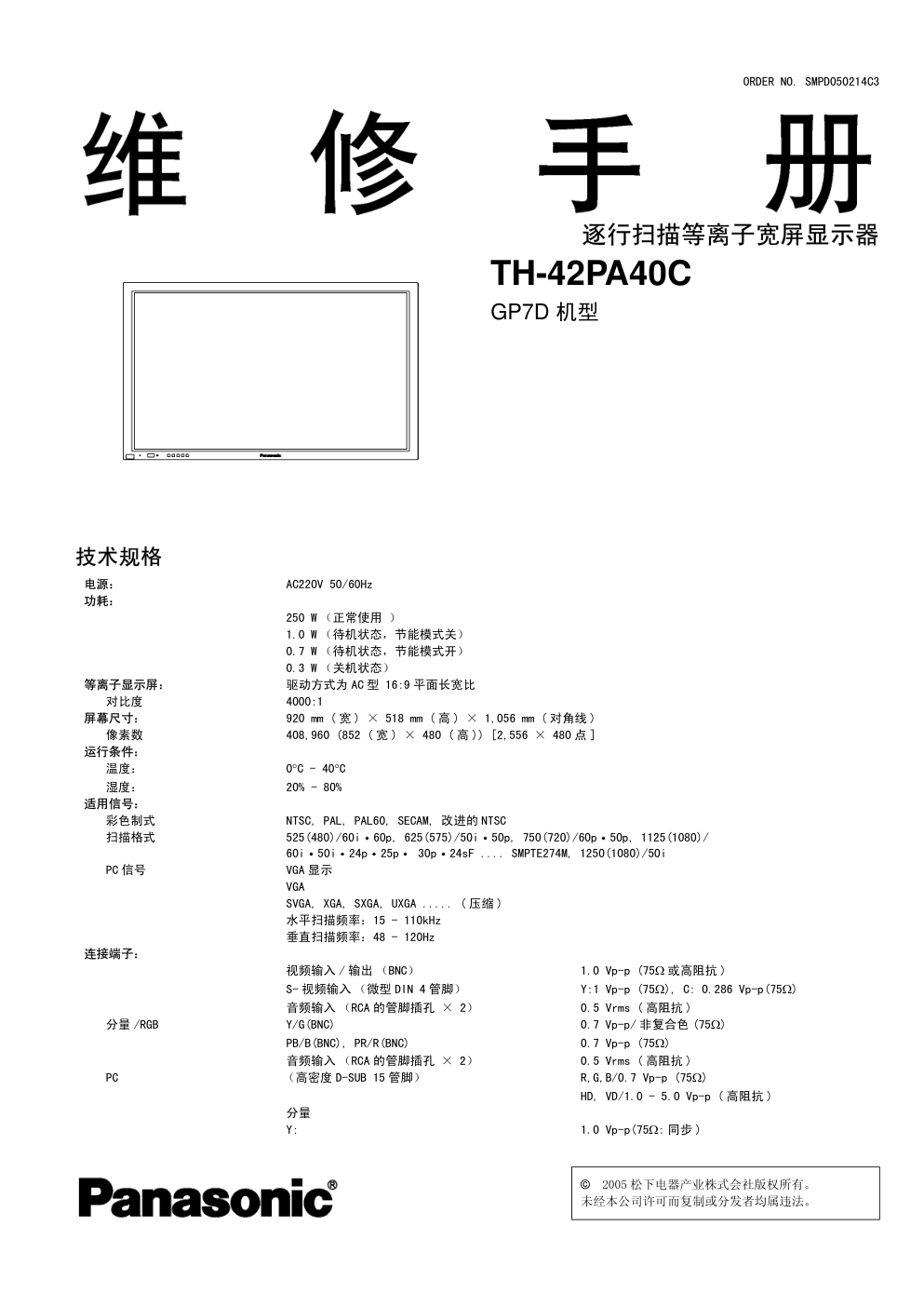

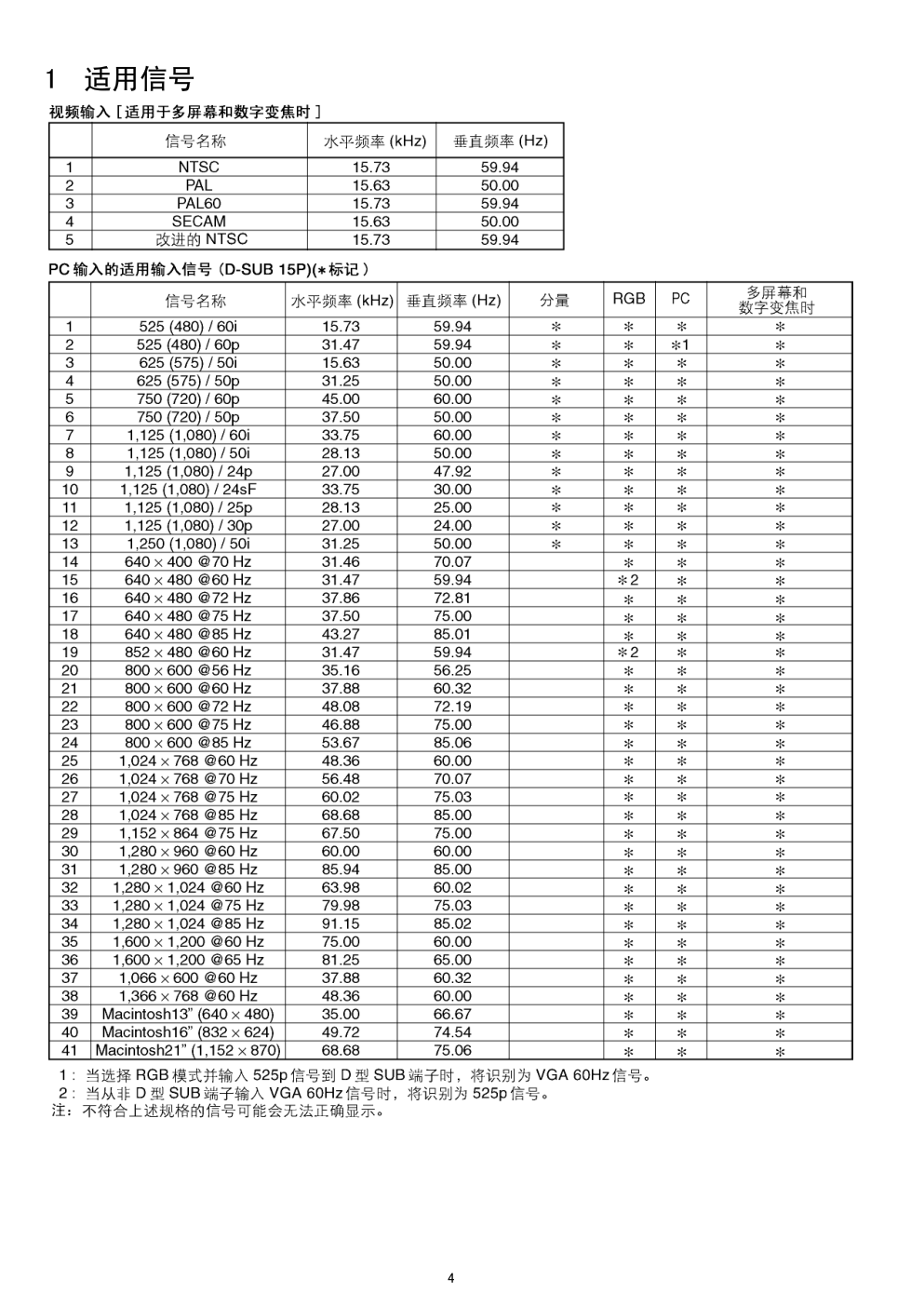

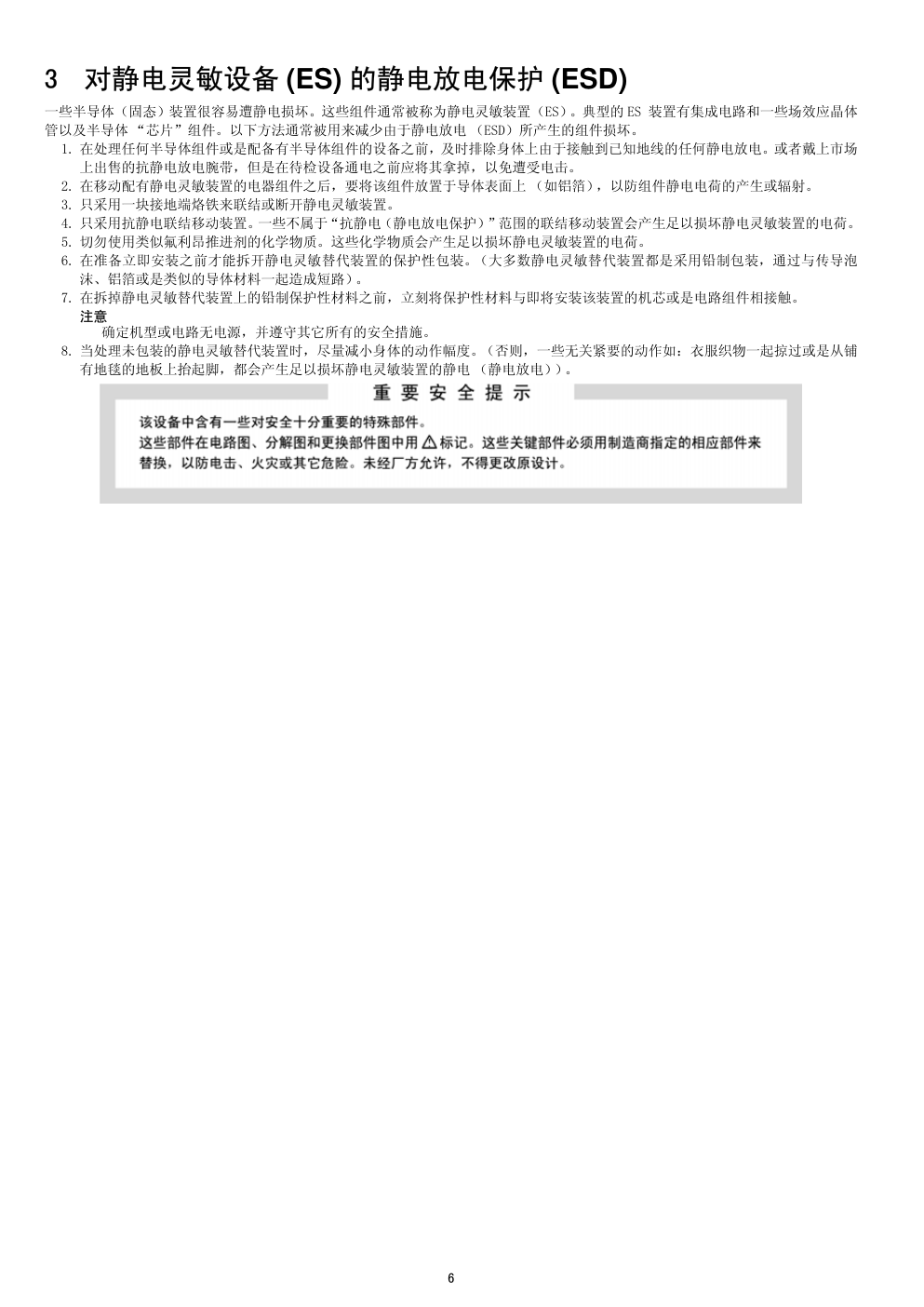

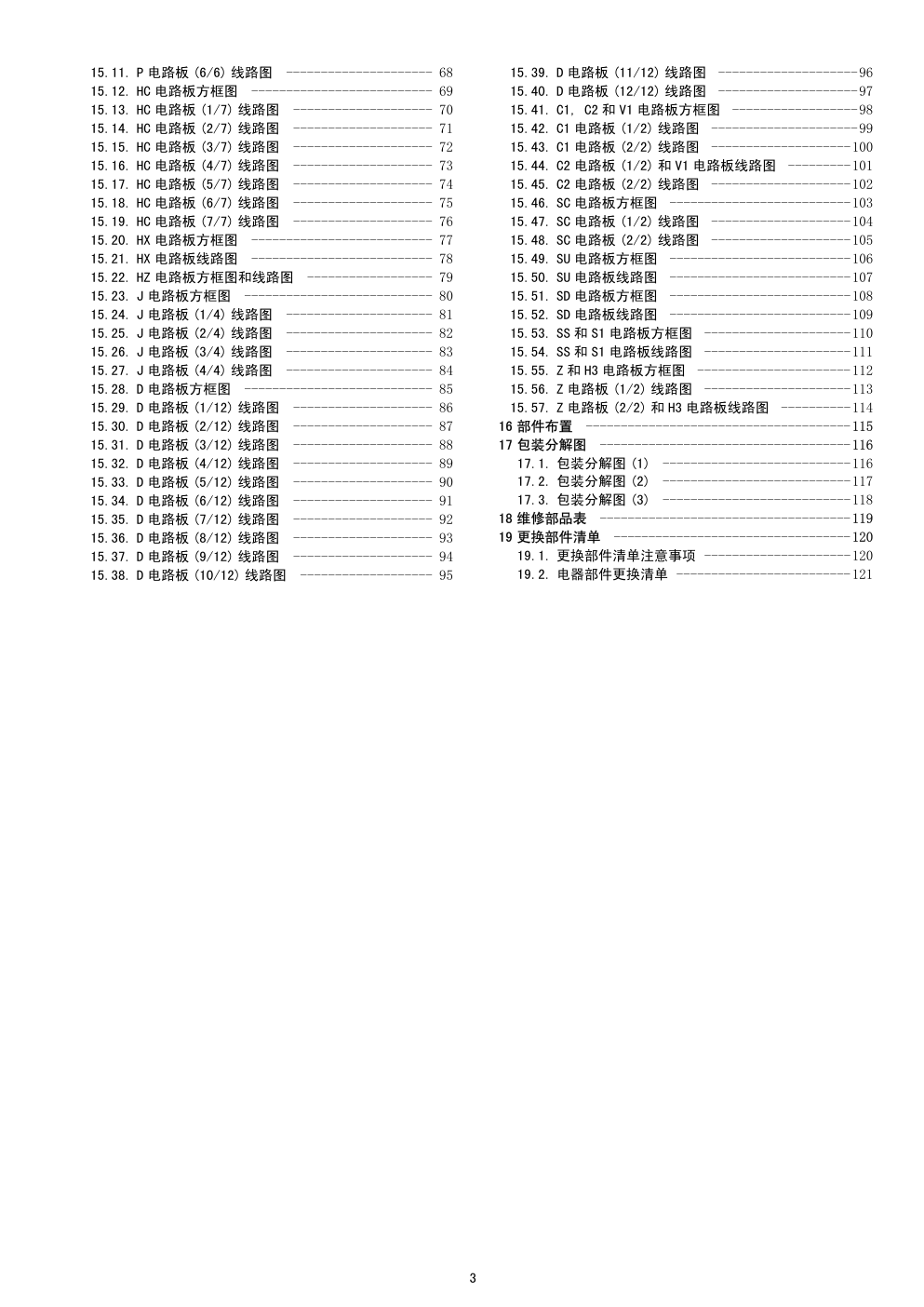

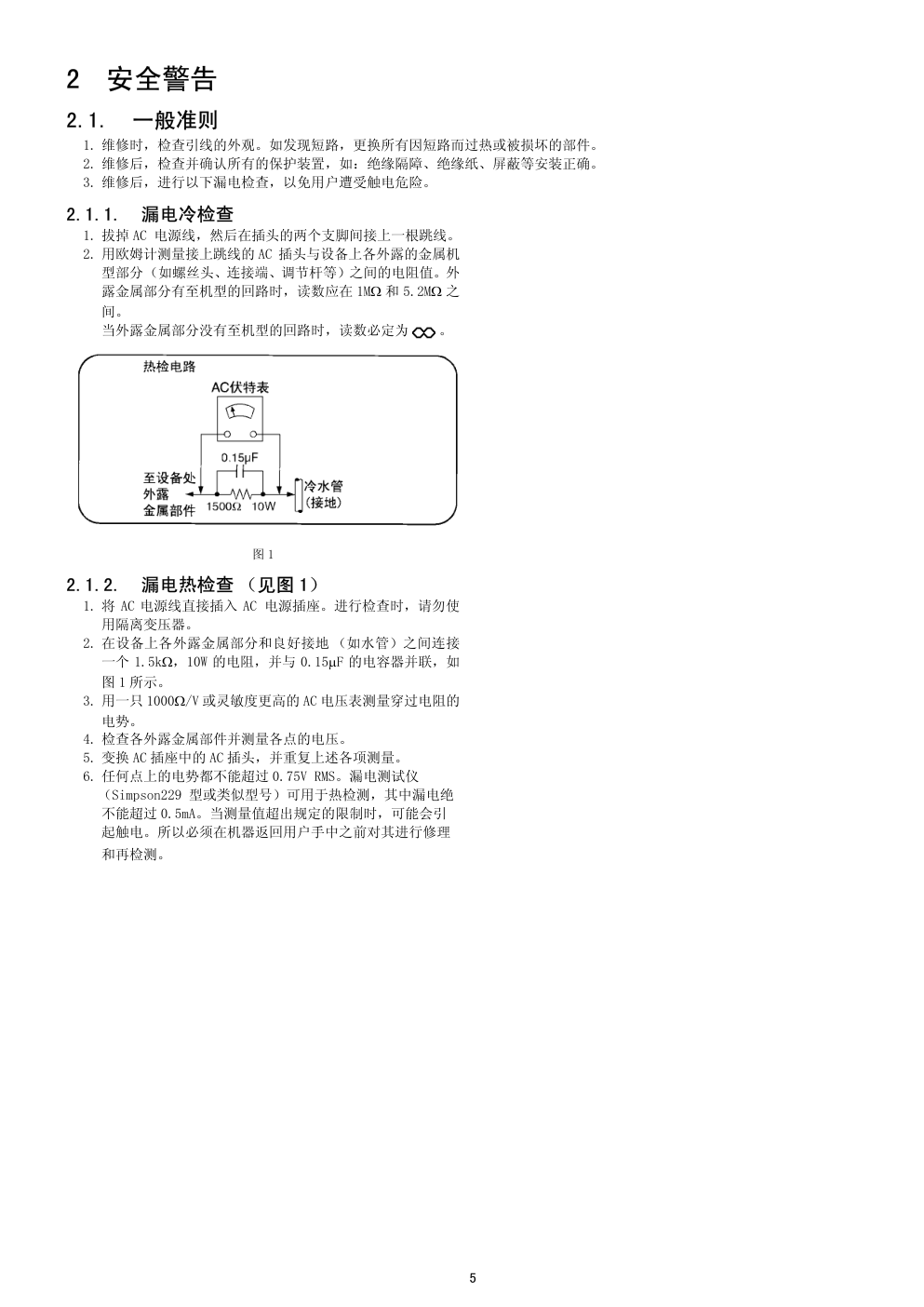

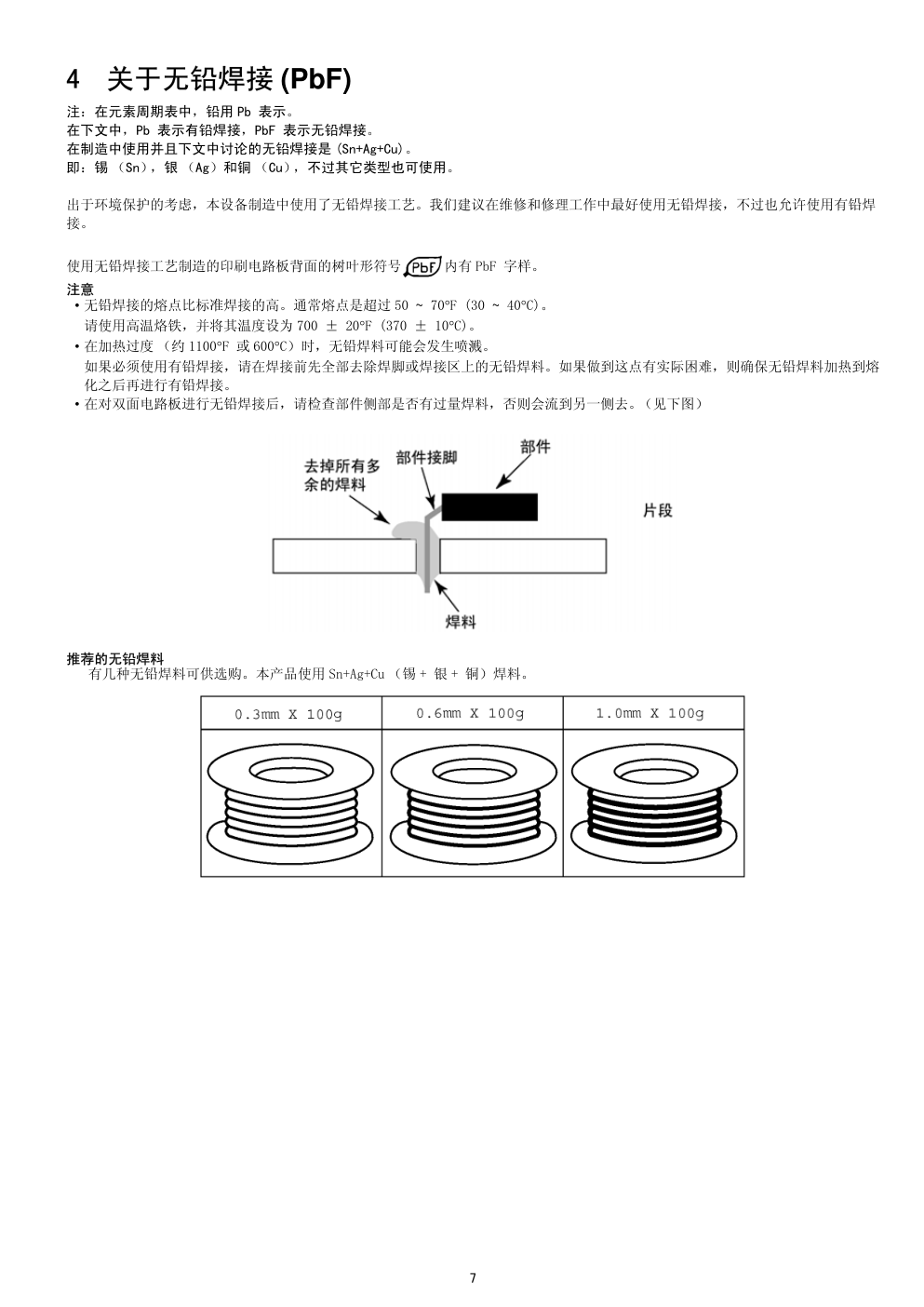

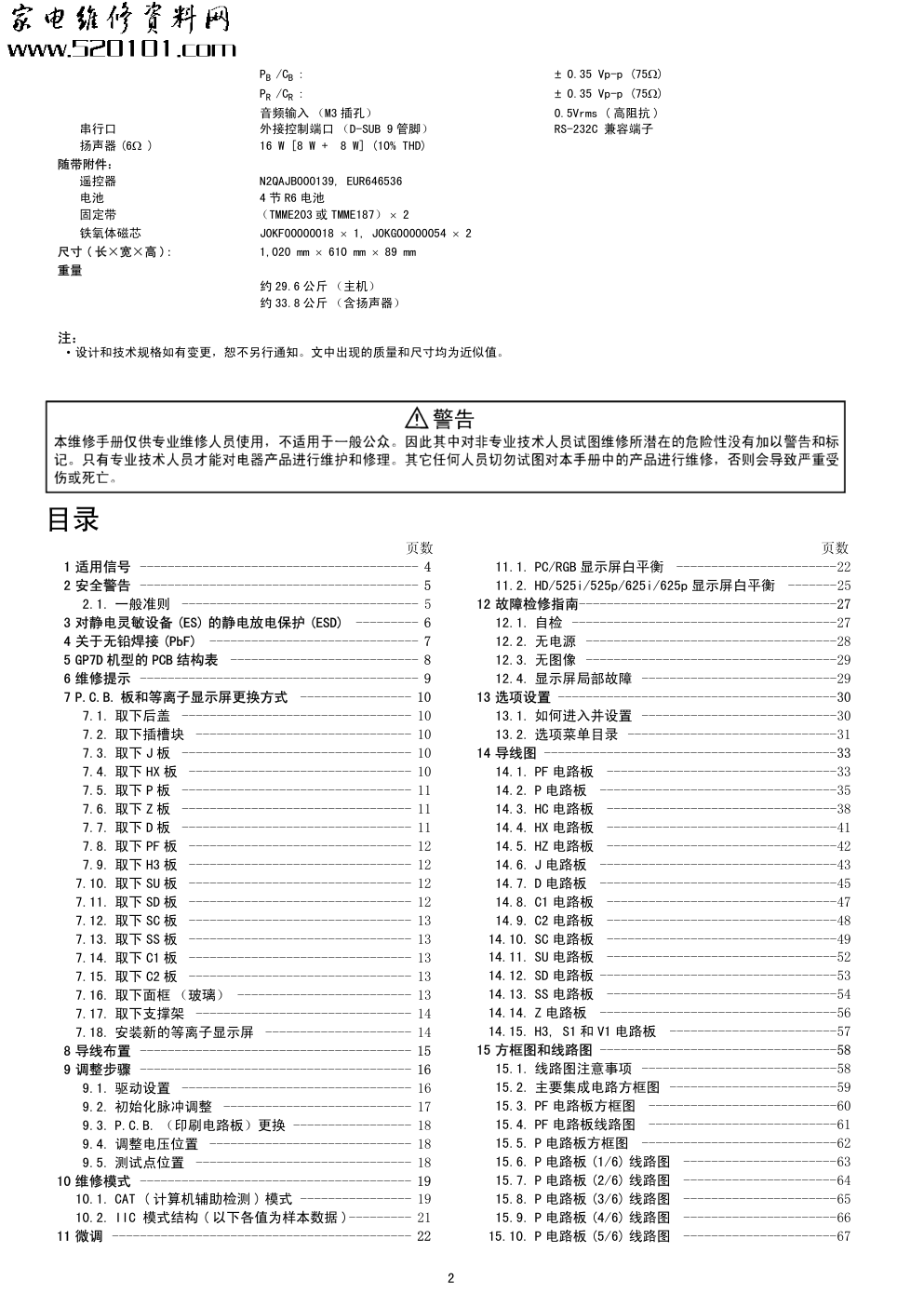

© 2005 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. SMPD050214C3 逐行扫描等离子宽屏显示器 TH-42PA40C GP7D 机型 技术规格 电源： AC220V 50/60Hz 功耗： 250 W （正常使用 ） 1.0 W （待机状态，节能模式关） 0.7 W （待机状态，节能模式开） 0.3 W （关机状态） 等离子显示屏： 驱动方式为 AC 型 16:9 平面长宽比 对比度 4000:1 屏幕尺寸： 920 mm ( 宽 ) × 518 mm ( 高 ) × 1,056 mm ( 对角线 ) 像素数 408,960 (852 ( 宽 ) × 480 ( 高 )) [2,556 × 480 点 ] 运行条件： 温度： 0°C - 40°C 湿度： 20% - 80% 适用信号： 彩色制式 NTSC, PAL, PAL60, SECAM, 改进的 NTSC 扫描格式 525(480)/60i 60p, 625(575)/50i 50p, 750(720)/60p 50p, 1125(1080)/ 60i 50i 24p 25p 30p 24sF .... SMPTE274M, 1250(1080)/50i PC 信号 VGA 显示 VGA SVGA, XGA, SXGA, UXGA ..... ( 压缩 ) 水平扫描频率：15 - 110kHz 垂直扫描频率：48 - 120Hz 连接端子： 视频输入 / 输出 （BNC） 1.0 Vp-p (75Ω 或高阻抗 ) S- 视频输入 （微型 DIN 4 管脚） Y:1 Vp-p (75Ω), C: 0.286 Vp-p(75Ω) 音频输入 （RCA 的管脚插孔 × 2） 0.5 Vrms ( 高阻抗 ) 分量 /RGB Y/G(BNC) 0.7 Vp-p/ 非复合色 (75Ω) PB/B(BNC), PR/R(BNC) 0.7 Vp-p (75Ω) 音频输入 （RCA 的管脚插孔 × 2） 0.5 Vrms ( 高阻抗 ) PC （高密度 D-SUB 15 管脚） R,G,B/0.7 Vp-p (75Ω) HD, VD/1.0 - 5.0 Vp-p ( 高阻抗 ) 分量 Y: 1.0 Vp-p(75Ω: 同步 ) 2 目录 页数 页数 1 适用信号 ---------------------------------------- 4 2 安全警告 ---------------------------------------- 5 2.1. 一般准则 ---------------------------------- 5 3 对静电灵敏设备 (ES) 的静电放电保护 (ESD) --------- 6 4 关于无铅焊接 (PbF) ------------------------------ 7 5 GP7D 机型的 PCB 结构表 --------------------------- 8 6 维修提示 ---------------------------------------- 9 7 P.C.B. 板和等离子显示屏更换方式 ---------------- 10 7.1. 取下后盖 --------------------------------- 10 7.2. 取下插槽块 ------------------------------- 10 7.3. 取下 J 板 --------------------------------- 10 7.4. 取下 HX 板 -------------------------------- 10 7.5. 取下 P 板 --------------------------------- 11 7.6. 取下 Z 板 --------------------------------- 11 7.7. 取下 D 板 --------------------------------- 11 7.8. 取下 PF 板 -------------------------------- 12 7.9. 取下 H3 板 -------------------------------- 12 7.10. 取下 SU 板 -------------------------------- 12 7.11. 取下 SD 板 -------------------------------- 12 7.12. 取下 SC 板 -------------------------------- 13 7.13. 取下 SS 板 -------------------------------- 13 7.14. 取下 C1 板 -------------------------------- 13 7.15. 取下 C2 板 -------------------------------- 13 7.16. 取下面框 （玻璃） ------------------------- 13 7.17. 取下支撑架 ------------------------------- 14 7.18. 安装新的等离子显示屏 --------------------- 14 8 导线布置 --------------------------------------- 15 9 调整步骤 --------------------------------------- 16 9.1. 驱动设置 --------------------------------- 16 9.2. 初始化脉冲调整 --------------------------- 17 9.3. P.C.B. （印刷电路板）更换 ----------------- 18 9.4. 调整电压位置 ----------------------------- 18 9.5. 测试点位置 ------------------------------- 18 10 维修模式 --------------------------------------- 19 10.1. CAT ( 计算机辅助检测 ) 模式 ---------------- 19 10.2. IIC 模式结构 ( 以下各值为样本数据 )--------- 21 11 微调 ------------------------------------------- 22 11.1. PC/RGB 显示屏白平衡 -----------------------22 11.2. HD/525i/525p/625i/625p 显示屏白平衡 -------25 12 故障检修指南-------------------------------------27 12.1. 自检 --------------------------------------27 12.2. 无电源 ------------------------------------28 12.3. 无图像 ------------------------------------29 12.4. 显示屏局部故障 ----------------------------29 13 选项设置 ----------------------------------------30 13.1. 如何进入并设置 ----------------------------30 13.2. 选项菜单目录 ------------------------------31 14 导线图 ------------------------------------------33 14.1. PF 电路板 ---------------------------------33 14.2. P 电路板 ----------------------------------35 14.3. HC 电路板 ---------------------------------38 14.4. HX 电路板 ---------------------------------41 14.5. HZ 电路板 ---------------------------------42 14.6. J 电路板 ----------------------------------43 14.7. D 电路板 ----------------------------------45 14.8. C1 电路板 ---------------------------------47 14.9. C2 电路板 ---------------------------------48 14.10. SC 电路板 ---------------------------------49 14.11. SU 电路板 ---------------------------------52 14.12. SD 电路板 ----------------------------------53 14.13. SS 电路板 ---------------------------------54 14.14. Z 电路板 ----------------------------------56 14.15. H3, S1 和 V1 电路板 ------------------------57 15 方框图和线路图 ----------------------------------58 15.1. 线路图注意事项 ----------------------------58 15.2. 主要集成电路方框图 ------------------------59 15.3. PF 电路板方框图 ---------------------------60 15.4. PF 电路板线路图 ---------------------------61 15.5. P 电路板方框图 ----------------------------62 15.6. P 电路板 (1/6) 线路图 ----------------------63 15.7. P 电路板 (2/6) 线路图 ----------------------64 15.8. P 电路板 (3/6) 线路图 ----------------------65 15.9. P 电路板 (4/6) 线路图 ----------------------66 15.10. P 电路板 (5/6) 线路图 ----------------------67 PB /CB : ± 0.35 Vp-p (75Ω) PR /CR : ± 0.35 Vp-p (75Ω) 音频输入 （M3 插孔） 0.5Vrms ( 高阻抗 ) 串行口 外接控制端口 （D-SUB 9 管脚） RS-232C 兼容端子 扬声器 (6Ω ) 16 W [8 W + 8 W] (10% THD) 随带附件： 遥控器 N2QAJB000139, EUR646536 电池 4 节 R6 电池 固定带 （TMME203 或 TMME187） × 2 铁氧体磁芯 J0KF00000018 × 1, J0KG00000054 × 2 尺寸 ( 长×宽×高 ): 1,020 mm × 610 mm × 89 mm 重量 约 29.6 公斤 （主机） 约 33.8 公斤 （含扬声器） 注： • 设计和技术规格如有变更，恕不另行通知。文中出现的质量和尺寸均为近似值。 3 15.11. P 电路板 (6/6) 线路图 --------------------- 68 15.12. HC 电路板方框图 -------------------------- 69 15.13. HC 电路板 (1/7) 线路图 -------------------- 70 15.14. HC 电路板 (2/7) 线路图 -------------------- 71 15.15. HC 电路板 (3/7) 线路图 -------------------- 72 15.16. HC 电路板 (4/7) 线路图 -------------------- 73 15.17. HC 电路板 (5/7) 线路图 -------------------- 74 15.18. HC 电路板 (6/7) 线路图 -------------------- 75 15.19. HC 电路板 (7/7) 线路图 -------------------- 76 15.20. HX 电路板方框图 -------------------------- 77 15.21. HX 电路板线路图 -------------------------- 78 15.22. HZ 电路板方框图和线路图 ------------------ 79 15.23. J 电路板方框图 --------------------------- 80 15.24. J 电路板 (1/4) 线路图 --------------------- 81 15.25. J 电路板 (2/4) 线路图 --------------------- 82 15.26. J 电路板 (3/4) 线路图 --------------------- 83 15.27. J 电路板 (4/4) 线路图 --------------------- 84 15.28. D 电路板方框图 --------------------------- 85 15.29. D 电路板 (1/12) 线路图 -------------------- 86 15.30. D 电路板 (2/12) 线路图 -------------------- 87 15.31. D 电路板 (3/12) 线路图 -------------------- 88 15.32. D 电路板 (4/12) 线路图 -------------------- 89 15.33. D 电路板 (5/12) 线路图 -------------------- 90 15.34. D 电路板 (6/12) 线路图 -------------------- 91 15.35. D 电路板 (7/12) 线路图 -------------------- 92 15.36. D 电路板 (8/12) 线路图 -------------------- 93 15.37. D 电路板 (9/12) 线路图 -------------------- 94 15.38. D 电路板 (10/12) 线路图 ------------------- 95 15.39. D 电路板 (11/12) 线路图 --------------------96 15.40. D 电路板 (12/12) 线路图 --------------------97 15.41. C1, C2 和 V1 电路板方框图 ------------------98 15.42. C1 电路板 (1/2) 线路图 ---------------------99 15.43. C1 电路板 (2/2) 线路图 --------------------100 15.44. C2 电路板 (1/2) 和 V1 电路板线路图 ---------101 15.45. C2 电路板 (2/2) 线路图 --------------------102 15.46. SC 电路板方框图 --------------------------103 15.47. SC 电路板 (1/2) 线路图 --------------------104 15.48. SC 电路板 (2/2) 线路图 --------------------105 15.49. SU 电路板方框图 --------------------------106 15.50. SU 电路板线路图 --------------------------107 15.51. SD 电路板方框图 --------------------------108 15.52. SD 电路板线路图 --------------------------109 15.53. SS 和 S1 电路板方框图 ---------------------110 15.54. SS 和 S1 电路板线路图 ---------------------111 15.55. Z 和 H3 电路板方框图 ----------------------112 15.56. Z 电路板 (1/2) 线路图 ---------------------113 15.57. Z 电路板 (2/2) 和 H3 电路板线路图 ----------114 16 部件布置 --------------------------------------115 17 包装分解图 ------------------------------------116 17.1. 包装分解图 (1) ---------------------------116 17.2. 包装分解图 (2) ---------------------------117 17.3. 包装分解图 (3) ---------------------------118 18 维修部品表 ------------------------------------119 19 更换部件清单 ----------------------------------120 19.1. 更换部件清单注意事项 ---------------------120 19.2. 电器部件更换清单 -------------------------121 4 1 适用信号 5 2 安全警告 2.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.1.1. 漏电冷检查 1. 拔掉 AC 电源线，然后在插头的两个支脚间接上一根跳线。 2. 用欧姆计测量接上跳线的 AC 插头与设备上各外露的金属机 型部分（如螺丝头、连接端、调节杆等）之间的电阻值。外 露金属部分有至机型的回路时，读数应在 1MΩ 和 5.2MΩ 之 间。 当外露金属部分没有至机型的回路时，读数必定为 。 图 1 2.1.2. 漏电热检查 （见图 1） 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使 用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接 一个 1.5kΩ，10W 的电阻，并与 0.15µF 的电容器并联，如 图 1 所示。 3. 用一只 1000Ω/V 或灵敏度更高的 AC 电压表测量穿过电阻的 电势。 4. 检查各外露金属部件并测量各点的电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 任何点上的电势都不能超过 0.75V RMS。漏电测试仪 （Simpson229 型或类似型号）可用于热检测，其中漏电绝 不能超过 0.5mA。当测量值超出规定的限制时，可能会引 起触电。所以必须在机器返回用户手中之前对其进行修理 和再检测。 6 3 对静电灵敏设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电灵敏装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体 “芯片”组件。以下方法通常被用来减少由于静电放电 （ESD）所产生的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，及时排除身体上由于接触到已知地线的任何静电放电。或者戴上市场 上出售的抗静电放电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只采用一块接地端烙铁来联结或断开静电灵敏装置。 4. 只采用抗静电联结移动装置。一些不属于“抗静电（静电放电保护）”范围的联结移动装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 在准备立即安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏替代装置都是采用铅制包装，通过与传导泡 沫、铝箔或是类似的导体材料一起造成短路）。 7. 在拆掉静电灵敏替代装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机芯或是电路组件相接触。 注意 确定机型或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 7 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造中使用并且下文中讨论的无铅焊接是 (Sn+Ag+Cu)。 即：锡 （Sn），银 （Ag）和铜 （Cu），不过其它类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意 • 无铅焊接的熔点比标准焊接的高。通常熔点是超过 50 ~ 70°F (30 ~ 40°C)。 请使用高温烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 在加热过度 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区上的无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔 化之后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu （锡 + 银 + 铜）焊料。 8 5 GP7D 机型的 PCB 结构表 备注 1. 建议用作 GP7D 机型的初始维修。 电路板名称 功能 备注 D 数字信号处理器 1 J 插槽接口和 SYNC 处理器 1 Z 音频输出，DC-DC 转换器 SS 维持输出 1 SC 扫描输出 1 SU 扫描连接 （上） 1 SD 扫描连接 （下） 1 C1 数据驱动 （右下） C2 数据驱动 （左下） H3 扬声器接线端子 S1 电源开关 V1 前按钮和遥控接收器 PF 电源滤波 P 主电源 1 HX PC 输入端子 HC 内置调谐器 HZ RCA 分量视频 9 6 维修提示 注意： 延长电缆插槽板将作为维修设备或工具提供。 ( 部件号：TZSC0704) 10 7 P.C.B. 板和等离子显示屏更换方式 更换等离子显示屏之前，先将本机放在维修台上，取下面框。 7.1. 取下后盖 a. 松开螺丝 (×16 , ×6 , ×4 )，之后取下后盖。 7.2. 取下插槽块 a. 取下连接件 （J1，J3，J5，J6，J8，J10）。 b. 松开螺丝 （×4）并取下插槽块。 7.3. 取下 J 板 a. 松开螺丝 （×7）并取下 J 板。 7.4. 取下 HX 板 a. 松开螺丝 （×6）并取下插槽盒。 b. 松开螺丝 （×4）。 c. 松开螺丝 （×2）并取下 HX 板。 11 7.5. 取下 P 板 a. 取下连接件（P2，P5，P7，P9，P10，P11，P12，P23，P25，P27）。 b. 松开螺丝 （×5）并取下 P 板。 7.6. 取下 Z 板 a. 取下连接件 （Z5，Z6，Z7，Z8）。 b. 松开螺丝 (×4 )，之后和支架一起取下 Z 板。 c. 松开螺丝 (×4 )，之后取下 Z 板。 7.7. 取下 D 板 a. 断开连接件（D1，D3，D5，D25，D27）和柔性电缆（D31，D32）。 b. 取下屏蔽盒。 c. 松开螺丝 （×6）并取下 D 板。 12 7.8. 取下 PF 板 a. 取下连接件 （PF1）。 b. 松开螺丝 （×2），之后取下 AC 电源插座。 c. 取下连接件 （PF9，PF10）。 d. 松开螺丝 （×4），之后取下 PF 板。 7.9. 取下 H3 板 a. 松开螺丝 (×2 )，之后和支架一起取下 H3 板。 b. 松开螺丝 (×4 )，之后取下 H3 板。 7.10. 取下 SU 板 a. 松开螺丝 （×2）。 b. 将 SU 板移到左边，使其与 SC 板的连接件 （SC41）断开。 c. 取下连接件 （SU45）。 d. 松开与 SU 板连接的柔性电缆（SU1，SU2，SU3），之后取下 SU 板。 7.11. 取下 SD 板 a. 松开螺丝 （×2）。 b. 将 SD 板移到左边，使其与 SC 板的连接件 （SC42）断开。 c. 取下连接件 （SD46）。 d.松开与SD板连接的柔性电缆（SD1，SD2，SD3），之后取下SD板。 13 7.12. 取下 SC 板 a. 取下连接件 （SC2，SC20，SC23，SC45，SC46）。 松开螺丝 （×6）并取下 SC 板。 7.13. 取下 SS 板 a. 取下连接件 （SS11，SS12，SS23，SS24）。 b. 松开柔性电缆 （SS41，SS42，SS43，SS44）。 c. 松开螺丝 （×6）并取下 SS 板。 7.14. 取下 C1 板 a. 松开柔性电缆 （CB1，CB2，CB3）。 b. 松开柔性电缆 （C11，C12），之后从 C1 板的线夹 （×2）中取 出扬声器电缆。 c. 松开螺丝 （×4）并取下 C1 板。 7.15. 取下 C2 板 a. 松开柔性电缆 （CB4，CB5，CB6，CB7）。 b. 取下连接件 （C23，C24）和柔性电缆 （C21），之后从 C2 板的 线夹中取出扬声器电缆。 c. 松开螺丝 （×4）并取下 C2 板。 7.16. 取下面框 （玻璃） a. 松开面板固定螺丝 （×2），之后取下前面板。 14 b. 从面框支架上的线夹中取出所有电缆。 c. 从面框上取下等离子显示屏时，向前拉面框底部，抬起，之后 取下。 7.17. 取下支撑架 a. 将等离子显示屏从维修架上取下，放置在类似桌子 （铺有软 布）的表面上，并且显示屏表面朝下。 将一块软布或类似的东西铺在桌子上进行保护，以防显示屏表面 被划伤。 b. 松开支撑架（左、右）固定螺丝（各 ×4）并取下支撑架（左、 右）。 7.18. 安装新的等离子显示屏 a. 将新的等离子显示屏放置在类似桌子 （铺有软布）等的表面 上，并且等离子显示屏表面朝下。 b. 将支撑架 （左、右）装配到新的等离子显示屏上。 c. 将等离子显示屏放置到维修架上。 d. 将面框和 P.C.B. 板等装到新的等离子显示屏上。 * 安装面框时，注意不要让前玻璃和等离子显示屏之间有碎屑、 灰尘或杂质存在。 15 8 导线布置 16 9 调整步骤 9.1. 驱动设置 9.1.1. 项目 / 准备 1. 输入 APL （平均图像电平）100% 白色信号。 2. 设定图像控制： - 图像模式：标准 色调设定：标准 长宽比： 16:9 9.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 * 见显示屏标牌。 名称 测试点 电压 调整点 备注 Vsus TPVSUS (SS) 174V ± 1V R628 (P) Ve TPVE (SS) 156V ± 1V VR6074 (SS) Vset TPVSET (SC) 232V ± 5V --- Vad TPVAD (SC) -90V ± 1V VR6477 (SC) Vscn TPVSCN (SC) Vad*+120V ± 2V --- Vda TPVDA (SS) 67V ± 1V R665 (P) 17 9.2. 初始化脉冲调整 1. 输入一个网格信号到等离子视频。 2. 设定图像控制： - • 图像模式：标准 • 色调设定：冷色 3. 连接示波器至测试点 TPSC1，并调整 R6523 至 15±10µ Sec。 4. 连接示波器至测试点 TPSC1，并调整 R6557 至 184±10µ Sec。 测试点 调整点 等级 T1 TPSC1 (SC) R6523 (SC) 15 ± 10µ Sec T2 TPSS1 (SS) R6557 (SC) 184 ± 10µ Sec 18 9.3. P.C.B. （印刷电路板）更换 9.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 9.3.2. P.C.B. 更换后进行快速调整 * 见显示屏标牌。 9.4. 调整电压位置 9.5. 测试点位置 P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS) 174V ± 1V R628 (P) Vda TPVDA (SS) 67V ± 1V R665 (P) SC 电路板 Vad TPVAD (SC) -90V ± 1V VR6477 (SC) Vset TPVSET (SC) 232V ± 5V --- Vscn TPVSCN (SC) Vad + 120 ± 2V --- SS 电路板 Ve TPVE (SS) 156V ± 1V VR6074 (SS) D, J 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡、背景和副亮度。 19 10 维修模式 10.1. CAT ( 计算机辅助检测 ) 模式 若要退出 CAT 模式，请进入 ID 模式，并关闭主电源。 10.1.1. IIC 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 IIC 模式，然后按下遥控器上的开始键。 主题和项目在第 21 页中提及。 按遥控器上的返回键退出 IIC 模式。 20 10.1.2. CD 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 CD 模式，然后按下遥控器上的静音键 5 秒钟以上。 MiCom 软件版本 （IC9354），该版本可通过以下方式升级： 1. 更换新版本 IC 2. 从装载工具上装入新的软件版本 TZSC07036。 存储数据变更 按遥控器上的返回键退出 CD 模式。 10.1.3. SD 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 SD 模式，然后按下遥控器上的开始键。 按遥控器上的返回键退出 SD 模式。 21 10.2. IIC 模式结构 ( 以下各值为样本数据 ) 22 11 微调 11.1. PC/RGB 显示屏白平衡 23 24 25 11.2. HD/525i/525p/625i/625p 显示屏白平衡 26 27 12 故障检修指南 12.1. 自检 12.1.1. 显示器指示 1. 自检用于自动检查等离子显示器的总线控制电路。 2. 要进入自检模式，按下机器前端用户控制器上的音量降低 volume down 键，同时按下遥控器上的 “关机定时”OFF- TIMER 键，显示屏将会显示：- 。 检查 CCU 端口时若发现其不正常或位置不对，则 “-”将会显示 在 “OK”的位置。 12.1.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁次数图。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 3. 备注 以上的风扇功能在安装有风扇过程中运行。 28 12.2. 无电源 第一检查点 LED 无电源指示有 3 种情况： 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。 3. 只有红灯亮。 29 12.3. 无图像 12.4. 显示屏局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 图 1 30 13 选项设置 13.1. 如何进入并设置 31 13.2. 选项菜单目录 GP7D 机型系列有特殊功能及操作设置装置，称为选项菜单。该选项菜单对于有特殊功能要求的客户很有用。该菜单在安装阶段设 置。由于隐藏于屏幕菜单上，最终用户无法对其进行设置或改变。 注： 如何设置 Remocon 用户标准和遥控 ID 为关。 1. 进入维修模式 （CAT 模式）并按下遥控器上的 SET UP 键。 2. 进入选项菜单。 3. 将 Remocon 用户标准和 / 或遥控 ID 设置为关。 GP7D 机型隐藏选项菜单 32 33 14 导线图 14.1. PF 电路板 A B C D E F G H I 1 2 3 4 5 6 PF-BOARD(FOIL SIDE) TXNPF1VCSC TH-42PA40C PF-BOARD TXNPF1VCSC TH-42PA40C PF-BOARD TXNPF1VCSC Parts Location PF-BOARD (FOIL SIDE) IC IC910 C-5 IC920 D-4 IC930 D-4 TP921 B-5 TP922 B-5 TP923 C-4 TP930 E-5 TP931 D-5 TP Q930 B-4 TRANSISTOR PF IC920 T920 IC930 CF901 CF902 F900 F901 F902 TP921 TP922 TP923 PF1 PF9 TP930 TP931 RL920 L912 Q930 L930 R901 R902 R903 R904 R912 R913 R914 R915 R918 R919 R920 R921 R922 R923 R924 R925 R926 R927 R930 R931 R932 R933 R934 R935 R936 R937 R938 R939 C901 C902 C903 R940 C904 R941 C905 R942 C906 C907 C910 C911 C912 C913 C914 C915 C916 C917 C918 C919 LF901 LF902 LF903 C920 S901 S902 C930 C931 ZA901 C932 C933 PF10 D910 D911 D912 D913 D914 D915 D916 D917 D918 D930 IC910 D931 D932 D933 HOT HOT COLD TNPA3196 PF 1 T8AH250V CAUTION COLD LIVE CIRCUIT LIVE CIRCUIT T3.15AL250V CAUTION T8AH250V CAUTION PbF 94V-0 V2 V1 P2 PT P1 S2 S1A S1B SEE REVERSE FOR ORDER NO. 1 4 1 4 E B C 1 6 + - 1 6 3 7 5 4 34 A B C D E F G H I 1 2 3 4 5 6 PF-BOARD(COMPONENT SIDE) TXNPF1VCSC TH-42PA40C PF-BOARD TXNPF1VCSC TH-42PA40C PF-BOARD TXNPF1VCSC Parts Location PF-BOARD (COMPONENT SIDE) IC IC910 D-5 IC920 C-4 Q930 E-4 TRANSISTOR PF IC920 T920 CF901 JS901 CF902 JS902 JS903 JS904 JS905 F900 F901 F902 PF1 PF9 RL920 L912 Q930 J2 J3 J6 J7 J8 J9 L930 J10 J11 J12 R901 R902 R903 R904 R912 R913 R914 R915 R918 R919 R920 R921 R922 C901 C902 C903 C904 C905 C906 C907 C910 C911 C912 C914 C917 LF901 LF902 LF903 C920 S901 S902 C930 C931 ZA901 C932 PF10 D910 D911 D915 D916 D918 D930 IC910 D931 T3.15AL250V CAUTION COLD HOT T8AH250V T8AH250V CAUTION TNPA3196 1 PF LIVE CIRCUIT HOT LIVE CIRCUIT 3 1 2 CAUTION 94V-0 PbF V2 V1 P2 PT P1 S2 S1A S1B ORDER NO. 1 4 1 4 1 6 + - 1 6 3 7 5 4 35 14.2. P 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C P-BOARD TNPA3213AC TH-42PA40C P-BOARD TNPA3213AC P-BOARD (FOIL SIDE) TNPA3213AC 36 TH-42PA40C P-BOARD TNPA3213AC TH-42PA40C P-BOARD TNPA3213AC Parts Location P-BOARD (FOIL SIDE) IC IC401 H-3 IC402 H-3 IC403 H-3 IC404 H-3 IC406 F-2 IC408 G-3 IC409 G-3 IC501 H-5 IC502 H-5 IC503 H-4 IC504 H-4 IC511 G-5 IC512 F-6 IC520 G-4 IC521 B-3 IC522 B-3 IC523 G-4 TP2 D-3 TP3 D-3 TP4 D-3 TP5 E-2 TP6 E-2 TP7 E-2 TP8 E-2 TP9 C-6 TP10 C-6 TP10 D-2 TP11 C-6 TP12 C-6 TP13 F-4 Q401 F-1 Q403 G-3 Q404 D-2 Q406 D-3 Q407 E-1 Q410 D-1 Q411 D-1 Q412 E-4 Q413 E-4 Q414 C-2 Q415 B-1 Q416 H-2 Q420 F-1 Q421 F-3 Q501 H-4 Q502 H-4 Q503 H-5 Q504 B-2 Q506 B-3 Q508 G-5 Q509 G-5 Q510 G-5 Q511 B-4 Q512 B-3 Q513 B-3 Q514 B-2 Q515 B-2 TRANSISTOR Q516 C-3 Q517 B-3 Q518 F-4 Q519 F-4 Q520 B-3 Q521 H-4 Q522 H-5 Q524 G-4 Q525 B-2 Q527 F-5 Q528 B-3 Q530 F-5 Q531 F-5 Q532 G-5 Q535 H-5 Q537 G-5 Q540 G-4 Q541 G-4 Q542 F-5 Q543 G-4 Q544 G-5 Q545 F-4 Q546 G-5 Q547 H-4 Q550 H-5 Q551 H-5 Q552 H-5 Q553 G-6 Q554 G-6 TP IC406 D-2 IC409 C-3 IC504 B-4 IC511 C-5 IC512 D-6 Q406 E-3 Q410 G-1 Q412 D-4 Q413 E-4 Q414 G-2 Q415 H-1 Q527 D-5 Q531 D-5 Parts Location P-BOARD (COMPONENT SIDE) IC TRANSISTOR P 37 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C P-BOARD TNPA3213AC TH-42PA40C P-BOARD TNPA3213AC P-BOARD (COMPONENT SIDE) TNPA3213AC 38 14.3. HC 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C HC-BOARD TXNHM1VPSC TH-42PA40C HC-BOARD TXNHM1VPSC HC-BOARD (FOIL SIDE) TXNHM1VPSC C634 C635 C441 C636 C442 C637 C443 C638 L300 C444 C639 L301 L302 R612 C447 R613 R420 L304 R614 R615 L307 C640 R424 C641 C642 C450 R429 R620 R621 C455 R622 R624 C458 R431 R627 L319 C651 R437 R438 C460 C655 R439 C656 C657 C463 TP304 L320 C465 TP305 L321 HD C466 VD R633 R634 C468 R440 L324 L325 R636 R637 R443 R638 L328 C661 R446 C662 C663 C470 R448 C664 C665 R449 C472 C666 C473 C667 C474 C668 R641 L331 C475 C669 C476 L332 C477 C478 R644 L334 R645 C479 L336 R646 R647 R453 L337 C670 L339 C672 C673 C480 R459 C481 C482 C676 C483 R650 C484 L340 C485 L342 R652 C486 R653 L343 C487 C488 C489 R462 R656 R657 C490 C491 C492 C493 C494 C689 C495 C496 L353 C497 L354 R470 C498 R471 R472 L356 R473 C690 JK300 R474 JK301 R475 JK302 JK303 R477 R478 JK304 R479 C698 L360 C699 R671 R672 R673 R480 R674 R675 R481 R676 R482 R677 R483 R484 R678 R679 R485 R486 R489 R680 R681 R682 R684 R490 R685 R686 R492 R687 R493 R494 R495 R496 R497 R498 R499 R693 R695 R696 C300 C301 C302 C304 C305 Q302 Q303 Q304 Q305 Q306 Q307 Q308 Q309 C502 C505 Q310 C508 Q311 H1 C509 Q312 H2 Q313 Q314 C703 Q317 C704 C510 C511 C512 C513 C707 TU300 C320 C514 C321 C515 C709 C516 C517 C323 Q320 C518 C324 D301 C519 C325 C326 C327 Q323 R300 C328 Q324 Q325 C329 Q326 C713 D307 D308 Q329 D309 C716 C522 C717 C523 C330 C524 C718 C331 IC301 C719 C526 IC303 R500 D310 Q330 R501 C529 Q331 R502 Q332 C336 R503 Q333 IC307 C720 R310 Q334 R504 IC308 C338 C721 R311 Q335 R505 C722 R312 Q336 R506 C723 R507 Q337 C724 C530 Q338 R315 C531 R509 C726 C532 C727 C533 C728 C340 IC310 C534 C729 C341 C535 IC311 C342 C536 IC312 R703 IC313 C537 C343 R510 R511 C539 R512 C346 C347 R513 IC318 R514 C731 IC319 R516 R517 C541 R519 C542 C737 C543 R328 C350 C544 R329 C545 IC322 R712 C546 C547 IC324 R520 C548 IC325 R521 C549 IC326 R522 C356 C357 R523 IC328 R330 C358 R331 IC329 C359 R332 R333 C743 R527 R528 R334 C550 C744 C551 R335 C552 C553 IC330 C554 C360 R339 C361 IC331 C555 C556 C362 C557 IC333 R724 C558 R530 IC334 C559 IC336 R532 R726 R727 IC337 R341 C752 R342 R343 C753 R344 C754 C560 C561 R345 R346 C756 C562 R347 C563 C757 R348 C564 C565 R349 C759 C566 R733 C567 R734 C568 R737 R543 R738 R544 C760 R350 R739 R545 C761 R546 R547 C764 R548 R355 R549 R356 C572 C766 R357 C767 C573 R358 C574 R740 C575 R742 C576 C577 R743 R744 R550 C578 R745 C579 R551 R746 C386 R552 R553 C387 R747 R554 R748 C770 C388 R749 R555 C389 R361 C771 C772 R556 R363 R557 C773 C580 C774 R558 R365 R559 C581 C776 R366 C582 R367 C583 FL300 R750 C584 FL301 C585 R752 C586 R753 R754 R560 R755 R561 C589 FL306 R562 R757 C397 R758 R370 FL309 R759 R371 C399 R372 R373 R374 R568 C591 R569 R375 R376 R377 C594 FL310 R760 R378 C595 R761 R379 R762 C596 R763 C597 C598 R764 C599 R765 R766 R767 R768 R575 R769 R381 R382 R576 R383 R577 R578 R579 R386 R387 R388 R770 R389 R771 R772 R580 R581 R582 R583 R584 R585 R586 R587 R588 R394 R395 R398 R591 R592 JS300 JS301 JS304 R598 R599 JS305 JS306 JS307 JS308 JS309 JS310 JS311 JS312 JS313 JS314 JS315 JS316 JS317 C401 X301 X303 C404 C600 C601 C602 C603 C604 ZA304 C605 ZA305 ZA306 C606 ZA307 C607 C608 C611 C612 C613 C614 C615 C616 C617 C618 C619 C426 C427 C428 R401 C429 C620 C621 C622 R406 C430 R408 R409 C434 R602 R603 C437 R410 R604 R605 R606 R608 R609 C633 SLOT 1 2 3 1 2 2 3 3 4 4 TNPA3398 1 HC CR NO.3 VIDEO IN MONITOR OUT 1 5 5 6 6 C626 R402 R426 R403 PbF 1 2 3 4 C Y L R L R SEE REVERSE FOR ORDER NO. B1 B2 A1 A2 A40 A39 B39 B40 B1 B2 A1 A2 A40 A39 B39 B40 1 30 31 60 61 90 91 120 1 3 4 5 1 4 5 8 1 3 4 5 1 3 4 5 3 4 1 5 1 3 4 5 1 28 29 56 1 4 5 8 1 12 13 24 1 7 8 14 1 24 25 48 1 5 1 5 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 VIDEOOUT SIFOUT AFT SDA SCL RFAGC BT BM AUDIOOUT BTL SW2 SW1 39 TH-42PA40C HC-BOARD PARTS LOCATION TH-42PA40C HC-BOARD PARTS LOCATION IC3300 F-4 IC3302 D-2 IC3304 D-4 IC3305 D-4 IC3306 E-3 IC3309 D-5 IC3315 E-2 IC3317 G-2 IC3320 E-5 IC3321 H-3 IC3323 G-3 IC3327 H-2 IC3332 C-5 IC3335 B-4 Parts Location HC-BOARD (COMPONENT SIDE) IC Q3300 A-3 Q3301 E-2 Q3315 G-2 Q3318 H-5 Q3319 H-5 Q3321 I-5 Q3322 I-5 Q3327 G-5 Q3328 G-2 TRANSISTOR IC3301 B-4 IC3303 F-3 IC3307 E-4 IC3308 B-4 IC3310 B-4 IC3311 C-5 IC3312 D-5 IC3313 D-3 IC3318 B-5 IC3319 F-5 IC3322 A-3 IC3324 A-4 IC3325 B-3 IC3326 C-2 IC3328 B-2 IC3329 H-5 IC3330 H-5 IC3331 G-5 IC3333 F-5 IC3334 G-4 IC3336 C-2 IC3337 C-3 Parts Location HC-BOARD (FOIL SIDE) IC TP3304 C-4 TP3305 C-4 TP Q3302 H-3 Q3303 F-2 Q3304 E-2 Q3305 F-2 Q3306 I-4 Q3307 H-4 Q3308 F-2 Q3309 F-3 Q3310 E-3 Q3311 F-4 Q3312 F-4 Q3313 G-4 Q3314 G-4 Q3317 C-5 Q3320 A-5 Q3323 A-5 Q3324 E-4 Q3325 E-4 Q3326 C-4 Q3329 A-3 Q3330 G-4 Q3331 G-4 Q3332 G-4 Q3333 G-4 Q3334 G-3 Q3335 G-4 Q3336 C-3 Q3337 C-3 Q3338 C-3 TRANSISTOR HC 40 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C HC-BOARD TXNHM1VPSC TH-42PA40C HC-BOARD TXNHM1VPSC HC-BOARD (COMPONENT SIDE) TXNHM1VPSC R418 R419 R610 R611 C445 L302 C446 L305 R421 R616 L306 R422 R617 R423 R618 R619 L309 C643 C644 C645 C451 C646 C452 C647 C453 C648 C454 C649 L311 R623 C457 L314 C459 C650 L318 R628 R629 AGC C461 B C462 G R R630 C464 R631 R632 C467 R635 C660 R639 C471 R640 R642 R643 R648 R649 C671 R457 R458 R651 R654 R460 R461 L346 R464 C680 L348 R658 R659 C681 C682 C683 C684 C687 R660 L350 L351 R661 L352 R662 R663 R664 R665 R666 R667 JK300 R668 JK301 R669 L359 C691 JK302 R476 JK303 JK304 C696 C697 R487 R488 R683 R688 R689 R690 R691 R694 R699 C303 Q300 Q301 C306 C307 C309 C500 C310 C311 C312 C506 C313 C314 C315 H1 C316 H2 C317 H3 C318 H4 C319 H5 Q315 Q318 Q319 C706 TU300 C708 C322 D300 Q321 D302 Q322 D303 D304 C710 R301 C711 D305 R302 D306 C712 R303 Q327 C714 R304 C520 Q328 R305 C715 C521 R306 R307 R308 IC300 C525 R309 IC302 C332 C333 IC304 C334 C335 IC305 IC306 C337 IC309 C339 R313 R314 R508 C725 R316 R317 R318 R319 R702 C344 IC315 C345 R706 R707 IC317 R320 C730 C348 R321 C349 C732 R322 C733 R323 C734 R324 C540 R518 C735 R325 C736 R326 R327 IC320 C738 IC321 R711 C739 C351 C352 IC323 R713 C353 R714 C354 C355 R716 IC327 R717 R718 C740 R524 R719 R525 C741 C742 R526 C745 C746 R336 R337 C747 R720 R338 C748 R721 C749 IC332 R722 C363 R723 C364 R725 IC335 R531 R533 C367 R728 R340 C368 R534 C369 R729 R535 R537 R538 C755 R539 R730 C758 R731 C371 C372 R732 C373 C375 R735 C376 R736 C377 C378 R351 C379 C762 R352 C763 R353 R354 C765 C768 C380 R741 C381 R359 C382 C383 C384 C385 R360 R368 C390 R369 C391 FL302 FL303 FL304 FL305 C396 FL307 FL308 C398 FL311 FL312 FL313 FL314 FL315 FL316 R385 R390 R391 R392 R393 R589 R396 R399 R590 R593 R594 R595 JS302 R596 JS303 R597 C400 X300 X302 C403 C406 ZA300 ZA301 ZA302 ZA303 C410 C411 C412 C413 C414 C415 C416 C417 C418 C419 C420 C421 C422 C423 C424 C425 R400 R404 R405 C623 R407 C625 C627 C628 R600 C629 R601 R411 R412 R607 R413 C630 R414 C631 R415 C632 R416 R417 TNPA3398 CR NO.3 A A B B HC 1 R428 R430 R432 C308 PbF 1 2 3 4 C Y L R L R ORDER NO. NP NP NP A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 1 9 NP A B C D E F G H J K L M N P R T U V W Y AA AB AC AD AE AF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 1 12 13 24 25 36 37 48 1 3 4 5 1 36 37 72 73 108 109 144 1 3 4 5 1 4 3 44 86 1 43 44 86 1 8 9 16 1 32 33 64 65 96 97 128 1 3 4 5 1 27 28 54 1 3 4 5 1 64 16 17 32 33 48 49 1 7 1 8 BM BT SCL SDA AFT SIFOUT VIDEOOUT RFAGC AUDIOAUTO BTL SW1SW2 41 14.4. HX 电路板 A B C D E F G H I 1 2 3 4 5 6 HX-BOARD(FOIL SIDE) TNPA3400 HX-BOARD(COMPONENT SIDE) TNPA3400 TH-42PA40C HX-BOARD TNPA3400 TH-42PA40C HX-BOARD TNPA3400 Parts Location HX-BOARD IC IC3502 E-4 Q3531 D-3 Q3532 D-3 Q3533 E-3 Q3534 E-3 Q3535 E-3 Q3536 E-3 Q3537 F-3 TRANSISTOR HX L526 R653 R654 R655 R656 R663 R664 R668 L555 R672 JK509 JK511 JK513 C523 C524 D501 D502 D503 D504 D505 D506 D507 D508 D509 R508 R509 IC502 D510 Q531 Q532 Q533 Q534 R510 Q535 R511 Q536 Q537 R526 R527 C550 R528 C551 R529 R530 R537 R538 C561 C562 C563 C564 C565 C566 C567 R547 R548 FL507 FL508 FL509 FL510 FL511 FL512 FL513 FL514 FL515 FL516 FL517 R776 R777 R778 R585 R586 R589 R780 R781 R782 R783 R784 R590 R785 R591 R786 R592 R787 R593 R788 R789 R790 R791 HX1 R792 R794 C404 C405 C409 R400 TNPA3400 CR NO.3 A B B C C 1 D D E E A HX PbF 1 5 6 9 1 5 ORDER NO. 1 4 5 8 1 1 1 12 22 JK509 JK511 JK513 CR NO.3 TNPA3400 HX 1 PbF 1 5 6 9 1 5 6 10 11 15 SEE REVERSE FOR ORDER NO. 42 14.5. HZ 电路板 H1 JK001 JK002 IC002 CR NO.3 TNPA2952 Pr Pb Y HZ 1 1 2 3 SLOT PbF ORDER NO. B1 B2 A1 A2 A40 A39 B39 B40 GR B R L R 8 5 4 1 R030 R031 R032 R033 R034 R035 R036 R037 R038 R039 R040 R041 R042 R043 R044 R045 R046 R047 R048 JS001 JS002 JS003 JS004 JS005 JS006 JS007 JS008 JS009 JS010 JS011 JS012 JS013 JS014 JS015 JS016 H0 H1 L001 L002 L003 L004 L005 L006 L007 JK001 JK002 TP032 TP033 TP034 TP035 TP036 C001 C002 C003 C004 Q001 C005 Q002 C006 C007 C008 C009 C010 C011 C012 C013 C014 C015 C016 C017 C018 C019 C020 C021 C022 C023 C024 C025 D001 C026 D002 D003 D004 R001 R002 R003 R004 R005 R006 R007 R008 IC001 R009 IC002 R010 R011 R012 R013 R014 R015 R016 R017 R018 R019 R020 R021 R022 R023 R024 R025 R026 R027 R028 R029 TNPA2952 CR NO.3 Pb Pr Y R L Y Pb Pr HZ 1 PbF SEE REVERSEFOR ORDERNO. 1 8 A1 A2 B1 B2 A39 A40 B39 B40 GR B R L R NP NP NP 1 8 9 16 1 4 5 8 HZ-BOARD(FOIL SIDE) TNPA2952 TH-42PA40C HZ-BOARD TNPA2952 A B C D 1 2 3 4 5 6 HZ-BOARD(COMPONENT SIDE) TNPA2952 TH-42PA40C HZ-BOARD TNPA2952 E F G H Parts Location HZ-BOARD IC IC3001 F-3 IC3002 G-3 TP032 E-4 TP033 F-4 TP034 F-4 TP035 F-4 TP036 F-4 TP Q3001 F-2 Q3002 G-2 TRANSISTOR HZ 43 14.6. J 电路板 A B C D E F G H I 1 2 3 4 5 6 J-BOARD(FOIL SIDE) TNPA3197 TH-42PA40C J-BOARD TNPA3197 TH-42PA40C J-BOARD TNPA3197 Parts Location J-BOARD (FOIL SIDE) IC IC8003 G-2 IC8004 H-2 Q3002 D-3 Q3003 D-3 TRANSISTOR J J11 J12 J13 C8184 C8185 C8186 IC8003 IC8004 TNPA3197 1 J 1 2 3 J14 R8046 R8049 C8074 C8075 C8076 R3230 R8051 R3231 R8058 R8059 C8081 R8062 R8065 R3051 R3052 R3053 R8067 R8068 R3059 R8070 D3061 R8073 R8074 R3061 R3062 R8077 R3063 R8078 R3260 R8081 R3261 R8082 R3262 R8083 R8084 R8087 R8088 R8093 R8094 C8113 C3101 C3103 C3110 C3114 C3116 C3119 C3126 R3101 C3129 R3102 R3103 R8117 R3104 R8118 R3105 R3106 R3109 R3110 R3111 R3112 R3113 R8127 R3118 JS8094 JS8095 JS8096 JS8097 R3140 R3141 R3145 R3146 R3160 R3161 R8181 R8182 R3188 R3189 R3190 R3195 R3196 R3197 R3198 R3199 C8005 C8006 C8007 C8008 C8009 C8010 C8011 C8012 C8013 C8014 C8019 C3005 Q3002 C3006 Q3003 C8020 C8025 D8001 C3012 C8026 D8002 D8003 C3013 C3014 D8004 C8028 C3015 C3016 C3017 D3001 R8013 R8014 D3004 R8015 R8016 R3002 R3003 R8019 R3005 C8042 R3006 C8043 R3009 C8046 C8047 R3200 R8020 C8049 R3201 R8021 R3202 R8022 R3203 R8023 R3204 R8024 R3010 R8025 R3011 R8026 R3012 R8027 R3013 R8028 R3014 R8029 C3041 R8030 R8031 D3022 R8032 D3023 R8033 R8034 R3022 R3025 C8064 C8066 PbF SEE REVERSE FOR ORDER NO. A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 1 10 11 20 1 10 11 20 1 11 12 22 44 A B C D E F G H I 1 2 3 4 5 6 J-BOARD(COMPONENT SIDE) TNPA3197 TH-42PA40C J-BOARD TNPA3197 TH-42PA40C J-BOARD TNPA3197 Parts Location J-BOARD (COMPONENT SIDE) IC IC3001 F-2 IC3002 E-3 IC3003 D-2 IC3004 E-3 IC3005 C-3 IC3006 D-2 IC3007 E-3 IC3101 C-2 IC3102 A-3 IC3108 A-3 IC3109 B-3 IC3150 C-4 IC8001 C-2 IC8002 B-2 IC8003 B-2 IC8004 A-2 IC8005 A-2 IC8007 C-3 IC8009 A-3 IC8009 B-2 IC8014 H-2 IC8015 H-2 IC8016 E-2 IC8020 B-3 IC8021 A-2 IC8100 G-3 IC8101 F-3 IC8181 H-3 Q8010 D-2 Q8011 D-2 Q8012 D-2 Q8013 D-2 Q8014 B-3 Q8015 B-3 Q8016 B-2 Q8018 C-3 Q8019 C-3 Q8020 E-3 Q8021 E-2 Q8023 E-2 Q8024 E-2 Q8025 E-2 Q8026 E-2 Q8181 E-3 Q8182 E-3 Q8200 F-2 Q8201 E-3 Q8202 E-3 Q8203 H-4 Q8204 H-4 Q3001 B-4 Q3101 D-2 Q3004 A-4 Q3102 D-2 Q3103 D-2 Q3104 D-2 Q3105 C-2 Q3106 C-2 Q8001 A-2 Q8002 B-3 Q8004 A-4 TRANSISTOR TPJH1 A-3 TPJH2 A-3 TPJV1 A-3 TPJV2 A-3 TRANSISTOR J J1 J3 J5 J6 J8 J10 J11 J12 J13 TNPA3197 1 J A A B B J14 R8044 R3030 R8045 R3031 R3032 R8047 R3033 C8070 R8048 R3034 C8071 R3035 C8072 R3036 R3037 C8073 R3038 R3039 C8077 R8050 C8078 R8052 R8053 R8054 R3040 R8055 R3041 R8056 R3042 R8057 R3043 R3044 C8080 R3045 R3046 C8082 R3047 C8083 R3048 C8084 R3049 C3266 C3267 C3268 R8060 R8061 R8063 R3050 R8064 X8181 R8066 R3054 R3055 R8069 R3056 R3057 R3058 R8071 R8072 R3060 R8075 R8076 R3064 R8079 R3065 R3066 R3067 FL3000 R3068 FL3001 R3069 FL3002 FL3003 FL3004 R8080 FL3005 FL3006 FL3007 FL3008 R3070 FL3009 R3071 R3072 R3073 R3074 R8089 R3075 R3076 R3077 FL3010 R3078 TPJV1 R3079 TPJV2 R8090 R8091 R8092 R3080 R8095 R3081 R8096 R3082 R8097 R3083 R8098 R3084 R8099 R3085 R3086 R3087 R3088 R3089 R3090 R3091 R3092 R3093 R3094 R3095 L8181 R3096 R3097 R3098 R3099 C8100 C8101 C8102 C8103 C8104 C8105 C8106 C8107 C8108 C8109 C8110 C8111 C8112 C8114 C8115 C8116 C3102 C8117 C8118 C3104 C8119 Q3101 C3105 Q3102 C3106 Q3103 C3107 Q3104 C3108 Q3105 C3109 Q3106 C8120 C8121 ZA3001 C8122 ZA3002 C8123 ZA3003 ZA3004 ZA3005 C3111 ZA3006 C3112 ZA3007 C3113 R8100 R8101 C3115 R8102 R8103 C3117 R8104 C3118 R8105 R8106 R8107 IC8100 R8108 IC8101 R8109 C3120 C3121 C3122 C3123 R8110 C3124 R8111 C3125 R8112 R8113 C3127 R3100 R8114 C3128 R8115 R8116 R8119 R3107 R3108 C3130 L8001 IC3101 IC3102 L8003 L8004 C3134 R8120 L8005 C3135 R8121 C3136 R8122 R8123 IC3108 R8124 IC3109 R8125 R8126 R3114 R8128 R3115 R3116 R3117 C3141 R3119 C3142 C3143 C3144 L3002 L3003 R3120 R3121 L3005 L3006 R3122 R3123 R3124 R3126 R3127 R3128 C3150 R3129 R3130 R3131 R3132 R3133 C8181 C8182 C8183 C8184 Q8181 C8185 Q8182 C8186 R3150 R3151 IC3150 R3162 R3163 D8180 L3050 R8183 R8184 R3170 R8185 R8186 R3172 R8187 R8188 IC8181 TPJH1 TPJH2 R3191 R3192 R3193 R3194 C8001 C8002 C8003 Q8001 Q8002 C8200 C8201 Q8200 Q8201 Q8202 Q8203 Q8010 Q8204 Q8011 C8015 C3001 Q8012 C8016 C3002 Q8013 C8017 C8018 Q8014 C3004 Q3001 Q8015 Q8016 Q8017 C3007 Q3004 Q8018 C3008 Q8019 C3009 C3200 C8021 C8022 C8023 C8024 C3010 Q8020 Q8021 C3011 C8027 Q8023 Q8024 C8029 R8001 Q8025 R8002 Q8026 R8003 C3018 R8004 C3019 R8005 R8006 R8007 D8200 C8030 R8008 D8201 IC8001 R8009 C8031 C8032 IC8002 D8203 C8033 IC8003 D8204 R8200 D8010 C3020 C8034 IC8004 R8201 D8011 C8035 C3021 IC8005 R8202 C3022 C8036 R8203 IC8007 C3023 C8037 R8204 IC8008 R8010 C8038 C3024 R8205 IC8009 R8011 C3025 C8039 R8206 R8012 C3026 C3027 D3003 R8207 C3028 R8208 R3001 C3029 D3005 R8209 D3007 R8017 D3008 C8040 R3004 R8018 C8041 R3007 R3008 C8044 C3030 IC8014 C8045 C3031 IC3001 IC8015 C3032 IC8016 IC3002 IC3003 IC3004 IC3005 IC3006 IC3007 IC8020 C8050 IC8021 C8051 R3015 R3016 R3017 C3040 R3018 R3019 R3210 R3211 D3021 R3212 R3213 D3024 R3214 R3020 R3215 R8035 R3021 R3216 R8036 R3023 R3217 R8037 R3218 R8038 R3024 R3219 R8039 R3026 R3027 R3028 C8065 R3029 C8067 R8040 R8041 R8042 R8043 ORDER NO. 1 14 15 28 7 8 21 22 1 14 15 28 7 8 21 22 1 2 19 20 1 2 29 30 1 31 1 21 1 2 19 20 1 6 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 1 4 5 8 1 8 9 16 1 8 9 16 20 11 10 1 20 11 10 1 1 7 8 14 1 4 5 8 1 4 5 8 1 4 5 8 NP 1 10 11 20 NP 1 14 15 28 1 8 9 16 1 8 9 16 1 7 8 14 1 8 9 16 1 8 9 16 1 19 20 32 33 51 52 64 1 8 9 16 1 4 5 8 1 11 12 22 45 14.7. D 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C D-BOARD TXN/D1VPSC TH-42PA40C D-BOARD TXN/D1VPSC D-BOARD(FOIL SIDE) TXN/D1VPSC Parts Location D-BOARD (FOIL SIDE) IC IC9000 F-4 IC9004 D-5 IC9005 E-5 IC9007 F-5 IC9201 D-2 IC9202 E-2 IC9204 D-2 IC9205 D-2 IC9206 D-2 IC9207 D-2 IC9700 D-5 IC9702 C-5 IC9850 E-2 IC9861 D-3 IC9864 D-3 IC9866 D-3 IC9867 D-2 IC9868 D-2 Q9003 D-6 Q9004 D-6 Q9006 D-6 Q9009 F-5 Q9010 D-4 Q9011 D-5 Q9012 E-4 Q9013 D-4 Q9014 E-4 Q9019 E-6 Q9250 F-2 Q9251 F-2 Q9252 E-2 Q9253 F-2 Q9254 F-2 Q9261 D-5 Q9262 D-6 Q9263 D-5 TRANSISTOR D C200 Q009 C201 C202 C203 C010 C204 C011 C205 C012 C013 Q010 Q011 Q012 Q013 C017 Q014 C019 Q019 C213 C214 C215 C216 C023 C217 C218 D9000 C219 D001 D002 C602 C027 C603 D003 D004 R9000 C604 C029 D005 C605 R001 C606 D006 R002 C607 R003 D008 C608 C220 R005 C221 D009 C609 R006 C222 C223 C030 R008 IC9000 C800 C224 D200 C225 C032 C226 C227 IC004 C228 C610 C229 D011 IC005 C035 C611 R201 D012 R202 C612 IC007 R203 C613 D014 C038 C614 D015 C039 C615 D016 C616 C617 C230 C618 C231 R209 C619 IC201 C232 IC202 C233 C234 C040 IC204 C041 IC205 IC206 C042 IC207 C237 C238 D020 C620 C239 D021 C621 R211 C046 C622 C047 D023 C623 D024 C624 R214 R021 R215 C625 R022 C626 R023 R217 C627 C240 R218 R024 C628 C241 R219 C629 R026 R602 C243 R027 C244 R028 C050 R604 C051 R605 R606 C247 R607 R220 C630 R608 R221 C249 C631 R222 C632 R223 C633 R224 R030 R225 C635 C636 R033 R803 C637 R228 C250 C638 R034 R229 C251 R611 C639 C252 C253 Q250 C255 Q251 Q252 R616 R617 Q253 Q254 C640 R231 C641 R619 R232 C642 R233 C643 R810 C644 R234 R235 C645 R236 C646 C647 R237 C648 R620 R045 C649 R239 C263 R817 R048 C264 R625 Q261 R626 Q262 R627 Q263 R240 C650 R241 C651 R242 C652 R436 C653 R437 R243 R244 C654 R051 R245 C655 R052 C656 R246 R053 R247 C657 C658 R248 R249 C659 R056 R632 R633 R440 C850 R634 R635 D251 C275 C277 C660 R250 C661 C855 R251 C662 R252 C663 R253 R060 R254 C664 R061 R255 C665 R062 C666 R256 R063 R257 C667 R064 R258 C668 R065 C281 C669 R259 R066 R067 R068 C285 R069 R260 R261 C671 R262 C672 R263 R264 R265 C675 R072 R073 C677 FL200 R074 R268 C290 FL201 R845 C679 C291 FL202 FL203 R847 R653 C293 FL204 R654 FL205 C295 FL206 C296 C873 C298 C680 C874 C875 C681 C299 C682 C876 R273 C877 C878 R851 C879 R852 R082 R276 R853 R278 R085 R855 R086 R856 R087 R088 IC850 C880 R089 C881 C882 C883 D860 C884 R280 C885 R282 C886 R284 R860 R091 R861 R286 R862 R093 R863 R287 R094 R864 R865 R095 R097 R867 R868 R099 IC861 R290 IC864 C894 R291 IC865 C895 IC867 IC868 R295 R296 R297 R683 R685 R687 R880 R881 R883 R884 R885 R890 R891 R892 R894 R897 R898 R899 C302 C303 FL850 FL851 C305 C306 FL860 FL861 FL862 C700 R100 R101 R104 R105 R106 C905 C906 C907 C714 C908 R305 R111 C909 R112 R308 R309 R116 C910 C911 C912 C913 R310 C914 C915 C917 C918 R124 R125 R319 R127 C922 C923 IC700 C925 IC702 C926 C927 R130 C928 R131 C929 R325 R326 R133 R327 C738 R328 R136 R906 R137 R907 R138 R139 C931 R334 R141 R911 R142 R912 R143 R337 R913 R338 R721 R339 R722 R146 R916 R147 R723 R917 R148 R149 R919 R340 R341 R535 R536 R150 R920 R538 R151 R539 R921 R922 R153 R923 R154 R155 R731 R156 R732 R157 R733 R158 R734 R540 R159 R735 R160 R930 R931 R161 R162 R163 R164 R165 R935 R166 R936 R167 R168 R938 R169 R939 R552 R747 R748 R749 R557 R170 R940 R941 R171 R559 C199 R942 R172 R174 R751 R175 FL301 R176 FL302 R753 R177 FL303 R179 R561 R755 R757 R565 R567 R180 FL501 R181 R182 R184 R378 R185 R379 R187 R188 R189 R190 R191 R193 R388 R197 R582 R779 R977 R978 R979 R592 R980 R795 R796 R797 R798 R990 R991 R992 C9000 C001 Q003 C007 C008 Q004 C009 Q006 1 2 3 TNPA3227 1 D CR NO.9 94V-0 PbF 1 10 11 20 1 4 5 8 1 3 4 5 1 3 4 5 1 28 29 56 1 3 4 5 1 3 4 5 1 4 5 8 1 5 1 3 5 + 1 10 11 20 SEE REVERSE FOR ORDER NO. 1 28 29 56 1 3 4 5 1 4 5 8 1 3 4 5 1 3 4 5 1 6 7 12 1 6 7 12 1 10 11 20 1 10 11 20 46 A B C D E F G H I 1 2 3 4 5 6 Parts Location D-BOARD (COMPONENT SIDE) IC IC9001 B-2 IC9002 A-5 IC9003 B-5 IC9006 A-5 IC9008 B-2 IC9010 B-2 IC9200 C-2 IC9203 B-3 IC9208 C-1 IC9209 C-4 IC9210 F-5 IC9211 E-5 IC9212 C-6 IC9214 A-2 IC9500 E-4 IC9506 D-2 IC9601 D-3 IC9602 E-3 IC9603 D-2 IC9604 E-3 IC9701 C-4 IC9703 D-5 IC9704 B-4 IC9706 D-5 IC9860 C-3 IC9862 B-3 IC9863 B-3 IC9869 C-2 IC9888 B-2 IC9899 B-1 Q9000 B-2 Q9001 B-2 Q9002 B-2 Q9007 A-5 Q9008 B-4 Q9015 A-5 Q9016 A-4 Q9017 A-4 Q9018 A-4 Q9301 D-1 Q9302 E-2 Q9303 D-1 Q9700 D-5 Q9701 D-5 TRANSISTOR TP0001 E-1 TRANSISTOR TH-42PA40C D-BOARD TXN/D1VPSC TH-42PA40C D-BOARD TXN/D1VPSC D-BOARD(COMPONENT SIDE) TXN/D1VPSC D Q008 C206 C207 C208 C015 C209 C016 C018 Q015 Q016 Q017 C210 Q018 C211 C212 C020 C021 C022 C024 X500 C025 C026 C028 D007 C031 R009 IC001 D201 IC002 D202 C033 IC003 D203 D010 C034 R200 C036 IC006 C037 R204 IC008 R010 R011 R205 R012 R206 D017 R013 R207 D018 R014 IC200 R208 D019 R015 R016 IC203 R017 R018 IC010 C235 R019 C236 C043 IC208 C044 R210 C045 IC209 D022 R212 R213 C048 R020 D025 C049 D026 R216 IC210 IC211 R601 C242 IC212 R603 IC214 C245 C246 C248 R609 IC601 IC602 IC603 R800 IC604 C634 R801 R031 R226 R802 R032 R227 R804 R610 R035 R805 R036 R806 R612 R807 R038 R808 C254 R039 R809 C061 C256 C063 C257 R230 C064 R618 C258 C259 R040 L501 R041 R042 R812 R043 R813 R044 R814 R238 C260 R621 C261 R815 R046 C262 R816 R622 R047 R623 R624 R818 R049 R819 C265 C266 C267 R628 C268 R629 C269 R050 R820 R821 R822 R823 R054 R824 R630 C270 R055 C271 R825 R631 C272 R826 R057 R827 C273 R058 R828 C274 R829 R059 C851 R441 C276 R636 R637 C278 R638 C279 R639 R830 R831 R832 R833 R834 C280 R640 R835 R641 C282 R642 R836 C283 R643 R837 FL9000 C284 R644 R838 C860 FL001 C861 R645 R839 C862 C286 R646 R647 C863 C287 C864 C288 R648 C670 D1 R649 C289 C865 C866 D3 C867 R840 C674 D4 C868 R070 R071 R841 C869 D5 R266 R842 C676 R267 R843 R650 C678 R075 R269 R651 R076 R846 C292 R652 R077 R078 C294 C870 C871 R079 C872 FL207 C297 FL208 R270 R271 R272 C683 R850 R274 R080 R081 R275 R277 R083 R084 R854 R279 R857 FL214 R858 R859 FL601 C691 R281 FL602 C692 C887 FL603 R283 C693 C888 C694 R285 R092 R288 R289 R866 R096 R098 IC860 R869 IC862 IC863 R292 R293 R294 R870 IC869 R871 R872 R873 R298 R874 R875 R299 R682 R876 R877 R684 R878 R879 R686 R882 R886 R887 R888 R889 R893 R895 IC898 IC899 D10 X001 D20 C301 C304 D25 Q301 Q302 Q303 D27 C500 C501 C502 D31 D32 C701 C702 C703 Q700 C704 Q701 C705 R102 C706 R103 C707 C708 C709 R107 R108 R109 D301 D302 C710 R301 C711 R302 C712 R303 C713 R304 R110 C715 C521 R306 C716 C522 R113 C717 C523 R307 R114 C718 C524 R115 C719 C525 C526 R117 C527 R118 C528 R119 C529 C720 C721 C722 C916 R312 C723 R313 R120 IC500 C724 C530 R314 R121 C725 C531 C919 R315 R122 C726 C532 R316 R123 C727 R317 C533 C728 R318 C729 R126 IC506 R128 L200 C920 R129 L201 C921 L202 C730 R320 C924 IC701 C731 R321 C732 R322 IC703 R323 C733 R324 C734 IC704 C541 C735 R132 IC706 C736 C542 C543 R134 C544 R135 R329 C545 C546 C547 C548 C930 R908 R909 C549 R521 R522 R523 R330 R524 R525 R331 R526 R332 R527 R333 R528 R140 C550 R910 R529 R335 C551 R336 C552 C553 R144 R914 R145 R915 C363 R530 R918 C365 R725 R531 C366 R726 R532 R533 R727 R534 C368 R728 C369 R537 C561 R152 C562 R730 R924 C371 C372 C374 R541 C375 R542 C376 R737 C377 R738 R739 R932 R933 R934 R740 C575 R741 C576 R742 C577 R743 R744 R551 R745 R746 R553 R554 R555 R556 R558 C581 C582 R173 C583 R750 C584 C585 R752 C586 C587 R178 R754 R756 R562 R563 R758 R564 R759 R566 R183 R760 R761 R186 R762 R763 R765 R766 R767 R768 R769 R192 R770 R771 R772 R773 R774 R199 R775 R581 R776 R777 R583 R778 R584 R585 R586 R780 R781 R782 R783 R784 R785 R591 R787 R593 R788 R594 R789 R595 R596 R981 R982 R983 R790 R984 R791 R985 R792 R986 R793 R794 R799 TP0001 C002 C003 C004 Q9000 C005 Q001 C006 Q002 Q007 TNPA3227 1 D CR NO. 9 94V-0 PbF 1 4 5 8 1 3 4 5 1 40 41 80 81 120 121 160 1 24 25 48 1 4 5 8 1 28 29 56 1 28 29 56 1 4 5 8 1 20 21 40 41 60 61 80 1 7 1 4 5 8 1 7 1 5 1 5 A B C D E F G H J K L M N P R T U V W Y AA AB AC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 43 44 86 1 43 44 86 1 3 4 5 + + 1 2 19 20 1 2 29 30 1 14 1 31 ORDER NO. 1 28 29 56 1 3 4 5 1 28 29 56 1 20 21 40 41 80 60 61 1 12 2 20 1 19 1 8 1 9 1 50 1 50 1 10 11 20 1 24 25 48 1 52 53 104 105 156 157 208 1 3 4 5 1 20 21 40 41 60 61 80 1 10 11 20 47 14.8. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C C1-BOARD TNPA3244 TH-42PA40C C1-BOARD TNPA3244 C1-BOARD(FOIL SIDE) TNPA3244 C1-BOARD(COMPONENT SIDE) TNPA3244 Parts Location C1-BOARD IC IC7101 G-2 IC7104 E-2 IC7105 F-2 IC7106 F-2 IC7107 G-1 IC7109 G-2 C1 C101 C102 C104 C105 C106 C107 C108 C109 C110 C113 C114 C115 C116 C117 C118 C120 C121 C124 C125 C128 R101 C129 R102 R103 R106 R107 C131 IC101 C132 IC103 C133 C134 IC104 C135 IC105 C136 IC106 IC107 C137 R110 C138 R111 C139 R112 R113 R114 R115 R116 R117 R118 C140 R119 C142 R120 R125 R126 R127 R128 C153 C154 C155 C156 C157 R130 R131 R132 R136 R137 R138 C160 C161 R139 C162 C163 C164 C165 C166 C167 C168 R140 C169 R141 R142 R143 R144 C170 R148 R149 R150 R154 R155 R156 C181 C182 C183 C186 R160 R161 R162 R163 R166 R167 C190 C191 C192 C193 C194 FL106 R170 R171 R175 R176 R177 R178 R179 R181 R182 R187 R188 R191 R192 R193 R194 R195 R196 R197 R198 R199 CB1 CB2 CB3 ZA101 ZA102 ZA103 R401 R402 R403 R404 R405 R411 L101 L102 L103 C11 C12 TNPA3244 1 C1 C1MM1 C1MM2 C1MM3 CR No.7 PbF 1 10 11 20 1 5 1 10 11 20 1 10 11 20 1 10 11 20 1 3 4 6 ORDER NO. 1 68 1 68 1 68 1 50 1 20 1 2 3 1 C1 TNPA3244 SEE REVERSE FOR ORDER NO. 48 14.9. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C C2-BOARD TNPA3245 TH-42PA40C C2-BOARD TNPA3245 C2-BOARD(FOIL SIDE) TNPA3245 C2-BOARD(COMPONENT SIDE) TNPA3245 Parts Location C2-BOARD IC IC7201 A-1 IC7202 D-1 IC7203 C-1 IC7204 C-1 IC7206 B-2 Q7201 H-2 Q7202 H-1 TRANSISTOR C2 1 2 3 C2 TNPA3245 1 SEE REVERSE FOR ORDER NO. C21 C22 C23 C24 ZA201 ZA202 ZA203 ZA204 R300 R301 R302 R304 R305 R306 R307 R308 R309 R310 R311 R312 R313 R314 R315 R316 R317 L204 L205 L206 L207 R324 R326 L211 L212 L213 L214 R331 L215 L216 R340 R341 R342 R343 R371 R372 R381 R382 R383 R384 CB4 CB5 CB6 CB7 C201 C202 C203 C204 Q201 C205 Q202 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C224 D201 C225 D202 D203 D204 C228 D205 R201 C229 D206 R202 R203 R206 R207 IC201 C232 IC202 C233 IC203 IC204 IC205 C235 C236 C237 R210 C238 R211 C239 R214 R215 R217 C240 C242 C243 R221 R222 R223 R224 R225 R226 R227 R228 R229 C252 C253 C254 C255 C256 C257 C258 R230 C259 R232 R233 R234 R235 R236 R237 C260 R238 C261 R239 C262 C263 C264 C265 C266 C267 C268 R240 C269 R241 R242 C270 C271 R249 C272 R250 R257 R258 C281 C282 C283 C286 C287 R266 R267 C290 R268 C291 R269 C292 C293 C294 FL207 FL208 R270 FL209 R271 R272 R273 R274 R275 R276 R278 R279 R281 R282 R289 R290 R293 R296 R297 C2 TNPA3245 1 C2MM1 CR No.7 C2MM2 PbF 1 50 1 20 1 11 1 8 ORDER NO. 1 68 1 68 1 68 1 68 1 10 20 11 1 10 11 20 1 10 11 20 1 10 11 20 1 3 4 6 49 14.10.SC 电路板 A B C D E F G H I 1 2 3 4 5 6 SC-BOARD(FOIL SIDE) TXNSC1VPSC TH-42PA40C SC-BOARD TXNSC1VPSC TH-42PA40C SC-BOARD TXNSC1VPSC SC41 SC42 C521 C523 C526 R510 R513 C550 C551 L602 L604 L611 L612 L613 L614 L615 L616 L620 L621 L624 L625 L626 L627 R554 L634 L635 L636 L637 L644 L645 C598 VR557 D583 L472 C601 C602 C603 C604 Q601 Q602 Q603 C608 Q604 Q605 Q606 Q607 Q608 Q609 Q610 C621 C622 C623 C624 Q621 C625 Q622 C626 C627 Q624 C628 Q625 C629 C630 R616 D620 D622 D624 Q451 C456 C457 Q454 C459 D629 C650 C461 C655 C656 C469 TP1 TP2 C470 TP4 TP5 TP6 TP7 TP8 C475 TP9 C476 R461 R465 C492 SC2 Q491 Q492 TP10 TP11 TP12 TP13 R474 TP14 TP15 TP16 TP17 TP18 TP19 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 R498 TP38 R499 TP39 VR477 TP40 TP41 TP42 TP43 TP44 TP45 TP46 TP47 TP48 T461 TP49 JS601 TP50 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 TP59 T471 TP60 TP61 TP62 TP63 TP64 SC23 SC30 C513 TNPA3228 1 SC 1 2 3 4 5 6 CRNo.6 PbF A1 A2 B2 B1 B40 B39 A40 A39 A1 A2 B2 B1 B40 B39 A40 A39 SEE REVERSE FOR ORDER NO. G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S A A K A A K A A K E C B E B C A A K 1 6 E C B E B C 1 5 6 10 B2 B1 P1 S1 S3 S2 P2 ST 1 3 1 3 50 TH-42PA40C SC-BOARD TXNSC1VPSC TH-42PA40C SC-BOARD TXNSC1VPSC Parts Location SC-BOARD (FOIL SIDE) TRANSISTOR Q6451 H-3 Q6491 A-5 Q6492 A-4 Q6601 B-4 Q6602 B-4 Q6603 C-4 Q6604 C-4 Q6605 D-4 Q6606 G-4 Q6607 F-4 Q6608 F-4 Q6609 E-4 Q6610 E-4 Q6621 D-3 Q6622 C-3 Q6624 F-3 Q6625 E-3 TP1 B-2 TP2 B-2 TP4 C-2 TP5 B-2 TP6 B-2 TP7 B-2 TP8 C-2 TP9 C-2 TP10 C-2 TP11 C-2 TP12 D-2 TP13 D-1 TP14 C-2 TP15 D-2 TP16 D-2 TP17 D-2 TP18 D-2 TP19 D-2 TP20 D-1 TP21 D-2 TP22 D-2 TP23 D-2 TP24 D-2 TP25 D-2 TP27 C-2 TP TP28 C-2 TP28 E-2 TP29 E-2 TP30 E-2 TP31 D-2 TP32 D-2 TP33 B-2 TP34 B-2 TP35 A-2 TP38 D-2 TP39 C-2 TP40 B-5 TP41 B-5 TP42 C-5 TP43 C-5 TP44 C-5 TP45 B-5 TP52 D-2 TP53 H-4 TP54 C-5 TP55 C-5 TP56 C-5 TP57 C-5 TP58 C-5 TP64 A-5 Parts Location SC-BOARD (COMPONENT SIDE) IC IC6451 B-3 IC6452 B-4 IC6453 B-4 IC6454 B-4 IC6455 B-5 IC6456 D-2 IC6458 A-5 IC6467 B-4 IC6469 I-4 IC6471 B-2 IC6472 B-4 IC6474 B-2 IC6480 C-2 IC6491 I-4 IC6501 A-5 IC6502 A-5 IC6503 B-3 IC6504 B-3 IC6505 A-5 IC6506 A-5 IC6507 A-5 IC6508 A-5 IC6509 A-5 IC6510 I-4 IC6511 C-4 IC6512 H-4 IC6517 D-2 IC6521 H-4 IC6541 C-5 IC6542 C-4 IC6543 B-4 IC6581 E-2 IC6601 E-2 IC6602 E-2 IC6602 E-2 IC6605 G-2 IC6607 F-2 Q6451 B-3 Q6454 B-3 Q6461 D-1 Q6462 D-1 Q6463 E-1 Q6471 C-2 Q6472 B-1 Q6474 B-2 Q6476 B-5 Q6477 B-5 Q6491 H-5 Q6492 H-4 Q6501 B-4 Q6502 H-4 Q6503 B-3 Q6504 B-3 Q6505 I-4 Q6511 B-5 Q6512 C-5 Q6520 H-4 Q6521 H-5 Q6522 E-4 Q6523 E-4 Q6524 E-4 Q6525 F-4 Q6526 F-4 Q6527 F-4 Q6528 F-4 Q6529 G-4 Q6530 G-4 Q6541 C-5 Q6542 E-5 Q6543 E-5 Q6544 E-5 Q6545 F-5 Q6546 F-5 Q6547 F-5 TRANSISTOR TPV15V H-2 TPVAD B-3 TPVSET I-5 TPVSUS H-2 Q6548 F-5 Q6549 G-5 Q6551 C-5 Q6552 D-5 Q6553 C-4 Q6554 C-4 Q6555 D-4 Q6581 E-2 Q6582 I-5 Q6583 E-2 Q6584 E-2 Q6601 H-4 Q6602 H-4 Q6603 G-4 Q6604 G-4 Q6605 F-4 Q6606 C-4 Q6607 C-4 Q6608 D-4 Q6609 D-4 Q6610 E-4 Q6611 F-3 Q6612 F-3 Q6613 E-3 Q6614 E-3 Q6621 F-3 Q6622 G-3 Q6624 D-3 Q6625 E-3 TP SC 51 A B C D E F G H I 1 2 3 4 5 6 SC-BOARD(COMPONENT SIDE) TXNSC1VPSC TH-42PA40C SC-BOARD TXNSC1VPSC TH-42PA40C SC-BOARD TXNSC1VPSC Q511 SC41 Q512 SC42 SC45 ZA601 SC46 ZA602 ZA603 C521 C523 C524 Q520 D500 Q521 D501 Q522 C526 D502 Q523 R500 Q524 R501 C529 Q525 Q526 R502 Q527 R503 Q528 R504 Q529 D509 R505 R506 R507 R508 C530 IC501 C531 R509 IC502 C532 IC503 C533 IC504 C534 Q530 IC505 D511 IC506 D512 IC507 D513 IC508 D514 R510 C538 IC509 C539 R511 D515 R512 D516 R513 D518 R514 R515 D519 R516 R517 IC510 C540 R518 IC511 R519 C541 IC512 C543 D520 C544 Q541 D521 Q542 C546 D522 Q543 IC517 D523 Q544 R520 C548 D524 Q545 D525 R521 Q546 D526 R522 Q547 D527 Q548 R524 D528 Q549 R525 D529 R526 R527 R528 C550 IC521 R529 C551 L602 L604 D530 L605 D531 Q551 Q552 L606 Q553 L607 Q554 R530 L608 Q555 R531 L609 D536 R532 R533 R534 R535 R536 R537 R538 L610 L611 R539 L612 L613 L614 L615 D541 L616 D542 D543 L617 L618 D544 R540 R541 D545 L619 D546 R542 R543 D547 D548 R544 D549 R545 R546 R547 L620 R548 IC541 L621 C571 R549 IC542 L622 IC543 L623 L624 D550 L625 C575 D551 L626 C576 D552 L627 D553 C577 D554 C578 R550 R551 R552 R553 R554 R555 R556 R557 C580 R558 R559 C581 C584 L634 L635 C585 Q581 L636 Q582 L637 Q583 C587 Q584 R560 C588 L638 R561 C589 R562 R563 R565 R566 R567 R568 C590 C591 L641 L644 D570 L451 L645 D572 L453 L647 L648 C598 R570 R571 L649 R572 R573 R574 R575 R576 R577 R578 R579 VR557 D582 D583 D584 R580 D585 R581 R582 D586 R583 R584 R585 R586 R587 R588 IC581 R589 L471 L472 R590 R591 R592 R593 R594 R595 R596 R599 C601 C602 C603 C604 Q601 Q602 C607 Q603 C608 Q604 Q605 Q606 Q607 Q608 Q609 C611 C612 C613 Q610 C615 Q611 C616 Q612 C617 Q613 Q614 C618 C619 C621 C622 C623 C624 Q621 C625 Q622 C626 C627 Q624 C628 R600 Q625 C629 R602 D607 R603 D608 R604 D609 R605 R606 R607 R608 C630 IC601 C631 R609 C632 IC602 C633 C634 IC605 C635 D611 C636 IC606 D612 C637 IC607 D613 C638 D614 R610 C639 R611 D615 D616 R612 R613 R614 R615 R616 R617 C640 R618 R619 C642 D620 D621 D622 C647 D623 D624 R620 Q451 R621 C649 C456 R622 C457 R623 C458 Q454 R624 C459 R431 D629 R625 R432 R626 R433 R627 R434 R628 C650 R435 R629 C651 R436 C652 R437 C460 R438 C461 C655 R439 C462 C656 C463 R630 C464 C465 D635 Q461 C659 C466 D636 Q462 C467 Q463 D637 C468 R440 C469 R636 R637 R638 C660 R639 C470 D640 C471 C472 C473 C474 R640 C475 D451 Q471 R641 C476 D452 R642 Q472 D453 D647 R643 C478 D648 R644 Q474 C479 D455 R451 D649 R645 D456 Q476 R646 R647 Q477 R454 R648 D459 R455 R649 R456 R457 R458 R459 IC451 IC452 IC453 D460 IC454 R650 D461 IC455 R651 D462 IC456 R652 D463 R653 D464 IC458 R654 R460 D465 R461 R655 D466 R462 R656 D467 R463 R657 D468 R464 R658 R465 R659 R466 R467 C490 R468 R469 R851 C492 R852 SC2 C493 D470 R660 R661 D471 R855 Q491 R662 D472 R856 Q492 D473 IC467 R857 R663 R470 R664 D475 R471 IC469 R859 R665 D476 R472 R666 R667 D477 R473 R668 D478 R474 D479 R475 R669 R476 R477 R478 R860 R479 IC471 R861 IC472 R862 C697 R863 C698 IC474 R864 R670 D481 D482 D483 D484 R480 D485 R675 R481 D486 R482 R676 D487 R483 R677 D488 R484 R678 D489 R485 R679 R486 R487 R488 IC480 R489 D490 R680 D491 R681 D492 R682 R683 R490 R684 D495 R491 R685 D496 R492 R686 R493 R687 R494 R688 R689 R497 R498 R499 IC491 VR477 R690 R691 R692 R693 R694 R695 R696 R697 R698 R699 T461 JS601 T471 SC20 SC23 C501 C502 C503 SC30 C504 C505 Q501 C506 Q502 C507 Q503 C508 Q504 C509 Q505 C511 C512 C513 TPV15V TPVSET TPVAD TNPA3228 SC SCMM1 TPVSCN TPSC1 42 37 TPVSUS 1 CRNo.6 37 PbF Discharge G D S A1 A2 B1 B2 A40 A39 B40 B39 G D S A1 A2 B1 B2 A40 A39 B40 B39 2 10 1 9 2 10 1 9 G S D G S D G S D G S D G S D G S D G S D G S D G S D 1 7 8 14 1 7 8 14 1 8 9 16 1 4 5 8 G S D G S D 1 2 3 4 G S D G S D G S D G S D G S D G S D 1 4 5 8 G S D G S D 1 4 5 8 1 4 5 8 ORDER NO. 1 4 5 8 D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S 1 8 9 16 1 8 9 16 1 10 11 20 1 10 11 20 1 7 8 14 A A K A A K A A K B C E B C E A A K B C E 1 8 9 16 B C E 1 2 3 4 1 6 B C E B C E 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 5 6 10 B2 B1 P1 S1 S3 S2 P2 ST 2 20 1 19 1 3 1 3 52 14.11.SU 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C SU-BOARD TNPA3242 TH-42PA40C SU-BOARD TNPA3242 SU-BOARD(COMPONENT SIDE) TNPA3242 SU-BOARD(FOIL SIDE) TNPA3242 Parts Location SU-BOARD IC IC6901 B-2 IC6902 C-2 IC6903 E-2 IC6904 F-2 TPSU1 D-2 TPSU2 C-2 TP Q6901 B-2 TRANSISTOR SU 1 SU TNPA3242 3 1 2 SEE REVERSE FOR ORDER NO. C6901 C6902 C6903 C6904 Q6901 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 C6919 D6901 D6902 D6903 D6905 R6901 R6902 R6903 D6908 R6904 D6909 C6931 IC6901 C6932 IC6902 C6933 IC6903 C6934 D6910 IC6904 R6910 R6911 R6912 R6913 R6914 R6920 R6921 R6922 R6923 R6924 SU45 SU1 SU2 SU3 TPSU1 TPSU2 SU 1 TNPA3242 PbF 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 10 ORDER NO. A1 B1 A40 B40 A1 B1 A40 B40 A1 B1 A40 B40 53 14.12.SD 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C SD-BOARD TNPA3243 TH-42PA40C SD-BOARD TNPA3243 SD-BOARD(COMPONENT SIDE) TNPA3243 SD-BOARD(FOIL SIDE) TNPA3243 Parts Location SD-BOARD IC IC6955 B-2 IC6956 C-2 IC6957 E-2 IC6958 F-2 TPSD1 D-2 TPSD2 B-2 TP SD TNPA3243 SD 1 2 1 3 SEE REVERSE FOR ORDER NO. TPSD1 C6955 TPSD2 C6956 C6957 C6958 C6971 C6972 C6973 C6974 C6975 C6976 C6977 C6978 C6979 D6956 D6957 R6955 R6956 R6957 R6958 C6980 R6959 IC6955 D6961 IC6956 D6962 IC6957 IC6958 R6975 R6976 R6977 R6978 R6979 SD46 SD1 SD2 SD3 SD 1 TNPA3243 PbF ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 10 A1 B1 A40 B40 A1 B1 A40 B40 A1 B1 A40 B40 54 14.13.SS 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C SS-BOARD TXNSS1VPSC TH-42PA40C SS-BOARD TXNSS1VPSC SS-BOARD(FOIL SIDE) TXNSS1VPSC Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6001 G-3 Q6002 G-3 Q6003 F-3 Q6004 F-3 Q6005 E-3 Q6006 D-3 Q6007 D-3 Q6008 C-3 Q6009 C-3 Q6010 B-3 Q6021 F-2 Q6022 E-2 Q6023 D-2 Q6024 D-2 Q6051 C-1 Q6052 C-2 TP1 H-1 TP2 H-1 TP3 H-1 TP4 H-1 TP5 I-1 TP6 H-1 TP7 I-2 TP8 I-2 TP9 I-2 TP10 I-2 TP11 H-1 TP12 H-2 TP13 A-1 TP14 A-1 TP15 A-2 TP16 A-2 TP TP17 A-1 TP18 A-1 TP19 A-2 TP20 A-2 TP21 A-2 TP22 A-2 TP23 A-2 TP24 D-1 TP25 A-3 TP26 E-2 TP27 I-2 TP28 E-1 TP29 B-2 TP30 I-2 TP31 G-1 TP32 G-1 SS L002 L003 L004 L005 L011 L012 L013 L014 L015 L016 L019 SS11 SS12 L020 L021 L024 L025 L026 L027 SS23 L034 L035 L036 L037 SS34 L044 L045 SS41 SS42 SS43 SS44 L050 SS41A SS42A SS43A SS44A C001 C002 C003 C004 Q001 Q002 C007 Q003 Q004 C008 Q005 Q006 Q007 Q008 Q009 Q010 C021 C022 C023 C024 C025 Q021 C026 Q022 C027 Q023 C028 Q024 C029 C030 C037 D020 D022 C047 D024 C048 D029 C053 C054 Q051 C056 Q052 Q053 R057 TP1 TP2 TP3 TP4 D065 TP5 TP6 TP7 TP8 D069 TP9 R067 R068 R077 R078 TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18 TP19 VR074 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 JS002 TP30 TP31 TP32 TNPA3229 1 SS 1 2 3 4 5 6 CRNo.6 PbF 1 7 1 5 1 11 1 3 1 13 1 13 1 13 1 13 1 13 SEE REVERSE FOR ORDER NO. 1 13 1 13 1 13 G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S A A K A A K A A K A A K E C B E B C E B C 55 A B C D E F G H I 1 2 3 4 5 6 SS-BOARD(COMPONENT SIDE) TXNSS1VPSC TH-42PA40C SS-BOARD TXNSS1VPSC TH-42PA40C SS-BOARD TXNSS1VPSC Parts Location SS-BOARD (COMPONENT SIDE) IC IC6001 E-3 IC6002 E-2 IC6003 G-1 IC6004 C-2 IC6005 H-3 IC6006 H-2 IC6011 F-1 Q6001 C-3 Q6002 C-3 Q6003 C-3 Q6004 D-3 Q6005 D-3 Q6006 F-3 Q6007 F-3 Q6008 G-3 Q6009 G-3 Q6010 G-3 Q6011 E-3 Q6012 E-3 Q6013 E-3 Q6014 E-3 Q6021 D-2 Q6022 D-2 Q6023 F-2 TRANSISTOR TPSS1 H-2 TPV15 A-2 TPVDA A-1 TPVE G-2 TPVSUS B-2 Q6024 F-2 Q6025 D-1 Q6041 H-2 Q6042 H-2 Q6045 C-1 Q6046 C-2 Q6051 G-1 Q6052 F-2 Q6053 G-1 Q6055 D-1 Q6056 H-3 TP SS R104 R105 R106 R107 R108 R109 R110 R111 R112 R118 R119 L002 L003 R120 L004 R121 L005 L006 L007 R123 L008 R124 L009 R125 R126 R127 R128 R129 L010 L011 L012 L013 R130 L014 R131 L015 L016 L017 L018 L019 SS11 SS12 L020 L021 L022 L024 L025 L026 L027 L028 L029 SS23 L030 L031 L032 L034 L035 L036 L037 SS34 L041 L042 L043 L044 L045 L047 L048 L049 SS41 SS42 SS43 SS44 L050 L051 SS41A SS42A SS43A SS44A C001 C002 C003 C004 C005 Q001 C006 Q002 C007 Q003 Q004 C008 Q005 C009 Q006 Q007 Q008 Q009 C011 C012 C013 Q010 C015 Q011 C016 Q012 C017 Q013 C018 Q014 C019 C021 C022 C023 C024 C025 Q021 D001 C026 Q022 D002 C027 Q023 C028 Q024 C029 Q025 R001 R002 R003 D007 R004 D008 R005 D009 R006 R007 R008 C030 R009 C031 IC001 C032 IC002 C033 IC003 C034 IC004 C035 D011 IC005 C036 D012 IC006 C037 D013 D014 C039 D015 R011 D016 R012 R013 R014 R015 R016 C040 C041 R019 IC011 C042 C043 C044 D020 C045 D021 Q041 C046 Q042 D022 D023 C047 D024 C048 R020 C049 Q045 R021 Q046 R022 R023 R024 D029 R025 R026 R027 C050 R028 C051 R029 C053 C054 C055 Q051 C056 Q052 C057 Q053 C058 R030 C059 Q055 D035 R031 Q056 D036 R032 R033 D037 R036 R037 C060 R038 C061 R039 D040 D041 R041 R042 R043 R044 R045 R047 R048 R049 D050 D051 D052 D053 D054 R050 D055 R051 D056 R052 D057 D058 D059 R055 R056 R057 C081 R059 C082 C084 D060 C085 D061 D062 D063 C088 D064 R060 C089 D065 D066 R062 D067 R063 D068 R064 D069 R065 R066 R067 C090 R068 C091 R069 C092 C093 D070 D071 D072 D073 R070 R071 R072 R073 R074 R075 R076 R077 R078 R079 R080 R081 R082 R083 R084 R085 R086 R087 R088 R089 R090 R091 R092 VR074 JS002 ZA002 ZA004 R101 R102 R103 TNPA3229 SS 1 TPV15 TPVDA TPSS1 TPVE CRNo.6 42 37 discharge TPVSUS 37 PbF 1 7 1 5 1 11 1 3 1 13 1 13 1 13 1 13 1 13 1 13 ORDER NO. 1 13 1 13 D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S 1 8 9 16 1 8 9 16 1 8 9 16 1 4 5 8 1 4 5 8 1 10 11 20 A A K G S D G S D A A K A A K G D S G S D A A K B C E B C E B C E 56 14.14.Z 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C Z-BOARD TNPA3198AB TH-42PA40C Z-BOARD TNPA3198AB Z-BOARD(FOIL SIDE) TNPA3198AB Z-BOARD(COMPONENT SIDE) TNPA3198AB Parts Location Z-BOARD (COMPONENT SIDE) IC IC801 G-2 IC802 G-2 IC803 H-1 IC804 H-3 IC2301 G-3 IC2302 F-4 IC2304 G-2 IC2401 G-2 Q2303 F-3 Q2304 E-3 Q2305 F-3 Q2306 F-3 Q2330 G-3 Q2331 F-4 Q2333 G-3 Q2334 G-3 Q2335 H-3 Q2336 H-3 Q2370 H-3 Q2371 H-2 Q2406 F-2 Q2408 E-2 Q2410 F-2 Q801 H-3 Q802 H-4 Q803 G-4 Q804 G-4 Q805 G-4 Q2301 F-2 Q2302 F-3 TRANSISTOR TP2331 F-2 TP2332 F-2 TP2339 F-3 TP2351 F-2 TP2354 F-2 TP2355 F-3 TP2364 E-3 TRANSISTOR Parts Location Z-BOARD (FOIL SIDE) IC IC802 B-3 IC804 A-3 IC2301 B-3 IC2302 C-4 IC2401 C-3 TP2303 D-2 TP2304 D-2 TP2308 D-2 TP2309 C-2 TP2328 B-2 TP2333 D-2 TP2334 C-3 TP2335 D-3 TP2336 D-2 TP2337 C-2 TP2338 C-2 TP2340 C-2 TP2341 C-2 TP2342 C-3 TP2343 C-3 TP2344 C-2 TP2345 C-3 TP TP091 B-3 TP092 B-3 TP093 C-4 TP094 C-4 TP2301 D-2 TP2302 D-2 TP Q2330 B-4 Q2331 D-4 TP2346 C-2 TP2347 C-3 TP2348 C-2 TP2349 C-2 TP2350 D-3 TP2353 D-3 TP2357 C-2 TP2359 D-3 TP2362 D-2 TP2363 D-2 TP2365 D-2 TP2366 C-3 TP2367 C-3 TP2368 C-3 TP2369 C-3 TP2370 C-3 TP2371 B-3 TP2372 C-3 TP2379 D-3 TRANSISTOR Z R2480 R2483 R2487 R2488 R2489 TP2351 TP2352 TP2354 TP2355 TP2356 TP2358 R2490 R2491 R2496 TP2364 R810 R814 R815 R816 Z32A R825 Z33A C802 C803 C805 Q2301 C806 Q2302 Q2303 C808 Q2304 Z34A C809 Q2305 Q2306 C810 C811 C812 C2312 C813 C2313 C814 C2314 C815 C816 C817 C818 C819 C821 C824 D2301 D2302 D2308 R2306 IC2301 R2309 IC2302 Q2330 IC2304 Q2331 Q2333 R2310 Q2334 Q2335 Q2336 R2319 R2325 C2352 C2353 C2354 C2355 C2358 C2359 R2332 C2362 C2363 C2364 D804 C2365 C2366 D806 C2367 D807 C2368 C2369 R2341 R2343 R2345 D810 C2370 D811 C2371 D812 D813 Q2370 D814 Q2371 R2355 R2356 R2357 R2358 R2359 IC801 IC802 IC803 IC804 R2360 R2365 R2366 R2367 R2369 R2370 R2371 R2372 R2373 R2374 R2375 JS2301 Q2406 Q2408 Q2410 C2417 C2419 Z10 C2422 C2423 C2426 C2427 C2429 R2408 C2430 IC2401 C2437 C2438 Z30 C2440 Z31 C2441 Z32 Z33 Z34 L2305 L2306 C2450 C2451 C2454 C2457 Q801 C2459 Q802 Q803 R2434 Q804 Q805 R2438 R2439 C2465 TP2305 C2466 C2467 TP2307 R2440 R2441 R2442 L801 R2445 L802 L803 L804 L805 L2330 C2474 L2331 C2484 TP2327 R2461 R2462 R2464 TP2330 R2469 TP2331 TP2332 Z5 TP2339 Z6 R2472 Z7 R2473 Z8 Z9 TNPA3198 1 Z ZMM1 ZMM2 DIP ZMM3 ZA003 ZA002 ZA001 PbF 94V-0 1 4 1 4 1 4 14 28 15 1 14 28 15 1 B C E ORDER NO. B C E 1 3 4 5 2 1 3 4 5 2 1 8 9 16 1 3 4 5 2 1 5 32 17 16 1 1 3 1 3 1 3 1 3 1 3 1 11 1 4 1 3 1 2 19 20 1 8 TP2340 TP2341 TP2342 TP2343 TP2344 TP2345 TP2346 TP2347 TP2348 TP2349 R2481 R2482 R2484 R2485 R2486 TP2350 TP2353 TP2357 TP2359 R2492 R803 R2493 R2494 R805 R2495 R806 R807 R808 R809 TP2362 TP2363 TP2365 TP2366 TP2367 TP2368 R811 TP2369 R812 R813 R817 R818 TP2370 R819 TP2371 TP2372 R820 R821 TP2379 R822 R823 R824 Z32A R826 R827 R828 R829 R830 R831 Z33A C802 C803 C805 C806 C807 C808 Z34A C809 C810 C811 C812 C813 C2313 C814 C2314 C815 C2315 C816 C817 C818 C819 C821 C823 C824 R2301 R2304 R2305 R2307 R2308 IC2301 IC2302 Q2330 Q2331 D2317 R2320 R2321 R2324 C2350 C2351 C2352 C2353 C2354 C2355 C2356 C2357 C2358 C2359 R2331 R2333 C2360 C2361 C2362 D802 C2363 D803 C2364 C2365 C2366 C2367 D808 C2368 C2369 R2346 R2347 R2348 C2370 C2371 R2350 R2351 R2352 R2353 R2354 R2355 R2356 R2357 R2358 R2359 IC801 IC802 IC804 R2360 R2365 R2366 R2368 R2374 R2375 R2376 R2377 R2378 R2379 R2380 R2381 R2382 C2419 Z10 C2427 C2429 C2431 IC2401 C2432 C2433 C2434 C2435 C2436 C2437 R2410 C2438 Z30 Z31 Z32 C2442 Z33 Z34 C2450 C2451 C2452 C2453 C2454 C2456 C2457 C2458 R2431 C2460 C2461 TP2301 C2462 TP2302 C2463 TP2303 C2464 TP2304 TP2308 TP2309 R2447 L804 R2448 L805 TP091 R2449 TP092 TP093 TP094 L2330 L2331 R2450 R2452 R2453 R2456 R2457 C2480 TP2328 R2460 R2463 R2466 R2467 R2468 TP2333 TP2334 TP2335 TP2336 TP2337 R2470 TP2338 R2471 Z6 Z7 R2476 R2477 TNPA3198 1 Z ZA001 ZA003 ZA002 PbF 94V-0 1 4 1 4 1 4 28 14 15 1 28 14 15 1 SEE REVERSE FOR ORDER NO. E C B E C B 1 5 2 4 3 1 5 2 4 3 1 5 2 4 3 1 5 1 16 17 32 1 3 1 3 1 3 1 3 1 3 1 4 1 3 57 14.15.H3, S1 和 V1 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PA40C V1-BOARD TXNV11VCSC S1-BOARD TNPA3200 H3-BOARD TNPA3003 TH-42PA40C V1-BOARD TXNV11VCSC S1-BOARD TNPA3200 H3-BOARD TNPA3003 V1-BOARD(FOIL SIDE) TXNV11VCSC V1-BOARD(COMPONENT SIDE) TXNV11VCSC S1-BOARD(FOIL SIDE) TNPA3200 S1-BOARD(COMPONENT SIDE) TNPA3200 H3-BOARD TNPA3003 V1 S1 H3 H3 JK8500 H37 C8001 C8002 L8501 L8502 TNPA3003 H3 1 SEE REVERSE FOR ORDERNO. 1 3 SEE REVERSE FOR ORDER NO. IC1550 S1550 S1551 S1552 S1553 S1554 RM001 TNPA3199 1 V1 PbF 94V-0 VOL.UP VOL.DOWN F TV/VTR STR S34 SEE REVERSE FOR ORDER NO. S061 TNPA3200 1 S1 PbF 1 3 R1510 R1511 R1512 R1513 R1514 D1550 D1552 D1553 R1553 R1554 R1555 V34 1 V1 1 8 S34 S061 ORDER NO. 1 3 58 15 方框图和线路图 15.1. 线路图注意事项 59 15.2. 主要集成电路方框图 SUSTAIN PULSE 64 S.R S.R 64 64 S.R 64 S.R VOLTAGE GENERATOR CONTROL PULSE PULSE SCAN SC2 SC23 SC20 D20 CONTROL DISCHARGE MAIN MPU ROM LVDS LVDS A/D FORMAT CONVERTER RGB PROCESSOR PROCESSOR SUB-FIELD PLASMA AI SDRAM D31 D32 P25 D25 P27 P5 D27 P9 Z5 P12 P11 SS11 SS12 SS23 SS34 SUSTAIN PULSE ERASE PULSE ADDRESS VOLTAGE (VE) S.R. 5V 15V D5 D1 J5 J6 J1 ANALOG SW SYNC SW SYNC SEPARATOR SDRAM ROM DC/DC CONVERTER DC/DC CONVERTER 3.3V 2.5V 1.8V PROCESS VOLTAGE RECTIFIER CONTROL SUSTAIN VOLTAGE RECTIFIER SUSTAIN VOLTAGE VOLTAGE PROCESS CONTROL RECTIFIER STANDBY VOLTAGE FACTOR POWER CONTROL RECTIFIER RELAY VOLTAGE STANDBY CONTROL RECTIFIER VDA 15V 5V 12V STB5V STB7V P23 P2 VSUS VSUS PRE AMP R OUT L OUT Z7 Z6 C12 C11 C22 C21 C24 C23 AUDIO SW J8 POWER ON STAND BY G R LED TV/VTR VOL.UP VOL.DN F STR REMOTE RECEIVER DETECTOR CATS - + LINE FILTER F.STB +14V F1 PF10 PF9 J10 + - POWER SWITCH SC SU SD H3 H3 L R Z8 J14 CONTROL D P SOS ON/OFF STB5V S34 S1 J STB ON/OFF STB 5V STB 15V Vda 15V SS F Z SPEAKER TERMINAL SPEAKER TERMINAL PC RS-232C PC AUDIO IN HX V34 VDA,SOS/SUSTAIN DRIVE PULSE SP SP AC IN AC IN C1 C2 V1 15V S.R. S.R. S.R. S.R. S.R. S.R. 64 S.R S.R 64 64 S.R 64 S.R J12 J13 D3 J3 A/D DIG12V SOUND12V CONTROL CONTROL BUS SW BUS SW BUS SW BUS SW TH-42PA40C Main Block Diagram TH-42PA40C Main Block Diagram J11 SC 41 SC 42 60 15.3. PF 电路板方框图 + + + + RESET REG - REG TFC S/GND Mirror Vcc - OVP Q - BEC DRIVE REG RTFC + Current R + BD OSC D + OLP LATCH + BTC DRV FB/OLP TSD S - Current OCP OCP/BD Mirror F900 F901 F902 1 3 5 4 6 7 D931 AC LINE CODE 1 PF1 4 LF901,LF902 LINE FILTER LINE FILTER LF903 STB REG IC910 8 4 1 2 6 11 5 9 7 12 10 T920 2 3 1 Q930 1 2 5 6 1 4 PF9 PF10 IC930 ERROR DET RL920 F.STB ON/OFF RELAY F.STB ON/OFF F.STB ON/OFF F.STB+14V F.STB+14V STB+5V Line Filter/F.STB Board PF AC INLET LIVE NEUTRAL LIVE NEUTRAL TO P9 IC920 TO J10 HOT COLD D910 DETECT OVER CURRENT Feed Back TH-42PA40C PF-Board Block Diagram TH-42PA40C PF-Board Block Diagram 61 15.4. PF 电路板线路图 ! + + + ~ - ~ + + + L.F L.F L.F RESET REG - REG TFC S/GND Mirror Vcc - OVP Q - BEC DRIVE REG RTFC + Current R + BD OSC D + OLP LATCH + BTC DRV FB/OLP TSD S - Current OCP OCP/BD Mirror T920 ETS28AZ1K6AD 1 V2 2 V1 4 P2 * 5 PT 6 P1 * 8 S2 * 9 NC 10 S1A 11 S1B 12 NC 7 NC D930 B0HARM000020 * * L930 10u C931 1kV 330p C930 25V 2200u PF10 1 2 3 4 5 6 C920 470p IC920 B3PAA0000261 IC930 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 R930 680 R931 470 D931 LNJ301MPUJA R936 6.8k RL920 K6B1ADA00009 * * D932 MA3X152K0L Q930 2SC3311A0A R937 68k R938 6.8k C932 25V 100u 1% R933 10k C933 1u R935 47k R939 6.8k R940 6.8k R941 6.8k R942 6.8k C910 450V 100u D910 B0EBNT000002 1/2W R918 0.82 1/2W R919 1 C914 2kV 220p * * L912 EXCELSA24T D911 B0EAKT000018 2W R914 10 2W R912 100k 2W R913 100k 1/2W R921 15 D912 B0HCMM000001 C912 50V 10u D913 B0HCMM000001 1/2W R922 1k C913 220p D914 B0HCMM000001 C915 470p 1/2W R920 330 R923 100k R925 1k C917 50V 10u R924 22k C918 2200p D915 B0BA01000046 D916 B0BA01000046 1W R915 100k C911 630V 0.022u C916 0.01u C919 0.22u R927 68k K5D312BL0008 F902 7W R904 3.3 * * 7W R903 3.3 * * PF9 1 ** 3 4 ** C905 1u * * LF902 G0B123K00002 1 * 2 * 3 * 4 * C906 220p C907 220p LF901 G0B123K00002 1 * 2 * 3 * 4 * C902 220p C903 220p C904 0.47u * * C901 1u * * 1/2W R902 1M * * 1/2W R901 1M * * CF901 ERZV10V621P2 F900 K5D802BNA003 F901 K5D802BNA003 PF1 1 ** 3 4 ** CF902 ERZV10V621P2 S901 J0LT00000009 S902 J0LT00000009 ZA901 K4ZZ01000121 LF903 G0B353G00001 1 * 2 * 3 * 4 * IC910 C5HABZZ00121 * 1 3 5 4 6 7 TP921 TP922 TP931 TP930 TP923 1% R932 24k 1% R934 22k D933 B0JCME000025 D918 B0BA01000046 3.2 3.2 3.5 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 STB+5V F.STB ON/OFF GND GND F.STB+14V F.STB+14V HOT COLD LIVE CIRCUIT LIVE NEUTRAL LIVE NEUTRAL ECKCNA471KB7 S903 S904 S905 S906 S907 S908 S909 S910 S911 S912 S913 S914 S915 3 A 4 5 6 B C D 7 2 8 E 1 (J10) TO J-BOARD FROM AC CORD (P9) TO P-BOARD COLD COLD HOT COLD ! PF-BOARD TXNPF1VCSC POWER CONTROL 0 15.0 5.0 0 15.0 0 * * * # # * m = $ $ ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! TH-42PA40C PF-Board Schematic Diagram TH-42PA40C PF-Board Schematic Diagram 62 15.5. P 电路板方框图 ~ - ~ + ~ - ~ + D404 D401 D409 D510 D511 D557 350V L403 F405 PR401 Q412 Q413 X501 4NHz D530 R665 R443 D410 D555 D419 D420 PR402 D428 D429 D563 D506 D521 D531 D512 D514 D580 D570 D569 PR601 D545 D544 D542 Q527 D536 D534 D538 D535 PR601 R661 D572 D549 R628 Q507 D501 8 6 T410 5 IC409 4 4 3 2 1 1 2 3 4 IC408 14 15 13 10 3 1 IC504 4 2 1 3 1 3 4 2 1 3 4 2 IC404 IC403 IC401 3 9 8 14 4 2 16 10 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 IC411 Q422 PFC Q420 Q401 Q404,Q406 L415,L402 IC406 POWER FACTOR CONTROL 5 4 9 2 10 6 T402 RL403 RL402 Q535 Q501 Q522 Q503 Q502 8 6 10 7 5 9 2 3 4 1 11 15 20 14 18 19 12 13 17 16 VDD VSS XIN XOUT RESET P21 P20 D3 D2 P00 P01 P02 P03 P10 P11 P12 P13 D0 D1 IC501 1 3 IC502 RESET 1 5 2 4 6 Q550 3 T407 14 11 19 6 10 5 T404 9 7 4 Q519 Q545 Q518 Q510 Vda IC520 Q CK 2 D IC523 5 Q CLR PR 7 3 1 6 Q540 Q521 Q509 Q541 1 2 2 Vda TO SS-BOARD SS12 P12 Vda +15V +15V 1 2 P7 +15V +12V TO Z-BOARD 1 2 6 Z5 P5 +12V +12Vs 3 STB5V +12Vs 7 +12Vs 8 1 +15V 2 +15V P23 TO SC-BOARD SC23 SS11 P11 3 2 Vsus TO SS-BOARD TO SC-BOARD P2 SC2 2 1 Vsus Vsus Vsus PS SOS ALL OFF 4 8 STB5V TO D-BOARD FAN SOS 2 7 P27 D27 TV ON/OFF 6 5V 2 +12V TO D-BOARD 5V 6 P25 D25 5 Q544 PS SOS TV ON/OFF ALL OFF Q407 POWER MCA COLD HOT COLD HOT P Power Supply Board 4 STB_PS LIVE 4 NEURTAL 1 P9 2 1 2 1 IC507 Q555 5 3 4 1 Q417,Q408 IC410 2 1 1 3 5 4 1 IC405 2 Q421 Q418 IC402 Q551 1 4 3 6 Q516 17 8 3 1 4 1 3 IC524 + - Q508 Q524 Q525 Q530 3 FAN CONT Q537 Q538 Q552 Q554 Q553 Q547 1 2 3 V.REF. IC503 +12V 1 FAN SOS Z10 +15V 5 1 3 P10 4 +5V TO Z-BOARD FAN CONT 4 2 1 3 IC505 Q504 IC503 2 3 1 V.REF. 5 STB12V Vlow Q542 Q511 Q520 Q517 Vsus IC506 1 3 Q505 Q506 2 3 4 5 12 11 9 8 6 T601 PF9 TO PF-BOARD Q536 TH-42PA40C P-Board Block Diagram TH-42PA40C P-Board Block Diagram 63 15.6. P 电路板 (1/6) 线路图 ZH38 R441 680K[F] ZH20 R451 33K TP1 R463 33K ZH17 R417 430K[F] C463 22P ZH43 C462 1u R475 680K[F] R437 10K C430 0.015 ZH18 R472 560K[F] C460 330p R415 10K D503 MA2C165001VT C412 0.01[KB] TP8 R471 3300 IC406 C0DAZZZ00021 R442 680K[F] ZH8 ZH42 R449 R10 R452 10K ZH35 TP4 C427 1.0[KB] R462 430K[F] D431 B0JCDD000002 R444 12K D504 MA2C165001VT Q420 2SD1819ARL ZH7 R439 12 ZH92 ZH21 R464 33K[F] ZH49 L403 EXCELSA35T ZH36 ZH19 ZH33 ZH31 R436 15K Q406 B1DEHQ000007 R440 470K C461 330p ZN402 D4EAD6210001 C436 1[KB] R424 22K ZH37 ZH34 R456 33K R431 10K ZH97 C431 1000P[KB] R454 10K TP5 TP7 ZH40 R410 10/5W C446 390uF/450V ZH95 F405 K5C136BC0001 D418 MAZ40820MF ZH32 C426 470P ZH96 C423 4700P D401 B0FBAT000006 D415 B0JAME000081 C445 1[KB] R467 1K Q404 B1ADRC000007 C429 0.015 R430 430K[F] ZH51 R421 33K C443 1000p Q407 XN0460100L C440 10[YXF] R493 12 R473 560K[F] R443 2K ZH48 ZH30 D433 MAZ4051NM1KT TP3 R426 10K R458 4700 R448 R10 C459 0.015 L402 EXCELSA24V C428 220P Q401 B1DHBD000004 ZH22 R465 560K[F] ZN401 D4EAD6210001 R428 10K R433 12K R414 15K C403 2200pF/250Vac TP2 TP6 R438 330 C432 1[KB] C408 47[YXF] C409 1.0uF D419 B0HANR000011 D420 B0HANR000011 T401 ETS42BV129AD Q422 B1GBCFNN0034 C468 0.01[KB] ZH2 RL402 K6B1AGA00177 ZH1 ZH3 ZH4 RL403 K6B1AGA00043 ZH12 ZH11 P9 K1KA03A00181 LIVE NC - NEUTRAL R419 100K D430 B0AAMV000002 R411 *** J402 J401 C442 1000p ZH13 C401 ZH14 ZH15 T402 G4D1A0000082 R550 2000 R555 2000 R552 2000 PR401 K5Y502B00007 ZH75 ZH73 R556 2000 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18 10 1 4 2 3 1 4 2 3 4 3 2 1 9 10 4 6 3 5 2 MOS DET COMP DRIVE GND CURR Vcc CURR TNPA3213 :N/A TNPA3213AB:2.2u C408 TNPA3213 :47 TNPA3213AB:--- D433 TNPA3213 :MAZ4051 TNPA3213AB:MAZ4150 R437 TNPA3213 :10K TNPA33213AB:18K TO (PF9) PF-BOARD PFC PFC 5 6 4 2 3 1 7 M A B C D E F G H I J K L N P-BOARD TNPA3213AC (1/6) ! 2 C 9 6 1 F 5 E 8 7 D 4 B A 3 HOT COLD HOT COLD HOT COLD HOT COLD HOT COLD HOT COLD P-BOARD (3/6) TO TH-42PA40C P-Board (1 of 6) Schematic Diagram TH-42PA40C P-Board (1 of 6) Schematic Diagram 64 15.7. P 电路板 (2/6) 线路图 R527 220K ZH26 R642 0.68 R656 47K[F] R536 200 R542 330K[F] Q505 B1CEJQ000002 IC505 CNC1S171RLL2 C613 0.1[KB] ZH41 P11 K1KA07A00096 GND GND GND NC Vsus Vsus NC R619 0.68 R640 4700[F] ZH27 D580 MAZ40620MF C627 1000P[KB] C520 1000P Q511 B1ABCF000134 C611 1700u/200V R526 220K R590 8.2K D570 MA2C165001VT ZH29 R539 200 D569 MA2C18800E C612 220P R647 0 C604 0.1[KB] D514 MAZ40620MF C615 1700u/200V Q525 B1CBGD000001 C614 1[KB] R627 7500 Q507 B1DEFQ000008 R629 22K[F] T601 ETS28AZ1J9AD ZH25 Q530 B1CBGD000001 IC506 C0ZBZ0000878 R646 0 D584 MAZ40750MF R680 120 D501 B0HAPR000010 R541 1800[F] D516 MA2C18800E R625 470[F] R620 10K R594 10 R641 10[F] R679 120 Q506 B1ADRC000007 P2 K1KA06A00180 VSUS VSUS NC GND GND GND D575 MA2C18800E ZH39 R626 150K[F] R643 0.68 ZH47 Q504 2SD13280SL C603 47 R657 3300[F] R622 150K[F] R636 150K[F] R658 1M R633 100 R534 220K R543 330K[F] C616 1000P D571 MAZ4051NM1KT R589 8.2K ZH28 R681 22 C618 1000P R648 150K[F] ZH46 R638 1.0 ZH23 D512 MA2C165001VT R610 750 R637 0.68 R621 8.2K C629 0.01[KB] R533 22K R628 3K R662 130K[F] C451 100P ZH108 C550 1000P[KB] R528 4.7 R482 390 P12 K1KA05A00139 STB12V STB_PS GND +15V Vda R674 33K D545 MAZ41800HF T404 ETS42LZ2126AD IC512 C0DAEMB00003 ZH91 C456 100P R655 0.20 D544 MAZ41800HF ZH85 C584 0.022[KB] R588 180[F] Q412 B1DEFQ000008 ZH78 D534 MA3D752A ZH93 ZH107 D542 MAZ41800HF ZH80 R664 9100[F] C555 100u/100V C556 1500u/16V D572 MA2C18800E ZH79 ZH109 D528 MA3X15300L R631 33K D543 MAZ41500MF J502 LSJW0001 C625 10 ZH86 R663 2.2 ZH94 C606 1[KB] D533 B0HAPR000009 Q413 B1DEFQ000008 D531 B0HDRM000002 ZH84 R624 0.22/1W D423 B0JAME000081 R476 2.2 ZH104 ZH81 P23 K1KA03A00213 GND +15V +15V ZH105 D568 MA3J142D0L ZH82 R592 3K[F] C581 0.022[KB] D532 B0HAPR000009 R632 220 D529 MA3X15300L R478 390 R669 130K[F] C624 1.0 R698 0.20 ZH74 T407 ETQ11K5AZ P5 K1KA11A00073 GND GND GND +12Vs +12Vs +12Vs GND GND STB5V +12V +12V C605 88u/280V J501 LSJW0001 ZH110 D425 B0JAME000081 Q527 B1DEHL000018 D540 B0HAPR000009 L509 J0JBC0000032 R676 33K R551 100K ZH83 C557 25V/1500 ZH111 ZH99 R665 2000 ZH90 PR601 F2A1E1520009 L510 EXCELDR25V R477 2.2 R675 2.2 C465 220P ZH106 C577 33/100V ZH72 C457 0.022u D539 B0HAPR000009 D536 MA3D752A Z1 LSJR0003 R691 100K C619 0.1[KB] R595 2200 R630 120 D582 MAZ705600F Vda R627 TNPA3213 :7500 TNPA3213AB:8200 R624 TNPA3213 :0.22/1W TNPA3213AB:0.22/2W TO (SS11) SS-BOARD TO (SC2) SC-BOARD TO (SS12) SS-BOARD TO SC-BOARD(SC23) TO (Z5) Z-BOARD VSUS 7 3 4 5 6 2 1 AV AM AH AQ AF AC AG AK AU AP AN AW AS AO AT AD AL AA AR AE AJ AB AI P-BOARD TNPA3213AC (2/6) ! 15 18 11 13 10 17 16 14 12 HOT COLD HOT COLD COLD HOT 170.6 170.6 0 0 0 0.1 0 0 0 0 170.7 0 170.7 67.9 15.4 0 11.5 11.5 0 12.2 0 0 0 0 12.2 12.2 12.2 4.5 12.2 15.0 0 15.0 P-BOARD (4/6) TO 2 1 4 3 7 6 5 4 3 2 1 11 12 2 3 8 9 4 5 7 6 1 2 5 3 4 1 2 3 4 5 6 5 4 3 2 1 14 15 13 17 18 19 1 3 4 6 5 7 10 11 9 8 1 2 3 3 2 1 6 5 2 4 1 11 10 9 8 7 6 5 4 3 2 1 1 TH-42PA40C P-Board (2 of 6) Schematic Diagram TH-42PA40C P-Board (2 of 6) Schematic Diagram 65 15.8. P 电路板 (3/6) 线路图 Q518 B1MBACA00006 C621 1000P[KB] IC523 C0JBAF000540 CK D -Q GND Q CLR PR Vcc C602 1000P[KB] R611 470 Q521 2SD1819ARL C600 0.01[KB] R605 3300 C620 0.01[KB] R587 470 C527 1000P[KB] Q545 B1CFNG000001 Q519 B1CFNG000001 D435 B0AAMV000002 D436 B0HAMP000016 R432 270K L506 EXCELDR25V ZH88 R498 330K D509 B0HANM000028 R529 10K[F] R429 15K C513 470P[JC] ZH102 ZH89 C411 10[YXF] R413 10/5W ZH103 R521 10 IC504 C0DAEMB00003 R434 2.2 C480 1[KB] R530 10.5[F] D511 B0JAME000078 C416 0.1[KB] D510 B0HANM000028 C514 470P[JC] D409 B0HAMM000122 D410 MA2C18800E R524 1K IC408 CNC1S171RLL2 R446 1M[F] D413 MA2C165001VT ZH87 C407 22u/450V D411 B0BB17000008 D557 MA2J11100L R507 220 R422 10 C419 0.1[KB] C511 1[KB] D412 MA2C165001VT D428 B0AAMV000002 ZH100 R447 1M[F] PR402 K5G162B00008 T410 ETS25AD1M6AG 8 6 4 3 2 1 10 11 12 13 15 14 C424 100P IC409 MIP2C20MP1KT R445 1M[F] ZH101 C425 1000P[KB] D438 B0AAMV000002 C516 1[KB] R488 0 C515 1200[ZL] R522 10 C517 220[YXF] D429 B0AAMV000002 D404 B0EBKT000007 C417 0.01[KB] Q418 UNR521L00L R485 100 C482 0.1[KB] R480 91K[F] R425 3300 C471 1[KB] C481 0.01[KB] C422 0.01[KB] R416 47K R418 47K R420 1K R497 24K[F] R496 560K[F] R495 560K[F] D405 MA2C165001VT Q417 B1CBGD000001 IC410 C0CBADE00037 Q408 B1CBGD000001 D402 MAZ40820MF D434 MAZ40820MF Q421 2SD1819ARL R453 1K R408 100K C421 0.01[KB] IC402 C0BBAA000040 R435 1K C402 100p IC405 C0CBADE00037 R404 22K R494 560K[F] C410 47/50V[YXF] IC411 C0BBAA000040 R409 169K[F] R479 150K C418 1[KB] C420 *** 1 2 3 4 5 6 7 8 1 2 3 2 1 4 3 1 2 3 4 5 6 7 8 1 2 3 1 2 5 3 4 1 2 3 1 2 5 3 4 C420 TNPA3213 :--- TNPA3213AB:47 11 12 17 16 14 15 13 BA BC BB BI BG BH BE BF BD M N A B C I J K L D E F G H P-BOARD TNPA3213AC (3/6) ! 2 C 9 6 1 F 5 E 8 7 D 4 B A 3 COLD HOT HOT COLD HOT COLD HOT COLD COLD HOT HOT COLD P-BOARD (5/6) TO P-BOARD (1/6) TO TH-42PA40C P-Board (3 of 6) Schematic Diagram TH-42PA40C P-Board (3 of 6) Schematic Diagram 66 15.9. P 电路板 (4/6) 线路图 R667 5.1K[F] R585 33K R699 10K R660 12K[F] R560 10K[F] R682 2200 C582 47[YXF] R540 100K R684 180 D521 MA2C18800E C528 0.1[KB] R575 4.7 R576 22K[F] C530 0.033[KB] R537 36K[F] D530 MAZ41000MF R606 3300 R668 2.4K[F] R579 10K Q524 2SD1819ARL P25 K1KA08A00221 GND GND +5V +5V GND GND +12V +12V PR509 K5H501Z00005 C561 0.01[KB] R545 10K R562 10K[F] D563 MA2J11100L R645 47K R683 220 C534 1200P[JC] D551 MAZ40750MF R653 3300 R612 1K P7 K1KA04A00242 GND GND +15Vs +15Vs Q520 B1HFCFA00021 Q516 B1DHBD000004 C553 0.1[KB] R670 22K[F] R593 5600[F] C536 0.1[KB] Q510 2SB1218ARL C585 0.1[KB] R650 10K R598 47K Q542 XN0460100L R583 7.5K[F] C546 0.033[KB] R600 390 Q508 B1GBCFNA0010 R574 330 R613 22K[F] IC524 C0BBAA000039 - + C586 0.1[KB] C535 0.01[KB] R597 47K R614 5600[F] R649 22K R672 15K[F] R661 5K Q517 B1HFCFA00021 R584 10K C547 0.033[KB] C554 0.1[KB] R652 10K IC520 C0JBAZ002056 R578 2.2K[F] R671 22K[F] R561 4300[F] C587 0.01[KB] R599 390 C548 0.1[KB] R563 4.7 C601 0.01[KB] R659 22K[F] D538 MAZ4051NM1KT C523 47[YXF] C532 0.1[KB] R654 3300 R666 9.1K[F] R673 5.1K[F] Q541 B1CBGD000001 R609 8200 Q540 B1DHBD000004 R607 8200 R596 10K[F] R582 10K[F] Q509 XN0440100L D549 MAZ40750MF D535 MA2C18800E Vlow TO (D25) D-BOARD 17 16 11 14 15 12 13 CC CI CJ CE CG CF CD CK CL CA CH CB AF AT AG AH AD AJ AB AM AQ AS AR AI AE AO AW AN AV AK AL AA AP AU AC P-BOARD TNPA3213AC (4/6) ! 15 18 11 13 10 17 16 14 12 0 5.3 0 0 12.2 12.2 5.2 0 15.0 0 15.0 0 P-BOARD (2/6) TO P-BOARD (6/6) TO 8 7 6 5 4 3 2 1 4 3 2 1 1 2 5 3 4 4 5 6 1 2 3 TH-42PA40C P-Board (4 of 6) Schematic Diagram TH-42PA40C P-Board (4 of 6) Schematic Diagram 67 15.10.P 电路板 (5/6) 线路图 IC502 C0EBE0000154 R502 100K IC501 C2ABCA000032 VDD VSS XIN XOUT CNVSS Reset P21 P20 D3 D2 D1 D0 P13 P12 P11 P10 P03 P02 P01 P00 R516 1K D506 B0JAME000081 Q536 B1CFQD000001 R520 100K R532 100 Q522 B1GDCFJJ0038 C583 0.01[KB] C610 1[KB] C509 100/25V R504 1K C504 0.1[KB] R505 22 R511 100K R601 3.3K Q502 2SD1820A0L R509 10K D505 B0JAME000081 D515 ERDS2TJ104T IC507 C0CBABE00041 Q554 B1DHBD000004 C608 0.01[KB] R687 10K R568 2.2 R618 100K Q551 2SD1819ARL C508 0.01[KB] R686 22K Q547 2SD11190RL Q553 2SD1819ARL R515 1K C501 0.01[KB] R486 3300 Q550 UNR521L00L R517 10K C623 10/50V IC401 CNC1S171RLL2 R577 100K Q501 2SD1820A0L Q544 B1GDCFJJ0038 X501 4MHz R690 1K D559 MAZ40750MF P10 K1KA05A00177 FAN_CONT +5V FAN_SOS GND +15V C506 0.01[KB] Q535 2SD1819ARL R510 K5H501Z00005 R569 2.2 C512 0.01[KB] R685 100K C607 1[KB] C507 0.01[KB] IC403 CNC1S171RLL2 R688 22K C626 0.01[KB] Q555 B1GDCFJJ0038 R514 100K R506 1K R518 100 R525 33K C609 0.01[KB] IC404 CNC1S171RLL2 R501 10K R604 390 R512 10K D555 MAZ40750MF Q538 B1CFQD000001 R508 1K R602 10K[F] R503 100K C502 0.01[KB] R617 10K R689 1K R694 100K R513 100K R603 10K[F] R538 100K R616 10K IC503 C0ZBZ0000878 REF A K P27 K1KA09A00099 GND ALL_OFF PS_SOS FAN_SOS KILL_SOS STB5V FAN_CONT TV_ON/OFF RUSH_ON/OFF Q503 B1GDCFJJ0038 C519 1[KB] R519 100K C599 0.1[KB] Q552 2SD1819ARL Q537 B1CFQD000001 R677 220K R678 22K R651 47K TO (D27) D-BOARD TO Z-BOARD(Z10) POWER MCA RESET 24 23 22 21 25 30 31 29 32 27 28 26 BB BG BA BI BD BF BC BE BH P-BOARD TNPA3213AC (5/6) ! 2 C 9 6 1 F 5 E 8 7 D 4 B A 3 HOT COLD HOT COLD HOT COLD 5.0 0 0 0 0 0 2.9 0.1 6.7 0 15.4 0 5.3 6.6 P-BOARD (3/6) TO 1 2 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1 2 3 2 1 4 3 5 4 3 2 1 2 1 4 3 2 1 4 3 1 2 5 3 4 9 8 7 6 5 4 3 2 1 TH-42PA40C P-Board (5 of 6) Schematic Diagram TH-42PA40C P-Board (5 of 6) Schematic Diagram 68 15.11.P 电路板 (6/6) 线路图 26 32 27 28 30 31 29 22 21 25 24 23 CK CG CD CC CH CF CE CI CJ CL CA CB P-BOARD TNPA3213AC (6/6) ! 15 18 11 13 10 17 16 14 12 P-BOARD (4/6) TO TH-42PA40C P-Board (6 of 6) Schematic Diagram TH-42PA40C P-Board (6 of 6) Schematic Diagram 69 15.12.HC 电路板方框图 2 1 C Y R G OSD_R OSD_R OSD_G OSD_B OSD_B OSD_G VS HS HS VS VS HS JK3302 L L-G R R-G JK3300 1-NC 1-H 1-G 2-NC 2-H 2-G JK3304 L L-G R R-G JK3303 JK3301 D3302 X3302 X3303 X3301 H0J202500002 Q3330 D3306 AV-Y SDA0 101 VIDEO OUT V1 40 VIDEO SW WP SCL0 Q3309,Q3312 B8 B2 3 11 50 AV-L 10 45 B15 MDIN15 VSOD YUVINA9 HSOD B14 10 12 S-1 TV 15 17 Q3310,Q3311 Y MON-R TxIN5 99 YUVO9 IC3322 PRIN 20 8 44 SDA V 47 5 REMOTE OUT 3 6 56 RX2+ IC3305 3 Y1 SDA 121 SCL CVBS1 SDA1 SDA0 GC3I 5V_SCL0 IC3300 5V_SDA0 MDOA15 5V_SDA1 136 VOUT1 Q3304 TU3300 7 SDA 4 MICON SCL MDIN0 LVDS TRANSMITTER SCL0 25 MDO10 AV-C VIN1 23 MDINA10 SCL 54 YUVINA0 SCL2 42 115 56 B9 52 MSP LCD MUTE IC3335 11 REMOTE SEL 20 MON-L 5 1 RX1- 7 6 B12 37 76 55 45 74 RXCLK+ MDO0 GC3FM 6 23 PBOUT7 RX0- 19 YIN 39 100 MONITOR OUT(V) SCL1 C1 AV-S-DET COUT1 VIDEO IN(C,Y) 5V_SCL1 132 5V_SCL2 SDA MDOA0 5V_SDA2 SCL OSDIN15 C SDA2 38 B6 RX1+ 47 SCL0 OSDIN0 SCL B3 IC3318 11 5 26 SDA 18 42 RX3+ 54 SDA0 SCL YUVO0 24 SC1_IN_R 43 5 5V_SCL1 SC1_IN_L SDA 25 RXCLK- 2 SDA0 27 IC3302 110 PBIN 41 26 AV-V EEPROM-WP 7 REMOTE IN 48 YOUT3 RX3- EEPROM YOUT7 PROUT7 SDA1 98 IC3321 26 Q3318,Q3321 143 45 7 AV-R OSD RGB A/D RX2- 5V_SDA1 PBOUT2 8 MDINA0 B5 SCL1 18 3 SCL0 13 55 SDRAM A Q3305 RX0+ PROUT3 IC3301 27 51 46 H1 22 75 41 16 YOUT1 OSDYM OSDYS CLKOD 44 HC TV VIN3 40 TUNER B11 14 14 SIF OUT BTL 15 3 VIDEO IN(L,R) REMOTE OUT VIDEO IN(V) MONITOR OUT(L,R) 6 5 SW1 SW2 S-2 14 AV-S-DET 33 VOUT2 Y1 36 SIF ANA IN+ 50 Q3319,Q3322 Q3320,Q3323 Q3303 Q3327 88 SD TX SD RX 89 112 OSD R OSD G 113 OSD B 114 A2 4 9 6 A6 A4 A8 A7 3 8 2 A1 A5 7 A3 5 A10 11 B6 B4 B8 B7 B2 20 21 16 B10 22 B1 B5 17 B3 13 15 19 18 Q3329 SRQ 94 IC3324 3.3V 5V 29 28 LED G 80 LED IC3323 RESET 1 RST D_CTR_I/O 0 D_CTR_I/O 1 60 61 SCL SCL1 SDA 2 1 SDA1 Q3306,Q3307 MON-V R L YSOUT6 95 94 70 CLK IN YSOUT5 ALFA2 ALFA3 93 YSOUT7 ALFA1 96 YSOUT4 ALFA0 YINC0 YINC1 102 VSYNC 103 HSYNC 6 5 SDA0 7 SDA1 SCL0 4 SCL1 H3 2 SRQ 5V_SCL0 5V_SCL1 5V_SDA0 5V_SDA1 97 LCD MUTE 5 6 7 A26 LOUT A28 ROUT 109 XTAL1 108 XTAL2 Q3314 Q3313 Q3333 Q3332 90 MUTE MUTE MUTE I1 I0 SEL SEL= L: I0 H: I1 REMOTE B30 Q3317 Q3326 COM 1 Q3337 Q3336 Q3315 Q3301 7 1 6 2 CLOCK IC3336 Q3328 IC3337 SWITCH 16M FLASH IC3328 64M SDRAM IC3327 64M SDRAM IC3317 IC3315 64M SDRAM SDRAM B 6 5V_SCL2 5V_SDA2 SCL_PANEL 4 SCL2 SRQ H4 5 SDA_PANEL 8 7 SDA2 WP IC3319 SCL SDA 7 6 5 EEPROM SDA_PANEL SCL_PANEL P2 SDA SCL 6 15 14 IC3320 Ex.I/O P5 10 SDA_PANEL SCL_PANEL SRQ_PANEL B23 B24 B25 SRQ_PANEL 2 RXD TXD B26 B27 5 3 1 7 CLOCK IC3307 20.25MHZ FRCLKIN 24 CKXI 67 20.25MHZ FRCLKIN 73 RESET IN 78 GC3 RST 58 NRST NRST 33 NRST 3.3V_MAIN 5V_MAIN A19 A17 9V_MAIN 5V_STB A22 A21 H2 3.3V_MAIN 5V_MAIN 9V_MAIN 5V_STB STB 3.3V STB 3.3V 2.5V IC3332 4 1 5 STB STB 2.5V IC3331 3 1 2 STB_5V IC3329 TUNER 1 2 5V 3 TUNER 5V 6 MAIN_9V MSP 1 2 IC3330 8V 3 6 MSP 8V 1.8V MAIN MAIN 1.8V IC3333 5 6 MAIN_3.3V 30V BT IC3334 MAIN_3.3V 3 U/V TUNER 30V 5 2.5V PLL PLL 2.5V IC3303 4 1 5 MAIN_3.3V 5 2.5V 1 AD AD 2.5V IC3304 4 5 2.5V 1 MAIN MAIN 2.5V IC3306 4 MAIN_3.3V MAIN_3.3V MAIN_5V 5 3.3V 1 AD AD 3.3V IC3308 4 MAIN_5V MAIN_3.3V 5 5 1 IC3312 4 1.8V 1 SDRAM PLL SDRAM PLL 1.8V IC3313 4 DDIF/OUT PLL 3.3V PLL 3.3V DDIF/OUT 30V BT TUNER 5V BM AFT 12 Q3302 MAINSW DET 125 Q3338 SC1_OUT_L SC1_OUT_R SC2_OUT_L SC2_OUT_R FORMAT CONVERTER B17 B19 B21 9V_MAIN 3.3V_MAIN 5V_MAIN TO SLOT2 TO SLOT1 USE FACTORY FOR USE FOR FACTORY PWRDWN RFB SCL0 SDA0 TxIN6 TxIN27 TxIN0 TxIN1 TxIN2 TxIN3 TxIN4 TxIN13 TxIN12 TxIN11 TxIN10 TxIN9 TxIN8 TxIN7 TxIN14 TxIN21 TxIN20 TxIN19 TxIN18 TxIN17 TxIN16 TxIN15 TxIN22 71 65 VSIN HSIN TxOUT0- TxOUT0+ TxOUT1- TxOUT1+ TxOUT2+ TxOUT2- TxOUT3- TxOUT3+ TxCLKOUT+ TxCLKOUT- R0E2-9 G0E2-9 B0E2-9 CLKE TxCLKIN 31 TH-42PA40C HC-Board Block Diagram TH-42PA40C HC-Board Block Diagram 70 15.13.HC 电路板 (1/7) 线路图 + + NP + + + + + NP 2 1 + BALLAN NP C Y NP + + + + + YUVO8 MDIN11 MDIN6 JTAG_TMS MDIN4 MHPO MDIN13 MDIN15 MDO8 MDO7 JTAG_TDI MDO10 MDO5 MDIN12 MDO4 MDIN2 MDIN8 MDIN5 MVPO YUVO3 MDIN1 MDIN14 YUVO2 MDIN0 MDO6 MDO9 YUVO1 MDIN3 YUVO5 YUVO4 YUVO6 MDIN7 YUVO9 MDIN10 YUVO0 MDO3 MDIN9 JTAG_TRST MDO2 MDO1 MDO0 YUVHPO 2.5V_AD 4.5V JTAG_TCK YUVVPO SDA_0 SCL_0 5.0V 5.0V 5V_TNR 5V_TNR AI_SCL_1 AI_SDA_1 AS_AFC AC_AV_L AC_AV_R L_OUT R_OUT AI_SCL_1 AI_SDA_1 AI_SCL_1 AI_SDA_1 AA_CVBS1 8V_MSP 30V_BT 8.2V MCLK YUVCLKO MSQ_RST L_MON_OUT R_MON_OUT L_MON_OUT REMOTE_SEL REMOTE_OUT AS_REMOTE 30V_BT 9V_MAIN 9V_MAIN 8V_MSP 5V_STB 5V_TNR 5V_TNR 5V_TNR R_MON_OUT YUVO7 AS_MUTE R3327 22 R3487 1M C3318 16V 47u R3366 820 C3412 16V 0.1u C3405 6.3V 1u R3328 4.7k C3328 50V 22p R3359 100 R3373 330 R3321 220 C3383 16V 0.1u R3358 287 C3388 6.3V 1u C3356 6.3V 1u C3319 16V 1u C3314 50V 0.1u JK3304 K2HA204B0097 L L-G R R-G IC3304 C0CBCAD00012 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C3349 6.3V 1u Q3315 2SB0709A0L JK3303 K2HC103B0105 MAIN3.3V R3412 0 L3309 G1C330K00017 C3390 50V 1000p C3416 16V 0.1u Q3333 UNR521100L R3520 4.7k C3371 50V 0.01u R3391 33 0.1u C3424 16V D3309 MA3X152E0L L3317 J0JCC0000241 R3396 2.7k L3359 EXC3BB102H R3348 560 FL3301 ELKE103FA 1 2 3 R3394 33 180k R3301 R3385 470 C3345 6.3V 100u FL3304 J0HABB000003 1 2 3 4 R3521 4.7k MSP8V C3419 16V 0.1u FL3300 ELKE103FA 1 2 3 C3361 10V 1u R3405 0 C3407 16V 0.1u R3384 0 C3522 50V 22p C3343 50V 22p C3399 1u 6.3V R3311 100 R3519 4.7k R3414 EXB38V560JV C3363 16V 0.1u R3334 10k C3315 10u R3363 560 L3315 J0JHC0000078 C3387 16V 0.1u BT30V R3397 470 L3307 G1C6R8K00005 R3361 470 C3373 50V 0.01u R3413 0 C3411 16V 0.1u IC3337 C0JBAR000111 1 2 3 4 5 6 7 8 C3303 25V 0.1u R3392 33 C3521 16V 22u D3300 MAZ31000ML C3406 16V 0.1u C3340 50V 56p R3318 220 R3320 1k R3333 150 C3520 16V 47u MAIN3.3V C3398 16V 0.1u C3523 50V 22p C3355 16V 47u C3302 50V 0.01u C3306 25V 0.1u R3306 75 R3369 15k 0.1u C3421 16V FL3303 J0HABB000004 1 2 3 4 Q3304 2SD0601A0L R3518 10k R3490 10k C3329 50V 47p JS3304 R3367 560 C0CBCAD00012 IC3306 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C3392 16V 0.1u X3303 H0J367200001 R3522 4.7k R3310 100 Q3332 UNR521100L Q3313 UNR521100L 180k R3302 R3514 9.1M R3400 150 R3408 22 C3354 10u 16V STB5V C3301 16V 0.1u Q3311 2SD10300TL C3368 16V 0.1u Q3300 2SB0709A0L R3303 75 FL3308 J0HABB000004 1 2 3 4 Q3302 2SB0709A0L L3300 EXC3BB102H MAIN3.3V 0.1u C3316 16V R3419 39 C1AB00000461 IC3302 1 V1 2 LV1 3 Y1 4 RV1 5 C1 6 S2-1 7 S-1 8 V2 9 LV2 10 Y2 11 RV2 12 C2 13 S2-2 14 S-2 15 V3 16 LV3 17 Y3 18 RV3 19 C3 20 S2-3 21 S-3 22 LV4 23 V4 24 RV4 25 ADR 26 SCL 27 SDA 28 DC OUT 29 COUT2 30 LOUT2 31 YOUT2 32 ROUT2 33 VOUT2 34 Vcc 35 MUTE 36 YIN1 37 BIAS 38 CIN1 39 LOUT1 40 VOUT1 41 ROUT1 42 TRAP1 43 YOUT1 44 GND 45 COUT1 46 LTV 47 TV 48 RTV L3310 G1C100KA0009 R3324 220 JS3300 MAIN9V C3304 50V 56p R3353 10k C3337 16V 0.1u R3375 100 R3368 12k Q3309 2SB0709A0L C3393 16V 0.1u R3523 10k R3415 EXB38V560JV R3371 33 C3357 50V 0.01u MAIN3.3V R3483 100 C3372 47u 4V TP3300 C3325 50V 0.1u C3335 50V 47p Q3336 2SD0601A0L C3322 16V 10u C3326 50V 56p R3406 330 R3393 33 R3388 1k R3495 100 JK3300 K1QBB2AB0005 1-NC 1-H 1-G 2-NC 2-H 2-G C3408 16V 0.1u R3312 100 C3403 16V 0.1u R3423 D1HG5608A002 C3359 16V 1u Q3310 2SB0709A0L FL3307 J0HABB000004 1 2 3 4 L3360 EXC3BB102H IC3336 C0JBAB000382 1 2 3 4 5 6 7 8 C3333 50V 1p R3315 1k C3425 1u 10V C3414 16V 0.1u R3398 2.7k C3364 16V 47u R3350 100 R3313 470 R3317 100 R3307 75 R3325 22 C3351 16V 0.1u C3341 50V 18p C3377 16V 0.1u C3382 16V 0.1u C3327 50V 10p Q3305 2SD0601A0L C3375 16V 0.1u C3385 16V 0.1u Q3338 2SD0601A0L R3330 1k C3369 6.3V 1u C3396 16V 0.1u R3417 56 0.1u C3400 16V R3360 100 R3374 470 D3310 MA3X152E0L Q3303 2SB0709A0L R3372 33 C3370 50V 68p R3381 100k C3317 16V 1u R3379 100k R3509 4.7k R3305 75 R3339 330 C3394 16V 0.1u R3370 680 C3442 10V 1u L3302 G0B101Y00001 1 2 3 4 R3513 470k C3312 10u JK3301 K1CB106B0027 R3389 1k L3311 J0JHC0000078 0.1u C3338 16V R3386 1.4k C3380 16V 0.1u R3319 1k R3376 100 R3351 220 R3484 100k R3343 3.3k C3346 6.3V 1u R3346 470 C3378 16V 0.1u C3386 16V 0.1u C3310 16V 1u R3349 470 C3415 16V 0.1u Q3334 2SB0709A0L L3304 ELJFA6R8MF L3316 J0JCC0000241 R3420 39 IC3335 C1AB00001942 1 l2C_CL 2 l2C_DA 3 l2S_CL 4 l2S_WS 5 l2S_DA_OUT 6 l2S_DA_IN1 7 ADR_DA 8 ADR_WS 9 ADR_CL 10 DVSUP 11 DVSS 12 l2S_DA_IN2 13 NC 14 NC 15 NC 16 RESETQ 17 DACA_R 18 DACA_L 19 VREF2 20 DACM_R 21 DACM_L 22 NC 23 DACM_SUB 24 NC 25 SC2_OUT_R 26 SC2_OUT_L 27 VREF1 28 SC1_OUT_R 29 SC1_OUT_L 30 CAPL_A 31 AHVSUP 32 CAPL_M 33 AHVSS 34 AGNDC 35 SC4_IN_L 36 SC4_IN_R 37 ASG 38 SC3_IN_L 39 SC3_IN_R 40 ASG 41 SC2_IN_L 42 SC2_IN_R 43 ASG 44 SC1_IN_L 45 SC1_IN_R 46 VREFTOP 47 MONO_IN 48 AVSS 49 AVSUP 50 ANA_IN1+ 51 ANA_IN- 52 ANA_IN2+ 53 TESTEN 54 XTAL_IN 55 XTAL_OUT 56 TP 57 AUD_CL_OUT 58 NC 59 NC 60 D_CTR_I/O_1 61 D_CTR_I/O_0 62 ADR_SEL 63 STANDBY 64 NC R3482 100 C3410 16V 0.1u R3336 1k JS3303 C3397 50V 0.01u L3305 G1C330K00017 R3356 0 JS3301 Q3335 2SB0709A0L JS3317 R3365 510 R3314 1k C3365 50V 68p C3443 10V 1u IC3303 C0CBCAD00012 1 Vcont 2 GND 3 Np 5 Vin 4 Vout Q3337 2SB0709A0L C3344 50V 0.1u R3332 150 FL3306 J0HABB000004 1 2 3 4 C3311 10u C3389 6.3V 1u C3352 50V 0.1u R3399 150 R3382 0 JS3302 R3316 470 C3358 6.3V 1u 0.1u C3300 16V C3395 6.3V 1u C3376 16V 0.1u R3401 150 FL3302 J0HABB000004 1 2 3 4 C3309 16V 1u L3313 G1C100KA0009 C3307 16V 0.1u R3390 33 R3395 33 C3362 16V 1u R3380 0 L3318 ELJPA6R8MF C3423 1u 10V C3401 1u 6.3V C3308 16V 470u R3352 220 C3342 50V 150p R3404 100 C1AB00001868 IC3305 1 VDDE 2 YUVCLKO 3 MDO2 4 MDO1 5 MDO0 6 YUVHPO(VP) 7 YUVVPO(HP) 8 YUVO9 9 YUVO8 10 VDDI 11 VSS 12 VDDE 13 YUVO7 14 YUVO6 15 YUVO5 16 YUVO4 17 YUVO3 18 YUVO2 19 YUVO1 20 YUVO0 21 VDDI 22 VSS 23 VDDE 24 FRCLKIN 25 SCL 26 SDA 27 VPD 28 TMS 29 TDI 30 VDDI 31 VSS 32 VDDE 33 NRST 34 EXVPIN 35 EXHPIN 36 TDO 37 AVSAD12 38 AVDAD12 39 AVSAD11 40 AVDAD11 41 VRH1 42 VIN1 43 VRL1 44 AVSAD22 45 AVDAD22 46 AVSAD21 47 AVDAD21 48 VRH2 49 VIN2 50 VRL2 51 AVSAD32 52 AVDAD32 53 AVSAD31 54 AVDAD31 55 VRH3 56 VIN3 57 VRL3 58 AVDCLP 59 AVSCLP 60 UCLP 61 VCLP 62 YCLP 63 VRO1 64 VREF1 65 AVSDA1 66 AVDDA1 67 AOUT1 68 VRO2 69 VREF2 70 AVSDA2 71 AVDDA2 72 AOUT2 73 VDDE 74 BXSDDIF 75 VDDI 76 DDIF358 77 VSS 78 AVSPL1 79 AVDPL1 80 CPO1 81 VGS1 82 VGS2 83 CPO2 84 AVDPL2 85 AVSPL2 86 VSS 87 FRNT358 88 VDDI 89 BXSFRNT 90 VDDE 91 VSS 92 TEST 93 TRST 94 TCK 95 HADIN9 96 HADIN8 97 HADIN7 98 HADIN6 99 HADIN5 100 HADIN4 101 HADIN3 102 HADIN2 103 HADIN1 104 HADIN0 105 VDDE 106 VSS 107 HADCLK 108 FRCLK 109 MHVPO 110 MHPO 111 MCLK 112 VSS 113 VDDE 114 VDDI 115 MDIN15 116 MDIN14 117 MDIN13 118 MDIN12 119 MDIN11 120 MDIN10 121 MDIN9 122 MDIN8 123 VDDI 124 VSS 125 MDIN7 126 MDIN6 127 MDIN5 128 MDIN4 129 MDIN3 130 MDIN2 131 MDIN1 132 MDIN0 133 VSS 134 VDDE 135 VDDI 136 MDO10 137 MDO9 138 MDO8 139 MDO7 140 MDO6 141 MDO5 142 MDO4 143 MDO3 144 VSS R3354 10k Q3307 2SD0601A0L C3413 16V 0.1u C3353 10u 16V C3409 16V 0.1u R3494 100 R3411 EXB38V560JV R3331 39 R3387 1.4k R3329 100 0.1u C3331 16V TUNER5V C3367 16V 0.1u 0.1u C3524 16V R3341 330 R3489 10k C3305 50V 56p D3301 MA3X152K0L R3342 3.3k Q3312 2SD0601A0L C3339 10u 16V C3332 50V 1p X3300 H0J184500020 R3383 0 C3417 16V 0.1u R3378 0 C3418 16V 0.1u C3347 6.3V 1u C3420 220u 4V L3306 G1C330K00017 0.1u C3526 16V R3418 56 R3323 15k C3391 16V 0.1u R3409 470 C3348 3.3u 50V R3486 100k Q3314 UNR521100L R3377 0 R3322 10k Q3301 2SD0601A0L C3360 10V 1u JS3305 Q3328 2SD0601A0L R3344 1.2k R3407 0 R3488 180k FL3316 J0HABB000004 1 2 3 4 R3416 56 R3496 100 FL3305 J0HABB000004 1 2 3 4 MAIN9V C3381 16V 0.1u R3410 22 C3334 50V 0.1u R3421 56 C3350 6.3V 10u L3301 EXC3BB102H Q3306 2SD0601A0L JK3302 K2HA204B0097 L L-G R R-G R3300 0 MSP8V C3384 16V 0.1u 0.1u C3321 16V D3308 MA3X157A0L FL3315 J0HABB000004 1 2 3 4 C3379 16V 0.1u C3313 16V 1u R3422 56 L3314 J0JCC0000241 R3308 220 TU3300 ENG39A10GF BM 3 NC 4 SW1 5 SW2 6 BT 7 RF_AGC 8 NC 9 SCL 10 SDA 11 AFT 12 AUDIO_OUT 13 SIF_OUT 14 BTL 15 NC 16 VIDEO_OUT 17 C3320 16V 0.1u 0.01u C3422 16V STB5V GC3FM PLL 2.5V MAIN 2.5V TV_V AFC 20.25MHZ 20.25MHZ 20.25MHZ 20.25MHZ VCC GND VEE INH COM I1 I0 SEL VCC GND A E F 5 6 2 8 C 9 1 B 7 3 4 D TUNER MONITOR OUT(L,R) REMOTE OUT VIDEO SW AD 2.5V MSP CLOCK SWITCH VIDEO IN(C,Y) VIDEO IN(V) MONITOR OUT(V) VIDEO IN(L,R) HC-BOARD TXNHM1VPSC (1/7) 1 2 3 4 5 6 7 8 9 10 TH-42PA40C HC-Board (1 of 7) Schematic Diagram TH-42PA40C HC-Board (1 of 7) Schematic Diagram SEL= L: I0 H: I1 71 15.14.HC 电路板 (2/7) 线路图 + 0.9V SDA_0 2.4V SCL_0 OSDIN12 OSDIN13 OSDIN14 OSDIN15 OSDIN6 OSDIN7 ALFA0 ALFA1 ALFA2 ALFA3 OSDIN0 OSDIN11 OSDIN5 OSDIN8 OSDIN9 OSDIN10 OSDIN4 OSDIN3 OSDIN2 OSDIN1 AS_OSDB AS_OSDG AS_OSDR AS_BLK HSOD VSOD CLKOD 9V_MAIN 5V_MAIN 3.3V_MAIN 3.3V_MAIN 3.3V_MAIN AB_FM_TDO AS_GC3_RST 3.3V_OSD 3.3V_OSD 3.3V_OSD C0JBAZ001769 IC3310 1 2 3 5 4 IC3307 C0JBAB000382 1 2 3 4 5 6 7 8 Q3322 2SD0601A0L R3505 100 R3453 1k C3430 50V 18p R3429 0 C3473 6.3V 1u C3487 50V 1000p R3457 470 C3489 16V 0.1u IC3308 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R3462 1k C3478 50V 1000p R3459 470 C3468 16V 0.1u MAIN3.3V R3449 100 C3481 50V 1000p Q3319 2SB0709A0L L3319 J0JGC0000021 C3498 16V 0.1u R3472 102 R3504 102 C3465 50V 0.01u C3486 16V 0.1u R3439 22 R3461 1k R3502 150 L3325 EXC3BB102H Q3320 2SB0709A0L C3480 16V 0.1u C3452 16V 0.1u Q3323 2SD0601A0L C3449 6.3V 10u R3499 68 C3485 50V 1000p R3438 22 C3447 16V 0.1u R3470 22k C3461 16V 0.1u R3480 68 C3462 16V 0.1u Q3321 2SD0601A0L R3458 470 C3495 6.3V 1u R3493 D1HG6808A002 R3424 1M R3481 68 C3466 16V 0.1u R3443 330 C3467 47u 4V C3458 16V 0.1u 1u C3497 10V C3427 50V 100p MAIN5V C3479 16V 0.1u R3452 1k C3445 16V 0.1u C3488 16V 0.1u C3446 16V 0.1u L3329 J0JHC0000078 C3493 6.3V 1u R3501 51 R3500 68 C3477 50V 1000p R3427 0 C3463 16V 0.1u R3498 EXB38V680JV R3478 22 C3450 6.3V 10u C3453 50V 39p R3492 0 IC3301 C1AB00001834 1 VSS 2 VDD 3 YOUT7 4 YOUT6 5 YOUT5 6 YOUT4 7 YOUT3 8 YOUT2 9 YOUT1 10 YOUT0 11 VDD 12 VSS 13 PBOUT7 14 PBOUT6 15 PBOUT5 16 PBOUT4 17 PBOUT3 18 PBOUT2 19 PBOUT1 20 PBOUT0 21 VDD 22 VSS 23 PROUT7 24 PROUT6 25 PROUT5 26 PROUT4 27 PROUT3 28 PROUT2 29 PROUT1 30 PROUT0 31 VSS 32 N.C 33 N.C 34 N.C 35 AVDAD1 36 N.C 37 VRH1 38 AVSAD1 39 N.C 40 VRL1 41 PBIN 42 CRMP1 43 CRMP2 44 PRIN 45 VRL2 46 AVSAD2 47 VRH2 48 N.C 49 AVDAD2 50 N.C 51 N.C 52 SDO 53 VDD 54 SDA 55 SCL 56 ADRS0 57 ADRS1 58 RSTN 59 VDD 60 VSS 61 OE 62 TST1 63 TST2 64 TST3 65 VIN 66 HIN2 67 CKXI 68 VDD 69 VSS 70 CKIN 71 HIN1 72 VDD 73 VSS 74 PLLH 75 HOUT 76 PORT0 77 PORT1 78 PORT2 79 PORT3 80 PORT4 81 CKO 82 VDD 83 VSS 84 PHIN2 85 VDD(PLL) 86 VSS(PLL) 87 PHCO 88 VCOI 89 XSM 90 XTST 91 VSS 92 VDD 93 YSOUT7 94 YSOUT6 95 YSOUT5 96 YSOUT4 97 YSOUT3 98 YSOUT2 99 YSOUT1 100 YSOUT0 101 N.C 102 AVSAD3 103 N.C 104 VRH3 105 AVDAD3 106 N.C 107 VRL3 108 YSIN 109 CRMP4 110 YIN 111 VRL4 112 N.C 113 AVSAD4 114 VRH4 115 N.C 116 AVDAD4 117 N.C 118 N.C 119 N.C 120 VPD R3460 1k C3472 6.3V 1u R3479 68 R3503 51 R3473 68 R3474 22 R3440 22 R3431 1.8k C3428 10V 1u C3496 6.3V 1u C3484 50V 1000p C3483 50V 1000p MAIN9V R3475 10k R3451 1k R3442 330 C3426 50V 15p C3444 16V 0.1u L3321 EXC3BB102H R3441 330 C3451 16V 0.1u MAIN3.3V R3425 0 L3320 EXC3BB102H C3482 50V 1000p C3471 16V 0.1u L3328 J0JCC0000241 C3460 1u 10V R3485 D1HG6808A002 C3474 6.3V 1u R3471 102 C3429 50V 0.01u C3490 50V 0.01u X3301 H0J202500002 C3455 50V 39p Q3318 2SB0709A0L C3448 6.3V 10u C3454 50V 39p R3469 22k C3494 6.3V 1u R3477 22 R3468 22k C3475 6.3V 1u BLUE (IIC Decorder CLK) FORMAT CONVERTER OSD RGB A/D GREEN AD 3.3V RED 20.25MHZ VCC GND 14 17 18 15 16 13 11 10 12 CLOCK INVERTER 2 3 5 7 4 1 9 10 8 6 21 22 23 24 25 26 27 28 29 30 TH-42PA40C HC-Board (2 of 7) Schematic Diagram TH-42PA40C HC-Board (2 of 7) Schematic Diagram HC-BOARD TXNHM1VPSC (2/7) 72 15.15.HC 电路板 (3/7) 线路图 + YUVO7 YUVO0 MDO6 MDO9 MDO2 MDO5 YUVVPO MHPO SCL_0 YUVHPO SDA_0 MVPO MCLK MDO10 MDO7 YUVO5 MDO4 YUVO8 MDO3 MDO8 MDO1 MDO0 YUVO1 YUVCLKO YUVO4 YUVO9 YUVO6 YUVO3 YUVO2 MDIN0 MDIN1 MDIN2 MDIN3 MDIN4 MDIN5 MDIN6 MDIN7 MDIN8 MDIN9 MDIN10 MDIN11 MDIN12 MDIN13 MDIN14 MDIN15 AB_LCD_ENB AB_LCD_G0 AB_LCD_G1 AB_LCD_G2 AB_LCD_G3 AB_LCD_G4 AB_LCD_G5 AB_LCD_G6 AB_LCD_G7 AB_LCD_R0 AB_LCD_R1 AB_LCD_R2 AB_LCD_R3 AB_LCD_R4 AB_LCD_R5 AB_LCD_R6 AB_LCD_R7 AB_LCD_B4 AB_LCD_B5 AB_LCD_B6 AB_LCD_B7 AB_LCD_HS AB_LCD_VS JTAG_TDO JTAG_TMS JTAG_TRST AB_LCD_B2 AB_LCD_B0 AB_LCD_B1 AB_LCD_B3 JTAG_TCK JTAG_TMS JTAG_TCK JTAG_TDI AS_LCD_MUTE AB_LCD_CLK 3.3V_MAIN AB_FM_TDO JTAG_TRST 1.8V_MAIN C3546 16V 0.1u IC3300 V24 BOE4 IC3300 AB16 - C3533 16V 0.1u IC3300 D6 - R3428 0 IC3300 AC5 - IC3300 G3 MDINA9 C3548 16V 0.1u IC3300 AA1 BOE6 C3543 50V 1000p IC3300 W3 GOE7 IC3300 B2 YUVINA1 IC3300 L1 MDOA15 MAIN3.3V R3524 2.7k IC3300 AB23 - C3502 16V 0.1u IC3300 F3 MDINA5 IC3300 AA5 GOE0 IC3300 E2 MDINA1 IC3300 M4 - R3542 10k R3535 EXB38V680JV IC3300 H22 - IC3300 Y5 GOE4 IC3300 L5 MDOA14 IC3300 B24 ROE2 IC3300 AC11 - IC3300 B22 HFR IC3300 D3 YUVINA8 IC3300 C9 UBINB0 IC3300 F4 MDINA4 MAIN1.8V IC3300 E9 VRINB6 IC3300 B6 YGINB4 R3545 0 C3508 16V 0.1u IC3300 AA4 GOE1 IC3300 AC18 - IC3300 F1 MDINA7 IC3300 A24 ROE1 IC3300 L2 MVPINA IC3300 A25 ROE3 IC3300 D4 YUVINA7 IC3300 B7 YGINB0 IC3300 D5 YGINB6 IC3300 D23 - IC3300 P23 - IC3300 B21 TCK C3537 16V 0.1u IC3300 AB12 - IC3300 D21 LCDMODE IC3300 G1 MDOA0 IC3300 V3 GOE9 IC3300 J4 MDOA5 IC3300 A5 VSIB C3531 16V 0.1u IC3300 D24 ROE9 R3531 D1HG6808A002 IC3300 AC23 - IC3300 M22 - C3549 16V 0.1u R3552 22k IC3300 W4 - C3510 16V 0.1u IC3300 AC6 - C3505 16V 0.1u IC3300 V26 BOE2 C3542 16V 0.1u C3511 50V 1000p C3550 50V 1000p R3527 22 IC3300 J3 MDOA6 C3536 50V 1000p IC3300 K4 MDOA10 IC3300 A9 UBINB1 IC3300 A8 UBINB5 IC3300 A4 SDA IC3300 J5 MDOA4 IC3300 J1 MDOA8 R3544 0 IC3300 AA3 BOE8 IC3300 AB17 - IC3300 L4 MCLKA IC3300 E3 CLKA IC3300 D1 VSIA C3551 16V 0.1u IC3300 L23 - IC3300 E20 TRST IC3300 Y1 BOE9 IC3300 E7 - R3526 D1HG5608A002 IC3300 R23 - C3513 16V 0.1u IC3300 A7 YGINB1 IC3300 AB13 - IC3300 N22 - IC3300 C23 ROE0 L3331 J0JHC0000078 IC3300 D7 UBINB6 IC3300 W2 GOE6 IC3300 W26 BOE5 IC3300 B3 YUVINA0 IC3300 B5 HSIB IC3300 A3 SCL C3554 16V 0.1u IC3300 W24 HSOE IC3300 D9 VRINB7 IC3300 E22 - IC3300 N4 - IC3300 J22 - IC3300 AC12 - IC3300 C7 UBINB7 IC3300 V25 BOE3 C3517 16V 0.1u IC3300 AF1 - IC3300 C21 TDI IC3300 U5 - C3534 50V 1000p IC3300 D12 - MAIN3.3V IC3300 D22 - IC3300 U22 - C3515 16V 0.1u IC3300 C3 YUVINA4 IC3300 Y26 CLKE IC3300 B9 CLKINB IC3300 E10 VRINB1 IC3300 C8 UBINB3 C3545 50V 1000p IC3300 A22 NRST IC3300 W23 - IC3300 AF26 - C3514 50V 1000p IC3300 A10 VRINB5 IC3300 V4 - L3332 J0JHC0000078 IC3300 D2 YUVINA9 IC3300 C1 YUVINA6 IC3300 AC19 - IC3300 V23 - IC3300 C2 YUVINA5 IC3300 B26 ROE4 R3553 22k IC3300 A26 - IC3300 C22 TMS IC3300 B10 VRINB4 IC3300 Y3 GOE3 IC3300 M5 - IC3300 A6 YGINB5 C3564 50V 100p R3549 0 IC3300 C25 ROE7 IC3300 G4 MDINA8 R3538 47 IC3300 C4 YUVINA3 C3553 50V 1000p C3519 16V 0.1u IC3300 C5 YGINB7 R3534 EXB38V680JV IC3300 B8 UBINB4 C3547 50V 1000p IC3300 D11 - IC3300 K5 MDOA9 C3529 16V 0.1u IC3300 H5 - IC3300 J23 - IC3300 W1 GOE5 IC3300 C10 VRINB3 C3539 6.3V 10u IC3300 H1 MDOA3 C3516 50V 1000p IC3300 B4 FRCLKIN IC3300 G2 MDINA10 IC3300 AB7 - C3556 16V 0.1u IC3300 T23 - R3525 D1HG5608A002 R3537 47 IC3300 W25 VSOE IC3300 E21 TEST C3532 50V 1000p IC3300 AB6 - C3512 6.3V 10u R3543 22k IC3300 A23 BOE0 IC3300 H3 MDOA1 IC3300 J2 MDOA7 IC3300 K3 MDOA11 C3509 50V 1000p IC3300 C11 VRINB0 R3546 0 IC3300 Y2 GOE2 IC3300 D10 VRINB2 IC3300 Y4 - IC3300 F5 MDINA3 C3535 16V 0.1u R3530 47 IC3300 A21 FBPIN R3528 22 C3552 16V 0.1u IC3300 AA2 BOE7 IC3300 L3 MHPINA R3536 22 R3551 0 IC3300 N5 CLKO C3558 16V 0.1u IC3300 C26 ROE6 IC3300 D20 VPD IC3300 T22 - IC3300 F23 - IC3300 G23 - IC3300 A1 - IC3300 V5 - IC3300 K2 MDOA12 IC3300 W5 GOE8 IC3300 F2 MDINA6 IC3300 B23 BOE1 IC3300 H2 MDOA2 R3547 0 C3518 50V 1000p IC3300 AB21 - IC3300 A2 CLKINB2 IC3300 K23 - IC3300 K1 MDOA13 C3506 220u 4V IC3300 B1 YUVINA2 R3539 47 R3533 D1HG6808A002 C3557 50V 1000p IC3300 AC7 - C3541 16V 0.1u IC3300 C24 ROE8 IC3300 E8 - IC3300 G5 - C3530 50V 1000p IC3300 C20 TDO IC3300 AB22 - IC3300 B25 ROE5 IC3300 AC13 - C3544 16V 0.1u MAIN3.3V C3559 16V 0.1u IC3300 D8 UBINB2 IC3300 E4 MDINA0 IC3300 E6 YGINB2 R3548 0 IC3300 C6 YGINB3 IC3300 AC17 - C3555 50V 1000p IC3300 H4 - IC3300 E1 MDINA2 IC3300 E5 HSIA R3555 1k ETC VDDI B A VDDE NC GC3I E LCD_SS LCD_BL0 LCD_MUTE LCD_BL1 LCD_ENB LCD_BL2 24 26 25 19 20 22 27 21 23 IC3300 C1AB00001926 25 28 22 26 29 27 30 24 23 21 41 42 43 44 45 TH-42PA40C HC-Board (3 of 7) Schematic Diagram TH-42PA40C HC-Board (3 of 7) Schematic Diagram HC-BOARD TXNHM1VPSC (3/7) 73 15.16.HC 电路板 (4/7) 线路图 DQA0 AB6 AA9 DQB13 DQA10 DQB15 AA5 DQB8 DQA13 AB8 AA2 DQB10 DQB17 DQA6 DQB2 DQA28 DQB7 DQB4 DQA4 AB10 DQA31 RASA DQB19 DQA14 AB7 DQA18 BAA0 DQB20 DQA7 DQB5 DQA21 DQB16 DQA8 DQB9 DQA25 DQB3 CASA DQA11 DQB26 DQA30 DQB30 DQA20 WEA DQA5 DQB24 DQA16 DQB25 DQA19 BAA1 DQA15 DQB29 DQB21 DQA1 DQB27 DQB18 AB4 DQB31 AB2 SDCLKIA DQB28 AB5 SDCKEA AB1 WEB AB3 AA7 CASB DQB14 AA10 DQA22 SDCKEB DQB0 AA8 DQA27 DQB22 AA6 DQA29 BAB1 DQA24 DQB1 DQA26 BAB0 DQA23 RASB DQA9 DQB12 AA1 DQA2 AB9 AA3 DQA12 AB0 AA4 DQB6 DQA3 DQB23 AA0 DQB11 0.0V OSDIN0 OSDIN6 OSDIN7 OSDIN1 OSDIN2 OSDIN3 OSDIN4 OSDIN5 OSDIN15 OSDIN14 OSDIN13 OSDIN12 OSDIN11 OSDIN10 OSDIN9 OSDIN8 AJ_HSYNC AJ_VSYNC ALFA0 ALFA1 ALFA3 ALFA2 VSOD HSOD 3.3V_PLL CLKOD SDCLKOB SDCLKOA DQA17 5V_MAIN 1.8V_PLL 3.3V_MAIN 3.3V_MAIN IC3300 R24 OSDIN7 R3586 330 IC3300 B12 DA4_VRO IC3300 AE4 DQA31 R3574 2.7k IC3300 B19 PLL2_VCI IC3300 K10 - IC3300 E11 - IC3300 AE11 DQA4 R3566 75 R3430 0 IC3300 AF24 DQB19 TP3304 IC3300 E18 - IC3300 N2 PLL1_VCI IC3300 R26 OSDIN9 IC3300 L10 - IC3300 AD10 CASA IC3300 P3 PLL1_AVD1 IC3300 AE17 DQB14 IC3300 M13 - IC3300 N26 OSDYS R3572 75 C3594 6.3V 1u IC3300 T13 - IC3300 U14 - IC3300 N12 - IC3300 U3 - IC3300 AB5 DQA15 IC3300 U25 OSDIN2 IC3300 D13 DA4_AVS1 R3581 150 C3582 1u 6.3V IC3300 U24 OSDIN1 IC3300 AB24 BAB0 IC3300 AD15 - IC3300 A20 - R3403 0 IC3300 AF3 AA4 IC3300 J26 YINC7 R3600 EXB38V560JV JS3312 IC3300 AB1 DQA11 IC3300 AC3 DQA9 IC3300 AE18 DQB10 C3574 1u 6.3V IC3300 AE21 DQB30 IC3300 U10 - IC3300 AF7 DQA21 IC3300 AC21 AB3 IC3300 AE23 DQB23 IC3300 C16 DA1_AVS2 IC3300 AD2 SDCKEA IC3300 R14 - IC3300 M16 - IC3300 V22 - IC3300 P16 - IC3300 P25 OSDIN11 IC3300 A13 DA4_VREF IC3300 D17 DA1_AVD1 IC3300 AF17 DQB13 IC3300 AF11 DQA3 IC3300 M14 - IC3300 AD26 AB1 C3587 1u 6.3V IC3300 H25 CLKIC IC3300 AB4 DQA14 IC3312 C0CBCBC00062 1 Cont 2 GND 3 Noise 5 Vin 4 Vo IC3300 AC22 DQB28 IC3300 V2 - R3595 0 IC3300 AC2 DQA8 R3576 330 C3585 6.3V 1u IC3300 K11 - IC3300 K26 YINC4 IC3300 L22 - R3590 EXB38V560JV IC3300 N17 - IC3300 AC15 - IC3300 AF9 BAA1 IC3300 A14 DA3_COMP R3589 EXB38V560JV IC3300 N13 - IC3300 U26 OSDIN3 IC3300 L17 - IC3300 G25 UVINC2 C3595 50V 0.01u IC3300 L25 YINC1 IC3300 AC4 DQA10 C3583 0.1u 16V IC3300 N14 - IC3300 L24 YINC0 IC3300 E24 UVINC8 IC3300 U16 - IC3300 R17 - C3604 6.3V 1u C3572 1u 6.3V IC3300 AF16 - IC3300 R3 DA5_AOUT IC3300 AA26 DQB4 R3599 22 IC3300 N16 - IC3300 AB15 - C3570 0.1u 16V IC3300 M12 - IC3300 B13 DA4_AOUT IC3300 AD21 DQB31 Q3324 2SB0709A0L R3584 680 MAIN3.3V L3340 G1C100KA0009 IC3300 M17 - IC3300 AA23 DQB7 IC3300 P22 - IC3300 E16 DA2_AVD1 IC3300 C12 - IC3300 AD5 DQA29 IC3300 N3 - IC3300 AE24 DQB20 IC3300 AD17 DQB15 IC3300 AC16 - IC3300 E13 DA4_AVD2 IC3300 AE8 DQA17 IC3300 V1 - IC3300 E19 - IC3300 AF18 DQB9 IC3300 AF13 - TP3305 IC3300 AA22 WEB IC3300 T17 - IC3300 AB25 RASB IC3300 P26 OSDIN12 IC3300 C14 DA3_AVS2 IC3300 U23 OSDIN0 IC3300 AF10 DQA7 R3592 0 IC3300 AE20 AB5 IC3300 U1 AD1_AVS IC3300 N24 OSDIN14 IC3300 AE7 DQA22 R3609 22 IC3300 L16 - IC3300 D19 - IC3300 H24 YINC9 R3567 75 IC3300 U17 - IC3300 AC14 - IC3300 AF22 DQB25 IC3300 P10 - IC3300 C15 DA2_AVS2 C3575 1u 6.3V IC3300 T14 - IC3300 K15 - R3604 1k R3606 56 IC3300 AF15 PLL3_VGS IC3300 M15 - IC3300 K22 - R3582 0 IC3300 AE16 - IC3300 A19 PLL2_CPO IC3300 AF14 PLL3_CPO R3578 2.7k IC3300 AB2 DQA12 IC3300 A16 DA1_VREF IC3300 M25 HSOD R3585 100 IC3300 AE3 AA5 C3576 0.33u 6.3V IC3300 Y24 DQB1 IC3300 N25 OSDIN15 IC3300 T10 - IC3300 AB11 DQA6 R3587 56 IC3300 AC20 AB7 IC3300 N1 PLL1_CPO IC3300 D16 DA2_AVD2 IC3300 D18 PLL2_AVD2 IC3300 T25 OSDIN5 R3601 EXB38V560JV IC3300 AB3 DQA13 IC3300 K17 - IC3300 AD8 DQA18 IC3300 AC26 BAB1 IC3300 P17 - IC3300 T26 OSDIN6 IC3300 R12 - IC3300 AD18 DQB11 C3580 50V 0.01u IC3300 AE2 AA8 IC3300 E25 UVINC9 MAIN3.3V IC3300 D14 DA3_AVS1 IC3300 AC25 AB10 R3577 820 IC3300 N11 - IC3300 B11 - IC3300 F24 UVINC4 IC3300 P12 - IC3300 P14 - IC3300 R25 OSDIN8 R3573 75 C3603 1u 6.3V IC3300 AA24 DQB6 C3588 0.1u 16V IC3300 U4 - MAIN3.3V C3600 50V 0.01u C3590 0.1u 16V IC3300 F22 - IC3300 T12 - IC3300 L12 - R3569 2.2k IC3300 T15 - IC3300 AF21 DQB29 IC3300 J24 YINC5 C3599 50V 0.01u IC3300 AF19 AB9 C3579 50V 0.01u R3562 2.2k IC3300 R4 DA5_AVS R3598 22 IC3300 B14 DA3_AOUT C3591 1u 6.3V IC3300 AC8 DQA19 IC3300 AB9 AA2 C3589 1u 6.3V L3337 J0JCC0000241 IC3300 AE25 DQB18 IC3300 AC10 RASA IC3300 P2 PLL1_AVS2 IC3300 P5 - IC3300 M3 PLL1CLKIN IC3300 AD12 DQA2 IC3300 AB19 DQB8 IC3300 AF5 DQA27 IC3300 M10 - IC3300 AF4 DQA30 IC3300 AD20 AB6 IC3300 Y22 DQB3 IC3300 T11 - IC3300 D25 VSIC C3586 0.1u 16V IC3300 AE14 PLL3_AVD IC3300 AB18 DQB12 R3565 2.7k IC3300 A15 DA2_COMP IC3300 AD3 SDCLKIA L3336 J0JCC0000241 IC3300 A18 PLL2_AVS1 R3588 0 R3564 2.2k IC3300 Y25 DQB0 C3596 1u 6.3V IC3300 AF23 DQB22 IC3300 K16 - IC3300 B16 DA1_AOUT IC3300 R10 - IC3300 C13 DA4_AVS2 IC3300 AB26 CASB C3607 120p 50V C3573 1u 6.3V IC3300 A12 DA4_COMP IC3300 P15 - IC3300 AD7 DQA23 IC3300 M24 VSOD IC3300 E12 DA4_AVD1 IC3300 AF2 AA6 R3561 470 IC3300 AD4 AA3 IC3300 AD22 DQB27 IC3300 K12 - IC3300 Y23 DQB2 IC3300 B20 - R3610 56 IC3300 AD6 DQA26 IC3300 AE13 - IC3300 K24 YINC2 IC3300 T2 AD1_VIN3 IC3300 E15 DA3_AVD2 IC3300 AE1 AA7 IC3300 R11 - IC3300 AF25 DQB17 L3334 J0JCC0000241 C3602 1u 6.3V IC3300 AB8 DQA20 IC3300 N15 - IC3300 R5 DA5_AVD IC3300 AE10 WEA IC3300 AE5 DQA28 C3578 6.3V 1u IC3300 R13 - R3563 1.1k IC3300 L15 - IC3300 L26 CLKID IC3300 AE9 AA10 Q3325 2SB0709A0L IC3300 AC24 AB0 C3597 50V 470p IC3300 G26 UVINC3 IC3300 AA25 DQB5 IC3300 E26 HSIC C3581 50V 0.01u MAIN5V IC3300 AD11 DQA5 C3565 1u 6.3V IC3300 M2 - C3571 0.1u 16V TP3302 C3606 1u 6.3V IC3300 G22 - IC3300 AB10 BAA0 IC3300 C19 - R3570 1.1k IC3300 E17 DA1_AVD2 L3339 J0JCC0000241 IC3300 T3 AD1_VIN2 C3568 1u 6.3V R3580 1.1k IC3300 AE15 PLL3_AVS IC3300 AD25 AB2 IC3300 AE12 DQA1 IC3300 R15 - C3569 1u 6.3V IC3300 AF6 DQA24 IC3300 P1 PLL1_AVS1 C3601 1u 6.3V IC3300 R1 DA5_VREF IC3300 AB14 - IC3300 AE22 DQB26 IC3300 C18 PLL2_AVD1 IC3300 R22 - C3584 0.01u 50V IC3300 A17 DA1_COMP IC3300 L11 - IC3300 AD23 DQB24 IC3300 L14 - IC3300 AF12 DQA0 IC3300 AE19 SDCKEB IC3300 U13 - IC3300 J25 YINC6 IC3300 U12 - IC3300 R2 DA5_VRO IC3300 U15 - R3579 2.2k IC3300 F26 UVINC6 IC3300 AE6 DQA25 IC3300 T16 - IC3300 P13 - IC3300 AD19 SDCLKOB IC3300 AF8 DQA16 IC3300 F25 UVINC5 IC3300 K13 - IC3300 E14 DA3_AVD1 IC3300 R16 - IC3300 A11 - IC3300 AC1 SDCLKOA IC3300 M26 CLKOD R3426 0 IC3300 T1 AD1_VR C0CBCAD00015 IC3313 1 Vcont 2 GND 3 Np 5 Vin 4 Vout IC3300 L13 - IC3300 P11 - C3608 16V 0.1u R3608 470 IC3300 D15 DA2_AVS1 IC3300 M1 - IC3300 B15 DA2_AOUT IC3300 C17 DA1_AVS1 IC3300 AD16 - JS3309 C3567 1u 6.3V IC3300 B17 DA1_VRO IC3300 E23 UVINC7 R3591 0 IC3300 U11 - IC3300 P4 PLL1_AVD2 IC3300 AD24 DQB21 IC3300 G24 UVINC1 C3577 50V 6800p IC3300 T5 - IC3300 N10 - IC3300 U2 AD1_AVD IC3300 H26 UVINC0 C3598 1u 6.3V IC3300 AD9 AA0 IC3300 N23 OSDIN13 R3611 0 IC3300 AB20 AB8 IC3300 T24 OSDIN4 IC3300 M11 - IC3300 M23 OSDYM IC3300 AD13 - IC3300 W22 - IC3300 AC9 AA1 IC3300 AD1 AA9 IC3300 AD14 - R3571 2.2k IC3300 AE26 DQB16 IC3300 AF20 AB4 IC3300 K25 YINC3 IC3300 P24 OSDIN10 JS3308 IC3300 K14 - IC3300 B18 PLL2_AVS2 C3605 16V 0.1u R3568 620 IC3300 H23 YINC8 IC3300 D26 CLKOC IC3300 T4 AD1_VIN1 SDRAM A SDRAM B C D VSS PLL DA/AD SDRAM PLL 1.8V DDIF/OUT PLL 3.3V 33 36 28 32 31 30 29 34 35 C1AB00001926 GC3I IC3300 61 62 63 64 65 66 67 43 44 41 42 45 TH-42PA40C HC-Board (4 of 7) Schematic Diagram TH-42PA40C HC-Board (4 of 7) Schematic Diagram HC-BOARD TXNHM1VPSC (4/7) 74 15.17.HC 电路板 (5/7) 线路图 + + DQA15 DQA26 AA2 DQA1 DQA3 DQA29 DQA18 DQA19 AA8 DQA0 AA1 AA3 DQA4 AA5 AA4 DQA9 SDCKEA AA0 DQA27 DQA13 AA9 DQA30 AA6 SDCLKOA DQA20 DQA23 DQA31 DQA21 DQA7 AA7 DQA28 BAA0 DQA14 DQA25 DQA10 DQA17 DQA16 WEA RASA CASA AB_LCD_CLK AB4 DQB18 DQB7 DQB20 DQB6 DQB3 DQB28 DQB13 DQB9 AB10 AB9 SDCKEB DQB26 DQB2 DQB31 DQB24 SDCLKOB AB1 WEB AB5 DQB14 AB2 DQB1 DQB21 DQB27 DQB25 DQB10 DQB19 BAB1 CASB RASB AB_LCD_ENB DQA2 DQA5 DQA6 BAA1 AA10 DQA22 DQA12 DQA11 DQA8 DQA24 DQB0 DQB5 DQB4 BAB0 AB0 DQB30 DQB29 DQB15 DQB12 DQB8 DQB11 AB3 AB8 AB7 AB6 DQB23 DQB22 DQB17 DQB16 SDA_PANEL SDA_PANEL SCL_PANEL SCL_PANEL 5V_STB SDA_PANEL SCL_PANEL RXD0 TXD0 5V_STB SRQ_PANEL SRQ_PANEL SCL_PANEL SDA_PANEL AI_SCL_2 R_OUT AI_SDA_1 AI_SCL_1 AI_SCL_0 AI_SDA_0 AS_SRQ AI_SDA_2 AS_REMOTE AB_LCD_B0 AB_LCD_G3 AB_LCD_G4 AB_LCD_G0 AB_LCD_G1 AB_LCD_G5 AB_LCD_G7 AB_LCD_G2 AB_LCD_B7 AB_LCD_B6 AB_LCD_B5 AB_LCD_B4 AB_LCD_B3 AB_LCD_B1 AB_LCD_R1 AB_LCD_R7 AB_LCD_R6 AB_LCD_R5 AB_LCD_R4 AB_LCD_R3 AB_LCD_R2 AB_LCD_R0 AB_LCD_HS AB_LCD_VS L_OUT CLK_SEL AB_LCD_G6 3.3V_MAIN AB_LCD_B2 R3618 68 MAIN3.3V C3625 50V 0.01u R3641 D1HG6808A002 R3637 68 C3648 10V 1u R3627 0 R3619 D1HG6808A002 R3635 68 C3614 50V 0.01u R3657 10k R3644 EXB38V680JV C3637 50V 0.01u C3652 16V 0.1u TP3306 R3594 EXB38V680JV C3653 16V 0.1u R3517 22 C3659 50V 1000p TVRN420 IC3319 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3626 10V 1u C3663 50V 0.01u R3593 68 C3627 50V 0.01u C3654 16V 0.1u R3613 68 C3655 16V 0.1u R3616 68 R3631 68 R3664 22 R3667 22 C3611 50V 1000p C3665 50V 0.01u R3622 0 C3635 50V 0.01u STB5V C3667 50V 1000p R3640 68 C3643 0.01u 50V C3617 50V 0.01u H4 K1KA08A00293 1 2 3 4 5 6 7 8 R3660 22 C3669 50V 0.1u C3615 50V 0.01u IC3317 C3ABPJ000065 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDD 16 DQM0 17 WE 18 CAS 19 RAS 20 CS 21 NC 22 BA0 23 BA1 24 A10 25 A0 26 A1 27 A2 28 DQM2 29 VDD 30 NC 31 DQ16 32 VSSQ 33 DQ17 34 DQ18 35 VDDQ 36 DQ19 37 DQ20 38 VSSQ 39 DQ21 40 DQ22 41 VDDQ 42 DQ23 43 VDD 44 VSS 45 DQ24 46 VSSQ 47 DQ25 48 DQ26 49 VDDQ 50 DQ27 51 DQ28 52 VSSQ 53 DQ29 54 DQ30 55 VDDQ 56 DQ31 57 NC 58 VSS 59 DQM3 60 A3 61 A4 62 A5 63 A6 64 A7 65 A8 66 A9 67 CKE 68 CLK 69 NC 70 NC 71 DQM1 72 VSS 73 NC 74 DQ8 75 VDDQ 76 DQ9 77 DQ10 78 VSSQ 79 DQ11 80 DQ12 81 VDDQ 82 DQ13 83 DQ14 84 VSSQ 85 DQ15 86 VSS R3654 EXB38V680JV R3634 D1HG6808A002 C3636 50V 0.01u H1 K1KA80B00034 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C3662 16V 0.1u C3612 50V 0.01u R3663 22 R3642 D1HG6808A002 C3630 10V 1u R3639 68 R3621 D1HG6808A002 C3616 50V 0.01u H3 K1KA07A00189 1 2 3 4 5 6 7 R3632 D1HG6808A002 C3657 16V 0.1u L3343 J0JHC0000078 R3614 68 R3665 10k C3650 10V 1u R3628 68 R3658 22 R3612 68 C3618 50V 0.01u C3623 220u 4V C3641 0.01u 50V C3619 50V 0.01u R3645 0 Q3317 2SD0601A0L C3639 0.01u 50V C3664 50V 0.01u C3632 10V 1u R3646 0 C3656 16V 0.1u R3512 22 R3636 68 R3669 22 MAIN3.3V R3643 EXB38V680JV C3660 4V 100u R3659 22 C3638 50V 0.01u R3648 68 C3613 50V 0.01u C3628 10V 1u STB5V R3511 22 R3432 0 C3621 16V 0.1u R3651 EXB38V680JV R3666 10k IC3315 C3ABPJ000065 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDD 16 DQM0 17 WE 18 CAS 19 RAS 20 CS 21 NC 22 BA0 23 BA1 24 A10 25 A0 26 A1 27 A2 28 DQM2 29 VDD 30 NC 31 DQ16 32 VSSQ 33 DQ17 34 DQ18 35 VDDQ 36 DQ19 37 DQ20 38 VSSQ 39 DQ21 40 DQ22 41 VDDQ 42 DQ23 43 VDD 44 VSS 45 DQ24 46 VSSQ 47 DQ25 48 DQ26 49 VDDQ 50 DQ27 51 DQ28 52 VSSQ 53 DQ29 54 DQ30 55 VDDQ 56 DQ31 57 NC 58 VSS 59 DQM3 60 A3 61 A4 62 A5 63 A6 64 A7 65 A8 66 A9 67 CKE 68 CLK 69 NC 70 NC 71 DQM1 72 VSS 73 NC 74 DQ8 75 VDDQ 76 DQ9 77 DQ10 78 VSSQ 79 DQ11 80 DQ12 81 VDDQ 82 DQ13 83 DQ14 84 VSSQ 85 DQ15 86 VSS R3649 68 R3638 68 C3672 10V 1u C3634 0.01u 50V C3631 50V 0.01u TP3307 IC3318 C0ZBZ0000967 1 Vcc 2 TxIN5 3 TxIN6 4 TxIN7 5 GND 6 TxIN8 7 TxIN9 8 TxIN10 9 Vcc 10 TxIN11 11 TxIN12 12 TxIN13 13 GND 14 TxIN14 15 TxIN15 16 TxIN16 17 R_FB 18 TxIN17 19 TxIN18 20 TxIN19 21 GND 22 TxIN20 23 TxIN21 24 TxIN22 25 TxIN23 26 Vcc 27 TxIN24 28 TxIN25 29 GND 30 TxIN26 31 TxCLKIN 32 PWRDWN 33 PLLGND 34 PLLVcc 35 PLLGND 36 LVDSGND 37 TxOUT3+ 38 TxOUT3- 39 TxCLKOUT+ 40 TxCLKOUT- 41 TxOUT2+ 42 TxOUT2- 43 LVDSGND 44 LVDSVcc 45 TxOUT1+ 46 TxOUT1- 47 TxOUT0+ 48 TxOUT0- 49 LVDSGND 50 TxIN27 51 TxIN0 52 TxIN1 53 GND 54 TxIN2 55 TxIN3 56 TxIN4 IC3320 C0JBAZ000801 1 A0 2 A1 3 A2 4 P0 5 P1 6 P2 7 P3 8 GND 9 P4 10 P5 11 P6 12 P7 13 VDAC 14 SCL 1 15 SDA 1 16 VCC R3630 68 C3620 50V 1000p R3345 10k C3633 50V 1000p C3658 50V 1000p C3629 50V 0.01u R3629 68 R3652 EXB38V680JV L3342 J0JHC0000078 C3640 0.01u 50V MAIN3.3V R3661 22 C3646 10V 1u R3340 10k C3647 50V 0.01u R3615 68 R3655 10k R3596 68 C3661 16V 0.1u STB5V R3617 68 R3624 0 R3653 D1HG6808A002 R3633 D1HG6808A002 R3647 0 C3622 6.3V 2.2u R3620 D1HG6808A002 C3649 50V 0.01u C3645 0.01u 50V C3651 50V 0.01u C3642 50V 1000p R3670 22 C3668 50V 0.01u R3597 68 C3644 10V 1u R3516 10k R3656 0 R3662 10k R3650 EXB38V680JV C3666 50V 0.1u C3671 10V 1u R3668 22 SDRAM A SDRAM B SCL1 SCL0 SDA1 SDA0 SCL2 SDA2 Rx0- Rx0+ Rx1- Rx2- Rx1+ Rx2+ RxCLK- RxCLK+ Rx3- Rx3+ SRQ STB5V TO SLOT1 R L SCL SDA 42 37 41 45 39 40 38 43 44 64M SDRAM 64M SDRAM LVDS TRANSMITTER EX.I/O EEPROM USE FOR FACTORY FOR FACTORY USE 63 62 66 65 61 67 64 81 82 83 84 85 TH-42PA40C HC-Board (5 of 7) Schematic Diagram TH-42PA40C HC-Board (5 of 7) Schematic Diagram HC-BOARD TXNHM1VPSC (5/7) 75 15.18.HC 电路板 (6/7) 线路图 + R G + + AQ_D9 AQ_D12 AO_A13 AO_A11 AO_A4 AO_A13 AO_A2 AO_A7 AJ_VSYNC AO_A6 AO_A8 AO_A9 AQ_D13 AS_OSDR AQ_D11 AO_A16 AQ_D9 AQ_D11 AQ_D9 AO_A12 AO_A10 AO_A0 AQ_D4 AQ_D14 AQ_D8 AP_WR AO_A5 AQ_D10 AQ_D12 AO_A14 AR_CS AO_A0 AR_CKE AQ_D10 AO_A3 AR_CKE AQ_D13 AO_A12 AQ_D0 AQ_D8 AO_A11 AS_OSDG AQ_D6 AQ_D4 AQ_D5 AO_A19 AP_CSD AO_A2 AQ_D2 AO_A3 AR_WR AO_A5 AO_A15 AO_A5 AO_A9 AO_A18 AO_A17 AS_M2_WP AP_RD AO_A4 AO_A8 AO_A7 AI_SCL_0 AQ_D10 AR_UDQM AO_A3 AO_A1 AQ_D7 AO_A2 AR_LDQM AQ_D2 AP_CSD AP_RD AO_A6 AO_A14 AQ_D0 AQ_D4 AS_OSDB AO_A10 AO_A15 AQ_D7 AO_A19 AQ_D11 AQ_D15 AO_A9 AO_A10 AQ_D14 AO_A6 AQ_D14 AQ_D1 AS_BLK AO_A15 AO_A0 AQ_D7 AQ_D8 AQ_D2 AR_CLK AQ_D6 AO_A14 AQ_D3 AQ_D5 AO_A8 AQ_D6 AO_A11 AR_UDQM AO_A1 AQ_D3 AP_CSD AO_A4 AQ_D3 AO_A17 AO_A18 AQ_D1 AR_CS AQ_D1 AJ_HSYNC AQ_D13 AR_WR AS_M2_TRGO AQ_D0 AO_A12 AQ_D5 AR_LDQM AO_A7 AQ_D15 AQ_D15 AQ_D12 AI_SDA_2 AI_SCL_2 AS_GC3_RST AS_M2_TRGI AS_LCD_MUTE AI_SDA_0 AO_A16 SCL_0 AI_SCL_1 AI_SCL_1 AI_SDA_1 AI_SDA_1 AR_CLK AQ_M2_TMS RXD0 TXD0 AQ_M2_TCK AA_CVBS1 AQ_M2_TDO AQ_M2_TDO AQ_M2_TDI AQ_M2_TDI 9V_MAIN AS_MUTE AS_AFC AS_SRQ SDA_0 REMOTE_OUT REMOTE_SEL AO_A1 AO_A13 2.5V_STB 2.5V_STB 3.3V_STB 3.3V_STB AS_M2_TRGI AQ_M2_TCK AS_M2_WP 3.3V_STB 3.3V_STB 3.3V_STB 3.3V_STB 3.3V_STB 3.3V_STB AS_M2_TRGO AQ_M2_TMS AS_REMOTE AP_WR C3721 16V 0.1u C3728 50V 270p Q3326 2SD0601A0L R3730 22 R3732 0 C3710 50V 1000p L3348 ELJFA8R2KF R3713 100 C3689 50V 1000p R3727 68 C3679 16V 0.1u C3724 16V 0.1u R3747 10k R3702 EXB38V680JV R3707 EXB38V680JV R3716 EXB38V680JV C0EBE0000120 IC3323 1 RST 2 VDD 3 GND 5 Cd 4 NC C3681 16V 0.1u C3723 16V 0.1u R3746 100 R3402 0 R3728 EXB38V680JV R3673 22k R3722 270 C3693 16V 0.1u C3682 1u 10V R3689 22 R3726 68 R3677 10k C3688 1u 10V R3718 0 C3708 16V 0.1u R3715 100 R3743 100 C0JBBZ000281 IC3324 1 NC 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 A9 11 A10 12 GND 13 B10 14 B9 15 B8 16 B7 17 B6 18 B5 19 B4 20 B3 21 B2 22 B1 23 OE 24 Vcc C3733 50V 270p C3687 4V 220u C3720 50V 0.01u R3678 68k R3714 EXB38V680JV C3696 16V 0.1u C3703 50V 1000p C3ABPG000133 IC3327 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 WE 17 CAS 18 RAS 19 CS 20 BA0 21 BA1 22 A10/AP 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 UDQM 40 NC/RFU 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS C3684 16V 0.1u R3681 0 C3691 16V 0.1u C3694 50V 150p C3525 6.3V 10u R3735 EXB38V103JV R3742 100 TVRN419 IC3328 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE 12 RESET 13 NC 14 NC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 Vss 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 Vcc 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 Vss 47 BYTE 48 A16 R3671 22k R3712 0 R3725 EXB38V680JV D3302 LNJ107W5PRW C3698 50V 1000p R3724 56 STB3.3V Q3329 UNR521100L C3690 16V 0.1u R3752 10k C3722 16V 0.1u R3734 22 R3683 EXB38V680JV R3711 EXB38V680JV Q3327 2SD0601A0L C3732 16V 0.1u C3726 16V 0.1u IC3325 C0JBAB000591 1 NC 2 A 3 GND 5 Vcc 4 Y L3353 J0JHC0000078 R3698 4.7k C3712 16V 0.1u R3705 100 R3733 22 R3738 10k R3703 22 C3730 16V 0.1u R3748 EXB38V103JV R3719 0 L3352 J0JHC0000078 R3697 10k C3680 16V 0.1u L3351 J0JHC0000078 C3711 16V 0.1u STB3.3V R3740 10k C3701 16V 0.1u R3690 22 C3725 4V 100u R3736 10k C3731 50V 270p R3679 100k R3706 330 C3736 16V 0.1u R3758 5.6k C3686 16V 0.1u R3729 22 R3688 22 R3709 470 R3680 68k R3684 10k STB5V C3727 10V 1u R3723 0 R3721 100 C3697 50V 22p C3700 50V 22p R3692 3.9k R3338 3.3k R3685 0 C3706 10u 16V C3729 50V 270p C3715 16V 0.1u C3707 16V 0.1u R3731 100 C3735 16V 0.1u R3691 22 C3734 50V 270p STB2.5V C3718 10V 1u C3737 16V 0.1u R3699 EXB38V680JV R3694 10k C3692 16V 0.1u R3672 22k C3719 16V 0.1u R3717 EXB38V680JV C3713 16V 0.1u R3737 10k R3741 5.6k R3754 0 R3682 EXB38V680JV R3749 0 IC3322 TVRN503 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc MAIN9V R3750 EXB38V103JV R3739 10k R3744 4.7k X3302 H0J600400006 R3686 EXB38V680JV C3683 50V 1000p R3674 22k MAIN5V C3704 16V 0.1u C3714 16V 0.1u R3710 10k R3675 22k L3350 J0JGC0000021 R3676 22k C3699 16V 0.1u STB3.3V C3685 16V 0.1u R3337 1.8k IC3326 C0JBAE000231 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc IC3321 C2CBYF000028 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 HSYNC A7 COR A9 BLK A6 VDD33-8 A5 VSS33-8 A10 XTAL1 A11 REMOTE_SEL XTAL2 VSS33-1 A12 VSSA-1 VDD33-1 VSS33-2 GC3_RST VDD33-2 A4 A3 A2 A1 A0 A13 A14 A15 VSS33-3 INV_ON TXD/MTSR VSS33-7 TDD VDD33-7 RMCN_IN VSS25-2 RMCN_OUT VDD25-2 TXDO Main5V_Det RXDO WR D15 VDDA-1 VSS33-4 OSD R VDD33-4 OSD G D7 D0 D14 D8 D6 D1 VSS33-5 VDD33-5 D13 D9 D5 OSD B D2 VSSA-2 D12 VDDA-2 D10 CVBS2 VSS33-6 VSSA-3 VDD33-6 VDDA-3 D4 D3 D11 RSTIN CVBS1B CVBS1A VSSA-4 VDDA-4 KEY AFC DVD_KEY1 DVD_KEY2 TMODE SCL0 SDA0 EEPROM_WP VDD33-3 LED_R MEMCLK RESQ CSSDRAM CLKEN MUTE CSROM RxD/CS MAIN_ON/SCLK RD RGB_SEL PANEL_ON UDQM SOS DCC LDQM TRGI A19 TRGO A18 LCD_MUTE A17 SCL1 VSS25-1 SDA1 TCK VDD25-1 SCL2 TMS A16 SDA2 TDI VSYNC A8 3.3V 5V Q-LINK_SEL /MAINSW_DET Q-LINK OUT / HDMI_CEC_OUT SRQ CLKOD 50 53 47 51 48 49 54 46 52 MICON RESET EEPROM 64M SDRAM 16M FLASH INVERTER FLIP FROP 84 85 83 82 81 TH-42PA40C HC-Board (6 of 7) Schematic Diagram TH-42PA40C HC-Board (6 of 7) Schematic Diagram HC-BOARD TXNHM1VPSC (6/7) 76 15.19.HC 电路板 (7/7) 线路图 + + + + + + 5V_STB 2.5V_STB 5V_MAIN 3.3V_MAIN 9V_MAIN 3.3V_STB 9V_MAIN 5V_STB BT30V C3762 16V 47u FL3311 ELKE103FA 1 2 3 C3755 47u 35V R3760 2k C3743 16V 0.1u Q3330 B1ABPF000005 STB5V C3540 220u 4V 0.1u C3765 16V 0.1u C3739 16V C3757 50V 4700p C3774 16V 0.1u D3305 B0JCME000025 C3771 50V 270p C3764 16V 4.7u 0.1u C3772 16V R3766 24.9k C3776 50V 220p MAIN1.8V C0CBAYG00011 IC3331 1 Vc 2 VIN 3 Vo 4 ADJ 5 GND 6 GND 7 GND 8 GND R3772 71.5k C3753 50V 0.01u 0.1u C3745 16V R3771 91k MAIN3.3V 0.1u C3738 16V 0.1u C3747 16V C0DBEZE00002 IC3330 1 IN 2 SW 3 OUT 4 ADJ 5 GND 6 R3764 820k H2 K1KA80B00034 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3767 23.7k C3752 16V 0.1u 0.1u C3741 16V MAIN9V R3765 13.7k L3356 G1C220MA0077 C3760 50V 1000p C0CBCBD00008 IC3332 1 Vcont 2 GND 3 Np 5 Vin 4 Vout 0.1u C3748 16V IC3333 C0DBAZE00008 1 ITH 2 RUN/SS 3 VFB 4 GND 5 SW 6 VIN 7 SYNC/MODE 8 VREF D3303 B0JCME000025 0.1u C3746 16V C3770 50V 0.1u R3770 2k IC3329 C0DBZHE00019 1 Vin 2 Vc 3 Vo 4 NC 5 GND 6 Vo FL3312 ELKE103FA 1 2 3 D3304 B0JCME000025 D3306 B0JCME000025 0.01u C3763 16V R3762 4.12k C3500 220u 4V STB3.3V C3761 50V 0.1u FL3313 ELKE103FA 1 2 3 D3307 MA2J11100L C3744 16V 0.1u MAIN5V STB2.5V C3767 50V 0.1u 0.1u C3754 16V IC3334 C0DBAMA00015 1 EaIn 2 SCP 3 VCC 4 BR/CTL 5 Out 6 GND 7 OSC 8 FB C3749 1u 10V 0.1u C3758 16V R3768 12k Q3331 UNR221100L FL3314 ELKE103FA 1 2 3 R3763 15k C3742 6.3V 100u L3354 G1C101M00018 R3508 0 C3759 50V 1000p C3768 47u 6.3V MSP8V L3346 G1C330K00017 0.1u C3740 16V C3766 16V 0.1u TUNER5V U/V TUNER 30V R SCL SDA L TXD RXD SRQ REMOTE CABLE_DET PLUG_DET POW_STAT SOS S2_det Reset1 Reset2 B R G VD HD 0.5A 58 59 61 55 60 62 56 63 57 STB 2.5V STB 3.3V MAIN 1.8V MSP 8V TUNER 5V TO SLOT2 5V_STB 9V_MAIN 5V_MAIN 3.3V_MAIN TH-42PA40C HC-Board (7 of 7) Schematic Diagram TH-42PA40C HC-Board (7 of 7) Schematic Diagram HC-BOARD TXNHM1VPSC (7/7) 77 15.20.HX 电路板方框图 JK3513 L AMP Q3532 R IN L IN 14 12 13 1 2 3 15 R AMP Q3531 13 11 5 1 3 7 9 6 5 7 VCLK SDA SCL DDC EEPROM IC3502 PC R PC G PC B PC HD PC VD SCL SDA PC IN JK3511 PC R PC B PC HD PC VD PC G PC Ls PC Rs TXD 3 2 RXD RXD TXD 19 18 JK3509 RS-232C REMOTE IN HX PC Terminal Board HX1 9V 5V 22 21 R L Q3535 Q3533 Q3536 Q3534 TO J14 TH-42PA40C HX-Board Block Diagram TH-42PA40C HX-Board Block Diagram 78 15.21.HX 电路板线路图 + + + AC_HD AB_RXD AB_TXD AB_RXD AB_TXD AC_VD AC_HD AC_VD R3776 100 R3400 10k D3509 MAZ81600HL R3672 100 FL3509 J0HABB000004 1 2 3 4 C3409 16V 0.1u C3524 50V 0.01u R3656 33k R3510 100 Q3532 2SD0601A0L JK3511 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 FL3513 J0HAAB000012 1 2 3 4 D3504 MAZ30560ML C3405 16V 47u L3526 ELJPA100KF R3592 0 D3503 MAZ30560ML FL3508 J0HABB000004 1 2 3 4 L3555 ELJPA100KF R3664 1k R3654 33k D3502 MAZ30560ML C3561 1u 16V FL3515 J0HAAB000012 1 2 3 4 R3590 56 Q3531 2SD0601A0L R3511 100 R3548 100 R3529 180k JK3509 1 2 3 4 5 8 9 6 7 R3791 0 C3550 50V 0.01u R3508 4.7k FL3517 J0HAAB000012 1 2 3 4 R3777 100 HX1 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 12 13 14 15 FL3514 J0HAAB000012 1 2 3 4 FL3511 J0HAAB000012 1 2 3 4 C3404 16V 0.1u R3668 100 R3589 47k D3508 MAZ81600HL D3501 MAZ30560ML R3653 15k R3585 56 R3509 4.7k FL3516 J0HAAB000012 1 2 3 4 R3790 0 D3510 MAZ81600HL FL3507 J0HABB000004 1 2 3 4 FL3510 J0HAAB000012 1 2 3 4 C3562 1u 16V R3778 47k D3507 MAZ81600HL R3547 100 IC3502 TVRN304 1 NC 2 NC 3 NC 4 VSS 5 SDA 6 SCL 7 VCLK 8 VCC R3593 0 C3551 16V 47u C3523 16V 47u R3591 0 R3655 15k R3663 1k JK3513 K2HC103B0105 FL3512 J0HAAB000012 1 2 3 4 R3586 56 R3530 180k B C 4 2 A 3 E 7 8 6 F 5 9 1 D 9V TXD RXD VD STB5 PC R PC G PC B R DDC EEPROM RXD TXD DTR CD GND PC Ls PC Rs HD TJS8A9880 CTS RTS PCis DSR RI L 5V RS-232C AUDIO IN PC IN J-BOARD TO (J14) 9.0 0 0 0 0 0 0 0 2.4 0 5.3 0 0 0 0 0 5.3 0 0 0 0 0 9.0 6.0 5.4 5.3 9.0 6.0 0 0 0 0 4.5 0 1.6 5.3 HX-BOARD TNPA3400 ! TH-42PA40C HX-Board Schematic Diagram TH-42PA40C HX-Board Schematic Diagram 79 15.22.HZ 电路板方框图和线路图 B GR R + Y Pb Pr AB_AUD_L 9V PWR_STAT STB5V AB_AUD_R SOS AB_AUD_L REMOTE CABEL_DET TXD RXD S2_DET AA_SCL2 RESET1 AA_SDA2 9V RESET2 AB_AUD_R AA_SCL2 AA_SDA2 R3042 0 JS3004 JS3012 L3005 J0HABB000003 J0HAAB000012 1 2 3 4 TP033 R3007 100 R3015 10k JS3001 L3001 J0HABB000004 1 2 3 4 R3026 100 L3006 10u Q3001 2SD0601A0L R3005 180k R3037 10k R3023 1k R3006 100 JK3001 K2HA306B0049 TP035 R3014 10k R3036 10k TP036 R3019 100 C3008 1u 16V R3016 10k JS3013 TP034 R3041 0 JS3016 JS3015 TP032 JS3014 R3025 100 JS3007 C3022 0.1u 16V L3002 J0HABB000004 1 2 3 4 JS3006 JS3011 L3004 J0HABB000003 J0HAAB000012 1 2 3 4 R3017 10k C3012 16V 0.1u JS3005 Q3002 2SD0601A0L JS3008 JS3003 C3007 1u 16V C3021 10V 1u JS3002 H1 TO SLOT3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 JK3002 K2HA204B0097 R3022 1k L3003 J0HABB000004 1 2 3 4 R3004 180k IC3002 TVRJ983 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3011 16V 47u R3018 100 IC3002 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC JK3002 JK3001 G Y G G G Pb G G G Pr G G PLUG_DET 3.3V 3.3V RSVD RSVD VD HD LAN15V LAN15V Pr Pb Y AUD_R AUD_L EEPROM HZ-BOARD TNPA2952 COMPONENT VIDEO IN AUDIO IN L R EEPROM TERMINAL BOARD INFORMATION A36 VIDEO IN COMPONENT TERMINAL BOARD R EEPROM L Pr L AMP H1 INFORMATION R AMP Q3002 A22 A34 A28 HZ Component Video Terminal(RCA) Board A21 9V 9V AUDIO IN L Q3001 Y A38 SCL A26 SDA B25 R B24 Pb STB5V TH-42PA40C HZ-Board Block and Schematic Diagram TH-42PA40C HZ-Board Block and Schematic Diagram B C 4 2 A 3 E 7 8 6 F 5 9 1 D 80 15.23.J 电路板方框图 + S2_DET PR PB Y PB PR Y S2_DET Y PB PR S2_DET S2_DET Y PB PR Y PB PR PR Y PB SCL_S1 SDA_S1 SCL_S2 SDA_S2 SDA_S3 SCL_S3 SCL_S1 SCL_S2 SCL_S3 SDA_S1 SDA_S2 SDA_S3 SLOT1_R SLOT1_L SLOT2_R SLOT2_L SLOT3_L SLOT3_R PC_R PC_L SLOT1_L SLOT2_L SLOT3_L PC_L SLOT1_R SLOT2_R SLOT3_R PC_R RXD4 TXD4 TXD4 RXD4 VD_HX HD_HX TXD4 RXD4 RXD4 TXD4 VD_S HD_S VD_M HD_M SCL3 SDA3 SDA3 SCL3 SDA3 SCL3 SCL3 SDA3 SCL3 SDA3 SCL3 SDA3 SCL3 SDA3 SCL3 SDA3 SCL3 SDA3 REMOTE_OUT CABLE_DET TXD1 RXD1 SRQ TXD1 RXD1 VD_M HD_M SLOT1_VD SLOT2_VD SLOT3_VD PC_VD SLOT1_HD SLOT3_HD PC_HD SLOT2_HD DPMS_VD DPMS_HD CABEL_DET REMOTE PWR_STATUS SLOT1_DET SLOT2_DET SOS SLOT3_DET SLOT1_HD SLOT1_VD SLOT2_HD SLOT2_VD SLOT3_HD SLOT3_VD PC_HD_HX PC_VD_HX SLOT1_VD SLOT2_VD SLOT3_VD PC_VD SLOT1_HD SLOT2_HD SLOT3_HD PC_HD PC_VD PC_HD VD_HX HD_HX HD_HX VD_HX HD_HX VD_HX SLOT1_DET SLOT2_DET SLOT3_DET RESET FAN_CONT RESET SRQ FAN_CONT DPMS_HD DPMS_VD HD_S VD_S PWR_STATUS SOS X8181 AVR 9V 2 1 DIG12V IC8101 TX0- B12 B9 TX2- B5 TXC- B3 TX1+ TX2+ B6 B11 TX0+ TXC+ TX1- B2 B8 TX3- B15 B14 TX3+ 1 5 2 4 12 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 L 3 R 13 10 9 A B IC3001 AUDIO SELECT 15 23 17 19 Pr S2 DET Pb Y 13 Pr/R S2 DET 7 9 5 Pb/B Y/G 3 Pr S2 DET 61 63 59 Pb Y Pr 55 57 53 Pb Y SLOT3 PC SLOT2 SLOT1 SCL SDA 27 28 42 44 40 46 50 48 Pr Pb Y Pb Pr Y 7 6 5 1 IC8008 CS/VIDEO SEL(SUB) AMP 7 6 5 CS/VIDEO SEL(MAIN) 1 IC8007 AMP Q3101 Q3102 AMP 4 12 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 VD 3 HD 13 10 9 IC8001 (MAIN) 1 5 2 SYNC SELECT 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 VD 3 HD 13 10 12 9 A SW2 B SW3 IC8002 (SUB) 1 5 4 2 SYNC SELECT IC8005 INVERTER 2 3 6 4 1 5 Q3103 AMP AMP Q3106 AMP Q3104 Q3105 AMP IC3005 INPUT SW 25 1 5 17 14 11 IN OUT OUT IN OUT IN VIDEO AMP IC3101 (MAIN) 14 25 17 IN 5 (SUB) OUT IN VIDEO AMP IC3102 11 OUT OUT IN A38 A36 A34 B36 A30 A32 B31 B28 B32 B35 B27 B26 B24 B25 B23 Y/G Pb/B Pr/R S2 DET HD VD A26 AUDIO IN R A28 AUDIO IN L RESET PWR STATUS SOS PLUG DET TXD RXD IIC SCL IIC SDA SRQ Pr/R B24 Pb/B A34 B23 AUDIO IN L B28 Y/G AUDIO IN R A28 B36 IIC SDA IIC SCL A30 VD A26 SRQ HD B35 A32 RESET SOS B31 A36 S2 DET A38 PLUG DET B25 TX2- B5 TXC- B3 TX1+ TX2+ B6 B11 TX0+ TXC+ TX1- B2 B8 TX3- B15 B14 TX3+ TX0- B12 B9 TX3+ 2 6 3 TX1+ 5 TX0+ TXC- TX2+ TXC+ 14 TX1- 11 12 TX2- TX3- 15 8 TX0- 9 10 11 12 SLOT1 SLOT2 SLOT3 SLOT3 SLOT2 SLOT1 SCL 7 SDA 9 14 2 S0 S1 IC3002 IIC SW 6 5 4 Pr/R AUDIO IN L VD S2 DET A38 A26 HD A30 Pb/B AUDIO IN R A36 A28 B36 Y/G A32 A34 B35 RESET SOS B31 B28 PLUG DET B24 B23 IIC SDA IIC SCL SRQ B25 Pr/R AUDIO IN L VD HD Pb/B AUDIO IN R Y/G 7 5 1 3 9 11 13 19 18 RXD TXD TXC+ 14 TX1- 11 12 TX2- TX3- 15 6 3 TX1+ 5 TX0+ TXC- TX2+ 8 TX0- 9 TX3+ 2 J11 J12 J13 21 P5V 22 9V J14 Y M 21 PB M 23 PR M 25 10 9 1 2 SW0 SW1 SW2 SW3 SDA SCL 14 15 CS(M) 3 IC3003 EX I/O SLOT1 SLOT2 SLOT3 PC LO LO LO LO HI HI HI HI S2 S1 A HI HI HI SLOT1 SLOT2 LO B LO SLOT3 LO PC LO HI A SW0 B SW1 SLOT3 SLOT2 HI LO HI PC LO A SLOT1 HI HI B LO LO 4 8 G IN V IN H IN 6 HD- 15 13 VD+ SYNC IC8003 SIGNAL (MAIN) PROCESSOR H:ON 2 1 7 CS(M) IC8009 SWITCH 18 VD M HD M 16 J5 Y S 5 PB S 9 PR S 1 14 3 15 CS(S) SCL SDA 6 3 H:ON 5 2 H:ON 1 7 IC3007 IIC SW 15 14 4 3 10 2 9 1 SDA SCL IIC SW IIC SW IC3004 EX I/O(IIC SW) IC3006 EX I/O SW0 SW1 INVERTER 12 11 8 10 13 9 H IN (SUB) V IN 5 3 H:ON 6 15 IC8004 6 8 HD- IC8005 SWITCH 4 13 G IN CS(S) PROCESSOR IC8009 SIGNAL SYNC VD+ 9V 3 2 1 4 INVERTER IC8016 16 13 17 RS232C IC8014 15 DRIVER R1IN T1OUT T1IN R1OUT B29 B30 CABEL DET REMOTE 2 23 IIC CONT 21 RXD PC TXD TU RXD TU 11 19 POWER STATUS CABLE DET 25 TXD PC 17 13 RESET REMOTE OUT 15 REAL TIME/INTER 27 SDA1 5 4 SCL1 SCL3 SDA3 7 6 28 12 SOUND MAIN MUTE STB ON RESET 15 14 SOUND MAIN MUTE 17 L 1 SLOT9V 3 SLOT5V 5 SLOT3.3V 6 SLOT3.3V 19 R 9 DIG 12V 12 DR15V SLOT5V DIG 12V DR15V SLOT3.3V SLOT9V Q8012 Q8013 Q8010 Q8011 SLOT9V SLOT5V SLOT3.3V J8 LAN15V LAN15V 6 5 STB 5V 1 2 STB ON/OFF J6 10 11 SDA3 SCL3 J10 5 2 3 SDA SCL /INTER 6 OSCOUT OSCIN 7 VDD 8 STB5V S STB5V Q3010 Q3011 Q3001 R AMP Q3003 L AMP Q3002 LAN15V STB 5V 9V IC8100 2 AVR 12V DR15V 12V 1 AVR 5V 9V 2 5V 1 AVR 5V 9V 2 5V 1 IC3108 IC3109 Slot Interface/SYNC Processor Board J SLOT3 SLOT2 HI LO HI PC LO A SLOT1 HI HI B LO LO MAIN SUB TO H2 TO H1 P5V 9V TO HX1 TO D5 IC8181 TIME CLOCK TO Z8 TO PF10 TO D6 1 Q8019 Q8018 Q8016,Q8017,Q8001 Q8020,Q8021,Q8025 Q8023,Q8024,Q8026 FAN_CONT 4 TO D1 J1 TO D3 FAN_CONT 15 J3 17 DPMS HD DPMS VD 20 13 HD S VD S 15 Q8181 Q8182 Q8011,Q8015,Q8002 TH-42PA40C J-Board Block Diagram TH-42PA40C J-Board Block Diagram 81 15.24.J 电路板 (1/4) 线路图 + + + + AK_VD_3 AI_VD_1 AD_VD_4 AE_SW1 AE_SW0 AE_SW3 AC_CS((M)) 9V AE_SW2 AC_CS((S)) AL_VD_2 AK_HD_3 AL_HD_2 AI_HD_1 AD_HD_4 SLOT9V SLOT3.3V SLOT5V *R8071 0 *R8013 270 *R8006 0 C8049 50V 0.01u *R8020 5.6k *Q8001 2SD0601A0L IC8009 C0JBAS000109 1 2 3 4 5 6 7 8 R8047 270 R8017 5.6k *R8099 10k *R8094 100 C8051 16V 0.1u R8011 270 R8072 0 R8002 0 *R8008 0 *R3162 1k C8113 16V 0.1u C8001 16V 47u R8093 100 1% *R8060 330 R8009 270 R8098 10k J8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R8003 0 *R8062 270 C8003 50V 0.1u C8107 16V 47u *R8007 0 C8035 16V 0.1u FL3006 ELKE103FA 1 2 3 *R8019 5.6k Q8002 2SD0601A0L *R8016 270 R8097 10k R8012 270 R8010 270 C8027 16V 2.2u *C8050 50V 0.01u 1% R8036 150 *IC8002 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD IC8001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD C8106 16V 47u *R8014 270 *C8041 16V 2.2u *C8002 50V 0.1u C8112 16V 0.1u FL3007 ELKE103FA 1 2 3 FL3008 ELKE103FA 1 2 3 IC8007 C0JBAR000111 1 2 3 4 5 6 7 8 C8105 16V 47u R8018 5.6k R8004 0 1% *R8061 150 *C8043 16V 0.1u *IC8008 C0JBAR000111 1 2 3 4 5 6 7 8 L8001 G1C100K00020 R8001 0 R3163 1k 1% R8035 330 R8100 10k *R8015 270 *R8005 0 C8111 16V 0.1u SDA3 SCL3 GND GND GND GND DIG12V SLOT9V SLOT5V SLOT3.3V SLOT3.3V RESET SOUND MAIN MUTE L R FAN SWITCH GND GND GND DR15V VSS VDD HI:ON VIDEO CS CS VIDEO I0 VCC COM INH SEL I1 VEE GND SEL I1 I0 VCC COM INH VEE GND SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI HD 9V 5V Z-BOARD TO (Z8) SELECT (MAIN) SYNC SELECT SYNC (SUB) SWITCH SWITCH SWITCH TO J-BOARD (3/4) ! J-BOARD (1/4) TNPA3197 B E 7 8 3 D 4 C 1 2 F 5 6 A 9 5 6 4 2 3 1 8 7 K L M D E F G H I A B C J Q V R N S O T U P 0 3.3 0 12.0 0 9.1 0 0 3.3 5.0 4.9 0.1 0 5.5 5.5 0 0 15.5 0.4 0 0.4 4.5 4.2 0 0.5 0.4 0.4 0 9.0 2.5 0.8 4.5 4.5 2.1 9.0 9.1 0 0.4 0.9 4.6 0.9 4.4 0 0.2 9.0 0.3 0.3 4.5 4.5 0.3 9.0 9.0 4.5 8.7 3.8 9.0 3.6 0 0 0 0 4.5 4.3 0.9 4.5 4.3 4.5 5.3 4.5 9.0 8.7 3.9 3.9 0 0 0 1.6 9.0 1.0 1.6 1.0 9.0 TH-42PA40C J-Board (1 of 4) Schematic Diagram TH-42PA40C J-Board (1 of 4) Schematic Diagram 82 15.25.J 电路板 (2/4) 线路图 + + AG_HD_M AG_VD_M AF_HD_S AF_VD_S 12V 5V_M 5V_S 1% *R8032 2.2k *C8039 50V 1000p ZA3002 K4CD01000013 *C8008 50V 100p 1% R8039 4.7k R8025 0 *L8004 G1C100K00020 C8021 16V 0.47u R8026 330 ZA3001 K4CD01000013 C8029 50V 0.01u 1% *R8030 3.3k *C8032 16V 47u R8056 100 R8021 2.2k *R8034 100k C8038 50V 1000p L8005 G1C100K00020 1% *R8040 4.7k R8059 100 *C8018 16V 4.7u 1% R8037 4.7k R8077 1.5k *C8034 50V 1000p C8045 16V 1u R8045 2.2k *C8017 10V 10u R8041 18k *D8004 MA2J11100L R8067 100 JS8095 IC8003 C1AA00000395 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing R8058 100 ZA3003 K4CD01000013 R8065 100 1% *R8038 4.7k C8009 6.3V 10u *IC8004 C1AA00000395 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing C8016 16V 4.7u R8050 2.2k *R8027 0 TPJV1 *R8022 2.2k C8036 50V 100p *C8026 50V 0.01u *C8011 6.3V 10u *R8082 1.5k JS8094 *C8024 50V 0.01u *R8068 100 *R8028 330 ZA3005 K4CD01000013 ZA3004 K4CD01000013 D8003 MA2J11100L R8055 100 C8025 50V 0.01u *TPJH2 L8003 G1C100K00020 C8015 10V 10u R8081 1.5k *C8014 16V 0.1u ZA3007 K4CD01000013 C8033 50V 1000p C8019 50V 0.01u R8046 2.2k IC8005 C0JBAB000417 TC74HC14AF(EL) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 *C8022 16V 0.47u *R8078 1.5k *C8031 50V 0.01u *D8002 MA2J11100L *R8042 18k *C8020 50V 0.01u *R8049 2.2k TPJH1 *R8070 100 C8005 50V 0.01u R8048 2.2k C8023 50V 0.01u C8030 16V 47u *C8037 50V 100p 1% R8031 2.2k D8001 MA2J11100L C8007 50V 100p *TPJV2 R8051 2.2k C8013 16V 0.1u ZA3006 K4CD01000013 *C8006 50V 0.01u R8033 100k 1% R8029 3k VD HD VD O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC HP VP VP HP 12V 5V PROCESSOR (MAIN) SIGNAL SYNC PROCESSOR SIGNAL (SUB) SYNC INVERTER J-BOARD (4/4) TO 14 12 10 16 11 15 13 17 18 4 2 3 1 8 7 5 6 AA AB 6.2 6.2 4.3 5.0 3.0 4.3 5.0 0.9 0 0 4.8 0 3.3 0 5.0 5.0 0.3 12.0 0.3 0 6.1 0 0 1.9 6.2 0 6.2 6.1 4.0 0 11.9 3.4 0 0 0 0 0 0 0 0 0 5.3 0 0 0 0.1 0 5.2 0 5.3 0 5.2 0 5.3 TH-42PA40C J-Board (2 of 4) Schematic Diagram TH-42PA40C J-Board (2 of 4) Schematic Diagram ! J-BOARD (2/4) TNPA3197 83 15.26.J 电路板 (3/4) 线路图 + + + + + + + + + + + AB_SCL3 AB_SDA3 AB_SCL3 AB_SDA3 AI_R_1 AI_L_1 AJ_RXD1 AH_SLOT3_DET AM_SDA_S3 AM_SCL_S3 AK_R_3 AK_L_3 AL_L_2 AH_SLOT2_DET AL_R_2 AL_VD_2 AL_HD_2 AL_PR_2 AL_S2_2 AL_PB_2 AL_Y_2 AN_SDA_S1 AN_SCL_S1 AJ_TXD1 AI_VD_1 AI_HD_1 AI_PR_1 AI_PB_1 AI_S2_1 AI_Y_1 AB_SDA3 AB_SCL3 AH_SOS AN_SCL_S1 AH_SOS AN_SDA_S1 AL_R_2 AD_R_4 AI_L_1 AL_L_2 AD_L_4 AI_R_1 AH_SOS_ALL AB_SDA3 AJ_TXD1 AJ_RXD1 AJ_TXD4 RXD_PC 5V AB_SCL3 AA_SDA3 AF_DPMS_VD AF_DPMS_HD AJ_STATUS AF_PR_S AG_PR_M AG_Y_M AF_Y_S AF_PB_S AG_PB_M AF_HD_S AG_HD_M AF_VD_S AG_VD_M AH_SLOT1_DET AC_SW0 AC_SW1 AH_SLOT1_DET AH_SLOT2_DET AA_SCL3 P5V SLOT5V SLOT3.3V P5V P5V LAN15V 12V LAN15V SLOT9V SLOT5V STB5V_S STB5V_S STB5V_S SLOT3.3V UNREG15V STB5V_S SLOT9V STB3.3V STB5V_S UNREG12V 9V LAN15V STB5V_S STB3.3V STB5V_S P5V STB5V_S C8100 16V 47u R3062 100 C0JBCA000066 IC3150 1 A 2 B 3 GND 5 Vcc 4 Y R8183 0 FL3005 ELKE103FA 1 2 3 R8186 2.7k R3015 0 C8123 16V 0.1u R3006 4.7k R3027 10k R3013 15k C3007 16V 47u D3001 MA2J11100L C8114 50V 0.01u C8117 50V 0.01u R3007 10k IC3007 C0JBAS000109 1 2 3 4 5 6 7 8 R3150 100 R8187 56 R3025 100 C3150 16V 0.1u R3063 100 C8122 16V 47u C8103 16V 47u D8180 MA2J11100L C8115 16V 47u R3042 0 IC3002 C0JBBR000002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R3141 47k R3198 12k Q3003 2SD0601A0L R8182 100 IC8101 C0CBAHG00005 GND 3 2 OUT IN 1 R3061 100 R8185 2.7k FL3009 ELKE103FA 1 2 3 R3020 0 R3043 0 X8181 H0J327200038 R3005 4.7k *J10 1 2 3 4 5 6 D3061 MA2J72800L Q8182 B1CBHD000001 G D S D3008 MA2J11100L FL3003 ELKE103FA 1 2 3 C8109 16V 0.1u J5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Q3002 2SD0601A0L R8184 0 C3011 16V 0.1u R3032 0 R3011 15k R3016 0 Q3004 2SD0601A0L Q3001 2SB0709A0L C3001 50V 0.01u R3160 5.6k D3005 LNJ206R5ARA R3196 10k FL3000 ELKE103FA 1 2 3 R3026 10k R3009 100 R3014 33k R3024 100 C8185 5.5V 1.5 C3006 16V 1u IC8181 C1DB00000274 1 2 3 4 5 6 7 8 Q8181 B1CBHD000001 G D S C8101 50V 0.01u C8182 50V 15p J12 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3116 10k L8181 G1C100K00020 R3023 100 C8108 16V 0.1u R3008 10k R3002 1k C3040 16V 0.1u R3010 100 IC3001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD R3017 0 R3161 5.6k R3021 0 C8110 50V 0.01u C8120 16V 47u C8181 50V 15p J1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R3022 0 C3008 50V 0.1u R3045 10k R3033 0 C3004 16V 47u FL3010 ELKE103FA 1 2 3 FL3002 ELKE103FA 1 2 3 R3140 47k R8207 0 D3003 MA2J11100L R3047 10k L3002 G1C100K00020 R3197 12k C3041 16V 0.1u D3007 MA2J11100L R3041 330 R3040 330 R3018 0 R3039 330 J6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 C3009 16V 0.1u R8188 56 R3001 10k R3003 47k J11 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C8119 50V 0.01u C8104 16V 47u R3195 10k R3004 100 J3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C3005 16V 1u R3060 1k C8116 50V 0.01u R3012 33k FL3001 ELKE103FA 1 2 3 C8121 16V 0.1u C8183 16V 0.1u R3019 0 R8181 100 IC3004 C1AB00000454 1 2 3 4 5 6 7 8 9 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 VCC C8118 16V 47u R3151 100 IC8100 C0CBAKG00003 GND 3 2 OUT IN 1 FL3004 ELKE103FA 1 2 3 C8102 16V 47u S1 S0 VDD VSS H:ON DAC2=75ohm DAC0 DAC1 32.768K CLOCK IC LAN15V PLUG DET CABLE DET SYNC GND REMOTE VD SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G GND GND STB5V SRQ RSVD IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND AUDIO IN R GND SLOT3.3V SLOT9V GND SLOT5V TX1+ GND TX3+ TX3- TXC+ TXC- TXCG TX3G TXG+ TXG- TX2G TX1- TX1G TX0+ TX0- TX0G SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R GND RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G LAN15V CABLE DET SYNC GND REMOTE VD SLOT5V GND SLOT9V GND STB5V SRQ RSVD IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND PLUG DET AUDIO IN R SLOT3.3V GND TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TX3- TX3+ GND TX1+ TX0G TX0- TX0+ TX1G TX1- PC HI HI LO LO LO LO SLOT3 SLOT2 HI HI SLOT1 SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI STB5V STB_ON LAN15V LAN15V GND GND TXG- TX2G TX1+ TX3+ TX3- TX3G TXC+ TXC- TXCG TXG+ TX1- TX1G TX0+ TX0- IIC SW SL3_DET=SW2 SW1=SL2_DET SW0=SL1_DET DAC3=IICSW DAC4=IICSW SDA SCL GND 1OE S1 1B4 1B3 1B2 1B1 1A GND VCC 2OE S0 2B4 2B3 2B2 2B1 2A R L Y1 INH TXG- TX2G TX1+ TX3+ TX3- TX3G TXC+ TXC- TXCG TXG+ TX1- TX1G TX0+ TX0- TDETECT RTC INT/PANEL_SOS 5V SCL3 FAN CONT REMOCON OUT SCL1 STB3.3V ON/OFF IIC_CONT STB3.3V STB5V STB_ON GND GND V MUTE IN 232C_STATUS TXD_TU RESET POWER STATUS ALL_OFF GND TXD_PC GND SOUND MUTE SDA1 RXD_TU RXD_PC CABLE DET SDA3 GND GND DETECT SCL SDA SLOT1 TO SLOT2 TO TO D-BOARD (D3) PF-BOARD (PF10) TO D-BOARD TO (D1) D-BOARD (D5) TO (D6) TO D-BOARD EX I/O IIC SW AUDIO SELECT AVR 9V AVR 12V (1/4) TO J-BOARD B E 7 8 3 D 4 C 1 2 F 5 6 A 9 17 18 16 19 14 15 13 20 11 12 24 23 22 21 25 30 29 27 28 26 31 32 M J L C D E F G H I A B K R S U N T O Q V P AND 0 5.0 0 15.0 0 15.0 2.5 2.5 0.6 3.2 4.0 5.0 0 2.3 4.0 0 3.2 0.4 0 0.3 0.4 5.0 0 0 0 3.2 0 0.4 0 5.3 0.4 0 0 6.6 0.4 2.9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.8 0 0.5 0 0 0.8 1.3 1 21 16 1.1 0 4 1.2 31 19 38 1.3 1.6 0.6 1.3 1.0 1.2 0 0 0 18 2.1 35 0 0 32 8 0.6 5.0 0 3 1.6 2 0 1.6 26 0 0.4 36 0 1.6 22 0 40 0 27 14 6 30 4.0 0 34 5 1.2 0 4.5 0 1.6 1.4 1.6 2.3 1.6 4.4 1.0 1.0 29 9.0 1.2 1.2 33 7 13 0.6 0 1.6 1.2 37 10 0 2.5 0.7 0 1.2 0 1.3 0 25 17 0 9.0 24 0 9 0 39 1.2 0 -0.3 1.2 0 1.5 4.8 5.0 1.0 3.3 1.1 2.3 0.5 15 0.3 20 11 28 12 2.0 0.5 0 0 23 3.3 1.6 4 0 0 0 10 18 0 21 0 0 1.6 5 14 28 20 0 15 0 30 0 0.5 0 1.6 8 0 6 1.6 0 0 27 25 5.0 0 0 5.0 31 0 0 17 19 0 5.0 0 0 0.5 0 0 1 1.6 9.0 0 0 0.4 0 0 0.5 0 0 5.0 0 1.6 0 -0.8 40 0 0 35 3.3 0.7 16 3.3 39 0 0 29 0 0.7 0 1.3 1.6 0 11 36 0 1.6 24 0 1.6 22 0 0 32 0 2 0 4.9 12 37 38 0 0 3 9 7 0 0 0 1.6 34 23 0 0.3 0 13 9.0 26 2.3 33 0 B A B A 0 0 0.1 0.3 1.6 0 0.2 0 0.1 0 1.6 0.5 0 0 0.7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1.6 1.6 1.6 0 1.6 0 1.6 1.5 0 0 1.6 1.6 1.6 0 0 0 0.5 0.6 0.5 0.5 0.6 0.1 5.0 5.0 0 4.5 0.3 0.5 3.2 15.4 11.9 0 12.0 0 9.0 0.3 5.3 1.1 0 5.3 0.6 0.3 0 5.3 9.0 5.3 0.6 1.1 9.0 0.3 1.1 0.2 0 0.2 2.4 0 4.0 4.1 0.2 4.1 4.9 0.2 0.2 4.1 0.2 2.5 0.2 0 4.5 0.3 5.0 0.4 4.9 0.4 4.6 0.3 5.0 0.4 4.0 4.9 5.0 4.0 0.4 4.4 4.9 4.1 4.0 4.0 0 4.5 4.0 3.7 4.9 0 9.0 6.1 5.5 5.4 9.0 6.1 5.0 0 0 4.4 0 2.5 5.0 3.1 3.2 5.0 2.5 0 0 0 < TH-42PA40C J-Board (3 of 4) Schematic Diagram TH-42PA40C J-Board (3 of 4) Schematic Diagram ! J-BOARD (3/4) TNPA3197 84 15.27.J 电路板 (4/4) 线路图 + + + + + + + + + + + AC_CS((S)) AG_PR_M AA_SCL3 AA_SDA3 AA_SDA3 AA_SCL3 AM_SDA_S3 AM_SCL_S3 AI_S2_1 AK_PR_3 AK_Y_3 AK_PB_3 AH_SOS AH_SLOT3_DET AK_Y_3 AK_PB_3 AK_S2_3 AK_PR_3 AK_HD_3 AK_VD_3 AK_R_3 AK_L_3 AG_PB_M AD_PB_4 AD_Y_4 AD_PR_4 AI_PR_1 AI_PB_1 AI_Y_1 AJ_TXD_4 AD_L_4 AD_Y_4 AD_PR_4 AD_R_4 AD_PB_4 AL_S2_2 AJ_RXD_4 AD_VD_4 AD_HD_4 AL_Y_2 AL_PB_2 AL_PR_2 AK_S2_3 AC_SW1 AC_SW0 AA_SCL3 AA_SDA3 AE_SW2 AE_SW3 AE_SW1 AC_CS((M)) AE_SW0 AF_VD_HX AF_HD_HX AF_PB_S AF_VD_HX AF_HD_HX AF_DPMS_VD AF_DPMS_HD AG_Y_M AF_Y_S AF_PR_S AJ_TXD_4 AJ_RXD_4 AJ_RXD4 AJ_TXD4 AH_SOS AH_SOS_ALL AF_HD_HX AF_VD_HX 9V 9V 9V STB5V_S STB5V_S SLOT9V SLOT3.3V SLOT5V P5V STB3.3V P5V 5V_M STB3.3V 5V_S LAN15V LAN15V STB5V_S LAN15V D8011 MA3X15300L R3126 0 R8124 100 R3066 56 C3109 16V 0.1u C3115 16V 0.1u R3053 56 1% R3102 180 R3059 100 *R3191 33 1% *R3204 180 Q8013 2SB0709A0L C1AB00001720 IC3101 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 SYNCIN 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC *Q8018 2SD0601A0L Q3102 2SD0601A0L R3231 100 R3028 10k 1% *R3202 180 R8125 100 4.7k R3215 *IC3108 AN78L05M-E1 IN 3 2 COMMON OUT 1 *R3083 100 *C3123 16V 0.1u Q8200 2SD0601A0L R3038 0 C3200 16V 1u Q8201 2SD0601A0L R3030 0 *C3130 16V 0.1u R3230 100 R8057 1k R3049 330k 1% *R3201 180 C3010 16V 0.1u 1% R3111 1.5k R3058 56 1% R3090 75 1% R3073 75 IC3003 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc C3017 50V 0.01u C3106 16V 0.1u JS8096 R3211 100 C8084 16V 1u C3030 2.2u 16V 1% R3088 75 *C3119 16V 2.2u *IC3006 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc R3076 56 1% R3093 75 C3022 2.2u 16V *C3120 16V 0.1u *R3192 33 C3108 16V 0.1u R3065 56 C3144 16V 2.2u *C3124 16V 0.1u C3012 50V 0.01u *Q3106 2SD0601A0L 1% R3110 4.7k D8203 MAZ31000ML *R3087 0 *R3085 10k C8071 47u 16V R3077 56 Q8019 2SD0601A0L C8083 16V 0.1u 1% *R3200 180 IC3005 C1AB00001139 1 L1 2 L2 3 L3 4 Vcc 5 Y2 6 GND 7 PB2 8 GND 9 PR2 10 SW 11 L1 12 L2 13 L3 14 Vcc 15 Y3 16 GND 17 PB3 18 GND 19 PR3 20 SW 21 L1 22 L2 23 L3 24 DGND 25 ADRESS 26 SDA 27 SCL 28 DVcc 29 L3out 30 L2out 31 L1out 32 MonSW 33 GND 34 PRout3 35 GND 36 PBout3 37 GND 38 Yout3 39 Vcc 40 PRout2 41 GND 42 PBout2 43 GND 44 Yout2 45 Vcc 46 PRout1 47 GND 48 PBout1 49 GND 50 Yout1 51 Avcc 52 Vcc 53 TV_Y 54 GND 55 TV_PB 56 GND 57 TV_PR 58 Vcc 59 Y1 60 GND 61 PB1 62 GND 63 PR1 64 SW C3026 2.2u 16V 1% R3189 75 D8201 MA2J11100L R3056 330k 1% R3072 75 *C3127 16V 0.1u 1% R3071 75 *C3128 16V 47u C3112 16V 0.1u *R3108 0 J13 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 *R3097 0 *R8066 680 C3029 2.2u 16V 1% *R3261 75 C3107 16V 0.1u *Q3105 2SD0601A0L *C3126 16V 2.2u *C3117 16V 0.1u C8070 0.1u 16V C3105 16V 0.1u C8072 10V 10u 1% R3105 180 1% R3104 180 4.7k R3213 1% *R3113 1.5k C3103 16V 2.2u R8201 47k R3046 10k 1% R3075 75 R3035 330 R3210 100 *R3094 330 R3068 56 C3136 16V 470u R8204 100k C3024 2.2u 16V R3130 180 C3013 50V 0.01u 1% R3190 75 C3021 2.2u 16V 1% *R3109 820 D8010 MA3X15300L R3212 4.7k R3054 56 R3194 33 Q3101 2SD0601A0L R3078 56 *C3116 16V 2.2u *C3268 16V 470u Q3103 2SD0601A0L C3025 2.2u 16V 1% R3092 75 1% R3089 75 C3023 2.2u 16V R3079 56 *C3141 16V 2.2u R8200 22k 1% *R3199 180 R8127 100 D3004 MA2J11100L *C3267 16V 470u *C3118 16V 0.1u R8202 22k D3024 MA2J11100L C3019 16V 0.1u 1% R3103 180 R3067 56 Q8012 2SD0601A0L R3050 56 C3101 16V 2.2u 1% R3074 75 R3217 3.3 C3134 16V 470u *R8091 180 R8069 680 Q8010 2SD0601A0L R3048 330k R3052 330k *R3132 180 JS8097 L3003 G1C100K00020 R3080 56 C3110 16V 2.2u R8118 0 D8200 MAZ31500ML R3214 4.7k 1% *R3112 4.7k *R3098 0 C3104 16V 0.1u C3015 50V 0.01u *R3133 180 C8200 16V 47u R8205 56k *R3096 330 R3029 10k C3020 2.2u 16V C1AB00001720 *IC3102 SM5301AS-G-ET 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 SYNCIN 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC C8073 10V 10u J14 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 12 13 14 15 R3031 0 1% *R3260 75 R3219 3.3 *R3100 10k C3014 50V 0.01u R3081 56 *C3122 16V 0.1u *R3099 10k R3064 56 *C3266 16V 470u *R3095 330 *R3084 10k C8080 16V 0.1u R8089 180 *C3125 16V 0.1u Q8011 2SB0709A0L C3018 16V 47u R3057 56 C3016 50V 0.01u R3216 3.3 C3031 2.2u 16V D8204 MA2J11100L C3027 2.2u 16V C0ZBZ0000911 IC8014 EN 1 2 C1+ 3 V+ 4 C1- 5 C2+ 6 C2- 7 V- 8 T2_OUT 9 R2_IN 10 R2_OUT 11 STATUS 12 T2_IN 13 T1_IN 14 ONLINE 15 R1_OUT 16 R1_IN 17 T1_OUT 18 GND 19 VCC 20 SHUTDOWN L3006 G1C100K00020 R8126 100 Q8202 2SD0601A0L 1% *R3262 75 R3036 330 C3143 16V 2.2u C3102 16V 0.1u R3051 330k *R3086 0 *R3127 0 1% R3118 820 C3113 16V 47u L3005 G1C100K00020 R8206 47k 1% R3091 75 C3114 16V 4.7u *R3107 100 R3055 330k R3037 0 1% R3188 75 *D3021 MA2J11100L R3069 56 R3044 10k 1% R3101 180 C3028 2.2u 16V R8203 22k *Q3104 2SD0601A0L R3218 3.3 R3193 33 R3129 180 R3117 0 *C3121 16V 0.1u R3082 100 C3002 6.3V 10u *C3129 16V 4.7u IC8016 C0JBAZ001934 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R3034 330 *C3142 16V 2.2u 1% R3070 75 C3135 16V 470u C8082 16V 0.1u 1% R3106 180 IC3109 AN78L05M-E1 IN 3 2 COMMON OUT 1 C3111 16V 0.1u *R8054 1k R8117 0 1% *R3203 180 L3050 G1C100K00020 *C3032 16V 0.1u R3128 180 C8081 16V 0.1u *R3131 180 :SYNC_INH(S) :LPF(S) :FAN_CONT :CS(S) :LPF(M) :CS(M) GND LAN15V AUDIO GND TXD AUDIO IN R Y/G Y/G GND PB/B S2DETECT PB/B GND RESET1 PR/R RESET2 PR/R GND HD PWR_STATUS SYNC GND SOS VD REMOTE SYNC GND CABLE DET PLUG DET GND SLOT5V GND SLOT9V SLOT3.3V GND AUDIO IN L RXD AUDIO GND IIC SCL RSVD IIC DAT RSVD SRQ STB5V GND TX1G TX1- TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TX3- TX3+ TX1+ TX0G TX0- TX0+ STB5V_S :SYNC_INH(M) SLOT1 :3 SLOT3 :1 PC :T GND GND 75ohm L R HD SLOT2 :2 GND GND GND GND GND GND GND RXD TXD Y/G PB/B PR/R VD :FAN_SW TO HX-BOARD (HX1) SLOT3 TO DRIVER RS232C INVERTER AVR 5V AVR 5V (MAIN) VIDEO AMP (SUB) VIDEO AMP EX I/O EX I/O INPUT SW TO J-BOARD (2/4) 14 12 10 16 11 15 13 17 18 24 31 30 32 26 27 25 28 29 21 13 14 20 16 23 19 17 15 22 18 12 11 AB AA 24 0 0 5.0 0 0 29 0 0 4.9 1.2 4 0 0 8 0 0 6 0 0 0 37 0 38 0 0 13 0 9.0 3 26 33 2.3 0 0 15 0 30 40 0 A 0 35 0 0.8 0 0 3.3 1.1 16 3.3 9 39 7 0.7 0 0 0 0 0 5.0 19 0 5.0 0 0 10 18 0 0 0.8 0 0 0 0 0 2 1.6 34 0 0 23 5.0 0 0 12 11 0 0 0 27 0 25 22 0 0 0 0.7 32 0 0 5 14 28 20 1 0 9.0 0 B 0 31 0 0 21 17 36 0 0 0 0 0 0 0 0 5.3 5.4 0 0 0 0 5.0 9.0 0 2.5 0 0 0 0 2.5 0 0 5.3 0 0.4 0.4 6.6 9.1 9.0 9.0 0.3 4.0 8.6 0 9.0 9.0 0.4 0 0.4 0.3 0.4 0.4 0.3 8.6 0.4 3.9 0 9.0 9.1 0.3 0 9.0 4.0 9.1 4.0 9.0 0 0 9.0 4.8 5.0 5.1 0 4.8 4.8 9.0 4.8 0 0 0 5.3 4.0 3.9 0 0 0 0 4.0 5.0 5.0 5.1 0 1.2 9.0 4.5 4.4 4.4 4.4 0 0 0 9.0 0 4.5 9.0 5.0 0 0 4.8 0 4.9 4.8 5.1 5.1 1.7 3.0 4.9 9.0 4.5 0 4.4 4.4 0 1.2 0 5.1 4.8 4.9 0 9.0 0 5.0 0 2.4 0 3.6 5.0 3.4 2.7 0 0.1 0 2.3 0 0.1 5.0 2.5 0 5.0 0 5.0 0 4.4 1.4 0 5.0 1.4 5.0 5.0 7.5 0 0 7.1 5.0 0 2.3 0.9 0 5.0 1.1 0 0 2.3 5.0 1.1 0.8 0 5.0 0.9 0 2.3 0 0.9 5.1 2.4 0 5.0 0 0 5.0 1.1 5.0 2.8 3.2 0 1.7 0 1.9 0 0.4 0.4 0 0 0 0 0 3.3 1.9 1.8 1.9 1.9 3.3 0 1.3 1.3 3.2 0 0 0 0 0 3.2 3.2 3.2 3.2 0 9.0 4.5 3.9 3.8 9.0 4.5 9.0 4.5 3.8 4.4 3.8 9.0 9.0 3.7 4.4 9.0 4.5 3.9 9.0 4.4 3.8 4.4 3.8 9.0 5.2 4.5 9.0 3.8 0 4.5 5.1 9.0 4.5 0 3.8 4.4 0.1 0 0 4.9 0 0.1 0 0.1 5.0 TH-42PA40C J-Board (4 of 4) Schematic Diagram TH-42PA40C J-Board (4 of 4) Schematic Diagram ! J-BOARD (4/4) TNPA3197 85 15.28.D 电路板方框图 DATA_SOS OPT KEY_SW REMOCON LED_R LED_G DRVRST DPMS_VD DPMS_HD PWR_STATUS REMOTE_OUT CABEL_DET TXD_TU RXD_TU RESET IIC_COT TXD_PC RXD_PC STB_ON MUTE RTC_INT FAN_CONT VDID_S HDID_S HDID_M VDID_M HD_M VD_M VD_S HD_S CLPC_M HD_ADM VD_ADM VDIA_M HDIA_M VDIA_S HDIA_S HD_ADS VD_ADS CLPC_S CLKB HDIA_M VDIA_M HDID_M VDID_M HD_M VD_M VD_S HD_S HD_ADM VD_ADM CLPC_M HD_ADS VD_ADS CLPC_S HDIA_S VDIA_S HDID_S VDID_S FAN_CONT SOS1 SOS2 SOS2 SOS1 KEY_SW DATA_SOS OPT REMOCON REMOTE_OUT PWR_STA RTC_INT DPMS_HD DPMS_VD MUTE STB_ON TXD_PC RXD_PC IIC_CONT CABEL_DET LED_G LED_R RESET RXD_TU TXD_TU P12V P12V P5V P5V STB5V_M P5V P5V P5V P5V P5V P5V 3.3V STB5V P5V P5V 3.3V P12V 1.5V 3.3V TO SC20 SCL 5V IC9506 1 R(8Bit) L-DOWN A/D CONVERTER (S) (32M) 3.3V G(8Bit) R-DOWN 5V IC9208 B(8Bit) 101 TO P27 5V 4 B(8Bit) /YPbPr F.CLP DRV TO P25 5V IC9867 HS OUT G(8Bit) MUTE-M Pr/R IN 5V TO J5 AVR 3.3V R(8Bit) 2 SOS TO J3 1 SDA3 DRVRST 3.3V 4 SCL1 LVDS(CLK) IC9002 SDA1 26 43 DATA R SCL3 CLK OUT 4 DATA L SDA2 ADC IC9209 IC9862 SCL2 Y/G IN 54 AVR 3.3V AVR 3.3V 1 3.3V 3.3V SCL2 7 Q9008 SDA2 4 SCL2 NDA SWM TIMING IC9868 STB5V SDA2 TIMING 24Bit BUS SW FAN SOS AVR 3.3V SDA1 SDA SCL1 IC9864 6 20 ALL OFF1 3.3V IC9204 5 8BIT 17 PS SOS SCL 110M EEPROM ADC D3 FPGA IC9004 RGB SOS2(SC) POWER STATUS STB5V CONTROL FORMAT SOS1(SC) RTC INT 5V CONVERTER 108 5V IC9601 Y S CTI/TINT REM IN 15V PB S COLOR 87 D25 PR S OSD 102 CONTRAST 1 SCAN-1 105 2 WB-Adj VD S SCAN-2 VS OUT 86 5 OSD SUS HD S STB5V REM INH 15V St-r DATA L TIMING 40 PLL POWER STATUS REM OUT 15V LEVEL SHIFT 39 TTL PARALLEL TO LVDS DATA R TIMING REMOTE OUT 5V 22 IC9700 LVDS(DATA3) 2 42 CABLE DET 15V 21 LVDS(DATA0) D20 3.3V 5V TXD TU DPMS VD B(8Bit) LVDS(DATA1) 12 LEVEL SHIFT SUSTAIN RXD TU RXD TU G(8Bit) 11 LVDS(DATA2) SOS3 IC9706 SCAN-1 DPMS HD R(8Bit) RESET IC9602 3 SOS1 3.3V 5V 5 SCAN-2 KEY SW 10 IC9203 TXD TU IIC CONT 4 64M SDRAMA 93 LEVEL SHIFT 15 202 106 TXD PC IC9702 LED R 19 LVDS RX SOUND MUTE 199 RXD PC 91 3.3V 5V PLL 107 D27 198 STB ON 185 20 LED G 145 STB5V 4 188 7 SOUND MAIN MUTE 17 DRVRST 42 8 DIGITAL1 B(8Bit) 187 5 REAL TIME/INTRA Pb/B IN 16 G(8Bit) 31 7 RGB(24Bit) 4 203 SCL1 R(8Bit) RESET 6 6 204 SDA1 IIC CONT 2 56 8 48 205 SCL3 STB ON PLASMA AI Q9701 IC9701 9 DIGITAL2 11 13 206 RXD PC SDA3 Q9700 DISCHARGE 23 RGB(24Bit) 12 52 17 2 19 24 CONTROL HD S RGB(24Bit) 9 19 TXD PC 3 12 VD S 27 OSD ANALOG(S) 11 DCK C 59 D5 9 29 SYNC PROCESSOR LVDS RX 25 VD M 51 2 11 IC9704 133 IC9863 HD M FAN CONT 15 26 77 9 132 100 VDID M TV ON/OFF 2 60 IC9207 15 6 70 RESET DRVRST 8 21 HDID M 5 LED G 4 B0 IC9703 106 23 12 VDIA M DPMS VD B7 Digtal Signal Processor Board DCKB RESET 14 28 3.3V HDIA M CABLE DET DPMS HD 18 G0 RESET HD ADM D 13 CLP IC9005 G7 3 VD ADM 15 R0 CLPC M AVR 3.3V LED R R7 IC9206 HD ADS 12 CLP G 4 VD ADS 5 27 28 R VS OUT CLPC S 1 3.3V B HS OUT HDIA S 9 26 VDIA S 5 HDID S 3.3V SOS 29 AVR 3.3V OSD CLK OUT Q9007 VDID S RESET 1 49 TTL PARALLEL TO LVDS 55 SYNC/SEPA 125 SCL 9 D31 MCU 4 VSOUT SDA 5 IC9003 HSOUT 47 8 SUSTAIN DATACK IC9860 48 DATA R SCAN-1 RXC- PLL 96 23 DATA L 24Bit BUS SW 90 SCAN-2 RX3+ HSYNC 43 SCL2 IC9200 RX3- VSYNC 5V SOS 92 SDA2 RX0+ IC9201 SUB-FIELD 95 RX1+ 24Bit BUS SW PROCESSOR 110M RX0- CATS EYE SOS2 3 RX1- CLP 57 RXG+ D32 TO C11 58 RXG- 8 8BIT 37 IC9210 RXC+ TO C21 SDA FLASH MEMORY STB5V AVR 3.3V 43 INVERTER INVERTER KEY SW 97 REMOCON 41 OPT 44 OR CLKB 185 64M SDRAMB IC9603 50 5V 49 5V 5V 47 5V 50 48 FPC DET 46 Q9301 46 Q9302 FPC DET Q9014 Q9303 15 5 IC9000 3.3V->5V 5 1 5 1 5 1 IC9202 5 1 3.3V AVR 3.3V 4 47 68 LVDS(CLK) RX3- 18 9 16 18 LVDS(DATA1) RXC+ 10 RX1- RX1+ LVDS(DATA3) LVDS(DATA2) RXG+ 20 20 RX0+ 27 RX0- RXG- RX3+ RXC- 23 30 21 26 11 24 15 12 29 LVDS(DATA0) 17 19 17 26 FAN CONT NRST 63 RESET 77 R0 67 R(8Bit) SDA2 58 PR M CLP 8 4 8 9 110M VSYNC SCL2 NRST 66 RESET RGB(24Bit) SDA B0 54 B(8Bit) Y/G IN SCL CLP 24Bit BUS SW VSOUT 4 63 HSYNC Y M IC9869 Pb/B IN IC9861 G0 38 19 CLP 57 Pr/R IN CLK B 2 31 64 CLAMP A/D CONVERTER (M) SYNC/SEPA PB M HSOUT G7 PLL B7 G(8Bit) 30 R7 ANALOG(M) DATACK 12 12 70 ADC 8BIT 43 D1 TO J1 HD M 16 18 VD M 5V->3.3V IC9850 LEVEL SHIFT G R B IC9010 5V->3.3V 64 66 CLK B 67 31 38 30 5 1 5 1 DCK M DCK S 6 3 2 5 5V 6 89 94 60 ALL OFF FAN SOS PS SOS TV ON/OFF 20 TV ON/OFF 5 IC9212 AVR 1.8V 1 1.8V 7 4 Q9262 Q9263 Q9261 TV ON/OFF 55 56 NDA SWS 55 56 DA SWM 55 56 DA SWS DCKA DCK S DCK M DCKB XRST NRST 2 7 1 6 3 5 DA SWS NDA SWS DCK S DA SWM 7 5 3 DCK M 2 6 NDA SWM 1 IC9865 IC9205 Q9016,Q9015 Q9009 Q9003 Q9004 Q9006 85 84 117 116 55 56 27 26 OSD0-15 OSD YS OSD YM DRV 100 RST 147 NRST 16 18 NRST D SEL2 D SEL1 SCL0 SDA0 SCL1 SDA1 SCL2 SDA2 4 1 2 OR IC9007 17 16 14 18 3 4 6 2 Q9017 Q9018 SCL2 SDA2 SDA3 SCL1 SDA1 SCL3 Q9011 Q9010 Q9012 Q9013 NDA SWM NDA SWS DA SWS DA SWM 5V -> 3.3V DRIVER RESET MUTE DRIVER IC9006 4M FLASH ROM IC9000 5V <- 3.3V TH-42PA40C D-Board Block Diagram TH-42PA40C D-Board Block Diagram 86 15.29.D 电路板 (1/12) 线路图 DPMS_HD DPMS_VD VD_M ANF_R_S ANF_G_S ANF_B_S ANF_R_M ANF_G_M ANF_B_M HD_M HD_S VD_S SB_RX0- SB_RX3+ MN_RX0- MN_RX3+ MN_RX3- MN_CLK- MN_RX2+ MN_RX2- MN_RX1- MN_RX1+ SB_RX0+ SB_RX1- SB_RX1+ SB_RX2- SB_RX2+ SB_CLK- SB_CLK+ SB_RX3- MN_RX0+ MN_CLK+ *R9861 100 R9864 100 R9751 0 R9753 0 R9755 0 *R9860 100 R9757 0 R9862 100 R9863 100 R9865 100 3.3V C9850 16V 0.1u IC9850 C0JBAZ000545 74LCX244MTCX OE1 1 2 I0 3 O7 4 I1 5 O6 6 I2 7 O5 8 I3 9 O4 10 GND 11 I4 12 O3 13 I5 14 O2 15 I6 16 O1 17 I7 18 O0 19 OE2 20 VCC D1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 FL9851 J0MAB0000175 *FL9850 J0MAB0000175 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 J5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 J6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 *R9187 0 *R9188 0 GND GND GND GND GND MN_RX0+ MN_RX1+ MN_RX1- MN_RX2+ MN_RX2- MN_RXCLK+ MN_RXCLK- MN_RX3+ MN_RX3- GND MN_RX0- GND SB_RX1+ GND GND SB_RX2+ SB_RX0+ GND SB_RXCLK+ GND SB_RX1- SB_RXCLK- SB_RX2- SB_RX3+ SB_RX3- SB_RX0- R_S GND GND R_M GND G_S GND GND B_S GND G_M B_M HD_M HD_DPMS VD_S HD_S GND VD_M VD_DPMS GND 5V->3.3V J-BOARD (J1) TO J-BOARD TO (J5) (J6) C 9 1 2 B F 5 6 E 7 8 3 D A 4 5 6 4 2 3 1 PWD7 MODEL ONLY D-BOARD (1/12) ! TXN/D1VPSC PWD7 MODEL ONLY PW7 MODEL ONLY 0 0.3 0 0.3 0.1 0.3 0.1 0 0 0.3 0 0.3 0 0.3 0 4.4 3.2 0.4 0 3.2 0 1.6 1.6 1.6 1.6 0 1.6 0 1.6 1.6 1.6 0 1.6 0 0 1.6 0 1.6 0 1.6 1.6 1.6 1.6 0 1.6 0 1.6 1.6 1.6 0 0 1.6 1.6 1.6 0 1.6 0 1.6 1.6 1.6 0 1.6 0 0 0 0 1.6 1.6 1.6 1.6 0 0 0 1.6 1.6 1.6 1.6 0 1.6 0 1.6 1.6 TH-42PA40C D-Board (1 of 12) Schematic Diagram TH-42PA40C D-Board (1 of 12) Schematic Diagram TO D-BOARD (7/12) 87 15.30.D 电路板 (2/12) 线路图 + G G G G G G 5V MA_B5 MAIN_G7 MD_R2 MD_G5 MD_R3 MA_B4 MD_G6 MD_R4 MD_G7 MD_R5 MA_B3 5V MD_B2 MD_R6 MD_R7 MA_B2 MD_G0 5V MA_B0 MA_G7 MAIN_G3 MA_B1 MD_G1 MA_R7 MAIN_G2 MA_B0 MD_G2 MA_B1 MA_G6 MAIN_G1 MA_G7 MD_G3 MA_R6 MAIN_G6 MAIN_G0 MA_G6 MD_G4 MA_G5 MAIN_G5 MAIN_R7 MA_G5 MAIN_R1 MD_G5 VD_ADM MA_R5 MAIN_G4 MAIN_R6 MA_G4 MAIN_R2 MD_G6 MA_G4 MAIN_R5 MA_G3 MAIN_R3 MD_G7 AM_VD MD_B4 MA_R4 MAIN_R4 MA_G2 MAIN_R4 MA_G3 MD_B0 HD_ADM AM_HD MD_B5 MAIN_R3 MA_G0 MAIN_R5 MD_B1 MA_R3 MD_B6 MA_G2 MD_G0 3.3V MAIN_R2 MA_G1 MAIN_R6 MD_B2 MD_R0 MD_G1 MAIN_R1 MA_R7 MD_B3 MA_R2 MD_B7 MA_G1 MD_R6 MAIN_R0 MA_R6 MAIN_G0 MD_B4 MD_B0 MD_R1 MAIN_B7 MA_R5 MAIN_G1 MD_B5 MA_R1 MA_G0 MD_B1 CLP_M MD_R7 MAIN_B6 MA_R4 MAIN_G2 MD_B6 MD_B3 MD_G2 MAIN_B5 MA_R3 MAIN_G3 MD_B7 MA_B7 MA_B2 MA_R0 MD_G3 MAIN_B4 MA_R2 MAIN_G4 MA_B6 MD_G4 MAIN_B3 MA_R0 MAIN_G5 MA_B5 MA_B7 MAIN_B2 MA_R1 MAIN_G6 MA_B4 MAIN_B1 MD_R0 MAIN_G7 MA_B6 MA_B3 5V MAIN_B0 MD_R1 MAIN_R7 MAIN_B6 MAIN_B7 MAIN_B4 MAIN_B2 MAIN_B1 MAIN_B0 MAIN_B3 MAIN_B5 DCK_M ANF_G_M ANF_R_M NDA_SWM_5V MN_RX0- MN_RX1+ MN_RX2- MN_RX2+ MN_CLK- MN_CLK+ MN_RX3- MN_RX3+ P3V_SDA2 P3V_SCL2 MD_R5 MD_R4 MD_R3 MD_R2 NRST ANF_B_M MAIN_R0 3.3V DA_SWM_5V C9860 6.3V 10u R9880 56 C9920 16V 0.1u C9873 16V 0.1u C9870 16V 0.1u R9873 100 R9867 0 R9868 0 R9924 0 C9921 16V 0.1u C9930 16V 0.1u R9878 10k C9908 16V 0.1u R9916 0 IC9862 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C9914 16V 0.1u C9924 16V 0.1u 3.3V R9876 100 C9916 16V 0.1u R9917 0 C9905 6.3V 10u C9909 16V 0.1u R9911 75 C9906 6.3V 10u C9880 16V 0.1u R9907 0 C9912 6.3V 10u P5V R9912 75 C9895 16V 0.1u R9872 100 R9870 100 IC9864 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 Y C9862 16V 0.1u R9913 75 R9906 0 C9879 16V 0.1u IC9868 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout IC9867 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C9865 16V 0.1u C9872 16V 0.1u C9929 16V 0.1u R9874 100 R9921 C9863 6.3V 10u R9918 6.8k C9876 16V 0.1u R9884 33 P5V C9910 16V 0.1u C9922 6.3V 10u C9861 16V 0.1u R9920 0 P5V IC9865 C0JBAS000109 1 2 3 4 5 6 7 8 C9864 16V 0.1u C9875 16V 0.1u C9907 16V 0.1u C9913 16V 0.1u C9886 16V 0.1u C9882 16V 0.1u C9931 16V 0.1u C9894 6.3V 10u C9919 1000p C9911 6.3V 10u R9898 0 R9919 0 C9923 16V 0.1u C9871 16V 0.1u C9867 6.3V 10u C9868 6.3V 10u C9869 6.3V 10u R9866 EXB2HV470JV R9871 EXB2HV470JV R9877 EXB2HV470JV R9936 0 R9893 0 R9888 0 R9886 0 IC9860 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE IC9861 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE IC9869 C0FBAD000095 1 DVSS 2 GOUT7 3 GOUT6 4 GOUT5 5 GOUT4 6 GOUT3 7 GOUT2 8 GOUT1 9 GOUT0 10 DVSS 11 DVDD 12 BOUT7 13 BOUT6 14 BOUT5 15 BOUT4 16 BOUT3 17 BOUT2 18 BOUT1 19 BOUT0 20 DVSS 21 DVSS 22 DVDD 23 DVDD 24 TEST 25 PVSS 26 PVDD 27 PVDD 28 PVSS 29 COAST 30 HSYNC 31 VSYNC 32 PVSS 33 FLT 34 PVDD 35 PVDD 36 AVSS 37 BIAS 38 CLAMP 39 AVDD 40 AVSS 41 AVSS 42 AVDD 43 BIN 44 AVSS 45 AVDD 46 AVDD 47 AVSS 48 GIN 49 SOGIN 50 AVSS 51 AVDD 52 AVDD 53 AVSS 54 RIN 55 A0 56 SCL 57 SDA 58 BYPASS 59 AVDD 60 AVSS 61 AVSS 62 AVDD 63 RESET 64 VSYNCO 65 SOGOUT 66 HSYNCO 67 DTCLK 68 DVSS 69 DVDD 70 ROUT7 71 ROUT6 72 ROUT5 73 ROUT4 74 ROUT3 75 ROUT2 76 ROUT1 77 ROUT0 78 DVDD 79 DVDD 80 DVSS C9917 0.01u C9918 0.01u C9915 0.01u C9926 8200p R9922 2.7k C9925 16V 0.082u C9866 4V 220u IC9863 C0ZBZ0000850 1 RxOUT22 2 RxOUT23 3 RxOUT24 4 GND 5 RxOUT25 6 RxOUT26 7 RxOUT27 8 LVDSGND 9 RxIN0- 10 RxIN0+ 11 RxIN1- 12 RxIN1+ 13 LVDSVcc 14 LVDSGND 15 RxIN2- 16 RxIN2+ 17 RxCLKIN- 18 RxCLKIN+ 19 RxIN3- 20 RxIN3+ 21 LVDSGND 22 PLLGND 23 PLLVcc 24 PLLGND 25 PWRDWN 26 RxCLKOUT 27 RxOUT0 28 GND 29 RxOUT1 30 RxOUT2 31 Vcc 32 RxOUT3 33 RxOUT4 34 RxOUT5 35 RxOUT6 36 GND 37 RxOUT7 38 RxOUT8 39 RxOUT9 40 Vcc 41 RxOUT10 42 RxOUT11 43 RxOUT12 44 GND 45 RxOUT13 46 RxOUT14 47 RxOUT15 48 Vcc 49 RxOUT16 50 RxOUT17 51 RxOUT18 52 GND 53 RxOUT19 54 RxOUT20 55 RxOUT21 56 Vcc FL9860 J0HABH000012 1 2 3 FL9861 J0HABH000012 1 2 3 FL9862 J0HABH000012 1 2 3 R9851 0 C9928 15p IC9898 C0JBAA000319 1 A 2 B 3 GND 5 VCC 4 Y R9850 0 C9887 16V 0.1u *R9930 0 T1- TCLK- T2- T2+ T3- TCLK+ T3+ 100MHz FOR DVI HI:HI-Z HS VS T1+ T0- VSS T0+ VDD HI:HI-Z H:ON DIGITAL1 ANALOG(M) & 110MHz SN74CBT16211ADGGR SN74CBT16211ADGGR MAIN INVERTER LVDS RX SWITCH SWITCH A/D (M) AVR3.3V AVR3.3V AVR3.3V SWITCH 11 17 14 15 13 12 18 10 16 4 2 3 1 5 6 26 25 23 21 27 29 30 28 A B C D TO D-BOARD (8/12) TXN/D1VPSC D-BOARD (2/12) ! 68(PW7 MODEL) 0 (PWD7 MODEL) 22 24 PW7 MODEL ONLY PW7 MODEL ONLY PW7 MODEL ONLY TH-42PA40C D-Board (2 of 12) Schematic Diagram TH-42PA40C D-Board (2 of 12) Schematic Diagram 88 15.31.D 电路板 (3/12) 线路图 + G G G G G G SUB_B0 SA_R6 SD_R6 SUB_B3 SA_G2 SD_R2 SD_B4 SD_B1 SA_G1 SA_R5 SA_R7 SD_R1 5V SD_B5 SD_B0 SA_R4 SA_G3 SD_R0 SD_G7 SA_R3 SA_B4 SD_R1 SD_B7 SA_R2 SA_B3 SD_B6 SA_R0 SA_B2 SA_G0 SD_R3 SD_B5 SA_R1 SA_B1 SD_G5 SD_R5 SD_B4 SA_B0 SD_G6 SD_R4 SD_B3 SA_G7 SD_G6 SD_B2 SA_G6 SD_B6 SA_B6 SD_G5 SD_G0 AS_HD SA_G5 SD_R0 SD_G4 SD_G1 SA_G4 SD_B7 SD_G7 SD_G3 AS_VD SD_G3 SD_B0 SD_G2 SD_B2 SD_G4 ANF_R_S SD_B1 SD_G1 ANF_G_S SA_R1 SD_G0 SD_B3 SA_G4 CLP_S ANF_B_S 5V SD_R7 VD_ADS SA_R2 SUB_B7 SD_R6 HD_ADS SUB_B6 SA_R3 SA_B7 SA_B6 SUB_B2 SA_R4 SA_B5 SA_R7 SUB_B1 5V SUB_B5 SA_R6 SUB_B0 SUB_B4 3.3V SA_R0 SUB_B7 SUB_B3 SD_R7 SUB_B6 SUB_B2 SA_R5 SD_G2 SUB_B5 SUB_B1 SUB_B4 DS_HD DS_VD SUB_R0 SUB_R1 SUB_R2 SUB_R3 SUB_R4 SUB_R5 SUB_R6 SUB_G0 SUB_G1 SUB_G2 SUB_G3 SUB_G4 SUB_G5 SUB_G6 SUB_G7 SUB_R7 SUB_R1 SUB_G0 SUB_R4 SUB_G7 SUB_R7 SUB_R3 SUB_G6 SUB_R6 SUB_R0 SUB_G5 SUB_R5 SUB_G4 SUB_G3 SUB_G2 SUB_R2 SUB_G1 NDA_SWS_5V DA_SWS_5V SB_RX3+ SB_CLK- SB_RX2+ SB_RX2- SB_RX1+ SB_RX1- SB_RX0+ SB_RX0- P3V_SCL2 P3V_SDA2 SD_R5 SD_R4 SD_R3 SD_R2 NRST DCK_S 3.3V 3.3V 3.3V 5V SA_B7 MA_R6 SA_B6 MA_R5 SA_B5 MA_R4 SA_B4 MA_R3 SA_B3 MA_R2 SA_B2 MA_R1 SA_B1 SA_G3 MA_R0 SA_B0 SA_G2 MA_B7 SA_G1 MA_B6 SA_G0 MA_B5 MA_G7 MA_B4 MA_G6 MA_B3 MA_G5 MA_B2 MA_G4 MA_B1 MA_G3 MA_B0 MA_G2 SA_G7 MA_G1 SA_G6 MA_G0 SA_G5 SA_R7 SA_G4 SA_R6 SA_R5 SA_R4 SA_R3 SA_R2 SA_R1 SA_R0 MA_R7 R9207 100 *R9219 0 R9210 100 *C9240 16V 0.1u C9212 16V 0.1u C9204 16V 0.1u *R9222 0 R9211 33 *C9248 16V 0.1u C9201 16V 0.1u *C9239 16V 0.1u *R9223 75 C9202 16V 0.1u R9204 100 IC9204 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 Y C9216 16V 0.1u *R9228 0 *R9224 75 3.3V C9205 16V 0.1u C9203 6.3V 10u C9222 16V 0.1u C9206 4V 220u *R9221 0 *R9236 0 C9213 16V 0.1u *R9229 0 *C9254 16V 0.1u *R9231 0 *R9233 0 *C9230 6.3V 10u *IC9206 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *C9232 16V 0.1u *R9232 0 C9228 16V 0.1u C9200 6.3V 10u C9226 16V 0.1u C9219 16V 0.1u *C9246 16V 0.1u C9215 16V 0.1u R9201 0 R9206 100 R9213 10k C9236 16V 0.1u C9227 6.3V 10u *C9238 6.3V 10u *IC9207 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout P5V C9210 16V 0.1u *C9233 16V 0.1u *R9230 6.8k R9215 56 R9202 0 *R9220 0 P5V *C9229 6.3V 10u C9235 6.3V 10u *C9247 16V 0.1u *C9237 6.3V 10u *R9225 75 IC9205 C0JBAS000109 1 2 3 4 5 6 7 8 R9208 100 *C9253 16V 0.1u IC9202 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *C9245 1000p C9211 16V 0.1u *R9218 0 *C9242 16V 0.1u *C9231 16V 0.1u C9220 16V 0.1u *C9255 16V 0.1u P5V *C9234 16V 0.1u C9207 6.3V 10u C9208 6.3V 10u C9209 6.3V 10u R9200 EXB2HV470JV R9205 EXB2HV470JV R9212 EXB2HV470JV *R9942 0 IC9201 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE IC9200 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE *IC9208 C0FBAD000095 1 DVSS 2 GOUT7 3 GOUT6 4 GOUT5 5 GOUT4 6 GOUT3 7 GOUT2 8 GOUT1 9 GOUT0 10 DVSS 11 DVDD 12 BOUT7 13 BOUT6 14 BOUT5 15 BOUT4 16 BOUT3 17 BOUT2 18 BOUT1 19 BOUT0 20 DVSS 21 DVSS 22 DVDD 23 DVDD 24 TEST 25 PVSS 26 PVDD 27 PVDD 28 PVSS 29 COAST 30 HSYNC 31 VSYNC 32 PVSS 33 FLT 34 PVDD 35 PVDD 36 AVSS 37 BIAS 38 CLAMP 39 AVDD 40 AVSS 41 AVSS 42 AVDD 43 BIN 44 AVSS 45 AVDD 46 AVDD 47 AVSS 48 GIN 49 SOGIN 50 AVSS 51 AVDD 52 AVDD 53 AVSS 54 RIN 55 A0 56 SCL 57 SDA 58 BYPASS 59 AVDD 60 AVSS 61 AVSS 62 AVDD 63 RESET 64 VSYNCO 65 SOGOUT 66 HSYNCO 67 DTCLK 68 DVSS 69 DVDD 70 ROUT7 71 ROUT6 72 ROUT5 73 ROUT4 74 ROUT3 75 ROUT2 76 ROUT1 77 ROUT0 78 DVDD 79 DVDD 80 DVSS *C9243 0.01u *C9244 0.01u *C9241 0.01u *C9250 8200p *C9249 16V 0.082u *R9235 2.7k IC9203 C0ZBZ0000850 1 RxOUT22 2 RxOUT23 3 RxOUT24 4 GND 5 RxOUT25 6 RxOUT26 7 RxOUT27 8 LVDSGND 9 RxIN0- 10 RxIN0+ 11 RxIN1- 12 RxIN1+ 13 LVDSVcc 14 LVDSGND 15 RxIN2- 16 RxIN2+ 17 RxCLKIN- 18 RxCLKIN+ 19 RxIN3- 20 RxIN3+ 21 LVDSGND 22 PLLGND 23 PLLVcc 24 PLLGND 25 PWRDWN 26 RxCLKOUT 27 RxOUT0 28 GND 29 RxOUT1 30 RxOUT2 31 Vcc 32 RxOUT3 33 RxOUT4 34 RxOUT5 35 RxOUT6 36 GND 37 RxOUT7 38 RxOUT8 39 RxOUT9 40 Vcc 41 RxOUT10 42 RxOUT11 43 RxOUT12 44 GND 45 RxOUT13 46 RxOUT14 47 RxOUT15 48 Vcc 49 RxOUT16 50 RxOUT17 51 RxOUT18 52 GND 53 RxOUT19 54 RxOUT20 55 RxOUT21 56 Vcc FL9200 J0HABH000012 1 2 3 FL9201 J0HABH000012 1 2 3 FL9202 J0HABH000012 1 2 3 *R9852 0 *R9933 EXB2HVR000V *R9932 EXB2HVR000V NO *R9934 EXB2HVR000V TCLK- T2+ T3- TCLK+ T3+ T1+ T0+ T1- ANALOG(S) VSS H:ON VDD HI:HI-Z HI:HI-Z DIGITAL2 & VS HS T0- SN74CBT16211ADGGR SN74CBT16211ADGGR FOR DVI 100MHz SUB T2- 110MHz AVR3.3V AVR3.3V A/D (S) AVR3.3V INVERTER LVDS RX SWITCH SWITCH SWITCH 24 26 22 21 27 25 20 23 19 43 41 44 45 46 42 AE AF AD AG AA AB AC AK AH AI AJ (9/12) D-BOARD TO PWD7 MODEL ONLY TXN/D1VPSC D-BOARD (3/12) ! 24 22 26 25 23 21 27 29 30 28 PW7 MODEL ONLY TH-42PA40C D-Board (3 of 12) Schematic Diagram TH-42PA40C D-Board (3 of 12) Schematic Diagram 89 15.32.D 电路板 (4/12) 线路图 20MHz(SPRD) 50MHz 50MHz 20MHz 20.75MHz 20.75MHz 20.75]MHz 50MHz(SPRD) DCK MCKREF REFCK SCKREF OCK NUEL UMH UML USH USL UEH FP_NUEL FP_UMH FP_UML FP_USH FP_USL FP_UEH FP_NUEL FP_UMH FP_UML FP_USH FP_USL FP_UEH FP_LED(R) FP_PCD(R) FP_LED(R) FP_PCD(R) LED(RIGHT) PCD(RIGHT) 3.3V R9533 10k P5V R9537 47 R9539 47 R9541 47 R9540 47 R9530 10k R9538 47 R9535 47 R9845 EXB38V103JV R9536 47 R9847 EXB38V103JV R9532 10k R9441 10k R9440 47 C9576 16V 0.1u C9577 16V 0.1u R9527 0 C9738 16V 1u C0JBAZ000856 IC9706 TC74VHCT541AFT(EL) G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc L9501 G1C150KA0038 C9575 6.3V 10u C1ZBZ0002606 IC9500 X1 1 2 S0 3 S1 4 CLK9 5 VDD 6 GND 7 CLK1 8 CLK2 9 CLK3 10 CLK4 11 CLK8 12 CLK7 13 CLK6 14 CLK5 15 GND 16 VDD 17 S2 18 PDTS 19 VDD 20 X2 X9500 H0J200500038 C9500 18p C9501 18p 3.3V->5V CPG 36 34 31 35 29 28 33 32 30 45 41 44 43 46 42 63 62 61 BA BB D-BOARD (10/12) TO TXN/D1VPSC D-BOARD (4/12) ! TH-42PA40C D-Board (4 of 12) Schematic Diagram TH-42PA40C D-Board (4 of 12) Schematic Diagram 90 15.33.D 电路板 (5/12) 线路图 38 37 39 42 41 40 45 43 44 61 63 62 91 92 CA (11/12) TO D-BOARD TXN/D1VPSC D-BOARD (5/12) ! TH-42PA40C D-Board (5 of 12) Schematic Diagram TH-42PA40C D-Board (5 of 12) Schematic Diagram 91 15.34.D 电路板 (6/12) 线路图 50 51 46 49 54 53 47 48 52 92 91 DA DB D-BOARD (12/12) TO TXN/D1VPSC D-BOARD (6/12) ! TH-42PA40C D-Board (6 of 12) Schematic Diagram TH-42PA40C D-Board (6 of 12) Schematic Diagram 92 15.35.D 电路板 (7/12) 线路图 + + + + + + + + + + + + + G G G G G G G G G G G G G G G G G G AA_PS_SOS AA_ALL_OFF1 AA_FAN_CONT AA_TV_ON/OFF AA_FAN_SOS SC_CL SC_CLK SC_SIU SC_SID SC_SCSU SC_CPL SC_CPH SC_CEH SC_CSL SC_CSH SC_CMH SC_CML P3V_SCL2 3V_SCL3 TXD_PC RXD_PC 3V_SDA3 3V_SCL1 3V_SCL3 3V_SDA1 AR_IIC_CONT P3V_SCL2 AR_IIC_CONT P3V_SDA2 P3V_SDA2 AA_NRST SOUND_MUTE AA_CABLE_DET POWER_STAT AA_ALL_OFF1 AA_REMOCON_OUT AA_FAN_CONT 3V_SCL1 3V_SDA3 VMUTE_IN AR_IIC_INT NRST DRVRST 5V_SCL3 5V_SDA3 SC_CEL AR_IIC_CONT RUSH_ON/OFF A_TV_ON/OFF KILL_SOS A_KILL_SOS A_RUSH_ON/OFF 5V_SCL3 3V_SCL3 5V_SDA3 3V_SDA3 SC_CSL FP_CL SC_CSH FP_CLK SC_CML FP_SIU SC_CMH FP_SID FP_CEL FP_SCSU FP_CEH FP_CPL FP_CSL FP_CPH FP_CSH FP_CMH FP_CPH FP_CML FP_CPL SC_CPH FP_CML FP_CSH FP_SCSU FP_CSL SC_CPL FP_SID FP_CMH FP_CEH FP_SIU SC_SCSU FP_CEL FP_CLK FP_CL SC_SID SC_SIU SC_CLK SC_CL SC_CEH SC_CEL TXD_PC RXD_PC 5VTXD_TU 5VRXD_TU 3VRXD_TU STB_ON LED_G LED_R 3VTXD_TU AH_LED_R AH_LED_G AA_NRST 5V_SCL3 5V_SDA3 AA_RTC_INT 5VRXD_TU 5VTXD_TU 3V_SDA1 DRVRST_5V AA_DRV_SOS7 AA_DRV_SOS2 R9255 100 C9269 25V 220u R9012 100 R9013 100 R9011 100 P12V R9256 100 R9008 0 R9267 0 C9284 50V 4700p C9261 16V 4.7u R9003 0 C9266 25V 220u R9257 100 STB3.3V R9005 0 R9268 0 1.8V C9372 6.3V 10u R9258 100 L9202 G1C220M00029 C9287 16V 0.1u P5V R9294 0 R9259 100 C9276 16V 4.7u C9256 16V 0.1u STB5V 1.5V C9290 16V 0.1u R9260 100 C9369 16V 0.1u R9014 100 STB5V_M C9001 16V 0.1u R9253 100 C9294 16V 0.1u IC9212 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C9264 16V 0.1u 3.3V R9254 100 R9246 100 C9263 50V 0.01u R9287 0 P5V R9016 100 R9247 100 C9000 16V 0.1u R9017 100 L9200 G1C150MA0078 P12V R9019 5.6k R9248 100 C9363 16V 0.1u P12V R9009 100 R9020 10k STB5V Q9001 B1CBHD000001 G D S C9003 16V 0.1u P5V R9274 0 IC9210 C0DBAMH00013 1 VIN 2 SW 3 FB 4 INV 5 EN 6 RT 7 GND 8 VIN C9265 16V 0.1u R9249 100 R9279 68k R9250 100 R9237 47k C9002 100p R9018 100 R9283 68k R9015 100 P5V C9296 16V 0.1u R9251 100 IC9001 C0JBAS000109 1 2 3 4 5 6 7 8 R9010 100 D27 1 2 3 4 5 6 7 8 9 C9282 25V 220u STB3.3V R9252 100 C9275 4700p C9279 25V 220u STB5V R9031 2.7k R9032 2.7k STB3.3V STB5V C9050 16V 0.1u STB3.3V R9216 0 R9296 0 STB3.3V STB5V STB5V_M C9365 16V 0.1u C9374 6.3V 10u C9371 16V 0.1u IC9214 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT STB5V_M R9006 22k P5V C9013 0.01u R9021 10k R9033 0 R9022 10k R9002 0 R9000 0 D9251 MA2J72800L Q9014 B1ABCC000004 C9260 16V 4.7u C9299 16V 4.7u IC9007 C0JBAE000239 1 A 2 B 3 GND 5 VCC 4 Y STB3.3V C9064 16V 0.1u R9240 0 R9241 0 R9243 0 R9244 0 R9245 0 R9261 0 R9262 0 R9263 0 R9264 0 R9265 0 R9299 0 R9747 EXB38V103JV R9723 EXB38V103JV C9714 16V 1u R9779 EXB38V103JV R9748 EXB38V103JV C9700 16V 1u P5V P5V R9139 100 R9072 100 R9140 100 R9080 10k R9079 100 D4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C0JBAZ000856 IC9702 TC74VHCT541AFT(EL) G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ000856 IC9700 TC74VHCT541AFT(EL) G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ000856 IC9000 TC74VHCT541AFT(EL) G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9277 47k R9276 18k R9295 100 D9007 MAZ30360HL D9000 MAZ30360HL D9001 MAZ30360HL D9002 MAZ30360HL D9003 MAZ30360HL D9004 MAZ30360HL D9005 MAZ30360HL D9006 MAZ30360HL D9008 MAZ30360HL D9009 MAZ30360HL D9202 B0JCPE000004 D9201 B0JCPE000004 D9024 MA3X152K0L D9023 MA3X152K0L STB5V STB5V D9026 MA3X152K0L D9025 MA3X152K0L Q9018 B1ABCC000004 R9096 3.3k R9091 10k R9092 3.3k R9095 10k Q9017 B1ABCC000004 STB3.3V IC9010 C0JBAZ002196 1 1OE 2 1A 3 1B 4 GND 5 2A 6 2B 7 2OE 8 VCC *D25 1 2 3 4 5 6 7 8 R9899 10k Q9261 B1ABCC000004 P12V Q9262 B1ABCC000004 Q9263 B1ABCC000004 R9894 10k P5V P12V R9291 10k R9209 10k R9897 100 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R9070 0 R9071 0 R9001 10k C9271 4V 220u C9292 4V 220u C9257 16V 47u C9258 16V 47u C9259 16V 47u C9286 16V 47u C9288 16V 47u C9366 16V 47u C9368 16V 47u 1% R9270 23.2k 1% R9271 10k 1% R9281 5.1k 1% R9282 10k 1% R9288 1k 1% R9289 442 1% R9292 1k 1% R9293 1.6k FL9000 J0HABH000012 1 2 3 FL9001 J0HABH000012 1 2 3 FL9203 J0HABH000012 1 2 3 FL9204 J0HABH000012 1 2 3 FL9205 J0HABH000012 1 2 3 FL9206 J0HABH000012 1 2 3 FL9207 J0HABH000012 1 2 3 FL9208 J0HABH000012 1 2 3 FL9214 J0HABH000012 1 2 3 C0DBAMH00014 IC9209 1 VIN 2 SW 3 FB 4 GND 5 INV 8 GND 6 RT 7 EN GND +12V +12V GND GND GND +5V +5V FAN_SOS TV_ON/OFF STB5V PS_SOS FAN_CONT (RUSH ON/OFF) ALL_OFF (KILL_SOS) GND CLK SIU CL CPH SCSU SID CPL CEH CEL CSL CSH CML CMH DRV_SOS7 DRV_SOS2 P5V GND GND STB3.3V IIC_INT/BOOT POWER STATUS GND SOUND MUTE RXD_TU CABLE DET V MUTE IN RXD N.C GND H:ON VSS VDD GND SDA1 SCL2 SDA2 IIC_CONT SCL1 STB5V SCL3 ALL_OFF SDA3 GND TXD_PC SDA1 GND RXD_PC SDA3 GND GND TXD SCL3 FAN CONT REMOCON OUT SCL1 IIC_CONT STB5V STB_ON GND TXD_TU RESET BD9778F 3.3V BD9778HFP AVR 1.5V RTC INT/PANEL_SOS 5V STB3.3V ON/OFF STB3.3V 5V->1.8V GND GND STB5V->STB3.3V 3.3V->5V SWITCH P-BOARD TO (P25) J-BOARD TO (J3) P-BOARD TO (P27) SC-BOARD TO (SC20) C 9 1 2 B F 5 6 E 7 8 3 D A 4 11 12 14 15 13 TXN/D1VPSC ! D-BOARD (7/12) 3.9 0 3.9 4.9 0.5 0.4 0 2.3 4.9 0.5 0 3.1 0 0.6 0.5 0 0.5 2.5 0.5 3.9 0 2.9 0 0 2.9 0 6.6 5.3 3.2 0 2.5 0 2.7 3.2 2.6 0 2.9 2.3 2.9 0 5.0 2.5 2.1 0 5.3 1.4 3.4 5.3 4.3 0 0 2.2 0.1 4.3 0.3 0 0.3 4.1 0.4 0 0 5.3 0.1 0 5.0 0 0 0 0 0 2.9 0.1 6.7 0 5.3 0 0 12.2 12.2 5.2 0 3.3V->5V 3.3V->5V 3.3V->5V TH-42PA40C D-Board (7 of 12) Schematic Diagram TH-42PA40C D-Board (7 of 12) Schematic Diagram (1/12) D-BOARD TO 93 15.36.D 电路板 (8/12) 线路图 + TXD_PC SDA1 D09 D09 A10 A2 SCL1 D10 A10 A11 D01 SDA2 A3 D02 A7 D03 A16 D05 D04 A8 D00 AH_REM_INH DA_SWS NDA_SWM_5V OSD_VDO NDA_SWS_5V A15 D05 D06 SOUND_MUTE ABI_I D02 AAE_MCLD DA_SWM A18 A18 SCL1 A4 3.3V_SOS D00 ABI_D AA_ALL_OFF1 A12 SDA1 A8 AA_DRV_SOS2 A13 A5 DRVMUTE AA_DRV_SOS9 OSD0 D11 A14 P3V_SCL2 D12 DRVRST SCL2 A17 A15 A6 AA_DRV_SOS7 AR_IIC_CONT D13 NRST SDA3 AA_RTC_INT AH_REM_OUT D14 A13 D13 A16 SCL3 D15 A2 3V_SCL1 POWER_STAT A14 A1 D14 A12 A3 SCL3 A4 D15 DA_SWS_5V AH_REM_OUT D01 A5 AR_IIC_INT OSD_HDIN RUSH_ON/OFF ABI_J A6 OSD_CKIN DA_SWM_5V A_TV_ON/OFF D03 REM_IN OSD_HDO KILL_SOS AA_PS_SOS SDA3 D04 OSD_YM AH_REM_INH AA_REMOCON_OUT 3V_SCL3 OSD_YS SCL2 D10 ABI_I D07 AA_CABLE_DET D06 SDA2 ABI_J D11 3V_SDA3 D07 ABI_D D08 A17 A7 D08 A9 A9 D12 MCVD MCHD DA_SWM DA_SWS AA_FAN_SOS KEY_INPUT 3.3V_SOS SOS_DET 5V_SOS 5V_SOS REM_IN A1 STB_ON OSD4 OSD3 OSD10 OSD9 OSD8 OSD2 OSD1 OSD7 OSD5 OSD6 OSD15 OSD14 OSD13 OSD12 OSD11 AH_LED_G AH_LED_R AA_REMOCON AA_CATS_EYE 3V_SDA1 P3V_SCL3 P3V_SDA3 3VRXD_TU 3VTXD_TU P3V_SCL2 P3V_SDA2 RXD_PC P3V_SDA2 DPMS_HD DPMS_VD A11 AAE_MCDATA_O AAE_MCCLK 3V_SCL3 3V_SDA3 3V_SCL1 3V_SDA1 R9105 0 R9169 100 D9011 B0ADBA000006 C9047 100p 50V R9073 10k C9005 16V 0.1u R9042 100 R9057 10k R9110 0 R9065 2.7k Q9011 B1ABCC000004 R9173 39k Q9006 B1ABCC000004 R9054 10k R9138 100 C9048 16V 0.1u R9141 100 R9074 10k D9019 MAZ303300L Q9012 B1ADCC000004 R9047 100 D9017 MAZ303300L R9058 10k R9062 2.7k R9121 1k R9133 47k R9027 47k C9025 16V 0.1u R9044 100 R9151 0 R9119 10k C9018 16V 0.1u R9116 330 R9182 100 R9175 100 R9099 47 R9168 10k R9159 1k R9124 10k R9153 1k R9132 0 R9130 10k R9093 0 R9098 10k Q9003 B1ABCC000004 R9183 39k R9134 10k R9081 10k C9020 16V 0.1u R9101 47 R9178 39k R9174 10k C9045 16V 1u R9038 10k R9120 100 R9184 0 R9112 10k R9177 100 R9117 1k C9035 16V 0.1u R9118 33 P12V C9028 16V 0.1u R9160 100 R9061 10k C9016 16V 0.1u R9111 47k R9082 10k D9012 B0ADBA000006 R9180 100 R9176 100 R9143 100 R9171 100 C9034 16V 0.1u STB3.3V R9028 47k R9166 10k C9037 27p R9163 100 R9043 1k R9049 100 Q9004 B1ABCC000004 R9113 0 C9026 16V 0.1u R9046 100 C9022 16V 0.1u 1.5V C9039 16V 0.1u D9018 MAZ303300L R9056 330 C9046 16V 0.1u C9033 16V 0.1u R9137 100 R9150 0 R9055 10k R9060 0 R9106 10k R9131 0 C9021 1000p R9036 10k R9059 3.3k R9129 0 3.3V STB3.3V P5V R9179 0 R9052 5.6k C9031 16V 0.1u R9149 0 C9041 1000p R9161 100 C9049 16V 4.7u R9039 1k R9030 47k Q9009 B1ABCC000004 STB3.3V R9051 5.6k Q9007 B1ABCC000004 R9115 0 R9127 1k R9142 100 D9014 B0ADBA000006 R9108 0 C9015 16V 0.1u C9038 16V 0.1u C9036 22p R9122 10k P5V R9084 10k Q9013 B1ABCC000004 Q9010 B1ADCC000004 C9044 16V 1u R9064 10k R9170 100 R9035 10k STB3.3V R9165 10k R9123 0 R9186 10k C9019 1000p R9167 10k Q9008 B1ABCC000004 C9043 16V 1u R9053 100 R9172 100 R9136 330 R9094 0 R9100 1k R9199 10k C9051 16V 1u D9021 MAZ303300L R9189 39k R9063 1k 3.3V R9192 10k R9026 1k R9024 1k R9023 10k R9181 0 R9067 6.8k R9066 3.3k P5V STB3.3V R9102 EXB2HV470JV R9103 EXB2HV470JV Q9016 B1ADCC000004 R9076 10k STB3.3V Q9015 B1ABCC000004 R9075 1k D9010 MA2J72800L D9016 MA2J72800L R9135 10k R9126 10k IC9002 C0JBAE000239 1 A 2 B 3 GND 5 VCC 4 Y C3FBKD000268 IC9006 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 N.C. 10 N.C. 11 WE 12 RESET 13 N.C. 14 N.C. 15 RY/BY 16 N.C. 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 VSS 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE 48 A16 R9985 0 R9986 0 R9128 0 R9164 12k IC9003 MN102H90MTC 1 TSTMD1 2 P83/A20 3 P66/A07 4 P65/A06 5 P64/A05 6 P63/A04 7 P62/A03 8 P61/A02 9 P60/A01 10 TEST 11 VDD 12 RTCXI 13 RTCX0 14 VSS 15 P45/HI0 16 P44/HI1 17 P43/VI0 18 P42/VI1 19 P16/TM3IO 20 P15/TM2IO 21 P14/TM1IO 22 P13/TM0IO 23 PC3/SDA0B 24 PC2/SCL0B 25 VSS 26 P41/HCCLK0 27 P40/HCCLK1 28 VDD 29 P37/B04 30 P36/B03 31 P35/B02 32 P34/B01 33 P33/B00 34 P32/G05 35 P31/G04 36 P30/G03 37 P27/G02 38 P26/G01 39 P25/G00 40 VDD 41 VSS 42 P24/R04 43 P23/R03 44 P22/R02 45 P21/R01 46 P20/R00 47 VDD 48 OSDKXI 49 OSDKX0 50 VSS 51 P12/VSYNC/IRQ1 52 P11/YS 53 P10/YM 54 P07/HSYNC 55 PC1/SDA0A 56 PC0/SCLA0 57 P06/VCLKOUT 58 P05/AL3 59 P04/AL2 60 P03/AL1 61 P02/AL0 62 P01/HOUT 63 P00/SYSCLK 64 AVSS 65 AVdd2 66 DAALOUT/DACOUT3 67 DABOUT/DACOUT2 68 DAGOUT/DACOUT1 69 DAROUT/DACOUT0 70 COMP 71 VREF 72 IREF 73 AVss 74 CVBS1 75 VREFHS1 76 CLL 77 AVdd1 78 CVBS0 79 VREFHS0 80 CLH 81 PLLTST 82 AVdd1 83 AVss 84 PC7/SCL2 85 PC6/SDA2 86 PF3/ADIN11/IRQ5 87 PF2/ADIN10/IRQ4 88 PF1/ADIN9/IRQ03 89 PF0/ADIN8/IRQ02 90 PE7/ADIN7 91 PE6/ADIN6 92 PE5/ADIN5 93 PE4/ADIN4 94 PE3/ADIN3 95 PE2/ADIN2 96 PE1/ADIN1 97 PE0/ADIN0 98 VSS 99 OSC2 100 OSC1 101 VDD 102 P57/RMIN/IRQ0 103 P95/SBO1 104 P94/SBI1 105 P93/SBT1 106 P92/SBO0 107 P91/SBI0 108 P90/SBT0 109 P56/PWM3/CS3 110 P55/PWM2/CS2 111 P54/PWM1/CS1 112 P53/PWM0/CS0 113 PD2/SBO2 114 PD1/STOP/SBI2 115 PD0/WDOUT/SBT2 116 PC5/SCL1 117 PC4/SDA1 118 CPUMD2 119 CPUMD1 120 CPUMD0 121 TSTMD0 122 P52/WE 123 P51/OE 124 VDD 125 P50/RST 126 VSS 127 PB7/D15 128 PB6/D14 129 PB5/D13 130 PB4/D12 131 PB3/D11 132 PB2/D10 133 BP1/D09 134 PB0/D08 135 PA7/D07 136 PA6/D06 137 PA5/D05 138 PA4/D04 139 VSS 140 VDD 141 PA3/D03 142 PA2/D02 143 PA1/D01 144 PA0/D00 145 P82/A19 146 P81/A18 147 P80/A17 148 P77/A16 149 P76/A15 150 P75/A14 151 P74/A13 152 P73/A12 153 VDD 154 VSS 155 P72/A11 156 P71/A10 157 P70/A09 158 P67/A08 159 P84/A21 160 OSCMD0 R9145 0 R9980 2.7k R9979 2.7k 3.3V R9266 10k R9089 10k R9109 6.8k R9114 15k Q9019 B1CBHD000001 G D S 3.3V C0EBE0000447 IC9005 1 Vout 2 VDD 3 GND 5 N.C. 4 N.C. R9048 3.3k R9077 3.3k R9388 2.7k C9024 16V 47u R9045 5.6k R9197 5.6k R9086 EXB38V220JV R9040 100k X9001 H0J400400025 C9030 16V 4.7u IC9004 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC STB3.3V C9029 16V 0.1u SOS_INH A MUTE DRIVER_MUTE RXD_TU REM_IN REMO_OUT AI_SENSE DRVSOS2 85 SDA3 84 SCL3 3.3_SOS KEY_INPUT 115 FPGA_CLK 116 SCL2 119 CPUMD1 120 CPUMD0 IIC_CONT TV_ON/OFF TXD_TU RXD_PC LED_G LED_R 88 CABLE_DET 89 FAN_SOS 83 AVSS 82 AVDD1 DRVSOS3 DRVSOS1 FPGA_LD Flash_CS IIC_INT ALL_OFF STANB_ON KILL_SOS LSIRST DRIVER_RESET TXD_PC REMO_INH 87 POWER_STAT 86 RTC_INT 81 PLLTST POWER_SOS DPMS_HD 5V_SOS 113 FPGA_DATAOUT DPMS_VD 114 FPGA_DATAIN 117 SDA2 118 CPUMD2 DIGITAL_SEL0 DIGITAL_SEL1 NC NC FLASH_SEL SOS_DET RUSH_ON/OFF MICOM FLASH MEMORY RESET 11 17 14 15 13 12 18 10 16 12 11 15 13 14 38 37 31 36 32 35 33 34 A B C D (2/12) D-BOARD TO EEPROM TVRN508 TXN/D1VPSC D-BOARD (8/12) ! TH-42PA40C D-Board (8 of 12) Schematic Diagram TH-42PA40C D-Board (8 of 12) Schematic Diagram 94 15.37.D 电路板 (9/12) 线路图 AG_TDI ROM_D3 VD_ADS AF_SL0 VDO_M CLP_S AM_HD AAE_MCDATA_O AM_VD FP_UEH ROM_AD18 FP_USL FP_SCSU AG_TMS ROM_D15 FP_UML FP_NUEL DRVMUTE AG_TDO DS_HD AG_TDI FP_CSL FP_CSH AG_TCK FP_CML DS_VD FP_CMH RM_OE ROM_AD20 FP_CL RM_RD_BY ROM_AD19 FP_CLK FP_CEL FP_SID AF_SL2 ROM_D7 FP_SIU HD_ADM AAE_MCCLK RM_CE ROM_D6 P3V_SDA2 RM_CE AF_SL1 FP_CPH RM_WE P3V_SCL2 ROM_D5 RM_BYTE VD_ADM FP_CPL AAE_MCLD VDO_S ROM_D4 HDO_S CLP_M ROM_D0 HDO_M ROM_D1 HD_ADS AG_TDO ROM_D2 AF_SL3 AF_SL4 AF_SL0 AF_SL1 AF_SL0 AF_SL1 AF_SL2 AF_SL3 AF_SL4 FPDAT1 FPDAT0 FPCLK FP_USH FP_UMH NRST AS_HD AS_VD FP_PCD(R) DCK_M DCK_M DCK_S DCK_S ROM_AD20 AG_TMS AG_TCK RM_WE RM_RD_BY RM_OE SFVRST FP_CEH ROM_AD0 ROM_AD1 ROM_AD2 ROM_AD3 ROM_AD4 ROM_AD5 ROM_AD6 ROM_AD7 ROM_AD8 ROM_AD9 ROM_AD10 ROM_AD11 ROM_AD12 ROM_AD13 ROM_AD14 ROM_AD16 ROM_AD17 ROM_AD18 ROM_AD15 ROM_AD19 OSD_VDO VMUTE_IN AAE_MCDATA_I VD_S HD_S VD_M HD_M SFRST FP_LED(R) ROM_D0 ROM_D1 ROM_D2 ROM_D3 ROM_D4 ROM_D5 ROM_D6 ROM_D7 DM_VD DM_HD AF_SL2 TDO_BS TRST_BS TDI_BS LATCH R9806 0 R9776 10k R9832 0 R9791 0 R9769 0 R9739 0 C9734 16V 0.1u C9731 16V 0.1u R9817 0 R9758 10k R9820 4.7k C9717 16V 0.1u R9789 0 Q9700 B1ABCC000004 R9785 0 R9822 10k C9729 16V 0.1u R9765 0 R9813 0 R9840 EXB38V103JV R9788 0 C9702 16V 0.1u R9742 0 R9807 0 R9731 0 R9823 4.7k R9805 0 R9793 0 C9709 0.01u R9816 10k R9775 0 C9703 16V 0.1u R9831 4.7k STB5V R9843 10k R9774 R9771 0 Q9701 B1ABCC000004 R9762 560 R9827 4.7k C9732 16V 0.1u R9819 4.7k P12V C9736 16V 0.1u C9727 16V 0.1u R9792 0 C9726 16V 0.1u *R9744 0 R9803 10k R9837 0 R9833 10k C9712 16V 0.1u R9824 4.7k R9727 0 D10 1 2 3 4 5 6 7 8 9 10 11 12 R9821 4.7k C9722 16V 0.1u R9835 10k R9804 4.7k R9818 4.7k R9768 0 *R9726 0 R9809 0 C9723 16V 0.1u R9826 4.7k R9770 0 *R9725 0 C9701 16V 0.1u R9834 10k *R9743 0 R9800 0 R9825 4.7k C9707 16V 4.7u R9842 EXB38V103JV C9730 16V 0.1u R9740 0 C9733 16V 0.1u C9725 16V 0.1u R9812 0 R9749 0 R9728 0 R9828 4.7k C9711 16V 0.1u R9782 0 R9767 0 C9716 16V 0.1u R9790 0 C9728 16V 0.1u C9715 16V 0.1u IC9704 C0ZBZ0000764 1 STATUS[1] 2 STATUS[2] 3 TDO 4 TDI 5 TMS 6 CONFIG_SEL[4] 7 CONFIG_SEL[3] 8 CONFIG_SEL[2] 9 CONFIG_SEL[1] 10 CONFIG_SEL[0] 11 TCK 12 VSS 13 VDD 14 ADDRESS[21] 15 ADDRESS[20] 16 ADDRESS[19] 17 ADDRESS[18] 18 ADDRESS[17] 19 ADDRESS[16] 20 VSS 21 VDD 22 ADDRESS[15] 23 ADDRESS[14] 24 ADDRESS[13] 25 ADDRESS[12] 26 ADDRESS[11] 27 ADDRESS[10] 28 ADDRESS[9] 29 ADDRESS[8] 30 ADDRESS[7] 31 ADDRESS[6] 32 VSS 33 VDD 34 ADDRESS[5] 35 ADDRESS[4] 36 ADDRESS[3] 37 ADDRESS[2] 38 ADDRESS[1] 39 ADDRESS[0] 40 VSS 41 VDD 42 DATA[7] 43 DATA[6] 44 DATA[5] 45 DATA[4] 46 DATA[3] 47 DATA[2] 48 DATA[1] 49 DATA[0] 50 XCE 51 XOE 52 VSS 53 XWE 54 RD_XBY 55 REG_SEL 56 D[3] 57 D[2] 58 D[1] 59 D[0] 60 VSS 61 VDD 62 XRESET 63 XWR 64 NC 65 XRD 66 XCS 67 BUS_REQ 68 BUS_RELEASE 69 DATA 70 XCEO 71 VSS 72 CLK 73 VDD 74 VDD 75 XRST 76 VDD 77 XCF 78 XCEI 79 MODE_SEL 80 STATUS[2] R9836 0 R9829 4.7k R9808 4.7k 3.3V R9754 22k R9830 4.7k R9794 0 R9761 100 C9724 16V 0.1u R9810 0 R9841 EXB38V103JV R9815 0 R9756 10k C9713 16V 0.1u R9741 0 C9718 16V 0.1u R9750 0 C9735 16V 0.1u R9730 0 1.8V C9708 16V 0.1u R9766 10k C9704 16V 0.1u C9721 16V 0.1u *R9745 0 R9839 0 R9787 0 R9799 560 R9838 0 C9705 16V 0.1u R9846 0 R9034 0 R9859 0 R9857 0 R9858 0 3.3V R9892 4.7k IC9701 C1ZBZ0002555 1 GND 2 TMS 3 I/O 4 I/O 5 I/O 6 I/O 7 I/O 8 I/O 9 I/O 10 I/O 11 I/O 12 GND 13 VCCO 14 VCCINT 15 I/O 16 I/O 17 I/O 18 I/O 19 GND 20 I/O 21 I/O 22 I/O 23 I/O 24 I/O 25 GND 26 VCCO 27 I/O 28 VCCINT 29 I/O 30 I/O 31 I/O 32 GND 33 I/O 34 I/O 35 I/O 36 I/O 37 VCCINT 38 VCCO 39 GND 40 I/O 41 I/O 42 I/O 43 I/O 44 I/O 45 I/O 46 I/O 47 I/O 48 I/O 49 I/O 50 M1 51 GND 52 M0 53 VCCO 54 M2 55 I/O 56 I/O 57 I/O 58 I/O 59 I/O 60 I/O 61 I/O 62 I/O 63 I/O 64 I/O 65 GND 66 VCCO 67 VCCINT 68 I/O 69 I/O 70 I/O 71 I/O 72 GND 73 I/O 74 I/O 75 I/O 76 VCCINT 77 GCK1 78 VCCO 79 GND 80 GCK0 81 I/O 82 I/O 83 I/O 84 I/O 85 GND 86 I/O 87 I/O 88 I/O 89 I/O 90 VCCINT 91 VCCO 92 GND 93 I/O 94 I/O 95 I/O 96 I/O 97 I/O 98 I/O 99 I/O 100 I/O 101 I/O 102 I/O 103 GND 104 DONE 105 VCCO 106 PROGRAM 107 I/O 108 I/O 109 I/O 110 I/O 111 I/O 112 I/O 113 I/O 114 I/O 115 I/O 116 I/O 117 GND 118 VCCO 119 VCCINT 120 I/O 121 I/O 122 I/O 123 I/O 124 GND 125 I/O 126 I/O 127 I/O 128 I/O 129 I/O 130 VCCO 131 GND 132 I/O 133 I/O 134 I/O 135 I/O 136 I/O 137 GND 138 I/O 139 I/O 140 I/O 141 I/O 142 VCCINT 143 VCCO 144 GND 145 I/O 146 I/O 147 I/O 148 I/O 149 I/O 150 I/O 151 I/O 152 I/O 153 I/O 154 I/O 155 CCLK 156 VCCO 157 TDO 158 GND 159 TDI 160 I/O 161 I/O 162 I/O 163 I/O 164 I/O 165 I/O 166 I/O 167 I/O 168 I/O 169 I/O 170 GND 171 VCCO 172 VCCINT 173 I/O 174 I/O 175 I/O 176 I/O 177 GND 178 I/O 179 I/O 180 I/O 181 I/O 182 GCK2 183 GND 184 VCCO 185 GCK3 186 VCCINT 187 I/O 188 I/O 189 I/O 190 GND 191 I/O 192 I/O 193 I/O 194 I/O 195 VCCINT 196 VCCO 197 GND 198 I/O 199 I/O 200 I/O 201 I/O 202 I/O 203 I/O 204 I/O 205 I/O 206 I/O 207 TCK 208 VCCO R9854 1k IC9703 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout *R9732 0 *R9733 0 VDID_S CLKM_IN DIN HDID_S ^INIT DSHL1 SYNCRST GND CLK20M VCCINT LAC OSDHO DMLL1 HDO_S DMHL1 VDO_S BLKU PCU LEU GCK3 BLKD LED PCD UBK NUEL UMH UML USH USL UEH CPH CPL NRST SCSU DRVMUTE_M SID DRVMUTE_S SIU P5V/TRST CLK CMH ROM47_2 CML ROM47_1 CSH RESERVE4 CSL CLPC_M ROM47_0 RESERVE4 CEL TDI N_VD47 SLAV GND CBK TDO CLPC_S 3.3V DRVRST CONFIG_SEL0 XNHD CONFIG_SEL1 FPDATA0 CONFIG_SEL2 FPDATA1 32MFlash_MSB LATCH SFVRST DCKC FPCLK OSDCLK CKI OSDIN4 GND VCCO OSDHD GCK1 OSDVD VCCINT GND GCK0 SCL YS SDA VCCO CL GND OSD0 TMS OSD1 TCK OSD2 P12V TEDASIC OSD9 HDID_M OSD10 VDID_M OSD11 HDIA_M OSD12 VDIA_M OSD13 OSD14 OSD15 OSDIN0 NCLP_M OSDIN1 RESERVE4 OSDIN2 NCLCP_S OSDIN3 LSI43_33MHz OSDIN5 SDAT OSDIN6 REFCK XNVD MCHD OSDIN7 DOE DCKB SFRST MCLD VDO_M MCCLK HDO_M SCO CGL MCVD VD_M OSD3 MCDATA HD_M OSD4 HD_S OSD5 VD_S NO_SYNC OSD6 HD_ADM OSD7 VD_ADM OSD8 DMLR1 DMHR1 VD_ADS DSHR1 HD_ADS DSLR1 HDIA_S DSLL1 VDIA_S VCCINT GND SS CONTROL CONTROL FPGA OSD DISCHARGE CONTROL SYNC PROCESSOR RESET 24 26 22 21 27 25 20 23 19 38 35 33 37 34 36 31 32 55 56 54 57 52 53 51 58 59 AB AG AD AA AK AC AI AJ AE AH AF (3/12) D-BOARD TO PWD7 MODEL ONLY PWD7 MODEL ONLY TXN/D1VPSC D-BOARD (9/12) ! PW7 MODEL ONLY 0(PWD7 MODEL) 33(PW7 MODEL) 0 3.2 0.2 12.2 0 3.2 0 3.2 3.2 0 0 0.6 TH-42PA40C D-Board (9 of 12) Schematic Diagram TH-42PA40C D-Board (9 of 12) Schematic Diagram 95 15.38.D 电路板 (10/12) 线路图 G G G G G G SUB_R0 SUB_R1 SUB_R2 SUB_R3 SUB_R4 SUB_R5 SUB_R6 SUB_R7 SUB_G4 SUB_G5 SUB_G1 SUB_G3 SUB_G6 SUB_G7 SUB_G2 SUB_G0 SUB_B4 SUB_B5 SUB_B1 SUB_B3 SUB_B6 SUB_B7 SUB_B2 SUB_B0 MAIN_R4 MAIN_R5 MAIN_R1 MAIN_R3 MAIN_R6 MAIN_R7 MAIN_R2 MAIN_R0 MAIN_G4 MAIN_G5 MAIN_G1 MAIN_G3 MAIN_G6 MAIN_G7 MAIN_G2 MAIN_G0 MAIN_B4 MAIN_B5 MAIN_B1 MAIN_B3 MAIN_B6 MAIN_B7 MAIN_B2 MAIN_B0 SB_R1 SB_G3 SB_G7 SB_G0 SB_R2 SB_R4 SB_G5 SB_R6 SB_G1 SB_G4 SB_G6 SB_R3 SB_R7 SB_R0 SB_R5 SB_B2 SB_B3 SB_B7 SB_B0 SB_B5 SB_B1 SB_B4 SB_B6 SB_G2 MN_G0 MN_G3 MN_R2 MN_B0 MN_G6 MN_R1 MN_R6 MN_B6 MN_R5 MN_G2 MN_R0 MN_B1 MN_B2 MN_R7 MN_B5 MN_G7 MN_R3 MN_B7 MN_G1 MN_G4 MN_G5 MN_R4 MN_B3 MN_B4 ROM_D0 ROM_D1 ROM_D2 ROM_D3 ROM_D4 ROM_D5 ROM_D6 ROM_D7 DO_DA1 DO_DC2 DO_DA2 DO_DC3 DO_DB3 DO_DA3 DO_DC4 NRST DO_DB2 DO_DC7 DO_DB7 DO_DA7 DO_DC8 DO_DB8 DO_DA8 DO_DC9 DO_DB9 DO_DA9 DO_DC10 DO_DB10 DO_DA10 DO_DC11 DO_DB11 DO_DA11 DO_DC12 ROM_AD0 ROM_AD1 ROM_AD2 ROM_AD3 ROM_AD4 ROM_AD5 ROM_AD6 ROM_AD7 ROM_AD8 ROM_AD9 ROM_AD10 ROM_AD11 ROM_AD12 ROM_AD13 ROM_AD14 ROM_AD15 DO_DB12 DO_DA12 ROM_AD16 ROM_AD17 ROM_A18 ROM_A19 ROM_A20 ROM_AD18 ROM_AD19 ROM_CE ROM_OE ROM_WE ROM_RD_BY ROM_BYTE RM_BYTE RM_RD_BY RM_WE RM_OE RM_CE ROM_AD20 ROM_D15 DO_DA6 R9523 EXB2HV470JV R9522 EXB2HV470JV R9521 EXB2HV470JV R9526 EXB2HV470JV R9525 EXB2HV470JV R9524 EXB2HV470JV R9551 EXB2HVR000V 3.3V L5VDD3.3V C9691 16V 0.1u L5P1.5V 1.5V C9693 16V 0.1u R9553 EXB2HVR000V R9554 EXB2HVR000V R9555 0 R9556 0 R9559 0 R9552 0 R9557 EXB38VR000V R9558 EXB38VR000V C9692 6.3V 10u C9694 6.3V 10u FL9601 J0HABH000012 1 2 3 FL9602 J0HABH000012 1 2 3 FL9603 J0HABH000012 1 2 3 36 34 31 35 29 28 33 32 30 54 52 56 53 51 58 59 57 55 72 71 75 74 80 79 77 78 76 73 81 82 83 BB BA (4/12) D-BOARD TO TXN/D1VPSC D-BOARD (10/12) ! TH-42PA40C D-Board (10 of 12) Schematic Diagram TH-42PA40C D-Board (10 of 12) Schematic Diagram 96 15.39.D 电路板 (11/12) 线路图 + + DO_DA13 SB_B7 DO_DC2 L5_SDDB26 L5_NWEB L5_ADRSA06 L5_SDDA13 OSD15 DO_DB13 SB_B6 L5_SDDB25 DO_DC13 DO_DC1 L5_ADRSA05 L5_SDDA12 OSD14 DO_DB12 SB_B5 L5_SDDB24 L5_NCSB DRVCLKD0 DO_DC0 L5_ADRSA04 L5_SDDA11 OSD13 DO_DB11 SB_B4 L5_SDDB23 L5_NCASB L5_ADRSA03 L5_SDDA10 DRVCLKD1 OSD12 DO_DB10 SB_B3 L5_SDDB22 L5_NRASB L5_ADRSA02 L5_SDDA09 DRVCLKD2 OSD11 DO_DB9 SB_B2 L5_SDDB21 L5_BANKB1 L5_ADRSA01 L5_SDDA08 OSD10 DRVCLKD3 DO_DB8 SB_B1 L5_SDDB20 L5_BANKB0 L5_ADRSA00 L5_SDDA07 MN_B1 L5_SDDA31 OSD9 DO_DB7 SB_B0 L5_SDDB19 L5_ADRSB11 L5_SDDA06 MN_B0 L5_SDDA30 OSD8 DO_DB6 SB_G7 L5_SDDB18 L5_ADRSB10 L5_SDDA05 MN_R7 L5_SDDA29 OSD7 DO_DB5 SB_G6 ROM_CE L5_SDDB17 L5_ADRSB09 L5_SDDA04 MN_R6 L5_SDDA28 SFVRST OSD6 DO_DB4 SB_G5 L5_SDDB16 L5_ADRSB08 L5_SDDA03 MN_R5 L5_SDDA27 SFRST OSD5 DO_DB3 SB_G4 L5_SDDB15 L5_ADRSB07 MN_G0 L5_SDDA02 MN_R4 LATCH DRDLY0 OSD4 DO_DB2 SB_G3 L5_SDDB14 L5_ADRSB06 MN_G1 L5_SDDA01 MN_R3 FPCLK OSD3 DRDLY1 SB_G2 L5_SDDB13 DO_DB1 L5_ADRSB05 MN_G2 MN_R2 FPDAT1 OSD2 DO_DA0 SB_G1 L5_SDDB12 L5_SDDA00 L5_ADRSB04 DO_DB0 MN_G3 MN_R1 FPDAT0 OSD1 L5_SDDA26 DO_DA1 SB_G0 L5_SDDB11 L5_NWEA L5_ADRSB03 MN_G4 L5_SDDA25 MN_R0 OSD0 DO_DA2 L5_SDDB10 L5_ADRSB02 MN_G5 L5_SDDA24 DO_DA3 DO_DC12 L5_NCSA L5_SDDB09 L5_ADRSB01 MN_G6 L5_SDDA23 OSD_YM DO_DA4 DO_DC11 L5_SDDB08 L5_NCASA L5_ADRSB00 MN_G7 L5_SDCKB L5_SDDA22 L5_SDDB07 OSD_YS DO_DA5 SB_R7 DO_DC10 L5_NRASA MN_B7 L5_SDDA21 L5_SDDB06 DO_DA6 SB_R6 DO_DC9 L5_BANKA1 L5_SDCKA MN_B6 L5_SDDA20 L5_SDDB05 DO_DA7 SB_R5 DO_DC8 L5_BANKA0 MN_B5 L5_SDDA19 L5_SDDB04 DO_DA8 SB_R4 DO_DC7 L5_ADRSA11 MN_B4 L5_SDDA18 L5_SDDB03 DO_DA9 SB_R3 DO_DC6 L5_SDDB30 L5_ADRSA10 MN_B3 L5_SDDA17 L5_SDDB02 OSD_VDO DO_DA10 SB_R2 DO_DC5 L5_SDDB29 L5_ADRSA09 MN_B2 L5_SDDA16 L5_SDDB01 OSD_HDO DO_DA11 SB_R1 DO_DC4 L5_SDDB28 L5_ADRSA08 L5_SDDA15 OSD_HDIN DO_DA12 SB_R0 DO_DC3 L5_SDDB27 L5_SDDB00 L5_ADRSA07 L5_SDDA14 OSD_CKIN OCK SCKREF MCKREF DCK REFCK P3V_SCL2 P3V_SDA2 HDO_S VDO_M DCK_M HDO_M VDO_S DCK_S TRST_BS TMS_BS TDI_BS TCK_BS C9645 16V 0.1u C9663 16V 0.1u C9672 16V 0.1u C9668 16V 0.1u C9636 16V 0.1u C9626 16V 0.1u C9646 16V 0.1u C9608 16V 0.1u C9625 16V 0.1u C9616 16V 0.1u R9617 0 C9656 16V 0.1u C9622 16V 0.1u C9619 16V 0.1u C9655 16V 0.1u C9615 16V 0.1u C9671 16V 0.1u C9632 16V 0.1u C9614 16V 0.1u C9605 16V 0.1u C9658 16V 0.1u C9640 16V 0.1u C9607 16V 0.1u C9669 16V 0.1u C9644 16V 0.1u C9637 16V 0.1u C9617 16V 0.1u R9616 0 C9664 16V 0.1u C9662 16V 0.1u C9618 16V 0.1u C9635 16V 0.1u C9651 16V 0.1u C9661 16V 0.1u C9606 16V 0.1u C9660 16V 0.1u C9612 16V 0.1u C9611 16V 0.1u C9630 16V 0.1u C9639 16V 0.1u C9602 16V 0.1u C9652 16V 0.1u C9641 16V 0.1u C9647 16V 0.1u C9610 16V 0.1u C9633 16V 0.1u C9627 16V 0.1u C9642 16V 0.1u C9650 16V 0.1u C9653 16V 0.1u L5P1.5V C9613 16V 0.1u L5VDD3.3V C9643 16V 0.1u C9654 16V 0.1u C9638 16V 0.1u C9604 16V 0.1u C9665 16V 0.1u C9659 16V 0.1u C9624 16V 0.1u C9657 16V 0.1u C9648 16V 0.1u C9628 16V 0.1u C9623 16V 0.1u C9620 16V 0.1u C9609 16V 0.1u C9649 16V 0.1u C9631 16V 0.1u C9621 16V 0.1u C9629 16V 0.1u C9666 16V 0.1u C9603 16V 0.1u C9667 16V 0.1u R9620 0 R9622 0 R9624 0 R9626 0 R9611 0 R9637 0 R9633 0 R9638 0 R9635 0 R9647 0 R9643 0 R9641 0 R9644 0 L5VDD3.3V R9649 0 L5VDD3.3V R9651 0 R9652 0 R9653 0 R9654 0 R9627 0 R9628 0 R9629 0 R9630 0 R9631 0 R9607 10k C9682 16V 0.1u C9683 16V 0.1u R9609 10k L5VDD3.3V R9608 0 R9610 0 R9601 0 R9602 0 R9603 0 R9604 0 R9605 0 R9606 0 C9634 220u 4V C9670 220u 4V IC9601 Y7 DRVCLKD4 IC9601 K23 SDCKA IC9601 H10 VDD33 IC9601 B13 OSDCKO IC9601 V20 TILD IC9601 Y13 NCSB IC9601 U1 DOUTDB07 IC9601 AC4 DOUTDC01 IC9601 R11 VDD15 IC9601 V5 VDD15 IC9601 G3 BUIB0 IC9601 B8 GYIA0 IC9601 D10 XMPLLPDN IC9601 P9 VDD15 IC9601 K21 SDDA00 IC9601 V22 TIIC58 IC9601 T23 TEST4 IC9601 H20 SDDA10 IC9601 J8 VSS IC9601 D8 GYIA2 IC9601 L22 ADRSA09 IC9601 B12 AVDD33M IC9601 A7 BUIA2 IC9601 N9 VDD15 IC9601 C6 BUIA0 IC9601 T2 DOUTDB09 IC9601 K10 VSS IC9601 AA2 DOUTDA03 IC9601 H12 VDD33 IC9601 R2 DOUTDC11 IC9601 N2 OCK IC9601 R23 SDIV3 IC9601 R1 DOUTDA10 IC9601 Y5 VDD15 IC9601 P16 VDD33 IC9601 N1 VDD33 IC9601 J2 RHB IC9601 W16 SDDB13 IC9601 A14 OSD03 IC9601 K1 VSS IC9601 M5 TCKSEL1 IC9601 C17 YS IC9601 L12 VSS IC9601 K20 SDDA01 IC9601 N10 VSS IC9601 W10 VDD33 IC9601 E1 BUIB7 IC9601 H3 RVIB3 IC9601 V4 DOUTDC07 IC9601 E16 AFJ IC9601 P20 SCPOUT IC9601 B6 RVIA7 IC9601 A2 VMASKA IC9601 C21 VSS IC9601 E21 SDDA23 IC9601 K16 VDD33 IC9601 E10 VDD33 IC9601 E11 MDIV0 IC9601 J23 SDDA03 IC9601 AB5 DOUTDB00 IC9601 Y15 SDDB09 IC9601 E12 REFCK IC9601 L13 VSS IC9601 AC20 NRASB IC9601 L4 TIOCTL1 IC9601 AA19 SDDB27 IC9601 H8 VSS IC9601 AC22 BANKB0 IC9601 C12 MCPOUT IC9601 L14 VDD15 IC9601 B5 RVIA4 IC9601 N13 VSS IC9601 AA12 ADRSB10 IC9601 AC13 SDDB02 IC9601 D1 GYIB2 IC9601 W3 DOUTDA05 IC9601 C18 ALPHA3 IC9601 D19 VDD15 IC9601 W11 VDD33 IC9601 AB11 ADRSB06 IC9601 F19 VDD15 IC9601 B23 SDDA29 IC9601 E5 VSS IC9601 B17 YM IC9601 U23 MINTEST IC9601 J5 RVIB0 IC9601 Y8 DRDLY1 IC9601 Y14 SDDB04 IC9601 E2 GYIB0 IC9601 J12 VDD15 IC9601 V19 VDD15 IC9601 AB3 DOUTDB02 IC9601 AA14 SDDB05 IC9601 AB16 SDDB16 IC9601 P5 DOUTDA13 IC9601 K12 VSS IC9601 AB18 SDDB25 IC9601 T11 VDD33 IC9601 C5 RVIA5 IC9601 D9 GYIA7 IC9601 R19 XSPLLRST IC9601 J11 VDD15 IC9601 V21 TIIC57 IC9601 C7 BUIA4 IC9601 P3 DOUTDC13 IC9601 E8 GYIA3 IC9601 F22 SDDA18 IC9601 A22 SDDA30 IC9601 H5 RVIB5 IC9601 H15 VSS IC9601 H14 VDD33 IC9601 J9 VSS IC9601 D6 BUIA1 IC9601 A13 TIDDQM IC9601 P19 AVDD33S IC9601 G4 BUIB1 IC9601 R13 VDD15 IC9601 U2 DOUTDA07 IC9601 C23 SDDA27 IC9601 J15 VSS IC9601 V3 DOUTDA06 IC9601 T1 DOUTDC09 IC9601 AA6 DRVCLKD0 IC9601 W13 VDD33 IC9601 D3 GYIB4 IC9601 M22 ADRSA04 IC9601 AC15 SDDB12 IC9601 B4 RVIA1 IC9601 L8 VDD33 IC9601 W22 SCL IC9601 D20 VSS IC9601 W9 MUTE IC9601 P1 DOUTDB12 IC9601 AA22 TRST IC9601 J22 SDDA04 IC9601 A23 VSS IC9601 G22 SDDA13 IC9601 E23 SDDA21 IC9601 D17 OSDCKI IC9601 C2 GYIB6 IC9601 W6 VDD15 IC9601 U21 TEST1 IC9601 J1 DCKB IC9601 AA9 SFRST IC9601 L11 VSS IC9601 AA13 SDDB00 IC9601 W1 DOUTDC05 IC9601 AB15 SDDB11 IC9601 AA1 DOUTDB03 IC9601 P4 DOUTDB13 IC9601 D22 SDDA25 IC9601 L9 VDD15 IC9601 U3 DOUTDC08 IC9601 B1 GYIB7 IC9601 P8 VDD33 IC9601 B18 ALPHA2 IC9601 V23 IICLPFON IC9601 C4 RVIA2 IC9601 U19 TEST3 IC9601 W15 SDDB08 IC9601 D23 SDDA24 IC9601 W21 SDA IC9601 J20 SDDA06 IC9601 AC19 SDDB29 IC9601 AA4 DOUTDA01 IC9601 F2 BUIB4 IC9601 V2 DOUTDB06 IC9601 Y2 DOUTDB04 IC9601 F1 BUIB3 IC9601 W20 VDD15 IC9601 A18 ALPHA1 IC9601 G20 SDDA15 IC9601 F23 SDDA17 IC9601 AA18 SDDB24 IC9601 F21 SDDA19 IC9601 J16 VSS IC9601 W4 VDD15 IC9601 N23 TIDDQS IC9601 AA23 MONOUT IC9601 AB20 SDDB31 IC9601 B11 MDIV3 IC9601 M19 ADRSA07 IC9601 C19 BANKA1 IC9601 C13 OSD00 IC9601 R14 VDD33 IC9601 Y22 TDI IC9601 AC18 SDDB26 IC9601 C20 NCASA IC9601 AC9 DCK IC9601 M14 VDD15 IC9601 V1 DOUTDC06 IC9601 N5 XRST IC9601 L1 TCKSEL0 IC9601 K4 HMASKB IC9601 T5 DOUTDB10 IC9601 AB8 FPDAT1 IC9601 A3 HMASKA IC9601 AA20 SDDB30 IC9601 T10 VDD33 IC9601 N8 VDD33 IC9601 AA8 FPDAT0 IC9601 U5 DOUTDA08 IC9601 D18 OSDHO IC9601 Y21 TDO IC9601 B22 VSS IC9601 K22 NCSA IC9601 J3 DHB IC9601 R20 SDIV0 IC9601 M11 VSS IC9601 H19 SDDA11 IC9601 AA10 ADRSB01 IC9601 Y3 DOUTDA04 IC9601 AA7 DRVCLKD5 IC9601 AB23 BANKB1 IC9601 D5 VDD15 IC9601 J21 SDDA05 IC9601 AB4 DOUTDB01 IC9601 AC7 CKOUT IC9601 A17 OSDHI IC9601 J4 DVB IC9601 B19 SDCLSEL IC9601 L10 VSS IC9601 J10 VDD15 IC9601 M2 TCKSEL4 IC9601 K5 CLAMPB IC9601 G23 SDDA12 IC9601 R3 DOUTDB11 IC9601 Y9 LATCH IC9601 H1 RVIB1 IC9601 H21 SDDA09 IC9601 W23 TMS IC9601 AC8 FPCLK IC9601 K13 VSS IC9601 D12 AVSSM IC9601 W18 VDD15 IC9601 P23 XSPLLPDN IC9601 D4 VSS IC9601 E4 VDD15 IC9601 C16 OSD15 IC9601 AB12 ADRSB11 IC9601 E3 GYIB1 IC9601 M1 TCKSEL5 IC9601 A15 OSD08 IC9601 AA11 ADRSB05 IC9601 M12 VSS IC9601 Y12 ADRSB09 IC9601 A4 RVIA0 IC9601 E9 RHA IC9601 D21 SDDA26 IC9601 N15 VDD15 IC9601 N20 ADRSA01 IC9601 AB17 SDDB21 IC9601 Y19 VDD15 IC9601 G21 SDDA14 IC9601 Y18 SDDB23 IC9601 AA5 DOUTDA00 IC9601 U4 DOUTDB08 IC9601 A12 MCKREF IC9601 T20 TEST7 IC9601 AC12 SDCKB IC9601 AC21 NWEB IC9601 C15 OSD10 IC9601 J14 VDD15 IC9601 L15 VDD33 IC9601 U22 TEST0 IC9601 K3 VMASKB IC9601 A10 DCKA IC9601 AC11 ADRSB07 IC9601 T21 TEST6 IC9601 T4 DOUTDC10 IC9601 G1 RVIB6 IC9601 E18 VDD15 IC9601 N3 SCANMODE IC9601 AA16 SDDB15 IC9601 C22 SDDA28 IC9601 N14 VSS IC9601 AC10 ADRSB03 IC9601 B14 OSD04 IC9601 B15 OSD09 IC9601 W12 ADRSB08 IC9601 K2 VDD33 IC9601 A9 GYIA4 IC9601 E15 OSD12 IC9601 AB21 NCASB IC9601 M23 ADRSA03 IC9601 D2 GYIB3 IC9601 C9 GYIA6 IC9601 Y6 ROMCE IC9601 K15 VDD33 IC9601 K14 VSS IC9601 G2 RVIB7 IC9601 F3 BUIB5 IC9601 AB1 DOUTDC03 IC9601 D16 BFJ IC9601 N16 VDD33 IC9601 T19 TIDDQ IC9601 A5 RVIA3 IC9601 T22 TEST5 IC9601 AC16 SDDB17 IC9601 H4 RVIB4 IC9601 B3 CLAMPA IC9601 F20 SDDA20 IC9601 E20 VDD15 IC9601 H2 RVIB2 IC9601 Y23 TCK IC9601 A8 BUIA7 IC9601 Y17 SDDB19 IC9601 W17 SDDB18 IC9601 AC2 DOUTDA02 IC9601 L19 VDD33 IC9601 D11 MDIV1 IC9601 R12 VDD15 IC9601 N19 ADRSA02 IC9601 H22 SDDA08 IC9601 E7 BUIA6 IC9601 C10 DHA IC9601 N21 ADRSA00 IC9601 F4 BUIB6 IC9601 AB19 SDDB28 IC9601 B2 VSS IC9601 D7 BUIA5 IC9601 Y10 ADRSB00 IC9601 J13 VDD15 IC9601 A11 XMPLLRST IC9601 M15 VDD15 IC9601 AB9 SFVRST IC9601 H16 VSS IC9601 A6 RVIA6 IC9601 K8 VDD33 IC9601 P21 AVSSS IC9601 C8 GYIA1 IC9601 W8 DRDLY0 IC9601 AC3 DOUTDC02 IC9601 A21 NRASA IC9601 R10 VDD15 IC9601 R4 DOUTDA11 IC9601 H11 VDD33 IC9601 E6 VDD15 IC9601 K11 VSS IC9601 K19 SDDA02 IC9601 M20 ADRSA06 IC9601 N12 VSS IC9601 N4 SCANEN IC9601 E17 ALPHA0 IC9601 E22 SDDA22 IC9601 AC5 DOUTDC00 IC9601 P22 SCKREF IC9601 AA17 SDDB20 IC9601 T12 VDD33 IC9601 B9 GYIA5 IC9601 L16 VDD33 IC9601 L23 ADRSA08 IC9601 M10 VSS IC9601 R21 SDIV1 IC9601 L2 TIOCTL3 IC9601 C14 OSD05 IC9601 E13 OSD02 IC9601 C11 MDIV2 IC9601 T3 DOUTDA09 IC9601 AC6 DRVCLKD2 IC9601 J19 VDD33 IC9601 N11 VSS IC9601 AB6 DRVCLKD1 IC9601 AA15 SDDB10 IC9601 L21 ADRSA10 IC9601 B21 SDDA31 IC9601 W7 DRVCLKD3 IC9601 AB7 VDD33 IC9601 H13 VDD33 IC9601 A19 OSDVO IC9601 F5 VDD15 IC9601 B20 NWEA IC9601 P15 VDD15 IC9601 M16 VDD33 IC9601 Y16 SDDB14 IC9601 AB14 SDDB06 IC9601 A16 OSD13 IC9601 A20 BANKA0 IC9601 L3 TIOCTL2 IC9601 AC17 SDDB22 IC9601 L5 TIOCTL0 IC9601 C3 VSS IC9601 M9 VDD15 IC9601 B16 OSD14 IC9601 K9 VDD15 IC9601 M13 VSS IC9601 AB13 SDDB01 IC9601 AC14 SDDB07 IC9601 M21 ADRSA05 IC9601 W2 DOUTDB05 IC9601 G5 BUIB2 IC9601 B7 BUIA3 IC9601 D13 OSD01 IC9601 M8 VDD33 IC9601 D14 OSD06 IC9601 H23 SDDA07 IC9601 N22 TPLLOUT IC9601 Y1 DOUTDC04 IC9601 W14 SDDB03 IC9601 U20 TEST2 IC9601 E19 VSS IC9601 MN84513-A A1 VSS IC9601 H9 VSS IC9601 M4 TCKSEL2 IC9601 C1 GYIB5 IC9601 T14 VDD33 IC9601 R5 DOUTDC12 IC9601 G19 SDDA16 IC9601 AB10 ADRSB02 IC9601 B10 DVA IC9601 L20 ADRSA11 IC9601 M3 TCKSEL3 IC9601 Y11 ADRSB04 IC9601 T13 VDD33 IC9601 P2 DOUTDA12 IC9601 D15 OSD11 IC9601 E14 OSD07 IC9601 R22 SDIV2 IC9601 R9 VSS IC9601 AB2 VSS IC9601 P13 VSS IC9601 Y20 VSS IC9601 R16 VSS IC9601 AB22 VSS IC9601 AC23 VSS IC9601 T15 VSS IC9601 P11 VSS IC9601 P12 VSS IC9601 W19 VSS IC9601 R8 VSS IC9601 AA21 VSS IC9601 T9 VSS IC9601 W5 VSS IC9601 P14 VSS IC9601 R15 VSS IC9601 AC1 VSS IC9601 Y4 VSS IC9601 AA3 VSS IC9601 T8 VSS IC9601 T16 VSS IC9601 P10 VSS L5VDD3.3V R9684 0 R9685 0 R9682 0 R9683 0 C9679 15p MN84513-A(LSI55) IC9601 38 37 39 42 41 40 45 43 44 77 78 82 81 75 83 76 80 79 74 73 72 71 101 102 103 104 105 106 CA (5/12) D-BOARD TO TXN/D1VPSC ! D-BOARD (11/12) PW7 MODEL ONLY TH-42PA40C D-Board (11 of 12) Schematic Diagram TH-42PA40C D-Board (11 of 12) Schematic Diagram 97 15.40.D 电路板 (12/12) 线路图 SIDE TERM SIDE TERM + + DRVCLKD3 DRVCLKD2 DRDLY LED(RIGHT) PCD(RIGHT) UEH USH USL UMH UML NUEL AA_DRV_SOS9 DRVRST DRVCLKD1 DRVCLKD0 LED_R LED_G AA_REMOCON DRVRST_5V 5V_SENSE 5V_SENSE KEY_INPUT DRVRST_5V AA_CATS_EYE LED(RIGHT) PCD(RIGHT) DRDLY L5_SDDB21 L5_SDDA12 DO_DA3 DO_DB9 DO_DA2 L5_NRASB L5_SDDA22 DO_DC2 L5_SDDB04 L5_SDDA29 L5_SDDA13 DO_DC11 L5_SDDB15 L5_NCASB L5_SDDA23 L5_SDDB28 L5_SDDA30 L5_SDDA14 DO_DB11 DO_DA6 L5_SDDB20 L5_BANKA0 L5_ADRSB04 L5_SDDB03 L5_SDDB08 L5_SDDA06 L5_SDDA15 DO_DB2 DO_DB10 L5_SDDB14 DO_DC8 L5_SDDB26 DO_DB8 L5_BANKA1 L5_NWEB L5_ADRSB06 L5_ADRSB10 L5_ADRSA03 L5_SDCKB L5_SDDA07 DO_DC5 DO_DB3 L5_SDDB19 DO_DA11 DO_DA5 DO_DC12 L5_ADRSA10 L5_ADRSB03 L5_ADRSA09 L5_ADRSB09 L5_ADRSA04 L5_SDDB25 L5_NWEA L5_SDDA01 DO_DB7 DO_DA9 L5_ADRSA00 L5_SDDB07 L5_SDDB13 L5_BANKB1 L5_ADRSA05 L5_SDDB23 DO_DA7 L5_NCASA L5_SDDA02 DO_DA4 L5_ADRSA01 L5_SDDB31 DO_DC9 L5_SDDB18 L5_ADRSB08 L5_ADRSA06 L5_SDDB24 DO_DA8 L5_NRASA L5_SDDA03 L5_SDDB27 L5_ADRSA02 L5_SDDB06 DO_DA10 L5_SDDB10 L5_BANKB0 L5_ADRSA07 L5_SDDB17 L5_SDDA04 L5_SDDB12 L5_SDDA24 DO_DA12 L5_SDDA16 L5_SDDB30 L5_SDDB02 L5_ADRSB01 L5_ADRSA08 L5_SDDB01 L5_SDDA05 DO_DC6 L5_SDDB16 L5_SDDA17 L5_SDDA08 L5_SDDB22 DO_DC10 DO_DC4 L5_SDDB09 L5_SDDA18 L5_SDDB11 L5_SDDA25 L5_SDDA09 L5_SDCKA L5_ADRSB05 L5_SDDA19 L5_ADRSB02 L5_ADRSB00 L5_SDDA26 L5_SDDA10 DO_DB6 L5_ADRSB07 L5_SDDA20 L5_SDDB05 L5_SDDA27 L5_SDDA11 DO_DB5 L5_SDDA21 L5_SDDB29 DO_DC3 L5_SDDA28 DO_DB4 DRDLY1 DRDLY DRDLY0 DO_DA1 DO_DB12 DO_DC7 ROM_RD_BY ROM_WE ROM_BYTE DO_DA9 DO_DB9 DO_DC9 DO_DA8 DO_DB8 DO_DC8 DO_DA11 DO_DB11 DO_DC11 DO_DA10 DO_DB10 DO_DC10 DO_DA13 DO_DB13 DO_DC13 DO_DA12 DO_DB12 DO_DC12 DO_DA4 DO_DC5 DO_DB5 DO_DA5 DO_DC2 DO_DB2 DO_DA2 DO_DC3 DO_DB4 DO_DC4 DO_DA7 DO_DB7 DO_DC7 DO_DA6 DO_DB6 DO_DC6 DO_DB3 DO_DA3 DO_DC0 DO_DB0 DO_DA0 DO_DC1 DO_DB1 DO_DA1 5V_SENSE ROM_A20 ROM_A19 ROM_A18 ROM_CE ROM_OE R9310 47 R9323 47 R9309 47 R9306 47 R9308 47 R9324 47 R9307 47 R9325 47 3.3V C9301 50V 0.01u R9318 10k R9316 4.7k Q9301 B1ABCC000004 R9317 100k 3.3V C9304 50V 0.01u R9333 10k R9331 4.7k Q9302 B1ABCC000004 R9332 100k R9335 100 Q9303 B1ABCC000004 R9336 100k R9314 150 R9313 150 R9315 150 R9319 0 P5V C9302 16V 4.7u C9303 16V 0.1u R9334 0 C9306 16V 0.1u P5V C9305 16V 4.7u STB5V_M R9305 0 R9328 0 R9330 47 R9327 47 R9326 47 R9312 EXB38V151JV C9550 16V 0.1u C9531 16V 0.1u C9561 16V 0.1u R9561 0 R9596 0 C9521 16V 0.1u C9528 16V 0.1u C9549 16V 0.1u R9584 0 C9551 16V 0.1u C9523 16V 0.1u C9527 16V 0.1u C9544 16V 0.1u C9522 16V 0.1u C9524 16V 0.1u R9594 0 R9595 22 R9581 0 C9548 16V 0.1u R9593 0 C9542 16V 0.1u L5VDD3.3V R9583 0 R9585 22 C9530 16V 0.1u 3.3V C9545 16V 0.1u C9526 16V 0.1u C9543 16V 0.1u C9525 16V 0.1u R9586 0 C9547 16V 0.1u R9591 0 C9562 16V 4.7u C9532 16V 0.1u C9552 16V 0.1u C9546 16V 0.1u C9541 16V 0.1u C9529 16V 0.1u L5VDD3.3V R9340 10k R9339 10k 3.3V R9337 0 R9563 4.7k R9301 100 TP0001 C3FBND000172 IC9506 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 WE 12 RESET 13 NC 14 WP/ACC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 VSS 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE 48 A16 D9302 B0ADBA000006 D9301 B0ADBA000006 R9341 0 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 C9533 220u 4V C9553 220u 4V R9329 EXB38VR000V C3ABPJ000071 IC9603 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDD 16 DQM0 17 /WE 18 /CAS 19 /RAS 20 /CS 21 NC 22 BA0 23 BA1 24 A10(AP) 25 A0 26 A1 27 A2 28 DQM2 29 VDD 30 NC 31 DQ16 32 VSSQ 33 DQ17 34 DQ18 35 VDDQ 36 DQ19 37 DQ20 38 VSSQ 39 DQ21 40 DQ22 41 VDDQ 42 DQ23 43 VDD 44 VSS 45 DQ24 46 VSSQ 47 DQ25 48 DQ26 49 VDDQ 50 DQ27 51 DQ28 52 VSSQ 53 DQ29 54 DQ30 55 VDDQ 56 DQ31 57 NC 58 VSS 59 DQM3 60 A3 61 A4 62 A5 63 A6 64 A7 65 A8 66 A9 67 CKE 68 CLK 69 NC 70 NC 71 DQM1 72 VSS 73 NC 74 DQ8 75 VDDQ 76 DQ9 77 DQ10 78 VSSQ 79 DQ11 80 DQ12 81 VDDQ 82 DQ13 83 DQ14 84 VSSQ 85 DQ15 86 VSS C3ABPJ000071 IC9602 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDD 16 DQM0 17 /WE 18 /CAS 19 /RAS 20 /CS 21 NC 22 BA0 23 BA1 24 A10(AP) 25 A0 26 A1 27 A2 28 DQM2 29 VDD 30 NC 31 DQ16 32 VSSQ 33 DQ17 34 DQ18 35 VDDQ 36 DQ19 37 DQ20 38 VSSQ 39 DQ21 40 DQ22 41 VDDQ 42 DQ23 43 VDD 44 VSS 45 DQ24 46 VSSQ 47 DQ25 48 DQ26 49 VDDQ 50 DQ27 51 DQ28 52 VSSQ 53 DQ29 54 DQ30 55 VDDQ 56 DQ31 57 NC 58 VSS 59 DQM3 60 A3 61 A4 62 A5 63 A6 64 A7 65 A8 66 A9 67 CKE 68 CLK 69 NC 70 NC 71 DQM1 72 VSS 73 NC 74 DQ8 75 VDDQ 76 DQ9 77 DQ10 78 VSSQ 79 DQ11 80 DQ12 81 VDDQ 82 DQ13 83 DQ14 84 VSSQ 85 DQ15 86 VSS R9302 100 R9303 EXB2HV101JV R9304 EXB2HV101JV R9320 EXB2HV101JV R9321 EXB2HV101JV R9322 EXB2HV101JV 5V DET R-DOWN L-DOWN DRVRST DRV_SOS9(SS) GND 5V (HZ) GND GND GND 5V NCLKR FPC_DET UE2H USL USH GND D21 5V D22 GND D26 GND D31 D23 D32 GND D33 D24 D34 D16 D35 D25 UEH GND GND CLKR GND D11 D36 D12 UMH D13 5V D14 GND D15 PCR GND UML DRDLY1_2 CER CLKL DRVRST DRCDLY1_1 D76 D75 D74 D73 D72 D71 D66 D65 D64 D63 D62 D61 D56 D55 D54 D53 D52 D51 D46 D45 D44 D43 D42 D41 CEL PCL LED_R LED_G REMOCON KEY_SW OPT STB5V GND GND GND GND GND GND GND GND GND 5V 5V 5V 5V NCLKL CLKD1 CLKD0 FPC_DET 5V DET CLKD3 CLKD2 SDRAM-B SDRAM-A FLASH ROM (C21) TO C2-BOARD (C11) TO C1-BOARD 50 51 46 49 54 53 47 48 52 106 103 105 104 101 102 DA DB (6/12) D-BOARD TO TXN/D1VPSC ! D-BOARD (12/12) 0.8 0.6 0.4 0.7 0.6 0 0.7 0.7 0.6 0.8 0.8 0 0.6 0.7 0.7 0.7 0.8 0.7 0.6 0.7 0 0 0 0.2 0.6 0.6 5.1 0 2.5 0.4 0.5 0.1 0.4 3.4 0.2 3.4 4.3 0 0.4 0 0 0 5.3 5.3 5.2 0 5.3 0 1.3 0.1 0.7 0.8 0 0.7 0.8 0 0.6 0.7 0.8 0.8 0.5 0 0.7 0.7 0.7 0.6 0.7 0.7 0.7 0.5 0.7 0.6 0.7 0 0.6 0.7 2.5 0 0.6 0.6 5.1 3.4 0 0 0 0.6 4.1 0 0 0.2 1.3 0 5.2 5.3 5.3 0 5.2 3.2 1.3 5.0 TH-42PA40C D-Board (12 of 12) Schematic Diagram TH-42PA40C D-Board (12 of 12) Schematic Diagram 98 15.41.C1, C2 和 V1 电路板方框图 CLKR D3 D2 D1 C11 CB1 D2 CLK CB2 D3 CLK CB3 9 8 7 6 1 5 4 17 19 20 18 SOS SOS IC7104-6 BUFFER D4 CLK CB4 CLK D1 C12 CLOCK BUFFER IC7101 CB5 D5 CLK CB6 D6 CLK CB7 D7 CLK Vda67V Vda67V Vda67V Vda67V 15 13 12 16 4 C22 1 20 14 3 2 17 OMH SOS OML OSL OSH UE2H UEH D6 D5 D4 CLKL IC7202-4 BUFFER D7 CLOCK BUFFER IC7201 6 8 9 5 3 7 4 11 SOS C23 REMOCON LED R LED G 6 C24 2 3 REMOCON LED_G LED_R SS23 Vda67V SS SOS Data drive (Lower Right) Board (Rear View) C1 Board (Rear View) Data drive (Lower Left) SUSTAIN SUS TO D31 C21 TO D32 SOS 11 12 10 C2 14 DRVRST 19 1 DRVRST DRVRST TO RM001 G R D1550 S1550 S1551 S1552 VOL.DN VOL.UP TV/VTR F V1 S1553 6 STR S1554 4 KEY SW IC1550 7 OPT REMOCON V34 2 3 Q1540 VOUT Remocon Senser , Power Switch Board RECEIVER 4 7 7 OPT 9 KEY SW DETECTER CATS OMH OSL SOS UEH OSH OML UE2H 16 15 14 13 11 12 8 OML UE2H OSL OSH UEH OMH OML UE2H OSL OSH UEH OMH OML UE2H OSL OSH UEH OMH OML UE2H OSL OSH UEH OMH UMH UML USL USH UEL UEH POWER ON STAND BY TH-42PA40C C1, C2 and V1-Board Block Diagram TH-42PA40C C1, C2 and V1-Board Block Diagram 99 15.42.C1 电路板 (1/2) 线路图 TERM SIDE AD_CLK21 AD_LE1 AE_BD16 AE_BD15 AE_BD14 AE_BD12 AD_LE1 AE_BD13 AE_BD11 67V FDET FDET C7153 100p R7102 22 R7136 22 R7103 22 R7125 1k R7175 0 C7104 16V 1u R7137 22 C7161 100V 0.47u C7108 16V 1u ZA7101 K4CD01000013 ZA7102 K4CD01000013 ZA7103 K4CD01000013 CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V 67V R7162 47 R7163 47 C7183 100p R7403 470 C7193 16V 0.1u C7191 6.3V 10u C7194 16V 0.1u C7192 16V 0.1u C7190 6.3V 10u C1_5V(SS) C1_5V IC7107 WW-C0D-A0061 1 CONTROL 2 GND 3 NP 4 VOUT 5 GND 6 VIN 5V 1 D A 8 E B C 3 7 6 2 4 5 DRIVER DATA TO 4 2 3 1 5.0 5.0 5.0 0 0 0 C1-BOARD TNPA3244 (1/2) ! TH-42PA40C C1-Board (1 of 2) Schematic Diagram TH-42PA40C C1-Board (1 of 2) Schematic Diagram 100 15.43.C1 电路板 (2/2) 线路图 SIDE TERM TERM SIDE TERM SIDE SIDE TERM AH_NCLKR AH_CER AH_CLKR AD_CLK21 AI_SOS AI_UEH AI_UE2H AI_OSL AI_OSH AI_OML AD_LE3 AD_LE2 AD_LE1 AI_OMH AI_SOS AI_OMH AI_OML AI_OSH AI_OSL AI_UEH AI_UE2H 5V AD_CLK21 AD_CLK11 AD_CLK11 AD_CLK21 AH_CER AH_PCR AB_D21 AB_D22 AB_D23 AB_D24 AB_D25 AB_D26 AA_D31 AA_D32 AA_D33 AA_D34 AA_D35 AA_D36 AG_BD33 AG_BD34 AG_BD36 AG_BD35 AC_D11 AC_D12 AC_D13 AC_D14 AC_D15 AC_D16 AE_BD13 AE_BD14 AE_BD15 AE_BD16 AD_LE3 AG_BD36 AG_BD34 AG_BD33 AG_BD32 67V AD_LE3 AG_BD35 AG_BD31 67V AD_LE2 AF_BD26 AF_BD24 AF_BD23 AF_BD22 AF_BD21 67V AD_LE2 AF_BD25 5V 67V 5V AF_BD24 AF_BD25 AF_BD23 AF_BD26 FDET FDET FDET FDET FDET AD_CLK11 FDET AH_PCR AE_BD12 AE_BD11 AG_BD31 AG_BD32 AF_BD22 AF_BD21 67V AH_NCLKR AH_CLKR 67V 67V AC_D11 AC_D12 AC_D13 AC_D14 AC_D15 AC_D16 AB_D21 AB_D22 AB_D23 AB_D24 AB_D25 AB_D26 AA_D31 AA_D32 AA_D33 AA_D34 AA_D35 AA_D36 R7111 22 C7136 10u R7127 47 R7187 22k IC7101 C0JBAZ001120 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc C7101 16V 1u C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7137 1u R7141 22 R7126 47 C7140 10u R7106 22 R7138 22 R7128 47 R7130 0 C7107 0.1u R7117 220k R7192 0 C7102 6.3V 10u R7132 0 R7139 22 IC7106 C0JBAZ001120 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc C7139 1u R7177 0 R7140 22 C7106 16V 1u C7138 10u R7110 22 R7176 0 C7135 1u R7188 100k R7107 22 IC7104 C0JBAZ001120 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc C7105 16V 1u IC7105 C0JBAZ001120 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc R7161 0 FL7106 ELKE103FA 1 2 3 C7163 100V 0.47u C7165 100V 0.47u R7194 0 C7110 16V 1u C7109 16V 1u CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7196 0 R7197 0 R7198 0 R7199 0 C1_5V C1_5V C1_5V 67V 67V 67V C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 C1_3.3V C1_5_3V_B C1_5_3V C1_3.3V C1_5_3V C1_5_3V C1_5_3V R7142 EXB38V470JV R7148 EXB38V470JV R7154 EXB38V470JV R7171 47 R7167 47 R7170 47 R7166 47 R7404 330 R7405 470 R7402 47 R7401 47 R7178 47 R7143 47 R7144 47 R7149 47 R7150 47 R7155 47 R7156 47 C1_5V(SS) C1_5V C7182 100p C7155 50V 820p C7154 820p C7186 330p 5V (SN74AHCT541PWR) (SN74AHCT541PWR) (SN74AHCT541PWR) (HZ) 3.3V (SN74AHCT541PWR) 15 13 9 14 10 11 8 12 TO (C22) C2-BOARD (C2-BOARD REVERSE FOR CONENCETOR PIN NO) DRIVER DATA TO DRIVER DATA TO CLOCK BUFFER BUFFER BUFFER BUFFER 1 4 2 3 TO (D31) D-BOARD 0 0.7 0.6 0.5 0.7 0 0.7 0.8 0 0.6 0.6 0.6 0.7 0.6 0.6 0.7 0.7 0.7 0.8 0 0 0.1 0.6 2.5 0 0.6 5.0 0 0 0 0.5 3.3 0.2 0.3 0 3.3 4.3 0 0 0.1 5.2 5.2 5.2 1.3 0 0 5.2 0 0 0 3.3 3.3 0.1 0.3 4.3 0 3.3 0.4 0.2 0 0 0 0 67.7 67.7 0 67.6 67.7 0 0.1 0 0 3.3 5.0 2.5 0 0 0.6 5.0 5.1 3.3 0 5.0 5.0 0.8 5.2 0 0 3.9 5.0 0 0 0.8 0.8 0.6 0 0 0.6 0.6 0.8 1.2 0 1.4 1.4 0 5.2 0 0 1.0 0.9 0.6 0.6 0.5 0.7 0 0.6 0 0 0.7 0 1.0 0 1.1 0.9 0.9 5.2 0 0 1.1 1.0 0 0.6 0 0 0.7 0 1.2 0 1.0 0.6 0.7 0.8 0.6 1.1 1.3 5.2 0 0 1.1 1.1 C1-BOARD TNPA3244 (2/2) ! TH-42PA40C C1-Board (2 of 2) Schematic Diagram TH-42PA40C C1-Board (2 of 2) Schematic Diagram 101 15.44.C2 电路板 (1/2) 和 V1 电路板线路图 TERM SIDE TERM SIDE SIDE TERM R G AB_CLK21 AB_CLK11 AK_REMOCON AK_OPT AK_KEY_SW AC_PCL AC_CEL AC_CLKL AC_NCLKL AB_LE4 AB_LE6 AB_LE7 AB_LE5 AB_CLK21 AB_CLK21 AB_CLK11 AB_CLK11 AG_D71 AG_D72 AG_D73 AG_D74 AG_D75 AG_D76 AF_D61 AF_D62 AF_D63 AF_D64 AF_D65 AF_D66 AE_D51 AE_D52 AE_D53 AE_D54 AE_D55 AE_D56 AD_D41 AD_D42 AD_D43 AD_D44 AD_D45 AD_D46 AD_D41 AD_D42 AD_D43 AD_D44 AD_D45 AD_D46 AE_D51 AE_D52 AE_D53 AE_D54 AE_D55 AE_D56 AF_D61 AF_D62 AF_D63 AF_D64 AF_D65 AF_D66 AG_D71 AG_D72 AG_D73 AG_D74 AG_D75 AG_D76 AJ_BD41 AJ_BD42 AJ_BD43 AJ_BD44 AJ_BD45 AJ_BD46 AI_BD63 AB_LE5 AA_BD56 AA_BD55 AA_BD54 AA_BD52 AA_BD51 67V AB_LE5 AA_BD53 AB_LE4 67V AB_LE4 AJ_BD46 AJ_BD45 AJ_BD44 AJ_BD43 AJ_BD42 AJ_BD41 67V AH_BD73 AH_BD71 AH_BD76 AH_BD74 AI_BD65 AH_BD72 AI_BD66 AH_BD75 AA_BD56 AA_BD55 AI_BD61 AI_BD64 AA_BD54 AI_BD62 AA_BD53 AA_BD52 AA_BD51 AC_PCL AK_KEY_SW AK_OPT AK_REMOCON STB5V AC_CLKL AC_NCLKL AC_CEL R7236 22 R7202 22 R7207 22 R7227 47 C7202 6.3V 10u R7309 0 C7238 6.3V 10u FL7208 ELKE103FA 1 2 3 R7206 22 D7202 MA3X152K0L D7201 MA3X152K0L C7266 100V 0.47u C7204 16V 1u C7201 16V 1u C7203 16V 1u R7228 47 R7310 0 R7203 22 C7268 100V 0.47u C7236 6.3V 10u IC7202 C0JBAZ001120 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc R7313 0 R7229 47 C7237 16V 1u C7240 6.3V 10u IC7204 C0JBAZ001120 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc C7242 16V 1u R7296 150 R7233 22 C7254 100p IC7201 C0JBAZ001120 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc FL7207 ELKE103FA 1 2 3 R7230 0 R7312 0 C7210 16V 1u R7234 22 R7306 100k R7235 22 C7235 16V 1u R7232 0 R7226 47 C7239 16V 1u IC7203 C0JBAZ001120 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc D7203 MA3X152K0L R7305 22k C7209 16V 1u C7208 16V 1u CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 STB5V STB5V STB5V R7324 0 R7326 0 67V 67V C2_5V C2_5V C2_5V C2_5_3V C2_5_3V C2_5_3V C2_5_3V C2_5V C2_5V R7340 0 R7341 0 R7342 0 R7343 0 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 R7241 EXB38V470JV R7242 EXB38V470JV R7249 EXB38V470JV R7250 EXB38V470JV R7257 EXB38V470JV R7258 EXB38V470JV C7283 820p R7381 330 R7289 47 R7290 47 R7293 47 C7286 820p R7382 330 R7372 56 R7371 56 C2_5V(SS) R7316 0 C7253 820p R7278 56 C24 1 2 3 4 5 6 7 8 D7205 MAZ80560ML L7215 L7212 L7213 D7206 MAZ80560ML L7216 STB5V L7214 L7211 IC1550 B3L000000020 R1556 47 R1552 220k Q1540 2SD0601A0L D1553 MAZ80560ML R1511 3k R1512 4.7k R1510 2.2k S1552 EVQPBD05R R1553 470 R1551 47 D1554 MAZ80560ML V34 1 2 3 4 5 6 7 8 R1550 1k R1513 8.2k D1550 LNJ107W5PRW R1555 47 S1554 EVQPBD05R D1551 MAZ80560ML R1554 270 RM001 PNA4601M05TV VOUT GND VCC D1552 MAZ80560ML C1530 6.3V 10u S1550 EVQPBD05R S1551 EVQPBD05R S1553 EVQPBD05R R1500 1k D7204 MA3X152K0L (SN74AHCT541PWR) 5V 5V (SN74AHCT541PWR) (SN74AHCT541PWR) (SN74AHCT541PWR) OPT STB5V LED_G LED_R KEY_SW REMOCON GND F MAIN STAND-BY C.A.T.S. SENSOR POWER LED REMOTE STR VOL. DOWN TF/VTR VOL. UP SENSOR ! V1-BOARD TNPA3199 CLOCK BUFFER BUFFER 8 4 1 2 3 B 7 5 6 D E C A DRIVER DATA TO DRIVER DATA TO C2-BOARD TNPA3245 (1/2) ! TO (D32) D-BOARD 5 6 4 2 3 1 3.1 0 1.3 3.2 5.2 5.2 5.3 0 5.3 4.9 3.3 0 0 4.1 0 0 0.6 0 5.1 0.8 0.5 0.4 0.4 0.5 0 2.6 0.6 0.5 0.5 0 0.4 0.4 0.6 0 0.5 0.6 0.5 0.5 0.5 0.6 0.5 0.6 0.7 0.6 0.5 0.4 0 0.6 0 0.4 0.2 0 0 0 5.0 0 3.1 4.1 0 0 0.2 0 5.0 0 3.1 4.1 5.0 3.4 5.1 5.1 0 0 2.5 5.1 0 0.6 5.0 5.1 5.0 5.0 3.4 5.2 0.8 3.9 0 0 0.5 0.6 0.6 0.6 0.6 0 0.6 0.6 0 0.6 0.8 0.8 0.8 0.9 0.9 5.2 1.0 0.8 0.9 0 0 0.5 0.5 0 0.5 0.4 0.6 0.4 0.5 0.6 0.7 0.7 0.9 0.9 0.9 5.3 0.9 0.8 0.8 0 0.8 1.0 0.6 0.5 0.6 0.5 0.7 0.9 0.8 5.2 0 0.8 1.1 1.1 1.0 0.6 0 0.5 0 0.5 BUFFER BUFFER TH-42PA40C C2-Board (1 of 2) and V1-Board Schematic Diagram TH-42PA40C C2-Board (1 of 2) and V1-Board Schematic Diagram 102 15.45.C2 电路板 (2/2) 线路图 SIDE TERM TERM SIDE TERM SIDE 5V AB_CLK21 AL_UE2H AL_UEH AL_OSL AL_OSH AL_OML AL_OMH AL_SOS AL_SOS AL_OMH AL_OML AL_OSH AL_OSL AL_UEH AL_UE2H AB_CLK11 AB_CLK21 AB_LE7 AH_BD76 AH_BD73 AH_BD71 67V AB_LE7 AH_BD75 AH_BD74 AH_BD72 67V AB_LE6 AI_BD65 AI_BD64 AB_LE6 AI_BD66 AI_BD63 AI_BD62 AI_BD61 67V AB_CLK11 67V 67V R7238 22 C23 1 2 3 4 5 6 7 8 9 10 11 R7314 0 R7214 22 C7206 16V 1u FL7209 ELKE103FA 1 2 3 R7240 22 R7225 1k R7239 22 R7211 22 C7255 100p C7272 100V 0.47u C7270 100V 0.47u R7315 0 R7237 22 R7217 220k C7243 16V 1u R7210 22 C7205 16V 1u R7215 22 C7207 100V 0.1u C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7222 16V 1u C7219 16V 1u ZA7201 K4CD01000013 ZA7202 K4CD01000013 ZA7203 K4CD01000013 ZA7204 K4CD01000013 CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C2_5V(SS) 67V 67V 67V C2_5V C2_5V C2_3V CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7281 100p R7384 56 R7301 47 R7304 47 R7383 220 R7300 47 R7297 47 IC7205 WW-C0D-A0061 1 CONTROL 2 GND 3 NP 4 VOUT 5 GND 6 VIN C2_5V C7290 16V 0.1u C7291 16V 0.1u C7292 16V 0.1u C7293 6.3V 10u C7294 6.3V 10u C2_5V(SS) C7282 820p C7256 100p 5V 5V 3.3V GND UMH UML USH USL UEL GND Vda 67V 5V UEH SS_SOS 13 12 8 10 14 9 15 11 SS-BOARD (SS23) TO (C12) TO (C1-BOARD REVERSE FOR CONENCETOR PIN NO) C1-BOARD DRIVER DATA TO DRIVER DATA TO ! C2-BOARD TNPA3245 (2/2) 6 4 2 5 3 1 0 0 1.9 2.0 0 67.7 67.7 67.7 0 67.7 0.1 3.0 0.1 0.3 3.0 0.8 4.5 0.4 0 3.4 0.3 0.1 0.3 0.2 0 5.2 3.4 4.5 0 0 67.7 5.0 0 0 5.0 5.0 0 TH-42PA40C C2-Board (2 of 2) Schematic Diagram TH-42PA40C C2-Board (2 of 2) Schematic Diagram 103 15.46.SC 电路板方框图 PHOTO COUPLER Q6611 3 5 4 6 9 8 11 10 1 2 13 12 FCLD FCLU FCLKD FCLKU PHOTO COUPLER PHOTO COUPLER 2 PHOTO COUPLER 4 1 2 3 4 IC6505 IC6506 IC6507 IC6508 8 9 11 10 PHOTO COUPLER IC6509 FSIU FSID PROU PROD 12 8 14 1 12 8 14 1 Q6612 Q6613 Q6601 Q6610 Q6605 Q6606 14 15 5 17 3 8 12 6 IC6602 FET DRIVER FET DRIVER IC6601 20 19 18 17 11 18 2 8 9 12 17 3 6 4 14 16 IC6502 BUFFER BUFFER IC6501 2 4 7 FET DRIVER IC6511 Q6477 Q6476 Q6511 Q6512 7 2 4 FET DRIVER IC6521 FET DRIVER IC6541 2 7 4 VAD+15V Q6530 Q6521 Q6520 Q6522 Q6529 Q6542 Q6549 Q6541 PHOTO COUPLER IC6510 PHOTO COUPLER IC6503 Q6551 Q6552 IC6504 PHOTO COUPLER IC6542 2 4 2 4 2 4 2 4 1 5 1 5 1 4 2 FET DRIVER Q6553 VSCN Q6614 S2 CMH S3 CML CSL CSH 1/2 Vo VSUS D6624 D6629 A2 A3 A4 A5 B4 B5 B2 B3 A7 A6 B7 B6 A8 A30 B8 B30 B31 A31 B32 A32 B33 A33 B40 A40 B37 A34 B11 B36 A11 A37 A36 B34 A33 A35 B33 A39 A38 B39 B38 B35 B8 B1 A1 A8 B10 A10 B9 A9 FSID FCLD FCLKD PROD VF5V Vf VSCN Q6451 Q6454 IC6451 15V IC6453 3 1 5V IC6455 3 1 Q6474 IC6471 IC6474 Q6472 Q6471 SCSU VAD INSERT VAD VSET2 INSERT CEL VSET INSERT CPH VSCN GEN VSET VAD GEN Q6491 Q6492 IC6491 VSET REG. VSUS SC20 7 13 L6612 L6615 2 4 8 11 IC6605 BUFFER IC6606 BUFFER 3 6 9 7 CSH CSL CMH CML SOS1 CEL2 CL CLK SIU SID CPH SCSU Q6581 IC6581 IC6458 IC6467 IC6469 IC6480 Vf5 SOS Vfo SOS VSCAN SOS VAD SOS D6559 D6468 D6470 D6479 D6584 Vfo FSIU FCLU FCLKU PROU VF5V Vf Vfo FSID FCLD FCLKD PROD VF5V Vf Vfo Vf Vfo FCLKU FSIU VF5V PROU FCLU VSCN VSCN VSCN VSCN VSCN Scan Drive Board SC SC42 SC41 TO SD42 TO SU41 TO D20 D6583 (RED LED) SC SC CPH CEL 4 VSET IC6452 Q6462 Q6461 IC6417 Q6463 T6461 IC6456 VSCN GEN VSET T6471 IC6472 Q6555 Q6501 6 5 Q6502 Q6503 Q6504 SOS2 12 12 1 9 4 4A 1A 3A 2A 2 5 10 13 1B 2B 3B 4B 11 3 8 6 4Y 1Y 3Y 2Y 4 16 14 CBK 11 9 2 18 13 CEL Q6583 Q6584 CLK SIU SID CL CEL2 CPH CEL SCSU IC6607 BUFFER VSUS VSUS 1 2 SC2 TO P2 SC23 TO P23 +15V 1 2 +15V Q6612 Q6611 Q6622 Q6621 Q6554 A1 B1 10 9 8 6 4 2 SC46 TO SD46 VF5V FSID FCLD FCLKD PROD VF5V 4 10 VF5V 8 2 6 9 TO SU45 FCLKU FSIU SC45 VF5V PROU FCLU TH-42PA40C SC-Board Block Diagram TH-42PA40C SC-Board Block Diagram 104 15.47.SC 电路板 (1/2) 线路图 + + + + + + 175V 15V 175V AA_CLK AA_SIU AA_SID AA_CPH AA_SCSU CSH AA_CL AA_CEL AA_CEL2 CSL CML CMH CBK CEL SOS1 CPH CEL2 SOS2 AA_CEL AA_SCSU AC_CPH 190V 75V 190V 0-190V AA_CPH 190V 0-190V 175V 15V 5V 0-190V 190V 190V R6855 47 R6589 10k R6688 47k R6603 0 TP28 L6621 R6470 5.6k Q6610 B1DEHM000005 TP10 D6613 B0JCME000025 C6634 25V 4.7u D6614 B0JCME000025 C0JBAZ000005 IC6606 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C6618 3900p 630V C6529 630V 470p R6695 470 L6620 TP20 C6622 250V 1u R6682 470 R6655 100 1u 250V C6630 C6607 25V 1u D6611 B0JCME000025 C6697 3900p 630V C6626 250V 1u R6658 0 R6628 100 R6627 100 L6602 G0ZZ00002183 TP16 Q6603 B1DEHM000005 R6685 470 C6629 250V 1u R6670 470 IC6581 C0BBBA000043 1 2 3 4 5 6 7 8 C6534 630V 470p Q6581 2SD0601A0L ZA6603 K4CD01000013 L6636 IC6607 C0JBAA000195 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC C6651 50V 0.01u IC6480 B3PBA0000062 1 2 3 4 C6650 250V 0.22u TP26 R6466 1k Q6622 2SK389200SRP C6633 16V 1u TP4 TP24 R6648 10 R6472 1k C6631 25V 4.7u Q6607 B1DEHM000005 R6438 10 TP30 R6697 47k L6614 1u D6615 B0ECHP000001 TP35 L6611 0.6u D6624 B0HBSN000009 R6659 100 R6859 10 R6698 47k R6439 10k R6482 4.7k R6857 47 D6481 MAZ83300ML TP9 J0JJC0000021 L6649 L6625 R6851 10 C6608 25V 470u D6616 B0JCME000025 L6608 R6863 10 R6647 10 C6546 16V 1u Q6625 B1DEHM000005 L6634 R6587 1.5k C6639 25V 4.7u TP5 TP22 1% R6582 39k TP39 R6683 470 R6675 47k R6463 1k ZA6602 K4CD01000013 Q6612 2SB1073001TV TP31 150 R6667 R6687 47k R6856 47 JS6601 0 B0ECHP000001 D6623 TP34 R6862 10 L6641 1/2W R6638 1 R6483 6.2k R6613 10 L6610 TP1 L6617 C6628 250V 1u L6647 J0JJC0000021 D6636 MA2J11100L C6624 250V 1u TP19 R6664 470 Q6624 B1DEHM000005 J0JJC0000021 L6638 C6647 16V 1u L6604 G0ZZ00002183 C6585 16V 1u 6.8k R6460 C6603 200V 220u L6624 R6620 47 SC2 1 2 3 4 5 6 TP21 R6625 10k R6590 2.2k Q6584 2SK062000L G D S C6471 16V 1u C6636 16V 1u D6622 B0HBSN000009 L6622 TP33 R6690 470 1% R6584 7.5k R6694 470 TP12 L6637 L6645 G0ZZ00002183 C6617 630V 5600p R6663 47k C6635 25V 4.7u C6655 10V 100u Q6608 B1DEHM000005 R6626 10 TP25 C6652 50V 0.01u R6686 47k SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R6641 10 C0JBAZ000005 IC6605 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC D6635 MAZ80330LL C6601 200V 220u R6679 470 TP23 TP52 R6656 100k C6602 200V 220u L6623 1/2W R6637 1 L6627 L6609 C6660 630V 470p L6626 C6637 25V 4.7u R6680 47k C6490 630V 3300p R6619 47 TP18 TP6 TP17 TP32 D6647 B0ECHP000001 C6619 630V 5600p R6860 10 Q6609 B1DEHM000005 200k R6630 L6612 0.6u TP15 R6864 10 Q6604 B1DEHM000005 L6644 G0ZZ00002183 D6637 B0ECHP000001 R6440 10k D6582 MAZ80510LL D6491 B0ECHP000001 R6676 470 C6530 630V 470p R6692 47k Q6614 2SB1073001TV TP2 R6678 470 R6614 10 1/2W R6639 1 C6632 25V 4.7u Q6606 B1DEHM000005 R6451 10k Q6602 B1DEHM000005 L6618 J0JJC0000021 R6684 470 L6606 C0ZBZ0000895 IC6602 M81709FP-DB0J 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6437 10 D6583 LNJ301MPUJA TP14 D6585 MAZ83300ML Q6613 2SD21850RL *L6615 1u D6479 MA2J11100L C0ZBZ0000895 IC6601 M81709FP-DB0J 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC 1/2W R6644 22 L6648 R6586 10k R6669 47k R6624 10 C6642 250V 0.1u TP13 C6656 10V 100u L6607 D6465 MAZ83300ML C6625 250V 1u C6621 250V 1u Q6583 2SK062000L G D S D6468 MA2J11100L L6635 ZA6601 K4CD01000013 R6861 10 R6642 10 R6591 1.5k C6533 630V 470p D6629 B0HBSN000009 C6584 25V 1u SC23 1 2 3 Q6611 2SD21850RL L6619 150 R6661 R6693 47k D6466 MAZ83300ML 1W R6499 8.2 1/2W R6636 1 R6623 10k 1% R6583 39k TP7 R6691 470 C6623 250V 1u C6659 630V 470p C6698 5600p 630V R6681 47k R6489 4.7k L6613 0.6u IC6467 B3PBA0000062 1 2 3 4 6.8k R6477 150 R6662 D6482 MAZ83300ML TP38 D6612 B0JCME000025 Q6605 B1DEHM000005 TP8 D6584 MA2J11100L D6640 B0ECHP000001 C6627 250V 1u R6689 47k TP11 R6852 10 TP29 TP27 Q6621 2SK389200SRP 150 R6668 D6586 MAZ83300ML R6660 100 1/2W R6643 22 B0ECHP000001 D6621 D6620 B0HBSN000009 NC +15V GND (GREEN LED) + - + - TP15V +15V GND GND Vsus Vsus GND GND GND GND TC74VHC244FT(EL) TC74VHC244FT(EL) TC74HC08AF(EL) Vscn sos D A 5 C F E 6 4 B 3 8 9 7 1 2 D-BOARD (D20) TO P-BOARD (P23) TO TO (P2) P-BOARD BUFFER BUFFER BUFFER FET DRIVER FET DRIVER COMPARETER 10 8 9 7 5 6 4 2 3 1 4.3 0.3 0 0.3 4.1 0.4 0 0 5.3 0.1 0 5.3 1.4 3.4 5.3 4.3 0 0 2.2 0.1 170.6 170.6 0 0 0 0.1 15.0 0 15.0 TXNSC1VPSC SC-BOARD (1/2) ! m = = * Vscn sos TH-42PA40C SC-Board (1 of 2) Schematic Diagram TH-42PA40C SC-Board (1 of 2) Schematic Diagram 105 15.48.SC 电路板 (2/2) 线路图 + + + + + + + + + + + + + + + 410V 380V 0V 400V 220V 39V AA_CEL 410V 0V -75V -90V -75V -90V 400V 220V -80V AB_FCLD AB_FCLU AB_FCLKU AB_FSID AB_FSIU AB_PROU AB_PROD AC_CPH AA_SCSU -80V 15V AA_CEL2 AA_SID AA_SIU AA_CLK AA_CL 400V 220-400V 315V -75V -85V 410V -90V 0V 380V 380V AB_FCLKD 390V 220V 395V 220V AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_PROD AB_FCLKD AB_FCLD AB_FSID 390V -90V -90-390V 390V 390V -90-390V 60V 30V 30V -70V 205V 405V 510V 510V 30-510V 510V 30V -90V -90V -90V -90V 15V R6508 2.2k TP55 D6463 MAZ80560HL R6502 2.2k SC46 1 2 3 4 5 6 7 8 9 10 R6622 10k TP58 R6506 2.2k C6578 16V1u SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 1% R6553 100k D6524 MAZ80510LL IC6501 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R6534 47 Q6551 2SD0601A0L R6574 470 D6551 B0JCME000025 D6554 B0HCKS000001 R6653 68 Q6502 2SK062000L G D S R6537 47 R6542 10 D6525 MA2J11100L 1% R6457 2.55k R6651 68 T6461 ETS13TB139AP N4 N2 1 2 3 NC 4 5 6 NC 7 9 10 NC D6471 MA2J11100L R6504 2.2k C6469 25V 220u R6600 100 C6513 160V 100u D6475 MA2J11100L R6565 10k C6511 25V 4.7u R6515 10 C6577 16V 1u R6555 100k R6550 22k Q6523 B1DFJM000003 R6645 150 IC6456 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 R6520 150 1% R6456 118k D6489 MAZ80560HL R6650 68 Q6462 2SB0709ARL Q6529 B1DFJM000003 T6471 ETS19AA259AC 1 B2 2 B1 3 P1 4 NC 5 P2 6 ST 7 S1 8 NC 9 S3 10 S2 D6462 B0JCME000025 1/2W R6608 1 C6575 16V1u D6543 B0HCKS000001 C6461 50V 100u D6526 B0HCMM000009 IC6542 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6548 MAZ83300ML D6484 MAZ80560HL R6518 100 C6457 160V 10u 1/4W R6454 10k D6552 MA2J11100L D6542 MA2J11100L C6468 16V 1u C6581 16V 1u D6519 MA2J11100L R6538 1k D6544 MA2J11100L 1% R6621 154k IC6455 AN78L05M-E1 IN 3 2 COMMON OUT 1 D6527 MA2J11100L 1% R6478 6.98k Q6548 2SK389500L TP42 R6519 1k D6464 B0JCME000025 R6473 22k IC6451 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 IC6502 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 D6490 MAZ80560HL R6561 47 C6589 25V 4.7u R6562 1k Q6544 2SK389500L D6509 MA2J11100L Q6528 B1DFJM000003 R6559 2.2k R6507 2.2k R6501 2.2k R6505 2.2k R6615 3.3k D6570 B0HCMM000009 R6516 470 R6546 10 IC6511 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6521 B0ECHP000001 R6560 47 C6512 25V 4.7u D6467 B0ECHP000001 C6459 25V 47u R6604 100 D6515 MAZ82400ML TP54 C6591 25V 4.7u R6540 100k D6485 MAZ80560HL 1% R6524 2k R6431 0 R6572 470 TP53 C6493 630V 2200p R6549 10 IC6503 B3PBA0000191 1 2 3 4 5 Q6503 2SK062000L G D S Q6454 2SC1473AEA R6558 10k R6573 470 D6470 MA2J11100L 3W R6510 2.2 Q6542 2SK389500L 3W R6513 2.2 C6502 16V 1u C6472 50V 0.033u R6570 10k C6508 16V 1u C6588 16V 1u R6563 5.6 R6581 100 TP56 R6544 10 1/2W R6616 220 Q6554 2SD21850RL D6459 MA2J11100L D6483 MAZ80560HL R6539 100 R6585 1k 1W R6498 8.2 IC6508 B3PBA0000191 1 2 3 4 5 D6514 MA2J11100L Q6505 2SK062000L G D S R6571 470 TP60 L6471 J0JJC0000021 C6501 16V 1u 1% R6596 5.23k IC6510 B3PBA0000191 1 2 3 4 5 R6649 68 R6652 68 C6521 25V 47u TP40 R6617 2.2k C6465 25V 4.7u 1W R6474 120 C6470 50V 220u D6492 B0ECHP000001 Q6477 2SD0601A0L R6566 100 1W R6554 100 TP61 Q6524 B1DFJM000003 IC6469 B3PBA0000062 1 2 3 4 Q6476 2SD0601A0L 1% R6492 220k C6576 16V 1u C6531 25V 4.7u R6576 470 R6666 68 R6699 10k D6452 MA2J11100L C6551 0.22u 250V R6486 10k R6526 47 TP59 C6509 50V 1000p C6587 25V 1u 1% R6552 100k D6512 MA2J11100L R6491 100k R6484 4.7k R6487 4.7k IC6517 B3PBA0000062 1 2 3 4 Q6504 2SK062000L G D S C6507 16V 1u IC6471 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 Q6451 2SD1263AP0LB C6467 50V 4700p TP41 Q6530 2SB1073001TV IC6458 B3PBA0000062 1 2 3 4 D6487 MAZ80560HL C6458 25V 4.7u C6598 160V 22u D6478 B0HCKS000001 1% R6493 220k R6488 10k TP46 1% R6469 16k D6486 MAZ80560HL Q6501 2SK062000L G D S D6546 MAZ83300ML 1% R6471 4.7k 1% R6595 14.3k C6571 16V 1u R6536 47 D6453 MA2J11100L SC45 1 2 3 4 5 6 7 8 9 10 R6551 100 D6476 B0ECHP000001 TP44 R6512 470 C6466 50V 0.01u Q6555 B1DFES000001 G D S R6610 100k IC6491 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 1W R6461 470 Q6472 2SB0709ARL R6517 10k R6500 1.2k Q6461 B1BBCJ000003 C6550 160V 100u Q6552 B1DFES000001 G D S R6525 100k R6607 220k D6522 MA2J11100L C6505 16V 1u IC6541 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb IC6521 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb Q6522 B1DFJM000003 1/4W R6459 100k IC6509 B3PBA0000191 1 2 3 4 5 R6646 150 D6520 B0JCKG000001 C6503 16V 1u R6497 10k TP45 R6593 1M R6594 100k TP50 R6556 1.8k D6545 MAZ80510LL C6580 16V1u 1% R6481 1k TP43 L6472 G0ZZ00002183 R6606 220k D6553 MA2J11100L R6528 1k TP64 C6464 25V 4.7u D6516 MA2J11100L D6501 MA2J11100L C6524 630V 470p IC6454 AN78L05M-E1 IN 3 2 COMMON OUT 1 L6451 J0JJC0000021 TP51 R6468 4.7k R6577 470 C6541 25V 4.7u IC6512 AN78L05M-E1 IN 3 2 COMMON OUT 1 Q6512 B1DFGL000005 G D S R6467 1.2k Q6511 B1DFGL000005 G D S IC6543 AN78L05M-E1 IN 3 2 COMMON OUT 1 D6513 MA2J11100L R6521 100k 1/4W R6455 10k R6529 47 R6514 100k C6492 350V 10u Q6491 2SD1263AP0LB C6590 16V 1u Q6549 2SK389500L R6522 0 D6495 B0HCKS000001 TP47 D6456 B0ECHP000001 R6530 47 TP49 R6568 4.7k R6575 470 Q6546 2SK389500L R6654 68 D6488 MAZ80560HL 1% R6476 274k R6567 4.7k C6462 25V 4.7u R6580 10k C6479 50V 0.1u C6478 50V 0.01u IC6452 AN78L15ME1 IN 3 2 COMMON OUT 1 2W R6465 8.2 D6550 MA2J11100L VR6557 10k 1 2 3 D6502 MA2J11100L D6547 MAZ83300ML C6476 160V 100u R6475 3.3k TP57 Q6527 B1DFJM000003 C6504 16V 1u D6496 B0JCME000025 D6511 B0HCMM000009 VR6477 2k 1 2 3 TP48 R6511 10 IC6453 AN78L15ME1 IN 3 2 COMMON OUT 1 R6464 2.2k R6531 47 Q6492 2SC1473AEA R6541 47 D6529 B0JCME000025 C6456 160V 100u D6473 MA2J11100L IC6504 B3PBA0000191 1 2 3 4 5 Q6463 2SD0601A0L R6696 10k C6544 630V 1000p C6506 16V 1u Q6521 B1DFES000001 G D S D6572 B0ECHP000001 R6578 470 R6433 0 L6453 J0JJC0000021 IC6505 B3PBA0000191 1 2 3 4 5 D6523 B0ECHP000001 R6588 10k IC6472 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 R6665 68 R6503 2.2k C6473 16V 1u TP63 D6541 B0HCKS000001 1% R6458 2.55k IC6507 B3PBA0000191 1 2 3 4 5 D6451 B0JCME000025 IC6506 B3PBA0000191 1 2 3 4 5 SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 C6474 50V 0.01u R6605 220k D6460 B0HCKS000001 C6543 630V 1000p R6592 1M 1/2W R6609 1 C6475 25V 220u R6509 2.2k Q6471 B1BBCJ000003 Q6520 2SD0601A0L R6532 47 R6479 100k R6480 10k TP62 Q6526 B1DFJM000003 R6599 100 D6455 MA2J11100L R6618 2.2k Q6541 2SB1073001TV C6523 35V 47u C6463 25V 4.7u Q6474 2SD814ATX D6477 MA2J11100L D6549 MA2J11100L R6535 47 D6461 B0HCKS000001 R6485 10k C6526 250V 22u R6527 1k C6532 25V 4.7u R6548 10 Q6553 2SB1073001TV 1% R6629 22k IC6474 B3PBA0000062 1 2 3 4 (D1FK70) VAD TPVAD TPVSCN TC74HC14AF TC74HC14AF INIT-R INIT-F VSET TPVSET TPSC1 F6S70HVX2 AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_FSID AB_FCLD AB_FCLKD AB_PROD M63994FP M63994FP M63994FP M63994FP 10 17 13 11 16 12 14 15 18 (SU41) SU-BOARD TO TO (SU45) SU-BOARD TO (SD42) SD-BOARD SD-BOARD (SD46) TO BUFFER FET DRIVER 5 6 4 10 8 9 7 2 3 1 = = # * * * * BUFFER FET DRIVER FET DRIVER FET DRIVER TH-42PA40C SC-Board (2 of 2) Schematic Diagram TH-42PA40C SC-Board (2 of 2) Schematic Diagram TXNSC1VPSC SC-BOARD (1/2) ! 106 15.49.SU 电路板方框图 TH-42PA40C SU-Board Block Diagram TH-42PA40C SU-Board Block Diagram B40 SU2 A40 FCL Vf5 FCLK IC6901 PRO PDP SCAN DRIVER IC6902 Q6901 FS01 FSO1 FS02 FS02 FS03 Vf5 FS03 SU Scan Out (up) Board SCAN ELECTRODES 48 PIN OUTPUT FCLK 64 PIN OUTPUT OUTPUT 64 PIN OUTPUT FCLK 64 PIN PRO A39 FCL FCL PRO PRO PDP SCAN DRIVER IC6904 A1 B1 Vf5 FSI To 1st 80pins of PDP SCAN DRIVER PDP SCAN DRIVER SCAN ELECTRODES IC6903 A24 To 2nd 80pins of B40 SCAN ELECTRODES B24 To 3rd 80pins of B25 B39 A25 A39 A2 B32 Vf5 A40 A17 A16 A1 A2 B1 B2 FCLK B33 FCL B40 B39 B17 B16 A33 B39 A39 SU1 SU3 A1 A40 A2 B2 B1 A32 B2 A47 FCL A71 Vfo A3 7 4 VSCN VF5V A30 PRO VSCN A32 TO SC41 Vfo FCL SU41 A80 A42 FCLK FSI FCLK A33 A48 A44 A6 10 VF5V Vf A4 A5 A46 A31 A73 A40 TO SC45 FCL A72 SU45 2 A2 FCLK 6 FSI VF5V 9 PRO FSI VF5V PRO A7 A70 A8 Vf A45 A43 80 LATCH 86 96 43 33 96 44 44 89 Vf 79 HV63 79 75 Vf HV17 33 16 SHIFT RESISTOR 15 88 HV64 43 HV62 97 77 HV18 85 SELECTOR 32 Vfo 90 97 32 80 76 Vf 33 SHIFT RESISTOR 88 43 99 85 HV33 SELECTOR 32 100 HV02 46 90 30 HV32 97 80 LATCH HV64 86 96 44 HV03 HV01 1 89 76 Vf 79 Vf 33 SHIFT RESISTOR 88 43 99 85 HV33 SELECTOR 32 100 HV02 46 90 91 30 HV32 97 80 LATCH HV64 86 96 44 HV03 HV01 1 89 76 Vf 79 Vf 33 SHIFT RESISTOR 88 43 99 85 HV33 SELECTOR 32 100 HV02 46 90 91 30 HV32 97 80 LATCH HV64 86 96 44 HV03 HV01 1 89 76 Vf 79 80 43 33 96 44 79 97 Vfo 32 80 43 33 96 44 79 97 Vfo 32 80 43 33 96 44 79 97 Vfo 32 107 15.50.SU 电路板线路图 TERM SIDE TERM SIDE TERM SIDE AA_240 AA_239 AA_238 AA_237 AA_236 AA_235 AA_234 AA_233 AA_232 AA_231 AA_230 AA_229 AA_228 AA_227 AA_226 AA_225 AA_224 AA_223 AA_222 AA_221 AA_220 AA_219 AA_218 AA_217 AA_216 AA_215 AA_214 AA_213 AA_212 AA_211 AA_206 AA_205 AA_204 AA_179 AA_180 AA_181 AA_182 AA_183 AA_184 AA_185 AA_186 AA_187 AA_188 AA_189 AA_190 AA_191 AA_192 AA_193 AA_194 AA_195 AA_196 AA_197 AA_198 AA_199 AA_200 AA_201 AA_202 AA_203 AB_176 AB_175 AB_174 AB_173 AB_172 AB_171 AB_170 AB_169 AB_168 AB_167 AB_166 AB_165 AB_164 AB_163 AB_162 AB_161 AB_160 AB_159 AB_158 AB_157 AB_156 AB_155 AB_154 AB_153 AB_152 AB_151 AB_150 AB_149 AB_148 AB_147 AB_142 AB_141 AB_140 AB_115 AB_116 AB_117 AB_118 AB_119 AB_120 AB_121 AB_122 AB_123 AB_124 AB_125 AB_126 AB_127 AB_128 AB_129 AB_130 AB_131 AB_132 AB_133 AB_134 AB_135 AB_136 AB_137 AB_138 AB_139 AC_112 AC_110 AC_109 AC_108 AC_107 AC_106 AC_105 AC_104 AC_103 AC_102 AC_101 AC_100 AC_99 AC_98 AC_97 AC_96 AC_95 AC_94 AC_93 AC_92 AC_91 AC_90 AC_89 AC_88 AC_87 AC_86 AC_76 AC_85 AC_84 AC_83 AC_78 AC_77 AC_51 AC_52 AC_53 AC_54 AC_55 AC_56 AC_57 AC_58 AC_59 AC_60 AC_61 AC_62 AC_63 AC_64 AC_65 AC_66 AC_67 AC_68 AC_69 AC_70 AC_71 AC_72 AC_73 AC_74 AC_75 AD_48 AD_47 AD_46 AD_45 AD_44 AD_43 AD_42 AD_41 AD_40 AD_38 AD_39 AD_37 AD_36 AD_35 AD_30 AD_28 AD_29 AD_3 AD_4 AD_5 AD_6 AD_7 AD_8 AD_9 AD_10 AD_11 AD_12 AD_13 AD_14 AD_15 AD_16 AD_17 AD_18 AD_19 AD_20 AD_21 AD_22 AD_23 AD_24 AD_25 AD_27 AD_26 AA_240 AA_238 AA_236 AA_234 AA_232 AA_230 AA_228 AA_226 AA_224 AA_222 AA_220 AA_218 AA_216 AA_214 AA_212 AA_210 AA_208 AA_206 AA_204 AA_202 AA_200 AA_198 AA_196 AA_194 AA_192 AA_190 AA_188 AA_186 AA_184 AA_182 AA_178 AA_180 AA_239 AA_237 AA_235 AA_233 AA_231 AA_229 AA_227 AA_225 AA_223 AA_221 AA_219 AA_217 AA_215 AA_213 AA_211 AA_209 AA_207 AA_205 AA_203 AA_201 AA_199 AA_197 AA_195 AA_193 AA_191 AA_189 AA_187 AA_185 AA_183 AA_181 AA_177 AA_179 AB_175 AB_173 AB_171 AB_169 AB_167 AB_165 AB_161 AB_163 AB_176 AB_174 AB_172 AB_170 AB_168 AB_166 AB_162 AB_164 AB_160 AB_158 AB_156 AB_154 AB_152 AB_150 AB_148 AB_146 AB_144 AB_142 AB_140 AB_138 AB_136 AB_134 AB_132 AB_130 AB_128 AB_126 AB_124 AB_122 AB_120 AB_118 AB_114 AB_116 AB_159 AB_157 AB_155 AB_153 AB_151 AB_149 AB_147 AB_145 AB_143 AB_141 AB_139 AB_137 AB_135 AB_133 AB_131 AB_129 AB_127 AB_125 AB_123 AB_121 AB_119 AB_117 AB_113 AB_115 AC_81 AC_112 AC_110 AC_108 AC_106 AC_104 AC_102 AC_100 AC_98 AC_96 AC_94 AC_92 AC_90 AC_88 AC_86 AC_82 AC_84 AC_111 AC_109 AC_107 AC_105 AC_103 AC_101 AC_99 AC_97 AC_95 AC_93 AC_91 AC_89 AC_87 AC_85 AC_83 AC_80 AC_78 AC_76 AC_74 AC_72 AC_70 AC_68 AC_66 AC_64 AC_62 AC_60 AC_58 AC_56 AC_54 AC_52 AC_50 AC_79 AC_77 AC_75 AC_73 AC_71 AC_69 AC_67 AC_65 AC_63 AC_61 AC_59 AC_57 AC_55 AC_53 AC_51 AC_49 AD_48 AD_46 AD_44 AD_42 AD_40 AD_38 AD_36 AD_34 AD_32 AD_30 AD_28 AD_26 AD_24 AD_22 AD_20 AD_18 AD_16 AD_14 AD_12 AD_10 AD_8 AD_6 AD_4 AD_2 AD_47 AD_45 AD_43 AD_41 AD_39 AD_37 AD_35 AD_33 AD_31 AD_29 AD_27 AD_25 AD_23 AD_21 AD_19 AD_17 AD_15 AD_13 AD_11 AD_9 AD_7 AD_5 AD_3 AD_1 AC_111 AE_FCLK AE_PRO AE_FCL AE_FSI AE_FSO3 AE_FCLK AE_FSO3 AE_FSO2 AE_FSO2 AE_FCL AE_PRO AE_FCLK AE_PRO AE_FCL AE_FCLK AE_PRO AE_FCL AD_1 AD_2 AD_31 AD_32 AD_33 AD_34 AC_49 AC_50 AC_79 AC_80 AC_81 AC_82 AB_113 AB_114 AB_143 AB_144 AB_145 AB_146 AA_177 AA_178 AA_207 AA_208 AA_209 AA_210 120V AE_FSI AE_FCL AE_FCLK AE_FCLK AE_PRO 150V R6912 4.7k C6904 16V 1u R6904 220 D6910 B0ECHP000001 D6905 B0ECHP000001 C6933 250V 0.1u C6917 50V 220p R6911 100k R6913 220k C6901 16V 1u R6923 10k R6903 220 R6910 100k AN16021A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6924 220k C6912 50V 1000p R6901 100 D6903 MAZ80560HL SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C6931 250V 0.1u SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 D6909 B0ECHP000001 SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R6921 10k D6902 MAZ80560HL R6902 220 C6903 16V 1u C6911 50V 1000p D6901 MAZ80560HL C6902 16V 1u Q6901 2SK062000L G D S R6922 10k R6920 10k TPSU1 AN16021A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16021A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16021A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A65 A50 A56 A53 A38 A33 A57 A6 A78 A15 A74 A80 A72 A8 A7 A36 A23 A79 A45 A34 A64 A5 A73 A20 A21 A55 A62 A46 A12 A76 A43 A58 A60 A19 A61 A67 A48 A10 A69 A18 A3 A68 A17 A66 A39 A14 A9 A42 A47 A2 A52 A4 A77 A1 A59 A24 A32 A28 A35 A11 A54 A26 A49 A75 A22 A37 A16 A63 A44 A70 A29 A13 A41 A27 A30 A31 A40 A71 A51 A25 SU45 1 2 3 4 5 6 7 8 9 10 11 Vscn NONUSE 1st OUTPUTS 14 OUTPUTS NONUSE PROU CLKU CLU UP Vf Vfo Vf5 Vf Vfo AE_FSI AE_FCL AE_FCLK AE_PRO GND VF5V FSI VF5V FCL PRO FCLK VF5V VF5V SIU VF5V D 4 8 7 C E 6 A 5 F 1 2 B 3 9 ! SU-BOARD TNPA3242 SC-BOARD TO (SC41) SC-BOARD TO (SC45) Vfo Vscn Vf TH-42PA40C SU-Board Schematic Diagram TH-42PA40C SU-Board Schematic Diagram 108 15.51.SD 电路板方框图 PDP SCAN DRIVER SHIFT RESISTOR B40 IC6958 A39 B2 SD2 B9 A1 OUTPUT SCAN ELECTRODES B79 IC6957 HV02 90 A39 B38 PRO 30 B34 A40 80 FS01 B78 B74 A2 VSCN 86 B37 Vfo B50 OUTPUT IC6956 SD3 A2 FSI 44 HV03 89 A40 B41 FSI Vf B35 OUTPUT B1 B2 PRO 99 85 B39 64 PIN B25 46 B36 A9 B39 64 PIN SD SCAN ELECTRODES B40 FCL B1 LATCH HV64 FCLK Vf B75 FCLK B17 A16 Vf5 Vf5 A2 SD42 Vfo A25 PRO B48 FS03 FS02 VF5V 76 B16 FCL 48 PIN Vf SD1 A1 33 A8 B9 Scan Out (Down) Board 88 FCLK B11 64 PIN SCAN ELECTRODES HV33 SELECTOR PDP SCAN DRIVER 100 A40 FCL PDP SCAN DRIVER PRO VF5V HV32 B24 B1 B1 To 2nd 80pins of OUTPUT FCLK FSI FCLK To 3rd 80pins of B2 B8 B73 B49 HV01 1 A1 FS01 A24 To 1st 80pins of 79 PRO FS02 B10 B8 B39 43 IC6955 FCL B51 B33 B76 VSCN FS03 32 Vf5 B40 PRO 91 TO SC42 A39 FCL 97 A17 FCL Vf5 96 Vf B77 FCLK PDP SCAN DRIVER B39 10 TO SC46 FCL SD46 2 FCLK 6 9 FSI VF5V PRO 7 4 VF5V 80 LATCH HV64 86 96 44 HV03 HV01 1 89 76 Vf 79 Vf 33 SHIFT RESISTOR 88 43 99 85 HV33 SELECTOR 32 100 HV02 46 90 91 30 HV32 97 80 LATCH HV64 86 96 44 HV03 HV01 1 89 76 Vf 79 Vf 33 SHIFT RESISTOR 88 43 99 85 HV33 SELECTOR 32 100 HV02 46 90 91 30 HV32 97 80 LATCH 86 96 44 89 Vf 79 Vf 33 SHIFT RESISTOR 88 43 85 SELECTOR 32 90 97 76 HV63 75 HV17 16 15 HV64 HV62 77 HV18 80 43 33 96 44 79 97 Vfo 32 80 43 33 96 44 79 97 Vfo 32 80 43 33 96 44 79 97 Vfo 32 80 43 33 96 44 79 97 Vfo 32 TH-42PA40C SD-Board Block Diagram TH-42PA40C SD-Board Block Diagram 109 15.52.SD 电路板线路图 TERM SIDE TERM SIDE TERM SIDE AA_240 AA_239 AA_238 AA_237 AA_236 AA_235 AA_234 AA_233 AA_232 AA_231 AA_230 AA_229 AA_228 AA_227 AA_221 AA_220 AA_195 AA_196 AA_197 AA_198 AA_199 AA_200 AA_201 AA_202 AA_203 AA_204 AA_205 AA_206 AA_207 AA_208 AA_209 AA_210 AA_211 AA_212 AA_213 AA_214 AA_215 AA_216 AA_217 AA_218 AA_219 AB_192 AB_191 AB_190 AB_189 AB_188 AB_187 AB_186 AB_185 AB_184 AB_183 AB_182 AB_181 AB_180 AB_179 AB_178 AB_177 AB_176 AB_175 AB_174 AB_173 AB_172 AB_171 AB_170 AB_169 AB_168 AB_167 AB_166 AB_165 AB_164 AB_163 AB_158 AB_157 AB_156 AB_131 AB_132 AB_133 AB_134 AB_135 AB_136 AB_137 AB_138 AB_139 AB_140 AB_141 AB_142 AB_143 AB_144 AB_145 AB_146 AB_147 AB_148 AB_149 AB_150 AB_151 AB_152 AB_153 AB_154 AB_155 AC_128 AC_127 AC_126 AC_125 AC_124 AC_123 AC_122 AC_121 AC_120 AC_119 AC_118 AC_117 AC_116 AC_115 AC_114 AC_113 AC_112 AC_111 AC_110 AC_109 AC_108 AC_107 AC_106 AC_105 AC_104 AC_103 AC_102 AC_101 AC_100 AC_99 AC_93 AC_92 AC_67 AC_68 AC_69 AC_70 AC_71 AC_72 AC_73 AC_74 AC_75 AC_76 AC_77 AC_78 AC_79 AC_80 AC_81 AC_82 AC_83 AC_84 AC_85 AC_86 AC_87 AC_88 AC_89 AC_90 AC_91 AD_64 AD_62 AD_61 AD_60 AD_59 AD_58 AD_57 AD_56 AD_55 AD_54 AD_53 AD_52 AD_51 AD_50 AD_49 AD_48 AD_47 AD_46 AD_45 AD_44 AD_43 AD_42 AD_41 AD_40 AD_39 AD_38 AD_37 AD_36 AD_35 AD_30 AD_29 AD_28 AD_3 AD_4 AD_5 AD_6 AD_7 AD_8 AD_9 AD_10 AD_11 AD_12 AD_13 AD_14 AD_15 AD_16 AD_17 AD_18 AD_19 AD_20 AD_21 AD_22 AD_23 AD_24 AD_25 AD_26 AD_27 AE_FCLK AE_PRO AE_FCL AE_FCLK AD_63 AE_FSO1 AE_PRO AE_FCL AB_160 AA_240 AA_238 AA_236 AA_234 AA_232 AA_230 AA_228 AA_226 AA_224 AA_222 AA_220 AA_218 AA_216 AA_214 AA_212 AA_210 AA_208 AA_206 AA_204 AA_202 AA_200 AA_198 AA_194 AA_196 AA_239 AA_237 AA_235 AA_233 AA_231 AA_229 AA_227 AA_225 AA_223 AA_221 AA_219 AA_217 AA_215 AA_213 AA_211 AA_209 AA_207 AA_205 AA_203 AA_201 AA_199 AA_197 AA_193 AA_195 AB_179 AB_187 AB_189 AB_191 AB_183 AB_181 AB_185 AB_188 AB_190 AB_192 AB_184 AB_182 AB_186 AB_177 AB_175 AB_173 AB_171 AB_169 AB_167 AB_165 AB_163 AB_161 AB_174 AB_178 AB_176 AB_170 AB_168 AB_166 AB_164 AB_162 AB_172 AB_180 AB_158 AB_156 AB_154 AB_152 AB_150 AB_148 AB_146 AB_144 AB_142 AB_140 AB_138 AB_136 AB_134 AB_130 AB_132 AB_159 AB_157 AB_155 AB_153 AB_151 AB_149 AB_147 AB_145 AB_143 AB_141 AB_139 AB_137 AB_135 AB_133 AB_129 AB_131 AC_128 AC_126 AC_124 AC_122 AC_120 AC_118 AC_116 AC_114 AC_112 AC_110 AC_108 AC_106 AC_104 AC_102 AC_100 AC_98 AC_96 AC_94 AC_92 AC_90 AC_88 AC_86 AC_82 AC_84 AC_127 AC_125 AC_123 AC_121 AC_119 AC_117 AC_115 AC_113 AC_111 AC_109 AC_107 AC_105 AC_103 AC_101 AC_99 AC_97 AC_95 AC_93 AC_91 AC_89 AC_87 AC_85 AC_81 AC_83 AC_80 AC_78 AC_76 AC_74 AC_72 AC_70 AC_66 AC_68 AC_79 AC_77 AC_75 AC_73 AC_71 AC_69 AC_67 AC_65 AD_63 AD_61 AD_59 AD_57 AD_55 AD_53 AD_51 AD_49 AD_47 AD_45 AD_43 AD_41 AD_39 AD_37 AD_35 AD_33 AD_31 AD_29 AD_27 AD_25 AD_23 AD_21 AD_19 AD_17 AD_15 AD_13 AD_11 AD_9 AD_7 AD_5 AD_3 AD_1 AD_64 AD_62 AD_60 AD_58 AD_56 AD_54 AD_52 AD_50 AD_48 AD_46 AD_44 AD_42 AD_40 AD_38 AD_36 AD_34 AD_32 AD_30 AD_28 AD_26 AD_24 AD_22 AD_20 AD_18 AD_16 AD_14 AD_12 AD_10 AD_8 AD_6 AD_2 AD_4 AE_FSO3 AE_FSO3 AE_FSO2 AE_FSO2 AE_FSO1 AE_FSI AE_FCL AE_PRO AE_FCLK AE_PRO AE_FCL AE_FCLK AC_94 AD_1 AD_2 AD_31 AD_32 AD_33 AD_34 AC_65 AC_66 AC_95 AC_96 AC_97 AC_98 AB_129 AB_130 AB_159 AB_160 AB_161 AB_162 AA_193 AA_194 AA_223 AA_224 AA_222 AA_225 AA_226 130V AE_PRO AE_FCLK AE_FCL AE_FSI AE_FSI 120V C6958 16V 1u C6955 16V 1u D6957 MAZ80560HL TPSD1 D6962 B0ECHP000001 SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C6977 250V 0.1u R6959 220k R6979 220k R6977 10k D6961 B0ECHP000001 C6956 16V 1u R6975 10k C6972 50V 1000p D6956 MAZ80560HL R6957 220 R6958 220 C6979 250V 0.1u AN16021A-VT IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6976 10k SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R6955 100 SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C6957 16V 1u C6971 50V 1000p R6956 220 R6978 10k AN16021A-VT IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16021A-VT IC6957 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16021A-VT IC6958 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B75 B36 B70 B73 B11 B24 B20 B26 B35 B10 B21 B37 B3 B19 B28 B78 B63 B80 B54 B48 B46 B58 B17 B40 B38 B22 B9 B42 B12 B5 B29 B68 B53 B32 B39 B59 B49 B7 B14 B15 B34 B55 B6 B1 B41 B76 B61 B52 B45 B2 B62 B79 B67 B65 B60 B74 B50 B66 B18 B44 B43 B13 B30 B57 B33 B8 B56 B69 B27 B47 B77 B72 B4 B64 B71 B51 B25 B23 B31 B16 SD46 1 2 3 4 5 6 7 8 9 10 Vscn PROD CLKD CLD SID Vf Vfo Vf Vf5 Vfo DOWN AE_FSI AE_FCL AE_FCLK AE_PRO VF5V GND FCL FCLK FSI VF5V PRO VF5V TO (SC46) SC-BOARD D 4 8 7 C E 6 A 5 F 1 2 B 3 9 FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) (SC42) SC-BOARD TO PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER ! SD-BOARD TNPA3243 Vfo Vscn Vf TH-42PA40C SD-Board Schematic Diagram TH-42PA40C SD-Board Schematic Diagram 110 15.53.SS 和 S1 电路板方框图 + PUSH USL 5 8 UEH SS23 UMH 7 4 UML USH 6 3 12 17 8 FET DRIVER 14 IC6001 1 12 8 Q6012 Q6011 Q6014 Q6013 6 Q6001-6005 Q6006-6010 FET DRIVER 1 14 IC6002 8 Q6021 Q6024 14 16 6 4 IC6005 Q6056 L6012 L6015 FET DRIVER IC6003 12 8 3 18 2 1 2 IC6004 FET DRIVER D6069 (15V DET) D6065 (SS-BOARD SOS DET) Q6045 Q6046 VE2 Q6042 Q6041 SS44 SS43 SS41 SS42 5 15 3 UEL 9 11 SS11 3 2 SS12 1 2 Q6053 Q6051 IC6011 TPVSUS TP15V TPVDA TPVe VE GENERATOR 4 R6074 Ve SOS VDA VSUS VSUS VDA +15V STB PS L6003 L6004 L6002 15V UMH UML S2 S3 D6024 D6029 S1 USH USL DISCHARGE 1/2 Vo SS34 1 Sustain Drive Board SS TO P12 TO P11 TO C23 BUFFER IC6006 +15V VCC VCC UEH VE INSERT VEL VEL TPSS1 SS-BOARD SOS DET In Vb Vs 7 4 S34 1 Power Switch Board S1 POWER SWITCH S061 Q6025 12 Q6022 Q6023 TH-42PA40C SS and S1-Board Block Diagram TH-42PA40C SS and S1-Board Block Diagram 111 15.54.SS 和 S1 电路板线路图 + + TERM SIDE + TERM SIDE + TERM SIDE TERM SIDE + + + + + + TERM SIDE TERM SIDE TERM SIDE TERM SIDE PUSH 67V 67V 155V 5V 80V 175V 175V 175V 15V 175V 0-175V 175V 0-175V 15V 190V 0-190V TP24 R6110 47k R6085 47 C6046 25V 4.7u L6009 JS6002 0 R6102 470 D6041 B0ECHP000001 R6047 10 D6070 MA2J11100L R6070 22k TP29 R6019 47 R6022 47 VR6074 10k 1 2 3 L6014 1u TP27 J0JJC0000021 L6041 R6069 22k R6074 24k R6052 10 C6023 250V 1u L6005 G0C101K00023 L6010 TP21 J0JJC0000021 L6029 C6028 250V 1u TP22 R6062 220k 1/2W R6037 1 ZA6002 K4CD01000013 Q6025 2SK062000L G D S R6079 100 150 R6002 R6064 220k R6063 220k L6013 0.6u J0JJC0000021 L6049 L6035 D6068 MA2J11100L Q6014 2SB1073001TV C6053 25V 220u L6042 R6081 2.2k 150 R6092 Q6055 2SD0601A0L D6057 B0ECHP000001 TP8 C6009 50V 0.01u 2W R6068 12k IC6005 C0BBBA000043 1 2 3 4 5 6 7 8 L6025 R6091 1k TP28 C6058 25V 1u R6031 10k C6029 250V 1u TP23 TP16 L6047 J0JJC0000021 D6024 B0HBSN000009 Q6056 2SD0601A0L C6022 250V 1u 1% R6073 1.2k Q6006 B1DEHM000005 1% R6119 39k TP14 L6021 R6080 100 R6015 10 C6054 25V 220u Q6042 2SK373100L G D S C0JBAZ000005 IC6006 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C6036 16V 1u R6086 47 Q6005 B1DEHM000005 D6035 MAZ80330LL R6106 47k C0ZBZ0000895 IC6002 M81709FP-DB0J 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC L6036 D6036 MA2J11100L Q6004 B1DEHM000005 Q6013 2SD21850RL D6014 B0JCME000025 Q6024 B1DEHM000005 R6023 10k 1/2W R6044 22 R6076 0 L6022 J0JJC0000021 Q6002 B1DEHM000005 200k R6033 1/2W R6036 1 *L6015 1u Q6008 B1DEHM000005 *SS43 1 2 3 4 5 6 7 8 9 10 11 12 13 L6004 G0ZZ00002183 Q6041 2SK373100L G D S R6130 10 TP10 D6029 B0HBSN000009 L6019 G0ZZ00002183 TP19 C6005 25V 4.7u C6034 25V 4.7u R6013 10 C6037 250V 0.22u R6027 100 C6007 160V 100u R6082 100 Q6023 B1DEHM000005 J0JJC0000021 L6051 R6083 100 100k R6008 D6055 B0JCME000025 C6026 250V 1u D6022 B0HBSN000009 J0JJC0000021 L6030 J0JJC0000021 L6028 D6053 B0JCME000025 C0ZBZ0000895 IC6003 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6103 470 R6121 10k TP26 R6025 10k TP17 C6032 25V 4.7u R6050 10 ZA6004 K4CD01000013 D6015 B0ECHP000001 Q6051 2SD1263AP0LB D6011 B0JCME000025 TP1 R6029 10k C6027 250V 1u C6025 250V 1u R6131 10 TP3 L6011 0.6u *SS42 1 2 3 4 5 6 7 8 9 10 11 12 13 R6024 10 C6051 16V 1u R6045 47 J0JJC0000021 L6031 R6104 47k R6087 100 R6129 10 L6027 100k R6009 3W R6077 0.22 D6012 B0JCME000025 TP31 C6047 200V 150u SS11 1 2 3 4 5 6 7 R6060 100 C6031 25V 4.7u L6050 G0ZZ00002183 R6071 1k *SS44 1 2 3 4 5 6 7 8 9 10 11 12 13 C6042 16V 1u C6040 630V 2200p Q6052 2SC1473AEA *SS41 1 2 3 4 5 6 7 8 9 10 11 12 13 C6041 16V 1u L6037 D6066 MAZ83300ML R6016 10 L6002 G0ZZ00002183 B0ECHP000001 D6023 B0ECHP000001 D6021 D6040 B0ECHP000001 R6107 470 C0ZBZ0000895 IC6001 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6022 2SK389200SRP Q6011 2SD21850RL L6003 G0ZZ00002183 R6101 470 R6126 1.5k TP12 TP25 Q6007 B1DEHM000005 SS34 1 2 3 SS23 1 2 3 4 5 6 7 8 9 10 11 R6059 100 TP30 C6015 630V 5600p D6059 MA2J11100L L6020 C6043 25V 4.7u L6008 220u 200V C6004 D6065 LNJ301MPUJA IC6004 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb C6024 250V 1u R6128 10 C6061 630V 470p R6111 47k TP4 R6056 100k 100 R6007 R6112 47k L6012 0.6u R6084 220k C6044 25V 4.7u C6049 25V 4.7u R6108 470 D6013 B0JCME000025 C6092 630V 3900p Q6021 2SK389200SRP R6124 10k R6020 47 R6066 22k D6069 LNJ301MPUJA C6093 630V 5600p D6060 MA2J11100L C6055 25V 1u D6037 B0ECHP000001 TP5 R6041 10 D6020 B0HBSN000009 D6016 B0JCME000025 D6067 MAZ83300ML 150 R6004 C6033 16V 1u R6028 100 TP11 150 R6003 C6060 630V 470p R6021 47 R6055 100 Q6010 B1DEHM000005 150 R6005 L6018 J0JJC0000021 R6105 47k L6044 G0ZZ00002183 TP9 D6050 B0ECHP000001 TP15 TP13 C6008 160V 100u R6125 2.2k TP2 Q6012 2SB1073001TV C6021 250V 1u 1% R6118 39k R6026 10 100 R6006 R6042 10 D6051 B0ECHP000001 TP6 L6024 D6054 B0ECHP000001 J0JJC0000021 L6032 D6061 MAZ81000ML R6049 10 TP32 Q6046 2SK373100L G D S TP20 R6014 10 R6048 10 Q6045 2SK326800L G D S R6089 1k 1/2W R6043 22 C6003 200V 220u L6043 TP18 D6063 MAZ80510LL L6026 C6057 25V 4.7u 1/2W R6039 1 D6062 MA2J11100L 1W R6057 47 1W R6067 4.7k R6001 100k D6052 B0JCME000025 L6045 G0ZZ00002183 1/2W R6038 1 1u 250V C6030 R6090 180 R6123 1.5k Q6053 2SC14730LA C6035 25V 4.7u R6065 10k C6050 16V 1u Q6009 B1DEHM000005 C6016 3900p 630V J0JJC0000021 L6007 R6109 470 C6039 250V 0.1u C6056 10V 100u J0JJC0000021 L6048 D6058 MA2J11100L TP7 C6001 200V 220u Q6003 B1DEHM000005 H5N2517FN-E-A9 1% R6120 7.5k C6048 25V 220u C0DBEMB00002 IC6011 TL431AIPK3 CATHODE 3 1 REF ANODE 2 D6064 MA2J11100L R6051 10 L6034 R6127 100 SS12 1 2 3 4 5 3W R6078 0.22 *SS44A 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS42A 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS41A 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS43A 1 2 3 4 5 6 7 8 9 10 11 12 13 *L6016 1u R6030 10k R6088 10k S34 1 2 3 S061 K0F162B00002 * m * * TP15V NC TPVDA STB_PS STB12V GND - + - + (GREEN LED) TPSS1 TPVe TPVSUS Vda60V VSUS VSUS NC GND GND +15V GND TC74VHC244FT(EL) (GREEN LED) 42 INCH MODEL ONLY 37 INCH MODEL ONLY 42 INCH MODEL ONLY 37 INCH MODEL ONLY D A 5 C F E 6 4 B 3 8 9 7 1 2 STB_PS POWER SWITCH ! S1-BOARD TNPA3200 (P12) P-BOARD TO (P11) P-BOARD TO TO (C23) C2-BOARD SS-BOARD ! TXNSS1VPSC FET DRIVER FET DRIVER FET DRIVER FET DRIVER BUFFER ERROR DET COMPARETER 0 0 0 0 170.7 0 170.7 67.9 15.4 0 11.5 11.5 11.5 11.5 0 11.5 11.5 0 0.4 0.1 0.5 0.2 4.1 5.2 3.4 4.3 0 0 67.7 TH-42PA40C SS and S1-Board Schematic Diagram TH-42PA40C SS and S1-Board Schematic Diagram 112 15.55.Z 和 H3 电路板方框图 100Hz LPF Q2406 32 20 L IN L OUT 12 1 R IN R OUT 28 29 27 11 16 OUT(R) AUDIO 17 20 21 4 IC2302 AUDIO AMP IC2301 AUDIO AMP AMP STB SW AUDIO OUT(L) 17 11 16 21 20 AMP STB SW 4 B IN ADD MS IN 17 19 MUTE Q2305 Q2303 MUTE POWER ON MUTE Q2306 1 IC801 2 AVR9V IC802 1 2 AVR5V 2 IC803 1 AVR3.3V(SW) 15 16 17 SCL SDA PORT 10 11 5 6 3 1 15 SLOT3.3V SLOT3.3V SLOT5V SLOT9V SOUND MAIN MUTE DR15V 12 SCL3 SDA3 R L Z8 Z5 1 DIG12V 2 DIG12V STB5V 3 SOUND12V 7 8 SOUND12V 9V 1 4 1 3 Z6 Z7 L+ L- R+ R- H37 1 3 IC2401 SOUND PROCESSOR 2 1 AVR 9V 31 VCC IC2304 Z Sound Processor Board + - H3 SPEAKER TERMINAL (L) (R) TERMINAL + SPEAKER H37 H3 1 3 - TO J8 DIG12V 9 TO P5 14 RESET JK8500 JK8500 Q2370 Q2334 Q2333 ERROR DETECT 16 FAN SW VIN VOUT VOUT VIN VIN SWOUT AVR12V SWOUT 2 IC804 1 VIN 4 FAN_SOS Z30 FAN_12V 1 3 Z31 FAN_SOS FAN_12V 1 3 Z32 FAN_SOS FAN_12V 1 3 Z33 FAN_SOS FAN_12V 1 3 Z34 FAN_SOS FAN_12V 1 3 Z10 DR15V 1 3 FAN_SOS 4 5 FAN_CONT 5V Q803 Q805 Q802 Q804 Q801 TO P10 TO FAN TH-42PA40C Z and H3-Board Block Diagram TH-42PA40C Z and H3-Board Block Diagram 113 15.56.Z 电路板 (1/2) 线路图 Thermal Pad + + + + + + + + + + + + + + + + + + + Thermal Pad 9V 9V R2440 0 C1BA00000278 IC2302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 C2465 50V 6800p R2346 12k C2437 C2353 50V 10u C2466 16V 1u C2366 50V 2.2u C2457 50V 4.7u C2433 50V 0.039u C2359 50V 2.2u Q2330 2SD1266AP0LB C2431 50V 0.01u R2353 10k C2312 50V 0.01u JS2301 C2454 50V 4.7u R2468 4.7k R2332 1.8k 1/2W R2358 2.2 C2467 16V 1u C2426 50V 0.015u D2302 B0JCME000025 C2357 50V 1000p 1/2W R2355 2.2 R2452 47k C2440 16V 4.7u R2485 0 C2360 50V 1000p ZA003 K4ZZ01000121 R2450 56k R2456 10k C2313 50V 47u C2434 50V 0.022u C2355 35V 47u C2456 50V 6800p R2301 4.7k R2354 10k C2351 2.2u 16V R2487 0 D2301 B0JCME000025 R2352 10k C2363 25V 470u R2461 100 R2439 56k R2448 1k C2435 50V 0.01u L2306 ELJPA100KF Z7 1 2 3 R2333 470 C2358 50V 2.2u R2486 0 ZA001 K4ZZ01000121 R2489 0 C2354 35V 47u R2488 0 D2317 B0JCME000025 1% R2463 15k C2452 50V 5600p R2304 47k C2314 25V 47u C2352 50V 10u 1/2W R2360 2.2 C2453 50V 0.1u R2441 12k R2306 22k C2362 25V 470u C2423 50V 0.01u Z6 1 2 3 4 R2476 22 Q2305 2SD0601A0L R2351 10k ZA002 K4ZZ01000121 D2308 MA3X152E0L R2445 0 C2450 50V 10u Q2303 2SD0601A0L R2350 4.7k R2467 220k R2477 22 C2361 50V 1000p 1/2W R2356 2.2 C2441 16V 4.7u C2436 16V 1u R2309 4.7k R2431 12k C2419 50V 10u C2429 R2462 100 C1BA00000278 IC2301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 R2305 22k C2459 16V 1u C2451 50V 4.7u R2453 10k C2364 50V 0.1u C2460 50V 0.047u C2368 50V 0.1u C2461 50V 1000p C2369 50V 0.1u C2365 50V 0.1u 1/2W R2359 2.2 C2458 50V 1000p C2356 50V 1000p C2427 50V 10u C2438 R2434 4.7k R2347 47k IC2401 C1BA00000302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 C2350 2.2u 16V R2469 100k C2463 50V 0.047u R2310 5.6k 1% R2460 18k R2348 10k C2367 50V 2.2u Q2306 2SD0601A0L IC2304 C0CBAHG00005 GND 3 2 OUT IN 1 R2466 100k 1/2W R2357 2.2 Q2406 2SD0601A0L R2470 4.7k R2471 1.8k R2473 1.8k R2472 4.7k *R2494 0 *R2495 0 L2330 220u Q2331 2SD1266AP0LB L2331 220u SCL3 SDA3 +R OUT -R OUT -L OUT +L OUT FILTER LIPPLE AMP STB SW ON TIME NC NC POWER GND BEEP IN NC PRE GND NC POWER GND Vcc(SW) OUT SW SW E SW B SW GND OUT- OUT+ Vcc SW GND POWER GND SW GND POWER GND Vcc OUT+ OUT- SW GND B SW E SW SW OUT Vcc(SW) POWER GND NC PRE GND NC IN BEEP POWER GND NC NC ON TIME STB SW AMP LIPPLE FILTER 100Hz LPF STT MS_IN B_GAIN LT B_IN ADD C_IN S_OUT V_REF PS STB LS2 AGC_ADJ(4.2V) LS1 VCC L_IN A_GND R_IN SCV PORT SDA SCL LB CB CT RT R_OUT RB C_OUT L_OUT SLV SRV SOUND PROCESSOR AVR 9V 8 4 1 2 B 5 C 6 A D E 7 3 AUDIO AMP AUDIO AMP Z-BOARD TNPA3198AB (1/2) ! 5 6 4 2 3 1 10 8 9 7 1.8 4.3 4.5 4.0 4.4 4.4 0 0 0 0 0 4.4 4.4 0 3.9 0.4 0.4 1.8 4.3 4.4 4.4 0.4 4.4 4.4 8.9 4.4 4.4 0 4.4 0.4 0.4 4.4 0.5 0 2.7 0.5 11.2 0 0.5 0 0.5 0.5 0 3.3 3.3 0 12.1 3.3 3.3 0 0 12.0 3.6 12.2 1.7 3.3 1.7 0.2 0 0 12.1 3.3 0 3.3 0 0 0 12.0 3.5 12.2 1.7 3.3 1.7 0.2 0.5 0 2.7 0.6 11.2 0 0.5 0 2.3 0.6 0 3.3 3.3 0 12.2 8.9 0 0.1 1.7 0.2 1.7 1.7 1.7 0.1 8.9 3.9 0.9 0 0 4.3 0 0 4.3 0.5 0 0 0.2 3.4 3.5 3.5 3.3 0.4 M = # = # = # = # M M M M = # M = # TH-42PA40C Z-Board (1 of 2) Schematic Diagram TH-42PA40C Z-Board (1 of 2) Schematic Diagram 114 15.57.Z 电路板 (2/2) 和 H3 电路板线路图 Thermal Pad + + + + + + + 3.3V 5V 12V C809 50V 0.01u C816 50V 6800p Z5 1 2 3 4 5 6 7 8 9 10 11 C0DBALH00002 IC803 1 AGND 2 N.C 3 DGND 4 CE/SS 5 Reg 6 N.C 7 Swout 8 N.C 9 N.C 10 N.C 11 Vin 12 BS 13 N.C 14 Comp 15 Vref 16 N.C D803 B0JCME000025 1% R809 1.2k L802 G1C121ZA0037 1% R805 1k C812 50V 0.1u R2371 1k D804 B0JCPD000010 R2372 1k Q2370 2SB0709A0L C805 16V 1000u D802 B0JCME000025 C815 50V 0.1u R2373 10k IC801 C0DAAHG00008 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF C802 25V 470u R2370 2.2k IC802 C0DAAHG00007 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF Z10 1 2 3 4 5 C2370 35V 47u C808 50V 0.01u 1% R803 1k R2366 0.56 1W C803 25V 330u C807 50V 0.1u C814 6.3V 1500u Q2334 2SD0601A0L R2368 10k L803 G1C680ZA0037 L801 G1C101ZA0037 Q2333 2SD0601A0L C806 10V 1000u R808 47 R2365 0.56 1W C813 50V 0.047u R2367 3.3k C811 50V 0.01u 1% R810 510 1% R806 15 C810 25V 560u 1% R807 15 R2369 10k *R2490 0 *R2491 0 Z8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D806 B0BC6R8A0010 D807 B0BC6R8A0010 JK8500 K4BC02B00013 L8501 G0A2R5H00003 JK8500 K4BC02B00013 L8501 G0A2R5H00003 H37 1 2 3 L8502 G0A2R5H00003 H37 1 2 3 L8502 G0A2R5H00003 SDA3 SCL3 SOUND12V SOUND12V STB5V DIG12V DIG12V DR15V SLOT3.3V SLOT3.3V SLOT5V SLOT9V DIG12V GND GND GND GND GND FAN CONT 5V FAN SOS GND DR15V GND GND FAN_SW R L SOUND MAIN MUTE RESET 9V/0.5A 3.3V/1.2A GND GND 5V/0.4A SOUND12V GND GND GND ! TNPA3003 SPEAKER TERMINAL (L) TNPA3003 TERMINAL SPEAKER (R) H3-BOARD ! H3-BOARD (P5) TO P-BOARD AVR 9V AVR 5V AVR 3.3V (J8) TO J-BOARD 12 8 10 9 13 11 15 14 +R OUT -R OUT -L OUT +L OUT Z-BOARD TNPA3198AB (2/2) ! 10 8 9 7 4 2 3 1 6 5 12.2 0 12.2 12.2 4.5 12.2 0 12.2 0 0 0 0 12.2 9.0 8.9 2.3 2.2 4.9 5.0 12.2 0 0 0 0 0 0 0 0 3.3 12.2 0 0 0 0 0.9 8.9 0.9 0 15.4 0 5.3 6.6 0 12.1 0 3.2 5.0. 9.0 3.9 0 0 3.3 0 5.4 5.5 0.4 0.4 3.9 0 15.3 4.9 0 12.2 12.2 0 0 12.1 0 0 4.2 0 1.7 1.7 0.1 1.7 1.7 0.1 M M M M M M M TH-42PA40C Z-Board (2 of 2) and H3-Board Schematic Diagram TH-42PA40C Z-Board (2 of 2) and H3-Board Schematic Diagram 115 16 部件布置 116 17 包装分解图 17.1. 包装分解图 (1) 117 17.2. 包装分解图 (2) 118 17.3. 包装分解图 (3) 119 18 维修部品表 参考号 部件号 部件名称及说明 数量 备注 1 EUR646536 遥控器 1 J0KD00000071 铁氧磁环 2 2 J0KF00000018 噪音过滤器 1 3 J0KG00000054 噪音过滤器 2 4 K1SBAABZ0001 RCA-BNC 变换接插件 2 5 K2CK3DH00028 电源线 1 K5D312BL0008 副保险丝 （PF 板 F902） 1 K5D802BNA003 主保险丝 （PF 板 F900 F901） 2 6 MC106W36FD7 屏 1 7 N2QAJB000139 遥控器 （高频头） 1 R6DW/2STA 电池 4 TBMA120 PANASONIC 标牌 1 TBMU196 SP 端子表示牌 2 TBMU500 HZ 端子表示牌 1 8 TBXA38901 铰链开关 1 9 TBXA39701 电源开关 1 10 TESD039 电源开关弹簧 1 THEL023Z 带垫螺丝 （黑） 14 THEL035N 攻丝镀镍螺丝 68 THTF010Z 螺丝 16 11 TKEA08508 民用面框本体 1 12 TKGA5170-2 前面板玻璃 ( 滤光玻璃 ) 1 13 TKKC5129 LED 屏 1 14 TKPA60302 遥控器受光屏 1 15 TKPA63401 IC 光电窗 1 16 TKRA26601 把手 2 17 TKUX07203 后盖本体 1 TMKG314 海绵 （左右）（面框内） 2 TMKG315 海绵 （上下）（面框内） 2 TMKK144 橡胶垫片 10 TMKX336 S1 线路板绝缘片 1 TMKX507 P 屏蔽绝缘片 1 TMKX674 SC/SS 绝缘片 1 TMKX785 遮光板 1 TMM15414-2 空中线夹 1 TMME185 尼龙铆钉 2 TMME203 扎带 2 TMME225 AC 线夹 1 TMME228 扎带固定件 2 TMMX079 M8 垫片 (T=0.5MM) 4 TMMX095 挂钩 2 TMWC008 电源开关托架 1 TMXX027 芯子支座 1 18 TPASK06 SP 导线 1 19 TPCB14201 内箱底箱 1 20 TPCB14310 内箱 1 21 TPD0A9002L 箱扣 8 22 TPDA0698 外箱左右泡缓冲材 4 23 TPDA0699 外箱中间泡缓冲材 2 24 TPDA0930 内箱顶部缓冲材 1 25 TPDA0931 内箱底部缓冲材 1 26 TPDF0760 内箱顶盖 1 27 TPDF0764 附属品箱 1 28 TPDF1004 外箱顶盖 1 29 TPEH165 整机保护袋 1 30 TPGA2040 外箱底箱 1 31 TPGA2642 外箱 1 TQFB662 线夹注意标签 1 32 TQZC735 说明书 1 TSXL222 柔性导线 （C1-C2） 1 TSXL368 柔性导线 （D-C1/2） 2 TXAUW01QBSC SP 端子 安装金具 （备品） 2 33 TXFMZ010VAS 台架安装块 （半成品） 2 TXFUW02VCSC 端子块 （完成品） 1 TXJ/D50VCS 线束 D5-J5 1 TXJ/J10VAS 线束 D1-J1 1 TXJ/J30VAS 线束 D3-J3( 磁场干扰对策 ) 1 TXJ/P20JAS 线束 SC2-P2 1 TXJ/Z50VAS 线束 Z5-P5 1 TXJ/Z80VAS 线束 Z8-J8 1 TXJC230QBS 线束 C23-SS23 1 TXJD200UNS 线束 SC20-D20 1 TXJD250VAS 线束 D25-P25 1 TXJD270QBS 线束 D27-P27 1 TXJJ100QBS 线束 PF10-J10 1 TXJP100VAS 线束 Z10-P10 1 TXJP110QJS 线束 P11-SS11 1 TXJP120VAS 线束 P12-SS12 1 TXJP230VAS 线束 SC23-P23 1 TXJPF90VAS 线束 PF9-P9 1 TXJS340VAS S34-SS34 导线 1 TXJS450UNS 线束 SD46-SC46;SU45-SC45 2 TXJSPL0QBS 线束 Z6-H37(SP) 1 TXJSPR0QBS 线束 Z7-H37(SP) 1 TXJV340QJS 线束 C24-V34 1 TXN/D1VPSC D 线路板 1 TXN/P1VPSC P 线路板 1 TXN/Z10VPSC Z 线路板 1 TXNC11VPSC C1 线路板 1 TXNC21VPSC C2 线路板 1 TXNHM1VPSC CHINA_ 调谐器端子块 1 TXNHZQDSC （HZ）（RCA）端子块 1 TXNPF1VCSC PF 线路板 （半成品） 1 TXNS11VCSC S1 线路板 （半成品） 1 TXNSC1VPSC SC 线路板 （半成品） 1 TXNSD1VPSC SD 线路板 （半成品） 1 TXNSS1VPSC SS 线路板 （半成品） 1 TXNSU1VPSC SU 线路板 （半成品） 1 TXNV11VCSC V1 线路板 （半成品） 1 XTB4+10A 螺丝 （前面板按压件） 20 XTS3+10J 攻丝螺丝 （S1 线路板） 1 XTV3+10J 螺丝 （电源 SW 块：2） 2 XTV3+6J 螺丝 2 XYN5+C15 带垫螺丝 （台架安装块） 6 34 XYN8+F20 后盖用固定螺丝 4 参考号 部件号 部件名称及说明 数量 备注 120 19 更换部件清单 19.1. 更换部件清单注意事项 121 19.2. 电器部件更换清单 参考号 部件号 部件名称及说明 件数 备注 F902 K5D312BL0008 熔断器 1 F900.901 K5D802BNA003 熔断器 2 C11 K1MN50BA0016 50P 连接接头 1 C12 K1MN20B00043 20P 连接接头 1 C21 K1MN50BA0016 50P 连接接头 1 C22 K1MN20B00043 20P 连接接头 1 C23 K1KA11A00102 11P 连接接头 1 C24 K1KA08A00232 8P 连接接头 1 C802 EEUFC1E471 E 470UF, 25V 1 C803 EEUFC1E331 E 330UF, 25V 1 C805 EEUFC1C102 E 1000UF, 16V 1 C806 EEUFC1A102 E 1000UF, 10V 1 C807 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C808,09 ECQB1H103JF P 0.01UF, J, 50V 2 C810 EEUFC1E561 E 560UF, 25V 1 C811 ECQB1H103JF P 0.01UF, J, 50V 1 C812 ECQB1H104JF P 0.1UF, J, 50V 1 C813 ECQB1H473JF P 0.047UF, J, 50V 1 C814 EEUFC0J152 E 1500UF, 6.3V 1 C815 ECQB1H104JF P 0.1UF, J, 50V 1 C816 ECQB1H682JF3 P 6800PF, J, 50V 1 C901 ECQU2A105BN9 P 1UF, 250V 1 C902,03 ECKCNA221KB7 C 220PF, M, 2 C904 ECQU2A474BN9 P 0.47UF, 250V 1 C905 ECQU2A105BN9 P 1UF, 250V 1 C906,07 ECKCNA221KB7 C 220PF, M, 2 C910 EETHC2W101J C 4700PF, Z,450V 1 C911 ECQE6223KF P 0.022UF, K,400V 1 C912 EEUEB1H100SB E 100UF, 25V 1 C913 ECJ2XC1H221J C 220PF, J, 50V 1 C914 ECKD3D221KBN C 220PF, K, 2KV 1 C915 ECJ2XC1H471J C 470PF, J, 50V 1 C916 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C917 EEUEB1H100SB E 100UF, 25V 1 C918 ECJ2XC1H222J C 2200PF, J, 50V 1 C919 ECJ2XF1H224Z C 0.22UF, Z, 50V 1 C920 ECKDNA471KB7 C 470PF, Z, 1 C930 EEUFC1E222 E 2200UF, 25V 1 C931 ECKD3A331KBP C 330PF, K, 1KV 1 C932 EEUEB1E101 E 100UF, 25V 1 C933 ECJ2FB1E105K C 1UF, K, 16V 1 C1530 ECJ3XB0J106M C 10UF, M,6.3V 1 C2312 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C2313 ECA1HHG470 E 47UF, 50V 1 C2314 ECA1EHG470 E 47UF, 25V 1 C2350,51 TCUY1C225KBM C 2.2UF, 16V 2 C2352,53 ECA1HHG100 E 10UF, 50V 2 C2354,55 ECA1VM470 E 47UF, 35V 2 C2356,57 ECJ2XB1H102K C 1000PF, K, 50V 2 C2358,59 ECA1HM2R2 E 2.2UF, 50V 2 C2360,61 ECJ2XC1H102J C 1000PF, J, 50V 2 C2362,63 ECA1EM471 E 470UF, 25V 2 C2364,65 ECQV1H104JM P 0.1UF, J, 50V 2 C2366,67 ECQV1H225JM P 2.2UF, J, 50V 2 C2368,69 ECQV1H104JM P 0.1UF, J, 50V 2 C2370 ECA1VM470 E 47UF, 35V 1 C2419 ECA1HHG100 E 10UF, 50V 1 C2423 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2426 ECJ2XB1H153K C 0.015UF, K, 50V 1 C2427 ECA1HHG100 E 10UF, 50V 1 C2429 EEAGA1C101 E 100UF, 16V 1 C2431 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C2433 ECJ2XB1H393K C 0.039UF, K, 50V 1 C2434 ECJ2XB1H223K C 0.022UF, K, 50V 1 C2435 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2436 ECJ3VB1C104K C 0.10UF, K, 16V 1 C2437,38 EEAGA1C101 E 100UF, 16V 2 C2440,41 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C2450 ECA1HHG100 E 10UF, 50V 1 C2451 ECA1HHG4R7 E 4.7UF, 50V 1 C2452 ECJ2XB1H562K C 5600PF, K, 50V 1 C2453 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C2454 ECA1HHG4R7 E 4.7UF, 50V 1 C2457 ECA1HHG4R7 E 4.7UF, 50V 1 C2458 ECJ2XC1H102J C 1000PF, J, 50V 1 C2459 ECJ3VB1C104K C 0.10UF, K, 16V 1 C2460 ECJ2XB1H473K C 0.047UF, K, 50V 1 C2461 ECJ2XC1H102J C 1000PF, J, 50V 1 C2463 ECJ2XB1H473K C 0.047UF, K, 50V 1 C2466,67 ECJ3VB1C104K C 0.10UF, K, 16V 2 C3001 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3002 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3003 EEVHP1A100 E 10UF, 10V 1 C3004 EEEHB1C470P C 47PF, J, 16V 1 C3005 ECJ2XB1H682K C 6800PF, K, 50V 1 C3006 ECJ2XB1H682K C 6800PF, K, 50V 1 C3007 EEEHB1C470P C 47PF, J, 16V 1 C3008 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3009 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3010 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3011 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3012 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3013 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3014 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3015 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3016 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3017 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3018 EEEHB1C470P C 47PF, J, 16V 1 C3019 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3020 TCUY1C225KBM C 2.2UF, 16V 1 C3021 TCUY1C225KBM C 2.2UF, 16V 1 C3022 TCUY1C225KBM C 2.2UF, 16V 1 C3023 TCUY1C225KBM C 2.2UF, 16V 1 C3024,25 TCUY1C225KBM C 2.2UF, 16V 2 C3026-31 TCUY1C225KBM C 2.2UF, 16V 6 C3032 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3040,41 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3051-54 ECJ1XC1H561J C 560PF, J, 50V 4 C3055,56 ECJ2XB1H682K C 6800PF, K, 50V 2 C3101 TCUY1C225KBM C 2.2UF, 16V 1 C3102 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3103 TCUY1C225KBM C 2.2UF, 16V 1 C3104,05 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3106 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3107 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3108 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3109 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3110 TCUY1C225KBM C 2.2UF, 16V 1 C3111 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3112 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3113 EEEHB1C470P C 47PF, J, 16V 1 C3114 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3115 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3116 TCUY1C225KBM C 2.2UF, 16V 1 C3117 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3118 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3119 TCUY1C225KBM C 2.2UF, 16V 1 C3120 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3121 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3122 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3123 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3124 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3125 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3126 TCUY1C225KBM C 2.2UF, 16V 1 C3127 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3128 EEEHB1C470P C 47PF, J, 16V 1 C3129 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3130 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3131-02 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3134 EEVHB1C471 E 470UF, 16V 1 C3135 EEVHB1C471 E 470UF, 16V 1 C3136 EEVHB1C471 E 470UF, 16V 1 C3137 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3138 ECJ3XB0J106M C 10UF, M,6.3V 1 C3139 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3140 ECJ1XC1H101J C 100PF, J, 50V 1 C3141 TCUY1C225KBM C 2.2UF, 16V 1 C3142 TCUY1C225KBM C 2.2UF, 16V 1 参考号 部件号 部件名称及说明 件数 备注 122 C3143 TCUY1C225KBM C 2.2UF, 16V 1 C3144 TCUY1C225KBM C 2.2UF, 16V 1 C3146 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3147 ECJ3XB0J106M C 10UF, M,6.3V 1 C3148 ECJ1XB0J105K C 1UF, K, 16V 1 C3149 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3150 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3151 ECJ1XC1H330J C 33PF, J, 50V 1 C3152 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3153 ECJ1XC1H101J C 100PF, J, 50V 1 C3154 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3156 ECJ1XB0J105K C 1UF, K, 16V 1 C3157 ECJ3XB0J106M C 10UF, M,6.3V 1 C3158 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3159 EEVHB0G221 E 220UF, 4V 1 C3160,61 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3162-66 ECJ1VF1A105Z C 1UF, Z, 10V 5 C3167-78 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C3179 EEVHB0G221 E 220UF, 4V 1 C3180-83 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3185 ECJ1XC1H060D C 6PF, D, 50V 1 C3186 ECJ1XC1H470J C 47PF, J, 50V 1 C3188 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3200 ECJ2XB1H682K C 6800PF, K, 50V 1 C3202-06 ECJ1VF1A105Z C 1UF, Z, 10V 5 C3207 EEVHB0G221 E 220UF, 4V 1 C3208-14 ECJ1VF1A105Z C 1UF, Z, 10V 7 C3216,17 ECJ1VF1A105Z C 1UF, Z, 10V 2 C3218 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3253 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3254 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3255 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3256 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3257 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3258 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3259 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3260 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3261 EEVHB0G221 E 220UF, 4V 1 C3262 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3263,64 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3265 EEVHB0G221 E 220UF, 4V 1 C3266-68 EEVHB1C471 E 470UF, 16V 3 C3301 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3308 EEVHB0G221 E 220UF, 4V 1 C3309 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3311 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3313 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3316,17 ECJ1VF1A105Z C 1UF, Z, 10V 2 C3318-21 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3322,23 EEVHB0G221 E 220UF, 4V 2 C3324 EEVHB0J101P E 100UF, 6.3V 1 C3325 EEVHB1C470 E 47UF, 16V 1 C3327-30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3404 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3405 EEEHB1C470P C 47PF, J, 16V 1 C3409 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3523 EEEHB1C470P C 47PF, J, 16V 1 C3524 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3550 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3551 EEEHB1C470P C 47PF, J, 16V 1 C3561,62 ECJ2XB1H682K C 6800PF, K, 50V 2 C6001 F2A2D221A022 E 220UF, 200V 1 C6003,04 F2A2D221A022 E 220UF, 200V 2 C6005 F1L1E4750004 C 4.7UF, 25V 1 C6007,08 ECA2CM101 E 100UF, 160V 2 C6009 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6015 F1L2J562A010 C 5600UF, K,6.3V 1 C6016 F1L2J392A010 E 22UF, 63V 1 C6021-30 ECQE2105RKB P 1UF, 250V 10 C6031,32 F1L1E4750004 C 4.7UF, 25V 2 C6033 TCUY1C105ZFN C 1UF, 16V 1 C6034,35 F1L1E4750004 C 4.7UF, 25V 2 C6036 TCUY1C105ZFN C 1UF, 16V 1 C6037 ECQE2224KF P 0.22UF, K,250V 1 C6039 F1L2E1040002 E 1000UF, 25V 1 C6040 ECJ3XB2J222K C 2200PF, K,630V 1 C6041,42 TCUY1C105ZFN C 1UF, 16V 2 参考号 部件号 部件名称及说明 件数 备注 C6043,44 F1L1E4750004 C 4.7UF, 25V 2 C6046 F1L1E4750004 C 4.7UF, 25V 1 C6047 F2A2D1510004 E 150UF, 200V 1 C6048 EEUFC1E221 E 220UF, 25V 1 C6049 F1L1E4750004 C 4.7UF, 25V 1 C6050,51 TCUY1C105ZFN C 1UF, 16V 2 C6053,54 EEUFC1E221 E 220UF, 25V 2 C6055 ECJ3YB1E105K C 1UF, K, 25V 1 C6056 EEUFC1A101 E 100UF, 10V 1 C6057 F1L1E4750004 C 4.7UF, 25V 1 C6058 ECJ3YB1E105K C 1UF, K, 25V 1 C6060,61 F1K2J471A014 C 470UF, K,6.3V 2 C6092 F1L2J392A010 E 22UF, 63V 1 C6093 F1L2J562A010 C 5600UF, K,6.3V 1 C6456 ECA2CM101 E 100UF, 160V 1 C6457 ECA2CHG100 E 10UF, 160V 1 C6458 F1L1E4750004 C 4.7UF, 25V 1 C6459 EEUFC1E470 E 47UF, 25V 1 C6461 ECA1HM101 E 100UF, 50V 1 C6462-65 F1L1E4750004 C 4.7UF, 25V 4 C6466 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6467 ECJ2XB1H472K C 4700PF, K, 50V 1 C6468 TCUY1C105ZFN C 1UF, 16V 1 C6469 EEUFC1E221 E 220UF, 25V 1 C6470 ECA1HM221 E 220UF, 50V 1 C6471 TCUY1C105ZFN C 1UF, 16V 1 C6472 ECJ2VB1H333K C 0.033UF, K, 50V 1 C6473 TCUY1C105ZFN C 1UF, 16V 1 C6474 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6475 EEUFC1E221 E 220UF, 25V 1 C6476 ECA2CM101 E 100UF, 160V 1 C6478 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6479 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6490 F1K2J332A014 C 3300UF, K,6.3V 1 C6492 ECA2VHG100 E 10UF, 350V 1 C6493 ECJ3XB2J222K C 2200PF, K,630V 1 C6501-08 TCUY1C105ZFN C 1UF, 16V 8 C6509 ECJ2XC1H102J C 1000PF, J, 50V 1 C6511,12 F1L1E4750004 C 4.7UF, 25V 2 C6513 ECA2CM101 E 100UF, 160V 1 C6521 EEUFC1E470 E 47UF, 25V 1 C6523 ECA1VM470 E 47UF, 35V 1 C6524 F1K2J471A014 C 470UF, K,6.3V 1 C6526 ECA2EHG220 E 22UF, 250V 1 C6529,30 F1K2J471A014 C 470UF, K,6.3V 2 C6531,32 F1L1E4750004 C 4.7UF, 25V 2 C6533,34 F1K2J471A014 C 470UF, K,6.3V 2 C6541 F1L1E4750004 C 4.7UF, 25V 1 C6543,44 F1K2J102A014 C 1000PF, 2 C6546 TCUY1C105ZFN C 1UF, 16V 1 C6550 ECA2CM101 E 100UF, 160V 1 C6551 ECQE2224KF P 0.22UF, K,250V 1 C6571 TCUY1C105ZFN C 1UF, 16V 1 C6575-78 TCUY1C105ZFN C 1UF, 16V 4 C6580,81 TCUY1C105ZFN C 1UF, 16V 2 C6584 ECJ3YB1E105K C 1UF, K, 25V 1 C6585 TCUY1C105ZFN C 1UF, 16V 1 C6587 ECJ3YB1E105K C 1UF, K, 25V 1 C6588 TCUY1C105ZFN C 1UF, 16V 1 C6589 F1L1E4750004 C 4.7UF, 25V 1 C6590 TCUY1C105ZFN C 1UF, 16V 1 C6591 F1L1E4750004 C 4.7UF, 25V 1 C6598 ECA1CM220 E 22UF, 16V 1 C6601-03 F2A2D221A022 E 220UF, 200V 3 C6607 ECJ3YB1E105K C 1UF, K, 25V 1 C6608 ECA1EM471 E 470UF, 25V 1 C6617 F1L2J562A010 C 5600UF, K,6.3V 1 C6618 F1L2J392A010 E 22UF, 63V 1 C6619 F1L2J562A010 C 5600UF, K,6.3V 1 C6621-30 ECQE2105RKB P 1UF, 250V 10 C6631,32 F1L1E4750004 C 4.7UF, 25V 2 C6633 TCUY1C105ZFN C 1UF, 16V 1 C6634,35 F1L1E4750004 C 4.7UF, 25V 2 C6636 TCUY1C105ZFN C 1UF, 16V 1 C6637 F1L1E4750004 C 4.7UF, 25V 1 C6639 F1L1E4750004 C 4.7UF, 25V 1 C6642 F1L2E1040002 E 1000UF, 25V 1 参考号 部件号 部件名称及说明 件数 备注 123 C6647 TCUY1C105ZFN C 1UF, 16V 1 C6650 ECQE2224KF P 0.22UF, K,250V 1 C6651,52 ECJ2XB1H103K C 0.01UF, K, 50V 2 C6655,56 EEUFC1A101 E 100UF, 10V 2 C6659,60 F1K2J471A014 C 470UF, K,6.3V 2 C6697 F1L2J392A010 E 22UF, 63V 1 C6698 F1L2J562A010 C 5600UF, K,6.3V 1 C6901-04 TCUY1C105ZFN C 1UF, 16V 4 C6911,12 ECJ2XB1H102K C 1000PF, K, 50V 2 C6917 ECJ2XB1H221K C 220PF, K, 50V 1 C6931 F1L2E1040002 E 1000UF, 25V 1 C6933 F1L2E1040002 E 1000UF, 25V 1 C6955-58 TCUY1C105ZFN C 1UF, 16V 4 C6971,72 ECJ2XB1H102K C 1000PF, K, 50V 2 C6977 F1L2E1040002 E 1000UF, 25V 1 C6979 F1L2E1040002 E 1000UF, 25V 1 C7101 TCUY1C105ZFN C 1UF, 16V 1 C7102 ECJ3XB0J106M C 10UF, M,6.3V 1 C7104-06 TCUY1C105ZFN C 1UF, 16V 3 C7107 F1K2A1040004 C 0.1UF, 100V 1 C7108-10 TCUY1C105ZFN C 1UF, 16V 3 C7135 TCUY1C105ZFN C 1UF, 16V 1 C7136 ECJ3XB0J106M C 10UF, M,6.3V 1 C7137 TCUY1C105ZFN C 1UF, 16V 1 C7138 ECJ3XB0J106M C 10UF, M,6.3V 1 C7139 TCUY1C105ZFN C 1UF, 16V 1 C7140 ECJ3XB0J106M C 10UF, M,6.3V 1 C7153 ECJ1XC1H101J C 100PF, J, 50V 1 C7154,55 ECJ1XC1H821J C 820PF, J, 50V 2 C7161 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7163 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7165 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7182,83 ECJ1XC1H101J C 100PF, J, 50V 2 C7186 ECJ1XC1H331J C 330PF, J, 50V 1 C7190,91 ECJ3XB0J106M C 10UF, M,6.3V 2 C7192-94 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C7201 TCUY1C105ZFN C 1UF, 16V 1 C7202 ECJ3XB0J106M C 10UF, M,6.3V 1 C7203-06 TCUY1C105ZFN C 1UF, 16V 4 C7207 F1K2A1040004 C 0.1UF, 100V 1 C7208-10 TCUY1C105ZFN C 1UF, 16V 3 C7219 TCUY1C105ZFN C 1UF, 16V 1 C7222 TCUY1C105ZFN C 1UF, 16V 1 C7235 TCUY1C105ZFN C 1UF, 16V 1 C7236 ECJ3XB0J106M C 10UF, M,6.3V 1 C7237 TCUY1C105ZFN C 1UF, 16V 1 C7238 ECJ3XB0J106M C 10UF, M,6.3V 1 C7239 TCUY1C105ZFN C 1UF, 16V 1 C7240 ECJ3XB0J106M C 10UF, M,6.3V 1 C7242,43 TCUY1C105ZFN C 1UF, 16V 2 C7253 ECJ1XC1H821J C 820PF, J, 50V 1 C7254 ECJ1XC1H101J C 100PF, J, 50V 1 C7255 ECJ1XC1H101J C 100PF, J, 50V 1 C7256 ECJ1XC1H101J C 100PF, J, 50V 1 C7266 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7268 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7270 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7272 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7281 ECJ1XC1H101J C 100PF, J, 50V 1 C7282,83 ECJ1XC1H821J C 820PF, J, 50V 2 C7286 ECJ1XC1H821J C 820PF, J, 50V 1 C7290-92 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C7293,94 ECJ3XB0J106M C 10UF, M,6.3V 2 C8001 EEEHB1C470P C 47PF, J, 16V 1 C8002 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C8003 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C8005 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8006 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8007 ECJ1XC1H101J C 100PF, J, 50V 1 C8008 ECJ1XC1H101J C 100PF, J, 50V 1 C8009 ECJ3XB0J106M C 10UF, M,6.3V 1 C8011 ECJ3XB0J106M C 10UF, M,6.3V 1 C8013 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8014 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8015 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8016 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8017 ECJ3YF1A106Z C 10UF, Z, 10V 1 参考号 部件号 部件名称及说明 件数 备注 C8018 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8019 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8020 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8021 ECJ3VB1C474K C 0.47UF, K, 16V 1 C8022 ECJ3VB1C474K C 0.47UF, K, 16V 1 C8023 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8024 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8025 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8026 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8027 TCUY1C225KBM C 2.2UF, 16V 1 C8029 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8030 EEEHB1C470P C 47PF, J, 16V 1 C8031 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8032 EEEHB1C470P C 47PF, J, 16V 1 C8033 ECJ1XC1H102J C 1000PF, J, 50V 1 C8034 ECJ1XC1H102J C 1000PF, J, 50V 1 C8035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8036 ECJ1XC1H101J C 100PF, J, 50V 1 C8037 ECJ1XC1H101J C 100PF, J, 50V 1 C8038 ECJ2XC1H102J C 1000PF, J, 50V 1 C8039 ECJ2XC1H102J C 1000PF, J, 50V 1 C8041 TCUY1C225KBM C 2.2UF, 16V 1 C8043 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8045 ECJ2XB1H682K C 6800PF, K, 50V 1 C8049 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8050 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8070 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8071 EEEHB1C470P C 47PF, J, 16V 1 C8072,73 ECJ3YF1A106Z C 10UF, Z, 10V 2 C8080-83 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C8084 TCUY1C105ZFN C 1UF, 16V 1 C8100 EEEHB1C470P C 47PF, J, 16V 1 C8101 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8102-07 EEEHB1C470P C 47PF, J, 16V 6 C8108,09 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C8110 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8111-13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C8114 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8115 EEEHB1C470P C 47PF, J, 16V 1 C8116,17 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C8118 EEEHB1C470P C 47PF, J, 16V 1 C8119 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8120 EEEHB1C470P C 47PF, J, 16V 1 C8121 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8122 EEEHB1C470P C 47PF, J, 16V 1 C8123 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8181,82 ECJ1XC1H150J C 15PF, J, 50V 2 C8183 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8185 EECS5R5H155 E 1.5UF, 5.5V 1 C8200 EEEHB1C470P C 47PF, J, 16V 1 C9000,01 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9002 ECJ1XC1H101J C 100PF, J, 50V 1 C9003 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9005 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9013 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9015,16 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9018 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9019 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9021 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9022 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9024 EEEHB1C470P C 47PF, J, 16V 1 C9025,26 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9028 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9029 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9030 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9031 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9033,34 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9036 ECJ1XC1H220J C 22PF, J, 50V 1 C9037 ECJ1VC1H270J C 27PF, J, 50V 1 C9038,39 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9041 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9043-45 TCUY1C105ZFN C 1UF, 16V 3 C9046 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9047 ECJ1XC1H101J C 100PF, J, 50V 1 参考号 部件号 部件名称及说明 件数 备注 124 C9048 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9049 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9050 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9051 TCUY1C105ZFN C 1UF, 16V 1 C9064 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9200 ECJ3XB0J106M C 10UF, M,6.3V 1 C9201 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9202 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9203 ECJ3XB0J106M C 10UF, M,6.3V 1 C9204,05 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9206 EEEHB0G221P C 220PF, J, 4V 1 C9207-09 ECJ3XB0J106M C 10UF, M,6.3V 3 C9210-13 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9215,16 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9219 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9220 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9222 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9226 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9227 ECJ3XB0J106M C 10UF, M,6.3V 1 C9228 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9229,30 ECJ3XB0J106M C 10UF, M,6.3V 2 C9231,32 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9233,34 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9235 ECJ3XB0J106M C 10UF, M,6.3V 1 C9236 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9237,38 ECJ3XB0J106M C 10UF, M,6.3V 2 C9239,40 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9241 ECJ2XB1H103K C 0.01UF, K, 50V 1 C9242 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9243,44 ECJ2XB1H103K C 0.01UF, K, 50V 2 C9245 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9246-48 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9249 ECJ1VB1C823K C 0.082UF, K, 16V 1 C9250 ECJ1VB1H822K C 8200PF, K, 50V 1 C9253-55 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9256 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9257-59 EEEHB1C470P C 47PF, J, 16V 3 C9260,61 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9263 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9264,65 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9266 F2H1E221A007 E 2.2UF, 25V 1 C9269 F2H1E221A007 E 2.2UF, 25V 1 C9271 EEEHB0G221P C 220PF, J, 4V 1 C9275 ECJ2XB1H472K C 4700PF, K, 50V 1 C9276 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9279 F2H1E221A007 E 2.2UF, 25V 1 C9282 F2H1E221A007 E 2.2UF, 25V 1 C9284 ECJ2XB1H472K C 4700PF, K, 50V 1 C9286 EEEHB1C470P C 47PF, J, 16V 1 C9287 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9288 EEEHB1C470P C 47PF, J, 16V 1 C9290 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9293 ECGRL0G680R C 68PF, J, 4V 1 C9294 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9296 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9301 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9302 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9303 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9304 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9305 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9306 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9363 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9365 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9366 EEEHB1C470P C 47PF, J, 16V 1 C9368 EEEHB1C470P C 47PF, J, 16V 1 C9369 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9371 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9372 ECJ3XB0J106M C 10UF, M,6.3V 1 C9374 ECJ3XB0J106M C 10UF, M,6.3V 1 C9500,01 ECJ1XC1H180J C 18PF, J, 50V 2 C9521-32 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C9533 EEEHB0G221P C 220PF, J, 4V 1 C9541-52 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C9553 EEEHB0G221P C 220PF, J, 4V 1 C9561 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9562 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9575 ECJ3XB0J106M C 10UF, M,6.3V 1 参考号 部件号 部件名称及说明 件数 备注 C9576,77 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9602-33 ECJ1XB1C104K C 0.1UF, Z, 16V 32 C9634 EEEHB0G221P C 220PF, J, 4V 1 C9635-69 ECJ1XB1C104K C 0.1UF, Z, 16V 35 C9670 EEEHB0G221P C 220PF, J, 4V 1 C9671,72 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9682,83 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9691 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9692 ECJ3XB0J106M C 10UF, M,6.3V 1 C9693 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9694 ECJ3XB0J106M C 10UF, M,6.3V 1 C9700 TCUY1C105ZFN C 1UF, 16V 1 C9701-05 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C9707 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9708 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9709 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9711-13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9714 TCUY1C105ZFN C 1UF, 16V 1 C9715-18 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9721-36 ECJ1XF1C104Z C 0.1UF, Z, 16V 16 C9738 TCUY1C105ZFN C 1UF, 16V 1 C9850 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9860 ECJ3XB0J106M C 10UF, M,6.3V 1 C9861 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9862 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9863 ECJ3XB0J106M C 10UF, M,6.3V 1 C9864,65 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9866 EEEHB0G221P C 220PF, J, 4V 1 C9867-69 ECJ3XB0J106M C 10UF, M,6.3V 3 C9870-73 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9875,76 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9879 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9880 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9886 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9894 ECJ3XB0J106M C 10UF, M,6.3V 1 C9895 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9905,06 ECJ3XB0J106M C 10UF, M,6.3V 2 C9907,08 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9909,10 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9911,12 ECJ3XB0J106M C 10UF, M,6.3V 2 C9913,14 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9915 ECJ2XB1H103K C 0.01UF, K, 50V 1 C9916 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9917,18 ECJ2XB1H103K C 0.01UF, K, 50V 2 C9919 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9920,21 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9922 ECJ3XB0J106M C 10UF, M,6.3V 1 C9923,24 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9925 ECJ1VB1C823K C 0.082UF, K, 16V 1 C9926 ECJ1VB1H822K C 8200PF, K, 50V 1 C9929-31 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 CB1-B7 K1MN68BA0002 68P 连接接头 7 CF901,02 ERZV10V621P2 变阻器 2 D1 K1KA20AA0009 20P 连接接头 1 D3 K1KA30AA0009 30P 连接接头 1 D4 K1KA14A00248 14P 连接接头 1 D5 K1KA31A00003 31P 连接接头 1 D10 K1KA12A00254 12P 连接接头 1 D20 K1KA20A00272 20P 连接接头 1 D25 K1KA08A00293 8P 连接接头 1 D27 K1KA09A00077 9P 连接接头 1 D31,32 K1MN50BA0016 50P 连接接头 2 D802,03 M1FS4 二极管 2 D804 B0JCPD000010 二极管 1 D806,07 B0BC6R8A0010 二极管 2 D910 D4SB80Z 二极管 1 D911 B0EAKT000017 二极管 1 D912-14 B0HCMM000001 二极管 3 D915,16 TMPG10G3 二极管 2 D918 TMPG10G3 二极管 1 D930 B0HARM000020 二极管 1 D931 LNJ301MPUJA LED 1 参考号 部件号 部件名称及说明 件数 备注 125 D932 MA152K 二极管 1 D933 M1FS4 二极管 1 D1550 LNJ107W5PRW LED 1 D1551-54 MA8056-M 二极管 4 D2301,02 M1FS4 二极管 2 D2308 MA152 二极管 1 D2317 M1FS4 二极管 1 D3001 MA111 二极管 1 D3002 MA3100M 齐纳二极管 1 D3003 MA111 二极管 1 D3004 MA111 二极管 1 D3005 LNJ206R5ARA LED 1 D3007,08 MA111 二极管 2 D3021 MA111 二极管 1 D3024 MA111 二极管 1 D3061 MA728 二极管 1 D3501-04 MA3056M 齐纳二极管 4 D3507-10 MA8160H 齐纳二极管 4 D6011-14 M1FS4 二极管 4 D6015 D1FL40F4063 二极管 1 D6016 M1FS4 二极管 1 D6020 B0HBSN000009 二极管 1 D6021 D1FL40F4063 二极管 1 D6022 B0HBSN000009 二极管 1 D6023 D1FL40F4063 二极管 1 D6024 B0HBSN000009 二极管 1 D6029 B0HBSN000009 二极管 1 D6035 MA8033L 齐纳二极管 1 D6036 MA111 二极管 1 D6037 D1FL40F4063 二极管 1 D6040,41 D1FL40F4063 二极管 2 D6050,51 D1FL40F4063 二极管 2 D6052,53 M1FS4 二极管 2 D6054 D1FL40F4063 二极管 1 D6055 M1FS4 二极管 1 D6057 D1FL40F4063 二极管 1 D6058,59 MA111 二极管 2 D6060 MA111 二极管 1 D6061 MA8100MTX 齐纳二极管 1 D6062 MA111 二极管 1 D6063 MA8051L 齐纳二极管 1 D6064 MA111 二极管 1 D6065 LNJ301MPUJA LED 1 D6066,67 MA8330M 齐纳二极管 2 D6068 MA111 二极管 1 D6069 LNJ301MPUJA LED 1 D6070 MA111 二极管 1 D6451 M1FS4 二极管 1 D6452,53 MA111 二极管 2 D6455 MA111 二极管 1 D6456 D1FL40F4063 二极管 1 D6459 MA111 二极管 1 D6460,61 B0HCKS000001 二极管 2 D6462 M1FS4 二极管 1 D6463 MA8056H 齐纳二极管 1 D6464 M1FS4 二极管 1 D6465,66 MA8330M 齐纳二极管 2 D6467 D1FL40F4063 二极管 1 D6468 MA111 二极管 1 D6470,71 MA111 二极管 2 D6473 MA111 二极管 1 D6475 MA111 二极管 1 D6476 D1FL40F4063 二极管 1 D6477 MA111 二极管 1 D6478 B0HCKS000001 二极管 1 D6479 MA111 二极管 1 D6481,82 MA8330M 齐纳二极管 2 D6483-90 MA8056H 齐纳二极管 8 D6491,92 D1FL40F4063 二极管 2 D6495 B0HCKS000001 二极管 1 D6496 M1FS4 二极管 1 D6501,02 MA111 二极管 2 D6509 MA111 二极管 1 D6511 M1FL20UF4063 二极管 1 D6512-14 MA111 二极管 3 D6515 MA8240M 齐纳二极管 1 D6516 MA111 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D6519 MA111 二极管 1 D6520 B0JCKG000001 二极管 1 D6521 D1FL40F4063 二极管 1 D6522 MA111 二极管 1 D6523 D1FL40F4063 二极管 1 D6524 MA8051L 齐纳二极管 1 D6525 MA111 二极管 1 D6526 M1FL20UF4063 二极管 1 D6527 MA111 二极管 1 D6529 M1FS4 二极管 1 D6541 B0HCKS000001 二极管 1 D6542 MA111 二极管 1 D6543 B0HCKS000001 二极管 1 D6544 MA111 二极管 1 D6545 MA8051L 齐纳二极管 1 D6546-48 MA8330M 齐纳二极管 3 D6549,50 MA111 二极管 2 D6551 M1FS4 二极管 1 D6552,53 MA111 二极管 2 D6554 B0HCKS000001 二极管 1 D6570 M1FL20UF4063 二极管 1 D6572 D1FL40F4063 二极管 1 D6582 MA8051L 齐纳二极管 1 D6583 LNJ301MPUJA LED 1 D6584 MA111 二极管 1 D6585,86 MA8330M 齐纳二极管 2 D6611-14 M1FS4 二极管 4 D6615 D1FL40F4063 二极管 1 D6616 M1FS4 二极管 1 D6620 B0HBSN000009 二极管 1 D6621 D1FL40F4063 二极管 1 D6622 B0HBSN000009 二极管 1 D6623 D1FL40F4063 二极管 1 D6624 B0HBSN000009 二极管 1 D6629 B0HBSN000009 二极管 1 D6635 MA8033L 齐纳二极管 1 D6636 MA111 二极管 1 D6637 D1FL40F4063 二极管 1 D6640 D1FL40F4063 二极管 1 D6647 D1FL40F4063 二极管 1 D6901-03 MA8056H 齐纳二极管 3 D6905 D1FL40F4063 二极管 1 D6909,10 D1FL40F4063 二极管 2 D6956,57 MA8056H 齐纳二极管 2 D6961,62 D1FL40F4063 二极管 2 D7201-04 MA152K 二极管 4 D7205,06 MA8056-M 二极管 2 D8001 MA111 二极管 1 D8002 MA111 二极管 1 D8003 MA111 二极管 1 D8004 MA111 二极管 1 D8010,11 MA153 二极管 2 D8180 MA111 二极管 1 D8200 MA3150M 齐纳二极管 1 D8201 MA111 二极管 1 D8203 MA3100M 齐纳二极管 1 D8204 MA111 二极管 1 D9000-09 MA3036H 齐纳二极管 10 D9010 MA728 二极管 1 D9011,12 MA152 二极管 2 D9014 MA152 二极管 1 D9016 MA728 二极管 1 D9017-19 MA3033 齐纳二极管 3 D9021 MA3033 齐纳二极管 1 D9023-26 MA152K 二极管 4 D9201,02 JVCRB051L40T 二极管 2 D9251 MA728 二极管 1 D9301,02 MA152 二极管 2 FL3000-10 ELKE103FA 噪音滤波器 11 FL3507-09 J0HABB000004 LC 滤波器 3 FL3510-17 TLK212T256AL EMI 滤波器 8 FL7106 ELKE103FA 噪音滤波器 1 FL7207-09 ELKE103FA 噪音滤波器 3 FL9000,01 J0HABH000012 LC 滤波器 2 FL9200-08 J0HABH000012 LC 滤波器 9 FL9214 J0HABH000012 LC 滤波器 1 参考号 部件号 部件名称及说明 件数 备注 126 FL9601-03 J0HABH000012 LC 滤波器 3 FL9850 J0MAB0000175 LC 滤波器 1 FL9851 J0MAB0000175 LC 滤波器 1 FL9860-62 J0HABH000012 LC 滤波器 3 H0 K1KA08A00293 8P 连接接头 1 H1 K1KA80B00034 80P 连接接头 2 H37 TJS3A9640 3P 连接接头 2 HX1 K1KB22A00036 20P 连接接头 1 IC801 C0DAAHG00008 IC 1 IC802 C0DAAHG00007 IC 1 IC803 C0DBALH00002 IC 1 IC910 C5HABZZ00121 IC 1 IC920 B3PAA0000261 IC 1 IC930 AN1431M 线性 IC 1 IC1550 B3L000000020 IC 1 IC2301,02 LA4901 IC 2 IC2304 PQ09SZ1T IC 1 IC2401 BH3865S 线性 IC 1 IC3001 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC3002 C0JBBR000002 IC 1 IC3003 CXA1315M 线性 IC 1 IC3004 CXA1875AM 线性 IC 1 IC3005 C1AB00001139 IC 1 IC3006 CXA1315M 线性 IC 1 IC3007 AHC2G66HDCTR 集成电路 1 IC3101 C1AB00001720 IC 1 IC3102 C1AB00001720 IC 1 IC3103 C1AB00001826 IC 1 IC3104 PST9128NR IC ( 逻辑 ) 1 IC3105 C0JBAZ001834 IC 1 IC3108 AN78L05M 线性 IC 1 IC3109 AN78L05M 线性 IC 1 IC3150 C0JBCA000066 IC 1 IC3201 C3HBKZ000002 IC 1 IC3251 C0ZBZ0000684 IC 1 IC3301 MM1065ZMR 线性 IC 1 IC3302 PQ07VZ012ZP IC 1 IC3303 AN80L25RMS IC 1 IC3304 C0JBBZ000285 IC 1 IC3305 JLC1562BFEL IC 1 IC3502 TVRN304 IC 1 IC3699 C3EBGC000018 IC 1 IC6001-03 C0ZBZ0000895 IC 3 IC6004 C0ZBZ0000735 IC 1 IC6005 NJM2903M 集成电路 1 IC6006 C0JBAZ000005 IC 1 IC6011 AN1431M 线性 IC 1 IC6451 AN1431M 线性 IC 1 IC6452,53 AN78L15M 线性 IC 2 IC6454,55 AN78L05M 线性 IC 2 IC6456 AN1431M 线性 IC 1 IC6458 TLP181 光耦合器 1 IC6467 TLP181 光耦合器 1 IC6469 TLP181 光耦合器 1 IC6471,72 AN1431M 线性 IC 2 IC6474 TLP181 光耦合器 1 IC6480 TLP181 光耦合器 1 IC6491 AN1431M 线性 IC 1 IC6501,02 TC74HC14AF IC 2 IC6503-10 B3PBA0000191 IC 8 IC6511 C0ZBZ0000735 IC 1 IC6512 AN78L05M 线性 IC 1 IC6517 TLP181 光耦合器 1 IC6521 C0ZBZ0000735 IC 1 IC6541,42 C0ZBZ0000735 IC 2 IC6543 AN78L05M 线性 IC 1 IC6581 NJM2903M 集成电路 1 IC6601,02 C0ZBZ0000895 IC 2 IC6605,06 C0JBAZ000005 IC 2 IC6607 TC74HC08AF IC 1 IC6901-04 AN16021A-VT IC 4 IC6955-58 AN16021A-VT IC 4 IC7101 C0JBAZ001120 IC 1 IC7104-06 C0JBAZ001120 IC 3 参考号 部件号 部件名称及说明 件数 备注 IC7107 C0DBZGD00039 IC 1 IC7201-04 C0JBAZ001120 IC 4 IC7205 C0DBZGD00039 IC 1 IC8001 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC8002 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC8003 M52346SP 线性 IC 1 IC8004 M52346SP 线性 IC 1 IC8005 TC74HC14AF IC 1 IC8007 TC4W53FEL IC 1 IC8008 TC4W53FEL IC 1 IC8009 AHC2G66HDCTR 集成电路 1 IC8014 C0ZBZ0000911 IC 1 IC8016 C0JBAZ001934 IC 1 IC8100 PQ12SZ1T IC 1 IC8101 PQ09SZ1T IC 1 IC8181 C1DB00000274 IC 1 IC9000 C0JBAZ000856 IC 1 IC9001 AHC2G66HDCTR 集成电路 1 IC9002 C0JBAE000239 IC 1 IC9003 MN102H90MTC IC 1 IC9004 TVRN508 IC 1 IC9005 C0EBE0000447 IC 1 IC9006 TVRN220 IC 1 IC9007 C0JBAE000239 IC 1 IC9010 C0JBAZ002196 IC 1 IC9200,01 C0JBAZ001992 IC 2 IC9202 C0CBCBD00008 IC 1 IC9203 C0ZBZ0000850 IC 1 IC9204 C0JBAB000550 IC 1 IC9205 AHC2G66HDCTR 集成电路 1 IC9206,07 C0CBCBD00008 IC 2 IC9208 C0FBAD000095 IC 1 IC9209 C0DBAMH00014 IC 1 IC9210 C0DBAMH00013 IC 1 IC9212 PQ07VZ012ZP IC 1 IC9214 PQ07VZ012ZP IC 1 IC9500 C1ZBZ0002606 IC 1 IC9506 TVRN224 IC 1 IC9601 MN84513-A IC 1 IC9602,03 C3ABPJ000071 IC 2 IC9700 C0JBAZ000856 IC 1 IC9701 C1ZBZ0002555 IC 1 IC9702 C0JBAZ000856 IC 1 IC9703 PST9128NR IC ( 逻辑 ) 1 IC9704 C0ZBZ0000764 IC 1 IC9706 C0JBAZ000856 IC 1 IC9850 C0JBAZ000855 IC 1 IC9860,61 C0JBAZ001992 IC 2 IC9862 C0CBCBD00008 IC 1 IC9863 C0ZBZ0000850 IC 1 IC9864 C0JBAB000550 IC 1 IC9865 AHC2G66HDCTR 集成电路 1 IC9867,68 C0CBCBD00008 IC 2 IC9869 C0FBAD000095 IC 1 J1 K1KA20AA0009 20P 连接接头 1 J3 K1KA30AA0009 30P 连接接头 1 J5 K1KA31B00004 31P 连接接头 1 J6 K1KA21B00005 21P 连接接头 1 J8 K1KA20AA0008 20P 连接接头 1 J10 K1KA06A00183 6P 连接接头 1 J11-13 K1KB80B00023 80P 连接接头 3 J14 K1KA22A00067 22P 连接接头 1 JK3001 K1QBB3BB0002 连接接头 1 JK3002 K2HA204B0097 插孔 1 JK3004 K2HA204B0097 插孔 1 JK3509 K1FB109B0058 连接接头 1 JK3511 K1FB115B0034 连接接头 1 JK3513 K2HC103B0105 插孔 1 JK8500 K4BC02B00013 端子 2 JS2301 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3001-08 ERJ3GEY0R00 M 0 OHM, 1/16W 8 JS3011-16 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3301-06 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3308-10 ERJ3GEY0R00 M 0 OHM, 1/16W 3 参考号 部件号 部件名称及说明 件数 备注 127 JS6002 ERD25V0T M OHM, 1/10W 1 JS6601 ERD25V0T M OHM, 1/10W 1 JS8094-97 J0JCC0000100 片状电感 4 L801 G1C101ZA0037 感应线圈 1 L802 G1C121ZA0037 感应线圈 1 L803 G1C680ZA0037 感应线圈 1 L912 EXCELSA24 头扼流圈 1 L930 G0A100GA0013 扼流线圈 1 L2306 ELJPA100KB 片状电感 1 L2330,31 G0A221ZA0038 扼流线圈 2 L3001 J0HABB000004 LC 滤波器 1 L3002 G1C100K00020 感应线圈 1 L3003 G1C100K00020 感应线圈 1 L3004 J0HABB000003 LC 滤波器 1 L3005 G1C100K00020 感应线圈 1 L3006 G1C100K00020 感应线圈 1 L3007 G1C2R2K00006 感应线圈 1 L3050 G1C100K00020 感应线圈 1 L3051,52 ELJNA1R5JF 线圈 2 L3102-04 ELJPA100KB 片状电感 3 L3201 ELJPA100KB 片状电感 1 L3251,52 ELJPA2R2MF 片状电感 2 L3305-08 ELKE103FA 噪音滤波器 4 L3526 ELJPA100KB 片状电感 1 L3555 ELJPA100KB 片状电感 1 L6002-04 G0ZZ00002183 校正线圈 3 L6005 G0C101K00023 校正线圈 1 L6007-10 J0JJC0000021 片状电感 4 L6011-13 G0AR60MA0003 扼流线圈 3 L6014 G0A1R0MA0003 扼流线圈 1 L6015 G0A1R0MA0003 扼流线圈 1 L6018 J0JJC0000021 片状电感 1 L6019-21 G0ZZ00002183 校正线圈 3 L6022 J0JJC0000021 片状电感 1 L6024-27 G0ZZ00002183 校正线圈 4 L6028-32 J0JJC0000021 片状电感 5 L6034-37 G0ZZ00002183 校正线圈 4 L6041-43 J0JJC0000021 片状电感 3 L6044,45 G0ZZ00002183 校正线圈 2 L6047-49 J0JJC0000021 片状电感 3 L6050 G0ZZ00002183 校正线圈 1 L6051 J0JJC0000021 片状电感 1 L6451 J0JJC0000021 片状电感 1 L6453 J0JJC0000021 片状电感 1 L6471 J0JJC0000021 片状电感 1 L6472 G0ZZ00002183 校正线圈 1 L6602 G0ZZ00002183 校正线圈 1 L6604 G0ZZ00002183 校正线圈 1 L6606-10 J0JJC0000021 片状电感 5 L6611-13 G0AR60MA0003 扼流线圈 3 L6614 G0A1R0MA0003 扼流线圈 1 L6615 G0A1R0MA0003 扼流线圈 1 L6617-19 J0JJC0000021 片状电感 3 L6620,21 G0ZZ00002183 校正线圈 2 L6622,23 J0JJC0000021 片状电感 2 L6624-27 G0ZZ00002183 校正线圈 4 L6634-37 G0ZZ00002183 校正线圈 4 L6638 J0JJC0000021 片状电感 1 L6641 J0JJC0000021 片状电感 1 L6644,45 G0ZZ00002183 校正线圈 2 L6647-49 J0JJC0000021 片状电感 3 L7211-16 J0JHC0000078 片状电感 6 L8001 G1C100K00020 感应线圈 1 L8003-05 G1C100K00020 感应线圈 3 L8181 G1C100K00020 感应线圈 1 L8501 G0A2R5H00003 扼流线圈 1 L8502 G0A2R5H00003 扼流线圈 2 L9200 G1C150MA0078 感应线圈 1 L9202 G1C220M00029 感应线圈 1 L9501 G1C150KA0038 感应线圈 1 LF901,02 G0B123K00002 扼流线圈 2 LF903 G0B353G00001 扼流线圈 1 PF1 K1KA03A00181 3P 连接接头 1 参考号 部件号 部件名称及说明 件数 备注 PF9 K1KA03A00181 3P 连接接头 1 PF10 K1KA06A00220 6P 连接接头 1 Q930 2SC3311A 三极管 1 Q1540 2SD601A 三极管 1 Q2303 2SD601A 三极管 1 Q2305,06 2SD601A 三极管 2 Q2330,31 2SD1266A 三极管 2 Q2333,34 2SD601A 三极管 2 Q2370 2SB709A 三极管 1 Q2406 2SD601A 三极管 1 Q3001 2SB709A 三极管 1 Q3002 2SD601A 三极管 1 Q3003 2SD601A 三极管 1 Q3004 2SD601A 三极管 1 Q3005 2SD601A 三极管 1 Q3006,07 2SB709A 三极管 2 Q3023 2SD601A 三极管 1 Q3051,52 2SD601A 三极管 2 Q3101 2SD601A 三极管 1 Q3102,03 2SD601A 三极管 2 Q3104-06 2SD601A 三极管 3 Q3531,32 2SD601A 三极管 2 Q6002-10 B1DEHM000005 三极管 9 Q6011 2SD2185 三极管 1 Q6012 2SB1073001TV 三极管 1 Q6013 2SD2185 三极管 1 Q6014 2SB1073001TV 三极管 1 Q6021,22 2SK389200SRP FET 2 Q6023,24 B1DEHM000005 三极管 2 Q6025 2SK620 FET 1 Q6041,42 2SK373100L 三极管 2 Q6045 2SK326800L FET 1 Q6046 2SK373100L 三极管 1 Q6051 2SD1263A 三极管 1 Q6052 2SC1473A 三极管 1 Q6053 2SC1473 三极管 1 Q6055 2SD601A 三极管 1 Q6056 2SD601A 三极管 1 Q6451 2SD1263A 三极管 1 Q6454 2SC1473A 三极管 1 Q6461 B1BBCJ000003 三极管 1 Q6462 2SB0709A 三极管 1 Q6463 2SD601A 三极管 1 Q6471 B1BBCJ000003 三极管 1 Q6472 2SB0709A 三极管 1 Q6474 2SD814A 三极管 1 Q6476,77 2SD601A 三极管 2 Q6491 2SD1263A 三极管 1 Q6492 2SC1473A 三极管 1 Q6501-05 2SK620 FET 5 Q6511,12 B1DFGL000005 三极管 2 Q6520 2SD601A 三极管 1 Q6521 B1DFES000001 三极管 1 Q6522-24 B1DFJM000003 三极管 3 Q6526-29 B1DFJM000003 三极管 4 Q6530 2SB1073001TV 三极管 1 Q6541 2SB1073001TV 三极管 1 Q6542 2SK389500L FET 1 Q6544 2SK389500L FET 1 Q6546 2SK389500L FET 1 Q6548,49 2SK389500L FET 2 Q6551 2SD601A 三极管 1 Q6552 B1DFES000001 三极管 1 Q6553 2SB1073001TV 三极管 1 Q6554 2SD2185 三极管 1 Q6555 B1DFES000001 三极管 1 Q6581 2SD601A 三极管 1 Q6583,84 2SK620 FET 2 Q6602-10 B1DEHM000005 三极管 9 Q6611 2SD2185 三极管 1 Q6612 2SB1073001TV 三极管 1 Q6613 2SD2185 三极管 1 Q6614 2SB1073001TV 三极管 1 Q6621,22 2SK389200SRP FET 2 Q6624,25 B1DEHM000005 三极管 2 Q6901 2SK620 FET 1 参考号 部件号 部件名称及说明 件数 备注 128 Q8001 2SD601A 三极管 1 Q8002 2SD601A 三极管 1 Q8010 2SD601A 三极管 1 Q8011 2SB709A 三极管 1 Q8012 2SD601A 三极管 1 Q8013 2SB709A 三极管 1 Q8018 2SD601A 三极管 1 Q8019 2SD601A 三极管 1 Q8181,82 2SK2731T146 三极管 2 Q8200-02 2SD601A 三极管 3 Q9001 2SK2731T146 三极管 1 Q9003,04 2SD601A-R 三极管 2 Q9006-09 2SD601A-R 三极管 4 Q9010 2SB709A-R 三极管 1 Q9011 2SD601A-R 三极管 1 Q9012 2SB709A-R 三极管 1 Q9013-15 2SD601A-R 三极管 3 Q9016 2SB709A-R 三极管 1 Q9017,18 2SD601A-R 三极管 2 Q9019 2SK2731T146 三极管 1 Q9261-63 2SD601A-R 三极管 3 Q9301-03 2SD601A-R 三极管 3 Q9700,01 2SD601A-R 三极管 2 R803 ERJ6ENF1001 M 1KOHM, 1/10W 1 R805 ERJ6ENF1001 M 1KOHM, 1/10W 1 R806,07 ERJ6ENF15R0 M 15 OHM, 1/10W 2 R808 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R809 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R810 ERJ6ENF5100 M 510 OHM, 1/10W 1 R901,02 ERC12ZGK105 S 1MOHM, K,1/2W 2 R903,04 ERF7TK3R3 W 3.3 OHM, K, 7W 2 R912,13 ERG2FJS104D M 100KOHM, J, 2W 2 R914 ERG2FJS100D M 10 OHM, J, 2W 1 R915 ERG1FJS104D M 100KOHM, J, 1W 1 R918 ERX12SJR82 M0.82 OHM, J,1/2W 1 R919 ERX12SJ1R0 M 0.1 OHM, J,1/2W 1 R920 ERDS1FJ331 C 330 OHM, J,1/2W 1 R921 ERDS1FJ150 C 15 OHM, J,1/2W 1 R922 ERDS1FJ102 C 1KOHM, J,1/2W 1 R923 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R924 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R925 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R927 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R930 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R931 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R932 ERJ6ENF2402 M 24KOHM, 1/10W 1 R933 ERJ6ENF1002 M 10KOHM, 1/10W 1 R934 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R935 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R936 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R937 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R938-42 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 5 R1500 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R1510 ERJ3GEYF222 M 2.2KOHM, 1/16W 1 R1511 ERJ3GEYF302 M 3.0KOHM, 1/16W 1 R1512 ERJ3GEYF472 M 4.7KOHM, 1/16W 1 R1513 ERJ3GEYF822 M 8.2KOHM,J,1/16W 1 R1550 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R1551 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R1552 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R1553 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R1554 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R1555,56 TAJAAH0470JV M 47 OHM,J,1/16W 2 R2301 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2304 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2305,06 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R2309 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2310 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R2332 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2333 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2346 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2347 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2348 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2350 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2351-54 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R2355-60 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 参考号 部件号 部件名称及说明 件数 备注 R2365,66 ERX1FJSR56D M0.56 OHM, J, 1W 2 R2367 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R2368,69 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R2370 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R2371,72 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2373 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2431 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2434 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2439 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R2440 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2441 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2445 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2448 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2450 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R2452 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2453 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2456 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2460 ERJ6ENF1802 M 18KOHM, 1/10W 1 R2461,62 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R2463 ERJ6ENF1502 M 15KOHM, 1/10W 1 R2466 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2467 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R2468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2469 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2470 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2471 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2472 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2473 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2476,77 ERJ6GEYJ220 M 22 OHM,J,1/10W 2 R2485-91 ERJ6GEY0R00 M 0 OHM, 1/10W 7 R2494,95 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3002 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3003 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3005 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R3006 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R3007 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3009 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3010 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3011 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3012 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3013 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3014 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3015 J0JCC0000100 片状电感 1 R3016 J0JCC0000100 片状电感 1 R3017 J0JCC0000100 片状电感 1 R3018 J0JCC0000100 片状电感 1 R3019 J0JCC0000100 片状电感 1 R3020 J0JCC0000100 片状电感 1 R3021 J0JCC0000100 片状电感 1 R3022 J0JCC0000100 片状电感 1 R3023 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3024 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3027,28 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3029 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3030 J0JCC0000100 片状电感 1 R3031 J0JCC0000100 片状电感 1 R3032,33 J0JCC0000100 片状电感 2 R3034 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3035 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3036 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3037 J0JCC0000100 片状电感 1 R3038 J0JCC0000100 片状电感 1 R3039 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3040 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3041 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3042 J0JCC0000100 片状电感 1 R3043 J0JCC0000100 片状电感 1 R3044 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3045 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3046 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3047 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 129 R3049 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3051 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3052 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3053 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3054 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3055 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3056 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3057 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3058 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3060 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3061 J0JCC0000100 片状电感 1 R3062 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3063 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3064 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 R3065,66 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R3067-69 ERJ6GEYJ560 M 56 OHM,J,1/10W 3 R3070-72 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3073-75 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3076-81 ERJ6GEYJ560 M 56 OHM,J,1/10W 6 R3082 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3083 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3084,85 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3086,87 J0JCC0000100 片状电感 2 R3088-93 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3094-96 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3097,98 J0JCC0000100 片状电感 2 R3099,00 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3101 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3102,03 ERJ6ENF1800 M 180 OHM, 1/10W 2 R3104,05 ERJ6ENF1800 M 180 OHM, 1/10W 2 R3106 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3107 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3108 J0JCC0000100 片状电感 1 R3109 ERJ6ENF8200 M 820 OHM, 1/10W 1 R3110 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R3111 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R3112 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R3113 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R3114 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3115 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3116 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3117 J0JCC0000100 片状电感 1 R3118 ERJ6ENF8200 M 820 OHM, 1/10W 1 R3119 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R3120 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3121 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R3122 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 R3123 ERJ3EKF1502 M 15KOHM, 1/16W 1 R3124 ERJ3EKF10R0 M 10 OHM, 1/16W 1 R3125 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3126 J0JCC0000100 片状电感 1 R3127 J0JCC0000100 片状电感 1 R3128,29 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R3130 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R3131 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R3132,33 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R3135 ERJ6ENF10R0 M 10 OHM, 1/10W 1 R3136-39 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3140 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3141 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3142,43 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3144,45 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R3148,49 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3150,51 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3152 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3154,55 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R3156 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3157 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3158 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R3159 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3160 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3161 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3162 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3163 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R3164-67 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3168 ERJ3EKF2000 M 200 OHM, 1/16W 1 R3169-72 ERJ6ENF75R0 M 75 OHM, 1/10W 4 R3173 ERJ3EKF2200 M 220 OHM, 1/16W 1 R3174 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3177 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3178 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3179 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3180 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3181 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3182 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3183 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3184 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3185 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3188 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3189,90 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3191 ERJ14YJ330 M 33 OHM, J,1/4W 1 R3192 ERJ14YJ330 M 33 OHM, J,1/4W 1 R3193 ERJ14YJ330 M 33 OHM, J,1/4W 1 R3194 ERJ14YJ330 M 33 OHM, J,1/4W 1 R3195,96 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3197,98 ERJ3GEYJ123 M 12KOHM,J,1/16W 2 R3199-04 ERJ6ENF1800 M 180 OHM, 1/10W 6 R3210,11 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3212-15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R3216-19 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4 R3230,31 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3251 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3252 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3253 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3254,55 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3260-62 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3300,01 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 R3302 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3303,04 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3305 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3307 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3308,09 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3313 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3314,15 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3319 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3337,38 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3400 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3508,09 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3510,11 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3529,30 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3547,48 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3585,86 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R3589 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R3590 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 R3591-93 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R3653 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R3654 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R3655 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R3656 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R3663,64 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R3668 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3672 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3776,77 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3778 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R3790,91 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6001 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6002-05 ERJ6GEYJ151 M 150 OHM,J,1/10W 4 R6006,07 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6008,09 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6013-16 ERJ6GEYJ100 M 10 OHM,J,1/10W 4 R6019-22 ERJ6GEYJ470 M 47 OHM,J,1/10W 4 R6023 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6024 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6025 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6026 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6027,28 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6029-31 ERJ6GEYJ103 M 10KOHM,J,1/10W 3 R6033 ERJ14YJ204 M 200KOHM, J,1/4W 1 R6036-39 ERJ12YJ1R0 M 1 OHM, J,1/2W 4 R6041,42 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6043,44 ERJ12YJ220 M 22 OHM,J, 1/2W 2 参考号 部件号 部件名称及说明 件数 备注 130 R6045 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6047-52 ERJ6GEYJ100 M 10 OHM,J,1/10W 6 R6055 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6056 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6057 ERG1FJS470D M 47 OHM, J, 1W 1 R6059,60 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6062-64 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6065 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6066 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6067 ERG1FJS472D M 4.7KOHM, J, 1W 1 R6068 ERG2FJS123D M 12KOHM, J, 2W 1 R6069,70 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R6071 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6073 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6074 ERJ6GEYJ243 M 24KOHM,J,1/10W 1 R6076 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6077,78 ERX3FJSR22D M 2.2 OHM, J, 3W 2 R6079,80 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6081 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6082,83 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6084 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6085,86 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6087 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6088 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6089 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6090 ERJ14YJ181U M 181 OHM,J,1/4W 1 R6091 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6092 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6101-03 ERJ3GEYJ471 M 470 OHM,J,1/16W 3 R6104-06 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R6107-09 ERJ3GEYJ471 M 470 OHM,J,1/16W 3 R6110-12 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R6118,19 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6120 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6121 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6123 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6124 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6125 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6126 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6127 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6128-31 ERJ6GEYJ100 M 10 OHM,J,1/10W 4 R6431 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6433 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6437,38 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6439,40 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6451 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6454,55 ERJ14YJ103 M 10KOHM, J,1/4W 2 R6456 ERJ6ENF1183 M 118KOHM, 1/10W 1 R6457,58 ERJ6ENF2551 M2.55KOHM, 1/10W 2 R6459 ERJ14YJ104 M 100KOHM, J,1/4W 1 R6460 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R6461 ERG1FJS471D M 470 OHM, J, 1W 1 R6463 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6464 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6465 ERX2FJS8R2D M 8.2 OHM, J, 2W 1 R6466 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6467 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6469 ERJ6ENF1602 M 16KOHM, 1/10W 1 R6470 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6471 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6472 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6473 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6474 ERG1FJS121D M 120 OHM, J, 1W 1 R6475 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6476 ERJ6ENF2743 M 274KOHM, 1/10W 1 R6477 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R6478 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6480 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6481 ERJ6ENF1001 M 1KOHM, 1/10W 1 R6482 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6483 ERJ14YJ622 M 62KOHM, J,1/4W 1 R6484 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6485,86 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6488 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R6489 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6491 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6492 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6493 ERJ6ENF2203 M 220KOHM, 1/10W 1 R6497 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6498,99 ERX1FJS8R2D M 8.2 OHM, J, 1W 2 R6500 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6501-09 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6510 ERX3FJS2R2D M 2.2 OHM, J, 3W 1 R6511 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6512 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6513 ERX3FJS2R2D M 2.2 OHM, J, 3W 1 R6514 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6515 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6516 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6518 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6519 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6520 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6521 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6522 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6524 ERJ6ENF2001 M 2KOHM, 1/10W 1 R6525 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6526 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6527 ERJ14YJ102 M 1KOHM, J,1/4W 1 R6528 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6529-32 ERJ6GEYJ470 M 47 OHM,J,1/10W 4 R6534-37 ERJ6GEYJ470 M 47 OHM,J,1/10W 4 R6538 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6539 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6540 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6541 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6542 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6544 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6546 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6548,49 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6550 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6551 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6552,53 ERJ6ENF1003 M 100KOHM, 1/10W 2 R6554 ERG1FJS101D M 100 OHM, J, 1W 1 R6555 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6556 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R6558 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6559 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6560,61 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6562 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6563 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6565 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6566 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6567,68 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6570 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6571-78 ERJ6GEYJ471 M 470 OHM,J,1/10W 8 R6580 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6581 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6585 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6586 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6587 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6588,89 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6590 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6591 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6592,93 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R6594 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6595 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R6596 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6599,00 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6603 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6604 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6605-07 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6608,09 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6613,14 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6615 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6616 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6617,18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6619,20 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 参考号 部件号 部件名称及说明 件数 备注 131 R6621 ERJ6ENF1543 M 154KOHM, 1/10W 1 R6622,23 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6624 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6625 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6626 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6627,28 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6629 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6630 ERJ14YJ204 M 200KOHM, J,1/4W 1 R6636-39 ERJ12YJ1R0 M 1 OHM, J,1/2W 4 R6641,42 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6643,44 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6645,46 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6647,48 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6649-54 ERJ6GEYJ680 M 68 OHM,J,1/10W 6 R6655 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6656 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6658 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6659,60 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6661,62 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6663 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R6664 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R6665,66 ERJ6GEYJ680 M 68 OHM,J,1/10W 2 R6667,68 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6669 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R6670 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R6675 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R6676 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R6678,79 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R6680,81 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R6682-85 ERJ3GEYJ471 M 470 OHM,J,1/16W 4 R6686-89 ERJ3GEYJ473 M 47KOHM,J,1/16W 4 R6690,91 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R6692,93 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R6694,95 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R6696 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6697,98 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R6699 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6851,52 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6855-57 ERJ6GEYJ470 M 47 OHM,J,1/10W 3 R6859-64 ERJ6GEYJ100 M 10 OHM,J,1/10W 6 R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6902-04 ERJ6GEYJ221 M 220 OHM,J,1/10W 3 R6910,11 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6912 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6913 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6920-23 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6924 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6955 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6956-58 ERJ6GEYJ221 M 220 OHM,J,1/10W 3 R6959 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6975-78 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6979 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7102,03 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7106,07 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7110,11 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7117 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7125 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7126-28 TAJAAH0470JV M 47 OHM,J,1/16W 3 R7130 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7132 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7136-41 ERJ14YJ220 M 22 OHM, J,1/4W 6 R7142 EXB38V101J 电阻阵列 1 R7143,44 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7148 EXB38V101J 电阻阵列 1 R7149,50 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7154 EXB38V101J 电阻阵列 1 R7155,56 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7160 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7161 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7162,63 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7166,67 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7170,71 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7175-77 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R7178 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7187 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7188 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7192 ERJ6GEY0R00 M 0 OHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R7194 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7196-99 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R7202,03 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7206,07 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7210,11 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7214,15 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7217 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7225 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7226-29 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7232 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7233-40 ERJ14YJ220 M 22 OHM, J,1/4W 8 R7241,42 EXB38V101J 电阻阵列 2 R7249,50 EXB38V101J 电阻阵列 2 R7257,58 EXB38V101J 电阻阵列 2 R7278 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R7289,90 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7293 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7296 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R7297 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7300,01 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7304 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7305 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7306 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7309,10 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7312-16 ERJ6GEY0R00 M 0 OHM, 1/10W 5 R7324 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7326 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7340-43 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R7371,72 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R7381,82 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R7383 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7384 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R7401,02 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7403 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R7404 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R7405 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R8001 J0JCC0000100 片状电感 1 R8002 J0JCC0000100 片状电感 1 R8003,04 J0JCC0000100 片状电感 2 R8005 J0JCC0000100 片状电感 1 R8006 J0JCC0000100 片状电感 1 R8007,08 J0JCC0000100 片状电感 2 R8009 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8010-12 ERJ3GEYJ271 M 270 OHM,J,1/16W 3 R8013 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8014-16 ERJ3GEYJ271 M 270 OHM,J,1/16W 3 R8017-20 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 4 R8021 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8022 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8025 J0JCC0000100 片状电感 1 R8026 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8027 J0JCC0000100 片状电感 1 R8028 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8029 ERJ6ENF3001 M 3KOHM, 1/10W 1 R8030 ERJ6ENF3001 M 3KOHM, 1/10W 1 R8031 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R8032 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R8033 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8034 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8035 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8036 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8037 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8038 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8039 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8040 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8041 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R8042 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R8045,46 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R8047 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8049 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8050,51 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R8054 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8055,56 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8057 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8058,59 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 参考号 部件号 部件名称及说明 件数 备注 132 R8060 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8061 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8062 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8065 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8066 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R8067 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8068 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8069 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R8070 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8071 J0JCC0000100 片状电感 1 R8072 J0JCC0000100 片状电感 1 R8077 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R8078 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R8081 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 2 R8082 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 2 R8089 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R8091 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R8093 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8094 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8097,98 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R8099 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8100 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8117,18 J0JCC0000100 片状电感 2 R8124-27 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R8181 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8182 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8183,84 J0JCC0000100 片状电感 2 R8185,86 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R8187,88 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R8200 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8201 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R8202,03 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R8204 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8205 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R8206 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R8207 J0JCC0000100 片状电感 1 R9000 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9002,03 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9005 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9006 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9008 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9009-18 TAJAAH0101JV M 100 OHM,J,1/16W 10 R9019 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9020-23 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9024 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9026 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9027,28 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R9030 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9031,32 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9033,34 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9035,36 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9038 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9039 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9040 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9042 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9043 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9044 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9045 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9046,47 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9048 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9049 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9051,52 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9053 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9054,55 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9056 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9057,58 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9059 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9060 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9061 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9062 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9063 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9064 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9065 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9066 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9067 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R9070,71 ERJ3GEY0R00 M 0 OHM, 1/16W 2 参考号 部件号 部件名称及说明 件数 备注 R9072 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9073,74 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9075 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9076 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9077 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9079 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9080-82 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9084 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9086 EXB38V220J 电阻阵列 1 R9089 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9091 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9092 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9093,94 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9095 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9096 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9098 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9099 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9100 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9101 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9102,03 EXB2HV470JV 电阻阵列 2 R9105 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9108 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9109 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R9110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9111 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9112 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9113 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9114 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R9115 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9116 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9117 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9118 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9119 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9120 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9122 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9123 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9124 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9126 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9127 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9128,29 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9130 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9131,32 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9133 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9134,35 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9136 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9137-43 TAJAAH0101JV M 100 OHM,J,1/16W 7 R9145 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9149-51 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9153 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9154 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9159 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9160,61 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9163 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9164 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R9165-68 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9169-72 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9173 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9174 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9175-77 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9178 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9179 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9180 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9181 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9182 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9183 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9184 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9186 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9189 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9192 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9197 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9199 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9200 EXB2HV470JV 电阻阵列 1 R9201,02 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9204 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9205 EXB2HV470JV 电阻阵列 1 参考号 部件号 部件名称及说明 件数 备注 133 R9206-08 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9209 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9210 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9211 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9212 EXB2HV470JV 电阻阵列 1 R9213 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9215 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9216 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9218,19 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9220-22 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9223-25 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9228,29 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9230 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R9231-33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9235 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9236 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9237 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9240,41 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9243-45 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9246-60 TAJAAH0101JV M 100 OHM,J,1/16W 15 R9261-65 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9266 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9267,68 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9270 ERJ6ENF2322 M23.2KOHM, 1/10W 1 R9271 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9274 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9276 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R9277 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9279 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9281 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R9282 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9283 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9287 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9288 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9289 ERJ6ENF4420 M 442 OHM, 1/10W 1 R9291 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9292 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9293 ERJ6ENF1601 M 1.6KOHM, 1/10W 1 R9294 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9295 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9296 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9299 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9301,02 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9303,04 EXB2HV101J 电阻阵列 2 R9305 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9306-10 TAJAAH0470JV M 47 OHM,J,1/16W 5 R9312 EXB38V151J 电阻阵列 1 R9313-15 ERJ3GEYJ151 M 150 OHM,J,1/16W 3 R9316 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9317 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9318 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9319 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9320-22 EXB2HV101J 电阻阵列 3 R9323-27 TAJAAH0470JV M 47 OHM,J,1/16W 5 R9328 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9329 EXB38VR000 电阻阵列 1 R9330 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9331 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9332 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9333 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9334 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9335 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9336 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9337 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9339,40 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9341 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9388 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9440 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9441 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9521-26 EXB2HV470JV 电阻阵列 6 R9527 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9530 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9532,33 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9535-41 TAJAAH0470JV M 47 OHM,J,1/16W 7 R9551 EXB2HVR000 电阻阵列 1 R9552 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9553,54 EXB2HVR000 电阻阵列 2 参考号 部件号 部件名称及说明 件数 备注 R9555,56 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9557,58 EXB38VR000 电阻阵列 2 R9559 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9561 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9563 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9581 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9583,84 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9585 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9586 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9591 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9593,94 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9595 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9596 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9601-06 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9607 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9608 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9609 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9610,11 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9616,17 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9620 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9622 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9624 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9626-31 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9633 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9635 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9637,38 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9641 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9643,44 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9647 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9649 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9651-54 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9682,83 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9684,85 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9723 EXB38V103J 电阻阵列 1 R9725,26 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9727,28 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9730,31 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9739-42 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9743-45 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9747,48 EXB38V103J 电阻阵列 2 R9749-51 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9753 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9754 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9755 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9756 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9757 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9758 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9761 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9762 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9765 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9766 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9767-71 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9774 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9775 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9776 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9779 EXB38V103J 电阻阵列 1 R9782 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9785 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9787-94 ERJ3GEY0R00 M 0 OHM, 1/16W 8 R9799 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9800 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9803 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9804 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9805-07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9808 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9809,10 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9812,13 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9815 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9816 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9817 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9818-21 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R9822 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9823-31 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 9 R9832 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9833-35 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9836-39 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9840-42 EXB38V103J 电阻阵列 3 参考号 部件号 部件名称及说明 件数 备注 134 R9843 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9845 EXB38V103J 电阻阵列 1 R9846 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9847 EXB38V103J 电阻阵列 1 R9851,52 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9854 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9857-59 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9860,61 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9862,65 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9866 EXB2HV470JV 电阻阵列 1 R9867,68 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9870 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9871 EXB2HV470JV 电阻阵列 1 R9872-74 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9876 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9877 EXB2HV470JV 电阻阵列 1 R9878 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9880 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9884 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9886 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9888 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9892 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9893 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9894 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9897 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9898 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9899 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9906,07 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9911-13 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9916,17 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9918 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R9919,20 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9921 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9922 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9924 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9936 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9942 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9979,80 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9985,86 ERJ3GEY0R00 M 0 OHM, 1/16W 2 RL920 K6B1ADA00009 继电器 1 RM001 PNA4601M05TV REMOCO 接收器 1 RTL TNPA3003 电路板 H3 2 RTL TNPA3197 电路板 J 1 RTL TZTNP01VCSE 电路板 HX 1 RTL TNPA3198AB 电路板 Z 1 RTL TXNPF1VCSC 电路板 PF 1 RTL TNPA3213AC 电路板 P 1 RTL TNPA3244 电路板 C1 1 RTL TNPA3245 电路板 C2 1 RTL TXN/D1VPSC 电路板 D 1 RTL TXNSC1VPSC 电路板 SC 1 RTL TNPA3243 电路板 SD 1 RTL TXNSS1VPSC 电路板 SS 1 RTL TNPA3242 电路板 SU 1 RTL TNPA3200 电路板 S1 1 RTL TNPA3199 电路板 V1 1 S34 K1KA03A00213 3P 连接接头 1 S061 K0F162B00002 开关 1 S901,02 J0LT00000009 开关 2 S1550-54 EVQPBD05R 开关 5 SC2 K1KA06A00180 6P 连接接头 1 SC20 K1KA20A00272 20P 连接接头 1 SC23 K1KA03A00213 3P 连接接头 1 SC41,42 K1ML80BA0001 80P 连接接头 2 SC45,46 K1KA10A00194 10P 连接接头 2 参考号 部件号 部件名称及说明 件数 备注 SD1-D3 K1MN80B00004 80P 连接接头 3 SD46 K1KA10B00209 10P 连接接头 1 SS11 K1KA07A00096 7P 连接接头 1 SS12 K1KA05A00139 5P 连接接头 1 SS23 K1KA11A00073 11P 连接接头 1 SS34 K1KA03A00213 3P 连接接头 1 SS41-44 K1MN13B00020 13P 连接接头 4 SU1-U3 K1MN80B00004 80P 连接接头 3 SU45 K1KA10B00209 10P 连接接头 1 T920 ETS28AZ1K6AD 转接变压器 1 T6461 ETS13TB139AP 转接变压器 1 T6471 ETS19AA259AC 转接变压器 1 V34 K1KA08B00005 8P 连接接头 1 VR6074 EVMEASA00B14 遥控 10KOHMB 0.3W 1 VR6477 EVMEASA00B23 遥控 2KOHMB 0.3W 1 VR6557 EVMEASA00B14 遥控 10KOHMB 0.3W 1 X3101 H0J202500002 晶体 1 X8181 H0J327200038 晶体 1 X9001 H0J400400017 晶体 1 X9500 H0J200500038 晶体 1 Z5 K1KA11A00102 11P 连接接头 1 Z6 K1KA04A00195 4P 连接接头 1 Z7 K1KA03A00172 3P 连接接头 1 Z8 K1KA20AA0008 20P 连接接头 1 Z10 K1KA05A00177 5P 连接接头 1 ZA001-03 K4ZZ01000121 接地片 3 ZA901 K4ZZ01000121 接地片 1 ZA3001-04 K4CD01000013 端子 4 ZA3005,06 K4CD01000013 端子 2 ZA3007 K4CD01000013 端子 1 ZA6002 K4CD01000013 端子 1 ZA6004 K4CD01000013 端子 1 ZA6601-03 K4CD01000013 端子 3 ZA7101 K4CD01000013 端子 1 ZA7102 K4CD01000013 端子 1 ZA7103 K4CD01000013 端子 1 ZA7201 K4CD01000013 端子 1 ZA7202,03 K4CD01000013 端子 2 ZA7204 K4CD01000013 端子 1 C401 F0CAF225A021 C 22UF, 250V 1 C402 ECJ2XC1H101J C 100PF, J, 50V 1 C403 ECKCNA222MEB C 2200PF, M 1 C409 F0CAF105A021 C 1UF, 250V 1 C410 ECA1HM470 E 47UF, 50V 1 C412 ECJ2XB1H103K C 0.01UF, K, 50V 1 C416 ECJ2XB1E104K C 0.1UF, K, 25V 1 C417 ECJ2XB1H103K C 0.01UF, K, 50V 1 C418 F1J1C1050011 C 1UF, Z, 50V 1 C419 ECJ2XB1H104K C 0.1UF, K, 50V 1 C420 ECA1HM470 E 47UF, 50V 1 C421,22 ECJ2XB1H103K C 0.01UF, K, 50V 2 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C424 ECJ2XC1H101J C 100PF, J, 50V 1 C425 ECJ2XB1H102K C 1000PF, K, 50V 1 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 F1J1A1050002 C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C429,30 F1K2J1530002 C 0.15PF, J,630V 2 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C440 ECA1HM100 E 10UF, 50V 1 C442,43 F1A3A102A040 C 1000PF, J, 1KV 2 C445 F1J1C1050011 C 1UF, Z, 50V 1 C446 F2B2W3910005 C 390UF, 450V 1 C451 F1A3A101A040 C 100PF, J, 1KV 1 C456 F1A3A101A040 C 100PF, J, 1KV 1 参考号 部件号 部件名称及说明 件数 备注 135 C457 ECWH12223RHV P 0.022UF,J,1.2KV 1 C459 F1K2J1530002 C 0.15PF, J,630V 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C465 ECKCNA221KB7 C 220PF, M, 1 C468 ECJ2XB1H103K C 0.01UF, K, 50V 1 C471 F1J1C1050011 C 1UF, Z, 50V 1 C480 ECJ3YB1E105K C 1UF, K, 25V 1 C481 ECJ2XB1H103K C 0.01UF, K, 50V 1 C482 ECJ2XB1H104K C 0.1UF, K, 50V 1 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 C504 ECJ2XB1H104K C 0.1UF, K, 50V 1 C506-08 ECJ2XB1H103K C 0.01UF, K, 50V 3 C509 F2A1E101A096 E 100UF 25V 1 C511 F1J1C1050011 C 1UF, Z, 50V 1 C512 ECJ2XB1H103K C 0.01UF, K, 50V 1 C513,14 ECJ2XC1H471J C 470PF, J, 50V 2 C515 EEUFC1A122 E 1200UF, 10V 1 C516 F1J1A1050002 C 1UF, Z, 50V 1 C517 ECA1EM221 E 220UF, 25V 1 C517 F2A1E221A096 E 220UF, 25V 1 C519 F1J1A1050002 C 1UF, Z, 50V 1 C520 ECJ2XB1H102J C 1000PF, J, 50V 1 C523 ECA1EM470 E 47UF, 25V 1 C527 ECJ2XB1H102K C 1000PF, K, 50V 1 C528 ECJ2XB1H104K C 0.1UF, K, 50V 1 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C532 ECJ2XB1H104K C 0.1UF, K, 50V 1 C534 ECJ2XC1H122J C 1200PF, J, 50V 1 C535 ECJ2XB1H103K C 0.01UF, K, 50V 1 C546,47 ECJ2VB1H333K C 0.033UF, K, 50V 2 C548 ECJ2XB1H104K C 0.1UF, K, 50V 1 C548 01 ECJ2XB1H104K C 0.1UF, K, 50V 1 C550 ECJ2XB1H102K C 1000PF, K, 50V 1 C553,54 ECJ2XB1H104K C 0.1UF, K, 50V 2 C555 ECA2AM101 E 100UF, 100V 1 C556 F2A1C1520009 E 1500UF, 16V 1 C557 F2A1E1520089 E 1500UF, 25V 1 C561 ECJ2XB1H103K C 0.01UF, K, 50V 1 C577 F2A2A330A022 E 33UF, 100V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C582 ECA1EM470 E 47UF, 25V 1 C583 ECJ2XB1H103K C 0.01UF, K, 50V 1 C584 ECJ2XB1H223K C 0.022UF, K, 50V 1 C585,86 ECJ2XB1H104K C 0.1UF, K, 50V 2 C587 ECJ2XB1H103K C 0.01UF, K, 50V 1 C599 ECJ2XB1H104K C 0.1UF, K, 50V 1 C600 ECJ2XB1H103K C 0.01UF, K, 50V 1 C601 ECUX1E103KBN C 0.01UF, M, 25V 1 C602 ECJ2XB1H102K C 1000PF, K, 50V 1 C603 ECA1HM470 E 47UF, 50V 1 C604 ECJ2XB1H104K C 0.1UF, K, 50V 1 C605 F2BZZ8800001 ZZ 880UF 1 C606,07 F1J1C1050011 C 1UF, Z, 50V 2 C608,09 ECJ2XB1H103K C 0.01UF, K, 50V 2 C610 F1J1C1050011 C 1UF, Z, 50V 1 C611 F2B2D1720001 E 1700UF,200V 1 C612 ECJ2XC1H221J C 220PF, J, 50V 1 C613 ECJ2XB1H104K C 0.1UF, K, 50V 1 C614 ECJ3YB1E105K C 1UF, K, 25V 1 C615 F2B2D1720001 E 1700UF,200V 1 C616 F1A3A102A040 C 1000PF, J, 1KV 1 C617 F1K2J1530002 C 0.15PF, J,630V 1 C618 ECJ2XB1H102J C 1000PF, J, 50V 1 C620 ECJ2XB1H103K C 0.01UF, K, 50V 1 C621 ECJ2XB1H102K C 1000PF, K, 50V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECA1HM010 E 1UF, 50V 1 C625 ECA1HM100 E 10UF, 50V 1 C626 ECJ2XB1H103K C 0.01UF, K, 50V 1 C627 ECJ2XB1H102K C 1000PF, K, 50V 1 C629 ECJ2XB1H103K C 0.01UF, K, 50V 1 D401 B0FBAT000006 二极管 1 D402 MA4082M 齐纳二极管 1 D404 B0EBKT000007 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D405 MA165 二极管 1 D409 B0HAMM000122 二极管 1 D410 MA188 二极管 1 D411 B0BB17000006 二极管 1 D412,13 MA165 二极管 2 D415 B0JAME000081 二极管 1 D418 MA4082M 齐纳二极管 1 D419,20 RU30A 二极管 2 D423 B0JAME000081 二极管 1 D425 B0JAME000081 二极管 1 D428-30 ERA15-10 二极管 3 D431 B0JCDD000002 二极管 1 D433 MA4150M 齐纳二极管 1 D434 MA4082M 齐纳二极管 1 D435 ERA15-10 二极管 1 D436 B0HAMP000016 二极管 1 D438 ERA15-10 二极管 1 D501 B0HAPR000010 二极管 1 D503,04 MA165 二极管 2 D505,06 B0JAME000081 二极管 2 D509,10 B0HANM000028 二极管 2 D511 AK06 二极管 1 D512 MA165 二极管 1 D514 MA4062M 齐纳二极管 1 D515 ERDS2TJ104 C 100KOHM, J,1/4W 1 D516 MA188 二极管 1 D517 B0JAME000081 二极管 1 D521 MA188 二极管 1 D528,29 MA153 二极管 2 D530 MA4100M 齐纳二极管 1 D531 B0HDRP000002 二极管 1 D532,33 B0HAPR000009 二极管 2 D534 MA752A 二极管 1 D535 MA188 二极管 1 D536 MA752A 二极管 1 D538 MA4051NM 齐纳二极管 1 D539,40 B0HAPR000009 二极管 2 D542 MA4180HTA 齐纳二极管 1 D543 MA4150M 齐纳二极管 1 D544,45 MA4180HTA 齐纳二极管 2 D549 MA4075M 齐纳二极管 1 D551 MA4075M 齐纳二极管 1 D555 MA4075M 齐纳二极管 1 D557 MA111 二极管 1 D559 MA4075M 齐纳二极管 1 D563 MA111 二极管 1 D568 MA3J142D0L 二极管 1 D569 MA188 二极管 1 D570 MA165 二极管 1 D571 MA4051NM 齐纳二极管 1 D572 MA188 二极管 1 D575 MA188 二极管 1 D580 MA4062M 齐纳二极管 1 D582 MAZ705600F 齐纳二极管 1 D584 MA4075M 齐纳二极管 1 D585 MA4300M 齐纳二极管 1 F405 P130A 熔断器 1 IC401 CNC1S171R IC 1 IC402 C0BBAA000038 IC 1 IC403,04 CNC1S171R IC 2 IC405 C0CBADE00037 IC 1 IC406 C0DAZZZ00021 IC 1 IC408 CNC1S171R IC 1 IC409 MIP2C20MP1KT IC 1 IC410 C0CBADE00037 IC 1 IC411 C0BBAA000038 IC 1 IC501 C2ABCA000032 IC 1 IC502 C0EBE0000154 IC 1 IC503 C0ZBZ0000878 IC 1 IC504 C0DAEMB00003 IC 1 IC505 CNC1S171R IC 1 IC506 C0ZBZ0000878 IC 1 IC507 C0CBABE00041 IC 1 IC512 C0CBABE00041 IC 1 IC520 C0JBAZ002056 IC 1 参考号 部件号 部件名称及说明 件数 备注 136 IC523 C0JBAF000540 IC 1 IC524 C0BBAA000039 IC 1 J501,02 LSJW0001 电缆 2 L402 EXCELSA24 头扼流圈 1 L403 EXCELSA35 头扼流圈 1 L506 EXCELDR25C 头扼流圈 1 L509 J0JBC0000032 片状电感 1 L510 EXCELDR25C 头扼流圈 1 P2 K1KA06A00180 6P 连接接头 1 P5 K1KA11A00073 11P 连接接头 1 P7 K1KA04A00242 4P 连接接头 1 P9 K1KA03A00181 3P 连接接头 1 P10 K1KA05A00177 5P 连接接头 1 P11 K1KA07A00096 7P 连接接头 1 P12 K1KA05A00139 5P 连接接头 1 P23 K1KA03A00213 3P 连接接头 1 P25 TJS1A8840 8P 连接接头 1 P27 K1KA09A00099 9P 连接接头 1 PR401 K5Y502B00007 熔断器 1 PR402 K5G162B00003 熔断器 1 PR509 K5H501Z00005 熔断器 1 PR601 K5G312B00003 熔断器 1 Q401 B1DHBD000004 三极管 1 Q404 2SB1386RT100 三极管 1 Q406 B1DEHQ000007 三极管 1 Q407 XN4601TX 三极管 1 Q408 B1CBGD000001 三极管 1 Q412,13 2SK3561 三极管 2 Q417 B1CBGD000001 三极管 1 Q418 UNR521L00L 三极管 1 Q420,21 2SD1819A 三极管 2 Q422 UN5213 三极管 1 Q501,02 2SD1820A 三极管 2 Q503 UN5211 三极管 1 Q504 2SD1328 三极管 1 Q505 B1CEJQ000002 三极管 1 Q506 2SB1386RT100 三极管 1 Q507 2SK3561 三极管 1 Q508 B1GBCFNA0010 三极管 1 Q509 XN0440100L 三极管 1 Q510 2SB1218ARL 三极管 1 Q511 B1ABCF000134 三极管 1 Q516 B1DHBD000004 三极管 1 Q517 B1HFCFA00021 三极管 1 Q518 B1MBACA00006 三极管 1 Q519 2SK3065T100 FET 1 Q520 B1HFCFA00021 三极管 1 Q521 2SD1819A 三极管 1 Q522 UN5211 三极管 1 Q524 2SD1819A 三极管 1 Q525 B1CBGD000001 三极管 1 Q527 B1DEHL000018 三极管 1 Q530 B1CBGD000001 三极管 1 Q535 2SD1819A 三极管 1 Q536-38 B1CFQD000001 三极管 3 Q540 B1DHBD000004 三极管 1 Q541 B1CBGD000001 三极管 1 Q542 XN4601TX 三极管 1 Q544 UN5211 三极管 1 Q545 2SK3065T100 FET 1 Q547 2SD1119 三极管 1 Q550 UNR521L00L 三极管 1 Q551-53 2SD1819A 三极管 3 Q554 B1DHBD000004 三极管 1 Q555 UN5211 三极管 1 R404 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R408 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R409 ERJ6ENF1693 M 169KOHM, 1/10W 1 R410 D1FZ100E0001 F 10 OHM 1 R413 D1FZ100E0001 F 10 OHM 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 参考号 部件号 部件名称及说明 件数 备注 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R416 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R418 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R420 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYJ274 M 270KOHM,J,1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R434 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 1 R435 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R439 ERJ14YJ120 M 12 OHM, J,1/4W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 遥控 2KOHMB 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R445-47 ERJ6ENF1004 M1000KOHM, 1/10W 3 R448,49 D0XGR10JA007 电阻阵列 2 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R453 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R471 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 R476,77 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 2 R478 ERJ14YJ391 M 390 OHM, J,1/4W 1 R479 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R480 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R482 ERJ14YJ391 M 390 OHM, J,1/4W 1 R485 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R486 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R493 ERJ14YJ120 M 12 OHM, J,1/4W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6ENF2402 M 24KOHM, 1/10W 1 R498 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R501 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R504 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R505 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R506 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R509 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R510 K5H501Z00005 熔断器 1 R511 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R512 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R515,16 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R518 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R525 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R526,27 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6ENF1002 M 10KOHM, 1/10W 1 R530 ERJ6ENF1052 M10.5KOHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 137 R532 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R533 ERJ8GEYJ223 M 22KOHM, J,1/8W 1 R534 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 R536 ERJ8GEYJ201 M 200 OHM,J,1/10W 1 R537 ERJ6ENF3602 M 36KOHM, 1/10W 1 R538 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R539 ERJ8GEYJ201 M 200 OHM,J,1/10W 1 R540 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R541 ERJ8ENF1801 M1.80KOHM, 1/8W 1 R542,43 ERJ8ENF2203 M 22KOHM, 1/8W 2 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R550 ERJ8GEYJ202 M 2KOHM, J,1/8W 1 R551 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R552 ERJ8GEYJ202 M 2KOHM, J,1/8W 1 R555,56 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R560 ERJ6ENF1002 M 10KOHM, 1/10W 1 R561 ERJ6ENF4301 M 4.3KOHM, 1/10W 1 R562 ERJ6ENF1002 M 10KOHM, 1/10W 1 R563 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R568,69 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 2 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R575 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R576 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R577 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R578 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R584 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R585 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R587 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R588 ERJ6ENF1800 M 180 OHM, 1/10W 1 R589,90 ERJ8GEYJ822 M 8.2KOHM, J,1/8W 2 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ8GEYJ101 M 100 OHM, J,1/8W 1 R596 ERJ6ENF1002 M 10KOHM, 1/10W 1 R597,98 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2 R601 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R602,03 ERJ6ENF1002 M 10KOHM, 1/10W 2 R604 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 R605,06 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R607 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1 R609 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1 R610 ERJ8GEYJ751 M 750 OHM, J,1/8W 1 R611 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R612 ERDS2TJ102 C 1KOHM, J,1/4W 1 R613 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R614 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R616,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R619 ERJ8RQFR68 M 0.68OHM, J,1/8W 1 R620 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R621 ERJ8GEYJ822 M 8.2KOHM, J,1/8W 1 R622 ERJ8ENF3902 M 39K OHM, 1/8W 1 R624 ERX2SJR22 M0.22 OHM, J, 2W 1 R625 ERJ6ENF4700 M 470 OHM, 1/10W 1 R626 ERJ8ENF3902 M 39K OHM, 1/8W 1 R627 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R628 EVMAASA00B23 遥控 2KOHMB 1 R629 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R630 ERJ8GEYJ121 M 120 OHM, J,1/8W 1 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R633 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R636 ERJ8ENF3902 M 39K OHM, 1/8W 1 R637 ERJ8RQFR68 M 0.68OHM, J,1/8W 1 R638 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 1 R639 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R640 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R641 ERJ6ENF10R0 M 10 OHM, 1/10W 1 R642,43 ERJ8RQFR68 M 0.68OHM, J,1/8W 2 R645 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R646,47 ERJ8GEY0R00 M 0 OHM, 1/8W 2 R648 ERJ8ENF3902 M 39K OHM, 1/8W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R651 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R652 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R653,54 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R655 ERJ14RSJR15 M0.15 OHM, J,1/4W 1 R656 ERJ6ENF1202 M 12KOHM, 1/10W 1 R657 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R658 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R659 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R661 EVMAASA00B53 遥控 5KOHMB 1 R662 ERJ6ENF1303 M 130KOHM, 1/10W 1 R663 ERJ3GEYJ2R2 M 2.2 OHM,J,1/16W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMAASA00B23 遥控 2KOHMB 1 R666 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R667 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R668 ERJ6ENF2401 M 2.4KOHM, 1/10W 1 R669 ERJ6ENF1303 M 130KOHM, 1/10W 1 R670,71 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R672 ERJ6ENF1502 M 15KOHM, 1/10W 1 R673 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R675 ERJ3GEYJ2R2 M 2.2 OHM,J,1/16W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R677 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R678 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R679,80 ERJ8GEYJ121 M 120 OHM, J,1/8W 2 R681 ERG2SJ220 M 22 OHM 2W 1 R682 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R683 ERJ6ENF2200 M 220 OHM, 1/10W 1 R684 ERJ6ENF1800 M 180 OHM, 1/10W 1 R685 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R686 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R688 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R689,90 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R694 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R698 ERJ14RSJR15 M0.15 OHM, J,1/4W 1 R699 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 RL402,03 TSEH8011 继电器 2 T401 ETS42BV129AD 转接变压器 1 T402 G4D1A0000082 转接变压器 1 T404 ETS42LZ126AD 转接变压器 1 T407 ETQ11K5AZ 扼流变压器 1 T410 ETS25AD1M6AG 转接变压器 1 T601 ETS28AZ1J9AD 转接变压器 1 W1 ERJ8GEY0R00 M 0 OHM, 1/8W 1 W1 ERJ8GEYJ393 M 39KOHM, J,1/8W 1 X501 H2B400400021 晶体 1 Z1 K4ZZ01000121 接地片 1 Z410 TMM7464-2 接线板 1 Z411 TMME190 接线板 1 Z412 TMME047 接线板 1 Z420 TMM23417 接线板 1 ZN401,02 D4EAD6210001 变阻器 2 C3300 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3301 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3302 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3303 ECJ2XB1E104K C 0.1UF, K, 25V 1 C3304,05 ECJ2XC1H560J C 56PF, J, 50V 2 C3306 ECJ2XB1E104K C 0.1UF, K, 25V 1 C3307 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3308 EEVHB1C471 E 470UF, 16V 1 C3309,10 ECJ2XB1H682K C 6800PF, K, 50V 2 C3311,12 EEEHP1A100R E 10UF, 10V 2 C3313 ECJ2XB1H682K C 6800PF, K, 50V 1 C3314 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3315 EEEHP1A100R E 10UF, 10V 1 C3316 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 参考号 部件号 部件名称及说明 件数 备注 138 C3317 ECJ2XB1H682K C 6800PF, K, 50V 1 C3318 EEEHB1C470P C 47PF, J, 16V 1 C3319 ECJ2XB1H682K C 6800PF, K, 50V 1 C3320 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3321 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3322 EEVHP1C100R E 10UF, 16V 1 C3325 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3326 ECJ1VC1H560J C 56PF, J, 50V 1 C3327 ECJ1VC1H100C C 10PF, C, 50V 1 C3328 ECJ1XC1H220J C 22PF, J, 50V 1 C3329 ECJ1XC1H470J C 47PF, J, 50V 1 C3331 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3332,33 ECJ1VC1H010C C 1PF, C, 50V 2 C3334 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3335 ECJ1XC1H470J C 47PF, J, 50V 1 C3337,38 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3339 EEVHB1C100R E 10UF, 16V 1 C3340 ECJ1VC1H560J C 56PF, J, 50V 1 C3341 ECJ1XC1H180J C 18PF, J, 50V 1 C3342 ECJ1XC1H151J C 150PF, J, 50V 1 C3343 ECJ1XC1H220J C 22PF, J, 50V 1 C3344 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3345 EEEHB0J101P C 100PF, J, 6.3V 1 C3346,47 ECJ1XB0J105K C 1UF, K, 16V 2 C3348 EEEHB1H3R3R C 3.3PF, J, 50V 1 C3349 ECJ1XB0J105K C 1UF, K, 16V 1 C3350 ECJ3XB0J106M C 10UF, M,6.3V 1 C3351 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3352 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3353,54 EEVHB1C100R E 10UF, 16V 2 C3355 EEVHB1C470P E 47UF, 16V 1 C3356 ECJ1XB0J105K C 1UF, K, 16V 1 C3357 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3358 ECJ1XB0J105K C 1UF, K, 16V 1 C3359 ECJ2XB1H682K C 6800PF, K, 50V 1 C3360,61 ECJ1VF1A105Z C 1UF, Z, 10V 2 C3362 ECJ2XB1H682K C 6800PF, K, 50V 1 C3363 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3364 EEVHB1C470P E 47UF, 16V 1 C3365 ECJ1XC1H680J C 68PF, J, 50V 1 C3367 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3368 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3369 ECJ1XB0J105K C 1UF, K, 16V 1 C3370 ECJ1XC1H680J C 68PF, J, 50V 1 C3371 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3372 F2H0G470A005 E 47UF, 50V 1 C3373 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3375-77 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C3378-84 ECJ1XB1C104K C 0.1UF, Z, 16V 7 C3385 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3386,87 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3388,89 ECJ1XB0J105K C 1UF, K, 16V 2 C3390 ECJ1XC1H102J C 1000PF, J, 50V 1 C3391 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3392,93 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3394 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3395 ECJ1XB0J105K C 1UF, K, 16V 1 C3396 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3397 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3398 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3399 ECJ1XB0J105K C 1UF, K, 16V 1 C3400 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3401 ECJ1XB0J105K C 1UF, K, 16V 1 C3403 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3405 ECJ1XB0J105K C 1UF, K, 16V 1 C3406 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3407 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3408-18 ECJ1XF1C104Z C 0.1UF, Z, 16V 11 C3419 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3420 EEVHB0G221P E 220UF, 4V 1 C3421 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3422 ECJ1VB1C103K C 0.01UF, K, 16V 1 C3423 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3424 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3425 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3426 ECJ1XC1H150J C 15PF, J, 50V 1 C3427 ECJ1XC1H101J C 100PF, J, 50V 1 参考号 部件号 部件名称及说明 件数 备注 C3428 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3429 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3430 ECJ1XC1H180J C 18PF, J, 50V 1 C3442,43 ECJ1VF1A105Z C 1UF, Z, 10V 2 C3444-47 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3448-50 ECJ3XB0J106M C 10UF, M,6.3V 3 C3451,52 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3453-55 ECJ1XC1H390J C 39PF, J, 50V 3 C3458 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3460 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3461-63 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3465 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3466 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3467 F2H0G470A005 E 47UF, 50V 1 C3468 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3471 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3472-75 ECJ1XB0J105K C 1UF, K, 16V 4 C3477,78 ECJ1XC1H102J C 1000PF, J, 50V 2 C3479,80 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3481-85 ECJ1XC1H102J C 1000PF, J, 50V 5 C3486 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3487 ECJ1XC1H102J C 1000PF, J, 50V 1 C3488,89 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3490 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3493-96 ECJ1XB0J105K C 1UF, K, 16V 4 C3497 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3498 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3500 EEVHB0G221P E 220UF, 4V 1 C3502 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3505 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3506 EEVHB0G221P E 220UF, 4V 1 C3508 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3509 ECJ1XC1H102J C 1000PF, J, 50V 1 C3510 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3511 ECJ1XC1H102J C 1000PF, J, 50V 1 C3512 ECJ3XB0J106M C 10UF, M,6.3V 1 C3513 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3514 ECJ1XC1H102J C 1000PF, J, 50V 1 C3515 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3516 ECJ1XC1H102J C 1000PF, J, 50V 1 C3517 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3518 ECJ1XC1H102J C 1000PF, J, 50V 1 C3519 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3520 EEEHB1C470P C 47PF, J, 16V 1 C3521 EEEHB1C220R C 22PF, J, 16V 1 C3522,23 ECJ1XC1H220J C 22PF, J, 50V 2 C3524 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3525 ECJ3XB0J106M C 10UF, M,6.3V 1 C3526 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3529 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3530 ECJ1XC1H102J C 1000PF, J, 50V 1 C3531 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3532 ECJ1XC1H102J C 1000PF, J, 50V 1 C3533 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3534 ECJ1XC1H102J C 1000PF, J, 50V 1 C3535 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3536 ECJ1XC1H102J C 1000PF, J, 50V 1 C3537 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3539 ECJ3XB0J106M C 10UF, M,6.3V 1 C3540 EEVHB0G221P E 220UF, 4V 1 C3541,42 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3543 ECJ1XC1H102J C 1000PF, J, 50V 1 C3544 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3545 ECJ1XC1H102J C 1000PF, J, 50V 1 C3546 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3547 ECJ1XC1H102J C 1000PF, J, 50V 1 C3548,49 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3550 ECJ1XC1H102J C 1000PF, J, 50V 1 C3551,52 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3553 ECJ1XC1H102J C 1000PF, J, 50V 1 C3554 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3555 ECJ1XC1H102J C 1000PF, J, 50V 1 C3556 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3557 ECJ1XC1H102J C 1000PF, J, 50V 1 C3558,59 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3564 ECJ1XC1H101J C 100PF, J, 50V 1 C3565 ECJ1XB0J105K C 1UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 139 C3567-69 ECJ1XB0J105K C 1UF, K, 16V 3 C3570,71 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3572-75 ECJ1XB0J105K C 1UF, K, 16V 4 C3576 ECJ1VB0J334K C 0.33UF, K, 16V 1 C3577 ECJ1VB1H682K C 6800PF, K, 50V 1 C3578 ECJ1XB0J105K C 1UF, K, 16V 1 C3579-81 ECJ1VB1H103K C 0.01UF, K, 50V 3 C3582 ECJ1XB0J105K C 1UF, K, 16V 1 C3583 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3584 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3585 ECJ1XB0J105K C 1UF, K, 16V 1 C3586 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3587 ECJ1XB0J105K C 1UF, K, 16V 1 C3588 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3589 ECJ1XB0J105K C 1UF, K, 16V 1 C3590 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3591 ECJ1XB0J105K C 1UF, K, 16V 1 C3594 ECJ1XB0J105K C 1UF, K, 16V 1 C3595 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3596 ECJ1XB0J105K C 1UF, K, 16V 1 C3597 ECJ1XC1H471J C 470PF, J, 50V 1 C3598 ECJ1XB0J105K C 1UF, K, 16V 1 C3599,00 ECJ1VB1H103K C 0.01UF, K, 50V 2 C3601-04 ECJ1XB0J105K C 1UF, K, 16V 4 C3605 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3606 ECJ1XB0J105K C 1UF, K, 16V 1 C3607 ECJ1XC1H121J C 120PF, J, 50V 1 C3608 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3611 ECJ1XC1H102J C 1000PF, J, 50V 1 C3612-19 ECJ1VB1H103K C 0.01UF, K, 50V 8 C3620 ECJ1XC1H102J C 1000PF, J, 50V 1 C3621 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3622 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C3623 EEVHB0G221P E 220UF, 4V 1 C3625 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3626 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3627 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3628 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3629 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3630 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3631 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3632 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3633 ECJ1XC1H102J C 1000PF, J, 50V 1 C3634-41 ECJ1VB1H103K C 0.01UF, K, 50V 8 C3642 ECJ1XC1H102J C 1000PF, J, 50V 1 C3643 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3644 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3645 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3646 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3647 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3648 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3649 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3650 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3651 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3652 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3653,54 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3655 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3656,57 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3658,59 ECJ1XC1H102J C 1000PF, J, 50V 2 C3660 EEVHB0G101R E 100UF 4V 1 C3661 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3662 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3663-65 ECJ1VB1H103K C 0.01UF, K, 50V 3 C3666 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3667 ECJ1XC1H102J C 1000PF, J, 50V 1 C3668 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3669 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3671,72 ECJ1VF1A105Z C 1UF, Z, 10V 2 C3679-81 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C3682 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3683 ECJ1XC1H102J C 1000PF, J, 50V 1 C3684-86 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C3687 EEVHB0G221P E 220UF, 4V 1 C3688 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3689 ECJ1XC1H102J C 1000PF, J, 50V 1 C3690,91 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3692 ECJ1XB1C104K C 0.1UF, Z, 16V 1 参考号 部件号 部件名称及说明 件数 备注 C3693 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3694 ECJ1XC1H151J C 150PF, J, 50V 1 C3696 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3697 ECJ1XC1H220J C 22PF, J, 50V 1 C3698 ECJ1XC1H102J C 1000PF, J, 50V 1 C3699 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3700 ECJ1XC1H220J C 22PF, J, 50V 1 C3701 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3703 ECJ1XC1H102J C 1000PF, J, 50V 1 C3704 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3706 EEVHB1C100R E 10UF, 16V 1 C3707,08 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3710 ECJ1XC1H102J C 1000PF, J, 50V 1 C3711-13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C3714,15 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3718 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3719 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3720 ECJ1VB1H103K C 0.01UF, K, 50V 1 C3721 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3722 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3723,24 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3725 EEVHB0G101R E 100UF 4V 1 C3726 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3727 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3728,29 ECJ1XC1H271J C 270PF, J, 50V 2 C3730 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3731 ECJ1XC1H271J C 270PF, J, 50V 1 C3732 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3733,34 ECJ1XC1H271J C 270PF, J, 50V 2 C3735,36 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3737-41 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C3742 EEEHB0J101P C 100PF, J, 6.3V 1 C3743,44 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3745-48 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C3749 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3752 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3753 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3754 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3755 EEEHB1V470P E 47UF, 35V 1 C3757 ECJ2XB1H472K C 4700PF, K, 50V 1 C3758 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3759,60 ECJ1XC1H102J C 1000PF, J, 50V 2 C3761 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C3762 EEVHB1C470P E 47UF, 16V 1 C3763 ECJ1VB1C103K C 0.01UF, K, 16V 1 C3764 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3765,66 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3767 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C3768 EEVHB0J470R E 47UF, 6.3V 1 C3770 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C3771 ECJ2XB1H271K C 270PF, K, 50V 1 C3772 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3774 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3776 ECJ1XC1H221J C 220PF, J, 50V 1 D3300 MA3100M 齐纳二极管 1 MAZ31000M D3301 MA152K 二极管 1 MA3X152K D3302 LNJ107W5PRW LED 1 D3303-06 M1FS4 二极管 4 D3307 MA111 二极管 1 MA2J111 D3308 MA157A 二极管 1 MA3X157A D3309,10 MA152 二极管 2 FL3300,01 ELKE103FA 噪音滤波器 2 FL3302,03 J0HABB000004 LC 滤波器 2 FL3304 J0HABB000003 LC 滤波器 1 FL3305-08 J0HABB000004 LC 滤波器 4 FL3311-14 ELKE103FA 噪音滤波器 4 FL3315,16 J0HABB000004 LC 滤波器 2 H1,H2 K1KA80B00034 80P 连接接头 2 H3 K1KA07A00056 7P 连接接头 1 H4 TJS1A8840 8P 连接接头 1 K1KA08A00221 IC3300 C1AB00001926 IC 1 IC3301 C1AB00001834 IC 1 IC3302 CXA2089Q 线性 IC 1 C1AB00000461 参考号 部件号 部件名称及说明 件数 备注 140 IC3303,04 C0CBCAD00012 IC 2 IC3305 C1AB00001868 IC 1 IC3306 C0CBCAD00012 IC 1 IC3307 TC7WU04FU IC 1 C0JBAB000339 IC3308 C0CBCBD00008 IC 1 IC3310 C0JBAZ001769 IC 1 IC3312 C0CBCBD00008 IC 1 IC3313 C0CBCAD00015 IC 1 IC3315 C3ABPJ000065 IC 1 IC3317 C3ABPJ000065 IC 1 IC3318 C0ZBZ0000967 IC 1 IC3319 TVRN420 IC 1 C3EBGC000033 IC3320 JLC1562BFEL IC 1 C0JBAZ000801 IC3321 C2CBYF000028 IC 1 IC3322 TVRN503 IC 1 C3EBHC000024 IC3323 C0EBE0000120 IC 1 IC3324 C0JBBZ000281 IC 1 IC3325 C0JBAB000591 IC 1 IC3326 C0JBAE000231 IC 1 IC3327 C3ABPG000133 IC 1 IC3328 TVRN419 IC 1 IC3329 C0DBZHE00019 IC 1 IC3330 C0DBEZE00002 IC 1 IC3331 C0CBAYG00011 IC 1 IC3332 C0CBCBD00008 IC 1 IC3333 C0DBAZE00008 IC 1 IC3334 C0DBAMA00015 IC 1 IC3335 C1AB00001942 IC 1 IC3336 TC7WU04FU IC 1 C0JBAB000382 IC3337 TC4W53FEL IC 1 C0JBAR000111 JK3300 K1QBB2AB0005 连接接头 1 JK3301 K1CB106B0027 连接接头 1 JK3302 K2HA204B0097 插孔 1 JK3303 K2HC103B0105 插孔 1 JK3304 K2HA204B0097 插孔 1 JS3300-05 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3308,09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3312 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3317 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L3300,01 EXC3BB102H 头扼流圈 2 L3302 TSK1040 铁氧体磁芯 1 G1BYYYH00004 L3304 ELJFA6R8MB 片状线圈 1 L3305,06 G1C330K00017 感应线圈 2 L3307 TALC168T6R8K 片状电感线圈 1 G1C6R8K00005 L3309 G1C330K00017 感应线圈 1 L3310 TALC168T100K 片状电感线圈 1 G1C100KA0009 L3311 J0JHC0000078 片状电感 1 L3313 TALC168T100K 片状电感线圈 1 G1C100KA0009 L3314 J0JCC0000241 片状电感 1 L3315 J0JHC0000078 片状电感 1 L3316,17 J0JCC0000241 片状电感 2 L3318 ELJPA6R8MF 片状电感 1 L3319 J0JGC0000021 片状电感线圈 1 L3320,21 EXC3BB102H 头扼流圈 2 L3325 EXC3BB102H 头扼流圈 1 L3328 J0JCC0000241 片状电感 1 L3329 J0JHC0000078 片状电感 1 L3331,32 J0JHC0000078 片状电感 2 L3334 J0JCC0000241 片状电感 1 L3336,37 J0JCC0000241 片状电感 2 L3339 J0JCC0000241 片状电感 1 L3340 TALC168T100K 片状电感线圈 1 G1C100KA0009 L3342,43 J0JHC0000078 片状电感 2 L3346 G1C330K00017 感应线圈 1 L3348 ELJFA8R2KB 片状电感 1 L3350 J0JGC0000021 片状电感线圈 1 L3351-53 J0JHC0000078 片状电感 3 L3354 G1C101M00018 感应线圈 1 L3356 G1C220MA0077 感应线圈 1 L3359,60 EXC3BB102H 头扼流圈 2 Q3300 2SB709A 三极管 1 2SB0709A Q3301 2SD601A 三极管 1 2SD0601A Q3302,03 2SB709A 三极管 2 2SB0709A 参考号 部件号 部件名称及说明 件数 备注 Q3304-07 2SD601A 三极管 4 2SD0601A Q3309,10 2SB709A 三极管 2 2SB0709A Q3311 2SD1030 三极管 1 Q3312 2SD601A 三极管 1 2SD0601A Q3313,14 UN5211 三极管 2 UNR5211 Q3315 2SB709A 三极管 1 2SB0709A Q3317 2SD601A 三极管 1 2SD0601A Q3318-20 2SB709A 三极管 3 2SB0709A Q3321-23 2SD601A 三极管 3 2SD0601A Q3324,25 2SB709A 三极管 2 2SB0709A Q3326-28 2SD601A 三极管 3 2SD0601A Q3329 UN5211 三极管 1 UNR5211 Q3330 B1ABPF000005 三极管 1 Q3331 UN2211 三极管 1 UNR2211 Q3332,33 UN5211 三极管 2 UNR5211 Q3334,35 2SB709A 三极管 2 2SB0709A Q3336 2SD601A 三极管 1 2SD0601A Q3337 2SB709A 三极管 1 2SB0709A Q3338 2SD601A 三极管 1 2SD0601A R3300 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3301,02 ERJ3GEYJ184 M 180KOHM,J,1/16W 2 R3303 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3305-07 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3308 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3310-12 TAJAAH0101JV M 100 OHM,J,1/16W 3 D0GB101JA006 R3313 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R3314,15 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R3316 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R3317 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3318 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3319,20 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R3321 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3322 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3323 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3324 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3325 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3327 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3328 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3329 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3330 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3331 ERJ8GEYJ390 M 39 OHM, J,1/8W 1 R3332,33 ERJ3GEYJ151 M 150 OHM,J,1/16W 2 R3334 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3336 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3337 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R3338 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3339 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R3340 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3341 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R3342,43 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 2 R3344 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R3345 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3346 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3348 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3349 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3350 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3351,52 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3353,54 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3356 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3358 ERJ3EKF2870 M 287 OHM, 1/16W 1 R3359,60 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R3361 ERJ3EKF4700 M 470 OHM, 1/16W 1 R3363 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3365 ERJ3GEYF5100 M 510 OHM, 1/16W 1 R3366 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R3367 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3368 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R3369 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3370 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R3371,72 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R3373 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R3374 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R3375,76 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R3377,78 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3379 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3380 ERJ3GEY0R00 M 0 OHM, 1/16W 1 参考号 部件号 部件名称及说明 件数 备注 141 R3381 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3382-84 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3385 ERJ3EKF4700 M 470 OHM, 1/16W 1 R3386,87 ERJ3EKF1401 M 1.4KOHM, 1/16W 2 R3388,89 ERJ3EKF1001 M 1KOHM, 1/16W 2 R3390-95 ERJ3EKF33R0 M 33 OHM, 1/16W 6 R3396 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3397 ERJ3EKF4700 M 470 OHM, 1/16W 1 R3398 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3399-01 ERJ3EKF1500 M 150 OHM, 1/16W 3 R3402,03 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3404 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3405 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3406 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3407 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3408 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3409 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3410 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3411 EXB38V560J 电阻阵列 1 R3412,13 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3414,15 EXB38V560J 电阻阵列 2 R3416-18 ERJ3GEYJ560 M 56 OHM,J,1/16W 3 R3419,20 ERJ3GEYJ390 M 39 OHM,J,1/16W 2 R3421,22 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R3423 D1HG5608A002 排阻 1 R3424 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R3425-30 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R3431 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R3438-40 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R3441-43 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3449 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3451-53 ERJ6GEYJ102 M 1KOHM,J,1/10W 3 R3457-59 ERJ3GEYJ471 M 470 OHM,J,1/16W 3 R3460-62 ERJ3GEYJ102 M 1KOHM,J,1/16W 3 R3468-70 ERJ3GEYJ223 M 22KOHM,J,1/16W 3 R3471,72 ERJ3EKF1020 M 102 OHM, 1/16W 2 R3473 ERJ3EKF68R0 M 68 OHM,J,1/16W 1 R3474 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3475 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3477,78 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3479-81 ERJ3EKF68R0 M 68 OHM,J,1/16W 3 R3482,83 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R3484 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3485 D1HG6808A002 排阻 1 R3486 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3487 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R3488 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R3489,90 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3492 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3493 D1HG6808A002 排阻 1 R3494-96 TAJAAH0101JV M 100 OHM,J,1/16W 3 D0GB101JA006 R3498 EXB38V680J 电阻阵列 1 R3499,00 ERJ3EKF68R0 M 68 OHM,J,1/16W 2 R3501 ERJ3GEYJ510 M 51 OHM,J,1/16W 1 R3502 ERJ3EKF1500 M 150 OHM, 1/16W 1 R3503 ERJ3GEYJ510 M 51 OHM,J,1/16W 1 R3504 ERJ3EKF1020 M 102 OHM, 1/16W 1 R3505 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3508 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3509 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3511,12 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3513,14 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R3516 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3517 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3518 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3519-22 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R3523 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3524 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R3525,26 D1HG5608A002 排阻 2 R3527,28 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3530 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R3531 D1HG6808A002 排阻 1 R3533 D1HG6808A002 排阻 1 R3534,35 EXB38V680J 电阻阵列 2 R3536 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3537-39 TAJAAH0470JV M 47 OHM,J,1/16W 3 D0GB470JA006 R3542 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R3543 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3544-49 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R3551 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3552,53 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R3555 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3561 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3562 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R3563 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3564 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R3565 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3566,67 ERJ3EKF75R0 M 0.75HM, 1/16W 2 R3568 ERJ3EKF6200 M 620 OHM, 1/16W 1 R3569 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R3570 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3571 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R3572,73 ERJ3EKF75R0 M 0.75HM, 1/16W 2 R3574 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3576 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3577 ERJ3GEYJ821 M 820 OHM,J,1/16W 1 R3578 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3579 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R3580 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3581 ERJ3EKF1500 M 150 OHM, 1/16W 1 R3582 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3584 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R3585 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3586 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3587 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3588 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3589,90 EXB38V560J 电阻阵列 2 R3591,92 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3593 TAJAAH0680JV M 68 OHM,J,1/16W 1 D0GB680JA006 R3594 EXB38V680J 电阻阵列 1 R3595 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3596,97 TAJAAH0680JV M 68 OHM,J,1/16W 2 D0GB680JA006 R3598,99 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3600,01 EXB38V560J 电阻阵列 2 R3604 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3606 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3608 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3609 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3610 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3611 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3612-18 TAJAAH0680JV M 68 OHM,J,1/16W 7 D0GB680JA006 R3619-21 D1HG6808A002 排阻 3 R3622 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3624 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3627 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3628-31 TAJAAH0680JV M 68 OHM,J,1/16W 4 D0GB680JA006 R3632-34 D1HG6808A002 排阻 3 R3635-40 TAJAAH0680JV M 68 OHM,J,1/16W 6 D0GB680JA006 R3641,42 D1HG6808A002 排阻 2 R3643,44 EXB38V680J 电阻阵列 2 R3645-47 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3648,49 TAJAAH0680JV M 68 OHM,J,1/16W 2 D0GB680JA006 R3650-52 EXB38V680J 电阻阵列 3 R3653 D1HG6808A002 排阻 1 R3654 EXB38V680J 电阻阵列 1 R3655 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3656 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3657 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3658-61 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R3662 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3663,64 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3665,66 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3667-70 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R3671-76 ERJ3GEYJ223 M 22KOHM,J,1/16W 6 R3677 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3678 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R3679 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3680 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R3681 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3682,83 EXB38V680J 电阻阵列 2 R3684 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3685 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3686 EXB38V680J 电阻阵列 1 R3688-91 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 参考号 部件号 部件名称及说明 件数 备注 142 R3692 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R3694 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3697 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3698 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3699 EXB38V680J 电阻阵列 1 R3702 EXB38V680J 电阻阵列 1 R3703 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3705 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3706 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3707 EXB38V680J 电阻阵列 1 R3709 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3710 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3711 EXB38V680J 电阻阵列 1 R3712 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3713 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3714 EXB38V680J 电阻阵列 1 R3715 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3716,17 EXB38V680J 电阻阵列 2 R3718,19 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3721 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3722 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R3723 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3724 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3725 EXB38V680J 电阻阵列 1 R3726,27 TAJAAH0680JV M 68 OHM,J,1/16W 2 D0GB680JA006 R3728 EXB38V680J 电阻阵列 1 R3729,30 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3731 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3733,34 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3735 EXB38V103J 电阻阵列 1 R3736-40 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R3741 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3742,43 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R3744 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3746 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3747 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3748 EXB38V103J 电阻阵列 1 R3749 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3750 EXB38V103J 电阻阵列 1 R3752 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3754 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3758 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3760 ERJ6ENF2001 M 2KOHM, 1/10W 1 R3762 ERJ6ENF4121 M4.12KOHM, 1/10W 1 R3763 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3764 ERJ6ENF8203 M 820KOHM, 1/10W 1 R3765 ERJ6ENF1372 M13.7KOHM, 1/10W 1 R3766 ERJ3EKF2492 M24.9KOHM, 1/16W 1 R3767 ERJ3EKF2372 M23.7KOHM, 1/16W 1 R3768 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R3770 ERJ3GEYJ202 M 2KOHM,J,1/16W 1 R3771 ERJ3EKF9102 M91.0KOHM, 1/16W 1 R3772 ERJ3EKF7152 M71.5KOHM, 1/16W 1 RTL TXNHM10UBS 电路板 HC 1 TU3300 ENG39A10GF ENG39A10GF 1 X3300 H0J184500020 晶体 1 X3301 H0J202500002 晶体 1 X3302 H0J600400006 晶体 1 X3303 H0J367200001 晶体 1 MISCELLANEOUS N2QAKB000053 遥控器 1 TBMU467 AV 端子表示 1 THEL023Z 螺钉 4 THEL027N 螺钉 4 TPCB06808 包装箱 1 TPDF1137 软垫 2 TPDF1193 软垫 B 4 TPEH161 保护垫片 1 TQE6691 聚乙烯袋 1 TQZH581 说明书 1 XTV3+10J 螺钉 4 参考号 部件号 部件名称及说明 件数 备注 XZBT6506 聚乙烯袋 1 C3007 ECJ2VF1C105Z C 1UF, Z, 16V 1 HZ C3008 ECJ2VF1C105Z C 1UF, Z, 16V 1 HZ C3011 EEVHB1C470 E 47UF, 16V 1 HZ C3012 ECJ2VF1C104Z C0.1UF, Z, 16V 1 HZ C3021 ECJ1VF1A105Z C 1UF, Z, 10V 1 HZ C3022 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 HZ C3301 ECJ1VF1A105Z C 1UF, Z, 10V 1 HZ C3316 ECJ1VF1A105Z C 1UF, Z, 10V 1 HZ H1 K1KA80B00034 80P 连接接头 1 HZ IC3002 C0ABGB000001 IC 1 HZ JK3001 K2HA306B0049 插孔 1 HZ JS2301 ERJ6GEY0R00 M 0 OHM, 1/10W 1 HZ JS3001-06 ERJ3GEY0R00 M 0 OHM, 1/16W 6 HZ JS3007,08 ERJ3GEY0R00 M 0 OHM, 1/16W 2 HZ JS3011 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HZ JS3012 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HZ JS3013 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HZ JS3014 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HZ JS3015 ERJ3GEY0R00 M 0OHM, 1/16W 1 HZ JS3016 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HZ JS3301-06 ERJ3GEY0R00 M 0 OHM, 1/16W 6 HZ JS3308-10 ERJ3GEY0R00 M 0 OHM, 1/16W 3 HZ L3001 J0HABB000004 LC 滤波器 1 HZ L3002 J0HABB000004 LC 滤波器 1 HZ L3003 J0HABB000004 LC 滤波器 1 HZ L3004 J0HABB000003 LC 滤波器 1 HZ L3005 J0HABB000003 LC 滤波器 1 HZ L3006 ELJPA100KB 片状电感 1 HZ L3006 ELJPA100KB 片状电感 1 HZ Q3001 2SD601A 三极管 1 HZ R3004 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 HZ R3005 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 HZ R3006 TAJAAH0101JV M 100 OHM,J,1/16W 1 HZ R3007 TAJAAH0101JV M 100 OHM,J,1/16W 1 HZ R3014 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 HZ R3015 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 HZ R3015 J0JCC0000100 片状电感 1 HZ R3016 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 HZ R3017 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 HZ R3018 TAJAAH0101JV M 100 OHM,J,1/16W 1 HZ R3019 TAJAAH0101JV M 100 OHM,J,1/16W 1 HZ R3022 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 HZ R3023 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 HZ R3025 TAJAAH0101JV M 100 OHM,J,1/16W 1 HZ R3026 TAJAAH0101JV M 100 OHM,J,1/16W 1 HZ R3035 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 HZ R3036 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 HZ R3037 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 HZ R3042 ERJ6GEY0R00 M 0 OHM, 1/10W 1 HZ RTL TNPA2952 电路板 HZ 1 HZ 参考号 部件号 部件名称及说明 件数 备注
