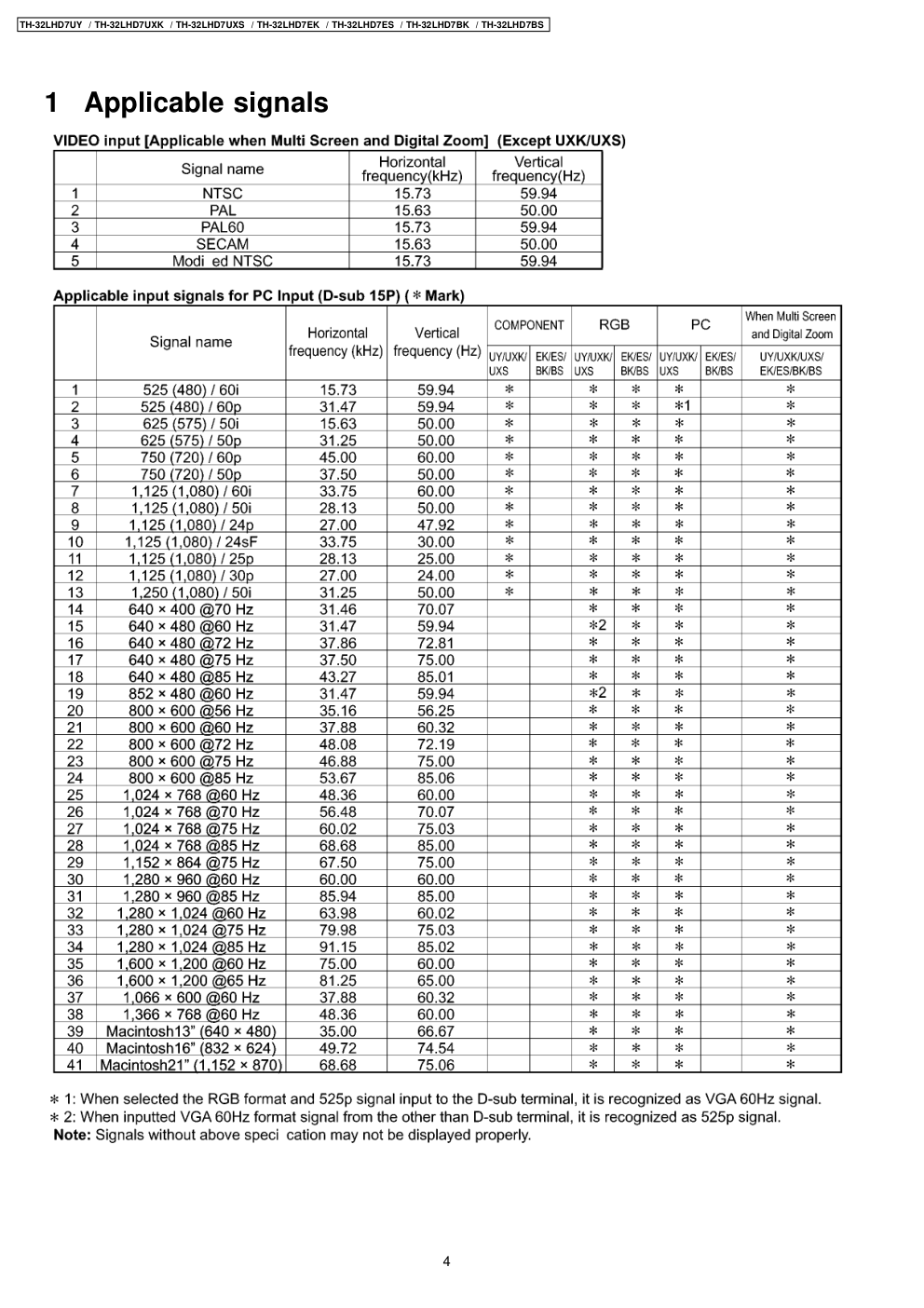

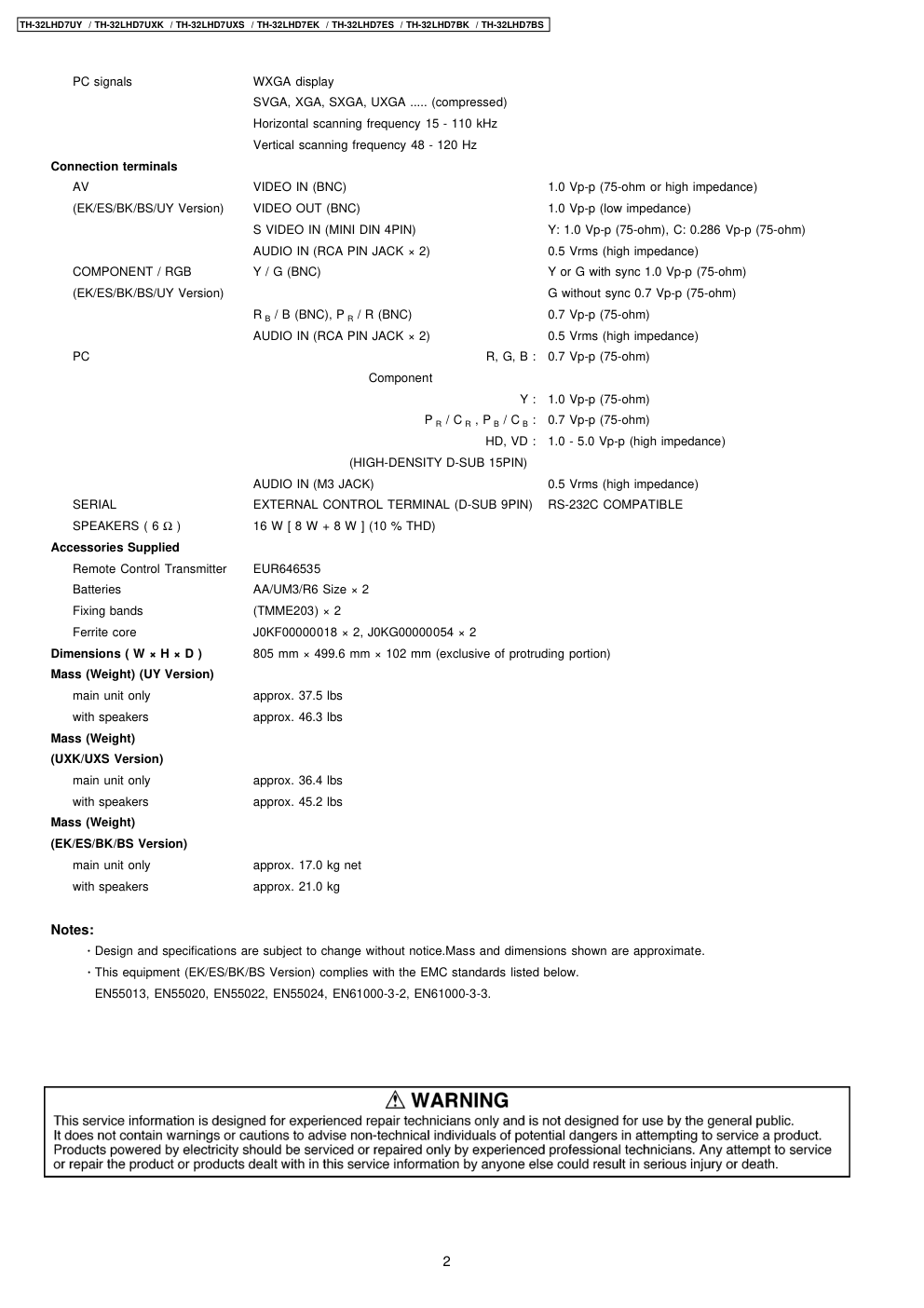

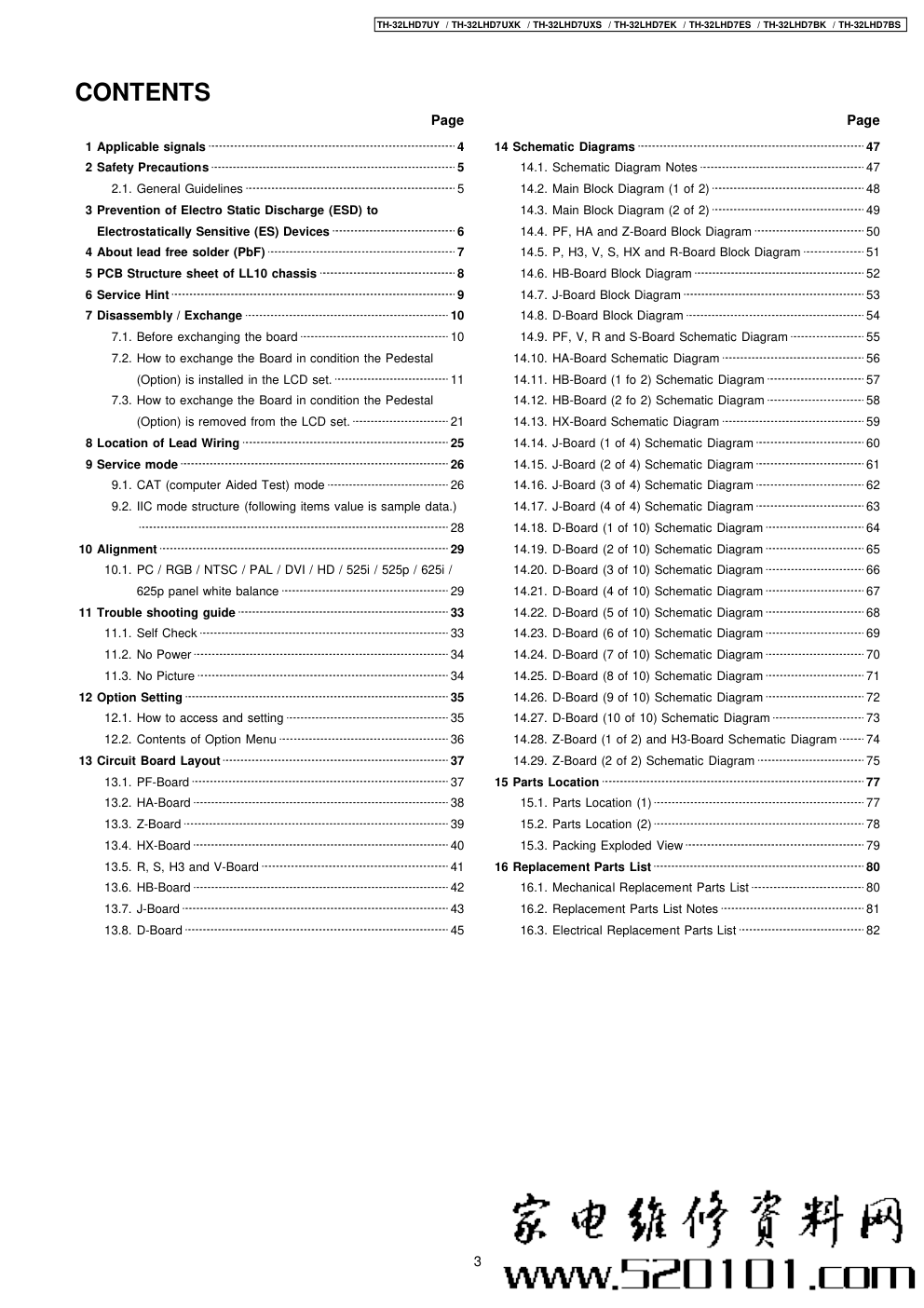

© 2005 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. TH-32LHD7UY TH-32LHD7UXK TH-32LHD7UXS TH-32LHD7EK TH-32LHD7ES TH-32LHD7BK TH-32LHD7BS LL10 Chassis LCD Display Specifications Power Source (UY/UXK/UXS Version) 120 V AC, 50 / 60 Hz Power Source (EK/ES/BK/BS Version) 220 - 240 V AC, 50 / 60 Hz Power Consumption (UY/UXK/UXS Version) Maximum 234W Stand-by condition Save OFF 0.8 W, Save ON 0.6 W Power off condition 0.2 W Power Consumption (EK/ES/BK/BS Version) Normal use 165 W Stand-by condition Save off 1.0 W, Save on 0.8 W Power off condition 0.4 W LCD Display panel 1,366 × 768 pixels widescreen LCD panel Contrast Ratio 800:1 Screen size 697.7 mm (W) × 392.3 mm (H) × 800.4 mm (diagonal) (No. of pixels) 1,049,088 (1,366 (W) × 768 (H)) [4,096 × 768 dots] Operating condition Temperature 32 ° F - 104 ° F (0 ° C - 40 ° C) Humidity 20 % - 80 % Applicable signals Colour System NTSC, PAL, PAL60, SECAM, Modified NTSC Scanning format 525 (480) / 60i 60p, 625 (575) / 50i 50p, 750 (720) / 60p 50p, 1125 (1080) / 60i 50i 24p 25p 30p 24sF .... SMPTE274M, 1250 (1080) / 50i Order Number : ITD0502001CE D10 PC signals WXGA display SVGA, XGA, SXGA, UXGA ..... (compressed) Horizontal scanning frequency 15 - 110 kHz Vertical scanning frequency 48 - 120 Hz Connection terminals AV VIDEO IN (BNC) 1.0 Vp-p (75-ohm or high impedance) (EK/ES/BK/BS/UY Version) VIDEO OUT (BNC) 1.0 Vp-p (low impedance) S VIDEO IN (MINI DIN 4PIN) Y: 1.0 Vp-p (75-ohm), C: 0.286 Vp-p (75-ohm) AUDIO IN (RCA PIN JACK × 2) 0.5 Vrms (high impedance) COMPONENT / RGB (EK/ES/BK/BS/UY Version) Y / G (BNC) Y or G with sync 1.0 Vp-p (75-ohm) G without sync 0.7 Vp-p (75-ohm) R B / B (BNC), P R / R (BNC) 0.7 Vp-p (75-ohm) AUDIO IN (RCA PIN JACK × 2) 0.5 Vrms (high impedance) PC R, G, B : 0.7 Vp-p (75-ohm) Component Y : 1.0 Vp-p (75-ohm) P R / C R , P B / C B : 0.7 Vp-p (75-ohm) HD, VD : 1.0 - 5.0 Vp-p (high impedance) (HIGH-DENSITY D-SUB 15PIN) AUDIO IN (M3 JACK) 0.5 Vrms (high impedance) SERIAL EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE SPEAKERS ( 6 Ω ) 16 W [ 8 W + 8 W ] (10 % THD) Accessories Supplied Remote Control Transmitter EUR646535 Batteries AA/UM3/R6 Size × 2 Fixing bands (TMME203) × 2 Ferrite core J0KF00000018 × 2, J0KG00000054 × 2 Dimensions ( W × H × D ) 805 mm × 499.6 mm × 102 mm (exclusive of protruding portion) Mass (Weight) (UY Version) main unit only approx. 37.5 lbs with speakers approx. 46.3 lbs Mass (Weight) (UXK/UXS Version) main unit only approx. 36.4 lbs with speakers approx. 45.2 lbs Mass (Weight) (EK/ES/BK/BS Version) main unit only approx. 17.0 kg net with speakers approx. 21.0 kg Notes: · Design and specifications are subject to change without notice.Mass and dimensions shown are approximate. · This equipment (EK/ES/BK/BS Version) complies with the EMC standards listed below. EN55013, EN55020, EN55022, EN55024, EN61000-3-2, EN61000-3-3. 2 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 1 Applicable signals 4 2 Safety Precautions 5 2.1. General Guidelines 5 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices 6 4 About lead free solder (PbF) 7 5 PCB Structure sheet of LL10 chassis 8 6 Service Hint 9 7 Disassembly / Exchange 10 7.1. Before exchanging the board 10 7.2. How to exchange the Board in condition the Pedestal (Option) is installed in the LCD set. 11 7.3. How to exchange the Board in condition the Pedestal (Option) is removed from the LCD set. 21 8 Location of Lead Wiring 25 9 Service mode 26 9.1. CAT (computer Aided Test) mode 26 9.2. IIC mode structure (following items value is sample data.) 28 10 Alignment 29 10.1. PC / RGB / NTSC / PAL / DVI / HD / 525i / 525p / 625i / 625p panel white balance 29 11 Trouble shooting guide 33 11.1. Self Check 33 11.2. No Power 34 11.3. No Picture 34 12 Option Setting 35 12.1. How to access and setting 35 12.2. Contents of Option Menu 36 13 Circuit Board Layout 37 13.1. PF-Board 37 13.2. HA-Board 38 13.3. Z-Board 39 13.4. HX-Board 40 13.5. R, S, H3 and V-Board 41 13.6. HB-Board 42 13.7. J-Board 43 13.8. D-Board 45 14 Schematic Diagrams 47 14.1. Schematic Diagram Notes 47 14.2. Main Block Diagram (1 of 2) 48 14.3. Main Block Diagram (2 of 2) 49 14.4. PF, HA and Z-Board Block Diagram 50 14.5. P, H3, V, S, HX and R-Board Block Diagram 51 14.6. HB-Board Block Diagram 52 14.7. J-Board Block Diagram 53 14.8. D-Board Block Diagram 54 14.9. PF, V, R and S-Board Schematic Diagram 55 14.10. HA-Board Schematic Diagram 56 14.11. HB-Board (1 fo 2) Schematic Diagram 57 14.12. HB-Board (2 fo 2) Schematic Diagram 58 14.13. HX-Board Schematic Diagram 59 14.14. J-Board (1 of 4) Schematic Diagram 60 14.15. J-Board (2 of 4) Schematic Diagram 61 14.16. J-Board (3 of 4) Schematic Diagram 62 14.17. J-Board (4 of 4) Schematic Diagram 63 14.18. D-Board (1 of 10) Schematic Diagram 64 14.19. D-Board (2 of 10) Schematic Diagram 65 14.20. D-Board (3 of 10) Schematic Diagram 66 14.21. D-Board (4 of 10) Schematic Diagram 67 14.22. D-Board (5 of 10) Schematic Diagram 68 14.23. D-Board (6 of 10) Schematic Diagram 69 14.24. D-Board (7 of 10) Schematic Diagram 70 14.25. D-Board (8 of 10) Schematic Diagram 71 14.26. D-Board (9 of 10) Schematic Diagram 72 14.27. D-Board (10 of 10) Schematic Diagram 73 14.28. Z-Board (1 of 2) and H3-Board Schematic Diagram 74 14.29. Z-Board (2 of 2) Schematic Diagram 75 15 Parts Location 77 15.1. Parts Location (1) 77 15.2. Parts Location (2) 78 15.3. Packing Exploded View 79 16 Replacement Parts List 80 16.1. Mechanical Replacement Parts List 80 16.2. Replacement Parts List Notes 81 16.3. Electrical Replacement Parts List 82 CONTENTS Page Page 3 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 1 Applicable signals 4 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 2.1.1. Leakage Current Cold Check 1. Unplug the AC cord and connect a jumper between the two prongs on the plug. 2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to thechassis,the reading should be between 1MΩ and 5.2MΩ. When the exposed metal does not have a return path to the chassis, the reading must be . Figure 1 2.1.2. Leakage Current Hot Check (See Figure 1.) 1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check. 2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1. 3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor. 4. Check each exposed metallic part, and measure the voltage at each point. 5. Reverse the AC plug in the AC outlet and repeat each of the above measurements. 6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outsideof the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer. 2 Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed. 3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards. 5 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistorsand semiconductor"chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD). 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, whichshouldbe removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparableconductivematerial). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient todamagean ES device). 6 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 4 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available. This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol stamped on the back of PCB. Caution · Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C). · Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder. · After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below) Suggested Pb free solder There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also beused. 7 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 5 PCB Structure sheet of LL10 chassis Board Name Function Remarks D Digital Signal Processor 1 J Slot Interface & SYNC processor 1 Z Audio out, DC-DC converter H3 Speaker terminal S Power switch V Operation SW. R Power indicator & Remote receiver 1 PF Line filter 1 P Power supply 1 HX PC_type_Input terminal HB BNC Composite/Component Video 2 HA BNC Component Video 2 Remarks 1. Recommend PCB´s for initial service for LL10 chassis. 2. Only for EK/ES/BK/BS/UY models. 8 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 6 Service Hint 9 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7 Disassembly / Exchange 7.1. Before exchanging the board · When exchanging the board, there are two kinds of the board, the board which can be exchange in condition the pedestal(Option) is installed in the LCD set and the board which cannot be exchange if the pedestal(Option) is not removed from the LCD set. (Refer to the following list of the the board removal category.) 7.1.1. Board removal category the board which can be exchange in condition the pedestal(Option) is installed in the LCD set. the board which cannot be exchange if the pedestal(Option) is not removed from the LCD set. [ Z ] Audio out, DC-DC converter Board — [ H3 ] Speaker terminal Board — FAN — [ P ] Power supply Board — [ V ] Operation SW Board — [ S ] Power switch Board — [ R ] Power indicator & Remote receiver Board — [ HB ] BNC Composite/Component Video Board — [ HA ] BNC Component Video Board — [ J ] Slot Interface & SYNC processor Board — [ HX ] PC_type_Input terminal Board — [ D ] Digital Signal Processor Board — [ PF ] Line filter Board × LCD module(finished) × · [ ]: Enable to exchange · [ × ]: Disable to exchange 10 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2. How to exchange the Board in condition the Pedestal (Option) is installed in the LCD set. The following write explains how to exchange in condition the Speaker (Option) is installed in the LCD set. 7.2.1. Removal of the Speaker (L, R) (Option) (1) Remove the Speaker cable (L, R). (2) Remove the each of 2 Speaker fixed screws. (3) Remove the Speaker (L, R) 7.2.2. Removal of the Rear Cover (1) Remove the 17 screws (A) of the Rear Cover . Caution: Remove the Handles at that time. (2) Remove the 10 screws (B) of the Rear Cover. (3) Remove the 4 screws (C) of the Pedestal (Option). (4) Remove the Rear Cover . 11 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.3. Exchange of the Z-Board (1) Disconnect the couplers (Z5, Z6, Z7, Z8, Z10, Z30, Z32). (2) Remove the 4 screws of the Z-Board and then remove the Z-Board. 7.2.4. Exchange of the H3-Board (R) (1) Remove the 2 screws of the H3-Board (R) fixed angle. (2) Disconnect the coupler (H37). (3) Remove the 3 screws (D) and then remove the H3-Board (R). (4) Exchange the new H3-Board. 12 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.5. Exchange of the H3-Board (L) (1) Remove the 1 screw of the H3-Board (L) fixed angle. (2) Disconnect the coupler (H37). (3) Remove the 3 screws (E) and then remove the H3-Board (L). (4) Exchange the new H3-Board. 13 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.6. Exchange of the Fan(L), (R) (1) Disconnect the coupler from the Fan Ass’y (L), (R). Fan (L): Coupler Z30 Fan (R): Coupler Z32 (2) Remove the each 3 screws of the Fan Ass’y (L), (R) and then remove the Fan Ass’y (L), (R). (3) Remove the 2 screws (V) of the Installation Plate (B) and then remove the both of the Installation Plate (A) and tthe Installation Plate (B). (4) Remove the 4 Fan rubbers. (5) Exchange the new Fan. Caution when the Fan is installed: Please exchange a new Fan Cushion (B) at the time of Fan exchange. Fan Cushion (B) : TMKG526 14 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.7. Exchange of the P-Board (1) Disconnect the couplers (P3, P5, P9, P10, P25, P27, P34). (2) Remove the 7 screws of the P-Board and then remove the P- Board. (3) Exchange the new P-Board. 7.2.8. Exchange of the V-Board (1) Remove the 2 screws (F) of the Control Button. (2) Disconnect the coupler (V35) and then remove the V-Board and the Control Button. (3) Remove the 2 screws (G) and then remove the V-Board. (4) Exchange the new V-Board. 15 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.9. Exchange of the S-Board (1) Remove the 2 screws (H) of the S-Board. (2) Disconnect the coupler (S34) and then remove the S-Board and the Power Button Bracket. (3) Remove the 2 screws (J) and then remove the S-Board. (4) Exchange the new S-Board. 7.2.10. Exchange of the R-Board (1) Remove the V-Board and the Control Button Bracket. (Refer to Exchange of the V-Board.) (2) Remove the S-Board and the Power Button Bracket. (Refer to Exchange of the S-Board.) (3) Disconnect the coupler (R34) and then remove the R-Board. (4) Exchange the new R-Board. 16 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.11. Removal of the Slot Block (1) Disconnect the couplers (J1, J3, J5, J6, J8, J10). (2) Remove the 4 screws of the Slot Block and then remove the Slot Block. Caution Remove the cable from clamper at that time according to the necessity. 7.2.12. Exchange of the HA-Board (1) Remove the Slot Block. (Refer to Removal of the Slot Block.) (2) Remove the 4 screws (K) of the HA Terminal Block and then pull the HA Terminal Block in the direction of the arrow. (3) Remove the 4 screws (L) of the Shield Plate. (4) Remove the 2 screws (M) of the HA-Board Plate. (5) Exchange the new HA-Board. 17 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.13. Exchange of the HB-Board (1) Remove the Slot Block. (Refer to Removal of the Slot Block.) (2) Remove the 4 screws (N) of the HB Terminal Block and then pull the HB Terminal Block in the direction of the arrow. (3) Remove the 4 screws (P) of the Shield Plate. (4) Remove the 2 screws (R) of the HB-Board Plate. (5) Exchange the new HB-Board. 7.2.14. Exchange of the J-Board (1) Remove the Slot Block. (Refer to Removal of the Slot Block.) (2) Remove the HA Terminal Block. (Refer to Exchange of the HA-Board.) (3) Remove the HB Terminal Block. (Refer to Exchange of the HB-Board.) (4) Remove the 6 screws of the J-Board and then remove the J-Board. (5) Exchange the new J-Board. Caution Take care to connect the coupler (J14) at that time. 18 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.15. Exchange of the HX-Board (1) Remove the Slot Block. (Refer to Removal of the Slot Block.) (2) Remove the HA Terminal Block. (Refer to Exchange of the HA-Board.) (3) Remove the HB Terminal Block. (Refer to Exchange of the HB-Board.) (4) Remove the J-Board. (Refer to Exchange of the J-Board.) (5) Remove the 6 screws of the Slot Case and then remove the Slot Case. (6) Remove the 4 Hexagonal-Head Screws and the 1 screw of the HX-Board and then remove the HX-Board. (7) Exchange the new HX-Board. 19 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.2.16. Exchange of the D-Board (1) Remove the Fan (L). (Refer to Exchange of the Fan (L), (R).) (2) Disconnect the couplers (D1, D3, D5, D20, D24, D25, D27, D34). (3) Remove the 6 screws of the D-Board and then remove the both of the D-Board and the Shield Case. (4) Exchange the new D-Board. 20 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.3. How to exchange the Board in condition the Pedestal (Option) is removed from the LCD set. 7.3.1. Preparation for exchange (1) Spread a soft cloth on the table in order not to damage the LCD screen and then lay the LCD set in the table. 7.3.2. Removal of the Rear Cover (1) Remove the Rear Cover (finished). (Refer to Removal of the Rear Cover (finished). 7.3.3. Removal of the Pedestal(Option) (1) Slide the Pedestal(Option) and remove the Pedestal(Option). 21 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.3.5. Exchange of the PF-Board 7.3.4. Removal of the Reinforcement Angle(L, R) (1) Remove the each of 4 screws of the Reinforcement Angle(L, R) and then remove the Reinforcement Angle(L, R). Caution Remove the cable from clamper at that time according to the necessity. (1) Remove of the 1 screw (S) of the FRP Sheet and then remove the FRP Sheet. (2) Disconnect the couplers (PF1, PF9, PF10). (3) Remove the 2 screws (T) of the AC Inlet and the 1 screw (U) the GND Cable and then remove the AC Inlet. (4) Remove the 5 screws of the PF-Board and then remove the PF- Board. (5) Exchange the new PF-Board. 22 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 7.3.6. Exchange of the LCD Panel (1) (2) (3) Remove the Fan (R). (Refer to Exchange of the Fan (L), (R).) Remove the H3-Board (R). (Refer to Exchange of the H3-Board (R) .) Remove of the 1 screw of the FRP Sheet and then remove the FRP Sheet. (4) Disconnect the coupler (CN001) from the LCD Panel. (5) Disconnect the couplers (D20, D34) from the D-Board. Caution Remove the cable from clamper at that time. (6) Disconnect the coupler (P34) from the P-Board. Caution Remove the cable from clamper at that time. (7) Remove the 8 screws of the Chassis and then remove the Chassis. Caution Remove the cable from the clamper at that time according to the necessity. (8) Remove the 6 screws of the LCD Panel . 23 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS (9) Exchange the LCD Panel from the Escutcheon). 24 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 8 Location of Lead Wiring 25 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 9 Service mode 9.1. CAT (computer Aided Test) mode To exit the CAT mode, access the ID mode and switch off the main power. 9.1.1. IIC mode Select the IIC mode by Up/Down button on the remote control at the front page of CAT mode then press the Action button on the remote control. Subject and item are mentioned on page 29. To exit the IIC mode, press the R button on the remote control. 26 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 9.1.2. CD mode Select the CD mode by Up/Down button on the remote control at the front page of CAT mode then press the Mute button on the remote control more than 5 sec. Micom software version (IC9006), this version can be upgrade by 1. replace of new version IC 2. Loading the new version software from loader tool, TZSC07036. Memory data change To exit the CD mode, press the R button on the remote control. 9.1.3. SD mode Select the SD mode by Up/Down button on the remote control at the front page of CAT mode then press the Action button on the remote control. To exit the SD mode, press the R button on the remote control. 27 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 9.2. IIC mode structure (following items value is sample data.) 28 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 10 Alignment 10.1. PC / RGB / NTSC / PAL / DVI / HD / 525i / 525p / 625i / 625p panel white balance 29 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 30 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 31 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 32 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 11.1.1. Display Indication 1. Self-check is used to automatically check the bus line controlled circuit of the LCD display. 2. To get into the Self-check mode, press the volume down button on the customer controls at the front of the set, at the same time pressing the OFF-TIMER button on the remote control, and the screen will show :- If the CCU ports have been checked and found to be incorrect Or not located then " - - " will appear in place of " OK " 3. If you want to exit this mode, press stand by button on the remote control or press the Main Power on/off switch at the front of the set. 11 Trouble shooting guide 11.1. Self Check 11.1.2. Power LED Blinking timing chart 1. Subject Information of LED Blinking timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinkes of the Power LED on the front panel of the unit. 3. Remarks Above Fan function is operated during the fans are installed. 33 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 11.2. No Power 1. No lit 11.3. No Picture 34 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 12 Option Setting 12.1. How to access and setting 35 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 12.2. Contents of Option Menu This chassis series have special function and operation setting facility called Option Menu. This Option Menu is useful for special function required customers. This should be set at the installation stage. The end user could not set or change them becauseof hidden On screen menu. Option menus default setting Contents Off-timer function Enable Off-timer operation Enable/Disable. On Screen display On Enable/Disable to display input mode indication after power on and no signal indication. Initial INPUT Off Sets the initial input mode when the power is turned on . Allow input mode selection while power is on. Initial VOL. level Off Sets the initial volume level when the power is turned on. Allow Volume control while power is on. Maximum VOL. Level Off Sets the maximum volume to desired level. Volume cannot exceed this level. INPUT lock Off Fixes the input mode to AV, Component/RGB or PC. Can not change input mode by input selection button. Studio W/B Off Bottom operation buttons invalidation. Off: Invalid buttons are null and void. MENU & ENTER: Invalid buttons are only MENU Screen ON/OFF button, Enter/Aspect button. On:Invalid buttons are all buttons. Button lock Off Set warm mode color temperature to 3,200 Kelvin. Remote control User Level Off Remote key invalidation. Off : Valid key are all keys of remote. User1 : Valid key are only Stand-by (ON/OFF), Input, Status, Surround, Sound mute On/Off, and volume adjustment. User2:Valid key is only Stand-by (ON/OFF). User3 : All keys are invalid. ID Select 0 Set ID number from 0 to 100 for Remote ID and Serial ID. Remote ID Off Remote ID function On/Off. (While the Remote ID is on, standard remote function can not control the unit.) Serial ID Off Serial ID function On/Off Slot power Off Sets the slot power mode when the power is turned on. Off: The power isn´t supplied to Optional Terminal Board. Auto: The power is supplied to Optional terminal Board when the power is turnedon. But the power isn´t supplied to the Board at the Stand-by condition. On: The power is supplied to Optional Terminal Board when the power is turned on and stand-by condition. Note : In the case the set can´t be operated, how to set button lock, Remocon User Level and Remote ID off and be able to operate the set. 1. Press down volume Down button at the bottm of the set, at the same time pressing the R button on the remote control for more than 5 seconds. 36 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 13 Circuit Board Layout 13.1. PF-Board A B C D E F G H I 1 2 3 4 5 6 T920 IC930 TP921 TP922 TP923 PF1 TP926 TP927 TP928 TP929 PF9 TP930 TP931 TP932 TP933 RL920 L912 Q930 L930 PC920 R900 R901 R902 R903 R904 R912 R913 R914 R915 R918 R919 R920 R921 R922 R923 R924 R925 R926 R927 R930 R931 R932 R933 R934 R935 R936 R937 R938 R939 C901 C902 C903 C904 R940 C905 R941 C906 R942 C907 C910 C911 C912 C913 C914 C915 C916 C917 C918 LF901 C919 LF902 LF903 C920 C930 C931 ZA902 C932 ZA903 C933 ZA904 ZA905 PF10 D910 D911 D912 D913 D914 D915 D916 D917 D918 IC910 D930 D931 D932 D933 D934 D935 PF 1 TNPA3538 HOT COLD T3.15AL250V COLD LIVE CIRCUIT CAUTION NEUTRAL LIVE LIVE NEUTRAL T5AH250V HOT CAUTION CAUTION T5AH250V S901 S902 F900 F901 F902 PbF V2 V1 P2 PT P1 S2 S1A S1B SEE REVERSE FOR ORDER NO. 1 4 1 4 E B C 1 6 + - 1 6 3 7 5 4 PF PF-BOARD (FOIL SIDE) TXNPF10Q59 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY PF-BOARD TXNPF10Q59 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY PF-BOARD TXNPF10Q59 Parts Location PF-BOARD (FOIL SIDE) IC IC910 E-3 IC930 C-3 TP921 E-3 TP922 E-4 TP923 E-3 TP926 F-4 TP926 F-5 TP927 F-5 TP929 F-4 TP930 F-4 TP931 F-4 TP932 F-4 TP933 F-4 TP Q930 F-4 TRANSISTOR TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 37 13.2. HA-Board A B C D E F G H I 1 2 3 4 5 6 H1 JK001 JK002 IC002 CR NO.3 TNPA2845 Pr Pb Y HA 1 1 2 3 SLOT PbF ORDER NO. B1 B2 A1 A2 A40 A39 B39 B40 L R 8 5 4 1 R030 R031 R032 R033 R034 R035 R036 R037 R038 R039 R040 R041 R042 R043 R044 R045 R046 R047 R048 JS001 JS002 JS003 JS004 JS005 JS006 JS007 JS008 JS009 JS010 JS011 JS012 JS013 JS014 JS015 JS016 H0 H1 L001 L002 L003 L004 L005 L006 L007 JK001 JK002 TP032 TP033 TP034 TP035 TP036 C001 C002 C003 C004 C005 Q001 C006 Q002 C007 C008 C009 C010 C011 C012 C013 C014 C015 C016 C017 C018 C019 C020 C021 C022 C023 C024 D001 C025 D002 C026 D003 D004 R001 R002 R003 R004 R005 R006 R007 R008 R009 IC001 IC002 R010 R011 R012 R013 R014 R015 R016 R017 R018 R019 R020 R021 R022 R023 R024 R025 R026 R027 R028 R029 TNPA2845 CR NO.3 Pb Pr Y R L Y P b Pr HA 1 PbF SEE REVERSE FOR ORDERNO. 1 8 A1 A2 B1 B2 A39 A40 B39 B40 L R NP NP NP 1 8 9 16 1 4 5 8 HA Parts Location HA-BOARD IC IC3001 E-3 IC3002 F-4 TP3032 E-4 TP3033 E-4 TP3034 E-4 TP3035 E-4 TP3036 E-4 TP Q3001 F-2 Q3002 F-2 TRANSISTOR TH-32LHD7BK/BS/EK/ES/UY HA-BOARD TXNHA10RBS TH-32LHD7BK/BS/EK/ES/UY HA-BOARD TXNHA10RBS HA-BOARD (FOIL SIDE) TXNHA10RBS HA-BOARD (COMPONENT SIDE) TXNHA10RBS TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 38 13.3. Z-Board A B C D E F G H I 1 2 3 4 5 6 R2480 R2483 R2487 R2488 R2489 TP2351 TP2352 TP2354 TP2355 TP2356 TP2358 R2490 R2491 R2496 TP2364 R810 R814 R815 R816 Z32A R825 Z33A C802 C803 C805 Q2301 C806 Q2302 Q2303 C808 Q2304 Z34A C809 Q2305 Q2306 C810 C811 C812 C2312 C813 C2313 C814 C2314 C815 C816 C817 C818 C819 C821 C824 D2301 D2302 D2308 R2306 IC2301 R2309 IC2302 Q2330 IC2304 Q2331 Q2333 R2310 Q2334 Q2335 Q2336 R2319 R2325 C2352 C2353 C2354 C2355 C2358 C2359 R2332 C2362 C2363 C2364 D804 C2365 C2366 D806 C2367 D807 C2368 C2369 R2341 R2343 R2345 D810 C2370 D811 C2371 D812 D813 Q2370 D814 Q2371 R2355 R2356 R2357 R2358 R2359 IC801 IC802 IC803 IC804 R2360 R2365 R2366 R2367 R2369 R2370 R2371 R2372 R2373 R2374 R2375 JS2301 Q2406 Q2408 Q2410 C2417 C2419 Z10 C2422 C2423 C2426 C2427 C2429 R2408 C2430 IC2401 C2437 C2438 Z30 C2440 Z31 C2441 Z32 Z33 Z34 L2305 L2306 C2450 C2451 C2454 C2457 Q801 C2459 Q802 Q803 R2434 Q804 Q805 R2438 R2439 C2465 TP2305 C2466 C2467 TP2307 R2440 R2441 R2442 L801 R2445 L802 L803 L804 L805 L2330 C2474 L2331 C2484 TP2327 R2461 R2462 R2464 TP2330 R2469 TP2331 TP2332 Z5 TP2339 Z6 R2472 Z7 R2473 Z8 Z9 TNPA3198 1 Z ZMM1 ZMM2 DIP ZMM3 ZA003 ZA002 ZA001 PbF 94V-0 1 4 1 4 1 4 14 28 15 1 14 28 15 1 B C E ORDER NO. B C E 1 3 4 5 2 1 3 4 5 2 1 8 9 16 1 3 4 5 2 1 5 32 17 16 1 1 3 1 3 1 3 1 3 1 3 1 11 1 4 1 3 1 2 19 20 1 8 TP2340 TP2341 TP2342 TP2343 TP2344 TP2345 TP2346 TP2347 TP2348 TP2349 R2481 R2482 R2484 R2485 R2486 TP2350 TP2353 TP2357 TP2359 R2492 R803 R2493 R2494 R805 R2495 R806 R807 R808 R809 TP2362 TP2363 TP2365 TP2366 TP2367 TP2368 R811 TP2369 R812 R813 R817 R818 TP2370 R819 TP2371 TP2372 R820 R821 TP2379 R822 R823 R824 Z32A R826 R827 R828 R829 R830 R831 Z33A C802 C803 C805 C806 C807 C808 Z34A C809 C810 C811 C812 C813 C2313 C814 C2314 C815 C2315 C816 C817 C818 C819 C821 C823 C824 R2301 R2304 R2305 R2307 R2308 IC2301 IC2302 Q2330 Q2331 D2317 R2320 R2321 R2324 C2350 C2351 C2352 C2353 C2354 C2355 C2356 C2357 C2358 C2359 R2331 R2333 C2360 C2361 C2362 D802 C2363 D803 C2364 C2365 C2366 C2367 D808 C2368 C2369 R2346 R2347 R2348 C2370 C2371 R2350 R2351 R2352 R2353 R2354 R2355 R2356 R2357 R2358 R2359 IC801 IC802 IC804 R2360 R2365 R2366 R2368 R2374 R2375 R2376 R2377 R2378 R2379 R2380 R2381 R2382 C2419 Z10 C2427 C2429 C2431 IC2401 C2432 C2433 C2434 C2435 C2436 C2437 R2410 C2438 Z30 Z31 Z32 C2442 Z33 Z34 C2450 C2451 C2452 C2453 C2454 C2456 C2457 C2458 R2431 C2460 C2461 TP2301 C2462 TP2302 C2463 TP2303 C2464 TP2304 TP2308 TP2309 R2447 L804 R2448 L805 TP091 R2449 TP092 TP093 TP094 L2330 L2331 R2450 R2452 R2453 R2456 R2457 C2480 TP2328 R2460 R2463 R2466 R2467 R2468 TP2333 TP2334 TP2335 TP2336 TP2337 R2470 TP2338 R2471 Z6 Z7 R2476 R2477 TNPA3198 1 Z ZA001 ZA003 ZA002 PbF 94V-0 1 4 1 4 1 4 28 14 15 1 28 14 15 1 SEE REVERSE FOR ORDER NO. E C B E C B 1 5 2 4 3 1 5 2 4 3 1 5 2 4 3 1 5 1 16 17 32 1 3 1 3 1 3 1 3 1 3 1 4 1 3 Parts Location Z-BOARD (COMPONENT SIDE) IC IC801 G-2 IC802 G-2 IC803 H-1 IC804 H-3 IC2301 G-3 IC2302 F-4 IC2304 G-2 IC2401 G-2 Q2303 F-3 Q2304 E-3 Q2305 F-3 Q2306 F-3 Q2330 G-3 Q2331 F-4 Q2333 G-3 Q2334 G-3 Q2335 H-3 Q2336 H-3 Q2370 H-3 Q2371 H-2 Q2406 F-2 Q2408 E-2 Q2410 F-2 Q801 H-3 Q802 H-4 Q803 G-4 Q804 G-4 Q805 G-4 Q2301 F-2 Q2302 F-3 TRANSISTOR TP2331 F-2 TP2332 F-2 TP2339 F-3 TP2351 F-2 TP2354 F-2 TP2355 F-3 TP2364 E-3 TP Parts Location Z-BOARD (FOIL SIDE) IC IC802 B-3 IC804 A-3 IC2301 B-3 IC2302 C-4 IC2401 C-3 TP2303 D-2 TP2304 D-2 TP2308 D-2 TP2309 C-2 TP2328 B-2 TP2333 D-2 TP2334 C-3 TP2335 D-3 TP2336 D-2 TP2337 C-2 TP2338 C-2 TP2340 C-2 TP2341 C-2 TP2342 C-3 TP2343 C-3 TP2344 C-2 TP2345 C-3 TP TP091 B-3 TP092 B-3 TP093 C-4 TP094 C-4 TP2301 D-2 TP2302 D-2 TP Q2330 B-4 Q2331 D-4 TP2346 C-2 TP2347 C-3 TP2348 C-2 TP2349 C-2 TP2350 D-3 TP2353 D-3 TP2357 C-2 TP2359 D-3 TP2362 D-2 TP2363 D-2 TP2365 D-2 TP2366 C-3 TP2367 C-3 TP2368 C-3 TP2369 C-3 TP2370 C-3 TP2371 B-3 TP2372 C-3 TP2379 D-3 TRANSISTOR Z TRANSISTOR TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY Z-BOARD TNPA3198 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY Z-BOARD TNPA3198 Z-BOARD (FOIL SIDE) TNPA3198 Z-BOARD (COMPONENT SIDE) TNPA3198 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 39 13.4. HX-Board A B C D E F G H I 1 2 3 4 5 6 JK509 JK511 JK513 CR NO.3 TNPA2842 HX 1 PbF 1 5 6 9 1 5 6 10 11 15 SEE REVERSE FOR ORDER NO. L507 L508 L509 L510 L511 L512 L513 L514 L515 L516 L517 L526 R653 R654 R655 R656 R663 R664 R668 L555 R672 JK509 JK511 JK513 C523 C524 D501 D502 D503 D504 D505 D506 D507 D508 D509 R508 R509 IC502 D510 Q531 Q532 Q533 R510 Q534 R511 Q535 Q536 Q537 R526 R527 R528 C550 R529 C551 R530 R537 R538 C561 C562 C563 C564 C565 C566 C567 R547 R548 R776 R777 R778 R585 R586 R589 R780 R781 R782 R783 R590 R784 R591 R785 R592 R786 R593 R787 R788 R789 R790 HX1 R791 R792 R794 C404 C405 C409 R400 TNPA2842 CR NO.3 A B B C C 1 D D E E A HX PbF 1 5 6 9 1 5 ORDER NO. 1 4 5 8 1 11 12 22 Parts Location HX-BOARD IC IC3502 E-4 Q3531 D-4 Q3532 D-4 Q3533 E-4 Q3534 E-4 Q3535 E-4 Q3536 E-4 Q3537 F-4 TRANSISTOR HX HX-BOARD (FOIL SIDE) TZTNP010Q60 HX-BOARD (COMPONENT SIDE) TZTNP010Q60 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY HX-BOARD TZTNP010Q60 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY HX-BOARD TZTNP010Q60 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 40 13.5. R, S, H3 and V-Board A B C D E F G H I 1 2 3 4 5 6 TNPA3536 1 SW061 S34 S C1510 C1511 R1510 R1511 R1512 R1513 R1514 SW1550 SW1551 SW1552 SW1553 SW1554 V35 TV/VTR F STR VOL.UP TNPA3535 1 VOL.DOWN V R500 C530 C531 C532 C533 C534 Q540 D550 D551 D552 D553 R550 D554 R551 R552 R553 R554 R555 R556 R560 SN550 R34 RM001 1 ORDER R CR No.1 A A B B TNPA3537 NO. PbF PbF PbF 1 3 ORDER NO. ORDER NO. 1 3 1 7 JK8500 H37 C8001 C8002 L8501 L8502 TNPA3003 H3 1 SEE REVERSE FOR ORDERNO. 1 3 TNPA3536 1 SEE REVERSE FOR ORDER NO. SW061 S34 S SW1550 SW1551 SW1552 SW1553 SW1554 1 TNPA3535 V SN1550 RM001 TNPA3537 1 SEE REVERSE FOR ORDER NO. R PbF PbF PbF 1 3 SEE REVERSE FOR ORDER NO. V R S H3 H3 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY V-BOARD TNPA3535 S-BOARD TNPA3536 H3-BOARD TNPA3003AB R-BOARD TNPA3537 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY V-BOARD TNPA3535 S-BOARD TNPA3536 H3-BOARD TNPA3003AB R-BOARD TNPA3537 V-BOARD (FOIL SIDE) TNPA3535 V-BOARD (COMPONENT SIDE) TNPA3535 S-BOARD (FOIL SIDE) TNPA3536 S-BOARD (COMPONENT SIDE) TNPA3536 R-BOARD (FOIL SIDE) TNPA3537 R-BOARD (COMPONENT SIDE) TNPA3537 H3-BOARD TNPA3003AB TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 41 13.6. HB-Board A B C D E F G H I 1 2 3 4 5 6 R031 R033 R034 R035 R036 L303 C253 C254 R038 C255 L305 L306 C256 L307 C257 L308 C258 C259 C260 C261 C262 C263 C264 R048 R049 C265 C266 R251 R252 R253 R254 R061 R255 R062 R064 R065 TS100 TS101 TS102 TS301 TS302 TS303 IC699 C102 C103 C104 C105 C106 C107 C108 C301 C110 C111 C113 C308 C114 C309 C116 C117 C118 C311 C313 H0 H1 C122 C316 C123 C317 C318 C124 C125 C319 C126 C127 C128 C129 C320 C321 C322 C323 C324 C130 C325 C131 D301 C132 C326 D302 IC103 C133 C327 D303 R300 C328 IC104 D304 R301 C329 C138 C139 R305 R112 R113 C330 IC301 IC302 R116 IC304 C141 IC305 C142 C143 C144 L001 C145 L002 C146 L003 C147 C148 L004 R121 R122 L006 R123 R124 L201 C155 C156 C157 C158 C159 R137 C160 R138 C161 R139 C163 C164 C165 C166 R142 R143 R337 R144 R338 R145 R146 R148 R149 C179 R154 R155 R158 R159 C182 C183 C184 C185 C186 C187 R160 C188 R161 R162 R166 R167 R168 L051 L052 R174 R175 JK001 R176 JK002 JK004 JK005 L251 L252 R181 R182 R183 R184 R185 R189 R194 R195 JS301 JS302 JS303 JS308 JS309 C002 C003 C004 C005 Q001 C007 Q003 C008 Q005 C009 X101 C010 C011 C012 C207 C013 C014 C018 C019 C020 C215 C216 C217 C023 C218 C024 D001 C219 Q023 R001 R002 R005 IC001 IC002 IC003 R010 R011 R014 R208 R015 R016 R018 R019 R021 R022 R023 R024 R025 R028 C051 R029 C052 L102 L103 L104 L105 L106 TNPA2844 2 CR No.3 HV GND VD HD G B R HB R031 R033 R034 R036 L303 C253 C254 R038 L305 L306 L307 C257 L308 C258 C261 R048 R049 C265 C266 R252 R254 R061 R255 R062 R065 TS100 TS101 TS102 TS301 TS303 C102 C106 C301 C110 C111 C113 C308 C114 C309 C116 C117 C118 C313 H1 C122 C316 C123 C317 C318 C124 C125 C319 C126 C127 C320 C321 C322 C323 C324 C130 IC101 C131 IC102 C326 C327 C328 IC104 C329 IC105 C138 C139 R305 C330 IC303 C141 C143 C145 C146 C147 C148 L004 R121 L006 R123 R124 L201 C157 R137 R138 R139 C163 R142 R143 R337 R338 R145 R146 R148 R149 R154 R155 C183 C184 C185 C186 R160 C188 R162 R166 L051 L052 JK005 L252 R183 R184 R185 R189 R194 R195 JS301 JS302 JS303 JS308 JS309 C004 Q001 C007 Q003 X101 C010 C207 C018 C019 C215 C216 C217 C218 C024 D001 C219 Q023 R001 R014 R208 R015 R018 R019 R021 R022 R023 R025 R028 C051 R029 C052 L102 L103 L104 L106 TNPA2844 CR No.3 VD HD B 94V-0 PbF 94V-0 SEE REVERSE FOR ORDER NO. 1 4 5 8 1 8 A1 A2 B1 B2 A39 A40 B39 B40 1 5 1 64 65 128 129 192 193 256 1 3 4 5 1 4 5 8 1 2 3 4 1 5 1 3 2 5 1 4 5 8 1 8 9 16 1 6 7 12 C Y L R GR B R NP NP NP NP 1 4 5 8 1 3 4 5 1 3 4 5 SEE REVERSE FOR ORDER NO. 1 4 5 8 1 8 A1 A2 B1 B2 A39 A40 B39 B40 1 1 64 65 128 129 192 193 256 1 3 4 5 1 4 5 8 1 2 3 4 1 5 1 3 2 5 1 4 5 8 1 8 9 16 1 6 7 12 L R GR B R NP NP NP 1 4 5 8 1 3 4 5 1 3 4 5 R030 R3419 R032 C251 C252 R037 R3420 R039 R040 R041 R042 R043 R044 R045 R046 R047 R050 R051 R052 R053 R054 R055 R056 R057 R058 R059 R060 R063 IC251 Q101 Q102 Q104 C109 C112 C115 C119 C120 C121 H1 R101 R102 R104 R106 R107 R108 C134 C135 C136 R302 R303 C137 R304 R307 R114 R308 R115 R309 R117 R118 C140 R119 R310 R311 R312 R313 R314 R120 R315 L005 C149 L007 R319 R125 R126 R127 C150 R128 C151 R129 C152 C153 C154 R130 R131 R132 R133 R134 R135 R136 C162 C167 C168 R140 C169 R141 C170 C171 C172 C173 C174 C175 C176 C177 C178 R151 R152 R153 R156 R157 C180 C181 R163 R164 R165 R169 R170 R171 R172 R173 JK001 JK002 R177 R178 JK004 R179 JK005 R180 R188 R192 R193 JS304 JS305 JS306 JS310 C001 C006 Q002 Q004 Q006 Q007 C202 C203 C204 C205 C206 C208 C209 C015 C016 C017 C210 C211 C212 C213 C214 C021 C022 D002 R003 R004 R006 R007 R008 R009 R012 R013 IC201 R017 R020 R026 R027 C053 C054 C055 Q051 C056 Q052 CR No.3 TNPA2844 2 HV 1 2 3 SLOT HB R030 R3419 R032 R037 R3420 R039 R040 R041 R042 R043 R044 R045 R046 R047 R050 R051 R052 R053 R054 R055 R056 R057 R058 R059 R060 R063 IC251 Q101 Q102 Q104 R101 R102 R104 R106 R107 R108 R302 R303 R304 R307 R308 R115 R309 R117 R119 R313 R314 R315 L005 L007 R319 R125 R129 R131 R136 R140 R141 JK001 JK002 JK004 JK005 R192 R193 JS304 JS306 JS310 C001 C006 Q002 Q004 Q006 Q007 C202 C203 C204 C205 C206 C208 C209 C015 C016 C017 C210 C211 C212 C213 C214 C021 C022 D002 R003 R004 R006 R007 R008 R009 R012 R013 IC201 R017 R020 R026 R027 C053 C054 C055 Q051 C056 Q052 CR No.3 1 2 3 SLOT 94V-0 PbF 94V-0 1 28 29 56 ORDER NO. B1 B2 A1 A2 A40 A39 B39 B40 C Y L R GR B R 1 35 36 70 1 28 29 56 B1 B2 A1 A2 C Y L R GR B R 1 35 36 70 Parts Location HB-BOARD IC IC3001 E-2 IC3002 D-2 IC3003 E-2 IC3101 D-3 IC3102 E-2 IC3103 F-3 IC3104 E-2 IC3105 F-2 IC3201 B-3 IC3251 B-4 IC3301 F-3 IC3302 D-4 IC3303 G-3 IC3304 F-2 IC3305 F-2 IC3699 F-2 TS3100 G-4 TS3101 G-4 TS3102 G-4 TS3301 E-4 TS3302 E-4 TS3303 E-4 TP Q3001 E-2 Q3002 B-2 Q3003 E-2 Q3004 C-2 Q3005 D-2 Q3006 B-2 Q3007 C-2 Q3023 D-2 Q3051 B-2 Q3052 B-2 Q3101 B-2 Q3102 C-2 Q3104 B-2 TRANSISTOR HB TH-32LHD7BK/BS/EK/ES/UY HB-BOARD TXNHB10QXS TH-32LHD7BK/BS/EK/ES/UY HB-BOARD TXNHB10QXS HB-BOARD (FOIL SIDE) TXNHB10QXS HB-BOARD (COMPONENT SIDE) TXNHB10QXS TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 42 13.7. J-Board A B C D E F G H I 1 2 3 4 5 6 J11 J12 J14 C8184 C8185 C8186 IC8003 IC8004 1 J 1 2 3 TNPA3246 R8046 R8049 C8072 C8073 R3230 R8051 R3231 R8058 C8080 R8059 R8062 R8065 R3051 R3052 R3053 R8067 R8068 R8070 D3061 R8073 R8074 R3061 R3062 R8077 R3063 R8078 R3260 R8081 R3261 R8082 R3262 R8083 R8084 R8087 R8088 R8093 R8094 C8113 C3101 C3103 C3110 C3114 C3116 C3119 C3126 R3101 C3129 R3102 R3103 R8117 R3104 R8118 R3105 R3106 R3109 R3110 R3111 R3112 R3113 R3118 JS8094 JS8095 JS8096 JS8097 R3140 R3141 R3145 R3146 R3160 R3161 R8181 R8182 R3188 R3189 R3190 R3195 R3196 R3197 R3198 R3199 C8005 C8006 C8007 C8008 C8009 C8010 C8011 C8012 C8013 C8014 C8019 C3005 Q3002 C3006 Q3003 C8020 C8025 D8001 C3012 C8026 D8002 D8003 C3013 C3014 D8004 C8028 C3015 C3016 C3017 D3001 R8014 R8015 R8016 R3002 R3003 R8019 R3005 C8042 R3006 C8043 R3009 C8046 C8047 R3200 R8020 C8049 R3201 R8021 R3202 R8022 R3203 R8023 R3204 R8024 R3010 R8025 R3011 R8026 R3012 R8027 R3013 R8028 R3014 R8029 C3041 R8030 R8031 D3022 R8032 D3023 R8033 R8034 R3022 R3025 C8064 C8066 PbF SEE REVERSE FOR ORDER NO. A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 1 11 12 22 1 10 11 20 1 10 11 20 Parts Location J-BOARD (FOIL SIDE) IC IC8003 F-1 IC8004 G-2 Q3002 B-3 Q3003 B-2 TRANSISTOR J TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY J-BOARD TNPA3246AC TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY J-BOARD TNPA3246AC J-BOARD (FOIL SIDE) TNPA3246AC TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 43 A B C D E F G H I 1 2 3 4 5 6 J1 J3 J5 J6 J8 J10 J11 J12 J14 TNPA3246 A A B B 1 J ZA3001 ZA3004 ZA3002 ZA3003 ZA3007 ZA3008 R8044 R3030 R8045 R3031 R3032 R8047 R3033 C8070 R8048 R3034 C8071 R3035 R3036 R3037 R3038 R3039 R8050 R8052 R8053 R8054 R3040 R8055 R3041 R8056 R3042 R8057 R3043 R3044 R3045 C8081 R3046 C8082 R3047 C8083 R3048 C8084 R3049 C3266 C3267 R8060 C3268 R8061 R8063 R8064 X8181 R8066 R3054 R3055 R8069 R3056 R3057 R3058 R8071 R8072 R3060 R8075 R8076 R3064 R8079 R3065 R3066 FL3000 FL3002 FL3003 FL3004 R8080 FL3005 FL3006 FL3007 FL3008 R3070 FL3009 R3071 R3072 R8089 R3076 R3077 FL3010 R3078 TPJV1 R3079 TPJV2 R8090 R8091 R8092 R3080 R8095 R3081 R8096 R3082 R8097 R3083 R8098 R3084 R8099 R3085 R3086 R3087 R3088 R3089 R3090 R3091 R3092 R3093 R3094 R3095 L8181 R3096 R3097 R3098 R3099 C8100 C8101 C8102 C8103 C8104 C8105 C8106 C8107 C8108 C8109 C8110 C8111 C8112 C8114 C8115 C8116 C3102 C8117 C8118 C3104 C8119 Q3101 C3105 Q3102 C3106 Q3103 C3107 Q3104 C3108 Q3105 C3109 Q3106 C8120 C8121 C8122 C8123 C3111 C3112 C3113 R8100 R8101 C3115 R8102 R8103 C3117 R8104 C3118 R8105 R8106 R8107 R8108 IC8101 R8109 C3120 C3121 C3122 C3123 R8110 C3124 R8111 C3125 R8112 R8113 C3127 R3100 R8114 C3128 R8115 R8116 R3107 R3108 C3130 L8001 IC3101 IC3102 L8003 L8004 C3134 L8005 C3135 C3136 IC3108 R8124 IC3109 R8125 R8126 R8127 R8128 R3114 R3115 R3116 R3117 C3141 R3119 C3142 C3143 C3144 L3002 L3003 R3120 L3005 R3121 L3006 R3122 R3123 R3124 R3126 R3127 R3128 C3150 R3129 R3130 R3131 R3132 R3133 C8181 C8182 C8183 C8184 Q8181 C8185 Q8182 C8186 R3150 R3151 IC3150 R3162 R3163 FL3100 D8180 L3050 R8183 R8184 R3170 R8185 R8186 R3172 R8187 R8188 IC8181 TPJH1 TPJH2 R3191 R3192 R3193 R3194 C8001 C8003 C8004 Q8001 Q8002 C8200 C8201 Q8200 Q8201 Q8202 Q8203 Q8010 Q8204 Q8011 C8015 C3001 Q8012 C8016 C3002 Q8013 C8017 C8018 Q8014 C3004 Q3001 Q8015 Q8016 Q8017 C3007 Q3004 Q8018 C3008 Q8019 C3009 C3200 C8021 C8022 C8023 C8024 C3010 Q8020 Q8021 C3011 C8027 Q8023 Q8024 C8029 R8001 Q8025 Q8026 R8003 C3018 R8004 C3019 R8005 R8007 D8200 IC8000 C8030 R8008 D8201 IC8001 C8031 C8032 IC8002 D8203 C8033 IC8003 D8204 R8200 D8010 C3020 C8034 IC8004 R8201 D8011 C8035 C3021 IC8005 R8202 C3022 C8036 R8203 IC8007 C8037 R8204 IC8008 R8010 C8038 R8205 IC8009 R8011 C8039 R8206 R8012 C3026 C3027 D3003 R8207 C3028 R8208 R3001 C3029 D3005 R8209 D3007 R8017 D3008 C8040 R3004 R8018 C8041 R3007 R3008 C8044 C3030 IC8014 C8045 C3031 IC3001 C3032 IC8016 IC3002 IC3003 IC3004 IC3005 IC3006 IC3007 IC8020 C8050 IC8021 C8051 R3015 R3017 C3040 R3018 R3210 R3211 D3021 R3212 R3213 D3024 R3214 R3020 R3215 R8035 R3021 R3216 R8036 R3217 R8037 R3023 R3218 R8038 R3024 R3219 R8039 R3026 R3027 R3028 C8065 R3029 C8067 R8040 R8041 R8042 R8043 ORDER NO. 1 14 15 28 7 8 21 22 1 14 15 28 7 8 21 22 1 2 19 20 1 2 29 30 1 31 1 21 1 2 19 20 1 6 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 1 11 12 22 1 4 5 8 1 8 9 16 1 8 9 16 20 11 10 1 20 11 10 1 1 7 8 14 1 4 5 8 1 4 5 8 1 4 5 8 NP 1 10 11 20 NP 1 8 9 16 1 8 9 16 1 7 8 14 1 8 9 16 1 8 9 16 1 19 20 32 33 51 52 64 1 8 9 16 1 4 5 8 Parts Location J-BOARD (COMPONENT SIDE) IC IC3001 G-3 IC3002 E-3 IC3003 E-1 IC3004 F-3 IC3005 E-3 IC3006 E-1 IC3007 E-3 IC3101 C-2 IC3102 A-2 IC3108 A-2 IC3109 B-2 IC3150 C-4 IC8000 H-3 IC8001 C-1 IC8002 B-1 IC8003 B-2 IC8004 A-2 IC8005 A-2 IC8007 D-1 IC8008 B-3 IC8009 C-2 IC8014 G-2 IC8016 F-1 IC8020 B-3 IC8021 A-2 IC8101 G-3 IC8181 G-2 Q8012 E-2 Q8013 D-1 Q8014 C-3 Q8015 C-3 Q8016 B-2 Q8017 A-3 Q8018 C-3 Q8019 D-3 Q8020 F-2 Q8021 F-1 Q8023 F-1 Q8024 F-1 Q8025 F-1 Q8026 F-1 Q8181 F-3 Q8182 F-2 Q8200 F-2 Q8201 F-3 Q8202 F-3 Q8203 G-4 Q8204 G-4 Q3001 C-4 Q3004 A-4 Q3101 E-2 Q3102 D-2 Q3103 D-2 Q3104 D-2 Q3105 D-2 Q3106 D-2 Q8001 B-2 Q8002 C-3 Q8010 E-2 Q8011 D-2 TRANSISTOR TPJH1 A-2 TPJH2 A-3 TPJV1 A-2 TPJV2 A-2 TRANSISTOR J TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY J-BOARD TNPA3246AC TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY J-BOARD TNPA3246AC J-BOARD (COMPONENT SIDE) TNPA3246AC TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 44 13.8. D-Board A B C D E F G H I 1 2 3 4 5 6 C200 Q009 C201 C202 C203 C010 C204 C011 C205 C012 Q010 Q011 Q012 Q013 C017 C019 Q017 Q018 Q019 C213 C408 C214 C409 Q405 C215 Q406 C216 C217 C023 Q407 C218 Q408 D9000 Q409 C219 D001 D002 C027 D003 D004 R9000 C029 D005 R001 D006 R002 R003 D008 Q410 C220 C221 R005 D009 C222 R006 C223 IC9000 D200 R008 C030 C224 C225 R009 D202 C032 C226 C227 C228 IC004 D204 C035 IC005 D011 R201 C229 R202 D012 R203 IC007 R010 D014 C038 D015 C039 R011 R012 D016 R013 C424 C230 R014 IC201 R015 C231 C426 C232 IC202 R016 C427 R017 C233 C040 IC204 C234 R401 IC205 C041 R402 IC206 C042 R403 C237 IC207 C238 D020 R405 R211 D021 C239 R406 C046 R407 D023 C047 R408 R214 D024 C431 R409 R021 R215 C432 R022 R216 R023 R217 D410 IC210 R600 TP100 C240 R218 R024 R601 D411 C241 R219 TP101 D412 TP102 R026 D413 R027 TP103 C243 R410 TP104 C244 IC214 C050 R028 R411 R605 TP105 C051 R412 C052 TP106 R413 R607 C247 TP107 TP108 R220 R609 TP109 C249 R221 R222 R223 IC410 R030 R224 IC411 C441 R225 R031 R032 R033 R803 C443 C250 R228 TP110 IC414 R611 TP111 C251 R229 IC415 C445 TP112 C252 IC416 C446 R613 C253 TP113 TP114 R615 C255 TP115 Q251 R422 TP116 R423 R617 TP117 R424 Q254 TP118 R619 R231 TP119 R425 R426 R232 R427 R233 R810 R234 R235 R236 R238 TP120 R621 R045 TP121 TP122 R816 R623 C263 TP123 R817 C264 R048 TP124 R625 R627 R629 R439 R051 R052 R822 R053 R631 R056 R633 R440 C850 R635 C275 D251 C276 TP136 R442 R637 TP137 C277 TP138 R639 TP139 C855 R060 R061 R256 R062 R257 R063 C280 TP140 R064 R641 R065 TP141 TP142 R066 R643 R067 TP143 C284 R068 TP144 FL9000 R069 R645 TP145 TP146 TP147 R647 TP148 TP149 R261 R262 R263 R458 R840 R264 R841 R265 R072 R073 TP150 C290 FL200 R268 R074 TP151 C291 FL201 TP152 FL202 TP153 FL203 TP154 C294 FL204 R460 R655 FL205 TP155 R461 FL206 C296 TP156 TP157 R463 C297 R657 C873 TP158 R464 C874 TP159 R465 R271 R659 C875 C299 C876 C877 C878 C879 R276 R082 R277 TP160 FL404 TP161 R661 R085 R855 TP162 R086 R856 TP163 R663 R087 R470 C880 IC850 R088 R665 R089 C881 C882 R667 C883 D860 C884 R280 R669 C885 R282 C886 R283 R285 R862 R287 R093 R863 R864 R094 R671 R865 R673 R097 R867 R868 IC861 R675 R099 R677 C894 IC864 R679 IC865 C895 R292 IC867 R293 IC868 R296 R298 R681 R299 R683 R685 R687 R494 R689 R495 R496 R497 R880 R498 R499 R881 R883 R884 R691 R885 R693 R695 R697 R699 R891 R892 R894 R895 R897 R898 R899 FL850 FL851 C307 Q305 Q306 Q307 C503 C504 C505 C506 C507 C508 FL860 C509 FL861 FL862 C510 R100 C511 R101 C512 C513 C514 R104 C515 R105 C516 R106 C517 C518 C519 Q901 R301 C905 R302 C906 R303 C907 C520 C908 C521 R111 C909 R306 C522 R112 R307 C523 C524 R309 C525 C526 R116 C527 C528 R500 C910 C529 TP001 R501 C911 TP002 R502 C912 TP003 C913 C914 C915 TP006 R312 TP007 C917 R507 R313 TP008 C530 C918 R314 R508 TP009 C531 R315 C532 R316 C533 R317 C534 R318 R124 R701 C535 R319 R125 C536 R703 C537 R127 C538 TP010 C539 TP011 R705 TP012 C922 C923 R707 TP013 TP014 R320 R709 R515 TP015 C925 TP016 C926 C927 C540 C928 R130 C541 R325 C929 R131 C542 C543 R327 R133 C544 R711 C545 C546 R136 R906 C547 R713 R907 R137 TP020 C548 Q350 R138 C549 R715 R139 Q351 C931 R717 R718 C551 R141 R911 R142 R912 R336 R143 R913 R720 C361 R146 R916 R147 R917 Q360 R148 Q361 TP031 R919 R149 C365 TP032 TP033 TP034 R535 TP035 R536 TP036 TP037 R538 TP038 R150 R920 R539 TP039 R921 R151 C562 R346 R922 R347 R923 R153 C564 R154 R731 R155 C371 C566 R732 R156 C567 R733 R157 R734 R540 C568 TP040 R158 C374 R735 TP041 R159 R542 TP042 R543 TP043 TP044 R350 TP045 R351 R546 TP046 R352 R547 TP047 R548 C570 R930 R160 TP048 R931 R549 R161 TP049 R162 R163 R164 R165 R935 R166 R936 R167 R550 TP050 R938 R168 R939 R551 R169 TP051 R552 TP052 R553 TP053 TP054 R749 TP055 R556 TP056 R557 R558 R170 R940 R559 R171 R941 C199 R942 R172 R174 R751 R175 R176 R753 R177 R560 R179 R755 R562 TP062 R563 R757 R564 R565 R567 R950 R180 R569 R181 R182 R953 FL503 R954 R184 R955 R185 R957 R187 R958 R570 R188 R189 R572 TP073 R574 TP074 R575 TP075 R382 TP076 R577 TP077 R578 TP078 R579 TP079 R388 R195 R197 TP080 R582 TP082 TP083 TP084 R585 TP085 R586 TP086 R587 TP087 TP088 R971 R589 TP089 R972 R973 R974 R975 R976 R590 TP090 R591 TP091 R979 TP092 R593 TP093 R594 TP094 TP095 R596 TP096 R597 TP097 R980 TP098 R599 TP099 R987 R988 R795 R796 R797 R798 R990 R991 R992 R994 R995 R996 R997 R998 R999 C9000 C001 Q9000 Q002 Q003 C007 Q004 C008 C009 Q006 CR NO.9 TNPA3602 1 D 1 2 3 ORDER NO. IC004 PbF 1 11 20 10 1 4 5 8 1 3 4 5 1 3 4 5 1 28 29 56 1 3 4 5 1 3 4 5 1 4 5 8 1 4 5 1 3 5 1 7 1 5 1 7 8 14 1 7 8 14 1 8 9 16 1 7 8 14 1 3 4 5 SEE REVERSE FOR ORDER NO. 1 10 11 20 1 28 29 56 1 3 4 5 1 4 5 8 1 3 4 5 1 3 4 5 D TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY D-BOARD TZTNP010Q61 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY D-BOARD TZTNP010Q61 D-BOARD (FOIL SIDE) TZTNP010Q61 Parts Location D-BOARD (FOIL SIDE) IC IC9000 E-4 IC9004 D-5 IC9005 E-5 IC9007 E-5 IC9201 D-2 IC9202 E-2 IC9204 D-2 IC9205 D-2 IC9206 C-1 IC9207 C-1 IC9210 B-3 IC9214 E-2 IC9410 B-5 IC9411 B-5 IC9414 C-5 IC9415 C-5 IC9416 C-5 IC9850 D-1 IC9861 D-3 IC9864 D-3 IC9865 D-3 IC9867 C-2 IC9868 C-2 Q9000 F-2 Q9002 F-2 Q9003 E-5 Q9004 E-5 Q9005 E-5 Q9009 E-5 Q9010 D-4 Q9011 D-4 Q9012 D-4 Q9013 D-4 Q9017 E-4 Q9018 E-4 Q9019 E-5 Q9254 E-2 Q9305 D-5 Q9306 D-5 Q9307 D-5 Q9350 D-5 Q9351 D-5 Q9360 D-5 Q9361 C-5 TP051 E-3 TP052 E-3 TP053 E-3 TP054 E-3 TP055 E-3 TP056 E-3 TP062 E-1 TP073 A-1 TP074 A-1 TP075 A-1 TP076 A-1 TP077 A-1 TP078 A-1 TP079 B-1 TP080 A-1 TP082 E-1 TP083 E-3 TP084 E-3 TP085 E-3 TP086 E-3 TP087 E-3 TP088 E-3 TP089 E-3 TP090 E-3 TP091 E-3 TP092 E-3 TP092 E-3 TP093 E-3 TP094 E-3 TP096 E-3 TP096 E-3 TP097 E-3 TP098 E-3 TP099 E-4 TP100 E-4 TP101 E-3 TP102 E-4 TP103 E-2 TP104 B-5 TP105 D-4 TP106 D-4 TP107 D-4 TP108 D-4 TP109 D-4 TP110 D-4 TP111 D-4 TP112 D-3 TP113 D-4 Q9405 A-1 Q9406 A-2 Q9407 E-3 Q9408 E-3 Q9409 F-2 Q9410 F-2 Q9251 E-2 Q9901 B-5 TP001 B-3 TP002 B-3 TP003 A-3 TP006 B-3 TP007 A-3 TP008 B-3 TP009 A-3 TP010 A-3 TP011 A-3 TP012 A-2 TP013 A-3 TP014 A-3 TP015 A-3 TP016 A-2 TP020 B-3 TP031 B-5 TP032 E-3 TP032 E-3 TP033 E-4 TP034 E-3 TP034 E-3 TP035 E-3 TP035 E-3 TP036 E-3 TP037 E-3 TP038 E-2 TP039 B-6 TP040 C-5 TP041 B-5 TP042 C-5 TP043 C-5 TP044 C-5 TP045 C-5 TP046 C-5 TP047 E-1 TP048 E-3 TP049 E-1 TP050 E-3 TRANSISTOR TP114 D-3 TP115 D-3 TP116 D-3 TP117 D-4 TP118 D-3 TP119 D-4 TP120 D-4 TP122 D-4 TP123 D-4 TP124 D-4 TP136 B-5 TP137 B-5 TP138 B-5 TP139 B-5 TP140 B-5 TP141 E-5 TP142 E-4 TP143 D-4 TP144 D-3 TP145 E-3 TP146 D-1 TP147 C-1 TP148 B-2 TP149 A-1 TP150 A-3 TP151 B-4 TP152 B-5 TP153 C-5 TP154 C-5 TP155 D-5 TP156 E-6 TP157 E-3 TP158 A-3 TP159 A-3 TP160 A-3 TP161 A-3 TP162 A-3 TP183 A-3 TP TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 45 A B C D E F G H I 1 2 3 4 5 6 Q008 C206 C207 C208 C015 C209 C016 C400 C018 C401 Q015 C402 Q016 C403 C210 C405 Q401 C211 C406 Q402 C212 C407 Q403 Q404 C020 C021 PA401 C022 X500 C024 C025 C026 C410 C028 C411 D007 Q411 C416 C417 C418 C800 C419 ZA501 C031 IC001 D201 ZA502 IC002 ZA503 C033 IC003 D203 ZA504 C034 D010 R200 ZA505 ZA506 IC006 C036 ZA507 C037 R204 IC008 R205 C422 R206 D017 R207 C423 IC200 R208 C425 R209 D019 IC203 R018 IC010 C235 C429 R019 C236 C043 C044 R210 IC208 IC209 C045 D022 R212 R213 IC400 C048 R020 D025 C049 D026 R602 IC212 C242 IC213 R604 C245 R606 C246 C053 R608 R414 C054 C248 R415 R416 R417 R418 R800 C440 R419 R801 IC412 R226 IC413 R227 R804 R610 R034 C444 R805 R035 R806 R612 R036 R807 R614 R808 R420 R038 Q250 C254 R809 R421 R039 C061 R616 Q252 Q253 C063 R618 R230 C258 C064 C259 R428 R040 R429 R041 R042 R813 R043 R237 C260 R620 R044 R814 R239 R815 C261 R622 R046 R047 R430 R624 R818 C265 R049 R431 R819 R626 R432 C266 R433 R240 R628 C268 R434 R241 R435 C269 R242 R436 R243 R437 R244 R438 R050 R820 R245 R821 R823 R630 R248 R054 R824 C271 R249 R825 R055 R632 R826 C273 R057 R827 R634 R828 R058 R441 R059 R829 R636 R443 R638 R444 C279 R830 R831 R832 R833 R258 R640 R834 R835 C282 R642 R836 R837 R450 R644 C860 R838 R451 FL001 R839 C861 R452 C286 R646 C862 R453 C287 C863 R454 C288 C864 R455 D1 C865 C289 R456 C866 R457 C867 D3 R070 C868 D4 R459 R071 C869 D5 R842 R266 R267 R843 R075 C292 R076 C293 R077 R654 R078 C870 C871 R079 R656 C872 R462 FL207 R658 R270 FL208 R466 R467 R274 FL400 R468 R080 FL401 R469 R081 FL402 FL403 R083 R660 R854 R084 R279 R662 R857 R664 R858 FL214 R471 R859 R666 R473 R668 R474 R475 R281 R090 R860 R091 R861 R092 R670 R288 R289 R095 R096 R672 R866 R674 IC860 R098 R869 R676 IC862 IC863 R290 R678 R291 R486 R487 R294 R870 R871 IC869 R872 R873 R297 R680 R874 R875 R682 R876 R877 R684 R878 R879 R686 R688 R882 R690 R692 R886 R887 R694 R888 R889 R696 R698 R890 R893 D10 X001 C300 D20 C301 C302 C303 C304 D24 C305 D25 C306 D27 C500 C501 C502 D34 C701 C702 C703 C704 C705 C706 R102 C707 R103 C708 D40 D41 R107 R108 R109 C710 C711 C712 C713 R304 R110 C715 C716 C717 R113 IC300 C718 R114 R115 C719 R117 R118 R119 R503 R310 R504 C720 C721 R505 C722 R506 C916 C723 IC500 C724 R120 C725 IC501 C919 R121 R509 C726 R122 C727 R123 C728 R700 C729 IC505 IC506 R702 R126 R704 L200 R510 R128 C920 R511 C921 R129 R706 R512 L202 R513 R708 C730 R514 C924 IC701 C731 R516 C732 R517 IC703 C733 R518 C734 IC704 R519 C735 R132 C736 L400 R710 R134 R135 R712 L402 L404 R714 R908 C930 R520 L405 R521 R909 R522 R716 L406 L407 R523 C740 L408 R524 L409 R719 C741 R525 R526 C742 R527 C743 R528 C744 R140 R910 C550 R529 C745 C746 C747 C553 L410 C748 R914 R144 C555 C749 R721 R145 R915 R722 C557 C363 R530 C364 C558 R918 R725 C559 R531 R532 R726 C366 C367 R727 R533 R728 R534 C750 C368 C751 C369 R341 C752 R537 C753 C560 C561 R152 C563 R924 R730 C370 C565 C372 C373 R541 C569 C377 R737 C378 R544 R738 R545 R739 C379 R353 R354 C571 R932 C572 C573 R933 R740 R934 R741 C575 R742 C576 C577 R743 C578 R744 C579 R745 R746 R554 R555 R173 R750 R752 R178 R561 R759 R566 FL500 R568 R951 FL501 R952 FL502 R183 R760 R378 R379 R956 R186 R571 R765 R766 R573 R767 R768 R769 R576 R190 R191 R192 R193 R770 R194 R771 R772 R196 R773 R198 R580 R774 R581 R199 R775 R776 R777 R583 R778 R584 R588 R780 R781 R782 R783 R784 R785 R592 R787 R595 R789 R598 R981 R982 R983 R984 R985 R986 R799 C002 C003 C004 Q001 C005 C006 Q007 D 1 TNPA3602 CR NO.9 SEE REVERSE FOR ORDER NO. PbF 1 4 5 8 1 3 4 5 1 40 41 80 81 120 121 160 1 24 25 48 1 4 5 8 1 28 29 56 1 28 29 56 1 4 5 8 1 20 21 40 41 60 61 80 1 7 1 29 56 28 1 5 1 5 1 7 8 14 1 4 5 8 + ORDER NO. 1 2 19 20 1 2 29 30 1 14 2 30 1 29 + 4 5 1 8 1 28 29 56 1 3 4 5 1 28 29 56 1 20 21 40 41 60 61 80 1 12 2 30 1 29 1 6 12 1 1 9 1 10 1 7 1 8 1 4 5 8 1 10 11 20 A B C D E F G H J K L M N P R T U V W Y AA AB AC 2 4 3 5 6 7 8 9 10 1112 13 14 15 16 17 18 19 20 21 22 23 1 1 3 0 31 50 51 80 100 81 1 24 25 48 1 52 53 104 105 156 157 208 1 3 4 5 1 20 21 40 41 60 61 80 + D TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY D-BOARD TZTNP010Q61 TH-32LHD7BK/BS/EK/ES/UXK/UXS/UY D-BOARD TZTNP010Q61 D-BOARD (COMPONENT SIDE) TZTNP010Q61 Parts Location D-BOARD (COMPONENT SIDE) IC IC9001 B-2 IC9002 A-5 IC9003 B-4 IC9006 A-5 IC9008 B-2 IC9010 B-2 IC9200 C-2 IC9203 B-2 IC9208 C-1 IC9209 C-4 IC9212 C-5 IC9213 C-2 IC9300 D-2 IC9400 E-2 IC9412 D-5 IC9413 E-5 IC9500 D-4 IC9501 C-3 IC9505 D-2 IC9506 E-3 IC9701 C-4 IC9703 D-5 IC9704 B-3 IC9860 C-3 IC9862 B-3 IC9863 B-3 IC9869 B-2 Q9001 B-2 Q9007 A-4 Q9008 A-4 Q9015 A-4 Q9016 A-4 Q9250 B-1 Q9252 B-2 Q9253 B-1 Q9401 E-1 Q9402 C-5 Q9403 D-5 Q9404 E-2 Q9411 E-2 TRANSISTOR TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 46 14 Schematic Diagrams 14.1. Schematic Diagram Notes Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacture’s specified parts. Important Safety Notice Notes: 1. Resistor All resistors are cabon 1/4W resistor, unless marked as follows: Unit of resistance is OHM [ ] (K=1,000, M=1,000,000). : Nonflammable : Metal Oxide : Solid : Metal Film : Wire Wound : Fuse: 2. Capacitor All capacitors are ceramic 50V capacitor, unless marked as follows: Unit of capacitance is F, unless otherwise noted. : Temperature Compensation : Electrolytic : Polyester : Bipolar : Metalized Polyester : Dipped Tantalum : Polypropylene : Z-Type 3. Coil Unit of inductance is H, unless otherwise noted. 4. Test Point : Test Point position 5. Earth Symbol : Chassis Earth (Cold) : Line Earth (Hot) 6. Voltage Measurement Voltage is measured by a DC voltmeter. Measurement conditions are as following: Power Source ................................................... AC120-240V, 50/60Hz Receiving Signal ............................................... Colour Bar signal (RF) All customer’s controls ...................................... Maximum positions 7. Number in red circle indicates waveform number. (See waveform pattern table.) 8. When the arrow mark ( ) is found, connection is easily found from the direction of its arrow. 9. Indicates the major signal flow. : Video Audio 10. This schematic diagram is the latest at the time of printing and subject to change without notice. + - M m T Z NP TH-32LHD7UY/UXK/UXS/EK/ES/BK/BS Schematic Diagram Notes TH-32LHD7UY/UXK/UXS/EK/ES/BK/BS Schematic Diagram Notes Remarks: 1. The Power Circuit contains a circuit area which uses a separate power supply to isolate the earth connection. The circuit is defined by HOT and COLD indications in the schematic diagram. Take the follwing precautions. All circuits, except the Power Circuit, are cold. Precautions a. Do not touch the hot parts or the hot and cold parts at the same time or you may be shocked. b. Do not short- circuit the hot and cold circuits or a fuse may blow and parts may break. c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously or a fuse may blow. Connect the earth of instruments to the earth connection of the circuit being measured. d. Make sure to disconnect the power plug before removing the chassis. 2. Following diodes are interchangable. MA150- MA162 (Replacement part) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 47 14.2. Main Block Diagram (1 of 2) Z GND GND 16 GND TX1+(S) AC INLET GND AC CORD GND GND GND 3 TX2+ 3 6 22 Z31 17 FAN CONT B-30 GND 16 LAN+15V STB+5V 3 2 R 4 GND 4 A-7 AUDIO(L) 2 15 Z8 TO P9 A-30 GND 7 B-37 GND 18 20 5 21 GND S_CLOCK2 S CLOCK1 GND B-38 20 3 20 AUDIO+12V A-27 A-2 TXC+(S) A-14 B-31 1 GND GND J12 A-19 4 J12 GND 20 22 FAN SOS B-40 10 B-27 19 A-8 B-30 B-16 TX3+(M) 4 RXD_PC A-35 13 A-21 A-22 A-24 A-15 GND SLOT+5V(S) 18 5 STB ON GND 26 13 B-11 GND 13 POWER STATUS B-35 GND 1 B-38 A-25 PC VD 8 GND GND 17 STB+5V CTS 11 B-8 9 TX3- A-23 SP_R- S2 DET GND TX0-(M) 21 B-29 A-39 GND B-33 A-30 PF9 B-26 GND 10 GND 11 GND A-12 B-2 12 GND B-23 17 3 2 13 9 B-12 B-13 13 A-15 B-13 10 GND SLOT+3.3V L 10 15 GND A-8 TO D3 TXC- SLOT+3.3V B-5 SLOT+3.3V B-2 10 GND 3 A-27 B-3 2 8 7 3 A-36 10 14 18 B-6 5 STB+3.3V A-34 +5V CABLE DET TXC-(S) 24 B-1 4 13 TXC+ 15 L B-10 14 16 PC HD FAN+12V 4 A-39 7 AF_VD(S) 3 B-27 1 3 TX0+(M) 15 TX2+(S) A-1 8 23 RXD GND 22 16 4 GND GND RESET GND 9 A-3 PC (G) 8 B-7 RESET J5 4 DIG+12V B-25 16 8 Z30 12 FAN SLOT+9V 13 3 2 11 B-22 Z10 28 13 6 A-25 10 4 GND FAN CONT A-2 TXC+(M) +5V 12 GND TX3+(S) AUDIO+12V 1 PB(S) B-33 19 19 12 5 7 GND 19 B-12 9 B-7 22 3 AUDIO MUTE 2 A-26 21 11 A-13 TX1+(M) 6 B-24 GND GND 4 A-31 B-16 3 14 S DATA3 GND AF_DPMS_HD TXD_PC 25 B-3 6 14 A-22 7 A-5 GND 19 9 A-9 GND TX0-(S) 15 SLOT+9V S_DATA1 DR+15V PC (B) GND PB(M) 1 14 PR(M) B-32 28 17 B-23 S_DATA3 A-3 1 TX3-(S) 23 TX2- Z33 B-36 A-40 AG_VD(M) GND 8 GND 27 SLOT+5V 9 STB+5V SLOT+3.3V B-9 2 5 B-34 A-19 6 5 GND AG_HD(M) B-1 3 B-9 TO P10 2 B-14 AUDIO+12V 2 3 9 B-37 12 +12V A-11 17 HX Board 19 11 A-18 11 1 1 GND SP_L+ PB/B LAN+15V 15 B-15 GND 16 2 B-29 2 HX1 3 29 TX1- 29 GND 1 TX0- 18 GND GND 1 TX2-(M) GND 6 4 1 B-40 1 GND A-32 2 GND 5 TX0+ 12 8 HD B-5 GND 1 2 TX2-(S) STB+5V(S) Z7 16 A-21 10 A-36 STB+5V 6 TX1+ VD 20 5 14 6 9 6 TO P5 B-21 GND 3 A-20 B-39 5 17 3 TXD_TU(SBI) 20 21 GND B-11 9 GND H37 B-8 A-38 18 3 3 2 SRQ SLOT+9V B-31 B-20 15 J10 TX1-(M) B-35 PR/R B-10 7 H3 Board A-37 A-32 11 A-18 1 A-38 TXC-(M) B-20 B-18 10 PF Board A-33 6 PC (R) A-4 PF1 5 2 A-9 GND 6 GND 3 6 3 A-13 J6 1 J11 A-14 7 A-37 2 S_CLOCK1 13 Z32 A-29 GND 10 GND GND B-15 B-22 GND H3 Board 11 GND 9 A-24 A-5 18 5 GND TX3+ J11 Y(S) GND B-34 18 PC IN A-35 J3 12 AF_DPMS_VD GND 19 18 A-6 GND GND GND Y/G A-10 GND GND GND A-16 19 B-21 14 B-36 B-26 GND B-39 20 SLOT+9V GND B-17 4 B-28 GND S DATA1 REMOTE OUT GND GND A-20 20 GND GND GND B-17 14 GND S CLOCK 17 A-16 B-4 SLOT+9V 8 PB/B S_DATA2 TX1-(S) A-23 B-19 AUDIO MUTE GND GND GND A-28 A-34 B-14 A-17 TO D5 SLOT+5V B-6 4 A-17 2 GND 1 TX3-(M) A-7 A-6 1 A-40 RTC INT/PANEL SOS B-18 SLOT+5V A-10 PR(S) A-28 A-4 5 GND A-33 Y/G Z5 GND B-28 GND 15 RTS A-31 B-24 TX2+(M) 11 12 RXD_TU(SBO) 9 GND A-12 AUDIO(R) B-25 GND GND 1 14 R 1 B-32 A-26 S CLOCK3 8 1 6 2 25 J Board AUDIO 3 26 30 A-29 4 A-1 S DATA S_CLOCK3 GND GND 20 4 10 21 B-19 FAN PR/R B-4 15 2 IIC_CONT J3 TO D1 AF_HD(S) 15 FAN SOS 8 4 RS-232C 1 12 18 1 SP_L- 27 6 GND 8 GND GND 17 H37 16 1 30 TXD GND 11 J1 3 GND GND 19 3 2 7 2 Z6 GND 24 PF10 STB ON TX0+(S) 1 J14 GND J8 16 7 21 7 17 2 A-11 8 7 11 GND 7 SP_R+ 9 4 +12V 12 3 5 2 GND 5 1 Y(M) FAN SW 13 2 2 +15V 4 GND 5 GND GND 14 22 28 GND 27 26 29 25 23 30 24 31 PC-(L) +9V PC-RXD PC-(R) PC-B PC-G +5V PC-HD PC-VD PC-R PC-TXD H1 H1 HB Board HA Board NEUTRAL LIVE LIVE NEUTRAL GND FAN SOS FAN+12V GND FAN SOS FAN+12V GND FAN SOS FAN+12V GND GND GND GND GND GND GND GND GND GND 1 B 7 3 5 6 D E C 8 A 4 2 TH-32LHD7UY/UXK/UXS/EK/ES/BK/BS Main Block Diagram ( 1 of 2 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/BS Main Block Diagram ( 1 of 2 ) Board TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 48 14.3. Main Block Diagram (2 of 2) D 28 19 18 5 3 2 29 6 4 RX0+(S) R34 RXC-(M) 20 1 17 13 RX2-(M) RX1-(S) 22 25 GND 22 3 16 D3 GND TO J3 27 23 4 7 2 16 3 10 RX3+(M) 5 17 19 6 7 26 R 5 12 GND 1 GND GND 3 RX2+(S) 14 9 9 GND 30 4 GND RXC+(M) 4 OPT 15 11 12 GND 8 RX3-(S) D34 16 14 P TO J1 4 18 21 23 RX0-(M) 30 24 RX1+(S) 3 RX1-(M) 17 21 RX3+(S) GND 1 18 REMOTE 27 2 RXC+(S) 5 RX0+(M) 19 RX2-(S) RX1+(M) 12 GND 7 6 D1 RX2+(M) 2 10 15 20 9 7 25 1 11 10 13 9 D5 26 20 TO J5/J6 8 7 3 RX0-(S) 28 8 6 24 5 13 29 GND GND RXC-(S) 10 6 8 15 RX3-(M) 11 14 LED(R) LED(G) 1 2 2 GND GND 1 V 5 15 10 13 2 3 16 15 19 17 LVDS SEL GND 12 GND 18 23 7 GND 11 24 9 29 7 22 12 27 3 1 17 5 LCD PANEL 28 11 4 GND 19 30 2 28 6 9 1 21 29 RX3(+) 16 30 GND 25 PANEL+5V 27 24 4 21 20 8 20 14 GND 25 RX3(-) RX2(+) 10 23 6 D20 LCD PANEL RX2(-) 14 26 22 GND 8 18 26 13 PANEL+5V PANEL+5V PANEL+5V PANEL+5V GND GND RX1(-) RX1(+) RX0(-) RX0(+) RX-CLOCK(+) RX-CLOCK(-) GND D24 2 3 1 6 6 4 5 2 3 1 4 5 2 1 4 S CLOCK3 D40 5 IRQ 6 GND 3 S DATA3 S CLOCK2 7 S DATA2 FACTORY USED 4 1 S CLOCK2 8 FACTORY USED 6 STB+5V S DATA2 D41 5 2 3 S CLOCK1 IRQ S DATA1 7 GND 5V PROG CONFIG_SEL0 32MFlash_MSB P5V/TRST 3.3V P12V TDO CONFIG_SEL2 TCK CONFIG_SEL1 TMS TDI STB_3.3V SDA3 GND SCL2 3 2 IIC_INT/BOOT 11 SDA1 12 D4 RXD 9 SCL1 7 FACTROY USED 8 4 6 13 10 GND TXD 5 SDA2 1 STB_5V IIC_CONT SCL3 14 3 2 11 12 D10 9 7 10 GND 5 1 FACTORY USED 8 4 6 3 2 1 S P34 1 STB+5V 2 3 S34 24V P3 2 1 3 1 3 2 5 4 6 4 6 5 GND 8 7 9 7 9 8 GND 10 10 GND GND GND 24V 24V 24V 24V 4 5 3 8 1 D27 P27 5 FAN CONT GND 4 7 FAN SOS AC RELAY SOS 3 1 6 9 6 STB+5V 8 ALL OFF 7 9 2 2 GND GND +12V 7 2 7 4 1 11 6 12 3 10 12 GND PANEL+5V 9 D25 11 9 4 +12V 8 P25 GND 1 5 6 5V 3 5 5V GND 8 2 10 PANEL+5V GND P9 2 1 4 TO PF9 3 4 2 FAN CONT +5V 3 1 TO Z10 FAN SOS GND +15V 5 P10 10 4 11 6 TO Z5 5 3 7 P5 1 8 2 9 RELAY VCC OFF H V35 KEY SCAN STB+5V STB+5V AUDIO+12V GND GND GND +12V GND AUDIO+12V +12V AUDIO+12V GND NEUTRAL LIVE AF_DPMS_HD GND Y(S) PR(M) GND GND AF_VD(S) Y(M) GND GND PR(S) AG_HD(M) GND GND AF_HD(S) PB(M) AF_DPMS_VD GND AG_VD(M) PB(S) TXD_PC RXD_PC FAN CONT S CLOCK1 S CLOCK3 GND GND STB+3.3V POWER STATUS GND TXD_TU(SBI) +5V CABLE DET GND STB ON REMOTE OUT STB+5V S DATA1 GND IIC_CONT RXD_TU(SBO) S DATA3 RESET RTC INT/PANEL SOS GND AUDIO MUTE BL_ON/OFF INV_SOS P_DIM A_DIM 15 10 14 9 12 8 13 11 TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES Main Block Diagram ( 2 of 2 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES Main Block Diagram ( 2 of 2 ) Board Board Board Board Board TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 49 14.4. PF, HA and Z-Board Block Diagram Y Pb Pr + - + L.F L.F + + + RESET REG - REG TFC S/GND Mirror Vcc - OVP Q - BEC DRIVE REG RTFC + Current R + BD OSC D + OLP LATCH + BTC DRV FB/OLP TSD S - Current OCP OCP/BD Mirror L.F + S902 D913 C914 * * JK3001 G Y G G G Pb G G G Pr G G R913 * R814 C906 Q930 RL920 * * * * D911 C910 ** ** Q2305 L912 D916 R932 D910 * * * * D918 T920 1 V2 2 V1 4 P2 * 5 PT 6 P1 * 8 S2 * 9 NC 10 S1A 11 S1B 12 NC 7 NC JK3002 R920 # C913 C916 R915 * D914 C907 F901 C920 S901 R935 R904 * * LF902 1 * 2 * 3 * 4 * Q801 R931 IC3002 D930 * * C915 R903 * * Q2306 R933 Q2303 D915 D932 R2309 R937 LF901 1 * 2 * 3 * 4 * D933 C903 D934 R938 R918 * R927 R912 * C912 C932 F900 Q2370 R923 D912 C930 C911 m R921 # L930 R922 # IC910 * 1 * 3 5 4 6 7 R925 D935 R930 PC920 LF903 1 * 2 * 3 * 4 * Q2334 C931 C918 Q2333 R924 R2310 C917 C933 D931 F902 K5D312BL0008 R934 C902 R914 * R919 * 1 B 7 3 5 6 D E C 8 A 4 2 8 Z32 HOT 9V 7 POWER CONTROL RECTIFICATION 20 FAN COLD 12V IC2304 HOT 4 R 3 COLD 16 J8 Z8 IC802 17 1 HOT A26 20 +15V 1 SDA FAN+12V 14 COLD 1 11 AUDIO+12V B25 FAN BAL AMP HOT 3 16 28 FAN SW +12V B24 Z5 MUTE SW FAN+12V 3 2 4 4 P10 31 SW REG PB LAN+15V FAN SOS L 1 12 9V STB SW +12V STB5V STB ON Z30 IC801 LAN+15V 2 5 AMP_STB_SW IC804 27 A36 5 1 STB+5V Z7 SCL3 16 SW 1 16 3 VIDEO IN PF10 FAN SOS Q2406 20 6 SW REG REG Z6 4 6 BTL AMP SLOT+9V COMPONENT 1 SLOT+3.3V 3.3V IC2401 12V DET 10W MONO AUDIO MUTE TERMINAL BOARD TONE A G C SOUND CONTROL 10 32 DR+15V A21 6 STB+5V 12V DET 100Hz LPF INFORMATION 2 15 S_CLOCK3 R L OUT 12V DET R OUT 9V 1 AUDIO+12V EEPROM 1 Z A28 AUDIO(R) 2 AUDIO+12V A34 S_DATA3 1 17 LIVE FAN CONT LIVE DIG+12V 14V PHASE K5D502BNA005 SLOT+5V K5D502BNA005 +5V 29 11 NEUTRAL SP_R- IC2301 NEUTRAL SHIFT 3 GND AUDIO(L) BTL AMP AC INLET SP_R+ 5 K2AH3H000028 PORT 10W MONO IC803 SDA3 AC COARD RESET Z10 FUSE PF1 17 FUSE 1 1 VCC FUSE 4 2 SLOT+3.3V POWER ON/OFF J10 PF Board VOL IC930 SW REG ERROR DET 1 P5 SWITCHING TRANS 9 FEED BACK 2 4 19 1 1 AC+100V 12 SW REG 10 5 5V IC2302 FAN SOS 9 11 15 2 17 -R OUT VCC 11 SP_L- VCC -L OUT AMP_STB_SW +L OUT A22 Q3002 L AMP 9V L PR R AMP AUDIO IN R (Excet TH-32LHD7UXK/UXS) HA Board L H1 Q3001 SDA Y 5 A38 6 SP_L+ P9 AC+100V SCL COLD SCL 3 TV RELAY PF9 1 +R OUT LPF TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES PF, HA and Z-Board Block Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES PF, HA and Z-Board Block Diagram Board TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 50 14.5. P, H3, V, S, HX and R-Board Block Diagram + + + + R G PUSH + + PC-VD PC-HD PC-VD PC-B PC-R PC-R PC-G PC-B PC-HD PC-G C557 Q502 G D S R514 C572 R435 R593 RM001 VOUT GND VCC Q511 JK3509 1 2 3 4 5 8 9 6 7 R541 JK3511 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R463 R1556 Q506 D401 R587 R1555 SW1552 D502 D415 SW1551 JK8500 Q404 Q501 G D S Q505 R1551 D404 Q503 C448 R513 Q510 R1510 R594 R572 F501 C407 Q519 D501 Q402 G D S R507 R448 F502 R420 F503 R506 R417 SW1550 Q513 G D S R544 SW1553 D402 R1513 Q507 G D S SN1550 C457 R1512 Q508 IC3502 R1511 SW1554 Q504 R502 Q514 R540 R543 R573 Q509 D1550 SW061 1 2 3 4 5 6 JK8500 JK3513 F504 C417 D412 C502 15 10 14 9 12 8 13 11 MC001 21 9 VOL- R 9 INPUT T402 2 VOL+ 6 16 V35 PC-(R) DET 8 D34 PC501 PC-B COLD 10 2 4 J14 H37 ERR 15 ZD416 5 1 P3 HX1 O.C.P. DET PC-G 1 FEED BACK 11 CONT 1 6 5 18 FEED BACK ZD406 7 3 +24V OUT 3 1 6 +5V KEY SCAN PC-HD O.V.P. DET REMOTE SENSOR STB+5V IC403 SOS DET 2 H37 9 +24V +B 3 1 PC-TXD K STB+5V 5 POWER OUT 1 LED(R) SOS DET 12 LED(G) 6 22 3 5 PC-R IC404 +24V H3 Board REMOTE SCL 6 P34 OPT 7 PC-VD STR 1 C.A.T.S. STB+5V CONTROL +24V HOT POWER LED RS-232C COLD P25 R Board PC AUDIO IN HOT STB+5V H3 Board R34 COLD 1 8 HOT 2 2 COLD 3 +5V HOT 3 T401 +5V 4 5 +12V P10 1 FAN CONT PANEL+5V +5V 3 IC501 FAN SOS POWER OUT A OSC 1 MC502 4 ERR DET AC+100V AC+100V STRAT S Board OSC K401 3 AC RELAY ERR DET 3 POWER OUT 4 7 CONT STR IC401 RELAY VCC STB+5V PANEL+5V AUDIO+12V OFF-H P27 ZD407 D25 ZD503 +24V 8 6 PC401 P9 ERR DET ZD502 1 ZD501 OSC ZD505 SOS AUDIO+12V P5 1 BACK LIGHT +12V P Board (P.C.B. EXCHENGE) 2 STRAT 6 +12V ALL OFF 5 POWER SW 9 2 POWER OUT STB+5V Z5 S34 2 19 PC-(L) MC501 +15V HX Board FAN CONT K +9V 10 STB+5V FAN SOS Z10 SDA ON AC RELAY PC IN SP_L+ A PC-RXD R SP_L- MAIN POWER RELAY CONTROL 5 AUDIO+12V SP_R- 1 D27 SP_R+ IC502 ERROR DET 5 D34 MENU +12V EEPROM ERROR DET 3 ENTER ERROR DET 13 8 V Board TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES P, H3, V, S, HX and R-Board Block Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES P, H3, V, S, HX and R-Board Block Diagram OFF TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 51 14.6. HB-Board Block Diagram C Y 2 1 X3101 JK3001 JK3002 JK3004 Q3051 9V Q3052 9V Q3003 9V Q3023 9V Q3005 9V Q3002 9V Q3004 B6 Generation B2 MEMORY CONTROLLOR B9 R07 B14 R00 B8 G07 TX1- B15 G00 B3 B00 TX0+ B07 TX0- 13 TX1+ 6 TX1- 199 TX2- 6 206 TX2+ 3 160 TX3- LL Clock 153 TX3+ /POWN 3 B24 CLK SEL 55 TXC- B25 4 S DET V Sync 56 SCL2 54 SDA2 8 IC3304 P1 IC3105 8 65 AUDIO IN 52 P2 8 EEPROM 2 5 6 IC3699 51 H Sync P0 Q3007 50 DAC ICC EXPANDER BUFFER 4 24 TX0+ BUFFER 14 IC3305 18 SCL BUFFER GC2M SCL R IN 22 BUFFER 16 6 + 15 AMP 5 - 23 L AMP + 20 R AMP - 19 1 14 1 10 3 11 3 8 IC3002 Q3006 4 AMP Q3104 12 AMP 7 2 Q3101,3102 6 SDA L.P.F. R07 AMP 15 G07 VIDEO IN/OUT SDA R00 G00 L IN B00 TX0- INV. IC3003 B07 TTL PARALLEL TO LVDS AMP 7 46 6 45 1 47 VIDEO 48 IN 37 VIDEO 5 42 H1 OUT 38 Analog 41 TX1+ Front-End 40 SWITCH AGC 39 5V<=>3.3V TXC+ LVDS TRANSMITTER 2 ADC PLL IC3001 IC3251 Adaptive 31 INFORMATION IC3201 Comb 27 TERMINAL BOARD 3 5V<=>3.3V Filter 28 MEMORY P7 NTSC 72 12 5M FIFO Color 95 S SEL IC3104 Decoder 163 S-VIDEO IN SDA 162 NTSC RESET 6 PAL OUT 7 HS SECAM SCL VS TX3+ Saturation CLK IN IC3103 Tint TX2- 117 SCL Mixer 2 116 TXC+ CLKSEL 2DScalar 212 /PDWN PIP 210 B36 Panorama IIC Bus R Clock Contast A26 TX2+ S2 DET Gen. Brightness A28 SDA Peaking V/Y SCL Output A38 C L Formatter SDA V/Y B11 5 TX3- PAL TXC- 17 Clock 32 Sync B12 B5 + 165 (Except TH-32LHD7UXK/UXS) HB Board AMP J11 16 18 19 17 23 22 21 20 TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES HB-Board Block Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES HB-Board Block Diagram TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 52 14.7. J-Board Block Diagram AA_SCL3 AA_SDA3 RESET IIC_SW IIC_SW AH_SLOT1_DET AH_SLOT2_DET AI_L1 AL_L2 AD_L4 AL_R2 AI_R1 AD_R4 AD_VD_4 AL_VD_2 AI_VD_1 AD_HD_4 AI_HD_1 AL_HD_2 AL_HD_2 AI_HD_1 AD_HD_4 AI_VD_1 AL_VD_2 AD_VD_4 SLOT9V SLOT5V SLOT3.3V 9V STB5V 9V STB5V STB5V STB5V STB5V 9V STB5V STB3.3V 5V STB5V STB5V STB5V LAN15V SLOT3.3V SLOT5V STB5V LAN15V SLOT9V LAN15V SLOT3.3V SLOT5V STB5V SLOT9V 5V 9V 5V_M 5V_S 9V 9V 9V 9V 5V 12V 12V 5V STB3.3V STB5V 5V 9V STB3.3V 1 Z8 3 J8 5 6 9 10 11 12 14 15 16 17 19 SLOT+5V AUDIO(L) RESET SLOT+9V DR+15V S_CLOCK3 AUDIO(R) SLOT+3.3V FAN SW S_DATA3 AUDIO MUTE SLOT+3.3V DIG+12V IC8101 9V REG 9V IC3109 5V REG 5V_M 5V REG 5V_S IC3108 IC8000 12V REG 12V IIC ON/OFF IC3007 8 3 7 AB_SCL3 AB_SDA3 AA_SDA3 AA_SCL3 IC3004 SLOT DET/IIC CONTROL 16 2 OUTPUT PORT 1 OUTPUT PORT 10 OUTPUT PORT IIC CONT 8bit ADC 3 8bit ADC 4 AB_SDA3 AB_SCL3 AH_SOS_ALL IIC CONT VIDEO SELECT(MAIN) IC3003 16 9 OUTPUT PORT(SW0) 2 OUTPUT PORT(SW0) 1 OUTPUT PORT(SW1) 10 OUTPUT PORT(SW1) 8bit ADC(SYNC INH(M)) 6 3 8bit ADC(CS(M)) 5 8bit ADC(LPF(M)) 4 8bit ADC(FAN CONT) SYNC_INH(M) AC_CS(M) LPF(M) FAN_CONT AA_SDA3 AA_SCL3 AC_CS(S) 3 FAN_SW 16 OUTPUT PORT(SW3) AA_SDA3 1 VIDEO SELECT(SUB) 5 8bit ADC(LPF(S)) 8bit ADC(SYNC INH(S)) 8bit ADC(FAN SW) AA_SCL3 2 LPF(S) OUTPUT PORT(SW2) IIC CONT SYNC_INH(S) IC3006 8bit ADC(CS(S)) 4 6 IC3002 EX.IIC SEL 16 AN_SDA_S1 AN_SCL_S1 IIC_DAT IIC_SCL AB_SDA3 AB_SCL3 9 10 IC3001 AUDIO SELECT 1 5 4 12 14 11 13 3 16 Q3002 Q3003 L R 1 D3 J3 9 29 2 4 5 12 7 11 6 13 15 21 17 19 16 23 25 27 26 28 S CLOCK1 S DATA1 RXD_TU(SBO) AUDIO MUTE STB ON STB+3.3V FAN CONT IIC_CONT RXD_PC RESET RTC INT/PANEL SOS STB+5V CABLE DET +5V POWER STATUS TXD_TU(SBI) S_DATA3 TXD_PC S_CLOCK3 RS232C STATUS REMOTE OUT AB_SCL3 AB_SDA3 Q8181 3.3V<=>5V LEVEL SHIFT 3.3V<=>5V Q8182 LEVEL SHIFT IC8181 CLOCK IC SDA SCL CLOCK IRQ RESET SRQ AJ_TXD1 AJ_RXD1 AJ_STATUS AJ_TXD4 AJ_RXD4 PC-G PC-R +5V PC-HD STB+5V PC-VD PC-TXD PC-RXD PC-(L) +9V PC-(R) PC-B J14 1 3 5 7 9 11 12 13 18 19 21 22 HX1 3.3V<=>5V LEVEL SHIFT FAN_CONT IC3150 LAN+15V STB+5V LAN+15V STB ON 5 PF10 6 1 2 J10 Q8200-Q8202 SOS OUT AH_SOS_ALL STB_ON AH_SOS FAN_SW AC_SW0 AC_SW1 4 D1 J1 8 16 12 1 18 9 5 15 13 20 17 PR(S) AF_VD(S) Y(S) AF_HD(S) PB(S) AG_HD(M) Y(M) PR(M) PB(M) AG_VD(M) AF_DPMS_VD AF_DPMS_HD MAIN SUB AG_PR_M AG_Y_M AG_PB_M AG_HD_M AG_VD_M AF_PR_S AF_Y_S AF_PB_S AF_HD_S AF_VD_S J11 H1 B17 A17 A19 B19 A22 A40 B40 B21 A21 B2 A26 B3 A28 B5 A30 B6 A32 B8 A34 B9 A36 B11 A38 B12 B14 B15 B23 B24 B25 B26 B27 B28 B31 B30 B29 B35 B32 B36 J5 D5 2 3 5 6 8 9 11 12 14 15 B14 B31 B11 B12 B19 A38 A21 A17 B23 B15 A30 A40 B40 J12 B35 B3 B36 B25 A22 B5 B24 B21 B2 B28 A32 B9 B8 A34 B6 H2 B17 A28 A36 A26 A19 J6 D6 6 9 12 8 5 15 14 11 3 2 AI_L_1 AI_R_1 AI_HD_1 AI_VD_1 AI_PB_1 AI_PR_1 AI_Y_1 AN_SDA_S1 AH_SLOT1_DET AN_SCL_S1 AJ_RXD1 AJ_TXD1 AI_S2_1 AH_SOS AH_SOS AL_HD_2 AL_R_2 IIC_SCL IIC_SDA AL_PB_2 AL_PR_2 AL_L_2 AL_VD_2 AL_S2_2 AH_SLOT2_DET AL_Y_2 15 17 19 9 5 7 23 13 53 55 57 AI_Y_1 AI_Pb_1 AI_Pr_1 AI_S2_1 AL_Pr_2 AL_S2_2 AL_Y_2 AL_Pb_2 AD_Pb_4 AD_Y_4 AD_Pr_4 COMPONENT SELECT IC3005 28 52 ASPECT DET IIC CONT 46 50 48 40 44 42 MAIN SUB Yout1 PBout1 PRout1 PBout2 PRout2 Yout2 AA_SDA3 AA_SCL3 1 LPF Q3101 14 11 5 LPF 17 25 LPF CUT-OFF FQ CONT IC3101 BUFFER(MAIN) 21 VFC LPF(M) 25 17 5 LPF LPF VFC 14 LPF(M) CUT-OFF 11 BUFFER(SUB) Q3104 FQ CONT 1 LPF 21 IC3102 Q3101 Q3101 Q3105 Q3106 Q8019 Q8018 11 VD HD AE_SW1 AE_SW0 10 9 IC8001 VD/HD SEL(MAIN) 1 5 13 4 3 12 16 14 6 5 VD 12 IC8002 AE_SW3 3 16 4 AE_SW2 13 HD 1 11 9 VD/HD SEL(SUB) 10 14 6 AG_Y_M AG_PB_M AG_PR_M AF_PB_S AF_Y_S AF_PR_S SYNC_INH(S) SYNC_INH(M) 7 1 6 5 IC8007 SYNC SEL(MAIN) 1 IC8008 6 7 SYNC SEL(SUB) 8 5 8 3 6 8 IC8009 5 2 HD SYNC SEL 7 1 Green HD Green HD AC_CS(S) AC_CS(S) AC_CS(M) AC_CS(M) 8 13 V Sync SEPA 15 6 H Sync SEPA 4 IC8003 SYNC PRO.(MAIN) IC8004 SYNC PRO.(SUB) 8 13 V Sync SEPA 15 6 H Sync SEPA 4 16 16 13 11 3 1 IC8005 SYNC INVERTER 6 2 12 8 14 AE_SW1 AE_SW0 AC_SW1 AC_SW0 AE_SW2 AE_SW3 AG_VD_M AG_HD_M AF_VD_S AF_HD_S 1 3 2 4 INVERTER IC8016 PC SYNC AF_DPMS_VD AF_DPMS_HD DRIVER RS232C IC8014 Q8010- Q8013 AJ_TXD4 AJ_RXD4 AJ_STATUS AD_HD_4 AD_VD_4 AD_Y_4 AD_PB_4 AD_PR_4 AF_HD_HX AF_VD_HX AD_R_4 AD_L_4 AJ_TXD_4 AJ_RXD_4 VD HD Green in HD VD Green in TX3-(M) TX1+(M) TX0+(M) TX3+(M) TX1-(M) TX2-(M) TX0-(M) TXC-(M) TXC+(M) TX2+(M) TXC+(S) TXC-(S) TX3-(S) TX0-(S) TX2+(S) TX3+(S) TX1+(S) TX2-(S) TX0+(S) TX1-(S) SLOT+3.3V SLOT+5V SLOT+3.3V SLOT+5V SLOT+9V SLOT+9V STB+5V(S) LAN+15V LAN+15V TXC+ TX0+ TXC- TX2- TX3- TX1+ TX3+ TX1- TX2+ TX0- VD Y/G HD AUDIO-R PR/R PB/B AUDIO-L S_CLOCK1 S_DATA1 RESET IIC CONT REMOTE CABLE DET SLOT DET RXD SOS POWER STATUS S2 DET TXD SLOT+9V TX3- SLOT+5V RESET TXC+ SLOT DET TX1+ S_CLOCK1 SLOT+5V S2 DET TX0+ Y/G LAN+15V TX1- PB/B LAN+15V IIC CONT TXC- AUDIO-R SLOT+3.3V STB+5V(S) TX2- SOS TX2+ TX0- PR/R S_DATA1 VD AUDIO-L TX3+ SLOT+3.3V HD SLOT+9V 14 J 28 30 29 26 24 23 27 25 TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Block Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Block Diagram Board TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 53 14.8. D-Board Block Diagram P12V P5V PANEL5V PANEL5V Q9401 P5V P5V P5V P5V P5V P5V P5V P5V STB5V P5V P12V P12V STB3.3V 2.5V 1.5V1 3.3V 1.8V 3.3V P12V 1.5V1 3.3V STB5V P5V P5V STB5V STB3.3V STB5V STB5V STB3.3V 3.3V 3.3V 3.3V 3.3V 2.5V 3.3V 2.5V 1.5V 3.3V 1.8V 3.3V STB3.3V STB3.3V STB3.3V STB3.3V STB3.3V STB3.3V STB5V 3.3V AG_PR_M AG_Y_M AG_PB_M AG_HD_M AG_VD_M AF_PR_S AF_Y_S AF_PB_S AF_HD_S AF_VD_S 13 4 20 J1 17 D1 PR(S) AG_HD(M) 8 AF_VD(S) Y(M) 16 Y(S) PR(M) 12 AF_HD(S) PB(M) 1 PB(S) AG_VD(M) 18 AF_DPMS_VD 9 AF_DPMS_HD 5 MAIN 15 SUB TXC-(S) TXC+(S) D5 TX2-(S) TX0+(S) TX1+(S) TX2+(S) J5 17 18 TX0-(S) 20 21 23 24 26 27 29 30 TX1-(S) TX3-(S) TX3+(S) J6 TX0-(M) TX1+(M) TX3+(M) TX2+(M) TX2-(M) TX3-(M) TX1-(M) 6 9 12 8 5 15 14 11 3 2 TXC-(M) TXC+(M) TX0+(M) 6 +12V PANEL+5V +12V 9 2 10 5 D25 +5V +5V PANEL+5V 1 FAN CONT FAN SOS AC RELAY 3 4 ALL OFF STB+5V 6 2 SOS 7 D27 8 4 5 12 7 11 6 13 15 21 17 19 16 23 25 27 26 28 S CLOCK1 S DATA1 RXD_TU(SBO) AUDIO MUTE CABLE DET +5V STB ON POWER STATUS STB+3.3V TXD_TU(SBI) FAN CONT S_DATA3 IIC CONT TXD_PC RXD_PC S_CLOCK3 RESET RTC INT/PANEL SOS REMOTE OUT STB+5V 1 J3 9 29 2 D3 P27 P25 +5V(P) RX2- RX0+ RX2- SEL_LVDS RXCLK+ RX0- RXCLK- RX1+ PARALLEL RX2+ RX3- RX1- RX2+ RX3+ LVDS +5V(P) BUFFER RX0+ RXCLK+ RX1- R/G/B RX0- RX1+ (8bit) CLK +3.3V HS/VS LVDS DRIVER IC9400 RXCLK- RX3+ RX3- DATA TTL IC9869 8bit RGB AD CLAMP FPGA 8-bit ADC Black Loop RGB*3 R CLAMP VSYNC HSYNC SYNC SEPA DTCLK HSYNC VSYNC SERIAL I/F LVDS RX IC9863 MM_RX0-3+ MM_RX0-3- CMOS/TTL CONV. 8bit R 8bit G 8bitB IC9867 IC9868 REG IC9862 REG BUS SW IC9861 BUS SW IC9860 CLAMP HSYNC IC9206 SYNC SEPA R IC9203 MM_RX0-3+ BUS SW REG BUS SW 8bit B IC9201 VSYNC 8bit G 8bit R LVDS RX IC9200 IC9207 REG SERIAL I/F CMOS/TTL CONV. MM_RX0-3- Loop 8-bit VSYNC IC9202 RGB*3 Black FPGA ADC DTCLK CLAMP 8bit RGB AD IC9208 HSYNC MM_R0-7 MM_G0-7 MM_B0-7 OSD_HD0 OSD_VD0 OSD_CLK SB_B0-7 SB_G0-7 SB_R0-7 IC9501 VIDEO/PANEL CONTROL 2 D20 26 25 23 22 20 19 17 16 14 13 5 4 2 +5V(P) 3 +5V(P) 1 +5V(P) 5V(P) PANEL ON/OFF Q9404 PANEL5V_SOS PANEL_ON IC9212 SW REG 1.8V 3.3V IC9210 SW REG 1.5V IC9209 SW REG 2.5V SW REG 3.3V IC9214 REG IC9213 TV_ON/OFF SW Q9305 Q9307 Q9306 IC9850 5V->3.3V IC9701 SYNC PRO - FPGA MICOM IC9003 Q9306 Q9307 Q9306 Q9307 SOS DET FAN_CONT PS_SOS ALL_OFF1 FAN_SOS 3.3V_SOS DPMS_HD DPMS_VD 5V_SOS TV_ON/OFF FAN_SOS PS_SOS ALL_OFF1 SDA1 IIC_CONT SCL1 RESET 5V_SDA3 5V_SCL3 POWER_STAT CABLE_DET SOUND_MUTE STB_ON RTC_INT STB_ON RTC_INT SOUND_MUTE CABLE_DET POWER_STAT IC9000 5V->3.3V LED_G LED_R NRST 5VTXD_TU IC9007 5V->3.3V LED_R 3VTXD_TU LED_G NRST 3VRXD_TU LED(G) STB+5V LED(R) REMOTE OPT KEY SCAN 3 D34 4 5 6 8 9 5V->3.3V Q9015,16 INV Q9008 INV Q9007 A OR IC9002 Y B REMOTE OUT REMOTE IN REMOTE IHN CATS KEY SCAN PANEL5V_SOS PANEL_ON SDA1 SCL1 SDA2 SCL2 SDA3 SCL3 1 4 14 5 D4 6 FACTORY USED 7 8 9 SDA1 SDA2 SCL3 SDA3 SCL2 SCL1 STB+3.3V STB+5V 2 IIC CONT 11 RXD TXD 10 5V->3.3V Q9000,02 SDA3 SCL3 FLASH MEMORY IC9006 OSD0-OSD15 OSD_HD0 OSD_VD0 OSD_CLK OSD0-OSD15 VD_ADM CLP_M HD_ADM CLP_S HD_ADS VD_ADS HD_M VD_M HD_S VD_S EEPROM IC9004 SDA1 SCL1 IC9005 RESET RESET HD_OUT_M VD_OUT_M HD_D_M VD_D_M HD_D_M HD_OUT_M VD_OUT_M VD_D_M SYNC PRO. SW DCK HD VD IC9500 CLOCK GENE. IC9505 DDR-SDRAM IC9506 FLASH MEMORY FPGA CONT IC9704 CLK6 CLK7 CLK8 CLK3 CLK1 CLK4 OSDKXI SCKREF REFCK MCKREF OCKREF FORMAT CONVERSION H/V CONTROL I/P CONV QUALITY OF IMAGE COMPENSATION CHROMA ADJ GAMMA CORR HV EMHASIS OSD CLOCK CONTROL LCD PANEL 3 D24 4 5 6 BL_ON/OFF INV_SOS PANEL5V_SOS A-DIM BL_ON/OFF INV_SOS A-DIM PWMOUT PWM_HARF PWM DUTY_SEL PWM CIRCUIT IC9410, IC9411, IC9412 IC9413, IC9414, IC9415 IC9416 LCD PANEL PWM_HARF PWM DUTY_SEL A00-A15 D00-D15 D V35 R34 INV_SOS BL_ON/OFF P_DIM A_DIM 37 34 33 38 32 31 36 35 TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Block Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Block Diagram Board TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 54 14.9. PF, V, R and S-Board Schematic Diagram + L.F L.F + + + + - + L.F RESET REG - REG TFC S/GND Mirror Vcc - OVP Q - BEC DRIVE REG RTFC + Current R + BD OSC D + OLP LATCH + BTC DRV FB/OLP TSD S - Current OCP OCP/BD Mirror PUSH R G 2W R914 10 R942 6.8k R930 680 D935 ERZV10V621P2 1% R933 10k K5D312BL0008 F902 TP932 1/2W R901 1M * * TP933 PF9 1 ** 3 4 ** TP931 C920 470p R925 1k C914 2kV 220p * * 3.2 C919 50V 0.22u 1/2W R919 1 PF1 1 ** 3 4 ** TP921 RL920 K6B2ADA00007 * * * * ZA902 K9ZZ00000424 S901 J0LT00000009 C932 25V 100u 3.2 3.2 TP928 1/2W R922 1k L912 EXCELSA24T D913 B0HCMM000013 D932 MA3X152K0L 3.2 R931 470 1/2W R918 0.82 ZA905 K9ZZ00000424 D912 B0HCMM000013 LF901 G0B852H00001 1 * 2 * 3 * 4 * R927 68k TP929 T920 ETS28AZ1K6ND 1 V2 2 V1 4 P2 * 5 PT 6 P1 * 8 S2 * 9 NC 10 S1A 11 S1B 12 NC 7 NC LF903 G0B852H00001 1 * 2 * 3 * 4 * 2W R913 100k 1/2W R920 330 2W R912 100k D915 B0BA01000065 R936 6.8k C930 25V 2200u C907 220p 1% R934 22k D916 B0BA01000065 C902 220p C933 25V 1u C904 0.47u * * C918 50V 2200p PF10 1 2 3 4 5 6 C911 630V 0.022u C912 50V 10u 1% R932 24k Q930 2SC3311A0A C901 1u * * TP923 R937 68k C917 50V 10u 1/2W R902 1M * * R938 6.8k R924 22k D930 B0HARM000020 * * C931 1kV 330p 3.2 C915 50V 470p 3.2 C910 450V 100u ** ** ZA904 K9ZZ00000424 3.2 F901 D931 LNJ301MPUJA D934 ERZV10V621P2 1/2W R921 15 R935 47k 3.2 3.2 F900 7W R904 3.3 * * 3.2 TP922 C916 50V 0.01u C905 1u * * R941 6.8k IC930 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 D933 B0JCME000025 1W R915 100k C913 50V 220p ZA903 K9ZZ00000424 D911 B0EAKT000018 TP927 R923 100k L930 10u D914 B0HCMM000013 3.2 3.2 3.5 R939 6.8k TP930 C906 220p TP926 S902 J0LT00000009 C903 220p R940 6.8k D910 B0EBNT000007 * * * * PC920 B3PAA0000261 7W R903 3.3 * * LF902 G0B852H00001 1 * 2 * 3 * 4 * D918 B0BA01000065 IC910 C5HABZZ00121 * 1 * 3 5 4 6 7 SW1554 EVQPBD05R 1% R1513 8.2k SW1552 EVQPBD05R SW1550 EVQPBD05R SW1553 EVQPBD05R 1% R1512 4.7k SW1551 EVQPBD05R 1% R1511 3k 1% R1510 2.2k V35 1 2 3 S34 1 2 3 SW061 ESB64601 1 2 3 4 5 6 D1551 MAZ80560ML R1551 47 C1533 6.3V 10u R1552 220k R1554 270 RM001 PNA4601M05TV VOUT GND VCC C1532 6.3V 10u SN1550 B3L000000020 C1534 6.3V 10u R34 1 2 3 4 5 6 7 D1553 MAZ80560ML R1550 1k C1531 6.3V 10u C1530 6.3V 10u Q1540 2SD0601A0L D1554 MAZ80560ML D1552 MAZ80560ML R1500 1k R1556 47 D1550 LNJ107W5PRW R1553 470 R1555 47 LIVE CIRCUIT NEUTRAL COLD NEUTRAL LIVE HOT LIVE 14V/1.4A STB+5V F.STB ON/OFF GND GND F.STB+14V F.STB+14V S903 S904 S905 S906 S907 S908 S909 S910 S911 S912 S913 S914 S915 K5D502BNA005 K5D502BNA005 1 5 6 D E 7 3 C 8 A 4 2 B PF-BOARD TXNPF10Q59 CPU_GND KEY_SW TV / VTR P_GND STR VOL. DOWN VOL. UP F V-BOARD TNPA3535 OFF-H ON OFF POWER SW STB 5V RELAY VCC S-BOARD TNPA3536 OPT LED STB5V LED_G CPU_GND REMOCON LED_R P_GND SENSOR CATS SENSOR CONTROL REMOTE R-BOARD TNPA3537 J-BOARD (J10) TO D-BOARD (D34) TO D-BOARD (D34) TO P-BOARD (P9) TO P-BOARD (P34) TO AC CORD TO 0 15.0 0 15.0 0 5.0 4.9 0 0 0 4.9 4.9 0.6 0 0 4.9 4.6 0 0 0 4.0 0 COLD COLD COLD * $ * # * * # * = = m $ # * TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES PF, V, R and S-Board Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES PF, V, R and S-Board Schematic Diagram TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 55 14.10. HA-Board Schematic Diagram Y Pb Pr + AA_SDA2 AA_SCL2 RXD TXD CABEL_DET REMOTE SOS PWR_STAT RESET2 AB_AUD_L AB_AUD_R 9V AB_AUD_L AB_AUD_R RESET1 S2_DET 9V AA_SCL2 AA_SDA2 STB5V C3012 16V 0.1u R3026 100 R3007 100 JS3015 L3006 10u JK3001 K1QBB3BB0002 K1QBB3AB0006 G Y G G G Pb G G G Pr G G R3016 10k JS3001 L3003 J0HABB000004 1 2 3 4 C3007 1u 16V R3018 100 JS3012 TP032 C3011 16V 47u H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3014 10k JS3006 JS3004 JS3013 JS3008 R3036 10k JS3007 R3041 0 R3042 0 R3023 1k JS3016 Q3002 2SD0601A0L JS3005 L3001 J0HABB000004 1 2 3 4 R3025 100 TP036 R3015 10k IC3002 C3EAGC000010 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3008 1u 16V R3037 10k R3017 10k TP033 R3019 100 JS3003 JS3014 Q3001 2SD0601A0L C3021 10V 1u R3006 100 R3005 180k JS3011 L3002 J0HABB000004 1 2 3 4 L3004 J0HABB000003 J0HAAB000012 1 2 3 4 JS3002 C3022 0.1u 16V TP034 JK3002 K2HA204B0097 R3004 180k R3022 1k L3005 J0HABB000003 J0HAAB000012 1 2 3 4 TP035 PLUG_DET 3.3V 3.3V RSVD RSVD VD HD AUD_R AUD_L EEPROM TERMINAL BOARD INFORMATION HA-BOARD TXNHA10RBS COMPONENT VIDEO IN AUDIO IN Pr Pb Y J-BOARD (J12) TO 5.0 0 0 0 4.9 0 0 0 1.6 0 9.0 0 0 0.4 0 0 0 0 1.6 0 1.3 0 1.6 0 0 0.3 0 0 0 0 0.5 5.0 0 0 0 0 1.6 0 0 0 0 1.6 3.3 0 0 1.6 0 9.0 2.3 0 0 0 0 0.5 0 0 0 1.6 -0.8 0 0 0 1.6 0 3.3 0.7 0 5.0 1.6 0 0 1.6 0 5.0 0 0 0.5 0 0 0.7 1 B 7 3 5 6 D E C 8 A 4 2 TH-32LHD7UY/EK/ES/BK/ES HA-Board Schematic Diagram TH-32LHD7UY/EK/ES/BK/ES HA-Board Schematic Diagram TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 56 14.11. HB-Board (1 fo 2) Schematic Diagram 9 + C Y + + + + + 2 1 + NP NP NP AL_S_DET AL_S_SEL AE_V_Y AE_R AE_L AC_RO0 AC_RO7 AC_RO6 AC_RO5 AC_RO4 AC_RO3 AC_RO2 AC_RO1 AO_FO9 AO_FO8 AO_FO7 AO_FI9 AO_FI8 AO_FI7 AO_FI6 AO_FI5 AO_FO6 AO_WE AO_WR AO_FI4 AO_FI3 AO_FI2 AO_FI1 AO_FI0 AO_RR AO_RE AO_FO4 AO_FO3 AO_FO5 AO_FO2 AO_FO1 AO_FO0 AM_HS AB_GO7 AB_GO6 AB_GO5 AB_GO4 AB_GO3 AB_GO2 AB_GO0 AB_GO1 AA_BO0 AA_BO1 AA_BO2 AA_BO3 AA_BO4 AA_BO5 AA_BO6 AA_BO7 2.5v_MB 2.5v_MM DA2.5V 2.5v_MF AL_S2_DET AO_FI1 AO_FI0 AO_FO2 AO_FO1 AO_FO0 AO_FO4 AO_FO3 AO_FI4 AO_FI3 AO_FI2 AO_RR AO_RE AO_FO7 AO_FO5 AO_FO6 AO_FI6 AO_FI5 AO_WR AO_WE AO_FI7 AO_FI9 AO_FI8 AO_FO8 AO_FO9 AD2R5V GC2R5V AM_VS GC3R3V 5V AG_SCL2 AG_SDA2 3.3V 9V 9V 9V 3.3V 3.3V PLL2.5V C3202 10V 1u C3173 16V 0.1u C3102 16V 0.1u Q3051 2SD0601A0L R3043 560 C3144 16V 0.1u R3047 1k R3048 100 C3115 16V 0.1u R3055 15k L3051 ELJNA1R5JF L3006 J0E8004B0008 1 2 3 4 5 6 7 9 10 12 R3101 22 C3016 50V 22p C3108 16V 0.1u C3209 10V 1u 560p C3054 50V C3112 16V 0.1u C3110 16V 0.1u R3025 100 1% R3112 1.5k 1% R3135 10 C3118 16V 0.1u R3056 33k R3020 1k R3018 100 C3125 16V 0.1u L3104 ELJPA100KF R3115 1k C3133 16V 0.1u 1% R3184 1.1k 1% R3030 390 C3136 50V 33p C3176 16V 0.1u C3009 16V 47u 1% R3123 15k C3010 16V 0.1u R3012 10k JK3001 K1CB106B0027 1% R3160 2.7k C3021 16V 1u C3154 16V 0.1u 1% R3161 2.7k Q3002 2SD0601A0L C3167 16V 0.1u 33k R3051 C3139 16V 0.1u 1% R3181 1.4k C3151 50V 33p C3169 16V 0.1u 1% R3032 120 1% R3172 75 R3011 10k Q3006 2SB0709A0L R3156 560 IC3102 C0DBZLB00001 K 1 3 R A 2 1% R3168 200 IC3001 C0JBAR000111 1 2 3 4 5 6 7 8 R3013 15k R3062 560 1% R3005 75 Q3104 2SD10300TL C3217 10V 1u C3160 16V 0.1u C3103 10V 1u R3131 22 R3060 1k L3201 ELJPA100KF C3179 4V 220u 1% R3040 330 C3152 16V 0.1u C3117 16V 0.1u C3206 10V 1u C3159 4V 220u 1% R3113 1.5k C3015 50V 47p C3174 16V 0.1u 560p C3051 50V C3107 16V 0.1u L3003 J0HABB000004 1 2 3 4 Q3023 2SD0601A0L R3038 2.7k C3114 16V 0.1u R3028 100 Q3052 2SD0601A0L C3109 16V 0.1u R3121 120 C3140 50V 100p R3027 1k R3023 4.7k C3129 16V 0.1u C3181 16V 0.1u 1% R3029 220 R3014 10k 1% R3133 10 C3124 16V 0.1u 1% R3031 470 1% R3163 2.7k C3134 16V 0.1u C3166 10V 1u C3014 16V 47u R3158 1.8k C3180 16V 0.1u C3175 16V 0.1u C3183 16V 0.1u R3053 15k C3011 16V 0.1u R3059 1k 1% R3162 2.7k C3001 25V 0.1u R3119 120 C3178 16V 0.1u C3137 16V 0.1u R3010 15k 1% R3182 1.1k C3170 16V 0.1u R3157 220 R3151 22 1% R3171 75 C3153 50V 100p R3033 100 R3104 22 R3007 100k R3061 560 Q3003 2SD0601A0L C3216 10V 1u C3163 10V 1u R3140 22 C3105 4V 220u L3007 G1C2R2K00006 C3205 10V 1u C3161 16V 0.1u 1% R3036 180 R3045 10k C3116 16V 0.1u C3211 10V 1u Q3007 2SB0709A0L 560p C3053 50V R3049 1k R3057 100 C3122 10V 1u IC3101 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT R3145 1k Q3004 2SD0601A0L C3113 16V 0.1u D3001 MA2J72900L L3102 ELJPA100KF R3117 1k C3119 16V 0.1u R3106 10k R3149 22 R3026 10k C3017 50V 68p C3158 16V 0.1u R3008 10k R3024 100 L3052 ELJNA1R5JF C3104 16V 0.1u IC3002 C0ABGB000001 1 2 3 5 4 R3037 220 1% C3128 16V 0.1u C3123 16V 0.1u C3056 1u 16V 1% R3173 220 C3186 50V 47p R3015 15k R3017 100 C3131 16V 0.1u C3165 10V 1u C3007 16V 0.1u C3002 25V 0.1u C3168 16V 0.1u C3207 4V 220u 1% R3177 1.4k C3013 16V 1u R3016 100 1% R3179 1.4k Q3102 2SD10300TL C3172 16V 0.1u R3153 220 C3150 16V 0.01u 1% R3170 75 C3005 16V 0.1u R3003 10k 1% R3122 8.2k R3154 330 R3044 10k 1% *R3001 75 C3203 10V 1u C3164 10V 1u 1% R3042 6.8k R3046 100 C3182 16V 0.1u C3127 16V 1u C3142 16V 0.1u C3055 1u 16V 1% R3050 75 C3210 10V 1u R3058 100 L3002 J0HABB000004 1 2 3 4 C3213 10V 1u 560p C3052 50V Q3005 2SD0601A0L C3120 16V 0.1u R3144 1k C3218 16V 0.1u C3111 16V 0.1u *JK3002 K1QBB2AB0005 R3148 22 *JK3004 K2HA204B0097 1% R3127 12 C3106 16V 0.1u R3006 10k R3021 1k R3107 33 R3035 1k X3101 H0J202500002 C3121 16V 0.1u L3103 ELJPA100KF 1% R3129 12 C3022 10V 1u Q3001 2SD0601A0L C3126 16V 0.1u R3054 33k R3022 100 Q3101 2SB0709A0L R3009 100 C3132 16V 0.1u C3185 50V 6p 1% R3134 10 1% R3183 1.4k C3130 16V 0.1u C3177 16V 0.1u C3006 16V 0.1u C3019 6.3V 3.3u C3008 16V 0.1u C3149 16V 0.1u C3162 10V 1u R3019 1k R3152 560 C3146 16V 0.1u 33k R3052 1% R3180 1.1k 1% R3169 75 1% R3178 1.1k C3171 16V 0.1u IC3003 C0ABGB000001 1 2 3 5 4 C3135 16V 0.01u 1% R3004 75 IC3104 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out R3155 330 1% R3124 10 C3012 16V 0.1u 1% R3041 180 1% *R3002 75 L3001 J0HABB000003 1 2 3 4 C1AB00001826 IC3103 1 VSS 2 VDDE 3 VDDI 4 UV0 5 UV1 6 RO0 7 RO1 8 RO2 9 RO3 10 RO4 11 RO5 12 RO6 13 RO7 14 HPO1 15 VPO1 16 LCLK1 17 VDDI 18 VDDE 19 VSS 20 HPIN2 21 VPIN2 22 UVIN0 23 UVIN1 24 UVIN2 25 UVIN3 26 UVIN4 27 UVIN5 28 UVIN6 29 UVIN7 30 UVIN8 31 UVIN9 32 CLKIN 33 VDDI 34 VDDE 35 VSS 36 YIN0 37 YIN1 38 YIN2 39 YIN3 40 YIN4 41 YIN5 42 YIN6 43 YIN7 44 YIN8 45 YIN9 46 VDDI 47 VDDE 48 VSS 49 YUV0 50 YUV1 51 YUV2 52 YUV3 53 YUV4 54 YUV5 55 YUV6 56 YUV7 57 YUV8 58 YUV9 59 VDDI 60 VDDE 61 VSS 62 BCLK 63 HFR 64 LCDSW 65 NRST 66 AVSAD12 67 AVDAD12 68 AVSAD11 69 AVDAD11 70 VRH1 71 NC 72 VIN1 73 VRL1 74 NC 75 NC 76 AVSAD22 77 AVDAD22 78 AVSAD21 79 AVDAD21 80 NC 81 VRH2 82 NC 83 VIN2 84 NC 85 VRL2 86 NC 87 NC 88 AVSAD32 89 AVDAD32 90 AVSAD31 91 AVDAD31 92 NC 93 VRH3 94 NC 95 VIN3 96 NC 97 VRL3 98 NC 99 NC 100 AVDCLP 101 AVSCLP 102 UCLP 103 VCLP 104 YCLP 105 VSS 106 VDDI 107 VDDE 108 MST 109 SMCK 110 VPD 111 XTST 112 VPIN1 113 HPIN1 114 SCS 115 XSM 116 SDA 117 SCL 118 VSS 119 VDDE 120 FO9 121 FO8 122 FO7 123 FIN9 124 FIN8 125 FIN7 126 FIN6 127 FIN5 128 FO6 129 FO5 130 VSS 131 VDDI 132 VDDE 133 WE 134 WR 135 FCKR 136 RR 137 RE 138 FO4 139 FO3 140 FIN4 141 FIN3 142 FIN2 143 FIN1 144 FIN0 145 FO2 146 FO1 147 FO0 148 OSDCNT 149 VDDE 150 VSS 151 VDDI 152 INTLC 153 VDAF 154 EWO 155 HO2 156 HO1 157 158 HDO 159 HTRAP 160 HINP 161 HPO3 162 VPO3 163 HPO2 164 VPO2 165 LCLK2 166 VDDE 167 BXS3 168 VSS 169 CW358 170 VDDI 171 VGS3 172 CPO3 173 AVDPL3 174 AVSPL3 175 VGS2 176 CPO2 177 AVDPL2 178 AVSPL2 179 VSS 180 HREF 181 VDDE 182 BXS2 183 VDDI 184 FBPMO 185 VDDE 186 FBPIN 187 VSS 188 AVSPL1 189 AVDPL1 190 CPO1 191 VGS1 192 VSS 193 VDDI 194 POUT 195 VDDE 196 VSAW 197 VDDE 198 RDV 199 BDV 200 RCF 201 GCF 202 BCF 203 HCLP 204 BLK 205 HPO4 206 VPO4 207 FRCLK 208 VDDE 209 VSS 210 XIN 211 VDDI 212 XOUT 213 VDDE 214 VSS 215 VMYS 216 YUVOE 217 TEST 218 AIN1 219 AIN2 220 AIN3 221 AIN4 222 AVSAD 223 VR 224 AVDAD 225 VRO1 226 VREF1 227 AOUT1 228 AVSDA1 229 AVDDA1 230 VRO2 231 VREF2 232 AVSDA2 233 AVDDA2 234 AOUT2 235 AVSDA3 236 AVDDA3 237 AOUT3 238 COMP3 239 AVSDA4 240 AOUT4 241 AVDDA4 242 VRO4 243 VREF4 244 COMP4 245 NC 246 AVDDA5 247 AVSDA5 248 AOUT5 249 COMP5 250 NC 251 AVSDA6 252 AOUT6 253 AVDDA6 254 VRO6 255 VREF6 256 COMP6 C0CBABB00029 IC3301 4 GND 3 SW 1 OUT 2 IN R3166 0 R3142 0 R3102 0 R3167 0 R3165 0 R3125 0 R3139 0 R3141 0 R3189 0 R3114 0 R3164 0 R3174 0 R3138 0 R3143 0 R3108 0 R3118 0 R3136 0 R3137 0 R3065 0 R3159 0 R3185 0 JS3309 JS3310 JS3308 JS3302 JS3306 JS3304 JS3305 JS3301 JS3303 L3005 0 R3192 10k R3193 10k R3195 0 R3194 0 C3023 16V 47u C3018 10V 10u C3004 10V 10u C3003 10V 10u IC3105 C0JBAZ001834 1 2 3 4 5 6 7 8 C3188 10V 1u C3156 1u 6.3V C3148 1u 6.3V C3141 1u 6.3V C3138 10u 6.3V C3147 10u 6.3V C3157 10u 6.3V C3024 10u 6.3V R3120 0 R3116 0 D3002 MAZ31000ML C3204 10V 1u C3208 10V 1u C3214 10V 1u C3212 10V 1u IC3201 C3HBKZ000002 1 VCC 2 CS 3 CSMODE 4 NC 5 VSS 6 DI0 7 DI1 8 NC 9 DI2 10 VSS 11 DO0 12 DO1 13 VCC 14 NC 15 DO2 16 VSS 17 VSS 18 VCC 19 VCC 20 DO3 21 NC 22 VCC 23 NC 24 DO4 25 VSS 26 DI3 27 NC 28 NC 29 DI4 30 VSS 31 OE 32 RE 33 RSTR 34 SRCK 35 VCC 36 VSS 37 SWCK 38 RSTW 39 WE 40 IE 41 VCC 42 DI5 43 NC 44 NC 45 DI6 46 VSS 47 DO5 48 NC 49 VCC 50 NC 51 DO6 52 VCC 53 VCC 54 VSS 55 VSS 56 DO7 57 NC 58 VCC 59 DO8 60 DO9 61 VSS 62 DI7 63 NC 64 DI8 65 DI9 66 VCC 67 NC 68 NC 69 NC 70 VSS R_IN L_IN Macro Macro Macro DA AD AD PLL PLL PLL For BurstLock For Mid_CLK For FBP Macro Macro Macro AVDDA4 AVSDA2 AVDDA2 AVSDA3 AVDDA3 AVSDA4 MP EHT ACL XTAL Macro GC2M+ Global_tvsiginal_processing_CoreLSI ver.2_for_Main_processor + - VCC GND VEE INH COM I1 I0 SEL + - CROMA /OE1 /OE2 B1 A2 Vcc A1 B2 GND F 5 A B E 6 8 7 3 D 4 C 1 2 5M_FIFO AVR 3.3V 5V=>3.3V RESET AVR 2.5V ERROR DET AMP AMP SWITCH 13 5 6 4 2 3 1 11 12 10 8 9 7 HB-BOARD TXNHB10QXS (1/2) TH-32LHD7UY/EK/ES/BK/ES HB-Board Schematic Diagram ( 1 of 2 ) TH-32LHD7UY/EK/ES/BK/ES HB-Board Schematic Diagram ( 1 of 2 ) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 57 14.12. HB-Board (2 fo 2) Schematic Diagram + + + + + + + C C C C C AH_TX2+ AJ_TXC- AJ_TXC+ AI_TX3- AI_TX3+ AD_TX0- AD_TX0+ AK_TX1- AK_TX1+ AH_TX2- AE_L AM_VS SRQ AM_HS AL_S2_DET 9V 5V 3.3V PLL2.5V AL_S_DET 3.3V 3.3V AC_RO1 AC_RO7 AC_RO6 AC_RO5 AC_RO4 AC_RO3 AC_RO0 AC_RO2 AB_GO2 AB_GO3 AB_GO4 AB_GO0 AB_GO1 AB_GO5 AB_GO7 AB_GO6 AA_BO5 AA_BO7 AA_BO6 AA_BO2 AA_BO0 AA_BO1 AA_BO3 AA_BO4 3.3V AJ_TXC- 3.3V AI_TX3+ AJ_TXC+ AI_TX3- AD_TX0+ AK_TX1- AK_TX1+ AD_TX0- AH_TX2+ AH_TX2- AL_S_SEL SCL2 SDA2 SRQ 3.3V AM_VS AM_HS SDA2 SCL2 AG_SDA2 AG_SCL2 SDA2 SCL2 AG_SCL2 AG_SDA2 AE_V_Y SDA2 SCL2 AE_R 3.3V 3.3V 2.5V IC3302 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT 1% R3300 1.5k R3338 22 R3308 10k C3254 16V 0.1u C3322 4V 220u C3327 16V 0.1u C3316 10V 1u IC3699 C3EBGC000018 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3265 4V 220u C3264 16V 0.1u IC3251 C0ZBZ0000684 DS90C383AMTDX 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 C3258 16V 0.1u C3311 16V 0.1u R3253 4.7k C3313 10V 1u R3337 22 C3260 16V 0.1u C3318 16V 0.1u C3328 16V 0.1u C3308 4V 220u C3257 50V 1000p R3304 22 R3252 10k C3256 16V 0.1u C3309 10V 1u IC3303 AN80L25RMSTX 5 4 3 1 2 C3325 16V 47u C3321 16V 0.1u H0 1 2 3 4 5 6 7 8 C3324 6.3V 100u TS3101 C3319 16V 0.1u C3329 16V 0.1u L3251 ELJPA2R2MF C3266 16V 0.1u R3303 22 TS3102 1% R3301 1.5k C3259 50V 1000p C3255 50V 1000p R3251 100 C3261 4V 220u TS3100 C3253 50V 1000p C3323 4V 220u C3320 16V 0.1u C3330 16V 0.1u IC3305 C0JBAZ000801 1 A0 2 A1 3 A2 4 P0 5 P1 6 P2 7 P3 8 GND 9 P4 10 P5 11 P6 12 P7 13 VDAC 14 SCL 1 15 SDA 1 16 VCC C3263 16V 0.1u L3252 ELJPA2R2MF R3309 10k C3262 50V 1000p H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 L3305 ELKE103FA 1 2 3 L3306 ELKE103FA 1 2 3 L3307 ELKE103FA 1 2 3 L3308 ELKE103FA 1 2 3 C3317 10V 1u R3302 4.7k C3301 10V 1u R3313 33k R3314 10k R3315 10k R3305 0 R3307 0 R3254 22 R3255 22 C0JBBZ000285 IC3304 1 NC 2 SCL0 3 SDA0 4 GND 5 EN 6 SDA1 7 SCL1 8 VCC 33k R3319 GND VP HP STB5V Y3- Y3+ LVDS GND PLL GND PLL VCC PLL GND /PDWN CLK IN D26 GND D25 D24 VCC D23 D22 D21 D20 GND D19 D18 D27 LVDS GND Y0- Y0+ Y1- Y1+ LVDS VCC LVDS GND Y2- Y2+ CLKOUT- CLKOUT+ D17 CLKSEL D16 D15 D14 GND D13 D12 VCC D10 D11 D9 GND D2 D3 D4 D0 D1 D8 GND D7 D6 D5 VCC CLKI_M S_DET SRQ GND SDA SCL GND OUT ON/OFF 17 18 14 12 10 16 11 15 13 LVDS TRANSMITTER AVR 2.5V EEPROM TERMINAL BOARD INFORMATION 5V=>3.3V DAC IIC EXPANDER AVR 2.5V 3 1 11 12 10 8 9 7 13 5 6 4 2 HB-BOARD TXNHB10QXS (2/2) TO J-BOARD (J11) IN GND NC TH-32LHD7UY/EK/ES/BK/ES HB-Board Schematic Diagram ( 2 of 2 ) TH-32LHD7UY/EK/ES/BK/ES HB-Board Schematic Diagram ( 2 of 2 ) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 58 14.13. HX-Board Schematic Diagram + + + + AB_TXD AB_RXD AC_VD AC_HD AC_HD AB_RXD AB_TXD AC_VD R3510 100 4.7k R3786 L3508 J0HABB000004 1 2 3 4 C3562 1u 16V D3509 MAZ81600HL R3400 10k L3509 J0HABB000004 1 2 3 4 JK3509 1 2 3 4 5 8 9 6 7 R3586 56 HX1 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 12 13 14 15 R3780 100 R3784 3.3 L3517 J0HAAB000012 1 2 3 4 Q3536 2SD0601A0L L3514 J0HAAB000012 1 2 3 4 IC3502 C3EBCC000020 1 NC 2 NC 3 NC 4 VSS 5 SDA 6 SCL 7 VCLK 8 VCC R3788 4.7k R3530 180k R3668 100 C3550 50V 0.01u R3529 180k C3564 47u 16V D3505 MA3X15300L C3551 16V 47u R3508 4.7k JK3511 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C3524 50V 0.01u D3504 MAZ30560ML R3656 33k R3547 100 C3405 16V 47u R3672 100 R3663 1k L3513 J0HAAB000012 1 2 3 4 R3585 56 R3789 4.7k L3555 ELJPA100KF L3512 J0HAAB000012 1 2 3 4 R3589 47k R3782 3.3 R3591 0 C3563 0.1u 16V D3502 MAZ30560ML Q3535 2SD0601A0L L3510 J0HAAB000012 1 2 3 4 R3511 100 R3548 100 L3511 J0HAAB000012 1 2 3 4 Q3533 2SB0709A0L C3404 16V 0.1u R3653 15k L3515 J0HAAB000012 1 2 3 4 D3503 MAZ30560ML Q3531 2SD0601A0L D3510 MAZ81600HL R3664 1k D3506 MA3X15300L R3654 33k R3592 0 R3781 3.3 R3593 0 R3590 56 C3561 1u 16V R3783 3.3 D3508 MAZ81600HL R3778 47k 4.7k R3787 C3523 16V 47u JK3513 K2HC103B0105 Q3534 2SB0709A0L R3777 100 C3409 16V 0.1u L3507 J0HABB000004 1 2 3 4 R3509 4.7k Q3532 2SD0601A0L R3785 100 L3526 ELJPA100KF L3516 J0HAAB000012 1 2 3 4 R3655 15k D3501 MAZ30560ML D3507 MAZ81600HL R3776 100 C3566 10V 10u C3567 10V 10u 5V 9V TXD RXD VD HD TJS8A9880 PC IN RS-232C REMOTE_IN TJS4A8390 CTS RTS PCis DSR RI K1FB109B0058 L R EEPROM DDC RXD TXD DTR CD GND 9V PC Ls PC Rs PC R PC G PC B STB5 PC AUDIO IN 7 B C A D E 8 1 3 6 5 4 2 J-BOARD TO (J14) 9.0 0 0 0 0 0 0 0 2.4 0 5.3 0 0 0 0 0 5.3 0 0 0 0 0 5.3 0 1.6 0 0 0 0 4.5 5.3 9.0 6.0 5.3 9.0 6.0 HX-BOARD TZTNP010Q60 TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES HX-Board Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES HX-Board Schematic Diagram TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 59 14.14. J-Board (1 of 4) Schematic Diagram + + + + 9V 5V AI_VD_1 AD_VD_4 AL_VD_2 AI_HD_1 AE_SW1 AE_SW0 AE_SW2 AE_SW3 AC_CS((M)) 9V AL_HD_2 AC_CS((S)) AD_HD_4 SLOT5V SLOT9V SLOT3.3V R8018 5.6k 1% *R8061 150 *R8099 10k IC8009 C0JBAS000109 1 2 3 4 5 6 7 8 *R8094 100 C8027 16V 2.2u R809710k 1% R8035 330 *R8005 0 *C8050 50V 0.01u J8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 *R8016 270 C8111 16V 0.1u *IC8002 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD FL3008 ELKE103FA 1 2 3 R8100 10k R8072 0 L8001 G1C100K00020 C8106 16V 47u FL3006 ELKE103FA 1 2 3 C8107 16V 47u R8098 10k Q8002 2SD0601A0L *R3162 1k R8017 5.6k R8047 270 R8001 0 R8011 270 *R8062 270 *R8020 5.6k C8003 50V 0.1u *C8004 50V 0.1u *R8014 270 R3163 1k *R8019 5.6k *R8015 270 C8105 16V 47u FL3007 ELKE103FA 1 2 3 *R8007 0 C8001 16V 47u R8004 0 C8035 16V 0.1u 1% *R8060 330 *Q8001 2SD0601A0L C8049 50V 0.01u *R8008 0 R8003 0 1% R8036 150 C8112 16V 0.1u *C8043 16V 0.1u R8012 270 *C8041 16V 2.2u IC8001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD C8051 16V 0.1u *R8071 0 R8010 270 C8113 16V 0.1u R8093 100 *IC8008 C0JBAR000111 1 2 3 4 5 6 7 8 IC8007 C0JBAR000111 1 2 3 4 5 6 7 8 SDA3 SCL3 GND GND GND GND DIG12V SLOT9V SLOT5V SLOT3.3V SLOT3.3V RESET SOUND MAIN MUTE L R FAN_SW GND GND GND DR15V VSS VDD H:ON VIDEO CS CS VIDEO I0 VCC COM INH SEL I1 VEE GND SEL I1 I0 VCC COM INH VEE GND SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI HD 9V 5V SWITCH SWITCH SWITCH (MAIN) SYNC SELECT SELECT SYNC (SUB) J-BOARD (1/4) TNPA3246AC J-BOARD (3/4) TO B E 6 8 7 3 D 4 C 1 2 F 5 A 9 TO (Z8) Z-BOARD 5 6 4 2 3 1 8 7 K L M D E F G H I A B C J Q R N S O T U P 12.0 0 9.1 0 0 3.3 5.0 4.9 0.1 0 5.5 5.5 0 0 15.5 0.4 0 0 3.3 0 0.4 4.5 4.2 0 0.5 0.4 0.4 0 4.5 2.1 9.0 9.1 9.0 2.5 0.8 4.5 0 0.9 0.4 4.6 0.9 4.4 0 0.2 9.0 0.3 0.3 4.5 4.5 0.3 9.0 9.0 4.5 8.7 3.8 9.0 3.6 0 0 0 5.3 4.5 4.3 0.9 4.5 4.3 4.5 0 4.5 9.0 8.7 3.9 3.9 0 0 0 1.6 9.0 1.0 1.6 1.0 9.0 TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Schematic Diagram ( 1 of 4 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Schematic Diagram ( 1 of 4 ) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 60 14.15. J-Board (2 of 4) Schematic Diagram + + AG_HD_M AG_VD_M AF_HD_S AF_VD_S 12V 5V_S 5V_M *TPJH2 R8025 0 L8003 G1C100K00020 R8050 2.2k *C8026 50V 0.01u R8055 100 R8065 100 R8045 2.2k R8021 2.2k R8033 100k C8025 50V 0.01u ZA3007 K4CD01000013 *C8006 50V 0.01u *C8037 50V 100p *C8008 50V 100p C8029 50V 0.01u *R8070 100 *R8049 2.2k 1% *R8040 4.7k R8046 2.2k ZA3008 K4CD01000013 *C8039 50V 1000p ZA3002 K4CD01000013 C8016 16V 4.7u *C8014 16V 0.1u R8058 100 *C8011 6.3V 10u R8081 1.5k *R8027 0 ZA3001 K4CD01000013 C8005 50V 0.01u IC8003 C1AA00000395 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing C8021 16V 0.47u *R8028 330 1% *R8038 4.7k R8026 330 *IC8004 C1AA00000395 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing D8003 MA2J11100L IC8005 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 *C8032 16V 47u R8051 2.2k *C8024 50V 0.01u *D8002 MA2J11100L C8019 50V 0.01u ZA3003 K4CD01000013 C8036 50V 100p TPJH1 JS8094 *R8034 100k L8005 G1C100K00020 1% R8031 2.2k C8038 50V 1000p R8059 100 C8023 50V 0.01u *R8078 1.5k R8067 100 *D8004 MA2J11100L R8056 100 *C8022 16V 0.47u C8013 16V 0.1u JS8095 1% R8037 4.7k *R8068 100 C8045 16V 1u C8007 50V 100p R8077 1.5k C8030 16V 47u C8015 10V 10u D8001 MA2J11100L R8041 18k *R8022 2.2k TPJV1 ZA3004 K4CD01000013 C8033 50V 1000p C8009 6.3V 10u R8048 2.2k *C8034 50V 1000p *R8042 18k 1% R8039 4.7k *C8031 50V 0.01u *C8020 50V 0.01u *C8018 16V 4.7u *L8004 G1C100K00020 *R8082 1.5k *TPJV2 1% *R8032 2.2k *C8017 10V 10u 1% R8029 3k 1% *R8030 3k VD HD VD O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC HP VP VP HP 12V 5V INVERTER (MAIN) SIGNAL SYNC PROCESSOR SIGNAL PROCESSOR (SUB) SYNC (4/4) J-BOARD TO 14 12 10 16 11 15 13 17 18 6 4 5 2 7 3 1 8 AB AA 6.2 6.2 4.3 5.0 3.0 4.3 5.0 0.9 0 0 4.8 0 3.3 0 5.0 5.0 0.3 12.0 0.3 0 0 0 0 0 0 0 1.9 6.2 0 6.2 6.1 4.0 0 11.9 3.4 0 0 0 6.1 0 0 5.3 0 0 0 0.1 0 5.2 0 5.3 0 5.2 0 5.3 J-BOARD (2/4) TNPA3246AC TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Schematic Diagram ( 2 of 4 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Schematic Diagram ( 2 of 4 ) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 61 14.16. J-Board (3 of 4) Schematic Diagram + + + + + + + + + + + AB_SCL3 AB_SDA3 AI_R_1 AH_SLOT1_DET AI_L_1 AJ_RXD1 AL_L_2 AH_SLOT2_DET AL_R_2 AL_VD_2 AL_HD_2 AL_PR_2 AL_S2_2 AL_PB_2 AL_Y_2 AN_SDA_S1 AN_SCL_S1 AJ_TXD1 AI_VD_1 AI_HD_1 AI_PR_1 AI_PB_1 AI_S2_1 AI_Y_1 AB_SCL3 AH_SOS AN_SCL_S1 AN_SDA_S1 AL_R_2 AD_R_4 AI_L_1 AL_L_2 AD_L_4 AI_R_1 AC_SW1 AG_PR_M AG_Y_M AG_PB_M AG_HD_M AG_VD_M AB_SDA3 AJ_TXD1 AJ_RXD1 AJ_TXD4 AJ_RXD4 AB_SCL3 AC_SW0 AA_SDA3 AF_HD_S AF_VD_S AF_DPMS_VD AF_DPMS_HD AF_PB_S AF_Y_S AF_PR_S AJ_STATUS AH_SOS AB_SDA3 15V AA_SCL3 STB5V_S STB5V_S 9V SLOT5V STB5V_S LAN15V STB5V_S STB5V_S SLOT3.3V STB3.3V P5V SLOT5V LAN15V 12V SLOT3.3V UNREG15V STB5V_S SLOT9V LAN15V SLOT9V STB5V_S STB3.3V P5V P5V P5V STB5V_S J11 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C3007 16V 47u J5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 D3001 MA2J11100L *J10 1 2 3 4 5 6 C8104 16V 47u C3041 16V 0.1u R3006 4.7k C8101 50V 0.01u R8207 0 C3150 16V 0.1u R3017 0 L3002 G1C100K00020 FL3004 ELKE103FA 1 2 3 C8116 50V 0.01u C3005 16V 1u FL3002 ELKE103FA 1 2 3 R3018 0 FL3003 ELKE103FA 1 2 3 R3004 100 R3011 15k IC8181 C1DB00000274 1 2 3 4 5 6 7 8 FL3100 ELKE103FA 1 2 3 C8118 16V 47u C3009 16V 0.1u R3021 0 R3062 100 J6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 D8180 MA2J11100L R3141 47k R8184 0 C0JBCA000066 IC3150 SN74AHCT1G08DCKR 1 A 2 B 3 GND 5 Vcc 4 Y C3001 50V 0.01u D3061 MA2J72800L R3025 100 C8109 16V 0.1u R8185 2.7k R3013 15k R8181 100 C8110 50V 0.01u IC3001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD C8123 16V 0.1u FL3000 ELKE103FA 1 2 3 R3009 100 R3024 100 D3007 MA2J11100L R3014 33k J12 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3160 5.6k IC8101 C0CBAHG00005 GND 3 2 OUT IN 1 J1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R3151 100 C8183 16V 0.1u R8183 0 D3008 MA2J11100L R3022 0 D3005 LNJ206R5ARA C8185 5.5V 1.5 FL3009 ELKE103FA 1 2 3 R3001 10k C3004 16V 47u C8119 50V 0.01u R3005 4.7k L8181 G1C100K00020 R8188 56 C8181 50V 15p IC3007 C0JBAS000109 1 2 3 4 5 6 7 8 R3198 12k R3150 100 D3003 MA2J11100L R3140 47k R3003 47k Q8182 B1CBHD000001 G D S R8182 100 R3002 1k FL3010 ELKE103FA 1 2 3 Q3004 2SD0601A0L C8108 16V 0.1u C3008 50V 0.1u R3015 0 C8100 16V 47u C3040 16V 0.1u Q3003 2SD0601A0L R3012 33k R3063 100 C8102 16V 47u R3020 0 C8103 16V 47u C8115 16V 47u R3197 12k R3008 10k C8120 16V 47u R3010 100 IC8000 C0CBAKG00003 GND 3 2 OUT IN 1 Q3002 2SD0601A0L Q3001 2SB0709A0L IC3002 C0JBBR000002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 C8182 50V 15p R3116 10k C8117 50V 0.01u C8121 16V 0.1u C8122 16V 47u Q8181 B1CBHD000001 G D S R3161 5.6k C8114 50V 0.01u R3007 10k R8186 2.7k R3061 0 R8187 56 FL3005 ELKE103FA 1 2 3 C3006 16V 1u R3023 100 J3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 UNREG12V R3060 1k X8181 H0J327200114 S1 S0 VDD VSS H:ON 32.768K LAN15V PLUG DET CABLE DET SYNC GND REMOTE VD SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G GND GND STB5V SRQ RSVD IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND AUDIO IN R GND SLOT3.3V SLOT9V GND SLOT5V TX1+ GND TX3+ TX3- TXC+ TXC- TXCG TX3G TXG+ TXG- TX2G TX1- TX1G TX0+ TX0- TX0G SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R GND RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G LAN15V CABLE DET SYNC GND REMOTE VD SLOT5V GND SLOT9V GND STB5V SRQ RSVD IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND PLUG DET AUDIO IN R SLOT3.3V GND TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TX3- TX3+ GND TX1+ TX0G TX0- TX0+ TX1G TX1- PC HI HI LO LO LO LO SLOT3 SLOT2 HI HI SLOT1 SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI STB5V STB_ON LAN15V LAN15V GND GND TXG- TX2G TX1+ TX3+ TX3- TX3G TXC+ TXC- TXCG TXG+ TX1- TX1G TX0+ TX0- SDA SCL 1OE S1 1B4 1B3 1B2 1B1 1A GND VCC 2OE S0 2B4 2B3 2B2 2B1 2A R L TXG- TX2G TX1+ TX3+ TX3- TX3G TXC+ TXC- TXCG TXG+ TX1- TX1G TX0+ TX0- TDETECT RTC INT/PANEL_SOS 5V SCL3 FAN CONT REMOCON OUT SCL1 STB3.3V ON/OFF IIC_CONT STB3.3V STB5V STB_ON GND GND V MUTE IN 232C_STATUS TXD_TU RESET POWER STATUS ALL_OFF GND TXD_PC GND SOUND MUTE SDA1 RXD_TU RXD_PC CABLE DET SDA3 GND GND DETECT PF-BOARD (PF10) TO TO D-BOARD (D3) (D1) D-BOARD TO D-BOARD (D5) TO TO D-BOARD (D5) IIC SW CLOCK IC AUDIO SELECT IIC SW AVR 9V AVR 12V TO (1/4) J-BOARD B E 6 8 7 3 D 4 C 1 2 F 5 A 9 17 18 16 19 14 15 13 20 11 12 24 23 22 21 25 30 31 29 32 27 28 26 J C D E F G H I A B M L R S U N T O Q K P AND 0 5.0 0 15.0 0 15.0 2.5 2.5 0.6 3.2 4.0 5.0 0 2.3 4.0 0 3.2 0.4 0 0.3 0.4 5.0 0 0 0 3.2 0 0.4 0 5.3 0.4 0 0 6.6 0.4 2.9 0 0.5 0 0 0.8 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.8 0 0 0 0 5.0 1.2 1.2 33 1.3 1 21 16 0 0 1.1 0 23 4 1.2 31 19 B A 38 1.3 1.6 0.6 1.3 1.0 4.4 1.0 14 1.0 6 1.2 29 30 0 4.0 0 0 18 36 7 2.1 0 13 1.6 0.6 22 3.3 0 35 0 0 1.6 1.2 32 37 8 10 0.6 0 2.5 5.0 0.7 0 0 3 2.3 1.6 0.5 2 15 0 0.3 1.6 26 0 0.4 20 11 0 40 28 0 1.2 27 0 1.3 0 0 34 25 5 17 1.2 0 0 9.0 4.5 24 0 0 1.6 9 0 1.4 1.6 39 2.3 1.2 1.6 0 -0.3 5.0 1.0 3.3 1.1 1.2 12 0 2.0 1.5 4.8 0.5 9.0 15 0 0 0 5.0 0 31 0 29 0 0 5 0 1 0 14 0.7 3.3 1.6 28 0 0.7 16 5.0 33 0 3.3 0 0 5.0 0 13 0 9.0 0.5 26 39 2.3 0 0 0.4 0 37 0 38 0.5 0 0 0 0 1.6 34 1.6 4 9.0 0 0 0 0 32 24 0 3 0 1.3 9 1.6 1.6 7 22 36 0 0 0 11 1.6 0 1.6 17 8 19 0 0 0 5.0 0 1.6 10 0 -0.8 0 23 0 0 0.3 1.6 0 0 27 25 18 0 21 30 0 2 0 6 0 1.6 0.5 4.9 0 12 40 0 0 35 B A 20 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.1 0.3 1.6 0 0.2 0 0.1 0 1.6 0.5 0 0 0.7 0.5 0.5 0.6 0 0.5 0.6 1.6 1.6 1.6 0 1.6 0 1.6 1.5 0 0 1.6 1.6 1.6 0 0 4.0 4.1 0.2 0.2 0 0.2 2.4 0 4.1 4.9 0.2 0.2 4.1 0.2 2.5 0.2 0.3 5.3 0.3 0 1.1 0 5.3 0.6 5.3 9.0 5.3 0.6 1.1 9.0 0.3 1.1 4.0 4.0 0 4.4 4.9 4.1 4.0 4.5 12.0 0 9.0 15.4 11.9 0 0.1 5.0 0.5 3.2 5.0 0 4.5 0.3 2.5 5.0 3.1 5.0 2.5 3.2 9.0 6.1 5.5 5.4 9.0 6.1 3.7 4.9 0 0 4.4 0 J-BOARD (3/4) TNPA3246AC TO HA-BOARD (H1) HB-BOARD TO (H1) < TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Schematic Diagram ( 3 of 4 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Schematic Diagram ( 3 of 4 ) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 62 14.17. J-Board (4 of 4) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Schematic Diagram ( 4 of 4 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES J-Board Schematic Diagram ( 4 of 4 ) + + + + + + + + + + + AB_SCL3 AB_SDA3 AC_CS((S)) AA_SCL3 AA_SDA3 AA_SDA3 AA_SCL3 AI_S2_1 AD_PB_4 AD_Y_4 AD_PR_4 AI_PR_1 AI_PB_1 AI_Y_1 AH_SLOT2_DET AJ_TXD_4 AD_L_4 AD_Y_4 AD_PR_4 AD_R_4 AD_PB_4 AL_S2_2 AJ_RXD_4 AD_VD_4 AD_HD_4 AL_Y_2 AL_PB_2 AL_PR_2 AH_SLOT1_DET AC_SW1 AC_SW0 AA_SCL3 AA_SDA3 AE_SW2 AE_SW3 AE_SW1 AC_CS((M)) AH_SOS_ALL AE_SW0 9V 9V 9V AF_VD_HX AF_HD_HX AF_VD_HX AF_HD_HX AF_DPMS_VD AF_DPMS_HD AG_PR_M AG_Y_M AG_PB_M AF_Y_S AF_PR_S AF_PB_S AJ_TXD4 AJ_RXD4 AJ_RXD_4 AJ_TXD_4 AH_SOS_ALL AH_SOS AF_HD_HX AF_VD_HX STB5V 5V_M P5V 9V P5V 5V_S STB5V_S STB3.3V LAN15V LAN15V STB5V_S STB3.3V R3033 0 1% R3090 75 4.7k R3213 *C3123 16V 0.1u R3031 0 1% R3190 75 C3109 16V 0.1u R3117 0 1% R3189 75 L3050 G1C100K00020 *R8091 180 D8011 MA3X15300L *C3124 16V 0.1u R3032 0 R3219 3.3 *R3127 0 R3042 0 R3043 0 C3114 16V 4.7u R8124 100 C8084 16V 1u R3081 56 D8010 MA3X15300L R3028 10k C3010 16V 0.1u C3104 16V 0.1u C3144 16V 2.2u C3011 16V 0.1u R3052 330k *R3083 100 1% R3103 180 IC3004 C1AB00000454 1 2 3 4 5 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 VCC *R3086 0 C8073 10V 10u 1% R3102 180 J14 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 12 13 14 15 R8204 100k C3107 16V 0.1u *R3133 180 *R3084 10k 1% R3111 1.5k *C3125 16V 0.1u *D3021 MA2J11100L R8201 47k R3230 100 C8072 10V 10u Q8012 2SD0601A0L C0ZBZ0000911 IC8014 EN 1 2 C1+ 3 V+ 4 C1- 5 C2+ 6 C2- 7 V- 8 T2_OUT 9 R2_IN 10 R2_OUT 11 STATUS 12 T2_IN 13 T1_IN 14 ONLINE 15 R1_OUT 16 R1_IN 17 T1_OUT 18 GND 19 VCC 20 SHUTDOWN Q8202 2SD0601A0L R3034 330 R3055 330k R3030 0 R3037 0 Q3103 2SD0601A0L 1% R3088 75 R3082 100 C3135 16V 470u R3053 56 C8080 16V 0.1u *R3108 0 R3193 33 R8125 100 R3195 10k C3030 2.2u 16V R3049 330k 1% R3093 75 R3051 330k L3006 G1C100K00020 1% R3104 180 1% R3089 75 JS8097 *R3099 10k C3028 2.2u 16V R8200 22k 1% *R3201 180 1% *R3109 820 R3076 56 1% *R3262 75 R3041 330 1% R3110 4.7k R8203 22k D8204 MA2J11100L L3005 G1C100K00020 R3044 10k *Q3105 2SD0601A0L *C3120 16V 0.1u *R8066 680 R3029 10k C3015 50V 0.01u C3021 2.2u 16V C8070 0.1u 16V Q3102 2SD0601A0L C3027 2.2u 16V 1% R3091 75 R3046 10k 1% R3101 180 C3105 16V 0.1u *R3100 10k C3017 50V 0.01u 1% R3070 75 *R3132 180 1% R3118 820 R8127 100 1% *R3202 180 *C3128 16V 47u C8200 16V 47u R3126 0 *Q8018 2SD0601A0L *C3116 16V 2.2u R3078 56 R8117 0 R3048 330k C3113 16V 47u R3047 10k *C3121 16V 0.1u R3039 330 R3218 3.3 1% R3072 75 Q8011 2SB0709A0L R3217 3.3 *C3122 16V 0.1u C8071 47u 16V R3066 56 *R3094 330 C3200 16V 1u R3035 330 C8083 16V 0.1u *R3107 100 *R3097 0 C3018 16V 47u *C3129 16V4.7u C3143 16V 2.2u 1% *R3199 180 C8081 16V 0.1u R3038 0 R3036 330 *C3141 16V 2.2u 1% *R3261 75 R3212 4.7k C3013 50V 0.01u 1% R3092 75 R3064 56 R8089 180 *IC3108 AN78L05M-E1 IN 3 2 COMMON OUT 1 R3077 56 1% *R3113 1.5k 1% *R3112 4.7k R8118 0 *C3119 16V 2.2u R8202 22k *IC3006 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc C8082 16V 0.1u 4.7k R3215 IC3109 AN78L05M-E1 IN 3 2 COMMON OUT 1 1% R3188 75 *R3098 0 *R8054 1k *Q3104 2SD0601A0L IC8016 C0JBAZ001934 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC C3115 16V 0.1u C3103 16V 2.2u *R3085 10k R3210 100 C3026 2.2u 16V Q8013 2SB0709A0L R3058 56 *R3191 33 R3080 56 R3079 56 1% R3071 75 Q8019 2SD0601A0L R8205 56k IC3003 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc R3196 10k R3128 180 R8126 100 *C3032 16V 0.1u R3040 330 C3016 50V 0.01u D8200 MAZ31500ML C3014 50V 0.01u 1% *R3203 180 C3102 16V 0.1u *C3118 16V 0.1u JS8096 C3019 16V 0.1u C3029 2.2u 16V C3134 16V 470u R3065 56 1% R3105 180 *R3131 180 Q3101 2SD0601A0L *C3127 16V 0.1u R3211 100 *R3192 33 R3026 10k *C3130 16V0.1u D8201 MA2J11100L C3136 16V 470u *C3267 16V 470u D8203 MAZ31000ML R3216 3.3 *R3087 0 D3024 MA2J11100L R3130 180 C1AB00002238 *IC3102 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 SYNCIN 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC R8069 680 R3054 56 R3194 33 Q8200 2SD0601A0L R3129 180 *C3268 16V 470u C3106 16V 0.1u R8206 47k C3012 50V 0.01u *R3096 330 R3057 56 IC3005 C1AB00001139 1 L1 2 L2 3 L3 4 Vcc 5 Y2 6 GND 7 PB2 8 GND 9 PR2 10 SW 11 L1 12 L2 13 L3 14 Vcc 15 Y3 16 GND 17 PB3 18 GND 19 PR3 20 SW 21 L1 22 L2 23 L3 24 DGND 25 ADRESS 26 SDA 27 SCL 28 DVcc 29 L3out 30 L2out 31 L1out 32 MonSW 33 GND 34 PRout3 35 GND 36 PBout3 37 GND 38 Yout3 39 Vcc 40 PRout2 41 GND 42 PBout2 43 GND 44 Yout2 45 Vcc 46 PRout1 47 GND 48 PBout1 49 GND 50 Yout1 51 Avcc 52 Vcc 53 TV_Y 54 GND 55 TV_PB 56 GND 57 TV_PR 58 Vcc 59 Y1 60 GND 61 PB1 62 GND 63 PR1 64 SW C3112 16V 0.1u C3101 16V 2.2u 1% *R3204 180 *C3266 16V 470u Q8201 2SD0601A0L C3108 16V 0.1u 1% R3106 180 R8057 1k R3027 10k *C3126 16V 2.2u R3231 100 R3056 330k *Q3106 2SD0601A0L 1% *R3200 180 C3031 2.2u 16V R3214 4.7k *C3117 16V 0.1u Q8010 2SD0601A0L C3022 2.2u 16V L3003 G1C100K00020 *R3095 330 C3111 16V 0.1u R3045 10k *C3142 16V 2.2u 1% *R3260 75 C3020 2.2u 16V C3110 16V 2.2u C1AB00002238 IC3101 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 SYNCIN 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC C3002 16V 4.7u DAC0 DAC0 :SYNC_INH(S) :LPF(S) :FAN_CONT :CS(S) DAC2=75ohm DAC3 SW0 SW1 :LPF(M) GND :CS(M) STB5V_S :SYNC_INH(M) SLOT1 :3 SLOT3 :1 PC :T GND GND 75ohm L R HD SLOT2 :2 GND GND GND GND GND GND GND RXD TXD SL3_DET= SW1=SL2_DET SW0=SL1_DET DAC3=IICSW DAC4=IICSW Y/G PB/B PR/R VD SW0 SW1 GND 9V T1OUT R1IN R1OUT T1IN :FAN_SW TO HX-BOARD (HX1) EX.I/O EX.I/O EX.I/O (MAIN) VIDEO AMP (SUB) VIDEO AMP DRIVER RS232C INVERTER AVR 5V AVR 5V INPUT SW (2/4) J-BOARD TO 14 12 10 16 11 15 13 17 18 14 25 21 23 15 18 12 27 20 19 24 16 11 26 17 22 13 31 29 28 30 32 AB AA 9.0 2.5 0 0 0 0 0 2.5 0 0 5.3 0 0 0 0 5.3 5.4 0 0 0 0 5.0 0 2.3 0.9 0 5.0 1.1 0 0 2.3 5.0 1.1 0.8 0 5.0 0.9 0 2.3 0 0.9 5.1 2.4 0 5.0 0 0 5.0 1.1 5.0 5.0 0 4.4 1.4 2.7 0 0 5.0 0 2.4 0 3.6 5.0 3.4 0.1 0 2.3 0 0.1 5.0 2.5 0 5.0 0 0 5.0 1.4 5.0 5.0 7.5 0 0 7.1 5.0 0 2.8 3.2 0 1.7 0 1.9 0 0.4 0.4 0 0 0 0 3.3 1.9 1.8 1.9 1.9 3.3 0 0 0 0 1.3 1.3 3.2 0 0 3.2 3.2 3.2 3.2 0 3.8 0 4.5 5.1 9.0 5.2 4.5 4.5 0 9.0 3.8 4.4 0 9.0 0 4.5 9.0 4.4 4.4 4.4 0 0 1.2 0 9.0 1.2 4.5 4.5 0 4.4 4.4 0 5.3 4.0 3.9 0 0 0 0 4.0 5.0 5.0 5.1 0 5.0 0 0 4.8 0 4.9 4.8 5.1 5.1 1.7 3.0 4.9 9.0 0 5.1 4.8 4.9 0 9.0 0 0 9.0 4.8 5.0 5.1 0 4.8 4.8 9.0 4.8 0 0 0.4 0.3 8.6 0.4 3.9 0 9.0 0.4 9.1 0.3 0 9.0 4.0 9.1 4.0 9.0 6.6 8.6 9.0 0.4 9.0 0 0.4 0.4 9.1 9.0 9.0 0.3 4.0 0 0.4 0.3 0 4.5 0.3 5.0 0.4 4.9 0.4 4.6 0.3 5.0 0.4 4.0 4.9 5.0 4.0 0.4 9.0 4.5 3.9 3.8 9.0 4.5 9.0 4.5 3.8 4.4 3.8 9.0 9.0 3.7 4.4 3.8 4.4 3.8 9.0 9.0 4.5 3.9 9.0 4.4 0 0.1 5.0 0.1 0 0 4.9 0 0.1 J-BOARD (4/4) TNPA3246AC TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 63 14.18. D-Board (1 of 10) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 1 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 1 of 10 ) + + G G + G G + + G G + + G G + + + + + + + DPMS_HD DPMS_VD VD_S VD_M HD_S HD_M ANF_R_S ANF_G_S ANF_B_S ANF_B_M ANF_G_M ANF_R_M D1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9209 0 C9269 25V 220u 1% R9281 5.1k C9275 50V 4700p R9287 0 C9373 4V 68u 3.3V R9276 33k C9370 16V 0.1u L9200 G1C150MA0078 C9850 16V 0.1u 1% R9291 1k J0HABH000012 FL9203 1 2 3 C9264 16V 0.1u C9292 4V 220u R9863 100 C9287 16V 0.1u C9424 16V 0.1u J0HABH000012 FL9204 1 2 3 R9303 10k P12V R9899 10k P12V C9293 4V 68u C9258 16V 47u 3.3V C9276 16V 4.7u 1.8V FL9850 J0MAB0000175 C9363 16V 0.1u D25 1 2 3 4 5 6 7 8 9 10 11 12 J0HABH000012 FL9205 1 2 3 C9296 16V 0.1u C9279 25V 220u C9260 16V 4.7u IC9213 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT R9757 0 R9277 82k 1.5V1 C9266 25V 220u IC9850 C0JBAZ002198 OE1 1 2 I0 3 O7 4 I1 5 O6 6 I2 7 O5 8 I3 9 O4 10 GND 11 I4 12 O3 13 I5 14 O2 15 I6 16 O1 17 I7 18 O0 19 OE2 20 VCC R9860 100 1% R9289 442 L9202 G1C220M00029 R9864 100 1% R9288 1k P12V C9372 6.3V 10u J0HABH000012 FL9404 1 2 3 R9274 0 FL9851 J0MAB0000175 C9265 16V 0.1u C9268 4V 68u R9279 68k 2.5V_1 R9861 100 C9263 50V 0.01u 3.3V R9897 100 Q9307 B1ABCF000138 C9299 16V 4.7u R9268 0 C9423 16V 47u P5V C9366 16V 47u P12V R9865 100 C9261 16V 4.7u C9284 50V 4700p 1% R9271 10k R9301 10k R9753 0 1% R9290 1k C9259 16V 47u R9755 0 P5V R9294 0 R9267 0 P12V R9862 100 C9271 4V 220u PANEL5V D9202 B0JCPD000026 R9894 10k C9294 16V 0.1u IC9212 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT Q9306 B1ABCF000138 1% R9270 23.2k C9367 16V 47u D9201 B0JCPD000026 R9283 68k C9282 25V 220u C9364 16V 0.1u C9369 16V 0.1u R9751 0 Q9305 B1ABCF000138 P5V 1% R9282 10k C0DBAMH00014 IC9210 1 VIN 2 SW 3 FB 4 GND 5 INV 8 GND 6 RT 7 EN C0DBAMH00014 IC9209 1 VIN 2 SW 3 FB 4 GND 5 INV 8 GND 6 RT 7 EN GND +12V +12V GND GND GND +5V +5V R_S GND GND R_M GND G_S GND GND B_S GND G_M B_M HD_M HD_DPMS VD_S HD_S GND VD_M VD_DPMS GND 3.3V 1.5V 3.3V->2.5V 5V->1.8V 5V->3.3V GND GND PANEL5V PANEL5V P-BOARD (P25) TO TO (J1) J-BOARD 1 4 3 2 C B 8 7 D E A 9 6 F 5 5 4 2 3 1 AA (6/10) TO D-BOARD 11.9 0 4.9 0 11.9 0 4.9 4.9 0 4.9 0 0 0 0 0 0 0 0 0 0 0 4.0 0 4.0 0 3.2 0 0 0 0 0 0 D-BOARD TZTNP010Q61 (1/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 64 14.19. D-Board (2 of 10) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 2 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 2 of 10 ) G G G G + G G MA_B5 MAIN_G7 MD_R2 MD_G5 MD_R3 MA_B4 MD_G6 MD_R4 MD_G7 MD_R5 MA_B3 MD_B2 MD_R6 MD_R7 MA_B2 MD_G0 MA_B0 MA_G7 MAIN_G3 MA_B1 MD_G1 MA_R7 MAIN_G2 MA_B0 MD_G2 MA_B1 MA_G6 MAIN_G1 MA_G7 MD_G3 MA_R6 MAIN_G6 MAIN_G0 MA_G6 MAIN_R0 MD_G4 MA_G5 MAIN_G5 MAIN_R7 MA_G5 MAIN_R1 MD_G5 VD_ADM MA_R5 MAIN_G4 MAIN_R6 MA_G4 MAIN_R2 MD_G6 MA_G4 MAIN_R5 MA_G3 MAIN_R3 MD_G7 AM_VD MD_B4 MA_R4 MAIN_R4 MA_G2 MAIN_R4 MA_G3 MD_B0 HD_ADM AM_HD MD_B5 MAIN_R3 MA_G0 MAIN_R5 MD_B1 MA_R3 MD_B6 MA_G2 MD_G0 MAIN_R2 MA_G1 MAIN_R6 MD_B2 MD_R0 MD_G1 MAIN_R1 MA_R7 MD_B3 MA_R2 MD_B7 MA_G1 MD_R6 MAIN_R0 MA_R6 MAIN_G0 MD_B4 MD_B0 MD_R1 MAIN_B7 MA_R5 MAIN_G1 MD_B5 MA_R1 MA_G0 MD_B1 CLP_M MD_R7 MAIN_B6 MA_R4 MAIN_G2 MD_B6 MD_B3 MD_G2 MAIN_B5 MA_R3 MAIN_G3 MD_B7 MA_B7 MA_B2 MA_R0 MD_G3 MAIN_B4 MA_R2 MAIN_G4 MA_B6 MD_G4 MAIN_B3 MA_R0 MAIN_G5 MA_B5 MA_B7 MAIN_B2 MA_R1 MAIN_G6 MA_B4 MAIN_B1 MD_R0 MAIN_G7 MA_B6 MA_B3 MAIN_B0 MD_R1 DM_HD DM_VD MAIN_R7 MAIN_B6 MAIN_B7 MAIN_B4 MAIN_B2 MAIN_B1 MAIN_B0 MAIN_B3 MAIN_B5 DCK_MAIN ANF_G_M ANF_R_M NDA_SWM_5V SB_RX0- SB_RX0+ SB_RX1- SB_RX1+ SB_RX2- SB_RX2+ SB_CLK- SB_CLK+ SB_RX3- SB_RX3+ MN_RX0- MN_RX0+ MN_RX1- MN_RX1+ MN_RX2- MN_CLK- MN_CLK+ MN_RX3- MN_RX3+ MN_RX0- MN_RX0+ MN_RX1- MN_RX1+ MN_RX2- MN_RX2+ MN_CLK- MN_CLK+ MN_RX3- MN_RX3+ P3V_SDA2 P3V_SCL2 MN_RX2+ MD_R5 MD_R4 MD_R3 MD_R2 NRST ANF_B_M DA_SWM_5V R9880 56 R9866 EXB2HV470JV R9922 2.7k C9894 6.3V 10u J0HABH000012 FL9860 1 2 3 J0HABH000012 FL9861 1 2 3 R9913 75 C9868 6.3V 10u C9909 16V 0.1u C9917 50V 0.01u C9914 16V 0.1u R9917 0 C9865 16V 0.1u IC9864 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 Y D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C9915 50V 0.01u C9922 6.3V 10u C9882 16V 0.1u C0JBAS000215 IC9865 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc C9911 6.3V 10u C9872 16V 0.1u C9880 16V 0.1u C9931 16V 0.1u R9871 EXB2HV470JV R9873 100 C9916 16V 0.1u C9907 16V 0.1u D9860 MAZ303300L IC9861 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE R9907 0 R9888 0 R9874 100 C9871 16V 0.1u R9886 0 C9905 6.3V 10u C9908 16V 0.1u C9864 16V 0.1u IC9868 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C9886 16V 0.1u C9861 16V 0.1u R9898 0 C9920 16V 0.1u IC9860 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE R9936 0 C9912 6.3V 10u R9912 75 1% R9918 6.8k R9921 0 C9921 16V 0.1u C9873 16V 0.1u C9906 6.3V 10u C9913 16V 0.1u P5V R9877 EXB2HV470JV R9906 0 C9875 16V 0.1u R9868 0 IC9863 C0ZBZ0000850 1 RxOUT22 2 RxOUT23 3 RxOUT24 4 GND 5 RxOUT25 6 RxOUT26 7 RxOUT27 8 LVDSGND 9 RxIN0- 10 RxIN0+ 11 RxIN1- 12 RxIN1+ 13 LVDSVcc 14 LVDSGND 15 RxIN2- 16 RxIN2+ 17 RxCLKIN- 18 RxCLKIN+ 19 RxIN3- 20 RxIN3+ 21 LVDSGND 22 PLLGND 23 PLLVcc 24 PLLGND 25 PWRDWN 26 RxCLKOUT 27 RxOUT0 28 GND 29 RxOUT1 30 RxOUT2 31 Vcc 32 RxOUT3 33 RxOUT4 34 RxOUT5 35 RxOUT6 36 GND 37 RxOUT7 38 RxOUT8 39 RxOUT9 40 Vcc 41 RxOUT10 42 RxOUT11 43 RxOUT12 44 GND 45 RxOUT13 46 RxOUT14 47 RxOUT15 48 Vcc 49 RxOUT16 50 RxOUT17 51 RxOUT18 52 GND 53 RxOUT19 54 RxOUT20 55 RxOUT21 56 Vcc IC9867 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C9910 16V 0.1u C9866 4V 220u P5V R9878 10k C9863 6.3V 10u C9862 16V 0.1u C9926 50V 8200p R9867 0 3.3V R9893 0 C9925 16V 0.082u IC9869 C0FBAD000102 1 DVSS 2 GOUT7 3 GOUT6 4 GOUT5 5 GOUT4 6 GOUT3 7 GOUT2 8 GOUT1 9 GOUT0 10 DVSS 11 DVDD 12 BOUT7 13 BOUT6 14 BOUT5 15 BOUT4 16 BOUT3 17 BOUT2 18 BOUT1 19 BOUT0 20 DVSS 21 DVSS 22 DVDD 23 DVDD 24 TEST 25 PVSS 26 PVDD 27 PVDD 28 PVSS 29 COAST 30 HSYNC 31 VSYNC 32 PVSS 33 FLT 34 PVDD 35 PVDD 36 AVSS 37 BIAS 38 CLAMP 39 AVDD 40 AVSS 41 AVSS 42 AVDD 43 BIN 44 AVSS 45 AVDD 46 AVDD 47 AVSS 48 GIN 49 SOGIN 50 AVSS 51 AVDD 52 AVDD 53 AVSS 54 RIN 55 A0 56 SCL 57 SDA 58 BYPASS 59 AVDD 60 AVSS 61 AVSS 62 AVDD 63 RESET 64 VSYNCO 65 SOGOUT 66 HSYNCO 67 DTCLK 68 DVSS 69 DVDD 70 ROUT7 71 ROUT6 72 ROUT5 73 ROUT4 74 ROUT3 75 ROUT2 76 ROUT1 77 ROUT0 78 DVDD 79 DVDD 80 DVSS R9924 0 C9930 16V 0.1u C9919 50V 1000p C9876 16V 0.1u C9924 16V 0.1u R9872 100 C9923 16V 0.1u C9870 16V 0.1u C9918 50V 0.01u C9867 6.3V 10u C9879 16V 0.1u R9884 10 J0HABH000012 FL9862 1 2 3 C9860 6.3V 10u C9895 16V 0.1u R9920 0 R9870 100 C9869 6.3V 10u P5V R9876 100 IC9862 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9919 0 R9916 0 R9911 75 C9929 16V 0.1u T1- TCLK- T2- T2+ T3- TCLK+ T3+ 100MHz HI:HI-Z HS VS T1+ T0- T0+ HI:HI-Z GND GND GND GND GND MN_RX0+ MN_RX1+ MN_RX1- MN_RX2+ MN_RX2- MN_RXCLK+ MN_RXCLK- MN_RX3+ MN_RX3- GND MN_RX0- GND SB_RX1+ GND GND SB_RX2+ SB_RX0+ GND SB_RXCLK+ SB_RX1- SB_RXCLK- SB_RX2- SB_RX3+ SB_RX3- SB_RX0- LVDS RX BUS SW BUS SW A/D SW AVR3.3V AVR3.3V AVR3.3V J-BOARD TO (J5/J6) 12 15 18 10 17 16 14 11 13 INV 3 1 5 4 2 25 27 28 26 24 23 22 21 BE BF BD BG BA BB BC (7/10) D-BOARD TO D-BOARD TZTNP010Q61 (2/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 65 14.20. D-Board (3 of 10) Schematic Diagram + G G G G G G SUB_B0 SA_R6 SD_R6 SA_G6 SUB_B3 SA_G2 SD_R2 SD_B4 SD_B1 SA_G1 SA_R5 SA_R7 SD_R1 SA_B2 SD_B5 SD_B0 SA_R4 SA_G3 SD_R0 SD_G7 SA_R3 SA_B4 SD_R1 SA_B0 SD_B7 SA_R2 SA_B3 SD_B6 SA_R0 SA_B2 SA_G0 SA_B1 SD_R3 SD_B5 SA_R1 SA_B1 SD_G5 SD_R5 SD_B4 SA_B0 SD_G6 SA_B7 SD_R4 SD_B3 SA_G7 SD_G6 SD_B2 SA_G6 SD_B6 SA_B6 SD_G5 SD_G0 AS_HD SA_G5 SD_R0 SD_G4 SD_G1 SA_G4 SA_B5 SD_B7 SD_G7 SD_G3 AS_VD SD_G3 SD_B0 SD_G2 SD_B2 SA_G5 SD_G4 SA_B4 ANF_R_S SD_B1 SD_G1 ANF_G_S SA_R1 SD_G0 SD_B3 SA_G4 CLP_S SA_B3 ANF_B_S SD_R7 VD_ADS SA_R2 SUB_B7 SD_R6 SA_G3 HD_ADS SUB_B6 SA_R3 SA_B7 SA_G2 SA_B6 SUB_B2 SA_R4 SA_B5 SA_R7 SA_G1 SUB_B1 SUB_B5 SA_R6 SUB_B0 SUB_B4 SA_R0 SA_G0 SUB_B7 SUB_B3 SD_R7 SUB_B6 SUB_B2 SA_R5 SD_G2 SA_G7 SUB_B5 SUB_B1 SUB_B4 DS_HD DS_VD DCK_SUB SUB_R0 SUB_R1 SUB_R2 SUB_R3 SUB_R4 SUB_R5 SUB_R6 SUB_G0 SUB_G1 SUB_G2 SUB_G3 SUB_G4 SUB_G5 SUB_G6 SUB_G7 SUB_R7 SUB_R1 SUB_G0 SUB_R4 SUB_G7 SUB_R7 SUB_R3 SUB_G6 SUB_R6 SUB_R0 SUB_G5 SUB_R5 SUB_G4 SUB_G3 SUB_G2 SUB_R2 SUB_G1 NDA_SWS_5V DA_SWS_5V SB_RX3+ SB_CLK- SB_RX2+ SB_RX2- SB_RX1+ SB_RX1- SB_RX0+ SB_RX0- P3V_SCL2 P3V_SDA2 SD_R5 SD_R4 SD_R3 SD_R2 NRST VMUTE_IN C9206 4V 220u C9240 16V 0.1u D9200 MAZ303300L C9249 16V 0.082u IC9203 C0ZBZ0000850 1 RxOUT22 2 RxOUT23 3 RxOUT24 4 GND 5 RxOUT25 6 RxOUT26 7 RxOUT27 8 LVDSGND 9 RxIN0- 10 RxIN0+ 11 RxIN1- 12 RxIN1+ 13 LVDSVcc 14 LVDSGND 15 RxIN2- 16 RxIN2+ 17 RxCLKIN- 18 RxCLKIN+ 19 RxIN3- 20 RxIN3+ 21 LVDSGND 22 PLLGND 23 PLLVcc 24 PLLGND 25 PWRDWN 26 RxCLKOUT 27 RxOUT0 28 GND 29 RxOUT1 30 RxOUT2 31 Vcc 32 RxOUT3 33 RxOUT4 34 RxOUT5 35 RxOUT6 36 GND 37 RxOUT7 38 RxOUT8 39 RxOUT9 40 Vcc 41 RxOUT10 42 RxOUT11 43 RxOUT12 44 GND 45 RxOUT13 46 RxOUT14 47 RxOUT15 48 Vcc 49 RxOUT16 50 RxOUT17 51 RxOUT18 52 GND 53 RxOUT19 54 RxOUT20 55 RxOUT21 56 Vcc C9212 16V 0.1u C9237 6.3V 10u IC9207 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9229 0 C9211 16V 0.1u C9215 16V 0.1u C9210 16V 0.1u R9208 100 IC9206 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9207 100 R9231 0 IC9202 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9201 0 R9232 0 R9224 75 C9255 16V 0.1u P5V R9210 100 J0HABH000012 FL9201 1 2 3 P5V IC9204 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 Y P5V C9239 16V 0.1u C9238 6.3V 10u C9222 16V 0.1u C9247 16V 0.1u R9219 0 C9243 50V 0.01u C9219 16V 0.1u 3.3V IC9200 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE C9233 16V 0.1u C9209 6.3V 10u C9253 16V 0.1u R9220 0 C9216 16V 0.1u R9942 0 R9205 EXB2HV470JV R9202 0 C9244 50V 0.01u C9234 16V 0.1u R9212 EXB2HV470JV C9227 6.3V 10u C9203 6.3V 10u J0HABH000012 FL9200 1 2 3 C9241 50V 0.01u C9236 16V 0.1u R9200 EXB2HV470JV R9236 0 IC9205 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc C9213 16V 0.1u C9208 6.3V 10u R9204 100 R9228 0 R9215 56 C9245 50V 1000p C9204 16V 0.1u R9211 10 C9200 6.3V 10u C9235 6.3V 10u C9226 16V 0.1u C9220 16V 0.1u IC9201 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE C9202 16V 0.1u R9225 75 IC9208 C0FBAD000102 1 DVSS 2 GOUT7 3 GOUT6 4 GOUT5 5 GOUT4 6 GOUT3 7 GOUT2 8 GOUT1 9 GOUT0 10 DVSS 11 DVDD 12 BOUT7 13 BOUT6 14 BOUT5 15 BOUT4 16 BOUT3 17 BOUT2 18 BOUT1 19 BOUT0 20 DVSS 21 DVSS 22 DVDD 23 DVDD 24 TEST 25 PVSS 26 PVDD 27 PVDD 28 PVSS 29 COAST 30 HSYNC 31 VSYNC 32 PVSS 33 FLT 34 PVDD 35 PVDD 36 AVSS 37 BIAS 38 CLAMP 39 AVDD 40 AVSS 41 AVSS 42 AVDD 43 BIN 44 AVSS 45 AVDD 46 AVDD 47 AVSS 48 GIN 49 SOGIN 50 AVSS 51 AVDD 52 AVDD 53 AVSS 54 RIN 55 A0 56 SCL 57 SDA 58 BYPASS 59 AVDD 60 AVSS 61 AVSS 62 AVDD 63 RESET 64 VSYNCO 65 SOGOUT 66 HSYNCO 67 DTCLK 68 DVSS 69 DVDD 70 ROUT7 71 ROUT6 72 ROUT5 73 ROUT4 74 ROUT3 75 ROUT2 76 ROUT1 77 ROUT0 78 DVDD 79 DVDD 80 DVSS C9254 16V 0.1u C9205 16V 0.1u R9222 0 C9230 6.3V 10u C9231 16V 0.1u C9242 16V 0.1u R9223 75 R9206 100 C9248 16V 0.1u R9218 0 R9213 10k C9232 16V 0.1u J0HABH000012 FL9202 1 2 3 C9201 16V 0.1u 1% R9230 6.8k R9235 2.7k C9246 16V 0.1u R9221 0 C9228 16V 0.1u C9207 6.3V 10u C9250 50V 8200p C9229 6.3V 10u R9233 0 TCLK- T2+ T3- TCLK+ T3+ T1+ T0+ T1- HI:HI-Z HI:HI-Z VS HS T0- T2- BUS SW BUS SW A/D LVDS RX SW AVR3.3V AVR3.3V AVR3.3V INV 27 24 21 23 26 25 19 20 22 22 27 21 28 26 24 23 25 43 41 42 CG CF CD CA CH CB CC CI CE CJ (8/10) D-BOARD TO D-BOARD TZTNP010Q61 (3/10) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 3 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 3 of 10 ) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 66 14.21. D-Board (4 of 10) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 4 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 4 of 10 ) G G 20MHz(SPRD) 39.5MHz 39.5MHz 39.5MHz 39.5MHz L7_MCK L7_REFCK L7_SCK TDO_BS 57_TDO L7_OCK C9577 16V 0.1u R9439 47 C9575 16V 4.7u R9536 47 R9530 10k R9535 47 C9500 50V 18p C9576 16V 0.1u R9539 47 R9527 0 3.3V R9540 47 C1ZBZ0002775 IC9500 X1 1 2 S0 3 S1 4 CLK9 5 VDD 6 GND 7 CLK1 8 CLK2 9 CLK3 10 CLK4 11 CLK8 12 CLK7 13 CLK6 14 CLK5 15 GND 16 VDD 17 S2 18 PDTS 19 VDD 20 X2 R9441 10k R9531 10k R9440 47 R9533 10k C9501 50V 18p X9500 H0J200500038 R9538 47 J0HABH000012 FL9501 1 2 3 R9325 0 R9541 47 CLOCK GEN. 30 34 31 29 28 33 35 36 32 41 43 42 DA DB (9/10) D-BOARD TO D-BOARD TZTNP010Q61 (4/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 67 14.22. D-Board (5 of 10) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 5 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 5 of 10 ) IN + IN + + IN AC_LCD_R4 AC_LCD_B5 AC_LCD_B4 AC_LCD_B3 AC_LCD_B2 AC_LCD_B1 AC_LCD_B7 AC_LCD_B6 AC_LCD_B0 AC_LCD_G5 AC_LCD_G4 AC_LCD_G3 AC_LCD_G7 AC_LCD_G6 AC_LCD_G2 AC_LCD_G1 AC_LCD_G0 AC_LCD_R5 AC_LCD_R7 AC_LCD_R6 AC_LCD_R0 AC_LCD_R1 AC_LCD_R2 AC_LCD_R3 AC_LCD_G4 L8_R3 AC_LCD_G1 L8_G2 L8_B9 AC_LCD_G2 L8_G3 L8_G9 AC_LCD_R5 AC_LCD_R6 AC_LCD_R0 L8_R9 L8_G8 AC_LCD_B7 L8_B2 AC_LCD_B4 L8_R8 AC_LCD_B0 AC_LCD_G0 L8_B3 L8_R7 AC_LCD_R7 AC_LCD_R4 AC_LCD_G5 AC_LCD_G3 AC_LCD_G7 AC_LCD_B2 AC_LCD_R3 AC_LCD_B1 AC_LCD_G6 AC_LCD_R2 L8_R2 AC_LCD_B3 AC_LCD_B6 AC_LCD_R1 AC_LCD_B5 L8_R4 L8_R5 L8_R6 L8_G7 L8_G6 L8_G5 L8_G4 L8_B8 L8_B4 L8_B5 L8_B6 L8_B7 PANEL_ON PANEL5V_SOS FL9400 J0JAD0000025 1 2 3 4 C9405 50V 0.01u R9420 22k R9459 0 R9456 0 R9453 EXB38V560JV C9401 4V 100u R9430 0 C9408 50V 0.01u R9178 6.8k C9416 50V 0.01u C9406 50V 0.01u C9432 6.3V 0.47u Q9404 B1DDED000005 C9419 16V 0.1u 3.3V R9455 EXB38V560JV C9431 6.3V 1u D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C9400 50V 0.01u IC9400 C0JBCZ000512 1 RS 2 TD1 3 TA5 4 TA6 5 GND 6 TB0 7 TB1 8 TD2 9 VCC 10 TD3 11 TB2 12 TB3 13 GND 14 TB4 15 TB5 16 TD4 17 R/F 18 TD5 19 TB6 20 TC0 21 GND 22 TC1 23 TC2 24 TC3 25 TD6 26 VCC 27 TC4 28 TC5 29 GND 30 TC6 31 CLK_IN 32 /PDWN 33 PLL_GND 34 PLL_VCC 35 PLL_GND 36 LVDS_GND 37 TD+ 38 TD- 39 TCLK+ 40 TCLK- 41 TC+ 42 TC- 43 LVDS_GND 44 LVDS_VCC 45 TB+ 46 TB- 47 TA+ 48 TA- 49 LVDS_GND 50 TD0 51 TA0 52 TA1 53 GND 54 TA2 55 TA3 56 TA4 R9450 EXB38V560JV R9465 56k R9451 EXB38V560JV R9452 EXB38V560JV FL9402 J0JAD0000025 1 2 3 4 R9454 EXB38V560JV R9249 47k C9418 16V 47u R9463 33k C9425 16V 10u C9402 16V 0.1u L9402 J0JHC0000031 Q9401 B1ABCF000138 FL9401 J0JAD0000025 1 2 3 4 C9409 16V 0.1u R9419 2.2k C9407 50V 0.01u PA9401 ERBFE5R00U R9442 3.3k C9417 50V 0.01u PANEL5V R9470 0 R9248 10k PANEL5V L9400 J0JGC0000021 TO LCD PANEL SEL_LVDS LVDS TX PANEL5V PANEL5V PANEL5V PANEL5V PANEL5V GND GND GND GND GND GND GND GND GND GND RX3+ TX3- TX1- RX1+ TX0- RX0+ TX2- RX2+ TXCLK- RXCLK+ INVERTER PANEL5V ON/OFF 42 40 39 38 43 44 45 41 37 EB EC EE EF ED EA (10/10) D-BOARD TO 4.9 4.9 4.9 4.9 4.9 0 0 0 0 0 0 0 1.1 1.3 0 1.2 1.2 0 1.1 1.2 0 1.0 1.4 0 1.0 1.4 0 0 0 0 D-BOARD TZTNP010Q61 (5/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 68 14.23. D-Board (6 of 10) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 6 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 6 of 10 ) + G G G G G G G G + G G + G G AA_PS_SOS AA_ALL_OFF1 AA_FAN_CONT TXD_PC RXD_PC 3V_SDA3 3V_SCL1 3V_SCL3 3V_SDA1 P3V_SCL2 AR_IIC_CONT P3V_SDA2 3V_SCL3 3V_SDA3 AA_NRST SOUND_MUTE AA_CABLE_DET POWER_STAT AA_ALL_OFF1 AA_REMOCON_OUT AA_FAN_CONT AR_IIC_CONT 3V_SDA1 VMUTE_IN 5VTXD_TU 5VRXD_TU TXD_PC RXD_PC AR_IIC_INT NRST AA_NRST RUSH_ON/OFF KILL_SOS A_RUSH_ON/OFF A_KILL_SOS 5VRXD_TU 3VTXD_TU 5VTXD_TU 3VRXD_TU 5V_SCL3 5V_SDA3 AH_LED_R A_TV_ON/OFF A_TV_ON/OFF 5V_SCL3 5V_SDA3 STB_ON AH_LED_G LED_G LED_R AA_FAN_SOS 5V_SDA2 5V_SCL2 P3V_SDA2 P3V_SCL2 3V_SDA1 5V_SCL1 5V_SDA1 3V_SCL1 5V_SCL3 5V_SDA3 5V_SCL2 5V_SDA2 5V_SDA1 5V_SCL1 3V_SCL1 AA_RTC_INT 1% R9292 1k C9288 16V 47u C9002 50V 100p R9503 0 D27 1 2 3 4 5 6 7 8 9 STB5V Q9407 B1CBHD000001 G D S J0HABH000012 FL9207 1 2 3 STB3.3V R9501 0 R9016 100 R9262 0 STB5V_M STB5V STB5V R9138 3.3k STB3.3V Q9000 B1CBHD000001 G D S STB3.3V D41 1 2 3 4 5 6 7 8 Q9002 B1CBHD000001 G D S R9005 0 R9010 100 C9290 16V 0.1u J0HABH000012 FL9214 1 2 3 R9216 0 STB5V R9014 100 R9502 0 R9243 0 R9019 5.6k R9015 100 C9371 16V 0.1u STB3.3V STB5V_M R9196 10k D4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R9013 100 C9001 16V 0.1u R9018 100 D9025 B0ACCE000005 J0HABH000012 FL9206 1 2 3 R9314 100 R9011 100 Q9409 B1CBHD000001 G D S D9251 MA2J72800L C9000 16V 0.1u R9346 10k R9336 0 R9245 0 R9299 0 STB3.3V R9504 0 STB3.3V STB3.3V Q9408 B1CBHD000001 G D S J0HABH000012 FL9001 1 2 3 D9024 B0ACCE000005 R9240 0 R9017 100 R9341 0 D9026 B0ACCE000005 R9140 100 R9244 0 D40 1 2 3 4 5 6 7 R9072 100 C9286 16V 47u R9241 0 STB3.3V D9023 B0ACCE000005 STB5V_M C0JBAZ000856 IC9000 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9139 100 R9002 0 R9008 0 R9296 0 STB5V Q9018 B1ABCF000138 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R9195 10k IC9007 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y J0HABH000012 FL9208 1 2 3 R9006 2.7k R9001 10k STB3.3V R9033 0 STB5V R9505 0 C9365 16V 0.1u P5V C9374 6.3V 10u R9012 100 STB5V R9265 0 R9496 2.7k R9497 2.7k R9263 0 1% R9293 1.6k R9261 0 R9347 10k R9137 3.3k R9031 2.7k IC9214 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C9050 16V 0.1u Q9017 B1ABCF000138 R9506 0 R9009 100 R9500 2.7k C9368 16V 47u R9032 2.7k Q9410 B1CBHD000001 G D S J0HABH000012 FL9000 1 2 3 R9003 0 R9079 100 R9000 0 R9264 0 STB5V FAN_SOS TV_ON/OFF STB5V PS_SOS FAN_CONT (RUSH ON/OFF) ALL_OFF (KILL_SOS) GND STB3.3V IIC_INT/BOOT POWER STATUS GND SOUND MUTE RXD_TU CABLE DET V MUTE IN RXD GND GND GND SDA1 SCL2 SDA2 IIC_CONT SCL1 STB5V SCL3 ALL_OFF SDA3 GND TXD_PC SDA1 GND RXD_PC SDA3 GND GND TXD SCL3 FAN CONT REMOCON OUT SCL1 IIC_CONT STB5V STB_ON GND TXD_TU RESET IIC 3.3V RTC INT/PANEL_SOS 5V STB5V->STB3.3V STB3.3V ON/OFF STB3.3V 3.3V->5V 5V->3.3V LED 3.3V->5V 5V Prog SDA1 SDA2/SDA3 SDA2 SDA3 GND SCL3 GND IRQ SCL2/SCL3 STBBY +B SCL2 NC SCL1 EEPROM IRQ IIC 3.3V IIC 3.3V LSI57/AD OTHER J-BOARD (J3) TO P-BOARD (P27) TO USED FACTORY USED FACTORY USED FACTORY 9 6 F 5 2 3 C B 8 7 D E A 1 4 11 12 AA TO (1/10) D-BOARD 3.1 3.1 4.7 0 4.9 4.7 3.1 3.2 4.9 3.2 0 0 3.2 0 0 0 0 4.9 3.1 3.1 3.2 3.1 0 3.1 0 0 0 5.9 0 4.9 5.9 0 0 4.9 2.0 0 0 0 0 3.1 4.9 4.9 4.9 4.9 0 3.2 4.9 4.7 4.9 0 3.2 4.7 0 4.9 3.2 3.1 3.1 0 3.2 3.2 3.0 3.2 3.1 3.0 3.1 3.1 4.9 0 D-BOARD TZTNP010Q61 (6/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 69 14.24. D-Board (7 of 10) Schematic Diagram SDA1 SDA1 TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 7 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 7 of 10 ) + TXD_PC SDA1 D09 A2 RXD_PC SCL1 A10 SDA2 A3 D05 D00 DA_SWS NDA_SWM_5V OSD_VDO NDA_SWS_5V A15 D06 SOUND_MUTE ABI_I D02 AAE_MCLD DA_SWM A18 SCL1 A4 3.3V_SOS ABI_D A11 3V_SDA1 SDA1 A8 A5 OSD0 3V_SDA1 SCL2 A17 A6 INV_SOS AR_IIC_CONT NRST SDA3 AA_RTC_INT AH_REM_OUT A13 D13 A16 SCL3 3V_SCL1 POWER_STAT A14 D14 A12 SCL3 D15 AH_REM_OUT D01 AR_IIC_INT OSD_HDIN RUSH_ON/OFF ABI_J OSD_CKIN DA_SWM_5V A_TV_ON/OFF D03 REM_IN OSD_HDO KILL_SOS AA_PS_SOS SDA3 D04 OSD_YM AH_REM_INH AA_REMOCON_OUT 3V_SCL3 OSD_YS SCL2 3V_SCL1 D10 D07 AA_CABLE_DET SDA2 D11 3V_SDA3 D08 A7 A9 D12 MCVD MCHD DA_SWM DA_SWS AA_FAN_SOS KEY_INPUT 3.3V_SOS PANEL_SOS 5V_SOS 5V_SOS REM_IN 3VTXD_TU A1 STB_ON OSD4 OSD3 OSD10 OSD9 OSD8 OSD2 OSD1 OSD7 OSD5 OSD6 OSD15 OSD14 OSD13 OSD12 OSD11 3VRXD_TU AA_REMOCON P3V_SCL2 P3V_SDA2 P3V_SDA2 P3V_SCL2 DPMS_HD AAE_MCDATA_O AH_LED_R AH_LED_G PWM_DUTY_SEL PANEL_ON A_DIM PANEL5V_SOS AH_REM_INH BL_ON/OFF AA_CATS_EYE PWM_HARF AA_ALL_OFF1 DPMS_VD 3V_SCL3 AAE_MCCLK DA_SWS_5V P3V_SCL3 P3V_SDA3 3V_SDA3 P3V_SDA2 P3V_SDA2 3V_SDA3 3V_SDA3 P3V_SCL2 3V_SCL3 AR_IIC_CONT A16 D13 D11 D05 D03 A13 D01 A7 A15 A2 ABI_J A10 D15 A9 D09 D00 D06 A5 D08 D12 A3 A12 A4 A14 A17 A8 ABI_I ABI_D D04 D14 D07 A6 A1 A11 D02 A18 D10 R9086 EXB38V220JV Q9350 B1ABCF000138 Q9010 B1ADCE000011 R9047 100 R9132 0 R9074 10k R9114 15k R9060 0 R9173 10k STB3.3V D9011 B0ACCE000005 Q9007 B1ABCF000138 R9179 0 C9019 50V 1000p R9024 1k R9979 2.7k R9168 10k R9145 0 C0EBE0000447 IC9005 1 Vout 2 VDD 3 GND 5 N.C. 4 N.C. R9177 100 R9161 100 Q9015 B1ABCF000138 R9189 39k R9163 100 R9127 1k C9003 16V 0.1u R9048 0 R9159 1k R9027 47k C9044 16V 0.1u C9020 16V 0.1u STB5V R9084 10k R9028 47k C9034 16V 0.1u R9133 47k R9123 0 R9023 10k R9149 0 R9154 10k Q9360 B1ABCF000138 R9129 2.4k R9101 47 R9035 10k R9350 10k R9038 10k 3.3V R9094 0 D9021 MAZ303300L R9169 100 R9110 0 R9142 100 Q9001 B1CBHD000001 G D S C9026 16V 0.1u R9044 100 R9143 100 Q9019 B1CBHD000001 G D S R9108 0 C9052 10V 1u C9028 16V 0.1u R9153 1k 3.3V P5V R9352 10k R9093 0 STB5V C9033 16V 0.1u R9135 10k C9045 16V 1u R9063 1k R9131 0 R9058 10k Q9351 B1ABCF000138 C9030 16V 4.7u R9141 100 STB3.3V R9089 47k R9124 10k C9031 16V 0.1u D9012 B0ACCE000005 R9421 100 Q9012 B1ADCE000011 STB3.3V X9001 H0J400400025 R9036 10k C9361 16V 0.1u 1% R9164 12k Q9006 B1ABCF000138 R9109 6.8k R9076 10k P5V R9176 100 R9996 10k R9980 2.7k R9039 1k R9994 3.3k C9021 50V 1000p R9100 1k C9037 50V 27p R9197 5.6k C9041 50V 1000p R9130 10k C9005 16V 0.1u R9388 2.7k P5V Q9003 B1ABCF000138 D9010 MA2J72800L IC9002 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y R9167 10k R9065 2.7k R9160 100 R9118 0 R9067 6.8k 1% R9183 3.3k R9102 EXB2HV470JV R9103 EXB2HV470JV Q9009 B1ABCF000138 R9121 0 Q9011 B1ABCF000138 R9075 1k C9051 16V 1u STB3.3V C9016 16V 0.1u C9046 16V 0.1u STB3.3V R9175 100 R9171 100 R9064 10k Q9004 B1ABCF000138 C9025 16V 0.1u 1% R9128 3.9k C9018 16V 0.1u R9119 10k C9039 16V 0.1u R9134 10k C9047 100p 50V IC9004 C3EBJC000061 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC R9057 10k R9120 100 R9266 10k R9112 10k C9015 16V 0.1u R9122 10k R9172 100 R9136 330 3.3V R9165 10k R9020 10k Q9013 B1ABCF000138 R9045 5.6k R9151 0 C0JBAS000215 IC9001 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc R9056 330 STB3.3V R9170 100 R9049 100 R9073 10k R9082 10k R9062 2.7k C9024 16V 47u R9040 100k C9038 16V 0.1u R9115 0 Q9008 B1ABCF000138 C9053 50V 0.01u R9026 1k R9099 47 C9035 16V 0.1u R9150 0 1.5V1 R9043 1k R9995 220 R9061 10k 1% R9126 5.1k R9054 10k R9042 100 R9030 47k D9016 MA2J72800L R9199 10k R9431 220 R9077 3.3k R9051 5.6k STB3.3V R9174 10k R9113 0 R9181 0 R9081 10k STB3.3V R9059 3.3k R9055 10k R9052 5.6k 3.3V Q9016 B1ADCE000011 C9054 16V 0.1u P12V R9117 1k R9180 0 R9046 100 1% R9182 2k MN102H90MTZ1 IC9003 1 TSTMD1 2 P83/A20 3 P66/A07 4 P65/A06 5 P64/A05 6 P63/A04 7 P62/A03 8 P61/A02 9 P60/A01 10 TEST 11 VDD 12 RTCXI 13 RTCX0 14 VSS 15 P45/HI0 16 P44/HI1 17 P43/VI0 18 P42/VI1 19 P16/TM3IO 20 P15/TM2IO 21 P14/TM1IO 22 P13/TM0IO 23 PC3/SDA0B 24 PC2/SCL0B 25 VSS 26 P41/HCCLK0 27 P40/HCCLK1 28 VDD 29 P37/B04 30 P36/B03 31 P35/B02 32 P34/B01 33 P33/B00 34 P32/G05 35 P31/G04 36 P30/G03 37 P27/G02 38 P26/G01 39 P25/G00 40 VDD 41 VSS 42 P24/R04 43 P23/R03 44 P22/R02 45 P21/R01 46 P20/R00 47 VDD 48 OSDKXI 49 OSDKX0 50 VSS 51 P12/VSYNC/IRQ1 52 P11/YS 53 P10/YM 54 P07/HSYNC 55 PC1/SDA0A 56 PC0/SCLA0 57 P06/VCLKOUT 58 P05/AL3 59 P04/AL2 60 P03/AL1 61 P02/AL0 62 P01/HOUT 63 P00/SYSCLK 64 AVSS 65 AVdd2 66 DAALOUT/DACOUT3 67 DABOUT/DACOUT2 68 DAGOUT/DACOUT1 69 DAROUT/DACOUT0 70 COMP 71 VREF 72 IREF 73 AVss 74 CVBS1 75 VREFHS1 76 CLL 77 AVdd1 78 CVBS0 79 VREFHS0 80 CLH 81 PLLTST 82 AVdd1 83 AVss 84 PC7/ SCL2 85 PC6/SDA2 86 PF3/ADIN11/IRQ5 87 PF2/ADIN10/IRQ4 88 PF1/ADIN9/IRQ03 89 PF0/ADIN8/IRQ02 90 PE7/ADIN7 91 PE6/ADIN6 92 PE5/ADIN5 93 PE4/ADIN4 94 PE3/ADIN3 95 PE2/ADIN2 96 PE1/ADIN1 97 PE0/ADIN0 98 VSS 99 OSC2 100 OSC1 101 VDD 102 P57/RMIN/IRQ0 103 P95/SBO1 104 P94/SBI1 105 P93/SBT1 106 P92/SBO0 107 P91/SBI0 108 P90/SBT0 109 P56/PWM3/CS3 110 P55/PWM2/CS2 111 P54/PWM1/CS1 112 P53/PWM0/CS0 113 PD2/SBO2 114 PD1/STOP/SBI2 115 PD0/WDOUT/SBT2 116 PC5/SCL1 117 PC4/ SDA1 118 CPUMD2 119 CPUMD1 120 CPUMD0 121 TSTMD0 122 P52/WE 123 P51/OE 124 VDD 125 P50/RST 126 VSS 127 PB7/D15 128 PB6/D14 129 PB5/D13 130 PB4/D12 131 PB3/D11 132 PB2/D10 133 BP1/D09 134 PB0/D08 135 PA7/D07 136 PA6/D06 137 PA5/D05 138 PA4/D04 139 VSS 140 VDD 141 PA3/D03 142 PA2/D02 143 PA1/D01 144 PA0/D00 145 P82/A19 146 P81/A18 147 P80/A17 148 P77/A16 149 P76/A15 150 P75/A14 151 P74/A13 152 P73/A12 153 VDD 154 VSS 155 P72/A11 156 P71/A10 157 P70/A09 158 P67/A08 159 P84/A21 160 OSCMD0 C9022 16V 0.1u R9098 10k D9014 B0ACCE000005 R9999 100 R9066 3.3k R9053 100 3.3V R9166 10k R9192 10k R9111 47k R9116 330 R9106 10k R9351 10k C9043 16V 0.1u R9353 10k C9029 16V 0.1u C9036 50V 22p R9105 0 STB3.3V STB5V R9985 0 R9986 0 STB3.3V C9049 16V 4.7u R9184 0 C3FBKD000268 IC9006 MBM29LV400BC55PFTN-SE1# 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 N.C. 10 N.C. 11 WE 12 RESET 13 N.C. 14 N.C. 15 RY/BY 16 N.C. 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 VSS 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE 48 A16 C9048 16V 0.1u R9186 10k SOS_INH A MUTE DRIVER_MUTE RXD_TU REM_IN REMO_OUT AI_SENSE DATA_SOS 85 SDA3 84 SCL3 3.3_SOS KEY_INPUT 115 FPGA_CLK 116 SCL2 119 CPUMD1 120 CPUMD0 IIC_CONT TV_ON/OFF TXD_TU RXD_PC LED_G LED_R 88 CABLE_DET 89 FAN_SOS 83 AVSS 82 AVDD1 SUS_SOS SCAN_SOS FPGA_LD Flash_CS IIC_INT ALL_OFF STANB_ON KILL_SOS DRIVER_RESET TXD_PC REMO_INH 87 POWER_STAT 86 RTC_INT 81 PLLTST POWER_SOS 5V_SOS 113 FPGA_DATAOUT 114 FPGA_DATAIN 117 SDA2 118 CPUMD2 DIGITAL_SEL0 DIGITAL_SEL1 NC NC REMOCON 5V 3.3V SOS_DET DPMS_HD DPMS_VD RUSH_ON/OFF LSIRST RESET EEPROM IIC SW OR MICRO-COMPUTER 1.5V SOS DET P12V SOS DET 3.3V SOS DET SOS DET IIC CONT INVERTER INVERTER INVERTER INV. 5V->3.3V INV. INV. INV. INV. FLASH MEMORY 13 11 12 15 18 10 17 16 14 12 11 31 36 32 35 33 34 BB BD BA BC BE BF TO (2/10) D-BOARD D-BOARD TZTNP010Q61 (7/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 70 14.25. D-Board (8 of 10) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 8 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 8 of 10 ) RM_RD_BY RM_RD_BY ADDRESS[19] ADDRESS[19] ADDRESS[18] ADDRESS[18] ADDRESS[13] ADDRESS[13] ADDRESS[12] ADDRESS[12] ADDRESS[3] ADDRESS[3] ADDRESS[2] ADDRESS[2] DR DRVMUTE_M VMUTE_M SUB_R0 SUB_R1 SUB_R2 SUB_R3 SUB_R4 SUB_R5 SUB_R6 SUB_R7 SUB_G4 SUB_G5 SUB_G1 SUB_G3 SUB_G6 SUB_G7 SUB_G2 SUB_G0 SUB_B4 SUB_B5 SUB_B1 SUB_B3 SUB_B6 SUB_B7 SUB_B2 SUB_B0 MAIN_R4 MAIN_R5 MAIN_R1 MAIN_R3 MAIN_R6 MAIN_R7 MAIN_R2 MAIN_R0 MAIN_G4 MAIN_G5 MAIN_G1 MAIN_G3 MAIN_G6 MAIN_G7 MAIN_G2 MAIN_G0 MAIN_B4 MAIN_B5 MAIN_B1 MAIN_B3 MAIN_B6 MAIN_B7 MAIN_B2 MAIN_B0 SB_R1 SB_G3 SB_G7 SB_G0 SB_R2 SB_R4 SB_G5 SB_R6 SB_G1 SB_G4 SB_G6 SB_R3 SB_R7 SB_R0 SB_R5 SB_B2 SB_B3 SB_B0 SB_B5 SB_B1 SB_B4 SB_B6 SB_G2 MN_G0 MN_G3 MN_R2 MN_B0 MN_G6 MN_R1 MN_R6 MN_B6 MN_R5 MN_G2 MN_R0 MN_B1 MN_B2 MN_R7 MN_B5 MN_G7 MN_R3 MN_B7 MN_G1 MN_G4 MN_G5 MN_R4 MN_B3 MN_B4 L7_RMD3 VD_ADS AF_SL0 VDO_M CLP_S AM_HD AAE_MCDATA_O AM_VD RM_A18 AG_TMS AG_TDO DS_HD AG_TDI L7_RMD7 L7_RMD6 AG_TCK DS_VD L7_RMD5 L7_RMD4 RM_OE L7_RMD2 RM_A20 L7_RMD1 RM_RD_BY RM_A19 L7_RMD0 AF_SL2 L7_RMD7 L7_RMD3 HD_ADM AAE_MCCLK RM_CE L7_RMD6 P3V_SDA2 RM_CE AF_SL1 RM_WE P3V_SCL2 L7_RMD5 RM_BYTE VD_ADM AAE_MCLD VDO_S L7_RMD4 HDO_S CLP_M L7_RMD0 HDO_M L7_RMD1 HD_ADS AG_TDO L7_RMD2 AF_SL3 AF_SL4 AF_SL0 AF_SL1 AF_SL2 AF_SL3 AF_SL4 NRST AS_HD AS_VD DCK_MAIN DCK_MAIN DCK_SUB DCK_SUB AG_TMS AG_TCK RM_WE RM_RD_BY RM_OE L7_HOUT L7_VOUT OSD_VDO OSD_HDO AAE_MCDATA_I VD_M HD_M VD_S HD_S DM_VD DM_HD AF_SL2 AF_SL1 AF_SL0 AG_TDI TDO_BS TRST_BS L8_R8 L8_R9 L8_G0 L8_G1 L8_G2 L8_G3 L8_R7 L8_R6 L8_R5 L8_R4 L8_R3 L8_R2 L8_R1 L8_R0 L8_G4 L8_G5 L8_G6 L8_G7 RM_A18 RM_A19 RM_A20 L7_RMD15 TDI_BS SB_B7 R9780 0 C9730 16V 0.1u R9782 0 R9854 1k R9822 10k C9725 16V 0.1u R9789 0 R9785 0 R9831 4.7k R9834 10k R9892 4.7k R9803 10k R9769 0 R9828 4.7k IC9701 C1ZBZ0002625 1 GND 2 TMS 3 I/O 4 I/O 5 I/O 6 I/O 7 I/O 8 I/O 9 I/O 10 I/O 11 I/O 12 GND 13 VCCO 14 VCCINT 15 I/O 16 I/O 17 I/O 18 I/O 19 GND 20 I/O 21 I/O 22 I/O 23 I/O 24 I/O 25 GND 26 VCCO 27 I/O 28 VCCINT 29 I/O 30 I/O 31 I/O 32 GND 33 I/O 34 I/O 35 I/O 36 I/O 37 VCCINT 38 VCCO 39 GND 40 I/O 41 I/O 42 I/O 43 I/O 44 I/O 45 I/O 46 I/O 47 I/O 48 I/O 49 I/O 50 M1 51 GND 52 M0 53 VCCO 54 M2 55 I/O 56 I/O 57 I/O 58 I/O 59 I/O 60 I/O 61 I/O 62 I/O 63 I/O 64 I/O 65 GND 66 VCCO 67 VCCINT 68 I/O 69 I/O 70 I/O 71 I/O 72 GND 73 I/O 74 I/O 75 I/O 76 VCCINT 77 GCK1 78 VCCO 79 GND 80 GCK0 81 I/O 82 I/O 83 I/O 84 I/O 85 GND 86 I/O 87 I/O 88 I/O 89 I/O 90 VCCINT 91 VCCO 92 GND 93 I/O 94 I/O 95 I/O 96 I/O 97 I/O 98 I/O 99 I/O 100 I/O 101 I/O 102 I/O 103 GND 104 DONE 105 VCCO 106 PROGRAM 107 I/O 108 I/O 109 I/O 110 I/O 111 I/O 112 I/O 113 I/O 114 I/O 115 I/O 116 I/O 117 GND 118 VCCO 119 VCCINT 120 I/O 121 I/O 122 I/O 123 I/O 124 GND 125 I/O 126 I/O 127 I/O 128 I/O 129 I/O 130 VCCO 131 GND 132 I/O 133 I/O 134 I/O 135 I/O 136 I/O 137 GND 138 I/O 139 I/O 140 I/O 141 I/O 142 VCCINT 143 VCCO 144 GND 145 I/O 146 I/O 147 I/O 148 I/O 149 I/O 150 I/O 151 I/O 152 I/O 153 I/O 154 I/O 155 CCLK 156 VCCO 157 TDO 158 GND 159 TDI 160 I/O 161 I/O 162 I/O 163 I/O 164 I/O 165 I/O 166 I/O 167 I/O 168 I/O 169 I/O 170 GND 171 VCCO 172 VCCINT 173 I/O 174 I/O 175 I/O 176 I/O 177 GND 178 I/O 179 I/O 180 I/O 181 I/O 182 GCK2 183 GND 184 VCCO 185 GCK3 186 VCCINT 187 I/O 188 I/O 189 I/O 190 GND 191 I/O 192 I/O 193 I/O 194 I/O 195 VCCINT 196 VCCO 197 GND 198 I/O 199 I/O 200 I/O 201 I/O 202 I/O 203 I/O 204 I/O 205 I/O 206 I/O 207 TCK 208 VCCO C9734 16V 0.1u C9715 16V 0.1u R9951 C9713 16V 0.1u C9716 16V 0.1u R9799 560 C9729 16V 0.1u R9521 EXB2HV470JV R9795 0 R9768 0 C9702 16V 0.1u R9807 0 R9797 0 R9952 R9414 0 R9800 0 R9034 0 R9778 10k R9957 C9701 16V 0.1u R9806 0 R9838 0 R9833 10k R9816 10k 1.8V R9858 0 R9836 0 C9736 16V 0.1u 3.3V C9721 16V 0.1u R9740 0 R9525 EXB2HV470JV R9524 EXB2HV470JV R9955 EXB38V680JV R9749 0 R9837 0 C9732 16V 0.1u R9774 56 R9950 68 R9526 EXB2HV470JV R9818 4.7k R9824 4.7k C9733 16V 0.1u R9839 0 C9731 16V 0.1u R9750 0 R9744 0 R9745 0 P12V C9711 16V 0.1u R9821 4.7k C9722 16V 0.1u C9724 16V 0.1u C9717 16V 0.1u R9813 0 C9708 16V 0.1u R9809 0 R9827 4.7k R9805 0 R9859 0 R9840 EXB38V103JV R9775 0 R9730 0 D10 1 2 3 4 5 6 7 8 9 10 11 12 3.3V R9832 0 C9704 16V 0.1u C9728 16V 0.1u IC9703 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout R9727 0 C9727 16V 0.1u C9712 16V 0.1u R9726 0 R9819 4.7k C9705 16V 0.1u R9954 EXB38V680JV R9731 0 R9523 EXB2HV470JV C9718 16V 0.1u R9826 4.7k R9842 EXB38V103JV R9742 0 R9781 0 R9835 10k R9815 0 C9723 16V 0.1u R9725 0 R9953 R9817 0 R9783 10k R9956 EXB38V680JV R9522 EXB2HV470JV R9770 0 R9857 0 R9958 R9829 4.7k R9551 0 R9787 0 R9843 10k R9739 0 R9767 0 R9804 4.7k R9741 0 R9765 0 C9707 16V 4.7u C9735 16V 0.1u R9743 0 R9776 10k R9823 4.7k R9808 4.7k R9810 0 R9830 4.7k R9825 4.7k C9703 16V 0.1u C9726 16V 0.1u R9728 0 R9766 10k R9429 0 R9771 56 R9841 EXB38V103JV IC9704 C0ZBZ0000764 1 STATUS[1] 2 STATUS[2] 3 TDO 4 TDI 5 TMS 6 CONFIG_SEL[4] 7 CONFIG_SEL[3] 8 CONFIG_SEL[2] 9 CONFIG_SEL[1] 10 CONFIG_SEL[0] 11 TCK 12 VSS 13 VDD 14 ADDRESS[21] 15 ADDRESS[20] 16 ADDRESS[19] 17 ADDRESS[18] 18 ADDRESS[17] 19 ADDRESS[16] 20 VSS 21 VDD 22 ADDRESS[15] 23 ADDRESS[14] 24 ADDRESS[13] 25 ADDRESS[12] 26 ADDRESS[11] 27 ADDRESS[10] 28 ADDRESS[9] 29 ADDRESS[8] 30 ADDRESS[7] 31 ADDRESS[6] 32 VSS 33 VDD 34 ADDRESS[5] 35 ADDRESS[4] 36 ADDRESS[3] 37 ADDRESS[2] 38 ADDRESS[1] 39 ADDRESS[0] 40 VSS 41 VDD 42 DATA[7] 43 DATA[6] 44 DATA[5] 45 DATA[4] 46 DATA[3] 47 DATA[2] 48 DATA[1] 49 DATA[0] 50 XCE 51 XOE 52 VSS 53 XWE 54 RD_XBY 55 REG_SEL 56 D[3] 57 D[2] 58 D[1] 59 D[0] 60 VSS 61 VDD 62 XRESET 63 XWR 64 NC 65 XRD 66 XCS 67 BUS_REQ 68 BUS_RELEASE 69 DATA 70 XCEO 71 VSS 72 CLK 73 VDD 74 VDD 75 XRST 76 VDD 77 XCF 78 XCEI 79 MODE_SEL 80 STATUS[2] R9820 4.7k VDID_S CLKM_IN DIN HDID_S ^INIT DSHL1 SYNCRST CLK20M VCCINT LAC OSDHO DMLL1 HDO_S DMHL1 VDO_S BLKU PCU LEU BLKD LED PCD UBK NUEL UMH UML USH USL UEH CPH CPL NRST SCSU DRVMUTE_M SID DRVMUTE_S SIU P5V/TRST CLK CMH ROM47_2 CML ROM47_1 CSH RESERVE4 CSL CLPC_M ROM47_0 RESERVE4 CEL TDI N_VD47 SLAV GND CBK TDO CLPC_S 3.3V DRVRST CONFIG_SEL0 XNHD CONFIG_SEL1 FPDATA0 CONFIG_SEL2 FPDATA1 32MFlash_MSB LATCH SFVRST DCKC FPCLK OSDCLK CKI OSDIN4 OSDHD OSDVD SCL YS SDA CL OSD0 TMS OSD1 TCK OSD2 P12V OSD9 HDID_M OSD10 VDID_M OSD11 HDIA_M OSD12 VDIA_M OSD13 OSD14 OSD15 OSDIN0 NCLP_M OSDIN1 RESERVE4 OSDIN2 NCLCP_S OSDIN3 LSI43_33MHz OSDIN5 SDAT OSDIN6 REFCK XNVD MCHD OSDIN7 DOE DCKB SFRST MCLD VDO_M MCCLK HDO_M SCO CGL MCVD VD_M OSD3 MCDATA HD_M OSD4 HD_S OSD5 VD_S NO_SYNC OSD6 HD_ADM OSD7 VD_ADM OSD8 DMLR1 DMHR1 VD_ADS DSHR1 HD_ADS DSLR1 HDIA_S DSLL1 VDIA_S LSB MSB RESET SYNC PROCESSING FPGA FPGA CONTROL 23 26 25 19 20 22 21 24 27 33 34 31 35 36 32 55 56 54 57 52 53 51 60 58 59 61 CE CH CC CI CJ CF CD CA CG CB TO (3/10) D-BOARD D-BOARD TZTNP010Q61 (8/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 71 14.26. D-Board (9 of 10) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 9 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 9 of 10 ) G G + G G G G + L7DR_AD2 L7DR_AD1 L7DR_DQ23 L7DR_DQ21 L7DR_DQ4 L7DR_DQ5 L7DR_DQ8 L7DR_DQ29 L7DR_DQ15 L7DR_AD7 L7DR_NCK L7DR_AD9 L7DR_DQS0 L7DR_DQ10 L7DR_BA0 L7DR_NCAS L7DR_DQ17 L7DR_CK L7DR_AD11 L7DR_DM3 L7DR_DM0 L7DR_AD5 L7DR_DQ19 L7DR_DM1 L7DR_CKE L7DR_NRAS L7DR_DQ9 L7DR_DQ13 L7DR_NCS L7DR_DQ30 L7DR_DQ25 L7DR_AD3 L7DR_DQ27 L7DR_AD0 L7DR_AD4 L7DR_DQ6 L7DR_BA1 L7DR_DQ20 L7DR_DQ31 L7DR_DQ22 L7DR_AD8 L7DR_DQ11 L7DR_DQ24 L7DR_DQ14 L7DR_DQ0 L7DR_DQ16 L7DR_DM2 L7DR_DQ3 L7DR_AD10 L7DR_DQ28 L7DR_NWE L7DR_DQ12 L7DR_AD6 L7DR_DQ7 L7DR_DQ1 L7DR_DQ18 L7DR_DQ26 L7_ADRS4 L7_DQ27 L7_DQ17 L7_SDCKON L7_DQ7 L7_DQ5 L7_ADRS9 L7_ADRS7 L7_DQ4 L7_DQ21 L7_DQ2 L7_DQ14 L7_DQ8 L7_ADRS5 L7_DQ0 L7_DQ23 L7_DQ24 L7_DQ6 L7_DQ31 L7_NWE L7_DQ26 L7_NCS L7_ADRS8 L7_BANK1 L7_DQ1 L7_DQ20 L7_DQ25 L7_DQ28 L7_DQ10 L7_DQ30 L7_ADRS11 L7_BANK0 L7_DQ11 L7_DQ19 L7_DQ18 L7_ADRS10 L7_NCAS L7_DQ15 L7_ADRS6 L7_DQ16 L7_DQ9 L7_DQ22 L7_DQ3 L7_DQ13 L7_DQ29 L7_CKE L7_ADRS3 L7_NRAS L7_ADRS0 L7_SDCKO L7_ADRS1 L7_ADRS2 L7_DQS0 L7_DQ12 L7DR_DQ2 L7_DQ31 L7_DQ30 L7_DQ29 L7_DQ28 L7_DQ27 L7_DQ25 L7_DQ24 L7_DQ23 L7_DQ22 L7_DQ21 L7_DQ20 L7_DQ19 L7_DQ18 L7_DQ17 L7_DQ16 L7_DQ15 L7_DQ14 L7_DQ13 L7_DQ12 L7_DQ11 L7_DQ10 L7_DQ9 L7_DQ8 L7_DQ6 L7_DQ5 L7_DQ4 L7_DQ3 L7_DQ2 L7_DQ1 L7_DQ0 L7_DQ7 L7_DQ26 L7_ADRS6 L7_ADRS3 L7_ADRS10 L7_ADRS11 L7_ADRS9 L7_ADRS8 L7_ADRS7 L7_ADRS5 L7_ADRS4 L7_ADRS2 L7_ADRS1 L7_ADRS0 L7_NRAS L7_NCAS L7_NCS L7_SDCKON L7_SDCKO L7_NWE L7_CKE L7_BANK1 L7_DQS0 L7_BANK0 MN_R7 MN_R6 MN_R5 MN_R4 MN_R3 MN_R2 MN_R1 MN_R0 MN_B0 MN_B3 MN_B7 MN_B2 MN_B1 MN_B5 MN_B6 MN_B4 MN_G0 MN_G3 MN_G7 MN_G2 MN_G1 MN_G5 MN_G6 MN_G4 SB_R0 SB_R3 SB_R7 SB_R2 SB_R1 SB_R5 SB_R6 SB_R4 SB_B0 SB_B3 SB_B7 SB_B2 SB_B1 SB_B5 SB_B6 SB_B4 SB_G0 SB_G3 SB_G7 SB_G2 SB_G1 SB_G5 SB_G6 SB_G4 L7_GOUT9 L7_GOUT8 L7_GOUT7 L7_GOUT6 L7_GOUT5 L7_GOUT4 L7_GOUT3 L7_GOUT2 L7_GOUT1 L7_GOUT0 L7_BOUT7 L7_BOUT5 L7_BOUT3 L7_BOUT9 L7_BOUT2 L7_BOUT6 L7_BOUT8 L7_BOUT4 L7_ROUT7 L7_ROUT5 L7_ROUT3 L7_ROUT1 L7_ROUT2 L7_ROUT0 L7_ROUT6 L7_ROUT8 L7_ROUT4 DCK_MAIN VDO_M DCK_SUB VDO_S OSD15 OSD14 OSD12 OSD13 OSD10 OSD9 OSD8 OSD11 OSD6 OSD4 OSD5 OSD2 OSD1 OSD0 OSD3 OSD_YM OSD_YS OSD_HDIN OSD_CKIN L7_ROUT9 L7_RMD15 L7_RMD13 L7_RMD12 L7_RMD10 L7_RMD8 L7_RMD11 L7_RMD9 L7_RMD6 L7_RMD4 L7_RMD7 L7_RMD5 L7_RMD2 L7_RMD0 L7_RMD3 L7_RMD1 L7_RMD14 OSD_VDO OSD_HDO HDO_M HDO_S L7_REFCK L7_MCK L7_SCK L7_OCK L7_HOUT L7_VOUT L7_RMCE OSD7 TMS_BS TCK_BS TDI_BS 57_TDO TRST_BS L7_ENB L7DR_BA1 L7DR_NCS L7DR_NCK L7DR_AD11 L7DR_AD8 L7DR_AD3 L7DR_CKE L7DR_NRAS L7DR_AD2 L7DR_AD5 L7DR_AD1 L7DR_AD4 L7DR_NWE L7DR_BA0 L7DR_AD9 L7DR_AD6 L7DR_NCAS L7DR_AD0 L7DR_CK L7DR_AD7 L7DR_AD10 L7DR_DQ8 L7DR_DQ20 L7DR_DQ23 L7DR_DQ14 L7DR_DQ16 L7DR_DQ28 L7DR_DQ26 L7DR_DQ12 L7DR_DQ24 L7DR_DQ9 L7DR_DQ3 L7DR_DQS0 L7DR_DQ10 L7DR_DQ21 L7DR_DQ5 L7DR_DQ27 L7DR_DQ4 L7DR_DQ0 L7DR_DQ30 L7DR_DQ1 L7DR_DQ19 L7DR_DQ11 L7DR_DQ13 L7DR_DQ25 L7DR_DQ2 L7DR_DQ22 L7DR_DQ29 L7DR_DQ15 L7DR_DQ18 L7DR_DQ17 L7DR_DQ7 L7DR_DQ6 L7DR_DQ31 NRST P3V_SCL2 P3V_SDA2 L8_B4 L7_GOUT1 L7_BOUT2 L8_G8 L7_GOUT0 L7_BOUT7 L8_B2 L7_BOUT5 L7_GOUT2 L7_BOUT4 L8_B3 L7_BOUT6 L7_GOUT7 L7_GOUT5 L8_G3 L7_ROUT2 L7_BOUT9 L7_GOUT4 L8_R9 L8_G1 L8_B9 L8_R8 L7_ROUT3 L7_ROUT8 L7_ROUT9 L8_B6 L8_R7 L8_G0 L8_B8 L7_GOUT6 L8_R6 L7_ROUT7 L7_GOUT8 L8_R5 L8_G6 L7_ROUT0 L8_R4 L7_ROUT5 L7_GOUT9 L8_B7 L8_R3 L8_G7 L7_BOUT3 L8_G2 L8_R2 L7_ROUT4 L7_ROUT1 L8_R1 L8_G5 L7_BOUT8 L8_R0 L8_B5 L7_ROUT6 RM_CE L7_GOUT3 L8_G4 L7_RMCE L8_G9 IC9501 H22 ROUT8 IC9501 B14 MINTEST IC9501 A2 OSD0 IC9501 E10 VDD15 IC9501 V2 RVIA2 IC9501 J2 DVB R9687 33 IC9501 R11 VSS C9506 16V 0.1u IC9501 B5 OSD9 IC9501 R20 MVDIO IC9501 A4 OSD8 IC9501 D22 ROMD15 IC9501 H12 VSS C9558 16V 0.1u IC9501 D23 ROMD14 IC9501 M19 VDD33 IC9501 B23 ROMD9 C9567 16V 0.1u C9523 16V 0.1u IC9501 N2 GYIA6 IC9501 T22 S1NCOPY IC9501 T13 VSS IC9501 B6 OSD12 IC9501 AB12 DQ8 IC9501 N20 BOUT9 R9382 0 IC9501 T9 VSS IC9501 D3 GYIB5 IC9501 AC14 VSS IC9501 Y22 SDIV2 IC9501 U20 S4NCOPY IC9501 R2 BUIA6 R9068 0 IC9501 T12 VSS IC9501 AA14 AVSS C9555 16V 0.1u R9675 33 IC9501 V4 RVIA4 IC9501 G21 ROUT5 IC9501 W23 SCKREF C9561 16V 0.1u IC9501 R9 VSS IC9501 W20 SDIV1 IC9501 D12 I2CSLV0 R9543 0 IC9501 E4 GYIB2 C9548 16V 0.1u IC9501 A10 OSDVO IC9501 C3 VSS IC9501 M21 BOUT5 IC9501 C12 ZLPFON C9526 16V 0.1u IC9501 P1 GYIA3 IC9501 A3 OSD4 IC9501 K5 VDD33 C9535 16V 0.1u IC9501 E1 GYIB0 C9529 16V 0.1u IC9501 C15 TEST2 IC9501 AC9 VDD25 R9685 33 IC9501 E6 OSD7 IC9501 H10 VSS C9516 16V 0.1u R9711 33 IC9501 C2 GYIB6 R9567 0 IC9501 J4 RVIB1 R9598 0 IC9501 W2 DDRIOCTR0 IC9501 M13 VSS C9504 16V 0.1u IC9501 P13 VSS IC9501 T23 OVDIO R9679 33 C9549 16V 0.1u IC9501 C14 SCANEN IC9501 V1 RVIA3 R9720 0 IC9501 Y2 TCK R9568 0 IC9501 E20 ROMD13 IC9501 H21 ROUT9 IC9501 F19 VDD33 IC9501 C19 MCPOUT IC9501 Y7 DQ21 J0HABH000012 FL9503 1 2 3 R9611 33 IC9501 AC12 DQ9 IC9501 B4 OSD5 IC9501 D7 YM IC9501 W3 DDRIOCTR1 IC9501 G1 BUIB0 R9703 33 3.3V_L78 C9565 16V 0.1u C9566 16V 0.1u C9530 16V 0.1u IC9501 E3 BUIB6 IC9501 M14 VSS IC9501 G20 ROUT6 IC9501 L8 VSS IC9501 F22 ROUT0 IC9501 C11 SLVSET R9699 33 IC9501 B22 ROMD6 R9669 33 R9663 33 IC9501 AA1 TRSTZ IC9501 W8 VSS IC9501 K12 VSS IC9501 D21 ROMD12 R9667 33 IC9501 U1 RVIA7 IC9501 H8 VSS IC9501 AC1 VSS IC9501 L15 VSS IC9501 T20 S1UDSEL1 IC9501 C1 GYIB4 IC9501 R23 MCKO IC9501 L3 ICKW IC9501 A23 VSS IC9501 V20 XSPLLPDN C9520 16V 0.1u IC9501 AA18 ADRS9 IC9501 A1 VSS IC9501 K21 GOUT7 IC9501 M22 BOUT4 R9553 0 IC9501 K13 VSS IC9501 N23 OCKO R9577 0 C9564 16V 0.1u IC9501 AB6 DQ0 2.5V_L7 IC9501 W5 VSS IC9501 D18 MDIV1 IC9501 L22 BOUT0 IC9501 M12 VSS R9719 0 IC9501 AA15 VSS IC9501 V22 S4UDSEL0 IC9501 N4 RHA R9556 0 2.5V_L7 IC9501 K1 HMASKB IC9501 L14 VSS IC9501 P4 GYIA4 IC9501 F2 BUIB3 4.7k R9589 IC9501 H19 VDD15 IC9501 AB21 BANK1 IC9501 T4 BUIA4 IC9501 P5 VDD33 1% R9091 1k IC9501 AA12 DQ25 IC9501 B13 I2CSLV2 IC9501 D2 GYIB3 IC9501 R21 MFJIO R9595 10k IC9501 A21 AVSSM R9718 0 IC9501 C13 I2CSCL C9511 16V 0.1u IC9501 B7 VSS IC9501 AA8 VSS IC9501 W13 AVDD25 IC9501 N3 GYIA5 C9578 16V 0.1u IC9501 D11 XRST IC9501 T3 BUIA1 IC9501 AA11 DQ27 IC9501 K15 VSS IC9501 L12 VSS IC9501 F3 BUIB2 IC9501 L16 VSS IC9501 A22 ROMD5 IC9501 D5 OSD3 IC9501 Y16 VSS 2.5V_L7 R9570 0 R9599 0 IC9501 H16 VSS IC9501 C20 ROMD2 IC9501 AA22 AVDD33S R9715 33 IC9501 L11 VSS 2.5V_L7 IC9501 F5 VDD15 C9572 16V 0.1u IC9501 D16 SDCLSEL IC9501 AB3 DQ6 IC9501 AB4 DQ4 IC9501 N14 VSS C9539 16V 0.1u C9560 220u 4V IC9501 H23 ROUT7 IC9501 L1 HMASKA IC9501 B16 TEST5 C9505 16V 0.1u IC9501 AA5 DQ17 C9528 16V 0.1u IC9501 AB13 DQS1 R9657 33 IC9501 A9 OSDCKI IC9501 A12 ZTSEL R9673 33 IC9501 AC5 DQ1 R9548 0 R9633 33 IC9501 AC7 DQS2 C9518 16V 0.1u IC9501 C9 ALPHA3 C9519 16V 0.1u R9683 33 R9635 33 IC9501 P14 VSS IC9501 D20 ROMD8 IC9501 AC4 DQ3 C9525 16V 0.1u IC9501 H4 RVIB5 IC9501 R22 ZLDENIO J0HABH000012 FL9500 1 2 3 R9709 33 IC9501 W14 VDD15 IC9501 N9 VSS IC9501 AB9 DQ15 3.3V_L78 IC9501 K10 VSS IC9501 E21 PWMOUT IC9501 J13 VSS IC9501 A13 I2CSLV1 R9661 33 IC9501 B10 BFJ IC9501 AC6 DQS0 IC9501 Y3 TDI IC9501 K11 VSS IC9501 T14 VSS R9513 0 IC9501 G2 RVIB7 1% R9096 1.4k IC9501 H13 VSS IC9501 H9 VSS IC9501 N16 VSS R9576 0 IC9501 E17 VSS IC9501 U2 RVIA6 IC9501 P11 VSS R9713 33 IC9501 V19 VDD15 IC9501 T11 VSS IC9501 A19 VSS IC9501 C6 OSD13 IC9501 G23 ROUT3 1k R9559 R9623 33 IC9501 A6 OSD11 IC9501 M23 BOUT3 IC9501 C5 OSD6 C9563 16V 0.1u R9597 0 IC9501 AC11 DQ11 IC9501 G3 RVIB6 C9537 16V 0.1u R9552 0 IC9501 AB17 SDCKO IC9501 AA7 DQ23 IC9501 K2 CLAMPB R9677 33 IC9501 M8 VSS IC9501 AB11 DQ10 IC9501 C17 NPLLSEL C9508 16V 0.1u C9531 16V 0.1u IC9501 K3 RHB R9627 33 IC9501 D19 ROMD3 R9613 33 IC9501 K16 VSS IC9501 T5 VDD15 C9541 16V 0.1u C9536 16V 0.1u R9693 33 IC9501 J3 RVIB0 R9645 33 IC9501 V23 VSS IC9501 AA20 ADRS1 IC9501 D10 AFJ 2.5V_L7 IC9501 M20 BOUT6 IC9501 D6 OSD14 IC9501 K20 GOUT8 IC9501 P8 VSS IC9501 L23 GOUT9 IC9501 W6 VDD25 IC9501 Y4 VSS R9550 47 IC9501 R19 VDD33 IC9501 P2 GYIA2 IC9501 P19 VDD33 R9575 0 IC9501 W18 ADRS7 R9617 33 R9639 33 C9544 16V 0.1u R9605 33 IC9501 AB19 ADRS5 IC9501 K4 DHB IC9501 W21 SDIV0 IC9501 V5 VDD15 R9584 0 IC9501 E13 VDD33 C9533 16V 0.1u IC9501 U3 RVIA5 IC9501 J8 VSS IC9501 P12 VSS IC9501 U22 S2UDSEL0 IC9501 N21 BOUT8 IC9501 T21 S1UDSEL0 IC9501 AB10 DQ12 IC9501 C16 TEST6 IC9501 J12 VSS IC9501 AC3 DQ5 IC9501 B20 AVDD33M IC9501 U4 BUIA0 IC9501 E12 VDD33 IC9501 U19 VDD15 IC9501 K9 VSS IC9501 A14 OMASK R9705 33 IC9501 L4 VMASKB IC9501 C21 ROMD7 C9515 16V 0.1u 3.3V_L78 IC9501 D14 SCANTEST 3.3V_L78 IC9501 M16 VSS IC9501 AC15 NWE IC9501 M1 DCKA R9721 0 IC9501 B11 XSYNCRST C9570 16V 0.1u IC9501 AC2 DQ7 IC9501 F21 ROUT1 IC9501 Y13 AVSS IC9501 W7 VDD15 C9512 16V 0.1u IC9501 H2 RVIB3 IC9501 P3 GYIA1 R9615 33 IC9501 B18 XPLLRST IC9501 H11 VSS IC9501 B21 ROMD1 IC9501 M3 DHA 3.3V_L78 C9532 16V 0.1u R9561 0 R9631 33 IC9501 N13 VSS IC9501 E15 VDD15 R9585 0 IC9501 D17 XMPLLPDN IC9501 R10 VSS IC9501 G19 VDD33 IC9501 AB14 BIAS IC9501 T1 BUIA3 IC9501 C4 OSD2 IC9501 W17 VDD25 IC9501 R14 VSS IC9501 AC21 ADRS0 IC9501 R16 VSS R9629 33 1.5V_L7 IC9501 W12 VDD25 IC9501 AA6 DQ19 C9542 16V 0.1u IC9501 AB5 DQ2 R9619 33 IC9501 Y21 SCPOUT IC9501 J19 VDD15 R9637 33 IC9501 V21 S4UDSEL1 IC9501 AA17 VSS IC9501 L2 CLAMPA IC9501 J16 VSS C9510 16V 0.1u IC9501 H14 VSS C9559 16V 0.1u C9568 16V 0.1u IC9501 A16 TEST4 IC9501 W4 DLLON IC9501 N11 VSS R9607 33 R9558 0 IC9501 W10 VDD25 IC9501 Y10 DQ28 IC9501 M5 VDD15 C9522 16V 0.1u IC9501 A17 VSS IC9501 AB18 VSS C9547 16V 0.1u IC9501 E14 VDD33 IC9501 Y17 ADRS11 R9609 33 IC9501 L13 VSS IC9501 E11 VDD15 IC9501 A7 OCKREF IC9501 K14 VSS IC9501 AC10 DQ13 R9069 0 IC9501 M15 VSS IC9501 C18 MDIV3 IC9501 E7 VDD33 IC9501 Y1 AHARDPWN IC9501 R3 BUIA5 IC9501 E19 ROMD4 IC9501 B12 ZTILD IC9501 W11 VDD25 IC9501 T16 VSS 1% R9193 1k 1.5V_L7 C9546 16V 0.1u R9621 33 IC9501 AC23 VSS IC9501 J14 VSS IC9501 D1 GYIB1 IC9501 A20 MDIV0 IC9501 M9 VSS IC9501 E16 VDD15 C9571 16V 0.1u R9555 0 C9557 16V 0.1u IC9501 W15 VSS IC9501 N8 VSS IC9501 M10 VSS 3.3V_L78 IC9501 AA4 DQ16 C9514 16V 0.1u C9517 16V 0.1u IC9501 J15 VSS IC9501 Y18 ADRS8 IC9501 A11 OSDCKO IC9501 J22 GOUT2 C9543 16V 0.1u 3.3V R9557 0 IC9501 J21 GOUT3 C9513 16V 0.1u IC9501 G4 BUIB1 IC9501 T15 VSS IC9501 U23 S2NCOPY C9527 16V 0.1u IC9501 E9 VDD15 IC9501 L20 BOUT2 R9659 33 IC9501 AC18 CKE IC9501 AB1 TDO IC9501 P23 VP IC9501 P16 VSS R9655 33 C9521 16V 0.1u IC9501 N5 VDD15 J0HABH000012 FL9502 1 2 3 IC9501 U21 S2UDSEL1 IC9501 A8 OSDHI IC9501 AB15 NRAS IC9501 P15 VSS IC9501 AA19 ADRS4 IC9501 W1 RVIA0 IC9501 D4 VSS 2.5V_1 IC9501 P10 VSS IC9501 Y12 DQ24 IC9501 C8 ALPHA0 IC9501 D8 ALPHA1 IC9501 E18 ROMD0 IC9501 B3 OSD1 IC9501 R12 VSS R9571 0 2.5V_L7 IC9501 B19 MDIV2 1% R9092 1k IC9501 F20 ROUT2 IC9501 AA9 DQ14 C9534 16V 0.1u R9695 33 IC9501 T10 VSS IC9501 R1 BUIA7 IC9501 Y9 DQ31 IC9501 AB2 VSS R9665 33 C9538 16V 0.1u IC9501 R8 VSS IC9501 AA21 VSS IC9501 Y15 VSS IC9501 H3 RVIB2 IC9501 T2 BUIA2 IC9501 C7 OSD15 IC9501 Y20 VSS R9671 33 IC9501 AC17 SDCKON IC9501 AA10 DQ29 R9681 33 R9717 33 IC9501 Y23 VSS R9647 33 IC9501 A15 TEST0 C9551 16V 0.1u IC9501 AB23 AVSSS IC9501 E22 ROMCE IC9501 G5 VDD15 IC9501 C23 ROMD10 IC9501 C10 REFCK 1% R9194 1k IC9501 J23 GOUT1 IC9501 M4 VMASKA C9540 16V 0.1u IC9501 L5 VDD15 IC9501 R15 VSS IC9501 J5 VDD33 IC9501 L9 VSS IC9501 AC8 VSS IC9501 A5 OSD10 IC9501 G22 ROUT4 IC9501 J20 GOUT4 IC9501 C22 ROMD11 C9553 16V 0.1u IC9501 E2 BUIB7 IC9501 J1 DCKB R9691 33 IC9501 W9 DQ30 IC9501 Y14 AVDD25 IC9501 M2 DVA C9545 16V 0.1u IC9501 R5 VDD33 IC9501 E23 C78EN IC9501 AB7 DQ22 IC9501 L19 VDD15 IC9501 P20 SRL IC9501 T8 VSS IC9501 N22 BOUT7 R9701 33 IC9501 AB8 VSS 1.5V1 R9600 0 IC9501 W16 ADRS10 IC9501 AA16 NCAS C9562 16V 0.1u IC9501 B2 VSS IC9501 F4 BUIB5 3.3V_L78 IC9501 B1 GYIB7 IC9501 Y6 DQ20 IC9501 J10 VSS IC9501 Y11 DQ26 C9579 220u 4V IC9501 N19 VDD33 IC9501 K8 VSS IC9501 L21 BOUT1 IC9501 N10 VSS IC9501 AC22 BANK0 IC9501 J9 VSS IC9501 P21 SRLF R9542 0 IC9501 F23 VIAREA R9625 33 IC9501 AA2 TMS IC9501 E5 VSS IC9501 AC16 VREF IC9501 T19 VDD15 R9544 0 IC9501 AC19 VSS IC9501 AA3 VSS IC9501 K22 GOUT6 IC9501 H5 VDD15 IC9501 AB22 VSS IC9501 U5 VDD15 IC9501 AC20 ADRS3 R9583 0 IC9501 AA23 SDIV3 C9503 16V 0.1u IC9501 K19 VDD15 R9689 33 IC9501 N12 VSS IC9501 L10 VSS IC9501 AB16 NCS IC9501 Y5 DQ18 IC9501 M11 VSS IC9501 AC13 VDD25 R9707 33 C9509 16V 0.1u IC9501 D9 OSDHO 1k R9560 IC9501 W22 DCPOUT IC9501 J11 VSS IC9501 B17 WDLLON IC9501 Y8 VSS IC9501 AA13 DQS3 IC9501 B15 TEST1 C9569 16V 0.1u IC9501 B9 ALPHA2 IC9501 P9 VSS IC9501 K23 GOUT5 C3ABQJ000031 IC9505 1 DQ3 2 VDDQ 3 DQ4 4 DQ5 5 VSSQ 6 DQ6 7 DQ7 8 VDDQ 9 DQ16 10 DQ17 11 VSSQ 12 DQ18 13 DQ19 14 VDDQ 15 VDD 16 VSS 17 DQ20 18 DQ21 19 VSSQ 20 DQ22 21 DQ23 22 VDDQ 23 DM0 24 DM2 25 WE 26 CAS 27 RAS 28 CS 29 BA0 30 BA1 31 A0 32 A1 33 A2 34 A3 35 VDD 36 A10 37 A11 38 N.C 39 N.C 40 N.C 41 N.C 42 N.C 43 N.C 44 N.C 45 A9 46 VSS 47 A4 48 A5 49 A6 50 A7 51 A8/AP 52 MCL 53 CKE 54 CK 55 CK 56 DM1 57 DM3 58 VREF 59 VDDQ 60 DQ8 61 DQ9 62 VSSQ 63 DQ10 64 DQ11 65 VDD 66 VSS 67 VDDQ 68 DQ12 69 DQ13 70 VSSQ 71 DQ14 72 DQ15 73 VDDQ 74 DQ24 75 DQ25 76 VSSQ 77 DQ26 78 DQ27 79 VDDQ 80 DQ28 81 DQ29 82 VSSQ 83 DQ30 84 DQ31 85 VSS 86 VDDQ 87 N.C 88 N.C 89 N.C 90 N.C 91 N.C 92 VSSQ 93 RFU 94 DQS 95 VDDQ 96 VDD 97 DQ0 98 DQ1 99 VSSQ 100 DQ2 IC9501 H15 VSS 1% R9095 1.1k IC9501 D13 I2CSDA C9524 16V 0.1u R9587 0 IC9501 E8 VDD33 IC9501 P22 HP R9697 33 C9507 16V 0.1u IC9501 B8 YS IC9501 AB20 ADRS2 IC9501 Y19 ADRS6 R9643 33 IC9501 H20 GOUT0 R9602 0 IC9501 F1 BUIB4 IC9501 N15 VSS IC9501 V3 RVIA1 3.3V_L78 IC9501 D15 TEST3 IC9501 R13 VSS R9641 33 IC9501 W19 VSS IC9501 H1 RVIB4 IC9501 N1 GYIA7 IC9501 A18 MCKREF R9574 0 IC9501 R4 GYIA0 R9601 0 R9564 EXB38V470JV R9569 EXB38V470JV R9562 EXB38V470JV R9579 EXB38V470JV R9596 EXB38V470JV R9590 EXB38V470JV R9578 EXB38V470JV R9563 EXB38V470JV R9586 EXB38V470JV DDR-Terminate POWER DDR I/F OSD IIC RESET (R4) (R3) (R2) (R1) (R0) (G5) (G4) (G3) (G2) (G1) (G0) (B4) (B3) (B2) (B1) (B0) MN84511-A(LSI57) DDR SDRAM IC9501 FORMAT COVERSION QUALITY-OF-IMAGE-COMPENSATION SYNC PROCESSING 2 SCREEN PROCESSING 28 33 31 29 30 34 35 36 32 55 61 58 57 56 60 53 59 52 54 51 73 72 71 75 74 77 76 DB DA TO (4/10) D-BOARD D-BOARD TZTNP010Q61 (9/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 72 14.27. D-Board (10 of 10) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 10 of 10 ) TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES D-Board Schematic Diagram ( 10 of 10 ) G G L7_RMD14 L7_RMD6 L7_RMD13 L7_RMD5 L7_RMD12 L7_RMD4 L7_RMD11 L7_RMD3 L7_RMD10 L7_RMD2 L7_RMD9 L7_RMD1 L7_RMD8 L7_RMD0 L7_RMD7 L7_RMD15 L7_RMD15 RM_OE L7_HOUT L7_VOUT L8_HIN L8_VIN L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G7 RM_A18 RM_A20 RM_A19 L8_R0 RM_RD_BY RM_WE L8_G6 RM_BYTE AA_REMOCON AA_CATS_EYE KEY_INPUT INV_SOS BL_ON/OFF PWM_DUTY_SEL PWM_HARF L7_ENB RM_CE LED_R LED_G A_DIM L8_VIN L8_HIN C9573 16V 0.1u R9425 0 3.3V_L78 R9306 0 L9408 J0JHC0000078 R9022 0 3.3V_L78 STB5V_M R9424 0 R9487 0 R9422 0 ZA9505 TESA169 ZA9506 TESA169 IC9412 C0JBAF000543 1 1CLR~ 2 1D 3 1CK 4 1PR~ 5 1Q 6 1Q~ 7 GND 8 2Q~ 9 2Q 10 2PR~ 11 2CK 12 2D 13 2CLR~ 14 VCC C3FBKD000268 IC9506 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 N.C. 10 N.C. 11 WE 12 RESET 13 N.C. 14 N.C. 15 RY/BY 16 N.C. 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 VSS 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE 48 A16 ZA9504 TESA169 R9256 100 3.3V_L78 R9427 0 C9445 16V 0.1u R9486 0 IC9411 C0JBAE000330 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc R9021 0 R9461 0 3.3V 3.3V_L78 PANEL5V 1% R9462 2.15k R9466 0 1% R9433 2k C0JBAM000129 IC9414 1 1A 2 1B 3 1CLR 4 1Q 5 2Q 6 2Ce 7 2Re 8 GND 9 2A 10 2B 11 2CLR 12 2Q 13 1Q 14 1Ce 15 1Re 16 VCC ZA9503 TESA169 L9409 J0JHC0000078 R9460 10k 3.3V_L78 R9474 1k C9440 16V 0.1u ZA9502 TESA169 R9307 0 R9426 0 R9432 100 L9407 J0JHC0000078 C9427 16V 0.1u L9406 J0JHC0000078 D34 1 2 3 4 5 6 7 8 9 10 ZA9501 TESA169 J0HABH000012 FL9403 1 2 3 R9471 0 1% R9434 1k R9071 0 ZA9507 TESA169 C9443 16V 0.1u C9446 16V 0.1u R9423 0 3.3V_L78 C9444 10V 1u 3.3V_L78 R9469 0 R9438 0 C0JBAB000667 IC9416 1 NC 2 IN A 3 GND 5 VCC 4 OUT Y IC9413 C0ABBA000134 1 1OUT 2 1IN- 3 1IN+ 4 GND 5 2IN+ 6 2IN- 7 2OUT 8 Vcc L9405 J0JHC0000078 IC9410 C0JBAA000355 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC C9426 16V 0.1u L9410 J0JHC0000078 R9258 100 IC9415 C0JBAS000226 1 IN/OUT1 2 OUT/IN1 3 OUT/IN2 4 IN/OUT2 5 CONT2 6 CONT3 7 Vss 8 IN/OUT3 9 OUT/IN3 10 OUT/IN4 11 IN/OUT4 12 CONT4 13 CONT1 14 VDD C9441 50V 1000p R9070 0 C9429 16V 0.1u R9309 47 D24 1 2 3 4 5 6 R9722 4.7k R9413 0 R9410 0 4M FLASH CPU_GND OPT LED_R KEY_SW CPU_GND REMOCON STB5V LED_G P_GND P_GND P_DIM A_DIM BL_ON/OFF INV_SOS GND NC OP AMP OR AND INVERTER SW F.F. F.F. LCD PANEL TO R/V-BOARD TO (R34/V35) 42 40 39 38 43 44 45 41 37 72 74 75 77 71 76 73 EB ED EA EC EE EF TO (5/10) D-BOARD 0 0 1.3 3.2 3.2 0 0 3.1 4.9 4.5 0 0 0 0.9 0 0 D-BOARD TZTNP010Q61 (10/10) TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 73 14.28. Z-Board (1 of 2) and H3-Board Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES Z-Board ( 1 of 2 ) and H3-Board Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES Z-Board ( 1 of 2 ) and H3-Board Schematic Diagram + + + + + Thermal Pad + + + + + + + + + + + Thermal Pad + + + 9V 9V R2486 0 R2355 2.2 Q2406 2SD0601A0L R2347 47k ZA003 K4ZZ01000121 R2353 10k C2367 50V 2.2u C2365 50V 0.1u C2452 50V 5600p C2436 16V 1u R2488 0 1/2W R2356 2.2 R2466 100k ZA001 K4ZZ01000121 C2460 50V 0.047u R2460 18k C2431 50V 0.01u C2313 50V 47u L2330 220u 1/2W R2358 2.2 R2489 0 L2331 220u C2312 50V 0.01u R2352 10k R2467 220k IC2401 C1BA00000302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 C2459 16V 1u C2354 35V 47u R2452 47k C2351 2.2u 16V C2359 50V 2.2u C2467 16V 1u ZA002 K4ZZ01000121 C2419 50V 10u C2451 50V 4.7u C1BA00000278 IC2301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 R2485 0 C2357 50V 1000p C2366 50V 2.2u R2456 10k C2441 16V 4.7u C2437 1/2W R2360 2.2 R2487 0 C2433 50V 0.039u D2302 B0JCME000025 R2434 4.7k R2354 10k C2440 16V 4.7u R2310 5.6k C2314 25V 47u R2471 1.8k R2495 0 JS2301 D2301 B0JCME000025 C2360 50V 1000p C2457 50V 4.7u D2317 B0JCME000025 C2434 50V 0.022u R2461 100 R2494 0 C2423 50V 0.01u Q2331 2SD1266AP0LB IC2304 C0CBAHG00005 GND 3 2 OUT IN 1 C2356 50V 1000p C2429 R2445 0 C2353 50V 10u C2368 50V 0.1u R2357 2.2 C2453 50V 0.1u R2359 2.2 R2346 12k R2348 10k R2439 56k D2308 MA3X152E0L R2450 56k R2448 1k R2476 22 C2450 50V 10u R2470 4.7k C2355 35V 47u C2361 50V 1000p C2364 50V 0.1u R2305 22k R2441 12k C2461 50V 1000p R2304 47k R2463 15k R2473 1.8k C2350 2.2u 16V R2309 4.7k C2454 50V 4.7u R2472 4.7k C2435 50V 0.01u R2351 10k R2469 100k C2363 25V 470u R2453 10k C2458 50V 1000p C2427 50V 10u Q2330 2SD1266AP0LB R2301 4.7k L2306 ELJPA100KF Q2306 2SD0601A0L R2462 100 R2332 1.8k R2306 22k Q2305 2SD0601A0L Q2303 2SD0601A0L R2440 0 C2369 50V 0.1u C2352 50V 10u Z7 1 2 3 C2466 16V 1u R2477 22 C2463 50V 0.047u R2468 4.7k R2333 470 R2350 4.7k C1BA00000278 IC2302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Z6 1 2 3 4 C2358 50V 2.2u C2362 25V 470u C2438 R2431 12k C2426 50V 0.015u H37 1 2 3 C8002 0.01u L8501 G0A2R5H00003 C8001 0.01u L8502 G0A2R5H00003 JK8500 K4BC02B00013 L8501 G0A2R5H00003 H37 1 2 3 C8001 0.01u JK8500 K4BC02B00013 C8002 0.01u L8502 G0A2R5H00003 E 4.4 0.6 RB 0 C_OUT L_OUT 0.1 0 SLV 11.2 9.0 SRV 2.2 1.7 4.1 12.0 0.5 1.7 12.2 3.6 1.7 11.2 12.0 0 0.2 3.3 0 12.1 0 0.1 3.5 3.9 0 8 1.7 0.5 0.5 9.0. SW 0 4 B 12.O 2 SW GND 4.4 OUT- 4.8 OUT+ 3 0 1.5 Vcc 0.5 4.4 SW GND 1 POWER GND 4.4 D 1.5 E SW GND 3.3 POWER GND 4.4 4.8 0.5 C 0.4 Vcc 7 0 4.4 OUT+ A 4.4 0 OUT- 0 3.5 SW GND 0 5 B 4.4 SCL3 6 SW 0.2 4.4 SDA3 E 4.0 +R OUT 0.5 B 0 SW 3.4 4.5 -R OUT SW 3.9 3.4 4.3 OUT 1.8 Vcc(SW) 3.3 12.1 0.4 POWER GND 0.4 NC 12.0 PRE GND 1.7 0.4 NC 1.8 0 IN 4.3 BEEP 3.5 POWER GND NC 1.7 NC ON TIME 0 2.7 STB SW AMP 3.3 LIPPLE 0 FILTER 100Hz LPF 12.2 STT 3.4 MS_IN 3.5 4.3 B_GAIN 1.7 0 LT 12.0 0 B_IN 2.7 3.4 ADD 0 C_IN -L OUT S_OUT 3.4 V_REF +L OUT 4 3 PS 0 FILTER 2 STB LIPPLE 1 SOUND PROCESSOR 0 AMP LS2 0 STB SW 4.3 AGC_ADJ(4.2V) ON TIME AUDIO AMP(R) 0 LS1 NC AUDIO AMP(L) 1.7 VCC NC L_IN POWER GND 0 A_GND BEEP R_IN IN 0.2 SCV NC 6 PORT PRE GND 10 0.5 SDA 8 NC 0.4 0.5 SCL 9 POWER GND 4.4 0 LB 0 7 Vcc(SW) 0 0 0 CB 5 OUT 4.4 CT Z-BOARD TNPA3198 (1/2) SW 4.4 2.2 RT 3.4 SW 9.0 R_OUT 0.1 1.7 1.7 TNPA3003AB TERMINAL SPEAKER (R) H3-BOARD 1.7 TNPA3003AB SPEAKER TERMINAL (L) H3-BOARD 1.7 0.1 # M M # # M # M # # M M TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 74 14.29. Z-Board (2 of 2) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES Z-Board ( 2 of 2 ) Schematic Diagram TH-32LHD7UY/UXK/UXS/EK/ES/BK/ES Z-Board ( 2 of 2 ) Schematic Diagram + + + + + + + + Thermal Pad + 12V 5V 9V C807 50V 0.1u 1% R810 510 C805 16V 1000u C809 50V 0.01u R2373 10k Q2334 2SD0601A0L Z30 1 2 3 R803 1k R2370 2.2k R818 1.2k C808 50V 0.01u D806 B0BC6R8A0010 C817 25V 220u D811 MA3X152K0L R2490 0 C818 16V 1200u R817 1.2k R819 1.2k D802 B0JCME000025 Q2333 2SD0601A0L R807 15 Z32 1 2 3 L802 G1C121ZA0037 L805 220u IC801 C0DAAHG00008 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF IC802 C0DAAHG00007 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF C811 50V 0.01u R2368 10k C2370 35V 47u C812 50V 0.1u R2491 0 C814 6.3V 1500u L803 G1C680ZA0037 R831 0 Q801 2SD0601ASL Z5 1 2 3 4 5 6 7 8 9 10 11 R808 47 R2365 0.56 1W R2372 1k Z10 1 2 3 4 5 R811 820 C802 25V 470u R2366 0.56 1W R2369 10k C803 25V 330u R2367 3.3k R825 0 Z8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D813 MA3X152K0L L804 G0C101K00023 R2371 1k D812 MA3X152K0L 1% R809 1.2k Z33 1 2 3 Z31 1 2 3 R813 4.7k R805 1k R815 47k D810 MA3X152K0L C810 25V 560u D804 B0JCPD000010 C815 50V 0.1u D803 B0JCME000025 D808 B0JCME000025 C819 50V 0.1u C0DBALH00002 IC803 1 AGND 2 N.C 3 DGND 4 CE/SS 5 Reg 6 N.C 7 Swout 8 N.C 9 N.C 10 N.C 11 Vin 12 BS 13 N.C 14 Comp 15 Vref 16 N.C R814 3.3k R812 5.1k D807 B0BC6R8A0010 C816 50V 6800p R816 470 IC804 C0DAAZG00006 1 V IN 2 SW out 3 GND 4 VO S 5 ON/OFF C806 10V 1000u R820 1.2k L801 G1C101ZA0037 R806 15 C813 50V 0.047u Q2370 2SB0709A0L Z-BOARD TNPA3198 (2/2) 9.0 12.0 SOUND12V GND 0 GND 0 GND 15.4 0 6.6 15.0 0 12.0 0 TO 5.0 1.5 5.0 2.3 9.0 0 FAN FAN12V 6.6 12.2 FAN CONT 0.1 0 5V 15 0 0.1 FAN SOS 0 0.1 GND 0 14 DR15V 12.2 0 11 6.6 GND GND 0.1 10 FAN_SW R L 5V/0.4A 5.0 12.2 SOUND MAIN MUTE 4.9 0 9 0 RESET 6.6 0 9V/0.5A 4.3 0 0 3.3V/1.2A 0 0 GND 0 8 0.9 GND 8.9 6.6 0.9 0 12 0 5.5 13 0 TO 2.3 3.4 (P5) GND 12.0 3.2 0 SDA3 4.9 SCL3 0 15.0 SOUND12V 0 0 SOUND12V 3.3 STB5V 4.8 12.2 DIG12V 0 0 DIG12V 12.2 DR15V 0 SLOT3.3V 0 SLOT3.3V 0 SLOT5V 12.2 SLOT9V 0 12.2 DIG12V 5.4 GND 4.5 5.5 GND 12.2 5.9 4.8 GND 0 0 8.9 GND 15.0 GND 2.2 FAN SOS P-BOARD TO (J8) J-BOARD 0 TO 1 (P10) 5 P-BOARD 4 3 2 AVR 9V 12.1 7 AVR 5V 9 SW REG 3.3V 8 FAN 12V 10 TO 6 5.9 FAN 0 3.3 0 12.2 M M M M M M M M TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 75 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 76 15 Parts Location 15.1. Parts Location (1) 77 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 15.2. Parts Location (2) 78 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 15.3. Packing Exploded View 79 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 16.1. Mechanical Replacement Parts List Ref. No. Part No. Part Name & Description Pcs Remarks 1 EUR646535 REMOTE CONTROL 1 2 J0KF00000018 NOISE FILTER 1 J0KG00000042 NOISE FILTER 1 3 J0KG00000054 NOISE FILTER 2 K2AH3H000035 AC INLET 1 4 K2CG3DH00025 AC POWER CORD 1 UY/UXK/UXS K2CN3DH00006 AC POWER CORD 1 EK/ES K2CT3DH00018 AC POWER CORD 1 BK/BS 5 L5EDD8Q00006 LCD PANEL 1 6 L6FALCEH0005 FAN 2 7 TBXA45701 POWER BUTTON 1 BK/EK/UY/UXK TBXA45702 POWER BUTTON 1 BS/ES/UXS 8 TBXA45801 CONTROL BUTTON 1 BK/EK/UY/UXK TBXA45802 CONTROL BUTTON 1 BS/ES/UXS 9 TKKL5266 COVER 2 UXS/UXK 10 TKKL5269 COVER (A) 1 BK/BS/EK/ES TKKL5269-3 COVER (B) 1 UY/UXS/UXK 11 TKPA94401 LED PANEL 1 BK/EK/UY/UXK TKPA94402 LED PANEL 1 BS/ES/UXS 12 TKRA20501 HANDLE 2 13 TKXA18001 POWER BUTTON BRACKET 1 BK/EK/UY/UXK TKXA18002 POWER BUTTON BRACKET 1 BS/ES/UXS 14 TMKG525 FAN CUSHION (A) 1 15 TMKG526 FAN CUSHION (B) 1 TMM17499 CLAMPER 1 TMM6428-1 CLAMPER 5 TMM7443-3 CLAMPER 5 TMM7443-3 CLAMPER 4 TMME047 CLAMPER 2 TMME185 CLAMPER 2 16 TMME187 CLAMPER 2 TMME217 CLAMPER 1 TMME225 AC CORD CLAMPER 1 TMME228 CLAMPER 2 TMME250 CLAMPER 2 TMMJ068 RUBBER 3 17 TPCB73203 PACKING CASE 1 UY TPCB73204 PACKING CASE 1 UXK TPCB73205 PACKING CASE 1 UXS TPCB73210 PACKING CASE 1 EK TPCB73211 PACKING CASE 1 ES TPCB73212 PACKING CASE 1 BS TPCB73213 PACKING CASE 1 BK 18 TPDA1071 CUSHION (UPPER) 1 19 TPDA1072 CUSHION (BOTTOM) 1 20 TPDF1368 TOP PAD 1 21 TPEH210 PROTECT COVER 1 Ref. No. Part No. Part Name & Description Pcs Remarks 22 TQBC0974 INSTRUCTION BOOK(ENGLISH) 1 UXK/UXS TQBC0975 INSTRUCTION BOOK(SPANISH) 1 UXK/UXS TQBC0976 INSTRUCTION BOOK(FRENCH) 1 UXK/UXS TQBC0977 INSTRUCTION BOOK(ENGLISH) 1 UY TQBC0978 INSTRUCTION BOOK(SPANISH) 1 UY TQBC0979 INSTRUCTION BOOK(FRENCH) 1 UY TQBC0985 INSTRUCTION BOOK(ENGLISH) 1 BK/BS TQBC0986 INSTRUCTION BOOK(ENGLISH) 1 EK/ES TQBC0987 INSTRUCTION BOOK(GERMAN) 1 EK/ES TQBC0988 INSTRUCTION BOOK(FRENCH) 1 EK/ES TQBC0989 INSTRUCTION BOOK(ITALIAN) 1 EK/ES TQBC0990 INSTRUCTION BOOK(SPANISH) 1 EK/E S TQBC0991 INSTRUCTION BOOK(DUTCH) 1 EK/ES TQBC0992 INSTRUCTION BOOK(DENMARK) 1 EK/ES TQBC0993 INSTRUCTION BOOK(SWEDISH) 1 EK/ES 23 TQEF035 POLY BAG 1 24 TTUA1120 REAR COVER 1 UY TTUA1121 REAR COVER 1 UXK/UXS TTUA1122 REAR COVER 1 EK/ES TTUA1123 REAR COVER 1 BK/BS 25 TTYA0687 CABINET ASS´Y 1 BK/EK/UY/UXK TTYA0692 CABINET ASS´Y 1 BS/ES/UXS 25-1 TBMA162 PANASONIC BADGE 1 TXJ/Z60Q59 SPEAKER LEAD(RIGHT) 1 TXJ/Z70Q59 SPEAKER LEAD(LEFT) 1 26 UR51EC810B BATTERY COVER 1 27 TMMJ093 FAN RUBBER 8 XTB4+15JFJ SCREW 6 XTV3+10J SCREW 4 BK/BS/EK/ES/U Y XTV3+12JFJ SCREW 4 XTV3+8JFJ SCREW 58 XTW4+16SFJK SCREW 17 XYC3+FF8FJ SCREW 2 XYN3+F10 SCREW 1 XYN3+J8 SCREW 2 XYN4+E8FJ SCREW 1 XYN4+F10FJ SCREW 8 XZBT6506 POLY BAG 1 THEA068N SCREW 4 THEL0239 SCREW 21 THEL027N SCREW 13 THEL027N SCREW 8 BK/BS/EK/ES/U Y THTD010N SCREW 3 16 Replacement Parts List 80 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS 16.2. Replacement Parts List Notes 81 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks F900, F901 K5D502BNA005 FUSE 2 F902 K5D312BLA016 FUSE 1 C802 EEUFC1E471 E 470UF 25V 1 C803 EEUFC1E331 E 330UF 25V 1 C805 EEUFC1C102 E 1000UF 16V 1 C806 EEUFC1A102 E 1000UF 10V 1 C807 ECJ2VF1H104Z C 0.1UF Z 50V 1 C808, 09 ECQB1H103JF P 0.01UF J 50V 2 C810 EEUFC1E561 E 560UF 25V 1 C811 ECQB1H103JF P 0.01UF J 50V 1 C812 ECQB1H104JF P 0.1UF J 50V 1 C813 ECQB1H473JF P 0.047UF J 50V 1 C814 EEUFC0J152 E 1500UF 6.3V 1 C815 ECQB1H104JF P 0.1UF J 50V 1 C816 ECQB1H682JF3 P 6800PF J 50V 1 C817 ECA1EHG221 E 220UF 25V 1 C818 EEUFC1C122 E 1200UF 16V 1 C819 ECQB1H104JF P 0.1UF J 50V 1 C902, 03 ECKCNA101KB7 C 100PF M 2 C904 ECQU2A224BN9 P 0.22UF 250V 1 C905 ECQU2A105BN9 P 1UF 250V 1 C910 EETHC2W101J C 4700PF Z 450V 1 C911 ECQE6223KF P 0.022UF K 400V 1 C912 EEUEB1H100SB E 100UF 25V 1 C913 ECJ2XC1H221J C 220PF J 50V 1 C914 ECKD3D221KBN C 220PF K 2KV 1 C915 ECJ2XC1H471J C 470PF J 50V 1 C916 ECJ2VF1H103Z C 0.01UF Z 50V 1 C917 EEUEB1H100SB E 100UF 25V 1 C918 ECJ2XC1H222J C 2200PF J 50V 1 C919 ECJ2XF1H224Z C 0.22UF Z 50V 1 C920 ECKDNA471KB7 C 470PF Z 1 C930 EEUFC1E222 E 2200UF 25V 1 C931 ECKD3A331KBP C 330PF K 1KV 1 C932 EEUEB1E101 E 100UF 25V 1 C933 ECJ2FB1E105K C 1UF K 16V 1 C1530-34 ECJ3XB0J106M C 10UF M 6.3V 5 C2312 ECJ2VF1H103Z C 0.01UF Z 50V 1 C2313 ECA1HHG470 E 47UF 50V 1 C2314 ECA1EHG470 E 47UF 25V 1 C2350, 51 TCUY1C225KBM C 2.2UF 16V 2 C2352, 53 ECA1HHG100 E 10UF 50V 2 C2354, 55 ECA1VM470 E 47UF 35V 2 C2356, 57 ECJ2XB1H102K C 1000PF K 50V 2 C2358, 59 ECA1HM2R2 E 2.2UF 50V 2 C2360, 61 ECJ2XC1H102J C 1000PF J 50V 2 C2362, 63 ECA1EM471 E 470UF 25V 2 C2364, 65 ECQV1H104JM P 0.1UF J 50V 2 C2366, 67 ECQV1H225JM P 2.2UF J 50V 2 C2368, 69 ECQV1H104JM P 0.1UF J 50V 2 C2370 ECA1VM470 E 47UF 35V 1 C2419 ECA1HHG100 E 10UF 50V 1 C2423 ECJ2XB1H103K C 0.01UF K 50V 1 C2426 ECJ2XB1H153K C 0.015UF K 50V 1 C2427 ECA1HHG100 E 10UF 50V 1 C2429 EEAGA1C101 E 100UF 16V 1 C2431 ECJ2VF1H103Z C 0.01UF Z 50V 1 C2433 ECJ2XB1H393K C 0.039UF K 50V 1 C2434 ECJ2XB1H223K C 0.022UF K 50V 1 C2435 ECJ2XB1H103K C 0.01UF K 50V 1 C2436 ECJ3VB1C104K C 0.10UF K 16V 1 C2437, 38 EEAGA1C101 E 100UF 16V 2 C2440, 41 ECJ3XF1C475Z C 4.7UF Z 16V 2 C2450 ECA1HHG100 E 10UF 50V 1 C2451 ECA1HHG4R7 E 4.7UF 50V 1 C2452 ECJ2XB1H562K C 5600PF K 50V 1 C2453 ECJ2VF1H104Z C 0.1UF Z 50V 1 C2454 ECA1HHG4R7 E 4.7UF 50V 1 C2457 ECA1HHG4R7 E 4.7UF 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C2458 ECJ2XC1H102J C 1000PF J 50V 1 C2459 ECJ3VB1C104K C 0.10UF K 16V 1 C2460 ECJ2XB1H473K C 0.047UF K 50V 1 C2461 ECJ2XC1H102J C 1000PF J 50V 1 C2463 ECJ2XB1H473K C 0.047UF K 50V 1 C2466, 67 ECJ3VB1C104K C 0.10UF K 16V 2 C3001 ECJ1VF1H103Z C 0.01UF Z 50V 1 C3002 ECJ3XF1C475Z C 4.7UF Z 16V 1 (J) C3002 ECJ2XB1E104K C 0.1UF K 25V 1 BK/BS/EK/E S/UY (HB) C3003 EEVHP1A100 E 10UF 10V 1 BK/BS/EK/E S/UY C3004 EEEHB1C470P C 47PF J 16V 1 (J) C3004 EEVHP1A100 E 10UF 10V 1 BK/BS/EK/E S/UY (HB) C3005 ECJ2VF1C105Z C 1UF Z 16V 1 (J) C3005 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3006 ECJ2VF1C105Z C 1UF Z 16V 1 (J) C3006 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3007 EEEHB1C470P C 47PF J 16V 1 (J) C3007 ECJ2VF1C105Z C 1UF Z 16V 1 BK/BS/EK/E S/UY (HA) C3007 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3008 ECJ1VF1H104Z C 0.1UF Z 50V 1 (J) C3008 ECJ2VF1C105Z C 1UF Z 16V 1 BK/BS/EK/E S/UY (HA) C3008 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3009 ECJ1XB1C104K C 0.1UF Z 16V 1 (J) C3009 EEVHB1C470 E 47UF 16V 1 BK/BS/EK/E S/UY (HB) C3010 ECJ1XB1C104K C 0.1UF Z 16V 1 C3011 ECJ1XB1C104K C 0.1UF Z 16V 1 (J) C3011 EEVHB1C470 E 47UF 16V 1 BK/BS/EK/E S/UY (HA) C3011 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3012 ECJ1VF1H103Z C 0.01UF Z 50V 1 (J) C3012 ECJ2VF1C104Z C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HA) C3012 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3013 ECJ1VF1H103Z C 0.01UF Z 50V 1 (J) C3013 ECJ2VF1C105Z C 1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3014 ECJ1VF1H103Z C 0.01UF Z 50V 1 (J) C3014 EEVHB1C470 E 47UF 16V 1 BK/BS/EK/E S/UY (HB) C3015 ECJ1VF1H103Z C 0.01UF Z 50V 1 (J) C3015 ECJ1XC1H470J C 47PF J 50V 1 BK/BS/EK/E S/UY (HB) C3016 ECJ1VF1H103Z C 0.01UF Z 50V 1 (J) C3016 ECJ1XC1H220J C 22PF J 50V 1 BK/BS/EK/E S/UY (HB) C3017 ECJ1VF1H103Z C 0.01UF Z 50V 1 (J) C3017 ECJ1XC1H680J C 68PF J 50V 1 BK/BS/EK/E S/UY (HB) C3018 EEEHB1C470P C 47PF J 16V 1 (J) C3018 EEVHP1A100 E 10UF 10V 1 BK/BS/EK/E S/UY (HB) C3019 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3019 ECJ3YB0J335K C 33UF J 25V 1 BK/BS/EK/E S/UY (HB) C3020 TCUY1C225KBM C 2.2UF 16V 1 C3021 TCUY1C225KBM C 2.2UF 16V 1 (J) C3021 ECJ1VF1A105Z C 1UF Z 10V 1 BK/BS/EK/E S/UY (HA) C3021 ECJ2VF1C105Z C 1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3022 TCUY1C225KBM C 2.2UF 16V 1 (J) C3022 ECJ2VF1C104Z C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HA) 16.3. Electrical Replacement Parts List 82 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks C3022 ECJ1VF1A105Z C 1UF Z 10V 1 BK/BS/EK/E S/UY (HB) C3023 EEVHB1C470 E 47UF 16V 1 BK/BS/EK/E S/UY C3024 ECJ3XB0J106M C 10UF M 6.3V 1 BK/BS/EK/E S/UY C3026-31 TCUY1C225KBM C 2.2UF 16V 6 C3032 ECJ1XB1C104K C 0.1UF Z 16V 1 C3040, 41 ECJ1XF1C104Z C 0.1UF Z 16V 2 C3051-54 ECJ1XC1H561J C 560PF J 50V 4 BK/BS/EK/E S/UY C3055, 56 ECJ2VF1C105Z C 1UF Z 16V 2 BK/BS/EK/E S/UY C3101 TCUY1C225KBM C 2.2UF 16V 1 C3102 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3102 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3103 TCUY1C225KBM C 2.2UF 16V 1 (J) C3103 ECJ1VF1A105Z C 1UF Z 10V 1 BK/BS/EK/E S/UY (HB) C3104 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3104 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3105 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3105 EEVHB0G221 E 220UF 4V 1 BK/BS/EK/E S/UY (HB) C3106 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3106 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3107 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3107 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3108 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3108 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3109 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3109 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3110 TCUY1C225KBM C 2.2UF 16V 1 (J) C3110 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3111 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3111 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3112 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3112 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3113 EEEHB1C470P C 47PF J 16V 1 (J) C3113 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3114 ECJ3XF1C475Z C 4.7UF Z 16V 1 (J) C3114 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3115 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3115 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3116 TCUY1C225KBM C 2.2UF 16V 1 (J) C3116 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3117 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3117 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3118 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3118 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3119 TCUY1C225KBM C 2.2UF 16V 1 (J) C3119 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3120 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3120 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3121 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3121 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3122 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3122 ECJ1VF1A105Z C 1UF Z 10V 1 BK/BS/EK/E S/UY (HB) C3123 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) Ref. No. Part No. Part Name & Description Pcs Remarks C3123 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3124 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3124 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3125 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3125 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3126 TCUY1C225KBM C 2.2UF 16V 1 (J) C3126 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3127 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3127 ECJ2VF1C105Z C 1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3128 EEEHB1C470P C 47PF J 16V 1 (J) C3128 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3129 ECJ3XF1C475Z C 4.7UF Z 16V 1 (J) C3129 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3130 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3130 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3131-33 ECJ1XB1C104K C 0.1UF Z 16V 3 BK/BS/EK/E S/UY C3134 EEVHB1C471 E 470UF 16V 1 (J) C3134 ECJ1XB1C104K C 0.1UF Z 16V 31 BK/BS/EK/E S/UY (HB) C3135 EEVHB1C471 E 470UF 16V 1 (J) C3135 ECJ1VB1C103K C 0.01UF K 16V 1 BK/BS/EK/E S/UY (HB) C3136 EEVHB1C471 E 470UF 16V 1 (J) C3136 ECJ1XC1H330J C 33PF J 50V 1 BK/BS/EK/E S/UY (HB) C3137 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3138 ECJ3XB0J106M C 10UF M 6.3V 1 BK/BS/EK/E S/UY C3139 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3140 ECJ1XC1H101J C 100PF J 50V 1 BK/BS/EK/E S/UY C3141 TCUY1C225KBM C 2.2UF 16V 1 (J) C3141 ECJ1XB0J105K C 1UF K 16V 1 BK/BS/EK/E S/UY (HB) C3142 TCUY1C225KBM C 2.2UF 16V 1 (J) C3142 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3143 TCUY1C225KBM C 2.2UF 16V 1 C3144 TCUY1C225KBM C 2.2UF 16V 1 (J) C3144 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3146 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3147 ECJ3XB0J106M C 10UF M 6.3V 1 BK/BS/EK/E S/UY C3148 ECJ1XB0J105K C 1UF K 16V 1 BK/BS/EK/E S/UY C3149 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3150 ECJ1XF1C104Z C 0.1UF Z 16V 1 (J) C3150 ECJ1VB1C103K C 0.01UF K 16V 1 BK/BS/EK/E S/UY (J) C3151 ECJ1XC1H330J C 33PF J 50V 1 BK/BS/EK/E S/UY C3152 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3153 ECJ1XC1H101J C 100PF J 50V 1 BK/BS/EK/E S/UY C3154 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3156 ECJ1XB0J105K C 1UF K 16V 1 BK/BS/EK/E S/UY C3157 ECJ3XB0J106M C 10UF M 6.3V 1 BK/BS/EK/E S/UY C3158 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3159 EEVHB0G221 E 220UF 4V 1 BK/BS/EK/E S/UY 83 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks C3160, 61 ECJ1XB1C104K C 0.1UF Z 16V 2 BK/BS/EK/E S/UY C3162-66 ECJ1VF1A105Z C 1UF Z 10V 5 BK/BS/EK/E S/UY C3167-78 ECJ1XB1C104K C 0.1UF Z 16V 12 BK/BS/EK/E S/UY C3179 EEVHB0G221 E 220UF 4V 1 BK/BS/EK/E S/UY C3180-83 ECJ1XB1C104K C 0.1UF Z 16V 4 BK/BS/EK/E S/UY C3185 ECJ1XC1H060D C 6PF D 50V 1 BK/BS/EK/E S/UY C3186 ECJ1XC1H470J C 47PF J 50V 1 BK/BS/EK/E S/UY C3188 ECJ1VF1A105Z C 1UF Z 10V 1 BK/BS/EK/E S/UY C3200 ECJ2VF1C105Z C 1UF Z 16V 1 C3202-06 ECJ1VF1A105Z C 1UF Z 10V 5 BK/BS/EK/E S/UY C3207 EEVHB0G221 E 220UF 4V 1 BK/BS/EK/E S/UY C3208-14 ECJ1VF1A105Z C 1UF Z 10V 7 BK/BS/EK/E S/UY C3216, 17 ECJ1VF1A105Z C 1UF Z 10V 2 BK/BS/EK/E S/UY C3218 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3253 ECJ1XB1H102K C 1000UF Z 50V 1 BK/BS/EK/E S/UY C3254 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3255 ECJ1XB1H102K C 1000UF Z 50V 1 BK/BS/EK/E S/UY C3256 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3257 ECJ1XB1H102K C 1000UF Z 50V 1 BK/BS/EK/E S/UY C3258 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3259 ECJ1XB1H102K C 1000UF Z 50V 1 BK/BS/EK/E S/UY C3260 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3261 EEVHB0G221 E 220UF 4V 1 BK/BS/EK/E S/UY C3262 ECJ1XB1H102K C 1000UF Z 50V 1 BK/BS/EK/E S/UY C3263, 64 ECJ1XB1C104K C 0.1UF Z 16V 2 BK/BS/EK/E S/UY C3265 EEVHB0G221 E 220UF 4V 1 BK/BS/EK/E S/UY C3266 EEVHB1C471 E 470UF 16V 1 (J) C3266 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY (HB) C3267, 68 EEVHB1C471 E 470UF 16V 2 C3301 ECJ1VF1A105Z C 1UF Z 10V 1 BK/BS/EK/E S/UY C3308 EEVHB0G221 E 220UF 4V 1 BK/BS/EK/E S/UY C3309 ECJ1VF1A105Z C 1UF Z 10V 1 BK/BS/EK/E S/UY C3311 ECJ1XB1C104K C 0.1UF Z 16V 1 BK/BS/EK/E S/UY C3313 ECJ1VF1A105Z C 1UF Z 10V 1 BK/BS/EK/E S/UY C3316, 17 ECJ1VF1A105Z C 1UF Z 10V 2 BK/BS/EK/E S/UY C3318-21 ECJ1XB1C104K C 0.1UF Z 16V 4 BK/BS/EK/E S/UY C3322, 23 EEVHB0G221 E 220UF 4V 2 BK/BS/EK/E S/UY C3324 EEVHB0J101P E 100UF 6.3V 1 BK/BS/EK/E S/UY C3325 EEVHB1C470 E 47UF 16V 1 BK/BS/EK/E S/UY C3327-30 ECJ1XB1C104K C 0.1UF Z 16V 4 BK/BS/EK/E S/UY C3404 ECJ2VF1C104Z C 0.1UF Z 16V 1 C3405 EEVHB1C470 E 47UF 16V 1 C3409 ECJ2VF1C104Z C 0.1UF Z 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C3523 EEVHB1C470 E 47UF 16V 1 C3524 ECJ2VF1H103Z C 0.01UF Z 50V 1 C3550 ECJ2VF1H103Z C 0.01UF Z 50V 1 C3551 EEVHB1C470 E 47UF 16V 1 C3561, 62 ECJ2VF1C105Z C 1UF Z 16V 2 C8001 EEEHB1C470P C 47PF J 16V 1 (J) C8001 ECKF1H102KB C 1000PF K 50V 2 (H3) C8002 ECKF1H102KB C 1000PF K 50V 2 C8003, 04 ECJ1VF1H104Z C 0.1UF Z 50V 2 C8005, 06 ECJ1VF1H103Z C 0.01UF Z 50V 2 C8007, 08 ECJ1XC1H101J C 100PF J 50V 2 C8009 ECJ3XB0J106M C 10UF M 6.3V 1 C8011 ECJ3XB0J106M C 10UF M 6.3V 1 C8013, 14 ECJ1XF1C104Z C 0.1UF Z 16V 2 C8015 ECJ3YF1A106Z C 10UF Z 10V 1 C8016 ECJ3YB1A475K C 0.047UF K 10V 1 C8017 ECJ3YF1A106Z C 10UF Z 10V 1 C8018 ECJ3YB1A475K C 0.047UF K 10V 1 C8019, 20 ECJ1VB1H103K C 0.01UF K 50V 2 C8021, 22 ECJ3VB1C474K C 0.47UF K 16V 2 C8023-26 ECJ1VB1H103K C 0.01UF K 50V 4 C8027 TCUY1C225KBM C 2.2UF 16V 1 C8029 ECJ1VF1H103Z C 0.01UF Z 50V 1 C8030 EEEHB1C470P C 47PF J 16V 1 C8031 ECJ1VF1H103Z C 0.01UF Z 50V 1 C8032 EEEHB1C470P C 47PF J 16V 1 C8033, 34 ECJ1XC1H102J C 1000PF J 50V 2 C8035 ECJ1XF1C104Z C 0.1UF Z 16V 1 C8036, 37 ECJ1XC1H101J C 100PF J 50V 2 C8038, 39 ECJ2XC1H102J C 1000PF J 50V 2 C8041 TCUY1C225KBM C 2.2UF 16V 1 C8043 ECJ1XF1C104Z C 0.1UF Z 16V 1 C8045 ECJ2VF1C105Z C 1UF Z 16V 1 C8049, 50 ECJ2VF1H103Z C 0.01UF Z 50V 2 C8051 ECJ1XF1C104Z C 0.1UF Z 16V 1 C8070 ECJ1XB1C104K C 0.1UF Z 16V 1 C8071 EEEHB1C470P C 47PF J 16V 1 C8072, 73 ECJ3YF1A106Z C 10UF Z 10V 2 C8080-83 ECJ1XF1C104Z C 0.1UF Z 16V 4 C8084 TCUY1C105ZFN C 1UF 16V 1 C8100 EEEHB1C470P C 47PF J 16V 1 C8101 ECJ1VF1H103Z C 0.01UF Z 50V 1 C8102-07 EEEHB1C470P C 47PF J 16V 6 C8108, 09 ECJ1XF1C104Z C 0.1UF Z 16V 2 C8110 ECJ1VF1H103Z C 0.01UF Z 50V 1 C8111-13 ECJ1XF1C104Z C 0.1UF Z 16V 3 C8114 ECJ2VF1H103Z C 0.01UF Z 50V 1 C8115 EEEHB1C470P C 47PF J 16V 1 C8116, 17 ECJ1VF1H103Z C 0.01UF Z 50V 2 C8118 EEEHB1C470P C 47PF J 16V 1 C8119 ECJ1VF1H103Z C 0.01UF Z 50V 1 C8120 EEEHB1C470P C 47PF J 16V 1 C8121 ECJ1XF1C104Z C 0.1UF Z 16V 1 C8122 EEEHB1C470P C 47PF J 16V 1 C8123 ECJ1XF1C104Z C 0.1UF Z 16V 1 C8181, 82 ECJ1XC1H150J C 15PF J 50V 2 C8183 ECJ1XF1C104Z C 0.1UF Z 16V 1 C8185 EECS5R5H155 E 1.5UF 5.5V 1 C8200 EEEHB1C470P C 47PF J 16V 1 C9000, 01 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9002 ECJ1XC1H101J C 100PF J 50V 1 C9003 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9005 ECJ1XF1C104Z C 0.1UF Z 16V 1 C901 ECQU2A105BN9 P 1UF 250V 1 C9015, 16 ECJ1XB1C104K C 0.1UF Z 16V 2 C9018 ECJ1XB1C104K C 0.1UF Z 16V 1 C9019 ECJ1XF1H102Z C 1000PF Z 50V 1 C9020 ECJ1XB1C104K C 0.1UF Z 16V 1 C9021 ECJ1XB1H102K C 1000UF Z 50V 1 C9022 ECJ1XB1C104K C 0.1UF Z 16V 1 C9024 EEEHB1C470P C 47PF J 16V 1 C9025, 26 ECJ1XB1C104K C 0.1UF Z 16V 2 C9028 ECJ1XB1C104K C 0.1UF Z 16V 1 84 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks C9029 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9030 ECJ3XF1C475Z C 4.7UF Z 16V 1 C9031 ECJ1XB1C104K C 0.1UF Z 16V 1 C9033, 34 ECJ1XB1C104K C 0.1UF Z 16V 2 C9035 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9036 ECJ1XC1H220J C 22PF J 50V 1 C9037 ECJ1VC1H270J C 27PF J 50V 1 C9038, 39 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9041 ECJ1XF1H102Z C 1000PF Z 50V 1 C9043, 44 ECJ1XB1C104K C 0.1UF Z 16V 2 C9045 TCUY1C105ZFN C 1UF 16V 1 C9046 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9047 ECJ1XC1H101J C 100PF J 50V 1 C9048 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9049 ECJ3XF1C475Z C 4.7UF Z 16V 1 C9050 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9051 TCUY1C105ZFN C 1UF 16V 1 C9052 ECJ2XB1A105K C 1UF K 10V 1 C9053 ECJ1VF1H103Z C 0.01UF Z 50V 1 C9054 ECJ1XB1C104K C 0.1UF Z 16V 1 C906, 07 ECKCNA221KB7 C 220PF M 2 C9200 ECJ3XB0J106M C 10UF M 6.3V 1 C9201 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9202 ECJ1XB1C104K C 0.1UF Z 16V 1 C9203 ECJ3XB0J106M C 10UF M 6.3V 1 C9204, 05 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9206 EEEHB0G221P C 220PF J 4V 1 C9207-09 ECJ3XB0J106M C 10UF M 6.3V 3 C9210-13 ECJ1XB1C104K C 0.1UF Z 16V 4 C9215, 16 ECJ1XB1C104K C 0.1UF Z 16V 2 C9219 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9220 ECJ1XB1C104K C 0.1UF Z 16V 1 C9222 ECJ1XB1C104K C 0.1UF Z 16V 1 C9226 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9227 ECJ3XB0J106M C 10UF M 6.3V 1 C9228 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9229, 30 ECJ3XB0J106M C 10UF M 6.3V 2 C9231, 32 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9233, 34 ECJ1XB1C104K C 0.1UF Z 16V 2 C9235 ECJ3XB0J106M C 10UF M 6.3V 1 C9236 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9237, 38 ECJ3XB0J106M C 10UF M 6.3V 2 C9239, 40 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9241 ECJ2XB1H103K C 0.01UF K 50V 1 C9242 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9243, 44 ECJ2XB1H103K C 0.01UF K 50V 2 C9245 ECJ1XB1H102K C 1000UF Z 50V 1 C9246-48 ECJ1XF1C104Z C 0.1UF Z 16V 3 C9249 ECJ1VB1C823K C 0.082UF K 16V 1 C9250 ECJ1VB1H822K C 8200PF K 50V 1 C9253-55 ECJ1XF1C104Z C 0.1UF Z 16V 3 C9258, 59 EEEHB1C470P C 47PF J 16V 2 C9260, 61 ECJ3XF1C475Z C 4.7UF Z 16V 2 C9263 ECJ1VF1H103Z C 0.01UF Z 50V 1 C9264, 65 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9266 F2H1E221A007 E 2.2UF 25V 1 C9268 ECGRL0G680R C 68PF J 4V 1 C9269 F2H1E221A007 E 2.2UF 25V 1 C9271 EEEHB0G221P C 220PF J 4V 1 C9275 ECJ2XB1H472K C 4700PF K 50V 1 C9276 ECJ3XF1C475Z C 4.7UF Z 16V 1 C9279 F2H1E221A007 E 2.2UF 25V 1 C9282 F2H1E221A007 E 2.2UF 25V 1 C9284 ECJ2XB1H472K C 4700PF K 50V 1 C9286 EEEHB1C470P C 47PF J 16V 1 C9287 ECJ1XB1C104K C 0.1UF Z 16V 1 C9288 EEEHB1C470P C 47PF J 16V 1 C9290 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9292 EEEHB0G221P C 220PF J 4V 1 C9293 ECGRL0G680R C 68PF J 4V 1 C9294 ECJ1XB1C104K C 0.1UF Z 16V 1 C9296 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9299 ECJ3XF1C475Z C 4.7UF Z 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C9361 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9363-65 ECJ1XF1C104Z C 0.1UF Z 16V 3 C9366-68 EEEHB1C470P C 47PF J 16V 3 C9369-71 ECJ1XF1C104Z C 0.1UF Z 16V 3 C9372 ECJ3XB0J106M C 10UF M 6.3V 1 C9373 ECGRL0G680R C 68PF J 4V 1 C9374 ECJ3XB0J106M C 10UF M 6.3V 1 C9400 ECJ1VB1H103K C 0.01UF K 50V 1 C9401 EEEHB0G101R C 100PF J 4V 1 C9402 ECJ1XB1C104K C 0.1UF Z 16V 1 C9405-08 ECJ1VB1H103K C 0.01UF K 50V 4 C9409 ECJ1XB1C104K C 0.1UF Z 16V 1 C9416, 17 ECJ1VB1H103K C 0.01UF K 50V 2 C9418 EEEHB1C470P C 47PF J 16V 1 C9419 ECJ1XB1C104K C 0.1UF Z 16V 1 C9423 EEEHB1C470P C 47PF J 16V 1 C9424 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9425 EEEHB1C100R C 10PF J 16V 1 C9426, 27 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9429 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9431 ECJ1XB0J105K C 1UF K 16V 1 C9432 ECJ1VB0J474K C 0.47UF K 16V 1 C9440 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9441 ECJ1XB1H102K C 1000UF Z 50V 1 C9443 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9444 ECJ2XB1A105K C 1UF K 10V 1 C9445, 46 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9500, 01 ECJ1XC1H180J C 18PF J 50V 2 C9503-49 ECJ1XF1C104Z C 0.1UF Z 16V 47 C9551 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9553 ECJ1XB1C104K C 0.1UF Z 16V 1 C9555 ECJ1XB1C104K C 0.1UF Z 16V 1 C9557-59 ECJ1XB1C104K C 0.1UF Z 16V 3 C9560 EEEHB0G221P C 220PF J 4V 1 C9561-72 ECJ1XB1C104K C 0.1UF Z 16V 12 C9573 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9575 ECJ3XF1C475Z C 4.7UF Z 16V 1 C9576-78 ECJ1XB1C104K C 0.1UF Z 16V 3 C9579 EEEHB0G221P C 220PF J 4V 1 C9701-05 ECJ1XF1C104Z C 0.1UF Z 16V 5 C9707 ECJ3XF1C475Z C 4.7UF Z 16V 1 C9708 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9711-13 ECJ1XF1C104Z C 0.1UF Z 16V 3 C9715-18 ECJ1XF1C104Z C 0.1UF Z 16V 4 C9721-36 ECJ1XF1C104Z C 0.1UF Z 16V 16 C9850 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9860 ECJ3XB0J106M C 10UF M 6.3V 1 C9861 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9862 ECJ1XB1C104K C 0.1UF Z 16V 1 C9863 ECJ3XB0J106M C 10UF M 6.3V 1 C9864, 65 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9866 EEEHB0G221P C 220PF J 4V 1 C9867-69 ECJ3XB0J106M C 10UF M 6.3V 3 C9870-73 ECJ1XB1C104K C 0.1UF Z 16V 4 C9875, 76 ECJ1XB1C104K C 0.1UF Z 16V 2 C9879 ECJ1XB1C104K C 0.1UF Z 16V 1 C9880 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9882 ECJ1XB1C104K C 0.1UF Z 16V 1 C9886 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9894 ECJ3XB0J106M C 10UF M 6.3V 1 C9895 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9905, 06 ECJ3XB0J106M C 10UF M 6.3V 2 C9907, 08 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9909, 10 ECJ1XB1C104K C 0.1UF Z 16V 2 C9911, 12 ECJ3XB0J106M C 10UF M 6.3V 2 C9913, 14 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9915 ECJ2XB1H103K C 0.01UF K 50V 1 C9916 ECJ1XF1C104Z C 0.1UF Z 16V 1 C9917, 18 ECJ2XB1H103K C 0.01UF K 50V 2 C9919 ECJ1XB1H102K C 1000UF Z 50V 1 C9920, 21 ECJ1XF1C104Z C 0.1UF Z 16V 2 C9922 ECJ3XB0J106M C 10UF M 6.3V 1 C9923, 24 ECJ1XF1C104Z C 0.1UF Z 16V 2 85 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks C9925 ECJ1VB1C823K C 0.082UF K 16V 1 C9926 ECJ1VB1H822K C 8200PF K 50V 1 C9929-31 ECJ1XF1C104Z C 0.1UF Z 16V 3 D1 K1KA20AA0009 20P CONNECTOR 1 D3 K1KA30AA0009 30P CONNECTOR 1 D4 K1KA14A00248 14P CONNECTOR 1 D5 K1KA30AA0250 30P CONNECTOR 1 D10 K1KA12AA0105 12P CONNECTOR 1 D20 K1KA30AA0250 30P CONNECTOR 1 D24 K1KA06AA0104 6P CONNECTOR 1 D25 K1KA12AA0153 12P CONNECTOR 1 D27 K1KA09AA0150 9P CONNECTOR 1 D34 K1KA10AA0105 10P CONNECTOR 1 D40 K1KA07A00189 7P CONNECTOR 1 D41 K1KA08A00463 8P CONNECTOR 1 D802, 03 M1FS4 DIODE 2 D804 B0JCPD000010 DIODE 1 D806, 07 B0BC6R8A0010 DIODE 2 D808 M1FS4 DIODE 1 D810-13 MA152K DIODE 4 D910 D4SB80Z DIODE 1 D911 B0EAKT000017 DIODE 1 D912-14 B0HCMM000013 DIODE 3 D915, 16 TMPG10G3 DIODE 2 D918 TMPG10G3 DIODE 1 D930 B0HARM000020 DIODE 1 D931 LNJ301MPUJA LED 1 D932 MA152K DIODE 1 D933 M1FS4 DIODE 1 D934, 35 ERZV10V621P2 VARISTOR 2 D1550 LNJ107W5PRW LED 1 D1551-54 MA8056-M DIODE 4 D2301, 02 M1FS4 DIODE 2 D2308 MA152 DIODE 1 D2317 M1FS4 DIODE 1 D3001 MA111 DIODE 1 (J) D3001 MA729 DIODE 1 BK/BS/EK/E S/UY (HB) D3002 MA3100M ZENER DIODE 1 BK/BS/EK/E S/UY D3003 MA111 DIODE 1 D3005 LNJ206R5ARA LED 1 D3007, 08 MA111 DIODE 2 D3021 MA111 DIODE 1 D3024 MA111 DIODE 1 D3061 MA728 DIODE 1 D3501-04 MA3056M ZENER DIODE 4 D3507-10 MA8160H ZENER DIODE 4 D8001-04 MA111 DIODE 4 D8010, 11 MA153 DIODE 2 D8180 MA111 DIODE 1 D8200 MA3150M ZENER DIODE 1 D8201 MA111 DIODE 1 D8203 MA3100M ZENER DIODE 1 D8204 MA111 DIODE 1 D9010 MA728 DIODE 1 D9011, 12 MA152K DIODE 2 D9014 MA152K DIODE 1 D9016 MA728 DIODE 1 D9021 MA3033 ZENER DIODE 1 D9023-26 MA152K DIODE 4 D9200 MA3033 ZENER DIODE 1 D9201, 02 B0JCPD000026 DIODE 2 D9251 MA728 DIODE 1 D9860 MA3033 ZENER DIODE 1 F900-1, - 2 EYF-52BC FUSE HOLDER 2 F901-1, - 2 EYF-52BC FUSE HOLDER 2 F902-1, - 2 EYF-52BC FUSE HOLDER 2 Ref. No. Part No. Part Name & Description Pcs Remarks FL3000 ELKE103FA NOISE FILTER 1 FL3002-10 ELKE103FA NOISE FILTER 9 FL3100 ELKE103FA NOISE FILTER 1 FL9000, 01 J0HABH000012 LC FILTER 2 FL9200-08 J0HABH000012 LC FILTER 9 FL9214 J0HABH000012 LC FILTER 1 FL9400-02 J0JAD0000025 CHIP INDUCTOR 3 FL9403, 04 J0HABH000012 LC FILTER 2 FL9500-03 J0HABH000012 LC FILTER 4 FL9850, 51 J0MAB0000175 LC FILTER 2 FL9860-62 J0HABH000012 LC FILTER 3 H0 K1KA08A00293 8P CONNECTOR 1 BK/BS/EK/E S/UY H1 K1KA80B00037 80P CONNECTOR 1 BK/BS/EK/E S/UY (HA) H1 K1KA80B00037 80P CONNECTOR 1 BK/BS/EK/E S/UY (HB) H37 TJS3A9640 3P CONNECTOR 2 HX1 K1KB22A00036 22P CONNECTOR 1 IC801 C0DAAHG00008 IC 1 IC802 C0DAAHG00007 IC 1 IC803 C0DBALH00002 IC 1 IC804 C0DAAZG00006 IC 1 IC910 C5HABZZ00121 IC 1 IC930 AN1431M LINEAR IC 1 IC2301, 02 LA4901 IC 2 IC2304 PQ09SZ1T IC 1 IC2401 BH3865S LINEAR IC 1 IC3001 MC14052BF MOS IC (CMOS GATE ARRLY) 1 (J) IC3001 TC4W53FEL IC 1 BK/BS/EK/E S/UY (HB) IC3002 C0JBBR000002 IC 1 (J) IC3002 S-24C16ADP ROM IC (EEPROM 16KBIT) 1 BK/BS/EK/E S/UY (HA) IC3002 C0ABGB000001 IC 1 BK/BS/EK/E S/UY (HB) IC3003 CXA1315M LINEAR IC 1 (J) IC3003 C0ABGB000001 IC 1 BK/BS/EK/E S/UY (HB) IC3004 CXA1875AM LINEAR IC 1 IC3005 C1AB00001139 IC 1 IC3006 CXA1315M LINEAR IC 1 IC3007 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC3101 C1AB00002238 IC 1 (J) IC3101 PQ07VZ012ZP IC 1 BK/BS/EK/E S/UY (HB) IC3102 C1AB00002238 IC 1 (J) IC3102 C0DBZLB00001 IC 1 BK/BS/EK/E S/UY (HB) IC3103 C1AB00001826 IC 1 BK/BS/EK/E S/UY IC3104 PST9128NR IC (LOGIC) 1 BK/BS/EK/E S/UY IC3105 C0JBAZ001834 IC 1 BK/BS/EK/E S/UY IC3108, 09 AN78L05M LINEAR IC 2 IC3150 C0JBAA000419 IC 1 IC3201 C3HBKZ000002 IC 1 BK/BS/EK/E S/UY IC3251 C0ZBZ0000967 IC 1 BK/BS/EK/E S/UY IC3301 MM1065ZMR LINEAR IC 1 BK/BS/EK/E S/UY IC3302 PQ07VZ012ZP IC 1 BK/BS/EK/E S/UY IC3303 AN80L25RMS IC 1 BK/BS/EK/E S/UY IC3304 C0JBAZ002344 IC 1 BK/BS/EK/E S/UY 86 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks IC3305 JLC1562BFEL IC 1 BK/BS/EK/E S/UY IC3502 TVRN481 IC 1 IC3699 C3EBGC000065 IC 1 BK/BS/EK/E S/UY IC8000 PQ12SZ1T IC 1 IC8001, 02 MC14052BF MOS IC (CMOS GATE ARRLY) 2 IC8003, 04 M52346SP LINEAR IC 2 IC8005 TC74HC14AF IC 1 IC8007, 08 TC4W53FEL IC 2 IC8009 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC8014 C0ZBZ0000911 IC 1 IC8016 C0JBAZ001934 IC 1 IC8101 PQ09SZ1T IC 1 IC8181 C1DB00001208 IC 1 IC9000 C0JBAS000215 IC 1 IC9001 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC9002 C0JBAE000354 IC 1 IC9003 MN102H90MTZ1 IC 1 IC9004 TVRN479 IC 1 IC9005 C0EBE0000447 IC 1 IC9006 TVRN442 IC 1 IC9007 C0JBAE000354 IC 1 IC9200, 01 C0JBAZ001992 IC 2 IC9202 C0CBCBD00008 IC 1 IC9203 C0ZBZ0000850 IC 1 IC9204 C0JBAB000703 IC 1 IC9205 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC9206, 07 C0CBCBD00008 IC 2 IC9208 C0FBAD000102 IC 1 IC9209, 10 C0DBAMH00014 IC 2 IC9212-14 PQ07VZ012ZP IC 3 IC9400 C0JBCZ000485 IC 1 IC9410 C0JBAA000355 IC 1 IC9411 C0JBAE000331 IC 1 IC9412 C0JBAF000543 MOS IC 1 IC9413 C0ABBA000134 IC 1 IC9414 C0JBAM000129 IC 1 IC9415 C0JBAS000226 MOS IC 1 IC9416 C0JBAB000174 MOS IC (CMOS S/LOGIC) 1 IC9500 C1ZBZ0002775 IC 1 IC9501 MN845110-A IC 1 IC9505 C3ABQJ000031 IC 1 IC9506 TVRN443 IC 1 IC9701 C1ZBZ0002625 IC 1 IC9703 PST9128NR IC (LOGIC) 1 IC9704 C0ZBZ0000764 IC 1 IC9850 TC74LCX244F MOS IC (CMOS S/LOGIC) 1 IC9860, 61 C0JBAZ001992 IC 2 IC9862 C0CBCBD00008 IC 1 IC9863 C0ZBZ0000850 IC 1 IC9864 C0JBAB000703 IC 1 IC9865 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC9867, 68 C0CBCBD00008 IC 2 IC9869 C0FBAD000102 IC 1 J1 K1KA20AA0009 20P CONNECTOR 1 J3 K1KA30AA0009 30P CONNECTOR 1 J5 K1KB31B00004 31P CONNECTOR 1 J6 K1KA21BA0180 21P CONNECTOR 1 J8 K1KA20AA0008 20P CONNECTOR 1 J10 K1KA06A00183 6P CONNECTOR 1 J11, 12 K1KB80B00024 80P CONNECTOR 2 J14 K1KA22A00067 22P CONNECTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks JK3001 K1QBB3BB0002 CONNECTOR 1 BK/BS/EK/E S/UY (HA) JK3001 K1CB106B0027 CONNECTOR 1 BK/BS/EK/E S/UY (HB) JK3002 K2HA204B0097 JACK 1 BK/BS/EK/E S/UY (HA) JK3002 02 K1QBB2AB0005 CONNECTOR 1 BK/BS/EK/E S/UY (HB) JK3004 K2HA204B0097 JACK 1 BK/BS/EK/E S/UY JK3509 K1FB109BA018 CONNECTOR 1 JK3511 K1FB115B0034 CONNECTOR 1 JK3513 K2HC103B0105 JACK 1 JK8500 K4BC02B00013 TERMINAL 2 JS2301 ERJ6GEY0R00 M 0 OHM 1/10W 1 JS3001-08 TSK1032 BEAD CHOKE 8 BK/BS/EK/E S/UY JS3011-16 TSK1032 BEAD CHOKE 6 BK/BS/EK/E S/UY JS3301-06 TSK1032 BEAD CHOKE 6 BK/BS/EK/E S/UY JS3308-10 TSK1032 BEAD CHOKE 3 BK/BS/EK/E S/UY JS8094-97 TSK1032 BEAD CHOKE 4 L801 G1C101ZA0037 INDUCTION COIL 1 L802 G1C121ZA0037 INDUCTION COIL 1 L803 G1C680ZA0037 INDUCTION COIL 1 L804 G0C101K00023 PEAKING COIL 1 L805 TALFP15B221K INDUCTION COIL 1 L912 EXCELSA24 BEAD CHOKE 1 L930 G0A100GA0013 CHOKE COIL 1 L2306 ELJPA100KB CHIP INDUCTOR 1 L2330, 31 G0A221ZA0038 CHOKE COIL 2 L3001 J0HABB000004 LC FILTER 1 BK/BS/EK/E S/UY (HA) L3001 J0HABB000003 LC FILTER 1 BK/BS/EK/E S/UY (HB) L3002 G1C100K00020 INDUCTION COIL 1 (J) L3002 J0HABB000004 LC FILTER 1 BK/BS/EK/E S/UY (HA) L3002 J0HABB000004 LC FILTER 1 BK/BS/EK/E S/UY (HB) L3003 G1C100K00020 INDUCTION COIL 1 (J) L3003 J0HABB000004 LC FILTER 1 BK/BS/EK/E S/UY (HA) L3003 J0HABB000004 LC FILTER 1 BK/BS/EK/E S/UY (HB) L3004 J0HABB000003 LC FILTER 1 BK/BS/EK/E S/UY L3005 G1C100K00020 INDUCTION COIL 1 (J) L3005 J0HABB000003 LC FILTER 1 BK/BS/EK/E S/UY (HA) L3005 TSK1032 BEAD CHOKE 1 BK/BS/EK/E S/UY (HB) L3006 G1C100K00020 INDUCTION COIL 1 (J) L3006 ELJPA100KB CHIP INDUCTOR 1 BK/BS/EK/E S/UY (HA) L3006 J0E8004B0008 LC FILTER 1 BK/BS/EK/E S/UY (HB) L3007 G1C2R2K00006 INDUCTION COIL 1 BK/BS/EK/E S/UY L3050 G1C100K00020 INDUCTION COIL 1 L3051, 52 ELJNA1R5JF COIL 2 BK/BS/EK/E S/UY L3102-04 ELJPA100KB CHIP INDUCTOR 3 BK/BS/EK/E S/UY L3201 ELJPA100KB CHIP INDUCTOR 1 BK/BS/EK/E S/UY L3251, 52 ELJPA2R2MF CHIP INDUCTOR 2 BK/BS/EK/E S/UY L3305-08 ELKE103FA NOISE FILTER 4 BK/BS/EK/E S/UY L3507-09 J0HABB000004 LC FILTER 3 L3510-17 TLK212T256AL EMI FILTER 8 L3526 ELJPA100KB CHIP INDUCTOR 1 L3555 ELJPA100KB CHIP INDUCTOR 1 87 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks L8001 G1C100K00020 INDUCTION COIL 1 L8003-05 G1C100K00020 INDUCTION COIL 3 L8181 G1C100K00020 INDUCTION COIL 1 L8501 G0A2R5H00003 CHOKE COIL 1 L8502 G0A2R5H00003 CHOKE COIL 1 L8502 02 G0A2R5H00003 CHOKE COIL 1 L9200 G1C150MA0078 INDUCTION COIL 1 L9202 G1C220M00029 INDUCTOR COIL 1 L9400 J0JGC0000021 CHIP INDUCTOR COIL 1 L9402 J0JHC0000031 CHIP INDUCTOR 1 L9405-10 J0JHC0000078 CHIP INDUCTOR 6 LF901-03 G0B852H00001 CHOKE COIL 3 PA9401 ERBFE5R00U FUSE 1 PC920 B3PAA0000261 IC 1 PF1 K1KA03A00537 3P CONNECTOR 1 PF9 K1KA03A00537 3P CONNECTOR 1 PF10 K1KA06A00452 6P CONNECTOR 1 Q801 2SD601A TRANSISTOR 1 Q930 2SC3311A TRANSISTOR 1 Q1540 2SD601A TRANSISTOR 1 Q2303 2SD601A TRANSISTOR 1 Q2305, 06 2SD601A TRANSISTOR 2 Q2330, 31 2SD1266A TRANSISTOR 2 Q2333, 34 2SD601A TRANSISTOR 2 Q2370 2SB709A TRANSISTOR 1 Q2406 2SD601A TRANSISTOR 1 Q3001 2SB709A TRANSISTOR 1 (J) Q3001 2SD601A TRANSISTOR 1 BK/BS/EK/E S/UY (HA) Q3001 2SD601A TRANSISTOR 1 BK/BS/EK/E S/UY (HB) Q3002 2SD601A TRANSISTOR 1 (J) Q3002 2SD601A TRANSISTOR 1 BK/BS/EK/E S/UY (HA) Q3002 2SD601A TRANSISTOR 1 BK/BS/EK/E S/UY (HB) Q3003 2SD601A TRANSISTOR 1 Q3004 2SD601A TRANSISTOR 1 Q3005 2SD601A TRANSISTOR 1 BK/BS/EK/E S/UY Q3006, 07 2SB709A TRANSISTOR 2 BK/BS/EK/E S/UY Q3023 2SD601A TRANSISTOR 1 BK/BS/EK/E S/UY Q3051, 52 2SD601A TRANSISTOR 2 BK/BS/EK/E S/UY Q3101 2SD601A TRANSISTOR 1 (J) Q3101 2SB709A TRANSISTOR 1 BK/BS/EK/E S/UY (HB) Q3102 2SD601A TRANSISTOR 1 (J) Q3102 2SD1030 TRANSISTOR 1 BK/BS/EK/E S/UY (HB) Q3103 2SD601A TRANSISTOR 1 Q3104 2SD601A TRANSISTOR 1 (J) Q3104 2SD1030 TRANSISTOR 1 BK/BS/EK/E S/UY (HB) Q3105, 06 2SD601A TRANSISTOR 2 Q3531, 32 2SD601A TRANSISTOR 2 Q8001, 02 2SD601A TRANSISTOR 2 Q8010 2SD601A TRANSISTOR 1 Q8011 2SB709A TRANSISTOR 1 Q8012 2SD601A TRANSISTOR 1 Q8013 2SB709A TRANSISTOR 1 Q8018, 19 2SD601A TRANSISTOR 2 Q8181, 82 2SK2731T146 TRANSISTOR 2 Q8200-02 2SD601A TRANSISTOR 3 Q9000-02 2SK2731T146 TRANSISTOR 3 Q9003, 04 2SD601A-R TRANSISTOR 2 Q9006-09 2SD601A-R TRANSISTOR 4 Q9010 2SB709A-R TRANSISTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks Q9011 2SD601A-R TRANSISTOR 1 Q9012 2SB709A-R TRANSISTOR 1 Q9013 2SD601A-R TRANSISTOR 1 Q9015 2SD601A-R TRANSISTOR 1 Q9016 2SB709A-R TRANSISTOR 1 Q9017, 18 2SD601A-R TRANSISTOR 2 Q9019 2SK2731T146 TRANSISTOR 1 Q9305-07 2SD601A-R TRANSISTOR 3 Q9350, 51 2SD601A-R TRANSISTOR 2 Q9360 2SD601A TRANSISTOR 1 Q9401 2SD601A-R TRANSISTOR 1 Q9404 B1DDED000005 TRANSISTOR 1 Q9407-10 2SK2731T146 TRANSISTOR 4 Q9901 2SD601A TRANSISTOR 1 R34 K1KA07B00041 7P CONNECTOR 1 R803 ERJ6ENF1001 M 1KOHM 1/10W 1 R805 ERJ6ENF1001 M 1KOHM 1/10W 1 R808 ERJ6GEYJ470 M 47 OHM J 1/10W 1 R809 ERJ6ENF1201 M 1.2KOHM 1/10W 1 R810 ERJ6ENF5100 M 510 OHM 1/10W 1 R811 ERJ6ENF8200 M 820 OHM 1/10W 1 R812 ERJ6ENF5101 M 5.1KOHM 1/10W 1 R813 ERJ6ENF4701 M 4.7KOHM 1/10W 1 R814 ERJ6GEYJ332 M 3.3KOHM J 1/10W 1 R815 ERJ6GEYJ473 M 47KOHM J 1/10W 1 R816 ERJ6GEYJ471 M 470 OHM J 1/10W 1 R817-20 ERJ6GEYJ122 M 1.2KOHM J 1/10W 4 R825 ERJ6GEY0R00 M 0 OHM 1/10W 1 R831 ERJ6GEY0R00 M 0 OHM 1/10W 1 R914 ERG2FJS100D M 10 OHM J 2W 1 R915 ERG1FJS104D M 100KOHM J 1W 1 R918 ERX12SJR82 M0.82 OHM J 1/2W 1 R919 ERX12SJ1R0 M 0.1 OHM J 1/2W 1 R920 ERDS1FJ331 C 330 OHM J 1/2W 1 R921 ERDS1FJ150 C 15 OHM J 1/2W 1 R923 ERJ6GEYJ104 M 100KOHM J 1/10W 1 R925 ERJ6GEYJ102 M 1KOHM J 1/10W 1 R927 ERJ6GEYJ683 M 68KOHM J 1/10W 1 R930 ERJ6GEYJ681 M 680 OHM J 1/10W 1 R931 ERJ6GEYJ471 M 470 OHM J 1/10W 1 R932 ERJ6ENF2402 M 24KOHM 1/10W 1 R933 ERJ6ENF1002 M 10KOHM 1/10W 1 R934 ERJ6ENF2202 M 2.2KOHM 1/10W 1 R935 ERJ6GEYJ473 M 47KOHM J 1/10W 1 R936 ERJ6GEYJ682 M 6.8KOHM J 1/10W 1 R937 ERJ6GEYJ683 M 68KOHM J 1/10W 1 R938-42 ERJ6GEYJ682 M 6.8KOHM J 1/10W 5 R1500 ERJ6GEYJ102 M 1KOHM J 1/10W 1 R1510 ERJ3EKF2201 M 2.2KOHM 1/16W 1 R1511 ERJ3EKF3001 M 3KOHM 1/16W 1 R1512 ERJ3EKF4701 M 4.7KOHM 1/16W 1 R1513 ERJ3EKF8201 M 8.2KOHM 1/16W 1 R1550 ERJ6GEYJ102 M 1KOHM J 1/10W 1 R1551 ERJ6GEYJ470 M 47 OHM J 1/10W 1 R1552 ERJ6GEYJ224 M 220KOHM J 1/10W 1 R1553 ERJ6GEYJ471 M 470 OHM J 1/10W 1 R1554 ERJ6GEYJ271 M 270 OHM J 1/10W 1 R1555, 56 ERJ3GEYJ470 M 47 OHM J 1/16W 2 R2301 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 R2304 ERJ6GEYJ473 M 47KOHM J 1/10W 1 R2305, 06 ERJ6GEYJ223 M 22KOHM J 1/10W 2 R2309 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 R2310 ERJ6GEYJ562 M 5.6KOHM J 1/10W 1 R2332 ERJ6GEYJ182 M 1.8KOHM J 1/10W 1 R2333 ERJ6GEYJ471 M 470 OHM J 1/10W 1 R2346 ERJ6GEYJ123 M 12KOHM J 1/10W 1 R2347 ERJ6GEYJ473 M 47KOHM J 1/10W 1 R2348 ERJ6GEYJ103 M 10KOHM J 1/10W 1 R2350 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 R2351-54 ERJ6GEYJ103 M 10KOHM J 1/10W 4 R2355-60 ERDS1FJ2R2 C 2.2 OHM J 1/2W 6 R2365, 66 ERX1FJSR56D M0.56 OHM J 1W 2 88 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R2367 ERJ6GEYJ332 M 3.3KOHM J 1/10W 1 R2368, 69 ERJ6GEYJ103 M 10KOHM J 1/10W 2 R2370 ERJ6GEYJ222 M 2.2KOHM J 1/10W 1 R2371, 72 ERJ6GEYJ102 M 1KOHM J 1/10W 2 R2373 ERJ6GEYJ103 M 10KOHM J 1/10W 1 R2431 ERJ6GEYJ123 M 12KOHM J 1/10W 1 R2434 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 R2439 ERJ6GEYJ563 M 56KOHM J 1/10W 1 R2440 ERJ6GEY0R00 M 0 OHM 1/10W 1 R2441 ERJ6GEYJ123 M 12KOHM J 1/10W 1 R2445 ERJ6GEY0R00 M 0 OHM 1/10W 1 R2448 ERJ6GEYJ102 M 1KOHM J 1/10W 1 R2450 ERJ6GEYJ563 M 56KOHM J 1/10W 1 R2452 ERJ6GEYJ473 M 47KOHM J 1/10W 1 R2453 ERJ6GEYJ103 M 10KOHM J 1/10W 1 R2456 ERJ6GEYJ103 M 10KOHM J 1/10W 1 R2460 ERJ6ENF1802 M 18KOHM 1/10W 1 R2461, 62 ERJ6GEYJ101 M 100 OHM J 1/10W 2 R2463 ERJ6ENF1502 M 15KOHM 1/10W 1 R2466 ERJ6GEYJ104 M 100KOHM J 1/10W 1 R2467 ERJ6GEYJ224 M 220KOHM J 1/10W 1 R2468 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 R2469 ERJ6GEYJ104 M 100KOHM J 1/10W 1 R2470 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 R2471 ERJ6GEYJ182 M 1.8KOHM J 1/10W 1 R2472 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 R2473 ERJ6GEYJ182 M 1.8KOHM J 1/10W 1 R2476, 77 ERJ6GEYJ220 M 22 OHM J 1/10W 2 R2485-91 ERJ6GEY0R00 M 0 OHM 1/10W 7 R2494, 95 ERJ6GEY0R00 M 0 OHM 1/10W 2 R3001 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3001 ERJ6ENF75R0 M 75 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3002 ERJ3GEYJ102 M 1KOHM J 1/16W 1 (J) R3002 ERJ6ENF75R0 M 75 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3003 ERJ3GEYJ473 M 47KOHM J 1/16W 1 (J) R3003 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3004 ERJ3GEYJ101 M 100 OHM J 1/16W 1 (J) R3004 ERJ6GEYJ184 M 180KOHM J 1/10W 1 BK/BS/EK/E S/UY (HA) R3004 ERJ6ENF75R0 M 75 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3005 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 (J) R3005 ERJ6GEYJ184 M 180KOHM J 1/10W 1 BK/BS/EK/E S/UY (HA) R3005 ERJ6ENF75R0 M 75 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3006 ERJ6GEYJ472 M 4.7KOHM J 1/10W 1 (J) R3006 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3006 03 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3007 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3007 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3007 ERJ3GEYJ104 M 100KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3008 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3008 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3009 ERJ3GEYJ101 M 100 OHM J 1/16W 1 R3010 ERJ3GEYJ101 M 100 OHM J 1/16W 1 (J) R3010 ERJ3GEYJ153 M 15KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3011 ERJ3GEYJ153 M 15KOHM J 1/16W 1 (J) R3011 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3012 ERJ3GEYJ333 M 33KOHM J 1/16W 1 (J) R3012 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3013 ERJ3GEYJ153 M 15KOHM J 1/16W 1 (J) R3013 ERJ3GEYJ153 M 15KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3014 ERJ3GEYJ333 M 33KOHM J 1/16W 1 (J) Ref. No. Part No. Part Name & Description Pcs Remarks R3014 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3014 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3015 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3015 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3015 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3015 ERJ3GEYJ153 M 15KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3016 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3016 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3017 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3017 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3017 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3017 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3018 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3018 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3018 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3018 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3019 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY R3020 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3020 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3020 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3021 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3021 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3021 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3022 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3022 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3022 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3022 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3023 ERJ3GEYJ101 M 100 OHM J 1/16W 1 (J) R3023 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3023 ERJ3GEYJ472 M 4.7KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3024 ERJ3GEYJ101 M 100 OHM J 1/16W 1 R3025 ERJ3GEYJ101 M 100 OHM J 1/16W 1 (J) R3025 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3025 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3026 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3026 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3026 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3027 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3027 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3028 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3028 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3029 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3029 ERJ3EKF2200 M 220 OHM 1/16W 1 BK/BS/EK/E S/UY (HB) 89 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R3030 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3030 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3030 ERJ3EKF3900 M 390 0HM 1/16W 1 BK/BS/EK/E S/UY (HB) R3031 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3031 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3031 ERJ3EKF4700 M 470 OHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3032 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3032 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3032 ERJ3EKF1200 M 120 OHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3033 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3033 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3033 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3034 ERJ3GEYJ331 M 330 OHM J 1/16W 1 R3035 ERJ3GEYJ331 M 330 OHM J 1/16W 1 (J) R3035 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3036 ERJ3GEYJ331 M 330 OHM J 1/16W 1 (J) R3036 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3036 ERJ6ENF1800 M 180 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3037 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3037 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3037 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HA) R3037 ERJ3EKF2200 M 220 OHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3038 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3038 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3038 ERJ3GEYJ272 M 2.7KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3039 ERJ3GEYJ331 M 330 OHM J 1/16W 1 R3040 ERJ3GEYJ331 M 330 OHM J 1/16W 1 (J) R3040 ERJ3EKF3300 M 330 OHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3041 ERJ3GEYJ331 M 330 OHM J 1/16W 1 (J) R3041 ERJ6GEY0R00 M 0 OHM 1/10W 1 BK/BS/EK/E S/UY (HA) R3041 ERJ3EKF1800 M 180 OHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3042 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3042 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3042 ERJ6GEY0R00 M 0 OHM 1/10W 1 BK/BS/EK/E S/UY (HA) R3042 ERJ3EKF6801 M 6.8KOHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3043 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3043 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3043 ERJ3GEYJ561 M 560 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3044 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R3045 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3045 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3046 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3046 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3047 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3047 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) Ref. No. Part No. Part Name & Description Pcs Remarks R3048 ERJ3GEYJ334 M 330KOHM J 1/16W 1 (J) R3048 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3049 ERJ3GEYJ334 M 330KOHM J 1/16W 1 (J) R3049 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3050 ERJ6ENF75R0 M 75 OHM 1/10W 1 BK/BS/EK/E S/UY R3051 ERJ3GEYJ334 M 330KOHM J 1/16W 1 (J) R3051 ERJ3GEYJ333 M 33KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3052 ERJ3GEYJ334 M 330KOHM J 1/16W 1 (J) R3052 ERJ3GEYJ333 M 33KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3053 ERJ3GEYJ560 M 56 OHM J 1/16W 1 (J) R3053 ERJ3GEYJ153 M 15KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3054 ERJ3GEYJ560 M 56 OHM J 1/16W 1 (J) R3054 ERJ3GEYJ333 M 33KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3055 ERJ3GEYJ334 M 330KOHM J 1/16W 1 (J) R3055 ERJ3GEYJ153 M 15KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3056 ERJ3GEYJ334 M 330KOHM J 1/16W 1 (J) R3056 ERJ3GEYJ333 M 33KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3057 ERJ3GEYJ560 M 56 OHM J 1/16W 1 (J) R3057 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3058 ERJ3GEYJ560 M 56 OHM J 1/16W 1 (J) R3058 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3059 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY R3060 ERJ3GEYJ102 M 1KOHM J 1/16W 1 (J) R3060 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3061 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3061 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3061 ERJ3GEYJ561 M 560 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3062 ERJ6GEYJ101 M 100 OHM J 1/10W 1 (J) R3062 ERJ3GEYJ561 M 560 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3063 ERJ3GEYJ101 M 100 OHM J 1/16W 1 R3064 ERJ6GEYJ560 M 56 OHM J 1/10W 1 R3065 ERJ6GEYJ560 M 56 OHM J 1/10W 1 (J) R3065 ERJ6GEY0R00 M 0 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3066 ERJ6GEYJ560 M 56 OHM J 1/10W 1 R3070-72 ERJ6ENF75R0 M 75 OHM 1/10W 3 R3076-81 ERJ6GEYJ560 M 56 OHM J 1/10W 6 R3082, 83 ERJ3GEYJ101 M 100 OHM J 1/16W 2 R3084, 85 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R3086, 87 TSK1032 BEAD CHOKE 2 BK/EK/UXK R3086, 87 J0JCC0000100 CHIP INDUCTOR 2 BS/ES/UY/U XS R3088-93 ERJ6ENF75R0 M 75 OHM 1/10W 6 R3094-96 ERJ3GEYJ331 M 330 OHM J 1/16W 3 R3097, 98 TSK1032 BEAD CHOKE 2 BK/EK/UXK R3097, 98 J0JCC0000100 CHIP INDUCTOR 2 BS/ES/UY/U XS R3099, 100 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R3101 ERJ6ENF1800 M 180 OHM 1/10W 1 (J) R3101 ERJ3GEYJ220 M 22 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3102 ERJ6ENF1800 M 180 OHM 1/10W 1 (J) R3102 ERJ3GEY0R00 M 0 OHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3103 ERJ6ENF1800 M 180 OHM 1/10W 1 R3104 ERJ6ENF1800 M 180 OHM 1/10W 1 (J) R3104 ERJ3GEYJ220 M 22 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3105 ERJ6ENF1800 M 180 OHM 1/10W 1 R3106 ERJ6ENF1800 M 180 OHM 1/10W 1 (J) 90 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R3106 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3107 ERJ3GEYJ101 M 100 OHM J 1/16W 1 (J) R3107 ERJ3GEYJ330 M 33 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3108 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3108 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3108 TSK1032 BEAD CHOKE 1 BK (HB) R3108 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY (HB) R3108 J0JCC0000100 CHIP INDUCTOR 1 EK (HB) R3109 ERJ6ENF8200 M 820 OHM 1/10W 1 R3110 ERJ6ENF4701 M 4.7KOHM 1/10W 1 R3111 ERJ6ENF1501 M 1.5KOHM 1/10W 1 R3112 ERJ6ENF4701 M 4.7KOHM 1/10W 1 (J) R3112 ERJ3EKF1501 M 1.5KOHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3113 ERJ6ENF1501 M 1.5KOHM 1/10W 1 (J) R3113 ERJ3EKF1501 M 1.5KOHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3114 ERJ3GEY0R00 M 0 OHM 1/16W 1 BK/BS/EK/E S/UY R3115 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY R3116 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3116 ERJ6GEY0R00 M 0 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3117 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3117 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3117 ERJ3GEYJ102 M 1KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3118 ERJ6ENF8200 M 820 OHM 1/10W 1 (J) R3118 ERJ3GEY0R00 M 0 OHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3119 ERJ3GEYJ121 M 120 OHM J 1/16W 1 BK/BS/EK/E S/UY R3120 TSK1032 BEAD CHOKE 1 BK R3120 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY R3120 J0JCC0000100 CHIP INDUCTOR 1 EK R3121 ERJ3GEYJ121 M 120 OHM J 1/16W 1 BK/BS/EK/E S/UY R3122 ERJ3EKF8201 M 8.2KOHM 1/16W 1 BK/BS/EK/E S/UY R3123 ERJ3EKF1502 M 15KOHM 1/16W 1 BK/BS/EK/E S/UY R3124 ERJ3EKF10R0 M 10 OHM 1/16W 1 BK/BS/EK/E S/UY R3125 TSK1032 BEAD CHOKE 1 BK R3125 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY R3125 J0JCC0000100 CHIP INDUCTOR 1 EK R3126 TSK1032 BEAD CHOKE 1 BK/EK/UXK R3126 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS R3127 TSK1032 BEAD CHOKE 1 BK/EK/UXK (J) R3127 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS (J) R3127 ERJ6ENF12R0 M 12 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3128 ERJ3GEYJ181 M 180 OHM J 1/16W 1 R3129 ERJ3GEYJ181 M 180 OHM J 1/16W 1 (J) R3129 ERJ6ENF12R0 M 12 OHM 1/10W 1 BK/BS/EK/E S/UY (HB) R3130 ERJ3GEYJ181 M 180 OHM J 1/16W 1 R3131 ERJ3GEYJ181 M 180 OHM J 1/16W 1 (J) R3131 ERJ3GEYJ220 M 22 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3132, 33 ERJ3GEYJ181 M 180 OHM J 1/16W 2 R3135 ERJ6ENF10R0 M 10 OHM 1/10W 1 BK/BS/EK/E S/UY R3136-39 ERJ3GEY0R00 M 0 OHM 1/16W 4 BK/BS/EK/E S/UY R3140 ERJ3GEYJ473 M 47KOHM J 1/16W 1 (J) Ref. No. Part No. Part Name & Description Pcs Remarks R3140 ERJ3GEYJ220 M 22 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3141 ERJ3GEYJ473 M 47KOHM J 1/16W 1 (J) R3141 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY (HB) R3142 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY R3143 TSK1032 BEAD CHOKE 1 BK R3143 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY R3143 J0JCC0000100 CHIP INDUCTOR 1 EK R3144, 45 ERJ3GEYJ102 M 1KOHM J 1/16W 2 BK/BS/EK/E S/UY R3148, 49 ERJ3GEYJ220 M 22 OHM J 1/16W 2 BK/BS/EK/E S/UY R3150 ERJ3GEYJ101 M 100 OHM J 1/16W 1 R3151 ERJ3GEYJ101 M 100 OHM J 1/16W 1 (J) R3151 ERJ3GEYJ220 M 22 OHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3152 ERJ3GEYJ561 M 560 OHM J 1/16W 1 BK/BS/EK/E S/UY R3153 ERJ3GEYJ221 M 220 OHM J 1/16W 1 BK/BS/EK/E S/UY R3154, 55 ERJ3GEYJ331 M 330 OHM J 1/16W 2 BK/BS/EK/E S/UY R3156 ERJ3GEYJ561 M 560 OHM J 1/16W 1 BK/BS/EK/E S/UY R3157 ERJ3GEYJ221 M 220 OHM J 1/16W 1 BK/BS/EK/E S/UY R3158 ERJ3GEYJ182 M 1.8KOHM J 1/16W 1 BK/BS/EK/E S/UY R3159 ERJ6GEY0R00 M 0 OHM 1/10W 1 BK/BS/EK/E S/UY R3160 ERJ3GEYJ562 M 5.6KOHM J 1/16W 1 (J) R3160 ERJ3EKF2701 M 2.7KOHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3161 ERJ3GEYJ562 M 5.6KOHM J 1/16W 1 (J) R3161 ERJ3EKF2701 M 2.7KOHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3162 ERJ3GEYJ102 M 1KOHM J 1/16W 1 (J) R3162 ERJ3EKF2701 M 2.7KOHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3163 ERJ3GEYJ102 M 1KOHM J 1/16W 1 (J) R3163 ERJ3EKF2701 M 2.7KOHM 1/16W 1 BK/BS/EK/E S/UY (HB) R3164-67 ERJ3GEY0R00 M 0 OHM 1/16W 4 BK/BS/EK/E S/UY R3168 ERJ3EKF2000 M 200 OHM 1/16W 1 BK/BS/EK/E S/UY R3169-72 ERJ6ENF75R0 M 75 OHM 1/10W 4 BK/BS/EK/E S/UY R3173 ERJ3EKF2200 M 220 OHM 1/16W 1 BK/BS/EK/E S/UY R3174 TSK1032 BEAD CHOKE 1 BK R3174 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY R3174 J0JCC0000100 CHIP INDUCTOR 1 EK R3177 ERJ3EKF1401 M 1.4KOHM 1/16W 1 BK/BS/EK/E S/UY R3178 ERJ3EKF1101 M 1.1KOHM 1/16W 1 BK/BS/EK/E S/UY R3179 ERJ3EKF1401 M 1.4KOHM 1/16W 1 BK/BS/EK/E S/UY R3180 ERJ3EKF1101 M 1.1KOHM 1/16W 1 BK/BS/EK/E S/UY R3181 ERJ3EKF1401 M 1.4KOHM 1/16W 1 BK/BS/EK/E S/UY R3182 ERJ3EKF1101 M 1.1KOHM 1/16W 1 BK/BS/EK/E S/UY R3183 ERJ3EKF1401 M 1.4KOHM 1/16W 1 BK/BS/EK/E S/UY R3184 ERJ3EKF1101 M 1.1KOHM 1/16W 1 BK/BS/EK/E S/UY R3185 ERJ6GEY0R00 M 0 OHM 1/10W 1 BK/BS/EK/E S/UY R3188 ERJ6ENF75R0 M 75 OHM 1/10W 1 R3189 ERJ6ENF75R0 M 75 OHM 1/10W 2 (J) R3189 TSK1032 BEAD CHOKE 1 BK (HB) R3189 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY (HB) R3189 J0JCC0000100 CHIP INDUCTOR 1 EK (HB) R3190 ERJ6ENF75R0 M 75 OHM 1/10W 1 91 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R3191 ERJ14YJ330 M 33 OHM J 1/4W 1 R3192 ERJ14YJ330 M 33 OHM J 1/4W 1 (J) R3192 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3193 ERJ14YJ330 M 33 OHM J 1/4W 1 (J) R3193 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY (HB) R3194 ERJ14YJ330 M 33 OHM J 1/4W 1 (J) R3194 TSK1032 BEAD CHOKE 1 BK (HB) R3194 J0JCC0000100 CHIP INDUCTOR 1 EK (HB) R3195 ERJ3GEYJ103 M 10KOHM J 1/16W 1 (J) R3195 TSK1032 BEAD CHOKE 1 BK (HB) R3195 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY (HB) R3195 J0JCC0000100 CHIP INDUCTOR 1 EK (HB) R3196 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R3197, 98 ERJ3GEYJ123 M 12KOHM J 1/16W 2 R3199-204 ERJ6ENF1800 M 180 OHM 1/10W 6 R3210, 11 ERJ6GEYJ101 M 100 OHM J 1/10W 2 R3212-15 ERJ3GEYJ472 M 4.7KOHM J 1/16W 4 R3216-19 ERJ6GEYJ3R3 M 3.3KOHM J 1/10W 4 R3230, 31 ERJ6GEYJ101 M 100 OHM J 1/10W 2 R3251 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R3251 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY R3252 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/BS/EK/E S/UY R3253 ERJ3GEYJ472 M 4.7KOHM J 1/16W 1 BK/BS/EK/E S/UY R3254, 55 ERJ3GEYJ220 M 22 OHM J 1/16W 2 BK/BS/EK/E S/UY R3260-62 ERJ6ENF75R0 M 75 OHM 1/10W 3 R3300, 01 ERJ3EKF1501 M 1.5KOHM 1/16W 2 BK/BS/EK/E S/UY R3302 ERJ3GEYJ472 M 4.7KOHM J 1/16W 1 BK/BS/EK/E S/UY R3305 ERJ6GEY0R00 M 0 OHM 1/10W 1 BK/BS/EK/E S/UY R3307 TSK1032 BEAD CHOKE 1 BK R3307 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY R3307 J0JCC0000100 CHIP INDUCTOR 1 EK R3308, 09 ERJ3GEYJ103 M 10KOHM J 1/16W 2 BK/BS/EK/E S/UY R3313 ERJ3GEYJ333 M 33KOHM J 1/16W 1 BK/BS/EK/E S/UY R3314, 15 ERJ3GEYJ103 M 10KOHM J 1/16W 2 BK/BS/EK/E S/UY R3319 ERJ3GEYJ333 M 33KOHM J 1/16W 1 BK/BS/EK/E S/UY R3337, 38 ERJ3GEYJ220 M 22 OHM J 1/16W 2 BK/BS/EK/E S/UY R3400 ERJ6GEYJ103 M 10KOHM J 1/10W 1 R3508, 09 ERJ6GEYJ472 M 4.7KOHM J 1/10W 2 R3510, 11 ERJ6GEYJ101 M 100 OHM J 1/10W 2 R3529, 30 ERJ6GEYJ184 M 180KOHM J 1/10W 2 R3547, 48 ERJ6GEYJ101 M 100 OHM J 1/10W 2 R3585, 86 ERJ6GEYJ560 M 56 OHM J 1/10W 2 R3589 ERJ6GEYJ473 M 47KOHM J 1/10W 1 R3590 ERJ6GEYJ560 M 56 OHM J 1/10W 1 R3591-93 ERJ6GEY0R00 M 0 OHM 1/10W 3 R3653 ERJ6GEYJ153 M 15KOHM J 1/10W 1 R3654 ERJ6GEYJ333 M 33KOHM J 1/10W 1 R3655 ERJ6GEYJ153 M 15KOHM J 1/10W 1 R3656 ERJ6GEYJ333 M 33KOHM J 1/10W 1 R3663, 64 ERJ6GEYJ102 M 1KOHM J 1/10W 2 R3668 ERJ6GEYJ101 M 100 OHM J 1/10W 1 R3672 ERJ6GEYJ101 M 100 OHM J 1/10W 1 R3776, 77 ERJ6GEYJ101 M 100 OHM J 1/10W 2 R3778 ERJ6GEYJ473 M 47KOHM J 1/10W 1 R3790, 91 ERJ6GEYJ101 M 100 OHM J 1/10W 2 R8001 TSK1032 BEAD CHOKE 1 BK/EK/UXK R8001 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS R8003-05 TSK1032 BEAD CHOKE 3 BK/EK/UXK R8003-05 J0JCC0000100 CHIP INDUCTOR 3 BS/ES/UY/U XS Ref. No. Part No. Part Name & Description Pcs Remarks R8007, 08 TSK1032 BEAD CHOKE 2 BK/EK/UXK R8007, 08 J0JCC0000100 CHIP INDUCTOR 2 BS/ES/UY/U XS R8010-12 ERJ3GEYJ271 M 270 OHM J 1/16W 3 R8014-16 ERJ3GEYJ271 M 270 OHM J 1/16W 3 R8017-20 ERJ3GEYJ562 M 5.6KOHM J 1/16W 4 R8021, 22 ERJ3GEYJ222 M 2.2KOHM J 1/16W 2 R8025 TSK1032 BEAD CHOKE 1 BK/EK/UXK R8025 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS R8026 ERJ3GEYJ331 M 330 OHM J 1/16W 1 R8027 TSK1032 BEAD CHOKE 1 BK/EK/UXK R8027 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS R8028 ERJ3GEYJ331 M 330 OHM J 1/16W 1 R8029, 30 ERJ6ENF3301 M 3.3KOHM 1/10W 2 R8031, 32 ERJ6ENF2201 M 2.2KOHM 1/10W 2 R8033, 34 ERJ3GEYJ104 M 100KOHM J 1/16W 2 R8035 ERJ6ENF3300 M 330 OHM 1/10W 1 R8036 ERJ6ENF1500 M 150 OHM 1/10W 1 R8037-40 ERJ6ENF4701 M 4.7KOHM 1/10W 4 R8041, 42 ERJ3GEYJ183 M 18KOHM J 1/16W 2 R8045, 46 ERJ3GEYJ222 M 2.2KOHM J 1/16W 2 R8047 ERJ3GEYJ271 M 270 OHM J 1/16W 1 R8048-51 ERJ3GEYJ222 M 2.2KOHM J 1/16W 4 R8054 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R8055, 56 ERJ3GEYJ101 M 100 OHM J 1/16W 2 R8057 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R8058, 59 ERJ3GEYJ101 M 100 OHM J 1/16W 2 R806, 07 ERJ6ENF15R0 M 15 OHM 1/10W 2 R8060 ERJ6ENF3300 M 330 OHM 1/10W 1 R8061 ERJ6ENF1500 M 150 OHM 1/10W 1 R8062 ERJ3GEYJ271 M 270 OHM J 1/16W 1 R8065 ERJ3GEYJ101 M 100 OHM J 1/16W 1 R8066 ERJ6GEYJ681 M 680 OHM J 1/10W 1 R8067, 68 ERJ3GEYJ101 M 100 OHM J 1/16W 2 R8069 ERJ6GEYJ681 M 680 OHM J 1/10W 1 R8070 ERJ3GEYJ101 M 100 OHM J 1/16W 1 R8071, 72 TSK1032 BEAD CHOKE 2 BK/EK/UXK R8071, 72 J0JCC0000100 CHIP INDUCTOR 2 BS/ES/UY/U XS R8077, 78 ERJ3GEYJ152 M 1.5KOHM J 1/16W 2 R8081, 82 ERJ3GEYJ152 M 1.5KOHM J 1/16W 2 R8089 ERJ3GEYJ181 M 180 OHM J 1/16W 1 R8091 ERJ3GEYJ181 M 180 OHM J 1/16W 1 R8093, 94 ERJ6GEYJ101 M 100 OHM J 1/10W 2 R8097-00 ERJ3GEYJ103 M 10KOHM J 1/16W 4 R8117, 18 TSK1032 BEAD CHOKE 2 BK/EK/UXK R8117, 18 J0JCC0000100 CHIP INDUCTOR 2 BS/ES/UY/U XS R8124-27 ERJ6GEYJ101 M 100 OHM J 1/10W 4 R8181 ERJ3GEYJ101 M 100 OHM J 1/16W 1 R8182 ERJ6GEYJ101 M 100 OHM J 1/10W 1 R8183, 84 TSK1032 BEAD CHOKE 2 BK/EK/UXK R8183, 84 J0JCC0000100 CHIP INDUCTOR 2 BS/ES/UY/U XS R8185, 86 ERJ3GEYJ272 M 2.7KOHM J 1/16W 2 R8187, 88 ERJ6GEYJ560 M 56 OHM J 1/10W 2 R8200 ERJ3GEYJ223 M 22KOHM J 1/16W 1 R8201 ERJ3GEYJ473 M 47KOHM J 1/16W 1 R8202, 03 ERJ3GEYJ223 M 22KOHM J 1/16W 2 R8204 ERJ3GEYJ104 M 100KOHM J 1/16W 1 R8205 ERJ3GEYJ563 M 56KOHM J 1/16W 1 R8206 ERJ3GEYJ473 M 47KOHM J 1/16W 1 R8207 TSK1032 BEAD CHOKE 1 BK/EK/UXK R8207 J0JCC0000100 CHIP INDUCTOR 1 BS/ES/UY/U XS R9000 TSK1032 BEAD CHOKE 1 BK R9000 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9000 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9001 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9002, 03 TSK1032 BEAD CHOKE 2 BK R9002, 03 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS 92 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R9002, 03 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9005 TSK1032 BEAD CHOKE 1 BK R9005 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9005 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9006 ERJ3GEYJ272 M 2.7KOHM J 1/16W 1 R9008 TSK1032 BEAD CHOKE 1 BK R9008 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9008 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9009-18 ERJ3GEYJ101 M 100 OHM J 1/16W 10 BK/BS/EK/E S R9009-18 ERJ3GEYJ101 M 100 OHM J 1/16W 10 UY/UXK/UXS R901, 02 ERC12ZGK105 S 1MOHM K 1/2W 2 R9019 ERJ3GEYJ562 M 5.6KOHM J 1/16W 1 R9020 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9021, 22 TSK1032 BEAD CHOKE 2 BK R9021, 22 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9021, 22 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9023 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9024 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9026 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9027, 28 ERJ3GEYJ473 M 47KOHM J 1/16W 2 R903, 04 ERF7TK3R3 W 3.3 OHM K 7W 2 R9030 ERJ3GEYJ473 M 47KOHM J 1/16W 1 R9031, 32 ERJ3GEYJ272 M 2.7KOHM J 1/16W 2 R9033, 34 TSK1032 BEAD CHOKE 2 BK R9033, 34 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9033, 34 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9035, 36 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9038 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9039 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9040 ERJ3GEYJ104 M 100KOHM J 1/16W 1 R9042 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9042 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9043 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9044 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9044 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9045 ERJ3GEYJ562 M 5.6KOHM J 1/16W 1 R9046, 47 ERJ3GEYJ101 M 100 OHM J 1/16W 2 BK/BS/EK/E S R9046, 47 ERJ3GEYJ101 M 100 OHM J 1/16W 2 UY/UXK/UXS R9048 TSK1032 BEAD CHOKE 1 BK R9048 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9048 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9049 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9049 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9051, 52 ERJ3GEYJ562 M 5.6KOHM J 1/16W 2 R9053 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9053 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9054, 55 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9056 ERJ3GEYJ331 M 330 OHM J 1/16W 1 R9057, 58 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9059 ERJ3GEYJ332 M 3.3KOHM J 1/16W 1 R9060 TSK1032 BEAD CHOKE 1 BK R9060 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9060 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9061 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9062 ERJ3GEYJ272 M 2.7KOHM J 1/16W 1 R9063 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9064 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9065 ERJ3GEYJ272 M 2.7KOHM J 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9066 ERJ3GEYJ332 M 3.3KOHM J 1/16W 1 R9067 ERJ3GEYJ682 M 6.8KOHM J 1/16W 1 R9068-71 TSK1032 BEAD CHOKE 4 BK R9068-71 ERJ3GEY0R00 M 0 OHM 1/16W 4 BS/ES/UY/U XS R9068-71 J0JCC0000100 CHIP INDUCTOR 4 EK/UXK R9072 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9072 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9073, 74 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9075 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9076 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9077 ERJ3GEYJ332 M 3.3KOHM J 1/16W 1 R9079 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9079 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9081, 82 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9084 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9086 EXB38V220J RESISTOR ARRAY 1 R9089 ERJ3GEYJ473 M 47KOHM J 1/16W 1 R9091, 92 ERJ6ENF1001 M 1KOHM 1/10W 2 R9093, 94 TSK1032 BEAD CHOKE 2 BK R9093, 94 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9093, 94 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9095 ERJ6ENF1101 M 1.1KOHM 1/10W 1 R9096 ERJ6ENF1401 M 1.4KOHM 1/10W 1 R9098 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9099 ERJ3GEYJ470 M 47 OHM J 1/16W 1 R9100 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9101 ERJ3GEYJ470 M 47 OHM J 1/16W 1 R9102, 03 EXB2HV470JV RESISTOR ARRAY 2 R9105 TSK1032 BEAD CHOKE 1 BK R9105 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9105 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9106 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9108 TSK1032 BEAD CHOKE 1 BK R9108 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9108 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9109 ERJ3GEYJ682 M 6.8KOHM J 1/16W 1 R9110 TSK1032 BEAD CHOKE 1 BK R9110 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9110 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9111 ERJ3GEYJ473 M 47KOHM J 1/16W 1 R9112 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9113 TSK1032 BEAD CHOKE 1 BK R9113 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9113 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9114 ERJ3GEYJ153 M 15KOHM J 1/16W 1 R9115 TSK1032 BEAD CHOKE 1 BK R9115 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9115 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9116 ERJ3GEYJ331 M 330 OHM J 1/16W 1 R9117 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9118 TSK1032 BEAD CHOKE 1 BK R9118 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9118 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9119 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R912, 13 ERG2FJS104D M 100KOHM J 2W 2 R9120 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9120 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9121 TSK1032 BEAD CHOKE 1 BK R9121 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9121 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9122 ERJ3GEYJ103 M 10KOHM J 1/16W 1 93 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R9123 TSK1032 BEAD CHOKE 1 BK R9123 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9123 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9124 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9126 ERJ3EKF5101 M 5.1KOHM 1/16W 1 R9127 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9128 ERJ3EKF3901 M 3.9KOHM 1/16W 1 R9129 ERJ3GEYJ242 M 2.4KOHM J 1/16W 1 R9130 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9131, 32 TSK1032 BEAD CHOKE 2 BK R9131, 32 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9131, 32 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9133 ERJ3GEYJ473 M 47KOHM J 1/16W 1 R9134, 35 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9136 ERJ3GEYJ331 M 330 OHM J 1/16W 1 R9137, 38 ERJ3GEYJ332 M 3.3KOHM J 1/16W 2 R9139-43 ERJ3GEYJ101 M 100 OHM J 1/16W 5 BK/BS/EK/E S R9139-43 ERJ3GEYJ101 M 100 OHM J 1/16W 5 UY/UXK/UXS R9145 TSK1032 BEAD CHOKE 1 BK R9145 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9145 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9149-51 TSK1032 BEAD CHOKE 3 BK R9149-51 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9149-51 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9153 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9154 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9159 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9160, 61 ERJ3GEYJ101 M 100 OHM J 1/16W 2 BK/BS/EK/E S R9160, 61 ERJ3GEYJ101 M 100 OHM J 1/16W 2 UY/UXK/UXS R9163 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9163 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9164 ERJ3EKF1202 M 12KOHM 1/16W 1 R9165-68 ERJ3GEYJ103 M 10KOHM J 1/16W 4 R9169-72 ERJ3GEYJ101 M 100 OHM J 1/16W 4 BK/BS/EK/E S R9169-72 ERJ3GEYJ101 M 100 OHM J 1/16W 4 UY/UXK/UXS R9173, 74 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9175-77 ERJ3GEYJ101 M 100 OHM J 1/16W 3 BK/BS/EK/E S R9175-77 ERJ3GEYJ101 M 100 OHM J 1/16W 3 UY/UXK/UXS R9178 ERJ3GEYJ682 M 6.8KOHM J 1/16W 1 R9179-81 TSK1032 BEAD CHOKE 3 BK R9179-81 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9179-81 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9182 ERJ3EKF2001 M 2KOHM 1/16W 1 R9183 ERJ3EKF3301 M 3.3KOHM 1/16W 1 R9184 TSK1032 BEAD CHOKE 1 BK R9184 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9184 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9186 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9189 ERJ3GEYJ393 M 39KOHM J 1/16W 1 R9192 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9193, 94 ERJ6ENF1001 M 1KOHM 1/10W 2 R9195, 96 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9197 ERJ3GEYJ562 M 5.6KOHM J 1/16W 1 R9199 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9200 EXB2HV470JV RESISTOR ARRAY 1 R9201, 02 TSK1032 BEAD CHOKE 2 BK R9201, 02 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9201, 02 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK Ref. No. Part No. Part Name & Description Pcs Remarks R9204 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9204 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9205 EXB2HV470JV RESISTOR ARRAY 1 R9206-08 ERJ3GEYJ101 M 100 OHM J 1/16W 3 BK/BS/EK/E S R9206-08 ERJ3GEYJ101 M 100 OHM J 1/16W 3 UY/UXK/UXS R9209 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9210 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9210 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9211 ERJ3GEYJ100 M 10 OHM J 1/16W 1 R9212 EXB2HV470JV RESISTOR ARRAY 1 R9213 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9215 ERJ3GEYJ560 M 56 OHM J 1/16W 1 R9216 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9218, 19 ERJ6GEY0R00 M 0 OHM 1/10W 2 R922 ERG1SJ102 M 1KOHM J 1W 1 BK/EK/UXK R922 ERDS1FJ102 C 1KOHM J 1/2W 1 BS/ES/UY/U XS R9220-22 TSK1032 BEAD CHOKE 3 BK R9220-22 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9220-22 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9223-25 ERJ3GEYJ750 M 75 OHM J 1/16W 3 R9228, 29 TSK1032 BEAD CHOKE 2 BK R9228, 29 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9228, 29 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9230 ERJ3EKF6801 M 6.8KOHM 1/16W 1 R9231-33 TSK1032 BEAD CHOKE 3 BK R9231-33 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9231-33 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9235 ERJ3GEYJ272 M 2.7KOHM J 1/16W 1 R9236 ERJ6GEY0R00 M 0 OHM 1/10W 1 R924 ERJ6GEYJ223 M 22KOHM J 1/10W 1 R9240, 41 TSK1032 BEAD CHOKE 2 BK R9240, 41 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9240, 41 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9243-45 TSK1032 BEAD CHOKE 3 BK R9243-45 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9243-45 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9248 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9249 ERJ3GEYJ473 M 47KOHM J 1/16W 1 R9256 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9256 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9258 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9258 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9261-65 TSK1032 BEAD CHOKE 5 BK R9261-65 ERJ3GEY0R00 M 0 OHM 1/16W 5 BS/ES/UY/U XS R9261-65 J0JCC0000100 CHIP INDUCTOR 5 EK/UXK R9266 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9267, 68 ERJ6GEY0R00 M 0 OHM 1/10W 2 R9270 ERJ6ENF2322 M23.2KOHM 1/10W 1 R9271 ERJ6ENF1002 M 10KOHM 1/10W 1 R9274 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9276 ERJ3GEYJ333 M 33KOHM J 1/16W 1 R9277 ERJ3GEYJ823 M 82KOHM J 1/16W 1 R9279 ERJ3GEYJ683 M 68KOHM J 1/16W 1 R9281 ERJ6ENF5101 M 5.1KOHM 1/10W 1 R9282 ERJ6ENF1002 M 10KOHM 1/10W 1 R9283 ERJ3GEYJ683 M 68KOHM J 1/16W 1 R9287 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9288 ERJ6ENF1001 M 1KOHM 1/10W 1 R9289 ERJ6ENF4420 M 442 OHM 1/10W 1 94 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R9290-92 ERJ6ENF1001 M 1KOHM 1/10W 3 R9293 ERJ6ENF1601 M 1.6KOHM 1/10W 1 R9294 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9296 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9299 TSK1032 BEAD CHOKE 1 BK R9299 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9299 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9301 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9303 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9306, 07 TSK1032 BEAD CHOKE 2 R9309 ERJ3GEYJ470 M 47 OHM J 1/16W 1 R9314 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9314 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9325 TSK1032 BEAD CHOKE 1 BK R9325 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9325 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9336 TSK1032 BEAD CHOKE 1 BK R9336 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9336 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9341 TSK1032 BEAD CHOKE 1 BK R9341 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9341 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9346, 47 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9350-53 ERJ3GEYJ103 M 10KOHM J 1/16W 4 R9382 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9388 ERJ3GEYJ272 M 2.7KOHM J 1/16W 1 R9410 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9413 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9414 TSK1032 BEAD CHOKE 1 BK R9414 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9414 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9419 ERJ3GEYJ222 M 2.2KOHM J 1/16W 1 R9420 ERJ3GEYJ223 M 22KOHM J 1/16W 1 R9421 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9421 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9422-26 TSK1032 BEAD CHOKE 5 BK R9422-26 ERJ3GEY0R00 M 0 OHM 1/16W 5 BS/ES/UY/U XS R9422-26 J0JCC0000100 CHIP INDUCTOR 5 EK/UXK R9427 TSK1032 BEAD CHOKE 1 BK R9427 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BS/ES/UY/U XS R9427 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9429, 30 TSK1032 BEAD CHOKE 2 BK R9429, 30 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9429, 30 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9431 ERJ3GEYJ103 M 10KOHM J 1/16W 1 BK/EK/UXK R9431 ERJ3GEYJ221 M 220 OHM J 1/16W 1 BS/ES/UY/U XS R9432 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9432 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9433 ERJ3EKF2001 M 2KOHM 1/16W 1 R9434 ERJ3EKF1001 M 1KOHM 1/16W 1 R9438 TSK1032 BEAD CHOKE 1 BK R9438 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9438 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9439, 40 ERJ3GEYJ470 M 47 OHM J 1/16W 2 R9441 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9442 ERJ3GEYJ332 M 3.3KOHM J 1/16W 1 R9450-55 EXB38V560J RESISTOR ARRAY 6 R9456 TSK1032 BEAD CHOKE 1 BK R9456 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS Ref. No. Part No. Part Name & Description Pcs Remarks R9456 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9459 TSK1032 BEAD CHOKE 1 BK R9459 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9459 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9460 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9461 TSK1032 BEAD CHOKE 1 BK R9461 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9461 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9462 ERJ3EKF2151 M 215 OHM 1/16W 1 R9463 ERJ3GEYJ333 M 33KOHM J 1/16W 1 R9465 ERJ3GEYJ563 M 56KOHM J 1/16W 1 R9466 TSK1032 BEAD CHOKE 1 BK R9466 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9466 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9469-71 TSK1032 BEAD CHOKE 3 BK R9469-71 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9469-71 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9474 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9486, 87 TSK1032 BEAD CHOKE 2 BK R9486, 87 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9486, 87 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9496, 97 ERJ3GEYJ272 M 2.7KOHM J 1/16W 2 R9500 ERJ3GEYJ272 M 2.7KOHM J 1/16W 1 R9501-06 TSK1032 BEAD CHOKE 6 BK R9501-06 ERJ3GEY0R00 M 0 OHM 1/16W 6 BS/ES/UY/U XS R9501-06 J0JCC0000100 CHIP INDUCTOR 6 EK/UXK R9513 TSK1032 BEAD CHOKE 1 BK R9513 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9513 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9521-26 EXB2HV470JV RESISTOR ARRAY 6 R9527 TSK1032 BEAD CHOKE 1 BK R9527 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9527 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9530, 31 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9533 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9535, 36 ERJ3GEYJ470 M 47 OHM J 1/16W 2 R9538-41 ERJ3GEYJ470 M 47 OHM J 1/16W 4 R9542 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9543, 44 TSK1032 BEAD CHOKE 2 BK R9543, 44 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9543, 44 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9548 TSK1032 BEAD CHOKE 1 BK R9548 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9548 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9550 ERJ3GEYJ470 M 47 OHM J 1/16W 1 R9551-53 TSK1032 BEAD CHOKE 3 BK R9551-53 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9551-53 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9555-58 TSK1032 BEAD CHOKE 4 BK R9555-58 ERJ3GEY0R00 M 0 OHM 1/16W 4 BS/ES/UY/U XS R9555-58 J0JCC0000100 CHIP INDUCTOR 4 EK/UXK R9559, 60 ERJ3GEYJ102 M 1KOHM J 1/16W 2 R9561 TSK1032 BEAD CHOKE 1 BK R9561 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9561 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9562-64 EXB38V470J RESISTOR ARRAY 3 R9567, 68 TSK1032 BEAD CHOKE 2 BK R9567, 68 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9567, 68 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9569 EXB38V470J RESISTOR ARRAY 1 R9570, 71 TSK1032 BEAD CHOKE 2 BK 95 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R9570, 71 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9570, 71 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9574-77 TSK1032 BEAD CHOKE 4 BK R9574-77 ERJ3GEY0R00 M 0 OHM 1/16W 4 BS/ES/UY/U XS R9574-77 J0JCC0000100 CHIP INDUCTOR 4 EK/UXK R9578, 79 EXB38V470J RESISTOR ARRAY 2 R9583-85 TSK1032 BEAD CHOKE 3 BK R9583-85 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9583-85 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9586 EXB38V470J RESISTOR ARRAY 1 R9587 TSK1032 BEAD CHOKE 1 BK R9587 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9587 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9589 ERJ3GEYJ472 M 4.7KOHM J 1/16W 1 R9590 EXB38V470J RESISTOR ARRAY 1 R9595 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9596 EXB38V470J RESISTOR ARRAY 1 R9597-02 TSK1032 BEAD CHOKE 6 BK R9597-02 ERJ3GEY0R00 M 0 OHM 1/16W 6 BS/ES/UY/U XS R9597-02 J0JCC0000100 CHIP INDUCTOR 6 EK/UXK R9605 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9607 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9609 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9611 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9613 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9615 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9617 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9619 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9621 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9623 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9625 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9627 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9629 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9631 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9633 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9635 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9637 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9639 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9641 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9643 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9645 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9647 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9655 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9657 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9659 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9661 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9663 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9665 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9667 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9669 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9671 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9673 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9675 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9677 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9679 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9681 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9683 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9685 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9687 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9689 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9691 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9693 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9695 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9697 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9699 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9701 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9703 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9705 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9707 ERJ3GEYJ330 M 33 OHM J 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9709 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9711 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9713 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9715 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9717 ERJ3GEYJ330 M 33 OHM J 1/16W 1 R9718-21 TSK1032 BEAD CHOKE 4 BK R9718-21 ERJ3GEY0R00 M 0 OHM 1/16W 4 BS/ES/UY/U XS R9718-21 J0JCC0000100 CHIP INDUCTOR 4 EK/UXK R9722 ERJ3GEYJ472 M 4.7KOHM J 1/16W 1 R9725-28 TSK1032 BEAD CHOKE 4 BK R9725-28 ERJ3GEY0R00 M 0 OHM 1/16W 4 BS/ES/UY/U XS R9725-28 J0JCC0000100 CHIP INDUCTOR 4 EK/UXK R9730, 31 ERJ6GEY0R00 M 0 OHM 1/10W 2 R9739-45 TSK1032 BEAD CHOKE 7 BK R9739-45 ERJ3GEY0R00 M 0 OHM 1/16W 7 BS/ES/UY/U XS R9739-45 J0JCC0000100 CHIP INDUCTOR 7 EK/UXK R9749-51 TSK1032 BEAD CHOKE 3 BK R9749-51 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9749-51 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9753 TSK1032 BEAD CHOKE 1 BK R9753 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9753 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9755 TSK1032 BEAD CHOKE 1 BK R9755 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9755 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9757 TSK1032 BEAD CHOKE 1 BK R9757 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9757 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9765 TSK1032 BEAD CHOKE 1 BK R9765 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9765 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9766 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9767-70 TSK1032 BEAD CHOKE 4 BK R9767-70 ERJ3GEY0R00 M 0 OHM 1/16W 4 BS/ES/UY/U XS R9767-70 J0JCC0000100 CHIP INDUCTOR 4 EK/UXK R9771 ERJ3GEYJ560 M 56 OHM J 1/16W 1 R9774 ERJ3GEYJ560 M 56 OHM J 1/16W 1 R9775 TSK1032 BEAD CHOKE 1 BK R9775 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9775 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9776 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9778 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9780-82 TSK1032 BEAD CHOKE 3 BK R9780-82 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9780-82 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9783 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9785 TSK1032 BEAD CHOKE 1 BK R9785 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9785 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9787 TSK1032 BEAD CHOKE 1 BK R9787 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9787 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9789 TSK1032 BEAD CHOKE 1 BK R9789 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9789 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9795 TSK1032 BEAD CHOKE 1 BK R9795 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9795 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9797 TSK1032 BEAD CHOKE 1 BK R9797 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS 96 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks R9797 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9799 ERJ3GEYJ561 M 560 OHM J 1/16W 1 R9800 TSK1032 BEAD CHOKE 1 BK R9800 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9800 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9803 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9804 ERJ3GEYJ472 M 4.7KOHM J 1/16W 1 R9805, 06 TSK1032 BEAD CHOKE 2 BK R9805, 06 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9805, 06 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9809, 10 TSK1032 BEAD CHOKE 2 BK R9809, 10 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9809, 10 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9813 TSK1032 BEAD CHOKE 1 BK R9813 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9813 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9814 J0JCC0000100 CHIP INDUCTOR 1 BK/EK/UXK R9814 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9815 TSK1032 BEAD CHOKE 1 BK R9815 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9815 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9816 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9817 TSK1032 BEAD CHOKE 1 BK R9817 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9817 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9818-21 ERJ3GEYJ472 M 4.7KOHM J 1/16W 4 R9822 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9823-31 ERJ3GEYJ472 M 4.7KOHM J 1/16W 9 R9832 TSK1032 BEAD CHOKE 1 BK R9832 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9832 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9833-35 ERJ3GEYJ103 M 10KOHM J 1/16W 3 R9836-39 TSK1032 BEAD CHOKE 4 BK R9836-39 ERJ3GEY0R00 M 0 OHM 1/16W 4 BS/ES/UY/U XS R9836-39 J0JCC0000100 CHIP INDUCTOR 4 EK/UXK R9840-42 EXB38V103J RESISTOR ARRAY 3 R9843 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9854 ERJ3GEYJ102 M 1KOHM J 1/16W 1 R9857-59 TSK1032 BEAD CHOKE 3 BK R9857-59 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9857-59 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9860-65 ERJ3GEYJ101 M 100 OHM J 1/16W 6 BK/BS/EK/E S R9860-65 ERJ3GEYJ101 M 100 OHM J 1/16W 6 UY/UXK/UXS R9866 EXB2HV470JV RESISTOR ARRAY 1 R9867, 68 TSK1032 BEAD CHOKE 2 BK R9867, 68 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9867, 68 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9870 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9870 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9871 EXB2HV470JV RESISTOR ARRAY 1 R9872-74 ERJ3GEYJ101 M 100 OHM J 1/16W 3 BK/BS/EK/E S R9872-74 ERJ3GEYJ101 M 100 OHM J 1/16W 3 UY/UXK/UXS R9876 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9876 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9877 EXB2HV470JV RESISTOR ARRAY 1 R9878 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9880 ERJ3GEYJ560 M 56 OHM J 1/16W 1 R9884 ERJ3GEYJ100 M 10 OHM J 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9886 TSK1032 BEAD CHOKE 1 BK R9886 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9886 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9888 TSK1032 BEAD CHOKE 1 BK R9888 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9888 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9892 ERJ3GEYJ472 M 4.7KOHM J 1/16W 1 R9893 TSK1032 BEAD CHOKE 1 BK R9893 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9893 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9894 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9897 ERJ3GEYJ101 M 100 OHM J 1/16W 1 BK/BS/EK/E S R9897 ERJ3GEYJ101 M 100 OHM J 1/16W 1 UY/UXK/UXS R9898 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9899 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9906, 07 ERJ6GEY0R00 M 0 OHM 1/10W 2 R9911-13 ERJ3GEYJ750 M 75 OHM J 1/16W 3 R9916, 17 TSK1032 BEAD CHOKE 2 BK R9916, 17 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9916, 17 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9918 ERJ3EKF6801 M 6.8KOHM 1/16W 1 R9919-21 TSK1032 BEAD CHOKE 3 BK R9919-21 ERJ3GEY0R00 M 0 OHM 1/16W 3 BS/ES/UY/U XS R9919-21 J0JCC0000100 CHIP INDUCTOR 3 EK/UXK R9922 ERJ3GEYJ272 M 2.7KOHM J 1/16W 1 R9924 ERJ6GEY0R00 M 0 OHM 1/10W 1 R9936 TSK1032 BEAD CHOKE 1 BK R9936 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9936 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9942 TSK1032 BEAD CHOKE 1 BK R9942 ERJ3GEY0R00 M 0 OHM 1/16W 1 BS/ES/UY/U XS R9942 J0JCC0000100 CHIP INDUCTOR 1 EK/UXK R9950 ERJ3GEYJ680 M 68 OHM J 1/16W 1 R9951-58 EXB38V680J RESISTOR ARRAY 8 R9979, 80 ERJ3GEYJ272 M 2.7KOHM J 1/16W 2 R9985, 86 TSK1032 BEAD CHOKE 2 BK R9985, 86 ERJ3GEY0R00 M 0 OHM 1/16W 2 BS/ES/UY/U XS R9985, 86 J0JCC0000100 CHIP INDUCTOR 2 EK/UXK R9987, 88 ERJ3GEYJ103 M 10KOHM J 1/16W 2 R9994 ERJ3GEYJ332 M 3.3KOHM J 1/16W 1 R9995 ERJ3GEYJ221 M 220 OHM J 1/16W 1 R9996 ERJ3GEYJ103 M 10KOHM J 1/16W 1 R9999 ERJ3GEYJ101 M 100 OHM J 1/16W 1 RL920 K6B2ADA00007 REALY 1 RM001 PNA4601M05TV REMOCO RECEIVER 1 RTL ETXMM566MBG MODULE P 1 RTL TNPA3003AB CIRCUIT BOARD H3 2 RTL TNPA3198AD CIRCUIT BOARD Z 1 RTL TNPA3246AC CIRCUIT BOARD J 1 RTL TNPA3535 CIRCUIT BOARD V 1 RTL TNPA3536 CIRCUIT BOARD S 1 RTL TNPA3537 CIRCUIT BOARD R 1 RTL TXNHA10RBS CIRCUIT BOARD HA 1 BK/BS/EK/E S/UY RTL TXNHB10QXS CIRCUIT BOARD HB 1 BK/BS/EK/E S/UY RTL TXNPF10Q59 CIRCUIT BOARD PF 1 RTL TZTNP010Q60 CIRCUIT BOARD HX 1 RTL TZTNP010Q61 CIRCUIT BOARD D 1 S34 K1KA03AA0193 3P CONNECTOR 1 S901, 02 J0LT00000009 SWITCH 2 97 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS Ref. No. Part No. Part Name & Description Pcs Remarks SN1550 B3L000000020 IC 1 SW061 ESB64601 SWITCH(POWER) 1 SW1550-54 EVQPBD05R SWITCH 5 T920 ETS28AZ1K6ND SWITCHING TRANS 1 BK/BS/EK/E S T920 ETS28AZ1K6ND SWITCHING TRANS 1 UY/UXK/UXS V35 TJS6A8780 3P CONNECTOR 1 X3101 H0J202500002 CRYSTAL 1 BK/BS/EK/E S/UY X8181 H0J327200114 CRYSTAL 1 X9001 H0J400400017 CRYSTAL 1 X9500 H0J200500038 CRYSTAL 1 Z5 K1KA11AA0153 11P CONNECTOR 1 Z6 K1KA04AA0192 4P CONNECTOR 1 Z7 K1KA03A00172 3P CONNECTOR 1 Z8 K1KA20AA0008 20P CONNECTOR 1 Z10 K1KA05AA0193 5P CONNECTOR 1 Z30-33 K1KA03A00172 3P CONNECTOR 4 ZA001-03 K4ZZ01000206 EARTH LUG 3 ZA902-05 K9ZZ00000424 CONNECTOR 4 ZA3001-04 K4CD01000013 TERMINAL 4 ZA3007, 08 K4CD01000013 TERMINAL 2 ZA9501-07 TESA169 SHIELD CLIP 7 98 TH-32LHD7UY / TH-32LHD7UXK / TH-32LHD7UXS / TH-32LHD7EK / TH-32LHD7ES / TH-32LHD7BK / TH-32LHD7BS
