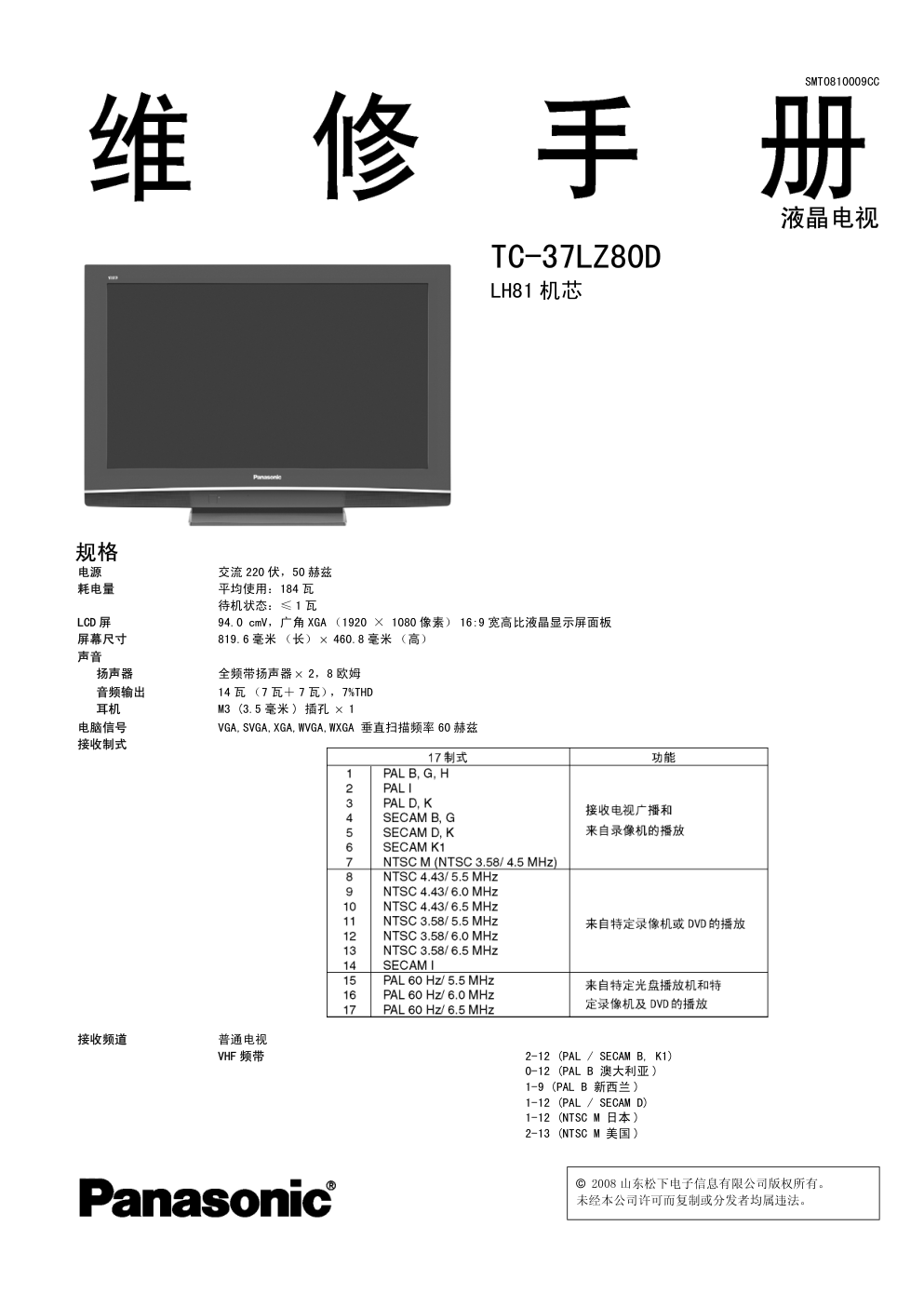

© 2008 山东松下电子信息有限公司版权所有。 未经本公司许可而复制或分发者均属违法。 SMT0810009CC 液晶电视 TC-37LZ80D LH81 机芯 规格 电源 交流 220 伏，50 赫兹 耗电量 平均使用：184 瓦 待机状态：≤ 1 瓦 LCD 屏 94.0 cmV，广角 XGA （1920 × 1080 像素） 16:9 宽高比液晶显示屏面板 屏幕尺寸 819.6 毫米 （长） × 460.8 毫米 （高） 声音 扬声器 全频带扬声器 × 2，8 欧姆 音频输出 14 瓦 （7 瓦＋ 7 瓦），7%THD 耳机 M3 (3.5 毫米 ) 插孔 × 1 电脑信号 VGA,SVGA,XGA,WVGA,WXGA 垂直扫描频率 60 赫兹 接收制式 接收频道 普通电视 VHF 频带 2-12 (PAL / SECAM B, K1) 0-12 (PAL B 澳大利亚 ) 1-9 (PAL B 新西兰 ) 1-12 (PAL / SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) TC-37LZ80D 2 UHF 频带 21-69 (PAL G, H, I / SECAM G, K, K1) 28-69 (PAL B 澳大利亚 ) 13-57 (PAL D, K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) 有线电视 S1-S20 (OSCAR) 1-125 ( 美国有线电视 ) C13-C49 ( 日本 ) S21-S41 (HYPER) Z1-Z37 ( 中国 ) 5A, 9A ( 澳大利亚 ) 后部天线 UHF / VHF 工作条件 温度： 0 ° C - 40 ° C 湿度： 20 % - 80 % 相对湿度 （无结露） 连接端子 视频 / 音频输入 1 视频 (RCA 插针式 × 1) 1.0 V[p-p](75 欧 ) 音频 左 - 右 (RCA 插针式 × 2) 0.5 V[rms] 视频 / 音频输入 2 视频 (RCA 插针式 × 1) 1.0 V[p-p](75 欧 ) 音频 左 - 右 (RCA 插针式 × 2) 0.5 V[rms] Y 1.0 V[p-p]( 包含同步 ) PB/CB，PR/CR ± 0.35 V[p-p] 视频 / 音频输入 3 视频 (RCA 插针式 × 1) 1.0 V[p-p](75 欧 ) S 端子 ( 微型 DIN4 插针 ) Y: 1.0 V[p-p](75 欧 ), C: 0.286 V[p-p](75 欧 ) 音频 左 - 右 (RCA 插针式 × 2) 0.5 V[rms] HDMI1/2 输入 A 型连接器 音频输入 RCA 插针式 ×2 0.5 V[rms] 电脑输入 高密度 D-sub 15 针 R,G,B/ 0.7 V[p-p](75 欧 ) HD,VD/TTL 级 2.0-5.0 V[p-p]( 高阻抗） 视频 / 音频输出 视频 (RCA 插针式 × 1) 1.0 V[p-p](75 欧 ) 音频 左 - 右 (RCA 插针式 × 2) 0.5 V[rms]( 高阻抗） 尺寸 ( 长 × 宽 × 高 ) 包括电视机架 940 毫米 × 295 毫米 × 652 毫米 仅电视机时 940 毫米 × 110 毫米 × 611 毫米 重量 净重 20.0Kg 注意： 设计和规格如有变更，恕不另行通知。所示重量和尺寸为近似值。 TC-37LZ80D 3 目录 页数 页数 1 使用说明书--------------------------------------- 4 2 安全防护----------------------------------------- 5 2.1. 一般准则 ----------------------------------- 5 3 对静电灵敏设备 （ES）的静电放电保护 （ESD）------- 6 4 关于无铅焊接 （PbF）------------------------------ 7 5 可显示的输入信号--------------------------------- 8 6 自检功能----------------------------------------- 9 6.1. 如何进入自检功能 --------------------------- 9 6.2. 屏幕显示 ----------------------------------- 9 7 机芯电路板分布---------------------------------- 10 8 维修拆解---------------------------------------- 11 8.1. 后盖 -------------------------------------- 11 8.2. 底座和壁挂金具 ---------------------------- 11 8.3. A 板、P 板、电源控制支架及侧 AV 支架 -------- 11 8.4. 扬声器和控制面板 -------------------------- 11 8.5. 下金具和机芯金具 -------------------------- 12 8.6. LCD 屏 ------------------------------------ 12 8.7. 导光板 ----------------------------------- 12 9 线处理------------------------------------------ 13 10 维修模式功能------------------------------------ 14 10.1. 如何进入维修模式 1 ------------------------ 14 10.2. 如何进入维修模式 2 ------------------------ 14 10.3. Option 代码设定 --------------------------- 15 11 调整-------------------------------------------- 16 11.1. A 板电压测试点 ---------------------------- 16 11.2. P 板电压测试点 ---------------------------- 16 11.3. DVCO 调整 -------------------------------- 16 12 导体图------------------------------------------ 17 12.1. A 板 （A 面）------------------------------- 17 12.2. A 板 （B 面）--------------------------------18 12.3. P 板 （铜箔面）-----------------------------19 12.4. P 板 （元器件面）---------------------------20 12.5. G 板和 K2 板 --------------------------------21 12.6. SW 板和 V 板 --------------------------------22 13 线路图 ------------------------------------------23 13.1. 线路图注意事项-----------------------------23 13.2. A 板 (1/6) 线路图 -------------------------24 13.3. A 板 (2/6) 线路图 -------------------------25 13.4. A 板 (3/6) 线路图 --------------------------26 13.5. A 板 (4/6) 线路图 --------------------------27 13.6. A 板 (5/6) 线路图 --------------------------28 13.7. A 板 (6/6) 线路图 --------------------------29 13.8. P 板 (1/2) 线路图 --------------------------30 13.9. P 板 (2/2) 线路图 --------------------------31 13.10. G 板线路图 --------------------------------32 13.11. SW 板线路图 -------------------------------33 13.12. K2 板线路图 -------------------------------34 13.13. V 板线路图 --------------------------------35 14 部品位置和机械部品表 ----------------------------36 14.1. 部品位置-----------------------------------36 14.2. 包装分解图---------------------------------37 14.3. 底座分解图---------------------------------38 14.4. 机械部件更换表-----------------------------39 15 更换部件表 --------------------------------------40 15.1. 注意事项-----------------------------------40 15.2. 电子部件更换表-----------------------------41 16 A4 尺寸线路图 ( 供打印使用 ) ----------------------54 TC-37LZ80D 4 1 使用说明书 TC-37LZ80D 5 2 安全防护 2.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行漏电检查，以免用户遭受触电危险。 2.1.1. 漏电冷检查 1. 拔掉 AC 电源线，然后在插头的两个支脚间接上一根跳线。 2. 用欧姆计测量接上跳线的 AC 插头与设备上各外露的金属机架部分 （如螺丝头、连接端等）之间的电阻值。 当外露金属部分与底板形成回路时，读数应该在 1MΩ 和 5.2MΩ 之间。 当外露金属部分与底板没有形成回路时，读数必定为∞。 图 1 2.1.2. 漏电热检查 ( 图 1) 1. 将 AC 电源线直接插入 AC 电源插座。 进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地之间连接一个 1.5kΩ，10W 的电阻，并与 0.15µF 的电容器并联，如图 1 所示。 3. 用一只 1KΩ/V 或灵敏度更高的 AC 电压表测量穿过电阻的电势。 4. 检查各外露金属部件并测量各点的电压。 5. 颠倒 AC 插座中的 AC 插头，并重复上述各项测量。 6. 任何点上的电势都不能超过 0.75V RMS。 必须用漏电测试仪（Simpson229 型或类似型号）来进行热检测。其中漏电绝不能超过 0.5mA。当测量值超出规定的限制时，可能 会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 TC-37LZ80D 6 3 对静电灵敏设备 （ES）的静电放电保护 （ESD） 一些半导体 （固态）装置很容易遭静电损坏。这些组件通常被称 为静电灵敏装置（ES）。典型的 ES 装置有集成电路和一些场效应 晶体管以及半导体 “芯片”组件。以下方法通常被用来减少由于 静电放电 （ESD）所产生的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，通过接触到已知地线及时排除身体上的任何静电放电。 或者戴上市场上出售的抗静电放电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只能使用有接地端的电烙铁来焊接或断开静电灵敏装置。 4. 只采用抗静电焊接装置。一些不属于 “抗静电 （静电放电保护）”范围的焊接装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 在准备立即安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏零部件都是采用铅制包装，通过与导电泡沫、 铝箔或是类似的导体材料一起造成短路）。 7. 在拆掉静电灵敏零部件上的铅制保护性材料之前，立刻将保护性材料与即将安装零部件的机芯或是电路组件相接触。 注意： 确定机芯或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 TC-37LZ80D 7 4 关于无铅焊接 （PbF） 注： 在元素周期表中，铅以 Pb 表示。 本手册中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造中使用并且在下文中讨论的无铅焊接是 （Sn + Ag + Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu）, 不过其它类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的高。通常熔点是超过 50 ～ 70°F （30 ～ 40°C）。 请使用高温烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 在加热过度（约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区的 无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔化之后再进行有铅焊接。 • 在对双电路板进行有铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购，本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 不过也可使用 Sn+Cu( 锡 + 铜 )，Sn+Zn+Bi （锡 + 锌 + 铋）。 TC-37LZ80D 8 5 可显示的输入信号 TC-37LZ80D 9 6 自检功能 所有节目频道，频道描述数据以及其它用户自定义的设定将被擦除返回工厂设定。 6.1. 如何进入自检功能 6.1.1. 进入 要进入自检模式，同时按下遥控器上的 “菜单”键和电视机上的音量 “减”键。 6.1.2. 退出 关机退出。 6.2. 屏幕显示 显示 回路号 描述 电路板 E2 IC1102 存储器 A 板 Tuner TU101 调谐器 A 板 HDMI1 IC5002 HDMI 处理 A 板 HDMI2 IC5001 HDMI 处理 A 板 MAU1 IC4001 图像缩放比例 A 板 MAU2 IC4001 图像缩放比例 A 板 FE1 IC4001 视频解码器 A 板 FE2 IC4001 视频解码器 A 板 MSP IC4001 伴音功效 A 板 TC-37LZ80D 10 7 机芯电路板分布 电路板名称 功能 A 板 主板 （AV 连接器、AV 切换、调谐器、音频 / 视频处理器、MCU、液晶驱动、LVDS） V 板 遥控接收、指示灯、背光自动跟踪系统 G 板 AV3, 耳机插孔 K2 板 电视机侧控制面板 P 板 电源板 SW 板 电源开关 TC-37LZ80D 11 8 维修拆解 8.1. 后盖 1. 放倒主机使后盖朝上。 2. 拆下固定螺丝 （17 个）。 3. 取下后盖。 8.2. 底座和壁挂金具 1. 取下后盖 （见 7.1）。 2. 拆下固定螺丝 （4 个和 4 个）。 3. 取下底座和壁挂金具。 8.3. A 板、P 板、电源控制支架及侧 AV 支架 1. 底座和壁挂金具 （7.2）。 2. 拆下固定螺丝 （1 个），取下电源控制支架。 3. 拆下固定螺丝 （2 个），取下侧 AV 支架。 4. 断开 G 板的 G3，G4。 5. 拆下固定螺丝 （6 个和 6 个），取下 A 板和 P 板。 8.4. 扬声器和控制面板 1. 取下后盖 （7.1）。 2. 从前壳上取下扬声器。 3. 断开连接器 K2~ G3。 4. 取下控制面板。 TC-37LZ80D 12 8.5. 下金具和机芯金具 1. 拆下固定螺丝 （8 个）。 2. 取下下金具和机芯金具。 8.6. LCD 屏 1. 拆下固定螺丝 （7 个和 6 个）。 2. 取下底部金具和侧金具。 3. 取下 LCD 屏。 8.7. 导光板 1. 拆下固定螺丝 (3 个 )。 2. 从前壳上取下导光板。 TC-37LZ80D 13 9 线处理 TC-37LZ80D 14 10 维修模式功能 MPU 通过 IIC 总线控制着机芯中各 IC 的功能切换。以下设定和调整可以用遥控器在维修模式中进行调整。 10.1. 如何进入维修模式 1 1. 设置关机定时器为 15，30，45……。 2. 设置音量为最小，按电视机上功能钮，切换为音量调节，同时按遥控器上的呼出钮和电视机上的音量 " 减 " 钮进入。 10.2. 如何进入维修模式 2 按遥控器上的静音钮和电视机上的音量减钮进入维修模式 2。 注意： 按遥控器上待机钮 （或标准钮），关机退出维修模式。 TC-37LZ80D 15 10.3. Option 代码设定 如果更换了存储 IC 或者 A 板时，Option 代码需重新存入。 Option 号码 TC-37LZ80D OPTION0 E2 OPTION1 06 OPTION2 01 TC-37LZ80D 16 11 调整 11.1. A 板电压测试点 11.2. P 板电压测试点 11.3. DVCO 调整 测定器名 连接 备注 数字万用表 步骤 1. 打开电源开关检查每个测试点的电压在下面的规格之内。 2. 通过遥控器关掉电源 , 打到待机状态 , 检查每个测试点的电压在规格之内。 这时 , 检查 LED 变绿。 这时 , 检查 LED 变红。 测定器名 连接 备注 数字万用表 步骤 1. 打开电源开关检查每个测试点的电压在下面的规格之内。 2. 通过遥控器关掉电源 , 打到待机状态 , 检查每个测试点的电压在规格之内。 TC-37LZ80D 17 12 导体图 12.1. A 板 （A 面） 9 8 7 6 F 5 4 3 2 1 E D C B A A TC-37LZ80D A��TNP4G439AE TC-37LZ80D A��TNP4G439AE A�(A�) TNP4G439AE TC-37LZ80D 18 12.2. A 板 （B 面） 9 8 7 6 F 5 4 3 2 1 E D C B A TC-37LZ80D A��TNP4G439AE TC-37LZ80D A��TNP4G439AE A�(B�) TNP4G439AE � TC-37LZ80D 19 12.3. P 板 （铜箔面） 9 8 7 6 F 5 4 3 2 1 E D C B A TC-37LZ80D P� TNP4G440AB TC-37LZ80D P� TNP4G440AB P�(���) TNP4G440AB P TC-37LZ80D 20 12.4. P 板 （元器件面） 9 8 7 6 F 5 4 3 2 1 E D C B A TC-37LZ80D P� TNP4G440AB TC-37LZ80D P� TNP4G440AB P�(����) TNP4G440AB P TC-37LZ80D 21 12.5. G 板和 K2 板 9 8 7 6 F 5 4 3 2 1 E D C B A TC-37LZ80D G� TNP4G443AB K2� TNP4G442AB G G�(���) TNP4G443AB G�(����) TNP4G443AB K2�(���) TNP4G442AB K2�(����) TNP4G442AB K2 TC-37LZ80D G� TNP4G443AB K2� TNP4G442AB TC-37LZ80D 22 12.6. SW 板和 V 板 9 8 7 6 F 5 4 3 2 1 E D C B A SW�(���) TNP4G445AB SW�(����) TNP4G445AB V�(���) TNP4G444AB V�(����) TNP4G444AB TC-37LZ80D SW� TNP4G445AB V� TNP4G444AB TC-37LZ80D SW� TNP4G445AB V� TNP4G444AB V SW TC-37LZ80D 23 13 线路图 13.1. 线路图注意事项 TC-37LZ80D 24 13.2. A 板 (1/6) 线路图 + G G G G SCL_HDMI1 SDA_HDMI1 SDA_HDMI2 SCL_HDMI2 HDMI2_CLK- HDMI2_CLK+ HDMI2_D0- HDMI2_D0+ HDMI2_D1- HDMI2_D1+ HDMI2_D2- HDMI2_D2+ HDMI1_CLK- HDMI1_CLK+ HDMI1_D0- HDMI1_D0+ HDMI1_D1- HDMI1_D1+ HDMI1_D2- HDMI1_D2+ HDMI1_HPD HDMI2_HPD HDMI_CEC_OUT HDMI_CEC_IN SCL_HDMI11 SDA_HDMI11 SCL_HDMI22 SDA_HDMI22 HDMI1_D2+ HDMI1_D2+ HDMI1_D2- HDMI1_D2- HDMI1_D1+ HDMI1_D1+ HDMI1_D1- HDMI1_D1- HDMI1_D0+ HDMI1_D0+ HDMI1_D0- HDMI1_D0- HDMI1_CLK+ HDMI1_CLK+ HDMI1_CLK- HDMI1_CLK- HDMI2_D2+ HDMI2_D2+ HDMI2_D2- HDMI2_D2- HDMI2_D1+ HDMI2_D1+ HDMI2_D1- HDMI2_D1- HDMI2_D0+ HDMI2_D0+ HDMI2_D0- HDMI2_D0- HDMI2_CLK+ HDMI2_CLK+ HDMI2_CLK- HDMI2_CLK- SCL_HDMI11 SDA_HDMI11 SDA_HDMI22 SCL_HDMI22 EDID_WR C5004 16V 0.1u C5061 10V 0.1u C5059 16V 0.1u C5055 16V 0.1u C5003 16V 0.1u C5058 16V 0.1u C5054 50V 220p C5056 16V 0.1u C5057 16V 0.1u C5060 10V 0.1u *C1828 47u 16V D5023 MA2J72800L D5004 MA22D3900L D5005 MA22D3900L D5003 MA22D3900L D5002 MA22D3900L FL5001 F1J1A1050020 FL5002 F1J1A1050020 IC5004 C3EBDC000067 M24C02-WMN6TP 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC5003 C3EBDC000067 M24C02-WMN6TP 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C1ZBZ0003846 IC5001 1 5V_SUPPLY 2 3.3V_SUPPLY 3 GND 4 TMDS_D2+ 5 TMDS_GND 6 NC 7 TMDS_D1+ 8 TMDS_GND 9 NC 10 TMDS_D0+ 11 TMDS_GND 12 NC 13 TMDS_CLK+ 14 TMDS_GND 15 NC 16 CEC_IN 17 DDC_CLK_IN 18 DDC_DAT_IN 19 HOTPLUG_DET_IN 20 HOTPLUG_DET_OUT 21 DDC_DAT_OUT 22 DDC_CLK_OUT 23 CEC_OUT 24 TMDS_CLK- 25 TMDS_GND 26 NC 27 TMDS_D0- 28 TMDS_GND 29 NC 30 TMDS_D1- 31 TMDS_GND 32 NC 33 TMDS_D2- 34 TMDS_GND 35 NC 36 GND 37 TMDS_BIAS 38 NC C1ZBZ0003846 IC5002 1 5V_SUPPLY 2 3.3V_SUPPLY 3 GND 4 TMDS_D2+ 5 TMDS_GND 6 NC 7 TMDS_D1+ 8 TMDS_GND 9 NC 10 TMDS_D0+ 11 TMDS_GND 12 NC 13 TMDS_CLK+ 14 TMDS_GND 15 NC 16 CEC_IN 17 DDC_CLK_IN 18 DDC_DAT_IN 19 HOTPLUG_DET_IN 20 HOTPLUG_DET_OUT 21 DDC_DAT_OUT 22 DDC_CLK_OUT 23 CEC_OUT 24 TMDS_CLK- 25 TMDS_GND 26 NC 27 TMDS_D0- 28 TMDS_GND 29 NC 30 TMDS_D1- 31 TMDS_GND 32 NC 33 TMDS_D2- 34 TMDS_GND 35 NC 36 GND 37 TMDS_BIAS 38 NC JK5001 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 JK5002 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 *L1805 J0JHC0000078 C C C C C C C C C C C C C C C C C C C C PP C C C C C C C C C C MAIN3.3V STBY3.3V MAIN5V MAIN5V MAIN3.3V MAIN3.3V CEC_3.8V 24V MAIN5V STBY6V SOUND15V BT30V MAIN5V MAIN3.3V MAIN8V ZA4007 TESA169 ZA4004 TESA169 ZA4003 TESA169 ZA4005 TESA169 ZA4002 TESA169 ZA4006 TESA169 TP5004 TP1816 TP5003 TP1822 TP1820 TP1826 TP5011 TP5008 TP5010 TP5009 TP5002 TP1813 TP5001 Q5019 2SC584500L Q5020 2SC584500L Q5004 2SC584500L Q5021 2SC584500L Q5003 2SC584500L R5097 47k *R5100 2.2M R5124 47k *R5095 220k R5121 47k R5007 22 R5003 1k R5027 10k R5129 47k R5126 100k *R5092 0 R5128 0 R5023 0 *R5009 4.7k 1/10W 1.6 x 0.8 R5099 4.7k R5120 47k R5028 22 R5024 270k R5026 0 *R5093 27k ERJ3EKF2702V R5125 47k R5102 22k R5094 220 R5098 100k R5134 47k R5004 1k R5006 22 R5029 22 *R5010 4.7k 1/10W 1.6 x 0.8 R5096 100k R5122 100k R5005 10k *A11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 24V GND SOUND_15V BT_30V STBY_6V GND GND MAIN_8V STBY_6V SOUND_GND GND SOUND_GND SOUND_15V GND KM MODEL D2G D1G D0G SCL D2+ CLK+ +5V CEC N.C. CLK- D0- D1- SDA DDCG HPDT D1+ CLKG D2- D0+ D2G SCL D0G CEC D0+ CLK- CLK+ D2+ D0- +5V HPDT DDCG D1+ D2- N.C. D1G CLKG D1- SDA HDMI2 HDMI1 C TP3828 TP3829 *Q3827 B1CHRE000003 TPC8116-H(TE12L,Q,M *Q3832 2SD0601A0L *R3925 10k *R3933 4.7k *R3930 10k *R3926 10k *JSA1845 0 MAIN8V *JSA1847 0 6V_SW STBY6V *R1889 2.2 5.6V_SW 1 2 3 4 5 6 7 8 9 A B C D E F 1 2 5 3 4 TC-37LZ80D A�(1/6)��� TC-37LZ80D A�(1/6)��� ! A� TNP4G439AE TC-37LZ80D (1/6) TC-37LZ80D 25 13.3. A 板 (2/6) 线路图 9 10 11 12 13 14 15 16 17 A B C D E F 12 16 17 13 14 15 + + + + + + + + + + + Thermal Pad Thermal Pad POL_PANEL_ON 10.0V AV_LINK_OUT/SUB_ON SIF AFT TUNER_CVBS AV1_IS_QLINK/24V_ON SW1 SW2 KEYSCAN MAIN_ON2 AV3_L AV3_C HP_L HP_R SDA1 SCL1 PROTECTION HP_SENSE MAIN_ON AV3_Y AV3_CVBS AV3_R C1866 10V 1u *C1842 6.3V 1u C3905 16V 0.1u C1889 0.01u 50V C1883 4700p 50V C1893 0.1u 50V C1921 10V 1u *C3874 16V 0.1u *C1934 0.01u 50V *C1800 0.1u 50V C1876 10u 25V C1872 50V 0.01u C1874 10V 1u *C1890 2200p 50V *C1931 1u 10V C1868 10V 1u *C1831 10V 0.1u C3863 1u 10V *C1918 22u 6.3V *C1898 10u C1914 270p 50V C1905 10V 1u *C1887 0.1u 50V C1886 0.1u 50V *C1932 10u 25V C1912 0.01u 50V *C1825 0.047u 50V C1879 10V 1u C3870 0.1u 50V *C4120 50V 100p C1910 0.047u 50V *C1870 16V 0.1u C1884 100p 50V C1880 0.01u 50V *C1897 10u 25V C3903 0.1u 16V *C1915 2200p 50V *C1873 5600p 50V 1.6X0.8 C1903 10u 25V *C1925 5600p 50V *C4121 50V 100p *C1917 22u 6.3V C3889 0.01u 50V *C1850 10V 0.1u C1923 10V 1u *C1908 22u 6.3V C1971 10V 0.1u C1924 10u 25V C1865 10V 1u C1867 10V 1u C1907 10V 1u C1882 0.01u 50V C1920 4V 220u *C1881 330u 35V *C1852 47u 16V C1875 10V 220u EEEHB1A221P *C1869 47u 16V C1885 16V 470u C1904 4V 220u *C1844 47u 6.3V *C1911 330u 35V C3902 6.3V 100u C1888 16V 330u D1817 B0ACCK000012 *D1815 B0ACCK000012 D1881 B0JCME000037 D1911 MA24D5000B D1813 B0ACCK000012 B0JCPG000005 D1882 *D1828 B0ACCK000012 *D1829 B0ACCK000012 D2100 MA22D3900L D1825 B0ACCK000012 D2101 MA22D3900L MA24D5000B *D1885 D1819 B0ACCK000012 *D1812 MAZ81600HL *D1814 MAZ80620LL D1824 MAZ82700ML D1818 MAZ80820ML D1816 MAZ81300ML C0CBCYE00001 *IC1804 1 Vadj 2 GND 3 Vc 5 Vo 4 Vin IC1808 C0DBAZG00048 1 VOUT 2 VIN 3 Oadj 4 ON/OFF 5 COMP 6 GND 7 GND 8 VB C0DBEYG00002 IC1811 1 Vin 2 Vc 4 Vadj 5 GND 3 Vo C0DBEGE00002 *IC1812 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND C0DBEGE00002 IC1807 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND IC1810 C0DBEYY00084 1 BS 2 IN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS L3802 J0JCC0000241 *L4018 J0JCC0000241 *L1806 J0JHC0000078 L1920 J0JHC0000075 *L4017 J0JCC0000241 L3800 J0JHC0000078 L1894 J0JHC0000075 L1811 J0JHC0000075 L1813 J0JKC0000007 L3803 J0JCC0000241 L1816 J0JKC0000007 L2103 ELJFC2R2KFB L2102 ELJFC2R2KFB *L1830 10u G1C100MA0077 L2101 ELJFC2R2KFB L1812 G1C100MA0077 10u L1815 10u L2100 ELJFC2R2KFB L1910 6.8u C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C MAIN1V MAIN8V STBY3.3V STBY1V MAIN8V MAIN5V MAIN5V MAIN1.8V MAIN3.3V STBY3.3V MAIN5V STBY3.3V MAIN1.25V MAIN8V 24V MAIN5V MAIN8V MAIN1.8V SOUND15V BT30V STBY3.3V MAIN5V CORE1V MAIN5V MAIN2.5V PANEL12V STBY3.3V PANEL12V TP1840 TP1824 TP3800 TP3802 TP1831 TP3826 TP1823 TP1815 TP1842 TP1844 TP3801 TP1839 TP1835 TP1845 TP1837 TP3823 TP1841 TP1832 TP1807 TP1838 TP1833 TP1846 TP1834 Q2033 B1MBACA00008 G1 D1 S1 G2 D2 S2 *Q1807 B1DEED000002 Q3807 2SC584500L *Q1813 2SD0601A0L Q1806 2SC584500L *Q3806 2SC584500L Q1932 2SD0601A0L Q1803 2SC584500L *Q4020 2SC584500L *Q1812 2SD0601A0L *Q4021 2SC584500L Q1804 2SA207700L *Q3801 2SA207700L Q1805 2SA207700L *JSA1837 0 *JSA1921 0 *JSA1801 *JSA1922 0 *JSA1839 0 JSA1829 0 *JSA1836 0 *R1853 56k *R1847 10k 1/10W 2.0 x 1.25 R3800 100 *R1921 20k *R1856 0 *R1934 10k *R3912 3.3k *R1913 13k 1% *R1855 10k *R1914 10k *R1825 47k R2110 6.8k 1% *R1820 15.4k *R1864 10k *R1936 20k 1/10W *R1843 10k R2108 100k R2104 100k *R3916 470 1% R1860 1k *R4016 10k *R1910 56k *R3900 560 R1827 4.7k *R4021 10k 1% *R1841 18k R2107 12k *R1950 220 *R1949 120 *R1826 10k R1829 4.7k *R3870 0 *R4017 10k *R4022 47k 1% *R1819 26.1k R2106 6.8k R2103 12k *R1912 51k *R4020 10k 1% *R1840 6.8k *R4037 0 *R1851 1.2k *R1849 9.76k *R3882 1k *R4055 100k *R1832 1k *R4054 0 R1823 47k R1830 4.7k 1% *R1922 30k *R4019 47k R2105 100 *R1848 71.5k *R1824 1.5k *R1863 10k *R1911 1.2k *R1842 1M *R3911 10k *R1802 0 R1831 1k *R1862 0 2.0 x 1.25 *R3914 3.3k R2109 100 1% R1859 634 *R3915 1.2k R3873 0 *R3879 220 R1828 4.7k *R1923 160 1/10W *R1935 47k *R3902 0 *TU101 ENG39E04GRF NC 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC_MONITOR 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 *R1850 20k 1/10W *A12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 *A7 K1KA15AA0194 B15B-PH-K-S(LF)(SN) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 *R1953 0 *L1834 2.2u *IC1809 C0DBAYY00428 1 SS 2 BST 3 VIN 4 SW 5 GND 6 FB 7 COMP 8 EN TP4060 TP3832 *R1877 5.6k 1/16W MAIN1.8V *D1886 MAZ802400L *R1878 1.5k 1/16W *R1879 10k 1/16W *C1820 10u 6.3V *C1819 1u 10V *R1880 0 C MAIN5V *JSA1843 0 6V_SW *JSA1853 *JSA1854 *JSA1855 0 *R1885 0 MAIN2.5V_PR TP4062 TP4058 TP4056 TP1847 TP1848 *JSA1920 0 PROTECT < < < < < AV3_S_DET MAIN_5V RESERVE PANEL_ON GND GND PANEL_5V/12V GND PANEL_5V/12V GND 24V_ON TO G2 GND GND SUB_ON MAIN_ON GND GND STBY_3.3V GND MAIN 1.00-1.05V STDBY Vadj 340mA(VCTP) 1.06-1.10V 500mA MAIN CORE 3.13-3.47V 2.5V 3.3V(KM) 1V 300mA 1A STBY3.3V(CZ) 2.37-2.63V 1V MAIN5V(KM) MAIN 1.7-1.9V 1.8V 250mA HP_R KEYSCAN HP_L AV3_C AV3_Y AV3_CVBS AV3_L AV3_R CZ MODEL KM MODEL KM MODEL OVERVOLTAGE PROTECTION (LED FLASHES) TUNER5V MAIN8V GND GND GND GND GND GND MAIN 1V MAIN 3.13-3.47V 3.3V(CZ) 300mA 415mA MAIN 1.225-1.275V 1.25V PAVCCZ PAVCKM 430mA(DDR) 80mA(IC4004) LH81-099 25V 1 2 5 3 4 6 7 11 8 9 10 TC-37LZ80D A�(2/6)��� TC-37LZ80D A�(2/6)��� ! A� TNP4G439AE TC-37LZ80D (2/6) TC-37LZ80D 26 13.4. A 板 (3/6) 线路图 + + R L V Y PR PB L V R L V R DV1_L DV1_R SCL1 SDA1 Y PB PR AV2_R AV2_L AV1_L PC_RED_IN PC_GREEN_IN PC_BLUE_IN AV3_C R1_OUT RESETQ BUS_RQS AV1_R AV1_CVBS TUNER_CVBS AV2_CVBS AV3_CVBS AV3_Y G_LED_ON R_LED_ON SIF PC_HP PC_VP L2_OUT R2_OUT AI INV_SOS INV_ON KID_PWM AV1_SLOW AV2_SLOW/Y_DET MON_V AV1_CVBS AV2_CVBS AV_LINK_OUT/SUB_ON AV_LINK_OUT/SUB_ON CVBS_OUT1 PC_HP PC_VP CVBS_OUT1 CVBS_OUT2 AV2_FBL AV1_FBL AV1_L AV1_R AV2_L AV2_R AV3_L AV3_R DV1_L DV1_R L1_OUT L2_OUT R2_OUT HP_L_OUT HP_R_OUT SP_L_OUT SP_R_OUT PR PC_RED_IN PC_GREEN_IN Y PB PC_BLUE_IN A_MON_DEF A_MON_DEF RGB_SWITCH/AV3_DET MUTE_SIGNAL REMOTE RESET_VDD C4008 16V 0.1u C4015 16V 0.1u C4064 16V 4.7u C4151 0.1u 16V C3065 16V 0.1u C4020 16V 0.1u C1834 16V 0.47u C3072 1000p 50V 1.6X0.8 C4074 6.3V 10u *C3058 1u 16V C1181 50V 1000p C1185 50V 1000p C1835 16V 0.056u C4006 16V 0.1u C4075 6.3V 10u C4018 16V 0.1u C1836 16V 0.1u C4150 0.1u 16V C1186 50V 1000p *C3056 1u 16V C1951 0.1u 50V C4076 6.3V 10u *C4119 50V 56p C4077 6.3V 10u *C3067 6.3V 10u *C4117 50V 22p C4017 16V 0.1u C4082 50V 56p C1839 50V 0.01u C1183 50V 0.1u C4004 16V 0.1u C4152 0.1u 16V *C3077 10V 1u C4005 16V 0.1u C4016 16V 0.1u C4081 6.3V 10u C4078 6.3V 10u *C1182 50V 1000p C3071 1000p 50V 1.6X0.8 C4014 16V 0.1u C4083 50V 56p C4079 6.3V 10u C4021 16V 0.1u C4080 6.3V 10u C1952 0.1u 50V *C1954 100u 6.3V *C3064 6.3V 330u D3250 B0ACCK000005 D3247 B0ACCK000005 D3249 B0ACCK000005 D3248 B0ACCK000005 D1109 MAZ80620ML *D3002 MAZ81400ML *D3031 MAZ81400ML *D3024 MAZ81400ML *D3018 MAZ81400ML *D3009 MAZ81400ML *D3007 MAZ81400ML *D3001 MAZ81400ML *D3014 MAZ81400ML *D3016 MAZ81400ML *D3023 MAZ81400ML *D3025 MAZ81400ML *D3017 MAZ81400ML *D3021 MAZ81400ML *D3026 MAZ81400ML *D3033 MAZ81400ML *D3008 MAZ81400ML *D3022 MAZ81400ML *D3032 MAZ81400ML D1110 MAZ80620ML *D3013 MAZ81400ML *D3028 MAZ81400ML *D3015 MAZ81400ML *D3003 MAZ81400ML *D3027 MAZ81400ML *IC4001 E26 SIF_INP *IC4001 K24 VIN16 *IC4001 L25 VIN13 *IC4001 E18 HEAD_OUTR *IC4001 E24 LINE_OUT2R *IC4001 J23 VIN19 *IC4001 T25 VIN7 *IC4001 U22 VIN6 *IC4001 K26 VIN15 *IC4001 A20 LINE_IN1R *IC4001 D16 MAIN_OUTR *IC4001 K22 VIN17 *IC4001 B24 LINE_IN5L *IC4001 H22 VIN22 *IC4001 E16 MAIN_OUTL *IC4001 C21 VREFAU *IC4001 D20 LINE_IN2R *IC4001 V25 VIN1 *IC4001 E17 MAIN_OUT_SUB *IC4001 U26 VIN3 *IC4001 M22 AGND5678 *IC4001 AE6 SPDIF_OUT *IC4001 W24 VOUT2 *IC4001 V23 VIN2 *IC4001 D24 LINE_OUT2L *IC4001 B26 LINE_OUT1L *IC4001 R24 VIN9 *IC4001 J25 VIN18 *IC4001 H24 VIN21 *IC4001 A24 LINE_IN5R *IC4001 W26 VOUT1 *IC4001 E22 LINE_IN4R *IC4001 B22 LINE_IN3L *IC4001 H26 VIN20 *IC4001 E20 LINE_IN2L *IC4001 R22 AGND1234 *IC4001 M26 VIN11 *IC4001 D22 LINE_IN4L *IC4001 R26 VIN8 *IC4001 D18 HEAD_OUTL *IC4001 B20 LINE_IN1L *IC4001 A22 LINE_IN3R *IC4001 W22 VOUT3 *IC4001 F26 SIF_INM *IC4001 C23 SGNDAU *IC4001 M24 VIN12 *IC4001 A26 LINE_OUT1R *IC4001 U24 VIN5 C0EBF0000354 *IC1803 4 OUT 3 CD 1 VSS 2 VDD JK3003 K4AK04A00001 L L-G R R-G *JK3007 K4AK06A00002 V V-G L L-G R R-G JK3001 K4AK07A00002 Y-SW Y Y-G PB PB-G PR PR-G *A19 K1FB115A0025 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 A9 K1KA08AA0714 1 2 3 4 5 6 7 8 L1188 J0JHC0000078 L1189 J0JHC0000078 L1186 J0JHC0000078 L1187 J0JHC0000078 L1185 J0JHC0000078 *L4016 ELJFA6R8KFB C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C STBY3.3V MAIN3.3V STBY3.3V MAIN3.3V MAIN8V MAIN3.3V STBY3.3V MAIN8V PANEL12V TP3001 TP1074 TP1181 TP1079 TP1182 TP1078 TP1177 TP1180 TP4061 TP1179 Q3062 2SC584500L Q3066 2SC584500L *Q3001 2SC584500L Q3003 2SC584500L Q3064 2SC584500L Q3067 2SC584500L Q3002 2SA207700L Q3072 2SA207700L *Q3007 2SA207700L Q3063 2SA207700L Q3073 2SA207700L Q3065 2SA207700L 1% R3010 75 *R3107 1.3k *R3022 330 *R4118 470 *R1952 11k R4210 22 *R3040 270k R4061 22 R3129 1k R4050 100 R4197 100 R4047 100 R4048 100 *R4130 20k R3118 1k *R1812 33k R3039 1M R3120 1k *R3041 47k R3242 75 R3001 180k R3006 180k R3116 330 R1861 0 *R3026 47k *R3249 4.7k 2.0 x 1.25 *R3029 100k R3130 1k *R3065 0 *R4128 20k R3112 1k R1813 4.7k R3034 100k R3245 22 R4195 100 *R3023 470 *R4125 20k R1176 100 R3002 180k R3007 180k R3119 100 *R3139 1.3k R3111 6.8k R3241 75 *R4131 20k R3108 6.8k R4009 36 *R4129 20k R3138 750 R3043 100k R4010 36 R3117 100 *R3028 0 *R3020 430 1% R3014 75 *R4132 20k R3097 18k R3137 18k R1177 100 *R3017 0 1% R3013 75 R3246 1k *R3021 430 *R3042 1k R3115 330 1% R3015 75 R3011 180k R3244 22 R3243 22 *R4126 20k *R1951 30k 1% R4187 100 R3012 180k R4186 100 *R3248 4.7k 1% R3005 75 *R3024 270 R3113 750 *R3064 0 R4049 100 1% *R3019 75 *R4127 20k R3110 1k R3240 75 R1183 100k *R3027 30k R3247 1k *A8A K1KA08BA0055 S8B-EH(LF)(SN) 1 2 3 4 5 6 7 8 A16 K1KA04AA0190 1 2 3 4 TP1080 *R2324 0 1.6 x 0.8 *R2325 0 1.6 x 0.8 *R1884 10k STBY6V TP4057 *JK3005A K4AK04A00002 V L R G *JK3004A K4AK04A00002 V L R G < < < RESET N.C. SDA1 MAIN3.3V TO V PRINT SCL1 FOR FACTORY ADJUSTMENT SRQ GND STBY3.3V 3.2V +/-2% MONITOR OUT ASIA AV1 AUDIO MONITOR OUT AV2 ASIA COMPONEMT AUDIO IN HDMI PC COMPONENT (CZ only) PC INPUT KM MODEL ANALOG DIMMING INV_ON (Normal:5V) KIDO_PWM INV_SOS (Normal :0v) KM MODEL CZ MODEL KM MODEL CZ MODEL ASIA AUDIO1 ANALOG VIDEO STBY3.3V R_LED_ON GND G_LED_ON REMOTE AI_SENSOR 17 18 19 20 21 22 23 24 25 A B C D E F 12 16 17 13 14 15 6 7 11 8 9 10 23 25 26 24 18 19 21 20 22 TC-37LZ80D A�(3/6)��� TC-37LZ80D A�(3/6)��� ! A� TNP4G439AE TC-37LZ80D (3/6) TC-37LZ80D 27 13.5. A 板 (4/6) 线路图 G G G G G G G G G G TX2N_A TX2P_A TCLKN_A TCLKP_A TX3N_A TX3P_A TX1N_B TX0N_B TCLKN_B TX0P_B TCLKP_B TX0N_A TX1P_B TX3P_B TX0P_A TX2N_B TX1N_A TX2P_B TX1P_A TX3N_B TX4P_A TX4N_A TX4P_B TX4N_B LVDSA_0P TX0P_A TX0N_A LVDSA_0N LVDSA_1P LVDSA_1N TX1P_A TX1N_A LVDSA_2N LVDSA_2P TX2N_A TX2P_A TCLKP_A TCLKN_A LVDSA_CLKN LVDSA_CLKP TX3N_A TX3P_A LVDSA_3N LVDSA_3P LVDSA_4P LVDSA_4N TX4N_A TX4P_A TX0N_B TX0P_B TX1N_B TX1P_B TX2N_B TX2P_B TCLKN_B TCLKP_B TX3N_B TX3P_B LVDSB_0N LVDSB_0P LVDSB_1N LVDSB_1P LVDSB_2N LVDSB_2P LVDSB_CLKN LVDSB_CLKP LVDSB_3N LVDSB_3P LVDSB_4N LVDSB_4P TX4N_B TX4P_B HDMI1_D0- HDMI1_D0+ HDMI1_D1- HDMI1_D1+ HDMI1_D2- HDMI1_D2+ HDMI1_CLK- HDMI1_CLK+ HDMI2_D0- HDMI2_D0+ HDMI2_D1- HDMI2_D1+ HDMI2_D2- HDMI2_D2+ HDMI2_CLK- HDMI2_CLK+ LVDSB_1N LVDSB_1P LVDSB_2N LVDSB_2P LVDSB_CLKN LVDSB_CLKP LVDSB_3N LVDSB_3P LVDSB_4N LVDSB_4P LVDSA_0N LVDSA_0P LVDSA_1N LVDSA_1P LVDSA_2N LVDSA_2P LVDSA_CLKN LVDSA_CLKP LVDSA_3N LVDSA_3P LVDSA_4N LVDSA_4P LVDSB_0N LVDSB_0P AV2_SLOW/Y_DET KEYSCAN AI AI REMOTE AFT A_MUTE A_MON_DEF SWITCH_HOLD_ON G_LED_ON SCL_HDMI1 SDA_HDMI1 HDMI1_HPD SCL_HDMI2 SDA_HDMI2 HDMI2_HPD SCL1 SDA1 EDID_WR KID_PWM VSENSE RGB_SWITCH/AV3_DET AV1_IS_QLINK/24V_ON AV1_IS_QLINK/24V_ON HDMI_CEC_OUT SW1 SW2 BUS_RQS PANEL_OFF PANEL_OFF HDMI_CEC_IN MAIN_ON1 MAIN_ON MAIN_ON JTAG_TMS JTAG_TDO JTAG_TCK R_LED_ON JTAG_TDI EEP_WE PROTECTION INV_OFF RESETQ INV_ON AV_LINK_OUT/SUB_ON C4054 16V 0.1u ECJ1VB1C104K C4098 16V 0.1u ECJ1VB1C104K C4047 16V 0.1u ECJ1VB1C104K C4090 6.3V 1u ECJ1VB0J105K C4093 16V 0.1u ECJ1VB1C104K C4039 6.3V 10u C4106 16V 0.1u ECJ1VB1C104K C4048 6.3V 10u C4049 16V 0.1u ECJ1VB1C104K C4036 6.3V 10u C4041 6.3V 10u C4101 16V 0.1u ECJ1VB1C104K C4057 6.3V 10u *C4072 50V 33p C4046 16V 0.1u ECJ1VB1C104K *C4108 16V 0.1u ECJ1VB1C104K C4100 6.3V 1u ECJ1VB0J105K C4107 6.3V 10u C4102 16V 0.1u ECJ1VB1C104K C4061 6.3V 10u C4032 16V 0.1u ECJ1VB1C104K C4029 16V 0.1u ECJ1VB1C104K C4053 6.3V 10u C4033 6.3V 10u C4094 6.3V 10u C4034 6.3V 1u ECJ1VB0J105K C4092 6.3V 10u C4059 6.3V 10u C4122 16V 0.1u C4058 16V 0.1u ECJ1VB1C104K C4043 6.3V 1u ECJ1VB0J105K C4056 16V 0.1u ECJ1VB1C104K C4104 16V 0.1u ECJ1VB1C104K *C4071 50V 33p C4051 16V 0.1u ECJ1VB1C104K C4031 6.3V 10u C4062 6.3V 1u ECJ1VB0J105K C4091 16V 0.1u ECJ1VB1C104K C4103 6.3V 10u C4097 6.3V 1u ECJ1VB0J105K C4035 16V 0.1u ECJ1VB1C104K C4055 6.3V 10u C4063 16V 0.1u ECJ1VB1C104K C4037 6.3V 1u ECJ1VB0J105K C4050 6.3V 10u C4095 16V 0.1u ECJ1VB1C104K C4099 6.3V 10u C4096 6.3V 10u C4060 16V 0.1u ECJ1VB1C104K C4052 16V 0.1u ECJ1VB1C104K C4105 6.3V 10u C4038 16V 0.1u ECJ1VB1C104K C4040 16V 0.1u ECJ1VB1C104K *D4120 B0ACCK000012 FL4007 EXC24CE900U 1 2 3 4 FL4001 EXC24CE900U 1 2 3 4 FL4002 EXC24CE900U 1 2 3 4 FL4010 EXC24CE900U 1 2 3 4 FL4011 EXC24CE900U 1 2 3 4 FL4008 EXC24CE900U 1 2 3 4 FL4009 EXC24CE900U 1 2 3 4 FL4000 EXC24CE900U 1 2 3 4 FL4003 EXC24CE900U 1 2 3 4 FL4006 EXC24CE900U 1 2 3 4 FL4005 EXC24CE900U 1 2 3 4 FL4004 EXC24CE900U 1 2 3 4 *IC4001 C5ZBZ0000074 A1 VSS *IC4001 G22 VSS33_ADC5678 *IC4001 B4 VIPA_6 *IC4001 R12 VSS *IC4001 W25 VSS33_ADC1234 *IC4001 AF17 VOPA_2 *IC4001 K23 VSS33_ADC5678 *IC4001 B17 HDMI1_RX0N *IC4001 C24 VSS *IC4001 U15 VSS10_PLL1 *IC4001 AA4 I2S_IN2_WS *IC4001 T18 VSS12_ADC1234 *IC4001 C18 VSS_HDMI1 *IC4001 J16 VSS33_AAU *IC4001 R10 VDD33_GPIO2 *IC4001 U14 VDD25_VOPA1 *IC4001 Y5 GPIO2_7 *IC4001 R18 VSS12_ADC1234 *IC4001 U13 VDD33_FLASH *IC4001 AD9 VSS *IC4001 V19 SEAL *IC4001 H16 VDD33_AAU *IC4001 AB16 VSS *IC4001 AF16 VOPA_4 *IC4001 E6 VIPA_1 *IC4001 V10 VDD25_PIF *IC4001 AD20 SCL *IC4001 AB5 I2S_IN2_DAT *IC4001 G23 VSS33_ADC5678 *IC4001 AD21 GPIO4_1 *IC4001 AD17 VSS *IC4001 L4 VIPA_23 *IC4001 P18 VSS12_ADC1234 *IC4001 D11 OSD_4 *IC4001 T11 VSS *IC4001 N16 VSS *IC4001 G24 VSS33_ADC5678 *IC4001 C7 GPIO3_2 *IC4001 AE16 VOPA_5 *IC4001 AC24 VSS *IC4001 AF26 VSS *IC4001 K4 VIPA_22 *IC4001 A14 HDMI1_TEST *IC4001 AD13 VSS *IC4001 M4 VIPAX_27 *IC4001 T17 VDD12_ADC1234 *IC4001 L24 VSS33_ADC5678 *IC4001 P14 VSS *IC4001 V13 VDD25_VOPA1 *IC4001 AF20 XTALIN *IC4001 H5 VIPA_12 *IC4001 AB26 GPIO1_0 *IC4001 B9 HDMI2_RX1N *IC4001 C9 VSS_HDMI2 *IC4001 J22 VSS33_ADC5678 *IC4001 J4 VIPA_21 *IC4001 C5 VIPA_5 *IC4001 R17 VDD12_ADC1234 *IC4001 D5 VIPA_16 *IC4001 V22 VSS33_ADC1234 *IC4001 N10 VDD33_VIPAX *IC4001 AB6 I2S_IN1_DAT *IC4001 T16 VSS *IC4001 D14 OSD_17 *IC4001 E5 VIPA_17 *IC4001 Y22 VSS33_ADC1234 *IC4001 T19 VSS12_ADC1234 *IC4001 C22 VSS *IC4001 AC20 GPIO4_2 *IC4001 R4 VIPAX_30 *IC4001 F25 VSS *IC4001 AB20 VSS *IC4001 P9 VDD_DRAM *IC4001 W17 VDD10_STDBY *IC4001 H4 VIPA_25 *IC4001 D12 OSD_0 *IC4001 J8 VDD_DRAM *IC4001 T22 VSS33_ADC1234 *IC4001 AD14 VSS *IC4001 A11 HDMI2_RXCP *IC4001 L17 VDD12_ADC5678 *IC4001 D9 VSS_HDMI2 *IC4001 D17 VSS_HDMI1 *IC4001 H19 SEAL *IC4001 A21 VSS *IC4001 AC13 VOPA_25 *IC4001 D23 VSS *IC4001 C10 VSS *IC4001 P24 VSS33_ADC1234 *IC4001 AB22 GPIO1_5 *IC4001 W19 SEAL *IC4001 D19 VSS *IC4001 AF25 VSS *IC4001 P19 VSS12_ADC1234 *IC4001 W4 GPIO2_3 *IC4001 U18 VSS *IC4001 AD7 PIF_3 *IC4001 J18 VDD12_SIFADC *IC4001 AE12 VOPA_13 *IC4001 C14 OSD_2 *IC4001 D26 VSS *IC4001 R13 VSS *IC4001 Y26 VSS33_ADC1234 *IC4001 T14 VSS *IC4001 AB14 VOPA_26 *IC4001 M16 VSS *IC4001 W5 GPIO2_0 *IC4001 E23 VSS *IC4001 E7 GPIO3_4 *IC4001 AF10 VOPA_16 *IC4001 AF22 VSS *IC4001 U10 VDD25_PIF *IC4001 AC5 I2S_IN1_CLK *IC4001 AC26 VSS *IC4001 L5 VIPA_24 *IC4001 AF21 XTALOUT *IC4001 R19 VSS12_ADC1234 *IC4001 N24 VSS33_ADC5678 *IC4001 M18 VSS12_ADC5678 *IC4001 L19 VSS12_ADC5678 *IC4001 AE26 VSS *IC4001 AD11 VSS *IC4001 AF19 VSS *IC4001 B19 VSS *IC4001 AC17 VSS *IC4001 AC7 PIF_4 *IC4001 R9 VSS *IC4001 M9 VDD_DRAM *IC4001 AB4 I2S_IN2_CLK *IC4001 AB8 PIF_2 *IC4001 T4 VIPAX_33 *IC4001 AE5 I2S_OUT_CLK *IC4001 D21 VSS *IC4001 A25 VSS *IC4001 U4 GPIO2_6 *IC4001 F24 VSS *IC4001 M12 VSS *IC4001 W10 VSS25_PLL3 *IC4001 B11 HDMI2_RXCN *IC4001 AC12 VSS *IC4001 E4 VIPA_19 *IC4001 AC10 PIF_10 *IC4001 H13 VSS *IC4001 V12 VSS10_PLL2 *IC4001 V5 GPIO2_2 *IC4001 AB15 VOPA_28 *IC4001 AA26 VSS *IC4001 E1 VSS *IC4001 AB9 PIF_9 *IC4001 J13 VDD25_OSD *IC4001 U25 VSS33_ADC1234 *IC4001 D10 VSS_HDMI2 *IC4001 R25 VSS33_ADC1234 *IC4001 G25 VSS33_ADC5678 *IC4001 M25 VSS33_ADC5678 *IC4001 AE7 VOPA_23 *IC4001 P25 VSS33_ADC1234 *IC4001 AB11 PIF_1 *IC4001 B23 VSS *IC4001 E9 GPIO3_5 *IC4001 AD22 GPIO4_0 *IC4001 R16 VSS *IC4001 K12 VSS *IC4001 L12 VSS *IC4001 AB12 VSS *IC4001 N14 VSS *IC4001 AC11 PIF_7 *IC4001 W23 VSS33_ADC1234 *IC4001 E10 VSS_HDMI2 *IC4001 B7 GPIO3_1 *IC4001 N15 VSS *IC4001 T15 VSS33_XTAL *IC4001 C20 VSS *IC4001 AE8 VOPA_21 *IC4001 C26 VSS *IC4001 C15 VSS *IC4001 L11 VSS *IC4001 A17 HDMI1_RX0P *IC4001 N22 VSS33_ADC5678 *IC4001 P16 VSS *IC4001 AE19 VSS *IC4001 E11 OSD_18 *IC4001 B18 HDMI1_RXCN *IC4001 AA23 GPIO1_1 *IC4001 U23 VSS33_ADC1234 *IC4001 AD8 VSS *IC4001 C19 VSS *IC4001 A19 VSS *IC4001 AD18 VSS *IC4001 AE10 VOPA_17 *IC4001 AF15 VOPA_6 *IC4001 B12 VSS *IC4001 B15 HDMI1_RX2N *IC4001 T13 VSS *IC4001 K11 VSS *IC4001 AF13 VOPA_10 *IC4001 AD10 VSS *IC4001 AB10 PIF_0 *IC4001 P15 VSS *IC4001 AB7 PIF_5 *IC4001 E13 OSD_19 *IC4001 U11 VDD25_VOPA2 *IC4001 A8 HDMI2_RX2P *IC4001 U17 VDD33_CADC *IC4001 V18 VSS *IC4001 B14 VSS_HDMI1 *IC4001 AF18 VOPA_0 *IC4001 R11 VSS *IC4001 AB21 GPIO1_6 *IC4001 AD26 VSS *IC4001 G5 VIPA_10 *IC4001 K5 VIPA_20 *IC4001 C11 VSS *IC4001 E12 OSD_1 *IC4001 W18 VSS *IC4001 A15 HDMI1_RX2P *IC4001 P13 VSS *IC4001 J15 VSS *IC4001 A23 VSS *IC4001 B8 HDMI2_RX2N *IC4001 N19 VSS12_ADC5678 *IC4001 L26 VSS33_ADC5678 *IC4001 C16 VSS_HDMI1 *IC4001 W13 VDD25_VOPA3 *IC4001 V15 VDD33_STDBY *IC4001 B25 VSS *IC4001 A4 VIPA_4 *IC4001 R5 VIPAX_28 *IC4001 AC23 VSS *IC4001 M19 VSS12_ADC5678 *IC4001 L10 VDD33_VIPA *IC4001 T8 VDD_DRAM *IC4001 AB24 GPIO1_3 *IC4001 AC19 RESETQ *IC4001 M14 VSS *IC4001 AC18 VSENSE *IC4001 U12 VDD25_PLL3 *IC4001 U16 VDD33_FLASH *IC4001 AA24 VSS33_CADC *IC4001 AC15 VOPA_29 *IC4001 L18 VSS12_ADC5678 *IC4001 N5 VIPAX_35 *IC4001 D7 GPIO3_3 *IC4001 P22 VSS33_ADC1234 *IC4001 H23 VSS33_ADC5678 *IC4001 N4 VIPAX_26 *IC4001 H11 VDD25_OSD *IC4001 AF8 VOPA_20 *IC4001 K10 VDD33_GPIO3 *IC4001 T10 VDD33_DAU *IC4001 P12 VSS *IC4001 L13 VSS *IC4001 M5 VIPAX_34 *IC4001 Y24 VSS33_ADC1234 *IC4001 V11 VDD25_VOPA2 *IC4001 AB19 SDA *IC4001 AE17 VOPA_3 *IC4001 AB23 GPIO1_4 *IC4001 D15 VSS *IC4001 M23 VSS33_ADC5678 *IC4001 T23 VDD33_ADC1234 *IC4001 AF14 VOPA_8 *IC4001 AF11 VOPA_14 *IC4001 AB25 VSS *IC4001 AE9 VOPA_19 *IC4001 J24 VSS33_ADC5678 *IC4001 AC9 PIF_8 *IC4001 A16 HDMI1_RX1P *IC4001 R8 VSS *IC4001 K25 VSS33_ADC5678 *IC4001 F5 VIPA_18 *IC4001 AC6 I2S_IN1_WS *IC4001 U5 VIPAX_36 *IC4001 F23 VSS12_SIFADC *IC4001 C25 VSS *IC4001 P23 VSS33_ADC1234 *IC4001 P5 VIPAX_31 *IC4001 J5 VIPA_13 *IC4001 V26 VSS33_ADC1234 *IC4001 AD15 VSS *IC4001 J14 VDD33_HDMI1 *IC4001 E19 VSS *IC4001 AA25 VSS *IC4001 G26 VSS33_ADC5678 *IC4001 E21 VSS *IC4001 AF12 VOPA_12 *IC4001 L16 VSS *IC4001 K16 VSS *IC4001 E8 GPIO3_0 *IC4001 A6 VIPA_8 *IC4001 T9 VDD_DRAM *IC4001 N9 VDD_DRAM *IC4001 AD19 VSS *IC4001 AE13 VOPA_11 *IC4001 H17 VSS *IC4001 AF5 I2S_OUT_MCLK *IC4001 C6 VIPA_9 *IC4001 B6 VIPA_7 *IC4001 L9 VSS *IC4001 B16 HDMI1_RX1N *IC4001 T26 VSS33_ADC1234 *IC4001 AD25 VSS *IC4001 Y25 VSS33_ADC1234 *IC4001 N26 VSS33_ADC5678 *IC4001 P11 VSS *IC4001 AF24 VSS *IC4001 AB13 VOPA_24 *IC4001 M15 VSS *IC4001 T12 VSS *IC4001 C13 OSD_7 *IC4001 AA22 GPIO1_2 *IC4001 AC16 VSS *IC4001 R15 VSS *IC4001 A12 HDMI2_TEST *IC4001 B10 HDMI2_RX0N *IC4001 AA5 GPIO2_5 *IC4001 B13 OSD_16 *IC4001 N12 VSS *IC4001 AE15 VOPA_7 *IC4001 AC8 PIF_6 *IC4001 E15 VSS_HDMI1 *IC4001 V16 VDD10_STDBY *IC4001 K15 VSS *IC4001 K14 VSS *IC4001 V4 GPIO2_4 *IC4001 H18 SEAL *IC4001 B21 VSS *IC4001 N25 VSS33_ADC5678 *IC4001 E14 OSD_3 *IC4001 AC21 VSS *IC4001 AD24 VSS *IC4001 W12 VSS10_PLL2 *IC4001 P17 VDD12_ADC1234 *IC4001 H8 VDD_DRAM *IC4001 N23 VSS33_ADC5678 *IC4001 V24 VSS33_ADC1234 *IC4001 AF7 VOPA_22 *IC4001 AD6 I2S_OUT_DAT *IC4001 AC14 VOPA_27 *IC4001 L15 VSS *IC4001 D13 OSD_6 *IC4001 C17 VSS *IC4001 N13 VSS *IC4001 T24 VSS33_ADC1234 *IC4001 L14 VSS *IC4001 AE14 VOPA_9 *IC4001 G4 VIPA_11 *IC4001 AD23 VSS *IC4001 V17 VDD33_GPIO1 *IC4001 AE23 VSS *IC4001 E25 VSS *IC4001 AF9 VOPA_18 *IC4001 AE18 VOPA_1 *IC4001 P26 VSS33_ADC1234 *IC4001 M11 VSS *IC4001 M13 VSS *IC4001 J17 VSS *IC4001 AE25 VSS *IC4001 AE11 VOPA_15 *IC4001 H12 VSS *IC4001 U19 VSS *IC4001 AE20 VSS *IC4001 D6 VIPA_0 *IC4001 Y23 VSS33_ADC1234 *IC4001 AD5 I2S_OUT_WS *IC4001 R23 VSS33_ADC1234 *IC4001 D4 VIPA_15 *IC4001 J26 VSS33_ADC5678 *IC4001 M10 VDD33_VIPA *IC4001 AE22 VSS *IC4001 AC25 VSS *IC4001 N11 VSS *IC4001 N18 VSS12_ADC5678 *IC4001 B5 VIPA_3 *IC4001 P4 VIPAX_29 *IC4001 AE24 VSS *IC4001 F4 VIPA_14 *IC4001 AD16 VSS *IC4001 M8 VDD_DRAM *IC4001 F22 VSS12_SIFADC *IC4001 P10 VDD33_VIPAX *IC4001 D25 VSS *IC4001 A10 HDMI2_RX0P *IC4001 R14 VSS *IC4001 M17 VDD12_ADC5678 *IC4001 V8 VDD_DRAM *IC4001 AB18 TEST *IC4001 Y4 GPIO2_1 *IC4001 C4 VIPA_2 *IC4001 D8 GPIO3_6 *IC4001 J11 VDD33_HDMI2 *IC4001 AE21 VSS *IC4001 L22 VSS33_ADC5678 *IC4001 K13 VSS *IC4001 L23 VDD33_ADC5678 *IC4001 AC22 GPIO1_7 *IC4001 AF23 VSS *IC4001 AD12 VSS *IC4001 C8 GPIO3_7 *IC4001 H25 VSS33_ADC5678 *IC4001 N17 VDD12_ADC5678 *IC4001 A18 HDMI1_RXCP *IC4001 C12 OSD_5 *IC4001 W16 VDD10_STDBY *IC4001 P8 VDD_DRAM *IC4001 T5 VIPAX_32 *IC4001 A9 HDMI2_RX1P A18 K1KB51A00001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 L4005 J0JDC0000002 L4025 J0JDC0000002 L4002 J0JDC0000002 L4006 J0JHC0000075 L4015 J0JDC0000002 L4009 J0JDC0000002 L4008 J0JDC0000002 L4011 J0JHC0000075 L4004 J0JHC0000075 L4019 J0JHC0000075 L4001 J0JDC0000002 L4014 J0JDC0000002 L4003 J0JDC0000002 L4024 J0JHC0000075 L4000 J0JDC0000002 L4020 J0JHC0000075 L4013 J0JHC0000075 L4023 J0JHC0000075 L4012 J0JHC0000075 L4007 J0JDC0000002 L4010 J0JDC0000002 C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C STBY3.3V MAIN3.3V MAIN1.25V STBY3.3V STBY1V STBY3.3V MAIN2.5V MAIN3.3V MAIN3.3V MAIN2.5V MAIN8V MAIN2.5V STBY3.3V MAIN1.8V PANEL12V MAIN3.3V TP4147 TP4129 TP4146 TP4148 TP4144 TP4132 TP4142 TP4151 TP4152 TP4137 TP4140 TP4138 TP4139 TP4130 TP4150 TP4131 TP4134 TP4149 TP4135 TP4145 TP4136 TP4133 TP4141 TP4143 Q4501 B1CBHD000002 *Q4119 2SC584500L R4074 10k R4069 1M *R4097 0 R4030 1M R4068 1M R4076 10k R4078 100 R4033 1M R4067 1M *R4084 1k *R4117 47k R4024 1M R4164 1M R4040 1M R1729 4.7k *R4116 100 R4031 1M R4042 1M *R4094 0 R4026 1M R4088 100 R4003 1k *R4095 0 *R4083 100 R4086 100 R4162 1M R4166 1M R4082 1M *R4056 1k R4044 1M R4014 100 R4072 1M R4043 1M *R4001 27k R4091 0 R4041 1M R4326 22 R4124 1M R4093 100 R4171 1M R4081 1M R4027 1M R4167 1M R4104 1k R4168 1M *R4119 1k R4169 1M R4188 1k R4028 1M R4123 1M R4080 100 R4160 1M *R4096 0 R4066 1M R4085 100 *R4092 100 R4025 1M *R4156 100 R4070 1M R4079 10k R4098 47k R4039 1M *R4071 1M R4090 100 R4046 1M R4089 1k R4051 5.6k R4052 1k *R1298 100 *R4073 1M R4087 100k R4045 1M R4008 100 *R4158 100 R4161 1M R4059 100 R4170 1M R4058 100 *R4075 5.6k R4032 1M *R4060 1k R4077 100 R4502 2.2k R4023 1M R4165 1M R4029 1M R4163 1M R4325 22 X4001 H0J270500126 *Q4022 2SC584500L *R4062 10k 1/16W 1.6 x 0.8 44 NC 45 LVDS Select 46 NC 48 NC 47 NC 1 12V 49 NC 2 12V 3 12V 50 NC 4 12V 5 NC 51 GND 38 TX1N_A 39 TX0P_A 40 TX0N_A 9 GND 10 GND 11 TX4P_B 12 TX4N_B 13 TX3P_B 14 TX3N_B 15 GND 16 TCLKP_B 17 TCLKN_B 18 GND 19 TX2P_B 20 TX2N_B 21 TX1P_B 22 TX1N_B 23 TX0P_B 24 TX0N_B 26 GND 25 BIT SELECT 27 TX4P_A 28 TX4N_A 29 TX3P_A 30 TX3N_A 6 GND 31 GND 7 GND 32 TCLKP_A 8 GND 33 TCLKN_A 34 GND 35 TX2P_A 36 TX2N_A 37 TX1P_A 41 GND 42 NC 43 NC LSI SIDE DIGITSL VIDEO CLOCK GPIO DIGITSL VIDEO INPUT PORT PANEL INTERFACE HDMI OUTPUT PORT CONTROLLER OSD PORT AUDIO2 GLP23F-041 LH81-098 25 26 27 28 29 30 31 32 33 A B C D E F 23 25 26 24 18 19 21 20 22 32 31 26 27 29 28 30 TC-37LZ80D A�(4/6)��� TC-37LZ80D A�(4/6)��� ! A� TNP4G439AE TC-37LZ80D (4/6) TC-37LZ80D 28 13.6. A 板 (5/6) 线路图 + + + + A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 BA0 BA1 CAS CKE CS ODT RAS WE CKP CKP CKN CKN BA0 BA0 BA1 BA1 CAS CAS CKE CKE CS CS ODT ODT RAS RAS WE WE VREF CKN CKP DQSQ3 DQSQ2 DQSQ1 DQSQ0 DQS3 DQS2 DQS1 DQS0 DQ31 DQ30 DQ29 DQ28 DQ27 DQ26 DQ25 DQ24 DQ23 DQ22 DQ21 DQ20 DQ19 DQ18 DQ17 DQ16 DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 DM3 DM2 DM1 DM0 DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQSQ1 DQSQ0 DQS1 DQS0 DM1 DM0 A10 DQ31 DQ30 DQ26 A4 BA1 WE A5 CS DQSQ3 DQS2 A12 DQ18 DQ29 DQ24 A6 ODT BA0 DQ16 DQ19 A2 RAS DQSQ2 DM2 DQ27 DQ20 VREF DQ25 A0 CKP DQ21 DQ17 A1 DQS3 A8 DQ23 DM3 A3 CKN A11 A9 DQ28 CAS A7 DQ22 CKE A0 A0 A1 A1 A2 A2 A3 A3 A4 A4 A5 A5 A6 A6 A7 A7 A8 A8 A9 A9 A10 A10 A11 A11 A12 A12 VREF VREF C4403 10V 0.1u ECJ0EB1A104K C4415 16V 0.1u ECJ1VB1C104K C4463 16V 0.1u ECJ1VB1C104K C4405 16V 0.1u ECJ1VB1C104K C4466 16V 0.1u ECJ1VB1C104K C4459 16V 0.1u ECJ1VB1C104K C4410 50V 1000p ECJ1VB1H102K C4401 10V 0.1u ECJ0EB1A104K C4402 10V 0.1u ECJ0EB1A104K C4400 10V 0.1u ECJ0EB1A104K C4503 16V 0.1u ECJ1VB1C104K C4462 50V 1000p ECJ1VB1H102K C4404 10V 0.1u ECJ0EB1A104K C4412 50V 1000p ECJ1VB1H102K C4456 16V 0.1u C4500 16V 0.1u ECJ1VB1C104K C4452 10V 0.1u ECJ0EB1A104K C4408 50V 1000p ECJ1VB1H102K C4406 50V 100p CM105CH101J50AT-DC *C4507 10u 6.3V C4453 10V 0.1u C4416 16V 0.1u ECJ1VB1C104K C4454 10V 0.1u C4461 16V 0.1u ECJ1VB1C104K C4350 16V 0.1u ECJ1VB1C104K C4455 50V 100p CM105CH101J50AT-DC C4409 16V 0.1u ECJ1VB1C104K C4464 50V 1000p ECJ1VB1H102K C4502 16V 0.1u ECJ1VB1C104K C4505 16V 0.1u ECJ1VB1C104K C4414 50V 1000p ECJ1VB1H102K C4451 10V 0.1u ECJ0EB1A104K C4506 6.3V 10u C4458 50V 1000p ECJ1VB1H102K C4460 50V 1000p ECJ1VB1H102K C4411 16V 0.1u ECJ1VB1C104K C4465 16V 0.1u ECJ1VB1C104K C4351 16V 0.1u ECJ1VB1C104K C4413 16V 0.1u ECJ1VB1C104K C4450 10V 0.1u ECJ0EB1A104K C4352 16V 0.1u ECJ1VB1C104K C4407 16V 10u EEEHB1C100R C4504 6.3V 47u EEEHB0J470R *C4501 6.3V 220u F2G0J2210013 C4457 16V 10u EEEHB1C100R *IC4003 C3ABRY000038 C3ABRY000015 A1 VDD *IC4002 C3ABRY000038 C3ABRY000015 A1 VDD *IC4001 AA2 DRAM_DQ14 *IC4003 D7 DQ10 *IC4003 D8 VSSQ *IC4002 C7 VDDQ *IC4002 A9 VDDQ *IC4003 F7 LDQS *IC4003 R8 NC *IC4001 C1 DRAM_DM3 *IC4003 R7 NC *IC4001 M2 DRAM_A6 *IC4002 B9 DQ15 *IC4003 C3ABRY000015 M8 A0 *IC4002 A3 VSS *IC4001 B2 DRAM_DQ31 *IC4003 D2 VSSQ *IC4002 K2 CKE *IC4001 K2 DRAM_BA1 *IC4002 G2 DQ1 *IC4001 Y2 DRAM_DQ6 *IC4001 N2 DRAM_CKP *IC4003 C2 DQ9 *IC4003 A7 VSSQ *IC4002 R1 VDD *IC4002 F3 LDM *IC4003 N2 A3 *IC4002 J1 VDDL *IC4002 C2 DQ9 *IC4002 N2 A3 *IC4001 T2 DRAM_A7 *IC4001 F2 DRAM_DQSQ2 *IC4001 W8 DRAM_VREF *IC4002 N1 VSS *IC4003 N8 A4 *IC4001 V2 DRAM_A3 *IC4003 C3 VDDQ *IC4002 F7 LDQS *IC4002 B2 VSSQ *IC4003 R3 NC *IC4002 E1 VDD *IC4002 G8 DQ0 *IC4003 H1 DQ4 *IC4003 M2 A10 *IC4003 C1 VDDQ *IC4002 P3 A9 *IC4002 C3 VDDQ *IC4003 E3 VSS *IC4002 H9 DQ5 *IC4001 N3 DRAM_A8 *IC4001 AB3 DRAM_DM1 *IC4003 D1 DQ12 *IC4001 G2 DRAM_DQS3 *IC4002 F8 VSSQ *IC4003 F2 VSSQ *IC4001 AC3 DRAM_DM0 *IC4002 G3 VDDQ *IC4003 L7 CAS *IC4003 E2 NC *IC4002 A2 NC *IC4002 B8 VSSQ *IC4002 P7 A11 *IC4003 N1 VSS *IC4003 P3 A9 *IC4001 AF2 DRAM_DQ10 *IC4003 L2 BA0 *IC4001 K3 DRAM_DQ17 *IC4002 N7 A6 *IC4003 B7 UDQS *IC4001 D2 DRAM_DM2 *IC4003 D3 DQ11 *IC4003 M9 VDD *IC4002 D3 DQ11 *IC4001 E3 DRAM_DQ16 *IC4001 U2 DRAM_A12 *IC4001 U1 DRAM_A5 *IC4001 R1 DRAM_A0 *IC4003 A2 NC *IC4002 D8 VSSQ *IC4003 M7 A2 *IC4001 J3 DRAM_DQ24 *IC4001 AC4 DRAM_DQS0 *IC4003 M3 A1 *IC4001 G1 DRAM_DQSQ3 *IC4002 D1 DQ12 *IC4002 D7 DQ10 *IC4003 G7 VDDQ *IC4001 J9 DRAM_VREF *IC4001 H3 DRAM_DQ25 *IC4003 F8 VSSQ *IC4003 J8 CK *IC4001 AC1 DRAM_DQ4 *IC4003 L3 BA1 *IC4002 D2 VSSQ *IC4003 C8 DQ8 *IC4002 H1 DQ4 *IC4002 E2 NC *IC4001 AE3 DRAM_DQ9 *IC4002 C1 VDDQ *IC4002 D9 DQ13 *IC4002 A7 VSSQ *IC4003 J1 VDDL *IC4003 G2 DQ1 *IC4001 E2 DRAM_DQ20 *IC4001 P2 DRAM_A10 *IC4002 C9 VDDQ *IC4003 J2 VREF *IC4003 H7 DQ2 *IC4002 L2 BA0 *IC4001 J1 DRAM_DQ19 *IC4001 U9 DRAM_VREF *IC4002 L1 NC *IC4002 H7 DQ2 *IC4002 M3 A1 *IC4001 AE4 DRAM_DQ0 *IC4001 C2 DRAM_DQ29 *IC4001 AB2 DRAM_DQ12 *IC4003 B1 DQ14 *IC4001 W3 DRAM_CKE *IC4003 E8 LDQS *IC4001 C3 DRAM_DQ21 *IC4002 B1 DQ14 *IC4003 K2 CKE *IC4002 E3 VSS *IC4001 W2 DRAM_WE *IC4001 L3 DRAM_BA0 *IC4002 G7 VDDQ *IC4002 M7 A2 *IC4001 L8 DRAM_VREF *IC4003 F1 DQ6 *IC4002 H2 VSSQ *IC4001 AA3 DRAM_DQ15 *IC4003 G3 VDDQ *IC4002 M9 VDD *IC4003 K9 ODT *IC4003 H8 VSSQ *IC4002 R8 NC *IC4003 P8 A8 *IC4002 R7 NC *IC4003 B8 VSSQ *IC4001 AA1 DRAM_DQ13 *IC4002 E9 VDDQ *IC4003 K7 RAS *IC4001 L2 DRAM_A2 *IC4002 K7 RAS *IC4003 J3 VSS *IC4003 H3 DQ3 *IC4003 P7 A11 *IC4001 A2 DRAM_DQ23 *IC4003 P2 A7 *IC4001 H9 DRAM_VREF *IC4003 E1 VDD *IC4002 H8 VSSQ *IC4003 B2 VSSQ *IC4001 Y3 DRAM_DQ5 *IC4003 A8 UDQS *IC4002 K9 ODT *IC4003 F9 DQ7 *IC4001 J2 DRAM_DQ18 *IC4001 AC2 DRAM_DQ3 *IC4002 N3 A5 *IC4002 B3 UDM *IC4002 J8 CK *IC4002 R2 A12 *IC4002 A8 UDQS *IC4003 B3 UDM *IC4003 C9 VDDQ *IC4002 N8 A4 *IC4003 F3 LDM *IC4003 N7 A6 *IC4002 F9 DQ7 *IC4002 G1 VDDQ *IC4002 H3 DQ3 *IC4001 V3 DRAM_RAS *IC4002 G9 VDDQ *IC4003 R2 A12 *IC4001 H2 DRAM_DQ26 *IC4001 AD4 DRAM_DQ1 *IC4002 L8 CS *IC4001 AD3 DRAM_DQ8 *IC4003 G9 VDDQ *IC4002 M2 A10 *IC4002 R3 NC *IC4003 K8 CK *IC4001 M3 DRAM_A4 *IC4002 C8 DQ8 *IC4002 K8 CK *IC4001 F3 DRAM_DQS2 *IC4001 R3 DRAM_A9 *IC4001 N1 DRAM_CKN *IC4003 C7 VDDQ *IC4001 R2 DRAM_A11 *IC4001 AE1 DRAM_DQS1 *IC4003 L1 NC *IC4001 W1 DRAM_DQ7 *IC4003 A9 VDDQ *IC4001 B1 DRAM_DQ28 *IC4002 F2 VSSQ *IC4003 D9 DQ13 *IC4003 G1 VDDQ *IC4003 J9 VDD *IC4002 L7 CAS *IC4003 K3 WE *IC4002 K3 WE *IC4003 H2 VSSQ *IC4003 B9 DQ15 *IC4001 AF3 DRAM_DQ2 *IC4001 B3 DRAM_DQ22 *IC4001 D3 DRAM_DQ30 *IC4003 N3 A5 *IC4003 P9 VSS *IC4002 P8 A8 *IC4002 E7 VSSQ *IC4001 P3 DRAM_CS *IC4002 B7 UDQS *IC4002 P2 A7 *IC4001 AE2 DRAM_DQSQ1 *IC4002 J9 VDD *IC4002 F1 DQ6 *IC4002 L3 BA1 *IC4003 G8 DQ0 *IC4003 L8 CS *IC4001 T3 DRAM_A1 *IC4003 E9 VDDQ *IC4001 AF1 DRAM_DQ11 *IC4001 L1 DRAM_ODT *IC4002 J2 VREF *IC4003 A3 VSS *IC4003 J7 VSSDL *IC4001 G3 DRAM_DQ27 *IC4001 U3 DRAM_CAS *IC4002 J3 VSS *IC4002 C3ABRY000015 M8 A0 *IC4002 E8 LDQS *IC4003 R1 VDD *IC4002 P9 VSS *IC4001 AD2 DRAM_DQSQ0 *IC4003 H9 DQ5 *IC4002 J7 VSSDL *IC4003 E7 VSSQ IC4004 C0DBEFH00002 BD3533F-E2 1 GND 2 EN 3 VTTS 4 VREF 5 VDDQ 6 VCC 7 VTTIN 8 VTT L4440 J0JCC0000268 L4441 J0JCC0000268 C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C VTT0.9V MAIN1.8V MAIN1.8V MAIN3.3V VTT0.9V MAIN1.8V MAIN1.8V VTT0.9V MAIN1.8V MAIN3.3V R4486 75 1.0 x 0.5 R4377 47 1.0 x 0.5 R4447 75 1.0 x 0.5 R4412 15 1.0 x 0.5 R4442 75 1.0 x 0.5 R4361 47 1.0 x 0.5 R4417 15 1.0 x 0.5 R4474 75 1.0 x 0.5 R4363 47 1.0 x 0.5 R4400 15 1.0 x 0.5 R4443 75 1.0 x 0.5 R4385 47 1.0 x 0.5 R4473 75 1.0 x 0.5 R4419 15 1.0 x 0.5 R4386 47 1.0 x 0.5 R4438 75 1.0 x 0.5 R4482 75 1.0 x 0.5 R4485 75 1.0 x 0.5 R4395 15 1.0 x 0.5 R4378 47 1.0 x 0.5 R4432 75 1.0 x 0.5 R4375 47 1.0 x 0.5 R4472 75 1.0 x 0.5 R4394 47 1.0 x 0.5 R4434 75 1.0 x 0.5 R4484 75 1.0 x 0.5 R4491 180 R4406 15 1.0 x 0.5 R4437 75 1.0 x 0.5 R4440 75 1.0 x 0.5 R4414 15 1.0 x 0.5 R4374 47 1.0 x 0.5 R4430 75 1.0 x 0.5 R4380 47 1.0 x 0.5 R4407 15 1.0 x 0.5 R4367 47 1.0 x 0.5 R4435 75 1.0 x 0.5 R4408 15 1.0 x 0.5 R4451 180 R4392 47 1.0 x 0.5 R4439 75 1.0 x 0.5 R4433 75 1.0 x 0.5 R4362 47 1.0 x 0.5 R4411 15 1.0 x 0.5 R4488 75 1.0 x 0.5 R4431 75 1.0 x 0.5 R4409 15 1.0 x 0.5 R4357 47 1.0 x 0.5 R4383 47 1.0 x 0.5 R4477 75 1.0 x 0.5 R4364 47 1.0 x 0.5 R4356 47 1.0 x 0.5 R4404 15 1.0 x 0.5 R4372 47 1.0 x 0.5 R4351 47 1.0 x 0.5 R4402 15 1.0 x 0.5 R4418 15 1.0 x 0.5 R4353 47 1.0 x 0.5 R4478 75 1.0 x 0.5 R4369 47 1.0 x 0.5 R4415 15 1.0 x 0.5 R4480 75 1.0 x 0.5 R4390 47 1.0 x 0.5 R4379 47 1.0 x 0.5 R4481 75 1.0 x 0.5 R4371 47 1.0 x 0.5 R4445 75 1.0 x 0.5 R4450 75 1.0 x 0.5 R4396 15 1.0 x 0.5 R4358 47 1.0 x 0.5 R4370 47 1.0 x 0.5 R4381 47 1.0 x 0.5 R4355 47 1.0 x 0.5 R4487 75 1.0 x 0.5 R4405 15 1.0 x 0.5 R4373 47 1.0 x 0.5 R4410 15 1.0 x 0.5 R4354 47 1.0 x 0.5 R4350 47 1.0 x 0.5 R4401 15 1.0 x 0.5 R4444 75 1.0 x 0.5 R4387 47 1.0 x 0.5 R4475 75 1.0 x 0.5 R4389 47 1.0 x 0.5 R4448 75 1.0 x 0.5 R4476 75 1.0 x 0.5 R4365 47 1.0 x 0.5 R4446 75 1.0 x 0.5 R4382 47 1.0 x 0.5 R4360 47 1.0 x 0.5 R4352 47 1.0 x 0.5 R4359 47 1.0 x 0.5 R4388 47 1.0 x 0.5 R4441 75 1.0 x 0.5 R4413 15 1.0 x 0.5 R4420 15 1.0 x 0.5 R4470 75 1.0 x 0.5 R4483 75 1.0 x 0.5 R4393 47 1.0 x 0.5 R4490 75 1.0 x 0.5 R4368 47 1.0 x 0.5 R4479 75 1.0 x 0.5 R4436 75 1.0 x 0.5 R4449 75 1.0 x 0.5 R4403 15 1.0 x 0.5 R4376 47 1.0 x 0.5 R4503 100 R4471 75 1.0 x 0.5 R4391 47 1.0 x 0.5 R4489 75 1.0 x 0.5 R4416 15 1.0 x 0.5 R4384 47 1.0 x 0.5 TP3831 DRAM EDE2516AEBG-6E-E(ELPIDA) EDE2516AEBG-6E-E(ELPIDA) MT47H16M16BG-3 (MICRON) MT47H16M16BG-3 (MICRON) C4142 16V 0.1u ECJ1VB1C104K C4114 16V 0.1u ECJ1VB1C104K C4113 6.3V 10u C4135 6.3V 10u C4136 16V 0.1u ECJ1VB1C104K C4133 6.3V 10u C4112 16V 0.1u ECJ1VB1C104K C4130 6.3V 10u C4134 16V 0.1u ECJ1VB1C104K C4141 16V 0.1u ECJ1VB1C104K C4109 6.3V 10u C4131 16V 0.1u ECJ1VB1C104K C4139 6.3V 1u ECJ1VB0J105K C4137 6.3V 10u C4111 16V 0.1u ECJ1VB1C104K *IC4001 K17 VDD10_CORE *IC4001 N8 VDD10_DLL *IC4001 W11 VDD10_PLL2 *IC4001 V14 VDD10_CORE *IC4001 J10 VDD10_HDMI2 *IC4001 W14 VDD10_CORE *IC4001 K8 VDD10_DLL *IC4001 H10 VDD10_HDMI2 *IC4001 H15 VDD10_HDMI1 *IC4001 U8 VDD10_DLL *IC4001 W15 VDD10_CORE *IC4001 K18 VDD10_CORE *IC4001 J12 VDD10_CORE *IC4001 K19 VDD10_CORE *IC4001 K9 VDD10_DLL *IC4001 J19 VDD10_CORE *IC4001 H14 VDD10_HDMI1 *IC4001 W9 VDD10_DLL *IC4001 AB17 VDD10_PLL1 *IC4001 V9 VDD10_DLL L4031 J0JHC0000075 L4027 J0JHC0000075 L4030 J0JCC0000268 L4029 J0JCC0000268 L4028 J0JHC0000075 L4026 J0JCC0000268 C C C C C C C C C C C C C C C MAIN1V CORE1V CORE1V_FB 33 34 35 36 37 38 39 40 41 A B C D E F 32 31 26 27 29 28 30 39 38 33 34 36 35 37 TC-37LZ80D A�(5/6)��� TC-37LZ80D A�(5/6)��� ! A� TNP4G439AE TC-37LZ80D (5/6) TC-37LZ80D 29 13.7. A 板 (6/6) 线路图 + + + + + + + + Thermal Pad + + + HP_R_OUT HP_L_OUT RESET_VDD SCL1 SCL1 POL_PANEL_ON SP_L_OUT SP_R_OUT HP_L HP_R HP_MUTE_IC ALL_OFF_DET MAIN_MUTE MAIN_ON1 INV_OFF KEYSCAN KEYSCAN EEP_WE SDA1 SDA1 MAIN_ON2 PANEL_OFF PROTECTION MAIN_SENSE_MUTE A_MUTE A_MON_DEF RESETQ INV_SOS C2009 1u 25V C2027 0.1u 25V C2356 1u 10V C2016 0.1u 25V C3203 0.22u 16V C2008 0.1u 25V C2015 1u 16V *C3200 6.3V 2.2u C2002 0.1u 25V C2358 50V 1000p C2026 1u 25V C2006 0.1u 25V C2359 1u 10V C2012 1u 16V C2022 0.1u 25V C2005 0.1u 25V C2029 0.022u 50V C2354 50V 0.01u C2357 50V 1000p C1168 16V 0.1u C2352 1u 10V *C2019 10u 25V C2010 0.1u 25V C2011 0.1u 25V C2025 0.1u 25V C2021 0.47u 16V C2003 1u 25V C2007 0.47u 16V C2020 1u 25V C2024 0.1u 25V C2000 1u 16V *C2017 10u 25V *C2004 10u 25V *C2300 47u 35V EEEHB1V470UP *C2301 330u 35V EEEFK1V331P C3202 16V 100u C3204 47u 16V C2355 16V 47u C2350 100u 16V 5 C2351 100u 16V C2353 16V 47u D3219 MA2J72900L *D3203 B0ACCK000012 *D3209 B0ACCK000012 D2307 MA22D3900L D2301 MA22D3900L D3217 B0ACCK000012 *D3206 B0ACCK000012 D3210 B0ACCK000012 D3208 B0ACCK000012 D2306 B0ACCK000012 *D3215 B0ACCK000012 D2303 B0ACCK000012 D2302 B0ACCK000012 D3207 B0ACCK000012 D3211 B0ACCK000012 D2305 B0ACCK000012 D3216 B0ACCK000012 D3204 B0ACCK000012 D3205 B0ACCK000012 *D3200 MAZ81500ML IC1102 C3EBKC000014 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC2350 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC C1AB00002916 IC2000 1 IN1 44 IN2 2 PLMT1 3 PLMT2 4 PLMT3 5 PLMT4 6 BSP1P 7 VCCP1P 8 VCCP1P 9 OUT1P 10 OUT1P 11 GNDP1 12 GNDP1 13 OUT1N 14 OUT1N 15 VCCP1N 16 VCCP1N 17 BSP1N 18 WARNING 19 ERROR 20 MUTEX 21 N.C. 22 N.C. 23 OSC 24 MS 25 ROSC 26 TM 27 VHOLD 28 BSP2N 29 VCCP2N 30 VCCP2N 31 OUT2N 32 OUT2N 33 GNDP2 34 GNDP2 35 OUT2P 36 OUT2P 37 VCCP2P 38 VCCP2P 39 BSP2P 40 VCCA 41 FILP 42 FILA 43 GNDA L2011 J0JHC0000034 L2009 J0JHC0000034 L2008 J0JHC0000034 L2004 J0JHC0000078 L2006 J0JJC0000015 L2010 J0JHC0000034 L2000 J0JHC0000078 L2005 G1C330MA0291 L2002 G1C330MA0291 L2007 G1C330MA0291 L2350 G0C100K00008 L2001 G1C330MA0291 C C A C A C C P C C C P C C C C C C P C P P P C P C C C C C C C PP C C C A C A C C C A C C C C P C C C C C C P C C A P MAIN8V MAIN5V 24V SOUND15V 24V STBY3.3V MAIN5V MAIN5V STBY3.3V SOUND15V 24V 24V STBY3.3V MAIN5V PANEL12V SOUND15V STBY3.3V TP257 TP3000 TP256 TP1184 TP258 TP250 TP2350 *Q3201 2SC584500L *Q3203 2SC584500L *Q3202 2SC584500L *Q3200 2SC584500L Q2301 2SC584500L Q2310 2SC584500L Q3205 2SC584500L Q2311 2SC584500L *Q1218 2SC584500L Q2302 2SC584500L Q2303 2SA207700L Q3204 2SA207700L *Q1217 2SA207700L JSA258 0 *JSA243 0 *JSA2011 0 JSA259 0 *JSA2012 0 *JSA2010 0 JSA250 0 *JSA242 0 *JSA240 0 *JSA241 0 *JSA2013 0 JSA251 0 JSA2304 0 R3237 47k R2352 680 R2303 10k *R2313 100k R3215 10k R2000 470 *R3207 3.3k R3227 10k R3225 10k R1167 100 *R3229 15k R2008 10k *R2102 0 R2301 1k R3226 47k *R3224 12k R3232 0 R2311 15k R2359 15k R1171 22 R2309 100k R2308 1k *R3204 2.2k *R3210 3.3k *R2302 47k *R1241 10k *R3201 47k R2356 100k R2357 100k R2006 100k R2353 100 R2300 0 *R2007 220 R1172 22 R2001 100k R2004 22k 1% *R3209 47k R3236 22k *R2314 10k 1/10W 1.6 x 0.8 *R3206 22k R3218 10k R3233 47k *R2002 22k 1% *R3205 2.2k R2310 10k *R1243 47k R2005 100k R2010 470 *R3230 47k R1173 47k *R1248 5.6k R3222 10k R2361 150 *R2099 0 R3234 2.2k R2011 100k R3235 1.5k R2003 22k 1% *R3200 10k *R3208 10k R2360 150 *R2009 47k *R3203 10k 1.6 x 0.8 *R1242 22k *R1240 47k R3221 10k R2354 100 R2355 15k *R3231 10k R2358 15k R2351 680 R3223 100 *R2315 1k 1/10W *A3 K1KA04BA0055 1 2 3 4 *C2018 470u 25V UVZ1E471MPH1AA *R2318 2.7k *C2014 10u 25V *C2028 3.3u 50V TP1849 TP1850 < < EEPROM MUTE SHORT SOS SOUND MUTE OPERATE M24128-BWMN6TP Rin Lin 3.3V BH3544F-E2 KM MODEL SHORT PROTECTION (LED FLASHES) TOP BOTTOM L- L+ R+ R+ MAKER P/N BD5423EFS-E2 41 42 43 44 45 46 47 48 49 A B C D E F 39 38 33 34 36 35 37 PANEL12V MAIN5V TC-37LZ80D A�(6/6)��� TC-37LZ80D A�(6/6)��� ! A� TNP4G439AE TC-37LZ80D (6/6) TC-37LZ80D 30 13.8. P 板 (1/2) 线路图 + + + + + + + + ` - L.F L.F REF K A DC_120V DC_240V DC_360V DC_120V DC_240V DC_360V DC_29V DC_29V AC_300V AC_300V DC_10V SUB_ON AC_300V AC_500V DC_29V DC_24V AC_300V DC_29V DC_430V AC_300V DC_430V DC_2.5V DC_430V DC_29V DC_29V AC_300V AC_300V DC_24V C801 0.22u * * C816 1000p 50V C824 0.1u 50V C806 100p 11.0X7.0 C830 1000p 50V C832 0.1u 50V C803 0.22u * * C888 0.1u 50V C822 0.1u 50V C845 0.033u 630V C862 0.1u 50V C922 10u 25V C807 100p C825 1u 25V C821 0.022u 50V C841 680p 250V C854 0.033u 50V C805 100p 11.0X7.0 C848 0.039u 800V * * C827 4700p 50V C839 220p 2kV * * C837 0.47u 16V C846 820p 50V C808 1u 500V * * C810 470p 2kV * * C812 0.047u 50V C800 100p 11.0X7.0 C804 0.22u * * C838 100p C828 820p 50V C840 0.33u 25V C921 10u 25V C815 2200p 50V C814 0.1u 50V C894 0.01u 50V C811 0.01u 50V C818 47u 50V C823 220u 25V C820 220u 450V ** ** C831 220u 50V C829 10u 50V C835 1000u 35V C833 56u 35V C834 1000u 35V D808 B0JCNE000004 D823 B0HAJL000003 *D845 B0HAKR000004 * * D807 B0JAME000058 D812 B0JCNG000003 D804 B0HAJL000003 D864 MA2J11100L D805 B0HASR000014 * * D832 B0JCME000037 D853 B0JCNG000003 D817 B0HAMM000122 *D818 B0JBSL000026 *D819 B0JBSL000026 *D800 B0EBNT000007 * * D852 B0BA02800001 D893 B0BA05600010 D809 MAZ80680ML D844 B0BA42500001 D815 MAZ80750ML D813 MAZ81800ML D851 B0BA02800001 D816 MAZ42400MF D811 MAZ80390HL D810 MAZ81100ML D801 ERZV10V621CS D803 ERZV10V621CS *LF801 G0B153H00003 * * * * *LF803 G0B153H00003 * * * * IC800 C0DBBZG00004 1 FB 2 COMP 3 MUL 4 IS 5 ZCD 6 GND 7 OUT 8 VCC C5HAZZZ00011 *IC801 4 S1 * 7 S-GND 8 P-GND 10 VCC 11 VREF 12 IS 13 FB 14 CON 15 VW 16 VW 20 G2 23 D2 * 19 D1 AN1431T-TA IC805 P1 K1KA02B00295 1 2 L868 EXCELDR35V L831 EXCELDR35V L881 EXCELSA39V L832 J0JKA0000038 L880 EXCELSA39V T802 ETS32CZ119AD 2 V2 * 3 V1 * 6 P1 * 7 P2 * 4 NC T801 ETS35LZ156AD 11 S3B * 10 S3A * 13 S5 * 8 S1 * 1 V1 * 3 P3 * 2 V2 4 P2 * 6 P1 * C C C C C C C C C C C C C C C C C H H H1 H1 H3 H H5 H H H4 H3 H1 H H1 H1 H1 H H1 ZA802 K9ZZ00000424 ZA805 K9ZZ00000424 ZA804 K9ZZ00000424 ZA806 K9ZZ00000424 ZA803 K9ZZ00000424 PC802 B3PAA0000363 PC801 B3PAA0000363 TPP007 TPP037 TPP021 TPP043 TPP022 TPP046 TPP025 TPP023 TPP020 TPP026 TPP045 TPP038 TPP024 Q801 B1DFBR000008 *Q814 B1DEHR000007 * * * Q843 B1CGRD000002 Q805 2SD0601A0L Q807 B1BACG000035 Q804 2SD0601A0L Q803 2SD0601A0L Q810 2SD0601A0L Q809 2SD0601A0L Q802 2SD0601A0L Q811 2SD0601A0L Q881 2SD0601A0L Q808 B1BACD000014 Q806 2SD0601A0L Q892 UNR221900L R880 D1F5100E0002 * JSP821 JSP830 JSP823 JSP822 JSP813 JSP832 JSP827 JSP809 JSP831 JSP825 JSP828 JSP814 JSP824 JSP820 JSP810 R873 3.3k R806 15k 1/8W R832 560k R869 10k 1/8W R883 27k 1/8W R802 330k 1/8W R854 820 1/4W R826 22k 1/8W 2.0 x 1.25 R857 150 1/2W R858 22 1/4W R819 100 1/4W R824 10k 1/8W R836 22k 1W R829 68k 1/8W R845 4.7k R834 1M 1/8W R863 4.7k 1/8W R843 10k 1/8W R840 150k 1/8W 2.0 x 1.25 R849 47k 1/8W 2.0 x 1.25 R844 100k 1/8W R923 75k 1/8W R851 22k 1/8W R816 620k 1/8W R848 22k 1/8W R853 2.2 1/2W R838 510k 1/8W R852 68k 1/8W R809 33 1/4W R882 6.8k 1/8W R924 75k 1/8W R837 10k 1W R831 7.5k 1/8W R861 1.1k 1/8W R864 6.65k 1/8W R881 47k 1/8W R830 10k R835 22k 1W R862 1k 1/8W R859 47 1/4W R818 7.68k 1/8W *R820 33 2W R803 330k 1/8W R856 1M 1/2W R920 10k 1/8W R801 1.8M 1/2W * * R866 3.9k 1/8W R860 22k 1/8W R867 1.24k R865 27k 1/10W *R874 8.2M R817 620k 1/8W R833 560k R812 47k 1/8W R868 4.7k 1/8W R807 22k 1/8W R804 330k 1/8W R828 150k 1/8W R872 10k 1/8W R846 3k 1/2W R850 47k 1/8W 2.0 x 1.25 R839 470k 1/8W R825 100k 1/8W 2.0 x 1.25 *R821 33 2W R808 47k 1/8W R842 68k 1/8W R855 47M 3W R815 620k 1/8W R847 22k 1/8W R903 9.53k 1/8W R800 510k R805 330k 1/8W R814 620k 1/8W R871 4.7k 1/8W R823 0.1 5W R841 47k 2.0 x 1.25 R810 120 1/4W RL801 K6B1CDA00028 * * < + * * COLD HOT TUC4GJ5014 TUC4GJ5007 1 2 3 4 5 6 7 8 9 A B C D E F 6 TC-37LZ80D P�(1/2)��� TC-37LZ80D P�(1/2)��� ! P� TNP4G440AB TC-37LZ80D (1/2) 5 6 3 2 1 4 7 8 9 10 11 TC-37LZ80D 31 13.9. P 板 (2/2) 线路图 + + + + + + + + DC_24V DC_24V DC_30V PANEL_12V DC_12V STBY_7V STBY_3.3V C884 0.1u 50V C878 0.1u 50V C897 10u 25V C826 0.01u 50V C868 0.01u 50V C887 0.01u 50V C867 10u 6.3V C849 0.1u 50V C853 0.1u 50V C889 0.1u 50V C847 0.1u 50V C859 1u 50V C857 0.1u 50V C883 0.1u 50V C819 4700p 50V C882 0.1u 50V C895 10u 25V C896 0.1u 50V C863 0.1u 50V C861 0.1u 50V C881 0.1u 50V C880 0.1u 50V C872 100p 50V C876 16V 470u C856 35V 220u C852 470u 16V C886 470u 16V C875 50V 220u C858 470u 16V C885 220u 35V C842 35V 220u D886 B0HCMM000014 D856 B0JCME000037 D891 B0JCME000037 D889 B0JANE000006 D854 B0JANE000006 D862 B0JCPG000005 D890 B0JCME000037 D892 B0JCPG000005 D887 B0HCMM000014 D863 B0JCME000037 D824 B0JCME000037 D885 B0JCME000037 D860 B0JANE000006 D888 B0BA02700008 D894 B0BC01000044 IC853 C0DBAZG00048 1 VOUT 2 VIN 3 Oadj 4 ON/OFF 5 COMP 6 GND 7 GND 8 VB C0DAAZG00014 IC862 1 Vin 2 Vout * 3 COM 4 Oadj 5 ON/OFF *IC852 C0DAAZH00020 1 INPUT_(_VIN_) 2 OUTPUT_(_V_OUT_) 3 COM 4 OADJ 5 ON_/_OFF_(_VC) C0DAAZG00014 *IC855 1 Vin 2 Vout 3 COM 4 Oadj 5 ON/OFF *IC851 C0DAAZH00020 1 INPUT_(_VIN_) 2 OUTPUT_(_V_OUT_) * 3 COM 4 OADJ 5 ON_/_OFF_(_VC) P2 K1KA10AA0194 1 2 3 4 5 6 7 8 9 10 P3 K1KA14AA0178 1 2 3 4 5 6 7 8 9 10 11 12 13 14 P4 K1KA18AA0178 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 L837 J0JKA0000038 L840 EXCELDR35V L843 EXCELDR35V L872 L867 J0JKB0000034 L844 G0C101K00041 * * L865 22u * * L870 100u * * L839 G0A221GA0001 * * L836 100u L869 100u L871 220u * * C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C TPP033 TPP039 TPP042 TPP028 TPP003 TPP035 TPP040 TPP010 TPP005 TPP001 TPP036 TPP030 TPP047 TPP029 TPP034 TPP004 TPP032 TPP002 TPP027 TPP015 TPP013 TPP011 TPP009 TPP041 TPP006 TPP031 Q845 2SD0601A0L Q848 2SD0601A0L Q847 2SD0601A0L Q849 2SD0601A0L JSP835 JSP808 JSP851 JSP842 JSP852 JSP854 JSP843 R877 1.2k R888 11k 1/10W R889 10k 1/10W R822 1.1k 1/10W R896 22k 1/8W R909 10k 1/8W R895 1k 1/8W R898 10k 1/8W R885 1k 1/8W R891 1k 1/8W R870 6.2k R890 10k 1/8W R897 4.7k 1/8W R893 47k 1/8W R894 10k 1/8W R884 33k 1/8W R875 1.33k R876 6.49k R913 820 R912 3.09k R899 1.15k 1/10W R887 47k 1/8W M = < TUC4G788-1 MAIN 8V PANEL 12V A SOUND STBY_5V/STBY_3.3V GND GND GND GND GND GND GND GND GND GND GND GND GND GND 24V BT_30V MAIN_8V SOUND_12V SOUND_12V SOUND_GND SOUND_GND RESERVE 24V_ON SUB_ON MAIN_ON PANEL_ON PANEL_12V PANEL_12V MAIN_5V STBY_3.3V 24V 24V 24V 24V 24V GND GND GND GND GND STDBY_5V STDBY_3.3V STBY_5V/STBY_3.3V TUC4G727-1 9 10 11 12 13 14 15 16 17 A B C D E F TC-37LZ80D P�(2/2)��� TC-37LZ80D P�(2/2)��� ! P� TNP4G440AB TC-37LZ80D (2/2) 6 5 6 3 2 1 4 7 8 9 10 11 TC-37LZ80D 32 13.10.G 板线路图 L L V Y C G R R GUARD_SR GUARD_SR GUARD_SL GUARD_V GUARD_SL D3511 MAZ81400ML D3501 MAZ81400ML D3502 MAZ81400ML D3510 MAZ81400ML D3509 MAZ81400ML D3506 MAZ81400ML D3508 MAZ81400ML D3507 MAZ81400ML D3504 MAZ81400ML D3513 MAZ81400ML D3503 MAZ81400ML D3512 MAZ81400ML JK3501 K4AK18B00004 R R-G L L-G V V-G Y-SW Y Y-G G C-G C-SW C G b a c R-SW G3 1 2 C CS C C CS CS C CS C C C C C C C C C C CS C C C TP3538 TP3540 TP3545 TP3506 TP3504 TP3502 TP3501 TP3510 TP3507 TP3541 TP3508 TP3546 TP3544 TP3542 TP3537 TP3505 TP3539 TP3543 TP3509 TP3521 CL3503 CL3504 JS3503 JS3501 JS3502 R3504 0 R3503 0 R3507 0 R3512 1k R3510 1k R3508 0 R3514 180k R3513 180k 1% R3505 75 1% R3502 75 R3517 0 2.0 x 1.25 R3516 0 R3509 75 R3501 0 R3511 0 G4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 CS C TO A4 GND AV3_V HP_LOUT AV3_S_DET AV3_LIN KEYSCAN HP_ROUT AV3_C AV3_RIN GND GND GND GND AV3_Y GND < 1 2 3 4 5 6 7 8 9 A B C D E F TC-37LZ80D G������ TC-37LZ80D G���� ! G� TNP4G443AB TC-37LZ80D TC-37LZ80D 33 13.11.SW 板线路图 D841 D4EAC6210002 SW1 1 2 SW2 1 3 C A-1 SW841 ESB92DA1B ** ** ** ** *F841 K5D502BNA005 T5AH/250V HOT COLD AC CORD 1 2 3 4 5 6 7 8 9 A B C D E F ! TC-37LZ80D SW���� TC-37LZ80D SW���� ! SW� TNP4G445AB TC-37LZ80D ! ! ! TC-37LZ80D 34 13.12.K2 板线路图 K2 1 2 3 C R2514 68k 1/10W R2511 6.8k 1/10W R2512 12k 1/10W R2513 22k 1/10W R2510 0 SW2513 EVQ11G05R SW2512 EVQ11G05R SW2514 EVQ11G05R SW2510 EVQ11G05R SW2511 EVQ11G05R KEYSCAN GND 1 2 3 4 5 6 7 8 9 A B C D E F TC-37LZ80D K2���� TC-37LZ80D K2���� ! K2� TNP4G442AB TC-37LZ80D TC-37LZ80D 35 13.13.V 板线路图 + + G R VCC GND OUT R_LED_ON G_LED_ON REMOTE REMOTE AI STB3.3V C1007 0.01u 50V C1006 6.3V 47u C1003 16V 22u *D1001 B3AGA0000072 V1 K1KA08BA0061 1 2 3 4 5 6 7 8 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 2 1 3 TPV001 TP1004 TP1003 TP1006 TP1007 TP1002 TP1005 TP1001 TP1008 *RM1001 PNA4701M06TV Q1007 2SC584500L Q1006 2SC584500L Q1002 2SA207700L Q1004 2SA207700L R1022 1.5k R1020 10k R1026 200k R1015 10k R1017 10k R1008 47k R1006 510 R1028 470 R1024 0 R1019 10k R1010 47k R1003 1k R1002 47k R1025 0 R1029 1k AI RM AI GND MAIN3.3V GND 1 2 3 4 5 6 7 8 9 A B C D E F SN1001 B3L000000032 TC-37LZ80D V���� TC-37LZ80D V���� ! �� TNP4G444AB TC-37LZ80D TC-37LZ80D 36 14 部品位置和机械部品表 14.1. 部品位置 TC-37LZ80D 37 14.2. 包装分解图 TC-37LZ80D 38 14.3. 底座分解图 TC-37LZ80D 39 14.4. 机械部件更换表 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 1 EAS16S07B 扬声器 J0KF00000018 磁环 J0KG00000139 磁环 K1PY51YA0008 LVDS 线 K2CA2YY00007 电源线 2 L5EDD9T00008 LCD 屏 3 N2QAYB000225 遥控器 4 R6PND/2S 电池 T5E7756 透明胶带 TBL0A8413 垫片 TBL0A8414 橡胶垫 TBM0A0412 侧 AV 指示牌 TBM0A0438 后铭牌 TBM0A0439 后 AV 指示牌 TBM0A0440 HDMI 指示牌 TBM2AX11701 商标标牌 TBX0A84902 五连键 5 TBX0A85001 电源键 TES0A204 电源键弹簧 TKK0A8533-1 端子盖 6 TKK0A8545 导光板 TKK0A8546 电源线支架 7 TKP0AB8901 控制部支架 TKP0AB9001 G 板支架 8 TKR0A1301 装饰条 9 TKU0A5902 后盖 10 TKX0A4102 底座盖板 TKZ0A8888 LCD 侧金具 11 TKZ0A8890 壁挂金具 TKZ0A8891 底座支架 TKZ0A8892 LCD 顶部金具 TKZ0A8893 LCD 底部金具 TMK0A068 无纺布 (OR TMK4G162) TMK0A252 无纺布 TMK0A253 无纺布 TMK0A254 无纺布 TMK0A318 无纺布 TMK0A319 无纺布 TMK0A323 无纺布 TMK0A326 无纺布 TMK0A329 无纺布 TMK0A339 无纺布 12 TMW0A304 电源键支架 13 TPC0A51504 包装箱 14 TPD0A1091 缓冲材 15 TPD0A2086 缓冲材 16 TPD0A5053 缓冲材 17 TPE0A4053 包装袋 18 TQB0A1222 说明书 TQD0A12008 合格票 TQD0A18007-4 保修证 TUA0A3500-1 机芯框架 19 TUX0A150 底座支架 20 TUX0A151 底座底板 21 TXFKY010NYC 前壳 TXFPE01RLTU 清洁布组件 XTB4+12JFJ 自攻钉 XTB4+15JFJ 螺钉 XTW3+10TFJ 自攻钉 XYN4+F6FJ 螺钉 TC-37LZ80D 40 15 更换部件表 15.1. 注意事项 TC-37LZ80D 41 15.2. 电子部件更换表 15.2.1. 集成电路 15.2.2. 三极管 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 IC800 C0DBBZG00004 集成电路 IC801 C5HAZZZ00011 集成电路 IC805 AN1431T-TA 集成电路 IC851 C0DAAZH00020 集成电路 IC852 C0DAAZH00020 集成电路 IC853 C0DBAZG00048 集成电路 IC855 C0DAAZG00014 集成电路 IC862 C0DAAZG00014 集成电路 IC1102 C3EBKC000014 集成电路 IC1803 C0EBF0000354 集成电路 IC1804 C0CBCYE00001 集成电路 IC1807 C0DBEGE00002 集成电路 IC1808 C0DBAZG00048 集成电路 IC1809 C0DBAYY00428 集成电路 IC1810 C0DBEYY00084 集成电路 IC1811 C0DBEYG00002 集成电路 IC1812 C0DBEGE00002 集成电路 IC2000 C1AB00002916 集成电路 IC2350 C1BB00000947 集成电路 IC4001 C5ZBZ0000074 集成电路 IC4001 TVR4G56-3( 订购品番 ) 集成电路 IC4002 C3ABRY000038 集成电路 IC4003 C3ABRY000038 集成电路 IC4004 C0DBEFH00002 集成电路 IC5001 C1ZBZ0003846 集成电路 IC5002 C1ZBZ0003846 集成电路 IC5003 C3EBDC000067 集成电路 IC5004 C3EBDC000067 集成电路 PC801 B3PAA0000363 集成电路 PC802 B3PAA0000363 集成电路 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 Q801 B1DFBR000008 三极管 Q802 2SD0601A0L 三极管 Q803 2SD0601A0L 三极管 Q804 2SD0601A0L 三极管 Q805 2SD0601A0L 三极管 Q806 2SD0601A0L 三极管 Q807 B1BACG000035 三极管 Q808 B1BACD000014 三极管 Q809 2SD0601A0L 三极管 Q810 2SD0601A0L 三极管 Q811 2SD0601A0L 三极管 Q814 B1DEHR000005 三极管 Q843 B1CGRD000002 三极管 Q845 2SD0601A0L 三极管 Q847 2SD0601A0L 三极管 Q848 2SD0601A0L 三极管 Q849 2SD0601A0L 三极管 Q881 2SD0601A0L 三极管 Q892 UNR221900L 三极管 Q1002 2SA207700L 三极管 Q1004 2SA207700L 三极管 Q1006 2SC584500L 三极管 Q1007 2SC584500L 三极管 Q1217 2SA207700L 三极管 Q1218 2SC584500L 三极管 Q1803 2SC584500L 三极管 Q1804 2SA207700L 三极管 Q1805 2SA207700L 三极管 Q1806 2SC584500L 三极管 Q1807 B1DEED000002 三极管 Q1812 2SD0601A0L 三极管 Q1813 2SD0601A0L 三极管 Q1932 2SD0601A0L 三极管 Q2033 B1MBACA00008 三极管 Q2301 2SC584500L 三极管 Q2302 2SC584500L 三极管 Q2303 2SA207700L 三极管 Q2310 2SC584500L 三极管 Q2311 2SC584500L 三极管 Q3001 2SC584500L 三极管 Q3002 2SA207700L 三极管 Q3003 2SC584500L 三极管 Q3007 2SA207700L 三极管 Q3062 2SC584500L 三极管 Q3063 2SA207700L 三极管 Q3064 2SC584500L 三极管 Q3065 2SA207700L 三极管 Q3066 2SC584500L 三极管 Q3067 2SC584500L 三极管 Q3072 2SA207700L 三极管 Q3073 2SA207700L 三极管 Q3200 2SC584500L 三极管 Q3201 2SC584500L 三极管 Q3202 2SC584500L 三极管 Q3203 2SC584500L 三极管 Q3204 2SA207700L 三极管 Q3205 2SC584500L 三极管 Q3801 2SA207700L 三极管 Q3806 2SC584500L 三极管 Q3807 2SC584500L 三极管 Q3827 B1CHRE000003 三极管 Q3832 2SD0601A0L 三极管 Q4020 2SC584500L 三极管 Q4021 2SC584500L 三极管 Q4022 2SC584500L 三极管 Q4119 2SC584500L 三极管 Q4501 B1CBHD000002 三极管 Q5003 2SC584500L 三极管 Q5004 2SC584500L 三极管 Q5019 2SC584500L 三极管 Q5020 2SC584500L 三极管 Q5021 2SC584500L 三极管 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 42 15.2.3. 二极管 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 D800 B0EBNT000007 二极管 D801 ERZV10V621CS 二极管 D803 ERZV10V621CS 二极管 D804 B0HAJL000003 二极管 D805 B0HASR000014 二极管 D807 B0JAME000058 二极管 D808 B0JCNE000004 二极管 D809 MAZ80680ML 二极管 D810 MAZ81100ML 二极管 D811 MAZ80390HL 二极管 D812 B0JCNG000003 二极管 D813 MAZ81800ML 二极管 D815 MAZ80750ML 二极管 D816 MAZ42400MF 二极管 D817 B0HAMM000122 二极管 D818 B0JBSL000026 二极管 D819 B0JBSL000026 二极管 D823 B0HAJL000003 二极管 D824 B0JCME000037 二极管 D832 B0JCME000037 二极管 D841 D4EAC6210002 二极管 D844 B0BA42500001 二极管 D845 B0HAKR000004 二极管 D851 B0BA02800001 二极管 D852 B0BA02800001 二极管 D853 B0JCNG000003 二极管 D854 B0JANE000006 二极管 D856 B0JCME000037 二极管 D860 B0JANE000006 二极管 D862 B0JCPG000005 二极管 D863 B0JCME000037 二极管 D864 MA2J11100L 二极管 D885 B0JCME000037 二极管 D886 B0HCMM000014 二极管 D887 B0HCMM000014 二极管 D888 B0BA02700008 二极管 D889 B0JANE000006 二极管 D890 B0JCME000037 二极管 D891 B0JCME000037 二极管 D892 B0JCPG000005 二极管 D893 B0BA05600010 二极管 D894 B0BC01000044 二极管 D1001 B3AGA0000072 LED 二极管 D1109 MAZ80620ML 二极管 D1110 MAZ80620ML 二极管 D1812 MAZ81600HL 二极管 D1813 B0ACCK000012 二极管 D1814 MAZ80620LL 二极管 D1815 B0ACCK000012 二极管 D1816 MAZ81300ML 二极管 D1817 B0ACCK000012 二极管 D1818 MAZ80820ML 二极管 D1819 B0ACCK000012 二极管 D1824 MAZ82700ML 二极管 D1825 B0ACCK000012 二极管 D1828 B0ACCK000012 二极管 D1829 B0ACCK000012 二极管 D1881 B0JCME000037 二极管 D1882 B0JCPG000005 二极管 D1885 MA24D5000B 二极管 D1886 MAZ802400L 二极管 D1911 MA24D5000B 二极管 D2100 MA22D3900L 二极管 D2101 MA22D3900L 二极管 D2301 MA22D3900L 二极管 D2302 B0ACCK000012 二极管 D2303 B0ACCK000012 二极管 D2305 B0ACCK000012 二极管 D2306 B0ACCK000012 二极管 D2307 MA22D3900L 二极管 D3001 MAZ81400ML 二极管 D3002 MAZ81400ML 二极管 D3003 MAZ81400ML 二极管 D3007 MAZ81400ML 二极管 D3008 MAZ81400ML 二极管 D3009 MAZ81400ML 二极管 D3013 MAZ81400ML 二极管 D3014 MAZ81400ML 二极管 D3015 MAZ81400ML 二极管 D3016 MAZ81400ML 二极管 D3017 MAZ81400ML 二极管 D3018 MAZ81400ML 二极管 D3021 MAZ81400ML 二极管 D3022 MAZ81400ML 二极管 D3023 MAZ81400ML 二极管 D3024 MAZ81400ML 二极管 D3025 MAZ81400ML 二极管 D3026 MAZ81400ML 二极管 D3027 MAZ81400ML 二极管 D3028 MAZ81400ML 二极管 D3031 MAZ81400ML 二极管 D3032 MAZ81400ML 二极管 D3033 MAZ81400ML 二极管 D3200 MAZ81500ML 二极管 D3203 B0ACCK000012 二极管 D3204 B0ACCK000012 二极管 D3205 B0ACCK000012 二极管 D3206 B0ACCK000012 二极管 D3207 B0ACCK000012 二极管 D3208 B0ACCK000012 二极管 D3209 B0ACCK000012 二极管 D3210 B0ACCK000012 二极管 D3211 B0ACCK000012 二极管 D3215 B0ACCK000012 二极管 D3216 B0ACCK000012 二极管 D3217 B0ACCK000012 二极管 D3219 MA2J72900L 二极管 D3247 B0ACCK000005 二极管 D3248 B0ACCK000005 二极管 D3249 B0ACCK000005 二极管 D3250 B0ACCK000005 二极管 D3501 MAZ81400ML 二极管 D3502 MAZ81400ML 二极管 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 43 15.2.4. 线圈 D3503 MAZ81400ML 二极管 D3504 MAZ81400ML 二极管 D3506 MAZ81400ML 二极管 D3507 MAZ81400ML 二极管 D3508 MAZ81400ML 二极管 D3509 MAZ81400ML 二极管 D3510 MAZ81400ML 二极管 D3511 MAZ81400ML 二极管 D3512 MAZ81400ML 二极管 D3513 MAZ81400ML 二极管 D4120 B0ACCK000012 二极管 D5002 MA22D3900L 二极管 D5003 MA22D3900L 二极管 D5004 MA22D3900L 二极管 D5005 MA22D3900L 二极管 D5023 MA2J72800L 二极管 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 L831 EXCELDR35V 扼流线圈 L832 J0JKA0000038 线圈 L836 G0C101K00023 线圈 L837 J0JKA0000038 线圈 L839 G0A221GA0001 线圈 L840 EXCELDR35V 扼流线圈 L843 EXCELDR35V 扼流线圈 L844 G0C101K00041 线圈 L865 G0A220ZA0033 线圈 L867 J0JKB0000034 线圈 L868 EXCELDR35V 扼流线圈 L869 G0A101ZA0034 线圈 L870 G0A101ZA0034 线圈 L871 G0A221GA0001 线圈 L872 J0JKB0000034 线圈 L880 EXCELSA39V 线圈 L881 EXCELSA39V 线圈 L1185 J0JHC0000078 线圈 L1186 J0JHC0000078 线圈 L1187 J0JHC0000078 线圈 L1188 J0JHC0000078 线圈 L1189 J0JHC0000078 线圈 L1805 J0JHC0000078 线圈 L1806 J0JHC0000078 线圈 L1811 J0JHC0000075 线圈 L1812 G1C100MA0077 线圈 L1813 J0JKC0000007 线圈 L1815 G0A100ZA0041 线圈 L1816 J0JKC0000007 线圈 L1830 G1C100MA0077 线圈 L1832 ELJPA2R2MFB 线圈 L1834 ELJPA2R2MFB 线圈 L1894 J0JHC0000075 线圈 L1910 ELLATV6R8N 线圈 L1920 J0JHC0000075 线圈 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 L2000 J0JHC0000078 线圈 L2001 G1C330MA0291 线圈 L2002 G1C330MA0291 线圈 L2004 J0JHC0000078 线圈 L2005 G1C330MA0291 线圈 L2006 J0JJC0000015 线圈 L2007 G1C330MA0291 线圈 L2008 J0JHC0000034 线圈 L2009 J0JHC0000034 线圈 L2010 J0JHC0000034 线圈 L2011 J0JHC0000034 线圈 L2100 ELJFC2R2KFB 线圈 L2101 ELJFC2R2KFB 线圈 L2102 ELJFC2R2KFB 线圈 L2103 ELJFC2R2KFB 线圈 L2350 G0C100K00008 线圈 L3800 J0JHC0000078 线圈 L3802 J0JCC0000241 线圈 L3803 J0JCC0000241 线圈 L4000 J0JDC0000002 线圈 L4001 J0JDC0000002 线圈 L4002 J0JDC0000002 线圈 L4003 J0JDC0000002 线圈 L4004 J0JHC0000075 线圈 L4005 J0JDC0000002 线圈 L4006 J0JHC0000075 线圈 L4007 J0JDC0000002 线圈 L4008 J0JDC0000002 线圈 L4009 J0JDC0000002 线圈 L4010 J0JDC0000002 线圈 L4011 J0JHC0000075 线圈 L4012 J0JHC0000075 线圈 L4013 J0JHC0000075 线圈 L4014 J0JDC0000002 线圈 L4015 J0JDC0000002 线圈 L4016 ELJFA6R8KFB 线圈 L4017 J0JCC0000241 线圈 L4018 J0JCC0000241 线圈 L4019 J0JHC0000075 线圈 L4020 J0JHC0000075 线圈 L4023 J0JHC0000075 线圈 L4024 J0JHC0000075 线圈 L4025 J0JDC0000002 线圈 L4026 J0JCC0000268 线圈 L4027 J0JHC0000075 线圈 L4028 J0JHC0000075 线圈 L4029 J0JCC0000268 线圈 L4030 J0JCC0000268 线圈 L4031 J0JHC0000075 线圈 L4440 J0JCC0000268 线圈 L4441 J0JCC0000268 线圈 LF801 G0B153H00003 线圈 LF803 G0B153H00003 线圈 T801 ETS35LZ156AD 变压器 T802 ETS32CZ119AD 变压器 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 44 15.2.5. 电阻 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 R800 ERJ6GEYJ514V M 510K OHM J 1/10W R801 ERC12ZGK185D C 1000K OHM K 1/2W R802 ERJ6GEYJ334V M 330K OHM J 1/10W R803 ERJ6GEYJ334V M 330K OHM J 1/10W R804 ERJ6GEYJ334V M 330K OHM J 1/10W R805 ERJ6GEYJ334V M 330K OHM J 1/10W R806 ERJ6GEYJ153V M 15K OHM J 1/10W R807 ERJ6GEYJ223V M 22K OHM J 1/10W R808 ERJ6GEYJ473V M 47K OHM J 1/10W R809 RD16ST330J C 33 OHM J 1/4W R810 RD16ST121J C 120 OHM J 1/4W R812 ERJ6GEYJ473V M 47K OHM J 1/10W R814 ERJ6GEYJ624V M 620K OHM J 1/10W R815 ERJ6GEYJ624V M 620K OHM J 1/10W R816 ERJ6GEYJ624V M 620K OHM J 1/10W R817 ERJ6GEYJ624V M 620K OHM J 1/10W R818 D1BD7681A044 M 7.68K OHM 1/10W R819 RD16ST101J C 100 OHM J 1/4W R820 ERG2SJW330E M 33 OHM J 2W R821 ERG2SJW330E M 33 OHM J 2W R822 ERJ3EKF1101V M 1.1K OHM F 1/16W R823 D0D5R10KA007 M 0.1 OHM K 5W R824 ERJ6GEYJ103V M 10K OHM J 1/10W R825 ERJ6GEYJ104V M 100K OHM J 1/10W R826 ERJ6GEYJ223V M 22K OHM J 1/10W R828 ERJ6GEYJ154V M 150K OHM J 1/10W R829 ERJ6GEYJ683V M 68K OHM J 1/10W R830 ERJ6GEYJ103V M 10K OHM J 1/10W R831 ERJ6GEYJ752V M 7.5K OHM J 1/10W R832 ERJ6GEYJ564V M 540K OHM J 1/10W R833 ERJ6GEYJ564V M 540K OHM J 1/10W R834 ERJ6GEYJ105V M 1M OHM J 1/10W R835 ERG1SJ223E M 22K OHM J 1W R836 ERG1SJ223E M 22K OHM J 1W R837 ERG1SJ103E M 10K OHM J 1W R838 ERJ6GEYJ514V M 510K OHM J 1/10W R839 ERJ6GEYJ474V M 470K OHM J 1/10W R840 ERJ6GEYJ154V M 150K OHM J 1/10W R841 ERJ6GEYJ473V M 47K OHM J 1/10W R842 ERJ6GEYJ683V M 68K OHM J 1/10W R843 ERJ6GEYJ103V M 10K OHM J 1/10W R844 ERJ6GEYJ104V M 100K OHM J 1/10W R845 ERJ12YJ472U C 4.7K OHM J 1/2W R846 RD50SST302J C 3K OHM J 1/2W R847 ERJ6GEYJ223V M 22K OHM J 1/10W R848 ERJ6GEYJ223V M 22K OHM J 1/10W R849 ERJ6GEYJ473V M 47K OHM J 1/10W R850 ERJ6GEYJ473V M 47K OHM J 1/10W R851 ERJ6GEYJ223V M 22K OHM J 1/10W R852 ERJ6GEYJ683V M 68K OHM J 1/10W R853 RD50SST2R2J C 2.2 OHM J 1/2W R854 EROS2THF8200 M 820 OHM F 1/4W R855 D0MA47MKA005 470 OHM K 3W R856 ERDS1TJ105V C 1M OHM J 1/2W R857 RD50SST151J C 150 OHM J 1/2W R858 ERQ14AJ220P F 22 OHM J 1/4W R859 RD16ST470J C 47 OHM J 1/4W R860 ERJ6GEYJ223V M 22K OHM J 1/10W R861 ERJ6GEYJ112V M 1.1 KOHM J 1/10W R862 ERJ6GEYJ102V M 1K OHM J 1/10W R863 ERJ6GEYJ472V M 4.7K OHM J 1/10W R864 D1BD6651A044 M 6.65K OHM 1/10W R865 ERJ3EKF2702V M 27K OHM F 1/16W R866 ERJ6GEYJ392V M 3.9K OHM J 1/10W R867 D1BD1241A044 M 1.24K OHM 1/10W R868 ERJ6GEYJ472V M 4.7K OHM J 1/10W R869 ERJ6GEYJ103V M 10K OHM J 1/10W R870 ERJ3EKF6201V M 6.2K OHM F 1/16W R871 ERJ6GEYJ472V M 4.7K OHM J 1/10W R872 ERJ6GEYJ103V M 10K OHM J 1/10W R873 ERJ6GEYJ332V M 3.3K OHM J 1/10W R874 D0AW825JA001 C 8.2OHM J 3/4W R875 ERJ3EKF1331V M 1.33K OHM F 1/16W R876 D1BD6491A044 C 6490 OHM F 1/8W R877 D1BD1201A044 M 1.2K OHM 1/10W R880 D1F5100E0002 保险电阻 R881 ERJ6GEYJ473V M 47K OHM J 1/10W R882 ERJ6GEYJ682V M 6.8K OHM J 1/10W R883 ERJ6GEYJ273V M 27K OHM J 1/10W R884 ERJ6GEYJ333V M 33K OHM J 1/10W R885 ERJ6GEYJ102V M 1K OHM J 1/10W R887 ERJ6GEYJ473V M 47K OHM J 1/10W R888 ERJ3EKF1102V M 11K OHM F 1/16W R889 ERJ3EKF1002V M 10K OHM F 1/16W R890 ERJ6GEYJ103V M 10K OHM J 1/10W R891 ERJ6GEYJ102V M 1K OHM J 1/10W R893 ERJ6GEYJ473V M 47K OHM J 1/10W R894 ERJ6GEYJ103V M 10K OHM J 1/10W R895 ERJ6GEYJ102V M 1K OHM J 1/10W R896 ERJ6GEYJ223V M 22K OHM J 1/10W R897 ERJ6GEYJ472V M 4.7K OHM J 1/10W R898 ERJ6GEYJ103V M 10K OHM J 1/10W R899 ERJ3EKF1151V M 1.15K OHM F 1/16W R903 D1BD9531A044 M 9.53K OHM 1/10W R909 ERJ6GEYJ103V M 10K OHM J 1/10W R912 ERJ3EKF3091V M 3.09K OHM F 1/16W R913 D1BD8200A044 M 820 OHM 1/10W R920 ERJ6GEYJ103V M 10K OHM J 1/10W R923 ERJ6GEYJ753V M 75K OHM J 1/10W R924 ERJ6GEYJ753V M 75K OHM J 1/10W R1002 D0GB473JA041 M 47K OHM J 1/16W R1003 D0GB102JA041 M 1K OHM J 1/16W R1006 D0GB511JA008 C 510 OHM J 1/10W R1008 D0GB473JA041 M 47K OHM J 1/16W R1010 D0GB473JA041 M 47K OHM J 1/16W R1015 D0GB103JA041 M 10K OHM J 1/16W R1017 D0GB103JA041 M 10K OHM J 1/16W R1019 D0GB103JA041 M 10K OHM J 1/16W R1020 D0GB103JA041 M 10K OHM J 1/16W R1022 D0GB152JA041 M 1.5K OHM J 1/16W R1026 D0GB204JA008 C 200K OHM J 1/10W R1028 D0GB471JA041 M 470 OHM J 1/16W R1029 D0GB102JA041 M 1K OHM J 1/16W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 45 R1167 D0GB101JA041 M 100 OHM J 1/16W R1171 D0GB220JA041 M 22 OHM J 1/16W R1172 D0GB220JA041 M 22 OHM J 1/16W R1173 D0GB473JA041 M 47K OHM J 1/16W R1176 D0GB101JA041 M 100 OHM J 1/16W R1177 D0GB101JA041 M 100 OHM J 1/16W R1183 D0GB104JA041 M 100K OHM J 1/16W R1240 D0GB473JA041 M 47K OHM J 1/16W R1241 D0GB103JA041 M 10K OHM J 1/16W R1242 D0GB223JA041 M 22K OHM J 1/16W R1243 D0GB473JA041 M 47K OHM J 1/16W R1248 D0GB562JA041 M 5.6K OHM J 1/16W R1298 D0GB101JA041 M 100 OHM J 1/16W R1729 D0GB472JA041 M 4.7K OHM J 1/16W R1812 D0GB333JA041 M 33K OHM J 1/16W R1813 D0GB472JA041 M 4.7K OHM J 1/16W R1819 ERJ3EKF2612V M 26.1K OHM F 1/16W R1820 ERJ3EKF1542V C 15.4K OHM F 1/10W R1823 D0GB473JA041 M 47K OHM J 1/16W R1824 D0GB152JA041 M 1.5K OHM J 1/16W R1825 D0GB473JA041 M 47K OHM J 1/16W R1826 D0GB103JA041 M 10K OHM J 1/16W R1827 D0GB472JA041 M 4.7K OHM J 1/16W R1828 D0GB472JA041 M 4.7K OHM J 1/16W R1829 D0GB472JA041 M 4.7K OHM J 1/16W R1830 D0GB472JA041 M 4.7K OHM J 1/16W R1831 D0GB102JA041 M 1K OHM J 1/16W R1832 D0GB102JA041 M 1K OHM J 1/16W R1840 ERJ3EKF6801V M 6.8K OHM F 1/16W R1841 ERJ3EKF1802V M 18K OHM F 1/16W R1842 D0GB105JA041 M 1M OHM F 1/16W R1843 D0GB103JA041 M 10K OHM J 1/16W R1847 D0GD103JA017 C 10K OHM J 1/8W R1848 ERJ3EKF7152V M 71.5 OHM F 1/16W R1849 ERJ3EKF9761V C 9.76K OHM F 1/10W R1850 D0GD203JA017 C 20K OHM J 1/8W R1851 ERJ3RBD122V C 1.2K OHM D 1/16W R1853 ERJ3RBD563V C 56K OHM D 1/16W R1855 ERJ3RBD103V C 10K OHM D 1/16W R1859 ERJ3EKF6340V C 634 OHM F 1/10W R1860 ERJ3EKF1001V M 1K OHM F 1/16W R1863 D0GB103JA041 M 10K OHM J 1/16W R1864 D0GB103JA041 M 10K OHM J 1/16W R1877 D0GB562JA041 M 5.6K OHM J 1/16W R1878 D0GB152JA041 M 1.5K OHM J 1/16W R1879 D0GB103JA041 M 10K OHM J 1/16W R1884 ERJ6GEYJ103V M 10K OHM J 1/10W R1889 ERJ6GEYJ2R2V M 2.2 OHM J 1/10W R1910 D0GB563JA008 C 56K OHM J 1/10W R1911 ERJ3EKF1201V M 1.2K OHM F 1/16W R1912 ERJ3EKF5102V M 51K OHM F 1/16W R1913 ERJ3EKF1302V M 13K OHM F 1/16W R1914 D0GB103JA041 M 10K OHM J 1/16W R1921 ERJ3EKF2002V M 20K OHM F 1/16W R1922 ERJ3EKF3002V M 30K OHM F 1/16W R1923 ERJ3EKF1600V M 160 OHM F 1/16W R1934 D0GB103JA041 M 10K OHM J 1/16W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 R1935 D0GB473JA041 M 47K OHM J 1/16W R1936 D0GB203JA041 M 20K OHM F 1/16W R1949 D0GB121JA041 M 120 OHM J 1/16W R1950 D0GB221JA041 M 220 OHM J 1/16W R1951 ERJ3EKF3002V M 30K OHM F 1/16W R1952 ERJ3EKF1102V M 11K OHM F 1/16W R2000 D0GB471JA041 M 470 OHM J 1/16W R2001 D0GB104JA041 M 100K OHM J 1/16W R2002 ERJ3EKF2202V M 22K OHM F 1/16W R2003 ERJ3EKF2202V M 22K OHM F 1/16W R2004 ERJ3EKF2202V M 22K OHM F 1/16W R2005 D0GB104JA041 M 100K OHM J 1/16W R2006 D0GB104JA041 M 100K OHM J 1/16W R2007 D0GD221JA017 C 220 OHM J 1/8W R2008 D0GB103JA041 M 10K OHM J 1/16W R2009 D0GB473JA041 M 47K OHM J 1/16W R2010 D0GB471JA041 M 470 OHM J 1/16W R2011 D0GB104JA041 M 100K OHM J 1/16W R2103 D0GB123JA008 C 12K OHM J 1/10W R2104 D0GB104JA041 M 100K OHM J 1/16W R2105 D0GB101JA041 M 100 OHM J 1/16W R2106 D0GB682JA041 M 6.8K OHM J 1/16W R2107 D0GB123JA008 C 12K OHM J 1/10W R2108 D0GB104JA041 M 100K OHM J 1/16W R2109 D0GB101JA041 M 100 OHM J 1/16W R2110 D0GB682JA041 M 6.8K OHM J 1/16W R2301 D0GB102JA041 M 1K OHM J 1/16W R2302 D0GB473JA041 M 47K OHM J 1/16W R2303 D0GB103JA041 M 10K OHM J 1/16W R2308 D0GB102JA041 M 1K OHM J 1/16W R2309 D0GB104JA041 M 100K OHM J 1/16W R2310 D0GB103JA041 M 10K OHM J 1/16W R2311 D0GB153JA041 M 15K OHM J 1/16W R2313 D0GB104JA041 M 100K OHM J 1/16W R2314 D0GB103JA041 M 10K OHM J 1/16W R2315 D0GB102JA041 M 1K OHM J 1/16W R2318 ERJ8GEYJ272V C 2.7K OHM J 1/4W R2351 D0GB681JA041 M 680 0HM J 1/16W R2352 D0GB681JA041 M 680 0HM J 1/16W R2353 D0GB101JA041 M 100 OHM J 1/16W R2354 D0GB101JA041 M 100 OHM J 1/16W R2355 D0GB153JA041 M 15K OHM J 1/16W R2356 D0GB104JA041 M 100K OHM J 1/16W R2357 D0GB104JA041 M 100K OHM J 1/16W R2358 D0GB153JA041 M 15K OHM J 1/16W R2359 D0GB153JA041 M 15K OHM J 1/16W R2360 ERJ8GEYJ151V C 150 OHM J 1/4W R2361 ERJ8GEYJ151V C 150 OHM J 1/4W R2511 ERJ3EKF6801V M 6.8K OHM F 1/16W R2512 ERJ3EKF1202V M 12K OHM F 1/16W R2513 ERJ3EKF2202V M 22K OHM F 1/16W R2514 ERJ3EKF6802V M 68K OHM F 1/16W R3001 D0GB184JA041 M 180K OHM J 1/16W R3002 D0GB184JA041 M 180K OHM J 1/16W R3005 D1BD75R0A044 M 75 OHM 1/10W R3006 D0GB184JA041 M 180K OHM J 1/16W R3007 D0GB184JA041 M 180K OHM J 1/16W R3010 D1BD75R0A044 M 75 OHM 1/10W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 46 R3011 D0GB184JA041 M 180K OHM J 1/16W R3012 D0GB184JA041 M 180K OHM J 1/16W R3013 D1BD75R0A044 M 75 OHM 1/10W R3014 D1BD75R0A044 M 75 OHM 1/10W R3015 D1BD75R0A044 M 75 OHM 1/10W R3019 D1BD75R0A044 M 75 OHM 1/10W R3020 D0GB431JA041 M 430 OHM J 1/16W R3021 D0GB431JA041 M 430 OHM J 1/16W R3022 D0GD331JA017 C 330 OHM J 1/8W R3023 D0GD471JA017 C 470 OHM J 1/8W R3024 D0GD271JA017 C 270 OHM J 1/8W R3026 D0GB473JA041 M 47K OHM J 1/16W R3027 D0GB303JA008 C 30K OHM J 1/10W R3029 D0GB104JA041 M 100K OHM J 1/16W R3034 D0GB104JA041 M 100K OHM J 1/16W R3039 D0GB105JA041 M 1M OHM F 1/16W R3040 D0GB274JA041 M 270K OHM J 1/16W R3041 D0GB473JA041 M 47K OHM J 1/16W R3042 D0GB102JA041 M 1K OHM J 1/16W R3043 D0GB104JA041 M 100K OHM J 1/16W R3097 D0GB183JA008 C 18K OHM J 1/10W R3107 D0GB132JA041 C 1300 OHM J 1/10W R3108 D0GB682JA041 M 6.8K OHM J 1/16W R3110 D0GB102JA041 M 1K OHM J 1/16W R3111 D0GB682JA041 M 6.8K OHM J 1/16W R3112 D0GB102JA041 M 1K OHM J 1/16W R3113 D0GB751JA008 C 750 OHM J 1/10W R3115 D0GB331JA041 M 330 OHM J 1/16W R3116 D0GB331JA041 M 330 OHM J 1/16W R3117 D0GB101JA041 M 100 OHM J 1/16W R3118 D0GB102JA041 M 1K OHM J 1/16W R3119 D0GB101JA041 M 100 OHM J 1/16W R3120 D0GB102JA041 M 1K OHM J 1/16W R3129 D0GB102JA041 M 1K OHM J 1/16W R3130 D0GB102JA041 M 1K OHM J 1/16W R3137 D0GB183JA008 C 18K OHM J 1/10W R3138 D0GB751JA008 C 750 OHM J 1/10W R3139 D0GB132JA041 C 1300 OHM J 1/10W R3200 D0GB103JA041 M 10K OHM J 1/16W R3201 D0GB473JA041 M 47K OHM J 1/16W R3203 D0GB103JA041 M 10K OHM J 1/16W R3204 ERJ14YJ222U M 22K OHM J 1/4W R3205 ERJ14YJ222U M 22K OHM J 1/4W R3206 D0GB223JA041 M 22K OHM J 1/16W R3207 D0GB332JA041 M 3.3K OHM J 1/16W R3208 D0GB103JA041 M 10K OHM J 1/16W R3209 D0GB473JA041 M 47K OHM J 1/16W R3210 D0GB332JA041 M 3.3K OHM J 1/16W R3215 D0GB103JA041 M 10K OHM J 1/16W R3218 D0GB103JA041 M 10K OHM J 1/16W R3221 D0GB103JA041 M 10K OHM J 1/16W R3222 D0GB103JA041 M 10K OHM J 1/16W R3223 D0GB101JA041 M 100 OHM J 1/16W R3224 D0GB123JA041 M 12K OHM J 1/16W R3225 D0GB103JA041 M 10K OHM J 1/16W R3226 D0GB473JA041 M 47K OHM J 1/16W R3227 D0GB103JA041 M 10K OHM J 1/16W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 R3229 D0GB153JA041 M 15K OHM J 1/16W R3230 D0GB473JA041 M 47K OHM J 1/16W R3231 D0GB103JA041 M 10K OHM J 1/16W R3233 D0GB473JA041 M 47K OHM J 1/16W R3234 D0GB222JA041 M 2.2K OHM J 1/16W R3235 D0GB152JA041 M 1.5K OHM J 1/16W R3236 D0GB223JA041 M 22K OHM J 1/16W R3237 D0GB473JA041 M 47K OHM J 1/16W R3240 D1BD75R0A044 M 75 OHM 1/10W R3241 D1BD75R0A044 M 75 OHM 1/10W R3242 D1BD75R0A044 M 75 OHM 1/10W R3243 D0GB220JA041 M 22 OHM J 1/16W R3244 D0GB220JA041 M 22 OHM J 1/16W R3245 D0GB220JA041 M 22 OHM J 1/16W R3246 D0GB102JA041 M 1K OHM J 1/16W R3247 D0GB102JA041 M 1K OHM J 1/16W R3248 D0GD472JA017 C 4.7K OHM J 1/8W R3249 D0GD472JA017 C 4.7K OHM J 1/8W R3502 D1BD75R0A044 M 75 OHM 1/10W R3505 D1BD75R0A044 M 75 OHM 1/10W R3509 D1BD75R0A044 M 75 OHM 1/10W R3510 D0GB102JA041 M 1K OHM J 1/16W R3512 D0GB102JA041 M 1K OHM J 1/16W R3513 D0GD184JA017 C 180K OHM J 1/8W R3514 D0GD184JA017 C 180K OHM J 1/8W R3800 D0GB101JA041 M 100 OHM J 1/16W R3879 D0GB221JA041 M 220 OHM J 1/16W R3882 D0GB102JA041 M 1K OHM J 1/16W R3900 D0GB561JA041 M 560 OHM J 1/16W R3911 D0GB103JA041 M 10K OHM J 1/16W R3912 D0GB332JA041 M 3.3K OHM J 1/16W R3914 D0GB332JA041 M 3.3K OHM J 1/16W R3915 D0GB122JA041 N 1.2K OHM J 1/16W R3916 D0GB471JA041 M 470 OHM J 1/16W R3925 D0GB103JA041 M 10K OHM J 1/16W R3926 D0GB103JA041 M 10K OHM J 1/16W R3930 D0GB103JA041 M 10K OHM J 1/16W R3933 D0GB472JA041 M 4.7K OHM J 1/16W R4001 D0GB273JA041 M 27K OHM J 1/16W R4003 D0GB102JA041 M 1K OHM J 1/16W R4008 D0GB101JA041 M 100 OHM J 1/16W R4009 D0GB360JA041 C 36 OHM J 1/10W R4010 D0GB360JA041 C 36 OHM J 1/10W R4014 D0GB101JA041 M 100 OHM J 1/16W R4016 D0GB103JA041 M 10K OHM J 1/16W R4017 D0GB103JA041 M 10K OHM J 1/16W R4019 D0GB473JA041 M 47K OHM J 1/16W R4020 D0GB103JA041 M 10K OHM J 1/16W R4021 D0GB103JA041 M 10K OHM J 1/16W R4022 D0GB473JA041 M 47K OHM J 1/16W R4023 D0GB105JA041 M 1M OHM F 1/16W R4024 D0GB105JA041 M 1M OHM F 1/16W R4025 D0GB105JA041 M 1M OHM F 1/16W R4026 D0GB105JA041 M 1M OHM F 1/16W R4027 D0GB105JA041 M 1M OHM F 1/16W R4028 D0GB105JA041 M 1M OHM F 1/16W R4029 D0GB105JA041 M 1M OHM F 1/16W R4030 D0GB105JA041 M 1M OHM F 1/16W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 47 R4031 D0GB105JA041 M 1M OHM F 1/16W R4032 D0GB105JA041 M 1M OHM F 1/16W R4033 D0GB105JA041 M 1M OHM F 1/16W R4039 D0GB105JA041 M 1M OHM F 1/16W R4040 D0GB105JA041 M 1M OHM F 1/16W R4041 D0GB105JA041 M 1M OHM F 1/16W R4042 D0GB105JA041 M 1M OHM F 1/16W R4043 D0GB105JA041 M 1M OHM F 1/16W R4044 D0GB105JA041 M 1M OHM F 1/16W R4045 D0GB105JA041 M 1M OHM F 1/16W R4046 D0GB105JA041 M 1M OHM F 1/16W R4047 D0GB101JA041 M 100 OHM J 1/16W R4048 D0GB101JA041 M 100 OHM J 1/16W R4049 D0GB101JA041 M 100 OHM J 1/16W R4050 D0GB101JA041 M 100 OHM J 1/16W R4051 D0GB562JA041 M 5.6K OHM J 1/16W R4052 D0GB102JA041 M 1K OHM J 1/16W R4055 D0GB104JA041 M 100K OHM J 1/16W R4056 D0GB102JA041 M 1K OHM J 1/16W R4058 D0GB101JA041 M 100 OHM J 1/16W R4059 D0GB101JA041 M 100 OHM J 1/16W R4060 D0GB102JA041 M 1K OHM J 1/16W R4061 D0GB220JA041 M 22 OHM J 1/16W R4062 D0GB103JA041 M 10K OHM J 1/16W R4066 D0GB105JA041 M 1M OHM F 1/16W R4067 D0GB105JA041 M 1M OHM F 1/16W R4068 D0GB105JA041 M 1M OHM F 1/16W R4069 D0GB105JA041 M 1M OHM F 1/16W R4070 D0GB105JA041 M 1M OHM F 1/16W R4071 D0GB105JA041 M 1M OHM F 1/16W R4072 D0GB105JA041 M 1M OHM F 1/16W R4073 D0GB105JA041 M 1M OHM F 1/16W R4074 D0GB103JA041 M 10K OHM J 1/16W R4075 D0GB562JA041 M 5.6K OHM J 1/16W R4076 D0GB103JA041 M 10K OHM J 1/16W R4077 D0GB101JA041 M 100 OHM J 1/16W R4078 D0GB101JA041 M 100 OHM J 1/16W R4079 D0GB103JA041 M 10K OHM J 1/16W R4080 D0GB101JA041 M 100 OHM J 1/16W R4081 D0GB105JA041 M 1M OHM F 1/16W R4082 D0GB105JA041 M 1M OHM F 1/16W R4083 D0GB101JA041 M 100 OHM J 1/16W R4084 D0GB102JA041 M 1K OHM J 1/16W R4085 D0GB101JA041 M 100 OHM J 1/16W R4086 D0GB101JA041 M 100 OHM J 1/16W R4087 D0GB104JA041 M 100K OHM J 1/16W R4088 D0GB101JA041 M 100 OHM J 1/16W R4089 D0GB102JA041 M 1K OHM J 1/16W R4090 D0GB101JA041 M 100 OHM J 1/16W R4092 D0GB101JA041 M 100 OHM J 1/16W R4093 D0GB101JA041 M 100 OHM J 1/16W R4098 D0GB473JA041 M 47K OHM J 1/16W R4104 D0GB102JA041 M 1K OHM J 1/16W R4116 D0GB101JA041 M 100 OHM J 1/16W R4117 D0GB473JA041 M 47K OHM J 1/16W R4118 D0GB471JA041 M 470 OHM J 1/16W R4119 D0GB102JA041 M 1K OHM J 1/16W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 R4123 D0GB105JA041 M 1M OHM F 1/16W R4124 D0GB105JA041 M 1M OHM F 1/16W R4125 D0GB203JA008 C 20K OHM J 1/10W R4126 D0GB203JA008 C 20K OHM J 1/10W R4127 D0GB203JA008 C 20K OHM J 1/10W R4128 D0GB203JA008 C 20K OHM J 1/10W R4129 D0GB203JA008 C 20K OHM J 1/10W R4130 D0GB203JA008 C 20K OHM J 1/10W R4131 D0GB203JA008 C 20K OHM J 1/10W R4132 D0GB203JA008 C 20K OHM J 1/10W R4156 D0GB101JA041 M 100 OHM J 1/16W R4158 D0GB101JA041 M 100 OHM J 1/16W R4160 D0GB105JA041 M 1M OHM F 1/16W R4161 D0GB105JA041 M 1M OHM F 1/16W R4162 D0GB105JA041 M 1M OHM F 1/16W R4163 D0GB105JA041 M 1M OHM F 1/16W R4164 D0GB105JA041 M 1M OHM F 1/16W R4165 D0GB105JA041 M 1M OHM F 1/16W R4166 D0GB105JA041 M 1M OHM F 1/16W R4167 D0GB105JA041 M 1M OHM F 1/16W R4168 D0GB105JA041 M 1M OHM F 1/16W R4169 D0GB105JA041 M 1M OHM F 1/16W R4170 D0GB105JA041 M 1M OHM F 1/16W R4171 D0GB105JA041 M 1M OHM F 1/16W R4186 D0GB101JA041 M 100 OHM J 1/16W R4187 D0GB101JA041 M 100 OHM J 1/16W R4188 D0GB102JA041 M 1K OHM J 1/16W R4195 D0GB101JA041 M 100 OHM J 1/16W R4197 D0GB101JA041 M 100 OHM J 1/16W R4210 D0GB220JA041 M 22 OHM J 1/16W R4325 D0GB220JA041 M 22 OHM J 1/16W R4326 D0GB220JA041 M 22 OHM J 1/16W R4350 ERJ2GEJ470X M 47 OHM J 1/4W R4351 ERJ2GEJ470X M 47 OHM J 1/4W R4352 ERJ2GEJ470X M 47 OHM J 1/4W R4353 ERJ2GEJ470X M 47 OHM J 1/4W R4354 ERJ2GEJ470X M 47 OHM J 1/4W R4355 ERJ2GEJ470X M 47 OHM J 1/4W R4356 ERJ2GEJ470X M 47 OHM J 1/4W R4357 ERJ2GEJ470X M 47 OHM J 1/4W R4358 ERJ2GEJ470X M 47 OHM J 1/4W R4359 ERJ2GEJ470X M 47 OHM J 1/4W R4360 ERJ2GEJ470X M 47 OHM J 1/4W R4361 ERJ2GEJ470X M 47 OHM J 1/4W R4362 ERJ2GEJ470X M 47 OHM J 1/4W R4363 ERJ2GEJ470X M 47 OHM J 1/4W R4364 ERJ2GEJ470X M 47 OHM J 1/4W R4365 ERJ2GEJ470X M 47 OHM J 1/4W R4367 ERJ2GEJ470X M 47 OHM J 1/4W R4368 ERJ2GEJ470X M 47 OHM J 1/4W R4369 ERJ2GEJ470X M 47 OHM J 1/4W R4370 ERJ2GEJ470X M 47 OHM J 1/4W R4371 ERJ2GEJ470X M 47 OHM J 1/4W R4372 ERJ2GEJ470X M 47 OHM J 1/4W R4373 ERJ2GEJ470X M 47 OHM J 1/4W R4374 ERJ2GEJ470X M 47 OHM J 1/4W R4375 ERJ2GEJ470X M 47 OHM J 1/4W R4376 ERJ2GEJ470X M 47 OHM J 1/4W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 48 R4377 ERJ2GEJ470X M 47 OHM J 1/4W R4378 ERJ2GEJ470X M 47 OHM J 1/4W R4379 ERJ2GEJ470X M 47 OHM J 1/4W R4380 ERJ2GEJ470X M 47 OHM J 1/4W R4381 ERJ2GEJ470X M 47 OHM J 1/4W R4382 ERJ2GEJ470X M 47 OHM J 1/4W R4383 ERJ2GEJ470X M 47 OHM J 1/4W R4384 ERJ2GEJ470X M 47 OHM J 1/4W R4385 ERJ2GEJ470X M 47 OHM J 1/4W R4386 ERJ2GEJ470X M 47 OHM J 1/4W R4387 ERJ2GEJ470X M 47 OHM J 1/4W R4388 ERJ2GEJ470X M 47 OHM J 1/4W R4389 ERJ2GEJ470X M 47 OHM J 1/4W R4390 ERJ2GEJ470X M 47 OHM J 1/4W R4391 ERJ2GEJ470X M 47 OHM J 1/4W R4392 ERJ2GEJ470X M 47 OHM J 1/4W R4393 ERJ2GEJ470X M 47 OHM J 1/4W R4394 ERJ2GEJ470X M 47 OHM J 1/4W R4395 ERJ2GEJ150X C 15 OHM J 0.063W R4396 ERJ2GEJ150X C 15 OHM J 0.063W R4400 ERJ2GEJ150X C 15 OHM J 0.063W R4401 ERJ2GEJ150X C 15 OHM J 0.063W R4402 ERJ2GEJ150X C 15 OHM J 0.063W R4403 ERJ2GEJ150X C 15 OHM J 0.063W R4404 ERJ2GEJ150X C 15 OHM J 0.063W R4405 ERJ2GEJ150X C 15 OHM J 0.063W R4406 ERJ2GEJ150X C 15 OHM J 0.063W R4407 ERJ2GEJ150X C 15 OHM J 0.063W R4408 ERJ2GEJ150X C 15 OHM J 0.063W R4409 ERJ2GEJ150X C 15 OHM J 0.063W R4410 ERJ2GEJ150X C 15 OHM J 0.063W R4411 ERJ2GEJ150X C 15 OHM J 0.063W R4412 ERJ2GEJ150X C 15 OHM J 0.063W R4413 ERJ2GEJ150X C 15 OHM J 0.063W R4414 ERJ2GEJ150X C 15 OHM J 0.063W R4415 ERJ2GEJ150X C 15 OHM J 0.063W R4416 ERJ2GEJ150X C 15 OHM J 0.063W R4417 ERJ2GEJ150X C 15 OHM J 0.063W R4418 ERJ2GEJ150X C 15 OHM J 0.063W R4419 ERJ2GEJ150X C 15 OHM J 0.063W R4420 ERJ2GEJ150X C 15 OHM J 0.063W R4430 ERJ2GEJ750X C 75 OHM J 0.063W R4431 ERJ2GEJ750X C 75 OHM J 0.063W R4432 ERJ2GEJ750X C 75 OHM J 0.063W R4433 ERJ2GEJ750X C 75 OHM J 0.063W R4434 ERJ2GEJ750X C 75 OHM J 0.063W R4435 ERJ2GEJ750X C 75 OHM J 0.063W R4436 ERJ2GEJ750X C 75 OHM J 0.063W R4437 ERJ2GEJ750X C 75 OHM J 0.063W R4438 ERJ2GEJ750X C 75 OHM J 0.063W R4439 ERJ2GEJ750X C 75 OHM J 0.063W R4440 ERJ2GEJ750X C 75 OHM J 0.063W R4441 ERJ2GEJ750X C 75 OHM J 0.063W R4442 ERJ2GEJ750X C 75 OHM J 0.063W R4443 ERJ2GEJ750X C 75 OHM J 0.063W R4444 ERJ2GEJ750X C 75 OHM J 0.063W R4445 ERJ2GEJ750X C 75 OHM J 0.063W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 R4446 ERJ2GEJ750X C 75 OHM J 0.063W R4447 ERJ2GEJ750X C 75 OHM J 0.063W R4448 ERJ2GEJ750X C 75 OHM J 0.063W R4449 ERJ2GEJ750X C 75 OHM J 0.063W R4450 ERJ2GEJ750X C 75 OHM J 0.063W R4451 D0GB181JA041 M 180 OHM J 1/16W R4470 ERJ2GEJ750X C 75 OHM J 0.063W R4471 ERJ2GEJ750X C 75 OHM J 0.063W R4472 ERJ2GEJ750X C 75 OHM J 0.063W R4473 ERJ2GEJ750X C 75 OHM J 0.063W R4474 ERJ2GEJ750X C 75 OHM J 0.063W R4475 ERJ2GEJ750X C 75 OHM J 0.063W R4476 ERJ2GEJ750X C 75 OHM J 0.063W R4477 ERJ2GEJ750X C 75 OHM J 0.063W R4478 ERJ2GEJ750X C 75 OHM J 0.063W R4479 ERJ2GEJ750X C 75 OHM J 0.063W R4480 ERJ2GEJ750X C 75 OHM J 0.063W R4481 ERJ2GEJ750X C 75 OHM J 0.063W R4482 ERJ2GEJ750X C 75 OHM J 0.063W R4483 ERJ2GEJ750X C 75 OHM J 0.063W R4484 ERJ2GEJ750X C 75 OHM J 0.063W R4485 ERJ2GEJ750X C 75 OHM J 0.063W R4486 ERJ2GEJ750X C 75 OHM J 0.063W R4487 ERJ2GEJ750X C 75 OHM J 0.063W R4488 ERJ2GEJ750X C 75 OHM J 0.063W R4489 ERJ2GEJ750X C 75 OHM J 0.063W R4490 ERJ2GEJ750X C 75 OHM J 0.063W R4491 D0GB181JA041 M 180 OHM J 1/16W R4502 D0GB222JA041 M 2.2K OHM J 1/16W R4503 D0GB101JA041 M 100 OHM J 1/16W R5003 D0GB102JA041 M 1K OHM J 1/16W R5004 D0GB102JA041 M 1K OHM J 1/16W R5005 D0GB103JA041 M 10K OHM J 1/16W R5006 D0GB220JA041 M 22 OHM J 1/16W R5007 D0GB220JA041 M 22 OHM J 1/16W R5009 D0GB472JA041 M 4.7K OHM J 1/16W R5010 D0GB472JA041 M 4.7K OHM J 1/16W R5024 D0GB274JA041 M 270K OHM J 1/16W R5027 D0GB103JA041 M 10K OHM J 1/16W R5028 D0GB220JA041 M 22 OHM J 1/16W R5029 D0GB220JA041 M 22 OHM J 1/16W R5093 ERJ3EKF2702V M 27K OHM F 1/16W R5094 D0GB221JA041 M 220 OHM J 1/16W R5095 D0GB224JA008 C 220K OHM J 1/10W R5096 D0GB104JA041 M 100K OHM J 1/16W R5097 D0GB473JA041 M 47K OHM J 1/16W R5098 D0GB104JA041 M 100K OHM J 1/16W R5099 D0GB472JA041 M 4.7K OHM J 1/16W R5100 D0GB225JA008 C 2200K OHM J 1/10W R5102 D0GB223JA041 M 22K OHM J 1/16W R5120 D0GB473JA041 M 47K OHM J 1/16W R5121 D0GB473JA041 M 47K OHM J 1/16W R5122 D0GB104JA041 M 100K OHM J 1/16W R5124 D0GB473JA041 M 47K OHM J 1/16W R5125 D0GB473JA041 M 47K OHM J 1/16W R5126 D0GB104JA041 M 100K OHM J 1/16W R5129 D0GB473JA041 M 47K OHM J 1/16W R5134 D0GB473JA041 M 47K OHM J 1/16W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 49 15.2.6. 电容 R1024 D0GBR00Z0002 M 0 OHM J 1/16W R1025 D0GBR00Z0002 M 0 OHM J 1/16W R1802 ERJ6GEY0R00V M 0 OHM J 1/10W R1856 ERJ6GEY0R00V M 0 OHM J 1/10W R1861 ERJ6GEY0R00V M 0 OHM J 1/10W R1862 ERJ6GEY0R00V M 0 OHM J 1/10W R1880 ERJ6GEY0R00V M 0 OHM J 1/10W R1885 D0GBR00Z0002 M 0 OHM J 1/16W R1953 D0GBR00Z0002 M 0 OHM J 1/16W R2099 ERJ6GEY0R00V M 0 OHM J 1/10W R2102 ERJ6GEY0R00V M 0 OHM J 1/10W R2300 ERJ6GEY0R00V M 0 OHM J 1/10W R2324 D0GBR00Z0002 M 0 OHM J 1/16W R2325 D0GBR00Z0002 M 0 OHM J 1/16W R2510 D0GBR00Z0002 M 0 OHM J 1/16W R3017 ERJ6GEY0R00V M 0 OHM J 1/10W R3028 ERJ6GEY0R00V M 0 OHM J 1/10W R3064 ERJ6GEY0R00V M 0 OHM J 1/10W R3065 ERJ6GEY0R00V M 0 OHM J 1/10W R3232 ERJ6GEY0R00V M 0 OHM J 1/10W R3501 ERJ6GEY0R00V M 0 OHM J 1/10W R3503 ERJ6GEY0R00V M 0 OHM J 1/10W R3504 ERJ6GEY0R00V M 0 OHM J 1/10W R3507 ERJ6GEY0R00V M 0 OHM J 1/10W R3508 ERJ6GEY0R00V M 0 OHM J 1/10W R3511 ERJ6GEY0R00V M 0 OHM J 1/10W R3516 D0GBR00Z0002 M 0 OHM J 1/16W R3517 ERJ6GEY0R00V M 0 OHM J 1/10W R3870 ERJ6GEY0R00V M 0 OHM J 1/10W R3873 ERJ6GEY0R00V M 0 OHM J 1/10W R3902 ERJ6GEY0R00V M 0 OHM J 1/10W R4037 ERJ6GEY0R00V M 0 OHM J 1/10W R4054 ERJ6GEY0R00V M 0 OHM J 1/10W R4091 ERJ6GEY0R00V M 0 OHM J 1/10W R4094 D0GBR00Z0002 M 0 OHM J 1/16W R4095 D0GBR00Z0002 M 0 OHM J 1/16W R4096 D0GBR00Z0002 M 0 OHM J 1/16W R4097 D0GBR00Z0002 M 0 OHM J 1/16W R5023 ERJ2GE0R00X M 0 OHM 1/4W R5026 ERJ2GE0R00X M 0 OHM 1/4W R5092 ERJ6GEY0R00V M 0 OHM J 1/10W R5128 ERJ2GE0R00X M 0 OHM 1/4W JA1 ERJ8GEY0R00V M 0 0HM 1/10W JA2 ERJ8GEY0R00V M 0 0HM 1/10W JA3 ERJ8GEY0R00V M 0 0HM 1/10W JA6 ERJ8GEY0R00V M 0 0HM 1/10W JA8 ERJ8GEY0R00V M 0 0HM 1/10W JA29 ERJ8GEY0R00V M 0 0HM 1/10W JSA240 ERJ6GEY0R00V M 0 OHM J 1/10W JSA241 ERJ6GEY0R00V M 0 OHM J 1/10W JSA242 ERJ6GEY0R00V M 0 OHM J 1/10W JSA243 ERJ6GEY0R00V M 0 OHM J 1/10W JSA250 ERJ6GEY0R00V M 0 OHM J 1/10W JSA251 ERJ6GEY0R00V M 0 OHM J 1/10W JSA258 ERJ6GEY0R00V M 0 OHM J 1/10W JSA259 ERJ6GEY0R00V M 0 OHM J 1/10W JSP808 ERJ6GEY0R00V M 0 OHM J 1/10W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 JSP814 ERJ6GEY0R00V M 0 OHM J 1/10W JSP820 ERJ6GEY0R00V M 0 OHM J 1/10W JSP821 ERJ6GEY0R00V M 0 OHM J 1/10W JSP822 ERJ6GEY0R00V M 0 OHM J 1/10W JSP823 ERJ6GEY0R00V M 0 OHM J 1/10W JSP824 ERJ6GEY0R00V M 0 OHM J 1/10W JSP825 ERJ6GEY0R00V M 0 OHM J 1/10W JSP854 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1801 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1829 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1836 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1837 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1839 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1843 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1845 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1847 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1853 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1854 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1855 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1920 D0GBR00Z0002 M 0 OHM J 1/16W JSA1921 ERJ6GEY0R00V M 0 OHM J 1/10W JSA1922 ERJ6GEY0R00V M 0 OHM J 1/10W JSA2010 ERJ6GEY0R00V M 0 OHM J 1/10W JSA2011 ERJ6GEY0R00V M 0 OHM J 1/10W JSA2012 ERJ6GEY0R00V M 0 OHM J 1/10W JSA2013 ERJ6GEY0R00V M 0 OHM J 1/10W JSA2304 ERJ6GEY0R00V M 0 OHM J 1/10W JS3501 ERJ6GEY0R00V M 0 OHM J 1/10W JS3502 ERJ6GEY0R00V M 0 OHM J 1/10W JS3503 ERJ6GEY0R00V M 0 OHM J 1/10W Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 C800 ECKCNA101MB7 C 100PF M 250V C801 F0CAF224A066 P 0.22UF M 315V C803 F0CAF224A066 P 0.22UF M 315V C804 F0CAF224A066 P 0.22UF M 315V C805 ECKCNA101MB7 C 100PF M 250V C806 ECKCNA101MB7 C 100PF M 250V C807 ECKCNA101MB7 C 100PF M 250V C808 F0C2H105A011 P 1UF K 500V C810 ECKW3D471KBP C 470PF K 2KV C811 ECJ1VB1H103K C 0.01UF K 50V C812 ECJ1VB1H473K C 0.047UF K 50V C814 ECJ1VB1H104K C 0.1UF K 50V C815 ECJ1VB1H222K C 2200PF K 50V C816 ECJ1VB1H102K C 1000PF K 50V C818 SKP470M1HE11 E 47UF 50V C819 ECJ1VB1H472K C 4700PF K 50V C820 F2B2W2210005 E 220UF 450V C821 ECJ1VB1H223K C 22000PF K 50V C822 ECJ1VB1H104K C 0.1UF K 50V C823 F2A1E221A487 E 220UF 25V C824 ECJ1VB1H104K C 0.1UF K 50V C825 ECJ2FB1E105K C 1UF 16V Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 50 C826 ECJ1VB1H103K C 0.01UF K 50V C827 ECJ1VB1H472K C 4700PF K 50V C828 F1H1H821A971 C 820PF K 50V C829 F2A1H100A317 10UF M 50V C830 ECJ1VB1H102K C 1000PF K 50V C831 F2A1H221B262 220 UF M 50V C832 ECJ1VB1H104K C 0.1UF K 50V C833 F2A1V5600014 E 56UF 35V C834 F2A1V1020043 E 1000UF 35V C835 F2A1V1020043 E 1000UF 35V C837 ECJ2FB1C474K C 0.47UF K 16V C838 F1A2E101A002 C 100PF C839 ECKW3D221KBP C 220PF J 2K C840 F1J1E3340003 P 0.33UF 25V C841 F1A2E681A002 C 680PF C842 F2A1V221A470 220 UF M 35V C845 ECQE6333JFB 0.033UF J 630V C846 F1H1H821A971 C 820PF K 50V C847 ECJ1VB1H104K C 0.1UF K 50V C848 F0C2K393A035 P 0.039UF M C849 ECJ1VB1H104K C 0.1UF K 50V C852 F2A1C471A537 E 470UF 16V C853 ECJ1VB1H104K C 0.1UF K 50V C854 ECJ1VB1H333K C 0.033UF K 50V C856 F2A1V221A470 220 UF M 35V C857 ECJ1VB1H104K C 0.1UF K 50V C858 F2A1C471A537 E 470UF 16V C859 ECQV1H105JL3 P 1UF J 50V C861 ECJ1VB1H104K C 0.1UF K 50V C862 ECJ1VB1H104K C 0.1UF K 50V C863 ECJ1VB1H104K C 0.1UF K 50V C867 F1J0J1060004 C 0.01UF K 16V C868 ECJ1VB1H103K C 0.01UF K 50V C872 ECJ1VC1H101J C 100PF J 50V C875 F2A1H221A115 E 220UF 50V C876 F2A1C471A537 E 470UF 16V C878 ECJ1VB1H104K C 0.1UF K 50V C880 ECJ1VB1H104K C 0.1UF K 50V C881 ECJ1VB1H104K C 0.1UF K 50V C882 ECJ1VB1H104K C 0.1UF K 50V C883 ECJ1VB1H104K C 0.1UF K 50V C884 ECJ1VB1H104K C 0.1UF K 50V C885 F2A1V221A470 220 UF M 35V C886 F2A1C471A537 E 470UF 16V C887 ECJ1VB1H103K C 0.01UF K 50V C888 ECJ1VB1H104K C 0.1UF K 50V C889 ECJ1VB1H104K C 0.1UF K 50V C894 ECJ1VB1H103K C 0.01UF K 50V C895 ECJ3YB1E106M E 10UF K 25V C896 ECJ1VB1H104K C 0.1UF K 50V C897 ECJ3YB1E106M E 10UF K 25V C921 ECJ3YB1E106M E 10UF K 25V C922 ECJ3YB1E106M E 10UF K 25V C1003 ECEA1CKS220B E 22UF 16V C1006 ECEA0JKS470B E 47UF 6.3V C1007 ECJ1VB1H103K C 0.01UF K 50V C1168 F1H1C104A001 P 0.1UF K 16V C1181 ECJ1VB1H102K C 1000PF K 50V Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 C1182 ECJ1VB1H102K C 1000PF K 50V C1183 ECJ1VB1H104K C 0.1UF K 50V C1185 ECJ1VB1H102K C 1000PF K 50V C1186 ECJ1VB1H102K C 1000PF K 50V C1800 ECJ1VB1H104K C 0.1UF K 50V C1819 ECJ1VB1A105K C 1UF K 10V C1820 F1J0J1060004 C 0.01UF K 16V C1825 ECJ1VB1H473K C 0.047UF K 50V C1828 F2G1C470A022 C 47UF J 16V C1831 F1G1A1040006 P 0.1UF 10V C1834 ECJ2FB1C474K C 0.47UF K 16V C1835 ECJ1VB1C563K C 0.056UF K 16V C1836 F1H1C104A001 P 0.1UF K 16V C1839 F1H1H103A013 0.01UF K 50V C1842 F1H0J1050013 P 1UF 10V C1844 F2H0J470A010 E 47UF 6.3V C1850 F1G1A1040006 P 0.1UF 10V C1852 F2H1C470A009 E 47UF 16V C1865 ECJ1VF1A105Z C 1UF Z 10V C1866 ECJ1VF1A105Z C 1UF Z 10V C1867 ECJ1VF1A105Z C 1UF Z 10V C1868 ECJ1VF1A105Z C 1UF Z 10V C1869 F2G1C470A022 C 47UF J 16V C1870 F1H1C104A001 P 0.1UF K 16V C1872 F1H1H103A970 E 0.01UF K 50V C1873 ECJ1VB1H562K C 5600PF K 50V C1874 ECJ1VB1A105K C 1UF K 10V C1875 EEEHB1A221P E 220UF 10V C1876 ECJ3YB1E106M E 10UF K 25V C1879 ECJ1VB1A105K C 1UF K 10V C1880 ECJ1VB1H103K C 0.01UF K 50V C1881 F2A1V331A127 330UF M 35V C1882 ECJ1VB1H103K C 0.01UF K 50V C1883 ECJ1VB1H472K C 4700PF K 50V C1884 ECJ1VC1H101J C 100PF J 50V C1885 F2A1C471A537 E 470UF 16V C1886 ECJ1VB1H104K C 0.1UF K 50V C1887 ECJ1VB1H104K C 0.1UF K 50V C1888 F2A1C331A127 330UF M 16V C1889 ECJ1VB1H103K C 0.01UF K 50V C1890 ECJ1VB1H222K C 2200PF K 50V C1893 ECJ1VB1H104K C 0.1UF K 50V C1897 ECJ3YB1E106M E 10UF K 25V C1898 ECJ3YB1E106M E 10UF K 25V C1903 ECJ3YB1E106M E 10UF K 25V C1904 F2H0G221A005 E 220UF 50V C1905 ECJ1VB1A105K C 1UF K 10V C1907 ECJ1VB1A105K C 1UF K 10V C1908 F1K0J226A008 P 22UF 6.3V C1910 F1J1H473A835 E 0.047UF K 50V C1911 F2A1V331A127 330UF M 35V C1912 F1H1H103A970 E 0.01UF K 50V C1914 F1G1H271A730 E 270PF K 50V C1915 F1H1H222A970 E 2200 PF K 50V C1917 F1K0J226A008 P 22UF 6.3V C1918 F1K0J226A008 P 22UF 6.3V C1920 F2H0G221A005 E 220UF 50V Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 51 C1921 ECJ1VB1A105K C 1UF K 10V C1923 ECJ1VB1A105K C 1UF K 10V C1924 ECJ3YB1E106M E 10UF K 25V C1925 ECJ1VB1H562K C 5600PF K 50V C1931 ECJ1VB1A105K C 1UF K 10V C1932 ECJ3YB1E106M E 10UF K 25V C1934 F1H1H103A970 E 0.01UF K 50V C1951 ECJ1VB1H104K C 0.1UF K 50V C1952 ECJ1VB1H104K C 0.1UF K 50V C1954 F2G0J101A019 E 100UF 6.3V C1971 ECJ0EB1A104K C 0.1UF K 10V C2000 ECJ1VB1C105K C 1UF K 16V C2002 F1H1E104A129 E 0.1UF K 25V C2003 ECJ2FB1E105K C 1UF 16V C2004 ECJ3YB1E106M E 10UF K 25V C2005 F1H1E104A129 E 0.1UF K 25V C2006 F1H1E104A129 E 0.1UF K 25V C2007 F1J1C474A194 E 0.47UF K 16V C2008 F1H1E104A129 E 0.1UF K 25V C2009 ECJ2FB1E105K C 1UF 16V C2010 F1H1E104A129 E 0.1UF K 25V C2011 F1H1E104A129 E 0.1UF K 25V C2012 ECJ1VB1C105K C 1UF K 16V C2014 F2A1E100A206 10UF M 25V C2015 ECJ1VB1C105K C 1UF K 16V C2016 F1H1E104A129 E 0.1UF K 25V C2017 ECJ3YB1E106M E 10UF K 25V C2018 F2A1E471A199 470UF M 25V C2019 ECJ3YB1E106M E 10UF K 25V C2020 ECJ2FB1E105K C 1UF 16V C2021 F1J1C474A194 E 0.47UF K 16V C2022 F1H1E104A129 E 0.1UF K 25V C2024 F1H1E104A129 E 0.1UF K 25V C2025 F1H1E104A129 E 0.1UF K 25V C2026 ECJ2FB1E105K C 1UF 16V C2027 F1H1E104A129 E 0.1UF K 25V C2028 F2A1H3R3A242 3.3UF M 50V C2029 F1H1H223A970 E 0.023UF K 50V C2300 EEEHB1V470UP E 47UF 25V C2301 EEEFK1V331P E 330UF 35V C2350 SKP101M1CD11 E 100UF 16V C2351 SKP101M1CD11 E 100UF 16V C2352 F1H1A1050032 E 1UF K 10V C2353 SKP470M1CD11 E 47UF 16V C2354 F1H1H103A970 E 0.01UF K 50V C2355 SKP470M1CD11 E 47UF 16V C2356 F1H1A1050032 E 1UF K 10V C2357 F1H1H102A219 C 1000UF K 50V C2358 F1H1H102A219 C 1000UF K 50V C2359 F1H1A1050032 E 1UF K 10V C3056 ECJ3YB1C105K C 1UF K 16V C3058 ECJ3YB1C105K C 1UF K 16V C3064 EEEHB0J331UP E 330UF 6.3V C3065 F1H1C104A001 P 0.1UF K 16V C3067 F1J0J1060004 C 0.01UF K 16V C3071 ECJ1VC1H102J C 1000PF J 50V C3072 ECJ1VC1H102J C 1000PF J 50V C3077 ECJ1VB1A105K C 1UF K 10V Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 C3200 ECJ1VB0J225K C 2.2UF K 6.3V C3202 EEEHB1C101UP E 100UF J 16V C3203 ECJ1VB1C224K C 0.22UF K 16V C3204 F2G1C470A022 C 47UF J 16V C3863 ECJ1VF1A105Z C 1UF Z 10V C3870 ECJ1VF1H104Z C 0.1UF Z 50V C3874 F1H1C104A001 P 0.1UF K 16V C3889 F1H1H103A013 0.01UF K 50V C3902 F2G0J101A019 E 100UF 6.3V C3903 F1H1C104A001 P 0.1UF K 16V C3905 F1H1C104A001 P 0.1UF K 16V C4004 F1H1C104A001 P 0.1UF K 16V C4005 F1H1C104A001 P 0.1UF K 16V C4006 F1H1C104A001 P 0.1UF K 16V C4008 F1H1C104A001 P 0.1UF K 16V C4014 F1H1C104A001 P 0.1UF K 16V C4015 F1H1C104A001 P 0.1UF K 16V C4016 F1H1C104A001 P 0.1UF K 16V C4017 F1H1C104A001 P 0.1UF K 16V C4018 F1H1C104A001 P 0.1UF K 16V C4020 ECJ1VB1C104K C 0.1UF K 16V C4021 ECJ1VB1C104K C 0.1UF K 16V C4029 ECJ1VB1C104K C 0.1UF K 16V C4031 ECJ2FB0J106M C 10UF 6.3V C4032 ECJ1VB1C104K C 0.1UF K 16V C4033 ECJ2FB0J106M C 10UF 6.3V C4034 ECJ1VB0J105K C 1UF K 6.3V C4035 ECJ1VB1C104K C 0.1UF K 16V C4036 ECJ2FB0J106M C 10UF 6.3V C4037 ECJ1VB0J105K C 1UF K 6.3V C4038 ECJ1VB1C104K C 0.1UF K 16V C4039 ECJ2FB0J106M C 10UF 6.3V C4040 ECJ1VB1C104K C 0.1UF K 16V C4041 ECJ2FB0J106M C 10UF 6.3V C4043 ECJ1VB0J105K C 1UF K 6.3V C4046 ECJ1VB1C104K C 0.1UF K 16V C4047 ECJ1VB1C104K C 0.1UF K 16V C4048 ECJ2FB0J106M C 10UF 6.3V C4049 ECJ1VB1C104K C 0.1UF K 16V C4050 ECJ2FB0J106M C 10UF 6.3V C4051 ECJ1VB1C104K C 0.1UF K 16V C4052 ECJ1VB1C104K C 0.1UF K 16V C4053 ECJ2FB0J106M C 10UF 6.3V C4054 ECJ1VB1C104K C 0.1UF K 16V C4055 ECJ2FB0J106M C 10UF 6.3V C4056 ECJ1VB1C104K C 0.1UF K 16V C4057 ECJ2FB0J106M C 10UF 6.3V C4058 ECJ1VB1C104K C 0.1UF K 16V C4059 ECJ2FB0J106M C 10UF 6.3V C4060 ECJ1VB1C104K C 0.1UF K 16V C4061 ECJ2FB0J106M C 10UF 6.3V C4062 ECJ1VB0J105K C 1UF K 6.3V C4063 ECJ1VB1C104K C 0.1UF K 16V C4064 ECJ2FB1C475K C 4.7UF 16V C4071 ECJ1VC1H330J C 33PF J 50V C4072 ECJ1VC1H330J C 33PF J 50V C4074 F1J0J1060004 C 0.01UF K 16V Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 52 15.2.7. 其他 C4075 F1J0J1060004 C 0.01UF K 16V C4076 F1J0J1060004 C 0.01UF K 16V C4077 F1J0J1060004 C 0.01UF K 16V C4078 F1J0J1060004 C 0.01UF K 16V C4079 F1J0J1060004 C 0.01UF K 16V C4080 F1J0J1060004 C 0.01UF K 16V C4081 F1J0J1060004 C 0.01UF K 16V C4082 ECJ1VC1H560J C 56PF J 50V C4083 ECJ1VC1H560J C 56PF J 50V C4090 ECJ1VB0J105K C 1UF K 6.3V C4091 ECJ1VB1C104K C 0.1UF K 16V C4092 ECJ2FB0J106M C 10UF 6.3V C4093 ECJ1VB1C104K C 0.1UF K 16V C4094 ECJ2FB0J106M C 10UF 6.3V C4095 ECJ1VB1C104K C 0.1UF K 16V C4096 ECJ2FB0J106M C 10UF 6.3V C4097 ECJ1VB0J105K C 1UF K 6.3V C4098 ECJ1VB1C104K C 0.1UF K 16V C4099 ECJ2FB0J106M C 10UF 6.3V C4100 ECJ1VB0J105K C 1UF K 6.3V C4101 ECJ1VB1C104K C 0.1UF K 16V C4102 ECJ1VB1C104K C 0.1UF K 16V C4103 ECJ2FB0J106M C 10UF 6.3V C4104 ECJ1VB1C104K C 0.1UF K 16V C4105 ECJ2FB0J106M C 10UF 6.3V C4106 ECJ1VB1C104K C 0.1UF K 16V C4107 ECJ2FB0J106M C 10UF 6.3V C4108 ECJ1VB1C104K C 0.1UF K 16V C4109 ECJ2FB0J106M C 10UF 6.3V C4111 ECJ1VB1C104K C 0.1UF K 16V C4112 ECJ1VB1C104K C 0.1UF K 16V C4113 ECJ2FB0J106M C 10UF 6.3V C4114 ECJ1VB1C104K C 0.1UF K 16V C4117 ECJ1VC1H220J C 22PF J 50V C4119 ECJ1VC1H560J C 56PF J 50V C4120 ECJ1VC1H101J C 100PF J 50V C4121 ECJ1VC1H101J C 100PF J 50V C4122 ECJ1VF1C104Z C 0.1UF Z 16V C4130 ECJ2FB0J106M C 10UF 6.3V C4131 ECJ1VB1C104K C 0.1UF K 16V C4133 ECJ2FB0J106M C 10UF 6.3V C4134 ECJ1VB1C104K C 0.1UF K 16V C4135 ECJ2FB0J106M C 10UF 6.3V C4136 ECJ1VB1C104K C 0.1UF K 16V C4137 ECJ2FB0J106M C 10UF 6.3V C4139 ECJ1VB0J105K C 1UF K 6.3V C4141 ECJ1VB1C104K C 0.1UF K 16V C4142 ECJ1VB1C104K C 0.1UF K 16V C4150 F1H1C104A001 P 0.1UF K 16V C4151 F1H1C104A001 P 0.1UF K 16V C4152 F1H1C104A001 P 0.1UF K 16V C4350 ECJ1VB1C104K C 0.1UF K 16V C4351 ECJ1VB1C104K C 0.1UF K 16V C4352 ECJ1VB1C104K C 0.1UF K 16V C4400 ECJ0EB1A104K C 0.1UF K 10V C4401 ECJ0EB1A104K C 0.1UF K 10V C4402 ECJ0EB1A104K C 0.1UF K 10V C4403 ECJ0EB1A104K C 0.1UF K 10V Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 C4404 ECJ0EB1A104K C 0.1UF K 10V C4405 ECJ1VB1C104K C 0.1UF K 16V C4406 F1H1H101A971 E 100PF J 50V C4407 F2H1C100A009 E 10UF 16V C4408 ECJ1VB1H102K C 1000PF K 50V C4409 ECJ1VB1C104K C 0.1UF K 16V C4410 ECJ1VB1H102K C 1000PF K 50V C4411 ECJ1VB1C104K C 0.1UF K 16V C4412 ECJ1VB1H102K C 1000PF K 50V C4413 ECJ1VB1C104K C 0.1UF K 16V C4414 ECJ1VB1H102K C 1000PF K 50V C4415 ECJ1VB1C104K C 0.1UF K 16V C4416 ECJ1VB1C104K C 0.1UF K 16V C4450 ECJ0EB1A104K C 0.1UF K 10V C4451 ECJ0EB1A104K C 0.1UF K 10V C4452 ECJ0EB1A104K C 0.1UF K 10V C4453 ECJ0EB1A104K C 0.1UF K 10V C4454 ECJ0EB1A104K C 0.1UF K 10V C4455 F1H1H101A971 E 100PF J 50V C4456 ECJ1VB1C104K C 0.1UF K 16V C4457 F2H1C100A009 E 10UF 16V C4458 ECJ1VB1H102K C 1000PF K 50V C4459 ECJ1VB1C104K C 0.1UF K 16V C4460 ECJ1VB1H102K C 1000PF K 50V C4461 ECJ1VB1C104K C 0.1UF K 16V C4462 ECJ1VB1H102K C 1000PF K 50V C4463 ECJ1VB1C104K C 0.1UF K 16V C4464 ECJ1VB1H102K C 1000PF K 50V C4465 ECJ1VB1C104K C 0.1UF K 16V C4466 ECJ1VB1C104K C 0.1UF K 16V C4500 ECJ1VB1C104K C 0.1UF K 16V C4501 F2G0J2210013 E 220UF 6.3V C4502 ECJ1VB1C104K C 0.1UF K 16V C4503 ECJ1VB1C104K C 0.1UF K 16V C4504 F2H0J470A010 E 47UF 6.3V C4505 ECJ1VB1C104K C 0.1UF K 16V C4506 ECJ2FB0J106M C 10UF 6.3V C4507 ECJ2FB0J106M C 10UF 6.3V C5003 F1H1C104A001 P 0.1UF K 16V C5004 F1H1C104A001 P 0.1UF K 16V C5054 F1H1H221A971 E 220PF J 50V C5055 F1H1C104A001 P 0.1UF K 16V C5056 F1H1C104A001 P 0.1UF K 16V C5057 F1H1C104A001 P 0.1UF K 16V C5058 F1H1C104A001 P 0.1UF K 16V C5059 F1H1C104A001 P 0.1UF K 16V C5060 F1G1A1040006 P 0.1UF 10V C5061 F1G1A1040006 P 0.1UF 10V Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 X4001 H0J270500126 晶振 SW841 ESB92DA1B 开关 SW2510 EVQ11G05R 开关 Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 53 SW2511 EVQ11G05R 开关 SW2512 EVQ11G05R 开关 SW2513 EVQ11G05R 开关 SW2514 EVQ11G05R 开关 FL4000 EXC24CE900U 滤波器 FL4001 EXC24CE900U 滤波器 FL4002 EXC24CE900U 滤波器 FL4003 EXC24CE900U 滤波器 FL4004 EXC24CE900U 滤波器 FL4005 EXC24CE900U 滤波器 FL4006 EXC24CE900U 滤波器 FL4007 EXC24CE900U 滤波器 FL4008 EXC24CE900U 滤波器 FL4009 EXC24CE900U 滤波器 FL4010 EXC24CE900U 滤波器 FL4011 EXC24CE900U 滤波器 FL5001 F1J1A1050020 滤波器 C 1UF Z 50V FL5002 F1J1A1050020 滤波器 C 1UF Z 50V F841 K5D502BNA005 保险丝 F841-L EYF52BC/L 保险丝支架 F841-R EYF52BC/L 保险丝支架 JK3001 K4AK07A00002 � 后 AV 端子 JK3003 K4AK04A00001 � 后 AV 端子 JK3004A K4AK04A00002 � 后 AV 端子 JK3005A K4AK04A00002 � 后 AV 端子 JK3007 K4AK06A00002 � 后 AV 端子 JK3501 K4AK18B00004 � 侧 AV 端子 JK5001 K1FY119D0003 � HDMI 端子 JK5002 K1FY119D0003 � HDMI 端子 RL801 K6B1CDA00028 继电器 RM1001 PNA4701M06TV 遥控接收器 SN1001 B3L000000032 传感器 TU101 ENG39E04GRF 高频头 A3 K1KA04BA0055 � 连接器 A7 K1KA15AA0194 � 连接器 A8A K1KA08BA0055 � 连接器 A9 K1KA08AA0714 � 连接器 A11 K1KA14AA0178 � 连接器 A12 K1KA18AA0178 � 连接器 A16 K1KA04AA0190 � 连接器 A18 K1KB51A00001 � 连接器 A19 K1FB115A0025 � 连接器 G3 K1KA02AA0180 � 连接器 G4 K1KA15AA0194 � 连接器 K2 K1KA03BA0055 � 连接器 P1 K1KA02B00295 � 连接器 P2 K1KA10AA0194 � 连接器 P3 K1KA14AA0178 � 连接器 P4 K1KA18AA0178 � 连接器 SW1 K1KA02A00720 � 连接器 SW2 K1KA02A00676 � 连接器 V1 K1KA08BA0061 � 连接器 RTL TNP4G439AE A 板 (37LZ80D) RTL TNP4G440AB P 板 (37LZ80D) RTL TNP4G442AB K2 板 (37LZ80D) RTL TNP4G443AB G 板 (37LZ80D) RTL TNP4G444AB V 板 (37LZ80D) Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 RTL TNP4G445AB SW 板 (37LZ80D) Ref. No. 回路号 Part No. 部品品番 Part Name & Description 部品品名 Remarks 备注 TC-37LZ80D 54 16 A4 尺寸线路图 ( 供打印使用 ) 10/2008 中国制作 �� ��� ����� �������
