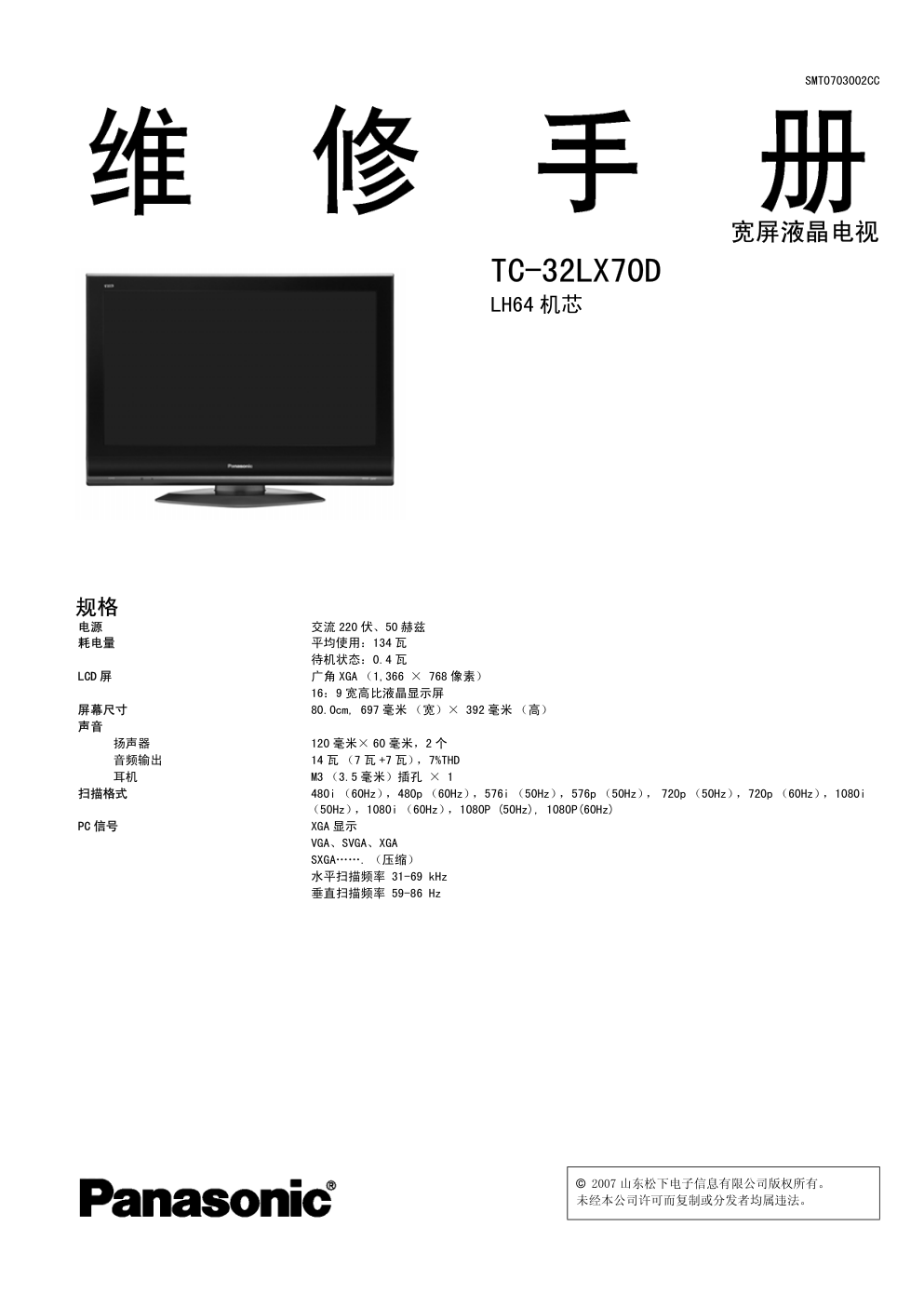

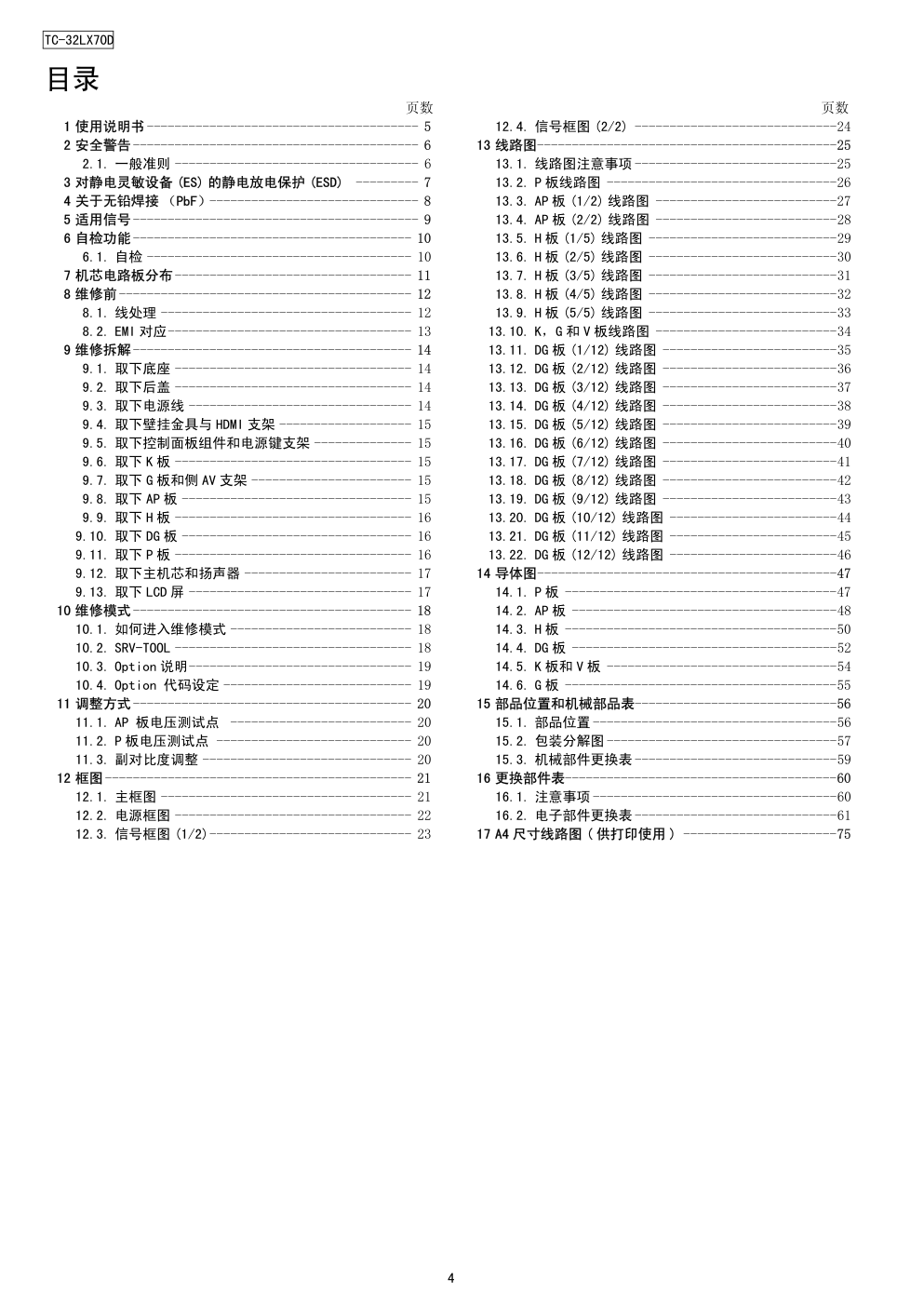

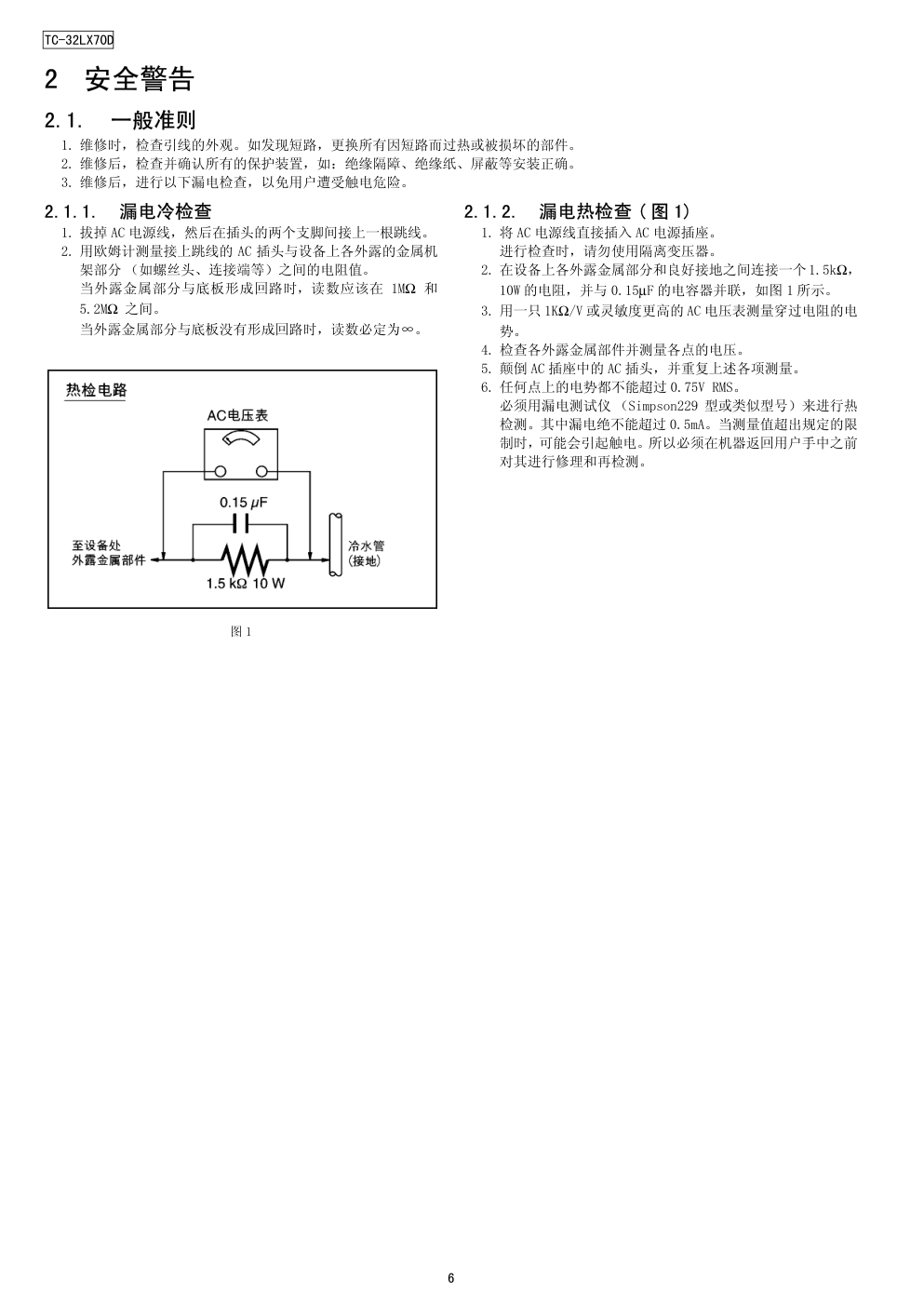

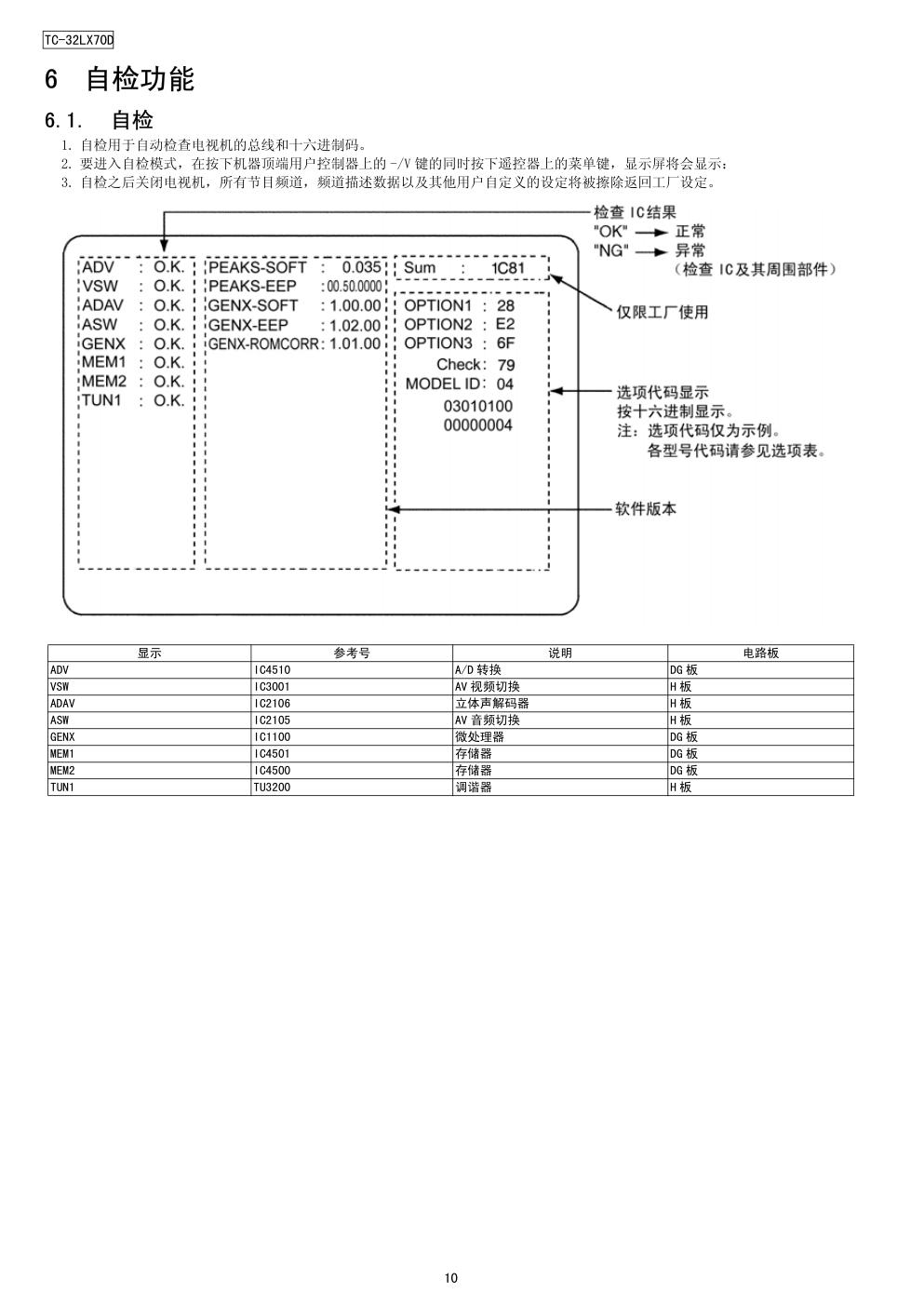

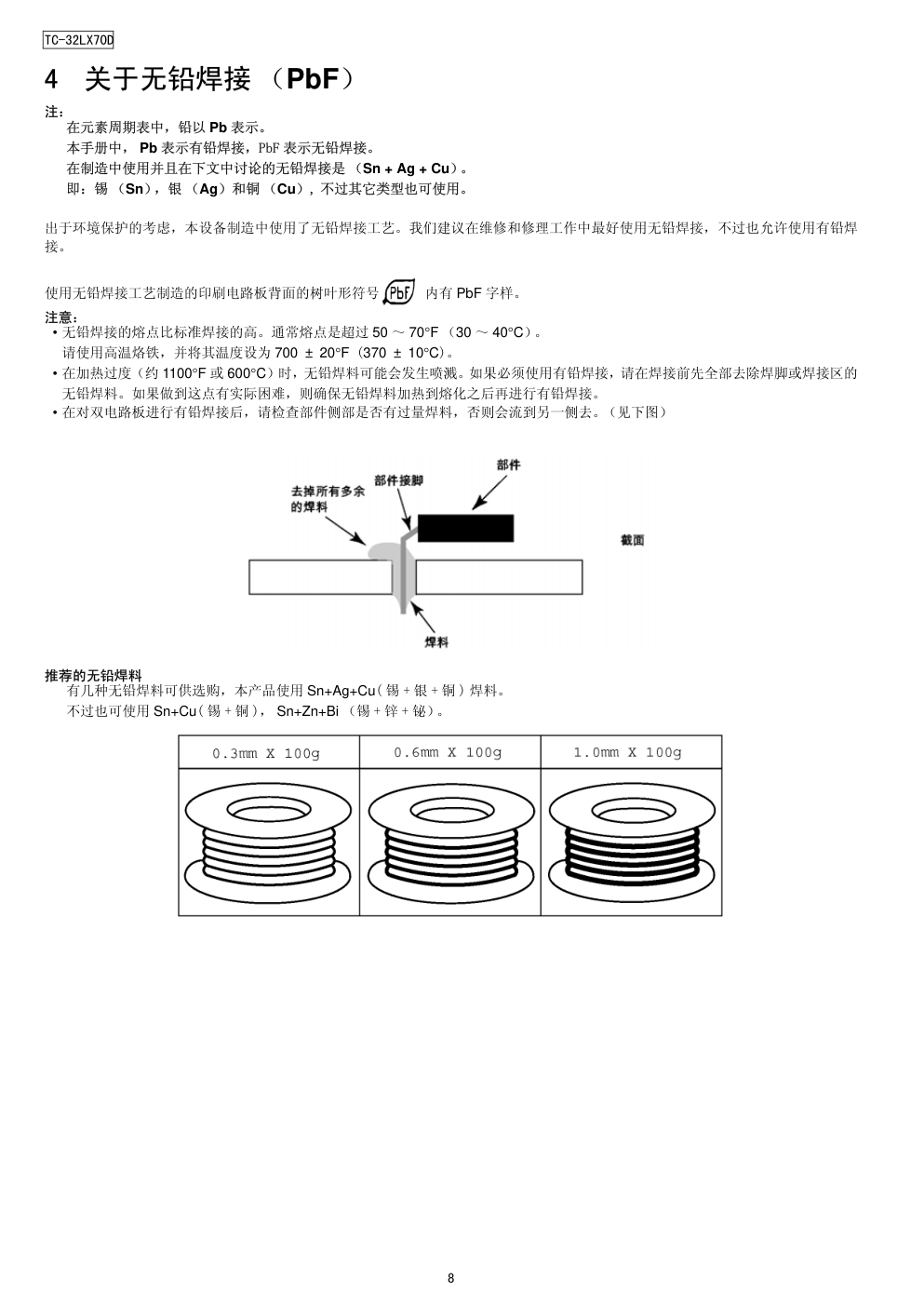

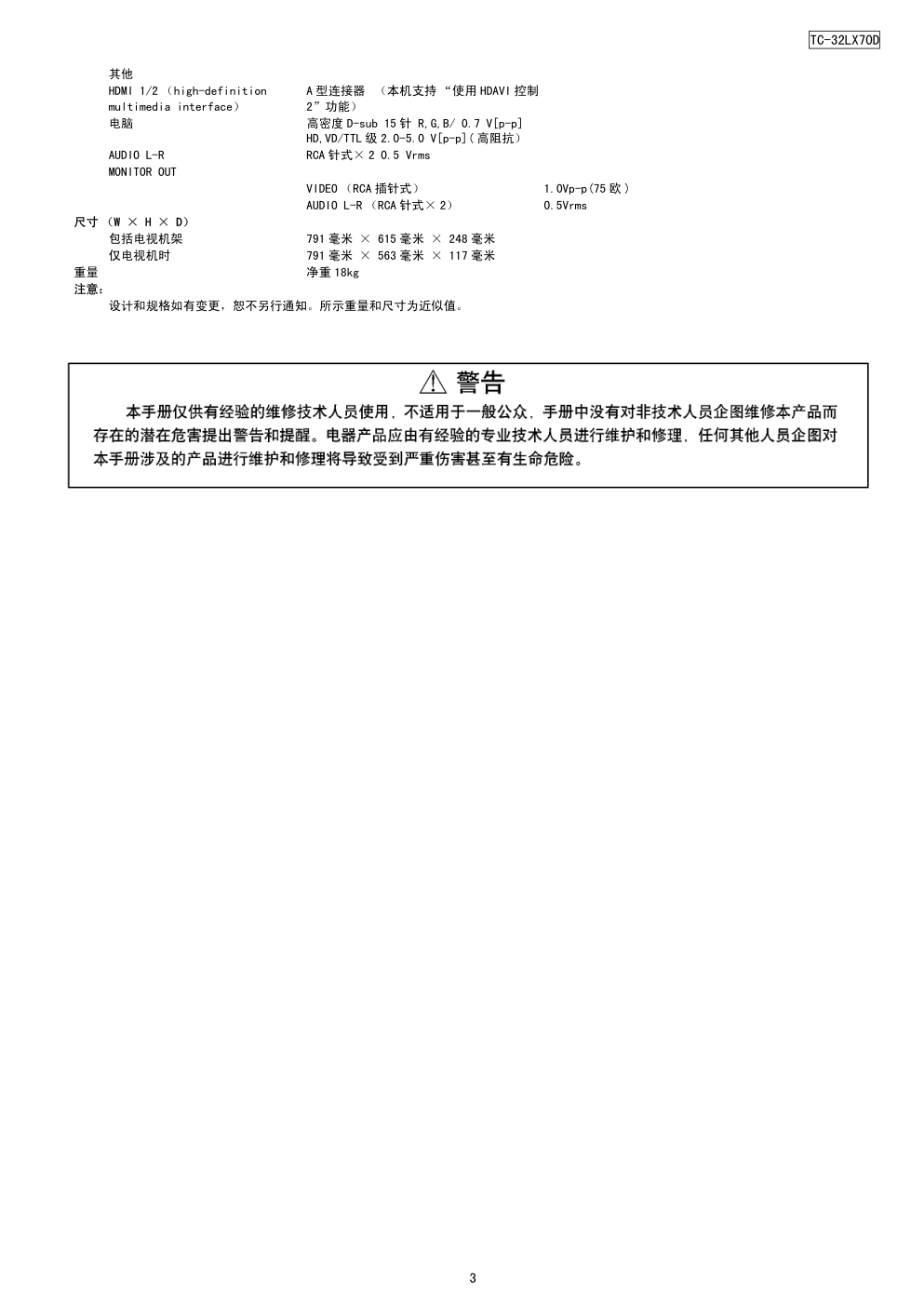

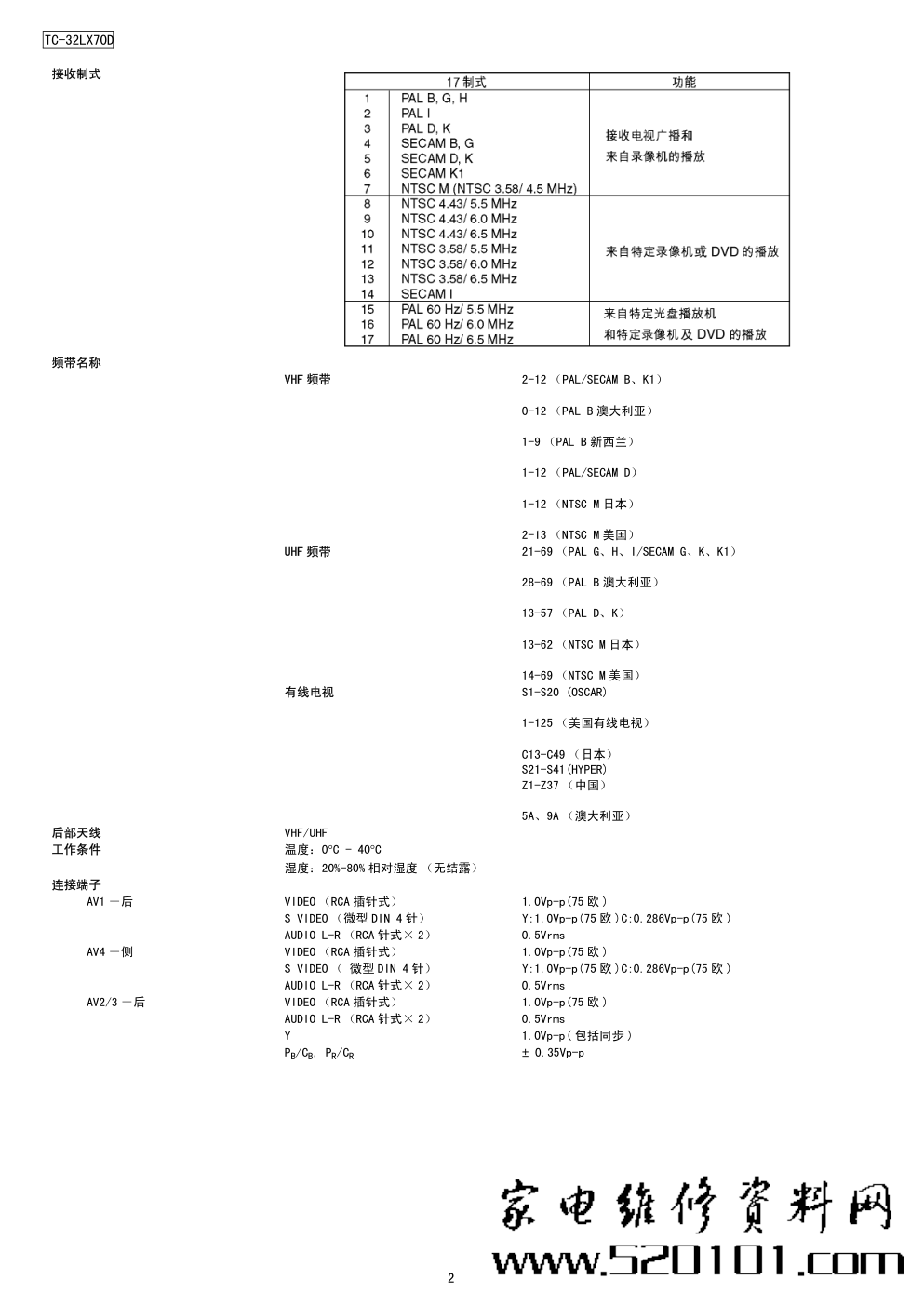

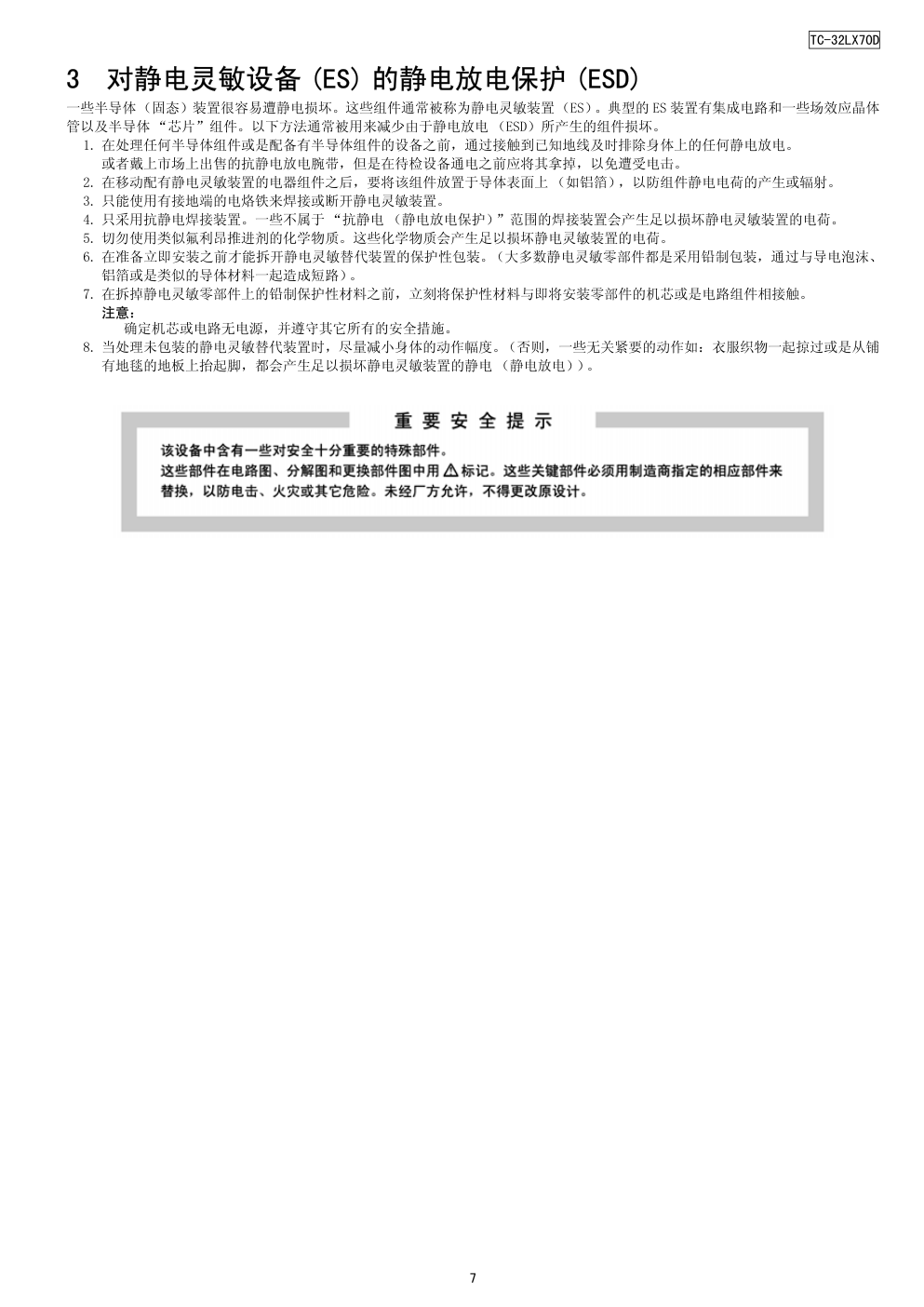

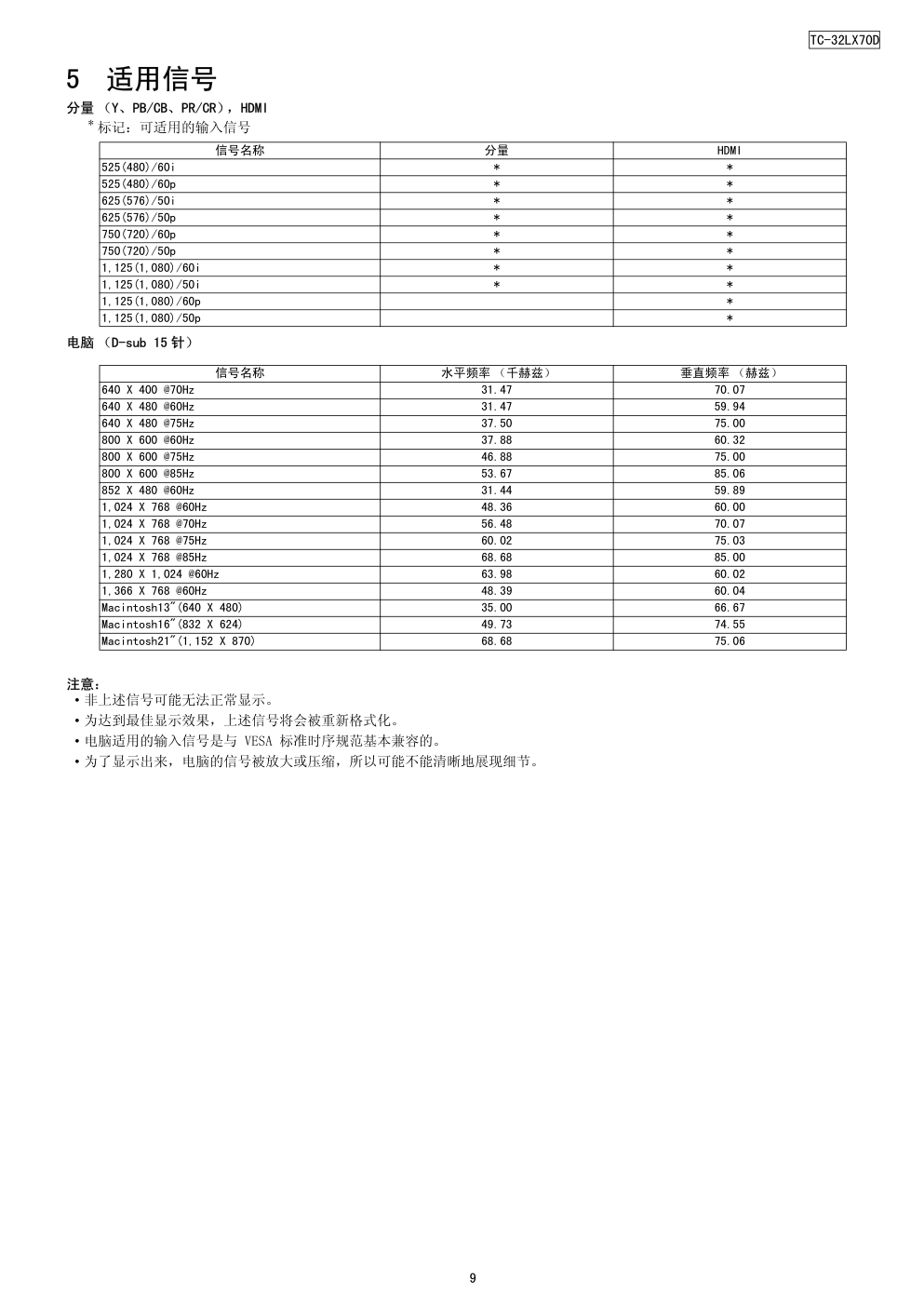

© 2007 山东松下电子信息有限公司版权所有。 未经本公司许可而复制或分发者均属违法。 SMT0703002CC 宽屏液晶电视 TC-32LX70D LH64 机芯 规格 电源 交流 220 伏、50 赫兹 耗电量 平均使用：134 瓦 待机状态：0.4 瓦 LCD 屏 广角 XGA （1,366 × 768 像素） 16：9 宽高比液晶显示屏 屏幕尺寸 80.0cm, 697 毫米 （宽）× 392 毫米 （高） 声音 扬声器 120 毫米× 60 毫米，2 个 音频输出 14 瓦 （7 瓦 +7 瓦），7%THD 耳机 M3 （3.5 毫米）插孔 × 1 扫描格式 480i （60Hz），480p （60Hz），576i （50Hz），576p （50Hz）， 720p （50Hz），720p （60Hz），1080i （50Hz），1080i （60Hz），1080P (50Hz), 1080P(60Hz) PC 信号 XGA 显示 VGA、SVGA、XGA SXGA……. （压缩） 水平扫描频率 31-69 kHz 垂直扫描频率 59-86 Hz TC-32LX70D 2 接收制式 频带名称 VHF 频带 2-12 （PAL/SECAM B、K1） 0-12 （PAL B 澳大利亚） 1-9 （PAL B 新西兰） 1-12 （PAL/SECAM D） 1-12 （NTSC M 日本） 2-13 （NTSC M 美国） UHF 频带 21-69 （PAL G、H、I/SECAM G、K、K1） 28-69 （PAL B 澳大利亚） 13-57 （PAL D、K） 13-62 （NTSC M 日本） 14-69 （NTSC M 美国） 有线电视 S1-S20 (OSCAR) 1-125 （美国有线电视） C13-C49 （日本） S21-S41(HYPER) Z1-Z37 （中国） 5A、9A （澳大利亚） 后部天线 VHF/UHF 工作条件 温度：0°C - 40°C 湿度：20%-80% 相对湿度 （无结露） 连接端子 AV1 －后 VIDEO （RCA 插针式） 1.0Vp-p(75 欧 ) S VIDEO （微型 DIN 4 针） Y:1.0Vp-p(75 欧 )C:0.286Vp-p(75 欧 ) AUDIO L-R （RCA 针式× 2） 0.5Vrms AV4 －侧 VIDEO （RCA 插针式） 1.0Vp-p(75 欧 ) S VIDEO （ 微型 DIN 4 针） Y:1.0Vp-p(75 欧 )C:0.286Vp-p(75 欧 ) AUDIO L-R （RCA 针式× 2） 0.5Vrms AV2/3 －后 VIDEO （RCA 插针式） 1.0Vp-p(75 欧 ) AUDIO L-R （RCA 针式× 2） 0.5Vrms Y 1.0Vp-p( 包括同步 ) PB/CB, PR/CR ± 0.35Vp-p TC-32LX70D 3 其他 HDMI 1/2 （high-definition multimedia interface） A 型连接器 （本机支持 “使用 HDAVI 控制 2”功能） 电脑 高密度 D-sub 15 针 R,G,B/ 0.7 V[p-p] HD,VD/TTL 级 2.0-5.0 V[p-p]( 高阻抗） AUDIO L-R RCA 针式× 2 0.5 Vrms MONITOR OUT VIDEO （RCA 插针式） 1.0Vp-p(75 欧 ) AUDIO L-R （RCA 针式× 2） 0.5Vrms 尺寸 （W × H × D） 包括电视机架 791 毫米 × 615 毫米 × 248 毫米 仅电视机时 791 毫米 × 563 毫米 × 117 毫米 重量 净重 18kg 注意： 设计和规格如有变更，恕不另行通知。所示重量和尺寸为近似值。 TC-32LX70D 4 目录 页数 页数 1 使用说明书--------------------------------------- 5 2 安全警告----------------------------------------- 6 2.1. 一般准则 ----------------------------------- 6 3 对静电灵敏设备 (ES) 的静电放电保护 (ESD) --------- 7 4 关于无铅焊接 （PbF）------------------------------ 8 5 适用信号----------------------------------------- 9 6 自检功能---------------------------------------- 10 6.1. 自检 -------------------------------------- 10 7 机芯电路板分布---------------------------------- 11 8 维修前------------------------------------------ 12 8.1. 线处理 ------------------------------------ 12 8.2. EMI 对应----------------------------------- 13 9 维修拆解---------------------------------------- 14 9.1. 取下底座 ---------------------------------- 14 9.2. 取下后盖 ---------------------------------- 14 9.3. 取下电源线 -------------------------------- 14 9.4. 取下壁挂金具与 HDMI 支架 ------------------- 15 9.5. 取下控制面板组件和电源键支架 -------------- 15 9.6. 取下 K 板 ---------------------------------- 15 9.7. 取下 G 板和侧 AV 支架 ----------------------- 15 9.8. 取下 AP 板 --------------------------------- 15 9.9. 取下 H 板 ---------------------------------- 16 9.10. 取下 DG 板 --------------------------------- 16 9.11. 取下 P 板 ---------------------------------- 16 9.12. 取下主机芯和扬声器 ------------------------ 17 9.13. 取下 LCD 屏 -------------------------------- 17 10 维修模式---------------------------------------- 18 10.1. 如何进入维修模式 -------------------------- 18 10.2. SRV-TOOL ---------------------------------- 18 10.3. Option 说明-------------------------------- 19 10.4. Option 代码设定 --------------------------- 19 11 调整方式---------------------------------------- 20 11.1. AP 板电压测试点 -------------------------- 20 11.2. P 板电压测试点 ---------------------------- 20 11.3. 副对比度调整 ------------------------------ 20 12 框图-------------------------------------------- 21 12.1. 主框图 ------------------------------------ 21 12.2. 电源框图 ---------------------------------- 22 12.3. 信号框图 (1/2)----------------------------- 23 12.4. 信号框图 (2/2) -----------------------------24 13 线路图-------------------------------------------25 13.1. 线路图注意事项 -----------------------------25 13.2. P 板线路图 ---------------------------------26 13.3. AP 板 (1/2) 线路图 --------------------------27 13.4. AP 板 (2/2) 线路图 --------------------------28 13.5. H 板 (1/5) 线路图 ---------------------------29 13.6. H 板 (2/5) 线路图 ---------------------------30 13.7. H 板 (3/5) 线路图 ---------------------------31 13.8. H 板 (4/5) 线路图 ---------------------------32 13.9. H 板 (5/5) 线路图 ---------------------------33 13.10. K，G 和 V 板线路图 --------------------------34 13.11. DG 板 (1/12) 线路图 -------------------------35 13.12. DG 板 (2/12) 线路图 -------------------------36 13.13. DG 板 (3/12) 线路图 -------------------------37 13.14. DG 板 (4/12) 线路图 -------------------------38 13.15. DG 板 (5/12) 线路图 -------------------------39 13.16. DG 板 (6/12) 线路图 -------------------------40 13.17. DG 板 (7/12) 线路图 -------------------------41 13.18. DG 板 (8/12) 线路图 -------------------------42 13.19. DG 板 (9/12) 线路图 -------------------------43 13.20. DG 板 (10/12) 线路图 ------------------------44 13.21. DG 板 (11/12) 线路图 ------------------------45 13.22. DG 板 (12/12) 线路图 ------------------------46 14 导体图-------------------------------------------47 14.1. P 板 ---------------------------------------47 14.2. AP 板 --------------------------------------48 14.3. H 板 ---------------------------------------50 14.4. DG 板 --------------------------------------52 14.5. K 板和 V 板 ---------------------------------54 14.6. G 板 ---------------------------------------55 15 部品位置和机械部品表-----------------------------56 15.1. 部品位置 -----------------------------------56 15.2. 包装分解图 ---------------------------------57 15.3. 机械部件更换表 -----------------------------59 16 更换部件表---------------------------------------60 16.1. 注意事项 -----------------------------------60 16.2. 电子部件更换表 -----------------------------61 17 A4 尺寸线路图 ( 供打印使用 ) ----------------------75 TC-32LX70D 5 1 使用说明书 TV 1 3 2 4 6 5 7 9 8 0 VCR DVD ����� ������ TC-32LX70D �� TC-32LX70D 6 2 安全警告 2.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.1.1. 漏电冷检查 1. 拔掉 AC 电源线，然后在插头的两个支脚间接上一根跳线。 2. 用欧姆计测量接上跳线的 AC 插头与设备上各外露的金属机 架部分 （如螺丝头、连接端等）之间的电阻值。 当外露金属部分与底板形成回路时，读数应该在 1MΩ 和 5.2MΩ 之间。 当外露金属部分与底板没有形成回路时，读数必定为∞。 图 1 2.1.2. 漏电热检查 ( 图 1) 1. 将 AC 电源线直接插入 AC 电源插座。 进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地之间连接一个 1.5kΩ， 10W 的电阻，并与 0.15µF 的电容器并联，如图 1 所示。 3. 用一只 1KΩ/V 或灵敏度更高的 AC 电压表测量穿过电阻的电 势。 4. 检查各外露金属部件并测量各点的电压。 5. 颠倒 AC 插座中的 AC 插头，并重复上述各项测量。 6. 任何点上的电势都不能超过 0.75V RMS。 必须用漏电测试仪 （Simpson229 型或类似型号）来进行热 检测。其中漏电绝不能超过 0.5mA。当测量值超出规定的限 制时，可能会引起触电。所以必须在机器返回用户手中之前 对其进行修理和再检测。 TC-32LX70D 7 3 对静电灵敏设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电灵敏装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体 “芯片”组件。以下方法通常被用来减少由于静电放电 （ESD）所产生的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，通过接触到已知地线及时排除身体上的任何静电放电。 或者戴上市场上出售的抗静电放电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只能使用有接地端的电烙铁来焊接或断开静电灵敏装置。 4. 只采用抗静电焊接装置。一些不属于 “抗静电 （静电放电保护）”范围的焊接装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 在准备立即安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏零部件都是采用铅制包装，通过与导电泡沫、 铝箔或是类似的导体材料一起造成短路）。 7. 在拆掉静电灵敏零部件上的铅制保护性材料之前，立刻将保护性材料与即将安装零部件的机芯或是电路组件相接触。 注意： 确定机芯或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 TC-32LX70D 8 4 关于无铅焊接 （PbF） 注： 在元素周期表中，铅以 Pb 表示。 本手册中， Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造中使用并且在下文中讨论的无铅焊接是 （Sn + Ag + Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu）, 不过其它类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的高。通常熔点是超过 50 ～ 70°F （30 ～ 40°C）。 请使用高温烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 在加热过度（约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区的 无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔化之后再进行有铅焊接。 • 在对双电路板进行有铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购，本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 不过也可使用 Sn+Cu( 锡 + 铜 )， Sn+Zn+Bi （锡 + 锌 + 铋）。 TC-32LX70D 9 5 适用信号 分量 （Y、PB/CB、PR/CR），HDMI * 标记：可适用的输入信号 电脑 （D-sub 15 针） 注意： • 非上述信号可能无法正常显示。 • 为达到最佳显示效果，上述信号将会被重新格式化。 • 电脑适用的输入信号是与 VESA 标准时序规范基本兼容的。 • 为了显示出来，电脑的信号被放大或压缩，所以可能不能清晰地展现细节。 信号名称 分量 HDMI 525(480)/60i * * 525(480)/60p * * 625(576)/50i * * 625(576)/50p * * 750(720)/60p * * 750(720)/50p * * 1,125(1,080)/60i * * 1,125(1,080)/50i * * 1,125(1,080)/60p * 1,125(1,080)/50p * 信号名称 水平频率 （千赫兹） 垂直频率 （赫兹） 640 X 400 @70Hz 31.47 70.07 640 X 480 @60Hz 31.47 59.94 640 X 480 @75Hz 37.50 75.00 800 X 600 @60Hz 37.88 60.32 800 X 600 @75Hz 46.88 75.00 800 X 600 @85Hz 53.67 85.06 852 X 480 @60Hz 31.44 59.89 1,024 X 768 @60Hz 48.36 60.00 1,024 X 768 @70Hz 56.48 70.07 1,024 X 768 @75Hz 60.02 75.03 1,024 X 768 @85Hz 68.68 85.00 1,280 X 1,024 @60Hz 63.98 60.02 1,366 X 768 @60Hz 48.39 60.04 Macintosh13"(640 X 480) 35.00 66.67 Macintosh16"(832 X 624) 49.73 74.55 Macintosh21"(1,152 X 870) 68.68 75.06 TC-32LX70D 10 6 自检功能 6.1. 自检 1. 自检用于自动检查电视机的总线和十六进制码。 2. 要进入自检模式，在按下机器顶端用户控制器上的 -/V 键的同时按下遥控器上的菜单键，显示屏将会显示： 3. 自检之后关闭电视机，所有节目频道，频道描述数据以及其他用户自定义的设定将被擦除返回工厂设定。 显示 参考号 说明 电路板 ADV IC4510 A/D 转换 DG 板 VSW IC3001 AV 视频切换 H 板 ADAV IC2106 立体声解码器 H 板 ASW IC2105 AV 音频切换 H 板 GENX IC1100 微处理器 DG 板 MEM1 IC4501 存储器 DG 板 MEM2 IC4500 存储器 DG 板 TUN1 TU3200 调谐器 H 板 TC-32LX70D 11 7 机芯电路板分布 电路板名称 功能 AP 板 稳压器 H 板 AV 连接器、TV 调谐器、AV 开关 P 板 DC 供电 DG 板 共用核心、A/D 转换器、MCU、HDMI 接口 G 板 AV4、耳机插孔 V 板 遥控接收器、指示灯 K 板 电源开关 TC-32LX70D 12 8 维修前 8.1. 线处理 1. 根据下图整理线缆。 TC-32LX70D 13 8.2. EMI 对应 导线固定 TC-32LX70D 14 9 维修拆解 9.1. 取下底座 1. 放倒主机使后盖朝上。 2. 拆下固定螺丝 （4 个）。 3. 取下底座。 9.2. 取下后盖 1. 取下底座。（见 9.1.） 2. 拆下固定螺丝 （13 个和 3 个）。 3. 取下后盖。 9.3. 取下电源线 1. 取下后盖。（见 9.2.） 2. 将电源线从 HDMI 支架上的卡槽中拔出。 3. 松开线夹 A 和线夹 B，断开连接件。 4. 取下电源线。 TC-32LX70D 15 9.4. 取下壁挂金具与 HDMI 支架 1. 取下后盖 （见 9.2.）和电源线 （见 9.3.）。 2. 拆下固定螺丝 （4 个和 2 个）。 3. 取下壁挂金具和 HDMI 支架。 9.5. 取下控制面板组件和电源键支架 1. 取下后盖。（见 9.2.） 2. 断开连接器 AP6。 3. 拆下固定螺丝 （4 个）。 4. 取下电源键支架和控制面板组件。 9.6. 取下 K 板 1. 取下后盖。（见 9.2.） 2. 取下电源键支架和控制面板组件。（见 9.5.） 3. 断开连接器 K8。 4. 从卡槽中取出 K 板。 9.7. 取下 G 板和侧 AV 支架 1. 取下后盖。（见 9.2.） 2. 断开连接器 G51。 3. 从卡槽中取下 G 板。 4. 取下侧 AV 支架。 9.8. 取下 AP 板 1. 取下壁挂金具和 HDMI 盖 （见 9.4.）。 2. 断开连接器 H3、H4、AP5、AP6。 3. 拆下固定螺丝 ～ （4 个）。 TC-32LX70D 16 4. 取下 AP 板。 9.9. 取下 H 板 1. 取下壁挂金具和 HDMI 支架 （见 9.4.）。 2. 断开连接件 H3、H4、DG2、H6、H12、H51。 3. 拆下固定螺丝 ～ （7 个）。 4. 取下 H 板。 9.10. 取下 DG 板 1. 取下壁挂金具和 HDMI 支架 （见 9.4.）。 2. 断开连接器 DG1、DG2、DG5、DG6、DG26。 3. 拆下固定螺丝 ～ （7 个）。 4. 取下 DG 板。 9.11. 取下 P 板 1. 取下壁挂金具和 HDMI 支架 （见 9.4.）。 2. 断开连接件 P5、P8、P9、P10。 3. 拆下固定螺丝 ～ (6 个 )。 4. 取下 P 板。 TC-32LX70D 17 9.12. 取下主机芯和扬声器 1. 取下壁挂金具和 HDMI 支架 （见 9.4.）。 2. 断开连接件 DG1、DG5、DG26、H12、P9、P10。 3. 拆下固定螺丝 （6 个）。 4. 和 P 板、AP 板、K 板、DG 板、H 板、G 板一起取下主机芯。 5. 拆下固定螺丝 （4 个），取下左右扬声器。 9.13. 取下 LCD 屏 1. 取下主机芯和扬声器 （见 9.12.）。 2. 拆下固定螺丝 （4 个），取下 LCD 侧面金具。 3. 拆下固定螺丝 （2 个），取下遮挡金具。 4. 拆下固定螺丝 （6 个），取下 LCD 金具 （下）。 5. 取下 LCD 屏。 TC-32LX70D 18 10 维修模式 10.1. 如何进入维修模式 按主机的 -/V 钮时， 在 3 秒内按遥控器上的显示钮三次。 10.1.1. 按键命令 “1”按钮 ... 向前选择主选项 “2”按钮 ... 向回选择主选项 “3”按钮 ... 向前选择子选项 “4”按钮 ... 向回选择子选项 音量 +、音量 - 按钮 ... 对数据进行调整。 10.1.2. 调整模式的内容 • 值以十六进制数显示。 • 预设值根据型号的不同而不同。 • 进入调整模式后，开始调整之前要注意每个项目中的值。 10.1.3. 如何退出 按主机上的电源按钮或遥控器上的待机 / 开机按钮关闭电源。 10.2. SRV-TOOL 10.2.1. 如何访问 1. 在维修模式中选择 “SRV-TOOL”。 主选项 子选项 数据 备注 ADJUST CONTRAST 23F COLOR 3F TINT FD Video-Gain2 180 SUB-BRT 808 BACKLGT 276 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0 WB-ADJ R-GAIN FA G-GAIN F4 B-GAIN FF R-CENT 7E G-CENT 80 B-CENT 78 OPTION Boot ROM STBY-SET 00 Emergency ON Y/C Delay -1 OPT1 28 OPT2 E2 OPT3 6F SRV-TOOL 00 TC-32LX70D 19 2. 按遥控器上的确定按钮。 10.2.2. 退出 1. 按主机上电源按钮或遥控器上的待机 / 开机按钮关闭电源。 10.3. Option 说明 10.4. Option 代码设定 如果更换了存储 IC 或者 DG 板时，Option 代码需重新存入。 如果你使用的是其他机型，应该重新存储不同选项代码到维修模式。 Name Value Current Default 70D Note option1 b0 ATP Search speed Slow(1)/Fast(0) Fast (0) 0 For CS b1 TEXT Ch Refresh enable(1)/disable(0) disable (0) 0 For CS b2 ID-1 enable(1)/disable(0) disable (0) 0 For CS EEPROM b3 Macrovision Auto-judge enable(1)/disable(0) disable (0) 1 For derivative models 004B b4 SRS surround SURROUND_1(1)/SURROUND_0(0) SURROUND_0(0) 0 For derivative models b5 Teletext Top-service disable(1)/enable(0) enable(0) 1 For derivative models b6 Pre Emphasis enable(1)/disable(0) disable (0) 0 For derivative models b7 0 option2 b0 0 b1 A2 enable(5.5) enable(1)/disable(0) disable (0) 1 For CS b2 A2 enable(6.0) enable(1)/disable(0) disable (0) 0 China/Asia Only EEPROM b3 A2 enable(6.5) enable(1)/disable(0) disable (0) 0 004C b4 0 b5 NICAM enable(5.5) enable(1)/disable(0) disable (0) 1 For CS b6 NICAM enable(6.0) enable(1)/disable(0) disable (0) 1 China/Asia Only b7 NICAM enable(6.5) enable(1)/disable(0) disable (0) 1 option3 b0 NICAM priority(ASIA/M.E) enable(1)/disable(0) disable (0) 1 For CS b1 NICAM priority(K/UK) enable(1)/disable(0) disable (0) 1 China/Asia Only b2 NICAM priority(CHINA) enable(1)/disable(0) disable (0) 1 EEPROM b3 NICAM priority(NZ/INDN) enable(1)/disable(0) disable (0) 1 004D b4 NICAM priority(AUS) enable(1)/disable(0) disable (0) 0 b5 NICAM priority(E.EURO) enable(1)/disable(0) disable (0) 1 b6 NICAM priority(SPECIAL) enable(1)/disable(0) disable (0) 1 b7 0 Option 号码 TC-32LX70D OPTION1 28 OPTION2 E2 OPTION3 6F TC-32LX70D 20 11 调整方式 11.1. AP 板电压测试点 11.2. P 板电压测试点 11.3. 副对比度调整 测定器名 连接 备注 数字万用表 步骤 1. 打开电源开关检查每个测试点的电压在下面的规格之内。 2. 通过遥控器关掉电源 , 打到待机状态 , 检查每个测试点的电压在规格之内。 测定器名 连接 备注 数字万用表 步骤 1. 打开电源开关检查每个测试点的电压在下面的规格之内。 2. 通过遥控器关掉电源 , 打到待机状态 , 检查每个测试点的电压在规格之内。 仪器名称 备注 1. 遥控器 2. 内部信号 步骤 备注 < 准备 > 变调度 87.5% 1. 接收 PAL 彩条信号 ( 含 100% 白 )。 RF D-7 ＜检查＞ 1. 进入工场调整模式、选择 "ADJUST" 模式、调整对比度。 在 "DYNAMIC"( 观看模式 ) 下显示 GAIN 的值 按音量 +/- 键开始调整。 按遥控器的 " 黄色键 " , 开始自动调整。 TC-32LX70D 21 12 框图 12.1. 主框图 P AC IN 220V UNIT DG MAIN 9V SUB 5V +15V_S DTV 9V PANEL_12V STB_5V L/R SIF DC/DC �� ���� �� IC1100 IC4510 IC4500 IC4501 2K EEP 2K EEP IC4513 IC8001 CPU LCD� IC2106 IC2105 TU3200 IC3001 ������ ��� �� �� �� ���� ��� ���� �� �� JK3100 JK3001 JK2003 AV1:S/V/L/R AV2:V/L/R AV3:V/L/R Y/PB/PR Y/PB/PR PCin Monitor Out AV4:V/L/R ������ ����� ����� ��� �� ����� ��� �� H G V K AP P11 P8 ��� TC-32LX70D K8 P5 AP5 P9 24V H6 DG6 H51 H12 G51 V1A DG5 DG33 JK4501 JK4500 ���� ����� RF IN H3A H4A AP3 AP4 H2 DG2 IC2301 IC4514 IC8554 NOR IC8621 IC8622 D-LATCH DG1 �� �� IC8003 IC8002 128M DDR 128M DDR IC8601 EEPROM DG26 AP6 KEY P10 TC-32LX70D 22 12.2. 电源框图 Q2301 3 SUB_5V SUB_5V MAIN_9V 21 H3A 2 17 18 +15V_S DTV9V 23 22 17 3 23 18 22 21 2 AP3 SUB_5V STB_3.3V VCC DG5 VCC IC4504 8 IC5601 3 23 12 MAIN5V IC4510 23 57 7 V1A 5 VO2 VCC CVDD CVDD CVDD CVDD DVDD DVDD DVDD VO1 IC2012 VCC 8 P5 RM1001 OUT GND VCC 3 PC1001 VCC IC4500 8 AP P H ���� ���� ���� DG V ���� TC-32LX70D PVDD PVDD TVDD TVDD TVDD TVDD 88 AVDD 84 AVDD 67 50 35 15 DVDDIO DVDDIO DVDDIO DVDDIO 104 101 125 141 109 139 127 123 111 2 3 8 1 STB_5V 24V 24V 24V AC CORD 1 2 P11 +15V_S DTV9V 11 H4A PANEL_12V STB_5V PANEL_12V 3 12 12 11 3 AP4 VIN IC2303 3 VOUT 1 SOUND12V SUB_3.3V AUD3.3V DVDD1.8V 6.3V 5V BT30V PVDD_A PVDD_A PVDD_B PVDD_C PVDD_D PVDD_D IC2301 40 41 35 32 27 26 GVDD_A GVDD_B VDD GVDD_C GVDD_D 44 1 21 22 23 VDD IC2610 2 VOUT 1 IC2011 4 8 IC2105 5 VCC2 VCC3 VCC4 VCC1 IC3001 6 25 45 69 AVOE 45 VIN IC2008 7 VOUT 1 VDD IC2010 1 VOUT 5 IC2013 3 4 5 VIN VOUT CE Q2636,Q2637 IC2107 7 5 1 VIN VOUT CE IC2106 53 4 59 68 71 12 14 AVDD AVDD AVDD AVDD AVDD AVDD DVDD DVDD 21 31 40 29 51 DVDD DVDD DVDD ODVDD 16 9 18 5 BB +B VB BTL TU3200 5 13 12 6 9 8 14 H2 17 DG2 AP5 2 3 8 1 18 21 23 5 13 12 6 9 8 14 17 18 21 23 PANEL_12V PANEL_12V SUB_5V SUB_5V SUB_5V SUB_3.3V SUB_3.3V MAIN9V STB_5V DTV9V DTV9V 30 29 31 27 Q5690,Q5692 VDD IC4507 1 VOUT 5 VCCA IC4514 1 VCCA IC4513 1 VDD IC5670 1 VOUT 5 Vin IC4506 7 Vo 1 VCC A_+INPUT IC4515 8 3 MAIN3.3V Q5691,Q5693 VDD VDD VDD IC8004 5 13 15 Vin IC4509 8 Vout 1 Vin IC4508 8 Vout 1 71 142 DG33 1 SUB1.2V SUB1.8V 1 3 P10 V- V+ VCCB 8 VCCB 8 IC1100 50 31 74 81 85 94 IVDD IVDD VPPEX RDNA IVDD NTEST IVDD 78 IVDD 108 3.3V JK8801 1 VCC IC8621 20 VCC IC8622 20 IC1101 8 Vdd IC5660 2 B_+INPUT 5 IC7301 IC7401 IC7701 IC7501 3 K8 K STB_5V 3 P8 24V 24V 24V 24V P9 6 7 8 5 DG1 VCC IC4501 8 VCC BYTE VIO IC8554 43 53 29 VCC IC8601 8 D4532 IC8001 K23 VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO K26 M21 M23 N24 P25 R21 T25 U24 V22 W26 Y22 Y24 VDDIO Y24 VDDIO Y24 IC8001 AA21 VDDIO AB19 AB22 AB25 AC18 AC23 AD17 AD22 AD25 AE16 AE21 AF20 AF26 VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO VDDIO IC8001 N10 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 P10 R10 R11 R12 R13 T10 T11 T12 T13 IC8001 U10 U11 U12 U13 AA14 AB14 AC14 AD14 AE14 AF14 IC8001 N17 VDDR R17 T15 U16 AB15 AC15 AD15 AE15 AF15 U14 VDDR VDDR VDDR VDDR VDDR VDDR VDDR VDDR DPAVDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 VDD12 IC8001 M17 VDDA U15 T17 VDDA VDDA IC8001 AA8 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 AA9 A25 A26 B24 C23 D7 D8 D16 D17 D22 E21 F11 F12 F15 F20 IC8001 G4 H4 J6 K6 N6 P6 R4 T4 U6 AC10 AC11 P16 H21 P3 E22 E23 F21 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 DPAVDD MVAVDD AGAVDD LVVDD LVVDD LVVDD VCC IC5600 17 VO 23 SUB3.3V IC8001 K17 LVVPD12 CVDD-1.8V DVDD-1.8V DVDDIO-3.3V STB3.3V 5 7 DG26 1 DG5 27 29 31 30 26 VCC_12V VCC_12V VCC_12V VCC_12V VCC_12V Vdd IC5671 2 L8003 1.8V_DDRI/F IC8002 IC8003 R3134 Q2301 Q4514 Q4515 Q4516 Q4517 66 P65 TC-32LX70D 23 12.3. 信号框图 (1/2) JK3100 14 21 13 5 3 H6 7 10 14 16 26 33 32 HDMI_LRCK HDMI_SDIN HDMI_BCLK DTV_LRCK DTV_SDIN DTV_BCLK AUDIO_XRST DTV2_SDIN 20 17 12 9 H51 5 G51 HP_ROUT HP_LOUT AV4_S AV4_Y AV4_C AV4_V AV4_R AV4_L G 1 3 13 15 11 9 7 10 8 7 19 15 58 60 62 64 66 68 70 �����1/2� TC-32LX70D TO DG6 AFC1 AV2C_YSW AV2C_Y AV2C_PB AV2C_PR L AV2 MONITOR OUT AV1 AV3 AV3C_YSW IC3001 ������ LP3 G3 B3 S13 Y5 S23 C5 V5 R3 V2 AV3C_Y AV3C_PB AV3C_PR AV3C_V AV1_C AV1_Y AV1_S AV2C_V VOUT4 AUXOUTL1 AUXOUTR1 A2NL1 A2NR1 AUXOUTL2 AUXOUTR2 JK3001 IC2105 IC2106 AV1_V H 17 16 SCL SDA 79 78 OUT_C BST_A BST_D IC2301 31 OUT_B 36 43 24 PWM_C PWM_A PWM_D SD 16 PWM_B 8 6 RESET_AB 7 RESET_CD 17 18 Y C L R G R L V JK3700 ������ ������ RF SIGNAL AUDIO MAIN SIGNAL VIDEO MAIN SIGNAL PC_R PC_G PC_B PC_V_IN PC_H_IN TU3200 SDA SCL SIF_OUT VIDEO_OUT AFT_OUTT Pr Pb Y LP3 G3 B3 R3 V L R R V Y C R_SW R L V Pr Pb Y C4 Y4 S12 V4 V2 VOUT3 AV2_L AV2_R LOUT2 ROUT2 L6 R6 L7 R7 L8 R8 Q2003 Q2002 Q2031 PC_R PC_G PC_B PC_H_IN PC_V_IN AUDIOOUT_L AUDIOOUT_R AV1_L AV1_R AV3_L AV3_R V L R 19 63 65 67 5 3 2 1 8 33 31 12 13 14 15 16 17 30 AV3_L AV3_R AV2_L AV2_R AV1_L AV1_R 1 2 14 3 13 81 79 77 78 B4 H2N2 R4 G4 V2N2 14 73 58 60 75 71 PC_LIN PC_RIN L12 R12 41 42 JK2003 L R L5 R5 10 11 PC_V PC_H MAIN_RGB_CVBS_OUT SDA0B_5V SDA0B_5V SCL0B_5V SCL0B_5V MAIN_RF_CVBS DVB_CVBS VIDEO_STATUS MAIN_PR_OUT VOUT HOUT VOUT7 V1 OUT1(Pr) 41 42 44 20 FLAG 85 38 MAIN_PB_OUT OUT1(PB) 39 MAIN_Y_OUT OUT1(CY) 40 V7 SDA 91 SCL 84 LOUT1 ROUT1 32 33 AV4_L AV4_R AV_L AV_R TV_L TV_R SCL SDA 35 36 L3 R3 6 7 83 97 98 96 95 99 74 79 41 74 75 72 73 AUDIOOUT_L AUDIOOUT_R AUDIOOUT_L AUDIOOUT_R IC2011 6 2 7 1 OUT2 OUT1 INT1 INT2 PC_LIN PC_RIN 11 LRCLK2 BCLK2 SD2N2 LRCLK0 BCLK0 22 23 SD2N0 SD2N1 26 24 27 18 19 Q2033,Q2034 DTV_LRCK DTV_BCLK HDMI_SDIN DTV2_SDIN DTV_SDIN HDMI_LRCK HDMI_BCLK PC_V PC_H MAIN_RGB_CVBS_OUT DVB_CVBS VIDEO_STATUS MAIN_PR_OUT MAIN_PB_OUT MAIN_Y_OUT AUDIO_MUTE PWM2A PWM2B PWM4A PWM4B 44 45 48 49 WO_R- SQ_R+ SQ_R- WO_R+ WO_R- WO_R+ 4 3 H12 2 R- R+ L- L+ 1 ��� 5 SOUND_SOS SQ_R+ SQ_R- HPOUTL1 HPOUTR1 57 58 HDMI_INT2 IC2012 3 5 MUTE 2 7 1 HDMI_INT2 AMUTE Q2040 AUDIO_MUTE AUDIO_MUTE MUTEB 15 Q2102 SOUND_SOS Q2101 34 35 39 SOUND_SOS TV_SUB_ON_DELAY SP_MUTE Q2635,Q2636 STB_5V SIF_IN1 8 AUDIO_XRST DTV_BCLK DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_BCLK HDMI_SDIN HDMI_LRCK MAIN_Y/CVBS/G MAIN_PB/C/B MAIN_PR/R RGB_CVBS PC_H PC_V DVB_CVBS AUDIO_MUTE HDMI_INT2 VIDEO_STATUS SOUND_SOS Q2640 Q2641 Q2301 TC-32LX70D 24 12.4. 信号框图 (2/2) DG IC4500 HPDT SDA +5V SCL CEC CLK- CLK+ D0- D0+ D1+ D2- D2+ D1- HPDT SDA SCL CLK- CLK+ D0- D0+ D1+ D2- D2+ D1- 19 16 15 12 10 9 7 6 4 3 1 19 16 15 12 10 9 7 6 4 3 1 13 JK4501 JK4500 IC4510 HDMI SDA 5 SCL 6 IC4501 SDA 5 SCL 6 VI1P19 VI1P18 VI1P17 VI1P16 VI1P15 VI1P14 VI1P13 VI1P12 VI1P29 VI1P28 VI1P9 VI1P8 VI1P27 VI1P7 VI1P6 P19 P18 P17 P16 P15 P14 P13 P12 P29 P28 P9 P8 P27 P7 P6 DDCA_SCL DDCA_SDA DDCB_SDA SDA DDCB_SCL IC8001 C9 A8 D2 D1 E3 18 WC 7 WC 7 13 CEC �����2/2� IC8001 B10 C10 A9 B9 B8 C8 A7 B7 C7 IC8001 A3 C4 B4 A4 C5 B5 A5 C6 B6 A6 +5V 18 5 3 DG6 7 10 14 16 26 32 58 60 62 64 66 68 70 74 79 41 33 34 35 39 IC4513 SDAB 6 SCLB 7 SDAA 3 SCLA 2 IC4514 SDAB 6 SCLB 7 SDAA 3 SCLA 2 112 RXA_CN RXA_CP RXA_ON RXA_OP RXA_1N RXA_1P RXA_2N RXA_2P RXB_CN RXB_CP RXB_ON RXB_OP RXB_1N RXB_1P RXB_2N RXB_2P 113 115 116 118 119 121 122 128 129 131 132 134 135 137 138 24 25 26 27 28 29 30 31 32 33 38 39 40 41 42 105 106 144 1 DCLKIN VS/FIECD DE 48 18 16 58 55 53 52 47 46 45 44 43 HS_IN VS_IN 63 62 VI1P2 VI1P3 VI1P22 VI1P23 VI1P24 VI1P25 VI1P26 VI1P4 VI1P5 VI1P2 VI1P3 VI1P22 VI1P23 VI1P24 VI1P25 VI1P26 VI1P4 VI1P5 VI1P2 VI1P3 VI1P22 VI1P23 VI1P24 VI1P25 VI1P26 VI1P4 VI1P5 PC_HS PC_VS VCLKOA VI1VSYNC VI1ENB VI1CLK VCLKOA VI1VSYNC VI1HSYNC VI1ENB VI1CLK VI1CKOUT VI1VSYNC VI1HSYNC VI1ENB P2 P3 P22 P23 P24 P25 P26 P4 P5 IC8001 C1 C2 B1 A2 B3 VI1P19 VI1P18 VI1P17 VI1P16 VI1P15 VI1P19 VI1P18 VI1P17 VI1P16 VI1P15 VI1P14 VI1P13 VI1P12 VI1P29 VI1P28 VI1P9 VI1P8 VI1P27 VI1P7 VI1P6 VI1P14 VI1P13 VI1P12 VI1P29 VI1P28 VI1P9 VI1P8 VI1P27 VI1P7 VI1P6 SPIDF I2S0 LRCLK SCLK INT1 INT2 RESET 2 3 7 8 19 20 21 HDMI_LRCK HDMI_SDIN HDMI_BCLK DTV_LRCK DTV_SDIN DTV_BCLK AUDIO_XRST DTV2_SDIN PC_V PC_H RGB_CVBS DVB_CVBS VIDEO_STATUS MAIN_PR/R MAIN_PB/C/B MAIN_Y/CVBSG HDMI_INT2 SOUND_SOS AFC1 AG_TV_SUB_ON_DELAY AUDIO_MUTE SP_MUTE PC_V PC_H RGB_CVBS MAIN_PR/R MAIN_PB/C/B MAIN_Y/CVBSG HDMI_LRCK HDMI_SDIN HDMI_BCLK HDMI_INT2 HDMI_LRCK HDMI_SDIN HDMI_SPDIF XIRQ3 HDMI_INT2 HDMI_BCLK AG_RF_AFT1 AG_AUDIO_XRST AG_AUDIO_MUTE AG_VIDEO_STATUS AG_SOUND_SOS AG_A_MON_MUTE AG_TV_SUB_ON_DELAY IC 8001 D12 A13 F14 D15 B13 MVDACO3 DMIXO LKCKO DAVDIO SRCKO AG-HDMI-CEC R1 XIRQ3 11 12 SCL AG_7493_XRST AIN6 AIN4 AIN9 AIN8 99 94 80 78 MAIN_PB/C MAIN_Y/CVBS MAIN_PR RGB_CVBS IC1100 P16 P35 P30 126 PC0 118 P87 127 PC1 111 P80 AG_RF_AFT1 AG_AUDIO_XRST AG_AUDIO_MUTE AG_VIDEO_STATUS AG_SOUND_SOS AG_A_MON_MUTE AG_TV_SUB_ON_DELAY 68 58 71 106 P91 P11 P13 P31 69 53 55 65 P76/CEC0 39 40 SDA0 SCL0 XIRQ3 DDR 128M IC8002 DDR 128M IC8001 NOR IC8554 15 14 DG5 18 19 21 11 12 1 2 3 4 6 7 9 10 IC8001 G26 G25 F26 F25 E26 TEIP TEIN TDIP TDIN TCLKIP E25 TCLKIN D26 TCIP D25 TCIN C26 TBIP C25 TBIN B26 TAIP B25 TAIN TEIP TEIN TDIP TDIN TCLKIP TCLKIN TCIP TCIN TBIP TBIN TAIP TAIN C16 DSRCK L6 VI2P21 G1 VI2P10 VI2P10 VI2P21 LCD� DG33 4 5 6 7 8 9 10 11 IC8001 SCL0 SDA0 XECS5 XECS3 SCL1 SDA1 SBT2 ADSAD0 AD_SCL0 AD_SCL3 AD_SDA3 AD_SCL1 AD_SDA1 AD_SCL2 AD_SDA2 SBT0 M2 M1 AC4 AD1 N5 N3 AD6 AB8 EEPROM IC8601 IC8003 GENX4_SCL GENX4_SDA LITE2_SCL3 LITE2_SDA3 LITE2_SCL1 LITE2_SDA1 LITE2_SCL2 LITE2_SDA2 2 SRQ 63 64 92 P72/SDA1 P73/SCL1 NBOOT 2 4 3 5 DG26 13 P83 123 P47 AG_INVENTER_ON AG_INV ENTER_SOS A21 B21 VOP3 VOP4 IC8001 Q4801Q4802 Q4800Q4803 PWM_K PWM_D DG1 9 1 3 2 1 5 7 8 V1 AI_SENSOR REMOTE R_LED_ON G_LED_ON AG_AI_SENSOR AG_RIN AG_R_LED_ON AG_G_LED_ON 113 45 49 89 113 P82/ADIN2 P50/RMIN P23 P27 AG_AI_SENSOR AG_RMIN AG_R_LED_ON AG_G_LED_ON ���������� V RST STB5V STB3.3V 93 IC5671 RST 1 VDD 2 P5 8 4 P10 1 P K8 3 4 4 K P8 3 STB_5V RELAY_5V PUSH P11 AC IN LLC 51 VI1CLK HS 17 VI1HSYNC Q4515 Q4517 Q4514 Q4516 TC-32LX70D 25 13 线路图 13.1. 线路图注意事项 TC-32LX70D 26 13.2. P 板线路图 ~ ~ 1 2 3 4 5 6 7 8 9 A B C D E F ! P� TNPA4116AB ���������� ����� ���������� ����� + - + + - ~ ~ + REF K A + L.F L.F 0.0V ZA801 K9ZZ00000424 D813 MA2J11100L ZA804 K9ZZ00000424 C821 10V 220u D815 MAZ83600ML JS808 R814 100k R819 1k ZA805 K9ZZ00000424 R818 1k TP803 C822 0.1u 50V C807 330p CF801 D4CAY8R0A010 * * T801 ETS15AB136AH 2 NC 3 V1 6 P1 8 P2 14 NC 15 NC 4 V2 1 NC 9 S1 12 S2 13 NC R813 4.7 D802 B0EBKT000007 * * * * TP801 270 R821 1W R825 33 C D812 B0HCMM000014 C801 0.22u * * C813 50V 4.7u P8 K1KA04AA0192 1 2 3 4 D823 MA2J11100L TP821 TP811 JS811 0 RL801 K6B1AGA00043 * * D811 B0HCMM000014 R824 3.3k D804 ERZV10V621T2 C803 Not specified DC Not specified DC 0.22u * * 1W R802 10M D0XB106J0003 Q801 IC801 2SB0709ASL D814 MAZ82400ML R817 1k CNC1S171R PC801 C815 0.1u 50V C809 0.22u * * D820 B0ZAZ0000045 TP823 RL802 K6B2ADA00007 * * * * D801 B0FBAT000008 ** * * * C0DAAMA00003 IC802 JS807 D817 MAZ80560ML B0JCNG000003 D821 C806 330p C817 50V 680p C0DABYY00008 1 O.C.P 2 VCC 3 GND 4 FB/O.L.P 5 Startup 7 D 8 D P5 K1KA09AA0190 Male type 1 2 3 4 5 6 7 8 9 C C814 0.01u 100V R827 2.2k 2.0 x 1.25 C818 2200p 1kV 12.0X4.5 C811 450V 2.2u F2A2W2R2A002 R822 6.8k 1% TP824 R816 100 2.0 x 1.25 C D818 MAZ41000MF R801 1M 1/2W C802 0.22u * * LF802 G0B103H00002 1 * * * 2 3 4 * D824 MAZ41000MF 2W R812 10 ZA803 K9ZZ00000424 D816 MAZ83600ML Q802 2SD0601ASL TP812 R823 6.8k 1% P11 K1KA02A00613 1 2 C823 0.1u 50V R820 1k P10 K1KA02A00626 1 3 270 R828 1W TP802 R826 1k 2.0 x 1.25 TP822 LF801 G0B103H00002 1 * 2 * 3 * 4 * JS810 JS821 0 H TP825 P9 K1KA08AA0192 1 2 3 4 5 6 7 8 JS812 0 C816 47p 2kV D803 ERZV10V621T2 ZA802 K9ZZ00000424 R815 100k R811 4.7 2.0 x 1.25 C819 1u ECQE2W105L28 * * TP804 D822 MA2J11100L K5D502BNA005 F801 D819 B0BA42500001 COLD INV HOT HEAT SINK TUCJ5346 1 V- 2 V- 3 NC 4 V+ PED 24V RELAY_5V 5VS STB_5V GND GND SUB_ON Hi ON/Lo OFF 24V GND 24V GND 24V 24V 24V 24V GND GND GND 1 2 3 4 1 2 3 4 1 2 3 4 1 2 ALL OFF (SW DET) STB_5V To K-PCB To AP-PCB To D-INV ALL OFF (SW DET) = TC-32LX70D 27 13.3. AP 板 (1/2) 线路图 1 2 3 7 8 9 A B C D E F ! AP� TNPA4117AC(1/2 ) ������������� ���������� ���������� ������������� 4 5 6 3 4 5 6 7 8 9 10 11 12 13 1 2 JS7001 JS7501 JS7401 JS7301 + + + + + + + + + PANEL_12V_1 10 0V 0V 5V 0V 9V 0V 0V 0V 24V_4 24V_4 0V VIN_9V SUB_9V 0V 0V PANEL_12V_1 0V 0V 24V D7505 MAZ81100ML C7501 50V 0.01u C7403 50V 0.01u R7707 470 1/2W L7302 68u L7304 EXCELDR25V Q7701 2SD0601ASL R7229 10k C7408 0.1u 50V R7309 10k R7206 4.7k C7508 0.1u 50V 1% R7301 910 R7506 36k TP7302 R7312 47k C Q7202 2SB0709ASL C7305 50V 0.01u C D7703 B0HCMM000014 R7408 47k Q7204 2SD0601ASL Q7703 2SD0601ASL C7405 50V 0.022u R7313 10k C0DAAZH00025 IC7301 BD9280-V3 1 SS 2 RT 3 FB 4 INV 5 SW 6 GND 7 VIN 8 PVIN 9 EN 10 SUB-GND SOUND D7401 B0JCPG000005 R7712 47k R7311 0 0 C7512 0.01u 50V C7703 16V 680u Q7301 2SD0601A0L C7705 50V 0.01u C7312 0.01u 50V C R7407 100 R7310 R7557 4.7k R7204 47k L7402 100u C7313 0.1u 50V R7505 91k 1% R7704 1k TP7701 R7205 10k 1% R7502 8.2k R7203 47k R7555 10k R7236 22k C R7231 47k C7406 1000p 50V C7101 50V 0.1u R7410 47k D7101 MAZ82700ML Q7203 2SB0709ASL C7513 0.1u 50V R7702 22k R7510 47k R7552 2.2k TP7702 R7511 10k C0DAAZG00014 IC7701 PQ1CG41H2RZH 1 Vin 2 Vout 3 COM 4 Oadj 5 ON/OFF C7204 10V 1u D7405 MAZ80750ML AP5 B9B-EH-F1(LF)(SN) K1KA09AA0190 1 2 3 4 5 6 7 8 9 R7305 36k D7303 B0HCMM000014 D7206 MA3X152D0L R7711 4.7k L7502 47u C7702 50V 220u F2A1H221A253 R7701 47k R7228 47k C7308 0.1u 50V C7502 50V 220u F2A1H221A253 R7709 12k 1% R7705 8.66k R7551 22k C7413 0.1u 50V C7211 50V 0.1u R7553 47k D7306 MAZ82000ML C C7506 2200p 50V D7403 B0HCMM000014 R7714 22k 1% R7501 1k C7551 50V 10u D7705 MA2J11100L C7311 50V 0.01u 1% R7401 1.5k R7503 47k Q7553 2SC584500L Q7402 2SD0601A0L R7201 1k L7403 EXCELDR25V 1% R7302 13k C C7303 50V 0.01u C7411 50V 0.01u C7210 50V 0.1u Q7212 2SD0601ASL R7235 47k D7305 MA2J11100L R7230 47k D7301 B0JCPG000005 R7507 1k R7559 4.7k TP7502 C7301 50V 0.01u L7504 EXCELDR25V R7713 4.7k C7304 16V 1000u F2A1C102A530 C7507 0.1u 50V C7409 0.1u 50V R7232 10k Q7551 B1DHDD000033 R7210 1k R7237 22k 1% R7304 160k R7307 100 Q7552 2SC584500L D7501 B0JCPG000005 C7505 50V 0.022u C C C7202 10V 1u C0DAAZH00026 IC7501 BD9281-V3 1 SS 2 RT 3 FB 4 INV 5 SW 6 GND 7 VIN 8 PVIN 9 EN 10 SUB-GND D7406 MA2J11100L D7503 B0HCMM000014 Q7502 2SD0601A0L R7706 1k Q7302 2SD0601A0L C7504 16V 1000u R7208 4.7k C7510 0.1u 50V C7310 0.1u 50V R7411 10k C7401 50V 0.01u C7410 0.1u 50V C7402 50V 220u F2A1H221A253 D7205 MAZ81800ML R7406 1k Q7210 2SD0601ASL R7202 10k C7701 50V 0.01u R7508 100 C7309 0.1u 50V TP7101 R7405 82k C D7702 B0JCPG000005 C7552 50V 0.01u C7102 50V 0.1u R7306 1k TP7102 R7554 47k C7412 4700p 50V ZA7001 K9ZZ00000424 C7511 50V 0.01u Q7501 2SD0601A0L C R7509 10k L7702 100u C7407 0.1u 50V R7303 47k Q7702 2SD0601ASL D7102 MA2J11100L R7710 22k Q7201 2SD0601ASL R7409 10k Q7211 2SD0601ASL D7506 MA2J11100L TP7402 C7503 50V 0.01u D7704 MAZ81800ML C7203 10V 1u R7207 4.7k R7556 10k TP7103 R7209 4.7k R7403 47k C0DAAZH00026 IC7401 BD9281-V3 1 SS 2 RT 3 FB 4 INV 5 SW 6 GND 7 VIN 8 PVIN 9 EN 10 SUB-GND C7201 10V 1u C7306 2200p 50V C7706 0.1u 50V C7307 0.1u 50V R7504 47k C7509 0.1u 50V 1% R7402 6.2k Q7401 2SD0601A0L L7551 10u C C7302 50V 220u F2A1H221A253 R7308 47k C7404 16V 1000u F2A1C102A530 1% R7404 56k SUB_9V PANEL_Vcc OVP PANEL_Vcc(12V) 24V_DET To P-PCB 24V OVP 24V ON:>2.6V OFF:L SOUND_VCC OVP SUB_5V(ROHM) ON:>2.6V OFF:L SUB5V OVP SOUND(ROHM) DTV_9V(ROHM) OFF:L ON:>2.6V GND GND 24V GND SUB_ON Hi ON/Lo OFF 24V ALL OFF (SW DET) 24V STB_5V ALL_OFF_DET MAIN_9V TC-32LX70D 28 13.4. AP 板 (2/2) 线路图 8 9 13 14 15 A B C D E F ! AP� TNPA4117AC(2/2) ������������� ���������� ���������� ������������� 10 11 12 7 C7901 50V 0.01u 3 4 5 6 7 8 9 10 11 12 13 1 2 + + 0V 0V 0V 0V 0V 0V 0V SUB_5V 0V 0V +15V_S SUB_5V_1 SOUND_VCC 0V MAIN_ON TV_SUB_ON PANEL_VCC_ON SUB_ACT STB_5V 0V D7212 MA2J11100L R7234 1k R7217 1.2k R7219 47k D7202 MAZ81500ML C7905 50V 0.1u C Q7209 2SD0601ASL R7226 47k C7906 50V 0.1u C L7201 68u C R7240 0 R7241 0 R7246 0 C7903 50V 0.1u R7222 1.5k ZA7002 K9ZZ00000424 C7908 16V 100u R7218 220 C7205 6.3V 2.2u F1J0J2250003 C SOUND R7215 2.2k R7243 0 Q7205 2SD0601ASL C7207 0.22u 16V D7204 MA2J11100L R7244 22k C7209 0.01u 50V Q7208 2SD0601ASL C C7904 50V 0.1u Q7206 2SB0709ASL R7227 4.7k R7212 10k CD L7903 10u AP4 TWG-P23P-A1 BLK ST K1KA23A00003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 D7208 MA2J11100L C D7210 MA2J11100L R7213 47k C C R7211 0 L7905 10u C D7209 MA2J11100L AP3 TWG-P23P-A1 BLK ST K1KA23A00003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 R7239 0 C R7223 22k D7211 MA2J11100L R7216 3.3k R7245 12k R7238 10k L7904 10u C7206 16V 100u R7214 1.5k R7225 4.7k R7224 22k C R7221 1.5k R7901 0 AP6 1 2 R7233 0 C7910 16V 100u D7207 MA2J11100L C7902 50V 0.1u R7242 10k ZA7003 K9ZZ00000424 SUB_9V GND GND NC PANEL_5V TV_SOS DTV9V LCD_3.3V/SUB9V(FHD) TV_MAIN_ON SOS FAN_MAX SHORT SOS SUB_5V SUB_9V DC-DC ON/OFF CONTROL MAIN_9V SOUND_16V KEY SUB_5V FAN_SOS KEYSCAN GND TV_SUB_ON +15V_S (SOUND_VCC) GND SUB_5V DTV9V S_GND S_GND 24V_DET GND NC DGND GND GND DGND GND GND GND PANELVCC_ON DTV9V GND STB_5V Panel Vcc PANEL_5V GND GND HQ3.3V NC +15V_S (SOUND_VCC) NC NC MAIN_9V NC NC LCD_3.3V/SUB9V(FHD) NC NC NC TC-32LX70D 29 13.5. H 板 (1/5) 线路图 1 2 3 7 8 9 A B C D E F ! H� TNPA4292DB(1/5 ) H� (1/5) ��� TC-32LX70D TC-32LX70D H� (1/5) ��� 4 5 6 + + COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y *R3306 4.7k *R3307 4.7k AV_L AV3_R SDA0B_5V SCL0B_5V AV4_L AV2_R AV1_R AV3_L AV1_L AV2_L AV4_R AV_R PC_RIN PC_LIN TV_L TV_R PC_B DAC_PD PC_H_IN PC_V_IN PC_G PC_R PC_LIN PC_RIN A_AV1_R AV1_V AV1_S A_AV2_RSW AV3C_YSW A_AV3_RSW AV3C_PR A_AV1_R AV2_V AV1_C AV1_Y A_AV1_L A_AV3_L A_AV2_R A_LOUT A_AV2_L A_AV2_L A_AV1_RSW AV2C_YSW AV3C_Y A_VOUT AV2C_PB A_AV3_L A_AV2_RSW A_AV1_RSW A_AV1_V A_AV1_L AV3C_PB A_AV2_R AV3_V A_AV3_R AV2C_PR A_ROUT A_AV3_R A_AV3_RSW A_LOUT AV2C_Y A_ROUT MONITOROUT_MUTE AV3_L AV3_R VOUT AV2_L AV2_R AV1_L AV1_R AUDIOOUT_L AUDIOOUT_R VOUT_FEED_B *D3334 MA2J11100L C C C C3120 50V 0.1u JS3012 0 R2032 22k *R3308 0 1% R3005 75 Q2002 2SC584500L FL2002 J0HABB000004 1 2 3 4 C C2164 16V 1u L2016 J0JCC0000100 R2196 100k SUB9V_PRCT D3100 MAZ81400ML 1% R3001 75 R3145 100k JS2033 CL019 JS3014 0 ERJ6GEY0R00V *D3337 MA2J11100L JS2031 C R2195 100k 1% R3007 75 C *JK3001 K1FB315A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R3130 220 C2161 16V 100u R2170 220 C L3013 J0JCC0000100 *R3309 0 R2031 22k C2021 560p 50V C FL2001 J0HABB000004 1 2 3 4 C2160 16V 1u C JS3011 0 *FL3001 J0HABB000003 1 2 3 4 R2167 220 1% R3004 75 R2132 47k *R2162 220 L2001 J0JCC0000364 D3036 MAZ81400ML *R2160 220 L3003 J0JCC0000100 C2010 50V 560p 1% R3012 75 C2147 16V 22u 1% R3002 75 AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS L11 40 R11 41 L12 42 R12 43 L13 44 R13 R2164 220 D3006 MAZ81400ML C2167 16V 1u 0 ERJ3GEY0R00V C2166 16V 1u *D3336 MA2J11100L C *R3318 75 C2013 50V 560p C C R3020 4.7k C2165 16V 1u C2159 16V 1u R2152 22 *FL3003 J0HABB000004 1 2 3 4 L2011 J0JCC0000100 D3047 MAZ81400ML C D3046 MAZ81400ML C L3010 J0JCC0000100 R2052 180k R3131 220 D3038 MAZ81400ML D3049 MAZ81400ML C C2135 16V 1u L2015 J0JCC0000100 JS3015 0 ERJ6GEY0R00V C C C2136 16V 1u L2008 J0JCC0000100 C JK3100 K1U936A00002 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G SUB9V_PRCT *C2157 16V 1u *C3102 10V 1u C *C2155 16V 1u JS3010 0 ERJ6GEY0R00V C C C3060 16V 1u C R2174 220 C C C2022 560p 50V D2119 B0BC01100001 R2047 330 C 1% R3008 75 C DTV9V D3035 MAZ81400ML R2051 180k R3021 4.7k C L2004 J0JCC0000100 R2054 100k C C C2154 50V 0.1u R2034 22k JS3013 0 ERJ6GEY0R00V C2011 50V 560p R2030 22k C2016 50V 560p R3022 4.7k C2163 16V 1u C *C3100 10V 1u C R2050 2.2k D3003 MAZ81400ML R2048 2.2k L2002 J0JCC0000364 C C C3070 6.3V 220u *R3143 75 C *FL3005 J0HABB000004 1 2 3 4 Q2003 2SC584500L D3040 MAZ81400ML R2137 220 *D3335 MA2J11100L C R2171 220 R2138 220 C D3005 MAZ81400ML *C3101 10V 1u *R3310 75 R2154 22 1% R3006 75 JS2032 C2162 16V 1u R2049 330 D3039 MAZ81400ML R2173 220 C2006 50V 560p C L2003 J0JCC0000100 L2007 J0JCC0000100 R2172 220 C2005 50V 560p D3037 MAZ81400ML *R3313 75 1% R3003 75 *FL3004 J0HABB000004 1 2 3 4 C CL020 *D3338 MA2J11100L L2012 J0JCC0000100 D3045 MAZ81400ML JK2003 K2HA204A0041 L L-G R R-G C C C L3001 J0JCC0000100 C R2033 22k C 1% R3010 75 C C R2053 100k C2014 50V 560p C *FL3002 J0HABB000003 1 2 3 4 L3002 J0JCC0000100 R2175 220 1% R3009 75 R2029 22k R2235 47k DTV9V C D3048 MAZ81400ML C2017 50V 560p *D3102 MA2J11100L SUB9V_VIDEO VIDEO/2 AVSW/2 B G R AVSW Audio SW AV3 1 2 3 R3188 C PC TC-32LX70D 30 13.6. H 板 (2/5) 线路图 4 5 7 8 6 + + + + + + RGB_CVBS MAIN_RGB_CVBS_OUT AV2C_Y AV2C_PB AV2C_PR MAIN_RF_CVBS MAIN_RF_GND PC_H PC_V SUB_PB_OUT AV4_VGND AV4_YGND AV3C_PB PC_G GUARD_G PC_R GUARD_R PC_B GUARD_B AV4_V AV4_Y AV4_S AV4_C AV4_CGND SUB_Y_OUT GUARD_R GUARD_B GUARD_G P_AVSW9V P_AVSW9V2 MAIN_RGB_CVBS_OUT MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT SUB_PR_OUT VIDEO_STATUS SDA0B_5V 30V SIF1 AFC1 AV1_Y AV2_V AV3_V AV3C_Y AV3C_PR SUB_RF_GND AV1_V AV1_S AV1_C AV3C_YSW AV2C_YSW SDA0B_5V SCL0B_5V MAIN_TNR_SW1 MAIN_TNR_SW2 MAIN_RF_CVBS MAIN_RF_GND SUB_RF_GND AFC2 MAIN_Y/CBVS/G MAIN_Y_OUT MAIN_PB/C/B MAIN_PB_OUT MAIN_PR/R MAIN_PR_OUT SCL0B_5V MAIN_TNR_SW1 MAIN_TNR_SW2 PC_H_IN PC_V_IN VOUT_FEED_B VOUT R3099 68 C3021 10V1u R3103 0 C C R3059 220 R3090 22 *R3268 47k C C3117 50V 0.1u R3205 0 DTV9V SUB9V_VIDEO *C3027 10V 1u C3103 16V 10u R3121 47 C *R3175 68 C3277 33p *R3176 68 R3110 0 C3033 10V 1u C *R3073 220 L3225 J0JCC0000241 C3278 33p C C3024 10V 1u C *D3042 MAZ81400ML *D3043 MAZ81400ML R3074 220 R3044 0 R3089 330 C C JS3032 Q3200 2SA207700L C3078 22u C *C3031 50V 0.1u C C JS3208 ERJ3GEY0R00V *D3041 MAZ81400ML 68 68 R3133 22 C3271 10u 16V L3226 J0JCC0000241 CL3207 R3191 C *R3068 75 R3123 47 *R3348 68 C C C3043 R3087 10V 1u *C3029 16V 1u R3101 68 R3096 68 C3023 10V 1u *TU3200 ENGF9701GF BB 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 *R3302 100 C C C R3247 220 C *R3216 0 R3246 22 *R3072 220 C3281 16V 0.1u CL3211 C R3249 1.5k *C3081 6.3V 100u R3222 0 *R3305 100 10V 1u C R3244 22 C3280 50V 100p C3116 50V 0.1u R3065 220 R3240 560 C C SUB5V R3137 100 R3140 47 *R3063 220 R3186 0 L3211 J0JGC0000021 CL3205 C AN15876A-VT IC3001 1 V4 2 S12 3 Y4 4 S22 5 C4 6 VCC2 7 LP5 8 V3 9 O3 Y3 GND2 12 C3 13 LP4 14 V2 15 S11 16 Y2 17 S21 18 C2 19 LP3 20 V1 21 O2 22 Y1 O1 24 C1 25 VCC3 26 VOUT6 27 DCOUT 28 VOUT5FB 29 VOUT5 30 VOUT4FB 31 VOUT4 32 VOUT3FB 33 VOUT3 34 OUT2(Pr) 35 OUT2(Pb) 36 OUT2(CY) 37 GND3 38 OUT1(Pr) 39 OUT1(Pb) 40 OUT1(CY) 41 VOUT 42 HOUT 43 HVOE 44 VOUT7 45 VCC4 46 FBLOUT 47 FBL3 48 FBL2 49 FBL1 50 FBLOE 51 G1 52 VIN1 53 B1 54 HIN1 55 R1 56 GND4 57 G2 58 VIN2 59 B2 60 HIN2 61 R2 62 NC 63 G3 64 TEST 65 B3 66 NC 67 R3 68 NC 69 VCC1 70 NC 71 G4 72 LP1 73 B4 74 L31 75 R4 76 NC 77 G5 78 LP2 79 B5 80 L32 81 R5 82 GND1 83 SDA 84 SCL 85 FLAG 86 BIAS 87 V9 88 NC 89 V8 90 NC 91 V7 92 O4 93 V6 94 LP7 95 V5 96 S13 97 Y5 98 S23 99 C5 100 LP6 C3270 6.3V 1000u R3243 270 L3206 J0JCC0000241 R3069 220 *R3349 68 R3045 0 C *R3062 220 *R3174 68 C L3207 J0JCC0000241 C L3209 J0JGC0000021 C3276 16V 0.1u R3100 68 C3115 50V 0.1u C3272 50V 0.1u D3044 B0BC01100001 C C3275 16V 0.1u C3055 10V 1u C C C3056 10V 1u 220 R3097 R3098 C3279 16V 0.1u C C R3168 220 C C C BT30V R3134 270k R3064 220 R3239 220 C3273 10u 50V C C *R3233 75 C C C C3026 50V 0.1u C3054 10V 1u R3111 22 C JS3024 *R3234 75 C3118 16V 47u R3202 0 C3075 16V 220u JS3023 *C3028 1u R3266 1.5k R3109 0 C3040 50V 0.1u MAIN9V C C C3051 10V 1u C3052 10V 1u C3053 R3102 0 C R3104 0 C VIDEO/1 AVSW/1 2Vpp to M2 1.12dB to ADV 1.12dB to ADV 1.12dB to ADV Video SW 9 10 11 15 16 17 A B C D E F ������������ ���������� ���������� ������������ 12 13 14 1 2 3 ! H� TNPA4292DB(2/5 ) TC-32LX70D 31 13.7. H 板 (3/5) 线路图 4 5 6 7 8 9 10 11 12 13 14 + + + + + + + + + + + + + AMUTE SUB3.3V DTV_LRCK SQ_L+ SQ_R+ SQ_R- SQ_L- DTV_BCLK TV_R AUDIOOUT_R AUDIOOUT_L AV_R HDMI_SDIN HDMI_BCLK HDMI_LRCK DTV2_SDIN SOUND_SOS AUDIO_MUTE DAC_PD NET0012570 TV_L AV_L DTV_SDIN HP_ROUT HP_LOUT GUARD_SL GUARD_SR SPDIF_IN 5V SIF3.3V SDA0B SCL0B PWM_SQ_L+ PWM_SQ_L- SQ_L+ SQ_L- PWM_SQ_R+ SQ_R+ SQ_R- PWM_SQ_R- GUARD_SL AUDIO_XRST C C2057 0.1u 50V R2297 0 C2058 0.1u 50V C2054 10u 10V C2107 47u 6.3V C2137 47u 6.3V C2114 0.1u 50V C2246 10u 10V C2170 50V 33p *R2184 100 *R2099 10k C C_AUD R2085 560 C0DBFFD00003 IC2107 MM1561JFBE(R59-7312) 1 2 3 4 5 6 7 C2101 10u 10V R2265 4.7k 0 *R2116 *C2203 1u 10V C L2040 J0JHC0000045 C 100 R2111 H0J245500082 X2010 20k 1% R2150 Q2101 2SC584500L Q2015 2SA207700L C2216 0.1u 50V R2210 10k *C2099 6.3V 6.3V 220u C2134 50V 0.01u C2056 12p 50V C C2102 0.1u 50V R2263 0 *R2185 100 R2291 0 CSIF L2021 J0JHC0000078 *C2184 50V 1000p C2272 4.7u 16V C2131 50V 0.1u C1AB00002746 IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REEP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTEB 16 SDA 17 SCL 18 LRCLK2 19 BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SDIN3 26 LRCLK0 27 BCLK0 28 ODGND 29 ODVDD 30 VDRIVE 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 BCLK1 36 LRCLK1 37 SDO0 38 SPDIF_OUT 39 SPDIF_IN 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESETB 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUTL1 58 HPOUTR1 59 AVDD 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 VOUT_SW 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUTL1 73 AUXOUTR1 74 AUXOUTL2 75 AUXOUTR2 76 AINL2 77 AINR2 78 AINL1 79 AINR1 80 ISET *C2271 470p 50V R2223 0 C2171 0.01u 50V 1% R2169 22k *L2034 J0JCC0000364 C2113 47u 6.3V 1% R2181 22k *C2179 16V 47u C2110 0.1u 50V C2116 470p 50V *R2178 1k *R2187 0 C2117 0.1u 50V MAIN9V C C2191 10u 10V 1% R2198 158k C2055 12p 50V *C2175 16V 47u C C *L2035 J0JCC0000364 R2209 10k C2053 0.1u 50V *C2195 50V 1000p SUB3.3V *C2270 470p 50V 1% R2183 36k DVDD3.3V C CSIF L2039 J0JHC0000045 1% R2168 16k *C2180 1u 10V 1% R2166 16k 2.2k R2125 C2289 10u 10V C2109 0.1u 50V C2173 4.7u 16V *R2237 15k C2185 10u 10V J0JCC0000077 L2029 R2295 0 *R2179 10k *R2271 22 EXB28V220JX C2280 4.7u 10V C C2118 1u 10V C2265 100p 50V R2084 4.7k SUB5V C2124 0.1u 50V Q2021 2SA207700L C2126 10u 10V C2130 6.3V 10u AUD3.3V C C2267 100p 50V 10k R2276 R2294 0 0 20k 1% R2146 C2183 10u 10V *C2204 1u 16V *R2193 100k C2088 4.7u 10V C2264 10u 10V C2121 56p 50V C2244 0.1u 50V C2059 47u 6.3V *R2236 15k C 1M *R2059 C2188 470p 50V C_AUD C2023 0.1u 50V C2146 50V 180p R2266 560 DVDD1.8V 300 R2058 C 22 R2056 C C2106 0.1u 50V C SUB5V DVDD1.8V 1% R2197 68k 1% *R2113 120k DVDD3.3V *R2186 82k 2k 1% R2104 C2138 0.1u 50V C2153 50V 33p 20k 1% R2145 C2108 47u 6.3V C2266 100p 50V C2111 2.2u 6.3V C2143 50V 180p C2089 560p 50V 22 R2057 C2268 100p 50V C2112 47u 6.3V *IC2012 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC 1% *R2114 75k IC2011 C0ABBB000230 NJM4565M(TE1) 1 2 3 4 5 6 7 8 C2115 0.1u 50V C2048 0.1u 50V C0DBGYY00281 *IC2013 1 NC 2 VSS 3 CE 5 VOUT 4 VIN DTV9V C2245 1000p 50V C2049 0.1u 50V C2251 10u 10V SUB3.3V DTV9V C2186 0.1u 50V C C2050 0.1u 50V C *L2022 ERJ3GEY0R00V R2165 10k 1% R2182 36k *R2180 100 C2151 47u 6.3V *C2133 50V 4.7u *C2197 25V 0.033u C2281 560p 50V R2290 C2189 1u 10V C R2149 10k C2213 1000p 50V C C R2296 0 C2100 0.1u 50V C 20k 1% R2151 *C2174 1u 10V C0CBCBC00190 IC2010 MM3143DNRE(R59-1828) 1 VDD 2 GND 3 CE 5 VOUT 4 NC *R2098 10k C2052 0.1u 50V C2105 0.1u 50V C0CBCBE00001 IC2008 MM1563DFBE(R59-7327) 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 SUB 7 VIN *R2233 10k *C2176 50V 0.01u 0 *R2117 C2263 10u 10V *R2238 47k CSIF C Q2102 2SC584500L C *R2192 100k C C2187 2.2u 6.3V C2288 10u 10V C2192 47u 6.3V *C2098 220u *C2202 2.2u 6.3V *C2198 25V 0.033u 20k 1% R2100 10k R2110 C2190 10u 10V C2125 1u 10V C R2300 0 R2189 10k D2189 MA2J11100L DTV_BCLK >> ADAV4xyz >> RESETB to D-AMP. >> MUTE from D-AMP << DTV_LRCLK >> - R + - + HDMI_BCLK >> DTV_SDIN >> MUTE(ES2-) >> Monitor R to HeadPhone out L, R >> HDMI_SDIN >> 1.8V (500mA) HDMI_LRCLK >> SLV: 34h >> Monitor L DTV2_SDIN >> HP AMP Lin 17 18 19 23 24 25 A B C D E F ���������� ���������� ������������ 20 21 22 ������������ C2096 50V 0.1u Q2017 2SC584500L R2092 470 L2027 J0JHC0000045 R2093 L2026 G1C6R8MA0061 R2088 100 R2089 560 1M R2112 R2096 10k 3.3k C2097 50V 0.1u C2091 50V 10p C2092 50V 22p 0 R2257 R2094 2.2k SUB5V R2086 470 Q2016 2SC584500L JS2096 C2120 56p 50V R2097 3.3k SIF1 in C JS3206 0 ! H� TNPA4292DB(3/5 ) TC-32LX70D 32 13.8. H 板 (4/5) 线路图 + + + + 35V 9.0V 0V 0V 0V SCL0B SDA0B SOS TV_SUB_ON_DELAY 3.30V 3.3V_SUB PWM_SQ_R+ PWM_SQ_R- AMUTE 15V_SOUND SOUND_SOS MONITOROUT_MUTE AUDIO_MUTE AMUTE HDMI_INT2 SP_MUTE 12V_SOUND 24V_DET PWM_SQ_L+ PWM_SQ_L- 9.0V 0.0V SCL0B_5V SDA0B_5V TP2303 C2815 50V 0.1u SOUND12V C DTV9V TP2310 L2649 G1C100MA0072 Q2039 2SC584500L C R2144 10k C C R2319 10 CP C2301 16V 0.1u C2813 50V 0.1u R2308 3.3 C R2866 2.2k CP C R2205 20k D2034 MA2J11100L SUB3.3V C2317 0.033u 25V R2624 22 C R2864 6.8k C C2357 50V 0.1u C C2353 50V 0.1u R2194 1k CP C2313 50V 0.1u Q2640 B1CBHD000002 R2331 2.2k R2301 2.2k D2302 MA2J11100L D2634 MA3X78900L D2633 MA2J11100L R2323 10 CP C L2308 J0JJC0000011 R2122 10k C2816 50V 10u CP TP2608 R2156 68 C2331 50V 0.47u TP2307 R2857 4.7k *R2304 0 Q2031 2SA207700L D2033 MA2J11100L C2309 25V 1u SOUND15V C2119 10V 220u C C2377 50V 0.022u R2128 1k C C R2305 470 L2648 G1C470MA0077 C CP R2860 10k C2383 50V 1000p C2812 16V 10u C C Q2033 2SA207700L *C2363 16V 0.1u R2859 4.7k C2379 50V 0.022u Q2636 2SA207700L R2311 3.3 C0DBGYY00202 IC2303 VIN 3 2 VSS VOUT 1 D2635 MA2J11100L D2032 MA2J11100L TP2611 R2629 5.1k C D2026 MA2J11100L TP2302 CP TP2301 C2341 50V 0.1u C Q2040 2SC584500L C2337 50V 0.022u Q2637 2SA207700L C L2302 G1C100MA0291 Q2639 B1CFNG000001 C TP2607 R2127 10k MAIN9V C2352 16V 1u CP L2300 G1C100MA0291 C TP2305 R2315 3.3 C2817 50V 1000p C2343 50V 0.1u 1% R2868 16k R2325 10 R2119 10k R2313 3.3 C C2385 50V 1000p C2305 25V 1u C1AB00002730 *IC2301 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A C2319 0.033u 25V D2304 MA2J11100L C2361 25V 470u R2208 10k C2307 25V 1u R2861 1k C C0DBAJB00004 IC2610 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS *R2217 47k C *C2329 16V 0.1u Q2635 2SC584500L *R2123 47k TP2610 C2302 16V 0.1u R2858 2.2k CP TP2609 R2625 22 C2339 50V 0.022u CP R2306 68k C C *C2311 16V 0.1u C2355 50V 0.1u CP *C2327 16V 0.1u BT30V R2131 10k STB+5V D2301 MA2J11100L R2118 1M D2303 MAZ30560HL R2855 47k C C2345 50V 0.022u L2310 J0JJC0000011 C2359 50V 0.1u C2303 25V 1u C2335 50V 0.1u C2389 50V 1000p SUB3.3V DTV9V Q2638 2SC584500L H12 K1KA04AA0190 B4B-EH-F1(LF)(SN) 1 2 3 4 R2317 10 R2869 4.7k TP2612 R2206 10k R2854 2.2k CP 1% R2867 82k R2204 33k C2325 50V 0.47u C2347 50V 0.022u R2863 1k D2638 B0BC03900015 *R2303 0 STB+5V C2375 50V 0.022u D2632 MA2J11100L D2031 MA2J11100L R2321 10 C2323 0.033u 25V C TP2606 MAIN9V C2381 50V 0.022u C C R2330 1k D2637 MA2J11100L Q2034 2SC584500L D2028 MA2J11100L L2306 G1C100MA0291 R2124 10k C Q2041 2SC584500L Q2641 B1CBHD000002 CP SUB5V C2333 50V 0.1u R2628 5.1k R2865 10k C C2387 50V 1000p C2349 50V 0.1u C C2321 0.033u 25V R2853 10k L2304 G1C100MA0291 R2890 100k Q2035 2SC584500L D2029 MA2J11100L R2216 10k *C2315 16V 0.1u D2636 MAZ30470HL R2129 10k R2302 2.2k Q2301 2SA207700L C R2891 ERJ6GEY0R00V R2856 K5H1622A0023 R3354 180 C3309 50V 330p CP C3310 50V 330p CP R3355 180 CP C3311 50V 330p R3356 180 CP C3312 50V 330p R3357 180 R3358 ERJ6GEYJ180V C3313 50V 330p CP R3359 ERJ6GEYJ180V C3314 50V 330p CP R3360 ERJ6GEYJ180V C3315 50V 330p CP R3361 ERJ6GEYJ180V C3316 50V 330p CP C2401 50V 0.1u C SUB_3.3V 15V 500mA OPERATE RESET SOS OPERATE 2 SP R- L+ L- R+ MUTE MUTE SW OPERATE MUTE MUTE MUTE MUTE MUTE 9 14 13 12 11 10 15 17 16 18 19 25 26 27 31 32 33 A B C D E F ������������ ���������� ���������� ������������ 28 29 30 ! H� TNPA4292DB(4/5 ) TC-32LX70D 33 13.9. H 板 (5/5) 线路图 33 34 35 39 40 41 A B C D E F ������������ ���������� ���������� ������������ 36 37 38 15 16 17 18 19 + JS2063 *JS3042 AV4_CGND AV4_YGND AV4_VGND HDMI_INT2 MAIN_PR/R MAIN_PB/C/B MAIN_Y/CBVS/G RGB_CVBS PC_H PC_V DVB_CVBS SUB_PR SUB_PB SUB_Y SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 SOS TUNER_SUB_ON GENX_RST PANEL_STBY_ON 24V_DET KEY FAN_SOS AFC2 FAN_CONT SCL0B VIDEO_STATUS DTV_BCLK DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK KEY HP_LOUT AV4_R AV4_R HP_ROUT AV4_L AV4_S AV4_Y AV4_V AV4_C TV_SUB_ON_DELAY 24V_DET FAN_CONT 9V_SUB FAN_SOS 5V_SUB 9V_MAIN SOS 5V_STB 5V_STB TUNER_MAIN_ON ALL_OFF TUNER_SUB_ON 12V_PANEL ECO_ON KEY PANEL_STBY_ON 3.3V_LCD *H51 K1KA20AA0178 B20B-PHDSS(LF)(SN) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CL059 C3267 50V 0.1u C3228 50V 0.1u MAIN9V C3226 50V 0.1u H2 K1KA23A00003 TWG-P23P-A1 BLK ST 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 *R3228 0 JS2045 R2231 0 C3230 50V 0.1u *R3229 0 C R2228 0 CL102 R3350 0 C3266 50V 0.1u TP2014 C CL066 *FL2006 J0HABB000003 1 2 3 4 *R3227 0 JS2052 C3216 50V 0.1u TP2016 CL062 CL076 C *FL3006 J0JAD0000028 1 2 3 4 SOUND15V C3227 50V 0.1u JS2062 R2225 0 JS2048 C SUB3.3V *FL2005 J0HABB000003 1 2 3 4 C R2229 0 CL061 C C C C *H3A K1KB23A00004 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SUB9V_H264 *JS2101 0 CL067 LCD3.3V C3214 50V 0.1u C C CL101 CL060 C JS2046 JS2044 *FL2004 J0HABB000003 1 2 3 4 CL103 DTV9V SUB5V C C CL3208 CL182 JS2050 CL129 C DTV9V CL078 C2819 25V 47u *FL2003 J0HABB000003 1 2 3 4 C CL080 C3265 50V 0.1u C C *JS2064 CSIF CAUD P12V C C H6 K1KB80AA0218 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 TP2015 STB+5V *H4A K1KB23A00004 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 JS2053 CL070 JS2060 JS2061 C_AUD C3268 50V 0.1u LCD3.3V MAIN9V JS2049 CP C JS2059 *FL3008 J0HABB000003 1 2 3 4 C3201 50V 0.1u CL077 R2227 0 C CL184 CP CL3206 C CL3204 SUB5V JS3213 0 R2224 0 CL025 C JS2051 TP2012 L2650 G1C3R3ZA0083 CL064 CL183 *FL3007 J0JAD0000028 1 2 3 4 CL075 C P12V C CL124 C CL022 R2230 0 C3263 50V 0.1u CP JS2047 CL065 STB+5V JS2104 JS2105 JS2106 JS2107 C2400 50V 0.1u C TP2617 MAIN_Y/CVBS/G GND PC_V GND NC(RGB_FB) SCL0B_3.3V SUB_PB/C GND GND GND GND GND SUB_PR SUB_Y/CVBS AUDIO_MUTE SOS GND GND GND GND GND VIDEO_STATUS TV_SUB_ON_DELAY GND GND AFC1 RGB_CVBS GND GND NC(QLINK_AV2) NC(QLINK_AV3) GND GND SP_MUTE SDA0B_3.3V GND GND GND GND GND PC_H GND DTV2_SDIN DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK GND GND GND GND GND GND GND MAIN_PB/C/B MAIN_PR/R GND DVB_CVBS AUDIO_XRST GENX_RST SOUND_SOS AFC2 TUNER_MAIN_ON TUNER_SUB_ON 24V_DET SPDIF_IN GND GND GND HDMI_INT2 GND 0.4A To G To AP4 To DG To DG LCD NC NC PANEL_VCC_ON FAN_SOS KEY GND FAN_MAX SUB5V SUB3.3V GND GND GND GND GND FHD9V/LCD3.3V GND SUB5V MAIN9V STB5V DTV9V GND FHD9V/LCD3.3V GND SUB5V GND DTV9V GND P12V SUB3.3V P12V N.C. SUB5V N.C.(BT30V) GND GND +15V_S GND GND +15V_S 24V_DET DTV9V GND N.C. GND S_GND SUB5V S_GND GND FAN_SOS MAIN9V DTV9V FAN_MAX +15V_S LCD SOS GND TUNER_SUB_ON P12V N.C. GND P12V GND GND TUNER_MAIN_ON GND GND STB5V GND PANEL_12V_ON N.C. FHD9V/LCD3.3V N.C. N.C. KEY N.C. N.C. FHD9V/LCD3.3V LCD HP_R AV4_R AV4_C AV4_L NC NC GND GND GND NC HP_L GND HP_GND AV4_S HP_GND AV4_V GND GND KEY AV4_Y LCD ! H� TNPA4292DB(5/5 ) ZA3003 K4CD08000002 ZA3003 K4CD08000002 ZA3003 K4CD08000002 ZA3003 K4CD08000002 ZA3003 K4CD08000002 ZA3003 K4CD08000002 ZA3003 K4CD08000002 TC-32LX70D 34 13.10.K，G 和 V 板线路图 1 2 3 4 5 6 7 8 9 A B C D E F ���������� ����� ����� ����� ! G� TNPA4118AB ! V� TNPA4127AG ! K� TNPA4128AB ���������� ����� ����� ����� + G R + R_LED_ON G_LED_ON TIMER_REC_LED REMOTE SUB5V AI_SENSOR STB3.3V S9B-PH-K-S(LF)(SN) K1KA09BA0061 R_LED_ON REMOTE SUB5V C1 TP1005 R1017 10k Q1004 2SB0709ASL C1 R1019 10k Q1006 2SD0601ASL C1 TP1007 C1 C1 R1046 22k TP1003 C1006 6.3V 47u C1 C1 C1 1% R1034 51k D1001 B3CKE0000007 Q1010 2SD0601ASL R1049 47k RM1001 PNA4701M05TV 1 VOUT 2 GND 3 VCC R1020 10k C1 R1048 220k TP1001 R1006 680 C1008 16V 0.1u TP1002 *V1 1 2 3 4 5 6 7 8 R1028 47 C1 C1 C1010 6.3V 22u Q1002 2SB0709ASL R1008 47k TP1008 C1 R1010 47k R1003 1k 1.6 x 0.8 PC1001 B3JB00000026 1 2 3 4 *JS1007 R1015 10k Q1007 2SD0601ASL TP1004 R1022 1.5k 1% R1033 24k C1007 0.01u 50V C1 R1002 47k C1 RM AI PUSH *K8 K1KA04AA0193 B4B-PH-K-S(LF)(SN) 1 2 3 4 TP7004 TP7000 SW7000 K0F162B00002 TP7001 SW_GND TP7002 TP7003 RELAY ALL_OFF 5VS ���ON STB_5V TO AP L L V Y C G R R AV4_V AV4_R AV4_C AV4_L AV4_S_DET AV4_Y L3703 J0JCC0000364 C TP3704 C G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C3702 50V 560p TP3700 C C *R3704 0 R3702 180k *R3710 10k C TP3703 TP3707 C C C3707 50V 0.1u C C C J0JCC0000100 L3700 R3703 180k TP3706 R3701 39k TP3701 L3702 J0JCC0000364 TP3702 C3700 50V 560p J0JCC0000100 L3701 C3705 50V 0.1u TP3705 C C R3700 39k JK3700 K4AK18B00004 R R-G L L-G V V-G Y-SW Y Y-G G C-G C-SW C G b a c R-SW HP_LOUT AV4_RIN AV4_Y AV4_LIN GND GND AV4_C L AV4_S_DET HP_ROUT AV4_V R GND GND GND GND GND TC-32LX70D 35 13.11.DG 板 (1/12) 线路图 1 2 3 7 8 9 A B C D E F ! DG� TNPA4293FU(1/12 ) �������������� ���������� ���������� �������������� 4 5 6 Sheet001:Cover C C C *ZA0017 TESA169 *ZA0015 TESA169 C *ZA0012 TESA169 C *ZA0013 TESA169 C *ZA0010 TESA169 C ZA0006 K4CD08000002 *ZA0016 TESA169 ZA0002 K4CD08000002 *ZA0011 TESA169 C *ZA0024 TESA169 C C C C *ZA0008 TESA169 C ZA0007 K4CD08000002 C *ZA0014 TESA169 *ZA0020 TESA169 C *ZA0005 K4AZ01D00004 *ZA0009 TESA169 C ZA0023 TESA169 C C *ZA0019 TESA169 *ZA0004 K4AZ01D00004 *ZA0018 TESA169 *ZA0001 K4AZ01D00004 C C C CI SD Card Sheet001 Sheet002 Peaks-Lite2/DDR2 Cover Sheet003 DTV Sheet005 PowerSupply/RST Sheet009 HQ1L/FHD Sheet008 GenX4 Sheet007 Cn to H Sheet010 ADV7493/HDMI Sheet011 LVDS_OUT TC-32LX70D 36 13.12.DG 板 (2/12) 线路图 1 2 3 7 8 9 A B C D E F �������������� ���������� ���������� �������������� 4 5 6 ! DG� TNPA4293FU(2/12) Sheet002_1:Peaks-Lite2/DDR2 CRNo:8000~8299 NET002635 NET002822 IC8001 D25 TC1N IC8001 C6 VI1P27 IC8001 L17 VSS IC8001 AC22 VSS IC8001 AD15 VDDR 1% R8006 6.8k C8018 16V 0.1u IC8001 R2 TRST IC8001 AC15 VDDR ED1 C IC8001 F14 LRCK0 IC8001 AD4 XNFRE TMS IC8001 L13 VSS IC8001 N3 SDA1 VOP26 VOP17 IC8001 R24 VSS IC8001 A23 MVCLK IC8001 D8 VDD33 SDCD IC8001 AC6 NANDRYBY IC8001 L1 VI2P28 VI2P0 TE1P IC8001 AA4 ESZ0 IC8001 AA22 VSS IC8001 A6 VI1P6 C IC8001 G2 VI2CLK IC8001 AD23 VSS VI1CVBS0 IC8001 AC23 VDDIO XNMIRQ IC8001 W6 VSS IC8001 J21 MVAVSS IC8001 A11 SVCOMP IC8001 B26 TA1P ED2 C8026 16V 0.1u IC8001 D23 SBO0 IC8001 T6 EA2 IC8001 L24 VSS IC8001 E5 VSS IC8001 T14 VSS XECS2 IC8001 F10 VI1CVBS1 VI1P26 EA7 IC8001 U3 EA7 IC8001 AE18 VSS C8076 16V 0.1u XECS0 IC8001 B25 TA1N XNFRE IC8001 M6 VI2P27 C8013 16V 0.1u VOP29 IC8001 R16 DPAVSS C8067 25V 0.01u IC8001 E12 VVREF IC8001 B24 VDD33 IC8001 AF2 XNFWP IC8001 E21 VDD33 IC8001 AA25 VSS IC8001 E18 VOP29 VI2P1 IC8001 E26 TCLK1P SCL0 VI1P12 IC8001 W4 ED9 IC8001 K14 VSS 1% R8004 24k SBI0 IC8001 F26 TD1P IC8001 D10 VSS IC8001 AB21 VSS IC8001 K2 VI2P22 L8003 J0JHC0000045 IC8001 AB13 SDDAT2 IC8001 AC13 VSS IC8001 D11 MVCOMP IC8001 C19 VOP16 IC8001 Y23 VSS IC8001 E13 MVDACO0 SDDAT2 VOUTENB VI1CVBS2 VOP27 IC8001 W24 VSS ED15 C8012 16V 0.1u VI1P3 VI1CVBS1 IC8001 V1 ED1 C8031 6.3V 1u IC8001 E10 VI1CVBS2 VI1CVBS3 IC8001 AF1 VSS C8021 16V 0.1u XRST C8072 16V 0.1u C8019 16V 0.1u IC8001 E14 DACVDD2 VI1P2 SDA1 VOP6 IC8001 Y2 ED11 IC8001 AB4 XECS2 IC8001 H3 VI2P12 IC8001 H4 VDD33 IC8001 AB14 VDD12 IC8001 C26 TB1P IC8001 Y22 VDDIOCK C8032 10u 10V ESZ1 BOOTSWAP NFALE IC8001 AA13 SDDAT3 C8070 16V 0.1u IC8001 K17 LVVDD12 IC8001 C12 DACVDD1 IC8001 A26 VDD33 IC8001 D13 VSS IC8001 C4 VI1P13 TDO IC8001 D15 DAUDIO IC8001 M3 VI2P29 IC8001 AA1 ED14 IC8001 J2 VI2P19 IC8001 AF15 VDDR IC8001 G4 VDD33 IC8001 F24 VSS IC8001 K26 VDDIO VI1CK208F IC8001 L15 VSS VI2P13 IC8001 AC25 VSS ED5 IC8001 C22 MHSYNC VI2P16 ECLK C8028 16V 0.1u IC8001 F7 VI2P2 IC8001 AB17 VSS IC8001 E11 VI1CVBS3 IC8001 T5 TDI ED3 IC8001 R4 VDD33 IC8001 AD3 XNFWE IC8001 K15 VSS VI2P5 VI1P13 IC8001 AC4 XECS5 IC8001 B13 SRCK0 IC8001 AA14 VDD12 XEWE0 VI2P28 IC8001 D2 VI1VSYNC IC8001 A10 IECOUT0 C8027 16V 0.1u SBO0 IC8001 D19 VSS VI1P18 VI1ENB IC8001 E2 VI1CLK2 IC8001 Y24 VDDIO IC8001 M25 VSS SDCLK IC8001 Y3 ED13 IC8001 N22 VSS IC8001 U4 EA4 IC8001 T10 VDD12 XIRQ1 VI1P4 XECS4 C8009 10u 10V IC8001 F13 MVDACO2 IC8001 D14 VSS IC8001 U5 ED0 IC8001 C2 VI1P18 IC8001 F17 VOP27 TE1N SDA0 EA4 MVSYNC IC8001 G7 VSS IC8001 M13 VSS L8007 J0JHC0000045 IC8001 F12 VDD33 IC8001 P17 VSS SRCK0 1.8V_DDRI/F XEDK C8077 16V 0.1u IC8001 AD17 VDDIO IC8001 N5 SCL1 VI2P23 C VI1P25 IC8001 D1 VI1HSYNC SDCMD IC8001 B12 MVDACO1 C8016 6.3V 1u LRCK0 IC8001 AA18 VSS VOP4 IC8001 K5 VI2P16 IC8001 H21 MVAVDD IC8001 AC5 XNFCE SDDAT1 IC8001 D4 VSS IC8001 G26 TE1P IC8001 AB25 VDDIO VI2P27 IC8001 E8 VI1CK208F XNFCE VI2VSYNC IC8001 B9 VI1P23 IC8001 L3 VI2P25 IC8001 C1 VI1P19 IC8001 U15 VDDA IC8001 T1 EA0 IC8001 G22 LPFOUT IC8001 AD12 SDCMD IC8001 F4 VI2P9 IC8001 C16 VOP1 IC8001 C17 VOP25 TA1N C8002 6.3V 1u IC8001 AE13 SDDAT1 EA3 IC8001 N15 VSS IC8001 U6 VDD33 ED6 VOP12 IC8001 C3 VSS SDDAT3 IC8001 E23 LVVDD C8029 16V 0.1u IC8001 U13 VDD12 VI2P24 VI2P4 VI1P22 IC8001 H26 VOUTENB IC8001 A20 VOP17 C8033 16V 0.1u VOP19 DACCK0 IC8001 F15 VDD33 ED13 IC8001 B2 VSS MVDACO2 EA1 IC8001 Y1 ED10 IC8001 D12 MVDACO3 ED10 C8010 10u 10V IC8001 N14 VSS IC8001 U10 VDD12 LCSCK IC8001 AD22 VDDIO SUB1.2V IC8001 V6 ED7 VI2CLK VI1P7 IC8001 F23 LVVSS IC8001 AF23 BOOTSWAP VI2P14 VI1CKOUT R8001 180 C VOP20 IC8001 H22 TCPOUT IC8001 B15 LCSID IC8001 J3 VI2P17 IC8001 U1 EA5 IC8001 P2 AGAVSS IC8001 AD19 VSS IC8001 B5 VI1P9 MHSYNC IC8001 AD1 XECS3 IC8001 J6 VDD33 IC8001 AB12 SDDAT0 IC8001 B8 VI1P24 IC8001 U17 VSS IC8001 R1 TMS IC8001 N24 VDDIO VOP25 IC8001 K11 VSS SBO2 IC8001 D16 VDD33 SUB3.3V IC8001 T4 VDD33 IC8001 T2 EA1 IC8001 A7 VI1P26 SUB1.2V IC8001 F19 VOP5 IC8001 L14 VSS IC8001 M21 VDDIO IC8001 K23 VDDIO IC8001 B22 VOP9 SBT0 VI2P12 IC8001 T25 VDDIO C8024 10u 10V IC8001 AB3 XEWE1 IC8001 T22 VSS IC8001 Y4 XERE R8108 33k C8034 16V 0.1u IC8001 C25 TB1N ED12 IC8001 U12 VDD12 DAUDIO IC8001 V3 ED4 VOP15 IC8001 U11 VDD12 IC8001 K12 VSS R8002 82 VI1P9 IC8001 M10 VSS IC8001 N10 VDD12 VI1CLK IC8001 E4 VI2P7 IC8001 AB6 NFCLE MVCLK IC8001 N17 VDDR MVDACO1 R8003 0 SUB1.2V IC8001 AC11 VDD33 IC8001 P3 AGAVDD IC8001 M2 SCL0 VI1CK204F IC8001 P12 VSS IC8001 P14 VSS IC8001 D18 VSS VI1VSYNC IC8001 M15 VSS IC8001 T3 EA3 IC8001 D20 VOP8 IC8001 P5 AVCOIN IC8001 A21 VOP3 IC8001 L22 VSS IC8001 B21 VOP4 IC8001 B18 VOP28 IC8001 N13 VSS IC8001 W26 VDDIO C C8030 6.3V 1u TCLK1N VI2P26 IC8001 D9 VSS MVDACO0 C8075 4V 22u VOP11 VI1P5 IC8001 C23 VDD33 IC8001 R13 VDD12 ESZ0 IC8001 AD6 SBT2 SDWP IC8001 L12 VSS IC8001 V4 VSS IC8001 U16 VDDR IC8001 AC10 VDD33 C8020 16V 0.1u IC8001 AC12 VSS IC8001 P23 VSS C8078 16V 0.1u IC8001 C20 VOP2 L8008 J0JHC0000045 IC8001 A17 VOP23 VI2HSYNC C8068 16V 0.1u IC8001 A16 VOP10 IC8001 A25 VDD33 IC8001 AA21 VDDIO IC8001 B20 VOP19 EA2 IC8001 L5 VI2P23 SUB1.8V IC8001 T13 VDD12 IC8001 K4 VI2P18 XNFWP IC8001 R10 VDD12 VOP18 C IC8001 P16 DPAVDD C IC8001 W2 ED6 IC8001 C21 VOP6 IC8001 L2 VI2P26 IC8001 A18 VOP26 L8010 J0JHC0000045 IC8001 B17 VOP24 IC8001 H5 VI2VSYNC L8002 J0JHC0000045 C IC8001 AB23 VSS IC8001 C13 DACCK0 IC8001 E19 VOP18 IC8001 AE21 VDDIO IC8001 U24 VDDIO VI1P24 IC8001 D22 VDD33 TRST IC8001 B23 SBO2 VI2P3 IC8001 T11 VDD12 IC8001 A15 LCSCK L8004 J0JHC0000045 VOP1 IC8001 AC14 VDD12 IC8001 M1 SDA0 IC8001 H1 VI2P15 IC8001 A3 VI1P14 TDI IC8001 M17 VDDA IC8001 AE15 VDDR IC8001 AE3 NFALE IC8001 A2 VI1P16 TCLK1P SBI2 IC8001 AC20 VSS IC8001 AE22 VSS IC8001 A22 VOP7 IC8001 B7 VI1P4 IC8001 B16 VOP0 IC8001 J4 VI2P13 IC8001 E16 VOP20 ED4 ED9 IC8001 N11 VSS IC8001 V5 ED3 IC8001 P15 VSS IC8001 E17 VOP22 MVDACO3 IC8001 C9 VI1CLK C C8001 16V 0.1u VOP16 IC8001 P13 VSS R8107 100 IC8001 G23 LPFIN R8106 2k IC8001 F8 VI2P0 TD1P VI2P17 VI1P16 IC8001 F11 VDD33 VOP28 IC8001 F9 VI1CK204F EA6 C8015 6.3V 1u VOP23 IC8001 D7 VDD33 C C8014 16V 0.1u XIRQ3 C IC8001 B6 VI1P7 IC8001 L11 VSS VOP21 IC8001 H23 VSS SUB3.3V IC8001 M12 VSS IC8001 C5 VI1P28 IC8001 E25 TCLK1N IC8001 P10 VDD12 C8079 16V 0.1u IC8001 K13 VSS IC8001 M16 VSS IC8001 AD26 VSS IC8001 A12 DACVSS2 IC8001 K10 VSS IC8001 F5 VI2P6 IC8001 A24 SBI2 IC8001 AE25 VSS XERE IC8001 E24 VSS IC8001 D5 VI2P5 IC8001 F25 TD1N IC8001 Y6 VSS IC8001 D6 VI2P3 IC8001 E22 LVVDD NFCLE IC8001 AD25 VDDIO IC8001 N16 VSS IC8001 P11 VSS NANDRYBY IC8001 E9 VI1CVBS0 IC8001 D26 TC1P XECS1 IC8001 C10 VI1P3 VI1P14 IC8001 F1 VI2HSYNC IC8001 E3 VI1ENB IC8001 R5 ATCPOUT SDDAT0 XEWE1 IC8001 R17 VDDR IC8001 AF26 VDDIO C8025 16V 0.1u SUB3.3V TCK IC8001 AB1 ECLK IC8001 R14 VSS IC8001 W21 VSS XECS5 ERXW IC8001 D21 XRST IC8001 C11 DACVSS1 IC8001 R15 VSS IC8001 D17 VDD33 VI2P22 VI2P18 VI1P27 IC8001 V22 VDDIO IC8001 L4 VSS IC8001 B1 VI1P17 C8069 50V 82p IC8001 W5 ED12 IC8001 AA6 VSS IC8001 AA3 XEWE0 VOP2 SBT2 IC8001 AF13 SDCLK IC8001 AA8 VDD33 C8005 1u 6.3V IC8001 AE24 DTCPOUT IC8001 AA2 ED15 IC8001 P6 VDD33 VI2P2 IC8001 V25 VSS IC8001 B10 VI1P2 VOP10 IC8001 AC18 VDDIO IC8001 B4 VI1P12 VI1P8 TB1N VI1P15 VOP3 DMIX0 SUB3.3V IC8001 AC3 XECS4 IC8001 P25 VDDIO ED11 ED7 IC8001 C24 SBI0 IC8001 P1 XIRQ3 IC8001 C18 VOP12 EA0 IC8001 A5 VI1P8 VOP7 ED0 SCL1 TD1N IC8001 F22 LVVSS IC8001 AF24 VSS C8022 6.3V 1u IC8001 T12 VDD12 IC8001 H2 VI2P14 VI1P17 C IC8001 L16 VSS VI2P29 IC8001 AB2 ERXW VI1P29 C8007 16V 0.1u IC8001 AB15 VDDR VOP13 IC8001 N12 VSS L8001 J0JHC0000045 IC8001 N2 XNMIRQ IC8001 A8 VI1CKOUT VI2P25 ED8 XECS3 IC8001 AB19 VDDIO IC8001 L10 VSS TA1P IC8001 AD14 VDD12 IC8001 J25 VSS IC8001 F6 VSS VI2P6 IC8001 AA5 XECS0 IC8001 M4 VSS VI2P15 IC8001 K16 VSS IC8001 B3 VI1P15 IC8001 G24 VSS IC8001 T16 VSS IC8001 AE16 VDDIO IC8001 N4 XIRQ1 IC8001 MN2WS0039A A1 VSS IC8001 AD13 SDCD 1% R8005 10k IC8001 AB8 SBT0 C8071 16V 0.1u IC8001 B19 VOP14 C8017 10u 10V IC8001 M23 VDDIO VOP5 IC8001 R3 TDO IC8001 AE14 VDD12 IC8001 AE14 VDD12 IC8001 R11 VDD12 IC8001 AA15 VSS IC8001 E7 VI2P1 IC8001 AC16 VSS VOP24 ED14 IC8001 D3 VI2P8 IC8001 A19 VOP13 IC8001 G21 LVVSS C8011 16V 0.1u IC8001 A13 DMIX0 IC8001 U14 DPAVDD12 IC8001 AC2 XECS1 IC8001 AC1 ESZ1 IC8001 A4 VI1P29 C8003 1u 6.3V LCSID VI1P6 XNFWE VI1CLK2 IC8001 F21 LVVDD VI2P8 IC8001 F16 VOP11 VOP0 C8006 16V 0.1u IC8001 M11 VSS C IC8001 AF20 VDDIO IC8001 V2 ED2 VI1P19 IC8001 T17 VDDA IC8001 R21 VDDIO IC8001 F18 VOP15 IC8001 B11 MVIREF VI2P19 C8080 16V 0.1u IC8001 P4 GTCPOUT IC8001 Y5 XEDK IC8001 D24 TSTAIO VOP22 IC8001 T15 VDDR IC8001 G25 TE1N IC8001 C7 VI1P5 IC8001 A9 VI1P22 C8023 10u 10V TC1P IC8001 C8 VI1P25 IC8001 AE12 SDWP IC8001 F20 VDD33 IC8001 AA9 VDD33 EA5 IC8001 R6 TCK IC8001 N6 VDD33 C XIRQ2 VI1HSYNC IC8001 W3 ED8 C TB1P IC8001 N1 XIRQ2 IC8001 R12 VDD12 IC8001 AA7 VSS IC8001 E20 MVSYNC L8009 J0JHC0000045 IECOUT0 IC8001 E6 VI2P4 VOP14 IC8001 C15 VOP21 IC8001 AF21 VSS C8074 16V 0.1u VI1P23 TC1N C8073 16V 0.1u IC8001 K1 VI2P24 VI2P7 VOP8 VOP9 SUB3.3V VI2P9 IC8001 W1 ED5 IC8001 U2 EA6 IC8001 R26 VSS VI1P28 C8008 16V 0.1u IC8001 AB22 VDDIO C8004 1u 6.3V IC8001 M14 VSS IC8001 K6 VDD33 L8006 0 EA19 IIC I/F AUDIO IF SD CARD I/F JTAG SERIAL I/F LVDS I/F SCL2 SDA2 SCL3 SDA3 LOSDOUT11 -> -> LOSDOUT10 -> LOSDOUT13 -> LOSDOUT12 LOSDOUT15 PORT16[1] SCARD_NMIRQ SCARD_IRQ -> RMCO -> -> B PORT (Sub Video Input or Address) -> PORT16[1] PORT16[1] Analog Video I/F CPU BUS I/F NAND I/F EA20 FOR HQ1L VIDEO EA13 EA22 EA15 EA16 EA10 EA21 LOSDOUT14 LOSDOUT9 LOSDOUT8 LOSDOUT7 LOSDOUT6 PORT6[4] PORT6[5] PORT6[7] EA12 LOSD OUT (for HQ1) C Y Cmp V EA09 FOR ADV7493 U EA18 Y EA17 LOSDOUT5 Cmp RMCO LOSDOUT4 LOSDOUT3 LOSDOUT2 LOSDOUT1 EA24 LOSDOUT0 EA11 LOSDOUT_CLK_O R LOSDOUT_H_O G LOSDOUT_YS B LOSDOUT_YM Cmp EA23 LOSDOUT_V_I LOSDOUT_CLK_I DAUDIO LOSDOUT_H_I XEAS XEAS FE_IRQ EA08 EA14 TC-32LX70D 37 13.13.DG 板 (3/12) 线路图 9 10 11 15 16 17 A B C D E F �������������� ���������� ���������� �������������� 12 13 14 ! DG� TNPA4293FU(3/12) Sheet002_2:Peaks-Lite2/DDR2 CRNo:8000~8299 + CH0DQ30 CH0DQ31 CH0DQ26 CH0XRAS CH0DQS0 CH0XRAS CH0A5 CH0CKE CH0A8 CH0DQ18 CH0DQ8 CH0DQ21 CH0XWE CH0XCS0 CH0CK CH0DM2 CH0A7 CH0DQ11 CH0DQ5 CH0XCAS CH0DQ9 CH0ODT CH0ODT CH0BA2 CH0XRAS CH0BA0 CH0DQ27 CH0A2 CH0A2 CH0A12 CH0DQS3 CH0BA1 CH0DM1 CH0A12 CH0BA2 CH0DM0 CH0DQ4 CH0A3 CH0DQ15 CH0A9 CH0CKE CH0A8 CH0XCS1 CH0DQ10 CH0BA2 CH0DQ1 CH0DQ14 CH0CK CH0A7 CH0DQ29 CH0A1 CH0DM3 CH0XCK CH0XWE CH0A0 CH0DQ25 CH0DQ7 CH0A5 CH0A4 CH0ODT CH0DQS3 CH0A4 CH0A11 CH0DQ0 CH0A10 CH0DM3 CH0BA1 CH0DQ12 CH0A9 CH0BA0 CH0DM2 CH0DQ20 CH0A11 CH0XCS0 CH0A6 CH0A7 CH0A11 CH0DQ2 CH0DQ23 CH0DQS0 CH0DQ22 CH0BA0 CH0A9 CH0XCAS CH0XWE CH0A10 CH0A0 CH0A5 CH0DQ6 CH0A2 CH0XCAS CH0A10 CH0A12 CH0A1 CH0A3 CH0A6 CH0DQ16 CH0A6 CH0DQ28 CH0DQ13 CH0A0 CH0DQS2 CH0XCS1 CH0A4 CH0DM1 CH0BA1 CH0DQ19 CH0ODT CH0DQ17 CH0DQ24 CH0A8 CH0DQS1 CH0CKE CH0DM0 CH0DQ3 CH0A3 CH0A1 CH0DQS1 CH0XCK CH0CKE CH0DQS2 CH0DQ16 CH0DQ17 CH0DQ18 CH0DQ19 CH0DQ20 CH0DQ21 CH0DQ22 CH0DQ23 CH0DQ24 CH0DQ25 CH0DQ26 CH0DQ27 CH0DQ28 CH0DQ29 CH0DQ30 CH0DQ31 CH0DQ0 CH0DQ1 CH0DQ2 CH0DQ3 CH0DQ4 CH0DQ5 CH0DQ6 CH0DQ7 CH0DQ8 CH0DQ9 CH0DQ10 CH0DQ11 CH0DQ12 CH0DQ13 CH0DQ14 CH0DQ15 *IC8002 L1 RFU *IC8002 C7 VDDQ *IC8003 F8 VSSQ *IC8003 C1 VDDQ *IC8002 E8 LDQS *IC8002 G3 VDDQ IC8001 U22 MMA5 *IC8002 C3ABRY000015 C3ABRG000080 A1 VDD C0ZBZ0001030 IC8004 ICS476EG-08LFT 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 COMM 9 27M 10 4.9152M 11 24.576/33M 12 GND 13 VDD 14 S2 15 VDD 16 X2 R8087 10k R8099 10k *IC8003 J8 CK C8040 16V 0.1u IC8001 U23 MMA12 IC8001 M22 MMVREF0 *IC8003 M3 A1 *IC8003 A9 VDDQ *IC8003 P2 A7 C *IC8002 H3 DQ3 VI2P10 C8056 16V 0.1u R8062 47 C8048 16V 0.1u IC8001 U21 MMXCAS *IC8002 G8 DQ0 L8005 J0JHC0000045 CLKGEN_S2 IC8001 N26 MMDQ11 *IC8003 C7 VDDQ *IC8003 G3 VDDQ C 1% R8032 270 *IC8002 J3 VSS *IC8003 H2 VSSQ R8029 0 IC8001 U26 MMA7 R8030 100 R8027 0 *IC8003 L2 BA0 IC8001 AC26 MMCK IC8001 L25 MMDM0 C IC8001 P22 MMDQ13 IC8001 AC21 TSTSEL IC8001 J5 VI2P11 *IC8002 G7 VDDQ IS1VAL VREF *IC8002 P8 A8 *IC8003 R7 RFU R8023 0 *IC8003 K7 RAS C8052 6.3V 1u *IC8002 F1 DQ6 R8059 47 *IC8002 M7 A2 IC8001 L26 MMDQS0 *IC8003 M2 A10 IC8001 M24 MMDQS1 C8039 16V 0.1u *IC8002 E3 VSS *IC8002 L7 CAS R8093 47 *IC8003 J2 VREF TP8037 *IC8003 N7 A6 IC8001 AE23 MCLK ADIN R8100 47 IC8001 J26 MMDQ6 IC8001 L23 MMDQ0 IC8001 K25 MMDQ2 IC8001 AA16 MMDQ29 *IC8002 F3 LDM IC8001 AA23 MMMONB C IC8001 AA17 MMDQ24 *IC8002 P7 A11 R8069 47 IC8001 P26 MMDQ15 CH0DATA *IC8002 D8 VSSQ C R8060 47 IC8001 AF4 IS0DATA IC8001 AE17 MMDQ26 *IC8002 D1 DQ12 *IC8002 C9 VDDQ *IC8003 D3 DQ11 R8063 47 RMCO *IC8002 M8 A0 *IC8002 H7 DQ2 C IC8001 AC7 IS1PSYNC IC8001 E15 SLRCK *IC8003 G7 VDDQ C8035 10u 10V R8066 47 C8049 16V 0.1u 1.8V_DDRI/F *IC8002 P9 VSS R8081 10k CL8002 *IC8002 L2 BA0 C IC8001 N21 MMDQ8 *IC8003 H7 DQ2 *IC8003 P7 A11 C R8028 0 *IC8003 P3 A9 R8068 47 IC8001 AF5 IS1DATA SUB3.3V *IC8003 E3 VSS IC8001 AD16 MMDQ30 *IC8002 H1 DQ4 IC8001 J22 VC27 IC8001 AD18 MMDQS3 *IC8002 G9 VDDQ *IC8003 P9 VSS *IC8003 R2 A12 *IC8003 C8 DQ8 *IC8003 M7 A2 *IC8002 E9 VDDQ *IC8003 L1 RFU IC8001 L21 MMDQ1 *IC8002 K3 WE *IC8002 A8 UDQS *IC8002 H9 DQ5 *IC8002 E7 VSSQ IC8001 J1 VI2CLK2 *IC8003 A2 NC *IC8003 D8 VSSQ R8026 0 IC8001 AF22 MMDQ22 X8001 H0J270500061 *IC8003 J7 VSSDL IC8001 H25 CLK74 R8061 47 *IC8002 J1 VDDL *IC8002 R8 RFU IC8001 G1 VI2P10 IC8001 AF18 MMDM3 *IC8003 N8 A4 1% R8031 270 IC8001 AB26 MMXCK C IS1CLK *IC8002 B1 DQ14 C8043 16V 0.1u IC8001 T21 MMA3 IC8001 H24 AUDCLK IC8001 AB7 IS0VAL SLRCK *IC8003 R3 RFU C8041 16V 0.1u C8053 25V 0.01u C IC8001 AF16 MMDQ31 C IC8001 AA24 MMODT C *IC8003 D2 VSSQ R8074 220 C IC8001 AE11 CH0VAL IC8001 U25 MMA9 1% R8082 75 *IC8002 R1 VDD *IC8003 A3 VSS IC8001 AE26 MMRODT *IC8003 E2 NC IC8001 K24 MMDQ3 IC8001 AD24 CK27D C8045 16V 0.1u C8057 16V 0.1u R8071 47 *IC8002 D2 VSSQ IC8001 AF17 MMDQ27 IC8001 R23 MMCKE *IC8003 L7 CAS C IC8001 AD11 CH0PSYNC *IC8002 P3 A9 IC8001 B14 ADCCK IC8001 AE19 MMDM2 *IC8003 F3 LDM R8058 47 C R8101 10k R8077 47 C VI2P11 IS0DATA *IC8002 F8 VSSQ *IC8002 N3 A5 IC8001 Y21 MMVCAL IC8001 Y25 MMA8 R8090 10k R8098 10k C C8038 16V 0.1u *IC8002 F2 VSSQ IC8001 G3 VI2ENB C8044 16V 0.1u R8067 47 *IC8002 J8 CK *IC8003 B3 UDM *IC8002 N2 A3 *IC8002 J7 VSSDL R8070 47 R8073 47 *IC8002 E1 VDD IC8001 AD5 IS1CLK R8084 0 *IC8002 B3 UDM IC8001 AF11 CH0DATA IC8001 Y26 MMA6 R8083 300 IC8001 C14 DSRCK R8056 47 C IC8001 AA26 MMA2 *IC8002 C3 VDDQ C8051 16V 0.1u *IC8003 R1 VDD *IC8003 C9 VDDQ IC8001 W25 MMXRAS *IC8002 M9 VDD IC8001 AD21 MMDQ23 *IC8003 H8 VSSQ *IC8003 P8 A8 *IC8003 N1 VSS IC8001 AE20 MMDQ18 R8086 100k *IC8003 R8 RFU 1.8V_DDRI/F *IC8003 N3 A5 CH0VAL *IC8002 G1 VDDQ *IC8002 M3 A1 *R8111 10k *IC8003 H9 DQ5 *IC8003 E8 LDQS IC8001 N25 MMDQ10 IS1DATA C *IC8002 K9 ODT IC8001 AB24 MMMONA *IC8003 A7 VSSQ IC8001 A14 ADIN R8065 47 1.8V_DDRI/F *IC8002 L8 CS IC8001 R22 MMXCS0 *IC8003 J1 VDDL IC8001 AE5 IS1VAL *IC8003 D7 DQ10 IC8001 AF12 CH0CLK *IC8002 D7 DQ10 *IC8003 M9 VDD *IC8002 R7 RFU *IC8003 M8 A0 IS0PSYNC *IC8003 E7 VSSQ *IC8002 P2 A7 *IC8003 K8 CK R8064 47 C *IC8003 B1 DQ14 IC8001 W23 MMA0 C8058 10u 10V IC8001 J23 MMDQ5 *IC8003 G8 DQ0 IC8001 T26 MMA10 *IC8002 K8 CK IC8001 V23 MMA11 *IC8002 F7 LDQS R8079 0 *IC8002 L3 BA1 CH0PSYNC *IC8002 N7 A6 *IC8003 B2 VSSQ IC8001 L6 VI2P21 C IC8001 T23 MMBA0 C IC8001 AF25 MMRDRV IS0CLK C8036 10u 10V ADCCK IC8001 M26 MMDM1 *IC8003 C3ABRY000015 C3ABRG000080 A1 VDD *IC8002 H2 VSSQ *IC8002 N8 A4 IS1PSYNC R8025 0 *IC8003 B7 UDQS *IC8002 C8 DQ8 *IC8003 N2 A3 *IC8003 A8 UDQS *IC8003 D9 DQ13 *IC8002 A9 VDDQ *IC8002 N1 VSS R8024 0 IC8001 R25 MMXWE IS0VAL *IC8003 K2 CKE IC8001 V26 MMA1 R8076 47 *IC8003 J3 VSS IC8001 AA19 MMDQ20 IC8001 AA20 MMDQ21 IC8001 P21 MMDQ12 *IC8003 F7 LDQS C VI2P21 R8057 47 IC8001 AF3 IS0CLK *IC8002 C1 VDDQ *IC8003 H1 DQ4 C IC8001 AB20 MMDQ16 IC8001 K21 CK27 *IC8002 J9 VDD *IC8002 F9 DQ7 *IC8003 K9 ODT IC8001 AD20 MMDQ19 *IC8003 K3 WE *IC8002 B9 DQ15 R8091 100 IC8001 J24 MMDQ7 *IC8002 C2 DQ9 IC8001 V24 MMBA1 R8080 0 IC8001 N23 MMDQ9 *IC8002 G2 DQ1 *IC8002 K2 CKE R8097 220 *IC8002 E2 NC IC8001 AE4 IS0PSYNC C C8047 16V 0.1u *IC8002 K7 RAS VI2ENB *IC8003 E1 VDD *IC8002 A7 VSSQ CH0CLK R8095 10k C8042 68u 4V DSRCK *IC8002 A2 NC *IC8003 B9 DQ15 IC8001 V21 MMA4 C R8072 47 *IC8003 C3 VDDQ *IC8002 D9 DQ13 IC8001 AB18 MMVREF1 IC8001 W22 MMXCS1 IC8001 AC24 MMPCLKEXT C *IC8003 F9 DQ7 *IC8003 G2 DQ1 R8078 47 *IC8003 J9 VDD *IC8003 L8 CS *IC8003 G1 VDDQ *IC8003 D1 DQ12 *IC8003 F1 DQ6 IC8001 K22 MMDQ4 *IC8003 C2 DQ9 *IC8002 H8 VSSQ VI2CLK2 *IC8003 F2 VSSQ *IC8003 H3 DQ3 IC8001 T24 MMBA2 IC8001 M5 RMCO C *IC8002 A3 VSS *IC8002 D3 DQ11 *IC8003 G9 VDDQ *IC8002 B2 VSSQ *IC8002 M2 A10 IC8001 AF19 MMDQS2 IC8001 AC17 MMDQ25 IC8001 P24 MMDQ14 *IC8003 L3 BA1 *IC8002 R2 A12 R8075 47 IC8001 AC19 MMDQ17 *IC8002 B8 VSSQ *IC8002 R3 RFU C8050 16V 0.1u C *IC8003 E9 VDDQ *IC8002 J2 VREF R8035 0 C8037 16V 0.1u C8046 16V 0.1u *IC8002 B7 UDQS R8039 0 IC8001 AB16 MMDQ28 *IC8003 B8 VSSQ DDR2_0 DDR2_1 XDTR0 RSV2(SDRAMCHK2) VMUTE XRI0 XDCD0 RXD0 TXD0 XCTS0 XDSR0 RSV3(SDRAM_CHK1) XRTS0 COMMON PORT .etc CLOCK GEN RSV1(SD_ERROR) DDR2 #1 84FBGA SDBOOT 84FBGA DDR2 #0 RSV4 CH,IS IF PANEL_STATUS EEPROM_WP P_MAIN_SW ETHER_IRQ PANEL_SOS SMTSEL0 IC8001 AA10 SMTRST1 VI1P11 VI1P10 XDCD0 IC8001 AF9 SMTCMD0 IC8001 AD7 XCTS0 VI2P20 IC8001 AC9 XRI0 RXD0 IC8001 AE2 XEXDMR0 IC8001 AD9 SMTCLK0 IC8001 AD2 XECS6 IC8001 AF6 XDSR0 IC8001 AD8 SMTCLK1 IC8001 AB5 XEXDMK0 IC8001 AE9 SMTRST0 VI1P21 IC8001 H6 VI1P20 IC8001 AE10 CH1PSYNC IC8001 G6 VI1P0 IC8001 AE8 SMTD1 XEXDMK0 SMTRST0 CH1CLK IC8001 AA12 CH1VAL IC8001 G5 VI1P1 IC8001 K3 VI2P20 XECS7 IC8001 AB10 SMTSEL1 SMTD0 XECS6 CH1DATA IC8001 E1 VI1P11 IC8001 AF8 SMTCMD1 CH1VAL XDTR0 IC8001 AA11 SMTD0 SMTRST1 IC8001 F2 VI1P21 XRI0 IC8001 AB11 SMTSEL0 XDSR0 IC8001 AF7 RXD0 IC8001 AD10 CH1CLK SMTCMD0 IC8001 AC8 XDTR0 VI1P0 SMTCMD1 TXD0 XRTS0 VI1P1 IC8001 AE6 XRTS0 IC8001 AE7 TXD0 CH1PSYNC SMTSEL1 XEXDMR0 IC8001 AF10 CH1DATA IC8001 AB9 XDCD0 SMTCLK0 IC8001 F3 VI1P10 SMTD1 SMTCLK1 IC8001 AE1 XECS7 VI1P20 XCTS0 SBI1 PORT14[1] PORT14[2] PORT14[3] PORT14[4] SBO1 HSVALIN HSSYNIN POD,CI I/F HSBCLKIN PORT5[6] SMT_OFF PORT5[7] PORT16[0] HSDIN0 HSDIN1 PORT15[5] POWER_DET HSDIN2 HSDIN3 PORT15[7] HSDIN4 HSDIN5 HSDIN6 HSDIN7 PORT10[6] PORT10[7] PORT5[4] PORT5[5] PORT9[5] *R4001 10k C *JS4002 C FS_PLL C TC-32LX70D 38 13.14.DG 板 (4/12) 线路图 1 2 3 7 8 9 A B C D E F �������������� ���������� ���������� �������������� 4 5 6 ! DG� TNPA4293FU(4/12) Sheet003_1:DTV CRNo:8300~8999 1 2 3 C AA_ED10 AA_ED0 AA_EA20 AA_EA14 AA_EA19 AA_EA12 AA_ED13 AA_EA22 AA_XEWE0 AA_EA8 AA_ED6 AA_EA18 AA_EA15 AA_ED4 AA_ED5 AA_XERE AA_EA3 AA_ED11 AA_ED1 AA_EA9 AA_ED8 AA_XECS0 AA_EA6 AA_ED9 AA_EA5 AA_EA21 AA_EA16 AA_EA23 AA_EA10 AA_ED14 AA_EA2 AA_EA13 AA_ED15 AA_EA1 AA_EA11 AA_XRST AA_ED2 AA_EA7 AA_ED7 AA_ED12 AA_EA17 AA_EA4 AA_ED3 C3FBQD000024 *IC8554 S29GL128N90TFIR20 1 N.C. 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE 14 RESET 15 A21 16 WP/ACC 17 RY/BY 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 N.C. 28 N.C. 29 Vio 30 N.C. 31 A0 32 CE 33 Vss 34 OE 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE 54 A16 55 N.C. 56 N.C. C C8555 16V 0.1u C R8551 10k L8551 J0JHC0000075 SUB3.3V R8564 10k (A23) (VIO) 128/256Mbit NOR FLASH XNFWP is used as PIO for NOR FWP. (reserved) AF_NAND_RY/BY AD_TO_SC AD_TRST AD_TO_GC3FS_NEXT AD_TMS AD_TCK AD_TO_GC3FS_NEXT AD_TCK AD_TRST AD_TO_SC AD_TMS FROM HQ1L TO GC3FS COMMON for EACH DEVICES JTAG SC --> LiteII --> GC3FS --> HQ1L --> SC PULL UP to MAIN3.3V on Sheet 004 Attention R4026/R4242 in sheet 004/009 C8551 16V 0.1u C8552 16V 0.1u AD_TO_HQ1L HQ1L Sheet009 AA_XERE AA_XEAS NET0031226 0V AA_ED10 AA_ED7 AA_XEAS AA_XNMIRQ AA_EA17 AA_EA4 AA_XEWE0 AA_ED6 AA_ED10 AD_TRST AA_ED12 AA_EA15 NET0031303 AA_EA21 AA_ED0 AA_XECS1 AA_ED0 AA_EA9 AA_EA14 AD_TO_BA01 AA_EA11 AF_NAND_RY/BY AG_DTV_XRST AA_ED15 AA_ED11 AA_ED4 AA_EA19 AA_EA5 AA_ESZ1 AA_ED13 AA_ESZ0 AA_ED2 AA_ED1 AA_EA8 AD_TO_GC3FS_NEXT AA_BOOTSWAP AA_EA7 AA_ED7 AA_EA16 AA_ERXW AA_ED14 AA_XIRQ1 AA_EA23 AA_EA22 AA_XECS0 AA_ED5 AA_ED15 AD_TMS AA_ED9 AA_ED12 AA_ED1 AA_EA6 NET0031576 AA_XIRQ2 AA_EA18 AA_EA1 AA_ED9 AA_XRST AA_EA10 AA_EA12 AG_SRQ-GENX AA_EA3 AA_EA20 AA_ED13 AA_XEWE1 AA_ED8 AA_ED3 AA_ED8 AA_ED11 AA_EA2 AA_ED14 AA_XEDK AA_EA25 AA_EA24 AA_ED5 AA_EA13 AA_ED2 AA_EA0 AA_ED4 AA_ED6 AA_ED3 AD_TCK GUARD_CLK AA_XECS2 AA_ESZ0 AA_ESZ1 AG_SD_BOOT_STS AG_SW_OFF_DET AA_FE_XRST STB_RST AA_SBI0 AA_SBO0 AA_XRST AG_DTV_VOUTENB NET0032084 R8710 68 R8711 10k Q8853 2SD0601ASL R8898 10k R8866 EXB2HV680JV XNFCE R8749 10k R8625 68 SUB3.3V R8938 4.7k C XRST XEDK R8882 68 ED2 SUB3.3V R8947 68 C EA5 R8629 68 R8881 68 Q8852 2SD0601ASL XIRQ2 R8889 68 Q8851 2SD0601ASL TDI R8896 0 R8876 10k R8886 68 ED11 C8622 16V 0.1u R8884 68 R8897 0 C R8622 68 XNFWE R8865 EXB2HV680JV ED8 R8737 68 C ED12 C SUB3.3V ED4 ADIN R8892 68 ED10 ADCCK TP8851 TP8852 R8950 0 SUB3.3V EA4 EA7 ED7 XNFWP R8939 180k ED3 R8877 68 VI2ENB R8891 68 EA3 R8632 68 C R8893 0 R8738 68 R8703 68 NFALE C SUB5V R8908 10k SUB3.3V XIRQ1 R8894 68 R8909 10k C8854 CL8702 ESZ0 R8874 10k ED15 R8745 10k R8735 68 ED5 SBO0 R8907 10k RMCO XECS1 XNMIRQ R8875 BOOTSWAP R8635 68 XECS4 R8634 68 XEWE0 C0JBAZ002845 IC8621 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc C8853 6.3V 2.2u ESZ1 XECS2 R8627 68 XECS6 AA_SBI0 SUB3.3V R8631 68 R8624 68 SLRCK ED9 ED6 R8867 EXB2HV680JV C TP8853 ED14 R8869 10k SBI0 XEWE1 R8626 68 R8736 68 R8636 68 NANDRYBY XERE R8885 68 ED13 XNFRE C R8948 10k R8895 0 EA1 EA2 R8900 68 R8871 10k AA_SBO0 C8621 16V 0.1u ED0 R8880 68 R8712 10k C8731 25V 0.01u R8904 10k C TP8854 R8946 0 TMS VI1CLK2 R8746 10k R8940 R8935 10k R8906 10k VI2P11 R8883 68 R8943 100k R8630 68 R8621 68 R8879 68 R8887 68 XECS0 VOUTENB DSRCK R8878 68 R8623 68 IS1DATA VI2P4 L8621 J0JHC0000075 ED1 R8941 47k R8888 68 C R8901 68 TCK R8870 0 C EA0 C8852 6.3V 2.2u 6.3V 2.2u R8628 68 EA6 R8944 22k R8633 68 R8742 10k TDO R8556 R8899 10k R8868 68 C0JBAZ002845 IC8622 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc C R8739 68 R8702 0 R8942 5.6k STB3.3V TRST R8905 10k NFCLE R8910 10k ERXW D_LATCH ExBUS from GENX JTAG INT.PU /EA10 INT.PU /EA9 /EA11 INT.PU PORT16[7], SD_BOOT OUTPUT OUTPUT/(BOOTBT) (XECS2,3 setting) No INT.PD at RESET /EA17 OUTPUT INT.PD INT.PU OUTPUT /EA12 INT.PU B_PORT OUTPUT PORT16[5] /EA16 /EA14 INT.PU INT.PU OUTPUT /EA21 /EA22 INT.PU see also SDA2 for ea_pullup_sel EA24 /EA15 TC74LCX373FT (TSSOP) Reserved for NAND I/F ED/EA with Int.PU at start NON USE for SEPARATING NEED EXT.PU XIRQ3 for HDMI_INT in ADV sheet DUBUG/JIG INT.PU /EA23 NEED EXT.PU INT.PD INT.PU INT.PU ExBUS DeMPX ED[15-0] --> EA[23-8] /EA20 /EA13 Hi-Z non NAND I/F ADDRESS MPXed, if D-Latch INT.PU GENX4 PIO non PORT6[6]:PSV1 ExBUS /EA18 TC74LCX373FT (TSSOP) Reserved/(ed_pullup_sel) LiteII /EA19 non PU: Reserved for JIG requireing large current /EA8 CONNECTED TO GENX4 FROM LiteII ON SHEET008 P_MAIN_SW NORMALY USE Just for Debug Use PORT5[1] PORT5[2] RSV3 RSV2 Hi-Z Hi-Z XECS3,5,7: USED FOR OTHER PORPOSE PINS INT.PU Hi-Z PORT16[4] AA_XEAS R8709 0 R4026 0 TC-32LX70D 39 13.15.DG 板 (5/12) 线路图 25 26 27 31 32 33 A B C D E F �������������� ���������� ���������� �������������� 28 29 30 ! DG� TNPA4293FU(5/12) Sheet003_2:DTV CRNo:8300~8999 1 2 3 D.SW W.P. AH_LRCK0 DVB_CVBS GUARD AE_SDCLK AA_XRST SMTCMD0 GUARD AD_SCL2 GUARD AC_XEAB AG_SD_LED_ON AG_SW_OFF_DET AD_SDA2 GUARD AD_SDA3 GUARD AH_IECOUT0 GUARD AD_SCL0 GUARD GUARD AD_SCL3 AD_SDA1 GUARD MVDACO3 AG_DTV_VOUTENB GUARD AG_SD_LED_ON AH_DAUDIO GUARD GUARD AE_SDDAT0 AG_DTV_XRST SDCD AH_DAUDIO AD_SCL2 GUARD SMTSEL0 AC_IOWR AG_SD_BOOT_STS GUARD AE_SDDAT1 AC_XPDWE GUARD AE_SDCMD GUARD AD_SDA0 AD_SCL1 GUARD GUARD GUARD AD_SDA2 0V AC_IORD GUARD AE_SDCLK AG_SRQ-GENX GUARD 0V AH_DMIX0 AE_SDDAT0 AD_SDA3 GUARD AD_SCL1 AD_SDA0 GUARD AH_SRCK0 GUARD AD_SCL0 GUARD GUARD 0V GUARD 0V AC_CI_XRST AH_LRCK0 GUARD GUARD AE_SDDAT3 GUARD AE_SDDAT2 AC_XPDOE AD_SCL3 GUARD AC_XPDCE1 SMTCLK0 AC_REG AD_SDA3 GUARD AC_CHVAL GUARD AD_SDA1 AD_SCL3 GUARD_Y MVDACO3 AH_DMIX0 GUARD AE_SDCD AE_SDWP AG_MODEM_LED2/CLK74SEL AG_MODEM_LED2/CLK74SEL STB_RST IS0PSYNC VI1P20 GUARD_V GUARD GUARD GUARD GUARD AG_TV_MAIN_ON AE_SDCD AE_SDWP AH_SRCK0 AC_CHSYNC GUARD_CLK AC_CHCLK AC_XPDWT AC_CHDI0 AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4 AC_CHDI5 AC_CHDI6 AC_CHDI7 AC_XETS IS0VAL R8911 68 AH_SRCK0 R8828 10k AG_MODEM_LED2/CLK74SEL SDDAT1 TP8802 AG_SD_LED_ON AG_DTV_XRST C SUB3.3V C CH1VAL 1% R8507 91 XECS7 IS0PSYNC R8921 4.7k C CH1CLK TP8803 R8655 10k R8864 68 R8917 68 XRI0 XECS5 RXD0 XDCD0 AH_LRCK0 R8817 68 SMTCMD1 AH_DAUDIO R8833 0 AD_SCL1 R8805 10k R8915 68 TP8808 R8816 68 R8912 68 R8815 68 TP8804 AH_DMIX0 R8601 22 STB_RST TP8605 25M TP8601 SDDAT3 R8926 4.7k SDCMD R8924 10k R8604 0 R8807 10k 1% R8512 180 XDSR0 R8852 0 SMTSEL0 SMTRST1 CH0VAL R8806 10k R8851 0 AH_IECOUT0 SCL1 R8825 0 SDA0 XECS3 R8602 22 C VI1P11 SDDAT0 DAUDIO AG_TV_MAIN_ON R8927 0 SRCK0 XEXDMR0 MVDACO1 TP8801 1% R8508 91 R8518 0 SMTD0 C TP8501 VMUTE R8854 0 ERJ2GE0R00X R8519 0 R8916 68 DMIX0 SDDAT2 R8860 68 TP8805 *R8818 0 TP8602 TP8806 *IC8601 C3EBGC000066 24LC16BT-I/SNG 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC C MVDACO2 SCL0 CH1DATA VI1P20 SMTCMD0 SDCD DVB_CVBS SMTCLK0 R8913 68 AD_SDA0 TXD0 CH0PSYNC AA_XRST R8513 0 1.0 x 0.5 SUB3.3V AD_SCL3 1% R8509 91 MVDACO0 R8859 68 VI2CLK2 AG_SW_OFF_DET SUB3.3V R8605 68 SDCLK VI2P20 TP8603 R8832 10k AG_SRQ-GENX R8914 68 C R8923 10k C8601 16V 0.1u AG_SD_BOOT_STS XEXDMK0 SMTSEL1 AD_SDA1 IS0DATA AG_DTV_VOUTENB SDA1 XDTR0 CLKGEN_S2 R8857 68 MVDACO3 R8808 10k 24.576M JK8801 K1NA09D00004 NO 1 2 3 4 5 6 7 8 9 10 W.P. 10 11 11 12 D.SW 12 XCTS0 R8862 68 R8603 47k SMTCLK1 VI1P1 SMTRST0 R8814 68 R8920 4.7k C TP8604 XRTS0 VI1P0 AD_SDA3 R8804 10k AD_SCL2 SMTD1 MAIN3.3V R8826 68 4.9152M R8653 10k R8856 68 CH0DATA SBT2 R8809 10k R8858 68 R8919 4.7k 1% R8510 91 R8812 0 CH1PSYNC TP8807 AD_SDA2 R8929 EXB2HVR000V SUB3.3V AD_SCL0 SDWP R8517 0 R8963 10k SBT0 R8855 68 R8802 10k R8925 4.7k C R8813 EXB28V680JX R8803 10k R8853 0 *R8823 47k CH0CLK R8918 68 R8952 68 LRCK0 R8863 68 R8922 4.7k SUB3.3V_SD SUB3.3V R8502 330 R8503 330 R8504 330 R8506 330 AV_OUT EEPROM SD_CARD XCI_IREQ SDDAT0 I2C MAIN AUDIO DATA XPDCD2 SDCMD Hi-Z GND SDCLK INT.PD INT.PU SD_CARD Hi-Z RESERVED Hi-Z CI I/F LiteII OUTPUT PORT9[5] CI_XRST SDDAT1 INT.PD INT.PD 3.3V INT.PD SDDTC GENX4 for PHOTO OUT INT.PU I2C Hi-Z COMMON LR/SR CLK XPDCD1 SDDAT3 INT.PD SDDAT2 INT.PU SDWP GND NO PU/PD TUNER SERIAL TS Hi-Z Hi-Z Hi-Z Hi-Z Hi-Z Hi-Z CI_#CE1 DIGITAL AUDIO CONNECTOR Comp. PORT9[4] EEPROM_WP to other devices (ea_pullup_sel) CI PARALLEL TS with AUDIO DESCRIPTION DATA HQ1L/FHD N.C. for CLKGEN port to H-PCB Hi-Z Hi-Z H:Int.PU on EA CI_POWER_ON CI_OCP Output Port need no Ext.PD. FOR H.264 BOARD Hi-Z H:Lite2 (Default) L:Pro for H.264 Hi-Z RXD0 SMART CARD REMOVED SMART CARD I/F is removed Hi-Z RESERVED SMTSEL0 SMTCMD0 PORT15[4] Hi-Z PORT15[4] used for CI_OCP on DT2 Int.PU PORT5[4] SD_COIN_DET 11/25 change (AC_XEDBA) Non Used AE_SDDAT1 AE_SDDAT3 AE_SDCMD AE_SDDAT2 C *R8328 10k CH0CLK SUB3.3V *R8471 10k AC_CHDI2 AC_CHDI1 AC_CHDI0 AC_CHDI7 AC_CHDI6 AC_CHDI5 AC_CHDI4 AC_CHDI3 AC_XPDWT SMTSEL0 SMTCMD0 AC_CHSYNC SMTCLK0 *R8475 EXB28V103JX SUB3.3V *R8472 EXB2HV103JV C C *R8474 EXB28V103JX XCI_IREQ XPDCD1 XPDCD2 AC_CHVAL GUARD_CLK AC_CHCLK TC-32LX70D 40 13.16.DG 板 (6/12) 线路图 1 2 3 7 8 9 A B C D E F �������������� ���������� ���������� �������������� 4 5 6 ! DG� TNPA4293FU(6/12) Sheet005:PowerSupply/RST CRNo:5600~5749 + + + + G G G G G G + + + + + 0 3.30V 8.04V 5.00V 0.0V 0.0V 3.30V AG_RMIN NET005936 NET005937 C D5606 B0JCDD000002 CL5712 C5670 10V 1u CC2 L5604 G1C100MA0077 CL5660 *R5635 22k C5609 47u 16V R5622 100k DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 D5604 B0JCDD000002 RB520S-30TE61 CL5714 C0DBAYY00274 IC5601 MB39A128APFT-G-BND-ERE1 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP STB3.3V D5607 MAZ802400L CC3 CL5693 C5629 68u 4V C5694 47u 6.3V STB3.3V C5610 16V 47u C5640 0.1u 16V CC2 R5672 0 *C5620 0.1u 50V D5671 B0HCMM000014 R5612 23.2k 1% CC3 R5660 5.6k C5711 50V 0.1u L5670 J0JHC0000078 *R5647 47k R5634 16k 1% TP5670 D5601 MA22D3900L MA22D3900L C5715 50V 0.1u C5712 50V 0.1u CC3 R5662 10k TP5705 SUB9V(FHD) C0CBCBC00190 IC5670 MM3143DNRE(R59-1828) 1 VDD 2 GND 3 CE 5 VOUT 4 NC AG_G_LED_ON Q5690 B1ABCF000138 MSD601-RT1G C D5605 MA22D3900L TP5706 Q5601 B1MBEDA00015 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 C R5628 0 C TP5606 CC3 R5600 68 C5607 50V 220p IC5660 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd NC C5600 1u 16V C5630 16V 47u Q5693 B1DHDC000028 J0HABH000013 *FL5731 CL5600 TP5604 D5673 B0HCMM000014 SUB5V CC2 *C5621 0.01u 25V L5602 G1C3R3ZA0083 STB5V C5618 10u 10V CL5601 C5714 50V 0.1u CL5711 TP5700 R5671 18k L5692 *C5643 0.1u 50V CC3 CL5710 *R5638 10k R5626 0 CC2 C5623 470p 50V CC2 R5691 10k DTV9V L5601 G1C2R2ZA0083 R-12U539DE R5661 47k STB3.3V D5608 MAZ802400L CC2 R5620 68 SUB5V AG_AC_GOOD/24V_DET CC2 DTV9V C C5606 470p 50V TP5600 R5694 1k R5731 47k C C *D5609 MAZ80560LL C DTV9V AG_KEY2 *R5636 68k AA_XRST Q5602 B1MBEDA00015 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 C TP5707 C J0HABH000013 FL5733 R5633 16k 1% C5637 0.1u 16V R5697 10k C5638 0.1u 16V C0EBF0000376 IC5671 1 RST 2 VDD 3 GND 5 Cd 4 NC L5605 R5605 12.7k 1% *C5730 0.01u C5662 10V 0.047u L5611 J0JHC0000035 CL5715 *C5663 25V 0.01u *C5693 50V 0.1u *R5641 47k C5617 1u 16V R5608 0 C CC2 L5690 J0JHC0000078 J0HABH000013 FL5734 R5632 30k 1% Q5600 B1MBEDA00015 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 CL5692 L5610 J0JHC0000035 R5696 10k C CL5713 *R5646 10k CC3 STB5V P12V TP5605 R5609 0 CL5691 CC2 R5670 0 R5610 100k TP5701 D5602 MA22D3900L MA22D3900L C C C5676 16V 0.1u C L5606 G1C100MA0077 SUB3.3V C5716 50V 0.1u C5632 1u 16V C C AG_KEY3 *C5661 25V 0.01u D5670 MA2J11100L C5639 0.1u 16V CC3 TP5603 *C5625 0.01u 25V R5692 47k CC2 D5691 B0BC6R600005 R5637 0 TP5704 R5730 47k C5690 47u 6.3V AG_AI_SENSOR R5690 10k MAIN3.3V *D5692 MAZ80390HL C L5600 G1C2R2ZA0083 R-12U539DE DG1 BM12B-GHS-TBT(LF)(SN) K1KA12A00317 1 2 3 4 5 6 7 8 9 10 11 12 Q5603 2SD0601ASL R5627 0 CL5690 D5603 B0JCDD000002 RB520S-30TE61 *C5692 50V 0.1u C5695 47u 6.3V C5628 68u 4V SUB1.8V C5608 0.1u 16V CC3 C5713 50V 0.1u C C *C5644 0.01u 25V C5673 10V 1u C5624 220p 50V Q5691 B1ABCF000138 MSD601-RT1G C5710 50V 0.1u C C5619 10u 10V Q5604 2SD0601ASL R5623 47k 1% C5641 0.1u 16V R5695 1k C5605 4.7u 10V C CC2 AG_R_LED_ON C C SUB5V C *C5604 0.01u 25V TP5703 C5626 0.1u 16V STB5V MAIN5V SUB3.3V C5615 10u 10V SUB5V SUB1.2V R5630 47.5k 1% C C5622 4.7u 10V TP5602 *C5645 2.2u 10V Q5692 B1DHDC000028 R5604 47k 1% SUB3.3V AG_RMIN C0DBAYY00273 IC5600 MB39A130APFT-G-BND-ERE1 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB AG_TV_MAIN_ON C C *C5603 0.01u 25V STB_RST C C5627 0.1u 16V C5691 47u 6.3V L5691 J0JHC0000078 *R5732 0 R5606 0 CC3 C5733 16V 0.1u R5607 0 R5693 47k D5690 B0BC6R600005 C5602 68u 4V R5611 36k 1% C5674 10V 1u C5636 0.1u 16V TP5702 CC2 TP5608 C R5621 47k 1% C R5625 0 C5616 0.047u 10V C5601 0.1u 16V C5631 16V 47u SUB3.3V DTV9V MAIN9V R5674 1.2k R5631 36k 1% TP5601 C C L5735 J0JHC0000078 R5629 30.1k 1% *R5644 2.2k *D5672 0 ERJ3GEY0R00V PEAKS-LITE2_RESET GENX4_POWER_RST MAIN5V_MAIN3.3V DG-K_CONNECTER PEAKS-LITE2_POWER DG-H_CONNECTER DG-H Connecter GenX4 From GenX4 to sheet008 MAX150mA SUB5V GND 145mA MAIN5V/MAIN3.3V to DG DG-K Connecter GND From H From H From H SUB3.3V SUB5V Cn to H From H GND P12V GND GND Peaks-LITE2 POWER CC2 CC3 Vo(3.3V) GND GND MAIN5V P12V DTV9V to K-PCB Peaks-LITE2 RST DTV9V PST3261 SUB3.3V GenX4 SUB5V to Sheet003 MAIN3.3V to sheet008 GND to sheet007 VREF(2.5V) RESET IC CTL (sheet008) RESET IC PGOOD GenX4 POWER/RST C 9V or 10.5V From H From H GND MAIN9V STB5V SUB9V(FHD)/LCD3.3V SUB9V(FHD)/LCD3.3V GND G_LED_ON GND AI_SENSOR SUB5V RMIN ACTIVE_STBY_LED_ON GND STB3.3V R_LED_ON GND KEY1 GND PGND PGND PGND PGND PGND PGND PGND PGND C TC-32LX70D 41 13.17.DG 板 (7/12) 线路图 1 2 3 7 8 9 A B C D E F �������������� ���������� ���������� �������������� 4 5 6 ! DG� TNPA4293FU(7/12 ) Sheet007:CN To H CRNo:5600~5749 AG_QLINK2 AG_VIDEO_STATUS AG_TV_MAIN_ON AG_SOS AD_SCL2 MAIN_Y/CVBS GUARD_Y AH_DMIX0 GUARD PC_VS GUARD AG_FAN_SOS PC_VS GUARD RGB_CVBS GUARD_V STB_RST HDMI_SDIN GUARD AH_LRCK0 GUARD DVB_CVBS GUARD_V AG_RF_AFT2 AG_RF_AFT1 AG_QLINK1 AG_AC_GOOD/24V_DET AG_SOUND_SOS AD_SDA2 AG_TV_SUB_ON HDMI_INT2 HDMI_INT2 AG_ECO_ON MAIN_PR GUARD_PR RGB_FB MAIN_PB/C GUARD_PB AH_SRCK0 GUARD_CLK PC_HS GUARD AG_FAN_MAX/INV_PSU_ON MAIN_Y/CVBS GUARD_Y AG_KEY1(CON-PANE) HDMI_LRCK GUARD RGB_FB PC_HS GUARD AG_ALL_OFF AH_DAUDIO GUARD HDMI_BCLK GUARD_CLK AG_SOUND_SOS AG_A_MON_MUTE/SP_MUTE AG_TV_SUB_ON STB_RST AG_AUDIO_MUTE AG_AUDIO_XRST AG_VIDEO_STATUS PANEL_STBY/VCC_ON AG_RF_AFT2 AG_FAN_SOS AG_ECO_ON AG_ALL_OFF AG_QLINK1 AG_QLINK1 AG_QLINK2 AG_QLINK2 GUARD_V DVB_CVBS AG_FAN_MAX/INV_PSU_ON AG_TV_SUB_ON_DELAY AH_IECOUT0 GUARD AH_DAUDIO GUARD AH_LRCK0 GUARD AH_DMIX0 GUARD AH_SRCK0 GUARD_CLK AD_SCL2 AD_SDA2 MAIN_PB/C GUARD_PB MAIN_PR GUARD_PR GUARD_V RGB_CVBS AG_KEY1(CON-PANE) AG_AC_GOOD/24V_DET PANEL_STBY/VCC_ON AG_SOS AG_RF_AFT1 AG_AUDIO_XRST AG_TV_SUB_ON_DELAY HDMI_BCLK GUARD_CLK HDMI_SDIN GUARD HDMI_LRCK GUARD AG_TV_MAIN_ON AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE GUARD AH_IECOUT0 PC_VS MAIN_PB/C AG_PANEL_STBY_ON/PANEL_VCC_ON AH_SRCK0 R2018 47k C AG_RF_AGC1 AD_SCL2 AG_SOUND_SOS AG_RF_AFT1 AG_FAN_MAX RGB_CVBS AG_QLINK_PU_ON AG_VIDEO_STATUS AG_ODU_ON/GEMSTER_STBY_EN AG_KEY1(CON-PANE) RGB_FB AU_SBI(HOTEL) AG_A_MON_MUTE/SP_MUTE *R2026 0 AG_SOS AG_TV_SUB_ON R2012 47k HDMI_LRCK R2023 47k MAIN_PR R2011 47k AG_BUS_CONNECT2 *R2019 47k STB_RST HDMI_SDIN C AH_IECOUT0 R2013 47k AG_TV_SUB_ON_DELAY R2025 47k AG_AUDIO_XRST AH_DAUDIO AG_QLINK2 *R2017 47k HDMI_BCLK R2010 47k R2014 47k AG_AC_GOOD/24V_DET AG_RF_AFT2 *R2022 47k *R2016 47k AG_INV_PSU_ON AG_AVSW_OFF C MAIN_Y/CVBS AU_SBO(HOTEL) AD_SDA2 AG_TV_MAIN_ON R2020 47k AG_ODU_DET AG_ALL_OFF PANEL_STBY/VCC_ON DVB_CVBS *R2003 0 AG_FAN_SOS HDMI_INT2 AG_ECO_ON C R2015 47k AG_QLINK1 AG_AUDIO_MUTE PC_HS *R2021 47k AH_DMIX0 AH_LRCK0 TP2000 TP2001 TP2002 TP2003 TP2004 TP2006 TP2005 TP2007 TP2008 TP2009 TP2010 TP2011 TP2012 TP2013 TP2014 TP2015 TP2016 TP2017 TP2018 TP2019 TP2020 TP2021 TP2022 TP2023 TP2024 DG6 K1KB80AA0218 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 SPDIF_IN(OPT) AFC2 FAN_SOS SUB_PB/C DTV_LRCK AC_GOOD/24V_DET ALL_OFF TV_MAIN_ON GenX4 DTV_BCKL QLINK_AV3 to Sheet 003 to sheet011 EURO QLINK CONTROL ADV7493 GENX_RST ECO_ON MAIN_Y/CVBS/G DTV_SDIN USA Only SOS DVB_CVBS JPN/USA Only MAIN_PR/R HDMI_SDIN MAIN_PB/C/B KEY1 SOUND_SOS JPN LCD Only JPN Only SUB_PR JPN LCD Only PC_V AFC1 HDMI_BCLK HDMI_LRCK AUDIO_XRST FAN_MAX/INV_PSU_ON(7/13 DTV2_SDIN to Sheet 003 IRD PC_H SUB_Y/CVBS RGB_CVBS SP_MUTE to H-PCB IIC2 QLINK_AV2 to Sheet 008 VIDEO_STATUS SCL0B SDA0B HDMI_INT2 Panel_STBY_ON/Pannel_VCC_ON RGB_FB to Sheet 010 TV_SUB_ON (RESERVE) AUDIO_MUTE (Used PDP) (Common) (EURO/ASIA) (ASIA) (Common) (EURO) (Common) TC-32LX70D 42 13.18.DG 板 (8/12) 线路图 1 2 3 7 8 9 A B C D E F �������������� ���������� ���������� �������������� 4 5 6 ! DG� TNPA4293FU(8/12) Sheet008:GenX4 CRNo:1100~1999 C1105 10V 1u AD_SCL3 AG_HDMI_CEC AG_RMIN AG_KEY3 AG_ODU_ON/GEMSTER_STBY_EN AG_HPD2 AD_SDA3 SCL AU_SBI(HOTEL) TRCST AG_TV_MAIN_ON AG_SD_LED_ON AG_DTV_1.5V_ON SDA AG_QLINK2 AU_SBO(HOTEL) AG_CONFIG_DONE AG_DTV_XRST AG_HPD1 AG_HQ1_VOUTENB AG_SRQ-GENX AG_LVDS_EN AG_ECO_ON AG_FPGA_XRST AG_HQ1_XRST AG_INVERTER_ON AG_INVERTER_SOS AG_DTV_VOUTENB AG_TV_SUB_ON AG_SD_BOOT_STS AG_KEY1(CON-PANE) AG_PWM_POW_ON AG_QLINK1 AG_HDMI_5V_DET1 AG_QLINK1 AG_AVSW_OFF AG_RF_AGC1 AG_QLINK2 AG_BUS_CONNECT2 AG_ALL_OFF AG_RF_AFT1 AG_RF_AFT2 AG_SOUND_SOS AG_SOS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_AUDIO_XRST AG_FAN_MAX AG_FAN_SOS AG_QLINK_PU_ON AG_7493_XRST SCL SDA AG_VIDEO_STATUS AG_PANEL_STBY_ON/PANEL_VCC_ON SBI2 SBO2 AD_SCL3 AD_SDA3 DTV9V_SENSE ADCCK AG_BUS_CONNECT2 AG_ODU_DET AG_RF_AGC1 AUDCLK SLRCK SCL SDA AG_ODU_ON/GEMSTER_STBY_EN AG_AVSW_OFF AG_KEY2 GUARD_CLK AG_MODEM_LED2/CLK74SEL AG_RMIN AUDCLK SLRCK ADCCK VI2ENB VI2ENB AG_ODU_DET MAIN9V_SENSE AG_HDMI_CEC AG_SRQ-GENX MAIN5V_SENSE AG_SRQ-GENX AG_KEY2 AG_AI_SENSOR AG_SW_OFF_DET AG_INV_PSU_ON AG_KEY3 AG_HDCP_WP AG_EDID_WP AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_HDMI_REP_EN AG_HPD3 AG_HDMI_5V_DET3 AG_HDMI_5V_DET3 AG_SW_OFF_DET AU_SBO(HOTEL) AU_SBI(HOTEL) AG_TV_MAIN_ON_DELAY AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_SD_COIN_DET AG_KEY1(CON-PANE) AG_HDMI_5V_DET1 AG_CONFIG_DONE AG_VIDEO_STATUS SBO2 SBI2 AG_PANEL_STBY_ON/PANEL_VCC_ON AG_EDID_WP AG_RF_AFT1 AG_RF_AFT2 AG_AI_SENSOR AG_SOS AG_FAN_SOS AG_SOUND_SOS AG_FPGA_XRST AG_DTV_XRST AG_SD_BOOT_STS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_ECO_ON AG_DTV_1.5V_ON AG_HQ1_VOUTENB AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_HDMI_REP_EN AG_INV_PSU_ON AG_INVERTER_ON AG_PWM_POW_ON AG_LVDS_EN AG_DTV_VOUTENB AG_SD_LED_ON AG_QLINK_PU_ON AG_ALL_OFF AG_HPD1 AG_HPD2 AG_HPD3 AG_TV_MAIN_ON AG_R_LED_ON AG_AUDIO_XRST AG_7493_XRST AG_HQ1_XRST AG_TV_SUB_ON_DELAY AG_HDMI_OPT_ENB AG_TV_MAIN_ON_DELAY AG_FAN_MAX AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_G_LED_ON AG_HDCP_WP AG_TV_SUB_ON AG_MODEM_LED2/CLK74SEL AG_INVERTER_SOS SD_PWR_CTRL SD_PWR_CTRL R1101 0 AG_INV_PSU_ON R1196 33k *R1250 47k R1104 47k R1205 22 AG_HDMI_5V_DET3 R1199 47k ADCCK AG_7493_XRST AG_HDMI_CEC AG_R_LED_ON R1203 47k TP1103 TP1105 C R1225 47k AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON C AG_FAN_MAX AU_SBO(HOTEL) AG_SD_COIN_DET R1164 10k R1171 56k C C1103 16V 0.1u R1232 47k AG_TV_MAIN_ON_DELAY C1102 10u 10V R1185 100 STB3.3V R1247 47k AG_CONFIG_DONE VI2ENB C1123 1u 10V AG_ODU_DET R1227 47k AG_RF_AFT1 R1144 47k C1111 1u 10V R1241 100 R1229 100 R1222 47k TP1100 AG_RF_AFT2 AG_G_LED_ON AG_QLINK_PU_ON R1195 100k *R1224 47k AG_HQ1_XRST AG_PWM_POW_ON R1109 100 MAIN3.3V R1209 47k C1109 1u 10V C C1104 16V 0.1u R1162 100 STB_RST AG_SRQ-GENX AG_AUDIO_XRST R1200 5.6k AG_QLINK2 AG_DTV_1.5V_ON AG_AVSW_OFF R1246 47k AG_DTV_VOUTENB AG_SOS R1105 100 AG_ODU_ON/GEMSTER_STBY_EN C R1235 100k R1216 33k MNZSFD7GP42 IC1100 1 P41/TMIO1 2 P42/TMIO2 3 P43/TMIO3 4 P44/TMIO4 5 P00/TMIO5 6 P01 7 P02 8 P03/SBT0B 9 P04/SBO0B 10 P51/IRQ2 11 P52/IRQ3 12 PB2 13 PB3 14 PB4 15 PB5 16 PB6 17 PB7 18 P53/IRQ4 19 P54/IRQ5 20 PA7 21 PA6 22 PA5 23 VSS 24 PA4 25 PA3 26 PA2 27 PA1/IRQ1 28 PA0 29 P45 30 P46 31 IVDD 32 VDD 33 P60/SBO0A 34 P61/SBT0A 35 P62/SBI0A 36 P05/IRQ6 37 P06/IRQ7 38 P07/IRQ8 39 P70/SDA0 40 P71/SCL0 41 N.C. 42 N.C. 43 N.C. 44 N.C. 45 P50/RMIN/IRQ0 46 P20 47 P21 48 P22 49 P23 50 IVDD 51 VSS 52 P10 53 P11 54 P12 55 P13 56 P14 57 P15 58 P16 59 P17 60 N.C. 61 N.C. 62 N.C. 63 P72/SDA1 64 P73/SCL1 65 P76/CEC0 66 P65/SBO2 67 P66/SBI2 68 P30 69 P31 70 P32 71 P33 72 P34 73 P35 74 VPPEX 75 N.C. 76 N.C. 77 N.C. 78 IVDD 79 VDD 80 N.C. 81 RONA 82 VSS 83 OSCXO 84 OSCXI 85 IVDD 86 P24 87 P25 88 P26 89 P27 90 P64/SBI1 91 P63/SBO1 92 NBOOT 93 NRST 94 NTEST 95 SCLOCK 96 SDATA 97 EXTRG0 98 EXTRG1 99 TRCCLK 100 TRCST 101 TRCD0 102 TRCD1 103 TRCD2 104 TRCD3 105 P90 106 P91 107 VSS 108 IVDD 109 P92 110 P93 111 P80/ADIN0 112 P81/ADIN1 113 P82/ADIN2 114 P83/ADIN3 115 P84/ADIN4 116 P85/ADIN5 117 P86/ADIN6 118 P87/ADIN7 119 P74/SDA2/CECAVL1B 120 P75/SCL2/CECAVL1A 121 P36 122 P37 123 P47 124 PB0 125 PB1 126 PC0 127 PC1 128 P40/TMIO0/SYSCLK SUB5V AG_FPGA_XRST R1228 47k MAIN5V R1184 22 AG_PANEL_STBY_ON/PANEL_VCC_ON R1223 47k R1245 47k *D1112 MA2J72800L C C1114 16V 0.1u R1233 47k AG_SOUND_SOS TP1104 R1175 22 L1100 J0JHC0000078 C C AG_BUS_CONNECT2 AG_KEY2 R1106 100 C C STB3.3V C1107 50V 22p AG_EDID_WP DTV9V AG_TV_SUB_ON R1170 27k AG_TV_SUB_ON_DELAY *R1173 200 AG_DTV_XRST C1117 16V 0.1u C R1107 100 SCL AG_HDCP_WP R1220 10k R1166 100k R1146 1k R1181 100 *R1263 47k AG_SD_BOOT_STS R1234 47k AG_AI_SENSOR AG_HQ1_VOUTENB R1102 100 AG_ALL_OFF AG_HPD1 R1147 47k R1218 10k AG_RMIN AG_RF_AGC1 R1237 47k R1174 22 AG_ECO_ON AG_TV_MAIN_ON AD_SDA3 STB3.3V R1172 27k Q1108 2SD0601ASL R1255 1k SDA C AD_SCL3 AG_KEY1(CON-PANE) MAIN9V AG_FAN_SOS STB3.3V AG_A_MON_MUTE/SP_MUTE R1204 0 TP1101 R1201 5.6k AG_VIDEO_STATUS R1217 56k C1112 16V 0.1u SBI2 AG_HDMI_5V_DET1 R1134 100 C R1244 47k R1100 100 AG_LVDS_EN D1107 MA3X704A0L AU_SBI(HOTEL) AG_HDMI_OPT_ENB C R1108 100 R1219 10k AG_KEY3 AG_INVERTER_ON R1103 33 R1183 22 R1206 22 R1125 22 R1239 100 R1163 1M Q1107 2SD0601ASL C C1108 16V 0.1u SLRCK AG_MODEM_LED2/CLK74SEL C R1231 47k D1113 MA2J72800L R1236 47k R1182 27k R1122 47k AG_SW_OFF_DET R1169 56k R1153 820 AG_AUDIO_MUTE R1179 100 R1221 7.15k 1% R1194 56k AG_SD_LED_ON AG_INVERTER_SOS TP1102 R1226 47k SBO2 AG_HPD3 R1165 1.8k R1186 100 C AG_QLINK1 C1106 50V 27p R1124 22 *C1122 25V 0.01u *IC1101 C3EBFC000042 C3EBFC000051 BR24L08F-WE2 1 2 3 4 5 6 7 8 SD_PWR_CTRL X1100 H0J100500035 to Sheet 007 shee011 VIDEO_STATUS CONFIG_DONE TV_MAIN_ON sheet003 ODU_ON/GEMSTER_STBY_EN (JPN/EURO) AVSW_OFF(US) (SD_LED_ON) ODU_DET (For LCD) (BUS_CONNECT2) (For PDP) (USA only) SUB5V_SENSE (For LCD) GenX-EEP_WP (For PDP) MAIN5V_SENSE SRQ_GenX ALL_OFF RSV2(LITE2) (QLINK_PU_ON) (HDMI_CEC_PU_ON) (USA/EURO) (For LCD) (For LCD) UART (HOTEL) HQ1_VOUTENB (For LCD) LVDS Out HDMI_5V_Det1 IIC HDMI_5V_Det2 MAIN9V_SENSE MAIN3.3V_SENSE RF_AFT1 RF_AFT2 AI_SENSOR SOS KEY2(US) to Sheet 003 to Sheet 005 KEY1 FAN_SOS SOUND_SOS SBI PANEL_STBY_ON R_LED_ON FAN_MAX SBO 7493_XRST RSV3(LITE2) HQ1_XRET RSV3 FE_XRST G_LED_ON PORT5[2] MODEM_XRST AUDIO_XRST PORT0[0] ETHER/1394_XRST PORT5[1] TV_SUB_ON RSV3(LITE2) Power Supply RSV4(LITE2) to Sheet 002 RSV2(LITE2) to Sheet 002 shee003/011 SYSCLK_OUT Lite2 sheet003/011 to Sheet 007 UART(LITE2-GenX4) CN to H (EURO/ASIA) HQ1L/CN to HFD sheet011/009 to Sheet 011 A_MON_MUTE/SP_MUTE sheet011/009 AUDIO_MUTE (For LCD) to Sheet 004/005/007/009/010 Lite2 ExBUS/Etc. RSV4 for USA SYSCLK ADJUST RSV2 Hand Sheke Reserve DTV_XRST SD_BOOT_STS USA Only SW_OFF_DET (USA Only) INVERTER_ON (JPN/USA) PWM_POWER_ON sheet009/004 DTV_VOUTENB HQ1L/GC3FS LVDS_EN LITE2 GenX4 E2PROM LINE sheet009/011 Lite2 E2PROM LINE sheet003 Power Supply sheet009/011 JPN Only INV_PSU_ON RSV4(LITE2) FPGA_RST to Sheet 010 HPD2 HPD1 to Sheet 009 REMOTE ADV7493 ECO_ON sheet003/011 DTV_1.5V_ON sheet003 RF_AGC1 EURO Only DTV9V_SENSE EURO Only STB5V_SENSE (RESERVE) INVERTER_SOS GenX4 RST to Sheet 005 sheet003 EURO Only Closed to sheet009 (HDMI_CEC_PU_ON) 10MHz KEY3(TV_POWER) PORT6[6] RSV1 RSV1(LITE2) (JPN/Euro) HDMI_5V_Det3 HDMI_MUX_SEL HDMI_MUX_EN HDMI_REP_EN TC-32LX70D 43 13.19.DG 板 (9/12) 线路图 1 2 3 7 8 9 A B C D E F �������������� ���������� ���������� �������������� 4 5 6 ! DG� TNPA4293FU(9/12) Sheet009:HQ1L/FHD CRNo:4200~4499 *R4322 C 47k C 47k 47k CFG_TCK 47k CFG_TDO CFG_TMS 47k CFG_TRST CFG_TDI to Sheet011 *R4318 *R4317 *R4319 *R4324 *R4320 LCD_PWM_D GUARD PEAKS_OSHIN PEAKS_OSDCKOUT AD_TO_SC LCD_PWM_K GUARD AD_TO_HQ1L GUARD_CLK GUARD GUARD LCD_PWM_K *R4302 33 VI2P2 LCD_PWM_D IS1CLK R4328 47k VI1CK204F R4202 33 AG_LVDS_EN R4284 10k R4286 47k R4287 47k R4288 47k *R4303 33 VI2P5 VOP2 AD_TO_SC AG_FPGA_XRST C *R4315 0 *R4316 0 *R4304 33 VOP3 MVCLK C R4201 33 AG_HQ1_VOUTENB R4327 47k VI2P3 R4200 33 VOP4 C *R4326 47k *R4305 33 *R4230 0 *R4242 0 R4330 47k VI2P6 AD_TO_HQ1L MVSYNC MHSYNC 47k AG_CONFIG_DONE LOSD3 PWMSS LOSDCLKOUT to Sheet 002 Lite2 Hi-Z after reset PWMA JTAG to Sheet 002 LOSDYM PWMANA LOSDYS LOSDHOUT LOSD LVDS OUT to Sheet 011 GenX4 to Sheet 008 Lite2 intPU after reset (Used LCD) (Used PDP) (Common) BOE3 BOE4 BOE2 PEAKS-YS PEACK_YM PORT16[3] Hi-Z OSD_FLAG TC-32LX70D 44 13.20.DG 板 (10/12) 线路图 1 2 3 7 8 9 A B C D E F ��������������� ���������� ���������� ��������������� 4 5 6 ! DG� TNPA4293FU(10/12) Sheet010_1:ADV7493/HDMI CRNo:4500~4799 4 5 6 3 2 1 7 8 9 + + AG_HDMI_5V_DET3 AG_EDID_WP AG_HDMI_5V_DET1 AG_HDMI_5V_DET1 AG_HDMI_CEC AG_HPD3 AG_HPD1 RXA_2N RXA_1P RXA_1N RXA_0P RXA_0N RXA_CP RXA_CN RXA_2P RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P DDC_SCL0 DDC_SDA0 R4687 4.7k *R4542 68 D4521 EZAEG2A50AX C *R4508 2.2 R4540 47k C TP4516 C4507 0.1u 16V D4520 EZAEG2A50AX C D4501 EZAEG2A50AX C MAIN3.3V R4561 47k *R4528 10k JK4501 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C *Q4500 2SD0601ASL C4626 16V 0.1u C *L4502 J0JHC0000078 C4622 0.1u 16V C R4690 22 *Q4502 2SD0601ASL *D4514 EZAEG2A50AX *R4513 2.2 R4507 10k Q4504 2SD0601ASL C *D4502 EZAEG2A50AX R4702 0 *R4547 10k C *IC4500 C3EBDC000067 M24C02-WMN6TP 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC *D4518 EZAEG2A50AX C4511 0.1u 16V R4518 2.2 *R4514 2.2 TP4508 TP4509 C *JK4500 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D4503 EZAEG2A50AX 33u 6.3V C4509 D4532 B0HCMM000014 R4520 2.2 R4523 2.2 *R4678 22 *C4621 0.1u 16V *R4509 2.2 *Q4505 2SD0601ASL C *D4506 EZAEG2A50AX *R4545 10k C R4562 4.7k C *R4532 10k R4703 0 *C4510 0.1u 16V C IC4504 C3EBEY000009 M24C04-RMN6TP 1 NC 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4565 22 D4527 B0HCMM000014 *R4526 1k TP4501 TP4502 C R4527 1k R4501 10k D4505 EZAEG2A50AX *D4522 EZAEG2A50AX *L4500 J0JHC0000078 *R4529 4.7k *D4504 EZAEG2A50AX D4509 EZAEG2A50AX R4522 2.2 L4501 J0JHC0000078 L4503 J0JHC0000078 C R4541 68 C D4516 EZAEG2A50AX C C TP4500 C 33u 6.3V *C4508 C4503 0.1u 16V TP4510 *D4525 B0HCMM000014 R4533 10k IC4513 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB L4507 J0JHC0000078 C *R4515 2.2 D4515 MAZ30560ML R4564 22 D4528 EZAEG2A50AX R4689 22 C *R4510 2.2 *R4686 4.7k C *D4513 MAZ30560ML R4517 2.2 R4563 4.7k C *R4681 22 *R4538 47k D4517 EZAEG2A50AX R4530 10k *R4539 68 L4506 J0JHC0000078 R4519 2.2 *C4627 16V 0.1u TP4507 *R4500 10k *L4505 J0JHC0000078 C C MAIN5V D4526 B0HCMM000014 D4523 EZAEG2A50AX C4515 16V 0.1u TP4503 *D4524 B0HCMM000014 *D4512 EZAEG2A50AX R4544 10k *R4502 33 TP4506 C C *C4506 0.1u 16V *R4524 10k D4507 EZAEG2A50AX R4677 22 MAIN3.3V *R4679 22 R4521 2.2 *L4504 J0JHC0000078 Q4501 2SD0601ASL C *C4500 0.1u 16V Q4503 2SD0601ASL R4543 68 R4503 33 R4546 10k *IC4514 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB *R4511 2.2 R4531 4.7k C C4501 0.1u 16V R4536 4.7k R4525 10k TP4505 *R4506 10k R4688 4.7k *IC4501 C3EBDC000067 M24C02-WMN6TP 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4676 22 TP4511 *R4535 4.7k C *D4500 EZAEG2A50AX *D4508 EZAEG2A50AX *R4685 4.7k R4552 22 C R4516 2.2 C C *C4502 0.1u 16V TP4504 C *D4519 EZAEG2A50AX *D4510 EZAEG2A50AX D4511 EZAEG2A50AX *R4512 2.2 *R4680 22 C C DDCG D0G D1+ +5V CLKG MCL D0- D0G SDA N.C. SCL D1+ SCL CLKG CLK+ D1G D2+ D2G CLK+ D2- MDA +5V N.C. D1- SDA CEC D2+ HPDT CEC DDCG SDA SCL D0+ CLK- D0- D1- CLK- D1G HPDT D2- D2G D0+ DDCA_SDA DDCA_SCL DDCB_SCL DDCB_SDA TC-32LX70D 45 13.21.DG 板 (11/12) 线路图 9 10 11 15 16 17 A B C D E F ��������������� ���������� ���������� ��������������� 12 13 14 ! DG� TNPA4293FU(11/12) Sheet010_2:ADV7493/HDMI CRNo:4500~4799 1 7 8 9 4 5 6 + VI1P25 VI1P22 VI1P28 CLKOA VI1P27 VI1P8 VI1HSYNC MAIN_PB/C GUARD_PB PC_VS RXA_1P RXA_0N XIRQ3 VI1P25 AG_HDMI_5V_DET1 VI1P7 VI1ENB AG_HPD1 VI1P7 AG_HDMI_5V_DET3 VI1VSYNC VI1P22 HDMI_LRCK VI1P26 VI1P19 VI1P12 VI1P29 RXA_1N VI1P9 RXA_2N VI1P12 VI1P3 AG_HDCP_WP VI1P15 HDMI_SDIN VI1P16 MAIN_PB/C GUARD_PB VI1P9 MAIN_PR GUARD_PR RGB_CVBS GUARD_V PC_VS VI1P6 VI1P2 VI1CLK VI1HSYNC 1.8V PC_HS VI1P24 VI1P4 VI1P13 AG_HDMI_CEC VI1P3 AG_7493_XRST RXA_0P VI1P15 PC_HS VI1P29 RGB_FB VI1P2 VI1P27 VI1P18 VI1VSYNC VI1P13 VI1P24 VI1P28 VI1P26 VI1P17 GUARD_Y MAIN_Y/CVBS VI1P14 VI1P5 VI1P18 VI1P4 VI1P8 VI1ENB VI1P19 VI1P23 DVDD_1.8V VI1CLK RXA_CN VI1P16 VI1P5 VI1P6 VI1P23 RXA_CP MAIN_PR GUARD_PR CVDD_1.8V VI1P14 VI1P17 HDMI_BCLK HDMI_SPDIF GUARD_V RGB_CVBS RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P RXA_2P AG_EDID_WP AG_HPD3 XIRQ3 AG_7493_XRST GUARD_Y MAIN_Y/CVBS CLKOA DVDDIO_3.3V C4629 10V 10u 1% R4682 10k PC_HS C4527 10V 1u C R4657 22 C4541 50V 470p TP4513 AD_SCL1 C4545 16V 0.1u VI1P25 IC4509 C0CBCAD00082 MM1681JFBE(R59-1615) 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin R4639 68 EXB28V680JX L4512 J0JCC0000077 C TP4514 R4653 10k VI1P26 MAIN_Y/CVBS C4607 47u 6.3V C4591 1u 10V RGB_CVBS R4699 0 C4586 25V 0.01u R4647 68 *C4600 25V 0.01u R4648 EXB28V330JX VI1CLK C R4596 1k Q4516 2SB0709ASL R4649 68 EXB28V680JX C4573 16V 0.1u R4645 68 C4549 50V 0.1u VI1P23 C4566 16V 0.039u C4564 25V 0.01u 1% R4611 1.37k C4602 16V 0.1u TP4519 C C C4553 50V 1000p C4593 25V 0.01u C_ANA C4548 50V 0.1u C4531 16V 0.1u C4613 1u 10V C_ANA C C C4609 10V 1u R4656 2.2k AG_HPD1 C4539 10u 10V 1% R4615 160 C4623 16V 0.1u C_ANA C_ANA JS4501 MAIN9V C4589 15p 50V C4598 1u 10V R4638 68 C4538 47u 6.3V R4661 100 VI1P5 C MAIN_PB/C C_ANA VI1P16 C4604 6.3V 2.2u 1M R4626 C4584 1u 10V L4524 J0JHC0000078 L4516 J0JHC0000078 C4612 25V 0.01u C C4576 47u 6.3V R4698 0 1% R4631 499 R4635 68 EXB28V680JX HDMI_SDIN VI1VSYNC VI1P12 R4597 1k C4585 1u 10V AG_HDCP_WP C4596 16V 0.1u C4560 16V 0.1u VI1P27 C4569 16V 0.68u C_ANA IC4515 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C4595 25V 0.01u AG_HDMI_5V_DET1 AG_EDID_WP C4574 25V 0.01u C4583 16V 0.1u VI1P8 SUB5V R4601 1k C4616 16V 0.1u VI1P13 C4628 16V 0.1u 0 R4627 C R4629 100 C4546 6.3V 2.2u VI1ENB C_ANA C4618 25V 0.01u R4707 10k C4587 16V 0.1u C4563 16V 0.082u R4683 10k C4555 10V 10u C1AB00002753 IC4510 ADV7493BBSTZ-150 1 DDCB_SDA 2 SPDIF 3 I2S0 4 I2S1 5 I2S2 6 I2S3 7 LRCLK 8 SCLK 9 MCLKOUT 10 MCLKIN 11 SDA 12 SCL 13 ALSB 14 DGND 15 DVDDIO 16 DE 17 HS 18 VS/FIELD 19 INT1 20 SFL/SYNC_OUT/INT2 21 RESET 22 DGND 23 DVDD 24 P19 25 P18 26 P17 27 P16 28 P15 29 P14 30 P13 31 P12 32 P29 33 P28 34 DGND 35 DVDDIO 36 P11 37 P10 38 P9 39 P8 40 P27 41 P7 42 P6 43 P5 44 P4 45 P26 46 R_ACTIVE/P25 47 SRLIN/P24 48 DCLKIN 49 DGND 50 DVDDIO 51 LLC 52 SRLUP/P23 53 TRGIN/P22 54 P21 55 P3 56 DGND 57 DVDD 58 P2 59 P1 60 P0 61 P20 62 VS_IN 63 HS_IN 64 DGND 65 XTAL1 66 XTAL 67 DVDDIO 68 PVDD 69 PGND 70 ELPF 71 PVDD 72 PGND 73 ELPF2 74 FB 75 SOG 76 AIN7 77 AIN1 78 AIN8 79 AIN2 80 AIN9 81 AIN3 82 AGND 83 AGND 84 AVDD 85 REFOUT 86 CML 87 AGND 88 AVDD 89 BIAS 90 CAPY1 91 CAPC1 92 CAPC2 93 AIN10 94 AIN4 95 AIN11 96 AIN5 97 SOY 98 AIN12 99 AIN6 100 PGND 101 PVDD 102 ELPF3 103 CGND 104 CVDD 105 DDCA_SCL 106 DDCA_SDA 107 MDA 108 MCL 109 CVDD 110 CGND 111 TVDD 112 RXA_CN 113 RXA_CP 114 TGND 115 RXA_0N 116 RXA_0P 117 TGND 118 RXA_1N 119 RXA_1P 120 TGND 121 RXA_2N 122 RXA_2P 123 TVDD 124 RTERM 125 CVDD 126 CGND 127 TVDD 128 RXB_CN 129 RXB_CP 130 TGND 131 RXB_0N 132 RXB_0P 133 TGND 134 RXB_1N 135 RXB_1P 136 TGND 137 RXB_2N 138 RXB_2P 139 TVDD 140 CGND 141 CVDD 142 DVDD 143 DGND 144 DDCB_SCL X4500 H0J270500113 C_ANA *R4659 0 C4605 16V 0.1u R4706 1k C4535 50V 0.1u C_ANA C R4651 68 HDMI_INT2 C AG_7493_XRST C_ANA Q4517 2SB0709ASL R4665 47k VI1P19 1% R4587 820 HDMI_SPDIF Q4515 2SB0709ASL C4624 50V 0.1u VI1P28 R4614 22 C4588 16V 0.082u C4575 1u 10V AG_HDMI_5V_DET3 C_ANA C C4625 50V 0.1u VI1P18 R4622 100 C4568 16V 0.1u R4692 22 C4550 16V 0.1u *R4641 22 TP4518 R4578 150 R4667 150 C4572 16V 0.1u R4637 68 C C_ANA C4559 16V 0.1u 1% *R4593 1k C4552 50V 0.1u R4640 68 EXB28V680JX MAIN5V TP4512 C C4580 25V 0.01u C_ANA C VI1P29 R4652 47k VI1P14 R4636 68 *R4643 22 C4614 16V 0.1u R4644 22 C C4557 16V 0.1u C_ANA *C4615 25V 0.01u R4650 68 C VI1P2 C_ANA C4617 16V 0.1u HDMI_BCLK C4544 16V 0.1u SUB5V C4611 1u 10V C4619 16V 0.1u C4581 10V 1u VI1P6 R4691 22 L4511 J0JHC0000078 MAIN_PR R4579 150 Q4514 2SB0709ASL R4642 68 EXB28V680JX C4562 50V 8200p RGB_FB C4551 50V 0.1u VI1P3 C4620 10V 1u R4655 100 VI1P15 MAIN5V C4577 16V 0.1u VI1P9 HDMI_LRCK C R4708 1k C4534 50V 0.1u VI1P4 SUB3.3V C VI1P7 C R4628 100 C4582 16V 0.1u R4606 4.7k 1% C C_ANA AG_HDMI_CEC L4520 J0JHC0000078 C4533 50V 68p C_ANA C4570 47u 6.3V 1% R4612 1.5k C4556 10V 10u C4565 25V 0.01u C_ANA SUB5V AG_HPD3 VI1P17 VI1P22 C4592 1u 10V C4578 16V 0.1u C4590 18p 50V PC_VS C_ANA XIRQ3 R4585 100 C0DBGGF00001 IC4506 1 Vo 2 NC 3 GND 4 Cn 5 Cont 6 Sub 7 Vin L4521 J0JHC0000078 C4601 25V 0.01u R4613 22 R4666 47k R4670 68 VI1P24 C4547 16V 0.1u C0CBCBC00190 IC4507 1 VDD 2 GND 3 CE 5 VOUT 4 NC AD_SDA1 C4543 16V 0.1u C_ANA 1% R4624 1.69k C4528 16V 0.1u VI1HSYNC *R4672 0 R4658 22 VI1CKOUT C R4646 68 TP4515 L4517 J0JHC0000078 1% R4604 7.5k R4598 1k L4518 J0JHC0000078 IC4508 C0CBCAD00082 MM1681JFBE(R59-1615) 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin C_ANA 1% R4654 4.7k R4710 4.7k R4711 4.7k YIN3 RX_SD0# GenX4 Sheet008 YIN1 YIN2 UVIN8 IN PVDD YIN4 OUT CN_to_H Sheet007 RIN2 UVIN9 AVDD RIN3 Peaks Lite II RIN0 Peaks Lite II DTV Sheet003 RIN1 Sheet 002 YIN0 CLKOA UVIN7 HSIA UVIN4 Sheet 002 UVIN2 VSIA UVIN3 CLKIA PB/C UVIN5 UVIN0 UVIN6 YIN YIN9 PR UVIN1 RX_WS TVDD YIN7 RX_SCK YIN5 CN_to_H Sheet007 CN_to_H Sheet007 YIN6 YIN8 GC3FS-n Sheet004 DTV Sheet011 Euro NONUSE Euro USE 3 2 TC-32LX70D 46 13.22.DG 板 (12/12) 线路图 1 2 3 7 8 9 A B C D E F ��������������� ���������� ���������� ��������������� 4 5 6 ! DG� TNPA4293FU(12/12) Sheet011:LVDS_OUT CRNo:4800~4999 + G G G G G G AD_SCL1 SCL AD_SCL3 AD_SCL2 AD_SDA2 AD_SDA1 SDA AD_SDA3 0V AG_PWM_POW_ON LCD_PWM_K GUARD VI2P21 VMUTE LCD_PWM_D GUARD VI2P10 AG_TV_SUB_ON AG_ALL_OFF AG_DTV_VOUTENB AG_INVERTER_ON AG_INVERTER_SOS AG_PWM_POW_ON PANEL_MUTE PANEL_STBY/VCC_ON AG_ECO_ON AG_FAN_SOS AG_FAN_MAX AG_INVERTER_ON AG_INVERTER_SOS AD_SCL3 AD_SDA3 AD_SCL1 AD_SDA1 AD_SCL2 AD_SDA2 SDA SCL VMUTE PANEL_STBY/VCC_ON *Q4201 2SB0709ASL AG_PWM_POW_ON *R4855 0 *L4800 G1C100KA0008 TD1P *R4876 0 TCLK1P TCLK1N C AD_SDA2 *Q4802 2SC39380QL C AD_SCL3 *DG26 K1KA06AA0104 B6B-ZR-SM4-TFT(LF)(SN) 1 2 3 4 5 6 TA1N C *R4871 0 STB5V C AD_SCL1 TB1N *C4203 16V 0.1u MAIN3.3V *R4805 10k C TP4807 TP4806 C TP4811 *R4814 10k *C4806 25V 0.01u TP4800 TD1N TP4804 TP4801 LCD_PWM_K *R4274 10k *R4279 1k AG_ALL_OFF AG_SRQ-GENX C *R4806 10k C AG_FAN_MAX *R4868 0 *R4853 0 LCD_PWM_D *Q4200 2SD0601ASL *R4838 100 AD_SCL2 TP4803 VI2P10 *Q4803 2SD0601ASL TP4805 *C4802 6.3V 22u TP4802 C *C4803 25V 0.01u C AD_SDA1 FL4800 J0JAD0000028 1 2 3 4 DTV9V TE1P AG_DTV_VOUTENB 1% *R4816 5.11k C ICTRL9V AD_SDA3 *Q4800 2SD0601ASL *L4801 J0JHC0000078 TE1N *D4800 MA3X152K0L *C4805 0.1u 16V C *R4807 10k C FL4802 J0JAD0000028 1 2 3 4 AG_INVERTER_SOS C MAIN3.3V *R4281 10k TB1P TP4810 *C4804 16V 47u AG_ECO_ON *Q4801 2SC39380QL *R4815 1k *R4874 0 *R4808 10k J0HABH000012 *FL4812 C C TP4809 C *R4852 0 *C4801 0.1u 16V *R4870 0 *R4283 3k 1% *R4818 3k SCL *R4811 10k VI2P21 *R4869 0 *R4804 10k AG_FAN_SOS AG_INVERTER_ON TP4451 *C4800 47u 16V *R4809 1k *R4812 10k DG5 K1KB31AA0140 FX15-31S-0.5SV 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 J0HABH000012 *FL4813 TC1P C P12V *R4867 0 PANEL_MUTE DG33 K1KA11AA0153 B11B-PH-SM4-TBT(LF)(SN) 1 2 3 4 5 6 7 8 9 10 11 C AG_TV_SUB_ON FL4801 J0JAD0000028 1 2 3 4 *R4854 0 *R4873 0 TP4808 *R4810 10k TA1P 1% *R4817 3.9k P12V J0HABH000012 *FL4811 C TC1N SDA C TP4812 TP4813 TP4814 TP4816 TP4815 TP4817 TP4818 *C4808 25V 0.01u C 1% *R4813 4.87k L4802 J0JJC0000011 PWM_K ICTRL_VCC GenX4 IIC PWM_K INVERTER_PWM GenX4 Ex IIC HQ1L/FHD to Sheet 009 CURRENT to Sheet 008 to Sheet 008 to Sheet 003 to Sheet 002 Lite2 PANEL_STATUS PANEL_SOS PANEL_STATUS PANEL_SOS to Sheet 003 LITE2 ExBUS/Etc. HQ1L/FHD to Sheet 009 (VMUTE/DISPEN) (Common) (Used PDP) (Used LCD) Terminate in sheet007 Terminate in sheet009 Terminate in sheet009 Terminate in sheet009 Terminate in sheet007 Terminate in sheet007 Terminate in sheet007 SRQ GND STB5V GenX4_SCL GenX4_SDA LITE2_SCL3 LITE2_SDA3 LITE2_SCL1 LITE2_SDA1 LITE2_SCL2 LITE2_SDA2 (GenX4 Loarder/E2PROM) (GenX4 Loarder/E2PROM) (Lite2 E2PROM) (Lite2 E2PROM) (Device Control) (Device Control) (Device Control) (Device Control) RxCLK- FORMAT VCC_12V GND VCC_12V GND GND VCC_12V Rx0+ VCC_12V AUO Rx3+ GND GND Rx2+ RxCLK+ Rx1+ VCC_12V Rx3- GND Rx0- Rx2- Rx1- GND GND GND GND GND GND Rx1+ Rx3- Rx4+ Rx3+ RxCLK- Rx4- Rx2- Rx0- RxCLK+ Rx1- Rx0+ Rx2+ NC NC GND to Sheet 002 Lite2 LVDS OUT TC-32LX70D 47 14 导体图 14.1. P 板 9 8 7 6 F 5 4 3 2 1 E D C B A P�(���) TNPA4116 P�(����) TNPA4116 TC-32LX70D P���� TC-32LX70D P���� P TC-32LX70D 48 14.2. AP 板 � � � � � � � � � � � � � � � �������� ������� ���������� ������ ���������� ������ �� TC-32LX70D 49 � � � � � � � � � � � � � � � ��������� �������� ���������� ������ ���������� ������ �� TC-32LX70D 50 14.3. H 板 � � � � � � � � � � � � � � � ������ �������� ���������� ����� ���������� ����� � TC-32LX70D 51 � � � � � � � � � � � � � � � ������ �������� ���������� ����� ���������� ����� � TC-32LX70D 52 14.4. DG 板 � � � � � � � � � � � � � � � ������� �������� ���������� ������ ���������� ������ �� TC-32LX70D 53 � � � � � � � � � � � � � � � ������� �������� ���������� ������ ���������� ������ �� TC-32LX70D 54 14.5. K 板和 V 板 � � � � � � � � � � � � � � � ������ �������� ������ �������� ������ �������� ������ �������� ���������� ����� ����� ���������� ����� ����� � � TC-32LX70D 55 14.6. G 板 � � � � � � � � � � � � � � � �������� �������� ������� �������� ���������� ����� ���������� ����� � TC-32LX70D 56 15 部品位置和机械部品表 15.1. 部品位置 TC-32LX70D 57 15.2. 包装分解图 TC-32LX70D 58 TC-32LX70D 59 15.3. 机械部件更换表 回路号 部品品番 部品品名 备注 3800A 保护胶带 1 EAS12S14B 扬声器 15 EUR7651130 遥控器 J0KG00000011 磁环 2 K0RB00500016 控制板组件 K1ZZ00001424 连接器 K2CA2YY00017 电源线 K5D502BNA007 保险丝 3 L5EDD8Q00032 LCD 板 21 R6PND/2S 电池 TBL0A8412 胶垫 TBM0A0346 后铭牌 TBM0A0363 侧 AV 指示牌 8 TBM0A0364 后 AV 指示牌 TBM0A0365 HDMI 指示牌 4 TBMA216 商标标牌 5 TBX0A84202 电源键 6 TES0A204 电源键弹簧 TEWA372 衬垫 TEWA496 衬垫 TEWF091 衬垫 TKK0A8533-1 端子盖 7 TKK0A8538 导光板 9 TKP0AB6701 电源按钮支架 11 TKP0AB6801 HDMI 支架 12 TKP0AB6901 侧 AV 支架 TKP0AB7001 高频头支架 13 TKU0A5301 后盖 19 TKX0A3701 底座上盖 18 TKX0A3801 底座盖板 14 TKY0A6901 前壳 TKZ0A8868 LCD 侧面金具 TKZ0A8870 LCD 金具 ( 下 ) TKZ0A8871 壁挂金具 TKZ0A8876 遮挡金具 TMK0A214 无纺布 TMK0A215 无纺布 TMK0A248 无纺布 TMK0A250 无纺布 TMK0A251 无纺布 TMK0A252 无纺布 TMK0A255 无纺布 TMK0A259 无纺布 TMK0A260 无纺布 TMK0A261 无纺布 TMK0A263 无纺布 TMK0A967 海绵条 TMK0A968 海绵条 TMK0A975 海绵条 TMK0A976 垫片 TMM0A519 橡胶垫 28 TPC0A50901 包装箱 23 TPD0A1084 缓冲材上 27 TPD0A2079 缓冲材下 26 TPD0A5043 缓冲材底 22 TPD0A5045 缓冲材中 24 TPE0A4052 保护膜 25 TPE0A4053 包装袋 16 TQB0A1192 说明书 TQD0A12008 合格票 TQD0A18007-1 保修证 TQE0A510 塑料袋 17 TUX0A145 支架 10 TUX0A146 安装板 20 TUX0A147 底板 TC-32LX70D 60 16 更换部件表 16.1. 注意事项 TC-32LX70D 61 16.2. 电子部件更换表 16.2.1. 集成电路 16.2.2. 三极管 16.2.3. 二极管 回路号 部品品番 部品品名 备注 IC801 C0DABYY00008 集成电路 IC802 C0DAAMA00003 集成电路 IC1100 MNZSFD7GP42 集成电路 IC1101 C3EBFC000042 集成电路 IC2008 C0CBCBE00001 集成电路 IC2010 C0CBCBC00190 集成电路 IC2011 C0ABBB000230 集成电路 IC2012 C1BB00000947 集成电路 IC2013 C0DBGYY00281 集成电路 IC2105 AN15862A-VT 集成电路 IC2106 C1AB00002746 集成电路 IC2107 C0DBFFD00003 集成电路 IC2301 C1AB00002730 集成电路 IC2303 C0DBGYY00202 集成电路 IC2610 C0DBAJB00004 集成电路 IC3001 AN15876A-VT 集成电路 IC4500 C3EBDC000067 集成电路 IC4501 C3EBDC000067 集成电路 IC4504 C3EBEY000009 集成电路 IC4506 C0DBGGF00001 集成电路 IC4507 C0CBCBC00190 集成电路 IC4508 C0CBCAD00082 集成电路 IC4509 C0CBCAD00082 集成电路 IC4510 C1AB00002753 集成电路 IC4513 C0JBAU000034 集成电路 IC4514 C0JBAU000034 集成电路 IC4515 C0BBBA000024 集成电路 IC5600 C0DBAYY00273 集成电路 IC5601 C0DBAYY00274 集成电路 IC5660 C0EBM0000026 集成电路 IC5670 C0CBCBC00190 集成电路 IC5671 C0EBF0000376 集成电路 IC7301 C0DAAZH00025 集成电路 IC7401 C0DAAZH00026 集成电路 IC7501 C0DAAZH00026 集成电路 IC7701 C0DAAZG00014 集成电路 IC8001 MN2WS0039A 集成电路 IC8002 C3ABRY000015 集成电路 IC8003 C3ABRY000015 集成电路 IC8004 C0ZBZ0001030 集成电路 IC8554 C3FBQD000024 集成电路 IC8554 TVRP383-1 集成电路 （订购品番） IC8601 C3EBGC000066 集成电路 IC8621 C0JBAZ002845 集成电路 IC8622 C0JBAZ002845 集成电路 PC801 CNC1S171R 集成电路 回路号 部品品番 部品品名 备注 Q801 2SB0709ASL 三极管 Q802 2SD0601ASL 三极管 Q1002 2SB0709ASL 三极管 Q1004 2SB0709ASL 三极管 Q1006 2SD0601ASL 三极管 Q1007 2SD0601ASL 三极管 Q1010 2SD0601ASL 三极管 Q1107 2SD0601ASL 三极管 Q1108 2SD0601ASL 三极管 Q2002 2SC584500L 三极管 Q2003 2SC584500L 三极管 Q2015 2SA207700L 三极管 Q2016 2SC584500L 三极管 Q2017 2SC584500L 三极管 Q2021 2SA207700L 三极管 Q2031 2SA207700L 三极管 Q2033 2SA207700L 三极管 Q2034 2SC584500L 三极管 Q2035 2SC584500L 三极管 Q2039 2SC584500L 三极管 Q2040 2SC584500L 三极管 Q2041 2SC584500L 三极管 Q2101 2SC584500L 三极管 Q2102 2SC584500L 三极管 Q2301 2SA207700L 三极管 Q2635 2SC584500L 三极管 Q2636 2SA207700L 三极管 Q2637 2SA207700L 三极管 Q2638 2SC584500L 三极管 Q2639 B1CFNG000001 三极管 Q2640 B1CBHD000002 三极管 Q2641 B1CBHD000002 三极管 Q3200 2SA207700L 三极管 Q4200 2SD0601ASL 三极管 Q4201 2SB0709ASL 三极管 Q4500 2SD0601ASL 三极管 Q4501 2SD0601ASL 三极管 Q4502 2SD0601ASL 三极管 Q4503 2SD0601ASL 三极管 Q4504 2SD0601ASL 三极管 Q4505 2SD0601ASL 三极管 Q4514 2SB0709ASL 三极管 Q4515 2SB0709ASL 三极管 Q4516 2SB0709ASL 三极管 Q4517 2SB0709ASL 三极管 Q4800 2SD0601ASL 三极管 Q4801 2SC39380QL 三极管 Q4802 2SC39380QL 三极管 Q4803 2SD0601ASL 三极管 Q5600 B1MBEDA00015 三极管 Q5601 B1MBEDA00015 三极管 Q5602 B1MBEDA00015 三极管 Q5603 2SD0601ASL 三极管 Q5604 2SD0601ASL 三极管 Q5690 B1ABCF000138 三极管 Q5691 B1ABCF000138 三极管 Q5692 B1DHDC000028 三极管 Q5693 B1DHDC000028 三极管 Q7201 2SD0601ASL 三极管 Q7202 2SB0709ASL 三极管 Q7203 2SB0709ASL 三极管 Q7204 2SD0601ASL 三极管 Q7205 2SD0601ASL 三极管 Q7206 2SB0709ASL 三极管 Q7208 2SD0601ASL 三极管 Q7209 2SD0601ASL 三极管 Q7210 2SD0601ASL 三极管 Q7211 2SD0601ASL 三极管 Q7212 2SD0601ASL 三极管 Q7301 2SD0601A0L 三极管 Q7302 2SD0601A0L 三极管 Q7401 2SD0601A0L 三极管 Q7402 2SD0601A0L 三极管 Q7501 2SD0601A0L 三极管 Q7502 2SD0601A0L 三极管 Q7551 B1DHDD000033 三极管 Q7552 2SC584500L 三极管 Q7553 2SC584500L 三极管 Q7701 2SD0601ASL 三极管 Q7702 2SD0601ASL 三极管 Q7703 2SD0601ASL 三极管 Q8851 2SD0601ASL 三极管 Q8852 2SD0601ASL 三极管 Q8853 2SD0601ASL 三极管 回路号 部品品番 部品品名 备注 D801 B0FBAT000008 二极管 D802 B0EBKT000007 二极管 D803 ERZV10V621T2 二极管 D804 ERZV10V621T2 二极管 D811 B0HCMM000014 二极管 D812 B0HCMM000014 二极管 D813 MA2J11100L 二极管 D814 MAZ82400ML 二极管 D815 MAZ83600ML 二极管 D816 MAZ83600ML 二极管 回路号 部品品番 部品品名 备注 TC-32LX70D 62 16.2.4. 线圈 D817 MAZ80560ML 二极管 D818 MAZ41000MF 二极管 D819 B0BA42500001 二极管 D820 B0ZAZ0000045 二极管 D821 B0JCNG000003 二极管 D822 MA2J11100L 二极管 D823 MA2J11100L 二极管 D824 B0BA03600021 二极管 D825 B0BA03600021 二极管 D1001 B3CKE0000007 二极管 D1107 MA3X704A0L 二极管 D1112 MA2J72800L 二极管 D1113 MA2J72800L 二极管 D2026 MA2J11100L 二极管 D2028 MA2J11100L 二极管 D2029 MA2J11100L 二极管 D2031 MA2J11100L 二极管 D2032 MA2J11100L 二极管 D2033 MA2J11100L 二极管 D2034 MA2J11100L 二极管 D2119 B0BC01100001 二极管 D2189 MA2J11100L 二极管 D2301 MA2J11100L 二极管 D2302 MA2J11100L 二极管 D2303 MAZ30560HL 二极管 D2304 MA2J11100L 二极管 D2632 MA2J11100L 二极管 D2633 MA2J11100L 二极管 D2634 MA3X78900L 二极管 D2635 MA2J11100L 二极管 D2636 MAZ30470HL 二极管 D2637 MA2J11100L 二极管 D2638 B0BC03900015 二极管 D3003 MAZ81400ML 二极管 D3005 MAZ81400ML 二极管 D3006 MAZ81400ML 二极管 D3035 MAZ81400ML 二极管 D3036 MAZ81400ML 二极管 D3037 MAZ81400ML 二极管 D3038 MAZ81400ML 二极管 D3039 MAZ81400ML 二极管 D3040 MAZ81400ML 二极管 D3041 MAZ81400ML 二极管 D3042 MAZ81400ML 二极管 D3043 MAZ81400ML 二极管 D3044 B0BC01100001 二极管 D3045 MAZ81400ML 二极管 D3046 MAZ81400ML 二极管 D3047 MAZ81400ML 二极管 D3048 MAZ81400ML 二极管 D3049 MAZ81400ML 二极管 D3100 MAZ81400ML 二极管 D3102 MA2J11100L 二极管 D3334 MA2J11100L 二极管 D3335 MA2J11100L 二极管 D3336 MA2J11100L 二极管 D3337 MA2J11100L 二极管 D3338 MA2J11100L 二极管 D4500 EZAEG2A50AX 二极管 D4501 EZAEG2A50AX 二极管 D4502 EZAEG2A50AX 二极管 D4503 EZAEG2A50AX 二极管 D4504 EZAEG2A50AX 二极管 D4505 EZAEG2A50AX 二极管 D4506 EZAEG2A50AX 二极管 D4507 EZAEG2A50AX 二极管 D4508 EZAEG2A50AX 二极管 D4509 EZAEG2A50AX 二极管 D4510 EZAEG2A50AX 二极管 D4511 EZAEG2A50AX 二极管 D4512 EZAEG2A50AX 二极管 D4513 MAZ30560ML 二极管 D4514 EZAEG2A50AX 二极管 D4515 MAZ30560ML 二极管 D4516 EZAEG2A50AX 二极管 D4517 EZAEG2A50AX 二极管 D4518 EZAEG2A50AX 二极管 回路号 部品品番 部品品名 备注 D4519 EZAEG2A50AX 二极管 D4520 EZAEG2A50AX 二极管 D4521 EZAEG2A50AX 二极管 D4522 EZAEG2A50AX 二极管 D4523 EZAEG2A50AX 二极管 D4524 B0HCMM000014 二极管 D4525 B0HCMM000014 二极管 D4526 B0HCMM000014 二极管 D4527 B0HCMM000014 二极管 D4528 EZAEG2A50AX 二极管 D4532 B0HCMM000014 二极管 D4800 MA3X152K0L 二极管 D5601 MA22D3900L 二极管 D5602 MA22D3900L 二极管 D5603 B0JCDD000002 二极管 D5604 B0JCDD000002 二极管 D5605 MA22D3900L 二极管 D5606 B0JCDD000002 二极管 D5607 MAZ802400L 二极管 D5608 MAZ802400L 二极管 D5609 MAZ80560LL 二极管 D5670 MA2J11100L 二极管 D5671 B0HCMM000014 二极管 D5673 B0HCMM000014 二极管 D5690 B0BC6R600005 二极管 D5691 B0BC6R600005 二极管 D5692 MAZ80390HL 二极管 D7101 MAZ82700ML 二极管 D7102 MA2J11100L 二极管 D7202 MAZ81500ML 二极管 D7204 MA2J11100L 二极管 D7205 MAZ81800ML 二极管 D7207 MA2J11100L 二极管 D7208 MA2J11100L 二极管 D7209 MA2J11100L 二极管 D7210 MA2J11100L 二极管 D7211 MA2J11100L 二极管 D7212 MA2J11100L 二极管 D7301 B0JCPG000005 二极管 D7303 B0HCMM000014 二极管 D7305 MA2J11100L 二极管 D7306 MAZ82000ML 二极管 D7401 B0JCPG000005 二极管 D7403 B0HCMM000014 二极管 D7405 MAZ80750ML 二极管 D7406 MA2J11100L 二极管 D7501 B0JCPG000005 二极管 D7503 B0HCMM000014 二极管 D7505 MAZ81100ML 二极管 D7506 MA2J11100L 二极管 D7702 B0JCPG000005 二极管 D7703 B0HCMM000014 二极管 D7704 MAZ81800ML 二极管 D7705 MA2J11100L 二极管 回路号 部品品番 部品品名 备注 L1100 J0JHC0000078 线圈 L2001 J0JCC0000364 线圈 L2002 J0JCC0000364 线圈 L2003 J0JCC0000100 线圈 L2004 J0JCC0000100 线圈 L2007 J0JCC0000100 线圈 L2008 J0JCC0000100 线圈 L2011 J0JCC0000100 线圈 L2012 J0JCC0000100 线圈 L2015 J0JCC0000100 线圈 L2016 J0JCC0000100 线圈 L2021 J0JHC0000078 线圈 L2022 D0GBR00Z0002 M 0 OHM J 1/16W L2026 G1C6R8MA0061 线圈 L2027 J0JHC0000045 线圈 L2029 J0JCC0000077 线圈 L2034 J0JCC0000364 线圈 L2035 J0JCC0000364 线圈 回路号 部品品番 部品品名 备注 TC-32LX70D 63 16.2.5. 电阻 L2039 J0JHC0000045 线圈 L2040 J0JHC0000045 线圈 L2300 G1C100MA0291 线圈 L2302 G1C100MA0291 线圈 L2304 G1C100MA0291 线圈 L2306 G1C100MA0291 线圈 L2308 J0JJC0000011 线圈 L2310 J0JJC0000011 线圈 L2648 G1C470MA0077 线圈 L2649 G1C100MA0072 线圈 L2650 G1C3R3ZA0083 线圈 L3001 J0JCC0000100 线圈 L3002 J0JCC0000100 线圈 L3003 J0JCC0000100 线圈 L3010 J0JCC0000100 线圈 L3013 J0JCC0000100 线圈 L3206 J0JCC0000241 线圈 L3207 J0JCC0000241 线圈 L3209 J0JGC0000021 线圈 L3211 J0JGC0000021 线圈 L3225 J0JCC0000241 线圈 L3226 J0JCC0000241 线圈 L3700 J0JCC0000100 线圈 L3701 J0JCC0000100 线圈 L3702 J0JCC0000364 线圈 L3703 J0JCC0000364 线圈 L4500 J0JHC0000078 线圈 L4501 J0JHC0000078 线圈 L4502 J0JHC0000078 线圈 L4503 J0JHC0000078 线圈 L4504 J0JHC0000078 线圈 L4505 J0JHC0000078 线圈 L4506 J0JHC0000078 线圈 L4507 J0JHC0000078 线圈 L4511 J0JHC0000078 线圈 L4512 J0JCC0000077 线圈 L4516 J0JHC0000078 线圈 L4517 J0JHC0000078 线圈 L4518 J0JHC0000078 线圈 L4520 J0JHC0000078 线圈 L4521 J0JHC0000078 线圈 L4524 J0JHC0000078 线圈 L4800 G1C100KA0008 线圈 L4801 J0JHC0000078 线圈 L4802 J0JJC0000011 线圈 L5600 G1C2R2ZA0083 线圈 L5601 G1C2R2ZA0083 线圈 L5602 G1C3R3ZA0083 线圈 L5604 G1C100MA0077 线圈 L5605 J0JHC0000075 线圈 L5606 G1C100MA0077 线圈 L5610 J0JHC0000035 线圈 L5611 J0JHC0000035 线圈 L5670 J0JHC0000078 线圈 L5690 J0JHC0000078 线圈 L5691 J0JHC0000078 线圈 L5692 J0JHC0000075 线圈 L5735 J0JHC0000078 线圈 L7201 G0A680GA0002 线圈 L7302 G0A680ZA0037 线圈 L7304 EXCELDR25V 扼流线圈 L7402 G0A101ZA0038 线圈 L7403 EXCELDR25V 扼流线圈 L7502 G0A470ZA0037 线圈 L7504 EXCELDR25V 扼流线圈 L7551 G0A100GA0013 线圈 L7702 G0A101ZA0038 线圈 L7903 G0A100GA0013 线圈 L7904 G0A100GA0013 线圈 L7905 G0A100GA0013 线圈 L8001 J0JHC0000045 线圈 L8002 J0JHC0000045 线圈 L8003 J0JHC0000045 线圈 L8004 J0JHC0000045 线圈 L8005 J0JHC0000045 线圈 L8006 D0GBR00Z0002 M 0 OHM J 1/16W L8007 J0JHC0000045 线圈 回路号 部品品番 部品品名 备注 L8008 J0JHC0000045 线圈 L8009 J0JHC0000045 线圈 L8010 J0JHC0000045 线圈 L8551 J0JHC0000075 线圈 L8621 J0JHC0000075 线圈 LF801 G0B103H00002 线圈 LF802 G0B103H00002 线圈 FL2001 J0HABB000004 线圈 FL2002 J0HABB000004 线圈 FL2003 J0HABB000003 线圈 FL2004 J0HABB000003 线圈 FL2005 J0HABB000003 线圈 FL2006 J0HABB000003 线圈 FL3001 J0HABB000003 线圈 FL3002 J0HABB000003 线圈 FL3003 J0HABB000004 线圈 FL3004 J0HABB000004 线圈 FL3005 J0HABB000004 线圈 FL3006 J0JAD0000028 线圈 FL3007 J0JAD0000028 线圈 FL3008 J0HABB000003 线圈 FL4800 J0JAD0000028 线圈 FL4801 J0JAD0000028 线圈 FL4802 J0JAD0000028 线圈 FL4811 J0HABH000012 线圈 FL4812 J0HABH000012 线圈 FL4813 J0HABH000012 线圈 FL5731 J0HABH000013 线圈 FL5733 J0HABH000013 线圈 FL5734 J0HABH000013 线圈 回路号 部品品番 部品品名 备注 R801 ERC12ZGK105V S 1M OHM K 1/2W R802 D0XB106J0003 10M OHM 1W R811 ERJ6GEYJ4R7V M 4.7 OHM J 1/10W R812 ERF2AJ100P W 10 OHM J 2W R813 ERJ6GEYJ4R7V M 4.7 OHM J 1/10W R814 ERJ6GEYJ104V M 100K OHM J 1/10W R815 ERJ6GEYJ104V M 100K OHM J 1/10W R816 ERJ6GEYJ101V M 100 OHM J 1/10W R817 ERJ6GEYJ102V M 1K OHM J 1/10W R818 ERJ6GEYJ102V M 1K OHM J 1/10W R819 ERJ6GEYJ102V M 1K OHM J 1/10W R820 ERJ6GEYJ102V M 1K OHM J 1/10W R821 RSS1L271J M 270 OHM J 1W R822 D1BD6801A044 M 6.8K OHM 1/10W R823 D1BD6801A044 M 6.8K OHM 1/10W O R824 ERJ6GEYJ332V M 3.3K OHM J 1/10W R825 ERJ6GEYJ330V M 33 OHM J 1/10W R826 ERJ6GEYJ102V M 1K OHM J 1/10W R827 ERJ6GEYJ222V M 2.2K OHM J 1/10W R828 RSS1L271J M 270 OHM J 1W R1002 D0GB473JA041 M 47K OHM J 1/16W R1003 D0GB102JA041 M 1K OHM J 1/16W R1006 D0GB681JA041 M 680 0HM J 1/16W R1008 D0GB473JA041 M 47K OHM J 1/16W R1010 D0GB473JA041 M 47K OHM J 1/16W R1015 D0GB103JA041 M 10K OHM J 1/16W R1017 D0GB103JA041 M 10K OHM J 1/16W R1019 D0GB103JA041 M 10K OHM J 1/16W R1020 D0GB103JA041 M 10K OHM J 1/16W R1022 D0GB152JA041 M 1.5K OHM J 1/16W R1028 D0GB470JA041 M 47 OHM J 1/16W R1033 ERJ3EKF2402V M 2.4K OHM F 1/16W R1034 ERJ3EKF5102V M 51K OHM F 1/16W R1046 D0GB223JA041 M 22K OHM J 1/16W R1048 D0GB224JA041 M 220K OHM J 1/16W R1049 D0GB473JA041 M 47K OHM J 1/16W R1100 ERJ2GEJ101X M 100 OHM J 1/4W R1102 ERJ2GEJ101X M 100 OHM J 1/4W R1103 ERJ2GEJ330X M 33 OHM J 1/4W R1104 ERJ2GEJ473X M 47K OHM J R1105 ERJ2GEJ101X M 100 OHM J 1/4W R1106 ERJ2GEJ101X M 100 OHM J 1/4W 回路号 部品品番 部品品名 备注 TC-32LX70D 64 R1107 ERJ2GEJ101X M 100 OHM J 1/4W R1108 ERJ2GEJ101X M 100 OHM J 1/4W R1109 ERJ2GEJ101X M 100 OHM J 1/4W R1122 ERJ2GEJ473X M 47K OHM J R1124 ERJ2GEJ220X M 22 OHM J 1/4W R1125 ERJ2GEJ220X M 22 OHM J 1/4W R1134 ERJ2GEJ101X M 100 OHM J 1/4W R1144 ERJ2GEJ473X M 47K OHM J R1146 ERJ2GEJ102X M 1K OHM J 1/4W R1147 ERJ2GEJ473X M 47K OHM J R1153 ERJ2GEJ821X M 820 OHM J 1/4W R1162 ERJ2GEJ101X M 100 OHM J 1/4W R1163 ERJ2GEJ105X M 1M OHM J 1/4W R1164 ERJ2GEJ103X M 10K OHM J 1/4W R1165 ERJ2GEJ182X M 1.8K OHM J 1/4W R1166 ERJ2GEJ104X M 100K OHM J 1/4W R1169 ERJ2GEJ563X M 56K OHM J 1/4W R1170 ERJ2GEJ273X M 27K OHM J 1/4W R1171 ERJ2GEJ563X M 56K OHM J 1/4W R1172 ERJ2GEJ273X M 27K OHM J 1/4W R1173 ERJ6GEYJ201V M 200 OHM J 1/10W R1174 ERJ2GEJ220X M 22 OHM J 1/4W R1175 ERJ2GEJ220X M 22 OHM J 1/4W R1179 ERJ2GEJ101X M 100 OHM J 1/4W R1181 ERJ2GEJ101X M 100 OHM J 1/4W R1182 ERJ2GEJ273X M 27K OHM J 1/4W R1183 ERJ2GEJ220X M 22 OHM J 1/4W R1184 ERJ2GEJ220X M 22 OHM J 1/4W R1185 ERJ2GEJ101X M 100 OHM J 1/4W R1186 ERJ2GEJ101X M 100 OHM J 1/4W R1194 ERJ2GEJ563X M 56K OHM J 1/4W R1195 ERJ2GEJ104X M 100K OHM J 1/4W R1196 ERJ2GEJ333X M 33K OHM J 1/4W R1199 ERJ2GEJ473X M 47K OHM J R1200 ERJ2GEJ562X M 5.6K OHM J 1/4W R1201 ERJ2GEJ562X M 5.6K OHM J 1/4W R1203 ERJ2GEJ473X M 47K OHM J R1205 ERJ2GEJ220X M 22 OHM J 1/4W R1206 ERJ2GEJ220X M 22 OHM J 1/4W R1209 ERJ2GEJ473X M 47K OHM J R1216 ERJ2GEJ333X M 33K OHM J 1/4W R1217 ERJ2GEJ563X M 56K OHM J 1/4W R1218 ERJ2GEJ103X M 10K OHM J 1/4W R1219 ERJ2GEJ103X M 10K OHM J 1/4W R1220 ERJ2GEJ103X M 10K OHM J 1/4W R1221 ERJ3EKF7151V M 7.15K OHM F 1/16W R1222 ERJ2GEJ473X M 47K OHM J R1223 ERJ2GEJ473X M 47K OHM J R1224 ERJ2GEJ473X M 47K OHM J R1225 ERJ2GEJ473X M 47K OHM J R1226 ERJ2GEJ473X M 47K OHM J R1227 ERJ2GEJ473X M 47K OHM J R1228 ERJ2GEJ473X M 47K OHM J R1229 ERJ2GEJ101X M 100 OHM J 1/4W R1231 ERJ2GEJ473X M 47K OHM J R1232 ERJ2GEJ473X M 47K OHM J R1233 ERJ2GEJ473X M 47K OHM J R1234 ERJ2GEJ473X M 47K OHM J R1235 ERJ2GEJ104X M 100K OHM J 1/4W R1236 ERJ2GEJ473X M 47K OHM J R1237 ERJ2GEJ473X M 47K OHM J R1239 ERJ2GEJ101X M 100 OHM J 1/4W R1241 ERJ2GEJ101X M 100 OHM J 1/4W R1244 ERJ2GEJ473X M 47K OHM J R1245 ERJ2GEJ473X M 47K OHM J R1246 ERJ2GEJ473X M 47K OHM J R1247 ERJ2GEJ473X M 47K OHM J R1250 ERJ2GEJ473X M 47K OHM J R1255 ERJ2GEJ102X M 1K OHM J 1/4W R1263 ERJ2GEJ473X M 47K OHM J R2010 ERJ2GEJ473X M 47K OHM J R2011 ERJ2GEJ473X M 47K OHM J R2012 ERJ2GEJ473X M 47K OHM J R2013 ERJ2GEJ473X M 47K OHM J R2014 ERJ2GEJ473X M 47K OHM J R2015 ERJ2GEJ473X M 47K OHM J R2016 ERJ2GEJ473X M 47K OHM J 回路号 部品品番 部品品名 备注 R2017 ERJ2GEJ473X M 47K OHM J R2018 ERJ2GEJ473X M 47K OHM J R2019 ERJ2GEJ473X M 47K OHM J R2020 ERJ2GEJ473X M 47K OHM J R2021 ERJ2GEJ473X M 47K OHM J R2022 ERJ2GEJ473X M 47K OHM J R2023 ERJ2GEJ473X M 47K OHM J R2025 ERJ2GEJ473X M 47K OHM J R2029 ERJ6GEYJ184V M 180K OHM J 1/10W R2030 ERJ6GEYJ184V M 180K OHM J 1/10W R2031 ERJ6GEYJ184V M 180K OHM J 1/10W R2032 ERJ6GEYJ184V M 180K OHM J 1/10W R2033 ERJ6GEYJ184V M 180K OHM J 1/10W R2034 ERJ6GEYJ184V M 180K OHM J 1/10W R2047 D0GB331JA041 M 330 OHM J 1/16W R2048 D0GB222JA041 M 2.2K OHM J 1/16W R2049 D0GB331JA041 M 330 OHM J 1/16W R2050 D0GB222JA041 M 2.2K OHM J 1/16W R2051 ERJ6GEYJ184V M 180K OHM J 1/10W R2052 ERJ6GEYJ184V M 180K OHM J 1/10W R2053 D0GB104JA041 M 100K OHM J 1/16W R2054 D0GB104JA041 M 100K OHM J 1/16W R2056 D0GB220JA041 M 22 OHM J 1/16W R2057 D0GB220JA041 M 22 OHM J 1/16W R2058 D0GB301JA041 M 300 OHM J 1/16W R2059 D0GB105JA041 M 1M OHM F 1/16W R2084 D0GB472JA041 M 4.7K OHM J 1/16W R2085 D0GB561JA041 M 560 OHM J 1/16W R2086 D0GB471JA041 M 470 OHM J 1/16W R2088 D0GB101JA041 M 100 OHM J 1/16W R2089 D0GB561JA041 M 560 OHM J 1/16W R2092 D0GB471JA041 M 470 OHM J 1/16W R2093 D0GB332JA041 M 3.3K OHM J 1/16W R2094 D0GB222JA041 M 2.2K OHM J 1/16W R2096 D0GB103JA041 M 10K OHM J 1/16W R2097 D0GB332JA041 M 3.3K OHM J 1/16W R2098 D0GB103JA041 M 10K OHM J 1/16W R2099 D0GB103JA041 M 10K OHM J 1/16W R2100 ERJ3EKF2002V M 20K OHM F 1/16W R2104 ERJ3EKF2001V M 2K OHM F 1/16W R2110 D0GB103JA041 M 10K OHM J 1/16W R2111 D0GB101JA041 M 100 OHM J 1/16W R2112 D0GB105JA041 M 1M OHM F 1/16W R2113 ERJ3EKF1203V M 120K OHM F 1/16W R2114 ERJ3EKF7502V M 75K OHM F 1/16W R2118 D0GB105JA041 M 1M OHM F 1/16W R2119 D0GB103JA041 M 10K OHM J 1/16W R2122 D0GB103JA041 M 10K OHM J 1/16W R2123 D0GB473JA041 M 47K OHM J 1/16W R2124 D0GB103JA041 M 10K OHM J 1/16W R2125 D0GB222JA041 M 2.2K OHM J 1/16W R2127 D0GB103JA041 M 10K OHM J 1/16W R2128 D0GB102JA041 M 1K OHM J 1/16W R2129 D0GB103JA041 M 10K OHM J 1/16W R2131 D0GB103JA041 M 10K OHM J 1/16W R2132 D0GB473JA041 M 47K OHM J 1/16W R2137 D0GB221JA041 M 220 OHM J 1/16W R2138 D0GB221JA041 M 220 OHM J 1/16W R2144 D0GB103JA041 M 10K OHM J 1/16W R2145 ERJ3EKF2002V M 20K OHM F 1/16W R2146 ERJ3EKF2002V M 20K OHM F 1/16W R2149 D0GB103JA041 M 10K OHM J 1/16W R2150 ERJ3EKF2002V M 20K OHM F 1/16W R2151 ERJ3EKF2002V M 20K OHM F 1/16W R2152 D0GB220JA041 M 22 OHM J 1/16W R2154 D0GB220JA041 M 22 OHM J 1/16W R2156 D0GB680JA041 M 68 OHM J 1/16W R2160 D0GB221JA041 M 220 OHM J 1/16W R2162 D0GB221JA041 M 220 OHM J 1/16W R2164 D0GB221JA041 M 220 OHM J 1/16W R2165 D0GB103JA041 M 10K OHM J 1/16W R2166 ERJ3EKF1602V M 16K OHM F 1/16W R2167 D0GB221JA041 M 220 OHM J 1/16W R2168 ERJ3EKF1602V M 16K OHM F 1/16W R2169 ERJ3EKF2202V M 22K OHM F 1/16W R2170 D0GB221JA041 M 220 OHM J 1/16W R2171 D0GB221JA041 M 220 OHM J 1/16W 回路号 部品品番 部品品名 备注 TC-32LX70D 65 R2172 D0GB221JA041 M 220 OHM J 1/16W R2173 D0GB221JA041 M 220 OHM J 1/16W R2174 D0GB221JA041 M 220 OHM J 1/16W R2175 D0GB221JA041 M 220 OHM J 1/16W R2178 D0GB102JA041 M 1K OHM J 1/16W R2179 D0GB103JA041 M 10K OHM J 1/16W R2180 D0GB101JA041 M 100 OHM J 1/16W R2181 ERJ3EKF2202V M 22K OHM F 1/16W R2182 ERJ3EKF3602V M 36K OHM F 1/16W R2183 ERJ3EKF3602V M 36K OHM F 1/16W R2184 ERJ6GEYJ101V M 100 OHM J 1/10W R2185 ERJ6GEYJ101V M 100 OHM J 1/10W R2186 D0GB823JA041 M 82K OHM J 1/16W R2189 D0GB103JA041 M 10K OHM J 1/16W R2192 D0GB104JA041 M 100K OHM J 1/16W R2193 D0GB104JA041 M 100K OHM J 1/16W R2194 D0GB102JA041 M 1K OHM J 1/16W R2195 D0GB104JA041 M 100K OHM J 1/16W R2196 D0GB104JA041 M 100K OHM J 1/16W R2197 ERJ3EKF6802V M 68K OHM F 1/16W R2198 ERJ3EKF1583V M 138K OHM F 1/16W R2204 D0GB333JA041 M 33K OHM J 1/16W R2205 D0GB203JA041 M 20K OHM F 1/16W R2206 D0GB103JA041 M 10K OHM J 1/16W R2208 D0GB103JA041 M 10K OHM J 1/16W R2209 D0GB103JA041 M 10K OHM J 1/16W R2210 D0GB103JA041 M 10K OHM J 1/16W R2216 D0GB103JA041 M 10K OHM J 1/16W R2217 D0GB473JA041 M 47K OHM J 1/16W R2233 D0GB103JA041 M 10K OHM J 1/16W R2235 D0GB473JA041 M 47K OHM J 1/16W R2236 D0GB153JA041 M 15K OHM J 1/16W R2237 D0GB153JA041 M 15K OHM J 1/16W R2238 D0GB473JA041 M 47K OHM J 1/16W R2265 D0GB472JA041 M 4.7K OHM J 1/16W R2266 D0GB561JA041 M 560 OHM J 1/16W R2271 EXB28V220JX 4 联电阻 22 OHM R2276 D0GB103JA041 M 10K OHM J 1/16W R2301 D0GB222JA041 M 2.2K OHM J 1/16W R2302 D0GB222JA041 M 2.2K OHM J 1/16W R2305 D0GB471JA041 M 470 OHM J 1/16W R2306 D0GB683JA041 M 68K OHM J 1/16W R2308 ERJ8GEYJ3R3V M 3.3 OHM J 1/10W R2311 ERJ8GEYJ3R3V M 3.3 OHM J 1/10W R2313 ERJ8GEYJ3R3V M 3.3 OHM J 1/10W R2315 ERJ8GEYJ3R3V M 3.3 OHM J 1/10W R2317 ERJ6GEYJ100V M 10 OHM J 1/10W R2319 ERJ6GEYJ100V M 10 OHM J 1/10W R2321 ERJ6GEYJ100V M 10 OHM J 1/10W R2323 ERJ6GEYJ100V M 10 OHM J 1/10W R2325 ERJ6GEYJ100V M 10 OHM J 1/10W R2330 D0GB102JA041 M 1K OHM J 1/16W R2331 D0GB222JA041 M 2.2K OHM J 1/16W R2624 D0GB220JA041 M 22 OHM J 1/16W R2625 D0GB220JA041 M 22 OHM J 1/16W R2628 D0GB512JA041 M 5.1K OHM J 1/16W R2629 D0GB512JA041 M 5.1K OHM J 1/16W R2853 D0GB103JA041 M 10K OHM J 1/16W R2854 D0GB222JA041 M 2.2K OHM J 1/16W R2855 D0GB473JA041 M 47K OHM J 1/16W R2856 K5H1622A0023 保险丝 R2857 D0GB472JA041 M 4.7K OHM J 1/16W R2858 D0GB222JA041 M 2.2K OHM J 1/16W R2859 D0GB472JA041 M 4.7K OHM J 1/16W R2860 D0GB103JA041 M 10K OHM J 1/16W R2861 D0GB102JA041 M 1K OHM J 1/16W R2863 D0GB102JA041 M 1K OHM J 1/16W R2864 D0GB682JA041 M 6.8K OHM J 1/16W R2865 D0GB103JA041 M 10K OHM J 1/16W R2866 D0GB222JA041 M 2.2K OHM J 1/16W R2867 D1BD8202A044 M 82K OHM 1/10W R2868 D1BD1602A044 M 16K OHM 1/10W R2869 D0GB472JA041 M 4.7K OHM J 1/16W R2890 D0GB104JA041 M 100K OHM J 1/16W R3001 D1BD75R0A044 M 75 OHM 1/10W R3002 D1BD75R0A044 M 75 OHM 1/10W R3003 D1BD75R0A044 M 75 OHM 1/10W 回路号 部品品番 部品品名 备注 R3004 D1BD75R0A044 M 75 OHM 1/10W R3005 D1BD75R0A044 M 75 OHM 1/10W R3006 D1BD75R0A044 M 75 OHM 1/10W R3007 D1BD75R0A044 M 75 OHM 1/10W R3008 D1BD75R0A044 M 75 OHM 1/10W R3009 D1BD75R0A044 M 75 OHM 1/10W R3010 D1BD75R0A044 M 75 OHM 1/10W R3012 D1BD75R0A044 M 75 OHM 1/10W R3020 D0GB472JA041 M 4.7K OHM J 1/16W R3021 D0GB472JA041 M 4.7K OHM J 1/16W R3022 D0GB472JA041 M 4.7K OHM J 1/16W R3059 D0GB221JA041 M 220 OHM J 1/16W R3062 D0GB221JA041 M 220 OHM J 1/16W R3063 D0GB221JA041 M 220 OHM J 1/16W R3064 D0GB221JA041 M 220 OHM J 1/16W R3065 D0GB221JA041 M 220 OHM J 1/16W R3068 D1BD75R0A044 M 75 OHM 1/10W R3069 D0GB221JA041 M 220 OHM J 1/16W R3072 D0GB221JA041 M 220 OHM J 1/16W R3073 D0GB221JA041 M 220 OHM J 1/16W R3074 D0GB221JA041 M 220 OHM J 1/16W R3087 D0GB221JA041 M 220 OHM J 1/16W R3089 D0GB331JA041 M 330 OHM J 1/16W R3090 D0GB220JA041 M 22 OHM J 1/16W R3096 D0GB680JA041 M 68 OHM J 1/16W R3097 D0GB680JA041 M 68 OHM J 1/16W R3098 D0GB680JA041 M 68 OHM J 1/16W R3099 D0GB680JA041 M 68 OHM J 1/16W R3100 D0GB680JA041 M 68 OHM J 1/16W R3101 D0GB680JA041 M 68 OHM J 1/16W R3111 D0GB220JA041 M 22 OHM J 1/16W R3121 D0GB470JA041 M 47 OHM J 1/16W R3123 D0GB470JA041 M 47 OHM J 1/16W R3130 D0GB221JA041 M 220 OHM J 1/16W R3131 D0GB221JA041 M 220 OHM J 1/16W R3133 D0GB220JA041 M 22 OHM J 1/16W R3134 D0GB274JA041 M 270K OHM J 1/16W R3137 ERJ3EKF1000V M 100 0HM F 1/16W R3140 D0GB470JA041 M 47 OHM J 1/16W R3143 D1BD75R0A044 M 75 OHM 1/10W R3145 D0GB104JA041 M 100K OHM J 1/16W R3168 D0GB221JA041 M 220 OHM J 1/16W R3174 D0GB680JA041 M 68 OHM J 1/16W R3175 D0GB680JA041 M 68 OHM J 1/16W R3176 D0GB680JA041 M 68 OHM J 1/16W R3191 D0GB220JA041 M 22 OHM J 1/16W R3233 D1BD75R0A044 M 75 OHM 1/10W R3234 D1BD75R0A044 M 75 OHM 1/10W R3239 D0GB221JA041 M 220 OHM J 1/16W R3240 ERJ3EKF5600V M 560OHM F 1/16W R3243 ERJ6GEYJ271V M 270 OHM J 1/10W R3244 D0GB220JA041 M 22 OHM J 1/16W R3246 D0GB220JA041 M 22 OHM J 1/16W R3247 D0GB221JA041 M 220 OHM J 1/16W R3249 D0GB152JA041 M 1.5K OHM J 1/16W R3266 D0GB152JA041 M 1.5K OHM J 1/16W R3268 D0GB473JA041 M 47K OHM J 1/16W R3302 ERJ6GEYJ101V M 100 OHM J 1/10W R3305 ERJ6GEYJ101V M 100 OHM J 1/10W R3306 ERJ6GEYJ472V M 4.7K OHM J 1/10W R3307 ERJ6GEYJ472V M 4.7K OHM J 1/10W R3310 D1BD75R0A044 M 75 OHM 1/10W R3313 D1BD75R0A044 M 75 OHM 1/10W R3318 D1BD75R0A044 M 75 OHM 1/10W R3348 D0GB680JA041 M 68 OHM J 1/16W R3349 D0GB680JA041 M 68 OHM J 1/16W R3354 ERJ6GEYJ180V M 180 OHM J 1/10W R3355 ERJ6GEYJ180V M 180 OHM J 1/10W R3356 ERJ6GEYJ180V M 180 OHM J 1/10W R3357 ERJ6GEYJ180V M 180 OHM J 1/10W R3358 ERJ6GEYJ180V M 180 OHM J 1/10W R3359 ERJ6GEYJ180V M 180 OHM J 1/10W R3360 ERJ6GEYJ180V M 180 OHM J 1/10W R3361 ERJ6GEYJ180V M 180 OHM J 1/10W R3700 ERJ6GEYJ393V M 39K OHM J 1/10W R3701 ERJ6GEYJ393V M 39K OHM J 1/10W R3702 ERJ6GEYJ184V M 180K OHM J 1/10W 回路号 部品品番 部品品名 备注 TC-32LX70D 66 R3703 ERJ6GEYJ184V M 180K OHM J 1/10W R3710 ERJ6GEYJ103V M 10K OHM J 1/10W R4001 ERJ2GEJ103X M 10K OHM J 1/4W R4200 ERJ2GEJ330X M 33 OHM J 1/4W R4201 ERJ2GEJ330X M 33 OHM J 1/4W R4202 ERJ2GEJ330X M 33 OHM J 1/4W R4274 ERJ2GEJ103X M 10K OHM J 1/4W R4279 ERJ2GEJ102X M 1K OHM J 1/4W R4281 ERJ2GEJ103X M 10K OHM J 1/4W R4283 ERJ2GEJ302X M 3K OHM J 1/4W R4284 ERJ2GEJ103X M 10K OHM J 1/4W R4286 ERJ2GEJ473X M 47K OHM J R4287 ERJ2GEJ473X M 47K OHM J R4288 ERJ2GEJ473X M 47K OHM J R4302 ERJ2GEJ330X M 33 OHM J 1/4W R4303 ERJ2GEJ330X M 33 OHM J 1/4W R4304 ERJ2GEJ330X M 33 OHM J 1/4W R4305 ERJ2GEJ330X M 33 OHM J 1/4W R4317 ERJ2GEJ473X M 47K OHM J R4318 ERJ2GEJ473X M 47K OHM J R4319 ERJ2GEJ473X M 47K OHM J R4320 ERJ2GEJ473X M 47K OHM J R4322 ERJ2GEJ473X M 47K OHM J R4324 ERJ2GEJ473X M 47K OHM J R4326 ERJ2GEJ473X M 47K OHM J R4327 ERJ2GEJ473X M 47K OHM J R4328 ERJ2GEJ473X M 47K OHM J R4330 ERJ2GEJ473X M 47K OHM J R4500 ERJ2GEJ103X M 10K OHM J 1/4W R4501 ERJ2GEJ103X M 10K OHM J 1/4W R4502 ERJ2GEJ330X M 33 OHM J 1/4W R4503 ERJ2GEJ330X M 33 OHM J 1/4W R4506 ERJ2GEJ103X M 10K OHM J 1/4W R4507 ERJ2GEJ103X M 10K OHM J 1/4W R4508 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4509 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4510 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4511 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4512 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4513 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4514 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4515 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4516 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4517 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4518 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4519 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4520 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4521 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4522 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4523 ERJ2GEJ2R2X M 2.2 OHM J 1/4W R4524 ERJ2GEJ103X M 10K OHM J 1/4W R4525 ERJ2GEJ103X M 10K OHM J 1/4W R4526 ERJ2GEJ102X M 1K OHM J 1/4W R4527 ERJ2GEJ102X M 1K OHM J 1/4W R4528 ERJ2GEJ103X M 10K OHM J 1/4W R4529 ERJ2GEJ472X M 4.7K OHM J 1/4W R4530 ERJ2GEJ103X M 10K OHM J 1/4W R4531 ERJ2GEJ472X M 4.7K OHM J 1/4W R4532 ERJ2GEJ103X M 10K OHM J 1/4W R4533 ERJ2GEJ103X M 10K OHM J 1/4W R4535 ERJ2GEJ472X M 4.7K OHM J 1/4W R4536 ERJ2GEJ472X M 4.7K OHM J 1/4W R4538 ERJ2GEJ473X M 47K OHM J R4539 ERJ2GEJ680X M 68 OHM J 1/4W R4540 ERJ2GEJ473X M 47K OHM J R4541 ERJ2GEJ680X M 68 OHM J 1/4W R4542 ERJ2GEJ680X M 68 OHM J 1/4W R4543 ERJ2GEJ680X M 68 OHM J 1/4W R4544 ERJ2GEJ103X M 10K OHM J 1/4W R4545 ERJ2GEJ103X M 10K OHM J 1/4W R4546 ERJ2GEJ103X M 10K OHM J 1/4W R4547 ERJ2GEJ103X M 10K OHM J 1/4W R4552 ERJ2GEJ220X M 22 OHM J 1/4W R4561 ERJ2GEJ473X M 47K OHM J R4562 ERJ2GEJ472X M 4.7K OHM J 1/4W R4563 ERJ2GEJ472X M 4.7K OHM J 1/4W R4564 ERJ2GEJ220X M 22 OHM J 1/4W 回路号 部品品番 部品品名 备注 R4565 ERJ2GEJ220X M 22 OHM J 1/4W R4578 ERJ2GEJ151X M 150 OHM J 1/4W R4579 ERJ2GEJ151X M 150 OHM J 1/4W R4585 ERJ2GEJ101X M 100 OHM J 1/4W R4587 ERJ3EKF8200V M 8.2K OHM F 1/16W R4593 ERJ3EKF1001V M 1K OHM F 1/16W R4596 ERJ6GEYJ102V M 1K OHM J 1/10W R4597 ERJ6GEYJ102V M 1K OHM J 1/10W R4598 ERJ6GEYJ102V M 1K OHM J 1/10W R4601 ERJ6GEYJ102V M 1K OHM J 1/10W R4604 ERJ3EKF7501V M 7.5K OHM F 1/16W R4606 ERJ3EKF4701V M 4.7K OHM F 1/16W R4611 ERJ3EKF1371V M 1.37K OHM F 1/16W R4612 ERJ3EKF1501V M 1.5K OHM F 1/16W R4613 ERJ2GEJ220X M 22 OHM J 1/4W R4614 ERJ2GEJ220X M 22 OHM J 1/4W R4615 ERJ3EKF1600V M 160 OHM F 1/16W R4622 ERJ2GEJ101X M 100 OHM J 1/4W R4624 ERJ3EKF1691V M 1.69K OHM F 1/16W R4626 ERJ2GEJ105X M 1M OHM J 1/4W R4628 ERJ2GEJ101X M 100 OHM J 1/4W R4629 ERJ2GEJ101X M 100 OHM J 1/4W R4631 ERJ3EKF4990V M 499 OHM F 1/16W R4635 EXB28V680JX 4 联电阻 68 OHM R4636 ERJ2GEJ680X M 68 OHM J 1/4W R4637 ERJ2GEJ680X M 68 OHM J 1/4W R4638 ERJ2GEJ680X M 68 OHM J 1/4W R4639 EXB28V680JX 4 联电阻 68 OHM R4640 EXB28V680JX 4 联电阻 68 OHM R4641 ERJ2GEJ220X M 22 OHM J 1/4W R4642 EXB28V680JX 4 联电阻 68 OHM R4643 ERJ2GEJ220X M 22 OHM J 1/4W R4644 ERJ2GEJ220X M 22 OHM J 1/4W R4645 ERJ2GEJ680X M 68 OHM J 1/4W R4646 ERJ2GEJ680X M 68 OHM J 1/4W R4647 ERJ2GEJ680X M 68 OHM J 1/4W R4648 EXB28V330JX 4 联电阻 33 OHM R4649 EXB28V680JX 4 联电阻 68 OHM R4650 ERJ2GEJ680X M 68 OHM J 1/4W R4651 ERJ2GEJ680X M 68 OHM J 1/4W R4652 ERJ2GEJ473X M 47K OHM J R4653 ERJ2GEJ103X M 10K OHM J 1/4W R4654 ERJ3EKF4701V M 4.7K OHM F 1/16W R4655 ERJ2GEJ101X M 100 OHM J 1/4W R4656 ERJ2GEJ222X M 2.2K OHM J 1/4W R4657 ERJ2GEJ220X M 22 OHM J 1/4W R4658 ERJ2GEJ220X M 22 OHM J 1/4W R4661 ERJ2GEJ101X M 100 OHM J 1/4W R4665 ERJ2GEJ473X M 47K OHM J R4666 ERJ2GEJ473X M 47K OHM J R4667 ERJ2GEJ151X M 150 OHM J 1/4W R4670 ERJ2GEJ680X M 68 OHM J 1/4W R4676 ERJ2GEJ220X M 22 OHM J 1/4W R4677 ERJ2GEJ220X M 22 OHM J 1/4W R4678 ERJ2GEJ220X M 22 OHM J 1/4W R4679 ERJ2GEJ220X M 22 OHM J 1/4W R4680 ERJ2GEJ220X M 22 OHM J 1/4W R4681 ERJ2GEJ220X M 22 OHM J 1/4W R4682 ERJ3EKF1002V M 10K OHM F 1/16W R4683 ERJ2GEJ103X M 10K OHM J 1/4W R4685 ERJ2GEJ472X M 4.7K OHM J 1/4W R4686 ERJ2GEJ472X M 4.7K OHM J 1/4W R4687 ERJ2GEJ472X M 4.7K OHM J 1/4W R4688 ERJ2GEJ472X M 4.7K OHM J 1/4W R4689 ERJ2GEJ220X M 22 OHM J 1/4W R4690 ERJ2GEJ220X M 22 OHM J 1/4W R4691 ERJ2GEJ220X M 22 OHM J 1/4W R4692 ERJ2GEJ220X M 22 OHM J 1/4W R4706 ERJ2GEJ102X M 1K OHM J 1/4W R4707 ERJ2GEJ103X M 10K OHM J 1/4W R4708 ERJ2GEJ102X M 1K OHM J 1/4W R4710 ERJ2GEJ472X M 4.7K OHM J 1/4W R4711 ERJ2GEJ472X M 4.7K OHM J 1/4W R4804 ERJ2GEJ103X M 10K OHM J 1/4W R4805 ERJ2GEJ103X M 10K OHM J 1/4W R4806 ERJ2GEJ103X M 10K OHM J 1/4W R4807 ERJ2GEJ103X M 10K OHM J 1/4W 回路号 部品品番 部品品名 备注 TC-32LX70D 67 R4808 ERJ2GEJ103X M 10K OHM J 1/4W R4809 ERJ2GEJ102X M 1K OHM J 1/4W R4810 ERJ2GEJ103X M 10K OHM J 1/4W R4811 ERJ2GEJ103X M 10K OHM J 1/4W R4812 ERJ2GEJ103X M 10K OHM J 1/4W R4813 D1BD4871A044 M 4.87K OHM 1/10W R4814 ERJ2GEJ103X M 10K OHM J 1/4W R4815 ERJ2GEJ102X M 1K OHM J 1/4W R4816 D1BD5111A044 M 5.11K OHM 1/10W R4817 D1BA3901A026 M 3.9K OHM F 1/16W R4818 D1BA3001A026 M 3K OHM F 1/16W R4838 ERJ2GEJ101X M 100 OHM J 1/4W R5600 ERJ2GEJ680X M 68 OHM J 1/4W R5604 ERJ3EKF4702V M 47K OHM F 1/16W R5605 ERJ3EKF1272V M 12.7K OHM F 1/16W R5610 ERJ2GEJ104X M 100K OHM J 1/4W R5611 ERJ3EKF3602V M 36K OHM F 1/16W R5612 ERJ3EKF2322V M 23.2K OHM F 1/16W R5620 ERJ2GEJ680X M 68 OHM J 1/4W R5621 ERJ3EKF4702V M 47K OHM F 1/16W R5622 ERJ2GEJ104X M 100K OHM J 1/4W R5623 ERJ3EKF4702V M 47K OHM F 1/16W R5629 ERJ3EKF3012V M 30.1K OHM F 1/16W R5630 ERJ3EKF4752V M 47.5K OHM F 1/16W R5631 ERJ3EKF3602V M 36K OHM F 1/16W R5632 ERJ3EKF3002V M 30K OHM F 1/16W R5633 ERJ3EKF1602V M 16K OHM F 1/16W R5634 ERJ3EKF1602V M 16K OHM F 1/16W R5635 ERJ2GEJ223X M 22K OHM J 1/4W R5636 ERJ2GEJ683X M 68K OHM J 1/4W R5638 ERJ2GEJ103X M 10K OHM J 1/4W R5641 ERJ2GEJ473X M 47K OHM J R5644 ERJ2GEJ222X M 2.2K OHM J 1/4W R5646 ERJ2GEJ103X M 10K OHM J 1/4W R5647 ERJ2GEJ473X M 47K OHM J R5660 ERJ2GEJ562X M 5.6K OHM J 1/4W R5661 ERJ2GEJ473X M 47K OHM J R5662 ERJ2GEJ103X M 10K OHM J 1/4W R5671 ERJ2GEJ183X M 18K OHM J 1/4W R5674 ERJ2GEJ122X M 1.2K OHM J 1/4W R5690 D0GB103JA041 M 10K OHM J 1/16W R5691 D0GB103JA041 M 10K OHM J 1/16W R5692 D0GB473JA041 M 47K OHM J 1/16W R5693 D0GB473JA041 M 47K OHM J 1/16W R5694 D0GB102JA041 M 1K OHM J 1/16W R5695 D0GB102JA041 M 1K OHM J 1/16W R5696 D0GB103JA041 M 10K OHM J 1/16W R5697 D0GB103JA041 M 10K OHM J 1/16W R5730 ERJ2GEJ473X M 47K OHM J R5731 ERJ2GEJ473X M 47K OHM J R7201 ERJ6GEYJ102V M 1K OHM J 1/10W R7202 ERJ6GEYJ103V M 10K OHM J 1/10W R7203 ERJ6GEYJ473V M 47K OHM J 1/10W R7204 ERJ6GEYJ473V M 47K OHM J 1/10W R7205 ERJ6GEYJ103V M 10K OHM J 1/10W R7206 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7207 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7208 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7209 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7210 ERJ6GEYJ102V M 1K OHM J 1/10W R7212 ERJ6GEYJ103V M 10K OHM J 1/10W R7213 ERJ6GEYJ473V M 47K OHM J 1/10W R7214 ERJ14YJ152U M 15K OHM J 1/4W R7215 ERJ6GEYJ222V M 2.2K OHM J 1/10W R7216 ERJ6GEYJ332V M 3.3K OHM J 1/10W R7217 ERJ14YJ122U M 12K OHM J 1/4W R7218 ERJ6GEYJ221V M 220 OHM J 1/10W R7219 ERJ6GEYJ473V M 47K OHM J 1/10W R7221 ERJ14YJ152U M 15K OHM J 1/4W R7222 ERJ14YJ152U M 15K OHM J 1/4W R7223 ERJ6GEYJ223V M 22K OHM J 1/10W R7224 ERJ6GEYJ223V M 22K OHM J 1/10W R7225 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7226 ERJ6GEYJ473V M 47K OHM J 1/10W R7227 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7228 ERJ6GEYJ473V M 47K OHM J 1/10W R7229 ERJ6GEYJ103V M 10K OHM J 1/10W 回路号 部品品番 部品品名 备注 R7230 ERJ6GEYJ473V M 47K OHM J 1/10W R7231 ERJ6GEYJ473V M 47K OHM J 1/10W R7232 ERJ6GEYJ103V M 10K OHM J 1/10W R7234 ERJ6GEYJ102V M 1K OHM J 1/10W R7235 ERJ6GEYJ473V M 47K OHM J 1/10W R7238 ERJ6GEYJ103V M 10K OHM J 1/10W R7239 ERJ6GEYJ332V M 3.3K OHM J 1/10W R7242 ERJ6GEYJ103V M 10K OHM J 1/10W R7244 ERJ6GEYJ223V M 22K OHM J 1/10W R7245 ERJ6GEYJ123V M 12K OHM J 1/10W R7301 D1BD9100A044 M 910 OHM 1/10W R7302 D1BD1302A044 M 13K OHM 1/10W R7303 ERJ6GEYJ473V M 47K OHM J 1/10W R7304 D1BD1603A044 M 160K OHM 1/10W R7305 ERJ6GEYJ363V M 36K OHM J 1/10W R7306 ERJ6GEYJ102V M 1K OHM J 1/10W R7307 ERJ6GEYJ101V M 100 OHM J 1/10W R7308 ERJ6GEYJ473V M 47K OHM J 1/10W R7309 ERJ6GEYJ103V M 10K OHM J 1/10W R7312 ERJ6GEYJ473V M 47K OHM J 1/10W R7313 ERJ6GEYJ103V M 10K OHM J 1/10W R7401 D1BD1501A044 M 1.5K OHM 1/10W R7402 D1BD6201A044 M 6.2K OHM 1/10W R7403 ERJ6GEYJ473V M 47K OHM J 1/10W R7404 D1BD5602A044 M 56K OHM 1/10W R7405 ERJ6GEYJ823V M 82K OHM J 1/10W R7406 ERJ6GEYJ102V M 1K OHM J 1/10W R7407 ERJ6GEYJ101V M 100 OHM J 1/10W R7408 ERJ6GEYJ473V M 47K OHM J 1/10W R7409 ERJ6GEYJ103V M 10K OHM J 1/10W R7410 ERJ6GEYJ473V M 47K OHM J 1/10W R7411 ERJ6GEYJ103V M 10K OHM J 1/10W R7501 D1BD1001A044 M 1K OHM 1/10W R7502 D1BD8201A044 M 8.2K OHM 1/10W R7503 ERJ6GEYJ473V M 47K OHM J 1/10W R7504 ERJ6GEYJ473V M 47K OHM J 1/10W R7505 D1BD9102A044 M 91K OHM 1/10W R7506 ERJ6GEYJ363V M 36K OHM J 1/10W R7507 ERJ6GEYJ102V M 1K OHM J 1/10W R7508 ERJ6GEYJ101V M 100 OHM J 1/10W R7509 ERJ6GEYJ103V M 10K OHM J 1/10W R7510 ERJ6GEYJ473V M 47K OHM J 1/10W R7511 ERJ6GEYJ103V M 10K OHM J 1/10W R7551 ERJ6GEYJ223V M 22K OHM J 1/10W R7552 ERJ6GEYJ222V M 2.2K OHM J 1/10W R7553 ERJ6GEYJ473V M 47K OHM J 1/10W R7554 ERJ6GEYJ473V M 47K OHM J 1/10W R7555 ERJ6GEYJ103V M 10K OHM J 1/10W R7556 ERJ6GEYJ103V M 10K OHM J 1/10W R7557 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7559 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7701 ERJ6GEYJ473V M 47K OHM J 1/10W R7702 ERJ6GEYJ223V M 22K OHM J 1/10W R7704 D1BD1001A044 M 1K OHM 1/10W R7705 D1BD8661A044 M 8.66K OHM 1/10W R7706 ERJ6GEYJ102V M 1K OHM J 1/10W R7707 ERJ12YJ471U M 470 OHM J 1/2W R7709 ERJ6GEYJ123V M 12K OHM J 1/10W R7710 ERJ6GEYJ223V M 22K OHM J 1/10W R7711 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7712 ERJ6GEYJ473V M 47K OHM J 1/10W R7713 ERJ6GEYJ472V M 4.7K OHM J 1/10W R7714 ERJ6GEYJ223V M 22K OHM J 1/10W R8001 ERJ2GEJ181X M 180 OHM J 1/4W R8002 ERJ2GEJ820X M 82 OHM J 1/4W R8004 ERJ3EKF2402V M 2.4K OHM F 1/16W R8005 ERJ3EKF1002V M 10K OHM F 1/16W R8006 ERJ3EKF6801V M 6.8K OHM F 1/16W R8030 ERJ2GEJ101X M 100 OHM J 1/4W R8031 ERJ3EKF2700V M 270 OHM F 1/6W R8032 ERJ3EKF2700V M 270 OHM F 1/6W R8056 ERJ2GEJ470X M 47 OHM J 1/4W R8057 ERJ2GEJ470X M 47 OHM J 1/4W R8058 ERJ2GEJ470X M 47 OHM J 1/4W R8059 ERJ2GEJ470X M 47 OHM J 1/4W R8060 ERJ2GEJ470X M 47 OHM J 1/4W R8061 ERJ2GEJ470X M 47 OHM J 1/4W 回路号 部品品番 部品品名 备注 TC-32LX70D 68 R8062 ERJ2GEJ470X M 47 OHM J 1/4W R8063 ERJ2GEJ470X M 47 OHM J 1/4W R8064 ERJ2GEJ470X M 47 OHM J 1/4W R8065 ERJ2GEJ470X M 47 OHM J 1/4W R8066 ERJ2GEJ470X M 47 OHM J 1/4W R8067 ERJ2GEJ470X M 47 OHM J 1/4W R8068 ERJ2GEJ470X M 47 OHM J 1/4W R8069 ERJ2GEJ470X M 47 OHM J 1/4W R8070 ERJ2GEJ470X M 47 OHM J 1/4W R8071 ERJ2GEJ470X M 47 OHM J 1/4W R8072 ERJ2GEJ470X M 47 OHM J 1/4W R8073 ERJ2GEJ470X M 47 OHM J 1/4W R8074 ERJ2GEJ221X M 220 OHM J 1/4W R8075 ERJ2GEJ470X M 47 OHM J 1/4W R8076 ERJ2GEJ470X M 47 OHM J 1/4W R8077 ERJ2GEJ470X M 47 OHM J 1/4W R8078 ERJ2GEJ470X M 47 OHM J 1/4W R8081 ERJ2GEJ103X M 10K OHM J 1/4W R8082 D1BA75R0A026 M 75 OHM F 1/16W R8083 ERJ2GEJ301X M 300 OHM J 1/4W R8086 ERJ2GEJ104X M 100K OHM J 1/4W R8087 ERJ2GEJ103X M 10K OHM J 1/4W R8090 ERJ2GEJ103X M 10K OHM J 1/4W R8091 ERJ2GEJ101X M 100 OHM J 1/4W R8093 ERJ2GEJ470X M 47 OHM J 1/4W R8095 ERJ2GEJ103X M 10K OHM J 1/4W R8097 ERJ2GEJ221X M 220 OHM J 1/4W R8098 ERJ2GEJ103X M 10K OHM J 1/4W R8099 ERJ2GEJ103X M 10K OHM J 1/4W R8100 ERJ2GEJ470X M 47 OHM J 1/4W R8101 ERJ2GEJ103X M 10K OHM J 1/4W R8106 ERJ2GEJ202X M 2K OHM J 1/4W R8107 ERJ2GEJ101X M 100 OHM J 1/4W R8108 ERJ2GEJ333X M 33K OHM J 1/4W R8111 ERJ2GEJ103X M 10K OHM J 1/4W R8328 ERJ2GEJ103X M 10K OHM J 1/4W R8471 ERJ2GEJ103X M 10K OHM J 1/4W R8472 EXB2HV103JV 8 联电阻 10K OHM R8474 EXB28V103JX 4 联电阻 10K OHM R8475 EXB28V103JX 4 联电阻 10K OHM R8502 ERJ2GEJ331X M 330 OHM J 1/4W R8503 ERJ2GEJ331X M 330 OHM J 1/4W R8504 ERJ2GEJ331X M 330 OHM J 1/4W R8506 ERJ2GEJ331X M 330 OHM J 1/4W R8507 ERJ3EKF91R0V M 91 OHM F 1/16W R8508 ERJ3EKF91R0V M 91 OHM F 1/16W R8509 ERJ3EKF91R0V M 91 OHM F 1/16W R8510 ERJ3EKF91R0V M 91 OHM F 1/16W R8512 ERJ3EKF1800V M 180 OHM F 1/16W R8551 ERJ2GEJ103X M 10K OHM J 1/4W R8555 ERJ2GEJ680X M 68 OHM J 1/4W R8556 ERJ2GEJ680X M 68 OHM J 1/4W R8557 ERJ2GEJ680X M 68 OHM J 1/4W R8558 ERJ2GEJ680X M 68 OHM J 1/4W R8559 ERJ2GEJ680X M 68 OHM J 1/4W R8560 ERJ2GEJ680X M 68 OHM J 1/4W R8561 ERJ2GEJ680X M 68 OHM J 1/4W R8564 ERJ2GEJ103X M 10K OHM J 1/4W R8601 ERJ2GEJ220X M 22 OHM J 1/4W R8602 ERJ2GEJ220X M 22 OHM J 1/4W R8603 ERJ2GEJ473X M 47K OHM J R8605 ERJ2GEJ680X M 68 OHM J 1/4W R8621 ERJ2GEJ680X M 68 OHM J 1/4W R8622 ERJ2GEJ680X M 68 OHM J 1/4W R8623 ERJ2GEJ680X M 68 OHM J 1/4W R8624 ERJ2GEJ680X M 68 OHM J 1/4W R8625 ERJ2GEJ680X M 68 OHM J 1/4W R8626 ERJ2GEJ680X M 68 OHM J 1/4W R8627 ERJ2GEJ680X M 68 OHM J 1/4W R8628 ERJ2GEJ680X M 68 OHM J 1/4W R8629 ERJ2GEJ680X M 68 OHM J 1/4W R8630 ERJ2GEJ680X M 68 OHM J 1/4W R8631 ERJ2GEJ680X M 68 OHM J 1/4W R8632 ERJ2GEJ680X M 68 OHM J 1/4W R8633 ERJ2GEJ680X M 68 OHM J 1/4W R8634 ERJ2GEJ680X M 68 OHM J 1/4W R8635 ERJ2GEJ680X M 68 OHM J 1/4W 回路号 部品品番 部品品名 备注 R8636 ERJ2GEJ680X M 68 OHM J 1/4W R8653 ERJ2GEJ103X M 10K OHM J 1/4W R8655 ERJ2GEJ103X M 10K OHM J 1/4W R8703 ERJ2GEJ680X M 68 OHM J 1/4W R8710 ERJ2GEJ680X M 68 OHM J 1/4W R8711 ERJ2GEJ103X M 10K OHM J 1/4W R8712 ERJ2GEJ103X M 10K OHM J 1/4W R8732 ERJ2GEJ101X M 100 OHM J 1/4W R8735 ERJ2GEJ680X M 68 OHM J 1/4W R8736 ERJ2GEJ680X M 68 OHM J 1/4W R8737 ERJ2GEJ680X M 68 OHM J 1/4W R8738 ERJ2GEJ680X M 68 OHM J 1/4W R8739 ERJ2GEJ680X M 68 OHM J 1/4W R8742 ERJ2GEJ103X M 10K OHM J 1/4W R8745 ERJ2GEJ103X M 10K OHM J 1/4W R8746 ERJ2GEJ103X M 10K OHM J 1/4W R8749 ERJ2GEJ103X M 10K OHM J 1/4W R8802 ERJ2GEJ103X M 10K OHM J 1/4W R8803 ERJ2GEJ103X M 10K OHM J 1/4W R8804 ERJ2GEJ103X M 10K OHM J 1/4W R8805 ERJ2GEJ103X M 10K OHM J 1/4W R8806 ERJ2GEJ103X M 10K OHM J 1/4W R8807 ERJ2GEJ103X M 10K OHM J 1/4W R8808 ERJ2GEJ103X M 10K OHM J 1/4W R8809 ERJ2GEJ103X M 10K OHM J 1/4W R8813 EXB28V680JX 4 联电阻 68 OHM R8814 ERJ2GEJ680X M 68 OHM J 1/4W R8815 ERJ2GEJ680X M 68 OHM J 1/4W R8816 ERJ2GEJ680X M 68 OHM J 1/4W R8817 ERJ2GEJ680X M 68 OHM J 1/4W R8823 ERJ2GEJ473X M 47K OHM J R8826 ERJ2GEJ680X M 68 OHM J 1/4W R8828 ERJ2GEJ103X M 10K OHM J 1/4W R8832 ERJ2GEJ103X M 10K OHM J 1/4W R8855 ERJ2GEJ680X M 68 OHM J 1/4W R8856 ERJ2GEJ680X M 68 OHM J 1/4W R8857 ERJ2GEJ680X M 68 OHM J 1/4W R8858 ERJ2GEJ680X M 68 OHM J 1/4W R8859 ERJ2GEJ680X M 68 OHM J 1/4W R8860 ERJ2GEJ680X M 68 OHM J 1/4W R8862 ERJ2GEJ680X M 68 OHM J 1/4W R8863 ERJ2GEJ680X M 68 OHM J 1/4W R8864 ERJ2GEJ680X M 68 OHM J 1/4W R8865 EXB2HV680JV 8 联电阻 68 OHM R8866 EXB2HV680JV 8 联电阻 68 OHM R8867 EXB2HV680JV 8 联电阻 68 OHM R8868 ERJ2GEJ680X M 68 OHM J 1/4W R8869 ERJ2GEJ103X M 10K OHM J 1/4W R8871 ERJ2GEJ103X M 10K OHM J 1/4W R8874 ERJ2GEJ103X M 10K OHM J 1/4W R8875 ERJ2GEJ103X M 10K OHM J 1/4W R8876 ERJ2GEJ103X M 10K OHM J 1/4W R8877 ERJ2GEJ680X M 68 OHM J 1/4W R8878 ERJ2GEJ680X M 68 OHM J 1/4W R8879 ERJ2GEJ680X M 68 OHM J 1/4W R8880 ERJ2GEJ680X M 68 OHM J 1/4W R8881 ERJ2GEJ680X M 68 OHM J 1/4W R8882 ERJ2GEJ680X M 68 OHM J 1/4W R8883 ERJ2GEJ680X M 68 OHM J 1/4W R8884 ERJ2GEJ680X M 68 OHM J 1/4W R8885 ERJ2GEJ680X M 68 OHM J 1/4W R8886 ERJ2GEJ680X M 68 OHM J 1/4W R8887 ERJ2GEJ680X M 68 OHM J 1/4W R8888 ERJ2GEJ680X M 68 OHM J 1/4W R8889 ERJ2GEJ680X M 68 OHM J 1/4W R8891 ERJ2GEJ680X M 68 OHM J 1/4W R8892 ERJ2GEJ680X M 68 OHM J 1/4W R8894 ERJ2GEJ680X M 68 OHM J 1/4W R8898 ERJ2GEJ103X M 10K OHM J 1/4W R8899 ERJ2GEJ103X M 10K OHM J 1/4W R8900 ERJ2GEJ680X M 68 OHM J 1/4W R8901 ERJ2GEJ680X M 68 OHM J 1/4W R8904 ERJ2GEJ103X M 10K OHM J 1/4W R8905 ERJ2GEJ103X M 10K OHM J 1/4W R8906 ERJ2GEJ103X M 10K OHM J 1/4W R8907 ERJ2GEJ103X M 10K OHM J 1/4W R8908 ERJ2GEJ103X M 10K OHM J 1/4W 回路号 部品品番 部品品名 备注 TC-32LX70D 69 R8909 ERJ2GEJ103X M 10K OHM J 1/4W R8910 ERJ2GEJ103X M 10K OHM J 1/4W R8911 ERJ2GEJ680X M 68 OHM J 1/4W R8912 ERJ2GEJ680X M 68 OHM J 1/4W R8913 ERJ2GEJ680X M 68 OHM J 1/4W R8914 ERJ2GEJ680X M 68 OHM J 1/4W R8915 ERJ2GEJ680X M 68 OHM J 1/4W R8916 ERJ2GEJ680X M 68 OHM J 1/4W R8917 ERJ2GEJ680X M 68 OHM J 1/4W R8918 ERJ2GEJ680X M 68 OHM J 1/4W R8919 ERJ2GEJ472X M 4.7K OHM J 1/4W R8920 ERJ2GEJ472X M 4.7K OHM J 1/4W R8921 ERJ2GEJ472X M 4.7K OHM J 1/4W R8922 ERJ2GEJ472X M 4.7K OHM J 1/4W R8923 ERJ2GEJ103X M 10K OHM J 1/4W R8924 ERJ2GEJ103X M 10K OHM J 1/4W R8925 ERJ2GEJ472X M 4.7K OHM J 1/4W R8926 ERJ2GEJ472X M 4.7K OHM J 1/4W R8929 EXB2HVR000V 8 联电阻 0 OHM R8935 ERJ2GEJ103X M 10K OHM J 1/4W R8938 ERJ8GEYJ472V M 4.7K OHM J 1/10W R8939 ERJ2GEJ184X M 180K OHM J 1/4W R8940 ERJ2GEJ473X M 47K OHM J R8941 ERJ2GEJ473X M 47K OHM J R8942 ERJ2GEJ562X M 5.6K OHM J 1/4W R8943 ERJ2GEJ104X M 100K OHM J 1/4W R8944 ERJ2GEJ223X M 22K OHM J 1/4W R8947 ERJ2GEJ680X M 68 OHM J 1/4W R8948 ERJ2GEJ103X M 10K OHM J 1/4W R8952 ERJ2GEJ680X M 68 OHM J 1/4W R8963 ERJ2GEJ103X M 10K OHM J 1/4W R1101 ERJ2GE0R00X M 0 OHM 1/4W R1204 ERJ2GE0R00X M 0 OHM 1/4W R2003 ERJ2GE0R00X M 0 OHM 1/4W R2026 ERJ2GE0R00X M 0 OHM 1/4W R2116 D0GBR00Z0002 M 0 OHM J 1/16W R2117 D0GBR00Z0002 M 0 OHM J 1/16W R2187 ERJ6GEY0R00V M 0 OHM J 1/10W R2223 D0GBR00Z0002 M 0 OHM J 1/16W R2224 D0GBR00Z0002 M 0 OHM J 1/16W R2225 D0GBR00Z0002 M 0 OHM J 1/16W R2227 D0GBR00Z0002 M 0 OHM J 1/16W R2228 D0GBR00Z0002 M 0 OHM J 1/16W R2229 D0GBR00Z0002 M 0 OHM J 1/16W R2230 D0GBR00Z0002 M 0 OHM J 1/16W R2231 D0GBR00Z0002 M 0 OHM J 1/16W R2257 D0GBR00Z0002 M 0 OHM J 1/16W R2263 D0GBR00Z0002 M 0 OHM J 1/16W R2290 D0GBR00Z0002 M 0 OHM J 1/16W R2291 D0GBR00Z0002 M 0 OHM J 1/16W R2294 D0GBR00Z0002 M 0 OHM J 1/16W R2295 D0GBR00Z0002 M 0 OHM J 1/16W R2296 D0GBR00Z0002 M 0 OHM J 1/16W R2297 D0GBR00Z0002 M 0 OHM J 1/16W R2300 D0GBR00Z0002 M 0 OHM J 1/16W R2303 D0GBR00Z0002 M 0 OHM J 1/16W R2304 D0GBR00Z0002 M 0 OHM J 1/16W R2891 ERJ6GEY0R00V M 0 OHM J 1/10W R3044 D0GBR00Z0002 M 0 OHM J 1/16W R3045 D0GBR00Z0002 M 0 OHM J 1/16W R3102 D0GBR00Z0002 M 0 OHM J 1/16W R3103 D0GBR00Z0002 M 0 OHM J 1/16W R3104 D0GBR00Z0002 M 0 OHM J 1/16W R3109 D0GBR00Z0002 M 0 OHM J 1/16W R3110 D0GBR00Z0002 M 0 OHM J 1/16W R3186 D0GBR00Z0002 M 0 OHM J 1/16W R3188 D0GBR00Z0002 M 0 OHM J 1/16W R3202 D0GBR00Z0002 M 0 OHM J 1/16W R3205 D0GBR00Z0002 M 0 OHM J 1/16W R3216 D0GBR00Z0002 M 0 OHM J 1/16W R3222 D0GBR00Z0002 M 0 OHM J 1/16W R3227 D0GBR00Z0002 M 0 OHM J 1/16W R3228 D0GBR00Z0002 M 0 OHM J 1/16W R3229 D0GBR00Z0002 M 0 OHM J 1/16W R3308 ERJ6GEY0R00V M 0 OHM J 1/10W R3309 ERJ6GEY0R00V M 0 OHM J 1/10W 回路号 部品品番 部品品名 备注 R3350 D0GBR00Z0002 M 0 OHM J 1/16W R3704 ERJ6GEY0R00V M 0 OHM J 1/10W R4026 D0GBR00Z0002 M 0 OHM J 1/16W R4230 ERJ2GE0R00X M 0 OHM 1/4W R4242 D0GBR00Z0002 M 0 OHM J 1/16W R4315 ERJ2GE0R00X M 0 OHM 1/4W R4316 ERJ2GE0R00X M 0 OHM 1/4W R4627 ERJ2GE0R00X M 0 OHM 1/4W R4659 ERJ2GE0R00X M 0 OHM 1/4W R4672 ERJ2GE0R00X M 0 OHM 1/4W R4698 ERJ2GE0R00X M 0 OHM 1/4W R4699 ERJ2GE0R00X M 0 OHM 1/4W R4702 ERJ2GE0R00X M 0 OHM 1/4W R4703 ERJ2GE0R00X M 0 OHM 1/4W R4852 D0GBR00Z0002 M 0 OHM J 1/16W R4853 D0GBR00Z0002 M 0 OHM J 1/16W R4854 D0GBR00Z0002 M 0 OHM J 1/16W R4855 D0GBR00Z0002 M 0 OHM J 1/16W R4867 ERJ2GE0R00X M 0 OHM 1/4W R4868 ERJ2GE0R00X M 0 OHM 1/4W R4869 ERJ2GE0R00X M 0 OHM 1/4W R4870 ERJ2GE0R00X M 0 OHM 1/4W R4871 ERJ2GE0R00X M 0 OHM 1/4W R4873 ERJ2GE0R00X M 0 OHM 1/4W R4874 ERJ2GE0R00X M 0 OHM 1/4W R4876 ERJ2GE0R00X M 0 OHM 1/4W R5606 ERJ2GE0R00X M 0 OHM 1/4W R5607 ERJ2GE0R00X M 0 OHM 1/4W R5608 ERJ2GE0R00X M 0 OHM 1/4W R5609 ERJ2GE0R00X M 0 OHM 1/4W R5625 ERJ2GE0R00X M 0 OHM 1/4W R5626 ERJ2GE0R00X M 0 OHM 1/4W R5627 ERJ2GE0R00X M 0 OHM 1/4W R5628 ERJ2GE0R00X M 0 OHM 1/4W R5637 ERJ2GE0R00X M 0 OHM 1/4W R5670 ERJ2GE0R00X M 0 OHM 1/4W R5672 ERJ2GE0R00X M 0 OHM 1/4W R5732 ERJ2GE0R00X M 0 OHM 1/4W R7211 ERJ6GEY0R00V M 0 OHM J 1/10W R7233 ERJ6GEY0R00V M 0 OHM J 1/10W R7240 ERJ6GEY0R00V M 0 OHM J 1/10W R7241 ERJ6GEY0R00V M 0 OHM J 1/10W R7243 ERJ6GEY0R00V M 0 OHM J 1/10W R7246 ERJ6GEY0R00V M 0 OHM J 1/10W R7310 ERJ6GEY0R00V M 0 OHM J 1/10W R7311 ERJ6GEY0R00V M 0 OHM J 1/10W R7901 ERJ6GEY0R00V M 0 OHM J 1/10W R8003 D0GBR00Z0002 M 0 OHM J 1/16W R8023 ERJ2GE0R00X M 0 OHM 1/4W R8024 ERJ2GE0R00X M 0 OHM 1/4W R8025 ERJ2GE0R00X M 0 OHM 1/4W R8026 ERJ2GE0R00X M 0 OHM 1/4W R8027 ERJ2GE0R00X M 0 OHM 1/4W R8028 ERJ2GE0R00X M 0 OHM 1/4W R8029 ERJ2GE0R00X M 0 OHM 1/4W R8035 ERJ2GE0R00X M 0 OHM 1/4W R8039 ERJ2GE0R00X M 0 OHM 1/4W R8079 ERJ2GE0R00X M 0 OHM 1/4W R8080 ERJ2GE0R00X M 0 OHM 1/4W R8084 ERJ2GE0R00X M 0 OHM 1/4W R8513 ERJ2GE0R00X M 0 OHM 1/4W R8517 ERJ2GE0R00X M 0 OHM 1/4W R8518 ERJ2GE0R00X M 0 OHM 1/4W R8519 ERJ2GE0R00X M 0 OHM 1/4W R8604 ERJ6GEY0R00V M 0 OHM J 1/10W R8702 ERJ2GE0R00X M 0 OHM 1/4W R8709 ERJ2GE0R00X M 0 OHM 1/4W R8812 ERJ2GE0R00X M 0 OHM 1/4W R8818 ERJ2GE0R00X M 0 OHM 1/4W R8825 ERJ6GEY0R00V M 0 OHM J 1/10W R8833 D0GBR00Z0002 M 0 OHM J 1/16W R8851 ERJ2GE0R00X M 0 OHM 1/4W R8852 ERJ2GE0R00X M 0 OHM 1/4W R8853 ERJ2GE0R00X M 0 OHM 1/4W R8854 ERJ2GE0R00X M 0 OHM 1/4W R8870 ERJ2GE0R00X M 0 OHM 1/4W R8893 ERJ2GE0R00X M 0 OHM 1/4W 回路号 部品品番 部品品名 备注 TC-32LX70D 70 16.2.6. 电容 R8895 ERJ2GE0R00X M 0 OHM 1/4W R8896 ERJ2GE0R00X M 0 OHM 1/4W R8897 ERJ2GE0R00X M 0 OHM 1/4W R8927 ERJ2GE0R00X M 0 OHM 1/4W R8946 ERJ2GE0R00X M 0 OHM 1/4W R8950 ERJ2GE0R00X M 0 OHM 1/4W CF801 D4CAY8R0A019 电阻 JS811 ERJ6GEY0R00V M 0 OHM J 1/10W JS821 ERJ6GEY0R00V M 0 OHM J 1/10W JS1007 D0GBR00Z0002 M 0 OHM J 1/16W JS1105 ERJ2GE0R00X M 0 OHM 1/4W JS1123 ERJ2GE0R00X M 0 OHM 1/4W JS2031 D0GBR00Z0002 M 0 OHM J 1/16W JS2032 D0GBR00Z0002 M 0 OHM J 1/16W JS2033 D0GBR00Z0002 M 0 OHM J 1/16W JS2044 D0GBR00Z0002 M 0 OHM J 1/16W JS2045 D0GBR00Z0002 M 0 OHM J 1/16W JS2046 D0GBR00Z0002 M 0 OHM J 1/16W JS2047 D0GBR00Z0002 M 0 OHM J 1/16W JS2048 D0GBR00Z0002 M 0 OHM J 1/16W JS2049 D0GBR00Z0002 M 0 OHM J 1/16W JS2050 D0GBR00Z0002 M 0 OHM J 1/16W JS2051 D0GBR00Z0002 M 0 OHM J 1/16W JS2052 D0GBR00Z0002 M 0 OHM J 1/16W JS2053 D0GBR00Z0002 M 0 OHM J 1/16W JS2059 D0GBR00Z0002 M 0 OHM J 1/16W JS2060 D0GBR00Z0002 M 0 OHM J 1/16W JS2061 D0GBR00Z0002 M 0 OHM J 1/16W JS2062 D0GBR00Z0002 M 0 OHM J 1/16W JS2064 D0GBR00Z0002 M 0 OHM J 1/16W JS2096 D0GBR00Z0002 M 0 OHM J 1/16W JS2101 D0GBR00Z0002 M 0 OHM J 1/16W JS2104 D0GBR00Z0002 M 0 OHM J 1/16W JS2105 D0GBR00Z0002 M 0 OHM J 1/16W JS2106 D0GBR00Z0002 M 0 OHM J 1/16W JS2107 D0GBR00Z0002 M 0 OHM J 1/16W JS3010 ERJ6GEY0R00V M 0 OHM J 1/10W JS3011 ERJ6GEY0R00V M 0 OHM J 1/10W JS3012 ERJ6GEY0R00V M 0 OHM J 1/10W JS3013 ERJ6GEY0R00V M 0 OHM J 1/10W JS3014 ERJ6GEY0R00V M 0 OHM J 1/10W JS3015 ERJ6GEY0R00V M 0 OHM J 1/10W JS3023 D0GBR00Z0002 M 0 OHM J 1/16W JS3024 D0GBR00Z0002 M 0 OHM J 1/16W JS3032 D0GBR00Z0002 M 0 OHM J 1/16W JS3042 D0GBR00Z0002 M 0 OHM J 1/16W JS3206 D0GBR00Z0002 M 0 OHM J 1/16W JS3208 D0GBR00Z0002 M 0 OHM J 1/16W JS3213 ERJ6GEY0R00V M 0 OHM J 1/10W JS4002 ERJ2GE0R00X M 0 OHM 1/4W JS4501 ERJ2GE0R00X M 0 OHM 1/4W D5672 D0GBR00Z0002 M 0 OHM J 1/16W 回路号 部品品番 部品品名 备注 C801 ECQU2A224MLA P 0.22UF M 250V C802 ECQU2A224MLA P 0.22UF M 250V C803 ECQU2A224MLA P 0.22UF M 250V C806 ECKCNA331MB7 C 150PF M C807 ECKCNA331MB7 C 150PF M C809 ECQU2A224MLA P 0.22UF M 250V C811 F2A2W2R2A002 E 2.2UF 450V C813 F2A1H4R7A118 E 4.7UF 50V C814 ECJ2VB2A103K C 0.01UF K 100V C815 ECJ2YB1H104K C 0.1 UF K 50V C816 ECCW3D470KGE P 47PF K 2KV C817 ECJ2VB1H681K C 680PF K 50V C818 ECKR3A222KBP C 2200PF K 1KV * C819 ECQE2W105L28 C 1UF 450V C821 F2A1A221A106 P 220UF 10V C822 ECJ2YB1H104K C 0.1 UF K 50V C823 ECJ2YB1H104K C 0.1 UF K 50V C1006 F2G0J470A019 E 47UF 6.3V C1007 ECJ1VB1H103K C 0.01UF K 50V 回路号 部品品番 部品品名 备注 C1008 ECJ1VF1C104Z C 0.1UF Z 16V C1010 F2G0J220A019 E 22UF 6.3V C1102 F1J1A106A043 C 10UF C1103 F1G1C104A081 P 0.1UF 16V C1104 F1G1C104A081 P 0.1UF 16V C1106 F1H1H2700008 P 27PF 50V C1107 F1H1H2200008 P 22PF 50V C1108 F1G1C104A081 P 0.1UF 16V C1109 F1H1A1050028 P 1UF 10V C1111 F1H1A1050028 P 1UF 10V C1112 F1G1C104A081 P 0.1UF 16V C1114 F1G1C104A081 P 0.1UF 16V C1117 F1G1C104A081 P 0.1UF 16V C1122 F1G1E1030005 P 0.01UF 25V C1123 F1H1A1050028 P 1UF 10V C2005 F1H1H5610007 P 560PF 50V C2006 F1H1H5610007 P 560PF 50V C2010 F1H1H5610007 P 560PF 50V C2011 F1H1H5610007 P 560PF 50V C2013 F1H1H5610007 P 560PF 50V C2014 F1H1H5610007 P 560PF 50V C2016 F1H1H5610007 P 560PF 50V C2017 F1H1H5610007 P 560PF 50V C2021 F1H1H5610007 P 560PF 50V C2022 F1H1H5610007 P 560PF 50V C2023 ECJ1VB1H104K C 0.1UF K 50V C2048 ECJ1VB1H104K C 0.1UF K 50V C2049 ECJ1VB1H104K C 0.1UF K 50V C2050 ECJ1VB1H104K C 0.1UF K 50V C2052 ECJ1VB1H104K C 0.1UF K 50V C2053 ECJ1VB1H104K C 0.1UF K 50V C2054 F1J1A106A043 C 10UF C2055 F1H1H1200004 P 12PF 50V C2056 F1H1H1200004 P 12PF 50V C2057 ECJ1VB1H104K C 0.1UF K 50V C2058 ECJ1VB1H104K C 0.1UF K 50V C2059 F2G0J470A019 E 47UF 6.3V C2088 ECJ2FB1A475K C 4.7UF 16V C2089 F1H1H5610007 P 560PF 50V C2091 ECJ1VC1H100C C 10PF C 50V C2092 F1H1H2200008 P 22PF 50V C2096 ECJ1VB1H104K C 0.1UF K 50V C2097 ECJ1VB1H104K C 0.1UF K 50V C2098 EEEHB0J221UP E 220UF 6.3V C2099 EEEHB0J221UP E 220UF 6.3V C2100 ECJ1VB1H104K C 0.1UF K 50V C2101 F1J1A106A043 C 10UF C2102 ECJ1VB1H104K C 0.1UF K 50V C2105 ECJ1VB1H104K C 0.1UF K 50V C2106 ECJ1VB1H104K C 0.1UF K 50V C2107 F2G0J470A019 E 47UF 6.3V C2108 F2G0J470A019 E 47UF 6.3V C2109 ECJ1VB1H104K C 0.1UF K 50V C2110 ECJ1VB1H104K C 0.1UF K 50V C2111 F1H0J2250008 P 2.2UF 10V C2112 F2G0J470A019 E 47UF 6.3V C2113 F2G0J470A019 E 47UF 6.3V C2114 ECJ1VB1H104K C 0.1UF K 50V C2115 ECJ1VB1H104K C 0.1UF K 50V C2116 F1H1H471A792 P 470PF 50V C2117 ECJ1VB1H104K C 0.1UF K 50V C2118 F1H1A1050028 P 1UF 10V C2119 EEEHB1A221P E 220UF 10V C2120 F1H1H5600007 P 56PF 50V C2121 F1H1H5600007 P 56PF 50V C2124 ECJ1VB1H104K C 0.1UF K 50V C2125 F1H1A1050028 P 1UF 10V C2126 F1J1A106A043 C 10UF C2130 F1J0J106A021 P 10UF 6.3V C2131 ECJ1VB1H104K C 0.1UF K 50V C2133 F2G1H4R7A031 E 4.7UF 50V C2134 F1H1H103A219 C 10000UF K 50V C2135 ECJ1VB1C105K C 1UF K 16V C2136 ECJ1VB1C105K C 1UF K 16V C2137 F2G0J470A019 E 47UF 6.3V C2138 ECJ1VB1H104K C 0.1UF K 50V C2143 F1H1H181A792 P 180PF 50V 回路号 部品品番 部品品名 备注 TC-32LX70D 71 C2146 F1H1H181A792 P 180PF 50V C2147 F2G1C220A022 C 22UF J 16V C2151 F2G0J470A019 E 47UF 6.3V C2153 F1H1H3300005 P 33PF 50V C2154 ECJ1VB1H104K C 0.1UF K 50V C2155 ECJ1VB1C105K C 1UF K 16V C2157 ECJ1VB1C105K C 1UF K 16V C2159 ECJ1VB1C105K C 1UF K 16V C2160 ECJ1VB1C105K C 1UF K 16V C2161 EEEHB1C101UP E 100UF J 16V C2162 ECJ1VB1C105K C 1UF K 16V C2163 ECJ1VB1C105K C 1UF K 16V C2164 ECJ1VB1C105K C 1UF K 16V C2165 ECJ1VB1C105K C 1UF K 16V C2166 ECJ1VB1C105K C 1UF K 16V C2167 ECJ1VB1C105K C 1UF K 16V C2170 F1H1H3300005 P 33PF 50V C2171 F1H1H103A219 C 10000UF K 50V C2173 ECJ2FF1C475Z C 4.7UF Z 16V C2174 F1H1A1050028 P 1UF 10V C2175 F2G1C470A022 C 47UF J 16V C2176 F1H1H103A219 C 10000UF K 50V C2179 F2G1C470A022 C 47UF J 16V C2180 F1H1A1050028 P 1UF 10V C2183 F1J1A106A043 C 10UF C2184 F1H1H102A219 C 1000UF K 50V C2185 F1J1A106A043 C 10UF C2186 ECJ1VB1H104K C 0.1UF K 50V C2187 F1H0J2250008 P 2.2UF 10V C2188 F1H1H471A792 P 470PF 50V C2189 F1H1A1050028 P 1UF 10V C2190 F1J1A106A043 C 10UF C2191 F1J1A106A043 C 10UF C2192 F2G0J470A019 E 47UF 6.3V C2195 F1H1H102A219 C 1000UF K 50V C2197 F1H1E333A029 P 0.033UF 25V C2198 F1H1E333A029 P 0.033UF 25V C2202 F1H0J2250008 P 2.2UF 10V C2203 F1H1A1050028 P 1UF 10V C2204 ECJ1VB1C105K C 1UF K 16V C2213 F1H1H102A219 C 1000UF K 50V C2216 ECJ1VB1H104K C 0.1UF K 50V C2244 ECJ1VB1H104K C 0.1UF K 50V C2245 F1H1H102A219 C 1000UF K 50V C2246 F1J1A106A043 C 10UF C2251 F1J1A106A043 C 10UF C2263 F1J1A106A043 C 10UF C2264 F1J1A106A043 C 10UF C2265 F1H1H1010005 P 100PF 50V C2266 F1H1H1010005 P 100PF 50V C2267 F1H1H1010005 P 100PF 50V C2268 F1H1H1010005 P 100PF 50V C2270 F1H1H471A792 P 470PF 50V C2271 F1H1H471A792 P 470PF 50V C2272 ECJ2FF1C475Z C 4.7UF Z 16V C2280 ECJ2FB1A475K C 4.7UF 16V C2281 F1H1H5610007 P 560PF 50V C2288 F1J1A106A043 C 10UF C2289 F1J1A106A043 C 10UF C2301 F1H1C104A041 C 0.1UF K 16V C2302 F1H1C104A041 C 0.1UF K 16V C2303 F1J1E105A171 P 1UF 25V C2305 F1J1E105A171 P 1UF 25V C2307 F1J1E105A171 P 1UF 25V C2309 F1J1E105A171 P 1UF 25V C2311 ECJ1VB1C104K C 0.1UF K 16V C2313 ECJ1VB1H104K C 0.1UF K 50V C2315 ECJ1VB1C104K C 0.1UF K 16V C2317 F1H1E333A029 P 0.033UF 25V C2319 F1H1E333A029 P 0.033UF 25V C2321 F1H1E333A029 P 0.033UF 25V C2323 F1H1E333A029 P 0.033UF 25V C2325 F1J1H474A757 P 0.47UF 50V C2327 ECJ1VB1C104K C 0.1UF K 16V C2329 ECJ1VB1C104K C 0.1UF K 16V C2331 F1J1H474A757 P 0.47UF 50V C2333 ECJ1VB1H104K C 0.1UF K 50V 回路号 部品品番 部品品名 备注 C2335 ECJ1VB1H104K C 0.1UF K 50V C2337 F1H1H223A219 P 0.022UF 50V C2339 F1H1H223A219 P 0.022UF 50V C2341 ECJ1VB1H104K C 0.1UF K 50V C2343 ECJ1VB1H104K C 0.1UF K 50V C2345 F1H1H223A219 P 0.022UF 50V C2347 F1H1H223A219 P 0.022UF 50V C2349 ECJ1VB1H104K C 0.1UF K 50V C2352 ECJ1VB1C105K C 1UF K 16V C2353 ECJ1VB1H104K C 0.1UF K 50V C2355 ECJ1VB1H104K C 0.1UF K 50V C2357 ECJ1VB1H104K C 0.1UF K 50V C2359 ECJ1VB1H104K C 0.1UF K 50V C2361 EEEFG1E471P E 470UF 25V C2363 ECJ1VB1C104K C 0.1UF K 16V C2375 F1H1H223A219 P 0.022UF 50V C2377 F1H1H223A219 P 0.022UF 50V C2379 F1H1H223A219 P 0.022UF 50V C2381 F1H1H223A219 P 0.022UF 50V C2383 F1H1H102A219 C 1000UF K 50V C2385 F1H1H102A219 C 1000UF K 50V C2387 F1H1H102A219 C 1000UF K 50V C2389 F1H1H102A219 C 1000UF K 50V C2400 ECJ1VB1H104K C 0.1UF K 50V C2401 ECJ1VB1H104K C 0.1UF K 50V C2812 F2G1C100A022 C 10UF J 16V C2813 ECJ1VB1H104K C 0.1UF K 50V C2815 ECJ1VB1H104K C 0.1UF K 50V C2816 F2G1H100A031 E 10UF 50V C2817 F1H1H102A219 C 1000UF K 50V C2819 EEEHB1E470P E 47UF 25V C3021 F1H1A1050028 P 1UF 10V C3023 F1H1A1050028 P 1UF 10V C3024 F1H1A1050028 P 1UF 10V C3026 ECJ1VB1H104K C 0.1UF K 50V C3027 F1H1A1050028 P 1UF 10V C3028 F1H1A1050028 P 1UF 10V C3029 ECJ1VB1C105K C 1UF K 16V C3031 ECJ1VB1H104K C 0.1UF K 50V C3033 F1H1A1050028 P 1UF 10V C3040 ECJ1VB1H104K C 0.1UF K 50V C3043 F1H1A1050028 P 1UF 10V C3051 F1H1A1050028 P 1UF 10V C3052 F1H1A1050028 P 1UF 10V C3053 F1H1A1050028 P 1UF 10V C3054 F1H1A1050028 P 1UF 10V C3055 F1H1A1050028 P 1UF 10V C3056 F1H1A1050028 P 1UF 10V C3060 ECJ1VB1C105K C 1UF K 16V C3070 EEEHB0J221UP E 220UF 6.3V C3075 EEEHB1C221UP E 220UF J 16V C3078 F1K0J226A008 P 22UF 6.3V C3081 F2H0J1010009 E 100UF 6.3V C3100 F1H1A1050028 P 1UF 10V C3101 F1H1A1050028 P 1UF 10V C3102 F1H1A1050028 P 1UF 10V C3103 F2G1C100A022 C 10UF J 16V C3115 ECJ1VB1H104K C 0.1UF K 50V C3116 ECJ1VB1H104K C 0.1UF K 50V C3117 ECJ1VB1H104K C 0.1UF K 50V C3118 F2G1C470A022 C 47UF J 16V C3119 F2G1C100A022 C 10UF J 16V C3120 ECJ1VB1H104K C 0.1UF K 50V C3201 ECJ1VB1H104K C 0.1UF K 50V C3214 ECJ1VB1H104K C 0.1UF K 50V C3216 ECJ1VB1H104K C 0.1UF K 50V C3226 ECJ1VB1H104K C 0.1UF K 50V C3227 ECJ1VB1H104K C 0.1UF K 50V C3228 ECJ1VB1H104K C 0.1UF K 50V C3230 ECJ1VB1H104K C 0.1UF K 50V C3263 ECJ1VB1H104K C 0.1UF K 50V C3265 ECJ1VB1H104K C 0.1UF K 50V C3266 ECJ1VB1H104K C 0.1UF K 50V C3267 ECJ1VB1H104K C 0.1UF K 50V C3268 ECJ1VB1H104K C 0.1UF K 50V C3270 EEEHB0J102UP E 1000UF 6.3V C3271 F2G1C100A022 C 10UF J 16V 回路号 部品品番 部品品名 备注 TC-32LX70D 72 C3272 ECJ1VB1H104K C 0.1UF K 50V C3273 F2G1H100A031 E 10UF 50V C3275 F1H1C104A041 C 0.1UF K 16V C3276 F1H1C104A041 C 0.1UF K 16V C3277 F1H1H3300005 P 33PF 50V C3278 F1H1H3300005 P 33PF 50V C3279 F1H1C104A041 C 0.1UF K 16V C3280 F1H1H1010005 P 100PF 50V C3281 F1H1C104A041 C 0.1UF K 16V C3309 F1H1H331A792 P 330PF 50V C3310 F1H1H331A792 P 330PF 50V C3311 F1H1H331A792 P 330PF 50V C3312 F1H1H331A792 P 330PF 50V C3313 F1H1H331A792 P 330PF 50V C3314 F1H1H331A792 P 330PF 50V C3315 F1H1H331A792 P 330PF 50V C3316 F1H1H331A792 P 330PF 50V C3700 ECJ2VC1H561J C 560PF J 50V C3702 ECJ2VC1H561J C 560PF J 50V C3705 ECJ1VF1H104Z C 0.1UF Z 50V C3707 ECJ1VF1H104Z C 0.1UF Z 50V C4203 F1G1C104A081 P 0.1UF 16V C4500 F1G1C104A081 P 0.1UF 16V C4501 F1G1C104A081 P 0.1UF 16V C4502 F1G1C104A081 P 0.1UF 16V C4503 F1G1C104A081 P 0.1UF 16V C4506 F1G1C104A081 P 0.1UF 16V C4507 F1G1C104A081 P 0.1UF 16V C4508 F2G0J330A019 E 33UF 6.3V C4509 F2G0J330A019 E 33UF 6.3V C4510 F1G1C104A081 P 0.1UF 16V C4511 F1G1C104A081 P 0.1UF 16V C4515 F1G1C104A081 P 0.1UF 16V C4527 F1H1A1050028 P 1UF 10V C4528 F1G1C104A081 P 0.1UF 16V C4531 F1G1C104A081 P 0.1UF 16V C4533 F1G1H680A565 P 68PF 50V C4534 ECJ1VB1H104K C 0.1UF K 50V C4535 ECJ1VB1H104K C 0.1UF K 50V C4538 F2G0J470A019 E 47UF 6.3V C4539 F1J1A106A043 C 10UF C4541 F1H1H471A219 P 470PF 50V C4543 F1G1C104A081 P 0.1UF 16V C4544 F1G1C104A081 P 0.1UF 16V C4545 F1G1C104A081 P 0.1UF 16V C4546 F1H0J2250008 P 2.2UF 10V C4547 F1G1C104A081 P 0.1UF 16V C4548 ECJ1VB1H104K C 0.1UF K 50V C4549 ECJ1VB1H104K C 0.1UF K 50V C4550 F1G1C104A081 P 0.1UF 16V C4551 ECJ1VB1H104K C 0.1UF K 50V C4552 ECJ1VB1H104K C 0.1UF K 50V C4553 F1G1H1020008 P 1000PF 50V C4555 F1J1A106A043 C 10UF C4556 F1J1A106A043 C 10UF C4557 F1G1C104A081 P 0.1UF 16V C4559 F1G1C104A081 P 0.1UF 16V C4560 F1G1C104A081 P 0.1UF 16V C4562 F1H1H822A219 P 8200PF 50V C4563 ECJ1VB1C823K C 0.082UF K 16V C4564 F1G1E1030005 P 0.01UF 25V C4565 F1G1E1030005 P 0.01UF 25V C4566 ECJ1VB1C393K C 0.039UF K 16V C4568 F1G1C104A081 P 0.1UF 16V C4569 F1J1C684A097 P 0.68UF 16V C4570 F2G0J470A019 E 47UF 6.3V C4572 F1G1C104A081 P 0.1UF 16V C4573 F1G1C104A081 P 0.1UF 16V C4574 F1G1E1030005 P 0.01UF 25V C4575 F1H1A1050028 P 1UF 10V C4576 F2G0J470A019 E 47UF 6.3V C4577 F1G1C104A081 P 0.1UF 16V C4578 F1G1C104A081 P 0.1UF 16V C4580 F1G1E1030005 P 0.01UF 25V C4581 F1H1A1050028 P 1UF 10V C4582 F1G1C104A081 P 0.1UF 16V C4583 F1G1C104A081 P 0.1UF 16V 回路号 部品品番 部品品名 备注 C4584 F1H1A1050028 P 1UF 10V C4585 F1H1A1050028 P 1UF 10V C4586 F1G1E1030005 P 0.01UF 25V C4587 F1G1C104A081 P 0.1UF 16V C4588 ECJ1VB1C823K C 0.082UF K 16V C4589 F1G1H150A565 P 15PF 50V C4590 ECJ0EC1H180J C 18PF J 10V C4591 F1H1A1050028 P 1UF 10V C4592 F1H1A1050028 P 1UF 10V C4593 F1G1E1030005 P 0.01UF 25V C4595 F1G1E1030005 P 0.01UF 25V C4596 F1G1C104A081 P 0.1UF 16V C4598 F1H1A1050028 P 1UF 10V C4600 F1G1E1030005 P 0.01UF 25V C4601 F1G1E1030005 P 0.01UF 25V C4602 F1G1C104A081 P 0.1UF 16V C4604 F1H0J2250008 P 2.2UF 10V C4605 F1G1C104A081 P 0.1UF 16V C4607 F2G0J470A019 E 47UF 6.3V C4609 F1H1A1050028 P 1UF 10V C4611 F1H1A1050028 P 1UF 10V C4612 F1G1E1030005 P 0.01UF 25V C4613 F1H1A1050028 P 1UF 10V C4614 F1G1C104A081 P 0.1UF 16V C4615 F1G1E1030005 P 0.01UF 25V C4616 F1G1C104A081 P 0.1UF 16V C4617 F1G1C104A081 P 0.1UF 16V C4618 F1G1E1030005 P 0.01UF 25V C4619 F1G1C104A081 P 0.1UF 16V C4620 F1H1A1050028 P 1UF 10V C4621 F1H1C104A041 C 0.1UF K 16V C4622 F1H1C104A041 C 0.1UF K 16V C4623 F1G1C104A081 P 0.1UF 16V C4624 ECJ1VB1H104K C 0.1UF K 50V C4625 ECJ1VB1H104K C 0.1UF K 50V C4626 F1G1C104A081 P 0.1UF 16V C4627 F1G1C104A081 P 0.1UF 16V C4628 F1G1C104A081 P 0.1UF 16V C4629 F1J1A106A043 C 10UF C4800 F2G1C470A022 C 47UF J 16V C4801 F1G1C104A081 P 0.1UF 16V C4802 F2G0J220A019 E 22UF 6.3V C4803 F1G1E103A059 P 0.01UF 25V C4804 F2G1C470A022 C 47UF J 16V C4805 F1G1C104A081 P 0.1UF 16V C4806 F1G1E103A059 P 0.01UF 25V C4808 F1G1E1030005 P 0.01UF 25V C5600 ECJ1VB1C105K C 1UF K 16V C5601 F1G1C104A081 P 0.1UF 16V C5602 ECGRL0G680ER E 68UF 4V C5603 F1G1E1030005 P 0.01UF 25V C5604 F1G1E1030005 P 0.01UF 25V C5605 F1J1A475A039 P 4.7 UF 10V C5606 F1H1H471A219 P 470PF 50V C5607 F1G1H221A459 P 220 PF 50V C5608 F1G1C104A081 P 0.1UF 16V C5609 F2G1C470A022 C 47UF J 16V C5610 F2G1C470A022 C 47UF J 16V C5615 F1J1A106A043 C 10UF C5616 ECJ0EB1A473K C 0.047UF K 10V C5617 ECJ1VB1C105K C 1UF K 16V C5618 F1J1A106A043 C 10UF C5619 F1J1A106A043 C 10UF C5620 ECJ1VB1H104K C 0.1UF K 50V C5621 F1G1E1030005 P 0.01UF 25V C5622 F1J1A475A039 P 4.7 UF 10V C5623 F1G1H471A459 P 470PF 50V C5624 F1G1H221A459 P 220 PF 50V C5625 F1G1E1030005 P 0.01UF 25V C5626 F1G1C104A081 P 0.1UF 16V C5627 F1G1C104A081 P 0.1UF 16V C5628 ECGRL0G680ER E 68UF 4V C5629 ECGRL0G680ER E 68UF 4V C5630 F2G1C470A022 C 47UF J 16V C5631 F2G1C470A022 C 47UF J 16V C5632 ECJ1VB1C105K C 1UF K 16V C5636 F1G1C104A081 P 0.1UF 16V 回路号 部品品番 部品品名 备注 TC-32LX70D 73 C5637 F1G1C104A081 P 0.1UF 16V C5638 F1G1C104A081 P 0.1UF 16V C5639 F1G1C104A081 P 0.1UF 16V C5640 F1G1C104A081 P 0.1UF 16V C5641 F1G1C104A081 P 0.1UF 16V C5643 ECJ1VB1H104K C 0.1UF K 50V C5644 F1G1E1030005 P 0.01UF 25V C5645 F1H1A225A051 P 2.2UF 10V C5661 F1G1E1030005 P 0.01UF 25V C5662 ECJ0EB1A473K C 0.047UF K 10V C5663 F1G1E1030005 P 0.01UF 25V C5670 F1H1A1050028 P 1UF 10V C5673 F1H1A1050028 P 1UF 10V C5674 F1H1A1050028 P 1UF 10V C5676 F1G1C104A081 P 0.1UF 16V C5690 F2G0J470A019 E 47UF 6.3V C5691 F2G0J470A019 E 47UF 6.3V C5692 ECJ1VB1H104K C 0.1UF K 50V C5693 ECJ1VB1H104K C 0.1UF K 50V C5694 F2G0J470A019 E 47UF 6.3V C5695 F2G0J470A019 E 47UF 6.3V C5710 F1J1H104A578 C 0.1UF 50V C5711 F1J1H104A578 C 0.1UF 50V C5712 F1J1H104A578 C 0.1UF 50V C5713 F1J1H104A578 C 0.1UF 50V C5714 F1J1H104A578 C 0.1UF 50V C5715 F1J1H104A578 C 0.1UF 50V C5716 F1J1H104A578 C 0.1UF 50V C5730 F1G1E1030005 P 0.01UF 25V C5733 F1G1C104A081 P 0.1UF 16V C7101 F1J1H104A717 P 0.1UF 50V C7102 F1J1H104A717 P 0.1UF 50V C7201 F1J1A1050016 P 1UF 10V C7202 F1J1A1050016 P 1UF 10V C7203 F1J1A1050016 P 1UF 10V C7204 F1J1A1050016 P 1UF 10V C7205 F1J0J2250003 P 2.2 UF 10V C7206 F2A1C101A121 E 100UF 16V C7207 ECJ2VB1C224K C 0.22UF K 16V C7209 F1J1H1030007 P 0.01UF 50V C7210 F1J1H104A717 P 0.1UF 50V C7211 F1J1H104A717 P 0.1UF 50V C7301 F1J1H1030007 P 0.01UF 50V C7302 F2A1H221A253 E 220UF 50V C7303 F1J1H1030007 P 0.01UF 50V C7304 F2A1C102A530 E 1000 UF 16V C7305 F1J1H1030007 P 0.01UF 50V C7306 ECJ2VB1H222K C 2200PF K 50V C7307 F1J1H104A717 P 0.1UF 50V C7308 F1J1H104A717 P 0.1UF 50V C7309 F1J1H104A717 P 0.1UF 50V C7310 F1J1H104A717 P 0.1UF 50V C7311 F1J1H1030007 P 0.01UF 50V C7312 F1J1H1030007 P 0.01UF 50V C7313 F1J1H104A717 P 0.1UF 50V C7401 F1J1H1030007 P 0.01UF 50V C7402 F2A1H221A253 E 220UF 50V C7403 F1J1H1030007 P 0.01UF 50V C7404 F2A1C102A530 E 1000 UF 16V C7405 F1J1H223A457 P 0.022UF 50V C7406 ECJ2VB1H102K C 1000PF K 50V C7407 F1J1H104A717 P 0.1UF 50V C7408 F1J1H104A717 P 0.1UF 50V C7409 F1J1H104A717 P 0.1UF 50V C7410 F1J1H104A717 P 0.1UF 50V C7411 F1J1H1030007 P 0.01UF 50V C7412 ECJ2VB1H472K C 4700PF K 50V C7413 F1J1H104A717 P 0.1UF 50V C7501 F1J1H1030007 P 0.01UF 50V C7502 F2A1H221A253 E 220UF 50V C7503 F1J1H1030007 P 0.01UF 50V C7504 F2A1C102A530 E 1000 UF 16V C7505 F1J1H223A457 P 0.022UF 50V C7506 ECJ2VB1H222K C 2200PF K 50V C7507 F1J1H104A717 P 0.1UF 50V C7508 F1J1H104A717 P 0.1UF 50V C7509 F1J1H104A717 P 0.1UF 50V 回路号 部品品番 部品品名 备注 C7510 F1J1H104A717 P 0.1UF 50V C7511 F1J1H1030007 P 0.01UF 50V C7512 F1J1H1030007 P 0.01UF 50V C7513 F1J1H104A717 P 0.1UF 50V C7551 F2A1H100A165 E 10UF 50V C7552 F1J1H1030007 P 0.01UF 50V C7701 F1J1H1030007 P 0.01UF 50V C7702 F2A1H221A253 E 220UF 50V C7703 F2A1C681A127 P 680UF 16V C7705 F1J1H1030007 P 0.01UF 50V C7706 F1J1H104A717 P 0.1UF 50V C7901 F1J1H102A721 P 1000PF 50V C7902 F1J1H104A717 P 0.1UF 50V C7903 F1J1H104A717 P 0.1UF 50V C7904 F1J1H104A717 P 0.1UF 50V C7905 F1J1H104A717 P 0.1UF 50V C7906 F1J1H104A717 P 0.1UF 50V C7908 F2A1C101A121 E 100UF 16V C7910 F2A1A221A106 P 220UF 10V C8001 F1G1C104A081 P 0.1UF 16V C8002 F1H0J1050012 P 1UF 6.3V C8003 F1H0J1050012 P 1UF 6.3V C8004 F1H0J1050012 P 1UF 6.3V C8005 F1H0J1050012 P 1UF 6.3V C8006 F1G1C104A081 P 0.1UF 16V C8007 F1G1C104A081 P 0.1UF 16V C8008 F1G1C104A081 P 0.1UF 16V C8009 F1J1A106A043 C 10UF C8010 F1J1A106A043 C 10UF C8011 F1G1C104A081 P 0.1UF 16V C8012 F1G1C104A081 P 0.1UF 16V C8013 F1G1C104A081 P 0.1UF 16V C8014 F1G1C104A081 P 0.1UF 16V C8015 F1H0J1050012 P 1UF 6.3V C8016 F1H0J1050012 P 1UF 6.3V C8017 F1J1A106A043 C 10UF C8018 F1G1C104A081 P 0.1UF 16V C8019 F1G1C104A081 P 0.1UF 16V C8020 F1G1C104A081 P 0.1UF 16V C8021 F1G1C104A081 P 0.1UF 16V C8022 F1H0J1050012 P 1UF 6.3V C8023 F1J1A106A043 C 10UF C8024 F1J1A106A043 C 10UF C8025 F1G1C104A081 P 0.1UF 16V C8026 F1G1C104A081 P 0.1UF 16V C8027 F1G1C104A081 P 0.1UF 16V C8028 F1G1C104A081 P 0.1UF 16V C8029 F1G1C104A081 P 0.1UF 16V C8030 F1H0J1050012 P 1UF 6.3V C8031 F1H0J1050012 P 1UF 6.3V C8032 F1J1A106A043 C 10UF C8033 F1G1C104A081 P 0.1UF 16V C8034 F1G1C104A081 P 0.1UF 16V C8035 F1J1A106A043 C 10UF C8036 F1J1A106A043 C 10UF C8037 F1G1C104A081 P 0.1UF 16V C8038 F1G1C104A081 P 0.1UF 16V C8039 F1G1C104A081 P 0.1UF 16V C8040 F1G1C104A081 P 0.1UF 16V C8041 F1G1C104A081 P 0.1UF 16V C8042 ECGRL0G680ER E 68UF 4V C8043 F1G1C104A081 P 0.1UF 16V C8044 F1G1C104A081 P 0.1UF 16V C8045 F1G1C104A081 P 0.1UF 16V C8046 F1G1C104A081 P 0.1UF 16V C8047 F1G1C104A081 P 0.1UF 16V C8048 F1G1C104A081 P 0.1UF 16V C8049 F1G1C104A081 P 0.1UF 16V C8050 F1G1C104A081 P 0.1UF 16V C8051 F1G1C104A081 P 0.1UF 16V C8052 F1H0J1050012 P 1UF 6.3V C8053 F1G1E1030005 P 0.01UF 25V C8056 F1G1C104A081 P 0.1UF 16V C8057 F1G1C104A081 P 0.1UF 16V C8058 F1J1A106A043 C 10UF C8067 F1G1E1030005 P 0.01UF 25V C8068 F1G1C104A081 P 0.1UF 16V 回路号 部品品番 部品品名 备注 TC-32LX70D 74 16.2.7. 其他 C8069 F1G1H820A565 P 82PF 50V C8070 F1G1C104A081 P 0.1UF 16V C8071 F1G1C104A081 P 0.1UF 16V C8072 F1G1C104A081 P 0.1UF 16V C8073 F1G1C104A081 P 0.1UF 16V C8074 F1G1C104A081 P 0.1UF 16V C8075 F1J0G2260001 P 22UF 4V C8076 F1G1C104A081 P 0.1UF 16V C8077 F1G1C104A081 P 0.1UF 16V C8078 F1G1C104A081 P 0.1UF 16V C8079 F1G1C104A081 P 0.1UF 16V C8080 F1G1C104A081 P 0.1UF 16V C8551 F1G1C104A081 P 0.1UF 16V C8552 F1G1C104A081 P 0.1UF 16V C8555 F1G1C104A081 P 0.1UF 16V C8601 F1G1C104A081 P 0.1UF 16V C8621 F1G1C104A081 P 0.1UF 16V C8622 F1G1C104A081 P 0.1UF 16V C8731 F1G1E1030005 P 0.01UF 25V C8852 F1H0J2250008 P 2.2UF 10V C8853 F1H0J2250008 P 2.2UF 10V C8854 F1H0J2250008 P 2.2UF 10V 回路号 部品品番 部品品名 备注 PC1001 B3JB00000026 传感器 RM1001 PNA4701M05TV 遥控接收器 T801 ETS15AB136AH 变压器 X1100 H0J100500035 晶振 X2010 H0J245500082 晶振 X8001 H0J270500061 晶振 X4500 H0J270500113 晶振 TU3200 ENGF9701GF 高频头 F801-1 EYF52BC/L 保险丝支架 F801-2 EYF52BC/L 保险丝支架 SW7000 K0F162B00002 电源开关 JK2003 K2HA204A0041 音频端子 JK3001 K1FB315A0006 RGB 端子 JK3100 K1U936A00002 后 AV 端子 JK3700 K4AK18B00004 侧 AV 端子 JK4500 K1FY119D0002 HDMI 端子 JK4501 K1FY119D0002 HDMI 端子 JK8801 K1NA09D00004 SD 卡槽 RL801 TSEH8011 继电器 RL802 K6B2ADA00007 继电器 AP3 K1KA23A00003 连接器 AP4 K1KA23A00003 连接器 AP5 K1KA09AA0190 连接器 AP6 K1KA02AA0193 连接器 DG1 K1KA12A00317 连接器 DG2 K1KB23A00003 连接器 DG5 K1KB31AA0140 连接器 DG6 K1KB80AA0218 连接器 DG26 K1KA06AA0104 连接器 DG33 K1KA11AA0153 连接器 G51 K1KA15AA0194 连接器 H2 K1KA23A00003 连接器 H6 K1KB80AA0218 连接器 H12 K1KA04AA0190 连接器 H51 K1KA20AA0178 连接器 H3A K1KB23A00004 连接器 H4A K1KB23A00004 连接器 K8 K1KA04AA0193 连接器 P5 K1KA09AA0190 连接器 P8 K1KA04AA0190 连接器 P9 K1KA08AA0190 连接器 P10 K1KA02A00626 连接器 P11 K1KA02A00613 连接器 V1 K1KA08BA0061 连接器 TNPA4116AB P 板 TNPA4117AC AP 板 回路号 部品品番 部品品名 备注 TNPA4118AB G 板 TNPA4127AG V 板 TNPA4128AB K 板 TNPA4292DB H 板 TNPA4293FU DG 板 回路号 部品品番 部品品名 备注 TC-32LX70D 75 17 A4 尺寸线路图 ( 供打印使用 ) FLE07040003 中国制作
