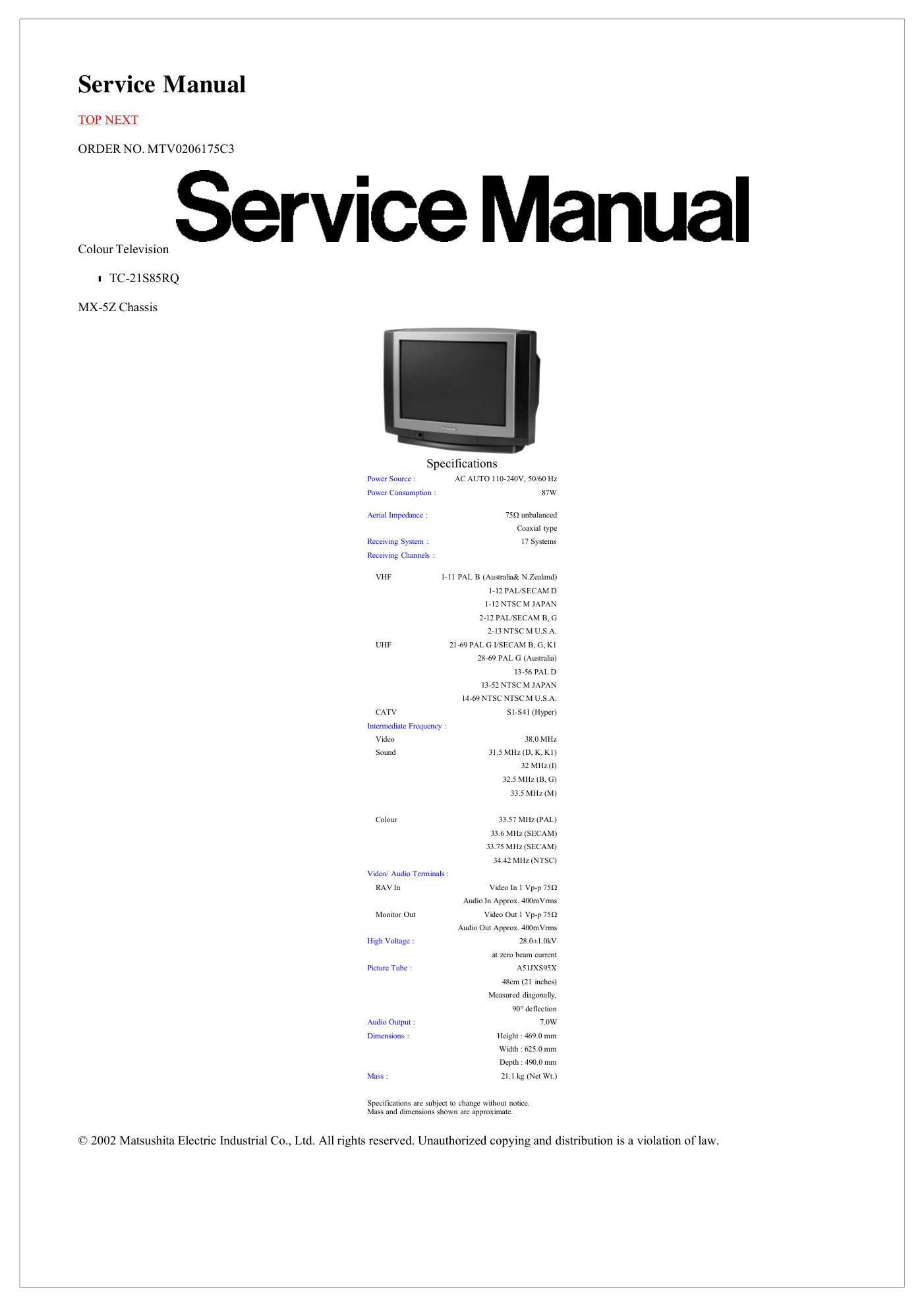

Service Manual TOP NEXT ORDER NO. MTV0206175C3 Colour Television l TC-21S85RQ MX-5Z Chassis © 2002 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. Specifications Power Source : AC AUTO 110-240V, 50/60 Hz Power Consumption : 87W Aerial Impedance : 75Ω unbalanced Coaxial type Receiving System : 17 Systems Receiving Channels : VHF 1-11 PAL B (Australia& N.Zealand) 1-12 PAL/SECAM D 1-12 NTSC M JAPAN 2-12 PAL/SECAM B, G 2-13 NTSC M U.S.A. UHF 21-69 PAL G I/SECAM B, G, K1 28-69 PAL G (Australia) 13-56 PAL D 13-52 NTSC M JAPAN 14-69 NTSC NTSC M U.S.A. CATV S1-S41 (Hyper) Intermediate Frequency : Video 38.0 MHz Sound 31.5 MHz (D, K, K1) 32 MHz (I) 32.5 MHz (B, G) 33.5 MHz (M) Colour 33.57 MHz (PAL) 33.6 MHz (SECAM) 33.75 MHz (SECAM) 34.42 MHz (NTSC) Video/ Audio Terminals : RAV In Video In 1 Vp-p 75Ω Audio In Approx. 400mVrms Monitor Out Video Out 1 Vp-p 75Ω Audio Out Approx. 400mVrms High Voltage : 28.0±1.0kV at zero beam current Picture Tube : A51JXS95X 48cm (21 inches) Measured diagonally, 90° deflection Audio Output : 7.0W Dimensions : Height : 469.0 mm Width : 625.0 mm Depth : 490.0 mm Mass : 21.1 kg (Net Wt.) Specifications are subject to change without notice. Mass and dimensions shown are approximate. 7 Schematic Diagram for printing with A4 size. TOP PREVIOUS TOP PREVIOUS <1A> <2A> <3A> <4A> <5A> <6A> <7A> <8A> <1A> <2A> <3A> <4A> <5A> <6A> <7A> <8A> <1B> <2B> <3B> <4B> <5B> <6B> <7B> <8B> TC-21S85RQ A-Board (2 of 4) Schematic Diagram <1B> <2B> <3B> <4B> <5B> <6B> <7B> <8B> <1C> <2C> <3C> <4C> <5C> <6C> <7C> <8C> <1C> <2C> <3C> <4C> <5C> <6C> <7C> <8C> TC-21S85RQ A-Board (4 of 4) Schematic Diagram <1> <2> <3> <4> TC-21S85RQ L-Board (1 of 2) Schematic Diagram <2> <3> <4>
