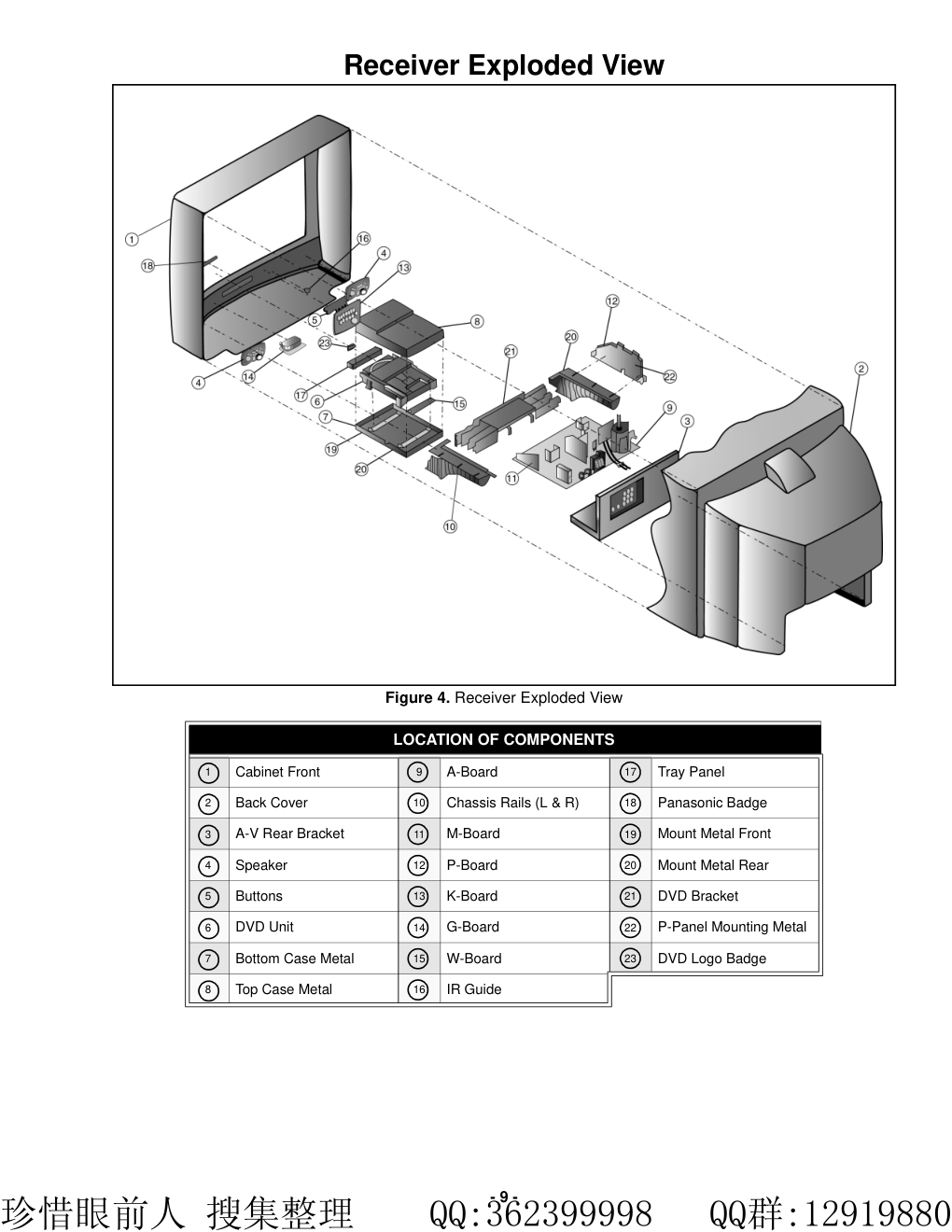

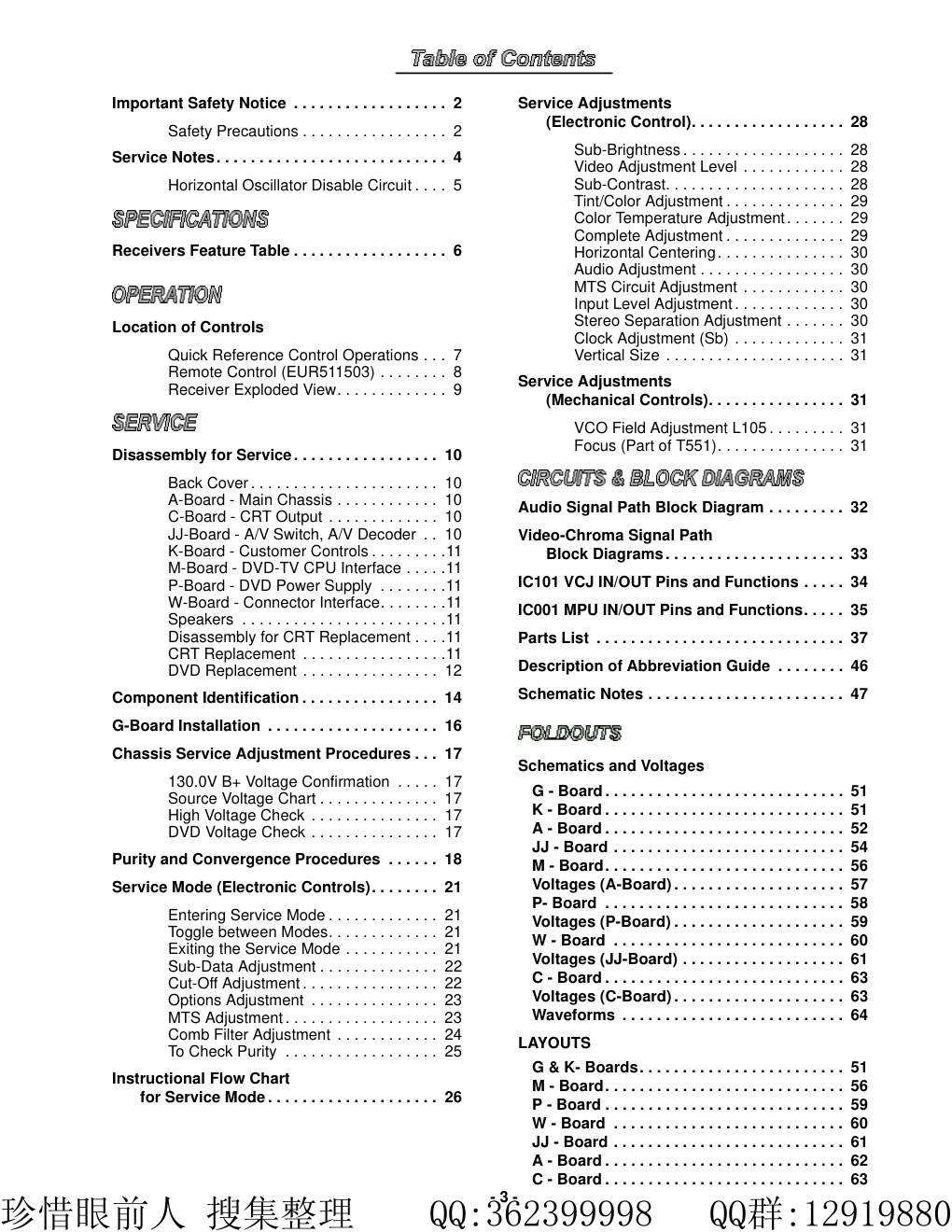

Panasonic Service Manual Color Television (NA6DVD) Main Manual Copyright 2001 by Matsushita Electric Corporation of America. All rights reserved. Unauthorized copying and distribution is a violation of law. Model Chassis CT-20DC50B AP348 ORDER NO. MTNC000939C1 B1 The service technician is required to read and follow the “Safety Precautions” and “Important Safety Notice” in this Main Manual. “WARNING! This Service Manual is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this Service Manual by anyone else could result in serious injury or death.” This Service manual is issued as a service guide for the models of the NA6DVD family listed above. Included in this manual are a set of schematic, block diagrams, functional descriptions, alignment procedures, disassembly procedures, and a complete parts list. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 2 - Important Safety Notice Special components are used in this Receiver that are important for safety. These parts are identified on the schematic diagram by the symbol and printed in BOLD TYPE on the replacement part list. It is essential that these critical parts be replaced with the manufacturer’s specified replacement part to prevent X-ray radiation, shock, fire or other hazards. Do not modify the original design without the manufacturer’s permission. Safety Precautions General Guidelines An Isolation Transformer should always be used during the servicing of a Receiver whose chassis is not isolated from AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect the Receiver from being damaged by accidental shorting that may occur during servicing. When servicing, observe the original lead dress, especially in the high voltage circuit. Replace all damaged parts (also parts that show signs of overheating.) Always Replace Protective Devices, such as fishpaper, isolation resistors and capacitors, and shields after servicing the Receiver. Use only manufacturer’s recommended rating for fuses, circuits’ breakers, etc. High potentials are present when this Receiver is operating. Operation of the Receiver without the rear cover introduces danger for electrical shock. Servicing should not be performed by anyone who is not thoroughly familiar with the necessary precautions when servicing high-voltage equipment. Extreme care should be practiced when handling the Picture Tube. Rough handling may cause it to implode due to atmospheric pressure. (14.7 lbs per sq. in.). Do not nick or scratch the glass or subject it to any undue pressure. When handling, use safety goggles and heavy gloves for protection. Discharge the picture tube by shorting the anode to chassis ground (not to the cabinet or to other mounting hardware). When discharging, connect cold ground (i.e. DAG ground lead) to the anode with a well-insulated wire or use a grounding probe. Avoid prolonged exposure at close range to unshielded areas of the picture tube to prevent exposure to X-ray radiation. The Test Picture Tube used for servicing the chassis at the bench should incorporate safety glass and magnetic shielding. The safety glass provides shielding for the tube viewing area against X-ray radiation as well as implosion. The magnetic shield limits the X-ray radiation around the bell of the picture tube in addition to the restricting magnetic effects. When using a picture tube test jig for service, ensure that the jig is capable of handling 50kV without causing X-ray radiation. Before returning a serviced Receiver to the owner, the service technician must thoroughly test the unit to ensure that is completely safe to operate. Do not use a line isolation transformer when testing. Leakage Current Cold Check Unplug the AC cord and connect a jumper between the two plug prongs. Measure the resistance between the jumpered AC plug and expose metallic parts such as screwheads, antenna terminals, control shafts, etc. If the exposed metallic part has a return path to the chassis, the reading should be between 240k: and 5.2M:� If the exposed metallic part does not have a return path to the chassis, the reading should be infinite. Leakage Current Hot Check (Fig. 1) Plug the AC cord directly into the AC outlet. Do not use an isolation transformer during the check. Connect a 1.5k: 10-watt resistor in parallel with a 0.15PF capacitor between an exposed metallic part and ground. Use earth ground, for example a water pipe. Using a DVM with a 1000 ohms/volt sensitivity or higher, measure the AC potential across the resistor. Repeat the procedure and measure the voltage present with all other exposed metallic parts. Verify that any potential does not exceed 0.75 volt RMS. A leakage current tester (such a Simpson Model 229, Sencore Model PR57 or equivalent) may be used in the above procedure, in which case any current measure must not exceed 0.5 milliamp. If any measurement is out of the specified limits, there is a possibility of a shock hazard and the Receiver must be repaired and rechecked before it is returned to the customer. X-ray Radiation WARNING: The potential source of X-ray radiation in the TV set is in the High Voltage section and the picture tube. Note: It is important to use calibrated equipment including the high voltage meter. Set the brightness, picture, sharpness and color controls to Minimum. Measure the High Voltage. The high voltage should be 27.70kV ± 1.25kV. If the upper limit is out of tolerance, immediate service and correction is required to insure safe operation and to prevent the possibility of premature component failure. Horizontal Oscillator Disable Circuit Test This test must be performed as a final check before the Receiver is returned to the customer. See “Horizontal Oscillator Disable Circuit” on page 5. Figure 1. Hot Check Circuit 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 3 - Important Safety Notice . . . . . . . . . . . . . . . . . . 2 Safety Precautions . . . . . . . . . . . . . . . . . 2 Service Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Horizontal Oscillator Disable Circuit . . . . 5 Receivers Feature Table . . . . . . . . . . . . . . . . . . 6 Location of Controls Quick Reference Control Operations . . . 7 Remote Control (EUR511503) . . . . . . . . 8 Receiver Exploded View. . . . . . . . . . . . . 9 Disassembly for Service. . . . . . . . . . . . . . . . . 10 Back Cover . . . . . . . . . . . . . . . . . . . . . . 10 A-Board - Main Chassis . . . . . . . . . . . . 10 C-Board - CRT Output . . . . . . . . . . . . . 10 JJ-Board - A/V Switch, A/V Decoder . . 10 K-Board - Customer Controls . . . . . . . . .11 M-Board - DVD-TV CPU Interface . . . . .11 P-Board - DVD Power Supply . . . . . . . .11 W-Board - Connector Interface. . . . . . . .11 Speakers . . . . . . . . . . . . . . . . . . . . . . . .11 Disassembly for CRT Replacement . . . .11 CRT Replacement . . . . . . . . . . . . . . . . .11 DVD Replacement . . . . . . . . . . . . . . . . 12 Component Identification . . . . . . . . . . . . . . . . 14 G-Board Installation . . . . . . . . . . . . . . . . . . . . 16 Chassis Service Adjustment Procedures . . . 17 130.0V B+ Voltage Confirmation . . . . . 17 Source Voltage Chart . . . . . . . . . . . . . . 17 High Voltage Check . . . . . . . . . . . . . . . 17 DVD Voltage Check . . . . . . . . . . . . . . . 17 Purity and Convergence Procedures . . . . . . 18 Service Mode (Electronic Controls). . . . . . . . 21 Entering Service Mode . . . . . . . . . . . . . 21 Toggle between Modes. . . . . . . . . . . . . 21 Exiting the Service Mode . . . . . . . . . . . 21 Sub-Data Adjustment . . . . . . . . . . . . . . 22 Cut-Off Adjustment . . . . . . . . . . . . . . . . 22 Options Adjustment . . . . . . . . . . . . . . . 23 MTS Adjustment . . . . . . . . . . . . . . . . . . 23 Comb Filter Adjustment . . . . . . . . . . . . 24 To Check Purity . . . . . . . . . . . . . . . . . . 25 Instructional Flow Chart for Service Mode . . . . . . . . . . . . . . . . . . . . 26 Service Adjustments (Electronic Control). . . . . . . . . . . . . . . . . . 28 Sub-Brightness . . . . . . . . . . . . . . . . . . . 28 Video Adjustment Level . . . . . . . . . . . . 28 Sub-Contrast. . . . . . . . . . . . . . . . . . . . . 28 Tint/Color Adjustment . . . . . . . . . . . . . . 29 Color Temperature Adjustment. . . . . . . 29 Complete Adjustment . . . . . . . . . . . . . . 29 Horizontal Centering. . . . . . . . . . . . . . . 30 Audio Adjustment . . . . . . . . . . . . . . . . . 30 MTS Circuit Adjustment . . . . . . . . . . . . 30 Input Level Adjustment . . . . . . . . . . . . . 30 Stereo Separation Adjustment . . . . . . . 30 Clock Adjustment (Sb) . . . . . . . . . . . . . 31 Vertical Size . . . . . . . . . . . . . . . . . . . . . 31 Service Adjustments (Mechanical Controls). . . . . . . . . . . . . . . . 31 VCO Field Adjustment L105 . . . . . . . . . 31 Focus (Part of T551). . . . . . . . . . . . . . . 31 Audio Signal Path Block Diagram . . . . . . . . . 32 Video-Chroma Signal Path Block Diagrams. . . . . . . . . . . . . . . . . . . . . 33 IC101 VCJ IN/OUT Pins and Functions . . . . . 34 IC001 MPU IN/OUT Pins and Functions. . . . . 35 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Description of Abbreviation Guide . . . . . . . . 46 Schematic Notes . . . . . . . . . . . . . . . . . . . . . . . 47 Schematics and Voltages G - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 K - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 A - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 JJ - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 M - Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Voltages (A-Board) . . . . . . . . . . . . . . . . . . . . 57 P- Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Voltages (P-Board) . . . . . . . . . . . . . . . . . . . . 59 W - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Voltages (JJ-Board) . . . . . . . . . . . . . . . . . . . 61 C - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Voltages (C-Board) . . . . . . . . . . . . . . . . . . . . 63 Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . 64 LAYOUTS G & K- Boards. . . . . . . . . . . . . . . . . . . . . . . . 51 M - Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 P - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 W - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 JJ - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 A - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 C - Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 4 - Service Notes Leadless Chip Component (Surface mount) Chip components must be replaced with identical chips due to critical foil track spacing. There are no holes in the board to mount standard transistors or diodes. Some chips capacitor or resistor board solder pads may have holes through the board, however the hole diameter limits standard resistor replacement to 1/8 watt. Standard capacitor may also be limited for the same reason. It is recommended that identical components be used. Chip resistors have a three-digit numerical resistance code - 1st and 2nd significant digits and a multiplier. Example: 162 = 1600 or 1.6k: resistor, 0 = 0: (jumper). Chip capacitors generally do not have the value indicated on the capacitor. The color of the component indicates the general range of the capacitance. Chip transistors are identified by a two-letter code. The first letter indicates the type and the second letter, the grade of transistor. Chip diodes have a two-letter identification code as per the code chart and are a dual diode pack with either common anode or common cathode. Check the parts list for correct diode number. Component Removal 1. Use solder wick to remove solder from component end caps or terminal. 2. Without pulling up, carefully twist the component with tweezers to break the adhesive. 3. Do not reuse removed leadless or chip components since they are subject to stress fracture during removal. Chip Component Installation 1. Put a small amount of solder on the board soldering pads. 2. Hold the chip component against the soldering pads with tweezers or with a miniature alligator clip and apply heat to the pad area with a 30 watt iron until solder flows. Do not apply heat for more than 3 seconds. How to Replace Flat-IC - Required Tools - 1. Remove the solder from all of the pins of a Flat-IC by using a de-solder braid. 2. Put the iron wire under the pins of the Flat-IC and pull it in the direction indicated while heating the pins using a soldering iron. A small awl can be used instead of the iron wire. 3. Remove the solder from all the pads of the Flat-IC by using a de-solder braid. 4. Position the new Flat-IC in place (apply the pins of the Flat-IC to the soldering pads where the pins need to be soldered). Properly determine the positions of the soldering pads and pins by correctly aligning the polarity symbol. 5. Solder all pins to the soldering pads using a fine tipped soldering iron. 6. Check with a magnifier for solder bridge between the pins or for dry joint between pins and soldering pads. To remove a solder bridge, use a de-solder braid as shown in the figure below. Note: These components are affixed with glue. Be careful not to break or damage any foil under the component or at the pins of the ICs when removing. Usually applying heat to the component for a short time while twisting with tweezers will break the component loose. Chip Components • Soldering iron • De-solder braids • Iron wire or small awl • Magnifier 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 5 - IMPORTANT: To protect against possible damage to the solid state devices due to arcing or static discharge, make certain that all ground wires and CRT DAG wire are securely connected. CAUTION: The power supply circuit is above earth ground and the chassis cannot be polarized. Use an isolation transformer when servicing the Receiver to avoid damage to the test equipment or to the chassis. Connect the test equipment to the proper ground ( ) or ( ) when servicing, or erroneous voltages will be measured. WARNING: This Receiver has been designed to meet or exceed applicable safety and X-ray radiation protection as specified by government agencies and independent testing laboratories. To maintain original product safety design standards relative to X-ray radiation and shock and fire hazard, parts indicated with the symbol on the schematic must be replaced with identical parts. Order parts from the manufacturer’s parts center using the parts numbers shown in this service manual, or provide the chassis number and the part reference number. For optimum performance and reliability, all other parts should be replaced with components of identical specification. Horizontal Oscillator Disable Circuit This chassis employs a special circuit to protect against excessive high voltage and beam current. If, for any reason, the high voltage and beam current exceed a predetermined level this protective circuit activates and detunes the horizontal oscillator that limits the high voltage. The over-voltage protection circuit is not adjustable. However, if components indicated by the symbol on the schematic in either the horizontal sweep system or the over-voltage protection circuit itself are changed, the operation of the circuit should be checked using the following procedure: Equipment needed to check the disabled circuit: 1. Voltmeter (0 - 200V scale) 2. High Voltage Meter (0- 50kV) 3. Variac or Isolation Transformer Procedure: 1. Tune in a station to verify that the horizontal is in sync. 2. Obtain a Monoscope pattern or a signal generator crosshatch pattern 3. Connect the voltmeter (-) lead to TPD2 and the (+) lead to TPD1 (junction of D555 anode, R556 & R557). Set Bright level to (0) and Picture for a 1.8-volt reading on the voltmeter. 4. Turn the Receiver “OFF”. Connect a jumper across IC803 pin 3 and pin 4. Apply +9V DC to cathode of D001. 5. Reduce the AC supply voltage to approximately 45V. Connect the high voltage meter to the CRT anode. (H.V. button). Note: Use the DAG Ground (C10 on the CRT Board) to connect the (-) lead of the meter. 6. Turn the Receiver “ON”. Slowly increase the AC supply voltage and verify that the high voltage does not exceed 34.0kV when horizontal just begins to pull out of sync. If the high voltage is not within the specified limit, the cause must be determined and corrected before the Receiver is returned to the customer. Remove jumper installed in Step 4. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 6 - Receiver Feature Table FEATURE Chassis AP348M Tunning system 64K # of channels 181 Menu language Eng/Span/Fr Closed Caption X V-Chip X 75 : input X Remote Model # EUR511503 Picture tube A51KQN011X Black Face Regular Tube X Comb Filter 3 Line Digital H. Edge Correction X V/A Norm - Both X MTS/SAP/DBX X AI Sound X Bass/Bl/Tre Control X Surround X Built-in audio power 5W x 2 (10%) # of speakers 2 A/V in (rear/front) 2(2/1) S-VHS Input (rear/ front) 1/0 Audio Out (FAO & VAO) X Others DVD Unit Digital Optical Output X Headphone Jack X Dimensions mm (WxDxH) in 595 x 563.5 x 580.4 23.4 x 22.2 x 22.9 Weight (kg/lbs) 24.5 / 53.9 Power source (V/Hz) 120 / 60 Anode voltage 27.70kV ± 1.25kV Video input jack 1Vp-p 75:, phono jack Audio input jack 500mV RMS 47k: FEATURE BOARD PART NUMBER DESCRIPTION A TNPH0353AB* Main Chassis C TNP2AA047AA* CRT Output G TNPA1736* Video Input (front) JJ TNPA1804* A/V Switch and A/V Decoder K TNPA1737* Customer Controls M TNPA1734* DVD-TV CPU Interface P TNPA1738* DVD Power Supply W TNPA1735* Connector Interface Board * When ordering, please add an “s” to the part number, for example TNPH0353AB should be ordered as TNPH0353ABS. Specifications are subject to change without notice or obligation. Dimensions and weights are approximate. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 7 - Location of Controls Quick Reference Control Operation Power - Press to turn “ON” or “OFF”. Volume - Press to adjust Sound Level, or to adjust Audio Menus, Video Menus, and select operating features when menus are displayed Channel - Press to select programmed channels. Press to highlight desired features when menus are displayed. Also use to select Cable Converter box channels after programming Remote Control Infrared codes (the TV/AUX/CABLE switch must be set in CABLE position). Action - Press to display Main Menu and access On Screen features and Adjustment Menus. TV/Video - Press to select TV or Video Input. Skip/Search - Press to search all channels/tracks. Play - Play DVD/CD or VHS tape. Stop - Stop playing DVD/CD or VHS tape. Skip/Search - Skip or search DVD/CD or VHS. Still/Pause - Pause DVD/CD or VHS while viewing. Open/Close - Open or close DVD drawer. 5 3 Figure 2. Location of Controls 1 4 2 Remote Control Sensor Input Jacks 7 8 9 10 11 6 1 2 3 4 5 6 7 8 9 10 11 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 8 - Figure 3. Location of Controls (Remote). POWER Press to turn ON and OFF. TV DVD CBL/DBS VCR Press to select remote operation. VOL Press to adjust TV sound and navigate in menus. MUTE Press to mute sound. Press to access and cancel (CC) Closed Caption. “0”~ “9” Press numeric keypad to select any channel. Selects DVD functions in DVD mode. R-TUNE Press to switch to previously viewed channel or video mode. CH Press to select next channel and navigate in menus. RECALL/DISPLAY Press to display time, channel, sleep timer, and other options. Display On Screen menus in DVD mode. SKIP/REW, PLAY, SKIP/FF, CANCEL, TV/VCR, STOP, STILL, PAUSE, REC, SEARCH Component function buttons. REMOTE CONTROL ACTION Press to access menu or enter selections LIGHT Press to light remote control buttons. TV/VIDEO Press to select TV, Video or DVD mode. EUR511503 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 9 - Receiver Exploded View Figure 4. Receiver Exploded View LOCATION OF COMPONENTS 1 Cabinet Front 9 A-Board 17 Tray Panel 2 Back Cover 10 Chassis Rails (L & R) 18 Panasonic Badge 3 A-V Rear Bracket 11 M-Board 19 Mount Metal Front 4 Speaker 12 P-Board 20 Mount Metal Rear 5 Buttons 13 K-Board 21 DVD Bracket 6 DVD Unit 14 G-Board 22 P-Panel Mounting Metal 7 Bottom Case Metal 15 W-Board 23 DVD Logo Badge 8 Top Case Metal 16 IR Guide 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 10 - Disassembly for Service Back Cover Remove all the screws marked with an arrow( ) from the back of the Receiver. • 3 screws at the top edge of the Receiver. • 1 screw at each lower corner of the Receiver. • 1 screw by the A/V jacks. • 1 screw by the AC cable opening cover. • 1 screw closest to the antenna terminal. • 1 screw by the Flyback. Figure 5. Back Cover Screw Location A-Board - Main Chassis The board is secured in place by the guide rails and by the DVD bracket. 1. The A-board is mounted on rails that are attached to the DVD bracket. To remove the rails, DVD bracket and A-Board press on the tabs located at the bottom of the cabinet and pull forward. 2. Press on the tabs located on the DVD bracket to release the A-Board from the hardware. Note: Some tie-wraps that secure the wire dressings may need to be unfastened for chassis removal. C-Board - CRT Output Socket plugs onto the CRT neck. Figure 6. C-Board Assembly G-Board - Video Input (Front) Fastened to the front panel. Position bottom of board on back of front panel and secure with 1 screw. Figure 7. G-Board Assembly JJ-Board - A/V Switch, A/V Decoder Plugs perpendicularly into 4 connectors on the A-Board. Figure 8. JJ-Board Assembly IMPORTANT NOTE: Reuse hardware (screws, bolts, connectors, etc.) upon reassembling the Receiver. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 11 - K-Board - Customer Controls (Keyboard Push Button Assembly) Fastened to the inside of the cabinet front with 3 screws. The push button unit is attached to the K-Board with 4 snap tabs (spring action). Press on the tabs and pull up to release push button assembly from the K-Board. Install the foam (cushion) between the two rows of push buttons. Figure 9. K-Board Assembly M-Board - DVD-TV CPU Interface Plugs perpendicularly into 3 connectors on the A-Board. Figure 10. M-Board Assembly P-Board - DVD Power Supply The P-Board is mounted onto the left chassis rail with a metal bracket. The bracket is secured to the rail with 2 screws. The P-Board is secured to the metal bracket with 5 screws. Figure 11. P-Board Assembly W-Board - Connector Interface Board Located underneath the DVD unit. Secured to the DVD enclosure with 2 screws. Speakers Speakers are secured to the cabinet’s front with 4 screws. Disassembly for CRT Replacement 1. Discharge the CRT as instructed in the Safety Precautions. (See page 2.) 2. Disconnect the yoke (DY) plug, degaussing coil (DEG) plug and the CRT 2nd anode button from the main board. 3. Remove the C-Board from the CRT base and unplug the black wire (CRT DAG ground) C10. 4. Disconnect the A11, A12, and Speakers plugs from the A-Board. 5. Lift the Main Chassis (A-Board) and all mounted boards completely out with the CRT Board attached. CRT Replacement 1. Perform Disassembly for CRT Replacement procedure. 2. Insure that the CRT H.V. Anode button is discharged before handling the CRT. Read “Safety Precautions” on page 2 on handling the picture tube. 3. Remove the components from the CRT neck and place the cabinet face down on a soft pad. 4. Note the original order for the CRT mounting hardware as they are removed from the CRT mounting brackets at each corner of the CRT. 5. Remove the CRT with the degaussing coil and the DAG ground braid attached. 6. Note the original locations and mounting of the degaussing coil and the DAG ground assembly to insure proper reinstallation on the replacement CRT. To remove and re-mount the degaussing coil: The degaussing coil is held in place by clampers fastened to the CRT corner ears, indicated as location “1”, “2”, “3” and “4” in Fig. 12. These clampers must be installed onto the replacement CRT prior to mounting the degaussing coil. Fasten the clampers, beginning at position “1” and ending at position “4”, while maintain a distance of 30~40mm between the corner ears and the degaussing coil, as depicted in the detail view in Fig. 12. To remove and re-mount the DAG ground braid: a.Unhook the coil spring from the bottom left corner of the CRT ear. b.Release the braid loop from the upper right corner of the CRT ear. 7. Mount the DAG ground braid on the replacement CRT. 8. Replace the components on CRT neck and reinstall into cabinet. Verify that all ground wires and circuit board plugs get connected. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 12 - Figure 12. Fixing of DEG (degaussing) coil and DAG GND. DVD Replacement Note: Observe universal STATIC PRECAUTIONS when handling the DVD unit. Replace the DVD unit when it fails (DVD unit is not shipped with its enclosure). When installing a new DVD, note the order of disassembly, and save the hardware. Follow the procedures for A-Board Removal on page 10. It is necessary to disassemble the plastic frame that holds the A-Board. It is held by 2 snap tabs on each side - one at the backside of the A-Board frame, and one approximately 1.5” apart (inside the plastic stiffening rib). Gently pull on the tabs to release each rail from the DVD bracket. See items 10 and 21 on page 9. Then, remove the W-Board located underneath the DVD that is secured to the DVD case with 2 screws. Reinstall in reverse order of disassembling. Reuse hardware and flat cable. Remove the shipping grounding “plug” from the underside of the DVD unit. Verify that the ferrite beads are installed on the cables connecting to the DVD unit. See Fig. 14 through Fig. 15 (page 13). Figure 13. Assembly of chassis frame, DVD pack & P-Board. Clamper (4 places) DAG GND DEG Coil DAG GND Connector CRT Clamper DEG Coil Mounting Ear CRT CRT Face 30~40mm DEG Coil Connector Detailed side view IMPORTANT NOTE: Reuse hardware (screws, bolts, connectors, etc.) upon reassembling the Receiver. DVD Pack Main Chassis DVD Bracket Chassis Rail (R) Chassis Rail (L) P-Board 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 13 - Figure 14. DVD Unit Connection Figure 15. DVD Unit Shipping Grounding “Plug” Removal W-Board Flat cable DVD Shipping “Plug” Grounding 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 14 - Component Identification Figure 16. Receiver Internal View LOCATION OF COMPONENTS INTEGRATED CIRCUITS BOARDS TRANSISTORS VARIOUS 1 IC 001 MPU 9 A Board 14 Q501 HOR. 16 T551 (Flyback) 2 IC 002 EEPROM 10 C Board 15 Q551 HOR. 17 A/V Jacks 3 IC 101 VCJ 11 JJ Board 18 Fuse (F801) 4 IC 6501 3L Filter 12 M Board 19 Tuner 5 IC 451 Vertical. 13 P Board 20 Speaker 6 IC 552 REG. 21 Anode 7 IC 803 REG. 22 CRT 8 IC 2302 Audio Out 23 Deflection Yoke 13 20 10 16 17 19 22 23 Rear 21 3 19 11 16 13 17 18 12 1 4 15 14 5 2 6 7 9 Front 8 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 15 - Figure 17. Side View - P-Board Figure 18. Side View - M-Board, Tuner & JJ-Board Figure 19. Side View - P-Board & Mounting Rail 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 16 - Figure 20. Side View - M-Board & Mounting Rail G-Board Installation Verify that when the cables leading from the A-Board to the G-Board are replaced, the ferrite beads are installed. See Fig. 21. Figure 21. G-Board Cables & Ferrite Beads Assembly G-Board G1 G2 A25 Ferrite Bead A26 IMPORTANT NOTE: Reuse hardware (screws, bolts, connectors, etc.) upon reassembling the Receiver. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 17 - Chassis Service Adjustment Procedures All service adjustments are factory preset and should not require adjustment unless controls and/or associated components are replaced. Note: Connect the (-) lead of the voltmeter to the appropriate ground. Use IC803’s heat sink when the HOT ground symbol ( ) is used. Otherwise, use COLD ground ( ) — Tuner shield, IC451’s heat sink or FA2. MOMENTARILY CONNECT A JUMPER FOR ENTERING SERVICE MODE (FA1 to FA2 ) 130V B+ Voltage Confirmation 1. Set the Bright and the Picture to Minimum by using the Picture Menu. 2. Connect the DVM between C809 (+ side) and cold ground ( ). 3. Confirm that B+ voltage is 132.0V ± 2.5V. This voltage supplies B+ to the Horizontal Output & Flyback circuits. Source Voltage Chart 120V AC line input. Set the Bright and the Picture to Minimum by using the Picture Menu. Use cold ground ( ) for the (-) lead of the DVM. Adjust Picture Menu for normalized video adjustments. High Voltage Check 1. Select an active TV channel and confirm that horizontal is in sync. 2. Adjust Brightness and Picture using Picture Icon menu so video just disappears. 3. Using a high voltage meter confirm that the High Voltage at the CRT anode is 27.70kV ± 1.25kV. 4. Normalize picture settings. DVD Voltage Check Play a DVD TEST DISC and measure the following: Figure 22. A-Board Main Components and Test Points LOCATION VOLTAGE TPD8 24.0V ± 2V TPD9 13.0V ± 2V C552 (+) side 20.0V ± 2V IC551 Pin3 9.0V ± 0.5V D554 Cathode 200V ± 15V C572 (+) side 5.0V ± 0.25V LOCATION VOLTAGE JJ1 pin1 - P2 pin1 (TPJJ5) -10.5V ± 0.52V JJ1 pin3 - P2 pin3 (TPJJ10) 10.5V ± 0 . 5 2 V JJ1 pin5 - P2 pin5 (TPJJ6) 5.0V ± 0.25V JJ1 pin6 - P2 pin6 (TPJJ7) 5.0V ± 0.25V W6 pin2 - P1 pin7 (TPW7) 2.5V ± 0.125V W6 pin4 - P1 pin4 (TPW6) 2.5V ± 0.125V W6 pin6 - P1 pin6 (TPW5) 5.0V ± 0.25V W6 pin8 - P1 pin8 (TPW3) 9.0V ± 0.45V W6 pin10 - P1 pin10 (TPW4) 5.0V ± 0.25V 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 18 - Purity and Convergence Procedure Adjustment is necessary only if the CRT or the deflection yoke is replaced or if the setting was disturbed. The complete procedure consists of: 1. Vertical Raster Shift Adjustment. (Only for Models with Purity/Convergence Assembly with 4 Pairs of Rings). 2. Initial static convergence. 3. Setting the purity. 4. Final static convergence. When the CRT or the Yoke is Replaced Place the yoke on the CRT neck (do not tighten the clamp). For a 2-piece assembly (see Fig. 23): Position purity/convergence assembly as shown and tighten clamp snugly. To reduce its magnetic field effect, remove the hot-melt glue seal on assembly and position like tabs of purity device together at 12 o’clock. For models using 4 pairs of rings, place the vertical raster shift tabs at 3 o’clock (90o from the purity and convergence tabs. (See Fig. 24 and Fig. 25.) For a 1-piece assembly (see Fig. 26): Position like tabs of purity devices together at 12 o’clock to reduce any magnetic field effect. (For better results, note part number and look for specifications at Service Center) For either assemblies: Turn the Receiver “ON”. Operate the Receiver for 60 minutes using the first Purity Check field (white screen) to stabilize the CRT. Fully degauss the Receiver by using an external degaussing coil. Slide the deflection yoke back and forth on the neck of the CRT until it produces a near white, uniform raster. Vertical Raster Shift Adjustment (Only for Models with Purity/Convergence Assembly with 4 Pairs of Rings). Apply a green pattern with a horizontal line, adjust the Deflection Yoke so that has no tilt, and then secure it. Adjust centerline of the pattern with the mechanical center of the CRT, this center is determined by two marks at the side edges of the screen. To adjust the line, once the vertical raster shift tabs are place at 3 o’clock to reduce its magnetic field effect (see Fig. 24 and Fig. 25) open the tabs the same angle from the center, until the centerline of the pattern becomes a straight line, centered with the marks of the CRT. (See Fig. 27) Figure 23. Positioning of Purity/Convergence Assembly (2-piece assembly) Figure 24. Positioning of Purity/Convergence Assembly (4 Pairs of Rings) Figure 25. Positioning of Purity/Convergence Assembly (4 Pairs of Rings) Figure 26. Positioning of Purity/Convergence Assembly (1-piece assembly) Figure 27. Vertical Raster Shift Adjustment (4 pairs of rings assembly) 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 19 - Initial Center Static Convergence Connect a dot/cross hatch generator to the Receiver and tune in a signal. Observe misconvergence at center of the screen only. Adjust the R & B pole magnets; by separating tabs and rotating to converge blue with red. Adjust the R & B and R & B & G pole magnets: by separating tabs and rotating to converge blue and red (magenta) with green. Note: Precise convergence at this point is not important. Purity Adjustment When the Receiver is in the Service Mode for making electronic adjustments, press Recall on the Remote Control to enter Purity Check. (See “Service Adjustments (Electronic Controls)” on page 28). Operate the Receiver for 60 minutes using the first Purity Check field (white screen) to stabilize the CRT. Fully degauss the Receiver by using an external degaussing coil. Press Recall on the Remote Control again until the Purity Check (green screen) appears. For a 2-piece assembly (see Fig. 23): Loosen the deflection yoke clamp screw and move the deflection yoke back as close to the purity magnet as possible. Adjust the Purity rings to set the vertical green raster precisely at the center of the screen. (See Fig. 28.) Slowly move the deflection yoke forward until the best overall green screen is displayed. For a 1-piece assembly (see Fig. 26): Slowly move the deflection yoke and purity rings assembly toward the CRT board and adjust the purity magnet rings to set vertical green raster at center of screen. (See Fig. 28.) Gradually move the deflection yoke & purity rings forward and adjust for best overall green screen. Continue from here for either assemblies: Tighten the deflection yoke clamp screw. Press Recall on the Remote Control again until the purity check (blue screen) and (red screen) appear and observe that good purity is obtained on each respective field. Press Recall on the Remote Control again until Purity check (white screen) appears. Observe the screen for uniform white. If purity has not been achieved, repeat the above procedure. Final Convergence Procedure (See Fig. 29 through Fig. 32): Note: Vertical size and focus adjustments must be completed prior to performing the convergence adjustment. Connect a dot pattern generator to the Receiver. The Brightness level should not be higher than necessary to obtain a clear pattern. Converge the red and the blue dots at the center of the screen by rotating the R & B pole Static Convergence Magnets. Align the converged red/blue dots with the green dots at the center of the screen by rotating the R & B & G pole Static Convergence Magnets. Melt wax with soldering iron to reseal the magnets. Slightly tilt vertically and horizontally (do not rotate) the deflection yoke to obtain a good overall convergence. If convergence is not reached at the edges, insert permalloy (see following section) from the DY corners to achieve proper convergence. Recheck for purity and readjust if necessary. After vertical adjustment of the yoke, insert wedge at 11 o’clock position, then make the horizontal tilt adjustment. Secure the deflection yoke by inserting two side wedges at 3 and 7 o’clock positions. Apply adhesive between tab (thin portion) of wedge and CRT and place tape over the tab to secure to the CRT. Permalloy Convergence Corrector Strip (Part No. 0FMK014ZZ) This strip is used in some sets to match the yoke and CRT for optimum convergence. If the yoke or CRT is replaced, the strip may not be required. First converge the set without the strip and observe the corners. If correction is needed: 1. Place strip between CRT and yoke, in quadrant needing correction. Slowly move it around for desired results. 2. Press adhesive tightly to the CRT and secure with tape. Figure 28. Green Raster Adjustment 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 20 - Figure 29. Vertical Yoke Movement Figure 30. Horizontal Yoke Movement Figure 31. Convergence Magnets and Wedges Location Note: For models using 4 pairs of rings assemblies see Fig. 24 for details 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 21 - Service Mode (Electronic Controls) This Receiver has electronic technology using the I²C Bus Concept. It performs as a control function and it replaces many mechanical controls. Instead of adjusting mechanical controls individually, many of the control functions are now performed by using “On Screen Display Menu”. (The Service Adjustment Mode.) Note: It is suggested that the technician reads all the way through and understand the following procedure for Entering/Exiting the Service Adjustment Mode then proceed with the instructions working with the Receiver. When becoming familiar with the procedure, the Flow Chart for Service Mode may be used as a quick guide. Quick Entry to Service Mode: At times when minor adjustments need to be done to the electronic controls, the method of Entering the Service Mode without removal of the cabinet back is as follows using the Remote Control: 1. Adjust VOLUME to minimum (0). 2. Set CC Mode (Close Caption) “OFF”. 3. Select SET-UP icon and select CABLE mode. 4. Select TIMER icon and set SLEEP time for 30, 60 or 90 Min. 5. Press ACTION twice to exit menus. 6. Tune to the Channel 124. 7. Press the VOL (decrease) on Receiver. Red “CHK” appears in the left upper corner. Note: Three additional indicators appear on screen. One is the five-digit usage in hours and the other two are four digits for V-Chip Main and Child ratings. Indicators are hexadecimal numbers. 8. Press Power on the Remote Control to select one of seven Service Adjustment Modes. 1. B= Service VCJ SUB-DATA adjustment. 2. C= Service VCJ CUT-OFF adjustment. 3. M= Service MTS adjustments. 4. S= Service OPTIONS adjustments. 5. X = Service OPTIONS adjustments. 6. “CHK” = Normal operation of CHANNEL and VOLUME . Figure 32. Service Mode Menu Adjustments. Note: Only the applicable settings for the Receiver serviced will be available (See a in Fig. 32). Exiting the Service Mode: Press the Action and Power on the Receiver simultaneously for at least 2 seconds. THE RECEIVER EXITS SERVICE MODE. The Receiver momentarily shuts off; then comes back on tuned to channel 3 with a preset level of sound. Any programmed channels, channels caption data and some others user defined settings will be erased. To toggle between Aging and Service Modes: While the “CHK” is displayed on the left top corner of the CRT, pressing the Action and the Volume Up on the Receiver simultaneously will toggle between the modes. Red “CHK” for Service and yellow “CHK” for Aging. An address Menu appears in the right hand corner of the screen 32 B 0 2 215 C 0 b a b a NOTE Always Exit the Service Mode Following Adjustments. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 22 - Press Power on the Remote Control to select the Service Adjustment. For Adjustments: Sub-Data Adjustment Adj. Range Default Level B0 SUB-COLOR 0 ~ 63 30 B1 SUB-TINT 0 ~ 63 42 B2 SUB-BRIGHTNESS 0 ~ 255 35 B3 SUB-PICTURE 0 ~ 63 26 B4 KILLER/ABL/GAMMA 0 ~ 7 5 B5 VIDEO ADJUSTMENT 0 ~ 15 8 B6 AUDIO ADJUSTMENT 0 ~ 31 9 B7 V-SIZE 0 ~ 63 40 Cut-Off Adjustment Adj. Range Default Level C0 CUT-OFF R 0 ~ 1 0 ~ 255 0 128 C1 CUT-OFF G 0 ~ 255 64 C2 CUT-OFF B 0 ~ 1 0 ~ 255 0 128 C3 DRIVE R 0 ~ 127 64 C4 DRIVE B 0 ~ 127 64 C5 YNR SWITCH 0 ~ 1 0 C6 AFT 0 ~ 1 0 ~ 255 1 120 C7 RF-AGC 0 ~ 127 64 C8 YNR VIDEO ADJUSTMENT 0 ~ 7 0 C9 HORIZONTAL CENTER 0 ~ 31 11 Ca BEAM LIMIT 0 ~ 7 4 Cb VCJ TEST H 0 ~ 2 0 1.Press Channel Up/Down on the Remote Control to select one of the available Service Adjustments (a in Fig. 32). Note: Write Down the original value set (b in Fig. 32) for each address before modifying anything. It is easy to erroneously adjust the wrong item. 2.Press Volume Up/Down on the Remote Control to adjust the level of the selected Service Adjustment (b in Fig. 32). NOTE Always Exit the Service Mode Following Adjustments. CH CH CH CH PW CH PW CH To S Items. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 23 - Press Power on the Remote Control to select the Service Adjustment For Adjustments: Options Adjustment Adj. Range Default Level S0 PIP COLOR 0 ~ 127 80 S1 PIP CONTRAST 0 ~ 127 52 S2 UP 1/9 0 ~ 255 26 S3 DOWN 1/9 0 ~ 255 146 S4 LEFT 1/9 0 ~ 255 9 S5 RIGHT 1/9 0 ~ 255 103 S6 UP 1/16 0 ~ 255 27 S7 DOWN 1/16 0 ~ 255 163 S8 LEFT 1/16 0 ~ 255 9 S9 RIGHT 1/16 0 ~ 255 118 Sa FREE RUN N/A N/A Sb CLOCK ADJUSTMENT 0 ~ 255 128 Sc PIP TINT 0 ~ 63 50 Sd LOUDNESS COMPENSATION 0 ~ 63 52 MTS Adjustment Adj. Range Default Level M0 INPUT LEVEL 0 ~ 63 33 M1 HIGH-LEVEL SEPARATION 0 ~ 63 25 M2 LOW-LEVEL SEPARATION 0 ~ 16 6 1.Press Channel Up/Down on the Remote Control to select one of the available Service Adjustments (a in Fig. 32). Note: Write Down the original value set (b in Fig. 32) for each address before modifying anything. It is easy to erroneously adjust the wrong item. 2.Press Volume Up/Down on the Remote Control to adjust the level of the selected Service Adjustment (b in Fig. 32). CH CH CH PW To X Items. PW 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 24 - Press Power on the Remote Control to select the Service Adjustment For Adjustments: Comb Filter Adjustment Adj. Range Default Level X0 COMB GAIN 0 ~ 255 152 X1 COMB SWITCH 0 ~ 63 12 X2 COMB LIMIT 0 ~ 63 24 X3 COMB CORE 0 ~ 127 41 X4 COMB RF DELAY 0 ~ 127 20 X5 COMB VIDEO DELAY 0 ~ 127 18 X6 COMB VMLM 0 ~ 127 90 X7 COMB VM SW 0 ~ 63 24 X8 COMB SHARP 0 ~ 255 30 X9 COMB VM LEVEL 0 ~ 255 255 Xa COMB VMPKF 0 ~ 1 01 Xb COMB ADJ SHARP 0 ~ 63 15 1.Press Channel Up/Down on the Remote Control to select one of the available Service Adjustments (a in Fig. 32). Note: Write Down the original value set (b in Fig. 32) for each address before modifying anything. It is easy to erroneously adjust the wrong item. 2.Press Volume Up/Down on the Remote Control to adjust the level of the selected Service Adjustment (b in Fig. 32). CH CH PW To B Items. CH 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 25 - To Check Purity: Press Recall on the Remote Control when in Service Mode (red “CHK” is displayed) to enter the Purity Field Check Mode. Press Recall again to select desired field. NORMAL SCREEN WHITE SCREEN RED SCREEN GRN. SCREEN BLUE SCREEN Figure 33. Purity Check Field Mode. Helpful Hints Entering Service Mode (Back-Open Method) 1. While the Receiver is on and operating in Normal Mode, momentarily short test point FA1 (TP8) to Cold Ground ( ) FA2 (TP3) A-Board. THE RECEIVER ENTERS THE AGING MODE Yellow letters “CHK” appear in the upper left corner of the CRT. (The Volume Up/Down will adjust rapidly). 2. Simultaneously press Action and Volume Up on the Receiver Control Panel. THE RECEIVER ENTERS THE SERVICE MODE The letter in “CHK” turn red. (The Volume Up/Down will adjust normally). (All customer controls are set to nominal level). NOTE Always Exit the Service Mode Following Adjustments. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 26 - Instructional Flow Chart for Service Mode Adj. needed? NORMAL MODE Momentarily short FA1 to FA2 ( ). Press Action + Volume Up Simultaneously (on Receiver) Adj. needed? B7 V-SIZE B6 AUDIO ADJUSTMENT B5 VIDEO ADJUSTMENT B4 KILLER/ABL/ GAMMA B3 SUB-PICTURE B2 SUB- BRIGHTNESS B1 SUB-TINT B0 SUB-COLOR Adj. needed? WHITE SCREEN (ON REMOTE) (ON REMOTE) RECALL WHITE SCREEN RED SCREEN GRN. SCREEN BLUE SCREEN POWER (ON REMOTE) AGING MODE • Yellow “CHK” appears in upper left corner of screen. • Volume Up/Down operate rapidly. • Customer Controls are set to nominal level. SERVICE MODE • “CHK” turns red. • Volume Up/Down operate normally. • Customer Controls are set to nominal level. SUB-DATA ADJUSTMENTS. B ITEMS. A QUICK ENTRY TO SERVICE MODE • Select CABLE Mode. • Set SLEEP time for 30 Min. • Tune to Channel 124. • Adjust Volume to minimum. • Press VOL DOWN. On Receiver. (ON REMOTE) CH CH EXIT EXIT Figure 34. Flow Chart for Service Mode. N Y N Y N Y B NOTE Always Exit the Service Mode Following Adjustments. (ON REMOTE) RECALL POWER (ON REMOTE) 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 27 - Instructional Flow Chart for Service Mode - Continued Adj. needed? CUT-OFF ADJUSTMENTS. C ITEMS. A EXIT Figure 35. Flow Chart for Service Mode. (Continued) N Y Cb VCJ TEST Ca BEAM LIMIT C9 HORIZ CENTER C8 YNR VID ADJ C7 RF-AGC C6 AFT C5 YNR SWITCH C4 DRIVE B C3 DRIVE R C2 CUT-OFF B C1 CUT-OFF G C0 CUT-OFF R MTS ADJUSTMENTS. M ITEMS. Adj. needed? N Y OPTIONS ADJUSTMENTS. S ITEMS. Adj. needed? N Y COMB-FILTER ADJUSTMENTS. X ITEMS. Adj. needed? B Y N N (ON REMOTE) CH (ON REMOTE) CH (ON REMOTE) CH (ON REMOTE) CH POWER (ON REMOTE) (ON REMOTE) CH POWER (ON REMOTE) POWER (ON REMOTE) POWER (ON REMOTE) (ON REMOTE) CH Sd LOUDNESS COMPENSATION Sc PIP TINT Sb CLOCK ADJUSTMENT Sa FREERUN S9 RIGH 1/16 S8 LEFT 1/16 S7 DOWN 1/16 S6 UP 1/16 S5 RIGH 1/9 S4 LEFT 1/9 S3 DOWN 1/9 S2 UP 1/9 S1 PIP CONTRAST S0 PIP COLOR M2 LOW-LEVEL SEPARATION M1 HIGH-LEVEL SEPARATION M0 INPUT LEVEL Xb COMB ADJ SHARP Xa COMB VMPKF X9 COMB VM LEVEL X8 COMB SHARP X7 COMB VM SW X6 COMB VMLM X5 COMB VIDEO DELAY X4 COMB RF DELAY X3 COMB CORE X2 COMB LIMIT X1 COMB SWITCH X0 COMB GAIN (ON REMOTE) CH (ON REMOTE) CH 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 28 - Service Adjustments (Electronic Controls) Sub-Brightness Service DAC Adjustment (B2) Adjustment of this control is important for setting proper operation of customer brightness and picture controls. This adjustment must be made after Sub-Contrast or Color Temperature adjustments are made. Do not adjust SCREEN after the Sub-Brightness is set. Preparation: Apply a color bar signal with 100 IRE white and 7.5 IRE black. (Switch Color to “OFF” on the signal generator.) Operate the Receiver for a minimum of 10 minutes prior to performing this adjustment. Procedure: In the Service Mode for making electronic adjustments, select the DAC adjustment (B2) and adjust until the black starts to look gray. Then decrease the level to the point where gray turns to black. Note: You may set the accurate value following the Preparation steps and the Procedure step No. 2 of the Sub-Contrast adjustment described below. Video Adjustment Level Service DAC Adjustment (B5) Preparation: 1. Obtain an NTSC color bar pattern with 100 IRE white and 87.5% modulation. 2. Connect the oscilloscope to TP12. Use cold ground for scope connection. Set the scope at Horizontal Sweep rate (20µs) time base. Procedure: 1. In the Service Mode for making electronic adjustments, select DAC Video Adjustment Level (B5) and adjust for 1.0 ± 0.05V from sync tip to white level. See Fig. 36. 2. Check that the sync signal amplitude (ratio between the sync signal to detection output) is within the range of 30 ± 5% (S / (S + P)=30 ± 5%). 3. Set the DAC Sub-Contrast Adjustment (B3). Sub-Contrast Service DAC Adjustment (B3) This adjustment is factory set. Do not adjust unless repairs are made to associated circuit, the CRT Board or when the CRT is replaced. Preparation: 1. Apply a color bar signal pattern with 87.5% modulation, 70% saturated color bar with 100 IRE white and 7.5 black. Note: The pattern used in this procedure is an EIA color bar pattern with 87.5% modulation with 100 IRE white and 7.5 black. Correlate the information in this procedure to the pattern used if another signal is used. 2. Preset the following controls: • Brightness . . . . . . . Center. • Color . . . . . . . . . . . Min. • Picture . . . . . . . . . . Max. • Sharpness . . . . . . . Center. • y, ABL . . . . . . . . . . “OFF”. 3. Connect the oscilloscope to TP47G. Set the scope time base to 20Ps (horizontal). 4. Connect a jumper from TPD2 to ground ( ). 5. Connect a jumper from IC101 pin 28 to ground ( ). Procedure: 1. In the Service Mode, select DAC Sub-Brightness Adjustment (B2) and adjust for 1.0 - 1.5Vp-p between blanking and 7.5 IRE level. (See video waveforms detail, Fig. 37). 2. In the Service Mode for electronic adjustments, select DAC Sub-Contrast Adjustment (B3) and adjust for 2.8Vp-p ± 0.1V from white level to black level on video waveform. (See video waveforms detail, Fig. 37.) 3. Set the signal generator color switch to “OFF”. (This will provide black & white signal only). 4. Repeat steps 1 and 2 above and observe the waveform as in Fig. 38. Figure 36. TP12 waveform 1V ± 0.05V P S Figure 37. TP47G waveform 1V - 1.5V p-p 2.8Vp-p ± 0.1V 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 29 - 5. Remove the jumpers (Preparation steps 4 & 5). Set RGB Gamma register to “ON” (S3=1). Tint/Color Adjustment Service DAC Adjustment (B1) (B0) Preparation: 1. Apply a rainbow color bar signal. 2. Preset the following controls: • Brightness . . . . . . .Min. • Color . . . . . . . . . . . .Center. • Tint . . . . . . . . . . . . .Center. • Picture. . . . . . . . . . .Max. • Sharpness. . . . . . . .Min. • y, ABL . . . . . . . . . . .“OFF” 3. Connect the oscilloscope probe to TP47B (A-Board). 4. Connect a jumper from TPD2 to GND ( ). 5. Connect a jumper from IC101 pin 28 to GND ( ). Procedure: 1. In the Service Mode for making electronic adjustments, select DAC Sub-Tint Adjustment (B1). Adjust until the waveform measured is as the one shown in Fig. 39. 2. Connect the oscilloscope to TP47G (A-Board) or to TP35. 3. Select DAC Sub-Color Adjustment (B0) and adjust for peak-to-peak amplitude to be 0.9Vp-p ± 0.05V as shown in Fig. 40. 4. Remove the jumpers (Preparation steps 4 & 5). Color Temperature Adjustment (B/W Tracking) Service DAC Adjust. (C0) (C1) (C2) (C3) (C4) Minor Touch-Up Method OBSERVE low and high brightness areas of a B/W picture for proper tracking. Adjust only as required for “good gray scale and warm highlights”. 1. LOW LIGHT areas – In Service Mode for making electronic adjustments, select Cutoff (C0) RED, (C1) GRN, (C2) BLU and adjust the picture for gray. 2. HIGH LIGHT areas – In Service Mode for making electronic adjustments, select Drive (C3) RED, (C4) BLU and adjust the picture for warm whites. Complete Adjustment Preparation: 1. Turn the Receiver “ON” and allow 10 minutes warm up at high brightness. 2. Apply a color bar signal with color “OFF”. 3. Turn the SCREEN control (part of FBT T551) fully counterclockwise. Procedure: Preset the following Service DACs for best results: • C0 . . . . . . . . . . . . . 0 128 • C1 . . . . . . . . . . . . . . . .64 • C2 . . . . . . . . . . . . . 0 128 • C3 . . . . . . . . . . . . . . . .64 • C4 . . . . . . . . . . . . . . . .64 1. Connect the oscilloscope to TP35. 2. In Service Mode for making electronic adjustment, select the Sub-Bright DAC (B2). 3. Press the R-Tune key on the remote. 4. Observe the oscilloscope waveform at Horizontal rate and adjust the Service Mode Sub-Bright DAC (B2) level until a scanning period of 3.1V above DC ground is measured, as indicated in Fig. 41. 5. Connect the scope to GRN Cathode (KG) on the CRT-Board. 6. In the Service Mode for making electronic adjustments, select the GREEN CUTOFF DAC (C1). 7. Press the R-Tune key on the remote. 8. View scope trace at Horizontal rate and adjust the Service Mode DAC (C1) level until a scanning Figure 38. TP47G waveform (B-W) only 1.0V - 1.5V p-p 2.8Vp-p ± 0.1V Figure 39. TP47B waveform TP47B (A-Board) Figure 40. TP47G waveform TP47G (A-Board) 0.9Vp-p ± 0.05V Figure 41. TP35 Waveform 3.1V DC 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 30 - period of 175V above DC ground is measured, as indicated in Fig. 42. 9. Connect the scope to the RED Cathode (KR). 10. In Service Mode for making electronic adjustments, select the RED CUTOFF DAC (C0). 11. Press the R-Tune key on the Remote 12. View the scope trace and adjust the Service Mode DAC (C0) for the scanning period to be 175V above DC ground. (See Fig. 42) 13. Connect the scope to the BLU Cathode (KB). 14. In Service Mode for making electronic adjustments, select the BLU CUTOFF (C2). 15. Press the R-Tune key on the Remote. 16. View the scope trace and adjust the Service Mode DAC (C2) for the scanning period to be 175V above DC ground. (See Fig. 42) 17. Turn the Screen Control (part of FBT) slowly clockwise until a color horizontal line appears. 18. With the other two colors Service Mode DAC CUTOFF adjustments (C0) RED, (C2) BLU; increase the colors to create a white horizontal line. 19. Confirm that a good gray scale is established by viewing B/W color bar pattern. 20. In the Service Mode for making electronic adjustments select the DAC DRIVE adjustments (C3) RED, (C4) BLUE and adjust for warm white in a white color bar pattern. 21. EXIT the Service Mode. 22. Adjust the Picture Menu Video Adjustments Bright and Picture from low scale to high scale and check Black and White tracking. 23. If correction is needed: Re-Enter the Service Mode and perform the Minor Touch – Up Method. 24. Perform Sub-Brightness Adjustment procedure if needed. Horizontal Centering Service DAC Adjustment (C9) Preparation: Connect a crosshatch generator. Procedure: 1. In the Service Mode for making electronic adjustments. Select the Horizontal Centering Adjustment DAC (C9) and adjust until the center of the crosshatch pattern is centered on CRT. 2. EXIT the Service Adjustment Mode. Audio Adjustment Service DAC Adjustment (B6) This adjustment is factory set and needs to be performed only when IC002 or IC101 is replaced. Preparation: 1. Apply the following signal at the antenna (70dB ± 5dB, 75: open P/S 10dB): audio signal set to monaural, 300Hz. 100% modulation; video input of 100 IRE flat field, 30% modulation. 2. Connect the RMS Meter with filter jig as shown in Fig. 43. Procedure: 1. In the Service Mode for making electronic adjustments, select the Audio Adjustment DAC (B6) and adjust until 75mV ± 7.5mV RMS is measured. 2. EXIT the Service Adjustment Mode. MTS Circuit Adjustments The MTS Circuit Adjustments require two steps: 1. Input Level Adjustment. 2. Stereo Separation Adjustment. Input Level Adjustment (M0) Preparation: 1. Connect an RMS meter with filter jig as shown in Fig. 44. 2. Connect an RF signal generator to the RF antenna input. Procedure: 1. Apply the following signal from the RF signal generator: Video: 100 IRE flat field, 30% modulation. Audio: 300Hz, 100% modulation, monaural (70 ± 5dB, 75: OPEN, P/S 10dB). 2. Adjust the MTS Input Level Adjustment (M0) until the voltage measured is 106 ± 6.0mV RMS. Stereo Separation Adjustment (M1 & M2) Preparation: 1. Connect an RF signal generator to the RF antenna input. 2. Connect a scope to TPE10. Procedure: 1. Select Stereo Mode in Audio menu 2. Apply the following signal from the RF signal generator: Figure 42. Cathode Waveform, Adjustment Waveform Detail 175V DC 0V DC Figure 43. Filter Jig TPE1 (A-BOARD) TPE10 Figure 44. Filter Jig 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 31 - Video: 100 IRE flat field, 30% modulation. Audio: 300Hz, 100% modulation, stereo (left only) (70 ± 5dB, 75: OPEN, P/S 10dB). 3. Adjust the MTS Low-Level Separation Adjustment (M2) until the amplitude displayed on the scope is minimum. 4. Apply the following signal from the RF signal generator: Video: 100 IRE flat field, 30% modulation. Audio: 3KHz, 100% modulation, stereo (left only) (70 ± 5dB, 75: OPEN, P/S 10dB). 5. Adjust the MTS High-Level Separation Adjustment (M1) until the amplitude displayed on the scope is minimum. 6. Repeat above steps 2 through 5 until the amplitude is at minimum for both signals. Clock Adjustment (Sb) Preparation: Connect the frequency counter from TPS1 (IC001 Pin 13) to cold ground ( ). Note: Frequency Counter probe capacitance should be 8pF or less. Procedure: 1. Turn the Receiver “OFF” with the AC power applied. 2. Measure TPS1 (IC001 pin 13) for the frequency of the waveform and record the reading. Note: Pin 13 measurement must have at least four digits of resolution following the decimal point. Example: 000.0000 3. Turn the Receiver back “ON”. 4. Place the Receiver into Service Mode for making electronic adjustment, select the Clock Adjustment DAC (Sb). 5. Calculate and set Sb based on the following formula: Note: Pin 13 measurement will not change regardless of the value stored in Sb. Vertical Size (B7) Adjust the VERTICAL SIZE DAC control, B7, until the top and the bottom edges of the raster are visible and touch the bezel edge. Best results can de obtained with a round test pattern. Linearity adjustment is done automatically when the size is being adjusted. Service Adjustments (Mechanical Controls) VCO Field Alignment L105 (IC101 pins 35 & 36) 1. Turn Receiver “ON” and let it warm up for a minimum of 20 minutes prior to continuing with the adjustments. 2. Connect a balance antenna and select a midband channel (Ch 10, 11 or 12). 3. Attenuate the signal strength for a weak noisy video. 4. While observing the picture tube, adjust L105 until best picture appears. 5. Change channels and observe that they are tuning properly. 6. If the channel monitored is not clear, repeat steps 1, 3 and 4 while applying a stronger signal. Focus (part of T551) Preparation: Connect a Signal generator and select a dot pattern. Procedure: Adjust the FOCUS control to obtain the sharpest and clearest dot pattern. a. Adjust for best center. b. Adjust for best area between the center and top right corner. Sb 128 0.901 6 u10 244.1406 pin13 Hz > @ – ^ ` 244.1406 ------------------------------------------------------------------ + = 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 32 - Audio Signal Path Block Diagram Figure 45. Audio Signal Path Block Diagram 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 33 - Video-Chroma Signal Path Block Diagram Figure 46. Video-Chroma Path Block Diagram 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 34 - IC101 IN/OUT Pins and Functions (VCJ) Figure 47. IC101 IN/OUT Pins and Functions (VCJ). 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 35 - IC001 IN/OUT Pins and Functions (MPU) Figure 48. IC001 IN/OUT Pins and Functions (MPU) 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 36 - NOTES 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. - 37 - 108-01 PARTS LIST Parts List REF NO. PART NO. DESCRIPTION CAPRISTORS CRA801 EXNG131P365 RES-CAP 130PF/3.6 MEG CRA802 EXNG131P365 RES-CAP 130PF/3.6 MEG CRA851 EXNG131P365 RES-CAP 130PF/3.6 MEG CAPACITORS C001 ECA1CM101B CAP,E 100UF/16V C002 ECJ2VB1H102K CAP,C .001UF-K-50V C003 ECA1HM220B CAP,E 22UF-50V C005 ECA1CM331B CAP,E 330UF-16V C006 ECJ2VB1H102K CAP,C .001UF-K-50V C008 ECJ2VF1H103Z CAP,C .01UF-Z-50V C010 ECJ2VF1H103Z CAP,C .01UF-Z-50V C011 ECA1CM471B CAP,E 470UF-16V C013 ECA1CM101B CAP,E 100UF/16V C016 ECJ2VC1H101J CAP,C 100PF-J-50V C017 ECJ2VC1H220J CAP,C 22PF-J-50V C018 ECJ2VC1H220J CAP,C 22PF-J-50V C019 ECA1CM101B CAP,E 100UF/16V C020 ECA1CM471B CAP,E 470UF-16V C021 ECJ2VF1H103Z CAP,C .01UF-Z-50V C022 ECA1CHG471B CAP,E 470UF-16V C024 ECA1HM4R7B CAP,E 4.7UF-50V C025 ECJ2VC1H101J CAP,C 100PF-J-50V C026 ECA1HM010B CAP,E 1UF-50V C029 ECJ2VF1H103Z CAP,C .01UF-Z-50V C031 ECJ2VB1H821K CAP,C 820PF-K-50V C032 ECA1CM470B CAP,E 47UF/16V C033 ECJ2VC1H680J CAP,C 68PF-J-50V C034 ECJ2VC1H680J CAP,C 68PF-J-50V C036 ECJ2VC1H220J CAP,C 22PF-J-50V C037 ECJ2VC1H220J CAP,C 22PF-J-50V C038 ECJ2VC1H220J CAP,C 22PF-J-50V C040 ECA1EHG470B CAP,E 47UF-25V C041 ECJ2VC1H330J CAP,C 33PF-J-50V C101 ECJ2VF1H223Z CAP,C .022UF-Z050V C102 ECA1CM101B CAP,E 100UF/16V C103 ECJ2VC1H300J CAP,C 30PF-J-50V C105 ECJ2VC1H221J CAP,C 220PF-J-50V C106 ECA1HMR47B CAP,E .47UF-50V C107 ECJ2VC1H390J CAP,C 39PF-J-50V C108 ECA1HMR22B CAP,E .22UF-50V C110 ECJ2VF1H103Z CAP,C .01UF-Z-50V C111 ECA1HM100B CAP,E 10UF/50V C113 ECA1HM100B CAP,E 10UF/50V C114 ECJ2VC1H120J CAP,C 12PF-J-50V C151 ECA1HMR22B CAP,E .22UF-50V C201 ECJ2VF1H103Z CAP,C .01UF-Z-50V C202 ECJ2VC1H101J CAP,C 100PF-J-50V C203 ECA1HM4R7B CAP,E 4.7UF-50V C301 ECJ2VC1H390J CAP,C 39PF-J-50V C302 EEANA1E1R0B CAP,E 1.0UF-25V C304 ECEA1HNR47UB CAP,E .47UF-50V C305 ECA1HM4R7B CAP,E 4.7UF-50V C306 ECA1CM221B CAP,E 220UF-16V C308 ECQB1H823JM3 CAP,P .082UF-J-50V C309 ECA1CM101B CAP,E 100UF/16V C310 ECA1HM4R7B CAP,E 4.7UF-50V C311 ECA1HM4R7B CAP,E 4.7UF-50V C312 ECA1HM220B CAP,E 22UF-50V C351 TACCW391T50V CAP,C 390PF/50V C352 TACCW391T50V CAP,C 390PF/50V C353 TACCW471T50V CAP,C 470PF/50V C354 ECKW3D102KBN CAP,C .001UF-K-2KVDC C357 EEANA1E1R0B CAP,E 1.0UF-25V C401 ECQB1H153JM3 CAP,P .015UF-J-50V C402 ECJ2VC1H471J CAP,C 470PF-J-50V C403 ECA1HM2R2B CAP,E 2.2UF-50V C451 ECA1CHG470B CAP,E 47UF-16V C452 ECSF1EE105VB CAP,E 1.0UF-25V C453 ECA1HHG2R2B CAP,E 2.2UF-50V C454 ECA1EM102E CAP,E 1000UF-25V C455 ECA1VHG101B CAP,E 100UF-35V C456 ECQB1H103JM3 CAP,P .01UF-J-50V C459 ECA1VHG471B CAP,E 470UF-35V C462 ECA1HM100B CAP,E 10UF/50V C502 ECQB1H223JM3 CAP,P .022UF-J-50V C503 ECA1HM2R2B CAP,E 2.2UF-50V C504 ECJ2VC1H221J CAP,C 220PF-J-50V C505 ECJ2VU1H221J CAP,C 220PF-J-50V C506 ECA1CM221B CAP,E 220UF-16V C508 ECJ2VC1H331J CAP,C 330PF-J-50V C510 ECCR2H100D5 CAP,C 10PF-D-500V C511 ECKR2H821KB5 CAP,C 820PF-K-500V C512 ECKR2H101KB5 CAP,C 100UF-K-500V C531 ECA1HM220B CAP,E 22UF-50V C532 ECA1CM102B CAP,E 1000UF/16V C534 ECJ2VF1H103Z CAP,C .01UF-Z-50V C551 ECA1VM331B CAP,E 330UF-35V C553 ECA1CM331B CAP,E 330UF-16V C554 ECKR2H561KB5 CAP,C 560PF-K-500V C555 ECA2EM220E CAP,E 22UF-250V C556 ECA1CM102B CAP,E 1000UF/16V C557 ECKR2H102KB5 CAP,C 1000PF-K-500V C559 ECA1HM220B CAP,E 22UF-50V C560 ECEA1HN2R2UB CAP,E 2.2UF-50V C561 ECKR2H561KB5 CAP,C 560PF-K-500V C563 ECWH16822JVB CAP,P 8200PF-J-1.5KV C564 ECKW3D821JBR CAP,C 820PF-J-2KV C565 ECKW3D821JBR CAP,C 820PF-J-2KV C566 ECKW3D181JBP CAP,C 180PF-J-2KV C569 ECWF2394JSR CAP,M .39UF-J-200V C571 ECA1CHG471B CAP,E 470UF-16V REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 38 - Parts List REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. 108-01 PARTS LIST C572 ECA1HM100B CAP,E 10UF/50V C573 ECA1CM101B CAP,E 100UF/16V C601 ECJ2VB1H102K CAP,C .001UF-K-50V C604 ECJ2VU1H150J CAP,C 15PF-J-50V C605 ECJ2VB1H332K CAP,C .0033UF-K-50V C606 ECA1HM010B CAP,E 1UF-50V C801 ECKWAE472ZED CAP,C 4700PF-Z-500V C802 ECKWAE472ZED CAP,C 4700PF-Z-500V C803 ECKWAE472ZED CAP,C 4700PF-Z-500V C804 ECKWAE472ZED CAP,C 4700PF-Z-500V C805 EC0S2DG151DG CAP,E 151UF/200V C806 EC0S2DG151DG CAP,E 151UF/200V C807 ECA1HM2R2B CAP,E 2.2UF-50V C808 ECA1CM101B CAP,E 100UF/16V C809 EC0S2DG151DG CAP,E 151UF/200V C810 ECQU2A103MVA CAP,P .01UF-J-250VAC C811 ECQU2A103MVA CAP,P .01UF-J-250VAC C812 ECQU2A224MVA CAP,P .22UF-M-250VAC C814 ECQB1H823JM3 CAP,P .082UF-J-50V C815 ECA1HHG470B CAP,E 47UF-50V C818 ECKW3A821KBP CAP,C 820PF-K-1KVDC C820 ECA1JHG100B CAP,E 10UF-63V C821 ECKR2H561KB5 CAP,C 560PF-K-500V C822 ECA1VHG221B CAP,E 220UF-35V C823 ECA160V33UE CAP,E 33UF/160V C824 ECKW3A331KBP CAP,C 330PF-K-1KV C825 ECKW3A471KBP CAP,C 470PF-K-1KV C853 TACA5102G125 CAPACITOR C855 TACA5222G125 CAPACITOR C859 ECA2DHG101E CAP,E 100UF-200V C861 ECKR3A471KBP CAP,C 470PF-K-1KV C862 ECKR3A182KBP CAP,C .0018UF-K-1KV C864 ECQB1H223JM3 CAP,P .022UF-J-50V C866 ECQB1H104JM3 CAP,P .1UF-J-50V C867 ECQB1H683JM3 CAP,P .068UF-J-50V C868 ECQB1H104JM3 CAP,P .1UF-J-50V C871 ECA1EHG470B CAP,E 47UF-25V C881 ECQV1H104JL3 CAP,P .10UF-J-50V C882 ECQB1H223JM3 CAP,P .022UF-J-50V C883 EEUFC1A102B CAP,E 1000UF-10V C884 ECA1AHG102B CAP,E 1000UF-10V C885 ECFR1E104KR2 CAP,C .10UF-25V C886 ECA1CHG221B CAP,E 220UF/16V C887 ECA0JM102B CAP,E 1000UF-6.3V C888 EEUFC1A331B CAP,E 330UF-10V C889 ECA1AHG102B CAP,E 1000UF-10V C891 ECA0JM102B CAP,E 1000UF-6.3V C892 EEUFC1V151B CAP,E 150UF-35V C893 ECA1HHG330B CAP,E 33UF/50V C894 EEUFC1V151B CAP,E 150UF-35V C895 ECA1HHG330B CAP,E 33UF/50V REF NO. PART NO. DESCRIPTION C896 EEUFC1E331B CAP,E 330UF-25V C897 ECA1EHG221B CAP,E 220UF-25V C898 ECA1CHG221B CAP,E 220UF/16V C2201 ECA1HM4R7B CAP,E 4.7UF-50V C2202 ECA1HM2R2B CAP,E 2.2UF-50V C2203 ECA1HM4R7B CAP,E 4.7UF-50V C2204 ECSF16E10VB CAP,E 10PF-16V C2205 ECA1HM010B CAP,E 1UF-50V C2206 ECQB1H223JM3 CAP,P .022UF-J-50V C2207 ECSF16E3R3VB CAP,E 3.3PF-16V C2208 ECJ2VB1C104K CAP,C .1UF-K-16V C2209 ECJ2VB1C104K CAP,C .1UF-K-16V C2210 ECJ2VB1C104K CAP,C .1UF-K-16V C2212 ECQB1H473JM3 CAP,P .047UF-J-50V C2215 ECA1CM101B CAP,E 100UF/16V C2218 ECA1HMR47B CAP,E .47UF-50V C2220 EEANA1E100B CAP,E 10UF-25V C2301 ECA1VM102E CAP,E 1000UF-35V C2302 ECA1HM010B CAP,E 1UF-50V C2305 ECA1HM010B CAP,E 1UF-50V C2306 ECJ2VF1H103Z CAP,C .01UF-Z-50V C2307 ECA1CM102B CAP,E 1000UF/16V C2308 ECKR1H103ZF5 CAP,C .01UF-Z-50V C2309 ECQB1H473JM3 CAP,P .047UF-J-50V C2311 ECA1HM3R3B CAP,E 3.3UF-50V C2313 ECA1VM101B CAP,E 100UF-35V C2314 ECQB1H473JM3 CAP,P .047UF-J-50V C2315 ECA1HM100B CAP,E 10UF/50V C2321 ECA1HM100B CAP,E 10UF/50V C2324 ECA1HM100B CAP,E 10UF/50V C2325 ECA1CM102B CAP,E 1000UF/16V C2326 ECJ2VB1H223K CAP,C .022UF-K-50V C2327 ECJ2VB1H223K CAP,C .022UF-K-50V C2328 ECJ2VB1H223K CAP,C .022UF-K-50V C2329 ECJ2VB1H223K CAP,C .022UF-K-50V C2331 EEANA1E100B CAP,E 10UF-25V C2332 EEANA1E100B CAP,E 10UF-25V C2333 ECA1HM0R1B CAP,E 0.1UF/50V C2334 ECJ2VB1H472K CAP,C .0047UF-K-50V C2335 ECA1VM470B CAP,E 47UF/35V C2336 ECQB1H104JM3 CAP,P .1UF-J-50V C2337 ECA1HM0R1B CAP,E 0.1UF/50V C2338 ECA1HM4R7B CAP,E 4.7UF-50V C2339 ECA1HM100B CAP,E 10UF/50V C2340 ECA1HMR47B CAP,E .47UF-50V C2341 ECA1HM4R7B CAP,E 4.7UF-50V C2342 ECA1HM4R7B CAP,E 4.7UF-50V C2343 ECA1HM4R7B CAP,E 4.7UF-50V C2344 ECJ2VB1H472K CAP,C .0047UF-K-50V C2345 ECA1HM0R1B CAP,E 0.1UF/50V C2346 ECA1VM470B CAP,E 47UF/35V REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. - 39 - 108-01 PARTS LIST Parts List C2347 ECJ2VF1H103Z CAP,C .01UF-Z-50V C2351 ECA1HM010B CAP,E 1UF-50V C2353 ECA1HM010B CAP,E 1UF-50V C2359 ECA1HM010B CAP,E 1UF-50V C2360 ECA1HM010B CAP,E 1UF-50V C2362 ECA1VM470B CAP,E 47UF/35V C3011 ECA1HM010B CAP,E 1UF-50V C3012 ECA1HM010B CAP,E 1UF-50V C3013 ECA1HM100B CAP,E 10UF/50V C3014 ECA1HM100B CAP,E 10UF/50V C3018 ECA1HM010B CAP,E 1UF-50V C3019 ECA1HM010B CAP,E 1UF-50V C3025 ECA1HM100B CAP,E 10UF/50V C3234 ECA1VM470B CAP,E 47UF/35V C3235 ECJ2VF1H103Z CAP,C .01UF-Z-50V C3236 ECA1CM221B CAP,E 220UF-16V C3237 ECA1CM221B CAP,E 220UF-16V C3240 ECJ2VF1H103Z CAP,C .01UF-Z-50V C3331 ECA0JM101B CAP,E 100UF-6.3V C3332 ECJ2VF1H103Z CAP,C .01UF-Z-50V C3501 ECJ2VF1H103Z CAP,C .01UF-Z-50V C3503 ECJ2VF1H103Z CAP,C .01UF-Z-50V C3505 ECJ2VF1H103Z CAP,C .01UF-Z-50V C3506 ECA1CM221B CAP,E 220UF-16V C3601 ECA1VM221B CAP,E 220UF-35V C3602 ECA1CM470B CAP,E 47UF/16V C3603 ECA1CM470B CAP,E 47UF/16V C3604 ECA1CM221B CAP,E 220UF-16V C3605 ECA1CM221B CAP,E 220UF-16V C3606 ECJ2VF1H104Z CAP,C .1UF-Z-50V C3607 ECJ2VF1H104Z CAP,C .1UF-Z-50V C3608 ECJ2VC1H101J CAP,C 100PF-J-50V C3609 ECJ2VC1H101J CAP,C 100PF-J-50V C3610 ECJ2VC1H102J CAP,C .001UF-J-50V C3611 ECJ2VC1H102J CAP,C .001UF-J-50V C3614 ECA1HM100B CAP,E 10UF/50V C3615 ECA1HM100B CAP,E 10UF/50V C3616 ECJ2VC1H102J CAP,C .001UF-J-50V C3617 ECJ2VC1H102J CAP,C .001UF-J-50V C3619 ECA1CM221B CAP,E 220UF-16V C3620 ECJ2VF1H103Z CAP,C .01UF-Z-50V C3621 ECJ2VB1H471K CAP,C 470PF-K-50V C3622 ECJ2VB1H103K CAP,C .01UF-K-50V C3623 EEUFC1C471B CAP,E 470UF-16V C3624 ECA0JM102B CAP,E 1000UF-6.3V C3625 ECA0JM102B CAP,E 1000UF-6.3V C3626 ECJ2VB1H331K CAP,C 330PF-K-50V C3627 ECJ2VB1H331K CAP,C 330PF-K-50V C3628 ECJ2VF1H104Z CAP,C .1UF-Z-50V C4138 ECJ2VF1H103Z CAP,C .01UF-Z-50V C4591 ECEA1CKA101B CAP,E 100UF-16V REF NO. PART NO. DESCRIPTION C4592 ECKR1H103ZF5 CAP,C .01UF-Z-50V C6501 ECA0JM101B CAP,E 100UF-6.3V C6502 ECJ2VF1H103Z CAP,C .01UF-Z-50V C6503 ECJ2VF1H103Z CAP,C .01UF-Z-50V C6504 ECJ2VC1H330J CAP,C 33PF-J-50V C6507 ECJ2VC1H120J CAP,C 12PF-J-50V C6509 ECJ2VC1H270J CAP,C 27PF-J-50V C6510 ECJ2VC1H120J CAP,C 12PF-J-50V C6511 ECA1HM010B CAP,E 1UF-50V C6512 ECJ2VF1H103Z CAP,C .01UF-Z-50V C6513 ECJ2VC1H270J CAP,C 27PF-J-50V C6514 ECJ2VF1H103Z CAP,C .01UF-Z-50V C6516 ECJ2VF1H103Z CAP,C .01UF-Z-50V C6517 ECEA1HN010UB CAP,E 1UF/50V C6518 ECJ2VF1H103Z CAP,C .01UF-Z-50V C6520 ECA1HM100B CAP,E 10UF/50V C6521 ECEA1CKA470B CAP,E 47UF-16V C6522 ECJ2VC1H221J CAP,C 220PF-J-50V C6523 ECJ2VF1H104Z CAP,C .1UF-Z-50V C6524 ECA1HM010B CAP,E 1UF-50V C6525 ECJ2VF1H103Z CAP,C .01UF-Z-50V C6526 ECA1HM3R3B CAP,E 3.3UF-50V C6527 ECJ2VF1H104Z CAP,C .1UF-Z-50V C6528 ECA1CM101B CAP,E 100UF/16V C6529 ECEA1CN100UB CAP,E 10UF-16V C6531 ECJ2VF1H103Z CAP,C .01UF-Z-50V C6532 ECJ2VB1H103K CAP,C .01UF-K-50V DIODES D001 ERA15-01V3 DIODE, RECTIFIER D002 MA165TA5VT DIODE, SWITCHING D003 MA4047HTA DIODE D006 MA4330HTA DIODE D008 MA165TA5VT DIODE, SWITCHING D009 MA165TA5VT DIODE, SWITCHING D011 MA165TA5VT DIODE, SWITCHING D012 MA4056MTA DIODE D013 MA4056MTA DIODE D014 MA165TA5VT DIODE, SWITCHING D015 MA165TA5VT DIODE, SWITCHING D016 MA165TA5VT DIODE, SWITCHING D017 MA165TA5VT DIODE, SWITCHING D025 MA4056MTA DIODE D026 MA4056MTA DIODE D046 MA4056MTA DIODE D047 MA4056MTA DIODE D451 ERA15-01V3 DIODE, RECTIFIER D452 MA4047MTA DIODE D453 MA165TA5VT DIODE, SWITCHING D461 MA27WTA DIODE D501 MA4082LTA DIODE D531 AS01V0 DIODE REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 40 - Parts List REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. 108-01 PARTS LIST D532 MA4062LTVTA DIODE, ZENER D551 TVSRU2NV1 DIODE, SILICONE D554 BYD33G-163 DIODE D555 MA165TA5VT DIODE, SWITCHING D556 MA4360HTA DIODE, ZENER D560 MA165TA5VT DIODE, SWITCHING D561 BYD33G-163 DIODE D801 EM02BMV0 DIODE D802 EM02BMV0 DIODE D806 MA4047MTA DIODE D807 MA165TA5VT DIODE, SWITCHING D809 RU3YX-MV1 DIODE, RECTIFIER D810 TAP2A102M005 DIODE (THERMISTOR) D820 EU02V1 DIODE D821 EU02V1 DIODE D822 EU02V1 DIODE D823 RL30A DIODE D824 EU02V1 DIODE D825 TVSSR2KLV1 DIODE, PROTECTION D826 EU02V1 DIODE D829 MA165TA5VT DIODE, SWITCHING D830 MA4270MTA DIODE D856 TVSS1WBS80 DIODE D862 AG01AV0 DIODE D864 AU01ZV0 DIODE D866 MA165TA5VT DIODE, SWITCHING D867 MA165TA5VT DIODE, SWITCHING D868 MA4036MTA DIODE D881 MA7075ATA DIODE D883 EK14V0 DIODE D888 EK14V0 DIODE D891 EM01ZV0 DIODE D892 EK06V0 DIODE D893 MA7150BTR DIODE D894 EK06V0 DIODE D895 EK06V0 DIODE D896 EK06V0 DIODE D2301 MA165TA5VT DIODE, SWITCHING D2305 MA4110MTA DIODE, ZENER D2306 MA4110MTA DIODE, ZENER D2307 MA4110MTA DIODE, ZENER D2308 MA4110MTA DIODE, ZENER D2315 MA165TA5VT DIODE, SWITCHING D2342 MA165TA5VT DIODE, SWITCHING D2343 MA165TA5VT DIODE, SWITCHING D3001 MA4110MTA DIODE, ZENER D3002 MA4110MTA DIODE, ZENER D3003 MA4110MTA DIODE, ZENER D3004 MA4110MTA DIODE, ZENER D3005 MA4110MTA DIODE, ZENER D3006 MA4110MTA DIODE, ZENER REF NO. PART NO. DESCRIPTION D3007 MA4110MTA DIODE, ZENER D3008 MA4110MTA DIODE, ZENER D3009 MA4110MTA DIODE, ZENER D3010 MA4110MTA DIODE, ZENER D3013 MA4110MTA DIODE, ZENER D3014 MA4110MTA DIODE, ZENER D3015 MA4110MTA DIODE, ZENER D3016 MA4110MTA DIODE, ZENER D3017 MA4110MTA DIODE, ZENER D3018 MA4110MTA DIODE, ZENER D3019 MA4110MTA DIODE, ZENER D3020 MA4110MTA DIODE, ZENER D3021 MA4110MTA DIODE, ZENER D3022 MA4110MTA DIODE, ZENER D3331 GP1F32T DIODE D3601 AK04V0 DIODE D3602 AK04V0 DIODE D3603 MA4100MTA DIODE, ZENER D3604 MA4100MTA DIODE, ZENER D3605 MA4110MTA DIODE, ZENER D3606 MA4110MTA DIODE, ZENER D3607 MA4100MTA DIODE, ZENER D3608 MA4100MTA DIODE, ZENER FUSES F801 XBA2A00101 FUSE F3601 ICP-N25 FUSE INTEGRATED CIRCUITS IC001 MN1876476TC1 IC, MPU IC002 C3EAEC000016 IC, EEPROM IC003 RPM6937-V4 IC, IR RECEIVER IC101 AN5166K IC, VCJ IC451 LA7837-TV IC, V-OUT IC551 AN78M09-LB INT CKT (REGULATOR) IC552 AN78M05-LB IC, 12V REGULATOR IC801 PC817X2 IC, OPTO ISOLATOR IC803 STR58041A IC, POWER SUPPLY IC866 PC817X1 IC, OPTO ISOLATOR IC881 UPC1093J-1-T IC IC891 PQ07RX11 IC IC896 SI-3090F IC IC2201 AN5829S-E1V IC, MTS CONTROLLER IC2302 AN5272 IC, AUDIO OUT IC2321 CXA2021S IC, AUDIO CONTROLLER IC3001 MM1114XFBE IC, VIDEO SW IC3002 BU4551BF-E2 IC, SW IC3501 TC74HCT00AFL IC, NAND GATE IC3502 TC74ACT164FL IC IC3601 PQ09DZ1U IC, VOLTAGE REGULATOR IC3602 NJM4580MTE1 IC, AMPLIFIER IC3603 ML6427CS IC IC4591 BA6956AN IC REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. - 41 - 108-01 PARTS LIST Parts List IC6501 MN82840 IC, 3L COMB FILTER IC6502 MN1382RTX IC, REGULATOR COILS J101 EXCELSA35V FERRITE BEAD L001 EXCELSA35V FERRITE BEAD L002 ELESN390KA COIL, PEAKING 39UH L003 TLTABT2R2K COIL, PEAKING 2.2UH L004 TLTABT2R2K COIL, PEAKING 2.2UH L005 ELESN390KA COIL, PEAKING 39UH L006 EXCELSA24T FERRITE BEAD L007 EXCELSA35T FERRITE BEAD L008 TLUABTA470K COIL, PEAKING 47UH L009 EXCELSA35V FERRITE BEAD L069 EXCELSA35V FERRITE BEAD L103 ELESN120JA COIL, PEAKING 12UH L104 TLUABTA390K COIL, PEAKING 39UH L105 EIV7EN053B COIL, VCO L106 ELESN180JA COIL, PEAKING 18UH L551 ELH5L4101 COIL L556 EXCELSA24T FERRITE BEAD L801 ELF15N013A LINE FILTER L803 ELF17N007A LINE FILTER L804 EXCELSA39V FERRITE BEAD L805 EXCELSA39V FERRITE BEAD L861 TSKA158 COIL L864 VLP0392-T COIL L883 TALL08T100KA COIL L885 ELELN100KA COIL L892 ELESN330KA COIL, PEAKING 33UH L894 ELESN330KA COIL, PEAKING 33UH L896 TALL08T220KA TRANSFORMER, LINE FILTER L2302 TLTABT2R2K COIL, PEAKING 2.2UH L3001 ELESN220KA COIL, PEAKING 22UH L3010 EXCELSA35V FERRITE BEAD L3011 EXCELSA35V FERRITE BEAD L3012 EXCELSA35V FERRITE BEAD L3331 ELESN220JA COIL, PEAKING 22UH L3501 ELESN220KA COIL, PEAKING 22UH L3601 TSKA157 COIL L3602 TSKA157 COIL L3603 ELESN220KA COIL, PEAKING 22UH L3604 TSKA157 COIL L3605 TSKA157 COIL L6501 ELESN150KA COIL, PEAKING 15UH L6502 ELESN330JA COIL, PEAKING 33UH L6504 ELESN330JA COIL, PEAKING 33UH L6505 ELESN330JA COIL, PEAKING 33UH L6507 ELESN150KA COIL, PEAKING 15UH L6508 EXCELSA39V FERRITE BEAD L6510 EXCELSA35V FERRITE BEAD REF NO. PART NO. DESCRIPTION TRANSISTORS Q001 2SD601ARTX TRANSISTOR Q002 2SC1685QRSTA TRANSISTOR Q003 2SB709ARTX TRANSISTOR Q004 2SB709ARTX TRANSISTOR Q302 2SD601ARTX TRANSISTOR Q303 2SB709ARTX TRANSISTOR Q304 2SD601ARTX TRANSISTOR Q351 2SC3063RL TRANSISTOR Q352 2SC3063RL TRANSISTOR Q353 2SC3063RL TRANSISTOR Q430 2SD601ARTX TRANSISTOR Q451 2SD601ARTX TRANSISTOR Q452 2SD601ARTX TRANSISTOR Q501 2SC4212HLB TRANSISTOR Q551 2SD2499LB306 TRANSISTOR Q801 2SC1685RSTA TRANSISTOR Q802 2SC1384RS TRANSISTOR Q861 2SC4662LF654 TRANSISTOR Q867 2SD1996STA TRANSISTOR Q871 2SD1996STA TRANSISTOR Q872 2SC3311ASTA TRANSISTOR Q873 2SD1996STA TRANSISTOR Q885 2SJ525TP TRANSISTOR Q886 UN4213TA TRANSISTOR Q2302 2SB709ARTX TRANSISTOR Q2303 2SD601ARTX TRANSISTOR Q2362 2SB709ARTX TRANSISTOR Q2363 2SD601ARTX TRANSISTOR Q2364 2SB709ARTX TRANSISTOR Q2409 2SD601ARTX TRANSISTOR Q2410 2SD601ARTX TRANSISTOR Q3601 2SD601ARTX TRANSISTOR Q3602 2SB709ARTX TRANSISTOR Q3603 2SB1434RTA TRANSISTOR Q3604 2SB1320ARTA TRANSISTOR Q3605 UN2212TX TRANSISTOR Q3606 2SB709ARTX TRANSISTOR Q6501 2SD601ARTX TRANSISTOR Q6502 2SD601ARTX TRANSISTOR Q6503 2SD601ARTX TRANSISTOR Q6504 2SD601ARTX TRANSISTOR Q6505 2SD601ARTX TRANSISTOR Q6506 2SD601ARTX TRANSISTOR Q6507 2SD601ARTX TRANSISTOR Q6509 2SD601ARTX TRANSISTOR Q6510 2SB709ARTX TRANSISTOR Q6516 2SB709ARTX TRANSISTOR Q6517 2SD601ARTX TRANSISTOR Q6519 2SD601ARTX TRANSISTOR REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 42 - Parts List REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. 108-01 PARTS LIST RELAYS RL801 TSEH8007 RELAY RESISTORS R002 ERJ6GEYJ182V RES,M 1.8K-J-1/10W R003 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R004 ERDS1TJ181T RES,C 180-J-1/2W R005 ERDS2TJ101T RES,C 100-J-1/4W R006 ERJ6GEYJ102V RES,M 1K-J-1/10W R007 ERJ6GEYJ102V RES,M 1K-J-1/10W R008 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R009 ERJ6GEYJ221V RES,M 220-J-1/10W R010 ERJ6GEYJ104V RES,M 100K-J-1/10W R011 ERJ6GEYJ474V RES,M 470K-J-1/10W R012 ERJ6GEYJ473V RES,M 47K-J-1/10W R013 ERJ6GEYJ223V RES,M 22K-J-1/10W R014 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R015 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R016 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R017 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R020 ERJ6GEYJ474V RES,M 470K-J-1/10W R021 ERJ6GEYJ101V RES,M 100-J-1/10W R022 ERJ6GEYJ101V RES,M 100-J-1/10W R023 ERJ6GEYJ102V RES,M 1K-J-1/10W R024 ERJ6GEYJ221V RES,M 220-J-1/10W R025 ERJ6GEYJ223V RES,M 22K-J-1/10W R026 ERJ6GEYJ333V RES,M 33K-J-1/10W R027 ERJ6GEYJ752V RES,M 7.5K-J-1/10W R030 ERJ6GEYJ102V RES,M 1K-J-1/10W R031 ERJ6GEYJ471V RES,M 470-J-1/10W R034 ERJ6GEYJ102V RES,M 1K-J-1/10W R038 ERJ6GEYJ471V RES,M 470-J-1/10W R040 ERJ6GEYJ223V RES,M 22K-J-1/10W R043 ERJ6GEYJ223V RES,M 22K-J-1/10W R044 ERJ6GEYJ471V RES,M 470-J-1/10W R046 ERJ6GEYJ103V RES,M 10K-J-1/10W R048 ERJ6GEYJ221V RES,M 220-J-1/10W R049 ERJ6GEYJ221V RES,M 220-J-1/10W R052 ERJ6GEYJ560V RES,M 56-J-1/10W R053 ERJ6GEYJ560V RES,M 56-J-1/10W R054 ERJ6GEYJ560V RES,M 56-J-1/10W R055 ERJ6GEYJ560V RES,M 56-J-1/10W R056 ERJ6GEYJ560V RES,M 56-J-1/10W R057 ERJ6GEYJ103V RES,M 10K-J-1/10W R058 ERJ6GEYJ560V RES,M 56-J-1/10W R059 ERJ6GEYJ560V RES,M 56-J-1/10W R060 ERJ6GEYJ102V RES,M 1K-J-1/10W R061 ERJ6GEYJ560V RES,M 56-J-1/10W R062 ERJ6GEYJ560V RES,M 56-J-1/10W R063 ERJ6GEYJ560V RES,M 56-J-1/10W R064 ERJ6GEYJ560V RES,M 56-J-1/10W R065 ERJ6GEYJ471V RES,M 470-J-1/10W REF NO. PART NO. DESCRIPTION R066 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R067 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R068 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R069 ERJ6GEYJ560V RES,M 56-J-1/10W R070 ERJ6GEYJ560V RES,M 56-J-1/10W R071 ERJ6GEYJ560V RES,M 56-J-1/10W R072 ERJ6GEYJ560V RES,M 56-J-1/10W R080 ER0S2TKF2201 RES,M 2.2K-F-1/4W R081 ER0S2TKF2201 RES,M 2.2K-F-1/4W R082 ER0S2TKF3301 RES,M 3.3K-F-1/4W R083 ER0S2TKF5101 RES,M 5.1K-F-1/4W R084 ER0S2TKF9101 RES,M 9.1K-F-1/4 R085 ER0S2TKF2202 RES,M 22K-F-1/4W R086 ER0S2TKF1002 RES,M 10K-F-1/4 R087 ER0S2TKF1002 RES,M 10K-F-1/4 R101 ERJ6GEYJ750V RES,M 75-J-1/10W R102 ERJ6GEYJ683V RES,M 68K-J-1/10W R104 ERJ6GEYJ681V RES,M 680-J-1/10W R105 ERJ6GEYJ681V RES,M 680-J-1/10W R107 ERJ6GEYJ471V RES,M 470-J-1/10W R108 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R109 ERJ6GEYJ183V RES,M 18K-J-1/10W R152 ERJ6GEYJ183V RES,M 18K-J-1/10W R153 ERJ6GEYJ223V RES,M 22K-J-1/10W R154 ERJ6GEYJ393V RES,M 39K-J-1/10W R201 ERJ6GEYJ471V RES,M 470-J-1/10W R202 ERJ6GEYJ682V RES,M 6.8K-J-1/10W R203 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R303 ERJ6GEYJ682V RES,M 6.8K-J-1/10W R304 ERJ6GEYJ332V RES,M 3.3K-J-1/10W R305 ERJ6ENF3001V RES,M 3K-F-1/10W R306 ERJ6ENF1651V RES,M 1.65K-F-1/10W R308 ERJ6GEYJ102V RES,M 1K-J-1/10W R309 ERJ6GEYJ393V RES,M 39K-J-1/10W R310 ERJ6GEYJ393V RES,M 39K-J-1/10W R311 ERJ6GEYJ185V RES,M 1.8MEG-J-1/10W R313 ERJ6GEYJ471V RES,M 470-J-1/10W R314 ERJ6GEYJ102V RES,M 1K-J-1/10W R317 ERJ6GEYJ684V RES,M 680K-J-1/10W R320 ERJ6GEYJ102V RES,M 1K-J-1/10W R351 ERG2FJ123H RES,M 12K-J-2W R352 ERG2FJ123H RES,M 12K-J-2W R353 ERG2FJ123H RES,M 12K-J-2W R354 ERDS1TJ272T RES,C 2.7K-J-1/2W R355 ERDS1TJ272T RES,C 2.7K-J-1/2W R356 ERDS1TJ272T RES,C 2.7K-J-1/2W R357 ERDS2TJ301T RES,C 300-J-1/4W R358 ERDS2TJ301T RES,C 300-J-1/4W R359 ERDS2TJ301T RES,C 300-J-1/4W R360 ERDS2TJ102T RES,C 1K-J-1/4W R361 ERDS2TJ102T RES,C 1K-J-1/4W REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. - 43 - 108-01 PARTS LIST Parts List R362 ERDS2TJ102T RES,C 1K-J-1/4W R363 ERDS2TJ101T RES,C 100-J-1/4W R364 ERDS2TJ101T RES,C 100-J-1/4W R365 ERDS2TJ101T RES,C 100-J-1/4W R401 ERJ6GEYJ102V RES,M 1K-J-1/10W R430 ERJ6GEYJ103V RES,M 10K-J-1/10W R432 ERJ6GEYJ102V RES,M 1K-J-1/10W R451 ERDS1FJ1R2P RES,C 1.2-J-1/2W R454 ERJ6GEYJ473V RES,M 47K-J-1/10W R455 ERJ6GEYJ153V RES,M 15K-J-1/10W R456 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R457 ERJ6GEYJ911V RES,M 910-J-1/10W R458 ERJ6GEYJ273V RES,M 27K-J-1/10W R459 ERJ6GEYJ683V RES,M 68K-J-1/10W R460 ERDS2TJ102T RES,C 1K-J-1/4W R462 ERJ6GEYJ473V RES,M 47K-J-1/10W R463 ERJ6GEYJ473V RES,M 47K-J-1/10W R465 ERJ6GEYJ103V RES,M 10K-J-1/10W R466 ERJ6GEYJ103V RES,M 10K-J-1/10W R467 ERJ6GEYJ104V RES,M 100K-J-1/10W R468 ERJ6GEYJ101V RES,M 100-J-1/10W R469 ERJ6GEYJ220V RES,M 22-J-1/10W R470 ERDS2TJ152T RES,C 1.5K-J-1/4W R471 ERJ6GEYJ223V RES,M 22K-J-1/10W R501 ERJ6GEYJ102V RES,M 1K-J-1/10W R502 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R503 ERJ6GEYJ822V RES,M 8.2K-J-1/10W R504 ERJ6GEYJ561V RES,M 560-J-1/10W R505 ERJ6GEYJ682V RES,M 6.8K-J-1/10W R506 ERJ6GEYJ182V RES,M 1.8K-J-1/10W R507 ERJ6GEYJ392V RES,M 3.9K-J-1/10W R508 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R509 ERDS2TJ331T RES,C 330-J-1/4W R510 ERG3FJ272H RES,M 2.7K-J-3W R512 ERG2FJ562H RES,M 5.6K-J-2W R531 ERD25FJ470P RES,C 47-J-1/4W R532 ERJ6ENF4702V RES,M 47K-F-1/10W R533 ERJ6ENF1502V RES,M 15K-F-1/10W R536 ERJ6GEYJ223V RES,M 22K-J-1/10W R537 ERJ6GEYJ473V RES,M 47K-J-1/10W R550 ERDS1FJ1R0T RES,C 1.0-J-1/2W R551 ERDS1FJ1R0P RES,C 1.0-J-1/2W R552 ERDS1FJ1R0T RES,C 1.0-J-1/2W R553 ERG2FJ470H RES,M 47-J-2W R556 ERJ6GEYJ272V RES,M 2.7K-J-1/10W R557 ERJ6GEYJ103V RES,M 10K-J-1/10W R558 ERQ2CJP2R2S RES,F 2.2-J-2W R559 ERG2FJ683H RES,M 12K-J-2W R560 ERDS1FJ182P RES,C 1.8K-J-1/2W R563 ERDS2TJ124T RES,C 120K-J-1/4W R564 ERDS2TJ104T RES,C 100K-J-1/4W REF NO. PART NO. DESCRIPTION R565 ERJ6GEYJ103V RES,M 10K-J-1/10W R567 ERG2FJ122H RES,M 12K-J-2W R574 ERG2FJ330H RES,M 33-J-2W R602 ERJ6GEYJ331V RES,M 330-J-1/10W R603 ERJ6GEYJ331V RES,M 330-J-1/10W R604 ERJ6GEYJ331V RES,M 330-J-1/10W R614 ERJ6GEYJ332V RES,M 3.3K-J-1/10W R801 ERF7ZK1R5 RES,W 1.5-K-7W R804 ERW12PK1R8C RES,W 1.8-K-1/2W R805 ERDS2TJ274T RES,C 27K-J-1/4W R806 ERDS2TJ274T RES,C 27K-J-1/4W R808 ERDS1FJ1R5T RES,C 1.5-J-1/2W R809 ERDS1FJ1R5T RES,C 1.5-J-1/2W R810 ERDS1FJ272T RES,C 2.7K-J-1/2W R812 ERDS1TJ183T RES,C 18K-J-1/2W R813 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R815 ERD75TAJ825 RES,C 8.2MEG-J-3/4W R818 ERQ12HKR56P RES,F .56-K-1/2W R822 ERD50FJ474P RES,C 470K-J-1/2W R823 ERDS2TJ222T RES,C 2.2K-J-1/4W R824 ERG5FJ680H RES,M 68-J-5W R825 ERDS2TJ102T RES,C 1K-J-1/4W R826 ERF2AKR33P RES,W .33-K-2W R827 ERDS1FJ561P RES,C 560-J-1/2W R828 ERG5FJ470 RES,M 47K-J-5W R829 ERQ14AJ270P RES,F 27-J-1/4W R862 ERDS2FJ124T RES,C 12K-J-1/4W R863 ERDS2FJ124T RES,C 12K-J-1/4W R864 ERDS2TJ105T RES,C 1M-J-1/4W R865 ERG3SJ680H RES,M 68K-J-3W R866 ERDS2TJ750T RES,C 75-J-1/4W R867 ERDS2TJ100T RES,C 10-J-1/4W R868 ERDS2TJ331T RES,C 330-J-1/4W R869 ER0S2TKG6800 RES,M 680-G-1/4W R871 ERDS2TJ103T RES,C 10K-J-1/4W R872 ERDS2TJ514T RES,C 510K-J-1/4W R873 ERDS2TJ474T RES,C 470K-J-1/4W R874 ERDS2TJ153T RES,C 15K-J-1/4W R875 ERDS2TJ332T RES,C 3.3K-J-1/4W R876 ERDS2TJ473T RES,C 47K-J-1/4W R881 ER0S2TKF75R0 RES,M 75-F-1/4W R882 ER0S2TKF1201 RES,M 1.2K-F-1/4W R883 ER0S2TKF1201 RES,M 1.2K-F-1/4W R884 ERDS2TJ561T RES,C 560-J-1/4W R885 ERDS2TJ271T RES,C 270-J-1/4W R886 ERDS2TJ392T RES,C 3.9K-J-1/4W R887 ERDS2TJ472T RES,C 4.7K-J-1/4 R888 ERDS2TJ104T RES,C 100K-J-1/4W R889 ERDS2TJ102T RES,C 1K-J-1/4W R891 ERDS2TJ101T RES,C 100-J-1/4W R892 ER0S2TKF1201 RES,M 1.2K-F-1/4W REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 44 - Parts List REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. 108-01 PARTS LIST R893 ER0S2TKF1201 RES,M 1.2K-F-1/4W R894 ERDS2TJ101T RES,C 100-J-1/4W R1065 ER0S2TKF2261 RES,M 2.26K-F-1/4W R1066 ER0S2TKF2261 RES,M 2.26K-F-1/4W R1067 ER0S2TKF3301 RES,M 3.3K-F-1/4W R1068 ER0S2TKF5101 RES,M 5.1K-F-1/4W R1069 ER0S2TKF9101 RES,M 9.1K-F-1/4 R1070 ER0S2TKF2152 RES,M 21.5K-F-1/4W R2201 ERJ6GEYJ224V RES,M 220K-J-1/10W R2206 ERJ6GEYJ102V RES,M 1K-J-1/10W R2207 ERJ6GEYJ102V RES,M 1K-J-1/10W R2220 ERJ6GEYJ101V RES,M 100-J-1/10W R2301 ERQ2CJP1R0S RES,F 1.0-J-2W R2305 ERD25FJ180T RES,C 18-J-1/4 R2306 ERD25FJ180T RES,C 18-J-1/4 R2307 ERJ6GEYJ221V RES,M 220-J-1/10W R2308 ERJ6GEYJ221V RES,M 220-J-1/10W R2311 ERJ6GEYJ392V RES,M 3.9K-J-1/10W R2312 ERJ6GEYJ822V RES,M 8.2K-J-1/10W R2318 ERJ6GEYJ682V RES,M 6.8K-J-1/10W R2319 ERJ6GEYJ223V RES,M 22K-J-1/10W R2323 ERJ6GEYJ333V RES,M 33K-J-1/10W R2325 ERJ6GEYJ682V RES,M 6.8K-J-1/10W R2329 ERJ6GEYJ751V RES,M 750-J-1/10W R2330 ERJ6GEYJ123V RES,M 12K-J-1/10W R2332 ERJ6GEYJ751V RES,M 750-J-1/10W R2333 ERJ6GEYJ123V RES,M 12K-J-1/10W R2334 ERJ6GEYJ682V RES,M 6.8K-J-1/10W R2336 ERJ6GEYJ105V RES,M 1M-J-1/10W R2337 ERJ6GEYJ101V RES,M 100-J-1/10W R2338 ERJ6GEYJ101V RES,M 100-J-1/10W R2339 ERJ6GEYJ105V RES,M 1M-J-1/10W R2340 ERJ6GEYJ473V RES,M 47K-J-1/10W R2341 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R2342 ERJ6GEYJ473V RES,M 47K-J-1/10W R2343 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R2352 ERJ6GEYJ105V RES,M 1M-J-1/10W R2357 ERJ6GEYJ221V RES,M 220-J-1/10W R2359 ERJ6GEYJ105V RES,M 1M-J-1/10W R2361 ERJ6GEYJ221V RES,M 220-J-1/10W R2362 ERJ6GEYJ103V RES,M 10K-J-1/10W R2363 ERJ6GEYJ471V RES,M 470-J-1/10W R2366 ERDS2TJ222T RES,C 2.2K-J-1/4W R2367 ERDS2TJ222T RES,C 2.2K-J-1/4W R2368 ERJ6GEYJ223V RES,M 22K-J-1/10W R2418 ERJ6GEYJ471V RES,M 470-J-1/10W R2419 ERJ6GEYJ471V RES,M 470-J-1/10W R3011 ERJ6GEYJ750V RES,M 75-J-1/10W R3012 ERJ6GEYJ101V RES,M 100-J-1/10W R3013 ERDS2TJ682T RES,C 6.8K-J-1/4W R3014 ERDS2TJ682T RES,C 6.8K-J-1/4W REF NO. PART NO. DESCRIPTION R3017 ERJ6GEYJ750V RES,M 75-J-1/10W R3019 ERJ6GEYJ750V RES,M 75-J-1/10W R3021 ERDS2TJ682T RES,C 6.8K-J-1/4W R3026 ERDS2TJ331T RES,C 330-J-1/4W R3028 ERDS2TJ682T RES,C 6.8K-J-1/4W R3033 ERJ6GEYJ101V RES,M 100-J-1/10W R3034 ERJ6GEYJ101V RES,M 100-J-1/10W R3041 ERDS2TJ102T RES,C 1K-J-1/4W R3042 ERDS2TJ102T RES,C 1K-J-1/4W R3043 ERJ6GEYJ101V RES,M 100-J-1/10W R3044 ERJ6GEYJ101V RES,M 100-J-1/10W R3045 ERJ6GEYJ101V RES,M 100-J-1/10W R3046 ERJ6GEYJ101V RES,M 100-J-1/10W R3047 ERJ6GEYJ101V RES,M 100-J-1/10W R3048 ERJ6GEYJ101V RES,M 100-J-1/10W R3051 ERJ6GEYJ101V RES,M 100-J-1/10W R3052 ERJ6GEYJ101V RES,M 100-J-1/10W R3053 ERJ6GEYJ101V RES,M 100-J-1/10W R3054 ERJ6GEYJ101V RES,M 100-J-1/10W R3321 ERDS2TJ181T RES,C 180-J-1/4W R3322 ERDS2TJ181T RES,C 180-J-1/4W R3501 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R3502 ERJ6GEYJ101V RES,M 100-J-1/10W R3503 ERJ6GEYJ101V RES,M 100-J-1/10W R3504 ERJ6GEYJ101V RES,M 100-J-1/10W R3505 ERJ6GEYJ560V RES,M 56-J-1/10W R3506 ERJ6GEYJ101V RES,M 100-J-1/10W R3507 ERJ6GEYJ101V RES,M 100-J-1/10W R3508 ERJ6GEYJ101V RES,M 100-J-1/10W R3509 ERJ6GEYJ101V RES,M 100-J-1/10W R3510 ERJ6GEYJ101V RES,M 100-J-1/10W R3511 ERJ6GEYJ101V RES,M 100-J-1/10W R3512 ERJ6GEYJ101V RES,M 100-J-1/10W R3513 ERJ6GEYJ101V RES,M 100-J-1/10W R3514 ERJ6GEYJ101V RES,M 100-J-1/10W R3515 ERJ6GEYJ101V RES,M 100-J-1/10W R3520 ERJ6GEYJ101V RES,M 100-J-1/10W R3521 ERJ6GEYJ473V RES,M 47K-J-1/10W R3522 ERJ6GEYJ473V RES,M 47K-J-1/10W R3523 ERJ6GEYJ101V RES,M 100-J-1/10W R3601 ERJ6GEYJ331V RES,M 330-J-1/10W R3602 ERJ6GEYJ103V RES,M 10K-J-1/10W R3603 ERJ6GEYJ333V RES,M 33K-J-1/10W R3604 ERJ6GEYJ822V RES,M 8.2K-J-1/10W R3605 ERJ6GEYJ152V RES,M 1.5K-J-1/10W R3606 ERJ6GEYJ822V RES,M 8.2K-J-1/10W R3607 ERJ6GEYJ822V RES,M 8.2K-J-1/10W R3608 ERJ6GEYJ103V RES,M 10K-J-1/10W R3609 ERJ6GEYJ103V RES,M 10K-J-1/10W R3610 ERJ6GEYJ822V RES,M 8.2K-J-1/10W R3611 ERJ6GEYJ473V RES,M 47K-J-1/10W REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. - 45 - 108-01 PARTS LIST Parts List R3612 ERJ6GEYJ473V RES,M 47K-J-1/10W R3613 ERJ6GEYJ821V RES,M 820-J-1/10W R3614 ERJ6GEYJ821V RES,M 820-J-1/10W R3617 ERJ6GEYJ104V RES,M 100K-J-1/10W R3618 ERJ6GEYJ104V RES,M 100K-J-1/10W R3619 ERJ6GEYJ392V RES,M 3.9K-J-1/10W R3620 ERJ6GEYJ392V RES,M 3.9K-J-1/10W R3621 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R3624 ERJ6ENF75R0V RES,M 75.0-F-1/10W R3625 ERJ6ENF75R0V RES,M 75.0-F-1/10W R3626 ERJ6GEYJ103V RES,M 10K-J-1/10W R3627 ERJ6GEYJ103V RES,M 10K-J-1/10W R3628 ERJ6GEYJ101V RES,M 100-J-1/10W R3629 ERJ6GEYJ101V RES,M 100-J-1/10W R3630 ERJ6GEYJ101V RES,M 100-J-1/10W R3631 ERJ6GEYJ101V RES,M 100-J-1/10W R3632 ERJ6GEYJ221V RES,M 220-J-1/10W R3633 ERJ6GEYJ221V RES,M 220-J-1/10W R3634 ERJ6GEYJ101V RES,M 100-J-1/10W R3635 ERJ6GEYJ471V RES,M 470-J-1/10W R3637 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R3640 ERJ6GEYJ223V RES,M 22K-J-1/10W R3641 ERJ6GEYJ121V RES,M 120-J-1/10W R3642 ERJ6GEYJ271V RES,M 270-J-1/10W R4593 ERJ6GEYJ103V RES,M 10K-J-1/10W R4594 ERJ6GEYJ333V RES,M 33K-J-1/10W R4595 ERJ6GEYJ101V RES,M 100-J-1/10W R4596 ERJ6GEYJ101V RES,M 100-J-1/10W R6501 ERJ6GEYJ471V RES,M 470-J-1/10W R6502 ERJ6GEYJ471V RES,M 470-J-1/10W R6503 ERJ6GEYJ103V RES,M 10K-J-1/10W R6504 ERJ6GEYJ103V RES,M 10K-J-1/10W R6505 ERJ6GEYJ471V RES,M 470-J-1/10W R6506 ERJ6GEYJ471V RES,M 470-J-1/10W R6507 ERJ6GEYJ102V RES,M 1K-J-1/10W R6508 ERJ6GEYJ102V RES,M 1K-J-1/10W R6509 ERJ6GEYJ471V RES,M 470-J-1/10W R6510 ERJ6GEYJ102V RES,M 1K-J-1/10W R6511 ERJ6GEYJ123V RES,M 12K-J-1/10W R6512 ERJ6GEYJ102V RES,M 1K-J-1/10W R6513 ERJ6GEYJ152V RES,M 1.5K-J-1/10W R6515 ERJ6GEYJ102V RES,M 1K-J-1/10W R6516 ERJ6GEYJ103V RES,M 10K-J-1/10W R6517 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R6518 ERJ6GEYJ333V RES,M 33K-J-1/10W R6519 ERJ6GEYJ333V RES,M 33K-J-1/10W R6520 ERJ6GEYJ511V RES,M 510-J-1/10W R6521 ERJ6GEYJ102V RES,M 1K-J-1/10W R6522 ERJ6GEYJ102V RES,M 1K-J-1/10W R6523 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R6524 ERJ6GEYJ471V RES,M 470-J-1/10W REF NO. PART NO. DESCRIPTION R6526 ERJ6GEYJ102V RES,M 1K-J-1/10W R6529 ERJ6GEYJ223V RES,M 22K-J-1/10W R6530 ERJ6GEYJ223V RES,M 22K-J-1/10W R6535 ERJ6GEYJ181V RES,M 180-J-1/10W R6537 ERJ6GEYJ392V RES,M 3.9K-J-1/10W R6538 ERJ6GEYJ122V RES,M 1.2K-J-1/10W R6540 ERJ6GEYJ151V RES,M 150-J-1/10W R6542 ERJ6GEYJ680V RES,M 68-J-1/10W R6543 ERJ6GEYJ122V RES,M 1.2K-J-1/10W R6545 ERJ6GEYJ221V RES,M 220-J-1/10W R6549 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R6552 ERJ6GEYJ101V RES,M 100-J-1/10W R6553 ERJ6GEYJ101V RES,M 100-J-1/10W R6554 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R6555 ERJ6GEYJ153V RES,M 15K-J-1/10W R6556 ERJ6GEYJ333V RES,M 33K-J-1/10W R6557 ERJ6GEYJ123V RES,M 12K-J-1/10W R6558 ERJ6GEYJ331V RES,M 330-J-1/10W R6559 ERJ6GEYJ272V RES,M 2.7K-J-1/10W R6560 ERJ6GEYJ124V RES,M 120K-J-1/10W R6565 ERJ6GEYJ102V RES,M 1K-J-1/10W R6566 ERJ6GEYJ681V RES,M 680-J-1/10W R6567 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R6568 ERJ6GEYJ471V RES,M 470-J-1/10W R6570 ERJ6GEYJ103V RES,M 10K-J-1/10W SWITCHES S010 EVQPBD05R SWITCH S011 EVQPBD05R SWITCH S012 EVQPBD05R SWITCH S013 EVQPBD05R SWITCH S014 EVQPBD05R SWITCH S015 EVQPBD05R SWITCH S016 EVQPBD05R SWITCH S020 EVQPBD05R SWITCH S021 EVQPBD05R SWITCH S022 EVQPBD05R SWITCH S023 EVQPBD05R SWITCH S024 EVQPBD05R SWITCH S025 EVQPBD05R SWITCH TRANSFORMERS T001 TLP16297 TRANSFORMER, POWER SUPPLY T501 ETH19Y70AYM TRANSFORMER, HORIZONTAL DRIVER T502 ETE19Z30DY TRANSFORMER, HORIZONTAL C T551 KFT3AB119F1 TRANSFORMER, FLYBACK T801 ETS29AK3K5NC TRANSFORMER, CHOPPER T861 ETS28AV115AC TRANSFORMER CRYSTALS/FILTERS X001 TSSA010 CRYSTAL X101 M1969M SAW FILTER X102 EFCS4R5MW5BA FILTER, BANDPASS REF NO. PART NO. DESCRIPTION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 46 - Parts List REPLACEMENT PARTS LIST Model: CT-20DC50B Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing any of these components use only manufacturer’s specified parts. 108-01 PARTS LIST X201 SFSH4R5MDB CRYSTAL X501 TAFCSB503F38 CRYSTAL, CLOCK X601 TSS2AA001 CRYSTAL, 3.58MHZ OTHERS TNR001 ENV56D37G3R TUNER M001 EUR511503 REMOTE CONTROL M002 TSX2AA0251 A/C LINE CORD M003 TMW2A97121 STRAIN RELIEF: AC LINE CORD M004 A51KQN011X CRT 20” M005 TJSC00300 CRT SOCKET DY TLY2AA010 DEFLECTION YOKE DEG TSP2AA008 COIL, DEGAUSSING 20” M006 TXF3A011DB2 ASSY. DAG GROUND M007 0FMK014ZZ CONVERGENCE CORRECTOR STRIP M008 TXFKY42BSER ASSY, CABINET FRONT Cabinet Front 32” & Pad Foam REF NO. PART NO. DESCRIPTION M009 TXFKU61BSER ASSY, CABINET BACK Cover Cabinet, Labels & Felt M010 TNAX007S ASSY, DVD UNIT Badge DVD Level, Panel Tray, Assy. DVD Unit M011 TXANV03ESER REPAIR KIT (DEGAUSSING COIL) M012 EASG65P506A2 SPEAKER M013 TBM2AA0041 BADGE, DVD LEVEL M014 TBM2A10143 BADGE, PANASONIC M015 TKP2AA0292S PANEL, TRAY M016 TKX2AA0071 IR GUIDE M017 TKX2AA0081 IR HOLDER JK3001 TJB2AA0181 TERMINAL, A/V JK3002 TJB2AA0046 TERMINAL, FRONT A/V JK3003 TJB2AA0171 TERMINAL, S-VHS M018 TQB2AA0339-2 MANUAL, OWNERS REF NO. PART NO. DESCRIPTION DESCRIPTION OF ABBREVIATIONS GUIDE RES, C 270-J-1/4 CAP, P .068UF-K-50V RESISTOR TYPE TOLERANCE C Carbon F ± 1% F Fuse J ± 5% M Metal Oxide K ± 10% S Solid M ± 20% W Wire Wound G ± 2% CAPACITOR TYPE TOLERANCE C Ceramic C ± 0.25pF E Electrolytic D ± 0.5pF P Polyester F ± 1pF S Styrol J ± 5% T Tantalum K ± 10% L ± 15% M ± 20% P +10% -0% Z +80% -20% 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 Schematic Notes - 47 - PARTS LIST SCHEMATIC NOTES 1. Resistors are carbon 1/4W unless noted otherwise. 2. Capacitors are ceramic 50V unless noted otherwise. 3. Coil value notes is inductance in PH. 4. Test point indicated by ; Test point but no pin . 5. Components indicated with are critical parts and replacement should be made with manufacture specified replacement parts only. 6. (BOLD LINE) indicates the route of B+ supply. 7. The schematic diagrams are current at the time of printing and are subject to change without notice. 8. Ground symbol indicates HOT GROUND CONNECTION; indicates COLD GROUND. NOTE: All other component symbols are used for engineering design purposes. WAVEFORM MEASUREMENTS 1. indicates waveform measurement. (Measurement can be taken at the best accessible location in common to the indicated point.) 2. Taken with an NTSC signal generator connected to the antenna terminal. (NTSC color bar pattern of 8 bars of EIA colors, 100 IRE white and 7.5 IRE black.) 3. Customer Controls (Picture/Audio Menu) are set to Normalize. Volume is set to “MIN”. 4. All video and color waveforms are taken with a wideband scope and a probe with low capacitance (10 to 1). Shape and peak altitudes may vary depending on the type of Oscilloscope used and its settings. 5. Ground symbol shown on waveform number indicates (Hot) ground lead connection of the Oscilloscope. CAUTION: Incorrect ground connection of the test equipment will result in erroneous readings. 3 VOLTAGE MEASUREMENTS 1. Voltage measurement: - AC input to the Receiver is 120V. NTSC (HD, 1125i & 525P when applicable) signal generator is connected to the antenna of the Receiver. (Color bar pattern of 100 IRE white and 7.5 IRE black.) - All Picture and Audio adjustments are set to Normalize. TV ANT/CABLE - (Set-Up Menu) in TV/ANT Mode Volume - Min. TV/Video SW - TV position Audio Mode - Stereo - Voltage readings are nominal and may vary ±10% on active devices. Some voltage reading will vary with signal strength and picture content. - Supply voltages are nominal. 2. Ground symbol indicates ground lead connection of meter. Incorrect ground connection will result in erroneous readings. CAUTION: Incorrect ground connection of the test equipment will result in erroneous readings. IMPORTANT SAFETY NOTICE THIS SCHEMATIC DIAGRAM INCORPORATES SPECIAL FEATURES THAT ARE IMPORTANT FOR PROTECTION FROM X-RADIATION, FIRE AND ELECTRICAL SHOCK HAZARDS. WHEN SERVICING IT IS ESSENTIAL THAT ONLY MANUFACTURERS SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS DESIGNATED WITH A IN THE SCHEMATIC. B E C CHIP TRANSISTOR LEAD DESIGNATION 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 48 - Schematic Notes PARTS LIST NOTAS DE LOS DIAGRAMAS 1. Las Resistencias son de Carbón de 1/4W, a menos que se indique otra característica. 2. Los Capacitores son de Cerámica para 50V, a menos que se indique otra característica. 3. El valor indicado de las Bobinas es la inductancia expresada en PH. 4. Los puntos de prueba en la terminal de algún componente son indicados por Los puntos de prueba fuera de los componentes se indican con . 5. Los componentes señalados con el símbolo son considerados componentes críticos y deben ser reemplazados sólo con las partes especificadas por el fabricante. 6. (LINEA GRUESA) indica las líneas de alimentación de los Voltajes B+. 7. Los diagramas eléctricos están sujetos a cambio sin previo aviso. 8. El símbolo indica que es una conexión a Tierra Caliente y el símbolo indica conexión a Tierra Fría. NOTA: Los demas símbolos de componentes incluidos son usados con fines de diseño. MEDICIÓN DE VOLTAJES 1. Medición de voltaje: - El voltaje de entrada al Receptor es de 120V de Corriente Alterna. Un generador de patrones con formato NTSC se conecta a la entrada de la antena. (Patrón de Barras de Colores con 100 IREs para el Blanco y 7.5 IREs para el Negro.) - Los ajustes de los Menus Picture y Audio se normalizan. En el Menú Set-Up, en la opción ANTENA, se selecciona el modo de CABLE. El nivel de Volumen se minimiza. De los modos TV y Video, seleccionar el modo TV. Seleccionar modo Estereo del Audio. - Las mediciones de los voltajes son nominales y pueden variar hasta 10% en componentes en funcionamiento. Las lecturas de los voltajes pueden variar por la potencia de la señal y el contenido de la imagen. - Las fuentes de voltajes son nominales. 2. El símbolo indica el tipo de tierra que se utiliza en la conexión del medidor. PRECAUCION: SI no se utiliza la conexión a la tierra adecuada, se obtendrán mediciones equivocadas y podría dañar el equipo de medición. MEDICIÓN DE FORMAS DE ONDA 1. Un símbolo como indica el punto para medir una señal. (La medición puede hacerse en el punto con mayor accesibilidad, siempre que sea común al indicado.) 2. Se midieron utilizando un generador con formato NTSC conectado a la terminal de la antena. (Patrón de 8 Barras de Colores EAI, formato NTSC de 100 IREs para el Blanco y 7.5 IREs para el Negro.) 3. Los ajustes de usuario de los Menus PICTURE y AUDIO se normalizaron. Posteriormente el nivel de volumen se ajusta al mínimo. 4. Las formas de onda de Video y Color fueron tomadas con un osciloscopio de banda alta y con un punta de prueba de baja capacitancia (10 a 1). La forma y amplitud de las ondas puede variar según el tipo de osciloscopio que se utilice y sus características. 5. El símbolo de tierra que aparece junto al número de la forma de onda, indica que se utiliza conexión a Tierra Caliente en el extremo negativo de la punta de prueba. PRECAUCION: Si no se utiliza la conexión a la tierra adecuada, se obtendrán mediciones equivocadas y podría dañar el equipo de medición. 3 NOTA DE SEGURIDAD LOS DIAGRAMAS ELÉCTRICOS INCLUYEN CARACTERÍSTICAS ESPECIALES MUY IMPORTANTES PARA LA PROTECCIÓN CONTRA RAYOS-X, QUEMADURAS Y DESCARGAS ELÉCTRICAS. CUANDO SE DE SERVICIO ES IMPORTANTE USAR PARA REEMPLAZO DE COMPONENTES CRITICOS, SOLO PARTES ESPECIFICADAS POR EL FABRICANTES. LOS COMPONENTES CRITICOS ESTAN SEÑALADOS EN LOS DIAGRAMAS POR EL SIMBOLO . B E C IDENTIFICACIÓN DE TERMINALES PARA TRANSISTORES EN CHIP 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 49 - Schematic Notes PARTS LIST 1. RESISTOR Unit of resistance is ohm (:�� �K=1,000, M=1,000,000) 2. CAPACITOR Unit of capacitance is PF, unless otherwise noted. SERVICE NOTES: This Receiver has a section that does not share a common ground with the power supply section. The different sections are referred to as HOT section and COLD section in the precautions below. 1. Do not probe HOT and COLD sections at the same time. You may receive an electric shock. 2. Do not short HOT section to COLD section. That could blow the fuse or damage components. 3. Never measure HOT and COLD sections at the same time when using tools such as oscilloscopes or multi meters. 4. Always unplug the unit before beginning any operation such as removing the chassis. Non Flammable Solid Metal Oxide Metal (Precision and high stability) Wire Wound Thermistor Fusible Positive coefficient Thermistor Flame Proof Rectangular Electrolytic Metallized Polyester Tantalum Polyprolene Bipolar Mica Polystyrene Ceramic Temperature Compensation Ceramic (SL) Polyester + - m NP S M 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 50 - Schematic Notes PARTS LIST 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 51 - G & K-BOARDS -- TARJETAS G Y K G & K-BOARD SCHEMATICS & LAYOUTS -- DIAGRAMAS ELÉCTRICOS Y CIRCUITOS IMPRESOS DE LAS TARJETAS G Y K B E C CHIP TRANSISTOR LEAD DESIGNATION B E C IDENTIFICACIÓN DE TERMINALES PARA TRANSISTORES EN CHIP Nota • Los circuitos impresos las tarjetas han sido modificados par mayor claridad. Note • The board layouts were modified to enhance and display traces otherwise hidden by a mask. Descripción de tarjetas • Tarjeta A - Chasis principal • Tarjeta C - Control del TRC • Tarjeta G - Entrada de video frontales • Tarjeta JJ - Ampificador A/V • Tarjeta K - Controles del usuario • Tarjeta M - Interfase UCP DVD-TV • Tarjeta P - Fuente de poder del DVD • Tarjeta W - Interfase del DVD Boards Designation • A-Board - Main Chassis • C-Board - CRT Drive • G-Board - Front Video Input • JJ-Board - A/V Amp Interface • K-Board - Customer Controls • M-Board - DVD-TV CPU Interface • P-Board - DVD Power Supply • W-Board - DVD Unit Interface 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 52 - A-BOARD SCHEMATIC LEFT PORTION -- DIAGRAMA ELÉCTRICO TARJETA A SECCIÓN IZQUIERDA A-BOARD -- TARJETA A 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 53 - A-BOARD SCHEMATIC RIGHT PORTION -- DIAGRAMA ELÉCTRICO TARJETA A SECCIÓN DERECHA A-BOARD -- TARJETA A B E C CHIP TRANSISTOR LEAD DESIGNATION B E C IDENTIFICACIÓN DE TERMINALES PARA TRANSISTORES EN CHIP 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 54 - JJ-BOARD SCHEMATIC LEFT PORTION -- DIAGRAMA ELÉCTRICO TARJETA JJ SECCIÓN IZQUIERDA JJ-BOARD - TARJETA JJ 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 55 - JJ-BOARD SCHEMATIC RIGHT PORTION -- DIAGRAMA ELÉCTRICO TARJETA JJ SECCIÓN DERECHA JJ-BOARD -- TARJETA JJ B E C CHIP TRANSISTOR LEAD DESIGNATION B E C IDENTIFICACIÓN DE TERMINALES PARA TRANSISTORES EN CHIP 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 56 - M-BOARD SCHEMATIC, LAYOUT & VOLTAGES -- DIAGRAMA ELÉCTRICO, CIRCUITO IMPRESO Y VOLTAJES TARJETA M M-BOARD -- TARJETA M IC3502 1 2 3 4 5 6 7 8 9 10 11 12 13 14 . . . . . 4.96 . . . . . 2.47 . . . . . 1.00 . . . . . 2.00 . . . . . 0.74 . . . . . 0.85 . . . . . GND . . . . . 4.17 . . . . . 4.95 . . . . . 0.87 . . . . . 1.82 . . . . . 0.93 . . . . . 2.07 . . . . . 4.95 IC3501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 . . . . . .4.96 . . . . . .3.27 . . . . . .0.00 . . . . . .0.00 . . . . . .0.22 . . . . . .4.95 . . . . . GND . . . . . .4.17 . . . . . .4.96 . . . . . .0.79 . . . . . .0.79 . . . . . .4.96 . . . . . .2.69 . . . . . .4.95 Nota • Los circuitos impresos las tarjetas han sido modificados par mayor claridad. Note • The board layouts were modified to enhance and display traces otherwise hidden by a mask. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 57 - A-BOARD VOLTAGES -- VOLTAJES TARJETA A A-BOARD -- TARJETA A IC001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 . . . . . .4.41 . . . . . .2.44 . . . . . .n.c . . . . . .3.46 . . . . . .5.25 . . . . . .5.25 . . . . . .0.97 . . . . . .5.25 . . . . . .n.c . . . . . .5.25 . . . . . .0.14 . . . . . GND . . . . . .2.63 . . . . . .0.00 . . . . . .0.00 . . . . . .0.00 . . . . . .0.00 . . . . . .0.44 . . . . . .0.00 . . . . . .0.00 . . . . . .0.00 . . . . . .5.26 . . . . . .0.00 . . . . . .n.c . . . . . .1.19 . . . . . .1.80 . . . . . GND . . . . . .0.00 . . . . . .5.22 . . . . . .4.94 . . . . . .5.19 . . . . . .0.00 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 . . . . . 0.00 . . . . . 5.24 . . . . . 5.22 . . . . . 0.00 . . . . . n.c . . . . . GND . . . . . 0.15 . . . . . 4.17 . . . . . 0.00 . . . . . 0.00 . . . . . 0.00 . . . . . 0.00 . . . . . 0.15 . . . . . 0.00 . . . . . 0.06 . . . . . n.c . . . . . n.c . . . . . 0.07 . . . . . 5.25 . . . . . 0.04 . . . . . 0.04 . . . . . ** . . . . . 4.12 . . . . . n.c . . . . . 4.46 . . . . . 0.00 . . . . . 4.84 . . . . . 4.86 . . . . . 5.25 . . . . . 2.45 . . . . . 2.36 . . . . . GND IC101 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 . . . . . 2.86 . . . . . 5.57 . . . . . 0.00 . . . . . 0.00 . . . . . 0.00 . . . . . 0.00 . . . . . 8.87 . . . . . 3.29 . . . . . 3.29 . . . . . 3.34 . . . . . 4.27 . . . . . GND . . . . . 3.67 . . . . . 4.84 . . . . . 4.74 . . . . . 0.36 . . . . . 3.29 . . . . . 4.92 . . . . . 2.72 . . . . . 2.72 . . . . . GND . . . . . 6.96 . . . . . 5.24 . . . . . 4.03 . . . . . n.c . . . . . 5.89 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 . . . . . n.c . . . . . 3.15 . . . . . 2.16 . . . . . n.c . . . . . 4.44 . . . . . n.c . . . . . 3.01 . . . . . 2.58 . . . . . 3.43 . . . . . 3.43 . . . . . 8.87 . . . . . 3.47 . . . . . 4.42 . . . . . 2.82 . . . . . 4.43 . . . . . 4.95 . . . . . 4.39 . . . . . GND . . . . . 0.39 . . . . . 6.12 . . . . . 4.06 . . . . . 2.17 . . . . . 5.26 . . . . . 0.88 . . . . . 6.28 . . . . . 4.12 IC2321 1 2 3 4 5 6 7 8 9 10 11 . . . . . 4.38 . . . . . GND . . . . . 4.43 . . . . . 4.40 . . . . . 4.42 . . . . . 4.38 . . . . . 4.47 . . . . . 5.47 . . . . . 4.30 . . . . . 1.43 . . . . . 5.26 12 13 14 15 16 17 18 19 20 21 22 . . . . . 0.10 . . . . . 5.05 . . . . . 4.45 . . . . . 4.39 . . . . . 4.36 . . . . . 4.39 . . . . . 4.39 . . . . . 4.41 . . . . . 4.43 . . . . . 8.86 . . . . . 4.38 IC551 1 2 3 . . . . 14.05 . . . . .GND . . . . . 8.90 IC552 1 2 3 . . . . . 8.34 . . . . .GND . . . . . 4.97 IC002 1 2 3 4 5 6 7 8 . . . . . GND . . . . . GND . . . . . GND . . . . . GND . . . . . 4.85 . . . . . 4.85 . . . . . GND . . . . . 5.26 IC801 1 2 3 4 . . . . 0.58 . . . . 0.00 . . . . 0.00 . . . 13.18 IC803 1 2 3 4 5 . . . . 88.00 . . . 130.10 . . . 300.60 . . . 130.00 . . . 130.00 IC2201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 . . . . . 1.25 . . . . . 2.18 . . . . . 2.18 . . . . . 2.27 . . . . . 2.24 . . . . . 0.29 . . . . . 4.95 . . . . . 2.43 . . . . . 2.46 . . . . . 0.40 . . . . . 2.24 . . . . . 3.22 . . . . . 3.38 . . . . . 2.18 . . . . . 3.39 . . . . . 3.48 . . . . . GND . . . . . 5.27 . . . . . 0.24 . . . . . n.c . . . . . 2.25 . . . . . 2.20 . . . . . 2.18 . . . . . 2.18 IC451 1 2 3 4 5 6 7 8 9 10 11 12 13 . . . . . 0.00 . . . . . 4.72 . . . . . 4.07 . . . . . 4.12 . . . . . 0.00 . . . . . 4.07 . . . . . 3.75 . . . . 26.80 . . . . . 2.64 . . . . . n.c . . . . . GND . . . . 15.27 . . . . 27.60 IC2302 1 2 3 4 5 6 7 8 9 10 11 12 . . . . . .6.15 . . . . . .6.80 . . . . . .0.21 . . . . . .6.19 . . . . . .6.80 . . . . .18.39 . . . . . 11.16 . . . . . 11.36 . . . . . .0.00 . . . . .24.10 . . . . . 11.19 . . . . .10.90 IC6501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 . . . . . GND . . . . . 4.94 . . . . . GND . . . . . GND . . . . . GND . . . . . n.c . . . . . 0.00 . . . . . 4.42 . . . . . 4.86 . . . . . 4.84 . . . . . GND . . . . . 2.44 . . . . . GND . . . . . 2.28 15 16 17 18 19 20 21 22 23 24 25 26 27 28 . . . . . 2.69 . . . . . 3.46 . . . . . 3.46 . . . . . 2.37 . . . . . GND . . . . . 2.47 . . . . . 1.47 . . . . . 0.43 . . . . . 9.96 . . . . . 0.39 . . . . . 1.17 . . . . . 1.17 . . . . . 3.61 . . . . . 0.58 ** Probing pin may cause television shut down or blanking the CRT. Q002 5.90 10.14 5.25 Q304 3.00 8.87 2.37 Q003 5.02 5.82 5.90 B C E Q001 0.75 0.12 GND Q004 5.25 GND 5.23 Q501 0.00 90.30 GND B C E B C E Q430 0.24 3.73 GND Q802 130.10 130.30 130.10 Q801 129.40 130.00 130.00 Q551 -0.04 -32.80 GND Q804 130.20 0.54 130.60 Q2303 0.06 24.10 GND Q302 2.70 4.96 2.09 Q303 1.21 GND 1.89 Q2302 24.10 GND 18.34 Q451 0.63 0.01 GND Q452 0.00 3.67 GND Q2362 8.35 0.10 8.33 Q2409 0.10 0.00 GND B C E Q6501 3.29 4.96 2.62 Q6502 3.38 4.82 2.71 Q6504 3.28 4.96 2.63 Q2410 0.09 0.00 GND B C E Q6505 2.38 4.96 1.75 B C E Q6516 1.79 GND 2.37 Q6519 1.75 3.31 1.11 Q6517 1.47 4.96 1.74 Q6506 2.23 3.39 1.61 Q6510 0.44 GND 1.11 Q2363 0.10 0.21 GND Q6503 2.45 2.67 1.82 Q6507 2.67 4.96 2.03 Q6509 2.22 4.96 2.00 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 58 - P-BOARD SCHEMATIC -- DIAGRAMA ELÉCTRICO TARJETA P P-BOARD -- TARJETA P 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 59 - P-BOARD LAYOUT & VOLTAGES -- CIRCUITO IMPRESO Y VOLTAJES TARJETA P P-BOARD - TARJETA P B C E Q861 70.00 2.28 GND IC866 1 2 3 4 . . . . . . 5.16 . . . . . . 4.03 . . . . . 70.40 . . . . . 76.30 IC881 A R K . . . . . GND . . . . . 2.50 . . . . . 2.80 IC891 1 2 3 4 5 . . . . . 4.01 . . . . . 0.00 . . . . . 0.00 . . . . . 0.00 . . . . . GND B C E Q886 0.00 5.10 GND B C E Q7545 22.12 -0.16 22.23 G D S Q885 5.10 0.00 5.10 IC896 1 2 3 4 5 . . . . . GND . . . . . 0.00 . . . . . 0.00 . . . . . 0.00 . . . . . 9.41 Q867 69.30 69.40 GND Q871 69.80 68.80 GND Q872 69.30 75.60 69.00 Q873 68.00 69.00 GND Nota • Los circuitos impresos las tarjetas han sido modificados par mayor claridad. Note • The board layouts were modified to enhance and display traces otherwise hidden by a mask. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 60 - W-BOARD SCHEMATIC & LAYOUT -- DIAGRAMA ELÉCTRICO Y CIRCUITO IMPRESO TARJETA W W-BOARD -- TARJETA W Nota • Los circuitos impresos las tarjetas han sido modificados par mayor claridad. Note • The board layouts were modified to enhance and display traces otherwise hidden by a mask. 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 61 - JJ-BOARD LAYOUT & VOLTAGES -- CIRCUITO IMPRESO Y VOLTAJES TARJETA JJ JJ-BOARD -- TARJETA JJ B E C CHIP TRANSISTOR LEAD DESIGNATION B E C IDENTIFICACIÓN DE TERMINALES PARA TRANSISTORES EN CHIP Notas: • Verifique los números de parte de los componentes y sus valores en la lista de partes. • Obtenga los voltajes con un voltímetro digital. • Los circuitos impresos las tarjetas han sido modificados par mayor claridad. Notes: • Check Parts List for most recent component values and part numbers. • Obtain voltages with a digital multimeter. • The board layouts were modified to enhance and display traces otherwise hidden by a mask. B C E Q3601 -8.88 0.00 -9.63 IC3603 1 2 3 4 5 6 7 8 9 10 11 12 . . . . . n.c . . . . . 0.00 . . . . . 0.00 . . . . . GND . . . . . GND . . . . . 0.00 . . . . . 0.00 . . . . . GND . . . . . GND . . . . . GND . . . . . GND . . . . . GND 13 14 15 16 17 18 19 20 21 22 23 24 . . . . . GND . . . . . GND . . . . . n.c . . . . . n.c . . . . . 0.00 . . . . . 0.00 . . . . . GND . . . . . 0.00 . . . . . n.c . . . . . 0.00 . . . . . 0.00 . . . . . 0.00 IC3002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 . . . . . 0.00 . . . . . 0.00 . . . . . 2.20 . . . . . 2.20 . . . . . 2.25 . . . . . 0.00 . . . . . -9.00 . . . . . GND . . . . . 5.24 . . . . . 2.25 . . . . . 0.19 . . . . . 4.23 . . . . . 4.23 . . . . . 0.00 . . . . . -0.20 . . . . . 8.86 Q3602 0.00 -8.86 0.00 Q3603 0.00 -9.65 0.00 IC3001 1 2 3 4 5 6 7 8 . . . . . 4.00 . . . . . 0.04 . . . . . 4.00 . . . . . 0.04 . . . . . 4.00 . . . . . 8.86 . . . . . 4.23 . . . . . GND IC3601 1 2 3 4 5 . . . . .10.08 . . . . . GND . . . . . .0.00 . . . . . .0.00 . . . . . GND IC3602 1 2 3 4 5 6 7 8 . . . . . .0.00 . . . . . .0.00 . . . . . .GND . . . . . .0.00 . . . . . .GND . . . . . .0.00 . . . . . .0.00 . . . . . .0.00 Q3604 0.00 0.00 0.00 B C E Q3605 5.10 0.00 GND 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 62 - A-BOARD LAYOUT -- CIRCUITO IMPRESO TARJETA A A-BOARD -- TARJETA A 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 63 - C-BOARD LAYOUT & VOLTAGES -- CIRCUITO IMPRESO & VOLTAJES TARJETA C C-BOARD -- TARJETA C B E C CHIP TRANSISTOR LEAD DESIGNATION B E C IDENTIFICACIÓN DE TERMINALES PARA TRANSISTORES EN CHIP Notas: • Verifique los números de parte de los componentes y sus valores en la lista de partes. • Obtenga los voltajes con un voltímetro digital. • Los circuitos impresos las tarjetas han sido modificados par mayor claridad. Notes: • Check Parts List for most recent component values and part numbers. • Obtain voltages with a digital multimeter. • The board layouts were modified to enhance and display traces otherwise hidden by a mask. B C E Q351 3.26 170.00 3.00 Q353 3.32 165.70 3.02 Q352 3.26 169.10 2.95 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 64 - A-BOARD WAVEFORMS -- FORMAS DE ONDA TARJETA A A-BOARD -- TARJETA A Waveforms - A-Board 2.0V p-p [20µs] IC101 PIN 33 (DET OUT) 1 IC101 PIN 1 3.58VCO OSC 3.58MHz X’tal 5 1.7V p-p [20µs] IC101 PIN 41 (SYNC) 9 30.8V p-p [5ms] IC451 PIN 13 13 7.4V p-p [20µs] IC101 PIN 16 (H SYNC) 17 324.0V p-p [5µs] IC803 PIN 2 21 0.9V p-p [20µs] TP12 2 4.7V p-p [20µs] A14 PIN 2 (R) TP47R 6 4.2V p-p [5ms] IC101 PIN 52 (VERT OUT) 10 14 NOT APPLICABLE 174.0V p-p [20µs] Q501 Collector (H DRIVE) 18 324.0V p-p [5µs] Q802 Collector 22 1.9V p-p [20µs] IC101 PIN 39 (Y IN) 3 3.8V p-p [20µs] A14 PIN 3 (G) TP47G 7 1.7V p-p [5ms] IC451 PIN 7 (DRIVE) 11 IC101 PIN 48 H OSC OSC 503KHz X’tal 15 256.0V p-p [20µs] T551 PIN 1 19 0.4V p-p [20µs] IC101 PIN 43 (C IN) 4 4.2V p-p [20µs] A14 PIN 4 (B) TP47B 8 54.4V p-p [5ms] IC451 PIN 12 (VERT OUT) 12 3.4V p-p [20µs] IC101 PIN 50 (H OUT) 16 24.8 p-p [20µs] T551 PIN 6 20 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 65 - Notes 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880 - 66 - SERVICEMAN MODE (ELECTRONIC CONTROL) SERVICE ADJUSTMENT VALUES Model _____________________________________________ Ser #_____________ Date_________________ Note: Record the original settings PRIOR to modifying the registers. Mode Service Adjustment Adjustment Range Def. Val. Original Value New Value Sub Adjustments B0 SUB-COLOR 0 ~ 63 33 B1 SUB-TINT 0 ~ 63 33 B2 SUB- BRIGHTNESS 0 ~ 255 80 B3 SUB-PICTURE 0 ~ 63 34 B4 KILLER/ABL/ GAMMA 0 ~ 7 5 B5 VIDEO ADJUSTMENT 0 ~ 15 8 B6 AUDIO ADJUSTMENT 0 ~ 31 16 B7 V-SIZE 0 ~ 63 29 B8 S V-SIZE 0 ~ 63 12 Cut-Off Adjustments C0 CUT-OFF R 0 ~ 1 0 ~ 255 0 128 C1 CUT-OFF G 0 ~ 255 64 C2 CUT-OFF B 0 ~ 1 0 ~ 255 0 128 C3 DRIVE R 0 ~ 127 64 C4 DRIVE B 0 ~ 127 64 C5 YNR SWITCH 0 ~ 1 0 C6 AFT 0 ~ 1 0 ~ 128 1 120 C7 RF-AGC 0 ~ 127 64 C8 YNR VIDEO ADJUSTMENT 0 ~ 7 0 C9 HORIZONTAL CENTER 0 ~ 31 11 Ca BEAM LIMIT 0 ~ 7 4 Cb VCJ TEST H 0 ~ 2 0 MTS Adjustments M0 INPUT LEVEL 0 ~ 63 33 M1 HIGH-LEVEL SEPARATION 0 ~ 63 25 M2 LOW-LEVEL SEPARATION 0 ~ 16 6 Mode Service Adjustment Adjustment Range Def. Val. Original Value New Value Options Adjustments S0 PIP COLOR 0 ~ 127 80 S1 PIP CONTRAST 0 ~ 127 52 S2 UP 1/9 0 ~ 255 26 S3 DOWN 1/9 0 ~ 255 146 S4 LEFT 1/9 0 ~ 255 9 S5 RIGH 1/9 0 ~ 255 103 S6 UP 1/16 0 ~ 255 27 S7 DOWN 1/16 0 ~ 255 163 S8 LEFT 1/16 0 ~ 255 9 S9 RIGH 1/16 0 ~ 255 118 Sa FREERUN N/A N/A Sb CLOCK ADJUSTMENT 0 ~ 255 128 Sc PIP TINT 0 ~ 63 50 Sd LOUDNESS COMPENSATION 0 ~ 63 52 Comb Filter Adjustments X0 COMB GAIN 0 ~ 255 152 X1 COMB SWITCH 0 ~ 63 12 X2 COMB LIMIT 0 ~ 63 24 X3 COMB CORE 0 ~ 127 41 X4 COMB RF DELAY 0 ~ 127 20 X5 COMB VIDEO DELAY 0 ~ 127 18 X6 COMB VMLM 0 ~ 127 90 X7 COMB VM SW 0 ~ 63 24 X8 COMB SHARP 0 ~ 255 30 X9 COMB VM LEVEL 0 ~ 255 255 Xa COMB VMPKF 0 ~ 1 01 Xb COMB ADJ SHARP 0 ~ 63 15 Printed in USA K01042593ZR0427 珍惜眼前人 搜集整理 QQ:362399998 QQ群:12919880
