DVR-520H-S
RRV2963
DVD RECORDER
DVR-520H-S
DVR-65H-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
Power Requirement
Region No.
Serial No.
Please confirm 3rd & 4th
alphabetical letters.
DVR-520H-S
KU/CA
AC120V
1
DVR-520H-S
KUXU/CA
AC120V
1
&&PG######$$
DVR-65H-S
KCXU
AC120V
1
&&PG######$$
÷ When servicing this model, some service procedures may reset the settings that customer
set (*) to the factory default settings. Make sure to explain this to the customer.
(*) : Initial Setup (Clock Setting, Remote Control Set, Channel settings, Video Out settings,
Audio In settings, Audio Out settings, Language settings)
Refer to the chapter 13 of the Operating Instructions for more details.
An HDD (Hard Disc Drive) is mounted in this product.
The HDD is a precision instrument very vulnerable to shock and electrostatic charges.
Please read "7.4 Cautions on Handling the HDD" in this manual and exercise sufficient caution
when handling the HDD itself, as well as the product with the HDD built in.
When an HDD becomes defective and inoperable, restoration of the user's data recorded on
the HDD, or copying of the user's recorded data to other media (such as a new HDD) is totally
impossible. Before servicing, OBTAIN THE USER'S PRIOR CONSENT to that effect.
The user must be made aware that all recorded data are deleted if the HDD is intialized.
For details, refer to "Important symbols for good services" .
T-ZZV MAY 2004 printed in Japan
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
2
1
2
3
4
1
2
3
4
C
D
F
A
B
E
SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pièces de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a
on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
test
Leakage
current
tester
Earth
ground
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
AC Leakage Test
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
3
5
6
7
8
5
6
7
8
C
D
F
A
B
E

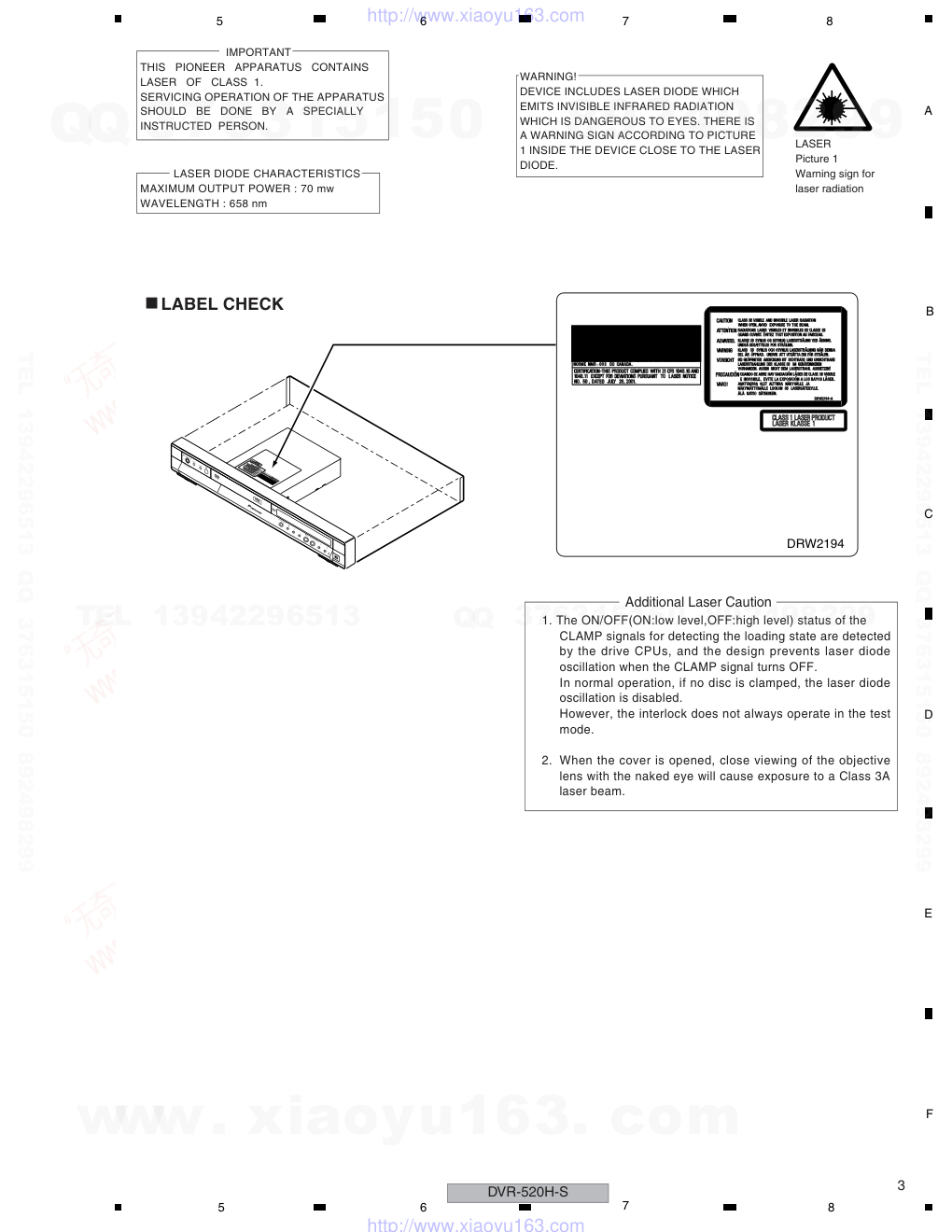

WARNING!
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.
LASER
Picture 1
Warning sign for
laser radiation
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER : 70 mw
WAVELENGTH : 658 nm
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LABEL CHECK
PULL-OPEN
STANDBY/ON
DVD
HDD
OPEN/CLOSE
REC ONE TOUCH COPY
DV IN/OUT
Î
CLAMP signals for detecting the loading state are detected
by the drive CPUs, and the design prevents laser diode
oscillation when the CLAMP signal turns OFF.
In normal operation, if no disc is clamped, the laser diode
oscillation is disabled.
However, the interlock does not always operate in the test
mode.
2. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class 3A
laser beam.
Additional Laser Caution
1. The ON/OFF(ON:low level,OFF:high level) status of the
DRW2194
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
4
1
2
3
4
1
2
3
4
C
D
F
A
B
E
[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
5
5
6
7
8
5
6
7
8
C
D
F
A
B
E
CONTENTS
SAFETY INFORMATION......................................................................................................................................2
1. SPECIFICATIONS.............................................................................................................................................6
2. EXPLODED VIEWS AND PARTS LIST.............................................................................................................8
2.1 PACKING ....................................................................................................................................................8
2.2 EXTERIOR ...............................................................................................................................................10
2.3 FRONT PANEL.........................................................................................................................................13
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..........................................................................................16
3.1.1 OVERALL BLOCK DIAGRAM ...............................................................................................................16
3.1.2 TUNB and JCKB ASSY BLOCK DIAGRAM ..........................................................................................18
3.1.3 MAIN ASSY BLOCK DIAGRAM ............................................................................................................20
3.1.4 POWER BLOCK DIAGRAM ..................................................................................................................22
3.2 OVERALL WIRING DIAGRAM .................................................................................................................24
3.3 TUNB ASSY..............................................................................................................................................26
3.4 JCKB ASSY(1/2).......................................................................................................................................28
3.5 JCKB(2/2), ATWB and ATHB ASSYS.......................................................................................................30
3.6 MAIN ASSY(1/5).......................................................................................................................................32
3.7 MAIN ASSY(2/5).......................................................................................................................................34
3.8 MAIN ASSY(3/5).......................................................................................................................................36
3.9 MAIN ASSY(4/5).......................................................................................................................................38
3.10 MAIN ASSY(5/5).....................................................................................................................................40
3.11 FLKY, KIRB, FRJB and DVJB ASSYS....................................................................................................42
3.12 POWER SUPPLY UNIT ..........................................................................................................................44
3.13 WAVE FORMS........................................................................................................................................46
4. PCB CONNECTION DIAGRAM ......................................................................................................................49
4.1 TUNB ASSY..............................................................................................................................................50
4.2 JCKB, ATWB and ATHB ASSYS ..............................................................................................................52
4.3 MAIN ASSY ..............................................................................................................................................56
4.4 FLKY, KIRB, FRJB and DVJB ASSYS......................................................................................................60
4.5 POWER SUPPLY UNIT ............................................................................................................................64
5. PCB PARTS LIST............................................................................................................................................65
6. ADJUSTMENT ................................................................................................................................................69
6.1 TUNB ASSY ADJUSTMENT ....................................................................................................................69
6.2 MAIN ASSY ADJUSTMENT.....................................................................................................................70
7. GENERAL INFORMATION .............................................................................................................................71
7.1 DIAGNOSIS..............................................................................................................................................71
7.1.1 CPRM ID NUMBER AND DATA SETTING ............................................................................................72
7.1.2 MODEL SETTING .................................................................................................................................76
7.1.3 DOWNLOAD METHOD .........................................................................................................................77
7.1.4 SERVICE MODE ...................................................................................................................................79
7.1.5 DV DEBUG MODE ................................................................................................................................91
7.1.6 ERROR RATE MEASUREMENT...........................................................................................................94
7.1.7 VIDEO ADJUSTMENT FOR SPECIFIC AREA......................................................................................96
7.1.8 AGING MODE .....................................................................................................................................100
7.1.9 SETUP SEQUENCE............................................................................................................................102
7.1.10 DISASSEMBLY..................................................................................................................................103
7.2 IC ............................................................................................................................................................108
7.3 OUTLINE OF THE PRODUCT ...............................................................................................................135
7.4 CAUTIONS ON HANDLING THE HDD...................................................................................................138
7.5 DISC/CONTENT FORMAT.....................................................................................................................140
7.6 CLEANING .............................................................................................................................................141
8. PANEL FACILITIES .......................................................................................................................................142
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
6
1
2
3
4
1
2
3
4
C
D
F
A
B
E

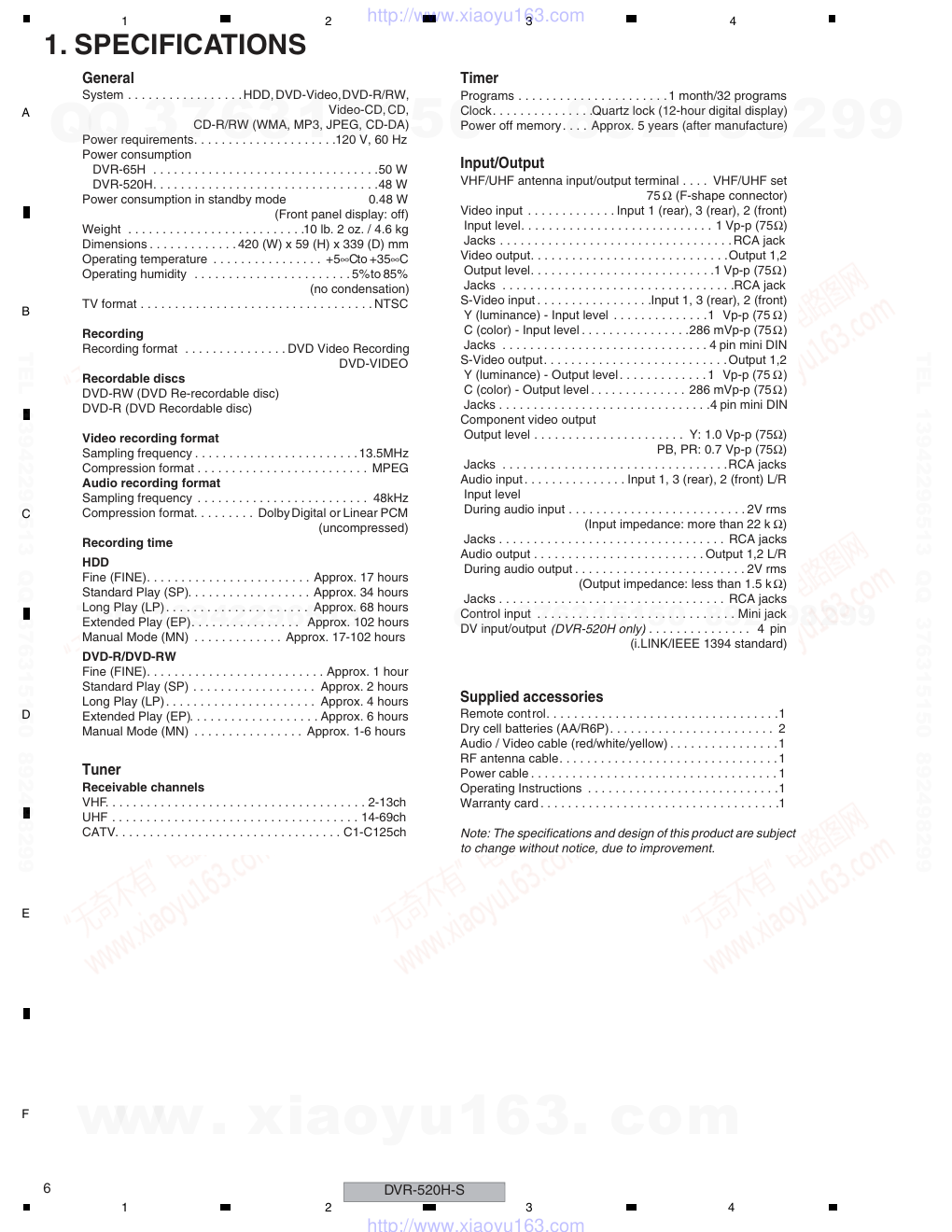

1. SPECIFICATIONS
Supplied accessories
Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Dry cell batteries (AA/R6P) . . . . . . . . . . . . . . . . . . . . . . . . 2
Audio / Video cable (red/white/yellow) . . . . . . . . . . . . . . . .1
RF antenna cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Note: The specifications and design of this product are subject
to change without notice, due to improvement.
General
System . . . . . . . . . . . . . . . . .HDD, DVD-Video, DVD-R/RW,
Video-CD, CD,
CD-R/RW (WMA, MP3, JPEG, CD-DA)
Power requirements. . . . . . . . . . . . . . . . . . . . . 120 V, 60 Hz
Power consumption
DVR-65H . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 W
DVR-520H . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 W
Power consumption in standby mode
0.48 W
(Front panel display: off)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . .10 lb. 2 oz. / 4.6 kg
Dimensions . . . . . . . . . . . . .420 (W) x 59 (H) x 339 (D) mm
Operating temperature . . . . . . . . . . . . . . . . +5∞C to +35∞C
Operating humidity . . . . . . . . . . . . . . . . . . . . . . . 5% to 85%
(no condensation)
TV format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NTSC
Recording
Recording format . . . . . . . . . . . . . . . DVD Video Recording
DVD-VIDEO
Recordable discs
DVD-RW (DVD Re-recordable disc)
DVD-R (DVD Recordable disc)
Video recording format
Sampling frequency . . . . . . . . . . . . . . . . . . . . . . . .13.5MHz
Compression format . . . . . . . . . . . . . . . . . . . . . . . . . MPEG
Audio recording format
Sampling frequency . . . . . . . . . . . . . . . . . . . . . . . . . 48kHz
Compression format. . . . . . . . . Dolby Digital or Linear PCM
(uncompressed)
Recording time
HDD
Fine (FINE) . . . . . . . . . . . . . . . . . . . . . . . . Approx. 17 hours
Standard Play (SP) . . . . . . . . . . . . . . . . . . Approx. 34 hours
Long Play (LP) . . . . . . . . . . . . . . . . . . . . . Approx. 68 hours
Extended Play (EP) . . . . . . . . . . . . . . . . Approx. 102 hours
Manual Mode (MN) . . . . . . . . . . . . . Approx. 17-102 hours
DVD-R/DVD-RW
Fine (FINE) . . . . . . . . . . . . . . . . . . . . . . . . . . Approx. 1 hour
Standard Play (SP) . . . . . . . . . . . . . . . . . . Approx. 2 hours
Long Play (LP) . . . . . . . . . . . . . . . . . . . . . . Approx. 4 hours
Extended Play (EP). . . . . . . . . . . . . . . . . . . Approx. 6 hours
Manual Mode (MN) . . . . . . . . . . . . . . . . Approx. 1-6 hours
Tuner
Receivable channels
VHF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13ch
UHF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-69ch
CATV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C1-C125ch
Timer
Programs . . . . . . . . . . . . . . . . . . . . . . 1 month/32 programs
Clock. . . . . . . . . . . . . . .Quartz lock (12-hour digital display)
Power off memory . . . . Approx. 5 years (after manufacture)
Input/Output
VHF/UHF antenna input/output terminal . . . . VHF/UHF set
75 Ω (F-shape connector)
Video input . . . . . . . . . . . . . Input 1 (rear), 3 (rear), 2 (front)
Input level. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack
Video output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Output 1,2
Output level. . . . . . . . . . . . . . . . . . . . . . . . . . .1 Vp-p (75 Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack
S-Video input . . . . . . . . . . . . . . . . . Input 1, 3 (rear), 2 (front)
Y (luminance) - Input level . . . . . . . . . . . . . .1 Vp-p (75 Ω)
C (color) - Input level . . . . . . . . . . . . . . . . 286 mVp-p (75 Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 pin mini DIN
S-Video output . . . . . . . . . . . . . . . . . . . . . . . . . . .Output 1,2
Y (luminance) - Output level . . . . . . . . . . . . . .1 Vp-p (75 Ω)
C (color) - Output level . . . . . . . . . . . . . . 286 mVp-p (75 Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 pin mini DIN
Component video output
Output level . . . . . . . . . . . . . . . . . . . . . . Y: 1.0 Vp-p (75 Ω)
PB, PR: 0.7 Vp-p (75 Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jacks
Audio input. . . . . . . . . . . . . . . Input 1, 3 (rear), 2 (front) L/R
Input level
During audio input . . . . . . . . . . . . . . . . . . . . . . . . . . 2V rms
(Input impedance: more than 22 k Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jacks
Audio output . . . . . . . . . . . . . . . . . . . . . . . . . Output 1,2 L/R
During audio output . . . . . . . . . . . . . . . . . . . . . . . . . 2V rms
(Output impedance: less than 1.5 kΩ)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jacks
Control input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mini jack
DV input/output (DVR-520H only) . . . . . . . . . . . . . . . . 4 pin
(i.LINK/IEEE 1394 standard)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
7
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Accessories
• Remote control ×1
(VXX2932)
• RF antenna cable ×1
(VDE1025)
• Power cable ×1
(ADG7021 : DVR-520H-S/KU/CA)
(ADG7075 : DVR-520H-S/KUXU/CA
DVR-65H-S/KCXU)
• Audio / Video cable(L=1.5m) ×1
(red/white/yellow)
(XDE3049 : DVR-520H-S/KU/CA)
(VDE1077 : DVR-520H-S/KUXU/CA
DVR-65H-S/KCXU)
• Dry cell batteries ×2
(AA/R6P)
Red
White
Yellow
UME
ONE TOUCH
COPY
HDD
DVD
+
ST ANDBY/ON
OPEN/CLOSE
OP MENU
MENU
RETURN
DISC NAVIGATOR
PLAY LIST
HOME
MENU
ENTER
DVD RECORDER
INPUT
SELECT
CHANNEL
VOL
+
AUDIO
SUBTITLE
ANGLE
PLAY MODE
INPUT
SELECT
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
CLEAR
CHANNEL
CLEAR
VCR Plus+
0
PAUSE
STOP OK
SKIP
CM
BACK
REV SCAN
PLAY
FWD SCAN
DISC
HISTORY
NAVI
MARK
CASE
SELECTION
CHP
MARK
EASY
TIMER
DISPLAY
TV CONTROL
REC
PREV
NEX T
STEP/SLOW
STOP REC
REC MODE TIMER REC
•
e
E
e
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
8
1
2
3
4
1
2
3
4
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
11
10
9
12
7
8
13
15
16
18
17
13
4
6
2
5
DVR-65H
Only
DVR-520H-S
Only
14
3
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
9
5
6
7
8
5
6
7
8
C
D
F
A
B
E
PACKING parts List
(2) CONTRAST TABLE
DVR-520H-S/KU/CA, KUXU/CA and DVR-65H/KCXU are constructed the same except for the following :
Mark No.
Description
Part No.
>
1
Power Cable
See Contrast table (2)
2
Audio / Video Cable
See Contrast table (2)
3
RF Antenna Cable
VDE1025
4
Remote Control
VXX2932
5
Battery Cover
AZN7933
NSP 6
Dry Cell Battery (R6P, AA)
See Contrast table (2)
7
Operating Instructions
See Contrast table (2)
(English)
8
Operating Instructions
See Contrast table (2)
(French)
NSP 9
HDD Caution 8L B
VRR1046
NSP 10
HDD Caution 8L
VRR1047
NSP 11
Card
See Contrast table (2)
NSP 12
Warranty Card
See Contrast table (2)
13
Polyethylene Bag
VHL1051
14
Mirror Sheet
VHL1006
15
IM Holder
See Contrast table (2)
16
Front Pad
See Contrast table (2)
17
Rear Pad
See Contrast table (2)
18
Packing Case
See Contrast table (2)
Mark No.
Description
Part No.
Mark
No.
Symbol and Description
DVR-520H-S
/KU/CA
DVR-520H-S
/KUXU/CA
DVR-65H-S
/KCXU
>
1
Power Cable
ADG7021
ADG7075
ADG7075
2
Audio / Video Cable
XDE3049
VDE1077
VDE1077
NSP
6
Dry Cell Battery (R6P, AA)
VEM1031
VEM1030
VEM1030
7
Operating Instructions
VRB1338
VRB1338
VRB1343
(English)
8
Operating Instructions
Not used
Not used
VRC1210
(French)
NSP
11 Card
VRY1132
VRY1132
Not used
NSP
12 Warranty Card
ARY7045
ARY7045
ARY7007
15 IM Holder
VHC1116
VHC1115
VHC1115
16 Front Pad
VHA1368
VHA1364
VHA1364
17 Rear Pad
VHA1369
VHA1365
VHA1365
18 Packing Case
VHG2545
VHG2530
VHG2549
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
10
1
2
3
4
1
2
3
4
C
D
F
A
B
E
2.2 EXTERIOR
F
O
I
I
J
J
B
H
H
A
A
K
C
C
F
D
E
G
D
E
B
O
K
G
CONTACT SIDE
NON-CONTACT
SIDE
L
L
C
J
F
I
B
G
H
A
64
64
64
64
64
64
64
25
8
43
19
34
64
64
64
64
64
3
12
15
17
16
47
61
61
61
63
63
59
63
64
35
62
20
24
22
21
12
13
10
6
48
62
55
64
64
52
14
7
64
64
64
39
65
64
64
64
64
64
23
36
60
60
42
38
38
53
53
53
41
53
45
38
9
2
1
26
53
29
27
18
38
30
32
36
33
58
54
11
46
4
28
49
51
(520H type)
(65H type)
50
56
57
Refer to
"2.3 FRONT PANEL SECTION".
5
44
Lithium Battery
(CR2032)
65
64
64
31
37
40
64
50
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
11
5
6
7
8
5
6
7
8
C
D
F
A
B
E
EXTERIOR parts List
(2) CONTRAST TABLE
DVR-520H-S/KU/CA, KUXU/CA and DVR-65H/KCXU are constructed the same except for the following :
Mark No.
Description
Part No.
1
TUNB Assy
VWV2010
2
JCKB Assy
VWV2023
3
MAIN Assy
VWV2025
4
FRJB Assy
VWV2004
5
DVJB Assy
VWV2006
6
ATWB Assy
VWV2009
7
ATHB Assy
VWV2011
>
8
POWER SUPPLY Unit
VWR1380
9
DRIVE Assy R7 (for Service)
VXX2942
10
HDD
See Contrast table (2)
11
DC Fan Motor
VXM1114
12
Ferrite Core
ATX1048
13
Ferrite Core
See Contrast table (2)
14
Connector Assy (13P)
PF13PP-D47
15
Flexible Cable (8P)
See Contrast table (2)
16
Flexible Cable (24P)
See Contrast table (2)
17
Flexible Cable (32P)
See Contrast table (2)
18
Flexible Cable (7P)
See Contrast table (2)
19
Flexible Cable (13P)
See Contrast table (2)
20
Flexible Cable (40P)
See Contrast table (2)
21
Shield Flexible Cable (40P)
See Contrast table (2)
22
Housing Assy (4P)
See Contrast table (2)
23
Housing Assy (2P)
See Contrast table (2)
24
Housing Assy (4P)
See Contrast table (2)
NSP 25
P. Plate Holder
PNY-405
26
Rubber Foot
VEB1349
27
Radiation Sheet
VEB1360
28
Rubber Spacer
VEB1370
NSP 29
PC Support
VEC1749
30
Heatsink Cushion
VEC2363
31
Gasket Sheet
VEC2394
32
Spacer
VEC2413
NSP 33
Clamp
VEC2418
34
FFC Protector
VEC2436
35
Gasket 20 x 8T
VEC2437
36
Gasket 75 x 7T
VEC2439
37
Gasket Sheet 2
VEC2440
38
Aluminum Tape
VEF1056
NSP 39
HDD Stay
VNE2334
NSP 40
Bonnet Angle
VNE2335
NSP 41
Writer Stay L
VNE2336
NSP 42
Writer Stay R
VNE2337
NSP 43
PCB Base
VNE2339
NSP 44
Heatsink
VNH1070
45
SYPS Cover
VNK5426
46
Fan Duct
VNK5427
NSP 47
Base Chassis Assy
VXA2682
NSP 48
Binder (BK-1)
ZCA-BK1
49
HDD Badge
See Contrast table (2)
50
Tray Sheet
See Contrast table (2)
51
Tray Panel
See Contrast table (2)
52
Bonnet Label
VRW2104
NSP 53
Tape
ZTA-156A-19
54
Rear Panel
See Contrast table (2)
55
Bonnet Case S
VXX2925
56
Tray Panel Base
See Contrast table (2)
57
Tray Panel Lens
See Contrast table (2)
58
Screw
BPZ30P250FTC
59
Screw
PBZ30P080FTC
60
Screw
AMZ30P060FTC
61
Screw
BBZ30P040FTC
62
Screw
BCZ40P060FNI
63
Screw
BPZ30P080FTC
64
Screw
BBZ30P060FTC
65
#6-32 Screw
DBA1125
Mark No.
Description
Part No.
Mark
No.
Symbol and Description
DVR-520H-S
/KU/CA
DVR-520H-S
/KUXU/CA
DVR-65H-S
/KCXU
10 HDD 80G 4R080L0 SV
VXF1010
VXF1010
Not used
10 HDD 160G 4R160L0 SV
Not used
Not used
VXF1028
13 Ferrite Core
VTH1051
VTH1050
VTH1050
15 Flexible Cable (8P)
VDA2011
VDA1997
VDA1997
16 Flexible Cable (24P)
VDA2012
VDA1998
VDA1998
17 Flexible Cable (32P)
VDA2013
VDA1999
VDA1999
18 Flexible Cable (7P)
VDA2014
VDA2000
VDA2000
19 Flexible Cable (13P)
VDA2015
VDA2001
VDA2001
20 Flexible Cable (40P)
VDA2034
VDA2032
VDA2032
21 Shield Flexible Cable (40P)
VDA2033
VDA2031
VDA2031
22 Housing Assy (4P)
VKP2330
VKP2327
VKP2327
23 Housing Assy (2P)
VKP2332
VKP2315
VKP2315
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
12
1
2
3
4
1
2
3
4
C
D
F
A
B
E
24 Housing Assy (4P)
VKP2348
VKP2335
VKP2335
49 HDD Badge
VAM1141
VAM1141
Not used
50 Tray Sheet B
VEC2409
VEC2409
Not used
50 Tray Sheet
Not used
Not used
VEC2448
51 Tray Panel
VNK5421
VNK5421
Not used
54 Rear Panel
VNA2704
VNA2704
VNA2737
56 Tray Panel Base
Not used
Not used
VNK5432
57 Tray Panel Lens
Not used
Not used
VNK5592
Mark
No.
Symbol and Description
DVR-520H-S
/KU/CA
DVR-520H-S
/KUXU/CA
DVR-65H-S
/KCXU
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
13
5
6
7
8
5
6
7
8
C
D
F
A
B
E
2.3 FRONT PANEL
CONTACT SIDE
NON-CONTACT
SIDE
D
E
8
17
(Note)
Note : When replacing the jack door, first fully open it.
If the jack door is not fully open during replacement,
it may unexpectedly fall out after being replaced.
8
17
(Note)
3
2
4
25
14
18
6
16
5
9(2/2)
9(1/2)
10
21
1
24
24
12
13
11
7
24
24
19
24
24
20
15
14
18
6
16
5
9(2/2)
9(1/2)
10
21
22
22
12
22
13
11
7
24
20
23
15
[DVR-65H type]
[DVR-520H type]
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
14
1
2
3
4
1
2
3
4
C
D
F
A
B
E
FRONT PANEL parts List
(2) CONTRAST TABLE
DVR-520H-S/KU/CA, KUXU/CA and DVR-65H/KCXU are constructed the same except for the following :
Mark No.
Description
Part No.
1
FLKY Assy
VWG2489
2
KIRB Assy
VWG2493
3
Flexible Cable (19P)
See Contrast table (2)
4
Flexible Cable (7P)
See Contrast table (2)
5
Front Panel Assy
See Contrast table (2)
6
Pioneer Name Plate
See Contrast table (2)
7
Door Spring
VBK1151
NSP 8
Mirror Sheet
VHL1082
NSP 9
Main Key
See Contrast table (2)
NSP 10
REC Ring
VNK5425
NSP 11
Sub Panel
See Contrast table (2)
NSP 12
Power Key
VNK5480
NSP 13
IR Window
See Contrast table (2)
NSP 14
DV Cover
VNK5451
NSP 15
FL Lens
See Contrast table (2)
NSP 16
Front Panel
See Contrast table (2)
17
Jack Door
VNK5494
18
Rubber Foot
VEB1349
19
Drive Sheet
VEC2345
20
Panel Sheet
See Contrast table (2)
NSP 21
Copy Ring
VNK5523
NSP 22
Cap
See Contrast table (2)
23
FL Filter
See Contrast table (2)
24
Screw
BPZ30P080FTC
25
Sheet S
See Contrast table (2)
Mark No.
Description
Part No.
Mark
No.
Symbol and Description
DVR-520H-S
/KU/CA
DVR-520H-S
/KUXU/CA
DVR-65H-S
/KCXU
3
Flexible Cable (19P)
VDA2016
VDA2002
VDA2002
4
Flexible Cable (7P)
VDA2019
VDA2005
VDA2005
5
Front Panel Assy
VXA2645
VXA2645
VXA2649
6
Pioneer Name Plate
VAM1146
VAM1146
VAM1147
NSP
9
Main Key
VNK5420
VNK5420
VNK5436
NSP
11 Sub Panel
VNK5483
VNK5483
VNK5526
NSP
13 IR Window
VNK5423
VNK5423
Not used
NSP
15 FL Lens
VNK5422
VNK5422
VNK5593
NSP
16 Front Panel
VNK5441
VNK5441
VNK5527
20 Panel Sheet
VEC2446
VEC2446
Not used
NSP
22 Cap
Not used
Not used
VNK5437
23 FL Filter
Not used
Not used
VEC2421
25 Sheet S
Not used
Not used
VEC2426
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
15
5
6
7
8
5
6
7
8
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
16
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
3.1.1 OVERALL BLOCK DIAGRAM
SPDL
MOTOR
LD
DRIVE
Pickup
LOADING
MOTOR
STEPPIONG
MOTOR
TV FRONT-END
U301 VXF1022
ANT
INPUT3
VIDEO
Y/C
L
R
(15P)
CN1301
(19P)
CN301
(13P)
CN451
(19P)
CN401
(13P)
CN402
(15P)
CN705
FRJB
ASSY
JCKB ASSY(1/3)
JCKB ASSY
(2/3)
C
F
TUNB
ASSY
A
MAIN ASSY
DRIVE ASSY
M
6
8
10
6
12
4
8
VOUT
19
Y
C
UVL
UVL
MPX
IN
L
OUT
LIN2
LIN4
LIN1
LIN3
L
V/Y
C
AOUT
16
RF IN
RF
OUT
V/Y
UVV
UVV
1V
3V
3Y
1Y
2Y
3C
1C
2C
2V
C
Video Selector
Video Driver
ATT WIDEBAND SPECTRAL
IC701
LA73033(1/2)
IC601
LC75342M
IC451 CXA2020M
13
5
11
14
12
19
27
17
15
13
79
77
75
7
5
3
LPF
1 Chip
Sysytem Codec
Audio MPX
Decoder
Audio Selector with Electirc ATT
7
21
JA1302
JA1301
VIN2
YIN2
CIN2
2
LIN2
INPUT1
INPUT3
VIDEO
Y/C
L
R
PICKUP
ASSY
Y
C
Y
C
JA601
VIDEO
Y/C
L
R
VIN1
LIN1
LIN3
VIN3
YIN1
YIN3
M
(40P)
[ATAPI]
DVD-VR
DVD-Video
DVD-VR
DVD-Video
CD Digital
CD Digital
CN4401
1
CN201
(2P)
CN703
(2P)
CN101
(45P)
8
CIN1
CIN3
CN501
CN502
(12P)
33
39
A
B
C
D
S4
S3
S2
S1
5
4
3
2
1/3
B
2/3
B
PB DVD/CD
IC1001
M65673WG
IC201
UPD63630GM
IC501
BD7907FS
IC101
UPC3330GC
RF IC
IC301
M30700FKLGP
IC202
SDRAM
16Mbit
7-10
13-16
(40P)
(21P)
(21P)
CN702
(1/2)
DSP
48
37
40
36
38
34
35
: Recording system signal route
: Playback system signal route
LPF
IC1401 ATA SDRAM
256Mbit
CPU SDRAM
128Mbit
IC1102
IC1101
Flash
64Mbit
2
13
13
17
3
7
7
Writer
CPU
25
6CH
Driver
2
LPF
201
76
CN3001
(1/2)
CN401
HDD
[ATA]
(40P)
CN4501
IC1421
×2
IC1103
SRAM
4Mbit
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
17
5
6
7
8
5
6
7
8
C
D
F
A
B
E
D FLKY ASSY
E KIRB ASSY
J
L
Control
Data
IC1301
IC3201
PCM1742KE
IC1001 PT6315
V1001
IC3101
AK5357VT
IC3301
SM5950AM
IC5101
UPD72852AGB-8EU
IEEE1394
Physical IC
IC5202
UPD72893BGD-LML
IEEE1394
Link IC
Audio
A/D
2
SEL.L
VOUT
(19P)
CN201
(19P)
CN1001
DVJB ASSY
YOUT
COUT
LOUT
(32P)
CN701(1/2)
9
SEL.V/Y
7
SEL.C
C IN
CVBS IN
CN1401
(7P)
CN5102
(7P)
JA1401
(32P)
(21P) (21P)
CN2001
(2/2)
(32P)
CN701
(2/2)
CN702(2/2)
38 39 37 36
1,3
2
6
7
XTPA
TPA
TPB
XTPB
XTPB
TPB
XTPA
TPA
1,3
2
6
7
1
2
3
4
Audio
D/A Conv.
FL Driver
FL
Key
SW
IC701
LA73033(2/2)
Sampling Rate
Converter
7
C
Y
Y/G
Cr/R
Cb/B
C OUT
Y OUT
Y(G) OUT
Cb OUT
Cr OUT
27
29
25
23
21
CN3001(2/2)
27
29
25
23
21
L OUT
17
17
SPDIF
1
1
3
2
1
IC3251-1/2
UPC4570G2
Cb
Cb
Cr
Cr
Y(G)
Y(G)
Y
C
V
Tuner U-com
JA651
OPTICAL
AC-3/PCM
DIGITAL
AUDIO
OUT
LINE
OUT 1
VIDEO
JA702
Y
C
Y
C
VIDEO
L
R
L
R
Y(G)
JA701
• R ch is same as L ch.
Cb
Cr
COMPONENT
VIDEO OUT
DV TERMINAL
LINE
OUT 2
(32P)
CN2001
9
5
7
Master Clock Freerun
48KHz 20Bit
JCKB ASSY(3/3)
3/3
B
ENC
SDRAM
128Mbit
IC1201
DEC
SDRAM
128Mbit
IC5204
DV SDRAM
16Mbit
53
51
45
43
41
56
60
58
63
65
68
IC202
PEG034A
Tuner
U-com
IC204
BR24L32F-W
EEPROM
IC203
RS5C372A
Real
Time
Clock
5
9
10
12
1-3
F5
D2
AE24
AG25
AD21
AF23
AG24
T26
V27
• MPEG2 PS Encode
• AC-3/Linear PCM
Audio Encode
• 2ch ATA/ATAPI Interface
• MPEG2 PS Decode
• AC-3/MPEG1/Linear
PCM Audio Decode
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
18
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.1.2 TUNB and JCKB ASSY BLOCK DIAGRAM
U301
V/U Tuner FrontEnd
VXF 1022-
SCL
SDA
AFT
AGC
Q306
TUON
TUON
+32V
Reg.
+6V
SW.
+5V
Ripple Filter
Audio
EVOLCLK
EVOLDATA
EVOLCE
LC75342M
IC601
Audio Selector
with
Electric A.T.T
Audio Input Circuit
Output Circuit
Video Input Circuit
SDET2
SDET3
SDET1
LAMUTE
RAMUTE
(Discrete)
R
L
Comp
C
Y
V
C
Y
Cb
Cr
Y
Muting
OUT2
OUT1
JA1301
JA1302
IN3
(Rear)
IN2
(Front)
IN1
(Rear)
JA601
Y
V
V
C
Y
C
V
Y
C
S
S
S
L
R
L
R
L
R
JA702
IC701
LA73033
Video Selector
&
Video Driver
(2/2)
IC701
LA73033
Video Selector
&
Video Driver
(1/2)
SCL
SDA
YVSEL
SWSTBY
R
L
V/Y
U/V
U/V
C
SYNC
Sync-Sepa
LPF
LPF
LPF
27
25
36
51
53
5
45
60
56
58
63
65
68
41
43
26
TUNB ASSY
(VWV2010)
A
JCKB ASSY (VWV2028)
B
FRJB ASSY (VWV2004)
F
CN1301
CN705
CN402
CN401
CN301
CN451
4
10
12
2
6
8
8
6
12
2
JA701
JA651
Component
OUT
Optical
OUT
4
10
13
5
4
18
17
2
1
3
9
7
5
1
4
7
15
16
1
3
18
19
17
5
7
9
13
10
Decoder
CXA2064M
Separation
IC451
MPX Audio
STID
SYNCAFT
SYNC
Q514
Q451
UV_L/R
SUID
STID
AGC
SCL
SDA
SCL
SDA
AFT
AGC
AFT
SUID
UV_L
UV_R
MUTE
MUTE
Wideband
ATT
15kHz LPF
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
19
5
6
7
8
5
6
7
8
C
D
F
A
B
E
FL Driver
PT6315
Front Keys
IR Detector
FAN
Driver
FAN
EEPROM
Battery
Ceramic
Resonator
EVOLCLK
EVOLDATA
EVOLCE
SPDIF
PCMOUT
PCMOUT
LAMUTE
525P
RAMUTE
FLKY ASSY
(VWG2489)
KIRB
ASSY
(VWG2490)
SELIR
KEY1, KEY2, KEY3
FLCK, FLDATA, FLSTB
IC202
CN1001
CN201
Tuner/FL
Control U-com
PEG034A-K
XINTRA
SCL
XIN, XOUT
XRESETIN
SDA
Other Devices
SCLEEP
SDAEEP
BR24L32F-W
IC203
Real-Time
Clock
RS5C372A
U-com I/F
Y
9
10
11
12
13
14
15
3
4
5
6
7
8
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
C
Y/G
Cb/B
Cr/R
R
L
SELC
CN702
< from/to MAIN >
CN703
< from DRIVE >
SELV/Y
SELR
SELL
1
13
16
17
18
22
24
23
2
D
E
SYNCAFT
IC1001
Q104
IC204
BT201
X201
Reset IC
PST3265
IC201
IC1201
S1201-S1203
S1001-S1009
SR In
JA201
FL Display
V1001
SYNC
MUTE
TUON
ASCK
SST to M
SSM to TSIS
HST to M
HSM to TSYS
XRESET
AGC
STID,SAPID
SCL
SDA
SWSTBY
SDET1
SDET2
SDET3
< to/from MAIN >
CN701
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
20
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.1.3 MAIN ASSY BLOCK DIAGRAM
To Writer
To JCKB ASSY
To JCKB ASSY
IC1401
ATA SDRAM
CN4401
ATA BUS
IC1102
FLASH
IC1301
Q2101-Q2105
IC2301
ENC
SDRAM
MT48LC4M32B2TG-7
K4S561632E-TC75
IC1201
DEC
SDRAM
W986416DH-6
VYW2176
DCLK0
ECLK0
CD D.OUT
D.OUT
AGC,ACC
IC3201
PCM1742KE
DAC
IC3101
A/D
AK5357VT
ADCCLKO
IC3403
AUDIO LR OUT
AUDIO LR IN
VIDEO Y,C,Yp,Cb,Cr OUT
IC3251
VIDEO Y,C IN
CN2001
CN3001
TO TUNER u-COM
CN1901
SERIAL
IC1001
M65673WG
1 Chip System Codec
• MPEG2 PS Encode
• AC-3/Linear PCM Audio Encode
• 2ch ATA/ATAPI Interface
• MPEG2 PS Decode
• AC-3/MPEG1/Linear PCM Audio Decode
MAIN ASSY
(VWV2025)
C
ARCLK0
To H.D.D
IC1421
ATA SDRAM
CN4501
K4S561632D-TC75
IC1103
CY62148VLL-70ZI
Backup
SRAM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
21
5
6
7
8
5
6
7
8
C
D
F
A
B
E
HOST BUS
DV
IC1101
CPU SDRAM
IC5202
UPD72893BGD-LML
UPD72852AGB-8EU
LINK/DV CODEC
IC5101
Phy
CN5102
IC5204
DV SDRAM
K4S281632E-TC75
K4S161622D-TC80
MCLK
VCLKI
SCLK
HCLK0
IC3301
SRC
SRC**O
SRC**I
IC4205
TC7WHU04FU
SM5950AM
Play Mster clock
IC4206
AMCLK2
IC3402
PLL IC
27M
24M
VMCLKI
AMCLK1
33M
36M
33/36M
X4102
VSS1195
VCXO
Input Mster
clock
ADMCLKI
27M
IC4101
DVPLLCK(ADMCLKI)
DVVPWM
IC5341
DVVCLKO
SM8707KV
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
22
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.1.4 POWER BLOCK DIAGRAM
LIVE
FLDC (–)
AC IN
F1
NEUTRAL
1
2
3
5
4
7
9
11
13
3
5
4
7
9
11
13
FLDC (+)
FL–28V
EV+37V
V+37E
EV+6V
SW+13V
SW+6V
SW+12V
1
4
1
SW+5V
DRIVE ASSY
DC FAN
MOTOR
CN101
CN203
(4P)
CN201
(13P)
SW+6V
V+13FAN
CN105
(2P)
2
4
6
7
8
V+6SW
V+13SW
Q104
Q102
Q101
Q103
SW+2.5V
SW+4V
SW+4V
SW+4V
SW+6V
SW+2.5V
SW+4V
SW+4V
SW+4V
CN202
(8P)
2
4
6
7
8
CN4001
(8P)
POWER SUPPLY UNIT
I
FLKY ASSY
D
TUNB ASSY
A
JCKB ASSY
B
MAIN ASSY
C
CN104
(13P)
V–28V
VEE
1
2
3
14
18
19
18
17
6
V+5VO
V+5VI
V+13SW
CN701
(32P)
CN2001
(32P)
32
32
V+5VO
CN702
(24P)
CN3001
(24P)
21 23
21 23
V+5VI
V+13SW
CN301
(19P)
13 11
7
9
V+6E
V+37E
FLDC –
FLDC +
NC
V+5E
V+5E
CN1001
(19P)
CN2005
(19P)
V+6E V+13SW V+6SW
IC101
5V REG.
V+6E
V+5M
V+5E
IC102
3.3V REG.
V1001
FL TUBE
IC1001
FL Driver
V+6E
V+6SW
V+6E
V+3_3E
V+5VO
V+13V
V+4V
V+4V
V+6V
V+2R5V
V+5VO
Q4000
V+12A
V+5VI
V+5RP
IC103
9V REG.
V+13SW
V+9
1
1
6
3
1
3
30
V+9
V+37E
V+6E
CN402
(13P)
CN401
(19P)
CN451
(13P)
3
11
V+9
V+9
V+37E
V+6E
V+5A
IC4004
5V REG.
5
1
V+6V
V+5D
IC4006
5V REG.
5
1
V+3D
IC4002
3.3V REG.
1
3
V+3D
V+2R5
IC5002
2.5V REG.
7
1
V+2R5V
V+PRA
IC4008
1.2V REG.
1
3
V+4V
V+3V
IC4007
3.3V REG.
5
4
2
SW+12V
SW+5V
HDD
1
4
R7
CN204
(4P)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
23
5
6
7
8
5
6
7
8
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
24
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.2 OVERALL WIRING DIAGRAM
DVJB ASSY
(VWV2006)
J
POWER
SUPPLY
UNIT
(VWR1380)
ATHB ASSY
(VWV2011)
I
H
TUNB ASSY (VWV2010)
A
MAIN ASSY (VWV2025)
C 1/5 - C 5/5
C
JCKB ASSY (VWV2023)
B 1/2 - B 2/2
B
ADG7075
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
25
5
6
7
8
5
6
7
8
C
D
F
A
B
E
ATWB ASSY
(VWV2009)
G
KIRB ASSY
(VWG2493)
E
FLKY ASSY
(VWG2489)
DRIVE ASSY
(R7)
(VXX2942)
D
FRJB ASSY
(VWV2004)
F
UPPER: LINE 1
UNDER: LINE 3
VKB1150
÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or
"PCB PARTS LIST".
÷ The > mark found on some component parts indicates the importance of the safety factor
of the part. Therefore, when replacing, be sure to use parts of identical designation.
÷
: The power supply is shown with the marked box.
VNF1129-
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
26
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.3 TUNB ASSY
A
TUNB ASSY (VWV2010)
A
(T)
(T)
(T)
(T)
(T)
(T)
(T)
(T)
(T)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
27
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A
CN401
B 2/2
CN402
B 2/2
: Video Signal Route (TUNER)
(T)
: Audio Signal Route (TUNER)
: Audio Signal Route (L ch)
(T)
(T)
(T)
(T)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
28
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.4 JCKB ASSY(1/2)
B 1/2
B 1/2
CN201
B 2/2
B 2/2
B 2/2
JCKB ASSY (VWV2023)
I
2/2
B
2/2
B
: Video Signal Route (Y)
: Video Signal Route
(Y)
: Video Signal Route (C)
: Audio Signal Route (L ch)
(C)
(Y)
(Y)
(C)
(C)
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
29
5
6
7
8
5
6
7
8
C
D
F
A
B
E
B 1/2
B 2/2
B 2/2
CN1001
D
PEG034B
TUFL u-com
EEPROM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
30
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.5 JCKB(2/2), ATWB and ATHB ASSYS
B 2/2
CN301
A
CN451
A
CN1301
F
to HDD
to DRIVE ASSY R7
B 1/2
B 1/2
B 1/2
CN4401
C 4/5
CN4501
C 4/5
ATHB
ASSY(VWV2011)
H
ATWB
ASSY
(VWV2009)
G
CN13
CN12
CN11
CN14
G H
: Video Signal Route (TUNER)
: Video Signal Route
(T)
: Video Signal Route (Y)
: Audio Signal Route (L ch)
(Y)
: Audio Signal Route (DIGITAL)
(D)
: Video Signal Route (C)
(C)
(Y)
(C)
: Video Signal Route (Cb)
(Cb)
: Video Signal Route (Cr)
(Cr)
(T)
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
31
5
6
7
8
5
6
7
8
C
D
F
A
B
E
B 2/2
B 2/2
JCKB ASSY
(VWV2023)
B 1/2
CN3001
C 3/5
CN2001
C 2/5
From
DRIVE ASSY (R7R)
(T)
(Y)
(Y)
(Cr)
(Cb)
(Y)
(Y)
(C)
(C)
(Y)
(D)
(D)
(D)
(D)
(D)
(C)
(Y)
(Cb)
(Cr)
(Y)
(Y)
(Y)
(C)
5
6
13
12
15
14
11
18
17
16
9
8
7
3
4
10
Video Selector
&
Video Driver
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
32
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.6 MAIN ASSY(1/5)
C 1/5
4/5
C
5/5
C
2/5,4/5
C
2/5
C
2/5
C
2/5
C
2/5,4/5
C
3/5
C
3/5
C
5/5
C
M65673WG-A
4/5
C
(D)
(D)
(AT)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
33
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C 1/5
C 1/5 MAIN ASSY
(VWV2025)
2/5
C
VYW2179
VCC
GND
5
4
3
2
1
R1104
IC1104
TC7SZ126FU-TLB
R1105
100 (S)
10k (S)
(D)
: ATA Data Signal Route
: Audio Signal Route (DIGITAL)
: Audio Signal Route (L ch)
(AT)
FLASH ROM
Backup SRAM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
34
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.7 MAIN ASSY(2/5)
C 2/5
C 2/5
C 1/5
C 1/5
C 1/5
C 1/5
C 1/5
MAIN ASSY (VWV2025)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
35
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C 2/5
C 1/5
C 1/5
C 1/5
C 3/5
CN701
B 2/2
C 3/5
C 3/5
: Audio Signal Route (L ch)
7
17
16
9
10
8
13
12
11
4
15
3
5
6
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
36
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.8 MAIN ASSY(3/5)
C 3/5
CN702
B 2/2
C 2/5
C 2/5
C 4/5
C 4/5
C 4/5
C 2/5
C 1/5
C 4/5
C 1/5
VKN1814
18
14
(D)
(D)
(D)
(D)
(D)
(D)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
37
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C 3/5
C 3/5
MAIN ASSY (VWV2025)
C 2/5
C 1/5
C 2/5
C 2/5
C 1/5
AK5357VT-TBB
(D)
: Audio Signal Route (DIGITAL)
: Audio Signal Route (L ch)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
38
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.9 MAIN ASSY(4/5)
C 4/5
CN202
I
C 4/5 MAIN ASSY (VWV2025)
C 3/5
C 3/5
C 1/5
C 1/5
C 5/5
C 5/5
C 3/5
C 1/5, 2/5
C 1/5, 2/5
MM1603DP
1
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
39
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C 4/5
To DRIVE ASSY (R7)
C 1/5
To HDD
ATAPI BUS
(AT)
(AT)
: ATA Data Signal Route
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
40
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.10 MAIN ASSY(5/5)
CN1401
J
C 5/5 MAIN ASSY (VWV2025)
C 1/5
C 5/5
IC5101
UPD72852AGB-8EU-A
IC5101
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
41
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C 4/5
C 1/5
C 1/5
C 4/5
C 1/5
C 1/5
C 5/5
IC5202
UPD72893BGD-LML
IC5204 K4S161622D-TC80
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
42
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.11 FLKY, KIRB, FRJB and DVJB ASSYS
D
CN201
B 1/2
FLKY ASSY (VWG2489)
D
1.0
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
43
5
6
7
8
5
6
7
8
C
D
F
A
B
E
D E F J
CN705
B 2/2
CN5102
C 5/5
KIRB ASSY (VWG2493)
E
FRJB ASSY
(VWV2004)
F
DVJB ASSY
(VWV2006)
J
: Video Signal Route (C)
: Audio Signal Route (L ch)
(C)
(C)
(C)
: Video Signal Route (Y)
(Y)
(Y)
(Y)
: Video Signal Route
INPUT 2
SWITCHES
S1001 : 0 OPEN/CLOSE
S1002 : & (REC/STOP)
S1004 : 7 (STOP)
S1005 : ¶ REC
S1006 : ONE TOUCH DUBBING
S1007 : -
S1008 : +
S1009 : 3 (PLAY)
SWITCHES
S1201 : STANDBY/ON
S1202 : DISC HISTORY
S1203 : DISC NAVIGATOR
100
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
44
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.12 POWER SUPPLY UNIT
I
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
AC IN
POWER SUPPLY UNIT (VWR1380)
I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
45
5
6
7
8
5
6
7
8
C
D
F
A
B
E
I
Not used
Not used
Not used
Not used
Not used
Not used
CN104
to HDD
to R7
DRIVE ASSY
B 1/2
CN4001
C 4/5
Note : No individual parts replacement for repair is accepted by Model Supplier due to the safety reasons.
Replace whole ASSY.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
46
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.13 WAVE FORMS
JCKB ASSY
B
2
CN401-pin 3 (UVIN)
(Function : Tuner 2 ch)
V: 500mV/div. H: 10µsec/div.
1
IC601-pin 11 (L4)
(Function : Tuner 2 ch)
V: 1V/div. H: 200µsec/div.
3
IC701-pin 27 (YSWO)
(Function : Line 1 Video in)
V: 500mV/div. H: 10µsec/div.
4
IC701-pin 25 (CSWO)
(Function : Line 1 Video in)
V: 500mV/div. H: 10µsec/div.
5
CN701-pin 29 (YVMtoT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
7
IC701-pin 69 (VOUT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
6
CN701-pin 27 (CMtoT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
8
IC701-pin 65 (COUT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
9
IC701-pin 63 (YOUT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
11 CN701-pin 5 (ALTtoM)
(Function : DVD play)
V: 1V/div. H: 200µsec/div.
12 CN701-pin 17 (ALMtoT)
(Function : DVD play)
V: 2V/div. H: 200µsec/div.
13 CN701-pin 25 (YGMtoT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
10 JA702-pin 4 (COUT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
16 IC701-pin 60 (PYRSCOUT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
15 CN701-pin 21 (CRRMtoT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
14 CN701-pin 23 (CBBMtoT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
17 IC701-pin 58 (CRGOUT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
18 IC701-pin 56 (CBBOUT)
(Function : DVD play)
V: 500mV/div. H: 10µsec/div.
GND
GND
GND
GND
GND
GND
GND
GND
GND
(Not terminated)
(75Ω terminated)
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Note : The encircled numbers denote measuring point in the schematic diagram.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
47
5
6
7
8
5
6
7
8
C
D
F
A
B
E
MAIN ASSY
C
1
X4102 - pin 4 (ADMCLKI)
V: 1V/div. H: 20nsec/div.
(Function : P.ON)
2
R4205 (VMCLK)
V: 1V/div. H: 20nsec/div.
(Function : P. ON)
3
Q2103 - B (Y)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
4
Q2102 - B (C)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
5
Q2104 - B (Cb)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
6
Q2105 - B (Cr)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
7
Q2101 - B (Y)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
8
CN2001-pin 23 (Cb Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
9
CN2001-pin 17 (Lch Out)
V: 2V/div. H: 200µsec/div.
(Function : PLAY)
10
CN2001-pin 21 (Cr Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
11 CN2001-pin 29 (Y Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
12 CN2001-pin 27 (C Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
13 CN2001-pin 25 (Y Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
14 CN3001-pin 13 (PCMAIN)
V: 1V/div. H: 400nsec/div.
(Function : PLAY)
15
CN2001-pin 9 (SEL Y/V)
V: 500mV/div. H: 10µsec/div.
(Function : L1)
16 CN2001-pin 7 (SEL C)
V: 500mV/div. H: 10µsec/div.
(Function : L1)
17 CN2001-pin 5 (SEL L)
V: 500mV/div. H: 200µsec/div.
(Function : L1)
18 IC3402-pin 7 (27MCLK)
V: 1V/div. H: 20nsec/div.
(Function : P.ON)
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Measurement condition ;
No.3 to No.8, No.10 to No.13 : 75% Color-bar, A1 disc 2-20
No.15 ,No.16
: 75% Color-bar
No.9, No.14
: 1kHz, 2Vrms, A1 disc 2-1
No.17
: 1kHz, 2Vrms
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
48
1
2
3
4
1
2
3
4
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
49
5
6
7
8
5
6
7
8
C
D
F
A
B
E
4. PCB CONNECTION DIAGRAM
NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams
Symbol In Schematic
Diagrams
Part Name
B C E
D
D
G
G
S
S
B C E
B
C
E
D
G
S
B
C
E
B
C
E
B
C
E
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
50
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.1 TUNB ASSY
5
4
3
2
1
19
1
13
1
R328
R325
R324
C328
L306
C327
KN300
C329
D301
U301
C326
Q301
R301
C304
C301
C302
R307
R306
C313
D302
C303
C309
Q302
C305
C306
R312
R315
C319
R316
R317
R318
Q304
L303
JA301
C316
Q306
C318
CN301
C461
C451
VR451
VR452
R454
R453
R455
C459
C453
C462
C456
C458
C460
R463
VR453
C465
R467
R466
R468
C473
Q451
CN451
C467
C468
C471
C472
C474
R471
R326
VNP1963-A
LF
SEPA
WIDE
INPUT
LAVEL
ADJAST
SPECTRUM
SEPA
ADJAST
ADJAST
FC
ICT
V+9
V+9
GND
V+5TU
Q451
Q306
Q304
Q302
Q301
VWV
or
GND
PC
G-Link
TUNB
PYKC F4X
C2
B
E
E2
B2
C
R
NP
19
1
NP
13
1
SIDE A
SIDE A
A
A
TUNB ASSY
A
CN401
B
CN301
CN402
B
CN451
(VNP1963-A)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
51
5
6
7
8
5
6
7
8
C
D
F
A
B
E
15
16
30
1
1
14
15
28
L305
L304
R323
L301
R302
R303
C311
R305
L302
Q303
C320
C321
C312
R304
C307
R313
R308
C315
R314
R310
R309
C308
C310
C314
C322
R319
C323
Q305
R322
C325
Q307
C317
R320
R321
C324
C452
R458
R457
R456
R460
R451
IC451
R480
R461
C457
R462
R452
C454
R459
C455
R464
R469
C466
R465
C464
C463
R472
R473
R474
R475
C469
R476
R477
C470
R470
R479
R478
C475
C476
C477
IC452
R327
R481
C478
(L4)
UVIN
VWV2034
UVIN
LF
VIDEO
NC(SIFtoONTA)
V+9
GND
GND
V+6E
(R4)
IC452
IC451
Q307
Q305
Q303
SD/STID
BT(+33V)
SDA
V+6E
G-Link
V+37E
V+5TU
( )
or
UVA_IN
AFT
GND
AUDIO
IF
MB(+5V)
BP(+5V)
MUTE
SIF
ADRS
SCL
TUON
VWV2016
SU/SAPID
AFT
V+6E
UV_LIN(L4)
AGC
SDA
UV_LIN
MIONTA
SCL
UV_RIN(R4)
FOMOI
AGC
28p
JUST
MUTE
G-Link
VWV2010
UV_RIN
19
1
1
15
16
30
13
1
14
15
28
1
SIDE B
SIDE B
A
A
TUNB ASSY
A
CN301
CN451
(VNP1963-A)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
52
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.2 JCKB, ATWB and ATHB ASSYS
1
9
1
40
1
10
1
14
8
7
1
87
59
29
1
58
30
116
88
10
9
8
7
5
4
3
2
1
18
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
13
10
1
1
5
4
8
1
-
+
40
1
40
1
40
1
R202
R320
R321
R221
Q201
R205
R204
C716
R262
R236
R215
R288
R287
R283
C218
C220
C219
C230
C228
C229
C209
C210
C211
R290
R289
R254
C222
R255
R250
JA201
C214
L202
L203
L204
CN703
C202
C201
R234
R275
C248
C247
C135
CN202
Q104
L102
C137
C231
C233
C236
C239
R209
C107
C106
X202
C208
R271
D202
R218
R203
R207
BT201
C205
R282
L101
C103
CN14
C204
R201
C203
IC201
R273
R272
CN201
R258
R257
C177
R259
C176
C175
R216
R303
R302
R304
R231
R276
R269
R233
R261
IC206
IC202
R217
R206
KN801
R277
C173
C174
JA601
R230
R229
R210
CN705
R651
C651
IC651
JA651
CN105
C652
R256
R653
R243
R212
R214
R213
X203
C123
C121
C240
IC204
L201
R240
Q202
R111
C206
R268
R178
R179
R172
R183
D103
X201
R180
R292
R173
L171
Q173
Q171
R176
R174 Q172
C251
C252
R175
R185
R293
R270
R200
R184
R299
R294
X204
BT202
R265
R264
CN11
C141
R300
R308
CN12
R447
R448
R454
R301
CN13
V+5M
SCL
SDA
SIDE
CONTACT
VNP1961-A
V+5M
AGC
AFT
L
R
V
C
Y
SDET2
GND
GND
GND
GND
GND
GND
GND
FLSTB
FLDATA
FLPON
GND
GND
KEY1
KEY2
DVD
V+5E
GND
V+13
FLCLK
NC
IR
HDD
GND
V+5M
V+6SW
V+13SW
SIDE
CONTACT
SIDE
CONTACT
CMKD-P3X
JCKB
VWV2011
VWV2009
CONTACT BOTTOM SIDE
ATHB
VWV
(HDD)
VWV2036
ATWB
CONTACT BOTTOM SIDE
(WRITER)
W
25
HE
DE
OF
CH
AN
TH
E
B
B2
C
MODIFED TEXT
VWV
CMKD-P3X
SW
VWV
Q201
Q702
Q404
Q405
Q406
Q407
Q703
Q104
Q101
Q711
Q708
Q514
Q202
Q173
Q712
Q171
Q172
Q771
IC701
IC201
IC401
IC206
IC202
IC651
IC103
IC204
IC501
NP
1
9
1
40
1
5
1
1
14
8
7
1
116
1
88
29
30
58
59
87
1
13
5
1
1
8
5
1
4
NP
+
-
40
1
40
1
R
R
LF
40
1
LF
ATHB ASSY
H
ATWB ASSY
G
to ASSY
CN14
CN4401
C
CN13
to HDD
CN12
CN4501
C
F
CN11
SIDE A
B G H
JCKB ASSY
B
CN1001
D
CN201
CN1301
CN705
(VNP1961-A)
(VNP1961-A)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
53
5
6
7
8
5
6
7
8
C
D
F
A
B
E
13
1
13
2
1
80
61
60
41
40
21
20
1
19
1
1
24
19
10
1
1
32
44
34
33
23
22
12
11
1
9
8
2
1
14
8
7
1
18
15
14
13
12
10
9
8
7
5
4
3
2
1
3
2
1
6
5
4
1
3
4
6
1
R721
R202
C729
C704
C717
R439
R440
R431
L506
R438
R437
R429
R428
R427
C549
D704
D705
R221
Q201
C133
C719
C718
C715
L404
C711
CN402
R701
C714
C708
C707
C706
C710
C713
C709
C716
C705
C712
Q702
C415
C416
C417
C410
R414
C404
C402
C437
C423
R413
C418
C435
C434
Q404
C428
R418
R288
R287
CN104
C429
R420
R419
Q405
R424
Q406
IC701
C436
R430
C432
C430
Q407
C427
C438
R434
C439
R436
R435
C425
R290
C426
C424
C440
C441
R736
R737
Q703
R714
L701
R711
C703
R553
R548
C722
CN401
C739
CN702
D706
D710
C407
C401
C731
R808
R804
C734
C730
R203
R207
C619
C620
C621
L403
L402
D714
C615
C614
C414
01
CN701
Q101
C728
R614
R613
R612
IC401
C732
R805
R302
R304
C726
L508
L503
L504
L505
R276
CN704
C727
IC206
C725
R426
R748
Q711
R755
R753
R745
R749
C723
R724
Q514
R555
C543
R556
C539
C542
R554
JA702
R726
R206
R725
JA701
KN802
R277
R102
R103
C115
C117
C118
R230
R229
R812
L405
C738
C744
C740
C735
C618
C607
C602
C604
C608
C610
C612
C609
C611
C603
C601
C616
C736
C724
C733
R712
R425
R423
R421
R415
IC103
C128
C126
C125
C123
C121
R502
C507
R509
D712
C749
C750
C752
X401
R180
Q712
Q171
C751
C251
C252
R562
R563
C748
R294
R565
CN403
R780
R564
R770
R771
R772
R773
R774
Q771
R264
IC501
C501
C502
C141
R301
R785
R784
R783
R781
R782
C503
V+5M
Y_TtoM
YtoM
CtoM
Cr
NC
RfromM
Y2
Y
RtoM
Cr
Cb
Y
CSYNC
AFT
SD/STID
MIONTA
GND
NC
C
LtoM
FOMOI
LfromM
Cb
VWV2029
Y
GND
GND
GND
L
GND
NC
V+9
P_ON
GND
NC
AGCCTL
SCL
R
SD/SAP
GND
/LM
GND
GND
AGC
SDA
MUTE
TUON
V+6E
V+5VO
V+37E
SIF
JUST
LDASH
UVIN
G-LINK
GND
C_TtoM
C
Y2
GND
UPPER SIDE
WORD SURFACE IS
LtoM
CtoM
V+5VO
FLON
GND
GNDA
GND
SPDIF
ASCK
HSTtoM
SSTtoM
SSMtoT
HSMtoT
PCMOUT
MRST
525P
XRST
V+5VI
GND
GND
GND
GND
P_CONT
GND
GND
GND
BUP
LMUTE RMUTE
FLDC-
FL-28V
FLDC+
GND
EV+37V
GND
SW+6V
GND
EV+6V
GND
SW+13V
LfromM
RfromM
PC
VWV2019
VWV2028
VWV2027
VWV2023
VWV2022
V+13SW
FLSTB
FLDATA
FLPON
GND
GND
KEY1
KEY2
DVD
FLDC+
FL-28V
V+5E
GND
V+13
FLCLK
NC
IR
HDD
GND
FLDC-
V+5VI
V+5VO
V+13SW
V+13SW
V+9
V+9
V+5VO
V+5VI
V+6E
RtoM
YtoM
VWV2032
Y
CONTACT
CONTACT
SIDE
SIDE
VWV2035
WARNING
25249.6 - PROPOSITION 65
HEALTH & SAFETY CODE SECTION
DEFECTS OR OTHER REPRODUCTIVE HARM.
OF CALIFORNIA TO CAUSE CANCER,BIRTH
CHEMICALS WHITCH ARE KNOWN TO THE STATE
AND CERTAIN ELECTRICAL PARTS CONTAIN
THIS PRODUCT CONTAINS LEAD IN SOLDER
E
B
C2
E2
B2
C
CVBS
Cr
Cb
VWV
CMKD-P3X
VWV2015
SW
1
13
1
13
21
40
41
60
61
80
1
20
1
19
1
24
19
1
1
32
11
12
22
23
33
34
44
1
14
8
7
1
NP
NP
1
ICT
FC
LF
6
1
3
4
R
Q708
SIDE A
B
CN301
A
CN401
CN451
A
CN402
CN2001
CN701
CN3001
C
CN702
CN201
H
CN104
(VNP1961-A)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
54
1
2
3
4
1
2
3
4
C
D
F
A
B
E
30
16
15
1
5
4
R517
R519
R518
C524
Q506
R523
R527
R720
R719
Q403
C525
Q402
R525
R722
C520
R536
R702
R601
R529
R524
R526
Q507
C526
C530
R530
Q508
R717
C132
C531
Q509
R532
R531
R534
R533
R535
Q510
R545
R402
R401
C536
C533
C538
R540
R542
L507
R544
Q513
R433
R552
C546
C541
C548
R557
R559
L509
Q516
R561
C720
R716
R621
R620
R715
R604
R608
R603
R522
R538
C419
C420
C421
C422
Q701
Q401
R403
L401
C403
R817
C409
C411
C405
R777
C130
C129
C433
C212
C431
R407
R406
R707
R705
R706
R704
C702
C721
R718
R551
R543
D708
D709
D707
C406
C408
C412
C413
D711
R801
R806
R809
C101
C1
R735
R558
R550
Q515
R546
R541
Q512
R521
R528
Q704
R807
C760
R208
Q710
Q707
Q709
Q706
D717
R560
R547
C540
C545
C544
C532
C535
C534
C517
C523
C529
C516
C522
C528
D702
R818
D703
D701
C547
C774
C537
C742
C743
C746
C745
R746
R739
R732
Q705
C527
C521
C515
R549
R757
R810
R811
R105
Q103
R723
R759
R729
C737
R727
R742
R104
C116
Q102
C119
C741
R728
R740
R743
R747
R730
D716
R751
R744
R734
R754
R756
R752
R741
R750
R731
R611
C747
C605
IC601
C613
R609
R738
R733
R708
R710
R709
R713
R417
R416
R412
R411
R409
D401
R410
C127
C134
C124
C122
C120
D713
R408
R405
R404
R501
R520
C514
C131
C518
C519
Q505
R445
R446
R775
R444
R443
R441
R442
R760
R761
R306
R307
IC101
C108
R776
C755
C754
C753
R452
C761
C762
C763
C764
C768
C767
C766
C765
C66
R778
R779
D105
C771
C772
C773
C770
C769
C758
C757
C756
19
AGC
SDA
RfromM
LfromM
Cr
AGCCTL
Y
C
RtoM
NC
Y2
NC
YtoM
CtoM
CSYNC
GND
SD/SAP
TUON
MUTE
Cb
NC
LtoM
GND
GND
FOMOI
V+6E
V+37E
SIF
JUST
LDASH
G-LINK
UVIN
L
R
GND
V+9
AFT
SCL
GND
GND
GND
GND
NC
/LM
GND
GND
MIONTA
SD/STID
XRESET
V+5VO
P_ON
FLON
FLDC-
FL-28V
FLDC+
GND
EV+37V
GND
GND
SW+6V
EV+6V
GND
SW+13V
GND
V+13SW
DVD
FLDC+
FL-28V
GND
FLDC-
V+5VI
XRST
525P
MRST
PCMOUT
HSMtoT
SSMtoT
SSTtoM
HSTtoM
ASCK
SPDIF
BUP
GND
LMUTE
RMUTE
GND
GND
P_CONT
GND
GND
GND
GND
VWV
V+6SW
V+6E
V+13SW
FL-28V
V+13SW
V+9
V+13SW
V+9
V+5VI
V+6E
V+37E
V+5VO
C
Y
Y
Cr
Cb
E2
B2
C
E
B
C2
E
C
B
VWV2035
VWV2032
VWV2029
VWV2019
VWV2022
VWV2023
VWV2027
VWV2028
VWV2015
GND
G-LINK
GND
GNDA
GND
13
1
19
1
1
24
1
32
30
16
15
1
1
A
B
C
1
0
0
3
2
1
0
9
8
7
6
5
4
3
2
1
0
1
LF
4
5
6
6
5
4
3
2
1 1
2
3
4
5
6
5
4
3
2
1
0
VWV2
0 0
9
8
7 7
8
9 9
8
7
SIDE B
B
CN401
CN402
JCKB ASSY
B
CN701
CN702
CN104
(VNP1961-A)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
55
5
6
7
8
5
6
7
8
C
D
F
A
B
E
6
4
3
1
1
8
5
4
1
4
5
8
7
5
4
1
R237
Q203
Q206
R220
R222
R223
R703
D607
C140
R608
C701
R603
C617
C606
R266
R263
C207
R239
C223
C224
C225
C221
C226
C227
C212
C213
R219
R242
R235
R245
R248
R246
R249
R251
R252
R253
C215
C216
C217
C136
Q205
Q204
C243
C242
C172
R107
C138
C139
R109
R106
R108
R110
Q105
D101
D102
C232
C105
C104
IC102
D203
R278
R279
IC203
C246
C245
R280
R
R281
R225
R224
R101
C101
C102
L103
R619
R618
R610
R607
R803
R247
R274
R284
C250
R286
C249
C241
R208
C254
717
R232
R652
R758
R757
R615
R617
R616
R605
R606
R602
R759
R729
C737
R727
R742
R226
C741
R728
R228
R227
R740
R802
C653
R655
R654
R244
R211
C244
R285
IC205
C122
C120
D201
R238
L205
R241
R260
R267
R295
R182
C171
R181
R171
D104
R113
R177
R291
L284
R186
R441
R442
R112
L206
L208
C253
R305
R306
R307
R298
R297
R296
IC101
C108
R449
R450
R451
R453
C234
Q408
Q409
Q410
Q411
D601
D602
D603
D604
D605
D606
D718
D719
D720
L207
C655
C654
C661
C660
C659
C658
C657
C656
D
C772
73
C770
C769
DLCE
1
FANPWM
P_CONT
JUST
SYNCAFT
GND
SDET2
GND
Y
GND
C
GND
V
GND
R
GND
L
GND
GND
GND
FLPON
FLDATA
FLSTB
KEY1
KEY2
DVD
FLDC+
FL-28V
V+5E
V+13SW
FLCLK
NC
IR
HDD
GND
FLDC-
GND
AGC
VWV
V+6E
V+5M
V+5M
V+6SW
V+6E
V+13SW
V+13SW
V+9
XRESET_IN
(WRITER)
(HDD)
CMKD-P3X
CMKD-P3X
VWV2035
32
29
27
28
Q506
Q403
Q402
Q507
Q508
Q509 Q510
Q513
Q516
Q203
Q206
Q701
Q401
Q205
Q204
Q105
Q515
Q512
Q704
Q710 Q707
Q709 Q706
Q705
Q103
Q102
Q505
Q408
Q409
Q410
Q411
IC102
IC203
IC601
IC205
IC101
1
1
9
1
6
4
3
4
1
8
5
40
1
1
13
1
8
5
4
1
4
1
7
5
40
1
LF
LF
R
R
ATHB ASSY
H
ATWB ASSY
G
SIDE B
H
G
B
CN705
CN14
CN12
CN201
(VNP1961-A)
(VNP1961-A)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
56
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.3 MAIN ASSY
C5214
TP4015
D4002
L5502
C5121
C5122
C5124
F5101
R5116
R5114
R5122
R5120
IC4007
L5102
L5101
L5501
7
1
CN5102
C4033
R5129
R5128
C5101
C5103
C5112
C5127
C5120
C4032
C5132
C5138
C5137
C5136
C5102
C5104
C4034
L5103
L5104
L5106
L5105
16
17
32
33
X5101
R5107
R5108
R5103
R5110
R5115
R5117
R5121
R5109
R5125
R5126
L1004
C1056
R1074
R2206
R2207
7
1
7
1
7
1
Q2202
R1005
R4101
R2109
R5290
TP1051
C1028
C1027
C1025
C1016
R5127
R5113
R5112
R5132
R5131
R4105
C1011
C4107
L1009
L1008
R1111
R1052
R1012
D1111
R5106
R5105
R5104
R5130
64
49
48
1
IC5101
C5126
C5125
C5110
C5111
C5105
C1114
C4105
R4108
C1054
C1061
TP5106
Q1102
C4106
R5273
1
7
2
R5274 1
7
8
L1007
C1031
C1032
C1104
R1090
R1071
R4102
R2114
R2116
R5265
R4104
R4103
R4110
R5123
R5124
R4106
R4107
R2112
R2115
R1024
R1023
R1022
R1021
3
4
2
1
X4102
C5123
C5119
C5118
C5113
C1014
C1050
C1004
C1003
C1002
C1001
C1510
C1509
C1508
C4102
C4103
C4104
R1009
R4109
C1060
TP28
TP1041
TP1050
TP1060
VR2104
IC4101
1
4
5
8
VR2105
VR1001
VR1002
R5289
1
7
2
8
R2302
R2303
R2111
R4306
R4305
C2104
C1055
L1005
R2252
C1042
Q2311
R1034
R2105
R2106
L1102
L1001
R2266
R2312
R2311
R5285
R1011
R2113
R1003
TP1002
C2246
C2265
C1041
C1037
C1034
C2319
C2106
C2105
Q2105
Q2104
C2317
1
7
2
8
R4307
R2313
R2314
R2102
R2103
C1057
R1006
C1044
C1045
C1017
C1018
C1019
C2103
C2102
TP4304
TP4305
TP4306
TP4307
TP1067
Q2312
Q2102
Q2101
Q2302
2
8
2
8
R2301
L1003
L1006
C2204
C1059
CN4301
R1066
R2233
R2235
R2107
R2210
R2201
R2202
R2304
R2307
R1031
7
1
7
1
C2301
Q2301
Q2201
Q2222
Q2103
TP14
C2101
C1039
C1049
C1036
C1038
C1035
C1029
C1030
C1026
C1024
C1023
C1022
C1021
C1048
C1047
C1012
C1052
C1051
C1005
C1006
C2222
C2209
C2202
C2306
R1008
R1004
D4201
R4209
R4208
R4207
R3104
D4202
6
1
8
1
C2210
R4205
R1080
R4201
C4201
C4202
R5222
R5223
R2204
R2239
R2221
R2227
R2205
R2203
R2209
8
2
R4304
8
2
R4303
8
2
R4302
8
2
R1048
8
2
R1045
8
2
R1043
VC4201
2
3
C3107
C1058
C2201
C2205
C4211
C1053
C1013
C2221
TP4202
TP4301
TP4302
TP4303
TP15
TP1012
TP1013
TP1027
TP1028
TP1029
TP1030
TP1032
TP1031
TP1033
TP1026
TP1024
Q2203
C2208
C2220
C4209
C4208
IC3101
1
3
IC4205
R3105
R1901
R1903
R1904
R1902
R2331
R2332
R2333
R4210
R4213
Q2204
C2331
C2206
F4201
9
L4201
X4201
1
8
1
7 1
7
1
7
R2334
R2208
R2305
R3108
R3107
R3106
R4211
R4212
R4206
C4206
R2214
C4210
C4203
C2332
C2333
C2223
16
4
1
IC4206
4
5
4
5
L4202
IC2331
4
3
R4202
R4204
R2026
C2311
C2243
R2306
R2407
R2404
R3270
R3271
R2011
R2012
R2013
R2014
R2015
D3103
7
1
CN1901
C2334
R2308
R2254
R2253
R2255
R
C3251
C2302
C2241
C2305
C4207
C2406
C2407
C2405
C3255
TP2007
Q2241
C2308
IC2211
4
5
IC2302
1
4
5
8
IC2301
1
4
5
8
R1905
R
R
R
R
R2047
R2027
R2025
R2040
TP48
TP49
TP50
TP2506
TP2505
TP2504
TP2502
TP2503
TP2501
TP2016
TP2018
TP2001
TP2002
TP2003
TP2004
TP2005
TP2006
TP2008
TP2009
TP2021
TP2011
TP2022
TP2012
TP2013
TP2014
TP2015
TP2017
TP2019
TP2024
TP2023
TP2020
TP2025
Q2403
Q2402
R2502
1
7
2
8
R2408
R2409
R2406
R2405
R2411
R2412
C
SIDE A
MAIN ASSY
C
CN1401
J
CN5102
IC4007
IC5101
Q1102
IC5202
IC4101
Q2105
Q2104
Q2311
Q2101
Q2102
Q2302
Q2312
Q2301
Q2103
IC5204
IC3301
IC4008
IC3403
IC3402
IC4206
IC4205
IC3101
IC4004
IC2331
IC2211
IC2301
Q2241
Q2402
Q2001
Q2403
Q3201
Q3202
IC2302
IC4003 IC4005
IC3001
Q2201
Q2222
Q2202
Q2203
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
57
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R5234
R5217
C5210
C5209
C5204
C5214
L5504
L5502
22
C5124
R5252
1
7
R5251
1
7
R5249
1
7
R5247
1
7
R5129
R5128
R5216
R5215
R5233
C5103
C5127
C5212
C5216
TP31
TP32
TP38
TP5202
TP5201
C5104
C5207
2
8
2
8
2
8
2
8
16
7
1
156
157
208
126
R5263
R5262
R5260
R5257
R5256
R5253
R5254
R5232
R5231
R5214
R3312
L5507
R4435
R5282
105
52
2
R5290
R5127
R5237
R5132
R5131
R4407
1
2
R5236
R5235
R5272
R5130
IC5202
4
1
C5226
C5126
C5125
C5217
C5215
TP5106
R5273
1
7
2
8
R5274 1
7
2
8
R5221
1
7
2
8
R5220 1
7
2
8
R5219
1
7
2
8
R52181
7
2
8
R5275
1
7
2
8
R4405 1
7
2
8
R4406 1
7
2
8
L1007
CN4401
R4432
R4429
R4428
R5314
R5313
R5228
R5227
R5225
R5224
R5238
R5276
R5286
R5277
R5287
R5288
R5278
R5279
R5280
R5281
R5124
8
2
7
1
C5228
C5227
C5123
C1050
C1060
R5230
1
7
2
8
R5229
1
7
2
8
R5289
1
7
2
8
7
8
R4408
R4508
TP3303
R4501 R4503
R4504
R5261
C5211
C1042
1
7 1
7
R5248
R5240
R5296
R5295
L1001
R5245
R5246
R5239
R5244
R5283
R5284
R5285
R1003
C4020
C4401
C5218
C5208
C5206
TP5204
1
7
2
8
R5259
2
8
R5258
2
8
R5250
2
8
2
8
R4436
1
7
8
53
104
R5243
R5241
R5242
R3303
R3304
R5293
R5294
C1057
C5329
C5230
C5223
C5213
C5225
C5222
1044
1045
C5205
1
7
R5255
1
7
R4507
1
7
2
8
1
2
L1006
CN4501
C1059
12
13
IC3301
R3311
R1066
R3307
R3310
R1031
IC5204
8
2
7
1
R4510
8
7
8
2
7
1
R4509
C5321
1039
1049
1048
1047
052
C1051
C1005
C1006
R1008
R3104
R3103
3
1
C3102
C4027
C4018
F4001
F3403
C3301
F3401
L5508
L3301
C3403
1
24
R3313
R5298
R5297
R3306
R3305
R4530
R4531
R4534
R4537
R4541
R3407
R3403
R3405
R3406
R3309
D4001
IC4008
R3411
8
2
7
1
R4538
8
5
IC3403
2
D4501
C3107
C5221
C1058
R4019
R3102
C5231
C5224
C5229
C4211
C3404
C3405
C3302
C3303
C3408
C1040
TP3401
TP4010
TP4001
TP1012
TP1013
IC3402
16
9
CN4001
C3406
R4020
IC3101
R3408
R3105
1
C4014
C3402
8
1
C3106
TP3403
C4029
C3108
C3101
C3407
C4028
8
9
1
4
R4017
R3410
R3409
R3108
R3107
R3106
8
F3102
TP4201
TP4009
TP4008
TP3402
C3105
C4031
R4010
R4015
F3402
16
1
1
IC4004
4
5
R4018
02
R2026
R2019
C4021
Q2001
IC3001
R2013
R2014
R2015
D3104
D3103
D3001
D3002
D3101
D3102
R3205
R3204
R3203
R3202
R3003
C3251
R4014
R4001
R4009
R2017
C4006
C4005
C4024
C4023
C4013
C3004
F4003
C4004
C3255
TP4002
TP4012
07
TP4011
TP4005
Q3201
Q3202
10
11
IC4003
IC4005
R3001
R3025
R3024
R3023
R3022
R4008
R4004
R3002
C4010
C3001
C3002
TP40
TP41
TP42
TP2016
TP2013
TP2014
TP2015
TP2017
TP3012
TP3011
TP3013
TP3010
TP3009
TP3008
TP3007
TP3006
TP3004
TP3002
TP3014
TP3001
TP3003
TP3005
TP2024
TP2023
TP2025
1
20
SIDE A
CN13
G
CN11
H
(VNP1960-C)
C
CN4001
CN202
I
CN4401
CN4501
This PCB is six layer structure.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
58
1
2
3
4
1
2
3
4
C
D
F
A
B
E
L1402
L5503
L1301
43
8
2
7
1
R1306
8
2
7
1
R1305
C5203
TP1
TP2
TP3
TP8
C1313
C1310
C1309
C1302
8
7
R1408
R5209
TP4521
R4532
R5342
TP4428
TP4429
R4434
R5343
R1426
7
1
7
1
16
C5342
TP4417
L5505
44
C5341
2
1
8
2
7
1
R4404
8
2
7
1
R4401
8
7
8
2
7
1
R1424
8
2
7
1
R1423
8
2
R1310
8
2
R1309
1
3
4
5
IC5301
1
54
C1311
C1426
C1425
C1424
C1423
C1422
C5311
R5305
R5306
R5311
R5309
R5308
R5312
R5304
R4426
C1312
R4403
R4402
TP4405
TP4403
TP4402
TP4406
TP4407
TP4409
TP4410
TP4411
TP4413
TP4415
TP4401
TP4404
TP4408
TP4412
C1301
C1421
R5341
8
2
7
1
R4417
8
2
7
1
R4416
8
7
R4410
2
1
8
2
7
1
R1425
9
8
1
IC5341
L5301
IC1421
C1428
C1427
C5343
C5310
R5310
R4433
R4431 R4430
R4425
R5307
C5308
R1412
TP4414
TP4416
TP4419
TP4418
TP4421
TP4420
TP4423
TP4422
TP4424
TP4425
TP4426
TP4427
C5309
R5301
C5301
R4506
2
1
R5327
R5330
C5327
C1405
R4505
TP4505
TP4508
C5322
R1404
D4401
R1032
D5322
D5321
2
1
8
2
7
1
R4502
8
2
7
1
R4423
8
2
7
1
R1405
8
7
C1403
1
54
27
28
C1429
C4025
R1033
R1065
R5323
R5326
R5325
C5306
C5326
C1404
R4440
R4427
TP4503
TP4502
TP4506
TP4501
TP4504
TP4430
C4019
R5321
TP1017
TP1016
TP101
C5307
IC5321
5
4
IC4006
5
4
3
1
R5328
7
1
8
2
7
1
R4518
8
2
7
1
R4512
8
7
8
2
7
1
R1407
8
2
7
1
R1406
C1406
IC1401
R1402
R5324
R5329
R5264
C5323
C5325
C5328
C1408
C1407
R4533
R4528 R4527
TP4507
TP4509
TP4510
TP4511
TP4513
TP4517
TP4515
TP4514
TP4518
TP4519
TP4520
TP4512
TP4516
R5322
TP5003
C5324
L5321
3
1
IC5322
1
4
5
8
R4005
R4012
R3266
C4008
C4007
R3268
R1055
C1401
TP1
C5008
1
16
L1401
F3201
5
4
IC5002
2
1
8
2
7
1
R1409
8
2
7
1
R1410
8
2
7
1
R1411
8
2
7
1
R4525
8
2
7
1
R4519
R4536
R4535
C1409
C1402
27
28
C5007
C4501
R3263
R3262
R4529
TP4522
TP4523
TP4524
TP4526
TP4525
TP4527
TP4528
TP4529
TP4530
C5006
TP10
TP5004
C5005
GND
Q4000
IC4002
R3254
R3265
R3253
R3251
C3
C3205
C3203
C3202
C3253
C3254
C3207
C3208
C4026
R1053
R3255
C4012
TP3251
TP3253
TP4003
TP1014
C3201
C3204
C4001
C4022
C4002
C4037
IC3201
8
9
R3012
R3017 R3015
R3014
R3011
TP4007
TP4006
TP4004
R3010
C3258
C3257
C32
C3252
C3005
C3003
C3006
C4016
C4030
R3257
R32
R3260
R3009
R3013
R3016
R3019
R3258
R3261
R3267
C4017
TP4014
TP2010
C4015
R3201
R3252
R4006
R4016
IC3251
C4009
IC3002
1
7
8
14
C4011
F4002
R3269
R4013
R4011
L2
TP13
TP12
TP11
TP10
TP4013
C4003
CN3001
24
1
32
C
SIDE B
MAIN ASSY
C
CN3001
CN702
B
IC1103
IC1104
IC1301
IC5301
IC5341
IC1421
IC1102
IC4006
IC5321
IC1001
IC5322
IC1401
IC5002
IC3201
IC4002
IC1201
IC2501
IC3251
IC3002
Q4000
IC1101
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
59
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R5144
R5143
TP23
TP21
3
1
IC1104
43
1
1
16
IC1103
R5142
R5141
8
2
7
1
R1306
8
2
7
1
R1305
8
2
7
1
R1304
8
2
7
1
R1303
TP5105
TP5104
TP5103
TP5102
TP5101
TP27
TP26
TP25
TP24
R1103
C1310
C1309
C1307
C1305
C1304
C1303
C1302
C1108
R1104
C5135
C5131
C5117
C5109
C5116
C5108
C5115
C5107
C5114
C5106
C5134
C5133
7
R1121
IC1101
R1002
R1025
7
1
7
1
7
1
7
1
TP1043
TP1046
TP1047
TP1048
TP1049
TP1063
TP1064
5
4
44
86
IC1301
17
32
NIN15
8
2
7
1
R1026
2
1
7
7
1
8
2
R1310
8
2
R1309
8
2
R1308
8
2
R1307
8
2
7
1
R1072
8
2
7
1
R1073
C1311
C1308
C1306
C1512
C1511
R1302
R1015
R1016
R1017
R1109
R1110
R1108
R1106
R1107
R1112
R1113
R1118
C1312
R1091
R1120
R1312
R1311
TP22
C1502
C1507
C1503
C1506
C1505
C1504
C1501
TP1044
TP1045
TP1034
IC1102
8
2
7
1
R1077
8
2
7
1
R1076
8
7
1
C1007
C1009
R1078
R1079
12
C1062
TP1040
TP1037
TP1052
TP1053
TP1054
TP1055
TP1056
TP1057
TP1058
TP1059
28
R1059
R1092
L1002
8
2
7
1
R1068
7
1
TP1003
C1008
C1010
C1105
C1113
R1033
5
R1057
R1056
IC1001
R1058
R1035
TP1017
TP1001
TP1004
TP1020
6
TP101
TP5211
TP5209
TP5210
TP5208
TP5207
TP5206
TP5205
TP100
R1069
1
7
2
8
8
2
7
1
R1054
7
1
27
C1109
C1111
R1064
R5264
R1105
R1060
07
R1063
R1062
R1061
R1093
R1119
TP1005
TP1006
TP1007
TP1008
TP1009
TP1042
L2501
C2506
IC2501
TP1901
R3268
8
7
R1051
C1207
C1202
1
54
C1102
R1055
R1070
R1081
TP1010
TP1036
TP1022
TP1062
TP1061
TP1065
TP1066
16
8
2
7
1
R1117
8
2
7
1
R1115
8
2
7
1
R1114
8
2
7
1
R1116
1 7
1
7
1
R1410
7
1
8
2
R1050
7
1
R1208
C1103
C1106
C1107
C1110
R1202
R3263
R3262
TP1011
TP1015
TP1035
TP1038
TP1019
1
7
L1201
L1101
C2508
C2505
34
33
23
22
51
8
2
7
1
R2503
2
1
7
1
8
2
7
1 R1049
8
2
7
1
R1046
8
2
7
1 R1044
8
2
7
1R1042
8
2
R1204
R2501
C3206
C1205
28
54
IC1201
C3205
C3253
C3207
C3208
R1053
R1075
5
TP3251
TP1903
C1101
TP1014
TP1039 TP1018
TP1023
9
R1206
2
8
R3014
R2506
C1209
C1208
C1206
C1204
C1203
1
27
C3256
C3005
R3257
R3256
R3260
R3259
R3264
R3258
R3261
TP3252
TP2507
TP2508
TP1902
TP1904
TP1905
TP1907
TP1906
TP2010
C1901
C1201
R1207
C2501
IC3251
R1205
1
7
2
8
R1203
1
7
2
8
L2101
1
11
12
44
C2503
C2504
C2507
C2502
7
1
TP16
TP17
TP18
TP19
R2505
D2501
ZF5
1
CN2001
32
1
CN2501
SIDE B
(VNP1960-C)
C
CN2001
CN701
B
This PCB is six layer structure.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
60
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.4 FLKY, KIRB, FRJB and DVJB ASSYS
7
1
19
1
7
1
1
9
1
33
27
D1203
S1201
W1026
W1204
C1203
W1205
CN1201
W1200
L1201
W1009
W1014
W1015
W1025
W1010
W1012
W1008
W1013
S1009
W1016
W1007
W1000
W1004
W1011
W1002
W1202
W1003
W1017
W1001
W1207
S1203
CN1001
W1206
CN1002
IC1201
L1001
V1001
S1002
S1005
S1006
S1004
S1001
C1012
C1010
C1005
S1202
W1201
D1201
W1203
MODE
REC MODE
IR
GND
GND
V+5FL
DUBBI
V+13SW
FLSTB
LED_DVD
VWG2489
ONE TO
VDD
GND
GND
KEY2
ACP-BS
MODE
OPEN/CLOSE
VWG2493
IR
STOP
VDD
FLSTB
LED
CONTACT SIDE
(HDD)
KIRB ASSY
VWG2490
CONTACT UPPER SIDE
FLDC+
(DVD)
PC
V+5FL
V+13SW
FLDC-
ACP-BS
FL-28V
CONTACT SIDE
PLAY
GND
VWG
LED_HDD
PC
REC STOP
VWG2508
DVD(H)
DISC NAVI(S)
HDD(H)
FL-28V
V+5FL
V+5FL
GND
GND
ONE TO
DISC HISTRY(S)
POWER
GND
V+13SW
VDD
GND
OPEN/CLOSE
REC MODE
LED_HDD
KEY1
VWG
REC
CONTACT UPPER SIDE
DUBBI
IR
STOP
FLDC+
V+5FL
VDD
LED
IR
IC1201
1
7
1
19
7
1
33
27
9
1
R
SIDE A
D E
KIRB ASSY
E
FLKY ASSY
D
CN201
B
CN1001
CN1201
CN1002
(VNP1962-C)
(VNP1962-C)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
61
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7
6
5
4
3
2
1
7
6
5
4
3
2
1
1
2
3
4
7
1
13
1
3
41
49
KN1301
JA1301
W1300
W1301
JA1302
W1021
W1018
W1023
W1024
W1020
JA1401
CN1401
W1022
CN1301
W1302
W1019
W1006
W1027
W1005
S1007
S1006
S1008
W1303
MODE (H)
REC MODE (S)
DUBBING
VDD
VWV
(+)
(-)
ONE TOUCH
L
R
MODE (H)
C
VWV2004
Rch
S_DET
(+)
(-)
CONTACT SIDE
VWV
FRJB ASSY
S-Video
Video
Lch
DVJB ASSY
C
ACP-BS
VDD
GND
GND
FLKY ASSY
GND
C
FLDC+
GND
VDD
VDD
ONE TOUCH
GND
GND
GND
GND
GND
J
REC MODE (S)
VDD
DUBBING
FC
FLPON
VWV2006
ACP-BS
R
7
1
1
13
49
41
33
SIDE A
J
F
D
FRJB ASSY
F
DVJB ASSY
J
CN705
B
CN1301
CN5102
C
CN1401
(VNP1962-C)
(VNP1962-C)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
62
1
2
3
4
1
2
3
4
C
D
F
A
B
E
R1303
R1302
R1304
R1312
C1306
R1501
C1308
R1311
C1309
R1308
R1310
R1307
R1301
C1301
R1504
R1503
D1302
C1502
C1500
R1500
C1018
C1017
C1303
C1014
R1502
R1305
C1001
Q1009
R1031
Q1008
R1033
R1032
R1030
R1029
Q1007
R1010
R1012
R1016
R1009
Q1002
R1008
Q1001
R1309
C1305
D1303
R1401
R1306
R1402
D1301
C1304
C1302
D1304
V
ACP-BS
R
(+)
(-)
GND
S_DET
LF
TPA
XTPA
LF
C
LF
Video
Rch
Lch
S-Video
CONTACT
VDD
TPB
XTPA
TPB
XTPB
GND
TPA
XTPB
GND
GND
VDD
GND
C
Y
GND
FLPON
FLDC+
VDD
GND
B
SIDE
C
L
R
L
Q1009
Q1008
Q1007
Q1002
Q1001
IC1001
1
7
13
1
R
41
49
(VNP1962-C)
(VNP1962-C)
SIDE B
J
F
D
FLKY ASSY
D
FRJB ASSY
F
DVJB ASSY
J
CN1301
CN1401
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
63
5
6
7
8
5
6
7
8
C
D
F
A
B
E
44
34
33
23
22
12
11
1
R1206
C1206
C1204
R1201
C1202
Q1202
R1204
R1211
R1210
D1204
R1209
R1205
R1208
C1205
R1017
R1207
C1020
R1212
R1214
R1203
C1207
Q1201
R1500
C1019
C1018
C1017
C1007
R1213
C1201
Q1008
R1029
Q1007
R1002
C1004
R1007
R1010
R1012
R1016
R1001
C1003
R1006
C1013
C1002
R1015
R1014
R1011
R1013
R1005
C1011
C1006
C1009
IC1001
D1202
R1202
R1034
R1035
C1021
OPEN/CLOSE
GND
GND
ACP-BS
V+5FL
V+13SW
FLDATA
GND
FLDC+
KIRB ASSY
REC
REC STOP
(-)
ONE TOUCH
DUBBING
IR
(HDD)
LED_HDD
IR
IR
LED
REC MODE (S)
MODE (H)
IR
LED_DVD
VWG2490
GND
A
B
LED_HDD
KEY1
GND
V+13SW
POWER
KEY1_2
V+5FL
LED_DVD
IR
LED_HDD
LF
DVD(H)
DISC NAVI(S)
HDD(H)
DISC HISTRY(S)
GND
V+13SW
FL-28V
FLKY ASSY
VWG2489
VDD
KEY2
LED_DVD
KEY2
V+5FL
KEY1
FLDC+
C
GND
GND
V+5FL
V+5FL
GND
VWG2493
FLSTB
GND
FLPON
GND
N
FLDC+
VDD
GND
V+5E
(DVD)
GND
LED_DVD
D
GND
FLCLK
FL-28V
LED_HDD
V+13SW
FLDC-
LED
E
VWG****
VDD
A
IR
KEY1_2
FLSTB
PLAY
STOP
VWG****
VWG2508
Q1202
Q1201
7
1
19
1
1
7
1
9
27
33
41
1
44
34
33
23
22
11
12
R
(VNP1962-C)
(VNP1962-C)
D E
SIDE B
KIRB ASSY
E
CN1001
CN1201
CN1002
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
64
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.5 POWER SUPPLY UNIT
SIDE A
SIDE A
I
I
POWER SUPPLY UNIT
I
CN104
B
CN201
CN4001
C
CN202
to
R7 DRIVE ASSY
CN203
to HDD
CN204
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
65
5
6
7
8
5
6
7
8
C
D
F
A
B
E
5. PCB PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5 6 1
4 7 3
R 5 0
1 R 0
5 6 2 1
NOTES:
560 Ω
47k Ω
0.5 Ω
1 Ω
RD1/4PU J
RD1/4PU J
RN2H K
RS1P K
56 x 10 1
47 x 10 3
R50
1R0
561
473
5.62k Ω
RN1/4PC F
562 x 10 1
5621
Mark No. Description
Part No.
NSP
1..FLKB ASSY
VWM2258
2..FLKY ASSY
VWG2489
2..KIRB ASSY
VWG2493
2..FRJB ASSY
VWV2004
2..DVJB ASSY
VWV2006
NSP
1..JACB ASSY
VWM2265
2..ATWB ASSY
VWV2009
2..ATHB ASSY
VWV2011
2..JCKB ASSY
VWV2023
1..TUNB ASSY
VWV2010
1..MAIN ASSY
VWV2025
>
1..POWER SUPPLY UNIT
VWR1380
Mark No. Description
Part No.
A TUNB ASSY
SEMICONDUCTORS
IC451
CXA2064M
Q303
2SA1576A
Q301
2SC4081
Q304, Q451
HN1C01FU
Q302
RN4903
Q306
UMF21N
D301
1SS355
D302
UDZS33B
COILS AND FILTERS
L302 INDUCTOR
CTF1399
L304, L305 CHIP BEADS
VTL1081
L303 RADIAL INDUCTOR
VTL1165
CAPACITORS
C460, C474
CCSRCH681J50
C301, C303, C451, C467
CEAT100M50
C319
CEAT101M10
C453
CEAT101M16
C305
CEAT102M6R3
C462
CEAT4R7M50
C459, C473
CKSRYB103K50
C469, C470
CKSRYB105K10
C475
CKSRYB123K50
C311
CKSRYB222K50
C452
CKSRYB272K50
C458, C472
CKSRYB472K50
C457
CKSRYB473K25
C476
CKSRYB562K50
C313, C454, C461
CKSRYF104Z25
C455, C463, C464, C466, C468
VCG1039
C477 (4.4uF)
VCG1039
C471 (10/50V)
VCH1224
C465 (3.3/50V)
VCH1225
RESISTORS
R327
RS1/10S0R0J
R465
RS1/16S6802F
VR453 (2.2k)
VCP1123
VR451, VR452 (4.7k)
VCP1154
Other Resistors
RS1/16S###J
OTHERS
CN451 13P SOCKET
AKP7070
CN301 19P SOCKET
AKP7073
U301 TV TUNER PACK
VXF1022
B JCKB ASSY
SEMICONDUCTORS
IC204
BR24L32F-W
IC701
LA73033M
IC601
LC75342M
IC501
MM1504XN
>IC101
MM1565AF
>IC103
NJM78M09FA
IC202
PEG034B
>IC102
PQ1K333M2ZP
IC201
PST3245
IC203
RS5C372A
IC206
TC74HCT7007AF
IC205
TC7WU04FU
Q506, Q508, Q510, Q701
2SA1576A
Q104
2SB1238X
Q102, Q103
2SC2411K
Q105, Q172, Q205, Q702
2SC4081
Q204
2SD2114K
Q202, Q203, Q707, Q710
DTA124EUA
Q206, Q712
DTC124EUA
Q514
HN1B04FU
Q708, Q711
HN1C03FU
Q201
RN1901
Q703, Q706, Q709
RN4903
Q101
UMF21N
D102
1SR154-400
D203
1SS352
D201, D716, D717
1SS355
D601, D602, D604, D605
DF3A5.6FU
D718-D720
DF3A5.6FU
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
66
1
2
3
4
1
2
3
4
C
D
F
A
B
E
D103, D202
RB501V-40
D607
UDZS5.1B
COILS AND FILTERS
L503-L505
LAU100J
L701
LAU2R2J
L103
LCYA100J2520
L102
LTA102J
L201-L208, L284 CHIP BEADS
VTL1081
CAPACITORS
C211, C220, C225, C226, C543
CCSRCH101J50
C619-C621
CCSRCH101J50
C245
CCSRCH120J50
C516, C522, C528, C720, C721
CCSRCH150J50
C140
CCSRCH221J50
C249, C250, C517, C523, C529
CCSRCH270J50
C542
CCSRCH331J50
C221, C232, C233
CCSRCH470J50
C177
CCSRCH561J50
C702
CCSRCH680J50
C215
CCSRCH681J50
C174, C601-C603, C607-C611
CEAT100M50
C614-C616, C618
CEAT100M50
C103, C107, C117, C118
CEAT101M10
C125, C126, C128, C141, C214
CEAT101M10
C507, C652, C717, C727
CEAT101M10
C121, C123, C133, C604, C612
CEAT101M16
C748, C751
CEAT101M6R3
C704, C716, C719
CEAT102M6R3
C539
CEAT220M25
C738
CEAT221M16
C739
CEAT221M6R3
C740, C744
CEAT470M16
C135
CEAT471M16
C705, C706
CEAT471M6R3
C137
CEJQ101M16
C102
CKSQYB225K10
C129, C224, C606, C617, C747
CKSRYB103K50
C222, C223, C707, C708
CKSRYB104K16
C711-C713, C718, C723-C725
CKSRYB104K16
C728-C730, C732-C735, C737
CKSRYB104K16
C741
CKSRYB104K16
C502
CKSRYB105K10
C241
CKSRYF103Z50
C104-C106, C115, C116
CKSRYF104Z25
C119, C120, C122, C124, C127
CKSRYF104Z25
C130-C132, C134, C136, C139
CKSRYF104Z25
C173, C175, C202-C204
CKSRYF104Z25
C216, C217, C228, C234
CKSRYF104Z25
C239, C240, C244, C246, C501
CKSRYF104Z25
C519, C525, C531, C605, C613
CKSRYF104Z25
C653, C709, C710, C714, C715
CKSRYF104Z25
C726, C731, C736, C749, C750
CKSRYF104Z25
C752, C760
CKSRYF104Z25
C101, C209, C210, C212, C213
CKSRYF105Z10
C218, C219, C227, C231, C236
CKSRYF105Z10
RESISTORS
R208
RS1/10S0R0J
R178
RS1/16S1501F
Mark No. Description
Part No.
R173
RS1/16S3901F
R519, R526, R534
RS1/16S5600F
R602, R605, R606, R615-R617
RS1/16S75R0F
R704, R715, R717, R718
RS1/16S75R0F
R728-R730, R740, R743, R747
RS1/16S75R0F
R757-R759
RS1/16S75R0F
Other Resistors
RS1/16S###J
OTHERS
X201 (10MHz)
ASS7034
X203 (4.433619MHz)
VSS1176
X202 (32kHz)
VSS1197
CN202 9P FFC CONNECTOR
52045-0945
CN705 13P FFC CONNECTOR
52045-1345
CN201 19P FFC CONNECTOR
52045-1945
CN402 13P PLUG
AKP7059
CN401 19P PLUG
AKP7062
CN104 CONNECTOR 13P
B13B-PH-K
CN105, CN703 CONNECTOR 2P
B2B-PH-K
JA651 OPT.LINK OUT 8MB/S
JFJ1001
JA201 JACK
RKN1004
BT201 LITHIUM BATTERY
VEM1033
(CR2032)
JA701 3P PIN JACK
VKB1150
JA601 JACK
VKB1183
JA702 JACK
VKB1184
CN702 CONNECTOR
VKN1200
CN701 32P FFC CONNECTOR
VKN1263
KN801, KN802
VNF1084
WRAPPING TERMINAL
C MAIN ASSY
SEMICONDUCTORS
IC3101
AK5357VT
IC2301
BA7655AF
IC1103
CY62148VLL-70ZI
IC5204
K4S161622D-TC80
IC1101
K4S281632E-TC75
IC1401, IC1421
K4S561632E-TC75
IC1001
M65673WG-A
IC5002
MM1562FF
>IC4007
MM1603DP
IC1301
MT48LC4M32B2TG-7
>IC4004, IC4006
NJM2872F05
IC4206, IC5301, IC5321
NJU7013F
IC3201
PCM1742KE
>IC4008
PQ015YZ01ZP
>IC4002
PQ070XZ02ZP
IC4003
PST3428U
IC4005
PST3809U
IC3301
SM5950AM
IC3402
SM8707KV
IC4101
SN74AHC2G53HDCT
IC3001
TC74LCX541FT
IC3002
TC74VHC14FT
IC5341
TC74VHC157FT
IC1104
TC7SZ126FU
IC3403, IC4205, IC5322
TC7WHU04FU
IC3251
UPC4570G2
IC5101
UPD72852AGB-8EU-A
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
67
5
6
7
8
5
6
7
8
C
D
F
A
B
E
IC5202
UPD72893BGD-LML
IC1102
VYW2176
IC1201
W986416DH-6
Q2101-Q2105, Q2201, Q2203, Q2301
2SA1576A
Q2312
2SA1576A
Q4000
2SC2411K
Q2202, Q2222
2SC4081
Q2302, Q2311
DTC114EUA
Q2402, Q2403
HN1B04FU
Q3201, Q3202
RN1903
Q1102
RN4982
Q2001
UMF21N
D3001, D3002, D3101-D3104
1SS355
D5321
HVC359
D5322
HVC362
D4201
MA2ZV05
D1111
RB521S-30
COILS AND FILTERS
F3102, F3401-F3403, F4201, F5101
DTF1069
L1001-L1009, L1101, L1102, L1301
DTL1106
L1401, L1402, L3301, L5501-L5505
DTL1106
L5507, L5508 EMI FILTER
DTL1106
L5301, L5321
LCYA100J2520
L4202
LCYA1R2J2520
F3201
VTF1096
L2101
VTL1067
L4201
VTL1079
L5103-L5106
VTL1082
CAPACITORS
C5311, C5329
CCSRCH100D50
C3253, C3258
CCSRCH101J50
C5105
CCSRCH271J50
C5325, C5327
CCSRCH330J50
C3207
CCSRCH331J50
C4208
CCSRCH390J50
C5131-C5138
CCSRCH4R0C50
C5326
CCSRCH5R0C50
C3254, C3257
CCSRCH681J50
C5121, C5122
CCSRCH8R0D50
C2208, C2317, C4034, C5322
CEVW100M16
C3251, C3255, C4001, C4002, C4004
CEVW101M16
C4029, C4037
CEVW101M16
C2101, C2221, C2405, C3201, C3204CEVW101M6R3
C3206
CEVW101M6R3
C2301
CEVW220M6R3
C1054, C1061, C3301, C4022
CEVW221M4
C3106
CEVW2R2M50
C5321
CEVW470M16
C2308, C3102, C3107, C4003, C5341
CEVW470M6R3
C5301
CEVW4R7M35
C1031, C1032, C1503-C1506
CKSQYB104K16
C2204, C4206, C5309
CKSQYB105K10
C1901, C4014, C4019, C4033
CKSQYB225K10
C1004, C1012, C1014, C1029, C1034
CKSRYB102K50
C1040, C1044, C1049, C1051
CKSRYB102K50
C1110, C1111, C1207, C1208, C1307
CKSRYB102K50
C1311, C1313, C1407, C1408
CKSRYB102K50
C1427, C1428, C3303, C3408
CKSRYB102K50
C1003, C1027, C1037, C1052, C1109
CKSRYB103K50
Mark No. Description
Part No.
C1206, C1305, C1308, C1310, C1406
CKSRYB103K50
C1425, C2305, C3003, C3004, C4018
CKSRYB103K50
C4020, C4207, C5214, C5222, C5224
CKSRYB103K50
C1508-C1510, C2311, C4104, C5306
CKSRYB104K16
C4103
CKSRYB223K50
C5328
CKSRYB473K25
C2202
CKSRYB563K16
C1002, C1005, C1007-C1010, C1016CKSRYF104Z25
C1018, C1019, C1021-C1023
CKSRYF104Z25
C1025, C1026, C1028, C1030, C1035
CKSRYF104Z25
C1038, C1041, C1042, C1047, C1102
CKSRYF104Z25
C1105, C1106, C1108, C1114, C1202
CKSRYF104Z25
C1204, C1302, C1304, C1312, C1402
CKSRYF104Z25
C1404, C1422, C1424, C2102-C2106
CKSRYF104Z25
C2201, C2206, C2222, C2223, C2306
CKSRYF104Z25
C2319, C2406, C2407, C3006, C3101
CKSRYF104Z25
C3105, C3108, C3202, C3203, C3205
CKSRYF104Z25
C3252, C3256, C3302, C4006-C4008
CKSRYF104Z25
C4010, C4012, C4013, C4017, C4021
CKSRYF104Z25
C4024-C4026, C4032, C4202, C4203
CKSRYF104Z25
C4209, C5113, C5118, C5120
CKSRYF104Z25
C5125-C5127, C5204, C5215, C5218
CKSRYF104Z25
C5225-C5228, C5230, C5308, C5310
CKSRYF104Z25
C5323, C5342, C5343
CKSRYF104Z25
C1001, C1006, C1048, C1103, C1107
CKSRYF105Z10
C1203, C1205, C1209, C1303, C1306
CKSRYF105Z10
C1309, C1403, C1405, C1409, C1423
CKSRYF105Z10
C1426, C1429, C3001, C3404-C3407
CKSRYF105Z10
C4027, C4030, C4105, C4107, C4201
CKSRYF105Z10
C4401, C4501, C5110
CKSRYF105Z10
C4028 (4.7/6.3V)
DCH1200
C3402, C3403, C4015 (10/10V)
VCG1045
C1060 (150/4V)
VCH1246
VC4201 (10pF)
VCM1012
RESISTORS
R1025, R1026, R1042-R1046
RAB4CQ103J
R1048-R1051, R1054, R1068, R1069
RAB4CQ103J
R1072, R1073, R5218-R5221
RAB4CQ103J
R5229, R5230, R5247, R5249-R5252
RAB4CQ103J
R5255, R5258, R5259, R5273-R5275
RAB4CQ103J
R5289, R5290
RAB4CQ103J
R1408-R1411
RAB4CQ220J
R4401, R4404, R4410, R4416, R4417
RAB4CQ223J
R4423, R4502, R4506, R4512
RAB4CQ223J
R4518, R4519, R4525
RAB4CQ223J
R1114-R1117, R4405-R4408, R4436
RAB4CQ330J
R4507-R4510, R4538
RAB4CQ330J
R1303-R1310, R1404-R1407
RAB4CQ560J
R1423-R1426
RAB4CQ560J
R1203-R1206
RAB4CQ680J
R5103
RN1/16SE5101D
R5108
RN1/16SE9101D
R1207, R1502, R1507, R2017, R3002
RS1/10S0R0J
R3102, R3201, R3252, R4001, R4006
RS1/10S0R0J
R4009, R4014, R4016, R4108, R4109
RS1/10S0R0J
R5209, R5322
RS1/10S0R0J
R4019
RS1/10S1001D
R5321
RS1/10S101J
R1501
RS1/10S2202F
R4020
RS1/10S5600D
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
68
1
2
3
4
1
2
3
4
C
D
F
A
B
E
R4013
RS1/16S1001F
R3254, R3266
RS1/16S1002F
R4012
RS1/16S1200F
R3253, R3265
RS1/16S1201F
R4011
RS1/16S1501F
R1021, R1023
RS1/16S2201F
R3251, R3269
RS1/16S2202F
R2105, R2106, R2111, R2112, R2115
RS1/16S3300F
R4018
RS1/16S3600D
R5104-R5107
RS1/16S56R0D
Other Resistors
RS1/16S###J
OTHERS
CN5102 7P FFC CONNECTOR
VKN1411
CN4401, CN4501 40P FFC CONNECTOR VKN1811
CN1901 7P FFC CONNECTOR
VKN1812
CN4001 8P FFC CONNECTOR
VKN1813
CN3001 24P FFC CONNECTOR
VKN1814
CN2001 32P FFC CONNECTOR
VKN1815
KN3 EARTH METAL FITTING
VNF1109
X4201 (27.000MHz)
VSS1146
X5101 (24.576MHz)
VSS1184
X4102 VCXO(27MHz)
VSS1195
D FLKY ASSY
SEMICONDUCTORS
IC1001
PT6315
COILS AND FILTERS
L1001
LAU220J
SWITCHES AND RELAYS
S1001, S1002, S1004-S1009
VSG1024
CAPACITORS
C1012
CEJQ101M6R3
C1010
CEJQ220M35
C1001-C1004, C1020
CKSRYB103K50
C1006, C1009, C1013
CKSRYF104Z25
C1011
CKSRYF105Z10
RESISTORS
Other Resistors
RS1/16S###J
OTHERS
CN1001 19P FFC CONNECTOR
9607S-19F
V1001 FL TUBE
VAW1081
CN1002 CONNECTOR
VKN1183
2 FL HOLDER
VNF1129
E KIRB ASSY
SEMICONDUCTORS
Q1201, Q1202
DTC124EUA
D1203
SLR-343BBT
D1201
SLR-343DC
SWITCHES AND RELAYS
S1201-S1203
VSG1024
CAPACITORS
C1201, C1202, C1204
CKSRYF104Z25
Mark No. Description
Part No.
RESISTORS
R1210
RS1/10S0R0J
R1206, R1207
RS1/10S182J
R1204
RS1/10S271J
Other Resistors
RS1/16S###J
OTHERS
IC1201 REMOTE RECEIVER UNIT
RPM7140-H9
CN1201 CONNECTOR
VKN1183
F FRJB ASSY
CAPACITORS
C1308, C1309
CCSRCH471J50
RESISTORS
R1501, R1502
RS1/10S0R0J
Other Resistors
RS1/16S###J
OTHERS
CN1301 13P FFC CONNECTOR
52492-1320
JA1301 YC CONNECTOR(VERTI)
VKB1190
JA1302 3P JACK(VERTICAL)
VKB1206
KN301 WRAPPING TERMINAL
VNF1084
G ATWB ASSY
OTHERS
CN14 40P ATA CONNECTOR
VKN1816
CN13 40P FFC CONECTOR
VKN1879
H ATHB ASSY
OTHERS
CN12 40P ATA CONNECTOR
VKN1816
CN11 40P FFC CONNECTOR
VKN1879
I POWER SUPPLY UNIT
POWER SUPPLY UNIT has no service part.
J DVJB ASSY
RESISTORS
Other Resistors
RS1/16S###J
OTHERS
JA1401 DV TERMINAL
VKB1207
CN1401 CONNECTOR
VKN1183
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
69
5
6
7
8
5
6
7
8
C
D
F
A
B
E
6. ADJUSTMENT
6.1 TUNB ASSY ADJUSTMENT
Audio ouput (L)
(Rear panel)
Audio ouputs (L/R)
(Rear panel)
Audio ouputs (L/R)
(Rear panel)
Best point of separation
≥25dB Note 1
Best point of separation
≥30dB Note 1
2
370mVrms ± 18.5mV
3
Input a signal of Mono 1kHz/100% modulation
to terrestrial tuner input. /through output.
Input a signal of Stereo 300Hz/30% modulation
(NR-ON/L ch only) to terrestrial tuner input.
Note 2
Input a signal of Stereo 3kHz/30% modulation
(NR-ON) to terrestrial wave input. /through output
Note 2
Note 1 : The values for channel separation is defined as those having passed through the following filters :
100Hz – 10kHz : +0/–0.5dB
15.75kHz – 100kHz : -40dB or more
Note 2 : The adjustment No.2 and No.3 should be repeated 2 times for good adjustment.
(Steps : No.1 → No.2 →No.3 →No.2 →No.3)
No.
Adjustment Name
Adj. Point Measurement Point
Adjustment Value
Adjustment State
1
Stereo Decoder ATT adjustment
(Input system adjustment)
Stereo Decoder Wideband
adjustment (Input system adjustment)
Stereo Decoder Spectral adjustment
(Input system adjustment).
VR453
VR451
VR452
5
4
3
2
1
19
1
13
1
R328
R325
R324
C328
L306
C327
KN300
C329
D301
U301
C326
Q301
R301
C304
C301
C302
R307
R306
C313
D302
C303
C309
Q302
C305
C306
R312
R315
C319
R316
R317
R318
Q304
L303
JA301
C316
Q306
C318
CN301
C461
C451
VR451
VR452
R454
R453
R455
C459
C453
C462
C456
C458
C460
R463
VR453
C465
R467
R466
R468
C473
Q451
CN451
C467
C468
C471
C472
C474
R471
R326
VNP1963-A
LF
SEPA
WIDE
INPUT
LAVEL
ADJAST
SPECTRUM
SEPA
ADJAST
ADJAST
FC
ICT
V+9
V+9
GND
V+5TU
VWV
or
GND
PC
G-Link
TUNB
PYKC F4X
C2
B
E
E2
B2
C
R
NP
19
1
NP
13
1
TUNB ASSY
A
SIDE A
VR451
VR452
VR453
Fig.1 Adjustment Points (TUNB ASSY)
* It is not necessary to adjust the ASSY normaly when exchanging the ASSY. But the adjustment is
necessary when exchanging the Tuner Module and IC451 stereo decoder IC.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
70
1
2
3
4
1
2
3
4
C
D
F
A
B
E
6.2 MAIN ASSY ADJUSTMENT
MAIN ASSY
IC3402 Pin8 (XTO)
(SM8707KV)
No.
Adjustment Name
Adj. Point
Measurement Point
Adjustment Value
Adjustment State
1
27.000000MHZ
± 130Hz
Master clock free-running adjustment
(Clock system adjustment)
VC4201
No signal input
* It is not necessary to adjust the ASSY normaly when exchanging the ASSY, but confirm the data.
IC3402
R5234
R5217
C5210
C5209
C5204
C5214
TP4015
D4002
L5504
L5502
C5121
C5122
C5124
F5101
R5252
1
7
R5251
1
7
R5249
1
7
R5247
1
7
R5116
R5114
R5122
R5120
IC4007
L5102
L5101
L5501
7
1
CN5102
C4033
R5129
R5128
R5216
R5215
R5233
C5101
C5103
C5112
C5127
C5120
C5212
C5216
C4032
C5132
C5138
C5137
C5136
TP31
TP32
TP38
TP5202
TP5201
C5102
C5104
C4034
C5207
L5103
L5104
L5106
L5105
2
8
2
8
2
8
2
8
16
17
32
33
X5101
1
156
157
208
R5107
R5108
R5103
R5110
R5115
R5117
R5121
R5109
R5125
R5126
R5263
R5262
R5260
R5257
R5256
R5253
R5254
R5232
R5231
R5214
L1004
C1056
R3312
R1074
R2206
R2207
7
1
7
1
7
1
Q2202
R1005
L5507
R4435
R4101
R5282
R2109
105
52
2
R5290
TP1051
C1028
C1027
C1025
C1016
R5127
R5237
R5113
R5112
R5132
R5131
R4105
C1011
C4107
R4407
1
2
L1009
L1008
R1111
R1052
R1012
R5236
R5235
D1111
R5272
R5106
R5105
R5104
R5130
IC5202
64
49
48
1
IC5101
C5226
C5126
C5125
C5110
C5111
C5105
C5217
C5215
C1114
C4105
R4108
C1054
C1061
TP5106
Q1102
C4106
R5273
1
7
2
8
R5274 1
7
2
8
R5221
1
7
2
8
R5220 1
7
2
8
R5219
1
7
2
8
R52181
7
2
8
R5275
1
7
2
8
R4405 1
7
2
8
R4406 1
7
2
8
L1007
C1031
C1032
C1104
CN4401
R1090
R1071
R4432
R4429
R4428
R4102
R5314
R5313
R5228
R5227
R5225
R5224
R5238
R5276
R5286
R5277
R5287
R5288
R5278
R5279
R5280
R5281
R2114
R2116
R5265
R4104
R4103
R4110
R5123
R5124
R4106
R4107
R2112
R2115
R1024
R1023
R1022
R1021
3
4
2
1
X4102
8
2
7
1
C5228
C5227
C5123
C5119
C5118
C5113
C1014
C1050
C1004
C1003
C1002
C1001
C1510
C1509
C1508
C4102
C4103
C4104
R1009
R4109
C1060
TP28
TP1041
TP1050
TP1060
VR2104
IC4101
1
4
5
8
VR2105
VR1001
VR1002
R5230
1
7
2
8
R5229
1
7
2
8
R5289
1
7
2
8
7
8
R4408
R2302
R2303
R2111
R4508
R4306
R4305
TP3303
C2104
C1055
L1005
R4501 R4503
R2252
R4504
R5261
C5211
C1042
Q2311
1
7 1
7
R1034
R2105
R2106
R5248
R5240
R5296
R5295
L1102
L1001
R2266
R2312
R2311
R5245
R5246
R5239
R5244
R5283
R5284
R5285
R1011
R2113
R1003
TP1002
C4020
C4401
C2246
C2265
C5218
C5208
C1041
C1037
C1034
C2319
C2106
C2105
C5206
TP5204
Q2105
Q2104
C2317
1
7
2
8
R5259
2
8
R5258
2
8
R5250
2
8
2
8
R4436
1
7
8
53
104
R5243
R5241
R5242
R4307
R3303
R2313
R2314
R3304
R2102
R2103
R5293
R5294
C1057
R1006
C5329
C5230
C5223
C5213
C5225
C5222
C1044
C1045
C1017
C1018
C1019
C2103
C2102
TP4304
TP4305
TP4306
TP4307
TP1067
Q2312
Q2102
Q2101
Q2302
C5205
1
7
R5255
1
7
2
8
2
8
R4507
1
7
2
8
1
2
R2301
L1003
L1006
CN4501
C2204
C1059
12
13
IC3301
CN4301
R3311
R1066
R3307
R2233
R2235
R3310
R2107
R2210
R2201
R2202
R2304
R2307
R1031
IC5204
8
2
7
1
R4510
8
7
8
2
7
1
R4509
7
1
7
1
C2301
Q2301
Q2201
Q2222
Q2103
TP14
C5321
C2101
C1039
C1049
C1036
C1038
C1035
C1029
C1030
C1026
C1024
C1023
C1022
C1021
C1048
C1047
C1012
C1052
C1051
C1005
C1006
C2222
C2209
C2202
C2306
R1008
R1004
D4201
R4209
R4208
R4207
R3104
R3103
D4202
6
1
8
1
3
1
C3102
C4027
C4018
C2210
F4001
R4205
R1080
R4201
F3403
C3301
C4201
C4202
F3401
L5508
L3301
C3403
1
24
R3313
R5298
R5297
R5222
R5223
R3306
R3305
R2204
R4530
R4531
R4534
R4537
R4541
R2239
R2221
R3407
R3403
R3405
R3406
R3309
R2227
R2205
R2203
R2209
D4001
IC4008
R3411
8
2
7
1
R4538
8
2
R4304
8
2
R4303
8
2
R4302
8
2
R1048
8
2
R1045
8
2
R1043
8
5
IC3403
VC4201
2
3
D4501
C3107
C5221
C1058
R4019
R3102
C2201
C2205
C5231
C5224
C5229
C4211
C3404
C3405
C3302
C3303
C3408
C1053
C1040
C1013
C2221
TP3401
TP4010
TP4202
TP4001
TP4301
TP4302
TP4303
TP15
TP1012
TP1013
TP1027
TP1028
TP1029
TP1030
TP1032
TP1031
TP1033
TP1026
TP1024
Q2203
16
9
C2208
CN4001
C2220
C3406
C4209
C4208
R4020
IC3101
1
3
IC4205
R3408
R3105
R1901
R1903
R1904
R1902
R2331
R2332
R2333
R4210
1
C4014
C3402
R4213
8
1
Q2204
C3106
TP3403
C4029
C2331
C3108
C3101
C3407
C4028
C2206
F4201
8
9
L4201
X4201
1
8
1
4
1
7 1
7
1
7
R2334
R2208
R2305
R4017
R3410
R3409
R3108
R3107
R3106
R4211
R4212
R4206
8
C4206
R2214
F3102
TP4201
TP4009
TP4008
TP3402
C3105
C4210
C4203
C4031
C2332
C2333
C2223
R4010
R4015
F3402
16
1
4
1
IC4206
4
5
IC4004
4
5
4
5
R4018
L4202
IC2331
4
3
R4202
R4204
R2026
R2019
C2311
C4021
Q2001
C2243
IC3001
R2306
R2407
R2404
R3270
R3271
R2011
R2012
R2013
R2014
R2015
D3104
D3103
D3001
D3002
D3101
D3102
7
1
CN1901
C2334
R2308
R2254
R2253
R2255
R3205
R3204
R3203
R3202
R3003
C3251
R4014
R4001
R4009
R2017
C2302
C2241
C2305
C4006
C4005
C4024
C4023
C4013
C4207
C2406
C3004
C2407
F4003
C2405
C4004
C3255
TP4002
TP4012
TP2007
TP4011
TP4005
Q2241
Q3201
Q3202
C2308
10
11
IC2211
4
5
IC2302
1
4
5
8
IC4003
IC4005
IC2301
1
4
5
8
R1905
R3001
R3025
R3024
R3023
R3022
R2047
R2027
R2025
R2040
R4008
R4004
R3002
C4010
C3001
C3002
TP40
TP41
TP42
TP48
TP49
TP50
TP2506
TP2505
TP2504
TP2502
TP2503
TP2501
TP2016
TP2018
TP2001
TP2002
TP2003
TP2004
TP2005
TP2006
TP2008
TP2009
TP2021
TP2011
TP2022
TP2012
TP2013
TP2014
TP2015
TP2017
TP2019
TP3012
TP3011
TP3013
TP3010
TP3009
TP3008
TP3007
TP3006
TP3004
TP3002
TP3014
TP3001
TP3003
TP3005
TP2024
TP2023
TP2020
TP2025
Q2403
Q2402
1
20
R2502
1
7
2
8
R2408
R2409
R2406
R2405
R2411
R2412
MAIN ASSY
C
SIDE A
VC4201
IC3402 Pin8
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
71
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7. GENERAL INFORMATION
7.1 DIAGNOSIS
Service Diagnosis List
7.1.1 CPRM ID NUMBER AND DATA SETTING
The Setting is necessary
• " CPRM ERR" is displayed on the FL display immediately after the power is turned on or in Stop mode.
• When the MAIN ASSY , DRIVE ASSY or the FLASH ROM is exchanged.
7.1.2 MODEL SETTING
7.1.3 DOWNLOAD METHOD
The Setting is necessary
• When the MAIN ASSY is replaced.
• When the JCKB ASSY is replaced.
• When the MAIN ASSY and JCKB ASSY is replaced.
7.1.4 SERVICE MODE
[First Screeen] (Version information, etc)
[Sub Screen 1] (Result of error-rate measurement : Video mode/VR mode)
[Sub Screen 2] (HDD information)
[Second Screen] (ATA/ATAPI debug screen)
[Sub Screen 3] (writer maintenance information of ATA/ATAPI DEBUG OSD)
[Sub Screen 4] (ATA/ATAPI DEBUG OSD_LD degradation judgement)
[Fourth Screen] (VR-recording error log)
[Sub Screen 4] (Error log for VR recording)
[Fifth Screen] (Error log for VR playback)
[Sub Screen 2] (Error log for VR playback)
7.1.5 DV DEBUG MODE
[Third Screeen] (DV debug information)
7.1.6 ERROR RATE MEASUREMENT
Only Video mode measurement
7.1.7 VIDEO ADJUSTMENT FOR SPECIFIC AREA
Purposes:
Depending on the area, jitter may appear in a picture received by the tuner, as conditions of signals received by
the tuner are different from area to area. To correct this kind of problem, the function of the System Codec AVIO
control section for adjusting signals received by the tuner can be used.
7.1.8 AGING MODE
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
72
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.1 CPRM ID NUMBER AND DATA SETTING
Entering the ID Number and ID Data for DVD Recorder
• " CPRM ERR" is displayed on the FL display immediately after the power is turned on or in Stop mode.
• When the MAIN ASSY , DRIVE ASSY or the HDD is exchanged.
Important: If no ID label is found on the rear panel, write down the specified ID number by checking it according to "How to
confirm the ID number" shown below.
For the DVD recorder,it is necessary with the recoding/playback of DVD–RW disc to set an individual number (ID number) and ID data to
each recorder. If the number and data are not set correctly with the following procedure, operations in the future may not be guaranteed.
You will find the ID number to be set on the ID label on the rear panel.
The Input is Necessary When:
DVD Recorder Data Disc
(GGV1179)
Service Remote Control
Unit (GGF1381)
JIGS AND MEASURING INSTRUMENTS
(*) Refer to P138.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
73
5
6
7
8
5
6
7
8
C
D
F
A
B
E
When exchanging Drive Assy
HDD information is not correct.
HDD information is not correct.
Execute HDD Initialize from
the Disc Setup menu.
CPRM information is not correct.
When displayed following message at
Power on
FL Tube : [HDD ERR]
CRT display :
When displayed following message at
Power on
FL Tube : [HDD ERR]
CRT display :
When displayed following message at
Power on
FL Tube : [CPRM ERR]
CRT display :
Only exchanging
Drive Assy
Also exchanging DRIVE Assy simultaneously
Power → ON
When displayed "CPRM ERR"
• When exchanging HDD or MAIN
Assy, or both exchanged
• When exchanging HDD
Initialize
Start
Basic
Initialize
Finalize
Initialize HDD
Disc Setup
Input Flow of the ID No. and ID data when exchanging HDD, MAIN Assy or Drive Assy
Confirmation of the CPRM ID No.
Normal operation mode
All recorded data are deleted if the HDD is intialized.
Take care that restoration of the user's data recorded on the HDD is totally
impossible.
Before servicing, OBTAIN THE USER'S PRIOR CONSENT to that effect.
*Use Remote Control of
the model
*Goes to normal operation
with no caution
New HDD/when
there is error
on recorded contents
Exchanging to the original HDD(when
there is no error on
the recorded
contents.)
End
[CAUTION]
End
End
Deletion of the CPRM ID No.(when ID No. is registered.)
Input of the CPRM ID No. and ID data
Power → OFF → ON
Execute
HOME MENU → Disc Setup → Intialize
HDD → Start
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
74
1
2
3
4
1
2
3
4
C
D
F
A
B
E
To enter the input mode, press ESC + STEREO sequentially in
a status with no ID number set, such as after FLASH-ROM
downloading.
Note:
Be sure to enter the ID number in Stop mode.
Use the service remote control (GGF1381) for operations. Only opening/closing of the tray are performed from the player.
The ID data disc is swept out automatically after the recorder has read the data from it.
How to Input the ID Number and ID Data
[Recorder's ID Number Setting]
ID Number ?
> - - - - - - - - -
Exit
Input ID Number !
1
As number input is enabled when the unit enters the input
mode, input the 9-digit ID number.
(The entered number is also displayed on the FL display.)
2
2
[Recorder's ID Data Setting]
Exit
Insert The ID Data Disc !
When the ID number has been registered, the unit enters the ID
data input mode. (The FL display indicates "INSERT ID.")
In this condition, place the ID data disc on the tray and close the
tray using the CLOSE key "7/0" on the player.
4
4
[Recorder's ID Data Setting]
Loading The ID Data Disc !
While the data are being read, the message shown in the figure
at left is displayed on the screen.
(The FL display indicates "LOAD ID.")
5
5
[Recorder's ID Number Setting]
ID Number ?
> 0 0 0 0 0 0 0 0 1 OK ?
Compare Mode
Enter
Input ID Number !
After inputting the number, press SEARCH to register the ID
number.
3
3
[Recorder's ID Data Setting]
Wait Rom Writing !
When the ID data have been read, the data are written to the
FLASH-ROM.
(The FL display indicates "WRITE ID.")
6
6
[Recorder's ID Data Setting]
Rom Write OK !
Exit
When the ID data have been written to the FLASH-ROM, the
message "Rom Write OK" is displayed on the screen.
(The FL display indicates "ID DATA OK.")
After confirming this message, press CLEAR to exit the input
mode.
7
8
7
8
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
75
5
6
7
8
5
6
7
8
C
D
F
A
B
E
How to Confirm the ID Number
How to Clear the ID Number
[Recorder's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> * * * * * * * * *
Exit
Input ID Number !
Press ESC + STEREO sequentially with an ID number already
set, and the unit enters the ID number confirmation mode.
The set ID number is displayed on the screen (and on the FL
display), permitting you to confirm it.
To exit this mode, press CLEAR .
1
Press ESC + STEREO sequentially with an ID number already
set, and the unit enters the ID number confirmation mode.
Input the same number as the ID number you have set.
1
2
2
3
2
3
[Recorder's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> * * * * * * * * *
Exit
ID Data Setting Mode
ID Data Setting Mode
Input ID Number !
2
After inputting the number, press STOP .
Only when the entered number matches the set ID number, the
ID number is cleared and the unit exits this mode.
If the numbers do not match, you must return to step 2.
( STOP is not accepted until 9 digits are entered.)
3
[Recorder's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> 0 0 0 0 0 0 0 0 1 OK ?
Enter
Memory Clear
Input ID Number !
3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
76
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.2 MODEL SETTING
• The Setup is Necessary When :
a) When the MAIN Assy is replaced
b) When the JCKB Assy is replaced
c) When the MAIN Assy and JCKB Assy are replaced Note : Make sure of setting the correct number.
• How to Setup the Model
1) After power on, the following screen is displayed on TV monitor.
Press " 22 " by using the remote control unit for service(GGF1381).
2) After 1), the following screen is displayed on TV monitor.
Press " 011 " by using the remote control unit for service.
Notes :
1) After the setting complete, you can NOT CLEAR the seting data.
Make sure the pressing number.
2) " NG " is appeared on TV when unsuitable number is pressed.
In such a case, please unplug the power cable and plug it again. Then restart the model setting.
The setting complete when OSD is disappeared.
3) Unplug the power cable.
4) Reset the recorder to all its factory settings.
1. Make sure that the recorder is on.
2. Press and hold [STOP] and press [STANDBY/ON] key on the front panel.
The recorder turns off with all settings reset.
5) Enter the Service Mode and then confirm the Model Name " DVR-520H/KU/CA ".
1. Make sure that the recorder is on.
2. Press [ESC] then [DISP] keys by using the remote control unit for Service.
[ Recorder 's Model Setting]
Input the number by using the remote for Service.
> --
Input No. Model
[ 22
:
DVR-520H-S
]
[ 23
:
DVR-65H-S
]
[ Recorder 's Type Setting]
Input the number by using the remote for Service.
> --- (Type -- , Region No. -)
Input No. Type
[ 01
:
KU/CA
]
DVR-520H/KU/CA
VERSION
: 0.60
SYSCON
: RELEASE_45
Rev :1.3685 $
TUFLCON
: 1.22
MASK
OK
DRIVE
: DVD-RW DVR-107X
OK
1.10K
OK
CKT0000353WL
OK
HDD
: ST380012ACE
80
DEVICE
: PRISM-PLUS
REGION
: 1
C
: ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗
FLASH
: 64M
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
77
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.1.3 DOWNLOAD METHOD
• The Download is Necessary When :
a) After model setting
b) When "NG" is displayed at First screen (version information, etc)
[Notes]
Be sure NOT to turn off the unit during downloading.
If the unit is turned off during downloading, the SYSCON, TUFLCON, and DRIVE programs may not be properly rewritten, in
which case the unit may not be able to initialize itself normally when turned on again. If that happens, repair the unit, as
described below, then perform downloading again:
• In a case where the power to the unit was shut off during rewriting of the SYSCON program:
The SYSCON program will not function properly if the power to the unit is forcibly shut off while the message "DOWNLOAD-
1" is displayed on the FL display during downloading. If downloading of the programs from the disc or through serial
communication becomes impossible, replace the FLASH ROM.
• In a case where the power to the unit was shut off during rewriting of the DRIVE program:
The DRIVE program will not function properly if the power to the unit is forcibly shut off while the message "DOWNLOAD-2" is
displayed on the FL display during downloading. If downloading of the programs from the disc or through serial
communication becomes impossible, replace the DRIVE ASSY.
• In a case where the power to the unit was shut off during rewriting of the TUFLCON program (only for the flash-type
TUFLCON microcomputers):
The TUFLCON program will not function properly if the power to the unit is forcibly shut off while the message "DOWNLOAD-
3" is displayed on the FL display during downloading. If downloading of the programs from the disc or through serial
communication becomes impossible, replace the TUFLCON microcomputer.
1. DISC DOWNLOAD METHOD
• How to Download
This is disc download method to save the initial setting data and user setting data.
However, the following data is deleted after downloading by this method.
* Disc history data
* REC mode
* Last channel (Before turn unit off)
1) Open a disc tray in the " DVD " function.
2) Put the download disc on the tray.
3) Press and hold a " STOP " button for playback,
then press a " DISC NAVIGATOR " button on a front panel.
- The disc tray closes automatically and the disc is loaded.
- The disc tray opens automatically after loading.
4) Take out the Download Disc.
- " DISC DWLD " is displayed on FL and download is started.
- The display on FL changes to " DOWNLOAD-1 "
- The display on FL changes to " DOWNLOAD-2 "
- The display on FL changes to " DOWNLOAD-3 " (*)
- After download is completed, the power turns off, and turns on and a disc tray closes automatically.
* It takes for about 5 minutes until download is completed.
5) Press and hold a " ESC ", then press " DISP " on a test mode remote control unit for the release version confirmation.
6) Confirm a firmware release version.
7) Press " ESC " on a test mode remote control unit in order to exit the test mode.
(*) : " DOWNLOAD-3" is displayed only when the TuFL u-com is FLASH type.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
78
1
2
3
4
1
2
3
4
C
D
F
A
B
E
2. Serial DOWNLOAD METHOD
[Notes]
This method is secondary way when the disc loading is impossible.
• JIGS
* PC with serial port
* RS232C straight cable
* RS232C I/F jig (GGF1348)
* 7P FFC (VDA1681)
* Download program (UFU.exe)
* Firmware
• Connection
PC ⇔ RS232C cable ⇔ RS232C I/F ⇔ 7P FFC ⇔ DVD Recorder
• How to Download
1) Connect the 232C I/F JIGS above way.
2) Turn on the PC and start the " UFU.exe ".
. 3) Select the Firmware file. ("sz0" file)
4) Turn the DVD recorder on and start the download program.
" Target Device is connected" is appeared on the screen.
. 5) Select the Communication Speed (Baud Rate)
a) Base Speed
38,400
b) Data Send Speed
115,200
6) START
* Even if you click "START" button,
sometimes "Communication Error" may come out one to twice, and download may fail.
In this case, please click "START" again.
* Other factors can be considerd if download fails 3 times or more.
* And it takes about an hour for updating the firmware.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
79
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.1.4 SERVICE MODE
• Details on HDD data are described below:
HDD : WDC10234564 # 80
Name of manufacturer, part No. by manufacturer
HDD identification error indication
Capacity of the HDD (unit: Gbytes)
If any abnormality exists in HDD connection, the indications shown in Table 1 below are displayed.
For service operations, use the GGF1381 remote control unit for service.
The Service-mode screens consist of nine mode screens, which are classified into such rough categories as recording system and VR
playback system, and their subscreens.
• How to enter Service mode : Press the ESC then DISP keys in turn while no GUI is displayed. The first screen (version
information, etc.) shown below is displayed.
• How to exit Service mode
: Press the ESC key.
• How to advance to the next Service-mode screen
: While the first screen is displayed, press directly one of the keys 1-9. For service, use the
keys 2, 4 or 5, as shown below.
• How to advance to a subscreen within the same Service-mode screen
: Press the DIG/ANA key. Pressing the DIG/ANA key repeatedly will change the subscreens
within the same Service-mode screen cyclically.
Note: After entering one of the Service-mode screens, if you wish to shift to another Service-mode screen, exit Service mode first,
then reenter Service mode and select your desired Service-mode screen.
DVR-520H/KU/CA
VERSION
: 0.60
SYSCON
: RELEASE_45
Rev :1.3685 $
TUFLCON
: 1.22
MASK
OK
DRIVE
: DVD-RW DVR-107X
OK
1.10K
OK
CKT0000353WL
OK
HDD
: ST380012ACE
80
DEVICE
: PRISM-PLUS
REGION
: 1
C
: ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗
FLASH
: 64M
Description of Each Service-mode screen
1
2
4
5
6
7
8
9
10
3
OK
: OK (proper combination)
NG+ : Version of the tuner microcomputer too advanced
NG– : Version of the tuner microcomputer too old
OK
: OK (proper combination)
NG+ : Version of the drive too advanced
NG– : Version of the drive too old
OK
: Serial No. of the drive already registered
NG
: Serial No. of the drive not registered
OK
: OK (proper drive)
NG
: NG (improper drive)
1 Model name/destination
2 Version of the recorder software
3 Revision No. of the system-control computer software
(Edition administration No. [from top to bottom, common
software, firmware, application software])
4 Version No. of the tuner microcomputer, Mask or
Flash
Result of the combination ckeck with system u-com
5 Information on the built-in drive
(Model name, version No., model type, serial No.)
6 Data of the built-in HDD, capacity of the HDD
7 Version No. of PRISM
8 Region No.
9 CPRM data (CPRM key No.)
0 FLASH ROM information
While the first screen shown above is displayed, press the DIG/ANA key to enter the subscreen shown below.
Note: Each time the DIG/ANA key is pressed, the display changes between the first screen and its subscreen.
1. First screen (version information, etc.)
The Service-mode screens to be used for service are as follows:
1 = First screen: Version information, etc.
2 = Second screen: ATA/ATAPI debug screen (Writer data)
4 = Fourth screen: Error log for the VR recording system
5 = Fifth screen: Error log for the VR playback system
(*1)
(*2)
(*3)
(*4)
(*1–*4 : Refer to two pages after.)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
80
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Subscreen 1: Result of error-rate measurement
ERR RATE
: x.xe-x/
While the first screen shown above is displayed, press the DIG/ANA key to enter the subscreen shown below.
Note: Each time the DIG/ANA key is pressed, the display changes between the first screen and its subscreen.
Note: Be sure to start playback after displaying this subscreen
to calculate the error rate.
• Subscreen 2: HDD information
HDD Info
Life Time: 87599h 09m 05s
Table 1: HDD data indications according to various HDD connection statuses
HDD identification conditions
Example of HDD data
to be displayed
Remarks
Failure in physical identification of HDD
(no connection, defective HDD, interface error)
Blank space
Physical identification of HDD possible, but not identified
WDC 10234564 # 80
"#" is displayed as HDD identification error
Physical identification of HDD possible, HDD identified,
but failure in logical formatting
WDC 10234564 ! 80
"!" is displayed as HDD identification error
Physical identification of HDD possible, HDD identified,
and correct logical formatting (HDD correctly identified)
WDC 10234564 80
• How the data on cumulative HDD-on time are processed in memory
Storage place: Backup SRAM, Flash ROM
Timing of referring to the data on cumulative HDD-on time: When the power is turned on, the backup SRAM is referred to
regarding the data on cumulative HDD-on time, and the data are stored in the RAM. If referring to the backup SRAM fails, the flash
ROM is referred to.
Timing of updating the data on cumulative HDD-on time: While the HDD is on, the data on cumulative HDD-on time in the RAM
is updated every 3 seconds, and every time updating is executed the data are stored in the backup SRAM. When the power is turned off,
the data are stored in the flash ROM.
How to clear the data on cumulative HDD-on time
Backup SRAM: When the HDD Identification Setting is performed, the data on cumulative HDD-on time are automatically cleared.
The HDD Identification Setting is automatically performed when the CPRM setting is performed on the CPRM setting screen (to
display the CPRM setting screen, press the ESC then the STEREO keys).
Notes: The data on cumulative HDD-on time are not cleared when resetting to factory-preset values is performed.
The data on cumulative HDD-on time are not cleared when the system-control computer software is downloaded.
Flash ROM: The data on cumulative HDD-on time cannot be cleared (they are not cleared even if resetting to factory-preset values is
performed or if the system-control computer software is downloaded).
Note: The data on cumulative HDD-on time in the flash ROM can be cleared if you clear the data in the backup SRAM following the
above-mentioned procedures then turn off the power of the unit, because the data in the backup SRAM are stored in the flash
ROM when the power is turned off.
Cumulative HDD-on time
During playback in VR mode, the average error rate of the past 10 VOBUs is displayed, and during playback in DVD-Video or
Video mode, the average error rate of the past 256 sectors is displayed. During playback in VR mode, the rotation rate of the
drive (/: normal speed, no display = double speed) is also displayed.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
81
5
6
7
8
5
6
7
8
C
D
F
A
B
E
(*1) NG+ : Version of the tuner microcomputer too advanced
NG- : Version of the tuner microcomputer too old
1. When TUFL µ-com is MASK type
NG+ : Download the firmware.
NG- : Replace the TUFL µ-com or JCKB ASSY.
2. When TuFL µ-com is FLASH type
NG+ : Download the firmware.
NG- : Download the firmware.
(*2) NG : NG (improper drive)
Replace the correct Drive Assy.
(*3) NG+ : Version of the drive too advanced
NG- : Version of the drive too old
NG+ : Download the firmware.
NG- : Download the firmware.
(*4) NG : Serial No. of the drive not registered
Check the part No. and replace the correct Drive Assy.
• When "NG" is displayed at First screen (version information, etc)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
82
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Subscreen 1: Command log (ALL) of ATA/ATAPI DEBUG OSD
Subscreen 1 of the second screen is displayed when the ESC, DISP, then "2" keys are pressed, in that order.
Note: Each time the DIG/ANA key is pressed, the display changes cyclically among subscreens 1 to 4.
The cumulative power-on time and error log that are administered by the writer are displayed. Such information is obtained when the power
is turned on. Thereafter, each time the SEARCH key on the remote control unit for service is pressed while subscreen 3 is displayed, the
updating command is sent, and the data on the subscreen are updated. Care must be taken when updating this subscreen, because an
undesired command is inserted if it is executed while recording, etc.
A T A / A T A P I History - ALL
3 2 0 1 0 0 0 0 0 0 0 0 0 0 A 0 0 0
OK
3 2 2 A 0 0 0 0 0 D E B B 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 D F 1 E 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 D F 8 1 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 D F E 4 0 0 0 0 6 2 0 0 0
OK
3 2 2 A 0 0 0 0 0 E 0 4 6 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 E 0 A 9 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 E 1 0 C 0 0 0 0 6 3 0 0 0
OK
> 3 2 2 A 0 0 0 0 0 E 1 6 F 0 0 0 0 6 2 0 0 0 2 3 A 0 0
• Subscreen 3: Writer mentenance information of ATA/ATAPI DEBUG OSD
A T A / A T A P I Writer MaintenanceInfo
Power ON
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 1 0 2 : 5 6
0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D V D
0 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
R 0 0 5 3 : 4 8
0 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
W 0 0 2 2 : 1 6
0 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
C D
0 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
R 0 0 3 4 : 0 4
0 6 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
W 0 0 0 0 : 0 0
0 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0- 0 0
• Subscreen 2: Command log (ERROR) of ATA/ATAPI DEBUG OSD
Error log for the Writer
1
2
3
4
5
1 Power-on time/cumulative power-on time
2 Duration of emission of the laser diode (LD) for DVD-R/DVD while reading
3 Duration of emission of the LD for DVD-W/DVD while writing
4 Duration of emission of the LD for CD-R/CD while reading
5 Duration of emission of the LD for CD-W/CD while writing
2. Second screen (ATA/ATAPI debug screen)
(Not for Service)
(Not for Service)
(Not for Service)
R7R Drive Assy (Read + Write total time)
DVD : 4700h
CD
: 11000h
MTTF time of each LD
(Reference)
(as the guideline of life span of each LD)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
83
5
6
7
8
5
6
7
8
C
D
F
A
B
E
The degrees of degradation of the LD (laser diode) for the writer (LDs for CD and DVD separately), temperature, and RF level are
displayed. To update the data on the subscreen, press the SEARCH key on the remote control unit for service while subscreen 4 is
displayed. See Table 1 below for a description of each item and the conditions for updating data.
• Subscreen 4: ATA/ATAPI DEBUG OSD_LD degradation judgment
1
2
3
4
5
6
A T A / A T A P I - LD Degrade
C D
: 0 0 7 0
1 0 4 %
O K
D V D : 0 0 6 8
9 6 %
O K
T M P : 0 0 A 3
4 1 °C
A D J : 0 0 67
2 6 °C
RF
: 3 D 7 0
TLT
: F F D 5
Table 1: Description of each item and conditions for updating data
No.
Item
Description
Conditions for updating by
pressing the SEARCH key
Remarks
1
CD
Degradation judgment of LD for CD. Regarded as NG when the value
is 120% or higher (same standard as for the PC drive)
No disc inserted in the disc tray
∗1
2
DVD
Degradation judgment of LD for DVD. Regarded as NG when the
value is 120% or higher (same standard as for the PC drive)
No disc inserted in the disc tray
∗1
3
TMP
Current temperature inside the Writer
No disc inserted in the disc tray
∗1
4
ADJ
Temperature (approx. 25°C) inside the Writer during adjustment
No disc inserted in the disc tray
∗1
5
RF
RF level (16-bit data, proportional calculation performed using the
actual RF level value with 2.5 V = 0xFFFF as the maximum value,
displayed in 4-digit hexadecimal)
During playback of disc medium
6
TLT
Writer adjustment data for straight (non-HDD) model
(FFFF is diplayed when the writer is not adjusted.)
No condition
∗1 : For correct judgment, after leaving the unit at a normal temperature (25°C typ.) for some time, judgment must be performed immediately
after the unit is turned on with no disc loaded.
∗2
∗1 : For correct judgment, after leaving the unit at a normal temperature (25°C typ.) for some time, judgment must be performed immediately
after the unit is turned on with no disc loaded.
∗2 : Use this item only for confirmation before and after lens cleaning, as the lens becomes dirty with dust.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
84
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Subscreen 1:
• Subscreens 2 and 3:
• Subscreens 5 to 11:
• Subscreen 4: Error log for VR recording
Subscreen 1 of the fourth screen is displayed when the ESC, DISP, then "4" keys are pressed, in that order.
Note: Each time the DIG/ANA key is pressed, the display changes cyclically among subscreens 1 to 11.
1 Recording-related error log for the last 18 errors, divided
into 2 screens
(generation time [year-month-day, hour:minute:second],
error data in simplified description)
RunFnc : ---- Ecl : **** Rate : **
----------------------
----------------------
----------------------
----------------------
----------------------
----------------------
R e c o r d i n g E r r o r H i s t o r y D i s p l a y
0 1 – 0 6 – 0 1 2 0 : 0 5 : 3 0 N o S y s H d r I N
0 1 – 0 6 – 0 2 0 0 : 2 2 : 1 0 W r i t e E r r o r
1
Notes:
• For details on error messages, see Table 2 "Description of VR-recording-related errors".
• The two error-log screens can be switched by pressing the SPEED+ or SPEED- key.
These subscreens are not for service use.
These subscreens are not for service use.
3. Fouth screen (VR-recording-related error log)
(Not for Service)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
85
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Subscreen 1:
• Subscreens 3 and 4:
• Subscreen 2: Error log for VR playback
Subscreen 1 of the fifth screen is displayed when the ESC, DISP, then "5" keys are pressed, in that order.
Note: Each time the DIG/ANA key is pressed, the display changes cyclically among subscreens 1 to 4.
1 Data on location of the display
Original(G)/play list (L), title No., chapter No. (X:XX-XX),
time of the display (min, sec, frame [XXmXXsXX]), busy
mark of the virtual mechanical-control computer (#),
error rate of the transfer data (X.XeXX), playback logical
address (ID [XXXXXXXX])
2 Error message log
Original(G)/play list (L), title No., time of generation (min,
sec [XXX:XXXX]), playback-related error log for the last
13 errors (XX:XXXXXXX)
G : 001–01 00h00m00s00# –. – e – – 00 . 00M
Tgt : STOP Now : STOP Spd : 0
Man : STOP Sub : 0 VBF : 000 ABF : 00
TrMd : STOP TrSt : 0 TNo : Ver : 00
RvMd : STOP RvSt : 0 DNo : Aer : 00
CcSt : STOP ld : 00000000
Stc : 00000000 Tpp-Av1 : +-0 V-A : +-0
MPEG2 720x480 A0 AC-3 2ch 0256k
NT ASP : 43 CGMS : 0 APS : 0 Src : 0
END : 00h00m00s00 Cell : 000
G : 01–01 00m00s# –. – e – – 00000000
h m s M e s s a g e
h m s Err
G001 : 000000 Tr : N u l l b l k
L002 : 001230 Tr : S c h L a t e
L002 : 004103 Tp : V o b D i f +
L002 : 004104 Tp : V o b D o f –
1
2
These subscreens are not for service use.
4. Fifth screen (Error log for VR playback)
Notes:
• For details on error messages, see Table 1 "Description of VR-playback-related errors".
• If a VR-playback-related error is generated, a problem in data reading from the disc may be suspected.
(The possibility of a problem on the drive side is high.)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
86
1
2
3
4
1
2
3
4
C
D
F
A
B
E
e
g
a
s
s
e
M
r
o
rr
E
n
o
it
p
ir
c
s
e
D
kl
B
llu
N
:
r
T
k
c
olb
p
o
t
e
h
t
t
a
L
L
U
N
:k
s
a
t
r
e
fs
n
a
r
T
).s
s
e
c
o
r
p
n
oitc
e
t
o
r
p
g
nitr
a
ts
d
n
a
s
eir
e
s
0
0
0
1
-
R
V
D
e
h
t
t
a
e
d
a
m
m
a
e
rts
G
N
g
nitc
e
t
e
D
(
rr
E
d
a
e
R
:
r
T
r
o
rr
e
d
a
e
r
A
T
A
:k
s
a
t
r
e
fs
n
a
r
T
e
t
a
L
h
c
S
:
r
T
e
t
al
h
c
r
a
e
s
A
T
A
:k
s
a
t
r
e
fs
n
a
r
T
r
v
O
T
m
e
S
:
r
T
)
y
alp
sid
e
h
t
h
ti
w
n
oit
a
zin
o
r
h
c
n
y
s
o
n
(
e
r
o
h
p
a
m
e
s
g
ninia
g
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
r
e
fs
n
a
r
T
rr
E
iv
a
N
:
r
T
I
V
A
N
la
u
tc
a
d
n
a
a
t
a
d
t
n
e
m
e
g
a
n
a
m
f
o
)r
o
t
a
giv
a
n
(
I
V
A
N
n
e
e
w
t
e
b
y
c
n
e
tsis
n
o
c
n
I
:k
s
a
t
r
e
fs
n
a
r
T
r
E
r
e
d
r
O
:
r
T
r
e
d
r
o
t
n
e
tsis
n
o
c
n
I
:k
s
a
t
r
e
fs
n
a
r
T
g
n
a
H
1
v
A
:
n
M
y
r
e
v
o
c
e
r
str
a
ts
d
n
a
r
e
d
o
c
e
d
V
A
f
o
p
u
-
g
n
a
h
stc
e
t
e
D
:k
s
a
t
nia
M
!
V
C
R
_
R
R
E
y
r
e
v
o
c
e
r
str
a
ts
d
n
a
r
e
d
o
c
e
d
V
A
f
o
p
u
-
g
n
a
h
stc
e
t
e
D
:k
s
a
t
P
P
T
+
fi
D
b
o
V
:
p
T
.r
u
o
h
U
B
O
V
1
y
b
s
e
c
n
a
v
d
a
C
T
S
r
e
d
o
c
e
d
e
h
T
:k
s
a
t
P
P
T
-fi
D
b
o
V
:
p
T
s
e
c
n
a
v
d
a
n
oit
a
m
r
o
f
nit
n
e
m
e
g
a
n
a
m
e
h
t
f
o
C
T
S
e
h
T
:k
s
a
t
P
P
T
L
L
U
N
di
m
:
p
T
.
L
L
U
N
s
a
w
d
e
t
a
n
gis
e
d
r
e
t
nio
p
n
oit
a
m
r
o
f
nit
n
e
m
e
g
a
n
a
m
e
h
T
:k
s
a
t
P
P
T
g
N
n
a
c
S
:
p
T
.
d
ele
c
n
a
c
s
a
w
g
nin
n
a
c
s
n
e
h
w
y
r
o
m
e
m
P
P
T
e
h
t
t
e
s
o
t
e
r
ulia
F
:k
s
a
t
P
P
T
r
E
p
e
t
S
R
:
p
T
.
d
e
t
a
c
ol
s
a
w
lle
c
p
o
t
e
h
t
e
s
u
a
c
e
b
d
e
t
a
ni
m
r
e
t
ylbic
r
o
f
s
a
w
n
oit
a
r
e
p
o
e
h
t
,
d
elia
f
d
a
h
p
e
ts
e
s
r
e
v
e
r
e
h
t
h
g
u
o
h
tl
A
:k
s
a
t
P
P
T
rr
E
p
p
t
:
p
T
.
d
e
rr
u
c
c
o
y
c
n
e
tsis
n
o
c
n
I
:k
s
a
t
P
P
T
r
v
O
T
ts
1
:
v
R
g
nid
o
c
e
d
g
nitr
a
ts
r
e
tf
a
yle
t
aid
e
m
m
i
U
B
O
V
p
o
t
e
h
t
o
t
n
oit
p
u
rr
e
t
ni
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
n
p
O
:
v
R
g
nid
o
c
e
d
g
nitr
a
ts
r
e
tf
a
yle
t
aid
e
m
m
i
P
O
G
n
e
p
o
e
h
t
f
o
e
r
u
tcip
-
B
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
lp
O
:
v
R
g
nid
o
c
e
d
g
nitr
a
ts
r
e
tf
a
yle
t
aid
e
m
m
i
P
O
G
n
e
p
o
e
h
t
f
o
e
r
u
tcip
-I
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
k
n
L
:
v
R
k
nil
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
lia
F
k
n
L
:
v
R
e
r
ulia
f
k
nil
g
nitc
e
t
e
d
y
b
n
oit
a
s
n
e
p
m
o
c
str
a
t
S
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
F
2
R
:
v
R
e
s
u
a
p
d
r
a
w
r
o
f
o
t
e
s
u
a
p
e
s
r
e
v
e
r
m
o
rf
t
u
o
e
m
it
g
nitc
e
t
e
d
r
e
tf
a
lairt
e
r
str
a
t
S
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
E
b
V
p
o
T
:
v
R
k
c
a
b
y
alp
la
m
r
o
n
e
s
r
e
v
e
r
g
nir
u
d
a
t
a
d
p
o
t
e
h
t
f
o
r
o
rr
e
elbis
s
o
p
a
f
o
e
s
u
a
c
e
b
n
oit
a
ni
m
r
e
t
d
e
c
r
o
F
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
E
r
e
d
r
O
:
v
R
r
e
d
r
o
t
n
e
tsis
n
o
c
n
I
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
C
/
B
:
v
A
t
u
o
e
m
it
r
a
elc
-r
e
ff
u
B
:
1
V
A
r
v
O
m
rt
S
:
v
A
y
d
a
e
r
m
a
e
rts
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:
1
V
A
r
v
O
T
m
p
T
:
v
A
e
g
n
a
h
c
e
d
o
m
P
T
r
o
f
t
u
o
e
m
i
T
:
1
V
A
r
v
O
T
m
p
S
:
v
A
d
n
a
m
m
o
c
p
e
ts
a
r
o
f
t
u
o
e
m
i
T
:
1
V
A
R
R
E
_
S
O
_
C
C
r
o
rr
e
S
O
:k
s
a
t
n
oit
p
a
c
d
e
s
ol
C
Table 1: Description of VR-playback-related errors
Abbreviations:
STC = System Time Clock
VOBU = Video Object Unit
GOP = Group Of Picture
B-picture = Bidirectionally predictive-picture
I-picture = Intra-picture
P-picture = Predictive-picture
TP mode change = AV1 term (Trick Play mode change)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
87
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Table 2: Description of VR-recording-related errors
Error Message
Description
Stream NG
Inappropriate input stream data
Stm Start NG
Failure to start encoding (reasons not clear)
AVEnc Hang
Inappropriate MPEG encoder
No SysHdr IN
System packet is not input periodically
Timeout waiting for system packet input at the beginning
Strm Start NG
IN Encode *
Changes cannot be made in the process of encoding
EncModul Hang
Encoder routine is hung up.
Error related to MPEG Encoder
Error Message
Description
Mem get NG
Video Mode Copy Memory has not ensured.
V Rsv RzoneNG
Video Mode Copy Reserve Rzone failed
VCHDD Info NG
Obtaining Video Mode Copy HDD Cell information failed
VC Pck Anl NG
Analizing Video Mode Copy Pack failed
Video Mode Copy VOBU Size NG
VC VOBU SizeE
Tracon Trn NG
Video Mode Copy Tracon tranfer has not been completed.
Error related to Dubbing
Error related to Drive system
Error Message
Description
BUF Overflow
Overflow of the Stream Buffer
Drive Hang
The Drive is hung up.
Write Err
The Drive failed to write and could not be recovered.
Read Err
Reading failed, ECC failed, etc.
Abnormality in the drive hardware or firmware
Drv Hard Err
Mech No Res
No response from the mechanical-control computer
Timeout waiting for drive operation
Drv Timeout
NWA Exhaust
MKB reading error
NWA surpassed and impossible to use
General error of the drive
MKB Invalid
Drv Err
Fail Repair
Repair failed
Because some data are invalid, data cannot be written
AlthoughTMP_VMGI is not written, it may be Video Mode disc.
Reserve RZone failed
Close RZone failed
Repair RZone failed
ReadOnly DISC *
May Be V mode
Rzn Rsv NG
Rzn Cls NG
Rzn Rpr NG
Bdr Opn NG
Open Border failed
Bdr Cls NG
Close Border failed
Format NG
OPC failed
Format failed
PCA has been used up.
RMA has been used up.
OPC NG
PCA Full
RMA Full
VTSI_B Wr Err
Video Mode VTSI BUP Write Error
VTSI Wr Err
Video Mode VTSI Write Error
Video Mode TMP VMGI Write Error
Video Mode Close Rzone failure
TMP-VMG WrErr
CLS Rzon Fail
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
88
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Other Errors
Error related to Dubbing (continued)
Error Message
Description
Strm TransfNG
Video Mode Copy Stream Transfer NG
VC FlushC NG
Video Mode Copy Flush Cache NG
VC Transf Stp
Video Mode Copy Transfer Stop
VC CopyCancel
Video Mode Copy Copy Cancel
Video Mode Copy idling NG
VC Idling NG
VC TSO BLK NG
Video Mode Copy TSO Block transfer has not been completed.
Maximum number for Video Mode copy Cells exceeded
VC Cell Max
VC HDD Inf NG
Inappropriate Video Mode Copy HDD content
No information on Video Mode Copy HDD
VR →HDD copy prohibitted material
VC HDD C Err
V2H SRC Prot
V2H Aud Ch NG
VR →HDD Audio Channel NG
VR →HDD Audio Stream number NG
VR →HDD Audio Mode NG
VR →HDD Video resolution NG
VR →HDD other NG
VR →HDD copy and other NG
V2H Aud Stm N
V2H Aud Md NG
V2H V Reso NG
V2H Unknown
H2D CP SomeNG
Error Message
Description
DRAM NG
Abnormality in access to the Work DRAM
SRAM NG
Abnormality in access to the backup work SRAM
CPRM IC NG
Inappropriate CPRM IC
Error in gaining data
Abnormality in VBR SRAM
Backup RAM data has not been wrtten on the File Sys.
Inappropriate VOBU information
Inappropriate stream data to the Ouroboros input
Watermark detected
No video input (not locked)
No further data can be written because the disc is full.
No more space in the internal work-management area
Invalid parameter
Source to be recorded is copy-protected.
In the process of the emergency processing
Invalid VMG content
Invalid TMP_VMGI content
Drive Destroy
The drive has crashed.
MKB REVOKED
WM Cracked
WM Cracked
VBR-SRAM NG
BK BATT Down
Backup RAM data has been erased.
BK FSYS Dirty
VOBU Info NG
Ourob Strm NG
WaterMark Det
No Video
Disc Full
No More Info *
No Permission *
No permission to write to the disc
Limit Over *
Standard maximum limit exceeded
Rec Pause *
No operation permitted during recording pause
Invalid Param *
Protect Src *
Now Busy *
Invalid Disc *
The disc cannot be recognized.
Invalid UDF *
Invalid UDF content
Invalid VMG *
Invalid TMVMG
Unmatch Stamp *
Impossible to modify because of nonmatching time stamp
Virgin DISC
Virgin Disc
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
89
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Other Errors (continued)
Error Message
Description
SW Vpb mode *
Switching to video playback routine is required.
SW Vrec mode *
Switching to video recording routine is required.
NV Pck MK Err
NV Pck DMA Er
Error in creating NaviPack
Inappropriate NaviPack DMA
Cell Close NG
undetermined error
Abnormality in change of statuses
Cancellation
Bus Reset has been excecuted.
Repairing has been executed.
Formatting has been executed.
Some bugs
Inappropriate Category information
Type NG
Count Max exceeded
Cell Close NG
Relocation Do
VR-recording data was relocated
Something *
Status NG *
Irr Action *
Incorrect action
Abort *
BusReset Done
Repair Excec
Format Excec
BUG
PARAM NO ACCP
Recording parameter is not matched.
DRAM CLR Err
Video Mode DRAM (Stream Buffer) Clear failure
V Categ ID NG
Inappropriate Category ID
V Cate Inf NG
V Ext TY NG
V Ext MAX Ovr
V ExtToo Big
The extension file is too large.
Over Heat
Abnormal temperatute
No Error
Error Message
Description
Non Err *
Normal
Notes;
• Any error message marked with ∗ is displayed "RecErr : ---------"
on the Subscreen 1 of the fourth screen.
• In a case of an error in the drive system, scratches or dirt on a disc,
or a problem of the drive itself (dirty pickup) may be suspected.
Abbreviations:
ECC = 4 byte Code for Error Correction
UDF = Universal Disc Format
PCA = Power Calibration Area
OPC = Optical Power Control
NWA = Next Writable Address
VMG = Video Manager
RMA = Recording Management Area
MKB = Media Key Block
TMP_VMGI = Temporary Video Manager
Information
Border = from Lead-in to Lead-out
Error related to HDD
Error Message
Description
HDD unauthor
Inconsistent HDD serial No.
HDD Destroy
HDD is not recognized on the bus.
TT Rec Over
Title recording time full
HDDReset Done
HDD Reset executed
Task No Activ
HDD Buff High
Task has not been activated.
High-level process executed for the HDD Buffer
DMA error in HDD copy transfer
HDD initialized
Inconsistent MBR data
Incorrect HDD Management Data
Abnormal power off
Inappropriate HDD SMART
HDD Trans Err
HDD Zero WR
MBR readout generated
HDD Initialize
HDD MBR NG
HDD SIG NG
Inconsistent HDD Management Data Magic
HDD INFO BAD
HDD IRRG POFF
HDD SMART NG
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
90
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Table 3: List of Key Codes
How to enter each check mode
Test mode remote control unit : [A8**]
Remote control unit supplied with the DVR : [AB**]
No.
Check Item
Key Input
Operation / purpose
Remarks
1
EE system
(same as preview)
[ESC] → [A.MON]
Turns on/off EE mode cyclically
Make sure that CGMS = 11 becomes when
CGMS = 10 is input.
EE mode: Simulation mode for recording status
[PLAY]
Starts the EE system in EE mode
(main-unit setting rate)
[STOP]
Stops the EE system in EE mode
2
Error-rate measurement
[ESC] → [SIDEB]
V-mode recording:
After recording for 10 seconds, the
unit starts playback while
displaying the error rate.
DVD-Video:
The error rate is automatically
measured, then the result will be
displayed.
For details, see
" 7.1.4 ERROR RATE MEASUREMENT ".
3
Settings for specific areas
[ESC] → [CHP/TIM]
Enters Adjustment mode for AVIO
settings
Settings are made for the selected input
(TUNER, LINE).
For details, see
" 7.1.5 SETTINGS FOR SPECIFIC AREAS ".
[ESC]
Determines the settings, then exits
Adjustment mode
How the ESC code is processed
• When the ESC code is received, ESCAPE mode is entered, but in combination with the code(s) that follow(s), a specific meaning is added.
• If ESC codes are received continuously, ESCAPE mode is retained.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
91
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.1.5 DV DEBUG MODE
(DV/1394) Init:OK AV:01 DV:01
INT4:02
[Recoder] GUID:00E036000160001 IRM
iPCR:C03F0000 oPCR:0000007A
[DV] GUID:0080880303480E96
VN:VICTOR MN:GR-D50K
TM:C3 TS:75 CT:32 WP:01 PS:FF OS:00
CA:A000002020 CV:FF MD:VTR
[DVdecoder:Yes]
TC:00h20m35s02f RD:02/02/05 RT:10h34m50s
ASPECT:4:3 CGMS:000000 APSTB:00 DEC:525-60
SF:32kHz QU:12bit AMODE:4) Stereo
[DVencode:No]
TC:--h--m--s--f RD:--/--/--/-- RT:--h--m--s
ASPECT:-------- CGMS:-- APSTB:--
1
2
4
5
6
7
8
9
10
11
12
13
14
3
Press the ESC, DISP, then "3" keys, in that order.
Boldface alphanumerics
: Fixed indications
Nonboldface alphanumerics : Variable indications
No.
Item
Description
Remarks
1
Init
Whether the initialization of uPD72893B
(1394LINK & DVcodec IC) has been completed
(OK) or not (NG)
In a case of NG, communication with uPD72893B may have
failed.
AV
Number of AV devices on the local bus
DV
Number of DV devices on the local bus
If the number does not become 01 even if a DV device is
connected, identification of that device fails.
INT4
Number of executing INT4(PIO) interrupt
processing routines until a POWER ON
notification arrives from uPD72893B (normally, 02)
2
GUID
GUID set in ConfigROM of the unit
In a case of ROOT (IRM), IRM is displayed at the rightmost of
the GUID indication
3
iPCR
iPCR value of the unit
oPCR
oPCR value of the unit
4
GUID
GUID set in ConfigROM of the connected DV
device
Data are displayed only if one DV device is identified. If the
connected DV device is ROOT (IRM), IRM is displayed at the
rightmost of the GUID indication
5
VN
Vendor name set in ConfigROM of the connected
DV device
Data are displayed only if one DV device is identified.
(Depending on the device, the vendor name may not be set in
ConfigROM.)
MN
Model name set in ConfigROM of the connected
DV device
Data are displayed only if one DV device is identified.
(Depending on the device, the vendor name may not be set in
ConfigROM.)
6
TM
Transport Mode data obtained from the DV device
Data are displayed only if one DV device is identified.
Data are displayed only if one DV device is identified.
Camera or VTR is displayed only if one DV device is identified.
TS
Transport State data obtained from the DV device
CT
Cassette Type data obtained from the DV device
WP
Copy-protection data obtained from the DV device
PS
Power-state data obtained from the DV device
OS
Output signal mode data obtained from the DV
device
CA
Connect AV data obtained from the DV device
CV
Camera/VTR data obtained from the DV device
MD
DV device mode
8
7
[DVdecode:XXX]
Whether Yes (in the process of requesting DV
input) or No is indicated in XXX
Normally, Yes is indicated only when CH is set to DV
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
92
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
Item
Description
Remarks
9
TC
Time-code data of the DVdecode Stream, or
response data of the Time Code command
Stream time-code data are obtained when playback in
the forward direction is performed. Otherwise, time-code
data are obtained through an AV/C command.
RD
Rec Date of DVdecode Stream
RT
Rec Time of DVdecode Stream
0
ASPECT
Aspect Ratio of DVdecode Stream
CGMS
CGMS of DVdecode Stream (from left to right,
CGMS data of bits 5-4: Audio ch2, bits 3-2:
Audio ch1, and bits 1-0: Video)
Recording of DV input cannot be performed unless the
value of CGMS is 00.
APSTB
APS trigger bit of DVdecode stream
DEC
With/without DVdecode stream input
With input: Signal type (525-60, 625-50, 1125-60, 1250-
50, or Invalid) is indicated, Without input: "No" is
indicated.
-
SF
Sampling Frequency of DVdecode Stream
If SF is 44 kHz, it is considered that 44.1-kHz audio is
input, and sound is muted on the unit.
QU
QUANTIZATION of DVdecode Stream
AMODE
AUDIO MODE of DVdecode Stream
=
[DVencode:XXX]
Whether Yes (in the process of requesting DV
output) or No is indicated in XXX
Normally, Yes is indicated only with HDD or DVD
playback
~
TC
TIME CODE of DVencode stream
RD
REC DATE of DVencode stream
RT
REC TIME of DVencode stream
!
ASPECT
Aspect Ratio of DVencode stream
CGMS
CGMS of DVencode stream (common to
video, audio ch1 and audio ch2)
Normally, sources other than CGMS=00 are not output.
APSTB
APS trigger bit of DVencode stream
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
93
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Simple Diagnosis
Symptoms
Location in the
Debug Screen
Items to be Checked, and Conditions
Possible causes
No operation for either DV
input or output
1
Check the init indication:
OK: Initialization of DV-related LSIs (IC5101, IC5202) appropriately completed
NG: Communication failure between DV-related LSIs (IC5101, IC5202) and
HOST microcomputer (IC1001). Initialization of DV-related LSIs (IC5101,
IC5202) has not been completed properly.
Defective IC, defective soldering, defective power supply,
etc.
Check the number of DV devices when one DV device is connected to the
recorder:
01:
The connected DV device is correctly identified.
Other than 01: The connected DV device is not correctly identified.
Defective DV terminals, improper connection of the
DV-terminal board, defective IC, defective cables, an
IEEE 1394 device other than the DV device connected
No picture nor sound for DV
input
7
Check of DV decoding when the recorder channel is set to DV:
Yes: The recorder is in the process of a DV input operation
No:
The recorder is not executing a DV input operation
Defective IC, defective soldering, defective power supply,
etc.
9
Check DEC:
525-60: An NTSC DV signal is input from the DV device.
625-50: A PAL DV signal is input from the DV device.
No:
No DV signal is input from the DV device.
Defective DV terminals, improper connection of the
DV-terminal board, defective IC, defective source device
Note: As to a model having the Input Line System
setting, if the setting and the actual input signal
system do not match, no picture appears.
DV input recording impossible
9
Check CGMS:
00:
A copy-permitted source is being input.
Other than 00: A copy-protected source is being input.
Recording cannot be performed for a copy-protected
source.
No sound for DV input
0
Check SF:
32 khz: An audio signal with 32-kHz sampling frequency is being input.
48 khz: An audio signal with 48-kHz sampling frequency is being input.
44 khz: An audio signal with 44.1-kHz sampling frequency is being input.
An audio signal with 44.1-kHz sampling frequency is
muted.
No picture nor sound for DV
output
-
Check DVencode during DVD/HDD playback:
Yes: The recorder is in the process of a DV output operation
No:
The recorder is not executing a DV output operation
(No is also displayed during playback of copy-prohibited sources or
simultaneous-recording/playback.)
Defective IC, defective soldering, defective power supply,
etc.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
94
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.6 ERROR RATE MEASUREMENT
How to enter Error-Rate Measurement mode
Press the ESC key then the SIDE-B key of the remote control unit for service to enter Error-Rate Measurement mode. During playback of
DVD-VIDEO, Error-Rate Measurement mode can also be entered by pressing the ESC key then the PLAY key.
How to exit Error-Rate Measurement mode
Press the ESC key. The error-rate display disappears, and Error-Rate Measurement mode is exited.
Note: The error rate cannot be measured in VR mode or during CD playback.
Functions
1 Video-mode recording (recording medium)
In this mode, DVD recording is automatically performed for 10 seconds, the recorded DVD title is played back while the error rate is
being measured, then as soon as playback of the recorded DVD title is finished, playback stops.*1 After error-rate measurement is
finished, the average error rate will be displayed on the FL display and OSD. Only in a case in which the calculation of the average error
rate fails, the tray will open.
2 DVD-VIDEO (playback medium)
Only during playback, when the ESC key then the SIDE-B key (or the ESC key then the PLAY key) are pressed, the error rate is
calculated and displayed on the FL display and OSD.(∗2) Only in a case in which the calculation of the average error rate fails, the tray
will open.
Changes of display
Table 1: Video mode (recording medium)
E R R O R
R A T E
E R R O R
R A T E
x x x x x
E R
x . x E - x
E R
x . x E - x
E R R R A T E : x . x E - x -
E R R R A T E : x . x E - x * O K
Operation
Display
FL Display
OSD (On Screen Display)
"ERROR RATE" is displayed on the FL display for an instant.
DVD recording starts.
DVD recording is performed for 10 seconds.
The recorded DVD title is played back while the error rate is being measured,
then as soon as playback is finished it stops.
After error-rate measurement is finished (∗1), the average error rate, the
measurement-finish mark (∗), and the OK/NG-judgment result (∗3) will be
displayed on the FL display and OSD.
(If the tray opens as a result of NG judgment, the display on the FL display
and OSD will be retained.)
Table 2: DVD-Video (playback medium)
E R
x . x E - x
E R
x . x E - x
E R R R A T E : x . x E - x -
E R R R A T E : x . x E - x - O K
Operation
Display
FL Display
OSD (On Screen Display)
Only during playback, when the corresponding keys are pressed, the error rate
is calculated and displayed on the FL display and OSD. (∗2)
After error-rate measurement is finished (∗1), the average error rate, the
measurement-finish mark (∗), and the OK/NG-judgment result (∗3) will be
displayed on the FL display and OSD.
(If the tray opens as a result of NG judgment, the display on the FL display and
OSD will be retained.)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
95
5
6
7
8
5
6
7
8
C
D
F
A
B
E
∗1 : Whether error-rate measurement is finished or not is judged, as shown in Table 3 below.
∗2 : During DVD-VIDEO error-rate measurement, even after error-rate measurement is finished, playback continues, and the display of the
error rate results is retained. In this playback mode, if Error-Rate Measurement mode is exited by pressing the ESC key, then it is
reentered by pressing the ESC and SIDE-B keys (or ESC and PLAY keys), the error rate will not be updated, and the previous value is
displayed. To reset the previous error rate, stop disc playback.
∗3 : OK/NG judgment
In DVD/VIDEO and Video Mode recording, OK/NG judgment is displayed under the following conditions:
Table 3: On judgment whether error-rate measurement is finished or not
Table 4: List of OK/NG threshold values
Recording Mode
Judgment whether error-rate
measurement is finished or not
Recording/playback duration required
for error-rate measurement
Video mode
After playback of a certain amount (∗) of data
Measurement of the 16 ECC blocks is performed 16 times,
then the grand sum is used for calculation of the error rate.
The capacity is as follows:
16 ECC blocks × 16 sectors × 2048 bytes × 16 times
= 8388608 bytes
= 67108864 bits
The time required for completion of error-rate
measurement varies, depending on the input video
signal to be recorded.
(The more the motion in the input video signal to be
recorded is animated, the shorter the playback time
required for completion of error-rate measurement
becomes.)
Disc Type
Recording Mode
Finalized or not finalized
Reference Value
Display
DVD-VIDEO
8.0 × 10
OK / NG
DVD-R
Video mode
Finalized
1.0 × 10
OK / NG
Not finalized
1.0 × 10
OK / NG
DVD-RW
Video mode
Finalized
1.0 × 10
OK / NG
Not finalized
1.0 × 10
OK / NG
– 4
– 3
– 3
– 3
– 3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
96
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.7 VIDEO ADJUSTMENT FOR SPECIFIC AREA
Purposes: Depending on the area, jitter may appear in a picture received by the tuner, as conditions of signals received by
the tuner are different from area to area. To correct this kind of problem, the function of the System Codec AVIO
control section for adjusting signals received by the tuner can be used.
How to enter setting modes: To enter General Setting mode, press the ESC key then the CHP/TIM key of the remote control
unit for service. To enter Specific Channel Setting mode, press the DIG/ANA key in General
Setting mode.
How to exit setting modes: Press the ESC key. The setting mode is exited, the OSD disappears.
[Display in Specific Channel Setting mode]
This mode is entered when the DIG/ANA key is pressed in General Setting mode. In this mode, specific settings can be made for up to 12
channels. For channels that do not have specific settings, the settings of General Setting mode are applied.
Display in Specific Channel Setting mode (A picture from the tuner can be viewed using the semitransparent OSD display.)
1. Specific Channel Setting mode
AVIO Specific Area Mode Ver *.**
Input - [ tuner ]
Sync AGC
: ON
*
Threshold
: Normal
*
V-Sync Det
: Normal
*
Std Det
: Normal
*
HD Err Det
: Normal
*
Individual setting state
Input Channel - [ 1CH]
Sync AGC
: ---
Threshold
: ------
V-Sync Det
: ------
Std Det
: ------
HD Err Det
: ------
[When specific channel settings have NOT
been made]
[When specific channel settings have
been made]
General Setting data
Specific Channel
Setting data
AVIO Specific Area Mode Ver *.**
Input - [ tuner ]
Sync AGC
: ON
*
Threshold
: Normal
*
V-Sync Det
: Normal
*
Std Det
: Normal
*
HD Err Det
: Normal
*
Individual setting state
Input Channel - [ 1CH]
Sync AGC
: ON
Threshold
: Auto Threshold Level---[3]
V-Sync Det
: Normal
Std Det
: Normal
HD Err Det
: Normal
∗ : setting is the default.
• If a channel that does not have specific settings is displayed, the setting figures are displayed as hyphens (--).
If the setting figures are not displayed as hyphens, those settings have been specifically set even if they are identical to the default settings
or those of General Setting mode.
• The channels to be displayed in "Input Channel" are as follows:
• In a case of line input: L1-L3, DV
• In a case of tuner input: Received channel (a channel to be set in specific channel settings)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
97
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Table 1: Key operations in Specific Channel Setting mode
(effective only during recording/playback stop)
Key
Operation
Setting (∗: Default)
Remarks
DIG/ANA
Switches cyclically between General
Setting mode and Specific Channel
Setting mode.
–
–
INPUT SELECT,
CHANNEL +/–
(∗R)
Switches inputs or channels.
–
–
[SIDE A], [SIDE B]
Sets Sync AGC.
ON (∗) / OFF
–
[SPEED +], [SPEED -]
HD Err Det
Normal (∗) / Fast / Stop
–
[Rev SCAN],
[SCAN Fwd]
Sets V-Sync Det.
Normal (∗) / Short / Long
–
[Rev STILL STEP],
[STILL STEP Fwd]
Sets Std Det.
Normal (∗) / Non STD
–
–
–
–
[Rev ×3], [×3 Fwd]
Sets Threshold level.
(∗) Normal
Auto Threshold Level
Manual Threshold Level
Pedestal Level
–
[Rev CHAPTER SKIP]
[CHAPTER SKIP Fwd]
Sets Threshold level.
According to the setting of Threshold,
the values can be changed within the
range mentioned below.
–
• Normal:
The value is fixed, with no display of
the value.
–
• Auto Threshold Level:
0-8 (Default: 0)
• Manual Threshold Level:
0-8 (Default: 0)
• Pedestal Level:
0-8 (Default: 0)
CLEAR
Initializes the setting of Specific
Channel Setting mode.
–
Pressing the key resets the settings
of Specific Channel Setting mode
for that channel to the initial values.
Settings of General Setting mode
are not affected.
PAUSE
The specific-setting data for the
currently selected channel are reset
to their default values.
(But the assignment of a channel
having specific settings is not
canceled.)
–
Settings of General Setting mode
are not affected (retained).
ESC
Exits AVIO setting for specific areas,
clearing the OSD.
–
–
∗R: Refers to keys on the remote control unit supplied with this unit. The keys without "R" refer to the remote control unit for service.
PLAY
All channels assigned to have specific
settings are canceled, and the
specific settings are reset to their
default values.
–
Settings of General Setting mode
are not affected.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
98
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Screen display when Specific Channel settings are made on 12 (maximum) channels: In such a case. If a channel which does not have
specific settings is selected, the individual setting state for that channel is not displayed, as shown in the figure below, and the settings
cannot be modified. In such a case, if you wish to make Specific Channel Settings for the currently selected channel, you must clear the
Specific Channel Settings for one or more channels beforehand.
AVIO Specific Area Mode
Input - [ TUNER ]
Sync AGC
: ON
*
Threshold
: Normal
*
V-Sync Det
: Normal
*
Std Det
: Normal
*
HD Err Det
: Normal
*
Individual setting state
Sorry !
You can store only 12 channels
for Specific Area mode.
[With 12 channels having specific settings,
when the currently selected channel does not have specific settings]
2. General Setting mode
This mode can be entered only during recording/playback stop. In this mode, each item and its current settings are displayed on the OSD.
The currently selected input mode (TUNER or LINE) is displayed. If L1, L2, L3 or DV is selected for input, general settings for the line
input can be made, and if TUNER is selected, general settings for the tuner input can be made.
AVIO Specific Area Mode
Input - [ tuner ]
Sync AGC
: ON
∗
Threshold
: Normal
*
V-Sync Det
: Normal
*
Std Det
: Normal
*
HD Err Det
: Normal
∗
[General Setting mode] (∗2)
∗ : setting is the default.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
99
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Table 2: Key operations in General Setting mode (effective only during recording/playback stop)
∗R: Refers to keys on the remote control unit supplied with this unit. The keys without "R" refer to the remote control unit for service.
Key
Operation
Setting (∗: Default)
Remarks
INPUT SELECT,
CHANNEL +/–
(∗R)
Switches inputs or channels.
–
–
[SIDE A], [SIDE B]
Sets Sync AGC.
[SPEED +], [SPEED -] HD Err Det
ON (∗) / OFF
–
[Rev SCAN],
[SCAN Fwd]
Sets V-Sync Det.
Normal (∗) /Short/Long
–
[Rev STILL STEP],
[STILL STEP Fwd]
Sets Std Det.
Normal (∗) /Non STD
Normal (∗) /Fast/Stop
–
–
–
–
[Rev ×3], [×3 Fwd]
Sets Threshold level.
(∗) Normal
Auto Threshold Level
Manual Threshold Level
Pedestal Level
–
[Rev CHAPTER SKIP]
[CHAPTER SKIP Fwd]
Sets Threshold level.
According to the setting of Threshold,
the values can be changed within the
range mentioned below.
–
• Normal:
The value is fixed, with no display of
the value.
–
• Auto Threshold Level:
0-8 (Default: 0)
• Manual Threshold Level:
0-8 (Default: 0)
• Pedestal Level:
0-8 (Default: 0)
CLEAR
Initializes the setting of General
Setting mode.
–
Pressing the key resets all settings
of General Setting mode to the
initial values. Settings of Specific
Channel Setting mode are not
affected (they are retained).
ESC
Exits AVIO setting for specific areas,
clearing the OSD.
–
–
[Display in General Setting mode when the channel currently displayed has specific settings]
∗1 : In General Setting mode, if the channel displayed has specific settings, the following will be displayed.
AVIO Specific Area Mode Ver*.**
Input - [tuner ]
Sync AGC
: ON
*
Threshold
: Normal
*
V-Sync Det
: Normal
*
Std Det
: Normal
*
HD Err Det
: Normal
*
This channel is set up
individually.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
100
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.8 AGING MODE
Notes:
Commands from the remote control unit are accepted during Aging mode.
If Aging mode is quit using the ESC key, indications on the FL display will return to normal display.
Cancel timer settings before entering Aging mode.
Set the recording rate beforehand. It cannot be changed during Aging mode.
Aging for the DVD-RW
Aging for the DVD-R
To enter
Aging mode
Press the DVD key to switch to DVD. Install a recordable
DVD-RW disc. After disc detection, press the ESC key then
the REP.B key on the remote control unit for servicing to enter
Aging mode.
Press the DVD key to switch to DVD. Install a recordable
DVD-R disc. After disc detection, press the ESC key then the
REP.B key on the remote control unit for servicing to enter
Aging mode.
To quit
Aging mode
Press the ESC key on the remote control unit for servicing to
quit Aging mode and return to Normal mode. This also results
in the following:
• If during recording: Recording is stopped.
• If during playback: Playback is paused.
• If during initialization: The unit stops after initialization is
finished.
• If the tray is being opened/closed: The unit stops after the
tray is opened/closed.
Press the ESC key on the remote control unit for servicing to
quit Aging mode and return to Normal mode. This also results
in the following:
• If during recording: Recording is stopped.
• If during playback: Playback is paused.
Function
During Aging mode, the following operations are repeated in
the order shown below.
1 The tray opens.
2 The tray closes.
3 Initialization
4 Recording for 60 minutes
5 Playback for 45 minutes
3 Initialization is performed according to the setting specified
in "DVD-RW automatic initialization" (accessed by selecting
"Unit Setting" then "Option").
During Aging, the number of loops is indicated on the FL
display, as shown below.
[AGING 0001]
If an error is generated, the aging operation stops.
Note:
Indications on the FL display are retained, and this
information is also retained as an OSD.
During Aging mode, the following operations are repeated in
the order shown below.
1 The tray opens.
2 The tray closes.
3 Recording for 1 minute
4 Recording pause for 6 minutes
5 Recording stops.
6 Playback for 1 minute
7 Playback pause for 6 minutes
8 Playback stops.
Note:
A continuous test of the above operations is possible for
approximately 23 hours.
After 2 the tray closes, disc detection is performed, and if 99
titles have already been registered, the unit stops there. The
number of loops is retained and indicated on the FL display.
An error indication is retained as an OSD.
During Aging, the number of loops is indicated on the FL
display, as shown below.
[AGING 0001]
If an error is generated, the aging operation stops.
Note:
Indications on the FL display are retained, and this
information is also retained as an OSD.
Note:
Recording time depends on the recording rate set. For
example, if the recording rate is MN32, only up to 60 titles can
be registered. Check the setting for recording rate before
performing aging.
* Be aware that all recorded data are deleted when the aging for the DVD-RW and HDD is executed.
Table 1: Aging for the DVD-RW and DVD-R
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
101
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Aging for the HDD
To enter
Aging mode
Press the HDD key to switch to HDD. Press the ESC key then
the REP.B key on the remote control unit for servicing to enter
Aging mode.
To quit
Aging mode
Press the ESC key on the remote control unit for servicing to
quit Aging mode and return to Normal mode. This also results
in the following:
• If during recording: Recording is stopped.
• If during playback: Playback is paused.
• If during erasure of all memory data from the HDD, the unit
stops after all memory data have been erased.
Function
During Aging mode, the following operations are repeated in
the order shown below.
1 Erasure of all the memory data from the HDD
2 Recording for 60 minutes
3 Playback for 60 minutes
During Aging, the number of loops is indicated on the FL
display, as shown below.
[AGING 0001]
If an error is generated, the aging operation stops.
Note:
Indications on the FL display are retained, and this
information is also retained as an OSD.
Table 2: Aging for the HDD
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
102
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.9 SETUP SEQUENCE
DVD-R/RW Drive
Tuner/FL U-com
System Codec IC (Inital Program Loader)
System Codec IC (Firmware)
Connect power cord.
Tuner/FL microcomputer starts up.
System microcomputer starts up.
Initialization of peripheral-circuit
register, RAM, etc.
Initialization of peripheral-circuit
register, RAM, etc.
Starting communication
with Tuner/FL microcomputer
Clock indication on FL display
Power ON ?
Waiting
for communication to be
established
Is ID check of drive OK?
LSI Check
No
Yes
Power ON, cancellation of reset
OK
NG
NG
NG
Has command arrived?
Yes
No
FLASH Check
Jumping to developed firmware
OK
"POWER ON" displayed
on FL display
"POWER ON" displayed
on FL display
Key-input and channel data
transmitted to the system-control
computer, and responding to
instructions from it,
indication displayed on FL
display and channel switching
performed
Yes
Downloading through
RS232C required.
"MONITOR" displayed
on FL display
LSI NG displayed
on FL display
Drive microcomputer starts up.
ATA/ATAPI command processing
Initialization of peripheral-circuit
register, RAM, etc.
No
"CPRM ERR" displayed on FL display
OK
Firmware stored in Flash memory
is developed in SD-RAM expanding
the compressed data.
Request for power off of
system-control computer made to
Tuner/FL microcomputer
System-control computer is turned off
(entering standby) following request
from Tuner/FL microcomputer
Obtaining LD
temperature data from drive.
Is temperature below
59°C?
No
Repair process
Playback
Is disc in?
Is starting/ID check of
HDD OK?
No
Yes
Is disc valid?
Yes
Repair required?
Yes
Yes
No
No
No
No
Playback requested?
Yes
Stop
Tray Open
"HDD ERR" displayed on FL display
(∗1)
(∗1)
∗1: If both the drive ID check and
starting/ID check of HDD failed,
"CPRM ERR" is first displayed
on FL display.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
103
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.1.10 DISASSEMBLY
1 Remove the bonnet case S by removing the eight screws.
2 Press the STANDBY/ON button to turn on the power.
3 Press the 0 OPEN/CLOSE button to open the tray.
4 Remove the tray panel.
5 Press the 0 OPEN/CLOSE button to close the tray.
6 Press the STANDBY/ON button to turn off the power.
Bonnet Case S and Tray panel
1
1 Unhook the four hooks.
2 Remove the front panel section.
Front panel section
2
3 5
4
1
1
1
2
3
1
2
1
3 5
2 6
Tray panel
Front panel section
Tray
Long thin pole
HDD
Aluminum tape
Binder
HDD stay
Emergency eject hole
Jack door
How to open the tray when the power cannot be on
When the player cannot eject disc tray due to power failure or
any other reasons, open the jack door, and use a long thin pole
and push the emergency eject hole under the tray panel to eject.
Bottom view
1 Remove the four screws.
2 Remove the binder.
3 Remove the aluminum tape.
4 Remove the HDD with HDD stay.
HDD Section
3
Diagnosis of the MAIN Assy
Note 1 : Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures
described here are common.
Note 2 : For performing the diagnosis shown below, the following jig cable for service is required:
• GGD1370 (Flexible cable)
Front side
1
1
1
4
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
104
1
2
3
4
1
2
3
4
C
D
F
A
B
E
1 Remove the some jumper wires from the clamp.
2 Remove the binder.
3 Remove the some jumper wires from the SYPS cover.
4 Remove the six screws.
5 Disconnect the connector.
6 Remove the three tapes.
7 Remove the DRIVE Assy R7.
CN703
DRIVE Assy R7 (DVD-R/RW WRITER)
4
1 Remove the four screws.
2 Disconnect the flexible cable.
3 Stand the MAIN Assy.
MAIN Assy.
MAIN Assy
5
1
2
3
5
6
7
SYPS cover
DRIVE Assy R7
Clamp
CN5102
2
3
DRIVE Assy R7
JCKB Assy
Tape
6 Tape
6 Tape
DVJB Assy
4
1
1
1
1
4
4
4
4
4
Binder
Note : This photograph may show a different model.
However, the method for disassembly is the same.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
105
5
6
7
8
5
6
7
8
C
D
F
A
B
E
1
1
1
1
Connect the jig cable.
2 Insert the insulation sheet between the MAIN Assy and base chassis.
3 Arrange the unit as shown in the photo below.
Caution :
Main IC (IC1001) on the MAIN Assy generate heat to arround 80 degrees.
Be careful when works.
Diagnosis
6
JCKB Assy
Front panel section
Jig cable (GGD1370)
B
POWER SUPPLY Unit
I
FRJB Assy
F
TUNB Assy
A
DVJB Assy
DRIVE Assy R7
HDD
J
ATHB Assy
H
MAIN Assy
C
Diagnosis
2 Insulation sheet
IC1001
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
106
1
2
3
4
1
2
3
4
C
D
F
A
B
E
1 Remove the writer stay L by removing the three screws
with the bonnet angle and the SYPS cover.
4 Remove the bottom cover by removing the four screws.
5 Remove the front bezel by unhooking the two hooks.
6 Remove the one screw.
7 Remove the top cover.
2 Remove the writer stay R by removing the three screws
with the bonnet angle.
3 Remove the four aluminum tapes.
Front side
Front side
Cleaning the pickup lens
SYPS cover
Bonnet angle
Writer stay L
Writer stay R
Bottom cover
Top cover
Bonnet angle
Aluminum tape
Bottom view
Bottom view
1
1
2
3
2
4
4
4
4
6
4
7
Aluminum tape
3
Aluminum tape
3
Aluminum tape
3
Front bezel
Hook
5
Hook
5
5
1
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
107
5
6
7
8
5
6
7
8
C
D
F
A
B
E
8 Remove the four screws.
9 Remove the clamper section.
10 Clean the pickup lens.
Pickup lens
Clamper section
Before shipping out the product, be sure to clean the
following positions by using the prescribed cleaning tools :
Cleaning liquid
: GEM1004
Cleaning paper
: GED-008
8
8
8
8
9
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
108
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.2 IC
PEG034B (JCKB ASSY : IC202)
• TUFL Microcomputer
PEG034B, RS5C372A, LC75342M, LA73033M, AK5357VT, PST3428U, PST3809U, M65672WG-C,
UPD72852AGB-8EU, UPD72893AGD-LML
No.
Pin Name
Signal Name
I/O
Function
Active
1
P95/ANEX0/CLK4
FLCLK
O
FL Driver communication line CLK
−
2
P94/DA1/TB4in
SYNC
I
C-Sync of input video
↑
3
P93/DA0/TB3in
AVLINKIN
I
Input line of NexTViewLink
−
4
P92/TB2in/Sout3
IR
I
Pulse input of remote control
−
5
P91/TB1in/Sin3
J_CLOCK
I
6
P90/TB0in/CLK3
SYNCAFT
I
C-Sync of input video
↑
7
BYTE
BYTE
I
8
CNVss
PGM
I
Communication line
9
P87/XCin
NC
(O)
−
10
P86/XCout
NC
(O)
−
11
-RESET
XRESETIN
I
u-Con Reset
12
Xout
XOUT
I
13
Vss
GND
−
14
Xin
XIN
I
15
Vcc
VCC
−
16
P85/-NMI
NMI
I
↓
17
P84/-INT2
NC
I
18
P83/-INT1
SLICEONFB
I
Feedback from SLICEON pin
↑ ?
19
P82/-INT0
XINTRA
I
Alarm/interval interruption
for HDD Model
for HDD Model
↓
20
P81/TA4in
LED HDD
O
H
21
P80/TA4out
LED DVD
O
↑ ↓
22
P77/TA3in
NC
(O)
−
23
P76/TA3out
FANPWM
O
FAN power control
H
24
P75/TA2in
JOGB
I
Phase VOL input
↑ ↓
25
P74/TA2out
NC
(O)
−
26
P73/-CTS2/-RTS2/TA1in
IICRST
O
27
P72/CLK2/TA1out
AVLINKOUT
O
28
P71/RxD2/SCL/TA0in/TB5in SCL
I/O
I2C communication (clock)
−
29
P70/TxD2/SDA/TA0out
SDA
I/O
I2C communication (data)
−
30
Vss2
GND
−
31
LP2
LP2
O
32
LP3
LP3
O
33
LP4
LP4
O
34
Vdd2
VDD2
−
35
M2
M2
I
Mode switch
36
M1
M1
I
37
P11/SLICEON
SLICEON
O
Slicer operating signal
H?
38
P67/TxD1
TXD
O
Communication line for firmware download/monitor
−
39
P66/RxD1
RXD
I
Communication line for firmware download/monitor
−
40
P65/CLK1
SCLK
(O)
Communication line for firmware download/monitor
−
Pin Function
• The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams.
List of IC
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
109
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
Pin Name
Signal Name
I/O
Function
Active
41
P64/-CTS1/-RTS1/CLKS1
BUSY
O
Communication line for firmware download/monitor
−
42
P63/TxD0
SSTTOM
O
SYS controller communication line (Tuner → Main)
−
43
P62/RxD0
SSMTOT
I
SYS controller communication line (Main → Tuner)
−
44
P61/CLK0
SCK
I
SYS controller communication line (clock)
↑
45
P60/-CTS0/-RTS0
HSTTOM
O
Tuner → SYS handshake
L
46
P57/-RDY/CLKout
DLCONT
O
Voltage supply SW of FLASH-ROM writing
L
47
P56/ALE
WRT
O
Write signal
H
48
P55/-HOLD
SDAEEP
I/O
SDA line for EEPROM
−
49
P54/-HLDA
SCLEEP
O
SCL line for EEPROM
−
50
P53/BCLK
VOLCE
O
Communication line CE
H
51
P52/-RD
VOLDATA
O
Communication line DATA
−
52
P51/-WRH/-BHE
VOLCLK
O
Communication line CLK
−
53
P50/-WRL/-WR
DLCE
I
Signal for serial I/O mode selection
−
54
P47/-CS3
S1
O
55
P46/-CS2
LET
O
Letterbox signal add
H
56
P45/-CS1
SQU
O
Squeeze signal add
−
57
P44/-CS0
BLANK
I
58
P43/A19
XTHROU
O
59
P42/A18
NC
(O)
−
60
P41/A17
NC
(O)
−
61
P40/A16
SWVION
O
Independent source SW for video I/O output circuit
H
62
P37/A15
SWSTBY
O
Standby mode of video input selector
H
63
P36/A14
NC
(O)
64
P35/A13
NC
(I)
65
P34/A12
SCTHRU
O
66
P33/A11
NC
(I)
67
P32/A10
SDET3
I
S terminal detection of Video input 3
L
68
P31/A9
SDET2
I
−
−
S terminal detection of Video input 2
L
69
Vcc
VCC
70
P30/A8
SDET1
I
S terminal detection of Video input 1
L
71
Vss
GND
72
P27/A7
NC
(O)
−
73
P26/A6
NC
(O)
−
74
P25/A5
NC
(O)
−
75
P24/A4
NC
(O)
−
76
P23/A3
P_SAVEBS
O
77
P22/A2
FOMO
O
−
78
P21/A1
M1ONTA
O
−
79
P20/A0
P_CONT
O
System Power ON
H
80
P17/D15/-INT5
NC
(O)
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
110
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
Pin Name
Signal Name
I/O
Function
Active
81
P16/D14/-INT4
HSMTOT
I
SYS → Tuner handshake
↓
82
P15/D13/-INT3
DCTRI
I
83
P14/D12
MUTE
O
MUTE control
H
84
P13/D11
SU/SAPID
I
SAP detection
H
85
P12/D10
ST/STID
I
Stereo detection (STID)
H
86
P11/D9
XRESET
O
System Reset output
L
87
P10/D8
LDASH
O
88
P07/D7
STBYQ
O
89
P06/D6
LM/
O
90
P05/D5
I/BG
O
91
P04/D4
XP_SAVE
O
92
P03/D3
TUON
O
Tuner power
H
93
P02/D2
YCSW
O
94
P01/D1
RSTCTL
O
Reset signal mask from the system controller
L
95
P00/D0
FLPON
O
FL Driver Power ON
H
96
P107/AN7/-KI3
MODEL1
A/D IN Input for destination judgment
−
97
P106/AN6/-KI2
MODEL2
A/D IN Input for destination judgment
−
98
P105/AN5/-KI1
AGC
A/D IN Field intensity detection
−
99
P104/AN4/-KI0
FUNC
A/D IN
100
P103/AN3
KEY2
A/D IN Main unit key input
−
101
P102/AN2
KEY1
A/D IN Main unit key input
−
102
P101/AN1
NC
103
Avss
GND
104
P100/AN0
AFT
A/D IN AFT voltage input
−
105
VREF
VREF
106
AVcc
AVCC
107
P97/-ADTRG/Sin4
FLSTB
O
−
−
−
−
−
−
−
−
I
Communication line strobe of FL driver
L
108
Vdd1
VDD1
109
SYNCIN
SYNCTEXT
I
Video input for sync. sep.
110
SVREF
SLICE
I
Slice level input
111
Vss1
GND
112
Vdd3
VDD3
113
CVIN1
CVIN1
I
Video input for teletext
114
Vss3
GND
115
FSCIN
FSCIN
Fsc input
116
P96/ANEX1/Sout4
FLDATA
O
Communication line data of FL driver
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
111
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Real Time Clock IC
32kHz Output
Control
Address
Decoder
Address
Resister
I/O
Control
OSC
Detect
Driver
Correction
Time Counter
(SEC, MIN, HOUR, WEEK, DAY, MONTH, YEAR)
OSC
OSCIN
DIV
Comparator_B
Comparator_A
Shift Resister
Interrupt Control
Alarm_B Register
(WEEK, MIN, HOUR)
Alarm_A Register
(WEEK, MIN, HOUR)
7
OSCOUT
6
/INTRA
5
SCL
2
VSS
4
VDD
8
SDA
3
/INTRB
1
No.
Pin Name
I/O
Function
1
/INTRB
O
Interruption output B
The output of 32.768kHz (in 32768Hz crystal use), cycled interrupt for CPU, or output alarm interrupt
(ALARM_B). This pin output 32.768kHz when activated power from 0V.
Nch open drain output.
2
SCL
I
Shift clock input
Synchronize with this clock, and input and output data from a SDA terminal.
Exceed VDD, and can input to 6V.
3
SDA
I/O
Serial input and output
Synchronize with SCL, and input and output writing data or readout data.
Exceed VDD, and can input to 6V. Nch open drain output in the output.
4
VSS
−
Ground pin
5
/INTRA
O
Interruption output A
Cycled interrupt for CPU, or output alarm interruption (ALARM_A, ALARM_B).
This pin becomes an OFF state when activated power from 0V. N ch open drain output.
6
OSCOUT
O
Oscillation circuit output
Connect a crystal resonator of 32.768kHz or 32.000kHz between OSCIN and
OSCOUT, and constitute oscillation circuit.
(component parts of oscillation circuit except crystal resonator have it built-in.)
7
OSCIN
I
Oscillation circuit input
8
VDD
−
Positive supply input
RS5C372A (JCKB ASSY : IC203)
Pin Function
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
112
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Electric Volume IC
11
10
L4
LSELO
9
LIN
8
LTRE
7
LBASS1
8
LBASS2
5
4
LOUT
TEST
2
CE
3
VSS
1
DI
30 CL
28 Vref
27 NC
29 VDD
12
L3
13
L2
14
L1
15
NC
20
R4
19
R3
18
R2
17
R1
16
NC
21
RSELO
22
RIN
23
RTRE
24
RBASS1
25
RBASS2
26
ROUT
Control
Circuit
Logic
Circuit
CCB
Interface
LVref
RVref
Control
Circuit
No.
Pin Name
Function
No.
Pin Name
Function
1
DI
Serial data input for control
16
NC
Not connected
2
CE
Chip enable pin
Data are written in the internal latch by a timing
of "H" → "L", and each analog switch works.
Data transfer is enabled by "H" level.
17
R1
Input signal pin
3
VSS
Ground pin
18
R2
4
TEST
Pin for electronic volume test
Set to VSS electric potential.
19
R3
5
LOUT
Volume and equalizer output pin
20
R4
6
LBASS2
Capacitor and resistor connection pins for bus
bandpass filter
21
RSELO
Input selector output pin
7
LBASS1
22
RIN
Volume and equalizer input pin
8
LTRE
Capacitor connection pin for treble bandpass
filter
23
RTRE
Capacitor connection pin for treble bandpass
filter
9
LIN
Volume and equalizer input pin
24
RBASS1
Capacitor and resistor connection pins for bus
bandpass filter
10
LSELO
Input selector output pin
25
RBASS2
11
L4
Input signal pins
26
ROUT
Volume and equalizer output pin
12
L3
27
NC
Not connected
13
L2
28
Vref
0.5XVDD voltage generation block
14
L1
29
VDD
Power supply pin
15
NC
Not connected
30
CL
Clock input pin for control
LC75342M (JCKB ASSY : IC601)
Pin Function
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
113
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Video selector and Video driver
LA73033M (JCKB ASSY : IC701)
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
114
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• 96kHz 24 bit ∆∑ ADC
AINL
AINR
1
∆∑
Modulator
2
AINR
∆∑
Modulator
1
VCOM
DIF
SCLK
SDTO
LRCK
MCLK
Voltage
Reference
Decimation
Filter
Decimation
Filter
Serial I/O
Interface
Clock
Divider
4
14
10
12
9
11
DGND
8
VD
7
AGND
5
VA
6
PDN
13
CKS0
16
CKS1
3
CKS2
15
AINL
2
CKS1
3
VCOM
4
AGND
5
VA
6
VD
7
DGNS
8
16
CKS0
15
CKS2
14
DIF
13
PDN
12
SCLK
11
MCLK
10
LRCK
9
SDTO
No.
Pin Name
I/O
Function
1
AINR
I
R ch analog input
2
AINL
I
L ch analog input
3
CKS1
I
Mode select 1
4
VCOM
O
Common voltage output, bias voltage of VA/2 and ADC input
5
AGND
−
Analog ground
6
VA
−
Analog power supply, 2.7V to 5.5V
7
VD
−
Digital power supply, 2.7 to 5.5V (fs = 4k to 48kHz), 3.0 to 5.5V (fs = 48k to 96kHz)
8
DGND
−
Digital ground
9
SDTO
O
Audio serial data output, outputs "L" in the power down mode.
10
LRCK
I/O
Channel clock I/O, outputs "L" by master mode in the power down mode.
11
MCLK
I
Master clock input
12
SCLK
I/O
Audio serial data clock, outputs "L" by master mode in the power down mode.
13
PDN
I
Power down mode "H": power up, "L": power down
14
DIF
I
Audio interface format, "H" : 24 bit I2S compatibility, "L" : 24 bit MSB justify
15
CKS2
I
Mode select 2
16
CKS0
I
Mode select 0
AK5357VT (MAIN ASSY : IC3101)
Pin Function
Pin Arrangement (Top view)
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
115
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Reset IC
VDD
VOUT
VOUT
1
Vref
2
1
VSS
4
VDD
2
4
VSS
3
NC
No.
Pin Name
Function
1
VOUT
Reset signal output
2
VDD
Power supply / voltage detection
3
NC
Not connected
4
VSS
VSS
PST3428U (MAIN ASSY : IC4003)
Pin Function
Pin Arrangement (Top view)
Block Diagram
VDD
OUT
OUT
1
Vref
2
1
GND
4
VDD
2
4
GND
3
NC
No.
Pin Name
Function
1
OUT
Reset signal output
2
VDD
Power supply / voltage detection
3
NC
Not connected
4
GND
Ground
• Reset IC
PST3809U (MAIN ASSY : IC4005)
Pin Function
Pin Arrangement (Top view)
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
116
1
2
3
4
1
2
3
4
C
D
F
A
B
E
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y AA AB AC AD AE AF AG AH
Buffer Name
Main Function
Remarks
PDIDGZ
Input buffer (5V tolerant)
PDUDGZ
Input buffer (5V tolerant), pull-up
PDDDGZ
Input buffer (5V tolerant), pull-down
PDO04CDG
Output buffer, 4mA
PDO08CDG
Output buffer, 8mA
PDO0204DGZ
Output buffer, 2/4mA
PDO0406DSGZ
Output buffer, 4/6mA
For SDRAM IF
PDO0406DSGZ×2
Output buffer, 8/12mA
For SDRAM IF
PDT0204DGZ
3 state output buffer, 2/4mA
PDB04DGZ
Bidirectional buffer, 4mA
PDB08DGZ
Bidirectional buffer, 8mA
PDB0204DGZ
Bidirectional buffer, 2/4mA
PDB0406DSGZ
Bidirectional buffer, 4/6mA
For SDRAM IF
• Signal Processing IC for DVD Recorder
M65673WG-A (MAIN ASSY : IC1001)
Pin Arrangement (Top view)
I/O buffer list
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
117
5
6
7
8
5
6
7
8
C
D
F
A
B
E
VDD
EDATA[23]
EDATA[22]
EDATA[20]
EDATA[18]
EDATA[16]
EADRS[0]
EBS[0]
ERAS
EDQM
EDATA[6]
EDATA[3]
EDATA[0]
AVDDAD8
BG8
VRB8
AVDDAD8
VRM10
AVDDAD10
PACKETEN
WM2DTO[2]
VDD
WMCLKO
WM1DTO[4]
WM1DTI[1]
WM1DTI[3]
HKEYPLS
VDD
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF
AG
AH
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF
AG
AH
AT1DATA[12]
EDATA[24]
EDATA[25]
EDATA[21]
EDATA[19]
EDATA[17]
EADRS[1]
EBS[1]
ECS
EWE
EDATA[7]
EDATA[4]
EDATA[1]
AVSSAD8
GIN
VRT8
DVSSAD10
CVBSIN
VBGR10
STREAM
WM2DTQ[4]
WM2DTO[6]
WM1DTO[1]
WM1DTO[6]
WM1DTI[4]
PEDCTL
REC656O[1]
REC656O[3]
AT1DATA[8]
AT1DATA[13] AT1DATA[15]
EDATA[26]
EDATA[29]
EDATA[30]
EADRS[2]
EADRS[10]
EADRS[11]
ECAS
EDATA[8]
EDATA[5]
EDATA[2]
DVSSAD8
CRIN
CIN
VRBD10
VRT10
NBC10
SYNC
WM2DTO[3]
WM1DTO[0]
WM1DTO[5]
WM1DTI[2]
WM1DTI[7]
ACCCTL
REC656O[2]
AVDD2DA10
AT1DATA[7]
AT1DATA[6]
AT1DATA[14]
EDATA[27]
EDATA28]
EDATA[31]
EADRS[4]
EADRS[6]
EADRS[8]
ECLKEN
EDATA[9]
EDATA[11]
EDATA[13]
DVDDAD8
AVDDAD8
AVSSAD8
VRB10
AVSSAD10
TSRW
WM2DTO[0]
WM2DTO[7]
WM1DTO[2]
WM1DTI[0]
WM1DTI[6]
AGCCTL
REC656O[5]
YOUT
AVSS2DA10
AT1DATA[2]
AT1DATA[1]
AT1DATA[5]
AT1DATA[10] AT1DATA[14]
EDATA[3]
EADRS[5]
EADRS[7]
EADRS[9]
ECLKO
EDATA[10]
EDATA[12]
EDATA[14]
EDATA[15]
AVSSAD8
DVDDAD10
VRTD10
TSCLK
WM2DTO[1]
WM2DTO[4]
WM1DTO[3]
WM2DTC[1]
WM1DTI[5]
REC656O[0]
COUT
IREF[1]
ROUT
AVDD1DA10
AT1DIOW
AT1DMACK
AT1DATA[0]
AT1DATA[3]
AT1DATA[9]
GND
VDD3
VDD
GND
VDD3
VDD
GND
VDD3
VDD
GND
VDD2
VDD
GND
VDD2
VDD
GND
VDD3
VDD
REC656O[4]
AVDD1DA10
BOUT
DVACK
DVREQ
AT1ADR[1]
AT1INTRQ
AT1DIOR
AT1RESET
AT1DATA4]
VDD3
VDD3
IREF[0]
AVSS1DA10
REC656O[6]
DVVIDEO[0]
DVVIDEO[1]
AT1CS[0]
AT1CS[1]
AT1ADR[0]
AT1IORDY
AT1DMARQ
VDD
VDD
GOUT
REC656O[7]
DVVIDEO[3]
DVVIDEO[4]
PLL2AVSS
AT2DATA[11] AT2DATA[12] AT1DATA[13] AT2DATA[14]
AT1ADR[2]
GND
GND
DVVIDEO[2]
ADMCLKI
PLL2AVDD
DVVCLKI
DVVIDEO[7]
AT2DATA[6]
AT2DATA[7]
AT2DATA[8]
AT2DATA[10] AT2DATA[15]
VDD3
VDD3
R656CLKI
DVVIDEO[5]
REC656I[0]
REC656I[1]
REC656I[2]
AT2DATA[1]
AT2DATA[2]
AT2DATA[4]
AT2DATA[5]
AT2DATA[9]
VDD
VDD
DVVIDEO[6]
REC656I[3]
REC656I[4]
REC656I[6]
REC656I[7]
AT2DIOW
AT2DMARQ
AT2RESET
AT2DATA[0]
AT2DATA[3]
GND
GND
GND
GND
GND
GND
GND
GND
REC656I[5]
PXCLK
DVVCLKO
PLLRST
TRST
AT2ADR[2]
AT2INTRQ
AT2IORDY
AT2DIOR
AT2DMACK
VDD3
GND
GND
GND
GND
GND
GND
VDD3
TCK
TDI
TDO
TMS
PLLON
AT2MODE
AT2CS[0]
AT2CS[1]
AT2ADR[0]
AT2ADR[1]
VDD
GND
GND
GND
GND
GND
GND
VDD
VIPWM
CSYNC
TESTMOD[0] TESTMOD[1] TESTMOD[2]
RESET
VDD
DBI
TRACE
VDD
GND
GND
GND
GND
GND
GND
GND
VDD
TESTMOD[6]
VDD
TESTMOD[5] TESTMOD[4] TESTMOD[3]
PCO
PLL3AVSS
PLL3AVDD
VMCLK
PLL1AVDD
VDD3
GND
GND
GND
GND
GND
GND
VDD3
HADRS[28]
HADRS[29]
HADRS[24]
HADRS[25]
HADRS[26]
PLL1AVSS
ADCCLKO
VDD
DVAMCLKO
DVAMCLKI
VDD
GND
GND
GND
GND
GND
GND
GND
HADRS[27]
HADRS[19]
HADRS[18]
HADRS[23]
HADRS[22]
DACCLKO
AMCLK1
AMCLK2
ARDATA[1]
ARDATA[0]
GND
VDD
HADRS[15]
HADRS[16]
HADRS[17]
HADRS[20]
HADRS[21]
ARDATA[14]
ARDATA[15]
ARDATA[4]
ARDATA[3]
ARDATA[2]
VDD2
VDD3
HDCS[1]
HDCS[0]
HCAS
HRAS
HCLKEN
ARDATA[11]
ARDATA[12]
ARDATA[13]
ARDATA[6]
ARDATA[5]
VDD
GND
HDATA[7]
HDWE
DQMWS[0]
DQMWS[1]
HCLKO
ARDATA[10]
ARDATA[9]
ARWE
ARDQM[0]
ARDATA[7]
GND
VDD
HDATA[6]
HDATA[5]
HDATA[4]
HDATA[8]
HDATA[9]
ARDATA[8]
ARDQM[1]
ARCS[0]
ARRAS
ARCAS
VDD3
VDD3
HADRS[9]
HDATA[2]
HDATA[3]
HDATA11]
HDATA[10]
ARCLKO
ARADRS[12] ARADRS[13] ARADRS[14]
ARCS[1]
VDD
VDD3
GND
VDD
VDD3
VDD
GND
VDD3
VDD
GND
VDD3
VDD
GND
VDD3
VDD
GND
VDD3
VDD
HADRS[10]
HDATA[1]
HDATA[0]
HDATA[12]
HDATA[13]
ARADRS[11]
ARADRS[9]
ARADRS[1]
ARADRS[0]
ARADRS[10]
SPDIFI
ACMOD[0]
BCKO
DVDADT[4]
DVDAADR[0]
SCIDATA[0]
SPIDATAO
DDATA[11]
DDATA[8]
DCLKO
DADRS[9]
DADRS[8]
INT[7]
INT[1]
CTS[2]
RTS[0]
TX[3]
HWAIT
HCS[5]
HADRS[11]
HADRS[12]
HDATA[15]
HDATA[14]
ARADRS[8]
ARADRS[3]
ARADRS[2]
SRCBCKI
SRCDATAO
ACMOD[1]
LRCKO
DVDADT[3]
DVDAREQ
SCIDATA[1]
SPICS
DDATA[14]
DDATA[12]
DDATA[9]
DDQM[1]
DADRS[11]
DADRS[7]
DADRS[6]
INT[6]
INT[2]
CTS[1]
RX[3]
TX[2]
HDACK[0]
VDD
HCS[0]
HADRS[13]
HADRS[14]
ARADRS[7]
ARADRS[6]
SRCLRCKI
SRCLRCKO
DVBCK
ADATAI
DVDADT[5]
DVDADT[1]
DVDAACK
VDD
SPIDATAI
DDATA[15]
DDATA[13]
DDATA[10]
DWE
DCS
DADRS[10]
DADRS[5]
DADRS[4]
INT[3]
SCLK[0]
CTS[0]
RX[2]
TX[1]
HDREQ[0]
HCS[3]
HCS[2]
HADRS[30]
ARADRS[5]
ARADRS[4]
SRCBCKO
SPDIFO
BCKI
DVDADT[7]
DVDADT[6]
DVDADT[0]
SCICS[1]
SCICLK[1]
SPICLK
DDATA[2]
DDATA[3]
DDATA[6]
DDQM[0]
DRAS
DBS[1]
DADRS[1]
DADRS[2]
INT[4]
SCLK[1]
RTS[3]
RTS[2]
RX[1]
HDACK[1]
HOE
HCS[4]
HCS[1]
VDD
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SRCDATAI
DVLRCK
DVADATA
LRCKI
ADATAO
DVDADT[2]
DVDAADR[1]
SCICS[0]
SCICLK[0]
DDATA[0]
DDATA[1]
DDATA[4]
DDATA[5]
DDATA[7]
DCAS
DBS[0]
DADRS[0]
DADRS[3]
INT[5]
INT[0]
CTS[3]
RTS[1]
RX[0]
TX[0]
HDREQ[1]
NC
NC
VDD
VDD3
GND
: 1.2V Power supply
: 3.3V Power supply
: Ground
Pin Name list
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
118
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
1
VDD3
VDD3
−
3.3V I/O power supply
56
V26
VRT10
−
2
GND
GND
−
Ground
57
V28
VRM10
−
3
VDD
VDD
−
1.2V LOGIC power supply
58
U25
VRB10
−
4
AH28
VDD
−
1.2V LOGIC power supply
59
U26
VRBD10
5
AF26
ACCCTL
O
60
U27
DVSSAD10
−
I/O
6
AF27
PEDCTL
O
VIDEO-Analog, Output buffer
61
T24
DVDDAD10
−
7
AG28
HKEYPLS
O
VIDEO-Analog, Output buffer
62
GND
GND
−
Ground
8
GND
GND
−
Ground
63
VDD
VDD
−
1.2V LOGIC power supply
TOP side reference voltage
Common voltage
Bottom side reference voltage
Analog test bus (for debugging)
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
9
AE26
WM1DTI[7]
I/O
WM/VWM, Bidirectional buffer
64
U28
AVDDAD8
−
10
AD25
WM1DTI[6]
I/O
WM/VWM, Bidirectional buffer
65
T25
AVSSAD8
−
11
AC24
WM1DTI[5]
I/O
WM/VWM, Bidirectional buffer
66
T26
CIN
I
12
AE27
WM1DTI[4]
I/O
WM/VWM, Bidirectional buffer
67
T27
VRT8
−
13
AF28
WM1DTI[3]
I/O
WM/VWM, Bidirectional buffer
68
T28
VRB8
−
14
AD26
WM1DTI[2]
I/O
WM/VWM, Bidirectional buffer
69
R25
AVDDAD8
−
15
AE28
WM1DTI[1]
I/O
WM/VWM, Bidirectional buffer
70
R24
AVSSAD8
−
16
AC25
WM1DTI[0]
I/O
WM/VWM, Bidirectional buffer
71
R26
CRIN
I
17
AB24
WM1DTO[7]
I/O
WM/VWM, Bidirectional buffer
72
R28
BG8
−
18
VDD
VDD
−
1.2V LOGIC power supply
73
P28
AVDDAD8
−
19
GND
GND
−
Ground
74
P27
AVSSAD8
−
20
AD27
WM1DTO[6]
I/O
WM/VWM, Bidirectional buffer
75
R27
GIN
I
21
AC26
WM1DTO[5]
I/O
WM/VWM, Bidirectional buffer
76
P26
DVSSAD8
−
22
AD28
WM1DTO[4]
I/O
WM/VWM, Bidirectional buffer
77
P25
DVDDAD8
−
23
AA24
WM1DTO[3]
I/O
WM/VWM, Bidirectional buffer
78
GND
GND
−
Ground
24
AB25
WM1DTO[2]
I/O
WM/VWM, Bidirectional buffer
79
P24
EDATA[15]
I/O
SDRAM ENC, Bidirectional buffer
25
VDD
VDD
−
1.2V LOGIC power supply
80
VDD3
VDD3
−
3.3V I/O power supply
26
AC27
WM1DTO[1]
I/O
WM/VWM, Bidirectional buffer
81
N28
EDATA[0]
I/O
SDRAM ENC, Bidirectional buffer
27
GND
GND
−
Ground
82
N27
EDATA[1]
I/O
SDRAM ENC, Bidirectional buffer
28
AC28
WMCLKO
O
WM/VWM, Output buffer
83
N26
EDATA[2]
I/O
SDRAM ENC, Bidirectional buffer
29
VDD3
VDD3
−
3.3V I/O power supply
84
VDD
VDD
−
1.2V LOGIC power supply
30
AB26
WM1DTO[0]
I/O
WM/VWM, Bidirectional buffer
85
N25
EDATA[13]
I/O
SDRAM ENC, Bidirectional buffer
31
AA25
WM2DTO[7]
O
WM/VWM, Output buffer
86
GND
GND
−
Ground
32
AB27
WM2DTO[6]
O
WM/VWM, Output buffer
87
M28
EDATA[3]
I/O
SDRAM ENC, Bidirectional buffer
33
AB28
VDD
−
1.2V LOGIC power supply
88
GND
GND
−
Ground
34
Y24
WM2DTO[5]
O
WM/VWM, Output buffer
89
N24
EDATA[14]
I/O
SDRAM ENC, Bidirectional buffer
35
AA27
WM2DTO[4]
O
WM/VWM, Output buffer
90
M27
EDATA[4]
I/O
SDRAM ENC, Bidirectional buffer
36
AA26
WM2DTO[3]
O
WM/VWM, Output buffer
91
M26
EDATA[5]
I/O
SDRAM ENC, Bidirectional buffer
37
AA28
WM2DTO[2]
O
WM/VWM, Output buffer
92
VDD3
VDD3
−
3.3V I/O power supply
38
W24
WM2DTO[1]
O
WM/VWM, Output buffer
93
M25
EDATA[11]
I/O
SDRAM ENC, Bidirectional buffer
39
GND
GND
−
Ground
94
L28
EDATA[6]
I/O
SDRAM ENC, Bidirectional buffer
40
Y25
WM2DTO[0]
O
WM/VWM, Output buffer
95
L27
EDATA[7]
I/O
SDRAM ENC, Bidirectional buffer
41
GND
GND
−
Ground
96
VDD
VDD
−
1.2V LOGIC power supply
42
Y26
SYNC
I/O
TS OUT, Bidirectional buffer
97
M24
EDATA[12]
I/O
SDRAM ENC, Bidirectional buffer
43
Y27
STREAM
I/O
TS OUT,Bidirectional buffer
98
GND
GND
−
Ground
44
Y28
PACKETEN
I/O
TS OUT,Bidirectional buffer
99
L26
EDATA[8]
I/O
SDRAM ENC, Bidirectional buffer
45
VDD3
VDD3
−
3.3V IO power supply
ADC part analog power supply (3.3V)
ADC part analog Ground
100
GND
GND
−
Ground
46
W25
TSRW
O
TS OUT,Output buffer
101
L25
EDATA[9]
I/O
SDRAM ENC, Bidirectional buffer
47
GND
GND
−
Ground
102
K28
EDQM
O
SDRAM ENC, Output buffer
48
V24
TSCLK
O
TS OUT,Output buffer
Bias current adjustment terminal
Analog test bus (for debugging)
Analog Input
Input common bias
103
K27
EWE
O
SDRAM ENC, Output buffer
49
VDD3
VDD3
−
3.3V I/O power supply
104
VDD3
VDD3
−
3.3V I/O power supply
50
W26
NBC10
−
105
K26
ECAS
O
SDRAM ENC, Output buffer
51
W27
VBGR10
I/O
106
L24
EDATA[10]
I/O
SDRAM ENC, Bidirectional buffer
52
W28
AVDDAD10
−
107
K25
ECLKEN
O
Output buffer, 4/6mA
53
V25
AVSSAD10
−
108
VDD
VDD
−
1.2V LOGIC power supply
54
V27
CVBSIN
I
109
J28
ERAS
O
SDRAM ENC, Output buffer
55
U24
VRTD10
−
110
GND
GND
−
Ground
Pin Function
ADC part digital power supply (3.3V)
ADC part digital ground
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
119
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
111
J27
ECS
O
SDRAM ENC, Output buffer
166
VDD3
VDD3
−
3.3V I/O power supply
112
GND
GND
−
Ground
167
C25
AT1DATA[11]
I/O
ATAPI-DVD, Bidirectional buffer
113
J26
EADRS[11]
O
SDRAM ENC, Output buffer
168
D24
AT1DATA[10]
I/O
ATAPI-DVD, Bidirectional buffer
114
J25
EADRS[8]
O
SDRAM ENC, Output buffer
169
E23
AT1DATA[9]
I/O
ATAPI-DVD, Bidirectional buffer
115
GND
GND
−
Ground
170
GND
GND
−
Ground
116
K24
ECLKO
O
SDRAM ENC, Output buffer
171
A26
AT1DATA[8]
I/O
ATAPI-DVD, Bidirectional buffer
117
VDD3
VDD3
−
3.3V I/O power supply
172
A25
AT1DATA[7]
I/O
ATAPI-DVD, Bidirectional buffer
118
H28
EBS[0]
O
SDRAM ENC, Output buffer
173
B25
AT1DATA[6]
I/O
ATAPI-DVD, Bidirectional buffer
119
H27
EBS[1]
O
SDRAM ENC, Output buffer
174
GND
GND
−
Ground
120
H26
EADRS[10]
O
SDRAM ENC, Output buffer
175
C24
AT1DATA[5]
I/O
ATAPI-DVD, Bidirectional buffer
121
VDD
VDD
−
1.2V LOGIC power supply
176
VDD3
VDD3
−
3.3V I/O power supply
122
G28
EADRS[0]
O
SDRAM ENC, Output buffer
177
E22
AT1DATA[4]
I/O
ATAPI-DVD, Bidirectional buffer
123
GND
GND
−
Ground
178
VDD
VDD
−
1.2V LOGIC power supply
124
J24
EADRS[9]
O
SDRAM ENC, Output buffer
179
D23
AT1DATA[3]
I/O
ATAPI-DVD, Bidirectional buffer
125
GND
GND
−
Ground
180
A24
AT1DATA[2]
I/O
ATAPI-DVD, Bidirectional buffer
126
G27
EADRS[1]
O
SDRAM ENC, Output buffer
181
B24
AT1DATA[1]
I/O
ATAPI-DVD, Bidirectional buffer
127
H25
EADRS[6]
O
SDRAM ENC, Output buffer
182
GND
GND
−
Ground
128
G26
EADRS[2]
O
SDRAM ENC, Output buffer
183
C23
AT1DATA[0]
I/O
ATAPI-DVD, Bidirectional buffer
129
VDD3
VDD3
−
3.3V I/O power supply
184
D22
AT1RESET
O
Output buffer,8mA
130
F27
EDATA[17]
I/O
SDRAM ENC, Bidirectional buffer
185
E21
AT1DMARQ
I
ATAPI-DVD, Input buffer
131
F28
EDATA[16]
I/O
SDRAM ENC, Bidirectional buffer
186
GND
GND
−
Ground
132
H24
EADRS[7]
O
SDRAM ENC, Output buffer
187
B23
AT1DMACK
O
ATAPI-DVD, Output buffer
133
VDD
VDD
−
1.2V LOGIC power supply
188
VDD3
VDD3
−
3.3V I/O power supply
134
G25
EADRS[4]
O
SDRAM ENC, Output buffer
189
A23
AT1DIOW
O
ATAPI-DVD, Output buffer
135
GND
GND
−
Ground
190
VDD
VDD
−
1.2V LOGIC power supply
136
F26
EDATA[30]
I/O
SDRAM ENC, Bidirectional buffer
191
C22
AT1DIOR
O
ATAPI-DVD, Output buffer
137
GND
GND
−
Ground
192
D21
AT1IORDY
I
ATAPI-DVD, Input buffer
138
E27
EDATA[19]
I/O
SDRAM ENC, Bidirectional buffer
193
B22
AT1INTRQ
I
ATAPI-DVD, Input buffer
139
E28
EDATA[18]
I/O
SDRAM ENC, Bidirectional buffer
194
GND
GND
−
Ground
140
F25
EDATA[31]
I/O
SDRAM ENC, Bidirectional buffer
195
E20
AT1ADR[2]
O
ATAPI-DVD, Output buffer
141
VDD3
VDD3
−
3.3V I/O power supply
196
A22
AT1ADR[1]
O
ATAPI-DVD, Output buffer
142
E26
EDATA[29]
I/O
SDRAM ENC, Bidirectional buffer
197
C21
AT1ADR[0]
O
ATAPI-DVD, Output buffer
143
G24
EADRS[5]
O
SDRAM ENC, Output buffer
198
GND
GND
−
Ground
144
D28
EDATA[20]
I/O
SDRAM ENC, Bidirectional buffer
199
B21
AT1CS[1]
O
ATAPI-DVD, Output buffer
145
VDD
VDD
−
1.2V LOGIC power supply
200
VDD3
VDD3
−
3.3V I/O power supply
146
D27
EDATA[21]
I/O
SDRAM ENC, Bidirectional buffer
201
A21
AT1CS[0]
O
ATAPI-DVD, Output buffer
147
GND
GND
−
Ground
202
VDD
VDD
−
1.2V LOGIC power supply
148
C28
EDATA[22]
I/O
SDRAM ENC, Bidirectional buffer
203
E19
AT2DATA[15]
I/O
ATAPI-HDD, Bidirectional buffer
149
GND
GND
−
Ground
204
D20
AT2DATA[14]
I/O
ATAPI-HDD, Bidirectional buffer
150
F24
EADRS[3]
O
SDRAM ENC, Output buffer
205
C20
AT2DATA[13]
I/O
ATAPI-HDD, Bidirectional buffer
151
E25
EDATA[28]
I/O
SDRAM ENC, Bidirectional buffer
206
GND
GND
−
Ground
152
D26
EDATA[26]
I/O
SDRAM ENC, Bidirectional buffer
207
B20
AT2DATA[12]
I/O
ATAPI-HDD, Bidirectional buffer
153
VDD3
VDD3
−
3.3V I/O power supply
208
A20
AT2DATA[11]
I/O
ATAPI-HDD, Bidirectional buffer
154
B28
EDATA[23]
I/O
SDRAM ENC, Bidirectional buffer
209
D19
AT2DATA[10]
I/O
ATAPI-HDD, Bidirectional buffer
155
C27
EDATA[25]
I/O
SDRAM ENC, Bidirectional buffer
210
GND
GND
−
Ground
156
B27
EDATA24]
I/O
SDRAM ENC, Bidirectional buffer
211
E18
AT2DATA[9]
I/O
ATAPI-HDD, idirectional buffer
157
VDD
VDD
−
1.2V LOGIC power supply
212
VDD3
VDD3
−
3.3V I/O power supply
158
D25
EDATA[27]
I/O
SDRAM ENC, Bidirectional buffer
213
C19
AT2DATA[8]
I/O
ATAPI-HDD, Bidirectional buffer
159
GND
GND
−
Ground
214
VDD
VDD
−
1.2V LOGIC power supply
160
C26
AT1DATA[15]
I/O
ATAPI-DVD, Bidirectional buffer
215
B19
AT2DATA[7]
I/O
ATAPI-HDD, Bidirectional buffer
161
E24
AT1DATA[14]
I/O
ATAPI-DVD, Bidirectional buffer
216
A19
AT2DATA[6]
I/O
ATAPI-HDD, Bidirectional buffer
162
GND
GND
−
Ground
217
D18
AT2DATA[5]
I/O
ATAPI-HDD, Bidirectional buffer
163
A28
VDD
−
1.2V LOGIC power supply
218
GND
GND
−
Ground
164
B26
AT1DATA[13]
I/O
ATAPI-DVD, Bidirectional buffer
219
C18
AT2DATA[4]
I/O
ATAPI-HDD, Bidirectional buffer
165
A27
AT1DATA[12]
I/O
ATAPI-DVD, Bidirectional buffer
220
E17
AT2DATA[3]
I/O
ATAPI-HDD, Bidirectional buffer
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
120
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
221
B18
AT2DATA[2]
I/O
ATAPI-HDD, Bidirectional buffer
276
VDD3
VDD3
−
3.3V I/O power supply
222
GND
GND
−
Ground
277
C11
AMCLK2
I
CLOCK, Input buffer
223
A18
AT2DATA[1]
I/O
ATAPI-HDD, Bidirectional buffer
278
GND
GND
−
Ground
224
VDD3
VDD3
−
3.3V I/O power supply
279
D11
ARDATA[1]
I/O
SDRAM-ATAPI, Bidirectional buffer
225
D17
AT2DATA[0]
I/O
ATAPI-HDD, Bidirectional buffer
280
VDD3
VDD3
−
3.3V I/O power supply
226
VDD
VDD
−
1.2V LOGIC power supply
281
A10
ARDATA[14]
I/O
SDRAM-ATAPI, Bidirectional buffer
227
C17
AT2RESET
I/O
ATAPI-HDD, Bidirectional buffer
282
VDD
VDD
−
1.2V LOGIC power supply
228
B17
AT2DMARQ
I
ATAPI-HDD, Input buffer
283
B10
ARDATA[15]
I/O
SDRAM-ATAPI, Bidirectional buffer
229
E16
AT2DMACK
O
ATAPI-HDD, Output buffer
284
E11
ARDATA[0]
I/O
SDRAM-ATAPI, Bidirectional buffer
230
GND
GND
−
Ground
285
C10
ARDATA[4]
I/O
SDRAM-ATAPI, Bidirectional buffer
231
A17
AT2DIOW
O
ATAPI-HDD, Output buffer
286
GND
GND
−
Ground
232
D16
AT2DIOR
O
ATAPI-HDD, Output buffer
287
D10
ARDATA[3]
I/O
SDRAM-ATAPI, Bidirectional buffer
233
C16
AT2IORDY
I
ATAPI-HDD, Input buffer
288
A9
ARDATA[11]
I/O
SDRAM-ATAPI, Bidirectional buffer
234
GND
GND
−
Ground
289
B9
ARDATA[12]
I/O
SDRAM-ATAPI, Bidirectional buffer
235
B16
AT2INTRQ
I
ATAPI-HDD, Input buffer
290
GND
GND
−
Ground
236
VDD3
VDD3
−
3.3V I/O power supply
291
C9
ARDATA[13]
I/O
SDRAM-ATAPI, Bidirectional buffer
237
A16
AT2ADR[2]
I/O
ATAPI-HDD, Bidirectional buffer
292
E10
ARDATA[2]
I/O
SDRAM-ATAPI, Bidirectional buffer
238
VDD
VDD
−
1.2V LOGIC power supply
293
D9
ARDATA[6]
I/O
SDRAM-ATAPI, Bidirectional buffer
239
E15
AT2ADR[1]
I/O
ATAPI-HDD, Bidirectional buffer
294
VDD3
VDD3
−
3.3V I/O power supply
240
GND
GND
−
Ground
295
A8
ARDATA[10]
I/O
SDRAM-ATAPI, Bidirectional buffer
241
D15
AT2ADR[0]
I/O
ATAPI-HDD, Bidirectional buffer
296
B8
ARDATA[9]
I/O
SDRAM-ATAPI, Bidirectional buffer
242
VDD
VDD
−
1.2V LOGIC power supply
297
C8
ARWE
O
SDRAM-ATAPI, Output buffer
243
C15
AT2CS[1]
O
ATAPI-HDD, Output buffer
298
VDD
VDD
−
1.2V LOGIC power supply
244
GND
GND
−
Ground
299
A7
ARDATA[8]
I/O
SDRAM-ATAPI, Bidirectional buffer
245
B15
AT2CS[0]
O
ATAPI-HDD, Output buffer
300
E9
ARDATA[5]
I/O
SDRAM-ATAPI, Bidirectional buffer
246
VDD
VDD
−
1.2V LOGIC power supply
301
D8
ARDQM[0]
O
SDRAM-ATAPI, Output buffer
247
A15
AT2MODE
I
ATAPI-HDD, Input buffer
302
GND
GND
−
Ground
248
GND
GND
−
Ground
303
B7
ARDQM[1]
O
SDRAM-ATAPI, Output buffer
249
GND
GND
−
Ground
304
C7
ARCS[0]
O
SDRAM-ATAPI, Output buffer
250
A14
RESET
I
Input buffer (5V tolerant)
305
VDD3
VDD3
−
3.3V I/O power supply
251
VDD3
VDD3
−
3.3V I/O power supply
306
A6
ARCLKO
O
SDRAM-ATAPI, Output buffer
252
B14
VDD
−
1.2V LOGIC power supply
307
GND
GND
−
Ground
253
C14
DBI
I
TEST, Input buffer
308
B6
ARADRS[12]
O
SDRAM-ATAPI, Output buffer
254
GND
GND
−
Ground
309
E8
ARDATA[7]
I/O
SDRAM-ATAPI, Bidirectional buffer
255
D14
TRACE
I
TEST, Input buffer
310
D7
ARRAS
O
SDRAM-ATAPI, Output buffer
256
E14
VDD
−
1.2V LOGIC power supply
311
VDD3
VDD3
−
3.3V I/O power supply
257
A13
PCO
O
CLOCK, 3 state output buffer
312
A5
ARADRS[11]
O
SDRAM-ATAPI, Output buffer
258
GND
GND
−
Ground
313
C6
ARADRS[13]
O
SDRAM-ATAPI, Output buffer
259
B13
PLL3AVSS
−
314
B5
ARADRS[9]
O
SDRAM-ATAPI, Output buffer
260
C13
PLL3AVDD
−
315
VDD
VDD
−
1.2V LOGIC power supply
261
D13
VMCLK
I
CLOCK, Input buffer
316
E7
ARCAS
O
SDRAM-ATAPI, Output buffer
262
E13
PLL1AVDD
−
317
D6
ARADRS[14]
O
SDRAM-ATAPI, Output buffer
263
A12
PLL1AVSS
−
318
C5
ARADRS[1]
O
SDRAM-ATAPI, Output buffer
264
VDD3
VDD3
−
3.3V I/O power supply
319
GND
GND
−
Ground
265
B12
ADCCLKO
O
CLOCK, Output buffer
320
B4
ARADRS[3]
O
SDRAM-ATAPI, Output buffer
266
GND
GND
−
Ground
321
A4
ARADRS[8]
O
SDRAM-ATAPI, Output buffer
267
C12
VDD
−
1.2V LOGIC power supply
322
A3
ARADRS[7]
O
SDRAM-ATAPI, Output buffer
268
VDD3
VDD3
−
3.3V I/O power supply
323
GND
GND
−
Ground
269
D12
DVAMCLKO
O
CLOCK, Output buffer
324
E6
ARCS[1]
O
SDRAM-ATAPI, Output buffer
270
GND
GND
−
Ground
325
D5
ARADRS[0]
O
SDRAM-ATAPI, Output buffer
271
A11
DACCLKO
O
CLOCK, Output buffer
326
C4
ARADRS[2]
O
SDRAM-ATAPI, Output buffer
272
VDD3
VDD3
−
3.3V I/O power supply
327
VDD3
VDD3
−
3.3V I/O power supply
273
E12
DVAMCLKI
I
AUDIO CLOCK, Input buffer
328
A2
ARADRS[5]
O
SDRAM-ATAPI, Output buffer
274
GND
GND
−
Ground
329
B3
ARADRS[6]
O
SDRAM-ATAPI, Output buffer
275
B11
AMCLK1
I
CLOCK, Input buffer
330
B2
ARADRS[4]
O
SDRAM-ATAPI, Output buffer
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
121
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
331
GND
GND
−
Ground
386
VDD
VDD
−
1.2V LOGIC power supply
332
E5
ARADRS[10]
O
SDRAM-ATAPI, Output buffer
387
GND
GND
−
Ground
333
D4
SRCBCKI
I
AUDIO, Input buffer
388
L3
SPIDATAI
I/O
HOST, Bidirectional buffer
334
VDD3
VDD3
−
3.3V I/O power supply
389
VDD
VDD
−
1.2V LOGIC power supply
335
C3
SRCLRCKI
I
AUDIO, Input buffer
390
M5
SPIDATAO
I/O
HOST, Bidirectional buffer
336
B1
SRCDATAI
I
AUDIO, Input buffer
391
GND
GND
−
Ground
337
A1
VDD
−
1.2V LOGIC power supply
392
L2
SPICLK
I/O
HOST, Bidirectional buffer
338
GND
GND
−
Ground
393
GND
GND
−
Ground
339
C2
SRCBCKO
O
AUDIO, Output buffer
394
L1
DDATA[0]
I/O
SDRAM-DEC, Bidirectional buffer
340
VDD
VDD
−
1.2V LOGIC power supply
395
VDD3
VDD3
−
3.3V I/O power supply
341
D3
SRCLRCKO
O
AUDIO, Output buffer
396
M4
DDATA[14]
I/O
SDRAM-DEC, Bidirectional buffer
342
E4
SRCDATAO
O
AUDIO, Output buffer
397
M3
DDATA[15]
I/O
SDRAM-DEC, Bidirectional buffer
343
F5
SPDIFI
I
AUDIO, Input buffer
398
M2
DDATA[2]
I/O
SDRAM-DEC, Bidirectional buffer
344
D2
SPDIFO
O
AUDIO, Output buffer
399
VDD
VDD
−
1.2V LOGIC power supply
345
C1
DVLRCK
I/O
AUDIO, Bidirectional buffer
400
N5
DDATA[11]
I/O
SDRAM-DEC, Bidirectional buffer
346
E3
DVBCK
I/O
AUDIO, Bidirectional buffer
401
GND
GND
−
Ground
347
D1
DVADATA
I/O
AUDIO, Bidirectional buffer
402
M1
DDATA[1]
I/O
SDRAM-DEC, Bidirectional buffer
348
F4
ACMOD[1]
I
AUDIO, Input buffer
403
GND
GND
−
Ground
349
G5
ACMOD[0]
I
AUDIO, Input buffer
404
N4
DDATA[12]
I/O
SDRAM-DEC, Bidirectional buffer
350
E1
LRCKI
I
AUDIO, Input buffer
405
N3
DDATA[13]
I/O
SDRAM-DEC, Bidirectional buffer
351
E2
BCKI
I
AUDIO, Input buffer
406
N2
DDATA[3]
I/O
SDRAM-DEC, Bidirectional buffer
352
GND
GND
−
Ground
407
VDD3
VDD3
−
3.3V I/O power supply
353
F3
ADATAI
I
AUDIO, Input buffer
408
N1
DDATA[4]
I/O
SDRAM-DEC, Bidirectional buffer
354
GND
GND
−
Ground
409
P5
DDATA[8]
I/O
SDRAM-DEC, Bidirectional buffer
355
G4
LRCKO
O
AUDIO, Output buffer
410
P4
DDATA[9]
I/O
SDRAM-DEC, Bidirectional buffer
356
VDD
VDD
−
1.2V LOGIC power supply
411
VDD
VDD
−
1.2V LOGIC power supply
357
H5
BCKO
O
AUDIO, Output buffer
412
P3
DDATA[10]
I/O
SDRAM-DEC, Bidirectional buffer
358
F1
ADATAO
O
DVD-AUDIO, Output buffer
413
GND
GND
−
Ground
359
F2
DVDADT[7]
O
DVD-AUDIO, Output buffer
414
P2
DDATA[6]
I/O
SDRAM-DEC, Bidirectional buffer
360
G2
DVDADT[6]
O
DVD-AUDIO, Output buffer
415
GND
GND
−
Ground
361
G3
DVDADT[5]
O
DVD-AUDIO, Output buffer
416
P1
DDATA[5]
I/O
SDRAM-DEC, Bidirectional buffer
362
J5
DVDADT[4]
O
DVD-AUDIO, Output buffer
417
R1
DDATA[7]
I/O
SDRAM-DEC, Bidirectional buffer
363
H4
DVDADT[3]
O
DVD-AUDIO, Output buffer
418
R2
DDQM[0]
O
SDRAM-DEC, Output buffer
364
G1
DVDADT[2]
O
DVD-AUDIO, Output buffer
419
VDD3
VDD3
−
3.3V I/O power supply
365
H3
DVDADT[1]
O
DVD-AUDIO, Output buffer
420
R3
DWE
O
SDRAM-DEC, Output buffer
366
H2
DVDADT[0]
O
DVD-AUDIO, Output buffer
421
VDD
VDD
−
1.2V LOGIC power supply
367
H1
DVDAADR[1]
O
DVD-AUDIO, Output buffer
422
R4
DDQM[1]
O
SDRAM-DEC, Output buffer
368
K5
DVDAADR[0]
O
DVD-AUDIO, Output buffer
423
GND
GND
−
Ground
369
J4
DVDAREQ
I/O
DVD-AUDIO, Bidirectional buffer
424
R5
DCLKO
O
SDRAM-DEC, Output buffer
370
GND
GND
−
Ground
425
VDD3
VDD3
−
3.3V I/O power supply
371
J3
DVDAACK
O
DVD-AUDIO, Output buffer
426
VDD
VDD
−
1.2V LOGIC power supply
372
VDD
VDD
−
1.2V LOGIC power supply
427
T1
DCAS
O
SDRAM-DEC, Output buffer
373
J2
SCICS[1]
I/O
HOST, Bidirectional buffer
428
GND
GND
−
Ground
374
VDD3
VDD3
−
3.3V I/O power supply
429
T2
DRAS
−
SDRAM-DEC, Output buffer
375
J1
SCICS[0]
I/O
HOST, Bidirectional buffer
430
GND
GND
−
Ground
376
VDD
VDD
−
1.2V LOGIC power supply
431
T3
DCS
O
SDRAM-DEC, Output buffer
377
K4
SCIDATA[1]
I/O
HOST, Bidirectional buffer
432
T4
DADRS[11]
O
SDRAM-DEC, Output buffer
378
GND
GND
−
Ground
433
U1
DBS[0]
O
SDRAM-DEC, Output buffer
379
L5
SCIDATA[0]
I/O
HOST, Bidirectional buffer
434
VDD3
VDD3
−
3.3V I/O power supply
380
K3
VDD
−
1.2V LOGIC power supply
435
T5
DADRS[9]
O
SDRAM-DEC, Output buffer
381
K2
SCICLK[1]
I/O
HOST, Bidirectional buffer
436
U2
DBS[1]
O
SDRAM-DEC, Output buffer
382
GND
GND
−
Ground
437
U3
DADRS[10]
O
SDRAM-DEC, Output buffer
383
K1
SCICLK[0]
I/O
HOST, Bidirectional buffer
438
VDD
VDD
−
1.2V LOGIC power supply
384
GND
GND
−
Ground
439
U4
DADRS[7]
O
SDRAM-DEC, Output buffer
385
L4
SPICS
I/O
HOST, Bidirectional buffer
440
GND
GND
−
Ground
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
122
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
441
V1
DADRS[0]
O
SDRAM-DEC, Output buffer
496
VDD
VDD
−
1.2V LOGIC power supply
442
GND
GND
−
Ground
497
AD4
HDACK[0]
O
Output buffer, 4mA
443
V2
DADRS[1]
O
SDRAM-DEC, Output buffer
498
AF1
HDREQ[1]
I
HOST, Input buffer
444
VDD
VDD
−
1.2V LOGIC power supply
499
AE3
HDREQ[0]
I
HOST, Input buffer
445
U5
DADRS[8]
O
SDRAM-DEC, Output buffer
500
AC5
HWAIT
I
HOST, Input buffer
446
GND
GND
−
Ground
501
AF2
HOE
O
HOST, Output buffer
447
V3
DADRS[5]
O
SDRAM-DEC, Output buffer
502
VDD3
VDD3
−
3.3V I/O power supply
448
VDD3
VDD3
−
3.3V I/O power supply
503
GND
GND
−
Ground
449
V4
DADRS[6]
O
SDRAM-DEC, Output buffer
504
AE4
VDD
−
1.2V LOGIC power supply
450
W1
DADRS[3]
O
SDRAM-DEC, Output buffer
505
AD5
HCS[5]
O
HOST, Output buffer
451
W2
DADRS[2]
O
SDRAM-DEC, Output buffer
506
AG2
HCS[4]
O
HOST, Output buffer
452
VDD
VDD
−
1.2V LOGIC power supply
507
AF3
HCS[3]
O
HOST, Output buffer
453
W3
DADRS[4]
O
SDRAM-DEC, Output buffer
508
AG3
HCS[2]
O
HOST, Output buffer
454
GND
GND
−
Ground
509
AH2
HCS[1]
O
HOST, Output buffer
455
GND
GND
−
Ground
510
GND
GND
−
Ground
456
GND
GND
−
Ground
511
AF4
HCS[0]
O
HOST, Output buffer
457
V5
INT[7]
I/O
HOST, Bidirectional buffer
512
VDD
VDD
−
1.2V LOGIC power supply
458
VDD
VDD
−
1.2V LOGIC power supply
513
AD6
HADRS[10]
I/O
HOST, Bidirectional buffer
459
W4
INT[6]
I/O
HOST, Bidirectional buffer
514
GND
GND
−
Ground
460
Y1
INT[5]
I/O
HOST, Bidirectional buffer
515
AE5
HADRS[11]
I/O
HOST, Bidirectional buffer
461
Y2
INT[4]
I/O
HOST, Bidirectional buffer
516
AG4
HADRS[13]
I/O
HOST, Bidirectional buffer
462
VDD3
VDD3
−
3.3V I/O power supply
517
AH3
HADRS[30]
I/O
HOST, Bidirectional buffer
463
Y3
INT[3]
I/O
HOST, Bidirectional buffer
518
VDD3
VDD3
−
3.3V I/O power supply
464
GND
GND
−
Ground
519
AF5
HADRS[12]
I/O
HOST, Bidirectional buffer
465
Y4
INT[2]
I/O
HOST, Bidirectional buffer
520
GND
GND
−
Ground
466
VDD
VDD
−
1.2V LOGIC power supply
521
AH4
HADRS[14]
I/O
HOST, Bidirectional buffer
467
W5
INT[1]
I/O
HOST, Bidirectional buffer
522
AE6
HDATA[1]
I/O
HOST, Bidirectional buffer
468
AA1
INT[0]
I/O
HOST, Bidirectional buffer
523
AD7
HADRS[9]
I/O
HOST, Bidirectional buffer
469
AA2
SCLK[1]
I/O
HOST, Bidirectional buffer
524
VDD3
VDD3
−
3.3V I/O power supply
470
AA3
SCLK[0]
I/O
HOST, Bidirectional buffer
525
AG5
HDATA[15]
I/O
HOST, Bidirectional buffer
471
AB1
CTS[3]
I/O
HOST, Bidirectional buffer
526
GND
GND
−
Ground
472
GND
GND
−
Ground
527
AH5
HDATA[14]
I/O
HOST, Bidirectional buffer
473
Y5
CTS[2]
I/O
HOST, Bidirectional buffer
528
GND
GND
−
Ground
474
GND
GND
−
Ground
529
AF6
HDATA[0]
I/O
HOST, Bidirectional buffer
475
AA4
CTS[1]
I/O
HOST, Bidirectional buffer
530
AD8
HDATA[6]
I/O
HOST, Bidirectional buffer
476
VDD
VDD
−
1.2V LOGIC power supply
531
AE7
HDATA[2]
I/O
HOST, Bidirectional buffer
477
AB3
CTS[0]
I/O
HOST, Bidirectional buffer
532
VDD3
VDD3
−
3.3V I/O power supply
478
AB2
RTS[3]
I/O
HOST, Bidirectional buffer
533
AG6
HDATA[12]
I/O
HOST, Bidirectional buffer
479
AC2
RTS[2]
I/O
HOST, Bidirectional buffer
534
VDD
VDD
−
1.2V LOGIC power supply
480
AC1
RTS[1]
I/O
HOST, Bidirectional buffer
535
AH6
HDATA[13]
I/O
HOST, Bidirectional buffer
481
AA5
RTS[0]
I/O
HOST, Bidirectional buffer
536
AG7
HDATA[11]
I/O
HOST, Bidirectional buffer
482
VDD3
VDD3
−
3.3V I/O power supply
537
AF7
HDATA[3]
I/O
HOST, Bidirectional buffer
483
AB4
RX[3]
I/O
HOST, Bidirectional buffer
538
GND
GND
−
Ground
484
GND
GND
−
Ground
539
AE8
HDATA[5]
I/O
HOST, Bidirectional buffer
485
AC3
RX[2]
I/O
HOST, Bidirectional buffer
540
GND
GND
−
Ground
486
VDD
VDD
−
1.2V LOGIC power supply
541
AD9
HDATA[7]
I/O
HOST, Bidirectional buffer
487
AD2
RX[1]
I/O
HOST, Bidirectional buffer
542
AF8
HDATA[4]
I/O
HOST, Bidirectional buffer
488
AD1
RX[0]
I/O
HOST, Bidirectional buffer
543
AH7
HDATA[10]
I/O
HOST, Bidirectional buffer
489
AB5
TX[3]
I/O
HOST, Bidirectional buffer
544
VDD3
VDD3
−
3.3V I/O power supply
490
AC4
TX[2]
I/O
HOST, Bidirectional buffer
545
AG8
HDATA[8]
I/O
HOST, Bidirectional buffer
491
AD3
TX[1]
I/O
HOST, Bidirectional buffer
546
VDD
VDD
−
1.2V LOGIC power supply
492
GND
GND
−
Ground
547
AH8
HDATA[9]
I/O
HOST, Bidirectional buffer
493
AE1
TX[0]
I/O
HOST, Bidirectional buffer
548
AE9
HDWE
O
HOST, Output buffer
494
GND
GND
−
Ground
549
AF9
DQMWS[0]
O
HOST, Output buffer
495
AE2
HDACK[1]
O
HOST, Output buffer
550
GND
GND
−
Ground
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
123
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
551
AD10
HDCS[1]
O
HOST, Output buffer
606
AG16
TMS
I
TEST, nput buffer
552
GND
GND
−
Ground
607
GND
GND
−
Ground
553
AG9
DQMWS[1]
O
HOST, Output buffer
608
AF16
TDO
O
TEST, Output buffer
554
VDD3
VDD3
−
3.3V I/O power supply
609
VDD
VDD
−
1.2V LOGIC power supply
555
AH9
HCLKO
O
HOST, Output buffer
610
AE16
TDI
I
TEST, Input buffer
556
GND
GND
−
Ground
611
VDD3
VDD3
−
3.3V I/O power supply
557
AE10
HDCS[0]
O
HOST, Output buffer
612
AH17
TRST
I
TEST, Input buffer
558
VDD3
VDD3
−
3.3V I/O power supply
613
GND
GND
−
Ground
559
AD11
HADRS[15]
I/O
HOST, Bidirectional buffer
614
AD16
TCK
I
TEST, Input buffer
560
VDD
VDD
−
1.2V LOGIC power supply
615
VDD3
VDD3
−
3.3V I/O power supply
561
AF10
HCAS
O
HOST, Output buffer
616
AG17
PLLRST
I
CLOCK, Input buffer
562
AG10
HRAS
O
HOST, Output buffer
617
GND
GND
−
Ground
563
AH10
HCLKEN
O
HOST, Output buffer
618
AF17
DVVCLKO
O
CLOCK, Output buffer
564
GND
GND
−
Groud
619
VDD3
VDD3
−
3.3V I/O power supply
565
AE11
HADRS[16]
I/O
HOST, Bidirectional buffer
620
AE17
PXCLK
O
CLOCK, Output buffer
566
GND
GND
−
Ground
621
GND
GND
−
Ground
567
AF11
HADRS[17]
I/O
HOST, Bidirectional buffer
622
AH18
REC656I[7]
I
VIDEO-Digital, Input buffer
568
AD12
HADRS[27]
I/O
HOST, Bidirectional buffer
623
VDD
VDD
−
1.2V LOGIC power supply
569
AG11
HADRS[20]
I/O
HOST, Bidirectional buffer
624
AG18
REC656I[6]
I
VIDEO-Digital, Input buffer
570
VDD3
VDD3
−
3.3V I/O power supply
625
GND
GND
−
Ground
571
AH11
HADRS[21]
I/O
HOST, Bidirectional buffer
626
AD17
REC656I[5]
I
VIDEO-Digital, Input buffer
572
VDD
VDD
−
1.2V LOGIC power supply
627
AF18
REC656I[4]
I
VIDEO-Digital, Input buffer
573
AE12
HADRS[19]
I/O
HOST, Bidirectional buffer
628
AE18
REC656I[3]
I
VIDEO-Digital, Input buffer
574
AF12
HADRS[18]
I/O
HOST, Bidirectional buffer
629
AH19
REC656I[2]
I
VIDEO-Digital, Input buffer
575
AG12
HADRS[23]
I/O
HOST, Bidirectional buffer
630
AG19
REC656I[1]
I
VIDEO-Digital, Input buffer
576
GND
GND
−
Ground
631
AF19
REC656I[0]
I
VIDEO-Digital, Input buffer
577
AD13
HADRS[28]
I/O
HOST, Bidirectional buffer
632
AH20
DVVIDEO[7]
I/O
VIDEO-Digital, Bidirectional buffer
578
VDD
VDD
−
1.2V LOGIC power supply
633
AD18
DVVIDEO[6]
I/O
VIDEO-Digital, Bidirectional buffer
579
AH12
HADRS[22]
I/O
HOST, Bidirectional buffer
634
AE19
DVVIDEO[5]
I/O
VIDEO-Digital, Bidirectional buffer
580
GND
GND
−
Ground
635
VDD3
VDD3
−
3.3V I/O power supply
581
AE13
HADRS[29]
I/O
HOST, Bidirectional buffer
636
AG20
DVVCLKI
I
CLOCK, Input buffer
582
VDD
VDD
−
1.2V LOGIC power supply
637
AF20
PLL2AVDD
−
583
AF13
HADRS[24]
I/O
HOST, Bidirectional buffer
638
AH21
PLL2AVSS
−
584
VDD3
VDD3
−
3.3V I/O power supply
639
AD19
R656CLKI
I
CLOCK, Input buffer
585
AG13
HADRS[25]
I/O
HOST, Bidirectional buffer
640
GND
GND
−
Ground
586
GND
GND
−
Ground
641
AE20
ADMCLKI
I
CLOCKl, Input buffer
587
AH13
HADRS[26]
I/O
HOST, Bidirectional buffer
642
VDD3
VDD3
−
3.3V I/O power supply
588
GND
GND
−
Ground
643
AG21
DVVIDEO[4]
I/O
VIDEO-Digital, Bidirectional buffer
589
GND
GND
−
Ground
644
AF21
DVVIDEO[3]
I/O
VIDEO-Digital, Bidirectional buffer
590
AD14
TESTMOD[6]
I
TEST, Input buffer
645
AD20
DVVIDEO[2]
I/O
VIDEO-Digital, Bidirectional buffer
591
AE14
VDD
−
1.2V LOGIC power supply
646
AH22
DVVIDEO[1]
I/O
VIDEO-Digital, Bidirectional buffer
592
AF14
TESTMOD[5]
I
TEST, Input buffer
647
AG22
DVVIDEO[0]
I/O
VIDEO-Digital, Bidirectional buffer
593
GND
GND
−
Ground
648
AE21
REC656O[7]
O
VIDEO-Digital, Output buffer
594
AG14
TESTMOD[4]
I
TEST, Input buffer
649
AF22
REC656O[6]
O
VIDEO-Digital, Output buffer
595
VDD
VDD
−
1.2V LOGIC power supply
650
VDD
VDD
−
1.2V LOGIC power supply
596
AH14
TESTMOD[3]
I
TEST, Input buffer
651
AH23
DVREQ
I
VIDEO-Digital, Input buffer
597
GND
GND
−
Ground
652
GND
GND
−
Ground
598
AH15
TESTMOD[2]
I
TEST, Input buffer
653
AG23
DVACK
O
VIDEO-Digital, Output buffer
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
599
VDD
VDD
−
1.2V LOGIC power supply
654
GND
GND
−
Ground
600
AG15
TESTMOD[1]
I
TEST, Input buffer
655
AE22
AVSS1DA10
−
601
GND
GND
−
Ground
656
AD21
GOUT
O
602
AF15
TESTMOD[0]
I
TEST, Input buffer
657
AH24
AVDD1DA10
−
603
AE15
CSYNC
I
CLOCK, Input buffer
658
AF23
BOUT
O
604
AD15
VIPWM
O
CLOCK, Output buffer
659
AE23
AVDD1DA10
−
605
AH16
PLLON
I
TEST, Input buffer
660
AG24
ROUT
O
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
124
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
661
AD22
IREF[0]
−
669
AD23
REC656O[4]
O
VIDEO-Digital, Output buffer
662
AF24
IREF[1]
−
670
AH27
REC656O[3]
O
VIDEO-Digital, Output buffer
663
AG25
YOUT
O
671
AG26
REC656O[2]
O
VIDEO-Digital, Output buffer
664
AH25
AVSS2DA10
−
672
AG27
REC656O[1]
O
VIDEO-Digital, Output buffer
665
AE24
COUT
O
673
GND
GND
−
Ground
666
AH26
AVDD2DA10
−
674
AD24
REC656O[0]
O
VIDEO-Digital, Output buffer
VIDEO-Analog
667
GND
GND
−
Ground
675
AE25
AGCCTL
O
668
AF25
REC656O[5]
O
VIDEO-Digital, Output buffer
BALL
Address
Pin Name
BALL
Address
Pin Name
BALL
Address
Pin Name
BALL
Address
Pin Name
AA23
GND
P12
GND
AC11
VDD
AB23
VDD3
AA6
GND
P13
GND
AC14
VDD
AB6
VDD3
AC12
GND
P14
GND
AC6
VDD
AC10
VDD3
AC17
GND
P15
GND
AC8
VDD
AC13
VDD3
AC20
GND
P16
GND
L6
VDD
AC16
VDD3
AC9
GND
P17
GND
AC11
VDD
AC19
VDD3
F11
GND
R12
GND
AC14
VDD
AC22
VDD3
F14
GND
R13
GND
AC6
VDD
AC7
VDD3
F17
GND
R14
GND
AC8
VDD
F10
VDD3
F20
GND
R15
GND
L6
VDD
F13
VDD3
F23
GND
R16
GND
P6
VDD
F16
VDD3
F8
GND
R17
GND
U6
VDD
F19
VDD3
H6
GND
R23
GND
Y6
VDD
F22
VDD3
J23
GND
R6
GND
F12
VDD
F7
VDD3
M12
GND
T12
GND
F6
VDD
G23
VDD3
M13
GND
T13
GND
F9
VDD
G6
VDD3
M14
GND
T14
GND
J6
VDD
K23
VDD3
M15
GND
T15
GND
AC15
VDD
K6
VDD3
M16
GND
T16
GND
AC18
VDD
N23
VDD3
M17
GND
T17
GND
AC21
VDD
N6
VDD3
M23
GND
U12
GND
AC23
VDD
T23
VDD3
M6
GND
U13
GND
F15
VDD
T6
VDD3
N12
GND
U14
GND
F18
VDD
W23
VDD3
N13
GND
U15
GND
F21
VDD
W6
VDD3
N14
GND
U16
GND
H23
VDD
N15
GND
U17
GND
L23
VDD
N16
GND
V23
GND
P23
VDD
N17
GND
V6
GND
U23
VDD
Y23
VDD
Others
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
125
5
6
7
8
5
6
7
8
C
D
F
A
B
E
UPD72852AGB-8EU (MAIN ASSY : IC5101)
• IEEE1394 Physical IC
Pin Arrangement
DGND
1
SCLK
2
IC (DL)
3
DVDD
4
CTL0
5
CTL1
6
DGND
7
D0
8
D1
9
DVDD
10
D2
11
D3
12
DGND
13
D4
14
D5
15
DGND
16
D6
17
D7
18
SUS/RES
19
DVDD
20
DGND
21
XO
22
XI
23
AGND
24
AVDD
25
PC0
26
PC1
27
PC2
28
IC (AL)
29
CMC
30
AVDD
31
CPS
32
48
TpBias1
47
AVDD
46
TpA1p
45
TpA1n
44
TpB1p
43
TpB1n
42
AGND
41
TpBias0
40
AVDD
39
TpA0p
38
TpA0n
37
TpB0p
36
TpB0n
35
AGND
34
RI1
33
AGND
64
DGND
63
LREQ
62
FNSel
61
SPD/BDB
60
DVDD
59
LPS
58
LKON
57
DGND
56
DVDD
55
RESETB
54
AVDD
53
AGND
52
AGND
51
IC (AL)
50
DIRECT
49
AGND
Block Diagram
30
39
38
CMC
TpA0p
TpA0n
26
PC0
27
PC1
28
PC2
19
SUS/RES
63
LREQ
59
LPS
50
DIRECT
2
SCLK
58
32
LKON
Link
Interface
I/O
5
CTL0
6
CTL1
8
D0
9
D1
11
D2
12
D3
14
D4
15
D5
17
D6
18
D7
CPS
55
RESETB
Arbitration
and
Control State
Machine
Logic
Cable
Port 0
Receive Data
Decoder
and
Retimer
Voltage
and
Current
Generator
Crystal Oscillator
PLL System
and
Transmit Clock
Generator
Transmit Data
Encoder
Cable
Power
Status
37
36
TpB0p
TpB0n
46
45
TpA1p
TpA1n
Cable
Port 1
44
43
TpB1p
TpB1n
41 TpBias0
48 TpBias1
34 RI1
23 XI
22 XO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
126
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Pin Function
• Cable Interface Pins
• Link Interface Pins
No.
Pin Name
I/O
Function
39
TpA0p
I/O
Port 0 twisted pair cable A positive phase I/O
38
TpA0n
I/O
Port 0 twisted pair cable A negative phase I/O
37
TpB0p
I/O
Port 0 twisted pair cable B positive phase I/O
36
TpB0n
I/O
Port 0 twisted pair cable B negative phase I/O
46
TpA1p
I/O
Port 1 twisted pair cable A positive phase I/O
45
TpA1n
I/O
Port 1 twisted pair cable A negative phase I/O
44
TpB1p
I/O
Port 1 twisted pair cable B positive phase I/O
43
TpB1n
I/O
Port 1 twisted pair cable B negative phase I/O
19
SUS/RES
I
Suspend/Resume function select
1 : Suspend/Resume on (IEEE1394a-2000 compliant)
0 : Suspend/Resume off (P1394a draft 1.3 compliant)
32
CPS
I
Cable power status
Connect to the cable through a 390 kΩ resistor and to the GND through a 100 kΩ resistor.
0 : Cable power fail
1 : Cable power on
No.
Pin Name
I/O
Function
8
D0
I/O
Data input/output (bit 0)
9
D1
I/O
Data input/output (bit 1)
11
D2
I/O
Data input/output (bit 2)
12
D3
I/O
Data input/output (bit 3)
14
D4
I/O
Data input/output (bit 4)
15
D5
I/O
Data input/output (bit 5)
17
D6
I/O
Data input/output (bit 6)
18
D7
I/O
Data input/output (bit 7)
5
CTL0
I/O
Link interface control (bit 0)
6
CTL1
I/O
Link interface control (bit 1)
63
LREQ
I
Link request input
2
SCLK
O
Link control output clock
LPS 1 : 49.152 MHz output
LPS 0 : Clamp to 0 (The clock signal will be output within 25 µsec after change to "0")
59
LPS
I
Link power status input
0 : Link power off
1 : Link power on (PHY/Link direct connection)
58
LKON
O
Link-on signal output
Link-on signal is 6.1444 MHz clock output.
50
DIRECT
I
PHY/Link isolation barrier control input
0 : Isolation barrier
1 : PHY/Link direct connection
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
127
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Control Pins
• IC
No.
Pin Name
I/O
Function
26
PC0
I
Power class set input
This pin status will be loaded to Pwr_class bit which allocated to PHY register 4H.
IEEE1394a-2000 chapter [4.3.4.1]
27
PC1
I
28
PC2
I
30
CMC
I
Configuration manager capable setting
This pin status will be loaded to Contender bit which allocated to PHY register 4H.
0 : Non contender
1 : Contender
55
RESETB
I
Power on reset input
Connect to GND through a 0.1 µF capacitor.
0 : Reset
1 : Normal
61
SPD/BDB
I
FNSel = 0
Speed select (UPD72852GB)
0 : MAX. S200
1 : MAX. S400
O
FNSel = 1
BIAS Detected output (Logical Inverse)
0 : BIAS is coming from some port.
1 : BIAS is not coming from any port.
No.
Pin Name
I/O
Function
29, 51 IC (AL)
−
Internally Connected (Low Clamped)
Connected to GND.
3
IC (DL)
−
Internally Connected (Low Clamped)
Connected to GND.
• Power Supply Pins
No.
Pin Name
I/O
Function
25, 31, 40, 47, 54
AVDD
−
Analog power
24, 33, 35, 42, 49, 52, 53
AGND
−
Analog GND
4, 10, 20, 56, 60
DVDD
−
Digital VDD
1, 7, 13, 16, 21, 57, 64
DGND
−
Digital GND
• Other Pins
No.
Pin Name
I/O
Function
41
TpBias0
O
Port 0 twisted pair output
48
TpBias1
O
Port 1 twisted pair output
34
RI1
−
Resistor connection pin 1 for reference current generator
Please connect to GND pin through the 9.1 kΩ resistor.
23
XI
−
Crystal oscillator connection XI
22
XO
−
Crystal oscillator connection XO
62
FNSel
I
Function Select
0 : #61 acts as SPD (UPD72852GB compliant)
1 : #61 acts as BDB
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
128
1
2
3
4
1
2
3
4
C
D
F
A
B
E
UPD72893BGD-LML (MAIN ASSY : IC5202)
• IEEE1394 Link IC
Pin Arrangement
RESETB
1
PHY_D7
2
PHY_D6
3
PHY_D5
4
3.3VDD
5
PHY_D4
6
PHY_D3
7
PHY_D2
8
3.3GND
9
PHY_D1
10
PHY_D0
11
CTL1
12
CTL0
13
2.5VDD
14
SCLK
15
LREQ
16
LPS
17
LINKON
18
STREAM10
19
STREAM11
20
STREAM12
21
STREAM13
22
STREAM14
23
STREAM15
24
STREAM16
25
STREAM17
26
PACKETEN1
27
TSERROR1
28
TSRW1
29
SYNC1
30
3.3VDD
31
TSSUB1
32
PACKETEN2/VSYNC
33
TSERROR2/HSYNC
34
3.3GND
35
TSRW2/FLD
36
SYNC2
37
TSSUB2
38
2.5GND
39
STREAM20/VD0
40
STREAM21/VD1
41
STREAM22/VD2
42
STREAM23/VD3
43
STREAM24/VD4
44
STREAM25/VD5
45
STREAM26/VD6
46
STREAM27/VD7
47
AFS1
48
AFS2
49
VCLKI
50
VCLKO
51
3.3VDD
52
VPWM
53
MD0
54
MD1
55
3.3GND
56
MD2
57
MD3
58
MD4
59
MD5
60
MD6
61
MD7
62
3.3VDD
63
MD8
64
MD9
65
MD10
66
2.5VDD
67
3.3GND
68
MD11
69
MD12
70
MD13
71
MD14
72
MD15
73
MWE
74
MCAS
75
MRAS
76
MCLK
77
3.3VDD
78
MA0
79
MA1
80
MA2
81
3.3GND
82
MA3
83
MA4
84
MA5
85
MA6
86
MA7
87
MA8
88
MA9
89
MA10
90
2.5GND
91
MA11
92
ALRCK
93
ABCK
94
3.3VDD
95
PCM1
96
PCM2
97
AEMP1
98
3.3GND
99
IC (O)
100
AMCLKO
101
APWM
102
AMCLK44
103
AMCLK48
104
A1
156
BR_MON
155
IC (PL)
154
DV_INT
153
IC (PL)
152
SCS
151
RXD
150
TXD
149
3.3GND
148
SCK
147
SI
146
SO
145
2.5GND
144
P_D15
143
P_D14
142
P_D13
141
3.3VDD
140
P_D12
139
P_D11
138
P_D10
137
P_D9
136
P_D8
135
P_D7
134
P_D6
133
P_D5
132
3.3GND
131
P_D4
130
P_D3
129
P_D2
128
3.3VDD
127
P_D1
126
P_D0
125
INT
124
IOCHRDY
123
IC (O)
122
IC (H)
121
IOR
120
RWZ
119
2.5VDD
118
CS
117
AD10
116
AD9
115
AD8
114
AD7
113
AD6
112
AD5
111
AD4
110
AD3
109
AD2
108
AD1
107
PSSEL1
106
PSSEL0
105
IFIROME
208
IC (L)
207
IC (L)
206
IC (L)
205
IC (PL)
204
IC (L)
203
HS_CLK
202
PLLDGND
201
PLLAGND
200
PLLAVDD
199
PLLDVDD
198
IC (L)
197
D15
196
2.5GND
195
D14
194
D13
193
D12
192
D11
191
D10
190
D9
189
3.3GND
188
3.3VDD
187
D8
186
D7
185
D6
184
D5
183
D4
182
D3
181
D2
180
D1
179
D0
178
WRZ
177
RDZ
176
A17
175
A16
174
3.3GND
173
A15
172
A14
171
2.5VDD
170
A13
169
A12
168
A11
167
3.3VDD
166
A10
165
A9
164
A8
163
A7
162
A6
161
A5
160
A4
159
A3
158
A2
157
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
129
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Block Diagram
149
1
76
TXD
150
RXD
Host
Interface
RESETB
202
HS_CLK
208
IFIROME
PHY_D [7 : 0]
CTL [1 : 0]
15
SCLK
16
LREQ
17
LPS
18
LINKON
STREAM [7 : 0]
TSRW
PACKETEN
SYNC
TSSUB
VD [7 : 0]
VSYNC
HSYNC
FLD
117
CS
119
RWZ
120
IOR
123
IOCHRDY
AD [10 : 1]
116-107
106, 105
47-40
12, 13
143-141, 139-132,
130-128, 126, 125
2-4, 6-8,
10, 11
P_D [15 : 0]
175, 174, 172, 171,
169-167, 165-156
196, 194-189,
186-178
A [17 : 0]
D [15 : 0]
92, 90-83,
81-79
MA [11 : 0]
73-69, 66-64,
62-57, 55, 54
MD [15 : 0]
RDZ
124
INT
PSSEL [1 : 0]
System
Control
Test
Block
Host
Inteface
IEEE1394 Link Core
DV Codec Core
External
Flash ROM
Interface
SDRAM
Interface
Audio
Interface
Parallel Interface
Stream
Interface
16-bit Timer
Unit D
CPU Core
High-speed
Internal ROM
192 kbytes
151
SCS
147
SCK
145
SO
146
176
WRZ
177
104
103
102
101
SI
MRAS
EEPROM
Interface
High-speed
Internal ROM
60 kbytes
Memory
Controller
INTC
77 MCLK
75 MCAS
74 MWE
AMCLK44
AMCLK48
APWM
AMCLKO
97 PCM2
96 PCM1
98 AEMP1
93 ALRCK
94 ABCK
36 TSRW2 / FLD
33 PACKETEN2 / VSYNC
37 SYNC2
34 TSERROR2 / HSYNC
38 TSSUB2
29 TSRW1
27 PACKETEN1
30 SYNC1
28 TSERROR1
32 TSSUB1
50 VCLKI
51 VCLKO
STREAM2 [7 : 0] / VD [7 : 0]
26-19
STREAM1 [7 : 0]
53 VPWM
Selector
Selector
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
130
1
2
3
4
1
2
3
4
C
D
F
A
B
E
(1) Link relation
No.
Pin Name
I/O
Function
Active
18
LINKON
I
Link-on signal input
Clock input
When LPS is active, input 0.
−
17
LPS
O
Link power status output
Link power OFF : 0
Link power ON : 2.7 MHz pulse output (20 dividing of host clock 54 MHz)
−
16
LREQ
O
Link request output
−
15
SCLK
I
Clock input for Link control
LPS is active : 49.152 MHz input
LPS = 0 0 : fixed
−
12, 13
CTL [1 : 0]
I/O
PHY/Link control signal input/output
−
2-4, 6-8, 10,11 PHY_D [7 : 0]
I/O
Data input/output between PHY-Link
−
26-19
STREAM1 [7 : 0]
I/O
ISO data bus of stream interface 1
−
27
PACKETEN1
I/O
Packet enable signal input/output of stream interface 1
H/L
28
TSERROR1
I/O
Packet error signal input/output of stream interface 1
H/L
29
TSRW1
I/O
Data read/write enable signal input/output of stream interface 1
−
30
SYNC1
I/O
Frame synchronous signal input/output of stream interface 1
H/L
32
TSSUB1
I/O
Not used Connect to VDD or GND through a resistor.
H/L
47-40
STREAM2 [7 : 0]
I/O
ISO data bus of stream interface 2
−
33
PACKETEN2
I/O
Packet enable signal input/output of stream interface 2
H/L
34
TSERROR2
I/O
Packet error signal input/output of stream interface 2
H/L
36
TSRW2
I/O
Data read/write enable signal input/output of stream interface 2
−
37
SYNC2
I/O
Frame synchronous signal input/output of stream interface 2
H/L
38
TSSUB2
O
Not used Set to open.
−
(2) Video interface pins
No.
Pin Name
I/O
Function
Active
50
VCLKI
I
Video clock input (27 MHz)
−
51
VCLKO
O
Video clock output (27 MHz)
−
47-40
VD [7 : 0]
I/O
Video data signal
−
33
VSYNC
I/O
Video vertical sync. signal
L
34
HSYNC
I/O
Video horizontal sync. signal
L
36
FLD
I/O
Field index signal
−
53
VPWM
O
PWM signal for video PLL
−
Pin Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
131
5
6
7
8
5
6
7
8
C
D
F
A
B
E
(3) Audio interface pins
No.
Pin Name
I/O
Function
Active
104
AMCLK48
I
Audio master clock input for sampling frequency 48 kHz
−
103
AMCLK44
I
Audio master clock input for sampling frequency 44 kHz
−
101
AMCLKO
O
Audio master clock output
−
96
PCM1
I/O
Audio PCM serial data
At 2ch : System 1 (data of audio block 1)
At 4ch : System 1
The above is default setting value. Input/output data of PCM 1 and PCM 2 is replaced
by Channel swap setting of an AUDIO_FUNC register.
−
97
PCM2
I/O
Audio PCM serial data
At 2ch : Mute
At 4ch : System 2 (data of audio block 2)
The above is default setting value. Input/output data of PCM 1 and PCM 2 is replaced
by Channel swap setting of an AUDIO_FUNC register.
Note: Cannot use it in DV decode.
−
98
AEMP1
O
PCM1 emphasis ON/OFF in PCM 1 output
H
93
ALRCK
I/O
Audio LR clock
L ch : High
R ch : Low
−
94
ABCK
I/O
Audio bit clock
−
49, 48
AFS [2 : 1]
O
Audio sampling frequency
AFS2
AFS1
44.1 kHz
0
1
48 kHz
0
0
32 kHz
1
0
−
102
APWM
O
PWM signal for audio PLL
−
(4) SDRAM interface pins
No.
Pin Name
I/O
Function
Active
77
MCLK
O
CLK pin connection of SDRAM
−
76
MRAS
O
RAS pin connection of SDRAM
−
75
MCAS
O
CAS pin connection of SDRAM
−
74
MWE
O
WE pin connection of SDRAM
−
92, 90-83,
81-79
MA [ 11 : 0]
O
Address pin connection of SDRAM
−
73-69, 66-64,
62-57, 55, 54
MD [ 15 : 0]
I/O
Data pin connection of SDRAM
Note: Process of pull-up or pull down is necessary.
So connect it to SDRAM directly.
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
132
1
2
3
4
1
2
3
4
C
D
F
A
B
E
(a) Parallel interface pins
(5) Host interface pins
No.
Pin Name
I/O
Function
Active
117
CS
I
Chip select input of parallel interface
L
119
RWZ
I
Read and write control input of parallel interface
ISA type bus, SH-1 bus: Write strobe
68000 bus : Read/write selection signal
L
120
IOR
I
IO read control input of parallel interface
ISA type bus, SH-1 bus : Read strobe
68000 bus : Data strobe (DS)
L
123
IOCHRDY
O
Ready output of parallel interface
L
116-107
AD [ 10 : 1]
I
Address input of parallel interface
−
143-141, 139-132,
130-128, 126, 125 P_D [15 : 0]
I/O
Data input/output of parallel interface
−
(b) Serial interface pins
No.
Pin Name
I/O
Function
Active
149
TXD
I/O
Serial transmission data output of unsynchronous serial interface (UART)
−
150
RXD
I/O
Serial transmission data input of unsynchronous serial interface (UART)
−
(c) Others
No.
Pin Name
I/O
Function
Active
124
INT
O
Interrupt output to the outside
H
106, 105
PSSEL [1 : 0]
I
Parallel/serial interface selection
Input signal to select the outside interface which of parallel interface or serial interface.
PSSEL [1 : 0]
Select
00
Serial interface (UART)
01
Parallel interface (ISA type bus)
10
Parallel interface (68000 bus)
11
Parallel interface (SH-1 bus)
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
133
5
6
7
8
5
6
7
8
C
D
F
A
B
E
(a) Flash ROM interface pins
(6) External ROM connection pins
No.
Pin Name
I/O
Function
Active
196, 194-189,
186-178
D [15 : 0]
I/O
External ROM data bus
Data bus in the external ROM access.
Process of pull-up or pull down is necessary.
−
175, 174, 172,
171, 169-167,
165-156
A [17 : 1]
O
External ROM address bus
Address bus in the external ROM access.
Can addressing the 256k byte space.
−
176
RDZ
O
ROM read
Strobe signal which shows a read cycle for external ROM.
It becomes the inactive in the idle state.
L
177
WRZ
O
ROM write
Strobe signal which shows a write cycle for external ROM.
L
(b) EEPROM interface pins
No.
Pin Name
I/O
Function
Active
145
SO
I/O
Serial transmit data output of clock-synchronous system serial interface (CSI)
−
146
SI
I/O
Serial receive data input of clock-synchronous system serial interface (CSI)
−
147
SCK
I/O
Clock output of clock-synchronous system serial interface (CSI)
−
151
SCS
I/O
Chip select output of clock-synchronous system serial interface (CSI)
−
(7) Clock and reset pins
No.
Pin Name
I/O
Function
Active
1
RESETB
I
Reset
RESETB input is asynchronous input. When a signal of fixed low-level width is input
without relation to an operation clock, take precedence of all operation, and reset the
system. Note: RESETB is low-active.
L
202
HS_CLK
I
Host clock
Clock input pin which is supplied to CPU core and built-in peripheral I/O.
Please input 27 MHz clock. Perform 2 multiply with internal PLL by 27 MHz clock, 54
MHz clock is supplied to CPU core and internal peripheral I/O.
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
134
1
2
3
4
1
2
3
4
C
D
F
A
B
E
(8) Power supply and ground pins
No.
Pin Name
I/O
Function
Active
5, 31, 52, 63,
78, 95, 127,
140, 166, 187
3.3VDD
−
3.3V power supply
3.3V positive power supply pins. Power supply for 3.3V interface I/O.
−
14, 67,
118, 170
2.5VDD
−
2.5V power supply
2.5V positive power supply pins. Power supply for internal each block.
−
39, 91,
144, 195
2.5GND
−
Ground pins
Connect all GND pins to the common ground.
−
9, 35, 56, 68,
82, 99, 131,
148, 173, 188
3.3GND
−
199
PLLAVDD
−
Analog power supply for multiply circuit
Analog positive power supply pin for PLL. Supply 2.5V.
−
200
PLLAGND
−
Analog ground for multiply circuit
Analog ground for PLL
−
198
PLLDVDD
−
Digital power supply for multiply circuit
Digital positive power supply pin for PLL. Supply 2.5V.
−
201
PLLDGND
−
Digital ground for multiply circuit
Digital ground for PLL
−
121
IC (H)
−
Internally connected pin
Connect to VDD directly.
−
197, 203,
205-207
IC (L)
−
Internally connected pin
Connect to ground directly.
−
152, 154, 204
IC (PL)
−
Internally connected pin
Connect to ground through a resistor.
−
100, 122
IC (O)
−
Internally connected pin
Set to open.
−
(9) Others
No.
Pin Name
I/O
Function
Active
153
DV_INT
I/O
Interrupt pin to the outside for the DV status read out.
H
155
BR_MON
I/O
Shows the bus reset occurred. There is some delay after real bus reset occurred
because of set by the built-in firmware.
H
208
IFIROME
I
ROM operation selection input
Set to 1 normally.
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
135
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.3 OUTLINE OF THE PRODUCT
Main newly developed technologies
1. Pickup
The pickup supports quadruple-speed recording for the DVD-
R/RW.
A liquid-crystal tilt servo system is adopted for the pickup.
2. Recording-signal-processing LSI
• UPD3330GC (DRIVE Assy: IC101)
The recording-signal-processing module of conventional models
consists of two chips, but this has been integrated into a
single newly developed recording-signal-processing LSI, enabling
stable performance and cost reduction.
3. AV-signal-processing LSI
• M65673WG (MAIN Assy: IC1001)
The AV-signal-processing module of conventional models
consists
of eleven chips, but this has been integrated into a single
newly developed AV-signal-processing LSI, enabling large-scale
cost reduction while maintaining the conventional functions. In
the new LSI, all the basic functions necessary for a DVD
recorder have been integrated. Like conventional models, this
model is designed to support multitasking. The main functions
are as follows:
• 3-D Y/C separation
• Video decoding
• Frame TBC
• MPEG video encoding
• Dolby Digital Consumer Encoding
• ATA/ATAPI I/F (2 ch)
• Main CPU (32-bit RISC, 54 MHz)
• Graphics engine (OSD, scaling, mixing)
• MPEG video decoding
• Audio decoding (AC-3, MPEG)
• Video encoding
• Progressive conversion
• Audio I/F
• 3-D DNR for playback
4. DV-signal-processing LSI
The DV-signal-processing LSI consists of the following two
chips:
• UPD72852AGB-8EU (MAIN Assy: IC5101)
A 400-Mbps two-port PHY LSI in compliance with the
IEEE1394a-2000 standards
• UPD72893BGD-LML (MAIN Assy: IC5202)
An EEE1394 link controller LSI having DV (digital video)
encoding/decoding functions. Encoding/decoding of digital video
signals in compliance with the SD specifications (NTSC/PAL) of
the DV standard is supported. The 32-bit RISC CPU is built in
for controlling the IEEE1394 bus and sending/receiving AV/C
commands.
Fig.1 MAIN Assy
IC1001
(SIDE B)
IC5202
(Side A)
IC5101
(Side A)
SIDE B
MAIN ASSY
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
136
1
2
3
4
1
2
3
4
C
D
F
A
B
E
System configuration
In each signal-processing LSI of the main function blocks,
various processes have been integrated into one chip, which
enables simpler system configuration. With the AV-signal-
processing LSI at the center, video inputs/outputs, audio
inputs/outputs, DV inputs/outputs, writer and various
memory cells are connected to it.
Fig2. System configuration
1394 (DV)
CVBS/YC/YCbCr
Analog Audio
DIF
Playback
Record
Tuner / Line
Select
IC202
Tuner / FL
Control
CPU
IC1001
AV Signal
Processing
LSI
Drive Assy
(DVD-R/RW)
IC5101
1394 Phy
IC1102
Flash
IC1101, IC1201, IC1301
IC1401 SDRAM
IC5202
1394 Link /
DV Codec
FL
IC1103
SRAM
Video : IC701 LA73033
Audio : IC601 LC75342M
IC3101
Audio A/D
AK5357VT
IC3201
Audio D/A
PCM1742KE
UPD72893BGD-LML
UPD72852AGB-8EU
[Memorized Data]
• EEPROM (IC204 JCKB ASSY)
The information about Tuner is backed up.
(Pre-set CH, AFT ON/OFF, Skip CH, etc)
Information about timed recording
Other information
(The state of Volume, remote control mode and
last positions (Line/Tuner, etc)
• CPU SDRAM (IC1101 MAIN ASSY)
The execution area and working area of a program
• FLASH ROM (IC1102 MAIN ASSY)
The storing area of a program code and setting information
• SRAM (IC1103 MAIN ASSY)
The working area for record and the storing area of setting
information (backup RAM)
• DEC SDRAM (IC1201 MAIN ASSY)
The working area of MPEG playback and OSD/Thumbnail
(OSD is mainly for Disc Menu creation in Video mode)
• ENC SDRAM (IC1301 MAIN ASSY)
The working area of MPEG recording and analog input and output (AVIO)
• ATA SDRAM (IC1401 MAIN ASSY)
The working area of ATA/OSD2/Audio TBC (OSD2 is for all GUI.)
• ATA SDRAM (IC1421 MAIN ASSY)
This is only for HDD model.
The working area about HDD operation.
• DV SDRAM (IC5204 MAIN ASSY)
The working area of Link and DV Codec
IC3301
SRC
Playback
Record
HDD
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
137
5
6
7
8
5
6
7
8
C
D
F
A
B
E
New functions and specifications
In this model, the following new functions and specifications
have been included in addition to those of conventional models:
1. Improved multitasking functions
As both the HDD and DVD drive are mounted in this model, like
conventional models, the unit is designed to support various
multitasking. Furthermore, this model supports DVD multitasking
(only in VR mode), which was impossible with conventional
models.
a Pursuit playback
Playback of the title being recorded by the DVD drive in VR
mode or the HDD is supported.
b Simultaneous recording/playback 1
Playback of a title other than that being recorded by the DVD
drive in VR mode or the HDD is also supported.
c Simultaneous recording/playback 2
DVD playback during HDD recording is supported.
d Simultaneous recording/playback 3
HDD playback during DVD recording is supported.
e Recording during high-speed dubbing
HDD recording during high-speed dubbing from the HDD to a
DVD is supported.
f Playback during high-speed dubbing
Playback of an HDD title during high-speed dubbing from the
HDD to a DVD is supported.
2. Improved dubbing functions
High-speed dubbing and normal-speed dubbing are supported, as
with conventional models. A one-touch dubbing function that
enables automatic selection between these dubbing functions is
also provided. In this model, high-speed dubbing from a DVD (in
VR mode) to the HDD is also an added capability.
3. Disc backup
The function of creating a backup disc for a disc recorded in
Video mode is added. The data of the original DVD are
transferred to the HDD, then retransferred to the DVD drive, and
because no reencoding is required during data transmission
between the drives, a backup disc with no degradation of video
and audio signals can be created.
4. Advanced disc NAVI
In the conventional disc NAVI function, recorded titles are
displayed with still pictures as a list. In the advanced disc
NAVI function, the title selected with the cursor is displayed
as an animated picture with sound.
5. Improved Still Picture menu in Video mode
The disc NAVI function, which enables displaying a list of
recorded titles with still pictures, is enabled in Video mode
with this model. Selection from among nine title menus is also
supported.
6. Adoption of MPEG2 SIF
In MN1-6 modes, MPEG2 SIF has been adopted, instead of the
MPEG1 SIF of conventional models. This enables higher-quality
recording for longer hours.
7. Improved editing functions
For DVD, the original/play-list editing in DVD-VR mode
available with conventional models is provided.
For HDD editing, play-list-editing functions almost the same as
for the DVD-VR, such as title combination, separation, and
partial erasure, are enabled for the HDD with this model. With
conventional models, these edit functions are available only for
the dubbing list. The automatic-chapter-mark-insertion function
in response to a change in audio type (stereo, monaural,
bilingual) makes commercial-cutting editing easier.
8. Various-format playback
Playback of WMA, MP3, and JPEG formats is supported.
9. Other functions and specifications
The following main functions and specifications adopted with
conventional models are also provided with this model:
• 192-kHz, 24-bit DAC
• 48-kHz, 20-bit ADC
• Digital 3-D Y/C separation circuit
• Digital frame TBC
• 3-D DNR
• DV (iLink) input/output
• Playback with commercials skipped
• CD/video-CD playback
• Picture creation
• Recording with 3/4-D1 and 2/3-D1 resolutions
• Recording mode with 32-step MNs
• LPCM recording
• High-resolution GUI
• Progressive output
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-520H-S
138
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.4 CAUTIONS ON HANDLING THE HDD
Reference: Main specifications on damage to the HDD
The HDD is about 10 times as sensitive to shock
during operation than during nonoperation.
During operation
During nonoperation
Shock G
(acceleration)
