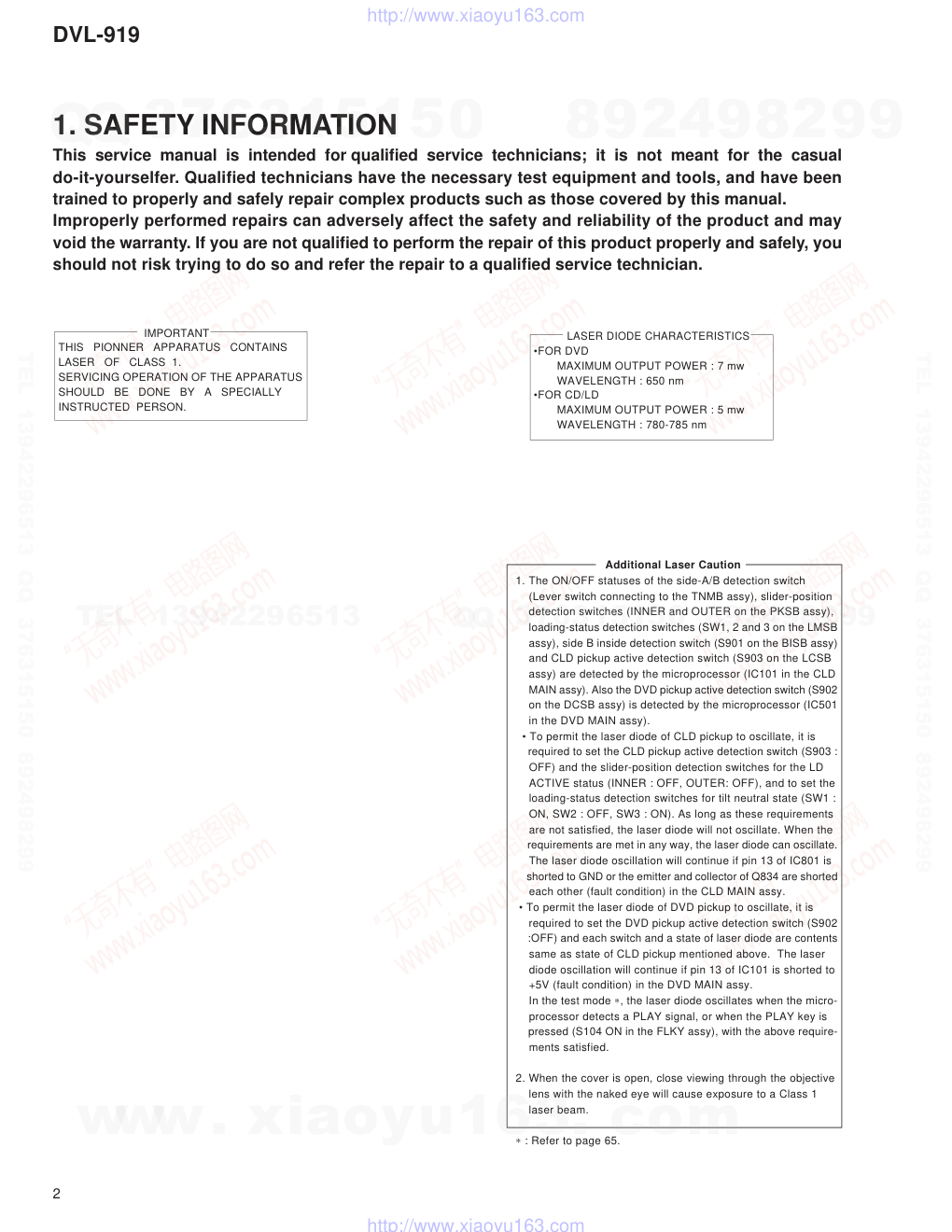

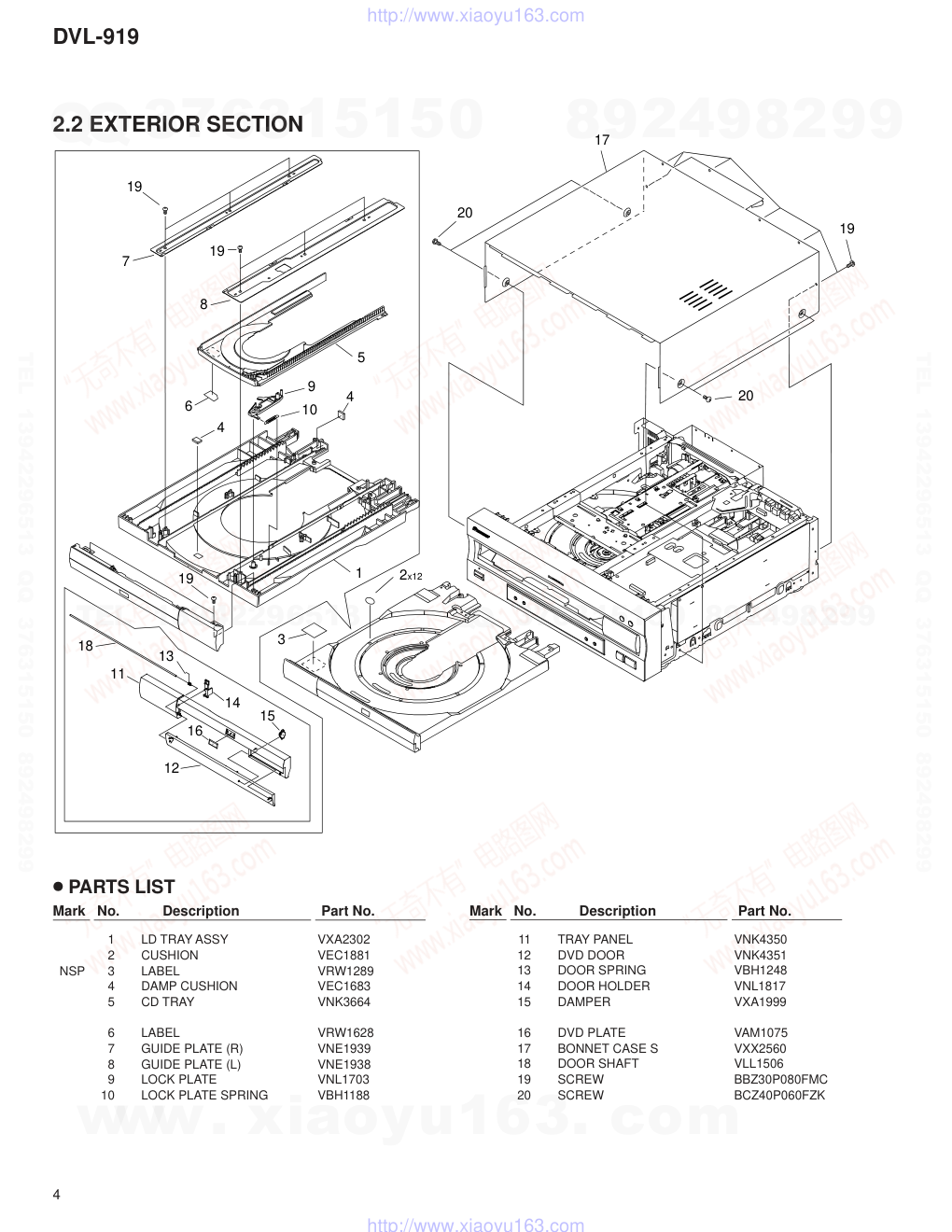

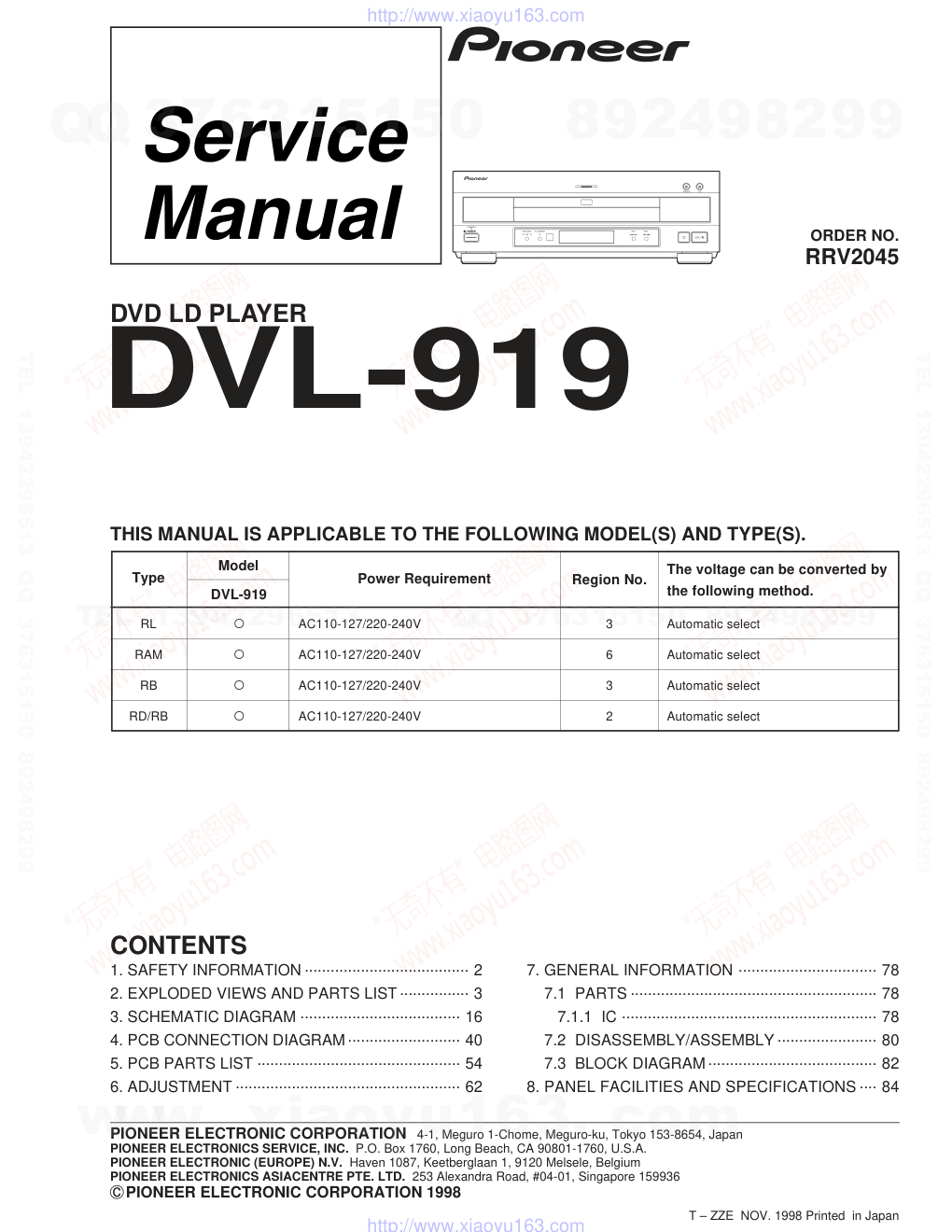

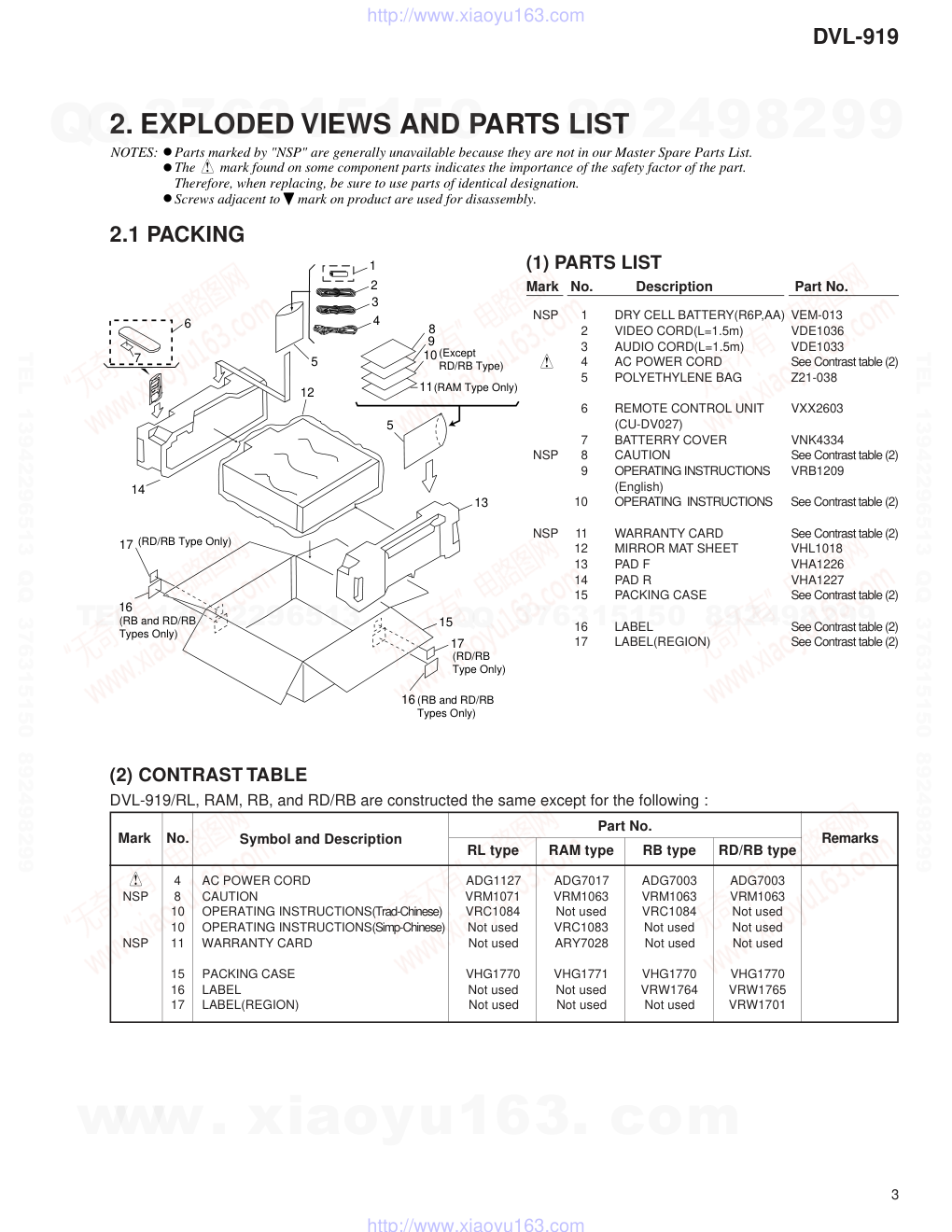

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1998 c DVL-919 RRV2045 1. SAFETY INFORMATION ...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................ 3 3. SCHEMATIC DIAGRAM ..................................... 16 4. PCB CONNECTION DIAGRAM .......................... 40 5. PCB PARTS LIST ............................................... 54 6. ADJUSTMENT .................................................... 62 CONTENTS 7. GENERAL INFORMATION ................................ 78 7.1 PARTS ......................................................... 78 7.1.1 IC ........................................................... 78 7.2 DISASSEMBLY/ASSEMBLY ....................... 80 7.3 BLOCK DIAGRAM ....................................... 82 8. PANEL FACILITIES AND SPECIFICATIONS .... 84 T – ZZE NOV. 1998 Printed in Japan Type Power Requirement The voltage can be converted by the following method. Model DVL-919 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Region No. RL ‡ AC110-127/220-240V 3 Automatic select RAM ‡ AC110-127/220-240V 6 Automatic select RB ‡ AC110-127/220-240V 3 Automatic select RD/RB ‡ AC110-127/220-240V 2 Automatic select DVD LD PLAYER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DVL-919 Additional Laser Caution 1. The ON/OFF statuses of the side-A/B detection switch (Lever switch connecting to the TNMB assy), slider-position detection switches (INNER and OUTER on the PKSB assy), loading-status detection switches (SW1, 2 and 3 on the LMSB assy), side B inside detection switch (S901 on the BISB assy) and CLD pickup active detection switch (S903 on the LCSB assy) are detected by the microprocessor (IC101 in the CLD MAIN assy). Also the DVD pickup active detection switch (S902 on the DCSB assy) is detected by the microprocessor (IC501 in the DVD MAIN assy). • To permit the laser diode of CLD pickup to oscillate, it is required to set the CLD pickup active detection switch (S903 : OFF) and the slider-position detection switches for the LD ACTIVE status (INNER : OFF, OUTER: OFF), and to set the loading-status detection switches for tilt neutral state (SW1 : ON, SW2 : OFF, SW3 : ON). As long as these requirements are not satisfied, the laser diode will not oscillate. When the requirements are met in any way, the laser diode can oscillate. The laser diode oscillation will continue if pin 13 of IC801 is shorted to GND or the emitter and collector of Q834 are shorted each other (fault condition) in the CLD MAIN assy. • To permit the laser diode of DVD pickup to oscillate, it is required to set the DVD pickup active detection switch (S902 :OFF) and each switch and a state of laser diode are contents same as state of CLD pickup mentioned above. The laser diode oscillation will continue if pin 13 of IC101 is shorted to +5V (fault condition) in the DVD MAIN assy. In the test mode ∗, the laser diode oscillates when the micro- processor detects a PLAY signal, or when the PLAY key is pressed (S104 ON in the FLKY assy), with the above require- ments satisfied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to a Class 1 laser beam. ∗ : Refer to page 65. 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. IMPORTANT THIS PIONNER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS •FOR DVD MAXIMUM OUTPUT POWER : 7 mw WAVELENGTH : 650 nm •FOR CD/LD MAXIMUM OUTPUT POWER : 5 mw WAVELENGTH : 780-785 nm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 3 2. EXPLODED VIEWS AND PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. NOTES: 2.1 PACKING (2) CONTRAST TABLE DVL-919/RL, RAM, RB, and RD/RB are constructed the same except for the following : 7 1 2 3 4 5 8 9 10 11 13 14 15 16 5 12 16 17 17 6 (Except RD/RB Type) (RAM Type Only) (RD/RB Type Only) (RD/RB Type Only) (RB and RD/RB Types Only) (RB and RD/RB Types Only) Mark 4 AC POWER CORD ADG1127 ADG7017 ADG7003 ADG7003 NSP 8 CAUTION VRM1071 VRM1063 VRM1063 VRM1063 10 OPERATING INSTRUCTIONS(Trad-Chinese) VRC1084 Not used VRC1084 Not used 10 OPERATING INSTRUCTIONS(Simp-Chinese) Not used VRC1083 Not used Not used NSP 11 WARRANTY CARD Not used ARY7028 Not used Not used 15 PACKING CASE VHG1770 VHG1771 VHG1770 VHG1770 16 LABEL Not used Not used VRW1764 VRW1765 17 LABEL(REGION) Not used Not used Not used VRW1701 Remarks Part No. RL type RAM type RB type RD/RB type Symbol and Description No. Mark No. Description Part No. NSP 1 DRY CELL BATTERY(R6P,AA) VEM-013 2 VIDEO CORD(L=1.5m) VDE1036 3 AUDIO CORD(L=1.5m) VDE1033 4 AC POWER CORD See Contrast table (2) 5 POLYETHYLENE BAG Z21-038 6 REMOTE CONTROL UNIT VXX2603 (CU-DV027) 7 BATTERRY COVER VNK4334 NSP 8 CAUTION See Contrast table (2) 9 OPERATING INSTRUCTIONS VRB1209 (English) 10 OPERATING INSTRUCTIONS See Contrast table (2) NSP 11 WARRANTY CARD See Contrast table (2) 12 MIRROR MAT SHEET VHL1018 13 PAD F VHA1226 14 PAD R VHA1227 15 PACKING CASE See Contrast table (2) 16 LABEL See Contrast table (2) 17 LABEL(REGION) See Contrast table (2) (1) PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 4 1 8 7 5 9 10 14 13 19 19 19 15 12 18 11 19 20 20 2x12 3 4 6 16 17 4 Mark No. Description Part No. 1 LD TRAY ASSY VXA2302 2 CUSHION VEC1881 NSP 3 LABEL VRW1289 4 DAMP CUSHION VEC1683 5 CD TRAY VNK3664 6 LABEL VRW1628 7 GUIDE PLATE (R) VNE1939 8 GUIDE PLATE (L) VNE1938 9 LOCK PLATE VNL1703 10 LOCK PLATE SPRING VBH1188 ÷ PARTS LIST 11 TRAY PANEL VNK4350 12 DVD DOOR VNK4351 13 DOOR SPRING VBH1248 14 DOOR HOLDER VNL1817 15 DAMPER VXA1999 16 DVD PLATE VAM1075 17 BONNET CASE S VXX2560 18 DOOR SHAFT VLL1506 19 SCREW BBZ30P080FMC 20 SCREW BCZ40P060FZK Mark No. Description Part No. 2.2 EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 5 8 12 6 2 11 7 1 16 3 4 10 9 (Except RL type) 14(3/3) 15(1/2) 5 16 14(2/3) 14(1/3) 15(2/2) 16 13 2.3 FRONT PANEL SECTION Mark No. Description Part No. (1) PARTS LIST Mark No. Description Part No. 1 FLKY ASSY See Contrast table (2) NSP 2 PWSB ASSY See Contrast table (2) NSP 3 DILB ASSY VWG1995 4 FLEXIBLE CABLE (14P) VDA1638 5 NAME PLATE G PAM1779 6 LED LENS PNW2019 7 ILLUMINATION FILTER VEC1950 8 FL LENS VEC2014 9 PW BUTTON See Contrast table (2) 10 ILLUMI HOLDER VNK4098 11 ILLUMINATION LENS VNK4168 12 FRONT PANEL See Contrast table (2) 13 SUB PANEL VNK4414 14 PLAY BUTTON VNK4348 15 OPERATION BUTTON VNK4349 16 SCREW BBZ30P080FMC (2) CONTRAST TABLE DVL-919/RL, RAM, RB and RD/RB are constructed the same except for the following : Mark 1 FLKY ASSY VWG2006 VWG2030 VWG2030 VWG2030 NSP 2 PWSB ASSY VWG2007 VWG1994 VWG1994 VWG1994 9 PW BUTTON Not used VNK4059 VNK4059 VNK4059 12 FRONT PANEL VNK4385 VNK4377 VNK4377 VNK4377 Remarks Part No. RL type RAM type RB type RD/RB type Symbol and Description No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 6 2.4 TOP VIEW SECTION 27 26 28 25 29 1 6 2 3 4 7 15 24 24 16 24 19 12 22 22 20 18 24 5x3 8 13 14 24 24 24 24 30 24 24 B B Refer to "2.3 FRONT PANEL SECTION" A A 24 24 RL type only 24 RL type only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 7 Mark No. Description Part No. 1 CENTER PLATE VNE2127 2 RUBBER MAT VEB1114 3 THRUST HOLDER VNL1663 4 CLAMPER VNL1648 5 CLAMPER SPRING VBH1192 6 CLAMPER HEAD VNL1649 7 CLAMPER HOLDER VNL1788 8 DVDM ASSY VWS1355 9 • • • • • 10 • • • • • 11 • • • • • 12 CORD CLAMPER RNH-184 13 CABLE HOLDER VEC1958 NSP 14 CORNER POST DEC1212 15 SHIPPING CAM VNL1729 (1) TOP VIEW SECTION PARTS LIST NSP 16 CORD WITH PLUG DE007VF0 17 • • • • • 18 GYCB ASSY VWV1634 19 HOUSING ASSY(13P) VKP2196 NSP 20 PCB-HOLDER VNE2164 21 • • • • • NSP 22 CENTER ANGLE VNE2126 23 • • • • • 24 SCREW BBZ30P080FMC 25 SCREW See Contrast table (2) 26 MSWB ASSY See Contrast table (2) NSP 27 POWER HOLDER See Contrast table (2) 28 POWER JOINT See Contrast table (2) 29 POWER BUTTON See Contrast table (2) 30 SCREW IBZ30P080FMC Mark No. Description Part No. (2) CONTRAST TABLE DVL-919/RL, RAM, RB and RD/RB are constructed the same except for the following : Mark 25 SCREW PMB30P080FZK Not used Not used Not used 26 MSWB ASSY VWG1895 Not used Not used Not used NSP 27 POWER HOLDER VNE2123 Not used Not used Not used 28 POWER JOINT VNK4148 Not used Not used Not used 29 POWER BUTTON VNK4159 Not used Not used Not used Remarks Part No. RL type RAM type RB type RD/RB type Symbol and Description No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 8 1 17 6 2 8 8 5 4 10 9 32 19 32 7 34 3 11 32 32 13 32 32 23 23 25 15 16 32 22 32 32 32 32 32 32 32 29 32 27 26 28 28 21 20 33 18 32 32 32 32 Refer to "2.6 LOADING MECHANISM SECTION" 35 36 Except RL type 2.5 BOTTOM VIEW SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 9 Mark No. Description Part No. NSP 1 CHASSIS VNA1887 2 INSULATOR ASSY VXA2356 3 PCB HINGE VEC1174 NSP 4 PCB SPACER AEC1188 NSP 5 CIRCUIT BOARD SPACER VEC1957 6 POWER SUPPLY ASSY VWR1287 7 SHEET P VEC1874 8 CORD CLAMPER RNH-184 NSP 9 STOPPER VNE2088 10 SPACER VEC1939 11 SHELL CLIP DEC1184 12 • • • • • 13 CLDM ASSY See Contrast table (2) 14 • • • • • 15 HOUSING ASSY (14P) VKP2151 16 FLEXIBLE CABLE(15P) VDA1644 NSP 17 PANEL HOLDER VNA1686 NSP 18 MECHANISM ASSY VWT1155 NSP 19 CAM HOLDER L VNE2089 20 SHIPPING LEVER VNL1728 21 SHIPPING SPRING VBH1275 (1) BOTTOM VIEW SECTION PARTS LIST Mark No. Description Part No. NSP 22 CAM HOLDER R VNE2090 23 FLEXIBLE CABLE(22P) VDA1652 24 • • • • • 25 HOUSING ASSY (4P) VKP2195 26 REAR PANEL R VNA1892 27 REAR PANEL L VNA2031 28 TRAY STOPPER VNL1707 29 REAR COVER See Contrast table (2) 30 • • • • • 31 • • • • • 32 SCREW BBZ30P080FMC 33 SCREW BBZ30P100FMC 34 RIVET RBM-003 NSP 35 SPACER VEC1989 NSP 36 HOUSING ASSY See Contrast table (2) (2) CONTRAST TABLE DVL-919/RL, RAM, RB and RD/RB are constructed the same except for the following : Mark 13 CLDM ASSY VWS1352 VWS1353 VWS1353 VWS1353 29 REAR COVER VNA2032 VNA2034 VNA2033 VNA2051 NSP 36 HOUSING ASSY Not used VKP2189 VKP2189 VKP2189 Remarks Part No. RL type RAM type RB type RD/RB type Symbol and Description No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 10 2.6 LOADING MECHANISM SECTION 15 3 16 17 19 18 12 14 13 20 21 22 23 24 25 3 3 3 26 1 3 3 3 3 3 8 9 10 5 6 7 11 4 3 B B A A 2 Refer to "2.7 SERVO MECHANISM SECTION (1/2)" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 11 ÷ LOADING MECHANISM SECTION PARTS LIST 1 Clamp Cam B VNL1765 2 CDP Spring VBH1191 3 Screw Z39-019 4 CD Plate VNL1685 5 Rubber Belt VEB1184 6 Gear Pulley VNL1662 7 Slider (L) VNL1665 8 Twin Gear VNL1626 9 Center Gear VNL1660 10 Double Gear VNL1661 11 Screw BMZ26P040FMC 12 Loading Motor Assy VXX2045 13 Carriage Motor VXM1033 NSP 14 Motor Pulley VNL1630 15 Synchro Gear Assy VXA2105 16 Flexible Cable (10P) VDA1645 NSP 17 LMSB Assy VWG1554 18 MB Switch Lever VNL1664 19 Roller VNL1042 20 Mechanism Base VNK3239 21 Cam Gear VNL1625 22 Cam Plate VNL1631 23 CAS Spring VBH1190 24 Shaft Holder VNE1942 25 CAM Holder VNE2032 26 Slider (R) VNL1666 Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 12 2.7 SERVO MECHANISM SECTION (1/2) 30 31 15 53 29 33 34 A A 35 36 37 39 38 40 41 42 43 44 45 46 32 47 56 48 49 52 50 51 28 27 28 58 55 58 Refer to "2.6 LOADING MECHANISM SECTION" Refer to "2.8 SERVO MECHANISM SECTION (2/2)" Refer to "2.10 CLD CARRIAGE ASSY" Refer to "2.9 DVD CARRIAGE ASSY" 18 16 15 17 19 20 21 13 14 12 4 5 6 2 8 7 9 10 11 22 23 24 25 26 57 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 13 ÷ SERVO MECHANISM SECTION (1/2) PARTS LIST 1 Mini Clamp VEC2030 2 Screw BBZ26P060FMC 3 • • • • • 4 Tilt Base (Upper) VNE2062 5 Housing Assy (2P) VKP2136 NSP 6 BISB Assy VWG1796 7 Screw BPZ20P040FZK 8 B Cam VNL1725 9 Support Spring VBH1273 10 SW Lever B VNL1723 11 Shaft Holder VNL1724 12 CA Shaft (Upper) VLL1486 13 CA Rack (Upper) VNL1722 14 Shaft Stay VNL1726 15 Screw BBZ30P080FMC 16 Screw PPZ20P060FMC 17 CA Shaft (Lower) VLL1496 18 TAN Guide VNE2061 19 FPC Holder A VNL1751 20 DVD Carriage Assy VWT1146 21 FPC Holder B VNL1801 22 CLD Carriage Assy VWT1141 23 CA Guide VNL1668 24 TAN Spring (B) VBH1264 25 TAN Lever (B) VNL1669 26 Screw PMZ20P060FZK 27 Tilt Base (Under) VNL1711 28 Tilt Rear Spring VBH1274 29 CA Rack (Lower) VNL1712 30 Flexible Cable (6P) VDA1642 31 Flexible Cable Cover VNL1727 32 Motor Base VNE1941 33 Screw IBZ26P060FMC 34 Tilt Spring VBH1263 35 Thrust Spring VBH1245 36 CA Switch Lever VNL1644 NSP 37 PKSB Assy VWG1555 38 Housing Assy (3P) VKP2045 39 Screw IBZ26P120FMC 40 Screw PMA30P050FMC 41 Tilt Spring B VBH1287 42 Housing Assy (3P) VKP2046 NSP 43 FG Assy VWG1556 44 FG Base VNL1781 45 Tilt Cam VNL1643 46 Tilt Cam Spring VBH1243 47 PRC Hub VNL1684 48 Centering Spring VBH1269 49 R Turn Table Assy VXA2354 NSP 50 Oil Stopper VBF1002 51 Screw ZMD30H030FBT NSP 52 Spindle Motor VXM1057 53 Cover S VNL1780 54 • • • • • 55 Screw BBZ30P050FZK 56 Spindle Motor Assy VXX2579 57 FPC Holder VNL1789 58 Screw BCZ30P080FMC Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 14 2.8 SERVO MECHANISM SECTION (2/2) 30 31 32 31 30 25 27 29 5 5 26 26 28 27 37 38 25 24 20 23 22 5 21 20 19 18 17 5 16 5 34 33 35 15 14 13 10 9 39 36 35 12 35 11 8 7 6 4 5 2 40 3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 15 ÷ SERVO MECHANISM SECTION (2/2) PARTS LIST 8 1 6 4 7 7 5 This part is no service part. This part is no service part. This part is no service part. 2.9 DVD CARRIAGE ASSY 2.10 CLD CARRIAGE ASSY 7 2 1 3 6 5 6 4 This part is no service part. ÷ CLD CARRIAGE ASSY PARTS LIST ÷ DVD CARRIAGE ASSY PARTS LIST NSP 1 TNMB Assy VWG1793 2 Carriage Motor VXM1033 NSP 3 Motor Pulley VNL1630 4 Motor Holder VNL1717 5 Screw BBZ30P080FMC 6 Screw BMZ26P040FMC 7 Gear Pulley VNL1662 8 Rubber Belt VEB1184 9 Housing Assy (3P) VKP2137 10 Lever Switch DSK1003 11 Middle Gear VNL1720 12 Turn Panel Assy VXA2337 13 Gear S VNL1719 14 Turn Cam Gear VNL1718 15 Swing Plate Assy VXA2289 16 Turn Lever Assy VXA2292 17 Turn Plate Assy VXA2290 18 PU FPC-B VNP1583 19 Flexible Cable (26P) VDA1653 20 Connector Assy PG02KK-E10 NSP 21 CNNB Assy VWG1792 22 Flexible Cable (27P) VDA1643 23 PU FPC-A VNP1582 24 PCB Holder VNL1716 25 FC Guide VNE2059 26 PU Holder VNL1715 27 SW Lever C VNL1714 NSP 28 LCSB Assy VWG1795 NSP 29 DCSB Assy VWG1794 30 FC Arm Spring VBH1272 31 FC Arm VNL1713 32 Tilt Shaft VLL1175 33 E Ring YE30FUC 34 Washer WA42D080D050 35 Washer WT26D070D050 36 Screw PMA26P060FMC 37 Cushion VEC1917 38 Tube VEB1273 39 Binder Z09-056 40 Loading Motor Assy VXX2045 Mark No. Description Part No. Mark No. Description Part No. 1 CA Gear (A) VNL1782 2 • • • • • 3 • • • • • 4 Motor Holder VNL1779 5 Thrust Holder VBK1058 6 CA Guide B VNL1721 7 Screw BBZ20P050FZK 8 Screw PMA20P033FUC 1 CA Gear (A) VNL1782 2 CA Gear (B) VNL1639 3 Slider Motor Assy VXX2472 4 Motor Holder VNL1779 5 Thrust Holder VBK1058 6 Screw PBZ20P050FMC 7 Screw PMA20P033FUC Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 16 A B C D 1 2 3 4 1 2 3 4 (VWS1352 : RL) (VWS1353 : RAM, RB, RD/RB) CLDM ASSY J J 1/3 – J 3/3 ( ) (VWV1634) GYCB ASSY K K 1/2, K 2/2 ( ) 3. SCHEMATIC DIAGRAM 3.1 OVERALL WIRING DIAGRAM, LMSB, PKSB, FG, CNNB, TNMB, DCSB, LCSB and BISB ASSEMBLIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 17 A B C D 5 6 7 8 5 6 7 8H Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". G F E D C B A (VWG1795) LCSB ASSY G (VWG1794) DCSB ASSY (VWT1141) CLD CARRIAGE ASSY (VWT1153) DVD CARRIAGE ASSY F (VWG1554) LMSB ASSY A (VWG1793) TNMB ASSY E (VWG1555) PKSB ASSY B (VWR1287) POWER SUPPLY ASSY O (VWG1792) CNNB ASSY D (VWG1556) FG ASSY C (VWG1995) DILB ASSY N (VWG2006 : RL) (VWG2030 : RAM, RB, RD/RB) (VWG2007 : RL) (VWG1994 : RAM, RB, RD/RB) FLKY ASSY L PWSB ASSY M (VWG1796) BISB ASSY H (VWS1355) DVDM ASSY I I 1/3 – I 3/3 ( ) SLIDER MOTOR ASSY VXX2472 OE IC OE IC SLIDER MOTOR ASSY VXX2472 LOADING MOTOR ASSY VXX2045 SPINDLE MOTOR ASSY VXX2579 (VWG1895) RL type ONLY MSWB ASSY P : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (F) (T) (S) (T) (T) (F) (F) (F) (F) (T) (T) (F) (F) (F) (F) (F) (T) (F) (T) (S) (S) (F) (T) (F) (T) (S) (S) (F) (T) (F) (T) (S) (S) (F) (T) (F) (T) (S) (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 18 A B C D 1 2 3 4 1 2 3 4 1/3 I 3.2 DVDM ASSY (1/3) (ROM) (ROM) (F) (T) (F) (T) (S) (F) (F) (T) (S) (F) (F) (F) (F) (T) (F) (F) (F) (F) (T) (T) (T) (S) (S) (S) (F) (F) (F) (F) (T) (T) (T) (S) (S) 5W 5W LPF 5W IC171 BA10393F IC171 BA10393F 2/2 1/2 O CN202 D CN902 CN103 VKN1430 S14B-PH-SM3 CN101 VKF1001 TP400 VKF1001 TP100 VKF1001 TP300 CN201 VKN1324 2/2 1/2 VTL1074 L342 VTL1074 L335 VTL1074 L340 (6/6) (5/6) (1/6) (4/6) (3/6) (2/6) I 2/3 I 2/3 I 2/3 I 3/3 I 3/3 C416 R407 10k R409 12k C417 100/16 47/10 1µ 2 Q403 IMX1 3 4 R177 22k R178 22k VCO Offset adj. L100 C100 YB 47µ 1µ BA178M08FP ADC1175CIJMX (VWS1355) DVDM ASSY I 1/3 R1 33k R2 22k IC302(1/2):VLXO D PRE SERVO PROCESSOR for DVD RF SIGNAL IC101: IC171: FOCS. EeTRK. DRIVE CURRENT DETECTOR IC151:TRK.,FOCS., SLD. and LOADING DRIVER +8V Reg. LD DRV. BUFFER BUFFER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 19 A B C D 5 6 7 8 5 6 7 81/3 I : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (F) (T) (S) (F) (F) (F) (F) (F) (T) (T) (T) (T) (T) (S) (S) AGCOFF LD-ON IC506 TC74VHCT245AFT VKF1001 TP200 IC501 PD4889A IC504 TC74VHC20FT IC505(1/2) TC74VHC139FT IC505(2/2) TC74VHC139FT SRM2B256SLMX70 IC201 LC78650NE C271 2200p R271 470k R273 330k R277 220k R275 68k R276 330k 2/2 1/2 I 2/3 I 2/3 I 2/3 I 3/3 I 3/3 XRESET,SBSY,PW, SFSY,SBCK,MON, C2F,FG FSX,EFLG,SLDPOS, DVDPRK,SHAKE, SCKI,SSI1,SSO1,CLD I 3/3 CLDFG SPDO IC501:MECHANISM CONTROL MICROCOMPUTER for DVD 256K SRAM IC201:Digital Signal Processor (Servo Control for DVD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 20 A B C D 1 2 3 4 1 2 3 4 2/3 I CN106 VKN1411 Q771,Q772: PDTC114TK X602 VSS1114 20MHz IC605(2/2) TC74VHC139FT IC605(1/2) TC74VHC139FT ADDRESS DATA A2-A10 C2F,XRESET I 3/3 I 3/3 I 1/3 XCSDOLV,DOLV-CD,XWRL,XWRH, XRD,XLT3,XAMUTE,XDREQ1,CDGM, HCPUCK,IR,SEL-IR,XDVRST1, XAVIRQ0,48/X44,HIBSEL,XCS6, XDACK1,NAP SW,C2F I 3/3 I 1/3 5W 5W 5W 5W 5W (1M) VYW1607 PGM 4MFLASH MEMORY MBM29F400TA-70PF (VWS1355) DVDM ASSY I 2/3 SYSTEM CONTROL MICROCOMPUTER 3.3 DVDM ASSY (2/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 21 A B C D 5 6 7 8 5 6 7 82/3 I VKN1418 CN105 SERVO MONITOR OUTPUT L CN101 TC74VHC14FT I I I I 3/3 I 3/3 3/3 3/3 1/3 I 1/3 I 3/3 I 3/3 I 3/3 I 1/3 I 1/3 I 3/3 I 3/3 I 1/3 I 3/3 I 1/3 I 3/3 SDATA I 1/3 : AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE (ROM) (ROM) (ROM) (ROM) (ROM) (ROM) DRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 22 A B C D 1 2 3 4 1 2 3 4 R845 4.7 C892 47/10 (1/4) (3/4) (4/4) (4/4) (3/4) (3/3) (1/3) (2/3) (1/4) (2/4) (2/4) S4B-PH-SM3 CN801 F952 VTF1080 IC813 CY2081SL-611 (4/4) (3/4) (2/4) (1/4) J 2/3 CN201 2/3 I I 2/3 I 2/3 I 2/3 I 2/3 I 1/3 I 1/3 I 2/3 I 2/3 I 2/3 I 2/3 I 2/3 I 2/3 I 2/3 Video Output Level Adj. CLDCS (COM) (Y) (C) (COM) (Y) (C) (ROM) (ROM) MB86371C (VWS1355) DVDM ASSY I 3/3 AUDIO and VIDEO DECODE for DVD(MPEG2)/VIDEO CD(MPEG) CLOCK GENERATOR 3/3 I 3.4 DVDM ASSY (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 23 A B C D 5 6 7 8 5 6 7 83/3 I IC901 2/2 1/2 2/2 1/2 CN903 S13B-PH-SMB CN901 VKN1426 R958 22 CN902 VKN1426 HIBSEL,48/X44,XRESET,XLT3 I 2/3 I 2/3 K 2/2 CN601 J 2/3 CN122 J 1/3 CN111 I 1/3 I 2/3 I 2/3 I 1/3 L.P.F. L.P.F. L.P.F. : AUDIO SIGNAL ROUTE : COMPOSITE VIDEO SIGNAL ROUTE : Y SIGNAL ROUTE : C SIGNAL ROUTE : ROM DATA SIGNAL ROUTE (COM) (Y) (C) (ROM) (COM) (COM) (COM) (COM) (Y) (Y) (Y) (Y) (C) (C) (C) (C) DATA SELECTOR SW IC816,Q873:BUFFER IC815,816(2/2):VIDEO AMP. Q871,872,851,852,831,832:BUFFER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 24 A B C D 1 2 3 4 1 2 3 4 1/3 J 2/3 J 3/3 J 2/3 J 2/3,3/3 J 3/3 J 3/3 J 3/3 J 3/3 J 3/3 J CN902 3/3 I O CN203 D CN904 E CN911 A CN101 (VWS1352 : RL) (VWS1353 : RAM, RB, RD/RB) CLDM ASSY J 1/3 PD0266A2 (F) (F) (F) (F) (T) (T) (T) (F) (F) (F) (F) (F) (T) (T) (F) (F) (T) (T) (F) (F) (T) (T) (T) (T) (F) (F) (F) (T) (T) (T) (F) (F) (F) (F) (T) (T) (T) 7 10 11 12 1 9 20 22 9 TILT/LOARD DRIVE SLDR. DRIVE Q121,122:FG SIGNAL WAVE FORMER TURN MECHANISM DRIVE LD DRV. FOCUS DRIVE 3.5 CLDM ASSY (1/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 25 A B C D 5 6 7 8 5 6 7 81/3 J 2/3 J 2/3 J 2/3 J 3/3 J 2/3 J 3/3 J 3/3 J : RF SIGNAL ROUTE : AUDIO SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (T) (F) (T) (F) (T) (T) (T) (T) (F) (F) (T) (T) (F) (F) 1 16 60 48 40 38 37 14 13 11 Q152: RF AMP. Q803: BUFFER RF CORRECTION ON/OFF/SW 5W 5W TRK. DRIVE (FCS.,TRK. and SPDL.) Q903–906: LIMITER IC905(2/2): BUFFER IC905(1/2): SPDL. ERR. Q908: SPDL. GAIN CONT. TRK. ZERO.CROS COMPARATOR IC183: BUFFER BUFFER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 26 A B C D 1 2 3 4 1 2 3 4 2/3 J CN801 3/3 I CN901 3/3 I 1/3 J 1/3 J 1/3 J 1/3 J 1/3 J 1/3 J 1/3 J 3.6 CLDM ASSY (2/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 27 A B C D 5 6 7 8 5 6 7 82/3 J 1/3 J 1/3 J 1/3 J J 2/3 (VWS1352 : RL) (VWS1353 : RAM, RB, RD/RB) CLDM ASSY S102 S102 : TV system switch : RF SIGNAL ROUTE : AUDIO SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 28 A B C D 1 2 3 4 1 2 3 4 3/3 J 1/3 J 1/3 J 2/3 J CN402 1/2 K 1/3 J 2 25 27 10 VIDEO IC Q441: BUFFER Q401: BUFFER IC601(1/2):VCXO EQ. 3.7 CLDM ASSY (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 29 A B C D 5 6 7 8 5 6 7 83/3 J CN401 1/2 K J 3/3 (VWS1352 : RL) (VWS1353 : RAM, RB, RD/RB) CLDM ASSY : RF SIGNAL ROUTE : VIDEO SIGNAL ROUTE 65 71 70 DIGITAL VIDEO PROCESSOR MEMORY IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 30 A B C D 1 2 3 4 1 2 3 4 CN401 J 3/3 R5039–R5046 : 0 (C) (C) (C) (Y) (C) (Y) (Y) (Y) (Y) (C) 33 24 36 1/2 K 3.8 GYCB ASSY (1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 31 A B C D 5 6 7 8 5 6 7 81/2 K CN402 J 3/3 K 2/2 (VWV1634) GYCB ASSY K 1/2 : VIDEO SIGNAL ROUTE : Y SIGNAL ROUTE : C SIGNAL ROUTE (Y) (C) (C) (C) (Y) (Y) (C) (Y) (C) (C) (C) (Y) (Y) (Y) (Y) (Y) (Y) (C) (C) (Y) (C) (Y) (C) (C) (C) (C) (C) 2 2 3 3 1 1 Q407–408,410: 75Ω DRIVER for Y and C VIDEO Q411–413: VIDEO AMP. Q414–416: 75Ω DRIVER for VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 32 A B C D 1 2 3 4 1 2 3 4 3.9 GYCB ASSY (2/2) 2/2 K K 1/2 (VWV1634) GYCB ASSY K 2/2 CN903 I 3/3 (C) (C) (Y) (Y) (Y) (Y) (C) (C) (C) (C) (Y) (C) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (CR) (CR) (CB) (CB) YNR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 33 A B C D 5 6 7 8 5 6 7 82/2 K K 1/2 K 1/2 CR CB : COMPONENT VIDEO SIGNAL ROUTE (CB) : COMPONENT VIDEO SIGNAL ROUTE (CR) : Y SIGNAL ROUTE : C SIGNAL ROUTE (CR) (CB) (Y) (C) (Y) (C) (C) (C) (C) (Y) (Y) (C) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (CR) (CR) (CR) (CR) (CR) (CR) (CB) (CB) (CB) (CB) (CB) Q1411, Q1412, Q1421, Q1422, Q1431, Q1432 : 75Ω DRIVER for COMPONENT VIDEO OUT (Y, CB, CR) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 34 A B C D 1 2 3 4 1 2 3 4 3.10 FLKB, PWSB and DILB ASSEMBLIES L M FLKY ASSY L (VWG2006 : RL) (VWG2030 : RAM, RB, RD/RB) PWSB ASSY M (VWG2007 : RL) (VWG1994 : RAM, RB, RD/RB) RAM, RB and RD/RB types ONLY RAM, RB and RD/RB types ONLY RL type ONLY 0 68k 27k 0 0 R126 PWSB ASSY S201 : STANDBY/ON MODE CONTROL IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 35 A B C D 5 6 7 8 5 6 7 8 M N (VWG1995) DILB ASSY N CN105 I 2/3 DILB ASSY S301 : DVD/CD open/close 0 S302 : LD open/close 0 FLKY ASSY S101 : Reverse 4�1 S102 : Foward ¡�¢ S103 : Stop 7 S104 : Play/Pause 6 S105 : Dimmer (FL DIMMER) S106 : Disc Side A/B DVD ILLUMINATION ON/OFF 5W RESET IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 36 A B C D 1 2 3 4 1 2 3 4 3.11 POWER SUPPLY and MSWB ASSEMBLIES O P C1101 ACG7009 S R MSWB ASSY (VWG1895) ! ! ! ! ! ! ! LIVE NEUTRAL AC POWER CORD S101 POWER SUPPLY ASSY (VWR1287) VEK1050 D2SBA60F4004 D101 VZF1045 VZF1056 VZF1056 VZF1056 RD18FB2 MTZJ2.7B PS2561L1-1VM VZF1052 VEK1033 T7F4T T7F4S D212 RD33FB2 VEK1033 VEK1045 ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! T3.15AH250V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 37 A B C D 5 6 7 8 5 6 7 8O ! ! ! ! ! ! NOTE ON SPARE PARTS IN POWER SUPPLY ASSY • In case of repairing, use the described parts only to prevent an accident. • Write the red mark on the board when the primary section of POWER SUPPLY Assy is repaired. • Take care to keep the space, not touching other parts when replacing the parts. • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE AND RATINGS ONLY. CAUTION - 2SD2395 VZF1048 VZF1047 T7F4T T7F4S D713 MTZJ30A MTZJ2.7B MTZJ8.2B DRVB DRVA VEK1036 VEK1036 VZF1045 VZF1045 VEK1041 VEK1045 AC1 AC2 CN101 J 1/3 CN101 I 1/3 POW-ON ! ! ! ! ! ! ! ! ! www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 38 • WAVEFORMS AND VOLTAGES Note : in the table correspond to the pin number. Measurement condition : In case when (D.audio) is written, at time when disc that has digital audio recording is played. No. CLDM ASSY 22 5msec/div IC801 (LA9425) DC mode 200mVp-p 0V 20 5msec/div DC mode 100mVp-p 0V 9 10msec/div DC mode 0.2Vp-p 0V 16 5msec/div IC901 (LA9430M) DC mode 500mVp-p 0V 60 5msec/div DC mode 1Vp-p 1.6Vp-p 5Vp-p 0V 0V 0V 0V 38 37 10µsec/div DC mode 5Vp-p 0V 0V 7 5msec/div CN802 DC mode (F2) (RF1) (V1) (T3) (T1) (F1) (F3) (T4) (F4) (RF2) 200mVp-p 0V IC902 (TA8410AK) CN801 IC803 (LA6510) IC908 (LC78625E) 13 14 DC mode 11 DC mode 40 10msec/div DC mode 0.3Vp-p 0V 48 50µsec/div DC mode 1Vp-p 0V 1 5msec/div DC mode 2Vp-p 0V 9 5msec/div DC mode 5Vp-p 0V 1 2msec/div DC mode 1.8Vp-p 0V 2 10µsec/div Q441 Emitter AC mode 400mVp-p 10 5msec/div DC mode 100mVp-p 0V 11 5msec/div DC mode 0.2Vp-p 0V 12 2msec/div AC mode 600mVp-p 0V 0V 1V 10 10µsec/div IC400 (LA7134M) DC mode 2Vp-p 27 2msec/div AC mode 400mVp-p 25 10µsec/div DC mode 1Vp-p 0.5µsec/div 50µsec/div 0V IC500 (PD6159B) 0V 47 5msec/div DC mode 5Vp-p 57 56 0V 10µsec/div DC mode 5Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 39 GYCB ASSY 380mVp-p 1Vp-p GND GND 10µsec/div IC301 (CXD2046Q) 24 10µsec/div DC mode 33 DC mode DC mode JA102 YOUT 3 DC mode 0V 1 10µsec/div JA101 (VIDEO OUT) DC mode 1Vp-p (75Ω termination) (75Ω termination) 2.2Vp-p GND 2.2Vp-p GND 10µsec/div JA102 COUT 4 DC mode (75Ω termination) 1Vp-p GND 10µsec/div 10µsec/div 36 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 40 A B C D 1 2 3 4 1 2 3 4 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4.1 LMSB, PKSB and FG ASSEMBLIES A B C LOADING MOTOR ASSY M (VNP1479-E) CN102 J FG ASSY C LMSB ASSY A PKSB ASSY B SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 41 A B C D 1 2 3 4 1 2 3 4 (VNP1599-B) CN801 J CN103 I CN103 J LCSB ASSY G TNMB ASSY E BISB ASSY H DCSB ASSY F CNNB ASSY D CNNB ASSY D DVD CARRIAGE ASSY CN101 CLD CARRIAGE ASSY CN101 SIDE B SIDE A 4.2 CNNB, TNMB, DCSB, LCSB and BISB ASSEMBLIES H G F E D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 42 A B C D 1 2 3 4 1 2 3 4 CN201 J CN122 J CN601 K CN902 D CN202 O CN101 L DVDM ASSY I VR891 VR801 VC301 IC601 IC506 IC401 IC302 IC303 IC701 IC203 IC202 IC806 IC204 IC161 IC271 IC824 IC902 IC813 IC818 | IC820 IC814 IC810 IC811 IC815 IC816 Q802 Q105 Q102 Q873 Q455 Q801 Q891 IC206 IC171 IC151 Q291 Q301 IC807 IC801 IC501 Q401 | Q403 CN111 J (VNP1624-D) SIDE A 4.3 DVDM ASSY • This PCB is a four-layered board.Middle layer is mainly connected to Vcc and GND. I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 43 A B C D 1 2 3 4 1 2 3 4 DVDM ASSY I (VNP1624-D) IC505 IC605 IC504 IC502 IC503 IC301 IC703 IC817 IC702 IC201 IC205 IC808 IC809 IC805 IC821 IC802 IC901 IC804 IC101 Q261 Q106 Q107 Q104 Q103 Q108 | Q110 Q851 Q871 Q831 Q852 Q872 Q832 IC604 IC603 IC602 Q771 Q772 Q601 | Q603 SIDE B I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 44 A B C D 1 2 3 4 1 2 3 4 J 4.4 CLDM ASSY D CN904 E CN911 I CN801 VR603 VR604 VC301 VR607 VR608 VR609 Q217 IC201 IC251 IC341 Q834 Q811 Q394 IC761 IC762 Q392 IC20 IC90 Q393 Q391 IC901 IC207 IC205 IC321 IC184 IC208 IC204 IC209 IC206 IC352 IC906 IC905 IC907 IC222 IC221 IC203 Q233 IC801 CLDM ASSY J SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 45 A B C D 5 6 7 8 5 6 7 8J A CN101 O CN203 K CN402 I CN901 I CN902 K CN401 VR450 VC901 2 IC202 IC908 IC141 IC102 IC142 IC101 Q182 Q181 IC181 IC902 IC171 IC501 Q591 IC183 IC601 IC803 IC182 SIDE A (VNP1662-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 46 A B C D 1 2 3 4 1 2 3 4 J CLDM ASSY J SIDE B Q481 Q122 Q121 Q141 Q995 Q981 Q972 Q441 IC500 IC400 Q401 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 47 A B C D 5 6 7 8 5 6 7 8J SIDE B Q270 Q803 Q805 Q212 Q262 5 Q981 Q261 Q905 Q906 Q903 Q904 Q902 Q908 Q901 Q211 Q213 Q215 Q214 Q269 (VNP1662-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 48 A B C D 1 2 3 4 1 2 3 4 GYCB ASSY K SIDE A SIDE B GYCB ASSY K I CN903 VR301 Q408 Q409 IC801 Q410 Q415 Q1433 Q407 Q1412 Q1411 Q1432 Q412 Q413 Q414 Q416 Q1417 Q1421–Q1423 Q801 Q661 Q803 Q417 IC650 Q805 Q806 Q1401 Q420 Q419 Q652 Q656–Q658 Q662 Q645–Q647 Q651 Q655 Q402 Q626 Q681 Q672 Q671 Q401 IC301 Q403 Q404 Q625 Q636 IC620 Q1431 4.5 GYCB ASSY K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 49 A B C D 5 6 7 8 5 6 7 8 SIDE A SIDE B J CN402 J CN401 VR701 VR301 IC202 IC301 IC201 Q101 IC701 Q3062 Q750 Q703 Q702 (VNP1666-A) K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 50 A B C D 1 2 3 4 1 2 3 4 PWSB ASSY M PWSB ASSY M SIDE A SIDE B 4.6 FLKB, PWSB and DILB ASSEMBLIES L M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 51 A B C D 5 6 7 8 5 6 7 8 I CN105 FLKY ASSY L DILB ASSY N DILB ASSY N FLKY ASSY L SIDE A SIDE B (VNP1663-B) N L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 52 A B C D 1 2 3 4 1 2 3 4 4.7 POWER SUPPLY and MSWB ASSEMBLIES O (VNP1662-A) POWER SUPPLY ASSY O Q102 Q150 Q101 I AC POWER CORD MSWB ASSY P SIDE A P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 53 A B C D 5 6 7 8 5 6 7 8O CN101 I CN101 J Q511 Q512 Q612 Q211 Q613 Q213 Q214 Q350 Q351 Q614 Q212 Q611 IC301 IC311 IC511 IC411 SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 54 7 LIST OF WHOLE PCB ASSEMBLIES 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F NSP MACB ASSY VWM1507 VWM1507 VWM1507 VWM1507 NSP LMSB ASSY VWG1554 VWG1554 VWG1554 VWG1554 NSP PKSB ASSY VWG1555 VWG1555 VWG1555 VWG1555 NSP FG ASSY VWG1556 VWG1556 VWG1556 VWG1556 NSP MECHB ASSY VWM1721 VWM1721 VWM1721 VWM1721 NSP CNNB ASSY VWG1792 VWG1792 VWG1792 VWG1792 NSP TNMB ASSY VWG1793 VWG1793 VWG1793 VWG1793 NSP DCSB ASSY VWG1794 VWG1794 VWG1794 VWG1794 NSP LCSB ASSY VWG1795 VWG1795 VWG1795 VWG1795 NSP BISB ASSY VWG1796 VWG1796 VWG1796 VWG1796 NSP FLKB ASSY VWM1880 VWM1894 VWM1894 VWM1894 FLKY ASSY VWG2006 VWG2030 VWG2030 VWG2030 NSP PWSB ASSY VWG2007 VWG1994 VWG1994 VWG1994 NSP DILB ASSY VWG1995 VWG1995 VWG1995 VWG1995 NSP CLD MAIN ASSY VWM1866 Not used Not used Not used MSWB ASSY VWG1895 Not used Not used Not used CLDM ASSY VWS1352 VWS1353 VWS1353 VWS1353 ∗1 DVDM ASSY VWS1355 VWS1355 VWS1355 VWS1355 GYCB ASSY VWV1634 VWV1634 VWV1634 VWV1634 POWER SUPPLY ASSY VWR1287 VWR1287 VWR1287 VWR1287 Mark Symbol and Description Part No. RL type RAM type RB type RD/RB type Remarks 7 CONTRAST OF PCB ASSEMBLIES FLKY ASSY VWG2006 and VWG2030 are constructed the same except for the following: R125 Not used RS1/10S0R0J R126 RS1/10S0R0J Not used Mark Remarks Symbol and Description Part No. VWG2006 VWG2030 Note ∗1: Although VWS1352 and VWS1353 are different in part number, they have same service parts. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 55 PWSB ASSY VWG2007 and VWG1994 are constructed the same except for the following: S201 Not used RSG1030 Mark Remarks Symbol and Description Part No. VWG2007 VWG1994 Mark No. Description Part No. Mark No. Description Part No. 7 PCB PARTS LIST FOR DVL-919/RL LMSB ASSY SWITCHES AND RELAYS S101–S103 VSG1006 OTHERS CN101 10P CONNECTOR 52044-1045 PKSB ASSY SWITCHES AND RELAYS S104, S105 VSG1006 FG ASSY SEMICONDUCTORS D101 GP1S24 CNNB ASSY OTHERS CN903 CONNECTOR 52030-2310 CN901 CONNECTOR 52030-2610 CN905, CN906 KR CONNECTOR S2B-PH-K-S CN902 CONNECTOR SLW26R-1C7 CN904 CONNECTOR SLW27R-1C7 TNMB ASSY OTHERS CN911 6P CONNECTOR 52044-0645 CN912 CONNECTOR POST B2B-PH-K-S CN913 CONNECTOR POST B3B-PH-K-S DCSB ASSY SWITCHES AND RELAYS S902 DSG1017 OTHERS CN915 KR CONNECTOR S2B-PH-K-S LCSB ASSY SWITCHES AND RELAYS S903 DSG1017 OTHERS CN916 KR CONNECTOR S2B-PH-K-S BISB ASSY SWITCHES AND RELAYS S901 DSG1017 OTHERS CN914 KR CONNECTOR S2B-PH-K-S MSWB ASSY CAPACITORS C1101 (4700pF/AC250V) ACG7009 OTHERS S1101 ASG1006 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 56 Mark No. Description Part No. Mark No. Description Part No. DILB ASSY SWITCHES AND RELAYS S301, S302 RSG1030 RESISTORS All Resistors RS1/10S&&&J OTHERS CN301 CONNECTOR 4P 04R-FJ PL301 LAMP VEL1022 FLKY ASSY SEMICONDUCTORS IC101 PE5018B IC102 S-806D Q102 DTD113ES Q151–Q154 PDTA124EK D102 1SS355 D106 EP05Q04 D101 RB411D D152, D153 SLP3118C51H D151 SLP4118C51H SWITCHES AND RELAYS S101–S106 RSG1030 CAPACITORS C106, C108, C110 CEAT470M10 C101, C102, C104, C105, C111 CKSQYB102K50 C141 CKSQYB102K50 C103, C107, C109, C112, C192 CKSQYF104Z25 C195 CKSQYF104Z25 RESISTORS All Resistors RS1/10S&&&J OTHERS CN102, CN103 CONNECTOR 4P 04P-FJ REMOTE RECEIVER UNIT GP1U28X V101 FL TUBE VAW1046 SPACER VEC1599 CN101 14P CONNECTOR VKN1274 HOLDER VNF1087 X101 CERAMIC RESONATOR(5MHz) VSS1104 PWSB ASSY SEMICONDUCTORS D201 SLP9118C51H RESISTORS All Resistors RS1/10S&&&J OTHERS CN201 CONNECTOR 4P 04R-FJ POWER SUPPLY ASSY SEMICONDUCTORS IC301 AN1431T IC311 VZF1047 IC411 VZF1048 IC511 UPC358C Q101, Q150, Q151 VZF1056 Q102 2SC3377 Q211, Q212 T7F4T Q213, Q214, Q351 2SC1740S Q350 2SD2007 Q511 2SD2395 Q512, Q613, Q614 2SA933S Q611, Q612 T7F4S D101 D2SB60F4004 D103 MTZJ2.7B D104 1SS270A D106 RD18FB2 D153, D220, D620 VZF1045 D200 PS2561L1-1VM D211, D611 31DF2 D212 RD33FB2 D213, D214, D612, D613 10ELS2 D311 VZF1052 D350, D512 1SS270A D351 MTZJ2.7B D511 S2LA20 D711 10ELS2 D713 MTZJ30A D712 MTZJ8.2B RESISTORS R151 FUSIBLE R(RF25S8.2J) VZC1058 OTHERS F101 FUSE(3.15A/250V) VEK1050 FU211, FU611 FUSE(136°C) VEK1033 FU213, FU612 FUSE(1A/125V) VEK1036 P214, P511 FUSE(1.25A/60V) VEK1045 P311 FUSE(1A/60V) VEK1041 CLDM ASSY SEMICONDUCTORS IC761 BA10393F IC251, IC601, IC905, IC906 BA4560F IC352 CA0002AM IC203 CY2081SL-611 IC171, IC803 LA6510 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 57 Mark No. Description Part No. Mark No. Description Part No. IC400 LA7134M IC801 LA9425 IC901 LA9430M IC908 LC78625E IC182, IC183 MM6558XF IC501 MN4777AS IC221 NJM78L08A IC222 NJM79L08A IC500 PD0234A IC101 PD0266A2 IC201 PE8001A IC902 TA8410AK IC181, IC184, IC762, IC907 TC4W53F IC321, IC341 TC74HCU04AF IC205–IC207 TC7S02F IC102 TC7S32F IC204, IC208 TC7WU04F Q121, Q182 2PB709A Q269, Q270, Q391–Q393, Q401 2PD601A Q441, Q481, Q803, Q811 2PD601A Q903–Q906 2PD601A Q834 2SA854S Q152 2SC3082K Q261, Q262 2SD2114K Q211, Q213, Q217, Q394, Q981 PDTA124EK Q122, Q181, Q214, Q215, Q233 PDTC124EK Q901, Q908 PDTC124EK D101, D181, D250, D902, D981 1SS355 D221 EP10QY03 D311, D550 KV1851 D115 UDZS5.1B COILS AND FILTERS F501–F508 CHIP BEAD DTF1069 L9294, L9295 CHIP INPEDER DTL1028 L414 LAU100J L401 LAU101J L352, L821–L823 LAU181J L241, L311, L312, L331, L351 LAU220J L413, L422, L461, L491, L831 LAU220J L412, L482, L511 LAU270J L242, L244 LAU2R2J L431, L432, L512 LAU430J L243 LAU470J L462 LAU560J L415, L501 LAU8R2J L832 LFA220J L463 LFA561J L323, L343 COIL PTL1003 L322, L342 COIL RTF1167 F238–F240 CHIP SOLID INDUCTOR VTF1096 F581, F664, F665 CHIP SOLID INDUCTOR VTF1096 F9321, F9341 CHIP SOLID INDUCTOR VTF1096 F520 14.3MHz FILTER VTF1099 L205, L224 CHIP BEADS VTL1098 L9242 CHIP BEADS VTL1101 CAPACITORS C229, C418, C419, C421, C434 CCSQCH100D50 C513, C535 CCSQCH100D50 C353, C821, C837–C839, C843 CCSQCH101J50 C864, C865 CCSQCH101J50 C921, C943 CCSQCH102J50 C432, C436, C483, C516, C553 CCSQCH120J50 C413 CCSQCH121J50 C403, C415, C484, C502 CCSQCH150J50 C355, C823, C901 CCSQCH151J50 C313, C352 CCSQCH180J50 C205, C824, C973 CCSQCH220J50 C255, C256, C414, C506 CCSQCH221J50 C230, C354, C411, C417, C431 CCSQCH270J50 C830 CCSQCH270J50 C104, C105, C257, C258, C356 CCSQCH330J50 C433, C451, C510, C512 CCSQCH330J50 C351, C402, C485 CCSQCH390J50 C217, C222, C401, C462 CCSQCH470J50 C925 CCSQCH471J50 C941 CCSQCH561J50 C509 CCSQCH5R0C50 C358, C511, C806 CCSQCH680J50 C920 CCSQCH681J50 C435, C559, C822, C829 CCSQCH7R0D50 C357, C825 CCSQCH820J50 C461, C465 CCSQCH910J50 C123 CCSQSL102J50 C439 CEAL100M6R3 C489 CEAL101M6R3 C251 CEAL470M6R3 C383 CEALR47M50 C986 CEANP3R3M50 C187, C441, C856 CEANP470M6R3 C221, C394, C975 CEAT100M50 C332, C391, C424, C437, C493 CEAT101M10 C505, C538, C540, C542, C558 CEAT101M10 C583, C832, C834, C884 CEAT101M10 C246 CEAT102M6R3 C269, C270, C867, C929 CEAT1R0M50 C981, C982 CEAT220M25 C927, C928, C931 CEAT220M50 C521 CEAT221M6R3 C102, C223, C224, C253, C254 CEAT470M10 C261–C264, C316, C318, C322 CEAT470M10 C324, C342, C344, C382, C390 CEAT470M10 C802, C804, C842, C852, C854 CEAT470M10 C859, C860 CEAT470M10 C984 CEAT4R7M50 C922 CEATR47M50 C936, C940 CEJA101M6R3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 58 Mark No. Description Part No. Mark No. Description Part No. C902 CEJA220M50 C863, C934 CEJA2R2M50 C242, C244 CEJA470M6R3 C862 CEJA4R7M50 C486 CFTLA154J50 C491 CFTLA683J50 C426, C910 CKSQYB102K50 C845, C881, C917, C942 CKSQYB104K25 C555, C933 CKSQYB105K10 C923 CKSQYB153K25 C911 CKSQYB154K16 C903 CKSQYB222K50 C379, C380 CKSQYB392K50 C373–C376, C388, C912, C932 CKSQYB472K50 C963 CKSQYB473K25 C763 CKSQYB682K50 C106–C112, C117, C118, C121 CKSQYF103Z50 C124, C153, C155, C173, C181 CKSQYF103Z50 C183, C184, C188, C189 CKSQYF103Z50 C191, C192, C210, C231–C237 CKSQYF103Z50 C239–C241, C243, C245 CKSQYF103Z50 C247–C250, C252, C281, C282 CKSQYF103Z50 C311, C314, C315, C317, C321 CKSQYF103Z50 C323, C325, C331, C341, C343 CKSQYF103Z50 C345, C381, C386, C389, C422 CKSQYF103Z50 C442, C508, C514, C515, C517 CKSQYF103Z50 C533, C534, C536, C552, C554 CKSQYF103Z50 C761, C762, C801, C803, C811 CKSQYF103Z50 C831, C833, C836, C841, C846 CKSQYF103Z50 C851, C853, C861, C882, C883 CKSQYF103Z50 C885, C924, C935, C937, C939 CKSQYF103Z50 C945–C947, C962, C974, C983 CKSQYF103Z50 C101, C103, C122, C151, C152 CKSQYF104Z25 C171, C172, C182, C199, C218 CKSQYF104Z25 C267, C268, C326, C346, C385 CKSQYF104Z25 C387, C392, C404, C405, C420 CKSQYF104Z25 C423, C425, C430, C438, C440 CKSQYF104Z25 C443, C452, C488, C492, C494 CKSQYF104Z25 C504, C507, C519, C520, C531 CKSQYF104Z25 C537, C541, C557, C601 CKSQYF104Z25 C603, C604, C764, C805, C847 CKSQYF104Z25 C857, C858, C866, C913, C914 CKSQYF104Z25 C919, C971, C972, C976 CKSQYF104Z25 C582, C584, C586 CKSQYF105Z16 C186, C602, C855, C926, C930 CKSQYF223Z50 C938 CKSQYF223Z50 C377, C378, C393, C908, C909 CKSQYF224Z25 C154, C156, C174, C312, C463 CKSQYF473Z50 C826, C828 CKSQYF473Z50 C265, C266 CQMBA332J50 VC301 (20pF) VCM-008 RESISTORS R751 RA4C0R0J R753 RA4C221J R203, R752 RA4C471J R425, R833, R834, R837, R839 RN1/10SE1002D R891, R892 RN1/10SE1002D R152, R156 RN1/10SE1003D R251, R252 RN1/10SE1602D R541 RN1/10SE1800D R540 RN1/10SE3300D R151, R259, R260, R277, R278 RN1/10SE3302D R893, R894 RN1/10SE3302D R153, R154 RN1/10SE4702D VR450 (2.2kΩ) PCP1025 VR603 (4.7kΩ) PCP1028 VR604, VR607–VR609 (47kΩ) PCP1031 Other Resistors RS1/10S&&&J OTHERS CN103 CONNECTOR 6P 52045-0645 CN102 CONNECTOR 52045-1045 CN101 CONNECTOR 52045-1545 CN802 CONNECTOR B11P-SHF-1AA CN201 CONNECTOR B4B-PH-K-S SCREW BBZ30P060FCC JA101, JA102 JACK RKN1004 JA331 OPTICAL OUTPUT JACK TOTX178 PCB BINDER VEF1040 JA251 JACK VKB1065 JA341 JACK VKB1110 CN111, CN122 22P CONNECTOR VKN1253 CN801 27P CONNECTOR VKN1258 CN401, CN402 B TO B CONNECTOR 20P VKN1403 SCREW PLATE VNE1948 S102 SLIDE SWITCH VSH1020 X101 CERAMIC RESONATOR(9MHz) VSS1040 X311 CRYSTAL RESONATOR(16MHz) VSS1081 X312 CRYSTAL RESONATOR(18.432MHz) VSS1116 X550 CRYSTAL RESONATOR(28MHz) VSS1131 DVDM ASSY SEMICONDUCTORS IC301 ADC1175CIJMX IC171 BA10393F IC401 BA178M08FP IC151 BA6797FP IC813 CY2081SL-611 IC702 HM514800CJ-7 IC101 LA9700M IC201 LC78650NE IC802 MB811171622A-100FN IC801 MB86371C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 59 Mark No. Description Part No. Mark No. Description Part No. IC815, IC816 MC14577CF IC271, IC302 NJM2100M IC203 NJM2107F IC901 PD2058A IC601 PD3381A IC701 PD4833A IC501 PD4889A IC502 SRM2B256SLMX70 IC202, IC204, IC206, IC902 TC4W53F IC604 TC551001BFL-85 IC503 TC74HC573AF IC804 TC74HCT541AF IC303 TC74HCU04AF IC807, IC808 TC74LCX245FT IC821 TC74VHC00FT IC814, IC820 TC74VHC02FT IC505, IC605 TC74VHC139FT IC703 TC74VHC14FT IC504 TC74VHC20FT IC805, IC806, IC809 TC74VHC541FT IC506 TC74VHCT245AFT IC817 TC74VHCT541AFT IC811, IC818, IC819 TC7SHU04F IC810 TC7WU04F IC603 VYW1607 Q401 2SB1260 Q108 HN1K03FU Q455, Q831, Q832, Q851, Q852 IMT1A Q871, Q872 IMT1A Q103, Q402, Q403, Q873 IMX1 Q102, Q104, Q291, Q301 IMZ1A Q106, Q603 PDTA114EK Q107, Q109, Q602 PDTC114EK Q601, Q771, Q772 PDTC114TK D301 KV1410 D171, D172 MA152WK D601 RB501V-40 COILS AND FILTERS F771, F778, F779 CHIP BEAD DTF1067 F896 FERRITE CORE VTF1077 F952 FERRITE CORE VTF1080 F801 VIDEO FILTER VTF1098 F401–F406 CHIP EMI FILTER VTH1037 L301 CHIP COIL(1.5µH) VTL1059 L101, L302 CHIP COIL(10µH) VTL1061 L802, L803 CHIP COIL(22µH) VTL1067 L335, L340, L342 CHIP BEADS VTL1074 L777, L780–L787, L895 CHIP BEADS VTL1075 L897–L899 CHIP BEADS VTL1075 L100 CHIP COIL(47µH) VTL1119 CAPACITORS C623 CCSRCH100D50 C152, C208, C291, C612, C613 CCSRCH101J50 C700, C735, C737, C739 CCSRCH101J50 C897, C898, C991 CCSRCH101J50 C111, C139, C215, C231, C232 CCSRCH151J50 C248 CCSRCH151J50 C125, C148, C329 CCSRCH180J50 C112, C118 CCSRCH220J50 C121, C130, C199, C319, C324 CCSRCH330J50 C120 CCSRCH331J50 C310, C323, C327 CCSRCH470J50 C230 CCSRCH471J50 C126, C331, C838 CCSRCH560J50 C127, C330, C863, C873, C882 CCSRCH5R0C50 C160 CCSRCH680J50 C401, C417, C892 CEHV470M10 C101, C104, C201, C325, C601 CEV101M6R3 C701, C704, C706, C801 CEV101M6R3 C803, C804, C813–C815, C826 CEV101M6R3 C901 CEV101M6R3 C123, C158, C412, C414 CEV220M16 C835, C895 CEV221M4 C131, C135, C205, C206, C301 CEV470M6R3 C303, C404, C406, C408, C410 CEV470M6R3 C501, C504, C832, C836, C841 CEV470M6R3 C887 CEV470M6R3 C211 CKSQYB104K25 C100, C109, C124, C216, C220 CKSQYB105K10 C229, C234, C275, C308, C326 CKSQYB105K10 C332, C333, C730, C731 CKSQYB105K10 C416, C818, C823, C828 CKSQYF105Z16 C213, C292, C309, C321 CKSRYB102K50 C105, C106, C108, C146, C147 CKSRYB103K50 C151, C154–C157, C161, C207 CKSRYB103K50 C217, C221, C247, C276, C318 CKSRYB103K50 C320, C620, C705, C722, C772 CKSRYB103K50 C859 CKSRYB103K50 C143, C162–C165, C223, C224 CKSRYB104K16 C242, C273, C274, C311, C312 CKSRYB104K16 C315 CKSRYB104K16 C141, C271 CKSRYB222K50 C328 CKSRYB223K25 C122 CKSRYB473K16 C102, C103, C113, C129 CKSRYF104Z16 C132–C134, C136, C137, C159 CKSRYF104Z16 C166, C191, C202–C204, C209 CKSRYF104Z16 C214, C218, C219, C222 CKSRYF104Z16 C226–C228, C235, C237, C241 CKSRYF104Z16 C246, C302, C304, C305, C317 CKSRYF104Z16 C322, C402, C403, C405, C407 CKSRYF104Z16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 60 Mark No. Description Part No. Mark No. Description Part No. C409, C411, C413, C415 CKSRYF104Z16 C502, C503, C505–C509 CKSRYF104Z16 C602–C611, C614, C615, C617 CKSRYF104Z16 C621, C622, C702, C703 CKSRYF104Z16 C707–C721, C723, C732–C734 CKSRYF104Z16 C736, C738, C740–C742, C771 CKSRYF104Z16 C791, C800, C802, C805–C812 CKSRYF104Z16 C816, C817, C819–C822 CKSRYF104Z16 C824, C825, C827, C829, C830 CKSRYF104Z16 C833, C834, C837, C839, C840 CKSRYF104Z16 C842–C848, C861, C862, C867 CKSRYF104Z16 C871, C872, C876, C878, C881 CKSRYF104Z16 C883, C888–C890, C902–C905 CKSRYF104Z16 C911 CKSRYF104Z16 C852, C855, C857, C858 (2.2µF) VCG1031 C922–C924 (2.2µF) VCG1031 VC301 (40pF) VCM1010 RESISTORS R602, R603, R610, R613, R618 DCN1090 R507, R508, R624, R628, R633 DCN1094 R703, R704, R717, R718 DCN1094 R745, R746, R761, R762, R792 DCN1094 R812, R813 DCN1094 R137, R501, R502, R505, R506 DCN1104 R604–R607, R712, R713, R719 DCN1104 R724, R748, R749, R791 DCN1104 R802, R803, R808, R901, R905 DCN1104 R907, R909, R910, R912, R913 DCN1104 R916–R919 DCN1104 R101, R11–R14, R141 RS1/10S0R0J R15–R17, R171, R18 RS1/10S0R0J R201–R203, R300, R319, R333 RS1/10S0R0J R411–R413, R701, R775, R776 RS1/10S0R0J R891, R893, R902, R908, R961 RS1/10S0R0J R205 RS1/10S101J R835, R839, R855, R859, R875 RS1/16S1001F R881 RS1/16S1001F R834, R854, R874 RS1/16S1201F R823–R825 RS1/16S1500F R117, R118 RS1/16S1501F R126 RS1/16S1502F R241, R247 RS1/16S2202F R110, R153, R155, R168, R169 RS1/16S2702F R173, R174, R213, R228, R229 RS1/16S2702F R248 RS1/16S2702F R152, R156, R158–R164, R167 RS1/16S4702F R170, R172, R175, R194, R227 RS1/16S4702F R836, R856, R879 RS1/16S5600F VR801 (1kΩ) VCP1125 Other Resistors RS1/16S&&&J OTHERS CN903 CONNECTOR S13B-PH-SM3 CN101 CONNECTOR S14B-PH-SM3 CN801 CONNECTOR S4B-PH-SM3 FLEXIBLE CABLE VDA1681 TP100, TP200, TP300, TP400 CHECKER-CHIP VKF1001 CN201 CONNECTOR VKN1324 CN106 7P CONNECTOR VKN1411 CN105 14P CONNECTOR VKN1418 CN901, CN902 22P CONNECTOR VKN1426 CN103 26P CONNECTOR VKN1430 KN1–KN3 EARTH METAL FITTING VNF1109 LABEL VRW1750 X602 CERAMIC RESONATOR(20MHz)VSS1114 X501 CERAMIC RESONATOR(10MHz)VSS1115 X901 CERAMIC RESONATOR(24MHz)VSS1118 GYCB ASSY SEMICONDUCTORS IC701 CXD2046Q IC801 TA7302P IC620 TC74HC4053AF Q1414, Q3062, Q407, Q411, Q414 2PB709A Q645, Q647, Q750 2PB709A Q1411, Q1412, Q1421, Q1422 2PD601A Q1431, Q1432, Q412, Q413 2PD601A Q415, Q416, Q626, Q636, Q646 2PD601A Q702, Q703, Q805, Q806 2PD601A Q408–Q410 2SC1740S Q1423, Q1433, Q417, Q420, Q803 PDTA124EK Q1401, Q418, Q419, Q681, Q801 PDTC124EK D699 MA111 COILS AND FILTERS F701, F771–F773 CHIP BEAD DTF1069 F777, F778 CHIP BEAD DTF1069 L3003, L750, L751 LAU220J-TA L801 LCTA470J2520 CAPACITORS C433 CCSQCH100D50 C771, C772, C777 CCSQCH101J50 C750, C753 CCSQCH220J50 C805 CCSQCH390J50 C754 CCSQCH470J50 C752 CCSQCH560J50 C751 CCSQCH6R0D50 C3064 CCSQCH910J50 C424 CEAL101M6R3 C1421, C1431 CEAL4R7M16 C629 CEANP220M10 C1401, C1402, C210, C216, C422 CEAT101M10 C7001–C7003, C704 CEAT101M10 C431, C434 CEAT221M6R3 C1426, C1436 CEAT471M6R3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVL-919 61 C426, C429, C436, C462, C603 CEJA101M6R3 C635, C793 CEJA101M6R3 C639 CEJANP220M10 C705 CKSQYB102K50 C1413, C620, C628, C632, C638 CKSQYB104K25 C706, C707, C722, C723, C804 CKSQYB104K25 C810, C850 CKSQYB104K25 C806, C807, C811 CKSQYF103Z50 C1414–C1416, C1423–C1425 CKSQYF104Z25 C1427, C1428, C1433–C1435 CKSQYF104Z25 C1437, C1438, C213, C215, C217 CKSQYF104Z25 C423, C425, C427, C428, C430 CKSQYF104Z25 C432, C435, C437, C439, C460 CKSQYF104Z25 C463, C622, C626, C627 CKSQYF104Z25 C630, C631, C633, C634, C636 CKSQYF104Z25 C692, C7004, C711, C713, C714 CKSQYF104Z25 C716, C717, C724, C770 CKSQYF104Z25 C773–C776, C791, C792, C802 CKSQYF104Z25 C808, C809, C812, C902 CKSQYF104Z25 RESISTORS R424 RN1/10SE1801D R422 RN1/10SE2201D R700, R704, R705 RN1/10SE2700D R425 RN1/10SE2702D R420, R421, R707, R717 RN1/10SE3301D R426, R701, R702, R708 RN1/10SE4701D R706 RN1/10SE5601D R1422, R1432 RS1/10S2001F R1423, R1433 RS1/10S3301F R814 RS1/10S68R0F R1415, R1425, R1435, R436–R441 RS1/10S75R0F R627 RS1/10S75R0F Other Resistors RS1/10S&&&J OTHERS JA102 SOCKET AKP7010 CN601 CONNECTOR B13B-PH-K-S PCB BINDER VEF1040 JA104 JACK VKB1107 JA103 JACK VKB1109 CN401, CN402 B TO B CONNECTOR 20P VKN1390 SCREW PLATE VNE1948 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DVL-919 6.1 ADJUSTMENT ITEMS AND LOCATION Adjustment Points (PCB Part) 6. ADJUSTMENT Adjustment Items [Mechanical Part] [Electricall Part] Tilt Offset Adjustment Tangential Direction Angle Adjustment for Side A Spindle Motor Centering Adjustment for Side A Crosstalk Check and Fine Tilt Offset Adjustment for Side A Focus Servo Loop Gain Adjustment Tracking Servo Loop Gain Adjustment Tangential Direction Angle Adjustment for Side B Spindle Motor Centering Adjustment for Side B Crosstalk Check and Fine Tilt Offset Adjustment for Side B RF MAX Adjustment DVD Jitter Adjustment Video Level Adjustment 18MHz Master Clock Adjustment 1 2 3 4 6 5 7 10 11 8 9 1 2 CLD DVD CLDM ASSY VCO Offset Adjustment Video Output Level Adjustment 1 2 DVDM ASSY DVDM ASSY 1,2 : FE 3,4 : GNDS 5,6 : RFO 7,8 : GNDS 9,10 : TE 11,12 : VREF 13 : TDO 14 : FDO 1 1 2 14 1 13 VR801 VC301 1 1 2 IC701 IC801 IC302 IC813 IC501 IC601 SIDE A CN101 CN201 CLDM ASSY VR603 IC500 VR604 VR609 VR450 CN802 11 1 4 6 5 1 1 1 1 1 32 33 64 IC101 IC901 IC802 VR607 9 1 VR608 VC301 2 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DVL-919 Adjustment Points (Mechanism Part) [Side A] [Side B] Black screw Loosen → Adjust → Tighten (apply the lock-tight) Note : Apply the lock-tight. 80° Side A centering adjustment screw Adjustment range 3 2 Side A tangential adjustment screw Carriage assy Mechanism assy 80° 80° 80° Adjustment range 7 8 Carriage assy DVD Carriage assy Tilt base (upper) ± 2 turns 90° 90° Side B tangential adjustment screw 10 11 DVD tangential adjustment screw Side B centering adjustment screw Adjustment range Adjustment range CLD DVD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DVL-919 CD test disc (YEDS-7) LD test disc (NTSC :GGV1012) (PAL :GGV1007) Screwdriver (medium) Screwdriver (large) Dual-trace oscilloscope (with delay) Frequency band 40MHz Frequency counter Display digit 8-digit TV monitor Test mode remote control unit (GGF1067) 6.2 JIGS AND MEASURING INSTRUMENTS Screwdriver (small) Precise screwdriver DVD test disc (DVD-MJK1) Precise screwdriver DC power supply Screwdriver (medium) CH1 CH2 (X) (Y) Jitter meter LEVEL JITTER V – + A Equalizer unit Plastic or Ceramic Screwdriver(small) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DVL-919 6.3 TEST MODE • With TRAY TEST MODE: ON TEST MODE: DISC SET TILT-OFF(N) TRK-OFF • No TRAY UP STOP BEFORE CLAMP GGF1067 Test mode remote control unit CHECK DVD, LD: S-LD CD: S-CD ESC TEST POWER REPEAT A ON GGF1067 Test mode remote control unit ESC POWER OFF 〈CLAMP〉 〈DISC SET〉 〈TRAY OPEN〉 〈TRKG OFF PLAY〉 〈TRKG ON〉 〈TILT ON〉 〈TILT OFF〉 + + REPEAT A REPEAT A 〈TRAY CLOSE〉 TEST MODE: PLAY TEST MODE: OFF PLAY TILT- OFF TRKG- OFF TEST TV/LDP 2 TEST 〈TRKG ON PLAY〉 5 SPEED SPEED TILT-OFF TRK-OFF PLAY TILT- OFF(N) TRKG- ON TILT-OFF(N) TRK-ON PLAY TILT- ON TRKG- ON TILT-ON TRK-ON OR 〈TRKG OFF〉 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 DVL-919 6.4 NECESSARY ADJUSTMENT POINTS When Adjustment Points Mechanical point Electric point Exchange pickup (CLD) Mechanical point Electric point Exchange spindle motor Mechanical point Electric point Exchange board CLDM ASSY 1 2 3 4 5 6 7 8 9 , , , , , , , , 3 8 , 1 4 5 6 9 , , , , EXCHANGE MECHANISM ASSY PARTS EXCHANGE PCB ASSY Note : and are adjusted already. Mechanical point Electric point Exchange board DVDM ASSY Note : and are adjusted already. Mechanical point Electric point Exchange pickup (DVD) 10 11 , 10 11 , ÷ When replacing the FLASH MEMORY (IC603) on the DVDM Assy, follow the "6.5 REGION SETTING". Mechanical point Electric point Exchange board GYCB ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 DVL-919 6.5 REGION SETTING Perform this operation after confirming the region number of each destination on the cover. Region number decided once can be changed never again. Ask the Region. Setting end POWER ON 2 OR OR 1 2 3 [ Player's Region Setting ] 〈 2 〉 : Region 2 〈 4 〉 : Region 4 〈 2 〉 4 3 〈 4 〉 etc. 3 4 2 〈 etc. 〉 Pick out any one of these ! (Blinking) Key input the number with the test mode remote control unit (GGF1067). Note : Region is decided by destination of the player automatically, and there is a case when it doesn't ask on this screen. There is not need of this setting at that occasion. Indication of disappears. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DVL-919 VR607 CLDM ASSY Center Probe (10:1) Oscilloscope V: 20mV/div. H: 0.5µsec/div. AC mode • Test mode • Non disc 1 Tilt Offset Adjustment Player 2 Tangential Direction Angle Adjustment for Side A Side A Tangential Adjustment Screw ∗ See “Adjustment points”. • Test mode TILT → ON TRKG → ON • Play the CD test disc at outer track. 3 RF CN802 CLDM ASSY 6.6 MECHANICAL ADJUSTMENT CLD Carriage assy VR609 Player CH1 CH2 (X) (Y) START START Max. Note: Apply the lock-tight after Adjustment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DVL-919 CH1 CH2 (X) (Y) 4 Crosstalk Check and Fine Tilt Offset Adjustment for Side A Oscilloscope V: 50mV/div. H: 10msec/div. DC mode 3 Spindle Motor Centering Adjustment for Side A • Test mode TILT TRKG • Play the CD test disc at inner track. (CD inside position in program area) Probe (10:1) Side A Centering Adjustment Screw ∗ See “Adjustment points”. Mechanism assy Player VR607 TV monitor VIDEO OUT VIDEO IN • Test mode TILT TRKG • Still the LD test disc at #115. CLDM ASSY Player START → ON → OFF → ON → ON 9 TRK ERR CN802 CLDM ASSY START Max. Note: Apply the lock-tight after Adjustment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 DVL-919 6 Tracking Servo Loop Gain Adjustment Oscilloscope X-Y mode X:  Y: 100mV/div. DC mode 5 Focus Servo Loop Gain Adjustment • Test mode • LD test disc • Play standby 6 FOCUS ERR 7 F IN CN802 8 GND • Test mode TILT TRKG • Still the LD test disc at #115. Oscilloscope X-Y mode X:  Y: 50mV/div. DC mode 9 TRK ERR CLDM ASSY Probe (10:1) CN802 CLDM ASSY Player CH1 CH2 (X) (Y) START CLDM ASSY VR604 Probe (10:1) CN802 CLDM ASSY Player CH1 CH2 (X) (Y) START CLDM ASSY VR603 → ON → ON 4.8Vp-p ± 0.5V 1.8Vp-p ± 0.2V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DVL-919 7 Tangential Direction Angle Adjustment for Side B 8 Spindle Motor Centering Adjustment for Side B Probe (10:1) Oscilloscope V: 20mV/div. H: 1µsec/div. AC mode Side B Tangential Adjustment Screw ∗ See “Adjustment points”. • Test mode TILT TRKG • Still the LD test disc at #115. 3 RF CN802 CLDM ASSY CLD carriage assy Player CH1 CH2 (X) (Y) START Oscilloscope V: 50mV/div. H: 10msec/div. DC mode • Test mode TILT TRKG • Still the LD test disc at #115. 9 TRK ERR Probe (10:1) Side B Centering Adjustment Screw ∗ See “Adjustment points”. CN802 CLDM ASSY Mechanism assy Player CH1 CH2 (X) (Y) START → ON → ON → ON → OFF Max. Max. Note: Apply the lock-tight after Adjustment. Note: Apply the lock-tight after Adjustment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 DVL-919 9 Crosstalk Check and Fine Tilt Offset Adjustment for Side B VR608 TV monitor VIDEO OUT VIDEO IN • Test mode TILT TRKG • Still the LD test disc at #115. CLDM ASSY Player START → ON → ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DVL-919 RF Max Adjustment • Test mode TRKG • Play the DVD test disc at outer track. Player → OFF 5 RFO CN201 DVD MAIN ASSY Tangential Adjustment Screw DVD Jitter Best Adjustment Probe (10:1) Oscilloscope V: 50mV/div. H: 0.5µsec/div. AC mode ∗ See “Adjustment points”. DVD Carriage assy CH1 CH2 (X) (Y) Max. START RF LEVEL JITTER X1 27M Jitter Meter Probe (1:1) EQ UNIT • Test mode TRKG • Play the DVD test disc at outer track (around #1F0000). Player → ON 5 RFO CN201 DVD MAIN ASSY Tangential Adjustment Screw ∗ See “Adjustment points”. DVD Carriage assy START TV monitor VIDEO OUT VIDEO IN •Jitter < 6.0 nS CHECK JT:Min. JT:Min. JT[0000] 0280 TEST DIG/ANA TILT UP/DOWN (4, ¢) Ajustment at midium track CLDM ASSY VR609 TILT- 7 TV monitor TILT ERROR : 7 AGC : ON BIT : 11T • RF Level = 0.8V~1.4V 10 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DVL-919 1 Video Level Adjustment 6.7 ELECTRICAL ADJUSTMENT FOR CLDM ASSY 2 18MHz Master Clock Adjustment • Normal mode • Power ON Frequency counter Player START VC301 CLDM ASSY 18.432000 MHz ± 25Hz CLDM ASSY 1 CN201 18M Player (Rear) VIDEO OUT Oscilloscope Probe (10:1) CH1 CH2 (X) (Y) VIDEO IN V: 20mV/div. H: 10µsec/div. AC mode TV monitor START VR450 CLDM ASSY 1Vp-p • Normal mode • Still the LD test disc at #19900. • Field Still : OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DVL-919 Player (Rear) VIDEO OUT Oscilloscope Probe (10:1) CH1 CH2 (X) (Y) 1.9V ± 0.1V 1 VCO Offset Adjustment • Normal mode • Play the DVD test disc Player START VC301 DVDM ASSY DVDM ASSY 1 IC302 GND Oscilloscope Probe (10:1) CH1 CH2 (X) (Y) 2 Video Output Level Adjustment VIDEO IN V: 20mV/div. H: 10µsec/div. AC mode TV trigger V: 50mV/div. H: 10msec/div. DC mode TV trigger TV monitor START • Normal mode • Still the DVD test disc at 100% white screen part VR801 DVDM ASSY 1Vp-p 6.8 ELECTRICAL ADJUSTMENT FOR DVDM ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DVL-919 TV Monitor Display LASER DISC §� DIG/ANA DISP TEST MODE ESC T T CX REP.A REP.B STEREO P. N A,MON TV/LDP − + A B SCAN ×3 CHAPTER SKIP PLAY 3 1 2 3 CLEAR 4 5 6 +10 7 8 9 0 FRM/TIM CHAP CHP/TIM SEARCH SPEED SIDE STILL STEP PAUSE 8 PIONEER SERVICE GGF1067 SR Player status Play − Test Mode Remote Control Unit (GGF1067) 6.9 OPERATIONS IN THE TEST MODE Stop Play Still PAUSE 8 4 ¢� Tray open Tray= Move Turntable= UP Tray= Move Turntable= DOWN 4 ¢� Play TILT UP Play TILT DOWN Play Search to input frame # +10 REPEAT B 3 1 8 3 CHP/TM Player status Tilt, ON Tilt= Neutral Tilt neutral Tilt= ON Clamp Slider= Move Clamp SPDL= ON, TRK servo = OFF TRK servo ����= ON TRK servo OFF TRK servo ON TRK servo ����= OFF TEST 2 5 TEST + + AGC-OFF AGC-ON TEST 7 + Clamp FOCUS SWEEP (Up and Down) TEST 3 Tray open Disc clamp REPAET A 1 ¡� 1 ¡� ×3 2 3 e e E E 4 ¢� + # 3183 Character in bold : Item name : Information display Remote control code Key code Mechanical position value Slider position FL controller version System controller revision Flash ROM version GUI-ROM number FL controller version First screen display Note : Switch the first and second screen by pressing the [DISPLAY] key on the remote control unit. Second screen display (at lower right portion of the screen) Region setting for the player Output video system DVD mechanism controller revision AV-1 chip version Part No. of flash ROM and system controller Part No. of DVD mechanism controller Part No. of CLD mechanism controller CLD mechanism controller revision Address Tilt error value, Tilt servo status Tracking status Spindle status AGC setting FTS servo IC information C1 error value of CD and DVD Internal operation mode of the mechanism control Disc judgment Pickup www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DVL-919 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DVL-919 PD0266A2 (CLDM ASSY : IC101) • Mechanism Control IC • Pin Function • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. . o N e m a N n i P O /I n o it c n u F 1 C C V I V 5 ylp p A nip ylp p u s r e w o P ± % 0 1 2 C W R O e tir W = " H " d a e R = " L " t u p t u o la n gis d n a m m o c e tir w / d a e r P S D 3 Y A L P X O s r e h t O = " H " Y A L P C S = " L " o v r e s eld nip s g nir u d t u p t u o la n gi S 4 K C Q C X O s r e h t O = " H " P S D = " L " h cti w s k c olc P S D / P V D 5 D C X O D L = " H " D C = L " t u p t u o la n gis h cti w s D C / D L 6 R R E T L I T I la n gis sih t t a h t o s r o t o m tlit e h t lo rt n o C .t u p nilo rt n o c o v r e s tlit e h t s a d e tr e v n o c D / A sila n gis sih T • D / A . V 5 . 2 s e m o c e b 7 R R E L A B K R T I .t u p nilo rt n o c t e sff o g nik c a rt e h t s a d e tr e v n o c D / A sila n gis sih T t u p nila n gis r o rr e e c n ala b g nik c a r T • D / A 8 R R E D L S I .t u p nilo rt n o c o v r e s r e dils e h t s a d e tr e v n o c D / A sila n gis sih T • D / A . V 5 . 2 s e m o c e b la n gis sih t t a h t o s r o t o m r e dils e h tlo rt n o C 9 S O P D L S I t u p ni h cti w s n oitc e t e d n oitis o p p u k ci P • D / A . d e divid e c n a tsis e r e r a s e h cti w s h c a e h cih w e ula v t u p ni D / A g nid a e r y b n oitis o p e h t tc e t e D 0 1 Q E S F I yti m rif n o C = " H " yti m rif n o c t o N = " L " t u p nila n gis n oitc e t e d yti m rif n o c .c n y s e d o c b u S 1 1 T C E T E D C X I la m r o N = " H " t n e rr u c r e v O = " L " t u p nila n gis n oitc e t e d t n e rr u c -r e v o eld nip S 2 1 V R D L A B K R T O .t e sff o g nik c a rt o t u a r o f e s u n e h t ,t u p t u o M W P o t la n gis t e sff o g nik c a rt e h t t u p t u O • M W P 0 1 9 µ Z , L , H lo rt n o c e t a ts -irt , d oir e p c e s 3 1 E K A H S O /I C I lo rt n o c m sin a h c e m D V D e h t h ti w n oit a cin u m m o c a t a d r o fla n gis e k a h s d n a H .t u p t u O /t u p n I e h t lo rt n o c r o s s e c o r p o r ci m h c a e d n a e nil a t a d la r e t alib e h t si nip sih T 4 1 N O I T C E R R O C F R O e r a s r e h t o , p u nia g tiu c ric r e n ni V A C , w o L : A - V D C , D C P U nia G = " H " t u p t u o la n gis h cti w s n oitc e rr o c F R . h gi H 5 1 T U O Q S I Q B U S t u o d a e R P S D m o rf t u p ni a t a d d n a m m o C 6 1 N I O C O t u p t u o a t a d 3 lair e S 7 1 K C Q C / 3 K C S O t u p t u o k c olc 3 lair e S 8 1 V R D D L S O 0 1 9 P O T S = V 5 . 2 , V E R = V 0 , D W F = V 5 t u p t u o la n gis lo rt n o c r e dil S • M W P µ lo rt n o c e t a ts -irt , d oir e p c e s 9 1 1 I S I C I lo rt n o c m sin a h c e m D V D e h t m o rf t u p ni a t a d lair e S 0 2 1 O S O C I lo rt n o c m sin a h c e m D V D e h t o t t u p t u o a t a d lair e S 1 2 1 K C S O /I C I lo rt n o c m sin a h c e m D V D e h t h ti w n oit a cin u m m o c lair e s r o f k c ol C C I lo rt n o c m sin a h c e m D V D e h t h ti w e t a cin u m m o c t u o h ti w e d o m t u p ni s e m o c e B 2 2 S R C 0 K R T I t u p nila n gis s s o r c o r e z r o rr e g nik c a r T • T N I n oitc e t e d p m alc s si m e h t ni t n u o c k c a rt g nih c r a e s n e h w la n gis sih t r o tin o M 3 2 Y S B S I t u p ni .c n y s k c olb e d o c b u S 4 2 T U O T L I T O /I t u p t u o lo rt n o c T L I T / D A O L P O T S : V 5 . 2 , P U tli T / T U O y a r T : V 5 , N W O D tli T / N I y a r T : V 0 t u p t u o M W P 5 2 T U O N R U T O t u p t u o la n gis e vir d n r u T 6 2 V B P X I .c n y s la citr e v g nir u D = " L " V D C / D L f o t u p nila n gis .c n y s la citr e v k c a b y al P 7 2 V N C S S I n ois r e v n o c D / A r o f d n u o r G 8 2 T E S E R X I t e s e r e s a ele R = " H " t e s e R = " L " t u p nila n gis t e s e R 9 2 N I X I t u p ni n oit allic s o k c olc z H M 9 0 3 T U O X O t u p t u o n oit allic s o k c olc z H M 9 7. GENERAL INFORMATION 7.1 PARTS 7.1.1 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DVL-919 . o N e m a N n i P O /I n o it c n u F 1 3 . C . N O d e s u t o N 2 3 D N G I d n u o r G 3 3 1 W S M I n oitc e t e d n oitis o p tli T / g nid a o L r o f t u p ni h cti w S 4 3 3 W S M 5 3 2 W S M 6 3 K C O L C B T I k c o L = " H " k c oln U = " L " t u p nila n gis k c ol eld nip S 7 3 G F I t u p nila n gis G F r o t o m eld nip S 8 3 A T A D I r ello rt n o c m sin a h c e m ni-tliu b h ti w r e d o c e d e d o c s pillih P r o f t u p n I 9 3 H B P X I r e d o c e d e d o c s pillih P r o f t u p ni C N Y S - H k c a b y al P 0 4 V B P X I r e d o c e d e d o c s pillih P r o f t u p ni C N Y S - V k c a b y al P 1 4 T X E D O F F O = " L " N O = " H " n ois n e tx e e g n a r ci m a n y d o e div f o t u p t u o la n gis lo rt n o C 2 4 M F W I y r o m e m h ti w : M F W 3 4 M E M T A L O . e g d e g nilla f t a s e h ct a L A 2 1 2 3 D P C Ilo rt n o c y r o m e m f o t u p t u o h ct allo rt n o c lair e S 4 4 K C A C Y O t u p ni K C A 8 4 1 6 D P C I b m o c la tigid e nil 3 5 4 H N I C Y X O t u p t u o h cti w s a t a d n oit a cin u m m o C 8 4 1 6 D P C I b m o c la tigid e nil 3 6 4 H R N A X O le v el R N g ola n A h gih = " H " w ol = " L " 7 4 D L O H T I g nit a r ele c e d / g nit a r ele c c a g nir u D = " H " s r e h t O = " L " t u p nila n gis g nit a r ele c e d / g nit a r ele c c a p m uj k c a r T 8 4 P V D T A L O . e g d e g nilla f t a s e h ct a L t u p t u o la n gis h ct allair e s 4 3 2 0 D P 9 4 C Z T L E S O n oit a ni m ir c sid c sid D V D / D C t a = " L " la m r o n t a = " H " t u p t u o la n gis h cti w s C Z T 0 5 H N I C O D O e ula v e t a ts -irt y b tiu c ric r ellik p m alc d n a e slu p p m alc e h tlo rt n o C 1 5 N O R N A X O R N g ola n a f o t u p t u o la n gis lo rt n o C F F O = " H " N O = " L " 2 5 F F O R N O R N t o N = " H " la m r o N = " L " M E D V y b t u p t u o lo rt n o c n oitc u d e r e sio N 3 5 T S X E C S D I e d o m . U . P D V D e h t ni m u s tlit e h t y b t u p nila n gis g nitc e t e d t n e s b a /t n e s e r p c si D . U . P D L t a t u p ni T C E F E D t n e s e r P = " L " t n e s b A = " H " 4 5 B N R U T X I B e di S = " L " n r u t / A e di S = " H " t u p ni h cti w s n r u T 5 5 A N R U T X I A e di S = " L " n r u t / B e di S = " H " t u p ni h cti w s n r u T 6 5 O P L X I n oitis o p t u o . U . P D L = " L " e vitc a . U . P D L = " H " t u p ni h cti w s g nitc e t e d n oitis o p t u o . U . P D L 7 5 T E D V I la m r o n b A = " H " la m r o N = " L " tr o p t u p nila n gis la m r o n b a r e w o p r o f e s U 8 5 K O F X I o v r e s s u c o f f o n oitc e t e d k c ol r o f e s U k c oln U = " H " k c o L = " L " t u p nila n gis k c ol o v r e s s u c o F 9 5 Q R W I K O = " H " G N = " L " t u p nila n gis K O g nid a e r Q e d o c b u S .k c e h c C R C y b d e s s a p a t a d Q e d o c b u s n e h w H e b lli w nip sih T 0 6 E T U M 3 C A O E T U M = " H " E T U M e s a ele R = " L " .k c a b y alp g nir u d E T U M e s a ele R 3 C A r o f t u p t u o la n gis lo rt n o c e t u M 1 6 1 Q S O N O h cle u q S = " H " F F O h cle u q S = " L " L / 1 t u p t u o la n gis g nih cti w s oid u a g ola n A 2 6 2 Q S O N O h cle u q S = " H " F F O h cle u q S = " L " R / 2 t u p t u o la n gis g nih cti w s oid u a g ola n A 3 6 X C X O F F O X C = " H " N O X C = " L " t u p t u o la n gis g nih cti w s n oitc u d e r e sio n X C oid u a g ola n A 4 6 A N A X O la tigi D = " H " g ola n A = " L " t u p t u o la n gis g nih cti w s oid u a g ola n A /la tigi D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DVL-919 7.2 DISASSEMBLY/ASSEMBLY (1) DISC TRAY (2) DVDM ASSY • Disassembly : • Assembly : POWER ON LD OPEN/CLOSE 1 1 2 2 5 1 3 3 4 4 5 • Disassembly : • Assembly : 1 2 3 4 4 4 4 3 3 3 3 3 2 1 A 1 2 5 Cable Holder Corner Post DVDM ASSY Corner Post Flexible Cable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DVL-919 (3) CLDM ASSY • Disassembly : • Assembly : 1 1 1 1 1 1 2 2 3 3 4 5 5 6 7 7 8 8 4 3 2 1 8 7 6 5 Rear panel (L) Rear panel (R) Hook CLDM ASSY GYCB ASSY Rear panel (L) × 4 7 Rear panel (L) 4 ∗ ∗ CLDM ASSY PCB Spacer Hook Hook 6 Tray Stopper Flexible Cable Flexible Cable Half Pierce Release Release Push Push Half Pierce A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 DVL-919 Sync Demod HA OEIC TE GEN Spindle Control DRAM I/F (Bus Arbiter) Sub-CPU I/F CPU I/F ROM RAM GUI ROM DMA ECC & ID Reg. CD-ROM Sync gene Sub-code Buffer 4Mbit DRAM VBR Buffer LSI-11 IC702 HMS14800CJ-7 IC701 PD4833A TA FA Slider EFM Decoder Servo DSP CD DSP IC201 IC78650E-P IC 501 PD4889 Mechanism Control CPU TA FA Slider For CLD For DVD SPDL Motor SLD POS XRESET IC101 PD0266A2 LD Mechanism Control SI, SO, SCK, SHAKE SLD DRV SLD ERR LOAD/TILT DRV TURN DRV Sel TILT ERR DVD TILT ERR M LOAD/TILT MOTOR M TURN MOTOR IC901 LA9430 Servo Control IC (ASP) TRKG FOCS IC801 LA9425 PSP VCXO ERR IC802 LC78625 DSP EFM Decode Mecha. SW 56 Sel LD DATA IC352 Analog Audio Analog L Analog R IC500 PD6159B NTSC/PAL DVP SPDL Cont A/D 57 ACOM 14M VCXO IC400 LA7134M VDEM 10 27 Phillips Code VCXO ERR IC501 MN477AS MEMORY IC 601 PD3381 System CPU (32bit RISC) 25 4 15 14 4 LD TILT ERR 16M 18M 16M CD PCM CD Digital Out 16M IC208 TC7WU04F IC 813 CY2081SL -611 X312 384 × 48k (18M) A/D Program Stream 27M 27M 36M CA0002AM Clock Generator 14-21 7.3 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DVL-919 Memory Controller CPU I/F System Decoder (DMUX) AV Sync Controller MPEG 2 Video Decoder NTSC /PAL Encode AC3/MPEG1 Audio Decoder S/PDIF DAC DAC DAC Copy Gurd Sub Picture Decoder GUI 16Mbit SDRAM CODE Buffer (Video, Audio, Sub-picture,GUI) IC604 TC55100BFL-85 AC-3 RF 16M IC201 PCM1716E D/A 25 16 13 Sel CLK IC207 TC7S02F VCXO X311 384 × 44.1k (16M) DATA 36M Sel Sel L R PCM Digital PD Key DVD C. DVD Y. IC620 TC74HC4053AF AC-3/PCM Digital IC301 CXD2046Q Y/C SEP. 1-8 D/A D/A IC620 Y (DVD) C (DVD) Comp. OUT C OUT Y OUT AC-3 RF OUT PCM Digital OUT AC-3 /PCM Digital OUT R OUT L OUT SR IN SR OUT SEL IR IR FL Cont. Key A.B. FL TUBE REMOTE SENSOR Front Section CLD Section 4 Y (LD) C (LD) 33 36 2 4 1 15 3 5 MIX IC 801 MB86371 DVD/V-CD AV Decoder 27M 36M GYCB ASSY IC203 CY2081SL -611 YNR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DVL-919 8. PANEL FACILITIES AND SPECIFICATIONS FRONT PANEL DISPLAY WINDOW 96 kHz GUI TITLE CHP/TRK REMAIN TOTAL LAST MEMO CONDITION ANGLE DOLBY DIGITAL This lights during play of a disc with a sampling frequency of 96 kHz. Indicates that a title is being displayed Indicates Dolby Digital playback Indicates location for Last Memory is being recorded in memory. Indicates that playback settings (condition) have been memorized. Indicates GUI operation is being performed. Indicates Multi-Angle playback is in progress. Indicates remaining playback time Indicates total playback time of side Indicates the playback mode, title, type of disc, etc. Indicates that a chapter/ track is being displayed When you press the FL DIMMER button, the brightness of the display window changes among the following settings. Bright = Semi-dark = Dark =off ± Standby indicator (STANDBY) Reverse 4�1 button LD open/close 0 button Disc illumination Turned off when a disc other than a DVD is played back. STANDBY/ON switch (Flat blade 2-pin AC plug model) Power switch (POWER) (Round blade 2-pin AC plug model) Forward ¡�¢ button Disc Side A/B button DVD/LD/CD disc table DVD/CD open/close 0 button Display window Remote sensor Play/Pause 6 button Dimmer (FL DIMMER) button Use this button to adjust the display window's brightness or to turn off the display. Stop 7 button The followiing illustration shows the Flat blade 2-pin AC plug model. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 DVL-919 REAR PANEL Video output jacks Control input jack Component video output jacks Power cord connection terminal S video output jacks Audio output jacks Control output jack Dolby Digital (AC-3) RF output (for LDs) Optical digital output jack Audio optical digital output. Coaxial digital output jacks Use output jack 2 when connecting to an amplifier that supports Dolby Digital, MPEG, or DTS. Use output jack 1 (PCM) for all other amplifiers. TV sysrtem switch (TV SYSTEM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DVL-919 REMOTE CONTROL Buttons ilisted with mark are used for menu operation. Subtitle button (SUBTITLE) STANDBY/ON button ( ) Audio switching button (AUDIO) Mode button (MODE) Title button (TITLE) Previous button (PREV 4) Play button (PLAY 3) Fast reverse button (REV 1) Stop button (STOP 7) Pause button (PAUSE 8) Number buttons Program button (PROGRAM) Chapter/time button (CHP/TIME) Jog mode button (JOG MODE) Random button (RANDOM) Jog mode indicator Repeat button (REPEAT) Disc side A/B button (DISC SIDE) Open/Close button (OPEN/CLOSE 0) Angle button (ANGLE) Display button (DISPLAY) Menu operation buttons Menu button (MENU) Direction buttons (2 • 3 • 5 • ∞ ) Enter button (ENTER) Return button (RETURN ) Next button (NEXT¢) Dimmer button (FL DIMMER) Forward button (FWD ¡) Step buttons (STEP e / E) Clear button (CLEAR) Condition button (CONDITION) Last Memory button (LAST MEMO) Jog dial Shuttle ring Using the lighting button • When you press the lighting button on the left side of the remote control, buttons on the remote control illustrated below will be illuminated for about 3 seconds. Lighting button These buttons will be illuminated. Lighting button DISC SIDE AUDIO SUBTITLE MENU ENTER CHP/TIME PROGRAM REPEAT JOG & SHUTTLE REV FWD REPEAT +10 A-B RANDOM JOG MODE LAST MEMO CLEAR C CONDITION ANGLE MODE DISPLAY RETURN TITLE NEXT PREV REV PLAY FWD PAUSE STOP 1 6 2 7 3 8 4 9 5 0 STEP FL DIMMER A/B OPEN/ CLOSE MENU ENTER MODE DISPLAY RETURN TITLE NEXT PREV REV PLAY FWD PAUSE STOP 1 2 3 4 5 STEP FL DIMMER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 DVL-919 SPECIFICATIONS ACCESSORIES Batteries(AA/R6P) ... 2 Remote control unit Other included items: ÷ Operating Instructions Power cord Video cord DISC SIDE AUDIO SUBTITLE MENU ENTER CHP/TIME PROGRAM REPEAT JOG & SHUTTLE REV FWD SUBTITLE REPEAT +10 A-B RANDOM JOG MODE LAST MEMO CLEAR C CONDITION ANGLE MODE DISPLAY RETURN TITLE NEXT PREV REV PLAY FWD PAUSE STOP 1 6 2 7 3 8 4 9 5 0 STEP FL DIMMER A/B OPEN/ CLOSE General System ......................... DVD system, LaserVision Disc system and Compact Disc digital audio system Power requirements ...................... AC 110-127/220-240V, 50/60Hz Power consumption .................................................................48 W Power consumption in standby mode ....................................6.9 W Weight Flat blade 2-pin AC plug model ........................................... 8.5kg Round blace 2-pin AC plug model ....................................... 8.6kg Dimensions Flat blade 2-pin AC plug model .... 420(W) x 462(D) x 146(H) mm Round blade 2-pin AC plug model 420(W) x 464(D) x 146(H) mm (Not including protruding cables, etc.) Operating temperature .............................................+5°C to +35°C Operating humidity ........................................................ 5% to 85% S-Video Output (2 pairs) Y (luminance) - Output level ....................................... 1 Vp-p (75 Ω ) C (color) - Output level ......................................... 286 mVp-p (75 Ω) Jacks ........................................................................... S-VIDEO jack Video Output (2 pairs) Output level ................................................................ 1 Vp-p (75 Ω) Jacks ................................................................................ RCA jacks Component Video Output (Y, CB, CR) Output level ......................................................... Y: 1.0 Vp-p (75 Ω) ......................................................................CB, CR: 0.7 Vp-p (75 Ω) Jacks ................................................................................ RCA jacks Audio Output (2 pairs) Output level During audio output ..............................200 mVrms (1 kHz, –20 dB) Number of channels ....................................................................... 2 Jacks ................................................................................ RCA jacks Digital audio characteristics (DVD fs=96kHz/24 bit) Frequency response 4 Hz to 44 kHz (DVD fs: 96 kHz) 4 Hz to 20 kHz (LD, CD) S/N ratio 115 dB Dynamic range 103 dB Total harmonic distortion 0.002 % Wow and flutter Limit of measurement (±0.001% W. PEAK) or lower Other Terminals Optical digital output (AC-3/PCM) ...................... Optical digital jack Coaxial digital output (AC-3/PCM) ...................................... RCA jack Coaxial digital output (PCM) ............................................... RCA jack AC-3 RF output (for LD) ..................................................... RCA jack CONTROL IN ............................................................ Minijack (3.5ø) CONTROL OUT ......................................................... Minijack (3.5ø) Accessories Remote control unit ....................................................................... 1 AA (R6P) dry cell batteries ............................................................. 2 Audio cord ...................................................................................... 1 Video cord ...................................................................................... 1 Power cord ..................................................................................... 1 Operating Instructions ................................................................... 1 NOTE: The specifications and design of this product are subject to change without notice, due to improvement. White Red Audio cord VDE1036 (L=1.5m) VDE1033 (L=1.5m) Yellow ADG7003 (RB and RD/RB types) ADG7017 (RAM type) ADG1127 (RL type) (Either of the two power cords above is supplied.) VXX2603 (CU-DV027) Manufactured under licese from Dolby Laboratories. "Dolby", "AC– 3" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works, © 1992-1997 Dolby Laboratories, Inc. All rights reserved. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
