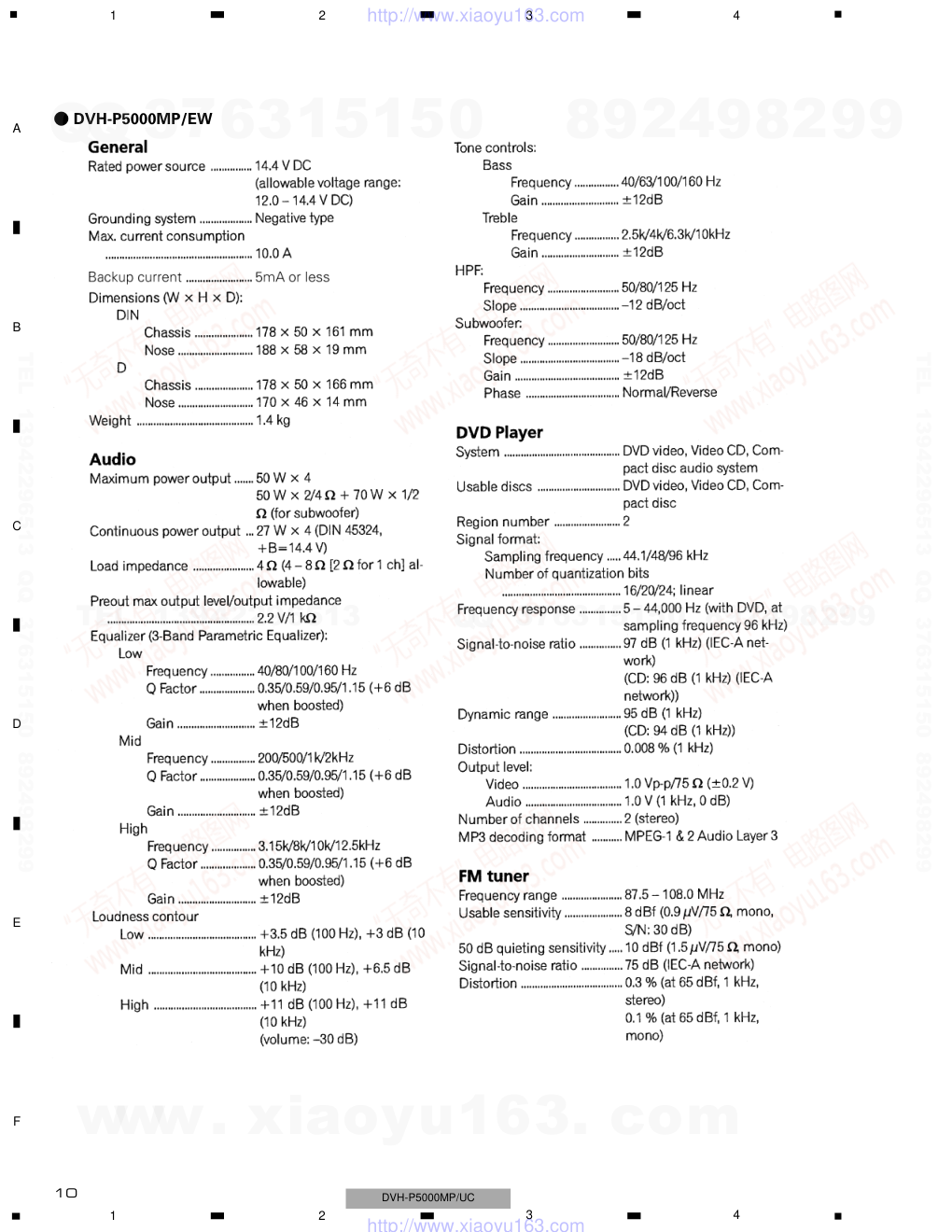

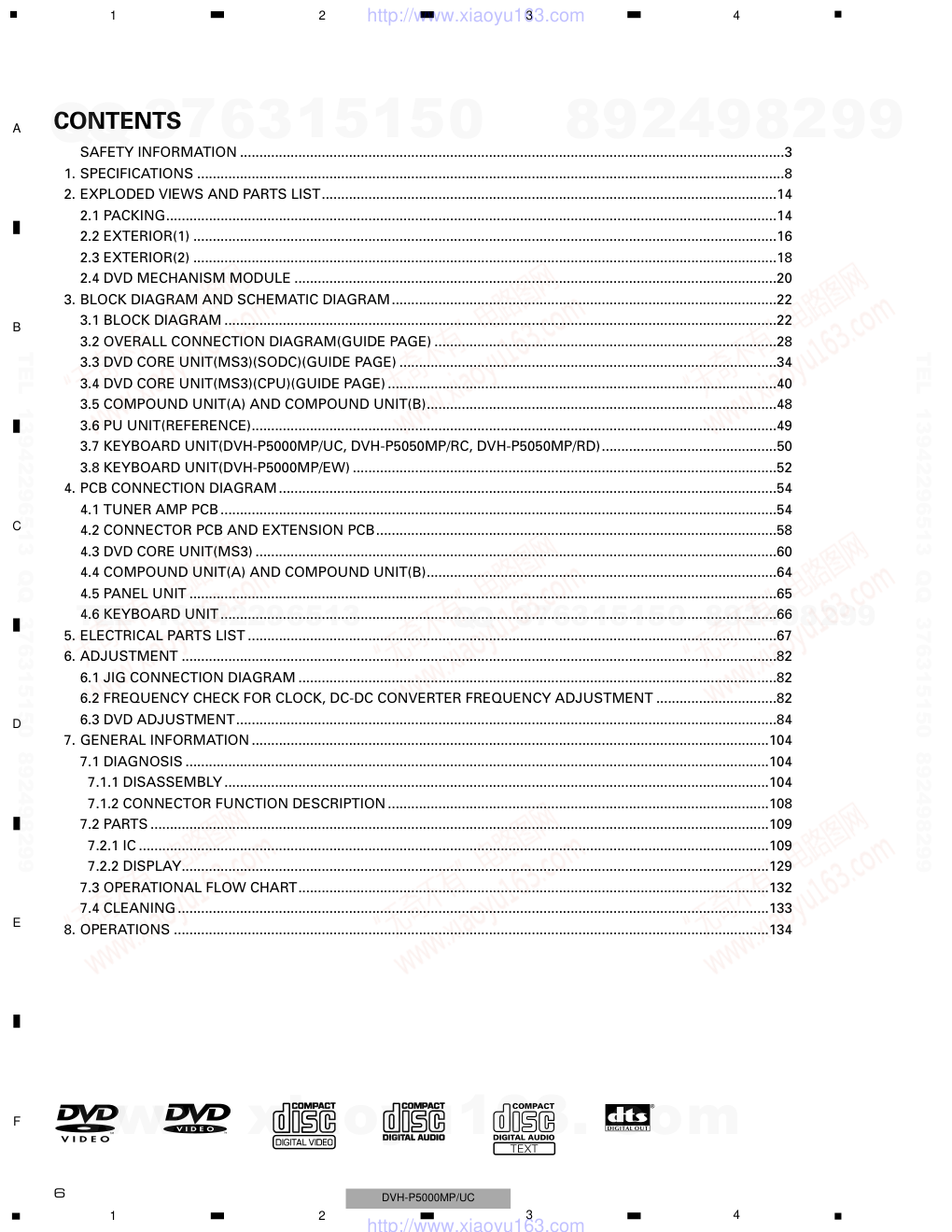

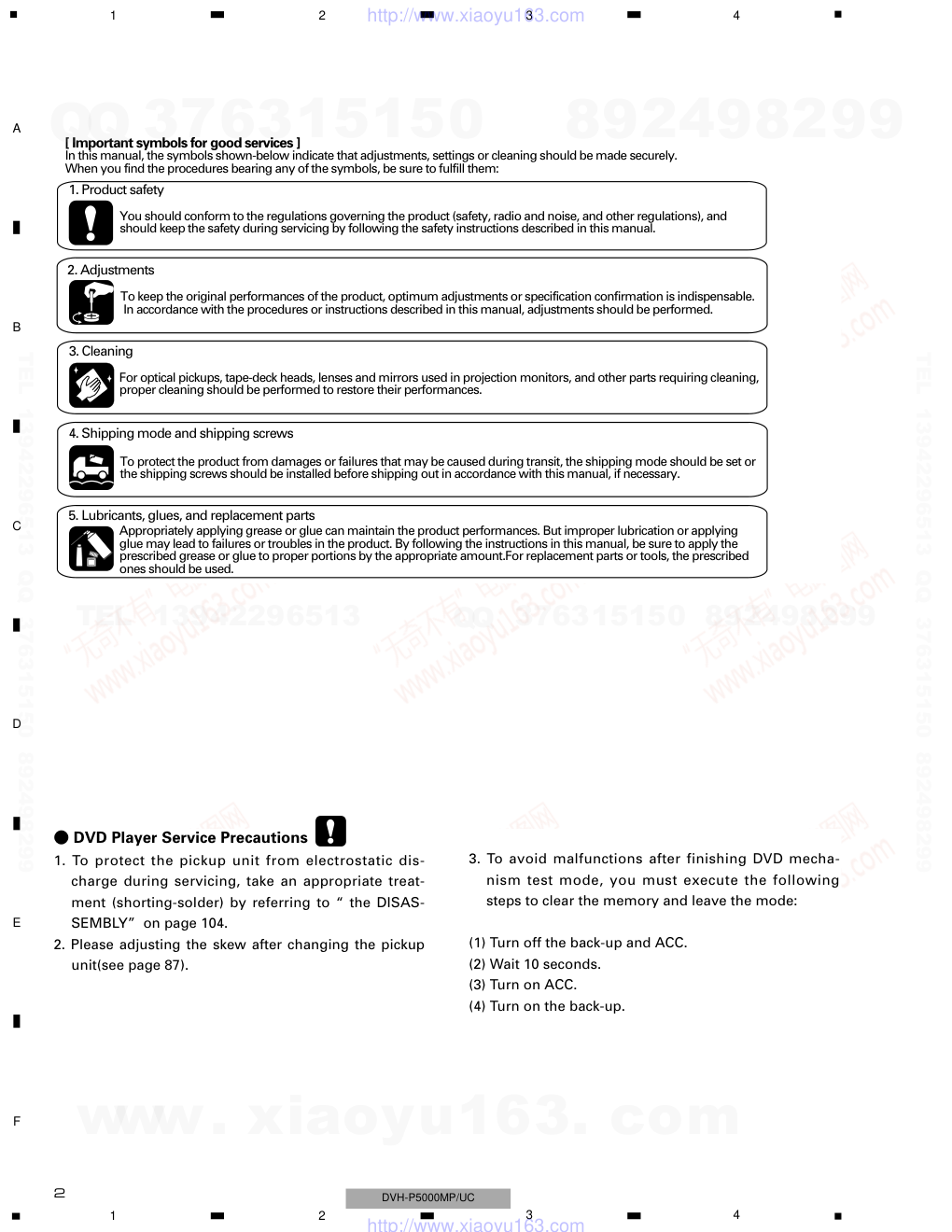

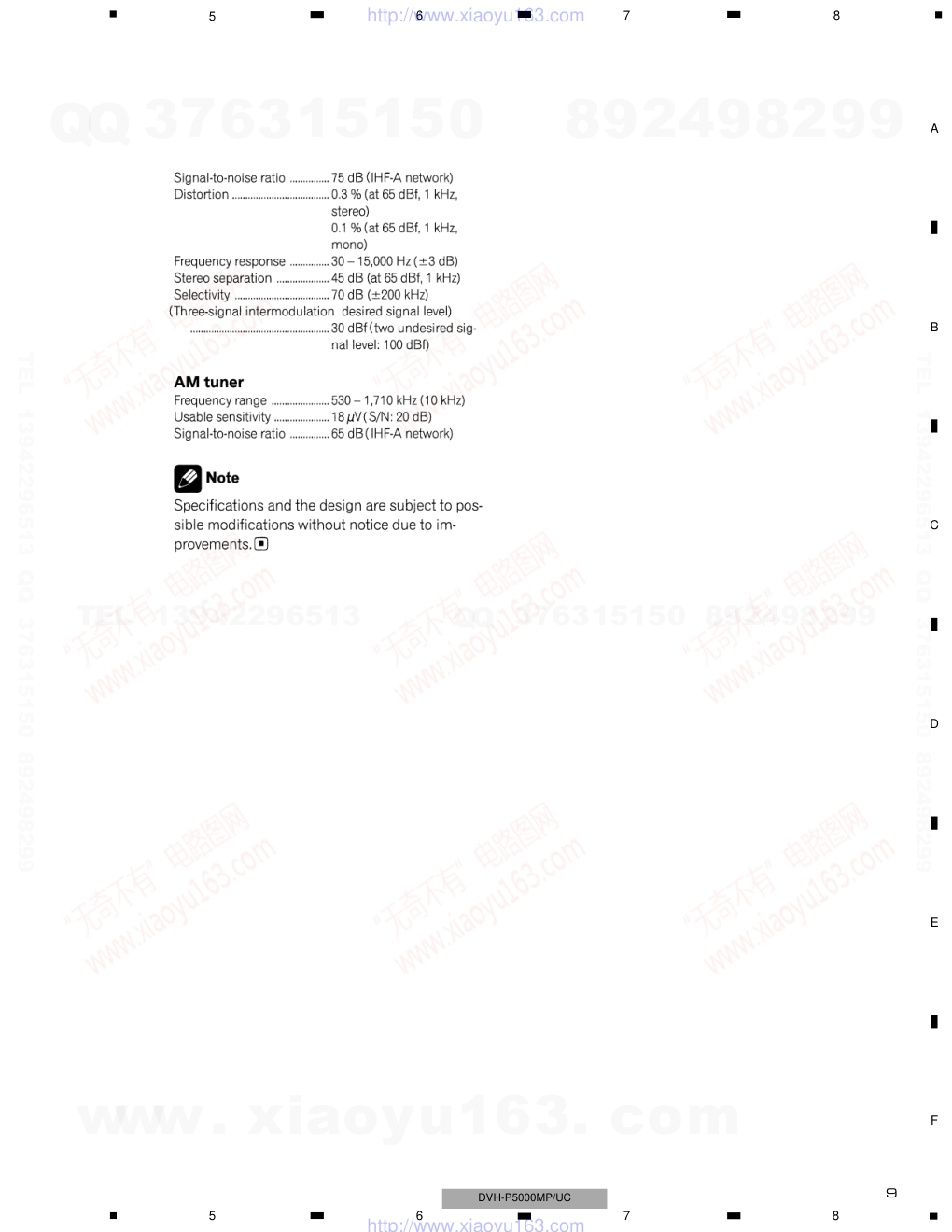

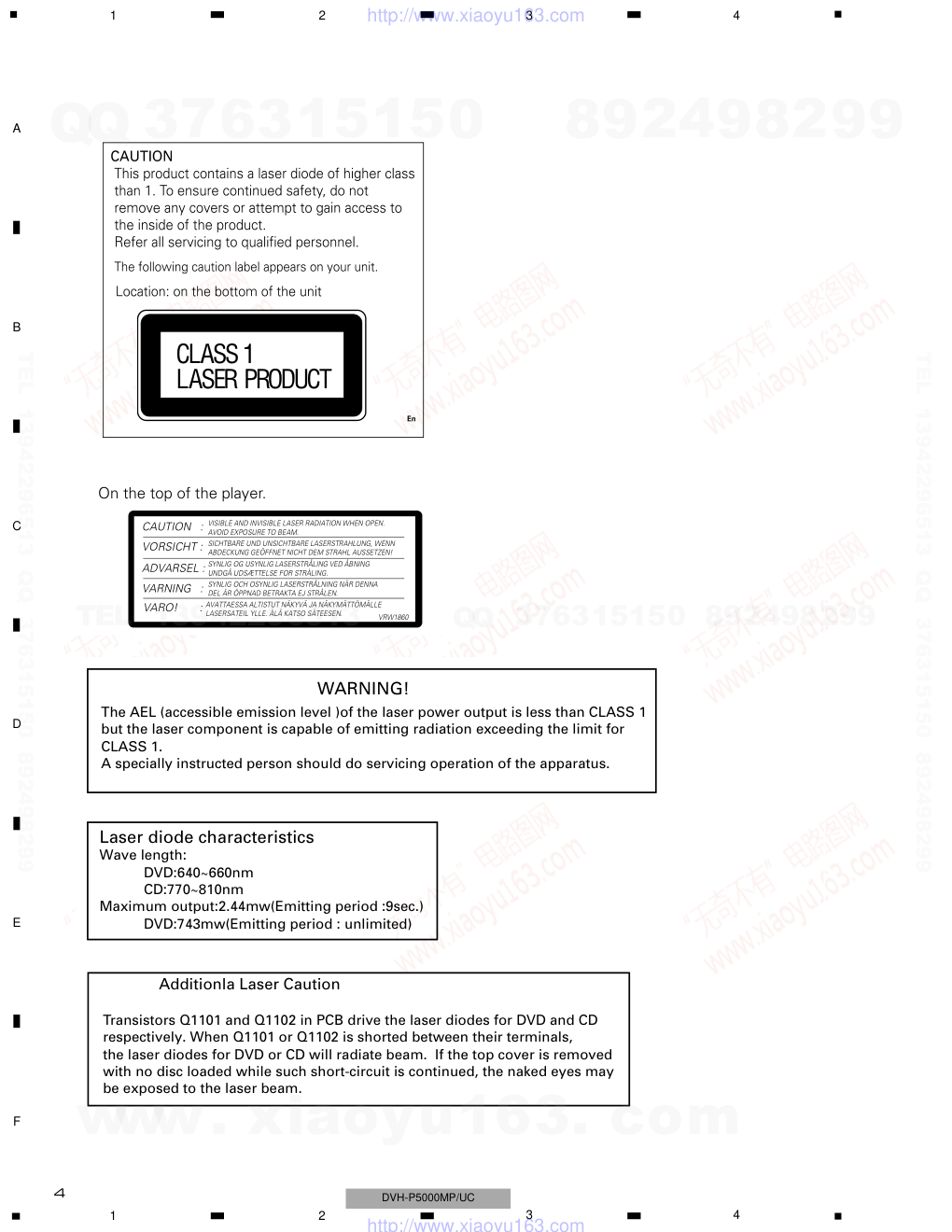

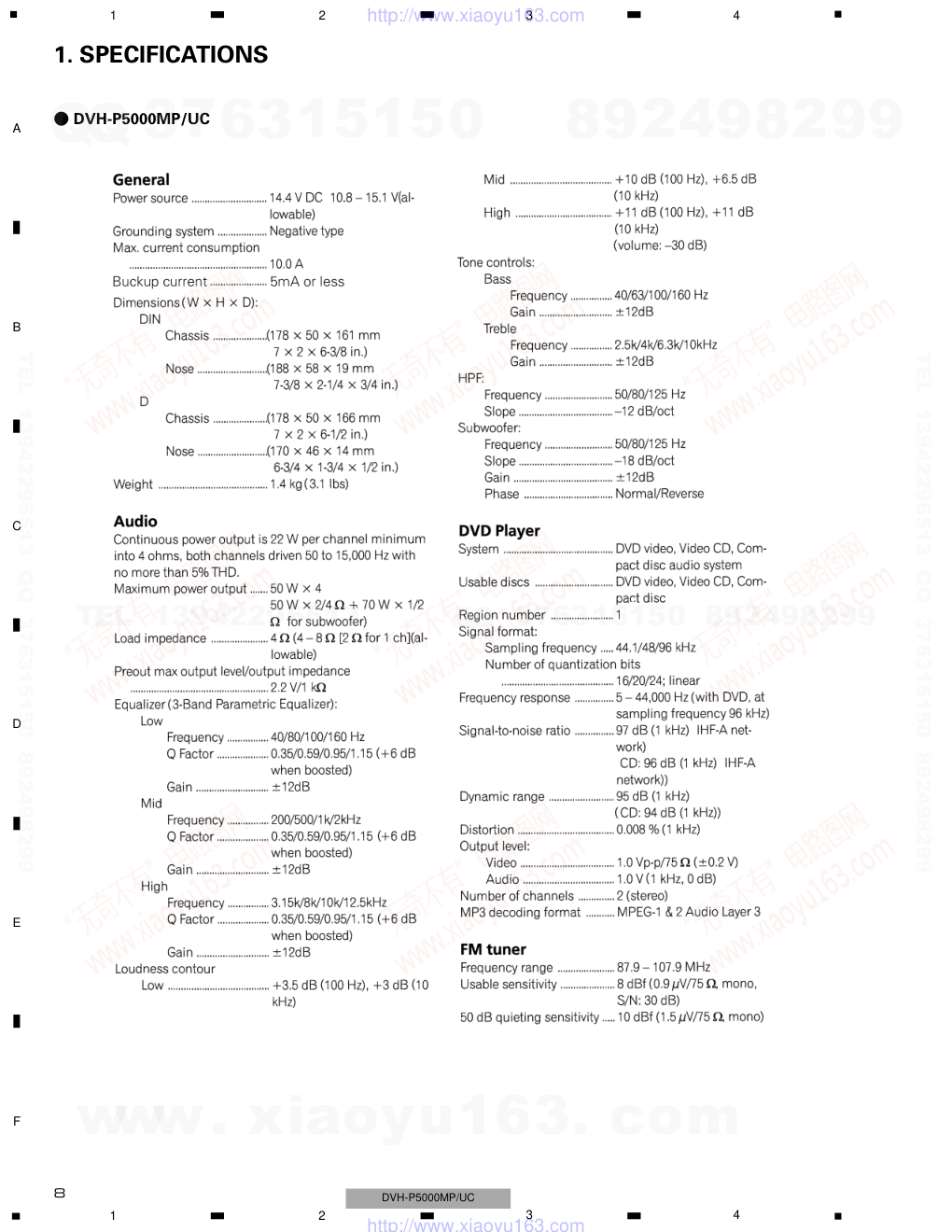

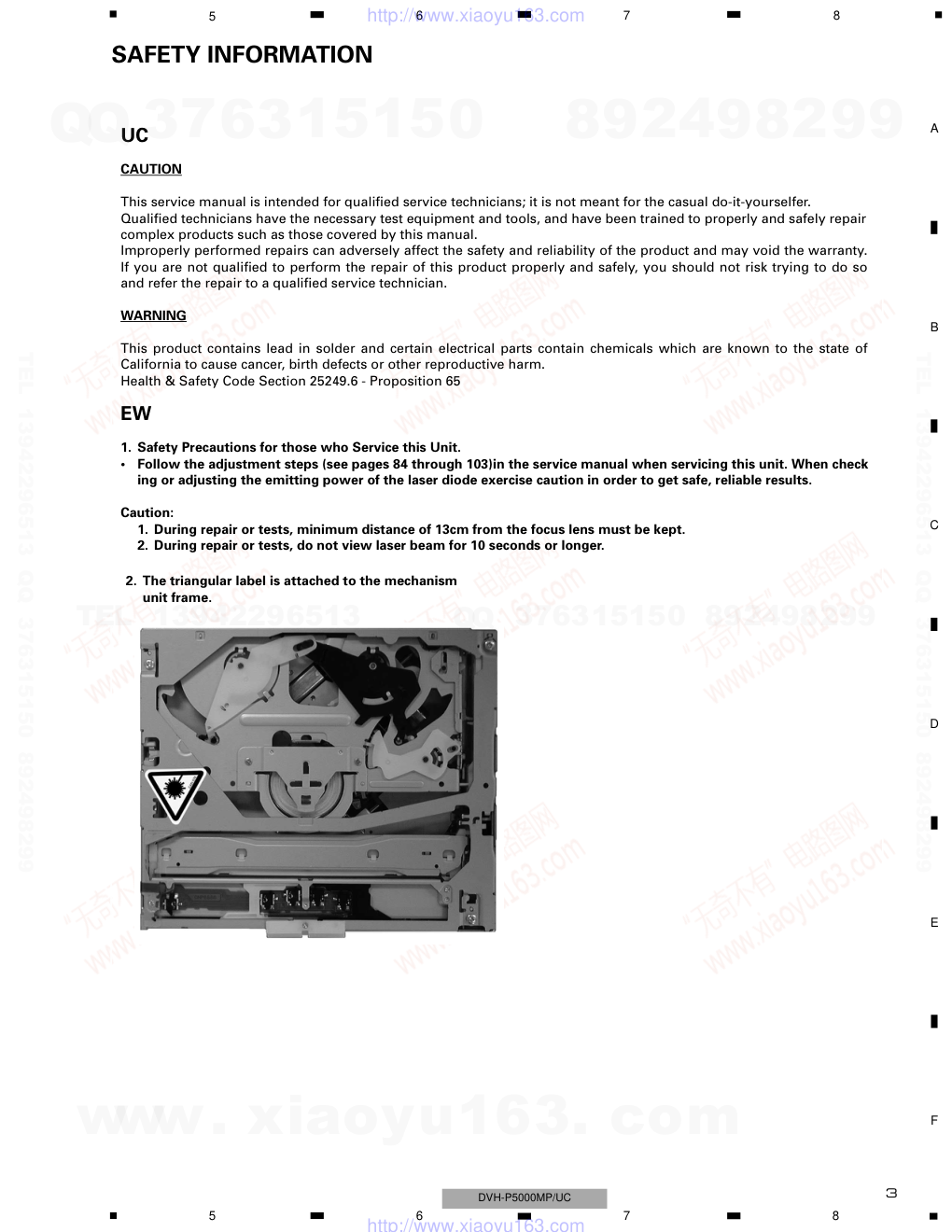

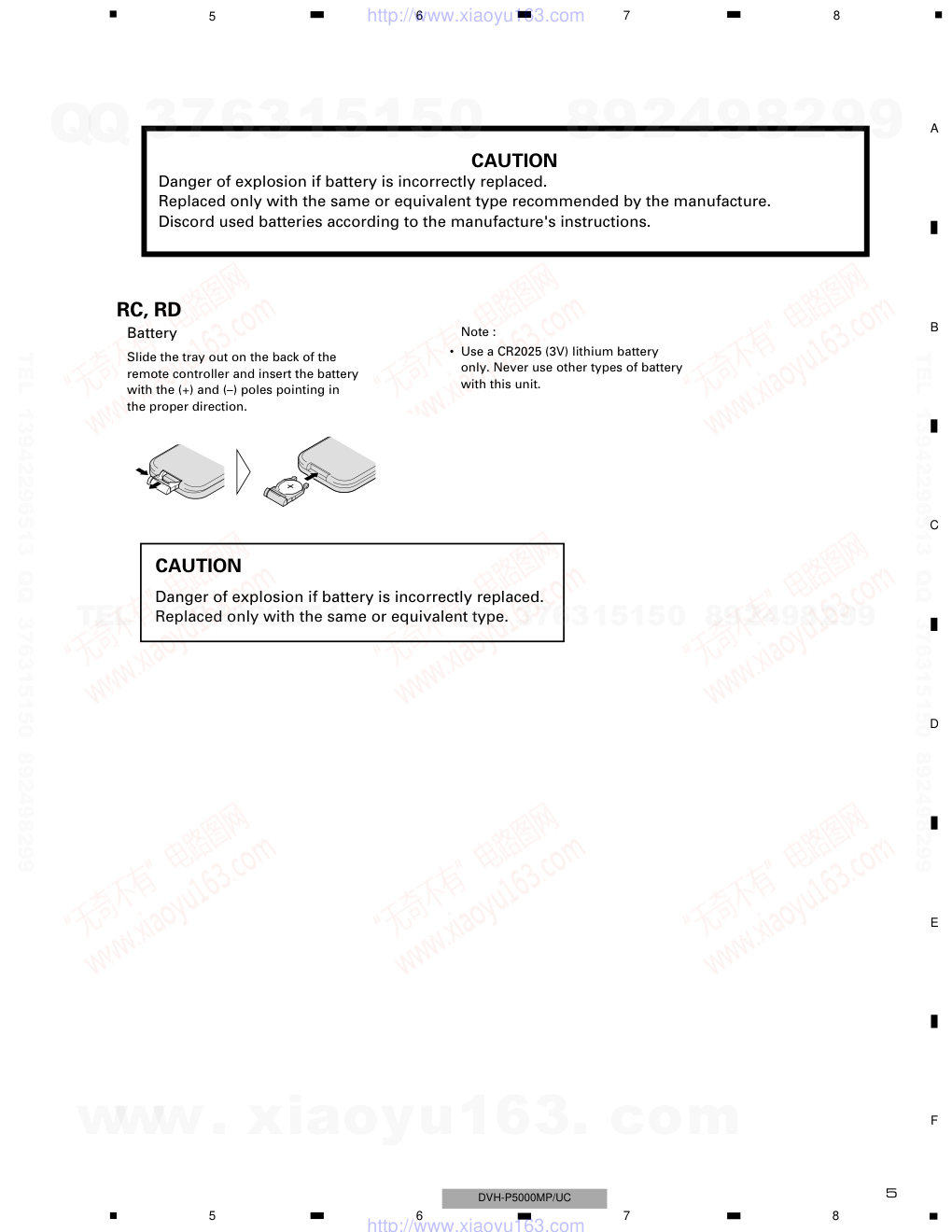

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2003 K-ZZA. MAY 2003 Printed in Japan ORDER NO. CRT3074 MULTI-CD CONTROL HIGH POWER DVD/VIDEO CD/CD/MP3 PLAYER WITH FM/AM TUNER DVH-P5000MP UC DVH-P5000MP EW DVH-P5050MP RC, RD Service Manual DVH-P5000MP/UC - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-3016 CRT3056 MS3 DVD Mech. Module : Circuit Description, Mech. Description, Disassembly - Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. For details, refer to "Important symbols for good services". MULTI-CD/DAB CONTROL HIGH POWER DVD/VCD/CD/MP3 PLAYER WITH RDS TUNER MULTI-CD CONTROL HIGH POWER DVD/VIDEO CD/CD/MP3 PLAYER WITH FM/AM TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. - DVD Player Service Precautions 1. To protect the pickup unit from electrostatic dis- charge during servicing, take an appropriate treat- ment (shorting-solder) by referring to “ the DISAS- SEMBLY” on page 104. 2. Please adjusting the skew after changing the pickup unit(see page 87). 3. To avoid malfunctions after finishing DVD mecha- nism test mode, you must execute the following steps to clear the memory and leave the mode: (1) Turn off the back-up and ACC. (2) Wait 10 seconds. (3) Turn on ACC. (4) Turn on the back-up. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 UC CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 EW 1. Safety Precautions for those who Service this Unit. • Follow the adjustment steps (see pages 84 through 103)in the service manual when servicing this unit. When check- ing or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. The triangular label is attached to the mechanism unit frame. 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC SAFETY INFORMATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 On the top of the player. CAUTION : VORSICHT : ADVARSEL : VARNING : VARO! : VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN! SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÀLING. SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN. AVATTAESSA ALTISTUT NÄKYVÄ JA NÄKYMÄTTÖMÄLLE LASERSATEIL YLLE. ÄLÄ KATSO SÄTEESEN. VRW1860 CLASS 1 LASER PRODUCT WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. Laser diode characteristics Wave length: DVD:640~660nm CD:770~810nm Maximum output:2.44mw(Emitting period :9sec.) DVD:743mw(Emitting period : unlimited) Additionla Laser Caution Transistors Q1101 and Q1102 in PCB drive the laser diodes for DVD and CD respectively. When Q1101 or Q1102 is shorted between their terminals, the laser diodes for DVD or CD will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacture. Discord used batteries according to the manufacture's instructions. RC, RD CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type. Battery Slide the tray out on the back of the remote controller and insert the battery with the (+) and (–) poles pointing in the proper direction. Note : • Use a CR2025 (3V) lithium battery only. Never use other types of battery with this unit. 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC CONTENTS SAFETY INFORMATION ............................................................................................................................................3 1. SPECIFICATIONS .......................................................................................................................................................8 2. EXPLODED VIEWS AND PARTS LIST.....................................................................................................................14 2.1 PACKING.............................................................................................................................................................14 2.2 EXTERIOR(1) ......................................................................................................................................................16 2.3 EXTERIOR(2) ......................................................................................................................................................18 2.4 DVD MECHANISM MODULE ............................................................................................................................20 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM...................................................................................................22 3.1 BLOCK DIAGRAM ..............................................................................................................................................22 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) ........................................................................................28 3.3 DVD CORE UNIT(MS3)(SODC)(GUIDE PAGE) .................................................................................................34 3.4 DVD CORE UNIT(MS3)(CPU)(GUIDE PAGE) ....................................................................................................40 3.5 COMPOUND UNIT(A) AND COMPOUND UNIT(B)..........................................................................................48 3.6 PU UNIT(REFERENCE).......................................................................................................................................49 3.7 KEYBOARD UNIT(DVH-P5000MP/UC, DVH-P5050MP/RC, DVH-P5050MP/RD).............................................50 3.8 KEYBOARD UNIT(DVH-P5000MP/EW) .............................................................................................................52 4. PCB CONNECTION DIAGRAM................................................................................................................................54 4.1 TUNER AMP PCB...............................................................................................................................................54 4.2 CONNECTOR PCB AND EXTENSION PCB.......................................................................................................58 4.3 DVD CORE UNIT(MS3) ......................................................................................................................................60 4.4 COMPOUND UNIT(A) AND COMPOUND UNIT(B)..........................................................................................64 4.5 PANEL UNIT .......................................................................................................................................................65 4.6 KEYBOARD UNIT...............................................................................................................................................66 5. ELECTRICAL PARTS LIST ........................................................................................................................................67 6. ADJUSTMENT .........................................................................................................................................................82 6.1 JIG CONNECTION DIAGRAM ...........................................................................................................................82 6.2 FREQUENCY CHECK FOR CLOCK, DC-DC CONVERTER FREQUENCY ADJUSTMENT ...............................82 6.3 DVD ADJUSTMENT...........................................................................................................................................84 7. GENERAL INFORMATION .....................................................................................................................................104 7.1 DIAGNOSIS ......................................................................................................................................................104 7.1.1 DISASSEMBLY ............................................................................................................................................104 7.1.2 CONNECTOR FUNCTION DESCRIPTION..................................................................................................108 7.2 PARTS ...............................................................................................................................................................109 7.2.1 IC ..................................................................................................................................................................109 7.2.2 DISPLAY.......................................................................................................................................................129 7.3 OPERATIONAL FLOW CHART.........................................................................................................................132 7.4 CLEANING........................................................................................................................................................133 8. OPERATIONS .........................................................................................................................................................134 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 1. SPECIFICATIONS - DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC - DVH-P5000MP/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC - DVH-P5050MP/RC, RD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) - PACKING SECTION PARTS LIST Part No. MarkNo. Description DVH-P5000MP/UC DVH-P5000MP/EW DVH-P5050MP/RC DVH-P5050MP/RD * 1-1 Polyethylene Bag CEG1116 CEG1116 CEG1116 CEG1116 1-2 Owner’s Manual CRD3791 CRD3787 CRB1854 CRB1854 1-3 Installation Manual CRD3792 CRD3790 CRD3793 CRD3793 * 1-4 Card ARY1048 Not used Not used Not used * 1-5 Caution Card CRP1295 CRP1295 CRP1295 CRP1295 1-6 Owner’s Manual Not used CRD3788 CRB1855 CRB1856 1-7 Owner’s Manual Not used CRD3789 Not used Not used * 1-8 Passport Not used CRY1013 Not used Not used * 1-9 Warranty Card Not used CRY1157 Not used Not used 2 ••••• 3 Cord Assy CDE7228 Not used CDE7228 CDE7228 4 Remote Control Unit CXC1336 CXC1337 CXC1337 CXC1337 5 Case Assy CXB3520 CXB3520 CXB3520 CXB3520 6 Accessory Assy CEA3792 CEA3791 CEA3793 CEA3793 7 Fixing Screw BPZ20P060FZK BPZ20P060FZK Not used Not used 8 Screw CBA1646 CBA1646 CBA1646 CBA1646 9 Handle CNC5395 CNC5395 CNC5395 CNC5395 10 ••••• 11 Bush CNV1009 CNV1009 CNV1009 CNV1009 * 12 Polyethylene Bag CEG-158 E36-615 CEG-158 CEG-158 13 Spring CBH-865 Not used CBH-865 CBH-865 14 Polyethylene Bag CEG1185 * CEG1305 * CEG1305 * CEG1305 15 Sub Carton CHA3167 CHA3167 CHA3167 CHA3167 16 Carton CHG5092 CHG5091 CHG5093 CHG5094 17 Contain Box CHL5092 CHL5091 CHL5093 CHL5094 18 Protector CHP2383 CHP2383 CHP2383 CHP2383 19 Protector CHP2384 CHP2384 CHP2384 CHP2384 20 Protector CHP2385 CHP2385 CHP2385 CHP2385 21 Protector CHP2386 CHP2386 CHP2386 CHP2386 22 Screw Assy CEA3788 Not used CEA3789 CEA3789 * 23 Polyethylene Bag CEG1158 Not used CEG1158 CEG1158 24 Screw CRZ50P090FTC Not used CRZ50P090FTC CRZ50P090FTC 25 Screw TRZ50P080FTC Not used TRZ50P080FTC TRZ50P080FTC 26 Cord Assy CDE6377 CDE6376 CDE6765(Cord) CDE6765(Cord) 27 Cord Assy CDE7230 CDE7230 CDE7230 CDE7230 28 Holder CND1249 CND1249 Not used Not used 29 Holder CND1250 CND1250 Not used Not used 30 Polyethylene Bag CEG1161 CEG1161 CEG1161 CEG1161 * 31 Lock Tie CNV-754 CNV-754 CNV-754 CNV-754 32 Filter CTX1060 CTX1060 CTX1060 CTX1060 33 Cord Assy Not used CDE7227 Not used Not used - Owner's Manual, Installation Manual Part No. Language CRD3791 English, French CRD3792 English, French CRD3787 English, Spanish CRD3788 German, French CRD3789 Italian, Dutch CRD3790 English, Spanish, German, French, Italian, Dutch Part No. Language CRB1854 English CRB1855 Traditional chinese CRB1856 Spanish CRD3793 English, Traditional chinese, Spanish www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 2.2 EXTERIOR(1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 1 Screw BMZ26P120FTC 2 ••••• 3 Screw BSZ26P060FTC 4 Screw BSZ30P060FTC 5 Screw BSZ30P200FTC 6 Screw(M2x4) CBA1457 7 Screw(M2x2.5) CBA1609 8 ••••• 9 Cord CDE7226 10 Cord Assy See Contrast table(2) 11 Fuse(10A) See Contrast table(2) 12 Cap See Contrast table(2) 13 Cord Assy CDE7230 14 Cap CNV6727 15 Cable CDE7390 16 DVD Mechanism Module(MS3) CXK6312 17 Chassis See Contrast table(2) 18 Case CNB2732 19 ••••• 20 Holder CND1546 21 Holder CND1548 22 Holder CND1549 23 Holder CND1569 24 Insulator CNM8227 25 Sheet CNM8228 26 Heat Sink CNR1617 27 ••••• 28 Tuner Amp Unit See Contrast table(2) 29 Screw BPZ30P060FTC 30 FM/AM Tuner Unit See Contrast table(2) 31 Connector(CN101, 102) CKS4653 32 ••••• 33 Holder CND1432 34 Pin Jack(CN302) CKB1059 35 Connector(CN301) CKM1343 36 Plug(CN802) CKM1370 37 Connector(CN973) CKS2104 38 Connector(CN871) CKS3124 39 Connector(CN971) CKS3124 40 Connector(CN171) CKS3408 41 Plug(CN101) CKS3537 42 Connector(CN201) CKS3751 43 Connector(CN1702) CKS3902 44 Connector(CN1701) CKS4496 45 Connector(CN974) CKS4581 46 Antenna Jack(CN402) CKX1056 47 Holder CNC9788 48 Holder CNC9792 49 Holder CND1058 50 Holder CND1547 51 Shield CND1550 52 Insulator CNM8453 53 Connector(CN972) HKS-193 54 Terminal(CN401) VNF1084 55 Fan Motor CXM1193 56 Screw ISS26P055FTC 57 Screw PMZ20P160FTC 58 IC(IC351) PAL007A 59 Resistor See Contrast table(2) 60 Cushion CNM7026 61 Cord Assy See Contrast table(2) 62 Fuse(10A) See Contrast table(2) 63 Cap See Contrast table(2) 64 Resistor See Contrast table(2) 65 Cap See Contrast table(2) 66 Label See Contrast table(2) (1) EXTERIOR(1) SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. (2) CONTRAST TABLE DVH-P5000MP/UC, DVH-P5000MP/EW, DVH-P5050MP/RC and DVH-P5050MP/RD are constructed the same except for the following: Part No. MarkNo. Description DVH-P5000MP/UC DVH-P5000MP/EW DVH-P5050MP/RC DVH-P5050MP/RD 10 Cord Assy CDE7228 Not used CDE7228 CDE7228 11 Fuse(10A) CEK1136 Not used CEK1136 CEK1136 12 Cap CNS1472 Not used CNS1472 CNS1472 17 Chassis CNA2641 CNA2636 CNA2641 CNA2641 28 Tuner Amp Unit CWM8676 CWM8674 CWM8672 CWM8673 30 FM/AM Tuner Unit CWE1651 CWE1650 CWE1651 CWE1651 59 Resistor RS1/2PMF102J Not used RS1/2PMF102J RS1/2PMF102J 61 Cord Assy Not used CDE7227 Not used Not used 62 Fuse(10A) Not used CEK1136 Not used Not used 63 Cap Not used CNS1472 Not used Not used 64 Resistor Not used RS1/2PMF102J Not used Not used 65 Cap Not used CKX-003 Not used Not used 66 Label Not used VRW1860 Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 2.3 EXTERIOR(2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 1 Button(EJECT) CAC7752 2 Screw(M2x4.5) CBA1647 3 Screw(M2x4) CBA1649 4 Washer CBF1038 5 Spring CBH2650 6 Spring CBH2651 7 Spring CBH2652 8 Spring CBH2653 9 Spring CBL1512 10 Holder CND1254 11 Cover CNM6854 12 Panel See Contrast table(2) 13 Gear CNV5997 14 Pin CNV6486 15 Lighting Conductor CNV6487 16 Arm CNV7400 17 Arm CNV7401 18 Arm CNV7402 19 Arm CNV7403 20 Panel Unit CWM8758 21 Socket(CN1950) CKS3550 22 Connector(CN1951) CKS4462 23 Holder Unit CXB9501 24 Holder Unit CXB9502 25 Damper Unit CXB9503 26 Service Panel Unit See Contrast table(2) 27-31 ••••• 32 Detach Grille Assy See Contrast table(2) 33 Screw BPZ20P060FTC 34 Screw BPZ20P100FZK 35 Knob See Contrast table(2) 36 Button(OPEN) CAC7728 37 Button(A) CAC7729 38 Button(1-6) CAC7730 39 Button(CLOCK) See Contrast table(2) 40 Button(SELECT) See Contrast table(2) 41 Spring CBH2654 42 Spring CBL1470 43 Sub Grille Assy See Contrast table(2) 44 Cushion CNM8291 45 Holder CNV7405 46 Keyboard Unit See Contrast table(2) 47 LCD See Contrast table(2) 48 Connector(CN1901) CKS4524 49 Holder CND1215 50 Sheet CNM7921 51 Connector CNV7365 52 Lighting Conductor CNV7406 53 Button Unit(EQ) CXB9925 54 Button Unit(EQ, SRC) CXB9924 55 Cover XNS7014 56 Remote Control Unit See Contrast table(2) 57 Cover CZN5357 58 Screw BMZ30P040FZK 59 Holder CNC8659 60 Panel See Contrast table(2) 61 Cushion CNM8612 (1) EXTERIOR(2) SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. (2) CONTRAST TABLE DVH-P5000MP/UC, DVH-P5000MP/EW, DVH-P5050MP/RC and DVH-P5050MP/RD are constructed the same except for the following: Part No. MarkNo. Description DVH-P5000MP/UC DVH-P5000MP/EW DVH-P5050MP/RC DVH-P5050MP/RD 12 Panel CNS7310 CNS7310 CNS7245 CNS7245 26 Service Panel Unit CXX1694 CXX1694 CXX1691 CXX1691 32 Detach Grille Assy CXC1309 CXC1308 CXC1310 CXC1310 35 Knob CAA2777 CAA2777 CAA2755 CAA2755 39 Button(CLOCK) CAC7751 CAC7727 CAC7751 CAC7751 40 Button(SELECT) CAC8005 CAC8005 CAC7733 CAC7733 43 Sub Grille Assy CXC1313 CXC1312 CXC1314 CXC1314 46 Keyboard Unit CWM8798 CWM8797 CWM8799 CWM8799 47 LCD CAW1814 CAW1813 CAW1815 CAW1815 56 Remote Control Unit CXC1336 CXC1337 CXC1337 CXC1337 60 Panel CNS7482 CNS7482 CNS6935 CNS6935 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 (A):GEM1045 (B):GEM1043 (C):GEM1024 (D):GEM1050 (D) 94 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 2.4 DVD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Mark No. Description Part No. Mark No. Description Part No. - DVD MECHANISM MODULE SECTION PARTS LIST 1 DVD Core Unit(MS3) CWX2769 2 Connector(CN1501) CKS4282 3 ••••• 4 Connector(CN1202) CKS4624 5 Connector(CN1611) CKS4052 6 Connector(CN1603) CKS4374 7 Connector(CN1101) CKS4625 8 Connector(CN1201) CKS4067 9 Screw BMZ20P020FTC 10 Screw(M2 x 3.5) CBA1571 11 Screw(M2 x 2.5) CBA1623 12 Washer CBF1038 13 Washer CBF1064 14 Spring CBH2586 15 Spring CBH2587 16 Spring CBH2588 17 Spring CBH2589 18 Spring CBH2590 19 Spring CBH2591 20 Spring CBH2592 21 Spring CBH2593 22 Spring CBH2594 23 Spring CBH2595 24 Spring CBH2596 25 Spring CBH2597 26 Spring CBH2598 27 Spring CBH2599 28 Spring CBH2600 29 Spring CBH2601 30 Spring CBH2602 31 Spring CBH2603 32 Spring CBH2604 33 Spring CBH2605 34 Spring CBH2711 35 Spring CBL1564 36 Pickup Unit(Service)(DP5)CXX1639 37 Shaft CLA3881 38 Shaft CLA4206 39 Shaft CLA4207 40 Lever CNC9933 41 Holder CNC9939 42 Holder CNC9940 43 Holder CNC9941 44 Frame CNC9944 45 Sheet CNM6883 46 Sheet CNM8283 47 Sheet CNM8287 48 Lever CNV7154 49 Lever CNV7155 50 Cam CNV7156 51 Rack CNV7157 52 Clamper CNV7158 53 Arm CNV7159 54 Arm CNV7160 55 Arm CNV7161 56 Arm CNV7162 57 Arm CNV7163 58 Arm CNV7164 59 Roller CNV7165 60 Arm CNV7166 61 Guide CNV7167 62 Gear CNV7169 63 Gear CNV7170 64 Gear CNV7171 65 Gear(Black) CNV7172 66 Gear CNV7173 67 Gear CNV7174 68 Rack CNV7175 69 Gear CNV7176 70 Arm CNV7177 71 Lever CNV7178 72 Lever CNV7179 73 Screw IMS20P030FTC 74 Gear CNV7181 75 Holder CNV7183 76 Holder CNV7184 77 Guide CNV7745 78 Roller CNV7344 79 Damper CNV7470 80 Damper CNV7471 81 Collar CNV7645 82 Compound Unit(A) CWX2752 83 Gathering PCB CNX3835 84 Compound Unit(B) CWX2753 85 Washer YE20FTC 86 Chassis Unit CXB8680 87 Arm Unit CXB8681 88 Frame Unit CXB8683 89 Arm Unit CXB8684 90 Bracket Unit CXB8685 91 Motor Unit(LOADING)(M1) CXB8687 92 Motor Unit(CARRIAGE)(M2)CXB8688 93 Screw Unit CXB8689 94 Roller Unit CXB8690 95 Motor(SPINDLE)(M3) CXM1211 96 Screw JFZ20P018FTC 97 Photo-transistor(Q1299) CPT231SCTD 98 Switch(S1201,S1202,S1203) CSN1051 99 Spring Switch(S1204,S1205) CSN1052 100 Resistor(R1298,R1299) RS1/16S0R0J 101 Guide CNV7615 102 Screw(M1.7x1.2) CBA1572 103 Arm CNV7742 104 Arm CNV7743 105 Spring CBH2710 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 IC 171 HA12187FP IP-BUS DRIVER X2 X1 PEE 18 LCDPW 73 70 SYSTEM CONTROLLER IC 601(2/2) PE5360A CN402 ANT BUS- B.UP BUS+ IPL+ IPL- 1 2 8 6 5 TX RX IPPW swvdd Q TUNER AMP PCB 38 X601 39 SWDACC VST,VCK,VDT TUNL IPL+ IPL- MS3L 1 DPDT 100 KYDT 60 SYSPW Q171 72 ILMPW 90 dsens 1 78 LVLINL LEVEL IND A CN171 BUZZER TC74VHCT08FT IC 202 TC74VHCT08AFT IC 201 SM5304AV IC 271 6 SM5304AV IC 273 6 1 1 26 5 3 32 31 DDCONT 65 HSTCMD,IRQPWR,XRST AMUTE,SLVSTS MS3L Q105 B.UP Q104 VDD Q102 CN201 IP-BUS CN1611 1 CN971 3 2 8 VDD 1 CN974 4 CN972 1 CN973 1 2 3 4 CN1501 TC7WT125FU CONNECTOR PCB B 8 PBSENS 21 CONTA CONTA MS3L VIDEO FRONT ISOLATOR, 75Ω DRIVER SP601 86 ejectin 84 RDT0 85 RDT1 IC 971 5 3 ← 3 5 ← A V : AUDIO SIGNAL : VIDEO SIGNAL A V V A V V A A A A A A A VDD TUN 3.3V SYS+B 5 8 1 7 11 DAC5V 22 MUTE SY 71 FLPILM EJILM IEC REAR ISOLATOR, 75Ω DRIVER VDD Q201 14 MSVDD 52 VDD33 VDD Q213 VDD3V REGULATOR Q216 MSVDD2 B.UP Q211 Q212 25 B.UP Q214 Q215 VD8 BA05SFP IC 214 2 4 VCC5 CONTB 1 27 26 BA00BC0WFP IC 213 2 4 VCC33 1 30 29 VCC33 REGULATOR VCC5 REGULATOR BA00BC0WFP IC 212 2 4 VCC18 1 33 VCC18 REGULATOR 34 VDD33 VDD33 23 CONTA S-814A33AMC-BCX IC 215 1 5 SRVDD 3 28 SRVDD REGULATOR VDD VDD Q202 CONTB 7 Q220 OUT2 OUT1 10 IC 211 AN8011S 3.3V DC-DC CONVERTER RT 2 VCC 9 B.UP Q371 MUTE Q373 B.UP DTSMUTE 67 AMUTE AMUTE 2 2 FMMUTE 24 RMMUTE 25 2 D D 61 REARPW FVOUT RVOUT ASENBO FMMUTE RMMUTE HSTX,IRQPWR,XRST AMUTE,MSRX MSVDD2 66 AMPPW MS3L FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 DO 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch FM/AM TUNER UNIT NC NC NC NC NC 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM - DVH-P5000MP/UC, DVH-P5050MP/RC, DVH-P5050MP/RD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 Q331 bsens asens B.UP 93 92 10 FL 11 RL EJILM SWDVDD BLB 3 5 23 21 FL- FL+ RL- RL+ ACC IN2-L 41 IN4+L 43 IN4-L 44 IN3-L 42 27 26 28 FLIN 12 RLIN 14 22 4 POWER AMP IC 601(1/2) PE5360A IC 361 PML009A IC 351 PAL007A VDD Q822 Q801 AMPPW TX RX IPPW ELECTRONIC VOLUME/ SOURCE SELECTOR STBY MUTE CN101 Q103 X601 VST,VCK,VDT TUNL PL+ PL- MS3L DPDT KYDT SYS+B B.UP Q831 BU Q362 MUTE PL Q303 Q321 FL Q323 REAR MONITOR L 12 PL 7 2 10 11 14 7 2 10 11 14 CN1950 CN1951 4 2 5 10 8 PANEL UNIT MUTE PL FL MS2L S101 DETACH SYSTEM CONTROLLER Q802 Q803 VDD isens 88 TELIN 95 25 B.REMOTE FL- FL+ RL- RL+ VDD REGULATOR ILL SENSE BACKUP SENSE ACC SENSE TELEPHONE MUTE AUDIO 8V REGULATOR 5 9 11 12 10 1 3 1 4 NJM4558MD IC 670 5 7 1 SEL_OUT_L LEVEL INDICATOR G C CN802 Q325 B.UP CN301 BACK UP FUSE 10A ACC ILL B.REM FVOUT 13 15 RVOUT 3 7 S-875041BUP-ABC 5 1 Q832 VIDEO5V B.UP Q861 VIDEO 5V REGULATOR Q862 CONTB B.UP Q871 FAN 9V REGULATOR SYSPW CONTB CN871 2 FAN MOTOR TUN3.3V TUNER 3.3V REGULATOR 1 3 BA033FP NJM4558MD 1 3 MUTE Q302 B.UP Q105 Q104 DD Q102 Q804 VDD PARKING BRAKE SENSE 7 PBSEN 1K(1/2w) 1K(1/2w) 12 12 7 13 13 9 CONTB Q821 4 IC 821 reset 34 IC 841 2 GND A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A SL TUNPCE2 TUNPCE TUNPDI TUNPDO 77 11 12 3 4 TUNPCK 5 ce@ CE1 DO DI CK CN302 6 IC 301 Q872 B.UP Q841 Q842 SYSPW DAC5V SYS+B Q851 DAC 5V REGULATOR Q852 CONTB RMUTE OFFMUTE SYSMUTE OFFMUTE OFFMUTE Q351 SYSMUTE SYSMUTE SYSPW 8 8 S1970 EJECT 9 9 DGND B.UP 5 6 5 6 Q101 EJILM 23 MUTE FVOUT RVOUT Q301 2 8 SYSPW 29 ASENBO SYSPW OFF MUTE MS3L IL+B SWVDD IC 1900 PD6294A LCD DRIVER/ KEY CONTROLLER KEY MATRIX 9 11 KEY DATA VDD 23 CN1901 3 5 DPDT KYDT IC 1901 RS-140 REMOTE CONTROL SENSOR OPT IN 4 1 10 REMIN 9 8 DPDT KTDT LCD H VLCD 78 8 BL+B Q1910 DIMMER DIMMER 7 ILLUMINATION X1 X0 2 X1900 3 S1950 6 4 ROT0 ROT1 ROT0 ROT1 KEYBOARD UNIT VOLUME 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 IC 171 HA12187FP IP-BUS DRIVER X2 X1 PEE 18 LCDPW 73 70 SYSTEM CONTROLLER IC 601(2/2) PE5361A CN402 ANT BUS- B.UP BUS+ IPL+ IPL- 1 2 8 6 5 TX RX IPPW swvdd Q TUNER AMP PCB 38 X601 39 SWDACC VST,VCK,VDT TUNL IPL+ IPL- MS3L 1 DPDT 100 KYDT 60 SYSPW Q171 72 ILMPW 90 dsens 1 78 LVLINL LEVEL IND A CN171 BUZZER TC74VHCT08FT IC 202 TC74VHCT08AFT IC 201 SM5304AV IC 271 6 SM5304AV IC 273 6 1 1 26 5 3 32 31 DDCONT 65 HSTCMD,IRQPWR,XRST AMUTE,SLVSTS MS3L Q105 B.UP Q104 VDD Q102 CN201 IP-BUS CN1611 1 CN971 3 2 8 VDD 1 CN974 4 CN972 1 CN973 1 2 3 4 CN1501 TC7WT125FU CONNECTOR PCB B 8 PBSENS 21 CONTA CONTA MS3L VIDEO FRONT ISOLATOR, 75Ω DRIVER SP601 86 ejectin 84 RDT0 85 RDT1 IC 971 5 3 ← 3 5 ← A V : AUDIO SIGNAL : VIDEO SIGNAL A V V A V V A A A A A A A VDD TUN 3.3V SYS+B 5 8 1 7 11 DAC5V 22 MUTE SY 71 FLPILM EJILM IEC REAR ISOLATOR, 75Ω DRIVER VDD Q201 14 MSVDD 52 VDD33 VDD Q213 VDD3V REGULATOR Q216 MSVDD2 B.UP Q211 Q212 25 B.UP Q214 Q215 VD8 BA05SFP IC 214 2 4 VCC5 CONTB 1 27 26 BA00BC0WFP IC 213 2 4 VCC33 1 30 29 VCC33 REGULATOR VCC5 REGULATOR BA00BC0WFP IC 212 2 4 VCC18 1 33 VCC18 REGULATOR 34 VDD33 VDD33 23 CONTA S-814A33AMC-BCX IC 215 1 5 SRVDD 3 28 SRVDD REGULATOR VDD VDD Q202 CONTB 7 Q220 OUT2 OUT1 10 IC 211 AN8011S 3.3V DC-DC CONVERTER RT 2 VCC 9 B.UP Q371 MUTE Q373 B.UP DTSMUTE 67 AMUTE AMUTE 2 2 FMMUTE 24 RMMUTE 25 2 D D 61 REARPW FVOUT RVOUT ASENBO FMMUTE RMMUTE HSTX,IRQPWR,XRST AMUTE,MSRX MSVDD2 66 AMPPW MS3L FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 DO 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch FM/AM TUNER UNIT LDET RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC - DVH-P5000MP/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 Q331 bsens asens B.UP 93 92 10 FL 11 RL EJILM SWDVDD BLB 3 5 23 21 FL- FL+ RL- RL+ ACC IN2-L 41 IN4+L 43 IN4-L 44 IN3-L 42 27 26 28 FLIN 12 RLIN 14 22 4 POWER AMP IC 601(1/2) PE5361A IC 361 PML009A IC 351 PAL007A VDD Q822 Q801 AMPPW TX RX IPPW ELECTRONIC VOLUME/ SOURCE SELECTOR STBY MUTE CN101 Q103 X601 VST,VCK,VDT TUNL PL+ PL- MS3L DPDT KYDT SYS+B B.UP Q831 Q362 MUTE PL Q303 Q321 FL Q323 REAR MONITOR L 12 PL 7 2 10 11 14 7 2 10 11 14 CN1950 CN1951 4 2 5 10 8 PANEL UNIT MUTE PL FL MS2L S101 DETACH SYSTEM CONTROLLER Q802 Q803 VDD isens 88 TELIN 95 25 B.REMOTE FL- FL+ RL- RL+ VDD REGULATOR ILL SENSE BACKUP SENSE ACC SENSE TELEPHONE MUTE AUDIO 8V REGULATOR 5 9 11 12 10 1 3 1 4 NJM4558MD IC 670 5 7 1 SEL_OUT_L LEVEL INDICATOR G C CN802 Q325 B.UP CN301 BACK UP RR + RR - FR + FR - FL + FL - RL + RL - ACC GND BACK UP B. REM FUSE 10A ACC ILL B.REM ILL FVOUT 13 15 RVOUT 3 7 S-875041BUP-ABC 5 1 Q832 VIDEO5V B.UP Q861 VIDEO 5V REGULATOR Q862 CONTB B.UP Q871 FAN 9V REGULATOR SYSPW CONTB CN871 2 FAN MOTOR TUN3.3V TUNER 3.3V REGULATOR 1 3 BA033FP NJM4558MD 1 3 MUTE Q302 B.UP Q105 Q104 DD Q102 Q804 VDD PARKING BRAKE SENSE 7 PBSEN 1K(1/2w) 1K(1/2w) 12 12 7 13 13 9 CONTB Q821 4 E RSTCNT IC 821 reset 34 IC 841 2 GND A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A ldet SL TUNPCE2 TUNPCE TUNPDI TUNPDO 94 77 11 12 3 4 TUNPCK 5 ce@ CE1 Q402 Q401 RDS_CK RDS_LOCK 20 rck 96 rdt 13 rds%&k 19 rdslk RDS_DATA RDS_HSLK DO DI CK CN302 6 IC 301 Q872 B.UP Q841 Q842 SYSPW DAC5V SYS+B Q851 DAC 5V REGULATOR Q852 CONTB RMUTE OFFMUTE SYSMUTE OFFMUTE OFFMUTE Q351 SYSMUTE SYSMUTE SYSPW 8 8 S1970 EJECT 9 9 DGND B.UP 5 6 5 6 Q101 EJILM 23 MUTE FVOUT RVOUT Q301 2 8 SYSPW 29 ASENBO SYSPW OFF MUTE MS3L IL+B SWVDD IC 1900 PD6294A LCD DRIVER/ KEY CONTROLLER KEY MATRIX 9 11 KEY DATA VDD 23 CN1901 3 5 DPDT KYDT IC 1901 RS-140 REMOTE CONTROL SENSOR OPT IN 4 1 10 REMIN 9 8 DPDT KTDT LCD H VLCD 78 8 BL+B Q1910 DIMMER DIMMER 7 ILLUMINATION X1 X0 2 X1900 3 S1950 6 4 ROT0 ROT1 ROT0 ROT1 KEYBOARD UNIT VOLUME 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 24 DVD CORE UNIT (MS3) Q1101 Q1102 Q1104 Q1103 Q1105 65LD 78LD 2 4 VSHF CN1101 CN1201 CN1202 LPC01 LPC02 IC 1706 TC7SH08FU IC 1702 M5M5V216ATP-70HI IC 1705 PD6419C FEP IC 1101 AN8703FH SODC IC 1301 MNZS26EDCUB IC 1202 AN8471SAT1 36 XWR 4 6 3 8 11 5 2 3 3 CPU IC 1701 PE5395A (1/2) 62 63 90 X1700 5MHz CLKOUT 94 17 1 2 3 11 86 97 79 96 CD/DVD X2 X1 XWR FSSW XUWR DSCSNS IC 1502 TC74VCX74FT IC 1504 TC74VCX74FT IC 1505 TC7PA04FU SRAM FLASH MEMORY IC 1201 BA5985FM 23 PICKUP UNIT(SERVICE)(DP5) A,B1-4,C,RF+,RF- M SPINDLE MOTOR M CARRIGE MOTOR M LOADING MOTOR FOP,FOM,TOP,TOM COP,COM DRIVER 9 LOM 10 LOP 10 A0-17,D0-7 CPU IC 1701 PE5395A(2/2) D FD,TD,MD,CRGDRV,FG FG S1206 S1902 S1903 S1904 S1901 S1905 CLAMP SW 12cm 8cm 8cm Disc sens Disc sens COMPOUND UNIT(B) F COMPOUND UNIT(A) E TBAL,FBAL,JLINE,TEY,ASF,FEY,ARF+,ARF-, OFTR,BOO,RFENV,TESTSG 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC - DVH-P5000MP/UC, DVH-P5000MP/EW, DVH-P5050MP/RC, DVH-P5050MP/RD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 36 34 3 8 11 21,22 87 88 136 26 5 502 CX74FT 504 CX74FT 505 A04FU IC 1501 M2V64S40DTP-6L SDRAM IC 1507 SM8707FV XWRH, XWR SRCK LRCK CLK27 HCLK 1 5 12 3 14 7 1 10 3,5 5 8 4 7 6 2 2,3 6,7 1 3 CLOCK GEN. Rch OUT IECOUT Lch OUT IC 1605 PCM1742KE IC 1604 NJM2100V CN1501 CN1611 VCC33 AV CHIP IC 1503 MN677531KAUB 83 IECOUT 1 (2/2) 11 12 VCC33 CN201 A CN971 B IC 1602 NJM2100M AMUTE,VCONTB,XRES,IRQPWR,HSTCMD,SLVSTS 1 SICOMN,SOCOMN,SCKCOMN,etc CN1603 CN1701 CN1702 EXTENSION PCB C 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A B C G EJECT DETACH SW EW H CN1901 PANEL UNIT G EXTENTION PCB C CONNECTOR PCB B A CN974 2/2 D CN1501 2/2 D CN1603 2/2 D CN1611 TUNER AMP PCB A > > > EW UC/RC/RD EW IP(1kHz, 0dB):0dBs CD/DVD(1kHz, 0dB):+0.3dBs FM(100%):-21.9dBs AM(100%):-32.1dBs FM(EW)(100%):-17.7dBs AM(EW)(100%):-28.4dBs ANTENNA 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 A-b A FAN MOTOR CXM1193 PE5360A PE5361A(EW) ETACH SW Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. REAR VIDEO FRONT VIDEO FRONT R CH FRONT L CH SUB WOOFER R CH SUB WOOFER L CH BACKUP GND RL— RL+ FL— FL+ B.REM ILL ACC VGND CEK1136 10A RR— RR+ FR— FR+ > PBSEN RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP B. REM EW B CN972 > > > UC/RC/RD EW/RC/RD EW EW TUNER AMP UNIT Consists of TUNER AMP PCB CONNECTOR PCB EXTENTION PCB CD/DVD:+0.3dBs IP:0dBs FM:-21.9dBs AM:-32.1dBs FM(EW):-17.7dBs AM(EW):-28.4dBs CD/DVD:+7.4dBs IP:+8.2dBs FM:+1.0dBs AM: -9.2dBs FM(EW):+5.3dBs AM(EW): -5.4dBs CD/DVD:+6.6dBs IP:+7.4dBs FM:+0.2dBs AM:-10.0dBs FM(EW):+4.5dBs AM(EW): -6.2dBs CD/DVD:+0.4dBs CD/DVD:+33.4dBs IP:+34.2dBs FM:+26.2dBs AM:+16.8dBs FM(EW):+31.3dBs AM(EW):+20.6dBs 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 A-a A-b A-a A-a A-b 1 2 3 2/2 D CN1611 TUNER AMP PCB A > > > EW IP(1kHz, 0dB):0dBs CD/DVD(1kHz, 0dB):+0.3dBs 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 A-a A-b A-a A-a A-b G C B EJECT PE5360A PE5361A DETACH SW EW H CN1901 PANEL UNIT G EXTENTION PCB C CONNECTOR PCB B A CN974 2/2 D CN1501 2/2 D CN1603 EW UC/RC/RD EW ANTENNA FM(100%):-21.9dBs AM(100%):-32.1dBs FM(EW)(100%):-17.7dBs AM(EW)(100%):-28.4dBs 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 A-a A-b A-b 1 2 3 The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. REAR VIDEO FRONT VIDEO FRONT R CH FRONT L CH SUB WOOFER R CH SUB WOOFER L CH B CN972 > > > EW EW TUNER AMP UNIT Consists of TUNER AMP PCB CONNECTOR PCB EXTENTION PCB CD/DVD:+0.3dBs IP:0dBs FM:-21.9dBs AM:-32.1dBs FM(EW):-17.7dBs AM(EW):-28.4dBs CD/DVD:+7.4dBs IP:+8.2dBs FM:+1.0dBs AM: -9.2dBs FM(EW):+5.3dBs AM(EW): -5.4dBs CD/DVD:+6.6dBs IP:+7.4dBs FM:+0.2dBs AM:-10.0dBs FM(EW):+4.5dBs AM(EW): -6.2dBs CD/DVD:+0.4dBs 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 A-a A-b A-b FAN MOTOR CXM1193 PE5360A PE5361A(EW) Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. BACKUP GND RL— RL+ FL— FL+ B.REM ILL ACC VGND CEK1136 10A RR— RR+ FR— FR+ > PBSEN RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP B. REM EW UC/RC/RD EW/RC/RD EW CD/DVD:+33.4dBs IP:+34.2dBs FM:+26.2dBs AM:+16.8dBs FM(EW):+31.3dBs AM(EW):+20.6dBs 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 D 1/2 D-a 1/2 PICUP UNIT(SERVICE)(DP5) E F M M2 CARRIAGE MOTOR CXB8688 M M3 SPINDLE MOTOR CXM1211 M M1 LOADING MOTOR CXB8687 1 5 3 9 7 2 4 8 6 RF SIGNAL FOCUS SERVO LINE F TRACKING SERVO LINE T CARRIAGE SERVO LINE C SPINDLE SERVO LINE S F T F F F F T C S T C S T T S S C S S T S C F T F 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 3.3 DVD CORE UNIT(MS3)(SODC)(GUIDE PAGE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 D 1/2 D-b 1/2 D 2/2 D 2/2 D 2/2 D 2/2 D 1/2 DVDCORTE UNIT(MS3) (SO-DC) # $ % @ 0 ! C S Servo stream 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 A-a D-b (1/2) D-a (1/2) D-b 1/2 D-a 1/2 1 PICUP UNIT(SERVICE)(DP5) 1 5 3 9 7 RF SIGNAL FOCUS SERVO LINE F TRACKING SERVO LINE T CARRIAGE SERVO LINE C SPINDLE SERVO LINE S F T T F 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 A-a D-b 1/2 D-a 1/2 D-b (1/2) D-a (1/2) 2 E F M M2 CARRIAGE MOTOR CXB8688 M M3 SPINDLE MOTOR CXM1211 M M1 LOADING MOTOR CXB8687 2 4 8 6 F F F F T C S T C S T T S S C S S T S C F 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 D-b 1/2 D-b (1/2) D-a (1/2) 1 Servo D 2/2 D 2/2 D 1/2 DVD CORE UNIT(MS3)(SO-DC) C S 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 D-b 1/2 D-b (1/2) D-a (1/2) 2 stream D 2/2 D 2/2 # $ % @ 0 ! 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 D 2/2 D 1/2 D 1/2 D 1/2 D 1/2 PD6419C D-a 2/2 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 3.4 DVD CORE UNIT(MS3)(CPU)(GUIDE PAGE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 D 2/2 D 1/2 D 1/2 D 2/2 DVD CORE UNIT(MS3) (CPU) & * ( ) ⁄ Clock Generalator stream stream System Computer pin pin D-b 2/2 CN1701 C CN201 A CN971 B 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 A-a D-b (2/2) D-a (2/2) D-b 2/2 D-a 2/2 2 1 PD6419C D 1/2 D 1/2 D 1/2 D 1/2 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 A-a D-b 2/2 D-a 2/2 D-b (2/2) D-a (2/2) 3 4 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 D-b 2/2 D-b (2/2) D-a (2/2) 2 1 D 1/2 D 2/2 DVD CORE UNIT (MS3)(CPU) CN607 & * ( ) ⁄ A 2/7 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 D-b 2/2 D-b (2/2) D-a (2/2) 3 4 Clock Generalator stream stream System Computer pin pin D 1/2 D 1/2 CN1393 A 3/7 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 1 FEY 500mV/div. 1ms/div. Focus search 2 CH1: ASF 3 CH2: RFENV Focus search 200ms/div. 1ms/div. 1 CH1: FEY 500mV/div. 1ms/div. 4 CH2: FD 1V/div. 1ms/div. Focus close 2 CH1: ASF 3 CH1: RFENV Focus close 5 CH1: TEY 500mV/div. 1ms/div. Focus close(DVD) 5 CH1: TEY 500mV/div. 1ms/div. Focus close(CD) 1 CH1: FEY 4 CH2: FD Play 500mV/div.20ms/div. 5 CH1: TEY 6 CH2: TD Play 500mV/div.20ms/div. 7 CH1: RFOUT 0.1V/div. 0.1µs/div. Play(DVD surroundings on inside) 7 CH1: RFOUT 0.1V/div. 0.2µs/div. Play(CD) 5 CH1: TEY 8 CH2: CRGDRV Surroundings on inside-> surroundings on outside 500mV/div. 100ms/div. - Waveforms Note:1. The encircled number denote measuring pointes in the circuit diagram. 2. Reference voltage VHALF : 1.65V VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF → 200mV/div. 2ms/div. VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ 7 CH1: RFOUT200mV/div. 100µs/div. 9 CH2: BDO 2V/div. 100µs/div. Black dot VHALF→ VHALF→ 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 4 CH1: FD 1V/div. 100µs/div. 6 CH2: TD 500mV/div. 100µs/div. Black dot 5 CH1: TEY 1 CH2: FEY EDC1 mode set up(DVD) 500mV/div.1s/div. VHALF→ VHALF→ VHALF→ VHALF→ 0 CH1: STD1 ! CH2: STD4 @ CH3: STD7 # CH4: STENABLE G→ 5V/div. 2µs/div. G→ G→ G→ $ CH1: STCLK % CH2: STVALID # CH3: STENABLE 5V/div. 2µs/div. G→ G→ G→ $ CH1: STCLK % CH2: STVALID # CH3: STENABLE 5V/div. 50µs/div. G→ G→ G→ CH1: Not used & CH2: SRCK * CH3: LRCK G→ 2V/div. 2µs/div. G→ G→ ( CH1: LO ) CH2: RO G→ 1V/div. 500µs/div. G→ ⁄ CH1: COMPO 200mV/div. 10µs/div. [White 100% output] G→ 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 E F F COMPOUND UNIT(B) COMPOUND UNIT(A) E S1901 Q1299 S1902 S1903 R1298 0R0 1 2 3 4 5 6 S1905 R1299 0R0 CPT231SCTD CLAMP 12cm 8cm DISC SENS DISC SENS 8cm CN1202 D 1/2 D 1/2 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 3.5 COMPOUND UNIT(A) AND COMPOUND UNIT(B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 24 Iop78 L2 LC Vcc GND GND IC1 L4 C2 C3 C6 C7 L3 17 15 C1 16 65LD 78LD LDGND R1 C5 Short round L1 C4 78LD 65LD 65MD 65MDG VR2/ 65Rmd VR1/ 78Rmd Vmda 1 2 3 4 6 5 7 R2 L6 MDA Top View up MDA A SW Vcc C8 C9 12 GND 13 V r 14 MDC 9 8 78MD 78MDG MDG B1 B1 B2 RF- B3 RF+ B4 C Vref : 2.5V GND C10 TH1 TEMP Vcc SW A NC T- T+ F- F+ B2 RF- B3 RF+ B4 C LDGND 23 26 25 07 08 05 06 22 21 20 19 18 17 27 02 01 03 04 09 16 15 14 13 12 11 10 Iop65 Im/ 2 Im Im/ 2 Ishf Vshf : 4V CN1101 D 1/2 Short round 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 3.6 PU UNIT(REFERENCE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 H CL-195PG-CD x3 CL-195PG-CD CAW1814(DVH-P5000MP/UC), CAW1815(DVH-P5050MP/RC, RD) 151 151 For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 3.7 KEYBOARD UNIT(DVH-P5000MP/UC, DVH-P5050MP/RC, DVH-P5050MP/RD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 H CL-195PG-CD CL-195PG-CD 151 151 271 271 151 151 101 151 151 101 181 181 G CN1951 H KEYBOARD UNIT VOLUME 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 H CL-195SR-CD x3 CL-195SR-CD CAW1813(DVH-P5000MP/EW) 151 151 CSG1135 CSG1135 CSG1164 For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 3.8 KEYBOARD UNIT(DVH-P5000MP/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 H CL-195SR-CD CL-195SR-CD 151 151 271 271 151 151 101 151 151 101 181 181 CSG1135 CSG1135 CSG1133 CSG1133 CSG1133 CSG1133 CSG1133 CSG1133 CSG1133 CSG1133 CSG1135 CSG1164 CSG1135 CSG1164 CSG1135 CSG1135 G CN1951 H KEYBOARD UNIT VOLUME 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 Capacitor Connector P.C.Board Chip Part A A TUNER AMP PCB SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams IC,Q ADJ D CN1611 FAN MOTOR 8 7 10 9 12 11 14 13 16 15 DETACH 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 A SIDE A FRONT G CN1950 IP-BUS REAR B CN972 CORD ASSY CORD ASSY ANTENNA FM/AM TUNER UNIT 2 1 4 3 6 5 8 7 10 9 12 11 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 A A TUNER AMP PCB TESTIN PCL 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 A SIDE B IC,Q DD1 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 B B CONNECTOR PCB SIDE A SIDE B C B CONNECTOR PCB C EXTENSION PCB SIDE A SIDE B C EXTENSION PCB D CN1501 OPT-OUT A CN974 D CN1603 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 4.2 CONNECTOR PCB AND EXTENSION PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 D D DVD CORE UNIT(MS3) IC,Q ADJ PICK (SER B CN971 M2 M1 M3 F RFOUT 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 4.3 DVD CORE UNIT(MS3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 D PICKUP UNIT (SERVICE)(DP5) C CN1701 A CN201 COMPO GNDV GND1 SIDE A 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 D D DVD CORE UNIT(MS3) 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 D SIDE B IC,Q E 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 COMPOUND UNIT(B) E F F COMPOUND UNIT(A) E D D CLAMP 12cm 8cm DISC SENS DISC SENS 8cm S1901 S1902 S1903 S1904 S1905 R1299 R1298 Q1299 CN1202 1 6 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 4.4 COMPOUND UNIT(A) AND COMPOUND UNIT(B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 G G PANEL UNIT G PANEL UNIT SIDE A SIDE B H CN1901 A CN101 EJECT 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 4.5 PANEL UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 H H KYEBOARD UNIT H KYEBOARD UNIT SIDE A SIDE B BAND AUDIO EQ-EX FUNC 6 5 4 3 2 1 DISP EQ SOURCE VOLUME TI/CLK RIGHT LEFT UP DOWN G CN1951 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 4.6 KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Tuner Amp Unit Consists of Tuner Amp PCB Connector PCB Extension PCB Unit Number : CWM8676(DVH-P5000MP/UC) CWM8672(DVH-P5050MP/RC) CWM8673(DVH-P5050MP/RD) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 171 IC HA12187FP IC 201 IC TC74VHCT08AFT IC 202 IC TC74VHC08FT IC 211 IC AN8011S IC 212 IC BA00BC0WFP IC 213 IC BA00BC0WFP IC 214 IC BA05SFP IC 215 IC S-814A33AMC-BCX IC 271 IC SM5304AV IC 273 IC SM5304AV IC 301 IC NJM4558MD IC 351 IC PAL007A IC 361 IC PML009A IC 601 IC PE5360A IC 670 IC NJM4558MD IC 821 IC S-875041BUP-ABC IC 841 IC BA033FP IC 971 IC TC7WT125FU Q 101 Transistor DTC143EU Q 102 Transistor IMD14 Q 103 Transistor 2SD1767 Q 104 Transistor 2SA1577 Q 105 Transistor UMD2N Q 171 Transistor UMF23N Q 201 Transistor UMD2N Q 202 Transistor UMD2N Q 211 Transistor 2SA1797 Q 212 Transistor UMZ1N Q 213 Transistor 2SC4097 Q 214 Transistor 2SA1834F5 Q 215 Transistor UMZ1N Q 216 Transistor IMD14 Q 220 Transistor DTC124EU Q 301 Transistor 2SC4081 Q 302 Transistor UMD2N Q 303 Transistor DTC323TU Q 304 Transistor DTC323TU Q 321 Transistor DTC323TU Q 322 Transistor DTC323TU Q 323 Transistor DTC323TU Q 324 Transistor DTC323TU Q 325 Transistor UMD2N Q 331 Transistor 2SC4081 Q 351 Transistor DTC124EU Q 362 Transistor DTC144EU Q 371 Transistor DTC323TU Q 372 Transistor DTC323TU Q 373 Transistor UMD2N Q 801 Transistor IMX1 Q 802 Transistor DTC114EU Q 803 Transistor 2SA1576 Q 804 Transistor 2SA1576 Q 821 Transistor 2SB1184F5 Q 822 Transistor 2SD1767 Q 831 Transistor 2SD2318F5 Q 832 Transistor UMD2N Q 841 Transistor 2SD1760F5 Q 842 Transistor UMD2N Q 851 Transistor 2SC4081 Q 852 Transistor UMD2N Q 861 Transistor 2SD1760F5 Q 862 Transistor UMD2N Q 871 Transistor 2SD1767 Q 872 Transistor UMD2N D 101 Diode UDZS5R6(B) D 102 Diode DAN202U D 104 Diode DAP202U D 105 Diode UDZS5R6(B) D 106 Diode HZS11L(B3) D 110 Diode UDZS5R6(B) D 111 Diode UDZS5R6(B) D 211 Diode RB060L-40 D 212 Diode RB060L-40 D 213 Diode SC802-06 D 214 Diode MPG06G-6415G3 D 215 Diode MPG06G-6415G3 D 216 Diode MPG06G-6415G3 D 217 Diode MPG06G-6415G3 D 220 Diode DAN202U D 273 Diode DAN202U D 274 Diode DAP202U D 275 Diode DAN202U D 276 Diode DAP202U D 301 Diode DAN202U D 331 Diode DAN202U D 332 Diode HZS9L(A3) D 333 Diode 1SS133 D 371 Diode DAN202U D 601 Diode DAN202U D 602 Diode UDZS5R6(B) =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC D 670 Diode DAN202U D 671 Diode DAP202U D 672 Diode Network DA204U D 673 Diode Network DA204U D 801 Diode MPG06G-6415G3 D 802 Diode MPG06G-6415G3 D 803 Diode HZS7L(C3) D 804 Diode HZS7L(A1) D 805 Diode DAN202U D 806 Diode DAN202U D 807 Diode MPG06G-6415G3 D 808 Diode MPG06G-6415G3 D 809 Diode MA111 D 821 Diode UDZS20(B) D 822 Diode 1SR154-400 D 831 Diode HZS9L(B3) D 832 Diode DAN202U D 841 Diode UDZS9R1(B) D 851 Diode HZS6L(A2) D 861 Diode HZS6L(B1) D 871 Diode HZS9L(A2) ZNR 401 Surge Protector RCCA-201Q31UA-PI L 101 Inductor LCTA4R7J3225 L 102 Inductor CTF1334 L 171 Inductor LCTC2R2K1608 L 201 Inductor CTF1473 L 202 Inductor CTF1473 L 203 Inductor CTF1473 L 204 Inductor CTF1473 L 205 Inductor CTF1464 L 211 Inductor CTH1255 L 212 Inductor CTH1253 L 213 Inductor CTH1255 L 214 Inductor CTF1484 L 215 Power Inductor CTF1417 L 216 Inductor CTF1473 L 219 Inductor CTF1484 L 220 Inductor LCYA100J2520 L 221 Inductor LCYA100J2520 L 222 Inductor CTF1606 L 223 Inductor CTF1606 L 224 Inductor CTF1409 L 225 Inductor CTF1379 L 226 Inductor CTF1379 L 271 Inductor CTF1473 L 273 Inductor CTF1473 L 274 Inductor CTF1464 L 275 Inductor CTF1464 L 276 Inductor CTF1379 L 301 Inductor CTF1399 L 302 Inductor CTF1487 L 371 Inductor LCTA2R2J2520 L 401 Ferri-Inductor LAU4R7K L 402 Inductor LAU1R0K L 404 Inductor LAU1R0K L 601 Inductor CTF1379 L 604 Inductor LCTA2R2J2520 L 605 Inductor CTF1379 L 606 Inductor CTF1379 L 607 Inductor CTF1379 L 801 Inductor LCTC2R2K1608 L 802 Inductor LCTC2R2K1608 L 851 Inductor CTF1473 L 971 Inductor CTF1379 X 601 Radiator 12.58291MHz CSS1602 S 101 Switch(DETACH) CSN1039 VR 211 Semi-fixed 10kΩ(B) CCP1396 FU 211 Fuse 1.5A CEK1282 FU 212 Fuse 3.5A CEK1287 FU 213 Fuse 4A CEK1288 FU 271 Fuse 4A CEK1288 FU 321 Fuse 2A CEK1284 FU 322 Fuse 2A CEK1284 FM/AM Tuner Unit CWE1651 BZ 601 Buzzer CPV1062 RESISTORS R 101 RS1/10S222J R 102 RS1/10S222J R 103 RS1/10S222J R 104 RS1/10S222J R 105 RS1/10S222J R 106 RS1/10S222J R 107 RS1/16S222J R 108 RS1/16S104J R 109 RS1/16S473J R 110 RS1/16S473J R 111 RS1/16S473J R 112 RAB4C101J R 113 RS1/16S472J R 114 RS1/16S472J R 115 RS1/16S223J R 116 RS1/16S1R0J R 117 RS1/16S392J R 118 RS1/16S103J R 119 RS1/16S221J R 120 RS1/16S221J R 121 RS1/16S102J R 122 RS1/16S104J R 171 RS1/16S150J R 172 RS1/16S470J R 173 RS1/16S101J R 174 RS1/16S101J R 175 RS1/16S222J R 176 RS1/16S332J R 177 RS1/16S562J R 178 RS1/16S103J R 201 RAB4C102J R 202 RAB4C102J R 203 RS1/16S102J R 204 RS1/16S102J R 205 RAB4C102J R 211 RD1/4PU271J R 212 RD1/4PU271J R 213 RS1/16S333J R 214 RS1/16S122J R 215 RS1/16S101J R 216 RD1/4PU560J R 217 RD1/4PU560J R 218 RD1/4PU560J R 219 RD1/4PU560J R 220 RS1/16S153J R 221 RS1/16S122J R 222 RS1/16S101J R 223 RS1/16S153J R 224 RS1/16S102J R 225 RS1/16S473J R 226 RS1/16S0R0J R 227 RS1/16S472J R 228 RS1/16S124J R 229 RS1/16S6801D R 230 RS1/16S5602D =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC R 231 RS1/16S3602D R 232 RS1/16S1001D R 234 RS1/16S473J R 235 RS1/16S104J R 236 RS1/16S3901D R 237 RS1/16S6801D R 238 RS1/16S1502D R 239 RS1/16S183J R 240 RS1/16S333J R 241 RS1/16S683J R 242 RS1/16S0R0J R 243 RS1/16S393J R 244 RS1/16S473J R 245 RS1/16S103J R 246 RS1/16S472J R 247 RS1/16S272J R 250 RS1/16S0R0J R 251 RS1/16S272J R 252 RS1/16S473J R 253 RS1/16S681J R 254 RS1/16S680J R 255 RS1/16S821J R 256 RS1/16S103J R 258 RS1/16S0R0J R 263 RS1/16S0R0J R 271 RS1/16S102J R 272 RS1/16S102J R 273 RS1/16S0R0J R 274 RS1/16S0R0J R 277 RS1/16S0R0J R 280 RS1/16S3301D R 285 RS1/16S0R0J R 287 RS1/16S3301D R 288 RS1/16S151J R 289 RS1/16S151J R 290 RS1/16S151J R 291 RS1/16S151J R 292 RS1/16S0R0J R 294 RS1/8S0R0J R 301 RS1/16S472J R 302 RS1/16S472J R 303 RS1/16S473J R 304 RS1/16S473J R 305 RS1/16S102J R 306 RS1/16S392J R 307 RS1/16S472J R 309 RS1/16S223J R 310 RS1/16S223J R 311 RS1/16S472J R 312 RS1/16S472J R 315 RS1/16S821J R 316 RS1/16S821J R 317 RS1/16S223J R 318 RS1/16S223J R 323 RS1/16S821J R 324 RS1/16S821J R 325 RS1/16S821J R 326 RS1/16S821J R 327 RS1/16S223J R 328 RS1/16S223J R 329 RS1/16S223J R 330 RS1/16S223J R 331 RS1/16S102J R 337 RS1/16S103J R 338 RS1/16S103J R 339 RS1/16S473J R 351 RS1/16S103J R 352 RS1/16S103J R 353 RS1/16S103J R 354 RS1/16S221J R 355 RS1/16S101J R 367 RS1/16S0R0J R 368 RS1/16S0R0J R 369 RS1/16S0R0J R 370 RS1/16S0R0J R 371 RS1/16S181J R 372 RS1/16S181J R 373 RS1/16S223J R 374 RS1/16S223J R 375 RS1/16S102J R 376 RS1/16S102J R 377 RS1/16S0R0J R 378 RS1/16S0R0J R 379 RS1/16S0R0J R 380 RS1/16S0R0J R 381 RS1/16S0R0J R 382 RS1/16S0R0J R 383 RAB4C102J R 401 RS1/16S681J R 403 RS1/16S681J R 404 RS1/16S681J R 405 RS1/16S681J R 406 RS1/16S681J R 412 RS1/16S0R0J R 413 RS1/16S0R0J R 414 RS1/16S0R0J R 417 RS1/16S0R0J R 601 RS1/16S102J R 602 RS1/16S102J R 603 RS1/16S473J R 604 RS1/16S102J R 605 RS1/16S473J R 606 RS1/16S101J R 607 RS1/16S473J R 608 RS1/16S102J R 609 RS1/16S102J R 610 RS1/16S0R0J R 612 RS1/16S0R0J R 613 RS1/16S104J R 614 RS1/16S0R0J R 615 RS1/16S102J R 616 RS1/16S0R0J R 617 (DVH-P5000MP/UC) RS1/16S104J R 617 (DVH-P5050MP/RC) RS1/16S473J R 617 (DVH-P5050MP/RD) RS1/16S823J R 618 (DVH-P5050MP/RC) RS1/16S823J R 618 (DVH-P5050MP/RD) RS1/16S473J R 619 RS1/16S102J R 620 RS1/16S102J R 621 RS1/16S473J R 622 RS1/16S104J R 623 RS1/16S104J R 624 RS1/16S104J R 625 RS1/16S104J R 626 RS1/16S102J R 627 RS1/16S102J R 628 RS1/16S103J R 631 RS1/16S0R0J R 633 RS1/16S104J R 634 RS1/16S104J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC R 635 RS1/16S104J R 636 RS1/16S0R0J R 639 RS1/16S681J R 640 RS1/16S681J R 641 RS1/16S681J R 642 RS1/16S0R0J R 643 RS1/16S0R0J R 644 RS1/16S102J R 647 RS1/16S0R0J R 648 RS1/16S0R0J R 670 RS1/16S683J R 671 RS1/16S104J R 672 RS1/16S474J R 673 RS1/16S474J R 674 RS1/16S683J R 675 RS1/16S104J R 801 RS1/16S102J R 802 RS1/16S104J R 803 RS1/16S103J R 804 RS1/16S473J R 805 RS1/16S473J R 807 RS1/16S472J R 809 RS1/16S472J R 810 RS1/16S473J R 811 RS1/16S473J R 812 RS1/16S472J R 813 RS1/16S103J R 814 RS1/16S153J R 815 RS1/16S103J R 821 RS1/16S104J R 822 RS1/16S101J R 823 RS1/16S470J R 824 RS1/16S470J R 825 RS1/16S561J R 826 RS1/16S102J R 831 RS1/16S152J R 841 RAB4C470J R 851 RS1/16S391J R 861 RS1/16S561J R 862 RS1/16S561J R 871 RS1/16S1R0J R 872 RS1/16S271J R 873 RS1/16S271J R 971 RS1/16S221J R 972 RS1/16S621J R 973 RS1/16S473J R 974 RS1/16S361J R 975 RS1/16S0R0J R 976 RS1/16S0R0J R 979 RS1/16S104J CAPACITORS C 101 CKSRYB102K50 C 102 CKSRYB473K50 C 103 CKSRYB104K16 C 106 CKSRYB102K50 C 171 CKSRYB104K16 C 172 CKSRYB104K16 C 201 CKSRYB102K50 C 202 CKSRYB102K50 C 211 CEHAZL471M16 C 212 CEHAZL471M16 C 213 CKSRYB102K50 C 214 CKSRYB102K50 C 215 CCSRCH331J50 C 216 CCSRCH331J50 C 217 CKSRYB104K16 C 218 CKSRYB104K16 C 219 CKSRYB104K16 C 220 CCSRCH101J50 C 221 CEHAZL471M16 C 222 CEHAZL471M16 C 223 CKSRYB104K16 C 224 CKSRYB102K50 C 225 CEJQ4R7M35 C 226 CKSRYB105K10 C 227 3300µF/16V CCH1384(P30) C 228 CEAT101M10 C 229 CKSRYB474K10 C 230 CEAT101M10 C 231 CKSRYB474K10 C 232 CEAT101M10 C 233 CEJQ100M16 C 234 CKSRYB474K10 C 235 CKSRYB105K10 C 236 CEJQ1R0M50 C 237 CKSRYB102K50 C 238 CKSRYB105K10 C 239 0.1F/5.5V CCL1023 C 242 CKSYB475K10 C 244 CKSYB475K10 C 245 CKSYB475K10 C 275 CKSYB475K10 C 276 CEJQ220M6R3 C 277 CEJQ101M6R3 C 278 CKSRYB104K16 C 279 CEJQ100M16 C 284 CKSYB475K10 C 285 CEJQ220M6R3 C 286 CEJQ101M6R3 C 287 CKSRYB104K16 C 288 CEJQ100M16 C 289 CKSRYB104K16 C 290 CKSRYB104K16 C 301 CEJQ100M16 C 302 CEJQ100M16 C 303 CEJQ100M16 C 304 CKSRYB102K50 C 305 CCSRCH220J50 C 306 CCSRCH220J50 C 307 CEJQ4R7M35 C 308 CEJQ4R7M35 C 309 CKSYB475K10 C 310 CKSRYB102K50 C 331 CEJQ100M16 C 337 CEJQ100M16 C 338 CEJQ100M16 C 339 CEJQ100M16 C 340 CEJQ100M16 C 351 CKSRYB105K10 C 352 CKSRYB105K10 C 353 CKSRYB105K10 C 354 CKSRYB105K10 C 355 CKSRYB105K10 C 356 CKSRYB105K10 C 357 CKSRYB105K10 C 358 CKSRYB105K10 C 359 CEJQ330M10 C 361 1000µF/16V CCH1234 C 362 CKSRYB104K16 C 363 CEJQ100M16 C 364 CKSYB475K10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC C 365 CKSYB475K10 C 366 CKSRYB473K50 C 367 CKSRYB102K50 C 368 CKSRYB102K50 C 371 CKSRYB102K50 C 372 CEJQ470M10 C 373 CKSRYB104K16 C 375 CKSRYB105K10 C 376 CKSRYB105K10 C 377 CKSRYB105K10 C 378 CKSRYB105K10 C 379 CKSQYB105K16 C 380 CKSQYB105K16 C 381 CKSRYB224K16 C 382 CKSRYB224K16 C 383 CKSYB475K10 C 384 CKSYB475K10 C 385 CKSYB475K10 C 386 CKSYB475K10 C 387 CKSYB475K10 C 388 CKSYB475K10 C 389 CKSYB475K10 C 390 CKSYB475K10 C 391 CEJQ100M16 C 392 CKSRYB104K16 C 393 CKSRYB104K16 C 401 CKSRYB103K50 C 402 CKSRYB103K50 C 403 CEJQ470M6R3 C 405 CEJQ101M10 C 406 CCSRCH101J50 C 408 CKSYB475K10 C 409 CCSRCH221J50 C 411 CKSRYB102K50 C 601 CKSRYB102K50 C 602 CCSRCH120J50 C 603 CCSRCH120J50 C 605 CKSRYB105K10 C 608 CKSRYB104K16 C 609 CKSRYB105K10 C 610 CKSRYB104K16 C 611 CKSRYB104K16 C 612 CKSRYB104K16 C 614 CCSRCH470J50 C 615 CKSRYB104K16 C 670 CKSRYB104K16 C 671 CCSRCH101J50 C 672 CCSRCH101J50 C 673 CKSRYB474K10 C 674 CKSRYB474K10 C 675 CKSRYB104K16 C 676 CKSRYB104K16 C 677 CKSRYB104K16 C 678 CKSRYB103K50 C 801 CKSRYB104K16 C 802 CEJQ1R0M50 C 803 CKSRYB103K50 C 804 CKSRYB103K50 C 805 CKSRYB104K16 C 806 CKSRYB104K16 C 807 CKSRYB104K16 C 821 CEJQ470M10 C 822 CKSRYB103K50 C 823 CKSRYB102K50 C 824 CKSRYB103K50 C 825 2200µF/16V CCH1405 C 831 CKSRYB103K50 C 832 470µF/10V CCH1438 C 833 CKSRYB103K50 C 834 470µF/10V CCH1438 C 841 CEJQ100M16 C 842 CKSRYB104K16 C 843 CKSYB475K10 C 844 CKSRYB103K50 C 851 CASA100M10 C 852 CKSRYB102K50 C 861 CEJQ101M10 C 862 CKSRYB103K50 C 863 CEJQ470M10 C 864 CKSRYB103K50 C 871 CKSRYB103K50 C 872 CEJQ100M16 C 873 CKSRYB103K50 C 971 CCSRCH150J50 C 972 CKSRYB104K16 C 973 CEJQ100M16 C 974 CCSRCH101J50 Tuner Amp Unit Consists of Tuner Amp PCB Connector PCB Extension PCB Unit Number : CWM8674(DVH-P5000MP/EW) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 171 IC HA12187FP IC 201 IC TC74VHCT08AFT IC 202 IC TC74VHC08FT IC 211 IC AN8011S IC 212 IC BA00BC0WFP IC 213 IC BA00BC0WFP IC 214 IC BA05SFP IC 215 IC S-814A33AMC-BCX IC 271 IC SM5304AV IC 273 IC SM5304AV IC 301 IC NJM4558MD IC 351 IC PAL007A IC 361 IC PML009A IC 601 IC PE5361A IC 670 IC NJM4558MD IC 821 IC S-875041BUP-ABC IC 841 IC BA033FP IC 971 IC TC7WT125FU Q 101 Transistor DTC143EU Q 102 Transistor IMD14 Q 103 Transistor 2SD1767 Q 104 Transistor 2SA1577 Q 105 Transistor UMD2N Q 171 Transistor UMF23N Q 201 Transistor UMD2N Q 202 Transistor UMD2N Q 211 Transistor 2SA1797 Q 212 Transistor UMZ1N Q 213 Transistor 2SC4097 Q 214 Transistor 2SA1834F5 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC Q 215 Transistor UMZ1N Q 216 Transistor IMD14 Q 220 Transistor DTC124EU Q 301 Transistor 2SC4081 Q 302 Transistor UMD2N Q 303 Transistor DTC323TU Q 304 Transistor DTC323TU Q 321 Transistor DTC323TU Q 322 Transistor DTC323TU Q 323 Transistor DTC323TU Q 324 Transistor DTC323TU Q 325 Transistor UMD2N Q 331 Transistor 2SC4081 Q 351 Transistor DTC124EU Q 362 Transistor DTC144EU Q 371 Transistor DTC323TU Q 372 Transistor DTC323TU Q 373 Transistor UMD2N Q 401 Transistor IMH1A Q 402 Transistor IMH1A Q 801 Transistor IMX1 Q 802 Transistor DTC114EU Q 803 Transistor 2SA1576 Q 804 Transistor 2SA1576 Q 821 Transistor 2SB1184F5 Q 822 Transistor 2SD1767 Q 831 Transistor 2SD2318F5 Q 832 Transistor UMD2N Q 841 Transistor 2SD1760F5 Q 842 Transistor UMD2N Q 851 Transistor 2SC4081 Q 852 Transistor UMD2N Q 861 Transistor 2SD1760F5 Q 862 Transistor UMD2N Q 871 Transistor 2SD1767 Q 872 Transistor UMD2N D 101 Diode UDZS5R6(B) D 102 Diode DAN202U D 104 Diode DAP202U D 105 Diode UDZS5R6(B) D 106 Diode HZS11L(B3) D 110 Diode UDZS5R6(B) D 111 Diode UDZS5R6(B) D 211 Diode RB060L-40 D 212 Diode RB060L-40 D 213 Diode SC802-06 D 214 Diode MPG06G-6415G3 D 215 Diode MPG06G-6415G3 D 216 Diode MPG06G-6415G3 D 217 Diode MPG06G-6415G3 D 220 Diode DAN202U D 273 Diode DAN202U D 274 Diode DAP202U D 275 Diode DAN202U D 276 Diode DAP202U D 301 Diode DAN202U D 331 Diode DAN202U D 332 Diode HZS9L(A3) D 333 Diode 1SS133 D 371 Diode DAN202U D 601 Diode DAN202U D 602 Diode UDZS5R6(B) D 670 Diode DAN202U D 671 Diode DAP202U D 672 Diode Network DA204U D 673 Diode Network DA204U D 801 Diode MPG06G-6415G3 D 802 Diode MPG06G-6415G3 D 803 Diode HZS7L(C3) D 804 Diode HZS7L(A1) D 805 Diode DAN202U D 806 Diode DAN202U D 807 Diode MPG06G-6415G3 D 808 Diode MPG06G-6415G3 D 809 Diode MA111 D 821 Diode UDZS20(B) D 822 Diode 1SR154-400 D 831 Diode HZS9L(B3) D 832 Diode DAN202U D 841 Diode UDZS9R1(B) D 851 Diode HZS6L(A2) D 861 Diode HZS6L(B1) D 871 Diode HZS9L(A2) ZNR 401 Surge Protector RCCA-201Q31UA-PI L 101 Inductor LCTA4R7J3225 L 102 Inductor CTF1334 L 171 Inductor LCTC2R2K1608 L 201 Inductor CTF1473 L 202 Inductor CTF1473 L 203 Inductor CTF1473 L 204 Inductor CTF1473 L 205 Inductor CTF1464 L 211 Inductor CTH1255 L 212 Inductor CTH1253 L 213 Inductor CTH1255 L 214 Inductor CTF1484 L 215 Power Inductor CTF1417 L 216 Inductor CTF1473 L 219 Inductor CTF1484 L 220 Inductor LCYA100J2520 L 221 Inductor LCYA100J2520 L 222 Inductor CTF1606 L 223 Inductor CTF1606 L 224 Inductor CTF1409 L 225 Inductor CTF1379 L 226 Inductor CTF1379 L 271 Inductor CTF1473 L 273 Inductor CTF1473 L 274 Inductor CTF1464 L 275 Inductor CTF1464 L 276 Inductor CTF1379 L 301 Inductor CTF1399 L 302 Inductor CTF1487 L 371 Inductor LCTA2R2J2520 L 401 Ferri-Inductor LAU4R7K L 402 Inductor LAU1R0K L 404 Inductor LAU1R0K L 601 Inductor CTF1379 L 604 Inductor LCTA2R2J2520 L 605 Inductor CTF1379 L 606 Inductor CTF1379 L 607 Inductor CTF1379 L 801 Inductor LCTC2R2K1608 L 802 Inductor LCTC2R2K1608 L 851 Inductor CTF1473 L 971 Inductor CTF1379 X 601 Radiator 12.58291MHz CSS1602 S 101 Switch(DETACH) CSN1039 VR 211 Semi-fixed 10kΩ(B) CCP1396 FU 211 Fuse 1.5A > CEK1282 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC FU 212 Fuse 3.5A > CEK1287 FU 213 Fuse 4A > CEK1288 FU 271 Fuse 4A > CEK1288 FU 321 Fuse 2A > CEK1284 FU 322 Fuse 2A > CEK1284 FM/AM Tuner Unit CWE1650 BZ 601 Buzzer CPV1062 RESISTORS R 101 RS1/10S222J R 102 RS1/10S222J R 103 RS1/10S222J R 104 RS1/10S222J R 105 RS1/10S222J R 106 RS1/10S222J R 107 RS1/16S222J R 108 RS1/16S104J R 109 RS1/16S473J R 110 RS1/16S473J R 111 RS1/16S473J R 112 RAB4C101J R 113 RS1/16S472J R 114 RS1/16S472J R 115 RS1/16S223J R 116 RS1/16S1R0J R 117 RS1/16S392J R 118 RS1/16S103J R 119 RS1/16S221J R 120 RS1/16S221J R 121 RS1/16S102J R 122 RS1/16S104J R 171 RS1/16S150J R 172 RS1/16S470J R 173 RS1/16S101J R 174 RS1/16S101J R 175 RS1/16S222J R 176 RS1/16S332J R 177 RS1/16S562J R 178 RS1/16S103J R 201 RAB4C102J R 202 RAB4C102J R 203 RS1/16S102J R 204 RS1/16S102J R 205 RAB4C102J R 211 RD1/4PU271J R 212 RD1/4PU271J R 213 RS1/16S333J R 214 RS1/16S122J R 215 RS1/16S101J R 216 RD1/4PU560J R 217 RD1/4PU560J R 218 RD1/4PU560J R 219 RD1/4PU560J R 220 RS1/16S153J R 221 RS1/16S122J R 222 RS1/16S101J R 223 RS1/16S153J R 224 RS1/16S102J R 225 RS1/16S473J R 226 RS1/16S0R0J R 227 RS1/16S472J R 228 RS1/16S124J R 229 RS1/16S6801D R 230 RS1/16S5602D R 231 RS1/16S3602D R 232 RS1/16S1001D R 234 RS1/16S473J R 235 RS1/16S104J R 236 RS1/16S3901D R 237 RS1/16S6801D R 238 RS1/16S1502D R 239 RS1/16S183J R 240 RS1/16S333J R 241 RS1/16S683J R 242 RS1/16S0R0J R 243 RS1/16S393J R 244 RS1/16S473J R 245 RS1/16S103J R 246 RS1/16S472J R 247 RS1/16S272J R 250 RS1/16S0R0J R 251 RS1/16S272J R 252 RS1/16S473J R 253 RS1/16S681J R 254 RS1/16S680J R 255 RS1/16S821J R 256 RS1/16S103J R 258 RS1/16S0R0J R 263 RS1/16S0R0J R 271 RS1/16S102J R 272 RS1/16S102J R 273 RS1/16S0R0J R 274 RS1/16S0R0J R 277 RS1/16S0R0J R 280 RS1/16S3301D R 285 RS1/16S0R0J R 287 RS1/16S3301D R 288 RS1/16S151J R 289 RS1/16S151J R 290 RS1/16S151J R 291 RS1/16S151J R 292 RS1/16S0R0J R 294 RS1/8S0R0J R 301 RS1/16S472J R 302 RS1/16S472J R 303 RS1/16S473J R 304 RS1/16S473J R 305 RS1/16S102J R 306 RS1/16S392J R 307 RS1/16S472J R 309 RS1/16S223J R 310 RS1/16S223J R 311 RS1/16S472J R 312 RS1/16S472J R 315 RS1/16S821J R 316 RS1/16S821J R 317 RS1/16S223J R 318 RS1/16S223J R 323 RS1/16S821J R 324 RS1/16S821J R 325 RS1/16S821J R 326 RS1/16S821J R 327 RS1/16S223J R 328 RS1/16S223J R 329 RS1/16S223J R 330 RS1/16S223J R 331 RS1/16S102J R 337 RS1/16S103J R 338 RS1/16S103J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC R 339 RS1/16S473J R 351 RS1/16S103J R 352 RS1/16S103J R 353 RS1/16S103J R 354 RS1/16S221J R 355 RS1/16S101J R 367 RS1/16S0R0J R 368 RS1/16S0R0J R 369 RS1/16S0R0J R 370 RS1/16S0R0J R 371 RS1/16S181J R 372 RS1/16S181J R 373 RS1/16S223J R 374 RS1/16S223J R 375 RS1/16S102J R 376 RS1/16S102J R 377 RS1/16S0R0J R 378 RS1/16S0R0J R 379 RS1/16S0R0J R 380 RS1/16S0R0J R 381 RS1/16S0R0J R 382 RS1/16S0R0J R 383 RAB4C102J R 401 RS1/16S681J R 402 RS1/16S681J R 403 RS1/16S681J R 404 RS1/16S681J R 405 RS1/16S681J R 406 RS1/16S681J R 407 RAB4C223J R 412 RS1/16S0R0J R 413 RS1/16S0R0J R 414 RS1/16S0R0J R 417 RS1/16S0R0J R 601 RS1/16S102J R 602 RS1/16S102J R 603 RS1/16S473J R 604 RS1/16S102J R 605 RS1/16S473J R 606 RS1/16S101J R 607 RS1/16S473J R 608 RS1/16S102J R 609 RS1/16S102J R 610 RS1/16S0R0J R 612 RS1/16S0R0J R 613 RS1/16S104J R 614 RS1/16S0R0J R 615 RS1/16S102J R 616 RS1/16S0R0J R 618 RS1/16S104J R 619 RS1/16S102J R 620 RS1/16S102J R 621 RS1/16S473J R 622 RS1/16S104J R 623 RS1/16S104J R 624 RS1/16S104J R 625 RS1/16S104J R 626 RS1/16S102J R 627 RS1/16S102J R 628 RS1/16S103J R 631 RS1/16S0R0J R 633 RS1/16S104J R 634 RS1/16S104J R 635 RS1/16S104J R 636 RS1/16S0R0J R 637 RS1/16S0R0J R 638 RS1/16S0R0J R 639 RS1/16S681J R 640 RS1/16S681J R 641 RS1/16S681J R 642 RS1/16S0R0J R 643 RS1/16S0R0J R 644 RS1/16S102J R 645 RS1/16S0R0J R 646 RS1/16S0R0J R 647 RS1/16S0R0J R 648 RS1/16S0R0J R 670 RS1/16S683J R 671 RS1/16S104J R 672 RS1/16S474J R 673 RS1/16S474J R 674 RS1/16S683J R 675 RS1/16S104J R 801 RS1/16S102J R 802 RS1/16S104J R 803 RS1/16S103J R 804 RS1/16S473J R 805 RS1/16S473J R 807 RS1/16S472J R 809 RS1/16S472J R 810 RS1/16S473J R 811 RS1/16S473J R 812 RS1/16S472J R 813 RS1/16S103J R 814 RS1/16S153J R 815 RS1/16S103J R 821 RS1/16S104J R 822 RS1/16S101J R 823 RS1/16S470J R 824 RS1/16S470J R 825 RS1/16S561J R 826 RS1/16S102J R 831 RS1/16S152J R 841 RAB4C470J R 851 RS1/16S391J R 861 RS1/16S561J R 862 RS1/16S561J R 871 RS1/16S1R0J R 872 RS1/16S271J R 873 RS1/16S271J R 971 RS1/16S221J R 972 RS1/16S621J R 973 RS1/16S473J R 974 RS1/16S361J R 975 RS1/16S0R0J R 976 RS1/16S0R0J R 979 RS1/16S104J R 985 RS1/16S0R0J CAPACITORS C 101 CKSRYB102K50 C 102 CKSRYB473K50 C 103 CKSRYB104K16 C 106 CKSRYB102K50 C 171 CKSRYB104K16 C 172 CKSRYB104K16 C 201 CKSRYB102K50 C 202 CKSRYB102K50 C 211 CEHAZL471M16 C 212 CEHAZL471M16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC C 213 CKSRYB102K50 C 214 CKSRYB102K50 C 215 CCSRCH331J50 C 216 CCSRCH331J50 C 217 CKSRYB104K16 C 218 CKSRYB104K16 C 219 CKSRYB104K16 C 220 CCSRCH101J50 C 221 CEHAZL471M16 C 222 CEHAZL471M16 C 223 CKSRYB104K16 C 224 CKSRYB102K50 C 225 CEJQ4R7M35 C 226 CKSRYB105K10 C 227 3300µF/16V CCH1384(P30) C 228 CEAT101M10 C 229 CKSRYB474K10 C 230 CEAT101M10 C 231 CKSRYB474K10 C 232 CEAT101M10 C 233 CEJQ100M16 C 234 CKSRYB474K10 C 235 CKSRYB105K10 C 236 CEJQ1R0M50 C 237 CKSRYB102K50 C 238 CKSRYB105K10 C 239 0.1F/5.5V CCL1023 C 242 CKSYB475K10 C 244 CKSYB475K10 C 245 CKSYB475K10 C 275 CKSYB475K10 C 276 CEJQ220M6R3 C 277 CEJQ101M6R3 C 278 CKSRYB104K16 C 279 CEJQ100M16 C 284 CKSYB475K10 C 285 CEJQ220M6R3 C 286 CEJQ101M6R3 C 287 CKSRYB104K16 C 288 CEJQ100M16 C 289 CKSRYB104K16 C 290 CKSRYB104K16 C 301 CEJQ100M16 C 302 CEJQ100M16 C 303 CEJQ100M16 C 304 CKSRYB102K50 C 305 CCSRCH220J50 C 306 CCSRCH220J50 C 307 CEJQ4R7M35 C 308 CEJQ4R7M35 C 309 CKSYB475K10 C 310 CKSRYB102K50 C 331 CEJQ100M16 C 337 CEJQ100M16 C 338 CEJQ100M16 C 339 CEJQ100M16 C 340 CEJQ100M16 C 351 CKSRYB105K10 C 352 CKSRYB105K10 C 353 CKSRYB105K10 C 354 CKSRYB105K10 C 355 CKSRYB105K10 C 356 CKSRYB105K10 C 357 CKSRYB105K10 C 358 CKSRYB105K10 C 359 CEJQ330M10 C 361 1000µF/16V CCH1234 C 362 CKSRYB104K16 C 363 CEJQ100M16 C 364 CKSYB475K10 C 365 CKSYB475K10 C 366 CKSRYB473K50 C 367 CKSRYB102K50 C 368 CKSRYB102K50 C 371 CKSRYB102K50 C 372 CEJQ470M10 C 373 CKSRYB104K16 C 375 CKSRYB105K10 C 376 CKSRYB105K10 C 377 CKSRYB105K10 C 378 CKSRYB105K10 C 379 CKSQYB105K16 C 380 CKSQYB105K16 C 381 CKSRYB224K16 C 382 CKSRYB224K16 C 383 CKSYB475K10 C 384 CKSYB475K10 C 385 CKSYB475K10 C 386 CKSYB475K10 C 387 CKSYB475K10 C 388 CKSYB475K10 C 389 CKSYB475K10 C 390 CKSYB475K10 C 391 CEJQ100M16 C 392 CKSRYB104K16 C 393 CKSRYB104K16 C 401 CKSRYB103K50 C 402 CKSRYB103K50 C 403 CEJQ470M6R3 C 405 CEJQ101M10 C 406 CCSRCH101J50 C 408 CKSYB475K10 C 410 CKSRYB102K50 C 411 CKSRYB102K50 C 601 CKSRYB102K50 C 602 CCSRCH120J50 C 603 CCSRCH120J50 C 605 CKSRYB105K10 C 608 CKSRYB104K16 C 609 CKSRYB105K10 C 610 CKSRYB104K16 C 611 CKSRYB104K16 C 612 CKSRYB104K16 C 614 CCSRCH470J50 C 615 CKSRYB104K16 C 670 CKSRYB104K16 C 671 CCSRCH101J50 C 672 CCSRCH101J50 C 673 CKSRYB474K10 C 674 CKSRYB474K10 C 675 CKSRYB104K16 C 676 CKSRYB104K16 C 677 CKSRYB104K16 C 678 CKSRYB103K50 C 801 CKSRYB104K16 C 802 CEJQ1R0M50 C 803 CKSRYB103K50 C 804 CKSRYB103K50 C 805 CKSRYB104K16 C 806 CKSRYB104K16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC C 807 CKSRYB104K16 C 821 CEJQ470M10 C 822 CKSRYB103K50 C 823 CKSRYB102K50 C 824 CKSRYB103K50 C 825 2200µF/16V CCH1405 C 831 CKSRYB103K50 C 832 470µF/10V CCH1438 C 833 CKSRYB103K50 C 834 470µF/10V CCH1438 C 841 CEJQ100M16 C 842 CKSRYB104K16 C 843 CKSYB475K10 C 844 CKSRYB103K50 C 851 CASA100M10 C 852 CKSRYB102K50 C 861 CEJQ101M10 C 862 CKSRYB103K50 C 863 CEJQ470M10 C 864 CKSRYB103K50 C 871 CKSRYB103K50 C 872 CEJQ100M16 C 873 CKSRYB103K50 C 971 CCSRCH150J50 C 972 CKSRYB104K16 C 973 CEJQ100M16 C 974 CCSRCH101J50 Unit Number : CWX2769 Unit Name : DVD Core Unit(MS3) MISCELLANEOUS IC 1101 IC AN8703FH IC 1201 IC BA5985FM IC 1202 IC AN8471SAT1 IC 1301 IC MNZS26EDCUB IC 1501 IC M2V64S40DTP-6L IC 1502 IC TC74VCX74FT IC 1503 IC MN677531KAUB IC 1504 IC TC74VCX74FT IC 1505 IC TC7PA04FU IC 1507 IC SM8707FV IC 1602 IC NJM2100M IC 1604 IC NJM2100V IC 1605 IC PCM1742KE IC 1701 IC PE5395A IC 1702 IC M5M5V216ATP-70HI IC 1705 IC PD6419C IC 1706 IC TC7SH08FU Q 1101 Transistor 2SB1260 Q 1102 Transistor 2SB1260 Q 1103 Transistor UN2211 Q 1104 Transistor 2SB709A Q 1105 Transistor 2SD601A Q 1201 Transistor DTC124EU Q 1501 Transistor 2SA1037K D 1101 Diode 1SS355 D 1102 Diode 1SS355 D 1301 Diode UDZ2R7(B) D 1302 Chip LED CL205IRXTU L 1301 Inductor CTF1409 L 1302 Inductor CTF1394 L 1303 Inductor CTF1395 L 1305 Inductor CTF1409 L 1504 Inductor CTF1394 L 1505 Inductor CTF1409 L 1506 Inductor CTF1473 L 1507 Inductor CTF1473 L 1508 Inductor CTF1473 L 1509 Inductor CTF1399 L 1510 Inductor CTF1409 L 1518 Inductor CTF1385 L 1520 Inductor CTF1399 L 1522 Inductor CTF1395 L 1605 Inductor CTF1379 L 1701 Inductor CTF1395 L 1702 Inductor CTF1409 L 1703 Inductor CTF1473 L 1704 Inductor CTF1473 X 1501 Radiator 27MHz CSS1609 X 1701 Ceramic Resonator 4.97MHz CSS1575 VR 1502 Semi-Fixed 2.2kΩ(B) CCP1444 RESISTORS R 1101 RS1/16SS101J R 1102 RS1/16SS3R9J R 1103 RS1/16SS3R9J R 1104 RS1/16SS3R9J R 1105 RS1/16SS3R9J R 1106 RS1/16SS330J R 1107 RS1/16SS3R9J R 1108 RS1/16SS3R9J R 1109 RS1/16SS3R9J R 1110 RS1/16SS3R9J R 1111 RS1/16SS272J R 1112 RS1/16SS472J R 1113 RS1/16SS102J R 1124 RS1/16SS273J R 1125 RS1/16SS273J R 1126 RS1/16SS224J R 1130 RS1/16SS0R0J R 1131 RS1/16SS0R0J R 1132 RS1/16SS0R0J R 1133 RS1/16S2402D R 1134 RS1/16S1002D R 1135 RS1/16S2702D R 1140 RS1/16SS105J R 1141 RS1/16SS105J R 1142 RS1/16SS105J R 1151 RS1/16SS103J R 1152 RS1/16SS103J R 1201 RS1/16SS221J R 1202 RS1/16SS393J R 1203 RS1/16SS303J R 1205 RS1/16SS0R0J R 1206 RS1/16SS102J R 1209 RS1/16SS221J R 1210 RS1/16SS393J R 1211 RS1/16SS393J R 1212 RS1/16SS393J R 1213 RS1/16SS393J R 1214 RS1/16SS221J R 1215 RS1/16SS1R0J R 1216 RS1/16SS1R0J R 1218 RS1/16SS221J R 1219 RS1/16SS221J R 1220 RS1/16SS221J R 1221 RS1/16SS822J R 1222 RS1/16SS822J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC R 1223 RS1/16SS822J R 1224 RS1/16SS563J R 1225 RS1/16SS243J R 1226 RS1/16SS473J R 1227 RS1/16SS473J R 1228 RS1/16SS1R0J R 1229 RS1/16SS1R0J R 1230 RS1/16SS1R0J R 1232 RS1/16SS822J R 1233 RS1/16SS243J R 1234 RS1/16S391J R 1235 RS1/16S471J R 1236 RS1/16SS513J R 1237 RS1/16SS513J R 1301 RS1/16SS222J R 1321 RS1/16SS104J R 1322 RS1/16SS0R0J R 1323 RS1/16SS221J R 1324 RS1/16SS221J R 1334 RS1/16SS221J R 1336 RS1/16SS103J R 1337 RS1/16SS103J R 1338 RS1/16SS472J R 1339 RS1/16SS273J R 1340 RS1/16SS472J R 1341 RS1/16SS273J R 1342 RS1/16SS273J R 1344 RS1/16SS273J R 1349 RS1/16SS562J R 1350 RS1/16SS242J R 1352 RS1/16S2702D R 1353 RS1/16SS102J R 1360 RS1/16SS153J R 1361 RS1/16SS105J R 1362 RS1/16SS473J R 1363 RS1/16SS101J R 1364 RS1/16SS123J R 1365 RS1/16SS101J R 1367 RS1/16SS473J R 1369 RS1/16SS473J R 1375 RS1/16SS103J R 1376 RS1/16SS103J R 1377 RS1/16SS103J R 1378 RS1/16SS103J R 1379 RS1/16SS103J R 1380 RS1/16SS103J R 1383 RS1/16SS103J R 1391 RS1/16SS103J R 1392 RS1/16SS103J R 1393 RS1/16SS103J R 1394 RS1/16SS471J R 1395 RS1/16SS0R0J R 1396 RS1/16SS0R0J R 1400 RS1/16SS221J R 1419 RS1/16SS221J R 1420 RS1/16SS221J R 1425 RAB4CQ221J R 1426 RAB4CQ221J R 1501 RS1/16SS220J R 1502 RAB4CQ220J R 1503 RS1/16S101J R 1504 RAB4CQ220J R 1505 RS1/16S101J R 1508 RAB4CQ220J R 1512 RAB4CQ220J R 1518 RAB4CQ220J R 1522 RAB4CQ220J R 1523 RS1/16S0R0J R 1527 RAB4CQ220J R 1533 RS1/16SS201J R 1534 RAB4CQ220J R 1538 RAB4CQ220J R 1539 RS1/16SS221J R 1542 RS1/16SS103J R 1543 RS1/16SS680J R 1544 RS1/16SS0R0J R 1545 RS1/16SS0R0J R 1549 RS1/16SS0R0J R 1550 RS1/16SS0R0J R 1551 RS1/16SS0R0J R 1552 RS1/16SS471J R 1553 RS1/16S68R0D R 1554 RS1/16SS471J R 1555 RS1/16SS0R0J R 1556 RS1/16SS750J R 1557 RS1/16SS0R0J R 1558 RS1/16SS622J R 1559 RAB4CQ0R0J R 1560 RS1/16SS122J R 1561 RS1/16SS162J R 1562 RS1/16SS0R0J R 1563 RS1/16SS4R7J R 1564 RAB4CQ0R0J R 1565 RS1/16S101J R 1566 RS1/16S101J R 1567 RAB4CQ0R0J R 1568 RS1/16S101J R 1569 RS1/16S101J R 1570 RS1/16S101J R 1571 RS1/16S220J R 1572 RAB4CQ0R0J R 1573 RS1/16SS473J R 1574 RAB4CQ0R0J R 1575 RAB4CQ0R0J R 1576 RAB4CQ0R0J R 1577 RAB4CQ0R0J R 1578 RS1/16SS472J R 1579 RS1/16SS101J R 1587 RS1/16SS101J R 1595 RS1/16SS472J R 1596 RS1/16SS472J R 1597 RS1/16SS104J R 1598 RS1/16SS270J R 1601 RS1/16SS821J R 1602 RS1/16SS821J R 1603 RS1/16SS0R0J R 1604 RS1/16SS0R0J R 1605 RS1/16SS102J R 1606 RS1/16SS102J R 1607 RS1/16SS222J R 1608 RS1/16SS222J R 1609 RS1/16SS472J R 1610 RS1/16SS472J R 1611 RS1/16SS472J R 1612 RS1/16SS472J R 1613 RS1/16SS103J R 1614 RS1/16SS103J R 1615 RS1/16SS472J R 1616 RS1/16SS472J R 1626 RS1/16SS0R0J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC R 1627 RS1/16SS0R0J R 1628 RS1/16SS0R0J R 1637 RS1/16SS104J R 1638 RS1/16SS104J R 1642 RS1/16SS221J R 1643 RS1/16SS221J R 1647 RS1/16SS221J R 1648 RS1/16SS221J R 1653 RS1/16SS473J R 1656 RS1/16SS102J R 1701 RS1/16SS473J R 1704 RS1/16SS473J R 1706 RS1/16SS104J R 1707 RS1/16SS221J R 1708 RS1/16SS221J R 1714 RS1/16SS221J R 1715 RS1/16SS473J R 1716 RS1/16SS221J R 1717 RS1/16SS104J R 1718 RS1/16SS104J R 1720 RS1/16SS104J R 1721 RS1/16SS104J R 1722 RS1/16SS104J R 1723 RS1/16SS104J R 1724 RS1/16SS222J R 1725 RS1/16SS223J R 1726 RS1/16SS104J R 1727 RS1/16SS104J R 1728 RS1/16SS104J R 1730 RS1/16SS221J R 1731 RS1/16SS104J R 1732 RS1/16SS0R0J R 1733 RS1/16SS104J R 1734 RS1/16SS221J R 1735 RS1/16SS104J R 1736 RS1/16SS104J R 1737 RS1/16SS104J R 1738 RS1/16SS104J R 1739 RS1/16SS330J R 1740 RS1/16SS0R0J R 1741 RS1/16SS0R0J R 1742 RS1/16SS473J R 1746 RS1/16SS104J R 1748 RS1/16SS104J R 1749 RS1/16SS103J R 1750 RS1/16SS473J R 1751 RS1/16SS103J R 1752 RS1/16SS104J R 1753 RS1/16SS104J R 1754 RS1/16SS104J R 1756 RS1/16SS104J R 1757 RS1/16SS472J R 1758 RS1/16SS104J R 1759 RS1/16SS104J R 1760 RS1/16S1002D R 1761 RS1/16SS105J R 1762 RS1/16SS473J R 1763 RS1/16SS104J R 1764 RS1/16SS104J R 1765 RS1/16SS104J R 1767 RS1/16SS104J R 1768 RS1/16SS473J R 1769 RS1/16SS104J R 1770 RS1/16SS473J R 1771 RS1/16SS473J R 1773 RS1/16SS103J R 1790 RS1/16SS473J R 1792 RS1/16SS0R0J R 1794 RS1/16SS222J R 1795 RS1/16SS104J R 1796 RS1/16SS473J R 1797 RS1/16SS104J R 1798 RS1/16SS104J R 1801 RS1/16SS104J R 1802 RS1/16SS104J R 1803 RS1/16SS104J R 1804 RS1/16SS102J R 1805 RS1/16SS102J CAPACITORS C 1101 CSZSC470M16 C 1102 CSZSR470M6R3 C 1103 CKSSYB104K10 C 1104 CKSSYB103K16 C 1105 CSZSR101M6R3 C 1106 CKSSYB104K10 C 1107 CKSSYB103K16 C 1108 CKSSYB104K10 C 1109 CKSRYB473K25 C 1110 CKSRYB473K25 C 1111 CKSSYB103K16 C 1112 CKSRYB105K10 C 1113 CKSRYB105K10 C 1114 CKSSYB103K16 C 1121 CKSSYB221K50 C 1122 CKSRYB393K16 C 1124 CKSSYB221K50 C 1125 CKSSYB104K10 C 1126 CKSSYB104K10 C 1127 CKSSYB104K10 C 1128 CKSRYB472K50 C 1129 CKSSYB104K10 C 1132 CKSRYB561K50 C 1133 CKSRYB561K50 C 1134 CKSRYB273K16 C 1135 CKSSYB473K10 C 1136 CKSSYB104K10 C 1137 CKSSYB104K10 C 1138 CKSSYB104K10 C 1139 CKSSYB104K10 C 1201 CKSSYB104K10 C 1204 CEV101M16 C 1205 CKSRYB104K16 C 1206 CKSRYB103K50 C 1207 CKSRYB103K50 C 1208 CCSSCH5R0C50 C 1209 CCSSCH470J50 C 1213 CKSRYB104K25 C 1214 CKSRYB104K25 C 1215 CKSSYB104K10 C 1216 CSZSC470M16 C 1217 CKSRYB104K25 C 1218 CSZSC470M16 C 1221 CKSRYB104K25 C 1301 CKSSYB104K10 C 1302 CKSSYB104K10 C 1303 CKSSYB224K6R3 C 1304 CKSSYB104K10 C 1305 CKSSYB224K6R3 C 1306 CKSSYB471K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC C 1307 CKSSYB104K10 C 1308 CKSRYB224K10 C 1309 CKSSYB104K10 C 1310 CKSSYB104K10 C 1311 CKSSYB103K16 C 1312 CKSSYB103K16 C 1313 CKSSYB104K10 C 1314 CKSRYB224K10 C 1315 CKSRYB102K50 C 1316 CKSRYB393K16 C 1317 CKSSYB104K10 C 1318 CKSSYB103K16 C 1319 CKSSYB104K10 C 1320 CKSSYB103K16 C 1329 CKSSYB104K10 C 1330 CKSRYB183K25 C 1331 CCSSCH470J50 C 1332 CKSRYB224K10 C 1333 CKSRYB224K10 C 1334 CKSRYB102K50 C 1335 CKSSYB562K25 C 1336 CKSSYB104K10 C 1337 CKSRYB102K50 C 1338 CKSRYB102K50 C 1339 CKSRYB102K50 C 1340 CKSSYB104K10 C 1341 CCSSCH101J50 C 1342 CKSRYB391K50 C 1343 CKSRYB471K50 C 1344 CKSRYB331K50 C 1346 CKSRYB224K10 C 1347 CKSSYB104K10 C 1348 CKSSYB104K10 C 1349 CKSSYB104K10 C 1350 CKSSYB104K10 C 1351 CKSSYB104K10 C 1352 CKSSYB104K10 C 1501 CKSRYB224K10 C 1502 CKSRYB224K10 C 1503 CKSRYB224K10 C 1504 CKSRYB224K10 C 1505 CKSRYB224K10 C 1507 CKSRYB224K10 C 1508 CKSRYB224K10 C 1510 CSZSC101M10 C 1513 CKSRYB224K10 C 1514 CKSRYB224K10 C 1515 CKSRYB224K10 C 1516 CKSRYB224K10 C 1517 CKSRYB224K10 C 1518 CKSRYB224K10 C 1519 CKSRYB224K10 C 1520 CKSRYB224K10 C 1521 CKSRYB224K10 C 1522 CKSRYB224K10 C 1523 CKSRYB224K10 C 1524 CKSRYB224K10 C 1525 CKSSYB104K10 C 1526 CKSRYB224K10 C 1527 CKSRYB224K10 C 1528 CKSSYB104K10 C 1529 CKSRYB224K10 C 1530 CKSRYB224K10 C 1531 CKSSYB471K50 C 1532 CKSSYB104K10 C 1533 CKSSYB104K10 C 1534 CKSRYB224K10 C 1535 CKSSYB104K10 C 1538 CKSSYB104K10 C 1539 CKSRYB105K10 C 1540 CKSRYB105K10 C 1542 CKSSYB104K10 C 1543 CSZS4R7M16 C 1544 CKSSYB104K10 C 1547 CSZSR330M10 C 1548 CKSSYB104K10 C 1549 CKSSYB104K10 C 1550 CKSSYB104K10 C 1551 CKSSYB104K10 C 1552 CKSSYB104K10 C 1554 CKSSYB104K10 C 1555 CKSSYB104K10 C 1556 CKSSYB104K10 C 1557 CKSSYB104K10 C 1558 CKSSYB104K10 C 1559 CKSSYB104K10 C 1560 CKSSYB104K10 C 1562 CKSSYB104K10 C 1563 CKSSYB104K10 C 1564 CKSSYB104K10 C 1566 CCSSCH7R0D50 C 1567 CCSSCH7R0D50 C 1605 CKSSYB471K50 C 1606 CKSSYB471K50 C 1609 CKSRYB104K16 C 1610 CKSRYB224K10 C 1611 CSZSR100M16 C 1612 CKSQYB225K10 C 1615 CCSRCH471J50 C 1616 CCSRCH471J50 C 1617 CCSRCH471J50 C 1618 CCSRCH471J50 C 1619 CKSRYB104K16 C 1641 CKSRYB104K16 C 1650 CKSYB475K16 C 1651 CKSYB475K16 C 1676 CSZSR100M10 C 1701 CKSRYB224K10 C 1702 CKSRYB224K10 C 1703 CKSRYB224K10 C 1706 CKSRYB224K10 C 1707 CKSRYB224K10 C 1708 CKSSYB471K50 C 1710 CKSRYB224K10 C 1711 CKSSYB103K16 C 1712 CKSSYB103K16 C 1713 CKSRYB224K10 C 1716 CKSRYB224K10 C 1717 CKSSYB104K10 C 1718 CKSRYB224K10 C 1719 CKSSYB104K10 C 1720 CKSRYB224K10 C 1721 CKSSYB104K10 C 1722 CKSRYB224K10 C 1723 CKSRYB224K10 C 1724 CKSSYB103K16 C 1727 CKSSYB224K6R3 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC Unit Number : CWX2752 Unit Name : Compound Unit(A) Q 1299 Photo-transistor CPT231SCTD S 1201 Switch(12cm) CSN1051 S 1202 Switch(8cm) CSN1051 S 1203 Switch(DISC SENS) CSN1051 S 1204 Spring Switch(DISC SENS) CSN1052 S 1205 Spring Switch(8cm) CSN1052 R 1298 RS1/16S0R0J R 1299 RS1/16S0R0J Unit Number : CWX2753 Unit Name : Compound Unit(B) S 1206 Switch(CLAMP) CSN1051 Unit Number : CWM8758 Unit Name : Panel Unit MISCELLANEOUS D 1970 LED CL220PGC S 1970 Push Switch(EJECT) CSG1112 RESISTORS R 1970 RS1/16S101J R 1971 RS1/16S101J R 1972 RS1/16S0R0J CAPACITORS C 1970 CKSRYB104K16 Unit Number : CWM8798(DVH-P5000MP/UC) CWM8799(DVH-P5050MP/RC, RD) Unit Name : Keyboard Unit MISCELLANEOUS IC 1900 IC PD6294A IC 1901 HIC Module RS-140 Q 1910 Transistor DTC114EU D 1902 Diode Network DA204U D 1910 LED NSSW440-9159 D 1912 LED NSSW440-9159 D 1914 LED NSSW440-9159 D 1930 LED CL-195PG-CD D 1931 LED CL-195PG-CD D 1932 LED CL-195PG-CD D 1935 LED CL-195PG-CD D 1942 LED CL190UBX D 1943 LED CL190UBX D 1946 LED CL-195PG-CD D 1947 LED CL-195PG-CD X 1900 Ceramic Resonator 5.00MHz CSS1547 S 1901 Push Switch CSG1112 S 1902 Push Switch CSG1112 S 1903 Switch CSG1107 S 1904 Switch CSG1107 S 1905 Switch CSG1107 S 1906 Switch CSG1107 S 1907 Switch CSG1107 S 1908 Switch CSG1107 S 1909 Switch CSG1107 S 1910 Switch CSG1107 S 1911 Push Switch CSG1112 S 1912 Push Switch CSG1160 S 1913 Push Switch CSG1112 S 1914 Push Switch CSG1160 S 1915 Push Switch CSG1112 S 1916 Push Switch CSG1112 S 1917 Push Switch CSG1111 S 1918 Push Switch CSG1111 S 1950 Encoder(VOLUME) CSD1059 LCD(DVH-P5000MP/UC) CAW1814 LCD(DVH-P5050MP/RC, RD) CAW1815 RESISTORS R 1900 RS1/16S222J R 1901 RS1/16S222J R 1902 RS1/16S121J R 1903 RS1/16S2R2J R 1910 RS1/16S151J R 1912 RS1/16S151J R 1914 RS1/16S271J R 1915 RS1/16S271J R 1919 RS1/16S101J R 1930 RS1/16S151J R 1932 RS1/16S151J R 1934 RS1/16S151J R 1936 RS1/16S151J R 1938 RS1/16S101J R 1939 RS1/16S101J R 1940 RS1/16S151J R 1941 RS1/16S181J R 1942 RS1/16S0R0J R 1943 RS1/16S181J R 1950 RS1/16S472J R 1960 RS1/16S473J CAPACITORS C 1900 CKSRYB104K16 C 1901 CKSYF106Z10 C 1902 CKSRYB104K16 C 1903 CKSRYB104K16 C 1904 CKSRYB104K16 C 1910 CKSRYF104Z25 C 1911 CKSRYF104Z25 C 1913 CKSRYF104Z25 C 1942 CKSRYF104Z25 C 1943 CKSRYF104Z25 Unit Number : CWM8797(DVH-P5000MP/EW) Unit Name : Keyboard Unit MISCELLANEOUS IC 1900 IC PD6294A IC 1901 HIC Module RS-140 Q 1910 Transistor DTC114EU D 1902 Diode Network DA204U D 1910 LED NSSW440-9159 D 1912 LED NSSW440-9159 D 1914 LED NSSW440-9159 D 1930 LED CL-195SR-CD D 1931 LED CL-195SR-CD D 1932 LED CL-195SR-CD =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E F G H H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC D 1935 LED CL-195SR-CD D 1942 LED CL190UBX D 1943 LED CL190UBX D 1946 LED CL-195SR-CD D 1947 LED CL-195SR-CD X 1900 Ceramic Resonator 5.00MHz CSS1547 S 1901 Push Switch CSG1135 S 1902 Push Switch CSG1135 S 1903 Push Switch CSG1133 S 1904 Push Switch CSG1133 S 1905 Push Switch CSG1133 S 1906 Push Switch CSG1133 S 1907 Push Switch CSG1133 S 1908 Push Switch CSG1133 S 1909 Push Switch CSG1133 S 1910 Push Switch CSG1133 S 1911 Push Switch CSG1135 S 1912 Push Switch CSG1164 S 1913 Push Switch CSG1135 S 1914 Push Switch CSG1164 S 1915 Push Switch CSG1135 S 1916 Push Switch CSG1135 S 1917 Push Switch CSG1111 S 1918 Push Switch CSG1111 S 1950 Encoder(VOLUME) CSD1059 LCD CAW1813 RESISTORS R 1900 RS1/16S222J R 1901 RS1/16S222J R 1902 RS1/16S121J R 1903 RS1/16S2R2J R 1910 RS1/16S151J R 1912 RS1/16S151J R 1914 RS1/16S271J R 1915 RS1/16S271J R 1919 RS1/16S101J R 1930 RS1/16S151J R 1932 RS1/16S151J R 1934 RS1/16S151J R 1936 RS1/16S151J R 1938 RS1/16S101J R 1939 RS1/16S101J R 1940 RS1/16S151J R 1941 RS1/16S181J R 1942 RS1/16S0R0J R 1943 RS1/16S181J R 1950 RS1/16S472J R 1960 RS1/16S473J CAPACITORS C 1900 CKSRYB104K16 C 1901 CKSYF106Z10 C 1902 CKSRYB104K16 C 1903 CKSRYB104K16 C 1904 CKSRYB104K16 C 1910 CKSRYF104Z25 C 1911 CKSRYF104Z25 C 1913 CKSRYF104Z25 C 1942 CKSRYF104Z25 C 1943 CKSRYF104Z25 Miscellaneous Parts List Fan Motor CXM1193 Pickup Unit(Service)(DP5) CXX1639 M 1 Motor Unit(LOADING) CXB8687 M 2 Motor Unit(CARRIAGE) CXB8688 M 3 Motor(SPINDLE) CXM1211 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 KEYBOARD UNIT (SIDE B) CN1951 CN1901 PANEL UNIT (SIDE A) TUNER AMP PCB GGD1316 RUBBER BAND RUBBER BAND 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 6. ADJUSTMENT 6.1 JIG CONNECTION DIAGRAM FREQUENCY CHECK FOR CLOCK No. Specification Measuring Point Note (Adjustment Item) 1 12.58291MHz ± 503Hz TP(PCL) 1. ACC, B.UP ON (Frequency Counter) 2. TP(TESTIN) : 5V DC-DC CONVERTER FREQUENCY ADJUSTMENT No. Specification Measuring Point Adjustment Note (Adjustment Item) Point 1 370 ± 5kHz TP(DD1) VR211 (Frequency Counter) • DC-DC converter frequency adjustment should be adjusted under playing DVD. • There is a hole for adjustment on the shield case of DC-DC converter. VR211 can be seen through the hole. 6.2 FREQUENCY CHECK FOR CLOCK, DC-DC CONVERTER FREQUENCY ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 TESTIN PCL DD1 IC601 IC211 VR211 - Adjustment Point TUNER AMP PCB(SIDE A) TUNER AMP PCB(SIDE B) DC Regulated Power Supply BACK UP GND +14.4V ACC GND 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 1) Precautions This product uses 5V and 3.3V as standard voltages. The electrical potential that is the reference for signals, is not GND, but VREF (approximately 2.2V) and VHALF (approximately 1.65V). During product adjustments, if the reference voltage is mistakenly taken as GND, and a grounding contact is made, not only would it be impossible to measure the accurate electrical potential, but also the servo motor would malfunction, resulting in the application of a strong impact on the pick up. The following precaution- ary measures should be strictly adhered to, in order to avoid such problems. The reference voltage and GND should not be confused when using the minus probe of a measurement device. When an oscilloscope is being used special care should be taken to make sure that the reference voltage is not connected to the probe of ch1 (on the minus side), while the probe of ch2 (on the minus side), is connected to GND. Further, since the body frame of most mea- surement devices have the same electrical potential as the minus side of the probe, the body frame of the mea- surement device should be set to floating ground. If the reference voltage is connected to GND by mis- take, turn the regulator OFF immediately, or turn the power OFF. • Remove the filters and wires used for measurements only after the regulator has been turned OFF. • After the power supply is turned on, regulator ON the following adjustment and measurement are promptly done. • Whenever the product is in the test mode, the software will not take any protective action. For this reason, special care should be taken to make sure that no mechanical or electrical shock could be applied to the product when taking measurements in the test mode. • Whenever the EJECT key is pressed to eject the disk, no other keys, other than the EJECT key, should be pressed until the disk eject action has been complet- ed. • Press the EJECT key only after the disk has stopped completely. • If the product hangs up turn the power OFF immedi- ately. • Laser didoes may be damaged, if the volume switch for the laser power adjustment of the pick up unit, is turned. Attention) • Test mode starting procedure ACC ON while pressing the ANGLE- and EQ keys together. • Test mode stopping procedure ACC and Backup OFF. 6.2 DVD ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Test mode In Set source to DVD Start test mode FE test mode Power On Power Off CRG + CRG – LD_ON Focus close adjustment Focus Search Power Off CRG + CRG – T.Bal and other adjustments Focus Jump Power Off Focus Jump ID Search Tracking Open T. Jump +/– ID specification Track number specification Error Rate measurement (Note 2) Reproduction speed switching (Note 3) Power Off CRG – Tracking close adjustment CRG + Disc Type (Note 1) Eject EDC1 mode EDC2 mode RIGHT EQ RIGHT EQ RIGHT EQ RIGHT EQ RIGHT LEFT Focus Search Stop LEFT REAR LEFT REAR BACK/TEXT BACK/TEXT REAR LEFT ATT ANGLE- ANGLE+ REAR, BACK/TEXT ATT CRG_HOME ANGLE- RIGHT LEFT REAR LEFT~ATT EJECT Power off condition Power on condition Focus close condition 2 Focus close condition 1 Tracking close condition ID Search Start ATT Jump start BACK/TEXT REAR 0X00 0000 0FFF 0000 0FFF 0000 1X00 0000 1FFF 0000 0000 0000 1A00 0000 1100 0000 TEST FE offset coefficient TE offset coefficient AS offset coefficient ENV offset coefficient TG offset coefficient DBALt coefficient FE MAX level FE MIN level AS MAX level ENV MAX level FE normalization feature Spindle gain coefficient TEMAX level TEMIN level TBAL Coefficient(Layer 0) TBAL Coefficient(Layer 1) TE normalization feature (Layer0) TE normalization feature (Layer1) FBAL Coefficient(Layer0) FBAL Coefficient(Layer1) Focus Gain Coefficient(Layer0) Focus Gain Coefficient(Layer1) Tracking Gain Coefficient(Layer0) Tracking Gain Coefficient(Layer1) AS normalization adjustment feature (Layer0) AS normalization adjustment feature (Layer1) 2FFF 0000 Layer L0:2000 0000 Layer L1:2100 0000 Layer L0:4X00 0000 Layer L1:4X00 0000 3000 0000 3FFF 0000 3B00 0000 DVD x 1CLV DVD x 1.3CLV CD x 2CLV 4X00 0000 3C00 0000 4A00 0000 Jump+: 4B00 0000 ID display Track number display 4000 0000 4X00 0000 Error Rate Focus Gain Coefficient(Layer0) Focus Gain Coefficient(Layer1) Tracking Gain Coefficient(Layer0) Tracking Gain Coefficient(Layer1) AS normalization adjustment feature (Layer0) AS normalization adjustment feature (Layer1) Operation while key is being pushed. Operation while key is being pushed. Operation while key is being pushed. Operation while key is being pushed. 2B00 0000 2C00 0000 Note 1: At this stage select the media type. Various settings are carried out according to the media selection made here. Note 2: While measurements are being taken, only the operation, for which the measurement is being taken, is allowed. Note 3: Reproduction (play) speed is selectable from DVD: x 1CLV ↔ x 1.3CLV, CD x 2CLV LEFT : DVD, single-layer REAR : DVD, dual-layer BACK/TEXT: CD ATT : CD-RW - Front-End test mode flow chart 1B00 0000 1C00 0000 1D00 0000 LD_ON :1100 0000 LD_OFF:1000 0000 BACK/TEXT RIGHT BACK/TEXT ~ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC Layer 0 selected Layer 1 selected EDC1 mode ID designation RIGHT LEFT EDC1 start ATT Layer 0 selected Layer 1 selected EDC2 mode ID designation RIGHT LEFT EDC2 start ATT F-close and F-search cannot be executed, unless LD-ON is set. [If F-close isn't executed within 9 seconds after LD-ON, it switches to LD-OFF automatically. And even if F-search is executed within 9 seconds after LD-ON, it also switches to LD-OFF.] 0000 0000 0000 0000 0100 0000 1103 0000 Layer0:10** **** Layer1:11** **** ** ****: ID specification value Layer0:20** **** Layer1:21** **** ** ****: Present ID value 0000 0000 1003 0000 0100 0000 1103 0000 0000 0000 1003 0000 Layer0:10** **** Layer1:11** **** ** ****: ID specification value Layer0:20** **** Layer1:21** **** ** ****: Present ID value The track number designation is selected from the track numbers already prepared for selection. Switching to cyclic operation is made at step REAR, and the decision is finalized (entered) in step BACK/TEXT. For CD: Tracks 1, 4, 10, 11 and 32. For DVD: Tracks 1, 4, 10, 11, 32, 64 and 100. Method for designating an ID address: • A number of digits are determined through commands RIGHTand LEFT. Numerical UP/DOWN operations are performed through commands REAR and BACK/TEXT. The decision is finalized (entered) with command ATT. Error status from DVD micurocomputer Contents Display 0X50 Mecha. error No dislay 0X40 No disc No dislay 0X30 The temperature is abnormal Thermal Protection in Motion 0X20 Read error Error-02-XX 0XE2 Non-playable disc NON-PLAYABLE DISC 0X90 Drrerent region disc DFFERENT REGION DISC 0XFF Undefined error Error-FF Error code of read error(Part of XX) Error Code Contents Display 0X99 Data cannot read Please condirm the disc 0X80 The address cannot be found Please condirm the disc 0X90 Focus error Please condirm the disc 0X91 Spindle lock NG DVD is stopping because mechanism detected abnormality 0X92 Carrige home NG DVD is stopping because mechanism detected abnormality 0X93 FOK error Please condirm the disc 0X94 ID/Subcode cannot be read Please condirm the disc 0X95 High spindle rotation Please condirm the disc 0X96 Row spindle rotation DVD is stopping because mechanism detected abnormality 0X98 TOC cannot be found Please condirm the disc 0X9A AV chip error DVD is stopping because mechanism detected abnormality 0X9B RecaveryNG(BE) DVD is stopping because mechanism detected abnormality OSD display Error Code List RIGHT BACK/TEXT ~ RIGHT BACK/TEXT ~ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Skew adjustment connection diagram • DVD core unit (MS3) - Skew adjustment If any of the following replacements have been performed on the system, adjustments for pick up, must be conducted: 1. Pick up unit replacement 2. Spindle motor replacement 3. Carriage chassis replacement 4. Pick up unit main shaft replacement 5. Pick up unit sub-shaft replacement Measurement device and tools : Oscilloscope Allen key wrench 40-pin flexible extension Screw rock(GYL1001) Disk used : GGV1018 Measurement reference : GND1 Measurement point : RFOUT COMPO GNDV IC1706 IC1101 GND1 Oscilloscope RFOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC A B C Symptoms in case of poor adjustment: Error efficiency deteriorated: 10-3 (Optimum value: 10-4 or lower) High jitter of the RF signal RF waveform deformed Unstable operation in tracking closing and servo control Caution: Avoid exposing your eyes to laser beams for a long time. Preparation for adjustment: Clean both ends of the shafts. Use brand new skew screws supplied with the service kit CXX1639. Procedures: 1. Place the DVD mechanism module upside down. 2. After replacing the pickup (by referring to the procedures of “Removing the Pickup.”), roughly adjust the three skew screws through visual check so that the pickup is mounted in parallel to the CRG chassis around the inner and outer tracks. 3. Connect an oscilloscope as shown in the connecting diagram. 4. Turn on the power of the product. Load the test disc (GGV1018). 5. In the front-end test mode, set the disc type to DVD layer 1. Move the pickup toward the inner tracks. 6. Turn on the laser diodes. 7. With the focus servo closed, complete all automatic adjustments. Close the tracking servo, and then complete all automatic adjustments. 8. Observing the RF waveform on the oscilloscope, slightly turn the skew adj. screw C to maximize the RF level. Next, move the pickup toward the outer tracks. Slightly turn the skew adj. screw B to maximize the RF level. Turn the skew adj. screws A and B in the same direction keeping their rotating angles the same until the RF level becomes the maximum. Lastly, move the pickup toward the inner tracks. Turn the skew adj. screw C so that the RF level becomes the maximum. Repeat the step 8 three times. 9. Turn off the power in the test mode. After confirming that the disc has stopped, eject the disc. 10. Apply Screw lock(GYL 1001) to the skew adj. screws and the shafts. Screw lock(GYL 1001) Shaft Skew adj. screw Skew adj. screw Prevent applied Screw lock from extending beyond this position. Prevent applied Screw lock from extending beyond this position. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Are all reproduced images and sounds normal? NO NO NG NG NG NG NG Are all clocks operating normally? Is the streaming I/F? Is the audio circuit operating normally? Is the video circuit operating normally? Is SDRAM I/F operating normally? All checks normal? Start Go to the F.E. section check Repair or replace any defective unit Check completed NG NO OK OK OK OK OK OK YES YES YES Is the F.E. section normal? Are all power supply voltages? Is the microprocessor operating normally? - Back end section check flow chart www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC Check 1: Are all power supply voltages normal? Reproduce DVD-REF-A1 Title 1. Verify the voltage of the sensing pin. If results are not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components. NO. Verification location Rated value Unit 1 VD8-PGND 8±0.4 V 2 VD33-GND 3.3±0.3 V 3 SRVDD33-GND 3.3±0.3 V 4 VCC5-GND V 5 AVCC5-GND 5±0.3 5±0.25 V 6 VCC33-GND 3.3±0.15 V 7 VCC18-GND V 1.8±0.15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Check 2: Are all clocks operating normally? Reproduce DVD-REF-A1 Title 1. Checks are to be conducted with a GND reference. If locations listed under "verification location 2", can be verified, there will be no need to perform verifications for the locations listed under "verification location 1." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in the vicinity of IC1507. Verification Verification NO. location 1 location 2 Media Rated value1 Rated value 2 Rated value 3 (contact measurements) 1 CLK27 IC1503 96pin ALL 2.65V~VCC33 GND~0.65V 27MHz±50ppm 2 EXTCK1 IC1503 100pin DVD 2.65V~VCC33 GND~0.65V 36.8640MHz±100ppm 3 EXTCK1 IC1503 100pin CD 2.65V~VCC33 GND~0.65V 33.8688MHz±100ppm 4 MCK16 IC1301 79pin ALL 2.33~VCC33 GND~0.99V 16.9344MHz±100ppm Rated value 1 Rated value 3 Rated value 2 GND Clock rated values www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC System Computer I/F MPEG stream www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Rated value 1 Rated value 2 GND Check 3: Is the streaming I/F operating normally? Reproduce DVD-REF-A1 Title 1. Checks are to be conducted with a GND reference. If the locations listed under "verification location 2" can be verified, then there is no need to conduct verifications for the locations listed under "verification location 1." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in areas where a problem occurs, for the overall sequence of“output " input"of the checked location. Verification NO. location 1 Verification Verification Rated Rated Reference Others (contact location2 Media value 1 value 2 waveform measurements) 1 STD0 IC1503 81pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD8 at R1425 2 STD1 IC1503 80pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD9 at R1425 3 STD2 IC1503 79pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD10 at R1425 4 STD3 IC1503 78pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD11 at R1425 5 STD4 IC1503 76pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD12 at R1426 6 STD5 IC1503 75pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD13 at R1426 7 STD6 IC1503 74pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD14 at R1426 8 STD7 IC1503 73pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD15 at R1426 9 STCLK IC1503 70pin DVD 2V~VCC33 GND~0.8V Waveform 2 Line name ODA2 at IC1405 10 STVALID IC1503 69pin DVD 2V~VCC33 GND~0.8V Waveform 2 Line name OINTRQ at IC1405 11 MASTER IC1301 176pin DVD 2V~VCC33 GND~0.8V Waveform 2 Line name STENABLE at IC1405 Streaming I/F rated value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC System Computer I/F MPEG stream www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Check 4: Is the audio circuit operating normally? Reproduce DVD-REF-A1 Title 2 Chapter (48V/16-bit/1 kHz/0dB). Verify the circuit described in Figure 2. Checks are to be conducted using GNDAU1 (sensing pins) as a reference. If the locations, listed under "verification location 2", can be verified, there is no need to conduct verifications for the locations listed under "verification location 1." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in the vicinity of the main components. NO. Verification Verification Rated Rated Reference location 1 location 2 value 1 value 2 waveform 1 AOUT0 IC1503 90pin 2.0V 0.8V Waveform 3 and over and lower 2 SRCK IC1605 1pin 2.0V 0.8V Waveform 3 and over and lower 3 LRCK IC1605 3pin 2.0V 0.8V Waveform 3 and over and lower Rated value1 Rated value 2 GND Three serial output rated values Checks are conducted with the measurement circuit below. NO. Verification Verification Rated value Reference location 1 location 2 waveform 4 LO CN1611 36pin 1100±150mV Waveform 4 5 RO CN1611 34pin 1100±150mV Waveform 4 Analog audio outputs (LO and RO) rated values LO and RO output measurement circuit NO. Verification Verification Rated value 1 Rated value 2 Reference location 1 location 2 waveform 6 IECOUT CN1501 1pin 2.2V and over 0.8V and lower Waveform 5 Rated value 22kΩ AAGND HOST I/F RO LO These resistors are inserted. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC System Computer I/F MPEG stream www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Check 5: Is the video circuit operated normally? Reproduce DVD-REF-A1 Title 2 Chapters (White 100IRE). Monitor the output with the oscilloscope, by setting the COMPO signal to a GND reference. Set the Trigger mode to the TV trigger, and the Trigger line to line-150. NO. Verification location Rated value Reference (sensing pin) waveform 1 COMPO 1.0±0.05Vpp Waveform 6 If the result is not satisfactory, check to see if there are any problems with resin flux cored solder, parts and components, in the vicinity of line-150 (the section marked 5 in the circuit diagram) and peripheral components. Color burst Horizontal periodic signal Rated value When the result is not satisfactory, adjust the noise level to 1.0 + 0.05 Vpp. PEAK BOTTOM Pedestal COMPO signal Composite signal 100% output waveform www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC System Computer I/F MPEG stream www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Check 6: Is SDRAM I/F operating normally? Reproduce DVD-REF-A1 Title 1. Check the conductivity of both the "Verification location 1" and the "Verification location2." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in areas where a problem occurs, for the overall sequence of “output " input" of the checked location. NO. Signal name Verification location 1 Verification location 2 Rated value 1 MA0 IC1501 23pin IC1503 2pin 22Ω ± 5% 2 MA1 IC1501 24pin IC1503 4pin 22Ω ± 5% 3 MA2 IC1501 25pin IC1503 7pin 22Ω ± 5% 4 MA3 IC1501 26pin IC1503 10pin 22Ω ± 5% 5 MA4 IC1501 29pin IC1503 8pin 22Ω ± 5% 6 MA5 IC1501 30pin IC1503 6pin 22Ω ± 5% 7 MA6 IC1501 31pin IC1503 3pin 22Ω ± 5% 8 MA7 IC1501 32pin IC1503 207pin 22Ω ± 5% 9 MA8 IC1501 33pin IC1503 204pin 22Ω ± 5% 10 MA9 IC1501 34pin IC1503 201pin 22Ω ± 5% 11 MA10 IC1501 22pin IC1503 206pin 22Ω ± 5% 12 MA11 IC1501 20pin IC1503 203pin 22Ω ± 5% 13 MDQ0 IC1501 2pin IC1503 159pin 22Ω ± 5% 14 MDQ1 IC1501 4pin IC1503 162pin 22Ω ± 5% 15 MDQ2 IC1501 5pin IC1503 165pin 22Ω ± 5% 16 MDQ3 IC1501 7pin IC1503 168pin 22Ω ± 5% 17 MDQ4 IC1501 8pin IC1503 171pin 22Ω ± 5% 18 MDQ5 IC1501 10pin IC1503 175pin 22Ω ± 5% 19 MDQ6 IC1501 11pin IC1503 178pin 22Ω ± 5% 20 MDQ7 IC1501 13pin IC1503 181pin 22Ω ± 5% 21 MDQ8 IC1501 42pin IC1503 180pin 22Ω ± 5% 22 MDQ9 IC1501 44pin IC1503 177pin 22Ω ± 5% 23 MDQ10 IC1501 45pin IC1503 173pin 22Ω ± 5% 24 MDQ11 IC1501 47pin IC1503 170pin 22Ω ± 5% 25 MDQ12 IC1501 48pin IC1503 167pin 22Ω ± 5% 26 MDQ13 IC1501 50pin IC1503 164pin 22Ω ± 5% 27 MDQ14 IC1501 51pin IC1503 161pin 22Ω ± 5% 28 MDQ15 IC1501 53pin IC1503 158pin 22Ω ± 5% 29 MCK IC1501 38pin IC1503 185pin 22Ω ± 5% 30 XWE IC1501 16pin IC1503 193pin 22Ω ± 5% 31 XCAS IC1501 17pin IC1503 195pin 22Ω ± 5% 32 XRAS IC1501 18pin IC1503 196pin 22Ω ± 5% 33 XCSM IC1501 19pin IC1503 199pin 22Ω ± 5% 34 XCSE IC1501 35pin IC1503 198pin 22Ω ± 5% 35 DQMUM IC1501 39pin IC1503 192pin 22Ω ± 5% 36 DQMLM IC1501 15pin IC1503 189pin 22Ω ± 5% 37 DQMUE IC1501 21pin IC1503 190pin 22Ω ± 5% www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC System Computer I/F MPEG stream www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Check 7: Is the microprocessor operating normally? Check the conductivity of both the "Verification location 1" and the "Verification location2." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in areas where a problem occurs, for the overall sequence of "output – input" of the checked location. NO. Signal name Verification Verification Verification Rated value Others location 1 location 2 Media 1 A1 IC1701 142pin IC1503 27pin ALL 0Ω 2 A2 IC1701 141pin IC1503 28pin ALL 0Ω 3 A3 IC1701 140pin IC1503 29pin ALL 0Ω 4 A4 IC1701 139pin IC1503 30pin ALL 0Ω 5 A5 IC1701 138pin IC1503 32pin ALL 0Ω 6 A6 IC1701 137pin IC1503 33pin ALL 0Ω 7 A7 IC1701 136pin IC1503 34pin ALL 0Ω 8 A8 IC1701 133pin IC1503 35pin ALL 0Ω 9 A9 IC1701 132pin IC1503 36pin ALL 0Ω 10 A10 IC1701 131pin IC1503 38pin ALL 0Ω 11 A11 IC1701 130pin IC1503 39pin ALL 0Ω 12 A12 IC1701 129pin IC1503 40pin ALL 0Ω 13 A13 IC1701 128pin IC1503 41pin ALL 0Ω 14 A14 IC1701 127pin IC1503 42pin ALL 0Ω 15 A15 IC1701 126pin IC1503 44pin ALL 0Ω 16 A16 IC1701 123pin IC1503 45pin ALL 0Ω 17 A17 IC1701 122pin IC1503 46pin ALL 0Ω 18 D0 IC1701 17pin IC1503 47pin ALL 0Ω 19 D1 IC1701 16pin IC1503 49pin ALL 0Ω 20 D2 IC1701 15pin IC1503 50pin ALL 0Ω 21 D3 IC1701 14pin IC1503 51pin ALL 0Ω 22 D4 IC1701 13pin IC1503 52pin ALL 0Ω 23 D5 IC1701 12pin IC1503 54pin ALL 0Ω 24 D6 IC1701 11pin IC1503 55pin ALL 0Ω 25 D7 IC1701 10pin IC1503 56pin ALL 0Ω 26 D8 IC1701 7pin IC1503 58pin ALL 0Ω 27 D9 D10 D11 D12 D13 D14 D15 IC1701 6pin IC1503 59pin ALL 0Ω 28 XCSAVR IC1701 5pin IC1503 60pin ALL 0Ω 29 XCSAVW IC1701 4pin IC1503 62pin ALL 0Ω 30 XCSAV IC1701 3pin IC1503 63pin ALL 0Ω 31 XAVINT2 XAVINT IC1701 2pin IC1503 65pin ALL 0Ω 32 XRD IC1701 1pin IC1503 66pin ALL 0Ω 33 CLKOUT IC1701 144pin IC1503 67pin ALL 0Ω Dividing circuitFor verification location 2, include also IC1502 pin-3 34 HCLK IC1701 101pin IC1706 1pin ALL 0Ω 35 XSRAMWR IC1701 100pin IC1706 2pin ALL 0Ω 36 XHWR IC1706 4pin IC1503 24pin ALL 0Ω 37 IC1701 42pin IC1503 17pin ALL 0Ω 38 IC1701 41pin IC1503 18pin ALL 0Ω 39 IC1701 95pin IC1503 23pin ALL 0Ω 40 IC1701 90pin IC1505 3pin ALL 33Ω 41 IC1502 5pin IC1503 26pin ALL 200Ω ± 5 % 42 IC1701 105pin IC1505 1pin ALL 0Ω 43 IC1504 8pin IC1503 21pin ALL 68Ω ± 5 % www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC System Computer I/F MPEG stream www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Note:1 The encircled number denote measuring pointes in the circuit diagram. 2 Reference voltage VHALF : 1.65V ! CH1: STD1 @ CH2: STD4 # CH3: STD7 $ CH4: STENABLE G→ 5V/div. 2µs/div. G→ G→ G→ ←T % CH1: AVRTM ^ CH2: STCLK & CH3: STVALID $ CH4: STENABLE G→ 5V/div. 2µs/div. G→ G→ G→ ←T % CH1: AVRTM ^ CH2: STCLK & CH3: STVALID $ CH4: STENABLE G→ 5V/div. 50µs/div. G→ G→ G→ ←T * CH1: AOUT0 ( CH2: SRCKAV ) CH3: LRCKAV G→ 2V/div. 2µs/div. G→ G→ ←T ⁄ CH1: IEC958 1V/div. 500ns/div. G→ ←T ¤ CH1: LO ‹ CH2: RO G→ 1V/div. 500µs/div. G→ ←T › CH1: COMPO 200mV/div. 10µs/div. [White 100% output] G→ Waveform 1 Waveform 2(1) Waveform 2(2) Waveform 5 Waveform 4 Waveform 3 Waveform 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 1 1 Fig.1 Fig.2 - Removing the DVD Mechanism Module (Fig.1) - Removing the Holder (Fig.2) Remove the four screws. Remove the screw and then remove the Holder. 1. Remove the Case. - Removing the Case (not shown) Disconnect the connector and then remove the DVD Mechanism Module. - Removing the Grille Assy (Fig.1) 2 Remove the two screws and then remove the Grille Assy. 2 2 DVD Mechanism Module Grille Assy 1 2 Holder 1 1 1 1 Connector PCB 2 - Removing the Connector PCB (Fig.2) Remove the screw and then remove the Connector PCB. 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 1 Fig.3 - Removing the Tuner Amp PCB (Fig.3) Remove the two screws. 3 4 4 4 4 Tuner Amp PCB 2 Remove the two screws. 3 Remove the two screws. 4 Straighten the tabs at four locations indicated. 3 2 1 1 5 2 Fan Motor 5 Remove the screw and then remove the Tuner Amp PCB. Disconnect the connector and then remove the Fan Motor. 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 - Precautions on handling the mechanism module 1. Hold the upper and main frames. 2. Do not hold the front portion of the upper frame. It is a delicate part. 3. Do not touch the switches on the top panel. 4. Be careful not to catch the flexible cables. Do not touch here. Do not touch here. Do not hold this delicate portion. - Removing the DVD Core Unit(MS3) Load motor leads and clamp SW leads Connector (for 8/12 detection flexible cable) Connector (for pickup flexible cable) Connector (for CRG flexible cable) Short here. A B C DVD Core Unit(MS3) 1. Set the mechanism to the lock position (disc load standby position). 2. Place the mechanism module upside down. 3. Short the two lands on the pickup flexible cable as shown below. 4. Be sure to disconnect the pickup flexible cable and the CRG flexible cable from the connectors to protect them from damages. 5. Remove solder from the load motor leads and clamp SW leads. 6. Loosen the two fixing screws. Lift the position A of the DVD core unit(MS3) lightly and move it in the direction B to remove it. Be careful not to damage the flexible cable C. 7. Disconnect the 8/12 detection flexible-cable from the connector. 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 - Removing the pickup unit 1. Remove the DVD core unit(MS3) in accordance with the procedure of "Removing the DVD core unit(MS3).” 2. While holding the pickup case, remove the skew screw (main). 3. Lifting the end of the pickup rack, slide the main shaft, and remove the pickup unit. Notes: Replacing the pickup unit requires the skew adjustment. Remove glue from both ends of the main and sub shafts, and skew stud. Do not reuse the old skew screw. Be sure to use a brand-new skew screw supplied with a new pickup unit. Fix the skew screw with screw lock (GYL1001) after adjustment. Sub shaft Pickup unit Skew screw Skew screw (main) Skew screw 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 1 2 3 4 5 6 7 8 9 11 10 1 2 3 4 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BL+ 8. ASENB 9. BR+ 10. BR- 11. BL- IP-BUS input (Blue) 1. GND 2. GND 3. NC 4. OPTOUT Optical output 1. B.UP 2. GND 3. ILM 4. B.REM 5. ACC 6. NC 7. P.BREAK 8. GND 9. RL- 10. FL- 11. RL+ 12. FL+ 13. RR- 14. FR- 15. RR+ 16. FR+ 1. TEL MUTE 2. NC 3. S/W or NON-FAD LOUT 4. GND 5. S/W or NON-FAD ROUT 6. GND 7. FL.PREOUT 8. GND 9. FR.PREOUT 10. GND 11. NC 12. NC 13. F.VOUT 14. GND 15. R.VOUT 16. GND 2 4 6 8 10 12 14 16 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 3 5 7 9 11 13 15 8mmMAX Rear audio output Antenna jack 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 7.1.2 CONNECTOR FUNCTION DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC - Pin Functions (PD6294A) Pin No. Pin Name I/O Function and Operation 1 VSS GND 2 X1 Crystal oscillator connection pin 3 X0 Crystal oscillator connection pin 4 NC Not used 5,6 MOD1,0 I Connect to GND 7 DIMMER O Dimmer select output 8 KYDT O Key data output 9 DPDT I Display data input 10 REMIN I Remote control pulse input 11 GRN Dual Illumination (Green) 12 AMB Dual Illumination (Amber) 13–16 KD4–1 I Key data input 17-22 KST6–1 O Key strobe output 23 VDD VDD 24-73 SEG49–0 O LCD segment output 74–77 COM3–0 O LCD common output 78 VLCD I LCD voltage input 79,80 V2,1 Power supply terminal * PD6294A 80 1 20 21 40 41 60 61 IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. PD6294A PE5360A PE5361A AN8011S SM5304AV S-875041BUP-ABC PE5395A PCM1742KE TC7PA04FU MNZS26EDCUB MN677531KAUB M2V64S40DTP-6L AN8471SAT1 AN8703FH SM8707FV PD6419C 7.2 PARTS 7.2.1 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 - Pin Functions(PE5360A, PE5361A) Pin No. Pin Name I/O Function and Operation 1 DPDT O GRILL : Data output 2 FWHS O Used to write the flash memory 3 TUNPDI I TUNER : PLL data input 4 TUNPDO O TUNER : PLL data output 5 TUNPCK O TUNER : PLL clock output 6 RXMS3 I MS3 : Data input 7 TXMS3 O MS3 : Data output 8 pbsens I Parking brake sense input 9 EVDD Power supply 10 EVSS GND 11 tunpce@ O TUNER : Chip enable output 12 TUNPCE O TUNER : Chip enable output 13 RDT I RDS data input(DVH-P5000MP/EW) 14 TESTIN I Test mode input 15 TSI I Test data input 16 TSO O Test data output 17 TSCK O Test data synchronism clock output 18 BEEP O Beep tone output 19 rds%&k I RDS 57kHz pulse count input(DVH-P5000MP/EW) 20 rdslk I RDS lock signal input(DVH-P5000MP/EW) 21 VPP Flash ROM write voltage supply 22 MUTE O System mute output 23 RMUTE O Rear audio mute output 24 fmmute O Front video mute output 25 rmmute O Rear video mute output 26 RX I IP-BUS : Data input 27 TX O IP-BUS : Data output 28 IPPW O IP-BUS : Driver power supply control output 29 ASENBO O IP-BUS : Slave ACC sense output 30-33 NC Not used 34 RESET I System reset input 35 XT1 Oscillator connection for sub clock 36 XT2 Oscillator connection for sub clock 37 REGC Memory connection for the regulator output stabilization 38 X2 Oscillator connection for main clock 39 X1 Oscillator connection for main clock 40 VSS GND 41 VDD Power supply 42 PCL2 O Inside system clock output 43 VDT O EVOL : Data output 44 VCK O EVOL : Clock output 45 EMUTE O EVOL : Mute output 46 VST O EVOL : Strobe output 47 ROMDATA I/O ROM correction : Data input/output 48 ROMCK O ROM correction : Clock output 49 ROMCS O ROM correction : Chip select output 50, 51 NC Not used 52 CONTVDD O MS3 digital power supply control output 53 CONTVD8 O MS3 motor power supply control output 54 IRQPWR O Backup OFF information to MS3 output 55 xreset O MS3 mechanism CPU reset output 56 AMUTE I MS3 mute input 57 NC Not used 58 BVDD Power supply for bus interface 59 BVSS GND for bus interface 60 SYSPW O System power control output 61 REARPW O Rear entertainment power supply output 62 NC Not used 63 DORAON O TUNER unit power supply ON output 64 DALMON O Current reduction output 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC Pin No. Pin Name I/O Function and Operation 65 DDCONT O TUNER : DD converter switch output 66 AMPPW O Amplifier power supply output 67-69 NC Not used 70 swvdd O GRILL : Chip enable output 71 FLPILM O Flap illumination output 72 ILMPW O Illumination output 73 LCDPW O Back light power supply output 74 AVDD A/D converter analog power supply 75 AVSS A/D converter GND 76 AVREF A/D converter reference voltage 77 SL I TUNER : Signal level input 78 VD8SENS I MS3 : VD8 sense input 79 LVLINL I Level indicator L.ch input 80 CSENS I Flap opening-and-closing sense input 81 LVLINR I Level indicator R.ch input 82, 83 NC Not used 84, 85 ROT0, 1 I Rotary encoder pulse input 0, 1 86 ejctin I Eject key input 87 MODEL I Model input(DVH-P5000MP/UC, DVH-P5050MP/RC, DVH-P5050MP/RD) 88 isens I Illumination sense input 89 NC Not used 90 dsens I Detach sense input 91 CONTBIN I MS3 : CONTB sense input 92 bsens I Back up sense 93 asens I ACC sense input 94 ldet I RDS PLL lock detection input(DVH-P5000MP/EW) 95 TELIN I TEL : Cellular mute input 96 rck I RDS clock input(DVH-P5000MP/EW) 97 FWSI O Used to write the flash memory 98 FWSO O Used to write the flash memory 99 FWSCK O Used to write the flash memory 100 KYDT I GRILL : Data input 100 1 30 31 50 51 80 81 * PE5360A(DVH-P5000MP/UC, DVH-P5050MP/RC, DVH-P5050MP/RD) * PE5361A(DVH-P5000MP/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC AN8011S VREF VREF CT RT VCC Latch IN+ IN-1 IN-2 FB-1 FB2 DTC2 Out2 GND DTCI Out1 U.V.L.O. On/ Off Latch Error amp. Error amp. Unlatch pro. PWM1 PWM2 Unlatch pro. Short pro OSC On/Off 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 _ + _ + _ + _ + _ + + _ + + _ + + SM5304AV GSEL VF VOUT GND VIN DISABLE RFC VCC 8th Other LPF 1 2 3 4 8 7 6 5 Buffer * S-875041BUP-ABC VIN VOUT VOR VSS CD 1 2 3 4 5 Short-circuit Protection Circuit Voltage Regulator Voltage Detection Circuit Delay Circuit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC D14/PDL14 1 D13/PDL13 2 D12/PDL12 3 D11/PDL11 4 D10/PDL10 5 D9/PDL9 6 D8/PDL8 7 VDD 8 VSS 9 D7/PDL7 10 D6/PDL6 11 D5/PDL5 12 D4/PDL4 13 D3/PDL3 14 D2/PDL2 15 D1/PDL1 16 D0/PDL0 17 MODE2 18 DMARQ3/INTP103/P07 19 DMARQ2/INTP102/P06 20 DMARQ1/INTP101/P05 21 DMARQ0/INTP100/P04 22 TO00/P03 23 INTP001/P02 24 TI000/INTP000/P01 25 PWM0/P00 26 VDD 27 VSS 28 DMAAK3/PBD3 29 DMAAK2/PBD2 30 DMAAK1/PBD1 31 DMAAK0/PBD0 32 TO01/P13 33 INTP011/P12 34 TI010/INTP010/P11 35 PWM1/P10 36 PCD3/UBE/SDRAS 108 PCS0/CS0 107 PCS1/CS1/RAS1 106 PCS2/CS2/IOWR 105 PCS3/CS3/RAS3 104 PCS4/CS4/RAS4 103 PCS5/CS5/IORD 102 PCS6/CS6/RAS6 101 PCS7/CS7 100 VSS 99 VDD 98 PCT0/LCAS/LWR/LDQM 97 PCT1/UCAS/UWR/UDQM 96 PCT4/RD 95 PCT5/WE 94 PCT6/OE 93 PCT7/BCYST 92 PCM0/WAIT 91 PCM1/CLKOUT/BUSCLK 90 PCM2/HLDAK 89 PCM3/HLDRQ 88 PCM4/REFRQ 87 PCM5/SELFREF 86 P50/INTP030/TI030 85 P51/INTP031 84 P52/TO03 83 VSS 82 VDD 81 P70/ANI0 80 P71/ANI1 79 P72/ANI2 78 77 P73/ANI3 76 P74/ANI4 75 P75/ANI5 74 P76/ANI6 P77/ANI7 73 VDD 37 VSS 38 TC3/INTP113/P27 39 TC2/INTP112/P26 40 TC1/INTP111/P25 41 TC0/INTP110/P24 42 TO02/P23 43 INTP021/P22 44 TI020/INTP020/P21 45 NMI/P20 46 VDD 47 VSS 48 ADTRG/INTP123/P37 49 INTP122/P36 50 INTP121/P35 51 RXD2/INTP120/P34 52 TXD2/INTP133/P33 53 SCK2/INTP132/P32 54 SI2/INTP131/P31 55 SO2/INTP130/P30 56 MODE1 57 MODE0 58 RESET 59 CKSEL 60 CVDD 61 X2 62 X1 63 CVSS 64 SCK1/P45 65 RXD1/SI1/P44 66 TXD1/SO1/P43 67 SCK0/P42 68 RXD0/SI0/P41 69 TXD0/SO0/P40 70 AVDD/AVREF 71 AVSS 72 PDL15/D15 144 PAL0/A0 143 PAL1/A1 142 PAL2/A2 141 PAL3/A3 140 PAL4/A4 139 PAL5/A5 138 PAL6/A6 137 PAL7/A7 136 VSS 135 VDD 134 PAL8/A8 133 PAL9/A9 132 PAL10/A10 131 PAL11/A11 130 PAL12/A12 129 PAL13/A13 128 PAL14/A14 127 PAL15/A15 126 VSS 125 VDD 124 PAH0/A16 123 PAH1/A17 122 PAH2/A18 121 PAH3/A19 120 PAH4/A20 119 PAH5/A21 118 PAH6/A22 117 PAH7/A23 116 PAH8/A24 115 PAH9/A25 114 VSS 113 VDD 112 PCD0/SDCKE 111 PCD1/SDCLK 110 PCD2/LBE/SDCAS 109 INTP100-INTP103, NMI INTC INTP110-INTP113, INTP120-INTP123, INTP130-INTP133 TO00-TO03 TI000,TI010, TI020,TI030 SO0/TXD0 SO1/TXD1 INTP000,INTP001, INTP010,INTP011, INTP020,INTP021, INTP030,INTP031 RPU SIO SI0/RXD0 SCK0 SCK2 PWM0 PWM1 ANI0-ANI7 AVREF/AVDD AVSS ADTRG SI1/RXD1 SCK1 TXD2 RXD2 SO2 SI2 UART0/CSI0 UART1/CSI1 CSI2 UART2 PWM0 Port PWM1 ADC RAM ROM PC System Registor General Register (32bit x 32) Multplier (32 x 32->64) 32bit Ballel Siffer CPU BCU MEMC ALU PDL0-PDL15 PAL0-PAL15 PAH0-PAH9 PCS0-PCS7 PCT0,PCT1,PCT4,PCT7 PCM0-PCM5 PCD0-PCD3 PBD0-PBD3 P70-P77 P50-P52 P40-P45 P30-P37 P21-P27 P20 P10-P13 P00-P17 Instruction Queue DRAMC HLDRQ DMAC CG System Controller ROMC HLDAK CS0,CS7 CS1/RAS1,CS3/RAS3 CS4/RAS4,CS6/RAS6 CS2/IORD CS5/IOWR SELFREF REFRQ BCYST LBE/SDCAS UBE/SDRAS SDCLK SDCKE WE RD OE UWR/UCAS/UDQM LWR/LCAS/LDQM WAIT A0-A25 D0-D15 DMARQ0-DMARQ3 DMAAK0-DMAAK3 TC0-TC3 CKSEL CLKOUT X1 X2 CVDD CVSS VDD VSS BUSCLK RESET MODE0-MODE2 *PE5395A - Block diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 1A 1Y GND Vcc 2A 2Y Audio Serial Port DAC Output Amp and Low-Pass Filter 4x/8x Over sampling Digital Filter with Function Controller Enhanced Multilevel Delta-Sigma Modulator Serial Control Port System Clock Manager System Clock Zero Detect DAC Output Amp and Low-Pass Filter BCK DATA LRCK DGND VDD VCC VOUTL VOUTR 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 SCK ML MC MD ZEROL/NA ZEROR/ZE VCOM AGND PCM1742KE *TC7PA04FU www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 1,2 3 4 5 6 7 8 9-17 18 19 20 21 22-30 31 32 33 34 35 36 37-44 45 46 47 48 49 50 51 52 53-56 57 58 59 60 61-64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 NINT0,1 VDD3 VSS NINT2 WAITODC NMRST DASPST CPUADR17-9 ADD18 VSS DRAMVDD18 DRAMVSS CPUADR8-0 VDD3 VSS DRAMVDD33 NCS NWR NRD CPUDT7-0 CLKOUT MMOD NRST MSTPOL SCLOCK SDATA OFTR BDO PWM1-4 VDD3 DRAMVDD18 DRAMVSS VSS PWM5-8 TBAL FBAL TRSDRV SPDRV FG TILTP TILT TILTN TX DTRD IDGT VDD18 VSS VDD3 OSCI1 OSCO1 VSS TSTSG VFOSHORT JLINE AVSSD ROUT System computer interrupt signal Power supply GND System computer interrupt signal System computer bus wait control out put Reset output to system computer DASP initialize value input System computer address input Power supply for I O GND Power supply for DRAM GND for DRAM System computer address Power supply GND Power supply for DRAM Chip select signal from system computer Write signal input from system computer Read signal input from system computer System computer data System computer clock output GND Reset input Pull up Pull up Pull up Off track signal input RF dropout signal input PWM output Power supply Power supply for DRAM GND for DRAM GND PWM put out Tracking balance adjustment output Focus balance adjustment output Traverse driver output Spindle driver output FG signal input TILTP pin TILT pin TILTN pin Digital audio interface data output Data read control signal output Not used Power supply GND Power supply Oscillator pin input Oscillator pin output GND Calibration signal output VFO short output J-LINE output GND for analog Analog audio right output O O O O O I I I I I I / O O I I I I / O I / O I I I / O I / O O O O O I O O O O O O I O O O O O Pin No. Pin Name I / O Function and Operation - Pin Functions (MNZS26EDCUB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 87 88 89 90 91 92 93 94 95 96 97 98 99 100,101 102 103 104 105 106 107,108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127-130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 LOUT AVDDD VCOS TRCRS CMPIN LPFOUT LPFIN AVSSC HPFOUT FPFIN CSLFLT RFDIF AVDDC PLFLT2,1 AVSSB RVI VREFH PLPG VHALF DSLF2,1 AVDDB NARF ARF JITOUT AVSSA DAC0 DAC1 AVDDA AD0 AD1 AD2 AD3 AD4 AD5/CAPAC2 AD6/CAPAC1 TECAPA VDD3 VSS MONI0-3 NEJECT NTRYCL NDASP NCS3FX NCS1FX DA2 DA0 NPDIAG DA1 NIOCS16 INTRQ NDMACK VDD3 VSS IORDY NIORD NIOWR Analog audio left output Power supply for analog JFVCO control voltage Track cross production signal input WOBBLE comparator input LPF output LPF input GND for analog HPF output HPF input Capacitor for CPDET RF input for CPDET Power supply for analog PLL capacitor output GND for analog VERFH reference current resistor input/output Reference voltage (2.2±0.1V) PLPG pin Reference voltage (1.65±0.1V) DSL capacitor input/output 1 Power supply for analog Equivalent RF-input Equivalent RF+ input Jitter signal monitor input/output GND for analog Tracking drive output Focus drive output Power supply for analog FE input TEph / TE3b / TEpp input AS input RF env input VHALF connect VHALF connect VHALF connect VHALF connect Power supply GND Monitor for inside signal Eject sense Try close sense ATAPI drive active/slave connect input/output ATAPI HOST chip select ATAPI HOST chip select ATAPI HOST address input/output 2 ATAPI HOST address input/output 0 ATAPI slave/master diagnosis input/output ATAPI HOST address input/output 1 ATAPI HOST data bus width select output ATAPI HOST interrupt request output ATAPI HOST DMA response Power supply GND ATAPI HOST ready output ATAPI HOST data read ATAPI HOST data write O I I I O I O I I I I I I I I I I I O O O I I I I I I I I O I / O I / O I / O I I I / O I / O I / O I / O O O I O I / O I / O Pin No. Pin Name I / O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 DMARQ HDD15 HDD0 HDD14 VDD18 PO UATASEL VSS VDD3 HDD1 HDD13 HDD2 HDD12 HDD3 VDD3 VSS HDD11 HDD4 HDD10 HDD5 HDD9 HDD3 VSS HDD6 HDD8 HDD7 VDDH NRESET MASTER ATAPI HOST DMA request output ATAPI HOST data input/output 15 ATAPI HOST data input/output 0 ATAPI HOST data input/output 14 Power supply (GND) Internal clock select input GND Power supply ATAPI HOST data input/output 1 ATAPI HOST data input/output 13 ATAPI HOST data input/output 2 ATAPI HOST data input/output 12 ATAPI HOST data input/output 3 Power supply GND ATAPI HOST data input/output 11 ATAPI HOST data input/output 4 ATAPI HOST data input/output 10 ATAPI HOST data input/output 5 ATAPI HOST data input/output 9 ATAPI HOST data input/output 3 GND ATAPI HOST data input/output 6 ATAPI HOST data input/output 8 ATAPI HOST data input/output 7 ATAPI reference power supply (5.0V) ATAPI host reset input ATAPI master/slave select input/output O I / O I / O I / O I I I / O I / O I / O I / O I / O I / O I / O I / O I / O I / O I / O I / O I / O I I Pin No. Pin Name I / O Function and Operation 44 45 88 89 132 133 176 1 *MNZS26EDCUB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27-30 31 32-36 37 38-42 43 44-46 47 48 49-52 53 54-56 57 58-60 61 62,63 Pin No. Pin Name I / O Function and Operation VDD MA0 MA6 MA1 LVDD MA5 MA2 MA4 VSS MA3 VDD HMD XRST ERRMON RFF LVDD XHINT XHINT2 XKD VSS XWRH XWR XRD XCS VDD HCLK HA1-4 VSS HA5-9 LVDD HA10-14 VSS HA15-17 HD0 VDD HD1-4 VSS HD5-7 LVDD HD8-10 VDD HD11,12 O O O O O O O I I O O O O O I I I I I I I I I I I / O I / O I / O I / O I / O Power supply Bank sell and address Bank sell and address Bank sell and address Lch Power supply Bank sell and address Bank sell and address Bank sell and address GND Bank sell and address Power supply Host CPU select System reset Error monitor Repeat first field flag output Lch Power supply Interrupt strobe Interrupt strobe Data acknowledge to host GND Write enable from host Write enable Read enable Chip select Power supply Host CPU clock Address bus GND Address bus Lch Power supply Address bus GND Address bus Data bus Power supply Data bus GND Data bus Lch Power supply Data bus Power supply Data bus - Pin Functions (MN677531KAUB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 64 65-67 68 69 70 71 72 73-76 77 78-81 82 83 84 85 86 87 88 89 90-92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 Pin No. Pin Name I / O Function and Operation VSS HD13-15 VDD AUDSTR VSTR VRQ VSS STD7-4 LVDD STD3-0 VSS IECOUT DMIX VDD DACCK LRCK SRCK VSS ADOUT0-2 VDD CLK121 CKIO CLK27 PLLVDD CLK81 LVDD EXTCK PLLAVDD TCPOUT PLLAVSS VSS VDD PHCOPMO PLLAVDD ACKIO MODE121 DCTEST APLLAVSS APLLAVDD VREFCR IREFCR COMPCR VCROUT I / O I I O I I O O O O O O I I I I I O O I I I I I I O GND Data bus Power supply Data strobe Data strobe DMA request GND Stream data/CD-Audio bypass port Lch power supply Stream data/CD-Audio bypass port GND IEC958 data output Sound down mix. signal Power supply DAC clock output LR clock output Bit clock output GND Audio data output Power supply 121.5MHz clock input 81MHz clock select 27MHz clock input PLL 81MHz clock input Lch Power supply Outside clock output PLL analog power supply OPEN OPEN GND Power supply OPEN PLL analog power supply Audio PLL test mode Clock mode select DC test mode Analog PLL audio GND Analog PLL power supply DAC reference input for CR signal DAC resistance terminal for bias current setting for CR signal DAC capacity connection terminal for stabilization for CR signal DAC output for CR signal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133,134 135 136 137-140 141 142,143 144 145 146 147-150 151 152-155 156 157 158 159 160 161 162 163 164 165 166 167 168 Pin No. Pin Name I / O Function and Operation AVDD VREFC IREFC COMPC VCOUT AVSS VREFCB IREFCB COMPCB VCBOUT AVDD VREFY IREFY COMPY VYOUT AVSS TESTSEL1,0 VSS VCLK REC7-4 VDD REC3,2 REC1/ XVSYNCO REC0/ XHSYNCO LVDD VD0-3 VSS VD4-7 VDD VSS MDQ15 MDQ0 VDD MDQ14 MD1 VSS MDQ13 MDQ2 VDD MDQ12 MDQ3 I I I O I I I O I I I O I I I / O I / O I / O I / O O O I / O I / O I / O I / O I / O I / O I / O I / O Analog power supply DAC reference input DAC resistance terminal for bias current setting DAC capacity connection terminal for stabilization Cr C analog output Analog GND DAC reference input for CB signal DAC resistance terminal for bias current setting for CB signal DAC capacity connection terminal for stabilization for CB signal DAC output for CB signal Analog power supply DAC reference input DAC resistance terminal for bias current setting DAC capacity connection terminal for stabilization Y analog output Analog GND Test signal GND Video data clock OPEN Power supply OPEN OPEN OPEN Lch power supply Video data bus GND Video data bus Power supply GND I/O data SDRAM I/O data SDRAM Power supply I/O data SDRAM I/O data SDRAM GND I/O data SDRAM I/O data SDRAM Power supply I/O data SDRAM I/O data SDRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 121 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 Pin No. Pin Name I / O Function and Operation VSS MDQ11 MDQ4 VDD MDQ10 LVDD MDQ5 VSS MDQ9 MDQ6 VDD MDQ8 MDQ7 VSS MCK1 LVDD MCK VSS DQMLE VDD DQMLM DQMUE LVDD DQMUM XWE VSS XCAS XRAS VDD XCSE XCSM VSS MA9 LVDD MA11 MA8 VDD MA10 MA7 VSS I / O I / O I / O I / O I / O I / O I / O I / O I O O O O O O O O O O O O O O O GND I/O data SDRAM I/O data SDRAM Power supply I/O data SDRAM Lch Power supply I/O data SDRAM GND I/O data SDRAM I/O data SDRAM Power supply I/O data SDRAM I/O data SDRAM GND SSDRAM CLK input Lch Power supply SDRAM CLK GND Lower byte DQ mask of extended SDRAM Power supply Lower byte DQ mask of main SDRAM Upper byte DQ mask of extended SDRAM Lch Power supply Upper byte DQ mask of main SDRAM Write signal of SDRAM GND CAS of SDRAM RAS of SDRAM Power supply CS of extended SDRAM CS of main SDRAM GND Bank sell and address Lch Power supply Bank sell and address Bank sell and address Power supply Bank sell and address Bank sell and address GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 122 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC Vdd DQ0 VddQ DQ1 DQ2 VssQ DQ3 DQ4 VddQ DQ5 DQ6 VssQ DQ7 Vdd DQML we cas ras cs BA0(A13) BA1(A12) A10 A0 A1 A2 A3 Vdd Vss DQ15 VssQ DQ14 DQ13 VddQ DQ12 DQ11 VssQ DQ10 DQ9 VddQ DQ8 Vss NC DQMU CLK CKE NC A11 A9 A8 A7 A6 A5 A4 Vss 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 Pin name CLK CKE cs ras cas we DQ0-15 DQM(U/L) A0-11 BA0, 1 VDD VDDQ VSS VSSQ Function Master clock Clock enable Chip select Row address strobe Column address strobe Write enable Data input/output DQ mask enable(Upper/Lower) Address input Bank address Power supply Data output power supply GND Data output GND *M2V64S40DTP-6L 52 53 104 105 156 157 208 1 *MN677531KAUB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 123 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC OSC LOGIC CIRCUIT HIGH PRESS CIRCUIT HEAT PROTECTION HALL AMP MATRIX HALL BIAS DIRECTION CHANGE DISTRIBUTION CIRCUIT PRE- DRIVER START/ STOP BRIDGE SRESET VT VCT x5 CSOUT PWMOUT VHB 1 H3L 2 H3H 3 H2L 4 H2H 5 H1L 6 H1H 7 EC 8 ECR 9 FG1 10 START 11 VPUMP 12 BC1 13 BC2 14 BC3 15 BC4 16 VLP 32 VM1 31 BMS 30 NC 29 A12 28 A11 27 CS1 26 A22 25 A21 24 CS2 23 A32 22 A31 21 FG2 20 VM2 19 VDD 18 GND 17 AN8471SAT1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 124 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC + - + - + - + - + - + - + - + - + - + - + - ADD HOLD VGA EQ AGG Cont. REG SIF LPC AMP Vel Adj. FC Cont BDO Cont Level Cont. Level Cont. OFTR Det. Boost CONT FBAL ADD ADD TBAL Differential Phase Det. Mirro Det. ADD J-Line S-Line ADD A M P SW TBAL + - 64 1 2 3 4 18 17 24 6 8 34 15 16 60 59 58 57 63 62 54 53 52 51 50 49 20 21 22 37 35 38 46 48 47 43 42 41 32 25 31 30 19 23 40 39 45 44 29 27 56 36 28 55 33 26 61 5 7 9 10 11 12 13 14 JLINE RSCL RFDIFO MON POFLT TBAL TEN TEOUT LPCO2 LPC2 LPCO1 LPC1 HDTYPE STDI SCK SEN STANBY IDGT DTRD GND1 GND2 GND3 VCC1 VCC2 VCC3 VREF1 VREF2 VHALF AGCG AGCO OFTR BDO AGCOFST AGCBAL DFLTON DFLTOP AGCLVL DCFLT RFENV BOTTOM PEAK RFINP RFINN TESTSG VFSHORT DCRF RFOUT RFC FEOUT FEN FBAL ASOUT VIN5 VIN6 VIN7 VIN8 VIN9 VIN1 VIN2 VIN3 VIN4 VIN10 VIN11 VIN12 EQ EQ EQ EQ - Block diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 125 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 64 1 16 17 32 33 48 49 Reference Divider 0 Phase Detector 0 Charge Pump 0 VCO 0 Control Logic LPF 0 X'tal OSC Loop Divider 0 Reference Divider 1 Phase Detector 1 Charge Pump 1 VCO 1 LPF 1 Loop Divider 1 1 VDD1 2 VSS1 3 MO1 4 NC1 5 VDD2 6 VSS2 7 XTI 8 XTO 16 NC2 15 SO2 14 FSEL 13 SO1 12 VDD3 11 VSS3 10 AO2 9 AO1 SM8707FV AN8703FH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 126 A15 A14 A13 A12 A11 A10 A9 A8 A19 N.C. WE RESET N.C. N.C. RY/BY A18 A17 A7 A6 A5 A4 A3 A2 A1 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 A16 BYTE VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 OE VSS CE A0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A-1,A0-A17 : Address input DQ0-DQ15 : Data input/output ce : Chip enable oe : Output enable we : Write enable reset : Hardware reset RY/by : Ready/Busy output byte : 8bit,16bit mode select VCC : Supply voltage VSS : GND N.C. : Not used 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC *PD6419C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 127 No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the ham of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 NC non connection Not used 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 NC non connection Not used 19 NC non connection Not used 20 NC non connection Not used 21 NC non connection Not used 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch - FM/AM Tuner Unit 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC - DVH-P5000MP/UC, DVH-P5050MP/RC, DVH-P5050MP/RD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 128 No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the ham of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 LDET O lock detector “Low” active 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 RDS_CK O RDS clock Output of RDS clock(2.5V) 19 RDS_DATA O RDS data Output of RDS data(2.5V) 20 RDS_LOCK O RDS lock Output unit “High” active(2.5V) (RDS_LOCK turns over by the external transistor. “Low” active) 21 RDS_HSLK O RDS high speed Output unit “High” active(2.5V)(RDS_HSLK turns over by the lock external transistor. “Low” active) 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch - FM/AM Tuner Unit 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC - DVH-P5000MP/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 129 COMMON SEGMENT COM3 COM0A COM1A COM2A COM0B COM1B COM2B 49 35 36 37 38 39 40 41 42 43 44 45 46 47 48 34 20 21 22 23 24 25 26 27 28 29 30 31 32 33 19 5 6 7 8 9 10 11 12 13 14 15 16 17 18 4 COM0A COM1A COM2A COM0B COM1B COM2B COM3 0 1 2 3 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC 7.2.2 DISPLAY - LCD(CAW1814)(DVH-P5000MP/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 130 COMMON SEGMENT COM3 COM0A COM1A COM2A COM0B COM1B COM2B 49 35 36 37 38 39 40 41 42 43 44 45 46 47 48 34 20 21 22 23 24 25 26 27 28 29 30 31 32 33 19 5 6 7 8 9 10 11 12 13 14 15 16 17 18 4 COM0A COM1A COM2A COM0B COM1B COM2B COM3 0 1 2 3 1 2 3 4 1 2 3 4 F E D C B A DVH-P5000MP/UC - LCD(CAW1813)(DVH-P5000MP/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 131 COMMON SEGMENT COM3 COM0A COM1A COM2A COM0B COM1B COM2B 49 35 36 37 38 39 40 41 42 43 44 45 46 47 48 34 20 21 22 23 24 25 26 27 28 29 30 31 32 33 19 5 6 7 8 9 10 11 12 13 14 15 16 17 18 4 COM0A COM1A COM2A COM0B COM1B COM2B COM3 0 1 2 3 5 6 7 8 F E D C B A 5 6 7 8 DVH-P5000MP/UC - LCD(CAW1815)(DVH-P5050MP/RC, RD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 132 VDD=5V Pin 41 Power ON bsens=L asens=L dsens=L bsens Pin 92 asens Pin 93 dsens Pin 90 swvdd←L Pin 70 ASENBO←H Pin 29 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H Pin 60 Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. CSENS Pin 80 2V
