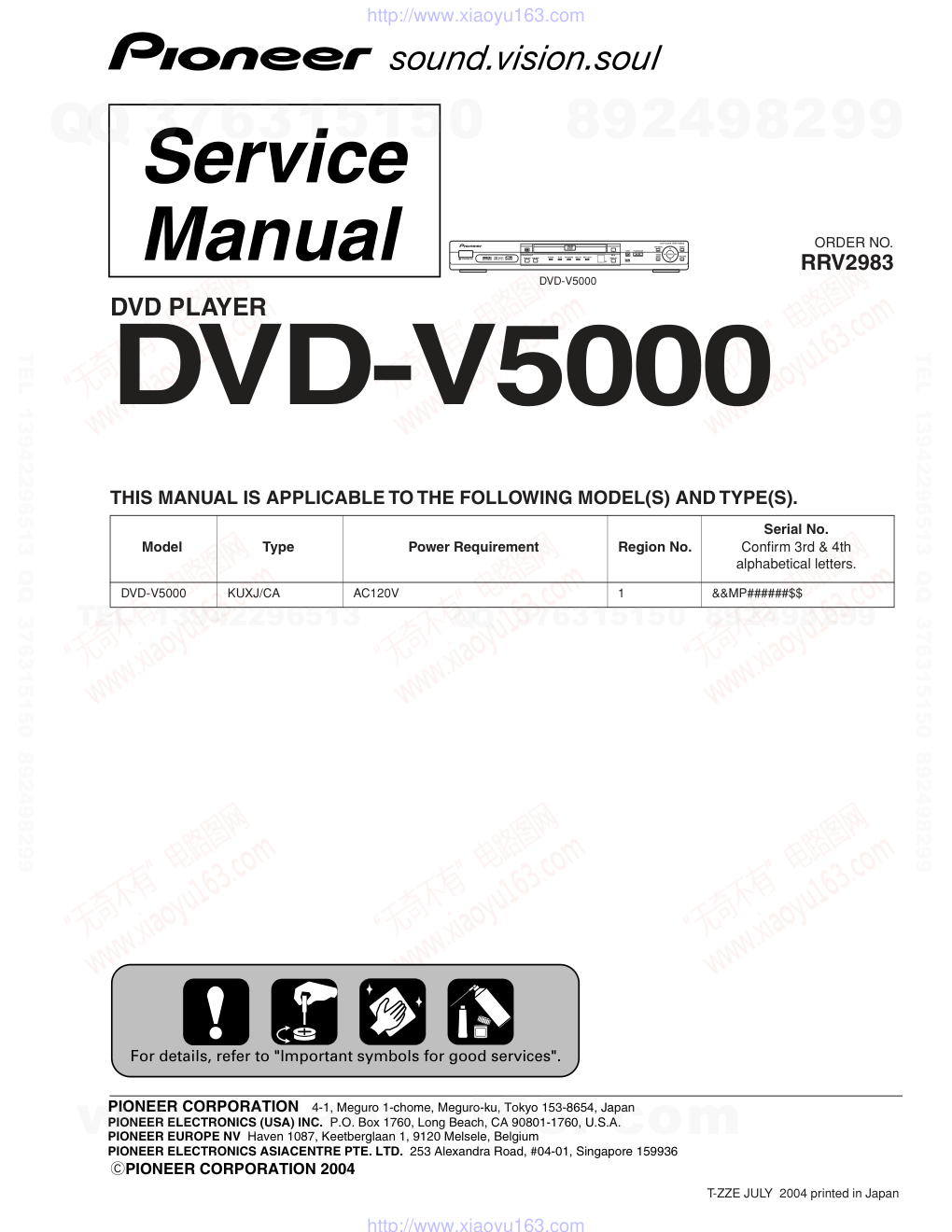

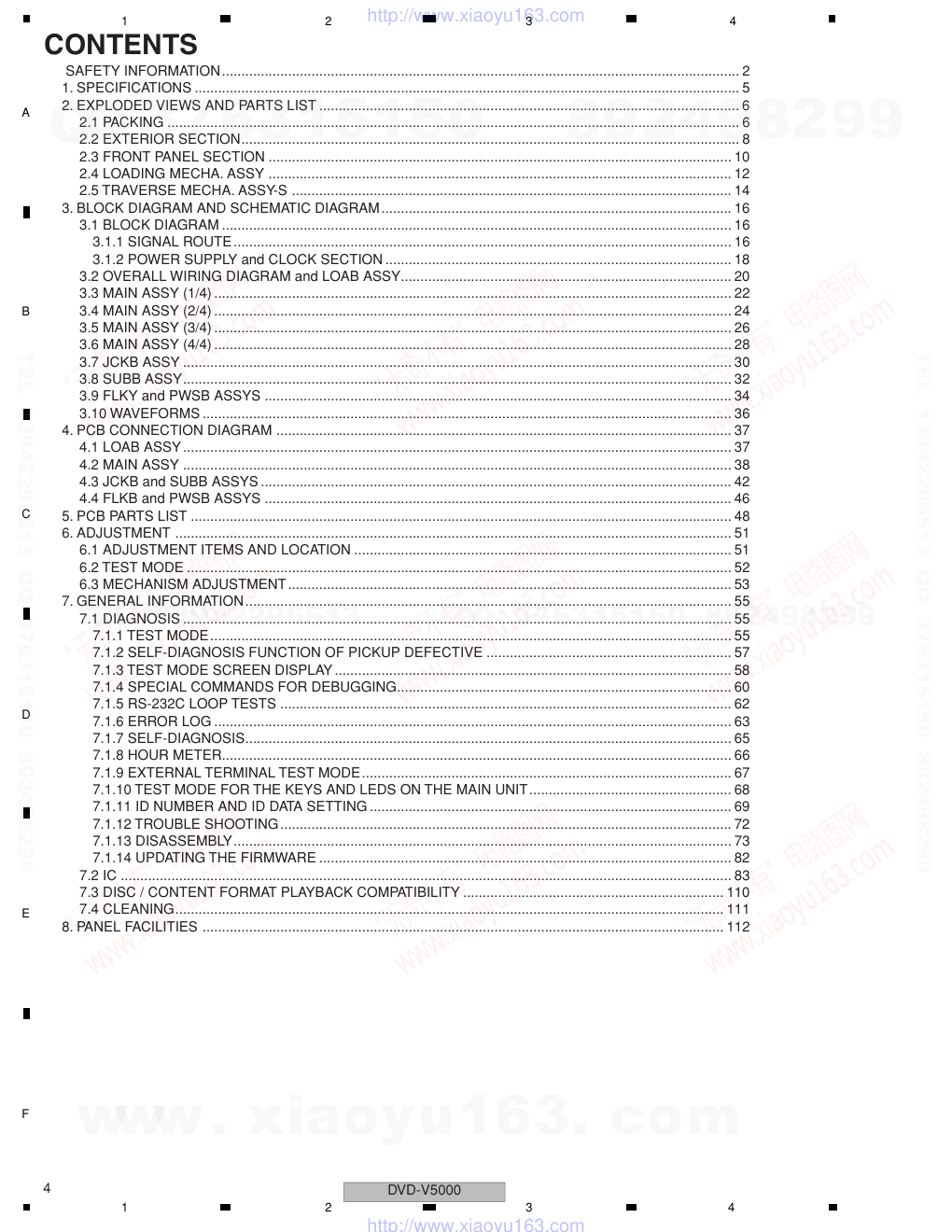

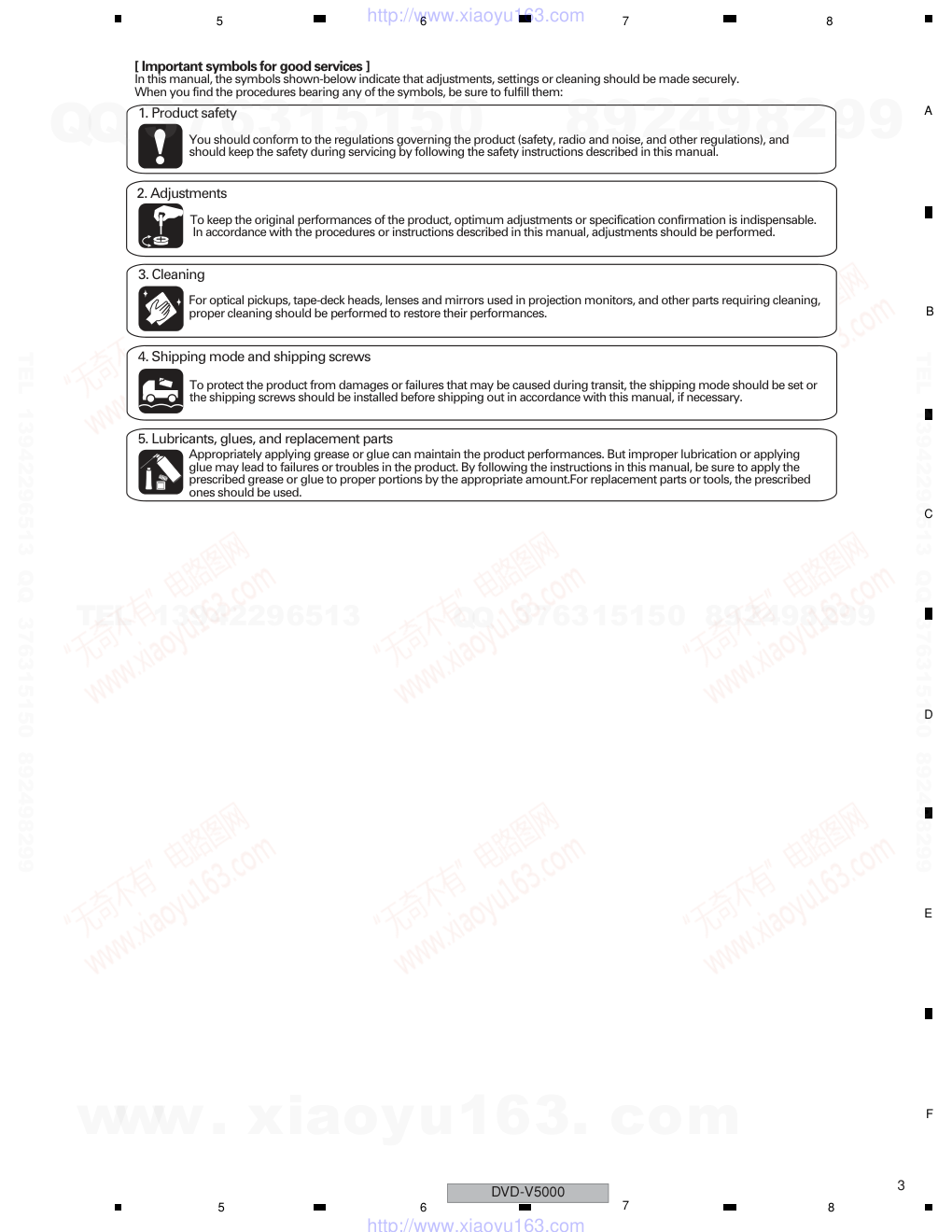

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2004 DVD-V5000 RRV2983 DVD PLAYER DVD-V5000 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Serial No. Confirm 3rd & 4th alphabetical letters. DVD-V5000 KUXJ/CA AC120V 1 &&MP######$$ For details, refer to "Important symbols for good services". T-ZZE JULY 2004 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 3 5 6 7 8 5 6 7 8 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 EXTERIOR SECTION................................................................................................................................ 8 2.3 FRONT PANEL SECTION ....................................................................................................................... 10 2.4 LOADING MECHA. ASSY ....................................................................................................................... 12 2.5 TRAVERSE MECHA. ASSY-S ................................................................................................................. 14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 16 3.1 BLOCK DIAGRAM ................................................................................................................................... 16 3.1.1 SIGNAL ROUTE................................................................................................................................ 16 3.1.2 POWER SUPPLY and CLOCK SECTION ......................................................................................... 18 3.2 OVERALL WIRING DIAGRAM and LOAB ASSY..................................................................................... 20 3.3 MAIN ASSY (1/4) ..................................................................................................................................... 22 3.4 MAIN ASSY (2/4) ..................................................................................................................................... 24 3.5 MAIN ASSY (3/4) ..................................................................................................................................... 26 3.6 MAIN ASSY (4/4) ..................................................................................................................................... 28 3.7 JCKB ASSY ............................................................................................................................................. 30 3.8 SUBB ASSY............................................................................................................................................. 32 3.9 FLKY and PWSB ASSYS ........................................................................................................................ 34 3.10 WAVEFORMS ........................................................................................................................................ 36 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 37 4.1 LOAB ASSY............................................................................................................................................. 37 4.2 MAIN ASSY ............................................................................................................................................. 38 4.3 JCKB and SUBB ASSYS ......................................................................................................................... 42 4.4 FLKB and PWSB ASSYS ........................................................................................................................ 46 5. PCB PARTS LIST ........................................................................................................................................... 48 6. ADJUSTMENT ............................................................................................................................................... 51 6.1 ADJUSTMENT ITEMS AND LOCATION ................................................................................................. 51 6.2 TEST MODE ............................................................................................................................................ 52 6.3 MECHANISM ADJUSTMENT.................................................................................................................. 53 7. GENERAL INFORMATION............................................................................................................................. 55 7.1 DIAGNOSIS ............................................................................................................................................. 55 7.1.1 TEST MODE...................................................................................................................................... 55 7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE ............................................................... 57 7.1.3 TEST MODE SCREEN DISPLAY...................................................................................................... 58 7.1.4 SPECIAL COMMANDS FOR DEBUGGING...................................................................................... 60 7.1.5 RS-232C LOOP TESTS .................................................................................................................... 62 7.1.6 ERROR LOG ..................................................................................................................................... 63 7.1.7 SELF-DIAGNOSIS............................................................................................................................. 65 7.1.8 HOUR METER................................................................................................................................... 66 7.1.9 EXTERNAL TERMINAL TEST MODE............................................................................................... 67 7.1.10 TEST MODE FOR THE KEYS AND LEDS ON THE MAIN UNIT.................................................... 68 7.1.11 ID NUMBER AND ID DATA SETTING ............................................................................................. 69 7.1.12 TROUBLE SHOOTING.................................................................................................................... 72 7.1.13 DISASSEMBLY................................................................................................................................ 73 7.1.14 UPDATING THE FIRMWARE .......................................................................................................... 82 7.2 IC ............................................................................................................................................................. 83 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY ................................................................... 110 7.4 CLEANING............................................................................................................................................. 111 8. PANEL FACILITIES ...................................................................................................................................... 112 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS General System ............................................................. DVD player Power requirements ............................ AC 120 V, 50/60 Hz Power consumption .................................................... 11 W Power consumption (standby) ................................... 0.7 W Weight ...................................................... 2.5 kg / 5 lb 8 oz Dimensions ........................ 420 (W) x 55 (H) x 283 (D) mm (16.5 (W) x 2.2 (H) x 11.1 (D) in.) Operating temperature .............................. +5 °C to +35 °C (+41 °F to +95 °F) Operating humidity ......................................... 5 % to 85 % (no condensation) Component video output Y (luminance) - Output level .......................... 1 Vp-p (75 Ω) PB (color) - Output level ........................... 0.65 Vp-p (75 Ω) PR (color) - Output level ........................... 0.65 Vp-p (75 Ω) Jack .................................................................... RCA jacks S-video output Y (luminance) - Output level .......................... 1 Vp-p (75 Ω) C (color) - Output level ........................... 265 mVp-p (75 Ω) Jack ................................................................. S-video jack Video output Output level ................................................... 1 Vp-p (75 Ω) Jack ...................................................................... RCA jack Audio output (1 stereo pair) Output level ......................................... During audio output 200 mVrms (1 kHz, –20 dB) Number of channels .......................................................... 2 Jack ......................................................................RCA jack Digital audio characteristics Frequency response .................................... 4 Hz to 44 kHz (DVD fs: 96 kHz) S/N ratio ................................................................... 118 dB Dynamic range ......................................................... 105 dB Total harmonic distortion ...................................... 0.0025 % Wow and flutter ................................. Limit of measurement (±0.001 % W. PEAK) or lower Other terminals Coaxial digital output ............................................ RCA jack RS-232C ................................................. D-sub 9-pin, male RS-232C and extended ...................... D-sub 15-pin,female Accessories Audio/video cable .............................................................. 1 Power cable .......................................................................1 Remote control .................................................................. 1 AA/R6P dry cell batteries .................................................. 2 Operating Instructions ....................................................... 1 Warranty card .................................................................... 1 The specifications and design of this product are subject to change without notice, due to improvement. *1 Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. *2 "DTS" and "DTS Digital Out" are registered trademarks of Digital Theater Systems, Inc. *3 TruSurround, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround technology is incorporated under license fromSRS Labs, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 9 11 13 10 7 4 5 5 3 12 2 8 1 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 7 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List Mark No. Description Part No. > 1 Power Cable ADG7021 2 Operating Instructions DRC1219 (English) NSP 3 Warranty Card PUSA DRY1226 NSP 4 Dry Cell Battery (R6P, AA) VEM1031 5 Polyethylene Bag B5 VHL1051 6 Remote Control Unit VXX2913 7 Battery Cover VNK4997 8 Audio / video Cable (1.5m) XDE3049 9 Packing Case DHG2431 10 Pad L VHA1323 11 Pad R VHA1324 12 Paper Board VHC1105 13 Mirror Mat Sheet Z23-007 (750 x 600 x 0.5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION A B C C D E F H I G I H B G F E D A CONTACT SIDE NON-CONTACT SIDE B D C Refer to "2.4 LOADING MECHA. ASSY". Refer to "2.3 FRONT PANEL SECTION". 5 10 44 28 47 47 45 47 16 44 26 29 12 14 11 9 4 26 47 47 47 43 46 46 (DDD1264) 46 15 2 15 31 31 36 33 13 17 17 19 21 21 21 18 34 32 35 23 25 30 21 21 46 46 46 46 45 45 37 47 38 47 46 46 39 39 30 6 6 1 3 8 7 16 40 41 20 20 27 24 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List Mark No. Description Part No. 1 MAIN Assy DWS1350 2 JCKB Assy DWZ1122 3 SUBB Assy DWZ1123 > 4 POWER SUPPLY Assy DWR1380 NSP 5 LOADING MECHA. Assy VWT1207 6 Flexible Cable (21P) DDD1262 7 Flexible Cable (30P) DDD1263 8 Flexible Cable (13P) DDD1265 9 Connector Assy (13P) PF13PP-D25 10 Connector Assy (5P) PG05KK-E27 11 Ferrite Core VTH1044 NSP 12 Binder (BK-1) ZCA-BK1 NSP 13 PCB Spacer (3 x 6) AEC7156 14 Mini Clamp AEC7373 15 Rear Cushion DEB1669 16 Corner Cushion DEB1670 17 Side Cushion DEB1693 18 Under Sheet DEC2658 19 Sheet A DEC2659 20 Tray Sheet S DEC2664 21 Cover Sheet DEC2666 22 Tray Sheet L DEC2670 23 Sheet B DEC2675 24 Tray Sheet R DEC2676 25 • • • • • 26 EMI Gasket DEC2697 27 Tray Sheet M DEC2717 28 Bonnet Case S DXX2551 29 Rear Panel KU DNC1697 NSP 30 PCB Support REC1285 31 F Cushion VEB1348 32 Rubber Foot VEB1349 33 PCB Support VEC2184 34 PCB Holder VEC2283 NSP 35 Base Chassis VNA2521 NSP 36 PCB Base VNE2276 37 Adaptor 3 L VNL1958 38 Adaptor 3 R VNL1959 NSP 39 Cord Clamper ZCB-069Z 40 DVD-V Badge VAM1120 41 Tray Panel VNK5231 42 • • • • • 43 Hexagon Head Screw BBA1051 44 Screw BCZ40P060FZK 45 Screw PPZ30P080FMC 46 Screw BBZ30P060FMC 47 Screw BBZ30P080FZK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 FRONT PANEL SECTION CONTACT SIDE NON-CONTACT SIDE E F To SUBB CN601 18 18 18 16 18 10 8 17 15 6 1 3 5 14 13 (1/2) 13 (2/2) 12 (4/4) 12 (3/4) 12 (2/4) 12 (1/4) 18 18 18 7 4 11 9 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 11 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List Mark No. Description Part No. 1 FLKB Assy DWZ1124 2 PWSB Assy DWZ1125 3 Flexible Cable (17P) DDD1264 4 Connector (3P) PF03PP-B07 5 LED Cover DEC2771 6 Sheet F DEC2667 7 Barrier 1 DEC2696 8 LED Panel DEC2662 9 Front Panel Assy DXA1983 10 Pioneer Badge S DAM1085 NSP 11 Front Panel DNK4291 NSP 12 Main Key DNK4292 NSP 13 Menu Key DNK4300 NSP 14 LED Lens VNK5226 15 Rubber Foot VEB1349 16 FP Angle VNE2304 17 Cover Sheet DEC2666 18 Screw PPZ30P080FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 12 1 2 3 4 1 2 3 4 C D F A B E 2.4 LOADING MECHA. ASSY LOADING MECHA. ASSY parts List A A To MAIN CN111 (Pickup Assy-S) To MAIN CN114 (Stepping Motor) To MAIN CN115 (Spindle Motor) 2 3 5 4 12 23 13 17 21 16 22 15 14 22 22 22 20 18 19 9 1 7 10 11 6 8 8 8 8 A Refer to "2.5 TRAVERSE MECHA. ASSY-S". Lubricating oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating oil GYA1001 Mark No. Description Part No. NSP 1 LOAB Assy VWG2426 2 Traverse Mecha. Assy-S VXX2871 3 Loading Motor Assy VXX2872 4 Motor Pulley PNW3026 NSP 5 Motor VXM1116 6 Flexible Cable (24P) VDA1947 7 Connector Assy 2P VKP2253 8 Floating Rubber VEB1351 9 Belt VEB1330 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base DVD VNL1918 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate VNE2342 19 Bridge 04 VNE2343 20 Clamper VNL1924 21 Screw JGZ17P028FMC 22 Screw Z39-019 23 Tray VNL1920 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 13 5 6 7 8 5 6 7 8 C D F A B E Application of Lubricant Lubricating oil GYA1001 Around the shaft No. 11 Loading base No. 23 Tray No. 13 Drive cam No. 13 Drive cam No. 23 Tray Front view Rear view Daifree GEM1036 Inner side of a ditch Concave of unevenness Top view Bottom view Daifree GEM1036 Daifree GEM1036 Side of the rib Lubricating oil GYA1001 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Lubricating oil GYA1001 Lubricating oil GYA1001 Lubricating oil GYA1001 Inner side of a ditch Lubricating oil GYA1001 Inner side of a ditch Lubricating oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 14 1 2 3 4 1 2 3 4 C D F A B E 2.5 TRAVERSE MECHA. ASSY-S To MAIN CN114 (Stepping Motor) To MAIN CN115 (Spindle Motor) To MAIN CN111 (Pickup Assy-S) CONTACT SIDE NON-CONTACT SIDE 12 3 (VDA1947) 7 8 1 17 16 17 10 13 17 10 6 11 14 16 2 9 15 (Torque : 0.15 ± 0.01 N•m) 15 (Torque : 0.15 ± 0.01 N•m) 4 (Adjustment screw) 5 (Adjustment spring) Screw tight GYL1001 Silicone adhesive GEM1037 Silicone adhesive GEM1037 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 15 5 6 7 8 5 6 7 8 C D F A B E TRAVERSE MECHA. ASSY-S parts List Mark No. Description Part No. 1 Spindle Motor 04 VXM1112 2 Stepping Motor 04 VXM1113 3 Pickup Assy-S OXX8005 4 Skew Screw VBA1091 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mecha.Chassis 04 VNE2344 12 Damper Sheet VEB1335 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw OBA8021 16 Screw BBZ20P050FZK 17 Screw PMA26P100FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 16 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 3.1.1 SIGNAL ROUTE 13,14, 19-24 201-208 IC101 LA9704W RF IC 17 11 12 5 6 60 49 52 41 42 IC251 BA6664FM Spindle Driver SPDO SPDO 21 Q106 185 194 163 172 IC741 K4S161622H-TC60-K 16M SDRAM IC781 HY57V641620HGT-H 64M SDRAM SPINDLE MOTOR LD(780) LD (780) LD(650) LD (650) 7 4 IC351 M56788AFP FTS Driver IC201 LC78652W Servo DSP IC701 PE5286A DVD Data Decoder EBY-CHIP MPEG, DVD-Audio, DTS Decoder and Progressive Scan Processor AV-1 IC601 PD6345A System Control CPU (FR CPU) IC603 DYW1735 PGM Flash Memory 12 13 9 10 35 1 20 17 28 37 49 48 47 62 47 48 164 FDO LODDRV ST2 ST1 RF AIN CDDATA AO00 170 DOUT0 DSPRF BH PH FE TE TDO 34 31 15 14 32 32 33 30 39 3 31 ROMXA C A B1 B2 T DRV T RTN F DRV F RTN T_DRV T_RTN F_DRV F_RTN PICKUP ASSY-S OEIC A LOAB ASSY B MAIN ASSY STEPPING MOTOR ST1+ ST1- ST2+ ST2- M LOADING MOTOR ASSY 9 19 17 16 15 4 3 2 1 2 1 3 4 4 9 10 11 12 13 14 5 6 7 8 9 12 21 22 23 24 16 7 18 6 8 9 10 B3 B4 C A B1 B2 B3 B4 22 21 3 4 CN111 (24P) CN114 CN1013 CN115 (12P) LOAD+ LOAD+ SW2 LODPOS LODPOS WP SLDPOS SLDPOS SW1 LOAD- LOAD- + – M S101 2 1 1 2 3 5 1 2 V+3D V+3D 4 4 3 5 CN103 (24P) CN601 BD0-BD7 Q102 Q101 46 57 H1+ H1- H2+ 1 2 4 7 2 3 A3 A2 A1 H2- H3+ H3- H1+ H1- H2+ A3 A2 A1 H2- H3+ H3- INSIDE CN602 184-186, 188-192 119 116 122 PRGA_Y PRGA_B PRGA_R PD0-PD7 RXD_3V CTS_3V TXD_3V DTR_3V IC2001 TC7W53FU 6 1 7 CN402 (21P) ı3/4 ı3/4 ı3/4 ı3/4 ı2/4 IC6002 BR24L32F-W EEPROM ı2/4 ı2/4 ı1/4 ı1/4 ı1/4 ı1/4 ı1/4 IC751 M65776AFP CN401 (13P) CN101 (13P) AC IN CN1 POWER SUPPLY ASSY LIVE NEUTRAL 1 2 1 2 3 4 5 9 11 13 1 2 3 4 5 9 11 13 EV6V(B) EV6V(A) -28V FL DC+ FL DC- SW+12V EV+4V SW+3.3V 7 85 97 122 98 123 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 17 5 6 7 8 5 6 7 8 C D F A B E Q514 DOUT0 AO00 AO0 C JCKB ASSY 4 16 9 8 IC786 TC74VHC541FT CN551 (21P) CN503 (21P) DOUT DATA0 DATA0 VOUTL VOUTR 14 11 14 11 IC501 LA73054 Video Driver Amp. IC506 TC74LCX157F RS-232C SWITCH IC502 PCM1742KE Audio DAC 2 7 8 8 6 11 14 16 33 Y RXD TXD DTR TXD RXD DTR D.LOAD RS-232C EXT TERMINAL PB PR V Y C 28 31 23 21 25 COMPONENT VIDEO OUT AUDIO OUT DIGITAL AUDIO OUT L R JA502 CN506 CN507 S VIDEO OUT 2-9 IC801 ADV7172KSTZ Video Encoder IC505 SP232EEN IC509 SP232EEN RS-232C TRANSCEIVER IC601 TC74HCT541AF 3V → 5V CONVERTER IC600 PD4954B MODE CONTROL IC603 PST9242NR SYSTEM RESET IC602 TC74VHC541F 5V → 3V CONVERTER IC931 TC74HC4053AFT SW for Interlace/Progressive Video Select PRGA_Y PRGA_B PRGA_R Y/G PD0-PD7 21 17 23 25 CN901 (30P) CN501 (30P) 1 15 2 3 4 5 13 14 12 28 2 4 3 14 12 13 Q935 Q940 Q937 Q936 V 35 Q932 Y 33 Q933 C V Y C Y/G/P_Y Cb/B/P_Cb Cr/R/P_Cr 29 19 15 21 17 23 25 19 15 Q934 CB/B 25 Q939 CR/R 24 Q938 27 TXD 27 28 CTS 28 29 RXD 29 30 DTR 30 V 2 Y C Y/G/P_Y Y/G V+5D_F KEY0 Cb/Pb Cr/Pr Cb/B/P_Cb Cr/R/P_Cr 3 IC503 NJM4565M 2 1 6 5 7 IC702 RPM7240-H4 Remote Sensor Unit IC701 BU2090F I/O EXPANDER ı4/4 ı4/4 ı3/4 D SUBB ASSY E FLKB ASSY F PWSB ASSY CN603 (21P) CN601 (17P) CN701 (17P) CN602 (13P) CN502 (13P) CN702 (3P) CN723 (3P) 4 17 1 1 10 7 11 14 2 3 14 3 4 2 4 10 7 9 8 12 13 11 14 V+3D_J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 18 1 2 3 4 1 2 3 4 C D F A B E 3.1.2 POWER SUPPLY and CLOCK SECTION 3,40,50,54,84, 103,107,145, 154,158,207 15,18,27,53,64, 74,78,92,104, 130,157,164, 183,191,208 IC101 LA9704W RF IC IC251 BA6664FM Spindle Driver 189 172 106 IC741 K4S161622H-TC60-K 16M SDRAM IC781 HY57V641620HGT-H 64M SDRAM SPINDLE MOTOR IC351 M56788AFP FTS Driver IC201 LC78652W Servo DSP IC701 PE5286A DVD Data Decoder EBY-CHIP MPEG, DVD-Audio, DTS Decoder and Progressive Scan Processor AV-1 IC601 PD6345A System Control CPU (FR CPU) IC603 DYW1735 PGM Flash Memory PICKUP ASSY-S OEIC A LOAB ASSY B MAIN ASSY STEPPING MOTOR ST1+ ST1- ST2+ ST2- M LOADING MOTOR ASSY 2 2 1 3 4 11 2 CN111 (24P) CN114 CN1013 CN115 (12P) + – M 2 1 3 V+3D 3 CN103 (24P) CN601 CN602 12,27,42, 56,71,88, 103,134,155, 174,198 IC2001 TC7W53FU CN402 (21P) ı3/4 ı3/4 ı3/4 ı3/4 ı2/4 ı2/4 ı2/4 ı1/4 ı1/4 ı1/4 ı1/4 IC751 M65776AFP CN401 (13P) CN101 (13P) AC IN CN1 POWER SUPPLY ASSY LIVE NEUTRAL 1 2 1 2 3 4 5 9 11 13 1 2 3 4 5 9 11 13 EV6V(B) 20 V+6EV EV6V(A) -28V FL DC+ FL DC- SW+12V EV+4V SW+3.3V V+5S VCC 8 V+5S 63 40 14 37 5 4 72 98 V+5S V+5S V+5D V+5SDSP V+3D 33MEBY1 22/24AV1 27MAV1 22/24 AV1 16MEBY 16MEBY 36MEBY 33MEBY1 22/24AV1 27MAV1 16MEBY 36MEBY V+3D V+5S V+5S 25 V+5S 27 V+6M 4,39 V+6M V+3D V+12 5,38 1,14,27 V+5DSP V+3D V+3D V+3D V+3DSP V+3D V+3DEBY V+25V V+25A V+25V V+25VEBY V+18AV V+18D 13,28,43,57, 72,89,104, 135,156,175, 199 V+3AV V+3D 61,82, 89 46,58, 59,109 V+25V 25,71, 110,132, 158 165, 166 1,7,13, 25,38,44 IC6002 BR24L32F-W EEPROM IC481 SM8707HV CLOCK GENERATOR ı2/4 8 14 3 10 15 13 9 7 8 V+3D 44X48 V+6M V+6EV X481 27MHz 105 13 V+5D 19 -28V 15 FLDC+ 17 FLDC- 8 EV+3V 1 V+3D SW+5 V12M V3VD V+12 V+5S V+5D IC402 MM1565AF 5V REG. V+33EV IC404 MM1385EN 3.3V REG. V+25V IC403 BA25BCQWFP 2.5V REG. V18D IC791 MM1561JF 1.8V REG. V+3D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 19 5 6 7 8 5 6 7 8 C D F A B E C JCKB ASSY IC786 TC74VHC541FT CN551 (21P) CN503 (21P) V+3D V+5D V+5D_J 17 12 17 12 IC501 LA73054 Video Driver Amp. IC502 PCM1742KE Audio DAC 5 6 Y PB PR COMPONENT VIDEO OUT AUDIO OUT DIGITAL AUDIO OUT L R JA502 CN506 S VIDEO OUT IC801 ADV7172KSTZ Video Encoder IC507 NJM78M05FA 5V REG. IC508 PQ05RD11 5V REG. IC601 TC74HCT541AF 3V → 5V CONVERTER IC600 PD4954B MODE CONTROL IC603 PST9242NR SYSTEM RESET IC602 TC74VHC541F 5V → 3V CONVERTER IC931 TC74HC4053AFT SW for Interlace/Progressive Video Select 11 CN901 (30P) CN501 (30P) 16 V+12 V+12 EV6V 9 8 11 9 8 13 EV6V 13 V+3D 19 19 IC503 NJM4565M 8 IC702 RPM7240-H4 Remote Sensor Unit IC701 BU2090F I/O EXPANDER ı4/4 ı4/4 ı3/4 D SUBB ASSY E FLKB ASSY F PWSB ASSY CN603 (21P) CN601 (17P) CN701 (17P) CN602 (13P) CN502 (13P) CN702 (3P) CN723 (3P) 5 34 35 V+3D V+3D_J 1 24 V+5V_J V+5A_J V+5D_J 20 V+3E_S 20 V+5D_S 16 V+5E_F V+5E_S V+6E_S V+5D_S -28V FLDC+ FLDC- V+3E_S V+3D_S V+5E_IC V+3D_S V+5E_S V+5D_S V+3E_S V+5D_J V+12V_J V+5D V+5D V+3D 20 1,11,19, 27,32,34, 47 V+12 V+6EV V+3DVEV V+3D 8,29, 52 V+3D_J V+6E_J V+12V_J V+5A_J V+5V_J X600 5MHz 20 13 19 15 1 8 10 12 17 10 8 6 17 8 V+6EV V+3D V+5E V+5D V+3E V+5D -28V FLDC+ FLDC- EV+3V V+3D 1 V+5E_S V+5E_IC IC605 MM1565AF 5V REG. V+3D_F V+5E_F V+5D_F V+3E_F IC506 TC74LCX157F RS-232C EXT TERMINAL CN506 CN507 IC505 SP232EEN IC509 SP232EEN RS-232C TRANSCEIVER RS-232C SWITCH 16 V+3D_J 16 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 20 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL WIRING DIAGRAM and LOAB ASSY SUBB ASSY (DWZ1123) D FLKB ASSY (DWZ1124) E JCKB ASSY (DWZ1122) C MAIN ASSY (DWS1350) B 1/4 - B 4/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 21 5 6 7 8 5 6 7 8 C D F A B E PWSB ASSY (DWZ1125) F POWER SUPPLY ASSY (DWR1380) ÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ : The power supply is shown with the marked box. LOAB ASSY (VWG2426) A AC POWER CORD ADG7021 VSK1011 LOADING MOTOR ASSY VXX2872 SPINDLE MOTOR VXM1112 : RF SIGNAL ROUTE : TRACKING SERVO LOOP LINE : FOCUS SERVO LOOP LINE : STEPPING SERVO LOOP LINE STEPPING MOTOR VXM1113 PICKUP ASSY (OXX8005) TRAVERSE MECHA. ASSY-S (VXX2871) LOADING MECHA. ASSY-S (VWT1207) CN602 CN1013 CN601 F (RF) (RF) (RF) (RF) (RF) (T) (S) (S) (S) (S) (T) (F) (T) (F) (S) (F) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 22 1 2 3 4 1 2 3 4 C D F A B E 3.3 MAIN ASSY (1/4) B 1/4 B 1/4 MAIN ASSY (DWS1350) • FTS SECTION PICKUP ASSY CN601 A STEPPING MOTOR SPINDLE MOTOR 2/4 B 2/4 B 2/4 B 2/4 B 2/4 B 2/4 B : RF VIDEO SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE (F) (AD) (RF) : RF AUDIO SIGNAL ROUTE (RF) (T) (S) (RF) (RF) (T) (F) (RF) (RF) (RF) (RF) (RF) (RF) (F) (F) (T) (T) (S) (S) (S) (S) (T) (T) (T) (S) (S) (S) (S) (F) (F) (F) 1 (RF) 2 4 LD Driver for DVD Focus, Tracking and Loading Driver LD Driver for CD SW for Defect Signal Buffer (RF) Buffer (RF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 23 5 6 7 8 5 6 7 8 C D F A B E B 1/4 3/4 B 3/4 B 3/4 B 3/4 B 2/4 B 2/4 B 2/4 B 3/4 B 3/4 B 3/4 B 2/4 B 3/4 B 2/4 B 3216 SIZE (RF) (RF) (F) (F) (T) (T) (RF) (AD) 5 6 8 9 11 10 7 DTC114EUA D302,D303 KV1470 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 24 1 2 3 4 1 2 3 4 C D F A B E 3.4 MAIN ASSY (2/4) B 2/4 MAIN ASSY (DWS1350) • FR SECTION B 2/4 3/4 B 1/4 B 1/4 B 3/4 B 1/4 B 1/4 B 4/4 B 4/4 B 1/4 B 3/4 B 3/4 B 4/4 B 4/4 B 4/4 B 4/4 B 1/4 B 1/4 B 1/4 B 1/4 B 4/4 B 4/4 B 1/4 B 3/4 B 3/4 B 3/4 B 3/4 B 1/4 B 4/4 B 3/4 B FR CPU www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 25 5 6 7 8 5 6 7 8 C D F A B E B 2/4 4/4 B 1/4 B 3/4 B 1/4 B 3/4 B 4/4 B 3/4 B CN603 D POWER SUPPLY ASSY CN101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 26 1 2 3 4 1 2 3 4 C D F A B E 3.5 MAIN ASSY (3/4) B 3/4 MAIN ASSY (DWS1350) • EBY/AV1 SECTION B 3/4 DVD data Decoder 2/4 B 4/4 B 1/4 B 1/4 B 2/4 B 2/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 2/4 B (VD) (D) (AD) (RF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 27 5 6 7 8 5 6 7 8 C D F A B E B 3/4 MPEG, DVD-Audio, DTS Decoder and Progressive scan Processer 2/4 B 3/4 B 4/4 B 4/4 B 2/4 B 4/4 B 1/4 B 4/4 B 2/4 B (D) (D) (D) (D) (D) (D) (D) (VD) (D) (AD) (VD) : RF VIDEO SIGNAL ROUTE (RF) : VIDEO DATA SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE (D) : DIGITAL AUDIO SIGNAL ROUTE : RF AUDIO SIGNAL ROUTE (RF) (VD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 28 1 2 3 4 1 2 3 4 C D F A B E 3.6 MAIN ASSY (4/4) B 4/4 MAIN ASSY (DWS1350) • VENC SECTION 1/4 B 1/4 B 1/4 B 2/4 B 1/4 B 2/4 B 3/4 B 3/4 B 3/4 B 3/4 B 3/4 B 2/4, 3/4 B 2/4 B 2/4 B B 4/4 (V) (V) (Y) (Y) (C) (C) (Y/G) (Y/G) (Cr) (Cr) (Cb) (Cb) (VD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 29 5 6 7 8 5 6 7 8 C D F A B E 3/4 B 3/4 B 2/4 B 2/4 B 3/4 B 2/4 B 3/4 B 2/4 B 2/4 B 3/4 B SW for Interlace/Progressive Video select Buffer Buffer Buffer Buffer Buffer Buffer Buffer Buffer Buffer B 4/4 RESERVED RESERVED CN501 C CN503 C 12 18 16 19 15 20 17 13 14 (V) (V) (V) (V) (V) (Y) (Y) (Y) (Y) (Y) (C) (C) (C) (C) (C) (C) (Y/G) (Y/G) (Y/G) (Y/G) (Y/G) (Cr) (Cr) (Cr) (Cr) (Cb) (Cb) (Cb) (Cb) (Cb) (Cb) (D) (D) (D) (C) (Y) (V) : V SIGNAL ROUTE : Y SIGNAL ROUTE (VD) : VIDEO DATA SIGNAL ROUTE : C SIGNAL ROUTE (Y/G) : Y/G SIGNAL ROUTE (Cr) : Cr SIGNAL ROUTE (Cb) : Cb SIGNAL ROUTE : DIGITAL AUDIO SIGNAL ROUTE (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 30 1 2 3 4 1 2 3 4 C D F A B E 3.7 JCKB ASSY C CN551 B 4/4 CN901 B 4/4 JCKB ASSY (DWZ1122) C CN602 D (V) (V) (V) (V) (Y) (Y) (Y) (Y) (C) (C) (C) (C) (Y/G) (Y/G) (Y/G) (Y/G) (Cr) (Cr) (Cr) (Cr) (Cb) (Cb) (Cb) (Cb) (D) (D) (D) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 31 5 6 7 8 5 6 7 8 C D F A B E C SW4 (RIGHT) SW1 (UPPER) SW2 (LOWER) SW3 (LEFT) (C) (Y) (V) : V SIGNAL ROUTE : Y SIGNAL ROUTE : C SIGNAL ROUTE (Y/G) : Y/G SIGNAL ROUTE (Cr) : Cr SIGNAL ROUTE (Cb) : Cb SIGNAL ROUTE : DIGITAL AUDIO SIGNAL ROUTE (D) : AUDIO SIGNAL ROUTE (V) (Y) (C) (Y/G) (Cr) (Cb) (V) (V) (Y) (Y) (Y) (C) (C) (C) (Y/G) (Y/G) (Y/G) (Cr) (Cr) (Cr) (Cb) (Cb) (Cb) (D) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 32 1 2 3 4 1 2 3 4 C D F A B E 3.8 SUBB ASSY D SUBB ASSY (DWZ1123) D CN701 E CN502 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 33 5 6 7 8 5 6 7 8 C D F A B E D CN402 B 2/4 5V → 3V CONVERTER 3V → 5V CONVERTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 34 1 2 3 4 1 2 3 4 C D F A B E 3.9 FLKY and PWSB ASSYS E FLKB ASSY (DWZ1124) E CN601 D IR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 35 5 6 7 8 5 6 7 8 C D F A B E E F PWSB ASSY (DWZ1125) F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 36 1 2 3 4 1 2 3 4 C D F A B E 3.10 WAVEFORMS 1 IC101-pin 3 (RF) V: 200mV/div. H: 0.1µsec/div. 2 Q106-emitter (RFO) V: 500mV/div. H: 0.1µsec/div. 3 4 IC101-pin 42 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC201 - pin 39 (EFM before slice) V: 0.5V/div. H: 0.2µsec/div. 6 IC201 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC251 - pin 24 (FG) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 10µsec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 10µsec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 0.2msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 Foot of R964 (V) V: 0.2V/div. H: 10µsec/div. 13 Foot of R963 (C) V: 0.2V/div. H: 10µsec/div. 14 Foot of R960 (Y) V: 0.2V/div. H: 10µsec/div. 19 Foot of R958 (Pb) Progressive V: 0.2V/div. H: 10µsec/div. 20 Foot of R957 (Pr) Progressive V: 0.2V/div. H: 10µsec/div. 15 Foot of R959 (Y) V: 0.2V/div. H: 10µsec/div. 16 Foot of R958 (Pb) V: 0.2V/div. H: 10µsec/div. 17 Foot of R957 (Pr) V: 0.2V/div. H: 10µsec/div. 18 Foot of R959 (Y) Progressive V: 0.2V/div. H: 10µsec/div. GND AC mode GND AC mode GND AC mode GND GND MAIN ASSY B Measurement condition: No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 12 to 14 : DVD-REF-A1, T2-Chap.1 No. 5 : CD, ABEX-784 Track 1 No. 15 to 20 : DVD-REF-A1, T2-Chap.19 GND GND GND GND GND Note: The encircled numbers denote measuring point in the schematic diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 37 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY SIDE A SIDE B A A C101 C102 V+3D SW2 (V+5D) LOAD- LOAD+ PYKC F6 GND 5 1 5 1 CN601 CN602 1 2 CN601 CN602 S101 VNP1910- VWG LOAB VWG2426- 5 1 1 2 1 5 (VNP1910-A) (VNP1910-A) LOAB ASSY A LOAB ASSY A LOADING MOTOR ASSY M CN103 B CN601 CN602 CN602 CN601 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 38 1 2 3 4 1 2 3 4 C D F A B E 4.2 MAIN ASSY 132 89 88 44 45 1 176 8 5 4 1 51 50 26 25 1 100 76 75 4 1 1 12 8 5 4 1 208 53 52 1 4 5 1 3 1 4 5 8 16 1 64 48 49 33 32 17 1 12 21 1 176 133 132 89 88 45 44 1 30 29 100 76 75 51 50 26 25 1 4 1 24 23 12 1 9 8 1 16 5 8 4 1 64 49 48 33 32 17 16 1 12 1 21 1 C662 C745 R619 IC601 R602 R725 R1002 R741 R696 R3008 C702 C426 R1005 C213 R1001 R635 R781 C204 R3009 R221 R1006 R328 C472 R202 C319 IC302 L4820 R3001 R3006 R263 IC201 R3003 C3002 R261 R268 R726 L4120 L4130 L4900 R1008 C127 R1007 R2001 C485 C701 R701 R704 C711 R718 R313 C1005 R262 R669 C119 R236 C202 C200 R240 R280 R350 C312 C223 C224 C264 R318 R317 R628 C1004 C471 R622 CN114 111 CN115 L4100 L4080 L4090 R272 R310 C314 C266 IC261 C212 C603 C313 R481 C695 IC481 C618 C317 C763 C764 C769 C770 C773 C774 C477 C474 C475 C227 R264 R231 R229 R640 C484 R631 R637 R615 R641 R623 R668 R620 R630 R607 R606 R605 C666 R414 R681 C610 R645 X601 C613 C607 C605 R626 C748 C617 C1001 C782 C781 R223 R222 C215 C230 C222 C221 R266 R270 R271 C263 C265 R269 C326 R211 R311 C207 IC751 C1002 R301 R115 R341 C391 R391 R242 R241 C241 R651 C368 C369 C358 C237 C236 R212 R684 R685 R1003 R1004 C2001 C6001 IC6001 IC6002 C759 C760 R316 R652 C693 C753 R693 C615 R676 R210 C225 R209 R201 C667 KN1 R3002 R1009 C604 C616 C614 C657 C658 IC1001 R2015 C1006 R683 C261 R232 C299 C231 C217 C216 C226 R208 C201 R129 C206 R638 C476 L481 C205 R204 C208 R633 R666 R662 R312 R624 R314 R611 R3007 R661 R695 R418 R224 R694 C315 R322 R664 R663 R627 R724 R762 CN1001 R667 C3018 L4830 R714 R713 L4880 R2013 L4890 R721 R215 C3019 L4110 R705 R706 C1008 R6002 C1007 X101 R150 C1003 CN402 27M FE 9 LDREAD SIDE A HCT163 CONTACT SIDE CONTACT DWS1350- PU 8 TE 94V-0 23 FG RFO (SECOND) SIDE SIDE CONTACT FL GNDM PPWM RPWM FPWM VPWM CONTACT SIDE SPDL SLDR 16 1 SIDE A B IC48 IC302 IC261 IC201 IC6001 IC1001 IC601 MAIN ASSY B SPINDLE MOTOR STEPPING MOTOR CN603 D CN402 CN115 CN114 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 39 5 6 7 8 5 6 7 8 C D F A B E 21 1 1 5 1 8 5 4 1 4 1 7 5 208 157 156 105 104 53 52 1 48 1 12 13 24 25 36 37 1 13 1 30 21 1 5 1 1 2 24 23 1 8 5 4 1 9 8 1 16 7 5 4 1 1 12 13 24 25 36 37 48 13 1 30 1 R815 R818 R801 C427 C414 C803 R811 R939 D402 R555 R806 C809 F404 C487 R495 C412 R809 C213 C2006 R781 C795 C793 C204 CN551 R758 R757 R756 L8020 R2003 L4820 R2016 R942 R959 R944 KN2 L4900 Q2003 C127 L4920 R2001 C955 C119 C393 C202 R240 Q103 CN103 C471 CN111 IC2001 C212 R583 C951 D3004 R760 R563 R48 R759 R816 R761 C411 IC481 R568 R940 R947 C7 C773 C774 C775 R813 C808 C477 C475 C481 C480 X481 R814 C810 C812 R805 C804 R812 C776 C777 R486 C484 C401 IC791 C956 C818 C817 C782 R791 C791 C792 C796 C215 C790 C801 R211 R118 C107 C811 C207 R817 C816 R951 R823 R822 R821 R808 C762 C123 R134 IC751 R958 R963 R964 R115 R242 R241 C241 C101 C35 C392 R577 R570 R480 R810 C2001 R807 C805 C767 C768 C760 R751 R755 C807 R803 R957 Q932 Q933 Q934 C100 IC403 C755 C931 C756 C753 IC801 C2003 C2004 C771 C772 C780 C779 C778 R752 R209 R579 R933 L4910 R389 D401 CN401 C21 R208 R129 C206 R117 R403 R945 R960 R937 R485 C476 L481 R934 C933 R121 R204 C117 C208 C428 C761 R754 C422 C106 C806 C754 C766 C752 C751 C103 C815 R119 C794 R950 R753 C757 R948 C932 R406 C470 R390 C802 CN901 R936 C108 R804 R120 C758 L4830 R2013 L4890 R632 C798 R2 R162 R166 R165 R996 R163 R164 F997 R161 R150 27M FE 9 2 1 Production code CONTACT SIDE DNP2109-A CONTACT SIDE EV3 HEAT RESISTANCE PRI-FLUX DVDM EV6 PU 8 JACK(AUDIO) TE CONTACT SIDE B3 23 LOAD RFO B4 EV4 VREF PW B2 B1 A C JACK(VIDEO) 5V 5S 2.5V CONTACT SIDE T.O. 16 1 SIDE A B Q933 IC403 IC791 IC751 IC481 IC2001 Q103 IC801 Q934 Q932 CN601 A (DNP2109-A) PPING OTOR POWER SUPPLY ASSY CN101 PICKUP ASSY CN503 C CN551 CN501 C CN901 N114 CN111 CN103 CN401 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 40 1 2 3 4 1 2 3 4 C D F A B E 3 4 NP NP NP NP 64 1 49 48 33 32 17 16 1 5 4 3 22 42 1 21 9 8 1 16 6 1 3 4 5 1 3 4 54 28 27 1 7 1 4 5 3 4 64 49 48 33 32 17 16 1 1 3 4 5 9 8 1 16 6 4 3 1 20 11 10 1 1 27 28 54 7 5 4 1 C419 C787 C783 R499 R2009 R949 R955 R999 R981 C946 R2010 C948 R972 IC305 C133 C102 R158 3 C112 R2011 Q106 C111 C116 Q101 R157 R123 Q102 C797 R108 R107 R110 R103 R104 R102 R132 3 R152 R153 R151 R154 Q241 R116 R101 R155 R156 R122 R133 C104 R127 C118 R136 C113 Q104 R109 C110 C122 C120 R126 C938 C322 04 R975 C939 R966 R219 C945 R172 R419 R571 R572 R574 R576 R562 R968 R969 C330 C335 33 4 C105 R4 R1 R2 R131 R130 D302 R3 IC101 4 IC304 D303 R336 R335 R353 R358 C359 R359 R351 C360 C357 R360 R357 C351 C353 IC351 65 R363 72 R373 C361 R368 R364 R362 R361 R354 R355 C354 C355 C356 R356 R371 R370 C371 C370 R124 R125 66 TP1 R112 TP2 R374 R369 R375 C242 C2002 R967 R974 R105 R106 D3002 R941 R965 R932 C416 C413 C415 R558 C134 R559 R554 R564 R556 R560 R561 R819 R820 C813 C814 Q938 Q936 R980 R977 R979 Q939 Q937 R952 R956 C934 Q940 C937 R973 Q935 R962 R970 C935 R961 C954 C957 C953 C950 C952 IC931 R978 C421 C410 R402 C403 D3003 C765 C785 R586 R982 R405 R114 Q2002 R585 C788 C109 C121 R135 C114 C424 R2012 C420 C406 C418 C417 C947 8 IC786 R2004 R2014 R113 R111 C786 IC404 C789 R588 R7361 C784 Q941 C708 R710 C714 R711 R401 C491 C490 IC781 R171 R2008 C404 R763 C407 C409 C423 C2005 C936 R998 R128 C716 R9032 R976 R159 R971 2 D3005 C115 1 IC402 Q2001 R2006 R2005 C425 R2007 C940 9 C405 C328 R2002 C124 RFO 20 IREF 11 10 1 DWS1350- SIDE B B MAIN ASSY B IC351 Q241 IC304 Q104 Q2002 Q2001 Q101 IC404 IC931 Q941 Q936 Q939 Q938 IC402 Q102 Q106 IC781 Q937 Q935 Q940 IC786 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 41 5 6 7 8 5 6 7 8 C D F A B E 1 3 4 5 1 29 14 15 30 28 24 1 25 48 1 5 4 3 22 42 21 NP A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 208 157 156 105 104 53 52 1 28 26 50 1 25 1 3 4 5 14 15 28 1 48 1 25 24 1 3 4 5 R621 R499 R727 R498 C220 IC305 C323 C112 C631 R260 R220 R723 C258 IC251 C249 C250 R256 C248 C253 C251 R254 C245 R255 C246 C247 R251 Q241 R1 R253 C703 C320 C322 C321 L304 R219 IC603 R342 R345 C332 C330 C333 R344 C335 R333 R3340 R214 R213 C214 C336 R334 L330 D302 C256 R257 C324 IC304 D303 R336 R335 R359 C360 C357 R360 R357 C351 C3 IC351 C365 R363 R372 R373 C361 R368 R364 R362 R361 C356 R371 R370 C371 C370 R259 R258 C366 R374 R369 R375 C2007 C3001 R246 C744 C390 C747 C608 R625 C623 R614 R612 C629 C650 R650 C297 R617 R298 C601 C602 C606 C621 R665 C255 C252 R7170 Q601 R7360 R689 R7050 D601 R682 C609 C619 R680 R609 R642 C731 C730 R634 C488 C727 R6001 C733 C732 R496 C726 C722 C789 IC701 R343 C708 R710 C714 C710 R709 R703 R711 C709 C707 C706 C704 C735 C713 C712 C715 C718 C720 R618 C490 IC781 R717 R716 R715 R712 R722 R252 R610 R659 R600 IC741 R616 C716 C719 C721 C723 C724 C728 R3004 R707 R639 R332 R330 R589 C741 R331 C729 C746 C725 R3005 R203 C743 R708 R702 R329 C328 C254 C742 R601 (FIRST) SIDE B SIDE B B (DNP2109-A) IC603 IC701 IC251 IC351 Q241 IC304 IC305 IC741 Q601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 42 1 2 3 4 1 2 3 4 C D F A B E 4.3 JCKB and SUBB ASSYS IC 12 10 8 7 6 5 4 3 2 1 W545 W535 W581 W542 W541 C565 KN503 C561 C563 W533 C503 C544 C512 C506 C521 C520 C525 KN502 C541 C539 C534 C575 C574 C577 C580 C587 C567 C571 C559 C578 IC507 W544 C589 W537 JA502 W562 W546 W538 W536 W534 W559 W580 JP502 W540 W539 W556 W543 W561 W558 JP503 W564 JP501 W563 W557 W560 Word Side XDFSO V+5A L_MUTE L1 V+12V L-MUTE2 GNDA DOUT2 LRCK XAMUTE XCSDF R_MUTE E L1 R1 V+3D R3 Cr2 Cb2 L3 L2 Cv1 V+5V DATA XDFSCK BCK SY2 SC2 V+5A JCKB Cv2 A Dout2 GNDD DWZ1122 Y2 PCMMCK Vr_6V R3 V_MUTE 24.VSEL1 15 V 21.Y/G/P_Y 25.Cr/R/P_Cr 19.Y 18.GNDD 17.C 16.GNDD 20.GNDD 23.Cb/B/P_Cb 22.P/XI 26.VSEL2 27.TXD 28.CTS 29.RXD 30.DTR FR1S P 13 1 17 1 13 1 17 1 19 1 80 65 40 25 64 41 24 1 W626 W641 W638 W659 W657 W621 W610 W637 W628 W611 W632 W649 W624 W608 W622 W629 W660 W604 W653 W615 W616 W601 W650 W642 W655 W617 W658 W643 W648 W644 W645 W627 W605 W602 W654 W636 W618 W633 W620 W646 W612 W613 W614 W625 W603 W651 W635 W623 W619 W656 W640 W634 W639 W647 CN602 D602 CN601 W607 C613 C611 CN603 C604 X600 KN600 KN601 KN602 W609 601 W630 W606 W652 W699 W698 C B EXT_KEY0 P_con V+5D LT1 KEY0 KEY1 GNDD JAMMAA V+5E JAMMAC JAMMAX JAMMAY V+5E XREADY GNDD V+5D_IC P_con V+5D_IC A EXP_CLK JAMMAX EXP_DATA IR V+5D_IC V+3E V+5D V+5D DWZ1123 JAMMAC RESET IN CONTACT SIDE V+5D SUBB SSCK CONTACT SIDE XRESET V+6E V+3E 6.KEY0 POWER_LED JAMMAZ V+3D JAMMAB V+5D_IC JAMMAE UPPER CONTACT SIDE S(MtoF) S(FtoM) V+3D EXT_KEY1 XREADY XRESET2 2 S(FtoM) KEY1 KEY0 SSCK3 S(FtoM)3 S(MtoF)2 3 XREADY2 SSCK2 4.JAMMAD 5.JAMMAC 6.JAMMAB 7.JAMMAA 9.JAMMAX 8.JAMMAY 2.GNDD 3.POWER_IN 11.JAMMAE 10.JAMMAZ 13.GNDD 12.GNDD CN602 1.GNDD 2.NC 7.FtoM 1.V+3D 3.ETT_KEY1 5.NC 4.EXT_KEY0 6.NC CN603 18.LT1 19.-28V 20.V+6EV 21.GNDD 8.E+3V 9.MtoF 10.GNDD 11.SSCK 12.XREADY 13.V+5D 14.P_CON 15.FLDC+ 16.XRESET 17.FLDC- 10.V+5D 1.V+3D 2.EXT_KEY1 3.EXT_KEY0 4.KEY1 8.V+5D 5.GNDD 7.GNDD 9.GNDD 15.EXP 14.IR 16.EXP 13.POWE 12.V+3E 11.GNDD CN601 _DATA _CLK R_LED 17.NC V+5D V+3E JAMMAD 21 1 FR1S P SIDE A C D JCKB ASSY C IC507 SUBB ASSY D (DNP2110-A) CN701 E CN601 CN402 B CN603 CN602 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 43 5 6 7 8 5 6 7 8 C D F A B E 30 1 21 1 ICT FC 13 1 1 30 19 1 9 1 8 15 9 5 6 1 4 1 13 1 4 2 W523 W530 W505 W552 W548 W568 CN501 W575 CN503 C599 C531 CN507 CN506 W522 W551 W519 IC508 W520 C544 C543 C506 C523 W586 W585 W549 C554 C545 KN501 C589 W528 W514 W554 W529 W547 CN502 W553 W512 W518 W517 W546 C556 W516 W525 W583 W526 W524 W511 W503 W504 W509 W508 W506 W531 W584 W582 W510 W579 W555 W573 W567 W570 W550 W571 W569 W572 W574 W502 W515 W564 W578 W577 W576 W532 W501 W521 JP504 W563 W566 W565 W527 W589 501 KN505 KN504 W513 W587 W588 W507 D Word Side RXD DTR JAC JAD DOUT2 UPPER V+3D SQEEZE SQEEZE SY1 TXD Pro/XIn Cb1 SC1 LETTER LETTER Cv1 V+12V V+12V V+5V LRCK BCK DATA V+3D SC2 XCSDF XAMUTE JAA JAB JAE CONTACT SIDE C CONTACT SIDE TXD_PC CONTACT SIDE V+5D V+5D B JAX JAZ XCOMP Cr1 JMC DOUT1 JAY JME JMD JMZ JMA XDFSCK XDFSO JMX JMY Pin GNDD V+5D PCMMCK SEL232 JMB Y1 Pin RXD_PC DTR_PC CTS XCOMP D.LOAD V+6E DTR_JAM RXD_JAM TXD_JAM 1.GNDD 2.GNDD 3.JAMMAE 5.JAMMAX 4.JAMMAZ 6.JAMMAY 7.JAMMAA 8.JAMMAB 9.JAMMAC 10.JAMMAD 11.POWER_IN 12.GNDD 13.GNDD CN502 ETCB DWM2182 DNP2110-A 19.V+3D 11.V+6E CN501 18.NC 21.PCMMCK 17.V+3D 16.NC 24.VSEL1 10.SQEEZE 15.V 14.LETTER 13.V+6E 12.XCOMPONENT 5.SEL_RS 4.GNDD 3.GNDD 2.NC 1.NC 9.V+12V 8.V+12V 7.NC 6.NC 21.Y/G/P_Y 14.DOUT 25.Cr/R/P_Cr 19.Y 18.GNDD 17.C 16.GNDD 20.GNDD 20.GNDD 13.GNDD 12.V+5D 11.DATA0 10.GNDD 9.BCLK0 8.GNDD 7.LRCK0 6.XAMUTE 5.XCSDF0 4.NC 3.XDFSCK 2.NC 1.XDFSO CN503 15.GNDD 23.Cb/B/P_Cb 22.P/XI 26.VSEL2 27.TXD 28.CTS SIDE A C (DNP2110-A) IC508 CN901 B CN501 CN551 B CN503 CN502 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 44 1 2 3 4 1 2 3 4 C D F A B E 30 1 36 19 18 1 13 1 1 8 9 16 8 1 16 9 36 19 18 1 8 1 16 9 D548 D549 R513 R512 R528 D542 D541 D539 D544 D543 D540 IC506 R524 R574 D536 D534 D535 Q521 Q522 Q523 Q524 Q525 Q526 Q527 Q528 R523 R518 R515 D591 D551 D550 D593 D595 D592 D596 C595 C596 C593 C592 C590 C597 D597 C591 D594 C594 D526 D520 R522 R526 R517 C598 C529 C528 IC505 C530 C533 C532 R516 R520 R519 R521 C551 C500 C501 C552 C562 D546 D547 D598 D599 C536 C535 C537 C502 C504 R531 C550 R537 C549 R505 C513 IC501 D545 C515 R503 C508 C507 C505 C511 C510 R502 C517 C516 R506 R507 C524 C519 C518 R510 D552 R560 Q514 R535 C548 C547 R534 R533 R530 C542 R532 R529 R557 R551 R559 R552 R566 R558 R542 R548 C555 C553 R575 R514 IC509 C546 11.V+6E A CN501 CN503 1 9 21.Y/G/P_Y 20.GNDD 10.SQEEZE 15.V 16.GNDD 17.C 18.GNDD 19.Y 8 14.LETTER 13.V+6E 9 16 8 1 16 7.JAMMAA CN502 6.JAMMAY 5.JAMMAX 4.JAMMAZ 3.JAMMAE 2.GNDD 1.GNDD 8.JAMMAB 9.JAMMAC 10.JAMMAD 11.POWER_IN 12.GNDD 13.GNDD CN503 1.XDFSO 2.NC 3.XDFSCK 4.NC 5.XCSDF0 6.XAMUTE 7.LRCK0 8.GNDD 9.BCLK0 10.GNDD 11.DATA0 12.V+5D 13.GNDD 20.GNDD 14.DOUT 15.GNDD 16.NC 17.V+3D 18.NC 19.V+3D 21.PCMMCK 30.DTR 12.XCOMPONENT 28.CTS 27.TXD 26.VSEL2 25.Cr/R/P_Cr 24.VSEL1 23.Cb/B/P_Cb 22.P/XI 5.SEL_RS 4.GNDD 3.GNDD 2.NC 1.NC CN501 29.RXD 9.V+12V 8.V+12V 7.NC 6.NC B C Z Pin 1 DOUT SC DTR TXD RXD DTR TXD RXD D.L D E X Y 1 21 8 16 1 9 15 9 1 8 SIDE B C Q525 Q525 Q521 Q523 Q524 Q522 Q527 Q528 IC509 Q514 IC506 IC501 IC505 CN502 CN501 CN503 JCKB ASSY C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 45 5 6 7 8 5 6 7 8 C D F A B E 9 8 16 1 4 5 8 1 8 5 1 4 R574 D538 R578 D530 D529 D532 D531 D524 D522 D525 D527 D523 D528 D526 D520 D517 D521 D519 D518 R525 C551 C566 C586 C560 C583 C564 IC502 C509 R501 C514 R505 R504 C513 C515 R503 C508 C507 C522 R508 C517 C526 R511 R509 L503 L504 C527 R573 Q511 R571 Q508 Q509 R572 R570 D513 R535 C548 C547 C538 C540 C581 C576 R563 C573 R565 R564 Q513 R562 R568 R569 R567 C585 C579 C570 R553 C558 R545 C568 C569 R550 R549 IC503 C572 R555 Q512 R554 R556 R541 R540 R546 Q507 Q506 R547 Q510 D514 C584 R561 R514 L 30.DTR 28.CTS 27.TXD 26.VSEL2 25.Cr/R/P_Cr 24 VSEL1 29.RXD Y R Cb DOUT Cv SC SY Cr 13 1 17 1 4 5 1 7 21 1 40 25 80 65 64 41 24 1 7 5 4 1 R617 IC603 D605 C614 D603 R667 R666 R664 R665 R663 R662 R660 R661 R651 R650 R649 R648 R642 R639 R637 L603 C612 C610 IC605 C608 C609 R638 C607 IC601 IC602 R630 R615 R616 R614 R631 R628 C605 C606 R606 R604 R608 R607 R619 R618 R620 L601 L602 R610 R603 R632 R611 L600 C602 R605 C600 C601 C603 R609 IC600 R612 R613 R629 R627 R623 17.NC R_LED _CLK _DATA 1.V+3D 2.EXT_KEY1 3.EXT_KEY0 4.KEY1 5.GNDD 8.V+5D 7.GNDD CN601 CN601 6.KEY0 10.V+5D 11.GNDD 12.V+3E 13.POWE 9.GNDD 16.EXP 14.IR 15.EXP 1.GNDD 13.GNDD CN602 CN602 12.GNDD 11.JAMMAE 10.JAMMAZ 9.JAMMAX 3.POWER_IN 8.JAMMAY 4.JAMMAD 5.JAMMAC 6.JAMMAB 7.JAMMAA 2.GNDD 18.LT1 19.-28V 20.V+6EV 21.GNDD 1.V+3D 2.NC 3.ETT_KEY1 5.NC 4.EXT_KEY0 6.NC 7.FtoM 8.E+3V 9.MtoF 10.GNDD 11.SSCK 12.XREADY 13.V+5D 14.P_CON 15.FLDC+ 16.XRESET 17.FLDC- CN603 CN603 20 11 10 1 20 11 10 1 1 5 SIDE B D C Q511 Q513 Q512 IC503 Q508 Q509 Q510Q506 Q507 IC502 IC605 IC600 IC602 IC601 IC603 CN601 CN603 CN602 (DNP2110-A) (DNP2110-A) SUBB ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 46 1 2 3 4 1 2 3 4 C D F A B E 4.4 FLKB and PWSB ASSYS 3 1 R K J STANDBY/ON DWZ1125 PWSB FR1S P 3 1 R 16 9 1 8 C708 R724 IC701 R727 R726 R728 Q702 Q703 R719 R705 R706 R704 Q701 R702 R709 R713 POWER ON STAND BY PROGRAM PLAY C B DISC IN D PROGRE KEY LOCK FWD FLKB DWZ1124 REV PROGRE 9 1 16 8 IR IC702(A) FR1S P CN702 CN723 3 1 3 2 1 CN723 S717 DWZ1125 PWSB STANDBY/ON FR1S P 3 1 1 3 2 1 D702 D709 W709 D704 D703 IC702 CN702 S701 S706 S707 D701 W701 D706 D705 POWER ORANGE POWER_LED REV FWD PROGRE DISC IN KEY LOCK PLAY PROGRAM GREEN ORANGE BLUE E-GREEN E-GREEN BLUE ALL LED POSITION SIDE A E F SIDE B PWSB ASSY F FLKB ASSY E FLKB ASSY E PWSB ASSY F (DNP2110-A) (DNP2110-A) IC702 IC701 Q702 Q703 Q701 CN723 CN702 CN702 CN723 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 47 5 6 7 8 5 6 7 8 C D F A B E 16 1 C708 C711 R733 R737 C705 C703 C702 C701 C710 C707 C706 C704 Q705 R734 R732 R735 R731 R730 R711 Q704 R710 R716 R717 R712 R718 R701 R723 R722 R703 R707 R708 R714 R715 D710 R736 D711 V+5D KEY1 V+5E KEY0 EXP_CLK H I G ENTER F CN701 EXP_DATA A IR E V+3D EXT_KEY1 RETURN MENU TOP MENU HOME MENU PLAY PAUSE EJECT 17.NC 16.EXP_DATA 15.EXP_CLK 14.IR 13.POWER_LED 12.V+3E 11.GNDD 10.V+5D 9.GNDD 8.V+5D 7.GNDD 6.KEY0 5.GNDD 4.KEY1 3.EXT_KEY0 2.EXT_KEY1 1.V+3D DISPLAY STEP 17 1 1 16 IR IC702(A) CN701 17 1 17 1 1 C712 C713 W708 W715 W712 W703 W709 CN701 IC702 S715 S713 S714 S716 S705 S709 S710 S712 S711 S702 S703 S704 S708 W711 W713 W714 W702 W707 W706 W710 W705 W704 W716 CONTACT SIDE UPPER KEY0_2 KEY1_2 EXP_CLK IR KEY1_3 FLKB IR2 DWZ1124 GNDD V+5E EXP_DATA V+3E KEY0 KEY1 V+5D ENTER EJECT PLAY STEP DISPLAY PAUSE MENU RETURN MENU HOME TOP MENU FR1S P SIDE A SIDE B E (DNP2110-A) (DNP2110-A) IC702 C701 Q704 Q705 CN601 D CN701 CN701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 48 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES NSP 1..ETCB ASSY DWM2182 2..JCKB ASSY DWZ1122 2..SUBB ASSY DWZ1123 2..FLKBASSY DWZ1124 2..PWSB ASSY DWZ1125 NSP 1..LOADING MECHANISM ASSY VWT1207 2..LOAB ASSY VWG2426 1..MAIN ASSY DWS1350 > 1..POWER SUPPLY ASSY DWR1380 Mark No. Description Part No. ALOAB ASSY SWITCHES AND RELAYS S101 REAF SWITCH VSK1011 OTHERS CN602 CONNECTOR S2B-PH-K CN601 CONNECTOR S5B-PH-K PC BOARD (LOAB) VNP1912 BMAIN ASSY SEMICONDUCTORS IC801 ADV7172KSTZ > IC403 BA25BC0WFP IC261,IC302 BA4510F IC251 BA6664FM IC6002 BR24L32F-W IC603 DYW1735 IC781 HY57V641620HGT-H IC741 K4S161622H-TC60 IC101 LA9704W IC201 LC78652W IC351 M56788AFP IC751 M65776AFP > IC404 MM1385EN > IC791 MM1561JF > IC402 MM1565AF IC601 PD6345A IC701 PE5286A IC481 SM8707HV IC931 TC74HC4053AFT IC786 TC74VHC541FT IC6001 TC7SET00F IC304,IC305 TC7SZU04F IC2001 TC7W53FU Q932-Q940 2SA1576A Q2003,Q241 DTC114EUA Q101,Q102,Q106 HN1A01F Q103,Q2001 HN1B04FU Q104,Q601 HN1C01FU Q941 RN4982 Q2002 UM5K1N D302,D303 KV1470 D401,D402 RB051L-40 D601 RB501V-40 COILS AND FILTERS F404,F997 CHIP BEAD DTF1070 L304 LCYA1R2J2520 L4080,L4090,L4100,L4110,L4120 VTL1074 L4130,L4820,L4880,L4910,L4920 VTL1074 L8020 CHIP BEAD VTL1074 L4830,L4890,L4900 CHIP BEAD VTL1081 L481 CHIP BEAD VTL1084 CAPACITORS C662 CCSRCH100D50 C121 CCSRCH121J50 C314,C474 CCSRCH150J50 C100 CCSRCH151J50 C484,C485,C487,C491 CCSRCH220J50 C120,C133 CCSRCH221J50 C134 CCSRCH331J50 C109,C324,C391,C392 CCSRCH391J50 C945,C946 CCSRCH391J50 C297 CCSRCH470J50 C241 CCSRCH560J50 C107,C360 CCSRCH681J50 C488,C490 CCSRCH820J50 C480 CCSRCH8R0D50 C481 CCSRCH9R0D50 C201,C205,C401,C411,C413 CEHVW101M6R3 C419,C421,C422,C424,C623 CEHVW101M6R3 C793,C801 CEHVW101M6R3 C254,C368,C369,C403,C405 CEHVW470M16 C414 CEHVW470M16 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 49 5 6 7 8 5 6 7 8 C D F A B E C3001 CEVW101M10 C123 CEVW101M16 C117 CEVW101M6R3 C103 CEVW220M16 C119,C326,C470,C472,C601 CEVW221M4 C701,C702,C711,C745 CEVW221M4 C751,C752,C781,C791 CEVW221M4 C2004 CEVW470M16 C101 CEVW470M6R3 C116,C127,C223,C224,C264 CKSQYB105K10 C312,C406,C407,C415,C416 CKSQYB105K10 C477,C794,C795 CKSQYB105K10 C216,C3018,C3019,C313,C351 CKSRYB102K50 C602,C617,C748 CKSRYB102K50 C110,C113,C220,C225,C261 CKSRYB103K50 C320-C322,C330,C404,C426 CKSRYB103K50 C619 CKSRYB103K50 C108,C111,C114,C115,C2005 CKSRYB104K16 C212,C213,C227,C231 CKSRYB104K16 C248-C251,C255,C263,C315 CKSRYB104K16 C317 CKSRYB104K16 C106 CKSRYB152K50 C208 CKSRYB222K50 C266 CKSRYB224K10 C206,C214,C242,C357 CKSRYB472K50 C105,C118,C122,C2006,C332 CKSRYF104Z25 C353,C359,C365,C366,C6001 CKSRYF104Z25 C609,C723,C755,C758 CKSRYF104Z25 C761,C762,C767,C768,C803 CKSRYF104Z25 C806,C807,C809-C812 CKSRYF104Z25 C815,C816,C933,C936 CKSRYF104Z25 C938,C939 CKSRYF104Z25 C102,C104,C112,C200 CKSRYF105Z10 C2001-C2003,C202,C204,C215 CKSRYF105Z10 C217,C221,C222,C226,C230 CKSRYF105Z10 C236,C253,C256,C258,C265 CKSRYF105Z10 C299,C319,C323,C328,C390 CKSRYF105Z10 C393,C409,C418,C423 CKSRYF105Z10 C475,C476,C603-C608,C610 CKSRYF105Z10 C613-C616,C618,C621,C631 CKSRYF105Z10 C657,C658,C704,C706-C710 CKSRYF105Z10 C712-C716,C718-C722 CKSRYF105Z10 C724-C732,C735,C741-C744 CKSRYF105Z10 C746,C747,C753,C754 CKSRYF105Z10 C756,C757,C759,C760 CKSRYF105Z10 C763-C765,C769-C780 CKSRYF105Z10 C782-C790,C792,C797 CKSRYF105Z10 RESISTORS R631,R713 RAB4C103J R111 RAB4C220J R113,R704,R705,R7361 RAB4C470J R150,R159,R2001-R2003,R2016 RS1/10S0R0J R202,R220,R240,R260,R280 RS1/10S0R0J R350,R401-R403,R405,R406 RS1/10S0R0J R791 RS1/10S0R0J R341 RS1/10S101J R973,R978 RS1/16S1000F R364,R369,R373,R375 RS1/16S1003F Mark No. Description Part No. R123 RS1/16S1202F R936,R944,R950,R966 RS1/16S1500F R358,R361 RS1/16S1503F R755 RS1/16S1801F R956,R971,R979 RS1/16S2200F R754 RS1/16S3001F R751 RS1/16S3301F R132 RS1/16S4702F R810,R817 RS1/16S6800F R357,R362,R363,R368,R372 RS1/16S6802F R374 RS1/16S6802F R257 (R=1.0) VCN1127 R258,R259 (R=2.2) VCN1128 Other Resistors RS1/16S###J OTHERS CN401 PH CONNECTER 13P S13B-PH-SM3 CN103 PH CONNECTOR 5P S5B-PH-SM3 CN114 4P FFC CONNECTOR VKN1409 CN115 12P FFC CONNECTOR VKN1416 CN402 21P FFC CONNECTOR VKN1425 CN551 21P FFC CONNECTOR VKN1425 CN901 30P FFC CONNECTOR VKN1434 CN111 24P FFC CONNECTOR VKN1464 KN1,KN2 EARTH METAL FITTING VNF1109 X601 CERAMIC RESONATOR VSS1160 (16.5MHz) X481 CRYSTAL RESONATOR VSS1172 (27MHz) CJCKB ASSY SEMICONDUCTORS IC501 LA73054 IC503 NJM4565M > IC507 NJM78M05FA IC502 PCM1742KE > IC508 PQ05RD11 IC505,IC509 SP232EEN IC506 TC74LCX157F Q510,Q511 2SA1037K Q514 2SC2412K Q512,Q513 2SD2114K Q521-Q528 DTA124EK Q506-Q509 DTC114YK D534-D536,D538,D605 1SS355 D517-D528,D591-D599,D603 UDZS5R1(B) D529-D532 UDZS6R2(B) COILS AND FILTERS L503,L504 CHP BEAD VTL1089 CAPACITORS C569,C585 CCSRCH271J50 C568,C586 CCSRCH330J50 C506,C534,C544,C559,C565 CEAT101M16 C567,C578,C587 CEAT101M16 C503,C512,C520,C543 CEAT102M6R3 C589 CEAT1R0M50 C539,C574,C575 CEAT221M6R3 C571,C577,C580 CEAT470M16 C521,C523,C525,C554 CEAT471M6R3 C545 CEJQ221M6R3 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 50 1 2 3 4 1 2 3 4 C D F A B E C500,C551,C552,C562,C566 CKSRYB102K50 C502,C504,C505,C510,C511 CKSRYB104K16 C513,C516,C518,C519 CKSRYB104K16 C528,C529,C532,C533 CKSRYB104K16 C535,C536 CKSRYB104K16 C524 CKSRYB105K6R3 C530,C537,C538,C540,C542 CKSRYF104Z25 C546,C549,C550,C555,C558 CKSRYF104Z25 C564,C570,C576,C579,C581 CKSRYF104Z25 C584,C614 CKSRYF104Z25 C501,C507,C508,C517,C553 CKSRYF105Z10 RESISTORS R549,R568 RN1/16SE2202D R545,R569 RN1/16SE4302D R561,R578 RS1/16S1502F R501,R504,R505,R508,R509 RS1/16S75R0F R511 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN507 D-SUB15 CONNECTOR DKN1342 CN506 D-SUB9 CONNECTOR DKN1343 501 PCB BINDER VEF1040 JA502 8P PIN JACK VKB1179 CN503 21P FFC CONNECTOR VKN1252 CN501 30P FFC CONNECTOR VKN1261 CN502 13P FFC CONNECTOR VKN1273 KN501-KN505 VNF1084 WRAPPING TERMINAL DSUBB ASSY SEMICONDUCTORS > IC605 MM1565AF IC600 PD4954B IC603 PST9242NR IC601 TC74HCT541AF IC602 TC74VHC541F COILS AND FILTERS L600,L603 LCYA150J2520 L601,L602 CHIP BEAD VTL1089 CAPACITORS C611,C613 CEAT101M16 C604 CEAT470M16 C600,C601 CKSRYB102K50 C602,C603,C607 CKSRYB103K50 C605,C606 CKSRYF104Z25 C608,C609,C612 CKSRYF105Z10 RESISTORS Other Resistors RS1/16S###J OTHERS 601 PCB BINDER VEF1040 CN601 17P FFC CONNECTOR VKN1248 CN603 21P FFC CONNECTOR VKN1252 CN602 13P FFC CONNECTOR VKN1273 KN600-KN602 VNF1084 WRAPPING TERMINAL Mark No. Description Part No. X600 CERAMIC RESONATOR VSS1142 (5MHz) EFLKB ASSY SEMICONDUCTORS IC701 BU2090F Q704,Q705 2SC2412K Q701-Q703 DTA124EK D701,D705 SLI-343DCW D703,D709 SLR-343BBT D702,D706 SLR-343EBT D704 SLR-343MC D710,D711 UDZS6R2(B) SWITCHES AND RELAYS S701-S716 VSG1024 CAPACITORS C708,C711 CKSRYF104Z25 C701-C703,C705 CKSRYF105Z10 RESISTORS Other Resistors RS1/16S###J OTHERS CN702 CONNECTOR POST 3P B3B-PH-K IC702 REMOTE RECEIVER UNIT RPM7240-H4 CN701 17P FFC CONNECTOR VKN1277 FPWSB ASSY SWITCHES AND RELAYS S717 VSG1024 OTHERS CN723 CONNECTOR POST 3P B3B-PH-K POWER SUPPLY ASSY This assembly has no service part. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 51 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 ADJUSTMENT ITEMS AND LOCATION ∗ After adjustment, screw locks with the Screw tight. Remove the solder on the required land of pickup assy before adjustment. (Refer to "7.1.13 DISASSEMBLY".) Remove the solder on the required land of pickup assy before adjustment. (Refer to "7.1.13 DISASSEMBLY".) Mechanism part LOAB and MAIN ASSYS Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Items Exchange the Pickup Assy-S Exchange PC Board 1 2 Electrical part Mechanism part Exchange the Traverse Mecha. Assy-S Electrical part Mechanism part Electrical part ∗ After adjustment, screw locks with the Screw tight. Mechanism part Exchange the Spindle Motor 2 Electrical part 1 2 Tangential adjustment screw 1 2 Radial adjustment screw Jigs and Measuring Instrument 1 2 Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Electrical adjustments are not required. Adjustment Points (Mechanism Part) Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 52 1 2 3 4 1 2 3 4 C D F A B E 6.2 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit REP. A REP. A TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 • The TEST MODE functions that are used only during adjustment are described here. For details, see "7.1.1 TEST MODE". During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD CAUTION: Perform only trace, video and audio outputs are nothing. DVD disc POWER ON OFF POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 53 5 6 7 8 5 6 7 8 C D F A B E 6.3 MECHANISM ADJUSTMENT • Remove the Loading Mecha. Assy. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Loading Mecha. Assy (Float Base) with nippers. Cautions: Keep spacer for future use. (used only for 2003 models) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Loading Mecha. Assy 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.1.13 DISASSEMBLY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 54 1 2 3 4 1 2 3 4 C D F A B E Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.2 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.3 TEST MODE SCREEN DISPLAY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 55 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the Test mode remote control unit. • Light the all LEDs, and goes out the LEDs when pressing the keys of something. • OSD displays test mode. Refer to the "7.1.3 TEST MODE SCREEN DISPLAY". 2 Release the Test mode • Turn off the power. • Press the [ESC] (A8-5F) key of the remote control unit and reset it. 3 Tray open / close • Press the [REP. A] (A8 - 48) key of the remote control unit. 4 Playback stop 1. Press the [REPEAT] (A8 - 44) key of the remote control unit from the playback state. 2. Press the [STOP] key of the remote control unit from the playback state. (Playback stops, but the loaded disc keeps rotating.) 5 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). 6 Focus on / sweep 1. Lock the focus by pressing the [TEST] (A8-5E) and [2] (A8-02) keys in order. 2. Repeat focus sweep by pressing the [TEST] (A8-5E) and [3] (A8-03) keys in order. 7 Spindle FG servo CAV : Press the [TEST] (A8-5E) and [5] (A8-05) keys in order,then rise up the spindle and FG servo becomes on. CLV : Press the [TEST] (A8-5E) and [9] (A8-09) keys in order,then rise up the spindle and FG servo becomes on. 8 Tracking open / close 1. Open tracking by pressing the [STEP FWD] (A8-54) key of the remote control unit in the play state. 2. Close tracking by pressing the [STEP REV] (A8-50) key of the remote control unit in the play state. 9 Slider servo on/off 1. Turn on the slider servo by pressing the [TEST] (A8-5E) and [CX] (A8-0E) keys in order. 2. Turn off the slider servo by pressing the [TEST] (A8-5E) and [TV/LDP] (A8-0F) keys in order. 0 Slider in / out Slider in : In the tracking off state, press the [SCAN REV] (A8-11) key of the remote control unit. Slider out : In the tracking off state, press the [SCAN FWD] (A8-10) key of the remote control unit. - Play (perform only the ID search and trace to the specified location) Press the [TV/LDP] (A8-0F) key of the remote control unit from the stop state. Perform only trace, video and audio outputs are nothing. = Screen display ON/OFF 1. Turn off the display by pressing the [AUDIO] (A8-1E) key of the remote control unit. 2. Turn on the display by pressing the [DISPLAY] (A8-43) key of the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 56 1 2 3 4 1 2 3 4 C D F A B E ~ Search 1. Search address input entry • It becomes the address input mode when pressing the [+10] (A8-1F) key. (Most significant digit of an address displays "<".) • In this time, display the last address as the initial state. 2. Search address input • Press the [0] to [9] (A8-00 to 09) keys of the remote control unit. In the DVD, set an address with hexadecimal. • In the address input mode, turn to the hexadecimal input by pressing the [PROGRAM] (A8-4C) key (display a "∗" mark), and [1] to [6] keys are each input as A to F. • Hexadecimal input and decimal input can switch with toggle. • In case of CD, perform only the absolute time search. 3. Search execution • Press the [CHP/TM] (A8-13) key of the remote control unit. • After the search, perform only trace and video and audio outputs are nothing. 4. Release the Search address input • Clear the address by pressing the [CLEAR] (A8-45) key. Release the address input mode when pressing the [CLEAR] key once again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 57 5 6 7 8 5 6 7 8 C D F A B E 7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE Character in bold : Item name : Information display Laser diode current value Symptom • "DISC IN" indicator is not turned on. • Player does not playback, etc.. This unit can confirm the laser diode current value (DVD: 650nm, CD: 780nm) of pickup on the Test Mode screen. (Press the ESC → TEST keys in order on the test mode remote control unit (GGF1381) to enter the test mode.) Note : When a DVD disc or a CD disc is played in the test mode, this function is effective. Procedure of Self-Diagnosis 1 Enter the Test mode. 2 When diagnosing the 650nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When diagnosing the 780nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When let it turn on once again after performed 2 once, After pressed REP.B key once 650nm: Press the → keys in order 780nm: Press the → keys in order 3 Confirm the indicated value of the laser diode current (LDI). (Refer to following figure.) 4 When indicated value is more than 100, pickup is defective. → Replacement is necessary Replace the Traverse Mechanism Assy or Pickup. TEST 1 TEST 1 TEST 4 TEST 4 It's effective in case of the following condition. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 58 1 2 3 4 1 2 3 4 C D F A B E 7.1.3 TEST MODE SCREEN DISPLAY Display Specification of the Test Mode Character in bold : Item name : Information display 1 5 4 6 10 20 21 22 23 11 8 9 3 2 12 17 18 19 16 13 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 4 Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗ ] 5 (1) Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] (2) Laser diode current value [LDI – ∗ ∗ ∗] 6 (1) Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] (2) AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] CD TOC area : [IN ] CD active area : [CD] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 (1) Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] (2) CD 1/3 beam switch [BM – ∗ ∗ ] - Jitter value [J – ∗ ∗ ∗ ∗] Make the jitter four times, and renew it in every 0.5 second. [J4 – ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RAM/RL/RD, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLSH = ∗] % Revision of the system controller [S: ∗ . ∗ / ∗ ∗ ∗ ] 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 59 5 6 7 8 5 6 7 8 C D F A B E ^ (1) Revision of the DVD mechanism controller [M: ∗ / ∗ ∗] (2) Part number of the GUI-ROM (OEM model) [GUI: ∗ ∗ ∗] (3) HOST conversion [HOST: ∗ ∗ ∗] & AGC setting [AGC – ∗ ∗ ∗ [∗] ] AGC on : [AGC-ON] AGC off : [AGC-OFF] [1] : RFAGC on [0] : RFAGC off * FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. ( Error rate indication 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] ) Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 60 1 2 3 4 1 2 3 4 C D F A B E 7.1.4 SPECIAL COMMANDS FOR DEBUGGING By simply pressing the ESC key then a specific key on the remote control unit, you can change various settings or display a screen for debugging. RS-232C commands corresponding to those commands from the keys on the remote control unit are also provided, which enables serial control of this unit, as well as control using the remote control unit. List of special commands Keys on the Remote Control Unit Operation RS-232C command − EE4354CE [ESC] + [TEST] Entering Test mode Entering Checker mode EE5445TE − Quitting Test or Checker mode NE [ESC] + DISPLAY Entering DEBUG Display mode − Displaying communication data of the FL controller − [ESC] + [CLEAR] [ESC] + [SIDE B] EE9900DB [ESC] + [0] RS-232C loop test for the 9-pin connector Memory clear − [ESC] + [1] RS-232C loop test for the 15-pin connector − RS-232C loop test for the 9-pin connector − − Measurement/display of error rate RS-232C loop test for the 15-pin connector EE9001DB Switching the background color between black and blue EE2000DB Black EE2001DB Blue [ESC] + [+10] [ESC] + [5] [ESC] + [3] [ESC] + [2] [ESC] + 2 Pan & Scan EE2101DB [ESC] + 3 Letter Box EE2102DB [ESC] + 4 Wide EE2103DB [ESC] + 5 EE1001DB [ESC] + 6 Dolby Digital Out: Dolby Digital Dolby Digital Out: PCM EE1000DB Virtual Dolby OFF EE1100DB [ESC] + 8 [ESC] + 7 Virtual Dolby ON EE1101DB [ESC] + 9 Muting audio at the final stage EE1201DB [ESC] + 0 EE1200DB [ESC] + REP.A Digital Out ON Canceling muting audio of at the final stage EE1301DB [ESC] + REP.B Digital Out OFF EE1300DB EE1401DB EE1400DB [ESC] + [SIDE A] [ESC] + STEP REV [ESC] + STEP FWD Input mode to search for a title DTS Out: OFF DTS Out: DTS − [ESC] + [CHP/TIM] Measurement/display of error rate EE9001DB EE9002DB DEBUG display of the mechanical controller − EE9101DB − EE2201DB [ESC] + SKIP REV [ESC] + SKIP FWD [ESC] + [CX] [ESC] + [CHAP] [ESC] + [FRM/TIM] [CHP/TIM] while displaying the error rate EE2200DB [ESC] + [STEREO] − [ESC] + [ZOOM] EE2301DB − x2 Zoom ON x4 Zoom ON CP ID Number input Interrace Progressive EDC/ID error display on the FL display Model Display mode Displaying an error log EE2302DB [ESC] + [x3 Rev] Zoom OFF EE2300DB Clearing the error log − − Entering Extend Terminal Test mode − Quitting Extend Terminal Test mode Acquiring the data on the status of the Extend terminal − − Measuring the error rate and acquiring its results − Selecting the RS-232C 15-pin connector Selecting the RS-232C 9-pin connector EE3015DB EE3009DB EE9003DB QY 99RZ 11RZ EE0016EC [Number] + [ENTER] − Selecting an item on the Video CD menu argNB [RETURN] MC EE8900DB − Acquiring the data on the settings that are changeable by the above- mentioned special commands EE9999DB − Clearing a display called by one of the above-mentioned special commands Returning to the Video CD menu For reliability testing ∗ 1 ∗ 1 ∗ 2 ∗ 2 ∗ 3 ∗ 3 ∗ 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 61 5 6 7 8 5 6 7 8 C D F A B E In the description below, the keys on the remote control unit for servicing are shown in brackets (e.g. [5]) and those on the remote control unit for the DVD player are not. ∗1: Difference between EE9001DB and EE9003DB EE9001DB is a command for entering Error Rate Measuring mode, and the result of a measurement is displayed only as an on-screen display. EE9003DB is a command for entering Error Rate Measuring mode and returning the result of the measurement. The result of a measurement is also displayed as an on-screen display. Example: ∗2: Return status and switching timing of the command for selecting the 9-pin/15-pin connectors The operation sequence when either an EE3009DB or EE3015DB command is received is as follows: 1 "R" is returned to both 9-pin and 15-pin connectors. 2 The assigned connector is selected. 3 The message "DSUB-9Pin is selected." or "DSUB-15Pin is selected." is sent to both connectors. ∗3: argNB and MC These commands are for selecting an item on the DVD menu or calling the menu. The previous DVD players for industrial use did not support interactive playback (Controlled Playback) using video CD, but the DVD-V5000 permits selection of an item on the video CD menu with the "argNB" RS-232C command, and calling the video CD menu with the "MC" RS-232C command. ∗4: Return status for EE8900DB The data on settings are returned in 2-byte alphanumerics in hexadecimal notation (initial status: h'0000). The meaning of each bit is as follows: b0 : Dolby Digital Out 0: Dolby Digital, 1: PCM b1 : Virtual Dolby 0: OFF, 1: ON b2 : Muting at the final stage 0: OFF, 1: ON b3 : Digital Out 0: ON, 1: OFF b4 : DTS Out 0: OFF, 1: ON b5-b7 : reserved Always 0 b8-b9 : Aspect 00: Wide, 01: Letter Box, 10: Pan & Scan b10 : Background Color 0: BLUE, 1: BLACK b11 : P/I 0: Interrace, 1: Progressive b12 : ZOOM 0: OFF, 1: x4 b13 : RS-232C Terminal 0: 15 pin, 1: 9 pin b14-b15 : reserved Always 0 Example: EE2201DB ← Progressive is selected. R EE1001DB ← Dolby Digital Out is set to PCM. R EE8900DB ← Requesting the data on the settings h'0801 ← Meaning that bit 11 and bit 0 are 1, i.e., Progressive & Dolby Digital > PCM RS-232C communication setting are as follows : Bit rate : 19200 bps Data bits : 8 Parity : None Stop bit : 1 PC DVD Player EE9003DB 3.4-e5 When a CD/Video CD is used, a four-digit integer (number of C1 corrections) is returned. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 62 1 2 3 4 1 2 3 4 C D F A B E 7.1.5 RS-232C LOOP TESTS An RS-232C loop test for the 9-pin connector can be performed by pressing [ESC] then [0] on the remote control unit for servicing, and that for the 15-pin connector can be performed by pressing [ESC] then [1]. As to the 9-pin connector, only a test for looping back TxD to RxD is performed. As to the 15-pin connector, however, a test for looping back DTR to D.LOAD is also performed, along with TxD to RxD. The results of a loop test are indicated by the LEDs on the main unit. Loop tests for reliability testing The above-mentioned loop tests ([ESC]+[0] and [ESC]+[1]) are provided for the purpose of inspections on the production line. Therefore, the number of loops of transmission, reception, and comparison is limited. However, for a reliability test, a mode is needed for endlessly repeating loop tests unless the result of comparison shows a failure. Thus, the following loop tests are also provided: [ESC] + [2] : Endless loop test for the 9-pin connector [ESC] + [3] : Endless loop test for the 15-pin connector While an endless loop test is in progress, the LED indication shows "while testing." If a failure is detected during comparison, the LED indication shows "failure," and the loop test is canceled. For an endless loop tests ([ESC]+[2] and [ESC]+[3]), the LED indication "Result: OK" will not be displayed. LED indications during a test for the 9-pin connector ([ESC] + [0]) LED indications during a test for the 15-pin connector ([ESC] + [1]) To quit Loop Test Result Display mode and return to Normal Operation mode, press any key on the main unit or the remote control unit. PROGRESSIVE PROGRAM DISC IN While testing Lit Lit Unlit Result: OK Flashing Unlit Unlit Result: Failure Unlit Flashing Unlit PROGRESSIVE PROGRAM DISC IN While testing Lit Lit Lit Result: OK Flashing Unlit Unlit TxD → RxD failure Unlit Flashing Unlit DTR → D. LOAD failure Unlit Unlit Flashing Result for both tests: Failure Unlit Flashing Flashing www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 63 5 6 7 8 5 6 7 8 C D F A B E 7.1.6 ERROR LOG How to display the error log Press the ESC key then the CHP/TIM key on the remote control unit for servicing. The following indications are displayed on the screen: 000000 ER(av) :0.0e-0 Self Check OK Press the CHP/TIM key again to display the error log and the results of self-diagnosis. Part enclosed in " " : Error log Part enclosed in " " : Results of self-diagnosis (For details on how the results of self-diagnosis are indicated, see "7.1.7 Self-diagnosis.") Display example: Error log indications The two-digit number in hexadecimal notation (F8 and C3 in the above display example) represents an error code, and the figures that follow represent the value of the hour meter when the corresponding error was generated. The current value of the hour meter is displayed if the DISPLAY and POWER keys on the main unit are pressed simultaneously to turn on the unit. If, for example, the value of the hour meter is 000135:40, you can see that in the above display example a loading error (F8) was generated about 12 hours before within the accumulated power-on time. The latest error is displayed on the first line, and if the number of error records exceeds 8, the oldest error record is erased. On the two lines at the bottom, the meaning of the latest error is displayed. The meaning of each error code is as shown in the following table. F8 000123 :45 AV_1 :OK C3 000079 :41 AV_2 :OK 00 000000 :00 F.E :OK 00 000000 :00 Ve :OK 00 000000 :00 DSP :-- 00 000000 :00 SACD :-- 00 000000 :00 00 000000 :00 PROM :OK The latest error F8 means Loading error Error Code Description Operation Upon Generation of the Error Possible Defective Part 1x: Search error 11 Search error (timeout) STOP (No action for DVD) MAIN Assy, Pickup Assy Traverse Mecha. Assy 12 Search error (number of retries exceeded) STOP (No action for DVD) 19 Timeout for tracing during convergence STOP 1B Error for searching for Index 0 (beginning of a title) STOP 1C An RW disc was wrongly detected as a disc without wobble grooves. Searching for Address 2E600 2x: Slider error 21 Timeout for slider move STOP MAIN Assy (FTS Driver), Traverse Mecha. Assy 22 Timeout for the slider while it is moved toward the inner track STOP 23 Timeout for the slider while it is moved toward the outer track STOP 3x: Focus error 33 FOK error OPEN MAIN Assy (FTS Driver), Pickup Assy 38 Disc-type detection error OPEN 39 An SGC was not converged while the peak is detected OPEN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 64 1 2 3 4 1 2 3 4 C D F A B E Clearing the error log The error log can be cleared using the "EE0016EC" RS-232C command. EE0016EC With this command, all data on type of error and time of occurrence are cleared. Error Code Description Operation Upon Generation of the Error Possible Defective Part 4x: Spindle error 41 Spindle timeout STOP MAIN Assy (EBY-CHIP, Servo DSP, Spindle Driver), Spindle Motor 48 FG shifting timeout STOP 49 PLL shifting timeout STOP 4A CD and GFS not locked STOP 4B Clamping error STOP 5x: Auto sequence error 51 ABUSY was not returned after DDTCT was transmitted. STOP MAIN Assy (Servo DSP, RF IC, FTS Driver), Pickup Assy 52 ABUSY was not returned after FJMPD was transmitted. STOP 53 ABUSY was not returned after FJMPU was transmitted. STOP 54 ABUSY was not returned after GSUMON was transmitted. STOP 55 ABUSY was not returned after DJSRT was transmitted. STOP 56 ABUSY was not returned after TBL OFS was transmitted. STOP 57 ABUSY was not returned after TSON was transmitted. STOP 58 ABUSY was not returned after TBL was transmitted. STOP 59 ABUSY was not returned after FGN was transmitted. STOP 5A ABUSY was not returned after TGN was transmitted. STOP 5B ABUSY was not returned after CMDAVET was transmitted. STOP 5C ABUSY was not returned after ADJMIR was transmitted. STOP 5D AFB time over STOP 5F A command could not be sent because ABUSY was low. STOP 7x: Reading error of codes 71 The ID could not be read during tracing because of continuous Xms data. STOP Servo DSP, Pickup Assy 72 The Sub Q data could not be read within 3 seconds during tracing. STOP 73 The ID could not be read within 1 second during startup check. OPEN 74 The Sub Q data could not be read within 3 seconds during startup check. OPEN 8x: Reading error of TOC 81 Timeout for reading TOC by the mechanical control computer STOP Servo DSP Ax: Servo DSP communication error A1 DSP command communication error OPEN Servo DSP A2 Communication error during reading DSP coefficient OPEN A3 Communication error during writing DSP coefficient OPEN A4 Communication error during continuous writing of DSP coefficient OPEN A7 DSP hung OPEN Bx: Recovery error B1 Timeout for backup STOP MAIN Assy (Servo DSP, RF IC, FTS Driver), Pickup Assy B2 Retry error for backup STOP B3 Retry error for tracing STOP Cx: Abnormality detected C3 Tracking overcurrent STOP MAIN Assy, Pickup Assy C5 Error responding to short-circuit test POWER OFF Fx: Other errors F6 Partially Recorded Disc (CD-R) Prohibiting searching and scaning − F8 Loading timeout. OPEN/CLOSE Loading Motor, FTS Driver FC Focusing impossible upon retry OPEN MAIN Assy, Pickup Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 65 5 6 7 8 5 6 7 8 C D F A B E 7.1.7 SELF-DIAGNOSIS Self-diagnosis is conducted each time the unit is turned on, and when commanded to do so from the remote control unit. 1. Self-diagnosis conducted when the unit is turned on and indication of its results Each time the unit is turned on, self-diagnosis on whether the peripheral devices of the microcomputer are operating normally is conducted, and the results are indicated by the LEDs on the front panel. The items for self-diagnosis conducted at startup are as follows: 1 Whether data are written properly to flash memory 2 Whether the Servo DSP is operating properly 3 Whether the video encoder is operating (communication check of the 12C bus) 4 Whether the EBY-CHIP is operating (checking writing to and reading from the register) 5 Whether data can be written to or read from the SDRAM of the EBY-CHIP properly 6 Whether the AV1 is operating (checking writing to and reading from the register) 7 Whether data can be written to or read from the SDRAM of the AV1 properly 8 Whether DMA is properly performed between the EBY-CHIP and AV1 If an error is detected in the process of 3 to 8 of the above-mentioned self-diagnosis, the corresponding LEDs flash rapidly, as shown in the table below. The LEDs also indicate an error when 9 data stored in the EEPROM could not be read. If two or more errors are generated, all corresponding LEDs flash. To stop the flashing of the LEDs to return the LEDs to normal indication, press any key on the main unit or remote control unit. In a case of 1 or 2 above, an error indication by the LEDs is not possible, because control of the unit is shifted to the monitor program in the mask ROM of the microcomputer. If the unit is connected with a PC via the RS-232C port, and the terminal software is operating, an error message will be displayed on the PC. The error message in the case of 1 looks like "Flash ROM XXXX NG," where XXXX represents the type of error, such as "signature get" or "checksum." The error message in the case of 2 is "Servo DSP NG." Following the above message, the prompt below is displayed, and the monitor program starts up. DVD PLAYER MONITOR PROGRAM DVD> In this condition, downloading of the firmware is possible. 2. Self-diagnosis commanded using the remote control unit When the procedure to display the error log is performed as described in "Error log," self-diagnosis on the peripheral devices is also conducted. The items to be checked in this type of self-diagnosis are as follows: 1 Checking writing to and reading from the register of the AV decoder 2 Checking writing to and reading from the SDRAM externally connected with the AV decoder 3 Checking DMA transfer from the front end (EBY-CHIP) to the AV decoder 4 Checking writing to and reading from the register of the video encoder 5 Checking writing to and reading from the EEPROM externally connected with the microcomputer The results of the self-diagnosis are expressed as follows: AV_1 : Result of 1 AV_2 : Result of 2 F.E : Result of 3 Ve : Result of 4 PROM : Result of 5 PROGRAM PLAY PROGRAM DISC KEY LOCK 3 √ 4 √ 5 √ 6 √ 7 √ 8 √ √ 9 √ √ Each LED flashes alternately. Each LED flashes alternately. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 66 1 2 3 4 1 2 3 4 C D F A B E 7.1.8 HOUR METER How to display the value of the hour meter Press the POWER key while holding the DISPLAY key pressed. The value of the hour meter is displayed: OPERATING TIME POWER ON 000123:45 Accumulated power-on time: In this example, 123 hours, 45 minutes PLAY 000109:11 Accumulated playback time: In this example, 109 hours, 11 minutes For power-on time, the time during which the unit was in Stop mode or the tray was open is also included. The playback time means the time during which the spindle motor was rotating and the laser diode was lit. Resetting the playback time The playback time can be reset on such an occasion as when the pickup is replaced with a new one during servicing. To avoid accidental resetting, reset is executed using both the RS-232C command and the remote control unit for servicing. Procedure: 1 Press the ESC key on the remote control unit for servicing. 2 Issue the "EE9010DB" RS-232C command. The following indication is displayed. Flashes. 3 Issue the "EE9011DB" RS-232C command. The playback time indication stops flashing. The message "OK?" is displayed. 4 Press the SEARCH key on the remote control unit for servicing. The playback time is reset to 0. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 67 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 EXTERNAL TERMINAL TEST MODE To enter Extend Terminal Test mode, first enter Test mode in either of the following two ways: • Method 1: Press the ESC then TEST keys on the remote control unit. • Method 2: Issue the "EE5445TE" RS-232C command. Then issue the "11RZ" RS-232C command to enter Extend Terminal (Pins 6-13 of the 15-pin DSUB connector) Test mode. Issue the "QY" command during Extend Terminal Test mode so that the system-control computer acquires the data on the status of the pins (H or L) of the Extend terminal from the sub-microcomputer and returns those data in "XXXX" format (XXXX represents 2-byte alphanumerics in hexadecimal notation): Bits 15-12 : Always 0 Bits 11-8 : PS/2 port Bits 7-0 : Extend terminal The input level "H" is represented by 1, and "L" by 0. As the DVD-V5000 does not support a mouse or keyboard, the clock is pulled up, and data are pulled down, and the PS/2 port (bits 11-8) is always 0101b. Each bit 7-0 corresponds to a pin of the 15-pin DSUB connector, as shown in the table below: Using this mode, the Extend Terminal Test can be automatically performed. To quit Extend Terminal Test mode, issue the "99RZ" command. Signal Name Pin No. b7 SW6(X) 11 b6 SW7(Y) 12 b5 SW8(Z) 13 b4 SW5(ENT) 10 b3 SW1(↑) 6 b2 SW2(↓) 7 b1 SW3(←) 8 b0 SW4(→) 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 68 1 2 3 4 1 2 3 4 C D F A B E 7.1.10 TEST MODE FOR THE KEYS AND LEDS ON THE MAIN UNIT In Extend Terminal Test mode, whether the keys and LEDs on the main unit are operating properly is also checked. When Extend Terminal Test mode is entered in response to the "11RZ" command, the LEDs light up one by one in the order of PROGRESSIVE, PLAY, PROGRAM, DISC, and KEY LOCK, and this is repeated. The green POWER indicator remains lit. Each time a key on the main unit is pressed, the LEDs light or go dark, as shown in the table below (√: lit, blank: unlit). The green POWER indicator remains lit. How to enter/quit Extend Terminal Test mode using only the remote control unit for servicing Extend Terminal Test mode is entered/quit using only the remote control unit for servicing, without issuing serial commands. After entering Test mode by pressing the ESC then TEST keys, instead of issuing the "11RZ" command, press the STEREO key (remote control code: A84A) on the remote control unit for servicing to enter Extend Terminal Test mode. To quit Extend Terminal Test mode, press the STEREO key again. PROGRESSIVE PLAY PROGRAM DISC KEY LOCK PROGRE √ SKIP REV √ √ SKIP FWD √ √ STOP/OPEN/CLOSE √ √ DISPLAY √ √ STEPFWD √ √ √ √ √ PLAY/PAUSE √ TOP MENU √ MENU √ HOME MENU √ √ RETURN √ ↑ √ √ ← √ √ ↓ √ √ √ → √ ENTER √ √ The LEDs light one by one in this order. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 69 5 6 7 8 5 6 7 8 C D F A B E 7.1.11 ID NUMBER AND ID DATA SETTING To enter ID Number Input Mode, with no ID number set, such as in a case of immediately after upgrading the firmware, press the ESC key then the STEREO key. Note: If a previous ID number and ID data, such as a factory- preset ID number and ID data, are maintained, the unit enters ID Number Confirmation Mode when the above keys are pressed. However, if only an ID number is maintained, the unit enters ID Data Input Mode. ID Number Input Mode [Player's ID Number Setting] ID Number ? - - - - - - - - - Exit Input ID Number ! 1 This display appears when the PLAY key is pressed in Step 4. Enter a 9-digit number to compare. The number is also displayed on the FL display. 6 By pressing the CLEAR key without having input a number, the unit returns to Step 2 without doing anything else. Each press of this key after a number has been input deletes one digit. 7 Enter a 9-digit ID number. The ID number is also displayed on the FL display. 2 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 3 After entering all 9 digits, if you press the PLAY key, the unit enters Compare mode. Enter the same ID number again. Only if your two input numbers match, the ID number is set. Compare mode helps eliminate mistyping of the ID number. 4 2 3 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Input ID Number ! 6 Input ID Number ! After entering all 9 digits, if you press the SEARCH key, the unit unconditionally sets the input number as the ID number. Then the unit automatically enters Player's Data Input Mode. (The SEARCH key is not accepted after all 9 digits have been entered.) 5 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare Mode

Enter 4 5 Caution: For the DVD players compatible with DVD-RW, for playback of a DVD-RW disc (CPRM), it is necessary that an individual ID number and ID data are set for each player. If the ID number and ID data be not properly set in the manner described below, future operations cannot be guaranteed. The ID number is written on the yellow label at the rear panel of the player. If there is no yellow label, before downloading FLASH ROM, take note of the ID number set following the procedures outlined in "ID Number Confirmation Mode" on the next page. Note: Enter ID numbers while the unit is in Stop mode so that the values set will be immediately written to the EEPROM. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 2 without doing anything else. DVD Data Disc (GGV1174) Service Remote Control Unit (GGF1381) JIGS AND MEASURING INSTRUMENTS Setting an ID number or ID data is required in the following case: If "No ID Number!" or "NO ID DATA!" is displayed on the TV screen for a few seconds immediately after the power to the player is turned on or during Stop mode. With the DVD-V5000, the ID number and ID data are stored in the EEPROM (not in the flash ROM,) which eliminates the necessity of resetting the ID number and ID data even when the firmware is downloaded. Resetting of the ID number and ID data is required when the EEPROM or the MAIN Assy is replaced. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 70 1 2 3 4 1 2 3 4 C D F A B E To enter ID Number Confirmation Mode after the ID number and the ID data are set, press the ESC key then the STEREO key. ID Number Confirmation Mode 1 The ID number already set is displayed. (It is also displayed on the FL display.) 2 Enter a 9-digit number for comparison. This is not required when you only wish to check the ID number visually. (The number is also displayed on the FL display.) 3 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 4 After entering all 9 digits, if you press the PLAY key, the unit compares the number entered in Step 2 with the ID number set, and only if the numbers match, the unit automatically exits ID Number Confirmation Mode. If an ID data has not been entered, the unit enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Confirmation Mode. 5 After entering all 9 digits, if you press the STOP key, the unit compares the number entered in Step 3 with the ID number set, and only if the numbers match, the unit automatically deletes the ID number and exits this mode. If the numbers do not match, the disc tray is opened, and the unit exits this mode. (The STOP key is not accepted after all 9 digits have been entered.) 6 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit Input ID Number ! 3 2 4 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare 0 0 0 0 0 0 0 0 1 Enter Memory Clear Input ID Number ! 5 6 Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 4 without doing anything else. • Indication of an ID number already set An ID number already set is displayed in the following cases: 1) When the ESC key then the CLEAR key are pressed, user settings are cleared, then the ID number set is displayed on the screen. In this case, the ID number is not displayed on the FL display. 2) When the unit enters ID Number Confirmation Mode by your pressing the ESC key then the CLEAR key, the ID number set is displayed. In this case, the ID number is also displayed on the FL display. If you only need to confirm the ID number, you can exit this mode by pressing the CLEAR key or turning off the power. • Indication when no ID number is set If no ID number is set, the message "No ID Number!" flashes on the screen for a few seconds after the power is turned on or during Stop mode. After entering all 9 digits, if you press the PLAY key, the unit compares the numbers input in Steps 2 and 6, and only if the numbers match, that number is set as the ID. Then the unit automatically enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Input Mode. 8 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare 0 0 0 0 0 0 0 0 1 Enter Input ID Number ! 8 Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 6 without doing anything else. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 71 5 6 7 8 5 6 7 8 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC is loaded in this mode, the unit automatically starts reading the data. (If the DVD DATA DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC, you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 72 1 2 3 4 1 2 3 4 C D F A B E 7.1.12 TROUBLE SHOOTING START Is tray open ? Power ON Yes No Turn on the power again after 2 - 3 minutes. • Tact-switches are damaged. (incase of only a key NG) SUBB IC600-pin 26 is it around 0V when you pushed a POWER key? • Wireless remote controller receiver or IR signal line or SEL IR signal line is damaged. (incase of only a key of wireless remote controller NG) Does SUBB IC600-pin 47 (SEL IR) and IR and SEL IR signal lines change 0V–5V when you pushed a wireless remote controller key? • Blow out fuse of the primary side • As for P-CONT of POWER SUPPLY Unit is around 3.3V. Blow out micro-fuse on the POWER SUPPLY Unit. (Check the each voltage.) P101–P102 or POWER SUPPLY Unit is damaged. • FL controller IC (IC600) or RESET IC (IC603) on the SUBB Assy is damaged. Are IC600-pin 17 (RESET IN) and pin 38 (POWER ON) "H" level together? • Check the following connections : MAIN Assy (CN103)- LOAB Assy (5P connector assy) MAIN Assy CN115-pin 12 (INSIDE SW signal) • Check the loading drive signal : IC351-pin 14, 15, 16 • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P101 and P102.) Are the video and audio signals output ? Are they normal ? Yes No Does carriage move ? (stepping positioning) Yes Yes Does laser diode light ? Does the focus-in ? Yes No No Does spindle turn ? No OK • Check the following connections and drive IC : MAIN Assy CN114 (4P flexible cable) Check the Stepping motor signals, IC351-pin 31, 32, 34, 35 and IC601-pin 47, 48. • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P101 and P102.) • Check the following connections and drive IC : MAIN Assy CN115 (12P flexible cable) Check the Spindle motor signals and IC251-each pins. • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P101 and P102.) • Check the connection between JCKB Assy and MAIN Assy. • Check voltage regulator of JCKB Assy IC508-pin 2 (+5V) for Video circuit, IC507 (+5V) for Audio circuit. • Check the interface of 16M SDRAM (IC741) for EBY-chip (IC701) and 64M SDRAM (IC781) for AV1 (IC751) on the MAIN Assy. • Check digital data of video and audio signals shown to each schematic diagram and an analog signal line. In addition, check CLK. audio system: 22/24MHz, video system: 27MHz • Check the following connection, IC351, IC101, IC201 : MAIN Assy CN111 - Pickup Assy (24P flexible cable) IC351-pin 9, 10, IC101-pin41 and IC201-pin 32, 47 for Focus Drive • Check the +6V and +12V power supply voltage and SW+5V (If +6V voltage is not supplied, check the micro-fuse P101 and P102.) • Check it whether the pickup is defectiveness. Perform the section "7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE" and check the LD current value. C101 (for DVD LD) and C103 (for CD LD) of MAIN are missing. • Regarding DVD LD (650nm) : Check each signals of CN111-pin 17 (PD), pin 18 (LD650), IC101-pin 17 and Q101 Regarding CD LD (780nm) : Check each signals of CN111-pin 17 (PD), pin 16 (LD780), IC101-pin 17 and Q102 PD: Monitor Power Diode (signal output) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 73 5 6 7 8 5 6 7 8 C D F A B E 7.1.13 DISASSEMBLY Bonnet and Tray panel 1 Diagnosis of the MAIN Assy 2 6 3 3 5 5 4 Tray panel Tray 1 Remove the bonnet by removing the six screws. 2 Press the � STANDBY/ON button to turn on the power. 3 Press the 0 button to open the tray. 4 Remove the tray panel. 5 Press the 0 button to close the tray. 6 Press the � STANDBY/ON button to turn off the power. How to open the Tray when the power cannot be on Slit Tray open Drive cam LOADING MECHA. Assy Screwdriver (small) Screwdriver (small) Projection Insert a screwdriver (small) into the slit located at the bottom of the unit, and slide the projection of the drive cam in the LOADING MECHA. Assy in the direction of the arrow, as indicated in the photo. If the tray pops out a little, fully pull it out by a hand. Note 1 : Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. Note 2 : For performing the diagnosis shown below, the following jigs for service are required: • Jig cables : GGD1298 (21 pin) × 2, GGD1505 (30 pin) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 74 1 2 3 4 1 2 3 4 C D F A B E 1 Unhook the six hooks. 2 Remove the front panel section. Front panel section 2 Front panel section 2 1 Bottom view 1 1 1 1 1 FLKB Assy E PWSB Assy F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 75 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the two screws. 2 Remove the two PCB supports. 3 Remove the three flexible cables. 4 Remove the MAIN Assy. 5 Connect the three jig cables. 6 Arrange the unit as shown in the below. MAIN Assy 3 Front panel section MAIN Assy B MAIN Assy B JCKB Assy C SUBB Assy D Cutting pliers PCB support 2 Cutting pliers PCB support 2 1 1 3 4 3 3 6 Diagnosis Jig cable (GGD1298) 5 Jig cable (GGD1298) 5 Jig cable (GGD1505) CN503 CN501 CN901 CN901 CN551 CN551 CN402 CN402 CN603 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 76 1 2 3 4 1 2 3 4 C D F A B E LOADING MECHA. Assy 4 Rear view 1 C D LOADING MECHA. Assy 2 2 2 2 3 3 3 3 4 1 Short-circuit two points of C and D by soldering. 2 Disconnect the four connectors. Note: After replacement, connect the flexible cable, then remove the soldered joint (open). 3 Remove the four screws. 4 Remove the LOADING MECHA. Assy. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 77 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the bridge by removing the one screw. 2 Pull out the tray, then remove it by pressing the hook. Tray 1 Front Side 1 -1 1 -2 2 -1 2 -2 Loading Base Triangle Drive Cam Pin Hook Bridge Tray Note when reinserting the Tray Removing the Traverse Mecha. Assy-S and Pickup Assy-S When reinserting the tray, first align the triangle printed on the loading base and the pin of the drive cam, then insert the tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 78 1 2 3 4 1 2 3 4 C D F A B E 1 Dislodge the flexible cables from their factory placement. 2 Remove the four hooks. 3 Remove the Traverse Mecha. Assy-S. Traverse Mecha. Assy-S 2 × 2 Bottom view Traverse Mecha. Assy-S Flexible cable for the pickup Flexible cable for the spindle motor 1 1 1 2 × 2 2 3 Flexible cable for the stepping motor Front side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 79 5 6 7 8 5 6 7 8 C D F A B E 1 Dislodge the flexible cable for the pickup from its packaged placement. 2 Remove the flexible cable for the pickup. 3 Remove the two adjustment screws and two adjustment springs. 4 Remove the Pickup Assy-S. Pickup Assy-S 3 Note: The Pickup Assy-S can be removed without removing the Traverse Mecha. Assy-S. (shown as Step ø.) Bottom view Flexible cable for the pickup 1 4 3 3 1 2 Front side Pickup Assy-S Adjustment screw (Skew screw) Adjustment screw (Skew screw) Adjustment spring (Skew spring) Adjustment spring (Skew spring) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 80 1 2 3 4 1 2 3 4 C D F A B E 5 5 5 Remove the two screws. Silicone adhesive GEM1037 Silicone adhesive GEM1037 Pickup Assy-S Note: The screws are secured with the silicone adhesive. Make sure to apply the silicone adhesive after reattaching the screws. Leaf spring Joint spring Joint 03 : Conductive surface Hook Hook Arrangement of the flexible cable for the spindle motor : Conductive surface Arrangement of the flexible cable for the stepping motor Front Side Front Side Bottom view Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 81 5 6 7 8 5 6 7 8 C D F A B E Front Side Note: Be sure to move the Pickup Assy-S to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 2 1 3 7 Attach the flexible cable of the pickup to the connector. 1 Fold the flexible cable inward at the position of the reference line. 3 Fold the flexible cable of the pickup with the backing inward. 7 Pass the flexible cable below the hook, and fold it back. 8 Fold the flexible cable back at the hook. 9 Fold the flexible cable along the hook. 4 Pass the flexible cable through the hook not allowing any slack. 6 Hook the part folded in Step 1 to the hook. 5 Fold the flexible cable as indicated in the photo. Hook Bottom view 5 6 Make sure there is no slack in the cable Reference line Reference line Backing 97mm ± 2mm Reference line Hook Pass the cable below the hook Hook 8 Hook Hook 9 Make sure that the cable does not have any slack Make sure that the cable is loose 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 82 1 2 3 4 1 2 3 4 C D F A B E 7.1.14 UPDATING THE FIRMWARE Terminate any running programs on the PC to be used, including antivirus software and other memory-resident programs. Connect between the RS-232C terminal of the DVD-V5000 and COM 1 port of the PC. If any devices, such as a modem, are connected to COM ports other than COM 1, turn them off. Purpose: To update the firmware that has been written in IC603 (flash ROM) of the MAIN Assy File name: WV5k***6.exe Preparation before executing updating 1 Turn on the DVD-V5000. 2 Start the WV5k***6.exe program file by double-clicking on the icon. 3 Click on DOWNLOAD. Updating of the firmware starts. Notes: • If an error message is displayed, turn the unit off then back on. • Do NOT activate any other program until updating is finished. 4 Updating is finished when "Version up is complete" is displayed. 5 Turn off the DVD-V5000, by pressing the POWER button on the unit or on the remote control unit. Procedures www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 83 5 6 7 8 5 6 7 8 C D F A B E 7.2 IC 7 LA9704W (MAIN ASSY : IC101) • RF IC ¶ Block Diagram • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC LA9704W, LC78652W, BA6664FM, M56788AFP, SM8707HV, PD6345A, M65776AFP, AD7172KSTZ, LA73054, PE5286A, PCM1742KE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 84 1 2 3 4 1 2 3 4 C D F A B E ¶ Pin Function . o N e m a n n i P s n o it c n u F n i P 1 N F R t u p ni - F R 2 C C V ) D P D r o f( la ni m r e t ylp p u s r e w o P 3 P F R t u p ni + F R 4 1 D P t u p nila n gis p u k ci P 5 2 D P 6 3 D P 7 4 D P 8 D N G ) D P D r o f( d n u o r G 9 1 N I P t u p nila n gis p u k ci P 0 1 2 N I P 1 1 1 N I T 2 1 2 N I T 3 1 1 N I F 4 1 2 N I F 5 1 1 D D L t u p t u o 1 C P A 6 1 1 S D L t u p ni r o tin o m 1 C P A 7 1 2 D D L t u p t u o 2 C P A 8 1 2 S D L t u p ni r o tin o m 2 C P A 9 1 D N G ) m e ts y s o v r e S ( d n u o r G 0 2 H T D L ) V m 0 8 1 : L , V 5 . 1 - C C V : H ( e g n a h c dlo h s e r h t 1 C P A 1 2 N O D L ) N O : H ( la ni m r e t N O r e s a L 2 2 L E S D L ) 1 C P A : H ( la ni m r e t e g n a h c C P A 3 2 F O G A la ni m r e t ff o C G A F R 4 2 A C B ) e d o m A C B : H ( e g n a h c t n eiciff e o c e g r a h c sid cirtc ele H P 5 2 U G ) p u nia G : H ( la ni m r e t p u nia g la n gis o v r e S , F R 6 2 D C / D V D ) D V D : H ( la ni m r e t e g n a h c d n a b r e zila u q e - F R 7 2 E T / D P D ) D P D : H ( la ni m r e t e g n a h c t u p t u o E T 8 2 E T / P P ) P P : H ( la ni m r e t e g n a h c t u p t u o S T 9 2 C C V ) m e ts y s o v r e S ( la ni m r e t ylp p u s r e w o P 0 3 T C S Q E ) e cio h c nip 2 6 : H ( D C r o f e g n a h c Q E 1 3 H B / O W ) E L B O W : H ( la ni m r e t e g n a h c t u p t u o X I M H B 2 3 L E S F R ) p u B d 6 : H ( e g n a h c nia g r eifilp m a F R 3 3 M D D L la ni m r e t r o tin o m D D L 4 3 H T ) dlo h : H ( dlo h g nik c a r T 5 3 R T H X ) h t di w d n a b h gi H : L ( e g n a h c d n a b m o tt o B , g nik c a r T 6 3 C G S ) E T , P P , E F ( la ni m r e tlo rt n o c nia g o v r e S 7 3 L B E F la ni m r e t t n e m ts ujd a e c n ala b E F 8 3 L B E T la ni m r e t t n e m ts ujd a e c n ala b E T 9 3 P C la ni m r e t n oitc e n n o c r e s n e d n o c a , g nitt e s nia g p m u p e g r a h c r o f e c n a tsis e R 0 4 C H T dlo h g nik c a rt r o fla ni m r e t n oitc e n n o c e m ulo V 1 4 E F t u p t u o r o rr e s u c o F 2 4 E T t u p t u o r o rr e g nik c a r T 3 4 N P P g nitt e s nia g llu p - h s u p r o fla ni m r e t n oitc e n n o c s m h O 4 4 P P la ni m r e t t u p t u o llu p - h s u P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 85 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P s n o it c n u F n i P 5 4 S T t u p t u o la n gis s s o r c g nik c a r T 6 4 I S E T la ni m r e t t u p ni r o t a r a p m o c S E T 7 4 S E T t u p t u o S E T 8 4 F E D h c r a e s tc e ff e D 9 4 X I M H B t u p t u o e g n a h c elb o w , H B , H P 0 5 I C A H B t u p ni C A – H B 1 5 H B t u p t u o n oitc e t e d m o tt o b F R 2 5 H P t u p t u o n oitc e t e d k a e p F R 3 5 C O W t u c C D r o fla ni m r e t n oitc e n n o c e m ulo V 4 5 T E S I g nitt e s y c n e u q e rf r e t n e c F P B r o fla ni m r e t n oitc e n n o c s m h O 5 5 I A C B ) A C B n I( g nitt e s r e b m u n d e xif n oitc e t e d dlo h k a e p r o fla ni m r e t n oitc e n n o c s m h O 6 5 C H P C G A - F R r o fla ni m r e t n oitc e n n o c r e s n e d n o c n oitc e t e d H P 7 5 C P L o v r e s C D F R r o fla ni m r e t n oitc e n n o c r e s n e d n o C 8 5 C F E D h c r a e s tc e ff e d r o fla ni m r e t n oitc e n n o c e m ulo V 9 5 D N G ) m e ts y s F R ( d n u o r G 0 6 O F R la ni m r e t t u p t u o F R 1 6 F E R la ni m r e t t u p t u o e c n e r e f e R 2 6 1 C Q E D C r o fla ni m r e t g nitt e s r e zila u q E 3 6 C C V ) m e ts y s F R ( la ni m r e t ylp p u s r e w o P 4 6 2 C Q E D C r o fla ni m r e t g nitt e s r e zila u q E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 86 1 2 3 4 1 2 3 4 C D F A B E 7 LC78652W (MAIN ASSY : IC201) • Servo DSP IC ¶ Block Diagram 33 FE 32 TE 29 TILTE 30 RF_PH 31 RF_BH 28 JITT 26 TES 51 HFLIO 81 VPDO 15 XOUT 73 BUSYB 8 XTALOUT 100 LEFM 97 LEFM2 52 LASER 92 JV MPX Servo Processor (16×16+32→32) 8bit A/D 8bit D/A CMP Track Counter 56 PP2/EVENT Event Counter 55 FG 39 EFMIN 80 VCOC 96 DVDSYNC 14 XIN 58 CSB 94 ADRAO 60 WRB 59 RDB 91 CDFR 90 DVDFR 1 EFMOUT SLCIST1,2 FG Counter SLC CLV PLL Frame Synchronous Detection, Protection, Insertion EFM Demodulation Error Detect Correction C1-Twofold, C2-Fourfold Supplement/Mute D Attenuate Deemphasis Filter Clock Generator Command Interface 34,35 SLCO1,2 36,37 PCKIST1,2 87,88 PD01-3 83-85 P0-7 63-70 PP0-3 93 PCK For De-Interleave 16k SRAM DOUT Serial Out Sub Code Decode CRC DVD Lock Detection 74 SQOUT 47 FDO 48 TDO 45 SLDO 46 SPDO 44 TBAL 43 TILTDO 42 AUXO 24 DRF 22 FAST 95 DVDSYEQ 23 V_PB 21 FSEQ 77 WRQ 17 EMPH 4 ROMCK 5 LRSY 19 DOUT 3 ROMXA 57 RESB 2 C2F 20 EFLG 9 FSX 12 PW 18 SBSY 11 SFSY 75 CQCKB TEST1-4 76 RWC 10 SBCK 25,27 38,50 7 FBUSYB General Purpose Register 53,54 ,56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 87 5 6 7 8 5 6 7 8 C D F A B E ¶ Pin Function . o N e m a N n i P O /I n o it c n u F n i P 1 T U O M F E O M F E e ula v d e t a ts - y r a nib s a w t a h t e t a ts e h t t u p t u O 2 F 2 C O t u p t u o g alf 2 C 3 A X M O R O t u p t u o a t a d M O R - D C 4 K C M O R O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc tfih S 5 Y S R L O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc R / L 6 3 P P O /I t u p t u o D O - h c N t u p nila n gis .c n y s D V D / t u p t u o /t u p nitr o p e s o p r u p -la r e n e G 7 B Y S U B F O t u p t u o D O - h c N n oit a r e p o s s e c o r p P S D f o t u p t u o la n gis y s u B 8 T U O L A T X O t u p t u o k c olc m e ts y s la n r e tx E 9 X S F O t u p t u o la n gis .c n y s e m a rf 1 D C 0 1 K C B S I t u p ni k c olc t u o g nid a e r e d o c b u S 1 1 Y S F S O e d o c b u s f o t u p t u o la n gis .c n y s e m a r F 2 1 W P O t u p t u o W d n a V , U , T , S , R , Q , P e d o c b u S 3 1 S S V − nip D N G 4 1 N I X I ) z H M 4 4 3 9 . 6 1 ( r o t a n o s e r la ts y r c a tc e n n o C 5 1 T U O X O r o t a n o s e r la ts y r c a tc e n n o C 6 1 1 D D V D − tiu c ric n oit allic s o e h t f o ylp p u s r e w o p V 3 . 3 7 1 H P M E O sis a h p m e e d e h t f o nip r o tin o M 8 1 Y S B S O k c olb e d o c b u s e h t f o t u p t u o la n gis .c n y S 9 1 T U O D O t u p t u o a t a d J A I E oid u A 0 2 G L F E O 2 C d n a 1 C n oitc e rr o c r o rr e e h t f o r o tin o m e t a ts n oitc e rr o c r o rr E 1 2 Q E S F O la n gis .c n y s e m a rf D V D / D C e h t f o r o tin o m n oitc e t e D 2 2 T S A F O t u p t u o D O - h c N r o tin o m d e e p s k c a b y al P 3 2 B P _ V O lo rt n o c V L C / o v r e s h g u o r e h t f o t u p t u o r o tin o M 4 2 F R D O r o tin o m s u c o f n I 5 2 3 T S E T I 3 t u p nits e T 6 2 S E T I t u p nila n gis r o rr e g nik c a r T 7 2 2 T S E T I 2 t u p nits e T 8 2 T T IJ I L L P M F E f o t u p nila n gis g nitc e t e d ytit n a u q r e ttiJ 9 2 E T L I T I t u p nila n gis r o rr e tli T 0 3 H P _ F R I t u p nila n gis dlo h k a e p F R 1 3 H B _ F R I t u p nila n gis dlo h m o tt o b F R 2 3 E T I t u p nila n gis r o rr e g nik c a r T 3 3 E F I t u p nila n gis r o rr e s u c o F 4 3 1 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 1 nip g nitt e s t n e rr u C 5 3 2 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 2 nip g nitt e s t n e rr u C 6 3 1 O C L S O C L S r o f 1 t u p t u o lo rt n o C 7 3 2 O C L S O C L S r o f 2 t u p t u o lo rt n o C 8 3 1 T S E T I 1 t u p nits e T 9 3 N I M F E I t u p ni + M F E / M F E 0 4 D D V A − o v r e s r o f A / D d n a D / A f o ylp p u s r e w o p V 5 1 4 S S V A − o v r e s r o f A / D d n a D / A f o D N G 2 4 O X U A O t u p t u o y r ailix u a A D 3 4 O D T L I T O t u p t u o la n gis lo rt n o c tli T 4 4 L A B T O t u p t u o la n gis lo rt n o c e c n ala b g nik c a r T 5 4 O D L S O t u p t u o la n gis lo rt n o c d el S 6 4 O D P S O t u p t u o la n gis lo rt n o c eld nip S 7 4 O D F O t u p t u o la n gis lo rt n o c s u c o F 8 4 O D T O t u p t u o la n gis lo rt n o c g nik c a r T 9 4 F E R V − o v r e s r o f A / D f o le v el e c n e r e f e R 0 5 4 T S E T I 4 t u p nits e T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 88 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P O /I n o it c n u F n i P 1 5 O I L F H O /I t u p t u o /t u p nila n gis n oitc e t e d r o rri M 2 5 R E S A L O lo rt n o c F F O / N O r e s al r o f nip t u p t u O 3 5 B D C _ D V D / 0 P P O /I t u p t u o la n gis n oit a ni m ir c sid c si D / t u p t u o /t u p nitr o p e s o p r u p -la r e n e G 4 5 B R R E C R C / 1 P P O /I t u p t u o la n gis tlu s e r C R C e d o c b u S / t u p t u o /t u p nitr o p e s o p r u p -la r e n e G 5 5 G F I t u p ni r e t n u o c G F 6 5 T N E V E / 2 P P O /I t u p ni r e t n u o c t n e v E / t u p t u o /t u p nitr o p e s o p r u p -la r e n e G 7 5 B S E R I t u p nit e s e R 8 5 B S C I t u p nitc ele s pih C 9 5 B D R I t u p nila n gis g nid a e r e t a ts la n r e t n I 0 6 B R W I t u p nila n gis g nitir w a t a d / d n a m m o C 1 6 2 D D V D − ylp p u s r e w o p V 5 2 6 S S V − D N G 3 6 0 P O /I t u p t u o /t u p ni a t a d / d n a m m o C 4 6 1 P 5 6 2 P 6 6 3 P 7 6 4 P 8 6 5 P 9 6 6 P 0 7 7 P 1 7 S S V − D N G 2 7 1 D D V D − la n r e t ni r o f ylp p u s r e w o p V 3 . 3 3 7 B Y S U B O s s e c o r p d n a m m o c f o t u p t u o la n gis y s u B 4 7 T U O Q S O Q e d o c b u s f o t u p t u o lair e S 5 7 B K C Q C I t u p t u o a t a d Q e d o c b u s r o f t u p ni k c olc tfih S 6 7 C W R I Q e d o c b u s f o t u p ni n ois si m r e p e t a d p U 7 7 Q R W O Q e d o c b u s f o r o tin o m y d a e r t u o d a e R 8 7 S S V A − k c olc m e ts y s la n r e t ni r o f D N G L L P 9 7 R F P R V − k c olc m e ts y s r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 0 8 C O C V I k c olc m e ts y s r o f r e tlif L L P a tc e n n o C 1 8 O D P V O 2 8 D D V A − k c olc m e ts y s r o f ylp p u s r e w o p V 5 L L P 3 8 1 O D P O /I k c a b y alp M F E r o f 1 nip n oitc e n n o c r e tlif L L P 4 8 2 O D P O /I k c a b y alp M F E r o f 2 nip n oitc e n n o c r e tlif L L P 5 8 3 O D P O /I k c a b y alp M F E r o f 3 nip n oitc e n n o c r e tlif L L P 6 8 S S V A − k c a b y alp M F E r o f D N G L L P 7 8 1 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 1 g nitt e s t n e rr u C 8 8 2 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 2 g nitt e s t n e rr u C 9 8 D D V A − k c a b y alp M F E r o f ylp p u s r e w o p V 5 L L P 0 9 R F D V D − 1 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 1 9 R F D C − 2 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 2 9 V J O k c a b y alp M F E r o f k c olc L L P f o t u p t u o r e ttiJ 3 9 K C P O k c a b y alp M F E r o f t u p t u o k c olc ti B 4 9 O A R D A I t u p ni s s e r d d A 5 9 Q E Y S D V D I t u p ni e slu p e zin o r h c n y s D V D 6 9 C N Y S D V D I t u p nila n gis s u o n o r h c n y s D V D 7 9 2 M F E L O 2 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O 8 9 1 D D V D − O /I r o f ylp p u s r e w o p V 3 . 3 9 9 S S V − D N G 0 0 1 M F E L O 1 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 89 5 6 7 8 5 6 7 8 C D F A B E 7 BA6664FM (MAIN ASSY : IC251) • Three-phase Motor Driver ¶ Block Diagram ¶ Pin Function DRIVER TSD PS TORQUE CURRENT SENSE AMP SENSE AMP SHORT BRAKE D R Q CK Q TL GAIN CONTROL GAIN SWITCH Vcc Vcc Vcc A3 2 A2 4 A1 7 GND 8 H1+ 9 H1- 10 H2+ 11 H2- 12 H3+ 13 H3- 14 GSW 26 FG 24 VCC 25 RNF 28 VM 27 HALL AMP PS 23 EC 22 ECR 21 FR 20 FG2 19 SB 18 CNF 17 BR 16 VH 15 BRAKE MODE HALL BIAS No. Pin Name Pin Name Pin Function No. Pin Function 1 N.C. N.C. 16 BR Brake mode switching pin 2 A3 Output pin 17 CNF Capacitor connection pin for phase compensation 3 N.C. N.C. 18 SB Short brake pin 4 A2 Output pin 19 FG2 FG 3-phase mix signal output pin 5 N.C. N.C. 20 FR Rotation detecting pin 6 N.C. N.C. 21 ECR Control reference pin of output voltage 7 A1 Output pin 22 EC Output voltage control pin 8 GND GND pin 23 PS Power save pin 9 H1+ Hall signal input pins 24 FG FG signal output pin 10 H1- 25 VCC Power supply pin 11 H2+ 26 GSW Gain switching pin 12 H2- 27 VM Motor power pin 13 H3+ 28 RNF Resistor connection pin for output current detection 14 H3- FIN FIN GND 15 VH Hall bias pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 90 1 2 3 4 1 2 3 4 C D F A B E M56788AFP (MAIN ASSY : IC351) • FTS Driver IC Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 91 5 6 7 8 5 6 7 8 C D F A B E 7 SM8707HV (MAIN ASSY : IC481) • Clock Generate IC ¶ Pin Arrangement ¶ Pin Function . o N e m a n n i P .ri D s n o it c n u F n i P 1 1 D D V R W P ) s s e nis u b la tigid ( 1 la ni m r e t ylp p u s r e w o P 2 1 S S V D N G ) s s e nis u b la tigid ( 1 la ni m r e t h tr a E 3 1 O M T U O )t u p t u o d e xif z H M 7 2 e h t( 1 la ni m r e t t u p t u o o e di V 4 2 O M T U O )t u p t u o d e xif z H M 7 2 e h t( 2 la ni m r e t t u p t u o o e di V 5 2 D D V R W P ) s s e nis u b g ola n a ( 2 la ni m r e t ylp p u s r e w o P 6 2 S S V D N G ) s s e nis u b g ola n a ( 2 la ni m r e t h tr a E 7 I T X N I n oitc e n n o c r o t a n o s e r la ts y r c r o la ni m r e t t u p ni k c olc la n r e tx E 8 O T X T U O la ni m r e t n oitc e n n o c r o t a n o s e r la ts y r C 9 1 O S T U O ) n oit a xif z H M 0 4 6 8 . 6 3 ( 1 la ni m r e t t u p t u o m e ts y s g nin oitid n o c la n gi S 0 1 1 O A T U O )t u p t u o sf 2 1 5 e h t( 1 la ni m r e t t u p t u o d n u o S 1 1 3 S S V D N G ) s s e nis u b la tigid ( 3 la ni m r e t h tr a E 2 1 3 D D V R W P ) s s e nis u b la tigid ( 3 la ni m r e t ylp p u s r e w o P 3 1 2 O S T U O ) n oit a xif z H M 4 4 3 9 . 6 1 ( 2 la ni m r e t t u p t u o m e ts y s g nin oitid n o c la n gi S 4 1 L E S F N I la ni m r e t e g n a h c y c n e u q e rf g nilp m a S z H k 8 4 = sf :" L " = L E S F z H k 1 . 4 4 = sf :" H " = L E S F )t u p ni r e g girt t di m h c S ,r e tsis e r p u -llu p e dis ni si e r e h T ( 5 1 3 O S T U O ) n oit a xif z H M 8 8 6 8 . 3 3 ( 3 la ni m r e t t u p t u o m e ts y s g nin oitid n o c la n gi S 6 1 C N – la ni m r e t d e s u n U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 92 1 2 3 4 1 2 3 4 C D F A B E 7 PD6345A (MAIN ASSY : IC601) • FR CPU ¶ Pin Function . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 6 1 D / 0 2 P 0 D O /I t u p t u o /t u p ni s u b a t a D 2 7 1 D / 1 2 P 1 D 3 8 1 D / 2 2 P 2 D 4 9 1 D / 3 2 P 3 D 5 0 2 D / 4 2 P 4 D 6 1 2 D / 5 2 P 5 D 7 2 2 D / 6 2 P 6 D 8 3 2 D / 7 2 P 7 D 9 4 2 D / 0 3 P 8 D 0 1 5 2 D / 1 3 P 9 D 1 1 6 2 D / 2 3 P 0 1 D 2 1 7 2 D / 3 3 P 1 1 D 3 1 8 2 D / 4 3 P 2 1 D 4 1 9 2 D / 5 3 P 3 1 D 5 1 0 3 D / 6 3 P 4 1 D 6 1 1 3 D / 7 3 P 5 1 D 7 1 S S V D N G − d n u o r G 8 1 0 0 A / 0 4 P 0 A O t u p t u o s u b s s e r d d A 9 1 1 0 A / 1 4 P 1 A 0 2 2 0 A / 2 4 P 2 A 1 2 3 0 A / 3 4 P 3 A 2 2 4 0 A / 4 4 P 4 A 3 2 5 0 A / 5 4 P 5 A 4 2 6 0 A / 6 4 P 6 A 5 2 7 0 A / 7 4 P 7 A 6 2 3 C C V D 3 . 3 + V − ylp p u s r e w o P 7 2 2 C C V D 5 . 2 + V − ylp p u s r e w o P 8 2 8 0 A / 0 5 P 8 A O t u p t u o s u b s s e r d d A 9 2 9 0 A / 1 5 P 9 A 0 3 0 1 A / 2 5 P 0 1 A 1 3 1 1 A / 3 5 P 1 1 A 2 3 2 1 A / 4 5 P 2 1 A 3 3 3 1 A / 5 5 P 3 1 A 4 3 4 1 A / 6 5 P 4 1 A 5 3 5 1 A / 7 5 P 5 1 A 6 3 S S V D N G − d n u o r G 7 3 6 1 A / 0 6 P 6 1 A O t u p t u o s u b s s e r d d A 8 3 7 1 A / 1 6 P 7 1 A 9 3 8 1 A / 2 6 P 8 1 A 0 4 9 1 A / 3 6 P 9 1 A 1 4 0 2 A / 4 6 P 0 2 A 2 4 1 2 A / 5 6 P 1 2 A 3 4 2 2 A / 6 6 P 2 2 A 4 4 3 2 A / 7 6 P L B W O ) nia m ( W / R D V D o t g nid n o p s e rr o c n oitc e t e d elb b o W r o F 5 4 S V A D D N G − d n u o r G 6 4 C V A D D 3 . 3 + V − ylp p u s r e w o P 7 4 0 A D 1 P E T S I lo rt n o c r o t o m g nip p e ts r o F 8 4 1 A D 2 P E T S I 9 4 2 A D V R D O L I e vir d r o t o m tc ele s d n a r o o d , g nid a o L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 93 5 6 7 8 5 6 7 8 C D F A B E No. Mark Pin Name I/O Pin Function 50 AN0 NC I NC 51 AN1 NC I NC 52 AN2 NC I NC 53 AN3 XOEM I OEM model protection input 54 AN4 LDREAD I Input for LD current value indication 55 AN5 EXT-KEY0 I KEY0 input 56 AN6 EXT-KEY1 I KEY1 input 57 AN7 LODPOS I Loading clamp position SW input 58 AVCC V+3.3D − Power supply 59 AVRH V+3.3D − Power supply 60 AVSS/AVRI GND − Ground 61 VSS GND − Ground 62 PP0/ATGX SLDPOS I SW input of slider inside position 63 PP1/FRCK GSW O Gain up at ACBR (at ACBR: H, others: L) 64 PP2/IN0 NC I NC 65 PP3/IN1 GU O RF, servo signal gain up terminal (H: Gain up) 66 PP4/IN2 XMON O Mute of DRV (spindle motor ON: H) 67 PP5/IN3 XDRVMUT O FTS driver mute output 68 PP6 LT1_3V O Communication response to the FL controller 69 PP7 XRDY_3V I Communication request from the FL controller 70 VCC3 V+3.3D − Power supply 71 VCC2 V+2.5D − Power supply 72 PO0/OC0 XCURDET I Actuator current detection input Servo OFF for "L" 300ms 73 PO1/OC1 XCBUSY I Busy signal of command process Command acceptable : "L" 74 PO2/OC2 XDSPRST O Servo DSP reset 75 PO3/OC3 BCA − BCA read signal (at BCA read: H) (Not used) 76 PO4/OC4 NC I NC 77 PO5/OC5 PPCNT O Switch of TZC in WBL traversal (at PP: H) 78 PO6/OC6 XDFINH O Defect signal control (DEFECT ON: Hi-Z; OFF: "L") 79 PO7/OC7 DPD/TE O H=1 beam, L=3 beams 80 VSS GND − Ground 81 PN0/AIN0 DVD/XCD O RF EQ switching signal at DVD/CD "H": DVD, "L": CD 82 PN1/BIN0 AGOFF O H": Turn off AGC of RFI 83 PN2/AIN1 650X780 O 780nm/650nm switching signal 84 PN3/BIN1 LD ON O ON/OFF control signal of laser diode 85 PN4/AIN2 WP O EEPROM write protect 86 PN5/BIN2 RFSEL O RF amplifier gain change terminal (H: Gain up) 87 PN6/AIN3 XCD2X O For VCD double speed playback 88 PN7/BIN3 OEICG O H": Gain of OEIC up to 6d 89 PM0/ZIN0 EN33M O NC 90 PM1/ZIN1 EN24M O NC 91 PM2/ZIN2 V SEL O Not used 92 PM3/ZIN3 V SEL2 O Not used 93 PL0/SDA1 SDAI I2C Serial I2C control lines 94 PL1/SDA0 NC − NC 95 PL2/SCL1 SCLI I2C Serial I2C control lines 96 PL3/SCL0 NC − NC 97 PL4 CTS I RS-232C clear to send input 98 PL5 DTR O RS-232C clear to send output 99 PL6/UC0 LOAD_ON O FLASH MEMORY write protect release 100 VSS GND − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 94 1 2 3 4 1 2 3 4 C D F A B E . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 0 1 0 N I T / 0 K P T S R E Q V X O la n gis t e s e r 3 E Q V 2 0 1 1 N I T / 1 K P 1 O R P S C X − d e s u t o N 3 0 1 2 N I T / 2 K P 5 E Q V S C X − la n gis g nih cti w s C 2 3 2 - S R 4 0 1 3 N I T / 3 K P M 6 1 N E O . C . N 5 0 1 0 T O T / 4 K P 8 4 X 4 4 O n oitc ele s 8 4 / 4 4 sf k c olc ylp p u s P S A D d n a C A D 6 0 1 1 T O T / 5 K P Y D R X 4 9 3 1 I . C . N 7 0 1 2 T O T / 6 K P 1 L E S O A O d e s u t o N 8 0 1 3 T O T / 7 K P I X / P O la n gis e g n a h c e c a r r e t n I/ e vis s e r g o r P 9 0 1 3 C C V D 3 . 3 + V − ylp p u s r e w o P 0 1 1 2 C C V D 5 . 2 + V − ylp p u s r e w o P 1 1 1 0 T N I/ 0 J P 0 T N I X I 2 1 1 1 T N I/ 1 J P 1 T N I X I 3 1 1 2 T N I/ 2 J P 0 1 Q R I X I 0 # t p u rr e t ni pih c Y B E 4 1 1 3 T N I/ 3 J P 1 1 Q R I X I 1 # t p u rr e t ni pih c Y B E 5 1 1 4 T N I/ 4 J P Y S U B A X I " L " n oit a r e p o s s e c o r p P S D f o la n gis y s u B 6 1 1 5 T N I/ 5 J P D L H T I la n gis g nir o tin o m d e e p s k c a b y al P 7 1 1 6 T N I/ 6 J P Y S B S I )" H " I S + O S d oir e p ( k c olb e d o c b u s f o la n gis .c n y S 8 1 1 7 T N I/ 7 J P . C . N I . C . N 9 1 1 0 I S / 0 I P I S S I t u p ni a t a d s u b lair e S 0 2 1 0 O S / 1 I P V 3 _ O S S O t u p t u o a t a d s u b lair e S 1 2 1 0 K C S / 2 I P V 3 _ K C S S I t u p ni k c olc s u b lair e S 2 2 1 1 I S / 3 I P V 3 _ D X R I D X R C 2 3 2 - S R 3 2 1 1 O S / 4 I P V 3 _ D X T O D X T C 2 3 2 - S R 4 2 1 1 K C S / 5 I P C N O C N 5 2 1 2 I S / 0 H P T L 4 9 3 1 O C N 6 2 1 2 O S / 1 H P M C I P S D I d e s u t o N 7 2 1 2 K C S / 2 H P C N I C N 8 2 1 0 D M D N G − d n u o r G 9 2 1 1 D M D N G − 0 3 1 2 D M D N G − 1 3 1 S S V D N G − d n u o r G 2 3 1 2 C C V D 5 . 2 + V − ylp p u s r e w o P 3 3 1 S S V D N G − d n u o r G 4 3 1 1 X L A T X E O 5 3 1 0 X L A T X I 6 3 1 3 C C V D 3 . 3 + V − ylp p u s r e w o P 7 3 1 2 Q E R D / 0 C P 1 T E S E R O t e s e r P S D m e ts y s oid u A 8 3 1 2 K C A D / 1 C P 0 P S D A S C X O d e s u t o N 9 3 1 2 P O E D / 2 C P 2 F D S C X O ) R / L m e ts y s d n u o rr u s r o f( tc ele s pih c C A D 0 4 1 0 Q E R D / 0 B P 0 Q E R D X I pih C Y B E o t t u p t u o e s n o p s e r A M D 1 4 1 0 K C A D / 1 B P 0 K C A D O pih C Y B E m o rf t u p nits e u q e r A M D 2 4 1 0 P O E D / 2 B P D C N E O . C . N 3 4 1 1 Q E R D / 3 B P 1 Q E R D X I pih C 1 - V A o t t u p t u o e s n o p s e r A M D 4 4 1 1 K C A D / 4 B P 1 K C A D X O pih C 1 - V A m o rf t u p nits e u q e r A M D 5 4 1 1 P O E D / 5 B P W O L F _ N E O . C . N 6 4 1 X R W O I/ 6 B P P M O C X O r e vir d o e div f o e g n a h c e c n e r e ffid r olo c/ B G R 7 4 1 X D R O I/ 7 B P 3 F D S C X O . C . N 8 4 1 S S V D N G − d n u o r G 9 4 1 X O S C / 0 A P 0 2 S C X O M O R h s al F o t t u p t u o tc ele s pih C 0 5 1 X 1 S C / 1 A P 6 S C X O tc ele s pih C 1 - V A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 95 5 6 7 8 5 6 7 8 C D F A B E . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 5 1 X 2 S C / 2 A P 3 S C X O ) pih C Y B E ( A 6 8 2 5 E P f o tc ele s pih C 2 5 1 X 3 S C / 3 A P 4 S C X O P S D o v r e s f o tc ele s pih C 3 5 1 X 4 S C / 4 A P 3 2 S C X O ) M 1 ( M A R S o t t u p t u o tc ele s pih C 4 5 1 X 5 S C / 5 A P . C . N O . C . N 5 5 1 X 6 S C / 6 A P . C . N O . C . N 6 5 1 X 7 S C / 7 A P . C . N O . C . N 7 5 1 3 C C V D 3 . 3 + V − ylp p u s r e w o P 8 5 1 2 C C V D 5 . 2 + V − ylp p u s r e w o P 9 5 1 X I M N − − d e xif D 3 . 3 + V 0 6 1 X T S H − − d e xif D 5 . 2 + V 1 6 1 X T I N I T I N I X I 2 6 1 Y D R / 0 8 P Y D R I 3 6 1 X T N R G B / 1 8 P E T U M A X I t u p t u o oid u a h c 2 f o e t u m e g a ts la ni F 4 6 1 Q R B / 2 8 P E T U M M X O e t u m le n n a h c itlu m oid u A 5 6 1 X D R / 3 8 P D R X O 6 6 1 X 0 R W / 4 8 P 0 R W X O 7 6 1 X 1 R W / 5 8 P 1 R W X O 8 6 1 S S V D N G − d n u o r G 9 6 1 K L C S Y S / 0 9 P K L C S Y S O . C . N 0 7 1 1 9 P T S R F D − ) R / L t n o rf r o f( t e s e r C A D 1 7 1 K L C M / 2 9 P 1 T S R F D − ) E F L d n a d n u o rr u s ,r e t n e c r o f( t e s e r C A D 2 7 1 3 9 P 0 F D S C X O ( tc ele s pih c C A D ← ) 3 T A L X 3 7 1 X A B L / 4 9 P 1 F D S C X O d e s u t o N 4 7 1 X A A B / 5 9 P T S R Q A X O d e s u t o N 5 7 1 6 9 P E Q A S C X O d e s u t o N 6 7 1 X E W / 7 9 P T N E M T I d e s u t o N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 96 1 2 3 4 1 2 3 4 C D F A B E 7 M65776AFP (MAIN ASSY : IC751) • MPEG2 Decorder IC ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 97 5 6 7 8 5 6 7 8 C D F A B E ¶ Pin Function . o N e m a n n i P .ri D s n o it c n u F n i P 8 0 2 - 1 0 2 ] 0 : 7 [ D B N I nip y rt n e a t a d m a e rts ti B 2 K L C B N I ) k c olc ( nip D B f o la n gis e b o rt S 3 N E D B N I . nip D B y b f o elp m a s a e n o d a t a d f o ytidila v ni/ e vitc e ff e r e d r o sih T . K L C B f o e g d e tr a ts a h ti w elp m a s a e n o d sitI 4 Q E R D B T U O la n gis d n a m e d a t a D 5 H C E S B N I .r o tc e s a f o e ty b p o t h ti w e r a nip D B f o a t a d r e h t e h w ti r e d r o sih T 7 8 - 4 8 5 9 - 0 9 2 0 1 - 7 9 ] 0 : 5 1 [ D M O /I M A R D S h ti w e nil r e fs n a rt a t a D 5 5 - 3 5 3 6 - 8 5 9 6 , 7 6 , 5 6 ] 0 : 1 1 [ A M T U O M A R D S f o e nil s s e r d d A 8 6 , 6 6 ] 0 : 1 [ A B M T U O e nil e cio h c k n a b M A R D S 0 7 S C D T U O M A R D S f o tc ele s pih C 3 7 2 S C D 4 7 3 S C D 5 7 4 S C D 6 7 5 S C D 7 7 S A R T U O M A R D S f o e nillo rt n o c ) e b o rt S s s e r d d A w o R ( S A R 8 7 S A C T U O M A R D S f o e nillo rt n o c ) e b o rt S s s e r d d A n m ulo C ( S A C 2 8 U M Q D T U O M A R D S f o e nillo rt n o c M Q D 3 8 L M Q D T U O M A R D S f o e nillo rt n o c M Q D 0 8 E W D T U O M A R D S f o e nillo rt n o c E W 9 7 K L C M T U O M A R D S f o k c olc t n e m e v o M 3 8 1 K L C X P T U O k c olc le xip z H M 7 2 2 8 1 P K L C X P T U O k c olc le xip z H M 4 5 , 8 5 1 , 7 5 1 6 8 1 - 4 8 1 2 9 1 - 8 8 1 ] 0 : 7 [ D P T U O . a t a d le xip la tigi D .t u p t u o siti d n a ,s u b tib 8 y b f o elpitlu m e n o d si r C / b C / Y 8 7 1 C N Y S C N I la ni m r e t t u p nila n gis C N Y S e tis o p m o C 9 7 1 Y E K D S O T U O t u p t u o g alf y e k D S O 7 7 1 D W P T U O t n e m e v o m n oit a zin o r h c n y s la n r e tx e r o f t u p t u o r o t a r a p m o c e s a h p e h T 1 8 1 C N Y S H T U O nip t u p t u o la n gis g nizin o r h c n y s la t n o zir o H 0 8 1 C N Y S V T U O nip t u p t u o la n gis g nizin o r h c n y s la citr e V 4 6 1 0 O A T U O C A D r o f a t a d M C P lair e S . a t a d f R /f L t u p t u o tI 6 6 1 1 O A T U O C A D r o f a t a d M C P lair e S . a t a d w S / C t u p t u o tI 7 6 1 2 O A T U O C A D r o f a t a d M C P lair e S . a t a d s R /s L t u p t u o tI 8 6 1 D O A T U O C A D r o f a t a d M C P lair e S .t u p t u o e r u txi m n w o d e h t r o f sitI 9 6 1 D A A T U O t u p t u o a t a d y r allaic n A 6 7 1 K L C O D T U O k c olc tib M C P 9 5 1 K L C R L T U O ) R / L ( a t a d m e ts y s oid u a n oit alu d o m e d o c e slu p f o n oitc nitsid le n n a h c r o f k c ol C 3 7 1 K L C C A D T U O C A D f o k c olc t n e m e v o m elp m a s d e t a r e g g a x E 1 6 1 K C B D C N I P S D D C y b t u p ni si h cih w k c olc tib n oit alu d o m e d o c e slu p e h T 0 6 1 K C R L D C N I P S D D C y b t u p ni si h cih w k c olc R / L e h T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 98 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 3 6 1 N I D D C N I P S D D C y b t u p ni e r a h cih w a t a d m e ts y s oid u a M C P 2 6 1 A T A D D C N I t u p ni e c a fr e t ni oid u a la tigi D 0 7 1 0 T U O D T U O t u p t u o e c a fr e t ni oid u a la tigi D 1 7 1 1 T U O D T U O t u p t u o e c a fr e t ni oid u a la tigi D 1 1 - 6 9 1 - 4 1 4 2 - 1 2 ] 0 : 5 1 [ D H O /I nip O /I a t a D 6 2 , 5 2 4 3 - 9 2 9 3 - 6 3 ] 0 : 1 1 [ A H N I nip t u p ni s s e r d d A 5 4 E H B N I nip t u p nila n gis elb a n E h gi H e ty B 1 4 E R N I nip t u p nila n gis elb a n E d a e R 4 4 E W N I nip t u p nila n gis elb a n E e tir W 0 4 S C N I nip t u p nila n gis tc ele S pih C 6 4 Y D R T U O d e t elp m o c s a w e t o n a r o a t a d f o t u o d a e r t a h t s w o h s h cih w la n gis e g d el w o n k c a e h T 7 4 1 T N I T U O P F A 6 7 7 5 6 M m o rf U P C e dist u o r o fla n gis ts e u q e r t p u rr e t ni n a sitI 8 4 2 T N I 9 4 3 T N I 1 5 Q E R D T U O r e fs n a rt p a M ti B D S O r o fla n gis ts e u q e r A M D 2 5 K C A D N I r e fs n a rt p a M ti B D S O r o fla n gis e g d el w o n k c a A M D 5 9 1 , 4 9 1 ] 0 : 1 [ E D O M H N I nip g nitt e s n oit a r e p o f o e d o m e c a fr e t nits o H 7 1 1 F E R I N I nip t u p nit n e rr u c cirtc ele e c n e r e f e R 5 1 1 I R V A N I nip t u p ni e g a tlo v e c n e r e f e R 0 2 1 1 S A I B N I e c r u o s t n e rr u c f o nip n ois s e r p m i e g a tlo v s ai B 8 1 1 2 S A I B 9 1 1 Y A P T U O ) Y r o f( nip t u p t u o t n e rr u c cirtc ele g ola n A 6 1 1 B A P T U O ) b P r o f( nip t u p t u o t n e rr u c cirtc ele g ola n A 2 2 1 R A P T U O )r P r o f( nip t u p t u o t n e rr u c cirtc ele g ola n A 4 1 1 B T U O A D T U O . d n u o r g g ola n a n a o t d e tc e n n o c e B , 1 2 1 , 3 1 1 3 2 1 3 3 D D V A – ylp p u s r e w o p g ola n a V 3 . 3 4 2 1 3 3 D N G A – d n u o r g g ola n A 6 0 1 N I K L C N I la ni m r e t t u p ni k c olc m e ts y S .k c olc z H M 7 2 t u p nitI 5 0 1 O K L C T U O t u p t u o k c olc z H M 7 2 2 7 1 I K L C A N I la ni m r e t t u p ni k c olc m e ts y s oid u A 3 9 1 T E S E R N I la ni m r e t t e s e r e r a w d r a H , 7 9 1 , 6 9 1 0 0 2 ] 0 : 2 [ T S E T N I .lait n e t o p " L " niti xi F , 2 4 , 7 2 , 2 1 , 8 8 , 1 7 , 6 5 , 4 3 1 , 3 0 1 , 4 7 1 , 5 5 1 8 9 1 8 1 D D V – la ni m r e t ylp p u s r e w o p V 8 . 1 , 3 4 , 8 2 , 3 1 , 9 8 , 2 7 , 7 5 , 5 3 1 , 4 0 1 , 5 7 1 , 6 5 1 9 9 1 3 3 D D V – la ni m r e t ylp p u s r e w o p V 3 . 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 99 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P , 5 3 , 0 2 , 1 , 1 8 , 4 6 , 0 5 , 2 1 1 , 6 9 , 5 4 1 , 5 2 1 7 8 1 , 5 6 1 D N G – la ni m r e t d n u o r G 7 0 1 8 1 D D V A – L L P e dis ni r o fla ni m r e t ylp p u s r e w o p V 8 . 1 8 0 1 8 1 D N G A – L L P e dis ni r o fla ni m r e t d n u o r G 1 1 1 - 9 0 1 3 3 1 - 6 2 1 4 4 1 - 6 3 1 4 5 1 - 6 4 1 0 C N C N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 100 1 2 3 4 1 2 3 4 C D F A B E 7 AD7172KSTZ (MAIN ASSY : IC801) • Digital PAL/NTSC Video Encoder with Six DACs (10-bits), Color Control and Enhanced Power Management ¶ Pin Function 48 1 2 3 4 5 6 7 8 9 10 11 12 VAA P0 P1 P2 P3 P4 P5 P6 P7 CSO_HSO VAA GND COMP1 DAC A VAA DAC B VAA GND VAA DAC C DACD VAA GND DAC E 36 35 34 33 32 31 30 29 28 27 26 25 47 46 45 44 43 42 41 40 39 38 37 CLOCK GND VAA VSO RESET PAL_NTSC CLAMP TTX TTXREQ SCRESET/RTC RESET1 VREF GND HSYNC FIELD/VSYNC BLANK ALSB GND VAA SCLOCK SDATA RESET2 COMP2 DAC F 13 14 15 16 17 18 19 20 21 22 23 24 14 48 HSYNC CLOCK 16 BLANK 41 TTX 39 SCRESET/RTC GND 12,13,18,26,31,47 40 TTXREQ P0-P7 (COLOR DATA) 1 11 19 27 30 32 34 46 2 | 9 VAA DAC A 44 RESET 15 FIELD/ VSYNC VIDEO TIMING GENERATOR TELETEXT INSERTION BLOCK BRIGHTNESS AND CONTRAST CONTROL LUMA PROGRAMMABLE FILTER SHARPNESS FILTER PROGRAMMABLE CHROMA FILTER REAL-TIME CONTROL CIRCUIT SIN/COS DDS SLOCK MODULATOR MULTI-PLEXER YUV TO RGB MATRIX YUV LEVEL CONTROL BLOCK 10BIT DAC HUE CONTROL ADD SYNC INTERPOLATOR 4:2:2 TO 4:4:4 INTER- POLATOR 43 PAL_NTSC 20 SCLOCK 21 SDATA 17 35 ALSB 10 CSO_HSO 45 VSO 14 CLAMP I2C MPU PORT VCrCb TO YUV MATRIX 8 8 10 10 10 10 10 10 10 10 DAC B 33 DAC C 29 DAC E 25 DAC F 24 DAC D 28 RESET1 38 COMP1 36 RESET2 22 VREF 37 COMP2 23 10 10 10 10 Y 8 U 8 V 8 8 ADD BURST SATURATION CONTROL INTERPOLATOR MULTI-PLEXER 10BIT DAC 10 10BIT DAC DAC CONTROL BLOCK 10 10BIT DAC 10 10BIT DAC 10 10BIT DAC 10 DAC CONTROL BLOCK . o N e m a N O /I n o it c n u F n i P 1 V A A P ) V 5 + o t V 3 + ( ylp p u S r e w o P 2 0 P I B S L e h t st n e s e r p e r 0 P ) 0 P - 7 P ( tr o P le xi P b C r C Y d e x elpitlu M 2 : 2 : 4 tib - 8 3 1 P 4 2 P 5 3 P ¶ Pin Arrangement ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 101 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N O /I n o it c n u F n i P 6 4 P I B S L e h t st n e s e r p e r 0 P ) 0 P - 7 P ( tr o P le xi P b C r C Y d e x elpitlu M 2 : 2 : 4 tib - 8 7 5 P 8 6 P 9 7 P 0 1 O S H _ O S C O la n gi S c n y S t u p t u O L T T O S H r o O S C n oitc n u fla u D 1 1 V A A P ) V 5 + o t V 3 + ( ylp p u S r e w o P 2 1 D N G G ni P d n u o r G 3 1 D N G G ni P d n u o r G 4 1 C N Y S H O /I t u p ni n a s a r o ) e d o M r e ts a M ( t u p t u o o t d e r u gif n o c e b y a m nip sih T .la n gi S lo rt n o C ) 2 d n a 1 sle d o M ( C N Y S H .sla n gis c n y S ) e d o M e v al S ( t p e c c a d n a 5 1 C N Y S V / D L E I F O /I t u p t u o o t d e r u gif n o c e b y a m nip sih T .la n gi S lo rt n o C ) 2 e d o M ( C N Y S V d n a ) 1 e d o M ( D L E I F n oitc n u F la u D .sla n gis lo rt n o c e s e h t t p e c c a d n a ) e d o M e v al S ( t u p ni n a s a r o ) e d o M r e ts a M ( 6 1 K N A L B O /I .la n oit p o sila n gis sih T ." 0 " le v el cig ol si sih t n e h w d e r o n gi e r a st u p nile xip e h T .la n gi S lrt n o C g nik n al B o e di V 7 1 B S L A I .s s e r d d a U P M e h t f o B S L e h t p u st e s la n gis sih T .t u p n I s s e r d d A L T T 8 1 D N G G ni P d n u o r G 9 1 V A A P ) V 5 + o t V 3 + ( ylp p u S r e w o P 0 2 K C O L C S I t u p n I k c ol C e c a fr e t n Ilair e S tr o P U P M 1 2 A T A D S O /I t u p t u O /t u p n I a t a D lair e S tr o P U P M 2 2 2 T E S R I o e di V e h t f o s e d u tilp m a ela c s -llu flo rt n o c o t d e s u si D N G o t nip sih t m o rf d e tc e n n o c r o tsis e r m h o 0 0 6 A .) s C A D "lla m s " e h t( F d n a E , D s C A D m o rf sla n gi S 3 2 2 P M O C O 1 . 0 a tc e n n o C . F d n a E , d s C A D r o f ni P n oit a s n e p m o C µ . A A V o t P M O C m o rf r o tic a p a C F 4 2 F C A D O .t u p t u o A m 6 6 . 8 g nidiv o r p f o elb a p a c si C A D sih T .t u p t u O g ola n A V / C o e di V - S / D E R 5 2 E C A D O .t u p t u o A m 6 6 . 8 g nidiv o r p f o elb a p a c si C A D sih T .t u p t u O g ola n A U / Y o e di V - S / E U L B 6 2 D N G G ni P d n u o r G 7 2 V A A P ) V 5 + o t V 3 + ( ylp p u S r e w o P 8 2 D C A D O .t u p t u o A m 6 6 . 8 g nidiv o r p f o elb a p a c si C A D sih T .t u p t u O g ola n A Y / e tis o p m o C / N E E R G 9 2 C C A D O .t u p t u o A m 6 6 . 4 3 g nidiv o r p f o elb a p a c si C A D sih T .t u p t u O g ola n A V / C o e di V - S / D E R 0 3 V A A P ) V 5 + o t V 3 + ( ylp p u S r e w o P 1 3 D N G G ni P d n u o r G 2 3 V A A P ) V 5 + o t V 3 + ( ylp p u S r e w o P 3 3 B C A D O .t u p t u o A m 6 6 . 4 3 g nidiv o r p f o elb a p a c si C A D sih T .t u p t u O g ola n A U / Y o e di V - S / E U L B 4 3 V A A P ) V 5 + o t V 3 + ( ylp p u S r e w o P 5 3 A C A D O .t u p t u o A m 6 6 . 4 3 g nidiv o r p f o elb a p a c si C A D sih T .t u p t u O g ola n A Y / e tis o p m o C / N E E R G 6 3 1 P M O C O 1 . 0 a tc e n n o C . C d n a B , A s C A D r o f ni P n oit a s n e p m o C µ m u m it p O r o F . A A V o t P M O C m o rf r o tic a p a C F s a w ol s a o t d e r e w ol e b n a c r o tic a p a c 1 P M O C e h t f o e ula v e h t , e d o M r e w o P w o L ni e c n a m r o fr e P ci m a n y D . F m 2 . 2 7 3 V F E R O /I ) V 5 3 2 . 1 ( t u p t u O e c n e r e f e R e g a tlo V r o s C A D r o f t u p n I e c n e r e f e R e g a tlo V 8 3 1 T E S R I o e di V e h t f o s e d u tilp m a ela c s -llu flo rt n o c o t d e s u si D N G o t nip sih t m o rf d e tc e n n o c r o tsis e r m h o 0 5 1 A .) s C A D " e g r al" e h t( C d n a B , A s C A D m o rf sla n gi S 9 3 C T R / T E S E R C S I s a d e r u gif n o c e b n a c tI . 4 r o tsis e R e d o M f o 1 4 R M d n a 2 4 R M g nitt e s y b t u p ni n a s a d e r u gif n o c e b n a c nip sih T dlei F o t e s a h p r eirr a c b u s e h t t e s e r lli w nip sih t n o n oitis n a rt w ol o t h gih a e s a c h cih w ni, nip t e s e r r eirr a c b u s a .t u p n I ) F C T R ( lo rt n o C e m i T -la e R a s a d e r u gif n o c e b y a m ti yle vit a n r e tl A . 0 0 4 Q E R X T T O .r e fs n a rt a t a d tx e t ele tlo rt n o c o t d e s u la n gis t u p nits e u q e R a t a D tx e t ele T 1 4 X T T O . ni P t u p n I a t a D tx e t ele T 2 4 P M A L C O .sla n gis o e div lla f o g nip m alc elb a n e o t y rtiu c ric la n r e tx e o tla n gi S t u p t u O L T T 3 4 C S T N _ L A P I . L A P stc ele s " 1 " cig o L o t t e s nip , n oit a r e p o f o e d o m C S T N r o L A P tc ele s o tla n gis t u p n I 4 4 T E S E R I C S T N si sih T . e d o m tlu a f e d o t ni T S K 2 7 1 7 V D A e h t st e s d n a r o t a r e n e g g ni m it pih c - n o e h t st e s e r t u p ni e h T e tis o p m o C , N O d e r e w o p F d n a E , D s C A D , F F O d e r e w o p C d n a B , A s C A D , 0 e d o M e v al S g ni m i T , n oit a r e p o .t u o o e di V - S d n a 5 4 O S V O la n gi S c n y S t u p t u O L T T O S V 6 4 V A A P ) V 5 + o t V 3 + ( ylp p u S r e w o P 7 4 D N G G ni P d n u o r G 8 4 K C O L C I z H M 2 5 . 4 2 a ,yle vit a n r e tl A . n oit a r e p o d r a d n a ts r o f k c olc e c n e r e f e r z H M 7 2 elb a ts a s e riu q e R .t u p n I k c ol C L T T . n oit a r e p o le xip e r a u q s r o f d e s u e b n a c ) L A P ( z H M 5 . 9 2 r o ) C S T N ( www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 102 1 2 3 4 1 2 3 4 C D F A B E 7 LA73054 (JCKB ASSY : IC501) • DVD Video Amplifier ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 103 5 6 7 8 5 6 7 8 C D F A B E ¶ Pin Function . o N s n o it c n u F n i P ) W O L ( V 7 . 0 – 0 ) H G I H ( V 5 – 6 . 2 6 3 S / e tis o p m o c r o f e g n a h c N I A G - P M A B d 6 B d 9 5 1 t n e n o p m o c r o f e g n a h c N I A G - P M A B d 6 B d 9 5 3 S / e tis o p m o c r o f e g n a h c t n e rr u c cirtc ele e vir D e vir d m e ts y s 2 e vir d m e ts y s 1 9 1 t n e n o p m o c r o f e g n a h c t n e rr u c cirtc ele e vir D e vir d m e ts y s 2 e vir d m e ts y s 1 5 r o flo rt n o c e t u M S / e tis o p m o c W O L nip 0 1 n I e t u m o d t o n sitI e t u m nip 8 2 , 1 3 , 3 3 H G I H nip 0 1 n I e t u m o d t o n sitI e t u m nip 8 2 , 1 3 2 1 t n e n o p m o c r o flo rt n o c e t u M e t u m o d t o n sitI e t u m nip 1 2 , 3 2 , 5 2 9 X I M – C / Y f o lo rt n o c e h T e tis o p m o c n I X I M – C / Y n I 0 1 e g n a h c m r o f t u p ni nip 1 1 t u p nit n e n o p m o c e h t n I t u p ni d n a b e s a b e h t n I 3 1 t n e n o p m o c r o f e g n a h c citsir e tc a r a h c F P L e c n e d n o p s e rr o c e c a r r e t n I e c n e d n o p s e rr o c e vis s e r g o r P . X I M - C / Y ni D N G o t slla f nip 2 . p m alc la ts e d e p h ti w )t u p nit n e n o p m o c e h t ni( C S T N o t nila n gis R C , B C a t u p ni nip 6 1 , 4 1 ,t u p nila n gis Y e h t d n a , p m alc si nip 1 1 . p m alc la ts e d e p h ti w )t u p ni d n a b e s a b e h t ni( L A P o t nila n gis B , G , R a t u p ni nip 6 1 , 4 1 , 1 1 ,t u p nila n gis Y e h t d n a , p m alc si nip 8 .)t u p ni d n a b e s a b e h t ni( L A P ni X I M - C / Y o d tI n e h w nip 5 f o e t u m tibih o r p tI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 104 1 2 3 4 1 2 3 4 C D F A B E 7 PE5286A (MAIN ASSY : IC701) • DVD Data Processor ¶ Pin Function . o N e m a n n i P .ri D s n o it c n u F n i P , 4 5 , 0 5 , 0 4 , 3 , 7 0 1 , 3 0 1 , 4 8 , 8 5 1 , 4 5 1 , 5 4 1 7 0 2 3 . 3 D D V − . V 3 . 3 + o t d e tc e n n o c e B .tiu c ric la tigid f o ylp p u s r e w o p a sitI , 3 5 , 7 2 , 8 1 , 5 1 , 2 9 , 8 7 , 4 7 , 4 6 , 7 5 1 , 0 3 1 , 4 0 1 , 1 9 1 , 3 8 1 , 4 6 1 8 0 2 5 . 2 D D V − . V 5 . 2 + o t d e tc e n n o c e B .tiu c ric la tigid f o ylp p u s r e w o p a sitI , 7 1 , 6 1 , 2 , 1 , 2 5 , 1 5 , 1 4 , 6 2 , 5 8 , 9 7 , 3 7 , 3 6 , 6 0 1 , 5 0 1 , 1 9 , 0 5 1 , 4 4 1 , 1 3 1 , 8 7 1 , 6 5 1 , 5 5 1 0 9 1 , 2 8 1 D N G − .tiu c ric la tigid f o d n u o r g a sitI 5 7 1 , 1 7 1 , 7 6 1 C N − . D D V r o D N G niti xi F . nip e s u - n o n a sitI 5 6 1 6 6 1 D D V A − .r e tr e v n o c la tigid - o t- g ola n a ni-tliu b r o fla ni m r e t ylp p u s ylp p u s r e w o p a sitI .) g ola n a ( V 5 . 2 + ylp p u S 6 7 1 7 7 1 D N G A − .r e tr e v n o c A / D ni-tliu b r o fla ni m r e t D N G a sitI 6 I R N U B N I . M A R e dis nif o la ni m r e tlo rt n o c ts e t n oit a r a p e s a sitI .ylla u s u e s u ni W O L t u p n I 0 9 1 C M T N I .ylla u s u e s u ni W O L t u p n I .la ni m r e t ts e t a sitI 8 4 1 2 C M T N I 4 A _ F R / K C M D N I .z H M 4 5 - 0 1 t u p n I .r e d o c e d M O R - D C / D V D f o t u p ni k c olc m e ts y s e h t sitI 9 8 1 D C K C N I .k c olb F /I m e ts y s oid u a n a f o k c olc r e ts a m sitI .k c olc e c n e r e f e r f o z H M 9 . 6 1 t u p ni, D C a f o t u o oid u a n I 5 4 D P /I K C A M D N I . D D V r o D N G ni ) ylla u s u d e s u n u ( e m it d e s u n u xi F 9 4 1 K L C O C V N I .t n u o c c a e g r a h c e dist u o f o O C V o t d e tc e n n o c siti,r o t alu d o m e d eld nip s f o k c olc m e ts y s h ti W 1 6 1 T E S E R X N I . m e ts y s tiu c ric d e t a r g e t ni ela c s e g r al elo h w e h t e zilaitinitI ,le v el W O L a f o t u p ni e h t y B 5 3 1 9 1 A S O /I .tin u g nis s e c o r p la rt n e c f o s u b s s e r d d a tc e n n o C 4 3 1 8 1 A S 3 3 1 7 1 A S 2 3 1 6 1 A S 9 2 1 5 1 A S 8 2 1 4 1 A S 7 2 1 3 1 A S 6 2 1 2 1 A S 5 2 1 1 1 A S 4 2 1 0 1 A S 3 2 1 9 A S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 105 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 2 2 1 8 A S N I .tin u g nis s e c o r p la rt n e c f o s u b s s e r d d a tc e n n o C 1 2 1 7 A S 0 2 1 6 A S 9 1 1 5 A S 8 1 1 4 A S 7 1 1 3 A S 6 1 1 2 A S 5 1 1 1 A S 4 1 1 0 A S 9 9 7 D A S O /I .tin u g nis s e c o r p la rt n e c f o s u b a t a d a tc e n n o C 0 0 1 6 D A S 1 0 1 5 D A S 2 0 1 4 D A S 8 0 1 3 D A S 9 0 1 2 D A S 0 1 1 1 D A S 1 1 1 0 D A S 7 9 D R S X N I .tin u g nis s e c o r p la rt n e c f o la n gis D R a o t d e tc e n n o c e B 8 9 R W S X N I .tin u g nis s e c o r p la rt n e c f o la n gis R W a o t d e tc e n n o c e B 6 9 1 L C S X N I .tin u g nis s e c o r p la rt n e c m o rfla n gis tc ele s pih c sitI .la n gis sih t W O L f o e m it e h t t a e vitc e ff e s e m o c e b R W S X / D R S X 5 9 T I A W S X T U O .tin u g nis s e c o r p la rt n e c r o f t u p t u o T I A W e h t sitI . W O L f o e m it e h t t a tin u g nis s e c o r p la rt n e c m o rf s s e c c a e v a elts u m la ni m r e t sih T 4 9 Q E R D S X T U O .tin u g nis s e c o r p la rt n e c r o f d n a m e d A M D a sitI . e g d e n a h ti w r e fs n a rt A M D s e t a vitc a d n a n w o d slla fla ni m r e t sih t f o pih le v el W O L 3 9 K C A D S N I .k c a b r e w s n a A M D sitI .) 0 : 7 ( D A S y b la n gis sih t H G I H h ti w t u p t u o e r a a t a D 2 1 1 0 1 Q R I X T U O . W O L h ti w tin u g nis s e c o r p la rt n e c r o f t p u rr e t ni d n a m e d tI .tit u p t u o y e h t r e h t e h w r e tsig e r a h ti w tit e s n a c sla ni m r e t h t o B 3 1 1 1 1 Q R I X 1 4 1 3 E P / L P G F N I .r o t o m eld nip s m o rf e slu p n r u t a t u p n I 7 4 1 M W P F T U O . o v r e s G F r o fla ni m r e t t u p t u o M W P tib 7 sitI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 6 4 1 M W P V T U O . o v r e s d e e p s r o fla ni m r e t t u p t u o M W P tib 5 sitI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 3 4 1 M W P P T U O . o v r e s e s a h p r o fla ni m r e t t u p t u o n oit alu d o m h t di w e slu p sitI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 2 4 1 R R E R T U O . o v r e s h g u o r r o f t u p t u o lo rt n o c sitI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 1 3 7 A P O /I . n oitc n u f a tc ele s n a c u o Y ,r e tsig e r 0 7 $ a f o g nitt e s y B .tr o p O /I e s o p r u p -la r e n e g sitI .r e d o c e d D C a m o rfla n gis t u o la tigid a st u p ni O D D C . 8 5 9 C E I n o d e s a b la ni m r e t t u p t u o oid u a la tigid si T U O F I D . o t ni e d o c A C B a t u p ni o tla ni m r e t si A C B . o t nila n gis E L B B O W a t u p ni o tla ni m r e t si N I D W R .s e nih c a m n oit a zila tiv e r W R h ti w y r a s s e c e n s e m o c e b la ni m r e t N I D W R / A C B 2 3 6 A P 3 3 5 A P 4 3 4 A P 5 3 3 A P / O D D C 6 3 T U O F I D 6 9 1 1 A P / A C B 5 9 1 0 A P / N I D W R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 106 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 8 3 1 2 S U T A T S / 7 D P T U O .)) 0 : 2 ( S U T A T S ( la n gis r o tin o m s u oir a v a t u p t u o tI .tr o p tr o p O /I e s o p r u p -la r e n e g a s a ti e s u n a c u o Y ,r e tsig e r 0 7 $ a f o g nitt e s y B 9 3 1 1 S U T A T S / 6 D P 0 4 1 0 S U T A T S / 5 D P 1 5 1 0 5 Y T U D T U O . % 0 5 yt u d f o e slu p a t u p t u o s y a w la tI . m e ts y s y r e v o c e r e h t f o la n gis D W P s u oir a v a f o e g a tlo v e c n e r e f e r e vig tI 0 6 1 C S A T U O . e slu p D W P a s a d oir e p k nis a f o r o rr e y c n e u q e rf t u p t u o tI 3 5 1 C P A T U O . e slu p D W P a s a p o ol d e k c ol e s a h p f o r o rr e e s a h p a t u p t u o tI 9 5 1 C T A T U O . e slu p D W P a s a la n gis F R a f o r o rr e t n e rr u c tc e rid a t u p t u o tI 2 5 1 C F A T U O . e slu p D W P a s a k c olc e c n e r e f e r f o r o rr e y c n e u q e rf d n a k L C O C V t u p t u o tI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 3 6 1 1 E P / T C E F E D N I . e dist u o e h t m o rf t u p nila n gis tc e ffid e h t sitI e n o d siti d n a ,) C P A ( H G I H nila ni m r e t sih t st u p t u o p o ol d e k c ol e s a h p f o r o rr e e s a h p a n e h T . dlo h e ula v t n o rf 2 6 1 7 C P / T E D _ T T U O . e slu p n oit alu d o m h t di w e slu p a s a tlu s e r h c r a e s tlit-lait n e g n a t a t u p t u o tI 0 7 3 1 A D T U O .r e ff u b R B V a r o f M A R D f o la n gis s s e r d d a sitI 1 7 2 1 A D 2 7 1 1 A D 5 7 0 1 A D 6 7 9 A D 7 7 8 A D 0 8 7 A D 1 8 6 A D 2 8 5 A D 3 8 4 A D 6 8 3 A D 7 8 2 A D 8 8 1 A D 9 8 0 A D 9 3 5 1 D D O /I .r e ff u b R B V a r o f M A R D f o s u b a t a d a sitI 2 4 4 1 D D 3 4 3 1 D D 4 4 2 1 D D 5 4 1 1 D D 6 4 0 1 D D 7 4 9 D D 8 4 8 D D 9 4 7 D D 5 5 6 D D 6 5 5 D D 7 5 4 D D 8 5 3 D D 9 5 2 D D 0 6 1 D D 1 6 0 D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 107 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 9 6 S A R D X T U O .r e ff u b R B V a f o M A R D f o la n gis S A R a sitI 7 6 L S A C D X / S A C D X T U O .r e ff u b R B V a f o M A R D f o la n gis S A C a sitI 6 6 L M Q D / E O D X T U O .r e ff u b R B V a f o M A R D f o la n gis E O n a sitI 5 6 E W D X T U O .r e ff u b R B V a f o M A R D f o la n gis E W a sitI 3 1 7 A T A D S T U O .le n n a h c A M D _ O E D I V a f o s u b t u p t u o a t a d a sitI .r e d o c e d G E P M o t d e tc e n n o c e B 4 1 6 A T A D S 9 1 5 A T A D S 0 2 4 A T A D S 1 2 3 A T A D S 2 2 2 A T A D S 3 2 1 A T A D S 4 2 0 A T A D S 9 2 Q E R S N I .le n n a h c A M D _ O E D I V a f o la ni m r e t d n a m e d r e fs n a rt a t a d a sitI .r e d o c e d G E P M o t d e tc e n n o c e B . g nitt e s y b ytir alo p e g n a h c n a c u o Y 5 2 5 C P / K C A S X T U O .le n n a h c A M D _ O E D I V a f o la ni m r e t ylp e r r e fs n a rt a sitI .r e d o c e d G E P M o t d e tc e n n o c e B . g nitt e s h ti w s eir a v m r o f t u p t u O 8 2 R W X T U O .le n n a h c A M D _ O E D I V a f o la ni m r e t ylp e r r e fs n a rt a sitI .r e d o c e d G E P M o t d e tc e n n o c e B . g nitt e s h ti w s eir a v m r o f t u p t u O 0 3 6 C P / M R T V A X T U O . nile n n a h c A M D _ O E D I V a f o a t a d r e fs n a rt f o r o tc e s a f o p o t e h t w o h s o tla n gis a sitI 7 0 C P / 0 A P S D T U O A M D _ O I D U A n a f o n oit a nits e d s a r o s s e c o r P la n gi S la tigi D alo r o t o M stc e n n o c ti n e h W .r o s s e c o r P la n gi S la tigi D alo r o t o M o t s s e r d d a A M D a s e vig h cih w la n gis e h t siti,le n n a h c 8 1 C P / 1 A P S D 9 2 C P / 2 A P S D 6 0 2 0 B P / 0 A T A D S A O /I .tr o p O /I e s o p r u p -la r e n e g sitI le n n a h c A M D _ O I D U A n a f o s u b t u p t u o a t a d a e m o c e b tI ,r e tsig e r 0 7 $ a f o g nitt e s y B .tr o p a s e dis e b 5 0 2 1 B P / 1 A T A D S A 4 0 2 2 B P / 2 A T A D S A 3 0 2 3 B P / 3 A T A D S A 2 0 2 4 B P / 4 A T A D S A 1 0 2 5 B P / 5 A T A D S A 0 0 2 6 B P / 6 A T A D S A 9 9 1 7 B P / 7 A T A D S A 0 1 R W A X T U O .le n n a h c A M D _ O I D U A n a f o la ni m r e t ylp e r r e fs n a rt a sitI . g nitt e s h ti w s eir a v m r o f t u p t u O 1 1 K C A S A X T U O .le n n a h c A M D _ O I D U A n a f o la ni m r e t ylp e r r e fs n a rt a sitI . g nitt e s h ti w s eir a v m r o f t u p t u O 2 1 Q E R S A N I .le n n a h c A M D _ O I D U A n a f o la ni m r e t d n a m e d r e fs n a rt a sitI . g nitt e s y b ytir alo p e g n a h c n a c u o Y 2 9 1 K C B T U O . C A D o t t u p t u o k c olc tib e h t sitI 3 9 1 K C R L T U O . C A D o t t u p t u o la n gis K C R L e h t sitI 4 9 1 0 A T A D A T U O . C A D o t t u p t u o a t a d lair e s e h t sitI 7 8 1 K C B D C N I .r e d o c e d D C a m o rf k c olc tib a t u p nitI .) sf 8 4 ( z H M 8 6 1 1 . 2 si y c n e u q e rf e vitc e p s o r P 6 8 1 R L D C N I .r e d o c e d D C a m o rfla n gis K C R L a t u p nitI 5 8 1 T D D C N I .r e d o c e d D C a m o rf a t a d m e ts y s oid u a t u p nitI 1 8 1 K C F W N I . D C a f o la n gis k c olc e m a rf sitI 0 8 1 R O C S N I . D C a f o k nis e d o c t n a tsis s a f o la ni m r e t t u p ni sitI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 108 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 9 7 1 O S B S N I . D C a f o la ni m r e t t u p ni a t a d e d o c t n a tsis s a n a sitI 4 8 1 K C X E T U O .la ni m r e t O S B S a n o h tr o f a t a d d n e s o t s s e nile m it g nik a m k c olc tfih s a sitI 8 8 1 2 E P /I F 2 C N I .r e d o c e d D C a m o rf g alf r o rr e 2 C f o la ni m r e t t u p ni sitI 6 3 1 4 S U T A T S / X S F O /I .r e d o c e d D C a m o rfla n gis X S F a t u p nitI f o n oitc e rr o c r o rr e f o la n gis t n e m n gila e m a rf h ti w d e e p s la m r o n t a z h K 5 3 . 7 sila n gis X S F . C R I C .) 4 S U T A T S ( t u p t u o r o tin o m la n r e t ni e h t e m o c e b tI ,r e tsig e r F 7 $ a f o g nitt e s y B 7 3 1 / G L F E 3 S U T A T S O /I .r e d o c e d D C a m o rfla n gis G L F E n a t u p nitI . C R I C f o t n e m e v o m g nis s e c o r p n oitc e rr o c r o rr e f o la n gis r o tin o m a sila n gis G L F E n A .) 3 S U T A T S ( t u p t u o r o tin o m la n r e t ni e h t e m o c e b tI ,r e tsig e r F 7 $ a f o g nitt e s y B 2 7 1 N I A N I .r e tr e v n o c D / A ni-tliu b o tla ni m r e t t u p nila n gis F R g ola n a sitI 8 6 1 T R V N I .r e tr e v n o c D / A ni-tliu b f o la ni m r e t t u p ni e g a tlo v e c n e r e f e r sitI 9 6 1 S T R V T U O . T R V h ti w tc e n n o C 0 7 1 C R V T U O .r e tr e v n o c D / A ni-tliu b f o la ni m r e t t u p t u o e g a tlo v r e t n e c sitI 4 7 1 B R V N I .r e tr e v n o c D / A ni-tliu b f o la ni m r e t t u p ni e g a tlo v e c n e r e f e r sitI 3 7 1 S B R V T U O . B R V h ti w tc e n n o C 7 3 3 D P / E K C T U O . K L C D S f o la n gis elb a n E n a sitI 8 3 2 D P / B S C T U O . M A R D S f o la n gis tc ele s pih c sitI 2 6 K L C D S T U O . M A R D S f o k c olc t n e m e v o m a g nitt u p t u o la ni m r e t a sitI 8 6 H M O D / H S A C X T U O .tib 8 k n a r h gih f o la n gis S A C a siti,tib e di w 6 1 s u b f o M A R D s e s u ti n e h W 7 9 1 1 D P / N E Q E R V O /I . Q E R - o e di V f o la n gis elb a n E n a sitI 8 9 1 0 D P / N E Q E R A O /I . Q E R - oid u A f o la n gis elb a n E n a sitI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 109 5 6 7 8 5 6 7 8 C D F A B E 7 PCM1742KE (JCKB ASSY : IC502) • D/A Converter ¶ Pin Arrangement ¶ Block Diagram ¶ Pin Function 1 BCK 16 SCK 2 DATA 15 ML 3 LRCK 14 MC 4 DGND 13 MD 5 VDD 12 ZEROL/NA 6 VCC 11 ZEROR/ZEROA 7 VOUTL 10 VCOM 8 VOUTR 9 AGND Audio Serial Port Enhanced Multi-level Delta-Sigma Modulator 4× / 8× Oversampling Digital Filter with Function Controller Serial Control Port System Clock System Clock Manager BCK 1 LRCK 3 DATA 2 ML 15 MC 14 MD 13 SCK 16 DAC Output Amp and Low-pass Filter DAC Power Supply Output Amp and Low-pass Filter VOUTL 7 VOUTR 8 AGND 8 VCC 6 DGND 9 VDD ZEROR/ZEROA 5 11 ZEROL/NA 12 VCOM 10 Zero Detect No. Nmae I/O Pin Function 1 BCK I Audio data bit clock input 2 DATA I Audio data digital input 3 LRCK I L-channel and R-channel Audio data latch enable input 4 DGND − Digital ground 5 VDD − Digital power supply +3.3V 6 VCC − Analog power supply +5V 7 VOUTL O Analog output for L-channel 8 VOUTR O Analog output for R-channel 9 AGND − Analog ground 10 VCOM − Common voltage decoupling 11 ZEROR/ZEROA O Zero flag output for R-channel / Zero flag output for L/R-channel 12 ZEROL/NA O Zero flag output for L-channel / No assign 13 MD I Mode control data input 14 MC I Mode control clock input 15 ML I Mode control latch input 16 SCK I System clock input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 110 1 2 3 4 1 2 3 4 C D F A B E 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY General disc compatibility This player was designed and engineered to be compatible with software bearing one or more ofthe following logos: This player can play discs recorded in either PAL or NTSC format. Use those discs which indicates “NTSC” or “PAL” on the jacket. Other formats, including but not limited to the following, are not playable in this player: DVD-Audio / SACD / DVD-RAM DVD-ROM / CD-ROM DVD-R/RW and CD-R/RW discs (Audio CDs and Video CDs) recorded using a DVD recorder, CD recorder or personal computer may not be playable on this unit. This may be caused by a number of possibilities, including but not limited to: the type of disc used; the type of recording; damage, dirt or condensation on either the disc or the player’s pick-up lens. See below for notes about particular software and formats. CD-R/RW compatibility • This unit will play CD-R and CD-RW discs recorded in CD Audio or Video CD format. However, any other content may cause the disc not to play, or create noise/distortion in the output. • This unit cannot record CD-R or CD-RWdiscs. • Unfinalized CD-R/RW discs recorded as CD Audio can be played, but the full Table of Contents (playing time, etc.) will not be displayed. DVD-R/RW compatibility • This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD- recorder. • This unit will play DVD-RW discs recorded using the Video Recording (VR) format. • When playing a VR format DVD-RW discs that was edited on a DVD recorder, the screen may go momentarily black at edited points and/or you may see scenes from immediately before the edited point. • This unit cannot record DVD-R/RW discs. • Unfinalized DVD-R/RW discs cannot be played in this player. PC-created disc compatibility • If you record a disc using a personal computer, even if it is recorded in a “compatible format” as listed above, there will be cases in which the disc may not be playable in this machine due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. • Check the DVD-R/RW or CD-R/RW software disc boxes for additional compatibility information. Due to the unique construction of DVD-R/RW and CD-R/RW discs, leaving them for extended periods of time in the pause mode at a single place on the disc may result in the discs’ becoming difficult to play at that location on the disc. When playing discs containing important data, users are recommended to construct backup archive discs. DVD-Video regions All DVD-Video discs carry a region mark on the case somewhere that indicates which region(s) of the world the disc is compatible with. Your DVD player also has a region mark, which you can find on the rear panel. Discs from incompatible regions will not play in this player. Discs marked ALL will play in any player. 1 ALL DVD-Video DVD-R DVD-RW Audio CD Video CD CD-R CD-RW is a trademark of DVD Format/Logo Licensing Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 111 5 6 7 8 5 6 7 8 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 112 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES STANDBY/ON TOP MENU STEP POWER PLAY DISPLAY PROGRAM DISC IN KEY LOCK PROGRESSIVE PLAY/PAUSE MENU HOME MENU RETURN ENTER 1 2 3 4 5 6 7 8 9 10 11 12 13 16 15 14 17 18 20 19 Front panel 1 � STANDBY/ON Press to switch the player on or into standby. 2 PROGRESSIVE button/indicator Press to switch the component video output mode between Progressive and Interlace. The indicator lights in progressive scan mode. 3 Disc tray 4 �/� Press to stop the disc. In the stop mode, press to open or close the disc tray. 5 STEP � Use for frame advance. 6 PLAY/PAUSE � Press to start or resume playback.In the play mode, press to pause playback. Press again to restart. 7 TOP MENU Press to display the top menu of a DVD disc. 8 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 9 MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD or Video CD disc is loaded. 10 RETURN Press to return to a previous menu screen. 11 HOME MENU Press to display (or exit) the on-screen display. 12 DISPLAY Press to display information about the disc playing. 13 Remote control sensor The remote control has a range of up to about 7m (23ft). 14 KEY LOCK When this indicator is lighted, the player cannot be operated using the front panel controls or the remote control unit. Settings can be changed by ADV. SETUP. 15 DISC IN Flashes during disc discriminating, and lights when a disc is loaded, 16 PROGRAM Lights when repeat play, program play or command stack function is operated. 17 PLAY Lights during playback, and flashes when starting up. 18 POWER Lights green when the player is on. Lights orange when the player is in the standby mode. 19 � � and � � Press and hold for fast reverse/forward scanning. Press to jump to the previous/next chapter or track. 20 This mark indicates compatibility with DVD-RW discs recorded on a DVD recorder in Video Recording mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 113 5 6 7 8 5 6 7 8 C D F A B E 4 1 2 3 6 5 7 8 Rear panel connections 1 DIGITAL AUDIO OUT This is a digital audio output for connection to a PCM, Dolby Digital and/or DTS-compatible AV receiver that has a coaxial digital input. Connect using a commercially available coaxial digital cable. 2 COMPONENT VIDEO OUT This is a high quality video output for connection to a TV, monitor or AV receiver that has component video inputs. Connect using a commercially available three-way component video cable. Be careful to match the colors of the jacks and cables for correct connection. 3 AUDIO OUT L / R This pair of analog audio outputs connects to your TV, AV receiver or stereo system. Even if you are connecting up one of the digital outputs, we still recommend you connect these jacks. Use the supplied audio/video cable when connecting these jacks. Match the colors of the jacks and cables for correct stereo sound. 4 AC IN Connect the supplied power cable here, then plug into a power outlet. 5 VIDEO OUT This is a standard video output that you can connect to your TV or AV receiver using the supplied audio/video cable. 6 S (S-video output) This is an S-video output that you can use instead of the video output described in 5 above. 7 RS-232C This is a RS-232C terminal (D-sub 9-pin, male). 8 EXT TERMINAL This is a RS-232C and Extend terminal (D-sub 15-pin, female). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 114 1 2 3 4 1 2 3 4 C D F A B E 0 1 2 3 4 5 6 7 8 9 CLEAR ENTER ANGLE AUDIO TOP MENU HOME MENU SUBTITLE PLAY MODE SURROUND ZOOM DVD DISPLAY MENU RETURN ENTER STANDBY/ON OPEN/CLOSE 1 14 15 16 17 18 19 20 21 23 2 4 5 6 7 8 10 12 13 3 9 11 22 24 1 � STANDBY/ON Press to switch the player on or into standby. 2 AUDIO Press to select the audio channel or language 3 SUBTITLE Press to select a subtitle display 4 Number buttons 5 TOP MENU Press to display the top menu of a DVD disc. 6 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute acommand. 7 HOME MENU Press to display (or exit) the on-screen display. 8 � and � / � Use for reverse slow motion playback, frame reverse and reverse scanning. 9 � Press to start playback. 10 � Press to jump to the beginning of the current chapter or track, then to previous chapters/tracks. 11 �� Press to pause playback (still); press again to restart. 12 PLAY MODE Press to display the Play Mode menu. (You can also get to the Play Mode menu by pressing HOME MENU and selecting Play Mode). 13 SURROUND Press to activate/switch off 2 V/SRS TruSurround. 14 � OPEN/CLOSE Press to open or close the disc tray. 15 ANGLE Press to change the camera angle during DVD multi-angle scene playback 16 CLEAR Press to clear a numeric entry. 17 ENTER Use to select menu options, etc. (works exactly the same as the ENTER button in 6 above). 18 MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD or Video CD disc is loaded. 19 RETURN Press to return to a previous menu screen. 20 � and � / � Use for forward slow motion playback, frame advance and forward scanning. 21 � Press to jump to the next chapter or track. 22 � Press to stop the disc. 23 DISPLAY Press to display information about the disc playing . 24 ZOOM Press to change the zoom level Remote control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 115 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V5000 116 1 2 3 4 1 2 3 4 C D F A B E Service Remote Control Unit GGF1381 diagnosis DVD Data Disc GGV1174 diagnosis (ID data setting) Name Jig No. Remarks DVD Test Disc (DVD-Video) GGV1025 Check of DVD-Video CD Test Disc STD-905 Check of CD Jig Cable GGD1298 diagnosis / Prepare two cables. Jig Cable GGD1505 diagnosis 7 Jigs list www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
