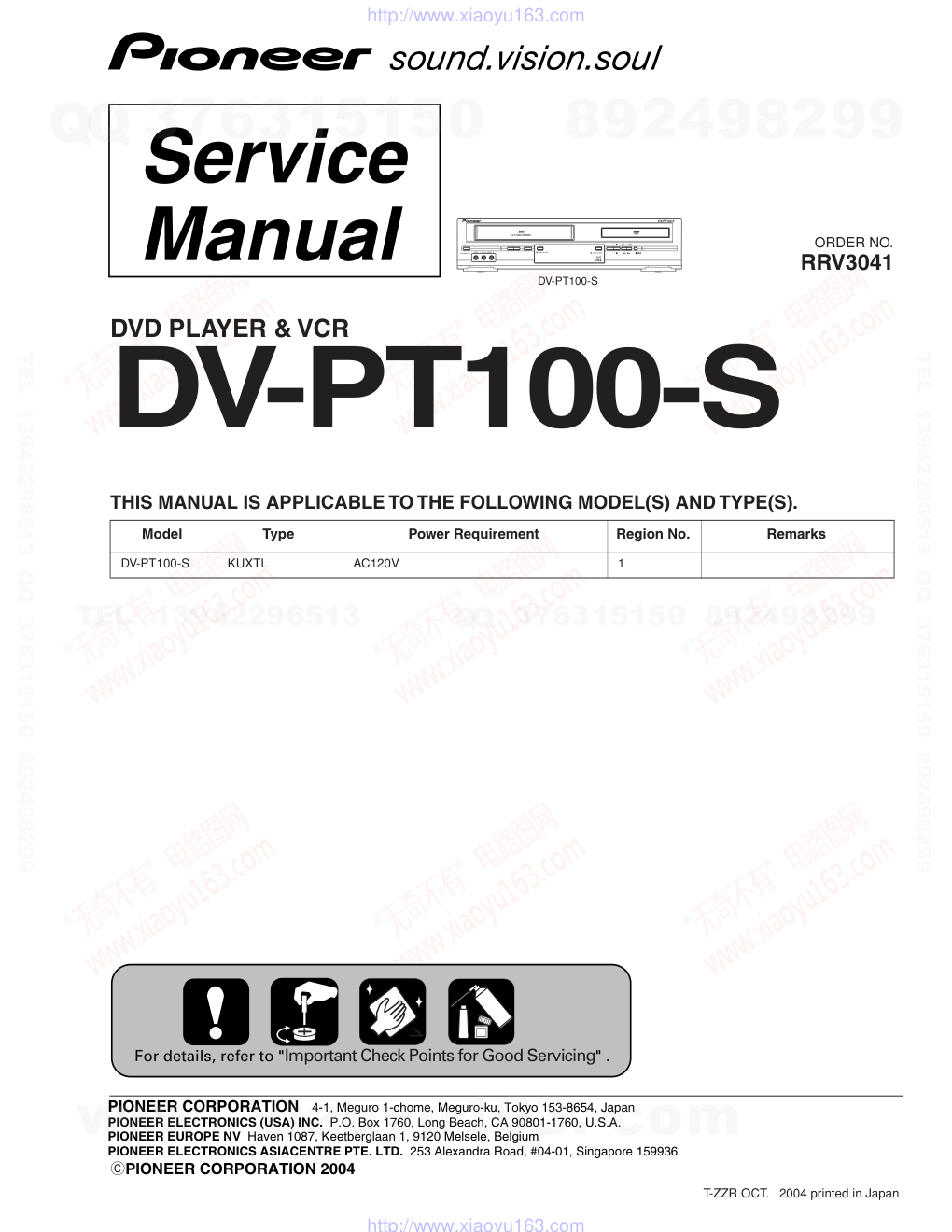

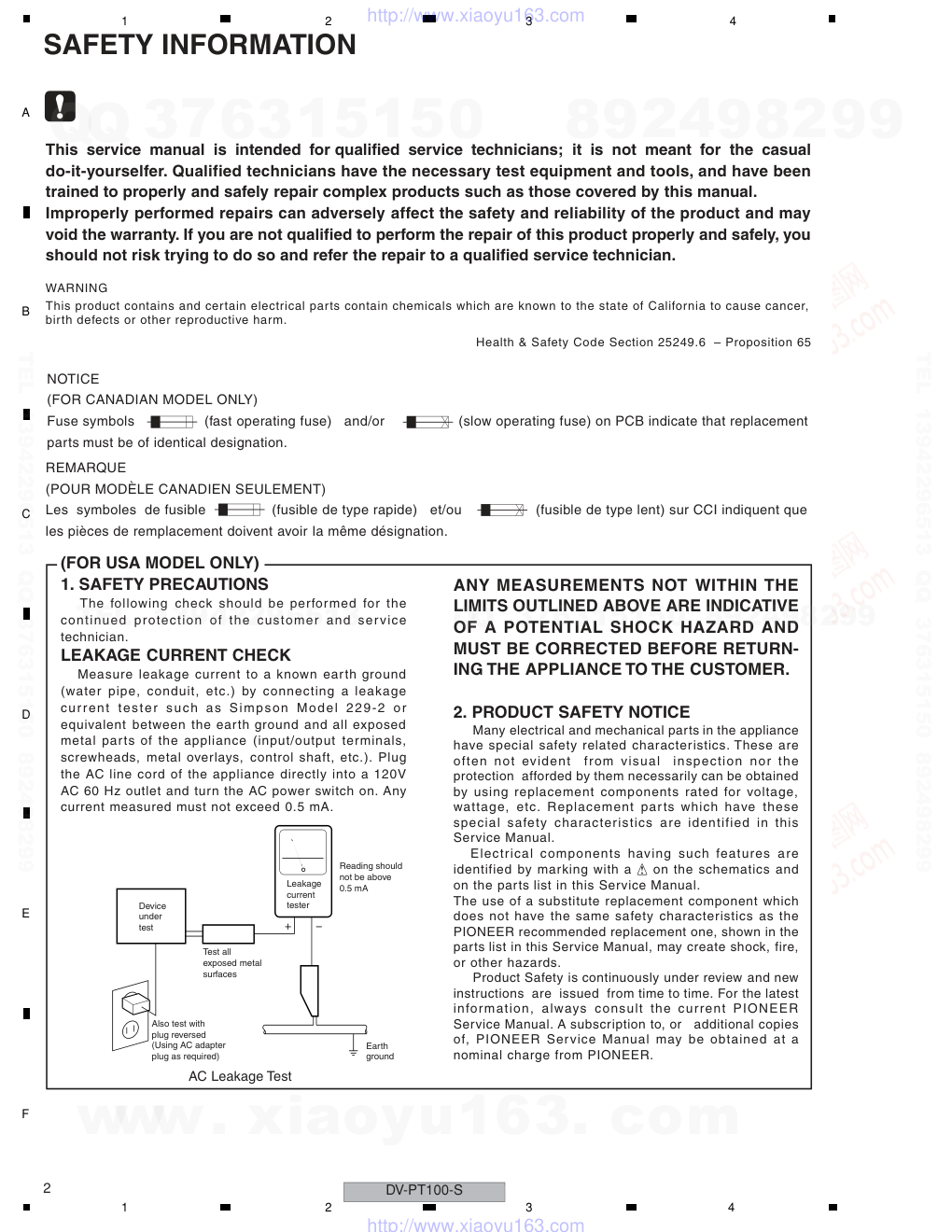

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2004 DV-PT100-S � REC DV-PT100-S RRV3041 DVD PLAYER & VCR DV-PT100-S THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Remarks DV-PT100-S KUXTL AC120V 1 For details, refer to "Important Check Points for Good Servicing" . T-ZZR OCT. 2004 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFCATIONS ............................................................................................................................................. 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 8 2.1 PACKING ................................................................................................................................................... 8 2.2 EXTERIOR SECTION.............................................................................................................................. 10 2.3 DECK ASSY (TOP SECTION)................................................................................................................. 12 2.4 DECK ASSY (BOTTOM SECTION)......................................................................................................... 14 2.5 DVD MECHA ASSY ................................................................................................................................. 16 2.6 WIRING CABLE ....................................................................................................................................... 18 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 19 3.1 BLOCK DIAGRAM ................................................................................................................................... 19 3.1.1 DVD BLOCK DIAGRAM .................................................................................................................... 19 3.1.2 Y/C AUDIO / CCD / HEAD AMP BLOCK DIAGRAM......................................................................... 20 3.1.3 SYSTEM CONTROL BLOCK DIAGRAM........................................................................................... 21 3.1.4 REGULATOR BLOCK DIAGRAM ...................................................................................................... 22 3.1.5 OPERATION / DISPLAY BLOCK DIAGRAM ..................................................................................... 23 3.1.6 HiFi / DEMODULATOR BLOCK DIAGRAM ....................................................................................... 24 3.1.7 TUNER / JACK BLOCK DIAGRAM.................................................................................................... 25 3.2 SW,LOADING MOTOR PCB ASSYS and OVERALL WIRING DIAGRAM............................................... 26 3.3 DVD PCB ASSY(1/4) ............................................................................................................................... 28 3.4 DVD PCB ASSY(2/4) ............................................................................................................................... 30 3.5 DVD PCB ASSY(3/4) ............................................................................................................................... 32 3.6 DVD PCB ASSY(4/4) ............................................................................................................................... 34 3.7 VCR PCB ASSY(1/6) ............................................................................................................................... 36 3.8 VCR PCB ASSY(2/6) ............................................................................................................................... 38 3.9 VCR PCB ASSY(3/6) ............................................................................................................................... 40 3.10 VCR PCB ASSY(4/6) ............................................................................................................................. 42 3.11 VCR PCB ASSY(5/6) ............................................................................................................................. 44 3.12 VCR PCB ASSY(6/6) ............................................................................................................................. 46 3.13 OPERATION PCB ASSY ....................................................................................................................... 48 3.14 WAVE FORMS ....................................................................................................................................... 49 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 53 4.1 DVD PCB ASSY....................................................................................................................................... 54 4.2 VCR PCB ASSY....................................................................................................................................... 58 4.3 OPERATION PCB ASSY ......................................................................................................................... 62 4.4 LOADING and SW PCB ASSYS.............................................................................................................. 63 5. PCB PARTS LIST ........................................................................................................................................... 64 6. ADJUSTMENT ............................................................................................................................................... 73 6.1 SERVICING FIXTURES AND TOOLS ..................................................................................................... 73 6.2 ADJUSTMENT ITEMS AND NECESSARY ADJUSTMENT POINTS...................................................... 74 6.3 SERVICE MODE LIST ............................................................................................................................. 76 6.4 CONFIRMATION OF HOURS USED....................................................................................................... 77 6.5 PREVENTIVE CHECKS AND SERVICE INTERVALS............................................................................. 78 6.6 MECHANICAL ADJUSTMENTS.............................................................................................................. 79 6.7 ELECTRICAL ADJUSTMENTS ............................................................................................................... 83 6.8 WHEN REPLACING DVD DECK ............................................................................................................. 85 6.9 WHEN REPLACING EEPROM (MEMORY) IC........................................................................................ 86 7. GENERAL INFORMATION............................................................................................................................. 87 7.1 SYSTEM SWITCH MODE ....................................................................................................................... 87 7.2 TAPE REMOVAL METHOD AT NO POWER SUPPLY............................................................................. 88 7.3 DISC REMOVAL METHOD AT NO POWER SUPPLY............................................................................. 88 7.4 PARENTAL CONTROL -RATING LEVEL................................................................................................. 89 7.5 DISASSEMBLY ........................................................................................................................................ 90 7.6 DVD DECK SECTION.............................................................................................................................. 98 7.7 KEY TO ABBREVIATIONS..................................................................................................................... 101 7.8 DISC/CONTENT FORMAT .................................................................................................................... 102 7.9 CLEANING............................................................................................................................................. 103 8. PANEL FACILITIES ...................................................................................................................................... 107 8.1 FRONT AND REAR SECTION .............................................................................................................. 107 8.2 DISPLAY ................................................................................................................................................ 108 8.3 REMOTE CONTROL ............................................................................................................................. 109 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFCATIONS G-1 Outline of the product DVD VIDEO PLAYER & VHS Player / Recorder G-2 DVD System Color System NTSC Disc DVD, CD-DA, CD-R/RW Disc Diameter 120 mm , 80 mm Deck Disc Loading System Front Disc Loading Motor 3 Motors Pick up 1-Lens 2-Beams System Playback time (Max) DVD 1-Layer 135min (4.7GB) DVD 2-Layer 245min (8.5GB) CD 74min VIDEO CD --min Search speed Fwd 4 steps Actual 2-45 times (DVD) 4-40 times (CD) Rev 4 steps Actual 2-45 times (DVD) 4-40 times (CD) Slow speed Fwd 1/7-1/2 times Actual -- Rev -- Actual -- G-3 VCR System VHS Player / Recorder System Video System NTSC Hi-Fi STEREO Yes NTSC PB(PAL60Hz) No Deck DECK OVD-7 Loading System Front Motor 3 Heads Video Head 4Head FM Audio Head 2Head Audio / Control Mono/Yes Erase (Full Track Erase) Yes Erase (Normal Audio Track Erase) No Tape Rec PAL - Speed NTSC SP/SLP Play PAL - NTSC SP/LP/SLP Fast Forward / Rewind Time (Approx.) at 25oC FF:4'50"/REW:2'30" with Cassette T-120 Forward/Reverse NTSC or PAL-M SP/LP/SLP = 3x,5x / 7x,9x / 9x,15x Picture Search PAL or SECAM - Frame Advance Yes Slow Speed 1/10 G-4 Tuning Broadcasting System US System M System Tuner and System 1Tuner Receive CH Destination US (w/CATV) Tuning System F-Synth Input Impedance VHF/UHF 75 OHM CH Coverage 2-69,4A,A-5~ A-1,A~I, J~ W, W+1-W+84 Intermediate Picture (FP) 45.75 MHz Frequency Sound (FS) 41.25 MHz FP-FS 4.50 MHz Preset CH - RF Converter Output Yes Channel 3 or 4 ch Level / Impedance 66 dBu / 75 Ohm Sound Selector No Stereo / Dual TV Sound US-ST Tuner Sound Muting Yes www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 6 1 2 3 4 1 2 3 4 C D F A B E G-5 Power Power Source AC 120V 60Hz DC - Power Consumption 18 W at 120V 60Hz Stand by 2 W at 120V 60Hz Per Year -- W Protector Power Fuse Yes Safety Circuit Yes IC Protector(Micro Fuse) No G-6 Regulation Safety UL Radiation FCC Laser DHHS G-7 Temperature Operation 5oC - 40oC Storage -20oC - 60oC G-8 Operating Humidity Less than 80% RH G-9 Signal Video Signal Output Level 1 V p-p/75 ohm (DVD,VCR) S/N Ratio (Weighted) 65 dB(DVD) 50 dB(VCR) Horizontal Resolution 500 Lines (DVD) 230 Lines(VCR Mode) RGB Signal Output Level - Audio Signal Input Level Microphone - Input Level Line -8 dBm/ 50k ohm (VCR, 0dBm=0.775Vrms) Output Level Line -8 dBm/ 1k ohm (VCR, 0dBm=0.775Vrms) -12dBm/ 1k ohm (DVD, -20dBFs 0dBFs=2 0Vrms) Digital Output Level 0.5 V p-p / 75 ohm(DVD) S/N Ratio at (Weighted) 90dB(DVD), 42dB(VCR at SP) Harmonic Distortion (1KHz) Typical 0.02% (1KHz) (DVD) , 1.5% (1KHz) (VCR) Frequency Response : DVD Mode at DVD 4 Hz - 22 KHz DVD Mode at VIDEO CD - DVD Mode at CD 4 Hz - 20 KHz VCR Mode at SP 100Hz - 10 KHz VCR Mode at LP - VCR Mode at SLP 100Hz - 4 KHz Hi-Fi Audio Signal Dynamic Range : More than 90dB Frequency Response 20Hz ~20kHz Wow And Flutter : Less than 0.01 %Wrms Channel Separation : More than 60 dB Harmonic Distortion : Less than 0.01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 7 5 6 7 8 5 6 7 8 C D F A B E Accessories • Remote control ×1 (076R0JN020) • RF antenna cable ×1 (06CPL02006) • Audio / Video cable(L=1.2m) ×1 (red/white/yellow) (06CPBA2003) • Dry cell batteries ×2 (AAA/R03) • Warranty Card • Operating Instructions Red White Yellow www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 8 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 1 2 6, 8 10 5 13 12 14 11 3 2 4 9 7 15 FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 9 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List Mark No. Description Part No. 1 Gift Sheet 791WHA0100 2 Package,Back 792WHAA117 3 Package,Front 792WHA0558 4 Gift Box 793WCDC541 5 Pad,Flat 795WCA0674 6 Instruction Book Kit (English) J2E51401A 7 Poly Bag (185x270xT0.04) Y817041000 8 Guarantee Card J2D30902A 9 Pad Type : B 795WCAA224 10 Polybag,Instruction JB5UD200 11 Remote Control 076R0JN020 12 RF Antenna Cable 06CPL02006 13 Audio/Video Cable 06CPBA2003 NSP 14 Dry Cell Battery(AAA/R03) 1412004008 15 Pad Type : A 759WCAA223 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION PCB130 (DVD PCB ASS'Y) PCB010 (VCR PCB ASS'Y) PCB270 (OPERATION PCB ASS'Y) Refer to "2.3 DECK ASSY (TOP SECTION)" "2.4 DECK ASSY (BOTTOM SECTION)". Refer to "2.5 DVD MECHA ASSY" 6 5 1 50 50 50 50 19 13 17 12 10 20 8 9 16 (2/2) 16 (1/2) 46 42 50 3 43 53 7 20 Adhesive Y113031000 C B A 47 27 27 28 26 47 47 40 49 35 49 54 54 34 52 48 22 37 41 14 2 30 33 31 29 33 47 39 55 51 55 44 51 24 25 32 53 32 53 47 11 11 36 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 11 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List Mark No. Description Part No. 1 DVD PCB Assy (PCB130) A2E514X130 2 VCR MT PCB Assy(PCB010) A2E514X010 3 OPERATION PCB Assy(PCB270) A2E514X270 4 • • • • 5 DVD MECHA Assy A2E504X650 6 DECK Assy A2E504X420K 7 Front Cabi Assy 7A701A279A 8 Cabinet, Front 701WPJC889 9 Plate, Display 711WPDA591 10 Flap, VCR 712WPJC092 > 11 AC Cord & Bush (CD501) 1209614920 12 Glass, LED-DVD 713WPA0194 13 Glass, LED-VCR 713WPA0193 > 14 Fuse (F501 : 2.5A)51MS025L 081PC2R505 15 • • • • 16 Button, Frame_VCR 738WPBA107 17 Button, Frame_DVD 738WPBA108 18 • • • • 19 Spring, Flap 743WKA0042 20 Cushion, Leg 800WFAA015 21 Bottom Cabi Assy 7G7610007A 22 Plate, Bottom 702WSA0216 23 Angle, Center 761WSA0175 24 Plate Tray_Front 712WPBA076 25 Sheet DVD 7235630010 26 Angle Front 761WSAA025 27 Cushion 65TS10-10 8965TS1010 (10 x 20 x 25) 28 Holder, Disc 761WPA0296 29 Holder, Deck 701WPA0686 30 Holder, Deck 701WPA0751 31 Heat Sink IC A023 763WSAA023 32 Spring, Earth 753WUA0065 33 Holder, End Sensor 85OP700038 34 Sheet, Rating 722631A001 35 Sheet, Jack 7230007787 36 Sheet, Caution 726000A073 37 Shield, COMPO 752WSA0290 38 • • • • 39 Shield, 3Pin Jack 752WUAA001 40 Holder, DVD (BR) 761WPA0261 41 Holder, DVD (BL) 761WPA0321 42 Holder, Deck Top 761WPA0262 43 Cabinet, Top 702WSA0212 44 Fiber Washer (3 x 3.2 x T0.5) 800WF00004 45 • • • • 46 Screw (3x29) 8109130B9U 47 Screw (3x7) 810923070U 48 Screw (3x10) 8109I30A0U 49 Screw (3x8) 810923080U 50 Screw (3x6) 8109K3060U 51 Screw (3x33R) 8154D3033U 52 Screw (3x4) 810713040U 53 Screw (2.6x8) 811022680U 54 Screw (2.6x6) 810722660U 55 SEMS (screw 3x8) 810F13080U Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 DECK ASSY (TOP SECTION) NOTE: Applying positions AA, AB, AC, AD and AE for the grease are displayed for this section. Check if the correct grease is applied for each position. Class Part No. Part Name Mark Grease Y315061000 G-555G AA Y315071000 MG-33 AB Y31D011000 FG-84M AC Y315041000 FL-721 AD Y315141000 G-313Y AE To VCR MT PCB Assy CP102 CONTACT SIDE NON-CONTACT SIDE 34 35 42 48 48 29 37 47 5 4 8 23 18 52 52 22 20 19 11 10 26 27 38 24 46 2 3 32 1 9 39 50 51 31 30 36 49 40 41 51 51 16 17 13 14 21 15 7 6 12 33 53 28 25 AA AA AA AA AE AE AE AE AE AE AE AB AB AB AC AE AE AA AB AB AC AD AB AB AB AB AB AB AB AB AB AB AB AE AE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 13 5 6 7 8 5 6 7 8 C D F A B E DECK ASSY (TOP SECTION) parts List Mark No. Description Part No. 1 Pinch Roller Block (VA) 85OA400240 2 AHC Assy 85OA500026 3 Worm 85OP600581 4 Base, AC Head 85OP500083 5 Spring, AC Head 85OP800324 6 Main Chassis Assy 85OA000516 7 Arm Idler Assy 85OA200090 8 Inclined Base T Unit 3S 85OA400223 9 P5 Arm Assy 2 85OA400232 10 Tension Arm Assy 2 85OA400235 11 Inclined Base S Unit 85OA400231 12 Spring, Locker 85OP800367 13 Cass, Holder 85OP900736 14 Cass, Side L 85OP900748 15 Cass, Side R 85OP900749 16 Locker, R 85OP900739 17 Link Unit 85OA900228 18 Post, Cass Guide 85OP000496 19 Reel, S (S) 85OP200316 20 Reel, T (S) 85OP200317 21 Gear, Idler 85OP200308 22 Holder, Tension 85OP400492 23 Cap. P4 85OP400520 24 Band, Tension 85OP400542 25 Connect, Tension 85OP400533 26 Arm, Brake T 85OP600573 27 Band, Brake T 85OP600584 28 Spring, Tension 85OP800322 29 Spring, Brake T 85OP800360 30 Lever, Link 85OP900743 31 Lever, Flap 85OP900744 32 Cass, Opener 85OP900745 33 Reflector, LED 85OP700035 34 Bracket, Top 3V 85OP900746 35 Cord Jumper (CD1501) 122H071704 36 Cord Jumper (CD1502) 122Y021902 37 Head (Audio Control)(H5001) 1523Q91004 38 Head (Full Erase)(H5002) 1543Q02014 > 39 Motor, Loading (M101) 1596S98001 40 Micro Motor (M2003) 1589S11020 > 41 Cylinder Unit Assy (UN4001) A2D312H500 42 Cord Jumper (CD102) 122T041508 43 • • • • • 44 • • • • • 45 • • • • • 46 Screw (2.6x8) 8107226804 47 Screw (2.6x4) 8107226404 48 Screw (M2x6) 8102120604 49 Screw (2.6x6) 8109126604 50 Screw/Washer (A) (M3x4) 810A130404 51 Screw/Washer (A) (M2.6x5) 810A126504 52 Polyslider Washer 82Q264713N 53 Screw (Bind 2.6x6) 8107226604 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 14 1 2 3 4 1 2 3 4 C D F A B E 2.4 DECK ASSY (BOTTOM SECTION) NOTE: Applying positions AA, AB, AC, AD and AE for the grease are displayed for this section. Check if the correct grease is applied for each position. Class Part No. Part Name Mark Grease Y315061000 G-555G AA Y315071000 MG-33 AB Y31D011000 FG-84M AC Y315041000 FL-721 AD Y315141000 G-313Y AE 8 6 23 10 2 4 15 16 24 7 3 5 9 13 22 19 18 17 21 1 20 22 22 12 11 14 AA AA AA AD AA AA AA AA AA AA AB AB AB AB AB AB AB AB AB AB AA AA AA AA AA AA AA AA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 15 5 6 7 8 5 6 7 8 C D F A B E DECK ASSY (BOTTOM SECTION) parts List Mark No. Description Part No. 1 Belt, Capstan (S) 85OP200290 2 Main Chassis Assy 85OA000516 3 Clutch Assy 85OA200089 4 Loading Arm S Unit 85OA300065 5 Loading Arm T Unit 85OA300066 6 Gear, Clutch 85OP200311 7 Gear, Coupling 85OP200312 8 Lever, Clutch 85OP200313 9 Gear, Main Loading 85OP300194 10 Lever, Tension 85OP400490 11 Cam, Pinch Roller 85OP600577 12 Cam, Main 85OP600578 13 Rod, Main 85OP600579 14 Gear, Joint 85OP600582 15 Spring, Coupling 85OP800355 16 Spring, Ring 85OP800356 17 Holder, Capstan 85OP400549 18 Cord Jumper (CD1501) 122H071704 19 Cord Jumper (CD1502) 122Y021902 > 20 Capstan DD Unit (M2001) 1510S98042 21 Screw (2.6x4) 8107226804 22 E-Ring (3.0) 83ETW30000 23 Screw (2.6x6) 8109126604 24 Polyslider Washer (CUT) 82P184505N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 16 1 2 3 4 1 2 3 4 C D F A B E 2.5 DVD MECHA ASSY Applying positions AA and AB for the grease are displayed for this section. Check if the correct grease is applied for each position. NOTE: CLASS MARK GREASE G-555G AA SF-112 AB PART NO. Y315061000 PART NAME Y315121000 AA AA AA 8 D E 8 34 9 14 18 21 15 AA AAAA AA 23 20 11 4 3 7 28 6 1 AB AA AB AA 12 PCB610 (LOADING MOTOR PCB ASS'Y) 29 31 CD2302 16 17 33 CD2001 32 10 2 22 30 13 24 5 19 Do not replace the parts. Because, minute adjustments are needed if this condition is disassembled further more. If the repair is needed, replace the DVD MECHA ASS'Y. PCB640 (SW PCB ASS'Y) CD2301 Cannot supply separately. If the repair is needed, replace the LOADER SUB ASS'Y. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 17 5 6 7 8 5 6 7 8 C D F A B E DVD MECHA ASSY parts List Mark No. Description Part No. NSP 1 Loading Motor PCB Assy A2D801X610 2 • • • • 3 Loading Motor Assy 1596S18002 4 Motor Pulley 92P100097A 5 FEED Motor 1515S98002 6 Cord Cable (24P)(CD2001) 122H0O1901 7 Cord Jumper (CD2302) 122H052601 8 Insulator (F) 92P200013A 9 Belt Loading 92P200012A 10 Insulator (R) 92P200014A 11 Frame main 92P100091A 12 Tray 92P100100A 13 Holder Traverse 92P100109A 14 Gear Pulley 92P100095A 15 Gear Main 92P100096A 16 Gear Middle 92P100108A 17 SW PCB Assy (PCB640) A2E220T640 18 Clamper Plate 92P000014A 19 Loader SUB Assy 92SBB0020A 20 Clamper 92P100094A 21 Screw (M1.7x3) 814011730U 22 Screw (M1.7x2.3) 814011723U 23 Rack Loading 92P100093A 24 Gear Motor 92P100088A 25 • • • • 26 • • • • 27 • • • • 28 Cord Jumper (CD2301) 122H062102 29 Switch (SW1) 0515S32002 30 Push Switch (SW2) 0500101037 31 Screw (2.6x8) 811022680U 32 Screw (2x8) 816112080U 33 Screw (Bind 2x8) 811022080U 34 DVD MECHA ASSY A2E504X650 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 18 1 2 3 4 1 2 3 4 C D F A B E 2.6 WIRING CABLE B C A * All cables are ASSY parts. VCR PCB CD501 OPERATION PCB DVD PCB DVD DECK CD2301 CD2001 CP2601 CP2603 CP2602 CP8101 CD4002 V651 J8003 J8004 J8005 OS651 TU301 OS8001 J8007 J8006 J8008 J8001 CP8001 S501 S502 CP651 CP501 TP101 TP701 TP3001 TP3002 CP103 FE HEAD CP102 AC HEAD CD102 AC IN CD681 CP681 CD8001 CD501 CD2302 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 19 5 6 7 8 5 6 7 8 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 3.1.1 DVD BLOCK DIAGRAM CP8101_2 IMSA-9604S-14F 1 10 11 12 13 14 2 3 4 5 6 7 8 9 CD4002 CU2B2201 1 10 11 2 3 4 5 6 7 8 9 SDD0~SDD15 SDA0~SDA11 HA0~HA20 HD0~H120 FROM/TO TUNER/JACK FROM/TO POWER DAC A,B,C,D GND U(B) GND V(R) GND AUDIO-L GND AUDIO-R ZERO DVD RESET Y(G) V SW DVD-H CVBS RX TX GND(M) P.CON+9V UNREG+3.8V UNREG+3.8V P.CON+A5V GND(A) GND(D) GND(D) SPDIF PCM1753DBQR ZR36762PQCG_V REG+3.3V/+1.9V DVD AUDIO L DVD AUDIO R 2 2 I CLK I DAT S-24C04BFJ-TB 3.3V 1.9V TR+/-,FO+/- SPDL+/-,SLED+/- S MUTE ADC IN 5,6,7 TRACK,FOCUS_PWM SPINDLE,SLED_PWM SPDL_SENS Loading Moter Spindle Moter Sled Moter Pick up DEFECT,LINK,MIRR,LDON IC2601 READ CHANNEL ZR36708TQC Moter Driver IC2301 LA6565 CD,DVD,LD RF A,B,C,D,E,F HOME,TIN SW ,TOUT SW RFA_SDEN,DATA,SCLK AAF_CE,FE,TE,PI FNN,FNP VBIASS0,S1 STEREO DAC IC8502 ALRCLK ABCLK AMCLK ASDATA0 IC4002 EEPROM SI-3007KWM-TL IC4003 DM3 SDRAM 64M IC4005 HY57V161610ETP-7 IC4007 FLASH 8M SST39VF800A-70-4C-EK-D MPEG Decoder W/Video Encorder W/u-CON W/DSP IC4001 (Vaddis6V) DVD LOADER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 20 1 2 3 4 1 2 3 4 C D F A B E 3.1.2 Y/C AUDIO / CCD / HEAD AMP BLOCK DIAGRAM AUDIO SIGNAL (PB) AUDIO SIGNAL(REC) RECORD LUMINANCE SIGNAL PLAYBACK LUMINANCE SIGNAL RECORD COLOR SIGNAL TUNER VIDEO SIGNAL PLAYBACK COLOR SIGNAL PLAYBACK VIDEO SIGNAL 30 2 22 32 10 21 67 65 7 9 36 6 8 34 55 54 53 57 4 3 5 78 76 H.AMP SW REC AMP CP102_1 4 3 2 AUDIO PB AUDIO REC CTL+ HEAD AUDIO CONTROL 1 CTL- CTL+ CTL- Y/C/AUDIO/CCD/HEAD AMP IC IC101 LA71206M 39 Q107 BUFFER TIMMING CCD OUT DRIVER CLAMP 37 58 60 59 24 25 66 H.SW 72 73 74 H.SW H L H L H L PB.EE P R WC DC NL EMPHA REC FM-EQ FM MOD P R AGC AMP KIL FM AGC DELAY PB FM-EQ PB PHASE-EQ P R C-LPF GCA B-UP AMP ACC AMP Main CONV 3.58M BPF2 AUTO BIAS P R KIL B.D. PB AMP 3.58M BPF1 DOUBLE LIM FM DEM SUB LPF V/I CONV P R Y-LPF YNR/ COMB N.L. DEEM NC1 Y/C MIX SYNC SEP VCA CLAMP 1/2 FBC Chara INS. 6dB P R P R V-AGC L101 CLAMP EQ AMP LINE AMP MUTE ALC Y/C_CS Y/C_DATA Y/C_CLK H. AMP_SW C. ROTARY H. SW ENV. DET COMP DUMMY_V. SYNC C.SYNC FRONT_V_IN TUNER_V TO_NORMAL_A FROM_NORMAL_A 6 2 3 1 5 Q105 BIAS CTL 11 4 P. CON + 5V H.AMP SW/ AUDIO MUTE C ROT RF SW IN ENV DET CONP OUT Q104 BIAS OSC Q103 SW Q101, Q102 AUDIO PB SW HF1 HF2 HI-FI/DEMODU LATOR HF_COM COIL, BIAS OSC X101 3.578545M Hz VX01 50 49 PULL 41 Q109 BUFFER TUNER/JACK SYSCON HI-FI/DEMODU LATOR 80 SERIAL DECODER AUDIO_MUTE-H V.REC_ST-H LPF ALC DET P R SYSCON SYSCON EP/LP-CH1 (R) EP/LP-CH2 (L) CP101 6 5 4 SP-CH1 (R) SP_COM SP-CH2 (L) CYL 3 2 1 EP/LP_COM HF2 (L) HF_COM HF1 (R) 7 8 9 FE HEAD (HOT) FE HEAD (GND) FE HEAD 2 1 CP103 DETAL ENH 28 DVD V OUT FSC 26 Y/C_VIDEO_OUT POWER 43 4FSC FSC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 21 5 6 7 8 5 6 7 8 C D F A B E 3.1.3 SYSTEM CONTROL BLOCK DIAGRAM SYSCON/TIMER/SERVO IC3001 OEC0138A Y/C/AUDIO/ CCD/HEAD AMP POWER ON-L DRUM PWM MS SEN-B POWER FAIL Y/C CS KEY-B KEY-A DUMMY V.SYNC C.ROTARY 41 29 107 27 37 30 99 105 109 KEY-A OPERATION/ DISPLAY VCR_POWER_ON-L POWER_FAIL VIDEO H.SW CYL SPEED UP 103 DFG/PG 104 AUDIO MUTE-H 95 X1001 10MHz OSC 2 OSC 1 78 80 93 TUNER/JACK LD M CTL 97 REM IN 43 BOT-H EOT-H 26 REEL-T 42 REEL SENS Q3002 AT 5.2V BOT SENSOR Q3008 EOT SENSOR Q3006 P.CON+5V 11 CYL FG/PG 12 CYL DRIVE CAP PWM 108 CAP LIMIT 84 CAP FULL 102 CAP FG 9 CAP FWD-L 98 5 9 I LIMIT CAP CTL 1 CAP FG 4 CAP.M F/R 2 1 4 3 MS SEN-A 28 MS_SEN A Q3005 MS_SEN B Q3004 2 3 4 1 2 3 4 1 CAPSTAN DD UNIT P.CON +5V H.AMP SW 100 Y/C CS DUMMY_V.SYNC C.ROTARY H.SW AUDIO_MUTE-H H.AMP_SW V ENV V.REC ST-H 96 24 CV IN1 17 ENV.DET V.REC_ST-H SW_V_ OUT CTL(+) 3 CTL(-) 4 CV OUT AFT S.CURVE 33 19 VCR-H 86 IIC SDA IIC CLK 61 62 VIDEO_OUT TV/VCR IIC_DATA IIC_CLK KEY-B REM_IN AFT-S.CURVE CTL+ CTL- AT+5.2V TAB SW 35 REC SAFTY SW RESET 77 1 2 3 IC3003 PST3231NR AT+5V SYSTEM RESET 5 6 EEPROM IC3099 S-24C02BFJ-TB Y/C DATA 54 Y/C CLK 53 Y/C_DATA Y/C_CLK C.SYNC 111 C.SYNC SCL SDA COMP 101 COMP SEG5 63 SEG1 VCR LED 47 55 SEG_5 SEG_1 VCR_LED ST SELECT 31 HIFI H.SW 106 HIFI ENV 32 ST_SELECT HIFI_H.SW HIFI_ENV.DET POWER MUTE L 87 POWER_MUTE-L IIC_DATA IIC_CLK AUDIO_MUTE-H REC_MUTE_H HIFI/ DEMODULATOR DVD_POWER_CTL 45 DVD_POWER_CTL 2G/DUB/REC LED 49 2G/DUB/REC_LED SYSTEM CONTROL BLOCK DIAGRAM RX 65 TX X3002 32.768KHz X1 X2 76 75 TX 64 DVD/RESET 44 DVD RESET 1G/VCR/T-REC LED 48 1G/VCR/T-REC_LED RX TUNER/JACK DVD LCD 46 DVD_LED 25 SYS_MUTE VIDEO MUTE H 40 88 SYS_MUTE VIDEO_MUTE-H AV SW1 92 AV_SW1 CENT LED D3001 10 LDM CTL CP3001 OPERATION/ DISPLAY SEG 6 SEG 9 SEG 7 67 68 71 SEG 8 3G/TV/VCR LED 50 66 4G/TIME SHIFT LED 51 SEG 6 SEG 9 SEG 7 SEG 8 3G/TV/VCR_LED 4G/TIME SHIFT_LED SEG 2 5G/CB/BS LED 52 58 SEG 2 5G/CB/BS_LED SEG 4 60 SEG 4 SEG 10 SEG 10 SEG 3 59 SEG 3 73 2 CAP VCO 8 LD/CY_VCO AT+12.6V POWER POWER POWER POWER RF_CH_SW 94 RF_CH_SW DVD_POWER_LTL 4FSC IN 22 REC_MUT_H 82 4FSC SYNC DET 39 RECORD LUMINANCE SIGNAL PLAYBACK LUMINANCE SIGNAL RECORD COLOR SIGNAL PLAYBACK COLOR SIGNAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 22 1 2 3 4 1 2 3 4 C D F A B E 3.1.4 REGULATOR BLOCK DIAGRAM Q502 IC503 Q501 CONTROL SW. T501 13 15 4 2 IC501 TL431AILP VOLTAGE CTL. IC 3 1 L501 AC IN D505, D506 D502, D503 6 12 10 11 7 PHOTO COUPLER 14 9VREG IC502 KIA7809API 1 3 2 2 4 Q505 P.CON 5V SW. Q510 P.CON+12V SW Q509 P.CON SW Q503 P.CON+5V SW. Q506 M-CON POWER SW. Q504 M-CON+5V SW. AT+12.6V OPERATION/DISPLAY TUNER/JACK P.CON+5V P.CON+12V AT+5.2V POWER FAIL VCR POWER ON-L AT+5V (M-CON) DVD POWER CTL +32V P.CON+5V AT+5.2V SYSCON SYSCON SYSCON TUNER/JACK TX CP501 7 UNREG+3.8V P.CON+5V 3 RX SPDIF 9 4 11 Q513 POWER FAIL SW. Q514 POWER FAIL SW. TX RX SYSCON P.CON+5V P.CON+5V Y/C/AUDIO/ CCD/HEAD AMP HIFI/ DEMODULATOR DVD Q507 CONTROL 6 P.CON+9V 8 UNREG+3.8V SPDIF AT+5.2V P.CON+9V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 23 5 6 7 8 5 6 7 8 C D F A B E 3.1.5 OPERATION / DISPLAY BLOCK DIAGRAM SYSCON KEY-A KEY-B CP681 CP651 REC/OTR PLAY FF/CUE REW/REV STOP OPEN CLOSE OS651 REM_IN 1 CH DOWN CH UP 6 13 12 11 10 8 9 7 5 4 14 15 V651 C02D0M3-A SEG10 5G/CS/BS_LED SYSCON 3 2 1 5G SW Q651 SEG10 SW Q652 SEG9 SW Q653 4G SW Q654 SEG8 SW Q655 Q656 Q657 Q658 3G SW Q659 Q660 2G SW Q661 Q662 Q663 Q664 1G SW Q665 SEG7 SW SEG1 SW SEG3 SW SEG2 SW SEG4 SW SEG5 SW SEG6 SW 4G/T_SHT_LED SEG9 SEG7 SEG8 SEG5 SEG6 SEG4 3G/TV/VCR_LED SEG3 2G/DUB/REC_LED SEG1 SEG2 1G/VCR/T-REC_LED POWER VCR EJECT VCR/DVD AT+5.2V DVD LED SW Q666 POWER DVD LED 5 KEY-A KEY-B 2 1 2 1 5 DVD LED D681 VCR LED D651 DVD_LED VCR_LED 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 24 1 2 3 4 1 2 3 4 C D F A B E 3.1.6 HiFi / DEMODULATOR BLOCK DIAGRAM HIFI AUDIO/H.AMP/DEM IC IC701 LA72670BM-L-MPB-E 80 9 78 39 38 71 2 49 57 40 37 23 27 26 24 51 4 6 AUDIO_OUT_L HIFI_H.SW RF_CONV_A.OUT SIF OUT AUDIO_MUTE-H HIFI_ENV. DET IIC_CLK IIC_DATA AUDIO_OUT_R ST_SELECT FRONT_A_IN-L FRONT_A_IN-R HF2 HF_COM FSC HF1 FROM_NORMAL_A TO_NORMAL_A TUNER/JACK SYSCON Y/C/AUDIO/CCD /HEAD AMP 46 32 36 P.CON+5V INPUT SW AMP AMP OUTPUT SW PNR DEM BLOCK AMP AMP LOGIC 15 DBX NOISE REDUCTION 11 73 74 12 DVD_A_OUT- L DVD_A_OUT-R POWER 3 5 AT+5.2V 54 P.CON+9V ALC ALC/ MUTE 17 REC_MUTE-H AUDIO SIGNAL (PB) AUDIO SIGNAL(REC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 25 5 6 7 8 5 6 7 8 C D F A B E 3.1.7 TUNER / JACK BLOCK DIAGRAM TU301 4 FRONT_A_IN-L AUDIO_OUT_R REAR OUT JACK J8001 2 Q8004 BUFFER VIDEO_OUT SYSCON HI-FI/ DEMODULATOR 1 RF_CONV_A. OUT 3 5 AUDIO_OUT_L TV/VCR P. CON+12V FRONT AV JACK VIDEO J8003 2 FRONT_V_IN TUNER_V 5 3 Y/C/AUDIO/CCD HEAD AMP FRONT_A_IN-R Q8006 MUTE SW SIF OUT 10 SCL 11 SDA 12 17 14 AFT-S. CURVE POWER MUTE_L 2 2 AUDIO L J8004 AUDIO R J8005 SYSCON 3 VIDEO MUTE H 15 +32V Q8003 VIDEO MUTE SW 4 1 DVD/VCR SW IC8005 MM1501XNRE 6 2 5 3 Q8005 MUTE SW Q8007 MUTE SW SYS_MUTE Y/C VIDEO OUT SW V OUT POWER P.CON+5V Vcc RF_CH_SW 2 Q301 MUTE SW CP8001 2 DVD-H Y(G) 1 3 4 V SW AUDIO-R 5 6 ZERO DVD RESET DVD_RESET AV SW1 DVD_A_OUT-R DVD_A_OUT-L SPDIF Q8001 DVD AUDIO DRIVER 8 FSC 2 5 3 DVD AIDIO OUT J8006 2 1 OPTICAL OS8001 AUDIO MUTE Q8008, Q8009 Q8010, Q8011 Q8012 AUDIO AMP IC8001 NJM4580M DVD AIDIO L DVD AIDIO R AUDIO-L 8 10 CVBS 12 14 U(B) V(R) 5 3 2 Y/U/V OUT J8007 4 3 Y/C SEPA J8008 Y C Y U V VIDE OUT SW SW 8001 DVD POWER CTL DVD DVD V OUT AUDIO SIGNAL (PB) AUDIO SIGNAL(REC) RECORD LUMINANCE SIGNAL PLAYBACK LUMINANCE SIGNAL RECORD COLOR SIGNAL TUNER VIDEO SIGNAL PLAYBACK COLOR SIGNAL DIGITAL AUDIO SIGNAL (PB) PLAYBACK VIDEO SIGNAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 26 1 2 3 4 1 2 3 4 C D F A B E 3.2 SW,LOADING MOTOR PCB ASSYS and OVERALL WIRING DIAGRAM 14 13 12 11 10 9 8 7 6 4 5 3 2 1 CP8101_2 14 13 12 11 10 9 8 7 6 4 5 3 2 1 CP8001 11 10 9 8 7 6 5 4 3 2 1 11 10 9 8 7 6 5 4 3 2 1 H1 H1 H2 E E J8007 YUV OUT 1 2 3 4 5 H1 E E H1 H2 J8006 DVD AUDIO OUT 1 2 3 4 5 SW8001 VIDEO OUT SW 1 11 12 13 14 15 16 17 18 2 3 4 5 6 7 8 BLACK WHITE BLADE WIDE CD501 AC120V_60HZ 24 23 22 21 20 19 2 1 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 CP2601 5 4 3 2 1 1 2 3 4 5 CP2602 OS8001 OPTICAL 1 2 3 J8008 Y/C SEPA 1 2 3 4 5 6 6 5 4 3 2 1 CP2603 H COMP L S/CVBS GND VCC INPUT S501 S502 BLACK WHITE 14 13 12 11 10 9 14 13 12 11 10 9 6 5 4 3 2 1 8 7 6 5 4 3 2 1 8 7 CD4002 UNREG+3.8V UNREG+3.8V UNREG+3.8V UNREG+3.8V GND(D) GND(D) GND(D) GND(D) DVD/CD DVD/CD 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 CD8001 FFC CVBS GND U(B) GND V(R) GND AUDIO-L GND AUDIO-R ZERO DVD RESET DVD-H Y(G) V SW DVD-H V SW Y(G) DVD RESET ZERO AUDIO-R GND AUDIO-L GND V(R) GND U(B) GND CVBS SPDIF GND P.CON+A5V P.CON+9V GND(M) TX RX SPDIF GND(A) P.CON+A5V P.CON+9V GND(M) TX RX CP501 LIMIT SW LD- LD+ GND(D) CLOSE OPEN LOADING MOTOR FG SENSER SW(GND) SLD- SLD+ SP1- SP1+ FFC SLED MOTOR SPINDLE MOTOR 6 5 4 3 2 1 VREF MON(DVD) NC(SW) VOL(DVD) GND(DVD) LD(DVD) LD(CD) VOL(CD) GND(CD) MON(COM) RF C B A D F E VCC GND(PDIC) F- F+ T- T+ VREF MON(DVD) NC(SW) VOL(DVD) GND(DVD) LD(DVD) LD(CD) VOL(CD) GND(CD) MON(COM) RF C B A D F E VCC GND(PDIC) F- F+ T- T+ 1 2 3 4 5 6 OPTICAL PICKUP ÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ : The power supply is shown with the marked box. SSS-13-2 SW1 GND(SW) SW-2(CLOSE) SW-1(OPEN) LOADING MOTOR(-) LOADING MOTOR(+) BCZ3B52 M2603 GND(SW) FEED MOTOR (+) SPINDLE MOTOR (+) SPINDLE MOTOR (-) FEED MOTOR (-) PICK UP INNER LIMIT SWITCH JCV9B06 M2601 M M M BCZ3B03 M2602 SW2 ESE22MH24 CD2301 CD2302 2H062102 DVD MECHA ASSY (A2E504X650) DVD PCB ASSY (A2E514X130) A 1/4 - A 4/4 A SW PCB ASSY D LOADING MOTOR PCB ASSY E D E 2H052601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 27 5 6 7 8 5 6 7 8 C D F A B E 4 3 2 1 4 3 2 1 H1 H1 H2 E E J8001 REAR OUT JACK 1 2 3 4 5 TU301 1 10 11 12 13 14 15 16 17 18 19 2 20 21 3 4 5 7 8 9 2 1 CP103 5 4 3 2 1 CP651 5 4 3 2 1 CP681 Vout B+ GND OS651 1 2 3 H NC E J8005 FRONT AV JACK AUDIO IN R 1 2 3 H E J8004 FRONT AV JACK AUDIO IN L 1 2 H E JJ8003 FRONT AV JACK VIDEO 1 2 7 6 5 4 3 2 1 12 11 10 9 8 7 6 5 4 3 2 1 12 11 10 9 8 7 6 5 4 3 2 1 9 8 7 6 4 5 3 2 1 CP101 CP102_1 3 2 1 4 2 1 3 4 AUDIO PB AUDIO REC FSC FPC V.OUT NC NC V.IN CONTROL +B CH A.IN NC NC NC TU 32V SIF OUT AFT A.OUT CLOCK DATA NC NC 3 2 1 5 4 6 9 8 7 FE HEAD (GND) FE HEAD (HOT) FE HEAD (GND) FE HEAD (HOT) FFC CD681 2 1 H5002 TM601 COMMAND TRANSMITTER 5 4 3 2 1 5 4 3 2 1 KEY-A KEY-B GND DVD LED KEY-A KEY-B GND DVD LED CP3001 HF1 (R) LD/CY VCO CD102 3 2 1 5 4 6 9 8 7 7 6 5 4 3 2 1 FFC 7 6 5 4 3 2 1 CTL- CTL+ FFC CTL- CTL+ AUDIO REC AUDIO PB H5001 AUDIO CONTROL CYLINDER UNIT WHITE RED M101 LOADING MOTOR LM D-U OUT D-V OUT D-W OUT D-COM M-GND D-PG OUT D-PG GND EP/LP HEAD SP HEAD HI-FI HEAD EP/LP COM SP COM HF2 (L) HF COM SP-CH2 (L) SP-CH1 (R) EP/LP-CH2 (L) EP/LP-CH1 (R) CAPSTAN DD UNIT M2001 CYL CTL CAP FG CAP VCO VCC CAP CTL CYL FG/PG LDM CTL GND MOTOR GND I LIMIT CAP.M/F/R O G VCC MR FG SENSOR ROTOR MAGNET COIL MAIN LOGIC SWITCH OUT HALL SENSOR IN HALL VCC HALL HEAD AUDIO CONTROL ASSY FULL ERASE HEAD ASSY OPERATION PCB ASSY (A2E514X270) VCR PCB ASSY (A2E514X010) C B 1/6 - B 6/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 28 1 2 3 4 1 2 3 4 C D F A B E 3.3 DVD PCB ASSY(1/4) C4078_1 100 6.3V KA IC4001 ZR36762PQCG_V MPEG/MICON/DSP 101102103 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 1 10 100 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 55 56 57 58 59 6 60 61 62 63 64 65 66 67 68 69 7 70 71 72 73 74 75 76 77 78 79 8 80 81 82 83 84 85 86 87 88 89 9 90 91 92 93 94 95 96 97 98 99 C4024 0.1 F C4025 0.1 F C4020 0.1 F C4019 0.1 F C4002 0.1 F C4023 0.1 F C4007 0.1 F C4005 0.1 F C4006 0.1 F C4018 0.1 F C4004 0.1 F C4085 0.001 B C4086 0.001 B C4088 0.01 B C4089 0.01 B C4001 0.1 F C4090 0.01 B C4022 0.1 F C4038 0.01 B C4008 0.1 F C4010 0.1 F C4013 0.1 F C4014 0.1 F C4077 0.1 F C4016 0.1 F C4017 0.1 F C4003 0.1 F R4043 10K R4022 10K R4044 10K R4056 100 R4061 3.3K R4060 1K R4046 4.7K R4050 4.7K R4051 4.7K R4052 4.7K R4049 4.7K R4008 100 R4001 390 +-1% R4053 1K R4072 8.2K R4039 4.7K R4037 4.7K R4038 4.7K R4036 4.7K R4054 1K R4057 100 R4073 100 R4064 100 R4059 100 DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS JG002 JG003 JG004 JG005 JG007 JG008 JG009 JG001 JG006 JG065 JG028 JG029 JG064 JG027 DIGITAL AUDIO SIGNAL(PB) NR4008 4D03WGJ0101T5E NR4007 4D03WGJ0101T5E NR4006 4D03WGJ0101T5E NR4005 4D03WGJ0101T5E NR4004 4D03WGJ0101T5E NR4003 4D03WGJ0101T5E NR4002 4D03WGJ0101T5E NR4001 4D03WGJ0101T5E MIRR LINK FNN FNP DEFECT AAF_PI AAF_TE AAF_FE AAF_CE VBIASS1 VBIASS0 ADCIN_5 ADCIN_6 ADCIN_7 SPDL_SENS RFA_SDEN RFA_DATA RFA_SCLK SLED_PWM TRACK_DAC FOCUS_DAC DAC_VIDEO_C DAC_VIDEO_B DAC_VIDEO_D DAC_VIDEO_A SPINDLE_PWM UNREG+3.8V BOOT2 FPCRX FPCTX FPCCLK BOOT1 FPCSTRB IRRCV DUPTD1 DUPRD1 DUPTD0 DUPRD0 P.CON+5V GND GND RFINN RFINP FPCSTRB IRRCV GND P.CON+3.3V HA0 HA1 HA2 HA3 HA15 HA4 HA5 HA16 HA6 HA14 HA7 HA13 HA8 HA12 HA9 HA10 HD15 HA11 HA11 HA12 HD7 HA13 HA14 HA15 HA10 HA16 HD14 HA17 HA9 HA18 HD6 HA19 HA20 HA8 HD0 HD13 HD1 HD5 HD2 HA20 HD3 HD4 HD5 HD12 HD6 WR HD7 HD4 HD8 HD9 HD10 HD11 HD11 HD3 HD12 HA19 HD13 HD14 HD15 HD10 HA18 MEMCS0 RD WR HD2 SD_A0 HA17 SD_A1 HD9 SD_A2 HA7 SD_A3 SD_A4 HD1 SD_A5 HA6 SD_A6 HD8 SD_A7 HA5 SD_A8 SD_A9 SD_A10 HD0 SD_A11 HA4 SD_D0 RD SD_D1 SD_D2 HA3 SD_D3 HA2 SD_D4 MEMCS0 SD_D5 HA1 SD_D6 SD_D7 HA0 SD_D8 SD_D9 SD_D10 SD_D11 SD_D12 SD_D13 SD_D14 SD_D15 RAMCS0# RAMCS1# RAMRAS# RAMCAS# SD_BA0 RAMDQM RAMWE# RAMCLK SD_A4 SD_A3 SD_A5 SD_A2 SD_A6 SD_A1 SD_A7 SD_A0 SD_A10 SD_A11 RAMCAS# SD_D10 SD_D11 SD_D12 SD_D13 SD_D14 SD_D15 SD_A8 SD_A9 RAMCS0# RAMCS1# RAMRAS# RAMWE# RAMDQM RAMCLK SD_D6 SD_D5 SD_D4 SD_D3 SD_D2 SD_D1 SD_BA0 SD_D7 SD_D9 SD_D8 FROM/TO MEMORY NC NC NC NC NC 0.9 0.3 1.0 0 1.0 3.3 0 1.0 0.2 0 0.2 1.8 1.9 0 0.2 3.3 0 3.1 0.5 0 3.1 0.2 3.2 3.3 3.2 0 0 1.6 3.3 2.1 0 1.3 0.8 0.8 3.3 1.7 1.3 0.5 0 0.9 1.8 1.4 0 0.5 3.3 2.0 0.4 1.5 0 0.8 1.2 0 0 1.9 0 0 0 2.1 2.0 0 3.3 0.6 3.3 2.6 1.8 2.7 2.9 0 0 0.5 0 0 0.6 0 0.6 2.7 2.7 0.6 0.4 5.5 3.3 0.4 3.3 0 0 0 3.1 3.1 3.2 0 3.3 3.3 3.3 3.3 3.3 3.0 3.0 3.0 3.3 3.3 0 0.5 2.6 1.1 1.2 3.3 1.1 1.2 1.2 0 0 0 0.9 3.3 0.8 0 3.3 1.2 1.2 0 3.3 1.7 1.5 1.6 0 0 1.7 1.8 1.6 1.7 1.1 0 0 0 0.7 0 1.5 1.8 2.9 2.9 0 3.3 3.3 0 0 0 3.3 0 3.3 3.3 0.7 3.3 3.3 4.3 SSCRXD GNDP VDDC GNDC 53 56 55 54 RAMADD(4) RAMADD(3) RAMADD(5) RAMADD(2) 100 101 102 103 104 RAMDAT(14) GNDP RAMDAT(1) RAMDAT(15) RAMDAT(0) SPINDLEPULSE 208 207 205 206 SSCCLK SSCTXD SLEDPULSE 157 160 159 158 GNDDACD CVBS/G/Y CVBS/C VDDDAC MEMAD(5) MEMDA(8) MEMAD(6) MEMDA(1) MEMAD(7) MEMDA(9) MEMAD(17) MEMDA(2) GNDP MEMAD(18) MEMDA(10) MEMAD(9) MEMDA(6) MEMAD(8) MEMDA(5) MEMDA(4) VDDC MEMWR# MEMDA(12) VDDP MEMAD(20) MEMDA(3) GNDC MEMAD(19) MEMAD(15) MEMAD(14) MEMAD(13) MEMAD(12) MEMDA(15) MEMAD(11) MEMAD(10) MEMDA(14) GNDP VDDP MEMDA(0) VDDP MEMAD(0) MEMAD(1) MEMAD(2) MEMAD(3) MEMAD(4) MEMRD# GNDP VDD-IP VDDP VDDP RAMDAT(13) RAMDAT(2) RAMDAAT(3) RAMDAT(12) RAMDAT(4) RAMDAT(9) RAMDAT(6) VDDP RAMDAT(10) RAMDAT(5) RAMDAT(11) RAMWE# RAMDQM GNDPCLK PCLK VDDPCLK RAMDAT(8) GNDP RAMDAT(7) VDDP VDDC RAMADD(10) RAMADD(9) RAMADD(11) RAMBA(0) RAMCAS# GNDP VDDP GNDC RAMADD(0) GNDP RAMADD(8) RAMADD(1) RAMADD(7) RAMADD(6) VDDP MEMAD(16) VDDP ICGPCI/O(7) GNDP ICGPCI/O(6) PWMCO(6) GNDPWM VDDPWM PWMCO(5) PWMCO(4) DEFECT GNDAFERF ADCIN(7) ADCIN(6) ADCIN(5) ADCIN(4) ADCIN(3) ADCIN(2) ADCIN(0) PWMCO(0) PWMCO(1) ADCIN(1) PWMCO(2) PWMCO(3) VDDC GNDC PWMACT(0) PWMACT(1) VBIASS0 VBIASS1 GNDAFES VDDAFES RFINP RFINN GNDDACDS VDDAFERF DACDRIVE(1) VDDDACS DACDRIVE(0) GNDDACPS GNDDACBS2 GNDDACP RSET C/B/U Y/R/V MEMCS(1) MEMDA(7) MEMDA(13) MEMDA(11) MEMCS(0)# RAMCS(1)# RAMRAS# RAMCS(0)# RAMBA(1) BOOTSEL1 BOOTSEL2 S AFE A 1/4 DVD PCB ASSY (A2E514X130) MPEG/MICON/DSP BLOCK A 1/4 2/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 29 5 6 7 8 5 6 7 8 C D F A B E C4083_1 100 6.3V KA C4011_1 100 6.3V KA C4053_1 100 6.3V KA C4009_1 47 16V KA 104 105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156 157 C4076 0.1 F C4073 0.1 F C4074 0.1 F C4075 0.1 F C4030 0.1 F C4031 0.01 B C4027 0.1 F C4028 0.1 F C4035 16P CH C4029 0.1 F C4033 0.1 F C4034 5P CH C4081 0.1 F C4072 0.1 F C4032 0.001 B C4096 0.001 B C4026 0.1 F C4037 0.1 F C4094 100P CH C4093 100P CH C4098 10P CH C4092 100P CH C4065 0.01 B C4097 0.01 B C4036 0.1 B C4082 0.1 F C4012 0.1 F C4066 1 B C4079 100P CH C4091 100P CH C4080 0.01 B C4015 0.1 F C4052 0.1 F C4070_1 47 6.3V KA C4069_1 47 6.3V KA C4068_1 47 6.3V KA C4067_1 47 6.3V KA C4084_1 47 6.3V KA C4071_1 47 6.3V KA R4005 75 +-1% R4003 75 +-1% R4004 82 +-1% R4002 75 +-1% R4024 4.7K R4020 33 R4019 33 R4021 33 R4023 4.7K R4042 100 R4045 4.7K R4016 100 R4018 4.7K R4012 1M R4047 33 R4031 4.7K R4025 220 R4026 220 R4027 220 R4058 220 R4014 4.7K R4071 150 R4035 4.7K R4070 47K R4068 100 B4001 FCM2012H-102T04 B4002 FCM2012H-102T04 B4005 FCM2012H-102T04 B4006 FCM2012H-102T04 B4010 FCM2012H-102T04 B4004 FCM2012H-102T04 B4003 FCM2012H-102T04 W817 TP4010 TP4005 TP4006 TP4004 TP4007 TP4009 TP4008 JG015 JG018 JG051 TP4015 TP4016 JG066 JG012 JG059 JG017 JG014 JG011 TP4003 JG050 JG016 JG010 X4001 100BT02701 27MHz IC4003 SI-3007KWM-TL 13 REG+3.3V 1.9V IC 6 IC4002 S-24C02BFJ-TB EEPROM IC 1 2 3 4 L4001 2.2uH 0305 CD4002 CU2B1101 1 10 11 2 3 4 5 6 7 8 9 DUPTD1 RX SYS_MUTE DVD-H V_SW DAC_VIDEO_A DAC_VIDEO_C P.CON+3.3V DAC_VIDEO_B DAC_VIDEO_D ASDATA0 ABCLK ALRCLK AMCLK MD MC GND ML RESET P.CON+5V GND GND +1.8V +3.3V TRAY_OPEN TRAY_CLOSE HOME SPDL_SENS TOUT_SW DUPTD1 TIN_SW DUPRD1 RFA_SDEN RFA_DATA DUPTD0 RFA_SCLK AAF_CE DUPRD0 AAF_FE AAF_TE VR_SEL AAF_PI TRAY_OPEN VR_SEL FNN TOUT_SW FNP TRAY_CLOSE VBIASS0 TIN_SW VBIASS1 SMUTE DEFECT LINK MIRR LDON SMUTE TRACK_DAC FOCUS_DAC RESET SPINDLE_PWM SLED_PWM HOME HOME P.CON+A5V LDON P.CON+3.3V VCC+9V DJTDO ML P.CON+5V DJTDI MC ADCIN_7 ADCIN_6 DJTMS MD ADCIN_5 ICETCK V_SW ICETDO M_GND ICETDI GND SYS_MUTE GND I2CCLK I2CDAT I2CDAT I2CCLK DUPRD1 RX M_GND IAMCLK AMCLK VCC+9V P.CON+A5V IABCLK ABCLK P.CON+5V IALRCLK ALRCLK STBY_L ASDATA0 ASDATA1 SPDIF ASDATA2 SPDIF DVD-H P.CON+3.3V UNREG+3.8V UNREG+3.8V SD_D0 FROM/TO POWER FROM/TO RF AMP/DSP FROM/TO AUDIO/VIDEO NC NC NC 3.3 0 0 0 0 1.6 0 0 0 0 1.6 1.7 0 1.7 3.3 3.3 0 3.3 1.6 3.3 0 3.3 3.3 3.3 3.3 3.3 0 0 0 3.3 3.3 3.3 0 3.3 1.8 0 0 0 3.3 3.1 0 0 3.3 0 3.3 0 5.0 3.3 3.3 5.1 3.3 3.3 1.5 0 NC NC NC GND VCC WP SCL SDA 0 0 0 0 3.2 0 3.3 3.2 SPDIF AOUT(2) AOUT(0) AOUT(1) ABCLK GNDP-A2 AMCLK VDDP-A2 VDDP VID(7) VID(3) VID(2) VID(1) VID(0) GPCI/O(31) RESET# XO GCLKP GCLKA VDDP GPCI/O(32) GPCI/O(33) GPCI/O(34) GNDP DUPRD0 DUPTD0 VDD-IP DUPRD1 DUPTD1 ICGPCI/O(0) IDGPCI/O(0) GNDP VDDP ALRCLK GPAI/O AIN GNDC VSYNC VDDC HSYNC GNDP IDGPCI/O(2) VDDA GNDA ICGPCI/O(4) ICGPCI/O(5) IDGPCI/O(3) GPCI/O(20) STBY-L D1 1 D1 2 V SW D 0 3.3 5.1 V_IN GND V_C 1 5 6 7 8 2 3 4 5 VO1 VO2 3.8 1.9 RX TX GND(M) P.CON+9V UNREG+3.8V UNREG+3.8V P.CON+A5V GND(A) GND(D) GND(D) SPDIF A 1/4 CP501 B 6/6 4/4 A 3/4 A 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 30 1 2 3 4 1 2 3 4 C D F A B E 3.4 DVD PCB ASSY(2/4) A 2/4 DVD PCB ASSY (A2E514X130) MEMORY BLOCK A 2/4 IC4007 SST39VF800A-70-4C-EK-D FLASH IC 8M 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 5 6 7 8 9 C4064 0.1 F C4039 0.1 F C4062 0.1 F C4099 0.01 B C4095 0.01 B C4063_1 220 6.3V KA R4041 4.7K R4040 4.7K B4008 FCM2012H-102T04 B4007 FCM2012H-102T04 W854 SD_A0 SD_A1 HA16 HA15 SD_A2 SD_A3 SD_A4 HA14 SD_A5 SD_A6 SD_A7 HA13 SD_A8 SD_A9 SD_A10 HD15 HA12 SD_A11 SD_D0 SD_D1 HD7 HA11 SD_D2 SD_D3 SD_D4 HD14 HA10 SD_D5 SD_D6 SD_D7 HD6 HA9 SD_D8 SD_D9 SD_D10 HD13 HA8 SD_D11 SD_D12 SD_D13 HD5 HA19 SD_D14 SD_D15 RAMCS0# HD12 HA20 RAMCS1# RAMRAS# RAMCAS# HD4 WR SD_BA0 RAMDQM RAMWE# RESET RAMCLK HA0 HA1 HD11 HA2 HA3 HA4 HD3 HA5 HA6 HA7 HD10 HA19 HA8 HA9 HA10 HD2 HA18 HA11 HA12 HA13 HD9 HA17 HA14 HA15 HA16 HD1 HA7 HA17 HA18 HA19 HD8 HA6 HA20 HD0 HD1 HD0 HA5 HD2 HD3 HD4 RD HA4 HD5 HD6 HD7 HA3 HD8 HD9 HD10 MEMCS0 HA2 HD11 HD12 HD13 HA0 HA1 HD14 HD15 MEMCS0 RD WR P.CON+3.3V GND RESET FROM/TO AUDIO/VIDEO FROM/TO MPEG/MICON/DSP 0 0 1.4 2.6 2.6 1.4 1.2 1.6 1.6 3.3 1.3 0.9 1.6 2.5 1.6 2.5 1.7 1.3 1.6 1.6 1.4 0.7 1.5 1.6 1.3 2.5 1.5 0.8 1.0 1.7 0 0.1 0.1 0 0 1.6 3.3 1.6 0.8 0 0.7 0.6 1.2 1.3 1.9 0.7 1.2 3.3 STANDARD A16 VSS DQ15 DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 VDD DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 DE# VSS CE# A0 DQ4 A7 A6 A5 A4 A3 A2 A1 VCCQ A15 A14 A13 A12 A11 A9 A8 A18 A17 A10 A19 A20 RP# VPP WP# A19 WE# 1/4 A 4/4 Awww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 31 5 6 7 8 5 6 7 8 C D F A B E A 2/4 IC4005 HY57V161610ETP-7 64M SDRAM IC 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 6 7 8 9 C4040 0.1 F C4041 0.1 F C4050 0.1 F C4045 0.1 F C4046 0.1 F C4047 0.1 F C4021_1 220 6.3V KA R4048 47K SD_D15 SD_D0 SD_D14 SD_D1 SD_D13 SD_D2 SD_D12 SD_D3 SD_D11 SD_D4 SD_D10 SD_D5 SD_D9 SD_D6 SD_D8 SD_D7 RAMDQM RAMDQM RAMWE# RAMCLK RAMCAS# RAMRAS# RAMCS1# SD_A11 SD_BA0 SD_A9 RAMCS0# SD_A8 SD_A10 SD_A7 SD_A0 SD_A6 SD_A1 SD_A5 SD_A2 SD_A4 SD_A3 VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 VSSQ DQ6 DQ7 VDD LDQM WE CAS RAS CS BA0 BA1 A10/AP A0 A1 A2 A3 VDD VSS DQ15 VSSQ DQ14 DQ13 VDDQ DQ12 DQ11 VSSQ DQ10 DQ9 VDDQ DQ8 VSS NC UDQM CLK CKE NC A11 A9 A8 A7 A6 A5 A4 VSS NC 0 NC 0 1.2 0 1.5 2.0 3.3 0.4 0.5 0 1.7 0.8 3.3 2.1 0 0 0 1.5 3.3 0 0.2 0.2 1.0 1.0 1.0 0.9 0 3.3 1.3 0 3.3 0.3 0.2 1.9 3.1 0.5 3.1 0.2 3.2 3.2 0 0 0 0.5 0.9 0.8 1.3 3.3 0.4 0.8 3.3 1.5 3.3 0 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 32 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVD PCB ASSY(3/4) A 3/4 DVD PCB ASSY (A2E514X130) RF AMP/DSP BLOCK A 3/4 Q2601 2SA1036K DVD LD CTL Q2602 2SA2048 CD LD CTL IC2601 ZR36708TQC READ CHANNEL IC 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 55 56 57 58 59 6 60 61 62 63 64 7 8 9 D2601 KDS120RTK 1 2 3 S D G Q2604 2SK3018 VR CD CTL S D G Q2603 2SK3018 VR DVD CTL S D G Q2605 2SK3018 VR SEL CTL 00_6232_005_006_800 1 2 3 4 5 00_6232_006_006_800 1 2 3 4 5 6 CP2601 CP2602 CP2603 09-5000-024-001-001 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 3 4 5 6 7 8 9 C2608_1 47 6.3V KA C2626 0.1 F C2632 0.1 F C2605 0.0022 B C2607 33P CH C2606 0.0022 B C2603 0.0022 B C2604 0.0022 B C2610 0.0068 B C2612 0.033 B C2613 220P CH C2614 0.1 B C2611 0.1 F C2609 0.1 F C2634 0.1 F C2648 0.1 F C2627 0.033 B C2628 0.001 B C2629 0.001 B C2635 0.001 B C2624 0.001 B C2625 0.001 B C2633 0.001 B C2639 0.1 F C2638 0.1 F C2657 100P CH C2637 0.1 F C2636 0.1 F C2660 100P CH C2658 100P CH C2659 100P CH C2640_1 100 6.3V KA C2641_1 100 6.3V KA R2601 4.7K R2615 10 R2620 4.7K R2602 1.8M R2648 13K R2621 100 R2622 4.7K R2647 4.7K R2624 4.7K R2623 4.7K R2619 100 R2635 4.7K R2649 100 R2650 4.7K R2653 100 R2651 4.7K R2652 100 R2614 12K +-1% R2616 1K R2617 1K R2603 13K +-1% R2618 10 B2602 FCM2012H-102T04 B2601 FCM2012H-102T04 JG062 TP22 TP20 TP21 TP19 TP37 TP36 TP27 TP28 TP29 TP30 TP31 JG055 TP34 TP25 JG022 JG023 JG024 TP40 TP10 JG021 TP4 TP6 TP2601 JG053 JG054 JG056 JG019 JG020 TP42 JG061 JG052 JG063 TP5 FNP FNN VR_SEL VR_DVD VR_CD P.CON+5V TR- TR+ FO- FNN FO+ FNP DVDPD OPU_RF VR_DVD RFAC DVDLD CDLD VR_CD GND CDPD OPU_RF OPU_C OPU_B OPU_A OPU_D OPU_F OPU_E OPU_VREF OPU_D OPU_C OPU_B MOT_LD- OPU_A MOT_LD+ TOUT_SW TIN_SW P.CON+3.3V LDON MIRR CDPD OPU_VREF DVDPD OPU_F OPU_E HOME MOT_SLED- MOT_SLED+ MOT_SPDL- MOT_SPDL+ DVDLD CDLD GND VREF NC NC NC A2 B2 C2 D2 CP CN D C B A CD_D CD_C CD_F CD_B 16 CD_A CD_E VPB VC DVDLD CDLD DVDPD CDPD VNB LDON MIRR MP MB MLPF MIN MEVO DFT TPH V125 FE CE MNTR SCLK SDATA RX MEV VNA FNN FNP DIP DIN BYP RFAC VPA AIP AIN ATON ATOP RFSIN RFDC 1 DVDRFP DVDRFN LCN LCP V33 V25 PI TE 33 LINK SDEN 48 MON(DVD) NC(SW) VOL(DVD) GND(DVD) LD(DVD) LD(CD) VOL(CD) GND(CD) MON(COM) RF C B A D F E VCC GND(PDIC) F- F+ T- T+ 0 0 0.7 0.5 0 0 0 0.7 0 0 0 2.5 0 2.5 2.5 3.7 3.7 2.7 2.7 2.7 2.6 2.7 2.7 2.7 2.6 2.6 0 2.6 5.1 5.1 3.7 5.1 0.2 0.2 0 3.3 2.7 2.2 2.3 2.9 0.2 0 3.3 0 1.7 3.3 1.6 1.8 1.7 1.8 0 4.1 4.2 3.3 3.3 1.5 0 0 0 0 0 2.3 3.5 3.5 2.6 2.4 5.1 4.3 4.3 3.1 3.1 0 1.5 FROM/TO LODER GND(D) SP1- SP1+ SLD+ SLD- LIMIT SW SW(GND) LD- LD+ NC OPEN CLOSE DVD/CD 3.9 4.5 1.0 4.5 3.9 1.0 DM3 CD2301 D CD2302 OPTICAL PICKUP E 4 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 33 5 6 7 8 5 6 7 8 C D F A B E A 3/4 IC2301 OEC0147AMOTOR DRIVE IC 1 10 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 4 5 6 7 8 9 HS2301 763WSA0026 HS76 C2617 0.1 B C2620 0.0056 B C2621 0.0056 B C2622 0.0056 B C2623 0.1 F C2619 560P CH C2654 0.01 B C2616 470P CH C2313 0.1 B C2301 0.1 F C2309 0.001 B C2312 0.001 B C2304 220P CH C2615 0.1 F C2642 0.1 F C2645 0.1 F C2305 220P CH C2618 0.1 B C2303 0.1 B C2302 0.1 B C2306 0.1 F C2307 0.1 B C2308 0.1 B C2655 0.01 B C2647 0.1 F C2311 0.1 B C2646_1 47 6.3V KA C2643_1 47 6.3V KA C2644_1 47 6.3V KA C2314_1 100 10V KA C2310_1 100 10V KA R2320 4.7K R2612 4.7K R2613 4.7K R2611 4.7K R2645 1K R2644 2.2K R2330 1K R2337 10K R2306 5.6K R2643 1K R2607 1.2K R2608 1.2K R2609 1.2K R2610 5.1K +-1% R2325 3.3K R2338 12K R2331 470 +-1% R2328 4.7K R2314 5.6K +-1% R2313 5.6K +-1% R2317 22K R2315 10K R2327 4.7K R2316 1.5K R2321 27K R2326 3.9K R2339 1M R2305 27K R2307 27K R2319 27K R2324 1K R2334 10K R2310 5.6K +-1% R2336 4.7K R2605 10K +-1% R2318 5.6K R2322 4.7K R2335 1.5K R2308 10K R2301 1K R2303 2.2 R2304 2.2 R2323 1.2 R2329 1.2 R2604 27K +-1% R2646 2.2K R2309 470 +-1% R2312 5.6K +-1% B2605 FCM2012H-102T04 B2604 FCM2012H-102T04 B2603 FCM2012H-102T04 DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS TP35 TP16 TP17 TP15 TP64 TP65 TP69 TP68 TP56 TP55 TP66 TP141 TP24 TP138 TP33 TP45 TP139 TP46 TP140 TP2 TP1 TP18 TP26 TP38 JG057 JG058 TOUT_SW TIN_SW RFA_SDEN RFA_DATA RFA_SCLK AAF_CE AAF_FE AAF_TE AAF_PI VR_SEL FNN FNP VBIASS0 VBIASS1 DEFECT LINK MIRR LDON HOME GND GND GND GND P.CON+5V RF_A5V P.CON+A5V RFA_SDEN P.CON+3.3V RFA_DATA RFA_SCLK SMUTE TRACK_DAC FOCUS_DAC SPINDLE_PWM AAF_CE SLED_PWM ADCIN_7 AAF_FE ADCIN_5 AAF_TE MOT_SPDL+ ADCIN_6 VCC+9V MOT_SPDL- AAF_PI M_GND SPDL_SENS VBIASS0 TRAY_CLOSE VBIASS1 TRAY_OPEN DEFECT LINK GND MOT_SPDL+ MOT_SPDL- MOT_SLED- MOT_LD- MOT_SLED+ MOT_LD+ TR+ TR- FO+ FO- FROM/TO MPEG/MICON/DSP 4.1 S-GND VCONT VIN4- VREF-IN VIN3 VCC1 VD2- VD2+ VD3- VD3+ VD4- VD4+ VLD+ VCC2 VLD- REV FWD VD1- VD1+ VIN1+A VIN1-A VIN 1 VIN2+ VIN2- VIN2 VIN3- VO_OP VIN-OP VIN+OP REG-IN REG-OUT VREF-OUT VIN4 MUTE234 MUTE1 VCCS RF 1.5 1.5 1.5 4.2 1.5 1.5 1.5 8.8 8.8 4.1 4.0 3.0 5.1 0 4.1 4.1 4.1 0.9 0.8 8.8 0 0 0 4.0 2.6 2.6 1.5 1.5 1.5 1.5 NC NC 0 0 NC 1.0 2.5 0 1.5 1.7 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 34 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVD PCB ASSY(4/4) A 4/4 DVD PCB ASSY (A2E514X130) AUDIO/VIDEO BLOCK A 4/4 IC8102 PCM1753DBQR STEREO DAC IC 1 10 11 12 13 14 15 16 2 3 4 5 6 7 8 9 AUDIO SIGNAL(PB) PLAYBACK VIDEO SIGNAL PLAYBACK LUMINANCE SIGNAL PLAYBACK COLOR SIGNAL COMPONENT SIGNAL(V) COMPONENT SIGNAL(U) C8120 0.1 F C8114 1 B C8113 1 B C8125 1 B C8126 1 B C8105 12P CH C8104 150P CH C8106 150P CH C8112 33P CH C8107 150P CH C8109 150P CH C8108 12P CH C8124 150P CH C8127 150P CH C8115 12P CH C8110 100P CH C8111 12P CH C8119_1 100 6.3V KA C8121_1 10 25V KA R8113 470 R8112 470 B8103 FCM2012H-102T04 W815 W818 W819 W820 L8103 1uH 0305 L8102 1uH 0305 L8105 1uH 0305 L8104 1uH 0305 DAC_VIDEO_A DAC_VIDEO_A DAC_VIDEO_C DAC_VIDEO_C DAC_VIDEO_B DAC_VIDEO_D P.CON+5V RESET DAC_VIDEO_B MC MD ML AMCLK ABCLK ALRCLK ASDATA0 DAC_VIDEO_D V_SW DVD-H SYS_MUTE GND GND RESET ASDATA0 AMCLK ABCLK ALRCLK ZERO MD MC ML FROM/TO MEMORY FROM/TO MPEG/MICON/DSP NC NC 0 0 SCK ML MC MD ZEROL/NA ZEROR/ZEROA VCOM AGND VOUTR VOUTL VCC VDD DGND LRCK DATA BCK 1.6 1.1 1.6 3.3 4.9 2.5 2.4 2.4 3.3 0 0 0 3.3 1.7 1/4 A 2/4 A 6 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 35 5 6 7 8 5 6 7 8 C D F A B E A 4/4 D8112 MCL4148 D8111 MCL4148 CP8101_2 IMSA-9604S-14F 1 10 11 12 13 14 2 3 4 5 6 7 8 9 C8122 0.001 B R8101 1K W824 W826 DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS JG038 JG040 JG042 JG048 JG035 JG034 JG036 JG030 JG033 JG031 JG037 JG013 DAC_A_VIDEO DAC_C_VIDEO DAC_B_VIDEO DAC_D_DVD_VIDEO DVD-H V_SW DAC_A_VIDEO RESET ZERO R_AUDIO L_AUDIO DAC_B_VIDEO DAC_C_VIDEO DAC_D_DVD_VIDEO SYS_MUTE FROM/TO TUNER/JACK 1 2 3 4 A B C D B R G CVBS CVBS Y C C CVBS CVBS Y Y V U U CVBS GND U(B) GND V(R) GND AUDIO-L GND AUDIO-R ZERO DVD RESET Y(G) V SW DVD-H CP8001 B 3/6 5 9 8 10 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 36 1 2 3 4 1 2 3 4 C D F A B E 3.7 VCR PCB ASSY(1/6) B 1/6 VCR PCB ASSY (A2E514X010) Y/C/AUDIO/CCD/HEAD AMP BLOCK B 1/6 IMSA-9604S-04C 1 2 3 4 B2013H02-2P 1 2 CD102 2F041508 FFC Q103 DTA124EKA SW CP101 CP102-1 CP103 TOC-C09X-A1 1 2 3 4 5 6 7 8 9 DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS C105 22 16V KA C112 220 6.3V KA C104 220 6.3V KA C115_1 33 10V KA L101 1626010 COIL,BIAS OSC 1 2 3 4 5 6 C101_1 0.033 100V MMTS C140 15P CH C129 1 B C120 1 B C162 1 B C158 1 B C107 0.015 B C106 0.01 B C117 0.01 B C118 0.01 B C116 0.1 F C169 0.047 F C165 0.047 F C166 0.068 B C122 0.0012 B C154 0.1 B C108 0.01 B C109 0.1 B C156 0.1 F C121 0.0027 B C114 0.1 B R102 10K R103 10K R140 2.2K 1/4W R107 3.9K R101 560 R110 8.2K R111 8.2K R112 330K R109 1K 1/4W R114 20K R106 680 R108 22K R138 22K R139 12K R142 1K R113 220 R137 12K 1/4W R136 22K R105 1K 1/4W R115 820 C174 47 6.3V KA C110_1 47 16V YK C119 10 25V KA Q104 KTC3203_Y BIAS OSC Q101 KTC3875S_Y_RTK AUDIO PB SW Q102 KTC3875S_Y_RTK AUDIO PB SW W805 W852 W819 W862 W863 Q105 KTA1266 BIAS CTL L102 100uH 0305 1 2 3 4 5 52 53 54 55 56 57 58 59 6 60 61 62 63 64 65 66 67 68 69 7 70 71 72 73 74 75 76 77 78 79 8 80 9 COMP H.SW ENV.DET H.AMP_SW C.ROTARY Y/C_CS Y/C_DATA Y/C_CLK AUDIO_MUTE-H P.CON+5V GND FSC TO_NORMAL_A FROM_NORMAL_A HF1 HF_COM HF2 P.CON+5V P.CON+5V TO_NORMAL_A CTL+ CTL- P.CON+5V V.REC_ST-H GND HOT TO FULL ERASE HEAD FROM/TO HEAD AUDIO CONTROL FROM/TO CYL FROM/TO HI-FI/DEMODULATOR FROM/TO POWER CTL- CTL+ AUDIO PB AUDIO REC 2.3 2.3 2.3 2.3 2.3 2.3 0 2.3 2.3 5.3 0 5.2 0 0 0 5.2 5.2 0 FE HEAD(HOT) FE HEAD(GND) 0 0 0.7 0.7 0 0 EP/LP-CH2 (L) EP/LP-CH1 (R) SP-CH2 (L) SP-CH1 (R) EP/LP COM HF1 (R) HF2 (L) + Vref 2.3V SP,LP EQ AMP ALC ALC A-VCC 1 2 3 A-GND HA PRE GND R P P R P P H L H L REC:LPIC501 IC K1A431A-AT I1KJ9A431A >IC502 IC KIA78R09API I1KA98R09A >IC503 PHOTO COUPLER PS2561AL1-1-V 000220002W IC701 IC LA72670BM-L-MPB-E I03F670BM0 IC2301 IC LA6565-TE-L-E I03F065650 IC2601 IC ZR36708TQC ICQK067080 IC3001 IC OEC0147A I54F50147A IC3003 IC PST3231NR I9UF032310 IC3099 MEMORY DATA S-24CS02AFJ I5HJ002AF0 IC4001 IC ZR36762PQCQ ICQK06762V IC4002 IC S-24CS02AFJ-TB-G I5HJ002AF0 IC S-24C02BFJ-TB I5HJ002BF0 IC4003 IC SI-3007KWM-TL I0BF97KWM0 IC4005 IC HY57V161610ETP-7 ICLJ0610EX IC4007 MEMORY SST39VF800A-70-4C- ICMJ0800A8 IC4008 IC HY57V161610ETP-7 ICLJ0610EX IC8001 IC NJM4580M(TE1) I0QJ045800 IC8005 IC MM1501XNRE I0UF015010 IC8102 IC PCM1753DBQR I17F017530 Q101 TRANSISTOR, 2SC2412KT146 T8YJ2412K0 Q102 TRANSISTOR, 2SC2412KT146 T8YJ2412K0 Q103 TRANSISTOR DTA124EKAT146 TPYJC05001 Q104 TRANSISTOR,SILICON KTC3203 TCAT032034 Q105 TRANSISTOR,SILICON KTA1266 TAATA12660 Q107 TRANSISTOR, 2SA1037AKT146 T6YJ1037K0 Q109 TRANSISTOR, 2SC2412KT146 T8YJ2412K0 Q301 TRANSISTOR, 2SC2412KT146 T8YJ2412K0 >Q501 FET 2SK3563 (ORION_Q) T25F035630 >Q502 TRANSISTOR,SILICON KTC3203 TCAT032034 >Q503 TRANSISTOR,SILICON KTC3209 TCAT03209Y >Q504 TRANSISTOR KTA1271 TAAT012714 >Q505 TRANSISTOR 2SD1207 TD3T012070 Q506 TRANSISTOR KRC103SRTK TNAAC05002 >Q507 TRANSISTOR,SILICON KTC3203 TCAT032034 Q509 TRANSISTOR DTC124EKAT146 TNYJC05001 >Q510 TRANSISTOR,SILICON 2SD1207 TD3T012070 Q513 TRANSISTOR 2SC2412KT146 T8YJ2412K0 Q514 TRANSISTOR,SILICON 2SC2412KT T8YJ2412K0 Q651 TRANSISTOR,SILICON 2SA1037AKTT6YJ1037K0 Q652 TRANSISTOR DTC124EKAT146 TNYJC05001 Q653 TRANSISTOR DTC124EKAT146 TNYJC05001 Q654 TRANSISTOR,SILICON 2SA1037AKTT6YJ1037K0 Q655 TRANSISTOR DTC124EKAT146 TNYJC05001 Q656 TRANSISTOR DTC124EKAT146 TNYJC05001 Q657 TRANSISTOR DTC124EKAT146 TNYJC05001 Q658 TRANSISTOR DTC124EKAT146 TNYJC05001 Q659 TRANSISTOR,SILICON 2SA1037AKTT6YJ1037K0 Q660 TRANSISTOR DTC124EKAT146 TNYJC05001 Q661 TRANSISTOR,SILICON 2SA1037AKTT6YJ1037K0 Q662 TRANSISTOR DTC124EKAT146 TNYJC05001 Q663 TRANSISTOR DTC124EKAT146 TNYJC05001 Q664 TRANSISTOR DTC124EKAT146 TNYJC05001 Q665 TRANSISTOR,SILICON 2SA1037AKTT6YJ1037K0 Q666 TRANSISTOR DTA124EKAT146 TPYJC05001 Q2601TRANSISTOR,SILICON 2SA1036KT T67J1036K0 Q2602TRANSISTOR,SILICON 2SA2048TL T67J048TL0 Q2603 FET 2SK3018 T27T030180 Q2604 FET 2SK3018 T27T030180 Q2605 FET 2SK3018 T27T030180 Q2607 TRANSISTOR,SILICON 2SA1037AKT T6YJ1037K0 Q2608 TRANSISTOR,SILICON 2SC2412KTT8YJ2412K0 Q3002 PHOTO COUPLER RPI-303 2700690 Q3003 TRANSISTOR DTA124EKAT146 TPYJC05001 Q3004 PHOTO COUPLER RPI-352C40N 0002700680 Q3005 PHOTO COUPLER RPI-352C40N 0002700680 Q3006 PHOTO TRANSISTOR ST-304L 0000M00390 Q3007 TRANSISTOR DTC124EKAT146 TNYJC05001 Q3008 PH0T0 TRANSISTOR ST-304L 0000M00390 Q8001 TRANSISTOR 2SC2412KT146 T8YJ2412K0 Q8002 TRANSISTOR DTC144EKAT TNYJD05001 Q8003 TRANSISTOR DTA124EKAT146 TPYJC05001 Q8004 TRANSISTOR KTA1266-AT TAATA12660 Q8005 TRANSISTOR 2SC2412KT146 T8YJ2412K0 Q8006 TRANSISTOR 2SC2412KT146 T8YJ2412K0 Q8007 TRANSISTOR DTA124EKAT146 TPYJC05001 Q8008 TRANSISTOR 2SC2412KT146 T8YJ2412K0 Q8009 TRANSISTOR 2SC2412KT146 T8YJ2412K0 Q8010 TRANSISTOR DTA143EKAT146 TPYJA05001 Q8011 TRANSISTOR DTA124EKAT146 TNYJC05001 Q8012 TRANSISTOR 2SC2412KT146 T8YJ2412K0 D501 DIODE,SILICON 1SS133T-77 D1VT001330 >D502 DIODE,SILICON 1N4005-EIC D2WXN40050 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 65 5 6 7 8 5 6 7 8 C D F A B E >D503 DIODE,SILICON 1N4005-EIC D2WXN40050 D504 DIODE,SILICON 1SS133T-77 D1VT001330 >D505 DIODE,SILICON 1N4005-EIC D2WXN40050 >D506 DIODE,SILICON 1N4005-EIC D2WXN40050 >D507 DIODE,SILICON RGP15J-G23 D23TGP15J0 D508 DIODE,SILICON 1SS133T-77 D1VT001330 D509 DIODE,RECTIFIER RGP10J-EIC D2WXGP10J0 >D510 DIODE,ZENER MTZJ22B T-77 D97U02201B >D511 DIODE,SCHOTTKY SB340L-6737 D2LKB340L0 D512 DIODE,SILICON 1SS133T-77 D1VT001330 >D513 DIODE,SILICON 1N4005-EIC D2WXN40050 D514 DIODE,ZENER MTZJ12B T-77 D97U01201B >D515 DIODE,SCHOTTKY 21DQ04N-TA2B1 D28T21DQN4 D516 DIODE,ZENER MTZJ5.1B T-77 D97U05R11B D518 DIODE,SILICON 1SS133T-77 D1VT001330 D519 DIODE,ZENER MTZJ6.8B T-77 D97U06R81B D520 DIODE,SILICON 1N4005-EIC D2WXN40050 >D522 DIODE,RECTIFIER 10ELS6N-TA1B2 D28TELS6N6 >D523 DIODE,ZENER MTZJ33B T-77 D97U03301B D524 DIODE,SILICON 1SS133T-77 D1VT001330 D526 DIODE,ZENER MTZJ3.3B T-77 D97U03R31B D527 DIODE,SILICON 1N4005-EIC D2WXN40050 D528 DIODE,SILICON 1SS133T-77 D1VT001330 D651 LED LTL-1CHEE-002A 0021E2Q210 D656 DIODE,SILICON 1N4005-EIC D2WXN40050 D685 LED LTL-1CHEE-002A 0021E2Q210 D2601 DIODE,SILICON KDS120RTK DDARDS1200 D2602 DIODE, 02DZ2.2-X DE5RB2R21X D3001 INFRARED LED LTE-3271T-012A-O 0010E00330 D3002 DIODE,SILICON 1SS133T-77 D1VT001330 D3007 DIODE,SILICON 1SS133T-77 D1VT001330 D3009 DIODE,SILICON 1SS133T-77 D1VT001330 D8004 DIODE,SILICON 1SS133T-77 D1VT001330 D8005 DIODE,SILICON 1SS133T-77 D1VT001330 D8006 DIODE,SILICON 1SS133T-77 D1VT001330 D8111 DIODE,SILICON MCL4148 DDDRL41480 D8112 DIODE,SILICON MCL4148 DDDRL41480 COILS AND FILTERS L101 COIL,BIAS OSC 1626010 031626010R L102 COIL 100UH 02167F101J L301 COIL 22UH 02167F220J >L501 COIL,LINE FILTER SS11VL-05230 029X000117 L505 COIL 22UH 02167F220J L506 COIL 22UH 021W7A220K L701 COIL 22UH 021LA6220J L702 COIL 22UH 021LA6220J L703 COIL 22UH 02167F220J L704 COIL 22UH 02167F220J L705 COIL 22UH 02167F220J L3002 COIL 22UH 021W7A220K L3003 COIL 12UH 021LA6120J L4001 COIL 2.2UH 02167F2R2J L8001 COIL 0.33UH 021LA6R33M L8002 COIL 0.33UH 021LA6R33M L8102 COIL 1UH 02167F1R0K L8103 COIL 1UH 02167F1R0K L8104 COIL 1UH 02167F1R0K L8105 COIL 1UH 02167F1R0K Mark No. Description Part No. SWITCHES AND RELAY SW651 SWITCH,TACT EVQ21505R 0504101T34 SW652 SWITCH,TACT EVQ21505R 0504101T34 SW653 SWITCH,TACT EVQ21505R 0504101T34 SW654 SWITCH,TACT EVQ21505R 0504101T34 SW655 SWITCH,TACT EVQ21505R 0504101T34 SW685 SWITCH,TACT EVQ11L05R 0504R01T38 SW686 SWITCH,TACT EVQ11L05R 0504R01T38 SW687 SWITCH,TACT EVQ11L05R 0504R01T38 SW688 SWITCH,TACT EVQ11L05R 0504R01T38 SW689 SWITCH,TACT EVQ11L05R 0504R01T38 SW690 SWITCH,TACT EVQ11L05R 0504R01T38 SW3001 SWITCH (LEAF) LSA-1144EAU 0508S11001 SW8001 SWITCH SLIDE SK42H01G9A 0510Y24001 CAPACITORS C101 CMP 0.033UF 100V MMTS P232W1333J C102 CE 10UF 25 V E50HU3100M C104 CE 220UF 6.3V E50HU0221M C105 CE 22UF 16 V E50HU2220M C106 CC 0.01UF 50V B CS0PB0414K C107 CC 0.015UF 50V B CS0PB04E4K C108 CC 0.01UF 50V B CS0PB0414K C109 CC 0.1UF 25V B CS0PB0315K C110 CE 47UF 16V E02LU2470M C112 CE 220UF 6.3V E50HU0221M C114 CC 0.1UF 25V B CS0PB0315K C115 CE 33UF 10 V E50HU1330M C116 CC 0.1UF 50V F CS0PF0415Z C117 CC 0.01UF 50V B CS0PB0414K C118 CC 0.01UF 50V B CS0PB0414K C119 CE 10UF 25 V E50HU3100M C120 CC 1UF 10V B CS0PB0N16K C121 CC 0.0027UF 50V B CS0PB04K3K C122 CC 0.0012UF 50V B CS0PB04B3K C123 CE 4.7UF 50V E50HU54R7M C124 CC 1UF 10V B CS0PB0N16K C125 CC 390PF 50V CH CS0PCH4N2J C126 CC 0.1UF 25V B CS0PB0315K C127 CC 180PF 50V CH CS0PCH4G2J C129 CC 1UF 10V B CS0PB0N16K C131 CE 100UF 6.3V E50HU0101M C132 CC 1UF 10V B CS0PB0N16K C133 CC 1UF 10V B CS0PB0N16K C134 CC 1UF 10V B CS0PB0N16K C135 CE 0.22UF 50V E02LU5R22M C136 CE 22UF 35V E02LU4220M C137 CC 1UF 10V B CS0PB0N16K C138 CE 1UF 50V E02LU5010M C139 CC 0.1UF 25V B CS0PB0315K C140 CC 15PF 50V CH CS0PCH4E1J C141 CC 0.01UF 50V B CS0PB0414K C142 CE 47UF 16V E50HU2470M C143 CC 1UF 10V B CS0PB0N16K C144 CC 0.01UF 50V B CS0PB0414K C145 CC 0.022UF 50V B CS0PB04H4K C146 CC 1UF 10V B CS0PB0N16K C147 CC 0.022UF 50V B CS0PB04H4K C148 CC 1UF 10V B CS0PB0N16K Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 66 1 2 3 4 1 2 3 4 C D F A B E C151 CC 1UF 10V B CS0PB0N16K C152 CE 47UF 16V E50HU2470M C154 CC 0.1UF 25V B CS0PB0315K C156 CC 0.1UF 50V F CS0PF0415Z C158 CC 1UF 10V B CS0PB0N16K C162 CC 1UF 10V B CS0PB0N16K C165 CC 0.047UF 50V F CS0PF04Q4Z C166 CC 0.068UF 16V B CS0PB02U4K C169 CC 0.047UF 50V F CS0PF04Q4Z C174 CE 47UF 6.3V E50HU0470M C302 CC 100PF 50V CH CS0PCH412J C303 CC 0.1UF 50V F CS0PF0415Z C307 CC 33PF 50V CH CS0PCH4L1J C308 CC 0.01UF 50V B CS0PB0414K C309 CE 220UF 6.3V E02LU0221M C313 CE 10UF 25 V E50HU3100M C315 CE 10UF 25 V E50HU3100M C317 CC 100PF 50V CH CS0PCH412J C318 CE 10UF 25 V E50HU3100M >C501 CE 2200UF 16V E02LF2222M >C502 CMP 0.22UF 275V ECQUL P2122B224M >C505 CE 100UF 16V E02LU2101M C506 CE 100UF 10V E02LU1101M C508 CC 0.022UF 50V B CS0PB04H4K C509 CP 0.018UF 50V P1M4T0183J C510 CC 0.022UF 50V B CS0PB04H4K >C511 CE 47UF 200V E62QFC470M C512 CE 10UF 25 V E50HU3100M C513 CC 220PF 2KV R C03L0R7H2K >C514 CE 100UF 16V E02LU2101M >C515 CC 0.01UF 500V B C0J0B0514K >C516 CC 0.0022UF 250V CC3LE0MH3M >C518 CE 2200UF 6.3V E61FF0222D >C519 CE 2200UF 10V E02LF1222M C520 CC 1UF 10V F CS0PF0N16Z >C521 CE 100UF 16V E02LU2101M >C522 CE 22UF 50V E02LU5220M C524 CC 0.022UF 50V B CS0PB04H4K C525 CC 680PF 2KV R C0PLRR7U2K >C526 CC 0.0022UF 250V CC3LE0MH3 C527 CC 0.001 UF 50V B CS0PB0413K C530 CE 100UF 16V E02LU2101M C531 CC 560PF 500V B C0JTB05S2K C534 CC 1UF 10V F CS0PF0N16Z >C540 CE 47UF 200V E62QFC470M C544 CC 1UF 10V B CS0PB0N16K C652 CE 100UF 10V E02LU1101M C653 CE 470UF 10V E02LU1471M C701 CC 1UF 10V B CS0PB0N16K C702 CC 1UF 10V B CS0PB0N16K C703 CC 1UF 10V B CS0PB0N16K C704 CC 0.01UF 50V B CS0PB0414K C705 CC 1UF 10V B CS0PB0N16K C706 CC 680PF 50V CH CS0PCH4U2J C707 CC 1UF 10V B CS0PB0N16K C708 CC 0.022UF 50V B CS0PB04H4K C709 CC 1UF 10V B CS0PB0N16K C711 CC 560PF 50V CH CS0PCH4S2J C712 CE 4.7UF 50V E50HU54R7M C713 CE 4.7UF 50V E50HU54R7M Mark No. Description Part No. C714 CC 0.033UF 25V B CS0PB03L4K C715 CC 1UF 10V B CS0PB0N16K C716 CE 4.7UF 50V E50HU54R7M C717 CC 1UF 10V B CS0PB0N16K C718 CC 0.1UF 25V B CS0PB0315K C719 CE 4.7UF 50V E50HU54R7M C720 CE 10UF 25 V E50HU3100M C721 CE 10UF 25 V E50HU3100M C722 CE 100UF 16V E02LU2101M C723 CC 1UF 10V B CS0PB0N16K C724 CC 0.1UF 50V F CS0PF0415Z C725 CE 22UF 16 V E50HU2220M C726 CE 4.7UF 50V E50HU54R7M C727 CE 2.2UF 50V E50HU52R2M C728 CE 22UF 16 V E50HU2220M C730 CC 0.1UF 50V F CS0PF0415Z C731 CE 100UF 6.3V E50HU0101M C732 CC 0.01UF 50V B CS0PB0414K C733 CC 1UF 10V F CS0PF0N16Z C735 CE 100UF 16 V E50HU2101M C739 CC 0.1UF 50V F CS0PF0415Z C740 CE 10UF 25 V E50HU3100M C742 CE 2.2UF 50V E50HU52R2M C743 CC 0.01UF 50V B CS0PB0414K C744 CC 560PF 50V CH CS0PCH4S2J C746 CC 0.1UF 50V F CS0PF0415Z C747 CC 1UF 10V B CS0PB0N16K C748 CC 1UF 10V B CS0PB0N16K C749 CC 680PF 50V CH CS0PCH4U2J C750 CE 10UF 25 V E50HU3100M C751 CE 22UF 16 V E50HU2220M C752 CC 0.1UF 50V F CS0PF0415Z C753 CE 4.7UF 50V E50HU54R7M C754 CC 0.01UF 50V B CS0PB0414K C755 CE 10UF 25 V E50HU3100M C756 CE 100UF 6.3V E50HU0101M C757CC 0.0047UF 50V B CS0PB04Q3K C758 CE 4.7UF 50V E50HU54R7M C759 CE 22UF 16 V E50HU2220M C760 CC 0.01UF 50V B CS0PB0414K C762 CC 0.01UF 50V B CS0PB0414K C763 CE 22UF 16 V E50HU2220M C764 CC 0.1UF 50V F CS0PF0415Z C765 CE 100UF 6.3V E50HU0101M C766 CC 0.1UF 50V F CS0PF0415Z C767 CE 4.7UF 50V E50HU54R7M C768 CC 0.0047UF 50V B CS0PB04Q3K C771 CC 0.01UF 50V B CS0PB0414K C2301 CC 0.1UF 50V F CS0PF0415Z C2302 CC 0.1UF 25V B CS0PB0315K C2303 CC 0.1UF 25V B CS0PB0315K C2304 CC 220PF 50V CH CS0PCH4H2J C2305 CC 220PF 50V CH CS0PCH4H2J C2306 CC 0.1UF 50V F CS0PF0415Z C2307 CC 0.1UF 25V B CS0PB0315K C2308 CC 0.1UF 25V B CS0PB0315K C2309 CC 0.001UF 50V B CS0PB0413K C2310 CE 100UF 10 V E50HU1101M C2311 CC 0.1UF 25V B CS0PB0315K C2312 CC 0.001UF 50V B CS0PB0413K Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 67 5 6 7 8 5 6 7 8 C D F A B E C2313 CC 0.1UF 25V B CS0PB0315K C2314 CE 100UF 10 V E50HU1101M C2603 CC 0.0022UF 50V B CS0PB04H3K C2604 CC 0.0022UF 50V B CS0PB04H3K C2605 CC 0.0022UF 50V B CS0PB04H3K C2606 CC 0.0022UF 50V B CS0PB04H3K C2607 CC 33PF 50V CH CS0PCH4L1J C2608 CE 47UF 6.3V E50HU0470M C2609 CC 0.1UF 50V F CS0PF0415Z C2610 CC 0.0068UF 50V B CS0PB04U3K C2611 CC 0.1UF 50V F CS0PF0415Z C2612 CC 0.033UF 25V B CS0PB03L4K C2613 CC 220PF 50V CH CS0PCH4H2J C2614 CC 0.1UF 25V B CS0PB0315K C2615 CC 0.1UF 50V F CS0PF0415Z C2616 CC 470PF 50V CH CS0PCH4Q2J C2617 CC 0.1UF 25V B CS0PB0315K C2618 CC 0.1UF 25V B CS0PB0315K C2619 CC 560PF 50V CH CS0PCH4S2J C2620 CC 0.0056UF 50V B CS0PB04S3K C2621 CC 0.0056UF 50V B CS0PB04S3K C2622 CC 0.0056UF 50V B CS0PB04S3K C2623 CC 0.1UF 50V F CS0PF0415Z C2624 CC 0.001UF 50V B CS0PB0413K C2625 CC 0.001UF 50V B CS0PB0413K C2626 CC 0.1UF 50V F CS0PF0415Z C2627 CC 0.033UF 25V B CS0PB03L4K C2628 CC 0.001UF 50V B CS0PB0413K C2629 CC 0.001UF 50V B CS0PB0413K C2632 CC 0.1UF 50V F CS0PF0415Z C2633 CC 0.001UF 50V B CS0PB0413K C2634 CC 0.1UF 50V F CS0PF0415Z C2635 CC 0.001UF 50V B CS0PB0413K C2636 CC 0.1UF 50V F CS0PF0415Z C2637 CC 0.1UF 50V F CS0PF0415Z C2638 CC 0.1UF 50V F CS0PF0415Z C2639 CC 0.1UF 50V F CS0PF0415Z C2640 CE 100UF 6.3V E50HU0101M C2641 CE 100UF 6.3V E50HU0101M C2642 CC 0.1UF 50V F CS0PF0415Z C2643 CE 47UF 6.3V E50HU0470M C2644 CE 47UF 6.3V E50HU0470M C2645 CC 0.1UF 50V F CS0PF0415Z C2646 CE 47UF 6.3V E50HU0470M C2647 CC 0.1UF 50V F CS0PF0415Z C2648 CC 0.1UF 50V F CS0PF0415Z C2654 CC 0.01UF 50V B CS0PB0414K C2655 CC 0.01UF 50V B CS0PB0414K C2657 CC 100PF 50V CH CS0PCH412J C2658 CC 100PF 50V CH CS0PCH412J C2659 CC 100PF 50V CH CS0PCH412J C2660 CC 100PF 50V CH CS0PCH412J C3001 CC 1UF 10V B CS0PB0N16K C3002 CC 1UF 10V B CS0PB0N16K C3004 CC 0.022UF 50V B CS0PB04H4K C3005 CC 0.001UF 50V B CS0PB0413K C3006 CC 0.001UF 50V B CS0PB0413K C3007 CC 0.1UF 25V B CS0PB0315K C3008 CC 0.0047UF 50V B CS0PB04Q3K C3009 CC 0.1UF 25V B CS0PB0315K Mark No. Description Part No. C3010 CC 0.001UF 50V B CS0PB0413K C3013 CE 22UF 16 V E50HU2220M C3014 CC 180PF 50V CH CS0PCH4G2J C3015 CC 820PF 50V CH CS0PCH4W2J C3016 CE 47UF 6.3V E50HU0470M C3017 CC 0.001UF 50V B CS0PB0413K C3018 CC 150PF 50V CH CS0PCH4E2J C3019 CC 0.1UF 25V B CS0PB0315K C3020 CC 0.022UF 50V B CS0PB04H4K C3021 CE 10UF 25 V E50HU3100M C3022 CC 470PF 50V CH CS0PCH4Q2J C3023 CE 470UF 6.3V E02LU0471M C3024 CC 12PF 50V CH CS0PCH4B1J C3025 CC 15PF 50V CH CS0PCH4E1J C3027 CC 0.1UF 50V F CS0PF0415Z C3029 CE 47UF 6.3V E50HU0470M C3030 CC 1UF 10V F CS0PF0N16Z C3031 CC 0.0015UF 50V B CS0PB04E3K C3032 CE 2.2UF 50V E50HU52R2M C3033 CE 220UF 16V E02LU2221M C3034 CC 1UF 10V F CS0PF0N16Z C3036 CC 0.1UF 50V F CS0PF0415Z C3038 CC 1UF 10V F CS0PF0N16Z C3040 CC 1UF 10V F CS0PF0N16Z C3041 CC 0.0015UF 50V B CS0PB04E3K C3044 CC 12PF 50V CH CS0PCH4B1J C3045 CE 0.47UF 50V E50HU5R47M C3049 CC 100PF 50V CH CS0PCH412J C3050 CC 0.01UF 50V B CS0PB0414K C3052 CE 22UF 16 V E50HU2220M C3053 CC 0.1UF 25V B CS0PB0315K C3061 CC 0.1UF 50V F CS0PF0415Z C3065 CC 0.1UF 50V F CS0PF0415Z C3066 CC 0.01UF 50V B CS0PB0414K C4001 CC 0.1UF 50V F CS0PF0415Z C4002 CC 0.1UF 50V F CS0PF0415Z C4003 CC 0.1UF 50V F CS0PF0415Z C4004 CC 0.1UF 50V F CS0PF0415Z C4005 CC 0.1UF 50V F CS0PF0415Z C4006 CC 0.1UF 50V F CS0PF0415Z C4007 CC 0.1UF 50V F CS0PF0415Z C4008 CC 0.1UF 50V F CS0PF0415Z C4009 CE 47UF 16V E50HU2470M C4010 CC 0.1UF 50V F CS0PF0415Z C4011 CE 100UF 6.3V E50HU0101M C4012 CC 0.1UF 50V F CS0PF0415Z C4013 CC 0.1UF 50V F CS0PF0415Z C4014 CC 0.1UF 50V F CS0PF0415Z C4015 CC 0.1UF 50V F CS0PF0415Z C4016 CC 0.1UF 50V F CS0PF0415Z C4017 CC 0.1UF 50V F CS0PF0415Z C4018 CC 0.1UF 50V F CS0PF0415Z C4019 CC 0.1UF 50V F CS0PF0415Z C4020 CC 0.1UF 50V F CS0PF0415Z C4021 CE 220UF 6.3V E50HU0221M C4022 CC 0.1UF 50V F CS0PF0415Z C4023 CC 0.1UF 50V F CS0PF0415Z C4024 CC 0.1UF 50V F CS0PF0415Z C4025 CC 0.1UF 50V F CS0PF0415Z C4026 CC 0.1UF 50V F CS0PF0415Z Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 68 1 2 3 4 1 2 3 4 C D F A B E C4027 CC 0.1UF 50V F CS0PF0415Z C4028 CC 0.1UF 50V F CS0PF0415Z C4029 CC 0.1UF 50V F CS0PF0415Z C4030 CC 0.1UF 50V F CS0PF0415Z C4031 CC 0.01UF 50V B CS0PB0414K C4032 CC 0.001UF 50V B CS0PB0413K C4033 CC 0.1UF 50V F CS0PF0415Z C4034 CC 5PF 50V CH CS0PCH450C C4035 CC 16PF 50V CH CS0PCH4F1J C4036 CC 0.1UF 25V B CS0PB0315K C4037 CC 0.1UF 50V F CS0PF0415Z C4038 CC 0.01UF 50V B CS0PB0414K C4039 CC 0.1UF 50V F CS0PF0415Z C4040 CC 0.1UF 50V F CS0PF0415Z C4041 CC 0.1UF 50V F CS0PF0415Z C4045 CC 0.1UF 50V F CS0PF0415Z C4046 CC 0.1UF 50V F CS0PF0415Z C4047 CC 0.1UF 50V F CS0PF0415Z C4050 CC 0.1UF 50V F CS0PF0415Z C4052 CC 0.1UF 50V F CS0PF0415Z C4053 CE 100UF 6.3V E50HU0101M C4062 CC 0.1UF 50V F CS0PF0415Z C4063 CE 220UF 6.3V E50HU0221M C4064 CC 0.1UF 50V F CS0PF0415Z C4065 CC 0.01UF 50V B CS0PB0414K C4066 CC 1UF 10V B CS0PB0N16K C4067 CE 47UF 6.3V E50HU0470M C4068 CE 47UF 6.3V E50HU0470M C4069 CE 47UF 6.3V E50HU0470M C4070 CE 47UF 6.3V E50HU0470M C4071 CE 47UF 6.3V E50HU0470M C4072 CC 0.1UF 50V F CS0PF0415Z C4073 CC 0.1UF 50V F CS0PF0415Z C4074 CC 0.1UF 50V F CS0PF0415Z C4075 CC 0.1UF 50V F CS0PF0415Z C4076 CC 0.1UF 50V F CS0PF0415Z C4077 CC 0.1UF 50V F CS0PF0415Z C4078 CE 100UF 6.3V E50HU0101M C4079 CC 100PF 50V CH CS0PCH412J C4080 CC 0.01UF 50V B CS0PB0414K C4081 CC 0.1UF 50V F CS0PF0415Z C4082 CC 0.1UF 50V F CS0PF0415Z C4083 CE 100UF 6.3V E50HU0101M C4084 CE 47UF 6.3V E50HU0470M C4085 CC 0.001UF 50V B CS0PB0413K C4086 CC 0.001UF 50V B CS0PB0413K C4088 CC 0.01UF 50V B CS0PB0414K C4089 CC 0.01UF 50V B CS0PB0414K C4090 CC 0.01UF 50V B CS0PB0414K C4091 CC 100PF 50V CH CS0PCH412J C4092 CC 100PF 50V CH CS0PCH412J C4093 CC 100PF 50V CH CS0PCH412J C4094 CC 100PF 50V CH CS0PCH412J C4095 CC 0.01UF 50V B CS0PB0414K C4096 CC 0.001UF 50V B CS0PB0413K C4097 CC 0.01UF 50V B CS0PB0414K C4098 CC 10PF 50V CH CS0PCH411D C4099 CC 0.01UF 50V B CS0PB0414K C8004 CC 470PF 50V CH CS0PCH4Q2J C8005 CE 470UF 6.3V E02LU0471M Mark No. Description Part No. C8008 CC 0.0015UF 50V B CS0PB04E3K C8009 CC 0.0015UF 50V B CS0PB04E3K C8010 CE 10UF 25 V E50HU3100M C8011 CE 220UF 6.3V E50HU0221M C8013 CE 10UF 50V E50HU5100M C8014 CC 0.1UF 50V F CS0PF0415Z C8015 CE 220UF 6.3V E50HU0221M C8019 CE 10UF 25 V E50HU3100M C8020 CC 100PF 50V CH CS0PCH412J C8021 CC 0.1UF 50V F CS0PF0415Z C8022 CE 47UF 16V E02LU2470M C8023 CC 0.022UF 50V B CS0PB04H4K C8024 CE 47UF 16V E02LU2470M C8025 CC 0.1UF 25V B CS0PB0315K C8028 CC 100PF 50V CH CS0PCH412J C8031 CE 4.7UF 50V E50HU54R7M C8032 CE 4.7UF 50V E50HU54R7M C8033 CC 220PF 50V CH CS0PCH4H2J C8034 CE 220UF 6.3V E02LU0221M C8035 CE 2.2UF 50V E50HU52R2M C8036 CE 2.2UF 50V E50HU52R2M C8037 CE 22UF 50 V E50HU5220M C8038 CE 22UF 50V E02LU5220M C8039 CE 100UF 16 V E50HU2101M C8041 CC 0.1UF 50V F CS0PF0415Z C8043 CC 330PF 50V CH CS0PCH4L2J C8044 CC 330PF 50V CH CS0PCH4L2J C8045 CC 150PF 50V CH CS0PCH4E2J C8047 CC 330PF 50V CH CS0PCH4L2J C8048 CC 330PF 50V CH CS0PCH4L2J C8050 CC 150PF 50V CH CS0PCH4E2J C8051 CE 33UF 50V E02LU5330M C8054 CC 33PF 50V CH CS0PCH4L1J C8055 CC 33PF 50V CH CS0PCH4L1J C8056 CC 33PF 50V CH CS0PCH4L1J C8057 CC 0.1UF 50V F CS0PF0415Z C8058 CC 10PF 50V CH CS0PCH411D C8060 CC 10PF 50V CH CS0PCH411D C8061 CE 1000UF 6.3V E02LT0102M C8062 CE 1000UF 6.3V E02LT0102M C8063 CE 1000UF 6.3V E02LT0102M C8099 CC 470PF 50V CH CS0PCH4Q2J C8104 CC 150PF 50V CH CS0PCH4E2J C8105 CC 12PF 50V CH CS0PCH4B1J C8106 CC 150PF 50V CH CS0PCH4E2J C8107 CC 150PF 50V CH CS0PCH4E2J C8108 CC 12PF 50V CH CS0PCH4B1J C8109 CC 150PF 50V CH CS0PCH4E2J C8110 CC 100PF 50V CH CS0PCH412J C8111 CC 12PF 50V CH CS0PCH4B1J C8112 CC 33PF 50V CH CS0PCH4L1J C8113 CC 1UF 10V B CS0PB0N16K C8114 CC 1UF 10V B CS0PB0N16K C8115 CC 12PF 50V CH CS0PCH4B1J C8119 CE 100UF 6.3V E50HU0101M C8120 CC 0.1UF 50V F CS0PF0415Z C8121 CE 10UF 25 V E50HU3100M C8122 CC 0.001UF 50V B CS0PB0413K C8124 CC 150PF 50V CH CS0PCH4E2J C8125 CC 1UF 10V B CS0PB0N16K Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 69 5 6 7 8 5 6 7 8 C D F A B E C8126 CC 1UF 10V B CS0PB0N16K C8127 CC 150PF 50V CH CS0PCH4E2J RESISTORS R101 RC 560OHM 1/16W R803R9561J R102 RC 10KOHM 1/16W R803R9103J R103 RC 10KOHM 1/16W R803R9103J R105 RC 1KOHM 1/4W R002T4102J R106 RC 680OHM 1/16W R803R9681J R107 RC 3.9KOHM 1/16W R803R9392J R108 RC 22KOHM 1/16W R803R9223J R109 RC 1KOHM 1/4W R002T4102J R110 RC 8.2KOHM 1/16W R803R9822J R111 RC 8.2KOHM 1/16W R803R9822J R112 RC 330KOHM 1/16W R803R9334J R113 RC 220OHM 1/16W R803R9221J R114 RC 20KOHM 1/16W R803R9203J R115 RC 820OHM 1/16W R803R9821J R116 RC 15KOHM 1/16W R803R9153J R117 RC 6.8KOHM 1/16W R803R9682J R119 RC 1.8KOHM 1/16W R803R9182J R122 RC 100KOHM 1/16W R803R9104J R123 RC 2.2KOHM 1/4W R002T4222J R124 RC 82KOHM 1/16W R803R9823J R126 RC 1.8KOHM 1/16W R803R9182J R127 RC 680KOHM 1/16W R803R9684J R129 RC 1.8KOHM 1/16W R803R9182J R131 RC 1.5KOHM 1/16W R803R9152J R132 RC 3.3KOHM 1/16W R803R9332J R133 RC 8.2KOHM 1/16W R803R9822J R136 RC 22KOHM 1/16W R803R9223J R137 RC 12KOHM 1/4W R002T4123J R138 RC 22KOHM 1/16W R803R9223J R139 RC 12KOHM 1/16W R803R9123J R140 RC 2.2KOHM 1/4W R002T4222J R141 RC 1KOHM 1/16W R803R9102J R142 RC 1KOHM 1/16W R803R9102J R143 RC 1KOHM 1/16W R803R9102J R144 RC 220KOHM 1/4W R002T4224J R301 RC 33KOHM 1/16W R803R9333J R302 RC 1KOHM 1/16W R803R9102J R304 RC 1K OHM 1/16W R803R9102J R305 RC 1KOHM 1/4W R002T4102J R306 RC 22OHM 1/16W R803R9220J >R501 RC 3.3MOHM 1/2W R0G3K2335K >R502 R,METAL OXIDE 1OHM 1W R3X181010J >R503 RC 1.5MOHM 1/2W R002T2155J >R504 RC 560OHM 1/2W R002T2561J R505 RC 680KOHM 1/4W R002T4684J R506 RC 1MOHM 1/2W R002T2105J R507 RC 10KOHM 1/16W R803R9103J R508 RC 100OHM 1/4W R002T4101J R509 RC 100OHM 1/4W R002T4101J R511 RC 560KOHM 1/16W R803R9564J >R512 R,METAL OXIDE 68KOHM 1W R3X181683J R513 RC 390OHM 1/2W R002T2391J R514 RC 220OHM 1/2W R002T2221J R515 RC 27KOHM 1/16W R803R9273J >R516 R,FUSE 0.22OHM 1W R63581R22J Mark No. Description Part No. >R517 RC 1KOHM 1/2W R002T2102J R518 RC 150OHM 1/16W R803R9151J R519 RC 1KOHM 1/16W R803R9102J R520 RC 3.3KOHM 1/16W R803R9332F R521 RC 390OHM 1/16W R803R9391J R522 RC 3.3KOHM 1/16W R803R9332F R523 RC 6.8KOHM 1/16W R803R9682J R524 RC 100OHM 1/4W R002T4101J R527 RC 220OHM 1/4W R002T4221J R529 RC 680KOHM 1/4W R002T4684J R530 RC 470KOHM 1/4W R002T4474J R531 RC 10KOHM 1/16W R803R9103J R532 RC 10KOHM 1/16W R803R9103J R533 RC 220OHM 1/4W R002T4221J R534 RC 22KOHM 1/4W R002T4223J R535 RC 22KOHM 1/4W R002T4223J R536 RC 5.6KOHM 1/16W R803R9562J R547 RC 100KOHM 1/16W R803R9104J R549 RC 100KOHM 1/4W R002T4104J R552 RC 100OHM 1/16W R803R9101J R553 RC 47KOHM 1/4W R002T4473J R554 RC 10KOHM 1/4W R002T4103J R651 RC 100OHM 1/4W R002T4101J R653 RC 330OHM 1/4W R002T4331J R657 RC 2.7KOHM 1/16W R803R9272J R658 RC 1.8KOHM 1/16W R803R9182J R659 RC 1.5KOHM 1/16W R803R9152J R661 RC 820OHM 1/16W R803R9821J R662 RC 180OHM 1/16W R803R9181J R663 RC 180OHM 1/16W R803R9181J R664 RC 820OHM 1/16W R803R9821J R665 RC 180OHM 1/16W R803R9181J R666 RC 180OHM 1/16W R803R9181J R667 RC 180OHM 1/16W R803R9181J R668 RC 180OHM 1/16W R803R9181J R669 RC 820OHM 1/16W R803R9821J R670 RC 180OHM 1/16W R803R9181J R671 RC 820OHM 1/16W R803R9821J R672 RC 180OHM 1/16W R803R9181J R673 RC 180OHM 1/16W R803R9181J R674 RC 180OHM 1/16W R803R9181J R675 RC 820OHM 1/16W R803R9821J R683 RC 560OHM 1/16W R803R9561J R685 RC 13KOHM 1/4W R002T4133J R686 RC 6.8KOHM 1/4W R002T4682J R687 RC 3.9KOHM 1/4W R002T4392J R688 RC 2.7KOHM 1/4W R002T4272J R689 RC 3.3KOHM 1/4W R002T4332J R690 RC 22KOHM 1/4W R002T4223J R701 RC 4.7KOHM 1/16W R803R9472J R703 RC 12KOHM 1/4W R002T4123J R704 RC 1KOHM 1/4W R002T4102J R707 RC 1.8KOHM 1/16W R803R9182J R708 RC 330OHM 1/16W R803R9331J R710 RC 390KOHM 1/4W R002T4394J R712 RC 47KOHM 1/4W R002T4473J R713 RC 1.5KOHM 1/16W R803R9152J R715 RC 5.6KOHM 1/16W R803R9562J R716 RC 330OHM 1/16W R803R9331J R717 RC 330OHM 1/16W R803R9331J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 70 1 2 3 4 1 2 3 4 C D F A B E R718 RC 2.2MOHM 1/4W R002T4225J R719 RC 47KOHM 1/4W R002T4473J R720 RC 5.6KOHM 1/16W R803R9562J R721 RC 1.5KOHM 1/16W R803R9152J R722 RC 1.8KOHM 1/16W R803R9182J R723 RC 12KOHM 1/4W R002T4123J R724 RC 1KOHM 1/4W R002T4102J R725 RC 39KOHM 1/16W R803R9393J R726 RC 2.2KOHM 1/16W R803R9222J R727 RC 470OHM 1/16W R803R9471J R728 RC 100OHM 1/4W R002T4101J R729 RC 100OHM 1/4W R002T4101J R731 RC 1KOHM 1/16W R803R9102J R2301 RC 1KOHM 1/16W R8E3P9102J R2303 RC 2.2OHM 1/16W R803R92R2J R2304 RC 2.2OHM 1/16W R803R92R2J R2305 RC 27KOHM 1/16W R8E3P9273J R2306 RC 5.6KOHM 1/16W R803R9562J R2307 RC 27KOHM 1/16W R8E3P9273J R2308 RC 10KOHM 1/16W R8E3P9103J R2309 RC 470OHM 1/16W R803R9471F R2310 RC 5.6KOHM 1/16W R803R9562F R2312 RC 5.6KOHM 1/16W R803R9562F R2313 RC 5.6KOHM 1/16W R803R9562F R2314 RC 5.6KOHM 1/16W R803R9562F R2315 RC 10KOHM 1/16W R803R9103J R2316 RC 1.5KOHM 1/16W R803R9152J R2317 RC 22KOHM 1/16W R803R9223J R2318 RC 5.6KOHM 1/16W R803R9562J R2319 RC 27KOHM 1/16W R8E3P9273J R2320 RC 4.7KOHM 1/16W R803R9472J R2321 RC 27K OHM 1/16W R8E3P9273J R2322 RC 4.7KOHM 1/16W R803R9472J R2323 RC 1.2OHM 1/16W R803R91R2J R2324 RC 1KOHM 1/16W R8E3P9102J R2325 RC 3.3KOHM 1/16W R803R9332J R2326 RC 3.9KOHM 1/16W R803R9392J R2327 RC 4.7KOHM 1/16W R8E3P9472J R2328 RC 4.7KOHM 1/16W R8E3P9472J R2329 RC 1.2OHM 1/16W R803R91R2J R2330 RC 1KOHM 1/16W R8E3P9102J R2331 RC 470OHM 1/16W R803R9471F R2334 RC 10KOHM 1/16W R8E3P9103J R2335 RC 1.5KOHM 1/16W R803R9152J R2336 RC 4.7KOHM 1/16W R8E3P9472J R2337 RC 10KOHM 1/16W R8E3P9103J R2338 RC 12KOHM 1/16W R803R9123J R2339 RC 1MOHM 1/16W R803R9105J R2601 RC 4.7KOHM 1/16W R8E3P9472J R2602 RC 1.8MOHM 1/16W R803R9185J R2603 RC 13KOHM 1/16W R803R9133F R2604 RC 27KOHM 1/16W R803R9273F R2605 RC 10KOHM 1/16W R803R9103F R2607 RC 1.2KOHM 1/16W R803R9122J R2608 RC 1.2KOHM 1/16W R803R9122J R2609 RC 1.2KOHM 1/16W R803R9122J R2610 RC 5.1KOHM 1/16W R803R9512F R2611 RC 4.7KOHM 1/16W R803R9472J R2612 RC 4.7KOHM 1/16W R8E3P9472J R2613 RC 4.7KOHM 1/16W R8E3P9472J Mark No. Description Part No. R2614 RC 12KOHM 1/16W R8E3P9123F R2615 RC 10OHM 1/16W R803R9100J R2616 RC 1KOHM 1/16W R8E3P9102J R2617 RC 1KOHM 1/16W R8E3P9102J R2618 RC 10OHM 1/16W R803R9100J R2619 RC 100OHM 1/16W R803R9101J R2620 RC 4.7KOHM 1/16W R8E3P9472J R2621 RC 100OHM 1/16W R803R9101J R2622 RC 4.7KOHM 1/16W R8E3P9472J R2623 RC 4.7KOHM 1/16W R8E3P9472J R2624 RC 4.7KOHM 1/16W R8E3P9472J R2635 RC 4.7KOHM 1/16W R8E3P9472J R2643 RC 1KOHM 1/16W R8E3P9102J R2644 RC 2.2KOHM 1/16W R803R9222J R2645 RC 1KOHM 1/16W R8E3P9102J R2646 RC 2.2KOHM 1/16W R803R9222J R2647 RC 4.7KOHM 1/16W R8E3P9472J R2648 RC 13KOHM 1/16W R803R9133J R2649 RC 100OHM 1/16W R803R9101J R2650 RC 4.7KOHM 1/16W R8E3P9472J R2651 RC 4.7KOHM 1/16W R8E3P9472J R2652 RC 100OHM 1/16W R803R9101J R2653 RC 100OHM 1/16W R803R9101J R3001 RC 5.6KOHM 1/16W R803R9562J R3002 RC 120OHM 1/4W R002T4121J R3003 RC 3.3KOHM 1/16W R803R9332J R3004 RC 330KOHM 1/16W R803R9334J R3006 RC 47KOHM 1/16W R803R9473J R3007 RC 6.8KOHM 1/16W R803R9682J R3008 RC 1KOHM 1/16W R803R9102J R3009 RC 4.7KOHM 1/16W R803R9472J R3010 RC 10KOHM 1/16W R803R9103J R3011 RC 47KOHM 1/4W R002T4473J R3012 RC 56KOHM 1/4W R002T4563J R3014 RC 56KOHM 1/16W R803R9563J R3015 RC 47KOHM 1/4W R002T4473J R3016 RC 270OHM 1/4W R002T4271J R3017 RC 560OHM 1/16W R803R9561J R3020 RC 560OHM 1/16W R803R9561J R3021 RC 1KOHM 1/16W R803R9102J R3022 RC 150KOHM 1/16W R803R9154J R3025 RC 470OHM 1/16W R803R9471J R3026 RC 270KOHM 1/16W R803R9274J R3027 RC 15KOHM 1/16W R803R9153J R3028 RC 47KOHM 1/4W R002T4473J R3030 RC 5.6KOHM 1/16W R803R9562J R3031 RC 1MOHM 1/16W R803R9105J R3032 RC 10KOHM 1/16W R803R9103J R3033 RC 10KOHM 1/16W R803R9103J R3034 RC 1MOHM 1/16W R803R9105J R3035 RC 10KOHM 1/16W R803R9103J R3036 RC 10KOHM 1/16W R803R9103J R3037 RC 47KOHM 1/16W R803R9473J R3038 RC 4.7KOHM 1/16W R803R9472J R3043 RC 470KOHM 1/16W R803R9474J R3044 RC 3.3KOHM 1/16W R803R9332J R3045 RC 3.3KOHM 1/16W R803R9332J R3046 RC 10KOHM 1/16W R803R9103J R3047 RC 10KOHM 1/16W R803R9103J R3049 RC 47KOHM 1/16W R803R9473J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 71 5 6 7 8 5 6 7 8 C D F A B E R3050 RC 100OHM 1/4W R002T4101J R3051 RC 18KOHM 1/16W R803R9183J R3053 RC 470KOHM 1/16W R803R9474J R3055 RC 22KOHM 1/16W R803R9223J R3056 RC 1KOHM 1/16W R803R9102J R3057 RC 22KOHM 1/16W R803R9223J R3062 RC 1KOHM 1/16W R803R9102J R3063 RC 1KOHM 1/16W R803R9102J R3083 RC 33KOHM 1/16W R803R9333J R3087 RC 33KOHM 1/16W R803R9333J R4001 RC 390OHM 1/16W R8E3P9391F R4002 RC 75OHM 1/16W R803R9750F R4003 RC 75OHM 1/16W R8E3P9750F R4004 RC 82OHM 1/16W R8E3P9820F R4005 RC 75OHM 1/16W R8E3P9750F R4008 RC 100 OHM 1/16W R803R9101J R4012 RC 1MOHM 1/16W R803R9105J R4014 RC 4.7KOHM 1/16W R8E3P9472J R4016 RC 100OHM 1/16W R803R9101J R4018 RC 4.7KOHM 1/16W R803R9472J R4019 RC 33OHM 1/16W R803R9330J R4020 RC 33OHM 1/16W R803R9330J R4021 RC 33OHM 1/16W R803R9330J R4022 RC 10KOHM 1/16W R8E3P9103J R4023 RC 4.7KOHM 1/16W R8E3P9472J R4024 RC 4.7KOHM 1/16W R8E3P9472J R4025 RC 220OHM 1/16W R803R9221J R4026 RC 220OHM 1/16W R803R9221J R4027 RC 220OHM 1/16W R803R9221J R4031 RC 4.7KOHM 1/16W R803R9472J R4035 RC 4.7KOHM 1/16W R8E3P9472J R4036 RC 4.7KOHM 1/16W R803R9472J R4037 RC 4.7KOHM 1/16W R803R9472J R4038 RC 4.7KOHM 1/16W R8E3P9472J R4039 RC 4.7KOHM 1/16W R8E3P9472J R4040 RC 4.7KOHM 1/16W R8E3P9472J R4041 RC 4.7KOHM 1/16W R8E3P9472J R4042 RC 100OHM 1/16W R803R9101J R4043 RC 10KOHM 1/16W R8E3P9103J R4044 RC 10KOHM 1/16W R8E3P9103J R4045 RC 4.7KOHM 1/16W R803R9472J R4046 RC 4.7KOHM 1/16W R8E3P9472J R4047 RC 33OHM 1/16W R803R9330J R4048 RC 47KOHM 1/16W R803R9473J R4049 RC 4.7KOHM 1/16W R8E3P9472J R4050 RC 4.7KOHM 1/16W R8E3P9472J R4051 RC 4.7KOHM 1/16W R8E3P9472J R4052 RC 4.7KOHM 1/16W R8E3P9472J R4053 RC 1KOHM 1/16W R8E3P9102J R4054 RC 1KOHM 1/16W R8E3P9102J R4056 RC 100OHM 1/16W R803R9101J R4057 RC 100OHM 1/16W R803R9101J R4058 RC 220OHM 1/16W R803R9221J R4059 RC 100 OHM 1/16W R803R9101J R4060 RC 1KOHM 1/16W R8E3P9102J R4061 RC 3.3KOHM 1/16W R803R9332J R4064 RC 100OHM 1/16W R803R9101J R4068 RC 100OHM 1/16W R803R9101J R4070 RC 47KOHM 1/16W R803R9473J R4071 RC 150OHM 1/16W R803R9151J Mark No. Description Part No. R4072 RC 8.2KOHM 1/16W R803R9822J R4073 RC 100OHM 1/16W R803R9101J R8002 RC 3.3KOHM 1/16W R803R9332J R8003 RC 1.5KOHM 1/16W R803R9152J R8004 RC 33KOHM 1/4W R002T4333J R8005 RC 220OHM 1/16W R803R9221J R8006 RC 68OHM 1/16W R803R9680J R8007 RC 100KOHM 1/16W R803R9104J R8008 RC 470OHM 1/16W R803R9471J R8009 RC 470OHM 1/2W R002T2471J R8010 RC 68OHM 1/16W R803R9680J R8011 RC 100OHM 1/4W R002T4101J R8012 RC 470OHM 1/16W R803R9471J R8014 RC 100OHM 1/16W R803R9101J R8015 RC 100OHM 1/16W R803R9101J R8016 RC 2.2KOHM 1/16W R803R9222J R8017 RC 2.2KOHM 1/16W R803R9222J R8019 RC 75OHM 1/16W R803R9750J R8021 RC 1KOHM 1/16W R803R9102J R8022 RC 1KOHM 1/16W R803R9102J R8023 RC 3.3KOHM 1/16W R803R9332J R8024 RC 4.7KOHM 1/16W R803R9472J R8025 RC 1KOHM 1/16W R803R9102J R8026 RC 470KOHM 1/16W R803R9474J R8027 RC 4.7KOHM 1/16W R803R9472J R8028 RC 10KOHM 1/16W R803R9103J R8029 RC 10KOHM 1/16W R803R9103J R8030 RC 470OHM 1/16W R803R9471J R8031 RC 470OHM 1/16W R803R9471J R8032 RC 150OHM 1/16W R803R9151J R8033 RC 1.5KOHM 1/16W R803R9152J R8034 RC 1.5KOHM 1/16W R803R9152J R8035 RC 10KOHM 1/16W R803R9103J R8036 RC 56OHM 1/4W R002T4560J R8037 RC 10KOHM 1/16W R803R9103J R8038 RC 12KOHM 1/16W R803R9123J R8039 RC 12KOHM 1/16W R803R9123J R8040 RC 47KOHM 1/16W R803R9473J R8041 RC 10KOHM 1/16W R803R9103J R8042 RC 10KOHM 1/16W R803R9103J R8043 RC 10KOHM 1/16W R803R9103J R8044 RC 47KOHM 1/16W R803R9473J R8045 RC 100KOHM 1/16W R803R9104J R8046 RC 100KOHM 1/16W R803R9104J R8047 RC 10KOHM 1/16W R803R9103J R8048 RC 10KOHM 1/16W R803R9103J R8049 RC 2.2OHM 1/16W R803R92R2J R8054 RC 2.2KOHM 1/16W R803R9222J R8056 RC 150OHM 1/16W R803R9151J R8059 RC 4.7KOHM 1/4W R002T4472J R8101 RC 1KOHM 1/16W R803R9102J R8112 RC 470OHM 1/16W R803R9471J R8113 RC 470OHM 1/16W R803R9471J OTHERS B501 CORE,BEADS W4BRH3.5X6X1.0X2 024HT03563 B2601 CORE,BEADS MMZ1608R102CT 0246C51024 B2602 CORE,BEADS MMZ1608R102CT 0246C51024 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 72 1 2 3 4 1 2 3 4 C D F A B E B2603 CORE,BEADS MMZ1608R102CT 0246C51024 B2604 CORE,BEADS MMZ1608R102CT 0246C51024 B2605 CORE,BEADS MMZ1608R102CT 0246C51024 B4001 CORE,BEADS MMZ1608R102CT 0246C51024 B4002 CORE,BEADS MMZ1608R102CT 0246C51024 B4003 CORE,BEADS MMZ1608R102CT 0246C51024 B4004 CORE,BEADS MMZ1608R102CT 0246C51024 B4005 CORE,BEADS MMZ1608R102CT 0246C51024 B4006 CORE,BEADS MMZ1608R102CT 0246C51024 B4007 CORE,BEADS MMZ1608R102CT 0246C51024 B4008 CORE,BEADS MMZ1608R102CT 0246C51024 B4010 CORE,BEADS MMZ1608R102CT 0246C51024 B8001 CORE,BEADS FCM2012H-102T04 024HC31022 B8002 CORE,BEADS FCM2012H-102T04 024HC31022 B8003 CORE,BEADS FCM2012H-102T04 024HC31022 B8103 CORE,BEADS MMZ1608R102CT 0246C51024 CD102 CORD,JUMPER 2F041508 122F041508 >CD501 CORD,AC BUSH 09614920 1209614920 CD681 CORD,JUMPER 2H051202 122H051202 CP101CONNECTOR PCB SIDE TOC-C09X-A1 0697290620 CP102 PCB SIDE IMSA-9604S-04C 069J740599 CP103 WIRE HOLDER B2013H02-2P 067U002019 CP501 CON. PCB SIDE A2001WV2-11P 069S2B0629 >CP502 CON. PCB SIDE A3963WV2-3PD 069S320419 CP651 CON. PCB SIDE IMSA-9604S-05F 069J750589 CP681 CON. PCB SIDE IMSA-9604S-05F 069J750589 CD4002 CORD,CONNECTOR CU2B1101 06CU2B1101 CD6002 CABLE CPL02006 06CPL02006 CD6003 CORD,RCA PIN TD-020301-3 06CPBA2003 CD8001 CORD,JUMPER 2F0E1001 122F0E1001 CP2601 CON. PCB SIDE 09-5000-024-001 069GYOT119 CP2602 CON. PCB SIDE 00-6232-005-006 069EV53010 CP2603 CON. PCB SIDE 00-6232-006-006 069EV63010 CP3001 CON. PCB SIDE TMC-J12P-B2 06972C0010 CP8001 CON. PCB SIDE IMSA-9604S-14C 069J7E0599 CP8101 CON. PCB SIDE IMSA-9604S-14F 069J7E0589 >F501 FUSE 51MS025L 081PC2R505 FH501 HOLDER,FUSE EYF-52BCY 06710T0009 FH502 HOLDER,FUSE EYF-52BCY 06710T0009 NR4001 R,NETWORK 4D03WGJ0101T5E 110P4101M4 NR4002 R,NETWORK 4D03WGJ0101T5E 110P4101M4 NR4003 R,NETWORK 4D03WGJ0101T5E 110P4101M4 NR4004 R,NETWORK 4D03WGJ0101T5E 110P4101M4 NR4005 R,NETWORK 4D03WGJ0101T5E 110P4101M4 NR4006 R,NETWORK 4D03WGJ0101T5E 110P4101M4 NR4007 R,NETWORK 4D03WGJ0101T5E 110P4101M4 NR4008 R,NETWORK 4D03WGJ0101T5E 110P4101M4 OS651 REMOTE RECEIVER PIC-37043LO-H 077Q037009 OS8001 OPTICAL DEVICE OFTG038101 07AQ000009 >TU301 RF UNIT 115-V-H035ARE 162300042 V651 LED DISPLAY CO2D0M3-A 0040H54010 X101 CRYSTAL HC-49/U 100DT3R528 X3001 CRYSTAL B10000C001 100GT01006 X3002 CRYSTAL DT-26 100DA32R01 X4001 CRYSTAL HC-49U/S 100BT02701 >T501TRANSFORMER,SWITCHING 81291244 0481291244 J8001 RCA JACK MSP-213V1-432 060J411031 J8003 RCA JACK MSP-281V42-B 060J401099 J8004 RCA JACK MSP-281V40-B 060J401098 Mark No. Description Part No. J8005 RCA JACK MSP-281V31-A 060J421039 J8006 RCA JACK MSP-213V1-732 060J411033 J8007 RCA JACK MSP-213V1-652 060J411032 J8008 JACK MDC-070V-B_LF 063D700008 PCB010 VCR MT ASSY VMD335B A2E514X010 PCB130 DVD ASSY VMD351A A2E514X130 PCB270 OPERATION ASSY VEDA46B A2E514X270 Note ; RESISTOR RC : CARBON RESISTOR CAPACITORS CC : CERAMIC CAPACITOR CE : ALUMI ELECTROLYTIC CAPACITOR CP : POLYESTER CAPACITOR CPP : POLYPROPYLENE CAPACITOR CPL : PLASTIC CAPACITOR CMP : METAL POLYESTER CAPACITOR CMPL : METAL PLASTIC CAPACITOR CMPP : METAL POLYPROPYLENE CAPACITOR Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 73 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 SERVICING FIXTURES AND TOOLS (For 4 heads model) VHS Alignment Tape GGV1183 (VN1S-LI63H) GGV1184 (VN1S-X63) GGV1185 (VN2E-LI63H) GGF1506 Adapter GGF1507 Dial Torque Gauge (10~90 gf•cm) GGF1508 (60~600 gf•cm) GGF1509 Post Adjustment Screwdriver Part No. SV-TG0-030-000 (small) GGF1510 X Value Adjustment Screwdriver GGF1511 Master Plane GGF1512 Reel Disk Height Adjustment Jig GGV1186 Torque Tape (VHT-063) Part No. Parts Name Remarks GGV1183 VHS Alignment Tape Hi-Fi Audio (For 4 heads model) GGV1184 VHS Alignment Tape X Value Adjustment (For 4 heads model) GGV1185 VHS Alignment Tape EP Monoscope, 6 kHz (For 4 heads model) GGF1506 Adapter VSR Torque, Brake Torque (S Reel/T Reel Assy) GGF1507 Dial Torque Gauge (10~90 gf•cm) Brake Torque (T Reel Assy) GGF1508 Dial Torque Gauge (60~600 gf•cm) VSR Torque, Brake Torque (S Reel) GGF1509 Post Adjustment Screwdriver Guide Roller Adjustment GGF1510 X Value Adjustment Screwdriver X Value Adjustment GGF1511 Master Plane Reel Disk Heifht Adjustment GGF1512 Reel Disk Height Adjustment Jig Reel Disk Heifht Adjustment GGV1186 Torque Tape (VHT-063) Playback Torque, Back Tension Torque During Playback PREPARATION FOR SERVICING 1. While pressing the CH DOWN button on the set for more than 2 seconds, press the POWER button on the set simultaneously at the Power OFF. Although the DVD is connected, the DVD mode cannot be selected. 2. Press both CH UP button on the set and the REC button on the set for more than 2 seconds. (The BOT, EOT, and the Reel Sensor do not work and the VCR deck can be operated without a cassette tape.) 3. In case of using a cassette tape, press the EJECT button to insert or eject a cassette tape. Turn on the power and re-check the cable before checking the trouble points. When you servicing with connection of DVD, perform the operations above step 2 to step 3. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 74 1 2 3 4 1 2 3 4 C D F A B E 6.2 ADJUSTMENT ITEMS AND NECESSARY ADJUSTMENT POINTS 1 Adjustment Items [Mechanism Part] 1-1 CONFIRMATION AND ADJUSTMENT OF REEL DISK HEIGHT 2 1-2 CONFIRMATION AND ADJUSTMENT OF TENSION POST POSITION 3 1-3 CONFIRMATION OF PLAYBACK TORQUE AND BACK TENSION TORQUE DURING PLAYBACK 4 1-4 CONFIRMATION OF VSR TORQUE 5 1-5 CONFIRMATION OF REEL BRAKE TORQUE 1. CONFIRMATION AND ADJUSTMENT 6 2-1 GUIDE ROLLER 7 2-2 CONFIRMATION AND ADJUSTMENT OF AUDIO/CONTROL HEAD 8 2-3 TAPE RUNNING ADJUSTMENT (X VALUE ADJUSTMENT) 9 2-4 CONFIRM HI-FI AUDIO (Hi-Fi model only) 2. CONFIRMATION AND ADJUSTMENT OF TAPE RUNNING MECHANISM 10 [Electrical Part] 1-1 PG SHIFTER 11 VCR SIDE EEPROM (IC3099) INITIAL SETTING REPLACING EEPROM (IC3099) IC 1. BASIC ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 75 5 6 7 8 5 6 7 8 C D F A B E Mechanical point Electrical point Replacing Parts of Mechanism Assy When Adjustment Items Replacing REEL DISK (S REEL, T REEL) 1 2 3 4 5 None Mechanical point Electrical point Replacing PCB Assy or Electrical Parts Replacing DECK ASSY VCR MT PCB ASSY 10 None Mechanical point Electrical point Replacing TU301 (TUNER) None None Mechanical point Electrical point Replacing HEAD (AUDIO CONTROL) CYLINDER UNIT ASSY 6 10 7 Mechanical point Electrical point Replacing IC3099 (VCR SIDE EEPROM) None 8 9 10 11 Mechanical point Electrical point Replacing IC4007 (DVD SIDE EEPROM) None None Mechanical point Electrical point Replacing DVD DECK None None Mechanical point Electrical point Replacing TENSION BAND TENSION CONNECT TENSION ARM ASSY T BRAKE BAND T BRAKE SPRING T BRAKE ARM IDLER ASSY CLUTCH ASSY 2 3 4 5 None www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 76 1 2 3 4 1 2 3 4 C D F A B E 6.3 SERVICE MODE LIST This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily. To enter to the SERVICE MODE function, press and hold both buttons simultaneously on the main unit or on the main unit and on the remote control for more than a standard time in the appropriate condition. (See below chart.) In case of the main unit and remote control, press the remote control buttons first, then press the main unit buttons. Set Condition Set Key Set Key Standard Time Operations VCR mode CH UP FF 2 sec. PLAY/REC total hours are displayed on the TV Monitor. Refer to the “PREVENTIVE CHECKS AND SERVICE INTERVALS” (CONFIRMATION OF HOURS USED). Can be checked of the INITIAL DATA of MEMORY IC. Refer to the “WHEN REPLACING EEPROM (MEMORY) IC”. VCR mode CH UP PLAY 2 sec. Initialization of the factory on VCR. NOTE: Do not use this for the normal servicing. If you set a factory initialization, the memories are reset such as the clock setting, the channel setting, and PLAY/REC total hours. VCR mode (Playback) CH UP STOP 2 sec. Adjust the PG SHIFTER automatically. Refer to the “ELECTRICAL ADJUSTMENT”. Power Off CH DOWN POWER 2 sec. VCR operation mode at no connection of DVD. Refer to the “PREPARATION FOR SERVICING” NOTE: Although the DVD is connected, the DVD mode cannot be selected. Set Condition Set Key Remocon Key Standard Time Operations DVD mode (No disc) REC/OTR 4 2 sec. Initialization of the factory on DVD. NOTE: Do not use this for the normal servicing. This function will only work without the setting of DVD disc at DVD mode. While pressing the Remocon Key for more than 2 seconds, press the Set Key simultaneously. DVD mode (No disc) STOP 7 3 sec. Releasing of PARENTAL LOCK. Refer to the “PARENTAL CONTROL - RATING LEVEL”. NOTE: The function will only work without the setting of DVD disc at DVD mode. Method Operations Press the ATR button on the remote control for more than 2 seconds during PLAY. Adjusting of the Tracking to the center position. Refer to the “MECHANICAL ADJUSTMENT” (GUIDE ROLLER) and “ELECTRICAL ADJUSTMENT” (PG SHIFTER). Make the short circuit between the test point of SERVICE and the GND. The BOT, EOT, and the Reel Sensor do not work and the VCR deck can be operated without a cassette tape. Refer to the “PREPARATION FOR SERVICING” www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 77 5 6 7 8 5 6 7 8 C D F A B E 6.4 CONFIRMATION OF HOURS USED PLAY/REC total hours can be checked on the screen. Total hours are displayed in 16 system of notation. NOTE: If you set a factory initialization, the total hours is reset to "0". 1. Connect the set to TV Monitor. 2. Turn on the POWER, and set to the VCR mode. 3. Press both CH UP button on the set and the FF button on the set for more than 2 seconds. The Fig. 1 screen will appear on TV Monitor. 4. After the confirmation of using hours, turn off the power. Fig. 1 Initial setting content of MEMORY IC. PLAY/REC total hours. = (16 × 16 × 16 × thousands digit value) + (16 × 16 × hundreds digit value) + (16 × tens digit value) + (ones digit value) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 78 1 2 3 4 1 2 3 4 C D F A B E 6.5 PREVENTIVE CHECKS AND SERVICE INTERVALS The following standard table depends on environmental conditions and usage. Parts replacing time does not mean the life span for individual parts. Also, long term storage or misuse may cause transformation and aging of rubber parts. The following list means standard hours, so the checking hours depends on the conditions. Parts Name Time 500 hours 1,000 hours 1,500 hours 2,000 hours 2,500 hours Notes Audio Control Head 7 7 7 ¶ ¶ Clean those parts in contact with the tape. Full Erase Head (Recorder only) 7 7 7 ¶ ¶ Capstan Belt ¶ ¶ ¶ ¶ Clean the rubber, and parts which the rubber touches Pinch Roller 7 ¶ ¶ ¶ ¶ Capstan DD Unit ¶ ¶ ¶ ¶ Loading Motor ¶ Tension Band ¶ ¶ ¶ ¶ T Brake Band ¶ ¶ ¶ ¶ Clutch Assy ¶ ¶ ¶ ¶ Idler Arm Assy ¶ ¶ ¶ ¶ Capstan Shaft 7 7 7 7 7 Tape Running Guide Post 7 7 7 7 7 Replace when rolling becomes abnormal. Cylinder Unit 7 ¶ ¶ ¶ ¶ Clean the Head 7 : Clean ¶ : Check it and if necessary, replace it NOTE After cleaning the heads with isopropyl alcohol, do not run a tape until the heads dry completely. If the heads are not completely dry and alcohol gets on the tape, damage may occur. 1. AUDIO CONTROL HEAD Clean the Audio Control Head with the cotton stick soaked by alcohol. Clean the full erase head in the same manner. (Refer to the figure below.) 2. TAPE RUNNING SYSTEM When cleaning the tape transport system, use the gauze moistened with isopropyl alcohol. 3. CYLINDER Wrap a piece of chamois around your finger. Dip it in isopropyl alcohol. Hold it to the cylinder head softly. Turn the cylinder head counterclockwise to clean it (in the direction of the arrow). (Refer to the figure below.) NOTE Do not exert force against the cylinder head. Do not move the chamois upward or downward on the head. Use the chamois one by one. CLEANING Audio Control Head Cylinder Head www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 79 5 6 7 8 5 6 7 8 C D F A B E 6.6 MECHANICAL ADJUSTMENTS 1. CONFIRMATION AND ADJUSTMENT Read the following NOTES before starting work. • Place an object which weighs between 450g~500g on the Cassette Tape to keep it steady when you want to make the tape run without the Cassette Holder. (Do not place an object which weighs over 500g.) 1-1: CONFIRMATION AND ADJUSTMENT OF REEL DISK HEIGHT 1. Turn on the power and set to the STOP mode. 2. Set the master plane (GGF1511) and reel disk height adjustment jig (GGF1512) on the mechanism framework, taking care not to scratch the drum, as shown in Fig. 1-1-A. 3. While turning the reel and confirm the following points. Check if the surface "A" of reel disk is lower than the surface "B" of reel disk height adjustment jig (GGV1186) and is higher than the surface "C". If it is not passed, place the height adjustment washers and adjust to 10 (+2, -0) mm. 4. Adjust the other reel in the same way. 1-2: CONFIRMATION AND ADJUSTMENT OF TENSION POST POSITION 1. Set to the PLAY mode. 2. Adjust the adjusting section for the Tension Arm position so that the Tension Arm top is within the standard line of Main Chassis. 3. While turning the S Reel clockwise, confirm that the edge of the Tension Arm is located in the position described above. • USING A CASSETTE TYPE TORQUE TAPE (GGV1186) 1. After confirmation and adjustment of Tension Post position (Refer to item 1-2), load the cassette type torque tape (GGV1186) and set to the PLAY mode. 2. Confirm that the right meter of the torque tape indicates 50~90gf•cm during playback in SP mode. 3. Confirm that the left meter of the torque tape indicates 25~40gf•cm during playback in SP mode. Master Plane (GGF1511) Master Plane (GGF1511) 10 (+0.2, -0) mm Reel Disk Adjusting section for the Tension Arm position Standard line of Main Chassis Tension Arm 0.5 mm (Adjustment range) Tension Band Bend The Tension Arm top will move to the inside direction of the Main Chassis. The Tension Arm top will move to the outside direction of the Main Chassis. Height Adjustment Washer 2.6 × 4.7 × T0.13 2.6 × 4.7 × T0.25 (B) (C) (A) Reel Disk Height Adjustment Jig (GGF1512) Fig. 1-1-A Fig. 1-2-A Fig. 1-2-B Fig. 1-1-B Reel Disk Height Adjustment Jig (GGF1512) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 80 1 2 3 4 1 2 3 4 C D F A B E 1-4: CONFIRMATION OF VSR TORQUE 1. Install the Torque Gauge (GGF1508) and Adapter (GGF1506) on the S Reel. Set to the Picture Search (Rewind) mode. (Refer to Fig.1-4-B) 2. Then, confirm that it indicates 120~180gf•cm. NOTE Install the Torque Gauge on the reel disk firmly. Press the REW button to turn the reel disk. 1-5: CONFIRMATION OF REEL BRAKE TORQUE (S Reel Brake) (Refer to Fig. 1-4-B) 1. Once set to the Fast Forward mode then set to the Stop mode. While, unplug the AC cord when the Pinch Roller Block is on the position of Fig. 1-4-A. 2. Move the Idler Assy from the S Reel. 3. Install the Torque Gauge (GGF1508) and Adapter (GGF1506) on the S Reel. Turn the Torque Gauge (GGF1508) clockwise. 4. Then, confirm that it indicates 60~100gf•cm. (T Reel Brake) (Refer to Fig. 1-4-B) 1. Once set to the Fast Forward mode then set to the Stop mode. While, unplug the AC cord when the Pinch Roller Block is on the position of Fig. 1-4-A. 2. Move the Idler Assy from the T Reel. 3. Install the Torque Gauge (GGF1507) and Adapter (GGF1506) on the T reel. Turn the Torque Gauge (GGF1507) counterclockwise. 4. Then, confirm that it indicates 30~50gf•cm. NOTE If the torque is out of the range, replace the following parts. 2. CONFIRMATION AND ADJUSTMENT OF TAPE RUNNING MECHANISM Tape Running Mechanism is adjusted precisely at the factory. Adjustment is not necessary as usual. When you replace the parts of the tape running mechanism because of long term usage or failure, the confirmation and adjustment are necessary. 2-1: GUIDE ROLLER 1. Playback the VHS Alignment Tape (GGV1183). (Refer to SERVICING FIXTURE AND TOOLS) 2. Connect CH-1 of the oscilloscope to TP101 (Envelope) and CH-2 to TP3002 (SW Pulse). 3. Press and hold the ATR button on the remote control more than 2 seconds to set tracking to center. 4. Trigger with SW Pulse and observe the envelope. (Refer to Fig. 2-1-A) 5. When observing the envelope, adjust the Adjusting Driver (GGF1509) slightly until the envelope will be flat. Even if you press the Tracking Button, adjust so that flatness is not moved so much. 6. Adjust so that the A : B ratio is better than 3 : 2 as shown in Fig. 2-1-B, even if you press the Tracking Button to move the envelope (The envelope waveform will begin to decrease when you press the Tracking Button). 7. Adjust the PG shifter during playback. (Refer to the ELECTRICAL ADJUSTMENTS) NOTE After adjustment, confirm and adjust A/C head. (Refer to item 2-2) The position at FF mode. Stop at this position. The position at STOP mode. Caption DD Unit Cassette Opener Pinch Roller Block Cassette Holder Assy S Reel T Reel Torque Gauge/Adpter (GGB1508/GGB1506) Torque Gauge/Adpter (GGB1508/GGB1506) CH-1 Envelope (TP101) CH-2 SW Pulse (TP3002) Max Max A : B 3 : 2 Entrance Exit CH-1 Track CH-2 Track Fig. 1-4-A Fig. 2-1-A Fig. 2-1-B Fig. 1-4-B Check Item Replacement Part 1-4 Idler Assy / Clutch Assy 1-5 S Reel side : S Reel/ Tension Band/Tension Connect/Tension Arm Assy T Reel side : T Reel/ Brake Band/T Brake Spring /T Brake Arm A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 81 5 6 7 8 5 6 7 8 C D F A B E 2-2: CONFIRMATION AND ADJUSTMENT OF AUDIO/CONTROL HEAD When the Tape Running Mechanism does not work well, adjust the following items. 1. Playback the VHS Alignment Tape (GGV1183). (Refer to SERVICING FIXTURE AND TOOLS) 2. Confirm that the reflected picture of stamp mark is appeared on the tape prior to P4 Post as shown in Fig. 2-2-A. a) When the reflected picture is distorted, turn the screw 1 clockwise until the distortion is disappeared. b) When the reflected picture is not distorted, turn the screw 1 counterclockwise until little distortion is appeared, then adjust the a). 3. Turn the screw 2 to set the audio level to maximum. 4. Confirm that the bottom of the Audio/ Control Head and the bottom of the tape is shown in Fig. 2-2-C. c) When the height is not correct, turn the screw 3 to adjust the height. Then, adjust the 1~3 again. 2-3: TAPE RUNNING ADJUSTMENT (X VALUE ADJUSTMENT) 1. Confirm and adjust the height of the Reel Disk. (Refer to item 1-1) 2. Confirm and adjust the position of the Tension Post. (Refer to item 1-2) 3. Adjust the Guide Roller. (Refer to item 2-1) 4. Confirm and adjust the Audio/Control Head. (Refer to item 2-2) 5. Connect CH-1 of the oscilloscope to TP3002, CH-2 to TP101 and CH-3 to HOT side of Audio Out Jack. 6. Playback the VHS Alignment Tape (GGV1183). (Refer to SERVICING FIXTURE AND TOOLS) 7. Press and hold the ATR button on the remote control more than 2 seconds to set tracking to center. 8. Set the X Value adjustment driver (GGF1510) to the 4 of Fig. 2-2-B. Adjust X value so that the envelope waveform output becomes maximum. Check if the relation between Audio and Envelope waveform becomes (1) or (2) of Fig. 2-3. 9. Playback the VHS Alignment Tape. (Refer to SERVICING FIXTURE AND TOOLS) 10. Check if the picture is played back correctly. 2-4: CONFIRM HI-FI AUDIO (Hi-Fi model only) 1. Connect CH-1 of the oscilloscope to TP101 and CH-2 to the Hi-Fi Audio Out Jack. 2. Playback the VHS Alignment Tape (GGV1185). (Refer to SERVICING FIXTURE AND TOOLS) 3. Press and hold the ATR button on the remote control more than 2 seconds to set tracking to center. 4. Press the Tracking Up button and count number of steps which the audio output is changed from Hi-Fi (10KHz) to MONO (6KHz). 5. Press and hold the ATR button on the remote control more than 2 seconds to set tracking to center. 6. Press the Tracking Down button and count number of steps which the audio output is changed from Hi-Fi (10KHz) to MONO (6KHz). 7. If the difference are more than 3 steps, set the X Value adjustment driver (GGF1510) to 4 of Fig. 2-2-B. Change the X Value and adjust it so that the value becomes within 2 steps. Audio/Control Head Audio/Control Head Audio/Control Head Tape 0.25 ± 0.05 mm P4 Cap Stamp Mark Reflected picture of Stamp Mark Envelope CH-3 Audio (1) (2) Fig. 2-2-A Fig. 2-3 Fig. 2-2-B Fig. 2-2-C 1 4 3 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 82 1 2 3 4 1 2 3 4 C D F A B E 3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE 9 10 8 7 6 5 4 3 2 1 1. Tension Connect 2. Tension Arm 3. Guide Roller 4. Audio/Control Head 5. X value adjustment driver hole 6. P4 Post 7. T Brake Spring 8. T Reel 9. S Reel 10. Adjusting section for the Tension Arm position www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 83 5 6 7 8 5 6 7 8 C D F A B E 6.7 ELECTRICAL ADJUSTMENTS Read and perform this adjustment when repairing the circuits or replacing electrical parts or PCB assemblies. 1. BASIC ADJUSTMENT CAUTION When you exchange IC and Transistor for a heat sink, apply the silicon grease on the contact section of the heat sink. Before applying new silicon grease, remove all the old silicon grease. (Old grease may cause damages to the IC and Transistor.) 1-1: PG SHIFTER CONDITIONS MODE-PLAYBACK Input Signal-Alignment Tape (GGV1183) INSTRUCTIONS 1. Connect CH-1 on the oscilloscope to TP3002 and CH-2 to J8005. 2. Playback the alignment tape. (GGV1183) 3. Press and hold the Tracking-Auto button on the remote control more than 2 seconds to set tracking to center. 4. Press both CH UP button on the set and the STOP button on the set for more than 2 seconds. 6.5 H CH-2 CH-1 Fig. 1-1-A 6.5 H CH-2 CH-1 Fig. 1-1-B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 84 1 2 3 4 1 2 3 4 C D F A B E 2. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION) B C A VCR PCB CD501 OPERATION PCB DVD PCB DVD DECK CD2301 CD2001 CP2601 CP2603 CP2602 CP8101 CD4002 V651 J8003 J8004 J8005 OS651 TU301 OS8001 J8007 J8006 J8008 J8001 CP8001 S501 S502 CP651 CP501 TP101 TP701 TP3001 TP3002 CP103 FE HEAD CP102 AC HEAD CD102 AC IN CD681 CP681 CD8001 CD501 CD2302 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 85 5 6 7 8 5 6 7 8 C D F A B E 6.8 WHEN REPLACING DVD DECK [ When the removal of the DVD Deck ] Before removing Pick Up PCB and DVD PCB connector, make the short circuit on the position as shown Fig. 1 using a soldering. If you remove the DVD Deck with no soldering, the Laser may be damaged. [ When the installation of the DVD Deck ] Remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD PCB connector. Pick Up PCB Fig. 1 Make the short circuit using a soldering. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 86 1 2 3 4 1 2 3 4 C D F A B E 6.9 WHEN REPLACING EEPROM (MEMORY) IC If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to ensure correct data settings while making reference to TABLE 1. NOTE: INI 34 and INI 35 cannot be set. Because, the total time for the PLAY/REC of the main unit is recorded. 1. Connect the set to TV Monitor. 2. Turn on the POWER, and set to the VCR mode. 3. Press both CH UP button on the set and the FF button on the set for more than 2 seconds. ADDRESS and DATA will appear on TV Monitor as Fig 1. 4. ADDRESS is now selected and should "blink". Using the Tracking + or - button on the remote, step through the ADDRESS until required ADDRESS to be changed is reached. 5. Press ENTER to select DATA. When DATA is selected, it will "blink". 6. Again, step through the DATA using Tracking + or - button until required DATA value has been selected. 7. Pressing ENTER will take you back to ADDRESS for further selection if necessary. 8. Repeat steps 4 to 7 until all data has been checked. 9. When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input. After the data input, set to the initializing of shipping. 10. Turn on the POWER, and set to the VCR mode. 11. Press both CH UP button on the set and the PLAY button on the set for more than 2 seconds. 12. After the finishing of the initializing of shipping, the unit will turn off automatically. The unit will now have the correct DATA for the new MEMORY IC. INIT +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F 00 0E 10 DC 60 64 64 4A 86 0B 2B 86 32 0A 08 0A 01 10 AF 97 95 8A A0 57 31 04 88 A5 9F 3A 00 10 BF 00 20 3A 11 22 70 61 2A 3A 00 0B 00 40 C5 9A B0 00 37 30 03 17 --- --- --- --- --- --- --- --- --- --- --- --- --- --- Table 1 Fig. 1 ADDRESS DATA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 87 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 SYSTEM SWITCH MODE Please see the list below for the operational timing and the mode sensor output of the main parts on each mechanism modes. MECHANISM MODE EJECT 3 15 100 206.3 226.4 255 272.2 303.7 323.8 0 18 21.5 26.5 29.5 35 38.5 0 Mode Dealing Directions INCLINED BASE S/T UNIT TENSION ARM ASSY (S REEL BRAKE) TENSION CONNECT (S REEL BRAKE) T BRAKE ARM (T REEL BRAKE) PINCH ROLLER BLOCK P5 ARM ASSY TENSION LEVER CLUTCH LEVER LINK UNIT FLAP LEVER UP PRESS CLUTCH-ON BRAKE-ON BRAKE-ON BRAKE-ON PRESS PRESS DIRECT (T BRAKE:LOW) MODE SENSOR Output MS-1 High Low High Low MS-2 Revolutional Angle of MAIN CAM Moving Quantity of MAIN ROD (mm) STBY UNLOAD STOP3 VSR F.SLOW PB STOP2 FF/REW S BRAKE: LOW S BRAKE: HIGH P5-ON (T BRAKE: HIGH) BRAKE-ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 88 1 2 3 4 1 2 3 4 C D F A B E 7.2 TAPE REMOVAL METHOD AT NO POWER SUPPLY 7.3 DISC REMOVAL METHOD AT NO POWER SUPPLY 1. Remove the Top Cabinet, Front Cabinet and DVD Block. (Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.) 2. Remove one screw 1 of the Deck Chassis and remove the Loading Motor. (Refer to Fig. 2) 3. Rotate the Pinch Roller Cam in the direction of the arrow by hand to slacken the Video Tape. 4. Rotate the Clutch Assy either of the directions to wind the Video Tape in the Cassette Case. 5. Repeat the above step 3~4. Then take out the Video Cassette from the Deck Chassis. Be careful not to scratch on the tape. Fig. 1 Fig. 2 Capstan DD Unit Main Chassis (Front Side) Clutch Assy Main Cam Pinch Roller Cam Screw Loading Motor 1 1. Remove the Back Cabinet and TV//DVD/VCR Block. (Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.) 2. Rotate the Main Gear in the direction of the arrow by hand. (Refer to Fig. 1) 3. Draw the Tray. Fig. 1 Main Gear DVD Deck www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 89 5 6 7 8 5 6 7 8 C D F A B E 7.4 PARENTAL CONTROL -RATING LEVEL If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps below. 1. Turn Unit ON. 2. Press and hold the '7' key on the remote control unit. 3. Simultaneously press and hold the 'STOP' key on the front panel. 4. Hold both keys for more than 2 seconds. 5. The On Screen Display message 'PASSWORD UNLOCK' will appear. 6. The 4 digit password has now been cleared. 4 DIGIT PASSWORD CANCELLATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 90 1 2 3 4 1 2 3 4 C D F A B E 7.5 DISASSEMBLY 1-1: TOP CABINET, FRONT CABINET AND OPERATION PCB ASSY (Refer to Fig. 1-1) 1. Remove the 5 screws 1. 2. Remove the Top Cabinet in the direction of arrow (A). 3. Disconnect the following connector: (CP651). 4. Unlock the 8 supports 2. 5. Remove the Front Cabinet in the direction of arrow (B). 6. Remove the 2 screws 3. 7. Remove the OPERATION PCB Assy in the direction of arrow (C). 1-3: DVD DECK/DVD PCB ASSY (Refer to Fig. 1-3) 1. Make the short circuit on the position as shown Fig. 1-3 using a soldering. If you remove the DVD Deck with no soldering, the Laser may be damaged. 2. Unlock the support 1 and remove the Deck Top Holder in the direction of arrow (A). 3. Remove the 2 screws 2. 4. Remove the 2 screws 3. 5. Disconnect the following connectors: (CP501, CP8001). 6. Remove the DVD Deck in the direction of arrow (B). 7. Remove the 2 screws 4. 8. Remove the DVD PCB Assy in the direction of arrow (C). 9. Remove the 3 screws 5. 10. Remove the Front Angle in the direction of arrow (D). 1-2: FLAP (Refer to Fig. 1-2) 1. Open Flap to 90° and flex in direction of arrow (A), at the same time slide in direction of arrow (B). 2. Then lift in direction of arrow (C). Fig. 1-1 Fig. 1-3 Fig. 1-2 1 1 1 1 1 3 3 3 2 3 2 1 5 5 5 4 4 2 2 2 2 2 2 2 2 Top Cabinet OPERATION PCB Assy DVD PCB Asy Pickup PCB Make the short circuit using a soldering. DVD Deck Deck Top Holder Front Angle Flap Front Cabinet (A) (A) (B) (D) (C) (B) (C) (C) (A) (B) 1. REMOVAL OF MECHANICAL PARTS AND P.C. BOARDS NOTE: When the installation of the DVD Deck, remove all the soldering on the short circuit position after the connection of Pick Up PCB and VCR PCB connector. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 91 5 6 7 8 5 6 7 8 C D F A B E 1-5: VCR PCB (Refer to Fig. 1-5) 1. Remove the screw 1. 2. Remove the 5 screws 2. 3. Remove the 2 screws 3. 4. Remove the 3 pin Shield. 5. Remove the VCR PCB Assy in the direction of arrow. 1-4: VCR DECK (Refer to Fig. 1-4) NOTE: Do not remove the cable at the FE Head section. The FE Head may be damaged if you remove the cable by force. 1. Remove the screw 1. 2. Remove the FE Head. 3. Move the Cassette Holder Assy to the back side. 4. Remove the 2 screws 2. 5. Remove the 2 screws 3. 6. Disconnect the following connectors: (CP101, CP102, CP3001). 7. Remove the VCR Deck in the direction of arrow. Fig. 1-5 Fig. 1-4 2 2 2 1 3 3 1 3 3 2 2 3 pin Shield VCR PCB Assy FE Head VCR Deck www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 92 1 2 3 4 1 2 3 4 C D F A B E 2-1: TOP BRACKET (Refer to Fig. 2-1) 1. Extend the 2 supports 1. 2. Slide the 2 supports 2 and remove the Top Bracket. NOTE: 1. After the installation of the Top Bracket, bend the support 1 so that the Top Bracket is fixed. 2-2: CASSETTE HOLDER ASSY (Refer to Fig. 2-2) 1. Move the Cassette Holder Assy to the front side. 2. Push the Locker R to remove the Cassette Side R. 3. Remove the Cassette Side L. NOTE: 1. In case of the Locker R installation, check if the one position of Fig.2-3-B are correctly locked. 2. When you install the Cassette Side R, be sure to move the Locker R after installing. 2-4: LINK UNIT (Refer to Fig. 2-4) 1. Set the Link Unit to the Eject position. 2. Unlock the support 1. 3. Remove the (A) side of the Link Unit first, then remove the (B) side. 2-5: LINK LEVER/FLAP LEVER (Refer to Fig. 2-5) 1. Extend the support 1. 2. Remove the Link Lever. 3. Remove the Flap Lever. Fig. 2-1 Fig. 2-3-B Fig. 2-4 Fig. 2-5 1 1 1 1 1 1 2 1 2 2 1 Top Bracket Top Bracket Main Chassis Main Chassis Main Chassis Locker Spring Locker R Locker R Cassette Side R Check it this position is locked. Cassette Holder Cassette Side L Flap Lever Link Lever Cassette Side R Link Unit Cassette Side L Cassette Side R Link Unit Link Unit (A) (B) Main Chassis Main Chassis Locker R Main Chassis 2. REMOVAL OF VCR DECK PARTS Fig. 2-2 2-3: CASSETTE SIDE L/R (Refer to Fig. 2-3-A) 1. Remove the Locker Spring. 2. Unlock the 4 supports 1 and then remove the Cassette Side L/R. 3. Unlock the support 2 and then remove the Locker R. Fig. 2-3-A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 93 5 6 7 8 5 6 7 8 C D F A B E 2-6: LOADING MOTOR/WORM (Refer to Fig. 2-6-A) 1. Remove the screw 1. 2. Remove the Loading Motor. 3. Remove the Worm. NOTE: 1. In case of the Worm installation, check if the value of the Fig. 2-6-B is correct. 2. In case of the Loading Motor installation, hook the wire on the Cassette Opener as shown Fig. 2-6-C. 3. When installing the wires between Capstan DD Unit and Loading Motor, connect them correctly as shown Fig. 2-6-D. 2-7: TENSION ASSY (Refer to Fig. 2-7-B) 1. Turn the Pinch Roller Cam clockwise so that the Tension Holder hook is set to the position of Fig. 2-7-A to move the Tension Arm Assy. 2. Remove the Tension Spring. 3. Unlock the 2 supports 1 and remove the Tension Band. 4. Unlock the support 2 and remove the Tension Arm Assy. 5. Unlock the support 3 and remove the Tension Connect. 6. Float the hook 4 and turn it clockwise then remove the Tension Holder. NOTE: 1. In case of the Tension Band installation, note the direction of the installation. (Refer to Fig. 2-7-C) 2. In case of the Tension Band installation, install correctly as Fig. 2-7-D. 3. In case of the Tension Connect installation, install as the circled section of Fig. 2-7-E. Fig. 2-6-A Fig. 2-7-A Fig. 2-7-B Fig. 2-7-C Fig. 2-7-D Fig. 2-7-E 1 1 3 2 4 1 Main Chassis Screw Torque: 3 ± 0.5kgf•cm Loading Motor Worm Tension Arm Assy Tension Band Tension Connect Tension Connect Tension Connect Main Chassis Tension Connect Tension Connect Tension Spring Tension Arm Assy Tension Holder Tension Band Tension Band Tension Band [OK] [NG] Loading Motor Pink Loading Motor White L2 Capstan DD Unit L1 Cassette Opener Safety surface for pressing of the insert. 19.2 ± 0.1mm Fig. 2-6-B Fig. 2-6-C Fig. 2-6-D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 94 1 2 3 4 1 2 3 4 C D F A B E 2-8: T BRAKE ARM/T BRAKE BAND (Refer to Fig. 2-8-A) 1. Remove the T Brake Spring. 2. Turn the T Brake Arm clockwise and bend the hook section to remove it. 3. Unlock the 2 supports 1 and remove the T Brake Band. NOTE: 1. In case of the T Brake Band installation, install correctly as Fig. 2-8-B. 2-9: S REEL/T REEL/IDLER ARM ASSY/IDLER GEAR (Refer to Fig. 2-9-A) 1. Remove the S Reel and T Reel. 2. Remove the 2 Polyslider Washers 1. 3. Remove the Idler Arm Assy and Idler Gear. NOTE: 1. Take care not to damage the gears of the S Reel and T Reel. 2. The Polyslider Washer may be remained on the back of the reel. 3. Take care not to damage the shaft. 4. Do not touch the section "A" of S Reel and T Reel. (Use gloves.) (Refer to Fig. 2-9-A) Do not adhere the stains on it. 5. When you install the reel, clean the shaft and grease it (FG-84M). (If you do not grease, noise may be heard in FF/REW mode.) 6. After installing the reel, adjust the height of the reel. (Refer to MECHANICAL ADJUSTMENT) NOTE: 1. In case of the S Reel and T Reel installation, check if the correct parts are installed. (Refer to Fig. 2-9-B) 2. In case of the Idler Arm Assy installation, install correctly as Fig. 2-9-C. And also set it so that the section "B" of Fig. 2-9-A is placed under the Main Chassis tab. Fig. 2-8-A Fig. 2-8-B Fig. 2-9-A Fig. 2-9-B Fig. 2-9-C 1 1 1 1 T Brake Band T Brake Band Clutch Gear Clutch Gear T Brake Band Hook Section T Brake Arm T Brake Arm Big Hole (S Reel) Small Hole (T Reel) T Brake Arm T Brake Spring (A) (A) (B) T Reel S Reel Idler Gear Idler Arm Assy Idler Arm Assy Idler Arm Assy [OK] [NG] [OK] [NG] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 95 5 6 7 8 5 6 7 8 C D F A B E 2-10: CASSETTE OPENER/PINCH ROLLER BLOCK/P5 ARM ASSY (Refer to Fig. 2-10-A) 1. Unlock the support 1 and remove the Cassette Opener. 2. Remove the Pinch Roller Block and P5 Arm Assy. NOTE: 1. Do not touch the Pinch Roller. (Use gloves.) 2. In case of the Pinch Roller Block and the Pinch Roller Cam installation, install correctly as Fig. 2-10-B. 2-11: A/C HEAD (Refer to Fig. 2-11-A) 1. Remove the screw 1. 2. Remove the A/C Head Base. 3. Remove the 3 screws 2. 4. Remove the A/C Head and A/C Head Spring. NOTE: 1. Do not touch the A/C Head. (Use gloves.) 2. When you install the A/C Head Spring, install as shown in Fig. 2-11-B. 3. When you install the A/C Head, tighten the screw (1) first, then tighten the screw (2), finally tighten the screw (3). 2-12: FE HEAD (RECORDER ONLY) (Refer to Fig. 2-12) 1. Remove the screw 1. 2. Remove the FE Head. 2-13: AHC ASSY/CYLINDER UNIT ASSY (Refer to Fig. 2-13) 1. Unlock the support 1 and remove the AHC Assy. 2. Disconnect the following connector: (CD2001) 3. Remove the 3 screws 2. 4. Remove the Cylinder Unit Assy. NOTE: 1. When you install the Cylinder Unit Assy, tighten the screws from (1) to (3) in order while pulling the Assy toward the left front direction. Fig. 2-10-A Fig. 2-10-B Fig. 2-11-A Fig. 2-11-B Fig. 2-12 Fig. 2-13 1 1 1 2 2 2 1 2 2 2 Cassette Opener FE Head Pinch Roller Block P5 Arm Assy Main Chassis Spring Position Can be seen the hole of the Pinch Roller Cam. Can be seen the hole of the Main Cam. Pinch Roller Block (1) (1) (2) (2) (3) (3) A/C Head A/C Head Spring AHC Assy Cylinder Unit Assy A/C Head Base P5 Arm Assy Screw Torque: 5 ± 0.5kgf•cm (Screw 1) Screw Torque: 3 ± 0.5kgf•cm • Screw Torque: 5 ± 0.5kgf•cm • The FE Head is not installed on the Video Cassette Player. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 96 1 2 3 4 1 2 3 4 C D F A B E 2-14: CAPSTAN DD UNIT (Refer to Fig. 2-14) 1. Remove the Capstan Belt. 2. Remove the screw 1. 3. Remove the Capstan Holder. 4. Remove the 3 screws 2. 5. Remove the Capstan DD Unit. 2-15: MAIN CAM/PINCH ROLLER CAM/JOINT GEAR (Refer to Fig. 2-15-A) 1. Remove the E-Ring 1, then remove the Main Cam. 2. Remove the E-Ring 2, then remove the Pinch Roller Cam and Joint Gear. NOTE: 1. In case of the Pinch Roller Cam and Main Cam installation, install them as the circled section of Fig. 2-15-B so that the each markers are met. (Refer to Fig. 2-15-B) 2-16: LOADING GEAR S/T UNIT (Refer to Fig. 2-16-A) 1. Remove the E-Ring 1 and remove the Main Loading Gear. 2. Remove the Main Rod, Tension Lever, Loading Arm S Unit and Loading Arm T Unit. NOTE: 1. When you install the Loading Arm S Unit, Loading Arm T Unit and Main Loading Gear, align each marker. (Refer to Fig. 2-16-B) Fig. 2-14 Fig. 2-15-A Fig. 2-15-B Fig. 2-16-B 1 1 1 2 2 2 2 Capstan Belt Pinch Roller Cam Marker Marker Marker Main Cam Capstan Holder Capstan DD Unit Main Loading Gear Main Loading Gear Loading Arm T Unit Loading Arm T Unit Loading Arm S Unit Loading Arm S Unit Main Rod Tension Lever Main Cam Pinch Roller Cam Joint Gear Fig. 2-16-A Screw Torque: 4 ± 0.5kgf•cm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 97 5 6 7 8 5 6 7 8 C D F A B E 2-17: CLUTCH ASSY/RING SPRING/CLUTCH LEVER/CLUTCH GEAR (Refer to Fig. 2-17-A) 1. Remove the Polyslider Washer 1. 2. Remove the Clutch Assy and Ring Spring. 3. Remove the Clutch Lever. 4. Remove the Coupling Gear, Coupling Spring and Clutch Gear. NOTE: 1. In case of the Clutch Assy installation, install it with inserting the spring of the Clutch Assy into the dent of the Coupling Gear. (Refer to Fig. 2-17-B) 2-18: CASSETTE GUIDE POST/INCLINED BASE S/T UNIT/P4 CAP/LED REFLECTOR (Refer to Fig. 2-18-A) 1. Remove the P4 Cap. 2. Unlock the support 1 and remove the Cassette Guide Post. 3. Remove the Inclined Base S/T Unit. 4. Remove the screw 2. 5. Remove the LED Reflector. NOTE: 1. Do not touch the roller of Guide Roller. 2. In case of the P4 Cap installation, install it with parallel for "A" and "B" of Fig. 2-18-B. 3. In case of the Cassette Guide Post installation, install correctly as the circled section of Fig. 2-18-C. Fig. 2-17-A Fig. 2-17-B Fig. 2-18-A 1 2 1 Clutch Assy Cassette Guide Post Cassette Guide Post Cassette Guide Post Inclined Base T Unit Inclined Base S Unit LED Reflector P4 Cap Cassette Opener P4 Cap Clutch Assy Ring Spring Clutch Lever "A" "B" Coupling Gear Coupling Gear Coupling Spring Clutch Gear Fig. 2-18-B Fig. 2-18-C Screw Torque: 5 ± 0.5kgf•cm [OK] [NG] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 98 1 2 3 4 1 2 3 4 C D F A B E 7.6 DVD DECK SECTION 3. REMOVAL OF DVD DECK PARTS 3-1: TRAY (Refer to Fig. 3-1-A) Set the Tray opened. (Refer to the DISC REMOVAL METHOD AT NO POWER SUPPLY) Unlock the 2 supports 1 and remove the Tray. 1. 2. Fig. 3-1-A Tray Main Frame Ass'y 1 NOTE 1. In case of the Tray installation, install them as the circled section of Fig. 3-1-B so that the each markers are met. 3-2: MAIN CHASSIS ASS'Y (Refer to Fig. 3-2-A) Remove the screw 1. Unlock the 2 supports 2. Remove the Insulator (R) from the Main Frame Ass'y. Remove the Main Chassis Ass'y. 1. 2. 3. 4. Fig. 3-2-A Tray Main Frame Ass'y Fig. 3-1-B Insulator (R) NOTE 1. Do not disassemble the DVD DECK PARTS except listed parts here. Minute adjustments are needed if the disassemble is done. If the repair is needed except listed parts, replace the DVD MECHA ASS'Y. NOTE 1. 2. In case of the Main Chassis Ass'y, install it from (1) to (4) in order. (Refer to Fig. 3-2-B) In case of the Main Chassis Ass'y installation, hook the wire on the Main Frame Ass'y as shown Fig. 3-2-C. 1 1 2 Main Frame Ass'y Main Chassis Ass'y 2 Fig. 3-2-B (1) (2) (3) (3) (4) (3) Check Lock (4) Main Chassis Ass'y Rack Loading Main Frame Ass'y (Bottom Side) Traverse Holder Fig. 3-2-C Main Frame Ass'y Check Hook Loading Belt Pulley Gear 1 Main Frame Ass’y 3-3: LOADING MOTOR PCB ASS'Y/ LOADING BELT (Refer to Fig. 3-3-A) 1. 2. 3. 4. 5. Remove the Loading Belt. Remove the screw 1. Remove the 2 screws 2. Remove the Loading Motor PCB Ass'y. Remove the Pulley Gear. Fig. 3-3-A 22 Loading Motor PCB Ass’y • Screw Torque: 2.0 ± 0.3kgf•cm • Screw Torque: 2.5 ± 0.3kgf•cm (Screw 1 ) • Screw Torque: 1.0 ± 0.3kgf•cm (Screw 2 ) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 99 5 6 7 8 5 6 7 8 C D F A B E Traverse Holder Insulator (F) Main Chassis Ass'y Insulator (F) Insulator (R) NOTE 1. 2. 3. In case of the Pulley Motor installation, check if the value of the Fig. 3-3-B is correct. When installing the Loading Motor PCB Ass'y, install it correctly as Fig. 3-3-C. In case of the Loading Motor PCB Ass'y installation, hook the wire on the Main Frame Ass'y as shown Fig. 3-3-C. Fig. 3-3-B 7.0 ± 0.1mm Safety surface for pressing of the insert. Loading Motor Pulley Motor Fig. 3-3-C Rack Loading A B The Lever should be position between A and B. Check Hook Rack Loading 1 Main Frame Ass’y Main Gear 3-4: RACK LOADING/MAIN GEAR/PULLEY GEAR (Refer to Fig. 3-4-A) 1. 2. 3. Press down the catcher 1 and slide the Rack Loading. Unlock the support 2 and remove the Pulley Gear. Remove the Main Gear. Pulley Gear 2 Fig. 3-4-A 3-5: CLAMPER ASS'Y (Refer to Fig. 3-5-A) Press the Clamper and rotate the Clamper Plate clockwise, then unlock the 3 supports 1. Remove the Clamper Plate, Clamper Magnet and Clamper. 1. 2. Clamper Plate Clamper Magnet Fig. 3-5-A Fig. 3-4-B NOTE 1. In case of the Rack Loading installation, do not mesh it to the Main Gear as shown the Fig. 3-4-B. Check Hook Main Gear Rack Loading Main Frame Clamper 1 1 1 NOTE 1. In case of the Clamper Ass'y installation, install correctly as Fig. 3-5-B. Fig. 3-5-B No gap Clamper Plate Clamper 3-6: Remove the Traverse Holder. Remove the 2 Insulator (F). Remove the Insulator (R). 1. 2. 3. Fig. 3-6-A TRAVERSE HOLDER/INSULATOR (F)/INSULATOR (R) (Refer to Fig. 3-6-A) NOTE 1. 2. In case of the Insulator (F) installation, install correctly as Fig. 3-6-B. In case of the Insulator (R) installation, install correctly as Fig. 3-6-C. Fig. 3-6-B Traverse Holder Insulator (F) Loading Motor PCB Ass’y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 100 1 2 3 4 1 2 3 4 C D F A B E Printing Surface Reinforcement Plate 53 ± 1mm Fold (1) Printing Surface 10 ± 1mm Fold (3) Printing Surface 52 ± 1mm Fold (4) Printing Surface Printing Surface 10 ± 1mm Fold (2) Reinforcement Plate Reinforcement Plate Printing Surface Reinforcement Plate 55 ± 1mm Fold (1) Printing Surface 10 ± 1mm Fold (3) Printing Surface 60 ± 1mm Fold (4) Printing Surface Printing Surface 10 ± 1mm Fold (2) Reinforcement Plate Reinforcement Plate ~ FEED MOTOR ~ ORANGE (4) BLUE (3) ~ SPINDLE MOTOR ~ YELLOW (2) GREEN (1) Fig. 3-6-C Insulator (R) Main Chassis Ass'y (Top Side) 3-7: Remove the screw 1. Remove the Switch PCB Ass'y. Unlock the support 2. Remove the Middle Gear. Remove the 2 screws 3. Remove the Feed Motor. Remove the Motor Gear. 1. 2. 3. 4. 5. 6. 7. SWITCH PCB ASS'Y/MIDDLE GEAR/FEED MOTOR (Refer to Fig. 3-7-A) Fig. 3-7-A Main Chassis Ass'y 1 Middle Gear 3 3 Motor Gear Feed Motor Fig. 3-7-B 6.0 ± 0.2mm Safety surface for pressing of the insert. Feed Motor Motor Gear Fig. 3-7-C Switch PCB Ass'y • Install wire from (1) to (4) in order. NOTE 1. 2. 3. In case of the Motor Gear installation, check if the value of the Fig. 3-7-B is correct. When installing the wire of the Switch PCB Ass'y, install it correctly as Fig. 3-7-C. After the assembly of the Main Chassis Ass'y, hook the wire on the Main Chassis Ass'y as shown Fig. 3-7-D. • Screw Torque: 3.0 ± 0.3kgf•cm (Screw 1 ) • Screw Torque: 1.5 ± 0.3kgf•cm (Screw 3 ) Switch PCB Ass'y 2 Fig. 3-7-D Main Chassis Ass'y (Bottom Side) Check Hook Check Hook Check Hook Check Hook • Loosen the wire in the direction of the arrow. Double Sided Tape Printing Surface 10mm Fold Fold back at the border line of the reinforcement plate. Fold it by 90˚ 50 ± 1mm 73 ± 1mm 117 ± 1mm • Proceed the steps (1) through (4). [ 24 pin FFC ] [ 5 pin FFC ] When installing the FFC, fold it correctly and install it as shown from Fig. 3-8-A to Fig. 3-8-C. 3-7: FFC WIRE HANDLING 1. Do not make the folding lines except the specified positions for the FFC. 1. NOTE • [ 6 pin FFC ] Fig. 3-8-A Fig. 3-8-B Fig. 3-8-C Proceed the steps (1) through (4). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 101 5 6 7 8 5 6 7 8 C D F A B E 7.7 KEY TO ABBREVIATIONS A A/C : Audio/Control ACC : Automatic Color Control AE : Audio Erase AFC : Automatic Frequency Control AFT : Automatic Fine Tuning AFT DET : Automatic Fine Tuning Detect AGC : Automatic Gain Control AMP : Amplifier ANT : Antenna A.PB : Audio Playback APC : Automatic Phase Control ASSY : Assembly AT : All Time AUTO : Automatic A/V : Audio/Video B BGP : Burst Gate Pulse BOT : Beginning of Tape BPF : Bandpass Filter BRAKE SOL : Brake Solenoid BUFF : Buffer B/W : Black and White C C : Capacitance, Collector CASE : Cassette CAP : Capstan CARR : Carrier CH : Channel CLK : Clock CLOCK (SY-SE) : Clock (Syscon to Servo) COMB : Combination, Comb Filter CONV : Converter CPM : Capstan Motor CTL : Control CYL : Cylinder CYL-M : Cylinder-Motor CYL SENS : Cylinder-Sensor D DATA (SY-CE) : Data (Syscon to Servo) dB : Decibel DC : Direct Current DD Unit : Direct Drive Motor Unit DEMOD : Demodulator DET : Detector DEV : Deviation E E : Emitter EF : Emitter Follower EMPH : Emphasis ENC : Encoder ENV : Envelope EOT : End of Tape EQ : Equalizer EXT : External F F : Fuse FBC : Feed Back Clamp FE : Full Erase FF : Fast Forward, Flipflop FG : Frequency Generator FL SW : Front Loading Switch FM : Frequency Modulation FSC : Frequency Sub Carrier FWD : Forward G GEN : Generator GND : Ground H H.P.F : High Pass Filter H.SW : Head Switch Hz : Hertz I IC : Integrated Circuit IF : Intermediate Frequency IND : Indicator INV : Inverter K KIL : Killer L L : Left LED : Light Emitting Diode LIMIT AMP : Limiter Amplifier LM, LDM : Loading Motor L LP : Long Play L.P.F : Low Pass Filter LUMI. : Luminance M M : Motor MAX : Maximum MINI : Minimum MIX : Mixer, mixing MM : Monostable Multivibrator MOD : Modulator, Modulation MPX : Multiplexer, Multiplex MS SW : Mecha State Switch N NC : Non Connection NR : Noise Reduction O OSC : Oscillator OPE : Operation P PB : Playback PB CTL : Playback Control PB-C : Playback-Chrominance PB-Y : Playback-Luminance PCB : Printed Circuit Board P. CON : Power Control PD : Phase Detector PG : Pulse Generator P-P : Peak-to Peak R R : Right REC : Recording REC-C : Recording-Chrominance REC-Y : Recording-Luminance REEL BRK : Reel Brake REEL S : Reel Sensor REF : Reference REG : Regulated, Regulator REW : Rewind REV, RVS : Reverse RF : Radio Frequency RMC : Remote Control RY : Relay S S. CLK : Serial Clock S. COM : Sensor Common S. DATA : Serial Data SEG : Segment SEL : Select, Selector SENS : Sensor SER : Search Mode SI : Serial Input SIF : Sound Intermediate Frequency SO : Serial Output SOL : Solenoid SP : Standard Play STB : Serial Strobe SW : Switch SYNC : Synchronization SYNC SEP : Sync Separator, Separation T TR : Transistor TRAC : Tracking TRICK PB : Trick Playback TP : Test Point U UNREG : Unregulated V V : Volt VCO : Voltage Controlled Oscillator VIF : Video Intermediate Frequency VP : Vertical Pulse, Voltage Display V.PB : Video Playback VR : Variable Resistor V.REC : Video Recording VSF : Visual Search Fast Forward VSR : Visual Search Rewind VSS : Voltage Super Source V-SYNC : Vertical-Synchronization VT : Voltage Tuning X X'TAL : Crystal Y Y/C : Luminance/Chrominance www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 102 1 2 3 4 1 2 3 4 C D F A B E 7.8 DISC/CONTENT FORMAT Discs which can be played back In this unit, use only discs that meet the standard, such as those bearing the below logo marks on the disc label surface. If you use a non-standard disc, we cannot guarantee playback. Even if such a disc can be played back, we cannot guarantee the image or sound quality. The DVD logo is a registered trademark. * This unit is designed to playback music Compact Discs (CD) that conform to the CD standard. CDs that contain (copy-restriction) signals to protect copyrights cannot be played back. Region management information This unit is designed and manufactured to support the region management information that is recorded on a DVD disc. If the region number written on the DVD disc does not correspond to the region number of this unit, this unit cannot play that disc. • The region number of this unit is “1”. • The unit will play DVD-Video discs marked with labels containing “1” or “ALL”. Example: 1 Media type Logo mark DVD-Video DVD-RW DVD-R Audio CD* CD-R/CD-RW l Operating DVD-Video • Some operations of DVD-Video may be prohibited by the manufacturer, or some operation methods or functions of the DVD-Video may be different from the description in this manual. • If you attempt an operation that is prohibited by either the disc or the unit, a “ ” mark will appear on the TV monitor. For operations prohibited by the disc, see the information that came with the disc. • When the menu screen or the operation guide appears during disc playback, follow the displayed information. Discs which cannot be played back The discs listed below cannot be played back in general. Even if one of these can be played back, it may not be played back correctly. If a disc is played back by mistake, extensively loud sounds may blow the speakers or may damage the hearing of those in hearing range. Do not playback the discs listed below. CDG, Photo-CD, CD-ROM, CD-TEXT,CD-EXTRA, VCD, SVCD, SACD, PD, CDV, DVD-ROM, DVD-RAM, DVD+R/RW, DVD audio, etc. The below DVD-Video may not be played back. • DVD-Video that do not have the region number “1” or “ALL”. • PAL or SECAM DVD-Video. • Prohibited or business-use DVD-Video. CD-R/CD-RWs cannot be played back for the following reasons. • Compatibility of the disc and this unit. • Compatibility of the disc and the recorder used. • Unfinalized discs. Do not playback the following discs. Playback of these discs may cause a failure. • Discs on which paper, labels or stickers are affixed. • Discs that have sticky areas left by adhesive tape. • Special-shaped discs. PC-created disc compatibility Discs recorded using a personal computer may not be playable in this unit due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. * * * * : Manufactured under license from DolbyLaboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. : “DTS” and “DTS Digital Out” are registered trademarks of Digital Theater Systems, Inc. is a trademark of DVD Format/Logo Licensing Corporation. Unauthorized recording of copyrighted television programs, films,video cassettes and other materials may infringe the rights of copyright owners and be contrary to copyright laws. DVD-R/RW compatibility • Compatible formats: DVD-Video, Video Recording (VR)* * Edit points may not play exactly as edited; screen may go momentarily blank at edited points. • Unfinalized playback: No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 103 5 6 7 8 5 6 7 8 C D F A B E 7.9 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 104 1 2 3 4 1 2 3 4 C D F A B E 7.10 IC INFORMATIONS Pin Function I54F50147A (OEC01474A) (VCR PCB ASSY : IC3001) • System Controller / Timers / Servo IC • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. List of IC I54F50147A (OEC01474A) No. Port Name Pin Name I/O Pin Function 1 SVSS SVSS − Ground. 2 CTL_REF CTL_REF O Output terminal for CTL amp REF (1/2 SVCC) 3 CTL-H(+) CTL-H(+) I Input and output terminal of Control Head. 4 CTL-H(-) CTL-H(-) I Input terminal of Control Head. 5 CTL_BIAS CTL_BIAS O Output terminal for bias. 6 CTL_FB CTL_FB I Input terminal for CTL feedback 7 CTL_AMP(O) CTL_AMP(O) O Output terminal for amp out. 8 CTL_AMP(I) CTL_AMP(I) I Input terminal for CTL schmitt amp . 9 CFG CFG I Input terminal for CAPSTAN FG signal detection. 10 SVCC SVCC − + 5V (Servo) 11 AFC_PC AFC_PC − AFC oscillator (external circuit). 12 AFC_OSC AFC_OSC − AFC oscillator (external circuit). 13 AFC_LPF AFC_LPF − LPF connection for AFC OSC. 14 CSYN/HSYN CSYNC O Output terminal for composite SYNC. 15 VLPF/VSYN VSYNC I Input terminal for composite SYNC.(from 14pin) 16 CV_IN2 CV_IN2 I Composite Video input terminal.(for data slicer) 17 CV_IN1 CV_IN1 I Composite Video input terminal.(for OSD) 18 OSD VCC OSDVCC − + 5V 19 CV_OUT CV_OUT O Composite Video output.(with OSD) 20 OSD_VSS OSD_VSS − Ground. 21 4/2 FSC_OUT 4/2 FSC_OUT O 4 FSC pulse. 22 4/2 FSC_IN 4/2 FSC_IN I 4 FSC pulse. 23 AVSS AVSS − Ground. 24 AN-B VIDEO_ENV I Input terminal of video RF envelope. 25 AN-A BOT-H I Tape start sensor input signal. 26 AN-9 EOT-H I Tape end sensor input signal. 27 AN8 MS_SEN-B I Input terminal of mecha state sensor. Input terminal of mecha state sensor. 28 P07/AN7 MS_SEN-A I 29 P06/AN6 KEY-B I Main unit key input. Main unit key input. 30 P05/AN5 KEY-A I 31 P04/AN4 STEREO_SEL I Input terminal for the judgement of voice reception condition. 32 P03/AN3 HI-FI_ENV I Input terminal of Hi-Fi RF envelope. 33 P02/AN2 AFT-S_CURVE I AFT S CURVE input for tuner. 34 P01/AN1 PG I Not used. 35 P00/AN0 TAB SW I Input terminal for judge the tape if it has TAB or not. 36 AVCC AVCC − ON/OFF control Micon AD section. 37 P10/IRQ0 POWER_FAIL I Input terminal of Power fail signal. 38 P11/IRQ1 NC O Not used. 39 P12/IRQ2 SYNC DET I Input terminal for judgement of Sync Detector 40 P13/IRQ3 VIDEO MUTE H O H for at AUTO_CLOCK in POWER OFF. 41 P14/IRQ4 POWER ON L O For control the user power switch ON/OFF. 42 P15/IRQ5 REEL T I Input terminal of reel sensor take up. 43 P16/IC REM_IN I Receive the remote control signal. 44 P17/TMOW DVD RESET O For control the DVD RESET. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 105 5 6 7 8 5 6 7 8 C D F A B E No. Port Name Pin Name I/O Pin Function 45 P67/RP7/TMB DVD POWER CTL O Output terminal for DVD power CTL.(3.3V/9V) 46 P66/RP6/ADTRG DVD LED O The DVD LED ON/OFF control output. 47 P65/RP5 VCR LED O The VCR LED ON/OFF control output. 48 P64/RP4 1G/T-REC LED O LEM(LED Module) control terminal. 49 P63/RP3 2G/REC LED O LEM(LED Module) control terminal. 50 P62/RP2 3G/TV/VCR LED O LEM(LED Module) control terminal. 51 P61/RP1 4G O LEM(LED Module) control terminal. 52 P60/RP0 5G O LEM(LED Module) control terminal. 53 P37/TM0 Y/C CLOCK O Control terminal for Y/C. (CLOCK). 54 P36/BUZZ Y/C DATA O Control terminal for Y/C.(DATA). 55 P35 SEG1 O LEM(LED Module) control terminal. 56 VCC VCC − Power of CPU. 57 VSS VSS − Ground. 58 P27 SEG2 O LEM(LED Module) control terminal. 59 P26 SEG3 O LEM(LED Module) control terminal. 60 P25 SEG4 O LEM(LED Module) control terminal. 61 P24/SCL1 IIC CLK O CLOCK terminal for IIC BUS communication. 62 P23/SDA1 IIC DATA O DATA terminal for IIC BUS communication. 63 P22/SCK1 SEG5 O LEM(LED Module) control terminal. 64 P21/SO1 SO1/TX O Input terminal for DVD communication.(asynchronous) 65 P20/SI1 SI1/RX I Output terminal for DVD communication.(asynchronous) 66 P47/RPTRG SEG6 O LEM(LED Module) control terminal. 67 P46/FTOB SEG7 O LEM(LED Module) control terminal. 68 P45/FTOA SEG8 O LEM(LED Module) control terminal. 69 P44/FTID NC O Not used. 70 P43/FTIC NC O Not used. 71 P42/FTIB SEG9 O LEM(LED Module) control terminal. 72 P41/FTIA NC O Not used. 73 P40/PWM14 SEG10 O LEM(LED Module) control terminal. 74 FEW FEW I FZTAT Write protect. 75 X2 X2 O Subclock pulse(32.768KHz) 76 X1 X1 I Subclock pulse(32.768KHz) 77 /RESET /RESET I RESET will be done when the voltage goes to HIGH after the reset signal. 78 OSC1 OSC1 I Connect the main crystal(10MHz) 79 VSS VSS O Ground. 80 OSC2 OSC2 O Connect the main crystal(10MHz) 81 VCL VCL I Connect the capacitor 82 MD0 MD0 I FZTAT Write MODE. 83 P34/PWM2 REC MUTE-H O Output terminal of REC MUTE. 84 P33/PWM1 CAP_LIMIT O Switch the maximum output current of the Capstan Motor. 85 P32/PWM0 TUNER AUDIO MUTE-H O Output low at tuner and output high at external input/play. 86 P31/SV2 VCR-H O H for at PLAY in VCR MODE. L for except above case. 87 P30/SV1 POWER_MUTE O Audio mute at POWER ON/OFF. 88 P70/PPG0 SYS_MUTE O Audio mute for DVD at POWER ON/OFF. 89 P71/PPG1 NC O Not used. 90 P72/PPG2 SERVICE I Input terminal for Service Mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 106 1 2 3 4 1 2 3 4 C D F A B E No. Port Name Pin Name I/O Pin Function 95 P77/RPG7/RPB AUDIO_MUTE-H O L for at AUDIO MUTE and POWER OFF. H for except above case. 96 P80/YCO V_REC_ST-H O On control of A/V recording(Whole width erase) circuit. 97 P81/EXCAP/YBO LDM CTL O Loading motor control terminal. 98 P82/EXCTL CAP_FWD-H O Capstan forward and backward command. 91 P73/PPG3 AV SW_2 O Control rear/front video signal.(at AV X 2) 92 P74/PPG4/RP8 AV SW_1 O Control DVD/VCR video/audio signal. 93 P75/PPG5/RP9 Y/C CS O Control terminal for Y/C. (CHIP SELECT). 94 P76/PPG6/RPA RF CH SW O 3/4 ch Selection for the RF CH. 99 P83/C,ROT/R C.ROTARY O Color Rotary Control output. 100 P84/H.AMP/SW/G H.AMP.SW O Switching output of Head Amp SW. 101 P85/COMP/B COMP I Comparison results input of Playback Envelope level on SP/LP heads (4 heads). 102 P85/EZTTRG CAP_FULL O Output the HIGH during the acceleration force of capstan motor at SLOW mode. 103 P87/DPG CYL_SPEED_UP O Output terminal for correct cylinder during SLOW. 104 DFG D FG/PG I Input terminal for DRUM FG signal detection. 105 VIDEO_FF VIDEO_H.SW O Output terminal of Video Head SW. 106 AUDIO_FF HI-FI H.SW O Output terminal of HI-FI Head SW. 107 DRUM_PWM DRUM_PWM O PWM output of Cylinder control. 108 CAP_PWM CAP_PWM O PWM output of Capastan control. 109 V-PULSE DUMMY_V-SYNC O Virtual V Pulse output. 110 SV VSS SV VSS − Ground. 111 C.SYNC_IN SYNC I Input terminal for composite SYNC. 112 VCC VCC(SV) − + 5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 107 5 6 7 8 5 6 7 8 C D F A B E 8. PANEL FACILITIES 8.1 FRONT AND REAR SECTION Rear panel Front panel STOP button Disc tray Cassette Loading Slot STANDBY/ON button AUDIO L (MONO)/R/ VIDEO INPUT jacks VCR indicator DVD indicator CHANNEL / buttons Display window Remote sensor VCR EJECT button OPEN/CLOSE button PLAY button VCR/DVD mode selector button FF (Fast Forward) button REW (Rewind) button REC button DVD COAXIAL DIGITAL AUDIO OUT jack DVD S-VIDEO OUT jack DVD/VCR common AUDIO (L/R)/VIDEO OUT jacks AC power cord DVD AUDIO (L/R) OUT jacks DVD OPTICAL DIGITAL AUDIO OUT jack (dust protection cap) DVD COMPONENT OUT jacks S-VIDEO/COMPONENT Video selector switch RF IN jack RF OUT jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 108 1 2 3 4 1 2 3 4 C D F A B E 8.2 DISPLAY Display window . Display Description Lights during video tape playback. Video tape is temporarily stopped. Lights during video tape recording. Progressive scanning mode. Timer recording display. P Appears when a CD is inserted. Appears when a DVD-Video is inserted. Appears when the tuner built into this unit is selected. When you press TV/VCR, VCR disappears. Video tape is in the unit. Clock display (Colon [ : ] flashes). Counter display in hour/minute/second for VCR/DVD, minute/second for CD. CATV channel display. TV channel display.. Track number display for CD. Display for afternoon (out in the morning). Error display. Lights during playback of DVD and CD. Flashes in auto resume. DVD or CD is temporarily stopped. CD DVD VCR 10:00 01H00M00S C 36CH 2CH TRK 002 PM Err 2 VCR recording modes. SP or SLP is selected in turn by pressing the REC MODE/SPEED repeatedly. SP/SLP Note • Some discs may not playback correctly, or chapter number, playback time, etc may not be displayed. DVD indicator CD indicator PM indicator Number indicator (Title, Chapter, Track playing time or other information) Progressive scanning indicator Pause indicator Play indicator VCR indicator REC indicator TRK indicator Video tape indicator Timer recording indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 109 5 6 7 8 5 6 7 8 C D F A B E 8.3 REMOTE CONTROL Remote control 1 STANDBY/ON Turns power on/off. 2 VCR EJECT Ejects the cassette tapes. 3 DVD OPEN/CLOSE Opens or closes the tray. 4 DVD/VCR Switches to operation between VCR and DVD. 5 0-9 Use for direct TV channel selection of TV; setting the input entering a password ; entering a Pluscode for VCR Plus+ timer programming. 6 TIMER REC Sets the unit to start recording at a preset time. 7 INPUT SELECT Switches between the external inputs. 9 RETURN Closes the menu window. 10 CLEAR/CANCEL Cancels input data in the setting mode ; deletes the timer recording program . 11 TITLE MENU/TOP MENU Selects titles of a DVD disc. 12 CH +/– Use to select TV channels. Up/down cursor buttons 13 TRK +/– Use to adjust the VCR manual playback tracking. Left/right cursor buttons 14 ENTER/SELECT Use to select menu options. 15 DVD MENU Displays the menu of the DVD disc. 16 SETUP Displays the setup menu. 17 STOP Stops playback or recording. 18 PLAY Starts playback. 19 PAUSE/STILL Pauses recording or playback (press again to restart). 20 SKIP / Skips forward or back chapters. 21 INDEX – / + Searches for INDEX marks on a tape 22 REW/SEARCH – Rewind/review playback 23 F.FWD/SEARCH + Fast forward/forward search playback 24 MARKER 26 SLOW Starts slow motion playback. 27 REC Starts recording. 30 AUDIO/AUDIO SELECT Switches sound between mono and stereo ; changes the language of the DVD. 31 DISPLAY/CALL Displays VCR or DVD operation status. 32 ZOOM 33 REPEAT A-B Repeats playback between A and B. 34 ZERO RETURN Stops the tape when the counter reaches 00H00M00S. 35 COUNTER RESET Resets the counter to 00H00M00S. 36 ANGLE Changes the DVD playback angle. 37 SUBTITLE Selects subtitles of the DVD disc. 38 ATR Digital auto tracking for VCR playback. 39 PLAY MODE / SPEED Selects the playback mode. 40 REPEAT A-B Selects the repeat playback mode. 41 CLOCK/COUNTER Changes the front panel display mode. 42 TV/VCR Switches input between the TV and VCR. 43 PROGRESSIVE Activates the progressive scanning mode. 4 ¢ 4 ¢ 3 3 / / 3 3 1 2 3 5 4 6 7 § 9 = ! 0 % ^ () ¡ ‹ › • º– ⁄ # ~ @ $ &* _ ∞ ™ ¶ ª ≠Ÿ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-PT100-S 110 1 2 3 4 1 2 3 4 C D F A B E VHS Alignment Tape GGV1183 VHS Alignment Tape GGV1184 Hi-Fi Audio (For 4 heads mode) Name Jig No. Remarks X Value Adjustment (For 4 heads mode) VHS Alignment Tape GGV1185 EP Monoscope, 6kHz (For 4 heads mode) Adapter GGF1506 Dial Torque Gauge (10-90 gf•cm) GGF1507 VSR Torque, Brake Torque (S Reel/T Reel Assy) Brake Torque (T Reel Assy) Dial Torque Gauge (60-600 gf•cm) GGF1508 VSR Torque, Brake Torque (S Reel) Post Adjustment Screwdriver GGF1509 X Value Adjustment Screwdriver GGF1510 Guide Roller Adjustment X Value Adjustment Mater Plane GGF1511 Reel Disk Height Adjustment Reel Disk Height Adjustment Jig GGF1512 Torque Tape (VHT-063) GGV1186 Reel Disk Height Adjustment Playback Torque, Back Tension Torque During Palyback 7 Jigs list www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
