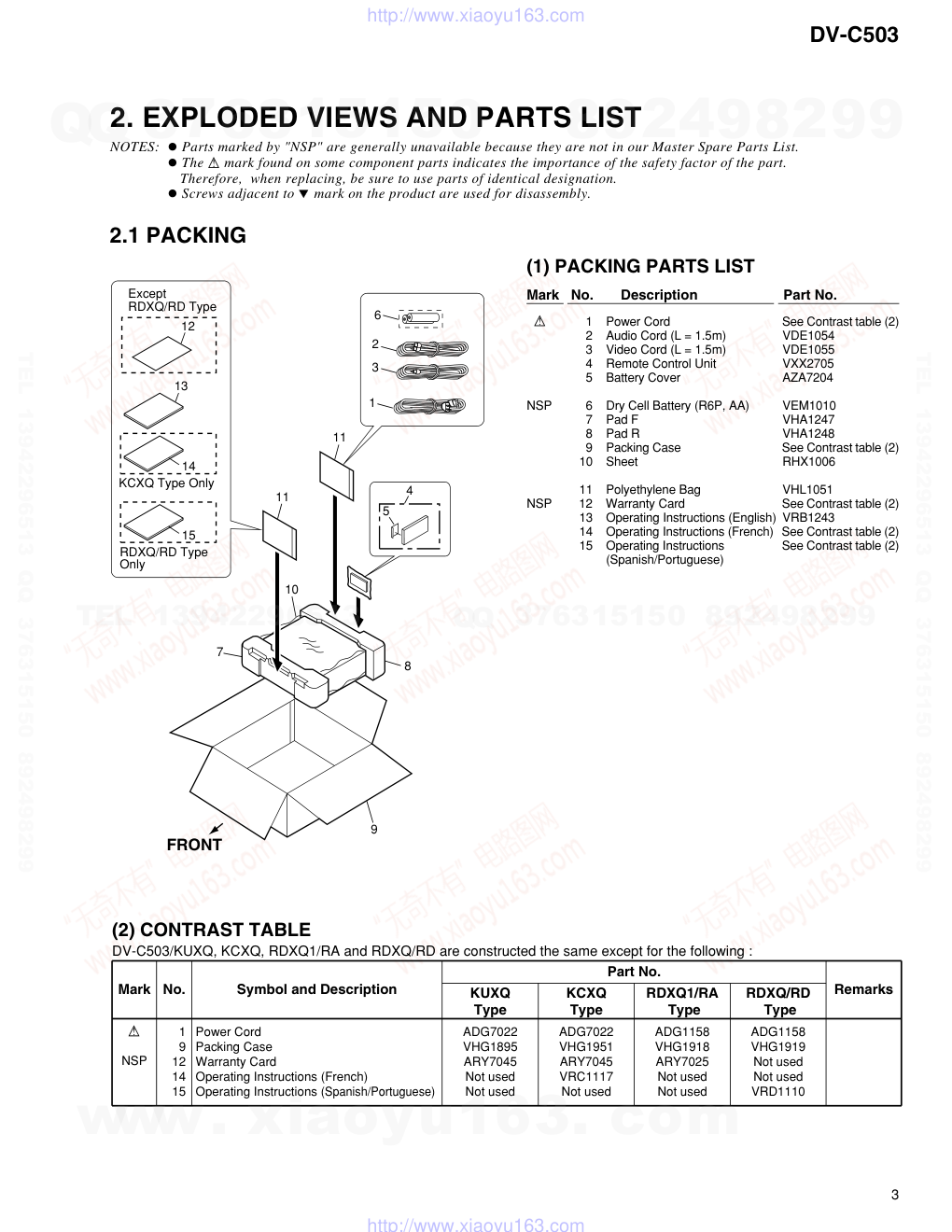

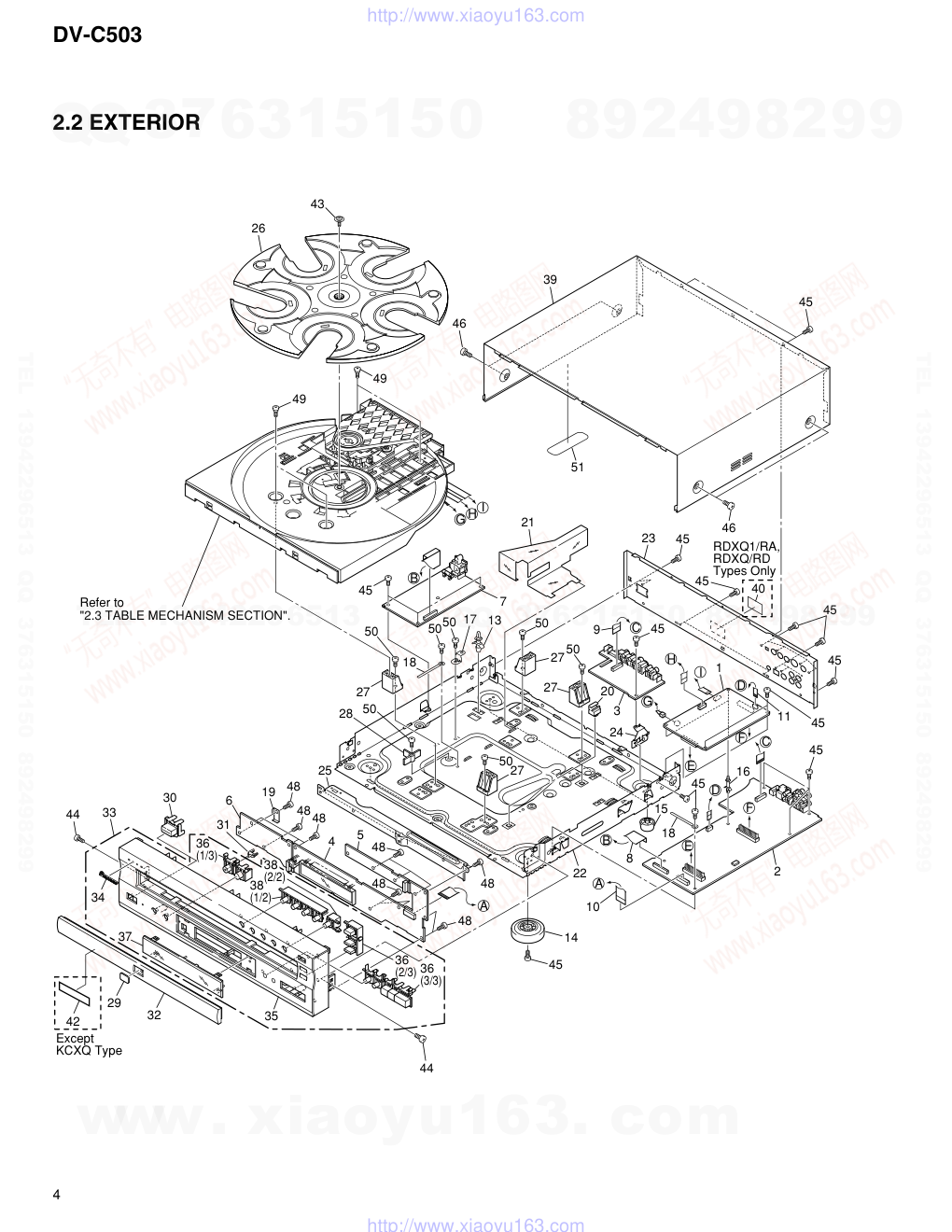

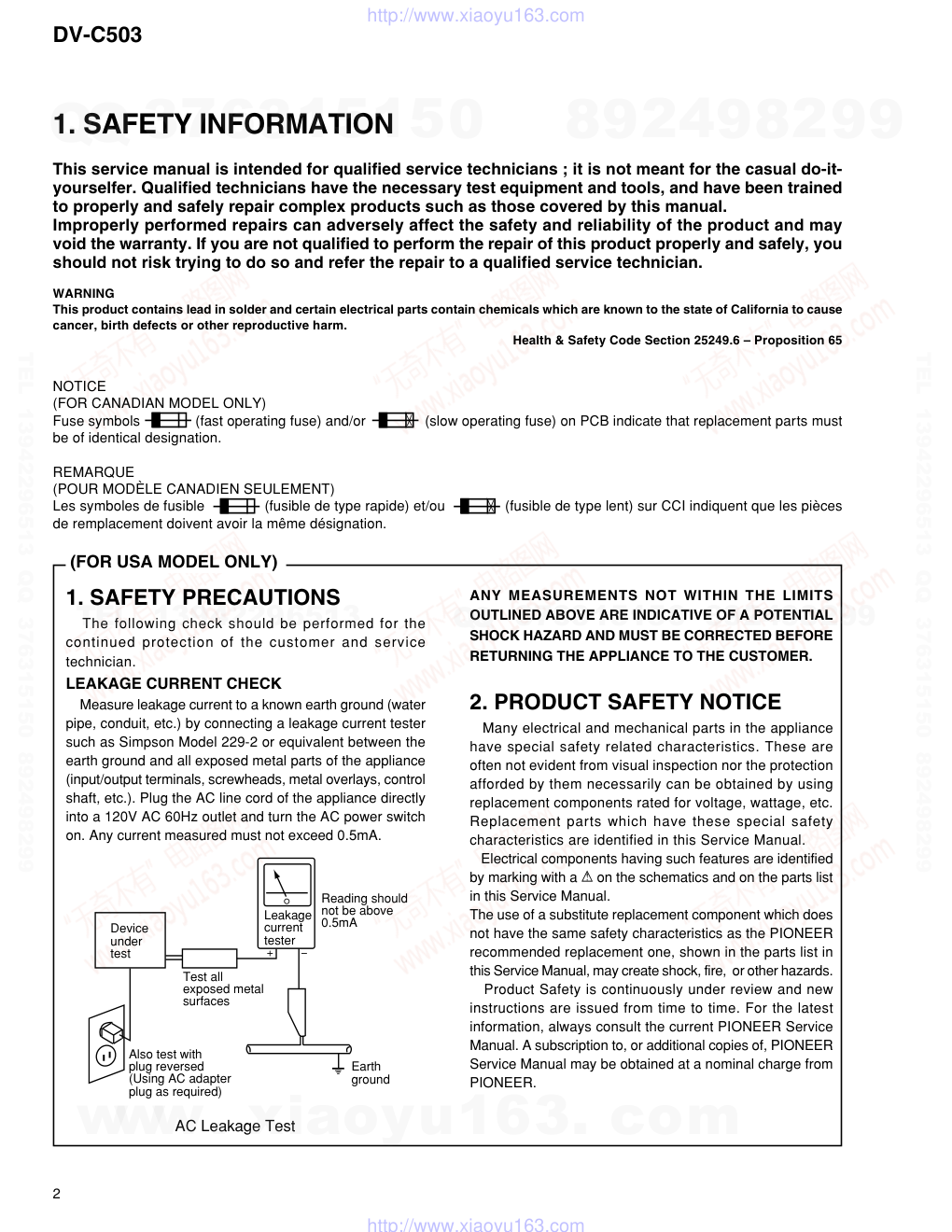

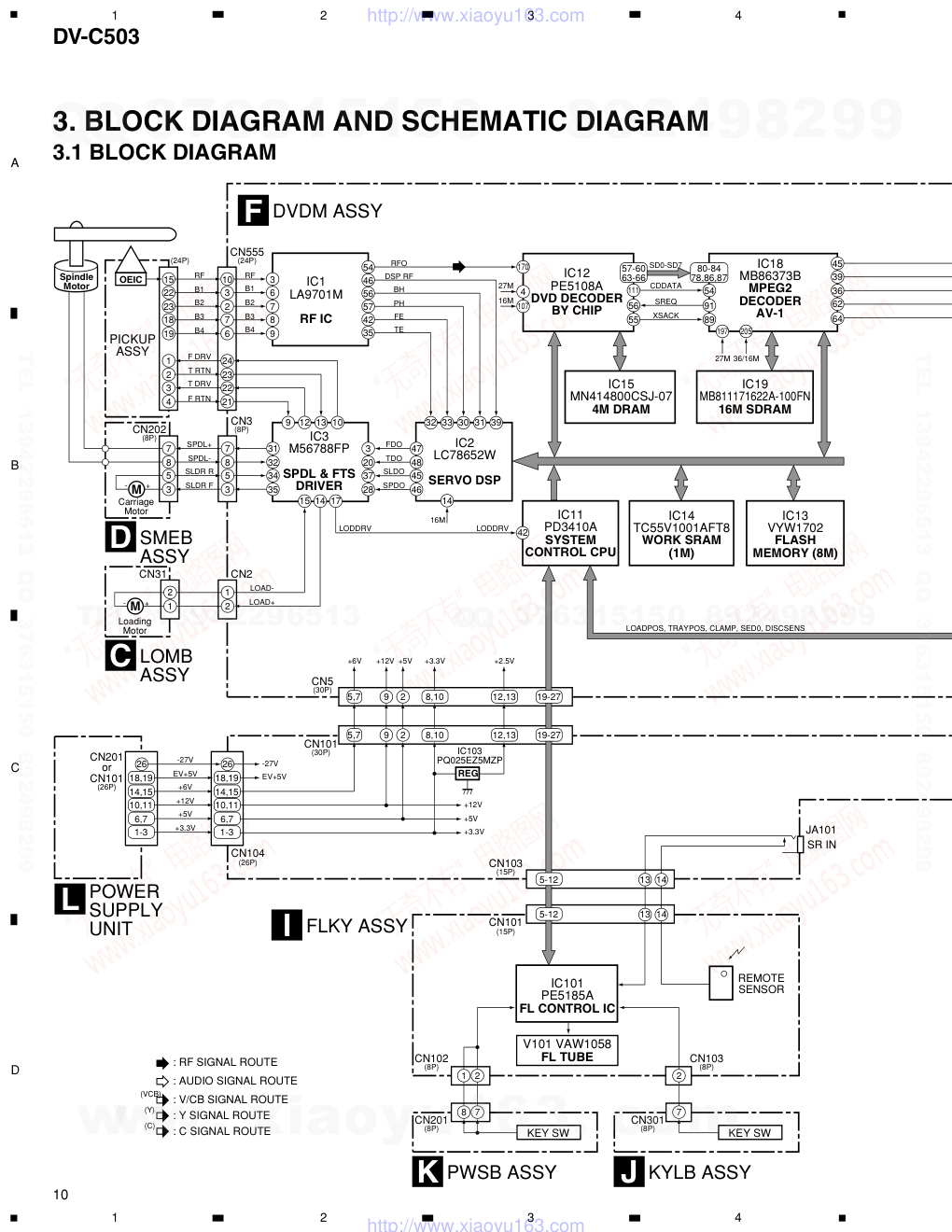

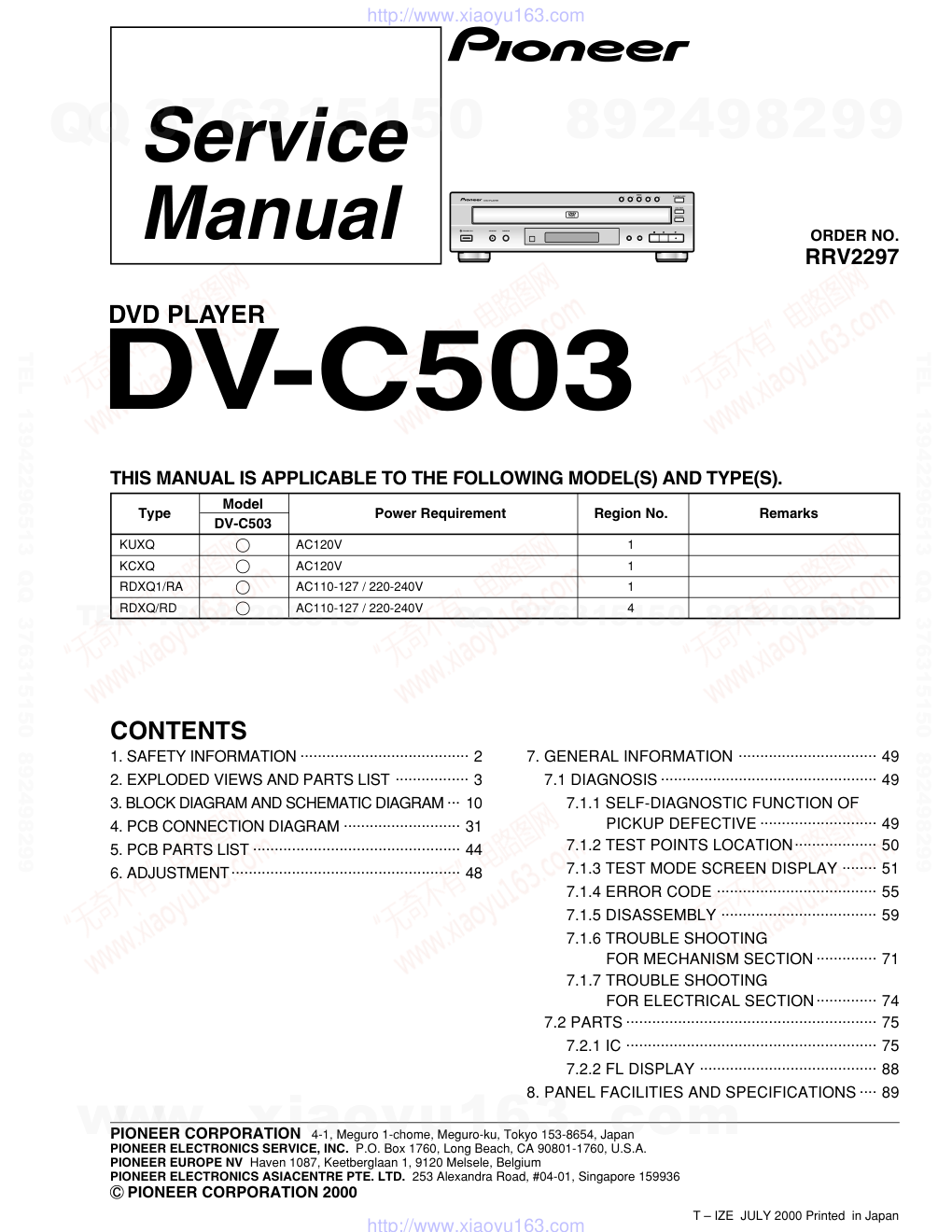

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2000 c DV-C503 RRV2297 T – IZE JULY 2000 Printed in Japan DVD PLAYER 1. SAFETY INFORMATION ....................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................. 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ... 10 4. PCB CONNECTION DIAGRAM ........................... 31 5. PCB PARTS LIST ................................................ 44 6. ADJUSTMENT..................................................... 48 CONTENTS 7. GENERAL INFORMATION ................................ 49 7.1 DIAGNOSIS .................................................. 49 7.1.1 SELF-DIAGNOSTIC FUNCTION OF PICKUP DEFECTIVE ........................... 49 7.1.2 TEST POINTS LOCATION................... 50 7.1.3 TEST MODE SCREEN DISPLAY ........ 51 7.1.4 ERROR CODE ..................................... 55 7.1.5 DISASSEMBLY .................................... 59 7.1.6 TROUBLE SHOOTING FOR MECHANISM SECTION .............. 71 7.1.7 TROUBLE SHOOTING FOR ELECTRICAL SECTION.............. 74 7.2 PARTS .......................................................... 75 7.2.1 IC .......................................................... 75 7.2.2 FL DISPLAY ......................................... 88 8. PANEL FACILITIES AND SPECIFICATIONS .... 89 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Type Model Power Requirement Region No. Remarks DV-C503 KUXQ AC120V 1 KCXQ AC120V 1 RDXQ1/RA AC110-127 / 220-240V 1 RDXQ/RD AC110-127 / 220-240V 4 DVD PLAYER STANDBY/ON CD MODE RANDOM 7 3 8 DISC SKIP 0 OPEN/CLOSE EXCHANGE DISC 1 2 3 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DV-C503 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DV-C503 FRONT 12 5 13 KCXQ Type Only Except RDXQ/RD Type 14 RDXQ/RD Type Only 15 4 6 11 11 3 2 1 8 9 7 10 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. (2) CONTRAST TABLE DV-C503/KUXQ, KCXQ, RDXQ1/RA and RDXQ/RD are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks KUXQ Type KCXQ Type RDXQ1/RA Type RDXQ/RD Type NSP 1 9 12 14 15 Power Cord Packing Case Warranty Card Operating Instructions (French) Operating Instructions (Spanish/Portuguese) ADG7022 VHG1895 ARY7045 Not used Not used ADG7022 VHG1951 ARY7045 VRC1117 Not used ADG1158 VHG1918 ARY7025 Not used Not used ADG1158 VHG1919 Not used Not used VRD1110 1 Power Cord See Contrast table (2) 2 Audio Cord (L = 1.5m) VDE1054 3 Video Cord (L = 1.5m) VDE1055 4 Remote Control Unit VXX2705 5 Battery Cover AZA7204 NSP 6 Dry Cell Battery (R6P, AA) VEM1010 7 Pad F VHA1247 8 Pad R VHA1248 9 Packing Case See Contrast table (2) 10 Sheet RHX1006 11 Polyethylene Bag VHL1051 NSP 12 Warranty Card See Contrast table (2) 13 Operating Instructions (English) VRB1243 14 Operating Instructions (French) See Contrast table (2) 15 Operating Instructions See Contrast table (2) (Spanish/Portuguese) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DV-C503 2.2 EXTERIOR A A B F F C D I H G E E D C B H I G 26 43 46 49 49 46 45 45 45 45 45 16 45 45 45 RDXQ1/RA, RDXQ/RD Types Only 23 1 9 20 24 18 18 5 4 6 19 30 31 32 42 33 44 44 13 17 21 51 45 50 50 5050 50 50 50 10 22 14 45 8 15 27 27 27 28 27 3 7 2 11 39 45 Refer to "2.3 TABLE MECHANISM SECTION". 40 Except KCXQ Type 48 25 4848 36 (1/3) 36 (3/3) 36 (2/3) 38 (1/2) 38 (2/2) 48 48 48 48 29 37 34 35 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DV-C503 (1) EXTERIOR PARTS LIST Mark No. Description Part No. (2) CONTRAST TABLE DV-C503/KUXQ, KCXQ, RDXQ1/RA and RDXQ/RD are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks KUXQ Type KCXQ Type RDXQ1/RA Type RDXQ/RD Type NSP 2 4 7 23 33 35 40 42 JAC1 Assy FLKY Assy POWER SUPPLY Unit Rear Panel Front Panel Assy Front Panel Label Getter VWV1751 VWG2182 VWR1329 VNA2168 VXA2410 VNK4602 Not used VRW1819 VWV1751 VWG2182 VWR1329 VNA2168 VXA2410 VNK4602 Not used Not used VWV1753 VWG2183 VWR1332 VNA2199 VXA2413 VNK4655 VRW1699 VRW1819 VWV1753 VWG2183 VWR1332 VNA2250 VXA2413 VNK4655 VRW1699 VRW1819 1 DVDM Assy VWS1429 2 JAC1 Assy See Contrast table (2) 3 JAC2 Assy VWV1752 4 FLKY Assy See Contrast table (2) NSP 5 KYLB Assy VWG2186 NSP 6 PWSB Assy VWG2188 7 POWER SUPPLY Unit See Contrast table (2) 8 Flexible Cable (26P) VDA1825 9 Flexible Cable (16P) VDA1826 10 Flexible Cabe (15P) VDA1827 11 Flexible Cable (07P) VDA1828 12 • • • • • NSP 13 PCB Holder PNW2100 14 Insulator PNW2766 15 Foot Assy REC1263 NSP 16 PCB Support REC1285 NSP 17 PCB Base RNE1221 18 Cord Clamper RNH-184 19 Earth Plate VBK1121 20 PCB Hinge VEC1174 21 Barrier VEC2176 NSP 22 Base Chassis VNA2167 23 Rear Panel See Contrast table (2) NSP 24 JB Stay VNE2223 25 FP Angle VNE2233 Mark No. Description Part No. 26 Rotary Tray VNK4739 27 Mechanism Holder VNL1869 28 Mechanism Support VNL1906 29 DVD Badge VAM1102 30 PW Button VNK4101 31 LED Lens VNK4503 32 Tray Panel VNK4604 33 Front Panel Assy See Contrast table (2) 34 Pioneer Badge VAM1109 35 Front Panel See Contrast table (2) 36 Main Key VNK4603 37 FL Lens VNK4617 38 5 Key VNK4643 39 Bonnet S VXX2728 40 Label See Contrast table (2) 41 • • • • • NSP 42 Getter See Contrast table (2) NSP 43 TS Screw DBA1006 44 Screw IBZ30P080FMC 45 Screw BBZ30P080FMC 46 Screw BCZ40P060FZK 47 Screw IBZ30P080FMC 48 Screw BBZ30P100FZK 49 Screw VBA1079 50 Screw BBZ30P060FZK NSP 51 Large Label VRW1855 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DV-C503 2.3 TABLE MECHANISM SECTION 37 (1/6) 37 (2/6 - 5/6) [Roller Cover] 37 (6/6) [PCB Cover] 36 35 2 1 16 29 20 18 14 30 28 42 42 21 14 14 19 32 13 14 11 12 26 25 30 30 27 22 15 17 38 33 40 34 30 39 31 10 5 7 8 3 4 42 9 6 From DVDM CN555 From DVDM CN2 Refer to "2.4 TRAVERSE MECHANISM ASSY-S". 42 41 24 23 30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DV-C503 TABLE MECHANISM SECTION PARTS LIST Mark No. Description Part No. NSP 1 5C Mechanism Base Assy VWT1173 NSP 2 5C Table Mechanism Assy VWT1175 NSP 3 TRSB Assy VWG2179 NSP 4 SSRB Assy VWG2180 NSP 5 LOMB Assy VWG2181 6 Traverse Mechanism Assy-S VXX2653 7 Flat Flexible Cable (24P) VDA1836 8 Flat Flexible Cable (8P) VDA1837 9 Flat Flexible Cable (8P) VDA1838 10 Housing Assy (2P) VKP2249 11 Carriage Motor (LOADING) VXM1033 12 Motor Pulley PNW1634 13 Spring VBH1324 14 Floating Rubber VEB1286 15 Load Belt VEB1316 16 Clamper Plate VNE2162 17 Mechanism Base VNK4647 18 Clamper VNL1738 19 Float Base VNL1907 20 Clamper Holder VNL1872 21 Clamp Cam VNL1873 22 Planet Base VNL1874 23 Gear Pulley VNL1876 24 Loading Gear 1 VNL1877 25 Loading Gear 2 VNL1908 26 Drive Gear VNL1879 27 Change Gear VNL1904 28 Screw ABA7009 29 Screw BPZ30P080FMC 30 Screw Z39-019 31 Motor (TRAY) DXM1118 32 Flat Flexible Cable (7P) VDA1835 33 Motor Pulley PNW1634 34 Tray Belt VEB1317 35 Rubber Roller VEB1318 36 Roller Shaft VLL1511 37 Slide Table VNK4751 38 Motor Holder VNL1880 39 Worm Gear VNL1881 40 Tray Gear VNL1882 41 Screw JGZ17P028FMC 42 Spacer VEC2177 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DV-C503 NSP 1 SMEB Assy VWG2048 NSP 2 FGSB Assy VWG2009 NSP 3 Motor (CARRIAGE) VXM1079 NSP 4 Motor (SPINDLE) VXM1084 NSP 5 Pickup Assy VWY1055 6 Table Sheet DEC2040 7 Screw VBA1058 8 Centering Spring VBH1278 9 Hook Spring VBH1317 10 Skew Spring VBH1303 11 Gear Spring VBH1308 NSP 12 Reflected Sheet VEC1959 13 Guide Bar VLL1504 14 Sub-guide Bar VLL1505 15 Hold Spring VNC1017 NSP 16 Magnet Holder VNE2070 NSP 17 Motor Base VNE2154 NSP 18 Cover VNE2155 19 Centering Ring VNL1746 NSP 20 Disc Table VNL1747 2.4 TRAVERSE MECHANISM ASSY-S 21 Hook VNL1770 22 FFC Holder VNL1802 23 Mechanism Base VNL1806 24 FG Holder VNL1807 25 Gear A VNL1808 26 Gear B VNL1809 27 Gear C VNL1810 28 Slider VNL1811 29 Gear D VNL1814 NSP 30 Magnet VYM1024 31 Screw JFZ17P025FZK 32 Screw JGZ17P028FMC 33 Screw VBA1051 34 Magnet Holder Assy VXX2507 35 Spindle Motor Assy VXX2649 36 Carriage Motor Assy VXX2650 37 Screw PBA1069 TRAVERSE MECHANISM ASSY-S PARTS LIST Mark No. Description Part No. Mark No. Description Part No. • Top View 30 16 34 19 8 15 10 10 22 33 23 5 14 10 37 18 32 13 10 37 18 26 25 27 29 7 7 7 3 1 11 28 33 6 35 20 12 21 4 9 31 37 17 24 37 36 To DVDM Assy CN3 21 9 17 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DV-C503 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 10 A B C D 1 2 3 4 1 2 3 4 7 8 5 3 1 2 Spindle Motor OEIC 15 22 23 18 19 1 2 3 4 10 3 2 7 6 24 23 22 21 RF B1 B2 B3 B4 T RTN F DRV 7 SPDL+ Carriage Motor Loading Motor + - 8 SPDL- LOAD- LODDRV LOADPOS, TRAYPOS, CLAMP, SED0, DISCSENS LODDRV +6V -27V -27V LOAD+ 5 SLDR R 3 SLDR F T DRV F RTN PICKUP ASSY IC1 LA9701M RF IC CN555 (24P) CN3 (8P) CN5 (30P) CN101 (30P) CN102 (8P) CN101 (15P) CN103 (15P) CN103 (8P) JA101 SR IN KEY SW CN201 (8P) CN104 (26P) CN201 or CN101 (26P) 1 2 CN2 CN202 (8P) CN31 (24P) D SMEB ASSY C LOMB ASSY K PWSB ASSY I FLKY ASSY L POWER SUPPLY UNIT F DVDM ASSY M + - M EV+5V +5V +3.3V +12V IC3 M56788FP SPDL & FTS DRIVER IC2 LC78652W SERVO DSP IC12 PE5108A DVD DECODER BY CHIP IC18 MB86373B MPEG2 DECODER AV-1 IC15 MN414800CSJ-07 4M DRAM IC11 PD3410A SYSTEM CONTROL CPU REG IC103 PQ025EZ5MZP IC101 PE5185A FL CONTROL IC REMOTE SENSOR V101 VAW1058 FL TUBE IC14 TC55V1001AFT8 WORK SRAM (1M) 3 RF 54 170 111 197 107 RFO 46 DSP RF 56 BH 57 PH 42 FE 35 4 56 57-60 63-66 80-84 78,86,87 55 91 54 89 TE 6 B1 7 B2 8 B3 9 B4 FDO 9 12 13 10 31 3 47 48 45 46 14 32 33 30 31 39 TDO 20 SLDO 37 SPDO 16M 27M 205 36/16M 27M SD0-SD7 SREQ CDDATA XSACK 16M 28 35 15 14 17 34 32 IC19 MB811171622A-100FN 16M SDRAM IC13 VYW1702 FLASH MEMORY (8M) 42 5,7 12,13 8,10 9 2 5,7 12,13 8,10 9 2 +12V +5V +3.3V +2.5V 19-27 19-27 5-12 26 EV+5V +6V +12V +5V +3.3V 8 7 2 KEY SW CN301 (8P) J KYLB ASSY 7 45 39 36 62 64 2 1 18,19 14,15 10,11 6,7 1-3 26 18,19 14,15 10,11 6,7 1-3 13 14 5-12 13 14 : AUDIO SIGNAL ROUTE : RF SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 11 A B C D 5 6 7 8 5 6 7 8 S11 DISC CLAMP DET. SW CN15 (30P) CN201 (30P) JA602 JA601 COAXIAL TOSLINK AC-3/PCM DIGITAL AUDIO OUT A TRSB ASSY B SSRB ASSY H JAC2 ASSY Q601 V/Cb OUT V IC301 LA7138M 3IN 6OUT VIDEO AMP IC201 PCM1716E 96kHz, 24bit 2ch DAC IC203 BA4560F FILTER IC21 CY2081SL-638 CLOCK GENERATOR G JAC1 ASSY JA1 JA3 JA201 COMPOSITE VIDEO OUT (YELLOW) Cb (BLUE) S VIDEO OUT COMPONENT VIDEO OUT Cr (RED) LOUT (WHITE) ROUT (RED) 6 27M LOADPOS LOADPOS TRAYPOS TRAYPOS CLAMP CLAMP SED0 SED0 DISCSENS DISCSENS SEDR+ SEDR- 5 16M 1 36/16M 7 11 9 23 29 7 11 9 23 29 Cb Y Y Cr C Y (GREEN) Y OUT C/Cr OUT ADA0 ADAI (AC3) Q83 Q85 Q81 Q304 CN55 (7P) CN903 (8P) CN11 (8P) CN12 (7P) CN21 (7P) CN902 (7P) 1 2 3 4 5 7 6 5 4 3 CN1 (16P) CN301 (16P) 4 6 14 8 AMP 3 2 IC901 BA6195FP 5DISC TURN DRIVER 25 12 13 Q306 AMP 10 Q305 AMP 6 16 13 23 21 13 15 17 19 12 2 13 11 3 9 5 15 5 4 1 2 3 6 4 5 8 7 6 3 5 7 4 6 3 S21 LOADING POSITION DET. SW PC21 DISC DET. SENSOR PC22 DISC TRAY POSITION DET. SENSOR 3 1 4 2 5 TRAY Motor + - M (VCB) (VCB) (V) (CB) (Y) (Y) (Y) (V) (CB) (Y) (V) (CB) (Y) (Y) (C) (C) (C) (Y) (C) (Y) (C) (Cr) (Cr) (Cr) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 12 A B C D 1 2 3 4 1 2 3 4 G 1/3- G 3/3 JAC1 ASSY (KUXQ, KCXQ : VWV1751) (RDXQ1/RA, RDXQ/RD : VWV1753) G POWER SUPPLY UNIT (KUXQ, KCXQ : VWR1329) (RDXQ1/RA, RDXQ/RD : VWR1332) L FLKY ASSY (KUXQ, KCXQ : VWG2182) (RDXQ1/RA, RDXQ/RD : VWG2183) I KYLB ASSY (VWG2186) J PWSB ASSY (VWG2188) K JAC2 ASSY (VWV1752) H KUXQ, KCXQ : CN101 RDXQ1/RA, RDXQ/RD : CN1 POWER CORD KUXQ, KCXQ : ADG7022 RDXQ1/RA, RDXQ/RD : ADG1158 KUXQ, KCXQ : AC120V 60Hz RDXQ1/RA, RDXQ/RD : AC110-127/220-240V 50/60Hz KUXQ, KCXQ : CN201 RDXQ1/RA, RDXQ/RD : CN101 RDXQ1/RA, RDXQ/RD ONLY 3.2 TRSB, SSRB, LOMB, SMEB, FGSB ASSYS and OVERALL WIRING DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 13 A B C D 5 6 7 8 5 6 7 8 F 1/3- F 3/3 DVDM ASSY (VWS1429) PICKUP ASSY (VWY1055) SPINDLE MOTOR ASSY : VXX2649 CARRIAGE MOTOR (LOADING) MOTOR (TRAY) : DXM1118 CARRRIAGE MOTOR ASSY : VXX2650 F SMEB ASSY (VWG2048) D LOMB ASSY (VWG2181) C SSRB ASSY (VWG2180) B TRSB ASSY (VWG2179) A FGSB ASSY (VWG2009) E DISC CLAMP DET. SW LOADING POSITION DET. SW DISC DET. SENSOR DISC TRAY POSITION DET. SENSOR C21 1000p C31 1000p : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (T) : SLIDER SERVO LOOP LINE (S) (S) (F) (T) (T) (F) (F) (T) (T) (F) (S) (S) (S) : The power supply is shown with the marked box. Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". E D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 14 A B C D 1 2 3 4 1 2 3 4 1/2 BA4510F CHECKER CHIP RF IC SPINDLE & FTS DRIVER PICKUP ASSY CN31 C CN202 D 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2SC4081 (DVD) (DVD) (DVD) (CD) (CD) (CD) (F) (F) (T) (T) (S) (S) (S) (S) (S) (F) (T) (T) (F) (F) (T) (T) (F) (T) (F) (F) (F) (T) (T) (S) (S) 2 4 1 7 3.3 DVDM ASSY (1/3) 1/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 15 A B C D 5 6 7 8 5 6 7 8 2/2 BA4510F BA4510F BA4510F SERVO DSP IC F 1/3 DVDM ASSY (VWS1429) 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 3/3 F LANDMARK for CHECKER VKN1493 1/2 2/2 CN902 G3/3 : RF SIGNAL ROUTE : CDDA•CD-ROM DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (F) (T) (S) : The power supply is shown with the marked box. (DVD) (DVD) (CD) (CD) (T) (T) (S) (F) (F) (T) (S) (F) (T) (F) 8 10 11 19 20 18 9 6 5 1/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 16 A B C D 1 2 3 4 1 2 3 4 F 2/3 DVDM ASSY (VWS1429) WORK SRAM (1M) BY CHIP DVD DATA PROCESSOR FLASH MEMORY (8M) 4M DRAM VYW1702 3/3 F 3/3 F 3/3 F 3/3 F 1/3 F 1/3 F 3/3 F 3/3 F 1/3 F 1/3 F 1/3 F 1/3 F 1/3 F 3/3 F 1/3 F : RF SIGNAL ROUTE : AUDIO SIGNAL ROUTE : CDDA•CD-ROM DATA SIGNAL ROUTE : DVD DATA SIGNAL ROUTE (DVD) 3.4 DVDM ASSY (2/3) 2/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 17 A B C D 5 6 7 8 5 6 7 8 SH SYSTEM CONTROL CPU 3/3 F 20MHz 3/3 F 3/3 F 1/3 F 1/3 F 3/3 F 1/3 F 1/3 F 1/3, 3/3 F 1/3, 3/3 F 3/3 F 1/3 F 1/3 F 1/3 F 1/3 F 1/3 F 3/3 F Q3 Q3 RN1911 VKN1626 CN101 G2/3 : The power supply is shown with the marked box. Tray Open state : H Tray Close state : L Disc Clamp state : H Others : L Disc Detection state : L Normal state : L (0V) Traverse Mecha.down state : H (3.3V) Tray position signal input pin Disc detection signal input pin 2/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 18 A B C D 1 2 3 4 1 2 3 4 AV-1 MPEG2 DECODER 16M SDRAM 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 1316 1215 1417 (V/Cb) (V/Cb) (Y) (Y) (C/Cr) (V/Cb) (Y) (C/Cr) (C/Cr) 3/3 F 3.5 DVDM ASSY (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 19 A B C D 5 6 7 8 5 6 7 8 VKN1626 F 3/3 DVDM ASSY (VWS1429) CLOCK GENERATOR CIRCUIT 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 1/3 F CN201 G2/3 : AUDIO SIGNAL ROUTE : DVD DATA SIGNAL ROUTE : V/Cb SIGNAL ROUTE (V/Cb) : Y SIGNAL ROUTE (Y) : C/Cr SIGNAL ROUTE (C/Cr) (V/Cb) (Y) (C/Cr) (V/Cb) (V/Cb) (V/Cb) (Y) (Y) (Y) (C/Cr) (C/Cr) (C/Cr) 3/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 20 A B C D 1 2 3 4 1 2 3 4 G 1/3 JAC1 ASSY (KUXQ, KCXQ : VWV1751) (RDXQ1/RA, RDXQ/RD : VWV1753) D/A CONVERTER AUDIO POWER SUPPLY 2/3 G 2/3 G 2/3 G 1/3 G 3.6 JAC1 ASSY (1/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 21 A B C D 5 6 7 8 5 6 7 8 1/2 2/2 : AUDIO SIGNAL ROUTE : The power supply is shown with the marked box. 1/3 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 22 A B C D 1 2 3 4 1 2 3 4 3V→5V CONVERTER 5V→3V CONVERTER CN15 F 3/3 CN5 F 2/3 CN101 I 1/3 G 1/3 G 3/3 G 1/3 G 3/3 G (V/Cb) (V/Cb) (V/Cb) (V/Cb) (V/Cb) (C/Cr) (C/Cr) (C/Cr) (C/Cr) (Y) (C/Cr) (Y) (Y) (Y) (Y) (Y) 2/3 G 3.7 JAC1 ASSY (2/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 23 A B C D 5 6 7 8 5 6 7 8 KUXQ, KCXQ ONLY RDXQ1/RA, RDXQ/RD ONLY 3IN 6OUT VIDEO AMP. CN1 H : AUDIO SIGNAL ROUTE : V/Cb SIGNAL ROUTE (V/Cb) : Y SIGNAL ROUTE (Y) : C/Cr SIGNAL ROUTE (C/Cr) G 2/3 JAC1 ASSY (KUXQ, KCXQ : VWV1751) (RDXQ1/RA, RDXQ/RD : VWV1753) (V/Cb) (V/Cb) (C/Cr) (C/Cr) (Y) (Y) (V) (V) (C) (C) (C) (Y) (Y) (Y) (Y) (Cb) (Cb) (Cr) (Cr) : The power supply is shown with the marked box. 2/3 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 24 A B C D 1 2 3 4 1 2 3 4 CN55 F 1/3 CN11 A CN201 (KUXQ, KCXQ) CN101 (RDXQ1/RA, RDXQ/RD) For RS-232C L L G 3/3 JAC1 ASSY (KUXQ, KCXQ : VWV1751) (RDXQ1/RA, RDXQ/RD : VWV1753) AUDIO POWER SUPPLY (EXCEPT OP AMP.) AUDIO POWER SUPPLY (OP AMP.) VIDEO POWER SUPPLY 5 DISC TURN DRIVER 2/3 G 2/3 G : The power supply is shown with the marked box. 3/3 G 3.8 JAC1 ASSY (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 25 A B C D 1 2 3 4 1 2 3 4 JAC2 ASSY (VWV1752) H CN301 G2/3 : V/Cb SIGNAL ROUTE (V/Cb) : Y SIGNAL ROUTE (Y) : C/Cr SIGNAL ROUTE (C/Cr) : The power supply is shown with the marked box. (V) (V) (V) (C) (C) (C) (Cb) (Cb) (Cb) (Cr) (Cr) (Cr) (Y) (Y) (Y) (Y) (Y) (Y) H 3.9 JAC2 ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 26 A B C D 1 2 3 4 1 2 3 4 S333-S337 : ASG7013 S190-S195 : ASG7013 FLKY ASSY (KUXQ, KCXQ : VWG2182) (RDXQ1/RA, RDXQ/RD : VWG2183) I KYLB ASSY (VWG2186) J RESET IC CN103 G2/3 FLKY ASSY S131 : PLAY S132 : 0 OPEN/CLOSE S190 : 4 1 S191 : ¡ ¢ S192 : 7 STOP S193 : 8 PAUSE S194 : EXCHANGE S195 : DISC SKIP KYLB ASSY S333 : 5 S334 : 4 S335 : 3 S336 : 2 S337 : 1 PWSB ASSY S200 : CD MODE S201 : RANDOM S230 : STANDBY/ON (POWER) DISC I J 3.10 FLKY, KYLB and PWSB ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 27 A B C D 5 6 7 8 5 6 7 8 DTC124EK ASG7013 ASG7013 ASG7013 ASG7013 4.7k 12k KUXQ, KCXQ : 36kΩ RDXQ1/RA, RDXQ/RD : 68kΩ KUXQ, KCXQ : 6.2kΩ RDXQ1/RA, RDXQ/RD : 27kΩ PWSB ASSY (VWG2188) K FL CONTROL MICROCOMPUTER : The power supply is shown with the marked box. IC101 is damaged → No Power ON I K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 28 A B C D 1 2 3 4 1 2 3 4 1 GND SW+3.3V GND SW+5.0V GND SW+12V GND M+6V GND E5.0V P.CONT FLAC A FLAC B FL-27V 2 3 4 5 6 7 8 9 10 11 12 13 14 CN201 CN101 LIVE F101 REK1078 NEUTRAL AC IN CN104 G3/3 NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE WITH SAME TYPE AND RATINGS OF FUSE. CAUTION - POWER SUPPLY UNIT (VWR1329) L 2A Z101 R101 L101 L102 L103 L105 PC101 R103 C107 T101 IC101 D S C C101 C102 D101 C106 C109 D108 R105 C108 C110 L104 D109 C105 D105 D201 C201 330/16 C205 100/16 C206 100/16 C202 1200/10 C203 680/10 C204 47/35 C218 0.1/25 C213 100/16 C215 100/16 C219 472p R228 47k R213 3.3/1W Q201 D208 D210 Q210 R201 47 R202 1k IC202 IC203 1 2 3 4 1 2 3 4 R205 1k R204 2.7k R220 10k R219 4.7k R203 2.7k VR201 1k PC101 IC201 P202 AEK7012 (1.6A) P203 AEK7063 (800mA) Q202 D201 (JP) R211 10k R227 180 R212 470/1W L201 20µ L202 20µ D202 D203 D206 C210 472p C211 472p C212 102p L204 (JP) L205 4.7µ D204 D207 D205 R206 10 R209 10k R206 10k D106 GND CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P202 (AEK7012). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR P203 (AEK7063). Blow out → No Power ON Blow out → No Power ON Blow out → No Power ON Short or Open → FL indication is abnormal 3.11 POWER SUPPLY UNIT (VWR1329) L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 29 A B C D 1 2 3 4 1 2 3 4 CN1 CN101 AC IN A A B B 5 8 4 2 1 10 11 14 12 13 12V 5V EV5V SW5V PO CONT SW3.3V GND –28V FLAC (B) FLAC (A) GND 3 GND 5 GND 7 GND 9 CN104 G3/3 F101 REK1102 2.5A Z1 C1 LIVE NEUTRAL C2 C5 C5 C82 C8 C7 GND BEA1 BEA2 R2 R71 R72 Q71 D71 R74 R73 D72 D7 D23 D24 C22 C11 C108 R301 R304 C302 R302 R307 R104 R403 R404 R405 Q401 Q402 D402 D403 R401 R420 R303 R410 Q412 R402 C110 R414 R407 R408 R409 D404 R103 R10 C9 R8 C21 C10 D25 R20 R12 D5 R17 D9 R23 R201 R202 R205 R203 R204 VR201 C201 R24 R25 R11 R22 D8 D4 PC1 D6 R9 Q20 Q1 Q2 PC2 PC1 IC201 R7 R6 R5 R19 R1 D14 D13 T1 D11 D12 D81 D82 D83 R84 R85 Q81 R82 R83 C81 L1 D105 D104 C107 D103 D102 P101 AEK7063 P102 AEK7066 C105 C106 C410 L101 C109 Q411 Q410 D111 D407 D112 D405 D406 D107 D301 D108 D109 D304 C112 PC2 C111 C411 IC103 IC102 C301 C303 800mA 1.6A NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - POWER SUPPLY UNIT (VWR1332) L BEA401 BEA3 CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P102 (AEK7066). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR P101 (AEK7063). Blow out → No Power ON Blow out → No Power ON Blow out → No Power ON Short or Open → FL indication is abnormal 3.12 POWER SUPPLY UNIT (VWR1332) L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 30 WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 5 : CD, ABEX-784 Track 1 No. 12 to 14 : MJK1, Title 1-chp 4 No. 15 to 17 : MJK1, Title 1-chp 5 1 Foot of R169 (RF) V: 100mV/div. H: 0.2µsec/div. 2 TP2 (RFO) V: 500mV/div. H: 0.1µsec/div. 4 TP3 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC2 - pin 39 (EFM before slice) V: 1V/div. H: 1µsec/div. 6 IC2 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC3 - pin 41 (REGB) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 5msec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 5msec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 5msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 IC18 - pin 45 (Composite Video output) V: 0.2V/div. H: 1msec/div. 13 IC18 - pin 39 (Y output) V: 0.2V/div. H: 5msec/div. 14 IC18 - pin 36 (C output) V: 0.2V/div. H: 5msec/div. 15 IC18 - pin 45 (CB output when selecting color difference output) V: 0.2V/div. H: 5msec/div. 18 18 19 CN55 - pin 5 (DISC SENS) V: 2V/div. H: 1sec/div. 19 CN55 - pin 2 (TRAY POS) V: 2V/div. H: 1sec/div. 20 CN55 - pin 4 (SED0) V: 2V/div. H: 5sec/div. 16 IC18 - pin 39 (Y output when selecting color difference output) V: 0.2V/div. H: 5msec/div. 17 IC18 - pin 36 (CR output when selecting color difference output) V: 0.2V/div. H: 5msec/div. GND GND GND GND GND GND CLOSE Tray Close OPEN DISC CHANGE GND GND GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 31 A B C D 1 2 3 4 1 2 3 4 (VNP1732-A) (VNP1782-A) (VNP1782-A) (VNP1782-A) (VNP1782-A) (VNP1782-A) (VNP1782-A) CARRIAGE MOTOR SPINDLE MOTOR LOADING MOTOR TRAY MOTOR BLK RED M M M NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 TRSB, SSRB, LOMB and SMEB ASSYS CN3 F CN2 F E SMEB ASSY D TRSB ASSY A TRSB ASSY A SSRB ASSY B SSRB ASSY B LOMB ASSY C CN903 G SIDE A SIDE B M D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 32 A B C D 1 2 3 4 1 2 3 4 DVDM ASSY F SIDE A (VNP1776-A) Q3 Q121 Q103 Q91 Q83 Q7 Q6 Q101 Q107 Q81 IC1 IC7 IC11 IC15 IC21 IC18 IC3 Q4 Q5 Q102 Q109 IC5 IC8 • This PCB is a four-layered board. CN902 G PICKUP ASSY 4.2 DVDM ASSY F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 33 A B C D 1 2 3 4 1 2 3 4 DVDM ASSY F CN101 G CN31 C CN202 D CN201 G SIDE B (VNP1776-A) Q1 IC12 IC2 IC19 Q112 Q114 Q113 Q131 Q106 Q85 Q89 Q87 Q251 IC26 IC27 IC13 IC14 • This PCB is a four-layered board. F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 34 A B C D 1 2 3 4 1 2 3 4 JAC2 ASSY H SIDE A CN5 F CN101 I CN11 A C F CN201 or CN101 L (VNP1783-A) Q2 Q1 IC501 IC3 G H 4.3 JAC1 and JAC2 ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 35 A B C D 5 6 7 8 5 6 7 8 JAC1 ASSY G (VNP1783-A) CN55 F CN15 F IC302 IC206 Q120 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 36 A B C D 1 2 3 4 1 2 3 4 JAC1 ASSY G Q257 Q203 Q357 Q202 Q201 IC301 IC602 IC205 IC204 IC203 IC207 IC208 Q601 Q307-Q310 Q722 Q301-Q306 IC304 Q Q204 Q315 IC200 IC201 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 37 A B C D 5 6 7 8 5 6 7 8 JAC2 ASSY H SIDE B (VNP1783-A) (VNP1783-A) Q722 -Q306 IC304 IC101 IC102 Q502 Q501 IC901 Q311-Q314 G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 38 A B C D 1 2 3 4 1 2 3 4 PWSB ASSY K (VNP1777-B) I J K 4.4 FLKY, KYLB and PWSB ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 39 A B C D 5 6 7 8 5 6 7 8 (VNP1777-B) CN103 G SIDE A IC102 (VNP1777-B) KYLB ASSY J FLKY ASSY I I J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 40 A B C D 1 2 3 4 1 2 3 4 Q420 Q301 Q302 Q303 Q304 Q305 KYLB ASSY J FLKY ASSY I I J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 41 A B C D 5 6 7 8 5 6 7 8 (VNP1777-B) PWSB ASSY K SIDE B (VNP1777-B) IC101 420 Q250 Q251 Q252 Q301 (VNP1777-B) I J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 42 A B C D 1 2 3 4 1 2 3 4 POWER SUPPLY UNIT L CN104 G AC IN SIDE A IC101 IC203 IC202 Q210 IC201 Q201 VR201 4.5 POWER SUPPLY UNIT (VWR1329) L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-C503 43 A B C D 1 2 3 4 1 2 3 4 POWER SUPPLY UNIT L CN104 G AC IN SIDE A Q411 Q410 IC102 VR201 IC103 IC201 Q20 Q71 Q2 Q1 Q412 Q402 Q401 L 4.6 POWER SUPPLY UNIT (VWR1332) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DV-C503 Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF WHOLE PCB ASSEMBLIES Mark Symbol and Description Part No. Remarks KUXQ Type KCXQ Type RDXQ1/RA Type RDXQ/RD Type NSP NSP NSP NSP NSP NSP NSP NSP NSP NSP NSP NSP 5C Mechanism Base Assy MECB Assy TRSB Assy SSRB Assy LOMB Assy Traverse Mechanism Assy SMEB Assy FGSB Assy DVDM Assy JKSB Assy JAC1 Assy JAC2 Assy FLKB Assy FLKY Assy KYLB Assy PWSB Assy POWER SUPPLY Unit VWT1173 VWM1992 VWG2179 VWG2180 VWG2181 VWT1161 VWG2048 VWG2009 VWS1429 VWM2028 VWV1751 VWV1752 VWM1995 VWG2182 VWG2186 VWG2188 VWR1329 VWT1173 VWM1992 VWG2179 VWG2180 VWG2181 VWT1161 VWG2048 VWG2009 VWS1429 VWM2028 VWV1751 VWV1752 VWM1995 VWG2182 VWG2186 VWG2188 VWR1329 VWT1173 VWM1992 VWG2179 VWG2180 VWG2181 VWT1161 VWG2048 VWG2009 VWS1429 VWM2029 VWV1753 VWV1752 VWM1996 VWG2183 VWG2186 VWG2188 VWR1332 VWT1173 VWM1992 VWG2179 VWG2180 VWG2181 VWT1161 VWG2048 VWG2009 VWS1429 VWM2029 VWV1753 VWV1752 VWM1996 VWG2183 VWG2186 VWG2188 VWR1332 JAC1 ASSY VWV1751 and VWV1753 are constructed the same except for the following : G Mark Symbol and Description Part No. Remarks VWV1751 VWV1753 S102 R116 R117 R119 Not used Not used RS1/10S0R0J Not used VSH1020 RS1/10S153J Not used RS1/10S103J FLKY ASSY VWG2182 and VWG2183 are constructed the same except for the following : I Mark Symbol and Description Part No. Remarks VWG2182 VWG2183 R141 R143 RS1/10S622J RS1/10S363J RS1/10S273J RS1/10S683J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DV-C503 Mark No. Description Part No. Mark No. Description Part No. PCB PARTS LIST FOR DV-C503/KUXQ UNLESS OTHERWISE NOTED Mark No. Description Part No. Mark No. Description Part No. TRSB ASSY SWITCH S11 VSK1011 RESISTOR R11 RS1/10S0R0J OTHERS CN12 8P FFC CONNECTOR VKN1267 CN11 7P FFC CONNECTOR VKN1268 SSRB ASSY SEMICONDUCTORS Q21 2SC2412K Q22 DTC124EK PC21 GP2S28 PC22 RPI-574 SWITCH S21 VSK1011 CAPACITOR C21 CKSQYF102Z50 RESISTORS All Resistors RS1/10S J OTHERS CN21 7P FFC CONNECTOR VKN1267 LOMB ASSY CAPACITOR C31 CKSQYF102Z50 OTHERS CN31 KR CONNECTOR B2B-PH-K-S SMEB ASSY SWITCH S201 DSG1016 OTHERS CN201 3P FFC CONNECTOR 52044-0345 CN202 8P FFC CONNECTOR VKN1212 PC BOARD SMEB VNP1732 A B C D E FGSB ASSY SEMICONDUCTOR PC101 GP2S60 RESISTORS R101 RS1/10S331J DVDM ASSY SEMICONDUCTORS IC5,IC7 BA4510F IC21 CY2081SL-638 IC1 LA9701M IC2 LC78652W IC3 M56788FP IC19 MB811171622A-100FN IC18 MB86373B IC15 MN414800CSJ-07 IC11 PD3410A IC12 PE5108A IC14 TC55V1001AFT8 IC8 TC7SHU04F IC13 VYW1702 Q106,Q109,Q81,Q83,Q85 2SA1576A Q114,Q121,Q251 2SC4081 Q131 DTC114EUA Q102 HN1A01F Q103,Q6,Q7 HN1B04FU Q101 HN1C01F Q112,Q113 HN1C01FU Q107,Q4,Q5 RN1902 Q3 RN1911 Q1 RN4982 D301 KV1471E D6 RB501V-40 D665,D666 RB521S-30 COILS L150,L330 LCYA100J2520 L304 LCYA2R7J2520 L81 CHIP COIL VTL1067 L85,L911 CHIP BEAD VTL1084 CAPACITORS C123,C146,C613,C843 CCSRCH101J50 C322 CCSRCH120J50 C135 CCSRCH121J50 C104-C108 CCSRCH150J50 C206,C210,C211 CCSRCH151J50 C333 CCSRCH180J50 C116,C151,C314 CCSRCH220J50 C152 CCSRCH221J50 C127,C209,C337 CCSRCH331J50 C134,C236 CCSRCH470J50 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DV-C503 Mark No. Description Part No. Mark No. Description Part No. C122,C208 CCSRCH471J50 C126,C335 CCSRCH560J50 C334 CCSRCH5R0C50 C124,C132 CCSRCH680J50 C117,C240,C352,C360 CCSRCH681J25 C845,C846 CCSRCK2R0C50 C129,C142,C842 CEV101M10 C113,C139 CEV220M16 C405,C413,C700,C808 CEV221M4 C111,C149,C205,C207,C401 CEV470M6R3 C403,C407 CEV470M6R3 C140,C223,C224,C252,C264 CKSQYB105K10 C312 CKSQYB105K10 C148,C217,C327,C414 CKSQYF105Z16 C801,C802,C807,C809-C815 CKSQYF105Z16 C817-C821 CKSQYF105Z16 C216,C313 CKSRYB102K50 C133,C136,C203,C220,C225 CKSRYB103K50 C239,C320,C321,C603,C625 CKSRYB103K50 C703,C711 CKSRYB103K50 C101,C102,C114,C118,C119 CKSRYB104K16 C121,C138,C204,C212,C213 CKSRYB104K16 C227,C231,C263,C315,C317 CKSRYB104K16 C332,C804 CKSRYB104K16 C153,C266 CKSRYB223K25 C357 CKSRYB223K50 C354 CKSRYB332K50 C214,C251,C261,C351 CKSRYB472K50 C330 CKSRYB682K50 C109,C110,C120,C130,C131 CKSRYF104Z16 C143,C150,C202,C215 CKSRYF104Z16 C221,C222,C226,C230,C235 CKSRYF104Z16 C265,C299,C319,C359,C367 CKSRYF104Z16 C369,C370,C402,C404,C406 CKSRYF104Z16 C408,C410,C412,C601,C602 CKSRYF104Z16 C604-C612,C614,C615 CKSRYF104Z16 C617-C620,C626,C701,C702 CKSRYF104Z16 C704-C710,C712-C724,C726 CKSRYF104Z16 C831-C833,C844 CKSRYF104Z16 C112 CKSRYF105Z10 C368,C411 (47µF/16V) VCH1166 RESISTORS R123 (39Ω) ACN7047 R732,R733,R735,R736 (47kΩ) ACN7077 R632 (100Ω) DCN1092 R608,R609,R613,R624,R627 (10kΩ) DCN1094 R629,R631,R633,R638,R654 (10kΩ) DCN1094 R657,R658,R664,R706 (10kΩ) DCN1094 R717,R718 (10kΩ) DCN1094 R121,R663 (22Ω) DCN1104 R712,R715,R881 (0Ω) DCN1106 R1020,R2010,R2020,R2030,R2040 RS1/10S0R0J R3050,R4010,R4020,R4030,R4040 RS1/10S0R0J R4050,R4060,R407,R685,R722 RS1/10S0R0J R8000,R821 RS1/10S0R0J R202,R3510 RS1/10S101J R700 RS1/10S1R2J R807 RS1/16S1201F R806 RS1/16S1501F R363,R365 RS1/16S1503F R825-R827 RS1/16S2000F R805 RS1/16S2701F R361,R364 RS1/16S7502F Other Resistors RS1/16S J OTHERS X2 CHIP CERALOCK DSS1110 (20MHz) CN2 PH CONNECTOR S2B-PH-SM3 FLEXIBLE CABLE (07P) VDA1681 CN555 24P FFC CONNECTOR VKN1464 CN55 07P FFC CONNECTOR VKN1493 CN15,CN5 VKN1626 B TO B CONNECTOR 30P CN3 8P FFC CONNECTOR VKN1763 X1 CRYSTAL RESONATOR VSS1148 (13.824MHz) JAC1 ASSY SEMICONDUCTORS IC203 BA4560F IC901 BA6195FP IC301 LA7138M IC206 NJM78L05A IC201 PCM1716E IC103 PQ025EZ5MZP IC102 TC74VHC125F IC101 TC74VHCT125AF Q202,Q304-Q306,Q315 2SA1037K Q120 2SC1740S Q601 2SC2412K Q257,Q357 2SD2114K Q201,Q722 DTC114YK D110 MA111 D230 UDZS6.2B COILS L301-L303 LAU120J-TA L202 LAU1R8J-TA L601 NOISE FILTER RTF1167 CAPACITORS C257 CCSQCH101J50 C313,C316,C319 CCSQCH180J50 C253,C353 CCSQCH221J50 C251,C351 CCSQCH330J50 C255,C256,C355,C356 CCSQCH331J50 C111 CCSQCH470J50 C311,C312,C314,C315 CCSQCH6R0D50 C317,C318 CCSQCH6R0D50 C113,C115 CEAL101M6R3 C502,C504 CEAL470M16 C101,C103-C105,C211,C608 CEAT101M10 C611,C907,C909 CEAT101M10 C102,C121,C122,C231,C232 CEAT101M16 C301,C327,C373 CEAT101M16 C203 CEAT102M6R3 C607 CEAT1R0M50 C106 CEAT220M35 C206,C207,C250,C350 CEAT470M16 C252,C352 CEAT470M25 C324-C326 CKSQYB104K25 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DV-C503 Mark No. Description Part No. Mark No. Description Part No. C130-C132 CKSQYF102Z50 C902,C908 CKSQYF103Z50 C100,C107-C110,C112,C114 CKSQYF104Z25 C116,C117,C120,C123 CKSQYF104Z25 C190,C191,C201,C202,C209 CKSQYF104Z25 C213,C218,C230,C233,C290 CKSQYF104Z25 C321-C323,C328,C501,C503 CKSQYF104Z25 C601,C602,C612,C901 CKSQYF104Z25 C905,C906,C915 CKSQYF104Z25 C210 CKSQYF105Z16 RESISTORS R250,R350 RN1/10SE1602D R251,R351 RN1/10SE2702D R259,R359 RN1/10SE3901D R930 RS1/10S1002F R909 RS1/10S1502F R914,R928 RS1/10S2402F R927 RS1/10S2701F R929 RS1/10S5601F R313,R317,R321 RS1/10S8200D Other Resistors RS1/10S J OTHERS PCB BINDER DEF1012 JA602 OPTICAL LINK OUT GP1FA550TZ CN103 FFC CONNECTOR 15P HLEM15S-1 JA101 REMOTE CONTROL JACK RKN1004 PCB BINDER VEF1040 JA201 4P PIN JACK VKB1128 JA601 1P PIN JACK (BLK, NI) VKB1159 CN902 7P FFC CONNECTOR VKN1238 CN903 8P FFC CONNECTOR VKN1239 CN301 16P FFC CONNECTOR VKN1247 CN104 26P FFC CONNECTOR VKN1257 CN901 7P FFC CONNECTOR VKN1267 CN101,CN201 VKN1765 B TO B CONNECTOR 30P JAC2 ASSY COILS L1,L2 CHIP BEAD VTL1089 SWITCH S101 VSH1009 CAPACITORS C1,C11,C3,C7,C9 CEAT471M6R3 C14,C5 CKSQYF104Z25 RESISTORS R13,R15 RS1/10S1100D R17,R19 RS1/10S3300D R18,R20 RS1/10S4700D R11,R21,R7,R9 RS1/10S62R0D Other Resistors RS1/10S J OTHERS CN3 4P MINI DIN SOCKET AKP7008 JA1 1P PIN JACK VKB1122 JA5 3P PIN JACK VKB1150 CN1 16P FFC CONNECTOR VKN1247 SCREW TERMINAL VNE1948 FLKY ASSY SEMICONDUCTORS IC101 PE5185A IC102 S-806D SWITCHES S131,S132,S190-S195 ASG7013 CAPACITORS C105 CEJQ470M10 C111 CKSQYB102K50 C103,C104,C106,C107,C142 CKSQYF104Z50 RESISTORS R130,R190,R200 RS1/10S1001D Other Resistors RS1/10S J OTHERS CN102,CN103 08P-FJ FJ CONNECTOR 8P CN101 52492-1520 FFC BOTTOM CONNECTOR 15P REMOTE RECEIVER UNIT GP1U28X V101 FL TUBE VAW1058 SPACER VEC1599 FL HOLDER VNF1096 X101 CERAMIC RESONATOR VSS1142 (5MHz) KYLB ASSY SWITCHES S333-S337 ASG7013 RESISTORS All Resistors RS1/10S J OTHERS CN301 FJ CONNECTOR 8P 08R-FJ PWSB ASSY SEMICONDUCTORS Q250 DTC124EK D250 SLR-343DC(NPQ) SWITCHES S200,S201,S230 ASG7013 RESISTORS All Resistors RS1/10S J OTHERS CN201 FJ CONNECTOR 8P 08R-FJ H I J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DV-C503 Mark No. Description Part No. Mark No. Description Part No. POWER SUPPLY UNIT (VWR1329) OTHERS P202 PROTECTOR (1.6A) AEK7012 P203 PROTECTOR (800mA) AEK7063 F101 FUSE (2A) REK1078 POWER SUPPLY UNIT (VWR1332) OTHERS P101 PROTECTOR (800mA) AEK7063 P102 PROTECTOR (1.6A) AEK7066 F101 FUSE (2.5A) REK1102 L L 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DV-C503 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 SELF-DIAGNOSTIC FUNCTION OF PICKUP DEFECTIVE Character in bold : Item name : Information display Test Mode Screen Display Laser diode current value Symptom • Indicates "No Disc" in FL display. • Player does not playback, etc.. Note : When a DVD disc is played in the test mode, this function is effective. This function is effective only for DVD pickup (650nm). Procedure of Self-Diagnosis 1 Press the → buttons (of the test mode remote control unit : GGF1067) in the test mode screen, and turn on the laser diode (It light-up for nine seconds.). 2 Confirm the indicated value of the laser diode current (LDI). 3 When indicated value is more than 110, pickup is defective. → Release the Traverse Mechanism Assy. TEST 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DV-C503 DVDM ASSY SIDE B 7.1.2 TEST POINTS LOCATION IC1 IC19 IC2 C707 IC26 IC27 CN4 CN3 CN1 CN15 IC13 CN5 IC14 CN2 VCODR SREQ VREF VREF TP3 (TE) TP1 (FE) TP2 (RFO) TP4 (FDO) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DV-C503 Remote control code Key code Mechanism position value and slider position Output video system and Skirt terminal output FL controller version and region setting for the player Port No. of Flash ROM and system controller System controller revision Flash ROM version and Flash ROM size FL controller destination setting AV1 chip version DVD mechanism controller revision (Control and part No. of GUI-ROM) Character in bold : Item name : Information display Test Mode Screen Display (First Screen Display) • Screen Composition Address Background color Tracking status and Laser diode current value Spindle status and AFB status AGC setting FTS servo IC information C1 error value of CD and DVD Internal operation mode of the mechanism control Disc judgment and CD 1/3 beam switch Equalizer value and jitter value Read value of the slit width 7.1.3 TEST MODE SCREEN DISPLAY TEST MODE SCREEN DISPLAY Consecutive double-OSD display is supported during test mode. The screen is composed 10 lines with a maximum of 32 characters per line. It can't be used with the debugging display mode together. Caution : The first screen and second screen switch by pressing [DISPLAY] key of the remote control unit. It is only a version display part on the lower right of the screen those contents of display change. ATB : ON/OFF information display and AGC manual setting display deleted with the second generation. The displays of Tilt error value, Tilt servo status and pickup DVD/CLD display deleted with the third generation becomes LD part is deleted. • Description of Each Item on the Display (1) Address indication The address being traced is displayed in number. DVD : ID indication (hexadecimal number, 8 digits) [ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] CD : A-TIME (min. sec.) [ 0 0 0 0 ∗ ∗ ∗ ∗ ] (Note : For DVDs, decimal-number indication is possible.) (2) Code indication of the remote control unit [R – ∗ ∗ ∗ ∗] The code for the key pressed on the remote control unit, which is received by the FL controller, is displayed while the key is pressed. In the case of the double code, the second code will be displayed. (3) Key code indication for the main unit [K – ∗ ∗ ] The code for the key pressed on the main unit, which is received by the system controller, is displayed while the key is pressed. (4) Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗] (5) 1 Tracking status [TRKG – ∗∗∗] Tracking on [ON ] Tracking off [OFF] 2 Laser diode current value [LDI – ∗∗∗] (6) 1 Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] 2 AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] (7) Mechanism position value [M – ∗] Position code [1] to [3] (8) Slider position [S – ∗ ∗ ∗ ∗] CD TOC area [IN ] CD active area [CD ] (9) AGC setting [AGC – ∗ ∗] AGC on [AGC-ON] AGC off [AGC-OFF] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DV-C503 (10) Output video system [V – ∗ ∗ ∗ ∗] NTSC system [NTSC] PAL system [PAL ] Auto-setting [AUTO] Skirt terminal output [SK – ∗ ∗] VIDEO [00] S-VIDEO [01] RGB [02] Note : Display only the model which can do the output setting of skirt terminal. (11) FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. (12) Error rate indication 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] (13) Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller (14) 1 Disk sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] 2 CD 1/3 beam switch [BM – ∗ ∗] (15) 1 Equalizer value [E – ∗ ∗] 2 Jitter value [J – ∗ ∗] nake the jitter four times, and renew it in every one second. [4 – * *] CD is effective only in the jitter value. (16) Version of the AV-1 chip [ AV : ∗ . ∗ ∗' ∗' ] (17) 1 Version of the FL controller [FL : ∗ ∗ ∗ ∗] 2 Region setting of the player [REG : ∗ ] Setting value [1] to [6] (18) Destination setting of the FL controller [MDL : ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ] For charactors in front represent the type of model : There charactors that follow represent the destination code. J : /J, K : /KU, /KC, /KU/KC, R : /RAM, /RL, /RD, /LB, WY : /WY (19) The part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗] 1 Part number of the flash ROM (Example) VYW1536-A = W1536A (Example) PD6256A9 = 6256A9 2 Part number of the system controller (Example) PD3381T1 = 3381T1 (20) 1 Version of the flash ROM [V : ∗ . ∗ ∗ ∗] 2 Flash ROM size [FLSH = ∗] (21) Revision of the system controller [S : ∗ . ∗ ∗ ∗ / ∗ . ∗ ∗ ] 1 Revision number of the external ROM part (flash ROM) of the system controller 2 Revision of the internal ROM part of the system controller (22) Revision of the DVD mechanism controller [M : ∗ . ∗ ∗ ∗] Revision number of the external ROM part (flash ROM) of the DVD mechanism controller (23) Control and part numbers of the GUI-ROM [GUI : ∗ ∗ ∗ ∗] No GUI model displays as "––– / ––––". OEM model displays the part number of GUI-ROM [GUI : * * * *] (24) Read value of the slit width (for Stop position detection) [FR ∗ ∗ ∗ ∗] Read value of Reverse direction Read value of Forward direction www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DV-C503 DEBUGGING SCREEN SPECIFICATION FOR THE MECHANISM CONTROLLER 3 Indication Contents 1. The error that became the trigger that an error of 2 occurred. There are many cases same as 2. 2. The error number that transferred to the system controller Refer to the error list about contents of error number. 3. Code read in state (it does not support in this unit) When X is indicated, ID or subcode are not able to read in. When X is not indicated, they are able to read in. 4. ID or subcode (it does not support in this unit) Subcode indicates the A time. 5. Inside mode of the mechanism controller when an error of 1 occurred It can indicate to a maximum 10 mode. Indicate it in order of an old mode from the left, and go right, and become a new mode. Indicate only a nest share of the mode. 6. Processing step of inside mode of 5 It can grasp the mode reaching an error and transition of step by watching 5 and 6 and it can specify the occurrence place of most errors. 7. Disk information in the mechanism controller ? : Indistinctness NO : There is no disc DVD 1 : DVD single layer DVD 2 : DVD dual layer CD : CD CDR : CD-R or CD-RW CDR P : PRD of CD-R or CD-RW 8. As a result of 8cm /12cm distinction ? : Indistinctness (undistinction) 8 : 8 cm 12 : 12 cm 9. OEIC gain (it does not support in this unit) H : OEIC HIGH gain L : OEIC LOW gain 10. SGC gain for LD of 780nm It indicates a step using in the mechanism controller inside with a hexadecimal number. Set the gain so that S curve becomes 1.8V (p-p) in disc distinction. 11. SGC gain for LD of 650nm For L0. It indicates a step using in the mechanism controller inside with a hexadecimal number. Set a gain so that S curve becomes 1.8V (p-p) in disc distinction. 12. SGC gain for LD of 650nm For L1. It indicates a step using in the mechanism controller inside with a hexadecimal number. Set a gain so that a S curve becomes 1.8V (p-p) in disc distinction. 13. RF count value for disc distinction RF count value to use the disc distinction. It compares threshold value of 14 and 15 and distinguishes the disc. 14. Disc distinction threshold value (DVD and CD) Threshold value of the disc distinction. Distinguish it from DVD if bigger than this value, and distinguish it from CD if small. 1 Indication Method of The Mechanism Controller Debugging Screen A debugging screen of the mechanism controller is indicated when pressing the test mode remote control unit [GGF1067] in order of the and buttons. Releace from debugging screen display of the mechanism controller with the button. ESC ESC CHP/TM 2 Screen Layout • This specifications is subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DV-C503 15. Disc distinction threshold value (CD and unrecorded disc) Threshold value of the disc distinction. Distinguish it from CD if bigger than this value, and distinguish it from an unrecorded disc if small. 16. Current jitter value Indicate the value that was read in from the MY-CHIP in DVD, and indicate the value that was read in from the servo DSP in CD. 17. Focus balance setting value of L0 18. Focus balance setting value of L1 19. Current mechanism controller inside mode (it does not support in this unit) It can indicate to a maximum 10 modes. Indicate only a nest share of the mode. 20. Processing step of 11 inside modes (it does not support in this unit) It can grasp the current mode, the mode reaching it and transition of step by watching 19 and 20. 21. Spindle control state of MY-CHIP (it does not support in this unit) OFF : Motor off condition A/B : Accelerator and brakes FG : FG servo RVP : Rough speed phase servo ORVP : Rough speed phase servo of offset addition 22. Rotation number of spindle motor Do not FG read in ? indication (during spindle stop). 23. Tracking error generation system (it does not support in this unit) 1: 1 beam (DPD) 3: 3 beams 24. TZC count value (it does not support in this unit) The value that counted the number of TZC for one rotation in the tracking open state. When this value is more than 512 with CD, set it in 1 beam because the eccentric is large. DVD does not measure it because it is 1 beam fixed (indication is 0000). 25. It indicates the frequency that entered the focus backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 26. It indicates focus backup limit frequency with the hexadecimal number Initial value is 14H, it does decrement whenever enter the focus backup and it gives up backup if it became 0. Then the error is generated. After reverted from the backup, When not enter the backup and pass fixed time (1500ms), return to initial value again. 27. It indicates the frequency that entered the internal circumference plunging into backup of the sled Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 28. It indicates the frequency that entered the tracking overrun backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 29. It indicates the limit frequency of tracking overrun backup with a hexadecimal number Initial value is 03H, it does decrement whenever enter the tracking overrun backup and it gives up backup if it became 0. 30. It indicates the frequency that entered sled overrun backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 31. It indicates the limit frequency of sled overrun backup with a hexadecimal number Initial value is 03H, it does decrement whenever enter the sled overrun backup and it gives up backup if it became 0. 32. It indicates the frequency that entered the tracking close NG backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Next of FF is be a 1 byte counter in 00. The hexadecimal number indication which indicates the frequency that reads 33. ID/subQ, and entered NG backup Hexadecimal number indication. A counter does not reset it till cuts it off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 34. An address to indicate in 35 Set it by using RS232.I (an address) Set it with DA. 35. Contents of an address indicated in 34. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DV-C503 FL Display Possible causes Operation of the unit AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with the specific audio. CPU AERR CPU address error (Hardware is unusual.) No operation DMA AERR DMA address error (Hardware is unusual.) No operation FLASH ID Difference in versions of the internal ROM of the system controller and of the flash ROM, or bus line failure or reverse installation No operation FLASH WRP Write protect error of the flash ROM No operation FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used was used.) No operation FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation (Hardware is unusual.) No operation FLASH SIZE Size error of the flash ROM (Use 4 or 8 M-bit.) No operation ILLGAL The system controller fetched a code other than an operation code (Hardware is unusual.) No operation RESERVE Undefined interrupt (Hardware is unusual.) No operation SLOT Inappropriate slot command issued (Hardware is unusual.) No operation Error codes that are displayed on the FL display without using the remote control unit 7.1.4 ERROR CODE Error codes that are displayed on the FL display by using the remote control unit (Mechanism controller error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the FL display To display the error history: ESC + DISPLAY + One shot; Location of the display: TV screen FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 11 Search timeout Search could not be complete within 7 seconds. Search could not be complete within 7 seconds, and it could not enter the target area within 7 seconds by VCD scan. CD : Stops, DVD : Continues operation 12 Search retry error A search could not be completed after 3 retries, search backup was executed 4 times, or in a case of timeout (6 seconds) while the unit was tracing 11 tracks or more beyond the target while the search operation was converging. Backup against slider skip was executed 4 times during a search, or slider skip twice resulted in starting from the read-in point. CD : Stops, DVD : Continues operation 19 Tracing timeout while converging Timeout (10.5 seconds) while tracing at the stage of convergence of a search. Stop 1B Index 0 search error During Track (Index) Search, the search for the beginning of a program could not be completed within 3 seconds (20 seconds in the case of Index Search) after positioning based on the TOC data was completed. Stop 22 Timeout of slider inner circumference Inside switch could not ON within 3 seconds. Stop 23 Timeout of slider outer circumference Inside switch could not OFF within 2 seconds. Stop 33 No FOK pulse during playback CLVA When the focus was deviated continuously 20 times. Adjusts focus at the innermost circumference and tries to return to its position where the error was generated (for 3 times),then opens. If the same error persists after one retry, the tray opens. (No FOK pulse) 38 Disc-type- sensing error If normal starting was impossible in the following three cases, disc-type sensing will be retried if other errors occure excepting C5 error. However, when the focus error "33" was occured continuously 3 times, it is finished as "38 error" at the moment: (1) startup with the first disc-type-sensing result, (2) forced startup with another disc by designating the disc type, (3) forced startup with the original disc by designating the disc type. Open www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DV-C503 FL Description of Error Causes if with a DVD Causes if with a CD Operation of the 39 SGC converge timeout SGC could not converge during detects the peak Open 41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command. Stop 48 Spindle FG transition timeout The spindle could not converge into within ± 12% of the target FG rotation speed within 10 seconds after spindle kick. The first time after startup (the first time after disc distinction), it doesn't become the number of the target rotation within five seconds. The first time after startup, detects the abnormal rotation number of high-speed continuously 3 loops. DVD: 5 to 9 mS , CD: 40 to 60 mS Stops. (FG timeout) 49 Spindle PLL transition timeout After the second times after startup, it doesn't become the number of the target rotation within five seconds. Detects the abnormal high-speed or low-speed rotations. DVD: 5 to 9 mS , CD: 40 to 60 mS Stops. ("73" is displayed during starting process.) 4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB. Stops. ("73" is displayed during starting process.) 51 Auto sequence timeout of peak ABUSY did not return within 1 second after the DDTCT (peak detection) command was sent. Stop 52 Auto sequence timeout of focus jump down ABUSY did not return within 30 mS after the FJMPD (Focus jump 1 to 0) command was sent. Stop 53 Auto sequence timeout of focus ABUSY did not return within 30 mS after the FJMPU (Focus jump 0 to 1) command was sent. Stop 54 Auto sequence timeout of play AGC ABUSY did not return within 50 mS after the GSUMON (play-AGC-measuring) command was sent. Stop 55 Auto sequence timeout of disc-type- sensing ABUSY did not return within 2 seconds after the DJSRT (disc-sensing) command was sent. Stop 56 Auto sequence timeout of ATB2 ABUSY did not return within 1 second after the TBLOFS (Internal ATB after the completion of external ATB) command was sent. Stop 57 Auto sequence timeout of tracking servo ON ABUSY did not return within 500 mS after the TSON (tracking servo ON) command was sent. Stop 58 Auto sequence timeout of ATB1 ABUSY did not return within 200 mS after the TBL (external ATB) command was sent. Stop 59 Auto sequence timeout of focus gain adjustment ABUSY did not return within 2 seconds after the FGN (focus gain adjustment) command was sent. Stop 5A Auto sequence timeout of tracking gain adjustment ABUSY did not return within 2 seconds after TGN (tracking gain adjustment) command was sent. Stop 5B Auto sequence timeout of offset adjustment ABUSY did not return within 1 second after the CMDAVE (offset adjustment) command was sent. Stop 5C Auto sequence timeout of modulation factor measurement ABUSY did not return within 200 mS after the ADJMIR (modulation factor measurement) command was sent. Stop 5D Auto sequence timeout of auto focus bias ABUSY did not return within 2 seconds after the AFB (auto focus bias) command was sent. Stop 5F Auto sequence already busy A command could not be sent because ABUSY was low. ABUSY did not return within 200 mS after TLV command was sent. Stop 62 Pause retry error Pause mode could not be restored within three retries after it had been released. Continues operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DV-C503 FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 71 ID can not read during tracing An ID could not be read for 1 second or more. Stop 72 Subcode check failure during playback No frame could be read for 3 seconds or more. Stop 73 ID can not read at the startup An ID could not be read within 1 second after the AFB adjustment had been finished. Opens (ID readout failure) 74 Subcode check failure during startup No subcode could be read within 3 seconds after AFB adjustment had been finished. Opens (Subcode readout failure). 81 Timeout for reading TOC of the mechanism controller TOC readout took 30 seconds or more. Stop 82 Timeout for reading TOC of the system controller Reading TOC of the system controller took 30 seconds or more. Stop A1 Communication timeout of DSP command A command could not be issued to DSP because Command Busy (XCBUSY) was in force (XCBUSY = L) for a specified time (about 200 mS). No operation A2 Communication timeout for reading DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 200 mS) before and after a coefficient read command was issued to DSP, or the address echo-back after command issuance did not match the setup address. No operation A3 Communication timeout for writing DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 1024 mS) before and after the coefficient write command was issued to DSP. No operation A4 Communication timeout for continuously writing DSP coefficient Command Busy (XCBUSY) was in force for 200 mS during continuous coefficient writing, or before and after a continuous write command was issued to DSP. No operation B1 Timeout error for backup In the tracing state during the backup sequence, codes could not be read for 1 second or more. In the backup sequence, tracking ON sequence of the servo DSP could not be completed even if more than 500 mS after the tracking ON command was issued. Stops B2 Retry error for backup Tracing impossible after retring the tracking ON for 3 times in the backup sequence. Stops B3 Retry error for trace During tracing, runaway was detected after three iterations of backup operations for detecting runaway. Stops C3 Detection of tracking overcurrent During playback, the overcurrent detection port was at L for 300 ms or more continuously. Stops (the mechanical controller operates independently). (C5) Short-circuit test corresponding error While the power was on, the overcurrent detection port was at L for 40 ms or more continuously. Turns off the power instantly (No indication on the FL display and no writing to flash memory) E3 Violation against digital copy guard Stops F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other than Open by an external force. Closes F8 Loading timeout Loading, unloading or clamping could not be completed within a specified time (about 5 seconds). Reverses the loading direction. It timeout is repeated upon retry, the unit stops. FC Focus The following error occured eight times. (1) Focus ON sequence could not be completed even if more than two seconds after the focus ON command (to the servo DSP) was sent. (2) Focus IN sequence was finished, actually focus IN was not completed. Stops wherever possible then opens (stops in the case of side B). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DV-C503 Error codes that are displayed on the FL display by using the remote control unit (Device error) To display : ESC + DISPLAY + DISPLAY ; Location of the display : At the two digits of left of the FL display FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit bit3=1 08 etc. AV1 access error (read, write NG) No operation or it becomes debugging indication if the power is able to ON. bit2=1 04 etc. MY CHIP access error bit1=1 01 etc. SRAM access error www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DV-C503 7.1.5 DISASSEMBLY 1 Remove the Bonnet (Screws × 6) 6 Remove two Screws 8 Remove the DVDM Assy (Connectors × 2) 7 Unhook two PCB Supports 4 Remove the Tray Panel 2 Power ON 5 7 Power OFF (Pull out the Power Cord from the outlet.) 3 Tray Open (0) DVDM Assy Note 1 3 4 8 9 8 ×2 Rotary Tray Connect two Connection Cables for Service (GGD1228) Attention : Be carefull not to put the flexible cables when closing the tray Tray Panel DVDM Assy Test Disc Insullation Sheet When diagnosing the unit, be sure to use two connection cables for service. (Part No : GGD1228) DIAGNOSIS OF PCBs Cutting Pliers PCB Support DVDM Assy 6 6 CN5 CN15 10 12 11 Put the Power Cord in the outlet 13 Power On → Tray close (Automatically) 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DV-C503 How to Open the Tray by Manual Operating Look in the gear pulley from the space If the tray moved toward the front about 2 or 3 cm, pull out the tray by hands. 3 3 4 5 2 1 Test Disc Small Screwdriver Small Screwdriver Gear Pulley DVDM Assy JAC1 Assy JAC2 Assy Gear Pulley Caution : Don't remove this screw. Tray Open Press the EXCHANGE Button (Clamp the Test Disc → Tray Open) 14 Play 15 14 -1 14 -2 Diagnosis 1 Remove the Bonnet (Screws × 6) 2 Remove the Rear Panel (Screws × 12) 3 Power ON 4 Tray Open (0) 8 6 10 5 Remove the DVDM Assy (Refer to step ) 7 Pull out the Power Cord from the outlet. JAC2 Assy JAC1 and JAC2 Assemblies 2 1 9 ×4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DV-C503 3 8 9 10 9 4 7 7 5 Set the DVDM Assy (two connectors) to the JAC1 Assy. JAC1 Assy Tray Panel Unhook ×2 PWSB Assy FLKY Assy KYLB Assy Test Disc Stand the JAC1 Assy to two slits not to short-circuit. 11 16 Play (3) 17 12 11 11 13 Diagnosis Diagnosis FLKY, KYLB and PWSB Assemblies 3 DVDM Assy Unhook Unhook 1 Remove the Bonnet (Screws × 6) 2 Power ON 4 Remove the Tray Panel 5 Tray Close 6 Power OFF (Pull out the Power Cord from the outlet) Put the Power Cord in the outlet. 11 Power ON 3 Tray Open (0) Tray Close (Automatically) (Be carefull not to put the flexible cables.) 14 Put the Power Cord in the outlet. 15 Power ON -1 -1 9 -2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DV-C503 1 Remove the Bonnet (Screws × 6) 3 Power ON 4 Tray Open (0) 5 Pull out the power cord from the outlet. 6 Push the tray by hand. (about 5 cm) 7 Bring an extra flexible cable close to the rear side. 8 Disconnect the flexible cable. 9 9 9 Unhook × 2 Pull out the tray while pressing the two hooks ( ). When Tray Cannot Pull Out Tray cannot pull out that is not at a position of home position. (When two hooks ( ) hide under the Rotary Tray and can not pull out the tray.) In that case, set the tray in the following procedures. Note : Do not need to match with Disc No. (1 to 5) when returns the tray. Detect it automatically. Set the tray to the position that can see a hole of the center. 2 Remove the Front Panel Section (Refer to step ) Unhook TRSB Assy CN12 Tray Section Note : The Traverse mechanism being an unclamp (=down) state. Remove Disassembly 9 Unhook 9 8 7 6 1 Tighten Rotary Tray 3 2 3 TRAVERSE MECHANISM ASSY-S 10 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DV-C503 8 Remove the DVDM Assy (Refer to step ) 9 Remove three Connectors DVDM Assy Side B CN2 CN555 CN3 9 9 9 11 10 Unhook Spring Clamper Holder 12 10 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DV-C503 14 15 17 16 19 13 Mechanism Base Section Release ×2 SMEB Assy CN202 Pickup Connector FFC Holder Unhook (Bottom View) ×4 ×2 Flexible Cable (24P) Flexible Cable (8P) 18 20 21 Unhook Rear View DVDM Assy Side POWER SUPPLY Unit Side Short Pickup Flexible Cable Pickup Flexible Cable Short SW Short SW Traverse Mechanism Assy-S 21 Exchange www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DV-C503 Assembly Hook ×2 Hook ×2 Hook Float Rubber Float Rubber Float Rubber Float Rubber Float Rubber Pole of the Float Base Traverse Mechanism Assy Check the Float Rubbers ×4 1 1 2 3 4 NG OK Hook ×2 SMEB Assy CN202 Pickup Connector FFC Holder Styling of the Flexible Cables Leave slacking of two flexible cables Reference (Bottom View) Flexible Cable (24P) Flexible Cable (8P) 5 1 1 2 6 24P Flexible Cable 8P Flexible Cable 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 DV-C503 9 10 DVDM Assy Side B CN2 CN555 CN3 8 7 8 8 Mechanism Base Section ×4 Set the DVDM Assy (Refer to step ) 1 Rear View DVDM Assy Side POWER SUPPLY Unit Side Open Pickup Flexible Cable Pickup Flexible Cable Short SW Short SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 DV-C503 Change Gear Match it between first teeth of the gear. When the tooth of gear deviates more than two or three tooth, Strange sound is generated, and cause trouble. Planet Base Turn it till stops OK NG Hook Spring Clamper Holder 11 12 12 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DV-C503 Assemble the Bonnet. (Screws × 6) 3 Tray Section Flexible cable from SSRB Assy CN21 Flexible cable from SSRB Assy CN21 Tray Section Mechanism Base Section TRSB Assy CN12 Mechanism Base Section Assemble the Tray Section to the Mechanism Base Section Match a convex part of the Tray section with a concave part of the Mechanism Base, and put it. Bring an extra flexible cable close to the front side. 14 Assemble the Front Panel Section. (Refer to step ) 21 22 16 18 17 19 20 15 Confirmation : Fully turning the Planet Base to an arrow direction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DV-C503 Important Points when Assembling the Mechanism Section 1 2 5 3 Motor (for Tray) Motor Pulley (for Tray Motor) Motor (for Loading) Motor Pulley (for Loading Motor) Motor Holder 4 Tray Gear Clamper Plate Worm Gear, Tray Belt 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 DV-C503 1 Motor (for Tray), Motor Pulley (for Tray Motor) 2 Motor Holder Adjust the height of the Motor Pulley to 2.4mm. Wiring lead wires into the hook of Motor Holder. (So that lead wires are caught at the Tray open or close.) 4 Tray Gear 5 Clamper Plate Apply Lubricating Oil (GYA1001) to the holder part. 3 Worm Gear and Tray Belt Be carefull not to damage it in exchange. 2.4mm Motor Pulley Motor Motor Motor Holder Tray Gear Apply Lubricating Oil (GYA1001) Apply Lubricating Oil (GYA1001) 6 Motor (for Loading), Motor Pulley (for Loading Motor) Adjust the height of Motor Pulley to 6.2mm. 6.2mm Motor Pulley Motor SSRB Assy Clamper Plate Apply the adhesive on the inside of hooks. (Prevention of dripping) Black Black Red Red Motor Holder Worm Gear Apply the one round Lubricating Oil (GYA1001) Apply the one round Lubricating Oil (GYA1001) Tray Belt www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DV-C503 7.1.6 TROUBLE SHOOTING FOR MECHANISM SECTION Location of Motors and Switches Disc Clamp Detect SW (S11 : VSK1011) Clamp Clamp Unclamp Unclamp Tray Open/Close Position Detect SW (S21 : VSK1011) Motor : DXM1118 (for Rotary Tray Drive) Carriage Motor : VXM1033 (for LOADING) Operation : Tray open → close Traverse Mecha. clamp → unclamp * When continued turning a gear by hand Tray open → close → Disc clamp → open Tray position Detect Sensor (PC22 : RPI-574) Disc Detect Sensor (PC21 : GP2S28) ↓ Continuous action Disc exchange operation Open Open Close Close Open Close www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 DV-C503 Trouble Shooting Condition Condition Trouble Point Tray does not open. (Nothing works) POWER OFF Key → "OFF" indication does not disappear 0 (OPEN) key → "OPEN" indication does not disappear 3 (PLAY) key → It becomes indication of "OPEN" from "NO DISC", and stop by the condition. (When a disc is not put in the Tray.) Loading Motor is damage, disconnection or contact defectiveness. Tray does not open. (Hear the clatter continuation sound.) It becomes the state that flashed indication of " ". Contact defectiveness of Flexible Cable (7P) or the connector comes off, etc.. Tray Open/Close Position SW (S21) is damage or contact defectiveness, etc.. Tray opens it in POWER ON freely, and stay by the state. Contact defectiveness of Flexible Cable (8P) or the connector comes off, etc.. Rotary Tray does not stop at the home position. (May stop on the way of rotation suddenly.) Tray Position Detect Sensor (PC22) is damage or contact defectiveness, etc.. "CHANGE" indication does not change in POWER ON, and Rotary Tray does not move. (In this case only opening and closing of Tray are possible.) Motor for Rotary Tray Drive is damage, disconnection or contact defectiveness. Hear the clatter sound in clamp of the disc. A gear of Planet Base deviates. Rotation of Rotary Tray does not stop in POWER ON. In this case indication more than two which seems to be " " lights, and abnormal indication appears. Slit part of bottom of the Rotary Tray is damaged. When Rotary Tray turns, hear the rattle and large sound. Damage of Worm Gear or grease is insufficient. Playback even if indicates it with "NO DISC". Take time till playbacks. Disc Detect Sensor (PC21) is damage or contact defectiveness, etc.. 1 2 3 4 5 6 7 8 9 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DV-C503 Tray Open/Close Position Detect SW (S21 : VSK1011) Motor : DXM1118 (for Rotary Tray Drive) Carriage Motor : VXM1033 (for LOADING) 1 Planet Base : VNL1874 7 Flexible Cable (8P) (SMEB CN202 ↔ DVDM CN3) 4 Tray position Detect Sensor (PC22 : RPI-574) 5 Disc Detect Sensor (PC21 : GP2S28) 10 Worm Gear : VNL1881 9 Rotary Tray : VNK4729 8 3 6 Flexible Cable (7P) : VDA1835 (TRSB CN12 ↔ SSRB CN21) 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DV-C503 7.1.7 TROUBLE SHOOTING FOR ELECTRICAL SECTION • No Power ON • FL is not turned ON • FL indication is abnormal • No Play START Is FL turn on ? Is tray open ? Is the indication of FL normal ? Insert a disc and close the tray. Do the disc detection and video and sound come out ? Power ON Yes Yes Yes Yes Do perform a disc detection operation ? (Is downed with the Traverse mechanism, and does the rotary tray go arround it ? Yes No No No No Turn on the power again after 2 - 3 minutes. • Blow out fuse of the primary side • Blow out micro-fuse on the POWER SUPPLY Unit. (Check the each voltage.) (KUXQ, KCXQ : P202, P203) (Others : P101, P102, BEA401) • FL controller IC (IC101) on the FLKY Assy is damaged. FL indication is dark or flickers. No Indicates the error message Refer to the section "7.1.4 ERROR CODE". Refer to the section "7.1.4 ERROR CODE". Indicate the error message. • Check the following connections : POWER SUPPLY Unit - JAC1 Assy, FLKY Assy - JAC1 Assy, JAC1 Assy - DVDM Assy, JAC1 Assy - TRSB Assy - SSRB Assy, DVDM Assy - PICKUP Assy, DVDM Assy - SMEB Assy - FGSB Assy • Check each voltage (EV+5V, +5V (SW), +3.3V (SW), +2.5V (SW), +6V, +12V (SW) and -27V) (If above voltage are not supplied, check the micro-fuse and short-circuit between each voltages.) • Check the following connections : DVDM Assy (CN2) - LOMB Assy (CN31) DVDM Assy (CN55) - JAC1 Assy (CN902) JAC1 Assy (CN903) - TRSB Assy (CN11) TRSB Assy (CN12) - SSRB Assy (CN21) • Check the +12V and +6V power supply voltages (If above voltages are not supplied, check the CPU operation of the right description.) • Traverse mechanism down operation : 1 Pin 86 (Clamp signal) of IC11 is "L" level (=0V). 2 Drive signal from pin 42 of IC11 outputs "L" level. 3 Perform the mechanism down operation and pin 86 of IC11 becomes "H" level (=3.3V). • Disc detection operation : 1 Drive signal from pin 68 of IC11 outputs "L" level. Rotary tray turns clockwise. 2 Inputs the tray position detecting pulse to pin 95 of IC11. 3 When a disc is put in, inputs the disc detecting pulse to pin 36 of IC11 while synchronizing the tray position detecting pulse of 2. 4 If there is no disc, Indicates "NO DISC" in the FL. • Check the following connections : DVDM Assy (CN2) - LOMB Assy (CN31) DVDM Assy (CN55) - JAC1 Assy (CN902) JAC1 Assy (CN903) - TRSB Assy (CN11) TRSB Assy (CN12) - SSRB Assy (CN21) • Check the +12V and +6V power supply voltages (If above voltages are not supplied, check the CPU operation of the right description.) • Traverse mechanism down operation : 1 Pin 86 (Clamp signal) of IC11 is "L" level (=0V). 2 Drive signal from pin 42 of IC11 outputs "L" level. 3 Perform the mechanism down operation and pin 86 of IC11 becomes "H" level (=3.3V). • Tray open operation : 1 In the tray close state, pin 84 of IC11 is "H" level. 2 Drive signal from pin 42 of IC11 outputs "L" level. 3 Perform the tray open operation and pin 84 of IC11 becomes "L" level. • Check the following connections : DVDM Assy (CN2) - LOMB Assy (CN31) DVDM Assy (CN55) - JAC1 Assy (CN902) JAC1 Assy (CN903) - TRSB Assy (CN11) TRSB Assy (CN12) - SSRB Assy (CN21) • Check the +12V and +6V power supply voltages (If above voltages are not supplied, check the CPU operation of the right description.) • Tray close operation : 1 In the tray open state, pin 84 of IC11 is "L" level. 2 Drive signal from pin 42 of IC11 outputs "H" level. 3 Close the tray and pin 84 of IC11 becomes "H" level. • Disc detection operation : 1 Drive signal from pin 68 of IC11 outputs "L" level. Rotary tray turns clockwise. 2 Inputs the tray position detecting pulse to pin 95 of IC11. 3 When a disc is put in, inputs the disc detecting pulse to pin 36 of IC11 while synchronizing the tray position detecting pulse • Clamp operation (Traverse mechanism up) : 1 In the mechanism down state, pin 86 of IC11 is "H" level. 2 Drive signal from pin 42 of IC11 outputs "H" level. 3 It becomes the disc clamp state, pin 86 of IC11 becomes "L" level. • Short or open the zenner diode on the POWER SUPPLY Unit. (KUXQ, KCXQ : D207) (Others : D304) • Check the values of R180 on the FLKY Assy. OK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DV-C503 • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. LC78652W (DVDM ASSY : IC2) • Servo DSP IC • Block Diagram 7.2.1 IC •List of IC LC78652W, PD3410A, MB86373B, PE5185A 33 FE 32 TE 29 TILTE 30 RF_PH 31 RF_BH 28 JITT 26 TES 51 HFLIO 81 VPDO 15 XOUT 73 BUSYB 8 XTALOUT 100 LEFM 97 LEFM2 52 LASER 92 JV MPX Servo Processor (16×16+32→32) 8bit A/D 8bit D/A CMP Track Counter 56 PP2/EVENT Event Counter 55 FG 39 EFMIN 80 VCOC 96 DVDSYNC 14 XIN 58 CSB 94 ADRAO 60 WRB 59 RDB 91 CDFR 90 DVDFR 1 EFMOUT SLCIST1,2 FG Counter SLC CLV PLL Frame Synchronous Detection, Protection, Insertion EFM Demodulation Error Detect Correction C1-Twofold, C2-Fourfold Supplement/Mute D Attenuate Deemphasis Filter Clock Generator Command Interface 34,35 SLCO1,2 36,37 PCKIST1,2 87,88 PD01-3 83-85 P0-7 63-70 PP0-3 93 PCK For De-Interleave 16k SRAM DOUT Serial Out Sub Code Decode CRC DVD Lock Detection 74 SQOUT 47 FDO 48 TDO 45 SLDO 46 SPDO 44 TBAL 43 TILTDO 42 AUXO 24 DRF 22 FAST 95 DVDSYEQ 23 V_PB 21 FSEQ 77 WRQ 17 EMPH 4 ROMCK 5 LRSY 19 DOUT 3 ROMXA 57 RESB 2 C2F 20 EFLG 9 FSX 12 PW 18 SBSY 11 SFSY 75 CQCKB TEST1-4 76 RWC 10 SBCK 25,27 38,50 7 FBUSYB General Purpose Register 53,54 ,56 7.2 PARTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DV-C503 •Pin Function . o N e m a N n i P O /I n o it c n u F 1 T U O M F E O M F E e ula v d e t a ts - y r a nib s a w t a h t e t a ts e h t t u p t u O 2 F 2 C O t u p t u o g alf 2 C 3 A X M O R O t u p t u o a t a d M O R - D C 4 K C M O R O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc tfih S 5 Y S R L O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc R / L 6 3 P P O /I t u p t u o D O - h c N t u p nila n gis .c n y s D V D / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 7 B Y S U B F O t u p t u o D O - h c N n oit a r e p o s s e c o r p P S D f o t u p t u o la n gis y s u B 8 T U O L A T X O t u p t u o k c olc m e ts y s la n r e tx E 9 X S F O t u p t u o la n gis .c n y s e m a rf 1 D C 0 1 K C B S I t u p ni k c olc t u o g nid a e r e d o c b u S 1 1 Y S F S O e d o c b u s f o t u p t u o la n gis .c n y s e m a r F 2 1 W P O t u p t u o W d n a V , U , T , S , R , Q , P e d o c b u S 3 1 S S V − nip D N G 4 1 N I X I ) z H M 4 4 3 9 . 6 1 ( r o t a n o s e r la ts y r c a tc e n n o C 5 1 T U O X O r o t a n o s e r la ts y r c a tc e n n o C 6 1 1 D D V D − tiu c ric n oit allic s o e h t f o ylp p u s r e w o p V 3 . 3 7 1 H P M E O sis a h p m e e d e h t f o nip r o tin o M 8 1 Y S B S O k c olb e d o c b u s e h t f o t u p t u o la n gis .c n y S 9 1 T U O D O t u p t u o a t a d J A I E oid u A 0 2 G L F E O 2 C d n a 1 C n oitc e rr o c r o rr e e h t f o r o tin o m e t a ts n oitc e rr o c r o rr E 1 2 Q E S F O la n gis .c n y s e m a rf D V D / D C e h t f o r o tin o m n oitc e t e D 2 2 T S A F O t u p t u o D O - h c N r o tin o m d e e p s k c a b y al P 3 2 B P _ V O lo rt n o c V L C / o v r e s h g u o r e h t f o t u p t u o r o tin o M 4 2 F R D O r o tin o m s u c o f n I 5 2 3 T S E T I 3 t u p ni ts e T 6 2 S E T I t u p nila n gis r o rr e g nik c a r T 7 2 2 T S E T I 2 t u p ni ts e T 8 2 T T IJ I L L P M F E f o t u p nila n gis g nitc e t e d ytit n a u q r e ttiJ 9 2 E T L I T I t u p nila n gis r o rr e tli T 0 3 H P _ F R I t u p nila n gis dlo h k a e p F R 1 3 H B _ F R I t u p nila n gis dlo h m o tt o b F R 2 3 E T I t u p nila n gis r o rr e g nik c a r T 3 3 E F I t u p nila n gis r o rr e s u c o F 4 3 1 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 1 nip g nitt e s t n e rr u C 5 3 2 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 2 nip g nitt e s t n e rr u C 6 3 1 O C L S O C L S r o f 1 t u p t u o lo rt n o C 7 3 2 O C L S O C L S r o f 2 t u p t u o lo rt n o C 8 3 1 T S E T I 1 t u p ni ts e T 9 3 N I M F E I t u p ni + M F E / M F E 0 4 D D V A − o v r e s r o f A / D d n a D / A f o ylp p u s r e w o p V 5 1 4 S S V A − o v r e s r o f A / D d n a D / A f o D N G 2 4 O X U A O t u p t u o y r ailix u a A D 3 4 O D T L I T O t u p t u o la n gis lo rt n o c tli T 4 4 L A B T O t u p t u o la n gis lo rt n o c e c n ala b g nik c a r T 5 4 O D L S O t u p t u o la n gis lo rt n o c d el S 6 4 O D P S O t u p t u o la n gis lo rt n o c eld nip S 7 4 O D F O t u p t u o la n gis lo rt n o c s u c o F 8 4 O D T O t u p t u o la n gis lo rt n o c g nik c a r T 9 4 F E R V − o v r e s r o f A / D f o le v el e c n e r e f e R 0 5 4 T S E T I 4 t u p ni ts e T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DV-C503 . o N e m a N n i P O /I n o it c n u F 1 5 O I L F H O /I t u p t u o /t u p nila n gis n oitc e t e d r o rri M 2 5 R E S A L O lo rt n o c F F O / N O r e s al r o f nip t u p t u O 3 5 B D C _ D V D / 0 P P O /I t u p t u o la n gis n oit a ni m ir c sid c si D / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 4 5 B R R E C R C / 1 P P O /I t u p t u o la n gis tlu s e r C R C e d o c b u S / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 5 5 G F I t u p ni r e t n u o c G F 6 5 T N E V E / 2 P P O /I t u p ni r e t n u o c t n e v E / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 7 5 B S E R I t u p ni t e s e R 8 5 B S C I t u p ni tc ele s pih C 9 5 B D R I t u p nila n gis g nid a e r e t a ts la n r e t n I 0 6 B R W I t u p nila n gis g nitir w a t a d / d n a m m o C 1 6 2 D D V D − ylp p u s r e w o p V 5 2 6 S S V − D N G 3 6 0 P O /I t u p t u o /t u p ni a t a d / d n a m m o C 4 6 1 P 5 6 2 P 6 6 3 P 7 6 4 P 8 6 5 P 9 6 6 P 0 7 7 P 1 7 S S V − D N G 2 7 1 D D V D − la n r e t ni r o f ylp p u s r e w o p V 3 . 3 3 7 B Y S U B O s s e c o r p d n a m m o c f o t u p t u o la n gis y s u B 4 7 T U O Q S O Q e d o c b u s f o t u p t u o lair e S 5 7 B K C Q C I t u p t u o a t a d Q e d o c b u s r o f t u p ni k c olc tfih S 6 7 C W R I Q e d o c b u s f o t u p ni n ois si m r e p e t a d p U 7 7 Q R W O Q e d o c b u s f o r o tin o m y d a e r t u o d a e R 8 7 S S V A − k c olc m e ts y s la n r e t ni r o f D N G L L P 9 7 R F P R V − k c olc m e ts y s r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 0 8 C O C V I k c olc m e ts y s r o f r e tlif L L P a tc e n n o C 1 8 O D P V O 2 8 D D V A − k c olc m e ts y s r o f ylp p u s r e w o p V 5 L L P 3 8 1 O D P O /I k c a b y alp M F E r o f 1 nip n oitc e n n o c r e tlif L L P 4 8 2 O D P O /I k c a b y alp M F E r o f 2 nip n oitc e n n o c r e tlif L L P 5 8 3 O D P O /I k c a b y alp M F E r o f 3 nip n oitc e n n o c r e tlif L L P 6 8 S S V A − k c a b y alp M F E r o f D N G L L P 7 8 1 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 1 g nitt e s t n e rr u C 8 8 2 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 2 g nitt e s t n e rr u C 9 8 D D V A − k c a b y alp M F E r o f ylp p u s r e w o p V 5 L L P 0 9 R F D V D − 1 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 1 9 R F D C − 2 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 2 9 V J O k c a b y alp M F E r o f k c olc L L P f o t u p t u o r e ttiJ 3 9 K C P O k c a b y alp M F E r o f t u p t u o k c olc ti B 4 9 O A R D A I t u p ni s s e r d d A 5 9 Q E Y S D V D I t u p ni e slu p e zin o r h c n y s D V D 6 9 C N Y S D V D I t u p nila n gis s u o n o r h c n y s D V D 7 9 2 M F E L O 2 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O 8 9 1 D D V D − O /I r o f ylp p u s r e w o p V 3 . 3 9 9 S S V − D N G 0 0 1 M F E L O 1 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DV-C503 PD3410A (DVDM ASSY : IC11) • System Control IC • Pin Function . o N k r a M e m a N n i P O /I n o it c n u F 1 L S A C X / 3 S C X 3 S C X O t u p t u o la n gis tc ele s pih c ) P I H C Y M ( A 5 9 9 4 D P 2 D N G D N G − D N G 3 K C K C U P C H O . C . N 4 C C V D 3 + V − D 3 + V 5 K L C I P − O /I . C . N 6 A T A D I P − O /I . C . N 7 D N G D N G − D N G 8 0 H T R O P − O . C . N 9 1 H T R O P − O . C . N 0 1 2 H T R O P H V M 6 3 O )r o t a r e n e g k c ol C ( F 8 5 1 2 U B 1 1 3 H T R O P 2 L E S _ V O ]le d o m Y W [ la ni m r e t trik s e h t f o t u p t u o la n gis g nih cti w s S / e tis o p m o C 2 1 C C V D 3 + V − D 3 + V 3 1 4 H T R O P − O . C . N 4 1 5 H T R O P − O . C . N 5 1 6 H T R O P − O . C . N 6 1 7 H T R O P − O . C . N 7 1 D N G D N G − D N G 8 1 L A T X E L A T X E I r o t a n o s e r ci m a r e c a tc e n n o C 9 1 L A T X L A T X O 0 2 C C V D 3 + V − D 3 + V 1 2 0 G T R O P 0 F D S C X O ( t u p t u o la n gis tc ele s pih c C A D ← ) 3 T A L X 2 2 1 G T R O P 1 F D S C X O ( e c a fr e t ni r e t u p m o c o r ci m P S D oid u a r o f t u p t u o la n gis tc ele s pih C ← ) S C A D _ T L X 3 2 2 G T R O P − O . C . N 4 2 3 G T R O P − O . C . N 5 2 4 G T R O P N O E F L O t n e m ele E F L f o h c R d n a h c L t n o rf e h t o t xi m e h t tc ele S 6 2 D N G D N G − D N G 7 2 5 G T R O P D M H C 6 O ( h c 6 / h c 2 st u p t u o C A D e h t h cti w S ← ) 2 T S R V D X 8 2 6 G T R O P P S A D X O t u p t u o 1 - V A o t / t u p t u o P S A D h g u o r h t P S A D 9 2 7 G T R O P E T U M A X O oid u a e h t f o t u p t u o la n gis e t u m e g a ts ts a L 0 3 0 F T R O P 8 4 X 4 4 O t u p t u o la n gis g nih cti w s S F 8 4 / 4 4 C A D 1 3 1 F T R O P − I . C . N 2 3 2 F T R O P N O D 3 O t u p t u o la n gis g nih cti w s s s a p y b / N O oid u a D 3 3 3 C C V D 3 + V − D 3 + V 4 3 3 F T R O P − O . C . N 5 3 4 F T R O P T S R S V A X O tr o p t e s e r .c n y S 6 3 5 F T R O P S N S C S D O tsix e c si D : L t u p t u o e slu p n oitc e t e d c si D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DV-C503 . o N k r a M e m a N n i P O /I n o it c n u F 7 3 6 F T R O P − O . C . N 8 3 7 F T R O P E V S C X O ]le d o m Y W [ r e d o c n e o e div e h t f o t u p t u o la n gis elb a n e n oit a cin u m m o c lair e S 9 3 D N G D N G − D N G 0 4 S S V A D N G − D N G 1 4 C C V A D 3 + V − D 3 + V 2 4 P _ A T U O V R D O L O t u p t u o e vir d g nid a o L 3 4 F E R V D 3 + V − D 3 + V 4 4 P _ B T U O I E T O t u p t u o la n gis t e sff o g nik c a r T 5 4 S S V A D N G − D N G 6 4 S S V A D N G − D N G 7 4 0 E T R O P L E S _ V O t u p t u o la n gis g nih cti w s e tis o p m o c/t n e n o p m o C 8 4 1 E T R O P − I . C . N 9 4 2 E T R O P − I . C . N 0 5 3 E T R O P 1 T S F O F O /I 1 t u p t u o t n e m ts ujd a t e sff o s u c o F 1 5 4 E T R O P 2 T S F O F O /I 2 t u p t u o t n e m ts ujd a t e sff o s u c o F 2 5 5 E T R O P H N I F D X O /I t u p t u o la n gis t n u h s tc e f e D 3 5 6 E T R O P D C X / D V D O t u p t u o la n gis g nih cti w s D C / D V D 4 5 7 E T R O P N O _ 1 D L O t u p t u o la n gis N O e d oid r e s al m n 0 5 6 5 5 0 D T R O P N O _ 2 D L O t u p t u o la n gis N O e d oid r e s al m n 0 8 7 6 5 C C V D 3 + V − D 3 + V 7 5 1 D T R O P E T / D P D O t u p t u o la n gis g nih cti w s s m a e b 3 / m a e b 1 8 5 2 D T R O P F F O G A O C I F R f o t u p t u o la n gis g nih cti w s F F O / N O C G A 9 5 3 D T R O P X 2 D C X O ) D C V ( k c a b y alp d e e p s elb u o d e h t g nih cti w s r o f t u p t u o la n gi S 0 6 4 D T R O P G C I E O O t u p t u o la n gis g nih cti w s nia g C I E O 1 6 D N G D N G − D N G 2 6 5 D T R O P N O M X O t u p t u o lo rt n o c r o t o m eld nip s e h t f o t u p t u o la n gis g nih cti w s F F O / N O 3 6 6 D T R O P − O . C . N 4 6 7 D T R O P − I . C . N 5 6 0 J T R O P T U M V R D X O t u p t u o e t u m r e vir D 6 6 1 J T R O P − O . C . N 7 6 2 J T R O P T S R P S D X O t e s e r P S D o v r e S 8 6 3 J T R O P 0 D E S I e vir d n oit a t o r y a r T 9 6 C C V D 3 + V − D 3 + V 0 7 4 J T R O P T N E _ M T I y rt n e e d o m ts e T 1 7 5 J T R O P − O . C . N 2 7 6 J T R O P W S _ L E S V I t u p ni W S e tis o p m o c/t n e n o p m o C 3 7 7 J T R O P − I . C . N 4 7 2 A C O I T / 0 B P Y S U B C X I t u p ni y s u b d n a m m o C 5 7 2 B C O I T / 1 B P Y S U B A X I t u p ni y s u b e c n e u q e s - o t u A 6 7 3 A C O I T / 2 B P 2 T N I X I ) 1 - V A ( 2 t u p ni t p u rr e t n I 7 7 C C V D 3 + V − D 3 + V 8 7 3 B C O I T / 3 B P 1 T L O r ello rt n o c L F e h t o t t u p t u o la n gis e s n o p s e r n oit a cin u m m o C 9 7 4 A C O I T / 4 B P Y S B S I t u p ni .c n y s k c olb e d o c b u S 0 8 T S E T M X − I ) D 3 + V ( la ni m r e t ts e T 1 8 D M U P C X − I ) D 3 + V ( la ni m r e t ts e T 2 8 S E R X T E S E R X I t u p ni t e s e R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DV-C503 . o N k r a M e m a N n i P O /I n o it c n u F 3 8 D N G D N G − D N G 4 8 0 N A S O P D O L I t u p ni n oitis o p g nid a o L 5 8 1 N A S O P D L S I t u p ni n oitis o p r e dil S 6 8 2 N A P M A L C I t u p ni W S n oitis o p p m al C 7 8 3 N A W S _ P A N I t u p ni W S L A P / O T U A / C S T N 8 8 4 N A M E O X I n oitc e t o r p le d o m M E O f o la ni m r e t t u p n I 9 8 5 N A D A E D D L I y alp sid e ula v t n e rr u c D L r o f t u p n I 0 9 6 N A − I . C . N 1 9 7 N A − I . C . N 2 9 f e r v A D 3 + V − D 3 + V 3 9 C C V A D 3 + V − D 3 + V 4 9 S S V A D N G − D N G 5 9 4 B C O I T / 5 B P S O P Y R T I t u p ni t n u o c r e b m u n c si D 6 9 C K L C T / 4 A X C O I T / 6 B P F 2 C I t u p ni r o rr e 2 C 7 9 D K L C T / 4 B X C O I T / 7 B P Y D R X I r ello rt n o c L F e h t m o rf t u p ni ts e u q e r n oit a cin u m m o C 8 9 0 D x R / 8 B P I S S I )r ello rt n o c L F ( t u p ni a t a d lair e S 9 9 0 D x T / 9 B P O S S O )r ello rt n o c L F ( t u p t u o a t a d lair e S 0 0 1 C C V D 3 + V − D 3 + V 1 0 1 1 D x R / 0 1 B P D X R I C 2 3 2 - S R e h t f o t u p ni a t a D 2 0 1 1 D x T / 1 1 B P D X T O C 2 3 2 - S R e h t f o t u p t u o a t a D 3 0 1 0 K C S / 4 Q R I X / 2 1 B P K C S S O /I )r ello rt n o c L F ( t u p t u o k c olc lair e S 4 0 1 1 K C S / 5 Q R I X / 3 1 B P 0 1 L Q R I X I ) P I H C Y M ( 0 # t u p ni t p u rr e t n I 5 0 1 D N G D N G − D N G 6 0 1 6 Q R I X / 4 1 B P 1 1 L Q R I X I ) P I H C Y M ( 1 # t u p ni t p u rr e t n I 7 0 1 7 Q R I X / 5 1 B P 0 T N I X I ) 1 - V A ( 0 # t u p ni t p u rr e t n I 8 0 1 0 A C O I T / 4 S C X / 0 A P 4 S C X O t u p t u o la n gis tc ele s pih c P S D o v r e S 9 0 1 S A R X / 5 S C X / 1 A P − O . C . N 0 1 1 0 B C O I T / 6 S C X / 2 A P 6 S C X O t u p t u o la n gis tc ele s pih c 1 - V A 1 1 1 T I A W X T I A W X I t u p nila n gis tia W 2 1 1 L R W X L R W X O L t u p t u o e slu p e tir W 3 1 1 D N G D N G − D N G 4 1 1 H R W X H R W X O H t u p t u o e slu p e tir W 5 1 1 D R X D R X O t u p t u o e slu p d a e R 6 1 1 K C A B X / 7 A P T E D R U C X I t u p nila n gis n oitc e t e d t n e rr u c -r e v O 7 1 1 Q E R B X / 8 A P S T C I t u p ni ti m r e p r e fs n a rt C 2 3 2 - S R 8 1 1 / T U O Q R I X / H A X / 9 A P G R T D A X R T D O t u p t u o ti m r e p r e fs n a rt C 2 3 2 - S R 9 1 1 1 A C O I T / L P D / 0 1 A P 1 T N I X I ) 1 - V A ( 1 t u p ni t p u rr e t n I 0 2 1 1 B C O I T / H P D / 1 1 A P D L H T I t u p nila n gis dlo h g nik c a r T 1 2 1 C C V D 3 + V − D 3 + V 2 2 1 / 0 K C A D / 0 Q R I X / 2 1 A P A K L C T 0 K C A D O ) P I H C Y M ( t u p t u o e s n o p s e r A M D 3 2 1 / 1 Q R I X / 3 1 A P B K L C T / 0 Q E R D X 0 Q E R D X I ) P I H C Y M ( t u p ni ts e u q e r A M D 4 2 1 1 K C A D X / 2 Q R I X / 4 1 A P 1 K C A D X O ) 1 - V A ( t u p t u o e s n o p s e r A M D 5 2 1 1 Q E R D X / 3 Q R I X / 5 1 A P 1 Q E R D X I ) 1 - V A ( t u p ni ts e u q e r A M D 6 2 1 0 D A 0 D O /I 0 s u b a t a D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DV-C503 . o N k r a M e m a N n i P O /I n o it c n u F 7 2 1 D N G D N G − D N G 8 2 1 1 D A 1 D O /I 1 s u b a t a D 9 2 1 2 D A 2 D O /I 2 s u b a t a D 0 3 1 3 D A 3 D O /I 3 s u b a t a D 1 3 1 4 D A 4 D O /I 4 s u b a t a D 2 3 1 5 D A 5 D O /I 5 s u b a t a D 3 3 1 6 D A 6 D O /I 6 s u b a t a D 4 3 1 C C V D 3 + V − D 3 + V 5 3 1 7 D A 7 D O /I 7 s u b a t a D 6 3 1 8 D A 8 D O /I 8 s u b a t a D 7 3 1 9 D A 9 D O /I 9 s u b a t a D 8 3 1 0 1 D A 0 1 D O /I 0 1 s u b a t a D 9 3 1 D N G D N G − D N G 0 4 1 1 1 D A 1 1 D O /I 1 1 s u b a t a D 1 4 1 2 1 D A 2 1 D O /I 2 1 s u b a t a D 2 4 1 3 1 D A 3 1 D O /I 3 1 s u b a t a D 3 4 1 4 1 D A 4 1 D O /I 4 1 s u b a t a D 4 4 1 C C V D 3 + V − D 3 + V 5 4 1 5 1 D A 5 1 D O /I 5 1 s u b a t a D 6 4 1 ) S B H X ( 0 A 0 A O 0 s u b s s e r d d A 7 4 1 1 A 1 A O 1 s u b s s e r d d A 8 4 1 2 A 2 A O 2 s u b s s e r d d A 9 4 1 D N G D N G − D N G 0 5 1 3 A 3 A O 3 s u b s s e r d d A 1 5 1 4 A 4 A O 4 s u b s s e r d d A 2 5 1 5 A 5 A O 5 s u b s s e r d d A 3 5 1 6 A 6 A O 6 s u b s s e r d d A 4 5 1 7 A 7 A O 7 s u b s s e r d d A 5 5 1 8 A 8 A O 8 s u b s s e r d d A 6 5 1 9 A 9 A O 9 s u b s s e r d d A 7 5 1 0 1 A 0 1 A O 0 1 s u b s s e r d d A 8 5 1 1 1 A 1 1 A O 1 1 s u b s s e r d d A 9 5 1 2 1 A 2 1 A O 2 1 s u b s s e r d d A 0 6 1 3 1 A 3 1 A O 3 1 s u b s s e r d d A 1 6 1 4 1 A 4 1 A O 4 1 s u b s s e r d d A 2 6 1 5 1 A 5 1 A O 5 1 s u b s s e r d d A 3 6 1 6 1 A 6 1 A O 6 1 s u b s s e r d d A 4 6 1 7 1 A 7 1 A O 7 1 s u b s s e r d d A 5 6 1 C C V D 3 + V − D 3 + V 6 6 1 8 1 A 8 1 A O 8 1 s u b s s e r d d A 7 6 1 9 1 A 9 1 A O 9 1 s u b s s e r d d A 8 6 1 0 2 A 0 2 A O ]le d o m M A R [ 0 2 s u b s s e r d d A 9 6 1 1 2 A 1 2 A O . C . N 0 7 1 I M N X I M N X I D 3 + V 1 7 1 D N G D N G − D N G 2 7 1 0 1 S C X − O . C . N 3 7 1 0 2 S C X 0 2 S C X O M O R h s alf e h t f o t u p t u o la n gis tc ele s pih C 4 7 1 2 2 S C X − O ]le d o m M E O [ M O R I U G e h t f o t u p t u o la n gis tc ele s pih C 5 7 1 3 2 S C X 3 2 S C X O M A R S e h t f o t u p t u o la n gis tc ele s pih C 6 7 1 2 S C X − O . C . N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 DV-C503 MB86373B (DVDM ASSY : IC18) • MPEG2 Decoder IC • Block Diagram Memory Controller Block Audio Clock Generation Block System Clock Generation Block Control Block Video Decoder Block Sync. Control Block Reset Signal Starting Signal NTSC/PAL Video Encoder DAC OSD Sub- picture MIX Audio Decoder Block System Clock Clock for video Clock for audio LPF VCO Clock Signal Video Output (Y,C,Comp/Y,Cb,Cr) Digital Signal Output (Component/ Composite) System Decoder Block CPU Interface CPU Clock Generation Block 27MHz Audio Output Internal Bus Reset Signal 16Mbit SDRAM Exclusive Parallel port Input Signal Picture Block Whole Control Block Video Output Block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DV-C503 • Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 L E S K L C I ) F F O : " L " , N O : " H "( L L P f o la n gis F F O / N O 7 2 D D V − ylp p u s r e w o p V 5 . 2 2 7 N P C G I D O ) B S M ( t u p t u o la n gis t n e n o p m o c la tigi D ) B S M ( )tib - 9 ( t u p t u o la n gis Y la tigi D 8 2 4 P M O C G I D O t u p t u o la n gis e tis o p m o c la tigi D t u p t u o la n gis C la tigi D 3 S S V − D N G 9 2 3 P M O C G I D 4 6 N P C G I D O t u p t u o la n gis t n e n o p m o c la tigi D )tib - 9 ( t u p t u o la n gis Y la tigi D 0 3 2 P M O C G I D 5 5 N P C G I D 1 3 1 P M O C G I D 6 4 N P C G I D 2 3 0 P M O C G I D ) B S L ( t u p t u o la n gis e tis o p m o c la tigi D ) B S L ( t u p t u o la n gis C la tigi D 7 3 N P C G I D 3 3 K C A D O t u p t u o k c olc z H M 7 2 8 2 N P C G I D 4 3 . C . N − n oitc e n n o c n o N 9 1 N P C G I D 5 3 3 A S S V − )r e tr e v n o c A / D ( D N G 0 1 D D V − ylp p u s r e w o p V 5 . 2 6 3 C A N A O la n gis t u p t u o ) C ( r olo c g ola n A 1 1 0 N P C G I D O ) B S L ( t u p t u o la n gis t n e n o p m o c la tigi D ) B S L ( )tib - 9 ( t u p t u o la n gis Y la tigi D 7 3 3 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 2 1 L E S B R O la tigid e h t t a la n gis n oit a ni m ir c sid r C d n a b C .t u p t u o la n gis t n e n o p m o c .t u p t u o la n gis Y la tigid e h t t a B S L 8 3 2 A S S V − )r e tr e v n o c A / D ( D N G 3 1 S H X O la n gis t u p t u o .c n y s la t n o zir o H 9 3 Y A N A O la n gis t u p t u o ) Y ( e c n a ni m ul g ola n A 4 1 S V X O la n gis t u p t u o .c n y s la citr e V 0 4 2 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 5 1 S S V − D N G 1 4 F E R V I r e tr e v n o c A / D r o f e g a tlo v e c n e r e f e R 6 1 T E S E R X I la n gis t e s e r I S L 2 4 O R V O r e tr e v n o c A / D f o nip g nitt e s t n e rr u c la n r e t n I 7 1 C N Y S C D L X I ) e d o m D L ( t u p nila n gis .c n y s la n r e tx E 3 4 4 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 8 1 Y E K O y alr e v o D S O d n a D L r o f la n gis Y E K ) e d o m D L ( 4 4 1 A S S V − )r e tr e v n o c A / D ( D N G 9 1 D P O f o la n gis t u p t u o tlu s e r n o sir a p m o c e s a h P ) e d o m D L ( .c n y s la t n o zir o h 5 4 P M O C A N A O la n gis t u p t u o e tis o p m o c g ola n A 0 2 D L F V O la n gis la tigid e h t t a la n gis n oit a ni m ir c sid dlei F dleif d d o : L dleif n e v e : H t u p t u o 6 4 1 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 1 2 9 P M O C G I D O ) B S M ( t u p t u o la n gis e tis o p m o c la tigi D ) B S M ( t u p t u o la n gis C la tigi D 7 4 F B O la n gis g alf ts r u B 2 2 8 P M O C G I D t u p t u o la n gis e tis o p m o c la tigi D t u p t u o la n gis C la tigi D 8 4 K L B X O la n gis g nik n alb e tis o p m o c V / H 3 2 7 P M O C G I D 9 4 4 T S E T O ." n e p o " o t t e s ,ylla m r o N 4 2 6 P M O C G I D 0 5 S S V − D N G 5 2 5 P M O C G I D 1 5 0 T S E T I ." n e p o " o t t e s ,ylla m r o N 6 2 S S V − D N G 2 5 1 T S E T I ylla m r o n s u t a ts " L " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DV-C503 . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 3 5 N II A D I ) F I D P S ( t u p nila n r e tx e f o t u p ni a t a d la tigi D 2 9 0 1 S R D A H I ) B S M ( la n gis s u b s s e r d d a U P C 4 5 A T A D D C I t u p nila n r e tx e f o t u p ni a t a d oid u A ) D C o t d n o p s e rr o c ( 3 9 9 S R D A H I la n gis s u b s s e r d d a U P C 5 5 R L D C I t u p nila n r e tx e f o t u p ni k c olc le n n a h c a t a D ) D C o t d n o p s e rr o c ( 4 9 8 S R D A H 6 5 K C B D C I t u p nila n r e tx e f o t u p ni k c olc a t a D ) D C o t d n o p s e rr o c ( 5 9 7 S R D A H 7 5 3 A T A D O A O a t a d e d o c e d oid u A 6 9 S S V − D N G 8 5 2 A T A D O A 7 9 D D V − ylp p u s r e w o p V 5 . 2 9 5 1 A T A D O A 8 9 6 S R D A H I la n gis s u b s s e r d d a U P C 0 6 S S V − D N G 9 9 5 S R D A H 1 6 D D V − ylp p u s r e w o p V 5 . 2 0 0 1 4 S R D A H 2 6 0 A T A D O A O a t a d e d o c e d oid u A 1 0 1 3 S R D A H 3 6 M C P O A O t u p t u o e c a fr e t ni oid u a la tigi D ) a t a d n ois s e r p m o c ( 2 0 1 2 S R D A H ) B S L ( la n gis s u b s s e r d d a U P C 4 6 I A D O A O ) a t a d e d o c e d ( t u p t u o e c a fr e t ni oid u a la tigi D 3 0 1 5 1 A T A D H O /I ) B S M ( la n gis s u b a t a d U P C 5 6 K C R L O r e tlif la tigid d n a A / D r o f k c olc le n n a h c a t a D 4 0 1 4 1 A T A D H la n gis s u b a t a d U P C 6 6 K C M O A O r e tlif la tigid d n a A / D r o f k c olc r e ts a M 5 0 1 3 1 A T A D H 7 6 K C B O r e tlif la tigid d n a A / D r o f k c olc ti B 6 0 1 2 1 A T A D H 8 6 2 T S E T I ." n e p o " o t t e s ,ylla m r o N 7 0 1 S S V − D N G 9 6 3 T S E T 8 0 1 1 1 A T A D H O /I la n gis s u b a t a d U P C 0 7 C N − n oitc e n n o c n o N 9 0 1 0 1 A T A D H 1 7 T S R P S D X I ." n e p o " o t t e s ,ylla m r o N 0 1 1 9 A T A D H 2 7 S S V − D N G 1 1 1 8 A T A D H 3 7 5 T S E T O ." n e p o " o t t e s ,ylla m r o N 2 1 1 7 A T A D H 4 7 C N − ." n e p o " o t t e s ,ylla m r o N 3 1 1 6 A T A D H 5 7 C N 4 1 1 D D V − ylp p u s r e w o p V 5 . 2 6 7 C N 5 1 1 5 A T A D H O /I la n gis s u b a t a d U P C 7 7 C N 6 1 1 4 A T A D H 8 7 7 D S I t u p ni a t a d lella r a P 7 1 1 3 A T A D H 9 7 D D V − ylp p u s r e w o p V 5 . 2 8 1 1 2 A T A D H 0 8 6 D S I t u p ni a t a d lella r a P 9 1 1 S S V − D N G 1 8 5 D S 0 2 1 1 A T A D H O /I la n gis s u b a t a d U P C 2 8 4 D S 1 2 1 0 A T A D H ) B S L ( la n gis s u b a t a d U P C 3 8 3 D S 2 2 1 L E S S U B I la n gis n oitc ele s h t di w s u B ) s u b tib - 6 1 : 1 ,s u b tib - 8 : 0 ( 4 8 2 D S 3 2 1 K C A D S O X I la n gis e g d el w o n k c a a t a d D S O 5 8 S S V − D N G 4 2 1 Q E R D S O X O la n gis ts e u q e r a t a d D S O 6 8 1 D S I t u p ni a t a d lella r a P 5 2 1 1 L E S U P C H I , C R A P S : 0 0 ( la n gis n oitc ele s U P C ) e v r e s e R : 1 1 , m e ts y s 8 6 : 0 1 , m e ts y s 6 8 : 1 0 7 8 0 D S 6 2 1 0 L E S U P C H 8 8 R R E X I la n gis t u p ni r o rr E 7 2 1 3 T N I X O U P C e h t o t la n gis ts e u q e r t p u rr e t n I 9 8 K C A S X I la n gis e g d el w o n k c A 8 2 1 2 T N I X 0 9 T S E T X I e s u la m r o n t a " H " o t t e S 9 2 1 1 T N I X 1 9 Q E R S O la n gis ts e u q e r a t a D 0 3 1 S S V − D N G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 DV-C503 . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 3 1 D D V − ylp p u s r e w o p V 5 . 2 0 7 1 S A C R D M X O M A R D S r o fla n gis S A C 2 3 1 0 T N I X O U P C o tla n gis ts e u q e r t p u rr e t n I 1 7 1 1 M Q D R D M X O r o fla n gis elb a n e t u p t u o / k s a m t u p n I M A R D S 3 3 1 Y D R T X E X O U P C o tla n gis y d a e R : m e ts y s 8 6 , C R A P S o tla n gis ) K C A ( e g d el w o n k c A : m e ts y s 6 8 U P C 2 7 1 S S V − D N G 4 3 1 W R H I la n gis e tir w / d a e r U P C 3 7 1 E W R D M X O M A R D S r o fla n gis elb a n e e tir W 5 3 1 N I K L C H I t u p ni k c olc ts o H 4 7 1 0 M Q D R D M X O r o fla n gis elb a n e t u p t u o / k s a m t u p n I M A R D S 6 3 1 S C H X I la n gis tc ele s pih c I S L 5 7 1 8 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 7 3 1 S A H X I e b o rts s s e r d d a U P C : m e ts y s 8 6 , C R A P S s u t a ts s s e r d d a U P C : m e ts y s 6 8 6 7 1 S S V − D N G 8 3 1 3 E B H X I la n gis elb a n e e ty b U P C 7 7 1 7 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 9 3 1 2 E B H X 8 7 1 9 T A D R D M 0 4 1 1 E B H X 9 7 1 6 T A D R D M 1 4 1 0 E B H X 0 8 1 0 1 T A D R D M 2 4 1 S S V − D N G 1 8 1 5 T A D R D M 3 4 1 4 R D A R D M O M A R D S r o fla n gis s s e r d d A 2 8 1 S S V − D N G 4 4 1 3 R D A R D M 3 8 1 D D V − ylp p u s r e w o p V 5 . 2 5 4 1 5 R D A R D M 4 8 1 1 1 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 6 4 1 2 R D A R D M 5 8 1 4 T A D R D M 7 4 1 D D V − ylp p u s r e w o p V 5 . 2 6 8 1 2 1 T A D R D M 8 4 1 S S V − D N G 7 8 1 3 T A D R D M 9 4 1 6 R D A R D M O M A R D S r o fla n gis s s e r d d A 8 8 1 3 1 T A D R D M 0 5 1 1 R D A R D M 9 8 1 S S V − D N G 1 5 1 7 R D A R D M 0 9 1 2 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 2 5 1 0 R D A R D M ) B S L ( M A R D S r o fla n gis s s e r d d A 1 9 1 4 1 T A D R D M 3 5 1 8 R D A R D M M A R D S r o fla n gis s s e r d d A 2 9 1 1 T A D R D M 4 5 1 S S V − D N G 3 9 1 5 1 T A D R D M ) B S M ( M A R D S r o fla n gis s u b a t a D 5 5 1 6 T S E T I ylla m r o n s u t a ts " L " 4 9 1 0 T A D R D M O /I ) B S L ( M A R D S r o fla n gis s u b a t a D 6 5 1 7 T S E T 5 9 1 S S V − D N G 7 5 1 8 T S E T 6 9 1 . C . N − n oitc e n n o c n o N 8 5 1 9 T S E T 7 9 1 M 7 2 K C I I t u p ni k c olc m e ts y S 9 5 1 0 1 R D A R D M O M A R D S r o fla n gis s s e r d d A 8 9 1 S S V − D N G 0 6 1 9 R D A R D M 9 9 1 M 7 2 K C O O t u p t u o k c olc m e ts y S 1 6 1 1 1 R D A R D M ) B S M ( M A R D S r o fla n gis s s e r d d A 0 0 2 ) O C V ( A S S V − ) yln o O C V r o f( D N G 2 6 1 S C R D M X O M A R D S r o fla n gis tc ele s pih C 1 0 2 ) O C V ( A D D V − ) yln o O C V r o f( ylp p u s r e w o p V 5 . 2 3 6 1 E K C R D M O M A R D S r o fla n gis elb a n e k c ol C 2 0 2 F P L I O oid u a r o f t u p t u o r e tr e v ni k c olb L L P 4 6 1 S S V − D N G 3 0 2 F P L M I oid u a r o f t u p ni r e tr e v ni k c olb L L P 5 6 1 D D V − ylp p u s r e w o p V 5 . 2 4 0 2 F P L O O oid u a r o f t u p t u o r o tc e t e d e s a h P 6 6 1 S A R R D M X O M A R D S r o fla n gis S A R 5 0 2 O C V O I k c olc oid u a r o f t u p ni O C V 7 6 1 K L C R D M O M A R D S r o fla n gis t u p t u o k c ol C 6 0 2 S S V − D N G 8 6 1 S S V − D N G 7 0 2 T S R L L P X I la n gis t e s e r n oitc e s L L P 9 6 1 N I K L C R D M I M A R D S r o fla n gis t u p ni k c ol C 8 0 2 T S R C N Y S X I la n gis t e s e r C N Y S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DV-C503 PE5185A (FLKY ASSY : IC101) • FL Control IC • Pin Function . o N k r a M e m a N n i P O /I n o it c n u F e v it c A 1 4 9 P 7 G O t u p t u o g ni m it L F N O : H 2 3 9 P 6 G 3 2 9 P 5 G 4 1 9 P 4 G 5 0 9 P 3 G 6 1 8 P 2 G 7 0 8 P 1 G 8 D D V ) V 5 ( − − 9 7 2 P 1 T E S L F I g nitt e s e b u t L F 0 1 6 2 P 2 T E S L F 1 1 5 2 P T E S Y E K I g nitt e s r e b m u n n oisivid y e K 2 1 4 2 P ) C N ( O − 3 1 3 2 P Y D A E R X O C I lo rt n o c m e ts y s h ti w e nil g nik a h s d n a h n oit a cin u m m o C n ois si m r e p n oit a cin u m m o C : L 4 1 2 2 P K C S O /I C I lo rt n o c m e ts y s h ti w t u p t u o k c olc n oit a cin u m m o C 5 1 1 2 P O S O /I C I lo rt n o c m e ts y s h ti w t u p t u o a t a d n oit a cin u m m o C 6 1 0 2 P I S I C I lo rt n o c m e ts y s h ti w t u p ni a t a d n oit a cin u m m o C 7 1 T E S E R N I T E S E R I t u p ni t e s e R t e s e R : L 8 1 4 7 P D E L 5 C S I D O F F O / N O D E L . o N c si D N O : L 9 1 3 7 P D E L 4 C S I D 0 2 S S V A ) D N G ( − − 1 2 7 1 P ) D N G ( I ) d e s u n U ( 2 2 6 1 P ) D N G ( 3 2 5 1 P − I − 4 2 4 1 P 2 N I K I t u p ni y e K 5 2 3 1 P 1 N I K 6 2 2 1 P 0 N I K 7 2 1 1 P 1 S M I t u p ni n oitc nitsid g nic u d n I 8 2 0 1 P 0 S M I t u p ni n oitc nitsid le d o M 9 2 D D V A ) V 5 ( − − 0 3 F E R V A ) V 5 ( − − 1 3 4 0 P ) D N G ( I ) d e s u n U ( 2 3 2 T X ) C N ( − − 3 3 S S V ) D N G ( − − 4 3 1 X 1 X I n oitc e n n o c k c olc r e t u p m o c o r ci M 5 3 2 X 2 X − 6 3 7 3 P ) C N ( O − 7 3 6 3 P 8 3 5 3 P 9 3 4 3 P ) D N G ( I ]le d o m M A R [ n oitc e t e d e c n e tsix e e n o h p o r ci M g niv a h e n o h p o r ci M : H 0 4 3 3 P ) C N ( O − www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 DV-C503 . o N k r a M e m a N n i P O /I n o it c n u F e v it c A 1 4 2 3 P N O R E W O P O F F O / N O V 5 W S N O : H 2 4 1 3 P T U O T E S E R O t u p t u o t e s e r m e ts y S t e s e R : L 3 4 0 3 P ) C N ( O − 4 4 3 0 P S E T I d e g g u b e d si C I lo rt n o c m e ts y s n e h w g nitt e S g nig g u b e d t A : H 5 4 2 0 P R E W O P N O I C I lo rt n o c L F f o e m it e h t t a h cti w s N O R E W O P / Y B T S p u g nid n a ts Y B T S : L 6 4 1 0 P T L I C I lo rt n o c m e ts y s h ti w e nil g nik a h s d n a h n oit a cin u m m o C n ois si m r e p n oit a cin u m m o C : H 7 4 0 0 P R I L E S I t u p nila n gis lo rt n o c e t o m e R 8 4 C I C I − − 9 4 2 7 P D E L 3 C S I D O F F O / N O D E L . o N c si D N O : L 0 5 1 7 P D E L 2 C S I D 1 5 0 7 P D E L 1 C S I D 2 5 D D V ) V 5 ( − − 3 5 7 2 1 P D E L N O . P O F F O / N O D E L Y B D N A T S N O : H 4 5 6 2 1 P M E O O t u p ni n oitc nitsid le d o m M E O M E O : H 5 5 5 2 1 P ) D V D ( D E L O F F O / N O D E L F F O L F N O : H 6 5 4 2 1 P ) E D O M D C ( D E L O F F O / N O D E L e d o m D C N O : H 7 5 3 2 1 P ) R N V ( D E L ] 6 3 C - V D , 3 0 6 C - V D [ F F O / N O D E L R N V 8 5 2 2 1 P 8 1 P O t u p t u o t n e m g e s L F N O : H 9 5 1 2 1 P 7 1 P 0 6 0 2 1 P 6 1 P 1 6 7 1 1 P 5 1 P 2 6 6 1 1 P 4 1 P 3 6 5 1 1 P 3 1 P 4 6 4 1 1 P 2 1 P 5 6 3 1 1 P 1 1 P 6 6 2 1 1 P 0 1 P 7 6 1 1 1 P 9 P 8 6 0 1 1 P 8 P 9 6 7 0 1 P 7 P 0 7 6 0 1 P 6 P 1 7 D A O L V V 7 2 - − V 7 2 - r o f t u p n I N O : H 2 7 5 0 1 P 5 P O t u p t u o t n e m g e s L F N O : H 3 7 4 0 1 P 4 P 4 7 3 0 1 P 3 P 5 7 2 0 1 P 2 P 6 7 1 0 1 P 1 P 7 7 0 0 1 P 1 1 G O t u p t u o g ni m it L F N O : H 8 7 7 9 P 0 1 G 9 7 6 9 P 9 G 0 8 5 9 P 8 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 DV-C503 VAW1058 (FLKY ASSY : V101) • FL DISPLAY 7.2.2 FL DISPLAY a d e g f b m c n r p h k i (2G - 11G) a d e g f b c (1G) 1G P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 e d c a g b f 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 1G 2G 4G 3G 5G 6G 7G 8G 9G 10G 11G 41 1 r n g a b k h f j m (DISC S) c p e d r n g a b k h f j m c p e d r n g a b k h f j m c p e d r n g a b k h f j m c p e d r n g a b k h f j m c p e d r n g a b k h f j m c p e d r n g a b k h f j m c p e d r n g a b k h f j m c p e d r n g a b k h f j m c p e d r n g a b k h f j m c p e d 28 27 26 25 24 23 22 21 P9 P8 P7 P6 P5 P4 P3 P2 Pin Assignment Anode Connection Pin Connection Pin No. 41 40 39 38 37 36 35 34 33 32 31 30 29 Connection F2 F2 NP NP P18 P17 P16 P15 P14 P13 P12 P11 P10 7 6 5 4 3 2 1 3G 2G 1G NP NP F1 F1 Pin No. 20 19 18 17 16 15 14 13 12 11 10 9 8 Connection P1 NX NX 11G 10G 9G 8G NX NX 7G 6G 5G 4G Note (1) F1, F2 : Filament (2) NP : No pin (3) NX : No extend pin (4) DL : Datum Line (5) 1G to 7G : Grid www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 DV-C503 1 STANDBY/ON button Press to switch the player on or to put in standby . 2 Disc tray When loading a disc, place it in the disc tray with the label side facing up. 3 DISC buttons Use to select discs in the player directly. 4 0 OPEN/CLOSE button Press to open and close the disc tray. 5 DISC SKIP button During playback, press to start playing the next disc in the player. If the disc tray is open while no disc is playing, the tray rotates one disc space. If the disc tray was opened using the EXCHANGE button, then pressing DISC SKIP rotates the disc tray two disc spaces. 6 EXCHANGE button Press during playback to open the disc tray without stopping playback. Press again to close the disc tray. 7 3 (play) button Press to start or resume playback. 8 8 (pause) button Press during playback to pause. Press again to resume playback. 9 7 (stop) button Press to stop playback. Pressing once enables playback to resume from a point shortly before the location where it stopped. Pressing twice causes the disc to return to the beginning of the disc if playback starts again. 0 ¡ ¢ (forward) button Press to advance to chapters/tracks. Press and hold to perform fast-forward scanning. - 4 1 (reverse) button Press to go back to previous chapters/tracks. Press and hold to perform reverse playback scanning. = Display window Displays system information. ~ Remote sensor Point the remote control toward the remote sensor to operate the player. ! RANDOM button Press to play discs, titles, chapters or tracks in random order. @ CD MODE button and indicator Switches CD mode on/off. The indicator lights when on. DVD PLAYER STANDBY/ON CD MODE RANDOM 7 3 8 DISC SKIP 0 OPEN/CLOSE EXCHANGE DISC 1 2 3 4 5 ~ 1 3 5 6 4 8 9 = 2 7 0 - ! @ 8. PANEL FACILITIES AND SPECIFICATIONS 8.1 PANEL FACILITIES Front Panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 DV-C503 1 DVD indicator Lights when a DVD is loaded. CD indicator Lights when an audio CD is loaded. VCD indicator Lights when a Video CD is loaded. 2 1 DISC/ALL DISCS indicator Lights during random or repeat play. If ALL Discs is selected, ALL DISCS lights; if 1 Disc is selected, DISC lights. 3 REPEAT indicator Indicates that the Repeat function is on. 4 RANDOM indicator Indicates that the Random function is on. 5 CONDITION indicator Indicates that Condition Memory settings are memorized for the currently loaded DVD. 6 LAST MEMORY indicator Indicates the Last Memory location is recorded in memory for the currently loaded DVD or Video CD. 7 (angle) Indicator Indicates Multi-Angle playback is in progress. 8 GUI indicator Indicates an on-screen menu operation is being performed. 9 REMAIN indicator Indicates that the remaining playback time of a title or chapter/ track is being displayed. 0 TOTAL indicator Indicates that the total number of titles/chapters or tracks is being displayed. - TRK indicator Indicates a track number is being displayed. CHP indicator Indicates a chapter number is being displayed. = Disc tray/Disc indicator means that a disc is loaded in that position. In CD mode, indicates a CD. (However, if the player has not yet determined whether a disc is loaded it also lights.) ~ Counter display Displays the playback mode, type of disc, title and chapter/ track numbers, playback time, etc. ! TITLE indicator Indicates a title number is being displayed. @ DISC number indicator Shows the disc number currently in the play position. # DOLBY DIGITAL indicator Indicates Dolby Digital audio playback. TITLE DVD VCD CD CONDITION TOTAL REMAIN LAST MEMORY CHP TRK DOLBY DIGITAL GUI 1 2 3 4 5 RANDOM REPEAT DISC ALL DISCS # 1 2 3 8 9 67 - 0 = 4 5 ! @ ~ Display Window www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 DV-C503 1 VIDEO OUT jack Connect to the video input on a TV or monitor or AV amplifier or receiver with video input capability. When using this output, be sure to set VIDEO OUT SELECT to the left position. 2 S-VIDEO OUT jack If your TV or monitor has an S-video input, clear picture reproduction is possible by connecting the player to your TV or monitor via the S-Video jack. When using this output, be sure to set VIDEO OUT SELECT to the left position. 3 COMPONENT VIDEO OUT jacks If your TV or monitor has component video inputs, you can produce a higher quality picture on your TV or monitor by connecting to the component video outputs on this unit. When using these jacks, be sure to set VIDEO OUT SELECT to the right position. 4 VIDEO OUT SELECT switch Use to set which output is used to output the video signals. Select either video/S-video or component video signal output depending on the connections you make. 5 AC IN power cord connection terminal (plug varies with the country/region, so may not match the illustration) Use to connect the power cord to the wall outlet. 6 TV SYSTEM switch* (except for U.S. and Canadian models) Use to change the TV signal mode to either PAL or NTSC according to the type of TV and disc to be used. When the switch is in the AUTO position, the player outputs the format on the disc as is. 7 CONTROL IN jack Use to connect this player to another component bearing the Pioneer Î mark. This lets you control this unit as though it were a component in a system. Player operations are then performed by pointing the remote control at the component that the player is connect to. 8 DIGITAL OUT jacks (coaxial, optical (OPT.)) Use to output the digital audio signal recorded on discs. You can output the digital signal via either coaxial or optical output jack to an AV amplifier or receiver. 9 AUDIO OUT jacks Use to output two-channel audio (analog) to the audio stereo inputs on a TV or stereo amplifier. If you are connecting to a receiver that has both digital and analog input jacks for DVD player connection, it may be beneficial to make both connections. CONTROL AUDIO OUT AC IN VIDEO OUT 2 L 1 R DIGITAL OUT S-VIDEO OUT COMPONENT VIDEO OUT VIDEO OUT SELECT Y OPT. PAL AUTO NTSC TV SYSTEM 1 2 3 4 5 7 6 8 9 (*The TV SYSTEM switch is not present on U.S. and Canadian models.) Rear Panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 DV-C503 1 LAST MEMORY button You can resume DVD or Video CD playback from the point you last watched even if the disc is removed from the player. Press LAST MEMORY during playback to set a Last Memory point. When you want to resume playback of that disc, press LAST MEMORY in the stop mode and playback starts from the memorized point. Last Memory locations can be stored for up to 5 DVDs and 1 Video CD. 2 (standby/on) button Press to switch the player on or to put in standby. 3 AUDIO button Press repeatedly to select one of the audio languages programmed on a DVD. For Video CD and CD, each press changes the audio output as follows. 4 SUBTITLE button Press repeatedly to select one of the subtitle languages programmed on a DVD or to turn the subtitles off. 5 SETUP button* Press when the player is in either play or stop mode to open and close the Setup screen. 6 MENU button* Use to display or close the DVD menu screen. 7 Cursor buttons (2/3/5/∞)* Use to move through the options on menu screens and to change settings. 8 PREV 4 button (previous) During playback, press PREV 4 to go back to a previous chapter/track. 9 STOP 7 button Press to stop playback. Pressing once enables playback to resume from a point shortly before the location where it was stopped. Pressing twice causes the disc to return to the beginning of the disc when playback starts again. 0 STEP/SLOW e/E buttons Press STEP/SLOW E during playback to view slow playback. In pause mode, press STEP/SLOW E to advance DVDs and Video CDs frame by frame and STEP/SLOW e to back up a few frames at a time. = Stereo = 1/L (Left) = 2/R (Right) DISC 0 TOP MENU MENU STOP STEP/SLOW ENTER 5 5 5 5 4 1 8 7 e E 3 REV FWD PREV NEXT RETURN CLEAR C 1 2 3 4 5 6 7 8 9 0 SETUP OPEN/ CLOSE AUDIO SUBTITLE ANGLE PLAY PAUSE PROGRAM REPEAT RANDOM SEARCH MODE REPEAT DISC 1 4 2 5 3 CD MODE CONDITION MEMORY LAST MEMORY DISPLAY A-B ¡ £ ∞ 2 3 4 5 6 7 ™ 8 9 0 * - = ~ ! 1 # $ % ^ & ( ) _ + ¢ @ Remote Control Unit (Buttons indicated with * are used for menu operation.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 DV-C503 - Number buttons (1-9, 0, +10)* Use to perform direct title and chapter/track searches, and to input numerical values. = PROGRAM button You can program titles, chapters, or tracks to play back in a desired order. Programs can be a maximum of 24 steps. ~ REPEAT button During playback of a DVD, press once to repeat playback of the current chapter, and twice to repeat playback of the current title. During playback of a Video CD or CD, press once to repeat playback of the current track, twice to repeat playback of the current disc, and 3 times to repeat all the discs loaded in the player. ! DISC buttons (1-5) Use to select discs in the player directly. @ CD MODE button Switches CD mode on/off. # CONDITION MEMORY button You can store in memory the settings for up to 15 DVDs. Press CONDITION MEMORY during DVD playback to memorize the settings. $ OPEN/CLOSE 0 button Press to open or close the disc tray. % ANGLE button Some DVDs are recorded with various camera angle playback options. Press ANGLE repeatedly to display different camera angles. ^ DISPLAY button Press during playback to display statistical disc information. Press repeatedly to display different information. & TOP MENU button* Press to call up the top menu programmed on the DVD. Depending on the DVD, the top menu may be identical to the DVD menu. * RETURN button* Use to go one menu back (current settings are maintained). Use RETURN when you do not want to change the option setting in a menu. ( ENTER button* Use to implement settings selected with the cursor buttons or to set items highlighted in a menu. ) NEXT ¢ button During playback, press NEXT ¢ to advance to the next chapter/track. _ PAUSE 8 button Press to pause playback of a disc. Press again to resume playback. + PLAY 3 button Press to start disc playback. ¡ 1 REV/FWD ¡ (fast reverse/forward) buttons During playback of DVD and Video CD, press FWD ¡ to perform fast forward scanning. Press REV 1 to perform fast reverse scanning of DVD and Video CD. When a CD is loaded, audio scanning is performed. ™ CLEAR button (C) Works in conjunction with a number of player functions. Use to cancel repeat and random playback, and to edit programs. £ SEARCH MODE button Press to perform a title, chapter/track or elapsed time search. ¢ REPEAT A-B button Press at the beginning and end of the section you want to repeat or to mark a location you want to return to. ∞ RANDOM button Press to play discs, titles, chapters or tracks in random order. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 DV-C503 General System ............................. DVD system, Compact Disc digital video system and Compact Disc digital audio system Power requirements U.S. and Canadian models ................................ AC 120 V, 60 Hz Other models ............................ AC 110-127/220-240 V, 50/60 Hz Power consumption U.S. and Canadian models .................................................. 11 W Other models ........................................................................ 12 W Power consumption in standby mode ......................... less than 1 W Weight .................................................................. 4.7 kg (10 lb 6 oz) Dimensions ................................... 420 (W) x 375 (D) x 128 (H) mm (16 9/16 (W) x 14 13/16 (D) x 5 1/16 (H) in.) (Not including protruding cables, etc.) Operating temperature ................... +5°C to +35°C (+41°F to +96°F) Operating humidity .............................5% to 85% (no condensation) S-Video output Y (luminance) - Output level ....................................... 1 Vp-p (75 Ω) C (color) - Output level ......................................... 286 mVp-p (75 Ω) Jack .............................................................................S-VIDEO jack Video output Output level ................................................................. 1 Vp-p (75 Ω) Jack .................................................................................... RCA jack Component video output (Y, PB, PR) Output level .......................................................... Y: 1.0 Vp-p (75 Ω) PB, PR: 0.7 Vp-p (75 Ω) Jacks ................................................................................ RCA jacks Audio output (2 pairs) Output level .......................................... 200 mVrms (1 kHz, –20 dB) Number of channels ........................................................................ 2 Jacks ................................................................................ RCA jacks Digital audio characteristics Frequency response ..................... 4 Hz to 44 kHz (DVD fs: 96 kHz) S/N ratio ................................................................................ 115 dB Dynamic range ...................................................................... 102 dB Total harmonic distortion ...................................................... 0.002 % Wow and flutter .............................................. Limit of measurement (±0.001% W. PEAK) or lower Digital output Optical digital output ............................................ Optical digital jack Coaxial digital output .......................................................... RCA jack Other terminals CONTROL IN ........................................................... Minijack (3.5 ø) Accessories Audio cord ....................................................................................... 1 Video cord ....................................................................................... 1 Power cord ...................................................................................... 1 Remote control unit ......................................................................... 1 AA (R6P) dry cell batteries .............................................................. 2 Operating instructions ..................................................................... 1 Note The specifications and design of this product are subject to change without notice, due to improvement. * Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights reserved. * “DTS” is trademark of Digital Theater Systems, Inc. 8.2 SPECIFICATIONS Please confirm that the following were received with the player. Audio cord (VDE1054) Video cord (VDE1055) Power cord (plug varies with the country/region, so may not match the illustration) (KUXQ, KCXQ Types : ADG7022) (RDXQ1/RA, RDXQ/RD Types : ADG1158) Remote control unit (VXX2705) AA (R6P) dry cell batteries Operating instructions DISC 0 TOP MENU MENU STOP STEP/SLOW ENTER 5 5 5 5 4 1 8 7 e E 3 REV FWD PREV NEXT RETURN CLEAR C 1 2 3 4 5 6 7 8 9 0 SETUP OPEN/ CLOSE AUDIO SUBTITLE ANGLE PLAY PAUSE PROGRAM REPEAT RANDOM SEARCH MODE REPEAT DISC 1 4 2 5 3 CD MODE CONDITION MEMORY LAST MEMORY DISPLAY A-B Accessories www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
