先锋PIONEER DV-AX10电路图

分类：电子电工日期：2023-04-08 点击：0

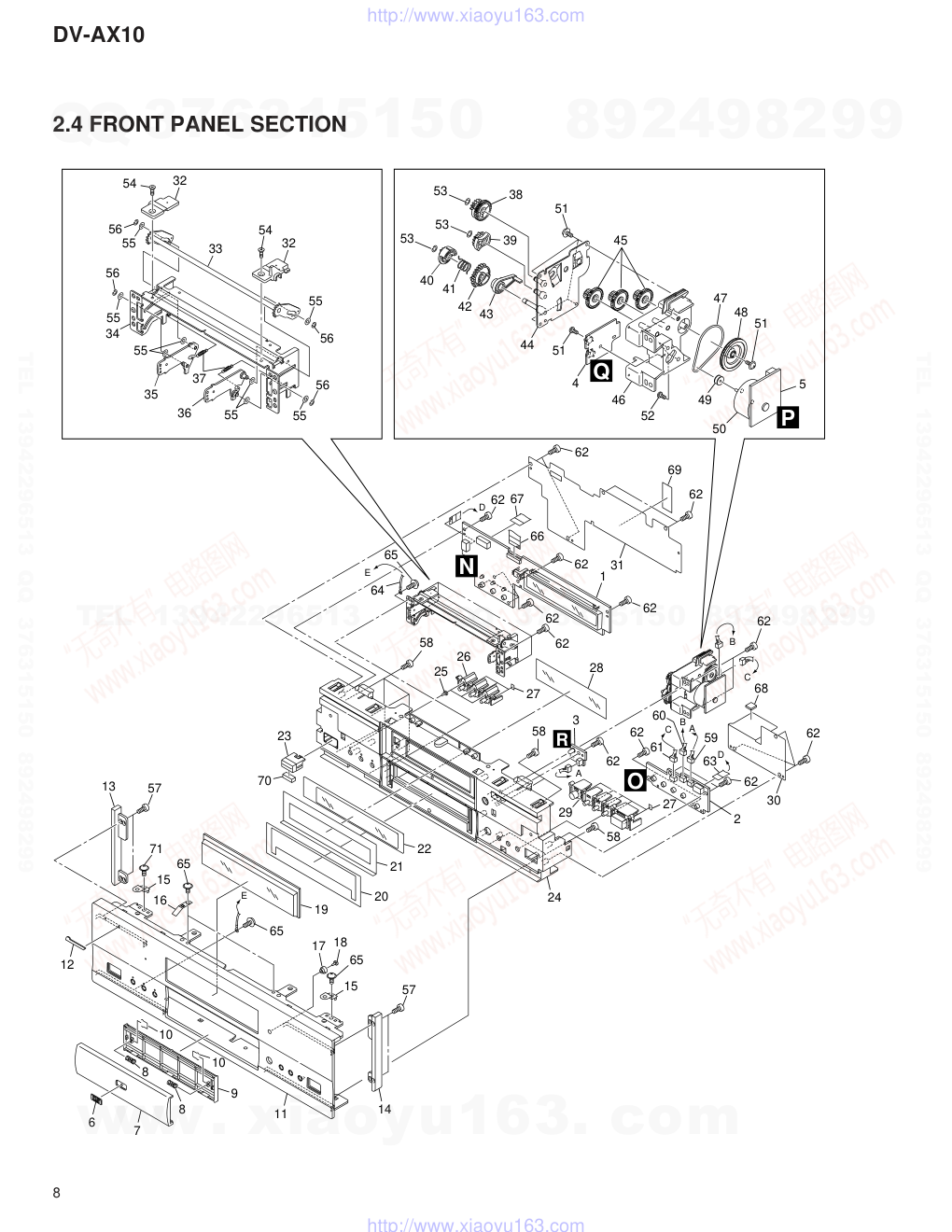

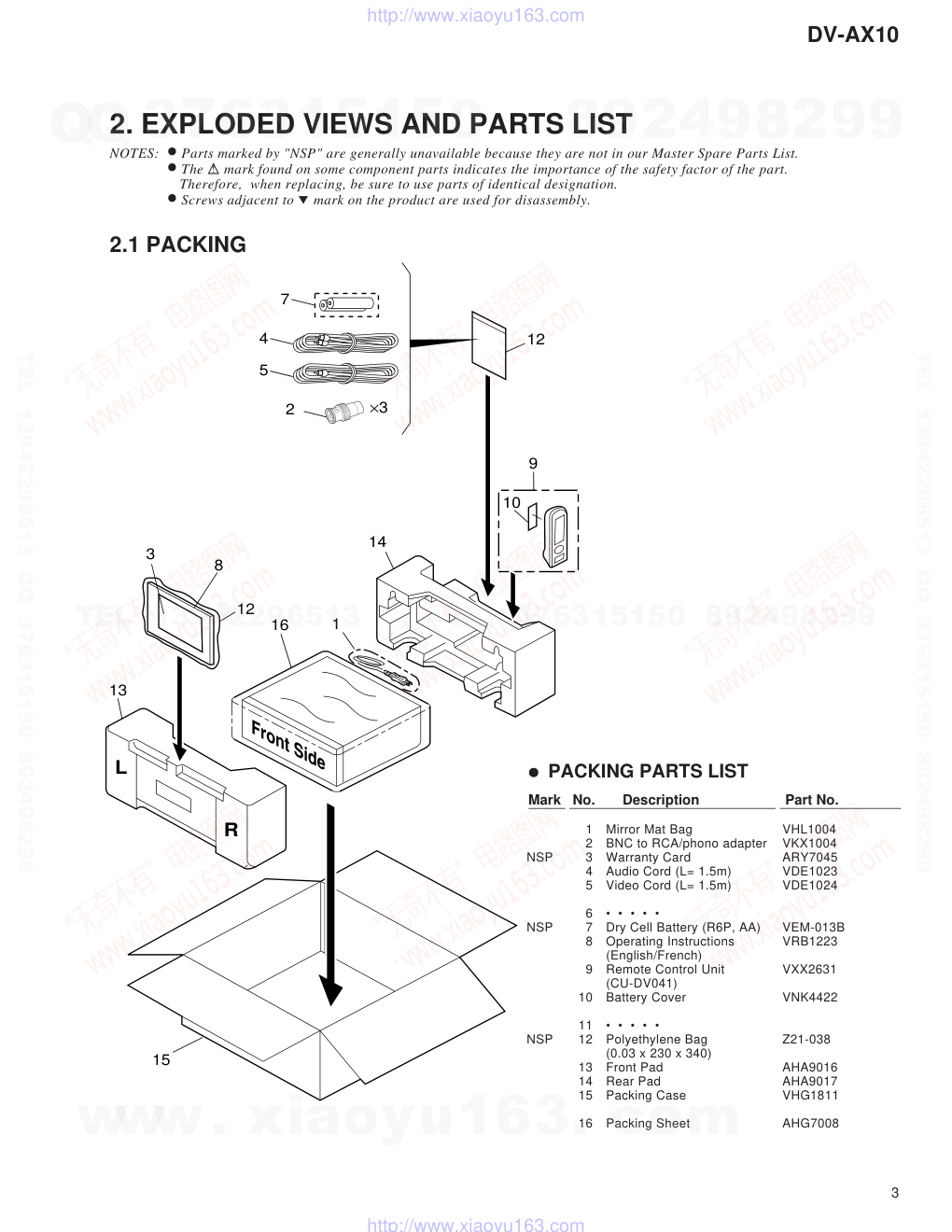

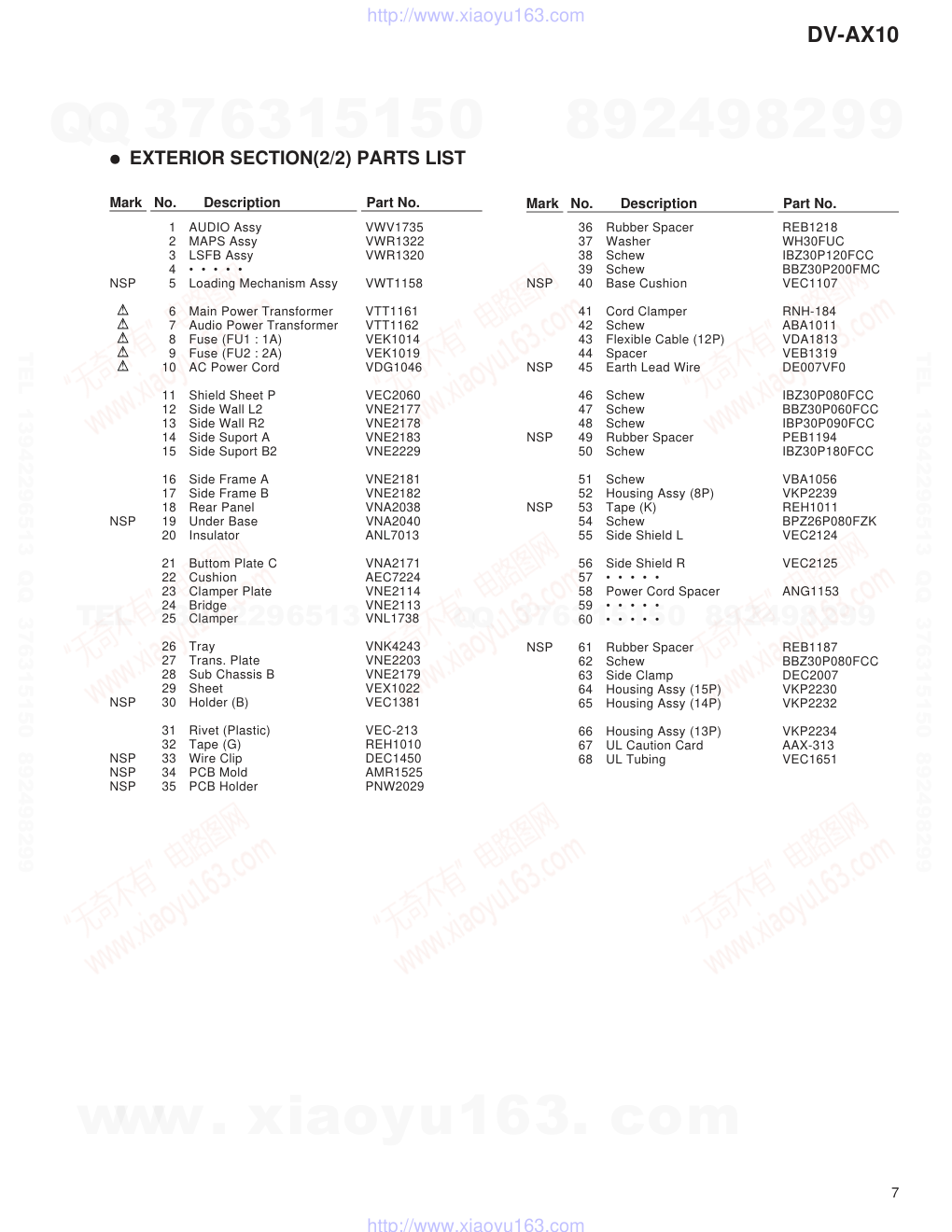

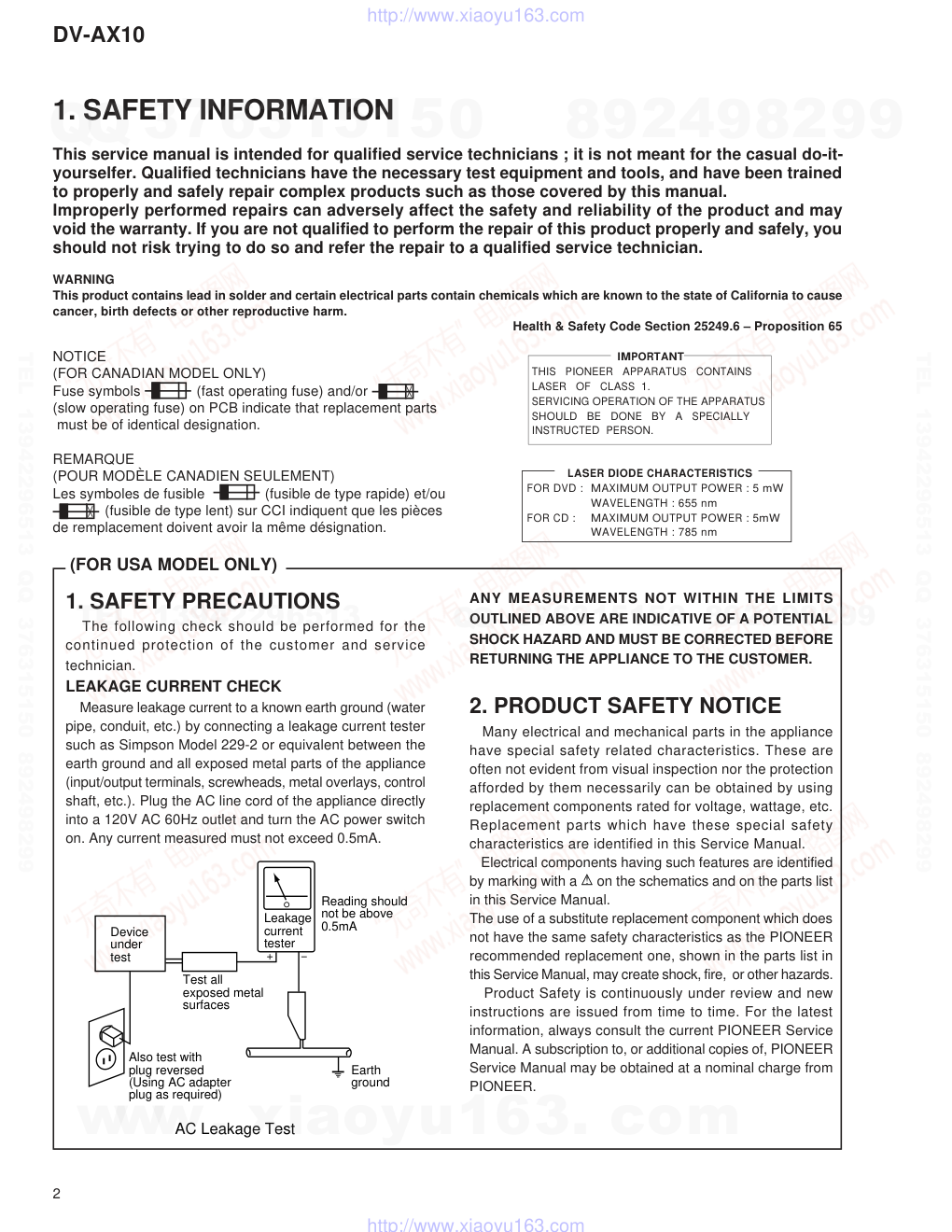

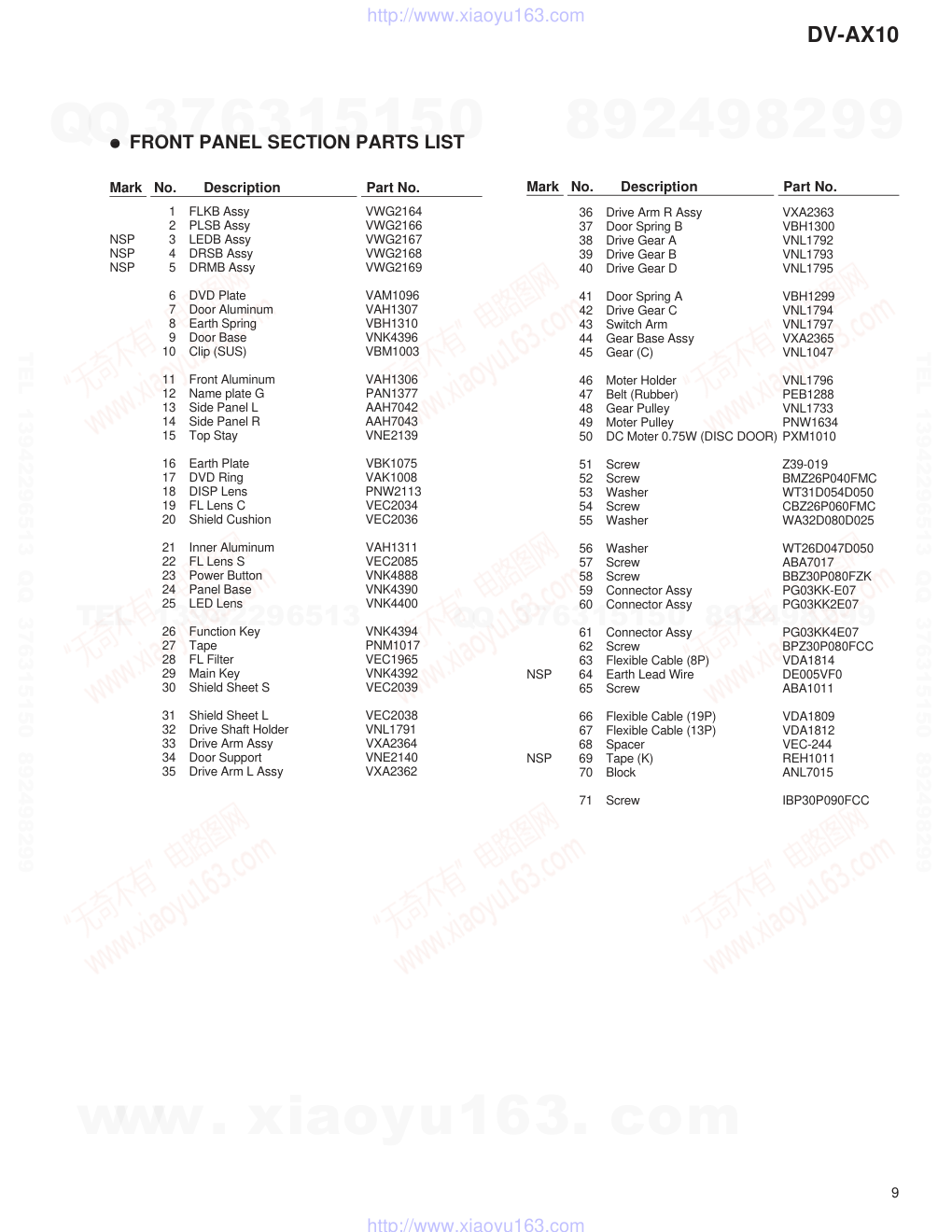

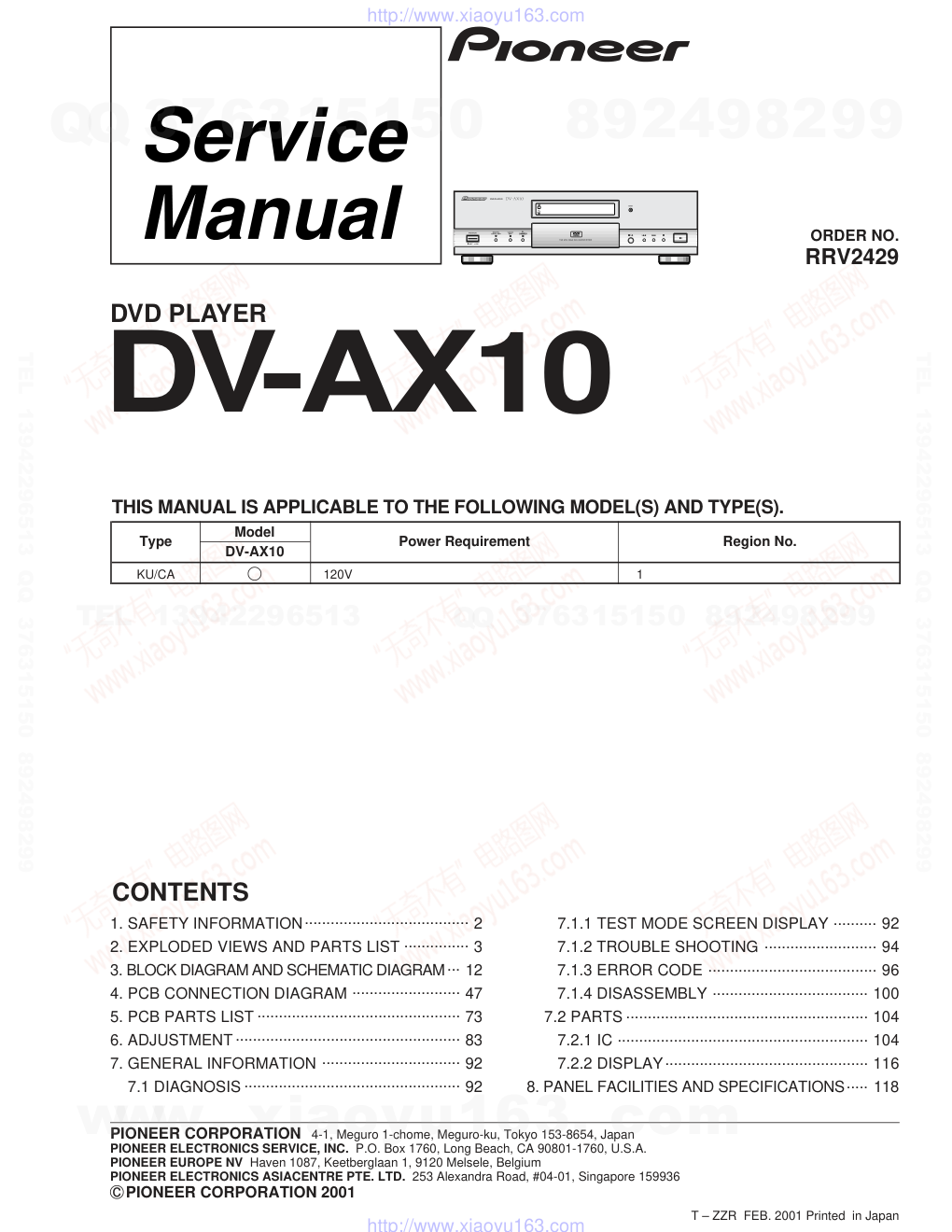

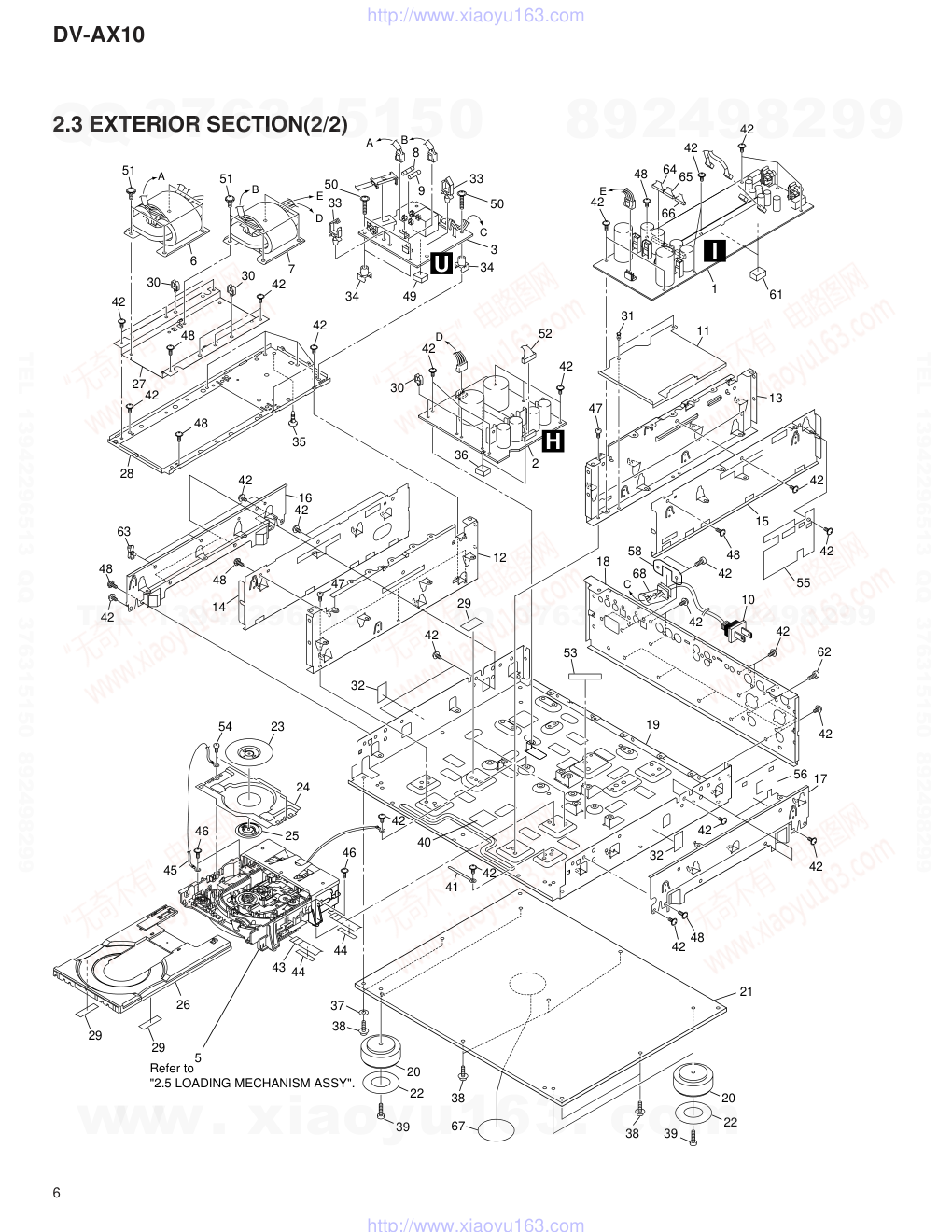

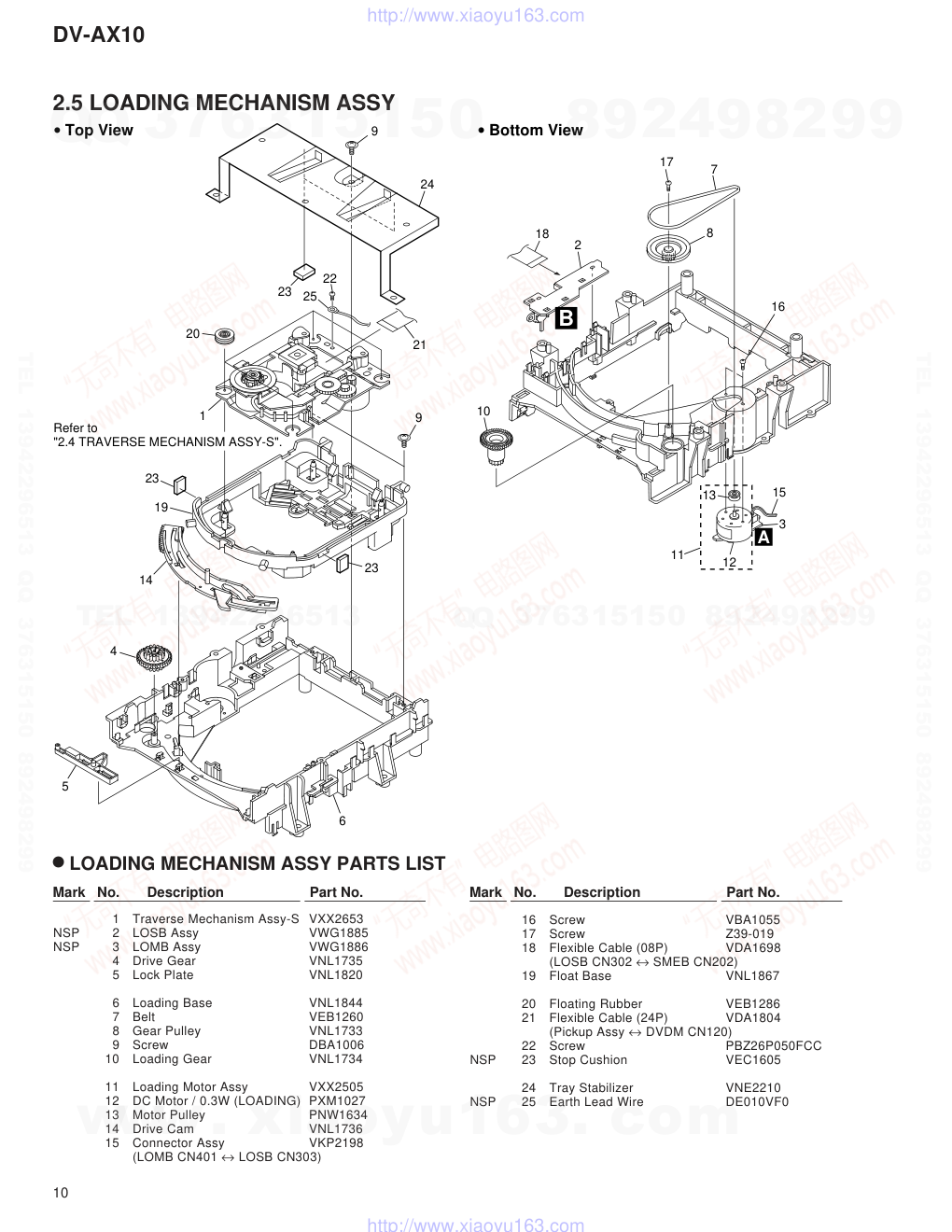

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2001 c DV-AX10 RRV2429 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM... 12 4. PCB CONNECTION DIAGRAM ......................... 47 5. PCB PARTS LIST ............................................... 73 6. ADJUSTMENT .................................................... 83 7. GENERAL INFORMATION ................................ 92 7.1 DIAGNOSIS .................................................. 92 CONTENTS 7.1.1 TEST MODE SCREEN DISPLAY .......... 92 7.1.2 TROUBLE SHOOTING .......................... 94 7.1.3 ERROR CODE ....................................... 96 7.1.4 DISASSEMBLY .................................... 100 7.2 PARTS ........................................................ 104 7.2.1 IC .......................................................... 104 7.2.2 DISPLAY............................................... 116 8. PANEL FACILITIES AND SPECIFICATIONS..... 118 T – ZZR FEB. 2001 Printed in Japan DVD PLAYER Type Model Power Requirement Region No. DV-AX10 KU/CA 120V 1 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). DVD PLAYER DVD POWER FL DIMMER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DV-AX10 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 655 nm FOR CD : MAXIMUM OUTPUT POWER : 5mW WAVELENGTH : 785 nm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DV-AX10 L R 7 4 5 12 10 14 16 8 12 13 3 1 9 2 15 ×3 2.1 PACKING ÷� PACKING PARTS LIST Mark No. Description Part No. 1 Mirror Mat Bag VHL1004 2 BNC to RCA/phono adapter VKX1004 NSP 3 Warranty Card ARY7045 4 Audio Cord (L= 1.5m) VDE1023 5 Video Cord (L= 1.5m) VDE1024 6 • • • • • NSP 7 Dry Cell Battery (R6P, AA) VEM-013B 8 Operating Instructions VRB1223 (English/French) 9 Remote Control Unit VXX2631 (CU-DV041) 10 Battery Cover VNK4422 11 • • • • • NSP 12 Polyethylene Bag Z21-038 (0.03 x 230 x 340) 13 Front Pad AHA9016 14 Rear Pad AHA9017 15 Packing Case VHG1811 16 Packing Sheet AHG7008 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DV-AX10 Refer to "2.3 EXTERIOR SECTION(2/2)". Refer to "2.4 FRONT PANEL SECTION". P P Q H I J R R TUV K D S S C L F E G E B A F G A D N M S C O M B O L N Q J S I H K T U V 10 10 9 72 73 10 73 73 10 12 13 14 15 33 1 30 30 11 2 4 32 39 7 32 52 35 23 20 22 38 36 70 67 22 72 73 24 37 39 39 19 31 34 34 48 47 46 68 41 17 76 51 39 65 65 40 40 42 63 62 53 54 31 39 40 58 16 32 61 44 18 19 39 64 45 57 39 75 74 57 40 66 57 66 21 3 6 5 8 39 69 55 56 39 79 80 39 39 39 39 39 39 39 39 40 39 39 39 39 40 40 49 40 39 43 39 39 39 71 39 60 83 59 39 39 50 50 67 25 26 40 64 27 28 29 22 43 41 73 22 73 82 78 77 64 E F L S T M G J K 2.2 EXTERIOR SECTION(1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DV-AX10 1 DVDM Assy VWS1475 2 DSPB Assy VWG2159 3 MAUD Assy VWV1735 4 DOUT Assy VWG2162 NSP 5 BLOUT Assy VWV1743 NSP 6 BLSW Assy VWG2170 7 SYPS Assy VWR1324 8 VOUT Assy VWV1760 9 Top Plate AAH7039 10 SH Screw PBA1049 NSP 11 Inside Plate VNA2107 12 Main Shield T VNE2226 13 AV1 Heat Sink VNH1052 14 FTS Heat Sink VNH1053 15 Locking Card Spacer ONK1035 16 Trans. Shield VNE2138 17 Main Shield B VNE2227 18 Shield Sheet M2 VEC2140 19 Rear Mole AAH7044 20 Side Alum. L AAH7040 21 Side Alum. R AAH7041 22 Screw (4 x 20) ABA7006 23 Subchassis T VNE2180 24 PW-SW-Holder VNE2204 25 P Screw VBA1057 26 Door Spring VBH1305 27 Door Holder VNK4605 28 Door Packing VEC2045 29 Tray Panel VNK4398 30 Gap Pad VEC1997 31 Board Holder DEC1231 NSP 32 Holder (B) VEC1381 33 Spacing Clip VEC2133 NSP 34 Card Spacer QEC1012 NSP 35 Spacer DEC1316 36 Switch PSG1011 37 Screw PMA30P060FCU 38 FLEX SW Wire VDX1008 39 Screw ABA1011 40 Screw IBP30P090FCC 41 Cord Clamper RNH-184 42 Housing Assy (3P) VKP2241 NSP 43 Spacer PNM1135 44 Housing Assy (4 + 4/10P) VKP2240 45 Screw PMA30P060FCU 46 Housing Assy Assy (14P) VKP2231 47 Housing Assy Assy (13P) VKP2233 48 Housing Assy Assy (15P) VKP2236 49 Housing Assy Assy (15P) VKP2229 50 Rubber Spacer REB1218 51 Gaurd Sheet VEC2146 52 Rivet(Plastic) VEC-213 53 Housing Assy Assy (8P) VKP2238 NSP 54 Shield Tube VDM1003 55 Flexible Cable (16P) VDA1810 56 Flexible Cable (28P) VDA1811 57 Screw BBZ30P080FCC 58 Shield Plate H AMR7309 59 SHLD Assy VWR1321 60 PCB Shield A VEC2126 NSP 61 Spacer VEC1532 62 Housing Assy Assy (10P) VKP2237 NSP 63 Shield Tube VDM1004 64 Screw IBZ30P080FCC 65 Radiation Seat VEB1314 NSP 66 Space AED7043 67 Shield Sheet A VEC2127 68 Shield Sheet B VEC2128 69 Shield Sheet C VEC2144 70 Shield Sheet D VEC2145 71 Fuse Caution Label VRW1770 72 Washer WH40FUC 73 Washer WA40F080M050 NSP 74 Label VRW1629 NSP 75 ID Label VRW1825 76 Shield Sheet E VEC2156 77 DC Fan Motor VXM1072 78 Screw BBZ30P150FMC NSP 79 FANB Assy VRW1325 80 Sheet VEX1022 81 Screw BBZ30P060FCC 82 Screw BMZ26P050FCU 83 Cap VEC2076 ÷� EXTERIOR SECTION(1/2) PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DV-AX10 A B D E A B C D E C 6 7 33 33 9 8 34 49 34 3 30 30 48 48 42 42 42 42 42 42 42 42 42 62 48 42 58 68 47 52 36 51 27 28 14 23 54 24 25 46 45 46 44 37 38 38 43 44 26 29 5 29 16 35 1 61 11 13 31 15 18 19 53 17 56 42 42 48 32 42 21 22 39 38 20 22 39 20 29 42 47 42 42 48 48 63 40 42 42 41 12 2 30 42 51 50 50 42 48 42 42 66 65 64 42 55 42 67 32 Refer to "2.5 LOADING MECHANISM ASSY". 10 H I U 2.3 EXTERIOR SECTION(2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DV-AX10 1 AUDIO Assy VWV1735 2 MAPS Assy VWR1322 3 LSFB Assy VWR1320 4 • • • • • NSP 5 Loading Mechanism Assy VWT1158 6 Main Power Transformer VTT1161 7 Audio Power Transformer VTT1162 8 Fuse (FU1 : 1A) VEK1014 9 Fuse (FU2 : 2A) VEK1019 10 AC Power Cord VDG1046 11 Shield Sheet P VEC2060 12 Side Wall L2 VNE2177 13 Side Wall R2 VNE2178 14 Side Suport A VNE2183 15 Side Suport B2 VNE2229 16 Side Frame A VNE2181 17 Side Frame B VNE2182 18 Rear Panel VNA2038 NSP 19 Under Base VNA2040 20 Insulator ANL7013 21 Buttom Plate C VNA2171 22 Cushion AEC7224 23 Clamper Plate VNE2114 24 Bridge VNE2113 25 Clamper VNL1738 26 Tray VNK4243 27 Trans. Plate VNE2203 28 Sub Chassis B VNE2179 29 Sheet VEX1022 NSP 30 Holder (B) VEC1381 31 Rivet (Plastic) VEC-213 32 Tape (G) REH1010 NSP 33 Wire Clip DEC1450 NSP 34 PCB Mold AMR1525 NSP 35 PCB Holder PNW2029 36 Rubber Spacer REB1218 37 Washer WH30FUC 38 Schew IBZ30P120FCC 39 Schew BBZ30P200FMC NSP 40 Base Cushion VEC1107 41 Cord Clamper RNH-184 42 Schew ABA1011 43 Flexible Cable (12P) VDA1813 44 Spacer VEB1319 NSP 45 Earth Lead Wire DE007VF0 46 Schew IBZ30P080FCC 47 Schew BBZ30P060FCC 48 Schew IBP30P090FCC NSP 49 Rubber Spacer PEB1194 50 Schew IBZ30P180FCC 51 Schew VBA1056 52 Housing Assy (8P) VKP2239 NSP 53 Tape (K) REH1011 54 Schew BPZ26P080FZK 55 Side Shield L VEC2124 56 Side Shield R VEC2125 57 • • • • • 58 Power Cord Spacer ANG1153 59 • • • • • 60 • • • • • NSP 61 Rubber Spacer REB1187 62 Schew BBZ30P080FCC 63 Side Clamp DEC2007 64 Housing Assy (15P) VKP2230 65 Housing Assy (14P) VKP2232 66 Housing Assy (13P) VKP2234 67 UL Caution Card AAX-313 68 UL Tubing VEC1651 ÷� EXTERIOR SECTION(2/2) PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DV-AX10 A A B C B C D D E E 32 54 54 53 53 53 51 51 51 52 62 62 65 64 62 62 62 62 62 62 62 58 58 63 59 60 61 68 62 62 66 67 62 69 56 56 55 55 56 56 55 55 55 55 33 34 35 37 36 32 38 39 40 41 42 43 44 4 46 47 48 49 50 5 45 31 1 30 27 29 24 22 23 70 57 3 28 2 27 26 25 58 21 20 19 65 18 15 17 15 12 13 16 11 10 10 6 7 8 8 9 57 14 65 71 65 P N O Q R 2.4 FRONT PANEL SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DV-AX10 1 FLKB Assy VWG2164 2 PLSB Assy VWG2166 NSP 3 LEDB Assy VWG2167 NSP 4 DRSB Assy VWG2168 NSP 5 DRMB Assy VWG2169 6 DVD Plate VAM1096 7 Door Aluminum VAH1307 8 Earth Spring VBH1310 9 Door Base VNK4396 10 Clip (SUS) VBM1003 11 Front Aluminum VAH1306 12 Name plate G PAN1377 13 Side Panel L AAH7042 14 Side Panel R AAH7043 15 Top Stay VNE2139 16 Earth Plate VBK1075 17 DVD Ring VAK1008 18 DISP Lens PNW2113 19 FL Lens C VEC2034 20 Shield Cushion VEC2036 21 Inner Aluminum VAH1311 22 FL Lens S VEC2085 23 Power Button VNK4888 24 Panel Base VNK4390 25 LED Lens VNK4400 26 Function Key VNK4394 27 Tape PNM1017 28 FL Filter VEC1965 29 Main Key VNK4392 30 Shield Sheet S VEC2039 31 Shield Sheet L VEC2038 32 Drive Shaft Holder VNL1791 33 Drive Arm Assy VXA2364 34 Door Support VNE2140 35 Drive Arm L Assy VXA2362 36 Drive Arm R Assy VXA2363 37 Door Spring B VBH1300 38 Drive Gear A VNL1792 39 Drive Gear B VNL1793 40 Drive Gear D VNL1795 41 Door Spring A VBH1299 42 Drive Gear C VNL1794 43 Switch Arm VNL1797 44 Gear Base Assy VXA2365 45 Gear (C) VNL1047 46 Moter Holder VNL1796 47 Belt (Rubber) PEB1288 48 Gear Pulley VNL1733 49 Moter Pulley PNW1634 50 DC Moter 0.75W (DISC DOOR) PXM1010 51 Screw Z39-019 52 Screw BMZ26P040FMC 53 Washer WT31D054D050 54 Screw CBZ26P060FMC 55 Washer WA32D080D025 56 Washer WT26D047D050 57 Screw ABA7017 58 Screw BBZ30P080FZK 59 Connector Assy PG03KK-E07 60 Connector Assy PG03KK2E07 61 Connector Assy PG03KK4E07 62 Screw BPZ30P080FCC 63 Flexible Cable (8P) VDA1814 NSP 64 Earth Lead Wire DE005VF0 65 Screw ABA1011 66 Flexible Cable (19P) VDA1809 67 Flexible Cable (13P) VDA1812 68 Spacer VEC-244 NSP 69 Tape (K) REH1011 70 Block ANL7015 71 Screw IBP30P090FCC ÷� FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DV-AX10 11 13 12 3 15 16 8 7 17 2 10 18 21 9 9 23 25 22 24 14 4 5 6 1 • Top View • Bottom View 19 23 23 20 Refer to "2.4 TRAVERSE MECHANISM ASSY-S". A B 1 Traverse Mechanism Assy-S VXX2653 NSP 2 LOSB Assy VWG1885 NSP 3 LOMB Assy VWG1886 4 Drive Gear VNL1735 5 Lock Plate VNL1820 6 Loading Base VNL1844 7 Belt VEB1260 8 Gear Pulley VNL1733 9 Screw DBA1006 10 Loading Gear VNL1734 11 Loading Motor Assy VXX2505 12 DC Motor / 0.3W (LOADING) PXM1027 13 Motor Pulley PNW1634 14 Drive Cam VNL1736 15 Connector Assy VKP2198 (LOMB CN401 ↔ LOSB CN303) 16 Screw VBA1055 17 Screw Z39-019 18 Flexible Cable (08P) VDA1698 (LOSB CN302 ↔ SMEB CN202) 19 Float Base VNL1867 20 Floating Rubber VEB1286 21 Flexible Cable (24P) VDA1804 (Pickup Assy ↔ DVDM CN120) 22 Screw PBZ26P050FCC NSP 23 Stop Cushion VEC1605 24 Tray Stabilizer VNE2210 NSP 25 Earth Lead Wire DE010VF0 Mark No. Description Part No. Mark No. Description Part No. LOADING MECHANISM ASSY PARTS LIST 2.5 LOADING MECHANISM ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DV-AX10 • Top View 30 16 34 19 8 15 10 10 22 33 23 5 14 10 37 18 32 13 10 37 18 26 25 27 29 7 7 7 3 1 11 28 33 6 35 20 12 21 4 9 31 37 17 24 37 36 2 C D NSP 1 SMEB Assy VWG2048 NSP 2 FGSB Assy VWG2009 NSP 3 Motor (CARRIAGE) VXM1079 NSP 4 Motor (SPINDLE) VXM1078 NSP 5 Pickup Assy VWY1055 6 Table Sheet DEC2040 7 Screw VBA1058 8 Centering Spring VBH1278 9 Hook Spring VBH1317 10 Skew Spring VBH1303 11 Gear Spring VBH1308 NSP 12 Reflected Sheet VEC1959 13 Guide Bar VLL1504 14 Sub-guide Bar VLL1505 15 Hold Spring VNC1017 NSP 16 Magnet Holder VNE2070 NSP 17 Motor Base VNE2154 NSP 18 Cover VNE2155 19 Centering Ring VNL1746 NSP 20 Disc Table VNL1747 21 Hook VNL1770 22 FFC Holder VNL1802 23 Mechanism Base VNL1806 24 FG Holder VNL1807 25 Gear A VNL1808 26 Gear B VNL1809 27 Gear C VNL1810 28 Slider VNL1811 29 Gear D VNL1814 NSP 30 Magnet VYM1024 31 Screw JFZ17P025FZK 32 Screw JGZ17P028FMC 33 Screw VBA1051 34 Magnet Holder Assy VXX2507 35 Spindle Motor Assy VXX2649 36 Carriage Motor Assy VXX2650 37 Screw PBA1069 Mark No. Description Part No. Mark No. Description Part No. 2.6 TRAVERSE MECHANISM ASSY-S TRAVERSE MECHANISM ASSY-S PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 12 IC101 LA9701M RF IC EFMO RFO ROMXA,LRSY, ROMCK SBCK SPDO EXCK AIN VCOCLK FGPL DOUT VIN RD1-RD8 RD1-RD8 C2F,SFSY, SBSY,PW IC201 LC78652W Servo DSP IC IC251 BA6195FP SPDL DRIVE IC701 PE5220A DVD DECODER BY Chip ES2 IC801 M65774FP MPEG2 DECODER AV-1 IC915,IC916 TC7SET08FU IC901 TC7WH157FU IC702 KM48V8104CS-6 64M DRAM IC352 BA5982FP FTS Drive IC IC601 PD3410A SH1 BASE ASIC IC612 TC74VHC541FT For PEC DIF attestation For Down load IC1001 PM0024AF VIDEO ENCODER VQE3 IC1003 CXD2307R D/A IC802 M2V64S40BTP-8L 64M SDRAM IC804 M5M4V18165DTP-6S 16M EDO DRAM IC803 M5M4V18165DTP-6S IC1002 HY58163210TQ-10F 16M EDO DRAM F1311 F1361 16M SGRAM IC301 ADC08351CIMTC 8 bit A/D IC604 TC55V1001AF8 WORK 1M SRAM E DVDM ASSY N FLKB ASSY O PLSB ASSY R LEDB ASSY Q DRSB ASSY P DRMB ASSY Pickup Spindle Motor 46 39 45 13 25 54 10 55 19 3,5,4 15,16 17,18 112-114 111-109 99,78 48,45,44 116-119 2,11,18,12 XRESET ADDRESS CARRIAGE DATA 27/33M 5 XCSVE SGL 10 50 53 54 56 46 73 36/16M 64 27M 55 HXRST 17 16M DD0-DD7 3 → 5 Converter Video Filter SSO,LT1 82 86 97 DA0-DA12 BD0-BD7 CDDATA,CDBCLK,CDLRCK BCLK CDDATA (SPDIF) DOUT1(STREAM) DOUT1 AC3 HLRCK HBCK AO1 AO2 AOSEL0 AO0 1 2 5 6 AOD PCM DOUT0 Servo Control 74 4 4 DOUT0(PCM) 81 LRCLK 80 DOCLK 70 AO1 69 AO2 71 AO0 68 AOD SREQ D0-D7 A0-A16 ADD0-ADD7 ASDAT0-ASDAT7 ASDAT0-ASDAT7 IC603 VYW1648 PGM 16M FLASH MEMORY IC611 TC74VHCT541AFT IC612 TC74VHCT541AFT IC501 TC7WH126FU CN503 CN101 CN303 CN302 CN341 CN301 CN304 CN331 CN351 REMOTE SENSOR CN103 CN105 CN510 CN513 CN101 IC101 PE5047A FL Control V101 FL Tube KEY SW D0-D15 A1-A9 MA0-MA11 MD0-MD15 NMA0-NMA9 MQD0-MQD31 SSO,SSCK MQA0-MQA9 Video Data Y C NMD0-NMD15 CPN0-CPN7,DACK,XHS,XVS CPN0-CPN7,DACK,XHS,XVS A0-A16 D0-D7 A1-A20 D0-D15 103,98 SSCK,SSI HXRST IC501 IC611 IC612 11 11 DORPOS TXD5 TXD,DTR RXD,CTS XRESET SEL IR IR HXRST 101,117 102,118 XRDY,DORPOS 27 RXD5 TXD5 RXD5 M DOOR M LOADING M 3 → 5 Converter 5 → 3 Converter 3 → 5 Converter 5 → 3 Converter 54 58 Cb Cr 50 Y F1411 F1461 F1511 F1561 F1201 F1251 12 165 162 120 170 181 107 160 162 106 1,2 1,2 204 205 206 207 9 9 3,2 16,15 17 4 : RF SIGNAL ROUTE : AUDIO DATA ROUTE (DVD) (D) : AUDIO DATA ROUTE (CD) (C) (AC) : AC-3, DTS SIGNAL ROUTE (Y) : Y SIGNAL ROUTE (C) : C SIGNAL ROUTE (Cr) : Cr SIGNAL ROUTE (Cb) : Cb SIGNAL ROUTE (D) (D) (D) (D) (D) (D) (C) (C) (C) (C) (AC) (AC) (C) (C) (C) (Y) (C) (Y) (C) (Cr) (Cb) (Y) 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 13 IC502 CS8404A-CS DIT IC905 TC74VHC157FT IC831 TC74VHC153FT IC841 IC907 TC74VHC153FT IC1631-2/2 IC911 TC7WH157FU IC909 TC74VHC153FT IC906 TC74VHCT541AFT IC902 TC74VHC157FT IC904 TC7WH157FU CN505 F DSPB ASSY L DOUT ASSY 3 → 5 Converter 15 9 7 13 15 11 LRCK IC904-2 HLRCK HBCK AO1 AO2 AO0D DI_ERRS IC902-13 IC902-6 IC902-10 IC902-3 2 3 13 3 2 4 CKOUT DATAO BCK LRCK 14 4 5 12 7 9 4 12 13 34 5 7 16 DO1SEL1 DO2SEL1 2 14 14 15 AOSEL1 CN801 JA931 CN508 14 BCK 17 ADATA1 18 ADATA2 16 20 5 ADATA0 DIRCLK DIRCLK DIRDAT DIRBCK DIRLCK 7 3 7 4 9 5 6 XTOFF DIN PCM AC3 PDIFR PDIFR PDIFL PDIFL DITRST FST DCMD2CSL 7 DSPBCK BCK 6 LRCK 10 2 3 9 DSPLRCK SDO0 SDI0 SDI1 AV1/XDSP1 SDI2 4 SDI02 HAD0 SDO0 2 DATA 3 SDO0 5 SDO1 SDO0 4 DATA 9 5 5 6 6 1 2 2 3 3 9 12 1 1 4 5 5 3 7 11 13 1 14 2 7 4 7 7 SDI1 SDO2 AO2 6 SDO2 11 AO1 10 7 SDI12 4 SDI22 SDO1 RESET2 DITCKSL SEL96K SDO2 DIT 128FS 4 DSPDO0 128FS 48/X44 CN602 G DO1SEL0 6 DO2SEL2 DO1SEL2 4 8,6,7 IC501 CS8404A-CS DIT IC162 TC74VHC157FT IC201 XCD56362PV100 DSP2 Water Mark Delay Adjust IC101 XCD56362PV100 DSP1 DVD-A DOLBY, DTS IC801 CXD2751Q SACD DECODER IC802 KM48V8104CS-6 64M DRAM IC161 TC74VHC157FT IC152 TC74VHC157FT IC158-2/2 TC7WH125FU IC158-1/2 TC7WH125FU IC104 TC7SET08FU IC931 KM616V1002CT-12 1M SRAM IC951 TC55V8128BJ-12 1M SRAM IC553 TC7WH157FU IC554 TC7WH157FU IC901 KM616V1002CT-12 1M SRAM IC921 PDK038A DTS ROM IC911 TC55V8128BJ-12 1M SRAM 20 16 12 4 10 4 10 SDI0 11 SD0-SD7 WAD1-WAD-7 BCKD DSDR DSDL XRESET BCKA MCKI WCK 14 AD0(DAX) SCKT 27 14 5 6 11 12 5 6 44 5 4 8,6,7 1/2 1/2 1/3 IC162 TC74VHC157FT AV1/XDIR MCLK(768fs) 80 46 DSAR 48 DSAL 47 13 VCOCLK SACDSL (LRCK) XEXCKON (BCK) SCKT 14 FSR 13 SCKR DIRCLK 15 XSCKT_IN RESET2 44 SCKR 15 FST/FSR 12 ACICKSL IC151 TC7WH157FU IC164 TC7WH157FU AV1/XDIR2 36/33M DIRCLK DSP1 DSP1&DSP2 SACD ACI HCKT MCLK JA911 JA921 DIGITAL OUT/PDIF OPT 2 COAX 1 COAX PCM 3 → 5 Converter CN506 CN507 CR/R CB/B Y/G C Y SEL IR SEL IR IR IR 20 22 24 10 8 3 2 CN601 M CN602 M IC1631-1/2 3 1 IC1691-2/2 5 7 IC1201-1/2 3 1 IC12011-2/2 5 7 5 6 3 2 4 B A (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D)(C) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (C) (C) (AC) (AC) (AC) (AC) (AC) (AC) (AC) (AC) (AC) (AC) (C) (C) (C) (C) (C) (C) (C) (C) (C) (C) (C) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 14 IC610 IC607-1/2 M VOUT ASSY 1 2 3 1 6 7 CN601 CR/R CB/B Y/G C Y SEL IR JA660 CN602 JA661 IN OUT IR B A IC609 JA653 Y CB COMPONENT VIDEO OUT CR IC607-2/2 1 6 5 7 6 7 IC608 IC606-1/2 IC606-2/2 IC602-1/2 IC604-2/2 IC604-1/2 IC602-IC607 TK15420M IC608-IC610 TC7W53FU 1 2 3 1 7 6 5 6 7 6 5 7 2 3 1 1 2 3 IC603-1/2 2 3 1 IC603-2/2 6 5 7 IC605-1/2 2 3 1 IC605-2/2 6 5 7 JA651 JA652 1 1 2 2 3 2 20 22 24 10 8 VIDEO OUT CONTROL S2-VIDEO OUT : AUDIO DATA ROUTE (DVD) (D) : AUDIO DATA ROUTE (CD) (C) : AUDIO SIGNAL ROUTE : VIDEO SIGNAL ROUTE (Y) : Y SIGNAL ROUTE (C) : C SIGNAL ROUTE (Cr) : Cr SIGNAL ROUTE (Cb) (Y) (C) (C) (Y) (Y) (Y) (C) (C) (C) (C) (Y) (Y) (Y) (Y) (Cr) (Cr) (Cb) (Cb) : Cb SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 15 CN602 G MAUD ASSY I AUDIO ASSY J BLOUT ASSY 18 16 DATA1T DOL DOR DATA2I IC681 SM5847AF Digital Filter IC701 Hi-Bit DAC IC603 TC74VHCT541AFT IC661 PD0236AM ADATA2 ADATA1 ADATA0 ADATA0 ADATA0 LRCK BCK 2 8 14 3 2 20 4 14 1 6 8 CENTER AUDIO OUT IC711 14 1 SUB WOOFER DOL DOR IC691 SM5847AF Digital Filter IC721 Hi-Bit IC671 PD0236AM 8 14 3 2 20 14 1 IC731 IC701,IC711,IC721,IC731 PCM1704U IC301,IC321,IC351,IC371 PCM1704U 14 1 DOL 1 2 3 DOR IC681 SM5847AF Digital Filter IC301 JA302 IC342-1/2 Hi-Bit IC131 PD0236AM 8 14 3 2 20 14 1 IC321 14 1 JA901 JA951 FRONT 1 CN101 11 CN301 CN901 4 3 2 1 1 2 9 10 CN605 5 3 5 7 9 DAC 1 2 3 IC351 JA352 IC392-1/2 14 1 IC371 14 1 L L R R AUDIO OUT SURROUND L R (D) (D) (C) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 16 A B C D 1 2 3 4 1 2 3 4 FOR RS-232C AC120V 60Hz AC POWER CORD VDG1046 ACE7014 ACE7014 VTT1161 FAN MOTOR VXM1072 VTT1162 VKP2229 E 1/5- E 5/5 DVDM ASSY (VWS1475) E F 1/2- F 2/2 DSPB ASSY (VWG2159) F MAPS ASSY (VWR1322) H DOUT ASSY (VWG2162) L SYPS ASSY (VWR1324) S FLKB ASSY (VWG2164) N LSFB ASSY (VWR1320) U FANB ASSY (VWR1325) T CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,REPLACE WITH SAME TYPE AND RATINGS ONLY. NOTE FOR FUSE REPLACEMENT 3.2 OVERALL CONNECTION DIAGRAM, LOMB, LOSB, SMEB, FGSB and LSFB ASSYS U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 17 A B C D 5 6 7 8 5 6 7 8 PC101 TLP910(O) CN201 52044-0345 S201 DSG1016 S201 CN202 VKN1212 CN302 VKN1268 (S) (S) (S) (S) VSK1011 S301 CN301 VKN1272 (F) (F) (F) (F) (T) (T) (F) (F) (T) (T) (F) (F) (T) (T) : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (T) : SLIDER SERVO LOOP LINE (S) CN6601 CN9902 VKP2236 VOUT ASSY (VWV1760) M MAUD ASSY (VWV1737) G AUDIO ASSY (VWV1735) I BLOUT ASSY (VWV1743) BLSW ASSY (VWG2170) J K FGSB ASSY (VWG2009) D SMEB ASSY (VWG2048) C LOMB ASSY (VWG1886) A LOSB ASSY (VWG1885) B PLSB ASSY (VWG2166) O DRSB ASSY (VWG2168) Q DRMB ASSY (VWG2169) P LEDB ASSY (VWG2167) R PICKUP ASSY (VWY1055) (S) (S) CARRIAGE MOTOR ASSY (VXX2650) (SLIDER) CN401 B2B-PH-K-S CN303 B2B-PH-K-S SPINDLE MOTOR ASSY (VXX2649) LOADING MOTOR ASSY (VXX2505) P R Q Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 18 A B C D 1 2 3 4 1 2 3 4 3/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 3/5 E 4/5 E CN403 S CN402 S PICKUP ASSY CN301 B (F) (F) (F) (F) (T) (F) (F) (T) (S) (T) (T) (F) (F) (T) (T) (F) (S) (S) (T) (T) (F) (F) (S) (S) 4 1 2 3 CEHAZA VCH1195 VCH1195 VCH1194 VCH1220 VCH1197 VCH1195 VCH1220 VCH1220 VCH1194 VCH1197 VCH1197 VCH1219 VCH1220 3.3 DVDM ASSY(1/5) 1/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 19 A B C D 5 6 7 8 5 6 7 8 3/5 E 3/5 E 4/5 E 2/5 E 3/5 E 3/5 E 3/5 E 2/5 E 2/5 E 4/5 E 4/5 E RESISTOR CAPACITOR 3 ← 5 CONVERTER : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (F) (T) (S) (T) (T) (F) (S) (T) (F) (S) (T) (F) (F) 5 9 to BY CHIP BY CHIP to BY CHIP to BY CHIP : The power supply is shown with the marked box. E 1/5 DVDM ASSY (VWS1475) Level Shift VCH1197 VCH1212 VCH1194 VCH1220 VCH1195 VCH1212 VCH1212 VCH1219 1/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 20 A B C D 1 2 3 4 1 2 3 4 4/5 E 4/5 E 4/5 E 3/5 E 3/5 E 1/5 E 3/5 E 1/5 E 3/5 E 4/5 E 1/5 E 3/5 E 1/5 E 1/5 E 1/5 E 1/5 E 1/5 E 4/5 E 5/5 E 4/5 E 4/5 E 4/5 E 4/5 E 2/5 E 4/5 E 4/5 E 4/5 E 3/5 E 5/5 E 1/5, 5/5 E 4/5 E 5/5 E 1/5 E 1/5 E 3/5 E 6 to BY CHIP to BY_CHIP to BY CHIP A VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1195 VYW1816 3.4 DVDM ASSY(2/5) 2/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 21 A B C D 5 6 7 8 5 6 7 8 3/5 E 1/5 E 1/5 E 4/5 E 4/5 E 3/5 E 4/5 E 5/5 E 1/5 E 4/5 E 3/5, 4/5 E 3/5 E 4/5 E 4/5 E 4/5 E 4/5 E 4/5 E 1/5 E 1/5, 3/5, 4/5 E CN102 N 5 → 3 CONVERTER 3 → 5 CONVERTER 3 → 5 CONVERTER RESISTOR CAPACITOR CN602 M from BY CHIP to BY CHIP to BY_CHIP to IC601(3P) A : The power supply is shown with the marked box. E 2/5 DVDM ASSY (VWS1475) VCH1194 VCH1220 VCH1220 VCH1220 VCH1220 2/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 22 A B C D 1 2 3 4 1 2 3 4 4/5 E 2/5 E 4/5 E 4/5 E 4/5 E 5/5 E 4/5 E 4/5 E 2/5 E 2/5 E 2/5 E 4/5 E 4/5 E 1/5 E 2/5 E 4/5 E 2/5 E 4/5 E 1/5 E 1/5 E 1/5 E 2/5 E 1/5 E 1/5 E 1/5 E 1/5 E RESISTOR CAPACITOR : RF SIGNAL ROUTE : CD AUDIO SIGNAL ROUTE : DVD AUDIO DATA ROUTE (D) : AC-3/DTS AUDIO DATA ROUTE (AC) (AC) (AC) (AC) (AC) (AC) (D) 9 4/5 E E 3/5 DVDM ASSY (VWS1475) BY CHIP ES2 VCH1220 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1195 VCH1195 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1195 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1219 VCH1220 VCH1219 VCH1195 VCH1195 3.5 DVDM ASSY(3/5) 3/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 23 A B C D 5 6 7 8 5 6 7 8 4/5 E 1/5 E 2/5 E 5/5 E 4/5 E 4/5 E 4/5 E 4/5 E 4/5 E 1/5 E 2/5 E (AC) (CSYNC:FOR EDUCATION) (PD: FOR EDUCATION) (AC) (AC) (AC) 9 9 VCH1220 VCH1220 VCH1220 VCH1195 VCH1220 VCH1220 VCH1195 VCH1195 VCH1195 VCH1195 VCH1195 VCH1195 VCH1195 3/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 24 A B C D 1 2 3 4 1 2 3 4 2/5 E 2/5 E 3/5 E 3/5 E 2/5 E 2/5 E 2/5 E 3/5 E 3/5 E 3/5 E 2/5 E 2/5 E 3/5 E 2/5 E 3/5 E 2/5 E 2/5 E 3/5 E 3/5 E 1/5 E 1/5 E 3/5 E 2/5 E 1/5 E 2/5 E 3/5 E 2/5 E 3/5 E 3/5 E CN103 F 2/2 CN102 F 2/2 CN105 F 2/2 TO CN513 LC89055W -RA8 3 → 5 CONVERTER 3 → 5 CONVERTER 3 → 5 CONVERTER TO CN511 (D) (D) (D) (D) (AC) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (AC) (AC) (AC) (AC) (AC) (AC) (AC) 10 10 9 9 9 9 to BY CHIP to BY CHIP from BY CHIP from BY CHIP from BY CHIP from BY CHIP from BY CHIP from BY CHIP from BY CHIP VCH1194 VCH1197 VCH1188 VCH1188 VCH1194 VCH1220 VCH1220 VCH1220 VCH1220 VCH1194 VCH1195 VCH1195 VCH1195 VCH1195 VCH1195 VCH1188 VCH1197 3.6 DVDM ASSY(4/5) 4/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 25 A B C D 5 6 7 8 5 6 7 8 RESISTOR CAPACITOR : CD AUDIO SIGNAL ROUTE : DVD AUDIO DATA ROUTE (D) : AC-3/DTS AUDIO DATA ROUTE (AC) 2/5 E 2/5 E 2/5 E 3/5 E 3/5 E 1/5, 3/5 E 2/5 E 2/5 E 2/5 E 2/5 E 3/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E 2/5 E CN801 L CN603 G CN604 G CN602 G TO CN513 7 8 & BY CHIP from BY CHIP E 4/5 DVDM ASSY (VWS1475) : The power supply is shown with the marked box. VCH1195 VCH1188 VCH1195 VCH1195 VCH1220 VCH1220 VCH1195 VCH1195 VCH1195 VCH1195 4/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 26 A B C D 1 2 3 4 1 2 3 4 : C SIGNAL ROUTE : CR SIGNAL ROUTE (C) (CR) : CB SIGNAL ROUTE (CB) : Y SIGNAL ROUTE (Y) (C) (C) (Y) (Y) 3/5 E 2/5 E 2/5 E 3/5 E RESISTOR CAPACITOR to BY CHIP E 5/5 DVDM ASSY (VWS1475) VCH1195 VCH1195 VCH1195 VCH1195 VCH1195 VCH1195 VCH1195 3.7 DVDM ASSY(5/5) 5/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 27 A B C D 5 6 7 8 5 6 7 8 (C) (C) (C) (C) (C) (CR) (CB) (Y) (Y) (C) (CR) (CB) (Y) (Y) (Y) (Y) (Y) (C) (Y) (Y) (CB) (CR) (CR) (CR) (CR) (CB) (CB) (CB) (CB) (CB) (Y) (Y) (Y) (Y) (Y) (Y) (C) (CR) (CR) 2/5 E 2/5 E 2/5 E CN601 M VCH1194 VCH1194 VCH1194 VCH1188 VCH1194 : The power supply is shown with the marked box. 5/5 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 28 A B C D 1 2 3 4 1 2 3 4 MASK ROM F 1/2 DSPB ASSY (VWG2159) 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F (D) (D) (D) 2 A to BY CHIP to BY CHIP to BY CHIP to BY CHIP BY CHIP to BY CHIP 3.8 DSPB ASSY(1/2) 1/2 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 29 A B C D 5 6 7 8 5 6 7 8 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F 2/2 F : CD AUDIO SIGNAL ROUTE : DVD (AC-3/DTS) AUDIO DATA ROUTE (D) (D) (D) (D) (D) (D) (D) 2 A 2 to BY CHIP 1/2 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 30 A B C D 1 2 3 4 1 2 3 4 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F 1/2 F CN511 E 4/5 CN513 E 4/5 CN510 E 4/5 (D) (D) (D) (D) (D) (D) 1 2 from BY CHIP from BY CHIP from BY CHIP from BY CHIP from BY CHIP from BY CHIP from BY CHIP 3.9 DSPB ASSY(2/2) 2/2 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 31 A B C D 5 6 7 8 5 6 7 8 F 2/2 DSPB ASSY (VWG2159) : CD AUDIO SIGNAL ROUTE : DVD (AC-3/DTS) AUDIO DATA ROUTE (D) 1/2 F 1/2 F 3 4 4 from BY CHIP : The power supply is shown with the marked box. 2/2 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 32 A B C D 1 2 3 4 1 2 3 4 (D) (D) (D) CN505 E 4/5 CN504 E 4/5 CN509 E 4/5 CN101 I CN201 I CN251 I (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) 2 3 1 4 6 5 VNF1084 MAUD ASSY (VWV1737) G 3.10 MAUD and MAPS ASSYS G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 33 A B C D 5 6 7 8 5 6 7 8 : CD AUDIO SIGNAL ROUTE : DVD AUDIO DATA ROUTE (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) : DVD (AC-3/DTS) AUDIO SIGNAL ROUTE TO AUDIO TRANS. 7 7 7 7 : The power supply is shown with the marked box. MAPS ASSY (VWR1322) H VCH1217 VCH1217 VCH1217 VCH1217 CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N38 ROHM CO.,LTD. FOR IC501, IC511, IC521 AND IC531 . H G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 34 A B C D 1 2 3 4 1 2 3 4 CN605 G CN606 G CN607 G TO AUDIO TRANS. 4 5 1 2 3 6 AUDIO ASSY (VWV1735) I CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N38 ROHM CO.,LTD. FOR IC421, IC431, IC441 AND IC451 . 3.11 AUDIO, BLOUT and BLSW ASSYS I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 35 A B C D 5 6 7 8 5 6 7 8 : CD AUDIO SIGNAL ROUTE BLSW ASSY (VWG2170) K BLOUT ASSY (VWV1743) J 7 7 7 7 : The power supply is shown with the marked box. K J I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 36 A B C D 1 2 3 4 1 2 3 4 CN508 E 4/5 3.12 DOUT ASSY L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 37 A B C D 5 6 7 8 5 6 7 8 : The power supply is shown with the marked box. DOUT ASSY (VWG2162) L L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 38 A B C D 1 2 3 4 1 2 3 4 3.13 VOUT ASSY M CN507 E 2/5 CN506 E 5/5 (C) (C) (C) (C) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (C) (Y) (Y) (Y) (Y) (Y) (Y) (C) (CB) (CB) (CR) (CR) (CB) (CB) (CB) (CR) (CR) (CR) VOUT ASSY (VWV1760) M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 39 A B C D 5 6 7 8 5 6 7 8M : VIDEO SIGNAL ROUTE : C SIGNAL ROUTE : CR SIGNAL ROUTE (C) (CR) : CB SIGNAL ROUTE (CB) : Y SIGNAL ROUTE (Y) (C) (C) (C) (C) (C) (C) (C) (C) (C) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (CB) (CB) (CB) (CB) (CR) (CR) (CR) (CR) (Y) (Y) (Y) 1 1 2 2 3 3 4 5 6 : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 40 A B C D 1 2 3 4 1 2 3 4 PE5047A 2 1 FLDIMMER FLKB ASSY (VWG2164) N Red Red Red 3.14 FLKB, PLSB, DRMB, DRSB and LEDB ASSYS N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 41 A B C D 5 6 7 8 5 6 7 8 DRMB ASSY (VWG2169) P DRSB ASSY (VWG2168) Q LEDB ASSY (VWG2167) R PLSB ASSY (VWG2166) O CN514 E 2/5 CN404 S LEVEL SHIFT FLKB ASSY S101 : DIGITAL DATA OFF S102 : VIDEO OFF S103 : FLDIMMER DRSB ASSY S341 : DOOR OPEN S342 : DOOR CLOSE S301 Linkage PLSB ASSY S301 : 7/0 S302 : 4 S303 : ¢ S304 : 8 S305 : 3 Complete Complete : The power supply is shown with the marked box. R Q P O N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 42 A B C D 1 2 3 4 1 2 3 4 TO MAIN TRANS. VR206: V+5U ADJ CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491.200, MFD BY LITTELFUSE INC. FOR IC304, IC314 AND IC324. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491007, MFD BY LITTELFUSE INC. FOR IC106, IC206, IC306 AND IC307. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491.900, MFD BY LITTELFUSE INC. FOR IC302. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491.900, MFD BY LITTELFUSE INC. FOR IC201. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491 1.25, MFD BY LITTELFUSE INC. FOR IC104. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491 .500, MFD BY LITTELFUSE INC. FOR IC102. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491.600, MFD BY LITTELFUSE INC. FOR IC301 . CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 4911.25, MFD BY LITTELFUSE INC. FOR IC202. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 4911.30, MFD BY LITTELFUSE INC. FOR IC216. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491 .600, MFD BY LITTELFUSE INC. FOR IC101. 3.15 SYPS and FANB ASSYS S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 43 A B C D 5 6 7 8 5 6 7 8 CN501 FAN MOTOR E 1/5 CN502 E 1/5 FANB ASSY (VWR1325) T CN103 N V+7U1 W150 W151 SYPS ASSY (VWR1324) S CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491 .800, MFD BY LITTELFUSE INC. FOR IC204 AND IC322. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491 .500, MFD BY LITTELFUSE INC. FOR IC332. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 4911.25, MFD BY LITTELFUSE INC. FOR IC203. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491 .600, MFD BY LITTELFUSE INC. FOR IC103. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491.400, MFD BY LITTELFUSE INC. FOR IC303. T S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DV-AX10 5 IC201 - pin 1 (EFMOUT) V: 1V/div. H: 5msec/div. (at DVD PLAY) GND GND GND GND GND GND GND GND GND GND GND GND GND CH2 CH1 (trigger) CH2 CH1 (trigger) CH2 CH1 (trigger) GND GND GND GND DVDM ASSY DSPB ASSY 4 CN201 - pin 1, 2 (FE) V: 100mV/div. H: 5msec/div. (at DVD PLAY) 3 CN201 - pin 13, 14 (FDO) V: 1V/div. H: 5msec/div. (at DVD PLAY) 2 CN201 - pin 9, 10 (TE) V: 1V/div. H: 5msec/div. (at DVD PLAY) 1 CN201 - pin 5, 6 (RFO) V: 1V/div. H: 50nsec/div. (at DVD PLAY) 4 Foot of R803 (DSDL) Foot of R804 (DSDR) V: 1V/div. H: 200nsec/div. (at SACD PLAY) 9 CD DATA CH1 : IC201 - pin 5→IC701 - pin 110 →IC801 - pin 81→IC904 - pin 5 →Foot of R913 CH2 : IC201 - pin 3→IC701 - pin 111 →IC801 - pin 71→IC901 - pin 5 →IC902 - pin 4→Foot of R912 V: 1V/div. H: 2µsec/div. (at CD PLAY) 10 Compression DATA CH1 : Foot of R6010 CH2 : Foot of R6011 V: 1V/div. H: 2µsec/div. [at DVD (AC-3, DTS) PLAY] 8 Foot of R973 (27M) V: 1V/div. H: 10nsec/div. (at DVD PLAY) 7 Foot of R981 (16M) V: 1V/div. H: 20nsec/div. (at DVD PLAY) 6 Foot of R612 (20M) V: 1V/div. H: 20nsec/div. (at DVD PLAY) 3 IC801 - pin 81 (SED0) V: 1V/div. H: 50nsec/div. (at SACD PLAY) 2 DVD-A DATA CH1 : Foot of R135→Foot of R257 →Foot of R148 CH2 : IC101 - pin 4,5,6→ IC201 - pin 4,5,6 V: 2V/div. H: 2µsec/div. [at DVD-A (48k, 5.1ch) PLAY] 1 Foot of R140 (HCKT) V: 1V/div. H: 20nsec/div. [at DVD-A (48k, 96k, 192k) PLAY] WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DV-AX10 7 IC741 - pin 7, IC751 - pin 7, IC761 - pin 7, IC771 - pin 7 (Analog Output)(44.1kHz/24 bit) V: 1V/div. H: 500µsec/div. 8 BCK, LRCK, ADATA (44.1kHz/24 bit) V: 5V/div. H: 2µsec/div. 8 BCK, LRCK, ADATA (44.1kHz/24 bit) V: 5V/div. H: 2µsec/div. 6 IC603 - pin 4 (ADATA1) IC603 - pin 2 (ADATA2) (44.1kHz/24 bit) V: 1V/div. H: 2µsec/div. MAUD ASSY 5 IC603 - pin 6 (LRCK1)(44.1kHz/24 bit) V: 1V/div. H: 5µsec/div. 4 IC603 - pin 8 (BCK1)(44.1kHz/24 bit) V: 1V/div. H: 200msec/div. 3 Foot of R621 (33M) V: 1V/div. H: 20nsec/div. 2 Foot of R622 (36M) V: 1V/div. H: 20nsec/div. 1 Foot of R620 (DIRCLK) V: 1V/div. H: 20nsec/div. 7 IC311 - pin 7, IC331 - pin 7 , IC361 - pin 7, IC381 - pin 7 (Analog Output)(44.1kHz/24 bit) V: 1V/div. H: 500µsec/div. 6 IC131 - pin 14 (DATA1)(44.1kHz/24 bit) V: 1V/div. H: 2µsec/div. AUDIO ASSY 5 IC131 - pin 14 (LRCK1)(44.1kHz/24 bit) V: 1V/div. H: 5µsec/div. 4 IC131 - pin 15 (BCK1)(44.1kHz/24 bit) V: 1V/div. H: 200msec/div. 3 Foot of R114 (33M) V: 1V/div. H: 20nsec/div. 2 Foot of R124 (36M) V: 1V/div. H: 20nsec/div. 1 Foot of R108 (DIRCLK) V: 1V/div. H: 20nsec/div. GND GND GND GND GND BCK LRCK ADATA GND GND GND GND GND GND GND GND GND GND BCK LRCK ADATA GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DV-AX10 6 JA653 - pin 6 (Cr Output) at play Color Bar Signal (DVD-REF-A1 : T2-Chap. 19) V: 200mV/div. H: 5µsec/div. VOUT ASSY 5 JA653 - pin 3 (Cb Output) at play Color Bar Signal (DVD-REF-A1 : T2-Chap. 19) V: 200mV/div. H: 5µsec/div. 4 JA653 - pin 2 (Y Output) at play Color Bar Signal (DVD-REF-A1 : T2-Chap. 19) V: 200mV/div. H: 5µsec/div. 3 JA652 - pin 4, 10 (C Output) at play Composite Video Disc (DVD-REF-A1 : T2-Chap. 1) V: 200mV/div. H: 10µsec/div. 2 JA652 - pin 3, 9 (Y Output) at play Composite Video Disc (DVD-REF-A1 : T2-Chap. 1) V: 200mV/div. H: 10µsec/div. 1 JA651 - pin 1, 2 (Composite Video Out) at play Composite Video Disc (DVD-REF-A1 : T2-Chap. 1) V: 200mV/div. H: 10µsec/div. FLKB ASSY 2 IC101 - pin 21 (XRDY) V: 1V/div. H: 20msec/div. 1 IC101 - pin 11 (X2) V: 1V/div. H: 100nsec/div. GND GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 47 A B C D 1 2 3 4 1 2 3 4 PC101 R101 (VNP1661-B) M M (VNP1695-A) (VNP1628-A) (VNP1628-A) CN512 E LOSB ASSY B SMEB ASSY C FGSB ASSY D LOMB ASSY A CARRIAGE MOTOR SPINDLE MOTOR LOADING MOTOR 4.1 LOMB, LOSB, SMEB and FGSB ASSYS SIDE A NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B D C B A 4. PCB CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 48 A B C D 1 2 3 4 1 2 3 4 DVDM ASSY E CN402 S CN601 M CN602 M CN801 L IC1008 Q1631 IC1201 IC1631 IC1691 IC1009 Q1661 IC6001 Q1401 Q1501 IC609 IC905 IC987 IC988 IC983 IC1007 IC1006 IC901 IC607 IC902 IC915 IC916 IC904 IC906 IC1001 IC801 IC704 IC913 IC914 Q1261 Q1362 Q1313 Q1312 Q1463 Q1462 Q1413 Q1412 Q1563 Q1562 Q1513 Q1512 Q1301 IC911 PICKUP ASSY CN602 G CN603 G CN604 G VR1261 VR1251 VR1201 VR1331 VR1431 VR1532 VR1531 4.2 DVDM ASSY E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 49 A B C D 5 6 7 8 5 6 7 8 CN403 S Q113 IC201 IC702 IC703 Q114 IC614 IC704 Q281 IC959 IC951 IC252 Q952 IC601 IC603 IC253 Q951 Q602 Q601 IC352 IC251 IC965 IC5001 IC610 Q101 Q103 Q105 IC303 Q108 IC261 IC302 UP SY CN301 B CN102 N (VNP1749-C) SIDE A • This PCB is a six-layered board. E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 50 A B C D 1 2 3 4 1 2 3 4 DVDM ASSY E IC501 IC606 IC608 IC611 IC613 Q542 Q541 Q543 IC612 IC604 IC615 IC299 Q102 Q109 IC101 Q112 Q107 Q111 Q106 Q301 IC701 IC1012 IC1011 I I IC305 IC301 IC161 CN103 F CN105 F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 51 A B C D 5 6 7 8 5 6 7 8 Q1001 IC1002 IC802 IC1003 IC803 IC1012 IC1011 Q1700 Q1701 Q1363 IC1602 Q1411 Q1511 Q1702 Q1703 IC1601 IC1603 IC907 IC1010 IC1005 Q1251 Q1201 Q1311 Q1531 IC909 IC917 IC1004 IC804 IC903 IC912 CN102 F 5 (VNP1749-C) SIDE B • This PCB is a six-layered board. E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 52 A B C D 1 2 3 4 1 2 3 4 (VNP1750-B) IC165 IC161 IC152 IC158 IC106 IC802 IC801 IC803 IC164 IC156 IC105 IC552 IC951 IC102 IC503 IC151 IC504 IC551 IC553 IC554 IC555 IC931 IC201 IC104 IC154 IC921 IC160 IC1101 IC911 IC153 IC101 IC601 IC901 IC157 IC162 IC502 IC501 DSPB ASSY F SIDE A • This PCB is a four-layered board. 4.3 DSPB ASSY F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 53 A B C D 1 2 3 4 1 2 3 4 (VNP1750-B) DSPB ASSY F SIDE B CN510 E CN513 E CN511 E • This PCB is a four-layered board. F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 54 A B C D 1 2 3 4 1 2 3 4 Black Black Black Black MAUD ASSY G Q701 Q702 IC741 IC751 IC761 IC771 IC701 IC711 IC721 IC731 CN502 H G 4.4 MAUD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 55 A B C D 5 6 7 8 5 6 7 8 C701 C711 C721 C731 Q113 IC201 IC702 IC703 Q114 IC614 Q281 IC959 IC951 IC252 Q952 IC601 IC603 IC253 Q951 Q602 IC352 IC251 IC965 IC5001 IC610 Q101 Q103 CN251 I CN509 E CN201 I CN504 E CN101 I CN505 E (VNP1751-D) SIDE A G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 56 A B C D 1 2 3 4 1 2 3 4 MAUD ASSY G Q607 Q606 Q601 Q602 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 57 A B C D 5 6 7 8 5 6 7 8 (VNP1751-D) SIDE B G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 58 A B C D 1 2 3 4 1 2 3 4 Open MAPS ASSY H AUDIO TRANS CN601 G Q513 IC531 IC511 Q532 IC503 Q503 IC501 IC521 IC502 Q522 SIDE A (VNP1766-D) H 4.5 MAPS ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 59 A B C D 1 2 3 4 1 2 3 4 MAPS ASSY H SIDE B Q505 Q531 Q511 Q504 Q502 Q501 Q521 Q512 (VNP1766-D) H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 60 A B C D 1 2 3 4 1 2 3 4 White Red AUDIO ASSY I BLOUT ASSY J BLSW ASSY K IC392 IC342 IC391 IC341 IC381 IC361 IC351 IC311 IC371 IC351 IC321 IC301 Q323 (VNP1766-D) (VNP1766-D) I J K 4.6 AUDIO, BLOUT and BLSW ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 61 A B C D 5 6 7 8 5 6 7 8 Y 1 1 1 1 IC171 IC131 IC111 IC121 IC271 IC272 Q223 Q224 Q221 IC421 Q422 Q432 Q452 Q442 IC441 IC431 IC451 IC422 IC442 IC261 IC141 IC151 Q262 Q264 Q263 Q222 IC101 VC111 VC121 VC111 VC121 AUDIO TRANS CN606 G CN607 G CN605 G (VNP1751-D) SIDE A I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 62 A B C D 1 2 3 4 1 2 3 4 AUDIO ASSY I Q421 Q431 Q451 Q441 Q413 Q414 SIDE B I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 63 A B C D 5 6 7 8 5 6 7 8 BLOUT ASSY J BLSW ASSY K Q386 Q366 Q335 Q336 Q316 Q315 Q371 Q321 Q312 Q362 Q365 Q385 Q322 (VNP1751-D) (VNP1766-D) (VNP1766-D) K J I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 64 A B C D 1 2 3 4 1 2 3 4 (VNP1751-D) (VNP1751-D) Q942 IC921 IC841 IC831 IC871 Q861 Q831 IC881 IC861 IC821 IC911 Q943 Q865 Q864 IC901 Q941 IC931 IC851 Q863 Q862 IC811 DOUT ASSY L DOUT ASSY L SIDE B SIDE A CN508 E 4.7 DOUT ASSY L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 65 A B C D 1 2 3 4 1 2 3 4 (VNP1752-A) (VNP1752-A) Q608 IC605 Q613 IC601 Q602 Q601 IC831 IC871 Q505 Q616 Q610 Q612 Q552 Q551 Q605 IC603 Q611 Q609 IC607 IC610 Q615 Q506 IC604 IC602 Q603 Q604 IC609 Q614 Q502 Q501 Q503 Q504 IC606 IC608 Q513 IC501 VOUT ASSY M VOUT ASSY M SIDE B SIDE A CN506 E CN507 E 4.8 VOUT ASSY M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 66 A B C D 1 2 3 4 1 2 3 4 (VNP1752-A) (VNP1752-A) (VNP1752-A) (VNP1752-A) IC106 IC107 Q104 IC103 FLKB ASSY N PLSB ASSY O DRMB ASSY P DRSB ASSY Q LEDB ASSY R Q106 Q105 Q109 Q110 IC102 CN404 S CN514 E 4.9 FLKB, PLSB, DRMB, DRSB and LEDB ASSYS P O N Q R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 67 A B C D 5 6 7 8 5 6 7 8 (VNP1752-A) A) IC106 IC107 04 IC103 IC105 IC101 SY SIDE A N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 68 A B C D 1 2 3 4 1 2 3 4 Q114 FLKB ASSY N O SIDE B N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 69 A B C D 5 6 7 8 5 6 7 8 (VNP1752-A) (VNP1752-A) (VNP1752-A) (VNP1752-A) (VNP1752-A) PLSB ASSY O DRMB ASSY P DRSB ASSY Q LEDB ASSY R SIDE B Q108 Q102 Q112 Q103 Q101 P O N Q R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 70 A B C D 1 2 3 4 1 2 3 4 W150 W151 SYPS ASSY S IC112 IC214 IC111 IC113 IC101 IC211 IC213 IC303 IC313 IC304 VR206 IC311 IC203 IC301 IC312 IC202 IC212 IC204 IC201 IC216 Q304 IC302 IC206 IC306 IC307 IC106 Q331 IC104 Q206 IC311 IC103 IC102 IC324 IC314 IC322 IC332 MAIN TRANS MAIN TRANS CN501 E CN702 T CN103 N CN502 E (VNP1766-D) SIDE A 4.10 SYPS ASSY S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 71 A B C D 1 2 3 4 1 2 3 4 SYPS ASSY S Q401 Q402 (VNP1766-D) Q218 SIDE B S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-AX10 72 A B C D 1 2 3 4 1 2 3 4 LSFB ASSY U FANB ASSY T AUDIO TRANS MAIN TRANS FAN MOTOR AC POWER CORD (VNP1751-D) (VNP1751-D) (VNP1751-D) (VNP1751-D) LSFB ASSY U FANB ASSY T SIDE A SIDE B CN405 S 4.11 FANB and LSFB ASSYS T U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. LIST OF PCB ASSEMBLIES NSP LOAB ASSY VWM1798 NSP LOMB ASSY VWG1886 NSP LOSB ASSY VWG1885 Traverse Mechanism Assy-S VXX2653 NSP SMEB ASSY VWG2048 NSP FGSB ASSY VWG2009 DVDM ASSY VWS1475 DSPB ASSY VWG2159 NSP MADOUT ASSY VWM1982 AUDIO ASSY VWV1735 MAUD ASSY VWV1737 DOUT ASSY VWG2162 NSP SYLF ASSY VWM1989 MAPS ASSY VWR1322 NSP BLOUT ASSY VWV1743 NSP BLSW ASSY VWG2170 SYPS ASSY VWR1324 LSFB ASSY VWR1320 NSP FANB ASSY VWR1325 NSP FLOUT ASSY VWM1984 FLKB ASSY VWG2164 PLSB ASSY VWG2166 NSP LEDB ASSY VWG2167 NSP DRSB ASSY VWG2168 NSP DRMB ASSY VWG2169 VOUT ASSY VWV1760 LOAB ASSY OTHERS PC BOARD (LOAB) VNP1628 LOMB ASSY OTHERS CN401 KR CONNECTOR B2B-PH-K-S LOSB ASSY SWITCH S301 VSK1011 OTHERS CN303 KR CONNECTOR B2B-PH-K-S CN302 8P FFC CONNECTOR VKN1268 CN301 12P FFC CONNECTOR VKN1272 SMEB ASSY SWITCH S201 Push SW DSG1016 OTHERS CN201 3P FFC CONNECTOR 52044-0345 CN202 8P FFC CONNECTOR VKN1212 PC BOARD(SMEB) VNP1695 FGSB ASSY SEMICONDUCTOR PC101 GP2S60 RESISTOR R101 RS1/10S331J DVDM ASSY SEMICONDUCTOR IC301 ADC08351CIMTC IC261, IC302 BA4510F IC352 BA5982FP IC251 BA6195FP IC959 BU2185F IC1003 CXD2307R IC965 CY2071ASL-371 IC702 HY51V65804ASLTC-50 IC1002 HY58163210TQ-10F IC101 LA9701M IC201 LC78652W IC6001 LC89055W-RA8 IC802 M2V64S40BTP-8L IC803, IC804 M5M4V18165DTP-6S IC801 M65774FP IC601 PD3410A IC701 PE5220A IC5001 PE9008A IC1001 PM0024AF IC604 TC55V1001AF8 A E D C B 5. PCB PARTS LIST NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. IC907, IC909 TC74VHC153FT IC902, IC905 TC74VHC157FT IC612 TC74VHC541FT IC607, IC610 TC74VHC574FT IC617 TC74VHC74FT IC608, IC609, IC611, IC906 TC74VHCT541AFT IC161, IC913–IC916, IC983 TC7SET08FU IC987, IC988 TC7SET32FU IC1005 TC7SH02FU IC1008,IC613, IC614, IC912 TC7SH04FU IC1006,IC1009,IC1010,IC917 TC7SH08FU IC1011,IC1012 TC7SH14FU IC1007,IC606, IC703 TC7SH32FU IC299, IC615, IC616 TC7SZ32FU IC1601-IC1603,IC252, IC253 TC7W53FU IC501 TC7WH126FU IC901, IC904, IC911 TC7WH157FU IC303, IC903, IC951 TC7WHU04FU IC305 TK15404M IC1201,IC1631,IC1691 TK15420M IC603 VYW1816 Q 109, Q 1312,Q 1362,Q 1412,Q 1462 2SA1576A Q 1512,Q 1562,Q 301 2SA1576A Q 105, Q 114, Q 1311,Q 1313,Q 1363 2SC4081 Q1411, Q1413, Q1463, Q1511,Q1513 2SC4081 Q 1563,Q 603 2SC4081 Q 602, Q 951 DTA114EUA Q 1701,Q 1703 DTA143EUA Q 1001,Q 107, Q 111, Q 601, Q952 DTC114EUA Q 1700,Q 1702 DTC143EUA Q 108 HN1K03FU Q 102, Q 106 IMT1A Q 101 IMX1 Q 1201,Q 1251,Q 1301,Q 1401,Q 1501 IMZ1A Q 112, Q 113 UMX1N Q 103, Q 281, Q 542, Q 543 UMZ1N D 302 KV1470 D 601 RB501V-40 COILS AND FILTERS L1001- L1010 LCYA100J2520 L304 LCYA1R5J2520 L 101, L 330 LCYA8R2J2520 F1201,F1251, F1361, F1461, F1561 VTF1150 F 1311,F 1411,F 1511 VTF1151 F401– F413 VTH1040 L1011, L102, L1020, L 201– L204 VTL1124 L 251, L 301, L 302, L 305 VTL1124 L 351, L 352, L 5001,L 6001, L6002 VTL1124 L 601, L 701– L703, L 801– L805 VTL1124 L 9001,L 9003,L 9004,L 9010,L959 VTL1124 L 965, L 991, L 992 VTL1124 CAPACITORS C 612 CCSRCH100D50 C 1070– C1072, C1085, C1086 CCSRCH101J50 C 1090, C1091, C123, C145, C258 CCSRCH101J50 C 282, C 617, C643, C655 CCSRCH101J50 C 661– C664, C666– C668 CCSRCH101J50 C 727, C728, C935– C939, C984 CCSRCH101J50 C1113, C216, C313 CCSRCH102J50 C126, C 333, C 634– C642, C665 CCSRCH150J50 C981, C 982 CCSRCH150J50 C 206, C 210, C211 CCSRCH151J50 C 322 CCSRCH180J50 C104– C108, C116, C151, C314 CCSRCH220J50 C152 CCSRCH221J50 C 632 CCSRCH330J50 C 209, C 283, C 360, C 391, C 392 CCSRCH331J50 C 584, C 656 CCSRCH331J50 C 128, C 134, C 297, C 335 CCSRCH470J50 C 122, C 208, C 352 CCSRCH471J50 C127, C 334, C6009, C6010, C953 CCSRCH5R0C50 C124, C146 CCSRCH680J50 C117, C240 CCSRCH681J25 C1370, C1470, C1570, C952 CCSRCJ3R0C50 C454 CEHAZA101M16 C115, C 450– C 453 CEHAZA471M6R3 C1087, C1088 CEV100M35 C1029,C 1084,C 1092,C 1201,C 1203 CEV101M10 C1301,C 1303,C 1401,C 1403,C 1501 CEV101M10 C1503,C 5004,C 645, C 733 CEV101M10 C113, C 139 CEV220M16 C1634, C1636, C6013 CEV220M6R3 C1003 CEV221M4 C111, C301, C409, C6007 CEV470M6R3 C140, C223, C224, C252, C264 CKSQYB105K10 C312 CKSQYB105K10 C1009- C1012, C1015, C1016 CKSQYF105Z16 C1019- C1021, C1026, C1027 CKSQYF105Z16 C1082, C1083, C114, C125, C148 CKSQYF105Z16 C150, C 217, C 236, C 299, C 367 CKSQYF105Z16 C431– C442, C5002, C5003, C561 CKSQYF105Z16 C581, C582, C621, C625, C628 CKSQYF105Z16 C647, C648, C903, C913 CKSQYF105Z16 C1005- C1008, C1030, C1033- C1036 CKSQYF225Z16 C1039- C1046, C1051- C1056 CKSQYF225Z16 C1093- C1096, C302, C305 CKSQYF225Z16 C327, C328, C585 CKSQYF225Z16 C203, C220, C225, C239, C256 CKSRYB103K50 C320, C321, C362, C363, C502 CKSRYB103K50 C6002, C6005, C619, C722 CKSRYB103K50 C101, C1017, C1018, C118– C120 CKSRYB104K16 C212, C213, C227, C 228, C231 CKSRYB104K16 C263, C315– C317, C332, C359 CKSRYB104K16 C369, C370, C418, C420 CKSRYB104K16 C6003, C6004, C609, C716 CKSRYB104K16 C281 CKSRYB222K50 C153, C266 CKSRYB223K50 C229 CKSRYB224K10 C261, C351 CKSRYB332K50 C214, C251, C354 CKSRYB472K50 C330 CKSRYB682K50 C133, C136, C355, C356, C703 CKSRYF103Z50 C102, C1063- C1068, C1073, C121 CKSRYF104Z16 C138, C308, C310, C713, C717 CKSRYF104Z16 C933 CKSRYF104Z16 C1059, C1062, C1077- C1081, C1089 CKSRYF105Z10 C109, C110, C1111, C1112, C1202 CKSRYF105Z10 C1204, C1252, C1254, C1257, C1259 CKSRYF105Z10 C130, C1302, C1304, C131, C1331 CKSRYF105Z10 C1402, C1404, C143, C1431, C1502 CKSRYF105Z10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. C1504, C1531, C1602, C1605- C1609 CKSRYF105Z10 C161, C1633, C1635, C1693, C1695 CKSRYF105Z10 C 202, C 204, C 215, C 221, C 222 CKSRYF105Z10 C 226, C 230, C 235, C 253, C 255 CKSRYF105Z10 C 257, C 265, C 298, C 303 CKSRYF105Z10 C 306, C 307, C 309, C 319, C 329 CKSRYF105Z10 C 371, C 372, C 402, C 404, C 406 CKSRYF105Z10 C 408, C 410, C 412, C 414, C 416 CKSRYF105Z10 C 422, C 424, C 426, C 501 CKSRYF105Z10 C542, C543, C6001, C6006, C6008 CKSRYF105Z10 C6011, C6012, C6014, C602– C608 CKSRYF105Z10 C 610, C 611, C 613– C616, C 618 CKSRYF105Z10 C622– C624, C 626, C 627, C 631 CKSRYF105Z10 C646– C648, C 651– C654, C 702 CKSRYF105Z10 C704– C712, C 714, C 718– C721 CKSRYF105Z10 C723– C726, C734, C771, C772 CKSRYF105Z10 C806– C818, C 822, C 827, C 829 CKSRYF105Z10 C831– C836, C 838– C841 CKSRYF105Z10 C 901, C 902, C 904, C 906, C 907 CKSRYF105Z10 C 909, C 911, C 914– C916, C 918 CKSRYF105Z10 C 921– C923, C 927, C 931, C 932 CKSRYF105Z10 C 934, C 951, C 960, C 961, C 966 CKSRYF105Z10 C 983, C 987, C 988 CKSRYF105Z10 C 357 CKSRYF223Z50 C1058, C1061, C1074, C1075, C129 VCH1188 (68µF/6.3V) C149, C401 (68µF/6.3V) VCH1188 C413, C415, C5001 (68µF/6.3V) VCH1188 C1058, C1061, C1075, C1092, C129 VCH1194 (100µF/6.3V) C149, C201, C403, C405, C645 VCH1194 (100µF/6.3V) C 912 (100µF/6.3V) VCH1194 C1002, C1014, C1023, C1024, C1038 VCH1195 (150µF/4V) C1048, C1049, C1084, C142, C147 VCH1195 (150µF/4V) C205, C326, C407, C411, C421 VCH1195 (150µF/4V) C423, C499, C5004, C601, C633 VCH1195 (150µF/4V) C715, C731– C733, C773 VCH1195 (150µF/4V) C801– C803, C823, C826 VCH1195 (150µF/4V) C851– C853, C955, C959, C965 VCH1195 (150µF/4V) C991– C993 (150µF/4V) VCH1195 C 254, C 358, C 368, C 417, C 419 VCH1197 (33µF/16V) C427 (33µF/16V) VCH1197 C1258, C1260, C1694, C1696, C207 VCH1212 (47µF/6.3V) C37, C304 (47µF/6.3V) VCH1212 C265, C319, C602– C608 (2.2µF) VCH1219 C610, C611, C613– C616, C654 VCH1219 C702, C704– C712, C718 (2.2µF) VCH1219 C720, C721, C724, C725, C734 VCH1219 C114, C125, C150, C218, C367 VCH1220 (10µF) C434, C435, C5002, C5003, C561 VCH1220 (10µF) C625, C628, C701, C714, C723 VCH1220 (10µF) C804, C811, C813, C816, C818 VCH1220 (10µF) C903, C913 (10µF) VCH1220 VC951 (20pF) VCM1008 RESISTORS R 738 RAB4C100J R 381, R 543, R 545, R 594, R 613 RAB4C103J R 637, R 648, R 649, R 691, R 692 RAB4C103J R 707, R 715, R 716 RAB4C103J R 1053- R1055, R121, R595 RAB4C220J R 609, R 610, R 616, R 617 RAB4C220J R 733, R 734, R 736– R741, R851 RAB4C220J R 853, R 855, R 860, R 863 RAB4C220J R 867– R873, R 876, R 877 RAB4C220J R 123 RAB4C390J R 6017,R 602, R 605– R608 RAB4C470J R1069- R1073, R1076, R143, R173 RS1/10S0R0J R 401, R 402, R406– R409, R416 RS1/10S0R0J R 596 RS1/10S0R0J R 1691 RS1/16S1002F R1206, R1256, R1314, R1364, R1414 RS1/16S1501F R 1464, R1514, R1564, R232 RS1/16S1501F R 365, R 398 RS1/16S1503F R 1259 RS1/16S1801F R 1077- R1079 RS1/16S1802F R 1301, R1401, R1501 RS1/16S2000F R 1210, R1694 RS1/16S2201F R 1207 RS1/16S2202F R1220, R1270, R1320, R1370, R1420 RS1/16S2701F R 1470,R 1520,R 1570 RS1/16S2701F R1058, R1205, R1255, R1313, R1363 RS1/16S3300F R1413, R1463, R1513, R1563, R228 RS1/16S3300F R332 RS1/16S3300F R1065- R1067, R1260 RS1/16S3901F R1693 RS1/16S5601F R1257 RS1/16S6802F R361, R399 RS1/16S7502F R1209 RS1/16S9100F VR1201, VR1251, VR1331 (470Ω) VCP1182 VR1431, VR1531 (470Ω) VCP1182 Other Resistor RS1/16S&&&J OTHERS X601 CERAMIC RESONATOR DSS1110 (20MHz) X951 CERAMIC RESONATOR VSS1086 (27.0MHz) X6001 CERAMIC RESONATOR VSS1144 (12.2888MHz) CN509 CONNECTER 53261-1390 CN504 CONNECTER 53261-1490 CN505,CN508 CONNECTER 53261-1590 CN501 KR CONNECTER S10B-PH-SM3 CN502 PH CONNECTER S8B-PH-SM3 CN201 B TO CONNECTER14P VKN1324 CN512 12P FFC CONNECTER VKN1416 CN507 16P FFC CONNECTER VKN1420 CN514 19P FFC CONNECTER VKN1423 CN506 28P FFC CONNECTER VKN1432 CN120 24P FFC CONNECTER VKN1464 CN511 B TO CONNECTER 30P VKN1569 CN510,CN513 CONNECTER40P VKN1570 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. KN1-KN4 EARTH METAL FITTING VNF1109 DSPB ASSY SEMICONDUCTORS IC501,IC502 CS8404A-CS IC801 CXD2751Q IC802 KM48V8104CS-6 IC901,IC931 KM616V1002CT-12 IC921 PDK038A IC911,IC951 TC55V8128BJ-12 IC503,IC551 TC74LCX74FT IC152,IC156,IC157,IC161,IC162 TC74VHC157FT IC153,IC160 TC74VHC595FT IC104 TC7SET08FU IC106,IC154,IC165 TC7SH04FU IC552,IC556 TC7SH86FU IC504 TC7WH00FU IC105 TC7WH04FU IC158,IC555 TC7WH125FU IC151,IC164,IC553,IC554 TC7WH157FU IC102 TC7WH74FU IC601 TC7WU04F IC101,IC201 XCD56362PV100 COILS AND FILTERS L103,L203 LCTA1R0J2520 F1001,F1011 VTH1040 L101,L102,L151,L201,L202 VTL1124 L501-L503,L601,L801,L802 VTL1124 L901,L911,L921,L931,L951 VTL1124 CAPACITORS C603,C809 CCSRCH150J50 C602 CCSRCH180J50 C113,C210 CKSRYB562K50 C808 CKSRYF103Z50 C103,C104,C108-C112 CKSRYF105Z10 C115-C129,C151-C154 CKSRYF105Z10 C156-C158,C160-C162 CKSRYF105Z10 C164,C165,C203,C204 CKSRYF105Z10 C208,C209,C211-C224,C501 CKSRYF105Z10 C503,C505,C506,C551-C553 CKSRYF105Z10 C555-C557,C601,C802-C806 CKSRYF105Z10 C812,C814,C902,C903 CKSRYF105Z10 C912,C913,C922,C932,C933 CKSRYF105Z10 C952,C953 CKSRYF105Z10 C1002,C502,C504, C1001 VCH1188 (68µF/6.3V) C101,C1011,C102,C105- C107 VCH1195 (150µF/4V) C155,C201,C205,C207,C521 VCH1195 (150µF/4V) C554,C604,C801,C807,C811 VCH1195 (150µF/4V) C901,C911,C921,C931,C951 VCH1195 (150µF/4V) C202 (47µF/6.3V) VCH1212 RESISTORS R101,R108,R139,R143,R145(10kΩ) DCN1094 R148,R207,R217 (10kΩ) DCN1094 R110,R119,R123,R163,R164 (22Ω) DCN1104 R172,R173,R178,R180,R197 (22Ω) DCN1104 R216,R219,R230,R238,R239 (22Ω) DCN1104 R244,R256,R260,R901-R904 (22Ω) DCN1104 R911,R912,R921,R923 (22Ω) DCN1104 R931-R934,R951,R952 (22Ω) DCN1104 Other Resistors RS1/16S&&&J OTHERS X601 CERAMIC RESONATOR ASS7023 CN102 B TO CONNECTOR 30P VKN1571 CN103,CN105 CONNECTOR40P VKN1572 MAUD ASSY SEMICONDUCTORS IC609 LM2940CT-5.0 IC741, IC751, IC761, IC771 OPA2134PA IC701, IC711, IC721, IC731 PCM1704U-J IC661, IC671 PD0236AM-TFB IC608 PST994I IC681, IC691 SM5847AF IC601 TC74VHC153FT IC604 TC74VHC595FT IC602, IC603 TC74VHCT541AFT IC605–IC607, IC610 TC7SHU04FU Q 605 2SA1037K Q 603, Q 604 2SD1859X Q 601, Q 607 2SK2033 Q 602, Q 606 DTA124EK D 601–D 604 1SS355 D 701, D 702 E-153RE COILS AND FILTERS F 602–F 604, F 661, F 671 DTF1070 F 681–F 685, F 691–F 695 DTF1070 L 601, L 602, L 605–L 607 LCYA220J2520 L 604 VTL1079 L 620–L 622 VTL1080 RELAY RY701,RY702 RSR1026 RY601-RY603 VSR1008 CAPACITORS C642,C784,C785 CCSQCH471J50 C1003-C1006 CCSRCH331J50 C703,C707,C713,C717,C723 CEBA470M50 C727,C733,C737 CEBA470M50 C704,C706,C714,C716,C724 CEGA470M25 C726,C734,C736 CEGA470M25 C615,C621 CEHAZA101M16 C616,C617,C661,C671 CEHAZA221M6R3 C680,C681,C683,C685,C687 CEHAZA221M6R3 C690,C691,C693,C695,C697 CEHAZA221M6R3 C 663–C 666, C 673–C 676 CCSRCH390J50 G F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. C 601, C 603, C 605, C 607, C 618 CEHAZA471M6R3 C 620, C 701, C 702, C 711, C 712 CEHAZA471M6R3 C721, C722, C731, C732 CEHAZA471M6R3 C1001, C1002 CKCYB102K50 C1009, C1010 CKSQYF104Z25 C1013, C1015 CKSQYF105Z16 C619, C782, C783 CKSQYF105Z50 C1018, C1019, C639– C641, C786 CKSQYF225Z16 C788, C789, C1019 CKSQYF225Z16 C613, C614 CKSRYF104Z25 C1011, C1020, C1021, C602, C604 CKSRYF105Z10 C606, C 608– C612, C623, C624 CKSRYF105Z10 C626– C632, C634, C637, C638 CKSRYF105Z10 C660, C 662, C 670, C 672, C 682 CKSRYF105Z10 C684, C 686, C 688, C 689, C 692 CKSRYF105Z10 C694, C696, C698, C699, C787 CKSRYF105Z10 C622, C 625, C 633, C 636 CKSRYF474Z16 C744, C 754, C 764, C 774 VCE1034 (220pF) C746, C 756, C 766, C 776 VCE1035 (470pF) C745, C 755, C 765, C 775 VCE1041 (1000pF) C1007, C1008, C705, C715, C725 VCH1203 (47µF/63V) C735, C741, C742, C747 VCH1203 (47µF/63V) C751, C752, C757, C761, C762 VCH1203 (47µF/63V) C767, C771, C772, C777 VCH1203 (47µF/63V) C780, C781 (47µF/63V) VCH1203 C604, C606, C623, C624, C634 VCH1219 (2.2µF) C660, C670 (2.2µF) VCH1219 C626, C635, C637, C638, C9652 VCH1220 (10µF) RESISTORS R744, R754, R 764, R 774 RDR1/2PM104J R742, R 743, R 752, R 753 RDR1/2PM182J R762, R 763, R 772, R 773 RDR1/2PM182J R1040, R780– R 789 RS1/10S0R0J R626, R636, R702, R712, R722 RS1/10S103J R732 RS1/10S103J R1001, R1002, R1018 RS1/10S330J R681– R684, R691– R694 RS1/10S470J R627, R632 RS1/10S472J R638– R647 RS1/10S473J R745, R755, R765, R775 VCN1130 (470Ω) R746, R756, R766, R776 VCN1131 (2.7kΩ) Other Resistors RS1/16S&&&J OTHERS CN604, CN607 CONNECTOR 53047-1310 CN603, CN606 CONNECTOR 53047-1410 CN602, CN605 CONNECTOR 53047-1510 IC Cover Sheet VEC1815 Screw BBZ30P050FCC MADOUT ASSY OTHERS PC BOARD (MADOUT) VNP1751 MAPS ASSY SEMICONDUCTORS IC501, IC511, IC521, IC531 ICP-N38 IC502, IC503 NJM4580DD Q 504, Q 512, Q 531 2SA1037K Q 513, Q 532 2SA1262 Q 502, Q 521 2SC2412K Q 503, Q 522 2SC3179 Q 505 2SK2033 Q 501 DTA124EK Q 511 DTC124EK D 501, D 502, D 511, D 512 31DF2-FC5 D 503, D 504, D 513, D 514 31DF2-FC6 D 521, D 531 UDZ3.6B D 505, D 506, D 515, D 516 UDZS5.6B CAPACITORS C505,C508,C515,C518,C521 CEBA101M25 C524,C531,C534 CEBA101M25 C503,C513 CKSQYF103Z50 C537– C539 CKSQYF225Z16 C506,C516,C522,C532 CMA101J2H C504,C514 (3300µF/35V) VCH1201 C507,C517,C523,C533 (4.7µF/50V) VCH1202 C501,C502,C511,C512 (1µF/50V) VCH1207 C509,C519,C525,C535 (220µF/50V) VCH1217 RESISTORS R501,R511 RDR1/2PM8R2J Other Resistors RS1/10S&&&J OTHERS CN501 4P Top Post B4P-VH KN501 EARTH METAL FITTING VNF1084 Screw BBZ30P050FCC AUDIO ASSY SEMICONDUCTORS IC272 BA033F IC421, IC431, IC441, IC451 ICP-N38 IC271 LM2940CT-5.0 IC422, IC442 NJM4580M-TFB IC311, IC331, IC341, IC342, IC361 OPA2134PA IC381,IC391,IC392 OPA2134PA IC301,IC321,IC351,IC371 PCM1704U-J IC131 PD0236AM IC261 PST994I IC171 SM5847AF IC101 TC74VHC153FT IC141, IC151 TC74VHC595FT IC111, IC121 TC7WHU04FU Q 315, Q 323, Q 335, Q 365, Q 385 2SA1037K Q 412, Q 441, Q 451 2SA1037K H I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. Q 442, Q 452 2SA1262 Q 221, Q 222 2SB1237X Q 421, Q 431 2SC2412K Q 422, Q 432 2SC3179 Q 262 2SD1859X Q 316, Q 336, Q 366, Q 386 2SD2114K Q 223, Q 224, Q 263, Q 411 2SK2033 Q 264, Q 413 DTA124EK Q 312, Q 321, Q 322, Q 362, Q 371 DTA143EK Q 414 DTC124EK D 271, D 272 1SS355 D 401, D 402, D 407, D 408 31DF2-FC5 D 403–D 406 31DF2-FC6 D 311, D 341, D 361, D 391 E-153RE D 432, D 452 UDZ3.6B D 421, D 422, D 441, D 442 UDZS5.6B COILS AND FILTERS F 141, F 151 DTF1070 L 101, L 111, L 121, L 131 LCTA100J3225 L 171, L 172, L 181–L 184 LCTA100J3225 L 114, L 124 VTL1079 L 100 VTL1080 L 113, L 123 VTL1109 RELAY RY301,RY302,RY351,RY352 RSR1026 RY9302,RY9502 VSR1008 CAPACITORS C 177, C 179 CCSQCH100D50 C 329, C 330, C 379, C 380 CCSQCH391J50 C 426, C 427, C 436, C 437 CCSQCH391J50 C 446, C 447, C 456, C 457 CCSQCH391J50 C 9271,C 9272 CCSQCH391J50 C 176, C 178, C 201–C 203 CCSRCH100D50 C 173 CCSRCH102J50 C 9701-C 9705 CCSRCH331J50 C 317, C 337, C 367, C 387 CCSRCH471J50 C 114 CCSRCH4R0C50 C 124 CCSRCH6R0D50 C 421, C 424, C 431, C 434, C 441 CEBA101M25 C 444, C 451, C 454 CEBA101M25 C 305, C 307, C 325, C 327, C 355 CEBA470M50 C 357, C 375, C 377 CEBA470M50 C 304, C 306, C 324, C 326, C 354 CEGA470M25 C 356, C 374, C 376 CEGA470M25 C 253, C 271, C 310 CEHAZA101M16 C 172, C 175, C 182, C 184, C 188 CEHAZA221M6R3 C 221, C 226, C 252, C 272 CEHAZA221M6R3 C 274, C 275 CEHAZA221M6R3 C 301, C 302, C 321, C 322 CEHAZA471M6R3 C 351, C 352, C 371, C 372 CEHAZA471M6R3 C 328, C 378 CKCYB102K50 C 405, C 406 CKSQYB103K50 C 9308,C 9328,C 9358,C 9378 CKSQYF105Z16 C 318, C 320, C 338, C 340, C 344 CKSQYF105Z50 C 368, C 370, C 388, C 393, C 394 CKSQYF105Z50 C 9001-C 9004,C 9901-C 9903 CKSQYF225Z16 C 9252 CKSRYF104Z16 C 101, C 111, C 121, C 131, C 141 CKSRYF105Z10 C 151, C 171, C 174, C 181, C 183 CKSRYF105Z10 C 185, C 187, C 261, C 262, C 9251 CKSRYF105Z10 C 9253-C 9255,C 9301,C 9302,C 9305 CKSRYF105Z10 C 9307,C 9321,C 9322,C 9325,C 9327 CKSRYF105Z10 C 9351,C 9352,C 9355,C 9357 CKSRYF105Z10 C 9371,C 9372,C 9375,C 9377 CKSRYF105Z10 C 422, C 432, C 442, C 452 CMA101J2H C 313, C 333, C 363, C 383 (220pF) VCE1034 C 315, C 335, C 365, C 385 (470pF) VCE1035 C 316, C 336, C 366, C 386 (220pF) VCE1040 C 132, C 186 (100µF/6.3V) VCH1194 C 102, C 112, C 122 (150µF/4V) VCH1195 C 423, C 433, C 443, C 453 VCH1202 (4.7µF/50V) C 303, C 311, C 312, C 319, C 323 VCH1203 (47µF/63V) C 331, C 332, C 339, C 341, C 342 VCH1203 (47µF/63V) C347– C349, C353, C361, C362 VCH1203 (47µF/63V) C369, C373, C381, C382, C389 VCH1203 (47µF/63V) C391, C392, C397– C399(47µF/63V) VCH1203 C461– C463 (47µF/63V) VCH1203 C401– C404 (1µF/50V) VCH1207 C425, C435, C445 (220µF/50V) VCH1217 C455 (220µF/50V) VCH1217 C411, C412 (3900µF/50V) VCH1218 C141, C151, C9251, C9253, C9254 VCH1219 ( 2.2µF ) C101, C187, C222, C227, C273 VCH1220 ( 10µF ) C276 ( 10µF ) VCH1220 VC111,VC121 (10pF) VCM1012 RESISTORS R 346, R 347, R 396, R 397 RDR1/2PM202J R 315, R 335, R 365, R 385 RDR1/2PM203J R 318, R 338, R 348, R 368, R 388 RDR1/2PM223J R 398 RDR1/2PM223J R 312, R 313, R 332, R 333 RDR1/2PM392J R 344, R 345, R 362, R 363 RDR1/2PM392J R 382, R 383, R 394, R 395 RDR1/2PM392J R 401, R 402 RDR1/2PM8R2J R 261, R 316, R 336, R 366, R 386 RS1/16S0R0J R 112, R 122, R 131– R133 RS1/16S101J R172– R175 RS1/16S101J R269, R 327– R329, R425, R435 RS1/16S103J R 445, R 455 RS1/16S103J R 111, R 121 RS1/16S105J R 424, R 444 RS1/16S123J R 426, R 446 RS1/16S183J R 265 RS1/16S223J R 436, R 456 RS1/16S242J R 108, R 206– R208, R 251 RS1/16S330J R 326 RS1/16S332J R 221, R 222, R 226, R 227, R 253 RS1/16S472J R 267, R 268 RS1/16S472J R 434, R 454 RS1/16S682J R 319, R 339, R 349, R 369, R 389 VCN1130 R 399 (470Ω) VCN1130 R 311, R 331, R 361, R 381 VCN1131 (2.7kΩ) Other Resistors RS1/10S&&&J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. OTHERS CN251 CONNECTOR 53047-1310 CN201 CONNECTOR 53047-1410 CN101 CONNECTOR 53047-1510 CN351 KR CONNECTOR B4B-PH-K-R CN301 KR CONNECTOR B4B-PH-K-S CN401 4P Top Post B4P-VH IC Cover Sheet VEC1815 JA352 1P PIN JACK (Red) VKB1143 JA302 1P PIN JACK (White) VKB1144 KN101 EARTH METAL FITTING VNF1084 BUS LINE PLATE (B) VNF1113 Screw BBZ30P050FCC X111 CRYSTAL RESONATOR VSS1132 (33.8688MHz) X121 CRYSTAL RESONATOR VSS1133 (36.864MHz) BLOUT ASSY RESISTORS R 901,R951,R991,R992,R994 RS1/10S0R0J CAPACITORS C 902,C903,C952,C953 CCSQCH101J50 OTHERS CN901 KR CONNECTOR S10B-PH-K-S JA901,JA951 CANNON CONNECTOR VKN1531 CN6601 B TO B CONNECTOR 3P VKN1593 SYLF ASSY OTHERS PC BOARD (SYLF) VNP1766 BLSW ASSY SWITCHES S9101 Slide SW DSH1008 CAPACITORS C 9105 CKSQYF225Z16 RESISTORS R9102,R9103 RS1/10S0R0J OTHERS CN9902 B TO B CONNECTOR 5P VKN1357 DOUT ASSY SEMICONDUCTORS IC871 LM2940CT-5.0 IC821,IC831 TC74VHC153FT IC811 TC74VHC595FT IC901,IC911 TC74VHCU04FT IC841,IC861 TC7W08FU IC931 TC7WH125FU IC921 TC7WHU04FU Q863,Q865,Q941,Q943 2SB1237X Q831,Q861,Q862,Q864,Q942 DTC124EK D871,D931,D932,D941,D942 1SS355 COILS AND FILTERS L811,L831,L931 LCTA100J3225 L901,L911,L921,L923 LCTA220J3225 L905,L915 PTL1003 RELAY RY941,RY942 VSR1008 CAPACITORS C 952, C 953 CCSQCH100D50 C 804, C 805, C 908, C 918 CCSQCH101J50 C 822, C 832 CCSQCH330J50 C 823, C 833 CCSRCH330J50 C 875 CEHAZA101M16 C 863, C 865, C 871, C 876, C 902 CEHAZA221M6R3 C 912, C 922, C 924, C 932, C 941 CEHAZA221M6R3 C 921 CKSQYF105Z16 C 944, C 945 CKSQYF225Z16 C 903, C 906, C 913, C 916 CKSRYB103K50 C 801, C 811, C 821, C 831, C 841 CKSRYF105Z10 C 861, C 901, C 911, C 923, C 931 CKSRYF105Z10 C 942, C 943 CKSRYF105Z10 C 802 CKSRYF474Z16 C 904, C 914 (47µF/16V) VCH1208 RESISTORS R 906, R 916 RS1/10S0R0J R 887 RS1/10S103J R 907, R 917 RS1/10S220J R 813, R 815, R 817, R 818, R 821 RS1/10S330J R 926 RS1/10S822J R 9821,R 9841,R 9861 RS1/8S0R0J Other Resistors RS1/16S&&&J OTHERS CN801 CONNECTOR 53047-1510 JA901 1P PIN JACK PKB1004 J931 STEREO MIN JACK QKN1004 JA921 OPTICAL LINK OUT TOTX176(HS) JA911 SRD PIN JACK VKB1076 SCREW PLATE VNE1948 KN801,KN802 EARTHMETAL FITTINGVNF1084 VOUT ASSY SEMICONDUCTORS IC501, IC601 TA7302P IC602–IC607 TK15420M Q 505, Q 605 2SC2412K Q 513, Q 608, Q 613–Q 615 2SC4081 Q 501, Q 502, Q 551, Q 601, Q 602 2SK2033 Q 609, Q 611 2SK2033 Q 503, Q 504, Q 552, Q 603, Q 604 DTA143EK Q 610, Q 612 DTA143EK Q 506, Q 606 IMZ1A D 501, D 502, D 551, D 552 1SS355 D 601, D 602, D 660 1SS355 J K L M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. COILS AND FILTERS L501,L601,L602 LCTA470J3225 L636,L638,L648,L652,L656 VTL1100 L681-L684 VTL1100 SWITCH ADN RELAY S501 VSH1020 RY551,RY552 VSR1015 CAPACITORS C671,C681 CCSQCH102J50 C505 CCSQCH390J50 C663 CCSQCH470J50 C518,C618 CCSRCH102J50 C605,C622 CCSRCH390J50 C664 CCSRCH470J50 C621 CCSRCJ3R0C50 C535,C616,C635,C643,C647 CEV100M16 C512,C514,C550,C551,C627 CEV220M6R3 C629,C651-C656 CEV220M6R3 C501,C503,C612,C614,C660 CEV470M6R3 C506-C509,C511,C606-C609 CKSQYB103K50 C611 CKSQYB103K50 C662 CKSQYF104Z25 C510,C610 CKSQYF105Z16 C631,C632 CKSRYB103K50 C502,C504,C513,C515,C519 CKSRYF105Z10 C520,C602,C604,C613,C615 CKSRYF105Z10 C619,C620,C623,C624,C628 CKSRYF105Z10 C630,C636,C637,C644,C645 CKSRYF105Z10 C661,C665-C670,C682,C683 CKSRYF105Z10 C601,C603 (68µF/6.3V) VCH1188 RESISTORS R510,R610,R632,R666-R671 RS1/10S0R0J R677,R679 RS1/10S1002F R631 RS1/10S102J R512,R612,R633,R634 RS1/10S103J R507,R607,R630 RS1/10S152J R509,R609 RS1/10S221J R506 RS1/10S331J R513,R613 RS1/10S332J R511,R611 RS1/10S333J R508,R608 RS1/10S471J R678 RS1/10S6801F R514 RS1/10S680J R635,R637,R639,R640,R643 RS1/10S75R0F R645,R647,R651,R655 RS1/10S75R0F R620,R621 RS1/16S1001F R673,R675 RS1/16S1002F R674 RS1/16S1502F R617,R618 RS1/16S2201F R676 RS1/16S6801F Other Resistors RS1/10S&&&J OTHERS JA652 4P MIN DIN JACK AKP7116 JA660,JA661 Remote Jack RKN1004 JA651 2P PIN JACK VKB1123 CN603 7P FFC CONNECTOR VKN1299 CN602 16P FFC CONNECTOR VKN1308 CN601 28P FFC CONNECTOR VKN1320 JA653 3 BNC CONNECTOR VKN1558 503 SCREW PLATE VNE1948 KN501,KN502 EARTHMETAL FITTINGVNF1084 FLOUT ASSY OTHERS PC BOARD (FLOUT) VNP1752 FLKB ASSY SEMICONDUCTORS IC102 BA6195FP IC101 PE5047A IC106 PST9130N IC105,IC107 PST9145N IC103 TC7SET08F Q114 2SC2412K Q109,Q110 2SD1858X Q106 2SK2033 Q108,Q112 DTA124EK Q105 DTA143EK Q101-Q103 DTC124EK D108,D109 1SR154-400 D103,D104 1SS355 D101,D102,D105 SLR-343VC(NPQ) COILS AND FILTERS F171,F172,F174 DTF1070 L101,L102 LCTA100J3225 L103,L104 LCTA1R0J3225 SWITCH ADN RELAY S101-S103 ASG7013 RY101,RY102 VSR1015 CAPACITORS C162,C164 CCSQCH102J50 C131-C133 CCSQCH471J50 C101,C102,C107-C109,C130 CCSRCH102J50 C163 CCSRCH102J50 C165-C167 CCSRCH150J50 C155-C157 CEAT101M16 C154 CEAT470M50 C113 CEV220M16 C135 CEV470M6R3 C119-C121,C128,C151-C153 CKSQYF105Z16 C110,C116,C122,C124,C127 CKSRYB103K50 C112 CKSRYF104Z16 C103,C105,C111,C117,C118 CKSRYF105Z10 C123,C126,C136,C160,C161 CKSRYF105Z10 C140,C141 CKSRYF223Z50 C104,C106,C129 (68µF/6.3V) VCH1188 RESISTORS R492-R494 RA15T473J R491 RA8T473J R173,R182 RS1/10S0R0J R106,R142,R179,R180 RS1/10S103J R105 RS1/10S302J R141,R147,R148,R153-R155 RS1/10S330J R163,R164 RS1/10S330J N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. R136,R137,R160,R161 RS1/10S331J R178,R181 RS1/10S392J R185 RS1/10S472J R145 RS1/16S1503F R138,R146,R152,R168 RS1/16S3003F Other Resistors RS1/16S&&&J OTHERS CN101 FFC CONNECTOR 08P 52492-0820 CN103 FFC CONNECTOR 13P 52492-1320 101 REMOTE RECEIVER UNIT GP1U28X V101 FL TUBE VAW1048 CN102 19P FF CONNECTOR VKN1311 X101 CERAMIC RESONATOR(5MHz) VSS1104 PLSB ASSY SWITCHES S301-S305 ASG7013 CAPACITORS C302,C303 CCSQCH331J50 C301 CKSQYF104Z25 RESISTORS Other Resistors RS1/16S&&&J OTHERS CN303 FFC CONNECTOR 08P 52492-0820 CN304 KR CONNECTOR S3B-PH-K-S DRMB ASSY CAPACITORS C351 CKSQYB103K50 DRSB ASSY SWITCH S341,S342 DSG1017 RESISTORS R341 RS1/10S183J LEDB ASSY SEMICONDUCTORS Q331 DTC124EK D331 LNG989CNBW D332 UDZS6.2B CAPACITORS C332 CCSQCH471J50 C331 CKSQYB103K50 RESISTORS R331 RS1/10S102J R332 RS1/10S681J OTHERS CN331 KR CONNECTOR B3B-PH-K-S SYPS ASSY SEMICONDUCTORS IC304,IC314,IC304 (250mA) AEK7002 IC303 (400mA) AEK7004 IC102,IC332 (500mA) AEK7005 IC101,IC103,IC301(630mA) AEK7006 IC204,IC322 (800mA) AEK7008 IC201,IC302 (1A) AEK7009 IC104,IC202,IC203 (1.25A) AEK7010 IC216 (2A) AEK7013 IC106,IC206,IC306,IC307 (7A) AEK7021 IC313 LM2940CT-5.0 IC111-IC113,IC312 LM2941CT/LB03 IC311 LM2991T/LB03 IC211-IC214 LP3964ET-3.3 Q304,Q331 2SB1375 Q104,Q216,Q401 2SK2033 Q402 DTA143EK Q206 IRLIZ24G D101-D103,D201-D204 1SS355 D301,D302,D313,D403,D413 1SS355 D423 1SS355 D311 MTZJ11B D324 MTZJ39B D334 MTZJ9.1A D106,D206,D306 RBA-406B D304,D314,D321,D331 S5688G COILS AND FILTERS L304,L314,L324,L334 LAU1R0J RELAY RY401 VSR1008 CAPACITORS C324 CEHAT100M50 C304,C314 CEHAT102M50 C316,C317 CEHAT1R0M50 C101-C103,C161,C201-C204 CEHAZA101M16 C301,C322,C334 CEHAZA101M16 C323 CEHAZA101M6R3 C302,C303 CEHAZA470M35 C121-C123,C173,C221-C224 CEHAZA471M6R3 C321 CEHAZA471M6R3 C106,C206,C306,C307 CKPUYF223Z25 C151-C153,C352,C361 CKSQYF104Z25 C406,C407 CKSQYF104Z25 C111-C113,C131-C133,C141 CKSQYF105Z16 C143,C171,C174,C211-C214 CKSQYF105Z16 C231-C234,C311,C331-C333 CKSQYF105Z16 C341,C342,C351,C364 CKSQYF105Z16 C344,C354 CKSQYF223Z50 C312,C313 CKSQYF224Z25 C116 (22000µF/16V) VCH1204 C216 (33000µF/10V) VCH1205 C327 (10000µF/25V) VCH1206 C326 (18000µF/25V) VCH1209 O P Q S R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 DV-AX10 Mark No. Description Part No. Mark No. Description Part No. RESISTORS R314,R361 RD1/4PU102J R324 RD1/4PU103J R371 RD1/4PU221J R304 RD1/4PU472J R306 RD1/4PU8R2J R121-R123 RN1/10SE1001D R312 RN1/10SE1002D R321,R322 RN1/10SE1201D R111-R113 RN1/10SE3001D R311 RN1/10SE3901D R131,R331 RS2LMF1R0J VR206 (1kΩ) VCP1151 Other Resistors RS1/10S&&&J OTHERS HEAT SINK ANH-575 CN405 KR CONNECTOR 3P B3B-PH-K-S CN406 3P Top Post B3P-VH CN401 7P-VH CONNECTOR B7P-VH CN402 KR CONNECTOR B8B-PH-K-S CN403 KR CONNECTOR B10B-PH-K-S CN404 FFC CONNECTOR 13P HLEM13S-1 IC HEAT SINK VNE1921 KN401 EARTHMETAL FITTING VNF1084 HEAT SINK VNH1059 HEAT SINK VNH1060 HEAT SINK VNH1061 HEAT SINK VNH1062 HEAT SINK VNH1063 Screw BBZ30P060FCC Screw BBZ30P080FCC Screw PMB30080FCU FANB ASSY SEMICONDUCTORS IC701 BA10393F Q701 2SB1238X COILS AND FILTERS F733 DTF1070 CAPACITORS C703,C704,C734 CEHAZA101M6R3 C701,C702,C714 CKSQYF104Z25 C724 CKSQYF105Z16 RESISTORS R701,R702,R712 RN1/10SE1201D R703 RN1/10SE3302D R713,R723 RS1/10S222J OTHERS TH701 Thermistor ERT-G1AHJ502 CN701 KR CONNECTOR S2B-PH-K-S CN702 KR CONNECTOR S3B-PH-K-S LSFB ASSY COILS AND FILTERS F21 EMC Filter ATF7023 SWITCH S1 PSA1004 CAPACITORS C11,C21 (0.01µF/AC250V) ACE7014 C12,C13 (10000pF/AC250V) ACG7033 OTHERS H1-H4 FUSE CLIP AKR1004 CN11 2P-VHCONNECTOR(RED) B2P3-VH-R CN21 2P-VHCONNECTOR(Yellow) B2P3-VH-Y PCB BINDER VEF1040 PW TERMINAL VKC-019 KN1 EARTH METAL FITTING VNF1084 T U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DV-AX10 DVDM ASSY SIDE A SIDE A 6. ADJUSTMENT 6.1 ADJUSTMENT ITEMS AND LOCATION Adjustment Points (PCB Part) Adjustment Items E SYPS ASSY S AUDIO ASSY I VR1261 VR1251 VR1201 VR1331 VR1431 VR1532 IC801 CN506 CN508 CN514 CN502 CN507 JA302 VC121 CN401 CN101 CN201 CN402 CN404 CN403 CN405 Q206 D206 CN401 CN406 JA352 VR1531 93P 2 3 4 5 11 12 6 VR206 1 VC111 VC951 10 [ Electrical Part ] Y Level Adjustment V+5U Adjustment 1 C Level Adjustment 2 Color-difference Y Level Adjustment 3 4 Color-difference Cb Level Adjustment Color-difference Cr Level Adjustment 5 Progressive Color-difference Y Level Confirmation 6 Progressive Color-difference Cb Level Confirmation 7 Progressive Color-difference Cr Level Confirmation 8 27MHz Clock Adjustment 9 36MHz Clock Adjustment 10 33MHz Clock Adjustment 11 12 3 E C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DV-AX10 6.2 JIGS AND MEASURING INSTRUMENTS 6.3 NECESSARY ADJUSTMENT POINTS Dual-trace oscilloscope (with delay) Frequency band 40MHz Frequency counter Display digit 8-digit TV monitor Screwdriver (small) CH1 CH2 (X) (Y) Voltmeter + – When Adjustment Points Exchange mother board Mechanical point Electric point DVDM ASSY Exchange PCB Assy Exchange AUDIO board Mechanical point Electric point AUDIO ASSY Note : - and = are adjusted already. Note : 1 is adjusted already. Note : 2, 3, 4, 5, 6, 7, 8, 9 and 0 are adjusted already. Exchange power supply board Mechanical point Electric point SYPS ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 DV-AX10 1 V + 5U Adjustment • Perform this adjustment for less than 10 seconds after turns the power on. • When this adjustment did not complete for less than 10 senconds, adjust it once again after turns the power off once and Q206 cooled down. Voltmeter VR206 SYPS ASSY Player 6.4 ELECTRICAL ADJUSTMENT + – 6.1V ± 1% • AC100V ± 1% • Power ON within 10 seconds SYPS ASSY CN402 CN404 CN403 CN405 Q206 D206 CN401 CN406 VR206 3 E C START Connect • Disconnect five connectors (CN402 to CN406). (open) • Pin 3 (P-ON) of CN404 set to Low (0V) supply. Main Trans. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DV-AX10 Player (Rear) 2 Y Level Adjustment • Power ON • Play the DVD test disc at the composite signal part VIDEO OUT VIDEO IN Oscilloscope V: 20mV/div. H: 10µsec/div. AC mode Probe (10:1) CH1 CH2 (X) (Y) TV monitor START VR1251 DVDM ASSY 1Vp-p Player (Rear) 3 C Level Adjustment • Power ON • Play the DVD test disc at the composite signal part VIDEO OUT VIDEO IN Oscilloscope V: 10mV/div. H: 10µsec/div. AC mode Probe (10:1) CH1 CH2 (X) (Y) TV monitor START VR1201 DVDM ASSY 0.286Vp-p Burst www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 DV-AX10 Player (Rear) 5 Color-difference Cb Level Adjustment VIDEO IN Oscilloscope V: 20mV/div. H: 10µsec/div. AC mode Probe (10:1) CH1 CH2 (X) (Y) TV monitor START VR1431 DVDM ASSY 0.7Vp-p Player (Rear) 4 Color-difference Y Level Adjustment • Power ON • Play the DVD test disc at the 100% color-bar signal part • Interlace mode • Power ON • Play the DVD test disc at the 100% color-bar signal part • Interlace mode Y COMPONENT VIDEO OUT VIDEO IN Oscilloscope V: 20mV/div. H: 10µsec/div. AC mode Probe (10:1) CH1 CH2 (X) (Y) TV monitor START VR1531 DVDM ASSY 1Vp-p Cb COMPONENT VIDEO OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 DV-AX10 Player (Rear) 6 Color-difference Cr Level Adjustment VIDEO IN Oscilloscope V: 20mV/div. H: 10µsec/div. AC mode Probe (10:1) CH1 CH2 (X) (Y) TV monitor START VR1331 DVDM ASSY • Power ON • Play the DVD test disc at the 100% color-bar signal part • Interlace mode 0.7Vp-p Player (Rear) 7 Progressive Color-difference Y Level Confirmation • Power ON • Play the DVD test disc at the 100% color-bar signal part • Progressive mode VIDEO IN Oscilloscope V: 20mV/div. H: 10µsec/div. AC mode Probe (10:1) CH1 CH2 (X) (Y) TV monitor START Cr COMPONENT VIDEO OUT Y COMPONENT VIDEO OUT Confirm 1Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 DV-AX10 Player (Rear) 8 Progressive Color-difference Cb Level Confirmation VIDEO IN Oscilloscope V: 20mV/div. H: 10µsec/div. AC mode Probe (10:1) CH1 CH2 (X) (Y) TV monitor START 0.7Vp-p • Power ON • Play the DVD test disc at the 100% color-bar signal part • Progressive mode Player (Rear) 9 Progressive Color-difference Cr Level Confirmation VIDEO IN Oscilloscope V: 20mV/div. H: 10µsec/div. AC mode Probe (10:1) CH1 CH2 (X) (Y) TV monitor START • Power ON • Play the DVD test disc at the 100% color-bar signal part • Progressive mode 0.7Vp-p Cb COMPONENT VIDEO OUT Confirm Confirm Cr COMPONENT VIDEO OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 DV-AX10 27MHz Clock Adjustment • Power ON • DAC mode ON • Test mode Frequency counter Player START VC951 DVDM ASSY 27.000000MHz ± 170Hz DVDM ASSY IC801 - pin 93 36MHz Clock Adjustment • Power ON • DVD PLAY Frequency counter Player START VC121 * 27MHz is generated from 36MHz by IC959. AUDIO ASSY 27.000000MHz ± 170Hz DVDM ASSY IC801 - pin 93 11 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 DV-AX10 33MHz Clock Adjustment • Power ON • CD PLAY • VIDEO ON Frequency counter Player START VC111 AUDIO ASSY 27.000000MHz ± 170Hz DVDM ASSY IC801 - pin 93 12 * 27MHz is generated from 33MHz by IC959. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 DV-AX10 • Description of Each Item on the Display (1) Address indication The address being traced is displayed in number. DVD : ID indication (hexadecimal number, 8 digits) [ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] CD : A-TIME (min. sec.) [ 0 0 0 0 ∗ ∗ ∗ ∗ ] (Note : For DVDs, decimal-number indication is possible.) (2) Code indication of the remote control unit [R – ∗ ∗ ∗ ∗] The code for the key pressed on the remote control unit, which is received by the FL controller, is displayed while the key is pressed. In the case of the double code, the second code will be displayed. (3) Key code indication for the main unit [K – ∗ ∗ ] The code for the key pressed on the main unit, which is received by the system controller, is displayed while the key is pressed. (4) Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗] (5) Tracking status [TRKG – ∗∗∗] Tracking on [ON ] Tracking off [OFF] (6) 1� Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O–S] 2 AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] (7) Mechanism position value [M – ∗] Position code [0] to [8] (8) Slider position [S – ∗ ∗ ∗ ∗] CD TOC area [IN ] CD active area [CD ] CDV video area [CDV] (9) AGC setting [AGC – ∗ ∗ ∗] [∗] AGC on [AGC-ON] AGC off [AGC-OFF] RF AGC on [1] RF AGC off [0] Remote control code Key code Mechanism position value and slider position SW setting (P : 525P, I : 525I, M : MENU SELECT) Output video system FL controller version and region setting for the player Port No. of Flash ROM and system controller System controller revision Flash ROM version and Flash ROM size FL controller destination setting AV1 chip version DVD mechanism controller revision (Control and part No. of GUI-ROM) Character in bold : Item name : Information display Test Mode Screen Display (First Screen Display) • Screen Composition Address Background color Tracking status Spindle status and AFB status AGC setting FTS servo IC information C1 error value of CD and DVD Internal operation mode of the mechanism control Disc judgment and CD 1/3 beam switch Equalizer value and jitter value 7.1.1 TEST MODE SCREEN DISPLAY 7.1 DIAGNOSIS 7. GENERAL INFORMATION Consecutive double-OSD display is supported during test mode. The screen is composed 10 lines with a maximum of 32 characters per line. It can't be used with the debugging display mode together. When the test mode is entered, press the ESC button and the TEST button in order of the test mode remote control unit (GGF1067). Caution : The first screen and second screen switch by pressing [DISPLAY] key of the remote control unit. It is only a version display part on the lower right of the screen those contents of display change. ATB : ON/OFF information display and AGC manual setting display deleted with the second generation. The displays of Tilt error value, Tilt servo status and pickup DVD/CLD display deleted with the third generation becomes LD part is deleted. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 DV-AX10 (10) Output video system [V – ∗ ∗ ∗ ∗ ∗] [∗] NTSC system [NTSC] PAL system [PAL ] Auto-setting [AUTO] • SW setting 525P [P] 525I [I] MENU SELECT [M] (11) FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. (12) Error rate indication � 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] � 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] (13) Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller (14) 1 Disk sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [CDV], [VCD], [ ] 2 CD 1/3 beam switch [BM – ∗ ∗] (15) 1 Equalizer value [E – ∗ ∗] 2 Jitter value [J – ∗ ∗] Make the jitter four times, and renew it in every one second. [4 – * *] CD is effective only in the jitter value. (16) Version of the AV-1 chip [ AV : ∗ . ∗ ∗' ∗' ] (17) 1 Version of the FL controller [FL : ∗ ∗ ∗ ∗] 2 Region setting of the player [REG : ∗ ] Setting value [1] to [6] (18) Destination setting of the FL controller [MDL : ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ] Four charactors in the front represent the type of model : Three charactors in the back represent the destination code. J : /J, K : /KU, /KC, /KU/KC, R : /RAM, /RL, /RD, /LB, WY : /WY (19) The part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗] � 1 Part number of the flash ROM (Example) VYW1536-A = W1536A (Example) PD6256A9 = 6256A9 � 2 Part number of the system controller (Example) PD3381T1 = 3381T1 (20) 1 Version of the flash ROM [V : ∗ . ∗ ∗ ∗] 2 Flash ROM size [FLSH = ∗] (21) Revision of the system controller [S : ∗ . ∗ ∗ ∗ / ∗ . ∗ ∗ ] � 1 Revision number of the external ROM part (flash ROM) of the system controller � 2 Revision of the internal ROM part of the system controller (22) Revision of the DVD mechanism controller [M : ∗ . ∗ ∗ ∗] Revision number of the external ROM part (flash ROM) of the DVD mechanism controller (23) Control and part numbers of the GUI-ROM [GUI : ∗ ∗ ∗ ∗] No GUI model displays as "––– / ––––". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 DV-AX10 START Is FL turn on ? Is tray open ? Is the indication of FL normal ? Do the picture and sound come out ? Power ON Yes Yes Yes Yes No No No • Check +12V voltage (If +12V voltage is not supplied, check the IC302 and IC322.) • Check the connection between DVDM Assy and LOMB Assy. • Check the connection between DVDM Assy and VOUT Assy. • Check -5V voltage of the SYPS Assy. • Check the connection of CN120 on the DVDM Assy. • Check the pickup short switch. No Indicates the error message Refer to the section "7.1.3 ERROR CODE". Indicates the error message Refer to the section "7.1.3 ERROR CODE". Check the voltage of the MAPS Assy (AC ±16V) (If above voltage is not supplied, check the IC501, IC511, IC521 and IC531.) • Blow out fuse of the primary side (FU1, FU2) • Check the following connections : SYPS Assy - DVDM Assy DVDM Assy - FLKB Assy MAUD Assy - AUDIO Assy DVDM Assy - MAUD Assy DVDM Assy - DSPB Assy • Check each voltage of SYPS Assy (±5V, +3.3V FLAC, FL -36V) • Check D324 and D334 on the SYPS Assy OK When only the sound does not come out. Check the voltage of the IC421, IC431, IC441 and IC451 of the AUDIO Assy. When only the sound of the front side does not come out. Check the voltage of the MAPS Assy. (V±12V, V±5V) When the sound except the front side does not come out. When neither the picture nor the sound comes out. When only the picture does not appear. 7.1.2 TROUBLE SHOOTING • No Power ON • FL is not turned ON • FL indication is unusual www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 DV-AX10 START Does the video output come out ? Does the analog 2 ch audio come out ? Is VIDEO OFF state ? Does the multi-ch audio come out ? Does the digital audio come out ? Yes Yes Yes Yes Yes Normal Yes No Is each signal of CN506 on the DVDM Assy normal ? No No DVDM Assy VOUT Assy Yes Yes Is each signal of pins 4 and 7 of CN508 on the DVDM Assy normal ? No Is each signal of pins 13 and 15 of CN505 on the DVDM Assy normal ? No DVDM Assy Is each signal of pin 11 of CN506 on the DVDM Assy normal ? No No DVDM Assy Is each power supply of CN601 on the MAUD Assy normal ? No No DSPB Assy No MAPS Assy DOUT Assy DSPB Assy Yes Yes Yes AUDIO Assy MAUD Assy Set to VIDEO ON Confirm the connection of each connector and FFC at first. And confirm that normal power supply voltage is supplied from the SYPS Assy to each Assy. Is Digital Data OFF state ? Yes No CD playbacks with the CD Digital Direct ON, and does the sound come out ? No Set to Digital Data ON Does it become the 2 CH mode ? Yes No Set to 5.1ch mode. OK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 DV-AX10 FL Display Possible causes Operation of the unit AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with the specific audio. CPU AERR CPU address error (Hardware is unusual.) No operation DMA AERR DMA address error (Hardware is unusual.) No operation FLASH ID Difference in versions of the internal ROM of the system controller and of the flash ROM, or bus line failure or reverse installation No operation FLASH WRP Write protect error of the flash ROM No operation FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used was used.) No operation FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation (Hardware is unusual.) No operation FLASH SIZE Size error of the flash ROM (Use 4 or 8 M-bit.) No operation ILLGAL The system controller fetched a code other than an operation code (Hardware is unusual.) No operation RESERVE Undefined interrupt (Hardware is unusual.) No operation SLOT Inappropriate slot command issued (Hardware is unusual.) No operation Error codes that are displayed on the FL display without using the remote control unit 7.1.3 ERROR CODE Error codes that are displayed on the FL display by using the remote control unit (Mechanism controller error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the FL display To display the error history: ESC + DISPLAY + One shot; Location of the display: TV screen FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 11 Search timeout Search could not be complete within 7 seconds. Search could not be complete within 7 seconds, and it could not enter the target area within 7 seconds by VCD scan. CD : Stops, DVD : Continues operation 12 Search retry error A search could not be completed after 3 retries, search backup was executed 4 times, or in a case of timeout (6 seconds) while the unit was tracing 11 tracks or more beyond the target while the search operation was converging. Backup against slider skip was executed 4 times during a search, or slider skip twice resulted in starting from the read-in point. CD : Stops, DVD : Continues operation 19 Tracing timeout while converging Timeout (10.5 seconds) while tracing at the stage of convergence of a search. Stop 1B Index 0 search error During Track (Index) Search, the search for the beginning of a program could not be completed within 3 seconds (20 seconds in the case of Index Search) after positioning based on the TOC data was completed. Stop 22 Timeout of slider inner circumference Inside switch could not ON within 3 seconds. Stop 23 Timeout of slider outer circumference Inside switch could not OFF within 2 seconds. Stop 33 No FOK pulse during playback CLVA When the focus was deviated continuously 20 times. Adjusts focus at the innermost circumference and tries to return to its position where the error was generated (for 3 times),then opens. If the same error persists after one retry, the tray opens. (No FOK pulse) 38 Disc-type- sensing error If normal starting was impossible in the following three cases, disc-type sensing will be retried if other errors occure excepting C5 error. However, when the focus error "33" was occured continuously 3 times, it is finished as "38 error" at the moment: (1) startup with the first disc-type-sensing result, (2) forced startup with another disc by designating the disc type, (3) forced startup with the original disc by designating the disc type. Open www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 DV-AX10 FL Description of Error Causes if with a DVD Causes if with a CD Operation of the 39 SGC converge timeout SGC could not converge during detects the peak Open 41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command. Stop 48 Spindle FG transition timeout The spindle could not converge into within ± 12% of the target FG rotation speed within 10 seconds after spindle kick. The first time after startup (the first time after disc distinction), it doesn't become the number of the target rotation within five seconds. The first time after startup, detects the abnormal rotation number of high-speed continuously 3 loops. DVD: 5 to 9 mS , CD: 40 to 60 mS Stops. (FG timeout) 49 Spindle PLL transition timeout After the second times after startup, it doesn't become the number of the target rotation within five seconds. Detects the abnormal high-speed or low-speed rotations. DVD: 5 to 9 mS , CD: 40 to 60 mS Stops. ("73" is displayed during starting process.) 4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB. Stops. ("73" is displayed during starting process.) 51 Auto sequence timeout of peak detection ABUSY did not return within 1 second after the DDTCT (peak detection) command was sent. Stop 52 Auto sequence timeout of focus jump down ABUSY did not return within 30 mS after the FJMPD (Focus jump 1 to 0) command was sent. Stop 53 Auto sequence timeout of focus jump up ABUSY did not return within 30 mS after the FJMPU (Focus jump 0 to 1) command was sent. Stop 54 Auto sequence timeout of play AGC ABUSY did not return within 50 mS after the GSUMON (play-AGC-measuring) command was sent. Stop 55 Auto sequence timeout of disc-type- sensing ABUSY did not return within 2 seconds after the DJSRT (disc-sensing) command was sent. Stop 56 Auto sequence timeout of ATB2 ABUSY did not return within 1 second after the TBLOFS (Internal ATB after the completion of external ATB) command was sent. Stop 57 Auto sequence timeout of tracking servo ON ABUSY did not return within 500 mS after the TSON (tracking servo ON) command was sent. Stop 58 Auto sequence timeout of ATB1 ABUSY did not return within 200 mS after the TBL (external ATB) command was sent. Stop 59 Auto sequence timeout of focus gain adjustment ABUSY did not return within 2 seconds after the FGN (focus gain adjustment) command was sent. Stop 5A Auto sequence timeout of tracking gain adjustment ABUSY did not return within 2 seconds after TGN (tracking gain adjustment) command was sent. Stop 5B Auto sequence timeout of offset adjustment ABUSY did not return within 1 second after the CMDAVE (offset adjustment) command was sent. Stop 5C Auto sequence timeout of modulation factor measurement ABUSY did not return within 200 mS after the ADJMIR (modulation factor measurement) command was sent. Stop 5D Auto sequence timeout of auto focus bias ABUSY did not return within 2 seconds after the AFB (auto focus bias) command was sent. Stop 5F Auto sequence already busy A command could not be sent because ABUSY was low. ABUSY did not return within 200 mS after TLV command was sent. Stop 62 Pause retry error Pause mode could not be restored within three retries after it had been released. Continues operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 DV-AX10 FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 71 ID can not read during tracing An ID could not be read for 1 second or more. Stop 72 Subcode check failure during playback No frame could be read for 3 seconds or more. Stop 73 ID can not read at the startup An ID could not be read within 1 second after the AFB adjustment had been finished. Opens (ID readout failure) 74 Subcode check failure during startup No subcode could be read within 3 seconds after AFB adjustment had been finished. Opens (Subcode readout failure). 81 Timeout for reading TOC of the mechanism controller TOC readout took 30 seconds or more. Stop 82 Timeout for reading TOC of the system controller Reading TOC of the system controller took 30 seconds or more. Stop A1 Communication timeout of DSP command A command could not be issued to DSP because Command Busy (XCBUSY) was in force (XCBUSY = L) for a specified time (about 200 mS). No operation A2 Communication timeout for reading DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 200 mS) before and after a coefficient read command was issued to DSP, or the address echo-back after command issuance did not match the setup address. No operation A3 Communication timeout for writing DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 1024 mS) before and after the coefficient write command was issued to DSP. No operation A4 Communication timeout for continuously writing DSP coefficient Command Busy (XCBUSY) was in force for 200 µS during continuous coefficient writing, or before and after a continuous write command was issued to DSP. No operation B1 Timeout error for backup In the tracing state during the backup sequence, codes could not be read for 1 second or more. In the backup sequence, tracking ON sequence of the servo DSP could not be completed even if more than 500 mS after the tracking ON command was issued. Stops B2 Retry error for backup Tracing impossible after retring the tracking ON for 3 times in the backup sequence. Stops 91 Timeout of door open Door open took 10 seconds or more. Close 92 Timeout of door close Door close took 10 seconds or more. Open A7 Servo DSP hang Servo DSP is hang when releasing the DAC mode. B3 Retry error for trace During tracing, runaway was detected after three iterations of backup operations for detecting runaway. Stops www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 DV-AX10 Error codes that are displayed on the FL display by using the remote control unit (Device error) To display : ESC + DISPLAY + DISPLAY ; Location of the display : At the two digits of left of the FL display FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit bit3=1 08 etc. AV1 access error (read, write NG) No operation or it becomes debugging indication if the power is able to ON. bit2=1 04 etc. MY CHIP access error bit1=1 01 etc. SRAM access error C3 Detection of tracking overcurrent During playback, the overcurrent detection port was at L for 300 ms or more continuously. Stops (the mechanical controller operates independently). (C5) Short-circuit test corresponding error While the power was on, the overcurrent detection port was at L for 40 ms or more continuously. Turns off the power instantly (No indication on the FL display and no writing to flash memory) E3 Violation against digital copy guard Stops F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other than Open by an external force. Closes F8 Loading timeout Loading, unloading or clamping could not be completed within a specified time (about 5 seconds). Reverses the loading direction. It timeout is repeated upon retry, the unit stops. FC Focus The following error occured eight times. (1) Focus ON sequence could not be completed even if more than two seconds after the focus ON command (to the servo DSP) was sent. (2) Focus IN sequence was finished, actually focus IN was not completed. Stops wherever possible then opens (stops in the case of side B). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 DV-AX10 ×4 ×2 Top Plate Side Alum. L Rear Mole Rear Mole To Each disassembly Side Alum. R 1 1 ×3 1 ×3 1 ×2 3 ×2 3 6 4 ×4 1 ×4 2 4 4 5 5 Shield Sheet M2 AUDIO Assy AUDIO Assy Note : There is not affect in a diagnosis even if removes the BLOUT Assy. MAUD Assy BLOUT Assy MAUD Assy Hook the MAUD Assy on a cut part of Rear Panel. 7.1.4 DISASSEMBLY Top Plate, Side Alum. L and R MAUD and AUDIO Assys Diagnosis of MAUD Assy Diagnosis of AUDIO Assy ×4 5 ×3 9 ×4 7 ×5 ×2 9 8 10 12 11 3 4 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 DV-AX10 Disconnect a connector CN508. Caution : Digital audio does not come out when disconnecting a connector of CN508, but there is not affect in a diagnosis. ×3 1 ×2 1 3 9 VOUT Assy DVDM Assy There is the DSPB Assy on the back side. Stand the DVDM Assy against the PCB Holder. VOUT, DVDM and DSPB Assys Diagnosis ×5 2 ×2 4 ×4 6 10 8 7 5 VOUT Assy DVDM Assy CN506 Pin 1 CN601 CN507 CN602 Pin 1 Line Line Caution : 1 Video is not output when removed two flexible cables of the VOUT Assy. In addition, please install two flexible cables surely before diagnosing the remote control unit because it does not work. 2 As for the flexible cable using for the VOUT Assy, a direction to insert is settled. Please connect the flexible cable not to mistake a direction to insert while referring to figure below. 3 There is not affect in a diagnosis even if removes the DOUT Assy. About the operating of DVDM Assy when the DSPB Assy was removed A microcomputer (IC601 : SH1) on the DVDM Assy works with 20 MHz clock supplied from the DSPB Assy. So the microcomputer does not work when removes the DSPB Assy. Diagnosis of the DVDM Assy becomes possible even if there is not DSPB Assy because operates a crystal oscillator (X601) on the DVDM Assy and works the microcomputer. Perform the following operations to oprate X601. 1 DVDM Assy Remove R612. On the DVDM Assy Caution : After the diagnosis was completed, return the resistors mentioned above to the original state surely. 2 Short-circuit R657 and R658. Front SIDE A CN503 IC601 Rear Panel Main Shield T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 DV-AX10 Stand the PCB and diagnose it. Caution : Do not short-circuit by using the insulation sheet, etc.. ×6 1 2 5 Main Shield B Pull it out to the being cross rear. VOUT Assy MAPS Assy DOUT Assy SYPS Assy MAUD Assy DVDM Assy DSPB Assy Insulation Sheet, etc. MAPS Assy Main Shield B and MAPS Assy Traverse Mechanism Assy-S Diagnosis ×6 4 3 6 Open (SYPS Assy side) Short MAUD Assy side Pickup Flexible Cable Short SW 1 Bridge Tray Stabilizer ×2 ×4 32 3 Unhook About the mechanism replacement • When Loading Mechanism is removed, remove the Front Panel and pull it out toward the front. • When Traverse Mechanism is replaced, replace it after removing the Loading Mechanism mentioned above. Traverse Mechanism Assy-S ×3 38 5 34 39 7 Note : When MAPS Assy is diagnosed, remove the VOUT Assy, Trans. Shield and Main Shield B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 DV-AX10 ×2 8 ×3 9 ×2 9 ×2 9 ×3 5 6 ×2 5 7 SYPS Assy Rear Panel Remove 6 connectors and unhook. CN402 CN406 CN404 CN403 CN401 CN801 DOUT Assy SYPS, DOUT and LSFB Assys ×2 1 10 13 13 13 12 16 18 11 2 4 ×2 ×2 ×2 ×2 ×8 14 ×3 15 ×2 17 ×4 19 20 ×4 • Turn the power on, and pull out the Tray by pressing the § button and remove the Tray Panel. Front Panel Pull out the Front Panel toward the front by removing the POWER button from the switch. (Come off when it pulls in the front straight.) Note : Be careful not to put the front face of Front Panel under because the door works. Side Frame A LSFB Assy • Fuses (FU1 and FU2) of primary side can not diagnose directly. Therefore, check the voltage of connector of secondary side and judge the fuse blown. • Perform replacement of fuses (FU1 and FU2) of the primary side after removing the Rear Panel. FU1 FU2 AUDIO TRANS MAIN TRANS Sub-chassis T 3 4 Unhook Unhook 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 DV-AX10 • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. BU2185F (DVDM ASSY : IC959) • Clock Generate IC • Block Diagram 7.2 PARTS 7.2.1 IC •List of IC BU2185F, LC89055W-RA8, PD3410A, PM0024AF, CY2071ASL-371 • Pin Function • Truth Table 1 2 11 9 14 XTAL1IN XTAL1OUT 15 3 CTRL1 CTRL2 CLK2 (27.0000MHz) CLK1 (36.8640MHz) (18.4320MHz) CLK3 (33.8688MHz) XTAL1 OSC PLL1 DATA1A DATA1B 1/2 H SW L PLL2 7 8 XTAL2IN XTAL2OUT 16 OE XTAL2 OSC CTRL1 CTRL2 SW PLL1 PLL2 H L H DATA1A DATA2A L L L DATA1A DATA2A H H H DATA1B DATA2B L H L DATA1B DATA2B No. Pin Name Function 1 XTAL1-IN Reference OSC input 1 (Not used) 2 XTAL1-OUT Reference OSC output 1 3 CTRL2 X'tal setting L: 36.8M mode, H: 18.4M mode 4 AGND Analog GND 5 DGND Digital GND 6 DVDD Independent power supply for XTAL2-IN and XTAL2-OUT 7 XTAL2-IN Reference OSC input 2 (36.864MHz or 18.432MHz) 8 XTAL2-OUT Reference OSC output 2 9 CLK1 Reference clock output (36.864MHz or 18.432MHz) 10 DVDD Independent power supply for CLK1 output buffer 11 CLK2 Clock output 2 (27.000MHz) 12 DVDD Digital VDD 13 AVDD Analog VDD 14 CLK3 Clock output 3 (33.8688MHz) 15 CTRL1 CLK1 output select H: 36.864MHz, L: 18.432MHz 16 OE Output enable H: enable, L: disable DATA1A=XTAL2×375/128/4 DATA1B=XTAL2×375/64/4 DATA2A=XTAL2×147/40/4 DATA2B=XTAL2×147/20/4 DATA2A DATA2B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 DV-AX10 LC89055W-RA8 (DVDM ASSY : IC6001) • DIR IC • Block Diagram Microcomputer Interface 23 EMPHA 26 F0/P0/C0 27 F1/P1/C1 25 CSFLAG 35 DO 24 AUDIO 2 DOUT 10 LPF 20 XMCK 21 XOUT 17 XSTATE C-bit Detection Input Block Data Demodulation Block Timing X'tal PLL Pa, Pb Detection Lock Detection fs Computation 3 DIN0 36 DI 1 DISEL 44 DOSEL0 46 CKSEL0 39 XSEL 37 CE 38 CL 28 F2/P2/C1 29 VF/P3/C3 32 AUTO 33 BPSYNC 34 ERROR 13 CKOUT 14 BCK 15 LRCK 16 DATAO 45 DOSEL1 47 CKSEL1 40 MODE0 4 DIN1 5 DIN2 8 R 9 VIN 22 XIN 41 MODE1 48 XMODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 DV-AX10 • Pin Function . o N e m a N n i P O /I n o it c n u F 1 L E S I D I ) 1 N I D , 0 N I D ( t u p ni a t a d f o t u p ni e vitc ele S 2 T U O D O a t a d e s a h pib t u p ni f o t u p t u o h g u o r h T 3 0 N I D I ). d e s u t o n t a r o tsis e r n w o d -llu p tsix e d n a le v el S O M C ( t u p ni a t a d la tigi D 4 1 N I D 5 2 N I D I )le v el L T T ( t u p ni a t a d la tigi D 6 D N G D − D N G la tigi D 7 D D V D − ylp p u s r e w o p la tigi D 8 R I t u p nilo rt n o c nia g O C V 9 N I V I y c n e u q e rf g nin n u r- e e rf O C V f o t u p ni g nitt e S 0 1 F P L O g nitt e s r e tlif p o ol L L P 1 1 D D V A − ylp p u s r e w o p g ola n A 2 1 D N G A − D N G g ola n A 3 1 T U O K C O ) n oit allic s o g nin n u r- e e rf O C V d n a n oit allic s o la ts y r c ,sf 2 1 5 ,sf 4 8 3 ,sf 6 5 2 ( t u p t u o k c ol C 4 1 K C B O t u p t u o k c olc sf 4 6 5 1 K C R L O I , h c L = H , h c R = L ( t u p t u o k c olc sf 2 ) n ois r e v ni = S 6 1 O A T A D O t u p t u o a t a D 7 1 E T A T S X O k c olc e c r u o s f o t u p t u o r o tin o m g nih cti w S 8 1 D N G D − D N G la tigi D 9 1 D D V D − ylp p u s r e w o p la tigi D 0 2 K C M X O ) z H M 8 8 2 . 2 1 r o z H M 6 7 5 . 4 2 ( t u p t u o k c olc r o t a n o s e r la ts y r C 1 2 T U O X O t u p t u o n oitc e n n o c r o t a n o s e r la ts y r C 2 2 N I X I ) z H M 8 8 2 . 2 1 r o z H M 6 7 5 . 4 2 ( t u p ni o t elb a sila n gis la n r e tx E ,t u p ni n oitc e n n o c r o t a n o s e r la ts y r C 3 2 A H P M E O s u t a ts le n n a h c f o t u p t u o n oit a m r o f ni sis a h p m E 4 2 O I D U A O s u t a ts le n n a h c f o t u p t u o )tib g nitc e t e d a t a d M C P n o N ( 1 ti B 5 2 G A L F S C O s u t a ts le n n a h c f o t u p t u o g alf e t a d p u tib - 0 4 d a e L 6 2 0 C / 0 P / 0 F O t u p t u o n oit a m r o f ni d r o w t u p n I / t u p t u o e p yt a t a d c P / t u p t u o la n gis n oit alu cla c sf t u p n I 7 2 1 C / 1 P / 1 F 8 2 2 C / 2 P / 2 F 9 2 3 C / 3 P / F V O t u p t u o n oit a m r o f ni d r o w t u p n I / t u p t u o e p yt a t a d c P / t u p t u o g alf ytidila V 0 3 D D V D − ylp p u s r e w o p la tigi D 1 3 D N G D − D N G la tigi D 2 3 O T U A O ) n oitc e t e d b P d n a a P ( a t a d ts r u b M C P n o n f o t u p t u o la n gis g nitc e t e d n ois si m s n a r T 3 3 C N Y S P B O d P d n a c P , b P , a P elb m a e r p ts r u b M C P n o n f o t u p t u o la n gis .c n y S 4 3 R O R R E O t u p t u o r o rr e g alf a t a d d n a r o rr e k c ol L L P 5 3 O D O F I r e t u p m o c o r ci m f o t u p t u o a t a d d a e R 6 3 I D I F I r e t u p m o c o r ci m f o t u p ni a t a d e tir W 7 3 E C I F I r e t u p m o c o ci m f o t u p ni elb a n e pih C 8 3 L C I F I r e t u p m o c o r ci m f o t u p ni k c ol C 9 3 L E S X I ) z H M 8 8 2 . 2 1 r o z H M 6 7 5 . 4 2 ( nip N I X f o y c n e u q e rf r o t a n o s e r la ts y r c f o t u p ni e vitc ele S 0 4 0 E D O M I t u p ni g nitt e s e d o M 1 4 1 E D O M 2 4 D N G D − D N G la tigi D 3 4 D D V D − ylp p u s r e w o p la tigi D 4 4 0 L E S O D I t a m r o f a t a d t u p t u o f o t u p ni e vitc ele S 5 4 1 L E S O D 6 4 0 L E S K C I k c olc t u p t u o f o t u p ni e vitc ele S 7 4 1 L E S K C 8 4 E D O M X I t u p ni t e s e r m e ts y S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 DV-AX10 PD3410A (DVDM ASSY : IC601) • System Control IC • Pin Function . o N k r a M e m a N n i P O /I n o it c n u F 1 L S A C X / 3 S C X 3 S C X O t u p t u o la n gis tc ele s pih c ) P I H C Y B ( A 8 0 1 5 E P 2 D N G D N G − D N G 3 K C K C U P C H O t u p t u o k c olc z H M 0 2 4 C C V D 3 + V − D 3 + V 5 K L C I P − O /I . C . N 6 A T A D I P − O /I . C . N 7 D N G D N G − D N G 8 0 H T R O P O P S C X O ) h ct al t u p t u o h ti w r e tsig e r tfih S ( T F 5 9 5 T C H V 4 7 C H 9 1 H T R O P H V M 3 3 O )r o t a r e n e g k c ol C ( 1 7 3 - L S A 1 7 0 2 Y C 0 1 2 H T R O P H V M 6 3 O r o t a r e n e g k c olc F 5 8 1 2 U B 1 1 3 H T R O P 2 L E S _ V O t u p t u o la n gis g nih cti w s o e di V 2 1 C C V D 3 + V − D 3 + V 3 1 4 H T R O P N O A T C S O la ni m r e t trik s e h t f o la n gis N O t u p t u o oid u A 4 1 5 H T R O P H V M 7 2 O tiu c ric lo rt n o c n oit allic s o z H M 7 2 5 1 6 H T R O P D P S S C X O ) h ct al t u p t u o h ti w r e tsig e r tfih S ( T F 5 9 5 T C H V 4 7 C H 6 1 7 H T R O P F F O V O la n gis F F O m e ts y s o e di V 7 1 D N G D N G − D N G 8 1 L A T X E L A T X E I r o t a n o s e r ci m a r e c a tc e n n o C 9 1 L A T X L A T X O 0 2 C C V D 3 + V − D 3 + V 1 2 0 G T R O P 0 F D S C X O t u p t u o la n gis tc ele s pih c C A D 2 2 1 G T R O P 1 F D S C X O )lella r a p / lair e S ( T F 5 9 5 C H V 4 7 C T 3 2 2 G T R O P 1 T S R F D O ) h c M r o f( F A 7 4 8 5 M S 4 2 3 G T R O P L E S B I H O M A 6 3 2 0 0 D P 5 2 4 G T R O P 0 T S R F D O ) h c 2 r o f C A D ( F A 7 4 8 5 M S 6 2 D N G D N G − D N G 7 2 5 G T R O P F F O A M X O F F O r e w o p h c itlu M 8 2 6 G T R O P T S R M X O M A 6 3 2 0 0 D P 9 2 7 G T R O P E T U M A X O h c 2 oid u a e h t f o t u p t u o la n gis e t u m e g a ts ts a L 0 3 0 F T R O P 8 4 X 4 4 O t u p t u o la n gis g nih cti w s S F 8 4 / 4 4 C A D 1 3 1 F T R O P R R E _ I D I )r e vie c e r e c a fr e t ni oid u a la tigi D ( 0 0 7 1 R I D 2 3 2 F T R O P E T U M M X O t u p t u o la n gis e t u m e g a ts ts alitlu M 3 3 C C V D 3 + V − D 3 + V 4 3 3 F T R O P 0 P S D A S C X I ) P S D oid u A ( 2 6 3 6 5 D C X 5 3 4 F T R O P 1 P S D A S C X O ) P S D oid u A ( 2 6 3 6 5 D C X 6 3 5 F T R O P 2 P S D A S C X O Q 1 5 7 2 D X C 7 3 6 F T R O P E V T S R X O 8 3 7 F T R O P E V S C X O r e d o c n e o e div e h t f o t u p t u o la n gis elb a n e n oit a cin u m m o c lair e S 9 3 D N G D N G − D N G 0 4 S S V A D N G − D N G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 DV-AX10 . o N k r a M e m a N n i P O /I n o it c n u F 1 4 C C V A D 3 + V − D 3 + V 2 4 P _ A T U O V R D O t u p t u o e vir d g nid a ol r o r o o D 3 4 F E R V D 3 + V − D 3 + V 4 4 P _ B T U O I E T O t u p t u o la n gis t e sff o g nik c a r T 5 4 S S V A D N G − D N G 6 4 S S V A D N G − D N G 7 4 0 E T R O P 1 L E S _ V O ) s r e h t o / B G R ( t u p t u o la n gis g nih cti w s o e div 8 8 4 1 E T R O P M G D C I 9 4 2 E T R O P S O B T A I 0 5 3 E T R O P 1 T S F O F O /I 1 t u p t u o t n e m ts ujd a t e sff o s u c o F 1 5 4 E T R O P 2 T S F O F O /I 2 t u p t u o t n e m ts ujd a t e sff o s u c o F 2 5 5 E T R O P H N I F D X O /I t u p t u o la n gis t n u h s tc e f e D 3 5 6 E T R O P D C X / D V D O t u p t u o la n gis g nih cti w s D C / D V D 4 5 7 E T R O P N O _ 1 D L O t u p t u o la n gis N O e d oid r e s al m n 0 5 6 5 5 0 D T R O P N O _ 2 D L O t u p t u o la n gis N O e d oid r e s al m n 0 8 7 6 5 C C V D 3 + V − D 3 + V 7 5 1 D T R O P E T / D P D O t u p t u o la n gis g nih cti w s s m a e b 3 / m a e b 1 8 5 2 D T R O P F F O G A O C I F R f o t u p t u o la n gis g nih cti w s F F O / N O C G A 9 5 3 D T R O P X 2 D C X O k c a b y alp d e e p s elb u o d e h t g nih cti w s r o f t u p t u o la n gi S 0 6 4 D T R O P G C I E O O t u p t u o la n gis g nih cti w s nia g C I E O 1 6 D N G D N G − D N G 2 6 5 D T R O P N O M X O t u p t u o lo rt n o c r o t o m eld nip s e h t f o t u p t u o la n gis g nih cti w s F F O / N O 3 6 6 D T R O P − O 4 6 7 D T R O P − I 5 6 0 J T R O P T U M V R D X O t u p t u o e t u m r e vir D 6 6 1 J T R O P R D X D L O ) W S g ola n A ( U F 3 5 W 7 C T 7 6 2 J T R O P T S R P S D X O ) P S D o v r e S ( W 2 5 6 8 7 C L 8 6 3 J T R O P K C A J N M I nip k c e h c n oitc e n n o c k c ajini M 9 6 C C V D 3 + V − D 3 + V 0 7 4 J T R O P T N E _ M T I y rt n e e d o m ts e T 1 7 5 J T R O P E P X E X O )r e ff u b e t a ts - 3 ( T F 4 7 5 C H V 4 7 C T 2 7 6 J T R O P W S _ L E S V I 3 7 7 J T R O P − I 4 7 2 A C O I T / 0 B P Y S U B C X I t u p ni y s u b d n a m m o C 5 7 2 B C O I T / 1 B P Y S U B A X I t u p ni y s u b e c n e u q e s - o t u A 6 7 3 A C O I T / 2 B P 2 T N I X I ) 1 - V A ( 2 t u p ni t p u rr e t n I 7 7 C C V D 3 + V − D 3 + V 8 7 3 B C O I T / 3 B P 1 T L O r ello rt n o c L F e h t o t t u p t u o la n gis e s n o p s e r n oit a cin u m m o C 9 7 4 A C O I T / 4 B P Y S B S I t u p ni .c n y s k c olb e d o c b u S 0 8 T S E T M X − I D 3 + V 1 8 D M U P C X − I D 3 + V 2 8 S E R X T S R X H I t u p ni t e s e R 3 8 D N G D N G − D N G 4 8 0 N A S O P D O L I t u p ni n oitis o p g nid a o L 5 8 1 N A S O P D L S I t u p ni n oitis o p r e dil S 6 8 2 N A W S R O O D I r ello rt n o c m sin a h c e m f o t u p ni n oitis o p r o o D 7 8 3 N A W S _ P A N I t u p ni W S L A P / O T U A / C S T N 8 8 4 N A − I 9 8 5 N A − I 0 9 6 N A − I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 DV-AX10 . o N k r a M e m a N n i P O /I n o it c n u F 1 9 7 N A P X /I I h cti w s e vis s e r g o r P / e c a fr e t n I 2 9 f e r v A D 3 + V − D 3 + V 3 9 C C V A D 3 + V − D 3 + V 4 9 S S V A D N G − D N G 5 9 4 B C O I T / 5 B P K L B I D I )r e vie c e r e c a fr e t ni oid u a la tigi D ( 0 0 7 1 R I D 6 9 C K L C T / 4 A X C O I T / 6 B P F 2 C I t u p ni r o rr e 2 C 7 9 D K L C T / 4 B X C O I T / 7 B P Y D R X I r ello rt n o c L F e h t m o rf t u p ni ts e u q e r n oit a cin u m m o C 8 9 0 D x R / 8 B P I S S I ) P S D oid u A d n a r ello rt n o c L F ( t u p ni a t a d lair e S 9 9 0 D x T / 9 B P O S S O ) E Q V d n a P S D oid u A ,r ello rt n o c L F ( t u p t u o a t a d lair e S 0 0 1 C C V D 3 + V − D 3 + V 1 0 1 1 D x R / 0 1 B P D X R I C 2 3 2 - S R e h t f o t u p ni a t a D 2 0 1 1 D x T / 1 1 B P D X T O C 2 3 2 - S R e h t f o t u p t u o a t a D 3 0 1 0 K C S / 4 Q R I X / 2 1 B P K C S S O /I ) E Q V d n a P S D oid u A ,r ello rt n o c L F ( t t u p t u o k c olc lair e S 4 0 1 1 K C S / 5 Q R I X / 3 1 B P 0 1 L Q R I X I ) P I H C Y M ( 1 t u p ni t p u rr e t n I 5 0 1 D N G D N G − D N G 6 0 1 6 Q R I X / 4 1 B P 1 1 L Q R I X I ) P I H C Y M ( 2 t u p ni t p u rr e t n I 7 0 1 7 Q R I X / 5 1 B P 0 Q R I V A X / 0 T N I X I ) 1 - V A ( 0 t u p ni t p u rr e t n I 8 0 1 0 A C O I T / 4 S C X / 0 A P 4 S C X O t u p t u o la n gis tc ele s pih c P S D o v r e S 9 0 1 S A R X / 5 S C X / 1 A P . C . N O n oitc e n n o c n o N 0 1 1 0 B C O I T / 6 S C X / 2 A P 6 S C X O t u p t u o la n gis tc ele s pih c 1 - V A 1 1 1 T I A W X T I A W X I t u p nila n gis tia W 2 1 1 L R W X L R W X O L t u p t u o e slu p e tir W 3 1 1 D N G D N G − D N G 4 1 1 H R W X H R W X O H t u p t u o e slu p e tir W 5 1 1 D R X D R X O t u p t u o e slu p d a e R 6 1 1 K C A B X / 7 A P R U C P S D I t u p nila n gis n oitc e t e d t n e rr u c -r e v O 7 1 1 Q E R B X / 8 A P S T C I t u p ni ti m r e p r e fs n a rt C 2 3 2 - S R 8 1 1 / T U O Q R I X / H A X / 9 A P G R T D A X R T D O t u p t u o ti m r e p r e fs n a rt C 2 3 2 - S R 9 1 1 1 A C O I T / L P D / 0 1 A P 1 T N I X / 1 Q R I V A X I ) 1 - V A ( 1 t u p ni t p u rr e t n I 0 2 1 1 B C O I T / H P D / 1 1 A P D L H T I t u p nila n gis dlo h g nik c a r T 1 2 1 C C V D 3 + V − D 3 + V 2 2 1 / 0 K C A D / 0 Q R I X / 2 1 A P A K L C T 0 K C A D O ) P I H C Y M ( t u p t u o e s n o p s e r A M D 3 2 1 / 1 Q R I X / 3 1 A P B K L C T / 0 Q E R D X Q E R D S X I ) P I H C Y M ( t u p ni ts e u q e r A M D 4 2 1 1 K C A D X / 2 Q R I X / 4 1 A P 1 K C A D X O ) 1 - V A ( t u p t u o e s n o p s e r A M D 5 2 1 1 Q E R D X / 3 Q R I X / 5 1 A P 1 Q E R D X I ) 1 - V A ( t u p ni ts e u q e r A M D 6 2 1 0 D A 0 D O /I 0 s u b a t a D 7 2 1 D N G D N G − D N G 8 2 1 1 D A 1 D O /I 1 s u b a t a D 9 2 1 2 D A 2 D O /I 2 s u b a t a D 0 3 1 3 D A 3 D O /I 3 s u b a t a D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 DV-AX10 . o N k r a M e m a N n i P O /I n o it c n u F 1 3 1 4 D A 4 D O /I 4 s u b a t a D 2 3 1 5 D A 5 D O /I 5 s u b a t a D 3 3 1 6 D A 6 D O /I 6 s u b a t a D 4 3 1 C C V D 3 + V − D 3 + V 5 3 1 7 D A 7 D O /I 7 s u b a t a D 6 3 1 8 D A 8 D O /I 8 s u b a t a D 7 3 1 9 D A 9 D O /I 9 s u b a t a D 8 3 1 0 1 D A 0 1 D O /I 0 1 s u b a t a D 9 3 1 D N G D N G − D N G 0 4 1 1 1 D A 1 1 D O /I 1 1 s u b a t a D 1 4 1 2 1 D A 2 1 D O /I 2 1 s u b a t a D 2 4 1 3 1 D A 3 1 D O /I 3 1 s u b a t a D 3 4 1 4 1 D A 4 1 D O /I 4 1 s u b a t a D 4 4 1 C C V D 3 + V − D 3 + V 5 4 1 5 1 D A 5 1 D O /I 5 1 s u b a t a D 6 4 1 ) S B H X ( 0 A 0 A O 0 s u b s s e r d d A 7 4 1 1 A 1 A O 1 s u b s s e r d d A 8 4 1 2 A 2 A O 2 s u b s s e r d d A 9 4 1 D N G D N G − D N G 0 5 1 3 A 3 A O 3 s u b s s e r d d A 1 5 1 4 A 4 A O 4 s u b s s e r d d A 2 5 1 5 A 5 A O 5 s u b s s e r d d A 3 5 1 6 A 6 A O 6 s u b s s e r d d A 4 5 1 7 A 7 A O 7 s u b s s e r d d A 5 5 1 8 A 8 A O 8 s u b s s e r d d A 6 5 1 9 A 9 A O 9 s u b s s e r d d A 7 5 1 0 1 A 0 1 A O 0 1 s u b s s e r d d A 8 5 1 1 1 A 1 1 A O 1 1 s u b s s e r d d A 9 5 1 2 1 A 2 1 A O 2 1 s u b s s e r d d A 0 6 1 3 1 A 3 1 A O 3 1 s u b s s e r d d A 1 6 1 4 1 A 4 1 A O 4 1 s u b s s e r d d A 2 6 1 5 1 A 5 1 A O 5 1 s u b s s e r d d A 3 6 1 6 1 A 6 1 A O 6 1 s u b s s e r d d A 4 6 1 7 1 A 7 1 A O 7 1 s u b s s e r d d A 5 6 1 C C V D 3 + V − D 3 + V 6 6 1 8 1 A 8 1 A O 8 1 s u b s s e r d d A 7 6 1 9 1 A 9 1 A O 9 1 s u b s s e r d d A 8 6 1 0 2 A 0 2 A O 0 2 s u b s s e r d d A 9 6 1 1 2 A 1 2 A O . C . N 0 7 1 I M N X I M N X I D 3 + V 1 7 1 D N G D N G − D N G 2 7 1 0 1 S C X 0 1 S C X O )r e ff u b e t a ts - 3 ( V F 2 3 H S 7 C T 3 7 1 0 2 S C X 0 2 S C X O M O R h s alf e h t f o t u p t u o la n gis tc ele s pih C 4 7 1 2 2 S C X − O 5 7 1 3 2 S C X 3 2 S C X O M A R S e h t f o t u p t u o la n gis tc ele s pih C 6 7 1 2 S C X − O . C . N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 DV-AX10 PM0024AF (DVDM ASSY : IC1001) • Video Encoder IC • Pin Function . o N e m a N n i P O /I n o it c n u F n i P 1 0 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 2 I 7 2 K L C I . T U O X d n a N I X g nis u n e h w ) V 3 . 3 + ( C C V o t tc e n n o C .t u p ni ) z H M 7 2 ( k c olc la n r e tx E 3 0 0 _ D D V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 4 3 0 _ T I . D N G o t tc e n n o C . nip e d o m ts e T 5 4 0 _ T 6 5 0 _ T 7 6 0 _ T 8 7 0 _ T 9 1 _ T S E T I . D N G o t tc e n n o C t u p nilo rt n o c e d o m ts e T 0 1 C N Y S V X O /I .)r e tsig e r e h t h ti w t e s ( e d o m e v al S t a st u p ni d n a e d o m r e ts a M t a st u p t u O .t u p nila n gis .c n y s la citr e V ytir alo p e vit a g e N 1 1 C N Y S H X O /I .)r e tsig e r e h t h ti w t e s ( e d o m e v al S t a st u p ni d n a e d o m r e ts a M t a st u p t u O .t u p nila n gis .c n y s la t n o zir o H ytir alo p e vit a g e N 2 1 0 0 S _ C C V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 3 1 0 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 4 1 N I X I .) 2 nip ( I 7 2 K L C g nis u n e h w ) V 3 . 3 + ( C C V o t tc e n n o C ) z H M 7 2 ( r o t a n o s e r la ts y r c a tc e n n o C 5 1 T U O X O .) 2 nip ( I 7 2 K L C g nis u n e h w n e p o o t t e S ) z H M 7 2 ( r o t a n o s e r la ts y r c a tc e n n o C 6 1 1 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 7 1 0 _ I V I ) B S L ( t u p ni a t a d o e di V . O X r o I 7 2 K L C o t ni d e zin o r h c n y s t a h t m r o f 1 0 6 - R I C C e h t f o la n gis lella r a p tib 8 t u p n I ) B S M ( 8 1 1 _ I V 9 1 2 _ I V 0 2 3 _ I V 1 2 4 _ I V 2 2 5 _ I V 3 2 6 _ I V 4 2 7 _ I V 5 2 8 0 _ T I . D N G o t tc e n n o C nip e d o m ts e T 6 2 1 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 7 2 9 0 _ T I . D N G o t tc e n n o C nip e d o m ts e T 8 2 0 1 _ T 9 2 1 0 _ D D V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 0 3 K C D S O O D S O la n r e tx e r o f t u p t u o k c ol C 1 3 B Y S H D S O O ytir alo p e vit a g e N D S O la n r e tx e r o f t u p t u o la n gis .c n y s la t n o zir o H 2 3 B Y S V D S O O ytir alo p e vit a g e N D S O la n r e tx e r o f t u p t u o la n gis .c n y s la citr e V 3 3 2 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 4 3 0 _ A T C I t u p ni a t a d D S O 5 3 1 _ A T C 6 3 2 _ A T C 7 3 M 6 1 G S I d n A . M A R G S tib - M 8 g nis u n e h w ) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C la ni m r e t t u p ni e g n a h c ytic a p a c M A R G S . M A R G S tib - M 6 1 g nis u n e h w V 3 . 3 o t tc e n n o c 8 3 0 _ D L B I t u p nilo rt n o c d n elb D S O 9 3 1 _ D L B 0 4 1 0 S _ C C V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 1 4 2 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 2 4 0 _ O M R O )] 0 [ R P S ( t u p t u o r o tin o m r e tsig e R 3 4 1 _ O M R )] 1 [ R P S ( t u p t u o r o tin o m r e tsig e R 4 4 2 _ O M R )] 2 [ R P S ( t u p t u o r o tin o m r e tsig e R 5 4 3 _ O M R )] 3 [ R P S ( t u p t u o r o tin o m r e tsig e R 6 4 4 _ O M R )] 4 [ R P S ( t u p t u o r o tin o m r e tsig e R 7 4 0 B G A _ D N G - .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n a b d r a u G r o f d n u o r G 8 4 1 C A D _ D D V - . V 3 . 3 o t tc e n n o C 1 C A D r o f ylp p u s r e w o P 9 4 1 C A D _ D N G - .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C 1 C A D r o f d n u o r G 0 5 1 T U O A D O t u p t u o 1 C A D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 DV-AX10 . o N e m a N n i P O /I n o it c n u F n i P 1 5 2 C A D _ D D V − . V 3 . 3 o t tc e n n o C 2 C A D r o f ylp p u s r e w o P 2 5 2 C A D _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C 2 C A D r o f d n u o r G 3 5 2 T U O A D O t u p t u o 2 C A D 4 5 3 C A D _ D D V − . V 3 . 3 o t tc e n n o C 3 C A D r o f ylp p u s r e w o P 5 5 3 T U O A D O t u p t u o 3 C A D 6 5 3 C A D _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C 3 C A D r o f d n u o r G 7 5 T X E R − . D N G o t r o tsis e r W k ) 0 . 3 ( 1 . 3 a tc e n n o C r o tsis e r e c n e r e f e r a tc e n n o C 8 5 L B C − . D N G o t r o tic a p a c F m 1 . 0 a tc e n n o C r o tic a p a c s s a p - y b a tc e n n o C 9 5 U B C − r o tic a p a c n oit a s n e p m o c e s a h p a tc e n n o C 1 . 0 a tc e n n o C µ 0 1 d n a r o tic a p a c ci m a r e c F µ . D N G o t r o tic a p a c .tc ele F 0 6 1 B G A _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n a B d r a u G r o f d n u o r G 1 6 5 _ O M R O )] 5 [ R P S ( t u p t u o r o tin o m r e tsig e R 2 6 6 _ O M R t u p t u o r o tin o m r e tsig e R 3 6 7 _ O M R t u p t u o r o tin o m r e tsig e R 4 6 2 0 S _ C C V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 5 6 3 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C 1 C A D r o f d n u o r G 6 6 1 1 _ T I . D N G o t tc e n n o C nip e d o m ts e T 7 6 2 1 _ T 8 6 3 1 _ T 9 6 4 1 _ T 0 7 5 1 _ T 1 7 1 0 Y S V O ytir alo p e vit a g e N t u p t u o g ola n a r o f t u p t u o la n gis .c n y s la citr e V 2 7 1 0 Y S H O ytir alo p e vit a g e N t u p t u o g ola n a r o f t u p t u o la n gis .c n y s la t n o zir o H 3 7 1 0 Y S C O ytir alo p e vit a g e N t u p t u o g ola n a r o f t u p t u o la n gis .c n y s e tis o p m o C 4 7 1 P M L C O t u p t u o g ola n a r o f t u p t u o la n gis p m al C 5 7 2 P M L C O t u p t u o la tigid r o f t u p t u o la n gis p m al C 6 7 2 0 _ D D V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 7 7 2 0 Y S V O ytir alo p e vit a g e N t u p t u o la tigid r o f t u p t u o la n gis .c n y s la citr e V 8 7 4 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 9 7 2 0 Y S H O ytir alo p e vit a g e N t u p t u o la tigid r o f t u p t u o la n gis .c n y s la t n o zir o H 0 8 2 0 Y S C O ytir alo p e vit a g e N t u p t u o la tigid r o f t u p t u o la n gis .c n y s la citr e V 1 8 0 _ 1 0 V O ) B S L ( t u p t u o 1 a t a d o e di V 2 8 1 _ 1 0 V 3 8 2 _ 1 0 V 4 8 3 _ 1 0 V 5 8 4 _ 1 0 V 6 8 3 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 7 8 5 _ 1 0 V O t u p t u o 1 a t a d o e di V ) B S M ( 8 8 6 _ 1 0 V 9 8 7 _ 1 0 V 0 9 8 _ 1 0 V 1 9 9 _ 1 0 V 2 9 3 0 S _ C C V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 3 9 5 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 4 9 0 _ 2 0 V O ) B S L ( t u p t u o 2 a t a d o e di V 5 9 1 _ 2 0 V 6 9 2 _ 2 0 V 7 9 3 _ 2 0 V 8 9 4 _ 2 0 V 9 9 4 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 0 0 1 5 _ 2 0 V O t u p t u o 2 a t a d o e di V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 DV-AX10 . o N e m a N n i P O /I n o it c n u F n i P 1 0 1 6 _ 2 0 V O t u p t u o 2 a t a d o e di V ) B S M ( 2 0 1 7 _ 2 0 V 3 0 1 8 _ 2 0 V 4 0 1 9 _ 2 0 V 5 0 1 3 0 _ D D V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 6 0 1 5 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 7 0 1 0 _ 3 0 V O ) B S L ( t u p t u o 3 a t a d o e di V 8 0 1 1 _ 3 0 V 9 0 1 2 _ 3 0 V 0 1 1 3 _ 3 0 V 1 1 1 4 _ 3 0 V 2 1 1 6 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 3 1 1 5 _ 3 0 V O t u p t u o 3 a t a d o e di V 4 1 1 6 _ 3 0 V 5 1 1 7 _ 3 0 V 6 1 1 4 0 S _ C C V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 7 1 1 6 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 8 1 1 8 _ 3 0 V O t u p t u o 3 a t a d o e di V ) B S M ( 9 1 1 9 _ 3 0 V 0 2 1 0 7 2 K L C O .r e tsig e r e h t h ti w t e s o t elb a si ytir alo P ..ct e ,r e tr e v n o c A D la n r e tx e o t tc e n n o C t u p t u o ) z H M 7 2 ( k c olc la n r e tx E 1 2 1 7 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 2 2 1 8 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 3 2 1 0 L L P _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C L L P r o f d n u o r G 4 2 1 0 L L P _ D D V − . V 3 . 3 o t tc e n n o C L L P r o f ylp p u s r e w o P 5 2 1 1 L L P _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C L L P r o f d n u o r G 6 2 1 1 L L P _ D D V − . V 3 . 3 o t tc e n n o C L L P r o f ylp p u s r e w o P 7 2 1 K L C F R − .) V 3 . 3 ( C C V r o D N G o t tc e n n o C L L P r o f nip ts e T 8 2 1 2 M T − . D N G o t tc e n n o C L L P r o f nip ts e T 9 2 1 9 0 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 0 3 1 7 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 1 3 1 T I . V 3 . 3 o t tc e n n o C e d o m ts e t r o f nip ts e T 2 3 1 W I . V 3 . 3 o t tc e n n o C lo rt n o c g nitir w r o f nip ts e T 3 3 1 4 0 _ D D V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 4 3 1 0 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 5 3 1 O K L C M O M A R G S r o f t u p t u o ) z H M 4 5 ( k c ol C 6 3 1 I K L C M I M A R G S r o f n r u t e r ) z H M 4 5 ( k c ol C 7 3 1 2 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 8 3 1 8 _ R D A M O M A R G S tib - M 6 1 g nis u n e h w M A R G S f o ) 9 ( A o t tc e n n o C M A R G S r o f t u p t u o s s e r d d A 9 3 1 3 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 0 4 1 5 0 _ D D V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 1 4 1 7 _ R D A M O M A R G S r o f t u p t u o s s e r d d A 2 4 1 6 _ R D A M 3 4 1 5 _ R D A M 4 4 1 5 0 S _ C C V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 5 4 1 8 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 6 4 1 4 _ R D A M O M A R G S r o f t u p t u o s s e r d d A ) B S L ( 7 4 1 3 _ R D A M 8 4 1 2 _ R D A M 9 4 1 1 _ R D A M 0 5 1 0 _ R D A M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 DV-AX10 . o N e m a N n i P O /I n o it c n u F n i P 1 5 1 9 _ R D A M O ) B S M ( . M A R G S tib - M 6 1 g nis u n e h w M A R G S f o ) 0 1 ( A o t tc e n n o C M A R G S r o f t u p t u o s s e r d d A 2 5 1 4 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 3 5 1 B S A R M O M A R G S r o f t u p t u o d n a m m o c e b o rts s s e r d d a w a R 4 5 1 B S A C M O M A R G S r o f t u p t u o d n a m m o c e b o rts s s e r d d a n m ulo C 5 5 1 B E W M O M A R G S r o f t u p t u o d n a m m o c elb a n e e tir W 6 5 1 6 0 _ D D V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 7 5 1 5 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 8 5 1 8 0 _ Q D M O /I p u -llu p h ti w M A R G S r o f t u p t u o d n a t u p ni a t a D 9 5 1 3 2 _ Q D M 0 6 1 9 0 _ Q D M 1 6 1 2 2 _ Q D M 2 6 1 6 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 3 6 1 0 1 _ Q D M O /I p u -llu p h ti w M A R G S r o f t u p t u o d n a t u p ni a t a D 4 6 1 1 2 _ Q D M 5 6 1 1 1 _ Q D M 6 6 1 0 2 _ Q D M 7 6 1 2 1 _ Q D M 8 6 1 6 0 S _ C C V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 9 6 1 9 0 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 0 7 1 9 1 _ Q D M O /I p u -llu p h ti w M A R G S r o f t u p t u o d n a t u p ni a t a D 1 7 1 3 1 _ Q D M 2 7 1 8 1 _ Q D M 3 7 1 4 1 _ Q D M 4 7 1 7 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 5 7 1 7 1 _ Q D M O /I p u -llu p h ti w M A R G S r o f t u p t u o d n a t u p ni a t a D 6 7 1 5 1 _ Q D M 7 7 1 6 1 _ Q D M 8 7 1 4 2 _ Q D M 9 7 1 7 0 _ Q D M 0 8 1 5 2 _ Q D M 1 8 1 7 0 _ D D V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 2 8 1 0 1 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 3 8 1 6 0 _ Q D M O /I p u -llu p h ti w M A R G S r o f t u p t u o d n a t u p ni a t a D 4 8 1 6 2 _ Q D M 5 8 1 5 0 _ Q D M 6 8 1 7 2 _ Q D M 7 8 1 4 0 _ Q D M 8 8 1 8 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 9 8 1 8 2 _ Q D M O /I p u -llu p h ti w M A R G S r o f t u p t u o d n a t u p ni a t a D ) B S M ( 0 9 1 3 0 _ Q D M 1 9 1 9 2 _ Q D M 2 9 1 2 0 _ Q D M 3 9 1 0 3 _ Q D M 4 9 1 1 0 _ Q D M 5 9 1 1 3 _ Q D M 6 9 1 7 0 S _ C C V − . V 3 . 3 o t tc e n n o C ylp p u s r e w o P 7 9 1 1 1 S _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 8 9 1 0 0 _ Q D M O /I ) B S L ( p u -llu p h ti w M A R G S r o f t u p t u o d n a t u p ni a t a D 9 9 1 0 _ T S E T I . D N G o t tc e n n o C t u p nillo rt n o c e d o m ts e T 0 0 2 0 0 _ T I . D N G o t tc e n n o C nip lo rt n o c e d o m ts e T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 DV-AX10 . o N e m a N n i P O /I n o it c n u F n i P 1 0 2 9 1 _ D N G − .) V 0 ( e g a tlo v e c n e r e f e r o t tc e n n o C d n u o r G 2 0 2 1 0 _ T I . D N G o t tc e n n o C t u p ni nip e d o m ts e T 3 0 2 2 0 _ T 4 0 2 K C O L G S O " H " : k c olt a t u p t u o la n gis k c ol G S S 5 0 2 N R S I t u p nitti m h c S t e s e r : L t u p nit e s e r m e ts y S 6 0 2 K L C S I t u p nitti m h c S . e g d e g nisir t a A T A D S ni d a e L e c a fr e t nilair e s U P M f o t u p ni k c ol C 7 0 2 A T A D S I t u p nitti m h c S e c a fr e t nilair e s U P M f o t u p ni a t a D 8 0 2 B S C I t u p nitti m h c S tc ele s : L e c a fr e t nilair e s U P M r o f t u p nitc ele s pih C CY2071ASL-371 (DVDM ASSY : IC965) • PLL Clock Generator • Block Diagram • Pin Function 3 4 1 5 6 XTALIN XTALOUT CLKA CLKB CLKC Reference Oscillator EPROM Configurable Multiplexer and Divide Logic PLL Block 8 OE/FS No. Pin Name Function 1 CLKA Configurable clock output 2 GND Ground 3 XTALIN Reference crystal input or external reference clock input 4 XTALOUT Reference crystal feedback 5 CLKB Configurable clock output 6 CLKC Configurable clock output 7 VDD Voltage supply 8 OE/FS Output control pin, either output enable or frequency select input. (Active-High, internal pull-up resistor to VDD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 DV-AX10 1 62 External Dimensions Anode and Grid Assignment Pin Assignment Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 Assignment NL F1 NP NL S38 S37 S36 S35 S34 S33 S32 S31 S30 14 15 16 17 18 19 20 21 22 23 24 25 26 S29 S28 S27 S26 S25 S24 S23 S22 S21 S20 S19 S18 S17 Pin No. 27 28 29 30 31 32 33 34 35 36 37 38 39 Assignment S16 S15 S14 S13 S12 S11 S10 S9 S8 S7 S6 S5 S4 40 41 42 43 44 45 46 47 48 49 50 51 52 S3 S2 S1 NL G15 G14 G13 G12 G11 G10 G9 G8 G7 Pin No. 53 54 55 56 57 58 59 60 61 62 Assignment G6 G5 G4 G3 G2 G1 NL NP F2 NL Note (G2 to G14) (1) F1, F2 : Filament (2) NP : No pin (3) NL : No Lead (4) G1 to G15 : Grid (5) S1 to S38 : Anode S6 S7 S8 S9 S10 S1 S2 S3 S4 S5 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 DOLBY LPCM MPEG 32k 48k 96k DIGITAL SACD L C R Ls S Rs LFE HDCD REMAIN TOTAL SEC MIN REPEAT CHP/TRK RANDOM PROGRAM V–PART ANGLE CONDITION MEMO LAST MEMO DOWN MIX A–B CHP TRK TITLE GRP 192k 44.1k 88.2k 16bit 20bit 24bit 176.4k DOLBY LPCM MPEG 32k 48k 96k DIGITAL SACD L C R Ls S Rs LFE HDCD REMAIN TOTAL SEC MIN REPEAT CHP/TRK RANDOM PROGRAM V–PART ANGLE CONDITION MEMO LAST MEMO DOWN MIX A–B CHP TRK TITLE GRP 192k 44.1k 88.2k 16bit 20bit 24bit 176.4k 7.2.2 DISPLAY VAW1048 (FLKB ASSY : V101) • FL Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 DV-AX10 Anode and Grid Assignment G1 GA G3 G7 G9 S1 S2 S3 S4 S5 S6 S6 S5 S4 S3 S2 S1 S6 S5 S4 S3 S2 S1 S7 S7 S7 S8 S8 S8 S9 S9 S9 S10 S10 S10 S11 S11 S11 S12 S12 S12 S13 S13 S14 S14 S14 S13 S12 S11 S10 S9 S8 S7 S6 S5 S4 S3 S2 S1 S14 S13 S12 S11 S10 S9 S8 S7 S6 S5 S4 S3 S2 S1 S14 S13 S15 S15 S15 S15 S15 S16 S16 S16 S16 S16 S17 S17 S17 S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S17 S17 S18 S18 S18 S18 S18 G11 G12 G14 G15 S1 S1 S1 S2 S2 S2 S3 S4 S4 S3 S4 S3 S5 S5 S5 S6 S6 S6 S7 S7 S7 S8 S8 S8 S9 S9 S9 S10 S11 S10 S10 S11 S12 S12 S11 S13 S12 S13 S13 S14 S14 S14 S15 S15 S15 S16 S16 S16 S17 S17 S17 S18 S18 S18 HDCD L C R Ls S Rs S19 S20 ANGLE V-PART DOWN MIX S21 S22 S23 S23 S22 S21 S20 S19 S24 S24 S24 S23 S22 S21 S20 S19 S25 S25 S25 S26 S26 S26 S27 S27 S27 S28 S28 S28 S29 S29 S29 S30 S30 S30 S31 S31 S32 S32 S32 S32 S31 S30 S29 S28 S27 S26 S25 S24 S23 S22 S21 S20 S19 S32 S31 S33 S33 S33 S33 S33 S34 S34 S34 S34 S34 S35 S35 S35 S35 S35 S36 S19 S19 S19 S20 S20 S20 S21 DOLBY DIGITAL S22 S22 S21 S22 S21 S23 S23 S23 S24 S24 S24 S25 S25 S25 S26 S26 S26 S27 S27 S27 S28 S28 S29 S28 LPCM S29 S30 S29 S30 S31 S31 S30 S31 S32 S32 S32 S33 S33 S33 S34 S34 S34 S35 S35 S35 LFE S37 TITLE GRP LAST MEMO S38 PROGRAM CHP CHP/TRK (A) MIN (B) REPEAT (C) A -B SEC TOTAL REMAIN 24bit 176.4k 192k 20bit 88.2k 96k 16bit 44.1k 48k 32k SCAD MPEG TRK RANDOM CONDITION MEMO GA : G2, G4 to G6, G8, G10, G13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 DV-AX10 DVD PLAYER DVD POWER DIMMER FL 8. PANEL FACILITIES AND SPECIFICATIONS 8.1 PANEL FACILITIES 7 Front Panel 1 POWER switch Press to switch the player on or off. 2 Remote sensor Point the remote control toward the remote sensor to operate the player. 3 Display window Displays system information (page 10). Press FL OFF on the front panel or DIMMER (FL) on the remote control to adjust the brightness of the display window. 4 DVD indicator Lights when a DVD-Audio disc or DVD-Video disc is loaded in the player. Does not light when a disc format other than DVD is loaded in the player. 5 3 (play) button Press to start or resume playback. 6 8 (pause) button Press during playback to pause. 7 ¢ (forward) button Press to advance to chapters, tracks, etc. 8 4 (reverse) button Press to go back to previous chapters, tracks, etc. 9 7 (stop) button Press to stop playback. Pressing once enables playback to resume from a point shortly before the location where it stopped. 0 (open/close) button Press to open and close the disc tray when stopped. 0 Disc door/Disc tray When loading a disc, place in the disc tray with the label side facing up. - FL DIMMER button/indicator Press to change the brightness of the Display windows and disc illumination in four steps: maximum brightness, medium brightness, minimum brightness, and off. When the Display window is on maximum brightness, the FL DIMMER indicator on the front panel is off. = Video Off button/indicator Switches the video signal output on/off AUTO: If there is a video signal from a loaded disc, video is output. If there is no signal from the disc or there is no disc loaded, no video signal is output. OFF: No video signal is output. ON: Video signal is output. When OFF is selected, the indicator lights. ~ DIGITAL DATA OFF button/indicator Switches the digital output on/off. When switched off, the indicator lights. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 DV-AX10 ANGLE V-PART PROGRAM TITLE GRP CHP TRK 32k 48k 96k 192k 16bit 20bit 24bit CONDITION MEMO TOTAL DIGITAL LAST MEMO LPCM L C R LS S RS LFE DOWN MIX MPEG SACD RANDOM CHP/TRK REPEAT DOLBY A - B REMAIN MIN SEC 44.1k 88.2k 176.4k 7 Display 1 CONDITION MEMO indicator Indicates that Condition Memory settings are memorized for the currently loaded DVD-Video disc. 2 ANGLE indicator Indicates Multi-Angle playback is in progress. 3 V-PART indicator During DVD-Audio disc or DVD-Video disc playback, lights when a video signal is present. 4 TITLE/GRP indicator Indicates a title or group number is being displayed. 5 PROGRAM indicator Indicates that the program function is on. 6 RANDOM indicator Indicates that the random function is on. 7 CHP/TRK indicator Indicates a chapter or track number is being displayed. 8 CHP/TRK indicator Indicates during chapter or track program play, repeat playor random playback. 9 REPEAT (A-B) indicator Indicates that the Repeat function is on and that the current title, chapter, group, or track is being repeated. 0 TOTAL indicator Indicates that the disc in the player is stopped and DISPLAY has been pressed. - REMAIN indicator Indicates that the remaining playback time of a title, chapter, group or track is being displayed. = LPCM Lights during Linear PCM playback. ~ DTS indicator Indicates DTS audio playback. ! DOLBY DIGITAL indicator Indicates Dolby Digital audio playback. @ SACD Lights when a Super Audio CD (SACD) is being played. # Bit depth display Displays the bit depth of the Linear PCM audio disc playing. $ Sampling frequency display Displays the sampling frequency of the Linear PCM audio disc playing. % MPEG Lights during playback of MPEG audio. ^ Counter display Displays the playback mode, type of disc, title/chapter/ group/track numbers, playback time, etc. & LAST MEMO indicator Indicates the Last Memory location is registered in memory for the currently loaded DVD-Video disc or Video CD. * Program Format indicators Depending on the audio format recorded on the disc loaded in the player, the following indicators light to show the channels being played back. L : Left front C : Center R : Right front LS : Left surround S : Surround (mono) RS : Right surround LFE: LFE (Low Frequency Effects) channel ( DOWNMIX indicator During multichannel audio playback, indicates that the out put signal has been “downmixed” from the original audio source. This is an automatic function performed by the player in order to present the most appropriate audio mix to the speakers present in your system. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 DV-AX10 7 Rear Panel 6 COMPONENT VIDEO OUT jacks If your projection monitor, projector or similar component has component video inputs, you can produce a higher quality picture on your projection monitor or projector by connecting to the component video outputs on this unit. When using these jacks, be sure to set the component video output selection switch to the correct position. 7 DIGITAL OUT jacks (coaxial(COAX)/optical (OPT)) Use to output the digital audio signal recorded on discs. You can output the digital signal via either coaxial or optical output jack to an AV amplifier or receiver. 8 PDIF jack When using this player with the optional C-AX10 Digital Control Amplifier, connect to this jack using the PDIF cable supplied with the C-AX10. 9 Power cord Use to connect the power cord to the wall outlet. 0 BALANCE ON/OFF switch Use to set to ON if you are using the balanced audio outputs. - AUDIO OUT FRONT jacks Use to output two-channel audio (analog) to the audio stereo inputs on a TV or stereo amplifier. If you are connecting to a receiver that has both digital and analog input jacks for DVD player connection, it may be beneficial to make both connections . 1 Multichannel AUDIO OUT jacks Use to output 6 discrete audio channels of decoded digital audio to a receiver or amplifier with discrete audio inputs. 2 CONTROL jacks Using a commercially available cord with a mini plug (3.5 mm dia. with no resistance) to connect this player’s CONTROL IN jack to the CONTROL OUT jack of another PIONEER component bearing the Î mark, you can control the player as though it were a component in a system (system control). • If you connect for system control, you cannot operate the player directly. Point the remote control unit at the component (AV amplifier, etc.) connected to the CONTROL OUT jack to operate. • When controlling as a system, be sure to make a connection to the amplifier using an audio or video cord, even when using only digital components. • For details, refer to the operation manuals of the connected components. 3 VIDEO OUT jacks Connect to the video input on a TV, monitor, AV amplifier or receiver with video input capability. 4 S-VIDEO OUT jacks If your TV or monitor has an S-VIDEO input, clear picture reproduction is possible by connecting the player to your TV or monitor via the S-VIDEO jack. 5 Component video output selection switch Use to set the scanning system (interlace, progressive, menu setting) being used by the TV, monitor, or projector connected to the COMPONENT VIDEO OUT jacks. * The rear and under section of this appllance are copper plated to ensure quality sound. It may sometimes happen that marks are left during the plating process, but this does not affect performance. R L SURROUND SUB WOOFER CENTER CONTROL IN OUT AUDIO OUT BALANCE 1 - GND 2 - HOT (+) 3 - COLD (-) FRONT OPT 2COAX 1COAX PCM R L DIGITAL OUT PDIF OFF ON 2 1 Y PB PR 525i (480i) 525p (480p) 2 1 menu select VIDEO OUT COMPONENT VIDEO OUT S-VIDEO OUT 1 2 3 4 5 6 9 7 8 - 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 121 DV-AX10 A-B ENTER V.ADJ FL F.MEM JOG MENU 0 9 8 7 +10 6 5 4 C 3 2 1 DVD PLAYER STEP/SLOW OPEN/CLOSE AUDIO SUBTITLE ANGLE DISPLAY TOP MENU SETUP M U L TI D I A L VIDEO ADJUST DIMMER JOG MODE FUNCTION MEMORY PLAY PAUSE STOP PREVIOUS NEXT REV FWD RETURN SEARCH MODE CLEAR PROGRAM REPEAT RANDOM LAST MEMORY CONDITION MEMORY * * * * * * 7 Remote Control 1 MENU button* Use to display or close the DVD menu screen. 2 AUDIO button Press repeatedly to select one of the audio languages and/or audio formats programmed on a DVD. For Video CD and CD, each press changes the audio output as follows. Stereo, 1/L (Left), 2/R (Right), Stereo, ... 3 DISPLAY button Press during playback to display statistical disc information. Press repeatedly to display different information. 4 SETUP button* Press when the player is in either play or stop mode to open and close the Setup screen. 5 MULTI DIAL Use to control the rate of playback according to the speed at which MULTI DIAL is turned. When the Jog Mode is on, frame by frame scanning in both forword and reverse directions is possible. 6 LIGHTING button (side panel) Use to illuminate the main operation buttons on the remote control. When pressed, the buttons light for approximately 6 seconds. This function is convenient for locating the command buttons when the room is dark. 7 VIDEO ADJUST (V.ADJ) button Various attributes of the video presentation can be adjusted to suit the program type or personal preferences. Press VIDEO ADJUST (V.ADJ) to display the on-screen options. 8 FUNCTION MEMORY (F.MEM) button Press to incorporate a menu item into a shortcut list that is stored in memory and can be called up at any time. 9 PLAY 3 button Press to start disc playback. 0 STOP 7 button Press to stop playback. Pressing once enables playback to resume from a point shortly before the location where it was stopped. Pressing twice causes the disc to return to the beginning of the disc when playback starts again. (Buttons indicated with * are used for menu operation.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 122 DV-AX10 - PREVIOUS 4/NEXT ¢ buttons During playback, press PREVIOUS 4 to go back to a previous chapter/track and NEXT ¢ to advance to the next chapter/track. = RETURN button* Use to go one menu back (current settings are maintained). Use RETURN when you do not want to change the option setting in a menu. ~ STEP/SLOW e/E buttons Press STEP/SLOW E during playback to view slow playback. In pause mode, press STEP/SLOW E to advance DVDs and Video CDs frame by frame and STEP/SLOW e to back up a DVD a few frames at a time. ! Number buttons (1-9, 0, +10)* Use to perform direct title/chapter/group/track searches, and to input numerical values. @ RANDOM button Play in random order the groups or tracks on DVD Audio disc, the titles or chapters on DVD Video disc, and the tracks on Video CDs and CDs. # LAST MEMORY button You can resume DVD-Video or Video CD playback from the point you last watched even if the disc is removed from the player. Press LAST MEMORY during playback to set a Last Memory point. When you want to resume playback of that disc, press LAST MEMORY in the stop mode and playback starts from the memorized point. Last Memory locations can be stored for up to 5 DVDs and 1 Video CD. $ OPEN/CLOSE 0 button Press to open or close the disc tray. % SUBTITLE button Press repeatedly to select one of the subtitle languages programmed on a DVD or to turn the subtitles off. ^ ANGLE button Some DVDs are recorded with various camera angle playback options. Press ANGLE repeatedly to display different camera angles. & TOP MENU button* Press to call up the top menu programmed on the DVD. Depending on the DVD, the top menu may be identical to the DVD menu. * Cursor control joystick* Use to move the cursor through the options on menu screens and to change settings. ENTER button* Press to implement settings selected with the cursor control joystick or to set items highlighted in a menu. ( DIMMER (FL) button Press to change the brightness of the Display windows and disc illumination in four steps: maximum brightness, medium brightness, minimum brightness, and off. When the Display windows is turned off, the FL OFF indicator on the front panel lights. ) JOG MODE indicator Lights when the function of MULTI DIAL is to perform frame by frame playback in both directions. _ JOG MODE (JOG) button Press to change the function of MULTI DIAL from slow playback and scan to frame by frame playback. When this mode is on, frame by frame playback in both forward and reverse directions is possible. + PAUSE 8 button Press to pause playback of a disc. Press again to resume playback. ¡ REV 1/FWD ¡ (fast reverse/ fast forward) buttons During playback of DVD and Video CD, press FWD ¡ to perform fast forward scanning. Press REV 1 to perform fast reverse scanning of DVD and Video CD. When a SACD or CD is loaded, audio scanning is performed. ™ SEARCH MODE button Press to perform a title/chapter/group/track or elapsed time search. £ CLEAR button Works in conjunction with a number of player functions. Use to cancel repeat and random playback, and to edit programs. ¢ PROGRAM button You can program groups and tracks on a DVD Audio disc, titles and chapters on a DVD Video disc, and tracks on Video CDs or CDs to play back in a desired order. ∞ REPEAT (A-B) buttons You can repeat groups and tracks on a DVD Audio disc, titles and chapters on a DVD Video disc, and tracks or an entire disc of a SACD, Video CD or CD. § CONDITION MEMORY button You can store in memory the settings for up to 15 DVDs. Press CONDITION MEMORY during DVD playback to memorize the settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 123 DV-AX10 8.2 SPECIFICATIONS Digital audio characteristics Frequency response .......................... 4 Hz to 88 kHz (DVD-Audio fs: 192 kHz) S/N ratio ...............................................more than 115 dB Dynamic range .................................... more than 108 dB Total harmonic distortion ..................................... 0.001% Wow and flutter............................ Limit of measurement (±0.001% W. PEAK) or lower Digital output Optical digital output (2 individual outputs) ............................................................ Optical digital jack Coaxial digital output ..........................................RCA jack Other terminals CONTROL IN............................................ Minijack (3.5 ø) CONTROL OUT ........................................ Minijack (3.5 ø) PDIF CONTROL OUT ............................... Minijack (3.5 ø) Accessories Audio cord ...................................................................... 1 Video cord ...................................................................... 1 BNC to RCA/phono adapter ........................................... 3 Remote control unit ....................................................... 1 AA (R6P) dry cell batteries ............................................. 2 Operating Instructions (this manual) .............................. 1 Note The specifications and design of this product are subject to change without notice, due to improvement. General SystemDVD system and Compact Disc digital audio system Power requirements ................................ AC 120 V, 60 Hz Power consumption ................................................ 58 W Weight............................................... 24 kg (52 lb. 15 oz.) Dimensions ................... 440 (W) x 394 (D) x 150 (H) mm (17 6/16(W) x 15 9/16 (D) x 5 15/16 (H) in.) (Not including protruding cables, etc.) Operating temperature. +5°C to +35°C (+36°F to +96°F) Operating humidity .......... 5% to 85% (no condensation) S-Video output (2 individual outputs) Y (luminance) - Output level ........................ 1 Vp-p (75 Ω) C (color) - Output level .........................286 mVp-p (75 Ω) Jacks ........................................................... S-VIDEO jack Video output (2 individual outputs) Output level ................................................. 1 Vp-p (75 Ω) Jacks ..................................................................RCA jack Component video output (Y, PB, PR) Output level ........................................... Y: 1.0 Vp-p (75 Ω) PB, PR: 0.7 Vp-p (75 Ω) Jacks ................................................................. BNC jack Audio output (2 individual outputs) Output level During audio output............. 200 mVrms (1 kHz, –20 dB) Jacks ......................................... RCA jack/BALANCE jack Multi-channel Audio output (Rear L/R, Center, Subwoofer) Output level During audio output.............. 200 mVrms (1 kHz, –20 dB) Jacks ..................................................................RCA jack ¶ Remote control Unit CU-DV041(VXX2631) ¶ dry cell batteries (size AA/R6) × 2 Accessories ¶ Audio cord (VDE1023) (L=1.5m) ¶ Video cord (VDE1024) (L=1.5m) ¶ Operating Instructions Manual ¶ BNC to RCA/phono adapter (VKX1004 x 3) A-B ENTER V.ADJ FL F.MEM JOG MENU 0 9 8 7 +10 6 5 4 C 3 2 1 DVD PLAYER STEP/SLOW OPEN/CLOSE AUDIO SUBTITLE ANGLE DISPLAY TOP MENU SETUP M U L TI D I A L VIDEO ADJUST DIMMER JOG MODE FUNCTION MEMORY PLAY PAUSE STOP PREVIOUS NEXT REV FWD RETURN SEARCH MODE CLEAR PROGRAM REPEAT RANDOM LAST MEMORY CONDITION MEMORY White Red Yellow www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
