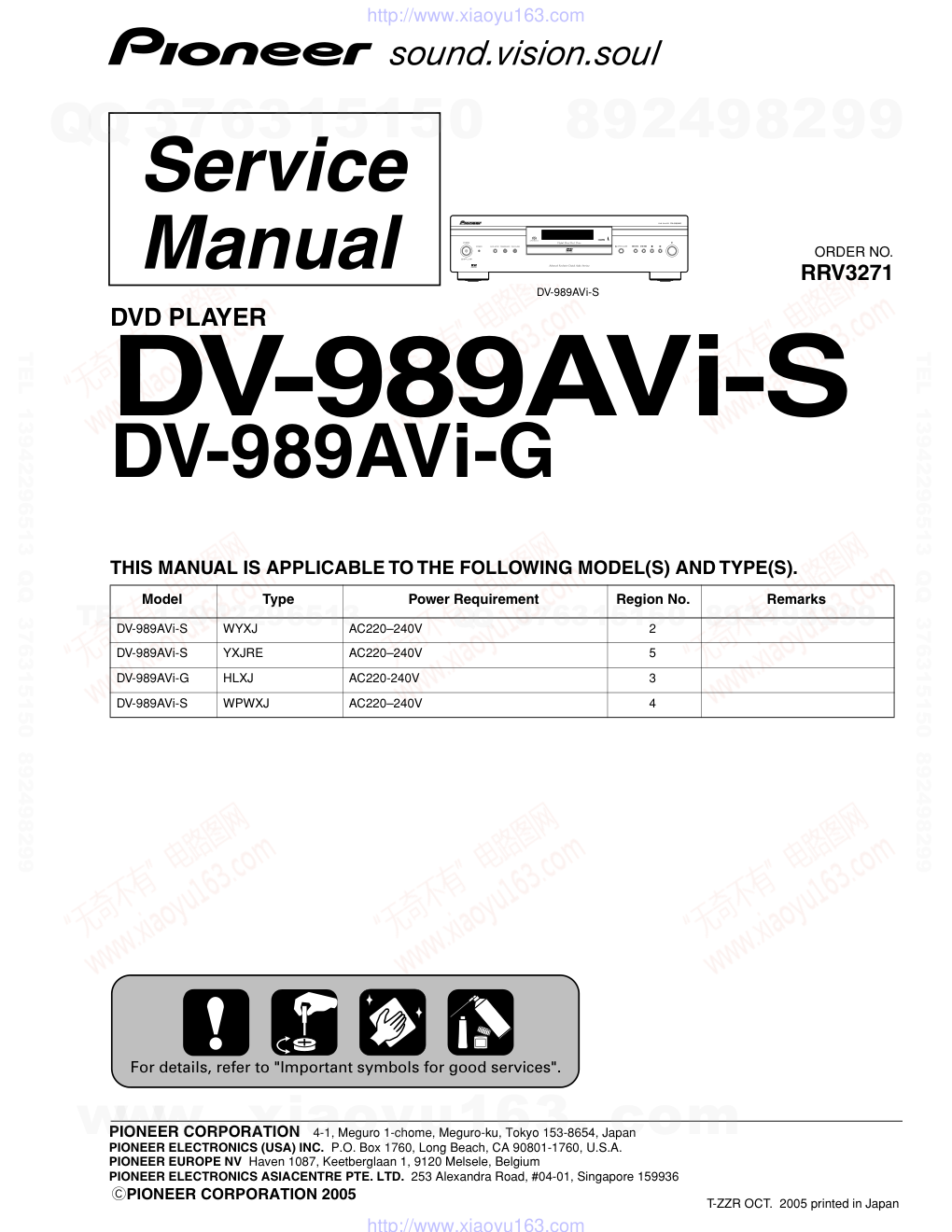

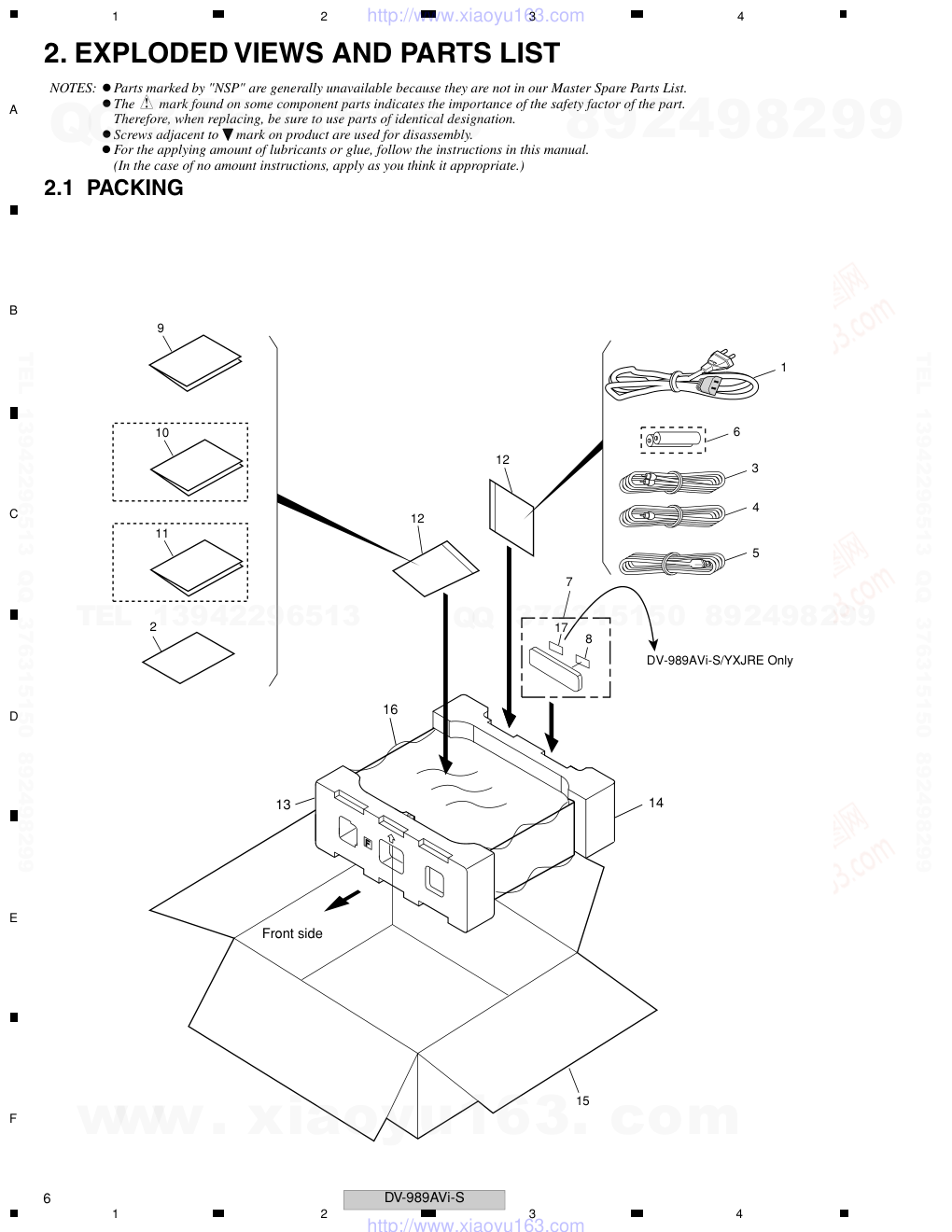

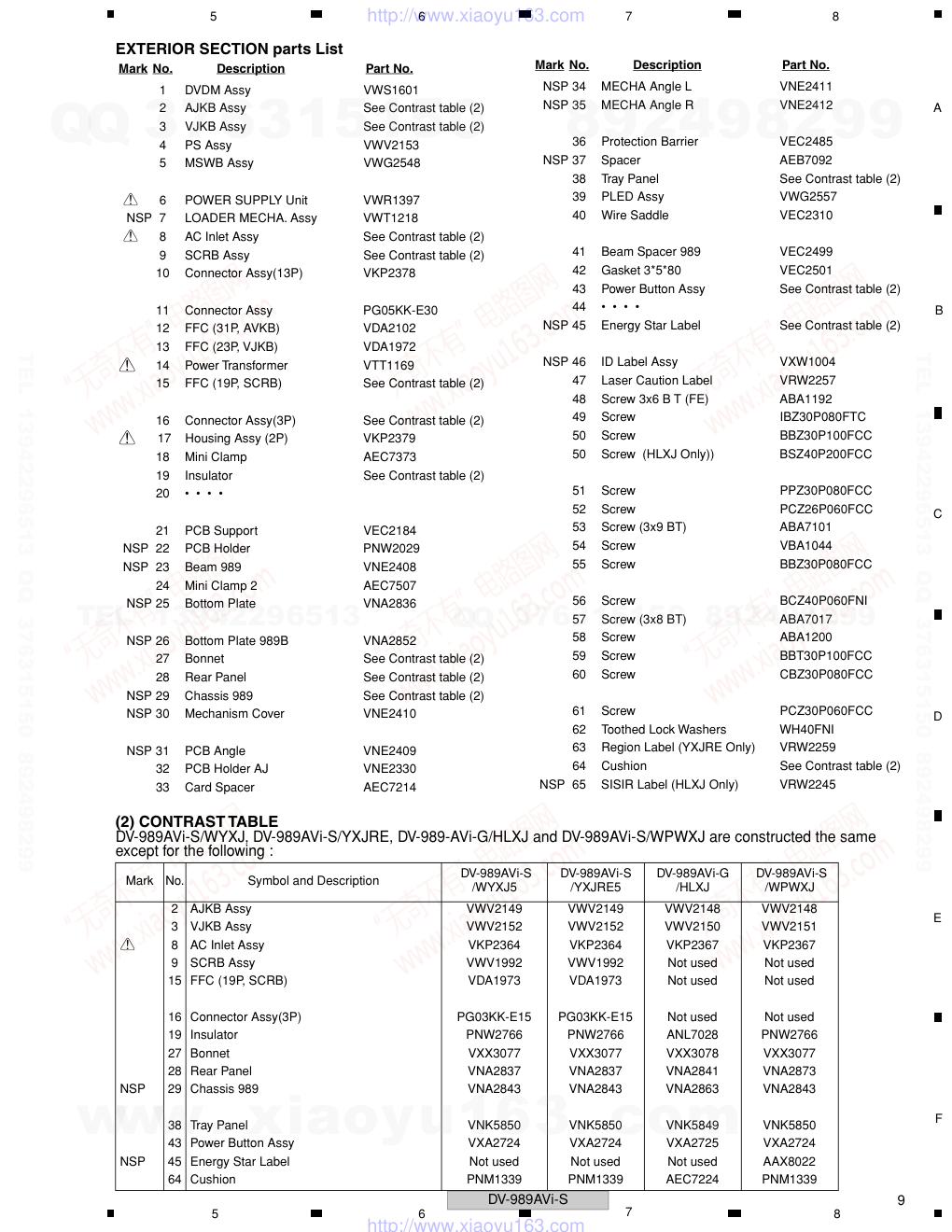

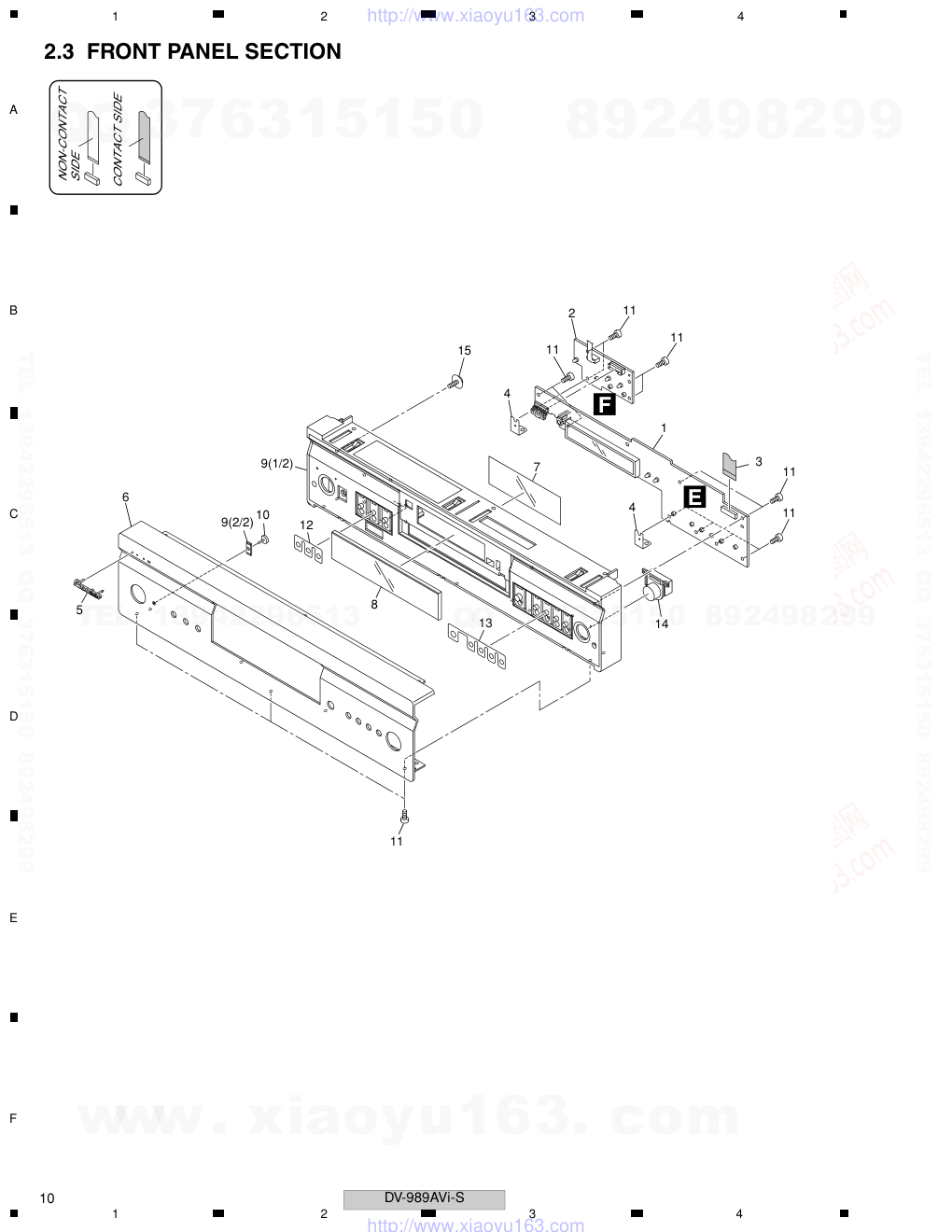

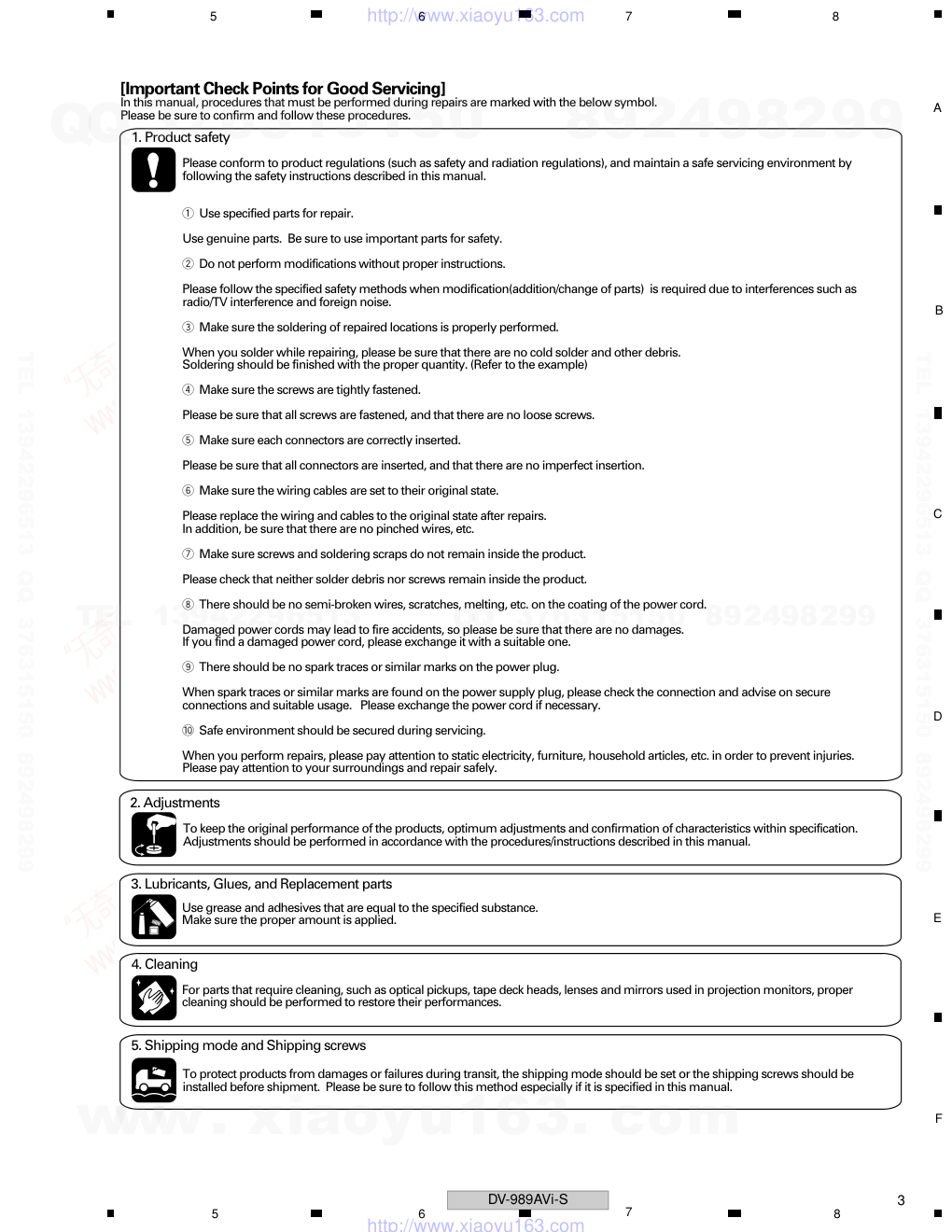

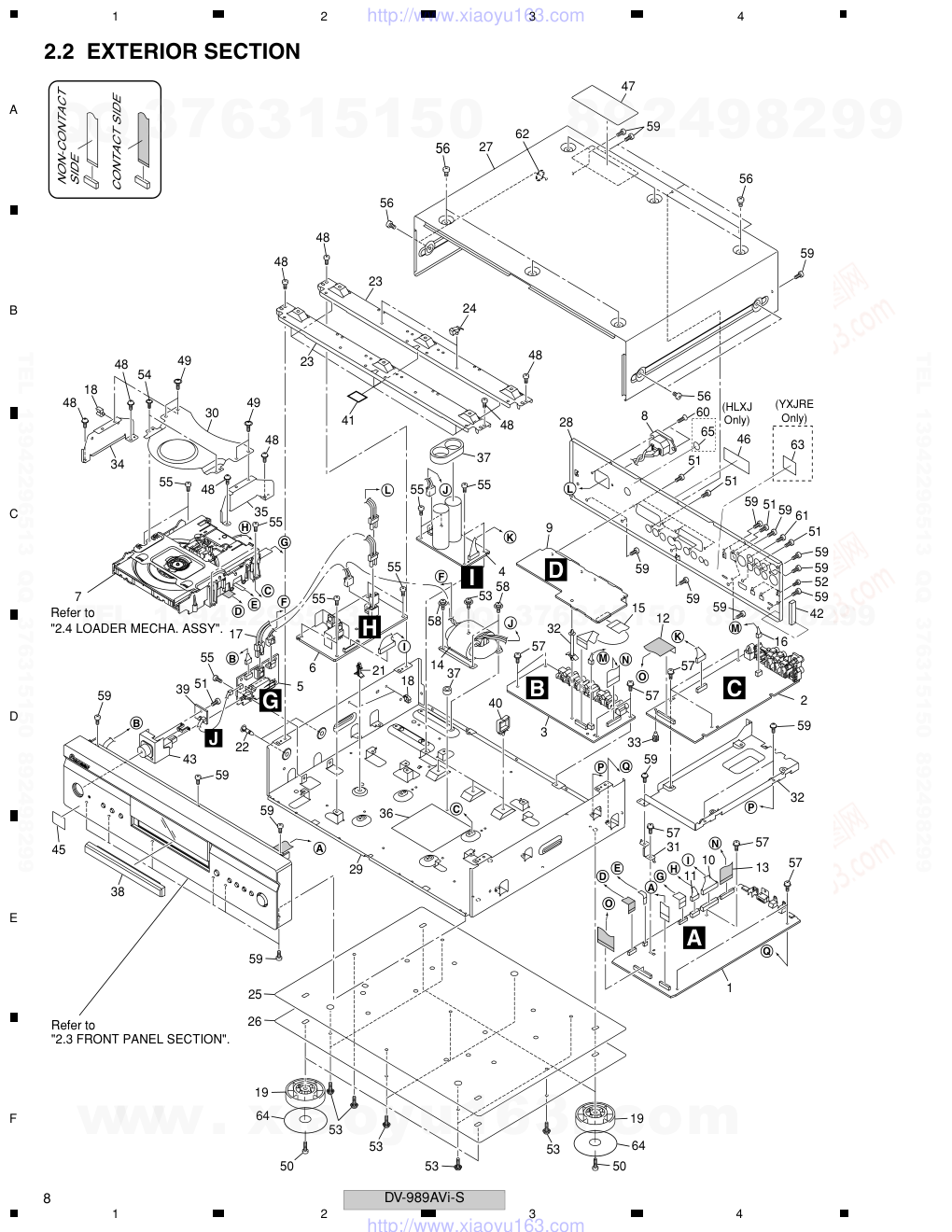

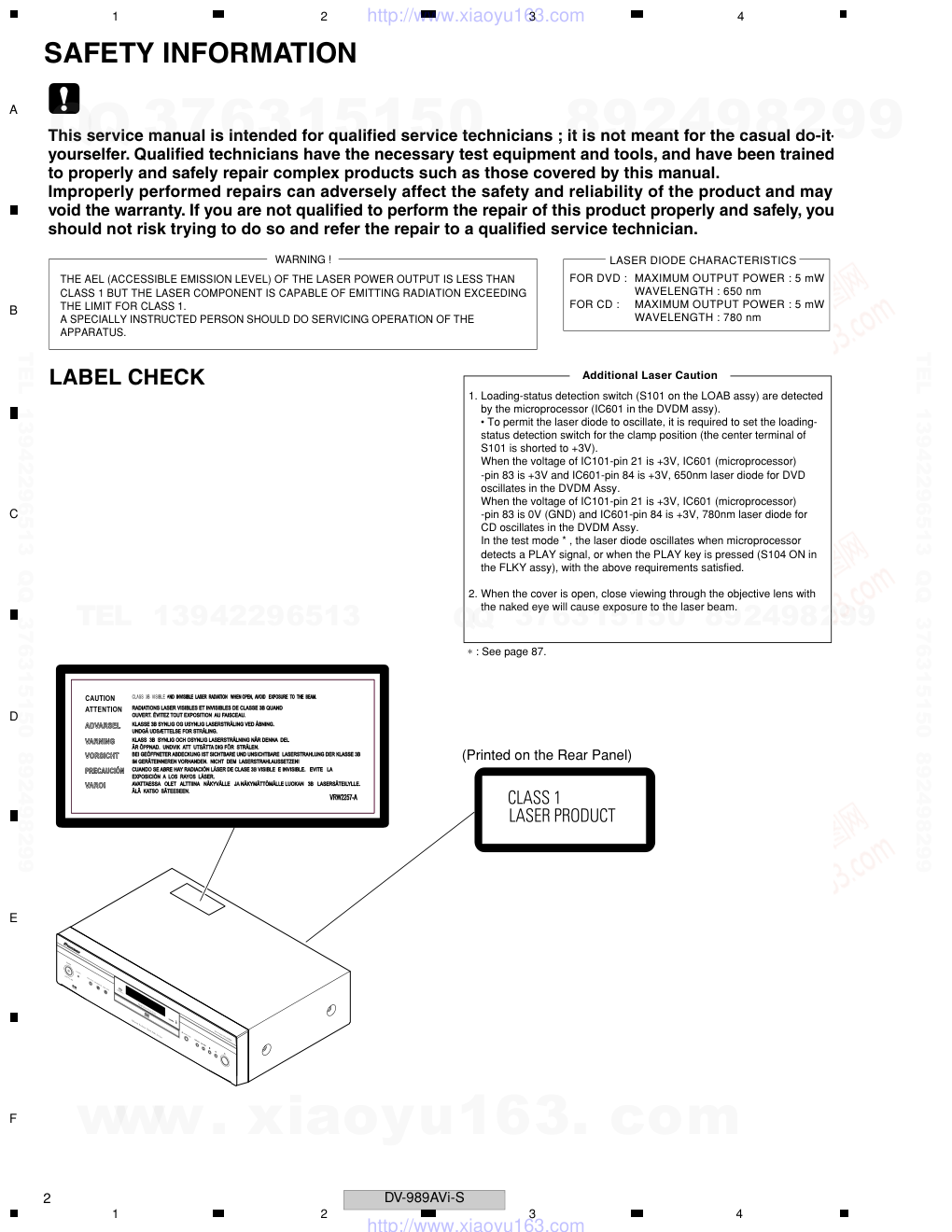

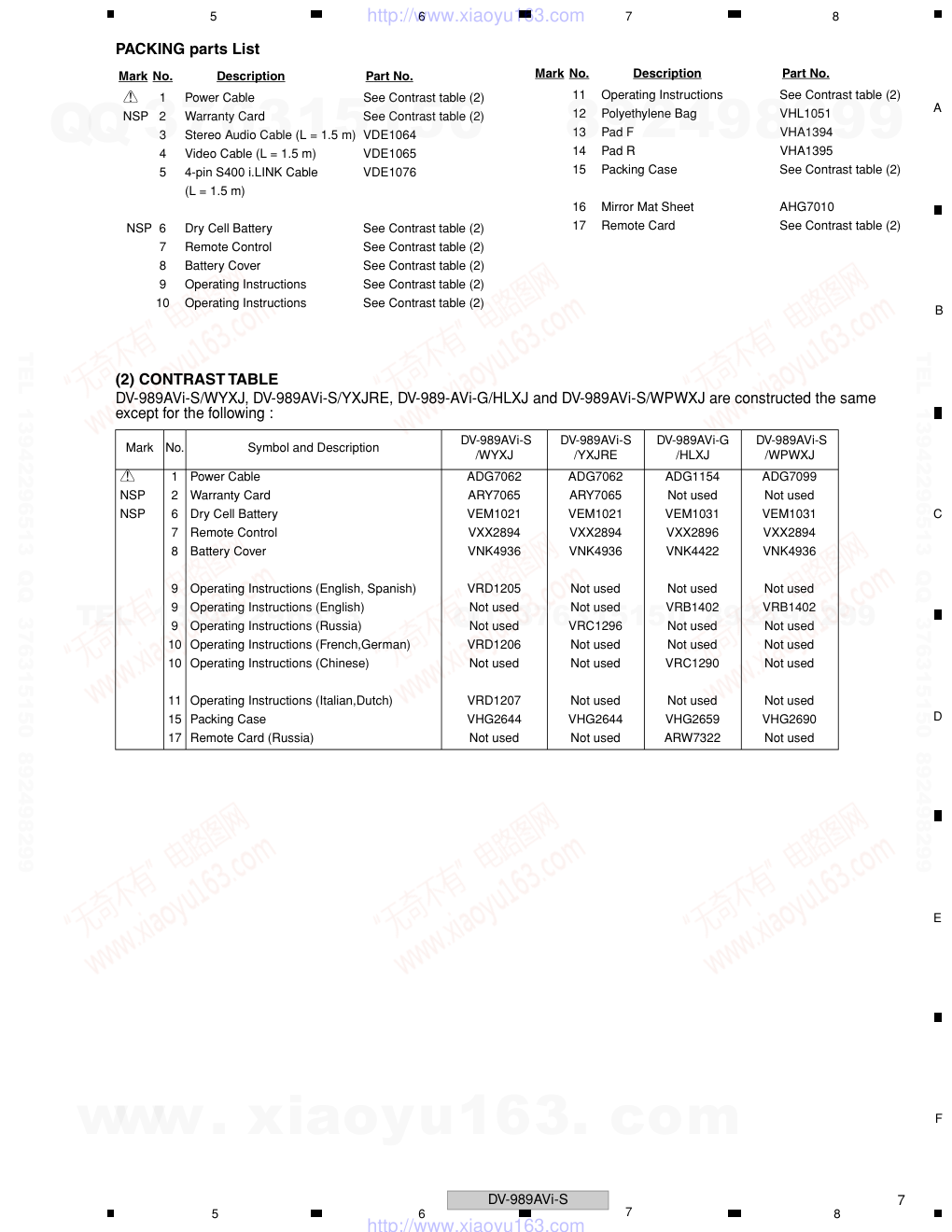

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 DV-989AVi-S RRV3271 DVD PLAYER DV-989AVi-S DV-989AVi-G THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Remarks DV-989AVi-S WYXJ AC220–240V 2 DV-989AVi-S YXJRE AC220–240V 5 DV-989AVi-G HLXJ AC220-240V 3 DV-989AVi-S WPWXJ AC220–240V 4 For details, refer to "Important symbols for good services". T-ZZR OCT. 2005 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 780 nm LABEL CHECK (Printed on the Rear Panel) Additional Laser Caution ∗ : See page 87. 1. Loading-status detection switch (S101 on the LOAB assy) are detected by the microprocessor (IC601 in the DVDM assy). • To permit the laser diode to oscillate, it is required to set the loading- status detection switch for the clamp position (the center terminal of S101 is shorted to +3V). When the voltage of IC101-pin 21 is +3V, IC601 (microprocessor) -pin 83 is +3V and IC601-pin 84 is +3V, 650nm laser diode for DVD oscillates in the DVDM Assy. When the voltage of IC101-pin 21 is +3V, IC601 (microprocessor) -pin 83 is 0V (GND) and IC601-pin 84 is +3V, 780nm laser diode for CD oscillates in the DVDM Assy. In the test mode * , the laser diode oscillates when microprocessor detects a PLAY signal, or when the PLAY key is pressed (S104 ON in the FLKY assy), with the above requirements satisfied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 EXTERIOR SECTION................................................................................................................................ 8 2.3 FRONT PANEL SECTION ....................................................................................................................... 10 2.4 LOAD✲✹ MECHA. ASSY.......................................................................................................................... 12 2.5 TRAVERSE MECHA. ASSY-S ................................................................................................................. 14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 16 3.1 OVERAL BLOCK DIAGRAM.................................................................................................................... 16 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM..................................................................................... 18 3.3 DVDM ASSY 1/6 [FTS BLOCK] ............................................................................................................... 20 3.4 DVDM ASSY 2/6 [FR BLOCK] ................................................................................................................. 22 3.5 DVDM ASSY 3/6 [EBY/AV1 BLOCK] ....................................................................................................... 24 3.6 DVDM ASSY 4/6 [i.LINK BLOCK] ............................................................................................................ 26 3.7 DVDM ASSY 5/6 [VIDEO BLOCK]........................................................................................................... 28 3.8 DVDM ASSY 6/6 [A-DSP/AQE/SACD BLOCK]........................................................................................ 30 3.9 AJKB ASSY ............................................................................................................................................. 32 3.10 VJKB ASSY............................................................................................................................................ 34 3.11 FLKY, KEYB and MSWB ASSYS........................................................................................................... 36 3.12 SCRB ASSY (WYXJ5, YXJRE5 Only) ................................................................................................... 38 3.13 POWER SUPPLY UNIT.......................................................................................................................... 40 3.14 WAVEFORMS ........................................................................................................................................ 42 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 45 4.1 LOAB ASSY............................................................................................................................................. 45 4.2 DVDM ASSY ............................................................................................................................................ 46 4.3 AJKB ASSY ............................................................................................................................................. 50 4.4 VJKB ASSY.............................................................................................................................................. 52 4.5 FLKY and KEYB ASSYS ......................................................................................................................... 54 4.6 SCRB ASSY ............................................................................................................................................ 58 4.7 PS ASSY.................................................................................................................................................. 60 4.8 POWER SUPPLY UNIT............................................................................................................................ 61 5. PCB PARTS LIST ........................................................................................................................................... 62 6. ADJUSTMENT ............................................................................................................................................... 86 6.1 ADJUSTMENT ITEMS AND LOCATION ................................................................................................. 86 6.2 JIGS AND MEASURING INSTRUMENTS............................................................................................... 86 6.3 NECESSARY ADJUSTMENT POINTS ................................................................................................... 87 6.4 TEST MODE ............................................................................................................................................ 88 6.5 MECHANISM ADJUSTMENT.................................................................................................................. 89 7. GENERAL INFORMATION............................................................................................................................. 91 7.1 DIAGNOSIS ............................................................................................................................................. 91 7.1.1 ID NUMBER AND ID DATA SETTING ............................................................................................... 91 7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE ............................................................... 93 7.1.3 TEST MODE SCREEN DISPLAY...................................................................................................... 94 7.1.4 SELF-DIAGNOSIS FUNCTION......................................................................................................... 96 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE ............................................................. 97 7.1.6 ERROR DISPLAY.............................................................................................................................. 98 7.1.7 TROUBLE SHOOTING.................................................................................................................... 101 7.1.8 FAILURE-TEST METHOD FOR THE HDMI TRANSMITTER IC..................................................... 103 7.1.9 SERIAL-DOWNLOAD...................................................................................................................... 104 7.1.10 DISASSEMBLY.............................................................................................................................. 105 8. PANEL FACILITIES ...................................................................................................................................... 115 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS Specifications General System. . . . . . . . . . . . . . . . . . . . . . . . .DVD Player Power requirements. . . . AC 220-240 V, 50/60 Hz Power consumption. . . . . . . . . . . . . . . . . . . 25 W Power consumption (standby) . . . . . . . . . . 0.3 W Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.0 kg Weight. . . . . . . . . . . . . . . . . (HLXJ model) 10.0 kg Dimensions. . . . 420 (W) x 117 (H) x 340 (D) mm Operating temperature. . . . . . . . +5°C to +35°C Operating humidity . . . . . . . . . . . . . . . 5% to 85% (no condensation) HDMI output HDMI output i.LINK output i.LINK output . . . . . . . . . . . . . . . . . . . 4 pin (S400) Component Video output (Y, PB, PR) Output level . . . . . . . . . . . . . . . .Y: 1.0 Vp-p (75 Ω) PB, PR: 0.7 Vp-p (75 Ω) Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA jacks S-Video output Y (luminance) - Output level . . . . . 1 Vp-p (75 Ω) C (color) - Output level. . . . . . . 286 mVp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . S-Video jack Video output Output level . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω) Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA jack AV connector output AV Connector (21-pin connector assignment) AV connector output. . . . . . . . .21-pin connector This connector provides the video and audio signals for connection to a compatible color TV or monitor. PIN no. 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . Audio 2/R out 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .Audio 1/L out 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B* out 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Status 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G* out 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . R* or C* out 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND 19 . . . . . . . . . . . . . . . . . . . . . .Video out or Y* out 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND *AV CONNECTOR 1 (RGB)-TV/AV Receiver is output Audio output (1 stereo pair) Output level . . . . . . . . . . . . .During audio output 200 mVrms (1 kHz, –20 dB) Number of channels. . . . . . . . . . . . . . . . . . . . . .2 Jacks. . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio output (multi-channel / L, R, C, SW, LS, RS) Output level . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels. . . . . . . . . . . . . . . . . . . . . .6 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio characteristics Frequency response . . . . . . . . . . . . . .4 Hz to 44 kHz(DVD fs: 96 kHz) . . . . . . . 4 Hz to 88 kHz (DVD-Audio fs: 192 kHz) S/N ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . .118dB Dynamic range . . . . . . . . . . . . . . . . . . . . 108.8dB Total harmonic distortion . . . . . . . . . . . 0.0008 % Wow and flutter . . . . . . . . Limit of measurement (0.001% W. PEAK) or lower Digital output Optical digital output . . . . . . Optical digital jack Coaxial digital output . . . . . . . . . . . . . . RCA jack Other terminals Control in . . . . . . . . . . . . . . . . . . .Minijack (3.5ø) Control out . . . . . . . . . . . . . . . . . .Minijack (3.5 ø) Accessories Stereo audio cable . . . . . . . . . . . . . . . . . . . . . . . .1 Video cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 4-pin S400 i.LINK cable . . . . . . . . . . . . . . . . . . . .1 Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . .1 AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . . 2 Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . .1 These operating instructions The specifications and design of this product are subject to change without notice, due to improvement. . . . . . . . . . . . . . . . . . . . . . . . . 19 pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 8 7 15 17 3 5 4 12 12 1 6 9 10 11 2 Front side 16 13 14 DV-989AVi-S/YXJRE Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 7 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE DV-989AVi-S/WYXJ, DV-989AVi-S/YXJRE, DV-989-AVi-G/HLXJ and DV-989AVi-S/WPWXJ are constructed the same except for the following : Mark No. Description Part No. > 1 Power Cable See Contrast table (2) NSP 2 Warranty Card See Contrast table (2) 3 Stereo Audio Cable (L = 1.5 m) VDE1064 4 Video Cable (L = 1.5 m) VDE1065 5 4-pin S400 i.LINK Cable VDE1076 (L = 1.5 m) NSP 6 Dry Cell Battery See Contrast table (2) 7 Remote Control See Contrast table (2) 8 Battery Cover See Contrast table (2) 9 Operating Instructions See Contrast table (2) 10 Operating Instructions See Contrast table (2) 11 Operating Instructions See Contrast table (2) 12 Polyethylene Bag VHL1051 13 Pad F VHA1394 14 Pad R VHA1395 15 Packing Case See Contrast table (2) 16 Mirror Mat Sheet AHG7010 17 Remote Card See Contrast table (2) Mark No. Description Part No. Mark No. Symbol and Description DV-989AVi-S /WYXJ DV-989AVi-S /YXJRE DV-989AVi-G /HLXJ DV-989AVi-S /WPWXJ > 1 Power Cable ADG7062 ADG7062 ADG1154 ADG7099 NSP 2 Warranty Card ARY7065 ARY7065 Not used Not used NSP 6 Dry Cell Battery VEM1021 VEM1021 VEM1031 VEM1031 7 Remote Control VXX2894 VXX2894 VXX2896 VXX2894 8 Battery Cover VNK4936 VNK4936 VNK4422 VNK4936 9 Operating Instructions (English, Spanish) VRD1205 Not used Not used Not used 9 Operating Instructions (English) Not used Not used VRB1402 VRB1402 9 Operating Instructions (Russia) Not used VRC1296 Not used Not used 10 Operating Instructions (French,German) VRD1206 Not used Not used Not used 10 Operating Instructions (Chinese) Not used Not used VRC1290 Not used 11 Operating Instructions (Italian,Dutch) VRD1207 Not used Not used Not used 15 Packing Case VHG2644 VHG2644 VHG2659 VHG2690 17 Remote Card (Russia) Not used Not used ARW7322 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION A CONTACT SIDE NON-CONTACT SIDE A D E O Q Q O M N J L K J L F I C F G H C E D B B K M P P G H I N Refer to "2.3 FRONT PANEL SECTION". 47 27 56 56 48 24 23 23 48 48 37 55 4 9 28 56 8 60 51 51 59 5159 61 51 59 59 52 59 59 16 59 57 2 59 32 57 33 59 57 31 57 13 11 57 1 59 15 32 58 53 58 55 14 21 18 36 6 5 55 55 35 48 49 30 49 54 48 48 18 34 55 48 17 55 51 39 45 59 43 59 59 38 59 26 19 50 53 53 53 53 19 50 25 22 29 37 57 40 3 12 55 59 56 59 62 48 41 42 10 7 Refer to "2.4 LOADER MECHA. ASSY". G J I B D H C A 46 65 63 64 64 (YXJRE Only) (HLXJ Only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List (2) CONTRAST TABLE DV-989AVi-S/WYXJ, DV-989AVi-S/YXJRE, DV-989-AVi-G/HLXJ and DV-989AVi-S/WPWXJ are constructed the same except for the following : Mark No. Description Part No. 1 DVDM Assy VWS1601 2 AJKB Assy See Contrast table (2) 3 VJKB Assy See Contrast table (2) 4 PS Assy VWV2153 5 MSWB Assy VWG2548 > 6 POWER SUPPLY Unit VWR1397 NSP 7 LOADER MECHA. Assy VWT1218 > 8 AC Inlet Assy See Contrast table (2) 9 SCRB Assy See Contrast table (2) 10 Connector Assy(13P) VKP2378 11 Connector Assy PG05KK-E30 12 FFC (31P, AVKB) VDA2102 13 FFC (23P, VJKB) VDA1972 > 14 Power Transformer VTT1169 15 FFC (19P, SCRB) See Contrast table (2) 16 Connector Assy(3P) See Contrast table (2) > 17 Housing Assy (2P) VKP2379 18 Mini Clamp AEC7373 19 Insulator See Contrast table (2) 20 • • • • 21 PCB Support VEC2184 NSP 22 PCB Holder PNW2029 NSP 23 Beam 989 VNE2408 24 Mini Clamp 2 AEC7507 NSP 25 Bottom Plate VNA2836 NSP 26 Bottom Plate 989B VNA2852 27 Bonnet See Contrast table (2) 28 Rear Panel See Contrast table (2) NSP 29 Chassis 989 See Contrast table (2) NSP 30 Mechanism Cover VNE2410 NSP 31 PCB Angle VNE2409 32 PCB Holder AJ VNE2330 33 Card Spacer AEC7214 NSP 34 MECHA Angle L VNE2411 NSP 35 MECHA Angle R VNE2412 36 Protection Barrier VEC2485 NSP 37 Spacer AEB7092 38 Tray Panel See Contrast table (2) 39 PLED Assy VWG2557 40 Wire Saddle VEC2310 41 Beam Spacer 989 VEC2499 42 Gasket 3*5*80 VEC2501 43 Power Button Assy See Contrast table (2) 44 • • • • NSP 45 Energy Star Label See Contrast table (2) NSP 46 ID Label Assy VXW1004 47 Laser Caution Label VRW2257 48 Screw 3x6 B T (FE) ABA1192 49 Screw IBZ30P080FTC 50 Screw BBZ30P100FCC 50 Screw (HLXJ Only)) BSZ40P200FCC 51 Screw PPZ30P080FCC 52 Screw PCZ26P060FCC 53 Screw (3x9 BT) ABA7101 54 Screw VBA1044 55 Screw BBZ30P080FCC 56 Screw BCZ40P060FNI 57 Screw (3x8 BT) ABA7017 58 Screw ABA1200 59 Screw BBT30P100FCC 60 Screw CBZ30P080FCC 61 Screw PCZ30P060FCC 62 Toothed Lock Washers WH40FNI 63 Region Label (YXJRE Only) VRW2259 64 Cushion See Contrast table (2) NSP 65 SISIR Label (HLXJ Only) VRW2245 Mark No. Description Part No. Mark No. Symbol and Description DV-989AVi-S /WYXJ5 DV-989AVi-S /YXJRE5 DV-989AVi-G /HLXJ DV-989AVi-S /WPWXJ 2 AJKB Assy VWV2149 VWV2149 VWV2148 VWV2148 3 VJKB Assy VWV2152 VWV2152 VWV2150 VWV2151 > 8 AC Inlet Assy VKP2364 VKP2364 VKP2367 VKP2367 9 SCRB Assy VWV1992 VWV1992 Not used Not used 15 FFC (19P, SCRB) VDA1973 VDA1973 Not used Not used 16 Connector Assy(3P) PG03KK-E15 PG03KK-E15 Not used Not used 19 Insulator PNW2766 PNW2766 ANL7028 PNW2766 27 Bonnet VXX3077 VXX3077 VXX3078 VXX3077 28 Rear Panel VNA2837 VNA2837 VNA2841 VNA2873 NSP 29 Chassis 989 VNA2843 VNA2843 VNA2863 VNA2843 38 Tray Panel VNK5850 VNK5850 VNK5849 VNK5850 43 Power Button Assy VXA2724 VXA2724 VXA2725 VXA2724 NSP 45 Energy Star Label Not used Not used Not used AAX8022 64 Cushion PNM1339 PNM1339 AEC7224 PNM1339 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 FRONT PANEL SECTION CONTACT SIDE NON-CONTACT SIDE 11 11 4 11 3 11 14 4 7 15 9(1/2) 9(2/2) 6 5 10 12 8 11 13 2 11 1 E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 11 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List (2) CONTRAST TABLE DV-989AVi-S/WYXJ, DV-989AVi-S/YXJRE, DV-989-AVi-G/HLXJ and DV-989AVi-S/WPWXJ are constructed the same except for the following : Mark No. Description Part No. 1 FLKY Assy See Contrast table (2) 2 KEYB Assy VWG2558 3 FFC (17P, FLKB) VDA2089 4 Earth Plate S VNF1131 5 Pioneer Name Plate See Contrast table (2) 6 Aluminum Panel See Contrast table (2) 7 FL Filter VEC2482 8 D Window VEC2492 9 Panel Base Assy See Contrast table (2) NSP 10 LED Lens VNK5073 11 Screw PPZ30P080FCC 12 Button Sheet L VED1014 13 Button Sheet R VED1015 14 Standby BTN V1 (P) See Contrast table (2) 15 Screw ABA7110 Mark No. Description Part No. Mark No. Symbol and Description DV-989AVi-S /WYXJ DV-989AVi-S /YXJRE DV-989AVi-G /HLXJ DV-989AVi-S /WPWXJ 1 FLKY Assy VWG2552 VWG2552 VWG2554 VWG2554 5 Pioneer Name Plate VAM1124 VAM1124 PAN1377 VAM1124 6 Aluminum Panel VAH1430 VAH1430 VAH1434 VAH1430 9 Panel Base Assy VXA2721 VXA2721 VXA2722 VXA2721 14 Standby BTN V1 (P) XAD3191 XAD3191 XAD3186 XAD3191 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 12 1 2 3 4 1 2 3 4 C D F A B E 2.4 LOAD✲✹ ✲✹ ✲✹ ✲✹ MECHA. ASSY LOADER MECHA. ASSY parts List A A 22 1 2 4 3 10 21 11 15 19 14 20 13 12 20 20 20 18 16 17 7 8 9 5 6 6 6 6 Refer to "2.5 TRAVERSE MECHA. ASSY-S". Lubricating Oil GYA1001 Daifree GEM1036 Cleaning paper GED-008 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 To DVDM CN101 (Pickup Assy-S) To DVDM CN104 (Stepping Motor) To DVDM CN105 (Spindle Motor) 23 K Mark No. Description Part No. 1 Traverse Mecha. Assy-S VXX2909 2 Loading Motor Assy VXX2912 3 Motor Pulley PNW1634 4 Motor VXM1107 5 Flexible Cable (24P) VDA1947 6 Floating Rubber VEB1351 7 Belt VEB1358 8 Stabilizer VNE2253 9 Loading Base VNL1917 10 Float Base DVD VNL1918 11 Drive Cam VNL1919 12 Gear Pulley VNL1921 13 Loading Gear VNL1922 14 Drive Gear VNL1923 15 SW Lever VNL1925 16 Clamper Plate VNE2342 17 Bridge VNE2343 18 Clamper VNL1924 19 Screw JGZ17P028FMC 20 Screw VBA1094 21 Tray VNL1920 NSP 22 LOAB Assy VWG2426 23 Connector Assy (2P) VKP2253 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 13 5 6 7 8 5 6 7 8 C D F A B E Application of Lubricant Lubricating Oil GYA1001 Around the shaft No. 11 Loading Base No. 23 Tray No. 13 Drive Cam No. 13 Drive Cam No. 23 Tray Front View Rear View Daifree GEM1036 Inner side of a ditch Concave of unevenness Top View Bottom View Daifree GEM1036 Daifree GEM1036 Side of the rib Lubricating Oil GYA1001 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 14 1 2 3 4 1 2 3 4 C D F A B E 2.5 TRAVERSE MECHA. ASSY-S To DVDM CN104 (Stepping Motor) To DVDM CN105 (Spindle Motor) To DVDM CN101 (Pickup Assy) CONTACT SIDE NON-CONTACT SIDE 3 7 8 1 17 16 17 10 13 17 10 6 11 14 16 2 9 15 (Torque : 0.15 ± 0.01 N•m) 15 (Torque : 0.15 ± 0.01 N•m) 4 (Adjustment screw) 5 (Adjustment spring) Screw Tight GYL1001 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Cleaning paper GED-008 Cleaning liquid GEM1004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 15 5 6 7 8 5 6 7 8 C D F A B E TRAVERSE MECHA. ASSY-S parts List Mark No. Description Part No. 1 Spindle Motor VXM1099 2 Stepping Motor VXM1101 3 Pickup Assy-S OXX8005 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mecha.Chassis VNE2248 12 Damper Sheet VEB1335 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw OBA8021 16 Screw BBZ20P050FZK 17 Screw PMA26P100FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 16 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 OVERAL BLOCK DIAGRAM DVDM BOARD DVD DECODER (CPPM,CPRM) EBY-CHIP PE5286B ( ) RF IC LA9704W 5V SERVO DSP LC78652W 5&3.3V MPEG2 DECODER MITSUBISHI AV1 (DVD-A,DTS,TPP) (Progressive Scan) M65776BFP 3.3V&1.8V SYSTEM CONTROL CPU FR30 PD6345A CLK Generator SM8707DV 3.3V (NPC) 16M SDRAM 16M PGM FLASH MEMORY 3.3V 64M SDRAM 3.3V LOADING MOTOR DV-989AVi BlockDiagram SPDL MOTOR PU STEPPING MOTOR TRAVERSE PICK UP FTS DRIVER M56788AFP 6&12V SPDL DRIVER BA6664FM 6&5V RF(SACD) Power Supply Board (Murata) FL CONTROL CPU PE5314C 3.3V Counter FL Tube Display KEY Board IR(SHARP) 3V,H=12.9mm Board Audio DSP XCA56367PV150 3.3V&1.8V AQE PD0274A CPLD IC LC4032VAA 3.3V (Macnica) AUDIO TRANS (Kitamura) CD Direct SW FLKB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 17 5 6 7 8 5 6 7 8 C D F A B E VJKB BOARD VIDEO OUTx2 S-VIDEO OUTx2 . COMPONENT OUT (Progressive/Interlace) D1/D2 OUT SCRB BOARD(WY Only) SCART IN/OUT*2 FRONT Lchx2 FRONT Rchx2 REAR Lch REAR Rch SUBWOOFER CENTER OPTICAL OUT COAXIAL OUT AJKB BOARD VIDEO AMP DRIVER 6ch OUT LA73054 V Y SC SY Cb Cr 192k,24bit, 2chDAC PCM1738E(BB SL SW SR C 3-5 Change I/P Processer &VIDEO DAC (PRO-3) CM0039AF (PVC) 1.8V&3.3V 192k,24bit, 2chDAC PCM1738E(BB 192k,24bit, 2chDAC PCM1738E(BB 64M SDRAM Cb/B Cr/R V SY SC Mercury TSB43CA- 42GGW 3.3V&1.8V Host CPU PD5787A PD5787A 4M Flash ROM SW/C SW/C(SACD) SL/SR SL/ SR(SACD FL/FR(SACD) Y/G SR IN SR 0UT FL/FR(AV1) SW SW SACD Decoder CXD2753R 3.3V&2.5V (SONY) 16M SDRAM 3.3V SW/C(AV1) SL/SR(AV1) RESOLUTIO N EXPO lC (T-REX) PD0280B 3.3V&2.5V HDMI TX SiI9030 HDMI connector SW i-Link Connector FL/FR VIDEO AMP DRIVER 6ch OUT LA73054 LA73054 B G R FL FR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 18 1 2 3 4 1 2 3 4 C D F A B E 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM SCRB ASSY (VWV1992) D PS ASSY (VWV2153) I LOADER ASSY KEYB ASSY (VWG2558) F MSWB ASSY (VWG2548) G POWER SUPPLY Unit (VWR1397) H PLED ASSY (VWG2557) J WYXJ, YXJRE Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 19 5 6 7 8 5 6 7 8 C D F A B E CN602 1 2 CN601 CN602 + M S101 LOADING MOTOR ASSY : VXX2872 VJKB ASSY (WYXJ, YXJRE : VWV2152) (HLXJ : VWV2150) (WPWXJ : VWV2151) B DVDM ASSY (VWS1601) A FLKY ASSY (WYXJ, YXJRE : VWG2552) (HLXJ, WPWXJ : VWG2554) E AJKB ASSY (WYXJ, YXJRE : VWV2149) (HLXJ, WPWXJ : VWV2148) C WYXJ, YXJRE Only ÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ : The power supply is shown with the marked box. LOAB ASSY (VWG2426) K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 20 1 2 3 4 1 2 3 4 C D F A B E 3.3 DVDM ASSY 1/6 [FTS BLOCK] from / to FR (IC601) RF_V RF_A RF RF RF RF RF RF RF RF RF RF F F T T F F F T T T 1 2 4 A 1/6 DVDM ASSY (VWS1601) to PU CN601 to SPINDLE MOTOR to CARRIAGE MOTOR A 1/6 2/6 A K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 21 5 6 7 8 5 6 7 8 C D F A B E to SACD (IC1110) to AVI (IC751) from Clock Block from EBY (IC701) : RF SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE F AD RF : RF (VIDEO) SIGNAL ROUTE RF_V : RF (AUDIO) SIGNAL ROUTE RF_A RF_V RF_V RF_A RF_A RF_A T S AD AD F T 5 6 7 8 9 11 10 A 1/6 3/6 A 2/6 A 3/6 A 3/6 A 3/6 A 2/6 A 6/6 A 2/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 22 1 2 3 4 1 2 3 4 C D F A B E 3.4 DVDM ASSY 2/6 [FR BLOCK] to Servo Block to RF IC (IC101) to SPDL DRIVER to FTS DRIVER VYW2363 A 2/6 3/6 A 3/6 A 3/6 A 3/6 A 4/6 A 4/6 A 1/6 A 3/6 A 3/6 A to EBY to AV1 from SERVO DSP to Video Block to CN901 for FRASH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 23 5 6 7 8 5 6 7 8 C D F A B E A 2/6 DVDM ASSY (VWS1601) A 2/6 4/6 A 5/6 A to FLKB ASSY from syps ASSY 3/6 A to EBY to IC805 HOSTCON Serial to FLKB CN2101 E CN101 H 5/6 A 3/6 A 6/6 A 6/6 A 4/6 A 1/6 A 3/6 A 6/6 A 3/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 24 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVDM ASSY 3/6 [EBY/AV1 BLOCK] RF_V RF_V AD AD D D VD AD VD AD A 3/6 6/6 A 2/6 A 1/6 A 4/6 A 1/6 A 2/6 A 1/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 25 5 6 7 8 5 6 7 8 C D F A B E AD VD : RF (VIDEO) SIGNAL ROUTE RF_V : VIDEO DATA SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE D : AUDIO (DIGITAL) SIGNAL ROUTE D D D D D D D D D VD VD AD A 3/6 DVDM ASSY (VWS1601) A 3/6 2/6 A 1/6 A 2/6 A 6/6 A 4/6 A 4/6 A 4/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 26 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVDM ASSY 4/6 [i.LINK BLOCK] Cb/B : Cb/B SIGNAL ROUTE Y/G : Y/G SIGNAL ROUTE Cr/R : Cr/R SIGNAL ROUTE S_Y : S-VIDEO OUT Y SIGNAL ROUTE S_C : S-VIDEO OUT C SIGNAL ROUTE V Cb/B Y/G Cr/R S_Y S_C V : V SIGNAL ROUTE VD VD VD VD : VIDEO DATA SIGNAL ROUTE D : AUDIO (DIGITAL) SIGNAL ROUTE A 4/6 DVDM ASSY (VWS1601) A 4/6 2/6 A 2/6 A 2/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 27 5 6 7 8 5 6 7 8 C D F A B E Cr/R Cb/B Y/G S_Y S_C V D D 16 19 15 18 17 20 14 12 13 A 4/6 2/6 A CN4101 B 2/6 A HDMI CONNECTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 28 1 2 3 4 1 2 3 4 C D F A B E 3.7 DVDM ASSY 5/6 [VIDEO BLOCK] D D D D D D D D D A 5/6 DVDM ASSY (VWS1601) A 5/6 6/6 A 2/6 A from AV1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 29 5 6 7 8 5 6 7 8 C D F A B E D : AUDIO (DIGITAL) SIGNAL ROUTE D D D D A 5/6 2/6 A for FRASH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 30 1 2 3 4 1 2 3 4 C D F A B E 3.8 DVDM ASSY 6/6 [A-DSP/AQE/SACD BLOCK] D D D D D D D D A 6/6 DVDM ASSY (VWS1601) A 6/6 3/6 A 3/6 A 2/6 A from FR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 31 5 6 7 8 5 6 7 8 C D F A B E D : AUDIO (DIGITAL) SIGNAL ROUTE D D D D : RF (AUDIO) SIGNAL ROUTE RF_A RF_A RF_A D D D D D D D D D D D D A 6/6 1/6 A 5/6 A 3/6 A CN3101 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 32 1 2 3 4 1 2 3 4 C D F A B E 3.9 AJKB ASSY 180 180 D D D D D D D D D D D D D 24 23 21 22 AJKB ASSY(WYXJ,YXJRE : VWV2149) (HLXJ,WPWXJ : VWV2148) C C I CN551 A from TRANS PS ASSY (VWV2153) I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 33 5 6 7 8 5 6 7 8 C D F A B E WY only : AUDIO (DIGITAL) SIGNAL ROUTE D : AUDIO SIGNAL ROUTE 25 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 34 1 2 3 4 1 2 3 4 C D F A B E 3.10 VJKB ASSY C4621 C4624 C4622 C4623 G Cr/R Cb/B Y/G S_Y S_C V Y/G Cb/B Cr/R V S_C S_Y Y Cb Cr Cb/B : Cb/B SIGNAL ROUTE Y/G : Y/G SIGNAL ROUTE Cr/R : Cr/R SIGNAL ROUTE S_Y : S-VIDEO OUT Y SIGNAL ROUTE S_C : S-VIDEO OUT C SIGNAL ROUTE V : V SIGNAL ROUTE : AUDIO SIGNAL ROUTE VJKB ASSY (WYXJ,YXJRE:VWV2152) (HLXJ : VWV2150) (WPWXJ: VWV2151) B B CN901 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 35 5 6 7 8 5 6 7 8 C D F A B E V S_C S_Y S_C S_C S_C V V V S_Y S_Y S_Y Y Cb Cr Y Cb Cr Y Cb Cr B CN901 D CN3351 C D-CONNECTOR (WYXJ,YXJRE : VWV2152 Only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 36 1 2 3 4 1 2 3 4 C D F A B E 3.11 FLKY, KEYB and MSWB ASSYS EU Regions Singapore,Malaysia Australia Our company's product Mechanical SW Tact SW Fluorescent character display tube FL Cushion G FLKY ASSY (WYXJ,YXJRE : VWG2552) (HLXJ,WPWXJ : VWG2554) E E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 37 5 6 7 8 5 6 7 8 C D F A B E KEYB ASSY (VWG2558) F F MSWB ASSY (VWG2548) G PLED ASSY (VWG2557) J J G E CN402 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 38 1 2 3 4 1 2 3 4 C D F A B E 3.12 SCRB ASSY (WYXJ5, YXJRE5 Only) V V V V SCRB ASSY (VWV1992) WYXJ, YXJRE Only D CN4602 B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 39 5 6 7 8 5 6 7 8 C D F A B E Cb/B : Cb/B SIGNAL ROUTE Y/G : Y/G SIGNAL ROUTE Cr/R : Cr/R SIGNAL ROUTE S_Y : S-VIDEO OUT Y SIGNAL ROUTE S_C : S-VIDEO OUT C SIGNAL ROUTE V V V V : V SIGNAL ROUTE : AUDIO SIGNAL ROUTE D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 40 1 2 3 4 1 2 3 4 C D F A B E 3.13 POWER SUPPLY UNIT H CN1 CN2 CN3 NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. POWER SUPPLY UNIT (VWR1397) H AC INLET ASSY CN2302 G CN2304 G • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 41 5 6 7 8 5 6 7 8 C D F A B E H CN101 CN401 A 2/6 P301 AEK7063 800mA P202 AEK7067 2.0A P101 AEK7067 2.0A P201 AEK7066 1.6A CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR P301 (AEK7063). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P201 (AEK7066). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P101 and P202 (AEK7067). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 42 1 2 3 4 1 2 3 4 C D F A B E 3.14 WAVEFORMS 1 IC101-pin 3 (RF) V: 200mV/div. H: 0.1µsec/div. 2 Q106-emitter (RFO) V: 500mV/div. H: 0.1µsec/div. 3 4 IC101-pin 42 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC201 - pin 39 (EFM before slice) V: 0.5V/div. H: 0.2µsec/div. 6 IC201 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC251 - pin 24 (FG) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 10µsec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 10µsec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 0.2msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 Foot of R968 (V) V: 0.2V/div. H: 10µsec/div. 13 Foot of R959 (S_C) V: 0.2V/div. H: 10µsec/div. 14 Foot of R963 (S_Y) V: 0.2V/div. H: 10µsec/div. 19 Foot of R958 (Cb/B) [progressive] V: 0.2V/div. H: 10µsec/div. 20 Foot of R957 (Cr/R) [progressive] V: 0.2V/div. H: 10µsec/div. 15 Foot of R960 (Y/G) [interlace] V: 0.2V/div. H: 10µsec/div. 16 Foot of R958 (Cb/B) [interlace] V: 0.2V/div. H: 10µsec/div. 17 Foot of R957 (Cr/R) [interlace] V: 0.2V/div. H: 10µsec/div. 18 Foot of R960 (Y/G) [progressive] V: 0.2V/div. H: 10µsec/div. GND AC mode GND AC mode GND AC mode GND GND GND GND GND GND GND DVDM ASSY A Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 12 to 14 : DVD-REF-A1, T2-Chap.1 No. 5 : CD, ABEX-784 Track 1 No. 15 to 20 : DVD-REF-A1, T2-Chap.19 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 43 5 6 7 8 5 6 7 8 C D F A B E 21 IC301-pin 4 (LRCK) V: 1V/div. H: 5µsec/div. 22 IC301-pin 5 (DATA0) V: 1V/div. H: 500nsec/div. IC301-pin 6 (BCK) V: 1V/div. H: 100nsec/div. 23 24 IC301-pin 7 (PMCK) V: 1V/div. H: 20nsec/div. 25 IC302 - pin 1 (Analog OUT) V: 1V/div. H: 500µsec/div. AJKB ASSY C Measurement condition : No. 21 to 25 : DVD-REF-A1, T2-Chap.1 Note : The encircled numbers denote measuring point in the schematic diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 44 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 45 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY SIDE A SIDE B K K C101 C102 V+3D SW2 (V+5D) LOAD- LOAD+ PYKC F6 GND 5 1 5 1 CN601 CN602 1 2 CN601 CN602 S101 VNP1912- VWG LOAB VWG2426- 5 1 1 2 1 5 (VNP1912-A) LOAB ASSY K LOADING MOTOR ASSY M CN103 A CN601 CN602 CN602 CN601 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 46 1 2 3 4 1 2 3 4 C D F A B E 4.2 DVDM ASSY R134 C108 C254 R252 C252 C255 C122 C120 R135 121 C114 R120 R121 C106 R119 R118 C107 C110 C109 R126 R129 R128 C103 R117 R342 R345 C330 C333 C335 R340 R333 C105 R131 R130 R343 L330 C256 R257 IC101 C358 R258 R259 R124 R125 TP1 TP2 C101 C241 R241 IC202 C250 C249 C248 R256 C247 C246 R255 C245 R254 C251 C253 C258 R251 R391 C391 IC211 R225 R218 R226 C233 C232 R227 C234 R228 C112 C390 R234 C113 R132 R133 C115 C116 R136 R127 C111 C118 C119 R123 R116 R115 R151 R154 R153 R152 Q103 Q106 Q104 CN115 CN114 R150 C117 R1162 R159 C124 R165 R166 R164 R163 R162 R161 C100 C127 R167 R1136 R1157 R171 R172 KN1 KN2 C235 R253 C442 R206 C441 C440 D401 CN402 L1102 R205 R547 R546 R545 R543 R542 R539 R541 C528 C559 C557 C558 C750 D407 D408 L401 R734 R557 C708 C701 R710 R706 R701 C714 C710 R709 C439 C749 IC411 R703 R711 C711 C709 C707 C706 C704 C735 C713 C712 C715 C718 C720 C722 C727 C725 724 723 C721 C719 C716 R702 IC410 R712 R713 718 C702 R720 R721 R722 R725 R727 R726 C703 IC552 C554 C552 C553 R551 R552 R553 C555 R554 R577 C740 R736 C536 C527 IC505 CN551 C556 IC553 C1144 R565 R705 IC504 C737 C1174 C444 C443 R1172 R1163 R1174 R1175 R1111 R1171 R1170 R1169 R1176 C1152 C1153 C1154 C1155 C1157 R1168 R1167 C1156 C1158 R1164 R1166 R1165 C1140 C1143 C1159 R1140 R1142 IC1106 IC1107 R1145 C1151 C1150 R1139 R1151 R1156 C1149 C1160 C1147 C1148 C1161 C1162 C1163 R1159 C1164 IC1110 C1165 R1160 C1146 C1176 R1149 C1175 C1173 C1172 C1171 C1170 C1169 C1167 C1168 C1166 C445 R1161 C446 C1178 R1137 R544 R540 C537 R177 29 R715 IC503 R1173 C535 R723 R735 R558 C956 C526 C561 C533 C534 R731 C560 VNP2023-A DVDM SIDE A(2nd) Heat Resistance Pre-Flux 4 6 3 1 VWS1601 VWS1600 4 3 1 5 5 1 8 4 5 1 8 1 4 PC A VWS 29 14 15 28 30 contact Side Side contact Side Side contact contact 33 32 17 16 1 64 49 48 12 1 1 4 1 17 104 157 1 208 52 53 1 4 5 7 1 13 24 1 16 9 8 2 1 31 30 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A 8 1 16 9 132 133 1 176 44 45 88 89 LF 1 8 9 16 R FC ICT 10 0 140 150 160 170 180 190 200 210 220 20 30 40 50 60 70 80 90 100 110 120 130 230 240 250 260 270 280 X A DVDM ASSY A SIDE A CN3101 C CN551 CN2101 E CN402 CN115 SPIMDLE MOTOR M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 47 5 6 7 8 5 6 7 8 C D F A B E R134 C123 C328 C321 C125 R331 C128 C122 C120 R135 C121 R129 R128 C103 R106 R105 R342 R345 C330 C333 C335 R340 R333 C10 R138 R131 R130 R343 L330 IC304 R137 C101 R872 C241 R241 R228 C112 CN103 C126 C393 R234 R101 R102 R103 R104 R108 R107 R110 R109 C115 C116 R136 C119 R151 R154 R153 R152 R155 R156 R157 R158 C133 C134 Q106 Q104 CN111 C483 D901 C934 C461 C1066 C117 R165 R166 R164 R163 R162 R161 C100 C127 R167 R171 R172 C857 C662 R609 R642 C658 C657 C614 C616 C604 C603 R676 C615 R602 IC601 C602 C601 R626 C605 C607 C613 X601 R645 R617 C610 R298 C297 C650 R681 R650 C629 C666 R612 R605 R606 R607 R630 R620 R619 R623 R641 R614 R615 R637 R625 C623 C608 C618 R647 IC481 C481 X481 R485 L481 R481 R627 R403 R1012 C423 C421 C410 C403 R639 R616 R640 C484 R635 R460 R667 R665 R666 R662 R689 R659 R693 R694 R696 C693 C695 C405 R683 R655 R600 R601 R492 CN401 C422 IC403 C418 C414 C417 R1049 R1050 IC402 C415 C416 C413 IC491 C494 R628 R457 R420 R610 R611 R621 R624 R633 R632 R664 R663 R661 C1016 C1015 C1012 C1013 C1011 C1009 C1008 C1005 C1007 C1004 C1017 Q404 C1019 C1020 R456 C438 R634 D402 C493 R652 C487 C486 C485 C488 C491 R631 R651 R613 R618 C1052 C667 C427 C617 C606 R453 R454 R425 R452 R427 R429 R1073 L1051 L1053 L1052 D403 D405 D406 R1079 R1081 R1015 IC701 R710 R461 R709 R160 IC401 C718 C720 C722 C726 C727 C730 C731 C732 C733 C729 C728 C725 C724 C723 C721 C719 R716 R717 R718 C702 C435 C434 R7 R955 R949 R946 R954 C1058 R952 C1021 R636 C1057 C626 C620 C612 R957 R959 R643 R646 R958 R963 R964 R965 R960 C942 C492 C941 C936 C495 C938 R969 R968 CN901 R644 C456 R982 C453 Q105 C437 C436 R176 Q941 R998 C452 R175 C945 C947 C948 C970 C969 C402 C1073 C1074 C1075 C1076 C1077 C1078 C471 C472 C473 C474 C1003 C1001 C475 C630 C631 R1016 R1017 R1018 R1013 R1014 R903 R902 R1006 R1005 IC1001 IC451 IC455 Q1052 R1009 Q901 R1001 R1002 L1054 R1010 R1057 R1053 R1055 R1051 R1052 R863 X801 C844 R861 R862 C841 R864 C843 R860 R865 CN801 C840 R867 R866 R869 R868 R871 R870 R873 R875 R464 R1816 R877 C856 C1061 C839 IC805 R1815 R888 C842 R880 R879 C854 C855 R832 R833 R1813 R1814 R1818 R859 R858 C835 IC804 C834 C836 C837 C838 R1801 R857 R854 CN403 C737 C738 C833 C627 D801 R850 R848 C809 R837 R836 C852 C853 R604 C1060 C807 R825 C808 R834 C810 R835 C812 R840 R839 R838 R841 C851 C806 C813 R843 C845 C846 C847 C848 R844 R889 R890 R891 R892 R893 R894 R895 R1820 R897 R896 C804 L807 L808 JA1 L806 R820 L805 JA2 R802 IC801 C814 C1022 C803 C802 R803 R805 C824 C825 R808 C823 R842 C815 R846 R801 C821 C822 X802 C816 D471 C1055 R174 R169 R170 R468 R466 R483 R482 R941 R491 R942 R945 C1069 C465 C463 C482 R459 C464 C451 Q802 R463 C1014 C1010 C1006 C1018 R455 R1078 R1074 C257 C462 C1051 C1056 C624 IC471 C1054 C496 C458 C454 R465 R177 C129 KN1051 C1002 R715 C1053 R1007 IC1051 IC454 R1004 R1003 R1066 R1011 R1058 R1054 R1067 R1068 C811 C1059 JA1001 R173 R467 R484 R943 R1069 R1070 R1082 R1086 R1087 R669 R670 R671 R672 R673 R827 R828 C1067 C1068 KN3 KN4 R648 R1064 R826 R638 R622 R731 R733 R732 R657 R654 R658 C984 C985 R1077 R1065 3 Heat Resistance 5 4 3 1 5 4 1 B 5 1 7 4 C NP Side contact contact Side 80 61 60 41 40 21 20 1 32 17 16 1 64 49 1 5 2 1 23 24 88 89 45 44 176 1 133 132 9 8 1 16 1 13 7 5 4 1 13 12 1 48 37 36 25 24 104 105 156 157 23 1 1 120 91 90 61 60 31 30 4 3 1 5 1 7 75 51 50 26 25 1 100 76 5 4 3 1 1 7 4 3 1 5 1 19 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Y A (VNP2023-A) SIDE A LOADING MOTOR M PICKUP ASSY-S CN111 CN103 CN401 CN101 H CN901 CN4101 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 48 1 2 3 4 1 2 3 4 C D F A B E C320 C322 L304 R13 R332 R330 R389 R390 R328 C315 R313 C C329 R334 C336 D302 C392 C IC303 R336 R14 IC306 C310 R315 R140 C130 C622 IC603 D601 R682 C609 C619 R728 R603 Q601 R684 R685 C799 C621 Q1054 Q1059 R1090 C411 C1071 C408 C412 C419 C428 D409 R1080 Q107 IC405 IC781 C782 C781 R704 R781 C791 IC751 C759 C760 C763 C764 C769 C770 C773 C774 C775 C776 C777 C778 C779 C780 C772 C771 C765 C762 C761 C757 C758 C755 C756 C753 C754 R760 R759 R757 R756 R758 C766 C752 C751 R761 C785 C786 C787 C788 C789 C783 C784 R762 C C798 R763 C625 R934 R935 R932 R931 C946 Q108 Q909 R966 C971 R961 R937 R940 R936 R933 R944 C979 R950 R953 C980 R951 Q908 C976 C977 C978 Q910 Q911 C968 C975 C974 Q912 C967 C973 C972 Q907 Q913 C964 C966 R947 R948 Q914 Q915 R1201 R921 C959 C961 C960 R923 R924 C962 C963 R929 R930 R922 R927 C965 C983 R925 R1202 C919 R914 R915 R928 R1203 R1204 R1205 R1206 C918 C930 C920 C921 C922 C923 C929 R1207 Q905 R1208 C917 C937 R1209 R1210 C916 C928 Q904 C927 R1211 C981 R1212 R1213 R912 R910 R913 R911 C926 C935 C958 R920 R1214 C982 C933 C949 C925 IC902 C915 C924 C914 IC901 R919 C932 C931 R907 C904 C913 C903 C902 C905 C906 C907 C908 C909 C910 C911 R916 C912 R904 R1096 C901 Q1055 C957 C986 C987 C996 C988 C989 C990 C991 R1056 R886 R887 R882 R1817 R884 R885 R881 R883 R874 R876 R878 C995 C992 C832 R856 R852 C830 R851 C831 R853 R855 C739 IC802 C829 C827 C828 R849 IC803 C826 R729 R730 R847 R899 R829 R830 R831 R898 C805 C850 C849 R824 R823 R1819 D803 D805 D807 D809 D811 D813 D815 D817 R822 R821 R819 D802 D804 D806 D808 D816 D814 D812 D810 R765 IC806 C801 R804 R806 R809 C993 C820 R817 R818 R816 R807 R811 R810 R814 R813 R812 R815 C994 R845 C817 Q801 R787 R1097 R766 R1091 R1092 IC752 R1095 IC753 R1215 Q1057 R1216 Q1058 R1217 R1218 R1093 R1094 R1219 R1220 R1221 R1222 R1223 C734 R764 R1224 R1225 R1226 R1227 R1228 R1229 R1230 R1231 R1232 R1233 R1234 R1235 R1236 R1237 R1238 R1239 R1240 R1241 R1242 R1083 R901 R905 R906 R909 R994 C1070 R653 R1088 R1089 R917 R918 R926 R908 R979 C447 R668 R629 C448 R649 R993 R1098 R751 R752 R656 R660 C1072 C939 C951 R1075 IC1052 4 3 1 5 6 3 1 4 3 4 5 1 3 4 5 1 48 1 24 25 1 2 3 4 5 28 54 1 27 208 1 52 53 104 105 157 156 1 10 44 86 1 43 1 176 44 45 88 89 132 133 48 1 24 25 7 8 14 1 4 5 1 3 NP 4 5 3 1 10 0 10 0 20 30 40 50 60 70 80 90 100 110 120 130 20 30 40 50 60 70 80 90 100 110 120 130 X Y A DVDM ASSY A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 49 5 6 7 8 5 6 7 8 C D F A B E C320 C322 L304 R139 R329 R332 R330 IC302 C319 R318 R317 R316 C313 C317 R328 R322 C315 R313 R312 C314 R311 R310 R314 R221 C221 C222 C230 C215 R222 R223 C225 R224 C227 R229 R231 R232 C231 C217 C201 R268 R261 R262 R263 R264 C261 C216 R208 C212 C213 R210 R209 R201 R207 C204 C220 R219 C226 IC261 R266 R270 R271 C263 C265 R269 C207 C205 R204 C208 R202 R272 C266 C326 R211 C206 R203 R114 IC201 C299 R246 C332 R344 R214 R213 R212 C214 C329 R334 C336 R4 R2 R1 D302 C236 C237 R3 C324 IC303 D303 R335 R336 R353 C359 R358 R359 C360 R351 C357 R357 R360 C351 C353 IC351 C365 R372 R363 R373 R368 C361 R364 R361 R362 R354 C354 R355 C355 R356 C356 R371 C371 R370 C370 C366 C369 C368 R112 R374 R375 R369 R242 C242 R341 R141 R142 C429 IC306 C310 R315 R140 C200 C202 C130 R301 R236 R280 R220 R240 R260 C102 C104 R350 C312 C223 C224 C264 Q241 C431 R122 Q101 Q102 C459 C455 R215 R111 R113 C622 IC603 R414 R408 R603 R462 C426 R413 R412 R411 R410 R409 R401 C409 C407 C401 C406 R450 R448 Q402 R417 R418 IC404 C404 C799 C621 R451 D404 Q107 C432 R415 R1133 R707 C791 IC741 R741 C745 C743 C742 C741 C746 C747 C744 C757 58 C755 C756 C753 C754 R759 R757 R756 R758 C752 C751 R762 C797 IC786 C798 C748 Q401 C625 R579 R563 R556 R570 R571 R572 R576 R574 C457 R583 Q108 C131 C944 C943 C950 C952 C953 C954 C955 R1204 R1211 C767 C570 IC452 IC453 IC102 R729 C1177 R730 R765 R786 C940 R1125 C1127 IC1102 C1136 R1124 R1150 R1109 R1112 R1110 C1108 C1109 C1110 R1118 C1135 C1137 R1113 C1107 C1134 C1138 R1108 IC1105 R1128 R1127 C1111 C1117 C1132 C1133 C1113 C1114 C1112 C1115 C1116 R1126 C1131 C1106 L1101 C1105 C1118 R1119 C1104 C1119 R1123 C1129 C1130 C1120 C1103 IC1101 C1125 C1124 C1123 C1122 C1121 R1101 C1101 C1102 C1126 C1139 R787 C430 R458 R449 R766 Q403 IC752 C460 IC753 R1223 R764 R1224 R1225 R1226 R1230 R1231 R1232 R1233 R1237 R1238 R1239 R1240 R753 R754 C362 C538 R564 R1104 R1102 C1128 C450 R1105 C466 R1103 C467 C449 IC1103 R1115 R649 C363 IC506 R1114 6 SIDE B(1st) 4 3 1 5 6 3 1 4 5 1 8 4 5 1 8 4 5 1 8 4 4 3 1 5 8 5 4 1 1 4 5 8 1 100 26 25 76 75 50 51 3 4 5 1 42 22 21 1 3 4 5 1 48 25 1 3 4 5 25 26 50 1 208 1 157 156 1 10 11 20 4 3 1 5 1 3 4 5 50 1 25 26 108 109 1 144 36 37 72 73 3 1 5 4 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 A (VNP2023-A) SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 50 1 2 3 4 1 2 3 4 C D F A B E 4.3 AJKB ASSY 1 4 5 8 1 4 5 8 1 4 5 8 1 14 15 28 NP NP 1 14 15 28 NP NP 1 14 15 28 1 3 1 3 5 4 1 2 31 30 1 6 7 1 14 8 NP NP R C3344 IC3321 Q3352 IC3331 C3343 C3324 C3345 C3321 C3323 C3305 C3306 C3105 C3335 IC3311 C3314 C3334 C3333 C3303 IC3301 C3301 C3331 C3313 R3603 R3602 C3609 C3610 R3601 C3601 R3606 C3602 C3311 C3101 C3447 C3421 C3437 C3406 C3405 C3403 IC3401 C3401 C3431 C3411 C3547 C3521 C3537 C3506 C3505 C3503 IC3501 C3501 C3531 C3511 C3109 R3112 R3111 R3115 R3116 R3117 R3118 R3123 R3124 R3125 R3126 R3127 R3130 R3131 R3128 C3302 C3502 C3402 C3404 C3504 C3304 C3307 C3407 R3304 R3474 R3374 R3313 R3314 R3323 R3324 R3341 R3344 R3345 R3342 R3332 R3335 R3334 R3331 R3333 R3336 R3346 R3343 R3347 R3337 R3453 R3463 R3563 R3553 R3368 R3358 R3366 R3356 R3367 R3357 R3352 R3362 R3351 R3354 R3364 R3361 R3114 R3122 R3121 R3129 CN3351 C3201 R3201 Q3472 Q3372 IC3201 C3510 C3410 C3310 R3110 R3371 R3372 R3373 R3471 R3472 R3473 R3202 R3113 KN3101 KN3102 R3302 R3303 R3402 R3403 R3502 R3503 R3173 R3174 C3607 C3608 C3603 C3606 Q3371 Q3471 C3351 C3451 C3551 CN3101 C3415 C3425 C3515 C3525 C3338 C3438 C3538 CN3102 R3604 IC3601 JA3602 R3102 R3103 C3315 C3325 C3337 C3347 L3601 L3602 JA3601 JA3301 R3203 C3564 C3565 C3356 C3357 C3118 C3119 B1 JA3401 F3402 F3401 V+12A 1.DOUT GND XMMUTE XCSDF1 XCSDF2 VWV I-V AJKB Ass'y PARTS CONTAIN CHEMICALS WHICH ARE THIS PRODUCT CONTAINS LEAD IN CAUSE CANCER, BIRTH DEFECTS OR OTHER SECTION 25249.6 - PROPOSITION 65 SOLDER AND CERTAIN ELECTRICAL WARNING FRONT Lch V+5A V-12A GNDA GNDA GNDA REPRODUCTIVE HARM. HEALTH & SAFETY CODE KNOWN TO THE STATE OF CALIFORNIA TO XDACRST XDFSI XDFSCK XCSDF0 LRCK1/GND V+3D PBCK1/GND V+3D DATA1/DSD_C GND GND/DSD_LFE GND DATA2/DSD_LS GND GND/DSD_RS GND LRCK0/GND GND PBCK0/GND GND PMCK/DBCK GND DATA0/DSD_L GND GND/DSD_R XAMUTE FR4 P FRONT Rch I-V FILTER SCART_R SCART_L GNDA LF VWV2148- /J VWV2149- /J 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 90 100 110 120 130 140 150 160 170 180 190 200 230 X Y SIDE A SIDE A J3801 I CN3102 CN551 A CN3101 AJKB ASSY C C C (VNP2024-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 51 5 6 7 8 5 6 7 8 C D F A B E 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 NP 1 3 4 5 1 3 4 5 1 6 NP R Q3362 C3322 D3101 Q3351 Q3361 Q3353 R3301 C3332 Q3363 C3613 C3611 C3312 Q3461 C3104 IC3421 Q3451 IC3431 C3422 IC3411 C3432 C3412 Q3561 IC3521 Q3551 IC3531 C3522 IC3511 C3532 C3512 C3112 C3113 R3101 C3507 R3401 R3501 R3381 R3382 R3574 R3384 R3383 R3531 R3534 R3532 R3535 R3542 R3545 R3541 R3544 R3431 R3434 R3432 R3435 R3442 R3445 R3441 R3444 R3433 R3443 R3436 R3446 R3533 R3536 R3546 R3543 R3547 R3537 R3437 R3447 R3451 R3452 R3462 R3461 R3552 R3562 R3551 R3561 R3355 R3365 R3353 R3363 C3110 C3308 C3309 C3508 C3509 C3408 C3409 R3524 R3523 R3514 R3513 R3424 R3423 R3414 R3413 C3524 C3523 C3514 C3513 C3424 C3423 C3414 C3413 C3543 C3533 C3443 C3433 C3544 C3534 C3444 C3434 C3545 C3535 C3435 C3445 C3114 C3115 C3116 Q3572 Q3382 R3572 R3571 R3573 C3117 R3369 R3359 R3305 R3171 R3172 C3618 C3619 C3500 C3604 C3605 Q3571 C3400 IC3402 IC3502 C3111 C3416 C3426 C3516 C3526 C3339 C3439 C3539 R3306 C3612 R3605 C3614 C3615 C3616 R3505 R3506 C3316 C3326 Q3381 C3352 F3601 F3602 C3617 C3622 C3454 C3455 C3353 C3354 C3355 C3452 C3453 C3556 C3557 C3456 C3558 C3552 C3553 C3559 C3560 C3561 C3562 C3457 C3563 C3621 F3301 F3302 F3501 F3502 C3620 1 1 1 1 1 1 VWV VWV2149- /J VWV2148- /J AJKB Ass'y GND PBCK0/GND GND PMCK/DBCK GND DATA0/DSD_L GND GND/DSD_R XAMUTE V+3D DATA1/DSD_C GND GND/DSD_LFE GND DATA2/DSD_LS GND GND/DSD_RS GND LRCK0/GND XMMUTE XCSDF1 XCSDF2 XDACRST XDFSI XDFSCK XCSDF0 LRCK1/GND V+3D PBCK1/GND GND 1.DOUT FR4 P 1.V+5A V+12A GNDA 6.V-12A 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 90 100 110 120 130 140 150 160 170 180 190 200 210 230 X Y SIDE B SIDE B CN3102 CN3101 AJKB ASSY C C C (VNP2024-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 52 1 2 3 4 1 2 3 4 C D F A B E 4.4 VJKB ASSY 1 18 19 36 7 1 5 4 3 1 1 23 C4621 CN4501 C4504 C4503 C4501 C4417 C4414 JA4403 C4413 C4408 D4412 D4409 D4410 D4411 D4407 D4408 C4314 CN4402 C4405 C4310 C4403 D4406 D4405 D4404 D4403 D4401 D4402 C4304 C4401 C4615 C4614 Q4602 C4612 R4605 C4607 R4106 C4604 C4606 CN4602 IC4601 C4602 IC4101 C4107 C4109 JA4202 JA4201 CN4601 KN4101 KN4102 KN4103 KN4104 R4312 R4311 C4102 C4101 C4105 C4104 D4609 R4607 D4301 R4301 R4314 R4315 R4313 C4302 C4316 C4301 C4616 R4606 Q4301 Q4302 Q4303 Q4601 C4103 F4303 F4301 F4302 JA4401 CN4101 R4101 C4108 C4110 C4605 C4609 C4610 C4608 R4601 R4302 C4324 D4610 C4111 C4330 R4105 C4114 R4608 C4323 R4614 C4113 R4104 R4651 C4325 C4326 C4327 C4328 C4329 C4622 C4623 C4611 C4613 C4624 FC GNDA V+6E ICT MC PS CONTACT SIDE White 19 B1 A FR4 P PC C D VJKB Ass'y B SIDE CONTACT V+5V VWV VWV21**- /J B2 V+5V V+12 V+5V VWV2151- /J VWV2150- /J VWV2152- /J V+12 SCART_L GNDA SCART_R GND V+6E V+6E VSEL2 Cr/R C GND V GND V+5V GND SQUEEZE B R VSEL2 G VSEL1 Y GND 1 P/XI GND Y/G GND S_Y GND V+12 V+12 GND LETTER SQUEEZE 1 IR SEL_IR GND V V_OFF S_C VSEL1 23 Cb/B CAUTION REPLACE WITH SAME TYPE NO.491001 MFD. BY LITTEL FUSE INC FOR IC3801,IC3802 ATTENTION EN CAS DE REMPLACEMENT DES FUSIBLES N'UTILISER QUE LA REFERENCE 491001 DE CHEZ LITTEL FUSE INC. 10 0 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 20 30 40 50 60 70 80 90 100 X Y SIDE A CN901 D CN4602 CN3351 C CN4601 VJKB ASSY B (VNP2024-B) B B SIDE A CN901 A CN4101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 53 5 6 7 8 5 6 7 8 C D F A B E 36 19 18 1 1 19 1 2 3 1 2 3 1 6 3 4 LF C4506 C4505 C4502 L4501 R4413 C4418 L4402 C4416 C4415 L4401 C4412 R4408 C4411 C4409 R4310 C4315 C4407 C4410 R4405 C4406 R4309 R4308 C4311 R4307 R4306 C4404 R4305 C4306 C4305 C4402 IC4302 C4603 D4603 D4602 D4601 D4606 D4605 D4604 IC4603 C4618 D4607 D4608 R4609 R4335 R4334 C4322 R4333 R4336 C4321 R4332 R4324 R4319 R4323 C4318 R4320 C4317 R4318 R4329 R4330 R4328 C4320 R4326 C4319 R4325 Q4304 Q4305 Q4306 D4201 R4201 R4204 R4207 C4201 C4202 C4206 C4619 C4617 C4303 C4307 C4308 C4309 C4312 C4313 R4401 R4411 R4402 R4403 R4404 R4406 R4407 R4409 R4410 R4412 R4501 R4502 R4503 C4620 D4101 R4416 R4612 R4415 R4508 R4613 R4102 C4112 R4103 R4650 R4414 R4507 R4505 R4504 R4506 L4502 R4510 R4509 R4602 R4603 R4604 R4610 V+5V VJKB Ass'y VWV2150- /J VWV2151- /J VWV21**- /J GNDA VWV2152- /J VWV 10 0 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 20 30 40 50 60 70 80 90 100 110 120 X Y SIDE B CN4602 CN4601 VJKB ASSY B (VNP2024-B) B B SIDE B CN4101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 54 1 2 3 4 1 2 3 4 C D F A B E 4.5 FLKY and KEYB ASSYS 1 17 1/2 VWG2549 VWG2551 VWG2555 VWG2554 VWG2552 VWG FLKY ASSY R VWG2550 PLAY PAUSE STOP FWD REV OPEN/ CLOSE HDMI I_link 1.1394RST 2.V+12 3.S(FtoM) 4.E+3V 5.S(MtoF) 6.GND 7.SCK 8.XREADY 9.IR 10.PW_ON 11.FLDC+ 12.XRESET 13.FLDC- 14.LT1 15.-28V 16.SEL IR 17.GND GND GND GND GND GND GND GND FLDC- FLDC- SCK SCK S(MtoF) S(MtoF) S(FtoM) S(FtoM) V+12 V+12 V+12 V+12 E+3V E+3V E+3V E+3V E+3V E+3V IR FLDC+ FLDC+ FLDC+ FLDC+ FLDC+ 1394RST 1394RST 1394RST 1394RST -28V -28V -28V -28V E+3V XREADY PW_ON XRESET LT1 SEL IR KEY1 KEY0 KEY0 KEY1 KEY1 KEY1 E+3V PW_ON PW_ON PW_ON PW_ON LED7 LED6 KEY0 STBY PWSW PC CMK-P3X W2146 W2136 W2122 W2126 W2123 W2130 W2150 W2117 W2141 W2115 W2109 W2145 W2108 W2120 W2116 S2103 S2105 S2106 S2102 W2133 W2134 X2101 C2112 W2151 S2104 W2138 W2152 W2149 S2101 D2103 CN2101 W2112 W2114 D2104 C2120 W2118 W2142 W2121 W2124 W2125 W2158 W2147 W2113 W2135 W2127 W2143 W2101 W2128 W2129 W2156 W2154 W2159 W2157 W2153 W2104 W2148 W2105 W2144 W2160 W2132 W2139 J2101 W2119 KN2101 W2110 W2140 W2137 W2111 W2102 W2106 W2161 W2131 W2103 W2155 W2107 10 0 10 0 20 30 40 50 60 70 80 90 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 X Y 60 70 80 90 100 Y Y E F FLKY ASSY E SIDE A CN402 A CN2101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 55 5 6 7 8 5 6 7 8 C D F A B E 1/2 9 1 1 9 4 1 5 1 Pure_AUDIO PROGR VWG2558 R VWG VWG2553 KEYB ASSY R Pure_AUDIO PROGR SACD MI STANDBY 2.V+12 3.LED7 4.LED6 5.KEY0 6.P_ON 7.STBY 8.PWSW 9.V+3E 1.P_LED 2.GND 3.KEY0 4.KEY0A 2.V+12 3.LED7 4.LED6 5.KEY0 6.P_LED 7.STBY 8.PWSW 9.V+3E 4.V+12 3.P_LED 2.V+3E 1.PWSW GND GND GND FLDC- E+3V IR STBY PWSW STBY LED7 LED6 KEY0 KEY0 V+3E STBY PWSW P_LED V+12 5.GND 1.GND 1.GND X CMK-P3X V2101 L2101 W2166 W2165 W2168 W2167 W2208 C2104 W2207 D2103 S2201 S2202 IC2103 D2204 D2203 CN2102 CN2201 J2201 D2201 J2203 W2204 W2203 W2206 W2169 S2204 W2209 J2202 W2202 W2201 KN2201 W2205 W2163 W2162 W2164 W2210 40 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 60 70 80 90 100 X 120 130 140 150 160 170 180 190 200 Y E F (VNP2022-B) (VNP2022-B) KEYB ASSY F SIDE A CN2102 CN2101 CN2301 G J2203 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 56 1 2 3 4 1 2 3 4 C D F A B E 1 9 1 9 1 4 5 1 R LF LF R VWG2549 VWG2558 A VWG2550 VWG2551 VWG2552 VWG2554 VWG2555 VWG VWG2553 VWG GND GND GND PWSW STBY FLDC- E+3V IR STBY KEY0 KEY0 LED6 LED7 P_LED PWSW V+3E STBY 1.GND V+12 1.GND 5.GND CMK-P3X CMK-P3X 2.V+12 3.LED7 4.LED6 5.KEY0 6.P_ON 7.STBY 8.PWSW 9.V+3E 2.V+12 3.LED7 4.LED6 5.KEY0 6.P_ON 7.STBY 8.PWSW 9.V+3E 1.PWSW 2.V+3E 3.P_LED 4.V+12 1.P_LED 2.GND 3.KEY0 4.KEY0A C2131 C2132 C2133 C2134 C2204 R2195 R2136 R2134 R2135 R2142 R2126 R2127 R2194 R2133 R2122 R2144 R2145 R2146 R2138 R2139 R2141 R2140 R2143 C2114 R2120 R2130 C2110 C2109 C2107 R2128 R2204 R2203 IC2102 R2149 R2150 R2148 R2147 C2111 R2202 R2201 Q2103 Q2105 Q2104 C2202 C2201 C2203 R2162 R2205 R2156 R2220 R2221 R2222 10 0 20 30 40 50 60 70 80 90 1 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 Y X 120 130 140 150 160 170 180 190 200 F K (VNP2022-B) (VNP2022-B) KEYB ASSY F SIDE B CN2102 CN2101 J2201 J2203 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 57 5 6 7 8 5 6 7 8 C D F A B E 60 41 40 21 20 1 80 61 5 1 1 17 A V+12 E+3V B B 1394RST FLDC+ E+3V XREADY PW_ON XRESET LT1 SEL IR -28V LED7 STBY PWSW LED6 PW_ON KEY0 PW_ON KEY1 KEY0 E+3V E+3V KEY1 KEY1 FLDC+ FLDC+ 1394RST 1394RST PW_ON -28V E+3V GND FLDC- SCK S(MtoF) S(FtoM) S(FtoM) S(MtoF) SCK IR V+12 PW_ON E+3V GND GND GND GND GND GND 1394RST E+3V KEY1 KEY0 -28V E+3V -28V V+12 FLDC+ V+12 FLDC- FLDC+ 1.1394RST 2.V+12 3.S(FtoM) 4.E+3V 5.S(MtoF) 6.GND 7.SCK 8.XREADY 9.IR 10.PW_ON 11.FLDC+ 12.XRESET 13.FLDC- 14.LT1 15.-28V 16.SEL IR 17.GND CN2101 C2133 R2106 R2113 R2103 R2110 R2104 R2111 R2114 R2142 R2108 IC2101 R2112 R2107 R2109 R2102 R2118 R2119 C2102 C2113 R2144 R2145 R2146 R2137 R2138 R2139 R2140 R2143 C2115 C2114 C2116 R2129 C2105 C2108 09 C2103 R2128 R2116 R2117 R2105 C2101 R2132 2 R2121 R2149 R2150 R2148 R2147 C2111 R2115 R2101 R2196 Q2103 Q2105 Q2104 Q2102 Q2101 R2123 R2191 R2151 R2152 D2101 C2117 R2181 R2182 R2183 D2102 C2118 R2125 C2161 R2161 Q2106 Q2107 R2124 R2131 R2153 C2130 C2123 C2124 C2125 C2119 C2121 C2122 C2106 C2171 R2162 R2155 R2156 C2126 Q2108 Q2109 R2154 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 X Y E F FLKY ASSY E SIDE B CN2101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 58 1 2 3 4 1 2 3 4 C D F A B E 4.6 SCRB ASSY 1 19 C946 C937 C930 C943 C934 C953 RY901 RY902 RY903 RY904 RY905 C908 CN901 C929 JA901 JA902 W913 W923 W971 W903 W914 W920 W962 W930 W963 W904 W905 W942 W934 W906 W949 W941 W922 W932 W918 W933 W921 W909 W901 W925 W911 W907 W908 W912 W931 W950 W910 W926 W937 W916 W927 W101 W929 W919 W956 W928 W954 W939 W938 W935 W936 W955 W915 W946 W951 W953 W917 W943 W966 W952 W970 W972 W960 W957 W961 W959 W967 W965 W944 W964 W969 W968 W973 W940 W902 W924 W999 W998 W945 W958 W947 W948 PYKC - Production Code PC VWV1939- GNDV SCRB GNDV GNDV GNDV V+5V VNP1918-B GNDA GNDV GNDV GNDV VWV SIDE GNDV GNDV GNDV GNDV GNDV V+5V GNDV GNDV GNDV GNDV GNDV GNDV V+12V UPPER B G R VSEL2 VSEL1 Y C V V+12V SQZ GNDV AUD.R GNDA AUD.L V+5V J901 VWV1939- 1/4 1/4 10 0 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 20 30 40 50 60 70 80 90 X Y SIDE A SIDE A CN4602 B CN901 D D (VNP1918-B) SCRB ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 59 5 6 7 8 5 6 7 8 C D F A B E 10 0 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 20 30 40 50 60 70 80 90 100 X Y SIDE B SIDE B CN901 D D (VNP1918-B) SCRB ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 60 1 2 3 4 1 2 3 4 C D F A B E 4.7 PS ASSY 1 3 1 6 R D3806 D3807 D3805 D3808 D3809 R3803 R3804 C3809 Q3806 R3805 R3806 Q3805 VWV VWV2153- /J PS Ass'y FR4 P VAC1 VAC2 CT 1.V+5A V+12A GNDA GNDA GNDA 6.V-12A 1 3 1 6 R CN3801 R3801 C3801 C3802 Q3801 Q3802 D3801 IC3801 C3803 J3801 IC3802 D3802 D3803 D3804 C3805 C3806 C3807 C3808 C3810 C3804 Q3803 Q3804 IC3803 NON-NFB REGURATOR VAC1 VAC2 CT 1.V+5A 2.V+12A 3.GNDA 4.GNDA 5.GNDA 6.V-12A VWV2153- /J VWV NON-NFB REGURATOR BOND BOND BOND BOND 2SC4883A 2SA1859A FR4 P AEK7009 AEK7009 PS Ass'y 10 0 180 190 200 210 220 20 30 40 50 60 70 80 90 100 230 X Y 10 0 180 190 200 210 220 20 30 40 50 60 70 80 90 100 110 120 230 X Y SIDE A SIDE A SIDE B SIDE B CN3102 C J3801 PS ASSY I (VNP2024-B) J3801 (VNP2024-B) I I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 61 5 6 7 8 5 6 7 8 C D F A B E 4.8 POWER SUPPLY UNIT SIDE A SIDE B H H P101 P202 P201 P301 CN401 A AC INLET ASSY CN101 CN1 CN2 CN2 CN3 CN3 CN1 [VWR1397] POWER SUPPLY UNIT H CN2302 G CN2304 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 62 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST 7777 LIST OF HOLE PCB ASSEMBLIES Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Mark Symbol and Description DV-989AVi-S /WYXJ5 DV-989AVi-S /YXJRE5 DV-989AVi-G /HLXJ DV-989AVi-S /WPWXJ NSP 1..FLKB ASSY VWM2350 VWM2350 VWM2354 VWM2354 2..MSWB ASSY VWG2548 VWG2548 VWG2548 VWG2548 2..FLKY ASSY VWG2552 VWG2552 VWG2554 VWG2554 2..PLED ASSY VWG2557 VWG2557 VWG2557 VWG2557 2..KEYB ASSY VWG2558 VWG2558 VWG2558 VWG2558 NSP 1..AVKB ASSY VWM2353 VWM2353 VWM2351 VWM2352 2..AJKB ASSY VWV2149 VWV2149 VWV2148 VWV2148 2..VJKB ASSY VWV2152 VWV2152 VWV2150 VWV2151 2..PS ASSY VWV2153 VWV2153 VWV2153 VWV2153 1..DVDM ASSY VWS1601 VWS1601 VWS1601 VWS1601 1..SCRB ASSY VWV1992 VWV1992 Not used Not used NSP 1..LOADER MECHA ASSY VWT1218 VWT1218 VWT1218 VWT1218 NSP 2..LOAB ASSY VWG2426 VWG2426 VWG2426 VWG2426 Mark No. Description Part No. A DVDM ASSY MISCELLANEOUS IC 101 (A,94 ,158 ) ASP IC LA9704WS1 IC 102 (B,95 ,157 ) IC TC7W53FU IC 201 (B,53 ,159 ) DSP LSI LC78652W IC 202 (A,97 ,198 ) SPINDLE DRIVER BA6664FM IC 211 (A,72 ,171 ) VIDEO AMP IC TK15404M IC 261 (B,68 ,190 ) OP-AMP IC BA4510F IC 302 (B,75 ,149 ) OP-AMP IC BA4510F IC 303 (B,64 ,136 ) LOGIC IC TC7SZU04FU IC 304 (A,70 ,137 ) LOGIC IC TC7SZU04FU IC 306 (B,57 ,136 ) LOGIC IC TC7SZU04FU IC 351 (B,98 ,176 ) IC M56788AFP > IC 401 (A,95 ,71 ) REGULATOR,IC PQ033EZ01ZP > IC 402 (A,97 ,41 ) REGULATOR IC (5.0V) MM1565AF > IC 403 (A,98 ,121 ) REGULATOR,IC PQ025EZ01ZP > IC 404 (B,100 ,205 ) REGULATOR IC(3.3V) MM1385EN > IC 405 (B,112 ,19 ) REGULATOR IC NJM2880U1-05 > IC 410 (A,95 ,235 ) REGULATOR IC MM1561JF > IC 411 (A,11 ,180 ) REGULATOR,IC PQ025EZ01ZP IC 451 (A,17 ,102 ) LOGIC IC TC7SHU04FUS1 IC 452 (B,51 ,181 ) IC TC7SH08FUS1 IC 453 (B,65 ,170 ) LOGIC IC TC7SHU04FUS1 IC 454 (A,33 ,118 ) LOGIC IC TC7SHU04FUS1 IC 455 (A,33 ,113 ) LOGIC IC TC7SHU04FUS1 > IC 471 (A,93 ,132 ) REGULATOR IC MM1561JF IC 481 (A,25 ,106 ) CLOCK GENERATE IC SM8707HV IC 491 (A,20 ,127 ) CPLD IC LC4032VAA IC 503 (A,81 ,232 ) IC TC74VHC157FTS1 IC 504 (A,68 ,233 ) IC TC74VHC157FTS1 IC 505 (A,53 ,233 ) IC TC74VHC157FTS1 IC 506 (B,96 ,242 ) IC TC7SH08FUS1 IC 552 (A,76 ,209 ) AQE IC PD0274A IC 553 (A,71 ,198 ) IC TC7WH157FU IC 601 (A,59 ,111 ) SYSTEM CONTROL CPU PD6345A IC 603 (B,63 ,116 ) FLASH ROM VYW2363 IC 701 (A,39 ,159 ) DVD DATA PROCESSORPE5286B IC 741 (B,27 ,165 ) IC HY57V161610ETP-8 IC 751 (B,31 ,111 ) MPEG2 DECODER IC M65776BFP IC 752 (B,32 ,134 ) IC TC7SZ32FU IC 753 (B,10 ,144 ) IC TC7WH125FU IC 781 (B,18 ,80 ) SD-RAM(64M) HY57V641620ETP-H IC 786 (B,24 ,138 ) IC TC74VHC541FTS1 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 63 5 6 7 8 5 6 7 8 C D F A B E IC 801 (A,36 ,46 ) IEEE1394 PHY LINK TSB43CA42ZGW IC 802 (B,41 ,79 ) FLASH ROM VYW2317 IC 803 (B,18 ,36 ) VCO IC BU2370FV IC 804 (A,12 ,50 ) OP AMP IC NJU7093AF IC 805 (A,25 ,82 ) MICROCOMPUTER PD5787A IC 806 (B,50 ,44 ) IC TC7SH08FUS1 IC 901 (B,74 ,73 ) PROGRESSIVE IC CM0039AF IC 902 (B,80 ,43 ) SDRAM(64M) K4S643232H-TC60 IC 1001(A,68 ,75 ) RESO EXP IC PD0280B IC 1051(A,71 ,45 ) HDMI TRANSMITER SII9030CTU IC 1101(B,68 ,216 ) DSP IC DSPD56367PV150 IC 1102(B,82 ,202 ) IC TC7SH04FUS1 IC 1103(B,49 ,196 ) IC TC7WH34FU IC 1105(B,33 ,191 ) IC HY57V161610ETP-8 IC 1106(A,25 ,182 ) IC TC7SH00FUS1 IC 1107(A,33 ,183 ) IC TC7WH74FU IC 1110(A,34 ,204 ) SACD DECODER CXD2753R Q 101 (B,96 ,150 ) CHIP TRANSISTOR HN1A01F Q 102 (B,102 ,150 ) CHIP TRANSISTOR HN1A01F Q 103 (A,88 ,175 ) CHIP TRANSISTOR HN1B04FU Q 104 (A,73 ,163 ) CHIP TRANSISTOR HN1C01FU Q 105 (A,88 ,145 ) CHIP TRANSISTOR HN1B04FU Q 106 (A,77 ,153 ) CHIP TRANSISTOR HN1A01F Q 107 (B,102 ,134 ) NMOS FET TRANSISTORUM5K1N Q 108 (B,98 ,138 ) CHIP TRANSISTOR DTC114EUA Q 241 (B,83 ,166 ) CHIP TRANSISTOR DTC114EUA Q 401 (B,28 ,218 ) TRANSISTOR(SC-70) 2SA1602A Q 402 (B,24 ,218 ) TRANSISTOR(SC-70) 2SA1602A Q 403 (B,25 ,225 ) TRANSISTOR 2SC4081 Q 404 (A,89 ,28 ) CHIP TRANSISTOR DTC114TUA Q 601 (B,87 ,115 ) CHIP TRANSISTOR RN4982 Q 801 (B,20 ,24 ) CHIP TRANSISTOR DTC114TUA Q 802 (A,20 ,25 ) CHIP TRANSISTOR RN4982 Q 901 (A,98 ,28 ) CHIP TRANSISTOR HN1C01FU Q 904 (B,94 ,92 ) TRANSISTOR 2SA1576A Q 905 (B,90 ,92 ) TRANSISTOR 2SA1576A Q 907 (B,82 ,92 ) TRANSISTOR 2SA1576A Q 908 (B,79 ,92 ) TRANSISTOR 2SA1576A Q 909 (B,76 ,92 ) TRANSISTOR 2SA1576A Q 910 (B,94 ,98 ) CHIP TRANSISTOR HN1B04FU Q 911 (B,90 ,98 ) CHIP TRANSISTOR HN1B04FU Q 912 (B,86 ,95 ) CHIP TRANSISTOR HN1B04FU Q 913 (B,83 ,98 ) CHIP TRANSISTOR HN1B04FU Q 914 (B,79 ,98 ) CHIP TRANSISTOR HN1B04FU Q 915 (B,76 ,98 ) CHIP TRANSISTOR HN1B04FU Q 941 (A,98 ,33 ) CHIP TRANSISTOR RN4982 Q 1052(A,61 ,30 ) NMOS FET TRANSISTOR UM6K1N Q 1054(B,63 ,29 ) CHIP TRANSISTOR HN1C01FU Q 1055(B,68 ,27 ) TRANSISTOR 2SA1576A Q 1057(B,65 ,37 ) DIGITAL TRANSISTOR DTC124EUA Q 1058(B,60 ,30 ) CHIP TR (PNP X 2) UMB1N D 302 (B,74 ,140 ) CHIP VARI-CAP DIOD EKV1870S D 303 (B,68 ,140 ) CHIP VARI-CAP DIOD EKV1870S D 401 (A,91 ,246 ) DIODE RB051L-40 D 402 (A,91 ,111 ) DIODE RB051L-40 D 403 (A,98 ,45 ) CHIP DIODE RB501V-40 D 404 (B,101 ,202 ) CHIP DIODE RB501V-40 D 406 (A,89 ,70 ) CHIP DIODE RB501V-40 D 408 (A,17 ,175 ) CHIP DIODE RB501V-40 D 409 (B,110 ,15 ) CHIP DIODE RB501V-40 Mark No. Description Part No. D 601 (B,90 ,113 ) CHIP DIODE RB501V-40 D 801 (A,49 ,85 ) CHIP DIODE RB501V-40 D 901 (A,101 ,24 ) DIODE 1SS355 L 304 (B,72 ,133 ) CHIP COIL LCYA1R2J2520 L 401 (A,22 ,248 ) CHIP BEADS VTL1084 L 481 (A,14 ,105 ) CHIP BEADS VTL1084 L 805 (A,53 ,23 ) COIL VTH1047 L 806 (A,49 ,23 ) COIL VTH1047 L 807 (A,36 ,23 ) COIL VTH1047 L 808 (A,32 ,23 ) COIL VTH1047 L 1051(A,79 ,26 ) COIL ATH7022 L 1052(A,75 ,26 ) COIL ATH7022 L 1053(A,71 ,26 ) COIL ATH7022 L 1054(A,68 ,26 ) COIL ATH7022 L 1101(B,45 ,210 ) CHIP COIL LCYA1R0J2520 L 1102(A,13 ,196 ) CHIP BEADS VTL1084 JA1 (A,34 ,12 ) 1394-TERMINAL VKN1800 JA2 (A,52 ,12 ) 1394-TERMINAL VKN1800 JA1001(A,72 ,13 ) HDMI CONNECTOR AKP1278 KN1 (A,99 ,217 ) EARTH METAL FITTING VNF1109 KN2 (A,12 ,247 ) EARTH METAL FITTING VNF1109 KN3 (A,98 ,96 ) EARTH METAL FITTING VNF1109 KN4 (A,8 ,26 ) EARTH METAL FITTING VNF1109 KN1051(A,92 ,8 ) SCREW PLATE VNE1948 X 481 (A,35 ,103 ) CRYSTAL RESONATOR VSS1172 X 601 (A,73 ,130 ) CERAMIC RESONATOR VSS1160 X 801 (A,7 ,82 ) CERAMIC RESONATOR VSS1179 X 802 (A,52 ,43 ) CRYSTAL RESONATOR ASS7055 CN103 (A,114 ,106 ) CONNECTOR AKM1276 CN111 (A,114 ,131 ) 24P CONNECTOR VKN1464 CN114 (A,114 ,206 ) 4P CONNECTOR VKN1409 CN115 (A,113 ,232 ) 12P CONNECTOR VKN1416 CN401 (A,114 ,77 ) CONNECTOR AKM1284 CN402 (A,24 ,256 ) 17P CONNECTOR VKN1421 CN403 (A,107 ,14 ) 07P CONNECTOR RKN1048 CN551 (A,68 ,256 ) 31P CONNECTOR VKN1517 CN801 (A,17 ,14 ) 07P CONNECTOR RKN1048 CN901 (A,114 ,42 ) 23P CONNECTOR VKN1427 2 PCB BINDER VEF1040 RESISTORS R 1 (B,108 ,259 ) RS1/16S332J R 2 (B,107 ,254 ) RS1/16S472J R 4 (B,105 ,254 ) RS1/16S103J R 101 (A,94 ,139 ) RS1/16S473J R 102 (A,94 ,141 ) RS1/16S473J R 103 (A,94 ,138 ) RS1/16S473J R 104 (A,94 ,143 ) RS1/16S473J R 105 (A,99 ,138 ) RS1/16S153J R 106 (A,102 ,139 ) RS1/16S153J R 107 (A,102 ,138 ) RS1/16S223J R 108 (A,102 ,136 ) RS1/16S223J R 109 (A,105 ,141 ) RS1/16S223J R 110 (A,105 ,138 ) RS1/16S223J R 111 (B,96 ,144 ) RAB4C220J R 112 (B,93 ,150 ) RS1/16S472J R 113 (B,102 ,144 ) RAB4C470J R 114 (B,105 ,150 ) RS1/16S472J R 115 (A,75 ,163 ) RS1/16S101J R 116 (A,76 ,166 ) RS1/16S102J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 64 1 2 3 4 1 2 3 4 C D F A B E R 117 (A,89 ,168 ) RS1/16S333J R 118 (A,89 ,172 ) RS1/16S473J R 119 (A,85 ,179 ) RS1/16S223J R 120 (A,88 ,180 ) RS1/16S223J R 121 (A,85 ,175 ) RS1/16S223J R 122 (B,83 ,158 ) RS1/16S225J R 123 (A,81 ,165 ) RS1/16S1202F R 124 (A,98 ,167 ) RS1/16S333J R 125 (A,100 ,167 ) RS1/16S473J R 126 (A,96 ,168 ) RS1/16S123J R 127 (A,93 ,172 ) RS1/16S103J R 128 (A,81 ,154 ) RS1/16S101J R 129 (A,75 ,157 ) RS1/16S102J R 130 (A,81 ,152 ) RS1/16S101J R 131 (A,74 ,153 ) RS1/16S102J R 132 (A,81 ,167 ) RS1/16S4702F R 133 (A,81 ,164 ) RS1/16S333J R 134 (A,81 ,156 ) RS1/16S151J R 135 (A,73 ,149 ) RS1/16S471J R 136 (A,78 ,149 ) RS1/16S471J R 137 (A,108 ,141 ) RS1/16S0R0J R 138 (A,105 ,120 ) RS1/10S0R0J R 139 (B,101 ,138 ) RS1/16S104J R 140 (B,103 ,129 ) RS1/16S0R0J R 141 (B,103 ,138 ) RS1/16S104J R 142 (B,98 ,141 ) RS1/16S103J R 150 (A,81 ,175 ) RS1/16S0R0J R 151 (A,92 ,145 ) RS1/16S392J R 152 (A,90 ,145 ) RS1/16S392J R 153 (A,95 ,145 ) RS1/16S392J R 154 (A,93 ,145 ) RS1/16S392J R 155 (A,99 ,142 ) RS1/16S103J R 156 (A,101 ,142 ) RS1/16S103J R 157 (A,103 ,142 ) RS1/16S153J R 158 (A,105 ,143 ) RS1/16S153J R 159 (A,81 ,172 ) RS1/16S0R0J R 160 (A,80 ,137 ) RS1/10S0R0J R 161 (A,96 ,145 ) RS1/16S225J R 162 (A,98 ,145 ) RS1/16S225J R 165 (A,103 ,145 ) RS1/16S105J R 166 (A,104 ,145 ) RS1/16S105J R 167 (A,106 ,145 ) RS1/16S103J R 169 (A,88 ,139 ) RS1/16S102J R 170 (A,88 ,138 ) RS1/16S102J R 171 (A,73 ,147 ) RS1/16S102J R 172 (A,78 ,147 ) RS1/16S102J R 173 (A,88 ,143 ) RS1/16S102J R 174 (A,88 ,141 ) RS1/16S102J R 175 (A,86 ,139 ) RS1/16S222J R 176 (A,86 ,142 ) RS1/16S101J R 177 (A,88 ,148 ) RS1/16S222J R 202 (B,53 ,172 ) RS1/16S0R0J R 203 (B,65 ,165 ) RS1/16S472J R 204 (B,68 ,162 ) RS1/16S472J R 205 (A,111 ,198 ) RS1/10S0R0J R 206 (A,97 ,185 ) RS1/10S0R0J R 207 (B,53 ,176 ) RS1/16S0R0J R 208 (B,73 ,162 ) RS1/16S473J R 209 (B,68 ,157 ) RS1/16S104J R 210 (B,66 ,157 ) RS1/16S473J Mark No. Description Part No. R 211 (B,73 ,158 ) RS1/16S563J R 212 (B,73 ,157 ) RS1/16S821J R 213 (B,49 ,170 ) RS1/16S223J R 214 (B,60 ,171 ) RS1/16S223J R 215 (B,48 ,170 ) RS1/16S103J R 218 (A,72 ,174 ) RS1/16S103J R 219 (B,55 ,146 ) RS1/16S103J R 220 (B,50 ,143 ) RS1/10S0R0J R 221 (B,42 ,145 ) RS1/16S332J R 222 (B,42 ,148 ) RS1/16S681J R 223 (B,42 ,150 ) RS1/16S473J R 224 (B,39 ,152 ) RS1/16S681J R 225 (A,72 ,168 ) RS1/16S152J R 226 (A,72 ,176 ) RS1/16S103J R 227 (A,72 ,166 ) RS1/16S102J R 228 (A,70 ,161 ) RS1/16S102J R 229 (B,39 ,154 ) RS1/16S473J R 231 (B,38 ,167 ) RS1/16S222J R 232 (B,41 ,161 ) RS1/16S152J R 234 (A,74 ,160 ) RS1/16S101J R 236 (B,58 ,173 ) RS1/16S0R0J R 240 (B,74 ,154 ) RS1/10S0R0J R 241 (A,77 ,157 ) RS1/16S331J R 242 (B,76 ,157 ) RS1/16S681J R 246 (B,41 ,164 ) RS1/16S104J R 251 (A,98 ,189 ) RS1/16S562J R 252 (A,93 ,189 ) RS1/16S682J R 253 (A,96 ,189 ) RS1/16S682J R 257 (A,111 ,195 ) CHIP RESISTOR RS1/4SA1R0J R 258 (A,111 ,192 ) CHIP RESISTOR RS1/4SA2R2J R 259 (A,111 ,188 ) CHIP RESISTOR RS1/4SA2R2J R 260 (B,41 ,174 ) RS1/10S0R0J R 261 (B,58 ,188 ) RS1/16S154J R 262 (B,59 ,188 ) RS1/16S104J R 263 (B,61 ,188 ) RS1/16S224J R 264 (B,62 ,188 ) RS1/16S154J R 266 (B,58 ,191 ) RS1/16S184J R 268 (B,59 ,191 ) RS1/16S104J R 269 (B,68 ,186 ) RS1/16S103J R 270 (B,77 ,189 ) RS1/16S153J R 271 (B,74 ,188 ) RS1/16S153J R 272 (B,68 ,165 ) RS1/16S332J R 280 (B,36 ,156 ) RS1/10S0R0J R 298 (A,59 ,134 ) RS1/16S470J R 301 (B,57 ,142 ) RS1/10S0R0J R 310 (B,65 ,149 ) RS1/16S104J R 311 (B,68 ,148 ) RS1/16S104J R 312 (B,65 ,145 ) RS1/16S103J R 313 (B,68 ,147 ) RS1/16S153J R 314 (B,65 ,147 ) RS1/16S223J R 315 (B,54 ,136 ) RS1/16S470J R 316 (B,82 ,147 ) RS1/16S223J R 317 (B,80 ,147 ) RS1/16S153J R 318 (B,78 ,145 ) RS1/16S103J R 322 (B,73 ,145 ) RS1/16S103J R 328 (B,68 ,150 ) RS1/16S102J R 329 (B,73 ,143 ) RS1/16S332J R 330 (B,74 ,137 ) RS1/16S104J R 331 (A,68 ,137 ) RS1/16S104J R 332 (B,68 ,133 ) RS1/16S471J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 65 5 6 7 8 5 6 7 8 C D F A B E R 333 (A,69 ,153 ) RS1/16S102J R 334 (B,60 ,136 ) RS1/16S470J R 335 (B,69 ,143 ) RS1/16S682J R 336 (B,68 ,137 ) RS1/16S104J R 340 (A,68 ,153 ) RS1/16S0R0J R 341 (B,78 ,172 ) RS1/10S101J R 342 (A,63 ,156 ) RS1/16S182J R 343 (A,61 ,153 ) RS1/16S220J R 344 (B,82 ,151 ) RS1/16S101J R 345 (A,68 ,156 ) RS1/16S182J R 350 (B,73 ,180 ) RS1/10S0R0J R 351 (B,88 ,168 ) RS1/16S472J R 353 (B,86 ,168 ) RS1/16S153J R 357 (B,87 ,183 ) CHIP RESISTOR RS1/16S6802F R 358 (B,84 ,183 ) CHIP RESISTOR RS1/16S1503F R 359 (B,87 ,193 ) RS1/16S123J R 360 (B,87 ,192 ) RS1/16S472J R 361 (B,87 ,187 ) CHIP RESISTOR RS1/16S1503F R 362 (B,87 ,188 ) CHIP RESISTOR RS1/16S6802F R 363 (B,110 ,184 ) CHIP RESISTOR RS1/16S6802F R 364 (B,107 ,181 ) RS1/16S1003F R 368 (B,107 ,179 ) CHIP RESISTOR RS1/16S6802F R 369 (B,110 ,183 ) RS1/16S1003F R 372 (B,108 ,171 ) CHIP RESISTOR RS1/16S6802F R 373 (B,108 ,169 ) RS1/16S1003F R 374 (B,107 ,163 ) CHIP RESISTOR RS1/16S6802F R 375 (B,107 ,165 ) RS1/16S1003F R 389 (B,111 ,107 ) RS1/16S103J R 390 (B,111 ,109 ) RS1/16S103J R 391 (A,107 ,228 ) RS1/16S103J R 401 (B,105 ,205 ) RS1/10S0R0J R 403 (A,88 ,38 ) RS1/10S0R0J R 408 (B,28 ,236 ) RS1/16S220J R 409 (B,22 ,236 ) RS1/16S220J R 410 (B,27 ,236 ) RS1/16S220J R 411 (B,20 ,236 ) RS1/16S220J R 412 (B,17 ,236 ) RS1/16S220J R 413 (B,23 ,236 ) RS1/16S220J R 415 (B,26 ,212 ) RS1/16S220J R 417 (B,16 ,236 ) RS1/16S0R0J R 420 (A,93 ,24 ) RS1/16S103J R 425 (A,93 ,23 ) RS1/16S562J R 427 (A,88 ,31 ) RS1/16S103J R 429 (A,93 ,26 ) RS1/16S103J R 448 (B,28 ,214 ) RS1/16S682J R 449 (B,28 ,221 ) RS1/16S104J R 450 (B,24 ,221 ) RS1/16S182J R 451 (B,28 ,225 ) RS1/16S104J R 452 (A,24 ,99 ) RS1/16S220J R 453 (A,19 ,102 ) RS1/16S470J R 454 (A,29 ,109 ) RS1/16S220J R 455 (A,32 ,109 ) RS1/16S0R0J R 456 (A,14 ,115 ) RS1/16S680J R 458 (B,47 ,181 ) RS1/16S0R0J R 459 (A,18 ,112 ) RS1/16S680J R 460 (A,21 ,116 ) RS1/16S470J R 462 (B,64 ,173 ) RS1/16S220J R 463 (A,21 ,114 ) RS1/16S470J R 464 (A,28 ,118 ) RS1/16S101J R 466 (A,28 ,113 ) RS1/16S680J Mark No. Description Part No. R 467 (A,36 ,119 ) RS1/16S680J R 468 (A,36 ,112 ) RS1/16S680J R 481 (A,20 ,113 ) RS1/16S0R0J R 482 (A,28 ,95 ) RS1/10S0R0J R 483 (A,32 ,102 ) RS1/16S0R0J R 484 (A,32 ,104 ) RS1/16S101J R 485 (A,29 ,103 ) RS1/16S105J R 491 (A,8 ,129 ) RS1/10S0R0J R 492 (A,10 ,125 ) RS1/16S220J R 539 (A,86 ,234 ) RS1/16S560J R 540 (A,61 ,235 ) RS1/16S560J R 541 (A,63 ,235 ) RS1/16S560J R 542 (A,73 ,235 ) RS1/16S560J R 543 (A,87 ,232 ) RS1/16S0R0J R 544 (A,47 ,235 ) RS1/16S560J R 545 (A,48 ,235 ) RS1/16S560J R 546 (A,58 ,235 ) RS1/16S560J R 547 (A,59 ,235 ) RS1/16S560J R 551 (A,71 ,216 ) RS1/16S560J R 552 (A,72 ,216 ) RS1/16S220J R 553 (A,74 ,216 ) RS1/16S220J R 554 (A,82 ,198 ) RS1/10S0R0J R 556 (B,93 ,249 ) RS1/16S220J R 557 (A,84 ,206 ) RS1/16S0R0J R 558 (A,83 ,206 ) RS1/16S0R0J R 563 (B,89 ,249 ) RS1/16S220J R 565 (A,76 ,235 ) RS1/16S560J R 570 (B,103 ,249 ) RS1/16S680J R 571 (B,97 ,249 ) RS1/16S220J R 572 (B,95 ,249 ) RS1/16S220J R 574 (B,99 ,249 ) RS1/16S220J R 576 (B,91 ,249 ) RS1/16S220J R 577 (A,74 ,235 ) RS1/16S560J R 579 (B,51 ,252 ) RS1/16S220J R 583 (B,101 ,249 ) RS1/16S220J R 600 (A,39 ,122 ) RS1/10S0R0J R 601 (A,34 ,96 ) RS1/10S0R0J R 602 (A,48 ,92 ) RS1/16S105J R 603 (B,67 ,132 ) RS1/10S0R0J R 604 (A,81 ,106 ) RS1/16S103J R 605 (A,50 ,92 ) RS1/16S105J R 606 (A,52 ,88 ) RS1/16S105J R 609 (A,50 ,133 ) RS1/16S101J R 610 (A,75 ,98 ) RS1/16S103J R 611 (A,79 ,106 ) RS1/16S103J R 612 (A,63 ,132 ) RS1/16S470J R 613 (A,68 ,132 ) RS1/16S0R0J R 614 (A,66 ,95 ) RS1/16S103J R 615 (A,66 ,128 ) RS1/16S103J R 616 (A,65 ,132 ) RS1/16S103J R 617 (A,64 ,93 ) RS1/16S103J R 618 (A,70 ,132 ) RS1/16S103J R 619 (A,50 ,129 ) RS1/16S103J R 620 (A,62 ,132 ) RS1/16S103J R 621 (A,64 ,128 ) RS1/16S103J R 622 (A,59 ,95 ) RS1/16S470J R 623 (A,82 ,104 ) RS1/16S103J R 624 (A,83 ,106 ) RS1/16S103J R 625 (A,78 ,116 ) RS1/16S103J R 628 (A,79 ,110 ) RS1/16S103J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 66 1 2 3 4 1 2 3 4 C D F A B E R 629 (B,71 ,115 ) RS1/16S330J R 630 (A,77 ,124 ) RS1/16S103J R 631 (A,82 ,113 ) RAB4C103J R 632 (A,52 ,129 ) RS1/16S103J R 633 (A,67 ,128 ) RS1/16S103J R 634 (A,81 ,110 ) RS1/16S103J R 635 (A,51 ,92 ) RS1/16S105J R 637 (A,78 ,114 ) RS1/16S103J R 638 (A,80 ,124 ) RS1/16S220J R 639 (A,82 ,124 ) RS1/16S103J R 640 (A,81 ,101 ) RS1/16S103J R 641 (A,58 ,92 ) RS1/16S103J R 642 (A,82 ,120 ) RS1/16S220J R 643 (A,75 ,124 ) RS1/16S103J R 644 (A,80 ,120 ) RS1/16S220J R 645 (A,78 ,124 ) RS1/16S220J R 646 (A,78 ,106 ) RS1/16S103J R 647 (A,55 ,92 ) RS1/16S105J R 648 (A,39 ,131 ) RS1/16S223J R 649 (B,54 ,124 ) RS1/16S220J R 650 (A,59 ,136 ) RS1/16S470J R 652 (A,44 ,129 ) RS1/16S470J R 653 (B,57 ,103 ) RS1/16S103J R 654 (A,73 ,96 ) RS1/16S103J R 655 (A,53 ,92 ) RS1/16S105J R 656 (B,72 ,118 ) RS1/16S103J R 659 (A,53 ,134 ) RS1/16S103J R 661 (A,38 ,128 ) RS1/16S103J R 662 (A,52 ,133 ) RS1/16S222J R 663 (A,38 ,129 ) RS1/16S682J R 664 (A,38 ,133 ) RS1/16S103J R 665 (A,49 ,129 ) RS1/16S103J R 666 (A,47 ,129 ) RS1/16S103J R 667 (A,46 ,129 ) RS1/16S103J R 668 (B,54 ,119 ) RS1/16S220J R 669 (A,80 ,96 ) RS1/16S223J R 670 (A,85 ,99 ) RS1/16S223J R 671 (A,78 ,98 ) RS1/16S470J R 672 (A,87 ,96 ) RS1/16S470J R 673 (A,84 ,96 ) RS1/16S222J R 681 (A,73 ,126 ) RS1/16S103J R 682 (B,87 ,112 ) RS1/16S104J R 683 (A,73 ,127 ) RS1/16S471J R 689 (A,76 ,96 ) RS1/16S103J R 693 (A,75 ,102 ) RS1/16S222J R 694 (A,75 ,101 ) RS1/16S470J R 696 (A,82 ,98 ) RS1/16S470J R 701 (A,55 ,183 ) RS1/10S0R0J R 703 (A,46 ,179 ) RS1/16S103J R 704 (B,50 ,122 ) RS1/16S470J R 705 (A,51 ,178 ) RS1/16S220J R 706 (A,38 ,181 ) RS1/16S680J R 707 (B,52 ,147 ) RS1/16S103J R 709 (A,57 ,160 ) RS1/16S0R0J R 710 (A,60 ,163 ) RS1/16S470J R 711 (A,63 ,167 ) RS1/16S103J R 712 (A,39 ,180 ) RS1/16S103J R 713 (A,36 ,178 ) RAB4C103J R 715 (A,60 ,162 ) RS1/16S220J R 716 (A,42 ,139 ) RS1/16S103J Mark No. Description Part No. R 717 (A,43 ,139 ) RS1/16S103J R 718 (A,62 ,148 ) RS1/10S0R0J R 720 (A,61 ,169 ) RS1/16S103J R 721 (A,60 ,179 ) RS1/10S0R0J R 722 (A,17 ,167 ) RS1/16S220J R 723 (A,60 ,172 ) RS1/16S470J R 725 (A,60 ,165 ) RS1/16S470J R 726 (A,63 ,165 ) RS1/16S470J R 727 (A,17 ,164 ) RS1/16S0R0J R 728 (B,10 ,66 ) RS1/10S0R0J R 729 (B,45 ,134 ) RAB4C101J R 730 (B,40 ,134 ) RAB4C101J R 731 (A,22 ,149 ) RS1/16S220J R 732 (A,32 ,140 ) RS1/16S220J R 733 (A,32 ,141 ) RS1/16S220J R 734 (A,35 ,176 ) RS1/16S470J R 735 (A,46 ,181 ) RS1/16S470J R 736 (A,48 ,178 ) RS1/16S220J R 741 (B,9 ,171 ) RS1/10S0R0J R 751 (B,53 ,109 ) RS1/16S220J R 752 (B,55 ,109 ) RS1/16S220J R 753 (B,10 ,148 ) RS1/16S470J R 754 (B,13 ,143 ) RS1/16S470J R 756 (B,51 ,130 ) RS1/10S0R0J R 757 (B,51 ,132 ) RS1/10S0R0J R 758 (B,15 ,133 ) RS1/10S0R0J R 759 (B,15 ,135 ) RS1/10S0R0J R 760 (B,12 ,97 ) RS1/10S0R0J R 761 (B,31 ,93 ) RS1/16S220J R 762 (B,50 ,124 ) RS1/16S0R0J R 763 (B,8 ,113 ) RS1/10S0R0J R 764 (B,28 ,134 ) RS1/16S103J R 765 (B,20 ,132 ) RS1/16S103J R 766 (B,30 ,135 ) RS1/16S390J R 781 (B,23 ,71 ) RS1/16S0R0J R 786 (B,18 ,147 ) RAB4C470J R 787 (B,18 ,143 ) RAB4C470J R 801 (A,45 ,67 ) RS1/16S103J R 802 (A,44 ,67 ) RS1/16S103J R 803 (A,47 ,67 ) RS1/16S103J R 804 (B,48 ,61 ) RAB4C103J R 805 (A,53 ,58 ) RS1/16S103J R 806 (B,47 ,56 ) RS1/16S103J R 807 (B,47 ,54 ) RS1/16S103J R 808 (A,51 ,52 ) RS1/16S103J R 809 (B,45 ,49 ) RS1/16S103J R 810 (B,52 ,53 ) RS1/16S103J R 811 (B,45 ,47 ) RS1/16S103J R 812 (B,45 ,46 ) RS1/16S103J R 813 (B,47 ,51 ) RS1/16S103J R 814 (B,52 ,51 ) RS1/16S103J R 815 (B,45 ,43 ) RS1/16S103J R 816 (B,57 ,34 ) CHIP RESISTOR RS1/16S6341D R 819 (B,42 ,53 ) RS1/16S103J R 820 (A,42 ,67 ) RS1/16S103J R 821 (B,28 ,63 ) RAB4C220J R 822 (B,38 ,63 ) RAB4C0R0J R 823 (B,33 ,63 ) RAB4C0R0J R 824 (B,43 ,63 ) RAB4C0R0J R 825 (A,23 ,54 ) RS1/16S103J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 67 5 6 7 8 5 6 7 8 C D F A B E R 826 (A,14 ,88 ) RS1/16S220J R 828 (A,47 ,43 ) RS1/16S151J R 832 (A,40 ,88 ) RAB4C0R0J R 833 (A,40 ,84 ) RAB4C0R0J R 834 (A,25 ,49 ) RS1/16S103J R 835 (A,22 ,45 ) RS1/16S103J R 836 (A,22 ,42 ) RS1/16S330J R 837 (A,16 ,42 ) RS1/16S0R0J R 839 (A,19 ,33 ) RS1/16S0R0J R 841 (A,15 ,34 ) RS1/16S0R0J R 842 (A,51 ,33 ) RS1/10S0R0J R 843 (A,31 ,32 ) RS1/16S103J R 844 (A,33 ,33 ) RS1/16S0R0J R 845 (B,38 ,41 ) RS1/10S0R0J R 846 (A,20 ,58 ) RS1/10S0R0J R 847 (B,51 ,93 ) RS1/10S0R0J R 848 (A,48 ,88 ) RS1/16S103J R 849 (B,8 ,38 ) RS1/10S0R0J R 850 (A,19 ,37 ) RS1/16S101J R 851 (B,22 ,38 ) RS1/16S103J R 852 (B,22 ,42 ) RS1/16S0R0J R 853 (B,22 ,31 ) RS1/16S273J R 855 (B,16 ,30 ) RS1/16S103J R 856 (B,21 ,42 ) RS1/16S472J R 857 (A,12 ,53 ) RS1/16S223J R 858 (A,8 ,52 ) RS1/16S223J R 859 (A,7 ,48 ) RS1/16S362J R 860 (A,18 ,96 ) RS1/16S103J R 862 (A,11 ,88 ) RS1/16S103J R 863 (A,11 ,86 ) RS1/16S0R0J R 864 (A,11 ,78 ) RS1/16S103J R 865 (A,17 ,70 ) RS1/16S103J R 866 (A,18 ,70 ) RS1/16S103J R 867 (A,20 ,70 ) RS1/16S220J R 868 (A,23 ,70 ) RS1/16S103J R 869 (A,11 ,83 ) RS1/16S0R0J R 871 (A,22 ,70 ) RS1/16S0R0J R 872 (A,23 ,25 ) RS1/16S104J R 873 (A,28 ,70 ) RS1/16S0R0J R 874 (B,28 ,70 ) RS1/16S103J R 875 (A,29 ,70 ) RS1/16S0R0J R 876 (B,29 ,70 ) RS1/16S103J R 877 (A,32 ,70 ) RAB4C0R0J R 878 (B,32 ,70 ) RAB4C103J R 880 (A,25 ,70 ) RS1/16S103J R 882 (B,12 ,21 ) RS1/16S103J R 883 (B,17 ,26 ) RS1/16S103J R 884 (B,10 ,21 ) RS1/16S0R0J R 885 (B,13 ,21 ) RS1/16S562J R 886 (B,15 ,21 ) RS1/16S0R0J R 887 (B,16 ,21 ) RS1/16S103J R 888 (A,10 ,68 ) RS1/10S0R0J R 889 (A,53 ,27 ) CHIP RESISTOR RS1/16S56R0D R 890 (A,52 ,26 ) CHIP RESISTOR RS1/16S56R0D R 891 (A,35 ,27 ) CHIP RESISTOR RS1/16S56R0D R 892 (A,35 ,26 ) CHIP RESISTOR RS1/16S56R0D R 893 (A,48 ,27 ) CHIP RESISTOR RS1/16S56R0D R 894 (A,48 ,26 ) CHIP RESISTOR RS1/16S56R0D R 895 (A,31 ,27 ) CHIP RESISTOR RS1/16S56R0D R 896 (A,30 ,26 ) CHIP RESISTOR RS1/16S56R0D Mark No. Description Part No. R 897 (A,45 ,23 ) RS1/16S5101F R 901 (B,66 ,55 ) RAB4C220J R 902 (A,53 ,85 ) RS1/16S0R0J R 903 (A,53 ,82 ) RS1/16S0R0J R 904 (B,67 ,98 ) RS1/16S0R0J R 905 (B,91 ,54 ) RAB4C103J R 906 (B,89 ,30 ) RAB4C103J R 907 (B,54 ,58 ) RS1/10S0R0J R 909 (B,85 ,30 ) RAB4C103J R 911 (B,68 ,102 ) RS1/16S0R0J R 913 (B,69 ,102 ) RS1/16S0R0J R 914 (B,81 ,56 ) RS1/16S220J R 915 (B,61 ,83 ) RS1/16S220J R 916 (B,57 ,88 ) RS1/10S0R0J R 919 (B,96 ,34 ) RS1/10S220J R 920 (B,81 ,34 ) RS1/16S0R0J R 921 (B,63 ,59 ) RS1/16S470J R 922 (B,77 ,55 ) RAB4C220J R 923 (B,85 ,58 ) RAB4C103J R 924 (B,89 ,58 ) RAB4C103J R 925 (B,56 ,83 ) RS1/16S0R0J R 928 (B,92 ,74 ) RS1/16S220J R 929 (B,58 ,82 ) RS1/16S0R0J R 930 (B,56 ,93 ) RAB4C103J R 931 (B,60 ,98 ) RAB4C220J R 932 (B,64 ,98 ) RAB4C220J R 933 (B,54 ,78 ) RAB4C220J R 934 (B,92 ,73 ) RS1/16S220J R 935 (B,93 ,68 ) RAB4C103J R 936 (B,54 ,73 ) RAB4C220J R 937 (B,54 ,68 ) RAB4C220J R 940 (B,54 ,63 ) RAB4C220J R 941 (A,93 ,33 ) RS1/16S222J R 942 (A,93 ,31 ) RS1/16S153J R 943 (A,95 ,28 ) RS1/16S473J R 944 (B,56 ,98 ) RAB4C103J R 945 (A,99 ,24 ) RS1/16S472J R 946 (A,107 ,27 ) RS1/16S220J R 947 (B,52 ,83 ) RS1/16S0R0J R 948 (B,65 ,94 ) RS1/16S220J R 949 (A,106 ,52 ) RS1/16S220J R 950 (B,69 ,92 ) RS1/10S0R0J R 951 (B,103 ,85 ) RS1/10S0R0J R 952 (A,101 ,29 ) RS1/16S474J R 953 (B,87 ,80 ) RS1/16S1802F R 954 (A,107 ,25 ) RS1/16S220J R 955 (A,107 ,30 ) RS1/16S220J R 957 (A,107 ,47 ) RS1/16S0R0J R 958 (A,107 ,43 ) RS1/16S0R0J R 959 (A,107 ,32 ) RS1/16S0R0J R 960 (A,107 ,38 ) RS1/16S0R0J R 961 (B,92 ,80 ) RS1/16S1502F R 963 (A,107 ,36 ) RS1/16S0R0J R 964 (A,107 ,35 ) RS1/16S220J R 965 (A,107 ,41 ) RS1/16S220J R 966 (B,95 ,83 ) RS1/16S1002F R 968 (A,107 ,28 ) RS1/16S0R0J R 969 (A,107 ,44 ) RS1/16S220J R 979 (B,93 ,80 ) RS1/16S681J R 982 (A,107 ,49 ) RS1/16S220J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 68 1 2 3 4 1 2 3 4 C D F A B E R 993 (B,96 ,73 ) RAB4C103J R 994 (B,95 ,64 ) RAB4C103J R 998 (A,100 ,33 ) RS1/16S473J R 1001(A,70 ,92 ) RS1/10S0R0J R 1002(A,80 ,93 ) RS1/10S0R0J R 1003(A,81 ,88 ) RS1/16S0R0J R 1004(A,60 ,38 ) RS1/16S0R0J R 1005(A,81 ,85 ) RS1/16S0R0J R 1006(A,87 ,77 ) RS1/16S332J R 1007(A,85 ,80 ) RS1/16S821J R 1009(A,82 ,71 ) RS1/16S470J R 1010(A,81 ,69 ) RS1/16S220J R 1011(A,85 ,68 ) RS1/16S220J R 1012(A,84 ,67 ) RS1/16S220J R 1013(A,84 ,58 ) RAB4C220J R 1014(A,80 ,58 ) RAB4C220J R 1015(A,76 ,58 ) RAB4C220J R 1016(A,72 ,58 ) RAB4C220J R 1017(A,67 ,58 ) RAB4C220J R 1018(A,63 ,58 ) RAB4C220J R 1049(A,58 ,30 ) RS1/16S0R0J R 1050(A,62 ,26 ) RS1/16S0R0J R 1051(A,86 ,48 ) RS1/10S0R0J R 1052(A,81 ,38 ) RS1/10S0R0J R 1053(A,81 ,35 ) RS1/10S0R0J R 1054(A,57 ,57 ) RS1/10S0R0J R 1055(A,64 ,35 ) RS1/10S0R0J R 1057(A,61 ,47 ) RS1/16S220J R 1058(A,59 ,50 ) RS1/16S220J R 1064(A,66 ,33 ) CHIP RESISTOR RS1/16S4750F R 1065(A,56 ,53 ) RS1/16S220J R 1066(A,83 ,43 ) RS1/16S0R0J R 1068(A,56 ,51 ) RS1/16S220J R 1069(A,56 ,49 ) RS1/16S220J R 1070(A,56 ,48 ) RS1/16S220J R 1073(A,61 ,33 ) RS1/16S472J R 1074(A,59 ,26 ) RS1/16S472J R 1075(B,61 ,33 ) RS1/16S272J R 1078(A,59 ,23 ) RS1/10S0R0J R 1079(A,86 ,26 ) RS1/10S0R0J R 1080(B,79 ,25 ) RS1/10S0R0J R 1082(A,57 ,44 ) RS1/16S220J R 1083(B,58 ,23 ) RS1/16S272J R 1091(B,65 ,30 ) RS1/16S272J R 1092(B,60 ,26 ) RS1/16S472J R 1093(B,65 ,27 ) RS1/16S472J R 1094(B,70 ,29 ) RS1/16S472J R 1095(B,67 ,30 ) RS1/16S562J R 1096(B,63 ,26 ) RS1/16S102J R 1097(B,64 ,24 ) RS1/16S473J R 1098(B,71 ,27 ) RS1/16S272J R 1101(B,51 ,231 ) RS1/10S0R0J R 1102(B,53 ,194 ) RS1/16S220J R 1103(B,55 ,194 ) RS1/16S220J R 1104(B,82 ,207 ) RS1/16S0R0J R 1105(B,79 ,199 ) RS1/16S0R0J R 1108(B,81 ,205 ) RS1/16S220J R 1109(B,78 ,199 ) RS1/16S103J R 1110(B,76 ,199 ) RS1/16S103J R 1111(A,51 ,196 ) RS1/16S103J Mark No. Description Part No. R 1112(B,75 ,199 ) RS1/16S103J R 1113(B,73 ,199 ) RS1/16S103J R 1118(B,60 ,199 ) RS1/16S103J R 1119(B,53 ,216 ) RS1/16S220J R 1123(B,51 ,222 ) RS1/16S103J R 1125(B,78 ,203 ) RS1/16S0R0J R 1126(B,52 ,186 ) RS1/10S0R0J R 1127(B,41 ,202 ) RAB4C103J R 1128(B,35 ,202 ) RAB4C103J R 1133(B,94 ,227 ) RS1/10S0R0J R 1136(A,15 ,209 ) RS1/16S470J R 1137(A,15 ,210 ) RS1/16S470J R 1139(A,27 ,185 ) RS1/10S0R0J R 1140(A,22 ,180 ) RS1/16S220J R 1142(A,30 ,182 ) RS1/16S0R0J R 1145(A,39 ,186 ) RS1/16S0R0J R 1149(A,19 ,194 ) RS1/16S470J R 1150(B,29 ,200 ) RS1/16S220J R 1151(A,38 ,186 ) RS1/16S220J R 1156(A,40 ,227 ) RS1/16S470J R 1157(A,15 ,212 ) RS1/16S470J R 1159(A,16 ,222 ) RS1/10S0R0J R 1160(A,43 ,228 ) RS1/10S0R0J R 1161(A,11 ,216 ) RS1/10S0R0J R 1162(A,19 ,227 ) RS1/16S470J R 1163(A,21 ,227 ) RS1/16S470J R 1164(A,23 ,227 ) RS1/16S470J R 1165(A,24 ,227 ) RS1/16S470J R 1166(A,37 ,227 ) RS1/16S470J R 1167(A,38 ,227 ) RS1/16S470J R 1168(A,30 ,227 ) RS1/16S470J R 1169(A,32 ,227 ) RS1/16S470J R 1170(A,33 ,227 ) RS1/16S470J R 1171(A,35 ,227 ) RS1/16S470J R 1172(A,26 ,227 ) RS1/16S470J R 1173(A,27 ,227 ) RS1/16S470J R 1174(A,29 ,227 ) RS1/16S470J R 1175(A,46 ,186 ) RAB4C470J R 1176(A,50 ,186 ) RAB4C470J R 1201(B,94 ,95 ) RS1/16S102J R 1203(B,92 ,106 ) RS1/16S270J R 1204(B,93 ,108 ) RS1/16S4700F R 1205(B,93 ,106 ) CHIP RESISTOR RS1/16S2700F R 1207(B,103 ,28 ) RS1/16S102J R 1208(B,90 ,95 ) RS1/16S102J R 1210(B,88 ,106 ) RS1/16S270J R 1211(B,89 ,108 ) RS1/16S4700F R 1212(B,90 ,106 ) CHIP RESISTOR RS1/16S2700F R 1214(B,106 ,35 ) RS1/16S102J R 1215(B,85 ,91 ) RS1/16S102J R 1217(B,85 ,102 ) RS1/16S180J R 1218(B,85 ,104 ) RS1/16S4700F R 1219(B,86 ,102 ) CHIP RESISTOR RS1/16S2700F R 1221(B,106 ,33 ) RS1/16S102J R 1222(B,82 ,95 ) RS1/16S102J R 1224(B,81 ,106 ) RS1/16S330J R 1225(B,82 ,108 ) RS1/16S5600F R 1226(B,83 ,106 ) RS1/16S3900F R 1228(B,103 ,38 ) RS1/16S102J R 1229(B,79 ,95 ) RS1/16S102J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 69 5 6 7 8 5 6 7 8 C D F A B E R 1231(B,78 ,106 ) RS1/16S330J R 1232(B,79 ,108 ) RS1/16S5600F R 1233(B,80 ,106 ) RS1/16S3900F R 1235(B,103 ,43 ) RS1/16S102J R 1236(B,76 ,95 ) RS1/16S102J R 1238(B,74 ,106 ) RS1/16S330J R 1239(B,74 ,107 ) RS1/16S5600F R 1240(B,77 ,106 ) RS1/16S3900F R 1242(B,103 ,46 ) RS1/16S102J R 1801(A,18 ,61 ) RS1/10S0R0J R 1813(A,40 ,80 ) RAB4C0R0J R 1814(A,40 ,76 ) RAB4C0R0J R 1815(A,40 ,72 ) RS1/16S103J R 1816(A,35 ,72 ) RS1/16S0R0J R 1817(B,20 ,27 ) RS1/16S103J R 1818(A,40 ,73 ) RS1/16S0R0J R 1819(B,35 ,42 ) RS1/16S103J R 1820(A,28 ,23 ) RS1/16S5101F CAPACITORS C 100 (A,81 ,157 ) CCSRCH151J50 C 101 (A,107 ,150 ) CHIP OS CAPACITOR ACH7174 C 102 (B,99 ,155 ) CKSRYB105K6R3 C 103 (A,107 ,157 ) CHIP ELECT.CAPACITOR CEVW220M16 C 104 (B,99 ,158 ) CKSRYB105K6R3 C 105 (A,104 ,162 ) CKSRYB105K6R3 C 106 (A,88 ,172 ) CKSRYB152K50 C 107 (A,88 ,178 ) CCSRCH681J50 C 108 (A,94 ,172 ) CKSRYB104K16 C 109 (A,96 ,172 ) CCSRCH391J50 C 110 (A,93 ,168 ) CKSRYB103K50 C 111 (A,91 ,168 ) CKSRYB104K16 C 112 (A,73 ,155 ) CKSRYF105Z10 C 113 (A,81 ,170 ) CKSRYB103K50 C 114 (A,81 ,168 ) CKSRYB104K16 C 115 (A,81 ,162 ) CKSRYB104K16 C 116 (A,80 ,159 ) CKSRYB105K6R3 C 117 (A,71 ,158 ) CAPACITOR(TANTARIUM) VCH1259 C 118 (A,77 ,163 ) CKSRYF105Z10 C 119 (A,81 ,148 ) CAPACITOR(TANTARIUM) VCH1258 C 120 (A,71 ,148 ) CCSRCH221J50 C 121 (A,75 ,148 ) CCSRCH121J50 C 122 (A,86 ,148 ) CKSRYF105Z10 C 123 (A,79 ,142 ) CEVW101M16 C 125 (A,108 ,139 ) CKSRYF105Z10 C 126 (A,105 ,118 ) CKSRYF105Z10 C 127 (A,80 ,161 ) CKSRYB105K6R3 C 128 (A,112 ,118 ) CHIP PV CAPACITOR VCH1252 C 129 (A,84 ,144 ) CKSRYF105Z10 C 130 (B,101 ,129 ) CKSRYF105Z10 C 131 (B,95 ,154 ) CKSRYF105Z10 C 133 (A,99 ,139 ) CCSRCH221J50 C 134 (A,105 ,139 ) CCSRCH151J50 C 200 (B,60 ,169 ) CKSRYF105Z10 C 201 (B,37 ,161 ) CAPACITOR(TANTARIUM) VCH1259 C 202 (B,53 ,169 ) CKSRYF105Z10 C 204 (B,53 ,170 ) CKSRYF105Z10 C 205 (B,45 ,142 ) CAPACITOR(TANTARIUM) VCH1258 C 206 (B,63 ,165 ) CKSRYB472K50 Mark No. Description Part No. C 208 (B,66 ,162 ) CKSRYB222K50 C 212 (B,71 ,162 ) CKSRYB104K16 C 213 (B,69 ,162 ) CKSRYB104K16 C 214 (B,41 ,162 ) CKSRYB472K50 C 215 (B,63 ,157 ) CKSRYF105Z10 C 216 (B,70 ,157 ) CKSRYB102K50 C 217 (B,63 ,153 ) CKSRYF105Z10 C 220 (B,55 ,148 ) CKSRYB103K50 C 221 (B,45 ,148 ) CKSRYF105Z10 C 222 (B,49 ,148 ) CKSRYF105Z10 C 223 (B,37 ,150 ) CKSRYB105K6R3 C 224 (B,38 ,148 ) CKSRYB105K6R3 C 225 (B,42 ,147 ) CKSRYB103K50 C 226 (B,42 ,153 ) CKSRYF105Z10 C 227 (B,36 ,152 ) CKSRYB104K16 C 230 (B,42 ,158 ) CKSRYF105Z10 C 231 (B,39 ,156 ) CKSRYB104K16 C 232 (A,68 ,168 ) CKSRYF105Z10 C 233 (A,66 ,175 ) CEVW101M16 C 234 (A,71 ,163 ) CKSRYB103K50 C 236 (B,42 ,166 ) CKSRYF105Z10 C 237 (B,42 ,170 ) CAPACITOR(TANTARIUM) VCH1258 C 241 (A,77 ,160 ) CCSRCH560J50 C 242 (B,80 ,167 ) CKSRYB472K50 C 248 (A,91 ,205 ) CKSRYB104K16 C 249 (A,90 ,207 ) CKSRYB104K16 C 250 (A,89 ,209 ) CKSRYB104K16 C 251 (A,91 ,189 ) CKSRYB104K16 C 253 (A,99 ,187 ) CKSRYF105Z10 C 254 (A,104 ,185 ) CEVW101M16 C 255 (A,90 ,189 ) CKSRYB104K16 C 256 (A,104 ,191 ) CKSRYF105Z10 C 258 (A,94 ,189 ) CKSRYF105Z10 C 261 (B,61 ,191 ) CKSRYB103K50 C 263 (B,78 ,189 ) CKSRYB104K16 C 264 (B,74 ,189 ) CKSRYB105K6R3 C 265 (B,68 ,194 ) CKSRYF105Z10 C 266 (B,66 ,165 ) CKSRYB224K10 C 299 (B,41 ,158 ) CKSRYF105Z10 C 310 (B,57 ,139 ) CKSRYF105Z10 C 312 (B,80 ,151 ) CKSRYB105K6R3 C 313 (B,80 ,144 ) CKSRYB102K50 C 314 (B,65 ,150 ) CCSRCH150J50 C 315 (B,68 ,145 ) CKSRYB104K16 C 317 (B,68 ,151 ) CKSRYB104K16 C 319 (B,78 ,154 ) CKSRYF105Z10 C 320 (B,74 ,136 ) CKSRYB103K50 C 321 (A,74 ,137 ) CKSRYB103K50 C 322 (B,70 ,136 ) CKSRYB103K50 C 324 (B,77 ,140 ) CCSRCH331J50 C 326 (B,64 ,142 ) CAPACITOR(TANTARIUM) VCH1258 C 328 (A,73 ,137 ) CKSRYF105Z10 C 329 (B,64 ,139 ) CKSRYF105Z10 C 330 (A,72 ,153 ) CKSRYB103K50 C 332 (B,84 ,151 ) CKSRYB104K16 C 351 (B,89 ,168 ) CKSRYB102K50 C 353 (B,87 ,171 ) CKSRYF104Z25 C 357 (B,87 ,185 ) CKSRYB472K50 C 358 (A,104 ,174 ) CEVW101M16 C 359 (B,89 ,171 ) CKSRYF104Z25 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 70 1 2 3 4 1 2 3 4 C D F A B E C 360 (B,87 ,190 ) CCSRCH681J50 C 363 (B,104 ,191 ) CHIP TZV CAPACITOR VCH1260 C 365 (B,108 ,166 ) CKSRYF104Z25 C 366 (B,108 ,168 ) CKSRYF104Z25 C 368 (B,78 ,180 ) CHIP TZV CAPACITOR VCH1260 C 369 (B,73 ,172 ) CEVW101M16 C 390 (A,108 ,228 ) CKSRYF105Z10 C 391 (A,105 ,228 ) CCSRCH331J50 C 392 (B,111 ,110 ) CCSRCH331J50 C 393 (A,107 ,108 ) CKSRYF105Z10 C 401 (B,94 ,198 ) CHIP PV CAPACITOR VCH1252 C 403 (A,94 ,81 ) CHIP TZV CAPACITOR VCH1260 C 404 (B,101 ,200 ) CKSRYB103K50 C 405 (A,104 ,60 ) CHIP TZV CAPACITOR VCH1260 C 407 (B,96 ,205 ) CKSQYB225K10 C 408 (B,113 ,23 ) CKSQYB225K10 C 409 (B,103 ,205 ) CKSRYF105Z10 C 410 (A,104 ,78 ) CKSRYF104Z25 C 411 (B,101 ,17 ) CKSRYF105Z10 C 412 (B,101 ,15 ) CKSRYB102K50 C 413 (A,91 ,51 ) CHIP PV CAPACITOR VCH1252 C 414 (A,99 ,51 ) CEVW101M16 C 416 (A,92 ,44 ) CKSQYB225K10 C 418 (A,102 ,45 ) CKSRYF105Z10 C 419 (B,114 ,15 ) CKSRYF105Z10 C 421 (A,101 ,110 ) CHIP PV CAPACITOR VCH1246 C 422 (A,89 ,120 ) CEVW101M16 C 426 (B,28 ,232 ) CKSRYB103K50 C 427 (A,106 ,78 ) CKSRYB102K50 C 428 (B,112 ,72 ) CKSRYB102K50 C 434 (A,103 ,72 ) CHIP PV CAPACITOR VCH1246 C 436 (A,93 ,61 ) CHIP PV CAPACITOR VCH1252 C 437 (A,103 ,85 ) CHIP PV CAPACITOR VCH1246 C 438 (A,98 ,86 ) CKSRYF105Z10 C 439 (A,86 ,243 ) CHIP PV CAPACITOR VCH1246 C 442 (A,97 ,239 ) CKSRYF105Z10 C 443 (A,97 ,246 ) CHIP ELECT.CAPACITOR CEVW221M4 C 444 (A,11 ,190 ) CHIP PV CAPACITOR VCH1246 C 446 (A,9 ,172 ) CHIP PV CAPACITOR VCH1246 C 451 (A,14 ,102 ) CKSRYF105Z10 C 455 (B,51 ,183 ) CKSRYF105Z10 C 459 (B,68 ,170 ) CKSRYF105Z10 C 462 (A,33 ,121 ) CKSRYF105Z10 C 464 (A,33 ,116 ) CKSRYF105Z10 C 472 (A,103 ,127 ) CKSRYF105Z10 C 474 (A,86 ,131 ) CHIP PV CAPACITOR VCH1246 C 475 (A,102 ,132 ) CHIP ELECT.CAPACITOR CEVW221M4 C 482 (A,21 ,105 ) CKSRYF105Z10 C 483 (A,28 ,98 ) CAPACITOR(TANTARIUM) VCH1258 C 484 (A,27 ,101 ) CKSQYB225K10 C 485 (A,26 ,112 ) CKSRYF105Z10 C 486 (A,32 ,100 ) CCSRCH5R0C50 C 487 (A,32 ,106 ) CCSRCH5R0C50 C 488 (A,18 ,107 ) CAPACITOR(TANTARIUM) VCH1258 C 491 (A,9 ,135 ) CHIP PV CAPACITOR VCH1246 C 493 (A,13 ,122 ) CKSRYF105Z10 C 494 (A,13 ,128 ) CKSRYF105Z10 C 495 (A,27 ,126 ) CKSRYF105Z10 C 496 (A,27 ,133 ) CKSRYF105Z10 C 527 (A,79 ,228 ) CKSRYF105Z10 Mark No. Description Part No. C 528 (A,79 ,227 ) CKSRYB102K50 C 535 (A,62 ,228 ) CAPACITOR(TANTARIUM) VCH1258 C 536 (A,68 ,228 ) CKSRYF105Z10 C 537 (A,52 ,229 ) CKSRYF105Z10 C 538 (B,98 ,242 ) CKSRYF105Z10 C 552 (A,78 ,199 ) CAPACITOR(TANTARIUM) VCH1258 C 553 (A,79 ,203 ) CKSRYF105Z10 C 554 (A,78 ,215 ) CKSRYF105Z10 C 556 (A,68 ,198 ) CKSRYF105Z10 C 557 (A,68 ,201 ) CKSRYB102K50 C 558 (A,70 ,250 ) CKSRYF105Z10 C 559 (A,68 ,250 ) CKSRYB102K50 C 560 (A,65 ,250 ) CAPACITOR(TANTARIUM) VCH1258 C 561 (A,65 ,244 ) CHIP PV CAPACITOR VCH1252 C 601 (A,42 ,96 ) CHIP TZV CAPACITOR VCH1262 C 602 (A,46 ,95 ) CKSRYF105Z10 C 603 (A,43 ,110 ) CKSRYF105Z10 C 604 (A,43 ,107 ) CKSRYF105Z10 C 605 (A,48 ,95 ) CKSRYF105Z10 C 606 (A,37 ,95 ) CKSRYB102K50 C 607 (A,55 ,96 ) CKSRYF105Z10 C 608 (A,42 ,118 ) CKSRYF105Z10 C 609 (B,87 ,118 ) CKSRYF104Z25 C 610 (A,61 ,93 ) CKSRYF105Z10 C 613 (A,63 ,95 ) CKSRYF105Z10 C 614 (A,69 ,126 ) CKSRYF105Z10 C 615 (A,75 ,109 ) CKSRYF105Z10 C 616 (A,74 ,122 ) CKSRYF105Z10 C 617 (A,82 ,117 ) CKSRYB102K50 C 618 (A,75 ,112 ) CKSRYF105Z10 C 619 (B,85 ,112 ) CKSRYB103K50 C 621 (B,62 ,128 ) CKSRYF105Z10 C 622 (B,67 ,128 ) CKSRYF105Z10 C 623 (A,43 ,123 ) CAPACITOR(TANTARIUM) VCH1258 C 625 (B,62 ,132 ) CAPACITOR(TANTARIUM) VCH1258 C 627 (A,78 ,131 ) CHIP TZV CAPACITOR VCH1262 C 657 (A,55 ,126 ) CKSRYF105Z10 C 658 (A,58 ,126 ) CKSRYF105Z10 C 662 (A,49 ,133 ) CCSRCH100D50 C 701 (A,56 ,179 ) CAPACITOR(TANTARIUM) VCH1258 C 702 (A,59 ,147 ) CAPACITOR(TANTARIUM) VCH1258 C 703 (A,55 ,176 ) CKSRYB102K50 C 704 (A,32 ,177 ) CKSRYF105Z10 C 706 (A,39 ,177 ) CKSRYF105Z10 C 707 (A,43 ,177 ) CKSRYF105Z10 C 708 (A,57 ,171 ) CKSRYF105Z10 C 709 (A,46 ,177 ) CKSRYF105Z10 C 710 (A,52 ,176 ) CKSRYF105Z10 C 711 (A,60 ,176 ) CAPACITOR(TANTARIUM) VCH1258 C 712 (A,20 ,170 ) CKSRYF105Z10 C 713 (A,20 ,173 ) CKSRYF105Z10 C 714 (A,58 ,173 ) CKSRYF105Z10 C 715 (A,20 ,166 ) CKSRYF105Z10 C 716 (A,56 ,163 ) CKSRYF105Z10 C 718 (A,20 ,162 ) CKSRYF105Z10 C 719 (A,56 ,158 ) CKSRYF105Z10 C 720 (A,20 ,155 ) CKSRYF105Z10 C 721 (A,60 ,157 ) CKSRYF105Z10 C 722 (A,20 ,158 ) CKSRYF105Z10 C 723 (A,65 ,148 ) CKSRYF104Z25 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 71 5 6 7 8 5 6 7 8 C D F A B E C 724 (A,63 ,148 ) CKSRYF105Z10 C 725 (A,56 ,148 ) CKSRYF105Z10 C 726 (A,21 ,143 ) CKSRYF105Z10 C 727 (A,20 ,147 ) CKSRYF105Z10 C 728 (A,57 ,143 ) CKSRYF105Z10 C 729 (A,57 ,142 ) CKSRYF105Z10 C 730 (A,26 ,140 ) CKSRYF105Z10 C 731 (A,39 ,140 ) CKSRYF105Z10 C 732 (A,46 ,140 ) CKSRYF105Z10 C 733 (A,51 ,140 ) CKSRYB102K50 C 735 (A,27 ,177 ) CKSRYF105Z10 C 737 (A,17 ,148 ) CAPACITOR(TANTARIUM) VCH1258 C 738 (A,18 ,141 ) CAPACITOR(TANTARIUM) VCH1258 C 739 (B,12 ,93 ) CAPACITOR(TANTARIUM) VCH1258 C 740 (A,20 ,250 ) CKSRYB104K16 C 741 (B,30 ,153 ) CKSRYF105Z10 C 742 (B,35 ,166 ) CKSRYF105Z10 C 743 (B,35 ,169 ) CKSRYF105Z10 C 744 (B,35 ,173 ) CKSRYF105Z10 C 745 (B,13 ,173 ) CAPACITOR(TANTARIUM) VCH1258 C 746 (B,18 ,166 ) CKSRYF105Z10 C 747 (B,18 ,171 ) CKSRYF105Z10 C 748 (B,16 ,172 ) CKSRYB102K50 C 749 (A,23 ,250 ) CKSRYB105K6R3 C 750 (A,27 ,250 ) CKSRYB102K50 C 751 (B,51 ,127 ) CAPACITOR(TANTARIUM) VCH1258 C 752 (B,15 ,130 ) CAPACITOR(TANTARIUM) VCH1258 C 753 (B,41 ,129 ) CKSRYF105Z10 C 754 (B,38 ,129 ) CKSRYF105Z10 C 755 (B,28 ,129 ) CKSRYF105Z10 C 756 (B,25 ,129 ) CKSRYF105Z10 C 757 (B,13 ,125 ) CKSRYF105Z10 C 758 (B,13 ,122 ) CKSRYF105Z10 C 759 (B,50 ,120 ) CKSRYF105Z10 C 760 (B,50 ,116 ) CKSRYF105Z10 C 761 (B,14 ,115 ) CKSRYF105Z10 C 762 (B,14 ,112 ) CKSRYF105Z10 C 763 (B,50 ,112 ) CKSRYF105Z10 C 764 (B,50 ,109 ) CKSRYF105Z10 C 765 (B,14 ,108 ) CKSRYF105Z10 C 767 (B,8 ,144 ) CKSRYF105Z10 C 769 (B,50 ,105 ) CKSRYF105Z10 C 770 (B,50 ,102 ) CKSRYF105Z10 C 771 (B,13 ,103 ) CKSRYF105Z10 C 772 (B,13 ,99 ) CKSRYF105Z10 C 773 (B,44 ,93 ) CKSRYF105Z10 C 774 (B,41 ,93 ) CKSRYF105Z10 C 775 (B,37 ,93 ) CKSRYF105Z10 C 776 (B,33 ,93 ) CKSRYF105Z10 C 777 (B,28 ,93 ) CKSRYF105Z10 C 778 (B,25 ,93 ) CKSRYF105Z10 C 779 (B,20 ,93 ) CKSRYF105Z10 C 780 (B,17 ,93 ) CKSRYF105Z10 C 781 (B,9 ,69 ) CAPACITOR(TANTARIUM) VCH1258 C 782 (B,11 ,72 ) CKSRYF105Z10 C 783 (B,20 ,72 ) CKSRYF105Z10 C 784 (B,16 ,72 ) CKSRYF105Z10 C 785 (B,7 ,88 ) CKSRYF105Z10 C 786 (B,11 ,88 ) CKSRYF105Z10 C 787 (B,15 ,88 ) CKSRYF105Z10 Mark No. Description Part No. C 788 (B,18 ,88 ) CKSRYF105Z10 C 789 (B,30 ,88 ) CKSRYF105Z10 C 791 (B,34 ,134 ) CKSRYF105Z10 C 797 (B,28 ,138 ) CKSRYF105Z10 C 801 (B,48 ,44 ) CKSRYF105Z10 C 802 (A,26 ,59 ) CKSRYF105Z10 C 803 (A,23 ,60 ) CAPACITOR(TANTARIUM) VCH1258 C 804 (A,30 ,56 ) CKSRYF105Z10 C 805 (B,37 ,51 ) CKSRYF104Z25 C 806 (A,35 ,56 ) CKSRYF105Z10 C 807 (A,30 ,58 ) CKSRYF105Z10 C 808 (A,27 ,54 ) CKSRYF105Z10 C 809 (A,18 ,45 ) CKSRYF104Z25 C 810 (A,26 ,46 ) CKSRYF105Z10 C 812 (A,27 ,40 ) CKSRYF105Z10 C 813 (A,33 ,35 ) CKSRYF105Z10 C 814 (A,44 ,37 ) CKSRYF105Z10 C 815 (A,45 ,34 ) CAPACITOR(TANTARIUM) VCH1258 C 816 (A,50 ,38 ) CKSRYF105Z10 C 817 (B,45 ,39 ) CAPACITOR(TANTARIUM) VCH1258 C 820 (B,54 ,36 ) CKSRYB104K16 C 821 (A,47 ,40 ) CKSRYF104Z25 C 822 (A,48 ,40 ) CKSRYB102K50 C 823 (A,47 ,45 ) CKSRYF105Z10 C 824 (A,51 ,56 ) CKSRYF104Z25 C 825 (A,43 ,57 ) CKSRYF105Z10 C 826 (B,48 ,93 ) CAPACITOR(TANTARIUM) VCH1258 C 827 (B,41 ,91 ) CKSRYF105Z10 C 828 (B,13 ,37 ) CKSRYF105Z10 C 829 (B,11 ,39 ) CAPACITOR(TANTARIUM) VCH1258 C 830 (B,16 ,41 ) CKSRYF105Z10 C 831 (B,19 ,30 ) CKSRYF105Z10 C 832 (B,19 ,42 ) CKSRYB103K50 C 833 (A,24 ,37 ) CAPACITOR(TANTARIUM) VCH1258 C 834 (A,11 ,47 ) CKSRYB105K6R3 C 835 (A,8 ,51 ) CKSRYB105K6R3 C 836 (A,8 ,48 ) CKSRYB683K16 C 837 (A,15 ,50 ) CKSRYF105Z10 C 838 (A,11 ,58 ) CHIP ELECT.CAPACITOR CEVW221M4 C 839 (A,36 ,81 ) CKSRYF105Z10 C 840 (A,21 ,93 ) CKSRYF105Z10 C 841 (A,15 ,82 ) CKSRYF105Z10 C 842 (A,10 ,71 ) CAPACITOR(TANTARIUM) VCH1258 C 843 (A,18 ,20 ) CKSRYF105Z10 C 844 (A,24 ,25 ) CKSRYB103K50 C 845 (A,51 ,23 ) CKSRYF105Z10 C 846 (A,34 ,23 ) CKSRYF105Z10 C 847 (A,47 ,23 ) CCSRCH221J50 C 848 (A,29 ,23 ) CCSRCH221J50 C 849 (B,42 ,27 ) CKSRYF104Z25 C 850 (B,43 ,27 ) CKSRYF104Z25 C 856 (A,13 ,97 ) CAPACITOR(TANTARIUM) VCH1258 C 857 (A,20 ,28 ) CKSRYF104Z25 C 901 (B,86 ,51 ) CKSRYF105Z10 C 903 (B,57 ,61 ) CKSRYF105Z10 C 904 (B,59 ,58 ) CAPACITOR(TANTARIUM) VCH1258 C 905 (B,72 ,60 ) CKSRYF105Z10 C 906 (B,69 ,60 ) CKSRYF105Z10 C 907 (B,87 ,73 ) CKSRYF105Z10 C 908 (B,81 ,57 ) CKSRYF105Z10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 72 1 2 3 4 1 2 3 4 C D F A B E C 909 (B,88 ,78 ) CKSRYF105Z10 C 910 (B,88 ,73 ) CKSRYF105Z10 C 911 (B,52 ,87 ) CAPACITOR(TANTARIUM) VCH1258 C 912 (B,52 ,90 ) CKSRYF105Z10 C 913 (B,87 ,78 ) CKSRYF105Z10 C 914 (B,66 ,90 ) CKSRYF105Z10 C 915 (B,74 ,60 ) CKSRYF105Z10 C 916 (B,61 ,79 ) CKSRYF105Z10 C 917 (B,59 ,76 ) CKSRYF105Z10 C 918 (B,65 ,93 ) CKSRYF105Z10 C 919 (B,72 ,102 ) CAPACITOR(TANTARIUM) VCH1258 C 920 (B,59 ,73 ) CKSRYF105Z10 C 921 (B,59 ,70 ) CKSRYF105Z10 C 922 (B,59 ,67 ) CKSRYF105Z10 C 923 (B,59 ,63 ) CKSRYF105Z10 C 924 (B,89 ,69 ) CKSRYF105Z10 C 925 (B,87 ,63 ) CKSRYF105Z10 C 926 (B,78 ,59 ) CKSRYF105Z10 C 927 (B,74 ,58 ) CKSRYF105Z10 C 928 (B,72 ,58 ) CKSRYF105Z10 C 929 (B,69 ,58 ) CKSRYF105Z10 C 930 (B,93 ,59 ) CAPACITOR(TANTARIUM) VCH1258 C 931 (B,94 ,40 ) CKSRYF105Z10 C 932 (B,96 ,38 ) CAPACITOR(TANTARIUM) VCH1258 C 933 (B,66 ,51 ) CKSRYF105Z10 C 934 (A,93 ,36 ) CKSRYF105Z10 C 935 (B,69 ,51 ) CKSRYF105Z10 C 936 (A,93 ,34 ) CKSRYF105Z10 C 937 (B,72 ,51 ) CKSRYF105Z10 C 939 (B,89 ,51 ) CKSRYF105Z10 C 941 (A,106 ,53 ) CCSRCH331J50 C 942 (A,107 ,39 ) CCSRCH331J50 C 943 (B,101 ,255 ) CCSRCH331J50 C 944 (B,51 ,255 ) CCSRCH331J50 C 945 (A,107 ,46 ) CCSRCH331J50 C 946 (B,111 ,33 ) CCSRCH331J50 C 947 (A,106 ,50 ) CCSRCH331J50 C 948 (A,106 ,33 ) CCSRCH331J50 C 949 (B,74 ,51 ) CKSRYF105Z10 C 951 (B,92 ,51 ) CKSRYF105Z10 C 957 (B,89 ,34 ) CKSRYF105Z10 C 958 (B,83 ,51 ) CKSRYF105Z10 C 959 (B,86 ,34 ) CKSRYF105Z10 C 960 (B,74 ,34 ) CKSRYF105Z10 C 961 (B,70 ,34 ) CKSRYF105Z10 C 963 (B,61 ,63 ) CKSRYF105Z10 C 964 (B,61 ,67 ) CKSRYF105Z10 C 965 (B,61 ,70 ) CKSRYF105Z10 C 966 (B,61 ,73 ) CKSRYF105Z10 C 967 (B,61 ,76 ) CKSRYF105Z10 C 968 (B,59 ,79 ) CKSRYF105Z10 C 971 (B,69 ,89 ) CKSRYF105Z10 C 972 (B,73 ,94 ) CKSRYB105K6R3 C 973 (B,97 ,84 ) CKSRYB105K6R3 C 974 (B,100 ,84 ) CAPACITOR(TANTARIUM) VCH1258 C 975 (B,73 ,92 ) CKSRYB105K6R3 C 976 (B,75 ,88 ) CKSRYB105K6R3 C 977 (B,78 ,89 ) CKSRYB105K6R3 C 978 (B,81 ,89 ) CKSRYB105K6R3 C 979 (B,85 ,90 ) CKSRYB105K6R3 Mark No. Description Part No. C 980 (B,88 ,89 ) CKSRYB105K6R3 C 981 (B,98 ,108 ) CEVW101M16 C 982 (B,92 ,97 ) CKSRYF105Z10 C 983 (B,88 ,94 ) CKSRYF105Z10 C 986 (B,92 ,89 ) CKSRYB105K6R3 C 987 (B,92 ,83 ) CKSRYB105K6R3 C 988 (B,95 ,80 ) CKSRYB105K6R3 C 989 (B,93 ,83 ) CKSRYB102K50 C 990 (B,90 ,80 ) CKSRYB102K50 C 991 (B,88 ,80 ) CKSRYB105K6R3 C 992 (B,88 ,69 ) CKSRYF105Z10 C 993 (B,88 ,63 ) CKSRYF105Z10 C 1001(A,66 ,91 ) CAPACITOR(TANTARIUM) VCH1258 C 1002(A,67 ,88 ) CKSRYF105Z10 C 1003(A,75 ,93 ) CAPACITOR(TANTARIUM) VCH1258 C 1004(A,81 ,90 ) CKSRYF105Z10 C 1005(A,76 ,90 ) CKSRYF105Z10 C 1006(A,80 ,81 ) CKSRYF105Z10 C 1007(A,83 ,81 ) CKSRYF105Z10 C 1009(A,85 ,83 ) CKSRYB334K10 C 1010(A,85 ,77 ) CKSRYF105Z10 C 1011(A,80 ,76 ) CKSRYF105Z10 C 1012(A,79 ,73 ) CKSRYF105Z10 C 1013(A,67 ,63 ) CKSRYF105Z10 C 1014(A,63 ,63 ) CKSRYF105Z10 C 1017(A,55 ,69 ) CKSRYF105Z10 C 1018(A,55 ,74 ) CKSRYF105Z10 C 1019(A,55 ,78 ) CKSRYF105Z10 C 1020(A,67 ,86 ) CKSRYF105Z10 C 1021(A,70 ,86 ) CKSRYF105Z10 C 1022(A,79 ,66 ) CKSRYF105Z10 C 1051(A,83 ,50 ) CAPACITOR(TANTARIUM) VCH1258 C 1052(A,80 ,53 ) CKSRYF105Z10 C 1053(A,80 ,49 ) CKSRYF105Z10 C 1054(A,80 ,46 ) CKSRYF105Z10 C 1055(A,77 ,35 ) CKSRYF105Z10 C 1056(A,69 ,35 ) CKSRYF105Z10 C 1057(A,73 ,35 ) CKSRYF105Z10 C 1058(A,62 ,38 ) CKSRYF105Z10 C 1059(A,70 ,54 ) CKSRYF105Z10 C 1060(A,62 ,50 ) CKSRYF105Z10 C 1061(A,61 ,42 ) CKSRYF105Z10 C 1066(A,62 ,22 ) CKSRYF105Z10 C 1067(A,85 ,33 ) CAPACITOR(TANTARIUM) VCH1258 C 1068(A,73 ,34 ) CKSRYB102K50 C 1069(A,69 ,34 ) CKSRYB102K50 C 1070(B,81 ,24 ) CKSRYF104Z25 C 1071(B,81 ,25 ) CKSRYF104Z25 C 1073(A,80 ,43 ) CKSRYF105Z10 C 1074(A,67 ,54 ) CKSRYF105Z10 C 1075(A,60 ,54 ) CKSRYF105Z10 C 1076(A,59 ,61 ) CAPACITOR(TANTARIUM) VCH1258 C 1078(A,61 ,43 ) CKSRYF105Z10 C 1101(B,53 ,226 ) CAPACITOR(TANTARIUM) VCH1258 C 1103(B,81 ,223 ) CKSRYF105Z10 C 1104(B,81 ,220 ) CKSRYF105Z10 C 1105(B,81 ,217 ) CKSRYF105Z10 C 1106(B,81 ,213 ) CKSRYF105Z10 C 1107(B,72 ,203 ) CKSRYF105Z10 C 1108(B,68 ,203 ) CKSRYF105Z10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 73 5 6 7 8 5 6 7 8 C D F A B E C 1109(B,66 ,201 ) CKSRYF105Z10 C 1110(B,63 ,203 ) CKSRYF105Z10 C 1111(B,54 ,206 ) CKSRYF105Z10 C 1112(B,54 ,210 ) CKSRYB473K50 C 1113(B,53 ,213 ) CKSRYF105Z10 C 1114(B,53 ,210 ) CKSRYB103K50 C 1115(B,48 ,210 ) CAPACITOR(TANTARIUM) VCH1258 C 1116(B,51 ,210 ) CKSRYF105Z10 C 1117(B,45 ,213 ) CKSRYF105Z10 C 1118(B,51 ,219 ) CKSRYF105Z10 C 1119(B,54 ,219 ) CKSRYF105Z10 C 1120(B,54 ,223 ) CKSRYF105Z10 C 1121(B,58 ,229 ) CKSRYF105Z10 C 1122(B,61 ,229 ) CKSRYF105Z10 C 1123(B,64 ,229 ) CKSRYF105Z10 C 1124(B,68 ,229 ) CKSRYF105Z10 C 1125(B,71 ,229 ) CKSRYF105Z10 C 1126(B,74 ,229 ) CKSRYF105Z10 C 1127(B,85 ,202 ) CKSRYF105Z10 C 1128(B,49 ,193 ) CKSRYF105Z10 C 1129(B,82 ,218 ) CKSRYF105Z10 C 1130(B,89 ,227 ) CAPACITOR(TANTARIUM) VCH1258 C 1131(B,48 ,187 ) CAPACITOR(TANTARIUM) VCH1258 C 1132(B,45 ,185 ) CKSRYF105Z10 C 1133(B,42 ,183 ) CKSRYF105Z10 C 1134(B,37 ,183 ) CKSRYF105Z10 C 1135(B,33 ,183 ) CKSRYF105Z10 C 1136(B,25 ,183 ) CKSRYF105Z10 C 1137(B,32 ,199 ) CKSRYF105Z10 C 1138(B,39 ,199 ) CKSRYF105Z10 C 1140(A,28 ,182 ) CKSRYF105Z10 C 1143(A,30 ,185 ) CKSRYF105Z10 C 1146(A,25 ,188 ) CKSRYF105Z10 C 1147(A,29 ,188 ) CKSRYF105Z10 C 1148(A,32 ,188 ) CKSRYF105Z10 C 1149(A,37 ,188 ) CKSRYF105Z10 C 1152(A,49 ,194 ) CKSRYF105Z10 C 1155(A,49 ,200 ) CKSRYF105Z10 C 1156(A,52 ,201 ) CAPACITOR(TANTARIUM) VCH1258 C 1157(A,49 ,209 ) CKSRYF105Z10 C 1158(A,44 ,219 ) CKSRYF105Z10 C 1159(A,41 ,219 ) CKSRYF105Z10 C 1160(A,34 ,219 ) CKSRYF105Z10 C 1161(A,30 ,219 ) CKSRYF105Z10 C 1162(A,23 ,220 ) CKSRYF105Z10 C 1163(A,20 ,220 ) CAPACITOR(TANTARIUM) VCH1258 C 1164(A,26 ,219 ) CKSRYF105Z10 C 1165(A,41 ,221 ) CKSRYF105Z10 C 1166(A,44 ,224 ) CAPACITOR(TANTARIUM) VCH1258 C 1167(A,14 ,216 ) CAPACITOR(TANTARIUM) VCH1258 C 1168(A,17 ,215 ) CKSRYB102K50 C 1169(A,18 ,215 ) CKSRYF105Z10 C 1170(A,18 ,208 ) CKSRYF105Z10 C 1172(A,18 ,205 ) CKSRYF105Z10 C 1173(A,18 ,198 ) CKSRYF105Z10 C 1175(A,19 ,191 ) CKSRYB103K50 C 1176(A,16 ,197 ) CKSRYF105Z10 Mark No. Description Part No. B VJKB ASSY MISCELLANEOUS > IC 4101(A,67 ,163 ) REGULATOR IC (5.0V) MM1565AF IC 4302(B,55 ,64 ) DVD VIDEO AMP LA73054 IC 4601(A,68 ,124 ) DVD VIDEO AMP LA73054 IC 4603(B,69 ,167 ) VIDEO SW IC MM1507XN Q 4301(A,33 ,145 ) TRANSISTOR UMD3N Q 4302(A,33 ,137 ) TRANSISTOR UMD3N Q 4303(A,88 ,104 ) TRANSISTOR UMD3N Q 4304(B,75 ,54 ) TRANSISTOR 2SA1576A Q 4305(B,74 ,69 ) TRANSISTOR 2SA1576A Q 4306(B,70 ,70 ) TRANSISTOR 2SA1576A Q 4601(A,82 ,103 ) TRANSISTOR UMD3N Q 4602(A,78 ,108 ) CHIP TRANSISTOR DTC114YUA D 4101(B,67 ,149 ) CHIP DIODE RB501V-40 D 4201(B,28 ,167 ) DIODE 1SS355 D 4301(A,88 ,108 ) DIODE DAN202K D 4609(A,83 ,108 ) DIODE DAN202K L 4401(B,31 ,57 ) CHIP BEADS VTL1089 L 4402(B,31 ,41 ) CHIP BEADS VTL1089 F 4301(A,82 ,64 ) 12MHZ LPF(VIDEO) VTF1175 F 4302(A,82 ,87 ) 12MHZ LPF(VIDEO) VTF1175 F 4303(A,72 ,91 ) 12MHZ LPF(VIDEO) VTF1175 JA4201(A,16 ,150 ) JACK RKN1004 JA4202(A,16 ,160 ) JACK RKN1004 JA4401(A,14 ,128 ) JACK VKB1135 JA4403(A,14 ,59 ) JACK VKB1151 KN4101(A,78 ,177 ) WRAPPING TERMINAL VNF1084 KN4102(A,27 ,173 ) WRAPPING TERMINAL VNF1084 KN4103(A,22 ,12 ) WRAPPING TERMINAL VNF1084 KN4104(A,88 ,9 ) WRAPPING TERMINAL VNF1084 CN4101(A,47 ,168 ) 23P CONNECTOR VKN1427 CN4402(A,14 ,97 ) SOCKET AKP7023 CN4601(A,79 ,157 ) CONNECTOR POST B3B-PH CN4602(A,86 ,133 ) 19P CONNECTOR VKN1250 PCB BINDERVEF1040 RESISTORS R 4101(A,59 ,161 ) RS1/10S0R0J R 4102(B,54 ,167 ) RS1/16S223J R 4103(B,57 ,168 ) RS1/16S103J R 4104(A,55 ,153 ) RS1/10S0R0J R 4105(A,53 ,148 ) RS1/10S0R0J R 4106(A,51 ,142 ) RS1/10S0R0J R 4201(B,30 ,164 ) RS1/16S0R0J R 4204(B,24 ,145 ) RS1/16S0R0J R 4207(B,24 ,167 ) RS1/16S0R0J R 4301(A,86 ,105 ) RS1/16S103J R 4302(A,60 ,88 ) RS1/10S0R0J R 4305(B,43 ,85 ) RS1/16S0R0J R 4306(B,41 ,77 ) RS1/16S0R0J R 4307(B,37 ,76 ) RS1/16S0R0J R 4308(B,39 ,67 ) RS1/16S0R0J R 4309(B,40 ,61 ) RS1/16S0R0J R 4310(B,36 ,49 ) RS1/16S0R0J R 4311(A,32 ,142 ) RS1/16S152J R 4312(A,30 ,142 ) RS1/16S102J R 4318(B,85 ,72 ) RS1/16S3000D R 4319(B,77 ,49 ) RS1/16S0R0J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 74 1 2 3 4 1 2 3 4 C D F A B E R 4320(B,75 ,56 ) RS1/16S182J R 4323(B,80 ,51 ) RS1/16S2202F R 4325(B,74 ,93 ) RS1/16S3000D R 4326(B,75 ,65 ) RS1/16S182J R 4328(B,81 ,73 ) RS1/16S2202F R 4330(B,81 ,68 ) RS1/16S0R0J R 4332(B,68 ,90 ) RS1/16S3000D R 4333(B,68 ,74 ) RS1/16S182J R 4334(B,73 ,77 ) RS1/16S2202F R 4336(B,72 ,74 ) RS1/16S0R0J R 4401(B,24 ,133 ) RS1/10S75R0F R 4402(B,25 ,120 ) RS1/10S75R0F R 4403(B,28 ,101 ) RS1/10S75R0F R 4404(B,30 ,108 ) RS1/10S75R0F R 4405(B,33 ,111 ) RS1/16S103J R 4406(B,29 ,87 ) RS1/10S75R0F R 4407(B,31 ,92 ) RS1/10S75R0F R 4408(B,34 ,91 ) RS1/16S103J R 4409(B,31 ,69 ) RS1/10S1R8J R 4410(B,28 ,56 ) RS1/10S1R0J R 4412(B,29 ,41 ) RS1/10S1R0J R 4414(B,26 ,71 ) CHIP RESISTOR RS1/10S68R0D R 4415(B,26 ,59 ) CHIP RESISTOR RS1/10S68R0D R 4416(B,26 ,44 ) CHIP RESISTOR RS1/10S68R0D R 4601(A,64 ,142 ) RS1/10S0R0J R 4602(B,70 ,124 ) RS1/16S0R0J R 4605(A,78 ,105 ) RS1/16S222J R 4607(A,80 ,104 ) RS1/16S103J R 4608(A,67 ,173 ) RS1/10S0R0J R 4612(B,35 ,128 ) RS1/16S0R0J R 4613(B,41 ,105 ) RS1/16S0R0J R 4614(A,39 ,94 ) RS1/16S0R0J R 4604(B,83 ,128 ) RS1/10S3R3J R 4610(A,77 ,131 ) RS1/10S3R3J CAPACITORS C 4107(A,59 ,154 ) CEAT101M16 C 4108(A,65 ,158 ) CKSQYF105Z25 C 4109(A,70 ,146 ) CEAT221M6R3 C 4110(A,69 ,156 ) CKSQYB225K10 C 4112(B,59 ,168 ) CKSRYB102K50 C 4201(B,23 ,155 ) CCSRCH470J50 C 4202(B,26 ,145 ) CCSRCH470J50 C 4206(B,21 ,167 ) CKSRYF105Z10 C 4303(B,53 ,93 ) CKSRYB104K16 C 4304(A,60 ,84 ) ELECT. CAPACITOR CEHAZA471M6R3 C 4305(B,59 ,74 ) CKSQYF104Z25 C 4306(B,48 ,73 ) CKSRYF105Z10 C 4307(B,53 ,97 ) CKSRYB104K16 C 4308(B,53 ,100 ) CKSRYB104K16 C 4309(B,68 ,65 ) CKSRYB104K16 C 4311(B,39 ,64 ) CKSRYF105Z10 C 4312(B,68 ,61 ) CKSRYB104K16 C 4313(B,68 ,58 ) CKSRYB104K16 C 4314(A,60 ,52 ) ELECT. CAPACITOR CEHAZA471M6R3 C 4315(B,62 ,55 ) CKSQYF105Z16 C 4316(A,31 ,135 ) CKSRYF105Z10 C 4317(B,75 ,59 ) CKSRYF104Z25 C 4318(B,82 ,51 ) CCSRCH100D50 C 4319(B,75 ,63 ) CKSRYF104Z25 Mark No. Description Part No. C 4320(B,81 ,75 ) CCSRCH100D50 C 4321(B,68 ,78 ) CKSRYF104Z25 C 4322(B,74 ,74 ) CCSRCH100D50 C 4324(A,32 ,89 ) CKSRYB102K50 C 4325(A,79 ,58 ) CCSRCH4R0C50 C 4326(A,79 ,82 ) CCSRCH4R0C50 C 4327(A,69 ,84 ) CCSRCH4R0C50 C 4328(A,79 ,64 ) CCSRCH7R0D50 C 4329(A,79 ,87 ) CCSRCH7R0D50 C 4330(A,69 ,90 ) CCSRCH7R0D50 C 4401(A,36 ,124 ) ELECT. CAPACITOR CEAT102M6R3 C 4403(A,36 ,115 ) ELECT. CAPACITOR CEAT102M6R3 C 4405(A,37 ,103 ) ELECT. CAPACITOR CEAT102M6R3 C 4406(B,35 ,108 ) CKSRYF104Z25 C 4408(A,37 ,81 ) ELECT. CAPACITOR CEAT102M6R3 C 4409(B,34 ,93 ) CKSRYF104Z25 C 4413(A,37 ,73 ) ELECT. CAPACITOR CEAT102M6R3 C 4414(A,36 ,61 ) ELECT. CAPACITOR CEAT471M6R3 C 4417(A,36 ,45 ) ELECT. CAPACITOR CEAT471M6R3 C 4602(A,80 ,145 ) CKSRYF105Z10 C 4603(B,89 ,152 ) CKSRYF105Z10 C 4604(A,63 ,138 ) ELECT. CAPACITOR CEHAZA471M6R3 C 4621(A,53 ,130 ) CKSRYB104K16 C 4606(A,67 ,133 ) CKSQYF104Z25 C 4607(A,72 ,134 ) CKSRYF105Z10 C 4608(A,59 ,128 ) CKSRYF104Z25 C 4624(A,55 ,126 ) CKSRYF104Z25 C 4610(A,57 ,123 ) CKSRYB104K16 C 4622(A,56 ,120 ) CKSRYF104Z25 C 4612(A,72 ,115 ) CKSRYF105Z10 C 4623(A,58 ,117 ) CKSRYB104K16 C 4614(A,63 ,110 ) ELECT. CAPACITOR CEHAZA471M6R3 C 4615(A,63 ,115 ) CKSQYF105Z16 C 4617(B,63 ,163 ) CKSRYB104K16 C 4618(B,70 ,162 ) CKSQYF104Z25 C 4619(B,65 ,163 ) CKSRYF104Z25 B VJKB ASSY [VWV2150] MISCELLANEOUS > IC 4101(A,67 ,163 ) REGULATOR IC (5.0V) MM1565AF IC 4302(B,55 ,64 ) DVD VIDEO AMP LA73054 Q 4301(A,33 ,145 ) TRANSISTOR UMD3N Q 4302(A,33 ,137 ) TRANSISTOR UMD3N Q 4303(A,88 ,104 ) TRANSISTOR UMD3N Q 4304(B,75 ,54 ) TRANSISTOR 2SA1576A Q 4305(B,74 ,69 ) TRANSISTOR 2SA1576A Q 4306(B,70 ,70 ) TRANSISTOR 2SA1576A D 4101(B,67 ,149 ) CHIP DIODE RB501V-40 D 4201(B,28 ,167 ) DIODE 1SS355 D 4301(A,88 ,108 ) DIODE DAN202K L 4401(B,31 ,57 ) CHIP BEADS VTL1089 L 4402(B,31 ,41 ) CHIP BEADS VTL1089 L 4501(B,38 ,24 ) CHIP BEADS VTL1089 L 4502(B,38 ,29 ) CHIP BEADS VTL1089 F 4301(A,82 ,64 ) 12MHZ LPF(VIDEO) VTF1175 F 4302(A,82 ,87 ) 12MHZ LPF(VIDEO) VTF1175 F 4303(A,72 ,91 ) 12MHZ LPF(VIDEO) VTF1175 JA4201(A,16 ,150 ) JACK RKN1004 JA4202(A,16 ,160 ) JACK RKN1004 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 75 5 6 7 8 5 6 7 8 C D F A B E JA4401(A,14 ,128 ) JACK VKB1135 JA4403(A,14 ,59 ) JACK VKB1151 KN4101(A,78 ,177 ) WRAPPING TERMINAL VNF1084 KN4102(A,27 ,173 ) WRAPPING TERMINAL VNF1084 KN4103(A,22 ,12 ) WRAPPING TERMINAL VNF1084 KN4104(A,88 ,9 ) WRAPPING TERMINAL VNF1084 CN4101(A,47 ,168 ) 23P CONNECTOR VKN1427 CN4402(A,14 ,97 ) SOCKET AKP7023 CN4501(A,14 ,25 ) D-SOCKET(14P) VKB1232 PCB BINDER VEF1040 RESISTORS R 4101(A,59 ,161 ) RS1/10S0R0J R 4102(B,54 ,167 ) RS1/16S223J R 4103(B,57 ,168 ) RS1/16S103J R 4104(A,55 ,153 ) RS1/10S0R0J R 4105(A,53 ,148 ) RS1/10S0R0J R 4106(A,51 ,142 ) RS1/10S0R0J R 4201(B,30 ,164 ) RS1/16S0R0J R 4204(B,24 ,145 ) RS1/16S0R0J R 4207(B,24 ,167 ) RS1/16S0R0J R 4301(A,86 ,105 ) RS1/16S103J R 4302(A,60 ,88 ) RS1/10S0R0J R 4305(B,43 ,85 ) RS1/16S0R0J R 4306(B,41 ,77 ) RS1/16S0R0J R 4307(B,37 ,76 ) RS1/16S0R0J R 4308(B,39 ,67 ) RS1/16S0R0J R 4309(B,40 ,61 ) RS1/16S0R0J R 4310(B,36 ,49 ) RS1/16S0R0J R 4311(A,32 ,142 ) RS1/16S152J R 4312(A,30 ,142 ) RS1/16S102J R 4318(B,85 ,72 ) RS1/16S3000D R 4319(B,77 ,49 ) RS1/16S0R0J R 4320(B,75 ,56 ) RS1/16S182J R 4323(B,80 ,51 ) RS1/16S2202F R 4325(B,74 ,93 ) RS1/16S3000D R 4326(B,75 ,65 ) RS1/16S182J R 4328(B,81 ,73 ) RS1/16S2202F R 4330(B,81 ,68 ) RS1/16S0R0J R 4332(B,68 ,90 ) RS1/16S3000D R 4333(B,68 ,74 ) RS1/16S182J R 4334(B,73 ,77 ) RS1/16S2202F R 4336(B,72 ,74 ) RS1/16S0R0J R 4401(B,24 ,133 ) RS1/10S75R0F R 4402(B,25 ,120 ) RS1/10S75R0F R 4403(B,28 ,101 ) RS1/10S75R0F R 4404(B,30 ,108 ) RS1/10S75R0F R 4405(B,33 ,111 ) RS1/16S103J R 4406(B,29 ,87 ) RS1/10S75R0F R 4407(B,31 ,92 ) RS1/10S75R0F R 4408(B,34 ,91 ) RS1/16S103J R 4409(B,31 ,69 ) RS1/10S1R8J R 4410(B,28 ,56 ) RS1/10S1R0J R 4412(B,29 ,41 ) RS1/10S1R0J R 4414(B,26 ,71 ) CHIP RESISTOR RS1/10S68R0D R 4415(B,26 ,59 ) CHIP RESISTOR RS1/10S68R0D R 4416(B,26 ,44 ) CHIP RESISTOR RS1/10S68R0D R 4501(B,37 ,17 ) RS1/10S1R8J Mark No. Description Part No. R 4502(B,36 ,24 ) RS1/10S1R0J R 4503(B,36 ,29 ) RS1/10S1R0J R 4506(B,27 ,12 ) RS1/16S103J R 4507(B,24 ,15 ) RS1/16S103J R 4508(B,34 ,16 ) CHIP RESISTOR RS1/10S68R0D R 4509(B,33 ,23 ) CHIP RESISTOR RS1/10S68R0D R 4510(B,33 ,30 ) CHIP RESISTOR RS1/10S68R0D CAPACITORS C 4107(A,59 ,154 ) CEAT101M16 C 4108(A,65 ,158 ) CKSQYF105Z25 C 4109(A,70 ,146 ) CEAT221M6R3 C 4110(A,69 ,156 ) CKSQYB225K10 C 4112(B,59 ,168 ) CKSRYB102K50 C 4201(B,23 ,155 ) CCSRCH470J50 C 4202(B,26 ,145 ) CCSRCH470J50 C 4206(B,21 ,167 ) CKSRYF105Z10 C 4303(B,53 ,93 ) CKSRYB104K16 C 4304(A,60 ,84 ) ELECT. CAPACITOR CEHAZA471M6R3 C 4305(B,59 ,74 ) CKSQYF104Z25 C 4306(B,48 ,73 ) CKSRYF105Z10 C 4307(B,53 ,97 ) CKSRYB104K16 C 4308(B,53 ,100 ) CKSRYB104K16 C 4309(B,68 ,65 ) CKSRYB104K16 C 4311(B,39 ,64 ) CKSRYF105Z10 C 4312(B,68 ,61 ) CKSRYB104K16 C 4313(B,68 ,58 ) CKSRYB104K16 C 4314(A,60 ,52 ) ELECT. CAPACITOR CEHAZA471M6R3 C 4315(B,62 ,55 ) CKSQYF105Z16 C 4316(A,31 ,135 ) CKSRYF105Z10 C 4317(B,75 ,59 ) CKSRYF104Z25 C 4318(B,82 ,51 ) CCSRCH100D50 C 4319(B,75 ,63 ) CKSRYF104Z25 C 4320(B,81 ,75 ) CCSRCH100D50 C 4321(B,68 ,78 ) CKSRYF104Z25 C 4322(B,74 ,74 ) CCSRCH100D50 C 4324(A,32 ,89 ) CKSRYB102K50 C 4325(A,79 ,58 ) CCSRCH4R0C50 C 4326(A,79 ,82 ) CCSRCH4R0C50 C 4327(A,69 ,84 ) CCSRCH4R0C50 C 4328(A,79 ,64 ) CCSRCH7R0D50 C 4329(A,79 ,87 ) CCSRCH7R0D50 C 4330(A,69 ,90 ) CCSRCH7R0D50 C 4401(A,36 ,124 ) ELECT. CAPACITOR CEAT102M6R3 C 4403(A,36 ,115 ) ELECT. CAPACITOR CEAT102M6R3 C 4405(A,37 ,103 ) ELECT. CAPACITOR CEAT102M6R3 C 4406(B,35 ,108 ) CKSRYF104Z25 C 4408(A,37 ,81 ) ELECT. CAPACITOR CEAT102M6R3 C 4409(B,34 ,93 ) CKSRYF104Z25 C 4413(A,37 ,73 ) ELECT. CAPACITOR CEAT102M6R3 C 4414(A,36 ,61 ) ELECT. CAPACITOR CEAT471M6R3 C 4417(A,36 ,45 ) ELECT. CAPACITOR CEAT471M6R3 C 4501(A,43 ,13 ) ELECT. CAPACITOR CEAT102M6R3 C 4503(A,43 ,20 ) ELECT. CAPACITOR CEAT471M6R3 C 4504(A,43 ,33 ) ELECT. CAPACITOR CEAT471M6R3 B VJKB ASSY [VWV2151] MISCELLANEOUS Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 76 1 2 3 4 1 2 3 4 C D F A B E > IC 4101(A,67 ,163 ) REGULATOR IC (5.0V) MM1565AF IC 4302(B,55 ,64 ) DVD VIDEO AMP LA73054 Q 4301(A,33 ,145 ) TRANSISTOR UMD3N Q 4302(A,33 ,137 ) TRANSISTOR UMD3N Q 4303(A,88 ,104 ) TRANSISTOR UMD3N Q 4304(B,75 ,54 ) TRANSISTOR 2SA1576A Q 4305(B,74 ,69 ) TRANSISTOR 2SA1576A Q 4306(B,70 ,70 ) TRANSISTOR 2SA1576A D 4101(B,67 ,149 ) CHIP DIODE RB501V-40 D 4201(B,28 ,167 ) DIODE 1SS355 D 4301(A,88 ,108 ) DIODE DAN202K L 4401(B,31 ,57 ) CHIP BEADS VTL1089 L 4402(B,31 ,41 ) CHIP BEADS VTL1089 F 4301(A,82 ,64 ) 12MHZ LPF(VIDEO) VTF1175 F 4302(A,82 ,87 ) 12MHZ LPF(VIDEO) VTF1175 F 4303(A,72 ,91 ) 12MHZ LPF(VIDEO) VTF1175 JA4201(A,16 ,150 ) JACK RKN1004 JA4202(A,16 ,160 ) JACK RKN1004 JA4401(A,14 ,128 ) JACK VKB1135 JA4403(A,14 ,59 ) JACK VKB1151 KN4101(A,78 ,177 ) WRAPPING TERMINAL VNF1084 KN4102(A,27 ,173 ) WRAPPING TERMINAL VNF1084 KN4103(A,22 ,12 ) WRAPPING TERMINAL VNF1084 KN4104(A,88 ,9 ) WRAPPING TERMINAL VNF1084 CN4101(A,47 ,168 ) 23P CONNECTOR VKN1427 CN4402(A,14 ,97 ) SOCKET AKP7023 PCB BINDER VEF1040 RESISTORS R 4101(A,59 ,161 ) RS1/10S0R0J R 4102(B,54 ,167 ) RS1/16S223J R 4103(B,57 ,168 ) RS1/16S103J R 4104(A,55 ,153 ) RS1/10S0R0J R 4105(A,53 ,148 ) RS1/10S0R0J R 4106(A,51 ,142 ) RS1/10S0R0J R 4201(B,30 ,164 ) RS1/16S0R0J R 4204(B,24 ,145 ) RS1/16S0R0J R 4207(B,24 ,167 ) RS1/16S0R0J R 4301(A,86 ,105 ) RS1/16S103J R 4302(A,60 ,88 ) RS1/10S0R0J R 4305(B,43 ,85 ) RS1/16S0R0J R 4306(B,41 ,77 ) RS1/16S0R0J R 4307(B,37 ,76 ) RS1/16S0R0J R 4308(B,39 ,67 ) RS1/16S0R0J R 4309(B,40 ,61 ) RS1/16S0R0J R 4310(B,36 ,49 ) RS1/16S0R0J R 4311(A,32 ,142 ) RS1/16S152J R 4312(A,30 ,142 ) RS1/16S102J R 4318(B,85 ,72 ) RS1/16S3000D R 4319(B,77 ,49 ) RS1/16S0R0J R 4320(B,75 ,56 ) RS1/16S182J R 4323(B,80 ,51 ) RS1/16S2202F R 4325(B,74 ,93 ) RS1/16S3000D R 4326(B,75 ,65 ) RS1/16S182J R 4328(B,81 ,73 ) RS1/16S2202F R 4330(B,81 ,68 ) RS1/16S0R0J R 4332(B,68 ,90 ) RS1/16S3000D R 4333(B,68 ,74 ) RS1/16S182J R 4334(B,73 ,77 ) RS1/16S2202F Mark No. Description Part No. R 4336(B,72 ,74 ) RS1/16S0R0J R 4401(B,24 ,133 ) RS1/10S75R0F R 4402(B,25 ,120 ) RS1/10S75R0F R 4403(B,28 ,101 ) RS1/10S75R0F R 4404(B,30 ,108 ) RS1/10S75R0F R 4405(B,33 ,111 ) RS1/16S103J R 4406(B,29 ,87 ) RS1/10S75R0F R 4407(B,31 ,92 ) RS1/10S75R0F R 4408(B,34 ,91 ) RS1/16S103J R 4409(B,31 ,69 ) RS1/10S1R8J R 4410(B,28 ,56 ) RS1/10S1R0J R 4412(B,29 ,41 ) RS1/10S1R0J R 4414(B,26 ,71 ) CHIP RESISTOR RS1/10S68R0D R 4415(B,26 ,59 ) CHIP RESISTOR RS1/10S68R0D R 4416(B,26 ,44 ) CHIP RESISTOR RS1/10S68R0D CAPACITORS C 4107(A,59 ,154 ) CEAT101M16 C 4108(A,65 ,158 ) CKSQYF105Z25 C 4109(A,70 ,146 ) CEAT221M6R3 C 4110(A,69 ,156 ) CKSQYB225K10 C 4112(B,59 ,168 ) CKSRYB102K50 C 4201(B,23 ,155 ) CCSRCH470J50 C 4202(B,26 ,145 ) CCSRCH470J50 C 4206(B,21 ,167 ) CKSRYF105Z10 C 4303(B,53 ,93 ) CKSRYB104K16 C 4304(A,60 ,84 ) ELECT. CAPACITOR CEHAZA471M6R3 C 4305(B,59 ,74 ) CKSQYF104Z25 C 4306(B,48 ,73 ) CKSRYF105Z10 C 4307(B,53 ,97 ) CKSRYB104K16 C 4308(B,53 ,100 ) CKSRYB104K16 C 4309(B,68 ,65 ) CKSRYB104K16 C 4311(B,39 ,64 ) CKSRYF105Z10 C 4312(B,68 ,61 ) CKSRYB104K16 C 4313(B,68 ,58 ) CKSRYB104K16 C 4314(A,60 ,52 ) ELECT. CAPACITOR CEHAZA471M6R3 C 4315(B,62 ,55 ) CKSQYF105Z16 C 4316(A,31 ,135 ) CKSRYF105Z10 C 4317(B,75 ,59 ) CKSRYF104Z25 C 4318(B,82 ,51 ) CCSRCH100D50 C 4319(B,75 ,63 ) CKSRYF104Z25 C 4320(B,81 ,75 ) CCSRCH100D50 C 4321(B,68 ,78 ) CKSRYF104Z25 C 4322(B,74 ,74 ) CCSRCH100D50 C 4324(A,32 ,89 ) CKSRYB102K50 C 4325(A,79 ,58 ) CCSRCH4R0C50 C 4326(A,79 ,82 ) CCSRCH4R0C50 C 4327(A,69 ,84 ) CCSRCH4R0C50 C 4328(A,79 ,64 ) CCSRCH7R0D50 C 4329(A,79 ,87 ) CCSRCH7R0D50 C 4330(A,69 ,90 ) CCSRCH7R0D50 C 4401(A,36 ,124 ) ELECT. CAPACITOR CEAT102M6R3 C 4403(A,36 ,115 ) ELECT. CAPACITOR CEAT102M6R3 C 4405(A,37 ,103 ) ELECT. CAPACITOR CEAT102M6R3 C 4406(B,35 ,108 ) CKSRYF104Z25 C 4408(A,37 ,81 ) ELECT. CAPACITOR CEAT102M6R3 C 4409(B,34 ,93 ) CKSRYF104Z25 C 4413(A,37 ,73 ) ELECT. CAPACITOR CEAT102M6R3 C 4414(A,36 ,61 ) ELECT. CAPACITOR CEAT471M6R3 C 4417(A,36 ,45 ) ELECT. CAPACITOR CEAT471M6R3 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 77 5 6 7 8 5 6 7 8 C D F A B E C AJKB ASSY [vwv2149] MISCELLANEOUS IC 3201(A,155 ,212 ) IC TC7SH08FUS1 IC 3301(A,123 ,165 ) D/A CONVERTER IC PCM1738EG-3 IC 3311(A,115 ,132 ) IC OPA2134PA IC 3321(A,140 ,132 ) IC OPA2134PA IC 3331(A,128 ,85 ) IC OPA2134PA IC 3401(A,167 ,114 ) D/A CONVERTER IC PCM1738EG-3 IC 3402(B,154 ,106 ) IC TC7SH08FUS1 IC 3411(B,177 ,93 ) OP-AMP IC NJM5532MD IC 3421(B,158 ,93 ) OP-AMP IC NJM5532MD IC 3431(B,167 ,70 ) OP-AMP IC NJM5532MD IC 3501(A,162 ,196 ) D/A CONVERTER IC PCM1738EG-3 IC 3502(B,145 ,204 ) IC TC7SH08FUS1 IC 3511(B,172 ,179 ) OP-AMP IC NJM5532MD IC 3521(B,153 ,179 ) OP-AMP IC NJM5532MD IC 3531(B,162 ,156 ) OP-AMP IC NJM5532MD IC 3601(A,183 ,60 ) IC TC74VHCU04FT Q 3351(B,119 ,51 ) TRANSISTOR 2SD2114K Q 3352(A,132 ,35 ) TRANSISTOR 2SD2114K Q 3353(B,140 ,51 ) TRANSISTOR 2SD2114K Q 3361(B,128 ,51 ) TRANSISTOR 2SD2114K Q 3362(B,128 ,38 ) TRANSISTOR 2SD2114K Q 3363(B,140 ,56 ) TRANSISTOR 2SD2114K Q 3371(A,105 ,67 ) CHIP TRANSISTOR UMH9N Q 3372(A,104 ,62 ) TRANSISTOR 2SA1576A Q 3381(B,105 ,67 ) CHIP TRANSISTOR UMH9N Q 3382(B,104 ,62 ) TRANSISTOR 2SA1576A Q 3451(B,143 ,37 ) TRANSISTOR 2SD2114K Q 3461(B,135 ,37 ) TRANSISTOR 2SD2114K Q 3471(A,147 ,58 ) CHIP TRANSISTOR UMH9N Q 3472(A,144 ,40 ) TRANSISTOR 2SA1576A Q 3551(B,157 ,36 ) TRANSISTOR 2SD2114K Q 3561(B,150 ,36 ) TRANSISTOR 2SD2114K Q 3571(B,153 ,58 ) CHIP TRANSISTOR UMH9N Q 3572(B,151 ,54 ) TRANSISTOR 2SA1576A L 3601(A,179 ,48 ) COIL VTL1172 L 3602(A,179 ,36 ) COIL PTL1017 F 3301(B,127 ,181 ) CHIP BEADS DTF1070 F 3302(B,143 ,164 ) CHIP BEADS DTF1070 F 3401(A,177 ,128 ) CHIP BEADS DTF1070 F 3402(A,185 ,125 ) CHIP BEADS DTF1070 F 3501(B,154 ,208 ) CHIP BEADS DTF1070 F 3502(B,142 ,175 ) CHIP BEADS DTF1070 F 3601(B,172 ,36 ) CHIP MAGNET CORE DTF1068 F 3602(B,170 ,36 ) CHIP BEADS DTF1070 F 3651CHIP BEADS DTF1070 JA3301(A,107 ,19 ) PIN JACK(2P) AKB7104 JA3401(A,139 ,19 ) JACK VKB1229 JA3601(A,170 ,19 ) PIN JACK(1P) AKB7102 JA3602(A,186 ,19 ) OPT. LINK OUT VKS1002 KN3101(A,109 ,197 ) WRAPPING TERMINALVNF1084 KN3102(A,184 ,189 ) WRAPPING TERMINALVNF1084 CN3101(A,166 ,221 ) 31P CONNECTOR VKN1517 CN3102(A,179 ,145 ) CONNECTOR B6B-EH CN3351(A,146 ,50 ) CONNECTOR POST B3B-PH PCB BINDER VEF1040 Mark No. Description Part No. RESISTORS R 3101(B,140 ,71 ) RS1/16S0R0J R 3102(A,157 ,125 ) METAL OXIDE RESISTOR RS3LMF181J R 3103(A,151 ,125 ) METAL OXIDE RESISTOR RS3LMF181J R 3110(A,185 ,222 ) RS1/16S470J R 3111(A,179 ,216 ) RS1/16S0R0J R 3112(A,178 ,213 ) RS1/16S0R0J R 3113(A,177 ,216 ) RS1/16S0R0J R 3114(A,176 ,213 ) RS1/16S0R0J R 3115(A,175 ,216 ) RS1/16S0R0J R 3116(A,174 ,213 ) RS1/16S220J R 3117(A,173 ,216 ) RS1/16S0R0J R 3118(A,149 ,216 ) RS1/16S0R0J R 3121(A,172 ,213 ) RS1/16S220J R 3122(A,170 ,216 ) RS1/16S470J R 3123(A,168 ,216 ) RS1/16S220J R 3124(A,166 ,216 ) RS1/16S220J R 3125(A,164 ,216 ) RS1/16S470J R 3126(A,162 ,216 ) RS1/16S220J R 3127(A,160 ,216 ) RS1/16S220J R 3128(A,158 ,216 ) RS1/16S470J R 3129(A,156 ,216 ) RS1/16S220J R 3130(A,154 ,216 ) RS1/16S220J R 3131(A,152 ,216 ) RS1/16S0R0J R 3202(A,153 ,212 ) RS1/16S0R0J R 3203(A,149 ,211 ) RS1/16S470J R 3302(A,117 ,190 ) RS1/16S220J R 3303(A,115 ,190 ) RS1/16S220J R 3304(A,123 ,158 ) CARBON FILM RESISTOR VCN1141 R 3313(A,103 ,143 ) CARBON FILM RESISTOR VCN1140 R 3314(A,119 ,143 ) CARBON FILM RESISTOR VCN1140 R 3323(A,128 ,143 ) CARBON FILM RESISTOR VCN1140 R 3324(A,144 ,143 ) CARBON FILM RESISTOR VCN1140 R 3331(A,108 ,115 ) CARBON FILM RESISTOR VCN1138 R 3332(A,116 ,115 ) CARBON FILM RESISTOR VCN1138 R 3333(A,104 ,93 ) CARBON FILM RESISTOR VCN1138 R 3334(A,107 ,93 ) CARBON FILM RESISTOR VCN1139 R 3335(A,113 ,104 ) CARBON FILM RESISTOR VCN1139 R 3336(A,120 ,115 ) CARBON FILM RESISTOR VCN1138 R 3337(A,118 ,47 ) CARBON FILM RESISTOR VCN1136 R 3341(A,139 ,115 ) CARBON FILM RESISTOR VCN1138 R 3342(A,131 ,115 ) CARBON FILM RESISTOR VCN1138 R 3343(A,143 ,93 ) CARBON FILM RESISTOR VCN1138 R 3344(A,140 ,93 ) CARBON FILM RESISTOR VCN1139 R 3345(A,134 ,104 ) CARBON FILM RESISTOR VCN1139 R 3346(A,127 ,105 ) CARBON FILM RESISTOR VCN1138 R 3347(A,129 ,57 ) CARBON FILM RESISTOR VCN1136 R 3351(A,113 ,57 ) CARBON FILM RESISTOR VCN1137 R 3352(A,135 ,35 ) RS1/16S221J R 3353(B,136 ,50 ) RS1/16S221J R 3354(A,120 ,44 ) CARBON FILM RESISTOR VCN1137 R 3355(B,131 ,34 ) RS1/16S221J R 3356(A,116 ,51 ) RS1/16S102J R 3357(A,136 ,46 ) RS1/16S102J R 3358(A,136 ,47 ) RS1/16S102J R 3359(B,144 ,49 ) RS1/16S0R0J R 3361(A,134 ,57 ) CARBON FILM RESISTOR VCN1137 R 3362(A,129 ,37 ) RS1/16S221J R 3363(B,136 ,57 ) RS1/16S221J R 3364(A,136 ,44 ) CARBON FILM RESISTOR VCN1137 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 78 1 2 3 4 1 2 3 4 C D F A B E R 3365(B,124 ,34 ) RS1/16S221J R 3366(A,127 ,47 ) RS1/16S102J R 3367(A,116 ,46 ) RS1/16S102J R 3368(A,131 ,49 ) RS1/16S102J R 3369(B,144 ,56 ) RS1/16S0R0J R 3371(A,107 ,71 ) RS1/16S102J R 3372(A,105 ,71 ) RS1/16S472J R 3373(A,109 ,71 ) RS1/16S332J R 3374(A,102 ,67 ) RS1/16S103J R 3381(B,108 ,71 ) RS1/16S102J R 3382(B,106 ,71 ) RS1/16S472J R 3383(B,110 ,66 ) RS1/16S332J R 3384(B,102 ,66 ) RS1/16S103J R 3401(B,168 ,100 ) RN1/16SE1602D R 3402(A,171 ,121 ) RS1/16S220J R 3403(A,171 ,123 ) RS1/16S220J R 3413(B,170 ,91 ) RN1/16SE6200D R 3414(B,184 ,91 ) RN1/16SE6200D R 3423(B,151 ,91 ) RN1/16SE6200D R 3424(B,165 ,91 ) RN1/16SE6200D R 3431(B,176 ,75 ) RN1/16SE1201D R 3432(B,173 ,82 ) RN1/16SE1201D R 3433(B,177 ,68 ) RN1/16SE1201D R 3434(B,177 ,72 ) CHIP METAL FILM R RN1/16SE1801D R 3435(B,174 ,72 ) CHIP METAL FILM R RN1/16SE1801D R 3436(B,169 ,82 ) RN1/16SE1201D R 3437(B,169 ,62 ) RS1/16S223J R 3441(B,158 ,76 ) RN1/16SE1201D R 3442(B,161 ,82 ) RN1/16SE1201D R 3443(B,157 ,68 ) RN1/16SE1201D R 3444(B,157 ,72 ) CHIP METAL FILM R RN1/16SE1801D R 3445(B,160 ,72 ) CHIP METAL FILM R RN1/16SE1801D R 3446(B,165 ,82 ) RN1/16SE1201D R 3447(B,165 ,62 ) RS1/16S223J R 3451(B,151 ,43 ) RS1/16S221J R 3452(B,142 ,34 ) RS1/16S221J R 3453(A,144 ,37 ) RS1/16S102J R 3461(B,151 ,46 ) RS1/16S221J R 3462(B,136 ,34 ) RS1/16S221J R 3463(A,141 ,37 ) RS1/16S102J R 3471(A,148 ,75 ) RS1/16S102J R 3472(A,148 ,68 ) RS1/16S472J R 3473(A,144 ,57 ) RS1/16S332J R 3474(A,147 ,37 ) RS1/16S103J R 3501(B,158 ,189 ) RN1/16SE1602D R 3502(A,165 ,205 ) RS1/16S0R0J R 3503(A,162 ,205 ) RS1/16S0R0J R 3513(B,165 ,177 ) RN1/16SE6200D R 3514(B,179 ,177 ) RN1/16SE6200D R 3523(B,146 ,177 ) RN1/16SE6200D R 3524(B,160 ,177 ) RN1/16SE6200D R 3531(B,171 ,161 ) RS1/16S122J R 3532(B,168 ,167 ) RS1/16S122J R 3533(B,172 ,153 ) RS1/16S122J R 3534(B,172 ,157 ) CHIP METAL FILM R RN1/16SE1801D R 3535(B,169 ,157 ) CHIP METAL FILM R RN1/16SE1801D R 3536(B,164 ,168 ) RS1/16S122J R 3537(B,167 ,50 ) RS1/16S223J R 3541(B,153 ,161 ) RS1/16S122J R 3542(B,156 ,168 ) RS1/16S122J Mark No. Description Part No. R 3543(B,152 ,153 ) RS1/16S122J R 3544(B,152 ,157 ) CHIP METAL FILM R RN1/16SE1801D R 3545(B,155 ,157 ) CHIP METAL FILM R RN1/16SE1801D R 3546(B,160 ,167 ) RS1/16S122J R 3547(B,163 ,50 ) RS1/16S223J R 3551(B,164 ,37 ) RS1/16S221J R 3552(B,156 ,29 ) RS1/16S221J R 3553(A,160 ,42 ) RS1/16S102J R 3561(B,159 ,41 ) RS1/16S221J R 3562(B,150 ,29 ) RS1/16S221J R 3563(A,158 ,42 ) RS1/16S102J R 3571(B,153 ,62 ) RS1/16S102J R 3572(B,151 ,62 ) RS1/16S472J R 3573(B,146 ,65 ) RS1/16S332J R 3574(B,149 ,62 ) RS1/16S103J R 3601(A,188 ,75 ) RS1/16S0R0J R 3602(A,178 ,60 ) RS1/16S0R0J R 3603(A,182 ,55 ) RS1/16S220J R 3604(A,183 ,52 ) RS1/16S470J R 3605(B,181 ,42 ) RS1/16S750J R 3606(A,187 ,222 ) RS1/16S0R0J CAPACITORS C 3101(A,171 ,145 ) ELECT. CAPACITOR CEHAZA102M6R3 C 3104(B,182 ,141 ) CKSRYF105Z10 C 3105(A,141 ,63 ) ELECT. CAPACITOR VCH1249 C 3109(A,183 ,207 ) ELECT. CAPACITOR CEHAZA471M6R3 C 3110(B,188 ,213 ) CKSRYF105Z10 C 3111(B,188 ,210 ) CKSRYB102K50 C 3201(A,158 ,212 ) CKSRYF105Z10 C 3301(A,122 ,176 ) ELECT. CAPACITOR CEHAZA471M6R3 C 3302(A,122 ,171 ) CKSRYF105Z10 C 3303(A,140 ,166 ) VCH1261 C 3305(A,135 ,161 ) VCH1261 C 3306(A,112 ,161 ) VCH1261 C 3307(A,129 ,171 ) CKSRYF104Z25 C 3308(B,108 ,143 ) CCSRCH331J50 C 3309(B,133 ,143 ) CCSRCH331J50 C 3310(A,130 ,174 ) CKSRYF104Z25 C 3311(A,105 ,125 ) VCH1257 C 3312(B,108 ,130 ) CKSRYF104Z25 C 3313(A,103 ,149 ) PORYPROPYLENE FILM CVCE1051 C 3314(A,116 ,149 ) PORYPROPYLENE FILM CVCE1051 C 3315(A,117 ,120 ) VCH1257 C 3316(B,112 ,143 ) CKSRYF104Z25 C 3321(A,130 ,125 ) VCH1257 C 3322(B,133 ,130 ) CKSRYF104Z25 C 3323(A,131 ,149 ) PORYPROPYLENE FILM CVCE1051 C 3324(A,144 ,149 ) PORYPROPYLENE FILM CVCE1051 C 3325(A,142 ,120 ) VCH1257 C 3326(B,137 ,143 ) CKSRYF104Z25 C 3331(A,114 ,80 ) VCH1257 C 3333(A,104 ,99 ) PORYPROPYLENE FILM CVCE1052 C 3334(A,113 ,86 ) PORYPROPYLENE FILM CVCE1051 C 3335(A,116 ,99 ) PORYPROPYLENE FILM CVCE1051 C 3337(A,115 ,67 ) VCH1255 C 3338(A,133 ,80 ) VCH1257 C 3343(A,138 ,99 ) PORYPROPYLENE FILM CVCE1052 C 3344(A,134 ,86 ) PORYPROPYLENE FILM CVCE1051 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 79 5 6 7 8 5 6 7 8 C D F A B E C 3345(A,126 ,99 ) PORYPROPYLENE FILM CVCE1051 C 3347(A,132 ,67 ) VCH1255 C 3351(A,132 ,165 ) CCH1510 C 3400(B,150 ,106 ) CKSRYF104Z25 C 3401(A,163 ,125 ) ELECT. CAPACITOR VCH1248 C 3402(A,166 ,120 ) CKSRYF105Z10 C 3403(A,183 ,112 ) ELECT. CAPACITOR VCH1249 C 3405(A,174 ,103 ) ELECT. CAPACITOR VCH1249 C 3406(A,165 ,103 ) ELECT. CAPACITOR VCH1249 C 3407(A,173 ,114 ) CKSRYF104Z25 C 3408(B,179 ,98 ) CCSRCH331J50 C 3409(B,160 ,98 ) CCSRCH331J50 C 3410(A,173 ,117 ) CKSRYF104Z25 C 3411(A,184 ,87 ) ELECT. CAPACITOR VCH1247 C 3412(B,181 ,87 ) CKSRYF104Z25 C 3413(B,169 ,95 ) CCSRCH471J50 C 3414(B,184 ,95 ) CCSRCH471J50 C 3415(A,175 ,87 ) ELECT. CAPACITOR VCH1247 C 3416(B,174 ,98 ) CKSRYF104Z25 C 3421(A,165 ,87 ) ELECT. CAPACITOR VCH1247 C 3422(B,162 ,87 ) CKSRYF104Z25 C 3423(B,150 ,95 ) CCSRCH471J50 C 3424(B,165 ,95 ) CCSRCH471J50 C 3425(A,156 ,87 ) ELECT. CAPACITOR VCH1247 C 3426(B,155 ,98 ) CKSRYF104Z25 C 3431(A,174 ,79 ) ELECT. CAPACITOR VCH1247 C 3433(B,174 ,76 ) CCSRCH122J50 C 3434(B,174 ,68 ) CCSRCH471J50 C 3435(B,169 ,74 ) CCSRCH471J50 C 3437(A,171 ,65 ) ELECT. CAPACITOR CEANP470M16 C 3438(A,165 ,79 ) ELECT. CAPACITOR VCH1247 C 3443(B,160 ,76 ) CCSRCH122J50 C 3444(B,160 ,68 ) CCSRCH471J50 C 3445(B,165 ,74 ) CCSRCH471J50 C 3447(A,163 ,65 ) ELECT. CAPACITOR CEANP470M16 C 3451(A,177 ,107 ) CCH1510 C 3500(B,141 ,204 ) CKSRYF105Z10 C 3501(A,152 ,205 ) ELECT. CAPACITOR VCH1248 C 3502(A,160 ,202 ) CKSRYF105Z10 C 3503(A,150 ,188 ) ELECT. CAPACITOR VCH1249 C 3505(A,169 ,187 ) ELECT. CAPACITOR VCH1249 C 3506(A,160 ,187 ) ELECT. CAPACITOR VCH1249 C 3507(B,156 ,195 ) CKSRYF104Z25 C 3508(B,155 ,183 ) CCSRCH331J50 C 3509(B,174 ,183 ) CCSRCH331J50 C 3510(A,168 ,199 ) CKSRYF104Z25 C 3511(A,179 ,173 ) ELECT. CAPACITOR VCH1247 C 3512(B,176 ,172 ) CKSRYF104Z25 C 3513(B,164 ,181 ) CCSRCH471J50 C 3514(B,179 ,181 ) CCSRCH471J50 C 3515(A,170 ,173 ) ELECT. CAPACITOR VCH1247 C 3516(B,169 ,183 ) CKSRYF104Z25 C 3521(A,160 ,173 ) ELECT. CAPACITOR VCH1247 C 3522(B,157 ,172 ) CKSRYF104Z25 C 3523(B,145 ,181 ) CCSRCH471J50 C 3524(B,160 ,181 ) CCSRCH471J50 C 3525(A,151 ,173 ) ELECT. CAPACITOR VCH1247 C 3526(B,150 ,183 ) CKSRYF104Z25 C 3531(A,169 ,165 ) ELECT. CAPACITOR VCH1247 C 3533(B,169 ,161 ) CCSRCH122J50 Mark No. Description Part No. C 3534(B,169 ,153 ) CCSRCH471J50 C 3535(B,164 ,160 ) CCSRCH471J50 C 3537(A,169 ,52 ) ELECT. CAPACITOR CEANP470M16 C 3538(A,160 ,165 ) ELECT. CAPACITOR VCH1247 C 3543(B,155 ,161 ) CCSRCH122J50 C 3544(B,155 ,153 ) CCSRCH471J50 C 3545(B,160 ,160 ) CCSRCH471J50 C 3547(A,161 ,52 ) ELECT. CAPACITOR CEANP470M16 C 3551(A,174 ,190 ) CCH1510 C 3601(A,189 ,196 ) ELECT. CAPACITOR VCH1248 C 3602(A,180 ,189 ) CKSRYF104Z25 C 3603(A,188 ,34 ) ELECT. CAPACITOR VCH1249 C 3604(B,190 ,31 ) CKSRYF105Z10 C 3605(B,189 ,36 ) CKSRYB102K50 C 3606(A,187 ,70 ) ELECT. CAPACITOR VCH1247 C 3607(A,184 ,65 ) CKSRYF105Z10 C 3608(A,184 ,64 ) CKSRYB102K50 C 3609(A,182 ,52 ) CKSRYB103K25 C 3610(A,177 ,57 ) ELECT. CAPACITOR VCH1249 C 3613(B,187 ,30 ) CKSRYF104Z25 C 3615(B,174 ,26 ) CKSRYF104Z25 C 3617(B,169 ,39 ) CKSRYF104Z25 C 3618(B,184 ,44 ) CKSRYF104Z25 C 3620(B,180 ,68 ) CKSRYF104Z25 C 3621(B,185 ,50 ) CKSRYF104Z25 C AJKB ASSY [VWV2148] MISCELLANEOUS IC 3201(A,155 ,212 ) IC TC7SH08FUS1 IC 3301(A,123 ,165 ) D/A CONVERTER IC PCM1738EG-3 IC 3311(A,115 ,132 ) IC OPA2134PA IC 3321(A,140 ,132 ) IC OPA2134PA IC 3331(A,128 ,85 ) IC OPA2134PA IC 3401(A,167 ,114 ) D/A CONVERTER IC PCM1738EG-3 IC 3402(B,154 ,106 ) IC TC7SH08FUS1 IC 3411(B,177 ,93 ) OP-AMP IC NJM5532MD IC 3421(B,158 ,93 ) OP-AMP IC NJM5532MD IC 3431(B,167 ,70 ) OP-AMP IC NJM5532MD IC 3501(A,162 ,196 ) D/A CONVERTER IC PCM1738EG-3 IC 3502(B,145 ,204 ) IC TC7SH08FUS1 IC 3511(B,172 ,179 ) OP-AMP IC NJM5532MD IC 3521(B,153 ,179 ) OP-AMP IC NJM5532MD IC 3531(B,162 ,156 ) OP-AMP IC NJM5532MD IC 3601(A,183 ,60 ) IC TC74VHCU04FT Q 3351(B,119 ,51 ) TRANSISTOR 2SD2114K Q 3352(A,132 ,35 ) TRANSISTOR 2SD2114K Q 3361(B,128 ,51 ) TRANSISTOR 2SD2114K Q 3362(B,128 ,38 ) TRANSISTOR 2SD2114K Q 3371(A,105 ,67 ) CHIP TRANSISTOR UMH9N Q 3372(A,104 ,62 ) TRANSISTOR 2SA1576A Q 3381(B,105 ,67 ) CHIP TRANSISTOR UMH9N Q 3382(B,104 ,62 ) TRANSISTOR 2SA1576A Q 3451(B,143 ,37 ) TRANSISTOR 2SD2114K Q 3461(B,135 ,37 ) TRANSISTOR 2SD2114K Q 3471(A,147 ,58 ) CHIP TRANSISTOR UMH9N Q 3472(A,144 ,40 ) TRANSISTOR 2SA1576A Q 3551(B,157 ,36 ) TRANSISTOR 2SD2114K Q 3561(B,150 ,36 ) TRANSISTOR 2SD2114K Q 3571(B,153 ,58 ) CHIP TRANSISTOR UMH9N Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 80 1 2 3 4 1 2 3 4 C D F A B E Q 3572(B,151 ,54 ) TRANSISTOR 2SA1576A L 3601(A,179 ,48 ) COIL VTL1172 L 3602(A,179 ,36 ) COIL PTL1017 F 3301(B,127 ,181 ) CHIP BEADS DTF1070 F 3302(B,143 ,164 ) CHIP BEADS DTF1070 F 3401(A,177 ,128 ) CHIP BEADS DTF1070 F 3402(A,185 ,125 ) CHIP BEADS DTF1070 F 3501(B,154 ,208 ) CHIP BEADS DTF1070 F 3502(B,142 ,175 ) CHIP BEADS DTF1070 F 3601(B,172 ,36 ) CHIP MAGNET CORE DTF1068 F 3602(B,170 ,36 ) CHIP BEADS DTF1070 F 3651CHIP BEADS DTF1070 JA3301(A,107 ,19 ) PIN JACK(2P) AKB7104 JA3401(A,139 ,19 ) JACK VKB1229 JA3601(A,170 ,19 ) PIN JACK(1P) AKB7102 JA3602(A,186 ,19 ) OPT. LINK OUT VKS1002 KN3101(A,109 ,197 ) WRAPPING TERMINAL VNF1084 KN3102(A,184 ,189 ) WRAPPING TERMINAL VNF1084 CN3101(A,166 ,221 ) 31P CONNECTOR VKN1517 CN3102(A,179 ,145 ) CONNECTOR B6B-EH PCB BINDER VEF1040 RESISTORS R 3101(B,140 ,71 ) RS1/16S0R0J R 3102(A,157 ,125 ) METAL OXIDE RESISTOR RS3LMF181J R 3103(A,151 ,125 ) METAL OXIDE RESISTOR RS3LMF181J R 3110(A,185 ,222 ) RS1/16S470J R 3111(A,179 ,216 ) RS1/16S0R0J R 3112(A,178 ,213 ) RS1/16S0R0J R 3113(A,177 ,216 ) RS1/16S0R0J R 3114(A,176 ,213 ) RS1/16S0R0J R 3115(A,175 ,216 ) RS1/16S0R0J R 3116(A,174 ,213 ) RS1/16S220J R 3117(A,173 ,216 ) RS1/16S0R0J R 3118(A,149 ,216 ) RS1/16S0R0J R 3121(A,172 ,213 ) RS1/16S220J R 3122(A,170 ,216 ) RS1/16S470J R 3123(A,168 ,216 ) RS1/16S220J R 3124(A,166 ,216 ) RS1/16S220J R 3125(A,164 ,216 ) RS1/16S470J R 3126(A,162 ,216 ) RS1/16S220J R 3127(A,160 ,216 ) RS1/16S220J R 3128(A,158 ,216 ) RS1/16S470J R 3129(A,156 ,216 ) RS1/16S220J R 3130(A,154 ,216 ) RS1/16S220J R 3131(A,152 ,216 ) RS1/16S0R0J R 3202(A,153 ,212 ) RS1/16S0R0J R 3203(A,149 ,211 ) RS1/16S470J R 3302(A,117 ,190 ) RS1/16S220J R 3303(A,115 ,190 ) RS1/16S220J R 3304(A,123 ,158 ) CARBON FILM RESISTOR VCN1141 R 3313(A,103 ,143 ) CARBON FILM RESISTOR VCN1140 R 3314(A,119 ,143 ) CARBON FILM RESISTOR VCN1140 R 3323(A,128 ,143 ) CARBON FILM RESISTOR VCN1140 R 3324(A,144 ,143 ) CARBON FILM RESISTOR VCN1140 R 3331(A,108 ,115 ) CARBON FILM RESISTOR VCN1138 R 3332(A,116 ,115 ) CARBON FILM RESISTOR VCN1138 R 3333(A,104 ,93 ) CARBON FILM RESISTOR VCN1138 R 3334(A,107 ,93 ) CARBON FILM RESISTOR VCN1139 Mark No. Description Part No. R 3335(A,113 ,104 ) CARBON FILM RESISTOR VCN1139 R 3336(A,120 ,115 ) CARBON FILM RESISTOR VCN1138 R 3337(A,118 ,47 ) CARBON FILM RESISTOR VCN1136 R 3341(A,139 ,115 ) CARBON FILM RESISTOR VCN1138 R 3342(A,131 ,115 ) CARBON FILM RESISTOR VCN1138 R 3343(A,143 ,93 ) CARBON FILM RESISTOR VCN1138 R 3344(A,140 ,93 ) CARBON FILM RESISTOR VCN1139 R 3345(A,134 ,104 ) CARBON FILM RESISTOR VCN1139 R 3346(A,127 ,105 ) CARBON FILM RESISTOR VCN1138 R 3347(A,129 ,57 ) CARBON FILM RESISTOR VCN1136 R 3351(A,113 ,57 ) CARBON FILM RESISTOR VCN1137 R 3352(A,135 ,35 ) RS1/16S221J R 3354(A,120 ,44 ) CARBON FILM RESISTOR VCN1137 R 3355(B,131 ,34 ) RS1/16S221J R 3356(A,116 ,51 ) RS1/16S102J R 3357(A,136 ,46 ) RS1/16S102J R 3361(A,134 ,57 ) CARBON FILM RESISTOR VCN1137 R 3362(A,129 ,37 ) RS1/16S221J R 3364(A,136 ,44 ) CARBON FILM RESISTOR VCN1137 R 3365(B,124 ,34 ) RS1/16S221J R 3366(A,127 ,47 ) RS1/16S102J R 3367(A,116 ,46 ) RS1/16S102J R 3371(A,107 ,71 ) RS1/16S102J R 3372(A,105 ,71 ) RS1/16S472J R 3373(A,109 ,71 ) RS1/16S332J R 3374(A,102 ,67 ) RS1/16S103J R 3381(B,108 ,71 ) RS1/16S102J R 3382(B,106 ,71 ) RS1/16S472J R 3383(B,110 ,66 ) RS1/16S332J R 3384(B,102 ,66 ) RS1/16S103J R 3401(B,168 ,100 ) RN1/16SE1602D R 3402(A,171 ,121 ) RS1/16S220J R 3403(A,171 ,123 ) RS1/16S220J R 3413(B,170 ,91 ) RN1/16SE6200D R 3414(B,184 ,91 ) RN1/16SE6200D R 3423(B,151 ,91 ) RN1/16SE6200D R 3424(B,165 ,91 ) RN1/16SE6200D R 3431(B,176 ,75 ) RN1/16SE1201D R 3432(B,173 ,82 ) RN1/16SE1201D R 3433(B,177 ,68 ) RN1/16SE1201D R 3434(B,177 ,72 ) CHIP METAL FILM R RN1/16SE1801D R 3435(B,174 ,72 ) CHIP METAL FILM R RN1/16SE1801D R 3436(B,169 ,82 ) RN1/16SE1201D R 3437(B,169 ,62 ) RS1/16S223J R 3441(B,158 ,76 ) RN1/16SE1201D R 3442(B,161 ,82 ) RN1/16SE1201D R 3443(B,157 ,68 ) RN1/16SE1201D R 3444(B,157 ,72 ) CHIP METAL FILM R RN1/16SE1801D R 3445(B,160 ,72 ) CHIP METAL FILM R RN1/16SE1801D R 3446(B,165 ,82 ) RN1/16SE1201D R 3447(B,165 ,62 ) RS1/16S223J R 3451(B,151 ,43 ) RS1/16S221J R 3452(B,142 ,34 ) RS1/16S221J R 3453(A,144 ,37 ) RS1/16S102J R 3461(B,151 ,46 ) RS1/16S221J R 3462(B,136 ,34 ) RS1/16S221J R 3463(A,141 ,37 ) RS1/16S102J R 3471(A,148 ,75 ) RS1/16S102J R 3472(A,148 ,68 ) RS1/16S472J R 3473(A,144 ,57 ) RS1/16S332J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 81 5 6 7 8 5 6 7 8 C D F A B E R 3474(A,147 ,37 ) RS1/16S103J R 3501(B,158 ,189 ) RN1/16SE1602D R 3502(A,165 ,205 ) RS1/16S0R0J R 3503(A,162 ,205 ) RS1/16S0R0J R 3513(B,165 ,177 ) RN1/16SE6200D R 3514(B,179 ,177 ) RN1/16SE6200D R 3523(B,146 ,177 ) RN1/16SE6200D R 3524(B,160 ,177 ) RN1/16SE6200D R 3531(B,171 ,161 ) RS1/16S122J R 3532(B,168 ,167 ) RS1/16S122J R 3533(B,172 ,153 ) RS1/16S122J R 3534(B,172 ,157 ) CHIP METAL FILM R RN1/16SE1801D R 3535(B,169 ,157 ) CHIP METAL FILM R RN1/16SE1801D R 3536(B,164 ,168 ) RS1/16S122J R 3537(B,167 ,50 ) RS1/16S223J R 3541(B,153 ,161 ) RS1/16S122J R 3542(B,156 ,168 ) RS1/16S122J R 3543(B,152 ,153 ) RS1/16S122J R 3544(B,152 ,157 ) CHIP METAL FILM R RN1/16SE1801D R 3545(B,155 ,157 ) CHIP METAL FILM R RN1/16SE1801D R 3546(B,160 ,167 ) RS1/16S122J R 3547(B,163 ,50 ) RS1/16S223J R 3551(B,164 ,37 ) RS1/16S221J R 3552(B,156 ,29 ) RS1/16S221J R 3553(A,160 ,42 ) RS1/16S102J R 3561(B,159 ,41 ) RS1/16S221J R 3562(B,150 ,29 ) RS1/16S221J R 3563(A,158 ,42 ) RS1/16S102J R 3571(B,153 ,62 ) RS1/16S102J R 3572(B,151 ,62 ) RS1/16S472J R 3573(B,146 ,65 ) RS1/16S332J R 3574(B,149 ,62 ) RS1/16S103J R 3601(A,188 ,75 ) RS1/16S0R0J R 3602(A,178 ,60 ) RS1/16S0R0J R 3603(A,182 ,55 ) RS1/16S220J R 3604(A,183 ,52 ) RS1/16S470J R 3605(B,181 ,42 ) RS1/16S750J R 3606(A,187 ,222 ) RS1/16S0R0J CAPACITORS C 3101(A,171 ,145 ) ELECT. CAPACITOR CEHAZA102M6R3 C 3104(B,182 ,141 ) CKSRYF105Z10 C 3105(A,141 ,63 ) ELECT. CAPACITOR VCH1249 C 3109(A,183 ,207 ) ELECT. CAPACITOR CEHAZA471M6R3 C 3110(B,188 ,213 ) CKSRYF105Z10 C 3111(B,188 ,210 ) CKSRYB102K50 C 3201(A,158 ,212 ) CKSRYF105Z10 C 3301(A,122 ,176 ) ELECT. CAPACITOR CEHAZA471M6R3 C 3302(A,122 ,171 ) CKSRYF105Z10 C 3303(A,140 ,166 ) VCH1261 C 3305(A,135 ,161 ) VCH1261 C 3306(A,112 ,161 ) VCH1261 C 3307(A,129 ,171 ) CKSRYF104Z25 C 3308(B,108 ,143 ) CCSRCH331J50 C 3309(B,133 ,143 ) CCSRCH331J50 C 3310(A,130 ,174 ) CKSRYF104Z25 C 3311(A,105 ,125 ) VCH1257 C 3312(B,108 ,130 ) CKSRYF104Z25 C 3313(A,103 ,149 ) PORYPROPYLENE FILM CVCE1051 C 3314(A,116 ,149 ) PORYPROPYLENE FILM CVCE1051 Mark No. Description Part No. C 3315(A,117 ,120 ) VCH1257 C 3316(B,112 ,143 ) CKSRYF104Z25 C 3321(A,130 ,125 ) VCH1257 C 3322(B,133 ,130 ) CKSRYF104Z25 C 3323(A,131 ,149 ) PORYPROPYLENE FILM CVCE1051 C 3324(A,144 ,149 ) PORYPROPYLENE FILM CVCE1051 C 3325(A,142 ,120 ) VCH1257 C 3326(B,137 ,143 ) CKSRYF104Z25 C 3331(A,114 ,80 ) VCH1257 C 3333(A,104 ,99 ) PORYPROPYLENE FILM CVCE1052 C 3334(A,113 ,86 ) PORYPROPYLENE FILM CVCE1051 C 3335(A,116 ,99 ) PORYPROPYLENE FILM CVCE1051 C 3337(A,115 ,67 ) VCH1255 C 3338(A,133 ,80 ) VCH1257 C 3343(A,138 ,99 ) PORYPROPYLENE FILM CVCE1052 C 3344(A,134 ,86 ) PORYPROPYLENE FILM CVCE1051 C 3345(A,126 ,99 ) PORYPROPYLENE FILM CVCE1051 C 3347(A,132 ,67 ) VCH1255 C 3351(A,132 ,165 ) CCH1510 C 3400(B,150 ,106 ) CKSRYF104Z25 C 3401(A,163 ,125 ) ELECT. CAPACITOR VCH1248 C 3402(A,166 ,120 ) CKSRYF105Z10 C 3403(A,183 ,112 ) ELECT. CAPACITOR VCH1249 C 3405(A,174 ,103 ) ELECT. CAPACITOR VCH1249 C 3406(A,165 ,103 ) ELECT. CAPACITOR VCH1249 C 3407(A,173 ,114 ) CKSRYF104Z25 C 3408(B,179 ,98 ) CCSRCH331J50 C 3409(B,160 ,98 ) CCSRCH331J50 C 3410(A,173 ,117 ) CKSRYF104Z25 C 3411(A,184 ,87 ) ELECT. CAPACITOR VCH1247 C 3412(B,181 ,87 ) CKSRYF104Z25 C 3413(B,169 ,95 ) CCSRCH471J50 C 3414(B,184 ,95 ) CCSRCH471J50 C 3415(A,175 ,87 ) ELECT. CAPACITOR VCH1247 C 3416(B,174 ,98 ) CKSRYF104Z25 C 3421(A,165 ,87 ) ELECT. CAPACITOR VCH1247 C 3422(B,162 ,87 ) CKSRYF104Z25 C 3423(B,150 ,95 ) CCSRCH471J50 C 3424(B,165 ,95 ) CCSRCH471J50 C 3425(A,156 ,87 ) ELECT. CAPACITOR VCH1247 C 3426(B,155 ,98 ) CKSRYF104Z25 C 3431(A,174 ,79 ) ELECT. CAPACITOR VCH1247 C 3433(B,174 ,76 ) CCSRCH122J50 C 3434(B,174 ,68 ) CCSRCH471J50 C 3435(B,169 ,74 ) CCSRCH471J50 C 3437(A,171 ,65 ) ELECT. CAPACITOR CEANP470M16 C 3438(A,165 ,79 ) ELECT. CAPACITOR VCH1247 C 3443(B,160 ,76 ) CCSRCH122J50 C 3444(B,160 ,68 ) CCSRCH471J50 C 3445(B,165 ,74 ) CCSRCH471J50 C 3447(A,163 ,65 ) ELECT. CAPACITOR CEANP470M16 C 3451(A,177 ,107 ) CCH1510 C 3500(B,141 ,204 ) CKSRYF105Z10 C 3501(A,152 ,205 ) ELECT. CAPACITOR VCH1248 C 3502(A,160 ,202 ) CKSRYF105Z10 C 3503(A,150 ,188 ) ELECT. CAPACITOR VCH1249 C 3505(A,169 ,187 ) ELECT. CAPACITOR VCH1249 C 3506(A,160 ,187 ) ELECT. CAPACITOR VCH1249 C 3507(B,156 ,195 ) CKSRYF104Z25 C 3508(B,155 ,183 ) CCSRCH331J50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 82 1 2 3 4 1 2 3 4 C D F A B E C 3509(B,174 ,183 ) CCSRCH331J50 C 3510(A,168 ,199 ) CKSRYF104Z25 C 3511(A,179 ,173 ) ELECT. CAPACITOR VCH1247 C 3512(B,176 ,172 ) CKSRYF104Z25 C 3513(B,164 ,181 ) CCSRCH471J50 C 3514(B,179 ,181 ) CCSRCH471J50 C 3515(A,170 ,173 ) ELECT. CAPACITOR VCH1247 C 3516(B,169 ,183 ) CKSRYF104Z25 C 3521(A,160 ,173 ) ELECT. CAPACITOR VCH1247 C 3522(B,157 ,172 ) CKSRYF104Z25 C 3523(B,145 ,181 ) CCSRCH471J50 C 3524(B,160 ,181 ) CCSRCH471J50 C 3525(A,151 ,173 ) ELECT. CAPACITOR VCH1247 C 3526(B,150 ,183 ) CKSRYF104Z25 C 3531(A,169 ,165 ) ELECT. CAPACITOR VCH1247 C 3533(B,169 ,161 ) CCSRCH122J50 C 3534(B,169 ,153 ) CCSRCH471J50 C 3535(B,164 ,160 ) CCSRCH471J50 C 3537(A,169 ,52 ) ELECT. CAPACITOR CEANP470M16 C 3538(A,160 ,165 ) ELECT. CAPACITOR VCH1247 C 3543(B,155 ,161 ) CCSRCH122J50 C 3544(B,155 ,153 ) CCSRCH471J50 C 3545(B,160 ,160 ) CCSRCH471J50 C 3547(A,161 ,52 ) ELECT. CAPACITOR CEANP470M16 C 3551(A,174 ,190 ) CCH1510 C 3601(A,189 ,196 ) ELECT. CAPACITOR VCH1248 C 3602(A,180 ,189 ) CKSRYF104Z25 C 3603(A,188 ,34 ) ELECT. CAPACITOR VCH1249 C 3604(B,190 ,31 ) CKSRYF105Z10 C 3605(B,189 ,36 ) CKSRYB102K50 C 3606(A,187 ,70 ) ELECT. CAPACITOR VCH1247 C 3607(A,184 ,65 ) CKSRYF105Z10 C 3608(A,184 ,64 ) CKSRYB102K50 C 3609(A,182 ,52 ) CKSRYB103K25 C 3610(A,177 ,57 ) ELECT. CAPACITOR VCH1249 C 3613(B,187 ,30 ) CKSRYF104Z25 C 3615(B,174 ,26 ) CKSRYF104Z25 C 3617(B,169 ,39 ) CKSRYF104Z25 C 3618(B,184 ,44 ) CKSRYF104Z25 C 3620(B,180 ,68 ) CKSRYF104Z25 C 3621(B,185 ,50 ) CKSRYF104Z25 D SCRB ASSY MISCELLANEOUS IC 901 (B,59,119) VIDEO SW IC MM1505XN IC 902 (B,65,51) VIDEO SW IC MM1507XN Q 901 (B,35,29) TRANSISTOR 2SC4081 Q 902 (B,48,17) TRANSISTOR 2SC4081 Q 904 (B,66,142) TRANSISTOR 2SA1576A Q 905 (B,66,132) TRANSISTOR 2SC4081 D 901 (B,32,31) DIODE 1SS355 D 903 (B,49,24) DIODE 1SS355 D 905 (B,56,123) DIODE 1SS355 D 906 (B,54,126) DIODE 1SS355 D 907 (B,71,74) DIODE 1SS355 D 908 (B,66,74) DIODE 1SS355 D 909 (B,66,71) DIODE 1SS355 D 911 (B,63,69) DIODE 1SS355 D 912 (B,66,162) DIODE 1SS355 Mark No. Description Part No. D 914 (B,68,165) DIODE 1SS355 D 915 (B,68,157) DIODE 1SS355 D 916 (B,65,155) DIODE 1SS355 D 999 (B,58,19) DIODE 1SR154-400 JA901 (A,12,61) CONNECTOR VKB1157 JA901 (A,87,61) CONNECTOR VKB1157 JA902 (A,12,145) CONNECTOR VKB1157 JA902 (A,87,145) CONNECTOR VKB1157 RY901 (A,51,54) RELAY VSR1017 RY902 (A,51,29) RELAY VSR1017 RY903 (A,53,138) RELAY VSR1017 RY904 (A,57,80) RELAY VSR1017 RY905 (A,51,164) RELAY VSR1017 CN901 (A,62,15) 19P CONNECTOR VKN1279 RESISTORS R 902 (B,37,19) RS1/16S103J R 903 (B,40,25) RS1/16S182J R 904 (B,40,23) RS1/16S182J R 905 (B,40,27) RS1/16S182J R 906 (B,41,17) RS1/16S153J R 909 (B,45,17) RS1/16S472J R 911 (B,35,33) RS1/16S563J R 912 (B,55,60) RS1/16S221J R 916 (B,56,63) RS1/16S221J R 919 (B,56,35) RS1/16S221J R 923 (B,65,135) RS1/16S223J R 924 (B,65,138) RS1/16S122J R 927 (B,66,128) RS1/16S472J R 928 (B,64,146) RS1/16S563J R 929 (B,40,38) RS1/16S221J R 932 (B,66,146) RS1/10S75R0F R 936 (B,55,119) RS1/10S1R5J R 937 (B,51,126) RS1/10S75R0F R 943 (B,73,81) CHIP TYPE RESISTER RS1/10S68R0F R 950 (B,43,111) CHIP TYPE RESISTER RS1/10S68R0F R 955 (B,61,170) RS1/10S75R0F R 965 (B,40,172) RS1/10S75R0F R 970 (B,40,29) RS1/16S182J R 971 (B,40,21) RS1/16S182J CAPACITORS C 901 (B,56,24) CKSRYF104Z25 C 902 (B,35,32) CKSRYF104Z25 C 903 (B,22,125) CCSRCH391J50 C 904 (B,23,42) CCSRCH221J50 C 907 (B,48,29) CKSRYF104Z25 C 909 (B,56,14) CKSRYF104Z25 C 910 (B,24,38) CCSRCH391J50 C 913 (B,23,131) CCSRCH391J50 C 914 (B,23,50) CCSRCH221J50 C 916 (B,62,133) CKSRYF104Z25 C 917 (B,49,52) CKSRYF104Z25 C 921 (B,23,47) CCSRCH391J50 C 924 (B,23,69) CKSRYF104Z25 C 925 (B,49,136) CKSRYF104Z25 C 927 (B,80,54) CCSRCH470J50 C 928 (B,63,116) CKSRYF104Z25 C 929 (A,64,124) CEAT101M10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 83 5 6 7 8 5 6 7 8 C D F A B E C 930 (A,53,121) CEAT101M10 C 932 (B,23,134) CCSRCH221J50 C 933 (B,20,124) CCSRCH221J50 C 935 (B,69,28) CKSRYF105Z10 C 936 (B,60,125) CKSRYF104Z25 C 937 (A,67,77) CEAT101M10 C 938 (B,74,50) CKSRYF104Z25 C 939 (B,69,57) CKSRYF104Z25 C 940 (B,61,50) CKSRYF104Z25 C 941 (B,54,77) CKSRYF104Z25 C 943 (A,62,104) CEAT101M10 C 945 (B,50,161) CKSRYF104Z25 C 946 (A,67,168) ELECT. CAPACITOR CEAT102M6R3 C 950 (B,22,120) CKSRYF104Z25 C 953 (A,35,175) ELECT. CAPACITOR CEAT102M6R3 E FLKY ASSY [VWG2552] MISCELLANEOUS IC 2101(B,80,48) FL CONTROL UCOM IC PE5314C IC 2102(B,63,29) RESET IC PST3228 IC 2103(A,259,30) REMOTE RECEIVER UNIT GP1UE27XK Q 2101(B,115,60) DIGITAL TRANSISTOR DTC124EUA Q 2102(B,116,51) CHIP DIGITAL TRANS. DTA124EUA Q 2108(B,50,36) DIGITAL TRANSISTOR DTC124EUA Q 2109(B,49,29) CHIP DIGITAL TRANS. DTA124EUA D 2103(A,138,44) LED(RED) SLI-343URW(RST) D 2104(A,127,44) LED(BLUE) SLR-343BBT(GHJ) KN2101(A,119,79) WRAPPING TERMINAL VNF1084 V 2101(A,245,49) FL TUBE VAW1089 S 2101(A,103,74) SWITCH VSG1024 S 2102(A,48,74) SWITCH VSG1024 S 2103(A,34,74) SWITCH VSG1024 S 2104(A,13,72) SWITCH VSG1024 S 2105(A,63,74) SWITCH VSG1024 S 2106(A,77,74) SWITCH VSG1024 X 2101(A,71,29) CERAMIC RESONATOR VSS1142 CN2101(A,16,33) 17P CONNECTOR VKN1277 CN2102(A,304,37) CONNECTOR 9P 09P-FJ FL SPACER 989 VEC2487 RESISTORS R 2105(B,92,79) RS1/16S103J R 2106(B,135,45) RS1/16S0R0J R 2107(B,75,63) RS1/16S0R0J R 2109(B,59,59) RS1/16S0R0J R 2110(B,63,59) RS1/16S0R0J R 2111(B,61,59) RS1/16S0R0J R 2113(B,71,69) RS1/16S0R0J R 2114(B,59,71) RS1/16S103J R 2115(B,57,75) RS1/16S0R0J R 2116(B,44,73) RS1/16S122J R 2117(B,36,75) RS1/16S222J R 2118(B,65,75) RS1/16S272J R 2119(B,72,73) RS1/16S392J R 2120(B,273,25) RS1/16S0R0J R 2121(B,69,69) RS1/16S0R0J R 2122(B,68,27) RS1/16S103J R 2123(B,73,69) RS1/16S0R0J Mark No. Description Part No. R 2125(B,118,46) RS1/10S182J R 2126(B,61,46) RS1/16S332J R 2127(B,63,46) RS1/16S472J R 2128(B,59,48) RS1/16S224J R 2129(B,53,49) RS1/16S0R0J R 2130(B,254,25) RS1/16S0R0J R 2131(B,115,46) RS1/10S182J R 2132(B,137,49) RS1/16S121J R 2133(B,63,42) RS1/16S101J R 2134(B,67,37) RS1/16S101J R 2135(B,63,34) RS1/16S101J R 2136(B,63,32) RS1/16S101J R 2138(B,58,42) RS1/16S103J R 2139(B,58,38) RS1/16S105J R 2141(B,63,36) RS1/16S105J R 2142(B,59,34) RS1/16S105J R 2146(B,157,48) RS1/16S0R0J R 2151(B,77,68) RS1/16S103J R 2152(B,90,68) RS1/16S103J R 2155(B,47,41) RS1/16S0R0J R 2161(B,65,69) RS1/16S103J R 2162(B,151,48) RS1/16S0R0J R 2191(B,90,85) RS1/16S103J R 2194(B,63,40) RS1/16S0R0J R 2195(B,63,38) RS1/16S101J R 2196(B,73,33) RS1/16S0R0J CAPACITORS C 2101(B,90,80) CKSRYB102K50 C 2102(B,68,55) CKSRYF105Z10 C 2103(B,59,75) CKSRYB102K50 C 2104(A,272,28) CEAL101M6R3 C 2105(B,21,39) CKSRYF105Z10 C 2107(B,65,46) CKSRYB102K50 C 2108(B,71,33) CKSRYB102K50 C 2110(B,260,26) CKSRYF105Z10 C 2111(B,56,42) CKSRYB103K50 C 2113(B,94,51) CKSRYF105Z10 C 2115(B,77,35) CKSRYF105Z10 C 2116(B,94,48) CKSRYB104K25 C 2120(A,23,71) CEJQ101M6R3 C 2121(B,84,68) CKSRYB102K50 C 2122(B,86,68) CKSRYB102K50 C 2126(B,50,39) CKSRYB102K50 C 2161(B,67,69) CKSRYB102K50 E FLKY ASSY [VWG2554] MISCELLANEOUS IC 2101(B,80,48) FL CONTROL UCOM PE5314C IC 2102(B,63,29) RESET IC PST3228 IC 2103(A,259,30) REMOTE RECEIVER UNIT GP1UE27XK Q 2101(B,115,60) DIGITAL TRANSISTOR DTC124EUA Q 2102(B,116,51) CHIP DIGITAL TRANS. DTA124EUA Q 2108(B,50,36) DIGITAL TRANSISTOR DTC124EUA Q 2109(B,49,29) CHIP DIGITAL TRANS. DTA124EUA D 2103(A,138,44) LED(RED) SLI-343URW(RST) D 2104(A,127,44) LED(BLUE) SLR-343BBT(GHJ) KN2101(A,119,79) WRAPPING TERMINAL VNF1084 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 84 1 2 3 4 1 2 3 4 C D F A B E V 2101(A,245,49) FL TUBE VAW1089 S 2101(A,103,74) SWITCH VSG1024 S 2102(A,48,74) SWITCH VSG1024 S 2103(A,34,74) SWITCH VSG1024 S 2104(A,13,72) SWITCH VSG1024 S 2105(A,63,74) SWITCH VSG1024 S 2106(A,77,74) SWITCH VSG1024 X 2101(A,71,29) CERAMIC RESONATOR VSS1142 CN2101(A,16,33) 17P CONNECTOR VKN1277 CN2102(A,304,37) CONNECTOR 9P 09P-FJ FL SPACER 989 VEC2487 RESISTORS R 2105(B,92,79) RS1/16S103J R 2106(B,135,45) RS1/16S0R0J R 2107(B,75,63) RS1/16S0R0J R 2109(B,59,59) RS1/16S0R0J R 2110(B,63,59) RS1/16S0R0J R 2111(B,61,59) RS1/16S0R0J R 2113(B,71,69) RS1/16S0R0J R 2114(B,59,71) RS1/16S103J R 2115(B,57,75) RS1/16S0R0J R 2116(B,44,73) RS1/16S122J R 2117(B,36,75) RS1/16S222J R 2118(B,65,75) RS1/16S272J R 2119(B,72,73) RS1/16S392J R 2120(B,273,25) RS1/16S0R0J R 2121(B,69,69) RS1/16S0R0J R 2122(B,68,27) RS1/16S103J R 2123(B,73,69) RS1/16S0R0J R 2125(B,118,46) RS1/10S182J R 2126(B,61,46) RS1/16S682J R 2127(B,63,46) RS1/16S272J R 2128(B,59,48) RS1/16S224J R 2129(B,53,49) RS1/16S0R0J R 2130(B,254,25) RS1/16S0R0J R 2131(B,115,46) RS1/10S182J R 2132(B,137,49) RS1/16S121J R 2133(B,63,42) RS1/16S101J R 2134(B,67,37) RS1/16S101J R 2135(B,63,34) RS1/16S101J R 2136(B,63,32) RS1/16S101J R 2138(B,58,42) RS1/16S103J R 2139(B,58,38) RS1/16S105J R 2141(B,63,36) RS1/16S105J R 2142(B,59,34) RS1/16S105J R 2146(B,157,48) RS1/16S0R0J R 2151(B,77,68) RS1/16S103J R 2152(B,90,68) RS1/16S103J R 2155(B,47,41) RS1/16S0R0J R 2161(B,65,69) RS1/16S103J R 2162(B,151,48) RS1/16S0R0J R 2191(B,90,85) RS1/16S103J R 2194(B,63,40) RS1/16S0R0J R 2195(B,63,38) RS1/16S101J R 2196(B,73,33) RS1/16S0R0J CAPACITORS C 2101(B,90,80) CKSRYB102K50 C 2102(B,68,55) CKSRYF105Z10 C 2103"(B,59,75) " CKSRYB102K50 Mark No. Description Part No. C 2104(A,272,28) CEAL101M6R3 C 2105(B,21,39) CKSRYF105Z10 C 2107(B,65,46) CKSRYB102K50 C 2108(B,71,33) CKSRYB102K50 C 2110(B,260,26) CKSRYF105Z10 C 2111(B,56,42) CKSRYB103K50 C 2113(B,94,51) CKSRYF105Z10 C 2115(B,77,35) CKSRYF105Z10 C 2116(B,94,48) CKSRYB104K25 C 2120(A,23,71) CEJQ101M6R3 C 2121(B,84,68) CKSRYB102K50 C 2122(B,86,68) CKSRYB102K50 C 2126(B,50,39) CKSRYB102K50 C 2161(B,67,69) CKSRYB102K5 F KEYB ASSY MISCELLANEOUS D 2201(A,201,79) LED(RED) SLR-343VC(NPQ) D 2203(A,155,79) LED(RED) SLR-343VC(NPQ) D 2204(A,138,79) LED(RED) SLR-343VC(NPQ) J 2203(A,170,63) CONNECTOR ASS'Y PF05PG-C17 KN2201(A,186,88) WRAPPING TERMINAL VNF1084 S 2201(A,135,89) SWITCH VSG1024 S 2202(A,152,89) SWITCH VSG1024 S 2204(A,172,89) SWITCH VSG1024 CN2201(A,150,59) CONNECTOR 9P 09R-FJ RESISTORS R 2201(B,144,78) RS1/16S101J R 2202(B,159,74) RS1/16S101J R 2203(B,141,85) RS1/16S122J R 2204(B,143,87) RS1/16S222J R 2205(B,200,75) RS1/16S181J R 2220(B,169,83) RS1/16S272J R 2221(B,172,85) RS1/16S392J CAPACITORS C 2201(B,171,66) CKSRYB103K50 C 2202(B,169,67) CKSRYB103K50 C 2203(B,133,62) CKSRYF105Z10 G MSWB ASSY MISCELLANEOUS D 2301(B,315,71) DIODE 1SS355 D 2302(B,321,71) DIODE 1SS355 RY2301(A,315,84) POWER RELAY VSR1018 S 2301(A,262,70) POWER SWITCH VSA1005 CN2301(A,270,93) CONNECTOR S5B-PH CN2302(A,283,83) AMP U-P CONNECTOR VKN2024 CN2303(A,255,89) CONNECTOR S2B-PH CN2304(A,309,85) CONNECTOR B2P3S-VH-BK RESISTORS R 2301(B,263,88) RS1/4SA102J R 2302(B,263,86) RS1/4SA102J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 85 5 6 7 8 5 6 7 8 C D F A B E H POWER SUPPLY UNIT OTHERS > P301 PROTECTOR(800mA) AEK7063 > P201 PROTECTOR(1.6A) AEK7066 > P101,P202 PROTECTOR(2.0A) AEK7067 I PS ASSY MISCELLANEOUS IC 3801(A,86 ,197 ) PROTECTOR(1A) AEK7009 IC 3802(A,81 ,208 ) PROTECTOR(1A) AEK7009 IC 3803(A,21 ,203 ) IC NJM78M05FA Q 3801(A,28 ,186 ) TRANSISTOR 2SC4883A Q 3802(A,33 ,226 ) TRANSISTOR 2SA1859A Q 3803(A,48 ,202 ) N-FET 2SK246 Q 3804(A,53 ,210 ) N-FET 2SK246 Q 3805(B,36 ,193 ) CHIP TRANSISTOR 2SC3906K Q 3806(B,36 ,219 ) CHIP TRANSISTOR 2SA1514K D 3801(A,75 ,184 ) SCHOTTKY DIODE 11EQS10 D 3802(A,78 ,184 ) SCHOTTKY DIODE 11EQS10 D 3803(A,75 ,224 ) SCHOTTKY DIODE 11EQS10 D 3804(A,78 ,224 ) SCHOTTKY DIODE 11EQS10 D 3805(B,37 ,203 ) DIODE UDZS12(B) D 3806(B,37 ,210 ) DIODE UDZS12(B) D 3807(B,29 ,203 ) CHIP DIODE RB501V-40 D 3808(B,29 ,210 ) CHIP DIODE RB501V-40 D 3809(B,12 ,208 ) CHIP DIODE RB501V-40 J 3801(A,7 ,200 ) 6P CONNECTOR ASS'Y VKP2363 CN3801(A,90 ,210 ) CONNECTOR B3P-VH HEAT SINK VNH1073 C CUSION VEB1375 PCB BINDER VEF1040 SCREW PMH30P080FCC HEAT SINK VNH1074 RESISTORS R 3801(A,76 ,200 ) CARBON FILM RESISTOR RD1/4MUF4R7J R 3803(B,40 ,194 ) RS1/16S331J R 3804(B,40 ,218 ) RS1/16S331J R 3805(B,31 ,191 ) RS1/16S681J R 3806(B,30 ,220 ) RS1/16S681J CAPACITORS C 3801(A,74 ,209 ) AUDIO FILM CAPACITOR ACE7063 C 3802(A,81 ,214 ) AUDIO FILM CAPACITOR ACE7063 C 3803(A,63 ,189 ) VCH1254 C 3804(A,63 ,214 ) VCH1254 C 3805(A,42 ,199 ) ELECT. CAPACITOR VCH1247 C 3806(A,42 ,208 ) ELECT. CAPACITOR VCH1247 C 3807(A,33 ,198 ) VCH1257 C 3808(A,33 ,210 ) VCH1257 C 3809(B,20 ,206 ) CKSRYB104K16 C 3810(A,15 ,209 ) ELECT. CAPACITOR CEHAZA101M10 J PLED ASSY MISCELLANEOUS D 2351(A,313,30) LED(BLUE) SLR-343BBT(GHJ) J 2351(A,317,22) CONNECTOR ASS'Y PF02PG-B07 Mark No. Description Part No. RESISTORS R 2351(B,318,27) RS1/16S0R0J CAPACITORS C 2351(B,316,35) CKSRYB104K25 C 2352(A,319,36) ELECT. CAPACITOR CEHAZA220M16 K LOAB ASSY [VWG2426] SWITCHES and RELAYS S101 REAF SWITCH VSK1011 OTHERS CN601 KR CONNCTOR S5B-PH-K-S CN602 KR CONNCTOR S2B-PH-K-S PRINTED CIRCUT BOARD(LOAB) VNP1912 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 86 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 ADJUSTMENT ITEMS AND LOCATION 6.2 JIGS AND MEASURING INSTRUMENTS 1 1 2 2 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1174) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 87 5 6 7 8 5 6 7 8 C D F A B E 6.3 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ Ÿ Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point LOAB and DVDM ASSYS Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 88 1 2 3 4 1 2 3 4 C D F A B E 6.4 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE (Player) TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD CAUTION: Perform only trace, video and audio outputs are nothing. DVD disc POWER ON OFF POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 89 5 6 7 8 5 6 7 8 C D F A B E 6.5 MECHANISM ADJUSTMENT • Remove the Loading Mecha. Assy. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Loading Mecha. Assy (Float Base) with nippers. Cautions: Keep spacer for future use. (used only for 2003 models) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Loading Mecha. Assy 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.1.10 DISASSEMBLY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 90 1 2 3 4 1 2 3 4 C D F A B E Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.3 TEST MODE SCREEN DISPLAY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 91 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 ID NUMBER AND ID DATA SETTING Entering the ID Number and ID Data for Players with DVD-Audio and DVD-RW Compatibility To enter the input mode, press ESC + STEREO in a status with no ID number set, such as after FLASH-ROM downloading. • Downloading FLASH-ROM is finished. (The latest version must be downloaded when a repair is made.) • "No ID Number" is displayed on the screen or FL display immediately after the power is turned on or in Stop mode. • If "No ID DATA" is displayed, the ID data must be entered. Important: If no yellow label is found on the rear panel, write down the specified ID number by checking it according to "How to confirm the ID number" shown below. Note: Be sure to enter the ID number in Stop mode. Use the service remote control (GGF1381) for operations. Only opening/closing of the tray are performed from the player. Use Disc No. : GGV1174 It is necessary with a player with DVD-audio and DVD-RW compatibility to set an individual number (ID number) and ID data. If the number and data are not set correctly with the following procedure, operations in the future may not be guaranteed. You will find the ID number to be set on the yellow label on the rear panel. The Input is Necessary When: How to Input the ID Number and ID Data [Player's ID Number Setting] ID Number ? > - - - - - - - - - Exit Input ID Number ! 1 As number input is enabled when the unit enters the input mode, input the 9-digit ID number. (The entered number is also displayed on the FL display.) 2 2 [Player's ID Data Setting] Exit Insert The ID Data Disc ! When the ID number has been registered, the unit enters the ID data input mode. (The FL display indicates "NO ID DATA.") In this condition, place the ID data disc on the tray and close the tray using the CLOSE key "7/0" on the player. 4 4 [Player's ID Data Setting] Loading The ID Data Disc ! While the data are being read, the message shown in the figure at left is displayed on the screen. (The FL display indicates "RD ID DATA.") 5 5 [Player's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! After inputting the number, press SEARCH to register the ID number. 3 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 92 1 2 3 4 1 2 3 4 C D F A B E How to Confirm the ID Number How to Clear the ID Number [Player's ID Data Setting] Wait Rom Writing ! When the ID data have been read, the data are written to the FLASH-ROM. (The FL display indicates "WR ID DATA.") 6 6 [Player's ID Data Setting] Rom Write OK ! Exit When the ID data have been written to the FLASH-ROM, the message "Rom Write OK" is displayed on the screen. (The FL display indicates "ID DATA OK.") After confirming this message, press CLEAR to exit the input mode. 7 8 7 8 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > * * * * * * * * * Exit Input ID Number ! Press ESC + STEREO with an ID number set, and the unit enters the ID number confirmation mode. The set ID number is displayed on the screen (and on the FL display), permitting you to confirm it. To exit this mode, press CLEAR . 1 Press ESC + STEREO with an ID number set, and the unit enters the ID number confirmation mode. Input the same number as the ID number you have set. 1 2 2 3 2 3 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > * * * * * * * * * Exit Input ID Number ! 2 After inputting the number, press STOP . Only when the entered number matches the set ID number, the ID number is cleared and the unit exits this mode. If the numbers do not match, you must return to step 2. ( STOP is not accepted until 9 digits are entered.) 3 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > 0 0 0 0 0 0 0 0 1 OK ? Enter Memory Clear Input ID Number ! 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 93 5 6 7 8 5 6 7 8 C D F A B E 7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE Character in bold : Item name : Information display Laser diode current value Symptom • Indicates "No Disc" in FL display. • Player does not playback, etc.. This unit can confirm the laser diode current value (DVD: 650nm, CD: 780nm) of pickup on the Test Mode screen. (Press the ESC → TEST keys in order on the test mode remote control unit (GGF1381) to enter the test mode.) Note : When a DVD disc or a CD disc is played in the test mode, this function is effective. Procedure of Self-Diagnosis 1 Enter the Test mode. 2 When diagnosing the 650nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When diagnosing the 780nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When let it turn on once again after performed 2 once, After pressed REP.B key once 650nm: Press the → keys in order 780nm: Press the → keys in order 3 Confirm the indicated value of the laser diode current (LDI). (Refer to following figure.) 4 When indicated value is more than 140, pickup is defective. → Replacement is necessary Replace the Traverse Mechanism Assy or Pickup. TEST 1 TEST 1 TEST 4 TEST 4 It's effective in case of the following condition. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 94 1 2 3 4 1 2 3 4 C D F A B E 7.1.3 TEST MODE SCREEN DISPLAY Display Specification of the Test Mode Character in bold : Item name : Information display 1 5 6 10 21 22 23 24 11 8 9 3 2 12 17 18 19 16 13 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 4 Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗ ] 5 (1) Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] (2) Laser diode current value [LDI – ∗ ∗ ∗] 6 (1) Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] (2) AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] CD TOC area : [IN ] CD active area : [CD] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 (1) Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] (2) CD 1/3 beam switch [BM – ∗ ∗ ] - Jitter value [J – ∗ ∗ ∗ ∗] Make the jitter four times, and renew it in every 0.5 second. [J4 – ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RAM/RL/RD, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLSH = ∗] % Revision of the system controller [S: ∗ . ∗ / ∗ ∗ ∗ ] 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 95 5 6 7 8 5 6 7 8 C D F A B E ^ (1) Revision of the DVD mechanism controller [M: ∗ / ∗ ∗] (2) Part number of the GUI-ROM (OEM model) [GUI: ∗ ∗ ∗] (3) HOST conversion [HOST: ∗ ∗ ∗] * AGC setting [AGC – ∗ ∗ ∗ [∗] ] AGC on : [AGC-ON] AGC off : [AGC-OFF] [1] : RFAGC on [0] : RFAGC off ( FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. ) Error rate indication 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] _ Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 96 1 2 3 4 1 2 3 4 C D F A B E 7.1.4 SELF-DIAGNOSIS FUNCTION Display screen of mechanism error history and self diagnosis result 2 (a) (b) (c) (d) (e) (f) (g) (h) When enter the service mode, self diagnosis mode operates with the "ESC"+"CHP/TIM" keys automatically. 1 Mechanism Error History (past eight times of error is displayed) Two columns of the beginning display the error status for mechanism controller. (the details of error contents refer to "7.1.6 Error Display".) Eight columns of the back display the count UP value (turned count up every 20msec) from the power-up. Example) 32h ⋅=. 1 sec, BB8h ⋅=. 1 min, 2BF20h ⋅=. 1 hour In addition, when there was error after power-up immediately (till initial setting is completed), turn the most significant bit to ON. 2 Check Item Display of Self Diagnosis Function a) AV1 Host Bus check (possible the check only during stop) (Read & Write process of an internal specific register) AV_1 : OK : −− ⇒ not yet check : HOST BUS NG ⇒ HOST bus NG b) Bus check between AV1 SDRAM (possible the check only during stop) (Read & Write process to the SDRAM) AV_2 : OK : −− ⇒ not yet check : AV1-SDRAM BUS NG ⇒ Bus NG between AV1 and SDRAM c) DMA transfer port check from F.E. to AV1 (during stop, possible the check only in DVD or NO DISC) (writing from F.E to SDRAM and reading of SDRAM) AV_3 : OK : −− ⇒ not yet check : FE-AV1 DMA NG ⇒ Bus NG between F.E and SDRAM installed outside of AV1 d) Video encoder (ADV∗∗∗∗) check (Read of the specific register) VE : OK : NG ADV, ⇒ ADV register reading NG : NG > ADV, ⇒ ADV communication NG of FR to video encoder : NG > PRO ⇒ Communication NG from EBY to progressive decoder e) DSP check (Read of the specific register) DSP : OK : NG ⇒ DASP NG f) SACD check (Read of the specific register) SACD : OK : NG ⇒ SACD NG g) 1394 relation HOST controller check HOST : OK : NG ⇒ HOST controller NG h) 1394 relation Mercury CHIP check MERC : OK : NG ⇒ Mercury CHIP NG i) HOMI Transmitter IC check HDMI : OK : NG j) HDMI Resolution Conversion IC(T-rex) check TREX : OK : NG Display the mechanism error history and self diagnosis result by pressing the "CHP / TIM" key once again. Afterwards press the "CHP / TIM" key with toggle and change the display. (i) (j) 1 HDMI TREX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 97 5 6 7 8 5 6 7 8 C D F A B E 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE Indication contents 1 2 3 4 • FL indication of EDC / ID error (short cut function) Indicate it in FL with the "ESC"+"CX" keys (LD remote control unit). Indication is released with the "ESC" key during display. FL indication contents 0 0 / 0 0 / 0 1 ∗ Indicate number of the location that caused EDC and ID errors Retry number of times at having caused ID error (error is indicated only in the occurring moment) Retry number of times of the latest ID error in the ST system Retry number of times at having caused EDC error (error is indicated only in the occurring moment) Retry number of times of the latest EDC error in the ST system ∗ Mark: When even once causes AV1 error, lights. • Screen display of the service mode Indicate to the screen with the "ESC"+"CHP/TIM" keys. Release the indication with the "ESC" key. Indication contents 1 ID Address 2 DVD in playback: Error rate regular indication and exponent indication CD/VCD in playback indicates the number of correct frame of C1 error /5 seconds. 3 Self diagnosis indication Indicate the self diagnosis result whether the F.E is normal. Self Check : During FE checks Self Check OK : Abnormality is not found in F.E. Self Check Error : Abnormality is found in F.E. Indicate the mechanism error history and self diagnosis result by pressing the "CHP / TIM" key once again. Afterwards press the "CHP / TIM" key with toggle and change the display. Indication of the mechanism error history and self diagnosis result refer to "7.1.4 self diagnosis function". 4 Error information indication of the AV decoder (a) When a retry occurred in reading from the disc, a history indicates the occurrence location and the occurrence reason. History is indicated to past seven times. Eight columns of the beginning show the physical address which occurred of retry. As for four columns of next, bitmap indicates EDC status. LSB shows the first sector during a block and MSB shows a last sector. Following field indicates the retry number of times. One digit in front of " / " shows number of times of the retry by EDC Error which occurred in the same block in succession. One digit after " / " shows number of times of the retry by ID Check Error which occurred in the same block in succession. " * " of last one digit shows the EDC Check NG Count Over. " # " shows the ID Check NG Count Over. When " * " and " # " are not indicated, show that data were rightly readable by retry process. (b) Indicate the error information that detected with the Audio/Video Decoder. When error occurred, a history indicates the occurrence time and the occurrence reason. History is indicated to past seven times. Field in front of ":" indicates the error information of Audio/Video Decoder. (Indication information is different from Fujitsu Decoder with Mitsubishi Decoder) 02 model is 656 series and 757 series is Mitsubishi model. • Specification for the Audio/Video Decoder (M65773FP) model of Mitsubishi bit7: VLD Fatal Error detection bit6: VLD Not Fatal Error detection bit5: Number of Macro Block mismatch bit4: Decode error bit3: VLD Sequence Layer Fatal Error detection bit2: VLD Picture Layer Fatal Error detection bit1: VLD Slice Layer Fatal Error detection bit0: Start-up Sequence Time-out Error detection Following field in " : " indicates a value of STC (System Time Clock) which detected the above Audio/Video Decoder error. ∗ When often perform the switch of debug screen, an error history will be increased. As for this, CPU power is used for update of OSD drawing, symptoms occur so that control of VBR Buffer is not in time. (a) 4 (b) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 98 1 2 3 4 1 2 3 4 C D F A B E 7.1.6 ERROR DISPLAY FL Display Possible causes Operation of the unit AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with the specific audio. CPU AERR CPU address error (Hardware is unusual.) No operation DMA AERR DMA address error (Hardware is unusual.) No operation FLASH ID Difference in versions of the internal ROM of the system controller and of the flash ROM, or bus line failure or reverse installation No operation FLASH WRP Write protect error of the flash ROM No operation FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used was used.) No operation FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation (Hardware is unusual.) No operation FLASH SIZ Size error of the flash ROM (Use 4 or 8 M-bit.) No operation GUI ROM ERROR Difference in version of GUI ROM and system controller software. Operate as the OSD model ILLGAL The system controller fetched a code other than an operation code (Hardware is unusual.) No operation MECHA CPU Difference in version of the internal ROM of the mechanism controller and of the flash ROM. No operation RESERVE Undefined interrupt (Hardware is unusual.) No operation SLOT Inappropriate slot command issued (Hardware is unusual.) No operation FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 11 Search timeout Search could not be complete within 7 seconds. Search could not be complete within 7 seconds, and it could not enter the target area within 7 seconds by VCD scan. CD : Stops, DVD: Continues operation 12 Search retry error More beyond the target while the read-in search was converging. A search could not be completed after 3 retries while the unit was tracing 11 tracks. A search could not be completed after retry when timeout occurs at read-in. CD: Stops, DVD: Continues operation 19 Tracing timeout while converging Timeout (10.5 seconds) while tracing at the stage of convergence of a search. Stop 1B Index 0 search error During Track (Index) Search, the search for the beginning of a program could not be completed within 3 seconds (20 seconds in the case of Index Search) after positioning based on the TOC data was completed. Stop 1C Embossment plunge error (only a model corresponding to RW) Plunged into unreadable embossment of DVD-RW player. 1. In wobble nothing (error distinction) : search to address 2E400h 2. In wobble existence: Tray open 22 Timeout of slider inner circumference Inside switch could not ON within 3 seconds. Stop 23 Timeout of slider outer circumference Inside switch could not OFF within the following times: at ATB: 2 seconds, at Backup: 2 or 2.02 seconds. Stop 33 No FOK pulse during playback When the focus was deviated continuously 20 times. Adjusts focus at the innermost circumference and tries to return to its position where the error was generated (for 3 times),then opens. If the same error persists after one retry, the tray opens. (No FOK pulse) 38 Disc-type- sensing error Were not able to playback from the disc distinction process. PLAY or STOP was not completed by backup operation of the disc distinction. Distinguished it from the blank disc in the ATB process completion. Open Error codes that are displayed on the FL display without using the remote control unit Error codes that are displayed on the FL display by using the remote control unit (Mechanism controller error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the FL display To display the error history: ESC + DISPLAY + One shot; Location of the display: TV screen www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 99 5 6 7 8 5 6 7 8 C D F A B E FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 39 SGC converge timeout SGC could not converge during detects the peak Open 41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command. Disc distinction is not completed even if passes for 10 seconds after the spindle turned. Stop 48 Spindle FG transition timeout Did not reach to the rotating speed that ATB was possible for less than 10 seconds. Did not reach aim CAV lock speed (high: 10%, low: 50%) for less than 10 seconds. CAV process passed more than 5 seconds or abnormal speed was detected. Spindle does not lock for less than 3 seconds in the BCA read start or end. Stops. (FG timeout) 49 Spindle PLL transition timeout CAV process passed more than 5 seconds. Abnormal speed was detected. Stops. ("73" is displayed during starting process.) 4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB. Stops. ("73" is displayed during starting process.) 51 Auto sequence timeout of peak detection ABUSY did not return within 1 second after the DDTCT (peak detection) command was sent. Stop 52 Auto sequence timeout of focus jump down ABUSY did not return within 30 mS after the FJMPD (Focus jump 1 to 0) command was sent. Open 53 Auto sequence timeout of focus jump up ABUSY did not return within 30 mS after the FJMPU (Focus jump 0 to 1) command was sent. Open 54 Auto sequence timeout of play AGC ABUSY did not return within 50 mS after the GSUMON (play-AGC-measuring) command was sent. Stop 55 Auto sequence timeout of disc-type- sensing ABUSY did not return within 2 seconds after the DJSRT (disc-sensing) command was sent. Stop 56 Auto sequence timeout of ATB2 ABUSY did not return within 1 second after the TBLOFS (Internal ATB after the completion of external ATB) command was sent. Stop 57 Auto sequence timeout of tracking servo ON ABUSY did not return within 0.5 sec. after the TSON (tracking servo ON) command was sent. Stop 58 Auto sequence timeout of ATB1 ABUSY did not return within 0.2 sec. after the TBL (external ATB) command was sent. Stop 59 Auto sequence timeout of focus gain adjustment ABUSY did not return within 2 seconds after the FGN (focus gain adjustment) command was sent. Stop 5A Auto sequence timeout of tracking gain adjustment ABUSY did not return within 2 seconds after TGN (tracking gain adjustment) command was sent. Stop 5B Auto sequence timeout of offset adjustment ABUSY did not return within 1 second after the AVE (offset adjustment) command was sent. Stop 5C Auto sequence timeout of modulation factor measurement ABUSY did not return within 200 mS after the ADJMIR (modulation factor measurement) command was sent. Stop 5D Auto sequence timeout of auto focus bias ABUSY did not return within 2 seconds after the AFB (auto focus bias) command was sent. Stop 5F Auto sequence already busy A command could not be sent because ABUSY was low. ABUSY did not return within 200 mS after TLV command was sent. Stop 62 Pause retry error Pause mode could not be restored within three retries after it had been released. Continues operation 71 ID reading check during playback An ID could not be read for 1 second or more. Stop 72 Subcode check failure during playback No frame could be read for 3 seconds or more. Stop 73 ID can not read during startup An ID could not be read within 1 second after the AFB tracking on. Opens (ID readout failure) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 100 1 2 3 4 1 2 3 4 C D F A B E FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 74 Subcode check failure during startup Subcode could not be read within 1 second after the tracking on. Opens (Subcode readout failure). A1 Communication timeout of DSP command A command could not be issued to DSP because Command Busy (XCBUSY) was in force (XCBUSY = L) for a specified time (about 200 µS). Open A2 Communication timeout for reading DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 200 µS) before and after a coefficient read command was issued to DSP, or the address echo-back after command issuance did not match the setup address. Open A4 Communication timeout for continuously writing DSP coefficient Command Busy (XCBUSY) was in force for 200 µS during continuous coefficient writing, or before and after a continuous write command was issued to DSP. Open B1 Timeout error for backup In the backup sequence, codes could not be read for fixed time. Stops B2 Retry error for backup Cannot close tracking even if performs backup fixed number of times. Stops B3 Retry error for trace During tracing, do not restore after the runaway detection backup was performed several times. Stops C3 Detection of tracking overcurrent During playback, the overcurrent detection port was at L for 300 ms or more continuously. Stops (the mechanical controller operates independently). (C5) Short-circuit test corresponding error After the overcurrent detection (C3 error), furthermore the overcurrent detection port was at L for 300 mS or more continuously. Turns off the power instantly (No indication on the FL display and no writing to flash memory) F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other than Open by an external force. Closes F6 Code reading NG (PH code nothing) When Philips code is not readable during LD starting, and a code was not readable after the slider moved to FWD and REV directions slowly each for five seconds. (PRD) In the CD starting, when a subcode of TOC part was not readable, but the subcode of the program area was readable. Search, scan and special playback prohibition, Playback as playback CD-R (PRD mode) as it is. F8 Loading timeout Loading or unloading could not be completed within a specified time (about 10 seconds). Though a portable cover is opening, when a close command was issued from the system controller. Reverses the loading direction. It timeout is repeated upon retry, the unit stops. FC Focus • Focus ON sequence could not be completed more than two seconds. • Auto sequence command was finished, actually focus ON was not completed. • Focus did not enter even if retried it eight times. Stops wherever possible then opens (stops in the case of side B). FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit bit4=1 10 etc. Mechanism controller RAM check sum error No operation or it becomes debugging indication if the power is able to ON. bit3=1 08 etc. AV1 access error (read, write NG) bit2=1 04 etc. LSI11 access error bit0=1 01 etc. SRAM access error Error codes that are displayed on the FL display by using the remote control unit (Device error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of left of the FL display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 101 5 6 7 8 5 6 7 8 C D F A B E 7.1.7 TROUBLE SHOOTING START Is FL turn on ? Is tray open ? Is the indication of FL normal ? Power ON Yes Yes Yes No No No Turn on the power again after 2 - 3 minutes. • Blow out micro-fuse on the POWER SUPPLY Unit. (P202 and P301) FL indication is dark or flickers. Indicates the error message Refer to the section "7.1.6 ERROR DISPLAY". • Tact-switches are damaged. (incase of only a key NG) FLKY IC101-pin 22 is it around +1.2V when you pushed a POWER key? • Wireless remote controller receiver or IR signal line or SEL IR signal line is damaged. (incase of only a key of wireless remote controller NG) Does FLKB IC101-pin 17 (SEL IR) and IR and SEL IR signal lines change 0V–3.3V when you pushed a wireless remote controller key? • Blow out fuse of the primary side • As for P-CONT of POWER SUPPLY Unit is around 3.3V. Blow out micro-fuse on the POWER SUPPLY Unit. (Check the each voltage.) P202, P301 of POWER SUPPLY Unit is damaged. • FL controller IC (IC101) or RESET IC (IC102) on the FLKY Assy is damaged. Are IC101-pin 12 (RESET OUT) and pin 11 (POWER ON) "H" level together? • Check the following connections : POWER SUPPLY Unit - DVDM Assy DVDM Assy - AJKB Assy DVDM Assy - VJKB Assy DVDM Assy - FLKY Assy • Check each voltage regulators of DVDM Assy : IC401-pin 3 (+3.3V), IC402-pin 1 (+5V), IC403-pin 3 (+2.5V), IC404-pin 4 (+3V), IC405-pin 4 (+5V), IC410-pin 1 (+1.8V), IC411-pin 3 (+2.5V) • Check each voltage (EV+6V, EV+4V, SW+3.3V, +12V, -28V, FLDC+ and FLDC-) (If above voltage are not supplied, check the micro-fuse P101, P201, P202, P301.) Are not there short and open-circuit between output connector of POWER SUPPLY Unit and CN401 of DVDM Assy? • R410 of POWER SUPPLY Unit is damaged. No -28V voltage appear. • Short or open the zenner diode on the POWER SUPPLY Unit. (D505) • Check the address bus and data bus of signal interface between FR CPU (IC601)–AV1 (IC751), Eby-Chip (IC701) and Servo DSP (IC201). • Check each voltage regulators of DVDM Assy : IC401 (+3.3V) and IC403 (+2.5V) Clock generator IC481 or crystal resonator X481 is damaged. Check waveform of each pin whether IC481 does oscillation. • Check the following connections : DVDM Assy (CN103)- LOAB Assy (5P connector assy) DVDM Assy CN105-pin 12 (INSIDE SW signal) • Check the loading drive signal : IC351-pin 14, 15, 16 • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 102 1 2 3 4 1 2 3 4 C D F A B E Do the video and sound come on? or beeing damaged? (noisy) Yes No Refer to the section "7.1.6 ERROR DISPLAY". Indicate the error message. Carriage does not move. (Stepping positioning) Yes Yes • Laser diode does not light. • Focus does not in. Yes No No Spindle does not turn. No OK • Check the following connections and drive IC : DVDM Assy CN104 (4P flexible cable) Check the Stepping motor signals, IC351-pin 31, 32, 34, 35 and IC601-pin 47, 48. • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) • Check the following connections and drive IC : DVDM Assy CN105 (12P flexible cable) Check the Spindle motor signals and IC251-each pins. • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) • Check the following connections : DVDM Assy - VJKB Assy DVDM Assy - AJKB Assy • Check voltage regulator of VJKB Assy IC701-pin 1 (+5V) for Video circuit, Check voltage and transistors requlator of PS Assy Q3801(+12V), Q3802(-12V), IC3803(+5V)for audio civcnit . If the voltage is off, check micro fuse of PS Assy IC3801, IC3802. • Check the interface of 16M SDRAM (IC741) for Eby-chip (IC701) and 64M SDRAM (IC781) for AV1 (IC751). • Check digital data of video and audio signals (audio signals: 3 line data, video signals: 8bit data) shown to each schematic diagram and an analog signal line. In addition, check CLK. audio system: 22/24MHz, video system: 27MHz • Check the following connection, IC351, IC101, IC201 : DVDM Assy CN101 - Pickup Assy (24P flexible cable) IC351-pin 9, 10, IC101-pin41 and IC201-pin 32, 47 for Focus Drive • Check the +6V and +12V power supply voltage and SW+5V (If +6V voltage is not supplied, check the micro-fuse P101 and P102.) • Check it whether the pickup is defectiveness. Perform the section "7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE" and check the LD current value. C101 (for DVD LD) and C103 (for CD LD) of DVDM are missing. • Regarding DVD LD (650nm) : Check each signals of CN101-pin 17 (PD), pin 18 (LD Drive), IC101-pin 17 and Q101 Regarding CD LD (780nm) : Check each signals of CN101-pin 17 (PD), pin 16 (LD Drive), IC101-pin 17 and Q102 PD: Power Diode (signal output) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 103 5 6 7 8 5 6 7 8 C D F A B E 7.1.8 FAILURE-TEST METHOD FOR THE HDMI TRANSMITTER IC • When replacing the DVDM Assy, see "7.1.10 DISASSEMBLY" In a case where the HDMI video signal is not output 1 In a case where the HDMI audio signal is not output 2 Is the Pure Audio function turned ON? (During Pure Audio mode, neither the HDMI signal nor the analog video signal is output.) Is the analog video signal output? Turn the Pure Audio function OFF. No Yes No OK NG Yes Are the audio signals properly output from the optical outputs and coaxial outputs (S/PDIF)? Yes No Probe R1058 (S/PDIF) and R1057 (22-/24-MHz clock) with an oscilloscope, and check if correct signals are output. The HDMI transmitter IC (audio processing block) may be in failure. No The lines from R1058 (S/PDIF) and R1057 (22-/24-MHz clock) are in failure. (The optical-output and coaxial-output lines are OK.) Check if the HOME MENU or VCD playback picture is displayed when this unit is connected to a PC monitor equipped with a DVI input. Purpose: To check if the HDMI output line, including the terminal, is in failure. (An HDMI↔DVI conversion cable is required for checking.) Failure test for the T-REX (IC1001: DVDM Assy) Probe R1013-R1018 (22 ohms × 4, 6 sets), and R1009 (27-MHz clock) with an oscilloscope, and check if the amplitude of each signal changes between H (3.3 V) and L during VCD playback and if the 27-MHz clock is output correctly. NG No The T-REX or the line between the T-REX and the HDMI transmitter IC may be in failure (replacement of the T-REX, failure in any of the above resistors, defective soldering, signal short-circuiting, or broken wires, etc.) Turn the Pure Audio function OFF. Is the Pure Audio function turned ON? (During Pure Audio mode, the HDMI audio signal is not output.) Yes Yes Is this unit connected to DVI equipment? (Only a video signal is available with DVI equipment.) Replace the DVDM Assy. Check if the initialization process for HDCP, etc. is OK by connecting this unit with a Pioneer Plasma Display equipped with an HDMI input. Yes OK Replace the DVDM Assy. Replace the DVDM Assy. IC901 (DVDM Assy) and its peripheral circuits may be in failure. No The HDMI transmitter IC (HDCP process block) may be in failure. The HDMI transmitter IC or the line between the IC and the output terminal may be in failure. The customer's monitor may not be compatible with this unit. Confirm the name of manufacturer and model of the monitor, and get a specific description of the failure. Then look for an identical case in a collection of past cases, or consult the design section. In some cases, upgrading the software or firmware for both the DVD player and the monitor will solve the problem. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 104 1 2 3 4 1 2 3 4 C D F A B E 7.1.9 SERIAL-DOWNLOAD [Note] Note on download connectors of the DV-989AVi-S Separate download connectors are provided on the unit for the system controller and host controller. Be sure to connect to the PC via the appropriate connector. 1 Connect the 232C I/F jigs above way. 2 Turn on the PC and execute the UFU.exe file. 3 Select the Firmware. ("sz0" file) 4 Turn on the DVD player and start the downloading. The message "Target has been connected/started." will be displayed. 5 Select the Communication Speed (Baud Rate) a) Base Speed 19,200 b) Data Send Speed 115,200 6 START • Downloading may fail because of a communication error. In such a case, click on "START" again. • If downloading fails three times or more, there may be other cause. • It takes about 5 minutes to download the firmware. SERIAL DOWNLOAD [Procedures] [Connection] Connect as indicated in the figure below: [Tools to be used] [Purposes] 1. To upgrade the system controller and / or host controller. 2. This method is used when disc downloading fails. PC This unit RS-232C I/F RS-232C cable 7P FFC 5 4 6 • PC with a serial port • RS-232C straight cable • RS-232C I/F Special device (GGF1348) • 7P FFC (VDA1681) • Program for downloading (UFU.exe) • Firmware This unit For host controller For system controller www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 105 5 6 7 8 5 6 7 8 C D F A B E 7.1.10 DISASSEMBLY Gear Pulley 05 LOADER Assy Mechanism Cover Loadig Base 1 Remove the bonnet by removing the fifteen screws. 2 Press the � POWER button to turn on the power. 3 Press the 0 OPEN/CLOSE button to open the tray. 4 Remove the tray panel. 5 Press the 0 OPEN/CLOSE button to close the tray. 6 Press the � POWER button to turn off the power. Bonnet and Tray Panel 1 Diagnosis of the PCBs 1 Remove the six screws. 2 Remove the three screws. 3 Disconnect the one connector and one flexible cables. 4 Remove the three hooks. 5 Remove the front panel section. Front Panel Section 2 2 6 3 3 5 5 4 1 4 Tray panel Tray 1 1 1 2 2 2 1 1 4 4 Bottom view Front panel section 3 CN402 5 Note 1 : Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. Note 2 : For performing the diagnosis shown below, the following jigs for service are required: • 17P flexible cable for service (GGF1157) • Extension board (GGF1430) CN2301 3 How to open the tray when the power cannot be on. Tray open Gear Pulley LOADER Assy Mechanism Cover Loading Base Turn the gear pulley clockwise as indicated. In the photo when the tray opens a little, pull out by hand. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 106 1 2 3 4 1 2 3 4 C D F A B E 1 Remove the two screws. 2 Release the jumper wire from the two clamper. 3 Remove the BEAM. BEAM BEAM 989 3 1 Remove the six screws. 2 Remove the three screws. AJKB Assy 4 1 2 2 2 2 1 AJKB Assy 2 3 1 1 1 1 ×2 ×2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 107 5 6 7 8 5 6 7 8 C D F A B E 3 Remove the AJKB Assy and stand it against the other parts. 4 Insert the insulation sheet. 5 Re-attatch the front panel section. 7 Disconnect the one connector and one flexible cables. 6 Connect the rear-panel to outer of pinjack by wire. (GND plate) 8 Remove the AJKB Assy. 9 Remove the front panel section. Diagnosis AJKB Assy Insulation sheet CN551 CN3351 Front panel section PCB holder 3 4 6 7 6 8 5 9 1 Remove the one screw. 2 Remove the three screws. 3 Remove the PCB holder. PCB Holder 5 1 2 2 3 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 108 1 2 3 4 1 2 3 4 C D F A B E 1 Remove the four screws. 2 Remove the four screws. 3 Connect the 17P flexible cable and the extension board. 4 Remove the DVDM Assy and stand it against the other parts. DVDM Assy 6 DVDM Assy DVDM Assy Front panel section 1 1 1 2 2 2 2 4 ×2 Diagnosis CN551 Extension board (GGF1430) 3 17P flexible cable (GGF1157) 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 109 5 6 7 8 5 6 7 8 C D F A B E LOADER MECHA. Assy 7 Rear view 1 C D 1 Short-circuit two points of C and D by soldering. 2 Disconnect the one connector and three flexible cables. 3 Release the jumper wire from the three clampers. 4 Remove the four screws. 5 Remove the four screws. 6 Remove the LOADING MECHA. Assy. 7 Remove the four screws. 8 Remove the two screws. 9 Remove the Mechanism Cover. LOADER MECHA. Assy Mechanism Cover Note: After replacement, connect the flexible cable, then remove the soldered joint (open). 2 2 2 2 3 3 3 6 4 4 4 5 5 5 5 4 9 7 7 LOADER MECHA. Assy 7 8 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 110 1 2 3 4 1 2 3 4 C D F A B E 1 Remove the bridge. 2 Pull out the tray, then remove it by pressing the hook. Bridge and Tray 1 Front side 1 2 -1 2 -2 Loading base Triangle Drive cam Pin Hook Bridge Tray Note when reinserting the tray Removing the Traverse Mecha. Assy-S and Pickup Assy-S When reinserting the tray, first align the triangle printed on the loading base and the pin of the drive cam, then insert the tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 111 5 6 7 8 5 6 7 8 C D F A B E 1 Dislodge the flexible cables from their factory placement. 2 Remove the four hooks. 3 Remove the Traverse Mecha. Assy-S. Traverse Mecha. Assy-S 2 × 2 Bottom view Traverse Mecha. Assy-S Flexible cable for the pickup Flexible cable for the spindle motor 1 1 1 2 3 Flexible cable for the stepping motor Front side × 2 2 Cleaning paper GED-008 Cleaning liquid GEM1004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 112 1 2 3 4 1 2 3 4 C D F A B E 1 Dislodge the flexible cable for the pickup from its packaged placement. 2 Remove the flexible cable for the pickup. 3 Remove the two adjustment screws and two adjustment springs. 4 Remove the Pickup Assy-S. Pickup Assy-S 3 Note: The Pickup Assy-S can be removed without removing the Traverse Mecha. Assy-S. (shown as Step ø.) Bottom view Flexible cable for the pickup 1 4 3 3 1 2 Front side Pickup Assy-S Adjustment screw (Skew screw) Adjustment screw (Skew screw) Adjustment spring (Skew spring) Adjustment spring (Skew spring) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 113 5 6 7 8 5 6 7 8 C D F A B E 5 5 5 Remove the two screws. Silicone adhesive GEM1037 Silicone adhesive GEM1037 Pickup Assy-S Note: The screws are secured with the silicone adhesive. Make sure to apply the silicone adhesive after reattaching the screws. Leaf spring Joint spring Joint 03 : Conductive surface Hook Hook Arrangement of the flexible cable for the spindle motor : Conductive surface Arrangement of the flexible cable for the stepping motor Front side Front side Bottom view Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 114 1 2 3 4 1 2 3 4 C D F A B E Front side Note: Be sure to move the Pickup Assy-S to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 2 1 3 7 Attach the flexible cable of the pickup to the connector. 1 Fold the flexible cable inward at the position of the reference line. 3 Fold the flexible cable of the pickup with the backing inward. 7 Pass the flexible cable below the hook, and fold it back. 8 Fold the flexible cable back at the hook. 4 Pass the flexible cable through the hook not allowing any slack. 6 Hook the part folded in Step 1 to the hook. 5 Fold the flexible cable as indicated in the photo. Hook Bottom view 5 6 Make sure there is no slack in the cable Reference line Reference line Backing 97mm ± 2mm Reference line Hook Pass the cable below the hook Hook 8 Hook Make sure that the cable does not have any slack Make sure that the cable is loose 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 115 5 6 7 8 5 6 7 8 C D F A B E 8. PANEL FACILITIES Front panel 1 POWER switch Press to switch the player on (the power indicator lights blue when the power is on) or off. (The player can be put into standby using the remote control.) 2 STANDBY indicator Lights when in standby. 3 SACD SETUP button Press to select which part of an SACD disc you want to listen to – stereo audio (2ch Area), multi-channel audio (Multi-ch Area) and, for hybrid SACDs, standard CD audio (CD Area). 4 PROGRESSIVE button/indicator Press to switch the component video output mode between progressive and interlace. The indicator lights in progressive scan mode. • This player is compatible with both PAL and NTSC progressive scan formats. However, your TV must also be progressive scan compatible to take advantage of this feature. 5 PURE AUDIO button/indicator When the player is stopped, press to switch off/on the front panel display and disable the video and digital outputs*. Use this when you want to hear audio from the analog outputs with no interference from other signals (when listening to a DVD-Audio disc, for example). The indicator lights when the Pure Audio feature is switched on. * These include i.LINK, HDMI, and the coaxial and optical digital outputs. 6 Remote control sensor The remote control has a range of up to about 7m. 7 Display 8 HDMI indicator Lights when this player is recognized by another HDMl or DVI/HDCP compatible component. 9 i.LINK indicator Lights when this player is recognized by another i.LINK compatible component. 10 OPEN/CLOSE Press to open or close the disc tray (when in standby, this button will also switch the power on). 11 (reverse scan/skip) • Press and hold for fast reverse scanning • Press to jump back to the beginning of the current chapter or track, then to previous chapters/tracks 12 (forward scan/skip) • Press and hold for fast forward scanning • Press to jump to the next chapter or track 13 (stop) Press to stop the disc (you can resume playback by pressing (play)). 14 (pause) Press to pause playback. Press again to restart. 15 (play) Press to start or resume playback (when in standby, this button will also switch the power on). 16 Disc tray 17 This mark indicates compatibility with DVD- RW discs recorded on a DVD recorder in Video Recording mode. 11 10 9 8 3 2 1 5 4 7 6 12 1314 15 16 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 116 1 2 3 4 1 2 3 4 C D F A B E Rear panel When connecting this player up to your TV, AV receiver or other components, make sure that all components are switched off and unplugged. 1 AUDIO OUT (2ch) Two channel analog audio outputs for connection to your TV, AV receiver or stereo system. 2 AUDIO OUT (5.1ch) Multichannel analog audio outputs for connection to an AV receiver with multi-channel inputs. 3 DIGITAL AUDIO OUT – OPTICAL / COAXIAL Digital audio outputs for connection to a PCM, Dolby Digital, DTS and/or MPEG-compatible AV receiver. 4 AC IN Connect the supplied power cord here, then plug into a power outlet. 5 (AUDIO) – i.LINK connectors 4-pin, S400 i.LINK connectors for connection to i.LINK-equipped receivers and other components. Each i.LINK connector acts simultaneously as both input and output. 6 HDMI OUT HDMI output providing a high quality inter-face for digital audio and video. 7 CONTROL IN / OUT For passing remote control signals to other Pioneer components. 8 VIDEO OUT (1&2) Standard video output(s) that you can connect to your TV or AV receiver using the supplied audio/video cable. 9 S-VIDEO OUT (1&2) S-Video output(s) that you can use instead of the VIDEO OUT jacks. 10 COMPONENT VIDEO OUT High quality video output for connection to a TV, monitor or AV receiver that has compo-nent video inputs. Connect using a commercially available three-way component video cable. Be careful to match the colors of the jacks and cables for correct connection. 11 D1/D2 VIDEO OUT (Except Australian model) 12 AV CONNECTORAV CONNECTOR 1 (RGB)-TV/AV Receiver Use a 21-pin SCART cable to connect to a TV or monitor compatible with this type of connection. Both audio (2 channel stereo) and video (Video, S-video, and RGB) signals are output from the AV CONNECTOR 1 (RGB)-TV . AV CONNECTOR 2Use a 21-pin SCART cable to connect to a VCR . 5 AC IN Connect the supplied power cord here, then plug into a power outlet. Refer to the illustration below when doing so to make sure the neutral and live blades are lined up properly. AUDIO OUT (2ch) AUDIO OUT (5.1ch) CONTROL OPTICAL COAXIAL IN R L L R CENTER SUB WOOFER SURROUND FRONT S-VIDEO OUT VIDEO OUT COMPONENT VIDEO OUT PB PR Y 2 1 2 1 (AUDIO) S400 DIGITAL AUDIO OUT HDMI OUT OUT AC IN D1/D2 VIDEO OUT 1 2 3 4 10 11 9 7 8 5 6 Rear panel AV CONNECTOR 1 (RGB)-TV/AV Receiver AV CONNECTOR 2 OPTICAL COAXIAL R L R L SUB WOOFER AUDIO OUT (2ch) CENTER SURROUND FRONT AUDIO OUT (5.1ch) DIGITAL AUDIO OUT (AUDIO) HDMI OUT S400 2 1 2 1 VIDEO OUT S-VIDEO OUT COMPONENT VIDEO OUT CONTROL IN OUT PB PR Y AC IN 1 2 3 12 5 10 9 7 8 5 6 LIVE L : Live AC IN N L Power cord • WYXJ,YXJRE Only • HLXJ,WPWXJ Only NEUTRAL N : Neutral www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 117 5 6 7 8 5 6 7 8 C D F A B E Display 1 5.1CH Lights when analog 5.1 channel output is selected. 2 V-PART Lights when playing a video part of a DVD disc. 3 PRGSVE Lights when the video output is progressive scan. 4 Lights during multi-angle scenes on a DVD disc. 5 GUI (Graphical User Interface) Lights when a menu is displayed on-screen. 6 GRP Indicates that the character display is showing a DVD-Audio group number. 7 TITLE Indicates that the character display is showing a DVD-Video title number. 8 Lights when V/TruSurround is active. 9 TRK Indicates that the character display is showing a track number. 10 CHP Indicates that the character display is showing a DVD chapter number. 11 REMAIN Lights when the character display is showing the time or number of tracks/titles/chapters remaining. 12 Character display 13 Lights when a disc is paused. 14 Lights when a disc is playing. 15 D Lights when a Dolby Digital soundtrack is playing. 16 DTS Lights when a DTS soundtrack is playing. 1 15 16 12 14 13 3 5 7 6 8 9 10 11 2 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 118 1 2 3 4 1 2 3 4 C D F A B E Remote control Press the button on the right side of the remote to illuminate buttons 6 to 9 and 20 to 22. 1 STANDBY/ON Press to switch the player on or into standby. 2 DISPLAY Press to display information about the disc playing. 3 AUDIO Press to select the audio channel or language . 4 HOME MENU Press to display (or exit) the on-screen display. 5 ENTER & Joystick Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 6 (RETURN) Press to return to a previous menu screen. 7 V.ADJ (VIDEO ADJUST) Press to display the Video Adjust menu. 8 Press to stop the disc (you can resume playback by pressing (play)). 9 Press to start or resume playback. 10 Press to jump to the start of the previous / next chapter / track. 11 PLAY MODE Press to display the Play Mode menu (You can also get to the Play Mode menu by pressing HOME MENU and selecting Play Mode). 12 Number buttons 13 MENU Press to display a DVD disc menu, or the Disc Navigator if a DVD-RW, CD, Video CD/Super VCD or MP3 disc is loaded. 14 OPEN/CLOSE Press to open or close the disc tray. 15 ANGLE Press to change the camera angle during DVD multi-angle scene playback. 16 SUBTITLE Press to select a subtitle display. 17 TOP MENU Press to display the top menu of a DVD disc. 18 MULTI dial Use for scanning and slow motion control. 19 Jog indicator Lights when multi dial is in jog mode. 20 JOG (JOG MODE) Press to put switch jog mode on/off. When on, use the MULTI dial to advance or reverse frames. 21 FL (DIMMER) Press to change the display brightness. 22 Press to pause playback; press again to restart. 23 and / and Use for reverse / forward slow motion playback, frame reverse / advance and reverse / forward scanning. 24 SURROUND Press to activate/switch off V/TruSurround. 25 CLEAR Press to clear a numeric entry. 26 ENTER Press to select an option or execute a command. / / HOME MENU DISPLAY AUDIO SUBTITLE ANGLE TOP MENU OPEN / CLOSE MENU – MULTI SPEED + ENTER VIDEO ADJUST DIMMER JOG MODE RETURN V.ADJ FL JOG PLAY MODESURROUND 0 9 8 7 6 5 4 C 3 2 1 CLEAR E ENTER 1 14 15 16 17 18 20 21 22 25 26 23 2 4 5 6 7 8 10 12 13 3 9 19 11 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 119 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-989AVi-S 120 1 2 3 4 1 2 3 4 C D F A B E 7 Jigs list Service Remote Control Unit GGF1381 DVD Data Disc GGV1174 diagnosis Name Jig No. Remarks diagnosis (ID data setting) 17P Flexible Cable GGF1157 Extension Board GGF1430 Diagnosis of DVDM Assy Diagnosis of DVDM Assy DVD Test Disc (DVD-Video) GGV1025 Check of DVD-Video DVD Test Disc (DVD-Audio) GGV1070 Check of DVD-Audio Lubricants and Glues list Cleaning Dyefree GEM1036 (ME-913A) Refer to "2.4 LOADER MECHA SECTION" Grease GYA1001 (PN-397) Refer to "2.4 LOADER MECHA SECTION" Grease GEM1018 (G-478B) Refer to "2.4 LOADER MECHA SECTION" Sillicone Adhesive GEM1037 Refer to "2.5 TRAVERSE MECHA SECTION" Screw Tight GYL1001 Refer to "2.5 TRAVERSE MECHA SECTION" Name Lubricants and Glues No. Remark Name Lubricants and Glues No. Remark • Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Pickup leneses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Refer to "2.5 TRAVERSE MECHA SECTION" , "7.1.10 DISASSEMBLY SECTION". Position to be cleaned Cleaning tools Remark Position to be cleaned Cleaning tools Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
