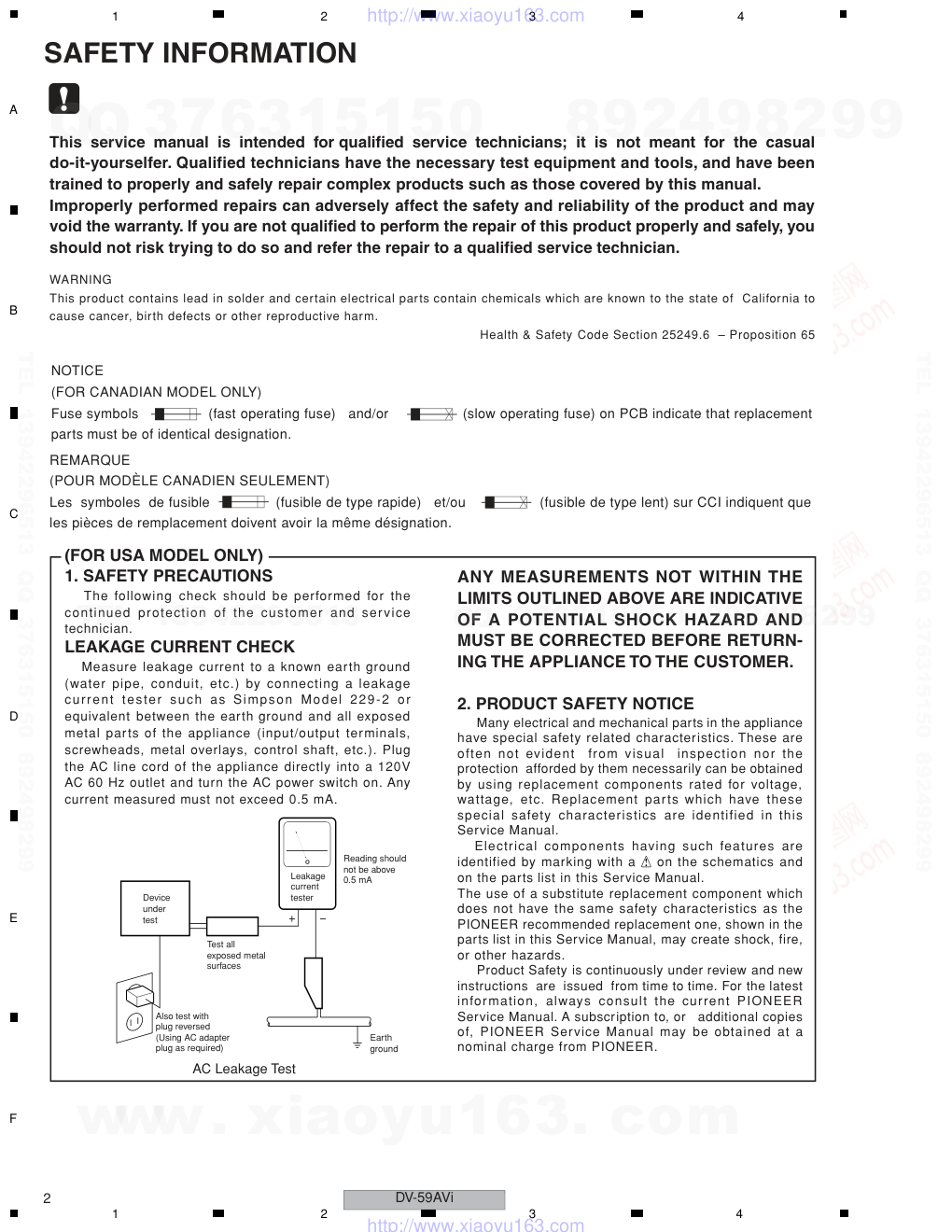

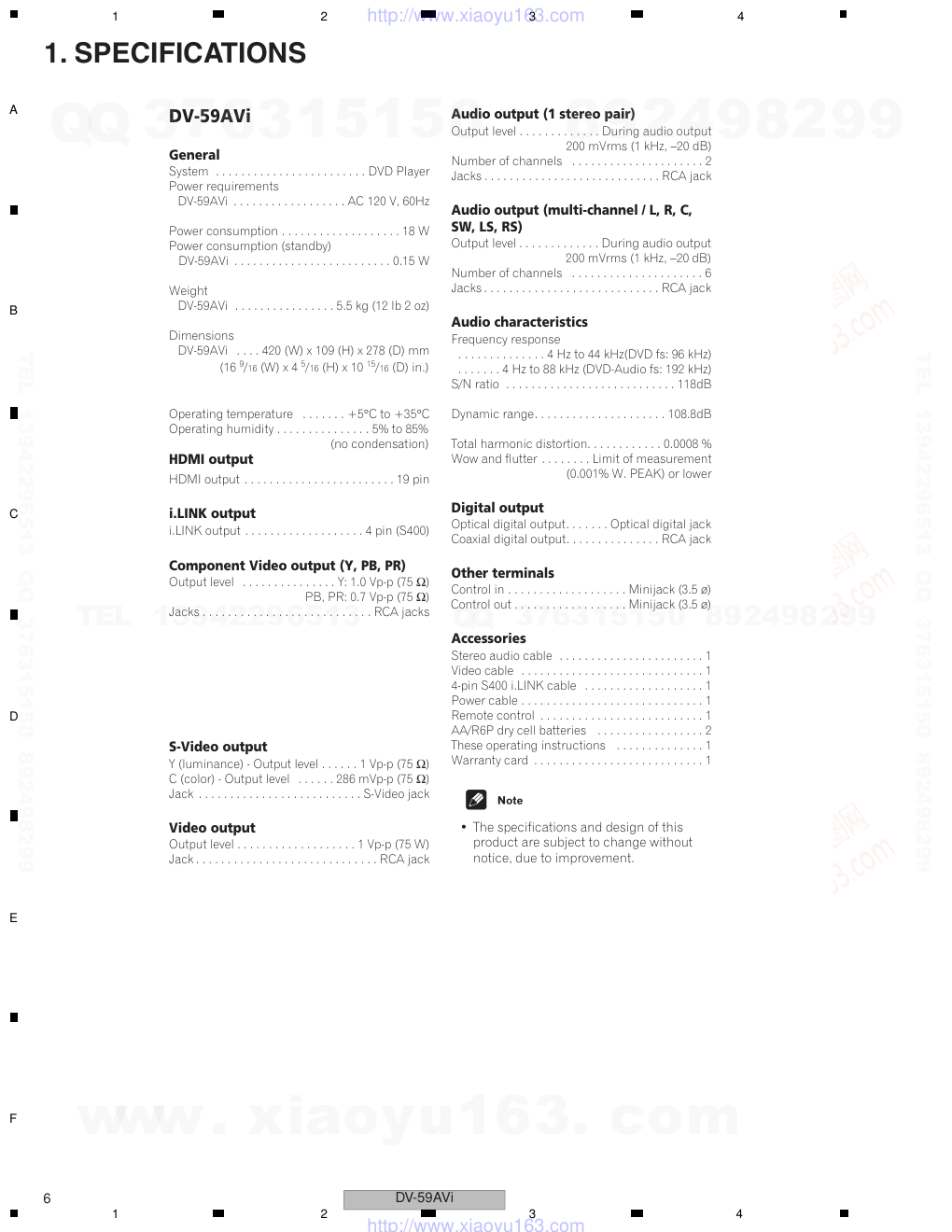

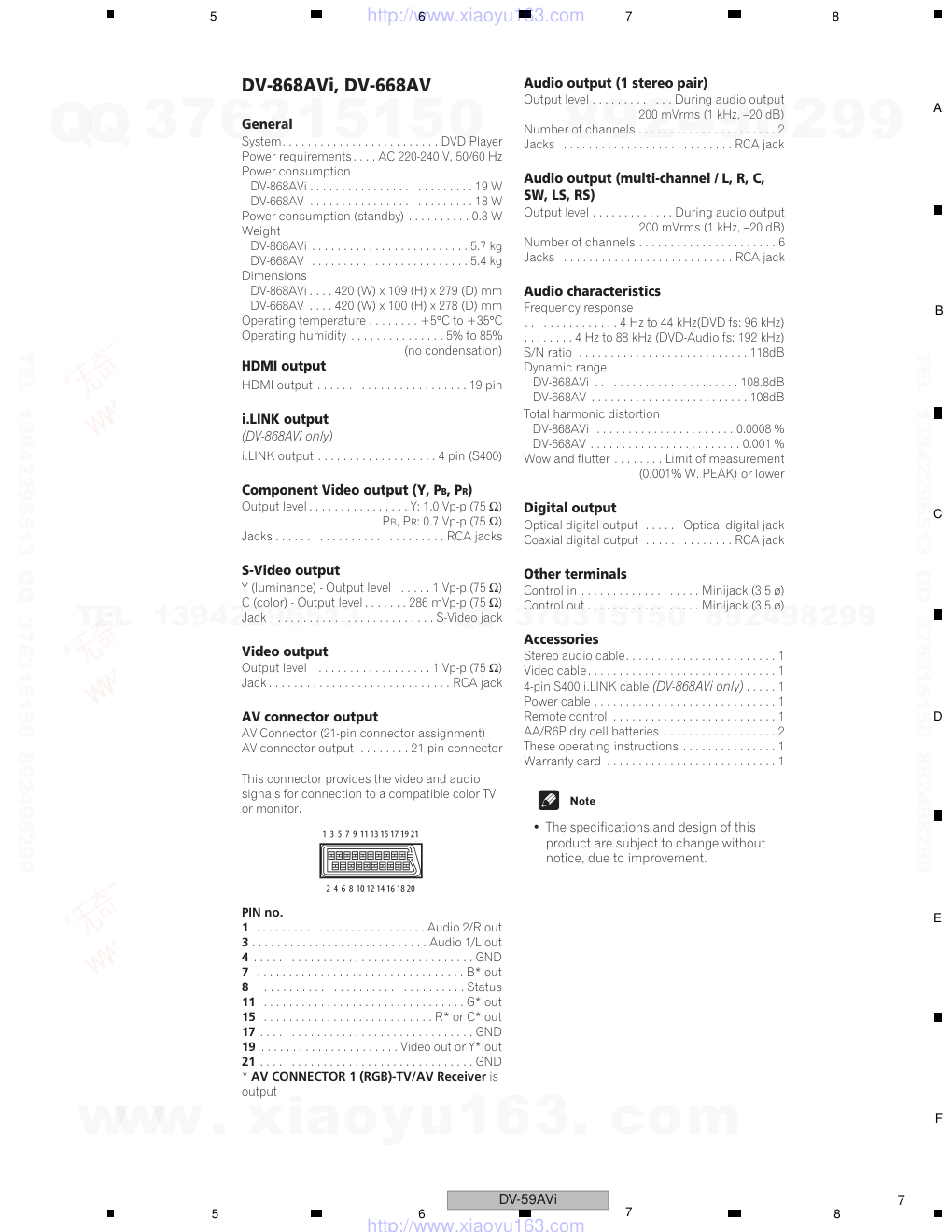

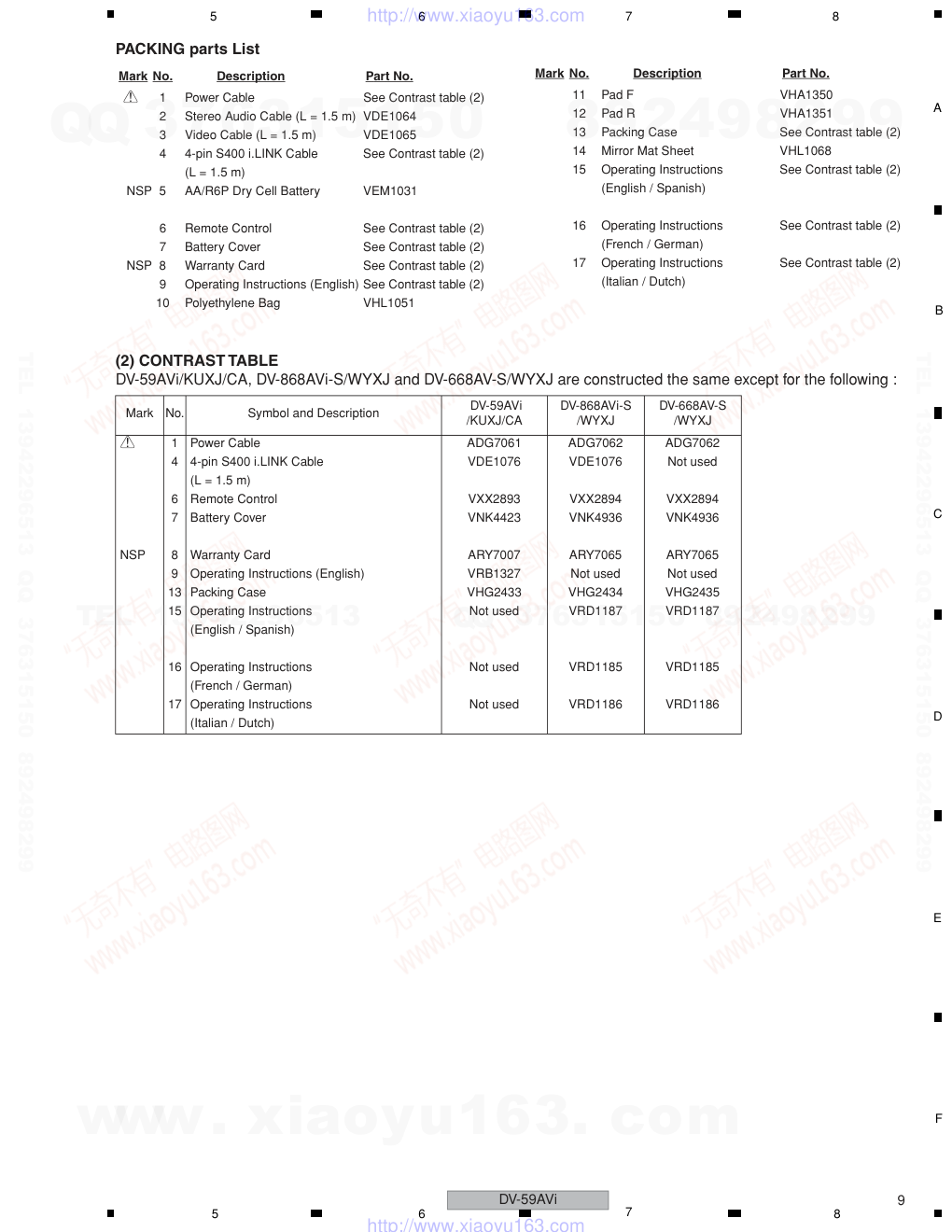

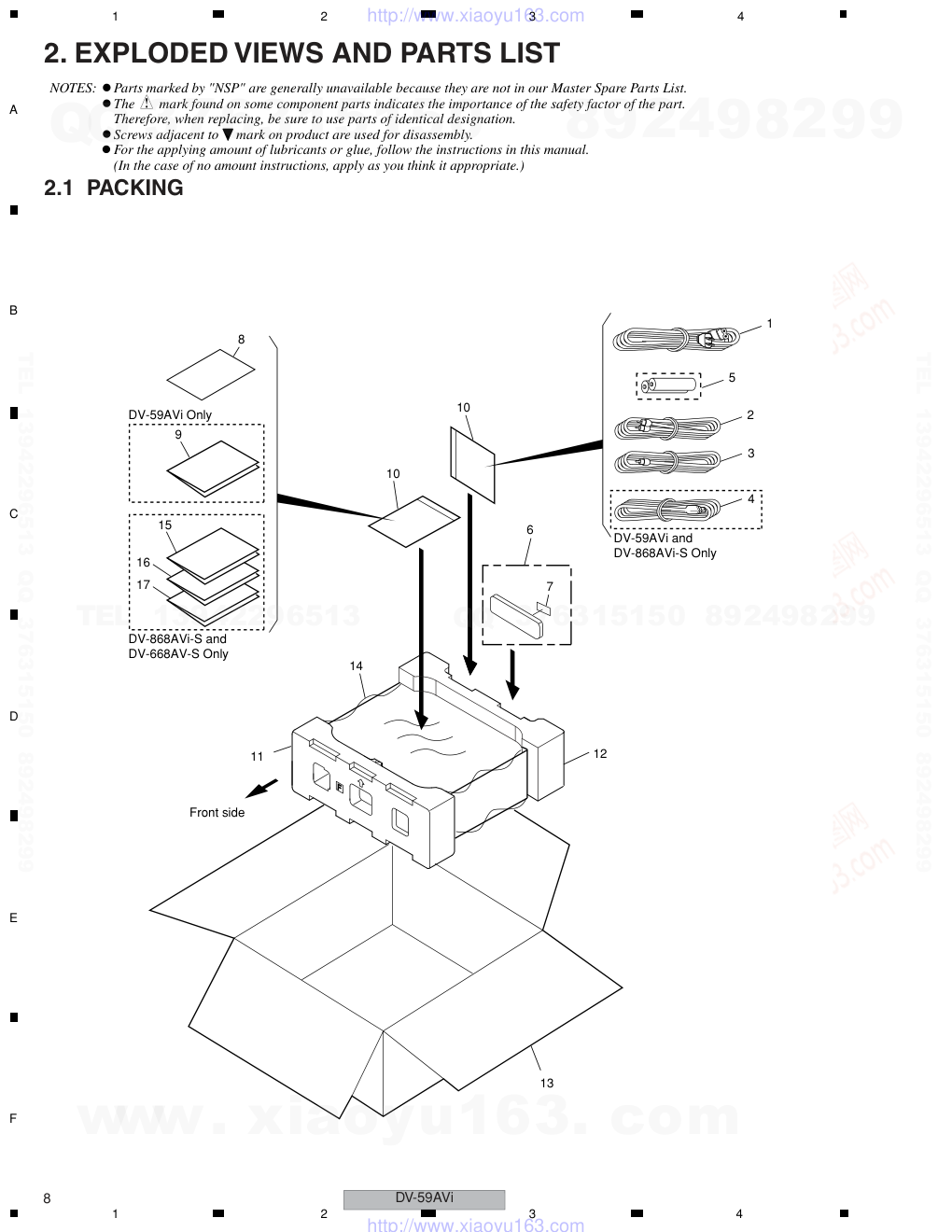

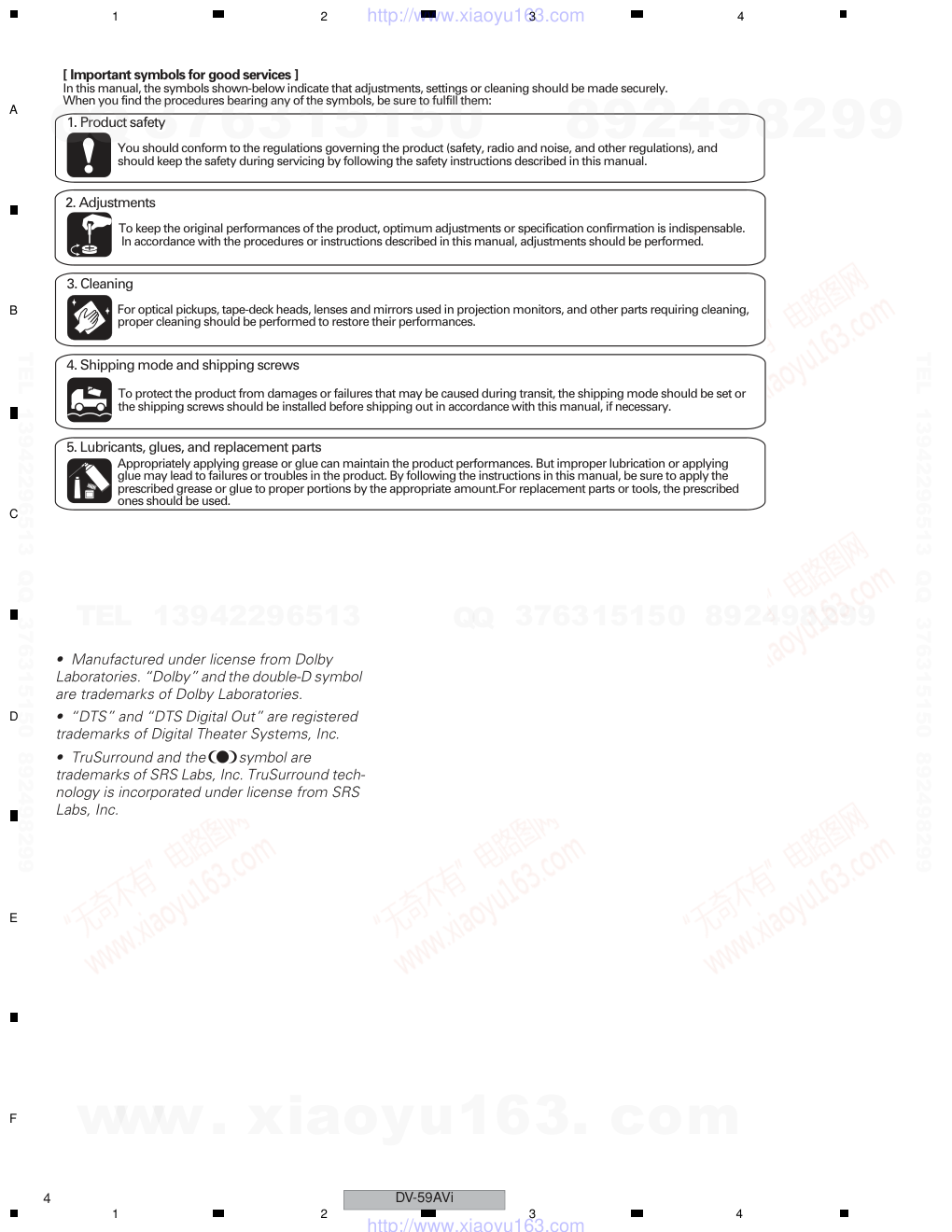

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 DV-59AVi RRV2816 DVD PLAYER DV-59AVi DV-868AVi-S DV-668AV-S THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Serial No. Confirm 3rd & 4th alphabetical letters. DV-59AVi KUXJ/CA AC120V 1 &&MP######$$ DV-868AVi-S WYXJ AC220-240V 2 &&MP######$$ DV-668AV-S WYXJ AC220-240V 2 &&MP######$$ For details, refer to "Important symbols for good services". T-ZZE DEC. 2003 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 3 5 6 7 8 5 6 7 8 C D F A B E This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trainedto properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 780 nm Additional Laser Caution ∗ : See page 79. LABEL CHECK [DV-868AVi-S and DV-668AV-S Only] 1. Loading-status detection switch (S101 on the LOAB assy) are detected by the microprocessor (IC601 in the DVDM assy). • To permit the laser diode to oscillate, it is required to set the loading- status detection switch for the clamp position (the center terminal of S101 is shorted to +3V). When the voltage of IC101-pin 21 is +3V, IC601 (microprocessor) -pin 83 is +3V and IC601-pin 84 is +3V, 650nm laser diode for DVD oscillates in the DVDM Assy. When the voltage of IC101-pin 21 is +3V, IC601 (microprocessor) -pin 83 is 0V (GND) and IC601-pin 84 is +3V, 780nm laser diode for CD oscillates in the DVDM Assy. In the test mode * , the laser diode oscillates when microprocessor detects a PLAY signal, or when the PLAY key is pressed (S104 ON in the FLKY assy), with the above requirements satisfied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. Location: Printed on the Rear Panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 4 1 2 3 4 1 2 3 4 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • “DTS” and “DTS Digital Out” are registered trademarks of Digital Theater Systems, Inc. • TruSurround and the symbol are trademarks of SRS Labs, Inc. TruSurround tech- nology is incorporated under license from SRS Labs, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION......................................................................................................................................2 1. SPECIFICATIONS.............................................................................................................................................6 2. EXPLODED VIEWS AND PARTS LIST.............................................................................................................8 2.1 PACKING ....................................................................................................................................................8 2.2 EXTERIOR SECTION ..............................................................................................................................10 2.3 FRONT PANEL SECTION ........................................................................................................................14 2.4 LOADING MECHA. ASSY ........................................................................................................................16 2.5 TRAVERSE MECHA. ASSY-S ..................................................................................................................18 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..........................................................................................20 3.1 BLOCK DIAGRAM....................................................................................................................................20 3.1.1 BLOCK DIAGRAM 1/3...........................................................................................................................20 3.1.2 BLOCK DIAGRAM 2/3...........................................................................................................................22 3.1.3 BLOCK DIAGRAM 3/3 [POWER BLOCK] .............................................................................................24 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM .....................................................................................26 3.3 DVDM ASSY 1/6 [FTS BLOCK]................................................................................................................28 3.4 DVDM ASSY 2/6 [FR BLOCK]..................................................................................................................30 3.5 DVDM ASSY 3/6 [EBY/AV1 BLOCK]........................................................................................................32 3.6 DVDM ASSY 4/6 [i.LINK BLOCK].............................................................................................................34 3.7 DVDM ASSY 5/6 [VIDEO BLOCK] ...........................................................................................................36 3.8 DVDM ASSY 6/6 [A-DSP/AQE/SACD BLOCK] ........................................................................................38 3.9 AJKB ASSY ..............................................................................................................................................40 3.10 VJKB ASSY ............................................................................................................................................42 3.11 SCRB ASSY ...........................................................................................................................................44 3.12 FLKY, KEYB and MSWB ASSYS ...........................................................................................................46 3.13 POWER SUPPLY UNIT ..........................................................................................................................48 3.14 WAVEFORMS.........................................................................................................................................50 4. PCB CONNECTION DIAGRAM ......................................................................................................................53 4.1 LOAB ASSY..............................................................................................................................................53 4.2 DVDM ASSY.............................................................................................................................................54 4.3 AJKB ASSY ..............................................................................................................................................58 4.4 VJKB ASSY ..............................................................................................................................................60 4.5 SCRB ASSY .............................................................................................................................................62 4.6 MSWB ASSY............................................................................................................................................63 4.7 FLKY and KEYB ASSYS ..........................................................................................................................64 4.8 POWER SUPPLY UNIT ............................................................................................................................66 5. PCB PARTS LIST............................................................................................................................................67 6. ADJUSTMENT ................................................................................................................................................77 6.1 ADJUSTMENT ITEMS AND LOCATION..................................................................................................77 6.2 JIGS AND MEASURING INSTRUMENTS ...............................................................................................77 6.3 NECESSARY ADJUSTMENT POINTS ....................................................................................................78 6.4 TEST MODE.............................................................................................................................................79 6.5 MECHANISM ADJUSTMENT...................................................................................................................80 7. GENERAL INFORMATION .............................................................................................................................82 7.1 DIAGNOSIS..............................................................................................................................................82 7.1.1 ID NUMBER AND ID DATA SETTING ...................................................................................................82 7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE ...................................................................84 7.1.3 TEST MODE SCREEN DISPLAY ..........................................................................................................85 7.1.4 SELF-DIAGNOSIS FUNCTION .............................................................................................................87 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE .................................................................88 7.1.6 ERROR DISPLAY..................................................................................................................................89 7.1.7 TROUBLE SHOOTING..........................................................................................................................92 7.1.8 FAILURE-TEST METHOD FOR THE HDMI TRANSMITTER IC...........................................................94 7.1.9 DISASSEMBLY......................................................................................................................................95 7.2 IC ............................................................................................................................................................106 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY....................................................................160 7.4 CLEANING .............................................................................................................................................161 8. PANEL FACILITIES .......................................................................................................................................162 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 6 1 2 3 4 1 2 3 4 C D F A B E 1. SPECIFICATIONS DV-59AVi General System . . . . . . . . . . . . . . . . . . . . . . . . DVD Player Power requirements DV-59AVi . . . . . . . . . . . . . . . . . . AC 120 V, 60Hz Power consumption . . . . . . . . . . . . . . . . . . . 18 W Power consumption (standby) DV-59AVi . . . . . . . . . . . . . . . . . . . . . . . . . 0.15 W Weight DV-59AVi . . . . . . . . . . . . . . . . 5.5 kg (12 lb 2 oz) Dimensions DV-59AVi . . . . 420 (W) x 109 (H) x 278 (D) mm (16 9/16 (W) x 4 5/16 (H) x 10 15/16 (D) in.) Operating temperature . . . . . . . +5°C to +35°C Operating humidity . . . . . . . . . . . . . . . 5% to 85% (no condensation) HDMI output HDMI output . . . . . . . . . . . . . . . . . . . . . . . . 19 pin i.LINK output i.LINK output . . . . . . . . . . . . . . . . . . . 4 pin (S400) Component Video output (Y, PB, PR) Output level . . . . . . . . . . . . . . . Y: 1.0 Vp-p (75 Ω) PB, PR: 0.7 Vp-p (75 Ω) Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jacks S-Video output Y (luminance) - Output level . . . . . . 1 Vp-p (75 Ω) C (color) - Output level . . . . . . 286 mVp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . S-Video jack Video output Output level . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 W) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio output (1 stereo pair) Output level . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . 2 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio output (multi-channel / L, R, C, SW, LS, RS) Output level . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . 6 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio characteristics Frequency response . . . . . . . . . . . . . . 4 Hz to 44 kHz(DVD fs: 96 kHz) . . . . . . . 4 Hz to 88 kHz (DVD-Audio fs: 192 kHz) S/N ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . 118dB Dynamic range. . . . . . . . . . . . . . . . . . . . . 108.8dB Total harmonic distortion. . . . . . . . . . . . 0.0008 % Wow and flutter . . . . . . . . Limit of measurement (0.001% W. PEAK) or lower Digital output Optical digital output . . . . . . . Optical digital jack Coaxial digital output. . . . . . . . . . . . . . . RCA jack Other terminals Control in . . . . . . . . . . . . . . . . . . . Minijack (3.5 ø) Control out . . . . . . . . . . . . . . . . . . Minijack (3.5 ø) Accessories Stereo audio cable . . . . . . . . . . . . . . . . . . . . . . . 1 Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4-pin S400 i.LINK cable . . . . . . . . . . . . . . . . . . . 1 Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 1 AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . 2 These operating instructions . . . . . . . . . . . . . . 1 Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 • The specifications and design of this product are subject to change without notice, due to improvement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 7 5 6 7 8 5 6 7 8 C D F A B E DV-868AVi, DV-668AV General System. . . . . . . . . . . . . . . . . . . . . . . . . DVD Player Power requirements. . . . AC 220-240 V, 50/60 Hz Power consumption DV-868AVi . . . . . . . . . . . . . . . . . . . . . . . . . . 19 W DV-668AV . . . . . . . . . . . . . . . . . . . . . . . . . . 18 W Power consumption (standby) . . . . . . . . . . 0.3 W Weight DV-868AVi . . . . . . . . . . . . . . . . . . . . . . . . . 5.7 kg DV-668AV . . . . . . . . . . . . . . . . . . . . . . . . . 5.4 kg Dimensions DV-868AVi . . . . 420 (W) x 109 (H) x 279 (D) mm DV-668AV . . . . 420 (W) x 100 (H) x 278 (D) mm Operating temperature . . . . . . . . +5°C to +35°C Operating humidity . . . . . . . . . . . . . . . 5% to 85% (no condensation) HDMI output HDMI output . . . . . . . . . . . . . . . . . . . . . . . . 19 pin i.LINK output (DV-868AVi only) i.LINK output . . . . . . . . . . . . . . . . . . . 4 pin (S400) Component Video output (Y, PB, PR) Output level . . . . . . . . . . . . . . . . Y: 1.0 Vp-p (75 Ω) PB, PR: 0.7 Vp-p (75 Ω) Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jacks S-Video output Y (luminance) - Output level . . . . . 1 Vp-p (75 Ω) C (color) - Output level . . . . . . . 286 mVp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . S-Video jack Video output Output level . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack AV connector output AV Connector (21-pin connector assignment) AV connector output . . . . . . . . 21-pin connector Audio output (1 stereo pair) Output level . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . . 2 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio output (multi-channel / L, R, C, SW, LS, RS) Output level . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . . 6 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio characteristics Frequency response . . . . . . . . . . . . . . . 4 Hz to 44 kHz(DVD fs: 96 kHz) . . . . . . . . 4 Hz to 88 kHz (DVD-Audio fs: 192 kHz) S/N ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . 118dB Dynamic range DV-868AVi . . . . . . . . . . . . . . . . . . . . . . . 108.8dB DV-668AV . . . . . . . . . . . . . . . . . . . . . . . . . 108dB This connector provides the video and audio signals for connection to a compatible color TV or monitor. PIN no. 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . Audio 2/R out 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . Audio 1/L out 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B* out 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Status 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G* out 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . R* or C* out 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND 19 . . . . . . . . . . . . . . . . . . . . . . Video out or Y* out 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND * AV CONNECTOR 1 (RGB)-TV/AV Receiver is output Total harmonic distortion DV-868AVi . . . . . . . . . . . . . . . . . . . . . . 0.0008 % DV-668AV . . . . . . . . . . . . . . . . . . . . . . . . 0.001 % Wow and flutter . . . . . . . . Limit of measurement (0.001% W. PEAK) or lower Digital output . . . . . . Optical digital jack Coaxial digital output Optical digital output . . . . . . . . . . . . . . RCA jack Other terminals Control in . . . . . . . . . . . . . . . . . . . Minijack (3.5 ø) Control out . . . . . . . . . . . . . . . . . . Minijack (3.5 ø) Accessories Stereo audio cable. . . . . . . . . . . . . . . . . . . . . . . . 1 Video cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4-pin S400 i.LINK cable (DV-868AVi only) . . . . . 1 Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 1 AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . . 2 These operating instructions . . . . . . . . . . . . . . . 1 Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 • The specifications and design of this product are subject to change without notice, due to improvement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 8 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 7 6 12 13 14 11 Front side 2 4 3 10 10 15 DV-868AVi-S and DV-668AV-S Only DV-59AVi and DV-868AVi-S Only DV-59AVi Only 16 1 5 8 9 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 9 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE DV-59AVi/KUXJ/CA, DV-868AVi-S/WYXJ and DV-668AV-S/WYXJ are constructed the same except for the following : Mark No. Description Part No. > 1 Power Cable See Contrast table (2) 2 Stereo Audio Cable (L = 1.5 m) VDE1064 3 Video Cable (L = 1.5 m) VDE1065 4 4-pin S400 i.LINK Cable See Contrast table (2) (L = 1.5 m) NSP 5 AA/R6P Dry Cell Battery VEM1031 6 Remote Control See Contrast table (2) 7 Battery Cover See Contrast table (2) NSP 8 Warranty Card See Contrast table (2) 9 Operating Instructions (English) See Contrast table (2) 10 Polyethylene Bag VHL1051 11 Pad F VHA1350 12 Pad R VHA1351 13 Packing Case See Contrast table (2) 14 Mirror Mat Sheet VHL1068 15 Operating Instructions See Contrast table (2) (English / Spanish) 16 Operating Instructions See Contrast table (2) (French / German) 17 Operating Instructions See Contrast table (2) (Italian / Dutch) Mark No. Description Part No. Mark No. Symbol and Description DV-59AVi /KUXJ/CA DV-868AVi-S /WYXJ DV-668AV-S /WYXJ > 1 Power Cable ADG7061 ADG7062 ADG7062 4 4-pin S400 i.LINK Cable VDE1076 VDE1076 Not used (L = 1.5 m) 6 Remote Control VXX2893 VXX2894 VXX2894 7 Battery Cover VNK4423 VNK4936 VNK4936 NSP 8 Warranty Card ARY7007 ARY7065 ARY7065 9 Operating Instructions (English) VRB1327 Not used Not used 13 Packing Case VHG2433 VHG2434 VHG2435 15 Operating Instructions Not used VRD1187 VRD1187 (English / Spanish) 16 Operating Instructions Not used VRD1185 VRD1185 (French / German) 17 Operating Instructions Not used VRD1186 VRD1186 (Italian / Dutch) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 10 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION A B B C A D C D E F G H H L I J J K K E F G I L CONTACT SIDE NON-CONTACT SIDE B C D E I H 7 27 DV-59AVi and DV-868AVi-S Only DV-868AVi-S and DV-668AV-S Only DV-868AVi-S and DV-668AV-S Only DV-868AVi-S and DV-668AV-S Only 47 55 55 11 33 34 52 54 52 52 52 58 58 53 54 54 54 60 35 30 22 16 10 39 28 46 57 14 18 31 20 25 26 36 36 37 38 45 29 19 19 12 15 2 1 53 53 54 54 54 54 54 54 53 21 44 42 6 4 3 8 17 5 40 58 58 43 41 53 55 59 54 56 56 56 53 55 55 55 53 53 53 50 56 Refer to "2.4 LOADING MECHA. ASSY". Refer to "2.3 FRONT PANEL SECTION". 49 49 49 48 51 51 53 53 DV-59AVi and DV-868AVi-S Only DV-59AVi and DV-868AVi-S Only DV-59AVi and DV-868AVi-S Only DV-59AVi and DV-868AVi-S Only DV-59AVi and DV-668AV-S Only DV-868AVi-S Only DV-59AVi Only DV-868AVi-S and DV-668AV-S Only 9 DV-59AVi and DV-668AV-S Only 24 54 54 13 23 32 Silicone adhesive GYA1011 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 11 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List (2) CONTRAST TABLE DV-59AVi/KUXJ/CA, DV-868AVi-S/WYXJ and DV-668AV-S/WYXJ are constructed the same except for the following : Mark No. Description Part No. 1 DVDM Assy See Contrast table (2) 2 AJKB Assy See Contrast table (2) 3 VJKB Assy See Contrast table (2) 4 SCRB Assy See Contrast table (2) 5 MSWB Assy See Contrast table (2) > 6 POWER SUPPLY Unit VWR1375 NSP 7 LOADING MECHA. Assy VWT1207 > 8 AC Inlet Assy ADX7406 NSP 9 Earth Lead Jumper Wire DE010VC0 10 Connector Assy PF13PP-D25 11 Connector Assy PG05KK-E27 12 FFC (33P, AJKB) VDA1971 13 FFC (23P, VJKB) VDA1972 14 FFC (19P, SCRB) See Contrast table (2) 15 Connector Assy See Contrast table (2) > 16 Housing Assy See Contrast table (2) > NSP 17 Housing Assy (2P) See Contrast table (2) 18 Mini Clamp AEC7373 19 Insulator See Contrast table (2) 20 Cord Clamper RNH-184 21 PCB Support VEC2184 22 MH Spacer 2 VEC2319 23 Bronze Tape VEC2403 24 Sheet See Contrast table (2) NSP 25 Bottom Plate VNA2469 NSP 26 Layered Chassis VNA2651 27 Bonnet S See Contrast table (2) 28 Rear Panel See Contrast table (2) NSP 29 Base Chassis VNA2666 30 Mechanism Holder VNE2266 31 PCB Base HE VNE2329 32 PCB Holder AJ VNE2330 33 Shield Plate VNF1125 34 Adapter 27 L VNL1926 35 Adapter 27R VNL1927 36 Spacer VNL1966 37 Door See Contrast table (2) 38 Tray Panel See Contrast table (2) 39 PCB Holder See Contrast table (2) 40 Wire Saddle See Contrast table (2) 41 PCB Holder 2 See Contrast table (2) 42 Stopper See Contrast table (2) NSP 43 Power Key 2 See Contrast table (2) NSP 44 Binder (BK-1) See Contrast table (2) NSP 45 Energy Star Label See Contrast table (2) NSP 46 ID Label Assy See Contrast table (2) 47 Caution Label See Contrast table (2) 48 Screw Z39-019 49 Screw BBZ30P180FMC 50 Screw CBZ30P080FZK 51 Screw BBZ30P120FMC 52 Screw BPZ30P080FNI 53 Screw IBZ30P080FCC 54 Screw BBZ30P060FCC 55 Screw BBZ30P080FCC 56 Screw See Contrast table (2) 57 Screw See Contrast table (2) 58 Screw See Contrast table (2) 59 Screw BPZ30P100FMC NSP 60 Tape ZTA-156A-19 Mark No. Description Part No. Mark No. Symbol and Description DV-59AVi /KUXJ/CA DV-868AVi-S /WYXJ DV-668AV-S /WYXJ 1 DVDM Assy VWS1568 VWS1568 VWS1569 2 AJKB Assy VWV1984 VWV1985 VWV1990 3 VJKB Assy VWV1986 VWV1988 VWV1989 4 SCRB Assy Not used VWV1992 VWV1992 5 MSWB Assy Not used VWG2455 Not used 14 FFC (19P, SCRB) Not used VDA1973 VDA1973 15 Connector Assy Not used PG03KK-E15 PG03KK-E15 > 16 Housing Assy VKP2284 Not used VKP2284 > NSP 17 Housing Assy (2P) Not used VKP2307 Not used 19 Insulator PNW2766 PNW2766 VXA2424 24 Sheet VED1011 VED1011 Not used 27 Bonnet S VXX2900 VXX2901 VXX2847 28 Rear Panel VNA2658 VNA2659 VNA2660 37 Door VEC2302 VEC2278 VEC2278 38 Tray Panel VNK5084 VNK5085 VNK5085 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 12 1 2 3 4 1 2 3 4 C D F A B E 39 PCB Holder Not used VEC2215 VEC2215 40 Wire Saddle Not used VEC2310 Not used 41 PCB Holder 2 Not used VNE2283 Not used 42 Stopper Not used VNE2328 Not used NSP 43 Power Key 2 Not used VNK5103 Not used NSP 44 Binder (BK-1) Not used ZCA-BK1 Not used NSP 45 Energy Star Label AAX8022 Not used Not used NSP 46 ID Label Assy VXW1004 VXW1004 VXW1003 47 Caution Label Not used VRW1872 VRW1872 56 Screw BCZ40P060FZK BCZ40P060FNI BCZ40P060FNI 57 Screw BBZ26P060FZK BBZ26P060FZK Not used 58 Screw Not used BBZ30P080FZK Not used Mark No. Symbol and Description DV-59AVi /KUXJ/CA DV-868AVi-S /WYXJ DV-668AV-S /WYXJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 13 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 14 1 2 3 4 1 2 3 4 C D F A B E 2.3 FRONT PANEL SECTION CONTACT SIDE NON-CONTACT SIDE 10 F G 11 DV-868AVi-S Only DV-868AVi-S Only 11 11 11 4 9 (1/3) 9 (2/3) 9 (3/3) 2 8 6 5 7 11 11 11 3 1 DV-59AVi and DV-668AV-S Only DV-59AVi and DV-868AVi-S Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 15 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List (2) CONTRAST TABLE DV-59AVi/KUXJ/CA, DV-868AVi-S/WYXJ and DV-668AV-S/WYXJ are constructed the same except for the following : Mark No. Description Part No. 1 FLKY Assy See Contrast table (2) 2 KEYB Assy See Contrast table (2) 3 FFC (17P, FLKB) VDA1970 4 Connector Assy See Contrast table (2) 5 Pioneer Name Plate See Contrast table (2) 6 Aluminum Panel See Contrast table (2) 7 FL Filter See Contrast table (2) 8 FL Lens See Contrast table (2) 9 Panel Base Assy See Contrast table (2) NSP 10 LED Lens 2 See Contrast table (2) 11 Screw BBZ30P080FCC Mark No. Description Part No. Mark No. Symbol and Description DV-59AVi /KUXJ/CA DV-868AVi-S /WYXJ DV-668AV-S /WYXJ 1 FLKY Assy VWG2459 VWG2456 VWG2448 2 KEYB Assy VWG2460 VWG2457 VWG2449 4 Connector Assy Not used PF02PP2R07 Not used 5 Pioneer Name Plate PAN1376 VAM1124 VAM1124 6 Aluminum Panel VAH1419 VAH1420 VAH1421 7 FL Filter VEC2280 VEC2281 VEC2281 8 FL Lens VEC2384 VEC2385 VEC2386 9 Panel Base Assy VXA2623 VXA2624 VXA2625 NSP 10 LED Lens 2 Not used VNK5105 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 16 1 2 3 4 1 2 3 4 C D F A B E 2.4 LOADING MECHA. ASSY LOADING MECHA. ASSY parts List A A To DVDM CN111 (Pickup Assy-S) To DVDM CN114 (Stepping Motor) To DVDM CN115 (Spindle Motor) 2 3 5 4 12 23 13 17 21 16 22 15 14 22 22 22 20 18 19 9 1 7 10 11 6 8 8 8 8 A Refer to "2.5 TRAVERSE MECHA. ASSY-S". Lubricating oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating oil GYA1001 Mark No. Description Part No. NSP 1 LOAB Assy VWG2426 2 Traverse Mecha. Assy-S VXX2871 3 Loading Motor Assy VXX2872 4 Motor Pulley PNW1634 5 Motor VXM1105 6 Flexible Cable (24P) VDA1947 7 Connector Assy 2P VKP2253 8 Floating Rubber VEB1351 9 Belt VEB1330 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base DVD VNL1918 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate VNE2251 19 Bridge VNE2252 20 Clamper VNL1924 21 Screw JGZ17P028FMC 22 Screw Z39-019 23 Tray VNL1920 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 17 5 6 7 8 5 6 7 8 C D F A B E Application of Lubricant Lubricating oil GYA1001 Around the shaft No. 11 Loading base No. 23 Tray No. 13 Drive cam No. 13 Drive cam No. 23 Tray Front view Rear view Daifree GEM1036 Inner side of a ditch Concave of unevenness Top view Bottom view Daifree GEM1036 Daifree GEM1036 Side of the rib Lubricating oil GYA1001 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Lubricating oil GYA1001 Lubricating oil GYA1001 Lubricating oil GYA1001 Inner side of a ditch Lubricating oil GYA1001 Inner side of a ditch Lubricating oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 18 1 2 3 4 1 2 3 4 C D F A B E 2.5 TRAVERSE MECHA. ASSY-S To DVDM CN114 (Stepping Motor) To DVDM CN115 (Spindle Motor) To DVDM CN111 (Pickup Assy) CONTACT SIDE NON-CONTACT SIDE 12 3 7 8 1 17 16 17 10 13 17 10 6 11 14 16 2 9 15 (Torque : 0.15 ± 0.01 N•m) 15 (Torque : 0.15 ± 0.01 N•m) 4 (Adjustment screw) 5 (Adjustment spring) Screw tight GYL1001 Silicone adhesive GEM1037 Silicone adhesive GEM1037 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 19 5 6 7 8 5 6 7 8 C D F A B E TRAVERSE MECHA. ASSY-S parts List Mark No. Description Part No. 1 Spindle Motor VXM1099 2 Stepping Motor VXM1101 3 Pickup Assy-S OXX8005 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mecha.Chassis VNE2248 12 Damper Sheet VEB1335 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw OBA8021 16 Screw BBZ20P050FZK 17 Screw PMA26P100FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 20 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 3.1.1 BLOCK DIAGRAM 1/3 CN402 (17P) CN101 (17P) CN102 (9P) CN201 (9P) CN202 CN301 CN302 CN2 CN1 2 9 2 9 7 4 7 4 2 1 2 1 2 1 2 1 2 1 18 7 16 8 6 9 10 3 4 21 22 23 24 IC603 VYW2117 PGM Flash MEMORY (16M) IC741 HY57V161610DTC-8 16M SDRAM B DVDM ASSY SPINDLE MOTOR LD(650) PICKUP ASSY-S OEIC 7 LD(780) 9 A 17 C 19 B1 16 B2 15 B3 22 B4 A C B1 B2 B3 B4 PH DSPRF AIN ROMXA ROMXA DATAI DATAI RFSACD BH TE FE FDO 21 TRKG DRV T_DRV 4 TRKG RTN 3 FOCS DRV 2 FOCS RTN T_RTN F_DRV F_RTN 1 IC102 TC7W53FU X601 16.5MHz X481 27MHz IC101 LA9704W RF IC IC701 PE5286A EBY-CHIP IC201 LC78652W SERVO DSP IC202 BA6664FM Spindle Driver IC601 PD6345A FR (System Control) IC481 SM8707HV CLOCK GENERATOR IC491 LC4032VAA CPLD IC351 M56788AFP FTS DRIVER 17 12 60 3 Q101 Q602(2/2) ı1/6 ı1/6 ı1/6 ı1/6 ı1/6 IC211 TK1540M IC451 TC7SHU04FU IC454 IC455 ı1/6 ı3/6 ı2/6 ı2/6 ı2/6 ı2/6 ı3/6 Q102 LDD2 11 5 6 7 4 52 49 42 41 33 47 48 46 14 49 62 57 14 3 10 42 28 3 20 17 32 31 30 39 3 19 A LOAB ASSY LOADING MOTOR ASSY LOAD+ SW2 V+3D V+33A V+3E LOAD– + – M S101 2 1 1 2 3 4 1 2 GNDS 5 5 3 4 CN103 CN601 CN602 6 5 7 8 9 4 3 2 1 CN115 (12P) H1+ A1 A2 A3 12 11 10 12 13 21 9 7 4 2 SLDPOS SLDPOS LODPOS 44x48 44x48 H1– H2+ H2– H3+ H3– STEPPING MOTOR (LOADING) ST2– ST2+ ST1+ ST1– M 4 3 2 1 CN114 CN602 (24P) CN111 (24P) AC IN I POWER SUPPLY UNIT LIVE NEUTRAL IR SEL IR F FLKY ASSY G H KEYB ASSY MSWB ASSY V101 FL Tube IC103 Remote Sensor Unit OTHERS IC101 PE5314B FL Control Microcomputer IC102 PST3228 RESET IC KEY1 KEY0 PWSW KEY0 PWSW RST IN 17 6 1 TDO 16MDSP 27MAV1 (to IC751) 27MDSP (to IC1101) 22/24M (to IC552,IC503) 22/24HDM (to IC502) 22/24AV1 (to IC751) 22/24M IN 16MIN 33MIN 16MOUT 33MOUT DV-668AV-S/WYXJ ONLY DV-59AVi/KUXJ/CA, DV-868AVi-S/WYXJ ONLY 22/24M 0UT 36MEBY BD0-BD7 CDDATA 33MEBY SDDO LODDRV LODDRV 9 36MEBY 4 4 5 2 Q104 Q602(1/2) 12 13 9 10 14 14 15 34 35 31 32 172 185 194 163 162 134 135 105 13,14, 19-24 201-208 4 2 4 2 IC453 13 16MDSP (to IC201) 4 2 IC452 15 8 7 X101 5MHz 3 4 31 6 22 21 33MSACD (to IC1106) 4 2 1 31 16MEBY (to IC701) 33MEBY1 19 43 26 4 2 DV-868AVi-S /WYXJ ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 21 5 6 7 8 5 6 7 8 C D F A B E 8 CN901 (23P) DOUT0 PD0-PD7 PD0-PD7 DATA2A DATA1A DATA0B DATA0 DATA0A AO0 27MDSP RFSACD DSD_C R559 AO00 DATA1A0 DATA2A0 DOUT1 DOUT1 TX0+,- TX1+,- TX2+,- TXC+,- X802 24.576MHz X801 6.144MHz IC751 M65776BFP MPEG2 DECODER AV-1 IC801 TSB43CA42GGW iceLynx-Micro (Mercury) IC1051 HDMI Transmitter IC805 PD5787A HOST CPU IC901 CD0040AF PROGRESSIVE & HI-QUALITY VIDEO ENCODER PRO-U IC903 ADV7310KST (12 BIT) ADV7314KST (14 BIT) VIDEO ENCODER IC786 TC74VHC541FT IC781 K4S641632F-TC75 64M SDRAM ı3/6 IC902 HY57V16160DTC-8 16M SDRAM IC1105 HY57V16160DTC-8 16M SDRAM ı5/6 ı6/6 ı6/6 ı6/6 ı5/6 ı5/6 IC802 VYW2118 4M FLASH ı4/6 IC803 BU2370FV PLL IC ı4/6 ı3/6 ı3/6 CN1001 (19P) HDMI OUT CN601 (7P) HOST CON DOWNLOAD JA2 i. LINK Connector JA1 Cr DV-668AV-S /WYXJ ONLY DV-59AVi/KUXJ/CA, DV-868AVi-S/WYXJ ONLY DV-59AVi/KUXJ/CA, DV-868AVi-S/WYXJ ONLY PB0-PB9 PC0-PC9 PPD0-PPD7 22/24HDM TPA1P,TPA1N,TPB1P,TPB1N TPA0P,TPA0N,TPB0P,TPB0N 27MAV1 22/24AV1 2 7 8 22/24M AV1CLK (27M) 2 IC1101 DSPD56367PV150 DVD-AUDIO DSP IC553 TC7WH157FU CD DIRECT IC552 PQ0274A AQE 48 10 6 5 55 AO0 2 1 24 6 1 5 4 3 7 18 17 13 AO0 VCO CLK DATA1A DATA2A ı4/6 ı4/6 IC1001 T-REX 20 CN551 (33P) DATA1/DSD_C 18 GND/DSD_LFE 16 DATA2/DSD_LS 14 GND/DSD_RS 6 DATA0/DSD_L 4 GND/DSD_R 33 DOUT 13 12 11 37 5 6 7 3 14 13 Q909 10 Cb 38 Q908 13 Y 39 Q907 16 S_Y 43 Q905 18 S_C 42 Q906 20 V 44 Q904 22 SEL_IR 23 IR Q901 171 167 166 164 138 ı6/6 ı6/6 ı6/6 ı6/6 IC1110 CXD2753R SACD DECODER IC505 TC74VHC157FT IC504 TC74VHC157FT 126 170 106 172 33,34 36,37 25,26 29,30 184-186 188-192 7-14 52 53 11 13 69 13 12 9 7 4 DATA1 DATA1 DATA2 DATA0 14 11 DSD_LFE 71 10 DSD_LS 74 6 DATA2 5 2 DSD_RS 76 3 DSD_L 64 13 DATA0 14 5 DSD_R 66 6 12 7 A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 22 1 2 3 4 1 2 3 4 C D F A B E 3.1.2 BLOCK DIAGRAM 2/3 16 14 11 9 6 4 2 1 IC302 LA73054 VIDEO AMP 16 IC601 LA73054 VIDEO AMP IC603 MM1507XN 11 IC401 PCM1738EG-3 5 IC311-1/2 IC331-1/2 Cr Cr Cb Y S_Y S_C V R B G SEL_IR IR CN101 (23P) Q304 Q601 OTHERS DV-668AV-S/WYXJ ONLY IC311-2/2 A B F301 14 Cb Q305 F302 11 Y 8 2 25 2 6 28 33 8 S_Y 6 S_C 2 21 23 25 28 31 33 V Cr Cb Y S_Y S_Y S_Y S_C S_C S_C V Q306 F303 JA403 JA401 CN402 PR COMPONENT VIDEO OUT VIDEO OUT [Composite] S-VIDEO OUT PB Y 2 CN602 (19P) CN601 (3P) CN101 (33P) CN351 (3P) JA301 R/FR L/FL AUDIO OUT [Front 2ch/Down mixed stereo] AUDIO OUT DIGITAL AUDIO OUT FR FL JA401 LS JA601 COAXIAL OPTICAL RS Center LFE [Sub Woofer] 1 4 6 8 10 18 16 3 1 3 1 R B G Y C V SCART_L SCART_R 4 JA201 JA202 CONTROL IN OUT L H 2 2 3 3 6 5 1 1 7 IC321-1/2 IC331-2/2 IC321-2/2 2 5 3 6 6 5 1 7 7 IC411-1/2 IC431-1/2 IC411-2/2 2 2 3 3 6 5 1 1 7 IC421-1/2 IC431-2/2 IC421-2/2 2 5 3 6 6 5 1 7 7 IC511-1/2 IC531-1/2 IC511-2/2 2 2 3 3 6 5 1 1 7 IC521-1/2 IC531-2/2 IC521-2/2 2 5 3 6 6 5 1 7 7 D VJKB ASSY C AJKB ASSY 14 DATA1/DSD_C 16 GND/DSD_LFE 18 DATA2/DSD_LS 20 GND/DSD_RS 28 DATA0/DSD_L 30 GND/DSD_R 1 DOUT 15 IC301 PCM1738EG-3 5 26 25 17 16 26 25 17 16 15 IC501 PCM1738EG-3 5 15 26 25 17 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 23 5 6 7 8 5 6 7 8 C D F A B E WYXJ MODEL ONLY R B G Y C V SCART_L SCART_R JA901 (21P) OUT L OUT R IN R OUT L IN B G R/C V/Y OUT V IN 3 7 11 15 19 20 JA902 (21P) IN L OUT R IN R OUT L IN B IN G IN R/C IN V OUT V IN 3 7 11 15 19 20 RY902 RY905 4 3 2 7 8 9 RY901 4 3 2 7 8 9 RY904 4 3 2 7 8 9 V/Y B G 4 3 2 7 8 9 RY903 4 3 2 7 8 9 AV CONNECTOR CN901 (19P) AUDIO_L AUDIO_R AUDIO_R AUDIO_L R/C C L H L H R Y V V IC901 MM1505XN 6 2 4 IC902 MM1507XN 6 2 4 E SCRB ASSY 6 2 1 6 2 1 18 19 16 14 12 10 2 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 24 1 2 3 4 1 2 3 4 C D F A B E 3.1.3 BLOCK DIAGRAM 3/3 [POWER BLOCK] CN302 1 2 H MSWB ASSY OTHERS DV-868AVi-S/WYXJ ONLY AC IN CN1 CN2 I POWER SUPPLY UNIT F FLKY ASSY B DVDM ASSY LIVE NEUTRAL 1 2 CN401 (13P) CN101 (13P) 1 2 3 9 11 13 1 2 3 9 11 13 EV6V(B) EV6V(A) -28V CN402 (17P) CN101 (17P) 3 14 16 3 14 16 -28V EV+3V V+12 -28V V+3E V+12 SW+12V CN901 (23P) 1 2 3 4 EV+4V SW+3.3V V+6E V+6V V+12S V+33A V+5S V+5V IC402 MM1565AF S302 POWER CN551 (33P) 2 3 21 23 EV+6 EV+6 V+12 V+12 V+12 V+12 V+3D V+3D 1 2 5V REG. V+5HD IC405 MJM2880U1-05 5V REG. ı2/6 ı2/6 V+3E IC404 MM1385EN 3V REG. ı2/6 V+25B IC403 PQ025EZ01ZP 2.5V REG. ı2/6 V+18 IC410 MM1561JF 1.8V REG. ı2/6 V+25A V+33A_AM1 L810 IC411 PQ025EZ01ZP 2.5V REG. ı2/6 V+33B IC401 PQ033EZ01ZP 3.3V REG. ı2/6 V+33A_AM2 L803 V+33A_DM L801 V+33A_HC L804 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 25 5 6 7 8 5 6 7 8 C D F A B E WYXJ MODEL ONLY D VJKB ASSY C AJKB ASSY E SCRB ASSY CN101 (23P) 23 CN602 (19P) CN901 (19P) 12 22 21 20 EV+6 V+5V V+12V EV+6 V+12 V+12 CN101 (33P) 32 31 13 11 V+12 V+12 V+3D V+3D V+5V 19 8 1 V+5V V+11V V+12V IC101 MM1565AF D999 V+6E V+12 5V REG. V+8A IC101 MJM78M08FA V+12A V+3D 8V REG. V+5A IC102 MJM78M05FA 5V REG. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 26 1 2 3 4 1 2 3 4 C D F A B E 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM CN351 CN601 CN551 CN901 CN101 CN801 CN403 32 33 31 2 3 1 28 29 27 26 25 20 19 22 21 30 23 24 9 5 4 6 7 8 15 10 12 11 13 14 2 1 3 2 1 3 17 7 8 11 13 14 15 16 9 10 18 12 21 18 16 20 19 17 24 23 26 25 22 4 2 1 3 6 5 31 28 29 27 32 30 33 20 22 21 23 18 17 19 2 1 5 6 4 3 7 5 2 6 1 3 4 12 15 8 11 14 13 7 9 10 18 17 19 16 15 14 12 11 13 7 8 9 10 5 6 5 6 11 12 13 14 7 8 9 10 16 15 11 13 8 9 10 12 15 18 17 19 14 16 3 2 1 18 17 19 16 4 22 21 20 23 2 3 1 4 7 6 5 2 1 4 3 6 5 7 2 1 4 3 COAX & OPT DIGITAL OUT JA601 XAMUTE V+12 V+12 GND PMCK/DBCK GND DATA0/DSD_L GND GND/DSD_R GND PBCK0/GND GND/DSD_RS GND LRCK0/GND JA401 Audio MultiCh Out LR/FLFR Out Audio JA301 GNDA SCART_R SCART_L DATA1/DSD_C GND GND/DSD_RS GND DATA2/DSD_LS GND XDFSCK XCSDF0 LRCK1/GND V+3D V+3D PBCK1/GND CN101 XDFSI XMMUTE GND XCSDF2 XDACRST XCSDF1 DOUT V+6E V+12 V+12 GND LETTER SQUEEZE V+6E JA403 Component Video S Video Composite Video JA401 JA202 CN402 SR OUT JA201 SR IN CN602 VSEL1 VSEL2 SQEEZE GND R G Y B V+5V GND GND GND GND V C IN OUT CN901 Y/G Cr/R VSEL2 Cb/B P/XI GND GND S_Y GND VSEL1 S_C SEL_IR IR V_OFF V GND SCART_L +12V GNDA SCART_R NC DOWN LOAD HOST CON TXD0 V+5D GNDD CTS2 RXD2 DTR0 CTS NC RXD DTR V+5D GNDD TXD SYSCON DOWN LOAD SCRB ASSY (VWV1992) E D VJKB ASSY (DV-59AVi: VWV1986) (DV-868AVi-S: VWV1988) (DV-668AV-S: VWV1989) C AJKB ASSY (DV-59AVi: VWV1984) (DV-868AVi-S: VWV1985) (DV-668AV-S: VWV1990) DV-868AVi-S, DV-668AVi-S ONLY DV-868AVi-S, DV-668AV-S ONLY NOTES: • When ordering service parts, be sure to refer to “EXPLODED VIEWS and PARTS LIST” or “PCB PARTS LIST”. • The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 27 5 6 7 8 5 6 7 8 C D F A B E A CN103 CN114 CN2 CN602 CN115 CN111 CN1001 JA1 CN402 JA2 CN401 CN101 CN1 CN2 CN302 CN2 CN301 CN202 CN102 CN201 2 1 2 1 4 5 3 3 2 4 1 5 4 3 1 2 3 2 4 1 10 12 6 8 4 9 11 7 3 5 3 2 5 6 2 1 4 1 11 9 8 16 17 14 15 12 13 10 7 18 19 24 22 21 20 23 20 23 22 19 24 21 18 16 17 14 15 13 11 9 8 12 10 7 6 3 2 5 4 1 2 3 4 1 11 7 8 9 10 5 6 12 11 13 8 7 10 9 12 13 10 9 8 7 12 11 6 4 5 1 2 3 6 5 1 3 2 4 1 17 19 14 13 16 15 18 1 4 2 3 2 3 1 4 1 2 1 2 11 3 4 10 9 5 6 7 8 16 15 17 14 13 12 3 11 8 4 5 7 9 6 10 15 17 14 13 16 12 1 1 1 2 1 2 1 2 1 2 2 2 2 1 2 3 4 2 3 1 4 6 7 5 8 6 7 5 8 9 9 LOAD- CN601 LOAD+ GNDS SW2 V+3D ST2- ST2+ ST1+ ST1- CN602 + M S101 M H3- SLDPOS V+5S GNDM H3+ H2- H2+ H1- H1+ A1 A2 A3 GND 780/650 B4 B3 VCC B1 C VREF(2.5V) B2 DEICG A PD LD(780) GNDD VR780 VR650 VRCOM VSHF TRKG DRV GNDD LD(650) FOCS RTN FOCS DRV TRKG RTN H1 H3 H2 CN602 GND TX2- TX1+ TX2+ GND GND TXC- TX0+ TX0- TX1- TXC+ GNDD HDMI CONNECTOR SW+3.3 CN101 GND SW+12V GND EV+4V GND EV6V(A) -28V FLDC+ FLDC- GND P_CON EV6V(B) SDA CEC SCL NC GNDD HOT_PLUG_DETECT +5V TPA1N TPB1N TPB1P TPA1P TPA0P TPA0N TPBOP TPB0N -28V SEL IR GND LT1 FLDC- IR SCK XREADY PW_ON FLDC+ XRESET E+3V S(MtoF) GND 1394RST 12V S(FtoM) VKP2278 PWSW NEUTRAL LIVE VKP2284 DV-868AVi-S ONLY DV-59AVi, DV-668AVi-S ONLY POWER SW S302 AC INRET V+3E LED6 LED7 GND KEY0 PWSW STBY LED5 V+3E LED4 LOADING MOTOR ASSY : VXX2872 STEPPING MOTOR : VXM1101 SPINDLE MOTOR : VXM1099 PICKUP ASSY-S (OXX8005) MSWB ASSY (VWG2455) H POWER SUPPLY UNIT (VWR1375) I LOAB ASSY (VWG2426) A B DVDM ASSY (DV-59AVi, DV-868AVi-S: VWS1568) (DV-668AV-S: VWS1569) F FLKY ASSY (DV-59AVi: VWG2459) (DV-868AVi-S: VWG2456) (DV-668AV-S: VWG2448) G KEYB ASSY (DV-59AVi: VWG2460) (DV-868AVi-S: VWG2457) (DV-668AV-S: VWG2449) : FTS BLOCK B 1/6 : FR BLOCK B 2/6 : EBY/AV1 BLOCK B 3/6 : VIDEO BLOCK B 5/6 : i.LINK BLOCK B 4/6 : A-DSP/AQE/SACD BLOCK B 6/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 28 1 2 3 4 1 2 3 4 C D F A B E 3.3 DVDM ASSY 1/6 [FTS BLOCK] B 1/6 V165 V165 LDREAD LDREAD C V+3D SW1(GNDS) SW2 to LOAB LOAD+ LOAD- 57p to FR (page2/IC601) (page1/IC201) (page1/IC201) from SERVO DSP 47p from SERVO DSP 48p VM3- CH3IN IN3- OUT3 VBS2 Vm2 NC GND IN3+ FTS DRIVER IN5- VM3+ GND VM4+ VM4- VM5+ VM5- OUT5 (page2/IC601) to FR 49p IN5+ IN4+ IN4- OUT4 (2.5V) GNDD (GNDS) VCC B4 780/650 B3 (100/16) A OEICG C B1 VREF(2.5V) B2 VR650 VRCOM 88p GNDD LD(780) VR780 VSHF GNDD LD(650) PD TRKG DRV TRKG RTN FOCS DRV FOCS RTN REG+ IN1- VM1- VM1+ REGB IN1+ VBS1 Vm1 OUT1 IN2+ VM2+ OUT2 VM2- IN2- GND GND MUTE1 (100/16) from IC261 1p (page1) (Nch_FET*2) 47p 48p MUTE2 SSGND VREFI VREFO (GNDS) (page1) from IC261 1p to FR (page2/IC601) 67p (2.5V) (2.5V) (2/2) (1/2) 82p 84p 83p 65p 81p 75p 85p 86p 44p 87p 79p 77p 78p from FR (GNDS) (GNDS) KN1–4 are all from RF IC (2.5V) (GNDS) LDD2 LDS2 FIN2 TIN2 TIN1 PIN2 FIN1 GND LDTH DVD/XCD AGOF GU LDSEL BCA LDON RPSEL VCC WO/BH DPD/TE PP/TE EQSCT RF IC 16 LDS1 LDD1 15 SGC XHTR CP LDDM TEBL FEBL TH 33 34 (GNDS) (GNDS) to FR 54p PD2 PD4 PD3 GND PD1 PIN1 RFP EQC2 RFN 1 2 VCC PP RFN TE FE THC TES TS DEF 48 47 DEFC LPC PHC VCC GND BCAI EQC1 RFO REF BHMIX ISET WOC PH BH BHACI TESI (GNDS) (GNDS) (GNDS) from FTS DRIVER (2.5V) (***) ST1- ST1+ ST2- ST2+ LODPOS LOAD- LOAD+ FDO F_DRV T_DRV T_RTN F_RTN LOAD+ LOAD- TDO LODDRV 780/X650 B4 B3 A C OEICG B2 B1 LD650 PD LD780 T_RTN F_RTN F_DRV T_DRV 780/X650 ST1- ST1+ ST1 ST2+ ST2 ST2- XDRVMUTE LD_ON AGOFF DVD/XCD GU 65X78 BCA XCD2X RFSEL PPCNT WBL DPD/TE XDFINH PD LD650 C A B1 B3 B2 B4 B4 TE FE B2 B1 B3 DEFIN TES TBAL FBAL SGC XHTR DFOUT TE FE BH PH DSPRF F_DRV B3 B4 B2 C B1 A L H 1-B3,2-C1 3 4 2 1 4 3 5 2 1 1 9 6 7 3 2 4 5 8 15 14 17 16 11 12 13 10 1 12 10 11 7 6 9 8 21 20 18 19 5 4 3 1 2 1 5 4 3 2 7 8 9 6 10 11 12 13 14 16 15 17 19 18 20 23 22 24 21 42 41 40 39 34 38 37 36 35 29 27 31 30 33 32 26 28 25 23 24 22 3 2 4 2 6 1 E C B C2 B2 C B 5 3 7 4 6 1 2 8 E E2 2 4 C E 8 E2 BC2 B2 6 1 5 3 7 1 1 6 7 8 3 2 2 3 8 6 7 2 3 1 8 2 3 1 6 7 4 4 5 5 4 4 5 8 6 7 5 3 5 4 6 2 1 4 1 2 2 5 6 1 8 7 3 1 2 16 17 10 11 12 13 14 15 21 25 24 23 18 19 20 22 29 28 31 26 33 27 32 30 35 37 34 38 39 36 2 3 5 4 6 1 9 5 6 8 7 4 1 2 3 64 40 45 42 44 43 41 57 61 59 56 58 60 63 62 51 52 53 47 46 48 55 49 54 50 B B2 C2 E2 C E TP123 TP124 TP122 TP121 R390 CN114 TP129 C392 R389 C393 TP127 CN103 TP126 TP125 TP128 TP358 R353 C353 TP360 TP354 C354 C359 R354 R355 C357 R356 TP353 R351 C351 C358 R357 C356 C355 TP359 R359 R358 TP355 C360 TP281 TP280 TP282 TP276 TP278 TP279 TP277 R360 R361 R362 TP273 TP275 TP274 TP272 CN115 TP271 TP13 C126 C128 TP26 TP11 R138 TP28 TP9 TP27 C130 R140 TP8 TP7 TP25 TP3 TP6 TP24 TP23 R137 C125 TP29 TP31 TP30 TP5 CN111 TP52 R113 C365 C369 R341 R374 R375 IC351 R372 C368 C371 R368 C370 R370 TP352 R371 C366 R350 R373 TP351 R364 TP356 TP357 C361 R369 R363 Q107 Q107 R141 R142 R139 Q108 Q102 Q102 C104 R114 C103 TP159 Q103 C106 R121 TP51 Q101 TP21 Q101 R111 C101 C102 R112 C133 R110 R106 R105 R107 R108 R104 R109 KN1 KN2 KN4 KN3 R102 R103 R173 R174 R175 R176 TP2 TP1 R169 R170 Q105 C129 R177 IC102 TP158 TP160 C105 R166 R163 R164 R162 R165 C134 R167 C131 R155 R158 R156 R161 R157 R118 R117 C107 Q103 R119 R120 R124 R125 R151 R101 R153 R152 R154 C122 IC101 C100 C115 R123 C113 Q105 R160 C123 R136 R135 C121 R171 R172 R133 R134 R132 C114 C119 C127 C116 C120 C118 R122 C110 C109 R126 R127 C108 TP152 TP153 TP151 C111 TP157 TP155 TP156 TP154 R159 TP150 C124 R150 Q106 R130 R128 R131 C117 Q106 R129 TP144 TP148 TP142 TP147 TP4 TP149 TP146 TP143 TP145 C112 VKN1409- -TBB GNDD 330P 10K YB 1u 10K S5B-PH-SM3-TBB V+33A GNDD 15K GNDM 0.1u *** 68KF YB 4700P *** *** 4.7K YB 1000P *** 100/16 0.1u *** *** 12K 150KF 680P VKN1416- -TBB 1u C390 YB V+5S 4.7K GNDM VREFO 68KF 150KF GNDD 100/6.3 1 VCH1252(PV) V+5S 0 1u 0 VREF 1u 0 V+5S VKN1464- -TFB HN1A01F(YGR)-T RAB4C470J-T 47*4 0.1u 100 V+12S 100/16 100KF 68KF M56788AFP-TBB 68KF 68KF *** *** *** *** VREFO UM5K1N-TRB GNDD UM5K1N-TRB V+6E 0.1u VCH1210(ZAV) 0 100KF 47/16 100KF GNDD 100KF 68KF *** VREF VREFO 100K GNDD 10K 100K DTC114EUA-TLB HN1A01F(YGR)-T V+5S YB 1u 4.7K 22/16 HN1B04FU(YGR)-TLB YB GNDD 1500p GNDD HN1A01F(YGR)-T HN1A01F(YGR)-T 22*4 RAB4C220J-T ACH7174(OS) 47/6.3 1u 4.7K YB V+5S 22K 15K 15K 22K 220p 47K GNDD VNF1109- -TRB VNF1109- -TRB VNF1109- -TRB VNF1109- -TRB 47K 1k GNDD 2.2k GNDD 100 VREF 1k 1k HN1B04FU(YGR)-TLB 1k YB 0.1u GNDD V+5S V+5S V+5S TC7W53FU-TRB GNDD 1u GNDD 15K V+5S 330p 10K 1M *** 1M *** 2.2M 22K 22K 10K 10K 15K 47K 2.2M 47K 33K 680P 1u V+5S 22K HN1B04FU(YGR)-TLB 22K 22K YB V+5S_RF GNDD 33K GNDD 47K 390p 3.9k 47K 3.9k 3.9k 3.9k HN1B04FU(YGR)-TLB V+5S_RF LA9704W YB 150p 0.1 12KF YB 0.01 2.2k 100/16 0 1u 470 120P V+5S_RF V+5S 1K 470 YB 150 47KF 0.1 YB 33K YB 1 YB 1 100/4 1K 220P 0.1 2.2M 10K YB 0.1 0.01 12K YB 0.1 GNDD 0 *** 0 GNDD 100 HN1A01F(YGR)-T 100 1K 68/6.3 GNDD HN1A01F(YGR)-T 1K VREF V+5S 1u V+5S Buffer (RF) SW for Detect Signal LD Driver for CD LD Driver for DVD Focus, Tracking and Loading Driver Buffer (RF) : RF SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE F AD RF : RF (VIDEO) SIGNAL ROUTE RF_V : RF (AUDIO) SIGNAL ROUTE RF_A RF_V RF_A T S RF RF RF RF RF RF RF RF RF RF F F T T F F F T T T 1 2 4 B 1/6 DVDM ASSY (DV-59AVi, DV-868AVi-S : VWS1568) (DV-668AV-S : VWS1569) PICKUP ASSY-S CN601 A STEPPING MOTOR 2/6 B 2/6 B 2/6 B 2/6 B 2/6 B SPINDLE MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 29 5 6 7 8 5 6 7 8 C D F A B E B 1/6 (MRZHR002AG - + - + + - + - V165 FGPL DUTY50 DDATAI 16MDSP RFSACD VCOCLK VCOSCD V165 RS1/10S0R0J-T RS1/10S0R0J-T H3- VH H1+ GND H2+ SPDL DRV IC H3+ H2- H1- FR SB Cnf FG2 Ecr BR FIN A1 NC NC Ec PS FG FIN A2 A3 NC NC Vcc GSW Vm Rnf 62p from/to FR (page2/IC601) (2.5V) (GNDS) 66p to FTS DRIVER(R361,369,375) 67p to EBY 141p(page3/IC701) 63p to VCO(R322,318) from EBY 151p (page3/IC701) (GNDS) to EBY 196p (page3/IC701) to FTS DRIVER (IC351/page1) (GNDS) (2.5V) from IC601 (FR 152p) from R684 (FR 165p) 74p 166p 9p 10p 11p 12p 13p 14p 15p 16p 73p from/to FR (page2/IC601) FG HFL DEFIN JT/XRR DEFOUT VSS VDD WRB P0 P1 RESB CSB RDB CTRF VSS VDD(3V) P7 P5 P4 P3 P2 P6 CQCKB BUSYB SQOUT (page2/IC601) from FR 81p SLDO FDO SPDO 50 TEST4 49 VREF 48 TDO EFMIN TILTDO TBAL AUXO VSS VDD SERVO DSP RWC 76 WRQ 77 VSS VRPFR VCOC VPDO VDD PDO3 VSS PCKIST1 PDO2 PDO1 SLCIST2 SLCIST1 SLCO1 TEST1 SLCO2 FE V PB THLD TEST3 26 TES 27 TEST2 28 JITT TILTE RF PH RF BH CURENT TE FSEQ DOUT EFLG SBSY EMPH VDD(for CLK) XOUT DVDFR CDFR JV VDD PCKIST2 PCK XHSMOVE ROMCK LRSY SBCK SFSY LEFM 100 DVSS 99 DVDD2 98 XTALOUT XABUSY EFMOUT ROMXA RCHP RCHN LCHN LCHP 143p 142p from EBY(page3/IC701) 147p 146p *** : parts not mounted 1608 size CKSQ**– CCSR**– CKSR**– RS1/10S*** 1608 size RS1/16S*** 2125 size capacitor 2125 size resistor XIN VSS PW FSX C2F 72p 116p (R2203) 117p SBSY 115p to FR(page2/IC601) 21p E2 (GNDS) (GNDS) (GNDS) 180p IC408 2p from 137p 136p 184p 181p 179p 186p to EBY(page3/IC701) 188p 185p 187p (GNDS) (GNDS) to RF IC (page1/IC101) 35p (GNDS) for Function Checker (GNDS) to IC1110 126pin (page6) for SACD from/to EBY EBY-172p (page3/IC701) MS1 MS0_1 R3340 ( (36M) to EBY 149p (page3/IC701) ) (36M) for SACD (page6) to IC1110 123pin series series ***** OEM *** ALL ********* ASC-160p ATC-159p series DV-S969AVi 868AVi-S/WYXJ 59AVi/KUXJ/CA S969AVi/BKXJ S969AVi/RPWXJ AWX8***- VWS15**- *** *** *** VWS15**- *** *** *** *** *** *** *** *** *** 3.3k 3.3k VWS1568- VWS1568- VWS1568- VWS1568- 3.3k 3.3k 4.7k *** 10K 4.7k *** 10K 10K *** 4.7k 4.7k *** 10K DV-668AV series AFC-152p 668AV-S/WYXJ ********* S969AVi-N/JJXJ Destination Model distinction APC-153p 3.3k VWS1568- VWS15**- VWS1569- 3.3k *** R1 Assy No. R3 10K 4.7K *** *** 4.7k 10K R4 R2 *** *** *** SLDPOS XMON XDRVMUTE GSW DFOUT DEFIN DVD/XCD HFL D8 XRD XDSPRST D9 XWRL XCS4 SPERR D15 D11 D14 D12 D13 D10 XCBUSY DSPRF TBAL SGC FBAL FDO TDO FE TE BH PH FPWM PPWM RPWM VPWM DSPCUR THLD SBSY EFLG XABUSY A3 SBCK FSX PW LRSY SFSY ROMCK C2F ROMXA RFO DSPRF XHTR AIN ATC ASC AFC APC 14 15 9 8 13 10 11 12 17 18 16 19 20 21 5 7 6 29 22 30 24 23 2 3 1 4 25 27 26 28 4 4 2 3 8 1 B E C 6 5 8 7 53 54 55 52 50 51 63 61 58 57 56 60 62 59 72 71 70 69 67 66 64 65 68 76 74 73 75 44 45 46 47 48 49 40 42 41 39 43 38 80 82 77 78 79 81 83 86 85 88 87 84 33 34 37 36 35 32 26 28 31 29 27 30 94 92 90 89 93 91 99 97 98 96 95 22 21 24 25 23 19 15 20 16 13 18 14 17 6 5 8 11 12 7 9 10 4 1 100 2 3 C2 B2 E B C 4 3 5 6 1 2 1 2 1 2 2 1 1 2 2 3 1 2 3 4 4 5 3 2 1 5 4 6 8 7 4 3 2 8 1 3 2 5 5 2 3 4 C391 R391 C250 C255 C252 C256 C254 C249 C248 R256 R255 C245 C247 R254 C246 IC202 TP253 C251 R252 C258 R253 C253 C257 R251 TP251 TP252 C266 IC261 R269 C264 IC261 C263 C265 R271 R270 R205 R257 R259 R258 Q241 C217 R206 TP261 R272 R268 C261 C220 C221 R219 C222 R242 C242 R241 C241 C216 R211 C212 R204 C208 R212 C213 R209 R210 C215 TP172 TP173 R223 R221 C231 R224 IC201 R231 R232 R229 C214 R266 R264 R262 R263 R261 C224 C223 R222 C226 C227 C225 C230 R246 C299 C236 C205 C206 R208 R203 C207 R220 R240 C204 R214 C200 R236 R202 R215 R260 R213 C202 R201 C203 R228 R234 Q104 R116 TP111 Q104 R115 C330 C333 R226 C235 R218 R342 R345 C335 R343 R227 R225 C234 C237 R280 C201 C233 C232 IC211 R1 TP102 R2 TP103 R3 R4 R335 C334 R333 L330 R336 C322 R330 C336 C326 R301 C329 R334 D303 C328 L304 R332 IC303 IC304 R331 C332 R329 C320 C324 IC302 C319 R344 R318 C313 IC302 R322 C312 R316 R317 D302 C321 TP301 C317 R328 C310 R315 R313 R312 R314 C315 C314 R311 R310 IC306 GNDD 330P 10K V+33A YB 0.1 YB 0.1 GNDM YB 0.1 *** BA6664FM-TBB 1u 100/16 YB 0.1 *** *** *** *** *** *** YB 0.1 6.8K VREF GNDD 1u 6.8k 1u GNDD *** 5.6k YB 0.22 GNDD BA4510F-TBB 10K GNDD GNDD BA4510F-TBB YB YB 0.1 GNDD 1 1u 15K 15K V+5S GNDD VCN1128- -T 2.2 VCN1128- -T VCN1127- -T 1 0 2.2 V+6E GNDD DTC114EUA-TLB VREF GNDD 1u 0 V+5S 3.3K 100K YB 0.01 0.01 YB 10K 1u 1u 680 4700P 330 56P YB 1000P 56K 820 0.1 YB YB 100K YB 4.7K 2200P YB 0.1 47K 1u 4.7K 47K 3.3K 0.01 680 0.1 LC78652W 2.2K 4700P 1.5K 47K 180K 150K 220K 150K 100K GNDD YB 1 680 YB 1 YB 1u VREF YB 0.1 YB 1u YB 100K 1u 1u *** 100/4 YB 4700P 47K V+33A_DSP 0 V+5S_DSP 0 V+5S V+33A 1u 1u 22K 0 *** 0 0 10K 22K 1u V+33A 0 GNDD HN1C01FU(YGR)-T 1K 100 100 1K V+5S GNDD V+5S HN1C01FU(YGR)-T GNDD 0.01 YB 0 *** 1k GNDD 10K *** 10K V+5S GNDD GNDD 1.8k GNDD *** 1.8k 22 1K 0.01 YB 1.5K 68/6.3 V+5S_SP *** 0 V+5S GNDD 1u 100/16 TK15404M-TRB V+5S GNDD GNDD V+3E V+3E GNDD 6.8K *** GNDD 100K LCYA1R2J2520-T 0.01 KV1870S-TLB 100/4 0 V+33A_VCO *** 47 1 YB 1u 1.2u 470 TC7SZU04FU-TLB TC7SZU04FU-TLB YB 0.1 3.3K 100K0.01 330P GNDD GNDD 1u BA4510F-TBB BA4510F-TBB 100 10K GNDD 1000P 1 10K GNDD 22K 22K 0.1 15K YB YB KV1870S-TLB YB 0.01 GNDD 0.1 YB V+5S 1K 100K TC7SZU04FU-TLB 1u 47 15K 10K GNDD YB 15P 100K 100K V+33A V+33A_VCO YB RF Amp. (RF for SACD Water Mark detection) VCO Circuit RF_V RF_V RF_A RF_A RF_A AD AD F T 5 6 7 8 9 11 10 3/6 B 6/6 B 3/6 B 6/6 B 3/6 B 2/6 B 2/6 B 3/6 B 2/6 B 2/6 B 3/6 B 3/6 B 3/6 B 3/6 B 2/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 30 1 2 3 4 1 2 3 4 C D F A B E 3.4 DVDM ASSY 2/6 [FR BLOCK] B 2/6 44X48 LDREAD ENCD TP161 TP163 TP603 TP655 TP654 TP604 TP164 TP14 TP12 TP15 TP656 TP658 TP657 TP602 TP601 85 87 86 88 89 92 94 90 91 93 95 81 82 83 84 80 77 74 75 78 79 76 72 73 71 70 69 68 63 62 66 65 67 64 56 57 61 58 59 60 53 52 55 51 54 49 48 50 45 47 46 99 97 98 100 102 101 103 96 110 104 105 107 108 109 106 111 117 113 119 118 116 115 114 112 120 128 127 123 124 121 122 125 126 132 136 134 131 130 135 129 133 2 3 137 138 139 141 140 1 146 147 145 144 143 142 1 4 6 2 8 149 148 152 153 150 151 5 3 7 1 158 157 159 156 154 155 163 162 165 164 161 160 166 169 167 168 170 173 176 171 172 174 175 44 43 42 41 40 39 38 1 2 6 5 1 3 5 8 6 7 2 3 9 4 48 4 42 43 47 46 45 44 41 40 37 35 36 33 34 32 30 31 27 25 29 23 22 28 24 26 20 14 16 15 17 19 18 21 12 5 9 8 11 10 13 6 7 1 3 4 2 12 15 13 14 17 16 18 11 10 20 21 22 23 24 19 37 33 36 34 31 32 38 39 35 27 28 29 30 25 26 3 1 2 31 32 30 10 11 4 5 6 7 8 9 16 15 12 13 14 26 27 28 23 29 25 24 22 20 19 21 17 18 2 1 47 47 2.2k *** 10K *** 22k 10K 10K 10K 10K *** 10K 10K *** *** 1u 10K 1u 10K 10K 10K RAB4C103J-T 10K*4 22 22 22 22 *** *** 33 10K 10K 10k 10k *** 1000p YB GNDD 1u 10K 10K 10K 47 1u 1u *** 10K 10K 1u *** 1M 1M 1M 1M 1M *** *** 1M 1 *** *** 1u VSS1160 10K 470 10K 10K 10K 10K 10K *** 0 10K 47 ***x4 47 22 *** PD6345A 1u *** 1u 2.2K 10K 10K 10P 10K 10K 100 10K *** 10K 10K 6.8K 22K *** 10K 47 *** 22 V+33A 100/4 1u 1000p YB V+33A_FR 0 GNDD RN4982-TLB V+33A RN4982-TLB GNDD VYW2117- 0.01 YB 100K RB501V-40-TRB 0.1u 1u 1u 1u 100/4 V+25A_FR 0 V+25A *** *** 0 V+33A HY62V8100BLLT1-85 1u GNDD V+12S 1u 1u 100/4 0 V+33A GNDD R696 R694 R695 C695 R693 C693 R610 R689 R642 R645 R640 R623 C618 R626 R628 R634 R627 C615 R604 R611 R646 R624 R631 R625 R637 R644 C612 R638 R639 R629 C620 C624 R630 R656 R643 C616 C617 R654 R617 R614 C613 C626 R622 C610 R641 R653 C607 R605 R607 R647 R635 R655 R606 R658 R660 R657 R602 C614 C627 X601 R681 R683 R633 R615 R618 R621 R620 C629 R613 R616 R649 R650 R651 R612 C650 IC601 C657 R636 C658 R662 R665 R632 C662 R619 R659 R609 R652 R664 C666 C667 R668 R666 R667 R663 R661 R648 R676 C606 C605 C601 C602 R601 R684 C619 Q601 Q601 R682 IC603 C609 C604 C603 C608 C623 R600 R685 R608 IC602 C628 D601 C625 C621 C622 R603 SCL1 V_SEL2 EN24M EN33M V_SEL1 SDA1 FRDTR FRCTS 1394XRDY XHDMIRST VOFF EN16M XPROURST P/XI XABUSY THLD SBSY S_MTOI S_FITOM 1394LT S_MTOF SSCK FRRXD FRTXD XIRQ10 HDMIINT XIRQ11 FILM AOSEL1 XINT0 XINT1 XSACDRST DSPICM DDC_ON XCSADSP0 RESET1 OEICG RFSEL XCD2X AGOFF LD_ON 65X78 DVD/XCD XDFINH PPCNT BCA DPD/TE XCBUSY DSPCUR XDSPRST XRDY_3V LT1_3V GSW XDRVMUTE XMON GU SLDPOS LODPOS 780ON ST2 LODDRV ST1 XOEM XCSDF2 DACK0 XDREQ0 XDFCS3 ENFLOW XDREQ1 XDACK10 XCSFMEM XCSEBY XCSAV1 XCSSRAM XWAIT XAMUTE XMMUTE HXRST XWRL XWRH XRD DFRST0 SYSCLK XCSAQE XAQRST XCSDF1 XCSDF0 FLOFF WBL A3 A1 A0 A2 A4 A21 A19 A18 A20 A17 A22 A12 A5 A11 A10 A9 A8 A6 A7 A16 A13 A14 A15 A16 A11 A20 A9 A14 A13 A10 A12 A15 FRCTS D12 D14 D13 D15 D6 D5 D10 D9 D7 D8 D11 D4 A12 A14 A13 A15 A11 A9 A16 A10 A4 A3 A5 A6 A8 A7 A9 A3 A10 A8 A11 A3 A5 A4 A6 A7 A2 D2 A1 D1 A0 D0 D3 A2 D10 D11 D9 D8 D7 D8 D6 A1 D4 D5 D9 D13 D15 D12 D14 TM_ENT D3 D2 D0 D1 D10 D11 D8 D9 D14 D15 D12 D13 XRD XWRH XWRL XWAIT XRD XWRL A21 A8 A19 A22 A18 A2 A7 A5 A6 A4 A3 D11 D14 D12 D13 D10 D15 A11 A8 A9 A16 A15 A13 A14 A6 A5 A7 A4 A12 XWRL XRD XWAIT XWRL XRD A17 D5 D14 D7 D13 D15 D6 D2 D10 D4 D11 D3 D9 D12 D1 D0 A1 D8 A10 D4 D6 D5 D7 D1 D3 D2 A0 D0 A3 A1 A2 XCSFMEM XCSSRAM to CN901(page5) to IC491 to RF IC(page1/IC101) to page1 GNDD 3.3V to page2 (page2) to R481 from EBY 112p XABUSY-7p from SERVO DSP(page1/IC201) 113p (~DSP~/AV1) from AV1 M3 P2 THLD-22p SBSY-18p 69p PROU (page4,5) to Video Block 2.5V to A-DSP(page6) from CN101 22p 32p 30p 26p 23p 22p 21p PN5 88 PN7 PM0 PM1 PM2 PM3 SDA1 SDA0 SCL1 PN2 GND PN3 PN4 PN0 87 PN6 PN1 to R117, R118 57p 24p 27p 28p 73p (page1/IC201) from SERVO DSP 24p PO2 PO3 PO4 PO7 PO5 PO6 V2R5 PP7 V3R3 PP6 PO0 PO1 (page1/IC202) to SPDL DRIVER 25p from CN103 4p from CN105 12p to page1 PP2 PP3 PP1 PP4 PP5 AN7 AVCC GND PP0 AGND AVRH from R124 (page1) (page1/IC351) AN1 AN4 AN5 AN2 AN3 AN6 DA2 AN0 DA1 DA0 46 DVVCC 45 DAGND A21 A22 A18 A20 A17 A23 A19 PK1 PK2 SCL0 GND PL4 PL5 PL6 PK0 PK4 PK3 PK6 PK7 PK5 V3R3 INT0 V2R5 INT2 INT4 INT5 INT7 SI0 SO0 INT6 INT1 INT3 PH0 MD0 SCK0 PH1 SI1 SO1 PI5 PH2 X1 134 GND 133 X0 MD1 MD2 GND V2R5 16.5MHz V3R3 XDREQ0 DACK0 PC2 PC1 PC0 to AV1(page3/IC751) to EBY(page3/IC701) 94p 93p XDREQ1 XDACK1 PB7 PB6 PB5 PB2 XCS4 XCS3 XCS2 XCS0 XCS1 GND 52p 51p 40p 96p FR CPU A15 A14 A13 A12 A05 A04 A16 A06 A07 V3R3 V2R5 A08 A09 A10 A11 GND A00 GND D27 D28 D29 D31 D30 D22 D26 D25 D24 D23 D20 A02 D21 P97 176 P96 175 A01 A03 XCS6 XCS7 V2R5 V3R3 XCS5 P82 XINIT NMIX P81 RDY HSTX CN901 6p CN551 6p XWR1 GND SYSCLK P91 XRD XWR0 P94 P95 P93 P92 D19 D18 D17 D16 CN551 2p (33M) CN901 5p IC552 11p IC552 4p CN551 7p to FTS DRIVER to RF IC 31p to EBY 114–129,132p(page3/IC701) to SERVO DSP 94p (page1/IC201) from IC601 97p A15 A11 A12 A9 A10 A19 A13 A14 A8 A17 D5 D6 D14 VSS D15 D7 BYTE D13 to AV1 (page3/IC751) GNDD 2.5V 3.3V to SERVO DSP 63–70p(page1/IC201) to EBY 111–108,102–99p(page3/IC701) to AV1(page3/IC751) 41p 44p 45p 44p 98p 97p to EBY(page3/IC701) to SERVO DSP(page1/IC201) to AV1 (page3/IC801) (16M: MBM29LV160TE-90PFTN) RY/BY RESET NC(A20) NC(A21) WE NC A17 A18 A5 A7 A6 A2 A3 A4 A1 D10 D11 VCC D4 PGM FLASH MEMORY D9 D3 D2 D12 D1 D8 D0 VSS OE CE A0 WORK SRAM(1M) A9 A11 OE A10 59p 60p 95p WE A15 NC VCC A16 A8 A13 CS2 A14 A7 A6 A5 A12 A4 D1 D2 D3 D4 D5 D6 D7 VSS CS1 A3 A2 A1 A0 D0 STAND BY B 2/6 DVDM ASSY (DV-59AVi, DV-868AVi-S : VWS1568) (DV-668AV-S : VWS1569) 3/6 B 1/6 B 1/6 B 1/6 B 1/6 B 1/6 B 1/6 B 1/6 B 5/6 B 3/6 B 1/6 B 6/6 B 3/6 B 3/6 B 4/6 5/6 B 1/6 B 3/6 B 1/6 B 4/6 5/6 6/6 B 3/6 B 1/6 B 3/6 B 3/6 B 1/6 B 3/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 31 5 6 7 8 5 6 7 8 C D F A B E B 2/6 1394RST 22/24HDM 22/24M 22/24AV1 16MDSP 16MEBY 33MSACD FLWCLK 44X48 33MEBY1 36MEBY 27MAV1 27MDSP 958CLK TP425 TP424 TP447 TP481 TP422 TP480 TP426 TP427 TP421 TP469 TP479 TP423 TP428 TP467 TP468 OFF/ VOUT VIN ON OADJ OFF/ VOUT VIN ON OADJ OFF/ VOUT VIN ON OADJ C E B 1 2 4 7 5 6 1 1 2 2 3 1 2 1 2 2 3 1 4 5 2 1 1 2 1 2 4 2 3 1 2 1 2 6 5 1 7 2 1 17 16 14 15 12 13 1 1 2 2 2 3 1 4 5 2 1 5 2 3 1 4 2 1 2 1 1 4 5 1 2 3 2 1 5 4 1 3 2 2 1 1 1 2 4 3 7 6 1 2 5 10 11 9 8 1 5 4 7 6 E B C 3 2 1 B E B C E C 10 12 13 11 7 8 9 3 2 5 4 3 5 2 4 2 1 8 9 2 4 5 6 7 3 1 10 14 15 11 13 12 16 3 5 4 2 2 5 3 4 1 5 3 4 6 2 1 6 7 3 4 1 5 2 9 8 12 11 10 46 44 43 47 48 45 37 39 38 42 41 40 13 14 15 16 17 18 24 23 19 20 22 21 3 5 2 4 34 31 30 35 33 36 32 25 27 29 28 26 V+33B 10K DTC114TUA-TLB GNDD 10K 10K V+5V V+33B 5.6K RKN1048- -TFB 150/4 VCH1246- -TRB *** GNDD V+25A PQ025EZ01ZP-TLB 150/4 VCH1246- -TRB GNDD 150/4 VCH1246- -TRB *** MM1561JF-TFB *** RB501V-40-TRB V+18 VCH1246- -TRB GNDD 1u GNDD 1u 220/4 RB051L-40-TRB *** GNDD *** GNDD GNDD 22 22 GNDD *** *** 0 VTL1084-A-T YB *** 1000P V+12S 0.1u 1u V+3E YB YB *** GNDD 47 150/4 V+33A GNDD 150/4 VCH1246- -TRB *** VCH1252(PV) 100/6.3 V+33B VCH1246- -TRB 150/4 RB501V-40-TRB *** GNDD PQ033EZ01ZP-TLB V+25B PQ025EZ01ZP-TLB *** 100/16 GNDD RB051L-40-TRB 2.2u GNDD NJM2880U1-05-TLB 1000p YB GNDD 1u GNDD 1u V+5HD V+5V RB501V-40-TRB GNDD 100/6.3 VCH1252(PV) GNDD V+3E YB MM1385EN-TLB 2.2u YB *** 1 0 GNDD 0.01 YB RB501V-40-TRB 100/6.3 VCH1252(PV) GNDD *** GNDD V+5S 0 YB 2.2u MM1565AF-TFB *** GNDD GNDD 1u 100/16 V+6V 22 0.01 22 22 GNDD *** YB 22 22 GNDD *** *** *** *** GNDD 6.8K GNDD *** 100K 2SA1602A(EF)-TLB 2SC4081(QR)-TLB 1.8k 100K VKN1421- -TBB 2SA1602A(EF)-TLB GNDD GNDD *** GNDD 0.1 VCH1210(ZAV) 47/16 1000p YB GNDM TC7SHU04FU-TLB TC7SHU04FU-TLB GNDD *** GNDD 22 GNDD 1u V+33A GNDD RB501V-40-TRB V+33A 1u 0 *** 22 *** 22 GNDD GNDD 5P VSS1172-A-T 100 GNDD 5P 1M GNDD 0 GNDD V+3CKA 100/4 1u 2.2u YB 0 VTL1084-A-T 100/4 1u GNDD SM8707HV-TBB GNDD 47 68 33 *** TC7SHU04FU-TLB GNDD *** GNDD 1u V+33A 22 47 47 22 *** GNDD GNDD TC7SH08FU-TLB 0 *** 1u GNDD 47/16 GNDM VCH1210(ZAV) V+12S V+6E *** 1000P YB *** S13B-PH-SM3-TBB 1u GNDD 1u LC4032VAA-K V+33A V+33A_CG 0 *** 39 GNDD *** V+33A 22 *** GNDD 0 22 TC7SHU04FU-TLB GNDD GNDD *** 0 1u V+33A 1u 22 *** 150/4 VCH1246- -TRB 1u 0 V+33A Q404 R420 TP432 TP433 TP434 R427 R429 R425 TP431 TP430 TP429 CN403 C445 C444 TP417 IC411 C446 C439 C440 IC410 C441 D408 C438 TP415 C437 D407 C442 C443 D401 C432 C431 R412 R411 C430 R417 TP416 L7740 R418 C740 C749 C297 R298 TP411 C435 C434 TP403 R415 C436 C423 C421 D406 C422 IC401 TP413 IC403 D405 D402 C408 C412 TP463 C411 C419 IC405 D409 C401 TP401 IC404 C407 C406 D404 C409 R401 C404 C413 C417 R403 C416 C415 TP405 IC402 C418 C414 C426 R409 R413 R414 R410 C429 C750 TP409 C467 C466 R408 R448 C449 C450 Q403 R450 R449 R451 Q402 CN402 Q401 C402 C410 C403 TP414 TP419 TP412 TP402 TP466 TP465 C427 TP410 TP464 IC455 IC454 C465 R468 TP477 C464 C463 D403 C462 TP474 R467 R465 R466 C461 C486 C487 X481 R484 R483 R485 C482 C484 C483 C488 R482 L481 C485 IC481 R463 TP418 R464 R461 C458 IC453 C459 TP476 R462 C460 R460 TP473 C456 R459 IC452 C457 C455 C405 C447 TP406 C428 TP408 C448 TP407 TP420 TP404 CN401 C495 C496 IC491 C481 R481 TP471 R456 R457 TP475 C454 TP472 R458 R454 C453 TP435 R455 TP478 R452 IC451 TP470 C452 R453 C451 C493 R492 C492 C491 C494 R491 FRDTR FRCTS FRRXD FRTXD S_MTOI S_FITOM SSCK 1394XRDY S_FITOM S_MTOF XCS4 1394LT HSSCK SSCK XRDY_3V SSCK HXRST IR LT1_3V FLOFF SELIR EV+4 SYSCLK ENFLOW EN16M ENCD EN33M EN24M GNDD V+5D CTS NC RXD TXD DTR SACD-16M SDRAM 4M FLASH HOST-con. (220/4) EBY-CHIP FR SACD 2.5V REGULATOR (220/4) (220/4) GND NC Cn 1.8V REGULATOR AV-1 DVDA DSP AV-1 VO SUB CONT VIN *** : parts not mounted from FR GND V+12 or 1394RESET EV+3V S(MtoF) GND S(FtoM) EBY-16M SDRAM AV1-64M SDRAM CLK Generator Mercury 2 SERVO DSP FLASH DVDA DSP EBY-CHIP XILINK PRO-U T-REX VEC ADV7300 ADV7304 PRO-U SDRAM FR AQE (220/4) SACD VEC HDMI (220/4) 3.3V REGULATOR (100/16) HOSTCON Serial to IC805(page4) (220/4) PRO-U T-REX 2.5V REGULATOR (page1/IC201) to SERVO DSP 58p HDMI JACK Out In 5V REGULATOR CON N GND DOWN LOAD EMIFORO SERVO DSP SPDL DRV (100/16) Vin 3V REGULATOR FL uCOM Vout CONT NOISE GND (100/16) Cn PIC UP RF IC NC VO GND CONT 5V REGULATOR VIN SUB V AMP SR P_CON XREADY SSCK IR FLDC+ FLDC- XRESET to VJKB GND -28V LT1 SEL_IR FLKB (100/16) SW+3.3 EV+4V GND GND P_CON GND SW+12V to IC1051 8p(page5) for AQE & AUDIO DAC FTS DRV SPDL DRV to IC552 6pin & IC503 2p(page6) to IC751 (page3) 27M XIN XOUT 22/24M 36M CLOCK GENERATOR AVDD AVSS VSS2 CLK27M FSEL1 CLK33M NC CLK16M DVSS DVDD VDD2 NC DV-668AV-S ONLY DV-668AV-S ONLY DV-668AV-S ONLY to IC701 189p(page3) to IC201 14p(page1) for SERVO DSP to IC1106 1p(page6) (100/16) FLKB AJKB VJKB FLASH FTS DRV -28V GND FLDC+ FLDC- SYPS EV6V(B) EV6V(A) 169p 145p 142p 89p 90p 104p TDI FLWon CDon VDD GND from FR(page2) FLW24Mon FLW33Mon FLW16Mon VDD TCK 33Min FRclk 22/24Min 16Mout VDD GND TDO VDD FLWCLK GND (page4) from Mercury 16Min TMS 33Mout 22/24Mout GND from FR 105p (page2) to IC701 4p(page3) for EBY to IC751 (page3) to IC1101 55p(page6) for DVD-A DSP (page4) to Mercury DV-59AVi, DV-868AVi-S ONLY CPLD CN101 F SYSCON DOWNLOAD CN101 I 6/6 B 4/6 B 4/6 B 3/6 B 3/6 B 3/6 B 6/6 B 3/6 B 3/6 B 5/6 B 1/6 B 4/6 B 6/6 B 1/6 B 5/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 32 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVDM ASSY 3/6 [EBY/AV1 BLOCK] B 3/6 104 105 109 108 111 107 106 113 112 110 102 103 101 100 98 99 96 94 95 92 93 97 86 88 87 90 89 91 81 83 82 80 85 84 78 77 79 76 75 70 71 69 73 72 74 114 119 115 116 117 118 120 121 127 129 122 123 125 128 124 126 137 135 131 130 133 132 134 136 140 141 144 139 146 142 143 145 138 147 149 148 151 150 153 152 154 155 156 157 160 158 159 161 163 162 167 164 166 165 168 169 174 170 171 173 175 172 179 177 178 181 176 180 183 184 182 185 186 189 190 192 191 187 188 63 64 65 67 68 66 60 59 61 62 58 57 55 54 53 56 52 46 49 48 47 44 45 51 50 41 40 36 37 38 39 43 42 33 32 29 28 7 5 1 34 3 35 30 31 21 25 24 23 22 27 26 20 14 16 19 1 17 11 15 12 13 18 194 197 198 196 195 193 201 203 199 200 202 204 206 207 208 1 205 8 9 1 10 3 4 5 6 7 1 2 2 8 4 6 26 28 27 24 25 23 32 36 30 31 35 34 33 37 29 38 43 41 39 40 44 42 45 19 21 20 16 18 22 15 14 17 13 12 11 8 9 6 7 10 50 49 48 47 46 5 2 3 1 4 GNDD 1u 1u *** 100/4 22 22 1u 22 1u 1u 1u 10K 1u 1u 10K 1000p YB 1u GNDD 1u 10k 100/4 1u 1u 0 V+25A PE5286A 0.1 V+25A_EBY2 1u 1u 0 1u 0 47 0 1u 22 1u 1u 1 1 1 10K 10K 47 47 10K *** 100/4 1u 47 1u 100/4 1u 10K*4 47 47 47 10K 1u 1u 1u GNDD 1u 1000p YB V+33A_EBY 0 0 V+25A_EBY1 0 0 V+25A V+33A HY57V161610DTC-8 1 1 1 1 1000p YB 100/4 0 V+33A FGPL DUTY50 VCOCLK 16MEBY 36MEBY 33MEBY1 1-D5 TP727 C738 C726 C737 R733 C730 R732 C727 R731 C722 C720 C718 TP722 TP713 R716 C731 C732 R717 C733 C728 C729 C725 R707 TP725 C702 C724 R718 IC701 TP724 TP723 C721 C723 R710 C719 R709 C716 R715 C715 R727 R722 C713 C735 C712 C746 C747 TP10 C704 TP711 C706 C709 C707 TP715 R703 R725 R726 R711 TP719 R720 TP721 TP720 C701 R723 TP714 C714 C708 C710 TP718 R702 TP716 TP717 C711 C703 R734 R713 R712 R735 R706 R736 R705 R721 R701 IC741 C741 C743 C742 C744 C748 C745 R741 XIRQ10 D8 XIRQ11 D9 D10 D11 A4 A2 A3 A1 A6 A0 A7 A8 A5 A10 A14 A9 A11 A15 A12 A13 EFLG FSX SQUEEZE VPWM LETTER PPWM RPWM A16 FPWM AFC APC D14 D12 D15 D13 XDREQ0 XWAIT XCSEBY DACK0 XWRL XRD EA0 EA1 EA2 EA6 EA3 EA5 EA4 EA10 EA7 EA8 EA9 XEDRAS EA11 HXRST ASC ATC AIN PW SFSY SBSY SBCK LRSY ROMXA C2F CDBCK ROMCK XEDOE XEDWE XEDCAS XEDCASH ED2 ED1 ED0 ED3 ESDCLK ED5 ED6 ED4 ED8 ED7 ED13 ED10 ED12 ED9 ED11 CKE ED15 CSB ED14 EA5 EA6 EA4 CKE XEDCASH EA9 ESDCLK EA8 EA7 ED12 ED11 ED8 ED10 ED9 TIO0 HFL CDLRCK XSRQ CDDATA SACDSL SCDCLKON XMSLAT XMSRDY XDFSCK0 SREQ BCLK XDFSO0 XDFSI BD1 BD0 BD2 BD3 BD4 BD5 BD7 BD6 ED14 ED13 ED15 XSHD XSAK DSPA2 EA2 EA3 EA1 XEDRAS XEDCAS XEDWE XEDOE EA10 EA0 CSB EA11 ED6 ED5 ED7 ED4 ED3 ED1 ED2 ED0 from/to FR (page2/IC601) to R264 to CN901 to R263 to R262 to page1 to SERVO DSP 9p 20p 14p 10p from SPDL DRIVER from PLL (page1/R334) (36M) to R261 to R270 (page1) (page1) AIN-R343 from RF LPF ASC-R314 VDD2.5V GND XIRQ11 XIRQ10 SAD2 SAD3 VDD3.3V SAD0 SAD1 GND VDD3.3V SAD4 SAD5 SAD6 SAD7 XSWR SDACK XSDREQ XSWAIT XSRD VDD2.5V XCSL1 TMC1 DA0 DA2 GND DA1 VDD3.3V DA5 DA4 GND DA3 DA6 DA10 VDD2.5V GND DA9 DA8 DA7 DA13 GND VDD2.5V XDRAS DA12 DA11 SA4 SA5 SA2 SA3 SA6 SA7 SA1 SA0 SA15 SA9 SA11 SA10 SA8 SA12 SA13 SA14 GND SA19 SA18 SA17 SA16 STATUS2/PD7 EFLG/STATUS3 FSX/STATUS4 VDD2.5V FGPL/PE3 VPWM RERR GND PPWM VDD3.3V STATUS0/PD5 STATUS1/PD6 GNDD APC DUTY50 VDD3.3V AFC GND TMC2 FPWM VCOCLK VDD2.5V GND GND 3.3V 2.5V to VCO AFC-R312 ATC-R316 APC-R310 DEFECT/PE1 T_DET/PC7 ATC VDD3.3V XRESET ASC AVDD2.5V AVDD2.5V VRT VRTS NC VDD2.5V from FLKB EBY-CHIP DVD data Decoder AIN VRB VRBS VRC NC SBSO GND SCOR AGND AGND NC from SERVO DSP (page1/IC201) GND EXCK VDD2.5V CDLR CDDT WFCK C2FI/PE2 BCK VDD2.5V GND CDBCK CKCD (33M) XDCAS/XDCASL XDOE/DQML XDWE GND VDD2.5V XCASH/DQMH DD0 DD2 DD1 SDCLK DD3 DD6 DD5 DD4 VDD2.5V VDD3.3V GND VDD3.3V DD7 GND DD12 DD11 DD10 DD9 DD8 (33M) DIFOUT/PA2 CKE/PD3 CSB/PD2 DD15 DD14 DD13 GND VDD3.3V XAVRTM/PC6 PA7 PA6 PA5 PA4 CDDO/PA3 SREQ VDD2.5V XWR SDATA0 GND SDATA5 SDATA2 SDATA3 SDATA4 SDATA1 XSACK/PC4 XASACK/PC4 ASREQ/PE0 GND VDD2.5V SDATA6 GND VDD2.5V SDATA7 VREQEN/PD1 AREQEN/PD0 RWDIN/PA0 ADATA0 LRCK BCA/PA1 ASDATA4/PB4 ASDATA3/PB3 ASDATA7/PB7 ASDATA5/PB5 ASDATA6/PB6 51p for SACD XAWR/PC3 ASDATA2/PB2 ASDATA0/PB0 ASDATA1/PB1 BUNRI VDD3.3V DMACKI/PD4 DMCK DSPA0/PC0 DSPA1/PC1 DSPA2/PC2 GND GND VDD2.5V VDD3.3V to DVDA DSP & SACD(page6) AQE & DAC from IC481 15p(page2) to AV1 to SACD_dec (page6/IC1110) A4 A5 VSS A6 16MSDRAM VCC A3 A2 A1 A7 A9 A8 NC CKE CLK UDQM NC VCCQ DQ8 DQ9 VSSQ DQ11 DQ10 DQ12 VCCQ A0 A11 A10 CS RAS CAS LDQM WE K4S161622D-TC80 VCCQ DQ7 DQ6 DQ5 VSSQ DQ4 VCCQ DQ3 VSS DQ14 DQ13 VSSQ DQ15 VCC VSSQ DQ2 DQ1 DQ0 RF_V RF_V AD AD D D VD AD VD AD B 3/6 DVDM ASSY (DV-59AVi, DV-868AVi-S : VWS1568) (DV-668AV-S : VWS1569) 6/6 B 6/6 B 2/6 B 6/6 B 1/6 B 2/6 B 1/6 B 5/6 B 1/6 B 2/6 B 1/6 B 1/6 B 2/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 33 5 6 7 8 5 6 7 8 C D F A B E B 3/6 1u 100/4 1 2 4 6 5 10 9 7 8 3 18 16 11 13 17 12 14 15 19 26 25 24 23 22 21 20 27 53 54 47 50 46 45 52 49 48 51 44 42 43 40 41 38 39 37 1 49 48 50 52 51 57 56 58 60 54 53 61 55 59 65 67 69 66 63 68 62 64 32 31 30 29 33 36 35 34 28 77 73 76 72 75 74 70 71 85 81 78 83 82 80 79 84 94 92 93 91 90 86 88 87 89 101 100 98 96 95 99 97 102 42 45 47 43 46 44 38 39 40 41 37 32 35 31 33 34 36 29 28 27 26 25 30 104 103 109 108 105 107 106 114 111 110 113 112 115 116 120 117 118 119 121 125 122 123 126 124 130 129 128 127 132 131 24 23 22 21 20 19 14 15 16 13 18 17 10 11 8 12 9 2 3 4 5 6 7 1 1 2 1 205 203 202 204 206 207 208 201 200 194 193 199 197 196 195 192 198 3 7 2 8 4 6 7 5 2 3 1 8 4 6 5 191 186 187 188 185 190 189 184 180 179 177 183 178 181 176 182 1 168 169 167 172 170 174 173 171 175 161 163 162 164 166 165 160 159 1 137 135 133 138 136 134 140 141 139 144 142 143 145 147 146 149 148 154 155 152 153 151 150 156 157 158 10 2 5 3 4 1 9 8 19 1 7 5 8 4 6 11 12 6 5 4 7 3 2 13 18 17 7 1 8 2 3 1 5 2 3 4 6 14 15 16 20 1u K4S641632F-TC75 1u 1u 1u GNDD 1u V+33A V+33A_64S 0 1u 1u *** 22 1u 1u 0 1u 1u 22 1u 1u 1u 22 1u 1u 1u 1u M65776BFP GNDD 100/4 1u 1u 0 1u V+18 1u *** V+33A 0 1u 1u 0 47 0 0 100/4 V+18 V+18_AV RAB4C101J-T 100*4 1u 1u RAB4C101J-T 100*4 10k 1u *** 1u 1u 1u 1u 10k 100/4 1u V+33A_AV 0 0 V+33A TC74VHC541FT-TBB GNDD GNDD 39 TC7SZ32FU-TLB V+33A_AV 1u 47*4 RA4C470J-T RA4C470J-T 47*4 1u V+33A 27MAV1 22/24AV1 DOUT0 DDATAI AV1CLK1 A1 A2 A3 A4 A5 A6 A7 A8 B1 B2 B3 B4 B5 B6 B7 B8 G1 G2 C785 C786 C787 C788 C789 IC781 C782 R728 C781 C783 C784 C734 TP751 R752 C774 C773 R781 C775 C776 R761 C777 C778 C779 R751 C770 C769 C764 C763 C739 C780 C772 R760 C771 TP704 TP703 TP755 TP702 C765 C766 TP701 R763 C760 C759 R762 R704 IC751 R756 R757 C751 R729 C753 C754 R730 R764 C755 TP754 C798 TP752 C756 C761 C762 C758 R765 C752 C757 R758 R759 IC786 R766 IC752 C791 R787 C797 R786 MD0 MD3 MD2 MD4 MD1 MD5 MRAS MD6 MD7 MDWE MDQML MCAS MA2 MA0 MA3 MDCS3 MBA0 MA1 MBA1 MA10 MA3 MD15 MA0 MA5 MD14 MD12 MD10 MA2 MA4 MD11 MA1 MA6 MD13 MA8 MA9 MD8 MA7 MDQMU MBA1 MA11 MBA0 MSDCLK MA10 MD9 XINT2 XINT1 XDREQ1 XDACK10 MA6 MA11 MRAS MA7 MDCS3 MA8 MA5 MA4 MA9 MCAS MSDCLK MDQML MD8 MD6 MDWE MDQMU MD7 MD3 MD9 MD4 MD11 MD10 MD5 MD13 MD0 MD1 MD12 MD14 MD2 MD15 XWAIT XWRH XINT0 XWRL A10 A11 A9 XCSAV1 XRD A4 A5 A8 A6 A7 A2 A1 A3 PRGA_Y PRGA_B PRGA_R D12 D14 D13 D11 D15 D10 D6 D8 D9 D7 D3 D4 D5 D2 D0 BCLK SREQ D1 PD7 BD7 BD5 BD3 BD2 BD0 BD4 BD6 BD1 HXRST CLK54M PD5 PD2 PD4 PD6 PD0 PD3 PD1 VSYNC HSYNC BCKA0 AAD DOUT1 AOD0 AO00 DATA2A0 DATA1A0 LRCKA0 AV1CLK0 LRCKA0 DATA1A0 DATA2A0 AO00 BCKA0 LRCKA1 LRCKA2 BCKA1 BCKA2 AO0M DATA1A AO0 DATA2A Vcc HY57V641620HGT-H DQ2 DQ1 VccQ DQ0 DQ5 VccQ DQ4 DQ3 VssQ WE LDQM Vcc DQ7 DQ6 VssQ RAS CAS BA1(A12) A10 A3 A2 BA0(A13) CS 64MSDRAM A1 A0 Vcc Vss DQ13 DQ14 VssQ DQ15 DQ10 VssQ DQ11 DQ12 VccQ (81M) CKE UDQM CLK Vss DQ8 VccQ DQ9 NC MA< 3> INT2 INT3 DREQ GND MA< 2> VDD33 VDD18 MA< 5> MA< 1> MA< 0> MA< 6> MA< 4> MA< 7> GND MA< 9> MBA[1] MBA[0] MA<11> MA<10> MA< 8> 52 DACK A9 A4 A11 NC A5 A6 A7 A8 Vss (81M) MEMORY DCS VDD33 DCS2 VDD18 DCS5 DCS4 DCS3 RAS CAS MCLK DWE GND DQML DQMU MD< 7> MD< 8> MD< 6> MD< 5> MD< 9> VDD18 VDD33 MD< 4> MD<10> MD<11> MD< 3> MD< 2> MD<12> GND MD<13> MD<15> MD< 0> MD<14> MD< 1> VDD33 VDD18 INT1 RDY BHE WE HA<10> HA<9> HA<8> RE CS HA<11> GND HA<7> HA<6> HA<4> HA<5> VDD33 HA<1> HA<0> VDD18 HA<2> HA<3> AV-1 MPEG, DVD-Audio, DTS Decoder and Progressive scan Processer VDD33 VDD18 CLKO CLKIN AGND18 NC AVDD18 AVRI DAOUTB AVDD33 NC NC GND BIAS1 AVDD33 PAY BIAS2 IREF PAB GND NCO AVDD33 PAR AGND33 NC NC NC NC NC NC GND HD<11> HD<15> HD<14> HD<13> HD<12> VDD33 HD<10> HD<9> HD<8> HD<7> HD<6> HD<2> HD<1> HD<3> HD<4> HD<5> VDD18 BDEN BCLK GND BDREQ BSECH HD<0> TEST[2] HMODE<0> HMODE<1> TEST[0] TEST[1] PD<7> MITSUBISHI PD<4> PD<5> PD<6> PXCLK CSYNC OSDKEY VSYNC HSYNC PXCLKP (DATA) CDDIN (SPDIF) CDDATA (LRCK) CDLRCK (BCK) CDBCK (JACKB) (PCM) DOUT0 (iLINKB) (STREAM) DOUT1 DACCLK BD<7> BD<6> BD<5> BD<2> BD<3> BD<1> BD<0> BD<4> VDD18 VDD33 RESET from FR from FLKB PD<3> PD<0> PD<1> PD<2> GND PWD DOCLK VDD33 VDD18 ACLKI AOD AAD AO2 LRCLK AO1 AO0 GND Video ENCODER (C,LFE) (RS,LS) from SERVO DSP VDD18 NC NC VDD33 NC NC NC NC NC NC NC NC NC NC NC NC NC GND NC NC NC NC VDD18 VDD33 NC NC (27M) AUDIO to DVDA DSP & IC503 & AQE to Mercury to DVDA DSP & AQE to DVDA DSP & IC503 & AQE to Mercury to Mercury to DVDA DSP & Mercury to DVDA DSP & Mercury (27M) To ProU AD VD : RF (VIDEO) SIGNAL ROUTE RF_V : VIDEO DATA SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE D : AUDIO (DIGITAL) SIGNAL ROUTE D D D D D D D D D VD VD AD 2/6 B 5/6 B 2/6 B 2/6 B 6/6 B 5/6 B 4/6 6/6 B 1/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 34 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVDM ASSY 4/6 [i.LINK BLOCK] B 4/6 RS1/10S0R0J-T FLWCLK 958CLK 100 8 5 4 1 3 6 7 2 99 98 97 96 90 91 93 94 92 95 2 3 1 10 11 12 14 15 16 13 9 18 20 17 19 21 22 24 23 25 28 27 30 29 26 36 35 34 32 31 33 C E B 7 6 5 3 4 2 1 84 89 85 86 87 88 80 79 82 81 83 78 76 77 75 74 70 71 72 69 68 73 7 8 6 3 5 4 2 1 6 3 1 9 6 7 4 8 5 2 13 12 15 17 11 10 14 16 42 43 40 48 47 46 45 44 41 39 35 33 38 34 37 32 36 41 37 38 42 39 40 45 46 43 44 48 47 67 66 65 64 63 62 61 60 54 52 53 59 57 58 55 56 7 5 2 3 1 8 4 6 5 2 3 1 4 7 1 4 6 1 2 8 7 5 2 4 6 3 8 5 3 49 50 51 24 20 19 18 21 22 23 28 29 30 25 27 26 31 1 2 4 3 5 4 3 6 7 5 12 8 10 9 11 2 1 13 14 132 136 137 138 139 134 135 133 147 146 143 142 145 144 141 140 130 126 131 129 128 127 121 123 122 124 125 6 7 5 8 2 1 4 7 5 2 3 3 8 4 6 115 120 117 119 118 116 113 112 114 111 110 109 7 5 2 1 6 8 8 6 3 7 4 1 2 3 1 4 5 106 107 103 104 108 105 97 99 98 102 101 100 154 155 150 151 152 153 149 148 159 156 157 163 158 162 161 160 170 171 166 172 169 167 165 164 168 173 176 1 174 175 7 3 4 5 2 6 10 8 11 12 9 1 2 17 18 16 15 14 13 21 19 20 22 24 23 25 29 30 28 26 27 35 36 32 31 34 33 2 3 93 95 94 92 96 90 85 82 86 88 84 87 89 83 91 80 74 79 76 77 75 81 78 4 1 5 2 3 1 5 8 6 7 4 69 68 67 72 66 73 71 70 64 65 60 58 59 61 62 63 41 40 39 38 37 53 52 54 55 56 57 49 51 50 44 45 46 43 42 48 47 1 2 *** 22 10k *** 100/4 *** *** 10k 1u VSS1179- -T 6.144MHz *** *** 0 *** 0 1u 10k GNDD 10k 10K 22 0 DTC114TUA-TLB V+33A 10k 10k GNDD 1u GNDD V+33A 10k V+5V V+33A 10k *** 0 5.6k 0 RKN1048- -TFB GNDD 0*4 RN4982-TLB GNDD 100k V+33A RN4982-TLB V+12S 0.01u YB 0.1u RB501V-40-TRB GNDD VYW2118- -J 4M FLASH HOST CPU PD5787A 10k 0 0 10k 10k 10k*4 1u 0*4 0*4 0*4 10k 0*4 0 100/4 0 V+33A_HC GNDD *** 10k V+33A_HC V+33A 0 GNDD GNDD GNDD 22k 1u YB V+33A_AM1 GNDD 10k 22k 0.01 YB 1u V+33A_AM1 GNDD GNDD 0 1u 100/4 NJU7093AF-TLB 1 YB 3.6k 0.068 YB 1u 220/4 0 PLL IC 4.7k GNDD *** 27k V+33A_AM1 V+33A 0 GNDD 1u 10k 100 BU2370FV-TBB 100/4 0 V+33A 10k 1u 10k 1u 1u 0.1 1u 0*4 0*4 TSB43CA42GGW 0*4 0*4 1u iceLynx-Micro IEEE1394 PHY LINK 10k 1u 0.1 *** 0 10k V+33A GNDD 33 1u 100/4 *** 0 *** 0 GNDIA 1u 10k GNDD 10k 0 10k 10k GNDD 10k 1u TC7SH08FU-TLB 1u V+33A_DM 0 V+33A 10k 10k 10k*4 100/4 10k 1u 10k 100/4 0.1 10k 10k 10k 10k 10k 10k 10k 10k GNDD 1u 0.1 YB CH 15P GNDD *** *** 6.34K(D) 10k V+33A_AM2 0 0.1 1000P YB 24.576MHz ASS7025 CH 18P 1u 100/4 1u V+33A_AM2 V+33A 0 R863 C855 R861 TP822 R826 TP821 C854 R862 C856 C853 TP9823 TP841 TP842 R860 TP840 TP838 TP839 C840 X801 TP825 R870 C851 R869 C852 TP827 TP826 R864 C841 TP824 TP828 TP861 TP860 R865 R866 TP859 R867 R871 Q801 R1817 R887 C843 R881 R883 R882 R886 R885 R884 TP847 TP844 TP845 TP846 CN801 TP848 TP837 TP836 TP835 TP834 Q802 R872 Q802 C844 R832 C857 TP820 TP849 D801 IC802 IC805 TP829 TP830 R868 R874 R876 R875 R873 TP831 TP832 C839 R1818 R877 TP833 R1815 R1816 R878 C842 R879 R880 L804 R833 R1813 R1814 R858 C835 R851 R857 C832 C830 C828 R849 C829 IC804 C834 C836 C838 R859 C837 R852 R856 R854 R853 L810 C831 R855 R850 IC803 R847 C826 R848 R825 C827 TP816 C808 C807 R824 C806 R823 C805 R822 R821 C804 TP817 C809 C810 R834 R836 C811 TP818 R837 R835 TP819 C812 TP843 C833 R838 R839 R840 R841 IC801 R843 R1819 C813 R844 R820 R819 TP815 R802 TP812 TP813 C801 IC806 C802 L801 C803 R801 R804 R803 C825 R806 R805 TP814 TP811 TP805 TP808 TP807 TP810 TP809 TP806 C823 C815 C824 R808 R807 R813 R812 R809 TP803 R814 R810 R811 X802 R815 C820 C819 R817 R818 R816 L802 C821 C822 C816 C818 C817 C814 L803 from FR HOST_DOUT HOST_DIN SYS_CLK HOST_ACK TEST1 BYTE CNVSS POWER XRST_FLW1 VSS VREF 100 FLOW SACD_SEL XRST_ARM DISABLE TEST_MODE2 VSS 99 LINK 98 MO_MODE XRESET XIN VCC NMI N.C. XOUT TEST2 VSS MEM_STA1 MEM_STA2 MER_REQ CLK_SEL FS_SEL1 MEM_STA0 FS_SEL0 SYS_REQ HPS XRST_MER CLK1 TXD1 RXD1 N.C. RTS0 TXD0 RXD0 CTS0 from FLASH NC GNDD V+5D DTR0 CTS2 RXD2 TXD0 D2 D1 H_SEL1 H_SEL0 D0 H_SEL2 D7 D8 D6 D3 D4 D5 D10 D9 A0 A1 A2 D15 D14 D11 D12 D13 A10 A15 DQ14 DQ13 XBYTE DQ15 A9 A8 A14 A13 A12 A11 MBM29LV400TC-90PFTN DQ10 A17 XRESET NC NC NC RY/XBY DQ11 NC NC XWE DQ12 DQ6 DQ7 A16 VSS DQ9 VCC DQ3 DQ2 DQ5 DQ4 XCS_MEM XCS_IO XCS_FL BUSCLK XHOLD XRD N.C. N.C. WAIT N.C. XWR N.C. A5 A6 A7 A8 VSS VCC A3 A4 A11 A12 A13 A14 A9 A15 A10 A16 A18 A19 A17 (R8804) A3 A2 A1 A7 A6 A5 A4 VSS A0 XCE DQ8 DQ1 XOE DQ0 from CPLD(IC491) (page2) VDD VSS A+ AOUT A- (R8810) GNDD FINA DVDD DGND VCOE VCOVDD VCOOUT FSEL VCOIN VCOGND PDE FINB VDD MCIF_ENDI HSDI0_CLK VSS VDD HSDI0_D2 HSDI0_DVALID HSDI0_D1 HSDI0_D0 HSDI0_AV HSDI0_SYNC HSDI0_EN MCIF_A10 MCIF_A9 MCIF_A8 VDD VSS MCIF_A7 MCIF_A3 133 MCIF_MODE0 MCIF_A2 MCIF_A6 MCIF_A5 MCIF_A4 137 HSDI0_AMCLK_IN 134 MCIF_MODE1 135 MCIF_MODE2 136 HSDI0_60958_IN VDD MCIF_A1 MCIF_D15 MCIF_D14 VSS MCIF_D10 MCIF_D13 MCIF_D12 MCIF_D11 MCIF_D9 MCIF_D8 R220–R223 MCIF_D4 MCIF_D3 MCIF_D5 MCIF_D7 MCIF_D6 MCIF_BUSCLK WD_TRIMZ 88 MCIF_D0 MCIF_D1 VDD MCIF_D2 VSS ARM_JTAG_TDO 84 ARM_FIGZ 87 UART_TX 85 UART_RX 86 from SACD HSDI0_D7 HSDI1_AV HSDI1_EN HSDI1_CLK HSDI0_D6 HSDI0_D5 HSDI0_D4 HSDI0_D3 HSDI1_D2 HSDI1_DVALID HSDI1_D1 HSDI1_D0 HSDI1_SYNC VSS VDD from AV1 HSDI1_AMCLK_OUT HSDI1_AUDIO_ERR HSDI1_D6 HSDI1_D7 HSDI1_AMCLK_IN HSDI1_D5 HSDI1_D4 HSDI1_D3 HSDI1_AUDIO_MUT 60958OUT 60958IN VDD VSS TEST_MODE1 VDD REF_SYT VCO_CLK TEST_MODE0 VSS MLPCM_BCLK MLPCM_LRCK DIV_VCO MLPCM_D1 PFD MLPCM_D0 from IC786(AV1) (Mercury) GPIO5 GPIO4 MLPCM_D2 GPIO3 MLPCM_A GPIO2 CPS VSS VDD MSPCTL AVDD AGND AVDD TPA0N AGND TPB0P TPB0N TPB1P AVDD TPBIAS0 TPA0P TPB1N AGND MCIF_OEZ MCIF_WEZ MCIF_WAIT MCIF_ACKZ ARM_JTAG_TDI JTAG_TDO JTAG_TRST MCIF_CS_IOZ MCIF_CS_MEMZ VDD VSS (R8801) LOW_PWR_RDY RESET_ARMZ DISABLE_IFZ TEST_MODE3 SDA GPIO1 GPIO6 SCL GPIO9 GPIO8 GPIO7 RESETZ LINKON HPS GPIO0 TPBIAS2 TPA2P TPA2N PLL GND TEST_MODE2 TPBIAS1 AVDD TPB2P TPB2N TPA1P TPA1N XO XI PLLVDD VSS VDD R0 AVDD AGND R1 (R8802) (R8803) REQ HSSCK S_FITOM S_MTOI 1394XRDY FLOW LINK DISABLE TST_MODE2 XRST_ARM 1394RST 1394LT HOSTCTS0 CLK_SEL HPS WD_TMRZ HOSTTXD1 HOSTRXD1 JTAG_TRST HOSTCLK1 XRST_MER HOSTRXD0 HOSTDTR0 HOSTTXD0 HOSTCTS0 HOSTCTS0 HOSTDTR0 HOSTRXD0 HOSTTXD0 ID0 ID1 ID2 ID6 ID8 ID7 ID4 ID3 ID5 ID10 ID9 ID11 ID13 ID15 ID12 ID14 IA1 IA2 IA16 IXWR IA14 IA12 IA10 IA13 IA9 IA15 IA11 IA18 IA17 XBYTE ID6 ID5 ID15 ID13 ID14 ID7 ID3 ID2 ID9 ID11 ID10 ID12 ID4 XHOLD BUSCLK IXRD IWAIT XCS_IO XCS_FL XCS_MEM IXWR IA6 IA3 IA8 IA4 IA7 IA5 IA15 IA14 IA10 IA16 IA13 IA9 IA11 IA12 IA17 IA18 IXRD XCS_FL IA4 IA6 IA8 IA3 IA7 IA2 IA5 IA1 A+IN A-IN AOUT ID0 ID8 ID1 FSEL PDOUT FINA FINB IA9 IA10 IA8 IA4 IA7 IA3 IA5 IA6 IA2 ID15 ID14 IA1 ID9 ID11 ID12 ID10 ID13 REG_OUT2 ID7 ID3 ID4 ID8 ID5 ID6 ID1 ID2 BUSCLK ID0 SACD_AV SACD_BCK SACD_D2 SACD_D0 SACD_FRAME SACD_D1 REG_OUT3 SACD_D4 SACD_D5 SACD_D3 SACD_DA DOUT1 PFD VCO_CLK REF_SYT DIV_VCO DATA1A BCKA2 AO0M LRCKA2 CPS DATA2A AAD TPA0N TPB0N TPB0P TPB1P TPBIAS0 TPA0P TPB1N IXRD IXWR IWAIT XCS_MEM XCS_IO MCIF_RW MCIF_STRBZ JTAG_TCK JTAG_TDI ARM_JTAG_TMS REG_OUT1 JTAG_TMS MCIF_INTZ WD_TMRZ JTAG_TRST REG_ENZ XRST_ARM XRST_MER FILTER1 FILTER0 TST_MODE2 DISABLE HPS LOW_PWR_RDY XI XO TPA1P TPBIAS1 TPA1N D D D D D D D D D HOSTCON DOWNLOAD 3/6 B 2/6 B 6/6 B 2/6 B 3/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 35 5 6 7 8 5 6 7 8 C D F A B E B 4/6 3 2 4 4 3 1 2 3 2 4 1 1 3 4 2 1 2 4 3 3 2 4 1 1 GNDIS GNDIS GNDD GNDIA *** *** *** GNDIA *** 1u *** GNDIA 1u CH 220P 5.1k(F) 5.1k(F) CH 220P 56(D) 56(D) 56(D) 56(D) 56(D) 56(D) 56(D) 56(D) VTH1047 GNDIS 0.1 0.1 VTH1047 VTH1047 VKN1800- -TLB VKN1800- -TLB V+33A_AM2 VTH1047 TP854 TP855 R1802 R899 R1803 R1801 D803 D805 D807 D811 D813 D815 D809 D817 TP850 TP853 C846 TP852 TP851 R898 R892 C845 R890 R891 R889 C848 R895 R1820 R893 R894 R897 R896 C847 TP867 TP866 TP869 TP868 C850 C849 L808 L806 L807 JA1 JA2 D802 D806 D804 D808 D816 D810 D812 D814 L805 CLK_SEL TPA0N TPB0P TPB0N TPA0P TPB1P TPB1N D201–D216 STAND BY All *** are stand by. TPA1P TPA1N i.LINK connector D : AUDIO (DIGITAL) SIGNAL ROUTE D D D D B 4/6 DVDM ASSY (DV-59AVi, DV-868AVi-S : VWS1568) (DV-668AV-S : VWS1569) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 36 1 2 3 4 1 2 3 4 C D F A B E 3.7 DVDM ASSY 5/6 [VIDEO BLOCK] B 5/6 TP905 TP906 TP901 TP902 TP907 TP910 TP909 TP908 TP911 TP900 4 1 2 3 8 7 5 5 3 7 6 4 6 1 8 2 3 1 5 7 3 2 5 4 1 6 8 6 2 8 4 15 14 17 11 10 9 16 13 12 24 22 18 25 21 23 20 19 3 7 1 7 5 4 6 2 8 33 32 31 30 29 28 27 26 36 35 34 50 48 47 46 45 49 39 40 43 44 42 41 6 4 5 3 1 2 10 11 8 9 7 12 36 35 34 37 38 30 31 28 33 32 29 13 17 15 14 16 18 21 20 22 23 19 142 143 141 140 139 144 133 138 136 137 134 135 130 132 127 129 128 131 122 123 125 124 126 40 38 42 37 39 41 43 45 44 46 47 48 4 2 3 1 4 6 2 8 3 7 1 5 53 49 54 50 51 52 55 57 59 56 58 6 8 5 7 2 4 6 3 1 118 116 117 119 120 121 114 115 110 112 111 113 109 105 107 108 106 103 102 101 104 98 95 94 93 100 99 96 97 86 90 85 92 87 89 88 91 63 62 61 60 65 64 71 68 69 66 67 70 2 8 4 6 5 7 3 1 8 7 5 77 78 79 81 80 83 82 84 74 75 76 72 73 26 27 25 24 AV1CLK1 C902 R904 R931 R910 R932 R912 R911 R928 R913 R926 R934 C914 R908 C905 C915 R935 C916 C917 C918 C919 R902 R903 R919 C932 C931 IC902 C949 C933 C935 C958 R920 C937 C912 C911 R916 C906 C907 C908 IC901 R914 R938 C920 R939 R962 R956 C921 R972 R971 R976 C909 C910 C913 R918 C924 R917 C925 C926 C927 C922 R977 C923 R915 C928 C929 C903 C930 R907 C904 XPROURST PD0 PD1 PD5 PD2 VSYNC PD6 PD7 PD3 HSYNC PD4 PPD7 PPD4 PHSYNC PPD5 PVSYNC PPD6 PPD2 PPD1 PPD0 PPD3 SCL1 SDA1 PRD0 PRD1 PRD15 PRD14 PRD2 PRD3 PRD13 PRD12 PRD15 PRD13 PRD12 PRD14 PRD11 PRD8 PRD9 PRD10 PRD11 PRD1 PRD5 PRD10 PRD0 PRD3 PRD2 PRD4 PRD6 PRD7 PRD9 PRD5 PRD8 PRD6 PRD4 PRD7 PSDCLK XPROURST PRA8 PRA5 PRA9 PRA6 PRA7 PRWE PRRAS PRCAS PRDQM PRA11 PRA0 PRA1 PRA10 PRA2 PC8 PROUCLK PC9 PC5 PC7 PC4 PC6 PC1 PC2 PC3 PC0 PB2 PB3 PB1 PB0 PB5 PB6 PB4 PB7 FILM PB8 PB9 PRA4 PRA3 PRWE PRDQM PSDCLK PRCAS PRA9 PRA11 PRA10 PRRAS PRA8 PRA7 PRA6 PRA0 PRA1 PRA2 PRA3 PRA4 PRA5 0 GNDD *** RAB4C220J-T RAB4C220J-T *** *** 1u 0 22*4 1u 1u 22*4 0 22 0 22 22*4 22*4 1u 1u GNDD 1u *** 0 0 22 100/4 1u V+33B GNDD 1u HY57V161610DTC-8 1u 1u 0 1u 1u 1u 100/4 1u 1u 1u 1u CD0040AF 0 1u 47*4 1u 47 47 47*4 47 47 1u 1u 1u 1u 1u 1u 47*4 22 1u 47*4 1u 1u 1u 1u *** GNDD 100/4 0 V+25B V+25B_PRU 0 22 22 V+33B_PRU V+33B from FR from AV1 (27M) R926,R935 DV-668AV/WYXJ IVDD CLKI(REFCL) OVDD PI1 PI3 PI2 TEST7 PLL_EN PI0 PI7 PI4 PI5 PI6 PI8 PI9 NHSI NVSI OVSS PO9 THMD CVSS PO8 PO7 NHSO(PHSYNC) NVSO(PVSYNC) 47 PO3 PO2 PO0 OVSS PO6 OVDD PO1 PO5 PO4 OVDD TEST0 OVSS from PRO-U VSSQ DQ13 DQ12 VSSQ DQ3 DQ2 DQ14 VSS DQ15 DQ1 VCC DQ0 16MSDRAM K4S161622D-TC80 DQ11 VCCQ DQ4 VCCQ DQ10 DQ9 VSSQ DQ5 DQ6 VSSQ (54M) CLK CKE UDQM LDQM CAS RAS WE NC DQ7 VCCQ DQ8 VCCQ NC CS A9 A5 A7 A6 A8 A11 A2 A0 A1 A10 TEST6 PLL_VDD CVDD VPDX PLL_GND OVSS SRN SLV SDA RFFO SCL PRO-U MD15 OVDD MD14 MD1 MD0 CVSS PROGRESSIVE & HI-QUALITY MD12 MD3 OVSS MD13 OVSS MD2 VIDEO ENCODER CVDD YO9 CLKO YO8 TEST1 TEST2 YO7 YO6 YO4 OVSS YO5 OVDD (27M) CVSS YO3 OVDD YO0 YO2 YO1 CO3 CO1 CO2 CO0 OVSS CO4 MD10 OVSS MD4 OVDD MD11 MD5 MD9 OVDD MD6 CVDD MD7 MD8 OVDD OVSS CAS MCLK TEST4 WE TEST3 DQM MA9 OVDD RAS OVSS OVDD MA11 MA8 MA10 IVSS CVSS MA6 MA0 OVSS MA7 MA1 OVSS CO5 OVSS OVDD CO6 CO7 FILM CO9 CO8 RFFI OVSS CVDD OVDD MA4 MA3 OVSS MA2 MA5 OVDD MD16 OVDD MD17 MD18 MD19 IVDD A4 VSS A3 VCC DV-668AV-S ONLY CORE/PLL/DAC:2.5V I/O:3.3V (54M) DV-59AVi, DV-868AVi-S ONLY IC1001 R1009 R1013–R1018 T-REX from PRO-U R1030–R1037 VD VD VD VD VD VD Cb/B : Cb/B SIGNAL ROUTE Y/G : Y/G SIGNAL ROUTE Cr/R : Cr/R SIGNAL ROUTE S_Y : S-VIDEO OUT Y SIGNAL ROUTE S_C : S-VIDEO OUT C SIGNAL ROUTE V : V SIGNAL ROUTE VD : VIDEO DATA SIGNAL ROUTE D : AUDIO (DIGITAL) SIGNAL ROUTE 2/6 B 2/6 B 3/6 B Note: The circuit diagram for the HDMI block is not shown in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 37 5 6 7 8 5 6 7 8 C D F A B E B 5/6 TP923 TP924 TP935 TP928 TP938 TP916 TP917 TP918 TP922 TP915 TP913 TP914 TP921 TP926 TP925 TP912 TP920 TP919 TP949 TP939 TP960 TP946 TP904 TP927 TP945 TP903 TP942 TP947 TP944 TP943 TP950 TP936 TP941 TP930 TP929 TP931 E B C B C E B E C B2 C2 E2 23 22 16 17 15 21 20 19 18 14 10 13 9 11 12 24 23 27 22 28 29 25 26 34 30 31 32 33 40 38 36 37 39 35 4 7 5 3 8 6 1 2 62 63 60 61 64 46 44 43 42 45 41 55 56 57 53 52 58 59 54 47 51 50 49 48 B C E B C E B C E E B C 18 20 21 19 14 17 15 16 13 12 11 10 6 7 9 8 3 5 4 1 2 6 5 2 3 4 1 R937 C970 R933 R993 R936 R944 R940 C971 R966 C979 R9907 Q909 R9906 R9904 R9905 R9903 R9902 R961 R9901 Q908 R992 C936 C934 R952 Q901 Q901 D901 R941 C938 R942 R943 R945 R946 R954 C969 C976 C975 C968 C967 C959 C939 C951 C960 C961 R924 C962 IC903 C973 C963 R929 C964 R922 C965 R930 C980 R951 C977 C978 R950 R953 R991 R990 Q907 R988 C983 R989 C972 C974 R987 R986 C966 R948 R947 Q906 R984 R985 R923 R921 R925 R979 R927 R980 R983 R981 R973 R970 Q905 R975 R978 C981 R967 Q904 C982 R974 R959 C946 R955 R968 R964 R963 C948 R958 C942 R960 R965 C947 R969 R982 C945 R957 R949 Q941 R998 Q941 C941 C984 C985 CN901 PB2 PB1 PB0 PC9 PC7 PC8 PC6 PC2 PC3 PC4 PC5 PC1 PC0 PB4 SDA1 SCL1 PB3 PB5 PB6 PB8 PB9 PB7 XPROURST PROUCLK OUT_CR/R OUT_CB/B IR SELIR OUT_Y/G VOFF V_SEL1 OUT_C V_SEL2 PPD4 PPD7 PPD5 PPD6 PROUCLK PPD1 PPD3 PPD2 PPD0 PHSYNC PVSYNC OUT_YS P/XI OUT_V YOUT CBOUT P/XI5 SQUEEZE CROUT LETTER V+25B GNDD *** *** 10K 10K 47 47 *** 10K 0 *** GNDD 24 GNDD 1.8K 270(F) 0 GNDD 24 V+5V 270(F) 0 1.8K GNDD GNDD HN1C01FU(YGR)-T 0 V+6V 1u 1u GNDD 470k GNDD GNDD 1SS355-TRB 4.7k HN1C01FU(YGR)-T 2.2k *** 15k 47k 22 22 GNDD 1u 1u ADV7314KST (14BIT) 0.1 1000p 1000P 1u 1u 100/4 100/4 1u *** 1u 0.1 1u 10K 100/4 1u 10K *** 2.7KF CH 3900P 820P 680 330F 24 V+5V 270(F) YB YB 1u 1.8K GNDD GNDD 1u 0 1u YB 22 2SA1576(RS)-TLB V+5V 300(F) *** 330F 2.7KF GNDD V+5V 1.8K 0 0 0 0 V+33B 0 10K *** *** V+25B 300(F) 4.7 5.6 300(F) V+5V GNDD 1.8K RN4982-TLB 0 100/16 GNDD 1.8K V+5V 1u 0 330p 22 0 0 22 0 330p GNDD 0 330p 22 0 22 330p 330p 22 0 22 330p 47K V+5V RN4982-TLB *** *** V+12S V+6V VKN1427-A-TBB (27M) From CN402(FLKB) 9p 2p SEL_IR GND IR PC1 PC3 PC2 PC4 SDA SPI_I2C_EN ALSB PC0 PY9 VIDEO ENCODER ADV7310KST (12BIT) PY7 VDD GNDD PY8 PC8 P_BLANK P_VSYNC P_HSYNC SCLK RESETB PC5 PC6 PC7 PC9 CLKIN 33 RTC EXT_LF DAC_E DAC_F RSET2 COMP2 GNDD DAC_D PY3/TESTMODE PY6 PY2/SCANEN PY4 PY5 PY1 S8 S7 VDDIO S9 1 GNDIO CLKIN_2 PY0 S_BLANK RSET1 VREF COMP1 DAC_B VAA 48 47 46 DAC_A DAC_C S5 S1 VDD S4 S2 S6 S3 GNDD S0 S_VSYNC S_HSYNC VR601,602:STANDBY R987 15Ω(668WY) from FR(page2) (27M) R983 0Ω(668WY) 91p 102p V V_OFF S_C GND GND S_Y VSEL1 92p 139p 140p Y Cb GND P/XI Cr LETTER SQUEEZE VSEL2 From EBY V+12 EV+6 V+12 GND EV+6 TO VJKB HDMI OUT CKSR**– CAPACITOR : 2125 size CCSR**– CKSQ**– : 1608 size CHIP SIZE RESISTOR : 2125 size RS1/16S– : 1608 size RS1/10S– or IC1051 CN1001 VKN1810- -TRB Transmitter HDMI R1058 DOUT1 from AV1 171pin 22/24HDM R1057 VD VD VD VD VD V S_Y S_C Cr/R Cb/B Y/G S_Y S_C V Cb/B Y/G Cr/R D 16 19 15 18 17 20 13 14 12 B 5/6 DVDM ASSY (DV-59AVi, DV-868AVi-S : VWS1568) (DV-668AV-S : VWS1569) CN101 D 3/6 B 2/6 B 2/6 B 3/6 B 2/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 38 1 2 3 4 1 2 3 4 C D F A B E 3.8 DVDM ASSY 6/6 [A-DSP/AQE/SACD BLOCK] B 6/6 22/24M 22/24M 27MDSP 1 4 2 3 5 6 7 8 12 13 10 11 7 6 9 8 1 2 4 3 5 14 17 19 18 15 16 23 22 21 20 24 3 5 2 4 1 2 3 11 9 8 5 7 6 4 10 144 143 1 140 141 138 139 142 135 134 136 137 133 132 127 126 129 128 131 130 125 120 121 124 122 123 117 118 119 116 114 115 113 112 111 110 109 18 19 20 16 14 15 17 13 12 24 25 22 23 21 28 27 26 36 34 33 32 31 30 29 35 37 38 39 41 40 43 42 47 46 48 49 45 44 53 51 52 55 50 54 61 60 59 57 56 58 63 62 66 67 65 64 69 72 70 71 68 107 108 106 99 100 104 103 102 101 98 105 96 93 92 90 91 94 97 95 87 89 88 82 83 84 86 85 74 73 75 76 77 78 79 80 81 TP533 IC553 C557 C556 R560 R561 R559 R1105 R1124 R1109 R1110 R1112 R1113 TP1106 C1107 R557 R558 C553 C555 C554 C552 R552 R553 R551 IC552 R554 C1110 C1108 C1109 R1118 IC1102 C1127 R1125 R1104 R1108 TP1101 C1106 C1105 C1104 C1103 C1102 C1177 C1111 C1116 C1115 C1113 C1114 C1112 TP1107 L1101 C1117 IC1101 R1119 C1118 C1119 R1123 C1120 C1101 R1101 C1126 C1124 C1125 C1123 C1122 C1121 C1129 C1130 R1133 GNDD TC7WH157FU-TRB 1000P YB 1u 0 0 V+33A GNDD 0 GNDD TC7SH04FU-TLB GNDD 0 *** 10K 10K 1u 10K 10K 0 0 1u *** PD0274A-TFB 1u 22 22 22 100/4 V+33A 0 1u 1u 1u 10k 1u 0 V+33A 0 22 1u 1u 1u 1u GNDD *** 1u GNDD *** 1u 100/4 0.047 0.01 1u LCYA1R0J2520-T YB YB 1u 1u V+18_DSP DSPD56367PV150 0 1u 1u 10K 1u GNDD 100/4 0 1u V+33A_DSP1 V+33A 1u 1u 1u 1u 1u 100/4 1u GNDD V+18_DSP V+18 0 107p (AV1 OUT) (DVDA DSP OUT) GND B(H) Y A(L) CD DIRECT SEL VCC Y ST DV-668AV-S ONLY NC1 AQE NC2 EBY 32p EBY 33p EBY 31p (LfRf) 138p 126p (CLFE) (RsLs) (LfRf) 174p 175p CSB NC4 XIN IGND ICVDD OGND NC6 OVDD SCKL SDATA NC3 NC5 DAIN BCKIN LRIN DALOUT DAROUT LROUT RSTB BCKOUT CGND CGND (L/R) DV-59AVi, DV-868AVi-S ONLY from FR 137p from EBY & DVDA DSP & IC786 (RSLS) (DVDAUDIO) MOSI MISO HREQ SS SCK SDO5 SDI1 VCCS GNDS SDO3 SDO2 SDO1 SDO0 MODA SDI1_1 TDO TDI TMS TCK MODC D22 D23 MODB MODD D21 D20 GNDQ VCCD GNDD VCCQL D16 D17 D18 D19 D15 GNDD VCCD D13 D14 D12 D10 D11 GNDD D7 D8 VCCD D9 GNDQ HCKR HCKT SCKR VCCQL FSR SCKT FST ACI ADO GNDS VCCS HACK HRW HDS HOREQ VCCQH H6 HA0 H7 HA1 HA2 HCS TIO0 H5 H4 VCCH H2 H1 H0 RESET GNDH H3 VCCP PCAP SDIO_1 GNDP VCCQH (CLFE) DVD-AUDIO DSP SCKT_1 AA2 EXTAL CAS GNDQ FST_1 PINT FSR_1 VCCQL VCCC GNDC SCKR_1 TA BR BB VCCC GNDC WR BG RD A0 AA1 AA0 from IC481 3p (page2) D5 D6 A16 A17 D0 D1 D2 VCCD GNDD D3 D4 (DVDAUDIO) GNDQ VCCQL A12 A13 A14 VCCQH GNDA A15 A9 VCCA GNDA A10 A11 A6 A7 A8 VCCA GNDA A3 A2 VCCA A4 A5 GNDA A1 Note 1608 1608 AOSEL1 AO0 DATA0B PLRCK0A DATA0 BCK XCSADSP0 DSPICM XDFSCK1 XDFSO1 XDFSI AO0 DATA2 DATA0B DATA1 XCSAQE XAQRST XDFSCK1 XDFSO1 BCKA1 LRCKA1 DATA0A RESET1 LRCKA1 BCKA1 DATA2A LRCKA1 DATA1A BCKA1 D D D D D D D D B 6/6 DVDM ASSY (DV-59AVi, DV-868AVi-S : VWS1568) (DV-668AV-S : VWS1569) 3/6 B 2/6 B 2/6 B 2/6 B 2/6 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 39 5 6 7 8 5 6 7 8 C D F A B E B 6/6 Q D CLR PR CK Q DOUT0 33MSACD RFSACD VCOSCD 5 8 6 7 11 12 9 10 2 4 3 1 16 13 15 14 8 7 9 10 2 1 3 6 4 5 9 10 8 7 12 14 11 13 2 4 5 3 1 6 14 16 13 12 15 11 2 3 8 7 6 9 11 10 5 4 1 15 17 16 18 22 19 21 20 24 25 23 26 29 28 30 27 2 4 5 3 1 14 16 13 12 15 1 2 4 5 3 31 32 33 4 3 6 5 1 2 8 7 8 6 7 3 5 2 1 4 7 5 2 3 8 4 6 3 2 6 7 1 4 8 5 1 2 176 3 4 5 1 6 14 13 9 8 7 11 10 12 170 171 173 172 174 175 19 18 21 20 22 15 17 16 23 29 27 25 30 28 24 26 31 166 169 167 165 164 168 159 158 163 162 161 160 24 25 27 26 23 22 18 21 20 19 16 15 14 17 13 30 28 29 31 33 32 36 37 35 38 34 153 157 156 154 155 152 151 150 147 149 148 145 143 142 144 141 146 136 137 138 139 135 140 35 36 33 34 39 38 37 32 44 40 45 43 42 41 49 48 51 50 47 46 53 52 55 56 57 54 62 63 60 61 58 59 67 64 66 65 69 68 73 72 74 71 70 80 78 76 79 77 75 85 82 83 86 84 81 7 9 12 10 11 8 6 4 5 2 3 1 41 39 40 43 44 42 47 45 50 48 46 49 134 128 132 131 133 129 127 130 120 122 119 125 123 124 121 126 115 113 114 111 118 110 116 112 117 107 105 102 104 103 108 109 106 95 99 100 101 94 97 96 98 87 90 91 92 93 88 89 R542 R541 R577 C535 C536 R540 IC504 R546 R545 TP503 TP568 CN551 TP506 TP558 TP557 TP559 TP513 TP507 TP553 TP564 TP514 TP517 TP561 R547 C537 R544 IC506 IC505 C538 R539 R563 R564 R565 R572 R571 R576 R556 TP952 TP518 TP519 TP953 TP563 TP520 TP954 C955 TP555 TP575 C954 TP556 TP569 TP554 TP552 C950 TP521 C953 C940 C952 C956 R543 C528 IC503 C527 C570 R583 R579 R574 R570 R1142 IC1106 R1140 C1140 TP562 TP560 TP522 C943 C944 C558 TP566 C559 C560 R1111 C1156 R1115 R1103 IC1103 R1114 R1102 C1128 R1176 C1143 R1175 IC1107 R1139 R1145 C1151 C1150 R1151 C1144 C1152 C1153 C1154 C1155 C1136 IC1105 C1149 C1148 C1135 R1150 C1137 C1147 IC1110 C1157 C1158 C1159 TP1129 TP1128 R1156 TP1119 TP1122 TP1120 C1160 C1161 R1166 R1171 R1167 TP1125 TP1123 TP1124 TP1121 TP1126 R1169 R1170 C1163 C1162 C1164 R1174 R1168 R1173 R1172 R1159 R1165 R1162 R1163 R1164 C1134 C1138 C1146 R1128 C1166 C1165 R1160 TP1118 R1127 C1133 C1132 C1131 R1126 C1176 C1173 R1149 L1102 C1175 C1172 C1171 C1170 R1136 R1157 R1137 C1168 TP1109 C1167 TP1117 C1169 R1161 TP1115 TP1116 TP1113 TP1114 TP1111 TP1112 TP1110 TP1108 GNDD 22 22 22 22 TC74VHC157FT-TBB 1u 100/4 V+33A 22 GNDD 22 GNDD VKN1519- -TFB V+12S 22 22 TC7SH08FU-TLB TC74VHC157FT-TBB GNDD GNDD 1u V+33A GNDD 22 V+33A 1u 22 *** 22 22 22 22 22 *** *** *** *** *** *** *** GNDD 0 TC74VHC157FT-TBB 1000P YB 1u *** 22 22 22 22 V+33A 0 GNDD TC7SH00FU-TLB 22 1 330p 330p 100/4 1000P 1u V+33A YB *** 10k *** 1u 100/4 GNDD *** 22 22 TC7WH34FU-TRB *** GNDD 1u V+33A 1u GNDD RAB4C470J-T RAB4C470J-T 47*4 1 47*4 TC7WH74FU-TRB 0 V+33A 0 *** *** 22 *** 1u 1u GNDD 1u 1u 1u HY57V161610DTC-8 22 1u 1u CXD2753R 1u 1u 47 1u 47 47 47 1u 47 47 1u 100/4 1u 47 47 47 V+33A_SD 47 0 47 47 47 47 V+33A 1u 1u 1u 10K 1u 100/4 0 10K 1u 1u 0 100/4 V+33A V+33A_SR V+25A_SACD V+25A VTL1084-A-T 1u 1u V+25A_SACD 47 0.01 1u *** 1000P 1u 47 47 47 YB 100/4 1u 0 V+33A_IO V+33A form SACD 2Y GND 2B 2A 3Y 3B 3A 4Y 1Y 1B 1A SELECT ST 4B VCC 4A GND 2Y 3B 3Y XAMUTE V+12 GND DATA0/DSD_L GND/DSD_R V+12 GND GND/DSD_RS GND LACK0/GND PBCK0/GND GND PMCK/DBCK GND 1A 1B SELECT 2A 2B 1Y VCC ST 4A 4Y 3A 4B from EBY & DVDA DSP & IC786 2B 2Y GND 3Y 3A 3B EBY(IC701) from FR(IC601) PBCK1/GND DATA1/DSD_C V+3D GND DATA2/DSD_LS GND GND/DSD_LFE GND XDFSI XDACRST XCSDF2 LRCK1/GND V+3D XCSDF0 XDFSCK XCSDF1 1A SELECT 2A 1Y 1B VCC ST 4Y 4A 4B 202p from CLKGEN MCK INVERTER from EBY TO AJKB DOUT GND XMMUTE DAC AQE to DVDA DSP 28p from EBY (SACD) SDCK DELAY MSDATO MSDATI MSCK XMSLAT VDC VSC XRST XMSDOE MSREADY EXCKO2 EXCKO1 VSIO MCKI SMUTE 176:SD7 175:SD6 174:SD5 SD4 SD1 SD3 SD2 MNT2 MNT0 TESTO TESTO MNT3 MNT1 VDIO FRAME LRCK TRST TMS TDO VSC TESTO TDI TCK TESTO XSDEF XSRQ XSAK SDCK SD0 XSHD A2 A3 A0 A1 VDIO VSIO VCC A3 16MSDRAM A4 VSS A2 A11 A10 XCS A1 A0 LDQM XWE VCCQ SD7 XRAS XCAS K4S161622D-TC80 A5 A9 A8 NC A6 A7 NC UDQM VCCQ CKE CLK DQ8 VDC A8 A5 A6 A7 A4 TEST0 VSC A10 A9 A11 SACD DECODER VDIO XWE DCKE DCLK XCAS XRAS SD1 131:DQ7 132:DQ6 VDIO SD2 SD3 VSIO SD0 TESTI TESTI TESTI TESTI TESTI TESTI TESTI VDC TEST3 TEST2 TEST1 SUPDT1 SUPDT0 XBIT TESTO VDIO VSIO SUPDT3 SUPDT2 XSUPAK VSC TESTI 44:SUPDT5 43:SUPDT4 TESTO SUPDT7 SUPDT6 VDC BCKASL DSDMR TESTI TESTO DSDML BCKAO ZDFL VSDSD PHREFI PHREFO BCKAI ZDFC DSAC DSAR DSAL ZDFR VDDSD DSASW ZDFLS DSALS VSDSD ZDFLFE IOUT0 VSC IOUT1 DSARS VDDSD ZDFRS TESTI TESTI TESTI TESTO TESTI TESTI 86:VSIO 88:IFULL 87:IANCO IOUT2 IOUT3 IFRM IBCK IOUTE IEMPTY VDC IOUT4 IOUT5 (SACD) SD6 SD5 VSSQ SD4 VCCQ SD3 SD0 VCC VSSQ SD2 SD1 DQ10 VSSQ DQ11 DQ9 VCCQ DQ12 DQ15 DQ13 VSS VSSQ DQ14 (SACD) SD4 WAVRB WAVSS VSIO WAVSS SD5 WAD7 WAD6 VDC TESTI WCK WAVDD WAVDD WARFI VDIO WAD0 WAD2 WAD1 VSIO WAD3 VSC WAD5 WAD4 VSIO VSC VDC VDIO (SACD) DSD_R DSD_L DSD_LS DSD_RS SACDSL DATA2 DSD_C DSD_LFE DATA1 XCSDF0 DFRST0 XDFSO1 XDFSCK1 XCSDF2 SACDSL DSDBCK XMMUTE XCSDF1 XAMUTE SCDCLKON XDFSO0 XDFSCK0 XSACDRST XDFSCK0 XDFSI XDFSO0 XMSLAT XMSRDY XDFSO1 XDFSCK1 BD7 BD6 BD5 BD3 BD1 BD2 BD4 BCLK DSPA2 XSHD XSRQ SDCK BD0 XSAK SA0 SA1 SA3 SA2 SA3 SA5 SA8 SA6 SA7 SA4 SA10 SA11 SA9 SA4 SA10 SA1 SA11 SA2 SA0 SD7 XSWE XSRAS XSCAS XSRAS XSWE SA9 SA7 SA8 SDCKE SSDCLK XSCAS SA6 SA5 SDCKE SSDCLK SD3 SD2 SD1 SD0 DSADML DSADMR DSDBCK DSD_R DSDBCK SACDSL DSD_L DSD_R DSD_L DSD_C DSD_C DSD_LS DSD_LFE DSD_RS DSD_LFE DSD_LS SACD_D1 DSD_RS SACD_D0 SACD_D4 SACD_D3 SACD_D5 SACD_D2 SD4 SD5 SD6 SD3 SD1 SD2 SD0 SD4 SD5 SD7 SD6 SACD_FRAME SACD_BCK SACD_DA SACD_D0 SACD_D1 SACD_D5 SACD_D3 SACD_D4 SACD_D2 SACD_DA SACD_BCK SACD_FRAME *** : parts not mounted D : AUDIO (DIGITAL) SIGNAL ROUTE D D D D D D : RF (AUDIO) SIGNAL ROUTE RF_A RF_A RF_A D D D D D D D D D D D D 2/6 B 3/6 B 1/6 B 3/6 B 3/6 B CN101 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 40 1 2 3 4 1 2 3 4 C D F A B E 3.9 AJKB ASSY C XAMUTE XMMUTE DOUT DOUT 0/DSD_LFE XDFSCK XCSDF1 XDFSI PMCK/DBCK 0/DSD_R PBCK1/GND LRCK1/GND DATA1/DSD_C XDACRST PMCK/DBCK DATA0/DSD_L PBCK0/GND 0/DSD_RS 0/DSD_LFE DATA2/DSD_LS LRCK0/GND 0/DSD_RS XCSDF2 XDFSI XDFSCK PBCK1/GND PMCK/DBCK DATA2/DSD_LS LRCK1/GND XDACRST DATA1/DSD_C XDFSCK PBCK1/GND LRCK1/GND XCSDF0 XDACRST XCSDF1 XCSDF2 XDFSI 0/DSD_R XDFSCK XDFSI XCSDF0 PMCK/DBCK PBCK0/GND XDACRST DATA0/DSD_L LRCK0/GND V+3SPDIF + - + - 2 1 5 6 4 7 8 4 3 2 8 1 13 14 7 8 9 12 11 10 16 15 22 18 21 20 17 19 1 1 1 3 2 1 2 33 31 32 1 3 2 1 2 27 28 29 30 23 26 25 24 22 19 21 20 16 18 17 2 1 6 2 3 4 5 1 25 26 23 24 27 28 1 2 3 5 4 2 5 3 4 1 14 13 12 15 17 16 7 8 9 6 11 10 1 5 3 4 2 22 21 20 23 18 19 28 24 25 26 27 12 15 14 13 9 10 11 8 6 7 4 5 3 2 1 1 2 5 3 4 14 13 12 16 17 15 6 7 8 9 10 11 1 2 3 4 5 21 22 19 18 20 23 25 27 26 28 24 2 5 3 4 1 E B C 5 1 3 2 4 D151 C153 C154 R151 IC151 C155 IC151 R174 R172 R173 R171 C151 C152 R503 C507 R501 C506 KN102 KN101 R191 C106 IC102 C108 C107 D112 C100 R118 C101 C102 IC101 C104 C103 D111 R130 R131 R202 R128 R129 R126 R127 R125 R124 C105 D101 R101 R502 C510 C501 C502 C505 C504 C551 C503 IC501 IC502 C500 C201 R201 IC201 C407 R403 R402 C410 C405 R401 C406 C451 C403 C404 R116 R117 R122 R123 R121 C112 C113 R113 R114 R115 R112 R110 R111 CN101 C109 C110 C111 C115 C114 C116 C117 C401 C402 IC402 C400 IC401 R611 C307 R303 R302 C310 C305 C306 R301 C351 C304 C303 R602 R603 R606 C604 C603 IC601 C615 R605 R604 C602 C601 R601 C605 R607 C608 C607 R609 R608 Q601 C606 R610 JA601 C609 C614 C610 C611 C612 C613 C301 C302 IC301 GNDA UDZS6.2B-TRB 100/16 VCH1247 *** GNDD GNDA 1k V+8A NJM5532MD-TLB(2/2) GNDA 1000p GNDA GNDA GNDA NJM5532MD-TLB(2/2) GNDD GNDA VREF1 YB 100/16 VCH1247 *** VREF2 GNDA V+12A GNDA GNDD 0 330p 16k (D) VCH1249 47/16 VCH1249 VNF1084-T VNF1084-T *** GNDD GNDD *** NJM78M05FA 330/6.3 VCH1248 GNDA *** 47/16 JQ 100/16 VCH1247 *** NJM78M08FA VCH1247 100/16 V+12A 0 RB501V-40-TRB 0 0 GNDD 0 22 V+3D 0 0 0 0 *** V+5A 47/16 VCH1249 GNDA V+8A *** VMUTE *** 0 V+12A 0 0.1 330/6.3 VCH1248 1.0 YF PCM1738EG-3-TBB *** 47/16 GNDD 1/50 CCH1510 V+3D TC7SH08FU-TLB 0.1 YF V+5A V+3D 0 *** 0.1 TC7SH08FU-TLB GNDD 330p GNDA 0 0 0.1 16k (D) 47/16 VCH1249 47/16 VCH1249 *** 47/16 VCH1249 47/16 VCH1249 0 0 22 0 0 *** *** 0 0 0 0 0 0 VKN1519- -TFB 330/6.3 V+3D VCH1248 GNDD 1000p YB 1.0 GNDD *** *** *** *** 330/6.3 VCH1248 1.0 V+3D YF PCM1738EG-3-TBB TC7SH08FU-TLB 0.1 GNDD 1/50 CCH1510 V+5A V+3D YF *** GNDD GNDD 330p GNDA 0 0 330/6.3 VCH1248 PCM1738EG-3-TBB 0.1 16k (D) 47/16 VCH1249 47/16 VCH1249 *** 0 0 GNDD 12p 680 *** *** (TC7SH08FU) 390 470 GNDD 0 0.1 VCH1248 330/6.3 V+3D *** 150 VCH1249 75(F) 0.1 100k 47/16 2SC4081(QR) GNDD *** *** VKX1012 47/16 VCH1249 1.0 YF 1000p YB 1.0 YF 1000p YB 100/16 VCH1247 1.0 YF V+3D V+5A 1/50 CCH1510 VCH1249 47/16 or CKSQ**– CAPACITOR : 1608size CKSR**– CCSR**– CCSQ**– : 2125size or RS1/10S– RS1/16S– : 1608size : 2125size RESISTOR CHIP SIZE STAND BY SCK XCS PMCK/DBCK GNDD SI SO PMCKO VDD MUTE/DSD_LFE IOUTR- VCOM3 IREF IOUTR+ GNDA1 VCOM1 VCOM2 XAMUTE V+12 V+12 GND GND/DSD_R GND DATA0/DSD_L GND PBCK0/GND GND PMCK/DBCK GND GND/DSD_RS LRCK0/GND GND GND DATA2/DSD_LS GND/DSD_LFE C100, C105, C155 : Stand by DV-668AV-S/WY BCK/GND LRCK/GND DATA1/DSD_C ZEROR ZEROL XRST IOUTL- GNDA2 VCC1 VCC2 IOUTL+ VCC3 SI SCK XCS IOUTR+ MUTE/DSD_RS IOUTR- GNDD BCK/GND PMCK/DBCK VDD PMCKO SO LRCK/GND DATA2/DSD_LS XRST ZEROL ZEROR IREF VCOM3 VCOM2 VCOM1 GNDA1 VCC1 IOUTL- VCC3 GNDA2 IOUTL+ VCC2 V+3D PBCK1/GND DATA1/DSD_C GND XCSDF0 LRCK1/GND XDFSCK V+3D XDFSI XDACRST XCSDF1 XCSDF2 XMMUTE GND DOUT (IC331, IC431, IC531 → NJM2068MD-TBB) (C303, C403, C503 → CEJQ101M6R3-T) NJM5532MD-TLB → BA4560F-TBB VCH1248 (330/6.3) → CEAT331M10-T VCH1249 (47/16) → CEAT470M16-T CCH1510 (1/50) → CEJQ1R0M50-T VCE1048 (2200p) → CQMBA222J50-T VCE1035 (470p) → CQMBA471J50-T DV-668AV-S/WY VCH1247 (100/16) → CEAT101M16-T VCH1242 (47/50) → CEAT470M16-T C607 : CEJQ1R0M50-T SCK SI XCS IOUTR- IOUTR+ MUTE/DSD_R GNDD VDD PMCKO BCK/GND PMCK/DBCK SO XRST ZEROL LRCK/GND ZEROR DATA0/DSD_L VCOM3 VCOM1 GNDA1 VCC1 IREF VCOM2 IOUTL- VCC2 VCC3 GNDA2 IOUTL+ STBY DV-668AV-S/WY DIGITAL AUDIO OUT +8V Regulator +5V Regulator Reference voltage generator for Audio Amp. Audio DAC for Front channel (2 ch) Audio DAC for Ls, Rs (2 ch) Audio DAC for C, LFE (Sub Woofer) (2 ch) DV-668AV-S/WY C614 : Stand by COAXIAL OPTICAL D D D D D D D D D D D D D D 24 23 21 22 CN551 B 6/6 C AJKB ASSY (DV-59AVi: VWV1984) (DV-868AVi-S: VWV1985) (DV-668AV-S: VWV1990) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 41 5 6 7 8 5 6 7 8 C D F A B E C XMMUTE XMMUTE XAMUTE XAMUTE - + + - - + - + + - + + - - - + + - - + - + + - + - - + + - - + - + - + 6 4 5 8 7 3 4 1 2 8 8 6 4 5 7 B B E C E 6 4 5 8 7 4 3 1 E 2 8 B C 4 5 1 4 3 2 8 6 8 7 1 2 4 3 8 4 5 6 8 7 6 8 4 5 7 2 3 8 1 4 C 5 4 2 3 1 B 6 C B C E E 3 8 1 2 4 B E C 4 5 E C B 6 8 7 4 2 3 1 8 4 5 7 6 8 6 8 7 4 5 8 1 2 4 3 B B C E C E 4 2 B 5 3 1 E C E 6 B E C B2 C2 E2 2 4 3 8 1 B E C B B C C E 1 2 B C E 3 R524 IC521 C509 C508 C524 IC521 R523 C523 C522 R541 R543 R544 C543 C544 R542 C545 R545 R546 C521 IC531 R547 C547 R561 R563 R562 Q561 R514 IC511 C514 IC511 R572 Q571 R571 Q571 R573 C513 R574 R513 C512 Q572 IC421 R532 C535 R536 R535 R531 C533 R534 IC531 R537 C537 C534 C511 R533 R443 C532 C531 R424 C424 IC421 C408 C409 C423 R423 C422 IC411 R414 R441 R444 C443 R442 C445 R445 R446 C444 IC431 R447 C447 C421 C435 R436 R432 C433 R435 R437 IC431 C437 R553 R551 Q551 R552 R461 JA401 R462 R463 R453 R451 Q451 Q461 R452 Q471 R471 R472 C414 IC411 C413 R474 R413 C412 R473 Q471 Q381 Q472 R384 IC321 R431 R434 R433 C411 C432 C434 C431 R343 R382 R381 Q381 R383 Q382 R324 C324 IC321 C309 C308 C323 R323 IC311 C322 R314 R341 R344 C343 R342 R345 C345 R346 C344 IC331 R347 C347 C321 C335 R336 R332 R335 C333 R337 IC331 C337 R357 R352 R367 R362 R355 Q352 R365 Q362 R356 R351 Q351 R354 JA301 Q371 R371 R372 C314 IC311 C313 R374 R313 C312 R373 Q371 Q372 R331 R334 R333 C311 C332 C334 C331 R366 R361 R353 R358 R364 Q361 R359 Q353 R363 R368 R369 Q363 CN351 NJM5532MD(2/2) VCE1048 200(D) 2200p PP GNDA NJM5532MD(2/2) 200(D) 330p GNDA GNDA 2200p PP 330p NJM5532MD(2/2) VCE1048 *** 3k (D) 1k (D) 1k (D) VCE1048 2200p PP 470p PP VCE1035 GNDA 1k (D) 3k (D) 1k (D) 100/16 VCH1247 470p PP VCE1035 NJM5532MD(2/2) 47/50 VCH1242 470p PP VCE1035 GNDA 220 22k 1k 1k 220 2SD2114K(VW)-TLB GNDA 2SD2114K(VW)-TLB GNDA GNDA 200(D) VCE1048 V+12A 2200p PP GNDA NJM5532MD(2/2) UMH9N-T(1/2) 4.7k 1k GNDA UMH9N-T(1/2) 3.3k 2200p PP VCE1048 10k 200(D) *** 2SA1576A(QR)-TLB V+12A NJM5532MD(2/2) VREF2 1k (D) 2200p PP VCE1048 3k (D) 1k (D) 1k (D) 3k (D) 1k (D) NJM5532MD(2/2) 47/50 VCH1242 470p PP VCE1035 GNDA GNDA 100/16 VCH1247 3k (D) 100/16 VCH1247 V+12A *** VMUTE 2200p PP VCE1048 200(D) GNDA NJM5532MD(2/2) GNDA 330p 200(D) 2200p PP 330p GNDA NJM5532MD(2/2) *** VCE1048 2200p PP VCE1048 200(D) V+12A 1k (D) 1k (D) 2200p PP VCE1048 1k (D) GNDA 1k (D) 3k (D) VCE1035 470p PP 47/50 VCH1242 VCE1035 470p PP NJM5532MD(2/2) VREF2 100/16 VCH1247 3k (D) 1k (D) 2200p PP VCE1048 1k (D) 470p PP VCE1035 GNDA NJM5532MD(2/2) 47/50 VCH1242 22k 220 220 GNDA 22k 220 1k VKB1125(Au) 220 2SD2114K(VW)-TLB 22k 1k 220 220 2SD2114K(VW)-TLB UMH9N-T(1/2) GNDA GNDA GNDA 4.7k 1k NJM5532MD(2/2) GNDA 2200p PP 10k VCE1048 200(D) *** UMH9N-T(1/2) 3.3k VMUTE GNDA UMH9N-T(1/2) 1k GNDA GNDA 2SA1576A(QR)-TLB 10k NJM5532MD(2/2) 1k (D) GNDA 1k (D) 3k (D) 100/16 VCH1247 V+12A 470p PP VCE1035 *** 100/16 VCH1247 GNDA V+12A 3k (D) UMH9N-T(1/2) 4.7k 2SA1576A(QR)-TLB 3.3k VMUTE 200(D) 2200p PP VCE1048 GNDA GNDA 200(D) NJM5532MD(2/2) 330p 2200p PP GNDA 330p VCE1048 V+12A NJM5532MD(2/2) *** 200(D) 2200p PP VCE1048 1k (D) 1k (D) 2200p PP VCE1048 GNDA 1k (D) 1k (D) 3k (D) VCE1035 470p PP 47/50 VCH1242 GNDA 470p PP VCE1035 NJM5532MD(2/2) VREF1 100/16 VCH1247 3k (D) 1k (D) 2200p PP VCE1048 1k (D) 470p PP VCE1035 NJM5532MD(2/2) 47/50 VCH1242 1k 220 22k 1k 220 220 GNDA 2SD2114K(VW)-TLB 220 2SD2114K(VW)-TLB 22k 220 1k 1k 220 GNDA 2SD2114K(VW)-TLB 2SD2114K(VW)-TLB VKB1133(Au) UMH9N-T(1/2) GNDA GNDA GNDA 1k 4.7k 200(D) GNDA NJM5532MD(2/2) VCE1048 10k 2200p PP *** UMH9N-T(1/2) 3.3k VMUTE V+12A 2SA1576A(QR)-TLB 1k (D) GNDA 1k (D) 3k (D) 470p PP VCE1035 100/16 VCH1247 GNDA 100/16 VCH1247 *** V+12A 220 220 1k 220 0 2SD2114K(VW)-TLB GNDA 220 1k 0 2SD2114K(VW)-TLB B3B-PH-K-S C508, C509 : 100pF DV-668AV-S/WY DV-668AV-S/WY C408, C409 : 100pF Center LFE (Sub Woofer) Ls Rs SW for Mute Control Signal IC311, IC321: I to V change circuit Audio Amp. (with LPF) Audio Amp. (with LPF) LPF: Low Pass Filter Audio Amp. (with LPF) Mute SW Mute SW Mute SW IC411, IC421: I to V change circuit IC511, IC521: I to V change circuit C308, C309 : 100pF DV-668AV-S/WY FL L/FL FR R/FR GNDA SCART_L DV-868AVi-S, DV-668AV-S ONLY SCART_R TO VJKB SW for Mute Control Signal SW for Mute Control Signal SW for Mute Control Signal AUDIO OUT (Front 2ch /Down mixed stereo) AUDIO OUT : AUDIO (DIGITAL) SIGNAL ROUTE D : AUDIO SIGNAL ROUTE 25 CN601 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 42 1 2 3 4 1 2 3 4 C D F A B E 3.10 VJKB ASSY D MM1565AF-TFB YB V S_C S_Y Y/G CR/R CB/B V_OFF VSEL1 VSEL1 V_OFF V_OFF SQUEEZE LETTER VSEL2 V_OFF VSEL1 1 3 2 1 2 4 6 5 3 1 3 2 10 9 8 7 12 13 11 14 E B C B2 C2 E2 11 12 9 8 7 10 E B C 17 15 16 18 19 20 21 22 23 5 7 6 4 3 2 1 5 4 6 1 3 2 12 9 8 7 10 11 B C 2 5 4 6 1 3 12 9 8 7 10 11 E E C B2 B C2 E2 1 5 2 4 6 3 E B C CN101 R207 TP202 C206 TP201 JA202 C201 C202 R204 TP101 TP102 D201 TP203 TP103 TP104 TP112 TP113 TP204 R201 TP205 JA201 TP206 C103 C105 TP114 TP105 TP115 C104 TP118 TP116 C111 R105 R106 KN101 KN104 KN102 KN103 Q303 D301 TP300 TP308 R301 R313 Q303 C301 C330 F303 C322 R336 R335 Q306 R334 TP309 C313 C309 C312 C307 C308 C102 C101 TP111 TP117 TP110 TP109 TP121 R102 TP123 R103 C112 TP119 R104 C113 C114 C107 C108 TP122 R101 IC101 C109 C110 D101 TP120 R332 TP333 TP330 C327 R339 TP304 F302 C320 R333 C321 TP323 R328 Q305 R329 R325 C329 R338 TP325 C326 TP324 C318 TP332 C319 R330 TP326 R326 TP322 Q304 C303 Q602 D609 Q601 R607 Q601 C328 F301 C325 R318 TP331 TP329 R337 TP328 R324 R319 TP327 R320 R323 C317 C323 TP321 TP602 TP603 R605 R606 C616 C613 C611 TP609 C610 TP611 C609 C608 TP601 C605 GND VKN1427-TBB 0 1 RKN1004- 47P 47P GND 1SS355-TRB GND 0 RKN1004- 0 *** *** *** *** 0 0 GND GND GND UMD3N-TLB(1/2) DAN202K-TLB *** UMD3N-TLB(1/2) 10k *** GND GND VTF1175- 10p GND GND 22K(F) 0 GND 2SA1576A(QR)-TLB *** V+5V V+5V 0.1 YB 0.1 0.1 YB YB 0.1 0.1 YB YB *** *** GND 22k 10k GND 0 *** GND *** GND V+12 *** 100/16 V+6E 0 1 220/6.3 2.2 RB501V-40-TRB V+5V 300(D) 7p 4p *** GND GND VTF1175- 10p GND V+5V 0.1 1.8K GND GND 2SA1576A(QR)-TLB *** 0 GND 300(D) 7p *** VTF1175- GND 4p 22K(F) GND 1.8K 0.1 GND V+5V 2SA1576A(QR)-TLB GND 0.1 YB UMD3N-TLB(2/2) DTC114YUA-TLB DAN202K-TLB GND GND GND 10k UMD3N-TLB(2/2) GND 300(D) 7p 10p GND *** 4p 0 1.8K 22K(F) *** 0.1 GND *** V+5V 2.2k V+5V V+5V V+5V *** *** GND 0.1 0.1 0.1 YB 0.1 YB 0.1 YB 0.1 For DV-668AV-S/WYXJ only 1.8 → 3.3 1.0 → 3.9 1.0 → 3.9 F301, 302, 303 C318, 320, 322, 325, 326, 327, 328, 329, 330 R323, R328, R334 R409 R410 R412 Unmounted Unmounted Unmounted For DV-668AV-S/WYXJ only DV-868AVi-S, DV-668AV-S ONLY R337, 338, 339 R318, 325, 332 SEL_IR GND IR from DVDMB V S_C V_OFF GND S_Y GND VSEL1 P/XI Y/G GND Cb/B *** → 0 300 → 0 IN KN101-KN104 are all VNF1084-T OUT CONTROL Cr S_C S_Y Y Cb SQUEEZE Cr/R VSEL2 LETTER GND V+12 V+12 V+6E V+6E V 10k 47k [ATTENTION1] [ATTENTION1] [ATTENTION2] R B : 1608size : 2125size CAPACITOR VSEL1 VSEL2 RESISTOR : 1608size CHIP SIZE : 2125size L L H L Y/C (Y/Cb/Cr) V MODE H H RGB G Video mute cont. SW Video mute cont. SW L.P.F. L.P.F. L.P.F. Cr/R G B R Cb/B Y/G S_Y S_C V Y/G Cb/B Cr/R V S_C S_Y Y Cb Cr Cb/B : Cb/B SIGNAL ROUTE Y/G : Y/G SIGNAL ROUTE Cr/R : Cr/R SIGNAL ROUTE S_Y : S-VIDEO OUT Y SIGNAL ROUTE S_C : S-VIDEO OUT C SIGNAL ROUTE V : V SIGNAL ROUTE : AUDIO SIGNAL ROUTE CN901 B 5/6 D VJKB ASSY (DV-59AVi: VWV1986) (DV-868AVi-S: VWV1988) (DV-668AV-S: VWV1989) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 43 5 6 7 8 5 6 7 8 C D F A B E D ZA ZA B R G GNDA SCART_R SCART_L ASPECT LETTER SQUEEZE ASPECT Y C VSEL2 VSEL1 Y C SQUEEZE E B C B2 C2 E2 B E C2 B2 C E2 17 18 16 15 20 21 19 22 11 12 14 13 9 10 5 7 8 6 4 3 24 26 27 28 23 25 31 32 30 29 34 33 1 2 3 5 6 4 2 8 5 1 10 3 4 6 2 9 7 4 2 1 35 36 15 14 18 17 16 20 21 22 23 19 8 13 12 11 10 9 4 3 7 6 5 24 25 27 28 29 26 30 33 34 31 32 4 5 6 1 3 2 3 1 1 2 6 7 8 3 4 5 9 10 12 13 11 14 2 1 35 36 2 3 1 18 17 19 16 15 Q301 R312 R311 C324 Q301 C302 R314 Q302 Q302 R315 C316 C417 L402 TP413 C414 C413 TP412 L401 C314 C315 C310 TP319 TP307 D407 TP311 TP310 R310 TP305 TP320 TP306 TP303 TP302 C311 TP312 TP313 R307 R309 R308 C306 TP318 TP316 TP314 TP315 R306 R305 D410 D411 D408 D409 D412 R408 C406 C409 R405 C408 TP350 C405 C403 R411 R413 TP416 R412 R416 TP411 C418 C416 R410 R415 TP414 TP415 R414 R409 TP409 C415 TP410 JA403 R407 C412 R404 TP406 R406 TP408 TP407 TP405 TP404 C410 C411 TP403 R403 C407 R402 C404 TP402 CN402 TP301 C304 C305 IC302 R302 TP317 D401 D404 D403 D402 D405 D406 C401 R613 R612 R614 TP629 TP628 R609 C614 C615 TP610 C620 TP632 D604 TP608 TP607 TP612 TP613 C612 TP636 TP635 TP631 C607 TP630 D601 TP624 TP627 D606 D605 R650 C619 TP604 IC603 TP623 C617 R651 D603 D602 TP625 C602 R401 TP401 C402 JA401 D608 D607 C618 TP626 TP614 TP617 TP615 TP616 C606 C604 TP606 IC601 R601 TP634 D610 R608 C603 CN601 TP619 TP622 TP618 TP620 TP621 CN602 GND GND UMD3N-TLB(1/2) 1k 1.5k GND GND YB 1000p UMD3N-TLB(1/2) *** UMD3N-TLB(2/2) UMD3N-TLB(2/2) *** *** *** V+5V V+5V GND V+5V V+5V GND VTL1089-T 470/6.3 VTL1089-T 470/6.3 1000/6.3 470/6.3 0.1 ZA *** GND 0 1 0 0 0 1 0 0 *** *** *** *** *** *** 10k 0.1 0.1 10k 1000/6.3 1000/6.3 1000/6.3 GND (D) 68 1.0 1.0 (D) 68 *** *** *** *** (D) 68 1.8 *** (Au) VKB1151- (F) 75 *** GND (F) 75 75(F) *** *** (Au) (F) 75 GND *** (F) 75 *** AKP7023- 470/6.3 0.1 LA73054-TBB 0 V+5V V+5V *** *** *** *** *** *** 1000/6.3 0 0 0 GND GND *** 470/6.3 GND 0.1 ZA GND GND GND 1 *** 1 *** *** *** 3.3 0.1 0.1 YB MM1507XN 3.3 *** *** *** GND 1 (F) 75 *** (Au) VKB1135- GND *** *** 0.1 V+5V GND 470/6.3 LA73054-TBB 0.1 V+5V 0 V+5V V+5V GND 0 *** 1 B3B-PH-K-S V+12 GNDA VKN1250- 10k 10k 10k 10k 10k 10k 10k 10k 1/X2_Drv GND Cr/R_out Cr/R_in 9/X6dB Vref GND GND Cr Y/G_out Cb/B_out MUTE P/XI Cb/B_in Y_out YCmix G/XY_SW Y/G_in V_out C_out SQUEEZE LETTER MUTE C_in C_DC_out GND Y_in VCC GND GND Cb S_Y Y GND VCC GND V S_C COMPONENT VIDEO OUT V_in 9/X6dB VCC 1/X2_Drv 1/X2_Drv Cb/B_out Cb/B_in 9/X6dB Cr/R_in Vref GND Cr/R_out GND GND MUTE P/XI Y_out YCmix Y_in G/XY_SW Y/G_in Y/G_out MUTE C_DC_out V_out GND C_in C_out SQUEEZE LETTER GND GND VCC GND GND VCC H L VIDEO OUT (Composite) S-VIDEO OUT Video Driver Amp. Video Driver Video Driver Amp. R B VSEL2 G Y C GND VSEL1 GND GND V GND V+5V SQUEEZE 9/X6dB VCC 1/X2_Drv V_in from AJKB V+12 SCART_L GND SCART_R GNDA to SCRB [ATTENTION2] Overlapping circuit of aspect change voltage G G G R B B R B R V S_C S_Y S_C S_C S_C V V V V V S_Y S_Y S_C S_Y S_C S_Y S_Y Y Cb Cr Y Cb Cr Y Cb Cr CN901 E CN351 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 44 1 2 3 4 1 2 3 4 C D F A B E 3.11 SCRB ASSY E 6 5 4 3 1 2 6 4 5 1 2 3 1 2 3 4 7 8 5 6 9 10 12 11 14 13 16 15 18 17 19 B E C E C B B C E B E C D915 D916 D914 C939 IC902 C938 C927 C934 C935 C940 D911 D912 D909 C929 C928 IC901 D908 C936 D907 D906 D905 C905 C909 CN901 R999 C901 C908 D999 R909 C906 C920 R927 C916 R923 Q905 R928 R924 Q904 R907 R910 Q902 R906 R911 C902 D901 Q901 R901 R902 R905 R903 R904 R970 R971 GNDV 1SS355 V+5V 1SS355 GNDV 1SS355 GNDV 0.1 YF MM1507XN 0.1 YF 47P GNDV CH GNDA GNDV *** 1u YF GNDV V+5V GNDV 0.1 YF GNDV 1SS355 V+5V 1SS355 1SS355 1SS355 V+5V GNDV V+5V 100/10 GNDV 0.1 YF MM1505XN 1SS355 0.1 GNDV V+5V GNDV YF V+5V 1SS355 1SS355 V+5V GNDV *** VKN1279- 1u *** GNDV *** 0.1 V+12V 1SR154-400-TRB V+11V YF 4.7K GNDV GNDV GNDV 4.7K *** 0.1 YF GNDV 2SC4081 56K 1.2K 22K 2SA1576A V+5V GNDV *** GNDV 0.1 GNDV GNDV V+5V 2SC4081 *** *** 15K 56K YF 2SC4081 1SS355 *** 10K V+12V 1.8K 1.8K 1.8K 1.8K 1.8K V+12V V V V Y L H VSEL2 V/Y G B R C L H R/C SQUEEZE V+12V AUD.L AUD.R GNDA GNDV +5V GNDV GNDV V C GNDV Y GNDV G VSEL1 from VJKB B R VSEL2 VSEL2 Video Amp. with SW VSEL1 BLANK AUD.R AUD.L V Y/C RGB VSEL 1 L L H VSEL 2 H L H (BLANK) MODE SQUEEZE Video Amp. with SW SW Buffer SW Buffer SCRB ASSY (VWV1992) E CN602 D C Y R G B V : V SIGNAL ROUTE : C SIGNAL ROUTE : Y SIGNAL ROUTE : R SIGNAL ROUTE : G SIGNAL ROUTE : B SIGNAL ROUTE : AUDIO SIGNAL ROUTE B V V V/Y R/C G B G C Y V V Y C R R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 45 5 6 7 8 5 6 7 8 C D F A B E E 6 10 9 8 7 5 4 3 2 1 6 10 9 8 7 5 2 1 4 3 6 5 9 4 10 8 7 3 2 1 2 3 2 3 1 2 1 2 1 1 19 20 21 18 15 17 16 11 12 13 14 7 8 9 10 3 4 5 6 6 10 9 8 7 5 2 1 4 3 6 5 3 1 7 10 9 8 4 2 1 2 21 20 16 17 19 18 12 13 14 15 9 10 8 11 4 7 5 6 3 2 1 C953 R965 D913 C947 C948 R955 C946 RY905 C945 R951 C943 R950 R952 D910 RY904 C941 C937 R945 R943 R944 R936 C930 R937 R938 RY903 D904 C925 C932 C933 C913 D920 D918 C951 R962 D919 D917 C959 C958 C950 R959 R932 R929 RY902 D903 C903 C917 C944 R919 R916 RY901 C907 D902 C914 C921 C910 R997 JA902 C924 C923 C942 C919 JA901 R912 C904 1000/6.3 1000/6.3 VSR1017- GNDV *** 0.1 GNDV GNDV *** *** *** *** *** (F) 75 V+11V *** GNDV 100/10 (F) 68 VSR1017- *** GNDV GNDV V+11V YF 0.1 YF 100/10 *** (F) 68 *** GNDV 100/10 *** GNDV VSR1017- *** 0.1 GNDA 220p 220p GNDA GNDA 390p GNDA GNDV GNDV GNDV *** *** *** GNDV *** *** GNDV *** *** 0.1 YF (F) 75 V+11V 220 VSR1017- 1SS355 GNDV YF GNDA 390p 0.1 *** GNDA 220 V+11V 220 GNDV VSR1017- *** YF 390p GNDA 0.1 YF GNDA 0 VKB1157- 0.1 YF GNDV *** GNDV GNDA GNDA *** 220p *** GNDA 390p VKB1157- 220 V+11V 220p (F) 75 ***:parts not mounted 1.5 75 (F) GNDV V OUT V IN NC GNDV G IN R/C IN GNDV GNDV BLANK IN GNDV GNDV SQUEEZE IN B IN NC GNDA L OUT GNDV L IN R IN R OUT [IN] GNDV R/C BLANK GNDV GNDV V/Y OUT V IN GNDV GNDV NC B GNDV G SQUEEZE GNDA GNDV L IN NC AV CONNECTOR L OUT R IN [OUT] R OUT RY901-RY905: Relay SW V V/Y G B R/C R/C R/C V/Y V G B B G V/Y V B G B G R/C R/C V V V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 46 1 2 3 4 1 2 3 4 C D F A B E 3.12 FLKY, KEYB and MSWB ASSYS F 0 *** *** *** *** *** *** *** GND *** 1 V+3E GND *** *** *** GND 10K GND GND GND 0.1 GND 1 GND GND 0 GND GND V+3E 5MHz *** VSS1142- 0 0 10K PE5314B GND 100 100 100 100 GND 100 0 GND 10K 1000p GND GND GND GND 1000p 0 0 GND GND 0 0 *** *** V+3E V+3E GND GND 1 GND GND V+3E 10K GND GND 1000p GND GND 0 V+3E GND V+3E V+3E 1000p V+3E GND 1000p GND 0 10K 10K GND 1.2k V+3E DTC124EK-TLB DTA124EUA-TLB GND V+3E *** V+12 0 V+12 *** 1000p DTC124EK-TLB GND GND *** V+12 V+12 2.2k DTA124EUA-TLB V101 R146 R145 R144 Q104 R148 R149 R147 C112 C113 R182 R183 R181 R151 C116 C115 R803 Q103 R196 C114 X101 R197 R152 IC101 R136 R134 R135 R195 R133 R194 C161 R161 R127 C107 R121 R123 R112 R113 R107 R108 C102 R126 R191 C103 S103 S102 R109 R110 R102 R103 R111 R104 C802 C101 S101 R106 R105 R115 R114 R116 C810 Q801 Q802 R801 R802 C801 Q101 R101 Q102 R117 P17 P10 FLDC2 FLDC1 P1 G1 RST_IN LED6 32 VAW1073 17 -28V standby for 868AVi LED P9 P4 P6 P7 P8 P5 G10 G11 P1 P2 P3 G9 G6 G5 G3 G4 G8 G7 -28V VDD P14 P11 P12 P13 P10 RESET IN G2 G1 VDD VSS X1 X2 IC P15 NC NC P16 1394RST (1394) test1 RESERVE OUT FL CONTROL MICROCOMPUTER NOR/KARAOKE XREADY POWER ON RESET OUT NC(LED3) NC(LED2) NC(LED1) NC(LED0) FLSET1 ON POWER test2 LED6 FLSET2 LED5 LED4 OEM PWSW test3 STBY_LED SEL IR +5V MS0_1 MS0_2 MS0_0 LED7 TES +5V SCK SI SO LED8 HALT GND MS1 LT KEY1 KEY0 NC GND FLSET1 FLSET2 /R* 0 *** R112 R107 /KU *** 0 /J, 868/WY R113 L R108 668/WY Pioneer 0 0 R6 R7 MS0_2 H #33 OEM/not OEM R111 0 - - R104 OEM 0 [STOP] MS0_0 MS0_1 MS0_2 - - 0 0 0 - CLOSE] [OPEN/ R3 R4 R5 MS0_1 MS1 MS0_0 R2 R1 R110 R103 - 0 0 - R126 R109 R102 3.3K - 0 0 - - R0 VWG**** VWM**** R127 KEYB FLKY FLKB VWG**** 0 4.7K VWG2452 VWG2451 VWM2226 VWG2449 VWG2448 VWM2225 DV-S969AVi /WY DV-668AV /J DV-S969AVi 0 - 0 - 0 - 0 - 3.3K 6.8K 0 - 3.9K 0 - 4.7K VWG2457 VWG2456 VWM2228 VWG2454 VWG2453 VWM2227 2.7K VWG2460 VWG2459 VWM2229 10K /RL /WY DV-868AVi /K_ELITE DV-59AVi MS1 [PAUSE] 30 31 32 33 29 35 34 24 25 26 27 28 18 20 21 22 23 19 12 13 15 17 16 14 7 8 9 10 11 1 2 3 4 5 6 E B C B 60 58 59 66 65 62 64 63 61 54 55 56 57 69 70 71 68 67 72 73 74 75 77 78 76 C E 1 79 2 80 3 4 5 6 7 53 51 50 52 48 47 46 49 45 44 43 42 41 36 37 38 39 40 30 31 32 33 34 35 25 27 26 29 24 28 10 11 8 9 15 14 12 13 16 17 18 19 23 22 21 20 E B C B B C E C B E C E F FLKY ASSY (DV-59AVi: VWG2459) (DV-868AVi-S: VWG2456) (DV-668AV-S: VWG2448) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 47 5 6 7 8 5 6 7 8 C D F A B E G F H GND GND *** *** *** ***(0) GND ***(0) 1M 10k *** 1M *** 1M *** GND 0.01 *** GND GND 1000p *** GND 220k *** GND GND 0 1 47/6.3 0 GND 1 GND *** GND GND GND VKN1275- 100/6.3 GND GND *** *** V+3E 10k PST3228-TLB V+3E V+3E GND GND GND GND 0 0 *** V+3E V+3E GND GND 2.7k 3.9k GND GND 1.8K 1.8K 1 0 *** UDZS6.2B *** GND 0 UDZS6.2B GND 180 1.8K 1.8K *** *** *** V+12 GND GND GND GND GND 1.2k 2.2k 3.9k 2.7k 09P-FJ 09R-FJ GND GND 0.01 0.01 V+3E V+3E V+3E *** V+3E C811 R150 Q105 R198 R138 R137 R139 R199 R142 R141 R140 R143 C111 C804 C108 R122 C109 R128 IC103 C803 R130 C110 C104 R129 C105 C805 C100 C807 C809 CN101 IC102 S104 S106 S105 R223 R120 L101 R118 R119 R224 R901 D212 D206 C901 R222 R225 C202 D201 R208 D211 D205 D204 R206 R902 R207 C201 C806 C808 D203 S204 R212 S202 R211 R213 S201 R214 R203 R204 S203 R221 R205 CN102 CN201 C292 C291 CN301 CN202 R216 R202 R201 R215 S301 C301 CN302 XRESET LT POWER_ON SI XREADY SO SCK XREADY POWER_ON XRESET SI SCK LT SEL_IR SO IR TO_MAIN *** Standby DV-868AVi-S ONLY DV-868AVi-S ONLY SPS-452L-H W156 SEL IR GND XRESET FLDC- -28V LT1 PW_ON IR FLDC+ XREADY S(MtoF) E+3V GND SCK 1394RST 12V S(FtoM) RESET IC [PLAY] [FWD] [REV] SLR-343BBT(Blue) [I_link] V+3E *** STBY PWSW LED4 KEY0 LED5 [HDMI] [STANDBY] SLR-343BBT(Blue) *** [Pure_AUDIO] 180 [Pure_AUDIO] [PROGR] [STAND BY] [***] [PROGR] *** 0 *** 0 LED7 LED6 GND PWSW V+3E PWSW V+3E 180 *** *** ACG7033 RKP1751- B C E 1 1 2 3 4 5 6 7 8 9 10 12 13 14 11 15 16 17 1 2 4 3 5 2 3 9 9 7 8 6 7 8 6 4 3 4 5 5 3 2 1 2 1 1 2 1 2 1 3 2 1 2 4 CN402 B 2/6 MSWB ASSY (VWG2445) H CN2 I G KEYB ASSY (DV-59AVi: VWG2460) (DV-868AVi-S: VWG2457) (DV-668AV-S: VWG2449) FLKY ASSY S101 : 0 S102 : 7 S103 : 8 S104 : 3 S105 : ¡ ¢ S106 : 4 1 KEYB ASSY S201 : PURE AUDIO S202 : PROGRESSIVE S203 : POWER STANDBY/ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 48 1 2 3 4 1 2 3 4 C D F A B E 3.13 POWER SUPPLY UNIT I CN1 CN2 NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. POWER SUPPLY UNIT (VWR1375) I AC INLET ASSY DV-868AVi-S: Other models: short-circuit CN302 H • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 49 5 6 7 8 5 6 7 8 C D F A B E I CN101 CN401 B 2/6 P301 AEK7063 800mA P202 AEK7067 2.0A P101 AEK7067 2.0A P201 AEK7066 1.6A CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR P301 (AEK7063). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P201 (AEK7066). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P101 and P202 (AEK7067). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 50 1 2 3 4 1 2 3 4 C D F A B E 3.14 WAVEFORMS 1 IC101-pin 3 (RF) V: 200mV/div. H: 0.1µsec/div. 2 Q106-emitter (RFO) V: 500mV/div. H: 0.1µsec/div. 3 4 IC101-pin 42 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC201 - pin 39 (EFM before slice) V: 0.5V/div. H: 0.2µsec/div. 6 IC201 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC251 - pin 24 (FG) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 10µsec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 10µsec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 0.2msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 Foot of R968 (V) V: 0.2V/div. H: 10µsec/div. 13 Foot of R959 (S_C) V: 0.2V/div. H: 10µsec/div. 14 Foot of R963 (S_Y) V: 0.2V/div. H: 10µsec/div. 19 Foot of R958 (Cb/B) [progressive] V: 0.2V/div. H: 10µsec/div. 20 Foot of R957 (Cr/R) [progressive] V: 0.2V/div. H: 10µsec/div. 15 Foot of R960 (Y/G) [interlace] V: 0.2V/div. H: 10µsec/div. 16 Foot of R958 (Cb/B) [interlace] V: 0.2V/div. H: 10µsec/div. 17 Foot of R957 (Cr/R) [interlace] V: 0.2V/div. H: 10µsec/div. 18 Foot of R960 (Y/G) [progressive] V: 0.2V/div. H: 10µsec/div. GND AC mode GND AC mode GND AC mode GND GND GND GND GND GND GND DVDM ASSY B Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 12 to 14 : DVD-REF-A1, T2-Chap.1 No. 5 : CD, ABEX-784 Track 1 No. 15 to 20 : DVD-REF-A1, T2-Chap.19 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 51 5 6 7 8 5 6 7 8 C D F A B E 21 IC301-pin 4 (LRCK) V: 1V/div. H: 5µsec/div. 22 IC301-pin 5 (DATA0) V: 1V/div. H: 500nsec/div. IC301-pin 6 (BCK) V: 1V/div. H: 100nsec/div. 23 24 IC301-pin 7 (PMCK) V: 1V/div. H: 20nsec/div. 25 IC302 - pin 1 (Analog OUT) V: 1V/div. H: 500µsec/div. AJKB ASSY C Measurement condition : No. 21 to 25 : DVD-REF-A1, T2-Chap.1 Note : The encircled numbers denote measuring point in the schematic diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 52 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 53 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY SIDE A SIDE B A A C101 C102 V+3D SW2 (V+5D) LOAD- LOAD+ PYKC F6 GND 5 1 5 1 CN601 CN602 1 2 CN601 CN602 S101 VNP1910- VWG LOAB VWG2426- 5 1 1 2 1 5 (VNP1910-A) LOAB ASSY A LOADING MOTOR ASSY M CN103 B CN601 CN602 CN602 CN601 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 54 1 2 3 4 1 2 3 4 C D F A B E 4.2 DVDM ASSY B SIDE A 1 8 5 4 1 13 24 1 8 16 9 4 1 7 5 64 49 48 33 32 17 16 1 132 133 1 176 44 45 88 89 8 9 16 1 1 6 4 3 12 1 1 5 4 3 28 30 15 14 29 1 176 133 132 1 1 4 4 3 1 5 48 37 36 25 24 13 12 1 17 1 16 9 8 1 208 157 156 105 104 52 1 4 6 1 3 33 32 2 1 5 8 1 4 4 6 1 3 23 24 2 1 R225 IC1107 R559 C554 C553 R643 C555 R561 R560 R553 R552 C552 D401 IC552 R551 C119 R616 IC503 C255 C252 R252 C254 R545 R543 C1149 C445 R1167 R1168 C495 C492 C442 C444 C358 R123 C704 C735 C713 C712 C535 C122 R133 R115 R116 R723 R638 R735 R1156 C715 C718 C720 C722 IC410 C726 R171 R542 R712 C297 R600 C650 R681 R650 R206 R256 R621 C253 IC101 C422 IC403 C258 R106 R734 C667 R205 R1137 461 C727 R1171 R1142 R1140 C1159 R1111 IC1110 C1165 R1160 R491 C1146 C1176 R1149 C1175 C1173 C1172 C1171 C1170 C1169 C1167 C1168 C1166 C1143 R1175 C1140 C1157 C1155 C1154 C1153 C1152 R170 R169 R1165 R1176 R1174 R132 IC504 R613 Q105 C730 R618 R667 C731 R1169 R1163 R1166 R1164 R1170 C1158 R1172 R174 C443 C1156 C721 R1173 C723 C724 R666 C729 C728 C725 C733 C732 R172 C719 C247 R633 R632 R558 R577 C560 R120 C716 R539 R732 R664 R702 C115 CN115 R150 R151 C118 R722 R721 C446 C134 C133 R158 R157 R156 R155 R1162 R152 R733 R153 Q104 C121 C114 C110 R662 IC304 R154 IC202 R228 C250 C246 R663 C249 C702 R720 R554 C120 C117 R253 R1151 R1139 C1164 R1159 C1163 R251 C1162 4 C1161 C1148 C1147 R731 R683 C116 R159 C441 L1102 R541 C494 C1160 CN114 R258 R259 IC1106 IC491 R546 C737 C738 C627 R124 L7740 C528 C559 C557 C558 C750 D407 D408 R125 C629 C666 R612 R630 R620 R619 R615 C623 R137 TP1 TP2 C101 C241 R241 R138 R298 R725 C1150 C1151 R1145 C124 R661 R136 C657 CN402 R648 R544 R1161 C234 C256 R105 R342 R226 R557 R492 C956 C109 C108 R331 C125 C321 C328 R540 R716 R713 R718 R717 C232 C233 R227 C333 C335 8 C334 R333 R129 R128 R121 C106 IC505 R176 C710 C714 R701 R706 R710 C701 C708 IC701 R173 R705 R467 C123 R234 R257 R131 C257 R652 C462 R391 R134 C112 R665 R659 C491 C391 R218 IC211 KN1 R609 R547 R639 R103 R102 R101 R127 C390 R651 R163 R164 R166 R165 R130 R119 CN551 R565 C1144 R175 IC553 C556 C126 R676 C662 C658 2 C614 C111 R727 R104 R108 R255 C245 R254 R107 R110 R109 C113 4 C496 C537 R177 R135 C129 R343 R715 R118 C107 R126 R117 R709 C439 R160 C749 IC411 R703 R711 C711 C709 C707 C251 C248 X601 R645 L330 KN2 R162 C235 R161 C100 C127 R167 R1136 R1157 C103 R345 Q106 Q103 C105 C330 R726 C703 C740 4 R736 C536 C527 R636 C612 C706 C440 CN111 contact Side contact Side contact PC ct VWS1568 VWS1569 A DVDM SIDE A(2nd) FCDC contact VNP1945-B 53 VWS Heat Resistance Pri-Flux Side 2/2 VWS Side IC504 Q105 IC1107 Q104 IC202 IC304 IC410 IC503 IC552 Q106 IC1106 IC491 IC505 IC701 IC211 IC553 IC411 IC1110 IC403 IC101 Q103 CN101 C CN551 CN101 F CN402 P A CN111 CN114 STEPPING MOTOR M CN115 SPINDLE MOTOR M DVDM ASSY B (VNP1945-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 55 5 6 7 8 5 6 7 8 C D F A B E B SIDE A 3 4 5 1 3 4 5 1 1 13 4 1 7 5 100 76 75 51 50 26 25 1 1 7 1 16 17 32 33 48 49 64 5 4 176 133 132 89 88 45 44 1 120 91 90 61 60 31 30 1 3 4 5 1 1 8 9 16 48 37 36 25 24 13 12 1 7 4 3 1 5 19 1 6 1 3 4 1 5 2 1 Q1052 R857 C434 Q1051 IC455 C1011 R643 R959 R957 R646 R963 R958 R964 R965 R960 R611 C435 C1009 R640 R616 C1008 C811 R1072 C1005 C1069 C806 C486 C495 C942 C492 C941 C936 R658 R654 R820 R826 R638 R481 L1058 C1061 C856 C938 R968 R969 C1007 C1004 C1017 C818 L806 R877 X802 JA1 R1816 C465 C297 R655 R600 R681 R601 IC451 R1071 C463 C482 L808 L807 R896 C804 R1012 C851 R621 R459 C464 C451 CN401 C422 IC403 C418 C414 C417 R106 C1052 C667 C427 C617 C606 R453 R454 C461 L1051 C1062 C1064 R873 R875 R464 R870 R945 R897 R871 R1820 R895 C934 R941 R491 R942 R170 R1060 C1059 R627 R R618 L481 R667 R403 C1055 R841 C1068 R868 R801 L801 C815 R890 R891 R892 R893 R894 R889 R666 R838 R839 R840 R482 C854 Q404 R624 R633 R632 IC402 C415 C416 C413 R657 R1064 C984 C985 R1075 R1077 Q1056 R832 L803 L1055 R879 R880 C842 L804 R1815 IC805 C1066 C1065 C812 R1073 R664 R425 L1057 R835 C810 R834 R869 R866 R867 R483 R850 R854 C819 C840 C823 CN801 C133 R466 R808 C808 IC1051 R617 C825 R C824 R833 R805 R825 C807 R803 C1019 C485 R452 C438 C1020 R663 IC601 R1063 C855 IC1001 R485 R1814 X481 C1060 Q802 R1813 C839 C481 R858 R1818 R859 L1053 R1011 R1003 IC454 R1037 R1054 R1058 R1062 R694 IC481 R683 R604 C802 R456 R844 L1052 C494 C835 C803 L810 C838 C837 R463 IC491 CN403 C833 C627 IC804 C834 C836 L1056 R865 R628 R1081 D403 D405 D406 R1079 C C666 R612 R605 R606 R607 R630 R620 R619 R623 R641 R614 R615 R637 R625 C623 C608 C618 R647 R872 C848 C853 R860 C602 C1014 R457 R420 R138 R298 C423 R696 C693 C847 C1022 C814 IC801 R802 JA2 L805 C1010 C852 C846 C845 R843 C813 R836 R837 C1006 C484 R635 R610 C809 D801 R468 C843 C1018 R864 C841 R862 R861 R427 C844 X801 R863 R1035 R1056 R661 R1036 R1052 R1051 R1055 R1053 R1059 R1057 R1010 L1054 R1013 R1002 R1001 Q901 R1009 C657 R648 R455 R1074 C601 C610 D901 R1061 R492 R848 R1078 C3 C128 R626 C695 C1016 C857 C437 C436 R461 CN1001 R467 C421 R484 C405 R943 R460 C493 C488 R652 C462 R689 R665 C491 C487 R695 C1051 C1015 R429 C605 R R639 R103 R102 R101 R631 C615 C607 C1012 Q941 C948 C947 C945 R17 C452 R998 C126 C604 C603 R676 C66 R602 C658 C616 R642 C614 C403 C1056 C393 R104 R108 R107 R110 C624 R622 C483 C1054 C496 C1063 C458 C454 R465 C1002 C1053 R1015 R1007 R160 IC401 C1013 CN103 KN4 C613 X601 C410 R645 R1016 R1017 R1018 R1014 R1006 R1005 C1003 C1001 C402 R693 KN3 C1067 R955 R949 R946 R954 CN901 R644 C1058 R952 C1021 C456 R982 C453 R636 C1057 C626 C620 C612 R634 D402 CN111 R1065 R1076 1 1 Side C 6 4 contact contact B Side 6 1 3 4 1 23 Bonding 3 IC402 IC805 Q1051 Q941 Q1056 IC455 IC1051 Q404 Q802 Q901 IC481 IC454 IC1001 IC601 IC451 IC491 IC804 IC801 IC401 Q1052 IC403 CN101 D CN901 CN101 I CN401 CN601 A CN103 PICKUP ASSY-S CN111 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 56 1 2 3 4 1 2 3 4 C D F A B E B SIDE B 3 4 32 17 16 1 4 6 1 3 48 25 24 1 3 4 5 1 5 4 3 2 1 14 8 7 1 48 25 24 1 73 72 37 36 1 144 108 109 1 3 1 50 26 25 64 49 48 33 32 17 16 1 156 104 52 208 1 4 3 1 54 28 27 1 3 1 5 4 C832 R856 R852 R934 C830 C734 R851 C831 R853 R935 R899 L802 R939 R931 R932 R938 C1072 R660 R9905 C448 R966 R653 C816 R972 Q1055 IC306 R1031 R1030 C763 R819 R878 R821 C822 R815 C821 R812 R813 R822 R764 C971 C764 C769 R961 C622 IC602 C621 R814 C770 R807 R811 R810 R876 Q801 R9906 C773 C774 R9907 C775 C619 C776 C777 C778 C779 R979 R1098 C817 R874 C780 D805 D807 D809 D811 D813 D815 D817 D803 C772 C771 C765 C762 C761 C757 C970 R937 R940 C758 R656 R752 R751 R936 C447 R649 R993 R933 R944 C755 C756 C753 C754 C939 C951 Q601 R816 R818 R849 C979 R761 R855 R883 R881 R757 R817 C820 R950 R809 R806 R760 C828 C946 R756 R758 C766 C752 R R953 C751 R847 C827 C785 C786 C980 D601 R1094 R1033 R1093 C787 C829 R804 IC802 R1819 R823 C788 R730 C789 R824 C783 C784 C849 C850 C628 R951 Q908 C801 IC806 R885 R884 C739 R1817 R882 IC405 C411 C1071 C408 C412 C419 C428 D409 R1080 Q107 IC803 R762 R766 Q1054 R962 R729 IC603 R765 C805 D810 D812 D814 R898 D816 D808 D806 C976 C977 D804 R887 R886 D802 R1803 R1034 R976 R1032 C978 R608 R1801 C826 R9903 R992 R9901 R1802 R980 R1092 R1091 C392 R390 R389 R332 L304 C320 C969 C968 C975 C974 R9902 R1097 C967 C973 IC901 R919 C932 C931 R907 C904 C913 C903 C972 C902 C905 C906 C907 C908 Q907 R989 IC752 C909 R956 R916 C911 C910 C912 C914 C924 C915 R908 IC902 R682 C965 R927 R922 R930 R929 C963 C962 R924 R923 C960 C961 C959 R921 R988 R990 R991 R948 R947 C966 C964 IC903 R925 C983 Q906 R904 R903 R902 R1096 C759 IC751 R684 R728 Q909 R9904 C919 R914 R915 R928 R926 R763 C798 R140 R668 R987 R1095 R986 R984 R985 IC781 C782 C781 R704 R781 C609 C918 C930 C920 C921 C922 C923 C929 R975 Q905 R978 C917 C937 R983 R981 C916 C928 Q904 C927 R973 C981 R967 R974 R912 R910 R913 R911 C926 C935 C958 R920 R970 C982 C933 C949 R917 R918 C925 R603 C1070 C760 R977 R971 R685 C625 R629 C130 R IC1052 IC IC802 IC803 IC806 IC1052 Q1055 Q801 Q601 Q908 Q107 Q1054 Q907 Q906 Q909 Q905 Q904 IC IC306 IC603 IC602 IC405 IC781 IC751 IC903 IC902 IC901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 57 5 6 7 8 5 6 7 8 C D F A B E B SIDE B 3 1 5 4 1 5 4 3 32 17 42 22 21 1 26 50 1 25 8 5 4 1 3 4 5 1 3 4 5 1 144 109 108 73 72 37 36 1 48 25 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A 3 4 5 1 5 8 1 4 8 5 4 1 50 26 25 1 76 75 51 50 26 25 100 1 1 3 4 5 156 208 1 1 3 4 5 5 4 3 1 20 11 10 1 5 8 1 4 C426 C226 R219 C220 C204 C203 R201 R209 R210 C213 C212 R208 C216 R141 R336 C261 R264 R263 R262 R261 R268 C201 C217 C231 R413 R232 R231 R229 C227 R224 C225 R223 R222 C215 C230 R563 R353 C1101 C1121 C1122 C1123 C1124 R359 R270 R579 R412 C449 C359 C222 C221 R574 R1102 R246 C450 C264 C224 C223 C312 R350 C104 C102 R358 R260 R240 R220 R280 C360 C1126 C1102 C430 IC306 IC453 R357 R351 R414 C1125 R764 R401 C409 C407 C401 C406 R411 C357 Q241 R408 R114 R142 C622 C621 R1101 C1137 R410 R1113 C1107 C1134 C1138 R1108 R2 R786 IC351 C1129 R3 C236 Q402 R1 C757 C758 C432 R1114 R409 R649 R571 R572 R576 C755 C756 C753 C754 R787 R707 C791 R451 C365 R372 R363 R373 R368 C361 R364 R361 Q102 C459 C455 C310 C237 R570 R362 C431 R354 C354 R757 R355 Q101 C1135 R1127 C355 C1131 R1126 R1128 IC1105 C1116 R1118 C1110 C1115 C1112 R759 C1103 C1109 R122 R356 C356 R371 C371 C208 R370 C1130 C1120 R556 R756 R758 C752 R315 C751 R1105 C324 R1123 R221 R269 C265 C263 R271 R417 C1108 R1110 R1112 R1109 C1119 C1104 R1119 IC102 R1150 R1124 C370 C1136 IC1102 C1114 IC506 R418 R1115 R730 C1118 R344 R1125 C1127 R111 C1113 C1133 R448 R450 R458 D303 C1128 C1105 C1177 L1101 D404 Q107 C1132 C366 R112 R374 R375 R369 R242 C242 R762 R449 R766 C1106 C1117 IC1101 C369 C368 C940 R729 R765 R360 R335 C797 R113 R211 R204 C205 C1111 Q403 IC452 C466 R415 IC1103 C326 C207 R314 R310 R311 C314 R312 R313 C315 R322 R328 C317 C313 R316 R317 R318 C319 IC302 R330 R332 R329 R139 L304 C322 C320 C429 C332 C131 R202 IC741 R741 IC201 IC752 C745 C460 R214 R1104 C743 R215 751 C404 IC404 C742 C351 IC303 C955 C954 C953 C952 C950 C943 C944 C741 C746 C747 C744 R272 R301 C798 IC786 R140 C266 R236 C206 R203 C299 C353 R704 R1133 R462 R564 C570 C538 R603 R213 R212 C214 C329 C200 C748 Q401 C457 R583 Q108 C625 R341 C202 C130 R334 C336 R4 IC261 R266 D302 R1103 C467 VWS VWS SIDE B(1st) VWS1568 VWS1569 IC506 IC1102 IC1105 IC1101 IC752 IC1103 IC453 IC102 IC452 Q241 Q402 Q102 Q101 Q107 Q403 Q401 Q108 IC302 IC261 IC201 IC303 IC351 IC306 IC404 IC741 51 IC786 DVDM ASSY B (VNP1945-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 58 1 2 3 4 1 2 3 4 C D F A B E 4.3 AJKB ASSY SIDE A SIDE A C C C344 C347 R344 R343 R362 R364 R363 R361 JA601 C105 R171 R354 R172 R110 R129 R121 R122 R113 R128 R131 R130 R127 R126 R125 R124 R123 R117 R116 R115 R114 R112 R111 KN102 C201 C100 CN101 R201 IC201 R202 R118 KN101 C404 C601 IC421 C451 C400 IC402 C410 C408 C407 C109 C403 IC411 IC401 C401 C402 R401 C406 C409 C405 C107 IC102 C614 C411 C412 C503 C501 C502 C507 R434 R435 R433 C413 C433 C434 C510 IC502 C500 C303 IC101 C101 C301 R303 R302 C103 IC431 C431 C432 C421 C422 C302 C307 R445 R444 R443 C424 C423 C414 C443 C444 C435 C445 C310 C513 C153 IC521 C511 C512 IC511 C506 C505 IC501 C521 C522 R501 C524 C523 C514 C543 R534 R535 R545 C509 C508 C533 C545 C535 C504 C551 C323 C305 C335 IC311 C314 C151 C333 C313 C311 C312 R301 R335 R334 C308 C351 C304 IC321 C343 C324 C345 C321 C322 C306 IC301 R345 C309 C607 C547 IC531 C537 C531 C532 R544 R533 R543 R547 R537 R552 R551 R561 C544 C534 C613 IC331 C337 C334 C331 C332 R333 R347 R351 R353 R337 R437 R447 R451 R452 R462 R461 R562 R352 R355 R365 C447 CN351 C437 JA401 JA301 D GNDA FR White FR FL FL RS LS C LFE C GNDA GNDA GNDA GNDA AJKB V+3D 18.DATA2/DSD_LS 16.GND/DSD_LFE 14.DATA1/DSD_C 12.PBCK1/GND 10.LRCK1/GND 22.LRCK0/GND 20.GND/DSD_RS 3.XMMUTE 6.XDACRESET 8.XDFSCK 11,13.V+3D 1.DOUT PC V+12A VWV 30.GND/DSD_R 28.DATA0/DSD_L 26.PMCK/DBCK 24.PBCK0/GND 33.XAMUTE 31,32.V+12 CN101 GNDD DC FC 2/2 VNP1946-A A GNDD VWV1984- -J VWV1990- -J VWV1985- -J EL FR4 P SIDE CONTACT B 2 1 32 33 1 1 1 15 28 1 14 78M05 1 78M08 1 1 1 28 15 14 1 1 1 28 15 14 1 1 1 1 3 IC201 IC421 IC402 IC411 IC401 IC102 IC502 IC101 IC431 IC521 IC511 IC501 IC311 IC321 IC301 IC531 IC331 AJKB AJKB ASSY ASSY (VNP19 (VNP1946 46-A) -A) CN551 B CN101 CN601 D CN351 AJKB ASSY C (VNP1946-A) DV-868AVi-S, DV-668AV ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 59 5 6 7 8 5 6 7 8 C D F A B E SIDE B SIDE B C C Q362 D101 R101 Q361 R374 R366 R367 Q372 R191 C608 R174 R173 C117 C116 C115 C114 C110 C111 C113 C112 R601 R607 R606 R603 R604 C604 R602 C615 Q601 C603 R605 IC601 C610 R413 R414 C609 C602 R424 R423 R402 R403 C108 C106 D112 R431 R432 R436 D151 R502 R503 C102 C104 R442 R441 R446 R151 D111 R531 R513 R572 R523 R514 R532 R542 R541 R536 R546 R524 IC151 C152 C154 R313 R314 R332 R331 R336 C155 R323 R324 R341 R342 R346 R609 R611 R610 Q561 Q551 R608 C605 C606 C611 R571 R471 R472 R473 R574 R573 R453 R563 R553 Q572 Q471 Q571 C612 Q352 Q351 Q353 Q363 R381 R382 R371 R372 R474 R373 R384 R383 R368 R358 R356 R357 Q461 Q451 Q472 Q382 Q371 Q381 R359 R369 R463 FL FR LFE LS RS FL FR C GNDA V+12A V+12A V+12A V+12A VREF1 VREF2 V+12A V+12A V+12A V+12A V+12A VREF2 V+8A GNDD V+3SPDIF V+5A V+12A V+5A V+5A V+5A V+3D GNDD GNDD VNP1946- VWV1990- -J VWV1984- -J VWV1985- -J AJKB V+3D V+3D V+3D LF 8 5 4 1 CN351 1 3 CN101 2 1 32 33 Q382 Q371 Q381 IC151 IC601 Q472 Q561 Q551 Q572 Q471 Q571 Q352 Q351 Q353 Q363 Q461 Q451 Q601 Q362 Q361 Q372 AJKB ASSY AJKB ASSY (VNP1946-A) (VNP1946-A) CN101 CN351 AJKB ASSY C (VNP1946-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 60 1 2 3 4 1 2 3 4 C D F A B E 4.4 VJKB ASSY SIDE A SIDE A D D 36 19 4 1 5 7 1 3 9 8 7 2 1 6 5 3 2 1 11 6 5 4 3 2 1 36 19 18 1 3 2 1 23 1 CN501 C504 C503 C501 C417 C414 JA403 C413 C408 D412 D409 D410 D411 D407 D408 C314 CN402 C405 C310 C403 D406 D405 D404 D403 D401 D402 C304 C401 C615 C614 Q602 C612 R605 C607 R106 C604 C606 CN602 IC601 C602 IC101 C107 C109 JA202 JA201 CN601 KN101 KN102 KN103 KN104 R312 R311 C102 C101 C105 C104 D609 R607 D301 R301 R314 R315 R313 C302 C316 C301 C616 R606 Q301 Q302 Q303 Q601 C103 F303 F301 F302 JA401 CN101 R101 C108 C110 C605 C609 C610 C608 C611 C613 R601 R302 C324 D610 C111 C330 R105 C114 R608 C323 R614 C113 R104 R651 C325 C326 C327 C328 C329 FC GNDA V+6E DC MC PS PARTS CONTAIN CHEMICALS WHICH ARE CONTACT THIS PRODUCT CONTAINS LEAD IN SIDE CAUSE CANCER, BIRTH DEFECTS OR OTHER White SECTION 25249.6 - PROPOSITION 65 19 B1 A FR4 P PC C D 2/2 SOLDER AND CERTAIN ELECTRICAL VJKB VNP1947- WARNING B SIDE CONTACT V+5V VWV VWV1989- -J REPRODUCTIVE HARM. HEALTH & SAFETY CODE B2 KNOWN TO THE STATE OF CALIFORNIA TO V+5V V+12 V+5V VWV1987- -J VWV1986- -J VWV1988- -J V+12 SCART_L GNDA SCART_R GND V+6E V+6E VSEL2 Cr/R C GND V GND V+5V GND SQUEEZE B R VSEL2 G VSEL1 Y GND 1 P/XI GND Y/G GND S_Y GND V+12 V+12 GND LETTER SQUEEZE 1 IR SEL_IR GND V V_OFF S_C VSEL1 23 Cb/B Q602 Q302 Q301 Q303 Q601 IC601 IC101 CN351 C CN601 CN901 B CN101 VJKB ASSY D (VNP1947-A) DV-868AVi-S, DV-668AV ONLY CN901 E CN602 DV-868AVi-S, DV-668AV ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 61 5 6 7 8 5 6 7 8 C D F A B E SIDE B SIDE B D D R507 R505 R504 R506 L502 C506 C505 C502 L501 R413 C418 L402 C416 C415 L401 C412 R408 C411 C409 R310 C315 C407 C410 R405 C406 R309 R308 C311 R307 R306 C404 R305 C306 C305 C402 IC302 C603 D603 D602 D601 D606 D605 D604 IC603 C618 D607 D608 R609 R335 R334 C322 R333 R336 C321 R332 R324 R319 R323 C318 R320 C317 R318 R329 R330 R328 C320 R326 C319 R325 Q304 Q305 Q306 D201 R201 R204 R207 C201 C202 C206 C619 C617 C303 C307 C308 C309 C312 C313 R401 R411 R402 R403 R404 R406 R407 R409 R410 R412 R501 R502 R503 C620 D101 R416 R337 R338 R339 R612 R415 R508 R613 R102 C112 R103 R650 R414 R510 R509 V+5V VJKB VNP1947- VWV1986- -J VWV1987- -J VWV1989- -J GNDA VWV1988- -J VWV 1 18 19 36 19 1 3 2 1 3 2 1 4 6 1 3 LF CN602 1 3 CN601 Q304 Q305 Q306 IC302 IC603 CN601 VJKB ASSY D (VNP1947-A) CN602 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 62 1 2 3 4 1 2 3 4 C D F A B E 4.5 SCRB ASSY SIDE B SIDE B SIDE A SIDE A E E 6 1 4 3 6 1 4 3 20 21 2 1 19 1 LF 20 21 2 1 C933 C903 R997 R952 R927 R945 R951 R937 R950 C950 C951 D905 D906 IC901 C928 R938 C913 R936 C936 C920 Q905 D915 R970 C909 C942 C901 C958 C919 Q904 C914 C921 D914 R955 D919 D920 R928 D916 R965 D912 R924 R923 C916 R932 D903 R999 C959 C932 D904 C925 C945 D913 C947 R971 D908 Q901 D907 Q902 D911 C905 D909 R905 R901 R910 C906 C941 R943 R962 R903 C948 R907 R916 R902 R912 R906 R909 C923 C944 C924 D999 D910 C940 R944 C935 R919 C902 C910 C917 C907 D902 R911 D917 C927 C939 C938 IC902 C904 R904 D901 D918 R929 R959 GNDV SCRB V+12V VWV1939- VWV GNDV VNP1918-B GNDA GNDV V+12V V+5V GNDV AUD.R SQZ V+5V V C Y G R AUD.L GNDA V+12V GNDV B V+5V GNDV GNDV GNDA GNDV VSEL1 VSEL2 B V+12V CN901 10 6 5 1 19 1 10 6 5 1 10 6 5 1 10 6 5 1 10 6 5 1 19 1 W947 W936 JA901 W950 W951 W948 RY904 W934 W939 W998 C930 W944 W943 C943 W946 W949 W959 C929 W968 W923 W969 W925 W915 W910 W912 W908 W911 C946 W962 CN901 W971 C953 W973 W952 W101 W955 W970 W954 W956 W963 W906 W964 RY905 RY903 W965 W902 W999 RY901 W901 W931 W904 W932 W930 W903 JA902 C937 W942 W928 W958 C908 W924 W938 W927 W937 W919 W907 W926 W933 C934 W945 W940 W929 W916 W921 W918 W922 W920 W914 W913 W941 W935 W909 W961 W967 W957 W960 W966 W972 W953 W917 RY902 W905 GNDV SCRB VWV1939- VWV GNDV - PYKC J901 GNDV GNDV GNDV GNDV Production Code V+5V GNDV PC VNP1918-B V+5V GNDV VWV1939- GNDV 4/4 4/4 V+12V V+5V AUD.L AUD.R SQZ V C Y R G GNDV GNDV GNDV GNDV GNDV GNDV GNDV GNDV GNDV GNDA GNDV V+12V VSEL1 VSEL2 B UPPER GNDA SIDE Q901 Q902 IC902 IC901 Q904 Q905 CN602 D CN901 CN901 SCRB ASSY E (VNP1918-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 63 5 6 7 8 5 6 7 8 C D F A B E 4.6 MSWB ASSY SIDE A SIDE A SIDE B SIDE B H H 1 LF C311 2/2 2 2 3 3 3 4 4 4 5 5 5 2 8 6 8 1 1 0 0 0 9 6 6 7 7 9 9 1 VWG2 7 8 VWG2455 VWG2390 VWG CN302 CN301 CN301 CN302 C301 S301 C CMKM-P3X B 2/2 A 1 VWG2390 PC PRIMARY MSWB D VWG VWG2455 CN2 I CN302 CN302 CN202 G CN301 CN301 MSWB ASSY H (VNP1952-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 64 1 2 3 4 1 2 3 4 C D F A B E 4.7 FLKY and KEYB ASSYS SIDE A SIDE B A- 9 9 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 0 0 9 8 7 6 5 4 3 2 1 0 LF 9 1 A- 9 9 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 0 0 9 8 7 6 5 4 3 2 1 0 LF 9 1 R182 R183 R216 R181 R902 R221 R215 Q801 R803 C292 R147 R204 R101 Q802 C806 R207 R203 D211 R144 Q103 R145 R146 R225 Q102 Q101 R222 R120 R130 C110 R214 D212 R212 R213 C202 C201 R802 R224 R205 R206 R202 R201 R208 C801 C807 R801 R223 R211 C802 C291 R901 C901 6 5 5 4 4 B 3 3 2 2 C 1 1 VWG2457 F CMKM-P3X 0 6.STBY 0 9 10.XREADY 8 7 6 5 5.LED5 VWG2368 59AVI/KU 4.KEY0 3.LED6 2.LED7 9 9 8 8 7 7 6 4 1.GND VWG VWG2370 VWG2369 VWG2371 3 VWG2368 /J 2 1 1.GND 11.SCK 2.SEL IR 3.-28V 4.LT1 5.FLDC- 6.XRESET 7.FLDC+ VWG2360 VWG2359 VWG2358 VWG2357 /KU/CA /WY /J /RL 8.PW_ON 9.IR VWG2449 12.GND VWG2448 668AV/WY S969AVI/J VWG2451 VWG2460 969AVI/R,/B 868AVI/WY 13.s(MtoF) A D E 0 2/2 VWG2454 G VWG2456 VWG2459 VWG2453 0 1 2 3 4 5 6 7 8 2 9 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 2 VWG VWG VWG VWG2452 CN102 CN202 CN201 9 1 9 1 1 2 W157 W161 W117 IC103 W158 C104 W120 D201 W201 W114 V101 D206 W116 W118 W165 W162 W115 L101 W121 CN102 W119 S202 S201 D205 D204 D203 S203 CN201 S204 W101 CN202 VWG2452 VWG2454 VWG2368 FL-OFF VWG2369 PC VWG2370 VWG /i-Link PROGRE PROGRE STAND BY J201 FLKY VWG2457 PURE AUDIO HDMI i-Link VWG2 VWG VWG2 VWG2 VWG2 PW /FL 2/2 VWG2449 VWG2460 KEYB VWG2371 VWG2 CMKM-P3X Q101 Q801 Q102 Q103 CN201 CN102 CN102 CN201 CN301 H CN202 CN101 KEYB ASSY G (VNP1952-A) KEYB ASSY G (VNP1952-A) F G DV-868AVi-S ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 65 5 6 7 8 5 6 7 8 C D F A B E SIDE A SIDE B F 17 1 R142 R161 R182 R183 C161 R126 R181 R110 IC101 R111 R107 R112 R109 R102 R803 R151 R121 R194 R133 R149 R150 R118 R148 R147 C111 R119 R196 R199 R115 R122 R198 R127 R108 C102 R114 C113 Q103 R145 Q105 R146 R195 Q104 R123 R137 R138 R136 R139 R141 R140 R143 R197 C115 C114 R134 C116 R129 C105 C108 R113 C109 R191 R103 C103 R106 C811 C107 R128 R116 R117 R105 C101 C810 R152 C803 C804 R104 IC102 C805 R135 C809 C808 21 10.XREADY CMKM-P3X I 11.SCK 20 5.FLDC- 6.XRESET 7.FLDC+ 80 8.PW_ON 9.IR 12.GND 1 13.s(MtoF) 14.E+3V 61 60 H M L J 41 40 K 15.S(FtoM) 2/2 16.12V 5 1 17.1394RST CN101 17 1 W166 W170 W124 S103 W145 W109 W129 S105 S106 W122 W153 S102 W106 C106 W156 X101 W108 W169 S104 W111 W167 CN101 W107 W131 W147 W133 W128 W130 W165 W152 W144 W112 W137 W138 W139 W140 W123 W136 C100 W143 W142 W135 W141 W148 W150 S101 W168 W113 W134 W151 W149 W132 W146 W127 /KU/CA PLAY PAUSE STOP FWD REV OPEN FLKY J101 CMKM-P3X VWG2357 VWG VWG2360 VWG2359 VWG2358 868AVI/WY 59AVI/KU 2/2 S969AVI/J VWG2453 VWG2451 /WY 668AV/WY /J VWG2368 PC 969AVI/R,/B /RL /J VWG2459 VWG2456 VWG2448 Q105 Q103 Q104 IC101 IC102 CN402 B CN101 CN101 FLKY ASSY F (VNP1952-A) FLKY ASSY F (VNP1952-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 66 1 2 3 4 1 2 3 4 C D F A B E 4.8 POWER SUPPLY UNIT SIDE A SIDE B I I P101 P202 P201 P301 CN401 B AC INLET ASSY CN101 CN1 CN1 CN2 CN2 [VWR1375] POWER SUPPLY UNIT I DV-868AVi-S: Other models: short-circuit CN302 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 67 5 6 7 8 5 6 7 8 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES [DV-59AVi/KUXJ/CA] NSP 1..LOADING MECHA. ASSY VWT1207 NSP 2..LOAB ASSY VWG2426 1..DVDM ASSY VWS1568 1..AJKB ASSY VWV1984 1..VJKB ASSY VWV1986 NSP 1..FLKB ASSY VWM2229 2..FLKY ASSY VWG2459 2..PWSB ASSY VWG2460 > 1..POWER SUPPLY UNIT VWR1375 [DV-868AVi-S/WYXJ] NSP 1..LOADING MECHA. ASSY VWT1207 NSP 2..LOAB ASSY VWG2426 1..DVDM ASSY VWS1568 1..AJKB ASSY VWV1985 1..VJKB ASSY VWV1988 1..SCRB ASSY VWV1992 NSP 1..FLKB ASSY VWM2228 2..FLKY ASSY VWG2456 2..PWSB ASSY VWG2457 2..MSWB ASSY VWG2455 > 1..POWER SUPPLY UNIT VWR1375 [DV-668AV-S/WYXJ] NSP 1..LOADING MECHA. ASSY VWT1207 NSP 2..LOAB ASSY VWG2426 1..DVDM ASSY VWS1569 1..AJKB ASSY VWV1990 1..VJKB ASSY VWV1989 1..SCRB ASSY VWV1992 NSP 1..FLKB ASSY VWM2225 2..FLKY ASSY VWG2448 2..PWSB ASSY VWG2449 > 1..POWER SUPPLY UNIT VWR1375 Mark No. Description Part No. ALOAB ASSY [VWG2426] SWITCHES AND RELAYS S101 REAF SWITCH VSK1011 OTHERS CN602 CONNCTOR S2B-PH-K CN601 CONNCTOR S5B-PH-K PRINTED CIRCUIT BOARD VNP1912 BDVDM ASSY [VWS1568] SEMICONDUCTORS IC903 ADV7314KST IC261, IC302 BA4510F IC202 BA6664FM IC803 BU2370FV IC901 CD0040AF IC1110 CXD2753R IC1101 DSPD56367PV150 IC1105, IC741, IC902 HY57V161610DTC-8 IC781 K4S641632F-TC75 IC101 LA9704W IC491 LC4032VAA IC201 LC78652W IC351 M56788AFP IC751 M65776BFP > IC404 MM1385EN > IC410 MM1561JF > IC402 MM1565AF > IC405 NJM2880U1-05 IC804 NJU7093AF IC552 PD0274A IC1001 PD0280B IC805 PD5787A IC601 PD6345A IC701 PE5286A > IC403, IC411 PQ025EZ01ZP > IC401 PQ033EZ01ZP IC481 SM8707HV IC503–IC505 TC74VHC157FT IC786 TC74VHC541FT IC1106 TC7SH00FU IC1102 TC7SH04FU IC452, IC506, IC806 TC7SH08FU IC451, IC453–IC455 TC7SHU04FU IC752 TC7SZ32FU www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 68 1 2 3 4 1 2 3 4 C D F A B E IC303, IC304, IC306 TC7SZU04FU IC102 TC7W53FU IC553 TC7WH157FU IC1103 TC7WH34FU IC1107 TC7WH74FU IC211 TK15404M IC801 TSB43CA42GGW IC802 VYW2118 IC603 VYW2163 Q1055, Q904–Q909 2SA1576A Q401, Q402 2SA1602A Q403 2SC4081 Q1056 DTA124EUA Q108, Q241 DTC114EUA Q404, Q801 DTC114TUA Q101, Q102, Q106 HN1A01F Q103, Q105 HN1B04FU Q104, Q1054, Q901 HN1C01FU Q601, Q802, Q941 RN4982 Q107 UM5K1N Q1052 UM6K1N D901 1SS355 D302, D303 KV1870S D401, D402 RB051L-40 D403, D404, D406, D408, D409 RB501V-40 D601, D801 RB501V-40 COILS AND FILTERS L1101 LCYA1R0J2520 L304 LCYA1R2J2520 L1051-L1058, L805–L808 VTH1047 COIL (670mH) L1102, L481, L774 CHIP BEADS VTL1084 CAPACITORS C101 (47/6.3V) ACH7174 C662 CCSRCH100D50 C121 CCSRCH121J50 C314, C819 CCSRCH150J50 C100, C134 CCSRCH151J50 C818 CCSRCH180J50 C120, C133, C847, C848 CCSRCH221J50 C324, C391, C392, C941–C948 CCSRCH331J50 C109 CCSRCH391J50 C241 CCSRCH560J50 C486, C487 CCSRCH5R0C50 C107, C360 CCSRCH681J50 C977 CCSRCH821J50 C123, C233, C254, C358, C369 CEVW101M16 C414, C422, C981 CEVW101M16 C103 CEVW220M16 C443, C838 CEVW221M4 C407, C408, C416, C484 CKSQYB225K10 C1059, C1068, C1069, C1168, C216 CKSRYB102K50 C313, C351, C412, C427, C428 CKSRYB102K50 C528, C557, C559, C606, C617 CKSRYB102K50 C703, C733, C748, C750, C822 CKSRYB102K50 C967, C975, C985 CKSRYB102K50 C110, C1114, C113, C220, C225 CKSRYB103K50 C234, C261, C320–C322, C330 CKSRYB103K50 Mark No. Description Part No. C404, C426, C619, C832, C844 CKSRYB103K50 C108, C111, C114, C115 CKSRYB104K16 C212, C213, C227, C231 CKSRYB104K16 C248–C251, C255, C263, C315 CKSRYB104K16 C317, C332, C740, C820 CKSRYB104K16 C102, C104, C105, C116, C127 CKSRYB105K6R3 C223, C224, C264, C312, C749 CKSRYB105K6R3 C834, C835, C972 CKSRYB105K6R3 C106 CKSRYB152K50 C208 CKSRYB222K50 C266 CKSRYB224K10 C1009 CKSRYB334K10 C978 CKSRYB392K50 C206, C214, C242, C357 CKSRYB472K50 C1112 CKSRYB473K50 C836 CKSRYB683K16 C1175 CKSRYF103Z50 C1070, C1071, C353, C359 CKSRYF104Z25 C365, C366, C410, C609, C723 CKSRYF104Z25 C805, C809, C821, C824 CKSRYF104Z25 C849, C850, C857, C973, C976 CKSRYF104Z25 C1002, C1004-C1007, C1010-C1014 CKSRYF105Z10 C1017-C1022, C1052-C1058 CKSRYF105Z10 C1060, C1061, C1066, C1103-C1111 CKSRYF105Z10 C1113, C1116-C1119, C112 CKSRYF105Z10 C1120-C1129, C1132-C1138, C1140 CKSRYF105Z10 C1143, C1146-C1149, C1152, C1155 CKSRYF105Z10 C1157-C1162, C1164, C1165 CKSRYF105Z10 C1169, C1170, C1172, C1173, C1176 CKSRYF105Z10 C118, C122, C125, C126 CKSRYF105Z10 C129–C131, C200, C202, C204 CKSRYF105Z10 C215, C217, C221, C222, C226 CKSRYF105Z10 C230, C232, C236, C253, C256 CKSRYF105Z10 C258, C265, C299, C310, C319 CKSRYF105Z10 C328, C329, C390, C393, C409 CKSRYF105Z10 C411, C418, C419, C438, C442 CKSRYF105Z10 C451, C455, C459, C462, C464 CKSRYF105Z10 C482, C485, C493–C496, C527 CKSRYF105Z10 C536–C538, C553, C554, C556 CKSRYF105Z10 C558, C602–C605, C607, C608 CKSRYF105Z10 C610, C613–C616, C618 CKSRYF105Z10 C621, C622, C628, C657, C658 CKSRYF105Z10 C704, C706–C710, C712–C716 CKSRYF105Z10 C718–C722, C724–C732, C735 CKSRYF105Z10 C741–C744, C746, C747 CKSRYF105Z10 C753–C765, C769–C780 CKSRYF105Z10 C782–C789, C791, C797 CKSRYF105Z10 C801, C802, C804, C806–C808 CKSRYF105Z10 C810, C812–C814, C816, C823 CKSRYF105Z10 C825, C827, C828, C830, C831 CKSRYF105Z10 C837, C839–C841, C843 CKSRYF105Z10 C845, C846, C903, C905–C910 CKSRYF105Z10 C912–C918, C920–C929, C931 CKSRYF105Z10 C933–C937, C949, C958–C963 CKSRYF105Z10 C965, C968, C969, C974 CKSRYF105Z10 C982, C983 CKSRYF105Z10 C368, C403, C405 (47/16V) VCH1210 C1001, C1003, C1051, C1067, C1101 VCH1243 C1115, C1130, C1131, C1156, C1163 VCH1243 C1166, C1167, C119, C205, C237 VCH1243 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 69 5 6 7 8 5 6 7 8 C D F A B E C326, C483, C488, C535, C552 VCH1243 C560, C601, C623, C625 VCH1243 C701, C702, C711, C737–C739 VCH1243 C745, C751, C752, C781, C803 VCH1243 C815, C817, C826, C829, C833 VCH1243 C842, C856, C904, C911, C919 VCH1243 C930, C932, C939, C951, C964 VCH1243 (100/4V) C117, C201 (68u/6.3V) VCH1244 C421, C434, C437, C439, C444 VCH1246 C446, C491 (150/4V) VCH1246 C128, C401, C413, C436 (100/6.3V) VCH1252 RESISTORS R1813, R1814, R821–R824 RAB4C0R0J R832, R833, R877 RAB4C0R0J R729, R730 RAB4C101J R1127, R1128, R631, R713, R804 RAB4C103J R878 RAB4C103J R1013-R1018, R111, R926 RAB4C220J R931, R932, R935 RAB4C220J R113, R1175, R1176, R786, R787 RAB4C470J R938, R939, R976, R977 RAB4C470J R1001, R1002, R1051-R1053, R1055 RS1/10S0R0J R1078-R1080, R1101, R1126, R1133 RS1/10S0R0J R1139, R1159-R1161, R138, R160 RS1/10S0R0J R205, R206, R220, R240, R260 RS1/10S0R0J R280, R301, R350, R401, R403 RS1/10S0R0J R482, R491, R554, R600, R601 RS1/10S0R0J R603, R608, R701, R718, R721 RS1/10S0R0J R728, R741, R756–R760, R763 RS1/10S0R0J R847, R849, R8801-R8804, R907 RS1/10S0R0J R916, R919, R921, R923, R927 RS1/10S0R0J R341 RS1/10S101J R364, R369, R373, R375 RS1/16S1003F R123 RS1/16S1202F R358, R361 RS1/16S1503F R990, R9902, R9906 RS1/16S2700F R947, R951 RS1/16S2701F R970, R981, R986 RS1/16S3000F R948, R953 RS1/16S3300F R132 RS1/16S4702F R1820, R897 RS1/16S5101F R889–R896 RS1/16S56R0D R816 RS1/16S6341D R357, R362, R363, R368, R372 RS1/16S6802F R374 RS1/16S6802F R257 (R=1.0 ,W=1/4) VCN1127 R258, R259 (R=2.2 ,W=1/4) VCN1128 Other Resistors RS1/16S###J OTHERS X802 (24.5760MHz) ASS7025 CN403, CN801 07P CONNECTOR RKN1048 CN401 PH CONNECTER(SMT) S13B-PH-SM3 CN103 CONNECTOR S5B-PH-SM3 9008 FLEXIBLE CABLE VDA1681 CN114 4P CONNECTOR VKN1409 CN115 12P CONNECTOR VKN1416 CN402 17P CONNECTOR VKN1421 CN901 23P CONNECTOR VKN1427 Mark No. Description Part No. CN111 24P CONNECTOR VKN1464 CN551 33P CONNECTOR VKN1519 JA1, JA2 1394-TERMINAL VKN1800 JA1001 HDMI CONNECTOR VKN1810 1002 SCREW PLATE VNE1948 KN1–KN4 VNF1109 EARTH METAL FITTING X601 (16.5MHz) VSS1160 X481 (27MHz) VSS1172 X801 (6.14MHz) VSS1179 BDVDM ASSY [VWS1569] SEMICONDUCTORS IC903 ADV7310KST IC261, IC302 BA4510F IC202 BA6664FM IC901 CD0040AF IC1110 CXD2753R IC1101 DSPD56367PV150 IC1105, IC741, IC902 HY57V161610DTC-8 IC781 K4S641632F-TC75 IC101 LA9704W IC201 LC78652W IC351 M56788AFP IC751 M65776BFP > IC404 MM1385EN > IC410 MM1561JF > IC402 MM1565AF > IC405 NJM2880U1-05 IC601 PD6345A IC701 PE5286A > IC403, IC411 PQ025EZ01ZP > IC401 PQ033EZ01ZP IC1051 SII9190CTG64 IC481 SM8707HV IC503–IC505 TC74VHC157FT IC786 TC74VHC541FT IC1106 TC7SH00FU IC1102 TC7SH04FU IC452, IC506 TC7SH08FU IC451, IC453–IC455 TC7SHU04FU IC752 TC7SZ32FU IC303, IC304, IC306 TC7SZU04FU IC102 TC7W53FU IC553 TC7WH157FU IC1103 TC7WH34FU IC1107 TC7WH74FU IC211 TK15404M IC603 VYW2163 Q1055, Q904–Q909 2SA1576A Q401, Q402 2SA1602A Q403 2SC4081 Q1056 DTA124EUA Q108, Q241 DTC114EUA Q404 DTC114TUA Q101, Q102, Q106 HN1A01F Q103, Q105 HN1B04FU Q104, Q1054, Q901 HN1C01FU Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 70 1 2 3 4 1 2 3 4 C D F A B E Q601, Q941 RN4982 Q107 UM5K1N Q1052 UM6K1N D901 1SS355 D302, D303 KV1870S D401, D402 RB051L-40 D403, D404, D406, D408, D409 RB501V-40 D601 RB501V-40 COILS AND FILTERS L1101 LCYA1R0J2520 L304 LCYA1R2J2520 L1051-L1058 COIL (670mH) VTH1047 L1102, L481, L774 CHIP BEADS VTL1084 CAPACITORS C101 (47/6.3V) ACH7174 C662 CCSRCH100D50 C121 CCSRCH121J50 C314 CCSRCH150J50 C100, C134 CCSRCH151J50 C120, C133 CCSRCH221J50 C324, C391, C392, C941–C948 CCSRCH331J50 C109 CCSRCH391J50 C241 CCSRCH560J50 C486, C487 CCSRCH5R0C50 C107, C360 CCSRCH681J50 C977 CCSRCH821J50 C123, C128, C233, C254 CEVW101M16 C368, C369, C401, C403, C405 CEVW101M16 C413, C414, C422, C436, C981 CEVW101M16 C103 CEVW220M16 C421, C434, C437, C439 CEVW221M4 C443, C444, C446 CEVW221M4 C407, C408, C416, C484 CKSQYB225K10 C1059, C1068, C1069, C1168, C216 CKSRYB102K50 C313, C351, C412, C427, C428 CKSRYB102K50 C528, C557, C559, C606, C617 CKSRYB102K50 C703, C733, C748, C750, C975 CKSRYB102K50 C985 CKSRYB102K50 C110, C1114, C113, C220, C225 CKSRYB103K50 C234, C261, C320–C322, C330 CKSRYB103K50 C404, C426, C619 CKSRYB103K50 C108, C111, C114, C115 CKSRYB104K16 C212, C213, C227, C231 CKSRYB104K16 C248–C251, C255, C263, C315 CKSRYB104K16 C317, C332, C740 CKSRYB104K16 C102, C104, C105, C116, C127 CKSRYB105K6R3 C223, C224, C264, C312, C749 CKSRYB105K6R3 C972 CKSRYB105K6R3 C106 CKSRYB152K50 C208 CKSRYB222K50 C266 CKSRYB224K10 C978 CKSRYB392K50 C206, C214, C242, C357 CKSRYB472K50 C1112 CKSRYB473K50 C1175 CKSRYF103Z50 C1070, C1071, C353, C359 CKSRYF104Z25 C365, C366, C410, C609, C723 CKSRYF104Z25 C973, C976 CKSRYF104Z25 C1052-C1058, C1060, C1061, C1066 CKSRYF105Z10 Mark No. Description Part No. C1103-C1111, C1113, C1116-C1119 CKSRYF105Z10 C112, C1120-C1129, C1132-C1138 CKSRYF105Z10 C1140, C1143, C1146-C1149, C1152 CKSRYF105Z10 C1155, C1157-C1162, C1164, C1165 CKSRYF105Z10 C1169, C1170, C1172, C1173, C1176 CKSRYF105Z10 C118, C122, C125, C126 CKSRYF105Z10 C129–C131, C200, C202, C204 CKSRYF105Z10 C215, C217, C221, C222, C226 CKSRYF105Z10 C230, C232, C236, C253, C256 CKSRYF105Z10 C258, C265, C299, C310, C319 CKSRYF105Z10 C328, C329, C390, C393, C409 CKSRYF105Z10 C411, C418, C419, C438, C442 CKSRYF105Z10 C451, C455, C459, C462, C464 CKSRYF105Z10 C482, C485, C527, C536–C538 CKSRYF105Z10 C556, C558, C602–C605 CKSRYF105Z10 C607, C608, C610, C613–C616 CKSRYF105Z10 C618, C621, C622, C628 CKSRYF105Z10 C657, C658, C704, C706–C710 CKSRYF105Z10 C712–C716, C718–C722 CKSRYF105Z10 C724–C732, C735, C741–C744 CKSRYF105Z10 C746, C747, C753–C765 CKSRYF105Z10 C769–C780, C782–C789, C791 CKSRYF105Z10 C797, C903, C905–C910 CKSRYF105Z10 C912–C918, C920–C929, C931 CKSRYF105Z10 C933–C937, C949, C958–C963 CKSRYF105Z10 C965, C968, C969, C974 CKSRYF105Z10 C982, C983 CKSRYF105Z10 C1051, C1067, C1101, C1115 VCH1243 C1130, C1131, C1163, C1166, C1167 VCH1243 C119, C205, C326, C483, C488 VCH1243 C535, C560, C601, C623, C625 VCH1243 C701, C702, C711, C745 VCH1243 C751, C752, C781, C904, C911 VCH1243 C932, C939, C951, C964 VCH1243 (100/4V) C201 (68u/6.3V) VCH1244 RESISTORS R729, R730 RAB4C101J R1127, R1128, R631, R713 RAB4C103J R1030-R1034, R111, R931, R932 RAB4C220J R113, R1175, R1176, R786, R787 RAB4C470J R926, R935, R938, R939 RAB4C470J R976, R977 RAB4C470J R1051-R1053, R1055, R1078-R1080 RS1/10S0R0J R1101, R1126, R1133, R1139 RS1/10S0R0J R1159-R1161, R138, R160 RS1/10S0R0J R205, R206, R220, R240, R260 RS1/10S0R0J R280, R301, R350, R401, R403 RS1/10S0R0J R482, R600, R601, R603, R608 RS1/10S0R0J R701, R718, R721, R728, R741 RS1/10S0R0J R756–R760, R763, R907, R916 RS1/10S0R0J R919, R921, R923, R927 RS1/10S0R0J R341 RS1/10S101J R364, R369, R373, R375 RS1/16S1003F R123 RS1/16S1202F R358, R361 RS1/16S1503F R990, R9902, R9906 RS1/16S2700F R947, R951 RS1/16S2701F R970, R981, R986 RS1/16S3000F Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 71 5 6 7 8 5 6 7 8 C D F A B E R948, R953 RS1/16S3300F R132 RS1/16S4702F R357, R362, R363, R368, R372 RS1/16S6802F R374 RS1/16S6802F R257 (R=1.0 ,W=1/4) VCN1127 R258, R259 (R=2.2 ,W=1/4) VCN1128 Other Resistors RS1/16S###J OTHERS CN403 07P CONNECTOR RKN1048 CN401 CONNECTOR S13B-PH-SM3 CN103 CONNECTOR S5B-PH-SM3 9008 FLEXIBLE CABLE VDA1681 CN114 4P CONNECTOR VKN1409 CN115 12P CONNECTOR VKN1416 CN402 17P CONNECTOR VKN1421 CN901 23P CONNECTOR VKN1427 CN111 24P CONNECTOR VKN1464 CN551 33P CONNECTOR VKN1519 JA1001 HDMI CONNECTOR VKN1810 1002 SCREW PLATE VNE1948 KN1–KN4 VNF1109 EARTH METAL FITTING X601 (16.5MHz) VSS1160 X481 (27MHz) VSS1172 CAJKB ASSY [VWV1984] SEMICONDUCTORS IC151, IC311, IC321, IC331, IC411 NJM5532MD IC421, IC431, IC511, IC521, IC531 NJM5532MD > IC102 NJM78M05FA > IC101 NJM78M08FA IC301, IC401, IC501 PCM1738EG-3 IC201, IC402, IC502 TC7SH08FU Q372, Q382, Q472, Q572 2SA1576A Q601 2SC4081 Q351, Q352, Q361, Q362, Q451 2SD2114K Q461, Q551, Q561 2SD2114K Q371, Q381, Q471, Q571 UMH9N D111 RB501V-40 D151 UDZS6.2B CAPACITORS C351, C451, C551 CCH1510 C615 CCSRCH120J50 C307–C309, C407–C409 CCSRCH331J50 C507–C509 CCSRCH331J50 C109 CEHAZA471M6R3 C100 CEJQ470M16 C111, C155, C610, C612 CKSRYB102K50 C310, C410, C510, C602 CKSRYF104Z25 C110, C201, C302, C400, C402 CKSRYF105Z10 C500, C502, C608, C609, C611 CKSRYF105Z10 C334, C335, C344, C345 (470p) VCE1035 C434, C435, C444, C445 (470p) VCE1035 C534, C535, C544, C545 (470p) VCE1035 C313, C314, C323, C324, C333 VCE1048 C343, C413, C414, C423, C424 VCE1048 C433, C443, C513, C514 (2200P) VCE1048 C523, C524, C533, C543 (2200P) VCE1048 Mark No. Description Part No. C337, C347, C437, C447, C537 VCH1242 C547 (47/50V) VCH1242 C101, C103, C151, C153, C311 VCH1247 C321, C331, C411, C421, C431 VCH1247 C511, C521, C531, C613 (100/16V) VCH1247 C107, C301, C401, C501, C601 VCH1248 (330/6.3V) C105, C303, C305, C306, C403 VCH1249 C405, C406, C503, C505, C506 VCH1249 C607, C614 (47/16V) VCH1249 RESISTORS R331, R332, R334, R335 RN1/16SE1001D R341, R342, R344, R345 RN1/16SE1001D R431, R432, R434, R435 RN1/16SE1001D R441, R442, R444, R445 RN1/16SE1001D R531, R532, R534, R535 RN1/16SE1001D R541, R542, R544, R545 RN1/16SE1001D R301, R401, R501 RN1/16SE1602D R313, R314, R323, R324 RN1/16SE2000D R413, R414, R423, R424 RN1/16SE2000D R513, R514, R523, R524 RN1/16SE2000D R333, R336, R343, R346, R433 RN1/16SE3001D R436, R443, R446, R533, R536 RN1/16SE3001D R543, R546 RN1/16SE3001D R101, R601 RS1/10S0R0J R607 RS1/10S151J R373, R383, R473, R573 RS1/10S332J R608 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS JA401 JACK VKB1125 JA301 JACK VKB1133 CN101 33P CONNECTOR VKN1519 JA601 JACK VKX1012 KN101, KN102 VNF1084 EARTH METAL FITTING CAJKB ASSY [VWV1985] SEMICONDUCTORS IC151, IC311, IC321, IC331, IC411 NJM5532MD IC421, IC431, IC511, IC521, IC531 NJM5532MD > IC102 NJM78M05FA > IC101 NJM78M08FA IC301, IC401, IC501 PCM1738EG-3 IC201, IC402, IC502 TC7SH08FU Q372, Q382, Q472, Q572 2SA1576A Q601 2SC4081 Q351–Q353, Q361–Q363, Q451 2SD2114K Q461, Q551, Q561 2SD2114K Q371, Q381, Q471, Q571 UMH9N D111 RB501V-40 D151 UDZS6.2B CAPACITORS C351, C451, C551 CCH1510 C615 CCSRCH120J50 C307–C309, C407–C409 CCSRCH331J50 C507–C509 CCSRCH331J50 C109 CEHAZA471M6R3 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 72 1 2 3 4 1 2 3 4 C D F A B E C100 CEJQ470M16 C111, C155, C610, C612 CKSRYB102K50 C310, C410, C510, C602 CKSRYF104Z25 C110, C201, C302, C400, C402 CKSRYF105Z10 C500, C502, C608, C609, C611 CKSRYF105Z10 C334, C335, C344, C345 (470p) VCE1035 C434, C435, C444, C445 (470p) VCE1035 C534, C535, C544, C545 (470p) VCE1035 C313, C314, C323, C324, C333 VCE1048 C343, C413, C414, C423, C424 VCE1048 C433, C443, C513, C514 (2200P) VCE1048 C523, C524, C533, C543 (2200P) VCE1048 C337, C347, C437, C447, C537 VCH1242 C547 (47/50V) VCH1242 C101, C103, C151, C153, C311 VCH1247 C321, C331, C411, C421, C431 VCH1247 C511, C521, C531, C613 (100/16V) VCH1247 C107, C301, C401, C501, C601 VCH1248 (330/6.3V) C105, C303, C305, C306, C403 VCH1249 C405, C406, C503, C505, C506 VCH1249 C607, C614 (47/16V) VCH1249 RESISTORS R331, R332, R334, R335 RN1/16SE1001D R341, R342, R344, R345 RN1/16SE1001D R431, R432, R434, R435 RN1/16SE1001D R441, R442, R444, R445 RN1/16SE1001D R531, R532, R534, R535 RN1/16SE1001D R541, R542, R544, R545 RN1/16SE1001D R301, R401, R501 RN1/16SE1602D R313, R314, R323, R324 RN1/16SE2000D R413, R414, R423, R424 RN1/16SE2000D R513, R514, R523, R524 RN1/16SE2000D R333, R336, R343, R346, R433 RN1/16SE3001D R436, R443, R446, R533, R536 RN1/16SE3001D R543, R546 RN1/16SE3001D R101, R601 RS1/10S0R0J R607 RS1/10S151J R373, R383, R473, R573 RS1/10S332J R608 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN351 CONNECTOR POST B3B-PH-K JA401 JACK VKB1125 JA301 JACK VKB1133 CN101 33P CONNECTOR VKN1519 JA601 JACK VKX1012 KN101, KN102 VNF1084 EARTH METAL FITTING CAJKB ASSY [VWV1990] SEMICONDUCTORS IC151, IC311, IC321, IC411, IC421 BA4560F IC511, IC521 BA4560F IC331, IC431, IC531 NJM2068MD > IC102 NJM78M05FA > IC101 NJM78M08FA IC301, IC401, IC501 PCM1738EG-3 Mark No. Description Part No. IC201, IC402, IC502 TC7SH08FU Q372, Q382, Q472, Q572 2SA1576A Q601 2SC4081 Q351–Q353, Q361–Q363, Q451 2SD2114K Q461, Q551, Q561 2SD2114K Q371, Q381, Q471, Q571 UMH9N D111 RB501V-40 D151 UDZS6.2B CAPACITORS C308, C309, C408, C409 CCSRCH101J50 C508, C509 CCSRCH101J50 C615 CCSRCH120J50 C307, C407, C507 CCSRCH331J50 C101, C103, C151, C153, C311 CEAT101M16 C321, C331, C411, C421, C431 CEAT101M16 C511, C521, C531, C613 CEAT101M16 C107, C109, C301, C401, C501 CEAT331M10 C601 CEAT331M10 C305, C306, C337, C347 CEAT470M16 C405, C406, C437, C447 CEAT470M16 C505, C506, C537, C547 CEAT470M16 C303, C403, C503 CEJQ101M6R3 C351, C451, C551, C607 CEJQ1R0M50 C111, C610, C612 CKSRYB102K50 C310, C410, C510, C602 CKSRYF104Z25 C110, C201, C302, C400, C402 CKSRYF105Z10 C500, C502, C608, C609, C611 CKSRYF105Z10 C313, C314, C323, C324, C333 CQMBA222J50 C343, C413, C414, C423, C424 CQMBA222J50 C433, C443, C513, C514 CQMBA222J50 C523, C524, C533, C543 CQMBA222J50 C334, C335, C344, C345 CQMBA471J50 C434, C435, C444, C445 CQMBA471J50 C534, C535, C544, C545 CQMBA471J50 RESISTORS R331, R332, R334, R335 RN1/16SE1001D R341, R342, R344, R345 RN1/16SE1001D R431, R432, R434, R435 RN1/16SE1001D R441, R442, R444, R445 RN1/16SE1001D R531, R532, R534, R535 RN1/16SE1001D R541, R542, R544, R545 RN1/16SE1001D R301, R401, R501 RN1/16SE1602D R313, R314, R323, R324 RN1/16SE2000D R413, R414, R423, R424 RN1/16SE2000D R513, R514, R523, R524 RN1/16SE2000D R333, R336, R343, R346, R433 RN1/16SE3001D R436, R443, R446, R533, R536 RN1/16SE3001D R543, R546 RN1/16SE3001D R101, R601 RS1/10S0R0J R607 RS1/10S151J R373, R383, R473, R573 RS1/10S332J R608 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN351 CONNECTOR POST B3B-PH-K JA401 JACK VKB1125 JA301 JACK VKB1133 CN101 33P CONNECTOR VKN1519 JA601 JACK VKX1012 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 73 5 6 7 8 5 6 7 8 C D F A B E KN101, KN102 VNF1084 EARTH METAL FITTING DVJKB ASSY [VWV1986] SEMICONDUCTORS IC302 LA73054 > IC101 MM1565AF Q304–Q306 2SA1576A Q301–Q303 UMD3N D201 1SS355 D301 DAN202K D101 RB501V-40 COILS AND FILTERS F301–F303 12MHZ LPF(VIDEO) VTF1175 L401, L402 CHIP BEADS VTL1089 CAPACITORS C318, C320, C322 CCSRCH100D50 C201, C202 CCSRCH470J50 C325–C327 CCSRCH4R0C50 C328–C330 CCSRCH7R0D50 C107 CEAT101M16 C401, C403, C405, C408, C413 CEAT102M6R3 C109 CEAT221M6R3 C414, C417 CEAT471M6R3 C304, C314 CEHAZA471M6R3 C110 CKSQYB225K10 C305 CKSQYF104Z25 C315 CKSQYF105Z16 C108 CKSQYF105Z25 C112, C324 CKSRYB102K50 C303, C307–C309, C312, C313 CKSRYB104K16 C317, C319, C321, C406, C409 CKSRYF104Z25 C206, C306, C311, C316 CKSRYF105Z10 RESISTORS R101, R104–R106, R302 RS1/10S0R0J R410, R412 RS1/10S1R0J R409 RS1/10S1R8J R414–R416 RS1/10S68R0D R401–R404, R406, R407 RS1/10S75R0F R323, R328, R334 RS1/16S2202F R318, R325, R332 RS1/16S3000D Other Resistors RS1/16S###J OTHERS CN402 SOCKET AKP7023 JA201, JA202 JACK RKN1004 PCB BINDER VEF1040 JA401 JACK VKB1135 JA403 JACK VKB1151 CN101 23P CONNECTOR VKN1427 KN101–KN104 VNF1084 EARTH METAL FITTING DVJKB ASSY [VWV1988] SEMICONDUCTORS IC302, IC601 LA73054 IC603 MM1507XN Mark No. Description Part No. > IC101 MM1565AF Q304–Q306 2SA1576A Q602 DTC114YUA Q301–Q303, Q601 UMD3N D201 1SS355 D301, D609 DAN202K D101 RB501V-40 COILS AND FILTERS F301–F303 12MHZ LPF(VIDEO) VTF1175 L401, L402 CHIP BEADS VTL1089 CAPACITORS C318, C320, C322 CCSRCH100D50 C201, C202 CCSRCH470J50 C325–C327 CCSRCH4R0C50 C328–C330 CCSRCH7R0D50 C107 CEAT101M16 C401, C403, C405, C408, C413 CEAT102M6R3 C109 CEAT221M6R3 C414, C417 CEAT471M6R3 C304, C314, C604, C614 CEHAZA471M6R3 C110 CKSQYB225K10 C305, C606, C618 CKSQYF104Z25 C315, C615 CKSQYF105Z16 C108 CKSQYF105Z25 C112, C324 CKSRYB102K50 C303, C307–C309, C312, C313 CKSRYB104K16 C605, C609, C610, C617 CKSRYB104K16 C317, C319, C321, C406, C409 CKSRYF104Z25 C608, C611, C613, C619 CKSRYF104Z25 C206, C306, C311, C316 CKSRYF105Z10 C602, C603, C607, C612 CKSRYF105Z10 RESISTORS R101, R104–R106, R302, R601 RS1/10S0R0J R608 RS1/10S0R0J R410, R412 RS1/10S1R0J R409 RS1/10S1R8J R650, R651 RS1/10S3R3J R414–R416 RS1/10S68R0D R401–R404, R406, R407 RS1/10S75R0F R323, R328, R334 RS1/16S2202F R318, R325, R332 RS1/16S3000D Other Resistors RS1/16S###J OTHERS CN402 SOCKET AKP7023 CN601 CONNECTOR POST B3B-PH-K JA201, JA202 JACK RKN1004 PCB BINDER VEF1040 JA401 JACK VKB1135 JA403 JACK VKB1151 CN602 19P CONNECTOR VKN1250 CN101 23P CONNECTOR VKN1427 KN101–KN104 VNF1084 EARTH METAL FITTING DVJKB ASSY [VWV1989] SEMICONDUCTORS IC302, IC601 LA73054 IC603 MM1507XN > IC101 MM1565AF Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 74 1 2 3 4 1 2 3 4 C D F A B E Q304–Q306 2SA1576A Q602 DTC114YUA Q301–Q303, Q601 UMD3N D201 1SS355 D301, D609 DAN202K D101 RB501V-40 COILS AND FILTERS L401, L402 CHIP BEADS VTL1089 CAPACITORS C201, C202 CCSRCH470J50 C107 CEAT101M16 C401, C403, C405, C408, C413 CEAT102M6R3 C109 CEAT221M6R3 C414, C417 CEAT471M6R3 C304, C314, C604, C614 CEHAZA471M6R3 C110 CKSQYB225K10 C305, C606, C618 CKSQYF104Z25 C315, C615 CKSQYF105Z16 C108 CKSQYF105Z25 C112, C324 CKSRYB102K50 C303, C307–C309, C312, C313 CKSRYB104K16 C605, C609, C610, C617 CKSRYB104K16 C317, C319, C321, C406, C409 CKSRYF104Z25 C608, C611, C613, C619 CKSRYF104Z25 C206, C306, C311, C316 CKSRYF105Z10 C602, C603, C607, C612 CKSRYF105Z10 RESISTORS R101, R104–R106, R302, R601 RS1/10S0R0J R608 RS1/10S0R0J R409, R650, R651 RS1/10S3R3J R410, R412 RS1/10S3R9J R414–R416 RS1/10S68R0D R401–R404, R406, R407 RS1/10S75R0F Other Resistors RS1/16S###J OTHERS CN402 SOCKET AKP7023 CN601 CONNECTOR POST B3B-PH-K JA201, JA202 JACK RKN1004 PCB BINDER VEF1040 JA401 JACK VKB1135 JA403 JACK VKB1151 CN602 19P CONNECTOR VKN1250 CN101 23P CONNECTOR VKN1427 KN101–KN104 VNF1084 EARTH METAL FITTING ESCRB ASSY [VWV1992] SEMICONDUCTORS IC901 MM1505XN IC902 MM1507XN Q904 2SA1576A Q901, Q902, Q905 2SC4081 D999 1SR154-400 D901, D903, D905–D909 1SS355 D911, D912, D914–D916 1SS355 SWITCHES AND RELAYS Mark No. Description Part No. RY901–RY905 VSR1017 CAPACITORS C904, C914, C932, C933 CCSRCH221J50 C903, C910, C913, C921 CCSRCH391J50 C927 CCSRCH470J50 C929, C930, C937, C943 CEAT101M10 C946, C953 CEAT102M6R3 C901, C902, C907, C909 CKSRYF104Z25 C916, C917, C924, C925, C928 CKSRYF104Z25 C936, C938–C941, C945, C950 CKSRYF104Z25 C935 CKSRYF105Z10 RESISTORS R936 RS1/10S1R5J R943, R950 RS1/10S68R0F R932, R937, R955, R965 RS1/10S75R0F Other Resistors RS1/16S###J OTHERS JA901, JA902 CONNECTOR VKB1157 CN901 19P CONNECTOR VKN1279 FFLKY ASSY [VWG2459] SEMICONDUCTORS IC101 PE5314B IC102 PST3228 Q102, Q802 DTA124EUA Q101, Q801 DTC124EK SWITCHES AND RELAYS S101–S106 VSG1024 CAPACITORS C101, C103, C107, C108, C161 CCSRCH102J50 C104 CEAL470M6R3 C100 CEJQ101M6R3 C801, C802 CKSRYB102K50 C111 CKSRYB103K50 C116 CKSRYF104Z50 C102, C105, C110, C113, C115 CKSRYF105Z10 RESISTORS All Resistors RS1/16S###J OTHERS CN102 CONNECTOR 9P 09P-FJ IC103 REMOTE RECEIVER UNIT SPS-452L-H V101 FL TUBE VAW1073 SPACER VEC2220 CN101 17P CONNECTOR VKN1277 HOLDER VNF1122 X101 (5MHz) VSS1142 FFLKY ASSY [VWG2456] SEMICONDUCTORS IC101 PE5314B IC102 PST3228 Q102, Q802 DTA124EUA Q101, Q801 DTC124EK SWITCHES AND RELAYS S101–S106 VSG1024 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 75 5 6 7 8 5 6 7 8 C D F A B E CAPACITORS C101, C103, C107, C108, C161 CCSRCH102J50 C104 CEAL470M6R3 C100 CEJQ101M6R3 C801, C802 CKSRYB102K50 C111 CKSRYB103K50 C116 CKSRYF104Z50 C102, C105, C110, C113, C115 CKSRYF105Z10 RESISTORS All Resistors RS1/16S###J OTHERS CN102 CONNECTOR 9P 09P-FJ IC103 REMOTE RECEIVER UNIT SPS-452L-H V101 FL TUBE VAW1073 SPACER VEC2220 CN101 17P CONNECTOR VKN1277 HOLDER VNF1122 X101 (5MHz) VSS1142 FFLKY ASSY [VWG2448] SEMICONDUCTORS IC101 PE5314B IC102 PST3228 Q802 DTA124EUA Q801 DTC124EK SWITCHES AND RELAYS S101–S106 VSG1024 CAPACITORS C101, C103, C107, C108, C161 CCSRCH102J50 C104 CEAL470M6R3 C100 CEJQ101M6R3 C802 CKSRYB102K50 C111 CKSRYB103K50 C116 CKSRYF104Z50 C102, C105, C110, C113, C115 CKSRYF105Z10 RESISTORS All Resistors RS1/16S###J OTHERS CN102 CONNECTOR 9P 09P-FJ IC103 REMOTE RECEIVER UNIT SPS-452L-H V101 FL TUBE VAW1073 SPACER VEC2220 CN101 17P CONNECTOR VKN1277 HOLDER VNF1122 X101 (5MHz) VSS1142 GKEYB ASSY [VWG2460] SEMICONDUCTORS D205, D206 SLR-343BBT D203, D204 SLR-343VC SWITCHES AND RELAYS S201–S203 VSG1024 Mark No. Description Part No. CAPACITORS C901 CKSRYF105Z10 RESISTORS R208, R223 RS1/10S0R0J R207, R224, R901, R902 RS1/10S182J Other Resistors RS1/16S###J OTHERS CN201 CONNECTOR 9P 09R-FJ GKEYB ASSY [VWG2457] SEMICONDUCTORS D205, D206 SLR-343BBT D201, D203, D204 SLR-343VC SWITCHES AND RELAYS S201, S202 VSG1024 CAPACITORS C291, C292 CKSRYB103K50 C901 CKSRYF105Z10 RESISTORS R208, R223 RS1/10S0R0J R207, R224, R901, R902 RS1/10S182J Other Resistors RS1/16S###J OTHERS CN201 CONNECTOR 9P 09R-FJ CN202 CONNECTOR S2B-PH-K GKEYB ASSY [VWG2449] SEMICONDUCTORS D205 SLR-343BBT D203, D204 SLR-343VC SWITCHES AND RELAYS S201–S203 VSG1024 CAPACITORS C901 CKSRYF105Z10 RESISTORS R208 RS1/10S0R0J R207, R902 RS1/10S182J Other Resistors RS1/16S###J OTHERS CN201 CONNECTOR 9P 09R-FJ HMSWB ASSY [VWG2455] SWITCHES AND RELAYS > S301 VSA1005 OTHERS CN301 CONNECTOR POST B2B-PH-K > CN302 AMP U-P CONNECTOR RKP1834 IPOWER SUPPLY UNIT [VWR1375] Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 76 1 2 3 4 1 2 3 4 C D F A B E OTHERS > P301 PROTECTOR(800mA) AEK7063 > P201 PROTECTOR(1.6A) AEK7066 > P101, P202 PROTECTOR(2A) AEK7067 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 77 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 ADJUSTMENT ITEMS AND LOCATION 6.2 JIGS AND MEASURING INSTRUMENTS 1 1 2 2 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 78 1 2 3 4 1 2 3 4 C D F A B E 6.3 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ Ÿ Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point LOAB and DVDM ASSYS Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 79 5 6 7 8 5 6 7 8 C D F A B E 6.4 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE (Player) TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD CAUTION: Perform only trace, video and audio outputs are nothing. DVD disc POWER ON OFF POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 80 1 2 3 4 1 2 3 4 C D F A B E 6.5 MECHANISM ADJUSTMENT • Remove the Loading Mecha. Assy. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Loading Mecha. Assy (Float Base) with nippers. Cautions: Keep spacer for future use. (used only for 2003 models) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Loading Mecha. Assy 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.1.9 DISASSEMBLY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 81 5 6 7 8 5 6 7 8 C D F A B E Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.3 TEST MODE SCREEN DISPLAY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 82 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 ID NUMBER AND ID DATA SETTING Entering the ID Number and ID Data for Players with DVD-Audio and DVD-RW Compatibility To enter the input mode, press ESC + STEREO in a status with no ID number set, such as after FLASH-ROM downloading. • Downloading FLASH-ROM is finished. (The latest version must be downloaded when a repair is made.) • "No ID Number" is displayed on the screen or FL display immediately after the power is turned on or in Stop mode. • If "No ID DATA" is displayed, the ID data must be entered. Important: If no yellow label is found on the rear panel, write down the specified ID number by checking it according to "How to confirm the ID number" shown below. Note: Be sure to enter the ID number in Stop mode. Use the service remote control (GGF1381) for operations. Only opening/closing of the tray are performed from the player. Use Disc No. : GGV1133 It is necessary with a player with DVD-audio and DVD-RW compatibility to set an individual number (ID number) and ID data. If the number and data are not set correctly with the following procedure, operations in the future may not be guaranteed. You will find the ID number to be set on the yellow label on the rear panel. The Input is Necessary When: How to Input the ID Number and ID Data [Player's ID Number Setting] ID Number ? > - - - - - - - - - Exit Input ID Number ! 1 As number input is enabled when the unit enters the input mode, input the 9-digit ID number. (The entered number is also displayed on the FL display.) 2 2 [Player's ID Data Setting] Exit Insert The ID Data Disc ! When the ID number has been registered, the unit enters the ID data input mode. (The FL display indicates "NO ID DATA.") In this condition, place the ID data disc on the tray and close the tray using the CLOSE key "7/0" on the player. 4 4 [Player's ID Data Setting] Loading The ID Data Disc ! While the data are being read, the message shown in the figure at left is displayed on the screen. (The FL display indicates "RD ID DATA.") 5 5 [Player's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! After inputting the number, press SEARCH to register the ID number. 3 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 83 5 6 7 8 5 6 7 8 C D F A B E How to Confirm the ID Number How to Clear the ID Number [Player's ID Data Setting] Wait Rom Writing ! When the ID data have been read, the data are written to the FLASH-ROM. (The FL display indicates "WR ID DATA.") 6 6 [Player's ID Data Setting] Rom Write OK ! Exit When the ID data have been written to the FLASH-ROM, the message "Rom Write OK" is displayed on the screen. (The FL display indicates "ID DATA OK.") After confirming this message, press CLEAR to exit the input mode. 7 8 7 8 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > * * * * * * * * * Exit Input ID Number ! Press ESC + STEREO with an ID number set, and the unit enters the ID number confirmation mode. The set ID number is displayed on the screen (and on the FL display), permitting you to confirm it. To exit this mode, press CLEAR . 1 Press ESC + STEREO with an ID number set, and the unit enters the ID number confirmation mode. Input the same number as the ID number you have set. 1 2 2 3 2 3 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > * * * * * * * * * Exit Input ID Number ! 2 After inputting the number, press STOP . Only when the entered number matches the set ID number, the ID number is cleared and the unit exits this mode. If the numbers do not match, you must return to step 2. ( STOP is not accepted until 9 digits are entered.) 3 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > 0 0 0 0 0 0 0 0 1 OK ? Enter Memory Clear Input ID Number ! 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 84 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE Character in bold : Item name : Information display Laser diode current value Symptom • Indicates "No Disc" in FL display. • Player does not playback, etc.. This unit can confirm the laser diode current value (DVD: 650nm, CD: 780nm) of pickup on the Test Mode screen. (Press the ESC → TEST keys in order on the test mode remote control unit (GGF1381) to enter the test mode.) Note : When a DVD disc or a CD disc is played in the test mode, this function is effective. Procedure of Self-Diagnosis 1 Enter the Test mode. 2 When diagnosing the 650nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When diagnosing the 780nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When let it turn on once again after performed 2 once, After pressed REP.B key once 650nm: Press the → keys in order 780nm: Press the → keys in order 3 Confirm the indicated value of the laser diode current (LDI). (Refer to following figure.) 4 When indicated value is more than 140, pickup is defective. → Replacement is necessary Replace the Traverse Mechanism Assy or Pickup. TEST 1 TEST 1 TEST 4 TEST 4 It's effective in case of the following condition. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 85 5 6 7 8 5 6 7 8 C D F A B E 7.1.3 TEST MODE SCREEN DISPLAY Display Specification of the Test Mode Character in bold : Item name : Information display 1 5 6 10 21 22 23 24 11 8 9 3 2 12 17 18 19 16 13 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 4 Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗ ] 5 (1) Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] (2) Laser diode current value [LDI – ∗ ∗ ∗] 6 (1) Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] (2) AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] CD TOC area : [IN ] CD active area : [CD] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 (1) Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] (2) CD 1/3 beam switch [BM – ∗ ∗ ] - Jitter value [J – ∗ ∗ ∗ ∗] Make the jitter four times, and renew it in every 0.5 second. [J4 – ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RAM/RL/RD, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLSH = ∗] % Revision of the system controller [S: ∗ . ∗ / ∗ ∗ ∗ ] 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 86 1 2 3 4 1 2 3 4 C D F A B E ^ (1) Revision of the DVD mechanism controller [M: ∗ / ∗ ∗] (2) Part number of the GUI-ROM (OEM model) [GUI: ∗ ∗ ∗] (3) HOST conversion [HOST: ∗ ∗ ∗] * AGC setting [AGC – ∗ ∗ ∗ [∗] ] AGC on : [AGC-ON] AGC off : [AGC-OFF] [1] : RFAGC on [0] : RFAGC off ( FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. ) Error rate indication 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] _ Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 87 5 6 7 8 5 6 7 8 C D F A B E 7.1.4 SELF-DIAGNOSIS FUNCTION Display screen of mechanism error history and self diagnosis result 2 (a) (b) (c) (d) (e) (f) (g) (h) When enter the service mode, self diagnosis mode operates with the "ESC"+"CHP/TIM" keys automatically. 1 Mechanism Error History (past eight times of error is displayed) Two columns of the beginning display the error status for mechanism controller. (the details of error contents refer to "7.1.6 Error Display".) Eight columns of the back display the count UP value (turned count up every 20msec) from the power-up. Example) 32h ⋅=. 1 sec, BB8h ⋅=. 1 min, 2BF20h ⋅=. 1 hour In addition, when there was error after power-up immediately (till initial setting is completed), turn the most significant bit to ON. 2 Check Item Display of Self Diagnosis Function a) AV1 Host Bus check (possible the check only during stop) (Read & Write process of an internal specific register) AV_1 : OK : −− ⇒ not yet check : HOST BUS NG ⇒ HOST bus NG b) Bus check between AV1 SDRAM (possible the check only during stop) (Read & Write process to the SDRAM) AV_2 : OK : −− ⇒ not yet check : AV1-SDRAM BUS NG ⇒ Bus NG between AV1 and SDRAM c) DMA transfer port check from F.E. to AV1 (during stop, possible the check only in DVD or NO DISC) (writing from F.E to SDRAM and reading of SDRAM) AV_3 : OK : −− ⇒ not yet check : FE-AV1 DMA NG ⇒ Bus NG between F.E and SDRAM installed outside of AV1 d) Video encoder (ADV∗∗∗∗) check (Read of the specific register) VE : OK : NG ADV, ⇒ ADV register reading NG : NG > ADV, ⇒ ADV communication NG of FR to video encoder : NG > PRO ⇒ Communication NG from EBY to progressive decoder e) DSP check (Read of the specific register) DSP : OK : NG ⇒ DASP NG f) SACD check (Read of the specific register) SACD : OK : NG ⇒ SACD NG g) 1394 relation HOST controller check HOST : OK : NG ⇒ HOST controller NG h) 1394 relation Mercury CHIP check MERC : OK : NG ⇒ Mercury CHIP NG Display the mechanism error history and self diagnosis result by pressing the "CHP / TIM" key once again. Afterwards press the "CHP / TIM" key with toggle and change the display. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 88 1 2 3 4 1 2 3 4 C D F A B E 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE Indication contents 1 2 3 4 • FL indication of EDC / ID error (short cut function) Indicate it in FL with the "ESC"+"CX" keys (LD remote control unit). Indication is released with the "ESC" key during display. FL indication contents 0 0 / 0 0 / 0 1 ∗ Indicate number of the location that caused EDC and ID errors Retry number of times at having caused ID error (error is indicated only in the occurring moment) Retry number of times of the latest ID error in the ST system Retry number of times at having caused EDC error (error is indicated only in the occurring moment) Retry number of times of the latest EDC error in the ST system ∗ Mark: When even once causes AV1 error, lights. • Screen display of the service mode Indicate to the screen with the "ESC"+"CHP/TIM" keys. Release the indication with the "ESC" key. Indication contents 1 ID Address 2 DVD in playback: Error rate regular indication and exponent indication CD/VCD in playback indicates the number of correct frame of C1 error /5 seconds. 3 Self diagnosis indication Indicate the self diagnosis result whether the F.E is normal. Self Check : During FE checks Self Check OK : Abnormality is not found in F.E. Self Check Error : Abnormality is found in F.E. Indicate the mechanism error history and self diagnosis result by pressing the "CHP / TIM" key once again. Afterwards press the "CHP / TIM" key with toggle and change the display. Indication of the mechanism error history and self diagnosis result refer to "7.1.4 self diagnosis function". 4 Error information indication of the AV decoder (a) When a retry occurred in reading from the disc, a history indicates the occurrence location and the occurrence reason. History is indicated to past seven times. Eight columns of the beginning show the physical address which occurred of retry. As for four columns of next, bitmap indicates EDC status. LSB shows the first sector during a block and MSB shows a last sector. Following field indicates the retry number of times. One digit in front of " / " shows number of times of the retry by EDC Error which occurred in the same block in succession. One digit after " / " shows number of times of the retry by ID Check Error which occurred in the same block in succession. " * " of last one digit shows the EDC Check NG Count Over. " # " shows the ID Check NG Count Over. When " * " and " # " are not indicated, show that data were rightly readable by retry process. (b) Indicate the error information that detected with the Audio/Video Decoder. When error occurred, a history indicates the occurrence time and the occurrence reason. History is indicated to past seven times. Field in front of ":" indicates the error information of Audio/Video Decoder. (Indication information is different from Fujitsu Decoder with Mitsubishi Decoder) 02 model is 656 series and 757 series is Mitsubishi model. • Specification for the Audio/Video Decoder (M65773FP) model of Mitsubishi bit7: VLD Fatal Error detection bit6: VLD Not Fatal Error detection bit5: Number of Macro Block mismatch bit4: Decode error bit3: VLD Sequence Layer Fatal Error detection bit2: VLD Picture Layer Fatal Error detection bit1: VLD Slice Layer Fatal Error detection bit0: Start-up Sequence Time-out Error detection Following field in " : " indicates a value of STC (System Time Clock) which detected the above Audio/Video Decoder error. ∗ When often perform the switch of debug screen, an error history will be increased. As for this, CPU power is used for update of OSD drawing, symptoms occur so that control of VBR Buffer is not in time. (a) 4 (b) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 89 5 6 7 8 5 6 7 8 C D F A B E 7.1.6 ERROR DISPLAY FL Display Possible causes Operation of the unit AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with the specific audio. CPU AERR CPU address error (Hardware is unusual.) No operation DMA AERR DMA address error (Hardware is unusual.) No operation FLASH ID Difference in versions of the internal ROM of the system controller and of the flash ROM, or bus line failure or reverse installation No operation FLASH WRP Write protect error of the flash ROM No operation FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used was used.) No operation FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation (Hardware is unusual.) No operation FLASH SIZ Size error of the flash ROM (Use 4 or 8 M-bit.) No operation GUI ROM ERROR Difference in version of GUI ROM and system controller software. Operate as the OSD model ILLGAL The system controller fetched a code other than an operation code (Hardware is unusual.) No operation MECHA CPU Difference in version of the internal ROM of the mechanism controller and of the flash ROM. No operation RESERVE Undefined interrupt (Hardware is unusual.) No operation SLOT Inappropriate slot command issued (Hardware is unusual.) No operation FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 11 Search timeout Search could not be complete within 7 seconds. Search could not be complete within 7 seconds, and it could not enter the target area within 7 seconds by VCD scan. CD : Stops, DVD: Continues operation 12 Search retry error More beyond the target while the read-in search was converging. A search could not be completed after 3 retries while the unit was tracing 11 tracks. A search could not be completed after retry when timeout occurs at read-in. CD: Stops, DVD: Continues operation 19 Tracing timeout while converging Timeout (10.5 seconds) while tracing at the stage of convergence of a search. Stop 1B Index 0 search error During Track (Index) Search, the search for the beginning of a program could not be completed within 3 seconds (20 seconds in the case of Index Search) after positioning based on the TOC data was completed. Stop 1C Embossment plunge error (only a model corresponding to RW) Plunged into unreadable embossment of DVD-RW player. 1. In wobble nothing (error distinction) : search to address 2E400h 2. In wobble existence: Tray open 22 Timeout of slider inner circumference Inside switch could not ON within 3 seconds. Stop 23 Timeout of slider outer circumference Inside switch could not OFF within the following times: at ATB: 2 seconds, at Backup: 2 or 2.02 seconds. Stop 33 No FOK pulse during playback When the focus was deviated continuously 20 times. Adjusts focus at the innermost circumference and tries to return to its position where the error was generated (for 3 times),then opens. If the same error persists after one retry, the tray opens. (No FOK pulse) 38 Disc-type- sensing error Were not able to playback from the disc distinction process. PLAY or STOP was not completed by backup operation of the disc distinction. Distinguished it from the blank disc in the ATB process completion. Open Error codes that are displayed on the FL display without using the remote control unit Error codes that are displayed on the FL display by using the remote control unit (Mechanism controller error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the FL display To display the error history: ESC + DISPLAY + One shot; Location of the display: TV screen www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 90 1 2 3 4 1 2 3 4 C D F A B E FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 39 SGC converge timeout SGC could not converge during detects the peak Open 41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command. Disc distinction is not completed even if passes for 10 seconds after the spindle turned. Stop 48 Spindle FG transition timeout Did not reach to the rotating speed that ATB was possible for less than 10 seconds. Did not reach aim CAV lock speed (high: 10%, low: 50%) for less than 10 seconds. CAV process passed more than 5 seconds or abnormal speed was detected. Spindle does not lock for less than 3 seconds in the BCA read start or end. Stops. (FG timeout) 49 Spindle PLL transition timeout CAV process passed more than 5 seconds. Abnormal speed was detected. Stops. ("73" is displayed during starting process.) 4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB. Stops. ("73" is displayed during starting process.) 51 Auto sequence timeout of peak detection ABUSY did not return within 1 second after the DDTCT (peak detection) command was sent. Stop 52 Auto sequence timeout of focus jump down ABUSY did not return within 30 mS after the FJMPD (Focus jump 1 to 0) command was sent. Open 53 Auto sequence timeout of focus jump up ABUSY did not return within 30 mS after the FJMPU (Focus jump 0 to 1) command was sent. Open 54 Auto sequence timeout of play AGC ABUSY did not return within 50 mS after the GSUMON (play-AGC-measuring) command was sent. Stop 55 Auto sequence timeout of disc-type- sensing ABUSY did not return within 2 seconds after the DJSRT (disc-sensing) command was sent. Stop 56 Auto sequence timeout of ATB2 ABUSY did not return within 1 second after the TBLOFS (Internal ATB after the completion of external ATB) command was sent. Stop 57 Auto sequence timeout of tracking servo ON ABUSY did not return within 0.5 sec. after the TSON (tracking servo ON) command was sent. Stop 58 Auto sequence timeout of ATB1 ABUSY did not return within 0.2 sec. after the TBL (external ATB) command was sent. Stop 59 Auto sequence timeout of focus gain adjustment ABUSY did not return within 2 seconds after the FGN (focus gain adjustment) command was sent. Stop 5A Auto sequence timeout of tracking gain adjustment ABUSY did not return within 2 seconds after TGN (tracking gain adjustment) command was sent. Stop 5B Auto sequence timeout of offset adjustment ABUSY did not return within 1 second after the AVE (offset adjustment) command was sent. Stop 5C Auto sequence timeout of modulation factor measurement ABUSY did not return within 200 mS after the ADJMIR (modulation factor measurement) command was sent. Stop 5D Auto sequence timeout of auto focus bias ABUSY did not return within 2 seconds after the AFB (auto focus bias) command was sent. Stop 5F Auto sequence already busy A command could not be sent because ABUSY was low. ABUSY did not return within 200 mS after TLV command was sent. Stop 62 Pause retry error Pause mode could not be restored within three retries after it had been released. Continues operation 71 ID reading check during playback An ID could not be read for 1 second or more. Stop 72 Subcode check failure during playback No frame could be read for 3 seconds or more. Stop 73 ID can not read during startup An ID could not be read within 1 second after the AFB tracking on. Opens (ID readout failure) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 91 5 6 7 8 5 6 7 8 C D F A B E FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 74 Subcode check failure during startup Subcode could not be read within 1 second after the tracking on. Opens (Subcode readout failure). A1 Communication timeout of DSP command A command could not be issued to DSP because Command Busy (XCBUSY) was in force (XCBUSY = L) for a specified time (about 200 µS). Open A2 Communication timeout for reading DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 200 µS) before and after a coefficient read command was issued to DSP, or the address echo-back after command issuance did not match the setup address. Open A4 Communication timeout for continuously writing DSP coefficient Command Busy (XCBUSY) was in force for 200 µS during continuous coefficient writing, or before and after a continuous write command was issued to DSP. Open B1 Timeout error for backup In the backup sequence, codes could not be read for fixed time. Stops B2 Retry error for backup Cannot close tracking even if performs backup fixed number of times. Stops B3 Retry error for trace During tracing, do not restore after the runaway detection backup was performed several times. Stops C3 Detection of tracking overcurrent During playback, the overcurrent detection port was at L for 300 ms or more continuously. Stops (the mechanical controller operates independently). (C5) Short-circuit test corresponding error After the overcurrent detection (C3 error), furthermore the overcurrent detection port was at L for 300 mS or more continuously. Turns off the power instantly (No indication on the FL display and no writing to flash memory) F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other than Open by an external force. Closes F6 Code reading NG (PH code nothing) When Philips code is not readable during LD starting, and a code was not readable after the slider moved to FWD and REV directions slowly each for five seconds. (PRD) In the CD starting, when a subcode of TOC part was not readable, but the subcode of the program area was readable. Search, scan and special playback prohibition, Playback as playback CD-R (PRD mode) as it is. F8 Loading timeout Loading or unloading could not be completed within a specified time (about 10 seconds). Though a portable cover is opening, when a close command was issued from the system controller. Reverses the loading direction. It timeout is repeated upon retry, the unit stops. FC Focus • Focus ON sequence could not be completed more than two seconds. • Auto sequence command was finished, actually focus ON was not completed. • Focus did not enter even if retried it eight times. Stops wherever possible then opens (stops in the case of side B). FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit bit4=1 10 etc. Mechanism controller RAM check sum error No operation or it becomes debugging indication if the power is able to ON. bit3=1 08 etc. AV1 access error (read, write NG) bit2=1 04 etc. LSI11 access error bit0=1 01 etc. SRAM access error Error codes that are displayed on the FL display by using the remote control unit (Device error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of left of the FL display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 92 1 2 3 4 1 2 3 4 C D F A B E 7.1.7 TROUBLE SHOOTING START Is FL turn on ? Is tray open ? Is the indication of FL normal ? Power ON Yes Yes Yes No No No Turn on the power again after 2 - 3 minutes. • Blow out micro-fuse on the POWER SUPPLY Unit. (P202 and P301) FL indication is dark or flickers. Indicates the error message Refer to the section "7.1.6 ERROR DISPLAY". • Tact-switches are damaged. (incase of only a key NG) FLKY IC101-pin 22 is it around +1.2V when you pushed a POWER key? • Wireless remote controller receiver or IR signal line or SEL IR signal line is damaged. (incase of only a key of wireless remote controller NG) Does FLKB IC101-pin 17 (SEL IR) and IR and SEL IR signal lines change 0V–3.3V when you pushed a wireless remote controller key? • Blow out fuse of the primary side • As for P-CONT of POWER SUPPLY Unit is around 3.3V. Blow out micro-fuse on the POWER SUPPLY Unit. (Check the each voltage.) P202, P301 of POWER SUPPLY Unit is damaged. • FL controller IC (IC101) or RESET IC (IC102) on the FLKY Assy is damaged. Are IC101-pin 12 (RESET OUT) and pin 11 (POWER ON) "H" level together? • Check the following connections : POWER SUPPLY Unit - DVDM Assy DVDM Assy - AJKB Assy DVDM Assy - VJKB Assy DVDM Assy - FLKY Assy • Check each voltage regulators of DVDM Assy : IC401-pin 3 (+3.3V), IC402-pin 1 (+5V), IC403-pin 3 (+2.5V), IC404-pin 4 (+3V), IC405-pin 4 (+5V), IC410-pin 1 (+1.8V), IC411-pin 3 (+2.5V) • Check each voltage (EV+6V, EV+4V, SW+3.3V, +12V, -28V, FLDC+ and FLDC-) (If above voltage are not supplied, check the micro-fuse P101, P201, P202, P301.) Are not there short and open-circuit between output connector of POWER SUPPLY Unit and CN401 of DVDM Assy? • R410 of POWER SUPPLY Unit is damaged. No -28V voltage appear. • Short or open the zenner diode on the POWER SUPPLY Unit. (D505) • Check the address bus and data bus of signal interface between FR CPU (IC601)–AV1 (IC751), Eby-Chip (IC701) and Servo DSP (IC201). • Check each voltage regulators of DVDM Assy : IC401 (+3.3V) and IC403 (+2.5V) Clock generator IC481 or crystal resonator X481 is damaged. Check waveform of each pin whether IC481 does oscillation. • Check the following connections : DVDM Assy (CN103)- LOAB Assy (5P connector assy) DVDM Assy CN105-pin 12 (INSIDE SW signal) • Check the loading drive signal : IC351-pin 14, 15, 16 • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 93 5 6 7 8 5 6 7 8 C D F A B E Do the video and sound come on? or beeing damaged? (noisy) Yes No Refer to the section "7.1.6 ERROR DISPLAY". Indicate the error message. Carriage does not move. (Stepping positioning) Yes Yes • Laser diode does not light. • Focus does not in. Yes No No Spindle does not turn. No OK • Check the following connections and drive IC : DVDM Assy CN104 (4P flexible cable) Check the Stepping motor signals, IC351-pin 31, 32, 34, 35 and IC601-pin 47, 48. • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) • Check the following connections and drive IC : DVDM Assy CN105 (12P flexible cable) Check the Spindle motor signals and IC251-each pins. • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) • Check the following connections : DVDM Assy - VJKB Assy DVDM Assy - AJKB Assy • Check voltage regulator of VJKB Assy IC701-pin 1 (+5V) for Video circuit, AJKB Assy IC102 (+8V, +5V) for Audio circuit. • Check the interface of 16M SDRAM (IC741) for Eby-chip (IC701) and 64M SDRAM (IC781) for AV1 (IC751). • Check digital data of video and audio signals (audio signals: 3 line data, video signals: 8bit data) shown to each schematic diagram and an analog signal line. In addition, check CLK. audio system: 22/24MHz, video system: 27MHz • Check the following connection, IC351, IC101, IC201 : DVDM Assy CN101 - Pickup Assy (24P flexible cable) IC351-pin 9, 10, IC101-pin41 and IC201-pin 32, 47 for Focus Drive • Check the +6V and +12V power supply voltage and SW+5V (If +6V voltage is not supplied, check the micro-fuse P101 and P102.) • Check it whether the pickup is defectiveness. Perform the section "7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE" and check the LD current value. C101 (for DVD LD) and C103 (for CD LD) of DVDM are missing. • Regarding DVD LD (650nm) : Check each signals of CN101-pin 17 (PD), pin 18 (LD Drive), IC101-pin 17 and Q101 Regarding CD LD (780nm) : Check each signals of CN101-pin 17 (PD), pin 16 (LD Drive), IC101-pin 17 and Q102 PD: Power Diode (signal output) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 94 1 2 3 4 1 2 3 4 C D F A B E 7.1.8 FAILURE-TEST METHOD FOR THE HDMI TRANSMITTER IC (In the case of the DV-668AV-S, probe R1030-R1036, and R1037 [27-MHz clock].) (In the case of the DV-668AV-S, the T-REX is read as IC901.) • As replacement of the HDMI transmitter IC (IC1051 : DVDM Assy) is not possible, because the connection between the IC and the HDMI out terminal is sealed with silicon adhesive, the DVDM Assy needs to be replaced if the IC is in failure. • When replacing the DVDM Assy, see "7.1.9 DISASSEMBLY." In a case where the HDMI video signal is not output 1 In a case where the HDMI audio signal is not output 2 Is the Pure Audio function turned ON? (During Pure Audio mode, neither the HDMI signal nor the analog video signal is output.) Is the analog video signal output? Turn the Pure Audio function OFF. No Yes No OK NG Yes Are the audio signals properly output from the optical outputs and coaxial outputs (S/PDIF)? Yes No Probe R1058 (S/PDIF) and R1057 (22-/24-MHz clock) with an oscilloscope, and check if correct signals are output. The HDMI transmitter IC (audio processing block) may be in failure. No The lines from R1058 (S/PDIF) and R1057 (22-/24-MHz clock) are in failure. (The optical-output and coaxial-output lines are OK.) Check if the HOME MENU or VCD playback picture is displayed when this unit is connected to a PC monitor equipped with a DVI input. Purpose: To check if the HDMI output line, including the terminal, is in failure. (An HDMI↔DVI conversion cable is required for checking.) Failure test for the T-REX (IC1001: DVDM Assy) Probe R1013-R1018 (22 ohms × 4, 6 sets), and R1009 (27-MHz clock) with an oscilloscope, and check if the amplitude of each signal changes between H (3.3 V) and L during VCD playback and if the 27-MHz clock is output correctly. NG No The T-REX or the line between the T-REX and the HDMI transmitter IC may be in failure (replacement of the T-REX, failure in any of the above resistors, defective soldering, signal short-circuiting, or broken wires, etc.) Turn the Pure Audio function OFF. Is the Pure Audio function turned ON? (During Pure Audio mode, the HDMI audio signal is not output.) Yes Yes Is this unit connected to DVI equipment? (Only a video signal is available with DVI equipment.) Replace the DVDM Assy. Check if the initialization process for HDCP, etc. is OK by connecting this unit with a Pioneer Plasma Display equipped with an HDMI input. Yes OK Replace the DVDM Assy. Replace the DVDM Assy. IC901 (DVDM Assy) and its peripheral circuits may be in failure. No The HDMI transmitter IC (HDCP process block) may be in failure. The HDMI transmitter IC or the line between the IC and the output terminal may be in failure. The customer's monitor may not be compatible with this unit. Confirm the name of manufacturer and model of the monitor, and get a specific description of the failure. Then look for an identical case in a collection of past cases, or consult the design section. In some cases, upgrading the software or firmware for both the DVD player and the monitor will solve the problem. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 95 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 DISASSEMBLY 1 Remove the bonnet by removing the nine screws. (for DV-59AVi and DV-868AVi-S) Remove the bonnet by removing the five screws. (for DV-668AV-S) 2 Press the STANDBY/ON button to turn on the power. 3 Press the 0 button to open the tray. 4 Remove the tray panel. 5 Press the 0 button to close the tray. 6 Press the STANDBY/ON button to turn off the power. Bonnet and Tray Panel 1 Diagnosis of the PCBs 1 Remove the four screws. 2 Remove the two earth lead by removing the two screws. 3 Disconnect the one connector. (DV-868AVi-S only) 4 Remove the six hooks. 5 Remove the front panel section. Front Panel Section 2 2 6 3 3 5 5 1 1 1 4 4 2 2 3 Tray panel Tray Note 2 : For performing the diagnosis shown below, the following jigs for service are required: • GGF1157 • GGF1430 Note 1 : Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. 1 4 4 4 4 4 Bottom view Front panel section DV-868AVi-S only CN301 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 96 1 2 3 4 1 2 3 4 C D F A B E R362 R364 R363 JA601 R171 R354 R172 C607 R547 R552 R551 R351 R447 R451 R452 R462 R461 R562 R352 R355 R365 JA401 JA301 FR FR FL FL RS LS C LFE 1 Remove the three screws. 2 Remove the four screws. 3 Remove the AJKB Assy and stand it against the other parts. 4 Insert the insulation sheet. 5 Short-circuit the pattern. 6 Disconnect the one connector. (DV-868AVi-S and DV-668AV-S only) 7 Disconnect the one connector. AJKB Assy 3 Diagnosis AJKB Assy AJKB Assy DV-868AVi-S and DV-668AV-S only Insulation sheet 1 1 1 2 3 7 6 4 2 2 2 CN351 CN551 5 SIDE A AJKB ASSY C Note : After removing the AJKB Assy from the rear panel for diagnosis, short-circuit between the ground pattern using a wire, as shown in the illustration below. If the ground pattern are not short-circuited, the three-terminal-regulator IC may be damaged, and the audio signal will not be output. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 97 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the two screws. 2 Remove the two screws. 4 Remove the two screws. (DV-59AVi and DV-868AVi-S only) 5 Remove the one screw. 6 Remove the three screws. 7 Remove silicone adhesive. 8 Peel off the bronze tape. 9 Disconnect the one connector. 3 Remove the PCB holder AJ. DVDM Assy 4 PCB holder AJ 1 1 2 6 6 6 4 4 5 3 9 2 CN402 DV-59AVi and DV-868AVi-S only Bronze tape 8 7 Note : The bronze tape is applied to the HDMI terminal and sealed with silicone adhesive. After reassembly, be sure to apply bronze tape tape to the terminal. Silicone adhesive GYA1011 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 98 1 2 3 4 1 2 3 4 C D F A B E 5 4 3 2 1 14 8 7 1 64 49 48 1 3 1 5 4 R851 C831 R853 R899 L802 C1072 C816 Q1055 C822 Q801 R1098 C817 D805 D807 D809 D811 D813 D815 D817 D803 C939 C951 R816 R818 R849 R855 R883 R881 R817 C820 C828 C946 R1094 R1093 R1819 C849 C850 Q908 R885 R884 R1817 R882 IC405 C411 C1071 C408 C412 C419 D409 R1080 IC803 Q1054 D810 D812 D814 R898 D816 D808 D806 D804 R887 R886 D802 R1803 R1801 R9903 R9901 R1802 R1092 R1091 R9902 R1097 C973 C972 Q907 R989 R922 R930 R929 C963 C962 R924 R923 C959 R921 R988 R990 R991 R948 R947 C966 R925 C983 Q906 R1096 R987 R1095 R986 R984 R985 R975 Q905 R978 R983 R981 Q904 R973 R967 R974 R970 C982 C1070 IC1052 10 11 Connect the 17P flexible cable and the extension board. Remove the DVDM Assy and stand it against the other parts. 12 Short-circuit the two patterns. Diagnosis Extension board (GGF1430) DVDM Assy CN402 17P flexible cable (GGF1157) SIDE B DVDM ASSY i.LINK i.LINK HDMI B 12 12 10 10 11 Note : After removing the HDMI and i.LINK terminals from the rear panel for diagnosis, short-circuit between the ground patterns using a wire, as shown in the illustration below. If the ground patterns are not short-circuited, both the ICs for input and for output may be damaged. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 99 5 6 7 8 5 6 7 8 C D F A B E AC inlet Assy POWER SUPPLY Unit CN2 CN2 CN302 CN1 CN1 AC inlet Assy Housing Assy (2P) Housing Assy POWER SUPPLY Unit MSWB Assy Connection Diagram of Housing Assy For DV-868AVi-S For DV-59AVi and DV-668AV-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 100 1 2 3 4 1 2 3 4 C D F A B E LOADING MECHA. Assy 5 Rear view 1 C D 1 Short-circuit two points of C and D by soldering. 2 Disconnect the four connectors. 3 Remove the earth lead by removing the one screw. 4 Remove the four screws. 5 Remove the LOADING MECHA. Assy. 6 Remove the four screws. 7 Remove the mechanism holder. LOADING MECHA. Assy Mechanism holder Note: After replacement, connect the flexible cable, then remove the soldered joint (open). 2 2 2 2 4 4 4 3 4 5 7 6 6 6 6 Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 101 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the shield plate by removing one screw. 2 Remove the bridge by removing the one screw. 3 Pull out the tray, then remove it by pressing the hook. Bridge and Tray 1 Front side 2 1 -1 2 -2 3 -1 3 -2 Loading base Triangle Drive cam Pin Hook Bridge Shield plate Tray Note when reinserting the tray Removing the Traverse Mecha. Assy-S and Pickup Assy-S When reinserting the tray, first align the triangle printed on the loading base and the pin of the drive cam, then insert the tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 102 1 2 3 4 1 2 3 4 C D F A B E 1 Dislodge the flexible cables from their factory placement. 2 Remove the four hooks. 3 Remove the Traverse Mecha. Assy-S. Traverse Mecha. Assy-S 2 × 2 Bottom view Traverse Mecha. Assy-S Flexible cable for the pickup Flexible cable for the spindle motor 1 1 1 2 3 Flexible cable for the stepping motor Front side × 2 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 103 5 6 7 8 5 6 7 8 C D F A B E 1 Dislodge the flexible cable for the pickup from its packaged placement. 2 Remove the flexible cable for the pickup. 3 Remove the two adjustment screws and two adjustment springs. 4 Remove the Pickup Assy-S. Pickup Assy-S 3 Note: The Pickup Assy-S can be removed without removing the Traverse Mecha. Assy-S. (shown as Step ø.) Bottom view Flexible cable for the pickup 1 4 3 3 1 2 Front side Pickup Assy-S Adjustment screw (Skew screw) Adjustment screw (Skew screw) Adjustment spring (Skew spring) Adjustment spring (Skew spring) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 104 1 2 3 4 1 2 3 4 C D F A B E 5 5 5 Remove the two screws. Silicone adhesive GEM1037 Silicone adhesive GEM1037 Pickup Assy-S Note: The screws are secured with the silicone adhesive. Make sure to apply the silicone adhesive after reattaching the screws. Leaf spring Joint spring Joint 03 : Conductive surface Hook Hook Arrangement of the flexible cable for the spindle motor : Conductive surface Arrangement of the flexible cable for the stepping motor Front side Front side Bottom view Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 105 5 6 7 8 5 6 7 8 C D F A B E Front side Note: Be sure to move the Pickup Assy-S to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 2 1 3 7 Attach the flexible cable of the pickup to the connector. 1 Fold the flexible cable inward at the position of the reference line. 3 Fold the flexible cable of the pickup with the backing inward. 7 Pass the flexible cable below the hook, and fold it back. 8 Fold the flexible cable back at the hook. 9 Fold the flexible cable along the hook. 4 Pass the flexible cable through the hook not allowing any slack. 6 Hook the part folded in Step 1 to the hook. 5 Fold the flexible cable as indicated in the photo. Hook Bottom view 5 6 Make sure there is no slack in the cable Reference line Reference line Backing 97mm ± 2mm Reference line Hook Pass the cable below the hook Hook 8 Hook Hook 9 Make sure that the cable does not have any slack Make sure that the cable is loose 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 106 1 2 3 4 1 2 3 4 C D F A B E 7.2 IC 7 LA9704W (DVDM ASSY : IC101) • RF IC ¶ Block Diagram • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC LA9704W, LC78652W, BA6664FM, SM8707HV, PD6345A, M65776BFP, PCM1738EG-3, LA73054, CXD2753R, PE5314B, PE5286A, PD0274A, ADV7314KST, ADV7310KST, TSB43CA42GGW, PD5787A, CD0040AF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 107 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P s n o it c n u F n i P 1 N F R t u p ni - F R 2 C C V ) D P D r o f( la ni m r e t ylp p u s r e w o P 3 P F R t u p n + F R 4 1 D P t u p nila n gis p u k ci P 5 2 D P 6 3 D P 7 4 D P 8 D N G ) D P D r o f( d n u o r G 9 1 N I P t u p nila n gis p u k ci P 0 1 2 N I P 1 1 1 N I T 2 1 2 N I T 3 1 1 N I F 4 1 2 N I F 5 1 1 D D L t u p t u o 1 C P A 6 1 1 S D L t u p ni r o tin o m 1 C P A 7 1 2 D D L t u p t u o 2 C P A 8 1 2 S D L t u p ni r o tin o m 2 C P A 9 1 D N G ) m e ts y s o v r e S ( d n u o r G 0 2 H T D L ) V m 0 8 1 : L , V 5 . 1 - C C V : H ( e g n a h c dlo h s e r h t 1 C P A 1 2 N O D L ) N O : H ( la ni m r e t N O r e s a L 2 2 L E S D L ) 1 C P A : H ( la ni m r e t e g n a h c C P A 3 2 F O G A la ni m r e t ff o C G A F R 4 2 A C B ) e d o m A C B : H ( e g n a h c t n eiciff e o c e g r a h c sid cirtc ele H P 5 2 U G ) p u nia G : H ( la ni m r e t p u nia g la n gis o v r e S , F R 6 2 D C / D V D ) D V D : H ( la ni m r e t e g n a h c d n a b r e zila u q e - F R 7 2 E T / D P D ) D P D : H ( la ni m r e t e g n a h c t u p t u o E T 8 2 E T / P P ) P P : H ( la ni m r e t e g n a h c t u p t u o S T 9 2 C C V ) m e ts y s o v r e S ( la ni m r e t ylp p u s r e w o P 0 3 T C S Q E ) e cio h c nip 2 6 : H ( D C r o f e g n a h c Q E 1 3 H B / O W ) E L B O W : H ( la ni m r e t e g n a h c t u p t u o X I M H B 2 3 L E S F R ) p u B d 6 : H ( e g n a h c nia g r eifilp m a F R 3 3 M D D L la ni m r e t r o tin o m D D L 4 3 H T ) dlo h : H ( dlo h g nik c a r T 5 3 R T H X ) h t di w d n a b h gi H : L ( e g n a h c d n a b m o tt o B , g nik c a r T 6 3 C G S ) E T , P P , E F ( la ni m r e tlo rt n o c nia g o v r e S 7 3 L B E F la ni m r e t t n e m ts ujd a e c n ala b E F 8 3 L B E T la ni m r e t t n e m ts ujd a e c n ala b E T 9 3 P C la ni m r e t n oitc e n n o c r e s n e d n o c a , g nitt e s nia g p m u p e g r a h c r o f e c n a tsis e R 0 4 C H T dlo h g nik c a rt r o fla ni m r e t n oitc e n n o c e m ulo V 1 4 E F t u p t u o r o rr e s u c o F 2 4 E T t u p t u o r o rr e g nik c a r T 3 4 N P P g nitt e s nia g llu p - h s u p r o fla ni m r e t n oitc e n n o c s m h O 4 4 P P la ni m r e t t u p t u o llu p - h s u P ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 108 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n n i P s n o it c n u F n i P 5 4 S T t u p t u o la n gis s s o r c g nik c a r T 6 4 I S E T la ni m r e t t u p ni r o t a r a p m o c S E T 7 4 S E T t u p t u o S E T 8 4 F E D h c r a e s tc e ff e D 9 4 X I M H B t u p t u o e g n a h c elb o w , H B , H P 0 5 I C A H B t u p ni C A – H B 1 5 H B t u p t u o n oitc e t e d m o tt o b F R 2 5 H P t u p t u o n oitc e t e d k a e p F R 3 5 C O W t u c C D r o fla ni m r e t n oitc e n n o c e m ulo V 4 5 T E S I g nitt e s y c n e u q e rf r e t n e c F P B r o fla ni m r e t n oitc e n n o c s m h O 5 5 I A C B ) A C B n I( g nitt e s r e b m u n d e xif n oitc e t e d dlo h k a e p r o fla ni m r e t n oitc e n n o c s m h O 6 5 C H P C G A - F R r o fla ni m r e t n oitc e n n o c r e s n e d n o c n oitc e t e d H P 7 5 C P L o v r e s C D F R r o fla ni m r e t n oitc e n n o c r e s n e d n o C 8 5 C F E D h c r a e s tc e ff e d r o fla ni m r e t n oitc e n n o c e m ulo V 9 5 D N G ) m e ts y s F R ( d n u o r G 0 6 O F R la ni m r e t t u p t u o F R 1 6 F E R la ni m r e t t u p t u o e c n e r e f e R 2 6 1 C Q E D C r o fla ni m r e t g nitt e s r e zila u q E 3 6 C C V ) m e ts y s F R ( la ni m r e t ylp p u s r e w o P 4 6 2 C Q E D C r o fla ni m r e t g nitt e s r e zila u q E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 109 5 6 7 8 5 6 7 8 C D F A B E 7 LC78652W (DVDM ASSY : IC201) • Servo DSP IC ¶ Block Diagram 33 FE 32 TE 29 TILTE 30 RF_PH 31 RF_BH 28 JITT 26 TES 51 HFLIO 81 VPDO 15 XOUT 73 BUSYB 8 XTALOUT 100 LEFM 97 LEFM2 52 LASER 92 JV MPX Servo Processor (16×16+32→32) 8bit A/D 8bit D/A CMP Track Counter 56 PP2/EVENT Event Counter 55 FG 39 EFMIN 80 VCOC 96 DVDSYNC 14 XIN 58 CSB 94 ADRAO 60 WRB 59 RDB 91 CDFR 90 DVDFR 1 EFMOUT SLCIST1,2 FG Counter SLC CLV PLL Frame Synchronous Detection, Protection, Insertion EFM Demodulation Error Detect Correction C1-Twofold, C2-Fourfold Supplement/Mute D Attenuate Deemphasis Filter Clock Generator Command Interface 34,35 SLCO1,2 36,37 PCKIST1,2 87,88 PD01-3 83-85 P0-7 63-70 PP0-3 93 PCK For De-Interleave 16k SRAM DOUT Serial Out Sub Code Decode CRC DVD Lock Detection 74 SQOUT 47 FDO 48 TDO 45 SLDO 46 SPDO 44 TBAL 43 TILTDO 42 AUXO 24 DRF 22 FAST 95 DVDSYEQ 23 V_PB 21 FSEQ 77 WRQ 17 EMPH 4 ROMCK 5 LRSY 19 DOUT 3 ROMXA 57 RESB 2 C2F 20 EFLG 9 FSX 12 PW 18 SBSY 11 SFSY 75 CQCKB TEST1-4 76 RWC 10 SBCK 25,27 38,50 7 FBUSYB General Purpose Register 53,54 ,56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 110 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P O /I n o it c n u F n i P 1 T U O M F E O M F E e ula v d e t a ts - y r a nib s a w t a h t e t a ts e h t t u p t u O 2 F 2 C O t u p t u o g alf 2 C 3 A X M O R O t u p t u o a t a d M O R - D C 4 K C M O R O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc tfih S 5 Y S R L O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc R / L 6 3 P P O /I t u p t u o D O - h c N t u p nila n gis .c n y s D V D / t u p t u o /t u p nitr o p e s o p r u p -la r e n e G 7 B Y S U B F O t u p t u o D O - h c N n oit a r e p o s s e c o r p P S D f o t u p t u o la n gis y s u B 8 T U O L A T X O t u p t u o k c olc m e ts y s la n r e tx E 9 X S F O t u p t u o la n gis .c n y s e m a rf 1 D C 0 1 K C B S I t u p ni k c olc t u o g nid a e r e d o c b u S 1 1 Y S F S O e d o c b u s f o t u p t u o la n gis .c n y s e m a r F 2 1 W P O t u p t u o W d n a V , U , T , S , R , Q , P e d o c b u S 3 1 S S V − nip D N G 4 1 N I X I ) z H M 4 4 3 9 . 6 1 ( r o t a n o s e r la ts y r c a tc e n n o C 5 1 T U O X O r o t a n o s e r la ts y r c a tc e n n o C 6 1 1 D D V D − tiu c ric n oit allic s o e h t f o ylp p u s r e w o p V 3 . 3 7 1 H P M E O sis a h p m e e d e h t f o nip r o tin o M 8 1 Y S B S O k c olb e d o c b u s e h t f o t u p t u o la n gis .c n y S 9 1 T U O D O t u p t u o a t a d J A I E oid u A 0 2 G L F E O 2 C d n a 1 C n oitc e rr o c r o rr e e h t f o r o tin o m e t a ts n oitc e rr o c r o rr E 1 2 Q E S F O la n gis .c n y s e m a rf D V D / D C e h t f o r o tin o m n oitc e t e D 2 2 T S A F O t u p t u o D O - h c N r o tin o m d e e p s k c a b y al P 3 2 B P _ V O lo rt n o c V L C / o v r e s h g u o r e h t f o t u p t u o r o tin o M 4 2 F R D O r o tin o m s u c o f n I 5 2 3 T S E T I 3 t u p nits e T 6 2 S E T I t u p nila n gis r o rr e g nik c a r T 7 2 2 T S E T I 2 t u p nits e T 8 2 T T IJ I L L P M F E f o t u p nila n gis g nitc e t e d ytit n a u q r e ttiJ 9 2 E T L I T I t u p nila n gis r o rr e tli T 0 3 H P _ F R I t u p nila n gis dlo h k a e p F R 1 3 H B _ F R I t u p nila n gis dlo h m o tt o b F R 2 3 E T I t u p nila n gis r o rr e g nik c a r T 3 3 E F I t u p nila n gis r o rr e s u c o F 4 3 1 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 1 nip g nitt e s t n e rr u C 5 3 2 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 2 nip g nitt e s t n e rr u C 6 3 1 O C L S O C L S r o f 1 t u p t u o lo rt n o C 7 3 2 O C L S O C L S r o f 2 t u p t u o lo rt n o C 8 3 1 T S E T I 1 t u p nits e T 9 3 N I M F E I t u p ni + M F E / M F E 0 4 D D V A − o v r e s r o f A / D d n a D / A f o ylp p u s r e w o p V 5 1 4 S S V A − o v r e s r o f A / D d n a D / A f o D N G 2 4 O X U A O t u p t u o y r ailix u a A D 3 4 O D T L I T O t u p t u o la n gis lo rt n o c tli T 4 4 L A B T O t u p t u o la n gis lo rt n o c e c n ala b g nik c a r T 5 4 O D L S O t u p t u o la n gis lo rt n o c d el S 6 4 O D P S O t u p t u o la n gis lo rt n o c eld nip S 7 4 O D F O t u p t u o la n gis lo rt n o c s u c o F 8 4 O D T O t u p t u o la n gis lo rt n o c g nik c a r T 9 4 F E R V − o v r e s r o f A / D f o le v el e c n e r e f e R 0 5 4 T S E T I 4 t u p nits e T ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 111 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P O /I n o it c n u F n i P 1 5 O I L F H O /I t u p t u o /t u p nila n gis n oitc e t e d r o rri M 2 5 R E S A L O lo rt n o c F F O / N O r e s al r o f nip t u p t u O 3 5 B D C _ D V D / 0 P P O /I t u p t u o la n gis n oit a ni m ir c sid c si D / t u p t u o /t u p nitr o p e s o p r u p -la r e n e G 4 5 B R R E C R C / 1 P P O /I t u p t u o la n gis tlu s e r C R C e d o c b u S / t u p t u o /t u p nitr o p e s o p r u p -la r e n e G 5 5 G F I t u p ni r e t n u o c G F 6 5 T N E V E / 2 P P O /I t u p ni r e t n u o c t n e v E / t u p t u o /t u p nitr o p e s o p r u p -la r e n e G 7 5 B S E R I t u p nit e s e R 8 5 B S C I t u p nitc ele s pih C 9 5 B D R I t u p nila n gis g nid a e r e t a ts la n r e t n I 0 6 B R W I t u p nila n gis g nitir w a t a d / d n a m m o C 1 6 2 D D V D − ylp p u s r e w o p V 5 2 6 S S V − D N G 3 6 0 P O /I t u p t u o /t u p ni a t a d / d n a m m o C 4 6 1 P 5 6 2 P 6 6 3 P 7 6 4 P 8 6 5 P 9 6 6 P 0 7 7 P 1 7 S S V − D N G 2 7 1 D D V D − la n r e t ni r o f ylp p u s r e w o p V 3 . 3 3 7 B Y S U B O s s e c o r p d n a m m o c f o t u p t u o la n gis y s u B 4 7 T U O Q S O Q e d o c b u s f o t u p t u o lair e S 5 7 B K C Q C I t u p t u o a t a d Q e d o c b u s r o f t u p ni k c olc tfih S 6 7 C W R I Q e d o c b u s f o t u p ni n ois si m r e p e t a d p U 7 7 Q R W O Q e d o c b u s f o r o tin o m y d a e r t u o d a e R 8 7 S S V A − k c olc m e ts y s la n r e t ni r o f D N G L L P 9 7 R F P R V − k c olc m e ts y s r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 0 8 C O C V I k c olc m e ts y s r o f r e tlif L L P a tc e n n o C 1 8 O D P V O 2 8 D D V A − k c olc m e ts y s r o f ylp p u s r e w o p V 5 L L P 3 8 1 O D P O /I k c a b y alp M F E r o f 1 nip n oitc e n n o c r e tlif L L P 4 8 2 O D P O /I k c a b y alp M F E r o f 2 nip n oitc e n n o c r e tlif L L P 5 8 3 O D P O /I k c a b y alp M F E r o f 3 nip n oitc e n n o c r e tlif L L P 6 8 S S V A − k c a b y alp M F E r o f D N G L L P 7 8 1 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 1 g nitt e s t n e rr u C 8 8 2 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 2 g nitt e s t n e rr u C 9 8 D D V A − k c a b y alp M F E r o f ylp p u s r e w o p V 5 L L P 0 9 R F D V D − 1 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 1 9 R F D C − 2 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 2 9 V J O k c a b y alp M F E r o f k c olc L L P f o t u p t u o r e ttiJ 3 9 K C P O k c a b y alp M F E r o f t u p t u o k c olc ti B 4 9 O A R D A I t u p ni s s e r d d A 5 9 Q E Y S D V D I t u p ni e slu p e zin o r h c n y s D V D 6 9 C N Y S D V D I t u p nila n gis s u o n o r h c n y s D V D 7 9 2 M F E L O 2 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O 8 9 1 D D V D − O /I r o f ylp p u s r e w o p V 3 . 3 9 9 S S V − D N G 0 0 1 M F E L O 1 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 112 1 2 3 4 1 2 3 4 C D F A B E 7 BA6664FM (DVDM ASSY : IC202) • Three-phase Motor Driver ¶ Block Diagram ¶ Pin Function DRIVER TSD PS TORQUE CURRENT SENSE AMP SENSE AMP SHORT BRAKE D R Q CK Q TL GAIN CONTROL GAIN SWITCH Vcc Vcc Vcc A3 2 A2 4 A1 7 GND 8 H1+ 9 H1- 10 H2+ 11 H2- 12 H3+ 13 H3- 14 GSW 26 FG 24 VCC 25 RNF 28 VM 27 HALL AMP PS 23 EC 22 ECR 21 FR 20 FG2 19 SB 18 CNF 17 BR 16 VH 15 BRAKE MODE HALL BIAS No. Pin Name Pin Name Pin Function No. Pin Function 1 N.C. N.C. 16 BR Brake mode switching pin 2 A3 Output pin 17 CNF Capacitor connection pin for phase compensation 3 N.C. N.C. 18 SB Short brake pin 4 A2 Output pin 19 FG2 FG 3-phase mix signal output pin 5 N.C. N.C. 20 FR Rotation detecting pin 6 N.C. N.C. 21 ECR Control reference pin of output voltage 7 A1 Output pin 22 EC Output voltage control pin 8 GND GND pin 23 PS Power save pin 9 H1+ Hall signal input pins 24 FG FG signal output pin 10 H1- 25 VCC Power supply pin 11 H2+ 26 GSW Gain switching pin 12 H2- 27 VM Motor power pin 13 H3+ 28 RNF Resistor connection pin for output current detection 14 H3- FIN FIN GND 15 VH Hall bias pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 113 5 6 7 8 5 6 7 8 C D F A B E 7 SM8707HV (DVDM ASSY : IC481) • Clock Generate IC ¶ Pin Arrangement ¶ Pin Function . o N e m a n n i P .ri D s n o it c n u F n i P 1 1 D D V R W P ) s s e nis u b la tigid ( 1 la ni m r e t ylp p u s r e w o P 2 1 S S V D N G ) s s e nis u b la tigid ( 1 la ni m r e t h tr a E 3 1 O M T U O )t u p t u o d e xif z H M 7 2 e h t( 1 la ni m r e t t u p t u o o e di V 4 2 O M T U O )t u p t u o d e xif z H M 7 2 e h t( 2 la ni m r e t t u p t u o o e di V 5 2 D D V R W P ) s s e nis u b g ola n a ( 2 la ni m r e t ylp p u s r e w o P 6 2 S S V D N G ) s s e nis u b g ola n a ( 2 la ni m r e t h tr a E 7 I T X N I n oitc e n n o c r o t a n o s e r la ts y r c r o la ni m r e t t u p ni k c olc la n r e tx E 8 O T X T U O la ni m r e t n oitc e n n o c r o t a n o s e r la ts y r C 9 1 O S T U O ) n oit a xif z H M 0 4 6 8 . 6 3 ( 1 la ni m r e t t u p t u o m e ts y s g nin oitid n o c la n gi S 0 1 1 O A T U O )t u p t u o sf 2 1 5 e h t( 1 la ni m r e t t u p t u o d n u o S 1 1 3 S S V D N G ) s s e nis u b la tigid ( 3 la ni m r e t h tr a E 2 1 3 D D V R W P ) s s e nis u b la tigid ( 3 la ni m r e t ylp p u s r e w o P 3 1 2 O S T U O ) n oit a xif z H M 4 4 3 9 . 6 1 ( 2 la ni m r e t t u p t u o m e ts y s g nin oitid n o c la n gi S 4 1 L E S F N I la ni m r e t e g n a h c y c n e u q e rf g nilp m a S z H k 8 4 = sf :" L " = L E S F z H k 1 . 4 4 = sf :" H " = L E S F )t u p ni r e g girt t di m h c S ,r e tsis e r p u -llu p e dis ni si e r e h T ( 5 1 3 O S T U O ) n oit a xif z H M 8 8 6 8 . 3 3 ( 3 la ni m r e t t u p t u o m e ts y s g nin oitid n o c la n gi S 6 1 C N – la ni m r e t d e s u n U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 114 1 2 3 4 1 2 3 4 C D F A B E 7 PD6345A (DVDM ASSY : IC601) • FR CPU . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 6 1 D / 0 2 P 0 D O /I t u p t u o /t u p ni s u b a t a D 2 7 1 D / 1 2 P 1 D 3 8 1 D / 2 2 P 2 D 4 9 1 D / 3 2 P 3 D 5 0 2 D / 4 2 P 4 D 6 1 2 D / 5 2 P 5 D 7 2 2 D / 6 2 P 6 D 8 3 2 D / 7 2 P 7 D 9 4 2 D / 0 3 P 8 D 0 1 5 2 D / 1 3 P 9 D 1 1 6 2 D / 2 3 P 0 1 D 2 1 7 2 D / 3 3 P 1 1 D 3 1 8 2 D / 4 3 P 2 1 D 4 1 9 2 D / 5 3 P 3 1 D 5 1 0 3 D / 6 3 P 4 1 D 6 1 1 3 D / 7 3 P 5 1 D 7 1 S S V D N G − d n u o r G 8 1 0 0 A / 0 4 P 0 A O t u p t u o s u b s s e r d d A 9 1 1 0 A / 1 4 P 1 A 0 2 2 0 A / 2 4 P 2 A 1 2 3 0 A / 3 4 P 3 A 2 2 4 0 A / 4 4 P 4 A 3 2 5 0 A / 5 4 P 5 A 4 2 6 0 A / 6 4 P 6 A 5 2 7 0 A / 7 4 P 7 A 6 2 3 C C V D 3 . 3 + V − ylp p u s r e w o P 7 2 2 C C V D 5 . 2 + V − ylp p u s r e w o P 8 2 8 0 A / 0 5 P 8 A O t u p t u o s u b s s e r d d A 9 2 9 0 A / 1 5 P 9 A 0 3 0 1 A / 2 5 P 0 1 A 1 3 1 1 A / 3 5 P 1 1 A 2 3 2 1 A / 4 5 P 2 1 A 3 3 3 1 A / 5 5 P 3 1 A 4 3 4 1 A / 6 5 P 4 1 A 5 3 5 1 A / 7 5 P 5 1 A 6 3 S S V D N G − d n u o r G 7 3 6 1 A / 0 6 P 6 1 A O t u p t u o s u b s s e r d d A 8 3 7 1 A / 1 6 P 7 1 A 9 3 8 1 A / 2 6 P 8 1 A 0 4 9 1 A / 3 6 P 9 1 A 1 4 0 2 A / 4 6 P 0 2 A 2 4 1 2 A / 5 6 P 1 2 A 3 4 2 2 A / 6 6 P 2 2 A 4 4 3 2 A / 7 6 P L B W O ) nia m ( W / R D V D o t g nid n o p s e rr o c n oitc e t e d elb b o W r o F 5 4 S V A D D N G − d n u o r G 6 4 C V A D D 3 . 3 + V − ylp p u s r e w o P 7 4 0 A D 1 P E T S I lo rt n o c r o t o m g nip p e ts r o F 8 4 1 A D 2 P E T S I 9 4 2 A D V R D O L I e vir d r o t o m tc ele s d n a r o o d , g nid a o L ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 115 5 6 7 8 5 6 7 8 C D F A B E . o N k r a M e m a N n i P O /I n o it c n u F n i P 0 5 0 N A C N I C N 1 5 1 N A C N I C N 2 5 2 N A C N I C N 3 5 3 N A M E O X I t u p ni n oitc e t o r p le d o m M E O 4 5 4 N A D A E R D L I n oit a cid ni e ula v t n e rr u c D L r o f t u p n I 5 5 5 N A C N I C N 6 5 6 N A C N I C N 7 5 7 N A S O P D O L I t u p ni W S n oitis o p p m alc g nid a o L 8 5 C C V A D 3 . 3 + V − ylp p u s r e w o P 9 5 H R V A D 3 . 3 + V − ylp p u s r e w o P 0 6 I R V A / S S V A D N G − d n u o r G 1 6 S S V D N G − d n u o r G 2 6 X G T A / 0 P P S O P D L S I n oitis o p e dis ni r e dils f o t u p ni W S 3 6 K C R F / 1 P P W S G O ) L :s r e h t o , H : R B C A t a ( R B C A t a p u nia G 4 6 0 N I/ 2 P P N O 0 8 7 I e d oid r e s al m n 0 8 7 f o la n gis lo rt n o c F F O / N O 5 6 1 N I/ 3 P P U G O ) p u nia G : H ( la ni m r e t p u nia g la n gis o v r e s , F R 6 6 2 N I/ 4 P P N O M X O ) H : N O r o t o m eld nip s ( V R D f o e t u M 7 6 3 N I/ 5 P P T U M V R D X O t u p t u o e t u m r e vir d S T F 8 6 6 P P V 3 _ 1 T L O r ello rt n o c L F e h t o t e s n o p s e r n oit a cin u m m o C 9 6 7 P P V 3 _ Y D R X I r ello rt n o c L F e h t m o rf ts e u q e r n oit a cin u m m o C 0 7 3 C C V D 3 . 3 + V − ylp p u s r e w o P 1 7 2 C C V D 5 . 2 + V − ylp p u s r e w o P 2 7 0 C O / 0 O P T E D R U C X I s m 0 0 3 " L " r o f F F O o v r e S t u p ni n oitc e t e d t n e rr u c r o t a u tc A 3 7 1 C O / 1 O P Y S U B C X I " L " : elb a t p e c c a d n a m m o C s s e c o r p d n a m m o c f o la n gis y s u B 4 7 2 C O / 2 O P T S R P S D X O t e s e r P S D o v r e S 5 7 3 C O / 3 O P A C B − ) d e s u t o N ( ) H : d a e r A C B t a ( la n gis d a e r A C B 6 7 4 C O / 4 O P C N I C N 7 7 5 C O / 5 O P T N C P P O ) H : P P t a ( la s r e v a rt L B W ni C Z T f o h cti w S 8 7 6 C O / 6 O P H N I F D X O )" L " : F F O ; Z -i H : N O T C E F E D ( lo rt n o c la n gis tc e f e D 9 7 7 C O / 7 O P E T / D P D O s m a e b 3 = L , m a e b 1 = H 0 8 S S V D N G − d n u o r G 1 8 0 N I A / 0 N P D C X / D V D O D C :" L " , D V D :" H " D C / D V D t a la n gis g nih cti w s Q E F R 2 8 0 N I B / 1 N P F F O G A O C I F R f o C G A ff o n r u T :" H " 3 8 1 N I A / 2 N P 0 8 7 X 0 5 6 O la n gis g nih cti w s m n 0 5 6 / m n 0 8 7 4 8 1 N I B / 3 N P N O D L O e d oid r e s alf o la n gis lo rt n o c F F O / N O 5 8 2 N I A / 4 N P L E S L B W O C N 6 8 2 N I B / 5 N P L E S F R O ) p u nia G : H ( la ni m r e t e g n a h c nia g r eifilp m a F R 7 8 3 N I A / 6 N P X 2 D C X O k c a b y alp d e e p s elb u o d D C V r o F 8 8 3 N I B / 7 N P G C I E O O B d 6 o t p u C I E O f o nia G :" H " 9 8 0 N I Z / 0 M P M 3 3 N E O C N 0 9 1 N I Z / 1 M P M 4 2 N E O C N 1 9 2 N I Z / 2 M P L E S V O h cti w s ) B G R ( r o )r C b C Y ( / ) S , e tis o p m o C ( 2 9 3 N I Z / 3 M P 2 L E S V O h cti w s ) S ( /la ni m r e t tr a c s f o ) e tis o p m o C ( 3 9 1 A D S / 0 L P I A D S lair e S C 2 1 s e nillo rt n o c C 2 1 4 9 0 A D S / 1 L P C N – C N 5 9 1 L C S / 2 L P I L C S lair e S C 2 1 s e nillo rt n o c C 2 1 6 9 0 L C S / 3 L P C N – C N 7 9 4 L P S T C I t u p ni d n e s o t r a elc C 2 3 2 - S R 8 9 5 L P R T D O t u p t u o d n e s o t r a elc C 2 3 2 - S R 9 9 0 C U / 6 L P C N O C N 0 0 1 S S V D N G − d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 116 1 2 3 4 1 2 3 4 C D F A B E . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 0 1 0 N I T / 0 K P T S R E Q V X O la n gis t e s e r 3 E Q V 2 0 1 1 N I T / 1 K P 1 O R P S C X − C I r e tr e v n o c e vis s e r g o r p e h t f o elb a n e n oit a cin u m m o c lair e S 3 0 1 2 N I T / 2 K P 5 E Q V S C X − C I 5 E Q V f o elb a n e n oit a cin u m m o c lair e S 4 0 1 3 N I T / 3 K P M 6 1 N E O . C . N 5 0 1 0 T O T / 4 K P 8 4 X 4 4 O n oitc ele s 8 4 / 4 4 sf k c olc ylp p u s P S A D d n a C A D 6 0 1 1 T O T / 5 K P Y D R X 4 9 3 1 I . C . N 7 0 1 2 T O T / 6 K P 1 L E S O A O ) a t a d R / L t n o rf( h cti w s P S D oid u a / 1 - V A 8 0 1 3 T O T / 7 K P I X / P O la n gis e g n a h c e c a r r e t n I/ e vis s e r g o r P 9 0 1 3 C C V D 3 . 3 + V − ylp p u s r e w o P 0 1 1 2 C C V D 5 . 2 + V − ylp p u s r e w o P 1 1 1 0 T N I/ 0 J P 0 T N I X I 2 1 1 1 T N I/ 1 J P 1 T N I X I 3 1 1 2 T N I/ 2 J P 0 1 Q R I X I 0 # t p u rr e t ni pih c Y M 4 1 1 3 T N I/ 3 J P 1 1 Q R I X I 1 # t p u rr e t ni pih c Y M 5 1 1 4 T N I/ 4 J P Y S U B A X I " L " n oit a r e p o s s e c o r p P S D f o la n gis y s u B 6 1 1 5 T N I/ 5 J P D L H T I la n gis g nir o tin o m d e e p s k c a b y al P 7 1 1 6 T N I/ 6 J P Y S B S I )" H " I S + O S d oir e p ( k c olb e d o c b u s f o la n gis .c n y S 8 1 1 7 T N I/ 7 J P . C . N I . C . N 9 1 1 0 I S / 0 I P I S S I t u p ni a t a d s u b lair e S 0 2 1 0 O S / 1 I P V 3 _ O S S O t u p t u o a t a d s u b lair e S 1 2 1 0 K C S / 2 I P V 3 _ K C S S I t u p ni k c olc s u b lair e S 2 2 1 1 I S / 3 I P V 3 _ D X R I D X R C 2 3 2 - S R 3 2 1 1 O S / 4 I P V 3 _ D X T O D X T C 2 3 2 - S R 4 2 1 1 K C S / 5 I P C N O C N 5 2 1 2 I S / 0 H P T L 4 9 3 1 O C N 6 2 1 2 O S / 1 H P M C I P S D I la n gis v d a e R n oit a cin u m m o c lair e s P S D m e ts y s oid u A 7 2 1 2 K C S / 2 H P C N I C N 8 2 1 0 D M D N G − d n u o r G 9 2 1 1 D M D N G − 0 3 1 2 D M D N G − 1 3 1 S S V D N G − d n u o r G 2 3 1 2 C C V D 5 . 2 + V − ylp p u s r e w o P 3 3 1 S S V D N G − d n u o r G 4 3 1 1 X L A T X E O 5 3 1 0 X L A T X I 6 3 1 3 C C V D 3 . 3 + V − ylp p u s r e w o P 7 3 1 2 Q E R D / 0 C P 1 T E S E R O t e s e r P S D m e ts y s oid u A 8 3 1 2 K C A D / 1 C P 0 P S D A S C X O P S D m e ts y s oid u a r o f tr o p tc ele s pih C 9 3 1 2 P O E D / 2 C P 2 F D S C X O ) R / L m e ts y s d n u o rr u s r o f( tc ele s pih c C A D 0 4 1 0 Q E R D / 0 B P 0 Q E R D X I pih C Y B o t t u p t u o e s n o p s e r A M D 1 4 1 0 K C A D / 1 B P 0 K C A D O pih C Y B m o rf t u p nits e u q e r A M D 2 4 1 0 P O E D / 2 B P D C N E O . C . N 3 4 1 1 Q E R D / 3 B P 1 Q E R D X I pih C 1 - V A o t t u p t u o e s n o p s e r A M D 4 4 1 1 K C A D / 4 B P 1 K C A D X O pih C 1 - V A m o rf t u p nits e u q e r A M D 5 4 1 1 P O E D / 5 B P W O L F _ N E O . C . N 6 4 1 X R W O I/ 6 B P P M O C X O r e vir d o e div f o e g n a h c e c n e r e ffid r olo c/ B G R 7 4 1 X D R O I/ 7 B P 3 F D S C X O . C . N 8 4 1 S S V D N G − d n u o r G 9 4 1 X O S C / 0 A P 0 2 S C X O M O R h s al F o t t u p t u o tc ele s pih C 0 5 1 X 1 S C / 1 A P 6 S C X O tc ele s pih C 1 - V A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 117 5 6 7 8 5 6 7 8 C D F A B E . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 5 1 X 2 S C / 2 A P 3 S C X O ) pih C Y M ( A 5 9 9 4 D P f o tc ele s pih C 2 5 1 X 3 S C / 3 A P 4 S C X O P S D o v r e s f o tc ele s pih C 3 5 1 X 4 S C / 4 A P 3 2 S C X O ) M 1 ( M A R S o t t u p t u o tc ele s pih C 4 5 1 X 5 S C / 5 A P . C . N O . C . N 5 5 1 X 6 S C / 6 A P . C . N O . C . N 6 5 1 X 7 S C / 7 A P . C . N O . C . N 7 5 1 3 C C V D 3 . 3 + V − ylp p u s r e w o P 8 5 1 2 C C V D 5 . 2 + V − ylp p u s r e w o P 9 5 1 X I M N − − d e xif D 3 . 3 + V 0 6 1 X T S H − − d e xif D 5 . 2 + V 1 6 1 X T I N I T I N I X I 2 6 1 Y D R / 0 8 P Y D R I 3 6 1 X T N R G B / 1 8 P E T U M A X I t u p t u o oid u a h c 2 f o e t u m e g a ts la ni F 4 6 1 Q R B / 2 8 P E T U M M X O e t u m le n n a h c itlu m oid u A 5 6 1 X D R / 3 8 P D R X O 6 6 1 X 0 R W / 4 8 P 0 R W X O 7 6 1 X 1 R W / 5 8 P 1 R W X O 8 6 1 S S V D N G − d n u o r G 9 6 1 K L C S Y S / 0 9 P K L C S Y S O . C . N 0 7 1 1 9 P T S R F D − ) R / L t n o rf r o f( t e s e r C A D 1 7 1 K L C M / 2 9 P 1 T S R F D − ) E F L d n a d n u o rr u s ,r e t n e c r o f( t e s e r C A D 2 7 1 3 9 P 0 F D S C X O ( tc ele s pih c C A D ← ) 3 T A L X 3 7 1 X A B L / 4 9 P 1 F D S C X O E F L d n a d n u o rr u s ,r e t n e c r o f tc ele s pih c C A D 4 7 1 X A A B / 5 9 P T S R Q A X O t e s e r E Q A 5 7 1 6 9 P E Q A S C X O tc ele s pih c E Q A 6 7 1 X E W / 7 9 P T N E M T I y rt n e e d o m ts e T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 118 1 2 3 4 1 2 3 4 C D F A B E 7 M65776BFP (DVDM ASSY : IC751) • MPEG2 Decorder IC ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 119 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 8 0 2 - 1 0 2 ] 0 : 7 [ D B N I nip y rt n e a t a d m a e rts ti B 2 K L C B N I ) k c olc ( nip D B f o la n gis e b o rt S 3 N E D B N I . nip D B y b f o elp m a s a e n o d a t a d f o ytidila v ni/ e vitc e ff e r e d r o sih T . K L C B f o e g d e tr a ts a h ti w elp m a s a e n o d sitI 4 Q E R D B T U O la n gis d n a m e d a t a D 5 H C E S B N I .r o tc e s a f o e ty b p o t h ti w e r a nip D B f o a t a d r e h t e h w ti r e d r o sih T 7 8 - 4 8 5 9 - 0 9 2 0 1 - 7 9 ] 0 : 5 1 [ D M O /I M A R D S h ti w e nil r e fs n a rt a t a D 5 5 - 3 5 3 6 - 8 5 9 6 , 7 6 , 5 6 ] 0 : 1 1 [ A M T U O M A R D S f o e nil s s e r d d A 8 6 , 6 6 ] 0 : 1 [ A B M T U O e nil e cio h c k n a b M A R D S 0 7 S C D T U O M A R D S f o tc ele s pih C 3 7 2 S C D 4 7 3 S C D 5 7 4 S C D 6 7 5 S C D 7 7 S A R T U O M A R D S f o e nillo rt n o c ) e b o rt S s s e r d d A w o R ( S A R 8 7 S A C T U O M A R D S f o e nillo rt n o c ) e b o rt S s s e r d d A n m ulo C ( S A C 2 8 U M Q D T U O M A R D S f o e nillo rt n o c M Q D 3 8 L M Q D T U O M A R D S f o e nillo rt n o c M Q D 0 8 E W D T U O M A R D S f o e nillo rt n o c E W 9 7 K L C M T U O M A R D S f o k c olc t n e m e v o M 3 8 1 K L C X P T U O k c olc le xip z H M 7 2 2 8 1 P K L C X P T U O k c olc le xip z H M 4 5 , 8 5 1 , 7 5 1 6 8 1 - 4 8 1 2 9 1 - 8 8 1 ] 0 : 7 [ D P T U O . a t a d le xip la tigi D .t u p t u o siti d n a ,s u b tib 8 y b f o elpitlu m e n o d si r C / b C / Y 8 7 1 C N Y S C N I la ni m r e t t u p nila n gis C N Y S e tis o p m o C 9 7 1 Y E K D S O T U O t u p t u o g alf y e k D S O 7 7 1 D W P T U O t n e m e v o m n oit a zin o r h c n y s la n r e tx e r o f t u p t u o r o t a r a p m o c e s a h p e h T 1 8 1 C N Y S H T U O nip t u p t u o la n gis g nizin o r h c n y s la t n o zir o H 0 8 1 C N Y S V T U O nip t u p t u o la n gis g nizin o r h c n y s la citr e V 4 6 1 0 O A T U O C A D r o f a t a d M C P lair e S . a t a d f R /f L t u p t u o tI 6 6 1 1 O A T U O C A D r o f a t a d M C P lair e S . a t a d w S / C t u p t u o tI 7 6 1 2 O A T U O C A D r o f a t a d M C P lair e S . a t a d s R /s L t u p t u o tI 8 6 1 D O A T U O C A D r o f a t a d M C P lair e S .t u p t u o e r u txi m n w o d e h t r o f sitI 9 6 1 D A A T U O t u p t u o a t a d y r allaic n A 6 7 1 K L C O D T U O k c olc tib M C P 9 5 1 K L C R L T U O ) R / L ( a t a d m e ts y s oid u a n oit alu d o m e d o c e slu p f o n oitc nitsid le n n a h c r o f k c ol C 3 7 1 K L C C A D T U O C A D f o k c olc t n e m e v o m elp m a s d e t a r e g g a x E 1 6 1 K C B D C N I P S D D C y b t u p ni si h cih w k c olc tib n oit alu d o m e d o c e slu p e h T 0 6 1 K C R L D C N I P S D D C y b t u p ni si h cih w k c olc R / L e h T ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 120 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 3 6 1 N I D D C N I P S D D C y b t u p ni e r a h cih w a t a d m e ts y s oid u a M C P 2 6 1 A T A D D C N I t u p ni e c a fr e t ni oid u a la tigi D 0 7 1 0 T U O D T U O t u p t u o e c a fr e t ni oid u a la tigi D 1 7 1 1 T U O D T U O t u p t u o e c a fr e t ni oid u a la tigi D 1 1 - 6 9 1 - 4 1 4 2 - 1 2 ] 0 : 5 1 [ D H O /I nip O /I a t a D 6 2 , 5 2 4 3 - 9 2 9 3 - 6 3 ] 0 : 1 1 [ A H N I nip t u p ni s s e r d d A 5 4 E H B N I nip t u p nila n gis elb a n E h gi H e ty B 1 4 E R N I nip t u p nila n gis elb a n E d a e R 4 4 E W N I nip t u p nila n gis elb a n E e tir W 0 4 S C N I nip t u p nila n gis tc ele S pih C 6 4 Y D R T U O d e t elp m o c s a w e t o n a r o a t a d f o t u o d a e r t a h t s w o h s h cih w la n gis e g d el w o n k c a e h T 7 4 1 T N I T U O P F A 6 7 7 5 6 M m o rf U P C e dist u o r o fla n gis ts e u q e r t p u rr e t ni n a sitI 8 4 2 T N I 9 4 3 T N I 1 5 Q E R D T U O r e fs n a rt p a M ti B D S O r o fla n gis ts e u q e r A M D 2 5 K C A D N I r e fs n a rt p a M ti B D S O r o fla n gis e g d el w o n k c a A M D 5 9 1 , 4 9 1 ] 0 : 1 [ E D O M H N I nip g nitt e s n oit a r e p o f o e d o m e c a fr e t nits o H 7 1 1 F E R I N I nip t u p nit n e rr u c cirtc ele e c n e r e f e R 5 1 1 I R V A N I nip t u p ni e g a tlo v e c n e r e f e R 0 2 1 1 S A I B N I e c r u o s t n e rr u c f o nip n ois s e r p m i e g a tlo v s ai B 8 1 1 2 S A I B 9 1 1 Y A P T U O ) Y r o f( nip t u p t u o t n e rr u c cirtc ele g ola n A 6 1 1 B A P T U O ) b P r o f( nip t u p t u o t n e rr u c cirtc ele g ola n A 2 2 1 R A P T U O )r P r o f( nip t u p t u o t n e rr u c cirtc ele g ola n A 4 1 1 B T U O A D T U O . d n u o r g g ola n a n a o t d e tc e n n o c e B , 1 2 1 , 3 1 1 3 2 1 3 3 D D V A – ylp p u s r e w o p g ola n a V 3 . 3 4 2 1 3 3 D N G A – d n u o r g g ola n A 6 0 1 N I K L C N I la ni m r e t t u p ni k c olc m e ts y S .k c olc z H M 7 2 t u p nitI 5 0 1 O K L C T U O t u p t u o k c olc z H M 7 2 2 7 1 I K L C A N I la ni m r e t t u p ni k c olc m e ts y s oid u A 3 9 1 T E S E R N I la ni m r e t t e s e r e r a w d r a H , 7 9 1 , 6 9 1 0 0 2 ] 0 : 2 [ T S E T N I .lait n e t o p " L " niti xi F , 2 4 , 7 2 , 2 1 , 8 8 , 1 7 , 6 5 , 4 3 1 , 3 0 1 , 4 7 1 , 5 5 1 8 9 1 8 1 D D V – la ni m r e t ylp p u s r e w o p V 8 . 1 , 3 4 , 8 2 , 3 1 , 9 8 , 2 7 , 7 5 , 5 3 1 , 4 0 1 , 5 7 1 , 6 5 1 9 9 1 3 3 D D V – la ni m r e t ylp p u s r e w o p V 3 . 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 121 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P , 5 3 , 0 2 , 1 , 1 8 , 4 6 , 0 5 , 2 1 1 , 6 9 , 5 4 1 , 5 2 1 7 8 1 , 5 6 1 D N G – la ni m r e t d n u o r G 7 0 1 8 1 D D V A – L L P e dis ni r o fla ni m r e t ylp p u s r e w o p V 8 . 1 8 0 1 8 1 D N G A – L L P e dis ni r o fla ni m r e t d n u o r G 1 1 1 - 9 0 1 3 3 1 - 6 2 1 4 4 1 - 6 3 1 4 5 1 - 6 4 1 0 C N C N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 122 1 2 3 4 1 2 3 4 C D F A B E 7 PCM1738EG-3 (AJKB ASSY : IC301, IC401, IC501) • D/A Converter IC ¶ Pin Arrangement ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 123 5 6 7 8 5 6 7 8 C D F A B E 7 LA73054 (VJKB ASSY : IC302, IC601) • DVD Video Amplifier ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 124 1 2 3 4 1 2 3 4 C D F A B E . o N s n o it c n u F n i P ) W O L ( V 7 . 0 – 0 ) H G I H ( V 5 – 6 . 2 6 3 S / e tis o p m o c r o f e g n a h c N I A G - P M A B d 6 B d 9 5 1 t n e n o p m o c r o f e g n a h c N I A G - P M A B d 6 B d 9 5 3 S / e tis o p m o c r o f e g n a h c t n e rr u c cirtc ele e vir D e vir d m e ts y s 2 e vir d m e ts y s 1 9 1 t n e n o p m o c r o f e g n a h c t n e rr u c cirtc ele e vir D e vir d m e ts y s 2 e vir d m e ts y s 1 5 r o flo rt n o c e t u M S / e tis o p m o c W O L nip 0 1 n I e t u m o d t o n sitI e t u m nip 8 2 , 1 3 , 3 3 H G I H nip 0 1 n I e t u m o d t o n sitI e t u m nip 8 2 , 1 3 2 1 t n e n o p m o c r o flo rt n o c e t u M e t u m o d t o n sitI e t u m nip 1 2 , 3 2 , 5 2 9 X I M – C / Y f o lo rt n o c e h T e tis o p m o c n I X I M – C / Y n I 0 1 e g n a h c m r o f t u p ni nip 1 1 t u p nit n e n o p m o c e h t n I t u p ni d n a b e s a b e h t n I 3 1 t n e n o p m o c r o f e g n a h c citsir e tc a r a h c F P L e c n e d n o p s e rr o c e c a r r e t n I e c n e d n o p s e rr o c e vis s e r g o r P . X I M - C / Y ni D N G o t slla f nip 2 . p m alc la ts e d e p h ti w )t u p nit n e n o p m o c e h t ni( C S T N o t nila n gis R C , B C a t u p ni nip 6 1 , 4 1 ,t u p nila n gis Y e h t d n a , p m alc si nip 1 1 . p m alc la ts e d e p h ti w )t u p ni d n a b e s a b e h t ni( L A P o t nila n gis B , G , R a t u p ni nip 6 1 , 4 1 , 1 1 ,t u p nila n gis Y e h t d n a , p m alc si nip 8 .)t u p ni d n a b e s a b e h t ni( L A P ni X I M - C / Y o d tI n e h w nip 5 f o e t u m tibih o r p tI ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 125 5 6 7 8 5 6 7 8 C D F A B E 7 CXD2753R (DVDM ASSY : IC1110) • SACD Decorder ¶ Pin Arrangement www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 126 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P O /I n o it c n u F n i P 1 C S V - e r o c r o fla ni m r e t d n u o r G 2 T A L S M X I n oit a cin u m m o c lair e s r e t u p m o c o r ci m r o fla ni m r e t t u p ni d e h ct a L 3 K C S M n oit a cin u m m o c lair e s r e t u p m o c o r ci m r o fla ni m r e t t u p ni k c olc tfih S 4 I A D S M n oit a cin u m m o c lair e s r e t u p m o c o r ci m r o fla ni m r e t y rt n e a t a D 5 C D V - e r o c r o fla ni m r e t ylp p u s r e w o P 6 O T A D S M O n oit a cin u m m o c lair e s r e t u p m o c o r ci m r o fla ni m r e t t u p t u o a t a D 7 Y D A E R S M n oit a cin u m m o c lair e s r e t u p m o c o r ci m r o f g alf n oit elp m o c n oit a r a p e r p t u p t u O 8 E O D S M X n oit a cin u m m o c lair e s r e t u p m o c o r ci m r o fla ni m r e t elb a n e t u p t u O 9 T S R X I ." L " h ti w C l elo h w e h t st e s e r la ni m r e t t e s e R 0 1 E T U M S d p I .la ni m r e t e t u m tf o s a " H " h ti w " L " h ti w t u o oid u a s e v o m e r e t u m e r a w tf o S 1 1 I K C M I la ni m r e t t u p ni k c olc r e ts a M 2 1 O I S V - O /I r o fla ni m r e t d n u o r G 3 1 1 O K C X E O 1 la ni m r e t k c olc t u p t u o e dist u O 4 1 2 O K C X E 2 la ni m r e t k c olc t u p t u o e dist u O 5 1 K C R L la ni m r e t t u p t u o k c olc ) z H k 1 . 4 4 ( s F 1 6 1 E M A R F la ni m r e t t u p t u o la n gis e m a r F 7 1 O I D V - O /I r o fla ni m r e t ylp p u s r e w o P 8 1 0 T N M O la ni m r e t t u p t u o r o tin o M 9 1 1 T N M 0 2 2 T N M 1 2 3 T N M 2 2 O T S E T ts e t r o fla ni m r e t t u p t u O 3 2 4 2 5 2 6 2 K C T I .ts e t r o fla ni m r e t t u p ni k c olc a " L " ni n oit a xif sitI 7 2 I D T u p I ts e t r o fla ni m r e t t u p n I 8 2 C S V - e r o c r o fla ni m r e t d n u o r G 9 2 O D T O ts e t r o fla ni m r e t t u p t u O 0 3 S M T u p I ts e t r o fla ni m r e t t u p n I 1 3 T S R T ts e t r o fla ni m r e t t e s e R 2 3 1 T S E T I .ts e t r o fla ni m r e t t u p ni k c olc a " L " ni n oit a xif sitI 3 3 2 T S E T 4 3 3 T S E T 5 3 C D V - e r o c r o fla ni m r e t ylp p u s r e w o P 6 3 O T S E T O ts e t r o fla ni m r e t t u p t u O 7 3 T I B X la ni m r e t r o tin o m n oitc e n n o c T S D 8 3 0 T D P U S ) B S L ( la ni m r e t t u p t u o a t a d y r a t n e m elp p u S 9 3 1 T D P U S la ni m r e t t u p t u o a t a d y r a t n e m elp p u S 0 4 2 T D P U S 1 4 3 T D P U S 2 4 O I S V - O /I r o fla ni m r e t d n u o r G 3 4 4 T D P U S O la ni m r e t t u p t u o a t a d y r a t n e m elp p u S 4 4 5 T D P U S 5 4 O I D V - O /I r o fla ni m r e t ylp p u s r e w o P 6 4 6 T D P U S O la ni m r e t t u p t u o a t a d y r a t n e m elp p u S 7 4 7 T D P U S ) B S M ( la ni m r e t t u p t u o a t a d y r a t n e m elp p u S 8 4 K A P U S X la ni m r e t t u p t u o a t a d y r a t n e m elp p u S 9 4 C S V - e r o c r o fla ni m r e t d n u o r G 0 5 O T S E T O ts e t r o fla ni m r e t t u p t u O ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 127 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P O /I n o it c n u F n i P 1 5 I T S E T I .la ni m r e t t u p nits e t a " L " ni n oit a xif sitI 2 5 3 5 O T S E T O ts e t r o fla ni m r e t t u p t u O 4 5 C D V - e r o c r o fla ni m r e t ylp p u s r e w o P 5 5 L M D A S D O xi M n w o D h c L r o fla ni m r e t t u p t u o a t a d D S D 6 5 R M D A S D xi M n w o D h c R r o fla ni m r e t t u p t u o a t a d D S D 7 5 L S A K C B I .)r e ts a m ( t u p t u o = H ,) e v als ( t u p ni = L .t u p t u o a t a d D S D r o f k c olc tib 1 a f o la ni m r e t e cio h c t u p t u o d n a t u p n I 8 5 D S D S V - t u p t u o a t a d D S D r o fla ni m r e t d n u o r G 9 5 I A K C B I t u p t u o a t a d D S D r o fla ni m r e t t u p ni k c olc ti B 0 6 O A K C B O t u p t u o a t a d D S D r o fla ni m r e t t u p t u o k c olc ti B 1 6 I F E R H P I n oit alu d o m e s a h p t u p t u o D S D r o fla ni m r e t t u p nila n gis e c n e r e f e r e s a h P 2 6 O F E R H P O n oit alu d o m e s a h p t u p t u o D S D r o fla ni m r e t t u p t u o la n gis e c n e r e f e r e s a h P 3 6 L F D Z g alf h c r a e s a t a d h c L o r e Z 4 6 L A S D r e k a e p s d u ol h c L r o fla ni m r e t t u p t u o a t a d D S D 5 6 R F D Z g alf h c r a e s a t a d h c R o r e Z 6 6 R A S D r e k a e p s d u ol h c R r o fla ni m r e t t u p t u o a t a d D S D 7 6 D S D D V - t u p t u o a t a d D S D r o f o k u zi M ylp p u s r e w o P 8 6 C F D Z O g alf h c r a e s a t a d h c C o r e Z 9 6 C A S D r e k a e p s d u ol h c C r o fla ni m r e t t u p t u o a t a d D S D 0 7 E F L F D Z g alf h c r a e s a t a d h c E F L o r e Z 1 7 W S A S D r e k a e p s d u ol h c W S r o fla ni m r e t t u p t u o a t a d D S D 2 7 D S D S V - t u p t u o a t a d D S D r o fla ni m r e t d n u o r G 3 7 S L F D Z O g alf h c r a e s a t a d h c S L o r e Z 4 7 S L A S D r e k a e p s d u ol h c S L r o f dlih c la ni m r e t t u p t u o a t a d D S D 5 7 S R F D Z g alf h c r a e s a t a d h c S R o r e Z 6 7 S R A S D r e k a e p s d u ol h c S R r o fla ni m r e t t u p t u o a t a d D S D 7 7 D S D D V - t u p t u o a t a d D S D r o f o k u zi M ylp p u s r e w o P 8 7 0 T U O I O F /I pit k nil 4 9 3 1 E E E I r o f 0 la ni m r e t t u p t u o a t a D 9 7 1 T U O I F /I pit k nil 4 9 3 1 E E E I r o f 1 la ni m r e t t u p t u o a t a D 0 8 C S V - e r o c r o fla ni m r e t d n u o r G 1 8 2 T U O I O F /I pit k nil 4 9 3 1 E E E I r o f 2 la ni m r e t t u p t u o a t a D 2 8 3 T U O I F /I pit k nil 4 9 3 1 E E E I r o f 3 la ni m r e t t u p t u o a t a D 3 8 C D V - o c r o fla ni m r e t ylp p u s r e w o P 4 8 4 T U O I O F /I pit k nil 4 9 3 1 E E E I r o f 4 la ni m r e t t u p t u o a t a D 5 8 5 T U O I F /I pit k nil 4 9 3 1 E E E I r o f 5 la ni m r e t t u p t u o a t a D 6 8 O I S V - O /I r o fla ni m r e t d n u o r G 7 8 O C N A I O F /I pit k nil 4 9 3 1 E E E I r o fla ni m r e t t u p t u o a t a d n oit a m r o f ni n ois si m s n a r T 8 8 L L U F I I F /I pit k nil 4 9 3 1 E E E I r o fla ni m r e t t u p nila n gis d n a m e d dlo h n ois si m s n a rt a t a D 9 8 Y T P M E I F /I pit k nil 4 9 3 1 E E E I r o fla ni m r e t t u p nila n gis d n a m e d n ois si m s n a rt d e e p s h gi H 0 9 O I D V - O /I r o fla ni m r e t ylp p u s r e w o P 1 9 M R F I O F /I pit k nil 4 9 3 1 E E E I r o f o k u zi M t u p t u o la n gis e c n e r e f e r e m a r F 2 9 E T U O I F /I pit k nil 4 9 3 1 E E E I r o fla ni m r e t t u p t u o la n gis elb a n E 3 9 K C B I F /I pit k nil 4 9 3 1 E E E I r o fla ni m r e t t u p t u o k c olc n ois si m s n a rt a t a D 4 9 C S V - e r o c r o fla ni m r e t d n u o r G 5 9 I T S E T I .la ni m r e t t u p nits e t a " H " ni n oit a xif sitI 6 9 .la ni m r e t t u p nits e t a " L " ni n oit a xif sitI 7 9 u p I .la ni m r e t t u p nits e t a " H " ni n oit a xif sitI 8 9 O T S E T O ts e t r o fla ni m r e t t u p t u O 9 9 C D V - o c r o fla ni m r e t ylp p u s r e w o P 0 0 1 I T S E T I .la ni m r e t t u p nits e t a " L " ni n oit a xif sitI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 128 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P O /I n o it c n u F n i P 1 0 1 I T S E T I .la ni m r e t t u p nits e t a " L " ni n oit a xif sitI 2 0 1 3 0 1 4 0 1 5 0 1 6 0 1 O I S V - O /I r o fla ni m r e t d n u o r G 7 0 1 I T S E T I .la ni m r e t t u p nits e t a " L " ni n oit a xif sitI 8 0 1 9 0 1 0 1 1 O I D V - O /I r o fla ni m r e t ylp p u s r e w o P 1 1 1 0 D A W I ) B S L ( h c r a e s k r a M c si D la cis y h P P S P r o fla ni m r e t y rt n e a t a d D / A e dist u O 2 1 1 1 D A W h c r a e s k r a M c si D la cis y h P P S P r o fla ni m r e t y rt n e a t a d D / A e dist u O 3 1 1 2 D A W 4 1 1 3 D A W 5 1 1 O I S V - O /I r o fla ni m r e t d n u o r G 6 1 1 C S V - e r o c r o fla ni m r e t d n u o r G 7 1 1 4 D A W I h c r a e s k r a M c si D la cis y h P P S P r o fla ni m r e t y rt n e a t a d D / A e dist u O 8 1 1 5 D A W 9 1 1 6 D A W 0 2 1 7 D A W ) B S M ( h c r a e s k r a M c si D la cis y h P P S P r o fla ni m r e t y rt n e a t a d D / A e dist u O 1 2 1 C D V - e r o c r o fla ni m r e t ylp p u s r e w o P 2 2 1 I T S E T I .la ni m r e t t u p nits e t a " L " ni n oit a xif sitI 3 2 1 K C W h c r a e s k r a M c si D la cis y h P P S P r o f k c olc t n e m e v o M 4 2 1 D D V A W - h c r a e s k r a M c si D la cis y h P P S P r o fla ni m r e t ylp p u s r e w o p D / A 5 2 1 6 2 1 I F R A W i A h c r a e s k r a M c si D la cis y h P P S P r o fla ni m r e t t u p nila n gis F R g ola n A 7 2 1 B R V A W h c r a e s k r a M c si D la cis y h P P S P r o fla ni m r e t e c n e r e f e r m o tt o b D / A 8 2 1 S S V A W - h c r a e s k r a M c si D la cis y h P P S P r o fla ni m r e t d n u o r g D / A 9 2 1 0 3 1 O I S V - O /I r o fla ni m r e t d n u o r G 1 3 1 7 Q D O /I ) B S M ( la ni m r e t t u p t u o -t u p ni a t a d M A R D S 2 3 1 6 Q D la ni m r e t t u p t u o -t u p ni a t a d M A R D S 3 3 1 5 Q D 4 3 1 4 Q D 5 3 1 O I D V - O /I r o fla ni m r e t ylp p u s r e w o P 6 3 1 3 Q D O /I la ni m r e t t u p t u o -t u p ni a t a d M A R D S 7 3 1 2 Q D 8 3 1 1 Q D 9 3 1 0 Q D ) B S L ( la ni m r e t t u p t u o -t u p ni a t a d M A R D S 0 4 1 O I S V - O /I r o fla ni m r e t d n u o r G 1 4 1 K L C D O M A R D S r o fla ni m r e t t u p t u o k c ol C 2 4 1 E K C D M A R D S r o fla ni m r e t t u p t u o elb a n e k c ol C 3 4 1 E W X M A R D S r o fla ni m r e t t u p t u o elb a n e t h gir W 4 4 1 S A C X M A R D S r o fla ni m r e t t u p t u o e b o rts s s e r d d a n m ulo C 5 4 1 S A R X M A R D S r o fla ni m r e t t u p t u o e b o rts s s e r d d a w o R 6 4 1 O I D V - O /I r o fla ni m r e t ylp p u s r e w o P 7 4 1 O T S E T O ts e t r o fla ni m r e t t u p t u O 8 4 1 1 1 A ) B S M ( M A R D S r o fla ni m r e t t u p t u o s s e r d d A 9 4 1 0 1 A M A R D S r o fla ni m r e t t u p t u o s s e r d d A 0 5 1 C S V - e r o c r o fla ni m r e t d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 129 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P O /I n o it c n u F n i P 1 5 1 9 A O M A R D S r o fla ni m r e t t u p t u o s s e r d d A 2 5 1 8 A 3 5 1 C D V - e r o c r o fla ni m r e t ylp p u s r e w o P 4 5 1 7 A O M A R D S r o fla ni m r e t t u p t u o s s e r d d A 5 5 1 6 A 6 5 1 5 A 7 5 1 4 A 8 5 1 O I S V - O /I r o fla ni m r e t d n u o r G 9 5 1 3 A O M A R D S r o fla ni m r e t t u p t u o s s e r d d A 0 6 1 2 A 1 6 1 1 A 2 6 1 0 A ) B S L ( M A R D S r o fla ni m r e t t u p t u o s s e r d d A 3 6 1 O I D V - O /I r o fla ni m r e t ylp p u s r e w o P 4 6 1 Q R S X O r o s s e c o r p d n e t n o rf a o t nit u p ni o tla ni m r e t t u p t u o ts e u q e r a t a D 5 6 1 D H S X I r o s s e c o r p d n e t n o rf a y b t u p t u o g alf r e d a e h a f o la ni m r e t t u p n I 6 6 1 K C D S r o s s e c o r p d n e t n o rf a y b t u p t u o k c olc r eirr a c a t a d a f o la ni m r e t t u p n I 7 6 1 K A S X r o s s e c o r p d n e t n o rf a y b t u p t u o g alf e s n o p s e r laitr a p a t a d f o la ni m r e t t u p n I 8 6 1 F E D S r o s s e c o r p d n e t n o rf a y b t u p t u o g alf r o rr e f o la ni m r e t t u p n I 9 6 1 0 D S r o s s e c o r p d n e t n o rf a y b t u p t u o si h cih w la ni m r e t t u p ni a t a d m a e rts e h T ) B S L ( 0 7 1 1 D S r o s s e c o r p d n e t n o rf a y b t u p t u o si h cih w la ni m r e t t u p ni a t a d m a e rts e h T 1 7 1 2 D S 2 7 1 3 D S 3 7 1 4 D S 4 7 1 5 D S 5 7 1 6 D S 6 7 1 7 D S ) B S M ( r o s s e c o r p d n e t n o rf a y b t u p t u o si h cih w la ni m r e t t u p ni a t a d m a e rts e h T t u p ni g ola n A :i A ,t u p ni n w o d -llu P : d p I ,t u p ni p u -llu P : u p I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 130 1 2 3 4 1 2 3 4 C D F A B E 7 PE5314B (FLKY ASSY : IC101) • FL Controller . o N e m a n l a n g i S .ri D s n o it c n u F n i P 1 V 1 D D − ) V 3 . 3 ( ylp p u S r e w o P e vitis o P 2 V 1 S S − lait n e t o P d n u o r G 3 1 X N I n oit allic s O k c ol C m e ts y S nia M r o f n oitc e n n o C la ts y r C 4 2 X − 5 C I − ) 1 S S V o t tc e n n o c yltc e ri D ( d e tc e n n o C ylla n r e t n I 6 T E S E R N I t u p n I t e s e R 7 1 K C S N I e c a fr e t n Ilair e S f o t u p n I k c ol C lair e S 8 1 I S N I e c a fr e t n Ilair e S f o t u p n I a t a D lair e S 9 1 O S T U O e c a fr e t n Ilair e S f o t u p t u O a t a D lair e S 0 1 Y D R X T U O e c a fr e t n Ilair e S f o t u p t u O ) y d a e R ( e k a h s - d n a H 1 1 N O R E W O P T U O t u p t u O lo rt n o C r e w o P 2 1 T U O T E S E R T U O t u p t u O t e s e R m e ts y S 3 1 T U O E V R E S E R T U O )le d o m sih t n o C N ( d e v r e s e R 4 1 8 D E L T U O )le d o m sih t n o C N ( 8 tr o P D E L 5 1 T L A H N I e d o M tla H e s U : " C N " tr o P tla H 6 1 K C A N I )t p u rr e t n I( e c a fr e t n Ilair e S f o t u p n I ) e g d el w o n k c A ( e k a h s - d n a H 7 1 R I L E S N I )r e m itlo rt n o c e t o m e r tib - 8 f o t u p ni r e m i T ( t u p n Ilo rt n o C e t o m e R 8 1 A S S V − r e tr e v n o C D / A r o flait n e t o P d n u o r G 9 1 1 S M N I )r e tr e v n o C D / A r o f t u p n I g ola n A ( tc ele S )r e y alp f o ( n oit a nits e D 0 2 C N − C N 1 2 1 Y E K N I )r e tr e v n o c D / A r o f t u p ni g ola n A ( 1 t u p n I y e K 2 2 0 Y E K N I )r e tr e v n o c D / A r o f t u p ni g ola n A ( 0 t u p n I y e K 3 2 0 S S V − str o P o tlait n e t o P d n u o r G 4 2 D D V A − ) V 3 . 3 ( r e tr e v n o C D / A o t t u p n I e g a tlo V e c n e r e f e R /r e w o P g ola n A 5 2 0 D D V − ) V 3 . 3 ( str o P o t ylp p u S r e w o P e vitis o P 6 2 2 _ 0 S M N I ) str o p 3 sih t f o n oitia nib m o c a h ti w t e S ( tc ele S )r e y alp f o ( le d o M 7 2 1 _ 0 S M 8 2 0 _ 0 S M 9 2 7 D E L T U O 7 tr o P D E L 0 3 ) Y B D N A T S ( D E L T U O tr o P D E L y B d n a t S 1 3 W S W P N I t u p n I e t a t S h cti w S y r a m ir P F F O : " L " N O : " H " 2 3 S E T N I e d o m la r e n e G : " L " e d o m t e s e R m e ts y S o N : " H " 3 3 M E O N I le d o M r e e n oi P : " L " le d o M M E O : " H " 4 3 N I C I M N I d e tc e n n o c e n o h p o r ci M : " H " e n o h p o r ci M f o n oitc e t e D 5 3 R E K C E H C N I e d o m la r e n e G : " L " e d o M r e k c e h C : " H " 6 3 R E W O P N O N I le d o M h cti w S r e w o P y r a d n o c e S : " L " le d o M h cti w S r e w o P y r a m ir P : " H " 7 3 2 T E S L F N I tc ele S e d o M r ello rt n o C - L F le d o m r e h t O : " H " / " H " = 2 / 1 T E S L F le d o m r e h t O : " L " / " H " = 2 / 1 T E S L F le d o m r e h t O : " H " / " L " = 2 / 1 T E S L F )le d o m sih T ( i A 7 5 7 , A 6 5 6 , 5 5 5 - V D : " L " / " L " = 2 / 1 T E S L F 8 3 1 T E S L F 9 3 2 T S E T T U O tr o P ts e T 0 4 6 D E L T U O 6 tr o P D E L ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 131 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n l a n g i S .ri D n o it c n u F n i P 1 4 5 D E L T U O 5 tr o P D E L 2 4 4 D E L 4 tr o P D E L 3 4 3 D E L )le d o m sih t n o C N ( 3 tr o P D E L 4 4 2 D E L )le d o m sih t n o C N ( 2 tr o P D E L 5 4 1 D E L )le d o m sih t n o C N ( 1 tr o P D E L 6 4 0 D E L )le d o m sih t n o C N ( 0 tr o P D E L 7 4 1 T S E T T U O tr o P ts e T 8 4 C N − C N 9 4 T S R 4 9 3 1 T U O t u p t u O t e s e R r ello rt n o C ts o H 4 9 3 1 0 5 C N − C N 1 5 6 1 P T U O t u p t u O 6 1 t n e m g e S P I F 2 5 5 1 P T U O t u p t u O 5 1 t n e m g e S P I F 3 5 C N − C N 4 5 4 1 P T U O t u p t u O 4 1 t n e m g e S P I F 5 5 3 1 P t u p t u O 3 1 t n e m g e S P I F 6 5 2 1 P t u p t u O 2 1 t n e m g e S P I F 7 5 1 1 P t u p t u O 1 1 t n e m g e S P I F 8 5 0 1 P t u p t u O 0 1 t n e m g e S P I F 9 5 2 D D V − ) V 3 . 3 ( r e vir D /r ello rt n o C P I F o t ylp p u S r e w o P e vitis o P 0 6 V D A O L − ) V 8 2 -( r e vir D /r ello rt n o C P I F f o n oitc e n n o C r o tsis e R n w o d -llu P 1 6 9 P T U O t u p t u O 9 t n e m g e S P I F 2 6 8 P t u p t u O 8 t n e m g e S P I F 3 6 7 P t u p t u O 7 t n e m g e S P I F 4 6 6 P t u p t u O 6 t n e m g e S P I F 5 6 5 P t u p t u O 5 t n e m g e S P I F 6 6 4 P t u p t u O 4 t n e m g e S P I F 7 6 3 P t u p t u O 3 t n e m g e S P I F 8 6 2 P t u p t u O 2 t n e m g e S P I F 9 6 1 P t u p t u O 1 t n e m g e S P I F 0 7 1 1 G T U O t u p t u O 1 1 dir G P I F 1 7 0 1 G t u p t u O 0 1 dir G P I F 2 7 9 G t u p t u O 9 dir G P I F 3 7 8 G t u p t u O 8 dir G P I F 4 7 7 G t u p t u O 7 dir G P I F 5 7 6 G t u p t u O 6 dir G P I F 6 7 5 G t u p t u O 5 dir G P I F 7 7 4 G t u p t u O 4 dir G P I F 8 7 3 G t u p t u O 3 dir G P I F 9 7 2 G t u p t u O 2 dir G P I F 0 8 1 G t u p t u O 1 dir G P I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 132 1 2 3 4 1 2 3 4 C D F A B E 7 PE5286A (DVDM ASSY : IC701) • DVD Data Processor . o N e m a n n i P .ri D s n o it c n u F n i P , 4 5 , 0 5 , 0 4 , 3 , 7 0 1 , 3 0 1 , 4 8 , 8 5 1 , 4 5 1 , 5 4 1 7 0 2 3 . 3 D D V − . V 3 . 3 + o t d e tc e n n o c e B .tiu c ric la tigid f o ylp p u s r e w o p a sitI , 3 5 , 7 2 , 8 1 , 5 1 , 2 9 , 8 7 , 4 7 , 4 6 , 7 5 1 , 0 3 1 , 4 0 1 , 1 9 1 , 3 8 1 , 4 6 1 8 0 2 5 . 2 D D V − . V 5 . 2 + o t d e tc e n n o c e B .tiu c ric la tigid f o ylp p u s r e w o p a sitI , 7 1 , 6 1 , 2 , 1 , 2 5 , 1 5 , 1 4 , 6 2 , 5 8 , 9 7 , 3 7 , 3 6 , 6 0 1 , 5 0 1 , 1 9 , 0 5 1 , 4 4 1 , 1 3 1 , 8 7 1 , 6 5 1 , 5 5 1 0 9 1 , 2 8 1 D N G − .tiu c ric la tigid f o d n u o r g a sitI 5 7 1 , 1 7 1 , 7 6 1 C N − . D D V r o D N G niti xi F . nip e s u - n o n a sitI 5 6 1 6 6 1 D D V A − .r e tr e v n o c la tigid - o t- g ola n a ni-tliu b r o fla ni m r e t ylp p u s ylp p u s r e w o p a sitI .) g ola n a ( V 5 . 2 + ylp p u S 6 7 1 7 7 1 D N G A − .r e tr e v n o c A / D ni-tliu b r o fla ni m r e t D N G a sitI 6 I R N U B N I . M A R e dis nif o la ni m r e tlo rt n o c ts e t n oit a r a p e s a sitI .ylla u s u e s u ni W O L t u p n I 0 9 1 C M T N I .ylla u s u e s u ni W O L t u p n I .la ni m r e t ts e t a sitI 8 4 1 2 C M T N I 4 A _ F R / K C M D N I .z H M 4 5 - 0 1 t u p n I .r e d o c e d M O R - D C / D V D f o t u p ni k c olc m e ts y s e h t sitI 9 8 1 D C K C N I .k c olb F /I m e ts y s oid u a n a f o k c olc r e ts a m sitI .k c olc e c n e r e f e r f o z H M 9 . 6 1 t u p ni, D C a f o t u o oid u a n I 5 4 D P /I K C A M D N I . D D V r o D N G ni ) ylla u s u d e s u n u ( e m it d e s u n u xi F 9 4 1 K L C O C V N I .t n u o c c a e g r a h c e dist u o f o O C V o t d e tc e n n o c siti,r o t alu d o m e d eld nip s f o k c olc m e ts y s h ti W 1 6 1 T E S E R X N I . m e ts y s tiu c ric d e t a r g e t ni ela c s e g r al elo h w e h t e zilaitinitI ,le v el W O L a f o t u p ni e h t y B 5 3 1 9 1 A S O /I .tin u g nis s e c o r p la rt n e c f o s u b s s e r d d a tc e n n o C 4 3 1 8 1 A S 3 3 1 7 1 A S 2 3 1 6 1 A S 9 2 1 5 1 A S 8 2 1 4 1 A S 7 2 1 3 1 A S 6 2 1 2 1 A S 5 2 1 1 1 A S 4 2 1 0 1 A S 3 2 1 9 A S ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 133 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 2 2 1 8 A S N I .tin u g nis s e c o r p la rt n e c f o s u b s s e r d d a tc e n n o C 1 2 1 7 A S 0 2 1 6 A S 9 1 1 5 A S 8 1 1 4 A S 7 1 1 3 A S 6 1 1 2 A S 5 1 1 1 A S 4 1 1 0 A S 9 9 7 D A S O /I .tin u g nis s e c o r p la rt n e c f o s u b a t a d a tc e n n o C 0 0 1 6 D A S 1 0 1 5 D A S 2 0 1 4 D A S 8 0 1 3 D A S 9 0 1 2 D A S 0 1 1 1 D A S 1 1 1 0 D A S 7 9 D R S X N I .tin u g nis s e c o r p la rt n e c f o la n gis D R a o t d e tc e n n o c e B 8 9 R W S X N I .tin u g nis s e c o r p la rt n e c f o la n gis R W a o t d e tc e n n o c e B 6 9 1 L C S X N I .tin u g nis s e c o r p la rt n e c m o rfla n gis tc ele s pih c sitI .la n gis sih t W O L f o e m it e h t t a e vitc e ff e s e m o c e b R W S X / D R S X 5 9 T I A W S X T U O .tin u g nis s e c o r p la rt n e c r o f t u p t u o T I A W e h t sitI . W O L f o e m it e h t t a tin u g nis s e c o r p la rt n e c m o rf s s e c c a e v a elts u m la ni m r e t sih T 4 9 Q E R D S X T U O .tin u g nis s e c o r p la rt n e c r o f d n a m e d A M D a sitI . e g d e n a h ti w r e fs n a rt A M D s e t a vitc a d n a n w o d slla fla ni m r e t sih t f o pih le v el W O L 3 9 K C A D S N I .k c a b r e w s n a A M D sitI .) 0 : 7 ( D A S y b la n gis sih t H G I H h ti w t u p t u o e r a a t a D 2 1 1 0 1 Q R I X T U O . W O L h ti w tin u g nis s e c o r p la rt n e c r o f t p u rr e t ni d n a m e d tI .tit u p t u o y e h t r e h t e h w r e tsig e r a h ti w tit e s n a c sla ni m r e t h t o B 3 1 1 1 1 Q R I X 1 4 1 3 E P / L P G F N I .r o t o m eld nip s m o rf e slu p n r u t a t u p n I 7 4 1 M W P F T U O . o v r e s G F r o fla ni m r e t t u p t u o M W P tib 7 sitI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 6 4 1 M W P V T U O . o v r e s d e e p s r o fla ni m r e t t u p t u o M W P tib 5 sitI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 3 4 1 M W P P T U O . o v r e s e s a h p r o fla ni m r e t t u p t u o n oit alu d o m h t di w e slu p sitI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 2 4 1 R R E R T U O . o v r e s h g u o r r o f t u p t u o lo rt n o c sitI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 1 3 7 A P O /I . n oitc n u f a tc ele s n a c u o Y ,r e tsig e r 0 7 $ a f o g nitt e s y B .tr o p O /I e s o p r u p -la r e n e g sitI .r e d o c e d D C a m o rfla n gis t u o la tigid a st u p ni O D D C . 8 5 9 C E I n o d e s a b la ni m r e t t u p t u o oid u a la tigid si T U O F I D . o t ni e d o c A C B a t u p ni o tla ni m r e t si A C B . o t nila n gis E L B B O W a t u p ni o tla ni m r e t si N I D W R .s e nih c a m n oit a zila tiv e r W R h ti w y r a s s e c e n s e m o c e b la ni m r e t N I D W R / A C B 2 3 6 A P 3 3 5 A P 4 3 4 A P 5 3 3 A P / O D D C 6 3 T U O F I D 6 9 1 1 A P / A C B 5 9 1 0 A P / N I D W R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 134 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 8 3 1 2 S U T A T S / 7 D P T U O .)) 0 : 2 ( S U T A T S ( la n gis r o tin o m s u oir a v a t u p t u o tI .tr o p tr o p O /I e s o p r u p -la r e n e g a s a ti e s u n a c u o Y ,r e tsig e r 0 7 $ a f o g nitt e s y B 9 3 1 1 S U T A T S / 6 D P 0 4 1 0 S U T A T S / 5 D P 1 5 1 0 5 Y T U D T U O . % 0 5 yt u d f o e slu p a t u p t u o s y a w la tI . m e ts y s y r e v o c e r e h t f o la n gis D W P s u oir a v a f o e g a tlo v e c n e r e f e r e vig tI 0 6 1 C S A T U O . e slu p D W P a s a d oir e p k nis a f o r o rr e y c n e u q e rf t u p t u o tI 3 5 1 C P A T U O . e slu p D W P a s a p o ol d e k c ol e s a h p f o r o rr e e s a h p a t u p t u o tI 9 5 1 C T A T U O . e slu p D W P a s a la n gis F R a f o r o rr e t n e rr u c tc e rid a t u p t u o tI 2 5 1 C F A T U O . e slu p D W P a s a k c olc e c n e r e f e r f o r o rr e y c n e u q e rf d n a k L C O C V t u p t u o tI . e c n a d e p m i h gih , W O L , H G I H f o t u p t u o e ula v 3 e h t sitI 3 6 1 1 E P / T C E F E D N I . e dist u o e h t m o rf t u p nila n gis tc e ffid e h t sitI e n o d siti d n a ,) C P A ( H G I H nila ni m r e t sih t st u p t u o p o ol d e k c ol e s a h p f o r o rr e e s a h p a n e h T . dlo h e ula v t n o rf 2 6 1 7 C P / T E D _ T T U O . e slu p n oit alu d o m h t di w e slu p a s a tlu s e r h c r a e s tlit-lait n e g n a t a t u p t u o tI 0 7 3 1 A D T U O .r e ff u b R B V a r o f M A R D f o la n gis s s e r d d a sitI 1 7 2 1 A D 2 7 1 1 A D 5 7 0 1 A D 6 7 9 A D 7 7 8 A D 0 8 7 A D 1 8 6 A D 2 8 5 A D 3 8 4 A D 6 8 3 A D 7 8 2 A D 8 8 1 A D 9 8 0 A D 9 3 5 1 D D O /I .r e ff u b R B V a r o f M A R D f o s u b a t a d a sitI 2 4 4 1 D D 3 4 3 1 D D 4 4 2 1 D D 5 4 1 1 D D 6 4 0 1 D D 7 4 9 D D 8 4 8 D D 9 4 7 D D 5 5 6 D D 6 5 5 D D 7 5 4 D D 8 5 3 D D 9 5 2 D D 0 6 1 D D 1 6 0 D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 135 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 9 6 S A R D X T U O .r e ff u b R B V a f o M A R D f o la n gis S A R a sitI 7 6 L S A C D X / S A C D X T U O .r e ff u b R B V a f o M A R D f o la n gis S A C a sitI 6 6 L M Q D / E O D X T U O .r e ff u b R B V a f o M A R D f o la n gis E O n a sitI 5 6 E W D X T U O .r e ff u b R B V a f o M A R D f o la n gis E W a sitI 3 1 7 A T A D S T U O .le n n a h c A M D _ O E D I V a f o s u b t u p t u o a t a d a sitI .r e d o c e d G E P M o t d e tc e n n o c e B 4 1 6 A T A D S 9 1 5 A T A D S 0 2 4 A T A D S 1 2 3 A T A D S 2 2 2 A T A D S 3 2 1 A T A D S 4 2 0 A T A D S 9 2 Q E R S N I .le n n a h c A M D _ O E D I V a f o la ni m r e t d n a m e d r e fs n a rt a t a d a sitI .r e d o c e d G E P M o t d e tc e n n o c e B . g nitt e s y b ytir alo p e g n a h c n a c u o Y 5 2 5 C P / K C A S X T U O .le n n a h c A M D _ O E D I V a f o la ni m r e t ylp e r r e fs n a rt a sitI .r e d o c e d G E P M o t d e tc e n n o c e B . g nitt e s h ti w s eir a v m r o f t u p t u O 8 2 R W X T U O .le n n a h c A M D _ O E D I V a f o la ni m r e t ylp e r r e fs n a rt a sitI .r e d o c e d G E P M o t d e tc e n n o c e B . g nitt e s h ti w s eir a v m r o f t u p t u O 0 3 6 C P / M R T V A X T U O . nile n n a h c A M D _ O E D I V a f o a t a d r e fs n a rt f o r o tc e s a f o p o t e h t w o h s o tla n gis a sitI 7 0 C P / 0 A P S D T U O A M D _ O I D U A n a f o n oit a nits e d s a r o s s e c o r P la n gi S la tigi D alo r o t o M stc e n n o c ti n e h W .r o s s e c o r P la n gi S la tigi D alo r o t o M o t s s e r d d a A M D a s e vig h cih w la n gis e h t siti,le n n a h c 8 1 C P / 1 A P S D 9 2 C P / 2 A P S D 6 0 2 0 B P / 0 A T A D S A O /I .tr o p O /I e s o p r u p -la r e n e g sitI le n n a h c A M D _ O I D U A n a f o s u b t u p t u o a t a d a e m o c e b tI ,r e tsig e r 0 7 $ a f o g nitt e s y B .tr o p a s e dis e b 5 0 2 1 B P / 1 A T A D S A 4 0 2 2 B P / 2 A T A D S A 3 0 2 3 B P / 3 A T A D S A 2 0 2 4 B P / 4 A T A D S A 1 0 2 5 B P / 5 A T A D S A 0 0 2 6 B P / 6 A T A D S A 9 9 1 7 B P / 7 A T A D S A 0 1 R W A X T U O .le n n a h c A M D _ O I D U A n a f o la ni m r e t ylp e r r e fs n a rt a sitI . g nitt e s h ti w s eir a v m r o f t u p t u O 1 1 K C A S A X T U O .le n n a h c A M D _ O I D U A n a f o la ni m r e t ylp e r r e fs n a rt a sitI . g nitt e s h ti w s eir a v m r o f t u p t u O 2 1 Q E R S A N I .le n n a h c A M D _ O I D U A n a f o la ni m r e t d n a m e d r e fs n a rt a sitI . g nitt e s y b ytir alo p e g n a h c n a c u o Y 2 9 1 K C B T U O . C A D o t t u p t u o k c olc tib e h t sitI 3 9 1 K C R L T U O . C A D o t t u p t u o la n gis K C R L e h t sitI 4 9 1 0 A T A D A T U O . C A D o t t u p t u o a t a d lair e s e h t sitI 7 8 1 K C B D C N I .r e d o c e d D C a m o rf k c olc tib a t u p nitI .) sf 8 4 ( z H M 8 6 1 1 . 2 si y c n e u q e rf e vitc e p s o r P 6 8 1 R L D C N I .r e d o c e d D C a m o rfla n gis K C R L a t u p nitI 5 8 1 T D D C N I .r e d o c e d D C a m o rf a t a d m e ts y s oid u a t u p nitI 1 8 1 K C F W N I . D C a f o la n gis k c olc e m a rf sitI 0 8 1 R O C S N I . D C a f o k nis e d o c t n a tsis s a f o la ni m r e t t u p ni sitI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 136 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n n i P .ri D s n o it c n u F n i P 9 7 1 O S B S N I . D C a f o la ni m r e t t u p ni a t a d e d o c t n a tsis s a n a sitI 4 8 1 K C X E T U O .la ni m r e t O S B S a n o h tr o f a t a d d n e s o t s s e nile m it g nik a m k c olc tfih s a sitI 8 8 1 2 E P /I F 2 C N I .r e d o c e d D C a m o rf g alf r o rr e 2 C f o la ni m r e t t u p ni sitI 6 3 1 4 S U T A T S / X S F O /I .r e d o c e d D C a m o rfla n gis X S F a t u p nitI f o n oitc e rr o c r o rr e f o la n gis t n e m n gila e m a rf h ti w d e e p s la m r o n t a z h K 5 3 . 7 sila n gis X S F . C R I C .) 4 S U T A T S ( t u p t u o r o tin o m la n r e t ni e h t e m o c e b tI ,r e tsig e r F 7 $ a f o g nitt e s y B 7 3 1 / G L F E 3 S U T A T S O /I .r e d o c e d D C a m o rfla n gis G L F E n a t u p nitI . C R I C f o t n e m e v o m g nis s e c o r p n oitc e rr o c r o rr e f o la n gis r o tin o m a sila n gis G L F E n A .) 3 S U T A T S ( t u p t u o r o tin o m la n r e t ni e h t e m o c e b tI ,r e tsig e r F 7 $ a f o g nitt e s y B 2 7 1 N I A N I .r e tr e v n o c D / A ni-tliu b o tla ni m r e t t u p nila n gis F R g ola n a sitI 8 6 1 T R V N I .r e tr e v n o c D / A ni-tliu b f o la ni m r e t t u p ni e g a tlo v e c n e r e f e r sitI 9 6 1 S T R V T U O . T R V h ti w tc e n n o C 0 7 1 C R V T U O .r e tr e v n o c D / A ni-tliu b f o la ni m r e t t u p t u o e g a tlo v r e t n e c sitI 4 7 1 B R V N I .r e tr e v n o c D / A ni-tliu b f o la ni m r e t t u p ni e g a tlo v e c n e r e f e r sitI 3 7 1 S B R V T U O . B R V h ti w tc e n n o C 7 3 3 D P / E K C T U O . K L C D S f o la n gis elb a n E n a sitI 8 3 2 D P / B S C T U O . M A R D S f o la n gis tc ele s pih c sitI 2 6 K L C D S T U O . M A R D S f o k c olc t n e m e v o m a g nitt u p t u o la ni m r e t a sitI 8 6 H M O D / H S A C X T U O .tib 8 k n a r h gih f o la n gis S A C a siti,tib e di w 6 1 s u b f o M A R D s e s u ti n e h W 7 9 1 1 D P / N E Q E R V O /I . Q E R - o e di V f o la n gis elb a n E n a sitI 8 9 1 0 D P / N E Q E R A O /I . Q E R - oid u A f o la n gis elb a n E n a sitI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 137 5 6 7 8 5 6 7 8 C D F A B E 7 PD0274A (DVDM ASSY : IC552) • Audio Quality Enhancer (AQE) ¶ Pin Arrangement ¶ Block Diagram ¶ Pin Function 1 DAIN 2 LRIN 3 BCKIN 4 RSTB 5 CGND 6 XIN 7 IGND 8 ICVDD 9 SCLK 10 SDATA 11 CSB 12 24 23 22 21 20 19 18 17 16 15 14 13 NC DALOUT DAIN IBS, TFS, IFS, LRIPOL, IFORM, CKSEL, TEST DAROUT LROUT BCKOUT CGND OVDD NC NC NC NC NC NC 1 LRIN 2 BCKIN 3 Input Inter face Bit Extension ATT + Deemphasis DALOUT BACS, BSO, OFORM, LRPOL, DACS, TEST 24 DAROUT 23 LROUT 22 BCKOUT RSTB XIN 21 Output Inter face 24 x2 1st FIR Filter x2 2st FIR Filter 24 24 2fs 4fs x2 3st FIR Filter Soft Mute 8fs IBS, BES, DIR x8 Digital Filter IFS, DFS, CKSE, COES, ATT, DE Note : "n" in the Block diagram expresses the rate to sample IFS, SMUTE, TEST LRCK LRCK LRCK CKSE 4 6 Timing Control Syscllk SDATA CSB 10 SCLK 9 11 Microcomputer Interface n* LRCK n* LRCK n* LRCK 24 24 24 No. Name I/O Pin Function 1 DAIN I Audio data input 2 LRIN I L/R clock input 3 BCKIN I Bit clock input (48fs/64fs) 4 RSTB I System reset "0" = Reset 5 CGND − Ground (0V) for Core 6 XIN I System clock input (128fs/192fs/256fs/384fs/512fs/768fs) 7 IGND − Ground (0V) for Input Buffer 8 ICVDD − Power supply (3.3V) for Core and Input Buffer 9 SCLK I Microcomputer interface clock input 10 SDATA I Microcomputer interface data input 11 CSB I Microcomputer interface chip select input "0" = Enable, "1" = Disenable 12 NC I No connection 13 NC 14 NC 15 NC 16 NC 17 NC 18 OVDD − Power supply (3.3V) for Output Buffer 19 OGND − Ground (0V) for Output Buffer 20 CGND − Ground (0V) for Core 21 BCKOUT O Bit clock output (48fs/64fs) 22 LROUT O L/R clock output. WCLK output at PCM1704. 23 DAROUT O R ch audio data output 24 DALOUT O L ch audio data output or L/R ch multiplex output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 138 1 2 3 4 1 2 3 4 C D F A B E 7 ADV7314KST (DVDM ASSY : IC903) • Video Encoder IC ¶ Pin Arrangement Pin No. Mnemonic Input/Output Function 11, 57 DGND G Digital Ground. 40 AGND G Analog Ground. 32 CLKIN_A I Pixel Clock Input for HD (74.25 MHz Only, PS Only (27 MHz), SD Only (27 MHz). 63 CLKIN_B I Pixel Clock Input. Requires a 27 MHz reference clock for Progressive Scan mode or a 74.25 MHz (74.1758 MHz) reference clock in HDTV mode. This clock is only used in dual modes. 36, 45 COMP2, COMP1 O Compensation Pin for DACs. Connect 0.1 µF capacitor from COMP pin to VAA. 44 DAC A O CVBS/Green/Y/Y Analog Output. 43 DAC B O Chroma/Blue/U/Pb Analog Output. 42 DAC C O Luma/Red/V/Pr Analog Output. 39 DAC D O In SD Only Mode: CVBS/Green/Y Analog Output. In HD Only mode and simultaneous HD/SD mode: Y/Green [HD] Analog Output. 38 DAC E O In SD Only Mode: Luma/Blue/U Analog Output. In HD Only mode and simultaneous HD/SD mode: Pr/Red Analog Output. 37 DAC F O In SD Only Mode: Chroma/Red/V Analog Output. In HD Only mode and simultaneous HD/SD mode: Pb/Blue [HD] Analog Output. 23 P_HSYNC I Video Horizontal Sync Control Signal for HD in Simultaneous SD/HD Mode and HD. 24 P_VSYNC I Video Vertical Sync Control Signal for HD in Simultaneous SD/HD Mode and HD. 25 P_BLANK I Video Blanking Control Signal for HD in Simultaneous SD/HD Mode and HD. 48 S_BLANK I/O Video Blanking Control Signal for SD only. ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 139 5 6 7 8 5 6 7 8 C D F A B E Pin No. Mnemonic Input/Output Function 50 S_HSYNC I/O Video Horizontal Sync Control Signal for SD Only. 49 S_VSYNC I/O Video Vertical Sync Control Signal for SD Only. 2–9, 12–13 Y9–Y0 I SD or Progressive Scan/HDTV Input Port for Y Data. Input port for inter- leaved progressive scan data. The LSB is set up on Pin Y0. For 8-bit data input, LSB is set up on Y2. 14–18, 26–30 C9–C0 I Progressive Scan/HDTV Input Port. In 4:4:4 Input mode, this port is used for the Cb[Blue/U] data. The LSB is set up on Pin C0. For 8-bit data input, LSB is set up on C2. 51–55, 58–62 S9–S0 I SD or Progressive Scan/HDTV Input Port for Cr [Red/V] Data in 4:4:4 Input Mode. LSB is set up on Pin S0. For 8-bit data input, LSB is set up on S2. 33 RESET I This input resets the on-chip timing generator and sets the ADV7314 into default register setting. RESET is an active low signal. 35, 47 RSET2 , RSET1 I A 3040 Ω resistor must be connected from this pin to AGND and is used to control the amplitudes of the DAC outputs. 22 SCLK I I2C Port Serial Interface Clock Input. 21 SDA I/O I2C Port Serial Data Input/Output. 20 ALSB I TTL Address Input. This signal sets up the LSB of the I2C address. When this pin is tied low, the I2C filter is activated, reducing noise on the I2C interface. 1 VDD_IO P 10, 56 VDD P Digital Power Supply. 41 VAA P Analog Power Supply. 46 VREF I/O Optional External Voltage Reference Input for DACs or Voltage Reference Output (1.235 V). 34 EXT_LF I External Loop Filter for the Internal PLL. 31 RTC_SCR_TR I I Multifunctional Input. Real-time control (RTC) input, timing reset input, subcarrier reset input. 19 I2C This input pin must be tied high (VDD_IO) for the ADV7314 to interface over the I2C port. 64 GND_IO Digital Input/Output Ground. TERMINOLOGY SD Standard definition video, conforming to ITU-R BT.601/656. HD High definition video, such as progressive scan or HDTV. PS Progressive scan video, conforming to SMPTE 293M, ITU-R BT.1358, BTA T-1004 EDTV2, BTA 1362 HDTV High definition television video, conforming to SMPTE 274M or SMPTE 296M. YCrCb SD, HD, or PS component digital video. YPrPb HD, SD, or PS component analog video. Power Supply for Digital Inputs and Outputs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 140 1 2 3 4 1 2 3 4 C D F A B E 7 ADV7310KST (DVDM ASSY : IC903) • Video Encoder IC ¶ Pin Arrangement www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 141 5 6 7 8 5 6 7 8 C D F A B E Mnemonic Input/Output Function DGND G Digital Ground. AGND G Analog Ground. CLKIN_A I Pixel Clock Input for HD (74.25 MHz Only, PS Only (27 MHz), SD Only (27 MHz). CLKIN_B I Pixel Clock Input. Requires a 27 MHz reference clock for progressive scan mode or a 74.25MHz (74.1758 MHz) reference clock in HDTV mode. This clock is only used in dual modes. COMP1,2 O Compensation Pin for DACs. Connect 0.1 µF capacitor from COMP pin to VAA. DAC A O CVBS/Green/Y/Y Analog Output. DAC B O Chroma/Blue/U/Pb Analog Output. DAC C O Luma/Red/V/Pr Analog Output. DAC D O In SD Only Mode: CVBS/Green/Y Analog Output; in HD Only Mode and Simultaneous HD/SD Mode: Y/Green [HD] Analog Output. DAC E O In SD Only Mode: Luma/Blue/U Analog Output; in HD Only Mode and Simultaneous HD/SD Mode: Pr/Red Analog Output. DAC F O In SD Only Mode: Chroma/Red/V Analog Output; in HD Only Mode and Simultaneous HD/SD Mode: Pb/Blue [HD] Analog Output. P_HSYNC I Video Horizontal Sync Control Signal for HD in Simultaneous SD/HD Mode and HD Only Mode. P_VSYNC I Video Vertical Sync Control Signal for HD in Simultaneous SD/HD Mode and HD Only Mode. P_BLANK I Video Blanking Control Signal for HD in Simultaneous SD/HD Mode and HD Only Mode. S_BLANK I/O Video Blanking Control Signal for SD Only. S_HSYNC I/O Video Horizontal Sync Control Signal for SD Only. S_VSYNC I/O Video Vertical Sync Control Signal for SD Only. Y9–Y0 I SD or Progressive Scan/HDTV Input Port for Y Data. Input port for interleaved progressive scan data. The LSB is set up on Pin Y0. For 8-bit data input, LSB is set up on Y2. C9–C0 I Progressive Scan/HDTV Input Port 4:4:4 Input Mode. This port is used for the Cb[Blue/U] data. The LSB is set up on pin C0. For 8-bit data input, LSB is set up on C2. S9–S0 I SD or Progressive Scan/HDTV Input Port for Cr[Red/V] data in 4:4:4 input mode. LSB is set up on pin S0. For 8-bit data input, LSB is set up on S2. RESET I This input resets the on-chip timing generator and sets the ADV7310/ADV7311 into default register setting. RESET is an active low signal. RSET1,2 I A 3040 Ω resistor must be connected from this pin to AGND and is used to control the amplitudes of the DAC outputs. SCLK I I2C Port Serial Interface Clock Input. SDA I/O I2C Port Serial Data Input/Output. ALSB I TTL Address Input. This signal sets up the LSB of the I2C address. When this pin is tied low, the I2C filter is activated, which reduces noise on the I2C interface. VDD_IO P Power Supply for Digital Inputs and Outputs. VDD P Digital Power Supply. VAA P Analog Power Supply. VREF I/O Optional External Voltage Reference Input for DACs or Voltage Reference Output (1.235 V). EXT_LF I External Loop Filter for the Internal PLL. RTC_SCR_TR I I Multifunctional Input. Real time control (RTC) input, timing reset input, subcarrier reset input. I2C This input pin must be tied high (VDD_IO) for the ADV7310/ADV7311 to interface over the I2C port. GND_IO Digital Input/Output Ground. ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 142 1 2 3 4 1 2 3 4 C D F A B E 7 TSB43CA42GGW (DVDM ASSY : IC801) • IEEE1394 PHY LINK ¶ Pin Arrangement www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 143 5 6 7 8 5 6 7 8 C D F A B E ¶ Pin Function Pin Name Pin No I/O Description Power & Ground Pins DISABLE_IFZ 64 I Interface Disable. When asserted, the interfaces are put into a Hi-Z state. Interfaces include: ex-CPU, HSDI, GPIO, and WTCH_DG_TMRZ. HPS 62 I Host Power Status. This indicates the power status of the external system to iceLynx-Micro. A rising edge indicates the system CPU has been turned ON. (The internal ARM should wake up.) A falling edge indicates the system CPU has been turned OFF. (The internal ARM decides if power down is necessary.) LOW_PWR_RDY 63 O Output to system to indicate iceLynx-Micro is ready to go into a low power state. The ARM and WTCH_DG_TMRZ control this pin. WTCH_DG_TMRZ 88 O Watch Dog Timer (for the ARM.) iceLynx-Micro hardware asserts this pin whenever ARM software has not updated the Timer2 register within the allowed time period. RESET_ARMZ 60 I ARM reset. This signal resets the internal ARM processor. RESETZ 59 I/O Device reset. This signal resets all logic. This includes the PHY, Link core, memory, the ARM, and random logic. VSS 1, 21, 55, 76, 102 117 131, 146, 162 176 Digital Ground. AGND 24, 27, 35, 45, Analog Ground. PLL_GND 54 PLL Ground. VDD 4, 20, 56, 75, 101 116, 130 145, 161 175 Digital Power Supply. Must be set to 3.3V nominal. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 144 1 2 3 4 1 2 3 4 C D F A B E Pin Name Pin No I/O Description AVDD 23, 28, 32, 41, 48 Analog Power Supply. Must be set to 3.3V nominal. PLL_VDD 51 PLL Power Supply. Must be set to 3.3V nominal. Regulator Pins REG_ENZ 73 I Internal Regulator Enable. The iceLynx-Micro core voltage is 1.8V. Internal regulators are used to regulate the 3.3V VDD inputs to 1.8V. This pin enables the regulators. REG_OUT0 74 O 1.8V Regulator Output. This pin should be connected to ground using a 0.1uF capacitor. REG_OUT1 115 O 1.8V Regulator Output. This pin should be connected to ground using a 0.1uF capacitor. REG_OUT2 160 O 1.8V Regulator Output. This pin should be connected to ground using a 0.1uF capacitor. External CPU Interface Pins MCIF_ACKZ 95 I/O MCIF Acknowledge pin. Default active low. iceLynx-Micro asserts this signal if it has completed the MCIF request. This signal is always driven. This signal is used for the following modes: • 68000 + Wait I/O Access • MPC850 I/O Access In Serial MCIF Mode, this pin is used for the Serial Read Acknowledge (SMCIF_RACKZ.) MCIF_ADDR1 120 I MCIF Address 1 pin. This data pin is the least significant bit of the MCIF Address Bus. MCIF_ADDR0 is internally grounded. Only 16-bit addressing is allowed. MCIF_ADDR1 should be connected to the Address1 signal of the system CPU. MCIF_ADDR10 129 I MCIF Address 10 pin. This data pin is the most significant bit of the MCIF Address Bus. MCIF_ADDR2 121 I MCIF Address 2 pin MCIF_ADDR3 122 I MCIF Address 3 pin MCIF_ADDR4 123 I MCIF Address 4 pin MCIF_ADDR5 124 I MCIF Address 5 pin MCIF_ADDR6 125 I MCIF Address 6 pin MCIF_ADDR7 126 I MCIF Address 7 pin MCIF_ADDR8 127 I MCIF Address 8 pin MCIF_ADDR9 128 I MCIF Address 9 pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 145 5 6 7 8 5 6 7 8 C D F A B E Pin Name Pin No I/O Description MCIF_BUSCLK 98 I MCIF Bus Clock. This pin is only used for the MCIF synchronous mode. (MPC850 I/O Access) and the Memory Access. This signal should be tied high if not used. In Serial MCIF Mode, this pin is used for the Serial Write Clock (SMCIF_WCLK.) MCIF_CS_IOZ 90 I MCIF Chip Select for all I/O MCIF modes. In Serial MCIF Mode, this pin is used for the Serial Write Request (SMCIF_WREQZ.) MCIF_CS_MEMZ 91 I/O MCIF Chip Select for the Memory MCIF mode. In Serial MCIF Mode, this pin is used for the Serial Write Acknowledge (SMCIF_WACKZ.) MCIF_DATA0 99 I/O MCIF DATA 0 pin. This data pin is the least significant bit of the MCIF Data Bus. In Serial MCIF Mode, this pin is used for the Serial Read Data (SMCIF_RDATA.) MCIF_DATA1 100 I/O MCIF DATA 1 pin. MCIF_DATA10 111 I/O MCIF DATA 10 pin. MCIF_DATA11 112 I/O MCIF DATA 11 pin. MCIF_DATA12 113 I/O MCIF DATA 12 pin. MCIF_DATA13 114 I/O MCIF DATA 13 pin. MCIF_DATA14 118 I/O MCIF DATA 14 pin. MCIF_DATA15 119 I/O MCIF DATA 15 pin. This data pin is the most significant bit of the MCIF Data Bus. MCIF_DATA2 103 I/O MCIF DATA 2 pin. MCIF_DATA3 104 I/O MCIF DATA 3 pin. MCIF_DATA4 105 I/O MCIF DATA 4 pin. MCIF_DATA5 106 I/O MCIF DATA 5 pin. MCIF_DATA6 107 I/O MCIF DATA 6 pin. MCIF_DATA7 108 I/O MCIF DATA 7 pin. MCIF_DATA8 109 I/O MCIF DATA 8 pin. MCIF_DATA9 110 I/O MCIF DATA 9 pin. MCIF_ENDIAN 132 I MCIF Endian Pin. This sets the Endianess for accesses between the external CPU and the internal iceLynx-Micro memory. This pin sets Endianess for all MCIF modes and the Serial MCIF mode. When set to a logical 0, data is read/written to the ex-CPU exactly as it is stored in iceLynx-Micro memory. (Big Endian) When set to a logical 1, data is swapped on half-word and byte boundaries before it is read/written to the ex-CPU. (Little Endian) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 146 1 2 3 4 1 2 3 4 C D F A B E Pin Name Pin No I/O Description MCIF_INTZ 89 O MCIF Interrupt. This signal is push-pull. (always asserted) It does not require a pull-up resistor. MCIF_MODE0 133 I MCIF Mode 0. Used to select MCIF mode. MCIF_MODE1 134 I MCIF Mode 1. Used to select MCIF mode. MCIF_MODE2 135 I MCIF Mode 2. Used to select MCIF mode. MCIF_OEZ 96 I MCIF Output Enable. Default active low. This input pin indicates if the system CPU wants to perform a MCIF read access. This signal is used for the following modes: • SH-3 I/O Access • M16C/62 I/O Access • Memory Access This signal should be tied high if not used. MCIF_RW 92 I MCIF Read/Write pin. Default value for read is a logical 1. Default value for write is a logical 0. In Serial MCIF Mode, this pin is used for the Serial Write Data (SMCIF_WDATA.) MCIF_STRBZ 93 I MCIF Strobe pin. Default active low. This pin is used (along with MCIF_CS_IOZ) to validate the MCIF access. This signal is used for the following modes: • 68000 + Wait I/O Access • MPC850 I/O Access • When not used, this pin should be tied high. In Serial MCIF Mode, this pin is used for the Serial Read Clock (SMCIF_RCLK.) MCIF_WAIT 94 O MCIF Wait pin. Default active high. iceLynx-Micro asserts this signal if it is not ready to service an MCIF request. When not asserted, this signal is in high-Z state. This signal is used for the following modes: • 68000 + Wait I/O Access • SH-3 I/O Access • M16C/62 I/O Access In Serial MCIF Mode, this pin is used for the Serial Read Request (SMCIF_RREQZ.) MCIF_WEZ 97 I MCIF Write Enable. Default active low. This input pin indicates if the system CPU wants to perform a MCIF write access. This signal is used for the following modes: • SH-3 I/O Access • M16C/62 I/O Access • Memory Access This signal should be tied high if not used. Universal Asynchronous Receiver Transmitter Pins UART_RxD 86 I UART receive port. Data from the system is input to the UART buffer using this pin. UART_TxD 85 O UART transmit port. Data from the UART buffer is output to the system using this pin. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 147 5 6 7 8 5 6 7 8 C D F A B E Pin Name Pin No I/O Description Joint Test Action Group (JTAG) & ARM Pins JTAG_TCK 80 I JTAG Clock pin. Both the boundary scan and ARM JTAG uses this input for the JTAG clock. JTAG_TDI 78 I JTAG Test Data Input pin JTAG_TDO 79 O JTAG Test Data Output pin JTAG_TMS 77 I JTAG Test Mode Selector pin. JTAG_TRST 81 I JTAG Reset Pin. Both the boundary scan and ARM JTAG uses this input for the JTAG clock. ARM_JTAG_TDI 83 I ARM JTAG Test Data Input pin ARM_JTAG_TDO 84 O ARM JTAG Test Data Output pin ARM_JTAG_TMS 82 I ARM JTAG Test Mode Selector pin I2C Serial Bus Pins SCL 68 I/O I2C Clock Pin. This pin should be tied to ground if no EEPOM is used. For EEPROM write operations, the GPIO8 settings are muxed with the SCL pin. Software can manipulate the GPIO8 register settings in order to perform a write. SDA 67 I/O I2C Data Pin For EEPROM write operations, the GPIO9 settings are muxed with the SDA pin. Software can manipulate the GPIO9 register settings in order to perform a write. General Purpose Input/Out Pins (GPIO) GPIO0 65 I/O GPIO0. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO1 66 I/O GPIO1. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO2 15 I/O GPIO2. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO3 16 I/O GPIO3. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO4 17 I/O GPIO 4. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO5 18 I/O GPIO 5. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO6 69 I/O GPIO6. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO7 70 I/O GPIO7. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 148 1 2 3 4 1 2 3 4 C D F A B E Pin Name I/O Description GPIO8 71 I/O GPIO8. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO9 72 I/O GPIO9. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. GPIO10 87 I/O GPIO10. Can be programmed as general-purpose input, general-purpose output, or specific function. Power-up default is input. Physical Layer Pins TPA0_N TPA1_N TPA2_N TPA0_P TPA1_P TPA2_P 29 36 42 30 37 43 I/O Twisted Pair A Differential Signal Terminals. For an unused port, TPAN and TPAP signals can be left open. TPB0_N TPB1_N TPB2_N TPB0_P TPB1_P TPB2_P 25 33 39 26 34 40 I/O Twisted Pair B Differential Signal Terminals. For an unused port, TPBN and TPBP signals can be left open. TPBIAS0 TPBIAS1 TPBIAS2 31 38 44 I/O Twisted Pair Bias Output. These signals provide the 1.86V nominal bias voltage needed for proper operation of the twisted pair driver and receivers for signaling an ìactive connectionî to a remote node. For an unused port, TPBIAS can be left unconnected. R1 R0 46 47 - Current Setting Resistors. These pins are connected to external resistors to set the internal operating currents and cable driver output currents. A resistance of 6.34kΩ ± 1% is required to meet the IEEE 1394-1995 output voltage limits. FILTER0 FILTER1 49 50 I/O PLL Filter Terminals. These terminals are connected to an external capacitor to form a lag-lead filter required for stable operation of the internal frequency-multiplier PLL, which is using the crystal oscillator. A 0.1 µF± 10% capacitor is the only external component required to complete this filter. XI X0 52 53 - Crystal Oscillator Inputs. These terminals connect to a 24.576 MHz parallel resonant fundamental mode crystal. The optimum values for the external shunt capacitors are dependent on the crystal used. CPS 21 I Cable Power Status. Input to iceLynx-Micro used to detect if cable power is present. This pin should be connected to the cable power through 390 kΩ resistor. MSPCTL 19 I LINKON 61 O Link On output. This signal is asserted whenever LPS is low and a Link On packet is received from the 1394 bus. High Speed Data Interface (HSDI) Port 0 Pins HSDI_60958_IN 173 I 60958 Data Input. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 149 5 6 7 8 5 6 7 8 C D F A B E Pin Name Pin No I/O Description HSDI_60958_OUT 179 O 60958 Data Output This signal is also used as FLWCTRL_DVALID in Flow Control Data Valid mode. HSDI0_60958_IN 136 I 60958 Data Input. HSDI0_AMCLK_IN 137 I Audio Master Clock Input. This clock is used to decode the bi- phase encoding of 60958 data. This pin is also used to input the 1.5*BCLK for Flow Control mode. HSDI0_AV 140 O HSDI Port 0 Available. Programmable. Default active low. For receive from 1394, this signal indicates if a 1394 packet is available in the receive buffer for reading. The HSDI_AV signal for MPEG2 data also depends on time stamp based release. For transmit onto 1394, this signal can be used to indicate buffer level in HSDI TX mode 8 and 9 by programming a CFR. If the buffer level is above a programmed level, HSDI_AV will be asserted. HSDI0_CLK 138 I HSDI Port 0 Clock. Programmable. Default rising edge sample. This clock is used to operate the HSDI port 0 logic. In parallel mode, the maximum clock is 27MHz. In serial mode, the maximum clock is 70MHz. This signal is output to HSDI1_CLK in pass thru mode. This signal can be used as HSDI0_MLPCM_BCLK for DVD- Audio Transmit. HSDI0_D0 143 I/O HSDI Port 0 Data 0 Pin. Data 0 is the least significant bit on the HSDI data bus. In serial mode, only HSDI0_D0 is used. This signal is output to HSDI1_D0 in pass thru mode. This signal can be used as HSDI0_MLPCM_D0 for DVD- Audio Transmit. HSDI0_D1 144 I/O HSDI Port 0 Data 1 Pin This signal is output to HSDI1_D1 in pass thru mode. This signal can be used as HSDI0_MLPCM_D1 for DVD- Audio Transmit. HSDI0_D2 147 I/O HSDI Port 0 Data 2 Pin This signal is output to HSDI1_D2 in pass thru mode. This signal can be used as HSDI0_MLPCM_D2 for DVD- Audio Transmit. HSDI0_D3 148 I/O HSDI Port 0 Data 3 Pin This signal is output to HSDI1_D3 in pass thru mode. This signal can be used as HSDI0_MLPCM_A for DVD-Audio Transmit. HSDI0_D4 149 I/O HSDI Port 0 Data 4 Pin This signal is output to HSDI1_D4 in pass thru mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 150 1 2 3 4 1 2 3 4 C D F A B E Pin Name Pin No I/O Description HSDI0_D5 150 I/O HSDI Port 0 Data 5 Pin This signal is output to HSDI1_D5 in pass thru mode HSDI0_D6 151 I/O HSDI Port 0 Data 6 Pin This signal is output to HSDI1_D6 in pass thru mode HSDI0_D7 152 I/O HSDI Port 0 Data 7 Pin. Data 0 is the most significant bit on the HSDI data bus. This signal is output to HSDI1_D7 in pass thru mode HSDI0_DVALID 142 I/O HSDI Port 0 Data Valid Pin. Programmable. Default active high. This pin indicates if data on the HSDI data bus valid for reading or writing. For transmit onto 1394, this signal is provided by the system with the data. For receive from 1394, iceLynx-Micro provides this signal with the data. For HSDI DV modes, this signal is used as HSDI0_FrameSync indicating DV frame boundary. This signal is output to HSDI1_DVALID in pass thru mode If not used in transmit mode, this signal can be tied low. HSDI0_EN 139 I HSDI Port 0 Enable. Programmable. Default active low. Input by the system to enable the HSDI for both transmit and receive from 1394. If not used, this signal can be tied enabled (low or high depending on the polarity set). The application can use HSDI_DVALID or HSDI_SYNC to validate the HSDI data. This signal can be used as HSDI0_MLPCM_LRCLK for DVD- Audio Transmit. HSDI0_SYNC 141 I/O HSDI Port 0 Sync Signal. Programmable. Default active high. This signal is used to indicate the start of packet. For transmit onto 1394, this signal is provided by the system with the data. For receive from 1394, iceLynx-Micro provides this signal with the data. This signal is output to HSDI1_SYNC in pass thru mode. If not used in transmit mode, this signal can be tied low or high depending on the polarity. High Speed Data Interface (HSDI) Port 1 Pins www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 151 5 6 7 8 5 6 7 8 C D F A B E Pin Name Pin No I/O Description HSDI1_AMCLK_IN 169 I Audio Master Clock Input. This clock is used to decode the bi- phase encoding of 60958 data. This pin is also used to input the 1.5*BCK for Flow Control mode. MLPCM Interface, HSDI1 Audio Port, and HSDI1 video port share buffer 1. Only one interface can access the buffer at a time. HSDI1_AMCLK_OUT 170 O Audio Master Clock Output. This clock is derived from the VCO_CLK input. 60958 data output from iceLynx-Micro is bi- phase encoded using this clock. HSDI1_AUDIO_ERR 171 O Audio Error Signal. iceLynx-Micro asserts this signal whenever an Audio Error condition occurs. (Receive from 1394 only.) HSDI1_AUDIO_MUTE 172 O Audio Mute Status. iceLynx-Micro asserts this signal whenever an Audio Mute condition has occurred, and hardware has muted the HSDI1 audio interface. (Receive from 1394 only.) HSDI1_AV 155 O HSDI Port 1 Available. Programmable. Default active low. For receive from 1394, this signal indicates if a 1394 packet is available in the receive buffer for reading. The HSDI_AV signal for MPEG2 data also depends on time stamp based release. For transmit onto 1394, this signal can be used to indicate buffer level in HSDI TX mode 8 and 9 by programming a CFR. This pin can be used to indicate buffer level in transmit mode by programming a CFR. If the buffer level is above a programmed level, HSDI_AV is asserted. HSDI1_CLK 153 I/O HSDI Port 1 Clock. Programmable. Default rising edge sample. This clock is used to operate the HSDI port 1 logic. In parallel mode, the maximum clock is 27MHz. In serial mode, the maximum clock is 70MHz. This signal can be used as HSDI1_SACD_MCLK for SACD Transmit and Receive. MLPCM Interface, HSDI1 Audio Port, and HSDI1 video port share buffer 1. Only one interface can access the buffer at a time. HSDI1_D0 158 I/O HSDI Port 1 Data 0 Pin. Data 0 is the least significant bit on the HSDI data bus. In serial mode, only HSDI0_D0 is used. This signal can be used as HSDI1_SACD_D0 for SACD Transmit and Receive. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 152 1 2 3 4 1 2 3 4 C D F A B E Pin Name Pin No I/O Description HSDI1_D1 159 I/O HSDI Port 1 Data 1 Pin This signal can be used as HSDI1_SACD_D1 for SACD Transmit and Receive. HSDI1_D2 163 I/O HSDI Port 1 Data 2 Pin This signal can be used as HSDI1_SACD_D2 for SACD Transmit and Receive. HSDI1_D3 164 I/O HSDI Port 1 Data 3 Pin This signal can be used as HSDI1_SACD_D3 for SACD Transmit and Receive. HSDI1_D4 165 I/O HSDI Port 1 Data 4 Pin This signal can be used as HSDI1_SACD_D4 for SACD Transmit and Receive. HSDI1_D5 166 I/O HSDI Port 1 Data 5 Pin This signal can be used as HSDI1_SACD_D5 for SACD Transmit and Receive. HSDI1_D6 167 I/O HSDI Port 1 Data 6 Pin This signal can be used as HSDI1_SACD_A for SACD Transmit and Receive. HSDI1_D7 168 I/O HSDI Port 1 Data 7 Pin. Data 0 is the most significant bit on the HSDI data bus. HSDI1_DVALID 157 I/O HSDI Port 1 Data Valid Pin. Programmable. Default active high. This pin indicates if data on the HSDI data bus valid for reading or writing. For transmit onto 1394, this signal is provided by the system with the data. For receive from 1394, iceLynx-Micro provides this signal with the data. For HSDI DV modes, this signal is used as HSDI0_FrameSync indicating DV frame boundary. If not used in transmit mode, this signal can be tied low. HSDI1_EN 154 I HSDI Port 1 Enable. Programmable. Default active low. Input by the system to enable the HSDI for both transmit and receive from 1394. If not used, this signal can be tied enabled (low or high depending on the polarity set). The application can use HSDI_DVALID or HSDI_SYNC to validate the HSDI data. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 153 5 6 7 8 5 6 7 8 C D F A B E Pin Name Pin No I/O Description HSDI1_SYNC 156 I/O HSDI Port 1 Sync Signal. Programmable. Default active high. This signal is used to indicate the start of packet For transmit onto 1394, this signal is provided by the system with the data. For receive from 1394, iceLynx-Micro provides this signal with the data. If not used in transmit mode, this signal can be tied low or high depending on the polarity. This signal can be used as HSDI1_SACD_FRAME for SACD Transmit and Receive. DVD-Audio Interface Pins MLPCM_A 14 I/O Audio MLPCM Interface Ancillary Data. Ancillary data is input/output using this pin. For DVD-Audio, MLPCM_LRCLK determines if Ancillary Left or Ancillary Right data is present. This signal also functions as FLWCTL_A in Flow Control mode MLPCM_BCLK 9 I/O Audio MLPCM Interface Bit Clock. Multiple functions: • DVD Audio BCK (I) • DVD Audio BCK (O) • Flow Control BCK (I/O) MLPCM Interface, HSDI1 Audio Port, and HSDI1 video port share buffer 1. Only one interface can access the buffer at a time. MLPCM_D0 11 I/O Audio MLPCM Interface D0. Contains Channel 1 and Channel 2 information. MLPCM_LRCLK determines which channel is present. This signal also functions as FLWCTL_D0 in Flow Control mode. MLPCM_D1 12 I/O Audio MLPCM Interface D1. Contains Channel 3 and Channel 4 information. MLPCM_LRCLK determines which channel is present. This signal also functions as FLWCTL_D0 in Flow Control mode MLPCM_D2 13 I/O Audio MLPCM Interface D2. Contains Channel 5 and Channel 6 information. MLPCM_LRCLK determines which channel is present. This signal also functions as FLWCTL_D0 in Flow Control mode MLPCM_LRCLK 10 I/O Audio MLPCM Interface Left-Right Clock. Multiple functions: DVD Audio LRCLK (I) DVD Audio LRCLK (O) Flow Control LRCLK (I/O) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 154 1 2 3 4 1 2 3 4 C D F A B E Pin Name Pin No I/O Description Phase Lock Loops Pins DIV_VCO 7 O Output for External Phase Detector. This signal is the divided VCO_CLK. It used by the external phase detector to compare with the REF_SYT signal. The divide ratios are setup in CFR. PFD 8 O Output from Internal Phase Detector. This signal can feed directly into the LPF and VCO if the internal phase detector is used. REF_SYT 6 O Output for External Phase Detector. This signal represents the SYT match for received audio or DV packets. The phase detector uses it as input to detect differences between the SYT match and the VCO clock. VCO_CLK 5 I Input from VCO. This is used to generate internal audio and DV clocks for receive clock recovery. Audio Frequency: 33.868MHz or 36.864MHz. DV Frequency: 30.72MHz Test Mode Pins TEST_MODE0 2 I/O Test Mode. Used for Internal TI testing. Should be tied low for normal operation. TEST_MODE1 3 I/O Test Mode. Used for Internal TI testing. Should be tied low for normal operation. TEST_MODE2 TEST_MODE3 57 58 I/O Test Mode. Used for Internal TI testing. Should be tied low for normal operation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 155 5 6 7 8 5 6 7 8 C D F A B E 7 PD5787A (DVDM ASSY : IC805) • HOST CPU ¶ Pin Arrangement ¶ Block Diagram I/O port Inside outskirts function port P0 Timer System clock outbreak Memory 16-bit core based CPU Program counter Flag register Vector table Stack pointer Registers port P1 port P2 port P3 port P4 port P5 port P6 port P7 port P8 port P9 port P10 port P85 Timer TA0 (16 bit) Timer TA1 (16 bit) Timer TA2 (16 bit) Timer TA3 (16 bit) Timer TB0 (16 bit) Timer TB1 (16 bit) Timer TB2 (16 bit) Timer TB3 (16 bit) Timer TB4 (16 bit) Timer TB5 (16 bit) Monitor timer (15 bit) DMAC (2 channel) D-A converter (8 bit × 2 channel) UART / clock synchronizer form SI/O (8 bit × 3 channel) CRC operationed circuit (CCITT system) Clock synchronizer SI/O (8 bit × 2 channel) A-D converter (10 bit × 8 channel) Multiplier www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 156 1 2 3 4 1 2 3 4 C D F A B E 109 cvdd 110 MD7 111 MD8 112 MD6 113 MD9 114 ovdd 115 ovss 116 MD5 117 MD10 118 MD4 119 MD11 120 ovdd 121 ovss 122 MD3 123 MD12 124 MD2 125 MD13 126 ovss 127 cvss 128 ovdd 129 MD1 130 MD14 131 MD0 132 MD15 133 SLV 134 RFFO 135 SDA 136 SCL 137 SRN 138 ovss 139 cvdd 140 PLL_VDD 141 VPDX 142 TEST6 143 PLL_GND 144 ivdd ivdd 72 cvdd 71 ovss 70 RFFI 69 FILM 68 CO9 67 CO8 66 CO7 65 CO6 64 CO5 63 ovss 62 ovdd 61 CO4 60 CO3 59 CO2 58 CO1 57 CO0 56 cvss 55 cvss 54 ovdd 53 YO0 52 YO1 51 YO2 50 YO3 49 YO4 48 ovss 47 ovdd 46 YO5 45 YO6 44 YO7 43 YO8 42 YO9 41 CLKO 40 TEST2 39 TEST1 38 cvdd 37 1 ovdd 2 CLKI 3 TEST7 4 PLL_EN 5 PI0 6 PI1 7 PI2 8 PI3 9 PI4 10 PI5 11 PI6 12 PI7 13 PI8 14 PI9 15 NHSI 16 NVSI 17 ovss 18 THRM 19 cvss 20 NVSO 21 NHSO 22 PO9 23 PO8 24 PO7 25 PO6 26 ovdd 27 ovss 28 PO5 29 PO4 30 PO3 31 PO2 32 PO1 33 PO0 34 TEST0 35 ovss 36 ovdd ovdd 108 ovss 107 TEST4 106 TEST3 105 WE 104 MCLK 103 CAS 102 DQM 101 RAS 100 ovss 99 ovdd 98 MA9 97 MA11 96 MA8 95 MA10 94 ovdd 93 cvss 92 TEST5 91 ovss 90 MA7 89 MA0 88 MA6 87 MA1 86 ovss 85 ovdd 84 MA5 83 MA2 82 MA4 81 MA3 80 ovss 79 ovdd 78 MD16 77 MD17 76 MD18 75 MD19 74 ovdd 73 CD0040AF (DVDM ASSY : IC901) • Progressive & Hi-Quality Video Encoder (PROU) Pin Arrangement www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 157 5 6 7 8 5 6 7 8 C D F A B E No. Name I/O Function 1 OVDD − VDD (3.3 V) for I/O 2 CLKI I 27-MHz system clock input 3 TEST7 I Input terminal dedicated for testing. To be connected to ground. 4 PLL_EN I PLL enable input terminal. The signal level is set to high once the power-supply voltage and the CLKI stabilize. 5 PI0 I ITU-R BT.656/601 input terminal (LSB) 6 PI1 I ITU-R BT.656/601 input terminal 7 PI2 I ITU-R BT.656/601 input terminal 8 PI3 I ITU-R BT.656/601 input terminal 9 PI4 I ITU-R BT.656/601 input terminal 10 PI5 I ITU-R BT.656/601 input terminal 11 PI6 I ITU-R BT.656/601 input terminal 12 PI7 I ITU-R BT.656/601 input terminal 13 PI8 I ITU-R BT.656/601 input terminal 14 PI9 I ITU-R BT.656/601 input terminal (MSB) 15 NHSI I Horizontal sync input terminal 16 NVSI I Vertical sync input terminal 17 OVSS − Digital GND 18 THMD I Through-mode setting terminal. Normally to be connected to ground. 19 CVSS − Digital GND 20 NVSO O Vertical sync output terminal (Interlace or Progressive) 21 NHSO O Horizontal sync output terminal (Interlace or Progressive) 22 PO9 I/O ITU-R BT.656/601 output terminal, or clamp-signal output and ITU-R BT.601 input terminal (MSB) 23 PO8 I/O ITU-R BT.656/601 output terminal, or active-signal output and ITU-R BT.601 input terminal 24 PO7 I/O ITU-R BT.656/601 output terminal, or blanking-signal output and ITU-R BT.601 input terminal 25 PO6 I/O ITU-R BT.656/601 output terminal and ITU-R BT.601 input terminal 26 OVDD − VDD (3.3 V) for I/O 27 OVSS − Digital GND 28 PO5 I/O ITU-R BT.656/601 output terminal and ITU-R BT.601 input terminal 29 PO4 I/O ITU-R BT.656/601 output terminal and ITU-R BT.601 input terminal 30 PO3 I/O ITU-R BT.656/601 output terminal and ITU-R BT.601 input terminal 31 PO2 I/O ITU-R BT.656/601 output terminal and ITU-R BT.601 input terminal 32 PO1 I/O ITU-R BT.656/601 output terminal and ITU-R BT.601 input terminal 33 PO0 I/O ITU-R BT.656/601 output terminal and ITU-R BT.601 input terminal (LSB) 34 TEST0 I Input terminal dedicated for testing. To be connected to ground. 35 OVSS − Digital GND 36 OVDD − VDD (3.3 V) for I/O 37 CVDD − VDD (2.5 V) for the core 38 TEST1 I Input terminal dedicated for testing. To be connected to ground. 39 TEST2 I Input terminal dedicated for testing. To be connected to ground. 40 CLKO O 27-MHz clock output 41 YO9 O ANSI/SMPTE 293 M output terminal (Y, MSB) 42 YO8 O ANSI/SMPTE 293 M output terminal (Y) 43 YO7 O ANSI/SMPTE 293 M output terminal (Y) 44 YO6 O ANSI/SMPTE 293 M output terminal (Y) 45 YO5 O ANSI/SMPTE 293 M output terminal (Y) 46 OVDD − VDD (3.3 V) for I/O 47 OVSS − Digital GND 48 YO4 O ANSI/SMPTE 293 M output terminal (Y) Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 158 1 2 3 4 1 2 3 4 C D F A B E No. Name I/O Function 49 YO3 O ANSI/SMPTE 293 M output terminal (Y) 50 YO2 O ANSI/SMPTE 293 M output terminal (Y) 51 YO1 O ANSI/SMPTE 293 M output terminal (Y) 52 YO0 O ANSI/SMPTE 293 M output terminal (Y, LSB) 53 OVDD − VDD (3.3 V) for I/O 54 OVSS − Digital GND 55 OVSS − Digital GND 56 CO0 O ANSI/SMPTE 293 M output terminal (Cb/Cr, LSB) 57 CO1 O ANSI/SMPTE 293 M output terminal (Cb/Cr) 58 CO2 O ANSI/SMPTE 293 M output terminal (Cb/Cr) 59 CO3 O ANSI/SMPTE 293 M output terminal (Cb/Cr) 60 CO4 O ANSI/SMPTE 293 M output terminal (Cb/Cr) 61 OVDD − VDD (3.3 V) for I/O 62 OVSS − Digital GND 63 CO5 O ANSI/SMPTE 293 M output terminal (Cb/Cr) 64 CO6 O ANSI/SMPTE 293 M output terminal (Cb/Cr) 65 CO7 O ANSI/SMPTE 293 M output terminal (Cb/Cr) 66 CO8 O ANSI/SMPTE 293 M output terminal (Cb/Cr) 67 CO9 O ANSI/SMPTE 293 M output terminal (Cb/Cr, MSB) 68 FILM O Film-detection flag output terminal 69 RFFI I MPEG data (repeat_first_field flag) input terminal 70 OVSS − Digital GND 71 CVDD − VDD (2.5 V) for the core 72 IVDD − VDD (3.3 V) for I/O 73 OVDD − VDD (3.3 V) for I/O 74 MD19 I/O SDRAM input/output terminal 75 MD18 I/O SDRAM input/output terminal 76 MD17 I/O SDRAM input/output terminal 77 MD16 I/O SDRAM input/output terminal 78 OVDD − VDD (3.3 V) for I/O 79 OVSS − Digital GND 80 MA3 O SDRAM address output terminal 81 MA4 O SDRAM address output terminal 82 MA2 O SDRAM address output terminal 83 MA5 O SDRAM address output terminal 84 OVDD − VDD (3.3 V) for I/O 85 OVSS − Digital GND 86 MA1 O SDRAM address output terminal 87 MA6 O SDRAM address output terminal 88 MA0 O SDRAM address output terminal (LSB) 89 MA7 O SDRAM address output terminal 90 OVSS − Digital GND 91 IVSS − Digital GND 92 CVSS − Digital GND 93 OVDD − VDD (3.3 V) for I/O 94 MA10 O SDRAM address output terminal 95 MA8 O SDRAM address output terminal 96 MA11 O SDRAM address output terminal (MSB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 159 5 6 7 8 5 6 7 8 C D F A B E No. Name I/O Function 97 MA9 O SDRAM address output terminal 98 OVDD − VDD (3.3 V) for I/O 99 OVSS − Digital GND 100 RAS O SDRAM "Row Address Strobe" command output terminal 101 DQM O SDRAM DQM output terminal. The CKE terminal of the SDRAM must be connected to the power source for the SDRAM. 102 CAS O SDRAM "Column Address Strobe" command output terminal 103 MCLK O SDRAM clock output terminal (54 MHz) 104 WE O SDRAM "Write Enable" command output terminal 105 TEST3 I Input terminal dedicated for testing. To be connected to ground. 106 TEST4 I Input terminal dedicated for testing. To be connected to ground. 107 OVSS − Digital GND 108 OVDD − VDD (3.3 V) for I/O 109 CVDD − VDD (2.5 V) for the core 110 MD7 I/O SDRAM data input/output terminal 111 MD8 I/O SDRAM data input/output terminal 112 MD6 I/O SDRAM data input/output terminal 113 MD9 I/O SDRAM data input/output terminal 114 OVDD − VDD (3.3 V) for I/O 115 OVSS − Digital GND 116 MD5 I/O SDRAM data input/output terminal 117 MD10 I/O SDRAM data input/output terminal 118 MD4 I/O SDRAM data input/output terminal 119 MD11 I/O SDRAM data input/output terminal 120 OVDD − VDD (3.3 V) for I/O 121 OVSS − Digital GND 122 MD3 I/O SDRAM data input/output terminal 123 MD12 I/O SDRAM data input/output terminal 124 MD2 I/O SDRAM data input/output terminal 125 MD13 I/O SDRAM data input/output terminal 126 OVSS − Digital GND 127 CVSS − Digital GND 128 OVDD − VDD (3.3 V) for I/O 129 MD1 I/O SDRAM data input/output terminal 130 MD14 I/O SDRAM data input/output terminal 131 MD0 I/O SDRAM data input/output terminal 132 MD15 I/O SDRAM data input/output terminal 133 SLV I MPU Interface slave address setting input terminal 134 RFFO O MPEG data (repeat_first_field flag) output terminal. When not in use, make it open. 135 SDA I/O MPU Interface data input/output terminal 136 SCL I MPU Interface clock input terminal 137 SRN I System reset input terminal 138 OVSS − Digital GND 139 CVDD − VDD (2.5 V) for the core 140 PLL_VDD − VDD (2.5 V) dedicated for PLL 141 VPDX I To be connected to ground 142 TEST6 I Input terminal dedicated for testing. To be connected to ground. 143 PLL_GND − GND dedicated for PLL 144 IVDD − VDD (3.3 V) for I/O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 160 1 2 3 4 1 2 3 4 C D F A B E 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY Disc / content format playback compatibility General disc compatibility This player was designed and engineered to be compatible with software bearing one or more of the following logos: *1 Except DV-59AVi Other formats, including but not limited to the following, are not playable in this player: Photo CD, DVD-RAM, DVD-ROM, CD- ROM*2 *2Except those that contain MP3 files formatted as specified in the Compressed Audio Compatibility section. DVD-R/RW and CD-R/RW discs (Audio CDs and Video CD/Super VCDs) recorded using a DVD recorder, CD recorder or personal computer may not be playable on this unit. This may be caused by a number of possibilities, including but not limited to: the type of disc used; the type of recording; damage, dirt or condensation on either the disc or the player’s pick-up lens. See below for notes about particular software and formats. Compressed Audio Compatibility • This unit will play CD-ROM discs containing files saved in the MPEG-1 Audio Layer 3 format (MP3) with a sampling rate of 44.1 or 48kHz. Incompat- ible files will not play and UNPLAYABLE will be displayed on the unit. • Fixed bit-rate files are recommended. Variable bit-rate (VBR) files are playable, but playing time may not be shown correctly. • The CD-ROM used to compile your MP3 files must be ISO 9660 Level 2 compliant. • CD physical format: Mode1, Mode2 XA Form1. • This player only plays tracks that are named with the file extension “.mp3” or “.MP3”. DVD-Video DVD-R DVD-RW DVD-Audio Video CD Audio CD CD-R CD-RW Super Audio CD Super VCD*1 CD-R/RW compatibility • This unit will play CD-R and CD-RW discs recorded in CD Audio or Video CD/Super VCD format, or as a CD-ROM containing MP3 audio files. However, any other content may cause the disc not to play, or create noise/distortion in the output. • This unit cannot record CD-R or CD-RW discs. • Unfinalized CD-R/RW discs recorded as CD Audio can be played, but the full Table of Contents (playing time, etc.) will not be displayed. DVD-R/RW Compatibility • This unit will play DVD-R/RW discs that were recorded using the DVD Video format or Video Recording format. • This unit cannot record DVD-R/RW discs. • Unfinalized DVD-R/RW discs cannot be played in this player. • This player is compatible with multi- session discs, but only plays sessions that are closed. • Use CD-R or CD-RW media for recording your MP3 files. • This player can recognize a combined total of up to 250 tracks and folders. If a disc containing over 250 tracks/folders is loaded, only the first 250 tracks/folders recorded on the disc will be playable. • Folder and track names (excluding the “.mp3” extension) are displayed. • There are many different recording bit- rates available to encode your MP3 files. This unit was designed to be compatible with all of them. Audio encoded at 128Kbps should sound close to regular CD Audio quality. This player will play lower bit-rate MP3 tracks, but please note that the sound quality becomes notice- ably worse at lower bit-rates. PC Created Disc Compatibility • If you record a disc using a personal computer, even if it is recorded in a “compatible format” as listed above, there will be cases in which the disc may not be playable in this machine due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. • Check the DVD-R/RW or CD-R/RW soft- ware disc boxes for additional compati- bility information. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 161 5 6 7 8 5 6 7 8 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 162 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES Front panel (DV-59AVi) 1 2 i.LINK indicator Lights when this player is recognized by another i.LINK compatible component. 3 HDMI indicator Lights when this player is recognized by another HDMl or DVI/HDCP compatible component. 4 PROGRESSIVE button/indicator Press to switch the component video output mode between progressive and interlace. The indicator lights in progressive scan mode. 5 PURE AUDIO button/indicator When the player is stopped, press to switch off/on the front panel display and disable the video and digital outputs*. Use this when you want to hear audio from the analog outputs with no interference from other signals (when listening to a DVD-Audio disc, for example). The indicator lights when the Pure Audio feature is switched on. * These include i.LINK, HDMI, and the coaxial and optical digital outputs. 8 7 6 2 1 4 3 5 9 10 12 13 14 15 11 • When the Pure Audio feature is switched on, i.LINK- and HDMI-connected devices won’t be recognized by the player. • Press DISPLAY twice to see disc informa- tion on your TV when Pure Audio is on. 6 Disc tray 7 � OPEN/CLOSE Press to open or close the disc tray (when in standby, this button will also switch the power on). 8 � (stop) Press to stop the disc (you can resume play- back by pressing � (play)). 9 � (pause) Press to pause playback. Press again to restart. 10 � (play) Press to start or resume playback (when in standby, this button will also switch the power on). 11 � � (forward scan/skip) • Press and hold for fast forward scanning • Press to jump to the next chapter or track 12 � � (reverse scan/skip) • Press and hold for fast reverse scanning • Press to jump back to the beginning of the current chapter or track, then to previous chapters/tracks 13 Display 14 Remote control sensor The remote control has a range of up to about 7m. 15 This mark indicates compatibility with DVD- RW discs recorded on a DVD recorder in Video Recording mode. Press to switch the player into standby. � STANDBY/ON (DV-59AVi) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 163 5 6 7 8 5 6 7 8 C D F A B E The following illustrations show the DV-868AVi, but connections for the DV-668AV are the same except where indicated . Front panel (DV-868AVi, DV-668AV) 1 POWER switch (DV-868AVi only) Press to switch the player on or off (the player can be put into standby using the remote control; the STANDBY indicator above the button lights when in standby). � STANDBY/ON (DV-668AV only) Press to switch the player into standby. 2 STANDBY indicator (DV-868AVi only) Lights when in standby. 3 i.LINK indicator (DV-868AVi only) Lights when this player is recognized by another i.LINK compatible component. 4 HDMI indicator Lights when this player is recognized by another HDMl or DVI/HDCP compatible component. 5 PROGRESSIVE button/indicator Press to switch the component video output mode between progressive and interlace. The indicator lights in progressive scan mode. • This player is compatible with both PAL and NTSC progressive scan formats. However, your TV must also be progressive scan compatible to take advantage of this feature. 6 PURE AUDIO button/indicator When the player is stopped, press to switch off/on the front panel display and disable the video and digital outputs*. Use this when you want to hear audio from the analog outputs with no interference from other signals (when listening to a DVD-Audio disc, for example). The indicator lights when the Pure Audio feature is switched on. * These include i.LINK, HDMI, and the coaxial and optical digital outputs. 9 8 7 3 2 1 5 4 6 10 11 13 14 15 16 12 • When the Pure Audio feature is switched on, i.LINK- and HDMI-connected devices won’t be recognized by the player. • Press DISPLAY twice to see disc information on your TV when Pure Audio is on. 7 Disc tray 8 � OPEN/CLOSE Press to open or close the disc tray (when in standby, this button will also switch the power on). 9 � (stop) Press to stop the disc (you can resume playback by pressing � (play)). 10 � (pause) Press to pause playback. Press again to restart. 11 � (play) Press to start or resume playback (when in standby, this button will also switch the power on). 12 � � (forward scan/skip) • Press and hold for fast forward scanning • Press to jump to the next chapter or track 13 � � (reverse scan/skip) • Press and hold for fast reverse scanning • Press to jump back to the beginning of the current chapter or track, then to previous chapters/tracks 14 Display 15 Remote control sensor The remote control has a range of up to about 7m. 16 This mark indicates compatibility with DVD- RW discs recorded on a DVD recorder in Video Recording mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 164 1 2 3 4 1 2 3 4 C D F A B E Rear panel (DV-59AVi) 1 AUDIO OUT (2ch) Two channel analog audio outputs for connection to your TV, AV receiver or stereo system. 2 AUDIO OUT (5.1ch) Multichannel analog audio outputs for connection to an AV receiver with multi- channel inputs. 3 DIGITAL AUDIO OUT – OPTICAL / COAXIAL Digital audio outputs for connection to a PCM, Dolby Digital, DTS and/or MPEG- compatible AV receiver. 4 AC IN Connect the supplied power cord here, then plug into a power outlet. 5 (AUDIO) – i.LINK connectors 4-pin, S400 i.LINK connectors for connection to i.LINK-equipped receivers and other components. Each i.LINK connector acts simultaneously as both input and output. 6 HDMI OUT HDMI output providing a high quality inter- face for digital audio and video. 7 CONTROL IN / OUT For passing remote control signals to other Pioneer components. 1 2 3 4 10 9 7 8 5 6 8 VIDEO OUT (1&2) Standard video output(s) that you can connect to your TV or AV receiver using the supplied audio/video cable. 9 S-VIDEO OUT (1&2) S-Video output(s) that you can use instead of the VIDEO OUT jacks. 10 COMPONENT VIDEO OUT High quality video output for connection to a TV, monitor or AV receiver that has compo- nent video inputs. Connect using a commercially available three-way component video cable. Be careful to match the colors of the jacks and cables for correct connection. Refer to the illustra- tion below when doing so to make sure the neutral and live blades are lined up properly. LIVE NEUTRAL N : Neutral L : Live AC IN N L Power cord www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 165 5 6 7 8 5 6 7 8 C D F A B E The following illustrations show the DV-868AVi, but connections for the DV-668AV are the same except where indicated. Rear panel (DV-868AVi, DV-668AV) 1 AUDIO OUT (2ch) Two channel analog audio outputs for connection to your TV, AV receiver or stereo system. 2 AUDIO OUT (5.1ch) Multichannel analog audio outputs for connection to an AV receiver with multichannel inputs. 3 DIGITAL AUDIO OUT – OPTICAL / COAXIAL Digital audio outputs for connection to a PCM, Dolby Digital, DTS and/or MPEG- compatible AV receiver. 4 AV CONNECTOR AV CONNECTOR 1 (RGB)-TV/AV Receiver Use a 21-pin SCART cable to connect to a TV or monitor compatible with this type of connection. Both audio (2 channel stereo) and video (Video, S-video, and RGB) signals are output from the AV CONNECTOR 1 (RGB)-TV. AV CONNECTOR 2 Use a 21-pin SCART cable to connect to a VCR. 1 2 3 4 5 11 10 8 9 6 7 5 AC IN Connect the supplied power cord here, then plug into a power outlet. Refer to the illustration below when doing so to make sure the neutral and live blades are lined up properly. 6 (AUDIO) – i.LINK connectors (DV-868AVi only) 4-pin, S400 i.LINK connectors for connection to i.LINK-equipped receivers and other components. Each i.LINK connector acts simultaneously as both input and output. 7 HDMI OUT HDMI output providing a high quality interface for digital audio and video. 8 CONTROL IN / OUT For passing remote control signals to other Pioneer components. 9 VIDEO OUT (1&2) Standard video output(s) that you can connect to your TV or AV receiver using the supplied audio/video cable. 10 S-VIDEO OUT (1&2) S-Video output(s) that you can use instead of the VIDEO OUT jacks. 11 COMPONENT VIDEO OUT High quality video output for connection to a TV, monitor or AV receiver that has component video inputs. Connect using a commercially available three-way component video cable. Be careful to match the colors of the jacks and cables for correct connection. LIVE NEUTRAL N : Neutral L : Live AC IN N L Power cord www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 166 1 2 3 4 1 2 3 4 C D F A B E Display 1 5.1CH Lights when analog 5.1 channel output is selected. 2 V-PART Lights when playing a video part of a DVD disc. 3 PRGSVE Lights when the video output is progressive scan. 4 Lights during multi-angle scenes on a DVD disc. 5 GUI (Graphical User Interface) Lights when a menu is displayed on-screen. 6 GRP. Indicates that the character display is showing a DVD-Audio group number 7 TITLE Indicates that the character display is showing a DVD-Video title number. 8 Lights when 2V/TruSurround is active. 9 TRK Indicates that the character display is showing a track number. 10 CHP Indicates that the character display is showing a DVD chapter number. 11 REMAIN Lights when the character display is showing the time or number of tracks/titles/chapters remaining. 12 Character display 13 � Lights when a disc is paused. 14 � Lights when a disc is playing. 15 2D Lights when a Dolby Digital soundtrack is playing. 16 DTS Lights when a DTS soundtrack is playing. 1 15 16 12 14 13 3 5 7 6 8 9 10 11 2 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 167 5 6 7 8 5 6 7 8 C D F A B E Remote control 1 � STANDBY/ON Press to switch the player on or into standby. 2 DISPLAY Press to display information about the disc playing. 3 AUDIO Press to select the audio channel or language. 4 HOME MENU Press to display (or exit) the on-screen display. 5 ENTER & Joystick Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 6 � (RETURN) Press to return to a previous menu screen. 7 V.ADJ (VIDEO ADJUST) Press to display the Video Adjust menu. 8 � Press to stop the disc (you can resume play- back by pressing � (play)). 9 � Press to start or resume playback. 10 � � Press to jump to the start of the previous / next chapter / track. 11 PLAY MODE 1 14 15 16 17 18 20 21 22 25 26 23 2 4 5 6 7 8 10 12 13 3 9 19 11 24 27 28 Press to display the Play Mode menu (You can also get to the Play Mode menu by pressing HOME MENU and selecting Play Mode). • DV-59AVi only – All buttons glow slightly in the dark for ease of use. • DV-868AVi and DV-668AV only – Press the button on the right side of the remote to illuminate buttons 6 to 9 and 20 to 22. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 168 1 2 3 4 1 2 3 4 C D F A B E 12 Number buttons 13 MENU Press to display a DVD disc menu, or the Disc Navigator if a DVD-RW, CD, Video CD/Super VCD or MP3 disc is loaded. 14 � OPEN/CLOSE Press to open or close the disc tray. 15 ANGLE Press to change the camera angle during DVD multi-angle scene playback. 16 SUBTITLE Press to select a subtitle display. 17 TOP MENU Press to display the top menu of a DVD disc. 18 MULTI DIAL Use for scanning and slow motion control 19 Jog indicator Lights when multi dial is in jog mode. 20 JOG (JOG MODE) Press to put switch jog mode on/off. When on, use the MULTI DIAL to advance or reverse frames. 21 FL (DIMMER) Press to change the display brightness. 22 � Press to pause playback; press again to restart. 23 � and �/� / � and �/� Use for reverse / forward slow motion play- back, frame reverse / advance and reverse / forward scanning. 24 SURROUND Press to activate/switch off 2V/TruSur- round. 25 CLEAR Press to clear a numeric entry. 26 ENTER Press to select an option or execute a command. 27 TV CONTROL buttons DV-59AVi only VOLUME Use to adjust the volume. CHANNEL Use to select TV channel. FUNC Press FUNC to select the TV for remote control operation. 28 �TV DV-59AVi only Press �TV to turn the TV on or into standby. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 169 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-59AVi 170 1 2 3 4 1 2 3 4 C D F A B E Service Remote Control Unit GGF1381 DVD Data Disc GGV1133 diagnosis Name Jig No. Remarks diagnosis (ID data setting) 17P Flexible Cable GGF1157 Extension Board GGF1430 Diagnosis of DVDM Assy Diagnosis of DVDM Assy DVD Test Disc (DVD-Video) GGV1025 Check of DVD-Video DVD Test Disc (DVD-Audio) GGV1070 Check of DVD-Audio 7 Jigs list www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
