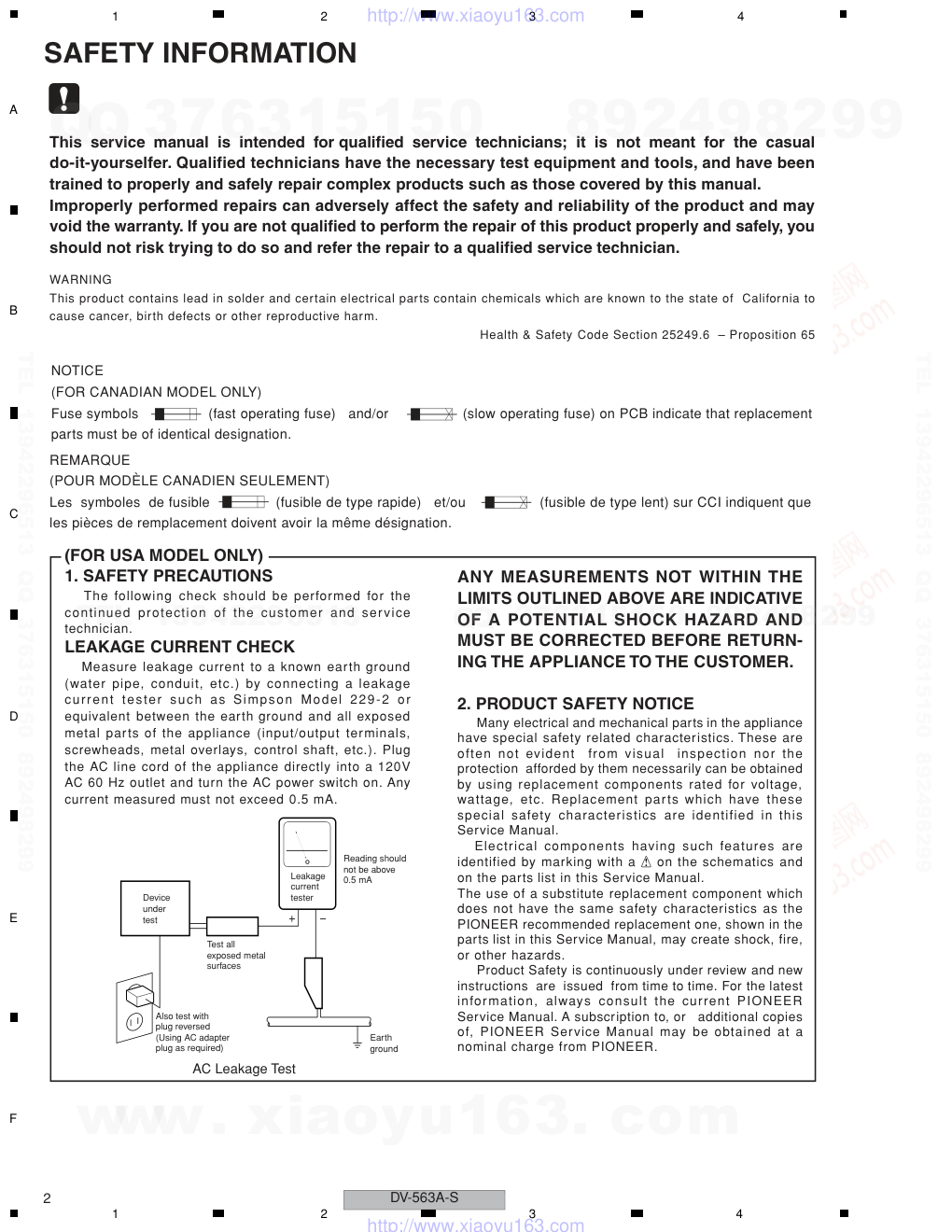

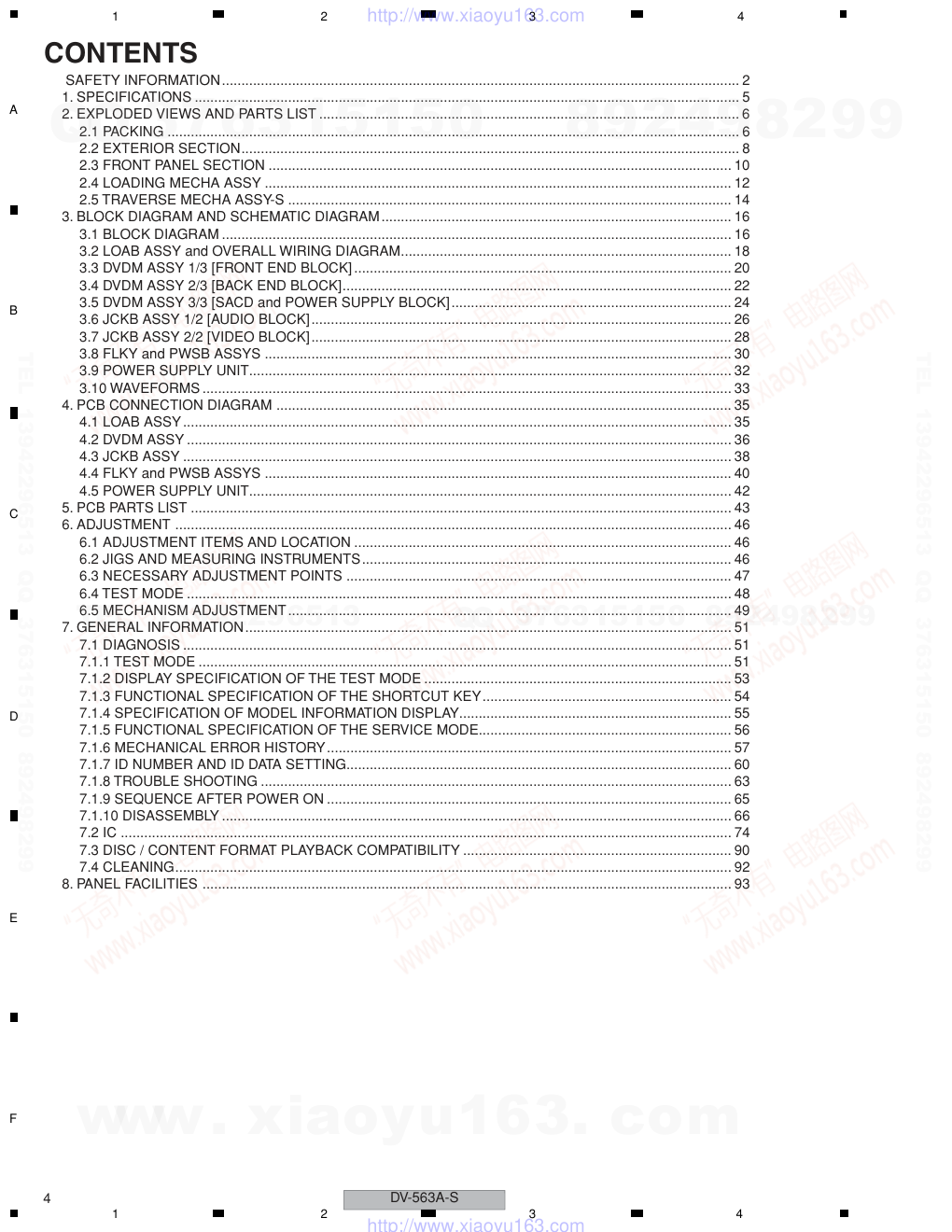

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 DV-563A-S RRV2740 DVD PLAYER DV-563A-S DV-50A THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Serial No. Confirm 3rd & 4th alphabetical letters. DV-563A-S KUXU/CA AC120V 1 &&PG######$$ DV-50A KUXU/CA AC120V 1 &&PG######$$ ¶ DV-50A is a system(s) component. Component System Service Manual Remarks EX-500 RRV2798 VSX-50 RRV2797 DVD RECEIVER AUDIO/VIDEO MULTI-CHANNEL RECEIVER DV-50A RRV2740 This service manual DVD PLAYER For details, refer to "Important symbols for good services". T-ZZE JUNE 2003 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 3 5 6 7 8 5 6 7 8 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • “DTS” and “DTS Digital Out” are registered trademarks of Digital Theater Systems, Inc. • TruSurround and the symbol are trademarks of SRS Labs, Inc. TruSurround tech- nology is incorporated under license from SRS Labs, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 EXTERIOR SECTION................................................................................................................................ 8 2.3 FRONT PANEL SECTION ....................................................................................................................... 10 2.4 LOADING MECHA ASSY ........................................................................................................................ 12 2.5 TRAVERSE MECHA ASSY-S .................................................................................................................. 14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 16 3.1 BLOCK DIAGRAM ................................................................................................................................... 16 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM..................................................................................... 18 3.3 DVDM ASSY 1/3 [FRONT END BLOCK]................................................................................................. 20 3.4 DVDM ASSY 2/3 [BACK END BLOCK].................................................................................................... 22 3.5 DVDM ASSY 3/3 [SACD and POWER SUPPLY BLOCK]........................................................................ 24 3.6 JCKB ASSY 1/2 [AUDIO BLOCK]............................................................................................................ 26 3.7 JCKB ASSY 2/2 [VIDEO BLOCK]............................................................................................................ 28 3.8 FLKY and PWSB ASSYS ........................................................................................................................ 30 3.9 POWER SUPPLY UNIT............................................................................................................................ 32 3.10 WAVEFORMS ........................................................................................................................................ 33 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 35 4.1 LOAB ASSY............................................................................................................................................. 35 4.2 DVDM ASSY ............................................................................................................................................ 36 4.3 JCKB ASSY ............................................................................................................................................. 38 4.4 FLKY and PWSB ASSYS ........................................................................................................................ 40 4.5 POWER SUPPLY UNIT............................................................................................................................ 42 5. PCB PARTS LIST ........................................................................................................................................... 43 6. ADJUSTMENT ............................................................................................................................................... 46 6.1 ADJUSTMENT ITEMS AND LOCATION ................................................................................................. 46 6.2 JIGS AND MEASURING INSTRUMENTS............................................................................................... 46 6.3 NECESSARY ADJUSTMENT POINTS ................................................................................................... 47 6.4 TEST MODE ............................................................................................................................................ 48 6.5 MECHANISM ADJUSTMENT.................................................................................................................. 49 7. GENERAL INFORMATION............................................................................................................................. 51 7.1 DIAGNOSIS ............................................................................................................................................. 51 7.1.1 TEST MODE ......................................................................................................................................... 51 7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE ............................................................................... 53 7.1.3 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY................................................................ 54 7.1.4 SPECIFICATION OF MODEL INFORMATION DISPLAY...................................................................... 55 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE................................................................. 56 7.1.6 MECHANICAL ERROR HISTORY........................................................................................................ 57 7.1.7 ID NUMBER AND ID DATA SETTING................................................................................................... 60 7.1.8 TROUBLE SHOOTING ......................................................................................................................... 63 7.1.9 SEQUENCE AFTER POWER ON ........................................................................................................ 65 7.1.10 DISASSEMBLY ................................................................................................................................... 66 7.2 IC ............................................................................................................................................................. 74 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY ..................................................................... 90 7.4 CLEANING............................................................................................................................................... 92 8. PANEL FACILITIES ........................................................................................................................................ 93 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS General System . . . . . . . . . . . . . . . . . . . . . . . . . DVD player Power requirements . . . . . . . . . . . . . . . . . . . AC 120 V, 60 Hz Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 W Power consumption (standby) . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.12 W Weight . . . . . . . . . . . . . . . . . . . . . 2.4 kg / 5 lb 3 oz Dimensions . . . . 420 (W) x 55 (H) x 283 (D) mm (16.5 (W) x 2.2 (H) x 11.1 (D) in.) Operating temperature . . . . . . . . . . +5°C to +35°C (+41°F to +95°F) Operating humidity . . . . . . . . . . . . . . . . 5% to 85% (no condensation) Component video output Y (luminance) - Output level . . . . . . . . 1 Vp-p (75 Ω) PB (color) - Output level . . . . . . . . . 0.7 Vp-p (75 Ω) PR (color) - Output level . . . . . . . . . 0.7 Vp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jacks S-video output Y (luminance) - Output level . . . . . . . . 1 Vp-p (75 Ω) C (color) - Output level . . . . . . . . 286 mVp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . S-video jack Video output Output level . . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio output (1 stereo pair) Output level. . . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . . . 2 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio output (multi-channel / L, R, C, SW, LS, RS) Output level . . . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . . . 6 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Digital audio characteristics Frequency response . . . . . . . . . . . . . . . 4 Hz to 44 kHz (DVD fs: 96 kHz) . . . . . . . . . 4 Hz to 88 kHz (DVD-Audio fs: 192 kHz) S/N ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 dB . . . . . . . . . . . . . . . . . . . . . . . 108 dB Total harmonic distortion . . . . . . . . . . . . . 0.0014 % Wow and flutter. . . . . . . . . . Limit of measurement (±0.001% W. PEAK) or lower Digital output Optical digital output . . . . . . . . . Optical digital jack Coaxial digital output . . . . . . . . . . . . . . . . RCA jack Other terminals Control in . . . . . . . . . . . . . . . . . . . . Minijack (3.5 ø) Control out . . . . . . . . . . . . . . . . . . . Minijack (3.5 ø) Accessories Audio/video cable (DV-563A-S only) . . . . . . . . . . 1 Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Remote control (DV-563A-S only) . . . . . . . . . . . . 1 AA/R6P dry cell batteries (DV-563A-S only) . . . . . 2 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Warranty card (DV-563A-S only) • The specifications and design of this product are subject to change without notice, due to improvement. . . . . . . . . . . . . . 1 Dynamic range www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 12 10 13 8 3 4 8 5 DV-563A-S Only DV-563A-S Only DV-563A-S Only 6 7 9 11 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 7 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE DV-563A-S/KUXU/CA and DV-50A/KUXU/CA are constructed the same except for the following : Mark No. Description Part No. > 1 Power Cable ADG7021 2 Audio / Video Cable See Contrast table (2) 3 Remote Control Unit See Contrast table (2) 4 Battery Cover See Contrast table (2) NSP 5 Dry Cell Battery (R6P, AA) See Contrast table (2) 6 Operating Instructions See Contrast table (2) (English) NSP 7 Warranty Card See Contrast table (2) 8 Polyethylene Bag VHL1051 9 Pad L VHA1319 10 Pad R VHA1320 11 Paper Board VHC1100 12 Packing Case See Contrast table (2) 13 Sheet (750 x 600 x 0.5) Z23-007 Mark No. Description Part No. Mark No. Symbol and Description DV-563A-S/ KUXU/CA DV-50A/KUXU/ CA 2 Audio / Video Cable VDE1077 Not used 3 Remote Control Unit VXX2865 Not used 4 Battery Cover VNK4997 Not used NSP 5 Dry Cell Battery (R6P, AA) VEM1030 Not used 6 Operating Instructions (English) VRB1311 VRB1313 NSP 7 Warranty Card ARY7045 Not used 12 Packing Case VHG2336 VHG2380 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION B C D CONTACT SIDE NON-CONTACT SIDE B C D E E A A 11 10 25 25 25 18 7 7 1 17 13 26 25 10 16 12 8 6 5 4 2 15 22 C F 25 25 25 25 25 26 28 28 19 20 25 26 26 27 27 21 26 26 10 B Refer to "2.4 LOADING MECHA. ASSY". Refer to "2.3 FRONT PANEL SECTION". 25 25 28 14 26 26 28 30 23 24 DV-563A-S Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List (2) CONTRAST TABLE DV-563A-S/KUXU/CA and DV-50A/KUXU/CA are constructed the same except for the following : Mark No. Description Part No. 1 DVDM Assy VWS1563 2 JCKB Assy VWV1942 3 • • • • • > 4 POWER SUPPLY Unit VWR1365 NSP 5 Loading Mecha. Assy VWT1207 6 Connector Assy PG05KK-E37 7 Flexible Cable (33P) VDA1956 8 Connector Assy (13P) VKP2310 9 • • • • • 10 Cord Clamper RNH-184 11 Rubber Foot VEB1349 12 PCB Support VEC2184 13 Cushion VEC2342 14 Rear Panel See Contrast table (2) NSP 15 Base Chassis VNA2614 16 PCB Base VNE2278 17 PCB Base VNE2310 NSP 18 S Earth Plate VNF1128 19 Adapter 3L VNL1960 20 Adapter 3R VNL1961 21 Bonnet Case S VXX2874 22 Tray Panel VNK5280 23 Acryl Door See Contrast table (2) 24 KUC Label VRW1959 25 Screw BBZ30P060FMC 26 Screw BBZ30P080FZK 27 Screw BCZ40P060FNI 28 Screw PPZ30P080FMC 29 • • • • • 30 Hologram Sheet See Contrast table (2) Mark No. Description Part No. Mark No. Symbol and Description DV-563A-S/ KUXU/CA DV-50A/KUXU/ CA 14 Rear Panel VNA2578 VNA2574 23 Acryl Door VEC2338 VEC2361 30 Hologram Sheet VEC2359 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 FRONT PANEL SECTION D E CONTACT SIDE NON-CONTACT SIDE 10 11 6 5 12 12 12 12 12 2 9 1 4 12 7 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 11 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List (2) CONTRAST TABLE DV-563A-S/KUXU/CA and DV-50A/KUXU/CA are constructed the same except for the following : Mark No. Description Part No. 1 FLKY Assy See Contrast table (2) NSP 2 PWSB Assy VWG2429 3 Connector Assy PF03PP-B07 4 Flexible Cable (21P) VDA1957 5 Rubber Foot VEB1349 6 FL Lens VEC2336 7 FL Filter VEC2339 8 • • • • • 9 FP Angle VNE2300 10 Front Panel Assy See Contrast table (2) 11 Pioneer Name Plate See Contrast table (2) 12 Screw PPZ30P080FMC Mark No. Description Part No. Mark No. Symbol and Description DV-563A-S/ KUXU/CA DV-50A/KUXU/ CA 1 FLKY Assy VWG2427 VWG2430 10 Front Panel Assy VXA2576 VXA2575 11 Pioneer Name Plate VAM1129 Not used 11 Pioneer Name Plate B Not used PAN1376 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 12 1 2 3 4 1 2 3 4 C D F A B E 2.4 LOADING MECHA ASSY LOADING MECHA ASSY parts List A A To DVDM CN101 (Pickup Assy-S) To DVDM CN104 (Stepping Motor) To DVDM CN102 (Spindle Motor) 2 3 5 4 12 23 13 17 21 16 22 15 14 22 22 22 20 18 19 9 1 7 10 11 6 8 8 8 8 A Refer to "2.5 TRAVERSE MECHA. ASSY-S". Lubricating Oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 Mark No. Description Part No. NSP 1 LOAB Assy VWG2426 2 Traverse Mecha. Assy-S VXX2871 3 Loading Motor Assy VXX2872 4 Motor Pulley PNW1634 5 Motor VXM1105 6 Flexible Cable (24P) VDA1945 7 Connector Assy 2P VKP2253 8 Floating Rubber VEB1351 9 Belt VEB1330 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base DVD VNL1918 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate VNE2251 19 Bridge VNE2252 20 Clamper VNL1924 21 Screw JGZ17P028FMC 22 Screw Z39-019 23 Tray VNL1920 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 13 5 6 7 8 5 6 7 8 C D F A B E Application of Lubricant Lubricating Oil GYA1001 Around the shaft No. 11 Loading Base No. 23 Tray No. 13 Drive Cam No. 13 Drive Cam No. 23 Tray Front View Rear View Daifree GEM1036 Inner side of a ditch Concave of unevenness Top View Bottom View Daifree GEM1036 Daifree GEM1036 Side of the rib Lubricating Oil GYA1001 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 14 1 2 3 4 1 2 3 4 C D F A B E 2.5 TRAVERSE MECHA ASSY-S To DVDM CN104 (Stepping Motor) To DVDM CN102 (Spindle Motor) To DVDM CN101 (Pickup Assy) CONTACT SIDE NON-CONTACT SIDE 12 3 7 8 1 17 16 17 10 13 17 10 6 11 14 16 2 9 15 (Torque : 0.15 ± 0.01 N•m) 15 (Torque : 0.15 ± 0.01 N•m) 4 (Adjustment screw) 5 (Adjustment spring) Screw Tight GYL1001 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 15 5 6 7 8 5 6 7 8 C D F A B E TRAVERSE MECHA ASSY-S parts List Mark No. Description Part No. 1 Spindle Motor VXM1099 2 Stepping Motor VXM1101 3 Pickup Assy-S OXX8005 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mecha.Chassis VNE2248 12 Damper Sheet VEB1335 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw OBA8021 16 Screw BBZ20P050FZK 17 Screw PMA26P100FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 16 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM CN105 (21P) CN103 (3P) CN104 (21P) 21 12 10 11 14 20 1 1 21 12 10 11 14 20 5 21 17 19 11 15 13 33 32 9 8 29 CN602 (33P) CN102 (33P) 13 17 15 23 19 12 4 2 6 8 26 25 30 29 18 16 8 6 9 10 3 4 21 22 23 24 IC601 STI5588CVB Back End IC IC603 VYW2087 16M Flash ROM IC602 K4S281632D-TC75 128M SDRAM IC702 K4S641632F-TC75 64M SDRAM 16 B_DATA B DVDM ASSY SPINDLE MOTOR LD(650) PICKUP ASSY-S OEIC 7 LD(780) 9 A 17 C 19 B1 16 B2 15 B3 22 B4 21 TRKG DRV 4 TRKG RTN 3 FOCS DRV 2 FOCS RTN 1 X6401 27MHz (3/3) (2/3) IC604 TC7WU04FU IC606 TC7WU04FU 120 PIXCLK 2 6 5 3 (1/3) (1/3) 7 7 1 1 X301 20MHz IC301 STM6316ATXXA Front End IC IC701 SAA7893HL/C2 SACD IC 89 21 90 20 6 8 64 87 86 Q201, Q202 Q531 Q211, Q212 LD1 LD2 E 14 C 12 D F A B OUT_DATA 44 PC(6) PC(0) FG 55 PD(0) FRE IN FRE OUT 99 21 35 RF SACD SYS_CLK 41 PCM_CELF_IN 39 PCM_LERI_IN 40 PCM_LSRS_IN DSD_PCM_0 DSD_PCM_1 DSD_PCM_2 DSD_PCM_3 DSD_PCM_4 DSD_PCM_5 AGCINP 70 PE(1) 38 PC(2) IC101 M63018FP FTS Driver 30 31 34 35 TO– SPDL PDM LOAD DRV 26 40 SPIN LOIN+ TO+ FO+ FE DATA SACD_27MHz SACD_RF SACD_RF A DATA2 A DATA1 A DATA0 DSD L/PCMDATA0 DSD R DSD C/PCMDATA1 DSD LFE DSD LS/PCMDATA2 DSD RS FO– A LOAB ASSY XCLOSE OPEN XCLOSE OPEN LOADING MOTOR ASSY 36 FG 24 LOAD+ SW2 V+3D LOAD– + – M S101 2 1 1 2 3 4 1 2 SW1 5 5 3 4 CN103 CN601 LO– CN602 6 5 7 8 9 4 3 2 1 CN102 (12P) H1+ A1 A2 A3 H1– H2+ H2– H3+ H3– STEPPING MOTOR ST2– ST2+ ST1+ ST1– M 4 3 2 1 CN104 53 PCMDATA1 54 PCMDATA2 52 PCMDATA0 27 R_OUT 57 SPDIF 26 G_OUT 25 B_OUT 34 CV_OUT 33 C_OUT 32 Y_OUT CN1013 (24P) CN101 (24P) DSD_L/PCMDATA0 22 CN601 (33P) CN101 (33P) HW– HW+ HV– HV+ HU– HU+ 16 17 18 19 20 21 U 14 V 13 W 12 6 SL2– 5 SL2+ 9 SL1+ 10 SL1– 36 LO+ 37 V+3_FED 108 109 110 111 113 114 AC IN CN1 F POWER SUPPLY UNIT LIVE NEUTRAL 1 2 CN401 (13P) CN101 (13P) 13 12 11 8 7 5 4 2 13 12 11 8 7 5 4 2 -28V FL DC+ FL DC- EV+3.3V VFDP IR SEL IR KEY0 FL DC+ FL DC- V+3E SW+1.8V EV+6V(A) EV+6V(B) SW+12V V+3_333 V+6 V+1R8 V-28 V+1R8_BED V+1R8_D V+1R8_FED V+12 IC403 PQ1L333M2SP 3V REG. V+_3A V+3_033 V+3E V+6B V+3_FEA IC402 PQ033EZ01ZP 3V REG. V+5 V+5D IC401 MM1565AF 5V REG. IC400 PST328 Reset V+3D V+3_FED V+1R8_FEA DSD_C/PCMDATA1 30 DSD_LFE 32 DSD_LS/PCMDATA2 DSD_RS 28 V+3A A_DOUT R_CR G_Y B_CB V S_C S_Y IR SEL_IR V+6 V+6 V+3A V+12 V+12 26 8 9 4 5 V+3A V+12 V+6B A DOUT RC_OUT G_OUT B_OUT CV_OUT C_OUT Y_OUT Q541 Q551 Q6972 Q511 Q501 Q521 21 1 2 25 26 10 DSD_R 24 D FLKY ASSY E PWSB ASSY FL101 FL Tube IR101 Remote Sensor Unit IC101 PE5374A FL Control Microcomputer -28V KEY0 - KEY2 KEY0 POWER SEL IR V+3E 60 17 8 8 RESET RESET IN 6 20-22 X101 5MHz 3 4 X1 X2 CN102 (3P) 3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 17 5 6 7 8 5 6 7 8 C D F A B E C JCKB ASSY DAC L/D0 CR/R Y/G CB/B V C Y V+3D Q801 DAC R DAC C/D1 DAC LFE DAC LS/D2 DAC RS V+12A V+6 18 17 12 13 VOUTL+ VOUTR+ VOUTL– VOUTR– IC201 DSD1791DBR Audio DAC (L, R) 25 3 24 DSD_L PDATA DSD_R JA101 L R FRONT L R AUDIO OUT L CENTER SUB WOOFER R SURROUND IC204 BA4560F Audio LPF & Amp. 7 6 18 16 12 10 14 8 4 3 C Y 5 6 1 2/2 1/2 3 2 9 10 VOUTR VOUTL IC301 DSD1702EG Audio DAC (Ls, Rs) 1 4 2 DSD_L PCMDATA DSD_R 21 Cr_R_out IC701 LA73054 Video Amp. 16 Cr_R_in 25 Y/G_out 11 Y/G_in 23 Cb_B_out 14 Cb_B_in 33 V_out 2 V_in 31 C_out 6 C_in 28 Y_out 8 Y_in 9 10 VOUTR VOUTL 1 2 DSD_L DSD_R IC302 BA4560F Audio LPF & Amp. 1 3 2 4 PCMDATA 7 2/2 1/2 6 5 1 3 2 7 2/2 1/2 6 5 IC401 DSD1702EG Audio DAC (C, Lfe) IC402 BA4560F Audio LPF & Amp. JA601 JA602 CONTROL IN OUT SEL IR IR A_DOUT VREF Q101 REG. V+12A V+5A IC101 NJM78M05FA 5V REG. V+6 V+5V IC771 MM1565AF 5V REG. JA801 JA102 (19P) DIGITAL AUDIO OUT OPTICAL DIGITAL AUDIO OUT COAXIAL S VIDEO OUT VIDEO OUT Y (GREEN) COMPONENT VIDEO OUT PB (BLUE) PR (RED) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 18 1 2 3 4 1 2 3 4 C D F A B E 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM JCKB ASSY (VWV1942) C Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 19 5 6 7 8 5 6 7 8 C D F A B E A LOAB ASSY (VWG2426) A LOADING MOTOR ASSY : VXX2872 STEPPING MOTOR : VXM1101 SPINDLE MOTOR : VXM1099 PICKUP ASSY-S (OXX8005) DVDM ASSY (VWS1563) B POWER SUPPLY UNIT (VWR1365) F PWSB ASSY (VWG2429) E FLKY ASSY D (DV-563A-S: VWG2427) (DV-50A: VWG2430) : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (T) : STEPPING SERVO LOOP LINE (S) RF : RF SIGNAL ROUTE F T T F S S S S RF RF RF RF RF RF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 20 1 2 3 4 1 2 3 4 C D F A B E 3.3 DVDM ASSY 1/3 [FRONT END BLOCK] B 1/3 B 1/3 DVDM ASSY (VWS1563) CN601 STEPPING MOTOR SPINDLE MOTOR PICKUP ASSY-S A S S S S F F T T S S S S RF RF RF RF RF RF 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 21 5 6 7 8 5 6 7 8 C D F A B E B 1/3 2/3 B 3/3 B : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE RF : RF SIGNAL ROUTE RF RF : FE_DATA SIGNAL ROUTE F T S 3 4 2 1 1– 5: Refer to "3.10 WAVEFORMS". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 22 1 2 3 4 1 2 3 4 C D F A B E 3.4 DVDM ASSY 2/3 [BACK END BLOCK] B 2/3 B 2/3 DVDM ASSY (VWS1563) 1/3 B 3/3 B 3/3 B S-Y/Y S-C/C V B/Cb G/Y R/Cr B/Cb G/Y R/Cr S-Y/Y S-C/C V D AD AD D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 23 5 6 7 8 5 6 7 8 C D F A B E B 2/3 6.8 6.8 6.8 6.8 6.8 6.8 CN102 C 1/2 CN101 C 1/2 3/3 B S-C/C S-Y/Y R/Cr G/Y B/Cb V : V SIGNAL ROUTE : S-VIDEO OUT C/C SIGNAL ROUTE : S-VIDEO OUT Y/Y SIGNAL ROUTE : R/Cr SIGNAL ROUTE : G/Y SIGNAL ROUTE : B/Cb SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE D AD D D : AUDIO(DIGITAL) SIGNAL ROUTE : FE_DATA SIGNAL ROUTE V S-C/C V S-C/C S-Y/Y G/Y B/Cb R/Cr S-Y/Y G/Y B/Cb R/Cr D D D D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 24 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVDM ASSY 3/3 [SACD and POWER SUPPLY BLOCK] B 3/3 B 3/3 DVDM ASSY (VWS1563) 2/3 B 2/3 B 2/3 B 2/3 B 1/3 B : AUDIO DATA SIGNAL ROUTE AD D : AUDIO(DIGITAL) SIGNAL ROUTE AD D D D D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 25 5 6 7 8 5 6 7 8 C D F A B E B 3/3 : The power supply is shown with the marked box. CN104 D CN101 F 2/3 B 2/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 26 1 2 3 4 1 2 3 4 C D F A B E 3.6 JCKB ASSY 1/2 [AUDIO BLOCK] C 1/2 : The power supply is shown with the marked box. 22/50 C 1/2 JCKB ASSY (VWV1942) CN601 B 2/3 CN602 B 2/3 2/2 C S-C/C S-Y/Y R/Cr G/Y B/Cb V : V SIGNAL ROUTE V S-C/C S-Y/Y G/Y B/Cb R/Cr : S-VIDEO OUT C/C SIGNAL ROUTE : S-VIDEO OUT Y/Y SIGNAL ROUTE : R/Cr SIGNAL ROUTE : G/Y SIGNAL ROUTE : B/Cb SIGNAL ROUTE : AUDIO(DIGITAL) SIGNAL ROUTE D : AUDIO SIGNAL ROUTE D D D D D S-C/C S-Y/Y R/Cr G/Y B/Cb V D D D D D D 9 10 7 6 8 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 27 5 6 7 8 5 6 7 8 C D F A B E C 1/2 330/10 330/10 2/2 C 6– -: Refer to "3.10 WAVEFORMS". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 28 1 2 3 4 1 2 3 4 C D F A B E 3.7 JCKB ASSY 2/2 [VIDEO BLOCK] C 2/2 : The power supply is shown with the marked box. C 2/2 JCKB ASSY (VWV1942) 1/2 C 1/2 C S-C/C S-Y/Y R/Cr G/Y B/Cb V : V SIGNAL ROUTE : S-VIDEO OUT C/C SIGNAL ROUTE : S-VIDEO OUT Y/Y SIGNAL ROUTE : R/Cr SIGNAL ROUTE : G/Y SIGNAL ROUTE : B/Cb SIGNAL ROUTE : AUDIO(DIGITAL) SIGNAL ROUTE D : AUDIO SIGNAL ROUTE S-C/C S-Y/Y R/Cr G/Y B/Cb V S-C/C S-Y/Y R/Cr G/Y B/Cb V D D D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 29 5 6 7 8 5 6 7 8 C D F A B E C 2/2 1/2 C S-C/C S-Y/Y R/Cr G/Y B/Cb V D S-C/C S-Y/Y R/Cr G/Y B/Cb V 12 17 15 14 13 16 =– $: Refer to "3.10 WAVEFORMS". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 30 1 2 3 4 1 2 3 4 C D F A B E 3.8 FLKY and PWSB ASSYS D used Not used FLKY ASSY (DV-563A-S: VWG2427) (DV-50A: VWG2430) D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 31 5 6 7 8 5 6 7 8 C D F A B E D E : The power supply is shown with the marked box. Not used Not used DV-563A DV-50A PWSB ASSY (VWG2429) E CN105 B 3/3 FLKY ASSY S102 : FL DIMMER S103 : 4 1 S104 : ¡ ¢ S105 : 7 S106 : 8 S107 : 3 S109 : 0 S110 : RETURN S111 : MENU S112 : \ S113 : » S114 : TOP MENU S115 : ENTER S116 : | S117 : HOME MENU S118 : « PWSB ASSY S101 : STANDBY ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 32 1 2 3 4 1 2 3 4 C D F A B E 3.9 POWER SUPPLY UNIT F F P301 AEK7063 800mA P101 AEK7066 1.6A CN401 B 3/3 CN101 CN1 AC IN NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. POWER SUPPLY UNIT (VWR1365) F CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR P301 (AEK7063). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P101 (AEK7066). • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 33 5 6 7 8 5 6 7 8 C D F A B E 3.10 WAVEFORMS DVDM ASSY B JCKB ASSY C Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 2 and 12 to 17 : reference A1 (DVD), T2-chp 19, Color-bar No. 6 to 11 : reference A1 (DVD), T2-chp 1 1 IC301 - pin 99 [RF] V: 200mV/div. H: 0.1µsec/div. GND 6 Foot of R208 (IC201 - pin 5) [AUDIO DAC -MCLK] V: 1V/div. H: 50nsec/div. GND 7 Foot of R207 (IC201 - pin 2, 4) [AUDIO DAC -BCK] V: 2V/div. H: 200nsec/div. 5 CN102 - pin3, 2, 1 (IC101 - pin 14, 13, 12) [FTS Driver -A1, A2, A3] V: 2V/div. H: 2msec/div. 12 Foot of R733 (IC701 - pin 33) [Composite Video out] V: 1V/div. H: 10µsec/div. V: 2V/div. H: 500nsec/div. 2 IC301 - pin 36 [FG] V: 1V/div. H: 5msec/div. 3 IC301 - pin 55 [LOAD_DRV] V: 1V/div. H: 500nsec/div. 8 Foot of R206 (IC201 - pin 1) [AUDIO DAC -LRCK] 9 Foot of R206 (IC201 - pin 1) [AUDIO DAC -LRCK] 10 Foot of R207 (IC201 - pin 2, 4) [AUDIO DAC -BCK] 11 Foot of R202 (IC201 - pin 3, 25) [AUDIO DAC -DATA] (Waveform of DATA is unsettled.) V: 2V/div. H: 5µsec/div. 9 10 11 13 Foot of R735 (IC701 - pin 25) [Component Video out -Y] V: 1V/div. H: 10µsec/div. 14 Foot of R736 (IC701 - pin 23) [Component Video out -Pb] V: 2V/div. H: 10µsec/div. 15 Foot of R737 (IC701 - pin 21) [Component Video out -Pr] V: 2V/div. H: 10µsec/div. 13 14 15 16 Foot of R734 (IC701 - pin 28) [S Video out -Y] V: 1V/div. H: 10µsec/div. 17 Foot of R732 (IC701 - pin 31) [S Video out -C] V: 1V/div. H: 10µsec/div. 16 17 [Tray stops] [Tray is opening] [Tray is closing] 4 IC301 - pin 44 [SPDL_PDM] STOP PLAY PLAY Accelertar ON Brakes ON [PLAY] [PLAY→STOP→PLAY] [STOP] V: 2V/div. H: 1sec/div. V: 2V/div. H: 500nsec/div. V: 2V/div. H: 500nsec/div. [PLAY] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 34 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 35 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY SIDE A SIDE B A A C101 C102 V+3D SW2 (V+5D) LOAD- LOAD+ PYKC F6 GND 5 1 5 1 CN601 CN602 1 2 CN601 CN602 S101 VNP1910- VWG LOAB VWG2426- 5 1 1 2 1 5 (VNP1910-A) LOAB ASSY A LOADING MOTOR ASSY M CN103 B CN601 CN602 CN602 CN601 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 36 1 2 3 4 1 2 3 4 C D F A B E 4.2 DVDM ASSY SIDE A SIDE A B B 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A 1 2 9 10 1 8 1 4 0 0 0 1 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 A- NP 5 1 1 21 1 2 32 33 32 33 2 1 1 12 C6505 C6136 R206 R6333 R6524 C6213 R355 R6159 R6301 C6198 C6171 C315 C360 R6523 R6991 R6184 R405 R374 CN608 2 1 23 24 C142 R6308 R6033 R6211 C6014 R6001 C6004 R6031 Q6972 R6932 C6172 R6983 R6053 C6001 R6529 C6037 C6047 C6049 R6045 C6048 R6943 C6023 C6030 C6050 C6976 R6984 R727 R6118 C6124 C6107 C6150 C6160 C6121 R6105 C715 IC402 C411 R6912 R6914 C406 C408 R6916 C422 R6918 CN401 13 1 R406 R6525 C342 C392 C318 R6926 C719 R6922 R6924 R6908 R6920 R6903 R6904 R6909 R6039 R6905 C6978 C6977 R6982 R6981 C712 C714 C710 C713 R6526 R6032 C6015 C139 C207 R319 R6305 C355 R300 C302 IC101 1 21 22 42 C410 R6156 C6506 R419 C323 C303 Q390 C394 R6511 R6104 R706 C708 C709 C701 IC701 R728 C702 R715 C711 C704 C703 C6703 C707 R707 R6993 C6094 R6075 R6056 C6081 C6064 R6052 CN301 R732 R731 R736 R737 R734 R361 R302 C233 C206 IC613 10 1 20 11 C101 C6508 R6530 R404 R6512 R6502 R390 R6527 C362 C209 C388 C6503 L361 L390 R431 C309 R407 R6187 CN603 CN104 R432 C326 C344 C462 R6141 C201 C300 R6980 R6131 R733 X301 R6106 C501 R6149 D6971 C211 IC601 208 157 156 105 104 53 52 1 R344 R6146 C430 R735 IC401 7 5 4 1 R6121 C6119 R6152 CN101 24 23 1 2 R220 R6123 CN607 29 30 2 1 R6183 C6122 R6191 R421 R6142 C301 IC611 1 3 4 5 C6314 C401 R6332 C716 IC301 51 50 26 25 1 100 76 C731 R6117 R392 Q6302 4 3 1 6 R6309 R6304 R6302 R391 C230 CN103 C391 IC400 R425 C424 R426 R428 C103 C102 R6501 CN105 KN102 R182 R117 R119 R115 C6149 CN609 2 1 23 24 R118 R120 C404 R116 C461 C132 C126 R126 CN602 R128 C210 C128 C122 CN601 C357 R6124 C390 C6184 C402 C231 KN103 C412 R393 C319 R417 C6313 C6137 C373 C717 C6159 C348 R6101 C377 C221 R6528 R6303 D6301 C393 R6997 CN102 VWS1566 4 3 VWS1565 VWS1563 4 3 1 5 1 5 1 DVDM (SECOND) SIDE VNP1921- CONTACT 2/2 SIDE A SIDE CONTACT B ADC_PCMCLK VWS1 FC DC CONTACT SIDE PRE FLUX HEAT PROOF 75 SACD_27M CONTACT SIDE A CONTACT SIDE 103 128 1 102 A_MCLK 38 65 64 39 C SIDE CONTACT DAC_MCK CONTACT S_Y V S_C B_CB G_Y R_CR SIDE IC400 IC401 IC611 IC301 Q6302 IC101 IC402 IC701 IC613 Q390 IC601 Q6972 CN104 D CN105 CN101 C CN601 CN102 C CN602 CN101 F CN401 CN601 A CN103 CN102 SPINDLE MOTOR M CN104 STEPPING MOTOR M PICKUP ASSY CN101 DVDM ASSY B (VNP1921-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 37 5 6 7 8 5 6 7 8 C D F A B E SIDE B SIDE B B B 1 3 4 5 1 8 9 16 R6531 R380 R532 C434 R6193 R433 C6972 R434 R430 C6510 R6322 R411 R106 C6317 R381 R372 R367 R104 R6329 C6320 R6208 R553 R6520 R365 D6502 R375 R6941 R6347 R6323 R6970 C6902 C6904 R6985 R6008 C504 C505 C506 R6047 R6812 R6935 R6055 R6933 R6907 R511 C502 R522 R503 C6808 IC607 Q501 R501 R531 R394 R6021 R6344 IC608 4 1 8 5 R502 R6814 C6812 C6809 Q511 R6936 R6934 R521 R6938 R6937 Q521 R512 C6906 C6908 R6042 R513 C6907 IC621 R6921 C6905 L608 C6921 R6986 R6988 R6987 C6810 R6810 C718 R723 R725 R716 R717 IC702 C720 R552 Q6973 R6971 C6701 C6402 C6401 R6402 IC606 1 8 5 4 R6977 R366 R754 C722 C420 R420 C723 R402 C413 C425 C403 R422 C427 R415 R416 R410 R414 R401 C721 R753 R6972 C451 R330 R541 R6163 R6206 R6979 L607 R6939 R6902 R6901 R6813 R6521 C6507 R551 IC451 R6407 R6343 R6204 C368 C369 R6404 C381 R205 R6185 Q551 Q402 C407 R6974 R6942 R6113 C6903 R201 R6973 C6973 R107 R368 C6319 R751 R408 R6207 R6328 R6009 R6190 R221 C6301 C705 C706 C724 R724 C725 R709 R710 R708 R704 R705 R702 R703 R711 R701 R726 C6705 C6706 R6046 C6057 R6071 R6996 L657 Q541 IC602 27 1 54 28 R6095 C6708 R6702 R6035 C6707 R6043 R6017 R6028 R6018 R6072 R6073 C202 R211 R212 R214 C212 C232 R383 R204 R223 R382 R384 R378 R379 Q201 R713 Q401 C428 C6512 R6976 IC604 1 4 5 8 R6522 R101 R6342 R371 C6901 R345 R222 R418 IC615 R523 R103 C423 R427 R6411 R2 C6509 R6186 R6167 R3 R6405 C6502 C6504 C204 R1 C6975 R200 R313 R444 R311 R202 R6196 R6125 R6200 R6109 Q403 C6974 C503 R6345 C200 L606 R488 R721 R6205 R363 R533 R6212 R6975 R312 R542 R6209 R543 R6401 R6978 R441 R443 R442 C222 IC201 4 1 8 5 R424 R6210 R712 R364 R102 R310 R6110 R480 C435 C429 R6157 R6202 R6324 R124 C203 R203 R6203 Q211 R6013 R482 R301 R110 C205 R111 C409 R400 R450 R109 C6511 D6511 R436 R435 R437 C400 R423 R6020 R6112 R6213 R6701 C6702 C127 C6704 R172 C114 C113 C120 R314 C118 R6016 Q531 C214 R123 C124 C213 C311 X6401 R152 R127 C125 C112 C116 R125 R6127 R6126 IC603 R6115 C6312 R6306 R6114 R6325 R369 C507 R412 C431 IC403 C432 R403 C405 R481 C433 R413 R409 R4 R331 R213 R6116 Q202 Q212 R752 L604 C6403 C6404 PC SIDE B (FIRST) 25 24 48 1 54 SACD_RF 28 4 V+12 5 1 1 3 2 27 4 5 8 1 4 1 5 3 V+1R8_BE IC201 Q212 IC615 Q6973 Q511 Q521 IC403 IC621 Q541 IC702 Q202 IC451 IC602 Q201 Q401 Q211 Q403 IC607 IC608 Q531 Q402 Q551 Q501 IC603 IC604 IC606 DVDM ASSY B (VNP1921-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 38 1 2 3 4 1 2 3 4 C D F A B E 4.3 JCKB ASSY SIDE B C SIDE A R742 R724 R715 C729 R601 R703 Q702 R762 C601 C751 C755 C756 C753 C752 C754 R743 C738 C117 C112 R751 D709 D708 D707 D706 R645 R752 R702 Q751 C621 R622 IC103 C624 D601 R621 C622 R623 R717 R714 L704 R644 C623 C736 R102 R740 L104 C134 C737 R739 R135 R134 C106 C101 R738 C132 R132 C136 C114 C115 IC104 R136 R741 R105 IC104 IC204 IC103 Q301 Q302 Q401 Q402 Q101 Q751 Q702 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A 1 8 1 7 1 8 CN102 1.XAMUTE2 2.XMMUTE 3.XAMUTE 5.D_OUT 8.V+6 9.V+6 11.V 13.C 15.Y 17.Y/G 19.CB/B 21.CR/R 23.SQUEEZE 24.LETTER 25.I/XP 26.VSEL1 27.VSEL2 28.CTS 33.IR 32.SEL_IR 31.TXD 30.RXD 29.RTS JA601 CN701 KN101 D711 R718 R731 R732 R733 R734 R735 R736 R737 R719 IC701 R602 R603 R615 C711 R101 C706 C705 C704 C703 C701 C702 C708 R609 R608 R610 R612 R611 R606 R605 R607 R604 C742 C734 R115 R116 R119 R118 C111 C763 C732 R110 R111 R107 R112 R106 R109 R108 R613 C743 R199 C775 R614 C762 IC771 C771 C772 C773 C774 C710 D701 D702 D703 D704 D705 D710 C709 C707 C766 C764 C765 C768 C761 JA602 C767 IC751 R104 D712 KN102 C726 CN601 C110 R121 CN101 18.A_MCK 16.0/PCM_LRCK 14.DSD_CLK/PCM_BCK 12.DSD_L/PCMDATA0 10.DSD_R 8.DSD_LS/PCMDATA2 6.DSD_RS 4.DSD_C/PCMDATA1 2.DSD_LFE 20.DAC_XCS1 21.DAC_XCS0 22.DAC_RST 23.FP_SCK 24.FP_SO 25.V+3A 26.V+3A 29.V+12 30.V+12 R120 L101 R133 Q201 IC302 IC402 IC201 IC101 IC401 IC102 IC301 IC751 IC771 IC701 IC801 Q206 Q405 Q208 Q404 Q303 Q403 Q214 Q202 Q210 Q207 Q801 Q205 Q305 Q204 Q304 Q215 JCKB ASSY 1 Q216 Q203 PC 2 3 V+3D CMKD-P3X V+5V V+12A 33 32 2 1 36 19 18 1 CONTACT SIDE CONTACT SIDE 7 1 5 4 18 19 36 1 FC DC 1 7 2 32 33 1 CN602 B CN102 CN601 B CN101 JCKB ASSY C (VNP1919-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 39 5 6 7 8 5 6 7 8 C D F A B E SIDE B SIDE A C C727 R254 C252 R255 R724 R241 R715 C729 R236 R244 C803 R805 R806 R327 R804 C806 C253 R263 C714 R261 C254 R704 R707 R710 L702 L701 R721 R722 C212 IC103 R410 C303 C123 R233 R235 R201 R114 C124 C122 R113 C133 L103 R706 R723 C717 C716 C715 R705 C721 R708 C722 R709 C723 C108 D101 Q101 R211 C113 R247 R210 D102 R310 R808 C306 R809 R717 R716 R714 L704 R713 C728 L703 R712 R711 C247 R232 R237 R361 R102 R341 R345 C333 R328 Q402 Q401 C802 L104 R135 C403 C406 C107 R131 R209 C106 C103 C101 R771 C104 R441 R445 R427 Q302 C433 R428 R444 R446 C434 C132 R132 C114 C115 R344 C334 R346 C210 R248 R264 C248 C255 R265 C231 R239 R240 IC204 R243 R316 R315 R257 R416 R415 IC Q301 R362 R259 R105 VWM ASSY V+12A JCKB V+12A V+3D V+5A VREF T-VWV389 prodaction Trial V+5V V+5A V+12A 1 8 -A 1 9 9 9 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4 3 3 3 2 2 2 1 1 1 0 0 0 1 8 5 4 1 8 R256 R892 IC801 C808 R251 C245 CN701 C807 C809 L802 R323 C246 C804 C327 C331 R305 R304 R802 R242 Q205 R811 L801 R426 C801 Q801 JA801 C206 C201 R812 R207 R260 R266 C712 R267 Q207 Q210 C719 C720 R422 R409 C422 C308 C402 C322 C321 IC301 R363 C301 C302 C304 C305 C208 R234 C242 C135 C238 JA102 R272 Q202 R274 C330 JA101 C207 C731 C733 IC102 C119 R104 C713 KN102 C718 R205 R204 R203 C203 R281 Q214 C735 C118 C121 R273 Q201 Q203 R309 C407 C307 R308 C805 C726 C725 C724 C131 R307 R306 R282 R271 C109 R283 R280 Q216 Q215 C234 R231 C110 CN751 1.V+12V 2.AUDIO_L 4.AUDIO_R 6.SQUEEZE 14.Y 12.C 10.V 8.V+5V 15.VSEL1 16.G 17.VSEL2 18.R 19.B R342 Q304 C429 R807 R801 R803 L101 R133 R404 C408 C421 IC401 C401 C404 C405 R463 R408 R407 R406 R405 Q204 KN103 R425 Q305 C730 R202 C102 IC101 R212 C211 R206 R208 C105 C202 IC201 C204 C205 R421 R424 C423 R461 C430 R462 R464 Q403 R364 R423 C427 Q303 C431 R443 R442 Q404 C428 Q208 C432 Q405 Q206 R343 R326 C328 C332 C209 C116 C232 C236 R262 C240 R238 C244 C425 C424 C426 IC402 C329 R258 R253 R321 R324 C323 C325 C324 C326 IC302 R322 R325 THIS PRODUCT CONTACT LEAD IN SOLDER AND CERTAIN ELECTRICAL PARTS CONTAIN WARNING 2/2 4 V+3D 78M05 CMKD-P3X BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING. HEALTH & SAFETY CODE SECTION 25249.6 - PROPOSITION 65 CHEMICALS WHICH ARE KNOWN TO THE STATE CALIFORNIA TO CAUSE CANCER, 5 V+5V V+12A 1 5 TZ 20 1 10 11 1 19 CONTACT SIDE 20 1 10 11 1 14 15 28 1 8 1 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 40 1 2 3 4 1 2 3 4 C D F A B E 4.4 FLKY and PWSB ASSYS SIDE A D E SIDE B R193 R194 R156 R158 R192 R191 R154 R155 R137 R133 C154 R138 VWG2 PWSB J K VWG2424- VWG2425- 8 5 C D B 9 3 3 2 2 4 1 1 0 8 7 0 7 6 1 8 -A 1 2 0 9 7 6 6 4 3 5 5 4 9 1 3 1 3 CN103 CN102 1 2 3 1 2 3 CN103 S104 FL101 D104 S103 D102 D101 S102 S101 CN102 D105 << >> PYKC F4X FL DIM PWSB VWG2425- VWG2424- POWER PYKC F4X 1 3 1 3 CN102 CN103 CN102 CN103 (VNP1901-B) FLKY ASSY D (VNP1901-B) FLKY ASSY D (VNP1901-B) PWSB ASSY E (VNP1901-B) PWSB ASSY E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 41 5 6 7 8 5 6 7 8 C D F A B E SIDE A SIDE B D 1 20 21 40 41 60 61 80 R199 R120 R127 R186 R188 C199 C184 R195 R170 C102 R172 R171 R124 R135 R132 R110 R103 R107 R108 R106 R104 R190 R185 C158 R126 C106 R161 R198 R112 R125 R162 R140 C153 R187 R153 R152 C156 R168 R167 C155 R173 R105 R109 CN101 R159 C103 R151 R166 R165 R164 R189 R182 R122 R160 R121 C152 R169 R183 C151 R184 R163 C104 C183 C182 R197 R196 R136 R139 C105 IC101 R131 R130 R129 R128 C157 C159 R123 R134 R181 R111 VWG2 VWG2419- VWG2420- VWG2421- VWG2417- VWG2418- 5 I E H F G A 3 3 2 2 4 1 1 0 0 1 -A 1 2 0 VWG2422- VNP1901- 4 FLKY VWG2423- 3 5 5 4 21 1 21 40 41 60 61 80 1 20 CN101 CN104 1 21 1 S108 S111 S109 L101 C181 S117 S119 S112 S118 CN101 S115 C101 S116 IR101 S110 S107 S114 X101 S113 S105 S106 1 CN104 VWG2420- VWG2419- TOP MENU VNP1901- VWG MENU RIGHT HOME MENU/PAUSE PLAY/>> PC EJECT DC FC STOP/EJECT VWG2417- FLKY VWG2418- ENTER /PLAY LEFT RETURN PAUSE/<< /STOP UP VWG2421- VWG2422- VWG2423- DOWN 1 21 CN105 B CN104 CN104 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 42 1 2 3 4 1 2 3 4 C D F A B E 4.5 POWER SUPPLY UNIT SIDE A SIDE B F F P101 P301 CN401 B AC IN CN101 CN1 CN1 [VWR1365] POWER SUPPLY UNIT F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 43 5 6 7 8 5 6 7 8 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES [DV-563A-S] NSP 1..LOADING MECHA. ASSY VWT1207 NSP 2..LOAB ASSY VWG2426 1..DVDM ASSY VWS1563 1..JCKB ASSY VWV1942 NSP 1..FLKB ASSY VWM2184 2..FLKY ASSY VWG2427 NSP 2..PWSB ASSY VWG2429 > 1..POWER SUPPLY UNIT VWR1365 [DV-50A] NSP 1..LOADING MECHA. ASSY VWT1207 NSP 2..LOAB ASSY VWG2426 1..DVDM ASSY VWS1563 1..JCKB ASSY VWV1942 NSP 1..FLKB ASSY VWM2191 2..FLKY ASSY VWG2430 NSP 2..PWSB ASSY VWG2429 > 1..POWER SUPPLY UNIT VWR1365 Mark No. Description Part No. ALOAB ASSY [VWG2426] SWITCHES AND RELAYS S101 REAF SWITCH VSK1011 OTHERS CN602 CONNCTOR S2B-PH-K CN601 CONNCTOR S5B-PH-K PRINTED CIRCUIT BOARD VNP1910 BDVDM ASSY [VWS1563] SEMICONDUCTORS IC602 K4S281632D-TC75 IC702 K4S641632F-TC75 IC101 M63018FP > IC401 MM1565AF > IC402 PQ033EZ01ZP > IC403 PQ1L333M2SP IC400 PST3228 IC701 SAA7893HL/C2 IC601 STI5588CVB IC301 STM6316ATXXA IC608 TC7WH34FU IC604, IC606, IC607 TC7WU04FU IC603 VYW2087 Q390, Q501, Q511, Q521, Q531 2SA1576A Q541, Q551 2SA1576A Q401, Q403 2SA1602A Q202, Q212, Q402 2SC4081 Q6973 DTC114TUA Q201, Q211 IMT1A Q6302 UMD3N Q6972 UMX1N D6971 1SS355 D6301 RB501V-40 COILS AND FILTERS L390 LCYA2R7J2520 L604, L606, L607 LCYA470J2520 L608 LCYAR22J2520 CAPACITORS C309, C315, C318, C319, C323 CCG1179 C326, C342, C348, C357, C360 CCG1179 C373, C377, C388, C391, C6004 CCG1179 C6014, C6047, C6808 (2.2uF/6.3V) CCG1179 C390 CCSRCH180J50 C142 CCSRCH221J50 C200 CCSRCH331J50 C392 CCSRCH560J50 C393 CCSRCH7R0D50 C6402, C6403 CCSRCH8R0D50 C211 CEVW100M16 C231, C406, C410, C501, C706 CEVW101M16 C710, C718 CEVW101M16 C6015, C6122, C713, C719 CEVW101M4 C201 CEVW220M16 C301, C408, C420, C430 CEVW221M4 C6049, C6050, C6137, C6160 CEVW221M4 C401 CKSQYB225K10 C127, C128, C381, C423, C427 CKSRYB102K50 C433, C6701, C702, C711 CKSRYB102K50 C112–C114, C124, C125, C205 CKSRYB103K50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 44 1 2 3 4 1 2 3 4 C D F A B E C213, C214, C355, C705 CKSRYB103K50 C101, C102, C122, C132, C139 CKSRYB104K16 C300 CKSRYB104K16 C394 CKSRYB152K50 C126, C344 CKSRYB223K50 C403, C409, C6301, C6812, C707 CKSRYF104Z25 C230, C232, C233, C411, C412 CKSRYF105Z10 C424, C434, C435, C502–C507 CKSRYF105Z10 C6023, C6030, C6037, C6048, C6064 CKSRYF105Z10 C6081, C6094, C6107, C6119, C6121 CKSRYF105Z10 C6124, C6136, C6149, C6150, C6159 CKSRYF105Z10 C6171, C6172, C6184, C6198, C6401 CKSRYF105Z10 C6404, C6703-C6708, C6974, C6975 CKSRYF105Z10 C701, C703, C704, C708, C709 CKSRYF105Z10 C712, C714–C717, C720–C725 CKSRYF105Z10 RESISTORS R6017, R6932 RAB4C0R0J R201 RAB4C220J R211 RAB4C390J R109, R402, R403, R408, R409 RS1/10S0R0J R412–R416, R420, R421, R424 RS1/10S0R0J R427, R480–R482, R488, R6149 RS1/10S0R0J R6159, R6305, R6701, R712, R713 RS1/10S0R0J R725, R727 RS1/10S0R0J R103, R106 RS1/10S1R0J R104, R107 RS1/10S1R8J R115–R120 RS1/10S4R7J R125, R152, R330, R331, R6028 RS1/16S1002F R6035 RS1/16S1002F R301 RS1/16S1202F R502, R512, R522, R532, R542 RS1/16S1500F R552 RS1/16S1500F R101, R102, R123, R172, R182 RS1/16S5600F Other Resistors RS1/16S###J OTHERS CN401 PH CONNECTER(SMT) S13B-PH-SM3 CN103 PH CONNECTER(SMT) S5B-PH-SM3 FLEXIBLE CABLE VDA1681 CN104 4P CONNECTOR VKN1409 CN102 12P CONNECTOR VKN1416 CN105 21P CONNECTOR VKN1425 CN101 24P CONNECTOR VKN1464 CN601, CN602 33P CONNECTOR VKN1519 KN102 EARTH METAL FITTING VNF1109 KN103 EARTH METAL FITTING VNF1109 X6401 (27MHz) VSS1172 X301 (20MHz) VSS1186 CJCKB ASSY [VWV1942] SEMICONDUCTORS IC204, IC302, IC402 BA4560F IC301, IC401 DSD1702EG IC201 DSD1791DBR IC701 LA73054 > IC771 MM1565AF > IC101 NJM78M05FA IC103, IC104 TC7WU04F Q203, Q216, Q303, Q403 2SA1576A Q101, Q801 2SC4081 Mark No. Description Part No. Q205–Q208, Q304, Q305 2SD2114K Q404, Q405 2SD2114K Q201, Q202, Q214, Q215 DTC114YUA Q301, Q302, Q401, Q402, Q702 DTC114YUA D101, D601 1SS355 D102 UDZS6.2B COILS AND FILTERS L701, L702 CHIP BEADS VTL1089 L801 CHIP BEADS VTL1108 CAPACITORS C327, C328, C427, C428 CCSRCH151J50 C206, C303, C403 CCSRCH331J50 C621, C624 CCSRCH470J50 C302, C308, C321, C322, C402 CEAT101M10 C408, C421, C422 CEAT101M10 C232, C330, C430 CEAT101M16 C712, C713, C718 CEAT102M6R3 C205 CEAT220M50 C109, C116, C201, C203, C304 CEAT331M10 C404 CEAT331M10 C245, C246, C331, C332 CEAT470M16 C431, C432 CEAT470M16 C719, C720 CEAT471M6R3 C102, C118, C732, C771 CEJQ101M16 C804 CEJQ1R0M50 C105, C111, C707, C711, C730 CEJQ221M6R3 C743, C774, C805 CEJQ221M6R3 C702–C706, C773 CKSQYB225K10 C701 CKSQYF104Z25 C117, C202, C210, C212, C301 CKSRYB102K50 C401, C734, C737 CKSRYB102K50 C323, C324, C423, C424 CKSRYB152K50 C204, C207–C209, C231, C305 CKSRYF104Z25 C329, C405, C429, C714, C801 CKSRYF104Z25 C806 CKSRYF104Z25 C101, C106, C108, C112–C115 CKSRYF105Z10 C211, C247, C248, C306 CKSRYF105Z10 C325, C326, C406, C425, C426 CKSRYF105Z10 C623, C708–C710, C731, C733 CKSRYF105Z10 C736, C742, C772 CKSRYF105Z10 C234, C236 CQMBA152J50 C238, C240, C242, C244 CQMBA561J50 RESISTORS R323, R326, R423, R426 RN1/16SE1502D R231, R234, R238, R242 RN1/16SE1801D R232, R237, R239, R244 RN1/16SE3301D R321, R322, R421, R422 RN1/16SE8201D R271, R282, R361, R461 RS1/10S332J R706, R707 RS1/10S68R0F R324, R325, R424, R425 RS1/16S1001F R233, R235, R240, R243 RS1/16S6800F R704, R708–R710 RS1/16S68R0F R805 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS JA801 OPT. LINK OUT 12MB/S GP1FA502TZ JA601, JA602 JACK RKN1004 JA101 JACK VKB1167 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 45 5 6 7 8 5 6 7 8 C D F A B E JA102 JACK VKB1179 CN601 7P CONNECTOR VKN1211 CN101, CN102 33P CONNECTOR VKN1519 KN101–KN103 EARTH METAL FITTING VNF1084 DFLKY ASSY [VWG2427] SEMICONDUCTORS IC101 PE5374A D102 SLR-343VC SWITCHES AND RELAYS S102–S107, S109–S118 ASG7013 CAPACITORS C183, C199 CKSRYB102K50 C151–C153 CKSRYB103K50 C102, C105 CKSRYF104Z25 C104 CKSRYF104Z50 C182 CKSRYF105Z10 RESISTORS All Resistors RS1/16S###J OTHERS CN102 CONNECTOR POST B3B-PH-K IC104 REMOTE RECEIVER RPM7240-H4 V101 FLUORESCENT TUBE VAW1078 CN104 21P CONNECTOR VKN1225 X101 (5MHz) VSS1142 DFLKY ASSY [VWG2430] SEMICONDUCTORS IC101 PE5374A D102 SLR-343VC SWITCHES AND RELAYS S102–S107, S109–S118 ASG7013 CAPACITORS C183, C199 CKSRYB102K50 C151–C153 CKSRYB103K50 C102, C105 CKSRYF104Z25 C104 CKSRYF104Z50 C182 CKSRYF105Z10 RESISTORS All Resistors RS1/16S###J OTHERS CN102 CONNECTOR POST B3B-PH-K IC104 REMOTE RECEIVER RPM7240-H4 V101 FLUORESCENT TUBE VAW1078 CN104 21P CONNECTOR VKN1225 X101 (5MHz) VSS1142 EPWSB ASSY [VWG2429] SWITCHES AND RELAYS S101 ASG7013 OTHERS CN103 CONNECTOR POST B3B-PH-K FPOWER SUPPLY UNIT [VWR1365] OTHERS Mark No. Description Part No. > P301 PROTECTOR(800mA) AEK7063 > P101 PROTECTOR(1.6A) AEK7066 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 46 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 ADJUSTMENT ITEMS AND LOCATION 6.2 JIGS AND MEASURING INSTRUMENTS 1 1 2 2 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 47 5 6 7 8 5 6 7 8 C D F A B E 6.3 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ Ÿ Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point LOAB and DVDM ASSYS Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 48 1 2 3 4 1 2 3 4 C D F A B E 6.4 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE (Player) TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD CAUTION: Perform only trace, video and audio outputs are nothing. • The TEST MODE functions that are used only during adjustment are described here. For details, see "7.1.1 TEST MODE". DVD disc POWER ON OFF POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 49 5 6 7 8 5 6 7 8 C D F A B E 6.5 MECHANISM ADJUSTMENT • Remove the Loading Mecha. Assy. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Loading Mecha. Assy (Float Base) with nippers. Cautions: Because there is not a Spacer for height adjustment in adjustment after the second time, will keep it at need. (This parts is Traverse mechanism exclusive use of a model for 2003 years) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Loading Mecha. Assy 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.1.10 DISASSEMBLY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 50 1 2 3 4 1 2 3 4 C D F A B E Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 51 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the Test mode remote control unit. • Light the all FL and LEDs, and goes out the FL and LEDs when pressing the keys of something. • OSD displays test mode. Refer to the "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". 2 Release the Test mode • Turn off the power. • Press the [ESC] (A8-5F) key of the remote control unit and reset it. 3 Tray open / close • Press the [REPEAT A-B] (A8 - 48) key of the remote control unit. • Press the [OPEN / CLOSE] key of the main unit from the stop state. 4 Playback stop 1. Press the [REPEAT] (A8 - 44) key of the remote control unit from the playback state. 2. Press the [STOP] key of the remote control unit or main unit from the playback state. (Playback stops, but the loaded disc keeps rotating.) 5 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). 6 Focus on / sweep 1. Lock the focus by pressing the [TEST] (A8-5E) and [2] (A8-02) keys in order. 2. Repeat focus sweep by pressing the [TEST] (A8-5E) and [3] (A8-03) keys in order. 7 Spindle FG servo CAV : Press the [TEST] (A8-5E) and [5] (A8-05) keys in order,then rise up the spindle and FG servo becomes on. CLV : Press the [TEST] (A8-5E) and [9] (A8-09) keys in order,then rise up the spindle and FG servo becomes on. 8 Tracking open / close 1. Open tracking by pressing the [STEP FWD] (A8-54) key of the remote control unit in the play state. 2. Close tracking by pressing the [STEP REV] (A8-50) key of the remote control unit in the play state. 9 Slider servo on/off 1. Turn on the slider servo by pressing the [TEST] (A8-5E) and [CX] (A8-0E) keys in order. 2. Turn off the slider servo by pressing the [TEST] (A8-5E) and [TV/LDP] (A8-0F) keys in order. 0 Slider in / out Slider in : In the tracking off state, press the [SCAN REV] (A8-11) key of the remote control unit. Slider out : In the tracking off state, press the [SCAN FWD] (A8-10) key of the remote control unit. - Play (perform only the ID search and trace to the specified location) Press the [TV/LDP] (A8-0F) key of the remote control unit from the stop state. Perform only trace, video and audio outputs are nothing. = Screen display ON/OFF 1. Turn off the display by pressing the [AUDIO] (A8-1E) key of the remote control unit. 2. Turn on the display by pressing the [DISPLAY] (A8-43) key of the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 52 1 2 3 4 1 2 3 4 C D F A B E ~ Search 1. Search address input entry • It becomes the address input mode when pressing the [+10] (A8-1F) key. (Most significant digit of an address displays "<".) • In this time, display the last address as the initial state. 2. Search address input • Press the [0] to [9] (A8-00 to 09) keys of the remote control unit. In the DVD, set an address with hexadecimal. • In the address input mode, turn to the hexadecimal input by pressing the [PROGRAM] (A8-4C) key (display a "∗" mark), and [1] to [6] keys are each input as A to F. • Hexadecimal input and decimal input can switch with toggle. • In case of CD, perform only the absolute time search. 3. Search execution • Press the [CHP/TM] (A8-13) key of the remote control unit. • After the search, perform only trace and video and audio outputs are nothing. 4. Release the Search address input • Clear the address by pressing the [CLEAR] (A8-45) key. Release the address input mode when pressing the [CLEAR] key once again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 53 5 6 7 8 5 6 7 8 C D F A B E 7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE Character in bold : Item name : Information display 1 5 6 10 13 11 8 9 3 2 12 17 18 19 16 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL – ∗ ∗ ∗] [OFF], [ACC/BRK], [CAV], [CLV] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] In Side Switch ON : [01] In Side Switch OFF : [00] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] - Jitter value [J – ∗ ∗ ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLASH = ∗ ∗] % Revision of the system controller [S: ∗. ∗ ∗ ∗ / ∗. ∗ ∗ ∗] version . revision / build number of the ST core ^ Revision of the DVD mechanism controller [M: ∗ ∗ / ∗ ∗ ∗] Kinds of version / firmware of the FE. RAM or ROM 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 54 1 2 3 4 1 2 3 4 C D F A B E 7.1.3 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY • Service mode indication (ESC + CHP/TIM keys) ID Address The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs. EDC/ID/AV 1 error history (ID Address, EDC/ID/AV 1 Error, last eight errors) Self-diagnosis functions (If a mechanical error has occurred, the mechanical-error history is also displayed.) • Calculation of the average error rate (ESC + "5" [Test mode remote control unit] keys) The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs) For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less • Indication of model information (ESC + CHAP keys) The items from 12 to 19 of the TEST MODE Indications are displayed. However, in the indications, S in the standard test mode is changed to B.E VERSION, and M is changed to F.E VERSION. For details, see 7.1.4. • Change of the background colors (ESC + "+10" [Test mode remote control unit] keys) Every time the keys are pressed, the background color is changed between blue and green alternately. (The green background is used in SETUP NAVIGATOR.) • Region confirmation mode (ESC + AUDIO [Test mode remote control unit] + "1"-"8" [Test mode remote control unit] keys) After you press the AUDIO key while holding the ESC key pressed and then input the region number, if the number is different from that set in the unit, an error message is displayed, and the tray opens. Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC key of the remote control unit. To quit, press the ESC key ∗1 : Test mode remote control unit Command Contents Conditions Remote Control Key Name Remote Control Code Memory clear and resion / revision indication CLEAR (∗1) A8-45 Average value measurement of DVD error rate 5 (∗1) A8-05 CD error rate measurement 5 (∗1) A8-05 Aspect : Pan scan 2 AF-A2 Aspect : Letter box 3 AF-A3 Aspect : Wide 4 AF-A4 Digital : AC3 5 AF-A5 Digital : AC-3 > PCM 6 AF-A6 Virtual surround : OFF Only for models having the corresponding functions 7 AF-A7 Virtual surround : TruSurround 8 AF-A8 Digital output ON REPEAT A AF-E8 Digital output OFF REPEAT B AF-E4 DTS Digital output ON Step-up mode : DTS Out STEP FWD AF-B7 DTS Digtal output OFF Step-up mode : DTS >Out STEP REV AF-B8 Scart terminal output : VIDEO WY, models equipped with Scart terminal AUDIO AF-BE Scart terminal output : S-VIDEO SUBTITLE AF-36 Scart terminal output : RGB ANGLE AF-B5 Progressive OFF Only for progressive models (This command is valid in the stop state after the playback.) R_SKIP A3-9D Progressive ON F_SKIP A3-9C SACD multi audio select play ON Only for SACD models (This command is valid in the stop state after the tray closed.) K_ADSEL (DIG/ANA) A8-0C SACD multi audio select play OFF LAS_MEMO AF-F6 SACD hibrid SACD CD layer ON KD_PLUS10 AF-BF SACD hibrid SACD CD layer OFF CONDITION AF-B1 Audio 5.1 CH ON Only for models having the corresponding functions (This command is valid in stop state.) KD_ENTER AF-EF Audio 5.1 CH OFF SURROUND AF-61 FL indication of EDC / ID error CX (∗1) A8-0E FL indication of ID number STEREO (∗1) A8-4A ZOOM ON (X4) ZOOM AF-37 ZOOM OFF - - - - - - - - - Exit Input ID Number ! 1 This display appears when the PLAY key is pressed in Step 4. Enter a 9-digit number to compare. The number is also displayed on the FL display. 6 By pressing the CLEAR key without having input a number, the unit returns to Step 2 without doing anything else. Each press of this key after a number has been input deletes one digit. 7 After entering all 9 digits, if you press the PLAY key, the unit compares the numbers input in Steps 2 and 6, and only if the numbers match, that number is set as the ID. Then the unit automatically enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Input Mode. 8 Enter a 9-digit ID number. The ID number is also displayed on the FL display. 2 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 3 After entering all 9 digits, if you press the PLAY key, the unit enters Compare mode. Enter the same ID number again. Only if your two input numbers match, the ID number is set. Compare mode helps eliminate mistyping of the ID number. 4 After entering all 9 digits, if you press the SEARCH key, the unit unconditionally sets the input number as the ID number. Then the unit automatically enters Player's Data Input Mode. (The SEARCH key is not accepted after all 9 digits have been entered.) 5 2 3 [Player's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! 4 5 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Input ID Number ! 6 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Input ID Number ! 8 Note: Enter ID numbers while the unit is in Stop mode so that the values set will be immediately written to the flash ROM. The following operations are all made with the TEST MODE remote control unit (GGF1381). Caution: For the DVD players compatible with DVD-RW, for playback of a DVD-RW disc (CPRM), it is necessary that an individual ID number and ID data are set for each player. If the ID number and ID data be not properly set in the manner described below, future operations cannot be guaranteed. The ID number is written on the yellow label at the rear panel of the player. If there is no yellow label, before downloading FLASH ROM, take note of the ID number set following the procedures outlined in "ID Number Confirmation Mode" on the next page. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 2 without doing anything else. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 6 without doing anything else. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 61 5 6 7 8 5 6 7 8 C D F A B E To enter ID Number Confirmation Mode after the ID number and the ID data are set, press the ESC key then the STEREO key. ID Number Confirmation Mode 1 The ID number already set is displayed. (It is also displayed on the FL display.) 2 Enter a 9-digit number for comparison. This is not required when you only wish to check the ID number visually. (The number is also displayed on the FL display.) 3 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 4 After entering all 9 digits, if you press the PLAY key, the unit compares the number entered in Step 2 with the ID number set, and only if the numbers match, the unit automatically exits ID Number Confirmation Mode. If an ID data has not been entered, the unit enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Confirmation Mode. 5 After entering all 9 digits, if you press the STOP key, the unit compares the number entered in Step 3 with the ID number set, and only if the numbers match, the unit automatically deletes the ID number and exits this mode. If the numbers do not match, the disc tray is opened, and the unit exits this mode. (The STOP key is not accepted after all 9 digits have been entered.) 6 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit Input ID Number ! 3 2 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Memory Clear Input ID Number ! 5 6 Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 4 without doing anything else. • Indication of an ID number already set An ID number already set is displayed in the following cases: 1) When the ESC key then the CLEAR key are pressed, user settings are cleared, then the ID number set is displayed on the screen. In this case, the ID number is not displayed on the FL display. 2) When the unit enters ID Number Confirmation Mode by your pressing the ESC key then the CLEAR key, the ID number set is displayed. In this case, the ID number is also displayed on the FL display. If you only need to confirm the ID number, you can exit this mode by pressing the CLEAR key or turning off the power. • Indication when no ID number is set If no ID number is set, the message "No ID Number!" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 62 1 2 3 4 1 2 3 4 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1133) is loaded in this mode, the unit automatically starts reading the data. (If the DVD DATA DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1133), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 63 5 6 7 8 5 6 7 8 C D F A B E 7.1.8 TROUBLE SHOOTING Check the error history first. (See "7.1.6 MECHANICAL ERROR HISTORY") When the error history is not displayed, see the below table. No. Symptoms Diagnosis Contents Possible Defective Points 1 The power is not turned on. Check the voltage of EV+3.3V, –28V and FLDC on the POWER SUPPLY Unit. POWER SUPPLY Unit Are wires of output connector (POWER SUPPLY Unit) and CN401 (DVDM Assy) disconnected or damaged ? Connector / cable Check that the voltage at IC101-pin 22 (KEY0) on the FLKY Assy becomes 0 V when the POWER key is pressed and 3.3 V when it is released. FLKY Assy Tact SW (when operation of only the POWER key on the main unit is not accepted) Check that the voltage at IC101-pin 17 (SEL IR) on the FLKY Assy is in the range between 0 and 3.3 V while receiving signals from the remote control unit when any key on it is pressed. FLKY Assy Remote receiver section (when operation of only the POWER key on the remote control unit is not accepted) 2 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Is the level at both IC101-pin 12 (XRESET) and pin 11 (POWER ON) on the FLKY Assy "H" ? FLKY Assy FL Control IC (IC101) • Check the voltage of E+6V and SW+1.8V on the POWER SUPPLY Unit. • Check the voltage of P-CONT is about 3V on the POWER SUPPLY Unit. POWER SUPPLY Unit Check that the following voltage are output : IC401-pin 1 : 5V, IC402-pin 3 : 3.3V, IC403-pin 5 : 3.3V on the DVDM Assy. DVDM Assy 5V Regulator IC (IC401) 3.3V Regulator IC (IC402) 3.3V Regulator IC (IC403) Are resonators (X601 : 27MHz, X301 : 20MHz) on the DVDM Assy oscillating ? DVDM Assy Crystal resonator (X601 and X301) Refer to contents of an FE error displayed on the FL display. (I2C communication line defectiveness, etc.) DVDM Assy Front End IC (IC301) • Is a signal input into IC603-pin26 (CE_FLASH) on the DVDM Assy ? (Is a signal fluctuating for several seconds after the power is turned on ?) → Communication with flash ROM. • Are the signals input into IC602-pin 16 (SMIWE), pin 19 (SMICS0) and pin 38 (SMICLK) on the DVDM Assy ? (Is a signal fluctuating ?) → Communication with SDRAM DVDM Assy Back End IC (IC601) Flash ROM (IC603) SDRAM (IC602) Is a signal output from IC603-pin 28 (CPU_OE) on the DVDM Assy? (Is a signal fluctuating for several seconds after the power is turned on ?) DVDM Assy Flash ROM (IC603) Is a signal input into IC101-pin 16 (FP_ACK) on the FLKY Assy ? (Is a signal fluctuating ?) → Communication with FL Control IC DVDM Assy Back End IC (IC601) FLKY Assy FL Control IC (IC101) Is a signal output from IC101-pin 10 (XRDY) on the FLKY Assy ? (Is a signal fluctuating in the range of 0-3V ?) FLKY Assy FL Control IC (IC101) Are the signals output from IC101-pin 9, pin 8 and pin 7 on the FLKY Assy ? (in the range of 0-3V) DVDM Assy Back End IC (IC601) – FLKY Assy FL Control IC (IC101) communication line 3 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Check the video signal path between Back End IC (DVDM Assy IC601) and video-out terminal (see the block diagram) DVDM Assy, JCKB Assy Video circuit after Back End IC (IC601) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 64 1 2 3 4 1 2 3 4 C D F A B E No. Symptoms Diagnosis Contents Possible Defective Points 4 A tray cannot be opened. (An opening screen is displayed on the monitor) Does the voltage of CN103-pin 3 and pin 5 on the DVDM Assy change normally ? Pin 3 (XCLOSE): Tray is fully closed: "H" Pin 5 (OPEN): Tray is fully opened: "H" DVDM Assy Front End IC (IC301) Tray SW Is a LOAD-DRV signal reaching ? DVDM Assy Back End IC (IC601) Are the signals output from IC101 pin 36 and pin 37 (CN103 pin 1 and pin 2) on the DVDM Assy ? Pin 36: Approx. 6V during opening tray approx. 0V during closing tray. Pin 37: Approx. 0V during opening tray approx. 6V during closing tray. DVDM Assy FTS Driver IC (IC101) Are wires of CN104 and CN103 on the DVDM Assy disconnected or damaged ? Connector / cable Does the voltage of CN102-pin 12 change by pressing the Inside switch. Inside switch 5 Playback impossible (no focusing) Are the signals output from IC101-pin 34 (F_DRV) and pin 35 (F_RTN) on the DVDM Assy ? DVDM Assy FTS Driver IC (IC101) Does 650-nm LD emit light ? Does a pickup lens move up / down ? Does an actuator spring bend ? Pickup Are plastic parts damaged ? Or is a shaft detached ? Is the turntable detached or tilted ? Mechanism section (motor) Is flexible cable of CN101 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC301-pin 33 (FACT) on the DVDM Assy ? (Device control of about 500 mV is output usually. It is fluctuated by about ± 100 mV with focus up / down.) DVDM Assy Front End IC (IC301) 6 Playback impossible (Spindle does not turn) Are the signals output from IC101-pin 12 (A3), pin 13 (A2) and pin 14 (A1) on the DVDM Assy ? Is pin 41 (PS) fixed LOW and is pin 38 (SB) fixed HIGH ? DVDM Assy FTS Driver IC (IC101) Is there any part detached from the spindle motor ? Or Is there any foreign object lodged in it ? Mechanism section (Spindle motor) Are wires of CN102 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC301-pin 44 (SPDL_PDM) on the DVDM Assy ? DVDM Assy Front End IC (IC301) 7 Playback impossible (Playback stops) Does 650-nm LD deteriorate ? If the voltage at both ends of R201 on the DVDM Assy is 0.7 V or more, the 650-nm LD is definitely deteriorated. 650-nm LD deteriorated. (When playback of a DVD is impossible) Does 780-nm LD deteriorate ? If the voltage at both ends of R211 on the DVDM Assy is 1.2 V or more, the 780-nm LD is definitely deteriorated. 780-nm LD deteriorated. (When playback of a CD is impossible) Is there abnormality in FG waveform ? DVDM Assy FG output : FTS Driver IC (IC101) Are there scratches or dirt on the disc ? Disc 8 Picture disturbance during playback (block noise, freeze, other) Are there scratches or dirt on the disc ? Is there a problem with the format of the disc ? Disc 9 No sound (Picture is normal) Check the waveform (BCK, LRCK, MCLK, DATA). DVDM Assy Back End IC (IC601) Is signal output from signal (IC201-pin 17, pin 18, pin 13, pin 12) on the JCKB Assy ? JCKB Assy Audio Dac IC (IC201) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 65 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 SEQUENCE AFTER POWER ON STANDBY Power on operation by a user (remote controller key or product key) FL controller receives a message [FL controller] FL lighting / outputs a power on signal (POWER ON: "L"→"H") [FL controller] Release the reset for BACK END (XRESET: "L"→"H") [BACK END] Accesses flash ROM and 128M SDRAM [BACK END] Accesses FRONT END [FL controller] Request communication to BACK END (FP_XRDY) [BACK END] Outputs the communicable signal to FL controller (FP_ACK) BACK END – FL controller communication The opening picture appears [FRONT END] Check the following: • Slider positioning (INSIDE SW) • Spindle FG stop Disc detection (Focus control) Spindle turn Read ID information code Various setting The picture appears Flow chart from power on to the picture output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 66 1 2 3 4 1 2 3 4 C D F A B E 7.1.10 DISASSEMBLY 1 Remove the Bonnet by removing the five screws. 2 Press the STANDBY/ON button to turn on the power. 3 Press the 0 button to open the tray. 4 Remove the tray panel. 5 Press the 0 button to close the tray. 6 Press the STANDBY/ON button to turn off the power. Bonnet and Tray Panel 1 How to open the Tray when the power cannot be on Diagnosis of the PCBs 2 6 3 3 5 5 4 Tray Panel Tray Slit Tray open Drive Gear Loading Mecha.Assy Screwdriver (small) Screwdriver (small) Projection Insert a screwdriver (small) into the slit located at the bottom of the unit, and slide the projection of the drive gear in the loading mecha. assy in the direction of the arrow, as indicated in the photo. If the tray pops out a little, fully pull it out by a hand. Note: For performing the diagnosis shown below, the following jig cables for service are required: • GGD1330 ×2 Procedures ; JCKB Assy : ¥ → ø → π DVDM Assy : ¥ → ø → [ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 67 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the six hooks. 2 Remove the front panel section. Front Panel Section 2 1 Remove the rear panel by removing the nine screws. 2 Remove the five screws. 3 Remove the JCKB Assy and stand it against the other parts. JCKB Assy 3 Front panel section Rear Panel JCKB Assy JCKB Assy 2 1 1 1 1 1 1 ×2 ×5 1 1 2 2 2 2 2 3 1 1 Diagnosis www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 68 1 2 3 4 1 2 3 4 C D F A B E 1 Exchange the two flexible cables for the two jig cables. 2 Remove the three screws. DVDM Assy 4 3 Remove the DVDM Assy and stand it against the other parts. Diagnosis DVDM Assy DVDM Assy Jig Cable (GGD1330) 2 3 2 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 69 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the bridge by removing the one screw. 2 Pull out the tray, then remove it by pressing the hook. 3 Short-circuit two points of C and D by soldering. 4 Remove the four connectors from the Loading Mecha. Assy. Note: After replacement, connect the flexible cable, then remove the soldered joint (open). 5 Remove the four screws that secure the Loading Mecha. Assy to the unit. Loading Mecha. Assy 1 Rear View Front Side 1 3 -1 1 -2 2 -1 2 -2 Loading Base Triangle Drive Cam Pin Hook Bridge Tray Note when reinserting the Tray C D Removing the Traverse Mecha. Assy-S and Pickup Assy-S When reinserting the Tray, first align the triangle printed on the Loading Base and the pin of the Drive Cam, then insert the Tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 70 1 2 3 4 1 2 3 4 C D F A B E 1 Dislodge the flexible cables from their factory placement. 2 Remove the four hooks. 3 Remove the Traverse Mecha. Assy-S. Traverse Mecha. Assy-S 2 × 2 Bottom View Traverse Mecha. Assy-S Flexible cable for the pickup Flexible cable for the spindle motor 1 1 1 2 × 2 2 3 Flexible cable for the stepping motor Front Side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 71 5 6 7 8 5 6 7 8 C D F A B E 1 Dislodge the flexible cable for the pickup from its packaged placement. 2 Remove the flexible cable for the pickup. 3 Remove the two adjustment screws and two adjustment springs. 4 Remove the Pickup Assy-S. Pickup Assy-S 3 Note: The Pickup Assy-S can be removed without removing the Traverse Mecha. Assy-S. (shown as Step ø.) Bottom View Flexible cable for the pickup 1 4 3 3 1 2 Front Side Pickup Assy-S Adjustment screw (Skew screw) Adjustment screw (Skew screw) Adjustment spring (Skew spring) Adjustment spring (Skew spring) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 72 1 2 3 4 1 2 3 4 C D F A B E 5 5 5 Remove the two screws. Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Pickup Assy-S Note: The screws are secured with epoxy. Make sure to apply epoxy after reattaching the screws. Leaf Spring Joint Spring Joint 03 : Conductive surface Hook Hook Arrangement of the flexible cable for the spindle motor : Conductive surface Arrangement of the flexible cable for the stepping motor Front Side Front Side Bottom View Bottom View www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 73 5 6 7 8 5 6 7 8 C D F A B E Front Side Note: Be sure to move the Pickup Assy-S to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 2 1 3 7 Attach the flexible cable of the pickup to the connector. 1 Fold the flexible cable inward at the position of the reference line. 3 Fold the flexible cable of the pickup with the backing inward. 7 Pass the flexible cable below the hook, and fold it back. 8 Fold the flexible cable back at the hook. 9 Fold the flexible cable along the hook. 4 Pass the flexible cable through the hook not allowing any slack. 6 Hook the part folded in Step 1 to the hook. 5 Fold the flexible cable as indicated in the photo. Hook Bottom View 5 6 Make sure there is no slack in the cable Reference line Reference line Backing 97mm ± 2mm Reference line Hook Pass the cable below the hook Hook 8 Hook Hook 9 Make sure that the cable does not have any slack Make sure that the cable is loose 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 74 1 2 3 4 1 2 3 4 C D F A B E 7.2 IC 7 STM6316ATXXA (DVDM ASSY : IC301) • FRONT END IC ¶ Block Diagram • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC STM6316ATXXA, STI5588CVB, SAA7893HL/C2, M63108FP, PE5374A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 75 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 F E R I F k 7 . 2 1 tr a p e c n e r e f e r k c olb g ola n A 2 I A D N G A D N G d n g g ola n a 3 N I F R r o tic a p a c k c olb n oit alu d o m e d a o t t u p ni n oit aic o s s a C la n gis F R 4 T U O F R r o tic a p a c k c olb g ola n a n a m o rf g nitsil e r u txi m 4 B + 3 B + 2 B + 1 B 5 8 1 A C C V A 8 V 1 8 V 1 g ola n a 6 A 1 B t u p ni 1 B - U P 7 N M D N G A D N G d n g g ola n a 8 B 2 B t u p ni 2 B - U P 9 N M 3 3 C C V A 3 V 3 3 V 3 g ola n a 0 1 D F E R p u k cip o t U P r o f t u p t u o 1 V 2 1 1 N M 8 1 C C V A 8 V 1 8 V 1 g ola n a 2 1 D 4 B t u p ni 4 B - U P 3 1 S I 8 1 A C C V A 8 V 1 8 V 1 g ola n a 4 1 C 3 B t u p ni 3 B - U P 5 1 S I 3 3 A C C V A 3 V 3 3 V 3 g ola n a 6 1 S I A D N G A D N G d n g g ola n a 7 1 D S 3 3 C C V A 3 V 3 3 V 3 g ola n a 8 1 D S 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 1 D S D N G A D N G d n g g ola n a 0 2 F C t u p ni C m a e b 3 - U P 1 2 E A t u p ni A m a e b 3 - U P 2 2 S I D L E I H S V A D N G d n g g ola n a 3 2 C D A 8 1 C C V A 8 V 1 8 V 1 g ola n a 4 2 C D A D N G A D N G d n g g ola n a 5 2 C D A D L E I H S V A D N G d n g g ola n a 6 2 C A D 3 3 C C V A 3 V 3 3 V 3 g ola n a 7 2 C A D D N G A D N G d n g g ola n a 8 2 E L D N I P S ) 2 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 9 2 E G D E L S ) 1 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 0 3 T X E F E R % 1 K 0 2 C A D r o f e c n e r e f e R 1 3 D N G F E R tx e f e r d n g g ola n a 2 3 C A D F E R % 1 m h o 0 6 5 e c n e r e f e r C A D 3 3 T C A F % 1 m h o 0 6 5 s u c o f r o f g nitsilt n e rr u c C A D 4 3 T C A T % 1 m h o 0 6 5 g nik c a rt r o f g nitsilt n e rr u c C A D 5 3 C A D 8 1 C C V A 8 V 1 8 V 1 g ola n a 6 3 0 C P G F t u p ni e slu p G F 7 3 1 C P S P la n gis lo rt n o c r e vir D 8 3 2 C P ) n e p o ( 1 W S y a rt n oitis o p N E P O y a rt r o f t u p ni W S 9 3 3 C P B S la n gis lo rt n o c r e vir D 0 4 4 C P n oitis o p D L S t u p ni W S e dis n I ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 76 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 4 S S V D D N G d n g la tigid 2 4 3 3 D D V D 3 V 3 3 V 3 la tigid 3 4 5 C P 0 5 6 X / 0 8 7 la n gis lo rt n o c e g n a h c D L m n 0 5 6 / m n 0 8 7 4 4 6 C P M D P e d nip s e vir d eld nip s r o f g nitsil M D P lo rt n o C 5 4 7 C P nia g cip o la n gis lo rt n o c nia g C I E O 6 4 7 D P U P 2 0 X / U P 3 0 t n e m eltt e s p u -llu P 7 4 S S V D D N G d n g la tigid 8 4 8 1 D D V D 8 V 1 8 V 1 la tigid 9 4 6 D P ) g u b e d ( ts e t 0 5 5 D P ) g u b e d ( ts e t 1 5 4 D P ) klc P S D ( ts e t 2 5 3 D P ) a t a d P S D ( ts e t 3 5 2 D P ) 1 b rts P S D ( ts e t 4 5 1 D P r o tin o m r o rr e ) d e e n d d a F P L z H K 0 3 ( r o tin o m r o rr e G K R T r o fla ni m r e T 5 5 0 D P e vir d M D P y a rt e vir d y a rt r o fla n gis M D P lo rt n o C 6 5 S S V D D N G d n g la tigid 7 5 3 3 D D V D 3 V 3 3 V 3 la tigid 8 5 R R E _ T U O R O R R E _ S R F /I A T A D E B 9 5 D I L A V E _ T U O N E _ R R E _ S R F /I A T A D E B 0 6 S S V D D N G d n g la tigid 1 6 K L C _ T U O K L C B _ S R F /I A T A D E B 2 6 8 1 D D V D 8 V 1 8 V 1 la tigid 3 6 D I L A V D _ T U O D I L A V D _ S R F /I A T A D E B 4 6 A T A D _ T U O A T A D _ S R F /I A T A D E B 5 6 C N Y S _ T U O T S B C C E _ S R F /I A T A D E B 6 6 5 E P ) A M D ( L C S t u p ni d a oln w o d e nit u o r E F 7 6 4 E P ) A M D ( A D S t u p ni d a oln w o d e nit u o r E F 8 6 3 E P L C S F /I d n a m m o c E B 9 6 2 E P A D S F /I d n a m m o c E B 0 7 1 E P ) e s olc ( 2 W S y a rt n oitis o p E S O L C y a rt r o f t u p ni W S 1 7 0 E P T N I X X D la n gis n oit a g a p o r p s u t a ts E F 2 7 S S V D D N G d n g la tigid 3 7 3 3 D D V D 3 V 3 3 V 3 la tigid 4 7 1 F P p ullu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 5 7 0 F P n w o dllu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 6 7 S S V D D N G d n g la tigid 7 7 8 1 D D V D 8 V 1 8 V 1 la tigid 8 7 1 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 9 7 0 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 0 8 T S E T n w o dllu p - K 0 1 ts e t www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 77 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 8 N _ T E S E R T E S E R t u p ni T E S E R 2 8 C D A S S V A D N G d n g g ola n a 3 8 C D A 8 1 D D V A 8 V 1 8 V 1 g ola n a 4 8 L L P D N G A D N G d n g g ola n a 5 8 F F O L L P A D N G d n g g ola n a 6 8 T U O E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 7 8 N I E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 8 8 L L P 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 8 1 D L D L m n 0 5 6 la n gis g nivir d D L m n 0 5 6 0 9 2 D L D L m n 0 8 7 la n gis g nivir d D L m n 0 8 7 1 9 3 3 A C C V A 3 V 3 3 V 3 la tigid 2 9 L E S W T D N G / R V _ D C D C r o fla ni m r e t n oitc n uj R V s e d oid r o tin o M 3 9 1 D M L 1 D M L / D M L la ni m r e t n oitc n uj e g a tlo v r o tin o M 4 9 2 D M L 2 D M L / R V _ D V D D V D r o fla ni m r e t n oitc n uj R V s e d oid r o tin o M 5 9 L D N G A D N G d n g g ola n a 6 9 M P _ T S T c n ts e t 7 9 E C I L S _ T S T c n ts e t 8 9 C D A _ T S T c n ts e t 9 9 D C A S F R C I _ D C A S t u p t u o la n gis F R 0 0 1 T L I F G B V r o tic a p a c ytilib a ts e c n e r e f e r e dis ni r o fla ni m r e t n oitc n uj r e s n e d n o C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 78 1 2 3 4 1 2 3 4 C D F A B E 7 STI5588CVB (DVDM ASSY : IC601) • BACK END IC ¶ Pin Configuration 208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 PIO2[4] PIO2[3] PIO2[2] PIO2[1] PIO2[0] TRIGGER_OUT TRIGGER_IN PIO1[5] PIO1[4] VSS VDD1_8 PIO1[3] PIO1[2] PIO1[1] PIO1[0] PIO0[7] PIO0[6] PIO0[5] PIO0[4] PIO0[3] PIO0[2] PIO0[1] PIO0[0] VSS VDD3_3 CPU_ADR[21] CPU_ADR[20] CPU_ADR[19] CPU_ADR[18] CPU_ADR[17] CPU_ADR[16] CPU_ADR[15] CPU_ADR[14] CPU_ADR[13] CPU_ADR[12] CPU_ADR[11] VSS VDD1_8 CPU_ADR[10] CPU_ADR[9] CPU_ADR[8] CPU_ADR[7] CPU_ADR[6] CPU_ADR[5] CPU_ADR[4] CPU_ADR[3] CPU_ADR[2] CPU_ADR[1] VSS VDD3_3 CPU_DATA[15] CPU_DATA[14] 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 PIO2[5] PIO2[6] PIO2[7] VDD3_3 VSS PIO3[0] PIO3[1] PIO3[2] PIO3[3] PIO3[4] PIO3[5] PIO3[6] PIO3[7] VDD1_8 VSS B_DATA B_BCLK B_FLAG B_SYNC PIO5[0] PIO5[1] PIO5[2] VDD_RGB VSS_RGB B_OUT G_OUT R_OUT V_REF_RG I_REF_RG VDD_YCC VSS_YCC Y_OUT C_OUT CV_OUT V_REF_YC I_REF_YC VDD1_8 VSS PIO4[0] PIO4[1] PIO4[2] PIO4[3] PIO4[4] PIO4[5] PIO4[6] PIO4[7] VDD3_3 VDD_PCM VSS_PCM VSS DAC_SCLK DAC_PCMOUT0 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 CPU_DATA[13] CPU_DATA[12] CPU_DATA[11] CPU_DATA[10] CPU_DATA[9] CPU_DATA[8] VSS VDD1_8 CPU_DATA[7] CPU_DATA[6] CPU_DATA[5] CPU_DATA[4] CPU_DATA[3] CPU_DATA[2] CPU_DATA[1] CPU_DATA[0] CPU_CAS1 CPU_CAS0 CPU_RAS1 VSS VDD3_3 CPU_CE[0] CPU_CE[1] CPU_CE[2] CPU_CE[3] CPU_WAIT CPU_RW CPU_BE[1] CPU_BE[0] IRQ[0] IRQ[1] IRQ[2] RESET VSS_PLL VDD_PLL VSS PIX_CLK VDD1_8 CPU_PROCLK CPU_OE PWM0 PWM1 PWM2 TCK TDI TDO TMS TRST VSS VDD3_3 ADC_PCMCLK PIO5[5] DAC_PCMOUT1 DAC_PCMOUT2 DAC_PCMCLK DAC_LRCLK SPDIF_OUT SMI_ADR[4] SMI_ADR[5] SMI_ADR[6] SMI_ADR[7] SMI_ADR[8] SMI_ADR[9] VDD1_8 VSS SMI_ADR[3] SMI_ADR[2] SMI_ADR[1] SMI_ADR[0] SMI_ADR[10] SMI_ADR[11] SMI_ADR[12] SMI_ADR[13] SMI_CS[0] SMI_CS[1] SMI_RAS SMI_CAS SMI_WE SMI_DQML SMI_DQMU VDD3_3 SMI_CLKIN VSS SMI_DATA[0] SMI_DATA[1] SMI_DATA[2] SMI_DATA[3] SMI_DATA[4] SMI_DATA[5] SMI_DATA[6] SMI_DATA[7] SMI_DATA[8] SMI_DATA[9] VDD1_8 SMI_CLKOUT VSS SMI_DATA[10] SMI_DATA[11] SMI_DATA[12] SMI_DATA[13] SMI_DATA[14] SMI_DATA[15] PIO5[3] PIO5[4] 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 PQFP 208 (rev F) STi5588 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 79 5 6 7 8 5 6 7 8 C D F A B E Internal peripherals Front-end & link interface DMA Central command port block move Debug MPEG MPEG DMAs Communications arbiter CPU (C2+) Clock generator Refill control RID Diagnostic controller DCache SRAM ICache TAP CPU arbiter Cache sub-system ST20 arbiter and memory controller I/F SDRAM block move CD FIFOs Command I/F SDRAM arbiter (LMC) OSD, SP decoder Video filtering DENC Programmable CPU interface (EMI) Shared SDRAM interface (SMI) Video decoder and mixing JTAG debugging interface Analog/digital Video output, 480i/480p 16, 32, 64 or 128-Mbit SDRAM Ext peripherals: flash, additional DRAM SDRAM DVD 2 UARTs, 2 I2C-SSCs, IR transceiver MAFE interface Audio & Karaoke Low power mode Audio in/out ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 80 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 O S _ P F T U O . e c a fr e t ni C A D /le n a P t n o r F .t u p t u o a t a d r e fs n a rtlair e S 2 3 A T A D _ A T U O r e d o c e d D C A S o t t u p t u o a t a D 3 K L C V T U O d e v r e s e r 4 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 5 S S V - d n u o r G 6 A T A D _ B T U O r e d o c e d D C A S o t t u p t u o a t a d D C A S 7 K L C B _ B T U O r e d o c e d D C A S o t t u p t u o k c olc tib D C A S 8 G A L F _ B T U O r e d o c e d D C A S o t t u p t u o g alf D C A S 9 S O P Y R T T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n sitI N I .r e g n a h C c si D 5 yln O .t u p ni e slu p n oit a t o r y a r T . d e s u e b n a c 0 N I _ E R U T P A C 0 1 E Z E E U Q S T U O .lo rt n o c 2 S / 1 S t u p t u o o e di V - S r o fla n gis t u p t u O . e d o m t u p t u o e z e e u q s :' H ' 1 1 S T R T U O .t u p t u o la n gis d n e S o T ts e u q e R ) C 2 3 2 - S R ( T R A U 2 1 R E T T E L T U O N O I T C N U F ( r o tc e n n o c ) T R A C S ( O R U E & lo rt n o c 2 S / 1 S t u p t u o o e di V - S r o fla n gis t u p t u O .la n gis ) G N I H C T I W S . e d o m t u p t u o x o b -r e tt el:' H ' 3 1 S T C N I .t u p nila n gis d n e S o T r a el C ) C 2 3 2 - S R ( T R A U 4 1 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 5 1 S S V - d n u o r G 6 1 A T A D _ E F N I . e c a fr e t ni m a e rts 6 1 3 6 L d n E -t n o r F .t u p ni a t a d lair e S 7 1 K L C B _ E F N I . e c a fr e t ni m a e rts 6 1 3 6 L d n E -t n o r F .t u p ni k c olc lair e S 8 1 D I L A V D _ E F N I . e c a fr e t ni m a e rts 6 1 3 6 L d n E -t n o r F .t u p ni g alf dila v a t a D 9 1 C N Y S _ E F N I . e c a fr e t ni m a e rts 6 1 3 6 L d n E -t n o r F .t u p ni g alf e zin o r h c n y s lair e S 0 2 D I L A V E _ E F N I . e c a fr e t ni m a e rts 6 1 3 6 L d n E -t n o r F .tilp s _ S R r o f g alf dila v r o rr E 1 2 T S B C C E _ E F N I . e c a fr e t ni m a e rts 6 1 3 6 L d n E -t n o r F .tilp s _ S R r o f g alf tr a ts k c olb C C E 2 2 P X /I T U O .r e vir d o e div r o f t u p t u o e vis s e r g o r P / e c alr e t nif o e g n a h c a r o fla n gis t u p t u O e c alr e t ni:' H ' e vis s e r g o r p :'L' 3 2 B G R _ D D V - ylp p u s r e w o P V 3 . 3 tiu c ric B G R 4 2 B G R _ S S V - d n u o r G tiu c ric B G R 5 2 T U O _ B T U O b C / B 6 2 T U O _ G T U O Y / G 7 2 T U O _ R T U O r C / R 8 2 B G R _ F E R V N I e c n e r e f e r C A D B G R 9 2 B G R _ F E R I N I e c n e r e f e r t n e rr u c C A D B G R 0 3 C C Y _ D D V - ylp p u s r e w o P V 3 . 3 tiu c ric C Y 1 3 C C Y _ S S V - d n u o r G tiu c ric C Y 2 3 T U O _ Y T U O Y 3 3 T U O _ C T U O C 4 3 T U O _ V C T U O V C 5 3 C C Y _ F E R V N I e c n e r e f e r C A D C C Y 6 3 C C Y _ F E R I N I e c n e r e f e r t n e rr u c C A D C C Y 7 3 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 8 3 S S V - d n u o r G ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 81 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 9 3 E T U M _ V R D X _ E F T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n sitI .r e g n a h C c si D 5 yln O . g nit u m r e vir d r o t o m r o fla n gis t u p t u O g nit u m :'L' 0 4 N E P O _ E F T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n sitI N I .r e g n a h C c si D 5 yln O . n oitis o p y a rt r o fla n gis t u p n I . n oitis o p N E P O e t elp m o c :' H ' 1 4 E S O L C _ E F T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n sitI N I .r e g n a h C c si D 5 yln O . n oitis o p y a rt r o fla n gis t u p n I . n oitis o p E S O L C e t elp m o c :' H ' 2 4 P M A L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n sitI N I .r e g n a h C c si D 5 yln O . n oitis o p p m alc c sid g ni w o h s r o fla n gis t u p n I . n oitis o p p m alc c sid e t elp m o c :' H ' 3 4 P M A L C N U X T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n sitI N I .r e g n a h C c si D 5 yln O . n oitis o p p m alc - n u c sid g ni w o h s r o fla n gis t u p n I . n oitis o p p m alc c sid e t elp m o c :' H ' 4 4 S N S _ C S I D T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n sitI N I .r e g n a h C c si D 5 yln O . g nitsix e c sid r o fla n gis t u p n I g nitsix e :'L' 5 4 2 E T U M V R D X T U O d e v r e s e r 6 4 x - P T T U O d e v r e s e r 7 4 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 8 4 M C P _ D D V - ylp p u s r e w o P V 8 . 1 9 4 M C P _ S S V - d n u o r G 0 5 S S V - d n u o r G 1 5 K C B _ A T U O k c olc C A D oid u A 2 5 0 A T A D _ A T U O a t a d R , L t n o r F C A D oid u A 3 5 1 A T A D _ A T U O a t a d E F L ,r e t n e C C A D oid u A 4 5 2 A T A D _ A T U O a t a d R , L d n u o rr u S C A D oid u A 5 5 K L C M _ A T U O k c olc r e ts a M C A D oid u A 6 5 K C R L _ A T U O k c olc R / L C A D oid u A 7 5 T U O D _ A T U O .t u p t u o oid u a la tigid ) 8 5 9 0 6 C E I( F I D P / S 8 5 4 A _ I M S T U O s s e r d d A M A R D S I M S 9 5 5 A _ I M S 0 6 6 A _ I M S 1 6 7 A _ I M S 2 6 8 A _ I M S 3 6 9 A _ I M S 4 6 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 5 6 S S V - d n u o r G 6 6 3 A _ I M S T U O s s e r d d A M A R D S I M S 7 6 2 A _ I M S 8 6 1 A _ I M S 9 6 0 A _ I M S 0 7 0 1 A _ I M S 1 7 1 1 A _ I M S 2 7 2 1 A _ I M S 3 7 3 1 A _ I M S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 82 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 4 7 0 S C _ I M S T U O .'L'tc ele s pih c M A R D S I M S 5 7 1 S C _ I M S T U O d e v r e s e r 6 7 S A R _ I M S T U O 'L' S A R M A R D S I M S 7 7 S A C _ I M S T U O 'L' S A C M A R D S I M S 8 7 E W _ I M S T U O 'L' elb a n E e tir W M A R D S I M S 9 7 L M Q D _ I M S T U O M Q D r e w o L M A R D S I M S tc ele s r e w o L :'L' 0 8 U M Q D _ I M S T U O M Q D r e p p U M A R D S I M S tc ele s r e p p U :'L' 1 8 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 2 8 N I K L C _ I M S N I .t u p ni k c olc M A R D S la n r e tx E 3 8 S S V - d n u o r G 4 8 0 D _ I M S O /I a t a D M A R D S I M S 5 8 1 D _ I M S 6 8 2 D _ I M S 7 8 3 D _ I M S 8 8 4 D _ I M S 9 8 5 D _ I M S 0 9 6 D _ I M S 1 9 7 D _ I M S 2 9 8 D _ I M S 3 9 9 D _ I M S 4 9 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 5 9 T U O K L C _ I M S T U O .t u p t u o k c olc M A R D S 6 9 S S V - d n u o r G 7 9 0 1 D _ I M S O /I a t a D M A R D S I M S 8 9 1 1 D _ I M S 9 9 2 1 D _ I M S 0 0 1 3 1 D _ I M S 1 0 1 4 1 D _ I M S 2 0 1 5 1 D _ I M S 3 0 1 S S O R C _ K C A R T T U O d e v r e s e r 4 0 1 M C P X _ D S D T U O d e v r e s e r 5 0 1 T S R X _ C A D T U O . C A D oid u a f o la n gis t e s e R t e s e R :'L' 6 0 1 K L C M C P _ C D A T U O d e v r e s e r 7 0 1 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 8 0 1 S S V - d n u o r G 9 0 1 T S R T X N I e c a fr e t nitin U lo rt n o C cits o n g ai D 0 1 1 S M T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 1 1 1 O D T T U O e c a fr e t nitin U lo rt n o C cits o n g ai D 2 1 1 I D T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 3 1 1 K C T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 4 1 1 V R D T O R T U O .r e g n a h c c sid 5 yln O . n oit a t o r y a rt r o f t u p t u o M W P 5 1 1 M O R _ M O R F _ T O O B N I tc ele s t o o B . U C D m o rf t o o B :'L' . M O R m r o f t o o B :' H ' 6 1 1 V R D _ D A O L T U O .r e g n a h c c sid 5 yln O . e vir d e s ol C / n e p O y a rt r o f t u p t u o M W P 7 1 1 E O _ U P C T U O . e r a w m rif r o f y r o m e m H S A L F stib M 6 1 r o fla n gis E O elb a n e :'L' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 83 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 8 1 1 K C D S _ U P C T U O . e r a w m rif g nig g u b e d r o f M A R D S stib M 4 6 r o f K C O L C 9 1 1 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 0 2 1 K L C X I P N I .t u p ni k c olc m e ts y s z H M 7 2 r e ts a M 1 2 1 S S V - d n u o r G 2 2 1 L L P _ D D V - ylp p u s r e w o P V 8 . 1 tiu c ric L L P k c ol C 3 2 1 L L P _ S S V - d n u o r G tiu c ric L L P k c ol C 4 2 1 T E S E R X N I .la n gis T E S E R m e ts y s N O r e w o P t e s e r :'L' 5 2 1 Q R I _ D C A S N I r e d o c e d D C A S m o rfla n gis t p u rr e t n I 6 2 1 Y D R X _ P F N I . e c a fr e t nile n a P t n o r F .t u p ni e k a h s - d n a H 7 2 1 T N I _ E F N I . 6 1 3 6 L d n E -t n o r F m o rfla n gis t u p nit p u rr e t n I 8 2 1 L M Q D _ D S , E W X _ F T U O . elb a n e e tir w y r o m e m h s al F . M Q D r e w o L M A R S / M A R D S g u b e D .tc ele s r e w o L , elb a n e :'L' 9 2 1 U M Q D _ D S T U O M Q D r e p p U M A R S / M A R D S g u b e D tc ele s r e p p u :'L' 0 3 1 W X R _ D S T U O e tir W / d a e R M A R D S g u b e D d a e r:' H ' , e tir w :'L' 1 3 1 T I A W _ U P C N I t u p ni' H 'tia w U P C 2 3 1 H S A L F _ E C T U O .'L' elb a n E pih C y r o m e m h s al F 3 3 1 D C A S _ E C T U O r e d o c e d D C A S m o rfla n gis e c n e ciL 4 3 1 1 E C _ U P C T U O d e v r e s e r 5 3 1 S A R X _ D S T U O 'L' S A R M A R D S g u b e D 'L' elb a n e pih c M A R S g u b e D 6 3 1 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 7 3 1 S S V - d n u o r G 8 3 1 1 S A R _ U P C T U O d e v r e s e r 9 3 1 S A C X _ D S T U O 'L' S A C M A R D S g u b e D 0 4 1 S C X _ D S T U O 'L'tc ele S pih C M A R D S g u b e D 1 4 1 0 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 4 1 1 D _ U P C 3 4 1 2 D _ U P C 4 4 1 3 D _ U P C 5 4 1 4 D _ U P C 6 4 1 5 D _ U P C 7 4 1 6 D _ U P C 8 4 1 7 D _ U P C 9 4 1 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 0 5 1 S S V - d n u o r G 1 5 1 8 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 5 1 9 D _ U P C 3 5 1 0 1 D _ U P C 4 5 1 1 1 D _ U P C 5 5 1 2 1 D _ U P C 6 5 1 3 1 D _ U P C 7 5 1 4 1 D _ U P C 8 5 1 5 1 D _ U P C 9 5 1 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 0 6 1 S S V - d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 84 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 6 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 2 6 1 2 A _ U P C 3 6 1 3 A _ U P C 4 6 1 4 A _ U P C 5 6 1 5 A _ U P C 6 6 1 6 A _ U P C 7 6 1 7 A _ U P C 8 6 1 8 A _ U P C 9 6 1 9 A _ U P C 0 7 1 0 1 A _ U P C 1 7 1 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 2 7 1 S S V - d n u o r G 3 7 1 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 4 7 1 2 1 A _ U P C 5 7 1 3 1 A _ U P C 6 7 1 4 1 A _ U P C 7 7 1 5 1 A _ U P C 8 7 1 6 1 A _ U P C 9 7 1 7 1 A _ U P C 0 8 1 8 1 A _ U P C 1 8 1 9 1 A _ U P C 2 8 1 0 2 A _ U P C 3 8 1 1 2 A _ U P C 4 8 1 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 5 8 1 S S V - d n u o r G 6 8 1 E P X E X T U O d e v r e s e r 7 8 1 R O R R E _ E F N I . e c a fr e t ni m a e rts 6 1 3 6 L d n E -t n o r F g alf r o rr E C C E 8 8 1 1 L E S V T U O la n gis t u p t u o ) G N I K N I L B ( r o tc e n n o c ) T R A C S ( O R U E elb a sid t u p t u o B G R :'L' elb a n e t u p t u o B G R :' H ' 9 8 1 2 L E S V T U O .la n gis C / R , Y / V r o tc e n n o c ) T R A C S ( O R U E B G C Y = t u p t u o B G R V :'L' B G R V = t u p t u o B G R V :' H ' 0 9 1 T S R _ E F T U O . 6 1 3 6 L d n E -t n o r F .t u p t u o t e s e r e r a w d r a H t e s e r :'L' 1 9 1 T S R X _ D C A S T U O .r e d o c e d D C A S f o la n gis t e s e R t e s e r :'L' 2 9 1 E T U M M X T U O t n e m e c n a h n e ytila u q e n o t r o f t u p t u O 3 9 1 C N Y S _ B T U O r e d o c e d D C A S o t t u p t u o n oit a zin o r h c n y s r o tc e S 4 9 1 A D S O /I e c a fr e t ni d n a m m o c 6 1 3 6 L d n E -t n o r F . e nil a t a d lair e s s u b C 2 I 5 9 1 L C S T U O e c a fr e t ni d n a m m o c 6 1 3 6 L d n E -t n o r F . e nil k c olc lair e s s u b C 2 I 6 9 1 K L C W _ B T U O r e d o c e d D C A S o t t u p t u o k c olc d r o W 7 9 1 D X T T U O t u p t u o a t a d ) C 2 3 2 - S R ( T R A U 8 9 1 8 V 1 _ D D V ylp p u s r e w o P V 8 . 1 9 9 1 S S V - d n u o r G 0 0 2 D X R N I t u p ni a t a d ) C 2 3 2 - S R ( T R A U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 85 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 0 2 E T U M A X T U O . g nit u m e nilt u p t u o oid u a g ola n a r o fla n gis t u p t u O g nit u m :'L' 2 0 2 N I G I R T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 3 0 2 T U O G I R T T U O e c a fr e t nitin U lo rt n o C cits o n g ai D 4 0 2 0 S C X _ C A D T U O .lo rt n o c lair e s C A D oid u a r o f elb a n e pih C elb a n e :'L' 5 0 2 1 S C X _ C A D T U O . elbis s o p si C A D oid u a h c 1 . 5 f o lo rt n o c lair e s f o e s U elb a n e :'L' 6 0 2 K C A _ P F T U O . e c a fr e t ni C A D /le n a P t n o r F .' H 't u p t u o ) e g d el w o n k c a ( e k a h s - d n a H 7 0 2 K C S _ P F T U O . e c a fr e t ni C A D /le n a P t n o r F .t u p t u o k c olc r e fs n a rtlair e S 8 0 2 I S _ P F N I . e c a fr e t nile n a P t n o r F .t u p ni a t a d r e fs n a rtlair e S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 86 1 2 3 4 1 2 3 4 C D F A B E 7 M63018FP (DVDM ASSY : IC101) • BTL Driver IC ¶ Pin Arrangement ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 87 5 6 7 8 5 6 7 8 C D F A B E ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 88 1 2 3 4 1 2 3 4 C D F A B E PE5374A (FLKY ASSY : IC101) • FL Control IC Pin Function No. Pin Name I/O Function 1 VDD1 − Positive Power Supply (3.3 V) 2 VSS1 − Ground Potential 3 X1 IN Crystal Connection for Main System Clock Oscillation 4 X2 − 5 IC − Internally Connected (Directly connect to VSS1) 6 RESET IN Reset Input 7 SCK1 IN Serial Clock Input of Serial Interface 8 SI1 IN Serial Data Input of Serial Interface 9 SO1 OUT Serial Data Output of Serial Interface 10 XRDY OUT Hand-shake (Ready) Output of Serial Interface 11 POWER ON OUT Power Control Output 12 RESET OUT OUT System Reset Output 13 RESERVE OUT OUT Reserved (NC on this model) 14 NC OUT NC 15 HALT IN Halt Port "NC" : Use Halt Mode 16 ACK IN Hand-shake (Acknowledge) Input of Serial Interface 17 SEL IR IN Remote Control Input (Timer input of 8-bit remote control timer) 18 AVSS − Ground Potential for A/D Converter 19 NC IN 8 digit model(DV-260,263) : Key3 Input (Analog input for A/D converter) 20 KEY2 IN Key Input 2 (Analog input for A/D converter) 21 KEY1 IN Key Input 1 (Analog input for A/D converter) 22 KEY0 IN Key Input 0 (Analog input for A/D converter) 23 VSS0 − Ground Potential to Ports 24 AVDD − Analog Power/Reference Voltage Input to A/D Converter (3.3 V) 25 VDD0 − Positive Power Supply to Ports (3.3 V) 26 MS0_2 IN Model (of player) Select (Set with a combinaition of this 3 ports) 27 MS0_1 IN 28 MS0_0 IN 29 MS1_2 IN Destination (of player) Select (Set with a combinaition of this 3 ports) 30 MS1_1 IN 31 MS1_0 IN 32 TES IN H" : No System Reset mode , "L" : General mode 33 OEM IN H" : OEM Model , "L" : Pioneer Model 34 MIC IN IN Detection of Microphone "H" : Microphone connected 35 CHECKER IN H" : Checker Mode "L" : General Mode 36 ON POWER IN H" : Primary Power Switch Model , "L" : Secondary Power Switch Model 37 FL SET2 IN FL-Controller Mode Select FL SET1 / 2 = "L" / "L" : 8 digit model 38 FL SET1 IN 39 TEST2 OUT (Test Port) 40 STAND BY LED OUT Stand By LED Port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 89 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Function 41 LED5 OUT LED Port 5 42 LED4 OUT LED Port 4 43 LED3 OUT LED Port 3 44 LED2 OUT LED Port 2 45 LED1 OUT LED Port 1 46 LED0 OUT LED Port 0 47 TEST1 OUT (Test Port) 48 TEST0 OUT (Test Port) 49 NC OUT NC 50 NC OUT NC 51 P16 OUT FIP Segment 17 Output 52 P15 OUT FIP Segment 16 Output 53 NC OUT FIP Segment 15 Output 54 P14 OUT FIP Segment 14 Output 55 P13 OUT FIP Segment 13 Output 56 P12 OUT FIP Segment 12 Output 57 P11 OUT FIP Segment 11 Output 58 P10 OUT FIP Segment 10 Output 59 VDD2 − Positive Power Supply to FIP Controller/Driver (3.3 V) 60 VLOAD − Pull-down Resistor Connection of FIP Controller/Driver (-28V) 61 P9 OUT FIP Segment 9 Output 62 P8 OUT FIP Segment 8 Output 63 P7 OUT FIP Segment 7 Output 64 P6 OUT FIP Segment 6 Output 65 P5 OUT FIP Segment 5 Output 66 P4 OUT FIP Segment 4 Output 67 P3 OUT FIP Segment 3 Output 68 P2 OUT FIP Segment 2 Output 69 P1 OUT FIP Segment 1 Output 70 NC OUT FIP Grid 11 Output 71 NC OUT FIP Grid 10 Output 72 NC OUT FIP Grid 9 Output 73 G8 OUT FIP Grid 8 Output 74 G7 OUT FIP Grid 7 Output 75 G6 OUT FIP Grid 6 Output 76 G5 OUT FIP Grid 5 Output 77 G4 OUT FIP Grid 4 Output 78 G3 OUT FIP Grid 3 Output 79 G2 OUT FIP Grid 2 Output 80 G1 OUT FIP Grid 1 Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 90 1 2 3 4 1 2 3 4 C D F A B E 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY ties, including but not limited to: the type of disc used; the type of recording; damage, dirt or condensation on either the disc or the player’s pick-up lens. See below for notes about particular software and formats. CD-R/RW compatibility • This unit will play CD-R and CD-RW discs recorded in CD Audio or Video CD/Super VCD format, or as a CD-ROM containing MP3 or JPEG files. However, any other content may cause the disc not to play, or create noise/distortion in the output. • This unit cannot record CD-R or CD-RW discs. • Unfinalized CD-R/RW discs recorded as CD Audio can be played, but the full Table of Contents (playing time, etc.) will not be displayed. DVD-R/RW compatibility • This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder. • This unit will play DVD-RW discs recorded using the Video Recording (VR) format. • DVD-RW shows in the display when a VR format DVD-RW disc is loading. • When playing a VR format DVD-RW discs that was edited on a DVD recorder, the screen may go momentarily black at edited points and/or you may see scenes from immediately before the edited point. • This unit cannot record DVD-R/RW discs. • Unfinalized DVD-R/RW discs cannot be played in this player. Disc / content format playback compatibility General disc compatibility This player was designed and engineered to be compatible with software bearing one or more of the following logos: * DV-667A only • KODAK Picture CD • is a trademark of Fuji Photo Film Co. Ltd. Other formats, including but not limited to the following, are not playable in this player: DVD-RAM / DVD-ROM / CD-ROM* * Except those that contain MP3 or JPEG. See also “Compressed audio compatibility ” and “JPEG file compatibility” below. DVD-R/RW and CD-R/RW discs (Audio CDs and Video CD/Super VCDs) recorded using a DVD recorder, CD recorder or personal computer may not be playable on this unit. This may be caused by a number of possibili- DVD-Video DVD-R DVD-RW Video CD Audio CD CD-R CD-RW DVD-Audio Super VCD* Super Audio CD Fujicolor CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 91 5 6 7 8 5 6 7 8 C D F A B E PC-created disc compatibility • If you record a disc using a personal computer, even if it is recorded in a “compatible format” as listed above, there will be cases in which the disc may not be playable in this machine due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. • Check the DVD-R/RW or CD-R/RW soft- ware disc boxes for additional compati- bility information. Compressed audio compatibility • This unit will play CD-ROM, CD-R, and CD-RW discs containing files saved in the MPEG-1 Audio Layer 3 (MP3) format with a sampling rate of 32, 44.1 or 48kHz. Incompatible files will not play and the message Can’t play this format will be displayed (NO PLAY in the front panel display). • Fixed bit-rate MP3 files are recom- mended. Variable bit-rate (VBR) MP3 files are playable, but playing time may not be shown correctly.. • The CD-ROM used to compile your MP3 files must be ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible with this player. • Use CD-R or CD-RW media for recording your files. The disc must be finalized (i.e. the session must be closed) in order to play in this unit. This player is not compat- ible with multi-session discs. Only the first session of a multi-session disc will be recognized. • This player only plays tracks that are named with the file extension .mp3 or .MP3. • When naming MP3 files, add the corre- sponding file name extension (.mp3). Files are played according to the file extension. To prevent noise and malfunc- tions, do not use these extensions for other kinds of files. • This player can recognize up to 999 files (MP3/JPEG) and up to 499 folders. If a disc exceeds these limits, only files and folders up to these limits will be playable. Files and folders are read/displayed in alphabetical order. Note that if the file structure is very complex, you may not be able to read/play all files on the disc. • Folder and track names (excluding the file extension) are displayed. • There are many different recording bit- rates available to encode MP3 files. This unit was designed to be compatible with all of them. Audio encoded at 128Kbps should sound close to regular CD Audio quality. This player will play lower bit-rate files, but please note that the sound quality becomes noticeably worse at lower bit-rates. JPEG file compatibility • Baseline JPEG and EXIF 2.1* still image files up to 8 mega-pixels are supported (maximum vertical and horizontal resolu- tion is 5120 pixels). (*File format used by digital still cameras) • The CD-ROM used to compile your JPEG files must be ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible with this player. • This player only displays files that are named with the file extension .jpg or .JPG. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 92 1 2 3 4 1 2 3 4 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 93 5 6 7 8 5 6 7 8 C D F A B E 8. PANEL FACILITIES Front panel 1 DV-563A-S � STANDBY/ON Press to switch the player on or into standby. 2 FL DIMMER Press to dim or brighten the display. 3 Disc tray 4 � OPEN/CLOSE Press to open or close the disc tray. 5 � Press to pause playback. Press again to restart. 6 � Press to start or resume playback. 7 TOP MENU Press to display the top menu of a DVD disc. 8 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 9 MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD, Video CD/Super VCD, MP3 or JPEG disc is loaded. 10 RETURN Press to return to a previous menu screen. 11 HOME MENU Press to display (or exit). 12 � Press to stop the disc (you can resume play- back by pressing � (play)). 13 Remote control sensor The remote control has a range of up to about 7m (23ft). 14 Display 15 � � and � � • Press and hold for fast reverse/forward scanning. • Press to jump to the previous/next chapter or track. 16 This mark indicates compatibility with DVD-RW discs recorded on a DVD recorder in Video Recording mode. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 16 15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 94 1 2 3 4 1 2 3 4 C D F A B E Rear panel connections 1 CONTROL IN / OUT For passing remote control signals to other Pioneer components. 3 DIGITAL AUDIO OUT – COAXIAL This is a digital audio output for connection to a PCM, Dolby Digital, DTS and/or MPEG- compatible AV receiver that has a coaxial digital input. Connect using a commercially available coaxial digital audio cable. 4 COMPONENT VIDEO OUT High quality video output for connection to a TV, monitor or AV receiver that has compo- nent video inputs. Connect using a commercially available three-way component video cable. Be careful to match the colors of the jacks and cables for correct connection. 5 AUDIO OUT (2ch) Two channel analog audio outputs for connection to your TV, AV receiver or stereo system. Use the supplied audio/video cable when connecting these jacks. Match the colors of the jacks and cables for correct stereo sound. 6 AUDIO OUT (5.1ch) Multichannel analog audio outputs for connection to an AV receiver with multi- channel inputs. 7 AC IN Connect the supplied power cord here, then plug into a power outlet. 8 VIDEO OUT 9 S (S-Video output) Standard video output that you can connect to your TV or AV receiver using the supplied audio/video cable. S-Video output that you can use instead of the video output described in 8 above. 10 DIGITAL AUDIO OUT – OPTICAL This is a digital audio output for connection to a PCM, Dolby Digital, DTS and/or MPEG compatible AV receiver that has an optical digital input. Connect using a commercially available optical digital audio cable. Connect using a commercially available optical digital audio cable. 1 7 8 9 10 3 4 5 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 95 5 6 7 8 5 6 7 8 C D F A B E Display 1 V-PART Lights when playing a video part of a DVD disc. 2 PRGSVE Lights when the player is set to output progressive scan video. 3 GRP Indicates that the character display is showing a DVD-Audio group number. 4 TITLE Indicates that the character display is showing a DVD title number. 5 Lights when 2V/SRS TruSurround is selected. 6 TRK Indicates that the character display is showing a CD or Video CD/Super VCD track number. 7 CHP Indicates that the character display is showing a DVD chapter number. 8 5.1CH Lights when analog 5.1 channel output is selected. 9 D.MIX During multichannel audio playback, indi- cates that the output signal has been “down- mixed” from the original audio source. This is an automatic function performed by the player in order to present the most appro- priate audio mix to the speakers present in your system. 10 Lights in any of the repeat play modes. 11 REMAIN Indicates that the character display is showing the disc or title/chapter/track remain time. 12 Character display 13 Lights during multi-angle scenes on a DVD disc. 14 � and � Indicates whether a disc is playing or paused. 15 DTS Lights when a DTS soundtrack is playing. 16 2 D Lights when a Dolby Digital soundtrack is playing. 15 16 12 14 13 2 4 3 5 6 7 8 9 10 11 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 96 1 2 3 4 1 2 3 4 C D F A B E Remote control [DV-563A-S] 1 � STANDBY/ON Press to switch the player on or into standby. 2 AUDIO Press to select the audio channel or language. 3 SUBTITLE Press to select a subtitle display. 4 Number buttons 5 TOP MENU Press to display the top menu of a DVD disc. 6 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 7 HOME MENU Press to display (or exit) the on-screen display. 8 � and �/� Use for reverse slow motion playback, frame reverse and reverse scanning. 9 � Press to start or resume playback. 10 � Press to jump to the beginning of the current chapter or track, then to previous chapters/ tracks. 11 � Press to pause playback; press again to restart. 1 14 15 16 17 18 19 20 21 23 2 4 5 6 7 8 10 12 13 3 9 11 22 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 97 5 6 7 8 5 6 7 8 C D F A B E 12 PLAY MODE Press to display the Play Mode menu. (You can also get to the Play Mode menu by pressing HOME MENU and selecting Play Mode). 13 SURROUND Press to activate/switch off 2V/SRS TruSur- round. 14 � OPEN/CLOSE Press to open or close the disc tray. 15 ANGLE Press to change the camera angle during DVD multi-angle scene playback. 16 CLEAR Press to clear a numeric entry. 17 ENTER Use to select menu options, etc. (works exactly the same as the ENTER button in 6 above). 18 MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD, Video CD/Super VCD, MP3 or JPEG disc is loaded. 19 RETURN Press to return to a previous menu screen. 20 � and �/� Use for forward slow motion playback, frame advance and forward scanning. 21 � Press to jump to the next chapter or track. 22 � Press to stop the disc (you can resume play- back by pressing � (play)). 23 DISPLAY Press to display information about the disc playing. 24 ZOOM Press to change the zoom level. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 98 1 2 3 4 1 2 3 4 C D F A B E Remote control [DV-50A] 1 � OPEN/CLOSE Press to open or close the disc tray. 2 DVD Press to select DVD as the current input. 3 AUDIO Press to select the audio channel or language 4 SUBTITLE Press to select a subtitle display. 5 TOP MENU Press to display the top menu of a DVD disc. 6 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 7 HOME MENU Press to display (or exit) the on-screen display. 8 � 9 � Use for reverse slow motion playback, frame reverse and reverse scanning. Press to start or resume playback. 10 � Press to jump to the beginning of the current chapter or track, then to previous chapters/ tracks. 11 � Press to pause playback; press again to restart. 12 Number buttons 1 13 14 15 16 21 20 24 23 26 25 22 17 18 19 2 5 6 7 8 12 3 4 9 10 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-563A-S 99 5 6 7 8 5 6 7 8 C D F A B E 13 LED Indicates a remote control operation. 14 � SOURCE Press to switch the player on or into standby. 15 PLAY MODE Press to display the Play Mode menu. (You can also get to the Play Mode menu by pressing HOME MENU and selecting Play Mode). 16 ANGLE Press to change the camera angle during DVD multi-angle scene playback. 17 DISPLAY Press to display information about the disc playing. 18 MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD, Video CD, MP3 or JPEG disc is loaded. 19 RETURN Press to return to a previous menu screen. 20 � Use for forward slow motion playback, frame advance and forward scanning. 21 � Press to jump to the next chapter or track. 22 � Press to stop the disc (you can resume play- back by pressing � (play)). 23 CLEAR Press to clear a numeric entry. 24 ENTER Use to select menu options, etc. (works exactly the same as the ENTER button in 6 above). 25 ZOOM Press to change the zoom level. 26 SURROUND Press to activate/switch off 2V/SRS TruSur- round. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
