先锋PIONEER DV-48AV电路图

分类:电子电工 日期: 点击:0
先锋PIONEER DV-48AV电路图-0 先锋PIONEER DV-48AV电路图-1 先锋PIONEER DV-48AV电路图-2 先锋PIONEER DV-48AV电路图-3 先锋PIONEER DV-48AV电路图-4 先锋PIONEER DV-48AV电路图-5 先锋PIONEER DV-48AV电路图-6 先锋PIONEER DV-48AV电路图-7 先锋PIONEER DV-48AV电路图-8 先锋PIONEER DV-48AV电路图-9

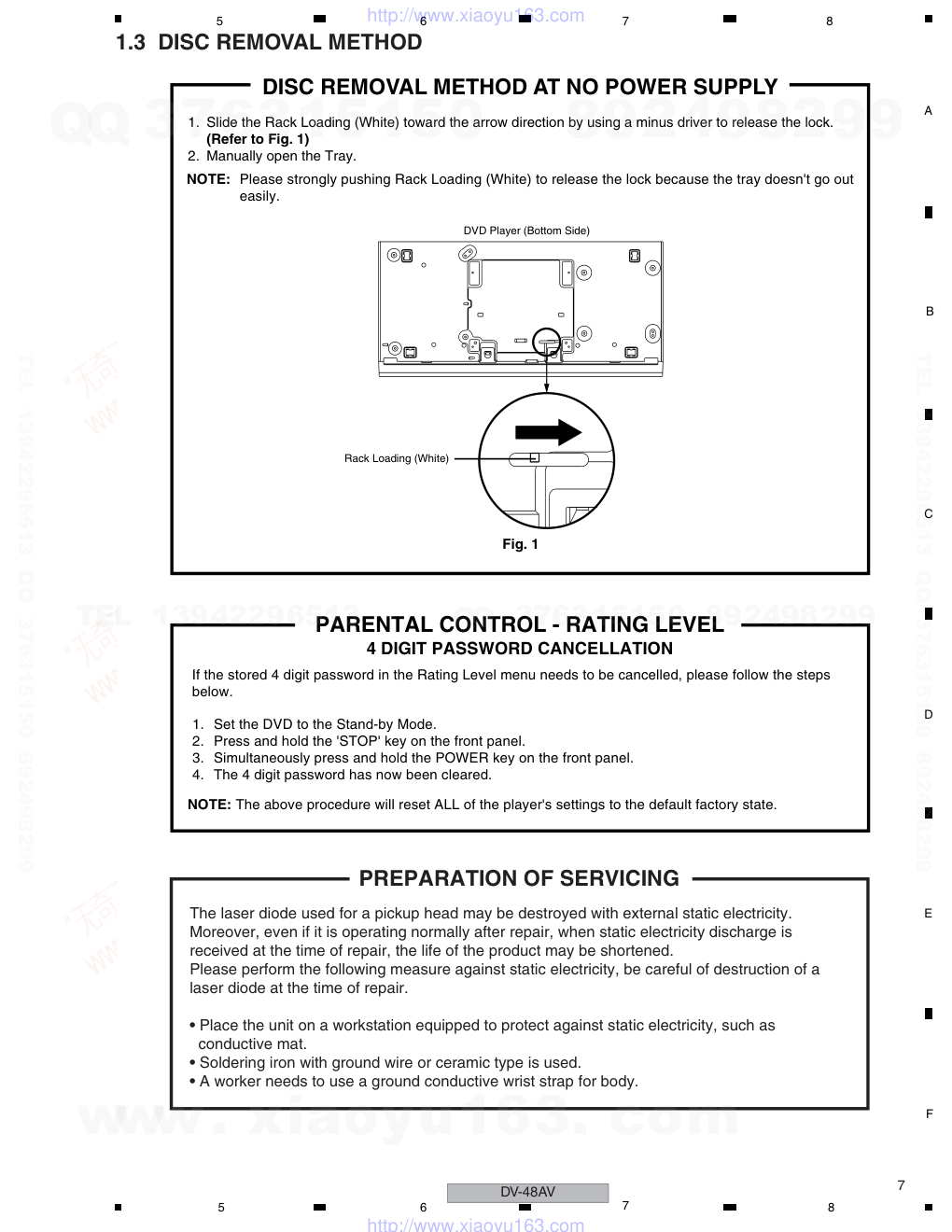

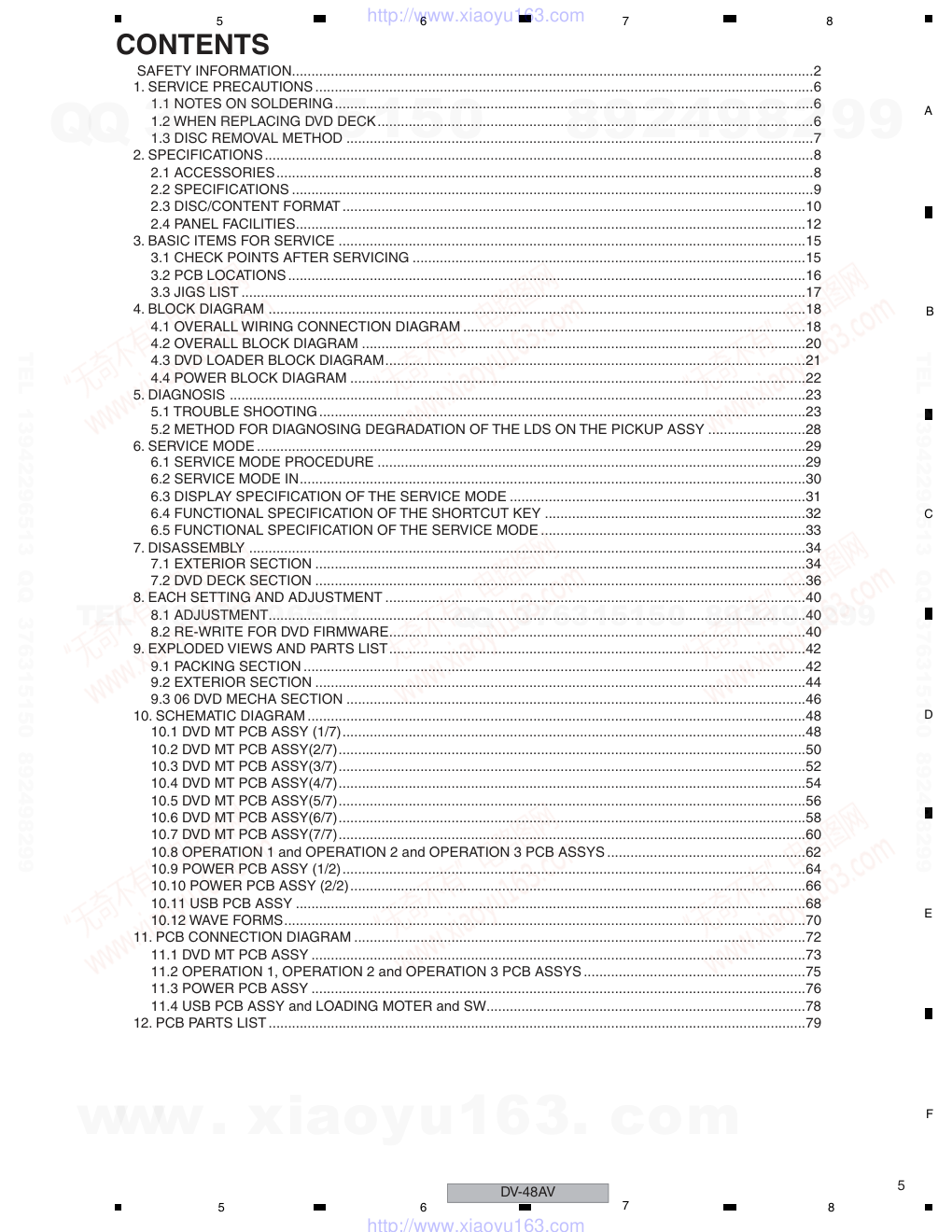

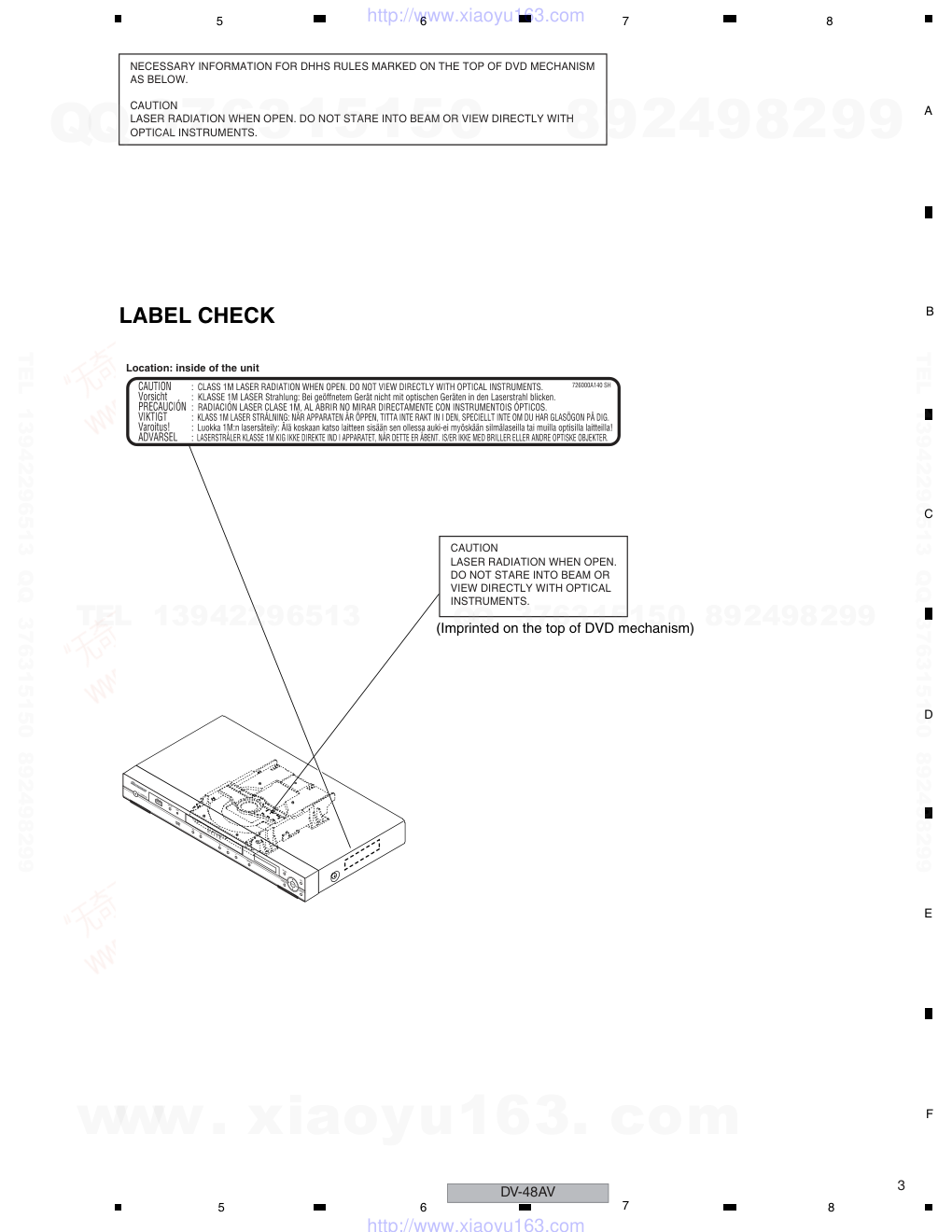

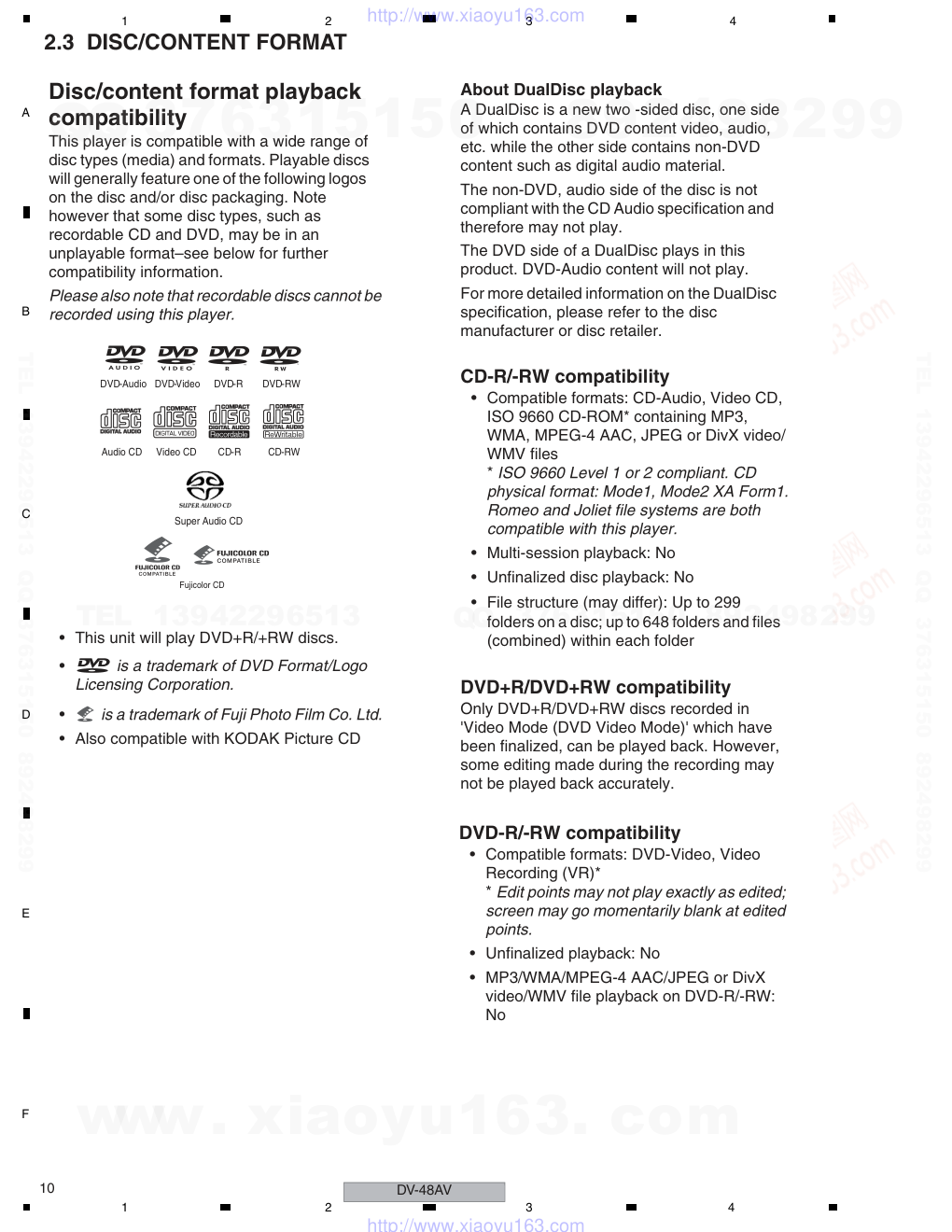

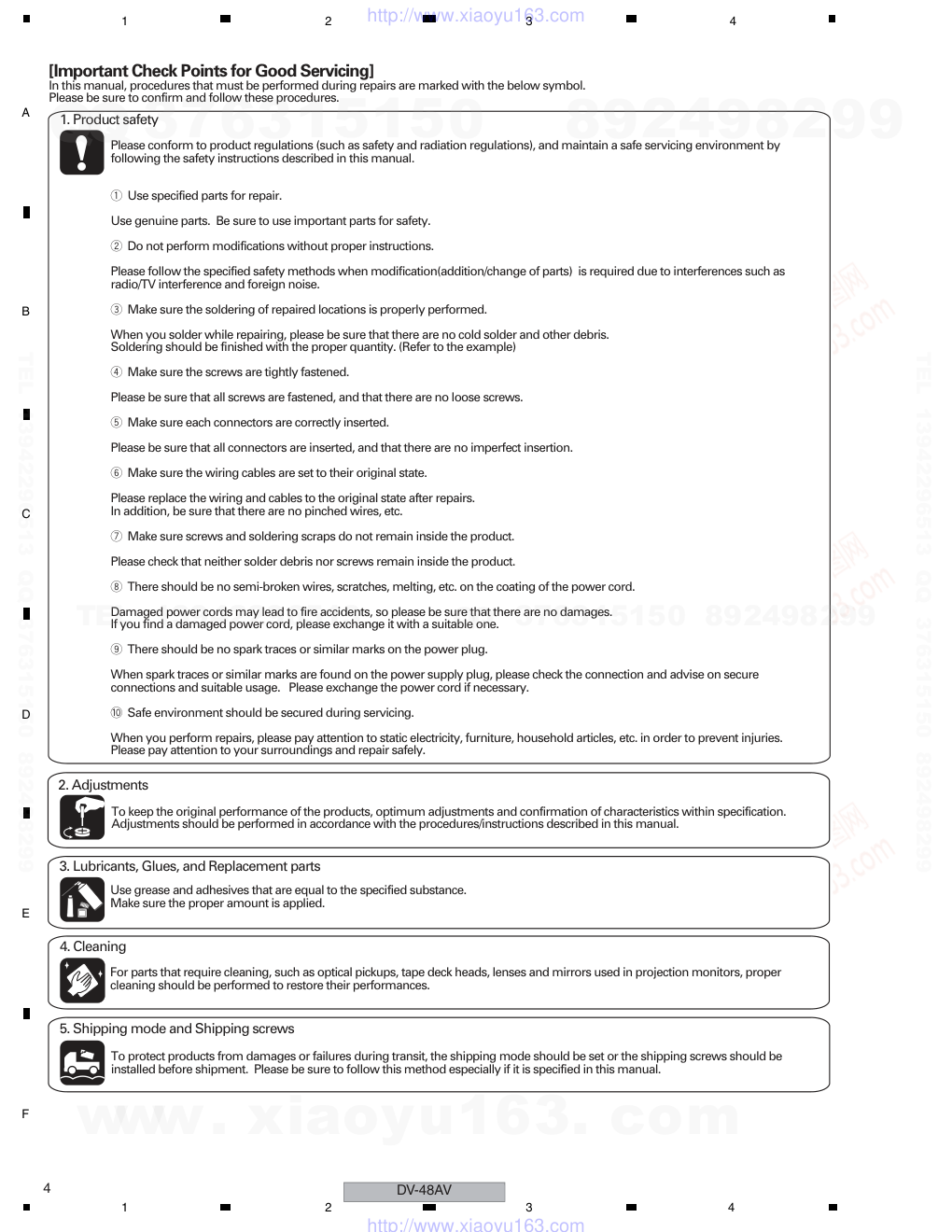

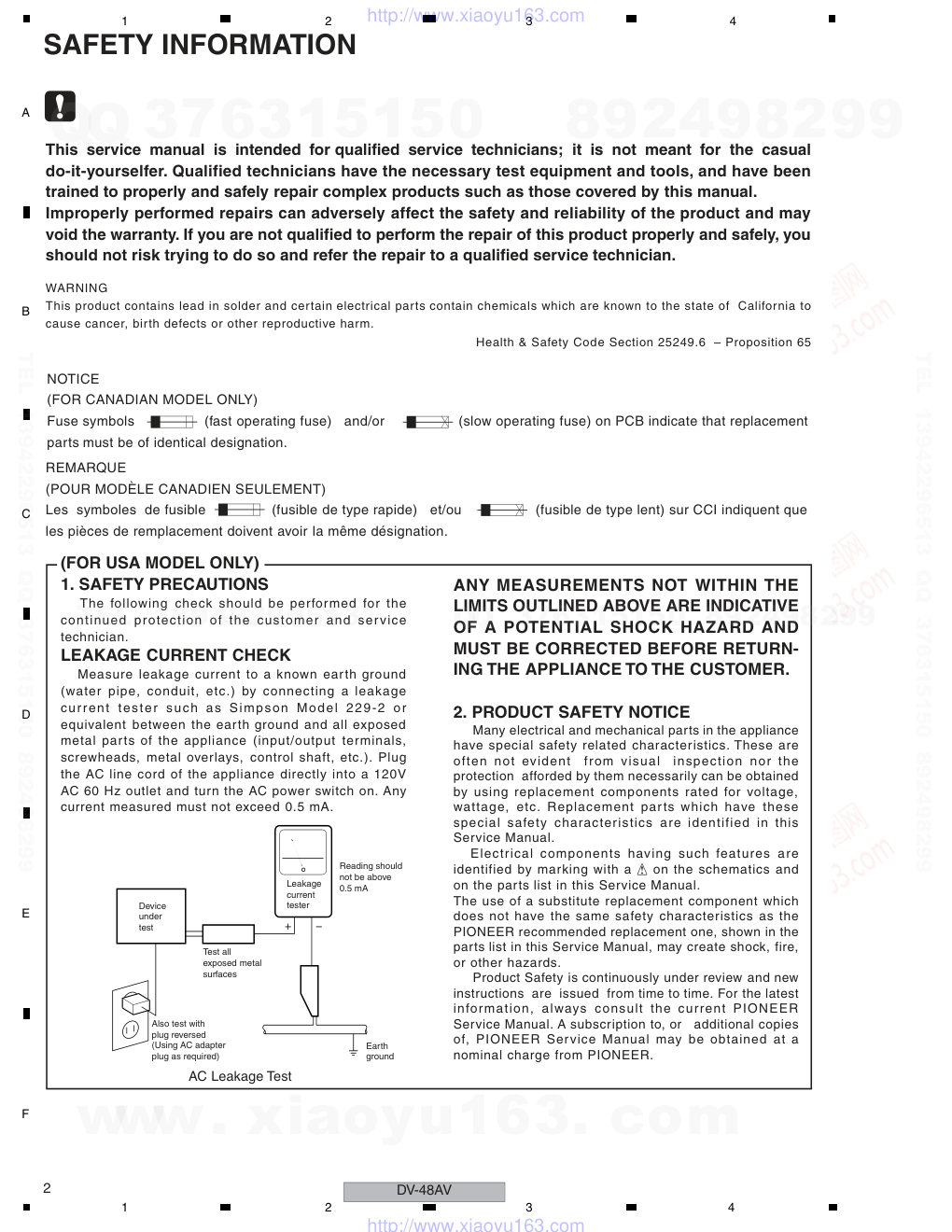

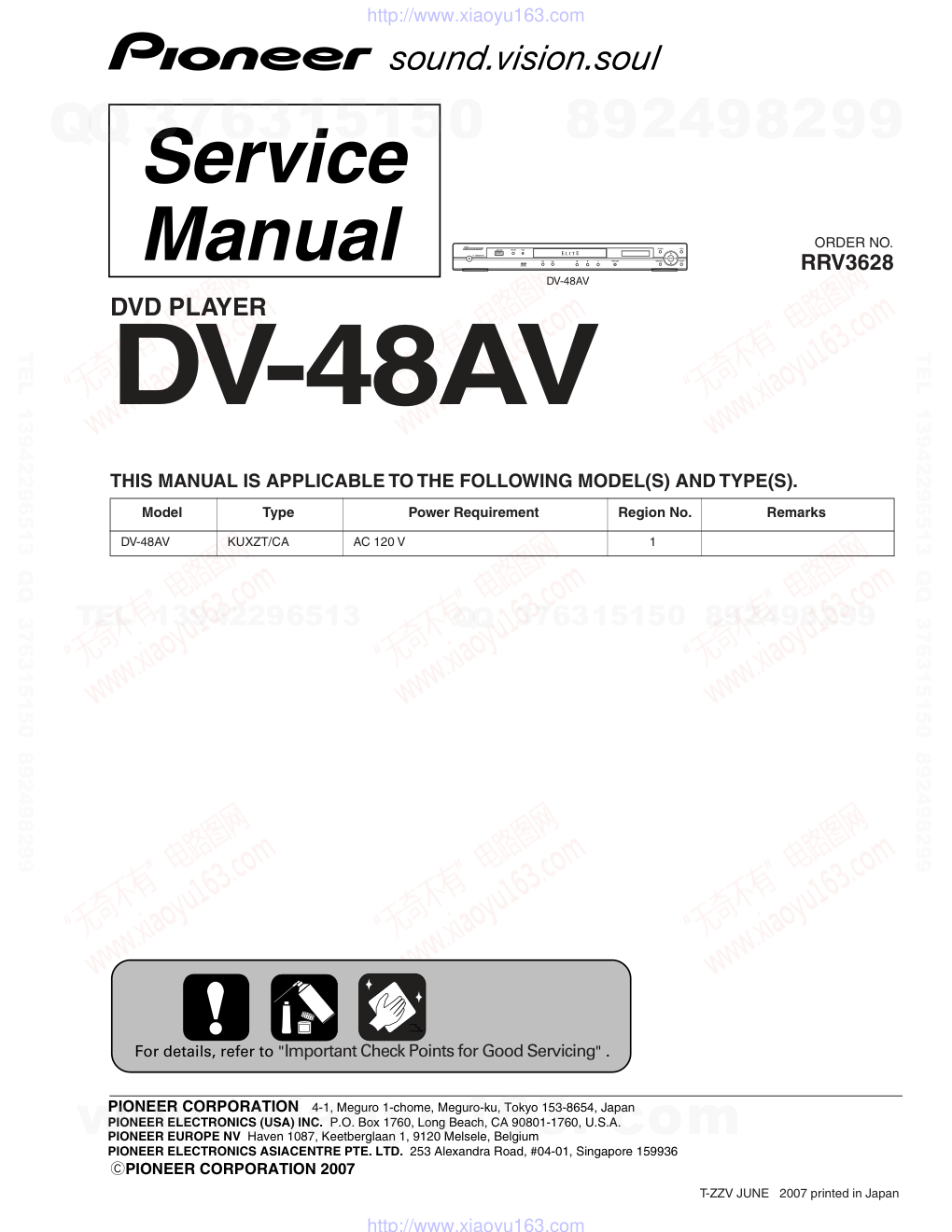

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2007 DV-48AV RRV3628 DVD PLAYER DV-48AV THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Remarks DV-48AV KUXZT/CA AC 120 V 1 For details, refer to "Important Check Points for Good Servicing" . T-ZZV JUNE 2007 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 3 5 6 7 8 5 6 7 8 C D F A B E NECESSARY INFORMATION FOR DHHS RULES MARKED ON THE TOP OF DVD MECHANISM AS BELOW. CAUTION LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. CAUTION LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. LABEL CHECK (Imprinted on the top of DVD mechanism) Location: inside of the unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 4 1 2 3 4 1 2 3 4 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION......................................................................................................................................2 1. SERVICE PRECAUTIONS ................................................................................................................................6 1.1 NOTES ON SOLDERING...........................................................................................................................6 1.2 WHEN REPLACING DVD DECK................................................................................................................6 1.3 DISC REMOVAL METHOD ........................................................................................................................7 2. SPECIFICATIONS.............................................................................................................................................8 2.1 ACCESSORIES..........................................................................................................................................8 2.2 SPECIFICATIONS ......................................................................................................................................9 2.3 DISC/CONTENT FORMAT.......................................................................................................................10 2.4 PANEL FACILITIES...................................................................................................................................12 3. BASIC ITEMS FOR SERVICE ........................................................................................................................15 3.1 CHECK POINTS AFTER SERVICING .....................................................................................................15 3.2 PCB LOCATIONS.....................................................................................................................................16 3.3 JIGS LIST .................................................................................................................................................17 4. BLOCK DIAGRAM ..........................................................................................................................................18 4.1 OVERALL WIRING CONNECTION DIAGRAM ........................................................................................18 4.2 OVERALL BLOCK DIAGRAM ..................................................................................................................20 4.3 DVD LOADER BLOCK DIAGRAM............................................................................................................21 4.4 POWER BLOCK DIAGRAM .....................................................................................................................22 5. DIAGNOSIS ....................................................................................................................................................23 5.1 TROUBLE SHOOTING.............................................................................................................................23 5.2 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY .........................28 6. SERVICE MODE .............................................................................................................................................29 6.1 SERVICE MODE PROCEDURE ..............................................................................................................29 6.2 SERVICE MODE IN..................................................................................................................................30 6.3 DISPLAY SPECIFICATION OF THE SERVICE MODE ............................................................................31 6.4 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY ...................................................................32 6.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE ....................................................................33 7. DISASSEMBLY ...............................................................................................................................................34 7.1 EXTERIOR SECTION ..............................................................................................................................34 7.2 DVD DECK SECTION ..............................................................................................................................36 8. EACH SETTING AND ADJUSTMENT ............................................................................................................40 8.1 ADJUSTMENT..........................................................................................................................................40 8.2 RE-WRITE FOR DVD FIRMWARE...........................................................................................................40 9. EXPLODED VIEWS AND PARTS LIST...........................................................................................................42 9.1 PACKING SECTION .................................................................................................................................42 9.2 EXTERIOR SECTION ..............................................................................................................................44 9.3 06 DVD MECHA SECTION ......................................................................................................................46 10. SCHEMATIC DIAGRAM................................................................................................................................48 10.1 DVD MT PCB ASSY (1/7).......................................................................................................................48 10.2 DVD MT PCB ASSY(2/7)........................................................................................................................50 10.3 DVD MT PCB ASSY(3/7)........................................................................................................................52 10.4 DVD MT PCB ASSY(4/7)........................................................................................................................54 10.5 DVD MT PCB ASSY(5/7)........................................................................................................................56 10.6 DVD MT PCB ASSY(6/7)........................................................................................................................58 10.7 DVD MT PCB ASSY(7/7)........................................................................................................................60 10.8 OPERATION 1 and OPERATION 2 and OPERATION 3 PCB ASSYS...................................................62 10.9 POWER PCB ASSY (1/2).......................................................................................................................64 10.10 POWER PCB ASSY (2/2).....................................................................................................................66 10.11 USB PCB ASSY ...................................................................................................................................68 10.12 WAVE FORMS......................................................................................................................................70 11. PCB CONNECTION DIAGRAM ....................................................................................................................72 11.1 DVD MT PCB ASSY ...............................................................................................................................73 11.2 OPERATION 1, OPERATION 2 and OPERATION 3 PCB ASSYS.........................................................75 11.3 POWER PCB ASSY ...............................................................................................................................76 11.4 USB PCB ASSY and LOADING MOTER and SW..................................................................................78 12. PCB PARTS LIST..........................................................................................................................................79 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 6 1 2 3 4 1 2 3 4 C D F A B E 1. SERVICE PRECAUTIONS 1.1 NOTES ON SOLDERING 1.2 WHEN REPLACING DVD DECK NOTES ON SOLDERING • For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. • Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 ºC. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 ºC in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Do NOT use a soldering iron whose tip temperature cannot be controlled. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: • Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. Before removing Pick Up PCB and DVD PCB connector, short circuit the position shown in Fig. 1 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged. WHEN REPLACING DVD DECK [ Removing the DVD Deck ] [ Installing the DVD Deck ] Remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD PCB connector. NOTE Fig. 1 Before your operation, please read “PREPARATION OF SERVICING” . Use the Lead Free solder. Manual soldering conditions • Soldering temperature: 320 ± 20˚C • Soldering time: Within 3 seconds • Soldering combination: Sn-3.0Ag-0.5Cu When Soldering/Removing of solder, use the draw in equipment over the Pick Up Unit to prevent the Flux smoke from it. • • • • Short circuit using a soldering iron. Pick Up PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 7 5 6 7 8 5 6 7 8 C D F A B E 1.3 DISC REMOVAL METHOD The laser diode used for a pickup head may be destroyed with external static electricity. Moreover, even if it is operating normally after repair, when static electricity discharge is received at the time of repair, the life of the product may be shortened. Please perform the following measure against static electricity, be careful of destruction of a laser diode at the time of repair. • Place the unit on a workstation equipped to protect against static electricity, such as conductive mat. • Soldering iron with ground wire or ceramic type is used. • A worker needs to use a ground conductive wrist strap for body. PREPARATION OF SERVICING If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps below. Set the DVD to the Stand-by Mode. Press and hold the 'STOP' key on the front panel. Simultaneously press and hold the POWER key on the front panel. The 4 digit password has now been cleared. 1. 2. 3. 4. PARENTAL CONTROL - RATING LEVEL 4 DIGIT PASSWORD CANCELLATION NOTE: The above procedure will reset ALL of the player's settings to the default factory state. Slide the Rack Loading (White) toward the arrow direction by using a minus driver to release the lock. (Refer to Fig. 1) Manually open the Tray. Please strongly pushing Rack Loading (White) to release the lock because the tray doesn't go out easily. 1. 2. Fig. 1 Rack Loading (White) DVD Player (Bottom Side) NOTE: DISC REMOVAL METHOD AT NO POWER SUPPLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 8 1 2 3 4 1 2 3 4 C D F A B E 2. SPECIFICATIONS 2.1 ACCESSORIES Accessories • Remote control ×1 (07650PC010) • Audio / Video cable(1.2m) ×1 (red/white/yellow) (06CPBA2006) • Dry cell batteries ×2 (AA/R6P) • Warranty Card • Operating Instructions DVD STANDBY/ON OPEN/CLOSE TOP MENU RETURN MENU HOME MENU HDMI COLOR AUDIO SUBTITLE ANGLE DVD/ USB PLAYMODE SURROUND ZOOM DISPLAY ENTER ENTER TV CONTROL PLAY VOLUME CHANNEL INPUT SELECT FL DIMMER CLEAR HDMI RESOLUTION PAUSE NEXT PREV STOP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 9 5 6 7 8 5 6 7 8 C D F A B E 2.2 SPECIFICATIONS General Power requirements . . . . . . . . . . . . . . .AC 120 V, 60 Hz Power consumption . . . . . . . . . . . . . . . . . . . . . . . .12 W Power consumption (standby). . . . . . . . . . . . . . . . 0.8 W Weight . . . . . . . . . . . . . . . . . . . . . . . . 2.6 kg (5 lb 12 oz) Dimensions . . . . . . . .420 mm (W) x 51.5 mm (H) x 215.5 mm (D) . . . . . . (16-9/16 in. (W) x 2-1/16 in. (H) x 8-1/2 in. (D)) Operating temperature . . . . . . . . . . . . .+5 °C to +35 °C (+41 °F to +95 °F) Operating humidity . . . . . . . . . . . . . . . . . . . 5 % to 85 % (no condensation) Component video output Y (luminance)-Output level . . . . . . . . . . . .1 Vp-p (75 Ω) PB (color)-Output level . . . . . . . . . . . . . .0.7 Vp-p (75 Ω) PR (color)-Output level . . . . . . . . . . . . . .0.7 Vp-p (75 Ω) Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA S-video output Y (luminance) - Output level . . . . . . . . . . .1 Vp-p (75 Ω) C (color) - Output level . . . . . . . . . . . .286 mVp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-video Video output Output level . . . . . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA Audio output (1 stereo pair) Output level . . . . . . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA HDMI output HDMI output . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 pin Audio output (multi-channel/L, R, C, SW, SL, SR) Output level . . . . . . . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA Digital audio characteristics Frequency response . . . . . . . . . . . . . . . .4 Hz to 44 kHz S/N ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115 dB Dynamic range. . . . . . . . . . . . . . . . . . . . . . . . . . .100 dB Total harmonic distortion . . . . . . . . . . . . . . . . 0.0023 % Wow and flutter. . . . . . . . . . . . . . .Limit of measurement (±0.001 % W. PEAK) or lower Digital output Coaxial digital output . . . . . . . . . . . . . . . . . . . . . . .RCA Optical digital output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Optical Accessories Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . . . . . . 2 Audio/video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Operating instructions The specifications and design of this product are subject to change without notice, due to improvement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 DISC/CONTENT FORMAT Disc/content format playback compatibility This player is compatible with a wide range of disc types (media) and formats. Playable discs will generally feature one of the following logos on the disc and/or disc packaging. Note however that some disc types, such as recordable CD and DVD, may be in an unplayable format–see below for further compatibility information. Please also note that recordable discs cannot be recorded using this player. • This unit will play DVD+R/+RW discs. • is a trademark of DVD Format/Logo Licensing Corporation. • is a trademark of Fuji Photo Film Co. Ltd. • Also compatible with KODAK Picture CD About DualDisc playback A DualDisc is a new two -sided disc, one side of which contains DVD content video, audio, etc. while the other side contains non-DVD content such as digital audio material. The non-DVD, audio side of the disc is not compliant with the CD Audio specification and therefore may not play. The DVD side of a DualDisc plays in this product. DVD-Audio content will not play. For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer. CD-R/-RW compatibility • Compatible formats: CD-Audio, Video CD, ISO 9660 CD-ROM* containing MP3, WMA, MPEG-4 AAC, JPEG or DivX video/ WMV files * ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible with this player. • Multi-session playback: No • Unfinalized disc playback: No • File structure (may differ): Up to 299 folders on a disc; up to 648 folders and files (combined) within each folder DVD+R/DVD+RW compatibility Only DVD+R/DVD+RW discs recorded in 'Video Mode (DVD Video Mode)' which have been finalized, can be played back. However, some editing made during the recording may not be played back accurately. DVD-R/-RW compatibility • Compatible formats: DVD-Video, Video Recording (VR)* * Edit points may not play exactly as edited; screen may go momentarily blank at edited points. • Unfinalized playback: No • MP3/WMA/MPEG-4 AAC/JPEG or DivX video/WMV file playback on DVD-R/-RW: No DVD-Video DVD-R DVD-RW Video CD Audio CD CD-R CD-RW DVD-Audio Super Audio CD Fujicolor CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 11 5 6 7 8 5 6 7 8 C D F A B E Compressed audio compatibility • Compatible formats: MPEG-1 Audio Layer 3 (MP3), Windows Media Audio (WMA), MPEG-4 AAC • Sampling rates: 32 kHz, 44.1 kHz or 48 kHz • Bit-rates: Any (128 kbps or higher recommended) • VBR (variable bit rate) MP3/WMA/MPEG-4 AAC playback: No • WMA lossless encoding compatible: No • DRM (Digital Rights Management) compatible: No (DRM-protected audio files will not play in this player) • File extensions: .mp3, .wma, .m4a (these must be used for the player to recognize MP3, WMA and MPEG-4 AAC files – do not use for other file types) About MPEG-4 AAC Advanced Audio Coding (AAC) is at the core of the MPEG-4 AAC standard, which incorporates MPEG-2 AAC, forming the basis of the MPEG-4 audio compression technology. The file format and extension used depend on the application used to encode the AAC file. This unit plays back AAC files encoded by iTunes© bearing the extension '.m4a'. DRM-protected files will not play, and files encoded with some versions of iTunes© may not play, or filenames may display incorrectly. Apple and iTunes are trademarks of Apple Inc., regis- tered in the U.S. and other countries. WMA (Windows Media™ Audio) compatibility This player can playback Windows Media Audio content. WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA content can be encoded by using Windows Media Player for Windows XP, Windows Media Player 9 or Windows Media Player 10 series. Windows Media is a trademark of Microsoft Corporation. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. About DivX video DivX is a media technology created by DivX, Inc. DivX media files contain not only video but also include advanced media features like menus, subtitles, and alternate audiotracks. This player can play DivX videos burned on CD-R/-RW/-ROM discs. Keeping the same terminology as DVD-Video, individual DivX video files are called ˝Titles˝. When naming files/titles on a CD-R/-RW disc prior to burning, keep in mind that by default they will be played in alphabetical order. DivX video compatibility • Official DivX© Certified product. • Plays all versions of DivX© video (including DivX© 6) with standard playback of DivX© media files. • File extensions: .avi and .divx (these must be used for the player to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this player. About WMV WMV is an acronym for Windows Media Video and refers to a video compression technology developed by Microsoft Corporation. WMV content can be encoded by using Windows Media® Encoder. • This player is compatible with WMV9 files that are encoded by using the Windows Media® Encoder 9 Series, with .wmv as an extension. • Compatible with size under 720 x 576 pixels/ 720 x 480 pixels. • Advanced Profile is not supported. • DRM-protected video files will not play in this player. JPEG file compatibility • Compatible formats: Baseline JPEG and EXIF 2.2* still image files up to a resolution of 3072 x 2048. * File format used by digital still cameras. • Progressive JPEG compatible: No • File extensions: .jpg (must be used for the player to recognize JPEG files – do not use for other file types) PC-created disc compatibility Discs recorded using a personal computer may not be playable in this unit due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. Discs recorded in packet write mode (UDF format) are not compatible with this player.Check the DVD-R/-RW or CD-R/-RW software disc boxes for additional compatibility information. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 12 1 2 3 4 1 2 3 4 C D F A B E 2.4 PANEL FACILITIES 2.4.1 FRONT PANEL SECTION Front panel 1 � STANDBY/ON 2 Disc tray 3 TOP MENU 4 ENTER & cursor buttons 5 MENU 6 RETURN 7 HOME MENU 8 Display 9 � OPEN/CLOSE 10 � 11 � 12 � 13 � and � 14 HDMI indicator Lights when this player is recognized by another HDMl or DVI/HDCP compatible component. 15 DVD/USB 16 USB port (Type A) 17 RW Compatible Press to switch the player on or into standby. Press to open or close the disc tray. Press to pause playback. Press again to restart. Press to start or resume playback. Press to stop the disc (you can resume play- back by pressing � (play)). Description of the display. • Press and hold for fast reverse/forward scanning. • Press to jump to the previous/next chapter or track. This mark indicates compatibility with DVD-RW discs recorded on a DVD recorder in Video Recording mode. Displays the ‘top menu’ of a DVD disc—this varies with the disc. Displays a DVD disc menu—this varies with the disc and may be the same as the ‘top menu’. Selects the current menu option. Returns to the previously dis-played menu screen. 2 3 4 5 1 7 6 8 10 9 17 14 15 16 11 12 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 13 5 6 7 8 5 6 7 8 C D F A B E 2.4.2 REMOTE CONTROL Remote control DVD STANDBY/ON OPEN/CLOSE TOP MENU RETURN MENU HOME MENU HDMI COLOR AUDIO SUBTITLE ANGLE DVD/ USB PLAYMODE SURROUND ZOOM DISPLAY ENTER ENTER TV CONTROL PLAY VOLUME CHANNEL INPUT SELECT FL DIMMER CLEAR HDMI RESOLUTION PAUSE NEXT PREV STOP 2 1 7 8 12 4 5 9 11 13 16 20 18 17 22 23 24 25 3 6 10 14 15 19 21 26 27 28 29 1 Press to switch the player on or into standby. 5 AUDIO Press to select the audio channel or language. 7 TOP MENU Press to display the top menu of a DVD disc. 8 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 12 Use for reverse slow motion playback, frame reverse and reverse scanning. 13 Press to start or resume playback. Press to jump to the beginning of the current 11 PLAY MODE Press to display the Play Mode menu. (You can also get to the Play Mode menu by pressing HOME MENU and selecting Play Mode). 10 SURROUND Press to switch on/off virtural Surround. 16 Press to open or close the disc tray. Press to control HDMI color. Press to control HDMI resolution. Press to execute a command. 21 ANGLE Press to change the camera angle during DVD multi-angle scene playback. 4 CLEAR Press to clear a numeric entry. Press to turn to USB mode and return to DVD mode. 22 MENU Press to display a DVD disc ( or Divx media files) menu, or the Disc Navigator if a VR format DVD-RW, CD, Video CD , MP3, WMA or JPEG disc is loaded. 3 Number buttons 2 FL DIMMER Press to change the display brightness. 6 SUBTITLE 14 chapter or track, then to previous chapters/ tracks. 15 Press to pause playback; press again to restart. 9 HOME MENU 17 HDMI COLOR 18 HDMI RESOLUTION +/– 19 ENTER 20 DVD/USB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 14 1 2 3 4 1 2 3 4 C D F A B E 23 RETURN Press to return to a previous menu screen. 26 Use for forward slow motion playback, frame advance and forward scanning. 27 Press to jump to the next chapter or track. 28 Press to stop the disc (you can resume playback by pressing (play)). 25 DISPLAY Press to display information about the disc playing. 24 ZOOM Press to change the zoom level. 29 TV CONTROL Press to control user's TV. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 15 5 6 7 8 5 6 7 8 C D F A B E 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING Check points after servicing (DVD player) To keep the product quality after servicing, confirm recommended check points shown below. See the table below for the items to be checked regarding video and audio: No. Procedure Check points 1 Confirm the firmware version on Service Mode. The version of the firmware must be latest. Update firmware to the latest one, if it is not the latest. The customer complain must not be reappeared. Video, audio and operations must be normal. 2 Confirm whether the customer complain has been solved. If the customer complain occurs with the specific disc, use it for the operation check. The error rates must be less than 5.0e-4. 3 Confirm playback error rates at the innermost and outermost tracks by using the following disc. DVD test disc (GGV1025) 4 Play back a DVD. (Menu operation, Title/chapter search) Audio and operations must be normal. 5 Play back a DVD. (Menu operation, Title/chapter search) Video, audio and operations must be normal. 6 Check the appearance of the product. No scratches or dirt on its appearance after receiving it for service. Items to be checked regarding video Item to be checked regarding audio Block noise Distortion Horizontal noise Noise Dot noise Volume too low Disturbed image (video jumpiness) Volume too high Too dark Volume fluctuating Too bright Sound interrupted Mottled color www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 16 1 2 3 4 1 2 3 4 C D F A B E 3.2 PCB LOCATIONS OPERATION 1 PCB ASSY OPERATION 2 PCB ASSY OPERATION 3 PCB ASSY POWER PCB ASSY USB PCB ASSY DVD MT PCB ASSY DVD MECHA ASSY Mark No. Description Part No. LIST OF ASSEMBLIES 1..DVD MT PCB ASSY A2K512A130 1..OPERATION 1 PCB ASSY A2K512A270 1..OPERATION 2 PCB ASSY A2K401A280 1..OPERATION 3 PCB ASSY A2K401ADF0 > 1..POWER PCB ASSSY A2K512A240 1..USB PCB ASSY A2K401ADD0 1..DVD MECHA ASSY A2K001A650 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 17 5 6 7 8 5 6 7 8 C D F A B E 3.3 JIGS LIST Service Remote Control Unit GGF1381 diagnosis Name Jig No. Remarks DVD Test Disc (DVD-Video,NTSC) GGV1025 Operation Check DVD Test Disc (DVD-Video,PAL) CD Test Disc GGV1101 STD-905 Operation Check Operation Check 7 Jigs list Lubricants and Glues list Cleaning Daifree GEM1036 (ZLX-ME413A) Refer to "9.3 06 DVD MECHA SECTION" Grease GYA1001 (ZLB-PN397B) Refer to "9.3 06 DVD MECHA SECTION" Grease GEM1018 Refer to "9.3 06 DVD MECHA SECTION" Name Lubricants and Glues No. Remark Name Lubricants and Glues No. Remark • Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Pickup leneses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Position to be cleaned Cleaning tools Remark Position to be cleaned Cleaning tools Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 18 1 2 3 4 1 2 3 4 C D F A B E 4. BLOCK DIAGRAM 4.1 OVERALL WIRING CONNECTION DIAGRAM 2 1 CP8102 2 1 CP8001 4 3 2 1 4 3 2 1 4 3 2 1 8 7 6 4 5 3 2 1 CP5901 11 10 9 8 7 6 5 4 3 2 1 11 10 9 8 7 6 5 4 3 2 1 14 13 12 11 10 9 8 7 6 4 5 3 2 1 CP4003 14 13 12 11 10 9 8 7 6 4 5 3 2 1 CP502 5 4 3 2 1 CP605 5 4 3 2 1 CP604 6 5 4 3 2 1 6 5 4 3 2 1 Vout B+ GND OS651 1 2 3 OS8101 OPTICAL 1 2 3 H E J8102 COAXIAL 1 2 CP501 CONNECTOR 1 2 BLADE WIDE BLACK WHITE 2 1 CD501 AC120V_60Hz(US) J7304 S-VIDEO OUT for HE 1 2 3 4 5 6 H1 H2 E H1 H2 E J7302 CVBS/Y/U/V 1 2 3 4 5 6 PCBDF0 PCB270 GND VCC INPUT FLDC- FLDC+ V+3E -28V DGND DGND DO (F to M) DI (M to F) IR STB CLK (CD601) 11 10 9 8 7 6 5 4 3 2 1 11 10 9 8 7 6 5 4 3 2 1 CP4002 2 1 2 1 GND SPDIF GND SPDIF 6 6 14 13 14 13 12 11 10 9 8 7 12 11 10 9 8 7 (CD502) 2 1 2 1 5 4 3 5 4 3 AT+3.3V FL DC- FL DC+ -28V AT+3.3V P.CON+6V GND(M) GND(D) P.ON-H GND P.CON+5V GND P.CON+12V AT+12V for MUTE AT+3.3V AT+3.3V FL DC- FL DC+ P.ON-H P.CON+6V -28V GND(M) GND(D) (CD6601) 6 5 4 3 2 1 CP4004 USBN GND GND USB_POWER USB_FLAG USBP DPF015 POWER PCB PCB240 GND P.CON+12V P.CON+5V GND AT+12V for MUTE (CD6602) 4 3 2 1 4 3 2 1 6 5 4 3 2 1 D2+ D2-S D2- D1+ D1-S D0+ D0-S D1- GND CP504 USB+5V GND USB+5V PCBDD0 DEF133 USB PCB GND USBN USB_POWER USB_FLAG GND USBP CP6601 (CD6603) +5V GND USB_DN USB_DP GND GND P.CON+5V P.CON+5V CP6602 1 2 3 4 5 5 4 3 2 1 (CD604) OPERATION PCB DEF126 DEF130 OPERATION3 PCB SW2 POWER V+3E LED USB SW2 POWER V+3E LED USB CP601 DGND DGND FLDC+ -28V FLDC- DI (M to F) V+3E STB DO (F to M) IR CLK DVD MT P (1/7 - 7/7) (A2K512A USB PCB ASSY (A2K401ADD0) OPERATION2 PCB ASSY (A2K401A280) OPERATION3 PCB ASSY (A2K401ADF0) OPERATION 1 PCB ASSY (A2K512A270) POWER PCB ASSY (A2K512A240) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 19 5 6 7 8 5 6 7 8 C D F A B E 19 18 17 16 15 14 13 12 11 10 9 8 7 6 4 5 3 2 1 5 4 3 2 1 CP2302 6 5 4 3 2 1 CP2303 24 23 22 21 20 19 2 1 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 CP2301 OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE THE TIME THIS INTERCONNECTION DIAGRAM IS THE LATEST AT NOTE: DANS LA NOMENCLATURE DES PIECES N'UTILISER QUE CELLS DECRITES DANGEREUSES AN POINT DE VUE SECURITE :LES PIECES REPAREES PAR UN ETANT ATTENTION :SINCE THESE PARTS MARKED BY CAUTION DESCRIBED IN PARTS LIST ONLY CRITICAL FOR SAFETY,USE ONES ARE H1 H2 E H1 H2 E J8002 LS/RS/C/LFE 1 2 3 4 5 6 H1 H2 E H1 H2 E J7302 CVBS/Y/U/V 1 2 3 4 5 6 H1 H2 E J8001 L/R 1 2 3 PCB130 VRCOM TRKG DRV TRKG RTN FOCS RTN FOCS DRV VCC D B VR780(CD) VRF(RF_OUT) SW1(DVD/CD) C E VS F GND A VR650(DVD) GND GND LD_DVD(650) LD_CD(780) PD/GND NC D2+ D2-S D2- D1+ D1-S D0+ D0-S D0- CLK-S CLK- CEC SCL SDA GND POWER HOTPLUG NC D1- CLK+ DMF090 DVD MT PCB CBDD0 EF133 SB PCB SW(GND) LIMIT SW SLD- SLD+ SPD- SPD+ LOAD+ LOAD- GND OPEN CLOSE 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 6 5 4 3 2 1 6 5 4 3 2 1 B A VRCOM VR780(CD) VRF(RF_OUT) SW1(DVD/CD) C VR650(DVD) GND LD_DVD(650) LD_CD(780) PD/GND TRKG DRV TRKG RTN FOCS RTN FOCS DRV VCC D E VS F GND GND NC DM-4PB DRIVE DVD OPTICAL PICK-UP DVD MT PCB ASSY (1/7 - 7/7) (A2K512A130) DED021 PCB610 CD2302 BCZ3B05 M2603 M 5 4 3 2 1 SW-2(CLOSE) GND(SW) SW-1(OPEN) LOADING MOTOR(-) LOADING MOTOR(-) 2H051602 SSS-28-5 SW1 BCZ3B05 JCV9B12 M2601 M2602 ESE22MH22 SW2 M M 2H061605 CD2301 DED020 PCB640 SPINDLE MOTOR(+) SPINDLE MOTOR(-) FEED MOTOR(-) GND(SW) FEED MOTOR(+) PICK UO INNER LIMIT SWITCH 6 5 4 3 2 1 DVD MECHA ASSY (A2K001A650) (LOADING MOTOR PCB) (SW PCB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 20 1 2 3 4 1 2 3 4 C D F A B E 4.2 OVERALL BLOCK DIAGRAM P.CON+12V AC220V~240V V+5H 27MHz -28V AT+12V for mute AT+3.3V P.CON+6V P.CON+5V POWER SUPPLY DVD LOADER (DM4) MOTOR DRIVER IC2301 AM5766 FIP DRIVER IC IC651 PT6315 8K EEPROM IC4001 S-24CS08AFJ-TB- 1GE FIP HNV-08SS44T KEY SERVO RF SERVO IR FP,STB ASPDIF RESET LD_DVD, LD_CD IR 108MHz TV Encoder MPEG-1/2/ JPEG VIDEO DECORDER RF OVERALL BLOCK DIAGRAM IR RECEIVER (OS651) ROM-N340TAO 16Mbit FLASH IC4004 ES29LV160EB-70 TG 64Mbit SDRAM IC4005 HY57V641620ETP-6-C SDA, SCL AMUTE MPEG/MICON BLOCK IC4002 MT1389EXE/S-L AUDIO CODEC/ INTERNAL DAC +1.8V A0~A20, AD0~AD7 MA0~MA11, DQ0~DQ15 RESET IC IC4003 R3112N291A- TR-FA VIDEO DRIVER 6CH IC IC7301 LA73054-TLM-E 4CH VIDEO DAC HDMI CONNECTOR CP5901 TX0+/-, TX1+/-, TX2+/-, TXC+/- S_VIDEO S CO COAXIAL OPTICAL OP IC8003/4/5 AUDIO DAC IC PCM174KE/2K DAC_XCSO, SCK, SD, ACLK, ABCK, ALRCK, ASDAT0~2 IC8002/7/8 AUDIO LPF AND AMP IC RC4580IDR C LFE SR L R FLDC+/- SL CVBS V U Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 21 5 6 7 8 5 6 7 8 C D F A B E 4.3 DVD LOADER BLOCK DIAGRAM DVD LOADER/MPEG BLOCK DIAGRAM DVD Loader (DM-4) MPEG/MICON IC IC4002 MT1389EXE/S-L X4001 27MHz IOA, V20 C RF, A, B, C, D, E, F, MDI1 LD_DVD, LD_CD Q2302~2305 LD DRIVE LDO1, LDO2 MOTOR DRIVER IC IC2301 AM5766 DMSO, FMSO, TROPEN, TRCLOSE, TRSO, FOSO, STBY, V1P4 T+/-, F+/-, LOAD+/-, MOT_SLED+/-, MOT_SPDL+/- OPU SPINDLE/ STEPING/ SLED MOTOR LIMIT, TRIN, TROUT, OPO, OP+/- 16Mbit FLASH IC4004 ES29LV160EB-70TG MA0~MA11, DQ0~DQ15, DQM0, DQM1, DBA0, DBA1, SDCLK, SDCKE, DWE#, DRAS#, DCAS# A D A0~A20, AD0~AD7, PRD#, PCE#, PWR# 64Mbit SDRAM IC4005 HY57V641620ETP-6-C A A RESET IC IC4003 R3112N291A- TR-FA A VIDEO DRIVER 6CH IC IC7301 LA73054-TLM-E LETTER, I/XP, S_Y, S_C, R/CR, B/CB, G/Y, CVBS A, B 3 5 Y U CVBS/Y/U/V J7302 2 V SQUEEZE, VSEL1 6 CVBS A.......AT+3.3V B.......+1.8V C.......P.CON+5V D.......P.CON+6V E.......AT+12V F.......P.CON+12V G.......-28V H.......V+5H EEPROM IC IC4001 S-24CS08AFJ-TB-1GE A IR IR RECEIVER (OS651) ROM-N340TAO IR GR1~GR8, P1~P16 FP_DI, FP_DO, FP_SCK, STB FIP DRIVER IC IC651 PT6315 FIP (V651) HNV-08SS44T G A A 2 COAXIAL JACK J8102 COAXIAL ASPDIF 1 OPTICAL OS8101 OPTICAL S-VIDEO OUT FOR HE J7304 4 3 Y C C 5 3 SL LFE LS/RS/C/LFE JACK J8002 6 C 2 SR L/R JACK J8001 3 2 R L IC8002/7/8 AUDIO LPF AND AMP IC RC4580IDR DAC_XCSO, SCK, SD, ACLK, ABCK, ALRCK, ASDAT0~2 IC8003/4/5 AUDIO DAC IC PCM1742KE/2K A, C F USB_POWER 1 USB_FLAG 2 USBN 5 4 USBP A +5V 1 2 USB_DN 3 USB_DN P.CON+5V 2 1 P.CON+ 5V HIGH SIDE SW IC6601 RT9702-PB CP6601 CP6602 CP6603 D2+ 1 3 D1+ 4 D1- 6 D0+ 7 D0- 9 CLK+ 10 D2- HDMI CONNECTOR CP5901 CLK- 12 HDMI_SCL HDMI_SDA 2 1 3 4 2 1 3 4 2 1 3 4 2 1 3 4 L5901 L5902 L5904 L5903 TX2+ TX2- TX1+ TX1- TX0- TX0+ TXC+ TXC- HOTPLUG 19 POWER 18 SDA 16 15 SCL RESET SCL SDA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 22 1 2 3 4 1 2 3 4 C D F A B E 4.4 POWER BLOCK DIAGRAM SWITCHING TRANS T501 P.CON SW POWER BLOCK DIAGRAM Q505 AC IN P.CON+5V AT+3.3V FL DC - -28V AT+12V for mute P.CON+6V P.CON+12V P.ON-H FL DC + Q515 P.CON +5V SW Q510 P.CON +12V SW Q504 FL+ P.CON SW Q502 -28V P.CON SW VOLTAGE CTL IC501 KIA431A-AT PHOTO COUPLER IC504 PS2561AL1-1-V (W) POWER CTL IC502 STR-A6131M 6V REG IC503 PQ070XF01SZH REG+1.8V IC4006 LM1117S-ADJ +1.8V HDMI+5V REG IC IC5902 PQ1K503M2ZPH V+5H +5.2V REC(USB) IC505 PQ070XF01SZH USB+5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 23 5 6 7 8 5 6 7 8 C D F A B E 5. DIAGNOSIS 5.1 TROUBLE SHOOTING POWER DOES NOT TURN ON Is the voltage at pin 8 and pin 9 of CP502 about 3.3V and at pin 5 of CP502 about 5V? No Yes No Is there waveform at X4001 about 3.0Vp-p ? Check X4001, IC4002 and peripheral circuit. Yes Write DVD FIRMWARE DATA. Check AT+3.3V line of POWER BLOCK. Check Q515 and peripheral circuit. No Yes No DECK DOES NOT ACCEPT OPEN/CLOSE Check P.CON 6V line of POWER BLOCK. Yes Is the lose connection at CD2302 to DECK ? Check CD2302 connection to DECK. Change DVD LOADER. Is the voltage at pin 8 and 19 of IC2301 about DC6V ? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 24 1 2 3 4 1 2 3 4 C D F A B E DOES NOT LIGHT ON DISPLAY Yes Is the voltage at pin 13 and pin 43 of IC651 about 3V ? Check AT+3.3V line of POWER BLOCK. No Replace V651 or IC651. NO PLAYBACK PICTURE OF AV JACK Is there video signal at pin 33 of IC7301 ? Change IC7301. No Yes No Yes Check J7302 and peripheral circuit. Is there a signal at pin 187 of IC4002 ? Check IC4002 and peripheral circuit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 25 5 6 7 8 5 6 7 8 C D F A B E NO DIGITAL AUDIO ON PLAYBACK OF COAXIAL JACK Is there waveform at pin 2 of J8102 about 0.3Vp-p? Check connection at RCA Cable. Yes Yes No No Change IC4002. Is there waveform at pin 215 of IC4002 about 3.3Vp-p ? Check Q8103 and peripheral circuit. NO ANALOG AUDIO ON PLAYBACK Is there AUDIO signal at pins 7 and 8 of IC8003 ? Yes Is there waveform at pins 1,2 and 3 0f IC8003 ? Yes Yes Check J8001 and peripheral circuit. No No Check AT +5V. Change IC4002. Is there voltage at pin 6 of IC8003 about 5V ? No Change IC8003. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 26 1 2 3 4 1 2 3 4 C D F A B E Yes Yes No No NO 5.1CH AUDIO ON NO OPTICAL OUT PLAYBACK Is there AUDIO signal at pins 7 and 8 of IC8003, IC8004 and IC8005 ? Is there voltage at pin 2 of OS8101 about 5V ? Yes Is there waveform at pins 1,2 and 3 0f IC8003, IC8004 and IC8005 ? Is there waveform at pins 1 of OS8101 about 2.5V ? Yes Check J8001, J8002 and peripheral circuit. No No No Check AT +5V. Check P.CON +D5V line. REFER TO "NO DIGITAL AUDIO ON PLAYBACK OF COAXIAL JACK". Change IC4002. Change OS8101. Is there voltage at pin 6 of IC8003, IC8004 and IC8005 about 5V ? YES Change IC8003, IC8004 and IC8005. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 27 5 6 7 8 5 6 7 8 C D F A B E Symptoms That May Occur When Any Of The Following ICs Is In Failure IC Symptoms EEPROM (DVD MT PCB Assy : IC4001) User's data cannot be stored in memory. The ID number is lost. 16M Flash ROM (DVD MT PCB Assy : IC4004) The power cannot be turned on. Downloading of the firmware cannot be performed. DVD IC (DVD MT PCB Assy : IC4002) Any kind of symptoms (no power, a failure in any of the servo, video and audio systems, etc.) may be generated, because the DVD processing is performed by a single chip. 64M SDRAM (DVD MT PCB Assy : IC4005) No power. Block noise is generated during playback. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 28 1 2 3 4 1 2 3 4 C D F A B E 5.2 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY C4086 W804 R4028 R4058 W832 W822 R2321 R2323 R2320 R2322 C2303 C2302 B4014 Case when this diagnosis is required : When playback of any disc, including a test disc (DVD: GGV1025, CD: STD-905), cannot be performed How to diagnose In the case mentioned above, degradation of the laser diodes (LDs) mounted on the PICKUP Assy is suspected. Measure the voltage between the two ends of one of the resistors mentioned below. Measure the voltage between the two ends of R2321 or R2323 on the DVDM Assy. If the voltage is 0.4 V or higher, the 650-nm LD is degraded. No playback of a DVD : Measure the voltage between the two ends of R2320 or R2322 on the DVDM Assy. If the voltage is 0.4 V or higher, the 780-nm LD is degraded. No playback of a CD : If the measurements show degradation of an LD, replace the PICKUP Assy. SIDE B DVD MT PCB ASSY DMF090A R4060 C4071 C4080 C4081 C4082 W827 C5921 C4088 C4068 C4072 C4073 C4054 C4102 C4101 C4120 C4052 C4064 R4001 C4055 C4051 R4014 R4004 C4022 C4040 C4025 R4044 C4021 R4054 C4086 C4029 R4039 C4036 W813 C4037 C4038 R4003 C4001 C4002 C4003 C4020 C4008 C4009 R4005 C4105 C4007 C4005 C4019 C4013 C4017 C4016 C4015 C4014 C4026 W816 R4020 C4027 C4028 C4033 R4022 C4034 C4035 C4041 C4043 C4049 C4048 C4046 R4057 R4053 C4061 R4069 R4068 W828 Q4002 R4048 C4084 C4065 R4006 R4008 C4110 C4066 C4067 R7304 R7305 R7316 R7317 C7330 C7317 C7302 C7313 Q7302 R7315 C7305 R4067 C4083 R4066 C4074 R4065 R4064 R4061 R4002 W804 R8097 C8042 C8054 C8006 R8099 C8051 R8063 R8064 C8055 R8066 C8062 C8046 R8061 R8075 R8087 Q8021 C8005 R8096 W808 W809 R8084 B8004 Q8025 R8083 R8086 R8089 R4028 R4058 W832 W822 W821 R4051 C4030 C4012 R8004 R4026 R2321 R2323 R2320 R2322 C2303 C2302 R2318 R2327 W868 W856 R4009 C4128 W807 B4014 W857 W858 C5901 B4015 R8065 C5925 C2308 B4018 Q4004 B4016 R8059 W864 W862 R8028 C4131 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 29 5 6 7 8 5 6 7 8 C D F A B E 6. SERVICE MODE 6.1 SERVICE MODE PROCEDURE POWER ON DSC - &&& GGF1381 Service mode remote control unit GGF1381 Service mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE Press the play key ( ) of the normal remote control unit. (Player) An address is displayed OR ESC ESC TEST CHECK DVD, CD DVD disc POWER ON OFF POWER DISC SET Notes: • After going into service mode, if you play back the disc, "DISC-NON" is displayed. • The video signal and the audio signal are outputted during the servicemode. • The SKIP key and the SCAN key are effective during the service mode. SERVICE MODE: PLAY SERVICE MODE: OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 30 1 2 3 4 1 2 3 4 C D F A B E 6.2 SERVICE MODE IN Service Mode Functional Specification 1 Service mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the Service mode remote control unit. • Light the all FL and LEDs. • OSD displays test mode. Note: * When pressing the keys of something, the FL displays "NO DISC" and the LED lighting disappears. 2 Release the Service mode • Turn off the power. • Press the [ESC] (A8-5F) key of the remote control unit. 3 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 31 5 6 7 8 5 6 7 8 C D F A B E 6.3 DISPLAY SPECIFICATION OF THE SERVICE MODE Character in bold : Item name : Information display 1 5 6 10 11 8 9 3 2 12 15 13 14 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : ID indication [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL – ∗ ∗ ∗] [OFF], [CLV] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] In Side Switch ON : [01] In Side Switch OFF : [00] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] - Jitter value [J – ∗ ∗ ∗ ∗] Note:Don't use it. = Version of the FL controller [FL: ∗ ∗ ∗ ∗] ~ Region setting of the player [REG: ∗] Setting value : [1] to [6] ! Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent code 01. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM, LB: /LB, WY: /WY @ Version of the flash ROM [VERSION: ∗∗∗∗∗∗∗∗] 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 32 1 2 3 4 1 2 3 4 C D F A B E 6.4 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY • Service mode indication (ESC + CHP/TIM keys) ID Address The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs. EDC/ID/AV 1 error history (ID Address, EDC/ID Error, last eight errors) • Calculation of the average error rate (ESC + "5" [Service mode remote control unit] keys) The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs) For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less • Indication of model information (ESC + CHAP keys) The items from 12 to 15 of the SERVICE MODE Indications are displayed. However, in the indications, S in the standard test mode is changed to CHIP VERSION, and M is changed to FL VERSION. • Region confirmation mode (ESC + A.MON [Service mode remote control unit] + "1"-"8" [Service mode remote control unit] keys) After you press the A.MON key while holding the ESC key pressed and then input the region number, if the number is different from that set in the unit, an error message is displayed, and the tray opens. Command Contents Conditions Remote Control Key Name Remote Control Code Memory clear and region / revision indication CLEAR (∗1) A8-45 Average value measurement of DVD error rate 5 (∗1) A8-05 CD error rate measurement 5 (∗1) A8-05 Scart terminal output : VIDEO WY, models equipped with Scart terminal AUDIO AF-BE Scart terminal output : S-VIDEO SUBTITLE AF-36 Scart terminal output : RGB ANGLE AF-B5 Progressive OFF Only for progressive models R_SKIP A3-9D Progressive ON F_SKIP A3-9C ZOOM ON (X2 -> X4 -> x1) ZOOM AF-37 Service mode indication (error rate indication, etc.) CHP/TIM (∗1) A8-13 Model information indication CHAP (∗1) A8-40 Title search Input mode IN Title No. input Search execution SIDE A (∗1) Numbers (∗1) PLAY (∗1) A8-4D A8-00 to A8-09 A8-17 Region confimation mode A.MON (∗1) Numbers (∗1) A8-1E A8-01 to A8-08 Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC key of the remote control unit. To quit, press the ESC key ∗1 : Service mode remote control unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 33 5 6 7 8 5 6 7 8 C D F A B E 6.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE • Display during Service Mode To enter Service Mode, press the CHP/TIM key while holding the ESC key pressed. To quit, press the ESC key. Service mode display 1 ID Address 2 Error rate (always displayed), in exponential notation ERROR RATE : ∗ ∗ ∗ ∗ ∗ ∗ ∗ ( ∗ ∗ ∗ ∗ ) • Calculation of the average error rate For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less 3 EDC/ID error history (ID Address, EDC/ID errors, last eight errors) Note: ∗ Error of AV1 is not supported in this player. Number of error Indication plan contents Character in bold : Item name : Information display 1 2 3 ex) For DVDs • Step 1 %%e -& %%e -6 : OK %%e -5 : OK %%e -4 : Refer to Step 2 %%e -3 : NG %%e -2 : NG • Step 2 %%e -4 3.0e -4 : OK 4.0e -4 : OK 5.0e -4 : OK 6.0e -4 : NG 7.0e -4 : NG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 34 1 2 3 4 1 2 3 4 C D F A B E 7. DISASSEMBLY 7.1 EXTERIOR SECTION 1. 1-1: REMOVAL OF MECHANICAL PARTS AND P.C. BOARDS 1. 2. 3. 4. 5. 6. 7. Remove the 5 screws 1. Remove the Top Cabinet in the direction of arrow (A). Disconnect the following connector: (CP1012). Unlock the 4 supports 2. Remove the Front Cabinet in the direction of arrow (B). Remove the 12 screws 3. Remove the Operation PCB in the direction of arrow (C). TOP CABINET/FRONT CABINET/OPERATION PCB (Refer to Fig. 1-1) 1-2: USB PCB (Refer to Fig. 1-2) 1. 2. 3. Disconnect the following connectors: (CP6601 and CP6602). Remove the 2 screws 1. Remove the USB PCB in the direction of arrow. Fig. 1-1 1 (B) (A) 1 1 1 1 Top Cabinet Front Cabinet 2 3 2 (C) Operation2 PCB 3 3 3 3 3 3 3 Operation 1 PCB Fig. 1-2 1 1 USB PCB 2 2 3 (C) Operation3 PCB 3 1-3: POWER PCB (Refer to Fig. 1-3) 1. 2. 3. 4. Fig. 1-3 Power PCB 2 Disconnect the following connectors: (CP502). Remove the 2 screws 1. Remove the 4 screws 2. Remove the Power PCB in the direction of arrow. 2 2 2 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 35 5 6 7 8 5 6 7 8 C D F A B E 1-5: DVD MT PCB (Refer to Fig. 1-5) 1. 2. 3. Remove the 5 screws 1. Remove the 4 screws 2. Remove the DVD MT PCB in the direction of arrow. Fig. 1-5 11 2 2 2 DVD MT PCB 2 11 1. 2. 3. 4. Short circuit the position shown in Fig. 1-4 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged. Disconnect the following connectors: (CP2301, CP2302 and CP2303). Remove the 4 screws 1. Remove the DVD Deck in the direction of arrow. 1-4: DVD DECK (Refer to Fig. 1-4) Fig. 1-4 DVD Deck 1 1 1 1 Short circuit using a soldering iron. Pick Up PCB NOTE Before your operation, please read “PREPARATION OF SERVICING”. Use the Lead Free solder. Manual soldering conditions • Soldering temperature: 320 ± 20˚C • Soldering time: Within 3 seconds • Soldering combination: Sn-3.0Ag-0.5Cu When Soldering/Removing of solder, use the drawing equipment over the Pick Up Unit to keep the Flux smoke away from it. When installing the DVD Deck, remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD MT PCB connector. 1. 2. 3. 4. 5. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 36 1 2 3 4 1 2 3 4 C D F A B E 7.2 DVD DECK SECTION 2. REMOVAL OF DVD DECK PARTS 2-1: TRAY (Refer to Fig. 2-1-A) METHOD AT NO POWER SUPPLY) Tray. 1. Set the Tray opened. (Refer to the DISC REMOVAL 2. Unlock the 2 supports 1 and draw it while sagging the Fig. 2-1-A Tray Push to Sag Push to Sag Loader Ass'y 1 NOTE 1. In case of the Tray installation, install them as the circled section of Fig. 2-1-B so that the each markers are met. 2-2: TRAVERSE ASS'Y (Refer to Fig. 2-2-A) 1. Remove the screw 1. 2. Unlock the 2 supports 2. 3. Remove the Insulator (R) from the Loader Sub Ass'y. 4. Remove the Traverse Ass'y. Fig. 2-2-A Tray Loader Ass'y Fig. 2-1-B Insulator (R) NOTE 1. Disassemble only the DVD DECK PARTS parts listed here. Minute adjustments are needed if the disassembly is done. If the repair is needed except listed parts, replace the DVD MECHA ASS'Y. NOTE 1. In case of the Traverse Ass'y, install it from (1) to (4) in 2. In case of the Traverse Ass'y installation, hook the wire order. (Refer to Fig. 2-2-B) on the Loader Ass'y as shown Fig. 2-2-C. 1 Traverse Ass'y Loader Sub Ass'y Fig. 2-2-B Check Lock Traverse Ass'y Rack Loading Loader Ass'y (Bottom Side) Holder Traverse Fig. 2-2-C Loader Ass'y Check Hook Loading Belt Loading Sub Ass'y Gear Pulley 1 2-3: LOADING MOTOR PCB ASS'Y/ LOADING BELT (Refer to Fig. 2-3-A) 1. Remove the Loading Belt. 2. Remove the screw 1. 3. Remove the Loading Motor PCB Ass'y. 4. Remove the 2 screws 2. 5. Remove the Loading Motor. 6. Remove the Gear Pulley. Fig. 2-3-A Loading Motor PCB Ass’y • Screw Torque: 2.0 ± 0.3kgf•cm • Screw Torque: 2.5 ± 0.3kgf•cm (Screw 1) • Screw Torque: 1.0 ± 0.3kgf•cm (Screw 2) 2 2 Loading Motor 2 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 37 5 6 7 8 5 6 7 8 C D F A B E BROWN (1) WHITE (2) NOTE 1. In case of the Pulley Motor installation, check if the value 2. When installing the wire of the Loading Motor PCB Ass'y, 3. When installing the Loading Motor PCB Ass'y, install it 4. In case of the Loading Motor PCB Ass'y installation, hook of the Fig. 2-3-B is correct. install it correctly as Fig. 2-3-C. Manual soldering conditions • Soldering temperature: 320 ± 20˚C • Soldering time: Within 3 seconds • Soldering combination: Sn-3.0Ag-0.5Cu correctly as Fig. 2-3-D. the wire on the Loader Sub Ass'y as shown Fig. 2-3-E. Fig. 2-3-B 7.0 ± 0.1mm Safety surface for pressing of the insert. Loading Motor Pulley Motor Check Hook Loading Motor PCB Ass’y Loading Motor PCB Ass’y Fig. 2-3-C Fig. 2-3-E Check Hook Fig. 2-3-D Rack Loading B A The Lever should be position between A and B. Check Hook Rack Loading 1 Loader Sub Ass’y Gear Main 2-4: RACK LOADING/MAIN GEAR/PULLEY GEAR (Refer to Fig. 2-4-A) 1. Unlock the support 2 and remove the Gear Pulley. 2. Remove the Gear Main. 3. Press down the catcher 1 and slide the Rack Loading. Gear Pulley 2 Fig. 2-4-A NOTE 1. In case of the Rack Loading installation, hook the Rack 2. When installing the Gear Main, take care the direction of Loading on the Loader Sub Ass'y as shown Fig. 2-4-B. up or down as shown Fig. 2-4-C. Fig. 2-4-B Rack Loading Check Hook Fig. 2-4-C Main Gear Up Side Down Side 2-5: CLAMPER ASS'Y (Refer to Fig. 2-5-A) clockwise, then unlock the 3 supports 1. 1. Press the Clamper and rotate the Plate Clamper 2. Remove the Plate Clamper, Magnet Clamper and Clamper. Plate Clamper Magnet Clamper Fig. 2-5-A Main Frame Clamper 1 1 1 Loader Sub Ass'y (Bottom Side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 38 1 2 3 4 1 2 3 4 C D F A B E Holder Traverse Insulator (F) Traverse Ass'y Insulator (F) Insulator (R) NOTE 1. In case of the Clamper Ass'y installation, install correctly as Fig. 2-5-B. Fig. 2-5-B Plate Clamper Clamper 2-6: HOLDER TRAVERSE/INSULATOR (F)/INSULATOR 1. Remove the Holder Traverse. 2. Remove the 2 Insulator (F). 3. Remove the Insulator (R). Fig. 2-6-A (R) (Refer to Fig. 2-6-A) NOTE 1. In case of the Insulator (F) installation, install correctly as Fig. 2-6-B. Fig. 2-6-B Traverse Holder Insulator (F) 2-7: SWITCH PCB ASS'Y/GEAR MIDDLE/GEAR FEED/ RACK FEED ASS'Y/FEED MOTOR (Refer to Fig. 2-7-A) 1. Unlock the support 1. 2. Remove the Gear Middle. 3. Remove the screw 2. 4. Remove the Rack Feed Ass'y. 5. Remove the screw 3. 6. Remove the Switch PCB Ass'y. 7. Remove the screw 4. 8. Remove the Gear Feed. 9. Remove the 2 screws 5. 10. Remove the Feed Motor. 11. Remove the Gear Motor. 3 Gear Middle Gear Motor Feed Motor • Screw Torque: 1.3 ± 0.3kgf•cm (Screw 2) • Screw Torque: 3.0 ± 0.3kgf•cm (Screw 3) • Screw Torque: 1.0 ± 0.3kgf•cm (Screw 4, 5) Switch PCB Ass'y 2 4 Rack Feed Ass'y Gear Feed 5 Fig. 2-7-A Traverse Ass'y 5 1 NOTE 1. When installing the Rack Feed Ass'y, push both ends to 2. In case of the Gear Motor installation, check if the value 3. When installing the wire of the Switch PCB Ass'y, install 4. After the assembly of the Traverse Ass'y, hook the wire align the teeth as shown Fig. 2-7-B. Then install it. of the Fig. 2-7-C is correct. it correctly as Fig. 2-7-D. Manual soldering conditions • Soldering temperature: 320 ± 20˚C • Soldering time: Within 3 seconds • Soldering combination: Sn-3.0Ag-0.5Cu on the Traverse Ass'y as shown Fig. 2-7-E. [OK] [NG] Fig. 2-7-B Rack Feed Ass'y Push Push Fig. 2-7-C 8.0 ± 0.2mm Safety surface for pressing of the insert. Feed Motor Gear Motor Check Lock Pickup leneses GEM1004 GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 39 5 6 7 8 5 6 7 8 C D F A B E [ 24 pin FFC ] shown from Fig. 2-8. 2-8: FFC WIRE HANDLING 1. When installing the FFC, fold it correctly and install it as positions for the FFC. 1. Do not make the folding lines except the specified NOTE Fig. 2-8 Traverse Ass'y • Loosen the wire in the direcion of the arrow. Check Hook Fig. 2-7-E ~ FEED MOTOR ~ WHITE (4) BROWN (3) ~ SPINDLE MOTOR ~ YELLOW (2) GREEN (1) Fig. 2-7-D Switch PCB Ass'y Printing Surface Fold 79 ± 1 mm Reinforcement Plate To Pick Up PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 40 1 2 3 4 1 2 3 4 C D F A B E 8. EACH SETTING AND ADJUSTMENT 8.1 ADJUSTMENT 8.2 RE-WRITE FOR DVD FIRMWARE There is no information to be shown in this chapter. 1. Purpose After replacing the DVD MT PCB Assy, be sure to update the firmware to the latest version. The firmware of the Assy for service may not be the latest. 3. Procedures for updating the firmware How to update: 1 Turn on the main unit and open the disc tray. 2 Place the disc for updating in the disc tray and close the tray. 3 Press the PLAY button. 4 Updating of the firmware is completed. 2. Procedures for creating the disc for updating Necessary tools: 1 PC with a CD-R/CD-RW drive 2 Blank CD-R or CD-RW 3 Firmware file (∗∗∗∗∗.BIN) How to create: 1 Start up the program for writing to CD. 2 Load a blank disc in the CD-R/CD-RW drive. 3 Enter "PIONEER" as the volume label. 4 Select the .BIN file. 5 Write the latest version of the firmware in ISO 9660 format. While the screen shown at left is being displayed, updating is in progress. DO NOT TURN OFF THE POWER DURING UPDATING. When the screen with the Pioneer logo is displayed, updating is completed. The time required for updating is about 2 minutes. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 41 5 6 7 8 5 6 7 8 C D F A B E 4. How to confirm the version of the firmware Press the ESC then the CHAP key on the remote control unit for servicing. The version of the firmware is labeled ROM NUMBER. Check if the version is the latest one. 5. Troubleshooting 1 If updating of the firmware failed If the main unit was turned off during updating, it cannot initialize and start up again properly. In such a case, replace the flash ROM on the DVD MT PCB Assy. 2 If updating of the firmware using the disc for updating failed • Was the disc for updating recognized properly? Check if the volume label of the disc is PIONEER. • Is playback of a disc other than the disc for updating possible? If playback of a test CD is also impossible, a reading section, such as PU, may be defective. In such a case, repair the defective part first. If playback of a test CD is possible, the disc for updating may be defective. Check for any scratches or foreign matter, such as fingerprints, on the reading surface. If no problem is found with the disc, create a new disc for updating again. YGA6B23A AREA:WY 40 02A5 1.16 1389FE ROM NUMBER REGION:2 REG CHK SUM CHK FL VERSION CHIP VERSION Y G A 6 B 2 3 A How to interpret the version code: Number of releases on the same release date Release date: 6: Year B: Month (1-9 [Jan-Sep], A-C [Oct-Dec]) 23: Day Fixed www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 42 1 2 3 4 1 2 3 4 C D F A B E 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING SECTION Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 43 5 6 7 8 5 6 7 8 C D F A B E PACKING SECTION parts List Mark No. Description Part No. 1 • • • • • • 2 Audio/Video Cable 06CPBA2006 3 Remote Control 07650PC010 4 Package Pad 792WHA0604 5 • • • • • • NSP 6 Guarranty Card J2K51202A 7 Operating Instructions (English) J2K51201A 8 • • • • • • 9 Polyethylene Bag,Instruction JB5KD300 10 Gift Sheet 791WHAA183 11 Package 792WHA0693 12 Gift Box 793WCDD559 13 Polyethylene Bag,INSTA5 791WHAA040 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 44 1 2 3 4 1 2 3 4 C D F A B E 9.2 EXTERIOR SECTION C C A B D A D B CONTACT SIDE NON-CONTACT SIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 45 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List Mark No. Description Part No. 1 DVD MT PCB Assy A2K512A130 2 OPERATION 1 PCB Assy A2K512A270 3 OPERATION 2 PCB Assy A2K401A280 4 OPERATION 3 PCB Assy A2K401ADF0 > 5 POWER PCB Assy A2K512A240 6 USB PCB ASSY A2K401ADD0 7 DVD MECHA ASSY A2K001A650 NSP 8 Plate,Bottom 702WSAA199 NSP 9 Sheet,Caution 726000A140 10 Plate,Cover power 755WPAA031 11 Holder,FFC 761WPA0396 12 Cushion,Leg VEB1349 13 Cabinet,Top 702WSB0115 14 Spring Earth 743WKAA015 15 Cushion (15x20x16) 8965TS101B > 16 Cord AC Bush 120Q618902 17 Screw,Tap Tite(S)-Bind Wash. 816423063U 18 Screw,Tap Tite(S) (3x5.5) 8107D3055U 19 Screw,Tap Tite(B) (3x6.0) 8109K3060S 20 Screw,Tap Tite(B)Pan (3x6) 810913060U 21 Screw,Tap Tite(P) (2.6x8) 811022680U 22 Screw,Tap Tite(P) Bind WH7 8110I2680U NSP 23 Sheet,Jack 1 722631A185 NSP 24 Sheet,Jack 2 722631A275 NSP 25 Sheet,Jack 3 722631A276 NSP 26 Sheet Caution 7250000597 27 Front Cabi Assy 7A701A962A 28 Flap, DVD 712WPDA083 29 Spring, Flap-DVD 743WKA0052 30 Cord Connector (CD502) 06CU2E3301 31 Cord Jumper (CD601) 122H0B1003 32 Cord Jumper (CD604) 122H051204 33 Cord Jumper (CD6601) 122H063401 NSP 34 Plate,Bottom-under 702WSAA211 NSP 35 Energy Star Label 7230007965 36 Screw Pan 810213060U 37 • • • • • • NSP 38 Angle PCB 761WSAA076 39 Spring Earth 753WUAA012 40 Screw , Tap Tite (B) 3x6 8109P3060S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 46 1 2 3 4 1 2 3 4 C D F A B E 9.3 06 DVD MECHA SECTION Applying positions AA, AB and AC for the grease are displayed for this section. Check if the correct grease is applied for each position. NOTE: CLASS MARK GREASE AA AB PART NO. GEM1018 GYA1001 AC GEM1036 Cannot supply separately. If the repair is needed, replace the LOADER SUB ASS'Y. PCB610 (LOADING MOTOR PCB ASS'Y) CD2302 Do not replace the parts. Because, minute adjustments are needed if this condition is disassembled further more. If the repair is needed, replace the DVD MECHA ASS'Y. (SW PCB ASS'Y) AB AB AB AA AB AB AB SW1 PCB640 CD2001 SW2 CD2301 AC AC AB Lubricating Oil GYA1001 Daifree GEM1036 Pickup leneses GEM1004 GED-008 Grease GEM1018 Note : Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 47 5 6 7 8 5 6 7 8 C D F A B E 06 DVD MECHA SECTION parts List Mark No. Description Part No. 1 • • • • • • 2 Gear,Middle 92P100117A 3 Loading Motor 1515S98004 4 Pulley,Motor 92P100097A 5 FEED Motor 1515S98004 6 Cord Jumper (24P)(CD2001) 122J4O2202 7 Cord Jumper (CD2302) 122H051602 8 Insulator (F) 92P200013A 9 Belt,Loading 92P200015A 10 Insulator (R) 92P200016A 11 Frame,main 92P100119A 12 Tray (R) 92P100151A 13 Holder ,Traverse 92P100125A 14 Gear,Pulley 92P100123A 15 Gear,Main 92P100124A 16 Gear,Feed 92P100116A 17 • • • • • • 18 Plate, Clamper 92P000023A 19 LOADER SUB ASSY (R) 92AAA0024A 20 Clamper 92P100122A 21 Screw,Pan (M1.7x3 P3) 814011730U 22 Screw,Pan (M1.7x2.3 P3) 814011723U 23 Rack,Loading 92P100121A 24 Gear,Motor 92P100088A 25 Feed Rack Assy 92AAA0017A 26 Screw,T-Tite(B) (M1.7x5.0 P3) 813381750U 27 Screw,Gear Feed 92P700007A 28 Cord Jumper (CD2301) 122H061605 29 Switch (SW1) 0515S32003 30 Push Switch (SW2) 0500101036 31 Screw,Tap Tite(P) (2.6x8) 811022680U 32 Sems.Tap Tite(P) (2x8) 816112080U 33 Screw (Bind 2x8) 811022080U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 48 1 2 3 4 1 2 3 4 C D F A B E 10. SCHEMATIC DIAGRAM 10.1 DVD MT PCB ASSY (1/7) IC4002 MT1389EXE/S-L MPEG/MICON IC 101 102 103 104 105 106 107 108 109 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 1 10 100 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 55 56 57 58 59 6 60 61 62 63 64 65 66 67 68 69 7 70 71 72 73 74 75 76 77 78 79 8 80 81 82 83 84 85 86 87 88 89 9 90 91 92 93 94 95 96 97 98 99 R4027 100 R4040 33 R4043 33 R4050 33 R4022 100K R4038 33 R4048 10K R4059 10K R4047 33 R4030 10 R4057 10K R4046 10 R4001 10K R4035 33 R4054 10K R4005 680K R4020 15K R4004 10K R4014 10K R4024 750K R4025 100K R4015 13K +-1% R4016 8.2K +-1% R4017 22K R4018 13K +-1% R4019 13K +-1% R4053 10K R4039 5.1K R4026 6.8 TP4013 TP4012 TP4011 TP4010 TP4043 TP4039 TP4041 TP4037 TP4036 TP4009 TP4007 TP4001 TP4002 TP4003 TP4004 TP4005 TP4006 TP4008 TP4034 TP4033 TP4015 TP4016 TP4017 TP4018 TP4019 TP4020 TP4021 TP4022 TP4023 TP4025 TP4024 TP4026 TP4027 TP4028 TP4031 TP4032 TP4108 TP4107 TP4103 TP4014 TP4109 TP4030 TP4029 TP4044 W815 W813 W812 W833 W830 W816 W807 C4047 0.001 B C4044 0.047 B C4042 0.047 B C4131 100P CH C4008 0.1 B C4036 0.1 B C4029 0.1 B C4030 10 (2125) B C4012 10 (2125) B C4022 0.1 B C4033 0.001 B C4034 20P CH C4035 0.1 B C4041 0.1 B C4043 0.1 B C4084 0.1 B C4032 0.1 B C4031 0.033 B C4024 0.0015 B C4021 0.1 B C4027 0.1 B C4038 0.1 B C4003 270P CH C4002 270P CH C4001 0.0022 B C4105 0.0022 B C4020 0.1 B C4007 0.1 B C4051 0.1 B C4028 0.1 B C4009 0.015 B C4014 1 B C4015 1 B C4016 1 B C4017 1 B C4103 1 B C4019 0.1 B C4025 0.1 B C4026 0.1 B C4013 0.1 B C4037 4.7 (2125) B C4005 0.1 B C4061 4.7 (2125) B C4049 11P CH C4046 0.1 B C4063 10 (2125) B 0 C4048 12P CH C4055 0.1 B IC4001 S-24CS08AFJ-TB-1GE EEPROM IC 1 2 3 4 5 6 7 8 C4060_1 220 6.3V YK_P 1 C4023 470 6.3V YK_P X4001 100GT02720 27MHz Q4004 KTC3875S_Y_RTK STBY POWER CTL B4010 MMZ1608 R102CT B4014 MMZ1608R102CT B4016 MMZ1608R102CT B4018 MMZ1608 R102CT NR4001 4D03WGJ 0330T5E DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OF PRIN NOTE:THIS SC V1P4 V+3 ACLK ABCK V+3 V+1R8 ALRCK V+3 ASDAT0 ASDAT1 ASDAT2 ASPDIF ADAC_GND A B C D E F MDI1 LDO1 LDO2 V1P4 DMSO FMSO TRCLOSE TROPEN TRSO FOSO OPO OP+ OP- TROUT TRIN D STBY A V20 LIMIT B IOA C RF RF D_GND E F MDI1 LDO2 LDO1 V20 V1P4 MA0 MA1 MA2 MA3 OPO MA4 OP- MA5 OP+ MA6 DMSO MA7 MA8 FMSO MA9 TROPEN MA10 V1P4 MA11 TRSO SDCKE SDCLK FOSO DBA0 DBA1 DCS# USBP DRAS# DCAS# USBN DWE# V+3 DQM0 DQM1 DQ0 DQ1 V+1R8 DQ2 DQ3 USB+3 DQ4 USB_P_ON-L DQ5 DQ6 USB_FLAG DQ7 IOA DQ8 DQ9 A2 DQ10 DQ11 A3 DQ12 A4 DQ13 A5 DQ14 A6 DQ15 A0 A7 A1 A8 A2 A18 A3 A19 A4 A5 SDA A6 SCL A7 V+3 A8 A9 UWR# URD# A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 AD0 AD1 AD2 AD3 PWR# A16 A15 A14 A13 A12 A11 A10 A20 PCE# PRD# AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 A17 AD4 A9 A1 A0 AD5 AD6 AD7 PWR# FP_SCK V+1R8 FP_DI FP_DO PCE# STB SCL SDA RXD TXD IR PRD# FROM/TO MEMORY 0 0.6 3.1 RFV33 RFVDD3 PLLVDD3 NC NC NC NC 1.9 1.4 1.1 1.1 0 1.5 1.4 0.8 0.8 0.7 0 2.3 1.3 2.3 2.2 0.8 1.9 0.9 0.3 3.2 3.2 0.7 0 3.2 3.2 3.2 3.2 3.2 3.1 3.2 3.2 3.2 3.2 3.2 1.7 1.8 0 0 1.3 0.7 0 3.2 3.2 2 3.2 3.3 0 NC NC 0 0 NC NC 2.02 0 0 2.01 2 2.01 2.01 1.67 0 0 0 0 0 3.18 0.83 1.52 1.67 0 1.2 1.28 1.35 2.06 2.03 1.27 1.53 1.54 1.55 1.27 1.25 1.35 1.32 1.95 2.77 0 1.89 2.71 3.18 3.16 2.38 0 0 2.03 1.94 1.94 0 3.03 2.25 1.87 2.26 1.6 1.7 1.75 0 0 0 3.23 0 1.72 0.7 3.19 0.39 2.73 1.72 0 01.6 1.6 1.6 0 0 00.9 3.2 1.6 01.7 0 1.7 0 01.7 3.3 0 0 03.3 3.3 0 1.1 1.6 1.8 01.3 1.2 3.2 03.2 01.5 1.5 1.6 3.1 0 00.8 1.3 FROM/TO LOADER/MOTOR DRIVE 65 66 67 68 254 253 255 256 XIOWR OSN RFGC IREF AVDD3 AGND DVDA DVDB DVDC DVDD DVDRFIP MA MB MC MD SA SB SC/TNI SD/TPI MDI1 MDI2 LDO2 LDO1 SVDD3 RFLVL/RFON SGND CSO/RFOP V2REF V20 VFEFO EFO TEO TEZISLV OP_OUT OP_INN OP_INP DMO FMO TROPENPWM PWMOUT1/_ADIN0 TRO FOO AGND18_DMPLL AVDD18_DMPLL USB_DP USB_DM VDD33_USB VSS33_USB PAD_VRT VDD18_USB VSS18_USB USB_XTALO/GPIO15 USB_XTALI/GPIO14 FG/GPIO16 IOA22/GPIO18 DVDD18 IOA2 IOA3 IOA4 IOA5 IOA6 IOA7 HIGHA0 IOA18 IOA19 DVDD33 A16 HIGHA7 IOA20 IOA0 ICE XRESET IR ADACVDD3 XTALO HRZFC CRTPLP RFGND OSP RFRPAC RFRPDC RFVDD3 ADCVSS ADCVDD3 LPFOP LPFIP LPFIN PLLVDD3 PLLVSS LPFON JITFN JITFO RFVDD18 RFGND18 XTALI SADCVSS18 SADCVDD18 ADACVSS3 CH7 CH8 ADACVDD1 ADACVDD2 CENTER ALS AL AVCM AR ARS LFE ADACVSS1 ADACVSS2 APLLCAP APLLVSS APLLVDD GPIO11 GPIO12 SPDIF/GPIO23 DVDD18 UP3_5/TXD UP3_4/RXD UP3_1 UP3_0 UP1_7/SDA UP1_6/SCL UP1_5/VSDA UP1_4/VSTB UP1_3/VSCK UP1_2/GPIO19 DVDD33 XURD XUWR DVDD18 A17 DVSS33 AD7 ALE IOA21/GPIO17 AD6 AD5 AD4 AD3 AD2 DVSS18 AD1 AD0 XIOOE IOA1 XIOCS HIGHA1 HIGHA2 HIGHA3 HIGHA4 HIGHA5 HIGHA6 IOCE# VCC WP SCL SDA NC NC NC GND 0.0 0.0 0.0 0.0 3.3 3.3 0.0 3.3 IOWR# (V+3D) 3.3V DVD MT PCB ASSY (1/7) (A2K512A130) 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 49 5 6 7 8 5 6 7 8 C D F A B E CAUTION: DIGITAL TRANSISTOR 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 100 99 33 33 R4056 100K R4038 33 R4052 10K R4030 10 R4002 2.2K +-1% R4061 51K R4060 33 R4007 100 R4001 10K R4051 33 R4084 4.7K R4008 10K R4006 10K R4064 150 +-1% R4065 150 +-1% R4066 150 +-1% R4067 150 +-1% R4068 150 +-1% R4069 150 +-1% R4083 100 R4082 33 R4071 33 R4070 33 R4009 2.7K +-1% R4003 33K R4021 10K TP4095 TP4096 TP4097 TP4099 TP4098 TP4045 TP4047 TP4035 TP4037 TP4036 TP4110 TP4094 TP4106 TP4048 TP4051 TP4052 TP4053 TP4054 TP4055 TP4056 TP4057 TP4058 TP4059 TP4087 TP4082 TP4081 TP4079 TP4080 TP4078 TP4076 TP4077 TP4088 TP4075 TP4073 TP4074 TP4072 TP4070 TP4071 TP4069 TP4100 TP4101 TP4102 TP4083 TP4084 TP4085 TP4086 TP4061 TP4060 TP4067 TP4062 TP4068 TP4066 TP4063 TP4090 TP4044 TP4046 TP4049 TP4089 TP4065 TP4038 TP4040 TP4104 TP4042 TP4105 W828 W837 W804 W827 W846 W831 W807 C4131 100P CH C4110 100P CH C4104 0.01 B C4054 220P CH C4130 0.1 B C4075 100P CH C4084 0.1 B C4067 0.1 B C4024 0.0015 B C4083 0.1 B C4074 0.1 B C4082 0.1 B C4081 0.1 B C4069 0.0056 B C4080 0.1 B C4071 0.1 B C4064 0.1 B C4091 0.1 B C4072 0.1 B C4068 0.1 B C4073 0.1 B C4088 0.1 B C4066 1 B C4065 0.1 B C4076 33P CH C4077 100P CH C4078 33P CH C4114 1 B C4117 100P CH C4079 100P CH C4128 0.01 B C4126 2.2 (2125) B C4011 47 16V YK_P C4023 470 6.3V YK_P IC4003 R3112N291A-TR-FA RESET IC 1 2 3 4 5 CP4002 00_6232_011_006_800+ 1 10 11 2 3 4 5 6 7 8 9 Q4003 KRC407-RTK/P USB_P_ON-H B4015 MMZ1608R102CT B4014 MMZ1608R102CT CP4004 00_6232_006_006_800+ 1 2 3 4 5 6 S D G Q4002 KTK5132U-RTK/P LEVEL SHIFT D4003 UDZS3.9B D4002 UDZS3.9B NR4001 4D03WGJ 0330T5E NR4002 4D03WGJ0330T5E ESTER AS OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME V+3 SD SCK V+3A STBY TRIN I/XP ASDAT1 ASDAT2 ASPDIF XMMUTE XAMUTE VSEL1 PWDN# TROUT V+1R8 ADAC_GND DAC_XCS0 TRCLOSE LETTER SQUEEZE SD SCK DAC_XCS0 VSEL1 XAMUTE LETTER XMMUTE SQUEEZE ALRCK I/XP V+3V ABCK R/CR ACLK B/CB ASDAT0 G/Y ASDAT1 CVBS ASDAT2 S_C ASPDIF S_Y D_GND D_GND V+5H S_Y V+3H DVDD18 S_C PWDN# V+1R8 CVBS V+3 V+3E V+3A G/Y FLDC- FLDC+ B/CB -28V ADAC_GND R/CR D_GND TX2+ TX2- TX1+ TX1- HDMI_SDA HDMI_SCL TX0+ HPD TX0- TXC- TXC+ TXC+ TXC- TX0- TX0+ DVDD18 TX1- TX1+ TX2- TX2+ A_GND V+3H USB+3 V+5H USB_P_ON-L HDMI_SCL HDMI_SDA HPD USB_FLAG MA4 MA5 MA6 MA7 MA8 USBP MA9 USBN MA11 SDCKE SDCLK V+3 RXD MA3 TXD MA2 D_GND MA1 MA0 MA10 DBA1 DBA0 DCS# DRAS# DCAS# DWE# DQM1 FP_SCK FP_DI LIMIT DQ8 STB FP_DO IR V+3E FLDC+ -28V FLDC- DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQM0 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 RESET FP_DO V+3 STB SCL SDA RXD TXD IR FROM/TO DISRLAY (CP601) STB DGND DGND FLDC+ -28V FLDC- CLK DI(M to F) DO(F to M) IR V+3E GND USBN USB_POWER USB_FLAG GND USBP FROM/TO HDMI FROM/TO POWER PORT TO AUDIO/JACK TO VIDEO FROM/TO USB PCB130 DMF090 3.2 0 0 0 0 3.3 NC NC 0 3.2 3.2 3.2 3.2 3.2 1 3.2 3.2 1.4 1.4 1.3 0.5 1.2 1.2 0.8 0.7 1.1 1.4 1.3 1.3 3.2 1.4 1.3 1.3 0 1.7 2.8 3.2 3.3 NC NC 0 0 0 0 0 0 0 0 0 0 0.3 1.7 1.7 0.6 0.5 0.3 3.2 0.3 0.5 3.2 0 0 0 0 0 0 0 0 0 0 3.2 1.5 1.8 1.7 1.2 1.5 0 0.6 0 2.5 2.9 0 3.1 1.4 3.2 1 1.3 3.1 3.1 0 0 0 4.9 1.7 4.9 0 0 1.4 1.6 1.3 3.2 0 3.2 0 0 0 0 3.2 3.4 0 0 0 0 0 0 0 0 0 NC NC 0 0 NC NC 3.2 03.1 3.2 3.2 2.9 2.8 3.2 3.3 3.3 3.2 1.0 1.0 0 0 00.9 3.2 1.6 01.7 0 0 0 03.2 3.2 (V+3D) 127 128 192 191 190 189 ICE XRESET IR RD7 RD6 RD5 RD4 RD3 DVDD33 RD2 RD1 RD0 RD15 RD10 RD9 DQM1 XRCS RA10 RA2 RCLK CKE RA9 RA8 TXCN TXCP TX0P TX1P TX2P C DACVDDB Y DACVDDC ARS LFE ADACVSS1 ADACVSS2 APLLCAP APLLVSS APLLVDD GPIO11 GPIO12 SPDIF/GPIO23 DVDD18 GPIO10 GPIO9 TS_ERROR DVDD33 TS_PWM TS_SYNC TS_CLK TS_VALID TS_DATA7 TS_DATA6 TS_DATA5 TS_DATA4 TS_DATA3 TS_DATA2 TS_DATA1 TS_DATA0 VREF FS DACVSSC DADVSSB CVBS DACVDDA G DACVSSA B R TX2N AVDD18_TX0 AGND18_TX0 TX1N AGND18_TX1 TX0N AVDD18_TX1 AGND18_TX2 AGND33_TX AVDD33_TX EXT_CAP AVDD33_VPLL EXT_RES AGND33_VPLL GPIO8_HPLG GPIO7_DDC_CLK DVDD18 GPIO6_DDC_DA GPIO5 GPIO4 DVDD33 RA4 RA5 RA6 RA7 RA11 DVSS33 DVDD33 RA3 DVDD18 RA1 RA0 BA1 BA0 XRAS XCAS XRWE DVDD33 GPIO20/SD_CMD RD8 125 126 RD12 RD11 GPIO21/SD_CLK DQM0 GPIO22/SDD0/INT 123 124 RD13 RD14 UP3_5/TXD UP3_4/RXD UP3_1 UP3_0 UP1_7/SDA UP1_6/SCL UP1_5/VSDA UP1_4/VSTB V+3D NC V_OUT VSS NC CT VDD 3.3 3.3 0 0 1.8V 3.3V 1.9 1 4 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 50 1 2 3 4 1 2 3 4 C D F A B E 10.2 DVD MT PCB ASSY(2/7) IC4004 ES29LV160EB-70TG 16Mbit FLASH IC 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 5 6 7 8 9 R4044 10K C4062 0.001 B C4040 1 B OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME A17 A16 A15 DQ0 DQ1 DQ2 A14 DQ3 DQ4 DQ5 A0 A13 DQ6 DQ7 DQ8 AD7 A12 DQ9 DQ10 DQ11 A11 DQ12 DQ13 DQ14 AD6 A10 DQ15 MA0 MA1 A9 MA2 MA3 MA4 AD5 A20 MA5 MA6 MA7 MA8 MA9 MA10 AD4 PWR# MA11 DWE# SDCKE DQM1 DQM0 DCAS# DRAS# DBA1 DBA0 AD3 SDCLK DCS# A0 A1 A2 AD2 A19 A3 A4 A5 A18 A6 A7 A8 AD1 A8 A9 A10 A11 A7 A12 A13 A14 AD0 A6 A15 A16 A17 PRD# A5 A18 A19 A20 A4 AD0 AD1 AD2 PCE# A3 AD3 AD4 AD5 A1 A2 AD6 AD7 PRD# PCE# PWR# V+3 D_GND FROM POWER PORT FROM/TO MPEG/MICON/DSP NC 0 0 1.4 2.6 2.6 1.4 1.2 1.6 1.6 3.3 1.3 0.9 1.6 2.5 1.5 1.6 1.3 2.5 1.5 0.8 1.0 1.7 1.6 0.8 0 0.7 0.6 1.2 1.3 1.9 0.7 1.2 A16 VSS VSS CE# A0 A15 A14 A13 A12 A11 A9 A8 A10 A19 D7 D14 D6 D13 D5 D12 D4 VCC D11 D3 D10 D2 D9 D1 D8 D0 NC NC NC NC NC NC NC OE# RESET# RY/BY# 0 D15/A1 NC (WP#/ACC) 0 0.1 0 0 3.3 A7 A6 A5 A4 A3 A2 A1 A18 A17 0.1 1.6 0.7 1.4 1.6 1.3 1.6 1.7 2.5 1.6 NC NC NC NC WE# NC (V+3D) BYTE# DVD MT PCB ASSY (2/7) (A2K512A130) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 51 5 6 7 8 5 6 7 8 C D F A B E IC4005 HY57V641620ETP-6-C 64Mbit(4M*16) 166MHz SDRAM IC 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 6 7 8 9 R4044 10K TP4050 C4123 0.1 B C4052 0.1 B C4102 0.1 B C4101 0.1 B C4120 0.1 B C4050 1000 6.3V YK_P DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OUT NOTICE THE TIME DQ15 DQ7 A16 A15 DQ14 DQ6 A14 DQ13 DQ5 A13 A12 DQ12 DQ4 A11 DQ11 DQ3 A10 A9 DQ10 DQ2 A20 DQ9 DQ1 PWR# DQ8 DQ0 DQM0 DQM1 DWE# SDCLK DCAS# A19 SDCKE DRAS# A18 DCS# A8 MA11 DBA0 A7 MA9 DBA1 A6 MA8 MA10 A5 MA7 MA0 A4 MA6 MA1 A3 MA5 MA2 A2 MA4 MA3 PCB130 DMF090 NC 5 6 3 5 5 8 0 7 1 3 6 7 4 6 3 6 7 5 6 NC NC NC VSS DQ0 DQ1 DQ2 DQ15 VSSQ DQ12 DQ11 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 VSSQ DQ10 DQ9 VDDQ DQ8 LDQM VSS UDQM CLK CKE NC A9 A11 A10/AP A0 A2 A1 A3 VDD VSS A4 A5 A6 A7 A8 NC/RFU NC NC 3.3 1.5 3.3 1.5 1.5 0.0 1.5 1.5 3.3 1.5 1.5 0.0 1.5 3.3 2.0 3.3 3.3 3.3 3.3 3.3 1.0 0.0 1.7 1.7 1.7 1.7 3.3 0.0 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.9 1.7 1.9 0.0 1.5 3.3 1.5 1.5 0.0 1.5 1.5 3.3 1.5 1.5 0.0 1.5 0.0 DQ13 VDDQ DQ14 WE# CAS# RAS# CS# BA0/A13 BA1/A12 VDD VDDQ VDD ÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 52 1 2 3 4 1 2 3 4 C D F A B E 10.3 DVD MT PCB ASSY(3/7) :SINCE THESE PARTS MARKED BY CAUTION DESCRIBED IN PARTS LIST ONLY CRITICAL FOR SAFETY,USE ONES CP2301 LD07T2-24ND-03 PICK-UP(GOLD) 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 3 4 5 6 7 8 9 CP2302 00_6232_005_006_800+ LOADING 1 2 3 4 5 R2304 10K R2306 100K R2307 100K R2312 8.2K +-1% R2313 10K +-1% R2308 10K R2309 10K R2338 10K R2319 150K R2329 1 R2342 680K R2331 150K R2325 470 +-1% R2310 10K R2316 3.3K TP2303 TP2330 TP2333 TP2304 TP2305 TP2306 TP2309 TP2310 TP2311 TP2312 TP2313 TP2314 TP2315 TP2316 TP2317 TP2318 TP2319 TP2308 TP2307 TP2320 TP2321 TP2322 TP2323 TP2302 TP2324 TP2325 TP2326 TP2327 TP2328 W802 W814 C2303 0.1 B C2323 0.1 B C2302 0.1 B C2301 0.1 B C2322 0.0022 B C2311 0.1 B C2307 0.1 B C2306 100 10V YK_P Q2301 KTC3875S_Y_RTK VCR_CTL CP2303 00_6232_006_006_800+ SLED/SPINDLE 1 2 3 4 5 6 S D G Q2307 KTK5132U-RTK/P VCR_CTL S D G Q2306 KTK5132U-RTK/P VCR_CTL DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME IOA V+5S V+5S F V20 E D C IOA RF B A MDI1 T+ T- F+ F- LOAD- FMSO TRSO STBY LOAD+ V+6A TROUT TRIN OPO OP- OP+ LIMIT MOT_SLED- MOT_SLED+ MOT_SPDL+ MOT_SPDL- V+3F MOT_SLED+ MOT_SLED- T- T+ VS LOAD+ LOAD- GND OPEN CLOSE NC SW(GND) LIMIT SW SLD- SLD+ SPD- SPD+ VRCOM TRKG DRV TRKG RTN FOCS RTN FOCS DRV VCC D B VR780(CD) VRF(RF_OUT) SW1(DVD/CD) C E F GND A VR650(DVD) GND GND LD_DVD(650) LD_CD(780) PD/GND NC 0.0 0.0 5.0 0.0 0.0 0.2 0.0 0.0 4.9 DVD MT PCB ASSY (3/7) (A2K512A130) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 53 5 6 7 8 5 6 7 8 C D F A B E DANS LA NOMENCLATURE DES PIECES N'UTILISER QUE CELLS DECRITES DANGEREUSES AN POINT DE VUE SECURITE :LES PIECES REPAREES PAR UN ETANT ATTENTION PARTS MARKED BY N PARTS LIST ONLY R SAFETY,USE ONES ARE Q2304 KTA1504S_Y_RTK LD DRIV for CD Q2305 KTA1504S_Y_RTK LD DRIV for DVD Q2302 KTA1504S_Y_RTK LD DRIV for CD Q2303 KTA1504S_Y_RTK LD DRIV for DVD IC2301 AM5766 MOTOR DRIVER IC 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 4 5 6 7 8 9 R2311 18K +-1% R2317 8.2K +-1% R2304 10K R2312 8.2K +-1% R2313 10K +-1% R2309 10K R2322 4.7 R2320 4.7 R2323 4.7 R2321 4.7 R2325 470 +-1% R2310 10K R2316 3.3K R2318 10K R2327 10K TP2301 TP2331 TP2329 TP2332 JG010 JG008 TP2342 JG009 TP2341 W802 W806 W805 C2312 0.1 B 311 0.1 B C2307 0.1 B C2305 0.1 B C2308 0.01 B C2320 100 10V YK_P C2321 100 10V YK_P IOA V20 A B C D V+3F E F MDI1 LDO2 LDO1 IOA LDO1 V1P4 LIMIT TROUT TRIN STBY DMSO FMSO TRCLOSE TROPEN TRSO FOSO LDO2 OPO OP+ OP- RF V+3F V+5S V+6A D_GND M_GND V1P4 FOSO DMSO TROPEN TRCLOSE MOT_SPDL- MOT_SPDL+ LOAD+ LOAD- F+ F- 2.5 2.0 3.1 2.5 3.1 3.3 3.3 3.3 0 0 3.3 FROM POWER PORT FROM/TO MPEG/MICON/DSP PCB130 DMF090 1.52 5.75 1.51 0 2.63 3.03 1.63 3.42 1.85 1.85 5.77 2.42 2.74 1.55 1.28 NC NC NC 0.45 5.74 3.49 0 5.74 1.51 1.57 1.52 0 1.39 5.77 2.84 2.73 2.9 2.82 NC NC NC 2.0 Vcc1 VOTR- VOTR+ VOSL+ VOSL- VOFC- VOFC+ REGO 1 VINSL+ REGO 2 TRB_1 VINFC REV FWD VOTK- VOTK+ VOLD+ VOLD- VCTL Vcc2 GND VINLD TRB_2 VINTK BIAS MUTE PGND PGND OPOUT OPIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 54 1 2 3 4 1 2 3 4 C D F A B E 10.4 DVD MT PCB ASSY(4/7) IC8003 PCM1742KE/2K AUDIO DAC (L,R) IC 1 10 11 12 13 14 15 16 2 3 4 5 6 7 8 9 IC8005 PCM1742KE/2K AUDIO DAC (Ls,Rs) IC 1 10 11 12 13 14 15 16 2 3 4 5 6 7 8 9 IC8004 PCM1742KE/2K AUDIO DAC (C,Lfe) IC 1 10 11 12 13 14 15 16 2 3 4 5 6 7 8 9 D8004 MA111 D8005 MA111 D8006 MA111 CP8001 A2001WV2-2P (CU223002) 1 2 Q8014 KTA1504S_Y_RTK MUTE CTL Q8001 KTA1505S-Y-RTK/P P.CON+3.3V Q8012 KTA1504S_Y_RTK MUTE CTL Q8013 KTA1504S_Y_RTK MUTE CTL R8021 2.2K R8023 6.8K R8020 2.2K R8022 2.2K R8036 10K +-1% R8037 270K R8034 270K R8035 10K +-1% R8049 680K R8001 100 R8003 100 R8002 100 R8054 680K R8029 4.7K 1 R80 10K R80 27 R8030 270K R8032 270K R8026 5.6K R8019 2.2K R8038 6.8K R8028 4.7K R8024 5.6K R8009 1K R8011 8.2K R8005 10K R8008 10 R8007 10 R8006 10 R8012 22K R8018 10 R8017 10 R8027 4.7K R8031 10K +-1% R8033 10K +-1% R8025 680K R8065 680K TP8003 TP8011 TP8001 TP8002 TP8004 W879 W878 W819 C8030 1 B C8014 0.1 B C8026 330P CH C8034 0.1 B C8023 330P CH C8017 1 B C8004 1 B C8049 1 B C8025 330P CH C8052 1 B C8054 1 B C8037 0.1 B C8015 0.1 B C8020 1 B C8039 1 B C8019 1 B C8002 1 B C8013 0.001 B C8036 0.1 B C8027 47 16V YK_P C8031 220 6.3V YK_P C8032 100 10V YK_P C8028 220 6.3V YK_P C8033 100 10V YK_P C8048 100 10V YK_P C8041 100 10V YK_P C8050 C8047 100 10V YK P C8035 100 10V YK_P C8029 1000 6.3V YK_P C8072 100 10V YK_P C8040 100 10V YK_P C8016 10 25V KA_P IC8001 TC7SHU04FU(TE85L_F INVERTER IC 1 3 2 4 5 Q8009 KTC3875S_Y_RTK REF GEN Q8011 KTC3875S_Y_RTK REF GEN Q8010 KTC3875S_Y_RTK REF GEN Q8008 KTC3875S_Y_RTK REF GEN Q8006 KRC407-RTK/P MUTE CTL Q8004 KRC407-RTK/P MUTE CTL Q8003 KRC407-RTK/P MUTE CTL Q8020 KRC407-RTK/P MUTE CTL Q8007 KRC407-RTK/P MUTE CTL Q8002 KRC407-RTK/P MUTE CTL Q8005 KRC407-RTK/P MUTE CTL B8001 MMZ1608R102CT D8003 UDZS6.8B DUR MEA NOTE:THE V+12AT XAMUTE XMMUTE SD SCK DAC_XCS0 ABCK XMMUTE ALRCK SD ACLK ASPDIF SCK DAC_XCS0 ASDAT0 ACLK1 ASDAT1 ASDAT2 V+3A V+12 V+12AT V+5A D_GND ABCK1 ASDAT2 ALRCK V+5A V+3A3 V+12AT XMMUTE SD V+3A SCK DAC_XCS0 V+3A3 ACLK1 V+3A2 V+3A1 V+5A COAXIAL GND ABCK1 ASDAT1 ALRCK V+5A ABCK ABCK1 V+3A2 ABCK0 V+12AT V+12 XAMUTE SD ACLK1 SCK DAC_XCS0 ACLK0 ACLK ABCK0 ASDAT0 ALRCK V+5A V+3A1 AL AR TO 21PIN/D-TERMINAL (CP8102) SPDIF GND FROM MPEG/MICON/RF-AMP FROM POWER PORT 1.5 0.9 0 NC 3.2 0 0 1.6 0 0 0 CS SCK ZERORZEROA VCOM GND_A PCMMCK ZEROL/MA SI PCMBCK PCMDATA PCMLRCK GNDD VCC VOUTL VOUTR VDD GND_A VCOM ZERORZEROA ZEROL/MA SI SCK CS PCMMCK PCMBCK PCMDATA PCMLRCK GNDD VDD VCC VOUTL VOUTR 1.6 2.6 2.6 0 0 0 0 0 5.8 6.3 12.5 12.5 5.8 6.3 5.8 12.5 6.3 6.8 6.3 12.5 NC 0 3.3 4.9 2.5 2.4 2.4 3.1 3.1 0 0 0 0 1.6 1.6 1.5 1.5 0 3.3 4.8 2.4 0 2.4 3.2 0 0 3.2 3.2 1.6 NC 2.4 1.6 0 1.5 PCMMCK CS SCK SI ZEROL/MA ZERORZEROA VCOM GND_A VOUTR VOUTL VCC VDD GNDD PCMLRCK PCMDATA PCMBCK NC 1.5 0 3.3 4.8 2.4 2.4 0 2.4 3.2 0 0 3.2 3.2 1.6 1.6 0 1.6 0 0 0 3.2 0 0 0 3.3 3.3 2.7 NC 1.5 0 0 1.6 3.3 GND VCC 3.0 1.5 1.6 0.9 VREF_F VREF_S VREF_C DVD MT PCB ASSY (4/7) (A2K512A130) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 55 5 6 7 8 5 6 7 8 C D F A B E H1 H2 E H1 H2 E J8002 RCA-405A-06 LS/RS/C/LFE 1 2 3 4 5 6 CAUTION: DIGITAL TRANSISTOR H1 H2 E J8001 RCA-207B-02 L/R 1 2 3 R8036 10K +-1% R8053 10K +-1% R8037 270K R8094 220 +-1% R8071 220 +-1% R8050 18K +-1% R8073 1K R8074 1K R8045 18K +-1% R8046 10K +-1% R8072 220 +-1% R8092 220 +-1% R8034 270K R8035 10K +-1% R8049 680K 01 0 03 0 02 0 R8054 680K R8040 270K R8041 10K +-1% R8059 18K +-1% R8043 10K +-1% R8061 10K +-1% R8042 270K R8030 270K R8032 270K R8077 1K R8069 22K R8070 22K R8096 220 +-1% R8099 220 +-1% R8079 1K R8078 220 +-1% R8095 220 +-1% R8058 10K+-1% R8055 18K +-1% R8076 220 +-1% R8093 220 +-1% R8031 10K +-1% R8033 10K +-1% R8052 10K +-1% R8048 18K +-1% R8063 10K +-1% R8064 18K +-1% R8087 220 +-1% R8088 1K R8090 1K R8081 220 +-1% R8066 22K R8075 22K R8065 680K R8067 22K R8068 22K TP8013 TP8012 TP8017 TP8019 TP8015 TP8014 W868 C8053 100P CH C8063 0.1 B C8049 1 B C8052 1 B C8006 330P CH C8005 330P CH C8054 1 B C8067 0.1 B C8046 560P CH C8044 560P CH C8008 330P CH C8007 330P CH C8059 100P CH C8064 0.1 B C8057 100P CH C8045 560P CH C8062 100P CH C8056 100P CH C8051 560P CH C8055 100P CH C8073 560P CH C8043 560P CH C8009 330P CH C8010 330P CH C8038 220P CH IC8007 RC4580IDR AUDIO LPF& IC 1 2 3 4 5 6 7 8 IC8008 RC4580IDR AUDIO LPF& IC 1 2 3 4 5 6 7 8 IC8002 RC4580IDR AUDIO LPF& IC 1 2 3 4 5 6 7 8 C8060 47 16V YK_P C8061 47 16V YK_P C8048 100 10V YK_P C8065 47 16V YK_P C8069 47 16V YK_P C8041 100 10V YK_P C8050 100 10V YK_P C8047 100 10V YK_P C8066 47 16V YK_P C8068 47 16V YK_P C8040 100 10V YK_P C8058 47 16V YK_P Q8016 KTC2875-B MUTE SW Q8015 KTC2875-B MUTE SW Q8021 KTC2875-B MUTE SW Q8023 KTC2875-B MUTE SW RTK Q8017 KTC2875-B MUTE SW Q8018 KTC2875-B MUTE SW DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME V+12 COAXIAL CENTER SL SR LFE AL AR PCB130 DMF090 0.6 0.6 + 5.7 5.7 5.7 L R SL SR C LFE 0.6 0 0 0 0 -0.7 0 0 -0.7 0 0 0.6 5.7 5.7 5.7 0 + - - + +VS -VS 5.7 5.7 12.2 5.7 + - - + +VS -VS 0 5.7 5.7 5.7 12.2 5.7 5.7 5.7 F_F _S _C + - - +VS -VS 5.7 5.7 5.7 12.2 0 0 0 0 0 9 10 7 8 5 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 56 1 2 3 4 1 2 3 4 C D F A B E 10.5 DVD MT PCB ASSY(5/7) IC7301 LA73054-TLM-E VIDEO DRIVER 6CH IC 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 4 5 6 7 8 9 R7315 1K TP7303 TP7302 C7309 1 B C7313 0.1 B C7302 0.1 B C7317 0.1 B C7305 1 B C7308 1 B C7307 1 B C7306 1 B C7304 0.1 B C7319 100 10V YK_P C7312 100 10V YK_P Q7302 KRC407-RTK/P P-H/I-L DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME CVBS SQUEEZE LETTER S_C S_Y SQUEEZE VSEL1 LETTER CVBS S_C VSEL1 S_Y G/Y G/Y B/CB R/CR I/XP B/CB R/CR I/XP P-H/I-L V+5 D_GND 3.4 0 0 FROM POWER PORT FROM/TO MPEG/MICON/RF-AMP 1.2 0 2.8 0 0 5 2.9 0 0 0 2 0 0 2 5 0 0 0 2.5 2.4 2.5 0 2.8 5 0 2.6 0 0 2.7 0 2.8 0 0 0 2.7 5 (1D=H,2D=L) (1D=H,2D=L) DRIVE2 (ON=H,OFF=L) (ON=H,OFF=L) (9dB=H,6dB=L) (P=H,I=L) (RGB=H,YUV=L) (MIX=H,OFF=L) (9dB=H,6dB=L) LPF IN SW AMP1 DRIVE1 VCC21 CVBS out GND21 C out C-DC out GND22 Y1 out GND23 GND24 Y2 out VCC22 CB out GND25 CR out GND26 REG GND12 CR in AMP2 CB in MUTE2 Y2 in YC-MIX Y1 in GND11 C in LE SQ MUTE1 CVBS in VCC1 DVD MT PCB ASSY (5/7) (A2K512A130) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 57 5 6 7 8 5 6 7 8 C D F A B E J7304 DIN-409A S-VIDEO OUT for HE 1 2 3 4 5 6 H1 H2 E H1 H2 E J7302 RCA-405A-08 CVBS/Y/U/V 1 2 3 4 5 6 R7302 75 +-1% R7316 75 +-1% R7301 10K R7317 75 +-1% R7305 75 +-1% R7304 75 +-1% R7303 75 +-1% TP7301 W872 W873 W871 W877 C7330 0.1 B C7314 470 6.3V YK_P C7329 470 6.3V YK_P C7318 1000 6.3V YK_P C7316 1000 6.3V YK_P C7315 470 6.3V YK_P B7304 MMZ1608R102CT B7305 MMZ1608R102CT U V CVBS Y PCB130 DMF090 C Y ASP S_Y S_C CVBS 13 14 11 16 12 15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 58 1 2 3 4 1 2 3 4 C D F A B E 10.6 DVD MT PCB ASSY(6/7) W865 W856 W861 DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OF PRIN NOTE:THIS SC V+5H D_GND TX2+ TX2- TX1+ TX1- TX0+ TX0- TXC+ TXC- HPD HDMI_SCL HDMI_SDA A_GND A_GND FROM/TO MPEG/MICON/DSP FROM POWER PORT DVD MT PCB ASSY (6/7) (A2K512A130) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 59 5 6 7 8 5 6 7 8 C D F A B E CP5901 1903015-3 HDMI CONNECTOR 1 10 11 12 13 14 15 16 17 18 19 2 3 4 5 6 7 8 9 L5901 EXC24CG900U 1 2 3 4 L5902 EXC24CG900U 1 2 3 4 L5903 EXC24CG900U 1 2 3 4 L5904 EXC24CG900U 1 2 3 4 R5919 1.5K R5920 1.5K W853 W840 W851 W858 W850 W857 W862 W864 C5920 0.1 B C5921 10 (2125) B C5925 100P CH C5901 0.01 B OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME TX2+ TX2- TX1+ TX1- TX0+ TX0- TXC+ TXC- HDMI_SCL HDMI_SDA HPD V+5H NC NC HDMI TYPE-A D2+ D2-S D2- D1+ D1-S D0+ D0-S D0- CLK-S CLK- CEC SCL SDA GND POWER HOTPLUG NC D1- CLK+ DMF090 PCB130 TX2+ TX2+ TX1+ TX1- TX0+ TX0- TXC- TXC+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 60 1 2 3 4 1 2 3 4 C D F A B E 10.7 DVD MT PCB ASSY(7/7) D N D :LE ATTENTION C4095 47 6.3V KA_P IC4006 LM1117S-ADJ REG+1.8V IC 1 2 3 CP4003 A2001WV2-14P 1 10 11 12 13 14 2 3 4 5 6 7 8 9 R4012 68 +-1% R4013 39 +-1% R4011 12 TP4064 W820 W843 C4093 1 B C4086 1 B C4099 0.001 B C4098 1 B C4096 1 B C4094 0.1 B C4112 0.001 B C4100 DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME FROM/TO POWER (CP502) GND P.CON+5V STBY L FL DC- FL DC+ AT+3.3V GND P.CON+12V AT+12V for MUTE GND(M) GND(D) P.CON+6V AT+3.3V -28V ADJ VIN VOUT 1.8 0.6 3.3 DVD MT PCB ASSY (7/7) (A2K512A130) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 61 5 6 7 8 5 6 7 8 C D F A B E DANS LA NOMENCLATURE DES PIECES N'UTILISER QUE CELLS DECRITES DANGEREUSES AN POINT DE VUE SECURITE :LES PIECES REPAREES PAR UN ETANT TTENTION :SINCE THESE PARTS MARKED BY CAUTION DESCRIBED IN PARTS LIST ONLY CRITICAL FOR SAFETY,USE ONES ARE IC5902 PQ1K503M2ZPH HDMI+5V REG(300mA) IC 1 2 3 4 5 6 R4058 100 R5921 22K R5901 10K R4028 10K W842 W841 W821 W822 W832 W826 W839 C5904_1 0.01 B C4099 0.001 B 1 B C4119 100P CH C5924 0.1 B C5922 1 B C4056 0.01 B C5923 0.01 B C4100 470 6.3V YK_P B4001 MMZ1608R102CT B4002 MMZ1608R102CT V+3A V+5A V+5A V+5 V+12AT V+12AT V+12 V+12 D_GND V+5 D_GND V+6A V+6A V+5S V+5S V+3F V+3F D_GND M_GND D_GND V+5H V+5H V+5H V+3H V+3H DVDD18 DVDD18 ADAC_GND V+3 V+3 V+3E V+3E V+1R8 V+1R8 PWDN# FLDC- FLDC+ -28V D_GND D_GND V+3 TO HDMI FRROM/TO MEMORY TO VIDEO FROM/TO MPEG/MICON/DSP TO LOADER/MOTOR DRIVE PCB130 DMF090 TO AUDIO/JACK (HDMI) (HDMI) (CORE) (MPEG/SDRAM/FLASH) (FIP/LED/IR/RESET) VOUT GND NR ON/OFF GND VIN 5.8 0 5.4 5 0 1.2 (OPU) (MOTOR) (F/E) (HDMI) (AUDIO AMP) (AUDIO MUTE) (VIDEO/OPT/COAX) (AUDIO DAC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 62 1 2 3 4 1 2 3 4 C D F A B E 10.8 OPERATION 1 and OPERATION 2 and OPERATION 3 PCB ASSYS IC651 PT6315 FIP DRIVER IC 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 Vout B+ GND OS651 ROM-V340TAO 1 2 3 SW668 EVQ11L05R USB SW652 EVQ11L05R DOWN SW653 EVQ11L05R ENTER SW666 EVQ11L05R EJECT SW667 EVQ11L05R POWER SW655 EVQ11L05R RETURN SW654 EVQ11L05R RIGHT SW656 EVQ11L05R MENU SW657 EVQ11L05R UP SW658 EVQ11L05R TOPMENU SW659 EVQ11L05R LEFT SW661 EVQ11L05R HOMEMENU SW665 EVQ11L05R PAUSE SW664 EVQ11L05R -SKIP SW663 EVQ11L05R PLAY SW662 EVQ11L05R +SKIP SW660 EVQ11L05R STOP V651 HNV-08SS44T 16 17 18 19 20 21 22 23 24 25 26 27 28 31 32 D660 LTL-1CHEE-002A HDMI LED(RED) CD604 2H051204 FFC(1.0mm pitch) D651 1SS133 D652 1SS133 D655 1SS133 D656 1SS133 D658 1SS133 D657 1SS133 D659 1SS133 D654 1SS133 D665 1SS133 CP605 00_6232_005_102_800+ 1 2 3 4 5 CP604 00_6232_005_102_800+ 1 2 3 4 5 R664 330 1/4W R666 2.2 1/4W TP662 W808 W807 C651 0.1 B C674 47 6.3V KA_P DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OF PRIN NOTE:THIS SC P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P8 P9 P10 P11 P12 P13 P14 P15 P16 P7 P6 P5 P4 P3 P2 P1 SW1 GR8 GR7 GR6 GR5 GR4 GR3 GR2 GR1 V+3E LED IR SW2 SW2 POWER V+3E LED USB SW2 POWER V+3E LED USB (OPERATION3 PCB) (OPERATION2 PCB) 12 23 -12.0 -6.0 -18.0 -19.0 -15.6 -19.0 -9.5 -13.0 -9.5 -12.6 -13.0 -6.0 34 44 NC NC NC NC -18.0 -18.0 -18.0 -18.0 -18.0 -18.0 -18.0 -18.0 -16.0 -16.0 -16.0 -16.0 -16.0 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 GR12 P5 P4 P3 P2 P1 -28V GR10 GR11 GR9 GR8 GR7 GR6 GR5 GR4 GR3 GR2 GR1 -16.0 -18.0 -18.0 -18.0 FL+ FL+ P16 P15 P14 P13 P12 P11 P10 DVDCD TRACK ALL P9 P8 P7 P6 P5 P4 -26 8 -26.8 -20.5 -20.5 -22.7 -20.5 -20.5 -22.7 -26.8 -26.8 -20.5 -22.7 -22.7 -26.8 -19.7 -19.7 DEF129 PCB280 DEF130 PCBDF0 OPERATION2 PCB ASSY (A2K401A280) OPERATION3 PCB ASSY (A2K401ADF0) OPERATION 1 PCB ASSY (A2K512A270) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 63 5 6 7 8 5 6 7 8 C D F A B E IC651 PT6315 FIP DRIVER IC 1 10 11 12 13 14 15 16 17 18 2 3 38 39 4 40 41 42 43 44 7 8 9 5 6 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 5 6 7 8 9 CD601 2H0B1003 FFC(1.0mm pitch) D667 1SS133 MS1_0 R662 100K R654 2.2 R653 2.2 R652 2.2 R651 2.2 R658 10K R656 1K R655 1K R666 1/4W R657 10K TP662 TP663 W805 W809 C654 0.01 B C610_1 47P CH C611_1 47P CH C676 0.1 B C675 0.1 B C604 33P CH C605 0.001 B C658 0.1 B C653 47 6.3V KA_P CP601 00_6232_011_102_800+ 1 10 11 2 3 4 5 6 7 8 9 OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME FLDC- FLDC+ P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 GR8 GR7 GR6 GR5 GR4 GR3 GR2 GR1 SW2 -28V SW1 P12 P13 P14 P15 P16 STB FP_SCK FP_DI FP_DO GR5 GR4 GR3 GR2 GR1 LED V+3E FP_SCK FP_DI STB FP_DO V+3E IR V+3E FLDC+ -28V FLDC- GND (CP4002) FROM/TO MPEG/MICON/RF-AMP DGND DGND FLDC+ -28V FLDC- DI (M to F) V+3E STB DO (F to M) IR CLK NC PCB270 DEF126 0 NC NC 0 0 0 STB 12 VDD 3.2 0 0 0 -19.0 -15.6 -19.0 -9.5 3.0 LED1 LED2 LED4 CLK VDD 44 -16.0 -16.0 -16.0 -16.0 6.0 0 2.9 3.2 0.7 3.4 K2 K1 DI DO OSC GND P16 P15 P14 P13 P12 GR5 GR4 GR3 GR2 GR1 GND LED3 3.3 3.3 FL- FL- P11 P10 ACK ALL REPEAT A B P9 P8 P7 P6 P5 P4 P3 P2 P1 G8 G7 G6 G5 G4 G3 G2 G1 -25.1 -25.1 -25.1 -25.1 -25.1 -25.1 -25.1 -25.1 -20.5 -26.8 -26.8 -26.8 -20.5 -20.5 -22.7 -20.5 -20.5 -22.7 -22.3 -22.3 Switches SW652 : DOWN («) SW653 : ENTER SW654 : RIGHT (\) SW655 : RETURN SW656 : MENU SW657 : UP (») SW658 : TOP MENU SW659 : LEFT (|) SW660 : STOP (�) SW661 : HOME MENU SW662 : + SKIP (�) SW663 : PLAY (�) SW664 : – SKIP (�) SW665 : PAUSE (�) SW666 : EJECT (�) 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 64 1 2 3 4 1 2 3 4 C D F A B E 10.9 POWER PCB ASSY (1/2) IS NON POLAR ONE. THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP THE RESISTOR MARKED F IS FUSE RESISTOR. NOTE: F501_1 1.6A125V L501 SS11V-03550-CH COIL,LINE FILTER 1 2 3 4 FH501_1 EYF-52BCY FH502_1 EYF-52BCY IC504 PS2561AL1-1-V(W) PHOTO COUPLER IC 1 2 3 4 R502 1.5 1W R510_1 2.7 1W REPLACE ONLY WITH THE SAME TYPE FUSE :FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, CAUTION N'UTILISER QUE DES FUSIBLE DE MEME TYPE :POUR UNE PROTECTION CONTINUE LES RISQUES D'INCEIE ATTENTION IC501 KIA431A-AT VOLTAGE CTL IC 1 2 3 CP501 A3963WV2-3PD CONNECTOR 1 2 1.6A 125V 1.6A 125V R507 10 1/4W R511 68 1/4W T501 81291294 10 11 12 13 14 15 16 2 3 4 6 7 8 9 BLADE WIDE BLACK WHITE 2 1 CD501 0Q618902 AC120V_60Hz(US) C520 R517 1.2K 1/4W DANS LA NOMENCLATURE DES PIECES N'UTILISER QUE CELLS DECRITES DANGEREUSES AN POINT DE VUE SECURITE :LES PIECES REPAREES PAR UN ETANT ATTENTION :SINCE THESE PARTS MARKED BY CAUTION DESCRIBED IN PARTS LIST ONLY CRITICAL FOR SAFETY,USE ONES ARE C511 82 400V UP_P C523 470 25V YK_P C521 1000 16V ZL_P D509_1 RL106F-E D506 1N4005-EIC D503 1N4005-EIC D502 1N4005-EIC D513 1H3-E D516 1SS13 D515 1S40-E D519 1F5-E D527 SR240-F D510 SR290-F D512_1 1H3-E D511 1H3-E D505 1N4005-EIC R503 1.5M 1/2W R505 22 1/4W R518 3.3K R516 10 R515 1K R514 1K 1/4W R504 680K R512_1 100K 1/2W R513 6.8K 1/4W C502_1 0.22 275V ECQUL C518 0.001 250V KX C516 0.0022 250V KX C513 47P 2KV SL C515_1 0.01 400V ECQP C508 680P CH C540 0.0068 B C503 0.1 B IC502 STR-A6131M POWER CTL IC 1 2 3 4 5 6 7 8 C517 220 25V YK P C509 10 50V YK_P C522 C506 2.2 50V KA_P KT B501 W4BRH3.5X6X1.0X2 D508 MTZJ5.6B NTSC BLACK(L) WHITE(N) L N 1.6A 125V{F501_1} 1.6A 125V{F501_1} 0 0 0 0 0 0 0 130 130 0 130 0 -22.5 -22.5 NC D D OCP VCC GND FB/OLP STARTUP 17.5 3.9 0.1 130 130 130 0 0 NC 0 2.5 9.9 GND OUT IN 9.9 0 3.9 10.9 CHASSIS GND NC NC POWER PCB ASSY (1/2) (A2K512A240) * The parts except mark cannot be changed. On that occasion, replace whole Assy. PRIMARY SIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 65 5 6 7 8 5 6 7 8 C D F A B E BT601 R6P(AR)XICI UM-4 TM601 07650PC010 CD6003 TD-OR0201R L503 22uH TSL0808 L505 22uH TSL0808 R529 220 1W R510_1 2.7 1W C501 KIA431A-AT VOLTAGE CTL IC 1 2 3 R511 68 1/4W Q506 KTA1504S_Y_RTK PROTECT PH503 003P-2100 1 IC503 PQ070XF01SZH 24 +6V REG (DVD MOTOR) IC 1 2 3 4 IC505 PQ070XF01SZH 24 +5.2V REG (USB) IC 1 2 3 4 C520 100 50V YK_P CD502 CU2E3301 CORD CONNECTOR R517 1.2K 1/4W +-1% R546 3.3K 1/4W +-1% CP504 A2001WV2-4P USB POWER 1 2 3 4 TURE DES PIECES LS DECRITES OINT DE VUE SECURITE ES PAR UN ETANT C526 470 6.3V YK_P C523 470 25V YK_P C536 220 6.3V YK_P C531 100 16V YK_P C535 330 16V YK_P C521 1000 16V ZL_P CP502 A2001WV2-14P 1 10 11 12 13 14 2 3 4 5 6 7 8 9 D534 1SS133 D532 1S40-E D525 1SS133 D520 1SS133 D521 1SS133 D522 1SS133 D516 1SS133 D515 1S40-E D519 1F5-E D527 SR240-F D510 SR290-F D512_1 1H3-E CAUTION: DIGITAL TRANSISTOR Q510 KTA1281_Y P.CON+12V SW Q504 KTA1281_Y FL+ P.CON SW Q513 KTA1504S_Y_RTK FL+ CTL Q503 KTA1504S_Y_RTK -28V CTL R526 6.8K +-1% R547 22 R525 100 R523 22K R539 4.7K 1/4W R527 100 1/4W R506 100 R538 22K R518 3.3K +-1% R516 10 R515 1K R514 1K 1/4W R545 22K +-1% R540 680 R524 1K 1/4W R519 3.3K R509 1K R530 560 1/4W R536 10K R544 10K R534 100 1/4W R548 1K R528 22K 1/4W R531 10K R541 5.6K +-1% R543 4.7K +-1% R542 470 +-1% R535 4.7K +-1% R533 15K +-1% R550 68 13 1/4W R537 1K W819 W814 W817 C501 0.01 B C541 0.01 B C540 0.0068 B C503 0.1 B C527 100 10V YK_P C519 22 35V YK_P C517 220 25V YK_P C538 220 6.3V YK_P C522 1000 6.3V ZL_P C504 10 25V KA_P C530 100 10V KA_P C528 2.2 50V KA_P Q501 KTC3875S_Y_RTK PROTECT Q509 KTC3875S_Y_RTK REG+12V CTL Q511 KTC3875S_Y_RTK REG+12V CTL Q512 KTC3875S_Y_RTK FL+ CTL Q502 KTC3209_Y -28V P.CON SW Q515 2SD1835S/T-AA P.CON+5V REG Q505 KRC102SRTK P.CON SW B502 W5RH3.5X5X1.0 (W023) D517 MTZJ2.2B D536 MTZJ3.0B D528 MTZJ5.1B D523 MTZJ3.6B D535 MTZJ5.1B D533 MTZJ2.2B D531 MTZJ27B DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME GND P.CON+D5V FROM/TO POWER PORT FROM/TO USB PCB (CP4003) P.CON+12V P.CON+5V FL DC- FL DC+ GND GND AT+12V for MUTE P.CON+6V -28V GND(M) GND(D) AT+3.3V AT+3.3V P.ON-H(STBY L) GND GND USB+5V USB+5V TO 21PIN/D-TERMINAL/DIGITAL NC PCB240 DPF015 IN GND OUT ADJ ACCESSORY 0 9.9 0 3.2 0 3.2 0 2.5 GND OUT IN 4.5 12.3 5.0 4.5 12.9 5.1 12.6 12.3 12.9 19.0 0.6 0 20.8 28.4 28.4 27.8 5.8 5.1 7.0 6.8 0.6 0 21.5 21.6 19.7 19.0 20.7 0 0 2.8 7.0 5.9 0 1.2 IN GND OUT ADJ 0 1.2 5.9 5.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 66 1 2 3 4 1 2 3 4 C D F A B E 10.10 POWER PCB ASSY (2/2) CP8102 E8223301 1 2 TP8101 TP8102 B8101 MMZ1608R102CT OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME A D_GND COAXIAL P.CON+D5V FROM AUDIO/JACK FROM POWER SPDIF GND (CP8001) POWER PCB ASSY (2/2) (A2K512A240) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 67 5 6 7 8 5 6 7 8 C D F A B E OS8101 RFT5CB1 OPTICAL 1 2 3 H E J8102 RCA-117-01 COAXIAL 1 2 R8123 68 +-1% R8122 220 R8106 2.4K R8107 1.8K R8124 100K R8121 3.9K TP8101 TP8102 C8119 1 B C8103 100P CH C8120 0.1 B C8118 100 10V YK_P C8104 1 50V KA_P Q8103 KTC3875S_Y_RTK COAXIAL DRV DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS ASPDIF COAXIAL D_GND 4.9 2.1 2.7 GND VCC INPUT PCB240 DPF015 * The parts except mark cannot be changed. On that occasion, replace whole Assy. 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 68 1 2 3 4 1 2 3 4 C D F A B E 10.11 USB PCB ASSY D6601 RB051L-40 (SCHOTTKY 3.0A) CD6601 2H063401 CORD CONNECTOR CD6602 E8241203 CORD CONNECTOR CP6602 A2001WR2-4P 1 2 3 4 R6613 22K W802 C6602 0.1 B C6604 0.1 B C6605 10 25V KA_P C6603 10 25V KA_P IC6601 RT9702-PB HIGH SIDE SW IC 1 2 3 4 5 B6601 HCB2012K-600T25 (60 OHM 2.5A) CP6601 00_6232_006_102_800+ 1 2 3 4 5 6 DURING PLAYBACK. MEASURED WITH THE DIGITAL TESTER NOTE:THE DC VOLTAGE EACH PART WAS USB_P_ON-H USB_FLAG USBP USBN GND GND GND P.CON+5V P.CON+5V FROM POWER PCB GND USBN USB_POWER USB_FLAG GND USBP FROM/TO DVD PCB EN GND /FLG VIN VOUT 5.3 5.3 5.3 0 3.3 (USB PCB) USB SCHEMATIC D USB PCB ASSY (A2K401ADD0) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 69 5 6 7 8 5 6 7 8 C D F A B E CP6603 USB-A1D05F-4B4N 1 2 3 4 WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL. WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED D6601 RB051L-40 (SCHOTTKY 3.0A) R6614 10 R6615 10 R6613 22K W801 C6607 10P CH C6608 10P CH C6610 100P CH C6609 0.01 B 10 25V KA_P C6606 47 6.3V KA_P 5 B6602 HCB2012K-600T25 (60 OHM 2.5A) D6608_1 UDZS3.9B D6610_1 UDZS3.9B DIGITAL TESTER PART WAS DEF133 PCBDD0 SB PCB) MATIC DIAGRAM +5V GND USB_DN USB_DP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 70 1 2 3 4 1 2 3 4 C D F A B E 10.12 WAVE FORMS MPEG/MICON/RF-AMP AUDIO/JACK 1 IC4002-pin146 (RCLK) V:1.0V/div. H:2nsec/div. IC4002-pin215 (ASPDIF) V:1.0V/div. H:20nsec/div. IC4002-pin231 (ACLK) V:1.0V/div. H:20ns/div. CP4002-pin1 (FP_SCK) V:1.0V/div. H:20µsec/div. 2 3 4 5 6 7 8 9 10 11 DVD MT PCB ASSY J8001-pin3 (Lch_Out) V:1.0V/div. H:500µsec/div. 12 13 14 15 J8001-pin2 (Rch_Out) V:1.0V/div. H:500µsec/div. J8002-pin3 (SL) V:1.0V/div. H:500µsec/div. J8002-pin2 (SR) V:1.0V/div. H:500µsec/div. J8002-pin6 (CENTER) V:1.0V/div. H:500µsec/div. J8002-pin5 (LFE) V:1.0V/div. H:500µsec/div. J7302-pin6 (CVBS_Out) V:200mV/div. H:10µsec/div. J7302-pin5 (Y_Out) V:500mV/div. H:10µsec/div. J7302-pin2 (V_Out) V:500mV/div. H:10µsec/div. J7304-pin3 (S_Y_Out) V:500mV/div. H:20µsec/div. J7302-pin3 (U_Out) V:500mV/div. H:20µsec/div. VIDEO Note : The encircled numbers denote measuring point in the schematic diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 71 5 6 7 8 5 6 7 8 C D F A B E POWER PCB ASSY DVD MT PCB ASSY OPERATION 1 PCB ASSY Note : The encircled numbers denote measuring point in the schematic diagram. 1 2 16 1 IC651-pin5 (OSC)) V:500mV/div. H:1µsec/div. J7304-pin4 (S_C_Out) V:500mV/div. H:10µsec/div. J8102-pin2 (COAXIAL) V:500mV/div. H:200nsec/div. OS8101-pin1 (OPTICAL) V:1.0V/div. H:200nsec/div. DISPLAY DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 72 1 2 3 4 1 2 3 4 C D F A B E 11. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 73 5 6 7 8 5 6 7 8 C D F A B E 11.1 DVD MT PCB ASSY DMF090A 193 129 65 1 R4007 C4075 W877 R8007 R8008 R4030 W879 W820 W814 W841 W842 C8038 W840 B4010 W830 R8042 D4003 D4002 R4059 R8043 W843 W861 L5904 L5903 L5902 L5901 W839 C4100 C4023 C4126 C4062 C4060_1 C4063 R2316 R4056 R4052 Q4003 C8025 C4024 C4117 W873 W872 W871 R4021 W837 W831 W851 IC4001 W850 C8031 C8028 C2301 R2304 C2306 R2313 R2312 R2325 W802 C2307 R2310 C2311 R2311 R2317 C2305 W806 W805 C2312 C2323 C2322 R2342 R2331 R2329 R2319 R2338 R2309 R2308 Q2301 R2307 R2306 Q2307 Q2306 C2320 Q2304 Q2302 C2321 Q2305 Q2303 IC2301 W833 R4043 C4103 C4119 C8008 Q8013 C8007 R4038 C8015 Q8006 C8034 C8020 C8023 C8064 C8037 C8014 C8019 C8026 C8073 C8043 C8063 Q8018 Q8016 R8032 R8070 R8079 R8078 R8095 R8027 R8034 R8049 R8067 R8073 R8071 R8094 R8022 R8029 IC8005 IC8004 J8002 C8066 C8065 R8033 C8047 C8072 C8032 Q8002 R8019 C8060 C8061 C8033 C8048 R8035 C8035 Q8004 Q8005 Q8014 R8026 R8024 C8045 Q8001 R8005 R8009 C8002 IC8002 IC8007 IC8001 J8001 C8029 C8017 C8069 C8058 IC8008 C8068 C8027 R8088 R8090 Q8023 R8081 Q8012 R8023 R8038 C8050 C8016 Q8007 R8020 Q8003 IC8003 R8018 C8041 C8036 C8013 C8040 R8041 R8040 R8001 D8004 Q8011 C8067 C7304 C7306 C7307 C7308 C7309 C7312 C7319 R7301 J7304 B7305 C7318 J7302 C7315 C7314 B7304 R7302 R7303 C7316 CP8001 C7329 IC7301 C4011 R4047 R4046 R4027 R4025 R4024 C4047 C4044 C4042 C4031 C4032 R4016 R4015 R4017 R4019 R4018 W815 W812 C5924 R5901 C5922 R5921 C5923 IC5902 C4056 B4001 R4013 C4096 IC4006 C4094 C4095 CP4003 B4002 C4099 R4012 R4011 C4093 C4112 C4098 W826 CP2301 C4079 C4078 C4076 C4077 R4035 NR4001 C4114 W846 C4104 C4091 R4084 CP4002 IC4003 IC4004 CP2302 CP2303 CP4004 C4123 C4050 R4070 R4071 R4083 R4082 C4069 X4001 NR4002 IC4002 IC4005 C5920 R5920 CP5901 R5919 DVD MT PCB ASSY SIDE A SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 74 1 2 3 4 1 2 3 4 C D F A B E DMF090A C4130 C5904_1 W865 W853 R8006 B8001 W878 C4131 R8028 W862 W864 R8059 B4016 Q4004 B4018 C2308 C5925 R8065 B4015 C5901 W858 W857 B4014 W807 C4128 R4009 W856 W819 W868 R4040 R2327 R2318 C2302 C2303 R2322 R2320 R2323 R2321 R4026 C4012 C4030 R4051 R4050 W821 W822 W832 R4058 R4028 R8093 R8092 R8072 Q8015 R8074 C8053 R8068 R8045 C8009 C8059 R8050 R8053 C8049 R8036 R8037 C8010 R8076 R8069 Q8017 R8077 C8056 R8048 R8030 R8031 R8052 C8044 R8055 R8058 C8057 C8052 R8054 R8011 Q8020 R8012 R8046 C8004 R8017 R8003 D8006 C8039 R8025 R8002 D8005 R8021 D8003 Q8008 Q8010 R8096 C8005 Q8021 R8087 R8075 R8061 C8046 C8062 R8066 C8055 R8064 R8063 C8051 R8099 C8006 C8030 Q8009 C8054 W804 R4002 R4061 R4064 R4065 C4074 R4066 C4083 R4067 C7305 R7315 Q7302 C7313 C7302 C7317 C7330 R7317 R7316 R7305 R7304 C4067 C4066 C4110 R4008 R4006 C4065 C4084 R4048 Q4002 W828 R4068 R4069 C4061 R4053 R4057 C4046 C4048 C4049 C4043 C4041 C4035 C4034 R4022 C4033 C4028 C4027 R4020 W816 C4026 C4014 C4015 C4016 C4017 C4013 C4019 C4005 C4007 C4105 R4005 C4009 C4008 C4020 C4003 C4002 C4001 R4003 C4038 C4037 W813 C4036 R4039 C4029 C4086 R4054 C4021 R4044 C4025 C4040 C4022 R4004 R4014 C4051 C4055 R4001 C4064 C4052 C4120 C4101 C4102 C4054 C4073 C4072 C4068 C4088 C5921 W827 C4082 C4081 C4080 C4071 R4060 DVD MT PCB ASSY SIDE B SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 75 5 6 7 8 5 6 7 8 C D F A B E 11.2 OPERATION 1, OPERATION 2 and OPERATION 3 PCB ASSYS 12 1 34 23 C654 C611_1 C610_1 C604 C605 C651 C676 C658 C675 R662 R658 R657 R656 R655 R654 R653 R652 R651 IC651 W007 D667 W809 W805 W807 W808 SW668 R666 W002 SW667 R664 D660 CP605 OS651 D665 D658 D657 D656 D655 W006 W017 W018 W016 W015 W013 W011 D659 D652 D654 W010 W012 CP604 SW664 SW662 SW660 SW665 SW663 D651 W009 W004 W003 CP601 C674 W001 C653 V651 SW666 SW661 SW658 SW659 SW652 SW653 SW657 SW654 SW655 SW656 DEF129A DEF130A DEF126A DEF129A DEF130A DEF126A SIDE A SIDE A OPERATION 1 PCB ASSY OPERATION 2 PCB ASSY OPERATION 3 PCB ASSY OPERATION 1 PCB ASSY (INSERTED PARTS) (CHIP MOUNTED PARTS) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 76 1 2 3 4 1 2 3 4 C D F A B E 11.3 POWER PCB ASSY . MARKED AS REPLACE - FIRE OF RISK DPF015A W817 W039 D512_1 PH503 W819 IC505 D510 B502 C530 C8104 W024 C504 CP504 Q515 Q502 D527 R512_1 R503 W011 W038 W022 W010 W007 W008 W002 W004 W001 W036 CP502 W037 C526 CP8102 C528 D536 C527 W028 C521 D535 C515_1 C522 C8118 OS8101 J8102 D517 R524 C516 R510_1 C513 C518 R546 D534 W814 D532 C523 W015 D525 C520 R539 D515 IC503 D533 C506 Q510 D519 D513 D511 W013 R502 W019 W018 C535 R527 R505 C531 T501 D531 W016 R528 R529 W005 C536 L503 L505 C538 Q504 R534 R530 W006 D523 C519 R517 D521 D528 D516 D520 D522 R511 W003 R514 R513 C517 IC501 IC504 R507 D508 C509 IC502 C511 L501 D509_1 B501 D505 D502 D506 D503 CP501 F501_1 FH501_1 FH502_1 C502_1 POWER PCB ASSY (INSERTED PARTS) SIDE A SIDE A L N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 77 5 6 7 8 5 6 7 8 C D F A B E DPF015A C540 R535 R550 R533 R542 R540 R548 R525 B8101 R547 R8124 C8103 R8123 R8122 C8120 Q8103 R8121 R8107 R8106 C8119 R519 R526 R545 C501 C541 R531 R536 R537 R544 Q513 Q505 R509 R543 R541 Q509 Q511 Q503 Q512 R506 R538 Q506 R523 Q501 R516 R518 C503 R515 R504 C508 POWER PCB ASSY (CHIP MOUNTED PARTS) SIDE A SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 78 1 2 3 4 1 2 3 4 C D F A B E 11.4 USB PCB ASSY and LOADING MOTER and SW DED021A DED021A DED020A BR WH YE GR SW2 CD2301 M2602 M2601 1 5 WH BR CD2302 M2603 DEF133A DEF133A SW1 CP6601 C6606 C6603 C6605 CP6603 CP6602 B6602 R6613 D6601 B6601 C6604 C6602 C6607 C6608 D6608_1 D6610_1 W810 W809 IC6601 C6609 C6610 W801 W802 SIDE A SIDE A USB PCB ASSY (INSERTED PARTS) LOADING MOTOR (INSERTED PARTS) LOADING MOTOR SW (CHIP MOUNTED PARTS) USB PCB ASSY (CHIP MOUNTED PARTS) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-48AV 79 5 6 7 8 5 6 7 8 C D F A B E 12. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES 1..DVD MT PCB ASSY A2K512A130 1..OPERATION 1 PCB ASSY A2K512A270 1..OPERATION 2 PCB ASSY A2K401A280 1..OPERATION 3 PCB ASSY A2K401ADF0 > 1..POWER PCB ASSSY A2K512A240 1..USB PCB ASSY A2K401ADD0 1..DVD MECHA ASSY A2K001A650 Mark No. Description Part No. DVD MT PCB ASSY SEMICONDUCTORS IC2301 IC AM5766 I1UFV5766S IC4001 IC S-24CS08AFJ-TB-1GE I5HJ0S08A0 IC4002 IC MT1389EXE/S-L IC8K0389SX IC4003 IC R3112N291A-TR-FA IE1F0291A0 IC4004 IC ES29LV160EB-70TG S2K512AF01 IC4005 IC HY57V641620ETP-6 ICLJ0TP6C0 IC4006 IC LM1117S-ADJ I1TF911170 IC7301 IC LA73054-TLM I03FG30540 IC5902 IC PQ1K503M2ZPH I0GF9K5030 IC8001 IC TC7SHU04FU I55F00FU0 IC8002,IC8007,IC8008 IC RC4580IDR I04J045800 IC8003-IC8005 IC PCM1742KE/2K I17F0042KE0 OTHERS J7302 RCA JACK 060R451010 J7304 JACK DIN-409A 063R700013 J8001 RCA JACK 060R451009 J8002 RCA JACK 060R451011 CP5901 CONNECTOR PCB SIDE 0694YJ3018 X4001 CRYSTAL (27MHz) 100GT02720 OPERATION 1 PCB ASSY SEMICONDUCTORS IC651 IC PT6315 IF4K063150 SWITCHES SW652 - SW666 SWITCH TACT 0504R01T38 OTHERS V651 TUBE FLUORESCENT 096F82R601 OS651 REMOTE RECEIVER 077A040002 OPERATION 2 PCB ASSY SWITCHES SW667 SWITCH TACT 0504R01T38 OPERATION 3 PCB ASSY SWITCHES SW668 SWITCH TACT 0504R01T38 POWER PCB ASSY RESISTORS > R511 R,FUSE 68 OHM 1/4W R65584680J OTHERS J8102 RCA JACK RCA-117-01 060R401122 CP8102 CORD CONNECTOR 06E8223301 OS8101 OPTICAL DEVICE RFT5CB1 07AA000011 USB PCB ASSY SEMICONDUCTORS IC6601 RT9702-PB I4UF097020 OTHERS CP6603 CONNECTOR PCB SIDE 06G5AA1001 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
