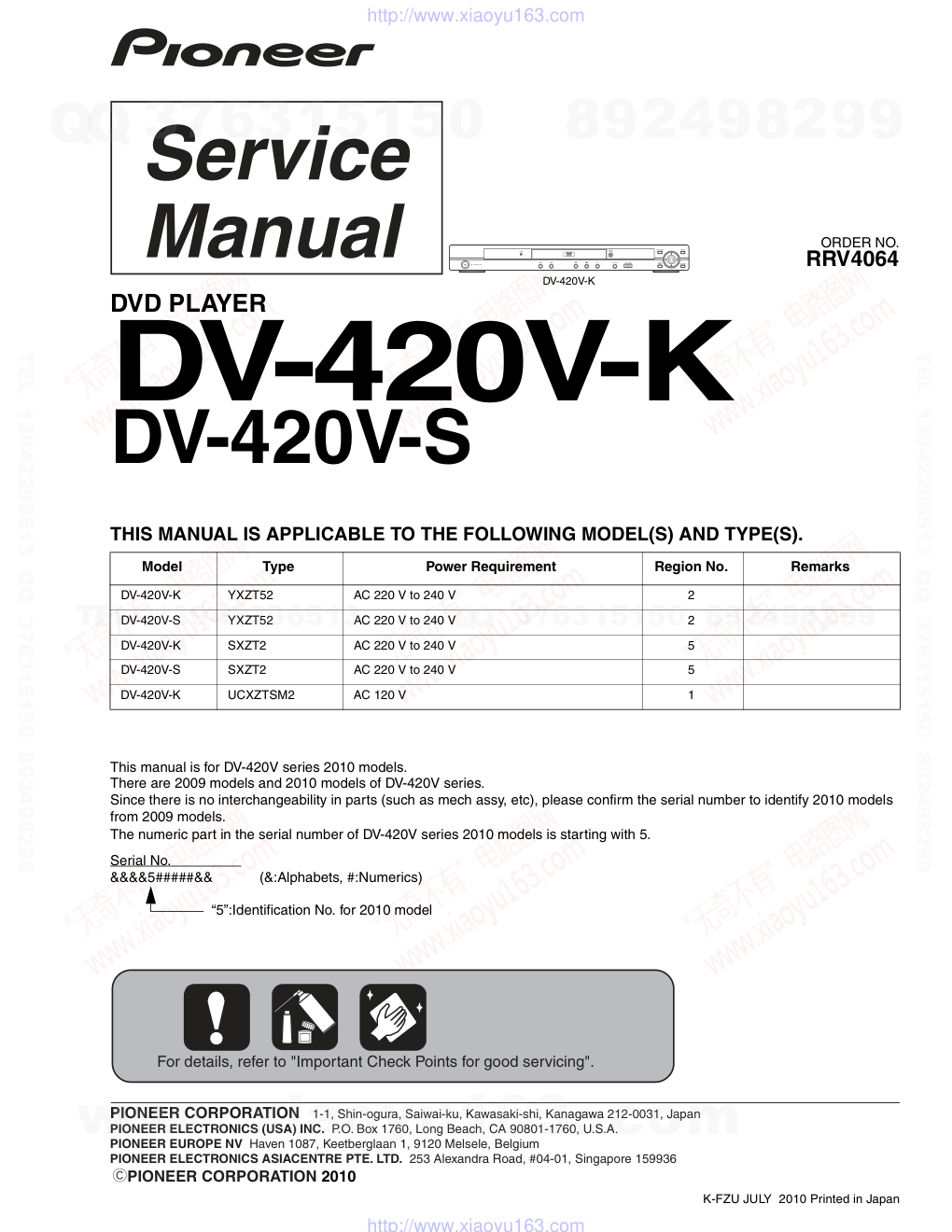

ORDER NO.
PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2010
2010 Printed in Japan
DV-420V-K
RRV4064
DVD PLAYER
DV-420V-K
DV-420V-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
This manual is for DV-420V series 2010 models.
There are 2009 models and 2010 models of DV-420V series.
Since there is no interchangeability in parts (such as mech assy, etc), please confirm the serial number to identify 2010 models
from 2009 models.
The numeric part in the serial number of DV-420V series 2010 models is starting with 5.
Serial No.
&&&&5#####&& (&:Alphabets, #:Numerics)
“5”:Identification No. for 2010 model
Model
Type
Power Requirement
Region No.
Remarks
DV-420V-K
YXZT52
AC 220 V to 240 V
2
DV-420V-S
YXZT52
AC 220 V to 240 V
2
DV-420V-K
SXZT2
AC 220 V to 240 V
5
DV-420V-S
SXZT2
AC 220 V to 240 V
5
DV-420V-K
UCXZTSM2
AC 120 V
1
For details, refer to "Important Check Points for good servicing".
For details, refer to "Important Check Points for good servicing".
K-FZU JULY
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4

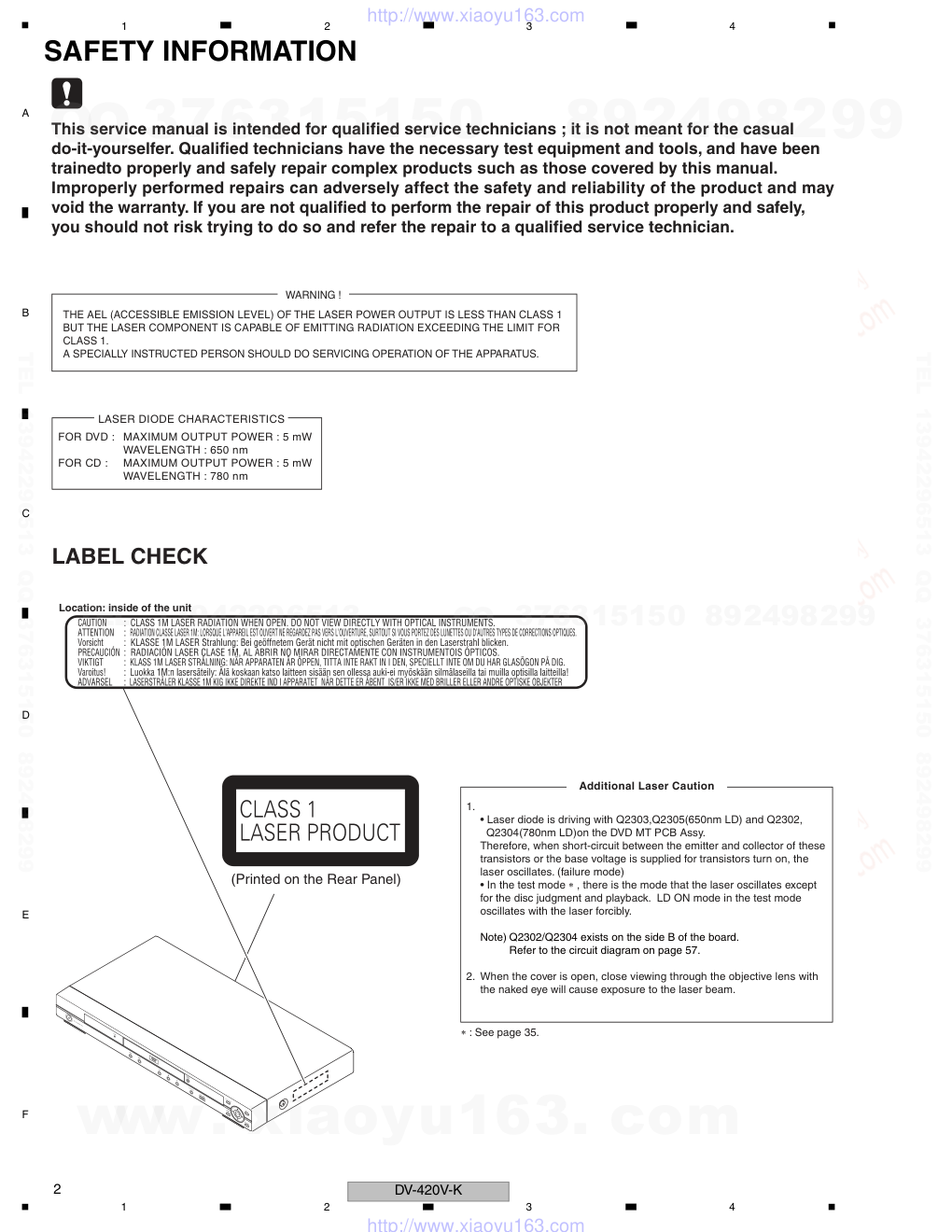

SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trainedto properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.
WARNING !
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR
CLASS 1.
A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.
LASER DIODE CHARACTERISTICS
FOR DVD : MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 650 nm
FOR CD :
MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 780 nm
Additional Laser Caution
∗ : See page 35.
1.
• Laser diode is driving with Q2303,Q2305(650nm LD) and Q2302,
Q2304(780nm LD)on the DVD MT PCB Assy.
Therefore, when short-circuit between the emitter and collector of these
transistors or the base voltage is supplied for transistors turn on, the
laser oscillates. (failure mode)
• In the test mode ∗ , there is the mode that the laser oscillates except
for the disc judgment and playback. LD ON mode in the test mode
oscillates with the laser forcibly.
Note) Q2302/Q2304 exists on the side B of the board.
Refer to the circuit diagram on page 57.
2. When the cover is open, close viewing through the objective lens with
the naked eye will cause exposure to the laser beam.
LABEL CHECK
(Printed on the Rear Panel)
Location: inside of the unit
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
[Important Check Points for Good Servicing]
In this manual, procedures that must be performed during repairs are marked with the below symbol.
Please be sure to confirm and follow these procedures.
1. Product safety
Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by
following the safety instructions described in this manual.
1 Use specified parts for repair.
Use genuine parts. Be sure to use important parts for safety.
2 Do not perform modifications without proper instructions.
Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as
radio/TV interference and foreign noise.
3 Make sure the soldering of repaired locations is properly performed.
When you solder while repairing, please be sure that there are no cold solder and other debris.
Soldering should be finished with the proper quantity. (Refer to the example)
4 Make sure the screws are tightly fastened.
Please be sure that all screws are fastened, and that there are no loose screws.
5 Make sure each connectors are correctly inserted.
Please be sure that all connectors are inserted, and that there are no imperfect insertion.
6 Make sure the wiring cables are set to their original state.
Please replace the wiring and cables to the original state after repairs.
In addition, be sure that there are no pinched wires, etc.
7 Make sure screws and soldering scraps do not remain inside the product.
Please check that neither solder debris nor screws remain inside the product.
8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.
Damaged power cords may lead to fire accidents, so please be sure that there are no damages.
If you find a damaged power cord, please exchange it with a suitable one.
9 There should be no spark traces or similar marks on the power plug.
When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure
connections and suitable usage. Please exchange the power cord if necessary.
a Safe environment should be secured during servicing.
When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.
Please pay attention to your surroundings and repair safely.
2. Adjustments
To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.
Adjustments should be performed in accordance with the procedures/instructions described in this manual.
4. Cleaning
For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper
cleaning should be performed to restore their performances.
3. Lubricants, Glues, and Replacement parts
Use grease and adhesives that are equal to the specified substance.
Make sure the proper amount is applied.
5. Shipping mode and Shipping screws
To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be
installed before shipment. Please be sure to follow this method especially if it is specified in this manual.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4

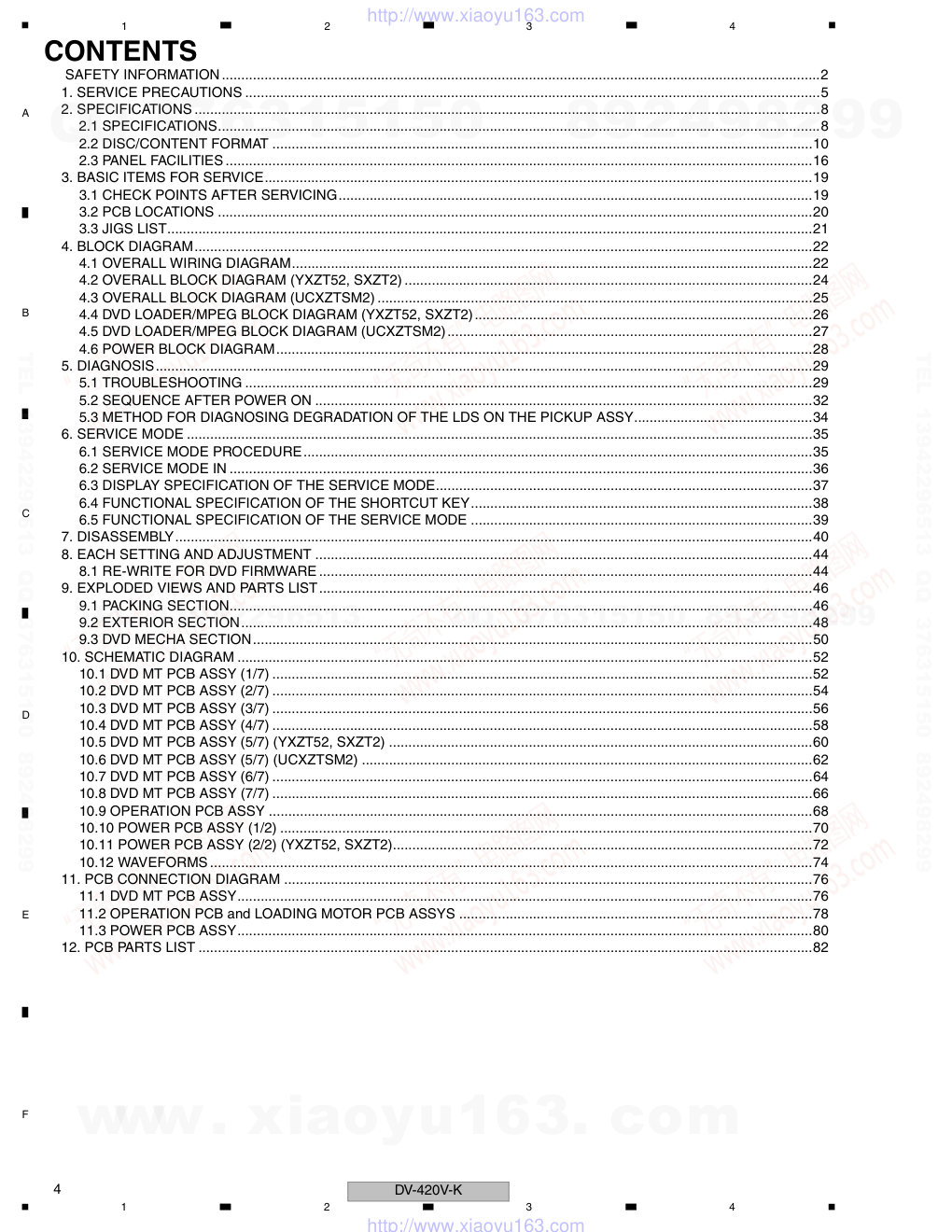

CONTENTS
SAFETY INFORMATION..........................................................................................................................................................2
1. SERVICE PRECAUTIONS ....................................................................................................................................................5

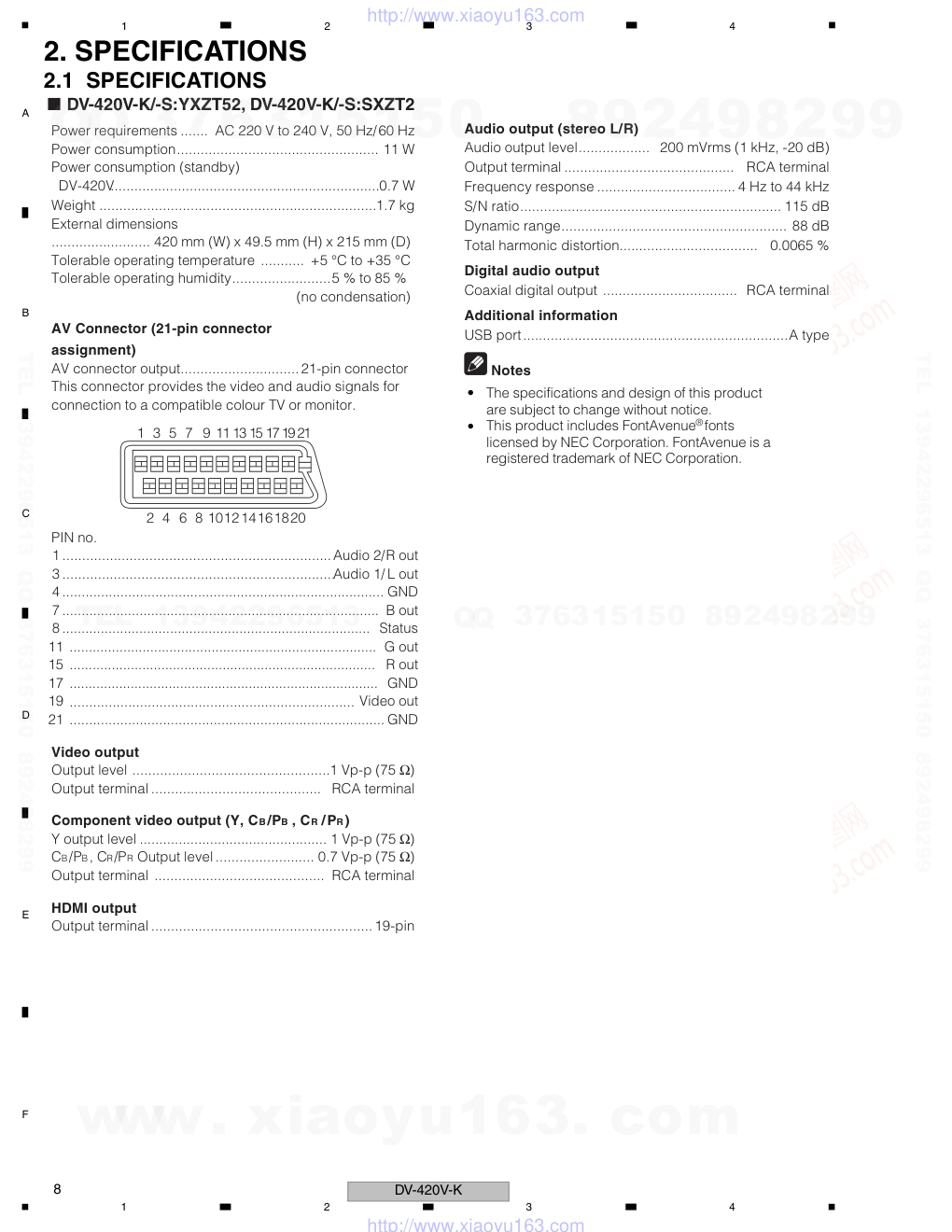

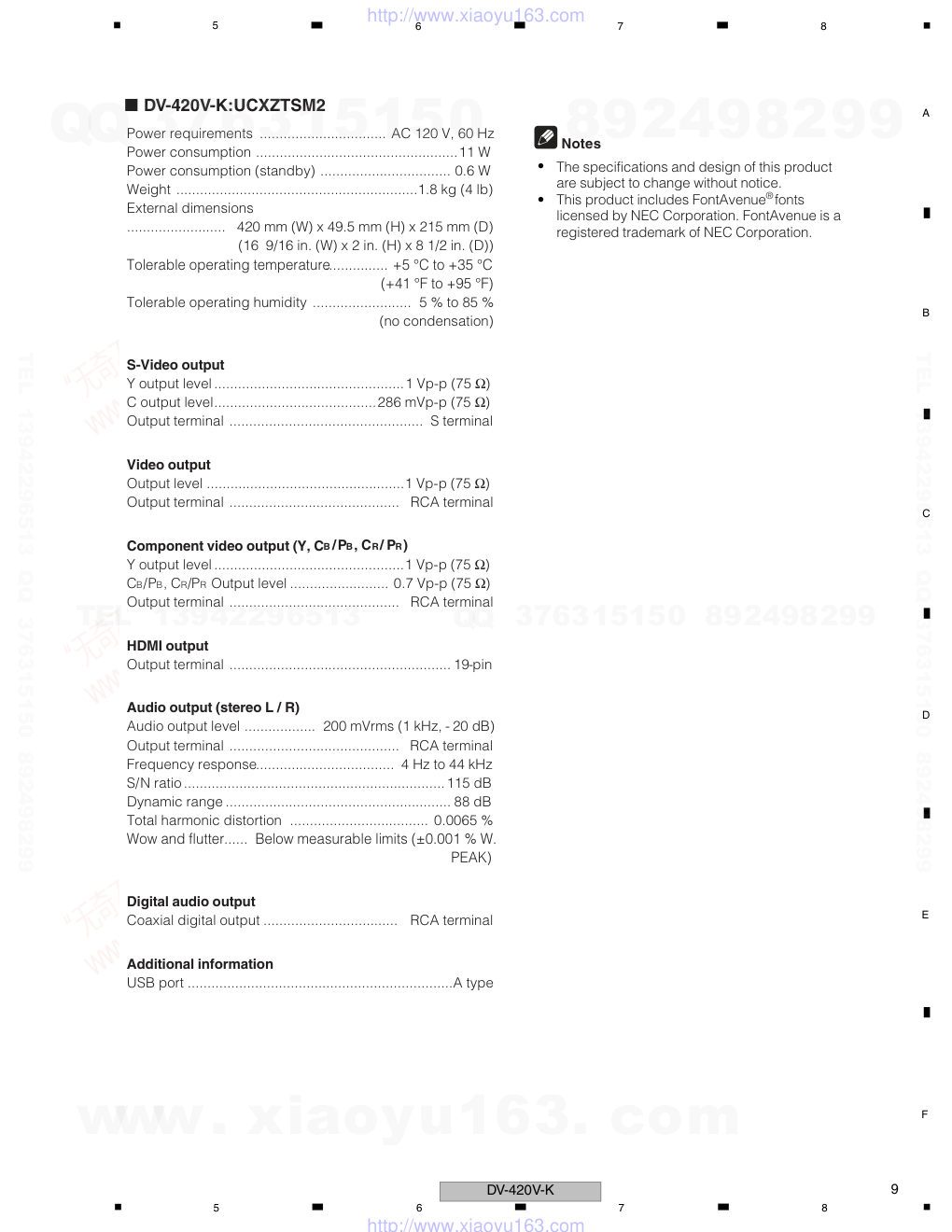

2. SPECIFICATIONS .................................................................................................................................................................8
2.1 SPECIFICATIONS...........................................................................................................................................................8

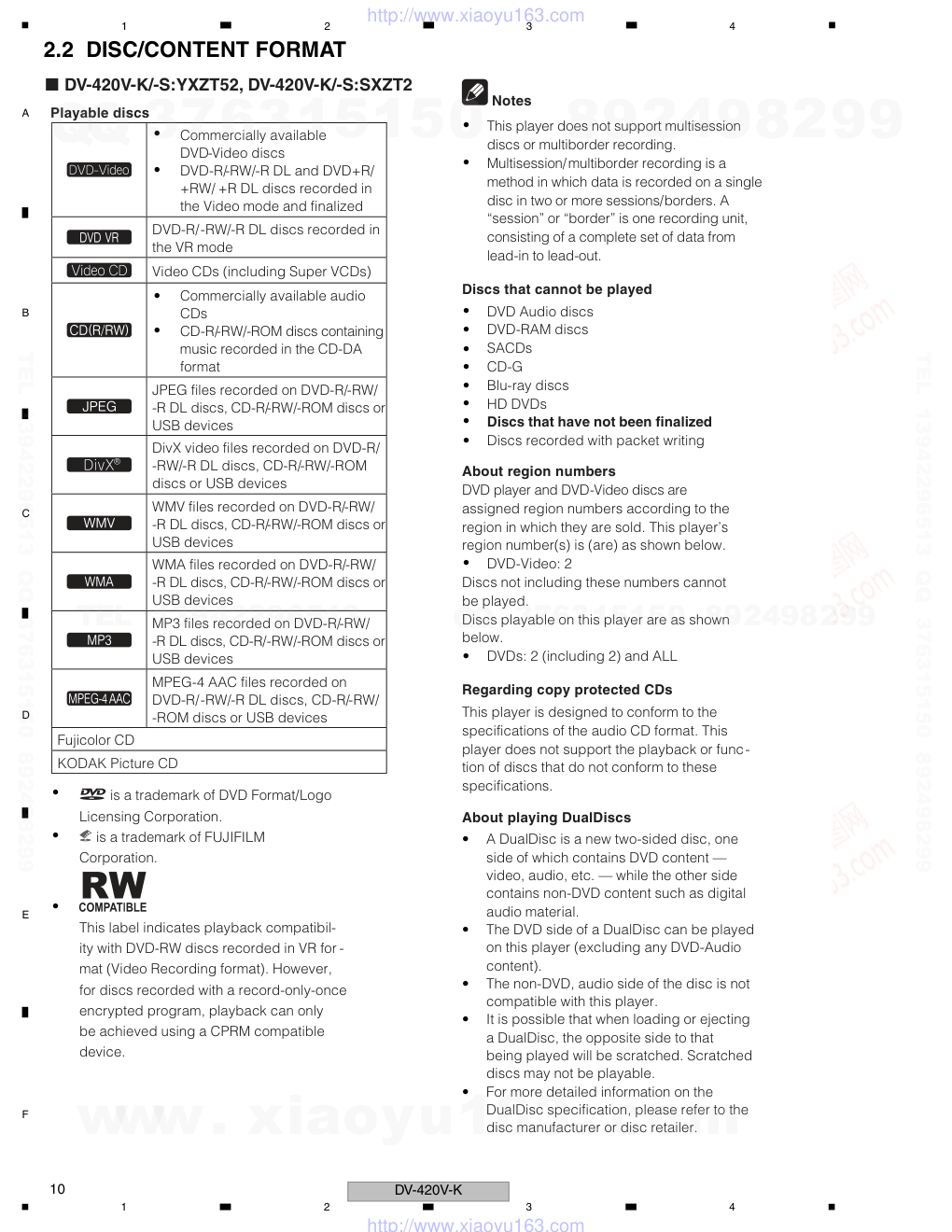

2.2 DISC/CONTENT FORMAT ...........................................................................................................................................10
2.3 PANEL FACILITIES .......................................................................................................................................................16
3. BASIC ITEMS FOR SERVICE.............................................................................................................................................19
3.1 CHECK POINTS AFTER SERVICING..........................................................................................................................19
3.2 PCB LOCATIONS .........................................................................................................................................................20
3.3 JIGS LIST......................................................................................................................................................................21
4. BLOCK DIAGRAM...............................................................................................................................................................22
4.1 OVERALL WIRING DIAGRAM......................................................................................................................................22
4.2 OVERALL BLOCK DIAGRAM (YXZT52, SXZT2) .........................................................................................................24
4.3 OVERALL BLOCK DIAGRAM (UCXZTSM2) ................................................................................................................25
4.4 DVD LOADER/MPEG BLOCK DIAGRAM (YXZT52, SXZT2).......................................................................................26
4.5 DVD LOADER/MPEG BLOCK DIAGRAM (UCXZTSM2)..............................................................................................27
4.6 POWER BLOCK DIAGRAM..........................................................................................................................................28
5. DIAGNOSIS.........................................................................................................................................................................29
5.1 TROUBLESHOOTING ..................................................................................................................................................29
5.2 SEQUENCE AFTER POWER ON ................................................................................................................................32
5.3 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY..............................................34
6. SERVICE MODE .................................................................................................................................................................35
6.1 SERVICE MODE PROCEDURE...................................................................................................................................35
6.2 SERVICE MODE IN ......................................................................................................................................................36
6.3 DISPLAY SPECIFICATION OF THE SERVICE MODE.................................................................................................37
6.4 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY........................................................................................38
6.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE ........................................................................................39
7. DISASSEMBLY....................................................................................................................................................................40
8. EACH SETTING AND ADJUSTMENT ................................................................................................................................44
8.1 RE-WRITE FOR DVD FIRMWARE ...............................................................................................................................44
9. EXPLODED VIEWS AND PARTS LIST...............................................................................................................................46
9.1 PACKING SECTION......................................................................................................................................................46
9.2 EXTERIOR SECTION...................................................................................................................................................48
9.3 DVD MECHA SECTION................................................................................................................................................50
10. SCHEMATIC DIAGRAM ....................................................................................................................................................52
10.1 DVD MT PCB ASSY (1/7) ...........................................................................................................................................52
10.2 DVD MT PCB ASSY (2/7) ...........................................................................................................................................54
10.3 DVD MT PCB ASSY (3/7) ...........................................................................................................................................56
10.4 DVD MT PCB ASSY (4/7) ...........................................................................................................................................58
10.5 DVD MT PCB ASSY (5/7) (YXZT52, SXZT2) .............................................................................................................60
10.6 DVD MT PCB ASSY (5/7) (UCXZTSM2) ....................................................................................................................62
10.7 DVD MT PCB ASSY (6/7) ...........................................................................................................................................64
10.8 DVD MT PCB ASSY (7/7) ...........................................................................................................................................66
10.9 OPERATION PCB ASSY ............................................................................................................................................68
10.10 POWER PCB ASSY (1/2) .........................................................................................................................................70
10.11 POWER PCB ASSY (2/2) (YXZT52, SXZT2)............................................................................................................72
10.12 WAVEFORMS...........................................................................................................................................................74
11. PCB CONNECTION DIAGRAM ........................................................................................................................................76
11.1 DVD MT PCB ASSY....................................................................................................................................................76
11.2 OPERATION PCB and LOADING MOTOR PCB ASSYS ...........................................................................................78
11.3 POWER PCB ASSY....................................................................................................................................................80
12. PCB PARTS LIST ..............................................................................................................................................................82
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F

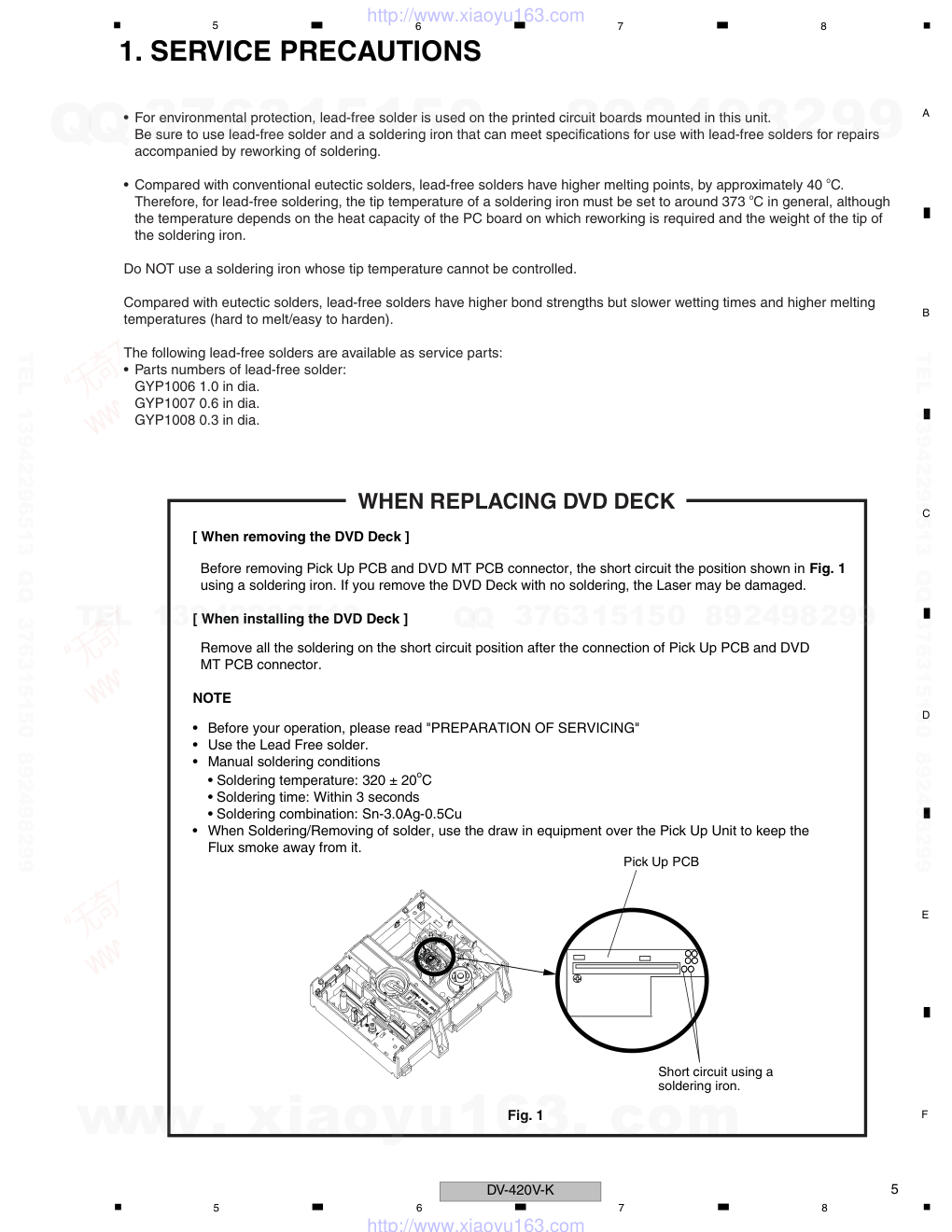

1. SERVICE PRECAUTIONS
• For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit.
Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs
accompanied by reworking of soldering.
• Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40
oC.
Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373
oC in general, although
the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of
the soldering iron.
Do NOT use a soldering iron whose tip temperature cannot be controlled.
Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting
temperatures (hard to melt/easy to harden).
The following lead-free solders are available as service parts:
• Parts numbers of lead-free solder:
GYP1006 1.0 in dia.
GYP1007 0.6 in dia.
GYP1008 0.3 in dia.
[ When removing the DVD Deck ]
Before removing Pick Up PCB and DVD MT PCB connector, the short circuit the position shown in Fig. 1
using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged.
[ When installing the DVD Deck ]
Remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD
MT PCB connector.
NOTE
• Before your operation, please read "PREPARATION OF SERVICING"
• Use the Lead Free solder.
• Manual soldering conditions
• Soldering temperature: 320 ± 20oC
• Soldering time: Within 3 seconds
• Soldering combination: Sn-3.0Ag-0.5Cu
• When Soldering/Removing of solder, use the draw in equipment over the Pick Up Unit to keep the
Flux smoke away from it.
Pick Up PCB
Fig. 1
Short circuit using a
soldering iron.
WHEN REPLACING DVD DECK
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4

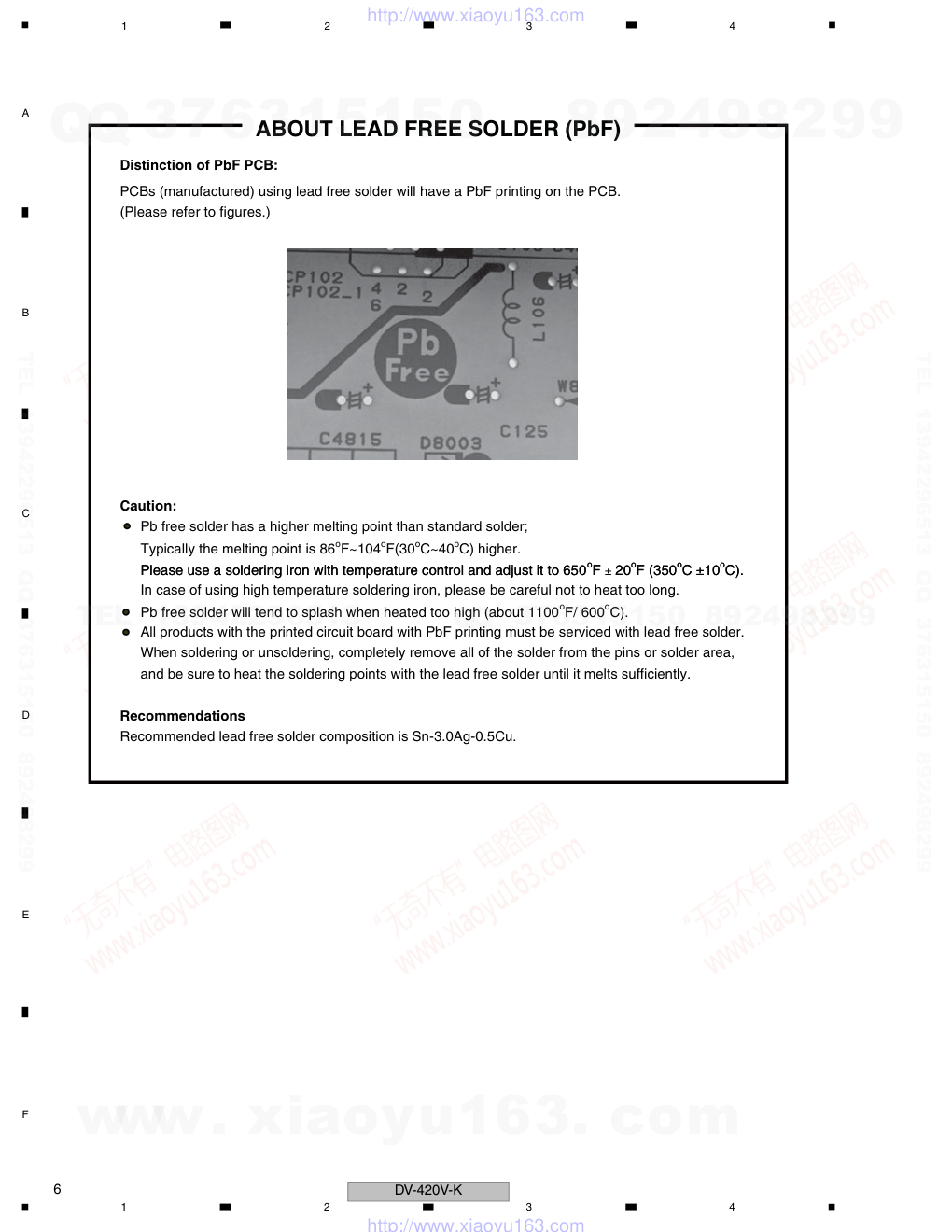

Distinction of PbF PCB:
PCBs (manufactured) using lead free solder will have a PbF printing on the PCB.
(Please refer to figures.)
Caution:
Pb free solder has a higher melting point than standard solder;
Typically the melting point is 86oF~104oF(30oC~40oC) higher.
Please use a soldering iron with temperature control and adjust it to 650oF 20oF (350oC ±10oC).
Please use a soldering iron with temperature control and adjust it to 650oF ± 20oF (350oC ±10oC).
In case of using high temperature soldering iron, please be careful not to heat too long.
Pb free solder will tend to splash when heated too high (about 1100oF/ 600oC).
All products with the printed circuit board with PbF printing must be serviced with lead free solder.
When soldering or unsoldering, completely remove all of the solder from the pins or solder area,
and be sure to heat the soldering points with the lead free solder until it melts sufficiently.
Recommendations
Recommended lead free solder composition is Sn-3.0Ag-0.5Cu.
ABOUT LEAD FREE SOLDER (PbF)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F

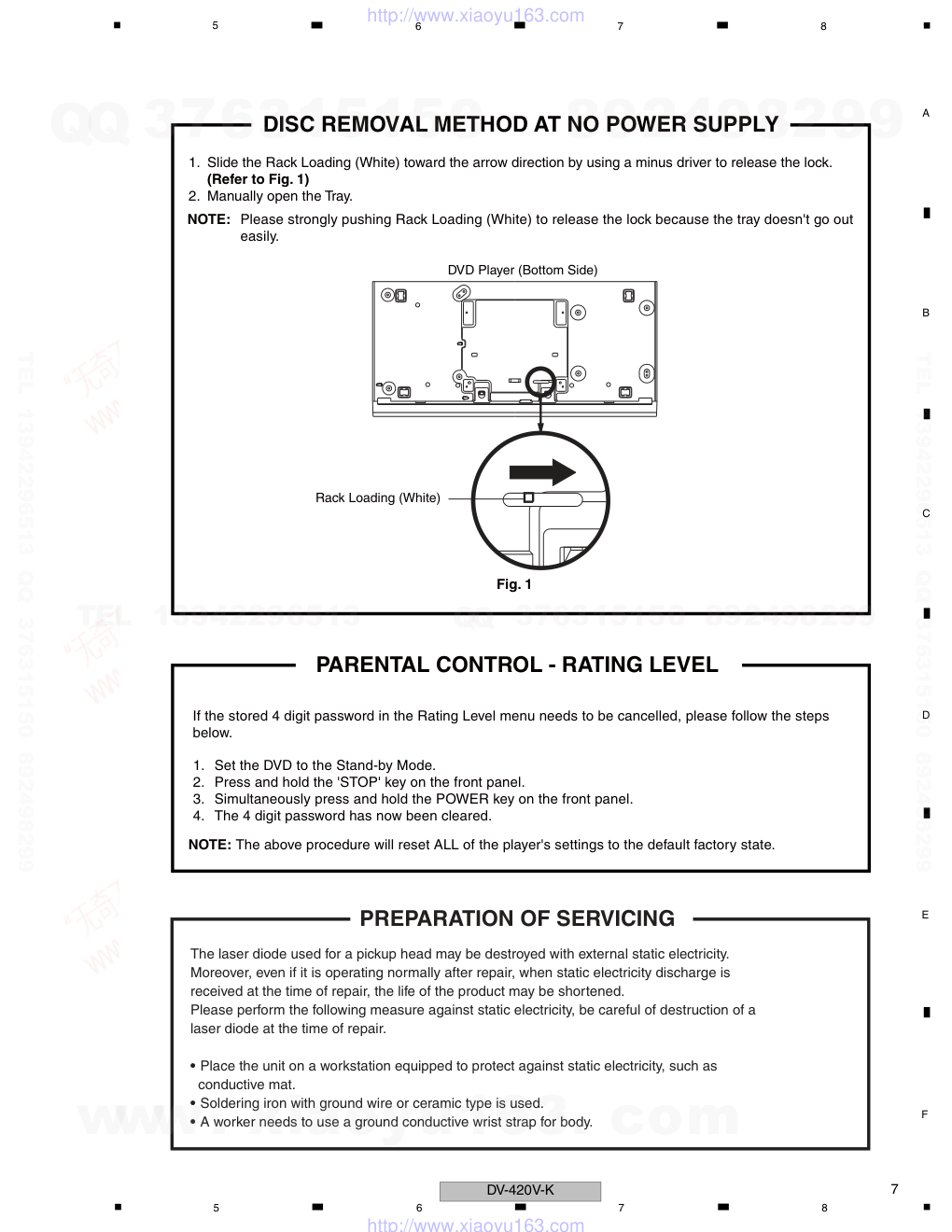

The laser diode used for a pickup head may be destroyed with external static electricity.
Moreover, even if it is operating normally after repair, when static electricity discharge is
received at the time of repair, the life of the product may be shortened.
Please perform the following measure against static electricity, be careful of destruction of a
laser diode at the time of repair.
• Place the unit on a workstation equipped to protect against static electricity, such as
conductive mat.
• Soldering iron with ground wire or ceramic type is used.
• A worker needs to use a ground conductive wrist strap for body.
PREPARATION OF SERVICING
If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps
below.
Set the DVD to the Stand-by Mode.
Press and hold the 'STOP' key on the front panel.
Simultaneously press and hold the POWER key on the front panel.
The 4 digit password has now been cleared.
1.
2.
3.
4.
PARENTAL CONTROL - RATING LEVEL
NOTE: The above procedure will reset ALL of the player's settings to the default factory state.
Slide the Rack Loading (White) toward the arrow direction by using a minus driver to release the lock.
(Refer to Fig. 1)
Manually open the Tray.
Please strongly pushing Rack Loading (White) to release the lock because the tray doesn't go out
easily.
1.
2.
Fig. 1
Rack Loading (White)
DVD Player (Bottom Side)
NOTE:
DISC REMOVAL METHOD AT NO POWER SUPPLY
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
2. SPECIFICATIONS
2.1 SPECIFICATIONS
Power requirements ....... AC 220 V to 240 V, 50 Hz/60 Hz
Power consumption................................................... 11 W
Power consumption (standby)
DV-420V....................................................................0.7 W
Weight ......................................................................1.7 kg
External dimensions
......................... 420 mm (W) x 49.5 mm (H) x 215 mm (D)
Tolerable operating temperature ........... +5 °C to +35 °C
Tolerable operating humidity.........................5 % to 85 %
(no condensation)
AV Connector (21-pin connector
assignment)
AV connector output..............................21-pin connector
This connector provides the video and audio signals for
connection to a compatible colour TV or monitor.
1 3 5 7 9 11 13 15 171921
2 4 6 8 101214161820
PIN no.
1 ....................................................................Audio 2/R out
3 .....................................................................Audio 1/ L out
4 ................................................................................... GND
7 .................................................................................. B out
8 ................................................................................ Status
11 ................................................................................ G out
15 ................................................................................ R out
17 ................................................................................. GND
19 ......................................................................... Video out
21 ................................................................................. GND
Video output
Output level ..................................................1 Vp-p (75 Ω)
Output terminal ........................................... RCA terminal
Component video output (Y, CB/PB , CR /PR)
Y output level ................................................ 1 Vp-p (75 Ω)
CB/PB, CR/PR Output level ......................... 0.7 Vp-p (75 Ω)
Output terminal ........................................... RCA terminal
HDMI output
Output terminal ........................................................19-pin
Audio output (stereo L/R)
Audio output level.................. 200 mVrms (1 kHz, -20 dB)
Output terminal ...........................................
RCA terminal
Frequency response ................................... 4 Hz to 44 kHz
S/N ratio.................................................................. 115 dB
Dynamic range......................................................... 88 dB
Total harmonic distortion...................................
0.0065 %
Digital audio output
Coaxial digital output .................................. RCA terminal
Additional information
USB port...................................................................A type
Notes
The specifications and design of this product
are subject to change without notice.
•
•
This product includes FontAvenue® fonts
licensed by NEC Corporation. FontAvenue is a
registered trademark of NEC Corporation.
DV-420V-K/-S:YXZT52, DV-420V-K/-S:SXZT2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
Notes
The specifications and design of this product
are subject to change without notice.
•
•
This product includes FontAvenue® fonts
licensed by NEC Corporation. FontAvenue is a
registered trademark of NEC Corporation.
Power requirements ................................ AC 120 V, 60 Hz
Power consumption ...................................................11 W
Power consumption (standby) ................................. 0.6 W
Weight .............................................................1.8 kg (4 lb)
External dimensions
.........................
420 mm (W) x 49.5 mm (H) x 215 mm (D)
(16 9/16 in. (W) x 2 in. (H) x 8 1/2 in. (D))
Tolerable operating temperature................ +5 °C to +35 °C
(+41 °F to +95 °F)
Tolerable operating humidity ......................... 5 % to 85 %
(no condensation)
S-Video output
Y output level ................................................1 Vp-p (75 Ω)
C output level.........................................286 mVp-p (75 Ω)
Output terminal ................................................. S terminal
Video output
Output level ..................................................1 Vp-p (75 Ω)
Output terminal ........................................... RCA terminal
Component video output (Y, CB/PB, CR/ PR)
Y output level ................................................1 Vp-p (75 Ω)
CB/PB, CR/PR Output level ......................... 0.7 Vp-p (75 Ω)
Output terminal ........................................... RCA terminal
HDMI output
Output terminal ........................................................ 19-pin
Audio output (stereo L / R)
Audio output level .................. 200 mVrms (1 kHz, - 20 dB)
Output terminal ........................................... RCA terminal
Frequency response................................... 4 Hz to 44 kHz
S/N ratio..................................................................115 dB
Dynamic range ......................................................... 88 dB
Total harmonic distortion ................................... 0.0065 %
Wow and flutter...... Below measurable limits (±0.001 % W.
PEAK)
Digital audio output
Coaxial digital output ..................................
RCA terminal
Additional information
USB port ...................................................................A type
DV-420V-K:UCXZTSM2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
2.2 DISC/CONTENT FORMAT
Commercially available
DVD-Video discs
DVD-R/-RW/-R DL and DVD+R/
+RW/ +R DL discs recorded in
the Video mode and finalized
DVD-R/-RW/-R DL discs recorded in
the VR mode
Video CDs (including Super VCDs)
Commercially available audio
CDs
CD-R/-RW/-ROM discs containing
music recorded in the CD-DA
format
JPEG files recorded on DVD-R/-RW/
-R DL discs, CD-R/-RW/-ROM discs or
USB devices
DivX video files recorded on DVD-R/
-RW/-R DL discs, CD-R/-RW/-ROM
discs or USB devices
WMV files recorded on DVD-R/-RW/
-R DL discs, CD-R/-RW/-ROM discs or
USB devices
WMA files recorded on DVD-R/-RW/
-R DL discs, CD-R/-RW/-ROM discs or
USB devices
MP3 files recorded on DVD-R/-RW/
-R DL discs, CD-R/-RW/-ROM discs or
USB devices
MPEG-4 AAC files recorded on
DVD-R/-RW/-R DL discs, CD-R/-RW/
-ROM discs or USB devices
Fujicolor CD
KODAK Picture CD
is a trademark of DVD Format/Logo
Licensing Corporation.
is a trademark of FUJIFILM
Corporation.
This label indicates playback compatibil-
ity with DVD-RW discs recorded in VR for -
mat (Video Recording format). However,
for discs recorded with a record-only-once
encrypted program, playback can only
be achieved using a CPRM compatible
device.
Notes
This player does not support multisession
discs or multiborder recording.
Multisession/multiborder recording is a
method in which data is recorded on a single
disc in two or more sessions/borders. A
“session” or “border” is one recording unit,
consisting of a complete set of data from
lead-in to lead-out.
Discs that cannot be played
DVD Audio discs
DVD-RAM discs
SACDs
CD-G
Blu-ray discs
HD DVDs
Discs that have not been finalized
Discs recorded with packet writing
About region numbers
DVD player and DVD-Video discs are
assigned region numbers according to the
region in which they are sold. This player’s
region number(s) is (are) as shown below.
DVD-Video: 2
Discs not including these numbers cannot
be played.
Discs playable on this player are as shown
below.
DVDs: 2 (including 2) and ALL
Regarding copy protected CDs
This player is designed to conform to the
specifications of the audio CD format. This
player does not support the playback or func-
tion of discs that do not conform to these
specifications.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
About playing DualDiscs
•
A DualDisc is a new two-sided disc, one
side of which contains DVD content —
video, audio, etc. — while the other side
contains non-DVD content such as digital
audio material.
•
The DVD side of a DualDisc can be played
on this player (excluding any DVD-Audio
content).
•
The non-DVD, audio side of the disc is not
compatible with this player.
•
It is possible that when loading or ejecting
a DualDisc, the opposite side to that
being played will be scratched. Scratched
discs may not be playable.
•
For more detailed information on the
DualDisc specification, please refer to the
disc manufacturer or disc retailer.
DV-420V-K/-S:YXZT52, DV-420V-K/-S:SXZT2
Playable discs
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
Playing discs created on
computers or BD/DVD recorders
•
It may not be possible to play discs
recorded using a computer due to the
application settings or computer’s
environment settings. Record discs in a
format playable on this player. For details,
contact the dealer.
•
It may not be possible to play discs
recorded using a computer or a BD/DVD
recorder, if burn quality is not good due to
characteristics of the disc, scratches, dirt
on the disc, dirt on the recorder’s lens,
etc.
Playable files
•
Only discs recorded in ISO9660 Level 1,
Level 2 and Joliet can be played.
•
Files protected by DRM (Digital Rights
Management) cannot be played.
Supported video file formats
Windows Media™ Video (WMV)
•
Resolution: Up to 720 x 480/720 x 576
pixels
•
This player supports files encoded using
Windows Media Player 9 Series.
•
This player does not support Advanced
Profile.
•
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/ or
other countries.
•
This product includes technology owned
by Microsoft Corporation and cannot be
used or distributed without a license from
Microsoft Licensing, Inc.
DivX
•
DivX is a media technology created by
DivX, Inc. DivX media files contain image
data.
•
DivX files may also include such
advanced playback functions as menu
screens and selection of multiple subtitle
languages/audio tracks.
•
Plays DivX® video, including premium
content
•
DivX ® is a registered trademark of DivX,
Inc., and is used under license.
Displaying external subtitle files
•
The font sets listed below are available
for external subtitle files.
•
This player supports the following lan-
guage groups:
Group 1
Afrikaans (af), Basque (eu), Catalan
(ca), Danish (da), Dutch (nl), English
(en), Faroese (fo), Finnish (fi), French
(fr), German (de), Icelandic (is), Irish
(ga), Italian (it), Norwegian (no), Portu -
guese (pt), Rhaeto-Romanic (rm), Scot -
tish (gd), Spanish (es), Swedish (sv)
Group 2
Albanian (sq), Croatian (hr), Czech (cs),
Hungarian (hu), Polish (pl), Romanian
(ro), Slovak (sk), Slovenian (sl)
Group 3
Bulgarian (bg), Byelorussian (be),
Macedonian (mk), Russian (ru), Ser -
bian (sr), Ukrainian (uk)
Group 4
Hebrew (iw), Yiddish (ji)
Group 5
Turkish (tr)
•
Some external subtitle files may be dis -
played incorrectly or not at all.
•
For external subtitle files the following
subtitle format filename extensions are
supported (please note that these files
are not shown within the disc navigation
menu): .srt, .sub, .ssa, .smi
•
The filename of the movie file has to be
repeated at the beginning of the filename
for the external subtitle file.
•
The number of external subtitle files
which can be switched for the same
movie file is limited to a maximum of 10.
Supported image file formats
JPEG
•
Resolution: Up to 3072 x 2048 pixels
•
This player supports baseline JPEG.
•
This player supports Exif Ver.2.2.
•
This player supports JPEG HD. Images
are output with a high resolution of 720p
or 1080i.
•
This player does not support progressive
JPEG.
Supported audio file formats
•
This player does not support VBR
(Variable Bit Rate).
•
This player does not support lossless
encoding.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
Windows Media Audio (WMA)
•
Sampling frequencies: 32kHz, 44.1kHz
and 48kHz
•
Bit rate: Up to 192 kbps
•
This player supports files encoded
using Windows Media Player Ver. 7/7.1,
Windows Media Player for Windows XP
and Windows Media Player 9 Series.
MPEG-1 Audio Layer 3 (MP3)
•
Sampling frequencies: 32 kHz, 44.1kHz
and 48kHz
MPEG-4 Advanced Audio Coding
(MPEG-4 AAC)
•
Sampling frequencies: 44.1kHz and
48kHz
•
This player supports files encoded using
iTunes.
•
Depending on the version of iTunes used
for encoding, it may not be possible to
play some files.
•
Apple and iTunes are trademarks of Apple
Inc., registered in the U.S. and other
countries.
Playable file extensions
Video files
.divx
.avi
.wmv
•
Files not containing DivX video signals
cannot be played, even if they have the
extension “.avi”.
Image files
.jpg
.jpeg
Audio files
.wma
.mp3
.m4a
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
DV-420V-K:UCXZTSM2
Playable discs
Commercially available
DVD-Video discs
DVD-R/-RW/-R DL and DVD+R/
+RW/ +R DL discs recorded in
the Video mode and finalized
DVD-R/-RW/-R DL discs recorded in
the VR mode
Video CDs
Commercially available audio
CDs
CD-R/-RW/-ROM discs containing
music recorded in the CD-DA
format
JPEG files recorded on DVD-R/-RW/
-R DL discs, CD-R/-RW/ -ROM discs or
USB devices
DivX video files recorded on DVD-R/
-RW/-R DL discs, CD-R/-RW/-ROM
discs or USB devices
WMV files recorded on DVD-R/-RW/
-R DL discs, CD-R/-RW/ -ROM discs or
USB devices
WMA files recorded on DVD-R/-RW/
-R DL discs, CD-R/-RW/-ROM discs or
USB devices
MP3 files recorded on DVD-R/-RW/
-
USB devices
MPEG-4 AAC files recorded on
DVD-R/-RW/-R DL discs, CD-R/-RW/
-ROM discs or USB devices
Fujicolor CD
KODAK Picture CD
is a trademark of DVD Format/Logo
Licensing Corporation.
is a trademark of FUJIFILM
Corporation.
This label indicates playback compatibil-
ity with DVD-RW discs recorded in VR for-
mat (Video Recording format). However,
for discs recorded with a record-only-once
encrypted program, playback can only
be achieved using a CPRM compatible
device.
Notes
This player conforms to NTSC standards.
Discs marked “NTSC” on the disc label,
package or jacket can be played. Discs
recorded in PAL are converted to NTSC for
playback.
This player does not support multisession
discs or multiborder recording.
Multisession/multiborder recording is a
method in which data is recorded on a single
disc in two or more sessions/borders. A
“session” or “border” is one recording unit,
consisting of a complete set of data from
lead-in to lead-out.
Discs that cannot be played
DVD Audio discs
DVD-RAM discs
SACDs
CD-G
Blu-ray discs
HD DVDs
Discs that have not been finalized
Discs recorded with packet writing
About region numbers
DVD player and DVD-Video discs are
assigned region numbers according to the
region in which they are sold. This player’s
region number(s) is (are) as shown below.
DVD-Video: 1
Discs not including these numbers cannot
be played.
Discs playable on this player are as shown
below.
DVDs: 1 (including 1) and ALL
Regarding copy protected CDs
This player is designed to conform to the
specifications of the audio CD format. This
player does not support the playback or func-
tion of discs that do not conform to these
specifications.
R DL discs, CD-R/-RW/-ROM discs or
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
About playing DualDiscs
A DualDisc is a new two-sided disc, one
side of which contains DVD content —
video, audio, etc. — while the other side
contains non-DVD content such as digital
audio material.
The DVD side of a DualDisc can be played
on this player (excluding any DVD-Audio
content).
The non-DVD, audio side of the disc is not
compatible with this player.
It is possible that when loading or eject-
ing a DualDisc, the opposite side to that
being played will be scratched. Scratched
discs may not be playable.
For more detailed information on the
DualDisc specification, please refer to the
disc manufacturer or disc retailer.
Playing discs created on
computers or BD/DVD recorders
It may not be possible to play discs
recorded using a computer due to the
application settings or computer’s
environment settings. Record discs in a
format playable on this player. For details,
contact the dealer.
It may not be possible to play discs
recorded using a computer or a BD/DVD
recorder, if burn quality is not good due to
characteristics of the disc, scratches, dirt
on the disc, dirt on the recorder’s lens,
etc.
Playable files
Only discs recorded in ISO9660 Level 1,
Level 2 and Joliet can be played.
Files protected by DRM (Digital Rights
Management) cannot be played.
Supported video file formats
Windows Media™ Video (WMV)
Resolution: Up to 720 x 480 pixels
This player supports files encoded using
Windows Media Player 9 Series.
This player does not support Advanced
Profile.
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
This product includes technology owned
by Microsoft Corporation and cannot be
used or distributed without a license from
Microsoft Licensing, Inc.
DivX
DivX is a media technology created by
DivX, Inc. DivX media files contain image
data.
DivX files may also include such
advanced playback functions as menu
screens and selection of multiple subtitle
languages/audio tracks.
Plays DivX
® video, including premium
content
DivX® is a registered trademark of DivX,
Inc., and is used under license.
Displaying external subtitle files
The font sets listed below are available
for external subtitle files.
This player supports the following lan-
guage groups:
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
Group 1
Afrikaans (af), Basque (eu), Catalan
(ca), Danish (da), Dutch (nl), English
(en), Faroese (fo), Finnish (fi), French
(fr), German (de), Icelandic (is), Irish
(ga), Italian (it), Norwegian (no), Portu-
guese (pt), Rhaeto-Romanic (rm), Scot-
tish (gd), Spanish (es), Swedish (sv)
Group 2
Albanian (sq), Croatian (hr), Czech (cs),
Hungarian (hu), Polish (pl), Romanian
(ro), Slovak (sk), Slovenian (sl)
Group 3
Bulgarian (bg), Byelorussian (be),
Macedonian (mk), Russian (ru), Ser-
bian (sr), Ukrainian (uk)
Group 4
Hebrew (iw), Yiddish (ji)
Group 5
Turkish (tr)
Some external subtitle files may be dis-
played incorrectly or not at all.
For external subtitle files the following
subtitle format filename extensions are
supported (please note that these files
are not shown within the disc navigation
menu): .srt, .sub, .ssa, .smi
The filename of the movie file has to be
repeated at the beginning of the filename
for the external subtitle file.
The number of external subtitle files
which can be switched for the same
movie file is limited to a maximum of 10.
Supported image file formats
JPEG
Resolution: Up to 3072 x 2048 pixels
This player supports baseline JPEG.
This player supports Exif Ver.2.2.
This player supports JPEG HD. Images
are output with a high resolution of 720p
or 1080i.
This player does not support progressive
JPEG.
Supported audio file formats
This player does not support VBR
(Variable Bit Rate).
This player does not support lossless
encoding.
Windows Media Audio (WMA)
Sampling frequencies: 32 kHz, 44.1 kHz
and 48 kHz
Bit rate: Up to 192 kbps
This player supports files encoded
using Windows Media Player Ver. 7/7.1,
Windows Media Player for Windows XP
and Windows Media Player 9 Series.
MPEG-1 Audio Layer 3 (MP3)
Sampling frequencies: 32 kHz, 44.1 kHz
and 48 kHz
MPEG-4 Advanced Audio Coding
(MPEG-4 AAC)
Sampling frequencies: 44.1 kHz and 48
kHz
This player supports files encoded using
iTunes.
Depending on the version of iTunes used
for encoding, it may not be possible to
play some files.
Apple and iTunes are trademarks of Apple
Inc., registered in the U.S. and other
countries.
Playable file extensions
Video files
.divx .avi .wmv
Files not containing DivX video signals
cannot be played, even if they have the
extension “.avi”.
Image files
.jpg .jpeg
Audio files
.wma .mp3 .m4a
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
2.3 PANEL FACILITIES
[1] Front Panel
1
9
5
7
8
2
12
11
10
13
16 15 14
3
4
6
17
STANDBY/ON
HDMI
This lights when the device connected to
the HDMI terminal is recognized.
Remote control sensor
Point the remote control to this, then
operate it within a distance of approxi -
mately 7 m (23 ft).
Reception of remote control signals
may be poor when exposed to direct
sunlight or strong artificial light from
a fluorescent bulb, etc.
Disc tray
OPEN/CLOSE
Front panel display
TOP MENU
Press to display the top menu of the
DVD-Video.
MENU
Press to display the menu screen or Disc
Navigator.
///
Use these to select items, change set
tings and move the cursor.
ENTER
Use this to implement the selected item
or enter a setting that you have changed.
RETURN
Press to return to the previous screen.
HOME MENU
Press to display/hide the Home Menu.
USB port (type A)
DVD/USB
/
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
[2] Display
1
2
3
4
5
6
7
8
Lights when playback is paused.
Lights during playback.
CHP
Lights when the chapter number is
displayed.
TITLE
Lights when the title number is displayed.
Lights when switched to a different angle
(DVD-Video only).
PRGSVE
Lights when Component Out is set to
Progressive.
Lights when in the Repeat Play mode.
REMAIN
Lights when the remaining time of the
currently playing title, chapter or track is
displayed.
Counter display
Displays the title, chapter, track or file
number, the elapsed time, etc.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
18
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
[3] Remote control
5
6
10
11
4
8
12
13
1
2
3
7
9
22
14
16
15
19
20
21
23
24
18
17
STANDBY/ON
AUDIO
SUBTITLE
Number buttons (0 to 9)
Use these to specify and play the title,
chapter, track or file you want to view/
listen to. Also use them to select items on
menu screens, etc.
TOP MENU
Press to display the top menu of the
DVD-Video.
///
Use these to select items, change set -
tings and move the cursor.
ENTER
Use this to implement the selected item
or enter a setting that you have changed.
HOME MENU
Press to display/ hide the Home Menu.
PLAY
//
PREV
PAUSE
USB REC
PLAY MODE
OPEN/CLOSE
ANGLE
DVD/USB
CLEAR
Press to clear the selected item. Use
this for example if you input the wrong
number.
MENU
Press to display the menu screen or Disc
Navigator.
RETURN
Press to return to the previous screen.
/
/
NEXT
STOP
DISPLAY
ZOOM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
19
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
3. BASIC ITEMS FOR SERVICE
3.1 CHECK POINTS AFTER SERVICING
Item to be checked regarding video
Item to be checked regarding audio
Block noise
Distortion
Horizontal noise
Noise
Dot noise
Volume too low
Disturbed image (video jumpiness)
Volume too high
Too dark
Volume fluctuating
Too bright
Sound interrupted
Mottled color
No.
Procedures
Check points
1
2
3
4
5
Confirm the firmware version on Test Mode.
The version of the firmware must be latest.
Update firmware to the latest one, if it is not the latest.
Confirm whether the customer complain has been solved.
If the customer complain occurs with the specific disc,
use it for the operation check.
The customer complain must not be reappeared.
Video, audio and operations must be normal.
Play back a DVD.
(Menu operation, Title/chapter search)
Play back a CD.
(track search)
Audio and operations must be normal.
Video, audio and operations must be normal.
Check the appearance of the product.
No scratches or dirt on its appearance after receiving it
for service.
Items to be checked after servicing / DV
To keep the product quality after servicing, confirm recommended check points shown below.
See the table below for the items to be checked regarding video and audio.
Cleaning
Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools.
Name
Position to be cleaned
Part No.
Remarks
Refer to “9.3 DVD MECHA SECTION”.
Cleaning liquid
Pickup leneses
GEM1004
Cleaning paper
GED-008
No.
Procedures
Check points
1
Confirm playback error rates at the innermost and
outermost tracks by using the following disc.
DVD test disc (NTSC:GGV1025, PAL:GGV1101)
The error rates must be less than 5.0e-4.
(This procedure can determine if the drive is
degraded.)
Specific Items to be Checked
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
3.2 PCB LOCATIONS
OPERATION PCB ASSY
POWER PCB ASSY
DVD MT PCB ASSY
DVD MECHA ASSY
Mark No. Description
Part No.
LIST OF ASSEMBLIES
1..DVD MT PCB ASSY(YXZT52,SXZT2)
A2M901A130
1..DVD MT PCB ASSY(UCXZTSM2)
A2M902A130
1..OPERATION PCB ASSY (YXZT52)
A2M901A270
1..OPERATION PCB ASSY (SXZT2)
A2M905A270
1..OPERATION PCB ASSY (UCXZTSM2)
A2M902A270
> 1..POWER PCB ASSY(YXZT52,SXZT2)
A2M901A240
> 1..POWER PCB ASSY(UCXZTSM2)
A2M902A240
1..DVD MECHA ASSY
A2M901A650
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
3.3 JIGS LIST
Service Remote Control Unit
GGF1381
Service Mode
Name
Jig No.
Remarks
DVD Test Disc (DVD-Video,NTSC)
GGV1025
Diagnosis
DVD Test Disc (DVD-Video,PAL)
CD Test Disc
GGV1101
STD-905
Diagnosis
Diagnosis
Jigs list
Lubricants and Glues list
Daifree
GEM1036(ZLX-ME413A)
Refer to "9.3 DVD MECHA SECTION"
Lubricating Oil
GYA1001 (ZLB-PN397B)
Refer to "9.3 DVD MECHA SECTION"
Name
Lubricants and Glues No.
Remarks
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
4. BLOCK DIAGRAM
4.1 OVERALL WIRING DIAGRAM
12
11
10
9
8
7
6
5
4
3
2
1
12
11
10
9
8
7
6
5
4
3
2
1
OS8001
OPTICAL for ME
1
2
3
13
12
11
10
9
8
7
6
4
5
3
2
1
CP4003
13
12
11
10
9
8
7
6
4
5
3
2
1
CP502
J8101
RGB-62
21PIN CONNECTOR
1
10
11
12
13
14
15
16
17
18
19
2
20
21
3
4
5
6
7
8
9
J501
AC INLET
1
2
CD501_2
AC220V-240V_50Hz/60Hz(EU)
CP5901
HDMI CONNECTOR
1
10
11
12
13
14
15
16
17
18
19
2
3
4
5
6
7
8
9
2
H
2
H
1
H
E
J7302
CVBS/Y/U
1
2
3
6
H
E
J8003
COAXIAL for ME
1
2
CD7301
3
2
9
8
7
6
5
4
1
3
2
9
8
7
6
5
4
1
AV for 21PIN
CP8103
GND
GND
RGB-H
FS
AUDIO L
GND
AUDIO R
CVBS
GND
G
B
R
CP7301
VIDEO/AUDIO for 21PIN
10
12
11
10
12
11
GND
GND
RGB-H
FS
AUDIO L
GND
AUDIO R
CVBS
GND
G
B
R
NC
NC
NC
NC
NC
DPJ024
D2+
D2-S
D2-
D1+
D1-S
D0+
D0-S
D0-
CLK-S
CLK-
CEC
SCL
SDA
GND
POWER
HOTPLUG
NC
D1-
CLK+
NC
PCB240
POWER PCB
3
2
9
8
7
6
5
4
1
10
13
12
11
3
2
9
8
7
6
5
4
1
13
12
11
10
P.CON+12V
GND
GND
P.CON+5V
FL DC-
FL DC+
AT+3.3V
GND(M)
GND(D)
AT+3.3V
-28V
P.ON-H
AT/P.CON+6V
P.CON+12V
GND
GND
P.CON+5V
FL DC-
FL DC+
AT+3.3V
GND(M)
GND(D)
AT+3.3V
-28V
P.ON-H
AT/P.CON+6V
CD502
POWER PCB ASSY(1/2,2/2)
(YXZT52,SXZT2 :A2M901A240)
(UCXZTSM2
:A2M902A240)
CAUTION - FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE WITH SAME TYPE AND RATINGS OF FUSE.
• NOTE FOR FUSE REPLACEMENT
When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS
LIST" or "PCB PARTS LIST".
The
mark found on some component parts indicates the importance of the safety
factor of the part. Therefore, when replacing, be sure to use parts of identical
designation.
:SINCE THESE PARTS MARKED BY
CAUTION
DESCRIBED IN PARTS LIST ONLY.
CRITICAL FOR SAFETY,USE ONES
ARE
DANS LA NOMENCLATURE DES PIECES.
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
:LES PIECES REPAREES PAR UN
ETANT
ATTENTION
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
(YXZT52, SXZT2)
CP501
CONNECTOR
1
2
BLADE
WIDE
BLACK
WHITE
1 2
CD501
AC120V_60Hz(US)
(YXZT52, SXZT2)
(UCXZTSM2)
E
E
H
J7301_1
S+COAXIAL for ME
1
2
3
4
5
8
(YXZT52, SXZT2)
(UCXZTSM2)
OS
CP601
CP4002
TM101
COMMAND TRANSMITTER
1
2
3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
or ME
2
H
1
H
E
2
H
1
H
E
J7302
CVBS/Y/U/V
1
2
3
4
5
6
H1 H2
E
J8001
L/R
1
2
3
DVD MT PCB ASSY(1/7-7/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
E
E
E
H
J7301_1
S+COAXIAL for ME(US,AS)
1
2
3
4
5
6
7
8
(UCXZTSM2)
5
4
3
2
1
5
4
3
2
1
CP604
CP603
4
3
2
1
CP602
USB CONNECTOR
11
10
9
8
7
6
5
4
3
2
1
11
10
9
8
7
6
5
4
3
2
1
OS651
4
5
4
5
3
2
1
3
2
1
DMJ124
DVD PCB
PCB130
CP4004
CP605
CP601
USBP
USBN
PGND
VBUS
GND(SHIELD)
USBP
USBN
PGND
VBUS
GND(SHIELD)
DEH157
DEH156
PCB280
OPERATION2 PCB
POWER
SW2
GND
POWER
SW2
GND
3
2
1
3
2
1
3
2
1
3
2
1
CP4002
10
3
2
9
8
7
6
5
4
1
DGND
FLDC+
-28V
V+3E
IR
STB
DO (F to M)
DI (M to F)
CLK
DGND
3
2
9
8
7
6
5
4
1
11
10
11
TM101
ND TRANSMITTER
OPERATION PCB
PCB270
+5V
GND
USB_DN
USB_DP
DGND
FLDC+
-28V
FLDC-
V+3E
IR
STB
DO (F to M)
DI (M to F)
CLK
DGND
FLDC-
OPERATION PCB ASSY
(YXZT52
: A2M901A270)
(SXZT2
: A2M905A270)
(UCXZTSM2 : A2M902A270)
Vout
B+
GND
1
2
3
CP2302
MOTOR(DM-5)
CP2301
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
3
4
5
6
7
8
9
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
3
4
5
6
7
8
9
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
3
4
5
6
7
8
9
LD_CD(780)
LD_DVD(650)
GND
VR650(DVD)
VR780(CD)
VR COM
F
E
D
B
A
SW1(DVD/CD)
VRF(RF_OUT)
C
GND
VS
VCC
PD
TRKG DRV
TRKG RTN
FOCS RTN
FOCS DRV
CP2301
LD_CD(780)
LD_DVD(650)
GND
VR650(DVD)
VR780(CD)
VR COM
F
E
D
B
A
SW1(DVD/CD)
VRF(RF_OUT)
C
GND
VS
VCC
PD
TRKG DRV
TRKG RTN
FOCS RTN
FOCS DRV
1
2
3
4
5
6
7
8
SP1-
SP1+
SLD-
SLD+
LD+
LD-
SW(OPEN/CLOSE)
GND(D)
LOARDING
MOTOR
PCB ASSY
(A2M901A610)
DVD MECHA ASSY
(A2M901A650)
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
SP1-
SP1+
SLD-
SLD+
LD+
LD-
SW(OPEN/CLOSE)
GND(D)
M
M
M
SW01
OPEN/CLOSE SW
CD2302
M2602
JQ24-35H440
M2603
JQ24-35H440A
M2601
JQ24-35H390
PEJ005
SW PCB
PCB610
H01438-A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
4.2 OVERALL BLOCK DIAGRAM (YXZT52, SXZT2)
P.CON+12V
AC220~240V
FLDC+/-
X4001
27MHz
-28V
AT+3.3V
P.CON+6V
P.CON+5V
POWER
SUPPLY
DVD LOADER
(DM5)
MOTOR DRIVER
IC2301
AM5766
FIP DRIVER IC
IC651
PT6315
EEPROM
IC4001
S-24CS04AFJ-TB-
GE
AUDIO AMP
IC8008
MC4580L
FIP
HNV-08SS84
KEY
SERVO
RF
SERVO
IR
FP,STB
ASPDIF
RESET
AUDIO_L,
AUDIO_R
AMP_AUDIO_L/R
LD_DVD,
LD_CD
IR
108MHz
TV Encoder
MPEG-1/2/
JPEG
VIDEO
DECORDER
R
COAXIAL
RF
CO
L
OVERALL BLOCK DIAGRAM
IR RECEIVER (OS651)
KSM-2001TC2P
16Mbit FLASH
IC4004
EN29LV160BB-70TIP
64Mbit(4M*16) 166MHz
SDRAM
IC4005
HY57V641620FTP-7
V+3,
SDA,
SCL
AMUTE
MPEG/MICON
IC4002
MT1389FE/S-L
AUDIO CODEC/
INTERNAL DAC
+1.8V
A0~A20,
AD0~AD7
MA0~MA11,
DQ0~DQ15
RESET
Q4008,Q4009
KTC3875S_Y_
RTK
VIDEO DRIVER 6CH IC
IC7301
LA73054-TLM-E
4CH VIDEO DAC
V
U
Y
4CH BUS SW IC
IC7302
TC7MB3257FT
21PIN
RGB OUT
CVBS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
4.3 OVERALL BLOCK DIAGRAM (UCXZTSM2)
P.CON+12V
AC120V
FLDC+/-
X4001
27MHz
-28V
AT+3.3V
P.CON+6V
P.CON+5V
POWER
SUPPLY
DVD LOADER
(DM5)
MOTOR DRIVER
IC2301
AM5766
FIP DRIVER IC
IC651
PT6315
EEPROM 4K
IC4001
S-24CS04AFJ-TB
-GE
AUDIO AMP
IC8008
MC4580L
FIP
HNV-08SS84
KEY
SERVO
RF
SERVO
IR
FP,STB
ASPDIF
RESET
AUDIO_L,
AUDIO_R
AMP_AUDIO_L/R
LD_DVD,
LD_CD
IR
108MHz
TV Encoder
MPEG-1/2/
JPEG
VIDEO
DECORDER
R
COAXIAL
RF
CO
L
OVERALL BLOCK DIAGRAM
IR RECEIVER (OS651)
KSM-2001TC2P
16Mbit FLASH
IC4004
EN29LV160BB-70TIP
64Mbit(4M*16) 200ZMH
SDRAM
IC4005
HY57V641620FTP-7
V+3,
SDA,
SCL
XAMUTE
MPEG/MICON
IC4002
MT1389FE/S-L
AUDIO CODEC/
INTERNAL DAC
+1.8V
A0~A20,
AD0~AD7
MA0~MA11,
DQ0~DQ15
RESET
Q4008,Q4009
KTC3875S_Y_
RTK
VIDEO DRIVER 6CH IC
IC7301
LA73054-TLM-E
4CH VIDEO DAC
V
U
Y
CVBS
S_C
S_V
ASP
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
4.4 DVD LOADER/MPEG BLOCK DIAGRAM (YXZT52, SXZT2)
DVD LOADER/MPEG BLOCK DIAGRAM
DVD
Loader
(DM-4)
MPEG/MICON IC
IC4002
MT1389FE/S-L
X4001
27MHz
IOA, V20
C
RF, A, B, C, D, E, F, MDI1
LD_DVD, LD_CD
Q2302~2305
LD DRIVE
LDO1, LDO2
MOTOR DRIVER IC
IC2301
AM5766
DMSO, FMSO,
TROPEN, TRCLOSE,
TRSO, FMSO,
STBY, V1P4
T+/-, F+/-,
LOAD+/-,
MOT_SLED+/-,
MOT_SPDL+/-
OPU
SPINDLE/
STEPING/
SLED
MOTOR
LIMIT, TRIN, TROUT,
OPO, OP+/-
AUDIO AMP IC
IC8008
MC4580L
A
D
A0~A20, AD0~AD7,
PRD#, PCE#, PWR#
3
2
R
L
AUDIO JACK L/R
J8001
AUDIO R
AUDIO L
AUDIO L, R
F
A.......AT+3.3V
B.......+1.8V
C.......P.CON+5V
D.......P.CON+6V
E.......AT+12V
F.......P.CON+12V
G.......-28V
H.......V+5H
RESET
Q4008, Q4009
KTC3875S_Y_RTK
A
RESET
ASPDIF
2
COAXIAL JACK
J8003
VIDEO DRIVER 6CH IC
IC7301
LA73054-TLM-E
LETTER, I/XP,
R/CR, B/CB, G/Y, CVBS
C
A, B
GR1~GR8, P1~P16
FP_DI, FP_DO,
FP_SCK, STB
3
5
Y
U
CVBS/Y/U/V
J7302
2
V
FIP (V651)
HNV-08SS84
G
19 CVBS
21PIN CONNECTOR
J8101
11
15 R OUT
G OUT
16
7
B OUT
3
L
4CH BUS SW IC
IC7302
TC7MB3257FT
C
SQUEEZE, VSEL1
VSEL1
6
CVBS
CR OUT
Y2 OUT
CB OUT
1
R
8
VSEL1
SQUEEZE
RGB-H
Q7305, Q7306
DVD_RGB_H_OUT
D2+
1
3
D1+
4
D1-
6
D0+
7
D0-
9
CLK+
10
D2-
HDMI CONNECTOR
CP5901
MA0~MA11, DQ0~DQ15,
DQM0, DQM1, DBA0, DBA1,
SDCLK, SDCKE, DWE#,
DRAS#, DCAS#, DCS#
CLK-
12
HDMI_SCL
HDMI_SDA
16Mbit FLASH
IC4004
EN29LV160BB-70TIP
A
64Mbit SDRAM
IC4005
HY57V641620FTP-7
A
EEPROM IC
IC4001
S-24CS04AFJ-TB-GE
SCL
A
SDA
IR
IR RECEIVER (OS651)
KSM-2001TC2P
IR
A
FIP DRIVER IC
IC651
PT6315
A
HOTPLUG
19
POWER
18
SDA
16
15 SCL
USBN
USB_P_ON-H
Q4003
KRC103SRTK
USB_P_ON-H
USB_P_ON-L
4
3
CP4004
USBP
Q5906
SW
L5901
3
4
2
1
6
5
7
8
L5902
3
4
2
1
6
5
7
8
FS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
4.5 DVD LOADER/MPEG BLOCK DIAGRAM (UCXZTSM2)
DVD LOADER/MPEG BLOCK DIAGRAM
DVD
Loader
(DM-4)
MPEG/MICON IC
IC4002
MT1389FE/S-L
X4001
27MHz
IOA, V20
C
RF, A, B, C, D, E, F, MDI1
LD_DVD, LD_CD
Q2302~2305
LD DRIVE
LDO1, LDO2
MOTOR DRIVER IC
IC2301
AM5766
DMSO, FMSO,
TROPEN, TRCLOSE,
TRSO, FMSO,
STBY, V1P4
T+/-, F+/-,
LOAD+/-,
MOT_SLED+/-,
MOT_SPDL+/-
OPU
SPINDLE/
STEPING/
SLED
MOTOR
TRIN, TROUT,
OPO, OP+/-
AUDIO AMP IC
IC8008
MC4580L
A
D
A0~A20, AD0~AD7,
PRD#, PCE#, PWR#
3
2
R
L
AUDIO JACK L/R
J8001
AUDIO R
AUDIO L
AUDIO L, R
F
A.......AT+3.3V
B.......+1.8V
C.......P.CON+5V
D.......P.CON+6V
E.......AT+12V
F.......P.CON+12V
G.......-28V
H.......V+5H
RESET
Q4008, Q4009
KTC3875S_Y_RTK
A
RESET
ASPDIF
6
COAXIAL JACK
J7301_2
VIDEO DRIVER 6CH IC
IC7301
LA73054-TLM-E
LETTER, I/XP,
R/CR, B/CB, G/Y, CVBS
C
A, B
GR1~GR8, P1~P16
FP_DI, FP_DO,
FP_SCK, STB
3
5
Y
U
CVBS/Y/U/V
J7302
2
V
FIP (V651)
HNV-08SS84
G
SQUEEZE, VSEL1, S_C, S_Y
6
CVBS
D2+
1
3
D1+
4
D1-
6
D0+
7
D0-
9
CLK+
10
D2-
HDMI CONNECTOR
CP5901
MA0~MA11, DQ0~DQ15,
DQM0, DQM1, DBA0, DBA1,
SDCLK, SDCKE, DWE#,
DRAS#, DCAS#, DCS#
CLK-
12
HDMI_SCL
HDMI_SDA
16Mbit FLASH
IC4004
EN29LV160BB-70TIP
A
64Mbit SDRAM
IC4005
HY57V641620FTP-7
A
EEPROM 4K IC
IC4001
S-24CS04AFJ-TB-GE
SCL
A
SDA
IR
IR
A
FIP DRIVER IC
IC651
PT6315
A
HOTPLUG
19
POWER
18
SDA
16
15 SCL
USBN
USB_P_ON-H
Q4003
KRC103SRTK
USB_P_ON-H
USB_P_ON-L
4
3
CP4004
USBP
Q5906
SW
L5901
3
4
2
1
6
5
7
8
L5902
3
4
2
1
6
5
7
8
IR RECEIVER (OS651)
KSM-2001TC2P
COAXIAL
Q8025
KTC3875S_Y_RTK
3
4
S_Y
S_C
COAXAL
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
28
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
4.6 POWER BLOCK DIAGRAM
SWITCHING
TRANS
T501
POWER BLOCK DIAGRAM
AC IN
P.CON+6V
AT+3.3V
FL DC -
-28V
P.CON+5V
P.CON+12V
P.ON-H
FL DC +
Q510
P.CON +12V SW
Q504
FL+ P.CON SW
Q502
-28V P.CON SW
VOLTAGE CTL
IC501
KIA431A-AT
PHOTO COUPLER
IC504
PS2561AL1-1-V(W)
POWER CTL
IC502
MIP2K40MSSCF
5V REG
(DVD MOTOR)
IC503
BD00HC0WEFJ-E2
REG+1.8V
IC4006
RP131H181D5-T1-F
+1.8V
HDMI+5V REG
IC5902
NJM2882F05
V+5H
VBUS REG
IC4009
RP131H501D-T1-F
V+5V_USB
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
5. DIAGNOSIS
5.1 TROUBLESHOOTING
POWER DOES NOT TURN ON
Is there waveform at
X4001 about 3.0V p-p ?
Write DVD FIRMWARE DATA
Check AT+3.3V line of POWER
and peripheral circuit.
Check X4001, IC4002 and
peripheral circuit.
Yes
Yes
Yes
No
No
No
Is the voltage at
pin 7 and pin 8 of CP502 about 3.3 V
and at pin 4 of CP502
about 5V ?
Is the lose connection
at CP2302 to DECK ?
Yes
No
Change DVD LOADER.
Check P.CON 6V line of
POWER BLOCK.
Check CP2302
connection to DECK
Is the voltage at pin 8 and
19 of IC2301 about
DC6V ?
DECK DOES NOT ACCEPT
OPEN/CLOSE
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
30
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
DOES NOT LIGHT ON DISPLAY
Check AT +3.3V line of
POWER BLOCK.
Yes
No
Replace V651 or IC651.
NO PLAYBACK PICTURE OF
Is the voltage at
pin 13 and pin 43 of IC651
about 3V ?
Is there a voltage
(beam current) at JG2329
and JG2330 ?
Change IC7301.
Is there a signal at pin
187 of IC4002 ?
Is there video signal at
pin 33 of IC7301 ?
Check LOADER BLOCK.
Check IC4002 and
peripheral circuit.
Check J7302 and peripheral
circuit.
Yes
No
AV JACK
No
Yes
No
Yes
DOES NOT LIGHT ON DISPLAY
Check AT +3.3V line of
POWER BLOCK.
Yes
No
Replace V651 or IC651.
NO PLAYBACK PICTURE OF
Is the voltage at
pin 13 and pin 43 of IC651
about 3V ?
Is there a voltage
(beam current) at JG2329
and JG2330 ?
Change IC7301.
Is there a signal at pin
187 of IC4002 ?
Is there video signal at
pin 33 of IC7301 ?
Check LOADER BLOCK.
Check IC4002 and
peripheral circuit.
Check J7302 and peripheral
circuit.
Yes
No
AV JACK
No
Yes
No
Yes
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
NO DIGITAL AUDIO ON
PLAYBACK OF COAXIAL JACK .
Change IC4002.
Check connection at RCA Cable.
Check Q8025 and peripheral
circuit.
No
ANALOG AUDIO
Yes
Is there waveform at pin 215
of IC4002 about 0.3 V p-p ?
Is there waveform at pin 2 of
J8001 about 0.3 Vp-p ?
No
Yes
Change IC8008.
No
No
Is there AUDIO signal at
pins 1 and 7 of IC8008 ?
ANALOG AUDIO
PLAYBACK.
NO
ON
Check J8001 and peripheral
circuit.
Yes
Is there AUDIO signal at pins
2 and 6 of IC8008 ?
Yes
Check AT pins 223 and 225
of IC4002.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
5.2 SEQUENCE AFTER POWER ON
Power on operation by a
user
STAND BY
FL initialization
Upgrade or start by user
[DVD IC]
Accesses flash
ROM, SDRAM(part)
AC ON
Get Start up types
FL initialization
The opening picture
appears
AC ON
[DVD IC]
Accesses 64M SDRAM
(Remaining part)
Disc detection
(Focus control)
Spindle turn
Read Disc information
code
Disc Identification
The picture appear
Flow chart from power on to the picture output
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
Symptoms That May Occur When Any Of The Following ICs Is In Failure
IC
Symptoms
EEPROM
(DVD MT PCB Assy : IC4001)
User's data cannot be stored in memory.
The ID number is lost.
16M Flash ROM
(DVD MT PCB Assy : IC4004)
The power cannot be turned on.
Downloading of the firmware cannot be performed.
DVD IC
(DVD MT PCB Assy : IC4002)
Any kind of symptoms (no power, a failure in any of the servo, video and audio systems, etc.) may be
generated, because the DVD processing is performed by a single chip.
64M SDRAM
(DVD MT PCB Assy : IC4005)
No power.
Block noise is generated during playback.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
5.3 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY
B400
B4001
C4056
C5922
R5901
C4119
Q2303
Q2305
C2321
C2320
R2306
R2307
R2319
R
C2312
C2306
Q2306
R2329_
W841
W845
R7306
R5921
C5924
IC5902_1
IC4006
C4092
R4011
C4011
C4100
NR2301
R2308
CP2302
IC4009
C4140
C4139
W860
C231
C230
CP2301
C2304_1
R4030
028
1
65
129
193
R5919
R5920
IC4005
IC4002
NR4002
C4069
R4082
R4083
R4071
R4070
C4050
C4123
IC4004
NR4001
R4035
C4135
C4098
B4002
B4001
C4056
C5922
R5901
W815
R4018
R4019
R4017
R4015
R4016
C4032
C4031
C4042
C4044
C4047
R4024
R4025
R4027
B4007
R7320
R7319
IC7301
C7314
C7315
J7302
CP7301
B7305
C7319
C7312
C7304
J8003
R8081
Q8023
R8085
R8090
R8088
R8091
R8080
Q8024
J8001
C8066_1
R8016
C4119
C4103
R4032
R4033
C4124
C4125
R4036
Q2303
Q2305
C2321
C2320
R2306
R2307
R2319
R2331
R2342
C2322
C2323
C2312
R2317
W802
R2325
C2306
IC4001
W855
D7313
C4117
C4024
C4063
C4062
W839
W861
R4059
Q2306
C4142
R4007
C4134
B5901
W830
L5901
L5902
B4010
R7302
R7303
C5925
R2329_1
C4102
C4003
C4002
C4001
C4007
C4038
Q5903
W825
R5902
W884
W841
W842
W823
Q7305
Q7306
W845
C7309
C7308
C7307
C7306
IC7302
D7314
C5908
R7306
C5909
CP4003
C8068
Q8012
R8038
IC8008
C8058
C8069
C8067
C8050
R8061
C8062
R8059
C8046
C8055
Q8002_1
R8020
C4099
C4112
R5921
C5924
IC5902_1
IC4006
C4092
R4011
C4011
C4023
C4100
X4001
Q4001
NR2301
R2308
CP2302
CP5901
IC4009
C4140
C4139
W860
IC2301
C2311
C2307
C2305
R2311
CP4004
L4001
D4002
D4003
CP4002
R4051
C7316
C7318
C8038
C2325
D5901
C5910
R5922
R8098
Q4008
R4073
R4060
R4072
C4091
R4062
CP2301
C2304_1
Q4005
R4037
R4030
R4028
C4078
C8011
C8012
C4060_1
C4132
MOTOR
POWER
AV
MICON
DMJ124A
PAL/NTSC
3
G
A30C5
Case when this diagnosis is required :
When playback of any disc, including a test disc (DVD: GGV1025(NTSC)/GGV1101(PAL), CD: STD-905), cannot be performed
How to diagnose
In the case mentioned above, degradation of the laser diodes (LDs) mounted on the PICKUP Assy is suspected.
Measure the voltage between the two ends of one of the resistors mentioned below.
Measure the voltage between the two ends of NR2301 on the DVD MT PCB Assy.
If the voltage is 0.17 V or higher, the 650-nm LD is degraded.
No playback of a DVD :
Measure the voltage between the two ends of NR2301 on the DVD MT PCB Assy.
If the voltage is 0.20 V or higher, the 780-nm LD is degraded.
No playback of a CD :
If the measurements show degradation
of an LD, replace the PICKUP Assy.
SIDE A
DVD MT PCB ASSY
for DVD laser diode
for CD laser diode
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
6. SERVICE MODE
6.1 SERVICE MODE PROCEDURE
POWER ON
DSC -
GGF1381
Service remote
control unit
GGF1381
Service remote
control unit
OPEN/CLOSE
(Player)
OPEN/CLOSE
Press the play key
( ) of the normal
remote control unit.
(Player)
An address is displayed
OR
ESC
ESC
TEST
CHECK
DVD, CD
DVD disc
POWER
ON
OFF
POWER
DISC SET
Notes:
• After going into service mode, if you play back the disc, "DISC-NON" is displayed.
• The video signal and the audio signal are outputted during the servicemode.
• The SKIP key and the SCAN key are effective during the service mode.
SERVICE MODE: PLAY
SERVICE MODE: OFF
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
6.2 SERVICE MODE IN
Service Mode Functional Specification
1 Service mode entry
In the power ON state, press the [ESC] key and [TEST] key of the Service remote control unit.
• Light the all FL and LEDs.
• OSD displays test mode.
Note:
* When pressing the keys of something, the FL displays "NO DISC" and the LED lighting disappears.
2 Release the Service mode
• Turn off the power.
• Press the [ESC] key of the remote control unit.
3 LD ON
DVD : Press the [TEST] and [1] keys in order, and turn on the laser diode (650n).
CD
: Press the [TEST] and [4] keys in order, and turn on the laser diode (780n).
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
6.3 DISPLAY SPECIFICATION OF THE SERVICE MODE
Character in bold : Item name
: Information display
Not used
Not used
Not used
Not used
1
5
6
10
11
8
9
3
2
12
15
13
14
1 Address indication
The address being traced is displayed in number.
(as for the DVD, indication of decimal number is
possible.)
DVD : ID indication (hexadecimal number, 8 digits)
[∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗]
CD : ID indication
[∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗]
2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗]
In case of double code, display a 2nd code.
3 Main unit keycode indication [K – ∗ ∗]
5 Tracking status [TRKG – ∗ ∗ ∗]
Tracking on : [ON]
Tracking off : [OFF]
6 Spindle status [SPDL – ∗ ∗ ∗]
[OFF], [CLV]
7 Mechanism (loading) position value [M – ∗ ∗]
Unknown
: [01] or [41]
Open state
: [04]
Close state
: [08]
During opening : [12]
During closing : [22]
8 Slider position [S – ∗ ∗ ∗ ∗]
In Side Switch ON : [01]
In Side Switch OFF : [00]
9 Output video system [V – ∗ ∗ ∗ ∗]
NTSC system
: [NTSC]
PAL system
: [PAL]
Automatic setting : [AUTO]
Scart terminal output [SK – ∗ ∗]
(Display only the WY model which can do the output
setting of scart terminal.)
VIDEO
: [00]
S-VIDEO : [01]
RGB
: [02]
a Disc sensing [DSC – ∗ ∗ ∗]
The type of discs loaded is displayed.
[DVD], [CD ], [VCD], [ ]
b Jitter value [J – ∗ ∗ ∗ ∗] Note:Don't use it.
c Version of the FL controller [FL: ∗ ∗ ∗ ∗]
d Region setting of the player [REG: ∗]
Setting value : [1] to [6]
e Destination setting of the FL controller
[MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗]
Four characters in the front represent code 01.
Three characters in the back represent the destination
code.
J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM,
LB: /LB, WY: /WY
f Version of the flash ROM [VERSION: ∗∗∗∗∗∗∗∗]
7
Not used
Not used
Not used
Not used
Not used
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
6.4 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY
• Service mode indication (ESC + CHP/TIM keys)
ID Address
The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs.
EDC/ID/AV 1 error history (ID Address, EDC/ID Error, last eight errors)
• Calculation of the average error rate (ESC + "5" [Service remote control unit] keys)
The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is
displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs)
For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less
• Indication of model information (ESC + CHAP keys)
The items from 12 to 15 of the SERVICE MODE Indications are displayed. However, in the indications, S in the standard test mode is changed
to CHIP VERSION, and M is changed to FL VERSION.
• Region confirmation mode (ESC + A.MON [Service remote control unit] + "1"-"8" [Service remote control unit] keys)
After you press the A.MON key while holding the ESC key pressed and then input the region number, if the number is different from that set in
the unit, an error message is displayed, and the tray opens.
Command Contents
Conditions
Remote Control
Key Name
Memory clear and region / revision indication
CLEAR (∗1)
Average value measurement of DVD error rate
5 (∗1)
CD error rate measurement
5 (∗1)
Scart terminal output : VIDEO
WY, models equipped with Scart terminal
AUDIO
Scart terminal output : S-VIDEO
SUBTITLE
Scart terminal output : RGB
ANGLE
Progressive OFF
Only for progressive models
R_SKIP
Progressive ON
F_SKIP
ZOOM ON (X2 -> X4 -> x1)
ZOOM
Service mode indication (error rate indication, etc.)
CHP/TIM (∗1)
Model information indication
CHAP (∗1)
Title search Input mode IN
Title No. input
Search execution
SIDE A (∗1)
Numbers (∗1)
PLAY (∗1)
Region confimation mode
A.MON (∗1)
Numbers (∗1)
Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC
key of the remote control unit. To quit, press the ESC key
∗1 : Service remote control unit
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
6.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE
Display during Service Mode
To enter Service Mode, press the CHP/TIM key while holding the ESC key pressed.
To quit, press the ESC key.
Service mode display
1 ID Address
2 Error rate (always displayed), in exponential notation
ERROR RATE : ∗ ∗ ∗ ∗ ∗ ∗ ∗
( ∗ ∗ ∗ ∗ )
• Calculation of the average error rate
For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less
3 EDC/ID error history (ID Address, EDC/ID errors, last eight errors)
Note:
∗ Error of AV1 is not supported in this player.
Number of error
Indication plan contents
Character in bold : Item name
: Information display
1
2
3
ex) For DVDs
• Step 1
e-
e -6 : OK
e -5 : OK
e -4 : Refer to Step 2
e -3 : NG
e -2 : NG
• Step 2
e -4
3.0e -4 : OK
4.0e -4 : OK
5.0e -4 : OK
6.0e -4 : NG
7.0e -4 : NG
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
7. DISASSEMBLY
1-3: DVD DECK (Refer to Fig. 1-3)
1-1: TOP CABINET/FRONT CABINET AND OPERATION
(Refer to Fig. 1-1)
1. Remove the 5 screws (1).
2. Remove the Top Cabinet in the direction of arrow (A).
3. Disconnect the following connectors:
(CP4002 and CP4004).
4. Unlock the 4 supports (2).
5. Remove the Front Cabinet in the direction of arrow (B).
6. Remove the 11 screws (3).
7. Remove the Operation PCB in the direction of arrow (C).
NOTE
(1)
(1)
(1)
(1)
(1)
Top Cabinet
(A)
(C)
(C)
(B)
(3)
(3)
(2)
(2)
(3)
(3)
(3)
1. Short circuit the position shown in Fig. 1-3 using a
soldering iron. If you remove the DVD Deck with no
soldering, the Laser may be damaged.
2. Disconnect the following connectors:
(CP2301,CP2302 ).
3. Remove the 4 screws (1).
4. Remove the DVD Deck in the direction of arrow.
Fig. 1-3
(3)
(3)
Operation PCB
Short circuit using a
soldering iron.
(1)
DVD Deck
Pick Up PCB
(1)
(1)
(1)
1-2: POWER PCB (Refer to Fig. 1-2)
1. Disconnect the following connector:
(CP502 and CP8103).
2. Remove the 2 screws (1).
3. Remove the 3 screws (2).
4. Remove the Power PCB in the direction of arrow.
(C)
(2)
(2)
Fig. 1-1
Fig. 1-2
1. Before your operation, please read "PREPARATION OF
SERVICING".
2. Use the Lead Free solder.
3. Manual soldering conditions
• Soldering temperature: 320
20oC
• Soldering time: Within 3 seconds
• Soldering combination: Sn-3.0Ag-0.5Cu
4. When Soldering/Removing of solder, use the drawing
equipment over the Pick Up Unit to keep the Flux smoke
away from it.
5. When installing the DVD Deck, remove all the soldering
on the short circuit position after the connection of Pick Up
PCB and DVD MT PCB connector.
1-4: DVD MT PCB (Refer to Fig. 1-4)
1. Remove the 4 screws (1).
2. Remove the 3 screws (2).
3. Remove the DVD MT PCB in the direction of arrow.
Fig. 1-4
Front Cabinet Ass'y
Operation PCB
(2)
(2)
(2)
(1)
(1)
POWER PCB
(2)
DVD MT PCB
(1)
(1)
(1)
(2)
(2)
(1)
1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
NOTE
1. Disassemble only the DVD DECK PARTS parts listed
here. Minute adjustments are needed if the disassembly
is done. If the repair is needed except listed parts,
replace the DVD MECHA ASS'Y.
2-1: TRAY (Refer to Fig. 2-1-A)
1. Set the Tray opened.(Refer to the DISC REMOVAL
METHOD AT NO POWER SUPPLY)
2. Unlock the 2 supports (1) and draw it while sagging the
Tray.
NOTE
• If RACK LOADING does not move following
the direction, it cannot Ass'y (1)
Loader Ass'y
Fig. 2-1-A
(1)
Push to Sag
Push to Sag
Tray
NOTE
1. In case of the Traverse Ass'y, install it from (1) to (3) in
order. (Refer to Fig. 2-2-B)
2. In case of the Traverse Ass'y installation, hook the wire
on the Loader Ass'y as shown Fig. 2-2-C.
Rack Loading
Check Lock
Fig. 2-2-B
Loader Ass'y (Bottom Side)
NOTE
1. In case of the Tray installation, install them as the circled
section of Fig. 2-1-B so that the each markers are met.
2-3: LOADING MOTOR PCB ASS'Y/LOADING BELT
(Refer to Fig. 2-3-A)
2-2: TRAVERSE ASS'Y (Refer to Fig. 2-2-A)
1. Remove the screw (1).
2. Unlock the 2 supports (2).
3. Remove the Insulator (R) from the Loader Sub Ass'y.
4. Remove the Traverse Ass'y.
• Screw Torque: 1.0 ± 0.3kgf•cm (Screw (2))
• Screw Torque: 2.0 ± 0.3kgf•cm
(1)
(2)
(2)
Loader Sub Ass'y
Traverse Ass' y
Insulator (R)
Fig. 2-2-A
Fig. 2-2-C
Loader Ass'y
1. Remove the Loading Belt.
2. Unlock the 2 supports (1).
3. Remove the Loading Motor PCB Ass'y.
4. Remove the 2 screws (2).
5. Remove the Loading Motor.
6. Remove the Pulley Motor.
Fig. 2-3-A
Loader Sub Ass'y
Pulley Motor
Loading Motor
Loading Motor PCB Ass'y
Loading Belt
(2)
(2)
(1)
(1)
Fig. 2-1-B
Tray
Rack Loading
• If RACK LOADING does not move following
the direction, it cannot Ass'y (1)
Loader Ass'y
2. REMOVAL OF DVD DECK PARTS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
NOTE
1. In case of the Pulley Motor installation, check if the value
of the Fig. 2-3-B is correct.
2. When installing the wire of the Loading Motor PCB Ass'y,
install it correctly as Fig. 2-3-C.
Manual soldering conditions
• Soldering temperature: 350 ± 5
oC
• Soldering time: Within 4 seconds
• Soldering combination: Sn-3.0Ag-0.5Cu
3. When installing the Loading Motor PCB Ass'y, install it from (1)
correctly as Fig. 2-3-D.
4. In case of the Loading Motor PCB Ass'y installation, hook
the wire on the Loader Sub Ass'y as shown Fig. 2-3-E.
Pulley Motor
Loading Motor
Safety surface for pressing
of the insert.
7.0
0.1mm
Fig. 2-3-B
• Install wire from (1) to (6) in order.
2-4: RACK LOADING/GEAR MAIN /GEAR PULLEY
(Refer to Fig. 2-4-A)
1. Unlock the support (2) and remove the Gear Pulley.
2. Remove the Gear Main.
3. Press down the catcher (1) and slide the Rack Loading.
Fig. 2-4-A
Rack Loading
Loader Sub Ass'y
Gear Pulley
Gear Main
(1)
(2)
NOTE
1. In case of the Rack Loading installation, hook the Rack
Loading on the Loader Sub Ass'y as shown Fig. 2-4-B.
2. When installing the Gear Main, take care the direction of
up or down as shown Fig. 2-4-C.
Rack Loading
LOADING MOTOR
W (WHITE)
B (BROWN)
5
6
Loading Motor PCB Ass'y
Fig. 2-3-C
LOADING MOTOR PCB
Fig. 2-3-D
Check Hook
Fig. 2-3-E
Loading Motor PCB Ass'y
Check Hook
Fig. 2-4-B
Loader Sub Ass'y (Bottom Side)
Check Hook
Up Side
Main Gear
Down Side
Fig. 2-4-C
2-5: CLAMPER ASS'Y (Refer to Fig. 2-5-A)
1. Unlock the Spring Clamper.
2. Remove the Clamper
Spring Clamper
Frame Sub Ass'y
Clamper
Fig. 2-5-A
Check Hook
UnLock
2
1
3
4
W (WHITE)
6
Check Position
Check Position
Check Hook
Check Position
(1)
• If RACK LOADING does not move following
the direction, it cannot Ass'y (1)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
NOTE
NOTE
1. In case of the Clamper Ass'y installation, install correctly
as Fig. 2-5-B.
2-6: INSULATOR (R) (Refer to Fig. 2-6-A)
1. Remove the Insulator (R).
Traverse Ass'y
Fig. 2-5-B
Check Hock
Clamper
Insulator (R)
Fig. 2-6-A
1. When installing the Rack Feed Ass'y, push both ends to
align the teeth as shown Fig. 2-7-B. Then install it.
2. In case of the Gear Motor installation, check if the value
of the Fig. 2-7-C is correct.
3. After the assembly of the Traverse Ass'y, hook the wire
on the Traverse Ass'y as shown Fig. 2-7-D.
Push
Rack Feed Ass'y
Push
Fig. 2-7-B
7.0
0.1mm
Gear Motor
Feed Motor
Check Hook
2-7: SWITCH PCB ASS'Y/GEAR MIDDLE/GEAR FEED/RACK
FEED ASS'Y/FEED MOTOR (Refer to Fig . 2-7-A)
1. Remove the screw (1).
2. Remove the Gear Feed.
3. Remove the Gear Middle.
4. Remove the screw (2).
5. Remove the Rack Feed Ass'y.
6. Remove the 2 screw (3).
7. Remove the Feed Motor.
2-8: FFC WIRE HANDLING
1. Do not make the folding lines except the specified
positions for the FFC.
• Screw Torque: 1.3
0.3kgf•cm (Screw (2))
• Screw Torque: 2.5
0.3kgf•cm (Screw (1))
• Screw Torque: 1.0
0.3kgf•cm (Screw (3))
Fig. 2-7-A
Feed Motor
Gear Motor
Traverse Ass'y
Rack Feed Ass'y
Gear Middle
Gear Feed
(3)
(1)
Fig. 2-7-C
Safety surface for pressing
of the insert.
Fig. 2-7-D
Traverse Ass'y
Check Hook
Check Hook
• Loosen the wire in the direction of the arrow.
[ 22 pin FFC ]
Fold
Printing Surface
52
1mm
Reinforcement Plate
To Pick Up PCB
(2)
(3)
Black
Red
Fig. 2-8
Pickup leneses
GEM1004
GED-008
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
8. EACH SETTING AND ADJUSTMENT
8.1 RE-WRITE FOR DVD FIRMWARE
1. Purpose
After replacing the DVD MT PCB Assy, be sure to update the firmware to the latest version. The firmware of the Assy for
service may not be the latest.
3. Procedures for updating the firmware
How to update:
1 Turn on the main unit and open the disc tray.
2 Place the disc for updating in the disc tray and close the tray.
3 Press the PLAY button.
4 Updating of the firmware is completed.
2. Procedures for creating the disc for updating
Necessary tools:
1 PC with a CD-R/CD-RW drive
2 Blank CD-R or CD-RW
3 Firmware file (*****.BIN)
How to create:
1 Start up the program for writing to CD.
2 Load a blank disc in the CD-R/CD-RW drive.
3 Enter "PIONEER" as the volume label.
4 Select the .BIN file.
5 Write the latest version of the firmware in ISO 9660 format.
While the screen shown at left is being displayed, updating is in progress.
DO NOT TURN OFF THE POWER DURING UPDATING.
When the screen with the Pioneer logo is displayed, updating is completed.
The time required for updating is about 2 minutes.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
4. How to confirm the version of the firmware
Press the ESC then the CHAP key on the remote control unit for servicing. The version of the firmware is labeled ROM
NUMBER. Check if the version is the latest one.
YLG0319A
AREA:WY
40
02A7
1.16
1389FE
ROM NUMBER
REGION:2
REG CHK
SUM CHK
FL VERSION
CHIP VERSION
How to interpret the version code:
Number of releases on the same release date
Release date:(Example:2010.3.19)
0: Year
3: Month (1-9 [Jan-Sep], A-C [Oct-Dec])
19: Day
Fixed
Y L G 0 3 1 9 A
5. Troubleshooting
1 If updating of the firmware failed
If the main unit was turned off during updating, it cannot initialize and start up again properly. In such a case, replace the
flash ROM on the DVD MT PCB Assy.
2 If updating of the firmware using the disc for updating failed
• Was the disc for updating recognized properly?
Check if the volume label of the disc is PIONEER.
• Is playback of a disc other than the disc for updating possible?
If playback of a test CD is also impossible, a reading section, such as PU, may be defective. In such a case, repair the
defective part first.
If playback of a test CD is possible, the disc for updating may be defective. Check for any scratches or foreign matter,
such as fingerprints, on the reading surface.
If no problem is found with the disc, create a new disc for updating again.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
46
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
9. EXPLODED VIEWS AND PARTS LIST
9.1 PACKING SECTION
NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
- The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
- Screws adjacent to b mark on product are used for disassembly.
- For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
DV-420V-K/YXZT52, DV-420V-S/YXZT52
only
DV-420V-K/SXZT2, DV-420V-S/SXZT2
only
DV-420V-K/UCXZTSM2 only
DV-420V-K/YXZT52,
DV-420V-S/YXZT52,
DV-420V-K/SXZT2,
DV-420V-S/SXZT2
only
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
47
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
(1) PACKING SECTION PARTS LIST
(2) CONTRAST TABLE
DV-420V-K/YXZT52, DV-420V-S/YXZT52, DV-420V-K/SXZT2,DV-420V-S/SXZT2 and DV-420V-K/UCXZTSM2 are
constructed the same except for the following:
Mark No.
Description
Part No.
1 Operating Instructions (Es)
See Contrast table (2)
2 Operating Instructions (En, Fr)
See Contrast table (2)
3 Operating Instructions (En, It)
See Contrast table (2)
4 Operating Instructions (Fr, De)
See Contrast table (2)
5 Operating Instructions (Es, Nl)
See Contrast table (2)
6 Operating Instructions (Ru)
See Contrast table (2)
7 Audio/Video Cable
06EHBA2005
8 Remote Control Unit
See Contrast table (2)
>
9 AC Power Code
See Contrast table (2)
10 Package Pad
792WHAA237
11 Gift Box
See Contrast table (2)
12 Package
792WHAA252
Mark No.
Description
Part No.
Mark
No.
Symbol and Description
DV-420V-K/
YXZT52
DV-420V-S/
YXZT52
DV-420V-K/
SXZT2
DV-420V-S/
SXZT2
DV-420V-K/
UCXZTSM2
1
Operating Instructions (Es)
Not used
Not used
Not used
Not used
J2M90201A
2
Operating Instructions (En, Fr)
Not used
Not used
Not used
Not used
J2M90221A
3
Operating Instructions (En, It)
J2M90321A
J2M90321A
Not used
Not used
Not used
4
Operating Instructions (Fr, De)
J2M90322A
J2M90322A
Not used
Not used
Not used
5
Operating Instructions (Es, Nl)
J2M90323A
J2M90323A
Not used
Not used
Not used
6
Operating Instructions (Ru)
Not used
Not used
J2M90601A
J2M90601A
Not used
8
Remote Control Unit
076E0PP131
076E0PP121
076E0PP141
076E0PP111
076E0PP141
>
9
AC Power Cable
1206158802
1206158802
1206158802
1206158802
Not used
11 Gift Box
793WCDE019
793WCDD984
793WCDE021
793WCDE020
793WCDE326
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
48
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
9.2 EXTERIOR SECTION
C
D
A
B
A
B
C
D
Refer to
"9.3 DVD MECHA SECTION".
DV-420V-K/UCXZTSM2
only
CONTACT SIDE
NON-CONTACT
SIDE
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
49
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
(1) EXTERIOR SECTION PARTS LIST
(2) CONTRAST TABLE
DV-420V-K/YXZT52, DV-420V-S/YXZT52, DV-420V-K/SXZT2, DV-420V-S/SXZT2 and DV-420V-K/UCXZTSM2 are
constructed the same except for the following:
Mark No.
Description
Part No.
1 DVD MT PCB ASSY
See Contrast table (2)
>
2 POWER PCB ASSY
See Contrast table (2)
3 OPERATION PCB ASSY
See Contrast table (2)
4 Rubber Foot
VEB1349
5 Cord Connector (CD502)
06EH2D3102
6 Cord Connector
06EH251302
7 Cord Jumper
122H0B1202
8 Front Cabinet ASSY
See Contrast table (2)
9 Cord Jumper (CD7301)
See Contrast table (2)
10 Flap, DVD
712WPAA179
11 Sheet DVD
723563A001
12 Spring, Flap-DVD
743WKA0052
13 Cabinet, Top
See Contrast table (2)
14 Spring Earth
743WKAA017
15 Spring Earth
753WUAA013
16 Shield, 21Pin
See Contrast table (2)
17 Screw Pan
810213060U
18 Screw, Tap Tite(B)Pan (3x6)
810913060U
19 Screw, Tap Tite(B) (3x6)
See Contrast table (2)
20 Screw, Tap Tite(P) Bind WH7
8110I2680U
21 Screw, Tap Tite(P) (2.6x8)
811022680U
22 Screw, Tap Tite(B)-R (3x5.5)
815223055U
23 Cushion 65TS10-7.5
8965TS0610
>
24 Cord, AC Bush
See Contrast table (2)
25 Screw, Tap Tite(S)-R Bind (3x6.3) 815223063U
Mark No.
Description
Part No.
Mark
No.
Symbol and Description
DV-420V-K/
YXZT52
DV-420V-S/
YXZT52
DV-420V-K/
SXZT2
DV-420V-S/
SXZT2
DV-420V-K/
UCXZTSM2
1
DVD MT PCB ASSY
A2M901A130
A2M901A130
A2M901A130
A2M901A130
A2M902A130
>
2
POWER PCB ASSY
A2M901A240
A2M901A240
A2M901A240
A2M901A240
A2M902A240
3
OPERATION PCB ASSY
A2M901A270
A2M901A270
A2M905A270
A2M905A270
A2M902A270
8
Front Cabinet ASSY
7A701B360A
7A701B357A
7A701B360A
7A701B357A
7A701B371A
9
Cord Jumper (CD7301)
122H0C3002
122H0C3002
122H0C3002
122H0C3002
Not used
13 Cabinet, Top
702WSBA079
702WSBA075
702WSBA079
702WSBA075
702WSBA079
16 Shield, 21Pin
761WSAA203
761WSAA203
761WSAA203
761WSAA203
Not used
19 Screw, Tap Tite(B) (3x6.0)
810923060S
810923060U
810923060S
810923060U
810923060S
>
24 Cord, AC Bush
Not used
Not used
Not used
Not used
120Q618902
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
50
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
9.3 DVD MECHA SECTION
SW1
Do not replace the parts. Because,
minute adjustments are needed if
this condition is disassembled
further more.
If the repair is needed, replace the
DVD MECHA ASSY.
Applying positions AA and AB for the grease are displayed for
this section.
Check if the correct grease is applied for each position.
NOTE:
CLASS
MARK
GREASE
AA
AB
PART NO.
GYA1001
GEM1036
Note:
AA
AA
AB
AB
AB
AB
AB
AB
AB
AB
AA
AA
AA
AB
AA
Lubricating Oil
GYA1001
Lubricating Oil
GYA1001
Daifree
GEM1036
Pickup leneses
GEM1004
GED-008
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
51
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
DVD MECHA SECTION PARTS LIST
Mark No.
Description
Part No.
1 DVD MECHA ASSY
A2M901A650
2 LOADING MOTOR PCB ASSY
A2M901A610
3 Push Switch
0500101042
4 Cord Jumper (CD2302)
12C5081601
5 FEED Motor
1515U98008
6 LOADER SUB ASSY
92AAA0025A
7 Loading Motor
1515U98007
8 Pulley, Motor
92P100097A
9 Frame, Main
92P100204A
10 Tray
92P100205A
11 Rack, Loading
92P100206A
12 Clamper
92P100207A
13 Gear, Pulley
92P100208A
14 Gear, Main
92P100209A
15 Belt, Loading
92P200027A
16 Spring, Clamper
92P300042A
17 Screw, Pan (M1.7x3 P3)
814011730U
18 FEED RACK ASSY
92AAA0026A
19 Chassis Traverse
92P100200A
20 Gear, Feed
92P100201A
21 Gear, Middle
92P100202A
22 Gear, Motor
92P100203A
23 Insulator (R)
92P200028A
24 Screw, Tap Tite(P) PanWH5.4 (1.7x8) 92P700020A
25 Screw, Tap Tite(P) Pan WH8 (2x8) 92P700021A
26 Screw, Pan (1.7x2.3)
814011723U
27 Screw, T-Tite(B) Camera Pan (1.7x5.0) 813381750U
Mark No.
Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
52
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10. SCHEMATIC DIAGRAM
10.1 DVD MT PCB ASSY (1/7)
IC4002
MT1389FE/S-L
MPEG/MICON
101102103104105106107108109110
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
1
10
100
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
31
32
33
34
35
36
37
38
39
4
40
41
42
43
44
45
46
47
48
49
5
50
51
52
53
54
55
56
57
58
59
6
60
61
62
63
64
65 66 67 68 69
7
70 71 72 73 74 75 76 77 78 79
8
80 81 82 83 84 85 86 87 88 89
9
90 91 92 93 94 95 96 97 98 99
R4035
33
1/16W
R4014
10K
1/16W
R4039
5.1K 1/16W +-1%
R4019
13K1/16W+-1%
R4015
13K 1/16W +-1%
R4016
8.2K 1/16W +-1%
R4017
22K 1/16W
R4018
13K 1/16W +-1%
R4027
100 1/16W
R4025
100K 1/16W
R4057
6.8 1/16W
R4024
750K
1/16W
R4001
10K1/16W
R4026
6.8 1/16W
R4004
10K
1/16W
R4005
680K
1/16W
R4054
10K 1/16W
R4022
100K 1/16W
R4059
10K
1/16W
R4020
15K 1/16W
TP4029
TP4001
TP4009
TP4007
TP4002
TP4003
TP4004
TP4005
TP4006
TP4008
TP4034
TP4033
TP4015
TP4016
TP4017
TP4018
TP4019
TP4020
TP4021
TP4022
TP4023
TP4025
TP4024
TP4026
TP4027
TP4028
TP4031
TP4032
TP4106
TP4103
TP4014
TP4013
TP4011
TP4030
TP4044
TP4012
TP4109
TP4107
TP4108
TP4010
TP4036
W809
W808
W816
W851
W858
W823
W807
W830
W815
W813
C4007
0.1
B
C4032
0.1
B
C4031
0.033
B
C4021
0.1 B
C4038
0.1 B
C4049
12P CH
C4048
15P
CH
C4063
10
10V
(2125)
B
C4084 0.1 B
C4051
0.1
B
C4028
0.1
B
C4025
0.1
B
C4026
0.1
B
C4047
0.001 B
C4055
0.1
B
C4131
100P
CH
C4022
0.1
B
C4020
0.1
B
C4013
0.1 B
C4005
0.1
B
C4019
0.1
B
C4105
0.0022
B
C4009
0.015 B
C4008
0.1
B
C4003
270P CH
C4002
270P CH
C4001 0.0022 B
C4035
0.1
B
C4041
0.1 B
C4043
0.1
B
C4046
0.1
B
C4037
4.7
6.3V
(2125)
B
C4012
10
10V
(2125)
B
C4029
0.1 B
C4061
4.7
(2125)
B
C4036
0.1 B
C4030
10
10V
(2125)
B
C4042
0.047 B
C4044
0.047
B
C4033
0.001
B
C4034
20P CH
C4075
56PCH
C4014
1 B
C4015
1 B
C4016
1 B
C4017
1 B
C4103
1 B
C4024
0.0015 B
C4027
0.1 B
IC4001
S-24CS04AFJ-TB-GE
EEPROM 4K
1
2
3
4
5
6
7
8
C4023
470
6.3V
YK_P
*C4060_1
1000
6.3V
YK_P
X4001
1003T02733
27MHz
Q4004
2SC5383-T111-1F
STBY POWER CTL
B4016
FCM1608KF
-102T02
B4007
MMZ1608R102CT
B4010
FCM1608KF
-102T02
B4018
FCM1608KF
-102T02
NR4001
4D03WGJ
0330T5E
NR4003
4D03WGJ0103T5E
V1P4
AL
AR
V+3
ASPDIF
I/XP
V+3D
V+1R8D
V+3IDAC
ADAC_GND
A
B
C
D
E
F
MDI1
LDO1
LDO2
V1P4
DMSO
FMSO
TRCLOSE
TROPEN
TRSO
FOSO
OPO
OP+
OP-
D
TRIN
STBY
A
V20
B
IOA
C
RF
RF
TRPWM
D_GND
E
F
MDI1
LDO2
LDO1
V20
USB_P_ON-L
USB_FLAG
V1P4
USBP
USBN
USB_GND
IR
MA0
MA1
MA2
MA3
OPO
MA4
OP-
MA5
OP+
MA6
DMSO
MA7
MA8
FMSO
MA9
TROPEN
MA10
TRPWM
MA11
TRSO
SDCKE
SDCLK
FOSO
DBA0
DBA1
DCS#
USBP
DRAS#
DCAS#
USBN
DWE#
V+3D
DQM0
DQM1
DQ0
DQ1
V+1R8D
DQ2
DQ3
DQ4
DQ5
USB_P_ON-L
DQ6
USB_FLAG
DQ7
DQ8
DQ9
IOA
DQ10
DQ11
A2
DQ12
A3
DQ13
DQ14
A4
DQ15
A5
A0
A6
A1
A7
A2
A3
A8
A4
A18
A5
A19
A6
A7
V+3D
A8
A9
UWR#
URD#
A10
SDA
A11
SCL
A12
A13
A14
A15
A16
A17
A18
A19
A20
AD0
AD1
AD2
AD3
PWR#
A16
A15
A14
A13
A12
A11
A10
A20
PCE#
PRD#
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
A17
DQM0
AD4
A9
A1
A0
AD5
AD6
AD7
PWR#
FP_SCK
V+1R8D
FP_DI
FP_DO
PCE#
STB
SCL
SDA
RXD
TXD
IR
PRD#
FROM/TO MEMORY/USB
FROM/TO LOADER/MOTOR DRIVE
NC
NC
NC
NC
NC
NCNC
NC NC
65
66
67
68
254
253
255
256
XIOWR
RFGC
IREF
AVDD3
AGND
DVDA
DVDB
DVDC
DVDD
DVDRFIP
MA
MB
MC
MD
SA
SB
SC/TNI
SD/TPI
MDI1
MDI2
LDO2
LDO1
SVDD3
RFLVL/RFON
SGND
CSO/RFOP
V2REF
V20
VFEFO
EFO
TEO
TEZISLV
OP_OUT
OP_INN
OP_INP
DMO
FMO
TROPENPWM
PWMOUT1/_ADIN0
TRO
FOO
AGND18_DMPLL
AVDD18_DMPLL
USB_DP
USB_DM
VDD33_USB
VSS33_USB
PAD_VRT
VDD18_USB
VSS18_USB
USB_XTALO/GPIO15
USB_XTALI/GPIO14
FG/GPIO16
IOA22/GPIO18
DVDD18
IOA2
IOA3
IOA4
IOA5
IOA6
IOA7
HIGHA0
IOA18
IOA19
DVDD33
A16
HIGHA7
IOA20
IOA0
ICE
XRESET
IR
ADACVDD3
XTALO
HRZFC
CRTPLP
RFGND
OSP
RFRPAC
RFRPDC
RFVDD3
ADCVSS
ADCVDD3
LPFOP
LPFIP
LPFIN
PLLVDD3
PLLVSS
LPFON
JITFN
JITFO
RFVDD18
RFGND18
XTALI
SADCVSS18
SADCVDD18
ADACVSS3
CH7
CH8
ADACVDD1
ADACVDD2
CENTER
ALS
AL
AVCM
AR
ARS
LFE
ADACVSS1
ADACVSS2
APLLCAP
APLLVSS
APLLVDD
GPIO11
GPIO12
SPDIF/GPIO23
DVDD18
GPIO10
GPIO22/SDD0/INT
UP3_5/TXD
UP3_4/RXD
UP3_1
UP3_0
UP1_7/SDA
UP1_6/SCL
UP1_5/VSDA
UP1_4/VSTB
UP1_3/VSCK
UP1_2/GPIO19
DVDD33
XURD
XUWR
DVDD18
A17
DVSS33
AD7
ALE
IOA21/GPIO17
AD6
AD5
AD4
AD3
AD2
DVSS18
AD1
AD0
XIOOE
IOA1
XIOCS
HIGHA1
HIGHA2
HIGHA3
HIGHA4
HIGHA5
HIGHA6
IOCE#
IOWR#
FE
TE
RFLV
CS
RFV33
RFVDD3
PLLVDD3
1
NC
VCC
SCL
WP
SDA
NC
NC
NC
GND
WP
SDA
NC
NC
NC
GND
0
0
0
0
3.3
3.3
3.3
0
OSN
1.1
0.9
0
0
0
0
1.6
2.2
2.2
2.2
2.2
2.0
2.0
0.2
0.2
2.5
3.3
3.3
0
0
0
2.7
2.0
1.4
1.3
1.3
1.3
1.2
1.7
1.6
1.9
1.3
0
1.4
1.3
1.4
0
1.9
0
0
3.3
0
0.8
1.9
0
3.3
3.7
0
0
1.9
2.0
2.1
2.1
1.9
2.1
2.6
2.3
2.3
0
3.3
3.3
3.3
0
0.5
1.7
3.3
1.9
1.9
2.1
1.1
2.0
0
0
1.9
0
1.8
1.8
0
1.1
1.1
1.4
1.5
1.3
0.1
1.2
1.2
0
0
2.1
1.8
3.2
3.2
3.3
3.2
3.2
3.1
3.2
3.3
0
3.2
2.9
20
3.0
3.3
3.3
0
1.4
0
0
1.5
0
1.7
1.5
1.3
1.6
3.3
0
3.3
1.4
1.5
1.7
1.5
3.2
0.8
0.6
1.0
0.5
1.9
0
1.9
3.3
0
0
0
3.3
3.3
0
1.6
1.0
1.6
0
0
0
1.3
3.3
1.7
1.9
0
0
NC
0.6
1.5
3.2
Therefore, when replacing, be sure to use parts of identical designation.
When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
The > mark found on some component parts indicates the importance of the safety factor of the part.
*C4060
DV-420V-K:SXZT2 E7EPT0102M (1000 uF 6.3V)
DV-420V-S:SXZT2 E62QU0681M (680 uF 6.3V)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
53
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
101102103104105106107108109110111112113114115116117118119120121122123124125126127128
129130131132133134135136137138139140141142143144145146147148149150151152153154155156157158159160161162163164165166167168169170171172173174175176177178179180181182183184185186187188189190191192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
21
00
R4071
33 1/16W
R4070
33 1/16W
R4006
10K1/16W
R4072
3.9K
1/16W
R4060
15K1/16W
R4074
22K 1/16W
R4073
3.3K 1/16W
R4003
33K 1/16W
R4034
100
1/16W
R4061
51K 1/16W
R4057
6.8 1/16W
R4008
10K 1/16W
R4001
10K1/16W
R4064
150 1/16W
+-1%
R4065
150 1/16W
+-1%
R4066
150 1/16W
+-1%
R4067
150 1/16W +-1%
R4068
150 1/16W
+-1%
R4069
150 1/16W
+-1%
R4051
220 1/16W
R4058
100
1/16W
R4002
2.2K
1/16W
+-1%
R40092.7K 1/16W
+-1%
R4083
47 1/16W
R4082
33 1/16W
R4062
4.7K 1/16W
TP4040
TP4104
TP4042
TP4105
TP4062
TP4068
TP4061
TP4066
TP4106
TP4048
TP4051
TP4052
TP4053
TP4054
TP4055
TP4056
TP4057
TP4058
TP4059
TP4087
TP4082
TP4081
TP4080
TP4088
TP4072
TP4070
TP4071
TP4069
TP4083
TP4084
TP4085
TP4086
TP4060
TP4063
TP4044
TP4046
TP4049
TP4089
TP4065
TP4079
TP4078
TP4076
TP4077
TP4075
TP4073
TP4074
TP4110
W823
W804
W807
W820
W850
C4071
0.1
B
C4083
0.1
B
C4074
0.1
B
C4084 0.1 B
C4073
0.1
B
C4072
0.1
B
C4069
0.0056
B
C4130
0.1 B
C4128
0.01 B
C4064
0.1
B
C4110
100P CH
C4067
0.1 B
C4065
0.1
B
C4117
100P CH
100P
CH
C4066
1
B
C4080
0.1
B
C4081
0.1
B
C4082
0.1
B
C4088
0.1
B
C4068
0.1 B
C4024
0.0015 B
C4011
47
16V
YK_P
C4091
22
6.3V
KA_P
C4023
470
6.3V
YK_P
Q4009
KTC3875S_Y_RTK
Q4008
KTC3875S_Y_RTK
B4007
MMZ1608R102CT
B4015
FCM1608KF-102T02
S
D
G
Q4002
2N7002K-RTK/P
SW
NR4002
4D03WGJ0330T5E
NR4001
4D03WGJ
0330T5E
V+3
V+3A
ASPDIF
I/XP
STBY
TRIN
V+1R8
XAMUTE
VSEL1
PWDN#
V+1R8
V+1R8D
TRCLOSE
LETTER
SQUEEZE
ADAC_GND
CEC_MONITOR
VSEL1
LETTER
SQUEEZE
I/XP
V+3V
R/CR
B/CB
G/Y
CVBS
XAMUTE
S_C
ASPDIF
S_Y
AR
D_GND
AL
ADAC_GND
D_GND
S_Y
V+5H
S_C
V+3H
DVDD18
CVBS
PWDN#
V+1R8
V+3
G/Y
V+3A
V+3IDAC
B/CB
D_GND
R/CR
TX2+
TX2-
TX1+
V+3D
TX1-
HDMI_SDA
HDMI_SCL
TX0+
HPD
TX0-
TXC-
TXC+
TXC+
TXC-
TX0-
TX0+
DVDD18
TX1-
TX1+
TX2-
TX2+
HDMI_CEC
CEC_MONITOR
V+3H
A_GND
V+5H
HDMI_SCL
HDMI_SDA
HDMI_CEC
HPD
MA4
MA5
MA6
MA7
MA8
MA9
MA11
SDCKE
SDCLK
V+3D
RXD
MA3
TXD
MA2
D_GND
MA1
MA0
MA10
DBA1
DBA0
DCS#
DRAS#
DCAS#
DWE#
DQM1
DQ8
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQM0
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
RESET
FP_DO
V+3
V+3D
STB
SCL
SDA
RXD
TXD
IR
FROM/TO AUDIO/JACK
FROM/TO HDMI
FROM/TO POWER PORT
FROM/TO VIDEO
DMJ124
PCB130
NC
NC
4.9
3.1
3.2
NC
NC NC
NC
NC
NC
127
128
192
191
190
189
ICE
XRESET
IR
RD7
RD6
RD5
RD4
RD3
DVDD33
RD2
RD1
RD0
RD15
RD10
RD9
DQM1
XRCS
RA10
TX2P
C
DACVDDB
Y
DACVDDC
LFE
ADACVSS1
ADACVSS2
APLLCAP
APLLVSS
APLLVDD
GPIO11
GPIO12
SPDIF/GPIO23
DVDD18
GPIO10
GPIO9
TS_ERROR
DVDD33
TS_PWM
TS_SYNC
TS_CLK
TS_VALID
TS_DATA7
TS_DATA6
TS_DATA5
TS_DATA4
TS_DATA3
TS_DATA2
TS_DATA1
TS_DATA0
VREF
DACVSSC
CVBS
DACVDDA
G
DACVSSA
B
R
TX2N
AVDD18_TX0
AGND18_TX0
AGND18_TX1
AVDD18_TX1
AGND18_TX2
AGND33_TX
AVDD33_TX
EXT_CAP
AVDD33_VPLL
EXT_RES
AGND33_VPLL
GPIO8_HPLG
GPIO7_DDC_CLK
DVDD18
GPIO6_DDC_DA
GPIO4
DVDD33
RA4
RA5
RA6
RA7
BA1
BA0
XRAS
XCAS
XRWE
DVDD33
GPIO20/SD_CMD
RD8
125
126
RD12
RD11
GPIO21/SD_CLK
DQM0
GPIO22/SDD0/INT
123
124 RD13
RD14
UP3_5/TXD
UP3_4/RXD
UP3_1
UP3_0
UP1_7/SDA
UP1_6/SCL
UP1_5/VSDA
MPEG/MICON/DSP SCHEMATIC DIAGRAM
3.3
3.3
3.3
3.1
3.2
3.3
0
3.2
2.9
2.0
3.3
0.2
1.0
0.8
0.7
1.1
1.3
1.0
1.1
1.3
1.0
1.0
1.3
1.0
1.3
1.1
1.1
FS
DADVSSB
0
0.5
3.3
0.7
0.4
3.3
0.4
0.7
0.7
1.0
1.0
1.9
3.3
1.6
1.6
1.6
1.5
0.1
1.4
2.7
3.1
2.9
3.1
2.0
0
0
0
1.3
3.3
1.7
1.9
0
0
0
0
3.3
3.3
3.3
0
0
2.9
0
3.3
0
3.3
0
3.3
1.1
3.3
1.2
2.9
1.1
3.3
0
0
0
0
0
CEC(GPIO5)
3
TXCN
TXCP
TX0P
TX1P
TX1N
TX0N
1.1
1.0
1.1
1.1
1.0
1.0
3.2
3.2
1.3
0.1
5.0
1.8
5.0
0.3
0
0
0
1.8
0
0
RA2
RCLK
CKE
RA9
RA8
RA11
DVSS33
DVDD33
RA3
DVDD18
RA1
RA0
2
0.1
0.1
0
0
3.3
1.6
3.3
1.5
2.1
1.8
1.8
0.6
1.8V
3.3V
RESET
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
DVD MT PCB ASSY(1/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
2M (1000 uF 6.3V)
1M (680 uF 6.3V)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
54
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.2 DVD MT PCB ASSY (2/7)
IC4005
HY57V641
64Mbit(4M*16) 200MHz SDRAM IC
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
*IC4004
16Mbit FLASH IC
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
31
32
33
34
35
36
37
38
39
4
40
41
42
43
44
45
46
47
48
5
6
7
8
9
R4044
10K1/16W
C4102
0.1 B
C4101
0.1 B
C4062
0.001 B
C4040
1
B
C4120
0.1
B
C4050
1000
6.3V
YK_P
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DQ0
DQ1
DQ2
DQ3
DQ4
DQ15
A17
A16
DQ5
DQ6
DQ7
A15
DQ8
DQ9
DQ10
DQ14
A14
DQ11
DQ12
DQ13
DQ13
A0
A13
DQ14
DQ15
MA0
AD7
A12
MA1
MA2
MA3
DQ12
A11
MA4
MA5
MA6
DQ11
AD6
A10
MA7
MA8
MA9
A9
MA10
MA11
DWE#
DQ10
AD5
A20
SDCKE
DQM1
DQM0
DQ9
DCAS#
DRAS#
DBA1
AD4
PWR#
DBA0
SDCLK
DCS#
DQ8
A0
A1
A2
A3
A4
A5
AD3
A6
A7
DQM1
A8
A9
A10
SDCLK
A11
AD2
A19
A12
A13
SDCKE
A14
A18
A15
A16
A17
AD1
A8
A18
A19
MA11
A20
A7
AD0
AD1
MA9
AD2
AD0
A6
AD3
AD4
MA8
AD5
PRD#
A5
AD6
AD7
MA7
PRD#
A4
PCE#
PWR#
MA6
USB_P_ON-L
PCE#
A3
USB_FLAG
USBN
MA5
USBP
A1
A2
USB_GND
MA4
IR
FP_DO
STB
FP_DI
FP_SCK
USB_P_ON-H
V+3
V+3D
FLDC-
-28V
FLDC+
V+3E
D_GND
V+5V_USB
FROM/TO POWER PORT
FROM/TO MPEG/MICON/DSP
MEMORY/USB SCHEMATIC DIAG
NC
VSS
DQ12
DQ11
DQ10
VDDQ
DQ8
UDQM
CKE
NC
A9
A11
V
A4
NC
NC
0.0
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.9
1.7
1.9
0.0
1.5
3.3
1.5
1.5
0.0
1.5
1.5
3.3
1.5
1.5
0.0
1.5
0.0
W
CA
RA
C
V
0
0
1.4
2.6
2.6
1.4
1.2
1.6
1.6
3.3
1.3
0.9
1.6
2.5
1.5
1.6
1.3
2.5
1.5
0.8
1.0
1.7
1.6
0.8
0
0.7
0.6
1.2
1.3
1.9
0.7
1.2
A16
VSS
VSS
CE#
A0
A15
A14
A13
A12
A11
A9
A8
A10
A19
VCC
NC
NC
NC
NC
NC
NC
NC
OE#
RESET#
RY/BY#
0
D15/A1
0
0.1
0
0
3.3
A7
A6
A5
A4
A3
A2
A1
A18
A17
0.1
1.6
0.7
1.4
1.6
1.3
1.6
1.7
2.5
1.6
NC
NC
NC
NC
WE#
NC
BYTE#
A10/
NC
CLK
VSS
DQ9
VSSQ
VDDQ
DQ13
DQ14
VSSQ
DQ15
A8
A7
A6
A5
VSS
A
A
LD
V
D
VS
VD
D
D
D
D
VS
D
D
VD
D
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
NC
*IC4004
YXZT52, SXZT2 S2M901AF01
UCXZTSM2
S2M902AF01
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
55
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
CAUTION: DIGITAL TRANSISTOR
C4005
HY57V641620FTP-7
4Mbit(4M*16) 200MHz SDRAM IC
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
3
4
5
6
7
8
9
CP4004
A2001WV-5A
1
2
3
4
5
Q4003
KRC103SRTK
USB_P_ON-H
L4001
DLP11SN900HL2L
1
2
3
4
CP4002
FCZ100E-11SS-K
1
10
11
2
3
4
5
6
7
8
9
D4002
AVRL161A1R1NT
D4003
AVRL161A1R1NT
R4048
2.2K 1/16W
R4007
2.2K
1/16W
TP4050
TP4035
W844
W837
W848
W812
C4122 100P CH
C4133 100P CH
C4135 100P CH
C4134
33P CH
C4132
33P CH
C4115
1
B
C4123
0.1 B
C4114
1
B
C4120
0.1
B
C4053
0.1 B
C4085
0.1 B
C4142
100
10V
YK_P
YBACK.
WITH THE DIGITAL TESTER
TAGE EACH PART WAS
DQ7
DQ6
DQ5
3
+
V
4
Q
D
V+5V_USB
DQ3
USB_P_ON-H
DQ2
USB_P_ON-L
DQ1
DQ0
DQM0
DWE#
DCAS#
DRAS#
DCS#
FLDC-
V
8
2
-
0
A
B
D
FLDC+
DBA1
D_GND
E
3
+
V
0
1
A
M
IR
O
D
_
P
F
0
A
M
STB
I
D
_
P
F
1
A
M
FP_SCK
MA2
MA3
USBN
USBP
USB+5V
MATIC DIAGRAM
FROM/TO DISPLAY
DMJ124
PCB130
VSS
DQ12
DQ11
DQ10
VDDQ
DQ8
UDQM
CKE
NC
A9
A11
A0
A2
A1
A3
VDD
A4
3.3
1.5
3.3
1.5
1.5
0.0
1.5
1.5
3.3
1.5
1.5
0.0
1.5
3.3
2.0
3.3
3.3
3.3
3.3
3.3
1.0
0.0
1.7
1.7
1.7
1.7
3.3
WE#
CAS#
RAS#
CS#
VDD
DGND
FLDC+
-28V
FLDC-
V+3E
IR
STB
DO (F to M)
DI (M to F)
CLK
DGND
0
0
3.3
USBP
USBN
PGND
VBUS
GND(SHIELD)
A10/AP
NC
CLK
VSS
DQ9
VSSQ
VDDQ
DQ13
DQ14
VSSQ
DQ15
A8
A7
A6
A5
VSS
A12
A13
LDQM
VDD
DQ7
VSSQ
VDDQ
DQ5
DQ6
DQ4
DQ3
VSSQ
DQ2
DQ1
VDDQ
DQ0
DVD MT PCB ASSY(2/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
(DV-420V-K:SXZT2)
CAUTION: DIGITAL TRANSISTOR
C4005
HY57V641620FTP-7
4Mbit(4M*16) 200MHz SDRAM IC
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
3
4
5
6
7
8
9
CP4004
A2001WV-5A
1
2
3
4
5
Q4003
KRC103SRTK
USB_P_ON-H
L4001
DLP11SN900HL2L
1
2
3
4
CP4002
FCZ100E-11SS-K
1
10
11
2
3
4
5
6
7
8
9
D4002
AVRL161A1R1NT
D4003
AVRL161A1R1NT
R4048
2.2K 1/16W
R4007
2.2K
1/16W
TP4050
TP4035
W844
W837
W848
W812
C4122 100P CH
C4133 100P CH
C4135 100P CH
C4134
33P CH
C4132
33P CH
C4115
1
B
C4123
0.1 B
C4114
1
B
C4120
0.1
B
C4053
0.1 B
C4085
0.1 B
C4142
100
10V
YK_P
YBACK.
WITH THE DIGITAL TESTER
TAGE EACH PART WAS
DQ7
DQ6
DQ5
3
+
V
4
Q
D
V+5V_USB
DQ3
USB_P_ON-H
DQ2
USB_P_ON-L
DQ1
DQ0
DQM0
DWE#
DCAS#
DRAS#
DCS#
FLDC-
V
8
2
-
0
A
B
D
FLDC+
DBA1
D_GND
E
3
+
V
0
1
A
M
IR
O
D
_
P
F
0
A
M
STB
I
D
_
P
F
1
A
M
FP_SCK
MA2
MA3
USBN
USBP
USB+5V
MATIC DIAGRAM
FROM/TO DISPLAY
DMJ124
PCB130
VSS
DQ12
DQ11
DQ10
VDDQ
DQ8
UDQM
CKE
NC
A9
A11
A0
A2
A1
A3
VDD
A4
3.3
1.5
3.3
1.5
1.5
0.0
1.5
1.5
3.3
1.5
1.5
0.0
1.5
3.3
2.0
3.3
3.3
3.3
3.3
3.3
1.0
0.0
1.7
1.7
1.7
1.7
3.3
WE#
CAS#
RAS#
CS#
VDD
DGND
FLDC+
-28V
FLDC-
V+3E
IR
STB
DO (F to M)
DI (M to F)
CLK
DGND
0
0
3.3
USBP
USBN
PGND
VBUS
GND(SHIELD)
A10/AP
NC
CLK
VSS
DQ9
VSSQ
VDDQ
DQ13
DQ14
VSSQ
DQ15
A8
A7
A6
A5
VSS
A12
A13
LDQM
VDD
DQ7
VSSQ
VDDQ
DQ5
DQ6
DQ4
DQ3
VSSQ
DQ2
DQ1
VDDQ
DQ0
DVD MT PCB ASSY(2/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
(DV-420V-K:SXZT2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
56
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.3 DVD MT PCB ASSY (3/7)
DANS LA NOMENCLATURE DES PIECES.
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
:LES PIECES REPAREES PAR UN
ETANT
ATTENTION
:SINCE THESE PARTS MARKED BY
CAUTION
DESCRIBED IN PARTS LIST ONLY.
CRITICAL FOR SAFETY,USE ONES
ARE
Q23
KTA1504S
LD DRIV f
Q23
KTA1504
LD DRIV fo
CP2302
FCZ100E-08SS-K
MOTOR(DM-5)
1
2
3
4
5
6
7
8
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
Q2306
UM6K1N
VR CTL
1
2
3
4
5
6
CP2301
04_6232_122_015_800+
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
3
4
5
6
7
8
9
R2312
8.2K 1/16W +-1%
R2313
10K1/16W+-1%
R2309
10K 1/16W
R2329_1
1
1/4W
(2125)
R2342
680K 1/16W
R2307
100K 1/16W
R2308
10K 1/16W
R2306
100K 1/16W
R2319
150K 1/16W
R2331
150K 1/16W
R2325
470 1/16W +-1%
JG2320
JG2321
JG2323
JG2329
TP
JG2330
TP
TP2330
TP2333
JG2305
JG2307
JG2304
JG2306
JG2308
JG2302
JG2310
JG2309
JG2311
JG2314
JG2312
JG2303
JG2315
JG2313
JG2317
JG2316
JG2319
JG2318
TP2325
TP2327
TP2328
TP2326
W802
C2323
0.1 B
C2322
0.0022 B
C2311
0.1
B
C2307
0.1 B
C2301
0.1 B
C2303
0.1 B
C2304_1
47
6.3V
KA_P
C2306
100
10V
YK_P
Q2301
KTC3875S_Y_RTK
VCR_CTL
DURING PL
MEASURED
NOTE:THE DC VO
IOA
V+5S
V+5S
E
V20
F
D
RF
A
B
IOA
C
MDI1
T-
T+
F-
F+
LOAD-
FMSO
TRSO
STBY
TRPWM
LOAD+
V+6A
TRIN
OPO
OP-
OP+
MOT_SLED+
MOT_SLED-
MOT_SPDL+
MOT_SPDL-
MOT_SLED+
MOT_SLED-
T-
T+
LOADER/MOTOR DRIVE SC
FROM/TO LOADER
NC
NC
NC
0.0
0.0
0.0
0.2
4.9
0.0
5.0
0.0
0.0
1S
1D
1G
2D
2S
2G
DV
C
Track
Sled
LD_CD(780)
LD_DVD(650)
GND
VR650(DVD)
VR780(CD)
VR COM
F
E
D
B
A
SW1(DVD/CD)
VRF(RF_OUT)
C
GND
VS
VCC
PD
TRKG DRV
TRKG RTN
FOCS RTN
FOCS DRV
SP1-
SP1+
SLD-
SLD+
LD+
LD-
SW(OPEN/CLOSE)
GND(D)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
57
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
Q2304
KTA1504S_Y_RTK
LD DRIV for CD
Q2305
KTA1504S_Y_RTK
LD DRIV for DVD
Q2302
KTA1504S_Y_RTK
LD DRIV for CD
Q2303
KTA1504S_Y_RTK
LD DRIV for DVD
IC2301
AM5766
MOTOR DRIVER
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
4
5
6
7
8
9
R2312
8.2K 1/16W +-1%
W
R2317
8.2K 1/16W +-1%
R2311
18K1/16W +-1%
R2325
470 1/16W +-1%
TP2332
TP2301
TP2331
TP2329
JG2329
TP2342
JG2330
TP2341
JG2301
C2312
0.1
B
C2305
0.1 B
C2325
100P CH
C2320
100
10V
YK_P
C2321
100
10V
YK_P
NR2301
4D03WGJ04R7T5E
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
IOA
V20
A
B
C
V+3F
D
E
F
MDI1
LDO2
LDO1
LDO1
IOA
V1P4
TRIN
STBY
DMSO
FMSO
TRCLOSE
TROPEN
TRSO
FOSO
LDO2
OPO
OP+
OP-
RF
TRPWM
V+3F
V+5S
V+6A
D_GND
M_GND
V1P4
FOSO
DMSO
TROPEN
TRCLOSE
MOT_SPDL-
MOT_SPDL+
LOAD+
LOAD-
F+
F-
FROM/TO MPEG/MICON/DSP
FROM/TO POWER PORT
DRIVE SCHEMATIC DIAGRAM
DMJ124
PCB130
Vcc1
VOTR-
VOTR+
VOSL+
VOSL-
VOFC-
VOFC+
REGO 1
VINSL+
REGO 2
TRB_1
VINFC
REV
FWD
VOTK-
VOTK+
VOLD+
VOLD-
VCTL
Vcc2
GND
VINLD
TRB_2
VINTK
BIAS
MUTE
PGND
PGND
OPOUT
OPIN
NC
NC
NC
Focus
Spindle
NC
NC
NC
3.3
0
3.3
0
3.3
3.3
3.1
5.2
5.2
3.1
0.2
0.2
RF33
DVD
CD
DVD MT PCB ASSY(3/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
58
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.4 DVD MT PCB ASSY (4/7)
C8012
47
16V
NA_P
C8011
47
16V
NA_P
Q8012
KTA1504S_Y_RTK
MUTE CTL
Q8002_1
KRC407-RTK/P
MUTE CTL for ME
R8028
4.7K
1/16W
R8004
33 1/16W
R8020
2.2K 1/16W
R8038
330 1/16W
R80
470K 1
R80
10K 1/1
R8065
22K
1/16W
R804
10K1/16W
R804
470K 1/16
R8098
22K 1/16
C8054
1 B
DUR
MEA
NOTE:THE
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
MID_SPDIF
XAMUTE
ASPDIF
V+5
V+12
V+3F
D_GND
AUDIO_L
AUDIO_R
GND
V+3F
XAMUTE
AL
AR
0
0
0
AUDIO/JACK SCH
FROM/TO POWER PORT
FROM/TO MPEG/MICON/RF-AMP
FROM/TO VIDEO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
59
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
CAUTION: DIGITAL TRANSISTOR
H1
H2
E
J8001
RCA-207B(CUSN)-02
L/R
1
2
3
H
E
J8003
RCA-125-01
COAXIAL for ME
1
2
C8012
47
16V
NA_P
C8011
47
16V
NA_P
R8089
68 1/16W
R8097
100K
1/16W
R8016
2.4K 1/16W
R8086
220
1/16W
R8084
3.9K 1/16W
R8083
1.8K
1/16W
R8082
220 1/16W +-1%
R8059
27K1/16W +-1%
R8061
10K 1/16W +-1%
R8085
1K 1/16W
R8096
220 1/16W +-1%
R8040
470K 1/16W
R8041
10K 1/16W +-1%
R8065
22K
1/16W
R8043
10K1/16W +-1%
R8042
470K 1/16W
R8099
220 1/16W+-1%
R8087
220 1/16W+-1%
R8088
1K 1/16W
R8090
1K 1/16W
R8091
1K 1/16W
R8080
220 1/16W+-1%
R8081
220 1/16W +-1%
R8066
22K 1/16W
R8075
22K 1/16W
R8063
10K1/16W+-1%
R8064
27K 1/16W+-1%
R8098
22K 1/16W
TP8019
TP8017
W868
C8074
1
B
C8042
100P CH
C8038
220P
CH
C8046
560P
CH
C8006
330P
CH
C8005
330P
CH
C8051
560P CH
C8062
68P CH
C8054
1 B
C8067
0.1
B
C8055
68P CH
IC8008 MC4580L
AUDIO LPF&
1
2
3
4
5
6
7
8
C8066_1
1
50V
KA_P
C8058
47
16V
YK_P
C8068
47
16V
YK_P
C8050
100
10V
YK_P
C8069
47
16V
YK_P
Q8025
KTC3875S_Y_RTK
COAXIAL DRIV
Q8021
2SD1306NE
MUTE SW
Q8023
2SD1306NE
MUTE SW
Q8019
2SD1306NE
MUTE SW
Q8024
2SD1306NE
MUTE SW
B8004
FCM1608K
F-102T02
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
V+5
MID_SPDIF
V+12
AUDIO_R
AUDIO_L
AR
11
5.0
2.8
2.1
/JACK SCHEMATIC DIAGRAM
L
R
6
0
0
-0.7
0
0
-0.7
0
0
-0.7
0
-0.7
0
7
+
-
-
+
+VS
-VS
0
5.7
5.7
5.7
12.2
5.7
5.7
5.7
DMJ124
PCB130
(YXZT52, SXZT2)
(YXZT52, SXZT2)
(YXZT52, SXZT2)
DVD MT PCB ASSY(4/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
(DV-420V-K:SXZT2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
60
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.5 DVD MT PCB ASSY (5/7) (YXZT52, SXZT2)
IC7301
LA73054
VIDEO DRIVER 6CH
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
31
32
33
34
35
36
4
5
6
7
8
9
Q7302
KRC103SRTK
P-H/I-L
R7315
1K 1/16W
R7306
68 1/16W
(W889)
TP7303
TP7302
C7309
1
B
C7334_1
1
B
C7313
0.1
B
C7302
0.1 B
C7317
0.1
B
C7304
0.1
B
C7307
1
B
C7306
1
B
C7308
1
B
C7305
1
B
C7319
100
10V
YK_P
C7312
100
10V
YK_P
DURING PLAYBACK.
MEASURED WITH THE DIGITAL T
NOTE:THE DC VOLTAGE EACH PART W
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
CVBS
SQUEEZE
LETTER
AUDIO_L
S_C
AUDIO_R
S_Y
SQUEEZE
VSEL1
LETTER
CVBS
S_C
S_Y
G/Y
G/Y
B/CB
R/CR
I/XP
VSEL1
B/CB
R/CR
I/XP
P-H/I-L
V+5
D_GND
V+6A
VSEL1
0
3.4
0
FROM/TO POWER PORT
FROM/TO AUDIO/JACK
FROM/TO MPEG/MICON/RF-AMP
NC
NC
NC
1.2
0
2.8
0
0
5
2.9
0
0
0
2
0
0
2
5
0
0
0
2.5
2.4
2.5
0
2.8
5
0
2.6
0
0
2.7
0
2.8
0
0
0
2.7
5
+5V
GND
(1D=H,2D=L)
(1D=H,2D=L)
DRIVE2
(ON=H,OFF=L)
(ON=H,OFF=L)
(9dB=H,6dB=L)
(P=H,I=L)
(RGB=H,YUV=L)
(MIX=H,OFF=L)
(9dB=H,6dB=L)
LPF
IN SW
AMP1
DRIVE1
VCC21
CVBS out
GND21
C out
C-DC out
GND22
Y1 out
GND23
GND24
Y2 out
VCC22
CB out
GND25
CR out
GND26
REG
GND12
CR in
AMP2
CB in
MUTE2
Y2 in
YC-MIX
Y1 in
GND11
C in
LE
SQ
MUTE1
CVBS in
VCC1
VIDEO SCHEMATIC DIA
(DV-420V-K:SXZT2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
61
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
D7314
KDR730E-RTK/P
H1
H2
E
H1
H2
E
J7302
RCA-405A(CUSN)-08
CVBS/Y/U/V
1
2
3
4
5
6
D7313
UDZSNP5.6B
D7310
UDZSNP6.8B
D7311
UDZSNP6.8B
D7312
UDZSNP6.8B
CP7301
IMSA-9604S-12C
VIDEO/AUDIO for 21PIN
1
10
11
12
2
3
4
5
6
7
8
9
IC7302
TC7MB3257FT
4CH BUS SW
1
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
Q7306
KRA102SRTK
RGB_H_DRV
CAUTION: DIGITAL TRANSISTOR
CAUTION: DIGITAL TRANSISTOR
Q7305
KRC103SRTK
RGB_H
R7303
75 1/10W +-1%
R7320
1.2K 1/16W
R7319
1.2K
1/16W
R7302
75 1/10W +-1%
R7305
75 1/10W +-1%
R7321
1.2K
1/16W
R7304
75
1/10W+-1%
TP7301
C7333
0.1
B
C7322
0.001
B
C7314
470
6.3V
YK_P
C7318
680
6.3V
PK_P
C7315
470
6.3V
YK_P
C7316
680
6.3V
PK_P
B7304
BLM18BD102SN1
B7305
BLM18BD102SN1
B7301
BLM18BD102SN1
ING PLAYBACK.
SURED WITH THE DIGITAL TESTER
DC VOLTAGE EACH PART WAS
V+3D
VSEL1
AUDIO_R
AUDIO_L
SQUEEZE
21PIN-G/D-Y
21PIN-B/D-U
21PIN-R/D-V
P-H/I-L_RGB-H
ASP/FS
DMJ124
PCB130
13
12
0
0
3.2
NC
RGB-H
R
B
G
GND
CVBS
AUDIO R
GND
AUDIO L
FS
GND
GND
3.3
3.3
1.8
2.4
2.6
1.3
2.5
2.5
2.4
2.4
1.3
5.0
0
0
GND
VCC
2B1
2B2
2A
1B2
1A
4B1
4B2
4A
3B1
3B2
3A
/OE
1B1
S
NC
NC
NC
EMATIC DIAGRAM
FROM/TO POWER
0
3.2
3.3
CVBS
ASP
15
14
CVBS
V
U
Y
DVD MT PCB ASSY (5/7)
(YXZT52,SXZT2:A2M901A130)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
62
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.6 DVD MT PCB ASSY (5/7) (UCXZTSM2)
DURING PLAYBAC
MEASURED WITH
NOTE:THE DC VOLTAGE
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
VIDEO SCHEMAT
IC7301
LA73054
VIDEO DRIVER 6CH IC
1
8
1
7
1
6
1
5
1
4
1
3
1
2
1
1
1
0
1
19
2
20 21 22 23 24 25 26 27 28 29
3
30
31
32
33
34
35
36
4 5 6 7 8 9
Q7302
KRC103SRTK
P-H/I-L
R7315
1K 1/16W
TP7303
TP7302
W877
W871
W873
W872
C7309
1
B
C7334_1
1
B
C7313
0.1
B
C7302
0.1
B
C7317
0.1
B
C7304
0.1
B
C7307
1
B
C7306
1
B
C7308
1
B
C7305
1
B
C7312
P
_
K
Y
V
0
1
0
0
1
C7319
P
_
K
Y
V
0
1
0
0
1
CVBS
SQUEEZE
LETTER
S_C
COAXIAL
S_Y
SQUEEZE
VSEL1
LETTER
CVBS
S_C
S_Y
G/Y
G/Y
B/CB
R/CR
I/XP
VSEL1
B/CB
R/CR
I/XP
P-H/I-L
V+5
D_GND
FROM/TO POWER PORT
FROM/TO AUDIO/JACK
FROM/TO MPEG/MICON/RF-AMP
1.2
0
2.8
0
0
5
2.9
0
0
0
2
0
0
2
5
0
0
0
2.5
2.4
2.5
0
2.8
5
0
2.6
0
0
2.7
0
2.8
0
0
0
2.7
5
0
(1D=H,2D=L)
(1D=H,2D=L)
DRIVE2
(ON=H,OFF=L)
(ON=H,OFF=L)
(9dB=H,6dB=L)
(P=H,I=L)
(RGB=H,YUV=L)
(MIX=H,OFF=L)
(9dB=H,6dB=L)
LPF
IN SW
AMP1
DRIVE1
VCC21
CVBS out
GND21
C out
C-DC out
GND22
Y1 out
GND23
GND24
Y2 out
VCC22
CB out
GND25
CR out
GND26
REG
GND12
CR in
AMP2
CB in
MUTE2
Y2 in
YC-MIX
Y1 in
GND11
C in
LE
SQ
MUTE1
CVBS in
VCC1
3.4
0
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
63
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
CAUTION: DIGITAL TRANSISTOR
CAUTION: DIGITAL TRANSISTOR
ACK.
H THE DIGITAL TESTER
E EACH PART WAS
DMJ124
PCB130
TIC DIAGRAM
DVD MT PCB ASSY (5/7)
(UCXZTSM2:A2M902A130)
2
H
1
H
E
2
H
1
H
E
J7302
RCA-405A(CUSN)-08
CVBS/Y/U/V
1
2
3
4
5
6
E
E
E
H
J7301_1
R102-D04AF(V)-06
2
1
)
S
A
,
S
U
(
E
M
r
o
f L
A
I
X
A
O
C
+
S
3
4
5
6
7
8
R7317
75 1/10W +-1%
R7316
75 1/10W
+-1%
R7301
10K 1/16W
R7305
75 1/10W +-1%
R7304
75 1/10W +-1%
R7303
75 1/10W+-1%
R7302
75 1/10W+-1%
TP7301
C7330
0.1 B
C7329
P
_
K
Y
V
3
.6
0
7
4
C7316
P
_
K
P
V
3
.6
0
8
6
C7314
P
_
K
Y
V
3
.6
0
7
4
C7315
P
_
K
Y
V
3
.6
0
7
4
C7318
P
_
K
P
V
3
.6
0
8
6
B7304
BLM18BD102SN1
B7305
BLM18BD102SN1
COAXIAL
16
ASP
S_Y
S_C
CVBS
13
12
15
14
CVBS
V
U
Y
17
Y
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
64
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.7 DVD MT PCB ASSY (6/7)
R5920
1.5K 1/16W
R5919
1.5K 1/16W
R5922
27K 1/16W
W855
W856
W861
W865
W863
C5910
100P CH
B5901
FCM1608KF-102T02
N
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
TX2+
TX2-
TX1+
TX1-
TX0+
V+3D
TX0-
V+5H
TX2+
TXC+
TX2-
TX1+
TXC-
TX1-
TX0+
TX0-
TXC+
V+5H
TXC-
HPD
HDMI_SCL
HDMI_SDA
HDMI_CEC
CEC_MONITOR
HDMI_SCL
D_GND
HDMI_SDA
A_GND
HPD
V+3D
HDMI_CEC
CEC_MONITOR
V+3D
A_GND
FROM/TO MPEG/MICON/DSP
V+5H
FROM/TO POWER PORT
HDMI SCHEMATIC DIAG
(UCXZTSM2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
65
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
CP5901
A111911-A-03-T
HDMI CONNECTOR
1
10
11
12
13
14
15
16
17
18
19
2
3
4
5
6
7
8
9
L5902
EXC28CG900U
1
2
3
4
5
6
7
8
L5901
EXC28CG900U
1
2
3
4
5
6
7
8
D5901
MA111
Q5906 UM6K1N
PROTECT
1
2
3
4
5
6
R5920
1.5K 1/16W
R5919
1.5K 1/16W
R5922
27K 1/16W
R5902
47 1/16W
W862
W840
W853
W864
W884
W825
C5908
100P CH
C5921
4.7
6.3V
(2125)
B
C5920
0.1
B
C5909
10P CH
C5901
0.01 B
C5925
100P CH
C5910
100P CH
B5901
FCM1608KF-102T02
S
D
G
Q5903
2SK3541_T2L
PROTECT
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
X2+
X2-
X1+
X1-
X0+
X0-
XC+
XC-
+5H
DMI_SCL
DMI_SDA
PD
+3D
DMI_CEC
C_MONITOR
+3D
MATIC DIAGRAM
DMJ124
PCB130
NC
TX2+
TX1+
TX1-
TX0+
TX0-
TXC-
TXC+
D2+
D2-S
D2-
D1+
D1-S
D0+
D0-S
D0-
CLK-S
CLK-
CEC
SCL
SDA
GND
POWER
HOTPLUG
NC
D1-
CLK+
TX2-
1S
1D
1G
2D
2S
2G
18
19
DVD MT PCB ASSY(6/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
66
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.8 DVD MT PCB ASSY (7/7)
DANS LA
N’UTILISE
DANGERE
:LES PIECE
ATTENTION
IC4006
RP131H181D5-T1-F
1.8V REG(0.9W/1A)
1
2
3
4
5
CP4003
A2001WV-13A
1
10
11
12
13
2
3
4
5
6
7
8
9
S
D
G
Q4005
KMA2D3P20S-RTK/P
+6V SW
Q4006
KRC102SRTK
P.CON SW
R4028
10K 1/16W
R4030
1M 1/16W
R4037
10K 1/16W
R4011
10 1/16W
R5901
10K 1/16W
TP4064
W8
W842(B
W845
C4086
1
B
C4078
0.1 B
C4092
10
10V
(2125)
B
C4094_1
100P
50V
CH
C4095_1
100P
50V
CH
C4097_1
100P
50V
CH
C4099
0.001 B
C4098
1
B
C5922
C4096
10
10V
(2125)
B
C4112
0.001
B
C4093
1
B
C4056
0.01 B
C4119
100PCH
C4100
470
6.3V
YK_P
B4
FCM1608
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
FROM/TO POWER
P.CON+12V
GND
GND
P.CON+5V
FL DC-
FL DC+
AT+3.3V
GND(M)
GND(D)
AT+3.3V
-28V
P.ON-H
AT/P.CON+6V
0
6.3
6.3
2.8
0
0
NC
GND
CE
VDD
VOUT
0
3.3
3.3
1.8
POWER PORT SCHEMAT
+3.3V
(DV-420V-K:SXZT2)
(DV-420V-K:SXZT2)
(DV-420V-K
SXZ
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
67
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
DANS LA NOMENCLATURE DES PIECES.
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
:LES PIECES REPAREES PAR UN
ETANT
TENTION
:SINCE THESE PARTS MARKED BY
CAUTION
DESCRIBED IN PARTS LIST ONLY.
CRITICAL FOR SAFETY,USE ONES
ARE
IC4009
RP131H501D-T1-F
VBUS REG(0.9W/1A)
1
2
3
4
5
IC5902_1
NJM2882F05
HDMI+5V REG(150mA) IC
1
2
3
4
5
CAUTION: DIGITAL TRANSISTOR
R5921
10K 1/16W
R4052
47K 1/16W
R5901
10K 1/16W
R4036
100K 1/16W
R4032
430
1/16W
+-1%
R4033
1.5K
1/16W
+-1%
TP4037
W821
W841(B4008)
W842(B4009)
W822
W839
W832
W860
C5924
0.1
25V
B
C4140
4.7
6.3V
(2125)
B
C4125
0.1
B
C4139
2.2
10V
B
C5923
0.01
50V
B
C5922
0.1
25V
B
C4124
1 B
Q4001
KTC3875S_Y_RTK
ADACVDD REG
B4002
FCM1608KF-102T02
B4001
FCM1608KF-102T02
V+3A
V+5
V+5
V+12
D_GND
V+3F
V+5S
V+5S
V+3F
V+3F
V+6A
V+6A
M_GND
D_GND
V+5H
V+5H
V+3IDAC
ADAC_GND
V+3H
V+3H
DVDD18
DVDD18
USB_FLAG
V+3
V+3
V+3E
V+3E
V+1R8
V+1R8
V+5V_USB
PWDN#
FLDC-
FLDC+
-28V
D_GND
USB_P_ON-H
D_GND
FROM/TO AUDIO/VIDEO/JACK
VBUS
FRROM/TO MEMORY
FROM/TO MPEG/MICON/DSP
FROM/TO HDMI
FROM/TO LOADER/MOTOR DRIVE
SCHEMATIC DIAGRAM
DMJ124
PCB130
(FIP/LED/IR)
(MPEG/SDRAM/FLASH/RESET)
(CORE)
4.7
NC
GND
CE
VDD
VOUT
6.0
0
(HDMI)
(HDMI)
5.0
0
5.0
VOUT
GND
VIN
CTL
NB
(AUDIO AMP)
(OPU)
5.0
3.9
3.3
(VIDEO/OPT/COAX)
(MOTOR)
(F/E)
V+12
DVD MT PCB ASSY (7/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
C5906_1
B
V
0
5
1
0.0
(UCXZTSM2)
(DV-420V-K:
SXZT2)
(DV-420V-K:
SXZT2)
FROM/TO VIDEO
(UCXZTSM2)
V+5
D_GND
DANS LA NOMENCLATURE DES PIECES.
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
:LES PIECES REPAREES PAR UN
ETANT
TENTION
:SINCE THESE PARTS MARKED BY
CAUTION
DESCRIBED IN PARTS LIST ONLY.
CRITICAL FOR SAFETY,USE ONES
ARE
IC4009
RP131H501D-T1-F
VBUS REG(0.9W/1A)
1
2
3
4
5
IC5902_1
NJM2882F05
HDMI+5V REG(150mA) IC
1
2
3
4
5
CAUTION: DIGITAL TRANSISTOR
R5921
10K 1/16W
R4052
47K 1/16W
R5901
10K 1/16W
R4036
100K 1/16W
R4032
430
1/16W
+-1%
R4033
1.5K
1/16W
+-1%
TP4037
W821
W841(B4008)
W842(B4009)
W822
W839
W832
W860
C5924
0.1
25V
B
C4140
4.7
6.3V
(2125)
B
C4125
0.1
B
C4139
2.2
10V
B
C5923
0.01
50V
B
C5922
0.1
25V
B
C4124
1 B
Q4001
KTC3875S_Y_RTK
ADACVDD REG
B4002
FCM1608KF-102T02
B4001
FCM1608KF-102T02
V+3A
V+5
V+5
V+12
D_GND
V+3F
V+5S
V+5S
V+3F
V+3F
V+6A
V+6A
M_GND
D_GND
V+5H
V+5H
V+3IDAC
ADAC_GND
V+3H
V+3H
DVDD18
DVDD18
USB_FLAG
V+3
V+3
V+3E
V+3E
V+1R8
V+1R8
V+5V_USB
PWDN#
FLDC-
FLDC+
-28V
D_GND
USB_P_ON-H
D_GND
FROM/TO AUDIO/VIDEO/JACK
VBUS
FRROM/TO MEMORY
FROM/TO MPEG/MICON/DSP
FROM/TO HDMI
FROM/TO LOADER/MOTOR DRIVE
SCHEMATIC DIAGRAM
DMJ124
PCB130
(FIP/LED/IR)
(MPEG/SDRAM/FLASH/RESET)
(CORE)
4.7
NC
GND
CE
VDD
VOUT
6.0
0
(HDMI)
(HDMI)
5.0
0
5.0
VOUT
GND
VIN
CTL
NB
(AUDIO AMP)
(OPU)
5.0
3.9
3.3
(VIDEO/OPT/COAX)
(MOTOR)
(F/E)
V+12
DVD MT PCB ASSY (7/7)
(YXZT52,SXZT2 :A2M901A130)
(UCXZTSM2
:A2M902A130)
C5906_1
B
V
0
5
1
0.0
(UCXZTSM2)
(DV-420V-K:
SXZT2)
(DV-420V-K:
SXZT2)
FROM/TO VIDEO
(UCXZTSM2)
V+5
D_GND
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
68
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.9 OPERATION PCB ASSY
IC651
PT6315
FIP DRIVER IC
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
SW652
EVQ11L05R
DOWN
SW658
EVQ11L05R
TOPMENU
SW656
EVQ11L05R
MENU
SW655
EVQ11L05R
RETURN
SW667
EVQ11L05R
POWER
SW665
EVQ11L05R
PAUSE
SW663
EVQ11L05R
PLAY
SW660
EVQ11L05R
STOP
SW664
EVQ11L05R
-SKIP
SW662
EVQ11L05R
+SKIP
SW653
EVQ11L05R
ENTER
SW654
EVQ11L05R
RIGHT
SW657
EVQ11L05R
UP
SW659
EVQ11L05R
LEFT
SW661
EVQ11L05R
HOMEMENU
SW666
EVQ11L05R
EJECT
V651
HNV-08SS84
1
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
31
32
Vout
B+
GND
OS651
KSM-2001TC2P
1
2
3
D660
LTL-1CHEE-002A
HDMI LED(RED)
CP603
B2013H02-3P
1
2
3
CP604
B2013H02-3P
1
2
3
D651
1SS133
D654
1SS133
D656
1SS133
D652
1SS133
D655
1SS133
D657
1SS133
D659
1SS133
D658
1SS133
R664
330
1/4W
R666
47
1/4W
TP662
C675
1
10V
B
C613
1
10V
B
C658
C676
C651
0.1
25V
B
C653
47
6.3V
KA_P
C674
47
6.3V
KA_P
DURING PLAYBACK.
MEASURED WITH THE DIG
NOTE:THE DC VOLTAGE EACH P
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
IR
V+3E
P16
P15
P14
P13
P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
GR8
GR7
SW2
SW1
P8
P9
P10
P11
P12
P13
P14
P15
P16
P7
P6
P5
P4
P3
P2
P1
GR8
GR7
GR6
GR5
GR4
GR3
GR2
GR1
LED
IR
V+3E
SW1
SW2
DISPLAY SCHEMATIC D
-25.1
-25.1
-20.5
-26.8
-26.8
-26.8
-20.5
-20.5
-22.7
-20.5
-20.5
-22.7
-26.8
-26.8
-20.5
-22.7
-22.7
-26.8
-19.7
-19.7
FL+
FL+
P16
P15
P14
P13
P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
G8
G7
POWER
SW2
GND
POWER
SW2
GND
(OPERATION2 PCB)
STB
12
VDD
23
-12.0
-6.0
-18.0
0
-19.0 -15.6
-19.0
-9.5
-13.0
-9.5
-12.6
-13.0
-6.0
LED1
LED2
LED4
CLK
34
VDD
44
NC
NC
NC
-18.0
-18.0
-18.0
-18.0
-18.0
-18.0
-18.0
-18.0
-16.0 -16.0 -16.0 -16.0
0
0.6
1
-
K2
K1
DI
DO
OSC
GND
P16
P15
P14
P13
P12
P11
P10
P9
P8
P7
P6
GR12
P5
P4
P3
P2
P1
-28V
GR10
GR11
GR9
GR8
GR7
GR6
GR5
GR4
GR3
GR2
GR1
GND
LED3
-16.0
-18.0
-18.0
3.3
3.3
NC
PCB280
DEH157
-18.0 NC
CHIP
TITLE
PRG
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
69
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
1
10
11
12
13
14
15
6
2
3
4
0
41
42
43
44
5
6
7
8
9
SW668
EVQ11L05R
USB
1
10
11
12
13
14
15
16
17
18
9
2
5
6
7
8
9
CP602
C-001-1-4K221400
USB CONNECTOR
1
2
3
4
CD601
2H0B1202
FFC(1.0mm pitch)
CD605
EH251302
SHIELD CABLE
D668
1SS133
MS1_1
D665
1SS133
CP605
A2001WR-5A
1
2
3
4
5
CP601
00_6232_011_102_800+
1
10
11
2
3
4
5
6
7
8
9
R654
2.2
1/16W
R657
10K
1/16W
R656
1K
1/16W
R658
10K
1/16W
R662
100K 1/16W
R655
1K 1/16W
TP662
W803
W806
(W802)
W804
C607
10
10V
B
C611
47P
50V
CH
C610
47P
50V
CH
C675
1
10V
B
C654
0.01
50V
B
C601
1
10V
B
C608
1
10V
B
C658
0.1
50V
B
C676
0.1
25V
B
C604
33P
50V
CH
C605
1
10V
B
C653
47
6.3V
KA_P
B603
BLM18BD221SN1D
B602
HCB2012K-600T25
(60 OHM 2.5A)
B601
HCB2012K-600T25
(60 OHM 2.5A)
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
THE DC VOLTAGE EACH PART WAS
FLDC-
FLDC+
P6
P5
P4
P3
P2
P1
GR8
GR7
GR6
GR5
GR4
GR3
GR2
GR1
SW2
-28V
SW1
P15
P16
STB
FP_SCK
FP_DI
FP_DO
FP_SCK
FP_DI
STB
FP_DO
IR
V+3E
GR2
GR1
LED
FLDC+
-28V
FLDC-
V+3E
GND
HEMATIC DIAGRAM
PCB270
DEH156
FROM/TO MPEG/MICON/RF-AMP
-25.1
-25.1
-25.1
-25.1
-25.1
-25.1
-25.1
-25.1
-20.5
-26.8
-26.8
-26.8
-20.5
-20.5
-22.3
-22.3
FL-
FL-
P7
P6
P5
P4
P3
P2
P1
G8
G7
G6
G5
G4
G3
G2
G1
+5V
GND
USB_DN
USB_DP
STB
12
VDD
3.2
0
0
0
-19.0 -15.6
LED1
LED2
LED4
CLK
VDD
44
-16.0 -16.0
0
0
2.9
3.2
0.7
3.4
NC
K2
K1
DI
DO
OSC
GND
P16
P15
P14
GR3
GR2
GR1
GND
LED3
0
0
0
NC
NC
NC
3.3
3.3
30
USBP
USBN
PGND
VBUS
GND(SHIELD)
DGND
FLDC+
-28V
FLDC-
V+3E
IR
STB
DO (F to M)
CLK
DGND
DI (M to F)
REMAIN
PRGSVE
D663
MA111
MS0_0
D667
1SS133
MS1_0
(SXZT2)
D669
1SS133
MS1_2
(YXZT52)
OPERATION PCB ASSY
(YXZT52
:A2M901A270)
(SXZT2
:A2M905A270)
(UCXZTSM2 :A2M902A270)
(UCXZTSM2)
(SXZT2,
UCXZTSM2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
70
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.10 POWER PCB ASSY (1/2)
C510_1
47
400V
WXA
C523
C521
L501
JLB20124
COIL,LINE FILTER
1
2
3
4
IC504
PS2561AL1-1-V(W)
PHOTO COUPLER IC
1
2
3
4
1.6A 250V
REPLACE ONLY WITH THE SAME TYPE FUSE
:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
CAUTION
N’UTILISER QUE DES FUSIBLE DE MEME TYPE
:POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE
ATTENTION
IC501
KIA431A-AT
VOLTAGE CTL
1
2
3
1.6A 125V
J501
CCT2302-1302FC
AC INLET
1
2
T501
81291494
10
11
12
13
14
15
16
2
3
4
6
7
9
8
CD501_2
06158802
AC220V-240V_50Hz/60Hz(EU)
SH501
YQ-12
IC502
MIP2K4
POWER CTL IC
1
2
3
4
5
7
8
R505
100K 1W
F501
392_1160_0440
1.6A(T) 250V
D509
1H3-A2
D503
1N4006-A5
D505
1N4006-A5
D502
1N4006-A5
D504
1N4006-A5
D507
RL106F-E
D512
1N4937-F
D527
SR240-F
D519
1N4937-F
D515
1S40-E
D510
1N4937-F
D508
1H3-E
D517
1SS133
D501
MTZJ30B
D511
MTZJ30B
D516
MTZJ2.2B
D506
MTZJ30B
R501
1.5M 1W
(RCR)
R503
15K
1/16W
R518
3.3K 1/16W
+-1%
R517
1.2K
1/16W
+-1%
R516
10
1/16W
R513
3.3K
1/16W
R514
560 1/4W
R515
1K 1/16W
R502
270K 1/16W
R504
68 1/4W
C519
220P
2KV
C509
0.0022
250V
(KX)
E
C513
47P
2KV
SL
C515
0.01
400V
PP
C502
0.22
275V
ECQUL
C507
0.1
50V
B
C505
0.0022
50V
B
C504
0.1
50V
B
C503
0.1
B
C529
220P
2KV
R
C508
0.001
50V
B
C511
4.7
50V
YK_P
C522
B501
W4BRH3.5X6X1.0X2
DURING PLAYBACK.
MEASURED WITH THE DIGITAL
NOTE:THE DC VOLTAGE EACH PART
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
POWER SCHEMATIC DIAGRAM
PAL/NTSC
1.6A 125V{F501}
1.6A 125V{F501}
PRI
SEC
14.5
0
0
298
Vdd
FB
CL
Vcc
D
S
S
2.45
6.44
2.55
GND
OUT
IN
9.9
0
3.9
10.9
NC
NC
N
L
CP501
A3963WV2-3PD
CONNECTOR
1
2
1
2
BLADE
WIDE
BLACK
WHITE
CD5010Q618902
AC120V_60Hz(US)
NTSC
L
N
BLACK(L)
WHITE(N)
(UCXZTSM2)
(YXZT52, SXZT2)
C510
A
X
W
V
0
5
3
7
4
(UCXZTSM2)
(YXZT52, SXZT2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
71
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
L505
22uH
C527
330
16V
ZL_P
C523
470
25V
YK_P
C526
470
6.3V
YK_P
C521
120
16V
ZL_P
CD502
EH2D3102
CORD CONNECTOR
CD6003
PD03120010C
*TM601
BT601
R6P(AR)2P_WO_GM_PET_EU
UM-4
R510
3.9 1W
R529
120
1W
R511
39 1/4W
DANS LA NOMENCLATURE DES PIECES.
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
:LES PIECES REPAREES PAR UN
ETANT
ATTENTION
:SINCE THESE PARTS MARKED BY
CAUTION
DESCRIBED IN PARTS LIST ONLY.
CRITICAL FOR SAFETY,USE ONES
ARE
CP502
A2001WV-13A
1
10
11
12
13
2
3
4
5
6
7
8
9
D509
1H3-A2
D512
1N4937-F
D527
SR240-F
D519
1N4937-F
D515
1S40-E
D510
1N4937-F
D535
MTZJ5.1B
D531
MTZJ27B
D536
MTZJ3.0B
D533
MTZJ2.2B
Q503
KTA1504S_Y_RTK
-28V CTL
Q510
KTA1281-Y(GP)
P.CON+12V SW
Q504 KTA1281-Y(GP)
FL+ P.CONSW
Q513
KTA1504S_Y_RTK
FL+ CTL
R512
1M
1/16W
R542
470
1/16W
+-1%
R509
1K 1/4W
R540
680 1/16W
R543
4.7K 1/16W
+-1%
R541
5.6K
1/16W
+-1%
R524
4.7K
1/16W
R518
3.3K 1/16W
+-1%
R517
1.2K
1/16W
+-1%
R516
10
1/16W
R521
10K 1/16W
R528
22K
1/4W
R531
10K
1/16W
4
/4W
R530
560
1/4W
R548
1K 1/16W
R544
10K
1/16W
R534
100 1/4W
R537
1K
1/16W
R536
10K 1/16W
R520
150K
1/16W
R519
1M
1/16W
R523
820 1/16W
R522
4.7K
1/16W
W803
W817
W805
C541
0.01 B
C519
220P
2KV
R
*C531
1
10V
(1608)
B
C529
220P
2KV
R
*IC503
BD00HC0WEFJ-E2
+5V REG(min800mA,min0.9w)
1
2
3
4
5
6
7
8
C535
220
16V
YK_P
C522
1000
6.3V
ZL_P
C520
47
50V
YK_P
C528
2.2
50V
KA_P
C517_1
220
10V
YK_P
Q509
KTC3875S_Y_RTK
REG+12V CTL
Q511
KTC3875S_Y_RTK
REG+12V CTL
Q502 KTC3209-Y(GP)
-28V P.CON SW
Q512
KTC3875S_Y_RTK
FL+ CTL
RING PLAYBACK.
ASURED WITH THE DIGITAL TESTER
DC VOLTAGE EACH PART WAS
GND
P.CON+12V
GND
A_GND
P.CON+D5V
M
FROM/TO POWER PORT
FROM/TO 21PIN/D-TERMINAL/DIGITAL
12.3
4.5
5.0
4.5
12.9
5.1
DPJ024
PCB240
(CP4003)
6.8
0.6
0
NC
NC
NC
NC
12.6
12.3
12.9
19.0
19.7
19.0
28.4
28.4
27.8
0.6
0
20.7
20.8
21.5
21.6
ACCESSORY
P.CON+12V
GND
AT/P.CON+6V
GND
P.CON+5V
FL DC-
FL DC+
AT+3.3V
GND(M)
GND(D)
AT+3.3V
-28V
P.ON-H
3.2
0
VIN
FB
NC
GND
VOUT
EN
NC
NC
POWER PCB ASSY (1/2)
(YXZT52,SXZT2 :A2M901A240)
(UCXZTSM2
:A2M902A240)
!
The mark found on some component parts should
be replaced with same parts (safety regulation
authorized) of identical designation.
DV-420V-S/SZXT2
DV-420V-K/SZXT2
*IC503
I1ZF9050D0(R1190H050D-T1-F) I07F000HC0(BD00HC0WEFJ-E2)
*C531
CS7RB0NQ6K(4.7 uF 10V B)
CS0PB0N16K(1 uF 10V B)
(DV-420V-K:SZXT2)
* The parts except mark cannot be changed.
On that occasion, replace whole Assy.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
72
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.11 POWER PCB ASSY (2/2) (YXZT52, SXZT2)
CD7301
2H0C3002
FFC(1.25mm pitch)
D8101
1SS133
D8103
MTZJ6.8B
D8104
MTZJ6.8B
D8105
MTZJ6.8B
CP8103
IMSA-9604S-12C
A/V for 21PIN
1
10
11
12
2
3
4
5
6
7
8
9
Q8102
KTA1504S_Y_RTK
21PIN CTL DRV
R8104
6.8K
1/16W
R8105
390
1/4W
R8101
4.7K 1/16W
R8108
8.2K
1/16W
R8103
470
1/4W
R8102
56K 1/16W
R8120
1 1/4W
R81
68 1/1
C8105
0.1
B
C8113
470
6.3V
YK_
Q8101
KTC3875S_Y_RTK
21PIN CTL IN
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
P.CON+12V
G/Y_VIDEO
B/U_VIDEO
R/V_VIDEO
P-H/I-L_RGB-H
ASP/FS
CVBS/C_VIDEO
AMP_A_OUT_L
AMP_A_OUT_R
A_GND
FROM/TO POWER
21PIN/D-TERMINAL/DIGITA
(CP7301)
FROM/TO VIDEO JACK
11.4
0
0
11.4
12.1
12.1
GND
AUDIO L
GND
AUDIO R
RGB-H
CVBS
FS
G
B
R
GND
GND
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
73
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
J8101
RGB-62
21PIN CONNECTOR
1
10
11
12
13
14
15
16
17
18
19
2
20
21
3
4
5
6
7
8
9
L8101
10uH 0405
R8114
220 1/10W +-1%
R8115
220 1/10W +-1%
R8110
68 1/10W +-1%
R8112
68 1/10W +-1%
R8113
75 1/10W +-1%
R8111
68 1/10W +-1%
R8109
68 1/10W +-1%
C8116
33PCH
C8107
0.001 B
C8111
0.001 B
C8113
470
6.3V
YK_P
C8112
1000
6.3V
YK_P
C8114
470
6.3V
YK_P
C8115
1000
6.3V
YK_P
DURING PLAYBACK.
MEASURED WITH THE DIGITAL TESTER
NOTE:THE DC VOLTAGE EACH PART WAS
21PIN_R
21PIN_L
21PIN_CTL
G/Y_VIDEO_OUT
B/U_VIDEO_OUT
R/V_VIDEO_OUT
BLANKING_OUT
CVBS_VIDEO_OUT
AL/DIGITAL SCHEMATIC DIAGRAM
DPJ024
PCB240
21
22
23
24
NC
NC
NC
NC
NC
25
26
POWER PCB ASSY (2/2)
(YXZT52,SXZT2 :A2M901A240)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
74
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
10.12 WAVEFORMS
MPEG/MICON/DSP
VIDEO JACK
500µs
10µs
200mV
200mV
1
12
2ns
10µs
1.0V
500mV
2
13
200ns
20µs
1.0V
500mV
3
14
AUDIO JACK
500µs
20µs
1.0V
500mV
9
15
500µs
1µs
1.0V
500mV
10
30
200ns
500mV
11
NOTE : The following waveforms were measured at
the point of the corresponding balloon
number in the schematic diagram.
DVD MT PCB ASSY
OPERATION PCB ASSY
DISPLAY
0
2 µs
V
m
0
0
5
16
10µs
V
m
0
0
5
17
(UCXZTSM2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
75
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
20μs
500mV
23
20μs
500mV
24
200μs
1.0V
25
200μs
1.0V
26
21PIN/D-TERMINAL/DIGITAL
20μs
500mV
21
20μs
500mV
22
POWER PCB ASSY
(YXZT52, SXZT2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
76
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
11. PCB CONNECTION DIAGRAM
11.1 DVD MT PCB ASSY
1
65
129
193
R5919
R5920
IC4005
IC4002
NR4002
C4069
R4082
R4083
R4071
R4070
C4050
C4123
IC4004
NR4001
R4035
C4135
C4098
B4002
B4001
C4056
C5922
R5901
W815
R4018
R4019
R4017
R4015
R4016
C4032
C4031
C4042
C4044
C4047
R4024
R4025
R4027
B4007
R7320
R7319
IC7301
C7314
C7315
J7302
CP7301
B7305
C7319
C7312
C7304
J8003
R8081
Q8023
R8085
R8090
R8088
R8091
R8080
Q8024
J8001
C8066_1
R8016
C4119
C4103
R4032
R4033
C4124
C4125
R4036
Q2303
Q2305
C2321
C2320
R2306
R2307
R2319
R2331
R2342
C2322
C2323
C2312
R2317
W802
R2325
C2306
IC4001
W855
D7313
C4117
C4024
C4063
C4062
W839
W861
R4059
Q2306
C4142
R4007
C4134
B5901
W830
L5901
L5902
B4010
R7302
R7303
C5925
R2329_1
C4102
C4003
C4002
C4001
C4007
C4038
Q5903
W825
R5902
W884
W841
W842
W823
Q7305
Q7306
W845
C7309
C7308
C7307
C7306
IC7302
D7314
C5908
R7306
C5909
CP4003
C8068
Q8012
R8038
IC8008
C8058
C8069
C8067
C8050
R8061
C8062
R8059
C8046
C8055
Q8002_1
R8020
C4099
C4112
R5921
C5924
IC5902_1
IC4006
C4092
R4011
C4011
C4023
C4100
X4001
Q4001
NR2301
R2308
CP2302
CP5901
IC4009
C4140
C4139
W860
IC2301
C2311
C2307
C2305
R2311
CP4004
L4001
D4002
D4003
CP4002
R4051
C7316
C7318
C8038
C2325
D5901
C5910
R5922
R8098
Q4008
R4073
R4060
R4072
C4091
R4062
CP2301
C2304_1
Q4005
R4037
R4030
R4028
C4078
C8011
C8012
C4060_1
C4132
DVD MT PCB ASSY
MOTOR
POWER
AV
MICON
DMJ124A
PAL/NTSC
3
G
A30C5
SIDE A
SIDE A
NOTE FOR PCB DIAGRAMS :
1. The parts mounted on this PCB include all
necessary parts for several destinations.
For further information for respective
destinations, be sure to check with the
schematic diagram.
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
2. View point of PCB diagrams.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
77
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
DVD MT PCB ASSY
C4071
C4080
C4081
C4082
C5921
C4088
C4068
C4072
C4073
C4101
C4120
C4053
C4064
R4001
C4055
C4051
R4014
R4004
C4022
C4040
C4025
R4044
C4021
R4054
C4029
R4039
C4036
W813
C4037
R4003
C4020
C4008
C4009
C4105
C4005
C4019
C4013
C4017
C4016
C4015
C4014
C4026
W816
R4020
C4027
C4028
C4033
R4022
C4034
C4035
C4041
C4043
C4049
C4048
C4046
C4061
R4069
R4068
C4084
C4065
R4006
R4008
C4110
C4066
C4067
D7312
D7311
R7321
D7310
B7301
C7317
C7302
C7313
R7315
C7305
R4067
C4083
R4066
C4074
R4065
R4064
R4061
R4002
R8097
C8042
C8006
R8099
R8075
R8087
R8082
Q8019
Q8021
C8005
R8096
R8084
B8004
Q8025
R8083
R8086
R8089
R4058
W822
W821
C4030
C4012
R8004
R4026
C2303
W868
W853
W856
R4009
C4128
W807
C5901
B4015
B4018
C4130
B4016
W864
W863
W862
C4131
W865
NR4003
R4034
Q7302
R4048
Q5906
C5920
R7304
R7305
W848
W851
W850
B7304
C4086
C4075
W858
W812
Q4002
C7333
Q4004
C7322
C4085
R8028
R8066
R8065
C8054
R8043
R8064
R8040
R8063
R8041
C8051
W809
C4093
C4096
C5923
R4057
W832
W804
Q2302
Q2304
Q2301
R2309
C2301
R2312
R2313
Q4003
W844
W837
C4114
C4122
C4115
C4133
R8042
W820
W840
Q4009
R4074
C4094_1
C4095_1
C4097_1
Q4006
C7334_1
R4052
C8074
R4005
W808
SIDE B
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
78
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
11.2 OPERATION PCB and LOADING MOTOR PCB ASSYS
SIDE A
SIDE A
SW667
D660
SW660
SW664
SW662
SW665
SW663
SW666
D659
D657
SW668
D656
D655
D654
D652
W017
D669
SW661
SW658
SW659
SW652
SW655
SW656
W001
D651
SW657
SW654
W005
W004
W016
W013
W012
W014
R664
W018
C674
C653
R666
W006
W011
W002
W019
W020
V651
CP601
W007
CP603
CP604
W023
CP602
OS651
SW653
CP605
W021
W022
D658
D665
W804
W003
OPERATION PCB ASSY
4
OPE2
4
NTSC
/PAL
DEH156A
DEH157A
PAL/
OPE
NTSC
G
A30C5
G
A30C5
LOADING MOTOR PCB ASSY
FEJ005A
SIDE A
SIDE A
SW667
D660
SW660
SW664
SW662
SW665
SW663
SW666
D659
D657
SW668
D656
D655
D654
D652
W017
D669
SW661
SW658
SW659
SW652
SW655
SW656
W001
D651
SW657
SW654
W005
W004
W016
W013
W012
W014
R664
W018
C674
C653
R666
W006
W011
W002
W019
W020
V651
CP601
W007
CP603
CP604
W023
CP602
OS651
SW653
CP605
W021
W022
D658
D665
W804
W003
OPERATION PCB ASSY
4
OPE2
4
NTSC
/PAL
DEH156A
DEH157A
PAL/
OPE
NTSC
G
A30C5
G
A30C5
LOADING MOTOR PCB ASSY
FEJ005A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
79
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
SIDE B
SIDE B
OPERATION PCB ASSY
LOADING MOTOR PCB ASSY
C651
R658
C610
R656
IC651
C654
B601
C675
R654
C605
C613
C604
C676
C658
C601
C608
B602
R662
R655
C611
R657
B603
C607
W806
W803
23
34
1
12
SW01
CD2301
BLACK
RED
GREEN
YELLOW
BROWN
WHITE
FEJ005A
4
OPE2
4
NTSC
/PAL
DEH156A
DEH157A
PAL/
OPE
NTSC
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
80
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
11.3 POWER PCB ASSY
SIDE A
SIDE A
T501
SH501
IC501
D515
D527
C517_1
C522
D510
C523
C535
R511
C528
R528
R534
D8105
L8101
D8101
R8103
R8105
C8112
D8103
C8113
D8104
C8114
W015
C8115
R8120
L505
C526
W004
W008
R530
D536
D535
D531
Q504
C511
IC504
R505
D503
D505
D502
D504
IC502
D519
D512
C520
D509
B501
C513
C515
CP502
C527
W012
Q502
C510_1
Q510
R504
W803
R510
R529
D517
D516
D511
C502
C529
W016
C519
R501
D507
D508
C521
D506
D501
R514
W018
W010
W817
W003
R509
CP8103
W006
W007
W009
D533
F501
J501
L501
C509
W013
J8101
W805
POWER PCB ASSY
3
DPJ024A
PAL
G
A30C5
RISK
OF FIRE
- REPLACE
AS MARKED .
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
81
DV-420V-K
5
6
7
8
5
6
7
8
A
B
C
D
E
F
SIDE B
SIDE B
Q509
Q511
R540
R543
R542 R541
R8114
C8111
R8115
C8107
R8111 R8102
Q8102
Q8101
R8104
R8108
R8110
R8112
R8101
R8113
C8116
R536
Q503
R531
R548
R537
Q513
R544
Q512
R515
C503
R513
R518
R517
R520
C541
C8105
R8109
C504
R521
R519
R516
R512
C505
C507
C508
R503
R502
C531
IC503
R522
R523
R524
POWER PCB ASSY
3
DPJ024A
PAL
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
82
DV-420V-K
1
2
3
4
A
B
C
D
E
F
1
2
3
4
12. PCB PARTS LIST
5 6 2 1
1 R 0
R 5 0
5 6 1
4 7 3
NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
- The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
- When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47 k ohm (tolerance is shown by J = 5%,
and K = 10%).
560 Ω
→
56 × 101
→
561 ...................................................................RD1/4PU J
47 kΩ
→
47 × 103
→
473 ...................................................................RD1/4PU J
0.5 Ω
→
R50 .................................................................................................RN2H K
1 Ω
→
1R0 .................................................................................................RS1P K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62 kΩ →
562 × 101 →
5621 .................................................................RN1/4PC F
Mark No. Description
Part No.
LIST OF ASSEMBLIES
1..DVD MT PCB ASSY(YXZT52,SXZT2)
A2M901A130
1..DVD MT PCB ASSY(UCXZTSM2)
A2M902A130
1..OPERATION PCB ASSY (YXZT52)(*1)
A2M901A270
1..OPERATION PCB ASSY (SXZT2)(*1)
A2M905A270
1..OPERATION PCB ASSY (UCXZTSM2)(*1) A2M902A270
> 1..POWER PCB ASSY(YXZT52,SXZT2)(*2)
A2M901A240
> 1..POWER PCB ASSY(UCXZTSM2)(*2)
A2M902A240
1..DVD MECHA ASSY
A2M901A650
(*1) A2M901A270, A2M905A270 and A2M902A270 have same
service parts. But they are NOT COMPATIBLE.
(*2) A2M901A240 and A2M902A240 have same service parts.
But they are NOT COMPATIBLE.
Mark No. Description
Part No.
DVD MT PCB ASSY
SEMICONDUCTORS
IC 2301 IC AM5766
I1UFV5766S
IC 4001 IC S-24CS04AFJ-TB-GE
I5HJ0S04A0
IC 4002 IC MT1389FE/S-L
IC8K0389S0
IC 4004 IC EN29LV160BB-70TIP (YXZT52,SXZT2)
S2M901AF01
IC 4004 IC EN29LV160BB-70TIP (UCXZTSM2)
S2M902AF01
IC 4005 IC HY57V641620FTP-7
IGXJ01620F
IC 4006 IC RP131H181D5-T1-F
I1ZF981D50
IC 4009 IC RP131H501D-T1-F
I1ZF9501D0
IC 5902 IC NJM2882F05
I0QF928820
IC 7301 IC LA73054-TLM-E
I03FG30540
IC 7302 IC TC7MB3257FT (YXZT52,SXZT2)
I55F032570
IC 8008 IC MC4580L
IK5F045800
OTHERS
X 4001 CRYSTAL (27MHz)
1003T02733
OPERATION PCB ASSY
SEMICONDUCTORS
IC 651
IC PT6315
IF4K063150
SWITCHES
SW 652-668 TACT SWITCH
0504R01T38
OTHERS
V 651
TUBE FLUORESCENT
096F80R401
OS651
REMOTE RECEIVER
077Q040004
POWER PCB ASSY
RESISTORS
>
R 511
R,FUSE 39 OHM 1/4W
R65584390J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
