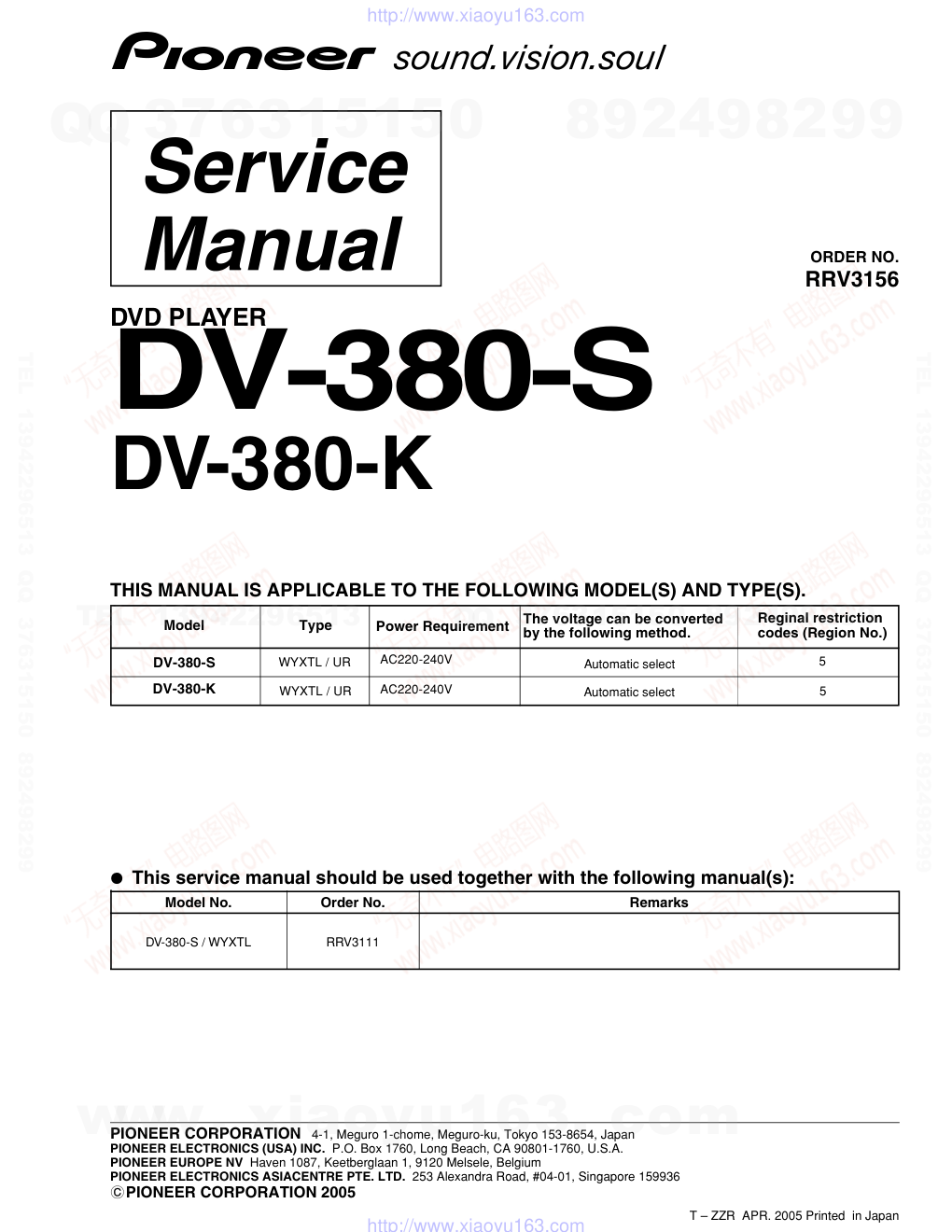

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3156 T – ZZR APR. 2005 Printed in Japan DVD PLAYER DV-380-S ¶ This service manual should be used together with the following manual(s): Model No. Order No. Remarks DV-380-S / WYXTL RRV3111 The voltage can be converted by the following method. Reginal restriction codes (Region No.) THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model DV-380-S Type Power Requirement WYXTL / UR AC220-240V DV-380-K AC220-240V Automatic select Automatic select 5 5 WYXTL / UR DV-380-K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E DV-380-S 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: DV-380-S / WYXTL DV-380-S / WYXTL/UR DV-380-K / WYXTL/UR CONTRAST TABLE DV-380-S/WYXTL, DV-380-S/WYXTL/UR and DV-380-K/WYXTL/UR are constructed the same except for the following: Part No. Remarks PACKING SECTION P7- 8 Operating Instructions(English,Italian) J2G50321A Not used Not used P7- 8 Operating Instructions(Russian) Not used J2G50601A J2G50601A P7- 9 Operating Instructions(German,French) J2G50322A Not used Not used P7-10 Operating Instructions(Spanish,Duch) J2G50323A Not used Not used P7-12 Polyethylen Bag JB5KD400 JB5KD200 JB5KD200 P7-15 Gift Box 793WCD1635 793WCDC719 793WCDC732 EXTERIOR SECTION P9- 5 DVD MECHA ASSY A2F101A650 A2G512A650 A2G512A650 P9-14 Cabinet, Top 702WSB0114 702WSB0114 702WSB0115 P9-24 Sheet, Jack 2 7226310058 7226310058 7226310070 P9-25 Sheet, Jack 3 7226310059 722631A005 722631A007 P9-101 Front, Cabi Assy 7A7010078A 7A7010078A 7A7010095A Ref. No. Mark Symbol and Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 DV-380-S RRV3111 DVD PLAYER DV-380-S DV-380-K THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Remarks DV-380-S WYXTL AC220-240V 2 DV-380-S WVXTL AC220-240V 2 DV-380-K WYXTL AC220-240V 2 For details, refer to "Important Check Points for Good Servicing" . T-ZZR MAR. 2005 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do- it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trainedto properly and safely repair complex products such as those covered by this manual.Improperly performed repairs can adversely affect the safety and reliability of the product and mayvoid the warranty. If you are not qualified to perform the repair of this product properly and safely, youshould not risk trying to do so and refer the repair to a qualified service technician. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 780 nm Additional Laser Caution ∗ : See page 51. 1. Laser Interlock Mechanism • Laser diode is driving with Q2303,Q2305(650nm LD) and Q2302, Q2304(780nm LD)on the DVD MT PCB Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) • In the test mode ∗ , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK (The following caution label appears on your unit.) Location: inside of the unit VORSICHT : SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG,WENNABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN ! CAUTION : VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. ADVARSEL : SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÀLING. VARO! : AVATTAESSA ALTISTUT NÄKYVÄ JA NÄKYMÄTTÖMÄLLE LASERSATEIL YLLE. ÄLÄ KATSO SÄTEESEN. VARNING : SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN. 7260000356 SH CUIDADO : RADIACIÓN LÁSER VISIBLE E INVISIBLE AL ESTAR ABIERTO. EVITAR EXPOSICIÓN AL RAYO. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFCATIONS ............................................................................................................................................. 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING SECTION .................................................................................................................................. 6 2.2 EXTERIOR SECTION................................................................................................................................ 8 2.3 05 DVD MECHA SECTION...................................................................................................................... 10 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 12 3.1 BLOCK DIAGRAM ................................................................................................................................... 12 3.2 OVERALL WIRING CONNECTION DIAGRAM........................................................................................ 14 3.3 DVD MT PCB ASSY (1/5) ........................................................................................................................ 16 3.4 DVD MT PCB ASSY(2/5) ......................................................................................................................... 18 3.5 DVD MT PCB ASSY(3/5) ......................................................................................................................... 20 3.6 DVD MT PCB ASSY(4/5) ......................................................................................................................... 22 3.7 DVD MT PCB ASSY(5/5) ......................................................................................................................... 24 3.8 OPERATION 1 and OPERATION 2 PCB ASSYS .................................................................................... 26 3.9 POWER PCB ASSY (1/2) ........................................................................................................................ 28 3.10 POWER PCB ASSY (2/2) ...................................................................................................................... 30 3.11 WAVE FORMS ....................................................................................................................................... 32 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 35 4.1 LOADING and SW PCB ASSYS.............................................................................................................. 35 4.2 DVD MT PCB ASSY................................................................................................................................. 36 4.3 OPERATION 1 and OPERATION 2 PCB ASSYS .................................................................................... 40 4.4 POWER PCB ASSY................................................................................................................................. 42 5. PCB PARTS LIST ........................................................................................................................................... 44 6. ADJUSTMENT ............................................................................................................................................... 50 6.1 WHEN REPLACING DVD DECK ............................................................................................................. 50 6.2 TEST MODE ............................................................................................................................................ 51 6.3 TEST MODE IN........................................................................................................................................ 52 6.4 DISC REMOVAL METHOD...................................................................................................................... 53 7. GENERAL INFORMATION............................................................................................................................. 54 7.1 DIAGNOSIS ............................................................................................................................................. 54 7.1.1 DISPLAY SPECIFICATION OF THE TEST MODE............................................................................ 54 7.1.2 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY ............................................................ 55 7.1.3 SPECIFICATION OF MODEL INFORMATION DISPLAY .................................................................. 56 7.1.4 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE ............................................................. 58 7.1.5 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY .................. 59 7.1.6 TROUBLE SHOOTING...................................................................................................................... 60 7.2 DISASSEMBLY ........................................................................................................................................ 63 7.3 DVD DECK SECTION.............................................................................................................................. 64 7.4 IC INFORMATION.................................................................................................................................... 68 7.5 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY ..................................................................... 78 8. PANEL FACILITIES ........................................................................................................................................ 80 8.1 FRONT PANEL SECTION ....................................................................................................................... 80 8.2 DISPLAY .................................................................................................................................................. 81 8.3 REMOTE CONTROL ............................................................................................................................... 82 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFCATIONS Specifications General System . . . . . . . . . . . . . . . . . . . . . . DVD player Power requirements . . AC 220–240 V, 50/60 Hz Power consumption . . . . . . . . . . . . . . . . . 7 W Power consumption (standby) . . . . . . 0.75 W Weight . . . . . . . . . . . . . . . . . . . . . . . . 1.7 kg Dimensions: DV-380 . . . . . 420 (W) x 49.5 (H) x 213.6 (D) mm Operating temperature . . . . . . . +5°C to +35°C Operating humidity . . . . . . . . . . . . . 5% to 85% (no condensation) AV connector output AV Connector (21-pin connector assignment) AV connector output . . . . . . . 21-pin connector This connector provides the video and audio signals for connection to a compatible colour TV or monitor. PIN no. 1 . . . . . . . . . . . . . . . . . . . . . . . Audio 2/R out 3. . . . . . . . . . . . . . . . . . . . . . . . . . Audio 1/L out 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B out 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Status 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G out 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R out 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND 19. . . . . . . . . . . . . . . . . . . . . . . . . . . Video out 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND Component video output Y (luminance) - Output level. . . 1 Vp-p (75 Ω ) PB (color) - Output level . . . . 0.7 Vp-p (75Ω ) PR (color) - Output level . . . . . 0.7 Vp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA S-video output Y (luminance) - Output level . . . 1 Vp-p (75Ω ) C (color) - Output level. . . . . 286 mVp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . S-video Video output Output level . . . . . . . . . . . . . . . 1 Vp-p (75Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA Audio output ( 1 stereo pair) Output level . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . 2 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA Digital audio characteristics Frequency response . . . . . . . . 4 Hz to 44 kHz (DVD fs: 96 kHz) S/N ratio . . . . . . . . . . . . . . . . . . . . . . . . . 115 dB Dynamic range . . . . . . . . . . . . . . . . . . . . 101 dB Total harmonic distortion . . . . . . . . . . 0.0023 % Wow and flutter . . . . . . Limit of measurement (±0.001% W. PEAK) or lower Digital output Coaxial digital output . . . . . . . . . . . . . RCA jack Accessories Audio/video cable. . . . . . . . . . . . . . . . . . . . . . . . 1 Power cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . 1 AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . 2 Warranty card. . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Operating Instructions The specifications and design of this product are subject to change without notice, due to improvement. Published by Pioneer Corporation. Copyright © 2005 Pioneer Corporation. All rights reserved www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING SECTION Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 15 14 3 4 14 3 For WVXTL type For WYXTL type 4 2 1 1 5 2 13 12 6 16 16 12 6 7 11 8-10 "Operating Instructions" Front www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 7 5 6 7 8 5 6 7 8 C D F A B E PACKING SECTION parts List (2) CONTRAST TABLE DV-380-S/WVXTL and DV-380-S,-K/WYXTL are constructed the same except for the following : Mark No. Description Part No. > 1 Cord set AC See Contrast table (2) 2 Cord, RCA Pin 06CPBA2006 3 Remote Control VXX2914 4 Battery Cover VNK4998 NSP 5 Battery,Mangan (AR, R6P) 141L003010 NSP 6 Guarntee Card J2G50202A 7 Operating Instructions(English) See Contrast table (2) 8 Instruction Book See Contrast table (2) 9 Instruction Book See Contrast table (2) 10 Instruction Book See Contrast table (2) 11 Package.Pad 792WHA0604 12 Polyethylene Bag,Instruction See Contrast table (2) 13 Gift Sheet 791WHA0108 14 Package See Contrast table (2) 15 Gift Box See Contrast table (2) NSP 16 Poly. Bag 791WHAA040 Mark No. Description Part No. Mark No. Symbol and Description DV-380-S/WVXTL DV-380-S/WYXTL DV-380-K/WYXTL > 1 Cord set AC 1206138802 1206158802 1206158802 7 Instruction Manual (English) J2G50101B Not used Not used 8 Instruction Book (English, Italian) Not used J2G50321A J2G50321A 9 Instruction Book (German, French) Not used J2G50322A J2G50322A 10 Instruction Book (Spanish, Duch) Not used J2G50323A J2G50323A 12 Polyethylene Bag, Instruction JB5KD200 JB5KD400 JB5KD400 14 Package 792WHA0597 792WHA0588 792WHA0588 15 Gift Box 793WCD1608 793WCD1635 793WCD1634 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION 101K 101C 101L 12 12 PCB130 (DVD PCB ASS'Y) 101E 101D 101H 101G 101J 101I 101B 101F 101A CONTACT SIDE NON-CONTACT SIDE A B C F 17 Refer to "2.3 05 DVD MECHA ASSY". " FRONT PANEL SECTION". 20 20 20 20 20 1 21 19 21 21 21 13 8 19 4 5 14 19 19 13 2 3 19 19 101 15 7 22 22 26 22 11 13 13 16 16 10 6 19 18 18 18 18 PCB240 (POWER PCB ASS'Y) 9 23 24 25 PCB280 (OPERATION 2 PCB ASS'Y) PCB270 (OPERATION 1 PCB ASS'Y) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List (2) CONTRAST TABLE DV-380-S/WVXTL, DV-380-S/WYXTL and DV-380-K/WYXTL are constructed the same except for the following : Mark No. Description Part No. 1 DVD MT PCB Assy A2G502A130 2 OPERATION 1 PCB Assy A2G502A270 3 OPERATION 2 PCB Assy A2G502A280 > 4 POWER PCB Assy A2G502A240 > 5 DVD MECHA ASSY A2F101A650 6 Shield,21Pin 761WSA0237 7 Plate. FIP 752WSA0466 8 Plate,Bottom 702WSA0243 > 9 Fuse (F501 : 1.6A) 080NT1R604 10 Sheet,Caution 7260000356 11 Plate,Cover power 755WPA0046 12 Holder,FFC 761WPA0396 13 Cushion,Leg VEB1349 14 Cabinet,Top See Contrast table (2) 15 POP Label 7236310006 16 Cushion (15x20x16) 8965TS1015 17 POP Label 7236310019 18 Screw,Tap Tite(S)-Bind Wash. 816423063U 19 Screw,Tap Tite(S) (3x5.5) 8107D3055U 20 Screw,Tap Tite(B) (3x6.0) See Contrast table (2) 21 Screw,Tap Tite(B)Pan (3x6) 810913060U 22 Screw,Tap Tite(P) (2.6x8) 811022680U 23 Sheet,Jack 1 7226310057 24 Sheet,Jack 2 See Contrast table (2) 25 Sheet,Jack 3 See Contrast table (2) 26 Double,Face-Tape 7290000156 101 Front Cabi Assy See Contrast table (2) NSP 101A Cabinet,Front See Contrast table (2) NSP 101B Plate,Display 711WPA0225 101C Flap,DVD See Contrast table (2) 101D Badge,Brand See Contrast table (2) NSP 101E Button,Cap power See Contrast table (2) NSP101F Button,Cap Play See Contrast table (2) NSP 101G Button,Frame 3 738WPA0131 NSP 101H Button,Frame 4 738WPA0137 NSP 101I Button,Frame 1 See Contrast table (2) NSP 101J Button,Frame 2 See Contrast table (2) 101K Spring,Flap-DVD 743WKAA012 NSP 101L Holder,Display 761WPA0368 Mark No. Description Part No. Mark No. Symbol and Description DV-380-S/WVXTL DV-380-S/WYXTL DV-380-K/WYXTL 14 Cabinet, Top 702WSB0114 702WSB0114 702WSB0115 20 Screw,Tap Tite(B) (3x6.0) 8109K3060U 8109K3060U 8109K3060S 24 Sheet, Jack 2 7226310058 7226310058 7226310070 25 Sheet, Jack 3 7226310059 7226310059 7226310071 101 Front Cabi Assy 7A7010078A 7A7010078A 7A7010095A NSP 101A Cabinet, Front 701WPJ1318 701WPJ1318 701WPJ1333 101C Flap, DVD 712WPJ0914 712WPJ0914 712WPJ0932 101D Badge, Brand 7236310014 7236310014 7236310009 NSP 101E Button, Cap Power 737WPB0001 737WPB0001 737WPA0024 NSP 101F Button, Cap Play 737WPB0002 737WPB0002 737WPA0025 NSP 101I Button, Frame 1 738WPB0050 738WPB0050 738WPA0156 NSP 101J Button, Frame 2 738WPB0051 738WPB0051 738WPA0157 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 05 DVD MECHA SECTION Applying positions AA, AB and AC for the grease are displayed for this section. Check if the correct grease is applied for each position. NOTE: CLASS MARK GREASE G-555G AA G-313Y AB PART NO. GYA1001 PART NAME GYA1001 FL-78A AC GEM1036 Cannot supply separately. If the repair is needed, replace the LOADER SUB ASS'Y. PCB610 (LOADING MOTOR PCB ASS'Y) CD2302 Do not replace the parts. Because, minute adjustments are needed if this condition is disassembled further more. If the repair is needed, replace the DVD MECHA ASS'Y. (SW PCB ASS'Y) 10 AB AB AB AA 34 15 14 21 18 11 23 9 AB 19 1 29 AB AB 3 12 20 6 4 SW1 31 PCB640 27 22 22 16 2 CD2001 24 5 25 26 32 8 13 35 8 30 SW2 33 CD2301 AC AC AB D E Lubricating Oil GYA1001 Daifree GEM1036 Note : Lubricating Oil GYA1001 7 17 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 11 5 6 7 8 5 6 7 8 C D F A B E 05 DVD MECHA SECTION parts List Mark No. Description Part No. 1 Loading Motor PCB Assy A2F101A610 2 Gear,Middle 92P100117A > 3 Loading Motor 1515S98004 4 Pulley,Motor 92P100097A > 5 FEED Motor 1515S98004 6 Cord Jumper (24P)(CD2001) 122H002305 7 Cord Jumper (CD2302) 122H051602 8 Insulator (F) 92P200013A 9 Belt,Loading 92P200015A 10 Insulator (R) 92P200016A 11 Frame,main 92P100119A 12 Tray (B) 92P100127A 13 Holder ,Traverse 92P100125A 14 Gear,Pulley 92P100123A 15 Gear,Main 92P100124A 16 Gear,Feed 92P100116A 17 SW PCB Assy (PCB640) A2F101A640 NSP 18 Magnet,Clamper 92P400007A 19 Loader SUB Assy 92AAA0019A 20 Clamper 92P100122A 21 Screw,Pan (M1.7x3 P3) 814011730U 22 Screw,Pan (M1.7x2.3 P3) 814011723U 23 Rack,Loading 92P100121A 24 Gear,Motor 92P100088A 25 Feed Rack Assy 92AAA0017A 26 Screw,T-Tite(B) (M1.7x5.0 P3) 813381750U 27 Screw,Gear Feed 92P700007A 28 Cord Jumper (CD2301) 122H061605 29 Switch (SW1) 0515S32003 30 Push Switch (SW2) 0500101036 31 Screw,Tap Tite(P) (2.6x8) 811022680U 32 Sems.Tap Tite(P) (2x8) 816112080U 33 Screw (Bind 2x8) 811022080U > 34 DVD MECHA ASSY A2F101A650 NSP 35 Traverse Sub ASSY 92AAA0016A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 12 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 11 11 A CP2301 IC2301 Motor Drive IC X4001 (27MHz) IC651 FIP Driver IC V651 FL TUBE IC4002 MPEG / MICON / RF-AMP IC4004 16Mbit Flash CP2303 CD2301 PICKUP SPINDLE MOTOR 10 10 B 7 7 C S_Y 6 6 D 6 1 SP1+ 5 2 SP1– 4 3 SLD+ 3 4 SLD– 21 21 T+ 22 22 T– 23 23 F+ 24 24 F– 5 5 E 2 2 10 10 11 11 9 9 6 6 30 7 6 9 8 11 10 5 12 13 4 48 19 18 2 5 4 3 194 49 F M SLED MOTOR M SW PCB ASSY DVD MECHA ASSY D DVD MT PCB ASSY A OPERATION 2 PCB ASSY C OPERATION 1 PCB ASSY B CP2302 CD2302 LOADING MOTOR SW1 2 4 LD+ 1 5 LD– 3 3 OPEN 5 1 CLOSE M LOADING MOTOR PCB ASSY E IC4005 64Mbit SDRAM IC4001 EEPROM S_C 196 R/CR 203 G/Y 200 B/CB 202 CVBS 198 228 229 ASPDIF ASDAT0 CP4002 CP601 CP603 CP602 225 217 V+3E V+3E FLDC+ FLDC– -28V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 13 5 6 7 8 5 6 7 8 C D F A B E IC8002 Video Driver 6 ch IC4006 REG+1.8V IC IC8001 4 ch BUS SW T501 Power Transformer F501 Fuse IC8004 Audio DAC 2 ch IC8003 Audio LPF & AMP 5 1 3 8 10 12 8 12 10 5 3 1 2 3 5 6 8 9 12 13 14 2 3 5 6 8 9 12 13 14 L N 15 11 7 19 3 1 6 2 3 2 14 10 12 4 21 26 16 9 4 7 2 5 11 10 3 6 20 18 23 2 7 2 8 POWER PCB ASSY F V-OUT L S_C OUT R/CR out S_Y OUT L J8003 J8002 J8004 R Y J8001 CP8001 CP503 CP502 CP4003 J8101 J501 CB CR CVBS DIGITAL OUT COAXIAL AUDIO OUT S VIDEO OUT 6 1 7 V-OUT R VIDEO OUT R L CVBS B G R SCART AC IN G/Y out B/CB out R G B CVBS P.CON+12V AUDIO L AUDIO R V out AT+12V for MUTE P.CON+5V P.CON+6V P.CON+3.3V AT+3.3V FL DC– FL DC+ -28V V+3 V+5V V+5S V+3A V+3E V+3F V+12 V+12AT V+6A V+5A (AUDIO DAC) (MPEG SDRAM FLASH) (AUDIO VIDEO DAC) (FLIP/LED/IR/RESET) (CORE) (AUDIO AMP) (AUDIO MUTE) (MOTOR) (VIDEO OPT/COAX) (OPU) (F/E) V+1P8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 14 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL WIRING CONNECTION DIAGRAM 24 23 22 21 20 19 2 1 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 24 23 22 21 20 19 2 1 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 24 23 22 21 20 19 2 1 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 CP2301 5 4 3 2 1 1 2 3 4 5 CP2302 6 5 4 3 2 1 CP2303 DVD/CD(SW) LIMIT SW LD- LD+ GND(D) CLOSE OPEN LOADING MOTOR FG SENSER SW(GND) SLD- SLD+ SP1- SP1+ FFC SLED MOTOR SPINDLE MOTOR 6 5 4 3 2 1 VREF MON(DVD) NC VOL(DVD) GND(DVD) LD(DVD) VOL(CD) GND(CD) GND(DVD) MON(COM) RF C B A D F E VCC GND F- F+ T- T+ VS NC SW1(DVD/CD) LD_DVD(650) PD/GND LD_CD(780) VR780(CD) GND GND VR650(DVD) VRF(RF_OUT) C B A D F E VCC GND TRKG RIN TRKG DRV FOCS RTN FOCS DRV 1 2 3 4 5 6 OPTICAL PICKUP SSS-13-2 SW1 GND(SW) SW-2(CLOSE) SW-1(OPEN) LOADING MOTOR(-) LOADING MOTOR(+) BCZ3B52 M2603 GND(SW) FEED MOTOR (+) SPINDLE MOTOR (+) SPINDLE MOTOR (-) FEED MOTOR (-) PICK UP INNER LIMIT SWITCH JCV9B06 M2601 M M M BCZ3B03 M2602 SW2 ESE22MH24 CD2301 CD2302 2H062102 2H052601 VRCOM CP4002 11 10 9 8 7 6 5 4 3 2 1 11 10 9 8 7 6 5 4 3 2 1 CP601 CLK DI (M to F) STB FL DC+ FL DC – – 28V DGND DGND V+ 3E I R DO (F to M) 2 3 4 5 6 CP602 5 4 3 2 1 CP603 069EVB3050 069EVB3030 069EV63050 069EV63050 5 4 3 2 1 2 6 1 3 4 5 6 1 STOP +SKIP SW2 PAUSE/–SKIP POWER 6 SW1 STOP +SKIP SW2 PAUSE/–SKIP POWER SW1 DVD MECHA ASSY (A2F101A650) OPERATION 2 PCB ASSY (A2G502A280) C OPERATION 1 PCB ASSY (A2G502A270) B SW PCB ASSY (A2F101A640) D LOADING MOTOR PCB ASSY (A2F101A610) E D E CD601(11P FFC) 122H0B1002 CD603(6P FFC) 122H062801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 15 5 6 7 8 5 6 7 8 C D F A B E CP502 14 13 12 11 10 9 8 7 6 4 5 3 2 1 CP4003 14 13 12 11 10 9 6 5 4 3 2 1 8 7 14 13 12 11 10 9 6 5 4 3 2 1 8 7 14 13 12 11 10 9 6 5 4 3 2 1 8 7 069J7C0599 069J7C0599 069S2E0629 AT+12V for MUTE GND P. CON+ 12V GND P. CON+5V P. CON+6V GND(M) P. CON+3.3V AT+3.3V P. ON-H GND(D) FL DC – FL DC + – 28V AT+12V for MUTE GND P. CON+ 12V GND P. CON+5V P. CON+6V GND(M) P. CON+3.3V(AT) AT+3.3V STBY L GND(D) FL DC – FL DC + – 28V CP503 12 11 10 9 8 7 6 4 5 3 2 1 CP8001 12 11 10 9 6 5 4 3 2 1 8 7 1 2 3 4 7 8 9 10 11 12 5 6 1 2 3 4 7 8 9 10 11 12 5 6 B/CB G/Y GND GND R/CR RGB-H FS CVBS GND AUDIO L GND AUDIO R B G GND GND R RGB-H FS CVBS GND AUDIO L GND AUDIO R ÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ : The power supply is shown with the marked box. DVD MT PCB ASSY (A2G502A130) A 1/5- A 5/5 A : MPEG/MICON/RF-AMP BLOCK A 1/5 : MEMORY BLOCK A 2/5 : LOADER/MOTOR DRV BLOCK A 3/5 : AUDIO/VIDEO JACK BLOCK A 4/5 : POWER PORT BLOCK A 5/5 POWER PCB ASSY (A2G502A240) F 1/2, F 2/2 F : POWER BLOCK F 1/2 : 21PIN/D/DIGITAL AUDIO BLOCK F 2/2 CVBS VIDEO OUT (COMPOSITE) J8001 J8002 Y U V S VIDEO OUT SCART AUDIO OUT DIGITAL OUT L J8003 R COAXIAL J8004 J8101 J501 LIVE BLUE BROWN AC IN 1 2 NEUTRAL Y C CD8001(12P FFC) 122HC0C3001 CP502(14P) Cord Connector 06C32E3504 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 16 1 2 3 4 1 2 3 4 C D F A B E 3.3 DVD MT PCB ASSY (1/5) A 1/5 R4020 15K R4027 100 R4013 10K R4014 10K R4011 10K R4012 10K R4024 750K R4025 100K R4035 33 R4034 33 R4016 15K R4017 22K R4018 22K R4019 22K R4002 10K R4026 10K R4015 10K R4003 680K R4022 100K R4001 1K C4032 0.1 B C4031 0.03 B C4027 0.1 B C4026 0. 1B C4025 0. 1 B C4030 0. 1 B C4050 0 . 1B C4019 0.1B C4020 0.1B C4013 0.1B C4014 1B C4015 1B C4016 1B C4042 0.047 B B C4044 0.047 C4021 0.1B C4012 0.1B C4001 0.0022B C4002 270P CH C4022 0. 1 B C4024 0 . 0015 B C4043 0.1 B C4048 10P CH C4047 390P CH C4049 11P CH C4003 150P CH C4017 1B C4080 1B C4005 0.1B C4008 0.1B C4007 0.1B C4009 0.015B C4091 0.0022B C4028 0.1 B C4101 0.1 B C4033 0. 001 B C4102 0. 1 B C4041 B 0.1 C4105 B 1 C4103 0. 1 B C4104 1 B C4035 0. 1 B C4045 0 . 47 B C4034 22P CH C4046 1 0 25V K A C4023 220 6. 3V Y K W829 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 1 2 19 10 11 12 13 14 15 16 17 18 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 55 56 57 58 59 6 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 7 8 9 TP4015 TP4016 TP4017 TP4018 TP4019 TP4020 TP4021 TP4035 TP4012 TP4010 TP4011 TP4009 TP4007 TP4001 TP4002 TP4003 TP4004 TP4005 TP4006 TP4008 TP4036 TP4030 TP4031 TP4032 TP4022 TP4023 TP4024 TP4025 TP4026 TP4027 TP4028 TP4029 TP4033 TP4034 TP4096 TP4014 TP4013 TP4037 TP4107 5 6 7 8 1 2 3 4 X4001 100BT02701 27MHz V+3 A{3} V1P4 B{3} C{3} D{3} E{3} F { 3} MDI1 { 3} LDO1 { 3} LDO2 { 3} V1P4 { 3} DMSO { 3} FMSO { 3} TRCLOSE { 3} TROPEN { 3} PWMOUT1 { 3} TRSO { 3} FOSO { 3} TROUT { 3} TRIN { 3} STBY { 3} V20 { 3} LIMIT { 3} D IOA { 3} A DEICG { 3} B R F { 3} O PO { 3} C O P+ { 3} RF O P- { 3} D_GND { 2, 3, 4, 5} E F MDI1 LDO2 LDO1 MA0 { 2} MA1 { 2} MA2 { 2} V20 MA3 { 2} V1P4 MA4 { 2} MA5 { 2} MA6 { 2} MA7 { 2} MA8 { 2} MA9 { 2} MA10 { 2} OPO MA11 { 2} OP- SDCKE{ 2} SDCLK{ 2} OP+ DBA0 { 2} DMSO DBA1 { 2} FMSO DCS#{ 2} TROPEN DRAS# { 2} PWMOUT1 DCAS# { 2} DWE#{ 2} TRSO DQM0{ 2} FOSO DQM1{ 2} V1P4 DQ0 { 2} DQ1 { 2} DQ2 { 2} DQ3 { 2} DQ4 { 2} DQ5 { 2} TROUT DQ6 { 2} TRIN DQ7 { 2} DQ8 { 2} STBY DQ9 { 2} TRCLOSE(ENDM) DQ10{ 2} DQ11{ 2} A2 DQ12{ 2} DQ13{ 2} A3 DQ14{ 2} A4 DQ15 { 2} A5 A 0 { 2} A6 A 1 { 2} A 2 { 2} A7 A 3 { 2} A8 A 4 { 2} A18 A 5 { 2} A19 A 6 { 2} A 7 { 2} A 8 { 2} SDA A 9 { 2} SCL A10 { 2} V+3 A11 { 2} A12 { 2} A13 { 2} UWR# URD# A14 { 2} A15 { 2} A16 { 2} A17 { 2} A18 { 2} A19 { 2} A20 { 2} AD0 { 2} AD1 { 2} AD2 { 2} AD3 { 2} AD4 { 2} AD5 { 2} AD6 { 2} PWR# A16 A15 A14 A13 A12 A11 A10 A20 PCE# PRD# AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 A17 AD7 { 2} A9 A1 A0 PWR# { 2} PCE# { 2} PRD# { 2} FP_DI FP_SCK D_GND {2,3,4,5} NC NC NC NC NC NC NC FROM/TO MEMORY NC NC AGND DVDA DVDB DVDC DVDRF[P DVDRF[N MA MB MC DVDD SB SC SD CDFON CDFOP SVDD3 RFLV/RFON SGND V2REFO V20 FEO TEO TEZIS[LV DMO FMO PWMOUT1/V_ADIN9 FDO USB_VDD3 TDI/V_ADIN4 (JTAG) FG/V_ADIN8 (PU) TCK/V_ADIN6 (JTAG) TDO/V_ADIN7 (JTAG) IOA2 (PU) IOA3 (PU) IOA4 (PU) IOA5 (PU) IDA7 (PU) IOA6 (PU) DVSS APLLCAP APLLVSS IOA19 (PU) IOA18 (PU) HIGHA0 (PU) DVDD18 65 66 67 68 254 253 255 256 APLLVSSVDD3 XIOWR A16 HIGHA7 (PU) DVDD3 HIGHA2 (PU) HIGHA3 (PU) HIGHA4 (PU) HIGHA5 (PU) HIGHA6 (PU) HIGHA1 (PU) IOA20 XIOCS (PU) XIODE DVDD3 AD0 AD1 AD2 AD3 DVSS (18) AD4 AD5 AD6 IOA2/V_ADIN0 ALE (PU) AD7 A17 I OA0 (PU) DVSS (3) XUWR (PU) XURD (PU) DVDD18 UP1_2 (PU) UP1_3 (PU) (PD) ASDATA4 MC_DATA (PD) SPDIF RFGND18 RFVDD18 XTALI JITFO JITFN PLLVSS IDACEXLP PLLVDD3 LPFON LPFIP LPFIN LPFOP ADCVDD3 ADCVSS RFVDD3 RFRPDC RFRPAC HRFZC CRTPLP RFGND OSP OSN (3) DVSS NC NC NC NC NC TROPENPWM USB_VSS NC NC IOCA1 (PU) CSO/RFOP VREFO TMS/V_ADIN5 (JTAG) VCC WP SCL SDA NC NC NC GND 3. 3V 1. 8V TPI MD SA AVDD3 IREF RFGC OP_OUT OP_INN OP_INP FROM/TO LOADER/MOTOR DRV MIDI1 TNI MIDI2 LDO2 LDO1 TRO XTALO V+3RF ( V+3D) ADIN IOWR# IOCE# 3/5 A 2/5 A MMZ1608R102CT POWER_ON MPEG/MICON/RF-AMP IC4002 MT1389FE/C2-L EEPROM IC4001 BR24L16FJ-WE2 DVD MT PCB ASSY (A2G502A130) A 1/5 MPEG/MICON/RF-AMP BLOCK ASPDIF B4007 (RF) (D) (A) (B) (C) (E) (F) (D) (A) (B) (C) (E) (RF) (RF) (F) (D) 1 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 17 5 6 7 8 5 6 7 8 C D F A B E A 1/5 R4043 33 R4068 1 50 + - 1% R4069 1 50 + - 1% R4071 33 R4051 3 3 R4067 1 50 + - 1% R4066 1 50 + - 1% R4065 1 50 + - 1% R4064 1 50 + - 1% R4054 1 0K R4052 1 0K R4050 3 3 R4047 3 3 R4061 2. 7K+ - 1% R40621 5K R4036 33 R4070 33 R4046 1 0 R4084 1K R4007 100 R4082 33 R4005 100 C4073 0. 1B C4072 0. 1 B C4067 0. 1 B C4063 0. 1 B C4061 0. 1 B C4060 0 . 1 B C4066 1 B C4062 0. 1 B C4064 0. 1 B C4053 0. 1 B C4054 220P CH C4068 0.1 B C4074 0. 1 B C4090 0. 0082 B C4076 3 3P CH C4077 1 00P CH C4078 3 3P CH C4071 0.1 B C4079 1 00P CH C4114 1 B C4116 100P CH C4110 100P CH W816 W814 W813 W812 W811 W815 W832 W833 W834 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 TP4044 TP4051 TP4052 TP4053 TP4054 TP4055 TP4056 TP4057 TP4058 TP4059 TP4063 TP4062 TP4061 TP4067 TP4068 TP4066 TP4060 TP4045 P4048T TP4095 TP4065 TP4064 P4043T TP4041 TP4039 TP4038 TP4050 TP4049 TP4047 TP4046 TP4103 TP4040 TP4097 TP4105 TP4104 TP4100 TP4101 TP4102 TP4076 TP4077 TP4078 TP4079 TP4080 TP4081 TP4082 TP4086 TP4087 TP4088 TP4085 TP4084 TP4083 TP4070 TP4071 TP4072 TP4075 TP4069 TP4073 TP4074 TP4093 TP4099 TP4098 TP4042 TP4106 TP4094 TP4108 TP4092 TP4091 TP4089 TP4090 IC4003 BD5229G-TR 1 4 5 2 3 1 10 11 2 3 4 5 6 7 8 9 NR4002 4D03WGJ0330T5E NR4001 4D03WGJ0330T5E SCK SD S_C S_Y IOA R/CR B/CB G/Y V+3A CVBS ACLK ABCK DEICG XAMUTE ASDAT0 ALRCK DAC_XCS0 VSEL1 {4} LETTER {4} SQUEEZE {4} I/XP{4} R/CR {4} B/CB {4} G/Y {4} CVBS {4} V+3V S_C { 4} S_Y { 4} SD{4} SCK {4} DAC_XCS0 {4} XAMUTE {4} ALRCK {4} ABCK {4} ACLK {4} ASDAT0 {4} ASPDIF {4} D_GND{2,3,4,5} VSEL1 VSEL2 LETTER SQUEEZE POWER_ON {5} V+1R8 {5} V+3 {2,5} V+3E {5} V+3A {4,5} I/XP FLDC- {5} FLDC+ {5} -28V {5} D_GND {2,3,4,5} MA4 MA5 MA6 MA7 MA8 MA9 MA11 SDCKE SDCLK MA3 MA2 MA1 MA0 MA10 V+3(V+3D) DBA1 RXD DBA0 TXD D_GND DCS# DRAS# DCAS# DWE# DQM1 DQ8 FP_SCK FP_DI DQ9 STB DQ10 FP_DO DQ11 DQ12 IR DQ13 V+3E URST# FLDC+ - 28V V+3E FLDC- DQM0 DQ15 DQ14 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 FP_DO LIMIT URST# V+3 V+1R8 STB SCL SDA RXD TXD I R NC NCNC NC NC NC NC NC NC NC NC NC NC NC NC NC NC UP1_4 (PU) UP1_5 (PU) UP1_6 (PU) UP1_7 (PU) UP3_0 (PU) UP3_1 (PU) UP3_4 (PU) PU3_5 (PU) DVDD3 ICE (PD) XPRST (PU) I R XINT0 (PU) DQM0 DQS0 RD7 DVSS (18) RD6 125 126 127 128 RD5 DVSS (3) RD4 RD3 DVDD18 RD2 RD1 RD0 RD15 DVDD3 RD14 RD13 RD12 RD11 RD10 RD9 (3) DVSS DQS1 RD8 DQM1 XCAS DVDD3 XRCS BA0 (18) DVSS BA1 RA10 RA0 (3) DVSS RA1 RA2 RA3 DVDD18 DVDD3 RCLK RA11 RA9 RA8 (3)DVSS RA7 (18) DVSS RA6 RA5 RA4 (PU) RD3/ASDATA5 (PU) RD30 RD29 DVDD18 RD26 RD25 RD24 (PD) DQM3 (PD) DQM2 DVDD3 DACVDDC VREF FS 192 191 190 189 DVDD3 VSYN/V_ADIN1 YUT7/ASDATA5 SPMCLK SPDATA SPLRCK SPBCK/ADTA5 (PD) ALRCK ABCK ACLK (18) DVSS (PD) ASDATA1 (PD) ASDATA2 (PD) ASDATA3 (PD) ASDATA0 DVDD18 NC NC NC NC NC NC NC NC NC NC NC NC NC YUV1/Y YUV5/B YUV0/CIN DVDD3 HSYN/V_ADIN2 FROM/TOVIDEO/AUDIO FROM/TOPOWER PORT VSS V_OUT VDD CT NC NC DI (Mto F) DO(F to M) V+3E FLDC+ -28V FLDC- I R STB CLK DGND DGND XRWE CKE DVDD3 YUV6/R DACVSSA YUV4/G DACVDDA YUV3/CVBS DACVSSB YUV2/C DACVDDB DACVSSC RXD TXD GND V+3D PP DEL V+3D 1. 8V CP4002 00_6232_011_006_800+ 4/5 A 5/5 A CP601 B 3.3V RESET IC XRAS : VIDEO SIGNAL ROUTE (RF) : RF SIGNAL ROUTE (SY) : S VIDEO SIGNAL ROUTE (Y ch) (SC) : S VIDEO SIGNAL ROUTE (C ch) (R/CR) : VIDEO SIGNAL ROUTE (R/CR ch) (G/Y) : VIDEO SIGNAL ROUTE (G/Y ch) (B/CB) : VIDEO SIGNAL ROUTE (B/CB ch) (D) : AUDIO DATA SIGNAL ROUTE (DA) : AUDIO SIGNAL ROUTE (Digital) (SY) (SC) (SY) (SC) (R/CR) (G/Y) (B/CB) (R/CR) (G/Y) (B/CB) (DA) (D) (DA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 18 1 2 3 4 1 2 3 4 C D F A B E 3.4 DVD MT PCB ASSY(2/5) C4081 0. 001 B A17 DQ0 { 1} DQ1 { 1} DQ 2 { 1} DQ 3 { 1} DQ 4 { 1} DQ 5 { 1} DQ 6 { 1} DQ 7 { 1} A0 DQ 8 { 1} DQ 9 { 1} DQ10 { 1} AD7 DQ11 { 1} DQ12 { 1} DQ13 { 1} DQ14 { 1} DQ15 { 1} M A0 { 1} AD6 M A1 { 1} M A2 { 1} M A3 { 1} M A4 { 1} M A5 { 1} M A6 { 1} AD5 M A7 { 1} M A8 { 1} M A9 { 1} MA10 { 1} MA11 { 1} DWE# { 1} AD4 SDCKE { 1} SDCLK { 1} DQM1 { 1} DQM0 { 1} DCAS# { 1} DRAS# { 1} DBA1 { 1} DBA0 { 1} DCS# { 1} AD3 A0 { 1} A1 { 1} AD2 A2 { 1} A3 { 1} A4 { 1} A5 { 1} A6 { 1} A7 { 1} AD1 A8 { 1} A9 { 1} A10 { 1} A11 { 1} A12 { 1} A13 { 1} AD0 A14 { 1} A15 { 1} A16 { 1} PRD# A17 { 1} A18 { 1} A19 { 1} A20 { 1} AD0 { 1} AD1 { 1} PCE# AD2 { 1} AD3 { 1} AD4 { 1} A1 AD5 { 1} AD6 { 1} AD7 { 1} PRD# { 1} PCE# { 1} PWR# { 1} V+3 { 1, 5} D_GND {1,3,4,5} FROM/TOMPEG/MICON/DSP (V+3D) A 2/5 1/5 A 1/5 A DVD MT PCB ASSY (A2G502A130) A 2/5 MEMORY BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 19 5 6 7 8 5 6 7 8 C D F A B E 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 3 4 5 6 7 8 9 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 3 4 5 6 7 8 9 R4087 10K C4082 0. 1 B C4088 0. 1B C4085 0.1 B C4084 0.1 B C4086 1000 6. 3V Y K W820 DQ15 A16 A15 DQ14 DQ6 A14 DQ13 DQ5 A13 A12 DQ12 DQ4 A11 DQ11 DQ3 A10 A9 DQ10 DQ2 A20 DQ9 DQ1 PWR# DQ8 DQ0 DQM0 DQM1 DWE# SDCLK DCAS# A19 SDCKE DRAS# A18 DCS# A8 MA11 DBA0 A7 MA9 DBA1 A6 MA8 MA10 A5 MA7 MA0 A4 MA6 MA1 A3 MA5 MA2 A2 MA4 MA3 0 0 1. 4 2. 6 2. 6 1. 4 1. 2 1. 6 1. 6 3. 3 1. 3 0. 9 1. 6 2. 5 1. 5 1. 6 1. 3 2. 5 1. 5 0. 8 1. 0 1. 7 0 0. 1 0 0 3. 3 1. 6 0. 8 0 0. 7 0. 6 1. 2 1. 3 1. 9 0. 7 1. 2 3. 3 A16 VSS VSS A0 A7 A6 A5 A4 A3 A2 A1 A15 A14 A13 A12 A11 A9 A8 A18 A17 A10 A19 0. 1 1. 6 0. 7 1. 4 1. 6 1. 3 1. 6 1. 7 2. 5 1. 6 D15 D7 D14 D6 D13 D5 D12 D4 VCC D11 D3 D10 D2 D9 D1 D8 D0 NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC VCC VSS DQ0 DQ1 DQ2 DQ15 VSSQ DQ13 VQ14 DQ12 DQ11 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 VSSQ DQ10 DQ9 DQ8 VCC LDQM VSS UDQM NC A9 A11 A10/AP A0 A2 A1 A3 VSS A4 A5 A6 A7 A8 BA0 BA1 VCCQ CKE CLK NC VCC CS ASR ASC WE VCCQ VCCQ OE# CE# RY/BY# RESET# WE# BYTE# A 2/5 16Mbit FLASH IC4004 S29AL016D 64Mbit SDRAM IC4005 K4S641632H-UC75 DQ7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 20 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVD MT PCB ASSY(3/5) Q2301 KTC3875S_Y_RTK 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 3 4 5 6 7 8 9 1 2 3 4 5 1 2 3 4 5 6 S D G Q2306 2SK3018T106 S D G Q2307 2SK3018T106 R2308 10K R2307 100K R2309 10K R2306 100K R2338 10K 2329R 1 R2342 680K R2319 150K R2331 150K C2303 0 . 1B C2301 0 . 1 B C2302 0 . 1 B C2314 1 B C2322 0. 0022 B C2323 0. 1 B C2325 0. 001 B TP2303 TP2305 TP2306 TP2309 TP2310 TP2311 TP2312 TP2313 TP2314 TP2315 TP2316 TP2317 TP2318 TP2319 TP2308 TP2307 TP2320 TP2321 TP2322 TP2323 TP2301 TP2302 TP2304 JG002 JG003 JG004 JG005 JG006 JG007 JG001 TP2327 TP2328 TP2326 TP2325 TP2324 TP2331 IOA V+5S DEICG V+5S F V20 E D C IOA RF B A MDI1 T+ T- F+ F- LOAD- LOAD+ TROUT V+6A TRIN OPO OP- OP+ LIMIT MOT_SLED- MOT_SLED+ MOT_SPDL+ MOT_SPDL- V+3F FG LOAD+ LOAD- GND OPEN CLOSE VRCOM TRKG DRV TRKGRTN FOCS RTN FOCS DRV VCC D B VR780(CD) VRF(RF_OUT) SW1(DVD/CD) C E VS F GND A VR650(DVD) GND GND LD_DVD(650) LD_CD(780) PD/GND NC NC SW(GND) LIMIT SW SLD- SLD+ SPD- SPD+ CP2303 00_6232_006_006_800+ CP2302 00_6232_005_006_800+ CP2301 09-5000-024-001-001 CD2302 To PICKUP E CD2301 D A 3/5 DVD MT PCB ASSY (A2G502A130) A 3/5 LOADER/MOTOR DRV BLOCK (F) (F) (E) (E) (D) (D) (C) (C) (B) (B) (RF) (RF) (A) (A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 21 5 6 7 8 5 6 7 8 C D F A B E Q2304 KTA1504S_Y_RTK D DRIV for CDL Q2305 KTA1504S_Y_RTK LD DRIV for DVD Q2302 KTA1504S_Y_RTK LD DRIV for CD Q2303 KTA1504S_Y_RTK LD DRIV for DVD IC2301 LA6565 19 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 R2317 56K + - 1% R2312 15K + - 1% R2311 10K R2318 10 K + - 1% R2326 4. 7K R2327 4. 7K R2330 10K + - 1% R2328 10K + - 1% R2316 10K + - 1% R2313 10K + - 1% R2325 15K + - 1% R2335 2. 2 R2334 2. 2 R2332 1. 2 R2333 1. 2 R2320 4. 7 R2321 4. 7 R2323 4. 7 R2310 2. 7K R2337 5. 6K R2322 4. 7 C2307 1 B C2312 1 B C2313 0. 01B C2311 0. 01B C2310 0. 01B C2308 0. 1 B C2309 0. 1 B C2305 0. 1 B C2320 100 10V Y K C2321 100 10V Y K C2306 1 00 10V Y K W817 W809 W819 TP2333 TP2334 TP2329 TP2330 TP2339 TP2340 TP2341 TP2342 TP2332 JG009 JG008 JG010 TP2336 TP2335 TP2338 TP2337 RF {1} DEICG {1} V20 {1} A { 1} B { 1} C { 1} D { 1} E { 1} V+3F F { 1} MDI1 {1} LDO2 {1} LDO1 {1} IOA {1} LDO1 V1P4 {1} LIMIT {1} TROUT {1} TRIN {1} STBY {1} DMSO {1} Fv TRCLOSE {1} TROPEN {1} PWMOUT1 {1} TRSO {1} LDO2 FOSO {1} OPO {1} Ov OP- {1} V+3F { 5} V+5S { 5} TRSO FOSO V+9A D_GND {1,2,4,5} M_GND {5} STBY DMSO V1P4 PWMOUT1 FMSO TRCLOSE TROPEN LOAD- LOAD+ MOT_SPDL- MOT_SPDL+ MOT_SLED- MOT_SLED+ T- T+ F- F+ S-GND VCONT VIN4- VREF-IN VIN3 VCC1 VD2- VD2+ VD3- VD3+ VD4- VD4+ VLD+ VCC2 VLD- REV FWD VD1- VD1+ VIN1+A VIN1-A VIN 1 VIN2+ VIN2- VIN2 VIN3- VO_OP VIN-OP VIN+OP REG-IN REG-OUT VREF-OUT MUTE234 MUTE1 VCCS VIN4 TRACK SPINDLE FOCUS DVD RF33 FROM/TO POWER PORT SLED FROM/TO MPEG/MICON/RF-AMP CD 3. 3 3. 3 3. 3 0 0 3. 3 2.0 3.1 3.1 2.0 2.5 2.5 NC NC NC NC NC NC 0 3. 3 3. 3 1. 4 1. 4 1. 4 1. 4 0 0 0. 9 1. 6 1. 6 5. 9 1. 4 1. 4 1. 1 1. 4 1. 4 4. 1 5. 9 5. 9 0 0 0. 1 0 2. 6 2. 6 2. 6 2. 6 0 1. 5 3. 7 2. 6 2. 6 5. 9 1. 4 1. 4 1. 4 1/5 A 5/5 A MOTOR DRIVE IC A 3/5 (RF) : RF SIGNAL ROUTE (A) (RF) (B) (C) (D) (E) (F) 17 18 15 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 22 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVD MT PCB ASSY(4/5) n G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 10 11 12 13 14 15 16 17 18 19 20 2 3 4 5 6 7 8 9 H1 H2 E H1 H2 E 1 2 3 4 5 6 CAUTION: DIGITAL TRANSISTOR CAUTION: DIGITAL TRANSISTOR 1 10 11 12 2 3 4 5 6 7 8 9 CD8001 2H0C3001 R8027 75 + - 1% R8029 75 + - 1% R8028 75 + - 1% R8024 75 + - 1% R8016 1. 2K R8017 1.2K R8018 1.2K C8001 0. 1B C8003 1 B C8006 1 B C8002 1 B C8004 0. 1B C8008 0. 1 B C8015 0. 1 B C8016 0. 1 B C8005 0. 1 B C8010 0. 1 B C8014 100 10V Y K C8017 100 10V Y K C8024 470 6. 3V Y K C8022 1000 6. 3V Y K C8023 470 6. 3V Y K C8026 1000 6. 3V Y K B8001 MMZ1608R102CT B8002 MMZ1608R102CT B8007 MMZ1608R102CT B8006 MMZ1608R102CT VSEL1 SQUEEZE AUDIO_R AUDIO_L P-H/I-L_RGB-H G/Y_OUT DAC_XCS0 {1} LETTER {1} B/U_OUT SQUEEZE {1} XAMUTE {1} ACLK {1} R/V_OUT ASPDIF {1} SCK {1} SD {1} VSEL1 {1} I/XP {1} ABCK{1} ASDAT0{1} ALRCK{1} R/CR{1} B/CB{1} G/Y {1} CVBS {1} S_C {1} S_Y {1} D_GND {1,2,3,5} V+12AT {5} V+12 {5} V+5V {5} V+5A {5} V+3A {1,5} ASP/FS S_C_OUT S_Y_OUT CVBS_OUT LETTER SQUEEZE V+5V S_C CB_OUT CR_OUT Y_OUT CVBS S_Y VSEL1 G/Y B/CB R/CR I/XP P-H/I-L_RGB-H VSEL1 FROM/TO POWER R/CR G/Y B/CB GND GND RGB-H FS AUDIO L GND AUDIO R CVBS GND FROM/TO MPEG/MICON/DSP NC NC NC IN GND DB S2B S1B DA S2A S1A VCC DC S2C S1C DD S2D /EN S1D V in YC MIX Y in I / P CY in CLP Vcc2 C uot S1 S2 GND2 Y out CY out GND2 Cb out Cr out GND2 Cr in MUTE2 Cb i ND2 V out GND1 BIAS DC out Y CB CR CVBS C in MUTE1 Vcc1 5.1 2.5 1.8 1.8 0 2.5 1.8 3.3 0 2.5 5.1 2.5 5.1 5.1 2.5 2.6 2.6 2.6 2.5 2.5 0 0 0 0 0 0 0 5.1 YUV/RGB both ---> IC8001 MOUNT,JP DEL YUV only ---> W810,W821,W822 ON RGB only ---> W863,W864,W865 ON 1/5 A 5/5 A CP8001 IMSA-9604S-12C VIDEO DRIVER 6CH IC8002 MM1623BFBE 21 22 23 24 25 26 27 28 4CH BUS SW IC8001 SN74CBT3257PWR A 4/5 DVD MT PCB ASSY (A2G502A130) A 4/5 AUDIO/VIDEO JACK BLOCK J8001 MSP-244V10-95_NI_FE_LF CVBS/Y/U/V CP503 F 1/2 : VIDEO SIGNAL ROUTE (SY) (SY) (SC) : S VIDEO SIGNAL ROUTE (Y ch) (SC) : S VIDEO SIGNAL ROUTE (C ch) (SY) (SC) (R/CR) (R/CR) : VIDEO SIGNAL ROUTE (R/CR ch) (G/Y) (G/Y) : VIDEO SIGNAL ROUTE (G/Y ch) (B/CB) (B/CB) : VIDEO SIGNAL ROUTE (B/CB ch) (R) (G) (B) (R) (G) (B) (R) (CR) (G/Y) (B) (R/CR) (R/CR) (R/CR) (G/Y) (G/Y) (G/Y) (B/CB) (B/CB) (B/CB) (D) (D) : AUDIO DATA SIGNAL ROUTE (DA) (DA) : AUDIO SIGNAL ROUTE (Digital) : AUDIO SIGNAL ROUTE (L ch) (SC) (SY) (SC) (Y) (CB) (SY) 12 10 11 9 14 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 23 5 6 7 8 5 6 7 8 C D F A B E Q8013 DTC114YUA MUTE CTL Q8010 DTC114YUA MUTE CTL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 D8007 1SS355 D8005 UDZS6.8B H E COAXIAL 1 2 H1 H2 E 1 2 3 Q8005 KTC3875S_Y_RTK COAXIAL DRIV Q8019 2SD2114K MUTE SW Q8018 2SD2114K MUTE SW Q8021 2SD2114K MUTE SW Q8020 2SD2114K MUTE SW Q8016 KTC3875S_Y_RTK REF VOL GEN Q8014 KTA1504S_Y_RTK JACK MUTE CTL R8056 4. 7K R8074 22K R8073 22K R8079 220 + - 1% R8078 470 R8081 470 R8084 220 + - 1% R8046 2. 2K R8038 220 R8036 3. 9K R8037 1. 8K R8035 2.2K R8039 68 R8040 100K R8044 10K R8067 18K +-1% R8066 10K +- 1% R8083 470 R8080 220 + - 1% R8085 220 + - 1% R8060 270K R8059 10K + - 1% R8049 10K + - 1% R8048 270K R8076 470 R8061 10K + - 1% R8063 1 8K + - 1% R8077 220 + - 1% R8082 2 20 + - 1% R8023 75 + - 1% R8026 75 + - 1% R8021 10K R8065 10 R8070 33 R8051 3.9K R8014 3.9K R8069 680K R8057 100 R8054 2. 2K C8042 100PCH C8074 330P CH C8068 0. 1 B C8078 330P CH C8077 330P CH C8075 0.1 B C8069 100P CH C8058 0. 1 B C8059 0. 1 B C8057 560P CH C8056 560P CH C8067 100PCH C8021 0. 1 B C8036 1 B C8063 0. 1 B C8072 0. 1 B C8046 C100PH C8062 1 B C8076 100 10V Y K C8038 1 50V K A C8073 47 16V Y K C8053 100 10V Y K C8051 100 10V Y K C8070 47 16V Y K C8025 470 6. 3V Y K C8066 100 10V Y K C8061 1000 6. 3V Y K W824 W866 1 2 3 4 5 6 7 8 B8004 MMZ1608R102CT B8003 MMZ1608R102CT SD SCK V+12AT V+5A V+3A ALRCK ABCK ACLK V+5V ASPDIF XAMUTE ASDAT0 DAC_XCS0 AUDIO_L GND AUDIO_R VSEL1 V+12 5V GND MC MD BCKIN ZERO L ZERO R AGND L R + - - + +VS -VS C Y DATA LRCKIM VDD VCC V-OUT L V-OUT R ML MCLK VCOM NC 6.3 6.3 6.3 6.3 6.3 6.3 0 12.5 6. 8 12. 5 6. 3 AUDIO DAC 2CH IC8004 PCM1742KEG/2K AUDIO LPF& IC8003 BA4560F-E2 A 4/5 J8004 MSP-251V-05NI-FE-LF J8002 MDC-070V-B_LF Y/C SEPA J8003 MSP-242V2-01NI-FE_LF L/R W870 (SY) (SC) (SC) (SY) (DA) (DA) (DA) (DA) (D) (D) 3 4 7 8 6 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 24 1 2 3 4 1 2 3 4 C D F A B E 3.7 DVD MT PCB ASSY(5/5) 1 10 11 12 13 14 2 3 4 5 6 7 8 9 C4095 47 6. 3V K A 1 2 3 R4039 68 + - 1% R4037 15 R4044 39 + - 1% C4039 1 B C4093 1 B C4094 0. 1 B C4109 0. 1 B C4112 0. 001 B C4040 1 16V B C4096 1 B W853 ADJ VIN VOUT 3.3 1.8 0.6 GND P.CON+5V STBY L FL DC- FL DC+ -28V AT+3.3V GND P.CON+12V AT+12V for MUTE P.CON+6V GND(M) GND(D) P.CON+3.3V(AT) CP4003 A2001WV2-14P IC4006 SIP1117L-ADJ-TP REG+1.8V IC A 5/5 DVD MT PCB ASSY (A2G502A130) A 5/5 POWER PORT BLOCK CP502 F 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 25 5 6 7 8 5 6 7 8 C D F A B E R4033 10K C4052 0. 01B C4098 1 B C4099 0. 001 B C4100 220 6. 3V Y K W850 W847 W848 W851 W852 B4001 MMZ1608R102CT B4002 MMZ1608R102CT V+3A {1,4} V+5A V+5A {4} V+5V V+5V {4} V+12AT V+12AT {4} V+12 V+12 {4} V+6A D_GND {1,2,3,4} V+5S V+6A {3} V+5S {3} V+3F V+3F {3} D_GND {1,2,3,4} M_GND {3} V+3A V+3 V+3 {1,2} V+3E V+3E {1} V+1R8 V+1R8 {1} V+3A {1,4} FLDC- {1} POWER_ON {1} FLDC+ {1} -28V {1} D_GND {1,2,3,4} (OPU) (MOTOR) (CORE) (MPEG/SDRAM/FLASH) (AUDIO/VIDEO DAC) (F/E) FROM/TO MPEG/MICON/RF-AMP (AUDIO DAC) (VIDEO/OPT/COAX) (AUDIO AMP) (AUDIO MUTE) FROM/TO AUDIO/VIDEO FROM/TO LOADER/MOTOR DRV (FIP/LED/IR/RESET) 4/5 A 3/5 A 1/5 A A 5/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 26 1 2 3 4 1 2 3 4 C D F A B E 3.8 OPERATION 1 and OPERATION 2 PCB ASSYS R666 2.2 1 / 4W C651 0.1B C659 0.001 B C674 47 6.3V K A D656 1SS133 D658 1SS133 Vout B+ GND OS651 ROM-N340TAO 1 2 3 SW667 EVQ11L05R POWER SW662 EVQ11L05R +SKIP SW660 EVQ11L05R STOP SW664 EVQ11L05R -SKIP SW665 EVQ11L05R PAUSE SW666 EVQ11L05R EJECT SW663 EVQ11L05R PLAY 1 2 3 4 5 6 1 2 3 4 5 6 P7 P6 P5 P4 P3 P2 P1 I R V+3E LED1 V+3E SW2 SW2 SW2 STOP STOP +SKIP +SKIP POWER POWER PAUSE/-SKIP PAUSE/-SKIP SW1 SW1 LED1 V+3E SW1 00_6232_006_102_800+ CP603 CP602 00_6232_006_102_800+ B C OPERATION 1 PCB ASSY (A2G502A270) B OPERATION 2 PCB ASSY (A2G502A280) C OPERATION 2 PCB ASSY SW660 : STOP SW662 : +SKIP SW664 : - SKIP SW665 : PAUSE SW667 : POWER OPERATION 1 PCB ASSY SW663 : PLAY SW666 : EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 27 5 6 7 8 5 6 7 8 C D F A B E R655 1K R657 10K R656 1K R658 10K C 675 0. 1 B C676 0.1 B C658 0.1 B W805 1 10 11 2 3 4 5 6 7 8 9 D669 1SS133 MS1_2 D659 1SS133 IC651 PT6315 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 1 2 3 4 5 6 7 8 9 10 11 CAUTION: DIGITAL TRANSISTOR CAUTION: DIGITAL TRANSISTOR V651 HNV-08SS44T 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 31 32 5 6 7 8 9 TP662 FLDC- FLDC+ P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 GR8 GR7 GR6 GR5 GR4 GR3 GR2 GR1 - 28V P8 P9 P10 P11 P12 P13 P14 P15 P16 STB FP_SCK FP_DI FP_DO GR8 GR7 GR6 GR5 GR4 GR3 GR2 GR1 FP_SCK FP_DI STB FP_DO V+3E IR V+3E FLDC+ -28V FLDC- GND STB 12 VDD 23 - 12.0 - 6.0 - 18.0 3.2 0 0 0 5.1 - 19. 0 -15.6 -19.0 -9.5 -13.0 -9.5 -12.6 -13.0 -6.0 LED1 LED2 LED4 CLK 34 VDD 44 NC NC NC NC - 18.0 - 18.0 - 18.0 - 18.0 - 18.0 - 18.0 - 18.0 - 18.0 5.0 -16.0 -16.0 -16.0 -16.0 -16.0 2.9 3.2 0.7 3.4 K2 K1 DI DO OSC GND P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 GR12 P5 P4 P3 P2 P1 -28V GR10 GR11 GR9 GR8 GR7 GR6 GR5 GR4 GR3 GR2 GR1 GND LED3 FL- FL- FL+ FL+ -16.0 -18.0 -18.0 -18.0 P16 P15 P14 P13 P12 P11 P10 DVD C D TRACK ALL REPEAT A B P9 P8 P7 P6 P5 P4 P3 P2 P1 G8 G7 G6 G5 G4 G3 G2 G1 FROM/TO MPEG/MICON RESION 0 0 0 1 1 1 1 0 1 0 1 1 JAPAN NORTH AMERICA 1 2 OTHER TAIWAN EUROPE THAI CHINA RESERVED 0 0 0 1 1 1 1 1 1 0 1 1 0 RESION MS0_2 MS0_1 MS0_0 LE MODEL(W DIVX) LE MODEL(W/O DIVX) KAEAOKE MODEL RESERVED RESSERVED RESERVED RESERVED 0 0 1 0 0 1 0 1 0 0 1 1 0 0 0 0 1 1 0 1 0 0 1 NC NC NC NC DGND DGND FLDC+ -28V FLDC- CLK DI (M to F) V+3E MS1_2 MS1_1 MS1_0 STB DO (F to M) IR LOW-END MODEL R651 R652 R653 2.2 2.2 2.2 R654 R662 100K 2.2 D657 1SS133 00_6232_011_102_800+ CP601 CP4002 A 1/5 B FIP DRIVER IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 28 1 2 3 4 1 2 3 4 C D F A B E 3.9 POWER PCB ASSY (1/2) B501 W4BRH3.5X6X1.0X2 R503 1.5M 1 /2W R502 1.8 1W R505 22 1 / 4W R515 1K R504 6 R512_1 100K1/2W C509 10 50V Y K C506 50V 2.2 KA C516 0.0022 250V KX C518 0.001 KX C513 47P 2KV SL C515_1 0.01CQP 400V C508 680P CH C502_2 20.2275V E CQUL C505 100P R 2KV C514 470PB 500V D506 1N4005-EIC D503 1N4005-EIC D502 1N4005-EIC D511 10ERB20-TA1B2 D509 RGP10KE D505 1N4005-EIC D513 10ERB20-TA1B2 D508 MTZJ5.6B C511 82 400V UP F501 T1.6A_L_250V 51MS016L L501 1 2 3 4 SS11V-03550-CH FH501 EYF-52BCY FH502 EYF-52BCY 1 2 3 4 1. 6A 250V R507 10 1 / 4W 2 1 BLUE BROWN YKE31-0148N 1 2 IC502 STR-A6151M 1 2 3 4 5 6 7 8 T501 81291294 10 11 12 13 14 15 16 2 3 4 6 7 8 9 16.4 2.3 0.1 3.4 L N NC D D OCP VCC GND FB/OLP STARTUP PHOTO COUPLER IC504 PS2561AL1-1-V(W) AC230-240V_50Hz POWER PCB ASSY (A2G502A240) F 1/2 POWER BLOCK F 1/2 J501 80K • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS OF FUSE. CAUTION - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 29 5 6 7 8 5 6 7 8 C D F A B E R513 R544 10K R537 1K R527 100 1/4W R518 3. 3K + - 1% R517 1. 2K + - 1% R523 22K R539 4.7K 1/4W R538 22K R506 100 R514 1K 1/4W R516 10 R541 5. 6K +-1% R542 1K + - 1% R509 1K R540 680 1/4W R543 4. 7K + - 1% R526 6. 8K + - 1% R545 22K + - 1% R546 3. 3K M +-1% R524 1K 1 / 4W R519 1K R525 150 1/4W R531 10K R530 560 1/4W R528 22K 1/4W R536 10K R534 100 1/4W R547 22 C519 22 35V Y K C517 220 25V YK C522_1 1000 6.3V FM C538 220 6.3V YK C528 2.2 50V KA C527 100 10V YK C503 0.1 B C540 0.01 B C507 0. 01 F C541 0. 01 F C501 0.01 F W811 W817 W815 W821 W814 D522 1SS133 D512 RGP15J D515 11EQS04N D520 1SS133 D521 1SS133 D516 1SS133 D534 1SS133 D510 RGP15J D525 1SS133 D527 21DQ04N D532 11EQS04N D519 10ERB60-TA2B5 Q501 KTC3875S_Y_RTK Q511 KTC3875S_Y_RTK Q509 KTC3875S_Y_RTK Q512 KTC3875S_Y_RTK Q502KTC3209_Y -28V P.CON SW Q515 2SD1207 REG P.CON 5V SW Q510 KTA1281_Y REG P.CON+12V SW Q504 KTA1281_Y FL+ P.CON SW Q503 KTA1504S_Y_RTK Q513 KTA1504S_Y_RTK CAUTION:DIGITALTRANSISTOR D523 MTZJ3.6B D528 MTZJ5.1B D533 MTZJ2.2B D517 MTZJ4.3B D535 MTZJ5.1B D536 MTZJ3.0B D531 MTZJ27B Q505 KRC102SRTK P.CON SW L505 22uH L503 22uH T SL0808 C533 100 10V Y K C521_1 1000 16V FM C526 220 6. 3V Y K C531 100 16V YK C535 330 16V YK C536 220 6. 3V Y K C523_1 470 25V YK C520 100 50V YK R510_1 3.3 1W R529 220 1W IC501KIA431A-AT 1 2 3 R511 68 1/4W CAUTION:DIGITALTRANSISTOR Q506 KTA1504S_Y_RTK 1 10 11 12 13 14 2 3 4 5 6 7 8 9 VIDEO/AUDIO for 21PIN 1 10 11 12 2 3 4 5 6 7 8 9 GND P.CON+D5V AT+3.3V{2} P.CON+12V{2} AMP_A_OUT_R {2} AMP_A_OUT_L {2} DAC_A[G]Y_VIDEO{2} DAC_C[B]U_VIDEO{2} DAC_B[R]V_VIDEO{2} 21PIN_CVBS_VIDEO {2} P-H/I-L_RGB-H{2} ASP/FS{2} A_GND {2} DAC_A[G]Y_VIDEO DAC_C[B]U_VIDEO DAC_B[R]V_VIDEO P-H/I-L_RGB-H ASP/FS 21PIN_CVBS_VIDEO AMP_A_OUT_L AMP_A_OUT_R FROM/TOMPEG/MICON 2.2 0 2.5 GND OUT IN G / Y G ND B / C B G ND R / C R GND AUDIO L GND AUDIO R RGB-H CVBS FS P.CON+12V P.CON+5V AT+3.3V FL DC- FL DC+ GND G N D P.CON+3.3V AT+12VforMUTE P.ON-H 3.4 3.3 3.9 IN 1 2 3 4 GND OUT P.CON+6V -28V GND(M) GND(D) FROM/TOAUDIO/VIDEO FROM/TO21PIN/D/DIGITAL CP502 C32E3502 CP503 IMSA-9604S-12C CP4003 A 5/5 6V REG (DVD MOTOR) IC503 PQ070XF01SZH 10K 1/4W VOLTAGE CTL F 1/2 2/2 F CP8001 A 4/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 30 1 2 3 4 1 2 3 4 C D F A B E 3.10 POWER PCB ASSY (2/2) R8120 1 1/4W R8101 4.7K 1/4W R8105 390 1/4W R8104 6.8K 8108 8.2K R8103 470 1/4W R8102 R 56K C8106 0.001 B C8101 0.01 B C8105 0.1B D8101 1SS355 Q8101 KTC3875S_Y_RTK 21PIN CTL IN Q8102 KTA1504S_Y_RTK 21PIN CTL DRV CAUTION : DIGITALTRANSISTOR CRAUTION : DIGITALTRANSISTOR AT+3.3V {1} P.CON+12V{1} P-H/I-L_RGB-H{1} ASP/FS{1} AMP_A_OUT_R {1} AMP_A_OUT_L {1} DAC_A[G]Y_VIDEO{1} DAC_C[B]U_VIDEO{1} DAC_B[R]V_VIDEO{1} 21PIN_CVBS_VIDEO{1} A_GND{1} FROM/TOPOWER 1/2 F F 2/2 POWER PCB ASSY (A2G502A240) F 2/2 21PIN/D/DIGTAL AUDIO BLOCK (R) (G) (B) (R) (G) (B) (R) (G) (B) 5 9 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 31 5 6 7 8 5 6 7 8 C D F A B E Q8105 DTA114EKA DVD_RGB_H_OUT 1 10 11 12 13 14 15 16 17 18 19 2 20 21 3 4 5 6 7 8 9 R8114 220 + - 1% R8115 220 + - 1% R8110 75 + - 1% R8112 75 + - 1% Rv 75 + - 1% R8111 75 + - 1% R8109 68 + - 1% C8112 1000 6.3V Y K C8114 470 6.3V Y K C8115 1000 6.3V Y K C8113 470 6.3V Y K C8107 0. 001 B C8111 0. 001 B C8116 33PCH Q8104 DTC144EKA DVD_RGB_H_OUT L8101 10uH 0 305 21PIN_R 21PIN_L 21PIN_CTL 21PIN/D_G/Y_OUT 21PIN/D_B/U_OUT 21PIN/D_R/V_OUT BLANKING_OUT 21PIN_CVBS_OUT NC NC NC NC NC 0 3.2 3.3 0 0 3.2 J8101 MRC-021V-07_A F 2/2 : VIDEO SIGNAL ROUTE (R) : VIDEO SIGNAL ROUTE (R ch) (G) : VIDEO SIGNAL ROUTE (G ch) (B) : VIDEO SIGNAL ROUTE (B ch) : AUDIO SIGNAL ROUTE (L ch) (R) (G) (B) (R/CR) (R) (G/Y) (G) (B/CB) (B) 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 32 1 2 3 4 1 2 3 4 C D F A B E 3.11 WAVE FORMS DVD MT PCB ASSY A Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 2 and 9 to 14 : reference A1 (DVD), T2-chp 19, Color-bar No. 3 to 8 : reference A1 (DVD), T2-chp 1 1 Foot of C626 [RF](IC4002 - pin 6) V: 200mV/div. H: 0.1µsec/div. 3 Foot of R8070 (IC8004 - pin 16) [AUDIO DAC -MCLK] 4 Foot of R4004 (IC8004 - pin 1) [AUDIO DAC -BCK] V: 2V/div. H: 200nsec/div. 9 (IC8002 - pin 23) [Composite Video out] V: 1V/div. H: 10µsec/div. V: 2V/div. H: 500nsec/div. 5 Foot of R4050 (IC8004 - pin 3) [AUDIO DAC -LRCK] 6 Foot of R4050 (IC8004 - pin 3) [AUDIO DAC -LRCK] 7 Foot of R8047 (IC8004 - pin 1) [AUDIO DAC -BCK] 8 Foot of R4043 (IC8004 - pin 2) [AUDIO DAC -DATA] (Waveform of DATA is unsettled.) V: 2V/div. H: 5µsec/div. 6 7 8 10 (IC8002 - pin 20) [Component Video out -Y] V: 1V/div. H: 10µsec/div. 11 (IC8002 - pin 18) [Component Video out -Pb] V: 2V/div. H: 10µsec/div. 12 (IC8002 - pin 16) [Component Video out -Pr] V: 2V/div. H: 10µsec/div. 10 11 12 13 (IC8002 - pin 21) [S Video out -Y] V: 1V/div. H: 10µsec/div. 14 (IC8002 - pin 26) [S Video out -C] V: 1V/div. H: 10µsec/div. 13 14 GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 33 5 6 7 8 5 6 7 8 C D F A B E DVD MT PCB ASSY A 18 CN2303 - pin 1 (IC2301 - pin 11) [MOT_SPDL+] V: 2V/div. H: 2msec/div. 15 15 [Tray is Open] [Tray is closing] 17 [DMSO_PLAY] [DMSO_OPEN] [DMS~3] V: 1V/div. H: 2sec/div. Foot of R4026(IC2301 - pin 1) [TROPEN] 16 16 15 16 Foot of R4002(IC2301 - pin 2 [TRCLOSE] Foot of R618 (IC4002 - pin 37) [DMSO] V: 1V/div. H: 10µsec/div. V: 1V/div. H: 10µsec/div. V: 1V/div. H: 5µsec/div. V: 1V/div. H: 5µsec/div. PLAY Braking a turn of disc OPEN KEY ON Tray: opening PLAY KEY ON: starting a turn of disc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 34 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 35 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOADING and SW PCB ASSYS LOADING MOTOR PCB ASSY (INSERTED PARTS) LOADING MOTOR PCB ASSY (CHIP MOUNTED PARTS) SW PCB ASSY M2603 LOADING MOTOR CD2301 SW2 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B SW1 SIDE A SIDE B D E E E D E D CP2302 A CD2302 CP2303 A CD2301 M2601 SPINDLE MOTOR M2602 SLED MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 36 1 2 3 4 1 2 3 4 C D F A B E 4.2 DVD MT PCB ASSY C4086 C4005 C4007 C4013 C4019 C4020 C4012 C4021 C4024 C4025 C4030 C4054 C4062 C4064 C4073 C4072 C4068 C4085 C4084 C4082 C4088 C4022 C4074 C4077 C4079 C4076 C4078 C4017 R4015 R4018 R4019 R4002 R4012 R4011 R4014 R4013 R4034 R4051 R4071 R4070 R4082 R4036 R4035 R4017 R4087 R4084 NR4001 NR4002 IC4001 IC4004 IC4002 IC4005 IC4003 CP2303 CP2301 IC2301 C2306 C2312 C2307 C2313 R2328 R2330 R2326 R2327 R2310 R2311 R2313 R2312 R2316 R2317 R2318 R2325 C2314 R4016 C4008 C4009 R4026 C4002 C4003 C4001 R2338 R2332 R2333 R2334 C2310 R2335 C2311 C2309 C2308 Q2302 Q2304 Q2303 Q2305 R2320 R2322 R2323 R2321 Q2307 Q2306 R2306 R2307 Q2301 R2309 R2308 C4080 C2303 C2301 C2302 C4090 W850 C4095 39 C4094 C4096 W851 C4081 C2305 C2323 R2329 R2319 R2331 R2342 C2322 W819 R4003 C4091 CP4002 CP2302 R2337 C4023 C2320 C2321 C2325 C4114 R4007 R4005 W820 W817 W809 853 B4007 C4071 W852 65 129 SIDE A A DVD MT PCB ASSY A CD2301 D CP2303 CD2302 E CP2302 CP601 B CP4002 PICKUP CP2301 IC2301 IC4004 IC4005 IC4002 Q2302 Q2307 Q2306 Q2303 Q2301 Q2303 Q2305 Q2304 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 37 5 6 7 8 5 6 7 8 C D F A B E X4001 C4005 C4013 C4019 C4020 C4072 C4068 C4060 C4053 C4066 C4067 C4063 C4061 C4048 C4049 C4050 C4047 C4045 C4043 C4044 C4042 C4041 C4034 C4035 C4033 C4032 C4031 C4028 C4027 C4026 C4085 C4014 C4017 C4016 C4015 R4082 R4054 R4050 R4047 R4046 R4043 R4052 R4025 R4027 R4024 R4022 R4020 R4069 R4068 R4061 R4062 IC4002 I W834 R4064 R4065 R4066 R4067 W833 W832 Q Q2301 R2309 R2308 C4080 W829 C2303 C2302 CP4003 IC4006 W850 C4095 C4039 C4094 C4096 R4044 R4037 R4039 C4100 C4098 C4099 W851 B4001 R4033 C4052 C4093 B4002 C4040 C4046 C4103 C4104 C4102 C4101 C4105 CP8001 IC8002 IC8004 R8028 R8029 R8024 R8027 R8040 R8039 R8076 R8078 R8056 R8046 R8044 R8083 R8081 R8054 R8077 R8084 R8079 R8074 R8061 R8049 R8059 R8057 R8082 R8085 R8080 R8073 R8066 R8070 R8023 R8026 R8051 Q8013 Q8010 Q8020 Q8019 Q8021 Q8018 B8004 D8005 C8005 C8004 C8006 C8003 C8021 C8001 C8015 C8016 C8074 C8072 C8062 C8078 C8059 C8067 C8057 C8077 C8058 C8069 C8056 C8075 C8068 C8063 C8014 C8017 C8066 C8070 C8051 C8073 C8053 C8076 J8001 J8002 J8004 R8060 R8067 R8063 R8048 B8003 J8003 W866 IC8001 B8001 B8002 C8022 C8023 C8026 C8025 C8024 C8008 C8038 R8038 R8036 R8037 R8035 C8036 R8021 C8002 W847 W848 IC8003 Q8005 Q8014 Q8016 R8065 R8014 R8018 R8016 R8017 C8061 C4109 B8006 B8007 C8010 C4110 D8007 C4116 W816 W815 W814 W813 W812 W811 R4005 R4001 W824 W853 W870 B4007 R8069 C8042 C4071 C4112 C8046 W852 1 193 SIDE A A CP502 F CP4003 CP503 F CP8001 C4002 6 Q2303 Q8010 Q8016 Q2301 IC4006 IC8004 IC8003 IC8001 Q8018-Q8021 Q8014 Q8013 IC8002 Q8005 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 38 1 2 3 4 1 2 3 4 C D F A B E SIDE B A CP4003 CP8001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 39 5 6 7 8 5 6 7 8 C D F A B E SIDE B A DVD MT PCB ASSY A CP2303 CP2302 CP4002 CP2301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 40 1 2 3 4 1 2 3 4 C D F A B E 4.3 OPERATION 1 and OPERATION 2 PCB ASSYS SW666 28 32 OS651 CP603 2 5 6 EJECT DEE029A 3 D659 D658 D657 D656 W006 W007 C674 W008 W009 R666 W805 SW660 SW665 SW667 CP602 2 5 6 POWER PAUSE STOP DEE037A 3 PAL R657 C651 R656 R658 C659 SIDE A SIDE B OPERATION 1 PCB ASSY B OPERATION 1 PCB ASSY B OPERATION 2 PCB ASSY C OPERATION 2 PCB ASSY C CP603 CP603 CP602 CP602 B Cwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 41 5 6 7 8 5 6 7 8 C D F A B E SW663 CP601 2 11 10 V651 1 5 28 32 CP603 2 5 6 PLAY W004 D669 D659 D658 D657 D656 W005 W006 W001 PAL PLAY W002 W003 SW662 SW664 SW660 STOP REW FF 23 34 1 12 IC651 C676 R655 R657 R651 R652 R653 R662 R654 C675 C658 R656 SIDE A SIDE B PCB ASSY PCB ASSY IC651 CP4002 A CP601 CP603 CP603 CP601 B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 42 1 2 3 4 1 2 3 4 C D F A B E 4.4 POWER PCB ASSY J501 FH502 FH501 F501 D503 D506 R503 D502 D505 B501 D509 J8101 C8115 C8113 C8114 W035 L8101 C8112 13 CP502 C502_2 L501 C511 IC502 1 4 5 8 C509 D508 R507 1 3 2 4 IC504 1 3 IC501 C517 C540 R513 R514 W003 R511 D527 D510 D512 D522 D520 D516 D528 D521 W002 R517 C519 D523 W006 R530 R534 E Q504 R540 E Q515 C538 C526 L505 L503 C536 W811 W012 W005 R529 R528 W016 D531 2 CP503 12 11 W032 W031 W030 R8120 T501 C531 R505 W010 R527 C535 W018 W019 W004 W001 R502 W007 R542 W013 E Q502 W021 220-240V: N 3 POWER T1.6A L 250V DPE004A NTSC/PAL PRIMARY SECONDARY L D511 D513 D519 E Q510 C505 BLACK WHITE C506 D533 1 4 IC503 D515 R539 C520 D525 W015 C523_1 C533 D532 W814 D534 R546 W024 W025 C518 C513 R512_1 R510_1 W011 W008 C516 R524 D517 R8101 R8103 R8105 W027 W026 W029 C522_1 C515_1 DANGER! MAINS\\VOLTAGE D535 C514 W023 C521_1 R525 C527 W036 D536 C528 W017 W821 W817 W815 DIP POWER PCB ASSY F F SIDE A CP8001 A CP503 AC IN J501 CP4003 A CP502 Q510 Q515 Q504 Q502 IC501 IC504 IC502 IC508 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 43 5 6 7 8 5 6 7 8 C D F A B E R8111 R8112 R8113 C8107 C8111 C8116 R8110 C508 R504 R515 C503 R518 R516 Q501 R523 Q506 R538 R506 Q512 Q503 Q511 Q509 R541 R543 R509 Q505 Q513 R544 R537 R536 R531 C507 C8105 R8104 Q8104 Q8105 C541 C501 R8114 R8115 R8109 C8101 R545 R526 C8106 R519 R8108 R8102 D8101 Q8102 Q8101 R547 POWER PCB ASSY F F SIDE B CP503 CP502 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 44 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES 1..DVD MT PCB ASSY A2G502A130 1..OPERATION PCB ASSY A2G502A270 1..OPERATION 2 PCB ASSY A2G502A280 1..POWER PCB ASSSY A2G502A240 NSP 1..DVD MECHA ASSY A2F101A650 2..LOADING PCB ASSY A2F101A610 2..SW PCB ASSY A2F101A640 Mark No. Description Part No. A DVD MT PCB ASSY SEMICONDUCTORS IC2301 IC LA6565-TE-L-E I03F065650 IC4001 IC BR24L16FJ-WE2 I57F04L160 IC4002 IC MT1389FE/C2-L IC8K0389C0 IC4003 IC BD5229G-TR I97F052290 IC4004 IC S29AL016D70TFI020 S2G502AF10 IC4005 IC K4S641632H-UC75 IFLJ0632H7 IC4006 IC SIP1117L-ADJ-TP I1HF9117L0 IC8001 IC SN74CBT3257PWR I5CJ032570 IC8002 IC MM1623BFBE I0UFG623B0 IC8003 IC BA4560F-E2 I07F045600 IC8004 IC PCM1742KEG/2K I17F02KEG0 Q2301 KTC3875S_Y_RTK TCAA3875SY Q2302 KTA1504S_Y_RTK TAAA1504SY Q2303 KTA1504S_Y_RTK TAAA1504SY Q2304 KTA1504S_Y_RTK TAAA1504SY Q2305 KTA1504S_Y_RTK TAAA1504SY Q2306 FET 2SK3018T106 T27T030180 Q2307 FET 2SK3018T106 T27T030180 Q8005 KTC3875S_Y_RTK TCAA3875SY Q8010 DTC114YUAT106 TN7J407001 Q8013 DTC114YUAT106 TN7J407001 Q8014 KTA1504S_Y_RTK TAAA1504SY Q8016 KTC3875S_Y_RTK TCAA3875SY Q8018 2SD2114KT146 T97A021140 Q8019 2SD2114KT146 T97A021140 Q8020 2SD2114KT146 T97A021140 Q8021 2SD2114KT146 T97A021140 D8005 UDZS6.8B TE-17 DE7RB6R82B D8007 1SS355 TE-17 DD7R0S3550 CAPACITORS C2301 CC 0.1 UF 25V B CS0PB0315K C2302 CC 0.1 UF 25V B CS0PB0315K C2303 CC 0.1 UF 25V B CS0PB0315K C2305 CC 0.1 UF 25V B CS0PB0315K C2306 CE 100 UF 10V E02LU1101M C2307 CC 1 UF 10V B CS0PB0N16K C2308 CC 0.1 UF 25V B CS0PB0315K C2309 CC 0.1 UF 25V B CS0PB0315K C2310 CC 0.01 UF 50V B CS0PB0414K C2311 CC 0.01 UF 50V B CS0PB0414K C2312 CC 1 UF 10V B CS0PB0N16K C2313 CC 0.01 UF 50V B CS0PB0414K C2314 CC 1 UF 10V B CS0PB0N16K C2320 CE 100 UF 10V E02LU1101M C2321 CE 100 UF 10V E02LU1101M C2322 CC 0.0022UF 50V B CS0PB04H3K C2323 CC 0.1 UF 25V B CS0PB0315K C2325 CC 0.001 UF 50V B CS0PB0413K C4001 CC 0.0022UF 50V B CS0PB04H3K C4002 CC 270 PF 50V CH CS0PCH4K2J C4003 CC 150 PF 50V CH CS0PCH4E2J C4005 CC 0.1 UF 25V B CS0PB0315K C4007 CC 0.1 UF 25V B CS0PB0315K C4008 CC 0.1 UF 25V B CS0PB0315K C4009 CC 0.015 UF 50V B CS0PB04E4K C4012 CC 0.1 UF 25V B CS0PB0315K C4013 CC 0.1 UF 25V B CS0PB0315K C4014 CC 1 UF 10V B CS0PB0N16K C4015 CC 1 UF 10V B CS0PB0N16K C4016 CC 1 UF 10V B CS0PB0N16K C4017 CC 1 UF 10V B CS0PB0N16K C4019 CC 0.1 UF 25V B CS0PB0315K C4020 CC 0.1 UF 25V B CS0PB0315K C4021 CC 0.1 UF 25V B CS0PB0315K C4022 CC 0.1 UF 25V B CS0PB0315K C4023 CE 220 UF 6.3V E02LU0221M C4024 CC 0.0015UF 50V B CS0PB04E3K C4025 CC 0.1 UF 25V B CS0PB0315K C4026 CC 0.1 UF 25V B CS0PB0315K C4027 CC 0.1 UF 25V B CS0PB0315K C4028 CC 0.1 UF 25V B CS0PB0315K C4030 CC 0.1 UF 25V B CS0PB0315K C4031 CC 0.033 UF 25V B CS0PB03L4K C4032 CC 0.1 UF 25V B CS0PB0315K C4033 CC 0.001 UF 50V B CS0PB0413K Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 45 5 6 7 8 5 6 7 8 C D F A B E C4034 CC 22 PF 50V CH CS0PCH4H1J C4035 CC 0.1 UF 25V B CS0PB0315K C4039 CC 1 UF 10V B CS0PB0N16K C4040 CC 1 UF 16V B CS0PB0216K C4041 CC 0.1 UF 25V B CS0PB0315K C4042 CC 0.047 UF 25V B CS0PB03Q4K C4043 CC 0.1 UF 25V B CS0PB0315K C4044 CC 0.047 UF 25V B CS0PB03Q4K C4045 CC 0.47 UF 10V B CS0PB0NQ5K C4046 CE 10 UF 25 V E50HU3100M C4047 CC 390 PF 50V CH CS0PCH4N2J C4048 CC 10 PF 50V CH CS0PCH411D C4049 CC 11 PF 50V CH CS0PCH4A1J C4050 CC 0.1 UF 25V B CS0PB0315K C4052 CC 0.01 UF 50V B CS0PB0414K C4053 CC 0.1 UF 25V B CS0PB0315K C4054 CC 220 PF 50V CH CS0PCH4H2J C4060 CC 0.1 UF 25V B CS0PB0315K C4061 CC 0.1 UF 25V B CS0PB0315K C4062 CC 0.1 UF 25V B CS0PB0315K C4063 CC 0.1 UF 25V B CS0PB0315K C4064 CC 0.1 UF 25V B CS0PB0315K C4066 CC 1 UF 10V B CS0PB0N16K C4067 CC 0.1 UF 25V B CS0PB0315K C4068 CC 0.1 UF 25V B CS0PB0315K C4071 CC 0.1 UF 25V B CS0PB0315K C4072 CC 0.1 UF 25V B CS0PB0315K C4073 CC 0.1 UF 25V B CS0PB0315K C4074 CC 0.1 UF 25V B CS0PB0315K C4076 CC 33 PF 50V CH CS0PCH4L1J C4077 CC 100 PF 50V CH CS0PCH412J C4078 CC 33 PF 50V CH CS0PCH4L1J C4079 CC 100 PF 50V CH CS0PCH412J C4080 CC 1 UF 10V B CS0PB0N16K C4081 CC 0.001 UF 50V B CS0PB0413K C4082 CC 0.1 UF 25V B CS0PB0315K C4084 CC 0.1 UF 25V B CS0PB0315K C4085 CC 0.1 UF 25V B CS0PB0315K C4086 CE 1000 UF 6.3V E02LT0102M C4088 CC 0.1 UF 25V B CS0PB0315K C4090 CC 0.0082UF 50V B CS0PB04W3K C4091 CC 0.0022UF 50V B CS0PB04H3K C4093 CC 1 UF 10V B CS0PB0N16K C4094 CC 0.1 UF 25V B CS0PB0315K C4095 CE 47 UF 6.3V E50HU0470M C4096 CC 1 UF 10V B CS0PB0N16K C4098 CC 1 UF 10V B CS0PB0N16K C4099 CC 0.001 UF 50V B CS0PB0413K C4100 CE 220 UF 6.3V E02LU0221M C4101 CC 0.1 UF 25V B CS0PB0315K C4102 CC 0.1 UF 25V B CS0PB0315K C4103 CC 0.1 UF 25V B CS0PB0315K C4104 CC 1 UF 10V B CS0PB0N16K C4105 CC 1 UF 10V B CS0PB0N16K C4109 CC 0.1 UF 25V B CS0PB0315K C4110 CC 100 PF 50V CH CS0PCH412J C4112 CC 0.001 UF 50V B CS0PB0413K C4114 CC 1 UF 10V B CS0PB0N16K C4116 CC 100 PF 50V CH CS0PCH412J Mark No. Description Part No. C8001 CC 0.1 UF 25V B CS0PB0315K C8002 CC 1 UF 10V B CS0PB0N16K C8003 CC 1 UF 10V B CS0PB0N16K C8004 CC 0.1 UF 25V B CS0PB0315K C8005 CC 0.1 UF 25V B CS0PB0315K C8006 CC 1 UF 10V B CS0PB0N16K C8008 CC 0.1 UF 25V B CS0PB0315K C8010 CC 0.1 UF 25V B CS0PB0315K C8014 CE 100 UF 10V E02LU1101M C8015 CC 0.1 UF 25V B CS0PB0315K C8016 CC 0.1 UF 25V B CS0PB0315K C8017 CE 100 UF 10V E02LU1101M C8021 CC 0.1 UF 25V B CS0PB0315K C8022 CE 1000 UF 6.3V E02LT0102M C8023 CE 470 UF 6.3V E02LU0471M C8024 CE 470 UF 6.3V E02LU0471M C8025 CE 470 UF 6.3V E02LU0471M C8026 CE 1000 UF 6.3V E02LT0102M C8036 CC 1 UF 10V B CS0PB0N16K C8038 CE 1 UF 50V E50HU5010M C8042 CC 100 PF 50V CH CS0PCH412J C8046 CC 100 PF 50V CH CS0PCH412J C8051 CE 100 UF 10V E02LU1101M C8053 CE 100 UF 10V E02LU1101M C8056 CC 560 PF 50V CH CS0PCH4S2J C8057 CC 560 PF 50V CH CS0PCH4S2J C8058 CC 0.1 UF 25V B CS0PB0315K C8059 CC 0.1 UF 25V B CS0PB0315K C8061 CE 1000 UF 6.3V E02LT0102M C8062 CC 1 UF 10V B CS0PB0N16K C8063 CC 0.1 UF 25V B CS0PB0315K C8066 CE 100 UF 10V E02LU1101M C8067 CC 100 PF 50V CH CS0PCH412J C8068 CC 0.1 UF 25V B CS0PB0315K C8069 CC 100 PF 50V CH CS0PCH412J C8070 CE 47 UF 16V E02LU2470M C8072 CC 0.1 UF 25V B CS0PB0315K C8073 CE 47 UF 16V E02LU2470M C8074 CC 330 PF 50V CH CS0PCH4L2J C8075 CC 0.1 UF 25V B CS0PB0315K C8076 CE 100 UF 10V E02LU1101M C8077 CC 330 PF 50V CH CS0PCH4L2J C8078 CC 330 PF 50V CH CS0PCH4L2J RESISTORS R2306 RC 100K OHM 1/16W R803R9104J R2307 RC 100K OHM 1/16W R803R9104J R2308 RC 10K OHM 1/16W R803R9103J R2309 RC 10K OHM 1/16W R803R9103J R2310 RC 2.7K OHM 1/16W R803R9272J R2311 RC 10K OHM 1/16W R803R9103J R2312 RC 15K OHM 1/16W R803R9153F R2313 RC 10K OHM 1/16W R803R9103F R2316 RC 10K OHM 1/16W R803R9103F R2317 RC 56K OHM 1/16W R803R9563F R2318 RC 10K OHM 1/16W R803R9103F R2319 RC 150K OHM 1/16W R803R9154J R2320 RC 4.7 OHM 1/16W R803R94R7J R2321 RC 4.7 OHM 1/16W R803R94R7J R2322 RC 4.7 OHM 1/16W R803R94R7J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 46 1 2 3 4 1 2 3 4 C D F A B E R2323 RC 4.7 OHM 1/16W R803R94R7J R2325 RC 15K OHM 1/16W R803R9153F R2326 RC 4.7K OHM 1/16W R803R9472J R2327 RC 4.7K OHM 1/16W R803R9472J R2328 RC 10K OHM 1/16W R803R9103F R2329 RC 1 OHM 1/16W R803R9010J R2330 RC 10K OHM 1/16W R803R9103F R2331 RC 150K OHM 1/16W R803R9154J R2332 RC 1.2 OHM 1/16W R803R91R2J R2333 RC 1.2 OHM 1/16W R803R91R2J R2334 RC 2.2 OHM 1/16W R803R92R2J R2335 RC 2.2 OHM 1/16W R803R92R2J R2337 RC 5.6K OHM 1/16W R803R9562J R2338 RC 10K OHM 1/16W R803R9103J R2342 RC 680K OHM 1/16W R803R9684J R4001 RC 1K OHM 1/16W R803R9102J R4002 RC 10K OHM 1/16W R803R9103J R4003 RC 680K OHM 1/16W R803R9684J R4005 RC 100 OHM 1/16W R803R9101J R4007 RC 100 OHM 1/16W R803R9101J R4011 RC 10K OHM 1/16W R803R9103J R4012 RC 10K OHM 1/16W R803R9103J R4013 RC 10K OHM 1/16W R803R9103J R4014 RC 10K OHM 1/16W R803R9103J R4015 RC 10K OHM 1/16W R803R9103J R4016 RC 15K OHM 1/16W R803R9153J R4017 RC 22K OHM 1/16W R803R9223J R4018 RC 22K OHM 1/16W R803R9223J R4019 RC 22K OHM 1/16W R803R9223J R4020 RC 15K OHM 1/16W R803R9153J R4022 RC 100K OHM 1/16W R803R9104J R4024 RC 750K OHM 1/16W R803R9754J R4025 RC 100K OHM 1/16W R803R9104J R4026 RC 10K OHM 1/16W R803R9103J R4027 RC 100 OHM 1/16W R803R9101J R4033 RC 10K OHM 1/16W R803R9103J R4034 RC 33 OHM 1/16W R803R9330J R4035 RC 33 OHM 1/16W R803R9330J R4036 RC 33 OHM 1/16W R803R9330J R4037 RC 15 OHM 1/16W R803R9150J R4039 RC 68 OHM 1/16W R803R9680F R4043 RC 33 OHM 1/16W R803R9330J R4044 RC 39 OHM 1/16W R803R9390F R4046 RC 10 OHM 1/16W R803R9100J R4047 RC 33 OHM 1/16W R803R9330J R4050 RC 33 OHM 1/16W R803R9330J R4051 RC 33 OHM 1/16W R803R9330J R4052 RC 10K OHM 1/16W R803R9103J R4054 RC 10K OHM 1/16W R803R9103J R4061 RC 2.7K OHM 1/16W R803R9272F R4062 RC 15K OHM 1/16W R803R9153J R4064 RC 150 OHM 1/16W R803R9151F R4065 RC 150 OHM 1/16W R803R9151F R4066 RC 150 OHM 1/16W R803R9151F R4067 RC 150 OHM 1/16W R803R9151F R4068 RC 150 OHM 1/16W R803R9151F R4069 RC 150 OHM 1/16W R803R9151F R4070 RC 33 OHM 1/16W R803R9330J R4071 RC 33 OHM 1/16W R803R9330J R4082 RC 33 OHM 1/16W R803R9330J Mark No. Description Part No. R4084 RC 1K OHM 1/16W R803R9102J R4087 RC 10K OHM 1/16W R803R9103J R8014 RC 3.9K OHM 1/16W R803R9392J R8016 RC 1.2K OHM 1/16W R803R9122J R8017 RC 1.2K OHM 1/16W R803R9122J R8018 RC 1.2K OHM 1/16W R803R9122J R8021 RC 10K OHM 1/16W R803R9103J R8023 RC 75 OHM 1/16W R803R9750F R8024 RC 75 OHM 1/16W R803R9750F R8026 RC 75 OHM 1/16W R803R9750F R8027 RC 75 OHM 1/16W R803R9750F R8028 RC 75 OHM 1/16W R803R9750F R8029 RC 75 OHM 1/16W R803R9750F R8035 RC 2.2K OHM 1/16W R803R9222J R8036 RC 3.9K OHM 1/16W R803R9392J R8037 RC 1.8K OHM 1/16W R803R9182J R8038 RC 220 OHM 1/16W R803R9221J R8039 RC 68 OHM 1/16W R803R9680J R8040 RC 100K OHM 1/16W R803R9104J R8044 RC 10K OHM 1/16W R803R9103J R8046 RC 2.2K OHM 1/16W R803R9222J R8048 RC 270K OHM 1/16W R803R9274J R8049 RC 10K OHM 1/16W R803R9103F R8051 RC 3.9K OHM 1/16W R803R9392J R8054 RC 2.2K OHM 1/16W R803R9222J R8056 RC 4.7K OHM 1/16W R803R9472J R8057 RC 100 OHM 1/16W R803R9101J R8059 RC 10K OHM 1/16W R803R9103F R8060 RC 270K OHM 1/16W R803R9274J R8061 RC 10K OHM 1/16W R803R9103F R8063 RC 18K OHM 1/16W R803R9183F R8065 RC 10 OHM 1/16W R803R9100J R8066 RC 10K OHM 1/16W R803R9103F R8067 RC 18K OHM 1/16W R803R9183F R8069 RC 680K OHM 1/16W R803R9684J R8070 RC 33 OHM 1/16W R803R9330J R8073 RC 22K OHM 1/16W R803R9223J R8074 RC 22K OHM 1/16W R803R9223J R8076 RC 470 OHM 1/16W R803R9471J R8077 RC 220 OHM 1/16W R803R9221F R8078 RC 470 OHM 1/16W R803R9471J R8079 RC 220 OHM 1/16W R803R9221F R8080 RC 220 OHM 1/16W R803R9221F R8081 RC 470 OHM 1/16W R803R9471J R8082 RC 220 OHM 1/16W R803R9221F R8083 RC 470 OHM 1/16W R803R9471J R8084 RC 220 OHM 1/16W R803R9221F R8085 RC 220 OHM 1/16W R803R9221F W13809 RC 0 OHM 1/16W R803R9000J W13811 RC 0 OHM 1/16W R803R9000J W13812 RC 0 OHM 1/16W R803R9000J W13813 RC 0 OHM 1/16W R803R9000J W13814 RC 0 OHM 1/16W R803R9000J W13815 RC 0 OHM 1/16W R803R9000J W13816 RC 0 OHM 1/16W R803R9000J W13817 RC 0 OHM 1/16W R803R9000J W13819 RC 0 OHM 1/16W R803R9000J W13820 RC 0 OHM 1/16W R803R9000J W13824 RC 0 OHM 1/16W R803R9000J W13829 RC 0 OHM 1/16W R803R9000J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 47 5 6 7 8 5 6 7 8 C D F A B E W13832 RC 0 OHM 1/16W R803R9000J W13833 RC 0 OHM 1/16W R803R9000J W13834 RC 0 OHM 1/16W R803R9000J W13847 RC 0 OHM 1/16W R803R9000J W13848 RC 0 OHM 1/16W R803R9000J W13850 RC 0 OHM 1/16W R803R9000J W13851 RC 0 OHM 1/16W R803R9000J W13852 RC 0 OHM 1/16W R803R9000J W13853 RC 0 OHM 1/16W R803R9000J W13866 RC 0 OHM 1/16W R803R9000J W13870 RC 0 OHM 1/16W R803R9000J OTHERS B4001 CORE,BEADS 0246C51024 B4002 CORE,BEADS 0246C51024 B4007 CORE,BEADS 0246C51024 B8001 CORE,BEADS 0246C51024 B8002 CORE,BEADS 0246C51024 B8003 CORE,BEADS 0246C51024 B8004 CORE,BEADS 0246C51024 B8006 CORE,BEADS 0246C51024 B8007 CORE,BEADS 0246C51024 CP2301 CONNECTOR PCB SIDE 069GYOT119 CP2302 CONNECTOR PCB SIDE 069EV53030 CP2303 CONNECTOR PCB SIDE 069EV63030 CP4002 CONNECTOR PCB SIDE 069EVB3030 CP4003 CONNECTOR PCB SIDE 069S2E0629 CP8001 CONNECTOR PCB SIDE 069J7C0599 J8001 RCA JACK 060J451008 J8002 JACK 063D700008 J8003 RCA JACK 060J411034 J8004 RCA JACK 060J401102 NR4001 R,NETWORK 110P4330M4 NR4002 R,NETWORK 110P4330M4 X4001 CRYSTAL 100BT02701 PCB130 PCB DME025A 13DME025AC B OPERATION 1 PCB ASSY SEMICONDUCTORS IC651 IC PT6315 IF4K063150 D656 1SS133T-77 D1VT001330 D657 1SS133T-77 D1VT001330 D658 1SS133T-77 D1VT001330 D659 1SS133T-77 D1VT001330 D669 1SS133T-77 D1VT001330 SWITCHES AND RELAYS SW663 SWITCH TACT 0504R01T38 SW666 SWITCH TACT 0504R01T38 CAPACITORS C651 CC 0.1 UF 25V B CS0PB0315K C658 CC 0.1 UF 50V B CS0PB0415K C659 CC 0.001 UF 50V B CS0PB0413K C674 CE 47 UF 6.3V E50HU0470M C675 CC 0.1 UF 25V B CS0PB0315K C676 CC 0.1 UF 25V B CS0PB0315K Mark No. Description Part No. RESISTORS R651 RC 2.2 OHM 1/16W R803R92R2J R652 RC 2.2 OHM 1/16W R803R92R2J R653 RC 2.2 OHM 1/16W R803R92R2J R654 RC 2.2 OHM 1/16W R803R92R2J R655 RC 1K OHM 1/16W R803R9102J R656 RC 1K OHM 1/16W R803R9102J R657 RC 10K OHM 1/16W R803R9103J R658 RC 10K OHM 1/16W R803R9103J R662 RC 100K OHM 1/16W R803R9104J R666 RC 2.2 OHM 1/4W R002T42R2J OTHERS OS651 REMOTE RECEIVER 077A040001 V651 TUBE FLUORESCENT 096F82R601 CD601 CORD JUMPER 122H0B1002 CD603 CORD JUMPER 122H062801 CP601 CONNECTOR PCB SIDE 069EVB3050 CP603 CONNECTOR PCB SIDE 069EV63050 W27001 JUMPER IN PCB 1230T05001 W27002 JUMPER IN PCB 1230T12501 W27003 JUMPER IN PCB 1230T05001 W27004 JUMPER IN PCB 1230T12501 W27005 JUMPER IN PCB 1230T05001 W27006 JUMPER IN PCB 1230T07501 W27007 JUMPER IN PCB 1230T07501 W27008 JUMPER IN PCB 1230T05001 W27009 JUMPER IN PCB 1230T05001 W27805 JUMPER IN PCB 1230T05001 PCB270 PCB DEE029A 13DEE029AW C OPERATION 2 PCB ASSY SWITCHES AND RELAYS SW660 SWITCH TACT 0504R01T38 SW662 SWITCH TACT 0504R01T38 SW664 SWITCH TACT 0504R01T38 SW665 SWITCH TACT 0504R01T38 SW667 SWITCH TACT 0504R01T38 OTHERS CP602 CONNECTOR PCB SIDE 069EV63050 PCB280 PCB DEE037A 13DEE037AW F POWER PCB ASSY SEMICONDUCTORS IC501 IC KIA431A-AT I1KJ9A431A IC502 IC STR-A6151M I0BD061510 IC503 IC PQ070XF01SZH I0GA9XF010 IC504 PS2561AL1-1-V(W) 000220002W Q501 KTC3875S_Y_RTK TCAA3875SY Q502 KTC3209_Y_AT TCAT03209Y Q503 KTA1504S_Y_RTK TAAA1504SY Q504 KTA1281_Y TAAT01281Y Q505 KTA102SRTK TNAAB05003 Q506 KTA1504S_Y_RTK TAAA1504SY Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 48 1 2 3 4 1 2 3 4 C D F A B E Q509 KTC3875S_Y_RTK TCAA3875SY Q510 KTA1281_Y TAAT01281Y Q511 KTC3875S_Y_RTK TCAA3875SY Q512 KTC3875S_Y_RTK TCAA3875SY Q513 KTA1504S_Y_RTK TAAA1504SY Q515 2SD1207(S,T)-AE TD3T012070 Q8101 KTC3875S_Y_RTK TCAA3875SY Q8102 KTA1504S_Y_RTK TAAA1504SY Q8104 DTC144EKAT146 TNYJD05001 Q8105 DTA114EKAT146 TPYJB05001 D502 1N4005-EIC D2WXN40050 D503 1N4005-EIC D2WXN40050 D505 1N4005-EIC D2WXN40050 D506 1N4005-EIC D2WXN40050 D508 MTZJ5.6B T-77 D97U05R61B D509 RGP10KE-G3 D2LTP10KE0 D510 RGP15J-G23 D23TGP15J0 D511 10ERB20-TA1B2 D28T0ERB20 D512 RGP15J-G23 D23TGP15J0 D513 10ERB20-TA1B2 D28T0ERB20 D515 11EQS04N-TA1B2 D28TQS04N0 D516 1SS133T-77 D1VT001330 D517 MTZJ4.3B T-77 D97U04R31B D519 10ERB60-TA2B5 D28X0ERB60 D520 1SS133T-77 D1VT001330 D521 1SS133T-77 D1VT001330 D522 D1SS133T-77 D1VT001330 D523 MTZJ3.6B T-77 D97U03R61B D525 1SS133T-77 D1VT001330 D527 21DQ04N-TA2B1 D28T21DQN4 D528 MTZJ5.1B T-77 D97U05R11B D531 MTZJ27B T-77 D97U02701B D532 11EQS04N-TA2B5 D28XQS04N0 D533 MTZJ2.2B T-77 D97U02R21B D534 1SS133T-77 D1VT001330 D535 MTZJ5.1B T-77 D97U05R11B D536 MTZJ3.0B T-77 D97U03R01B D8101 1SS355 TE-17 DD7R0S3550 COILS AND FILTERS B501 CORE,BEADS 024HT03563 L501 COIL,LINE FILTER 029X000123 L503 COIL 22 UH 02167E220K L505 COIL 22 UH 02167E220K L8101 COIL 10 UH 02167F100J TRANSFORMERS T501 TRANSFORMER,SWITCHING 0481291294 CAPACITORS C501 CC 0.01 UF 50V F CS0PF0414Z C502 CMP 0.22 UF 275V ECQUL P2122B224M C503 CC 0.1 UF 25V B CS0PB0315K C505 CC 100 PF 2KV R C0PLRR712K C506 CE 2.2 UF 50V E50HU52R2M C507 CC 0.01 UF 50V F CS0PF0414Z C508 CC 680 PF 50V CH CS0PCH4U2J C509 CE 10 UF 50V E02LU5100M C511 CE 82 UF 400V E51CHH820M C513 CC 47 PF 2KV SL CP3YSL7Q1J Mark No. Description Part No. C514 CC 470 PF 500V B C0JTB05Q2K C515 CP 0.01 UF 400V ECQP P11104103J C516 CC 0.0022UF 250V CD39E0MH3M C517 CE 220 UF 25V E02LU3221M C518 CC 0.001 UF 250V CD39E0M13M C519 CE 22 UF 35V E02LU4220M C520 CE 100 UF 50V E02LT5101M C521 CE 1000 UF 16V E61FF2102D C522 1000 UF 6.3V E61FT0102D C523 CE 25YK470MKC 470 UF 25V E0ELF3471M C526 CE 220 UF 6.3V E02LU0221M C527 CE 100 UF 10V E02LU1101M C528 CE 2.2 UF 50V E50HU52R2M C531 CE 100 UF 16V E02LU2101M C533 CE 100 UF 10V E02LU1101M C535 CE 330 UF 16V E02LU2331M C536 CE 220 UF 6.3V E02LU0221M C538 CE 220 UF 6.3V E02LU0221M C540 CC 0.01 UF 50V B CQGTB0414K C541 CC 0.01 UF 50V F CS0PF0414Z C8101 CC 0.01 UF 50V B CS0PB0414K C8105 CC 0.1 UF 25V B CS0PB0315K C8106 CC 0.001 UF 50V B CS0PB0413K C8107 CC 0.001 UF 50V B CS0PB0413K C8111 CC 0.001 UF 50V B CS0PB0413K C8112 CE 1000 UF 6.3V E02LT0102M C8113 CE 470 UF 6.3V E02LU0471M C8114 CE 470 UF 6.3V E02LU0471M C8115 CE 1000 UF 6.3V E02LT0102M C8116 CC 33 PF 50V CH CS0PCH4L1J RESISTORS R502 R,METAL OXIDE 1.8 OHM 1W R3X1811R8J R503 RC 1.5M OHM 1/2W R002T2155J R504 RC 680K OHM 1/16W R803R9684J R505 RC 22 OHM 1/4W R002T4220J R506 RC 100 OHM 1/16W R803R9101J R507 R,FUSE 10 OHM 1/4W R63884100J R509 RC 1K OHM 1/16W R803R9102J R510 R,METAL OXIDE 3.3 OHM 1W R3X1813R3J R511 R,FUSE 68 OHM 1/4W R65584680J R512 RC 100K OHM 1/2W R002T2104J R513 RC 10K OHM 1/4W R002T4103J R514 RC 1K OHM 1/4W R002T4102J R515 RC 1K OHM 1/16W R803R9102J R516 RC 10 OHM 1/16W R803R9100J R517 R,METAL 1.2K OHM 1/6W R4X5T6122F R518 RC 3.3K OHM 1/16W R803R9332F R519 RC 1K OHM 1/16W R803R9102J R523 RC 22K OHM 1/16W R803R9223J R524 RC 1K OHM 1/4W R002T4102J R525 RC 150 OHM 1/4W R002T4151J R526 RC 6.8K OHM 1/16W R803R9682F R527 RC 100 OHM 1/4W R002T4101J R528 RC 22K OHM 1/4W R002T4223J R529 R,METAL OXIDE 220 OHM 1W R3X181221J R530 RC 560 OHM 1/4W R002T4561J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 49 5 6 7 8 5 6 7 8 C D F A B E R531 RC 10K OHM 1/16W R803R9103J R534 RC 100 OHM 1/4W R002T4101J R536 RC 10K OHM 1/16W R803R9103J R537 RC 1K OHM 1/16W R803R9102J R538 RC 22K OHM 1/16W R803R9223J R539 RC 4.7K OHM 1/4W R002T4472J R540 RC 680 OHM 1/4W R002T4681J R541 RC 5.6K OHM 1/16W R803R9562F R542 R,METAL 1K OHM 1/6W R4X5T6102F R543 RC 4.7K OHM 1/16W R803R9472F R544 RC 10K OHM 1/16W R803R9103J R545 RC 22K OHM 1/16W R803R9223F R546 R,METAL 3.3K OHM 1/6W R4X5T6332F R547 RC 22 OHM 1/16W R803R9220J R8101 RC 4.7K OHM 1/4W R002T4472J R8102 RC 56K OHM 1/16W R803R9563J R8103 RC 470 OHM 1/4W R002T4471J R8104 RC 6.8K OHM 1/16W R803R9682J R8105 RC 390 OHM 1/4W R002T4391J R8108 RC 8.2K OHM 1/16W R803R9822J R8109 RC 68 OHM 1/16W R803R9680F R8110 RC 75 OHM 1/16W R803R9750F R8111 RC 75 OHM 1/16W R803R9750F R8112 RC 75 OHM 1/16W R803R9750F R8113 RC 75 OHM 1/16W R803R9750F R8114 RC 220 OHM 1/16W R803R9221F R8115 RC 220 OHM 1/16W R803R9221F R8120 RC 1 OHM 1/4W R002T4010J OTHERS F501 FUSE 50T016H 080NT1R604 CD8001 CORD JUMPER 122H0C3001 CP502 CORD CONNECTOR 06C32E3504 CP503 CONNECTOR PCB SIDE 069J7C0599 FH501 HOLDER,FUSE 06710T0009 FH502 HOLDER,FUSE 06710T0009 J501 SOCKET,AC 064A6A0001 J8101 SOCKET,21PIN 063D100050 W24001 JUMPER IN PCB 1230T07501 W24002 JUMPER IN PCB 1230T10001 W24003 JUMPER IN PCB 1230T05001 W24004 JUMPER IN PCB 1230T12501 W24005 JUMPER IN PCB 1230T05001 W24006 JUMPER IN PCB 1230T05001 W24007 JUMPER IN PCB 1230T15001 W24008 JUMPER IN PCB 1230T12501 W24010 JUMPER IN PCB 1230T10001 W24011 JUMPER IN PCB 1230T07501 W24012 JUMPER IN PCB 1230T05001 W24013 JUMPER IN PCB 1230T05001 W24015 JUMPER IN PCB 1230T05001 W24016 JUMPER IN PCB 1230T05001 W24017 JUMPER IN PCB 1230T10001 W24018 JUMPER IN PCB 1230T05001 W24019 JUMPER IN PCB 1230T05001 W24021 JUMPER IN PCB 1230T15001 W24023 JUMPER IN PCB 1230T07501 W24024 JUMPER IN PCB 1230T10001 W24025 JUMPER IN PCB 1230T07501 W24026 JUMPER IN PCB 1230T05001 W24027 JUMPER IN PCB 1230T05001 Mark No. Description Part No. W24029 JUMPER IN PCB 1230T05001 W24030 JUMPER IN PCB 1230T05001 W24031 JUMPER IN PCB 1230T05001 W24032 JUMPER IN PCB 1230T05001 W24035 JUMPER IN PCB 1230T05001 W24036 JUMPER IN PCB 1230T05001 W24811 JUMPER IN PCB 1230T05001 W24814 JUMPER IN PCB 1230T05001 W24815 JUMPER IN PCB 1230T12501 W24817 JUMPER IN PCB 1230T12501 W24821 JUMPER IN PCB 1230T12501 PCB240 PCB DPE004A 13DPE004AW Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 50 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 WHEN REPLACING DVD DECK Before removing Pick Up PCB and DVD PCB connector, short circuit the position shown in Fig. 1 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged. WHEN REPLACING DVD DECK [ Removing the DVD Deck ] [ Installing the DVD Deck ] Remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD PCB connector. NOTE Fig. 1 Short circuit using a soldering iron. Pick Up PCB Before your operation, please read “PREPARATION OF SERVICING” . Use the Lead Free solder. Manual soldering conditions • Soldering temperature: 320 ± 20˚C • Soldering time: Within 3 seconds • Soldering combination: Sn-3.0Ag-0.5Cu When Soldering/Removing of solder, use the draw in equipment over the Pick Up Unit to prevent the Flux smoke from it. • • • • www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 51 5 6 7 8 5 6 7 8 C D F A B E 6.2 TEST MODE POWER ON DSC - &&& GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE Press the play key ( ) of the normal remote control unit. (Player) TEST MODE: PLAY TEST MODE: OFF An address is displayed OR ESC ESC TEST CHECK DVD, CD DVD disc POWER ON OFF POWER DISC SET Notes: • After going into test mode, if you play back the disc, "DISC-NON" is displayed. • The video signal and the audio signal are outputted during the test mode. • The SKIP key and the SCAN key are effective during the test mode. DVD test disc (GGV1025) Test mode remote control unit (GGF1381) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 52 1 2 3 4 1 2 3 4 C D F A B E 6.3 TEST MODE IN Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the Test mode remote control unit. ¥ Light the all FL and LEDs. ¥ OSD displays test mode. Note: * When pressing the keys of something, the FL displays "NO DISC" and the LED lighting disappears. 2 Release the Test mode ¥ Turn off the power. ¥ Press the [ESC] (A8-5F) key of the remote control unit. 3 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 53 5 6 7 8 5 6 7 8 C D F A B E 6.4 DISC REMOVAL METHOD 1. 2. 3. Remove the Top Cabinet and Front Cabinet. (Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.) Rotate the Main Gear in the direction of the arrow by hand. (Refer to Fig. 1) Draw the Tray. DISC REMOVAL METHOD AT NO POWER SUPPLY Fig. 1 DVD Deck Main Gear If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps below. Set the DVD to the Stand-by Mode. Press and hold the 'STOP' key on the front panel. Simultaneously press and hold the POWER key on the front panel. The 4 digit password has now been cleared. 1. 2. 3. 4. PARENTAL CONTROL - RATING LEVEL 4 DIGIT PASSWORD CANCELLATION NOTE: The above procedure will reset ALL of the player's settings to the default factory state. The laser diode used for a pickup head may be destroyed with external static electricity. Moreover, even if it is operating normally after repair, when static electricity discharge is received at the time of repair, the life of the product may be shortened. Please perform the following measure against static electricity, be careful of destruction of a laser diode at the time of repair. • Place the unit on a workstation equipped to protect against static electricity, such as conductive mat. • Soldering iron with ground wire or ceramic type is used. • A worker needs to use a ground conductive wrist strap for body. PREPARATION OF SERVICING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 54 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISPLAY SPECIFICATION OF THE TEST MODE Character in bold : Item name : Information display 1 5 6 10 11 8 9 3 2 12 15 13 14 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : ID indication [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL – ∗ ∗ ∗] [OFF], [CLV] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] In Side Switch ON : [01] In Side Switch OFF : [00] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] - Jitter value [J – ∗ ∗ ∗ ∗] Note:Don’t use it. = Version of the FL controller [FL: ∗ ∗ ∗ ∗] ~ Region setting of the player [REG: ∗] Setting value : [1] to [6] ! Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent code 01. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM, LB: /LB, WY: /WY @ Version of the flash ROM [VERSION: ∗∗∗∗∗∗∗∗] 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 55 5 6 7 8 5 6 7 8 C D F A B E 7.1.2 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY • Service mode indication (ESC + CHP/TIM keys) ID Address The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs. EDC/ID/AV 1 error history (ID Address, EDC/ID Error, last eight errors) • Calculation of the average error rate (ESC + "5" [Test mode remote control unit] keys) The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs) For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less • Indication of model information (ESC + CHAP keys) The items from 12 to 15 of the TEST MODE Indications are displayed. However, in the indications, S in the standard test mode is changed to CHIP VERSION, and M is changed to RF VERSION. For details, see 7.1.4. • Region confirmation mode (ESC + A.MON [Test mode remote control unit] + "1"-"8" [Test mode remote control unit] keys) After you press the AUDIO key while holding the ESC key pressed and then input the region number, if the number is different from that set in the unit, an error message is displayed, and the tray opens. Command Contents Conditions Remote Control Key Name Remote Control Code Memory clear and region / revision indication CLEAR (∗1) A8-45 Average value measurement of DVD error rate 5 (∗1) A8-05 CD error rate measurement 5 (∗1) A8-05 Scart terminal output : VIDEO WY, models equipped with Scart terminal AUDIO AF-BE Scart terminal output : S-VIDEO SUBTITLE AF-36 Scart terminal output : RGB ANGLE AF-B5 Progressive OFF Only for progressive models R_SKIP A3-9D Progressive ON F_SKIP A3-9C ZOOM ON (X2 -> X4 -> x1) ZOOM AF-37 Service mode indication (error rate indication, etc.) CHP/TIM (∗1) A8-13 Model information indication CHAP (∗1) A8-40 Title search Input mode IN Title No. input Search execution SIDE A (∗1) Numbers (∗1) PLAY (∗1) A8-4D A8-00 to A8-09 A8-17 Region confimation mode A.MON (∗1) Numbers (∗1) A8-1E A8-01 to A8-08 Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC key of the remote control unit. To quit, press the ESC key ∗1 : Test mode remote control unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 56 1 2 3 4 1 2 3 4 C D F A B E 7.1.3 SPECIFICATION OF MODEL INFORMATION DISPLAY • Display contents Character in bold : Item name : Information display 1 3 4 2 5 6 1 Destination indication Display it according to model information set from the FL Driver IC. 2 Region No. 3 ROM number Rom display Version. To display model information : Press the ESC key then the CHAP key. To close the model information display : Press the ESC key. Don't care. AREA : WY REGION : 2 ROM NUMBER YAD5215B REG CHK 40 SUM CHK D2AD FL VERSION 1.08 CHIP VERSION 1389FE Don't Care 4kinds of ROM Image Rom Version Ex. Yxx4A04A 4 : Mediatek system xx : AA=LE-A (Please refer to the above-mentioned table.) AB=LE-B (Please refer to the above-mentioned table.) AC=LE-C (Please refer to the above-mentioned table.) AD=LE&LU (Please refer to the above-mentioned table.) Y : Year (2004) A : Month (10) A : 1-9=Jan-Sep/A=Oct/B=Nov/C=Dec 10: Date (04) 01-31 A : No. A-Z The Version done UP in the day Audio Out 2Ch 2Ch 5.1Ch DivX No Yes Yes US EU LE-A LE-B LE&LU LE-C TH JP CH TW Other Chip MT1389D2 MT1389C MT1389B Y xx 4 A 04 A system spec. year month date version www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 57 5 6 7 8 5 6 7 8 C D F A B E 4 REG CHK 5 SUM CHK (Fast) 1byte K1/KS10-16 bit Dimmer/ms1_2/ms1_1/ms1_0 / Checker/ms0_2/ms0_1/ms0_0 High-order bit of two places of display The following about ms1_0 to 2, ms0_0 to 2 SUM value of E2P ROM displays with four places. Calculation range : TV_COMP_POS (65d) – LAST_TV_SYSTEM_POS (151d) Low-order bit of two places of display Pin No. of FL Driver IC651 (PT6315) When assumed existence of diodes on each pin as follows, Exist: 1 Nothing: 0 Display four places of high-order and low-order with hexadecimal. 23pin 24pin 25pin 26pin 27pin 28pin 29pin 6 CHIP VERSION 000 : rgn2 Japan 001 : rgn1 North America 010 : Other 011 : Taiwan 100 : Europe 101 : Thai 110 : China 111 : reserved 000 : LE model 001 : LU model (w DivX) 010 : LU model (w/o DivX) 011 : reserved 100 : karaoke model 101 : reserved 110 : reserved 111 : reserved MS1_2 MS1_1 MS1_0 MS0_2 MS0_1 MS0_0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 58 1 2 3 4 1 2 3 4 C D F A B E 7.1.4 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE • Display during Service Mode To enter Service Mode, press the CHP/TIM key while holding the ESC key pressed. To quit, press the ESC key. Service mode display 1 ID Address 2 Error rate (always displayed), in exponential notation ERROR RATE : ∗ ∗ ∗ ∗ ∗ ∗ ∗ ( ∗ ∗ ∗ ∗ ) • Calculation of the average error rate For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less 3 EDC/ID error history (ID Address, EDC/ID errors, last eight errors) Note: ∗ Error of AV1 is not supported in this player. Number of error Indication plan contents Character in bold : Item name : Information display 1 2 3 ex) For DVDs • Step 1 %%e -& %%e -6 : OK %%e -5 : OK %%e -4 : Refer to Step 2 %%e -3 : NG %%e -2 : NG • Step 2 %%e -4 3.0e -4 : OK 4.0e -4 : OK 5.0e -4 : OK 6.0e -4 : NG 7.0e -4 : NG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 59 5 6 7 8 5 6 7 8 C D F A B E 7.1.5 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY CP2303 CP2301 C R2326 R2327 R2310 R2311 R2313 R2312 R2316 R2317 R2318 R2325 C4002 C4003 R2338 R2332 R2333 R2334 C2310 R2335 C2311 C2308 Q2302 Q2304 Q2303 Q2305 R2320 R2322 R2323 R2321 Q2307 Q2306 R2306 R2307 Q2301 R2309 R2308 2303 C2301 C2305 W819 R2337 C2320 W817 W809 To OPTICAL PICKU CP2301 CP2303 Case when this diagnosis is required : When playback of any disc, including a test disc (DVD: GGV1025, CD: STD-905), cannot be performed How to diagnose In the case mentioned above, degradation of the laser diodes (LDs) mounted on the PICKUP Assy is suspected. Measure the voltage between the two ends of one of the resistors mentioned below. Measure the voltage between the two ends of R2321 or R2323 on the DVDM Assy. If the voltage is 0.4 V or higher, the 650-nm LD is degraded. No playback of a DVD : Measure the voltage between the two ends of R2320 or R2322 on the DVDM Assy. If the voltage is 0.4 V or higher, the 780-nm LD is degraded. No playback of a CD : If the measurements show degradation of an LD, replace the PICKUP Assy. SIDE A Front side DVD MT PCB ASSY A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 60 1 2 3 4 1 2 3 4 C D F A B E 7.1.6 TROUBLE SHOOTING No. Symptoms Diagnosis Contents Possible Defective Points 1 The power is not turned on. Check the voltage of AT+3.3V, –28V and FLDC on the POWER SUPPLY Unit. POWER PCB ASSY Are wires of output connector (POWER PCB ASSY) and CP4003 (DVDM Assy) disconnected or damaged ? Connector / cable Check that the voltage at IC101-pin 22 (KEY0) on the FLKY Assy becomes about 2.7V when the POWER key is pressed and 0 V when it is released. OPERATION 2 Assy Tact SW (when operation of only the POWER key on the main unit is not accepted) Check that the voltage at OS651-pin 1 (IR) on the OPERATION1 Assy is in the range between 0 and 3.3 V while receiving signals from the remote control unit when any key on it is pressed. FLKY Assy Remote receiver section (when operation of only the POWER key on the remote control unit is not accepted) 2 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) • Check the voltage of E+6.8V and SW+3.3V on the POWER SUPPLY Unit. • Check the voltage of P.ON-H is about 2.8V on the POWER SUPPLY Unit. POWER SUPPLY Unit Check that the following voltage are output : IC4006-pin 5 : 1.8V, on the DVD MT PCB Assy. DVD MT PCB Assy 1.8V Regulator IC (IC4006) Is a resonator (X4001 : 27MHz) on the DVDM Assy oscillating ? DVD MT PCB Assy Crystal resonator (X4001) • Is a signal input into IC603-pin26 (PCE#) on the DVDM Assy ? (Is a signal "H" for 80 mS and then "L" after the power is turned on ?) → Communication with flash ROM. • Are the signals input into IC4005-pin 16 (DWE#), pin 19 (DCS#) and pin 38 (SDCLK) on the DVDM Assy ? (Is a signal fluctuating ?) → Communication with SDRAM DVD MT PCB Assy DVD IC (IC4002) Flash ROM (IC4004) SDRAM (IC4005) Is a signal output from IC4004-pin 28 (PRD#) on the DVD MT Assy? (Is a signal fluctuating for several hundred mS after the power is turned on ?) DVD MT PCB Assy Flash ROM (IC4004) Are the signals of IC4001-pin 5(SDA) and pin 6(SCL) on the DVDM Assy fluctuating for one or two seconds after the power is turned ? DVD MT PCB Assy EEPROM (IC4001) 3 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Check the video signal path between DVD IC (DVD MT Assy IC4002) and video-out terminal (see the block diagram) DVD MT PCB Assy Video circuit after DVD IC (IC4002) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 61 5 6 7 8 5 6 7 8 C D F A B E No. Symptoms Diagnosis Contents Possible Defective Points 4 A tray cannot be opened. (An opening screen is displayed on the monitor) Does the voltage of CP2302-pin 3 and pin 1 on the DVD MT Assy change normally ? Pin 5 (SW2(TRIN)): Tray is fully closed: "L" Pin 3 (SW1(TROUT)): Tray is fully opened: "L" Tray SW Is a LOAD-DRV signal reaching ? DVD MT PCB Assy DVD IC (IC4002) Are the signals output from IC101-pin 36 and pin 37 (CN103-pin 1 and pin 2) on the DVDM Assy ? Pin 4: Approx. 45V during opening tray approx. 0V during closing tray. Pin 5: Approx. 0V during opening tray approx. 4.5V during closing tray. DVD MT PCB Assy FTS Driver IC (IC2301) Are wires of CP2302 and CP2303 on the DVDM Assy disconnected or damaged ? Connector / cable Does the voltage of CD2301-pin 5 change by pressing the Inside switch. Inside switch 5 Playback impossible (no focusing) Are the signals output from IC2301-pin 9 (F+) and pin 8 (F–) on the DVDM Assy ? DVD MT PCB Assy FTS Driver IC (IC2301) Does 650-nm LD emit light ? Does a pickup lens move up / down ? Does an actuator spring bend ? Pickup Are plastic parts damaged ? Or is a shaft detached ? Is the turntable detached or tilted ? Mechanism section (motor) Is flexible cable of CP2301 on the DVD MT Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC4002-pin 42 (FOSO) on the DVDM Assy ? (Device control of about 1.4 V is output usually. It is fluctuated by about ± 250 mV with focus up / down.) DVD MT PCB Assy DVD IC (IC4002) 6 Playback impossible (Spindle does not turn) Are the signals output from IC2301-pin 10 (MOT SPDL–), and pin 11 (MOT SPDL+) on the DVD MT Assy ? Is pin 33,34 (STBY) fixed LOW? DVD MT PCB Assy FTS Driver IC (IC2301) Is there any part detached from the spindle motor ? Or Is there any foreign object lodged in it ? Mechanism section (Spindle motor) Are wires of CP2303 on the DVD MT Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC4002-pin 37 (DMSO) on the DVDM Assy ? DVD MT PCB Assy DVD IC (IC4002) 7 Playback impossible (Playback stops) Does 650-nm LD deteriorate ? If the voltage at each both ends of R2303 and R2305 on the DVD MT Assy is 0.4 V or more, the 650-nm LD is definitely deteriorated. 650-nm LD deteriorated. (When playback of a DVD is impossible) Does 780-nm LD deteriorate ? If the voltage at each both ends of R2302 and R2304 on the DVD MT Assy is 0.4 V or more, the 780-nm LD is definitely deteriorated. 780-nm LD deteriorated. (When playback of a CD is impossible) Are there scratches or dirt on the disc ? Disc 8 Picture disturbance during playback (block noise, freeze, other) Are there scratches or dirt on the disc ? Is there a problem with the format of the disc ? Disc 9 No sound (Picture is normal) Check the waveform (ABCK, ALRCK, ACLK, ASDATA). DVD MT PCB Assy DVD IC (IC4002) Is signal output from IC8004-pin 7 and pin 8 on the DVD MT Assy ? DVD MT PCB Assy Audio Dac IC (IC8004) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 62 1 2 3 4 1 2 3 4 C D F A B E Symptoms That May Occur When Any Of The Following ICs Is In Failure IC Symptoms EEP ROM (DVD MT Assy : IC4001) User's data cannot be stored in memory. The ID number is lost. 16M Flash ROM (DVD MT Assy : IC4004) The power cannot be turned on. Downloading of the firmware cannot be performed. DVD IC (DVD MT Assy : IC4002) Any kind of symptoms (no power, a failure in any of the servo, video and audio systems, etc.) may be generated, because the DVD processing is performed by a single chip. 64M SDRAM (DVD MT Assy : IC4005) No power. Block noise is generated during playback. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 63 5 6 7 8 5 6 7 8 C D F A B E 7.2 DISASSEMBLY 1. REMOVAL OF MECHANICAL PARTS AND P.C. BOARDS 1-1: 1. 2. 3. 4. 5. 6. 7. Remove the 5 screws 1. Remove the Top Cabinet in the direction of arrow (A). Disconnect the following connector: (CP4002). Unlock the 4 supports 2. Remove the Front Cabinet in the direction of arrow (B). Remove the 7 screws 3. Remove the Operation 1/2 PCB in the direction of arrow (C). Fig. 1-1 1-2: POWER PCB (Refer to Fig. 1-2) 1. 2. 3. 4. Disconnect the following connectors: (CP4003, CP8001). Remove the screw 1. Remove the 4 screws 2. Remove the Power PCB in the direction of arrow. Fig. 1-2 1. 2. 3. 4. Short circuit the position shown in Fig. 1-3 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged. Disconnect the following connectors: (CP2301, CP2302, CP2303). Remove the 4 screws 1. Remove the DVD Deck in the direction of arrow. 1-3: DVD DECK (Refer to Fig. 1-3) Fig. 1-3 2 2 Power PCB 2 DVD Deck 2 1 1 1 1 Short circuit using a soldering iron. Pick Up PCB NOTE Before your operation, please read “PREPARATION OF SERVICING”. Use the Lead Free solder. Manual soldering conditions • Soldering temperature: 320 ± 20˚C • Soldering time: Within 3 seconds • Soldering combination: Sn-3.0Ag-0.5Cu When Soldering/Removing of solder, use the drawing equipment over the Pick Up Unit to prevent the Flux smoke from it. When installing the DVD Deck, remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD PCB connector. 1. 2. 3. 4. 5. 1-4: DVD PCB (Refer to Fig. 1-4) 1. 2. 3. Remove the 4 screws 1. Remove the 4 screws 2. Remove the DVD PCB in the direction of arrow. Fig. 1-4 111 2 2 1 DVD PCB TOP CABINET/FRONT CABINET/OPERATION 1/2PCB (Refer to Fig. 1-1) 1 (B) (A) 1 1 1 2 1 Top Cabinet Front Cabinet 2 2 2 (C) (C) Operation 1 PCB Operation 2 PCB 1 3 3 3 33 3 3 2 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 64 1 2 3 4 1 2 3 4 C D F A B E 7.3 DVD DECK SECTION 2. REMOVAL OF DVD DECK PARTS 2-1: TRAY (Refer to Fig. 2-1-A) Set the Tray opened. (Refer to the DISC REMOVAL METHOD AT NO POWER SUPPLY) Unlock the 2 supports 1 and draw it while sagging the Tray. 1. 2. Fig. 2-1-A Tray Loader Ass'y NOTE 1. In case of the Tray installation, install them as the circled section of Fig. 2-1-B so that the each markers are met. 2-2: TRAVERSE ASS'Y (Refer to Fig. 2-2-A) Remove the screw 1. Unlock the 2 supports 2. Remove the Insulator (R) from the Loader Sub Ass'y. Remove the Traverse Ass'y. 1. 2. 3. 4. Fig. 2-2-A Tray Loader Ass'y Fig. 2-1-B Insulator (R) NOTE 1. Do not disassemble the DVD DECK PARTS except listed parts here. Minute adjustments are needed if the disassemble is done. If the repair is needed except listed parts, replace the DVD MECHA ASS'Y. NOTE 1. 2. In case of the Traverse Ass'y, install it from (1) to (4) in order. (Refer to Fig. 2-2-B) In case of the Traverse Ass'y installation, hook the wire on the Loader Ass'y as shown Fig. 2-2-C. 1 Traverse Ass'y Loader Sub Ass'y Fig. 2-2-B Check Lock Traverse Ass'y Rack Loading Loader Ass'y (Bottom Side) Holder Traverse Fig. 2-2-C Loader Ass'y Check Hook Loading Belt Gear Pulley 1 2-3: LOADING MOTOR PCB ASS'Y/ LOADING BELT (Refer to Fig. 2-3-A) 1. 2. 3. 4. 5. 6. Remove the Loading Belt. Remove the screw 1. Remove the Loading Motor PCB Ass'y. Remove the 2 screws 2. Remove the Loading Motor. Remove the Gear Pulley. Fig. 2-3-A Loading Motor PCB Ass’y • Screw Torque: 2.0 ± 0.3kgf•cm • Screw Torque: 2.5 ± 0.3kgf•cm (Screw 1) • Screw Torque: 1.0 ± 0.3kgf•cm (Screw 2) 2 2 Loading Motor 1 1 2 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 65 5 6 7 8 5 6 7 8 C D F A B E BROWN (1) WHITE (2) NOTE 1. 2. 3. 4. In case of the Pulley Motor installation, check if the value of the Fig. 2-3-B is correct. When installing the wire of the Loading Motor PCB Ass'y, install it correctly as Fig. 2-3-C. Manual soldering conditions • Soldering temperature: 350 ± 5˚C • Soldering time: Within 4 seconds • Soldering combination: Sn-3.0Ag-0.5Cu When installing the Loading Motor PCB Ass'y, install it correctly as Fig. 2-3-D. In case of the Loading Motor PCB Ass'y installation, hook the wire on the Loader Sub Ass'y as shown Fig. 2-3-E. Fig. 2-3-B 7.0 ± 0.1mm Safety surface for pressing of the insert. Loading Motor Pulley Motor Check Hook Loading Motor PCB Ass’y Loading Motor PCB Ass’y Fig. 2-3-C Fig. 2-3-E Check Hook Fig. 2-3-D Rack Loading A B The Lever should be position between A and B. Check Hook Rack Loading 2 Loader Sub Ass’y Gear Main 2-4: RACK LOADING/MAIN GEAR/PULLEY GEAR (Refer to Fig. 2-4-A) 1. 2. 3. Unlock the support 1 and remove the Gear Pulley. Remove the Gear Main. Press down the catcher 2 and slide the Rack Loading. Gear Pulley 1 Fig. 2-4-A NOTE 1. 2. In case of the Rack Loading installation, hook the Rack Loading on the Loader Sub Ass'y as shown Fig. 2-4-B. When installing the Gear Main, take care the direction of up or down as shown Fig. 2-4-C. Fig. 2-4-B Rack Loading Check Hook Fig. 2-4-C Main Gear Up Side Down Side 2-5: CLAMPER ASS'Y (Refer to Fig. 2-5-A) Press the Clamper and rotate the Plate Clamper clockwise, then unlock the 3 supports 1. Remove the Plate Clamper, Magnet Clamper and Clamper. 1. 2. Plate Clamper Magnet Clamper Fig. 2-5-A Main Frame Clamper 1 1 1 Loader Sub Ass'y (Bottom Side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 66 1 2 3 4 1 2 3 4 C D F A B E Holder Traverse Insulator (F) Traverse Ass'y Insulator (F) Insulator (R) NOTE 1. In case of the Clamper Ass'y installation, install correctly as Fig. 2-5-B. Fig. 2-5-B Plate Clamper Clamper 2-6: Remove the Holder Traverse. Remove the 2 Insulator (F). Remove the Insulator (R). 1. 2. 3. Fig. 2-6-A HOLDER TRAVERSE/INSULATOR (F)/INSULATOR (R) (Refer to Fig. 2-6-A) NOTE 1. In case of the Insulator (F) installation, install correctly as Fig. 2-6-B. Fig. 2-6-B Traverse Holder Insulator (F) 2-7: Unlock the support 1. Remove the Gear Middle. Remove the screw 2. Remove the Rack Feed Ass'y. Remove the screw 3. Remove the Switch PCB Ass'y. Remove the screw 4. Remove the Gear Feed. Remove the 2 screws 5. Remove the Feed Motor. Remove the Gear Motor. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. SWITCH PCB ASS'Y/GEAR MIDDLE/GEAR FEED/RACK FEED ASS'Y/FEED MOTOR (Refer to Fig. 2-7-A) 3 Gear Middle Gear Motor Feed Motor • Screw Torque: 1.3 ± 0.3kgf•cm (Screw 2) • Screw Torque: 3.0 ± 0.3kgf•cm (Screw 3 4 ) • Screw Torque: 1.0 ± 0.3kgf•cm (Screw , 5) Switch PCB Ass'y 2 4 Rack Feed Ass'y Gear Feed 5 Fig. 2-7-A Traverse Ass'y 5 1 NOTE 1. 2. 3. 4. When installing the Rack Feed Ass'y, push both ends to align the teeth as shown Fig. 2-7-B. Then install it. In case of the Gear Motor installation, check if the value of the Fig. 2-7-C is correct. When installing the wire of the Switch PCB Ass'y, install it correctly as Fig. 2-7-D. Manual soldering conditions • Soldering temperature: 350 ± 5˚C • Soldering time: Within 4 seconds • Soldering combination: Sn-3.0Ag-0.5Cu After the assembly of the Traverse Ass'y, hook the wire on the Traverse Ass'y as shown Fig. 2-7-E. [OK] [NG] Fig. 2-7-B Rack Feed Ass'y Push Push Fig. 2-7-C 8.0 ± 0.2mm Safety surface for pressing of the insert. Feed Motor Gear Motor Check Lock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 67 5 6 7 8 5 6 7 8 C D F A B E [ 24 pin FFC ] When installing the FFC, fold it correctly and install it as shown from Fig. 2-8. 2-8: FFC WIRE HANDLING 1. Do not make the folding lines except the specified positions for the FFC. 1. NOTE Fig. 2-8 Traverse Ass'y Check Hook Check Hook Check Hook Check Hook Fig. 2-7-E ~ FEED MOTOR ~ WHITE (4) BROWN (3) ~ SPINDLE MOTOR ~ YELLOW (2) GREEN (1) Fig. 2-7-D Switch PCB Ass'y • Install wire from(1) to (4) in order. To Pick Up PCB Reinforcement Plat • Loosen the wirein the direction of the arrows. Printing _Serface 85±1 mm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 68 1 2 3 4 1 2 3 4 C D F A B E 7.4 IC INFORMATION IC4002 MT1389FE/C2-L MPEG/MICON/RF-AMP 101 102 103 104 105 106107 108109 110 111 112113 114 115116 117 118 119 120 121 122 123124 125 126 127 128 129 130 131 132 133134 135 136 137 138 139 140 141142 143144 145 146 147 148 149 150 151152 153 154155 156 157 158 159 160 161162 163 164 165 166 167 168 169 170 171 172173 174175 176 177 178179 180 181 182 183184 185 186 187 188189 190 191192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 1 10 100 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 55 56 57 58 59 6 60 61 62 63 64 65 66 67 68 69 7 70 71 72 73 74 75 76 77 78 79 8 80 81 82 83 84 85 86 87 88 89 9 90 91 92 93 94 95 96 97 98 99 NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC AGND DVDA DVDB DVDC DVDRF[P DVDRF[N MA MB MC DVDD SB SC SD CDFON CDFOP SVDD3 RFLV/RFON SGND V2REFO V20 FEO TEO TEZIS[LV DMO FMO PWMOUT1/V_ADIN9 FDO USB_VDD3 TDI/V_ADIN4 (JTAG) FG/V_ADIN8 (PU) TCK/V_ADIN6 (JTAG) TDO/V_ADIN7 (JTAG) IOA2 (PU) IOA3 (PU) IOA4 (PU) IOA5 (PU) IDA7 (PU) IOA6 (PU) DVSS APLLCAP APLLVSS IOA19 (PU) IOA18 (PU) HIGHA0 (PU) DVDD18 65 66 67 68 254 253 255 256 APLLVSSVDD3 XIOWR A16 HIGHA7 (PU) DVDD3 HIGHA2 (PU) HIGHA3 (PU) HIGHA4 (PU) HIGHA5 (PU) HIGHA6 (PU) HIGHA1 (PU) IOA20 XIOCS (PU) XIODE DVDD3 AD0 AD1 AD2 AD3 DVSS (18) AD4 AD5 AD6 IOA2/V_ADIN0 ALE (PU) AD7 A17 IOA0 (PU) DVSS (3) XUWR (PU) XURD (PU) DVDD18 UP1_2 (PU) UP1_3 (PU) UP1_4 (PU) UP1_5 (PU) UP1_6 (PU) UP1_7 (PU) UP3_0 (PU) UP3_1 (PU) UP3_4 (PU) PU3_5 (PU) DVDD3 ICE (PD) XPRST (PU) IR XINT0 (PU) DQM0 DQS0 RD7 DVSS (18) RD6 125 126 127 128 RD5 DVSS (3) RD4 RD3 DVDD18 RD2 RD1 RD0 RD15 DVDD3 RD14 RD13 RD12 RD11 RD10 RD9 (3) DVSS DQS1 RD8 DQM1 XCAS XRAS DVDD3 XRCS BA0 (18) DVSS BA1 RA10 RA0 (3) DVSS RA1 RA2 RA3 DVDD18 DVDD3 RCLK RA11 RA9 RA8 (3)DVSS RA7 (18) DVSS RA6 RA5 RA4 (PU) RD3/ASDATA5 (PU) RD30 RD29 DVDD18 RD26 RD25 RD24 (PD) DQM3 (PD) DQM2 DVDD3 DACVDDC VREF FS 192 191 190 189 DVDD3 VSYN/V_ADIN1 YUT7/ASDATA5 SPMCLK SPDATA SPLRCK SPBCK/ADTA5 (PD) ALRCK ABCK ACLK (18) DVSS (PD) ASDATA1 (PD) ASDATA2 (PD) ASDATA3 (PD) ASDATA0 DVDD18 (PD) ASDATA4 MC_DATA (PD) SPDIF RFGND18 RFVDD18 XTALI JITFO JITFN PLLVSS IDACEXLP PLLVDD3 LPFON LPFIP LPFIN LPFOP ADCVDD3 ADCVSS RFVDD3 RFRPDC RFRPAC HRFZC CRTPLP RFGND OSP OSN NC NC NC NC NC NC NC NC NC NC NC NC NC YUV1/Y YUV5/B YUV0/CIN (3) DVSS NC NC NC NC NC TROPENPWM USB_VSS NC NC DVDD3 IOCA1 (PU) CSO/RFOP HSYN/V_ADIN2 VREFO TMS/V_ADIN5 (JTAG) TPI MD SA AVDD3 IREF RFGC OP_OUT OP_INN OP_INP MIDI1 TNI MIDI2 LDO2 LDO1 TRO XRWE CKE DVDD3 YUV6/R DACVSSA YUV4/G DACVDDA YUV3/CVBS DACVSSB YUV2/C DACVDDB DACVSSC XTALO MT1389FE (DVD MT ASSY: IC4002) • MPEG / MICON / RF-AMP Pin Arrangement (Top view) Data PLL 108 Mhz DLL VIDEO DAC RF Circuits INT_ADDA APLL DMPLL DMPLL MT1389FE, LA6565, PT6315 • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. List of IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 69 5 6 7 8 5 6 7 8 C D F A B E • MPEG / MICON / RF-AMP Microcomputer Block Diagram DVD PUH Module RF Amplifier Video DAC CVBS, Y/C Component Videop Video Processor De- interlacer Servo IO Spindle Control Memory Controller System CPU GPIO IR/VFD System Parser CPPM/CPRM DRM 32-bit RISC Audio Output Audio DAC SDPIF MPEG-1/2 JPEG Video Decoder Servo Processor Audio DSP Debug Port 108Mhz TV Encoder Motor Drive FLASH ROM DRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 70 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 AGND – Analog ground 2 DVDA I AC coupled input path A 3 DVDB I AC coupled input path B 48 TDI I Serial interface port 3 data-out Version AD input port 4 GPIO 4 DVDC I AC coupled input path C 5 DVDD I AC coupled input path D 49 TMS I Serial interface port 3 data-in Version AD input port 5 GPIO 6 DVDRFIP I AC coupled DVD RF signal input RFIP 7 DVDRFIN I AC coupled DVD RF signal input RFIN 50 TCK I Serial interface port 3 clock pin Version AD input port 6 GPIO 8 MA I DC coupled main-beam RF signal input A 9 MB I DC coupled main-beam RF signal input B 51 TDO I Serial interface port 3 chip-select Version AD input port 7 GPO 10 MC I DC coupled main-beam RF signal input C 11 MD I DC coupled main-beam RF signal input D 52 DVDD18 – 1.8V power pin for internal digital circuitry 12 SA I DC coupled sub-beam RF signal input A 53 IOA2 I/O Microcontroller address 2/IO 13 SB I DC coupled sub-beam RF signal input B 54 IOA3 I/O Microcontroller address 3/IO 14 SC I DC coupled sub-beam RF signal input C 55 IOA4 I/O Microcontroller address 4/IO 15 SD I DC coupled sub-beam RF signal input D 56 IOA5 I/O Microcontroller address 5/IO 16 CDFON I CD focusing error negative input 57 IOA6 I/O Microcontroller address 6/IO 17 CDFOP I CD focusing error positive input 58 IOA7 I/O Microcontroller address 7/IO 18 TNI I 3 beam satellite PD signal negative input 59 HIGHA0 I/O Microcontroller address 8 19 TPI I 3 beam satellite PD signal positive input 60 IOA18 I/O Flash address 18/IO 20 MDI1 I Laser power monitor input 61 IOA19 I/O Flash address 19/IO 21 MDI2 I Laser power monitor input 62 DVSS – 3.3V Ground pin for internal digital circuitry 22 LDO2 O Laser driver output 63 APLLCAP I APLL External Capacitance connection 23 LDO1 O Laser driver output 64 APLLVSS – Ground pin for sudio clock circuitry 24 SVDD3 – Analog power 3.3V 65 APLLVDD3 – 3.3V Power pin for audio clock circuity 25 CSO O Central servo/Positive main beam summing output 66 IOWR# I/O Flash write enable, active low/IO 26 RFLVL O RFRP low pass, or Negative main beam summing output 67 A16 O Flash adress 16 27 SGND – Analog ground 68 HIGHA7 I/O Microcontroller address 15 28 V2REFO – Reference voltage 2.8V 69 HIGHA6 I/O Microcontroller address 14 29 V20 I/O Reference voltage 2.0V 70 HIGHA5 I/O Microcontroller address 13 30 VREFO I/O Reference voltage 1.4V 71 HIGHA4 I/O Microcontroller address 12 31 FEO O Focus error monitor output 72 HIGHA3 I/O Microcontroller address 11 32 TEO O Tracking error monitor output 73 DVDD3 – 3.3V power pin for internal digital circuitry 33 TEZISLV I/O TE Slicing Level 74 HIGHA2 I/O Microcontroller adress 10 34 OP_OUT O Op amp output 75 HIGHA1 I/O Microcontroller adress 9 35 OP_INN I Op amp negative input 76 IOA20 I/O Flash adress 20/IO 36 OP_INP I Op amp positive input 77 IOCS# I/O Flash chip select, active low/IO 37 DMO O Disk motor control output. PWM output 78 IOA1 I/O Microcontroller adress 1/IO 38 FMO O Feed motor control. PWM output 79 IOOE# I/O Flash output enable, active low/IO 39 TROPENP/WM O Tray PWM output/Tray open output 80 DVDD3 – 3.3V power pin for internal digital circuitry 40 PWMOUT1 O 1st General PWM output, or Version AD input9 81 AD0 I Microcontroller address/data 0 41 TRO O Tracking servo output. PDM output of tracking servo compensator. 82 AD1 I Microcontroller address/data 1 83 AD2 I Microcontroller address/data 2 42 FOO O Focus servo output. PDM output of focus servo compensator 84 AD3 I Microcontroller address/data 3 85 DVSS – 1.8V Ground pin for internal digital circuitry 43 DVSS – 1.8V Ground pin for internal digital 86 AD4 I Microcontroller address/data 4 44 NC – – 87 AD5 I Microcontroller address/data 5 45 NC – – 88 AD6 I Microcontroller address/data 6 • MPEG/MICON/RF-AMP CPU Pin Function MT1389FE/C2-L (DVD MT ASSY : IC4002) 46 DVDD3 – 3.3V power pin for internal digital circuitry 47 FG(Diogital pin) – Motor Hall sensor input, or Version AD input 8 89 IOA21 I/O Flash address 21/IO While External FLASH size <= 2MB: Version AD input port 0, or GPIO 90 ALE I/O Microcontroller address latch enable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 71 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 91 AD7 I Microcontroller address/data 7 92 A17 O Flash address 17 93 IOA0 I/O Microcontroller address 0/IO 94 DVSS – 3.3V Ground pin for internal digital circuitry 137 DQM1 I/O Data mask 1 95 UWR# I Microcontroller write strobe, active low 138 RWE# O DRAM Write enable, active low 96 URD# I Microcontroller read strobe, active low 139 CAS# O DRAM column address strobe, active low 97 DVDD18 – 1.8V power pin for internal digital circuitry 140 RAS# O DRAM row address strobe, active low 98 UP1_2 I/O Microcontroller port 1-2 141 DVDD3 – 3.3V power pin for internal digital circuitry 99 UP1_3 I/O Microcontroller port 1-3 142 RCS# O DRAM chip select, active low 100 UP1_4 I/O Microcontroller port 1-4 143 BA0 I/O DRAM bank address 0 101 UP1_5 I/O Microcontroller port 1-5 144 DVSS – 1.8V Ground pin for internal digital circuitry 102 UP1_6 I/O Microcontroller port 1-6 I2C clock pin 145 BA1 I/O DRAM bank address 1 146 RA10 I/O DRAM address 10 103 UP1_7 I/O Microcontroller port 1-7 I2C data pin 147 RA0 I/O DRAM address 0 148 DVSS – 3.3V Ground pin for internal digital circuitry 104 UP3_0 I/O Microcontroller port 3-0 8032 RS232 RXD 149 RA1 I/O DRAM address 1 150 RA2 I/O DRAM address 2 105 UP3_1 I/O Microcontroller port 3-1 8032 RS232 TXD 106 UP3_4 I/O Microcontroller port 3-4 Hardwired RD232 RXD I2C clock pin 107 UP3_5 I/O Microcontroller port 3-5 Hardwired RD232 TXD I2C data pin 108 DVDD3 – 3.3V power pin for internal digital circuitry 109 ICE I Microcontroller ICE mode enable 110 PRST# I Power on reset input, active low 111 IR I IR control signal input 112 INT0# I/O Microcontroller external interrupt 0, active low 113 DQM0 I/O Data mask 0 114 DQS0 I/O GPIO 115 RD7 I/O DRAM data 7 116 DVSS – 1.8V Ground pin for internal digital circuitry 117 RD6 I/O DRAM data 6 118 RD5 I/O DRAM data 5 119 DVSS – 3.3V Ground pin for internal digital circuitry 120 RD4 I/O DRAM data 4 121 RD3 I/O DRAM data 3 122 DVDD18 – 1.8V power pin for internal digital circuitry 123 RD2 I/O DRAM data 2 124 RD1 I/O DRAM data 1 125 RD0 I/O DRAM data 0 126 RD15 I/O DRAM data 15 127 DVDD3 – 3.3V power pin for internal digital circuitry 128 RD14 I/O DRAM data 14 129 RD13 I/O DRAM data 13 152 DVDD18 – 1.8V power pin for internal digital circuitry 153 NC – – 154 NC – – 155 DVDD3 – 3.3V power pin for internal digital circuitry 156 RCLK I/O Dram clock 157 CKE O DRAM clock enable 158 RA11 I/O DRAM address bit 11 159 RA9 I/O DRAM address 9 160 RA8 I/O DRAM address 8 161 DVSS – 3.3V Ground pin for internal digital circuitry 162 RA7 I/O DRAM address 7 163 DVSS – 1.8V Ground pin for internal digital circuitry 164 RA6 I/O DRAM address 6 165 RA5 I/O DRAM address 5 166 RA4 I/O DRAM address 4 167 DVDD3 – 3.3V power pin for internal digital circuitry 168 RD31 I/O GPIO 169 RD30 I/O GPIO 170 RD29 I/O GPIO 171 NC – – 172 NC – – 173 DVDD18 – 1.8V power pin for internal digital circuitry 174 RD26 I/O GPIO 175 NC – – 176 RD25 I/O GPIO 177 RD24 I/O GPIO 178 DQM3 I/O GPIO 151 RA3 I/O DRAM address 3 130 RD12 I/O DRAM data 12 131 RD11 I/O DRAM data 11 132 RD10 I/O DRAM data 10 133 RD9 I/O DRAM data 9 134 DVSS – 3.3V Ground pin for internal digital circuitry 135 RD8 I/O DRAM data 8 136 DQS1 I/O GPIO 179 DQM2 I/O GPIO 180 NC – – 181 NC – – 182 DVDD3 – 3.3V power pin for internal digital circuitry 183 NC – – 184 NC – – 185 NC – – 186 NC – – 187 NC – – 188 NC – – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 72 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 220 ASDATA3 I/O Audio serial data 3 (Center-back/Center-left- back/Center-right-back, in 6.1 or 7.1 mode) DSD data right surround channel Trap value in power-on reset: 1:manufactory test mode 0:normal operation While only 2 channels output: GPIO 221 DVDD18 – 1.8V power pin for internal digital circuitry 222 ASDATA4 I/O Audio serial data 4 (Down-mixed Left/Right) DSD data center channel Trap value in power-on reset: 1:manufactory test mode 0:normal operation While only 2 channels output: Microcontroller external interrupt 1 GPIO 223 DVSS – 3.3V Ground pin for internal digital circuitry 224 MC_DATA I/O Microphone serial input While not support Microphone: Microcontroller external interrupt 2 GPIO 225 SPDIF O SPDIF output 226 RFGND18 – Analog ground 227 RFVDD18 – Analog power 1.8V 228 XTALO O 27M crystal out 229 XTALI I 27M crystal in 189 DACVDDC – 3.3V power pin for VIDEO DAC circuitry 230 JITFO O The output terminal of RF jitter meter 190 VREF – Bandgap reference voltage 231 JITFN I The input terminal of RF jitter meter 191 FS – Full scale adjustment 232 PLLVSS – Ground pin for data PLL and related analog circuitry 192 YUV0 O Video data output bit 0 Compensation capacitor 233 IDACEXLP O Data PLL DAC Low-pass filter 193 DACVSSC – Ground pin for VIDEO DAC circuitry 234 PLLVDD3 – Power pin for data PLL and related analog circuitry 194 YUV1 O Video data output bit 1 Analog Y output 235 LPFON O The negative output of loop filter amplifier 195 DACVDDB – 3.3V power pin for VIDEO DAC circuitry 236 LPFIP I The positive input terminal of loop filter amplifier 196 YUV2 O Video data output bit 2 Analog chroma output 237 LPFIN I The negative input terminal of loop filter amplifier 197 DACVSSB – Ground pin for VIDEO DAC circuitry 238 LPFOP O The positive output of loop filter amplifier 198 YUV3 O Video data output bit 3 Analog composite output 199 DACVDDA – 3.3V power pin for VIDEO DAC circuitry 200 YUV4 O Video data output bit 4 Green or Y 201 DACVSSA – Ground pin for VIDEO DAC circuitry 202 YUV5 O Video data output bit 5 Blue or CB 203 YUV6 O Video data output bit 6 Red or CR 204 DVDD3 – 3.3V power pin Video DAC digital circuitry only 205 VSYN I/O Vertical sync input/output While no External TV-encoder: Vertical sync for video-input Version AD input port 1 GPIO 206 YUV7 I/O Video data output bit 7 While no External TV-encoder: Microcontroller external interrupt 3 Audio serial data 5 part II:DSD data sub- woofer channel or Microphone output GPIO 207 HSYN I/O Horizontal sync input/output While no External TV-encoder: Horizontal sync for video-input Microcontroller external interrupt 4 Version AD input port 2 GPIO 208 SPMCLK I/O Audio DAC master clock of SPDIF input While SPDIF input is not used: Serial interface port 0 clock pin GPIO 209 SPDATA I/O Audio data of SPDIF input While SPDIF input is not used: Serial interface port 0 data-in GPIO 210 SPLRCK I/O Audio left/right channel clock of SPDIF input While SPDIF input is not used: Serial interface port 0 data-out GPIO 211 SPBCK I/O Audio bit clock of SPDIF input While SPDIF input is not used: Serial interface port 0 chip select Audio serial data 5 part I:DSD data sub- woofer channel or Microphone output GPIO 212 DVDD3 – 3.3V power pin for internal digital circuitry 219 ASDATA2 I/O Audio serial data 2 (Center/LFE) DSD data left surround channel Trap value in power-on reset: 1:manufactory test mode 0:normal operation While only 2 channels output: GPO 213 ALRCK I/O Audio left/right channel clock Trap value in power-on reset: 1:use external 373 0:use internal 373 214 ABCK O Audio bit clock Phase de-modulation 215 ACLK I/O Audio DAC master clock 216 DVSS – 1.8V Ground pin for internal digital circuitry 217 ASDATA0 I/O Audio serial data 0 (Front-Left/Front-Right) DSD data left channel Trap value in power-on reset: 1:manufactory test mode 0:normal operation 218 ASDATA1 I/O Audio serial data 1 (Left-Surround/Right-Surround) DSD data right channel Trap value in power-on reset: 1:manufactory test mode 0:normal operation While only 2 channels output: GPO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 73 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 239 ADCVDD3 – Analog 3.3V Power for ADC 240 NC – 242 NC – – 243 NC – – 244 RFVDD3 – Analog Power 245 RFRPDC O RF ripple detect output 246 RFRPAC I RF ripple detect input (through AC-coupling) 247 HRFZC I High frequency RF ripple zero crossing 249 RFGND – Analog Power 250 NC – – 251 NC – – 252 OSP O RF Offset cancellation capacitor connecting 253 OSN O RF Offset cancellation capacitor connecting 254 RFGC O RF AGC loop capacitor connecting for DVD-ROM 255 IREF I Current reference input. It generates reference current for RF path. Connect an external 15K resistor to this pin and AVSS 256 AVDD3 – Analog power 3.3V 241 ADCVSS – Analog ground for ADC – 248 CRTPLP O Defect level filter capacitor connecting www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 74 1 2 3 4 1 2 3 4 C D F A B E 11kΩ 44kΩ 1 2 3 4 5 15 16 10 11 12 13 14 FR 6 7 8 9 17 18 35 34 33 32 31 30 29 27 26 22 21 20 19 FR 23 24 25 36 28 44kΩ 11kΩ 44kΩ 44kΩ – + – + – + 11kΩ FWD Input Output control Level shifter Level shifter Level shifter Level shifter Sugnal system power supply Thermal shutdown circuit To VREFOUT (Load output voltage setting) To VREFOUT CH1 11kΩ REG_IN REG_OUT (Vcc) SGND REV VCONT VCCP2 MUTE1 VLO– MUTE234 VLO+ VIN4– VO4+ VIN4 VO4– VREF_IN VO3+ VREF_OUT VO3– REG_OUT VO2+ REG_IN VO2– VIN+OP VO1– VIN–OP VO1+ VO_OP VCCP1 VIN3 VCCS VIN3– VIN1+ VIN2 VIN1– VIN2– VIN1 VIN2+ CH2,3,4 Internal Block Diagram – + – + – + – + – + – + – + – + – + – + Power system ground Signal system ground MUTE Turns the corresponding channal on/off. High : output on, Low : output off Power system ground LA6565 (DVD MT : IC2301) • MOTOR DRIIVE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 75 5 6 7 8 5 6 7 8 C D F A B E Pin Functions Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 Pin Name FWD REV V CC 2 VLO – VLO + VO4 + VO4 – VO3 + VO3 – VO2 + VO1 – VO1 – VO1 + VCCP1 VCCS VIN1 + VIN1 – VIN1 VIN2 + VIN2 – VIN2 VIN3 – VIN3 VO_OP VIN–OP VIN+OP REG_IN REG_OUT VREF_OUT VREF_IN VIN4 VIN4 – MUTE234 MUTE1 VCONT S_GND Pin Descriptions Loading output direction switching (FWD). Loading system logic input. Loading output direction switching (REV). Loading system logic input. Channels 3, 4, and loading power stage power supply Loading output (–) Loading output (+) Channel 4 output (+) Channel 4 output (–) Channel 3 output (+) Channel 3 output (–) Channel 2 output (+) Channel 2 output (–) Channel 1 output (–) Channel 1 output (+) Channel 1 and 2 power stage power supply Signal system power supply Channel 1 input. Input operational amplifier + input. Channal 1 input. Input operational amplifier – input. Channel 1 input. Input operational amplifier output. Channal 2 input. Input operational amplifier + input. Channel 2 input. Input operational amplifier – input. Channel 2 input. Input operational amplifier output. Channel 3 input. Input operational amplifier – input. Channal 3 input. Input operational amplifier output. Operational amplifier output Operational amplifier – input Operational amplifier + input Regulator error amplifer output. Connect this pin to the base of the external pnp transistor. Regulator error amplifier input (+). VREF amplifier (voltage follower) output. VREF input. Apply the external reference voltage to this pin. Channal 4 input. Input operational amplifier output. Channal 4 input operational amplifier – input. Controls the on/off state of channals 2, 3, and 4. Channal 1 output on/off control Loading block output high–level voltage setting Signal system ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 76 1 2 3 4 1 2 3 4 C D F A B E Block Diagram DN R OSC LED1 LED2 LED3 LED4 OSC LED Driver K1 K2 VDD GND Dimming Circuit Grid Driver Segment Driver/ SG1/KS1 SG2/KS2 SG3/KS3 SG4/KS4 SG5/KS5 SG6/KS6 SG7/KS7 SG8/KS8 SG9/KS9 SG10/KS10 SG11/KS11 SG12/KS12 SG13/KS13 SG14/KS14 SG15/KS15 SG16/KS16 SG17/GR12 SG18/GR11 SG10/GR10 SG20/GR9 SG21/GR8 SG22/GR7 SG23/GR6 SG24/GR5 GR1 GR2 GR3 GR4 Grid Driver/ Key Scan Output VEE Serial Data Interlace Control Display Memory (24bits x 12 Words) Tlming Generator Key Matrix Memory DOUT CLK ST3 PT6315 (OPERATION 1 ASSY : IC651) • FIP DRIIVE IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 77 5 6 7 8 5 6 7 8 C D F A B E Pin Name I/O Description Pin No. LED1 to LED4 O LED Output Pin 1 to 4 OSC I Oscillator Input Pin A resistor is connected to this pin to determine the oscillation frequency 5 DOUT O Data Output Pin (N-Channel, Open-Drain) This pin outputs serial data at the falling edge of the shift clock (starting from the lower bit). 6 DIN (Schmitt Trigger) I Data Input Pin This pin inputs serial data at the rising edge of the shift clock (starting from the lower bit) 7 CLK (Schmitt Trigger) I Clock Input Pin This pin reads serial data at the rising edge and outputs data at the falling edge. 8 STB (Schmitt Trigger) I Serial Interface Strobe Pin The data input after the STB has fallen is processed as a command. When this pin is "HIGH", CLK is ignored. 9 K1 to K2 I Key Data Input Pins The data inputted to these pins are latched at the end of the display cycle. 10 ,11 VSS – Logic Ground Pin 12,44 VDD – Logic Power Supply 13,43 SG1/KS1 to SG16/KS16 O High-Voltage Segment Output Pins Also acts as the Key Source 14 to 29 VEE – Pull-Down Level 30 SG17/GR12 to SG24/GR5 O High Voltage Segment/Grid Output Pins 31 to 38 GR4 to GR1 O High-Voltage Grid Output Pins 39 to 42 Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 78 1 2 3 4 1 2 3 4 C D F A B E 7.5 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 79 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 80 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES 8.1 FRONT PANEL SECTION 1 STANDBY/ON Press to switch the player on or into standby. 2 Disc tray 3 � OPEN/CLOSE Press to open or close the disc tray. 4 � Press to pause playback. Press again to restart. 5 � Press to start or resume playback. 11 � Press to stop the disc (you can resume play- back by pressing � (play)). 13 Remote control sensor The remote control has a range of up to about 7m. 13 Display Compatible Description of the display. 14 � and � � • Press and hold for fast reverse/forward scanning. • Press to jump to the previous/next chapter or track. 15 This mark indicates compatibility with DVD-RW discs recorded on a DVD recorder in Video Recording mode. Front panel STANDBY/ON � � � � � � � 15 3 13 5 4 11 14 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 81 5 6 7 8 5 6 7 8 C D F A B E 8.2 DISPLAY DVD C D TRACK ALL REPEAT A B Display window 9 8 7 2 5 4 3 6 1 6 A <––> B Indicator PAUSE Indicator 3 TRACK Indicator Traack number display for CD. 4 ALL Indicator Indicates the all repeat playback mode. 7 DVD or CD is temporarily stopped. PLAY Indicator 8 Lights during playback of DVD and CD. 2 CD Indicator Lights when the playing a CD disc. 9 NUMBER Indicator Title, Chapter, Track playing time or other information. 5 REPEAT Indicator Repeats playback between A and B. 1 DVD Indicator Lights when playing a video part of a DVD disc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 82 1 2 3 4 1 2 3 4 C D F A B E 8.3 REMOTE CONTROL Remote control 1 Press to switch the player on or into standby. 2 AUDIO Press to select the audio channel or language. 3 SUBTITLE Press to select a subtitle display. 4 Number buttons 5 TOP MENU Press to display the top menu of a DVD disc. 6 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 7 HOME MENU Press to display (or exit) the on-screen display. 8 Use for reverse slow motion playback, frame reverse and reverse scanning. 9 Press to start or resume playback. 10 Press to jump to the beginning of the current chapter or track, then to previous chapters/ tracks. 11 Press to pause playback; press again to restart. 12 PLAY MODE Press to display the Play Mode menu. (You can also get to the Play Mode menu by pressing HOME MENU and selecting Play Mode). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 83 5 6 7 8 5 6 7 8 C D F A B E Remote control 2 13 SURROUND Press to activate/switch off 2 V/SRS TruSurround. 14 Press to open or close the disc tray. 15 ANGLE Press to change the camera angle during DVD multi-angle scene playback. 16 CLEAR Press to clear a numeric entry. 17 ENTER Use to select menu options, etc. 18 MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD, Video CD , MP3, WMA or JPEG disc is loaded. 19 RETURN Press to return to a previous menu screen. 20 Use for forward slow motion playback, frame advance and forward scanning. 21 Press to jump to the next chapter or track. 22 Press to stop the disc (you can resume playback by pressing (play)). 23 DISPLAY Press to display information about the disc playing. 24 ZOOM Press to change the zoom level. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-380-S 84 1 2 3 4 1 2 3 4 C D F A B E Service Remote Control Unit GGF1381 diagnosis Name Jig No. Remarks DVD Test Disc (DVD-Video) GGV1025 Check of DVD-Video CD Test Disc STD-905 Check of CD 7 Jigs list Lubricants and Glues list Cleaning Dyefree GEM1036 (ZLX-ME413A) Refer to "2.3 05 DVD MECHA SECTION" Grease GYA1001 (ZLB-PN397B) Refer to "2.3 05 DVD MECHA SECTION" Name Lubricants and Glues No. Remark Name Lubricants and Glues No. Remark • Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Pickup leneses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Refer to "2.3 05 DVD MECHA SECTION" , "7.2 DVD DECK SECTION". Position to be cleaned Cleaning tools Remark Position to be cleaned Cleaning tools Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
