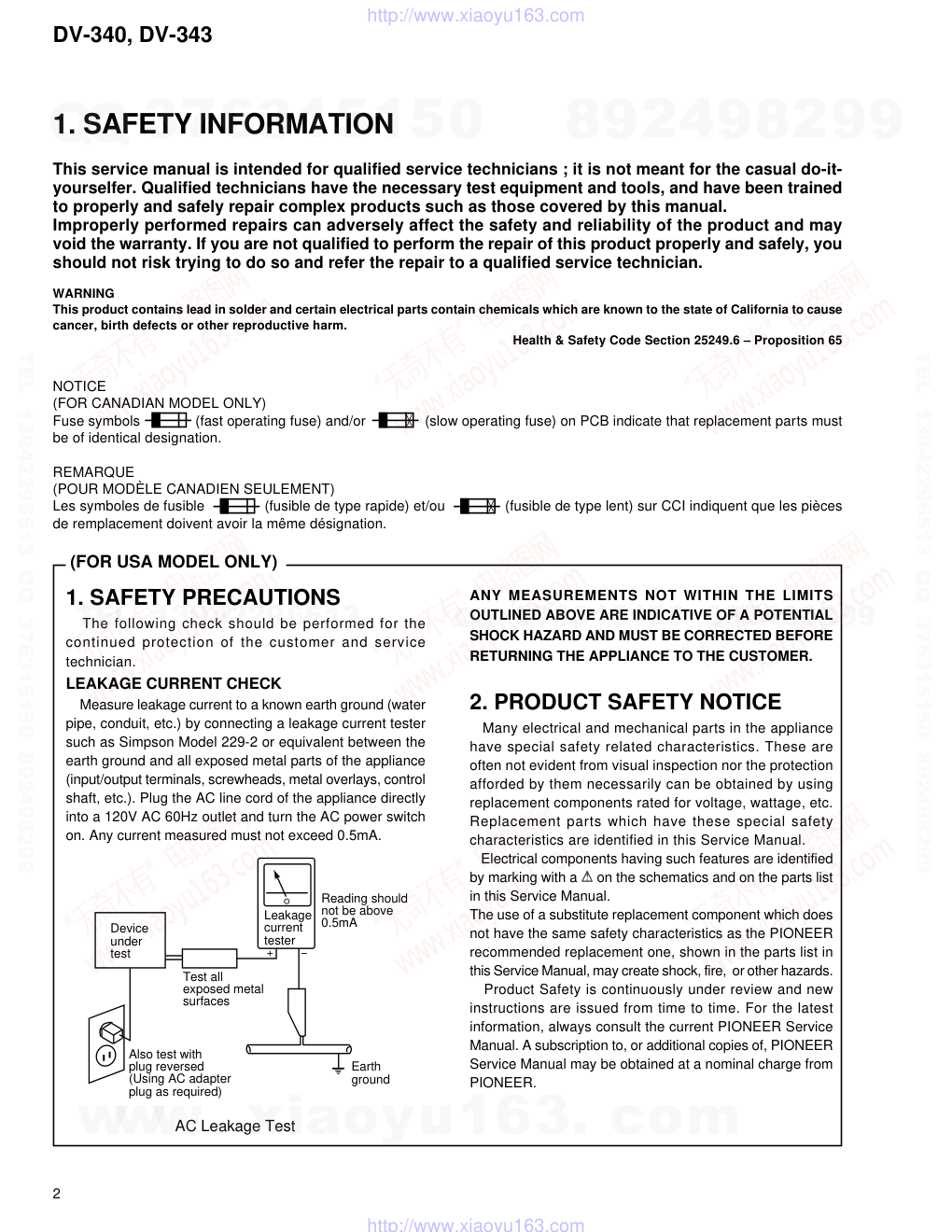

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2001 c DV-340 RRV2438 T – ZZE MAR. 2001 Printed in Japan DVD PLAYER 1. SAFETY INFORMATION ....................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................. 4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ... 10 4. PCB CONNECTION DIAGRAM ........................... 27 5. PCB PARTS LIST ................................................ 35 6. ADJUSTMENT..................................................... 37 CONTENTS 7. GENERAL INFORMATION ................................ 38 7.1 DIAGNOSIS .................................................. 38 7.1.1 SELF-DIAGNOSTIC FUNCTION OF PICKUP DEFECTIVE ........................... 38 7.1.2 TEST POINTS LOCATION................... 39 7.1.3 TEST MODE SCREEN DISPLAY ........ 40 7.1.4 TROUBLE SHOOTING ........................ 44 7.1.5 ERROR CODE ..................................... 45 7.1.6 DISASSEMBLY .................................... 49 7.2 IC .................................................................. 52 8. PANEL FACILITIES AND SPECIFICATIONS .... 65 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Type Model Power Requirement Region No. Remarks DV-340 DV-343 WYXQ AC220-240V 2 WYXQ/FRGR – AC220-240V 2 WVXQ – AC220-240V 2 WYXCN – AC220-240V 2 YXCN/FRGR – AC220-240V 2 DV-343 (Illustration is DV-340) DVD PLAYER Î 3 8 7 ¡ ¢ 4 1 0 STANDBY/ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DV-340, DV-343 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DV-340, DV-343 (Printed on the Rear Panel) LABEL CHECK Additional Laser Caution 1. Inside detection switch (S201 on the SMEB assy) and loading- status detection switch (S101 on the LOAB assy) are detected by the microprocessor (IC11 in the DVDM assy). • To permit the laser diode to oscillate, it is required to set the inside detection switch for the inside position (S201 : ON) and to set the loading-status detection switch for the clamp position (the center terminal of S101 is shorted to +5V). The 650 nm laser diode for DVD oscillation will continue if pin 19 of IC1 is shorted to +5V (fault condition) in the DVDM assy. The 780 nm laser diode for CD oscillates if pin 20 of IC1 is shorted to +5V in the DVDM assy. In the test mode ∗ , the laser diode oscillates when microproces- sor detects a PLAY signal, or when the PLAY key is pressed (S706 ON in the KEYB assy), with the above requirements satis- fied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. ∗ : See page 40. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 655 nm FOR CD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 785 nm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 4 FRONT 13-17 "Operating Instructions" 5 4 12 6 20 10 25 1 2 3 6 2 3 1 12 8 9 WVXQ Type Only Except WVXQ Type 7 5 4 2.1 PACKING 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 5 (1) PACKING PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Power Cord See Contrast table (2) 2 Audio Cord (L = 1.5m) VDE1054 3 Video Cord (L = 1.5m) VDE1055 4 Remote Control Unit VXX2702 5 Battery Cover VNK4631 NSP 6 Dry Cell Battery (R6P, AA) VEM1010 7 Pad F VHA1269 8 Pad R VHA1270 9 Packing Case See Contrast table (2) 10 Mirror Mat Sheet See Contrast table (2) NSP 11 Warranty Card ARY7022 12 Polyethylene Bag VHL1051 13 Operating Instructions See Contrast table (2) (English/Italian) 14 Operating Instructions See Contrast table (2) (Spanish/Portuguese) 15 Operating Instructions See Contrast table (2) (Dutch/Swedish) 16 Operating Instructions See Contrast table (2) (German/French) 17 Operating Instructions See Contrast table (2) (English) 18 • • • • • 19 • • • • • NSP 20 Polyethylene Bag Z21-038 21 • • • • • 22 • • • • • 23 • • • • • 24 • • • • • 25 Cord Holder See Contrast table (2) (2) CONTRAST TABLE Mark Remarks No. Symbol and Description Part No. WYXCN YXCN/FRGR DV-340 1 9 10 13 14 15 16 17 25 Power Cord Packing Case Mirror Mat Sheet Operating Instructions (English/Italian) Operating Instructions (Spanish/Portuguese) Operating Instructions (Dutch/Swedish) Operating Instructions (French/German) Operating Instructions (English) Cord Holder ADG1154 VHG2041 VNL1006 VRD1127 VRD1130 VRD1129 VRD1128 Not used Not used ADG1154 VHG2042 VHL1006 Not used Not used Not used VRD1128 Not used Not used WYXQ DV-343 ADG1154 VHG2084 Z23-007 VRD1145 VRD1148 VRD1147 VRD1146 Not used Not used WYXQ/FRGR ADG1154 VHG2045 Z23-007 Not used Not used Not used VRD1128 Not used Not used WVXQ ADG1156 VHG2047 Z23-007 Not used Not used Not used Not used VRB1265 VHC1078 WYXQ ADG1154 VHG2043 Z23-007 VRD1127 VRD1130 VRD1129 VRD1128 Not used Not used DV-340/WYXQ, WYXQ/FRGR, WVXQ, WYXCN, YXCN/FRGR and DV-343/WYXQ are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 6 2.2 EXTERIOR SECTION A B C A C B Refer to "2.3 LOADING MECHANISM ASSY". 20 24 24 22 1 7 To LOAB Assy CN101 5 2 8 6 23 22 22 22 22 22 21 21 25 21 21 21 21 3 12 13 14 16 17 Illustration is DV-343. 26 or 27 15 4 9 10 11 E G D H F 25 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 7 (1) EXTERIOR PARTS LIST Mark No. Description Part No. 1 DVDM Assy VWS1467 NSP 2 PWSB Assy VWG2275 NSP 3 KEYB Assy VWG2276 4 FLJB Assy VWV1831 5 POWER SUPPLY Unit VWR1340 (∗1) NSP 5 POWER SUPPLY Unit VWR1330 (∗1) NSP 6 Loading Mechanism Assy VWT1174 7 Connector Assy PG03KK-E07 8 PCB Support VEC2184 9 Insulator VXA2424 10 Foot Assy VEC2185 NSP 11 Chassis See Contrast table (2) 12 Rear Panel See Contrast table (2) 13 Tray VNL1858 14 DVD Plate VAM1102 15 Pioneer Name Plate See Contrast table (2) 16 Tray Panel See Contrast table (2) 17 Front Panel Assy See Contrast table (2) 18 • • • • • 19 • • • • • 20 Bonnet Case S See Contrast table (2) 21 Screw BBZ30P060FMC 22 Screw BBZ30P080FMC 23 Screw BBZ30P180FMC 24 Screw See Contrast table (2) 25 Screw PPZ30P080FMC NSP 26 FL Lens See Contrast table (2) 27 FL Lens See Contrast table (2) 28 Caution Label VRW1872 ∗1 : As for POWER SUPPLY Unit, either VWR1340 or VWR1330 is installed. Install VWR1340 when replacing the POWER SUPPLY Unit. (2) CONTRAST TABLE Mark No. Symbol and Description Part No. WYXCN YXCN/FRGR DV-340 NSP 11 12 15 16 17 20 24 26 27 Chassis Rear Panel Pioneer Name Plate Tray Panel Front Panel Assy Bonnet Case S Screw FL Lens FL Lens VNA2335 VNA2276 VAM1116 VNK4790 VXA2435 VXX2759 BCZ40P060FNI VNK4789 Not used WYXQ DV-343 VNA2160 VNA2347 VAM1109 VNK4752 VXA2470 VXX2757 BCZ40P060FZK Not used VNK4757 WYXQ/FRGR WVXQ WYXQ VNA2160 VNA2276 VAM1116 VNK4790 VXA2435 VXX2759 BCZ40P060FNI VNK4789 Not used DV-340/WYXQ, WYXQ/FRGR, WVXQ, WYXCN, YXCN/FRGR and DV-343/WYXQ are constructed the same except for the following : Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 8 2.3 LOADING MECHANISM ASSY 22 20 21 18 To DVDM Assy CN4 To DVDM Assy CN3 To DVDM Assy CN2 15 12 11 13 14 4 5 9 2 10 8 7 4 3 6 1 16 17 Refer to "2.4 TRAVERSE MECHANISM ASSY-S". A 1 Traverse Mechanism Assy-S VXX2653 NSP 2 LOAB Assy VWG2171 3 Drive Cam VNL1862 4 Drive Gear VNL1861 5 Lock Plate VNL1820 6 Loading Base VNL1863 7 Belt VEB1320 8 Gear Pulley VNL1866 9 Screw JGZ17P028FMC 10 Loading Gear VNL1860 11 Loading Motor Assy VXX2505 12 DC Motor / 0.3W (LOADING) PXM1027 13 Motor Pulley PNW1634 14 Connector Assy VKP2253 15 Flexible Cable (08P) VDA1818 (or VDA1852) 16 Float Base VNL1865 17 Floating Rubber VEB1327 (or VEB1286) 18 Flexible Cable (24P) VDA1820 19 • • • • • 20 Clamper Plate VNE2162 21 Clamper VNL1738 22 Bridge VNL1859 LOADING MECHANISM ASSY PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 9 2.4 TRAVERSE MECHANISM ASSY-S 21 9 17 • Top View 30 16 34 19 8 15 10 10 22 33 23 5 14 10 37 18 32 13 10 37 18 26 25 27 29 7 7 7 3 1 11 28 33 6 35 20 12 21 4 9 31 37 17 24 37 36 2 B C NSP 1 SMEB Assy VWG2048 NSP 2 FGSB Assy VWG2009 NSP 3 Motor (CARRIAGE) VXM1079 NSP 4 Motor (SPINDLE) VXM1084 (or VXM1078) NSP 5 Pickup Assy VWY1055 6 Table Sheet DEC2040 7 Screw VBA1058 8 Centering Spring VBH1278 9 Hook Spring VBH1317 10 Skew Spring VBH1303 11 Gear Spring VBH1308 NSP 12 Reflected Sheet VEC1959 13 Guide Bar VLL1516 14 Sub-guide Bar VLL1517 15 Hold Spring VNC1017 NSP 16 Magnet Holder VNE2070 NSP 17 Motor Base VNE2154 NSP 18 Cover VNE2155 19 Centering Ring VNL1746 NSP 20 Disc Table VNL1747 21 Hook VNL1770 22 FFC Holder VNL1802 23 Mechanism Base VNL1806 24 FG Holder VNL1807 25 Gear A VNL1808 26 Gear B VNL1809 27 Gear C VNL1810 28 Slider VNL1811 29 Gear D VNL1814 NSP 30 Magnet VYM1024 31 Screw JFZ17P025FZK 32 Screw JGZ17P028FMC 33 Screw VBA1051 34 Magnet Holder Assy VXX2507 35 Spindle Motor Assy VXX2649 36 Carriage Motor Assy VXX2650 37 Screw PBA1069 TRAVERSE MECHANISM ASSY-S PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 10 A B C D 1 2 3 4 1 2 3 4 7 8 5 3 1 2 3 1 2 3 1 2 1 5 7 9 11 13 Spindle Motor OEIC 15 22 23 18 19 1 2 3 4 15 22 23 18 19 1 2 3 4 RF B1 B2 B3 B4 T RTN T DRV 7 SPDL+ Carriage Motor Loading Motor S101 Loading Position Switch + - 8 SPDL- LOAD- +6V +3.3V -27V -27V GND LOD POS LOAD+ 5 SLDR R 3 SLDR F T DRV F RTN PICKUP ASSY IC1 LA9701M RF IC CN4 (24P) CN3 (8P) CN5 (30P) CN102 (30P) CN103 (4P) KEY SW CN801 (4P) CN101 (14P) CN101 (14P) 1 2 CN2 CN1 CN202 (8P) CN101 (24P) B SMEB ASSY A LOAB ASSY G PWSB ASSY H POWER SUPPLY UNIT D DVDM ASSY M + - M EV+5V +5V +3.3V +12V IC3 M56788FP SPDL & FTS DRIVER IC2 LC78652W SERVO DSP IC12 PE5108A DVD DECODER BY CHIP IC15 MN414800CSJ-07 4M DRAM IC11 PD3410A SYSTEM CONTROL CPU REG IC105 PQ025EZ5MZP IC101 PE5242A FL CONTROL IC V101 VAW1061 FL TUBE IC14 KM68V1000CLT-7L WORK SRAM (1M) 3 RF 54 170 111 107 207 RFO 46 DSP RF 56 BH 57 PH 42 FE 35 4 56 57-60 63-66 55 TE 6 B1 7 B2 8 B3 9 B4 FDO 9 12 13 10 31 3 47 48 45 46 14 32 33 30 31 39 TDO 20 SLDO 17 SPDO 16M 27M SD0-SD7 SREQ SQUEEZE CDDATA XSACK 16M 28 35 35 14 34 32 84 5,7 12,13 8,10 9 2 16 5,7 12,13 8,10 9 2 16 28 28 +12V +5V +3.3V +2.5V 19-27 19-27 1 5 7 9 11 13 EV+5V +6V +12V +5V +3.3V 1 2 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 11 A B C D 5 6 7 8 5 6 7 8 CN104 (4P) CN15 (30P) CN106 (30P) JA491 JA4040 SR IN COAXIAL DIGITAL AUDIO OUT IC18 MB86373B MPEG2 DECODER AV-1 Q651 197 80-84 78,86,87 91 54 89 27M V/Cb OUT V 205 36/16M IC19 MB811171622A-100FN 16M SDRAM IC401 LA7139M 3IN 6OUT VIDEO AMP IC201 PCM1716E 96kHz, 24bit 2ch DAC IC202 BA4560F IC13 VYW1765 FLASH MEMORY 4M IC21 BU2288FV CLOCK GENERATOR 1 2 KEY SW REMOTE SENSOR CN701 (4P) F KEYB ASSY E FLJB ASSY 1 2 JA402 JA402 COMPOSITE VIDEO OUT (YELLOW) S VIDEO OUT 3 27M 13 16M 9 36/16M 7 45 11 9 23 24 20 22 8 V Y C Y OUT 39 C/Cr OUT 36 ADA0 ADA (AC3) 62 64 Q83 Q85 Q81 AMP 2 AMP AMP 6 16 13 23 21 15 19 3 10 19 3 1 8 AV CONNECTOR JA901 COMPOSITE L R SQUEEZE JA4030 LOUT (WHITE) ROUT (RED) : AUDIO SIGNAL ROUTE : RF SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) (VCB) (VCB) (V) (Y) (Y) (V) (Y) (C) (C) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 12 A B C D 1 2 3 4 1 2 3 4 KEYB ASSY (VWG2276) F PWSB ASSY (VWG2275) G E 1/2, E 2/2 FLJB ASSY (VWV1831) For DOWNLOAD E Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". 3.2 LOAB, SMEB, FGSB ASSYS and OVERALL WIRING DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 13 A B C D 5 6 7 8 5 6 7 8C B A R101 330 FGSB ASSY (VWG2009) C LOAB ASSY (VWG2171) A D 1/3- D 3/3 DVDM ASSY (VWS1467) D POWER SUPPLY UNIT (VWR1340) or (VWR1330) H SMEB ASSY (VWG2048) B SPINDLE MOTOR ASSY : VXX2649 CARRIAGE MOTOR ASSY : VXX2650 LOADING MOTOR ASSY : VXX2505 TRAVERSE MECHANISM ASSY-S (VXX2653) LOADING MECHANISM ASSY (VWT1174) PICKUP ASSY (VWY1055) AC220-240V 50/60Hz POWER CORD ADG1154: other models ADG1156: WVXQ : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (T) : SLIDER SERVO LOOP LINE (S) (T) (T) (F) (F) (F) (F) (T) (T) (F) (F) (F) (F) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 14 A B C D 1 2 3 4 1 2 3 4 CN4 CN1 CN2 CN3 1/2 2 4 1 7 (DVD) (DVD) (DVD) (CD) (CD) (T) (T) (F) (F) (F) (F) (F) (F) (T) (T) (F) (F) (T) (T) (T) (F) (T) (T) (T) (F) (T) (F) (T) (T) (F) (F) (F) (T) (T) (S) (S) (S) (S) (S) (S) (S) PICKUP ASSY CN101 A CN202 B LOADING MOTOR ASSY RF IC SPDL & FTS DRIVER 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D D 1/3 DVDM ASSY (VWS1467) 1/3 D 3.3 DVDM ASSY (1/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 15 A B C D 5 6 7 8 5 6 7 81/3 D : The power supply is shown with the marked box. 2/2 5 6 8 10 11 9 : RF SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (F) (T) (S) (DVD) (DVD) (CD) (CD) (T) (F) (F) (S) (T) (F) (S) (T) DSP IC 2/3 D 2/3 D 3/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 16 A B C D 1 2 3 4 1 2 3 4 D 2/3 DVDM ASSY (VWS1467) BY CHIP VYW1765 FLASH MEMORY (4M) KM68V1000CLT-7L WORK SRAM (1M) 4M DRAM 1/3 D 3/3 D 3/3 D 3/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 3/3 D 3/3 D 3/3 D 3/3 D 1/3 D (DVD) 3.4 DVDM ASSY (2/3) 2/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 17 A B C D 5 6 7 8 5 6 7 82/3 D : The power supply is shown with the marked box. CN5 CN102 E 1/2 SYSTEM CONTROL CPU 3/3 D 3/3 D 3/3 D 1/3, 3/3 D 1/3, 3/3 D 3/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 3/3 D 1/3 D 1/3 D 1/3 D 1/3 D 3/3 D 3/3 D : RF SIGNAL ROUTE : AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 18 A B C D 1 2 3 4 1 2 3 4 D 3/3 DVDM ASSY (VWS1467) 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D AV-1 16M SDRAM (VCB) (Y) (C) (VCB) (Y) (C) (VCB) (Y) (C) 13 12 14 3.5 DVDM ASSY (3/3) 3/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 19 A B C D 5 6 7 8 5 6 7 83/3 D CN15 2/3 D 2/3 D 2/3 D 1/3 D 2/3 D 2/3 D CN106 E 2/2 CLOCK GENERATOR : AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) (VCB) (Y) (C) (VCB) (VCB) (Y) (Y) (C) (C) (VCB) (Y) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 20 A B C D 1 2 3 4 1 2 3 4 CN110 R141 : 47k R143 : 33k ROHM SHARP FL CONTROL MICROCOMPUTER E 1/2 FLJB ASSY (VWV1831) KEYB ASSY S701 : 0 (OPEN/CLOSE) S702 : 4 1 S703 : ¡ ¢ S704 : 7 (STOP) S705 : 8 (PAUSE) S706 : 3 (PLAY) PWSB ASSY S802 : POWER STANDBY/ON 1/2 E 3.6 FLJB (1/2), KEYB and PWSB ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 21 A B C D 5 6 7 8 5 6 7 8 1/2 E G F : The power supply is shown with the marked box. CN103 CN801 CN104 CN701 CN101 CN102 R118 : 18Ω R119 : 33Ω KEYB ASSY (VWG2276) F PWSB ASSY (VWG2275) G 3 → 5 CONVERTER 5 → 3 CONVERTER 2/2 E 2/2 E 2/2 E 2/2 E 2/2 E CN5 D 2/3 CN101 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 22 A B C D 1 2 3 4 1 2 3 4 for WYXCN, YXCN/FRGR for WYXCN, YXCN/FRGR CN106 VIDEO OUT SELECT TV SYSTEM 2ch DAC CN15 D 3/3 1/2 E 1/2 E E 2/2 FLJB ASSY (VWV1831) (VCB) (Y) (C) (VCB) (Y) (C) (VCB) (Y) (C) 2/2 E 3.7 FLJB ASSY (2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 23 A B C D 5 6 7 8 5 6 7 82/2 E 5.6k JA4040 JA4030 JA901 WYXCN YXCN/FRGR other models OUT OUT OUT JA402 JA491 3IN 6OUT VIDEO AMP 1/2 E 1/2 E : AUDIO SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) (VCB) (Y) (C) (VCB) (Y) (C) (C) (V) (C) (V) (V) (Y) (C) (Y) (V) (V) (Y) (V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 24 A B C D 1 2 3 4 1 2 3 4 CN1 CN101 AC IN A A B B 5 8 4 2 1 10 11 14 12 13 12V 5V EV5V SW5V PO CONT SW3.3V GND –27V FLAC (B) FLAC (A) GND 3 GND 5 GND 7 GND 9 CN101 E 1/2 F101 REK1102 2.5A Z1 C1 LIVE NEUTRAL C2 C5 C5 C82 C8 C7 GND BEA1 BEA2 R2 R71 R72 Q71 D71 R74 R73 D72 D7 D23 D24 C22 C11 C108 R301 R304 C302 R302 R307 R104 R403 R404 R405 Q401 Q402 D402 D403 R401 R420 R303 R410 Q412 R402 C110 R414 R407 R408 R409 D404 R103 R10 C9 R8 C21 C10 D25 R20 R12 D5 R17 D9 R23 R201 R202 R205 R203 R204 VR201 C201 R24 R25 R11 R22 D8 D4 PC1 D6 R9 Q20 Q1 Q2 PC2 PC1 IC201 R7 R6 R5 R19 R1 D14 D13 T1 D11 D12 D81 D82 D83 R84 R85 Q81 R82 R83 C81 L1 D105 D104 C107 D103 D102 P101 AEK7063 P102 AEK7066 C105 C106 C410 L101 C109 Q411 Q410 D111 D407 D112 D405 D406 D107 D301 D108 D109 D304 C112 PC2 C111 C411 IC103 IC102 C301 C303 800mA 1.6A NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. POWER SUPPLY UNIT (VWR1340, VWR1330) H BEA401 BEA3 3.8 POWER SUPPLY UNIT (VWR1340, VWR1330) H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 25 WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 5 : CD, ABEX-784 Track 1 No. 12 to 14 : MJK1, Title 1-chp 4 No. 15 to 17 : MJK1, Title 1-chp 5 1 Foot of R169 (RF) V: 100mV/div. H: 0.2µsec/div. 2 TP2 (RFO) V: 500mV/div. H: 0.1µsec/div. 3 4 TP3 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC2 - pin 39 (EFM before slice) V: 1V/div. H: 1µsec/div. 6 IC2 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC3 - pin 41 (REGB) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 5msec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 5msec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 5msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 IC18 - pin 45 (Composite Video output) V: 2V/div. H: 1msec/div. 13 IC18 - pin 39 (Y output) V: 0.2V/div. H: 5msec/div. 14 IC18 - pin 36 (C output) V: 0.2V/div. H: 5msec/div. GND GND GND GND GND GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 26 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 27 A B C D 1 2 3 4 1 2 3 4 PC101 R101 CARRIAGE MOTOR SPINDLE MOTOR BLK RED M M NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 LOAB and SMEB ASSYS CN1 D CN3 D LOAB ASSY A SMEB ASSY B LOAB ASSY A FGSB ASSY C SIDE A SIDE B VNP1784-A VNP1762-A : WYXCN, YXCN/FRGR Types VNP1774-A : WYXQ, WYXQ/FR/GR, WVXQ Types VNP1732-A B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 28 A B C D 1 2 3 4 1 2 3 4 4.2 DVDM ASSY D DVDM ASSY D VNP1815-A : WYXQ, WYXQ/FRGR, WVXQ Types VNP1827-A : WYXCN, YXCN/FRGR Types SIDE A Q3 IC23 IC11 IC7 IC5 IC15 Q101 Q121 IC8 Q7 IC21 Q4 Q103 Q5 Q102 Q109 Q107 IC1 Q81 IC3 Q83 Q91 IC18 Q6 • This PCB is four-layered board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 29 A B C D 1 2 3 4 1 2 3 4D LOADING MOTOR ASSY PICKUP ASSY CN202 B CN202 B CN106 E DVDM ASSY D SIDE B CN102 E VNP1815-A : WYXQ, WYXQ/FRGR, WVXQ Types VNP1827-A : WYXCN, YXCN/FRGR Types Q1 IC14 IC13 IC12 IC2 Q114 Q113 Q131 Q106 Q251 Q85 Q89 Q87 IC26 IC27 Q112 IC19 • This PCB is four-layered board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 30 A B C D 1 2 3 4 1 2 3 4 4.3 FLJB, KEYB and PWSB ASSYS E F G IC150 IC102 FLJB ASSY E PWSB ASSY G KEYB ASSY F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 31 A B C D 5 6 7 8 5 6 7 8E Q291 CN5 D CN15 D CN101 H SIDE A VNP1816-A : WYXQ, WYXQ/FRGR, WVXQ Types VNP1828-A : WYXCN, YXCN/FRGR Types www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 32 A B C D 1 2 3 4 1 2 3 4 E Q254 Q902 Q901 Q256 Q225 Q411 Q4 Q431 IC202 IC201 IC401 IC105 Q253 Q601 VNP1816-A : WYXQ, WYXQ/FRGR, WVXQ Types VNP1828-A : WYXCN, YXCN/FRGR Types www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 33 A B C D 5 6 7 8 5 6 7 8G F E Q411 Q401 Q421 IC104 IC103 IC101 FLJB ASSY E PWSB ASSY G KEYB ASSY F SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-340, DV-343 34 A B C D 1 2 3 4 1 2 3 4 POWER SUPPLY UNIT H CN101 E AC IN SIDE A Q411 Q410 IC102 IC103 VR 201 IC201 Q20 Q71 Q2 Q1 Q412 Q402 Q401 4.4 POWER SUPPLY UNIT (VWR1340, VWR1330) H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DV-340, DV-343 Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF ASSEMBLIES NSP LOADING MECHANISM ASSY VWT1174 NSP LOAB ASSY VWG2171 TRAVERSE MECHANISM ASSY VXX2653 NSP SMEB ASSY VWG2048 NSP FGSB ASSY VWG2009 DVDM ASSY VWS1467 NSP FLJB ASSY VWM2077 FLJB ASSY VWV1831 NSP KEYB ASSY VWG2276 NSP PWSB ASSY VWG2275 POWER SUPPLY UNIT VWR1340 (∗1) NSP POWER SUPPLY UNIT VWR1330 (∗1) ∗1 : As for POWER SUPPLY Unit, either VWR1340 or VWR1330 is installed. Install VWR1340 when replacing the POWER SUPPLY Unit. LOAB ASSY SWITCHES AND RELAYS S101 VSK1011 OTHERS CN101 CONNECTOR POST S3B-PH-K PC BOARD LOAB VNP1774 SMEB ASSY SWITCHES AND RELAYS S 201 DSG1016 OTHERS CN201 CONNECTOR 52044-0345 CN202 8P CONNECTOR VKN1212 PC BOARD SMEB VNP1695 FGSB ASSY SEMICONDUCTORS PC101 GP2S60 RESISTORS R 101 RS1/10S331J DVDM ASSY SEMICONDUCTORS IC5, IC7 BA4510F IC21 BU2288FV IC14 KM68V1000CLT-7L IC1 LA9701M IC2 LC78652W IC3 M56788FP-TFB IC19 MB811171622A-100FN IC18 MB86373B IC15 MN414800CSJ-07 IC11 PD3410A IC12 PE5108A IC8 TC7SHU04F IC13 VYW1765 Q 106, Q 109, Q 81, Q 83, Q 85 2SA1576A Q 114, Q 121, Q 251 2SC4081 Q 131 DTC114EUA Q 102 HN1A01F Q 103, Q 6, Q 7 HN1B04FU Q 101 HN1C01F Q 112, Q 113 HN1C01FU Q 107, Q 4, Q 5 RN1902 Q 3 RN1911 Q 1 RN4982 D 301 KV1471E D 6 RB501V-40 COILS AND FILTERS L 150, L 330 LCYA100J2520 L 304 LCYA2R7J2520 L 81 CHIP COIL VTL1067 L 9170 CHIP BEADS VTL1084 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DV-340, DV-343 Mark No. Description Part No. Mark No. Description Part No. CAPACITORS C 845, C 846 CCSRCH100D50 C 123, C 146, C 613 CCSRCH101J50 C 322 CCSRCH120J50 C 135 CCSRCH121J50 C 104–C 108 CCSRCH150J50 C 206, C 210, C 211 CCSRCH151J50 C 333 CCSRCH180J50 C 314 CCSRCH220J50 C 152 CCSRCH221J50 C 151 CCSRCH270J50 C 127, C 209, C 337 CCSRCH331J50 C 116, C 134, C 236 CCSRCH470J50 C 122, C 208 CCSRCH471J50 C 126, C 335 CCSRCH560J50 C 334 CCSRCH5R0C50 C 124, C 132 CCSRCH680J50 C 117, C 240, C 352, C 360 CCSRCH681J25 C 129, C 142, C 842 CEV101M10 C 113, C 139 CEV220M16 C 405, C 413, C 700, C 808 CEV221M4 C 368, C 411 CEV470M16 C 111, C 149, C 205, C 207, C 401 CEV470M6R3 C 403, C 407 CEV470M6R3 C 140, C 223, C 224, C 252, C 264 CKSQYB105K10 C 312 CKSQYB105K10 C 216, C 313 CKSRYB102K50 C 133, C 136, C 203, C 220, C 225 CKSRYB103K50 C 239, C 320, C 321, C 330, C 625 CKSRYB103K50 C 703, C 711 CKSRYB103K50 C 101, C 102, C 114, C 118, C 119 CKSRYB104K16 C 121, C 138, C 204, C 212, C 213 CKSRYB104K16 C 227, C 231, C 263, C 315, C 317 CKSRYB104K16 C 332, C 804 CKSRYB104K16 C 153, C 266, C 357 CKSRYB223K50 C 214, C 251, C 261, C 351, C 354 CKSRYB472K50 C 109, C 110, C 120, C 130, C 131 CKSRYF104Z50 C 143, C 150, C 1901, C 1902, C 202 CKSRYF104Z50 C 215, C 221, C 222, C 226, C 230 CKSRYF104Z50 C 235, C 265, C 299, C 319, C 359 CKSRYF104Z50 C 367, C 369, C 370, C 601, C 605 CKSRYF104Z50 C 607, C 608, C 610, C 615, C 618 CKSRYF104Z50 C 620, C 626, C 701, C 702, C 704 CKSRYF104Z50 C 706, C 708, C 712, C 715–C 721 CKSRYF104Z50 C 723, C 726, C 844 CKSRYF104Z50 C 148, C 217, C 327, C 801, C 802 CKSRYF105Z10 C 810, C 813, C 815, C 817–C 821 CKSRYF105Z10 C 828, C 830 CKSRYF105Z10 RESISTORS R 632 RAB4C0R0J R 657, R 658 RAB4C103J R 121, R 663 RAB4C220J R 123 RAB4C390J R 202, R 3510 RS1/10S101J R 700 RS1/10S1R0J R 363, R 365 RS1/16S1203F R 807 RS1/16S1501F R 825–R 827 RS1/16S2200F R 806 RS1/16S2201F R 805 RS1/16S2701F R 361, R 364 RS1/16S4702F Other Resistors RS1/16S&&&J OTHERS CN4 FFC CONNECT0R DKN1193 X 2 (20MHz) DSS1110 CN2 CONNECTOR S2B-PH-SM3 CN1 CONNECTOR S3B-PH-SM3 FLEXIBLE CABLE VDA1681 CN15, CN5 CONNECTOR VKN1626 CN3 8P CONNECTOR VKN1763 X 1 (27.000MHz) VSS1159 FLJB ASSY SEMICONDUCTORS IC105 BA25BC0FP IC202 BA4560F IC401 LA7139M IC201 PCM1716E IC101 PE5242A IC150 RPM7040P-H3 IC102 S-806D IC104 TC74VHC125F IC103 TC74VHCT125AF Q 255, Q 431, Q 902 2SA1037K Q 291 2SC1740S Q 651, Q 901 2SC2412K Q 253, Q 254 2SD2114K Q 256 DTC114YK D 497, D 901–D 903 1SS355 D 261 UDZS6.2B COILS AND FILTERS L 210, L 211 LAU2R2J L 101 LAU680J CAPACITORS C 257, C 258 CCSRCH101J50 C 255, C 256 CCSRCH150J50 C 491–C 493 CCSRCH221J50 C 251, C 2520,C 904 CCSRCH331J50 C 438, C 439, C 497 CCSRCH470J50 C 103 CEAL101M6R3 C 655 CEAL1R0M50 C 259, C 292 CEAT101M16 C 210, C 211 CEAT101M6R3 C 202, C 209 CEAT102M6R3 C 204, C 208, C 253, C 254 CEAT470M25 C 261, C 262, C 264 CEAT470M25 C 430, C 431 CEAT471M10 C 455, C 459, C 901 CEAT471M6R3 C 108 CKSRYB102K50 C 102, C 114, C 116, C 119, C 120 CKSRYF104Z50 C 123, C 172, C 173, C 183, C 185 CKSRYF104Z50 C 203, C 205, C 207, C 212, C 260 CKSRYF104Z50 C 263, C 463, C 471, C 498, C 652 CKSRYF104Z50 C 902, C 903 CKSRYF104Z50 C 201, C 435–C 437 CKSRYF105Z10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DV-340, DV-343 Mark No. Description Part No. Mark No. Description Part No. 6. ADJUSTMENT There is no information to be shown in this chapter. RESISTORS R 265, R 266 RN1/16SE3302D R 261, R 262 RN1/16SE6802D R 118 RS1/10S180J R 242 RS1/10S182J R 119 RS1/10S330J R 451, R 453, R 455, R 910 RS1/16S56R0F Other Resistors RS1/16S&&&J OTHERS CN103, CN104 CONNECTOR 4P 04R-FJ CN101 CONNECTOR 14P 14P-FJ JA4030 JACK BKB1017 JA491 JACK RKN1004 V 101 FL TUBE VAW1062 JA4040 JACK VKB1159 JA402 JACK VKB1163 JA901 CONNECTOR VKB1166 CN110 7P CONNECTOR VKN1267 CN102, CN106 B TO B CONNECTOR 30P VKN1627 FL HOLDER VNK4748 X 101 (5MHz) VSS1142 KEYB ASSY SWITCHES AND RELAYS S 701–S 706 ASG7013 RESISTORS All Resistors RS1/16S&&&J OTHERS CN701 CONNECTOR 4P 04P-FJ PWSB ASSY SWITCHES AND RELAYS S 802 ASG7013 RESISTORS All Resistors RS1/16S&&&J OTHERS CN801 CONNECTOR 4P 04P-FJ POWER SUPPLY UNIT (VWR1340) OTHERS IC101 PROTECTOR(800mA) AEK7063 IC102 PROTECTOR(1.6A) AEK7066 FU1 FUSE(2.5A) REK1102 POWER SUPPLY UNIT (VWR1330) OTHERS P101 PROTECTOR (800mA) AEK7063 P102 PROTECTOR (1.6A) AEK7066 FU101 FUSE (2.5A) REK1102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DV-340, DV-343 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 SELF-DIAGNOSTIC FUNCTION OF PICKUP DEFECTIVE Character in bold : Item name : Information display Test Mode Screen Display Laser diode current value Symptom • Indicates "No Disc" in FL display. • Player does not playback, etc.. Note : When a DVD disc is played in the test mode, this function is effective. This function is effective only for DVD pickup (650nm). Procedure of Self-Diagnosis 1 Press the → buttons (of the test mode remote control unit : GGF1067) in the test mode screen, and turn on the laser diode (It light-up for nine seconds.). 2 Confirm the indicated value of the laser diode current (LDI). 3 When indicated value is more than 110, pickup is defective. → Release the Traverse Mechanism Assy. TEST 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DV-340, DV-343 DVDM ASSY SIDE B Front Side 7.1.2 TEST POINTS LOCATION IC1 IC19 IC2 C707 IC26 IC27 R389 Short-circuit at diagnosis CN4 CN3 CN1 CN15 IC13 CN5 IC14 CN2 VCODR SREQ VREF VREF TP3 (TE) TP1 (FE) TP2 (RFO) TP4 (FDO) This model has not test terminal. Please use following points when checking the RF, FE and TE, etc.. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DV-340, DV-343 Remote control code Key code Mechanism position value and slider position Output video system and Skirt terminal output FL controller version and region setting for the player Port No. of Flash ROM and system controller System controller revision Flash ROM version and Flash ROM size FL controller destination setting AV1 chip version DVD mechanism controller revision (Control and part No. of GUI-ROM) Character in bold : Item name : Information display Test Mode Screen Display (First Screen Display) • Screen Composition Address Background color Tracking status and Laser diode current value Spindle status and AFB status AGC setting FTS servo IC information C1 error value of CD and DVD Internal operation mode of the mechanism control Disc judgment and CD 1/3 beam switch Equalizer value and jitter value 7.1.3 TEST MODE SCREEN DISPLAY TEST MODE SCREEN DISPLAY Consecutive double-OSD display is supported during test mode. The screen is composed 10 lines with a maximum of 32 characters per line. It can't be used with the debugging display mode together. Caution : The first screen and second screen switch by pressing [DISPLAY] key of the remote control unit. It is only a version display part on the lower right of the screen those contents of display change. ATB : ON/OFF information display and AGC manual setting display deleted with the second generation. The displays of Tilt error value, Tilt servo status and pickup DVD/CLD display deleted with the third generation becomes LD part is deleted. • Description of Each Item on the Display (1) Address indication The address being traced is displayed in number. DVD : ID indication (hexadecimal number, 8 digits) [ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] CD : A-TIME (min. sec.) [ 0 0 0 0 ∗ ∗ ∗ ∗ ] (Note : For DVDs, decimal-number indication is possible.) (2) Code indication of the remote control unit [R – ∗ ∗ ∗ ∗] The code for the key pressed on the remote control unit, which is received by the FL controller, is displayed while the key is pressed. In the case of the double code, the second code will be displayed. (3) Key code indication for the main unit [K – ∗ ∗ ] The code for the key pressed on the main unit, which is received by the system controller, is displayed while the key is pressed. (4) Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗] (5) 1 Tracking status [TRKG – ∗∗∗] Tracking on [ON ] Tracking off [OFF] 2 Laser diode current value [LDI – ∗∗∗] (6) 1 Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] 2 AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] (7) Mechanism position value [M – ∗] Position code [1] to [3] (8) Slider position [S – ∗ ∗ ∗ ∗] CD TOC area [IN ] CD active area [CD ] (9) AGC setting [AGC – ∗ ∗] AGC on [AGC-ON] AGC off [AGC-OFF] When the test mode is entered, press the ESC button and the TEST button in order of the test mode remote control unit (GGF1067). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DV-340, DV-343 (10) Output video system [V – ∗ ∗ ∗ ∗] NTSC system [NTSC] PAL system [PAL ] Auto-setting [AUTO] Skirt terminal output [SK – ∗ ∗] VIDEO [00] S-VIDEO [01] RGB [02] Note : Display only the model which can do the output setting of skirt terminal. (11) FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. (12) Error rate indication 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] (13) Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller (14) 1 Disk sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] 2 CD 1/3 beam switch [BM – ∗ ∗] (15) 1 Equalizer value [E – ∗ ∗] 2 Jitter value [J – ∗ ∗] nake the jitter four times, and renew it in every one second. [4 – * *] CD is effective only in the jitter value. (16) Version of the AV-1 chip [ AV : ∗ . ∗ ∗' ∗' ] (17) 1 Version of the FL controller [FL : ∗ ∗ ∗ ∗] 2 Region setting of the player [REG : ∗ ] Setting value [1] to [6] (18) Destination setting of the FL controller [MDL : ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ] For charactors in front represent the type of model : There charactors that follow represent the destination code. J : /J, K : /KU, /KC, /KU/KC, R : /RAM, /RL, /RD, /LB, WY : /WY (19) The part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗] 1 Part number of the flash ROM (Example) VYW1536-A = W1536A (Example) PD6256A9 = 6256A9 2 Part number of the system controller (Example) PD3381T1 = 3381T1 (20) 1 Version of the flash ROM [V : ∗ . ∗ ∗ ∗] 2 Flash ROM size [FLSH = ∗] (21) Revision of the system controller [S : ∗ . ∗ ∗ ∗ / ∗ . ∗ ∗ ] 1 Revision number of the external ROM part (flash ROM) of the system controller 2 Revision of the internal ROM part of the system controller (22) Revision of the DVD mechanism controller [M : ∗ . ∗ ∗ ∗] Revision number of the external ROM part (flash ROM) of the DVD mechanism controller (23) Control and part numbers of the GUI-ROM [GUI : ∗ ∗ ∗ ∗] No GUI model displays as "––– / ––––". OEM model displays the part number of GUI-ROM [GUI : * * * *] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DV-340, DV-343 DEBUGGING SCREEN SPECIFICATION FOR THE MECHANISM CONTROLLER 3 Indication Contents 1. The error that became the trigger that an error of 2 occurred. There are many cases same as 2. 2. The error number that transferred to the system controller Refer to the error list about contents of error number. 3. Code read in state (it does not support in this unit) When X is indicated, ID or subcode are not able to read in. When X is not indicated, they are able to read in. 4. ID or subcode (it does not support in this unit) Subcode indicates the A time. 5. Inside mode of the mechanism controller when an error of 1 occurred It can indicate to a maximum 10 mode. Indicate it in order of an old mode from the left, and go right, and become a new mode. Indicate only a nest share of the mode. 6. Processing step of inside mode of 5 It can grasp the mode reaching an error and transition of step by watching 5 and 6 and it can specify the occurrence place of most errors. 7. Disk information in the mechanism controller ? : Indistinctness NO : There is no disc DVD 1 : DVD single layer DVD 2 : DVD dual layer CD : CD CDR : CD-R or CD-RW CDR P : PRD of CD-R or CD-RW 8. As a result of 8cm /12cm distinction ? : Indistinctness (undistinction) 8 : 8 cm 12 : 12 cm 9. OEIC gain (it does not support in this unit) H : OEIC HIGH gain L : OEIC LOW gain 10. SGC gain for LD of 780nm It indicates a step using in the mechanism controller inside with a hexadecimal number. Set the gain so that S curve becomes 1.8V (p-p) in disc distinction. 11. SGC gain for LD of 650nm For L0. It indicates a step using in the mechanism controller inside with a hexadecimal number. Set a gain so that S curve becomes 1.8V (p-p) in disc distinction. 12. SGC gain for LD of 650nm For L1. It indicates a step using in the mechanism controller inside with a hexadecimal number. Set a gain so that a S curve becomes 1.8V (p-p) in disc distinction. 13. RF count value for disc distinction RF count value to use the disc distinction. It compares threshold value of 14 and 15 and distinguishes the disc. 14. Disc distinction threshold value (DVD and CD) Threshold value of the disc distinction. Distinguish it from DVD if bigger than this value, and distinguish it from CD if small. 1 Indication Method of The Mechanism Controller Debugging Screen A debugging screen of the mechanism controller is indicated when pressing the test mode remote control unit [GGF1067] in order of the and buttons. Releace from debugging screen display of the mechanism controller with the button. ESC ESC CHP/TM 2 Screen Layout • This specifications is subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DV-340, DV-343 15. Disc distinction threshold value (CD and unrecorded disc) Threshold value of the disc distinction. Distinguish it from CD if bigger than this value, and distinguish it from an unrecorded disc if small. 16. Current jitter value Indicate the value that was read in from the MY-CHIP in DVD, and indicate the value that was read in from the servo DSP in CD. 17. Focus balance setting value of L0 18. Focus balance setting value of L1 19. Current mechanism controller inside mode (it does not support in this unit) It can indicate to a maximum 10 modes. Indicate only a nest share of the mode. 20. Processing step of 11 inside modes (it does not support in this unit) It can grasp the current mode, the mode reaching it and transition of step by watching 19 and 20. 21. Spindle control state of MY-CHIP (it does not support in this unit) OFF : Motor off condition A/B : Accelerator and brakes FG : FG servo RVP : Rough speed phase servo ORVP : Rough speed phase servo of offset addition 22. Rotation number of spindle motor Do not FG read in ? indication (during spindle stop). 23. Tracking error generation system (it does not support in this unit) 1: 1 beam (DPD) 3: 3 beams 24. TZC count value (it does not support in this unit) The value that counted the number of TZC for one rotation in the tracking open state. When this value is more than 512 with CD, set it in 1 beam because the eccentric is large. DVD does not measure it because it is 1 beam fixed (indication is 0000). 25. It indicates the frequency that entered the focus backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 26. It indicates focus backup limit frequency with the hexadecimal number Initial value is 14H, it does decrement whenever enter the focus backup and it gives up backup if it became 0. Then the error is generated. After reverted from the backup, When not enter the backup and pass fixed time (1500ms), return to initial value again. 27. It indicates the frequency that entered the internal circumference plunging into backup of the sled Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 28. It indicates the frequency that entered the tracking overrun backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 29. It indicates the limit frequency of tracking overrun backup with a hexadecimal number Initial value is 03H, it does decrement whenever enter the tracking overrun backup and it gives up backup if it became 0. 30. It indicates the frequency that entered sled overrun backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 31. It indicates the limit frequency of sled overrun backup with a hexadecimal number Initial value is 03H, it does decrement whenever enter the sled overrun backup and it gives up backup if it became 0. 32. It indicates the frequency that entered the tracking close NG backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Next of FF is be a 1 byte counter in 00. The hexadecimal number indication which indicates the frequency that reads 33. ID/subQ, and entered NG backup Hexadecimal number indication. A counter does not reset it till cuts it off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 34. An address to indicate in 35 Set it by using RS232.I (an address) Set it with DA. 35. Contents of an address indicated in 34. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DV-340, DV-343 7.1.4 TROUBLE SHOOTING • No Power ON • FL is not turned ON • FL indication is unusual START Is FL turn on ? Is tray open ? Is the indication of FL normal ? Do the video and sound come on ? Power ON Yes Yes Yes Yes No No No Turn on the power again after 2 - 3 minutes. • Blow out fuse of the primary side • Blow out micro-fuse on the POWER SUPPLY Unit. (Check the each voltage.) (P101, P102) • FL controller IC (IC101) on the FLJB Assy is damaged. • Blow out micro-fuse on the POWER SUPPLY Unit. (P101) • Check the connection between PICKUP Assy and DVDM Assy. (14P flexible cable) • Check the +6V power supply voltage (above micro fuse). FL indication is dark or flickers. No Indicates the error message Refer to the section "7.1.5 ERROR CODE". Refer to the section "7.1.5 ERROR CODE". Check the connection between FLJB Assy and DVDM Assy. Indicate the error message. • Check the following connections : POWER SUPPLY Unit - DVDM Assy DVDM Assy - FLJB Assy FLJB Assy - PWSB Assy • Check each voltage (EV+5V, SW+5V, SW+3.3V, +6V and +12V) (If above voltage are not supplied, check the micro-fuse.) • Short or open the zenner diode on the POWER SUPPLY Unit. (D304) • Check the values of R118 and R119 on the FLJB Assy. OK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DV-340, DV-343 FL Display Possible causes Operation of the unit AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with the specific audio. CPU AERR CPU address error (Hardware is unusual.) No operation DMA AERR DMA address error (Hardware is unusual.) No operation FLASH ID Difference in versions of the internal ROM of the system controller and of the flash ROM, or bus line failure or reverse installation No operation FLASH WRP Write protect error of the flash ROM No operation FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used was used.) No operation FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation (Hardware is unusual.) No operation FLASH SIZE Size error of the flash ROM (Use 4 or 8 M-bit.) No operation ILLGAL The system controller fetched a code other than an operation code (Hardware is unusual.) No operation RESERVE Undefined interrupt (Hardware is unusual.) No operation SLOT Inappropriate slot command issued (Hardware is unusual.) No operation Error codes that are displayed on the FL display without using the remote control unit 7.1.5 ERROR CODE Error codes that are displayed on the FL display by using the remote control unit (Mechanism controller error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the FL display To display the error history: ESC + TV/LDP + One shot; Location of the display: TV screen FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 11 Search timeout Search could not be complete within 7 seconds. Search could not be complete within 7 seconds, and it could not enter the target area within 7 seconds by VCD scan. CD : Stops, DVD : Continues operation 12 Search retry error A search could not be completed after 3 retries, search backup was executed 4 times, or in a case of timeout (6 seconds) while the unit was tracing 11 tracks or more beyond the target while the search operation was converging. Backup against slider skip was executed 4 times during a search, or slider skip twice resulted in starting from the read-in point. CD : Stops, DVD : Continues operation 19 Tracing timeout while converging Timeout (10.5 seconds) while tracing at the stage of convergence of a search. Stop 1B Index 0 search error During Track (Index) Search, the search for the beginning of a program could not be completed within 3 seconds (20 seconds in the case of Index Search) after positioning based on the TOC data was completed. Stop 22 Timeout of slider inner circumference Inside switch could not ON within 3 seconds. Stop 23 Timeout of slider outer circumference Inside switch could not OFF within 2 seconds. Stop 33 No FOK pulse during playback CLVA When the focus was deviated continuously 20 times. Adjusts focus at the innermost circumference and tries to return to its position where the error was generated (for 3 times),then opens. If the same error persists after one retry, the tray opens. (No FOK pulse) 38 Disc-type- sensing error If normal starting was impossible in the following three cases, disc-type sensing will be retried if other errors occure excepting C5 error. However, when the focus error "33" was occured continuously 3 times, it is finished as "38 error" at the moment: (1) startup with the first disc-type-sensing result, (2) forced startup with another disc by designating the disc type, (3) forced startup with the original disc by designating the disc type. Open www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DV-340, DV-343 FL Description of Error Causes if with a DVD Causes if with a CD Operation of the 39 SGC converge timeout SGC could not converge during detects the peak Open 41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command. Stop 48 Spindle FG transition timeout The spindle could not converge into within ± 12% of the target FG rotation speed within 10 seconds after spindle kick. The first time after startup (the first time after disc distinction), it doesn't become the number of the target rotation within five seconds. The first time after startup, detects the abnormal rotation number of high-speed continuously 3 loops. DVD: 5 to 9 mS , CD: 40 to 60 mS Stops. (FG timeout) 49 Spindle PLL transition timeout After the second times after startup, it doesn't become the number of the target rotation within five seconds. Detects the abnormal high-speed or low-speed rotations. DVD: 5 to 9 mS , CD: 40 to 60 mS Stops. ("73" is displayed during starting process.) 4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB. Stops. ("73" is displayed during starting process.) 51 Auto sequence timeout of peak ABUSY did not return within 1 second after the DDTCT (peak detection) command was sent. Stop 52 Auto sequence timeout of focus jump down ABUSY did not return within 30 mS after the FJMPD (Focus jump 1 to 0) command was sent. Stop 53 Auto sequence timeout of focus ABUSY did not return within 30 mS after the FJMPU (Focus jump 0 to 1) command was sent. Stop 54 Auto sequence timeout of play AGC ABUSY did not return within 50 mS after the GSUMON (play-AGC-measuring) command was sent. Stop 55 Auto sequence timeout of disc-type- sensing ABUSY did not return within 2 seconds after the DJSRT (disc-sensing) command was sent. Stop 56 Auto sequence timeout of ATB2 ABUSY did not return within 1 second after the TBLOFS (Internal ATB after the completion of external ATB) command was sent. Stop 57 Auto sequence timeout of tracking servo ON ABUSY did not return within 500 mS after the TSON (tracking servo ON) command was sent. Stop 58 Auto sequence timeout of ATB1 ABUSY did not return within 200 mS after the TBL (external ATB) command was sent. Stop 59 Auto sequence timeout of focus gain adjustment ABUSY did not return within 2 seconds after the FGN (focus gain adjustment) command was sent. Stop 5A Auto sequence timeout of tracking gain adjustment ABUSY did not return within 2 seconds after TGN (tracking gain adjustment) command was sent. Stop 5B Auto sequence timeout of offset adjustment ABUSY did not return within 1 second after the CMDAVE (offset adjustment) command was sent. Stop 5C Auto sequence timeout of modulation factor measurement ABUSY did not return within 200 mS after the ADJMIR (modulation factor measurement) command was sent. Stop 5D Auto sequence timeout of auto focus bias ABUSY did not return within 2 seconds after the AFB (auto focus bias) command was sent. Stop 5F Auto sequence already busy A command could not be sent because ABUSY was low. ABUSY did not return within 200 mS after TLV command was sent. Stop 62 Pause retry error Pause mode could not be restored within three retries after it had been released. Continues operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DV-340, DV-343 FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 71 ID can not read during tracing An ID could not be read for 1 second or more. Stop 72 Subcode check failure during playback No frame could be read for 3 seconds or more. Stop 73 ID can not read at the startup An ID could not be read within 1 second after the AFB adjustment had been finished. Opens (ID readout failure) 74 Subcode check failure during startup No subcode could be read within 3 seconds after AFB adjustment had been finished. Opens (Subcode readout failure). 81 Timeout for reading TOC of the mechanism controller TOC readout took 30 seconds or more. Stop 82 Timeout for reading TOC of the system controller Reading TOC of the system controller took 30 seconds or more. Stop A1 Communication timeout of DSP command A command could not be issued to DSP because Command Busy (XCBUSY) was in force (XCBUSY = L) for a specified time (about 200 mS). No operation A2 Communication timeout for reading DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 200 mS) before and after a coefficient read command was issued to DSP, or the address echo-back after command issuance did not match the setup address. No operation A3 Communication timeout for writing DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 1024 mS) before and after the coefficient write command was issued to DSP. No operation A4 Communication timeout for continuously writing DSP coefficient Command Busy (XCBUSY) was in force for 200 mS during continuous coefficient writing, or before and after a continuous write command was issued to DSP. No operation B1 Timeout error for backup In the tracing state during the backup sequence, codes could not be read for 1 second or more. In the backup sequence, tracking ON sequence of the servo DSP could not be completed even if more than 500 mS after the tracking ON command was issued. Stops B2 Retry error for backup Tracing impossible after retring the tracking ON for 3 times in the backup sequence. Stops B3 Retry error for trace During tracing, runaway was detected after three iterations of backup operations for detecting runaway. Stops C3 Detection of tracking overcurrent During playback, the overcurrent detection port was at L for 300 ms or more continuously. Stops (the mechanical controller operates independently). (C5) Short-circuit test corresponding error While the power was on, the overcurrent detection port was at L for 40 ms or more continuously. Turns off the power instantly (No indication on the FL display and no writing to flash memory) E3 Violation against digital copy guard Stops F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other than Open by an external force. Closes F8 Loading timeout Loading, unloading or clamping could not be completed within a specified time (about 5 seconds). Reverses the loading direction. It timeout is repeated upon retry, the unit stops. FC Focus The following error occured eight times. (1) Focus ON sequence could not be completed even if more than two seconds after the focus ON command (to the servo DSP) was sent. (2) Focus IN sequence was finished, actually focus IN was not completed. Stops wherever possible then opens (stops in the case of side B). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DV-340, DV-343 Error codes that are displayed on the FL display by using the remote control unit (Device error) To display : ESC + DISPLAY + DISPLAY ; Location of the display : At the two digits of left of the FL display FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit bit3=1 08 etc. AV1 access error (read, write NG) No operation or it becomes debugging indication if the power is able to ON. bit2=1 04 etc. MY CHIP access error bit1=1 01 etc. SRAM access error www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DV-340, DV-343 7.1.6 DISASSEMBLY 1 Remove the Bonnet (Screws × 8) 5 Pull out the AC Power Cord Bonnet, Tray Panel Note 1 1 Loading Mechanism Assy 4 Test Disc Clamp 2 Front Panel Assy 3 2 Power ON 4 Power OFF 3 3 3 2 4 3 1 Tray Open (0) Remove the Connector (×2) 2 Tray Close (0) Test Disc Front Panel Assy Tray Tray Panel Disc Clamp 1 Unhook (×3) 1 Unhook (×3) (×4) 2 Loading Mechanism Assy When diagnosing the unit, be sure to use two connection cables for service. (Part No. : GGD1228) 7 DIAGNOSIS OF PCBS Note : This photograph shows other models. However, the work method is the same. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DV-340, DV-343 2 2 2 2 FLJB Assy Connection Cable for Service [GGD1228] Connection Cable for Service [GGD1228] DVDM Assy DVDM Assy Loading Mechanism Assy Styling of the Connection Cables 6 Diagnosis (1) 7 1 Put the AC Power Cord Diagnosis (2) 8 1 3 CN15 CN102 CN106 CN1 CN5 (×2) 4 3 2 Power ON PWSB Assy KEYB Assy POWER SUPPLY Unit FLJB Assy Short Circuit R389 5 DVDM Assy Note ; 1 : When does not short-circuit with R389, playback will not be possible after the next steps. 2 : The tray cannot be opened while R389 is short-circuited. 3 : Release the short-circuit after the Diagnosis (1) and Diagnosis (2) are completed. CN1 R389 Short circuit (Bottom View) 7 8 1 Remove the Rear Panel (Screws × 8) 2 Remove the PCBs (Screws × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DV-340, DV-343 8 Open POWER SUPPLY UNIT side Short SW Pickup Flexible Cable Short 1 Remove the Bonnet (Screws × 8) 7 DISASSEMBLY OF TRAVERSE MECHANISM ASSY-S 2 Power ON Bridge 3 3 Tray Open (0) Unhook (×2) Tray Traverse Mechanism Assy-S Float Base (Top View) 5 6 Unhook (×2) 9 Remove the Traverse mechanism assy-S 10 9 9 Unhook Unhook 7 Pull out the AC Power Cord 4 (×1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DV-340, DV-343 • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. LC78652W (DVDM ASSY : IC2) • DSP IC • Block Diagram 7.2 IC •List of IC LC78652W, PD3410A, MB86373B, PE5242A 33 FE 32 TE 29 TILTE 30 RF_PH 31 RF_BH 28 JITT 26 TES 51 HFLIO 81 VPDO 15 XOUT 73 BUSYB 8 XTALOUT 100 LEFM 97 LEFM2 52 LASER 92 JV MPX Servo Processor (16×16+32→32) 8bit A/D 8bit D/A CMP Track Counter 56 PP2/EVENT Event Counter 55 FG 39 EFMIN 80 VCOC 96 DVDSYNC 14 XIN 58 CSB 94 ADRAO 60 WRB 59 RDB 91 CDFR 90 DVDFR 1 EFMOUT SLCIST1,2 FG Counter SLC CLV PLL Frame Synchronous Detection, Protection, Insertion EFM Demodulation Error Detect Correction C1-Twofold, C2-Fourfold Supplement/Mute D Attenuate Deemphasis Filter Clock Generator Command Interface 34,35 SLCO1,2 36,37 PCKIST1,2 87,88 PD01-3 83-85 P0-7 63-70 PP0-3 93 PCK For De-Interleave 16k SRAM DOUT Serial Out Sub Code Decode CRC DVD Lock Detection 74 SQOUT 47 FDO 48 TDO 45 SLDO 46 SPDO 44 TBAL 43 TILTDO 42 AUXO 24 DRF 22 FAST 95 DVDSYEQ 23 V_PB 21 FSEQ 77 WRQ 17 EMPH 4 ROMCK 5 LRSY 19 DOUT 3 ROMXA 57 RESB 2 C2F 20 EFLG 9 FSX 12 PW 18 SBSY 11 SFSY 75 CQCKB TEST1-4 76 RWC 10 SBCK 25,27 38,50 7 FBUSYB General Purpose Register 53,54 ,56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DV-340, DV-343 •Pin Function . o N e m a N n i P O /I n o it c n u F 1 T U O M F E O M F E e ula v d e t a ts - y r a nib s a w t a h t e t a ts e h t t u p t u O 2 F 2 C O t u p t u o g alf 2 C 3 A X M O R O t u p t u o a t a d M O R - D C 4 K C M O R O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc tfih S 5 Y S R L O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc R / L 6 3 P P O /I t u p t u o D O - h c N t u p nila n gis .c n y s D V D / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 7 B Y S U B F O t u p t u o D O - h c N n oit a r e p o s s e c o r p P S D f o t u p t u o la n gis y s u B 8 T U O L A T X O t u p t u o k c olc m e ts y s la n r e tx E 9 X S F O t u p t u o la n gis .c n y s e m a rf 1 D C 0 1 K C B S I t u p ni k c olc t u o g nid a e r e d o c b u S 1 1 Y S F S O e d o c b u s f o t u p t u o la n gis .c n y s e m a r F 2 1 W P O t u p t u o W d n a V , U , T , S , R , Q , P e d o c b u S 3 1 S S V − nip D N G 4 1 N I X I ) z H M 4 4 3 9 . 6 1 ( r o t a n o s e r la ts y r c a tc e n n o C 5 1 T U O X O r o t a n o s e r la ts y r c a tc e n n o C 6 1 1 D D V D − tiu c ric n oit allic s o e h t f o ylp p u s r e w o p V 3 . 3 7 1 H P M E O sis a h p m e e d e h t f o nip r o tin o M 8 1 Y S B S O k c olb e d o c b u s e h t f o t u p t u o la n gis .c n y S 9 1 T U O D O t u p t u o a t a d J A I E oid u A 0 2 G L F E O 2 C d n a 1 C n oitc e rr o c r o rr e e h t f o r o tin o m e t a ts n oitc e rr o c r o rr E 1 2 Q E S F O la n gis .c n y s e m a rf D V D / D C e h t f o r o tin o m n oitc e t e D 2 2 T S A F O t u p t u o D O - h c N r o tin o m d e e p s k c a b y al P 3 2 B P _ V O lo rt n o c V L C / o v r e s h g u o r e h t f o t u p t u o r o tin o M 4 2 F R D O r o tin o m s u c o f n I 5 2 3 T S E T I 3 t u p ni ts e T 6 2 S E T I t u p nila n gis r o rr e g nik c a r T 7 2 2 T S E T I 2 t u p ni ts e T 8 2 T T IJ I L L P M F E f o t u p nila n gis g nitc e t e d ytit n a u q r e ttiJ 9 2 E T L I T I t u p nila n gis r o rr e tli T 0 3 H P _ F R I t u p nila n gis dlo h k a e p F R 1 3 H B _ F R I t u p nila n gis dlo h m o tt o b F R 2 3 E T I t u p nila n gis r o rr e g nik c a r T 3 3 E F I t u p nila n gis r o rr e s u c o F 4 3 1 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 1 nip g nitt e s t n e rr u C 5 3 2 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 2 nip g nitt e s t n e rr u C 6 3 1 O C L S O C L S r o f 1 t u p t u o lo rt n o C 7 3 2 O C L S O C L S r o f 2 t u p t u o lo rt n o C 8 3 1 T S E T I 1 t u p ni ts e T 9 3 N I M F E I t u p ni + M F E / M F E 0 4 D D V A − o v r e s r o f A / D d n a D / A f o ylp p u s r e w o p V 5 1 4 S S V A − o v r e s r o f A / D d n a D / A f o D N G 2 4 O X U A O t u p t u o y r ailix u a A D 3 4 O D T L I T O t u p t u o la n gis lo rt n o c tli T 4 4 L A B T O t u p t u o la n gis lo rt n o c e c n ala b g nik c a r T 5 4 O D L S O t u p t u o la n gis lo rt n o c d el S 6 4 O D P S O t u p t u o la n gis lo rt n o c eld nip S 7 4 O D F O t u p t u o la n gis lo rt n o c s u c o F 8 4 O D T O t u p t u o la n gis lo rt n o c g nik c a r T 9 4 F E R V − o v r e s r o f A / D f o le v el e c n e r e f e R 0 5 4 T S E T I 4 t u p ni ts e T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DV-340, DV-343 . o N e m a N n i P O /I n o it c n u F n i P 1 5 O I L F H O /I t u p t u o /t u p nila n gis n oitc e t e d r o rri M 2 5 R E S A L O lo rt n o c F F O / N O r e s al r o f nip t u p t u O 3 5 B D C _ D V D / 0 P P O /I t u p t u o la n gis n oit a ni m ir c sid c si D / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 4 5 B R R E C R C / 1 P P O /I t u p t u o la n gis tlu s e r C R C e d o c b u S / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 5 5 G F I t u p ni r e t n u o c G F 6 5 T N E V E / 2 P P O /I t u p ni r e t n u o c t n e v E / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 7 5 B S E R I t u p ni t e s e R 8 5 B S C I t u p ni tc ele s pih C 9 5 B D R I t u p nila n gis g nid a e r e t a ts la n r e t n I 0 6 B R W I t u p nila n gis g nitir w a t a d / d n a m m o C 1 6 2 D D V D − ylp p u s r e w o p V 5 2 6 S S V − D N G 3 6 0 P O /I t u p t u o /t u p ni a t a d / d n a m m o C 4 6 1 P 5 6 2 P 6 6 3 P 7 6 4 P 8 6 5 P 9 6 6 P 0 7 7 P 1 7 S S V − D N G 2 7 1 D D V D − la n r e t ni r o f ylp p u s r e w o p V 3 . 3 3 7 B Y S U B O s s e c o r p d n a m m o c f o t u p t u o la n gis y s u B 4 7 T U O Q S O Q e d o c b u s f o t u p t u o lair e S 5 7 B K C Q C I t u p t u o a t a d Q e d o c b u s r o f t u p ni k c olc tfih S 6 7 C W R I Q e d o c b u s f o t u p ni n ois si m r e p e t a d p U 7 7 Q R W O Q e d o c b u s f o r o tin o m y d a e r t u o d a e R 8 7 S S V A − k c olc m e ts y s la n r e t ni r o f D N G L L P 9 7 R F P R V − k c olc m e ts y s r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 0 8 C O C V I k c olc m e ts y s r o f r e tlif L L P a tc e n n o C 1 8 O D P V O 2 8 D D V A − k c olc m e ts y s r o f ylp p u s r e w o p V 5 L L P 3 8 1 O D P O /I k c a b y alp M F E r o f 1 nip n oitc e n n o c r e tlif L L P 4 8 2 O D P O /I k c a b y alp M F E r o f 2 nip n oitc e n n o c r e tlif L L P 5 8 3 O D P O /I k c a b y alp M F E r o f 3 nip n oitc e n n o c r e tlif L L P 6 8 S S V A − k c a b y alp M F E r o f D N G L L P 7 8 1 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 1 g nitt e s t n e rr u C 8 8 2 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 2 g nitt e s t n e rr u C 9 8 D D V A − k c a b y alp M F E r o f ylp p u s r e w o p V 5 L L P 0 9 R F D V D − 1 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 1 9 R F D C − 2 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 2 9 V J O k c a b y alp M F E r o f k c olc L L P f o t u p t u o r e ttiJ 3 9 K C P O k c a b y alp M F E r o f t u p t u o k c olc ti B 4 9 O A R D A I t u p ni s s e r d d A 5 9 Q E Y S D V D I t u p ni e slu p e zin o r h c n y s D V D 6 9 C N Y S D V D I t u p nila n gis s u o n o r h c n y s D V D 7 9 2 M F E L O 2 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O 8 9 1 D D V D − O /I r o f ylp p u s r e w o p V 3 . 3 9 9 S S V − D N G 0 0 1 M F E L O 1 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DV-340, DV-343 PD3410A (DVDM ASSY : IC11) • System Control IC • Pin Function . o N k r a M e m a N n i P O /I n o it c n u F 1 L S A C X / 3 S C X 3 S C X O t u p t u o la n gis tc ele s pih c ) P I H C Y M ( A 5 9 9 4 D P 2 D N G D N G − D N G 3 K C K C U P C H O . C . N 4 C C V D 3 + V − D 3 + V 5 K L C I P − O /I . C . N 6 A T A D I P − O /I . C . N 7 D N G D N G − D N G 8 0 H T R O P − O . C . N 9 1 H T R O P − O . C . N 0 1 2 H T R O P H V M 6 3 O ]le d o m Y W [ )r o t a r e n e g k c ol C ( F 8 5 1 2 U B 1 1 3 H T R O P 2 L E S _ V O la ni m r e t trik s e h t f o t u p t u o la n gis g nih cti w s S / e tis o p m o C 2 1 C C V D 3 + V − D 3 + V 3 1 4 H T R O P − O . C . N 4 1 5 H T R O P − O . C . N 5 1 6 H T R O P − O . C . N 6 1 7 H T R O P − O . C . N 7 1 D N G D N G − D N G 8 1 L A T X E L A T X E I r o t a n o s e r ci m a r e c a tc e n n o C 9 1 L A T X L A T X O 0 2 C C V D 3 + V − D 3 + V 1 2 0 G T R O P 0 F D S C X O ( t u p t u o la n gis tc ele s pih c C A D ← ) 3 T A L X 2 2 1 G T R O P − O . C . N 3 2 2 G T R O P − O . C . N 4 2 3 G T R O P − O . C . N 5 2 4 G T R O P − O . C . N 6 2 D N G D N G − D N G 7 2 5 G T R O P − O . C . N 8 2 6 G T R O P − O . C . N 9 2 7 G T R O P E T U M A X O oid u a e h t f o t u p t u o la n gis e t u m e g a ts ts a L 0 3 0 F T R O P 8 4 X 4 4 O t u p t u o la n gis g nih cti w s S F 8 4 / 4 4 C A D 1 3 1 F T R O P − I . C . N 2 3 2 F T R O P N O D 3 O t u p t u o la n gis g nih cti w s s s a p y b / N O oid u a D 3 3 3 C C V D 3 + V − D 3 + V 4 3 3 F T R O P − O . C . N 5 3 4 F T R O P T S R S V A X O tr o p t e s e r .c n y S 6 3 5 F T R O P − O . C . N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DV-340, DV-343 . o N k r a M e m a N n i P O /I n o it c n u F 7 3 6 F T R O P − O . C . N 8 3 7 F T R O P E V S C X O ]le d o m Y W [ r e d o c n e o e div e h t f o t u p t u o la n gis elb a n e n oit a cin u m m o c lair e S 9 3 D N G D N G − D N G 0 4 S S V A D N G − D N G 1 4 C C V A D 3 + V − D 3 + V 2 4 P _ A T U O V R D O L O t u p t u o e vir d g nid a o L 3 4 F E R V D 3 + V − D 3 + V 4 4 P _ B T U O I E T O t u p t u o la n gis t e sff o g nik c a r T 5 4 S S V A D N G − D N G 6 4 S S V A D N G − D N G 7 4 0 E T R O P L E S _ V O t u p t u o la n gis g nih cti w s e tis o p m o c/t n e n o p m o C 8 4 1 E T R O P − I . C . N 9 4 2 E T R O P − I . C . N 0 5 3 E T R O P 1 T S F O F O /I 1 t u p t u o t n e m ts ujd a t e sff o s u c o F 1 5 4 E T R O P 2 T S F O F O /I 2 t u p t u o t n e m ts ujd a t e sff o s u c o F 2 5 5 E T R O P H N I F D X O /I t u p t u o la n gis t n u h s tc e f e D 3 5 6 E T R O P D C X / D V D O t u p t u o la n gis g nih cti w s D C / D V D 4 5 7 E T R O P N O _ 1 D L O t u p t u o la n gis N O e d oid r e s al m n 0 5 6 5 5 0 D T R O P N O _ 2 D L O t u p t u o la n gis N O e d oid r e s al m n 0 8 7 6 5 C C V D 3 + V − D 3 + V 7 5 1 D T R O P E T / D P D O t u p t u o la n gis g nih cti w s s m a e b 3 / m a e b 1 8 5 2 D T R O P F F O G A O C I F R f o t u p t u o la n gis g nih cti w s F F O / N O C G A 9 5 3 D T R O P X 2 D C X O ) D C V ( k c a b y alp d e e p s elb u o d e h t g nih cti w s r o f t u p t u o la n gi S 0 6 4 D T R O P G C I E O O t u p t u o la n gis g nih cti w s nia g C I E O 1 6 D N G D N G − D N G 2 6 5 D T R O P N O M X O t u p t u o lo rt n o c r o t o m eld nip s e h t f o t u p t u o la n gis g nih cti w s F F O / N O 3 6 6 D T R O P − O . C . N 4 6 7 D T R O P − I . C . N 5 6 0 J T R O P T U M V R D X O t u p t u o e t u m r e vir D 6 6 1 J T R O P − O . C . N 7 6 2 J T R O P T S R P S D X O t e s e r P S D o v r e S 8 6 3 J T R O P − I . C . N 9 6 C C V D 3 + V − D 3 + V 0 7 4 J T R O P T N E _ M T I y rt n e e d o m ts e T 1 7 5 J T R O P − O . C . N 2 7 6 J T R O P W S _ L E S V I t u p ni W S e tis o p m o c/t n e n o p m o C 3 7 7 J T R O P − I . C . N 4 7 2 A C O I T / 0 B P Y S U B C X I t u p ni y s u b d n a m m o C 5 7 2 B C O I T / 1 B P Y S U B A X I t u p ni y s u b e c n e u q e s - o t u A 6 7 3 A C O I T / 2 B P 2 T N I X I ) 1 - V A ( 2 t u p ni t p u rr e t n I 7 7 C C V D 3 + V − D 3 + V 8 7 3 B C O I T / 3 B P 1 T L O r ello rt n o c L F e h t o t t u p t u o la n gis e s n o p s e r n oit a cin u m m o C 9 7 4 A C O I T / 4 B P Y S B S I t u p ni .c n y s k c olb e d o c b u S 0 8 T S E T M X − I ) D 3 + V ( la ni m r e t ts e T 1 8 D M U P C X − I ) D 3 + V ( la ni m r e t ts e T 2 8 S E R X T E S E R X I t u p ni t e s e R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DV-340, DV-343 . o N k r a M e m a N n i P O /I n o it c n u F 3 8 D N G D N G − D N G 4 8 0 N A S O P D O L I t u p ni n oitis o p g nid a o L 5 8 1 N A S O P D L S I t u p ni n oitis o p r e dil S 6 8 2 N A − I . C . N 7 8 3 N A W S _ P A N I t u p ni W S L A P / O T U A / C S T N 8 8 4 N A M E O X I n oitc e t o r p le d o m M E O f o la ni m r e t t u p n I 9 8 5 N A D A E D D L I y alp sid e ula v t n e rr u c D L r o f t u p n I 0 9 6 N A − I . C . N 1 9 7 N A − I . C . N 2 9 f e r v A D 3 + V − D 3 + V 3 9 C C V A D 3 + V − D 3 + V 4 9 S S V A D N G − D N G 5 9 4 B C O I T / 5 B P − I . C . N 6 9 C K L C T / 4 A X C O I T / 6 B P F 2 C I t u p ni r o rr e 2 C 7 9 D K L C T / 4 B X C O I T / 7 B P Y D R X I r ello rt n o c L F e h t m o rf t u p ni ts e u q e r n oit a cin u m m o C 8 9 0 D x R / 8 B P I S S I )r ello rt n o c L F ( t u p ni a t a d lair e S 9 9 0 D x T / 9 B P O S S O )r ello rt n o c L F ( t u p t u o a t a d lair e S 0 0 1 C C V D 3 + V − D 3 + V 1 0 1 1 D x R / 0 1 B P D X R I C 2 3 2 - S R e h t f o t u p ni a t a D 2 0 1 1 D x T / 1 1 B P D X T O C 2 3 2 - S R e h t f o t u p t u o a t a D 3 0 1 0 K C S / 4 Q R I X / 2 1 B P K C S S O /I )r ello rt n o c L F ( t u p t u o k c olc lair e S 4 0 1 1 K C S / 5 Q R I X / 3 1 B P 0 1 L Q R I X I ) P I H C Y M ( 0 # t u p ni t p u rr e t n I 5 0 1 D N G D N G − D N G 6 0 1 6 Q R I X / 4 1 B P 1 1 L Q R I X I ) P I H C Y M ( 1 # t u p ni t p u rr e t n I 7 0 1 7 Q R I X / 5 1 B P 0 T N I X I ) 1 - V A ( 0 # t u p ni t p u rr e t n I 8 0 1 0 A C O I T / 4 S C X / 0 A P 4 S C X O t u p t u o la n gis tc ele s pih c P S D o v r e S 9 0 1 S A R X / 5 S C X / 1 A P − O . C . N 0 1 1 0 B C O I T / 6 S C X / 2 A P 6 S C X O t u p t u o la n gis tc ele s pih c 1 - V A 1 1 1 T I A W X T I A W X I t u p nila n gis tia W 2 1 1 L R W X L R W X O L t u p t u o e slu p e tir W 3 1 1 D N G D N G − D N G 4 1 1 H R W X H R W X O H t u p t u o e slu p e tir W 5 1 1 D R X D R X O t u p t u o e slu p d a e R 6 1 1 K C A B X / 7 A P T E D R U C X I t u p nila n gis n oitc e t e d t n e rr u c -r e v O 7 1 1 Q E R B X / 8 A P S T C I t u p ni ti m r e p r e fs n a rt C 2 3 2 - S R 8 1 1 / T U O Q R I X / H A X / 9 A P G R T D A X R T D O t u p t u o ti m r e p r e fs n a rt C 2 3 2 - S R 9 1 1 1 A C O I T / L P D / 0 1 A P 1 T N I X I ) 1 - V A ( 1 t u p ni t p u rr e t n I 0 2 1 1 B C O I T / H P D / 1 1 A P D L H T I t u p nila n gis dlo h g nik c a r T 1 2 1 C C V D 3 + V − D 3 + V 2 2 1 / 0 K C A D / 0 Q R I X / 2 1 A P A K L C T 0 K C A D O ) P I H C Y M ( t u p t u o e s n o p s e r A M D 3 2 1 / 1 Q R I X / 3 1 A P B K L C T / 0 Q E R D X 0 Q E R D X I ) P I H C Y M ( t u p ni ts e u q e r A M D 4 2 1 1 K C A D X / 2 Q R I X / 4 1 A P 1 K C A D X O ) 1 - V A ( t u p t u o e s n o p s e r A M D 5 2 1 1 Q E R D X / 3 Q R I X / 5 1 A P 1 Q E R D X I ) 1 - V A ( t u p ni ts e u q e r A M D 6 2 1 0 D A 0 D O /I 0 s u b a t a D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DV-340, DV-343 . o N k r a M e m a N n i P O /I n o it c n u F 7 2 1 D N G D N G − D N G 8 2 1 1 D A 1 D O /I 1 s u b a t a D 9 2 1 2 D A 2 D O /I 2 s u b a t a D 0 3 1 3 D A 3 D O /I 3 s u b a t a D 1 3 1 4 D A 4 D O /I 4 s u b a t a D 2 3 1 5 D A 5 D O /I 5 s u b a t a D 3 3 1 6 D A 6 D O /I 6 s u b a t a D 4 3 1 C C V D 3 + V − D 3 + V 5 3 1 7 D A 7 D O /I 7 s u b a t a D 6 3 1 8 D A 8 D O /I 8 s u b a t a D 7 3 1 9 D A 9 D O /I 9 s u b a t a D 8 3 1 0 1 D A 0 1 D O /I 0 1 s u b a t a D 9 3 1 D N G D N G − D N G 0 4 1 1 1 D A 1 1 D O /I 1 1 s u b a t a D 1 4 1 2 1 D A 2 1 D O /I 2 1 s u b a t a D 2 4 1 3 1 D A 3 1 D O /I 3 1 s u b a t a D 3 4 1 4 1 D A 4 1 D O /I 4 1 s u b a t a D 4 4 1 C C V D 3 + V − D 3 + V 5 4 1 5 1 D A 5 1 D O /I 5 1 s u b a t a D 6 4 1 ) S B H X ( 0 A 0 A O 0 s u b s s e r d d A 7 4 1 1 A 1 A O 1 s u b s s e r d d A 8 4 1 2 A 2 A O 2 s u b s s e r d d A 9 4 1 D N G D N G − D N G 0 5 1 3 A 3 A O 3 s u b s s e r d d A 1 5 1 4 A 4 A O 4 s u b s s e r d d A 2 5 1 5 A 5 A O 5 s u b s s e r d d A 3 5 1 6 A 6 A O 6 s u b s s e r d d A 4 5 1 7 A 7 A O 7 s u b s s e r d d A 5 5 1 8 A 8 A O 8 s u b s s e r d d A 6 5 1 9 A 9 A O 9 s u b s s e r d d A 7 5 1 0 1 A 0 1 A O 0 1 s u b s s e r d d A 8 5 1 1 1 A 1 1 A O 1 1 s u b s s e r d d A 9 5 1 2 1 A 2 1 A O 2 1 s u b s s e r d d A 0 6 1 3 1 A 3 1 A O 3 1 s u b s s e r d d A 1 6 1 4 1 A 4 1 A O 4 1 s u b s s e r d d A 2 6 1 5 1 A 5 1 A O 5 1 s u b s s e r d d A 3 6 1 6 1 A 6 1 A O 6 1 s u b s s e r d d A 4 6 1 7 1 A 7 1 A O 7 1 s u b s s e r d d A 5 6 1 C C V D 3 + V − D 3 + V 6 6 1 8 1 A 8 1 A O 8 1 s u b s s e r d d A 7 6 1 9 1 A 9 1 A O 9 1 s u b s s e r d d A 8 6 1 0 2 A 0 2 A O ]le d o m M A R [ 0 2 s u b s s e r d d A 9 6 1 1 2 A 1 2 A O . C . N 0 7 1 I M N X I M N X I D 3 + V 1 7 1 D N G D N G − D N G 2 7 1 0 1 S C X − O . C . N 3 7 1 0 2 S C X 0 2 S C X O M O R h s alf e h t f o t u p t u o la n gis tc ele s pih C 4 7 1 2 2 S C X − O ]le d o m M E O [ M O R I U G e h t f o t u p t u o la n gis tc ele s pih C 5 7 1 3 2 S C X 3 2 S C X O M A R S e h t f o t u p t u o la n gis tc ele s pih C 6 7 1 2 S C X − O . C . N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DV-340, DV-343 MB86373B (DVDM ASSY : IC18) • MPEG2 Decoder IC • Block Diagram Memory Controller Block Audio Clock Generation Block System Clock Generation Block Control Block Video Decoder Block Sync. Control Block Reset Signal Starting Signal NTSC/PAL Video Encoder DAC OSD Sub- picture MIX Audio Decoder Block System Clock Clock for video Clock for audio LPF VCO Clock Signal Video Output (Y,C,Comp/Y,Cb,Cr) Digital Signal Output (Component/ Composite) System Decoder Block CPU Interface CPU Clock Generation Block 27MHz Audio Output Internal Bus Reset Signal 16Mbit SDRAM Exclusive Parallel port Input Signal Picture Block Whole Control Block Video Output Block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DV-340, DV-343 • Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 L E S K L C I ) F F O : " L " , N O : " H "( L L P f o la n gis F F O / N O 7 2 D D V − ylp p u s r e w o p V 5 . 2 2 7 N P C G I D O ) B S M ( t u p t u o la n gis t n e n o p m o c la tigi D ) B S M ( )tib - 9 ( t u p t u o la n gis Y la tigi D 8 2 4 P M O C G I D O t u p t u o la n gis e tis o p m o c la tigi D t u p t u o la n gis C la tigi D 3 S S V − D N G 9 2 3 P M O C G I D 4 6 N P C G I D O t u p t u o la n gis t n e n o p m o c la tigi D )tib - 9 ( t u p t u o la n gis Y la tigi D 0 3 2 P M O C G I D 5 5 N P C G I D 1 3 1 P M O C G I D 6 4 N P C G I D 2 3 0 P M O C G I D ) B S L ( t u p t u o la n gis e tis o p m o c la tigi D ) B S L ( t u p t u o la n gis C la tigi D 7 3 N P C G I D 3 3 K C A D O t u p t u o k c olc z H M 7 2 8 2 N P C G I D 4 3 . C . N − n oitc e n n o c n o N 9 1 N P C G I D 5 3 3 A S S V − )r e tr e v n o c A / D ( D N G 0 1 D D V − ylp p u s r e w o p V 5 . 2 6 3 C A N A O la n gis t u p t u o ) C ( r olo c g ola n A 1 1 0 N P C G I D O ) B S L ( t u p t u o la n gis t n e n o p m o c la tigi D ) B S L ( )tib - 9 ( t u p t u o la n gis Y la tigi D 7 3 3 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 2 1 L E S B R O la tigid e h t t a la n gis n oit a ni m ir c sid r C d n a b C .t u p t u o la n gis t n e n o p m o c .t u p t u o la n gis Y la tigid e h t t a B S L 8 3 2 A S S V − )r e tr e v n o c A / D ( D N G 3 1 S H X O la n gis t u p t u o .c n y s la t n o zir o H 9 3 Y A N A O la n gis t u p t u o ) Y ( e c n a ni m ul g ola n A 4 1 S V X O la n gis t u p t u o .c n y s la citr e V 0 4 2 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 5 1 S S V − D N G 1 4 F E R V I r e tr e v n o c A / D r o f e g a tlo v e c n e r e f e R 6 1 T E S E R X I la n gis t e s e r I S L 2 4 O R V O r e tr e v n o c A / D f o nip g nitt e s t n e rr u c la n r e t n I 7 1 C N Y S C D L X I ) e d o m D L ( t u p nila n gis .c n y s la n r e tx E 3 4 4 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 8 1 Y E K O y alr e v o D S O d n a D L r o f la n gis Y E K ) e d o m D L ( 4 4 1 A S S V − )r e tr e v n o c A / D ( D N G 9 1 D P O f o la n gis t u p t u o tlu s e r n o sir a p m o c e s a h P ) e d o m D L ( .c n y s la t n o zir o h 5 4 P M O C A N A O la n gis t u p t u o e tis o p m o c g ola n A 0 2 D L F V O la n gis la tigid e h t t a la n gis n oit a ni m ir c sid dlei F dleif d d o : L dleif n e v e : H t u p t u o 6 4 1 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 1 2 9 P M O C G I D O ) B S M ( t u p t u o la n gis e tis o p m o c la tigi D ) B S M ( t u p t u o la n gis C la tigi D 7 4 F B O la n gis g alf ts r u B 2 2 8 P M O C G I D t u p t u o la n gis e tis o p m o c la tigi D t u p t u o la n gis C la tigi D 8 4 K L B X O la n gis g nik n alb e tis o p m o c V / H 3 2 7 P M O C G I D 9 4 4 T S E T O ." n e p o " o t t e s ,ylla m r o N 4 2 6 P M O C G I D 0 5 S S V − D N G 5 2 5 P M O C G I D 1 5 0 T S E T I ." n e p o " o t t e s ,ylla m r o N 6 2 S S V − D N G 2 5 1 T S E T I ylla m r o n s u t a ts " L " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DV-340, DV-343 . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 3 5 N II A D I ) F I D P S ( t u p nila n r e tx e f o t u p ni a t a d la tigi D 2 9 0 1 S R D A H I ) B S M ( la n gis s u b s s e r d d a U P C 4 5 A T A D D C I t u p nila n r e tx e f o t u p ni a t a d oid u A ) D C o t d n o p s e rr o c ( 3 9 9 S R D A H I la n gis s u b s s e r d d a U P C 5 5 R L D C I t u p nila n r e tx e f o t u p ni k c olc le n n a h c a t a D ) D C o t d n o p s e rr o c ( 4 9 8 S R D A H 6 5 K C B D C I t u p nila n r e tx e f o t u p ni k c olc a t a D ) D C o t d n o p s e rr o c ( 5 9 7 S R D A H 7 5 3 A T A D O A O a t a d e d o c e d oid u A 6 9 S S V − D N G 8 5 2 A T A D O A 7 9 D D V − ylp p u s r e w o p V 5 . 2 9 5 1 A T A D O A 8 9 6 S R D A H I la n gis s u b s s e r d d a U P C 0 6 S S V − D N G 9 9 5 S R D A H 1 6 D D V − ylp p u s r e w o p V 5 . 2 0 0 1 4 S R D A H 2 6 0 A T A D O A O a t a d e d o c e d oid u A 1 0 1 3 S R D A H 3 6 M C P O A O t u p t u o e c a fr e t ni oid u a la tigi D ) a t a d n ois s e r p m o c ( 2 0 1 2 S R D A H ) B S L ( la n gis s u b s s e r d d a U P C 4 6 I A D O A O ) a t a d e d o c e d ( t u p t u o e c a fr e t ni oid u a la tigi D 3 0 1 5 1 A T A D H O /I ) B S M ( la n gis s u b a t a d U P C 5 6 K C R L O r e tlif la tigid d n a A / D r o f k c olc le n n a h c a t a D 4 0 1 4 1 A T A D H la n gis s u b a t a d U P C 6 6 K C M O A O r e tlif la tigid d n a A / D r o f k c olc r e ts a M 5 0 1 3 1 A T A D H 7 6 K C B O r e tlif la tigid d n a A / D r o f k c olc ti B 6 0 1 2 1 A T A D H 8 6 2 T S E T I ." n e p o " o t t e s ,ylla m r o N 7 0 1 S S V − D N G 9 6 3 T S E T 8 0 1 1 1 A T A D H O /I la n gis s u b a t a d U P C 0 7 C N − n oitc e n n o c n o N 9 0 1 0 1 A T A D H 1 7 T S R P S D X I ." n e p o " o t t e s ,ylla m r o N 0 1 1 9 A T A D H 2 7 S S V − D N G 1 1 1 8 A T A D H 3 7 5 T S E T O ." n e p o " o t t e s ,ylla m r o N 2 1 1 7 A T A D H 4 7 C N − ." n e p o " o t t e s ,ylla m r o N 3 1 1 6 A T A D H 5 7 C N 4 1 1 D D V − ylp p u s r e w o p V 5 . 2 6 7 C N 5 1 1 5 A T A D H O /I la n gis s u b a t a d U P C 7 7 C N 6 1 1 4 A T A D H 8 7 7 D S I t u p ni a t a d lella r a P 7 1 1 3 A T A D H 9 7 D D V − ylp p u s r e w o p V 5 . 2 8 1 1 2 A T A D H 0 8 6 D S I t u p ni a t a d lella r a P 9 1 1 S S V − D N G 1 8 5 D S 0 2 1 1 A T A D H O /I la n gis s u b a t a d U P C 2 8 4 D S 1 2 1 0 A T A D H ) B S L ( la n gis s u b a t a d U P C 3 8 3 D S 2 2 1 L E S S U B I la n gis n oitc ele s h t di w s u B ) s u b tib - 6 1 : 1 ,s u b tib - 8 : 0 ( 4 8 2 D S 3 2 1 K C A D S O X I la n gis e g d el w o n k c a a t a d D S O 5 8 S S V − D N G 4 2 1 Q E R D S O X O la n gis ts e u q e r a t a d D S O 6 8 1 D S I t u p ni a t a d lella r a P 5 2 1 1 L E S U P C H I , C R A P S : 0 0 ( la n gis n oitc ele s U P C ) e v r e s e R : 1 1 , m e ts y s 8 6 : 0 1 , m e ts y s 6 8 : 1 0 7 8 0 D S 6 2 1 0 L E S U P C H 8 8 R R E X I la n gis t u p ni r o rr E 7 2 1 3 T N I X O U P C e h t o t la n gis ts e u q e r t p u rr e t n I 9 8 K C A S X I la n gis e g d el w o n k c A 8 2 1 2 T N I X 0 9 T S E T X I e s u la m r o n t a " H " o t t e S 9 2 1 1 T N I X 1 9 Q E R S O la n gis ts e u q e r a t a D 0 3 1 S S V − D N G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DV-340, DV-343 . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 3 1 D D V − ylp p u s r e w o p V 5 . 2 0 7 1 S A C R D M X O M A R D S r o fla n gis S A C 2 3 1 0 T N I X O U P C o tla n gis ts e u q e r t p u rr e t n I 1 7 1 1 M Q D R D M X O r o fla n gis elb a n e t u p t u o / k s a m t u p n I M A R D S 3 3 1 Y D R T X E X O U P C o tla n gis y d a e R : m e ts y s 8 6 , C R A P S o tla n gis ) K C A ( e g d el w o n k c A : m e ts y s 6 8 U P C 2 7 1 S S V − D N G 4 3 1 W R H I la n gis e tir w / d a e r U P C 3 7 1 E W R D M X O M A R D S r o fla n gis elb a n e e tir W 5 3 1 N I K L C H I t u p ni k c olc ts o H 4 7 1 0 M Q D R D M X O r o fla n gis elb a n e t u p t u o / k s a m t u p n I M A R D S 6 3 1 S C H X I la n gis tc ele s pih c I S L 5 7 1 8 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 7 3 1 S A H X I e b o rts s s e r d d a U P C : m e ts y s 8 6 , C R A P S s u t a ts s s e r d d a U P C : m e ts y s 6 8 6 7 1 S S V − D N G 8 3 1 3 E B H X I la n gis elb a n e e ty b U P C 7 7 1 7 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 9 3 1 2 E B H X 8 7 1 9 T A D R D M 0 4 1 1 E B H X 9 7 1 6 T A D R D M 1 4 1 0 E B H X 0 8 1 0 1 T A D R D M 2 4 1 S S V − D N G 1 8 1 5 T A D R D M 3 4 1 4 R D A R D M O M A R D S r o fla n gis s s e r d d A 2 8 1 S S V − D N G 4 4 1 3 R D A R D M 3 8 1 D D V − ylp p u s r e w o p V 5 . 2 5 4 1 5 R D A R D M 4 8 1 1 1 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 6 4 1 2 R D A R D M 5 8 1 4 T A D R D M 7 4 1 D D V − ylp p u s r e w o p V 5 . 2 6 8 1 2 1 T A D R D M 8 4 1 S S V − D N G 7 8 1 3 T A D R D M 9 4 1 6 R D A R D M O M A R D S r o fla n gis s s e r d d A 8 8 1 3 1 T A D R D M 0 5 1 1 R D A R D M 9 8 1 S S V − D N G 1 5 1 7 R D A R D M 0 9 1 2 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 2 5 1 0 R D A R D M ) B S L ( M A R D S r o fla n gis s s e r d d A 1 9 1 4 1 T A D R D M 3 5 1 8 R D A R D M M A R D S r o fla n gis s s e r d d A 2 9 1 1 T A D R D M 4 5 1 S S V − D N G 3 9 1 5 1 T A D R D M ) B S M ( M A R D S r o fla n gis s u b a t a D 5 5 1 6 T S E T I ylla m r o n s u t a ts " L " 4 9 1 0 T A D R D M O /I ) B S L ( M A R D S r o fla n gis s u b a t a D 6 5 1 7 T S E T 5 9 1 S S V − D N G 7 5 1 8 T S E T 6 9 1 . C . N − n oitc e n n o c n o N 8 5 1 9 T S E T 7 9 1 M 7 2 K C I I t u p ni k c olc m e ts y S 9 5 1 0 1 R D A R D M O M A R D S r o fla n gis s s e r d d A 8 9 1 S S V − D N G 0 6 1 9 R D A R D M 9 9 1 M 7 2 K C O O t u p t u o k c olc m e ts y S 1 6 1 1 1 R D A R D M ) B S M ( M A R D S r o fla n gis s s e r d d A 0 0 2 ) O C V ( A S S V − ) yln o O C V r o f( D N G 2 6 1 S C R D M X O M A R D S r o fla n gis tc ele s pih C 1 0 2 ) O C V ( A D D V − ) yln o O C V r o f( ylp p u s r e w o p V 5 . 2 3 6 1 E K C R D M O M A R D S r o fla n gis elb a n e k c ol C 2 0 2 F P L I O oid u a r o f t u p t u o r e tr e v ni k c olb L L P 4 6 1 S S V − D N G 3 0 2 F P L M I oid u a r o f t u p ni r e tr e v ni k c olb L L P 5 6 1 D D V − ylp p u s r e w o p V 5 . 2 4 0 2 F P L O O oid u a r o f t u p t u o r o tc e t e d e s a h P 6 6 1 S A R R D M X O M A R D S r o fla n gis S A R 5 0 2 O C V O I k c olc oid u a r o f t u p ni O C V 7 6 1 K L C R D M O M A R D S r o fla n gis t u p t u o k c ol C 6 0 2 S S V − D N G 8 6 1 S S V − D N G 7 0 2 T S R L L P X I la n gis t e s e r n oitc e s L L P 9 6 1 N I K L C R D M I M A R D S r o fla n gis t u p ni k c ol C 8 0 2 T S R C N Y S X I la n gis t e s e r C N Y S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DV-340, DV-343 PE5242A (FLJB ASSY : IC101) • FL Control IC • Pin Function . o N k r a M e m a N n i P O /I n o it c n u F e v it c A 1 4 9 P 7 G O t u p t u o g ni m it L F N O : H 2 3 9 P 6 G 3 2 9 P 5 G 4 1 9 P 4 G 5 0 9 P 3 G 6 1 8 P 2 G 7 0 8 P 1 G 8 D D V ) V 5 ( − − 9 7 2 P 1 T E S L F I g nitt e s e b u t L F 0 1 6 2 P 2 T E S L F 1 1 5 2 P T E S Y E K I g nitt e s r e b m u n n oisivid y e K 2 1 4 2 P ) C N ( O − 3 1 3 2 P Y D A E R X O C I lo rt n o c m e ts y s h ti w e nil g nik a h s d n a h n oit a cin u m m o C n ois si m r e p n oit a cin u m m o C : L 4 1 2 2 P K C S O /I C I lo rt n o c m e ts y s h ti w t u p t u o k c olc n oit a cin u m m o C 5 1 1 2 P O S O /I C I lo rt n o c m e ts y s h ti w t u p t u o a t a d n oit a cin u m m o C 6 1 0 2 P I S I C I lo rt n o c m e ts y s h ti w t u p ni a t a d n oit a cin u m m o C 7 1 T E S E R N I T E S E R I t u p ni t e s e R t e s e R : L 8 1 4 7 P ) C N ( O − 9 1 3 7 P 0 2 S S V A ) D N G ( − − 1 2 7 1 P ) D N G ( I ) d e s u n U ( 2 2 6 1 P ) D N G ( 3 2 5 1 P − I − 4 2 4 1 P 2 N I K I t u p ni y e K 5 2 3 1 P 1 N I K 6 2 2 1 P 0 N I K 7 2 1 1 P 1 S M I t u p ni n oitc nitsid g nic u d n I 8 2 0 1 P 0 S M I t u p ni n oitc nitsid le d o M 9 2 D D V A ) V 5 ( − − 0 3 F E R V A ) V 5 ( − − 1 3 4 0 P ) D N G ( I ) d e s u n U ( 2 3 2 T X ) C N ( − − 3 3 S S V ) D N G ( − − 4 3 1 X 1 X I n oitc e n n o c k c olc r e t u p m o c o r ci M 5 3 2 X 2 X − 6 3 7 3 P ) C N ( O − 7 3 6 3 P 8 3 5 3 P 9 3 4 3 P A R A K / L A M R O N I ]le d o m M A R [ n oitc e t e d e c n e tsix e e n o h p o r ci M g niv a h e n o h p o r ci M : H 0 4 3 3 P ) C N ( O − www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DV-340, DV-343 . o N k r a M e m a N n i P O /I n o it c n u F e v it c A 1 4 2 3 P N O R E W O P O F F O / N O V 5 W S N O : H 2 4 1 3 P T U O T E S E R O t u p t u o t e s e r m e ts y S t e s e R : L 3 4 0 3 P ) C N ( O − 4 4 3 0 P S E T I d e g g u b e d si C I lo rt n o c m e ts y s n e h w g nitt e S g nig g u b e d t A : H 5 4 2 0 P R E W O P N O I C I lo rt n o c L F f o e m it e h t t a h cti w s N O R E W O P / Y B T S p u g nid n a ts Y B T S : L 6 4 1 0 P T L I C I lo rt n o c m e ts y s h ti w e nil g nik a h s d n a h n oit a cin u m m o C n ois si m r e p n oit a cin u m m o C : H 7 4 0 0 P R I L E S I t u p nila n gis lo rt n o c e t o m e R 8 4 C I C I − − 9 4 2 7 P ) C N ( O − 0 5 1 7 P 1 5 0 7 P 2 5 D D V ) V 5 ( − − 3 5 7 2 1 P ) C N ( O − 4 5 6 2 1 P M E O O t u p ni n oitc nitsid le d o m M E O M E O : H 5 5 5 2 1 P ) C N ( O − 6 5 4 2 1 P ) C N ( O − 7 5 3 2 1 P 8 5 2 2 1 P 9 1 P O t u p t u o t n e m g e s L F N O : H 9 5 1 2 1 P 8 1 P 0 6 0 2 1 P 7 1 P 1 6 7 1 1 P 6 1 P 2 6 6 1 1 P 5 1 P 3 6 5 1 1 P 4 1 P 4 6 4 1 1 P 3 1 P 5 6 3 1 1 P 2 1 P 6 6 2 1 1 P 1 1 P 7 6 1 1 1 P 0 1 P 8 6 0 1 1 P 9 P 9 6 7 0 1 P 8 P 0 7 6 0 1 P 7 P 1 7 D A O L V V 7 2 - − V 7 2 - r o f t u p n I N O : H 2 7 5 0 1 P 6 P O t u p t u o t n e m g e s L F N O : H 3 7 4 0 1 P 5 P 4 7 3 0 1 P 4 P 5 7 2 0 1 P 3 P 6 7 1 0 1 P 2 P 7 7 0 0 1 P 1 P 8 7 7 9 P 0 1 G O t u p t u o g ni m it L F N O : H 9 7 6 9 P 9 G 0 8 5 9 P 8 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DV-340, DV-343 8. PANEL FACILITIES AND SPECIFICATIONS 8.1 PANEL FACILITIES Front Panel 1 STANDBY/ON button Press to switch the player on or to put in standby. 2 Disc tray When loading a disc, place discs in the disc tray with the label side facing 3 0 (open/close) button Press to open and close the disc tray. 4 7 (stop) button Press to stop playback. Pressing once enables playback to resume from a point shortly before the location where it stopped. Pressing twice causes the disc to return to the beginning of the disc if playback starts again. 5 8 (pause) button Press during playback to pause. Press again to resume playback. 6 3 (play) button (Illustration is DV-340) Press to start or resume playback. 7 ¡ ¢ (forward) button Press to advance to chapters/tracks. Press and hold to perform fast-forward scanning. 8 4 1 (reverse) button Press to go back to previous chapters/tracks. Press and hold to perform reverse playback scanning. 9 Remote sensor Point the remote control toward the remote sensor to operate the player. 0 Display window Displays system information. DVD PLAYER Î 3 8 7 ¡ ¢ 4 1 0 STANDBY/ON 9 1 3 4 5 6 7 8 0 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 DV-340, DV-343 Display Window VCD TITLE TOTAL REMAIN GUI DVD CD TRK CHP LAST COND. DIGITAL 2 1 2 3 6 5 7 8 9 0- = ~ ! @ # 4 1 VCD indicator Lights when a Video CD is loaded. 2 TITLE indicator Indicates a title number is being displayed. 3 DVD indicator Lights when a DVD is loaded. 4 CD indicator Lights when an audio CD is loaded. 5 indicator Indicates that the Repeat function is on and that the current title, chapter, or track is being repeated. 6 indicator Indicates Multi-Angle playback is in progress. 7 TRK indicator Indicates a track number is being displayed. 8 CHP indicator Indicates a chapter number is being displayed. 9 TOTAL indicator Indicates that the disc in the player is stopped and DISPLAY has been pressed. 0 3/8 indicator 3 lights when any disc is playing. When a disc is paused, 8 lights. - COND. indicator Indicates that Condition Memory settings are memorized for the currently loaded DVD. = LAST indicator Indicates the Last Memory location is recorded in memory for the currently loaded DVD or Video CD ~ REMAIN indicator Indicates that the remaining playback time of a title or chapter/track is being displayed. ! 2 DIGITAL indicator Indicates Dolby Digital audio playback. @ Counter display Displays the playback mode, type of disc, title and chapter/track numbers, playback time, etc. # GUI indicator Indicates an on-screen menu operation is being performed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 DV-340, DV-343 Rear Panel AUDIO OUT L R VIDEO OUT DIGITAL OUT CONTROL AC IN IN AV CONNECTOR S-VIDEO OUT 1 2 3 4 5 6 7 1 AUDIO OUT jacks Use to output two-channel audio (analog) to the audio stereo inputs on a TV or stereo amplifier. If you are connecting to a receiver that has both digital and analog input jacks for DVD player connection, it may be beneficial to make both connections. 2 AV CONNECTOR jack Use a 21-pin SCART cable to connect to a TV or monitor compatible with this type of connection. Both audio and video signals are output from the AV CONNECTOR jack. 3 VIDEO OUT jack Connect to the video input on a TV or monitor or AV amplifier or receiver with video input capability. 4 DIGITAL OUT jack (coaxial) Use to output the digital audio signal recorded on discs. You can output the digital signal via either coaxial output jack to an AV amplifier or receiver. 5 CONTROL IN jack Use to connect this player to another component bearing the Pioneer Î mark. This lets you control this unit as though it were a component in a system. Player operations are then performed by pointing the remote control at the component that the player is connect to. 6 AC IN power cord connection terminal Use to connect the power cord to the wall outlet. 7 S-VIDEO OUT jack If your TV or monitor has an S-video input, clear picture reproduction is possible by connecting the player to your TV or monitor via the S-Video jack. You can switch between [S1] and [S2] S-video output from the Setup menu. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DV-340, DV-343 Remote Control (Buttons indicated with * are used for menu operation.) 1 LAST MEMORY button You can resume DVD or Video CD playback from the point you last watched even if the disc is removed from the player. Press LAST MEMORY during playback to set a Last Memory point. When you want to resume playback of that disc, press LAST MEMORY in the stop mode and playback starts from the memorized point. Last Memory locations can be stored for up to 5 DVDs and 1 Video CD. 2 (standby/on) button Press to switch the player on or to put in standby. 3 AUDIO button Press repeatedly to select one of the audio languages and/or audio formats programmed on a DVD. For Video CD and CD, each press changes the audio output as follows. 4 SUBTITLE button Press repeatedly to select one of the subtitle languages programmed on a DVD or to turn the subtitles off. 5 SETUP button* Press when the player is in either play or stop mode to open and close the Setup screen. 6 MENU button* Use to display or close the DVD menu screen. 7 DISPLAY button Press during playback to display statistical disc information. Press repeatedly to display different information. 8 Cursor buttons (2/3/5/ )* Use to move through the options on menu screens and to change settings. 9 ENTER button* Use to implement settings selected with the cursor buttons or to set items highlighted in a menu. 0 PREV 4 (previous) button During playback, press PREV 4 to go back to a previous chapter/track. - STOP 7 button Press to stop playback. Pressing once enables playback to resume from a point shortly before the location where it was stopped. Pressing twice causes the disc to return to the beginning of the disc when playback starts again. = Stereo = 1/L (Left) = 2/R (Right) ∞ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DV-340, DV-343 _ PLAY 3 button Press to start disc playback. + PAUSE 8 button Press to pause playback of a disc. Press again to resume playback. ¡ REV 1/FWD ¡ (fast reverse/forward) buttons During playback of DVD and Video CD, press FWD ¡ to perform fast forward scanning. Press REV 1 to perform fast reverse scanning of DVD and Video CD. When a CD is loaded, audio scanning is performed. ™ CLEAR button Works in conjunction with a number of player functions. Use to cancel repeat and random playback, and to edit programs. £ SEARCH MODE button Press to perform a title, chapter/track or elapsed time search. = STEP/SLOW e/E buttons Press STEP/SLOW E during playback to view slow playback. In pause mode, press STEP/SLOW E to advance DVDs and Video CDs frame by frame and STEP/SLOW e to back up a few frames at a time. ~ Number buttons (1-9, 0, +10)* Use to perform direct title and chapter/track searches, and to input numerical values. ! RANDOM button Press to play chapters/tracks in random order. @ PROGRAM button You can program titles, chapters, or tracks to play back in a desired order. Programs can be a maximum of 24 steps. Additionally, DVD programs for up to 24 discs can be stored in the player ’s memory for future use. # CONDITION MEMORY button You can store in memory the settings for up to 15 DVDs. Press CONDITION MEMORY during DVD playback to memorize the settings. $ OPEN/CLOSE button Press to open or close the disc tray. % ANGLE button Some DVDs are recorded with various camera angle playback options. Press ANGLE repeatedly to display different camera angles. ^ REPEAT button Press once to repeat playback of current chapter/ track. Press twice to repeat playback of current title. & REPEAT A-B button Press at the beginning and end of the section you want to repeat or to mark a location you want to return to. * TOP MENU button* Press to call up the top menu programmed on the DVD. Depending on the DVD, the top menu may be identical to the DVD menu. ( RETURN button* Use to go one menu back (current settings are maintained). Use RETURN when you do not want to change the option setting in a menu. ) NEXT ¢ button During playback, press NEXT ¢ to advance to the next chapter/track. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 DV-340, DV-343 8.2 SPECIFICATIONS • Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works, © 1992-1997 Dolby Laboratories. All rights reserved. • "DTS" is a trademark of Digital Theater Systems, Inc. Audio Cord (L=1.5m): VDE1054 Video Cord (L=1.5m): VDE1055 Power Cord : ADG1156 (DV-340/WVXQ) Power Cord : ADG1154 (DV-340/WYXQ, WYXQ/FRGR, WYXCN, YXCN/FRGR) (DV-343/WYXQ) Remote Control Unit : VXX2702 Dry Cell Battery (R6P,AA) White Red Yellow Accessories Specifications General System ... DVD system and Compact Disc digital audio system Power requirements ................. AC 220-240 V, 50/60 Hz Power consumption................................................ 11 W Power consumption in standby mode ....... less than 1 W Weight ................................................................... 2.7 kg Dimensions [DV-340] .... 420 (W) x 282 (D) x 95.5 (H) mm Dimensions [DV-343] .... 420 (W) x 278 (D) x 95.5 (H) mm (Not including protruding cables, etc.) Operating temperature ............................ +5°C to +35°C Operating humidity .......... 5% to 85% (no condensation) S-Video output Y (luminance) - Output level ........................ 1 Vp-p (75 Ω) C (color) - Output level ........................ 286 mVp-p (75 Ω) Jacks .......................................................... S-VIDEO jack Video output Output level ................................................ 1 Vp-p (75 Ω) Jacks ................................................................. RCA jack AV connector input/output.................... 21-pin connector This connector provides the video and audio signals for connection to a compatible color TV or monitor. 21-pin connector assignment PIN no. 1 Audio 2/R out 13 GND 3 Audio 1/L out 14 GND 4 GND 17 GND 5 GND 18 GND 8 Status 19 Video out 9 GND 21 GND 20 18 16 14 12 10 8 6 4 2 21 19 17 15 13 11 9 7 5 3 1 Audio output Output level During audio output ............. 200 mVrms (1 kHz, –20 dB) Number of channels .......................................................2 Jacks ............................................................... RCA jacks Digital audio characteristics Frequency response ..... 4 Hz to 44 kHz (DVD fs: 96 kHz) S/N ratio ............................................................... 118 dB Dynamic range ..................................................... 103 dB Total harmonic distortion ................................. 0.0016 % Wow and flutter............................ Limit of measurement (±0.001% W. PEAK) or lower Digital output Coaxial digital output......................................... RCA jack Other terminals CONTROL IN .......................................... Minijack (3.5 ø) Accessories Audio cord ......................................................................1 Video cord ......................................................................1 Power cord .....................................................................1 Remote control unit .......................................................1 AA (R6P) dry cell batteries ............................................. 2 Operating Instructions ...................................................1 Note The specifications and design of this product are subject to change without notice, due to improvement. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
