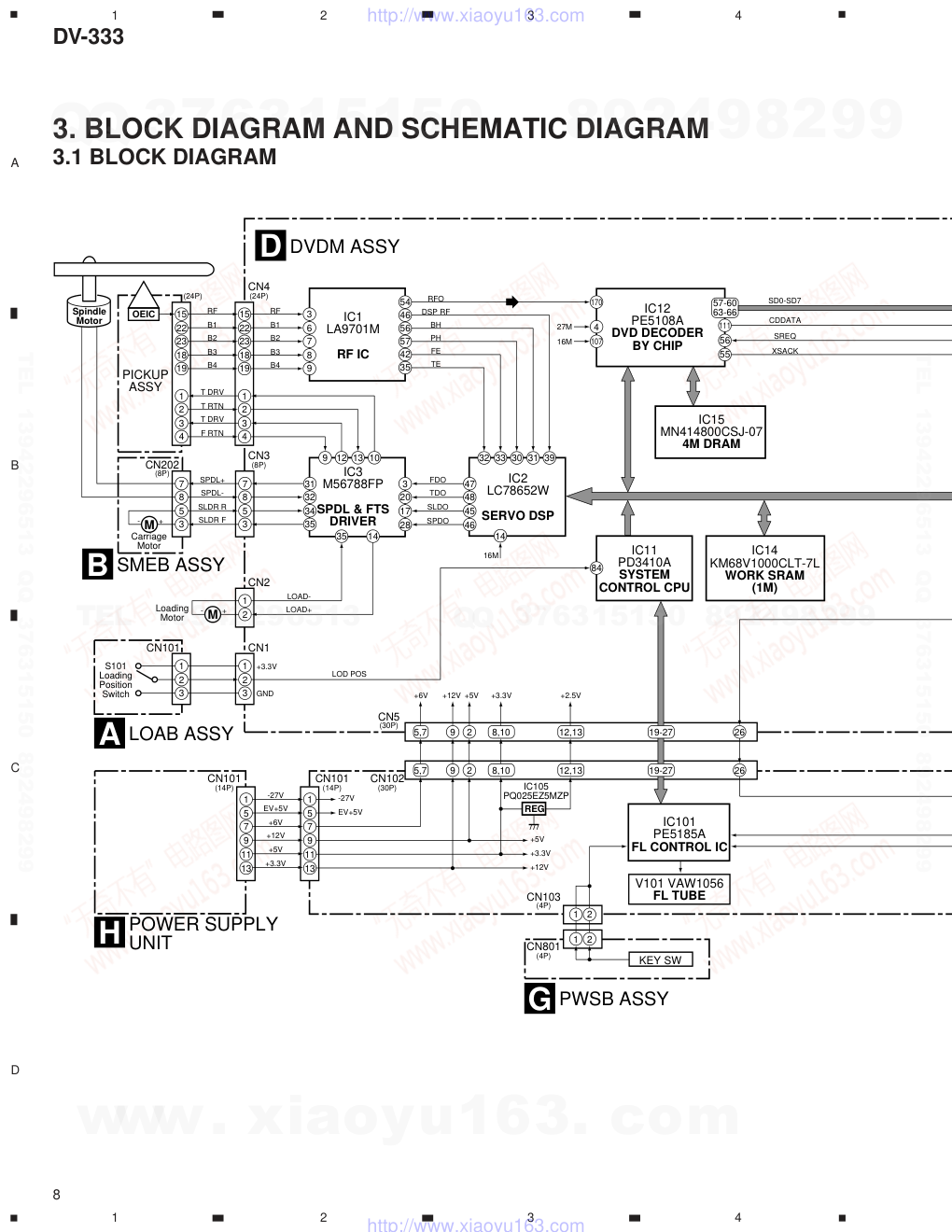

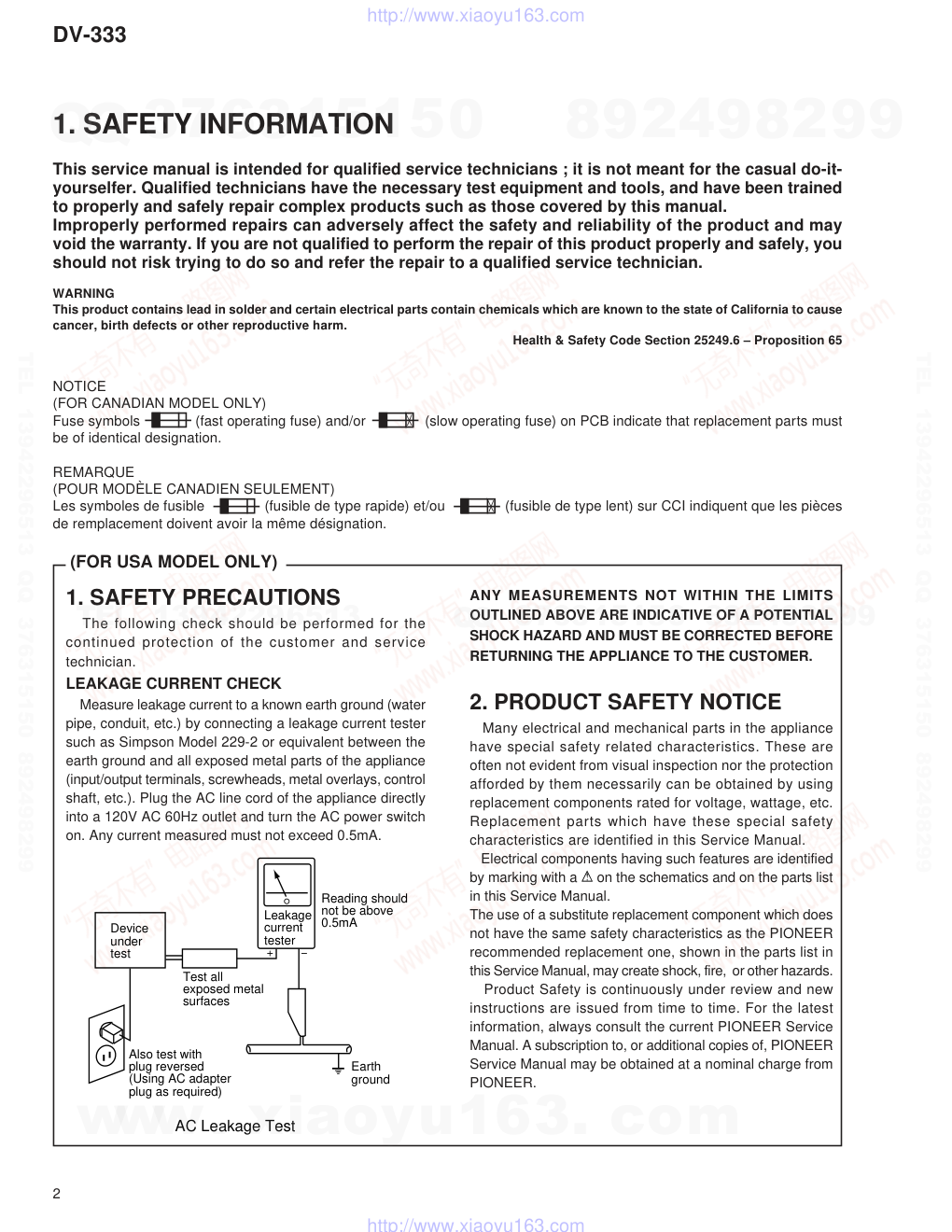

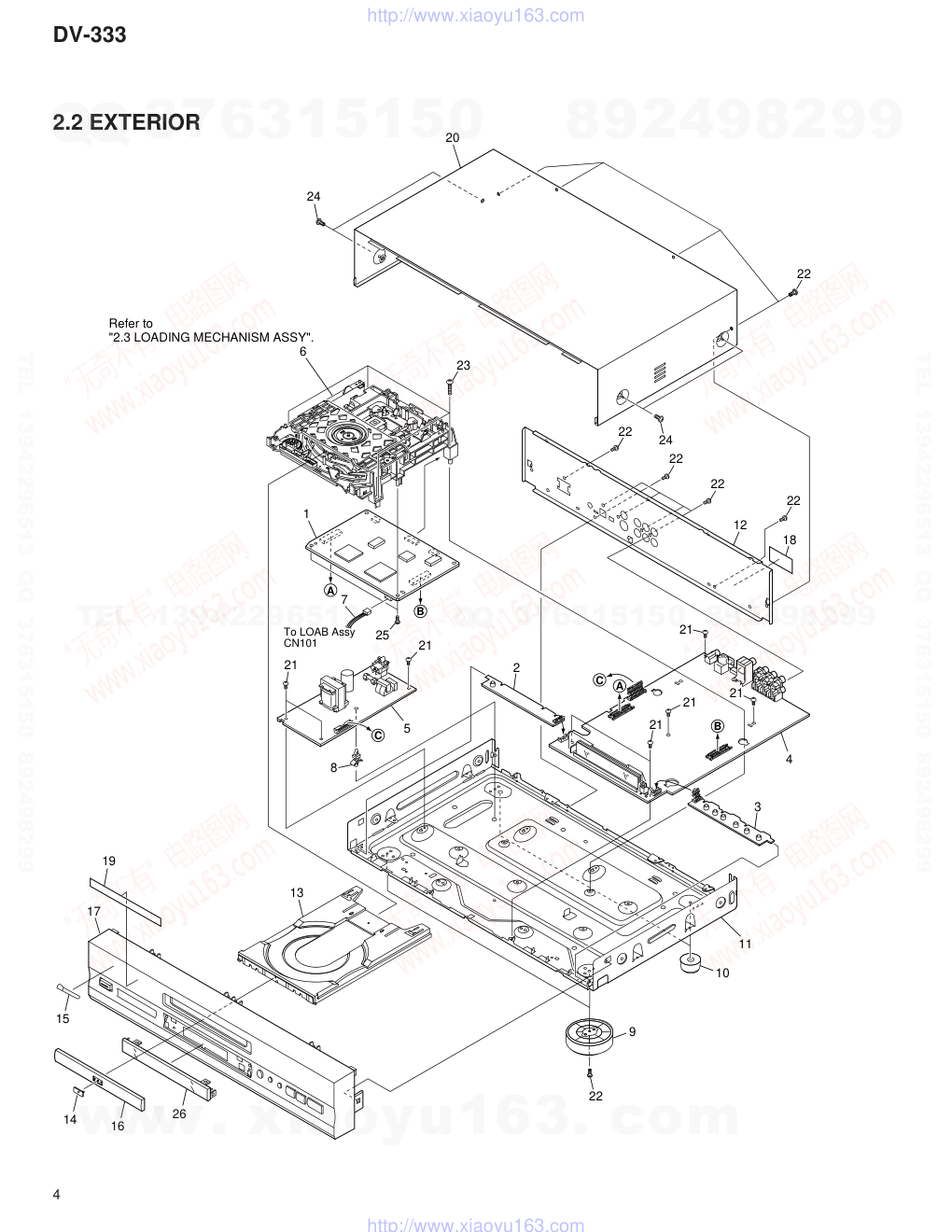

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2000 c DV-333 RRV2290 T – IZE MAY 2000 Printed in Japan DVD PLAYER 1. SAFETY INFORMATION ....................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................. 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..... 8 4. PCB CONNECTION DIAGRAM ........................... 27 5. PCB PARTS LIST ................................................ 36 6. ADJUSTMENT..................................................... 38 CONTENTS 7. GENERAL INFORMATION ................................ 39 7.1 DIAGNOSIS .................................................. 39 7.1.1 SELF-DIAGNOSTIC FUNCTION OF PICKUP DEFECTIVE ........................... 39 7.1.2 TEST POINTS LOCATION................... 40 7.1.3 TEST MODE SCREEN DISPLAY ........ 41 7.1.4 TROUBLE SHOOTING ........................ 45 7.1.5 ERROR CODE ..................................... 46 7.1.6 DISASSEMBLY .................................... 50 7.2 IC .................................................................. 53 8. PANEL FACILITIES AND SPECIFICATIONS .... 66 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Type Model Power Requirement Region No. Remarks DV-333 KUXJ AC120V 1 KCXJ AC120V 1 KUXQ AC120V 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DV-333 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DV-333 2.1 PACKING 1 Power Cord ADG7022 2 Audio Cord (L = 1.5m) See Contrast table (2) 3 Video Cord (L = 1.5m) See Contrast table (2) 4 Remote Control Unit VXX2702 5 Battery Cover VNK4631 NSP 6 Dry Cell Battery (R6P, AA) See Contrast table (2) 7 Pad F VHA1238 8 Pad R VHA1239 9 Packing Case See Contrast table (2) 10 Mirror Mat Sheet Z23-007 (750 × 600 × 0.5) NSP 11 Warranty Card ARY7045 12 Polyethylene Bag VHL1051 13 Operating Instructions (English) VRB1244 14 Operating Instructions (French) See Contrast table (2) (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. (2) CONTRAST TABLE DV-333/KUXJ, KCXJ and KUXQ are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks KUXJ Type KCXJ Type KUXQ Type NSP 2 3 6 9 14 Audio Cord (L = 1.5m) Video Cord (L = 1.5m) Dry Cell Battery (R6P, AA) Packing Case Operating Instructions (French) VDE1052 VDE1053 VEM-013 VHG1901 Not used VDE1052 VDE1053 VEM-013 VHG1923 VRC1116 VDE1054 VDE1055 VEM1010 VHG1903 Not used FRONT 11 5 13 KCXJ Type Only 14 4 12 6 12 3 2 1 8 9 7 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DV-333 2.2 EXTERIOR A B C A C B Refer to "2.3 LOADING MECHANISM ASSY". 20 24 24 22 1 7 To LOAB Assy CN101 5 2 8 6 23 22 22 22 22 22 21 21 25 21 21 21 21 3 12 18 13 14 16 17 19 26 15 4 9 10 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DV-333 1 DVDM Assy VWS1412 NSP 2 PWSB Assy VWG2174 NSP 3 KEYB Assy VWG2176 4 FLJB Assy VWV1748 5 POWER SUPPLY Unit VWR1327 (∗1) NSP 5 POWER SUPPLY Unit VWR1328 (∗1) NSP 6 Loading Mechanism Assy VWT1174 7 Connector Assy PG03KK-E07 NSP 8 PCB Holder PNW2100 9 Insulator PNW2766 10 Foot Assy REC1263 NSP 11 Chassis VNA2160 12 Rear Panel See Contrast table (2) 13 Tray VNL1858 14 DVD Plate VAM1088 15 Pioneer Name Plate VAM1099 16 Tray Panel VNK4591 17 Front Panel Assy See Contrast table (2) NSP 18 Label VRW1629 NSP 19 Pop Label VRW1830 20 Bonnet Case S VXX2651 21 Screw BBZ30P060FMC 22 Screw BBZ30P080FMC 23 Screw BBZ30P180FMC 24 Screw BCZ40P060FZK 25 Screw PPZ30P080FMC 26 FL Lens VNK4593 ∗1 : As for POWER SUPPLY Unit, either VWR1327 or VWR1328 is installed. Install VWR1327 when replacing the POWER SUPPLY Unit. (1) EXTERIOR PARTS LIST Mark No. Description Part No. (2) CONTRAST TABLE DV-333/KUXJ, KCXJ and KUXQ are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks KUXJ Type KCXJ Type KUXQ Type 12 17 Rear Panel Front Panel Assy VNA2161 VXA2391 VNA2161 VXA2391 VNA2174 VXA2407 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DV-333 1 Traverse Mechanism Assy-S VXX2653 NSP 2 LOAB Assy VWG2171 3 Drive Cam VNL1862 4 Drive Gear VNL1861 5 Lock Plate VNL1820 6 Loading Base VNL1863 7 Belt VEB1315 (or VEB1320) 8 Gear Pulley VNL1866 9 Screw JGZ17P028FMC 10 Loading Gear VNL1860 11 Loading Motor Assy VXX2505 12 DC Motor / 0.3W (LOADING) PXM1027 13 Motor Pulley PNW1634 14 Connector Assy VKP2253 15 Flexible Cable (08P) VDA1822 (or VDA1818) 16 Float Base VNL1865 17 Floating Rubber VEB1286 18 Flexible Cable (24P) VDA1821 (or VDA1820) 19 • • • • • 20 Clamper Plate VNE2162 21 Clamper VNL1738 22 Bridge VNL1859 LOADING MECHANISM ASSY PARTS LIST 2.3 LOADING MECHANISM ASSY 22 20 21 18 To DVDM Assy CN4 To DVDM Assy CN3 To DVDM Assy CN2 15 12 11 13 14 4 5 9 2 10 8 7 4 3 6 1 16 17 Refer to "2.4 TRAVERSE MECHANISM ASSY-S". Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DV-333 NSP 1 SMEB Assy VWG2048 NSP 2 FGSB Assy VWG2009 NSP 3 Motor (CARRIAGE) VXM1079 NSP 4 Motor (SPINDLE) VXM1084 NSP 5 Pickup Assy VWY1055 6 Table Sheet DEC2040 7 Screw VBA1058 8 Centering Spring VBH1278 9 Hook Spring VBH1317 10 Skew Spring VBH1303 11 Gear Spring VBH1308 NSP 12 Reflected Sheet VEC1959 13 Guide Bar VLL1504 14 Sub-guide Bar VLL1505 15 Hold Spring VNC1017 NSP 16 Magnet Holder VNE2070 NSP 17 Motor Base VNE2154 NSP 18 Cover VNE2155 19 Centering Ring VNL1746 NSP 20 Disc Table VNL1747 2.4 TRAVERSE MECHANISM ASSY-S 21 Hook VNL1770 22 FFC Holder VNL1802 23 Mechanism Base VNL1806 24 FG Holder VNL1807 25 Gear A VNL1808 26 Gear B VNL1809 27 Gear C VNL1810 28 Slider VNL1811 29 Gear D VNL1814 NSP 30 Magnet VYM1024 31 Screw JFZ17P025FZK 32 Screw JGZ17P028FMC 33 Screw VBA1051 34 Magnet Holder Assy VXX2507 35 Spindle Motor Assy VXX2649 36 Carriage Motor Assy VXX2650 37 Screw PBA1069 TRAVERSE MECHANISM ASSY-S PARTS LIST Mark No. Description Part No. Mark No. Description Part No. • Top View 30 16 34 19 8 15 10 10 22 33 23 5 14 10 37 18 32 13 10 37 18 26 25 27 29 7 7 7 3 1 11 28 33 6 35 20 12 21 4 9 31 37 17 24 37 36 To DVDM Assy CN3 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 8 A B C D 1 2 3 4 1 2 3 4 7 8 5 3 1 2 3 1 2 3 1 2 1 5 7 9 11 13 Spindle Motor OEIC 15 22 23 18 19 1 2 3 4 15 22 23 18 19 1 2 3 4 RF B1 B2 B3 B4 T RTN T DRV 7 SPDL+ Carriage Motor Loading Motor S101 Loading Position Switch + - 8 SPDL- LOAD- +6V +3.3V -27V -27V GND LOD POS LOAD+ 5 SLDR R 3 SLDR F T DRV F RTN PICKUP ASSY IC1 LA9701M RF IC CN4 (24P) CN3 (8P) CN5 (30P) CN102 (30P) CN103 (4P) KEY SW CN801 (4P) CN101 (14P) CN101 (14P) 1 2 CN2 CN1 CN202 (8P) CN101 (24P) B SMEB ASSY A LOAB ASSY G PWSB ASSY H POWER SUPPLY UNIT D DVDM ASSY M + - M EV+5V +5V +3.3V +12V IC3 M56788FP SPDL & FTS DRIVER IC2 LC78652W SERVO DSP IC12 PE5108A DVD DECODER BY CHIP IC15 MN414800CSJ-07 4M DRAM IC11 PD3410A SYSTEM CONTROL CPU REG IC105 PQ025EZ5MZP IC101 PE5185A FL CONTROL IC V101 VAW1056 FL TUBE IC14 KM68V1000CLT-7L WORK SRAM (1M) 3 RF 54 170 111 107 RFO 46 DSP RF 56 BH 57 PH 42 FE 35 4 56 57-60 63-66 55 TE 6 B1 7 B2 8 B3 9 B4 FDO 9 12 13 10 31 3 47 48 45 46 14 32 33 30 31 39 TDO 20 SLDO 17 SPDO 16M 27M SD0-SD7 SREQ CDDATA XSACK 16M 28 35 35 14 34 32 84 5,7 12,13 8,10 9 2 26 5,7 12,13 8,10 9 2 26 +12V +5V +3.3V +2.5V 19-27 19-27 1 5 7 9 11 13 EV+5V +6V +12V +5V +3.3V 1 2 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 9 A B C D 5 6 7 8 5 6 7 8 CN104 (4P) CN1 (30P) CN106 (30P) JA491 JA201 JA201 SR IN COAXIAL TOSLINK AC-3/PCM DIGITAL AUDIO OUT IC18 MB86373B MPEG2 DECODER AV-1 Q601 197 80-84 78,86,87 91 54 89 27M V/Cb OUT V 205 36/16M IC19 MB811171622A-100FN 16M SDRAM IC401 LA7138M 3IN 6OUT VIDEO AMP IC201 PCM1716E 96kHz, 24bit 2ch DAC IC202 BA4560F FILTER IC13 VYW1727 FLASH MEMORY 4M IC21 CY2081SL-638 CLOCK GENERATOR 1 2 KEY SW REMOTE SENSOR CN701 (4P) F KEYB ASSY E FLJB ASSY 1 2 JA401 JA402 COMPOSITE VIDEO OUT (YELLOW) Cb (BLUE) S VIDEO OUT COMPONENT VIDEO OUT Cr (RED) LOUT (WHITE) ROUT (RED) 6 27M 5 16M 1 36/16M 7 45 11 9 23 24 20 22 8 Cb Y Y Cr C Y (GREEN) Y OUT 39 C/Cr OUT 36 ADA0 ADA (AC3) 62 64 Q83 Q85 Q81 Q411 AMP 3 2 Q421 AMP 10 Q401 AMP 6 16 13 23 21 13 15 17 19 : AUDIO SIGNAL ROUTE : RF SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) (VCB) (VCB) (V) (CB) (Y) (Y) (Y) (Y) (C) (C) (C) (Cr) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 10 A B C D 1 2 3 4 1 2 3 4 E 1/3- E 3/3 FLJB ASSY (VWV1748) E KEYB ASSY (VWG2176) F POWER SUPPLY UNIT (VWR1327) or (VWR1328) H PWSB ASSY (VWG2174) G AC120V 60Hz POWER CORD : ADG7022 For DOWNLOAD CN110 3.2 LOAB, SMEB, FGSB ASSYS and OVERALL WIRING DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 11 A B C D 5 6 7 8 5 6 7 8 D 1/3- D 3/3 DVDM ASSY (VWS1412) D LOAB ASSY (VWG2171) TRAVERSE MECHANISM ASSY (VWT1161) LOADING MECHANISM ASSY (VWT1174) PICKUP ASSY (VWY1055) A SMEB ASSY (VWG2048) B FGSB ASSY (VWG2009) C LOADING MOTOR ASSY : VXX2505 SPINDLE MOTOR ASSY : VXX2649 CARRIAGE MOTOR ASSY : VXX2650 S101 : VSK1011 S201 : DSG1016 R101 330 CN101 S3B-PH-K-S CN202 VKN1212 CN201 52044-0345 : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (F) (T) (T) (F) (T) (T) (T) (T) (F) (F) (F) (F) (F) (F) (F) (F) (F) (T) (T) (F) (T) : SLIDER SERVO LOOP LINE (S) Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 12 A B C D 1 2 3 4 1 2 3 4 SPDL & FTS DRIVER RF IC CHECKER CHIP 1/2 CN3 VKN1763 CN2 S2B-PH-SM3 CN1 S3B-PH-SM3 CN4 DKN1193 LOADING MOTOR ASSY PICKUP ASSY CN202 B CN101 A 2SC4081 D 1/3 DVDM ASSY (VWS1412) 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D (DVD) (DVD) (DVD) (CD) (CD) (DVD) (T) (T) (F) (F) (F) (F) (F) (F) (T) (T) (T) (T) (T) (T) (F) (F) (F) (F) (T) (T) (S) (F) (T) (S) (S) (F) (F) (T) (T) (F) (F) (T) (T) (S) (S) (S) (S) 2 4 1 7 1/3 D 3.3 DVDM ASSY (1/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 13 A B C D 5 6 7 8 5 6 7 8 LANDMARK for CHECKER DSP IC 2/2 1/2 2/2 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 3/3 D : RF SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (F) (T) (S) : The power supply is shown with the marked box. (CD) (CD) (DVD) (DVD) (T) (F) (F) (F) (S) (S) (T) (T) 6 5 8 10 11 9 1/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 14 A B C D 1 2 3 4 1 2 3 4 KM68V1000CLT-7L VYW1727 WORK SRAM (1M) FLASH MEMORY (4M) 4M DRAM BY CHIP D 2/3 DVDM ASSY (VWS1412) 1/3 D 3/3 D 3/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 3/3 D 3/3 D 3/3 D 1/3 D 3/3 D (DVD) 3.4 DVDM ASSY (2/3) 2/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 15 A B C D 5 6 7 8 5 6 7 8 SYSTEM CONTROL CPU Q3 Q3 RN1911 CN5 VKN1626 CN102 E 1/3 3/3 D 1/3, 3/3 D 1/3, 3/3 D 3/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3 D 3/3 D 3/3 D 3/3 D 3/3 D 3/3 D : RF SIGNAL ROUTE : AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : The power supply is shown with the marked box. 2/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 16 A B C D 1 2 3 4 1 2 3 4 AV-1 16M SDRAM D 3/3 DVDM ASSY (VWS1412) 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D (VCB) (Y) (C) (VCB) (Y) (C) (VCB) (Y) (C) 1316 1215 1417 3.5 DVDM ASSY (3/3) 3/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 17 A B C D 5 6 7 8 5 6 7 8 CLOCK GENERATOR CN15 VKN1763 CN106 E 3/3 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 1/3 D : AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) (VCB) (Y) (C) (VCB) (VCB) (VCB) (Y) (Y) (Y) (C) (C) (C) 3/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 18 A B C D 1 2 3 4 1 2 3 4 FL CONTROL MICROCOMPUTER E 1/3 FLJB ASSY (VWV1748) 2/3 E 3/3 E 3/3 E : The power supply is shown with the marked box. KEYB ASSY S701 : 0 (OPEN/CLOSE) S702 : 4 S703 : ¢ S704 : 7 (STOP) S705 : 8 (PAUSE) S706 : 3 (PLAY) PWSB ASSY S802 : POWER STANDBY/ON 1/3 E 3.6 FLJB (1/3), KEYB and PWSB ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 19 A B C D 5 6 7 8 5 6 7 8 ASG7013 S701-S706 : ASG7013 CN801 04P-FJ CN701 04P-FJ CN101 14P-FJ CN102 VKN1627 CN103 04R-FJ CN104 04R-FJ KEYB ASSY (VWG2176) F PWSB ASSY (VWG2174) G 2/3 E 3/3 E 3 → 5 CONVERTER 5 → 3 CONVERTER CN5 D 2/3 CN101 (VWR1327) or CN201 (VWR1328) H 1/3 E G F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 20 A B C D 1 2 3 4 1 2 3 4 2ch DAC E 2/3 FLJB ASSY (VWV1748) 1/3 E 3/3 E 3/3 E 2/3 E 3.7 FLJB ASSY (2/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 21 A B C D 5 6 7 8 5 6 7 8 2SA1037K 3/3 E 1/3 E CN110 VKN1267 2/2 1/2 : AUDIO SIGNAL ROUTE 2/3 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 22 A B C D 1 2 3 4 1 2 3 4 CN106 VKN1627 VIDEO OUT SELECT 2/3 E 1/3 E 1/3 E CN15 D 3/3 E 3/3 FLJB ASSY (VWV1748) (VCB) (VCB) (VCB) (VCB) (VCB) (C) (Y) (Y) (Y) (C) (C) (Y) (Y) (C) (C) (Y) (C) 3/3 E 3.8 FLJB ASSY (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 23 A B C D 5 6 7 8 5 6 7 8 JA491 RKN1004 JA401 VKB1147 JA402 VKB1146 3IN 6OUT VIDEO AMP 1/3 E 2/3 E 2/3 E 2SA1037K : AUDIO SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) (VCB) (CB) (CB) (CB) (Y) (C) (Y) (C) (Y) (V) (V) (C) (Y) (V) (V) (C) 3/3 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 24 A B C D 1 2 3 4 1 2 3 4 CN1 CN101 AC IN A A B B 5 8 4 2 1 10 11 14 12 13 12V 5V EV5V SW5V PO CONT SW3.3V GND –28V FLAC (B) FLAC (A) GND 3 GND 5 GND 7 GND 9 CN101 E 1/3 F1 REK1077 1.6A Z1 C1 LIVE NEUTRAL C2 C5 C8 C7 GND BEA1 BEA2 R2 R71 R72 D72 D7 D23 D24 C22 C11 C108 R301 R302 R307 R104 R401 R420 R303 R410 Q412 R402 C110 R414 R407 R408 R409 D404 R103 R10 C9 R8 C21 C10 D25 R20 R12 D5 R17 D9 R23 R201 R202 R205 R203 R204 VR201 C201 R24 R25 R11 R22 D8 D4 PC1 D6 R9 Q20 Q1 Q2 PC2 PC1 IC201 R7 R6 R5 R19 R1 D14 D13 T1 D11 D12 L1 D105 D104 D103 D102 P101 AEK7063 P102 AEK7066 C105 C106 C410 L101 C109 Q411 Q410 D111 D407 D112 D405 D406 D107 D108 D109 D304 C112 PC2 C111 C411 IC103 IC102 C301 C303 800mA 1.6A NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) ASSY • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Assy is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - POWER SUPPLY UNIT (VWR1327) H 3.9 POWER SUPPLY UNIT (VWR1327) H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 25 A B C D 1 2 3 4 1 2 3 4 1 GND SW+3.3V GND SW+5.0V GND SW+12V GND 5V GND E5.0V P.CONT FLAC A FLAC B FL-28V 2 3 4 5 6 7 8 9 10 11 12 13 14 CN201 CN101 LIVE F1 REK1078 NEUTRAL AC IN CN101 E 1/3 NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) ASSY • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Assy is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - POWER SUPPLY UNIT (VWR1328) H 2A Z101 R101 L101 L102 L103 L105 PC101 R103 C107 T101 IC101 O S C C101 C102 D101 C106 C109 D108 R105 C108 C110 L104 D109 C105 D105 D201 C201 330/16 C205 100/16 C206 100/16 C202 1200/10 C203 680/10 C204 47/35 C218 0.1/25 C213 100/16 C215 100/16 C219 472 C220 4.7µ R228 47k R213 3.3/1W R229 1k Q201 D208 D210 Q210 R201 47 R202 1k IC202 IC203 1 2 3 4 1 2 3 4 R205 1k R204 2.3k R220 10k R219 4.7k R203 2.7k VR201 PC101 IC201 P202 AEK7012 (1.6A) P203 AEK7063 (800mA) Q202 D201 R211 10k R227 180 R212 470/1W L201 20µ L202 20µ D202 D203 D206 C210 473p C211 473p C212 103p L204 D204 D212 D207 D205 R206 10 R209 15k R206 15k D106 GND H 3.10 POWER SUPPLY UNIT (VWR1328) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 26 WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 5 : CD, ABEX-784 Track 1 No. 12 to 14 : MJK1, Title 1-chp 4 No. 15 to 17 : MJK1, Title 1-chp 5 1 Foot of R169 (RF) V: 100mV/div. H: 0.2µsec/div. 2 TP2 (RFO) V: 500mV/div. H: 0.1µsec/div. 3 4 TP3 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC2 - pin 39 (EFM before slice) V: 1V/div. H: 1µsec/div. 6 IC2 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC3 - pin 41 (REGB) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 5msec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 5msec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 5msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 IC18 - pin 45 (Composite Video output) V: 2V/div. H: 1msec/div. 13 IC18 - pin 39 (Y output) V: 0.2V/div. H: 5msec/div. 14 IC18 - pin 36 (C output) V: 0.2V/div. H: 5msec/div. 15 IC18 - pin 45 (CB output when selecting color difference output) V: 0.2V/div. H: 5msec/div. 16 IC18 - pin 39 (Y output when selecting color difference output) V: 0.2V/div. H: 5msec/div. 17 IC18 - pin 36 (CR output when selecting color difference output) V: 2V/div. H: 5msec/div. GND GND GND GND GND GND GND GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 27 A B C D 1 2 3 4 1 2 3 4 (VNP1722-A : KUXJ, KCXJ Types) (VNP1732-A : KUXQ Type) CARRIAGE MOTOR SPINDLE MOTOR BLK RED M M NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 LOAB and SMEB ASSYS (VNP1762-A : KUXJ, KCXJ Types) (VNP1774-A : KUXQ Type) (VNP1762-A : KUXJ, KCXJ Types) (VNP1774-A : KUXQ Type) CN1 D CN3 D C LOAB ASSY A SMEB ASSY B LOAB ASSY A SIDE A SIDE B B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 28 A B C D 1 2 3 4 1 2 3 4 4.2 DVDM ASSY D DVDM ASSY D SIDE A (VNP1760-A) Q3 Q121 Q103 Q91 Q83 Q7 Q6 Q101 Q107 Q81 IC1 IC7 IC11 IC15 IC21 IC18 IC3 Q4 Q5 Q102 Q109 IC5 IC8 • This PCB is a four-layered board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 29 A B C D 1 2 3 4 1 2 3 4 DVDM ASSY D CN102 E LOADING MOTOR ASSY PICKUP ASSY CN202 B CN106 E CN101 A SIDE B (VNP1760-A) Q1 IC12 IC2 IC19 Q112 Q114 Q113 Q131 Q106 Q85 Q89 Q87 Q251 IC26 IC27 IC13 IC14 • This PCB is a four-layered board. D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 30 A B C D 1 2 3 4 1 2 3 4 IC150 IC102 IC101 FLJB ASSY E PWSB ASSY G KEYB ASSY F CN5 D 4.3 FLJB, KEYB and PWSB ASSYS E F G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 31 A B C D 5 6 7 8 5 6 7 8 (VNP1761-A : KUXJ, KCXJ Types) (VNP1775-A : KUXQ Type) IC201 IC491 Q291 IC301 IC302 CN101 (VWR1327) H CN201 (VWR1328) H N5 CN15 D or E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 32 A B C D 1 2 3 4 1 2 3 4 FLJB ASSY E Q601 Q570 IC602 IC401 Q431 Q362 Q363 Q361 Q261 IC1 Q Q255 IC203 IC302 Q301 IC303 Q253 Q254 Q259 Q260 Q331 IC201 IC301 Q258 Q292 Q256 Q257 IC210 IC202 Q281 Q351-Q353 Q354 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 33 A B C D 5 6 7 8 5 6 7 8 PWSB ASSY G KEYB ASSY F Q363 Q361 Q261 IC104 IC101 IC103 IC501 Q541 Q421 Q401 Q411 Q551 Q500 Q531 Q521 Q501 Q511 (VNP1761-A : KUXJ, KCXJ Types) (VNP1775-A : KUXQ Type) G F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 34 A B C D 1 2 3 4 1 2 3 4 POWER SUPPLY UNIT H CN101 E AC IN SIDE A Q2 Q1 Q20 Q411 Q412 IC201 VR201 4.4 POWER SUPPLY UNIT (VWR1327) H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-333 35 A B C D 1 2 3 4 1 2 3 4H 4.5 POWER SUPPLY UNIT (VWR1328) POWER SUPPLY UNIT H CN101 E AC IN SIDE A IC101 IC203 IC202 Q210 IC201 Q201 VR201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DV-333 Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF ASSEMBLIES NSP LOADING MECHANISM ASSY VWT1174 NSP LOAB ASSY VWG2171 NSP TRAVERSE MECHANISM ASSY VWT1161 NSP SMEB ASSY VWG2048 NSP FGSB ASSY VWG2009 DVDM ASSY VWS1412 NSP FLJB ASSY VWM1991 FLJB ASSY VWV1748 NSP KEYB ASSY VWG2176 NSP PWSB ASSY VWG2174 POWER SUPPLY UNIT (∗1) VWR1327 NSP POWER SUPPLY UNIT (∗1) VWR1328 ∗1 : As for POWER SUPPLY Unit, either VWR1327 or VWR1328 is installed. Install VWR1327 when replacing the POWER SUPPLY Unit. LOAB ASSY SWITCH S101 VSK1011 OTHERS CN101 KR CONNECTOR S3B-PH-K-S PC BOARD LOAB VNP1762 (KUXJ and KCXJ Types) PC BOARD LOAB VNP1774 (KUXQ Type) SMEB ASSY SWITCH S201 DSG1016 OTHERS CN201 3P FFC CONNECTOR 52044-0345 CN202 8P FFC CONNECTOR VKN1212 PC BOARD SMEB VNP1722 (KUXJ and KCXJ Types) PC BOARD SMEB VNP1732 (KUXQ Type) A B FGSB ASSY SEMICONDUCTOR PC101 GP2S60 RESISTOR R101 RS1/10S331J DVDM ASSY SEMICONDUCTORS IC21 CY2081SL-638 IC14 KM68V1000CLT-7L IC1 LA9701M IC2 LC78652W IC3 M56788FP IC19 MB811171622A-100FN IC18 MB86373B IC15 MN414800CSJ-07 IC5,IC7 NJM2100M IC11 PD3410A IC12 PE5108A IC8 TC7SHU04F IC13 VYW1727 Q106,Q109,Q81,Q83,Q85 2SA1576A Q114,Q121,Q251 2SC4081 Q131 DTC114EUA Q102 HN1A01F Q103,Q6,Q7 HN1B04FU Q101 HN1C01F Q112,Q113 HN1C01FU Q107,Q4,Q5 RN1902 Q3 RN1911 Q1 RN4982 D301 KV1471E D6 RB501V-40 D665,D666 RB521S-30 COILS L150,L330 LCYA100J2520 L304 LCYA2R7J2520 L81 CHIP COIL VTL1067 L85,L911 CHIP BEAD VTL1084 C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DV-333 Mark No. Description Part No. Mark No. Description Part No. CAPACITORS C123,C146,C613,C843 CCSRCH101J50 C322 CCSRCH120J50 C135 CCSRCH121J50 C104-C108 CCSRCH150J50 C206,C210,C211 CCSRCH151J50 C333 CCSRCH180J50 C116,C151,C314 CCSRCH220J50 C152 CCSRCH221J50 C127,C209,C337 CCSRCH331J50 C134,C236 CCSRCH470J50 C122,C208 CCSRCH471J50 C126,C335 CCSRCH560J50 C334 CCSRCH5R0C50 C124,C132 CCSRCH680J50 C117,C240,C352,C360 CCSRCH681J25 C845,C846 CCSRCK2R0C50 C129,C142,C842 CEV101M10 C113,C139 CEV220M16 C405,C413,C700,C808 CEV221M4 C111,C149,C205,C207,C401 CEV470M6R3 C403,C407 CEV470M6R3 C140,C223,C224,C252,C264 CKSQYB105K10 C312 CKSQYB105K10 C148,C217,C327,C414 CKSQYF105Z16 C801,C802,C807,C809-C815 CKSQYF105Z16 C817-C821 CKSQYF105Z16 C216,C313 CKSRYB102K50 C133,C136,C203,C220,C225 CKSRYB103K50 C239,C320,C321,C603,C625 CKSRYB103K50 C703,C711 CKSRYB103K50 C101,C102,C114,C118,C119 CKSRYB104K16 C121,C138,C204,C212,C213 CKSRYB104K16 C227,C231,C263,C315,C317 CKSRYB104K16 C332,C804 CKSRYB104K16 C153,C266 CKSRYB223K25 C357 CKSRYB223K50 C354 CKSRYB332K50 C214,C251,C261,C351 CKSRYB472K50 C330 CKSRYB682K50 C109,C110,C120,C130,C131 CKSRYF104Z16 C143,C150,C202,C215 CKSRYF104Z16 C221,C222,C226,C230,C235 CKSRYF104Z16 C265,C299,C319,C359,C367 CKSRYF104Z16 C369,C370,C402,C404,C406 CKSRYF104Z16 C408,C410,C412,C601,C602 CKSRYF104Z16 C604-C612,C614,C615 CKSRYF104Z16 C617-C620,C626,C701,C702 CKSRYF104Z16 C704-C710,C712-C724,C726 CKSRYF104Z16 C831-C833,C844 CKSRYF104Z16 C368,C411 (47µF/16V) VCH1166 RESISTORS R123 (39Ω) ACN7047 R732,R733,R735,R736 (47kΩ) ACN7077 R632 (100Ω) DCN1092 R608,R609,R613,R624,R627 (10kΩ) DCN1094 R629,R631,R633,R638,R654 (10kΩ) DCN1094 R657,R658,R664,R706 (10kΩ) DCN1094 R717,R718 (10kΩ) DCN1094 R121,R663 (10kΩ) DCN1104 R712,R715,R881 (0Ω) DCN1106 R1020,R2010,R2020,R2030,R2040 RS1/10S0R0J R3050,R4010,R4020,R4030,R4040 RS1/10S0R0J R4050,R4060,R407,R685,R722 RS1/10S0R0J R8000,R821 RS1/10S0R0J R202,R3510 RS1/10S101J R700 RS1/10S1R2J R807 RS1/16S1201F R806 RS1/16S1501F R363,R365 RS1/16S1503F R825-R827 RS1/16S2000F R805 RS1/16S2701F R361,R364 RS1/16S6202F Other Resistors RS1/16S J OTHERS CN4 FLEXIBLE CONNECTOR DKN1193 X2 CHIP CERALOCK DSS1110 (20MHz) CN2 PH CONNECTOR S2B-PH-SM3 CN1 PH CONNECTOR S3B-PH-SM3 FLEXIBLE CABLE (07P) VDA1681 CN15,CN5 VKN1626 B TO B CONNECTOR 30P CN3 8P FFC CONNECTOR VKN1763 BAR-CODE LABEL VRW1773 X1 CRYSTAL RESONATOR VSS1147 (13.824MHz) FLJB ASSY SEMICONDUCTORS IC202 BA4560F IC401 LA7138M IC201 PCM1716E IC101 PE5185A IC105 PQ025EZ5MZP IC102 S-806D IC104 TC74VHC125F IC103 TC74VHCT125AF Q255,Q401,Q411,Q421,Q431 2SA1037K Q291 2SC1740S Q601 2SC2412K Q253,Q254 2SD2114K Q256 DTC114YK D497 1SS355 D261 UDZS6.2B COILS L401,L411,L421 LAU120J-TA L101 LAU680J-TA L601 NOISE FILTER RTF1167 L480,L481 CHIP BEAD VTL1089 SWITCH S402 VSH1009 CAPACITORS C403,C413,C423 CCSQCH180J50 C257,C258 CCSQCH221J50 C255,C256 CCSQCH330J50 C251,C252 CCSQCH331J50 C438-C440,C497 CCSQCH470J50 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DV-333 Mark No. Description Part No. Mark No. Description Part No. C401,C402,C411,C412 CCSQCH6R0D50 C421,C422 CCSQCH6R0D50 C103 CEAL101M6R3 C264,C430,C431 CEAL470M16 C204,C208 CEAL470M6R3 C611 CEAT101M10 C259,C292,C293 CEAT101M16 C214,C215,C297 CEAT102M6R3 C605 CEAT1R0M50 C253,C254,C261,C262 CEAT470M25 C451,C453,C455,C457,C459 CEAT471M6R3 C108,C110-C113,C122 CKSQYB102K50 C435-C437,C463 CKSQYB104K25 C102,C114,C116,C119,C120 CKSQYF104Z25 C172,C173,C178-C181,C183 CKSQYF104Z25 C185-C187,C203,C205-C207 CKSQYF104Z25 C212,C260,C263,C291,C294 CKSQYF104Z25 C410,C420,C432-C434,C441 CKSQYF104Z25 C471,C498,C561,C602,C612 CKSQYF104Z25 C123 CKSQYF104Z50 RESISTORS R265,R266 RN1/16SE1602D R261,R262 RN1/16SE3302D R456,R460 RS1/10S1100D R458,R462 RS1/10S3300D R459,R463 RS1/10S4700D R451,R453,R455,R464 RS1/10S62R0D R401,R411,R421 RS1/10S8200D Other Resistors RS1/10S J OTHERS CN103,CN104 FJ CONNECTOR 4P 04R-FJ CN101 FJ CONNECTOR 14P 14P-FJ JA201 OPTICAL LINK OUT GP1FA550TZ JA491 REMOTE CONTROL JACK RKN1004 IC150 REMOTE RECEIVER UNIT TSOP1840XG1 V101 FL TUBE VAW1056 JA402 2P PIN JACK VKB1146 JA401 6P PIN JACK VKB1147 CN110 7P FFC CONNECTOR VKN1267 CN102,CN106 VKN1627 B TO B CONNECTOR 30P FL HOLDER VNK4595 X101 CERAMIC RESONATOR VSS1142 (5MHz) KEYB ASSY SWITCHES S701-S706 ASG7013 RESISTORS All Resistors RS1/10S J OTHERS CN701 FJ CONNECTOR 4P 04P-FJ PWSB ASSY SWITCH S802 ASG7013 RESISTORS All Resistors RS1/10S J OTHERS CN801 FJ CONNECTOR 4P 04P-FJ POWER SUPPLY UNIT (VWR1327) OTHERS F1 FUSE (1.6A) REK1077 P101 PROTECTOR (800mA) AEK7063 P102 PROTECTOR (1.6A) AEK7066 POWER SUPPLY UNIT (VWR1328) OTHERS F1 FUSE (2A) REK1078 P202 PROTECTOR (1.6A) AEK7012 P203 PROTECTOR (800mA) AEK7063 F H G H 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DV-333 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 SELF-DIAGNOSTIC FUNCTION OF PICKUP DEFECTIVE Character in bold : Item name : Information display Test Mode Screen Display Laser diode current value Symptom • Indicates "No Disc" in FL display. • Player does not playback, etc.. Note : When a DVD disc is played in the test mode, this function is effective. This function is effective only for DVD pickup (650nm). Procedure of Self-Diagnosis 1 Press the → buttons (of the test mode remote control unit : GGF1067) in the test mode screen, and turn on the laser diode (It light-up for nine seconds.). 2 Confirm the indicated value of the laser diode current (LDI). 3 When indicated value is more than 110, pickup is defective. → Release the Traverse Mechanism Assy. TEST 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DV-333 DVDM ASSY SIDE B Front Side 7.1.2 TEST POINTS LOCATION IC1 IC19 IC2 C707 IC26 IC27 R389 Short-circuit at diagnosis CN4 CN3 CN1 CN15 IC13 CN5 IC14 CN2 VCODR SREQ VREF VREF TP3 (TE) TP1 (FE) TP2 (RFO) TP4 (FDO) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DV-333 Remote control code Key code Mechanism position value and slider position Output video system and Skirt terminal output FL controller version and region setting for the player Port No. of Flash ROM and system controller System controller revision Flash ROM version and Flash ROM size FL controller destination setting AV1 chip version DVD mechanism controller revision (Control and part No. of GUI-ROM) Character in bold : Item name : Information display First Screen Display • Screen Composition Address Background color Tracking status and Laser diode current value Spindle status and AFB status AGC setting FTS servo IC information C1 error value of CD and DVD Internal operation mode of the mechanism control Disc judgment and CD 1/3 beam switch Equalizer value and jitter value 7.1.3 TEST MODE SCREEN DISPLAY TEST MODE SCREEN DISPLAY Consecutive double-OSD display is supported during test mode. The screen is composed 10 lines with a maximum of 32 characters per line. It can't be used with the debugging display mode together. Caution : The first screen and second screen switch by pressing [DISPLAY] key of the remote control unit. It is only a version display part on the lower right of the screen those contents of display change. ATB : ON/OFF information display and AGC manual setting display deleted with the second generation. The displays of Tilt error value, Tilt servo status and pickup DVD/CLD display deleted with the third generation becomes LD part is deleted. • Description of Each Item on the Display (1) Address indication The address being traced is displayed in number. DVD : ID indication (hexadecimal number, 8 digits) [ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] CD : A-TIME (min. sec.) [ 0 0 0 0 ∗ ∗ ∗ ∗ ] (Note : For DVDs, decimal-number indication is possible.) (2) Code indication of the remote control unit [R – ∗ ∗ ∗ ∗] The code for the key pressed on the remote control unit, which is received by the FL controller, is displayed while the key is pressed. In the case of the double code, the second code will be displayed. (3) Key code indication for the main unit [K – ∗ ∗ ] The code for the key pressed on the main unit, which is received by the system controller, is displayed while the key is pressed. (4) Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗] (5) 1 Tracking status [TRKG – ∗∗∗] Tracking on [ON ] Tracking off [OFF] 2 Laser diode current value [LDI – ∗∗∗] (6) 1� Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] 2 AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] (7) Mechanism position value [M – ∗] Position code [1] to [3] (8) Slider position [S – ∗ ∗ ∗ ∗] CD TOC area [IN ] CD active area [CD ] (9) AGC setting [AGC – ∗ ∗] AGC on [AGC-ON] AGC off [AGC-OFF] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DV-333 (10) Output video system [V – ∗ ∗ ∗ ∗] NTSC system [NTSC] PAL system [PAL ] Auto-setting [AUTO] Skirt terminal output [SK – ∗ ∗] VIDEO [00] S-VIDEO [01] RGB [02] Note : Display only the model which can do the output setting of skirt terminal. (11) FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. (12) Error rate indication � 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] � 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] (13) Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller (14) 1 Disk sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] 2 CD 1/3 beam switch [BM – ∗ ∗] (15) 1 Equalizer value [E – ∗ ∗] 2 Jitter value [J – ∗ ∗] nake the jitter four times, and renew it in every one second. [4 – * *] CD is effective only in the jitter value. (16) Version of the AV-1 chip [ AV : ∗ . ∗ ∗' ∗' ] (17) 1 Version of the FL controller [FL : ∗ ∗ ∗ ∗] 2 Region setting of the player [REG : ∗ ] Setting value [1] to [6] (18) Destination setting of the FL controller [MDL : ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ] For charactors in front represent the type of model : There charactors that follow represent the destination code. J : /J, K : /KU, /KC, /KU/KC, R : /RAM, /RL, /RD, /LB, WY : /WY (19) The part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗] � 1 Part number of the flash ROM (Example) VYW1536-A = W1536A (Example) PD6256A9 = 6256A9 � 2 Part number of the system controller (Example) PD3381T1 = 3381T1 (20) 1 Version of the flash ROM [V : ∗ . ∗ ∗ ∗] 2 Flash ROM size [FLSH = ∗] (21) Revision of the system controller [S : ∗ . ∗ ∗ ∗ / ∗ . ∗ ∗ ] � 1 Revision number of the external ROM part (flash ROM) of the system controller � 2 Revision of the internal ROM part of the system controller (22) Revision of the DVD mechanism controller [M : ∗ . ∗ ∗ ∗] Revision number of the external ROM part (flash ROM) of the DVD mechanism controller (23) Control and part numbers of the GUI-ROM [GUI : ∗ ∗ ∗ ∗] No GUI model displays as "––– / ––––". OEM model displays the part number of GUI-ROM [GUI : * * * *] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DV-333 DEBUGGING SCREEN SPECIFICATION FOR THE MECHANISM CONTROLLER 3 Indication Contents 1. The error that became the trigger that an error of 2 occurred. There are many cases same as 2. 2. The error number that transferred to the system controller Refer to the error list about contents of error number. 3. Code read in state (it does not support in this unit) When X is indicated, ID or subcode are not able to read in. When X is not indicated, they are able to read in. 4. ID or subcode (it does not support in this unit) Subcode indicates the A time. 5. Inside mode of the mechanism controller when an error of 1 occurred It can indicate to a maximum 10 mode. Indicate it in order of an old mode from the left, and go right, and become a new mode. Indicate only a nest share of the mode. 6. Processing step of inside mode of 5 It can grasp the mode reaching an error and transition of step by watching 5 and 6 and it can specify the occurrence place of most errors. 7. Disk information in the mechanism controller ? : Indistinctness NO : There is no disc DVD 1 : DVD single layer DVD 2 : DVD dual layer CD : CD CDR : CD-R or CD-RW CDR P : PRD of CD-R or CD-RW � 8. As a result of 8cm /12cm distinction ? : Indistinctness (undistinction) 8 : 8 cm 12 : 12 cm 9. OEIC gain (it does not support in this unit) H : OEIC HIGH gain L : OEIC LOW gain 10. SGC gain for LD of 780nm It indicates a step using in the mechanism controller inside with a hexadecimal number. Set the gain so that S curve becomes 1.8V (p-p) in disc distinction. 11. SGC gain for LD of 650nm For L0. It indicates a step using in the mechanism controller inside with a hexadecimal number. Set a gain so that S curve becomes 1.8V (p-p) in disc distinction. 12. SGC gain for LD of 650nm For L1. It indicates a step using in the mechanism controller inside with a hexadecimal number. Set a gain so that a S curve becomes 1.8V (p-p) in disc distinction. 13. RF count value for disc distinction RF count value to use the disc distinction. It compares threshold value of 14 and 15 and distinguishes the disc. 14. Disc distinction threshold value (DVD and CD) Threshold value of the disc distinction. Distinguish it from DVD if bigger than this value, and distinguish it from CD if small. 1 Indication Method of The Mechanism Controller Debugging Screen A debugging screen of the mechanism controller is indicated when pressing the test mode remote control unit [GGF1067] in order of the and buttons. Releace from debugging screen display of the mechanism controller with the button. ESC ESC CHP/TM 2 Screen Layout www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DV-333 15. Disc distinction threshold value (CD and unrecorded disc) Threshold value of the disc distinction. Distinguish it from CD if bigger than this value, and distinguish it from an unrecorded disc if small. 16. Current jitter value Indicate the value that was read in from the MY-CHIP in DVD, and indicate the value that was read in from the servo DSP in CD. 17. Focus balance setting value of L0 18. Focus balance setting value of L1 19. Current mechanism controller inside mode (it does not support in this unit) It can indicate to a maximum 10 modes. Indicate only a nest share of the mode. 20. Processing step of 11 inside modes (it does not support in this unit) It can grasp the current mode, the mode reaching it and transition of step by watching 19 and 20. 21. Spindle control state of MY-CHIP (it does not support in this unit) OFF : Motor off condition A/B : Accelerator and brakes FG : FG servo RVP : Rough speed phase servo ORVP : Rough speed phase servo of offset addition 22. Rotation number of spindle motor Do not FG read in ? indication (during spindle stop). 23. Tracking error generation system (it does not support in this unit) 1: 1 beam (DPD) 3: 3 beams 24. TZC count value (it does not support in this unit) The value that counted the number of TZC for one rotation in the tracking open state. When this value is more than 512 with CD, set it in 1 beam because the eccentric is large. DVD does not measure it because it is 1 beam fixed (indication is 0000). 25. It indicates the frequency that entered the focus backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 26. It indicates focus backup limit frequency with the hexadecimal number Initial value is 14H, it does decrement whenever enter the focus backup and it gives up backup if it became 0. Then the error is generated. After reverted from the backup, When not enter the backup and pass fixed time (1500ms), return to initial value again. 27. It indicates the frequency that entered the internal circumference plunging into backup of the sled Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 28. It indicates the frequency that entered the tracking overrun backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 29. It indicates the limit frequency of tracking overrun backup with a hexadecimal number Initial value is 03H, it does decrement whenever enter the tracking overrun backup and it gives up backup if it became 0. 30. It indicates the frequency that entered sled overrun backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 31. It indicates the limit frequency of sled overrun backup with a hexadecimal number Initial value is 03H, it does decrement whenever enter the sled overrun backup and it gives up backup if it became 0. 32. It indicates the frequency that entered the tracking close NG backup Hexadecimal number indication. Counter does not reset till turns the power off after turning it on. Next of FF is be a 1 byte counter in 00. The hexadecimal number indication which indicates the frequency that reads 33. ID/subQ, and entered NG backup Hexadecimal number indication. A counter does not reset it till cuts it off after turning it on. Due to a 1 byte counter, next of FF becomes 00. 34. An address to indicate in 35 Set it by using RS232.I (an address) Set it with DA. 35. Contents of an address indicated in 34. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DV-333 7.1.4 TROUBLE SHOOTING • No Power ON • FL is not turned ON • FL indication is unusual START Is FL turn on ? Is tray open ? Is the indication of FL normal ? Do the video and sound come on ? Power ON Yes Yes Yes Yes No No No Turn on the power again after 2 - 3 minutes. • Blow out fuse of the primary side • Blow out micro-fuse on the POWER SUPPLY Assy. (Check the each voltage.) (KU, KC : P202, P204, P205, P201) (Others : P611, P211, P711) • FL controller IC (IC101) on the FLKY Assy is damaged. • Blow out micro-fuse on the POWER SUPPLY Assy. (KU, KC : P201) (Others : P711) • Check the connection between PICKUP Assy and DVDM Assy. (14P flexible cable) • Check the +6V power supply voltage (above micro fuse). FL indication is dark or flickers. No Indicates the error message Refer to the section "7.1.3 ERROR CODE". Refer to the section "7.1.3 ERROR CODE". Check the connection between AVJB Assy and DVDM Assy. Indicate the error message. • Check the following connections : POWER SUPPLY Assy - DVDM Assy DVDM Assy - FLKY Assy FLKY Assy - PWSB Assy • Check each voltage (EV+5V, SW+5V, SW+3.3V, +6V and +12V) (If above voltage are not supplied, check the micro-fuse.) • Short or open the zenner diode on the POWER SUPPLY Assy. (KU, KC : D207) (Others : D513) • Check the values of R110 - R120 on the FLKY Assy. OK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DV-333 FL Display Possible causes Operation of the unit AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with the specific audio. CPU AERR CPU address error (Hardware is unusual.) No operation DMA AERR DMA address error (Hardware is unusual.) No operation FLASH ID Difference in versions of the internal ROM of the system controller and of the flash ROM, or bus line failure or reverse installation No operation FLASH WRP Write protect error of the flash ROM No operation FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used was used.) No operation FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation (Hardware is unusual.) No operation FLASH SIZE Size error of the flash ROM (Use 4 or 8 M-bit.) No operation ILLGAL The system controller fetched a code other than an operation code (Hardware is unusual.) No operation RESERVE Undefined interrupt (Hardware is unusual.) No operation SLOT Inappropriate slot command issued (Hardware is unusual.) No operation Error codes that are displayed on the FL display without using the remote control unit 7.1.5 ERROR CODE Error codes that are displayed on the FL display by using the remote control unit (Mechanism controller error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the FL display To display the error history: ESC + DISPLAY + One shot; Location of the display: TV screen FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 11 Search timeout Search could not be complete within 7 seconds. Search could not be complete within 7 seconds, and it could not enter the target area within 7 seconds by VCD scan. CD : Stops, DVD : Continues operation 12 Search retry error A search could not be completed after 3 retries, search backup was executed 4 times, or in a case of timeout (6 seconds) while the unit was tracing 11 tracks or more beyond the target while the search operation was converging. Backup against slider skip was executed 4 times during a search, or slider skip twice resulted in starting from the read-in point. CD : Stops, DVD : Continues operation 19 Tracing timeout while converging Timeout (10.5 seconds) while tracing at the stage of convergence of a search. Stop 1B Index 0 search error During Track (Index) Search, the search for the beginning of a program could not be completed within 3 seconds (20 seconds in the case of Index Search) after positioning based on the TOC data was completed. Stop 22 Timeout of slider inner circumference Inside switch could not ON within 3 seconds. Stop 23 Timeout of slider outer circumference Inside switch could not OFF within 2 seconds. Stop 33 No FOK pulse during playback CLVA When the focus was deviated continuously 20 times. Adjusts focus at the innermost circumference and tries to return to its position where the error was generated (for 3 times),then opens. If the same error persists after one retry, the tray opens. (No FOK pulse) 38 Disc-type- sensing error If normal starting was impossible in the following three cases, disc-type sensing will be retried if other errors occure excepting C5 error. However, when the focus error "33" was occured continuously 3 times, it is finished as "38 error" at the moment: (1) startup with the first disc-type-sensing result, (2) forced startup with another disc by designating the disc type, (3) forced startup with the original disc by designating the disc type. Open www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DV-333 FL Description of Error Causes if with a DVD Causes if with a CD Operation of the 39 SGC converge timeout SGC could not converge during detects the peak Open 41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command. Stop 48 Spindle FG transition timeout The spindle could not converge into within ± 12% of the target FG rotation speed within 10 seconds after spindle kick. The first time after startup (the first time after disc distinction), it doesn't become the number of the target rotation within five seconds. The first time after startup, detects the abnormal rotation number of high-speed continuously 3 loops. DVD: 5 to 9 mS , CD: 40 to 60 mS Stops. (FG timeout) 49 Spindle PLL transition timeout After the second times after startup, it doesn't become the number of the target rotation within five seconds. Detects the abnormal high-speed or low-speed rotations. DVD: 5 to 9 mS , CD: 40 to 60 mS Stops. ("73" is displayed during starting process.) 4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB. Stops. ("73" is displayed during starting process.) 51 Auto sequence timeout of peak ABUSY did not return within 1 second after the DDTCT (peak detection) command was sent. Stop 52 Auto sequence timeout of focus jump down ABUSY did not return within 30 mS after the FJMPD (Focus jump 1 to 0) command was sent. Stop 53 Auto sequence timeout of focus ABUSY did not return within 30 mS after the FJMPU (Focus jump 0 to 1) command was sent. Stop 54 Auto sequence timeout of play AGC ABUSY did not return within 50 mS after the GSUMON (play-AGC-measuring) command was sent. Stop 55 Auto sequence timeout of disc-type- sensing ABUSY did not return within 2 seconds after the DJSRT (disc-sensing) command was sent. Stop 56 Auto sequence timeout of ATB2 ABUSY did not return within 1 second after the TBLOFS (Internal ATB after the completion of external ATB) command was sent. Stop 57 Auto sequence timeout of tracking servo ON ABUSY did not return within 500 mS after the TSON (tracking servo ON) command was sent. Stop 58 Auto sequence timeout of ATB1 ABUSY did not return within 200 mS after the TBL (external ATB) command was sent. Stop 59 Auto sequence timeout of focus gain adjustment ABUSY did not return within 2 seconds after the FGN (focus gain adjustment) command was sent. Stop 5A Auto sequence timeout of tracking gain adjustment ABUSY did not return within 2 seconds after TGN (tracking gain adjustment) command was sent. Stop 5B Auto sequence timeout of offset adjustment ABUSY did not return within 1 second after the CMDAVE (offset adjustment) command was sent. Stop 5C Auto sequence timeout of modulation factor measurement ABUSY did not return within 200 mS after the ADJMIR (modulation factor measurement) command was sent. Stop 5D Auto sequence timeout of auto focus bias ABUSY did not return within 2 seconds after the AFB (auto focus bias) command was sent. Stop 5F Auto sequence already busy A command could not be sent because ABUSY was low. ABUSY did not return within 200 mS after TLV command was sent. Stop 62 Pause retry error Pause mode could not be restored within three retries after it had been released. Continues operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DV-333 FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 71 ID can not read during tracing An ID could not be read for 1 second or more. Stop 72 Subcode check failure during playback No frame could be read for 3 seconds or more. Stop 73 ID can not read at the startup An ID could not be read within 1 second after the AFB adjustment had been finished. Opens (ID readout failure) 74 Subcode check failure during startup No subcode could be read within 3 seconds after AFB adjustment had been finished. Opens (Subcode readout failure). 81 Timeout for reading TOC of the mechanism controller TOC readout took 30 seconds or more. Stop 82 Timeout for reading TOC of the system controller Reading TOC of the system controller took 30 seconds or more. Stop A1 Communication timeout of DSP command A command could not be issued to DSP because Command Busy (XCBUSY) was in force (XCBUSY = L) for a specified time (about 200 mS). No operation A2 Communication timeout for reading DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 200 mS) before and after a coefficient read command was issued to DSP, or the address echo-back after command issuance did not match the setup address. No operation A3 Communication timeout for writing DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 1024 mS) before and after the coefficient write command was issued to DSP. No operation A4 Communication timeout for continuously writing DSP coefficient Command Busy (XCBUSY) was in force for 200 mS during continuous coefficient writing, or before and after a continuous write command was issued to DSP. No operation B1 Timeout error for backup In the tracing state during the backup sequence, codes could not be read for 1 second or more. In the backup sequence, tracking ON sequence of the servo DSP could not be completed even if more than 500 mS after the tracking ON command was issued. Stops B2 Retry error for backup Tracing impossible after retring the tracking ON for 3 times in the backup sequence. Stops B3 Retry error for trace During tracing, runaway was detected after three iterations of backup operations for detecting runaway. Stops C3 Detection of tracking overcurrent During playback, the overcurrent detection port was at L for 300 ms or more continuously. Stops (the mechanical controller operates independently). (C5) Short-circuit test corresponding error While the power was on, the overcurrent detection port was at L for 40 ms or more continuously. Turns off the power instantly (No indication on the FL display and no writing to flash memory) E3 Violation against digital copy guard Stops F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other than Open by an external force. Closes F8 Loading timeout Loading, unloading or clamping could not be completed within a specified time (about 5 seconds). Reverses the loading direction. It timeout is repeated upon retry, the unit stops. FC Focus The following error occured eight times. (1) Focus ON sequence could not be completed even if more than two seconds after the focus ON command (to the servo DSP) was sent. (2) Focus IN sequence was finished, actually focus IN was not completed. Stops wherever possible then opens (stops in the case of side B). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DV-333 Error codes that are displayed on the FL display by using the remote control unit (Device error) To display : ESC + DISPLAY + DISPLAY ; Location of the display : At the two digits of left of the FL display FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit bit3=1 08 etc. AV1 access error (read, write NG) No operation or it becomes debugging indication if the power is able to ON. bit2=1 04 etc. MY CHIP access error bit1=1 01 etc. SRAM access error www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DV-333 7.1.6 DISASSEMBLY 1 Remove the Bonnet (Screws × 8) 5 Pull out the AC Power Cord Bonnet, Tray Panel Note 1 1 Loading Mechanism Assy 4 Test Disc Clamp 2 Front Panel Assy 3 2 Power ON 4 Power OFF 3 3 3 2 4 3 1 Tray Open (0) Remove the Connector (×2) 2 Tray Close (0) Test Disc Front Panel Assy Tray Tray Panel Disc Clamp 1 Unhook (×3) 1 Unhook (×3) (×4) 2 Loading Mechanism Assy When diagnosing the unit, be sure to use two connection cables for service. (Part No : GGD1228) DIAGNOSIS OF PCBS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DV-333 2 2 2 2 FLJB Assy Connection Cable for Service [GGD1228] Connection Cable for Service [GGD1228] DVDM Assy DVDM Assy Loading Mechanism Assy Styling of the Connection Cables 6 Diagnosis (1) 7 1 Put the AC Power Cord Diagnosis (2) 8 1 Remove the Rear Panel (Screws × 7) 2 Remove the PCBs (Screws × 8) 1 3 CN15 CN102 CN106 CN1 CN5 (×2) 4 3 2 Power ON PWSB Assy KEYB Assy POWER SUPPLY Unit FLJB Assy Short Circuit R389 5 DVDM Assy Note ; 1 : When does not short-circuit with R389, playback will not be possible after the next steps. 2 : Release the short-circuit after the Diagnosis (1) and Diagnosis (2) are completed. CN1 R389 Short circuit (Bottom View) 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DV-333 1 Remove the Bonnet (Screws × 8) DISASSEMBLY OF TRAVERSE MECHANISM ASSY-S 2 Power ON Bridge 3 3 Tray Open (0) Unhook (×2) Tray Traverse Mechanism Assy-S Float Base (Top View) 4 5 Unhook (×2) 6 Unhook (×2) 6 Remove the Traverse mechanism assy-S 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DV-333 • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. LC78652W (DVDM ASSY : IC2) • DSP IC • Block Diagram 7.2 IC •List of IC LC78652W, PD3410A, MB86373B, PE5185A 33 FE 32 TE 29 TILTE 30 RF_PH 31 RF_BH 28 JITT 26 TES 51 HFLIO 81 VPDO 15 XOUT 73 BUSYB 8 XTALOUT 100 LEFM 97 LEFM2 52 LASER 92 JV MPX Servo Processor (16×16+32→32) 8bit A/D 8bit D/A CMP Track Counter 56 PP2/EVENT Event Counter 55 FG 39 EFMIN 80 VCOC 96 DVDSYNC 14 XIN 58 CSB 94 ADRAO 60 WRB 59 RDB 91 CDFR 90 DVDFR 1 EFMOUT SLCIST1,2 FG Counter SLC CLV PLL Frame Synchronous Detection, Protection, Insertion EFM Demodulation Error Detect Correction C1-Twofold, C2-Fourfold Supplement/Mute D Attenuate Deemphasis Filter Clock Generator Command Interface 34,35 SLCO1,2 36,37 PCKIST1,2 87,88 PD01-3 83-85 P0-7 63-70 PP0-3 93 PCK For De-Interleave 16k SRAM DOUT Serial Out Sub Code Decode CRC DVD Lock Detection 74 SQOUT 47 FDO 48 TDO 45 SLDO 46 SPDO 44 TBAL 43 TILTDO 42 AUXO 24 DRF 22 FAST 95 DVDSYEQ 23 V_PB 21 FSEQ 77 WRQ 17 EMPH 4 ROMCK 5 LRSY 19 DOUT 3 ROMXA 57 RESB 2 C2F 20 EFLG 9 FSX 12 PW 18 SBSY 11 SFSY 75 CQCKB TEST1-4 76 RWC 10 SBCK 25,27 38,50 7 FBUSYB General Purpose Register 53,54 ,56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DV-333 •Pin Function . o N e m a N n i P O /I n o it c n u F 1 T U O M F E O M F E e ula v d e t a ts - y r a nib s a w t a h t e t a ts e h t t u p t u O 2 F 2 C O t u p t u o g alf 2 C 3 A X M O R O t u p t u o a t a d M O R - D C 4 K C M O R O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc tfih S 5 Y S R L O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc R / L 6 3 P P O /I t u p t u o D O - h c N t u p nila n gis .c n y s D V D / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 7 B Y S U B F O t u p t u o D O - h c N n oit a r e p o s s e c o r p P S D f o t u p t u o la n gis y s u B 8 T U O L A T X O t u p t u o k c olc m e ts y s la n r e tx E 9 X S F O t u p t u o la n gis .c n y s e m a rf 1 D C 0 1 K C B S I t u p ni k c olc t u o g nid a e r e d o c b u S 1 1 Y S F S O e d o c b u s f o t u p t u o la n gis .c n y s e m a r F 2 1 W P O t u p t u o W d n a V , U , T , S , R , Q , P e d o c b u S 3 1 S S V − nip D N G 4 1 N I X I ) z H M 4 4 3 9 . 6 1 ( r o t a n o s e r la ts y r c a tc e n n o C 5 1 T U O X O r o t a n o s e r la ts y r c a tc e n n o C 6 1 1 D D V D − tiu c ric n oit allic s o e h t f o ylp p u s r e w o p V 3 . 3 7 1 H P M E O sis a h p m e e d e h t f o nip r o tin o M 8 1 Y S B S O k c olb e d o c b u s e h t f o t u p t u o la n gis .c n y S 9 1 T U O D O t u p t u o a t a d J A I E oid u A 0 2 G L F E O 2 C d n a 1 C n oitc e rr o c r o rr e e h t f o r o tin o m e t a ts n oitc e rr o c r o rr E 1 2 Q E S F O la n gis .c n y s e m a rf D V D / D C e h t f o r o tin o m n oitc e t e D 2 2 T S A F O t u p t u o D O - h c N r o tin o m d e e p s k c a b y al P 3 2 B P _ V O lo rt n o c V L C / o v r e s h g u o r e h t f o t u p t u o r o tin o M 4 2 F R D O r o tin o m s u c o f n I 5 2 3 T S E T I 3 t u p ni ts e T 6 2 S E T I t u p nila n gis r o rr e g nik c a r T 7 2 2 T S E T I 2 t u p ni ts e T 8 2 T T IJ I L L P M F E f o t u p nila n gis g nitc e t e d ytit n a u q r e ttiJ 9 2 E T L I T I t u p nila n gis r o rr e tli T 0 3 H P _ F R I t u p nila n gis dlo h k a e p F R 1 3 H B _ F R I t u p nila n gis dlo h m o tt o b F R 2 3 E T I t u p nila n gis r o rr e g nik c a r T 3 3 E F I t u p nila n gis r o rr e s u c o F 4 3 1 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 1 nip g nitt e s t n e rr u C 5 3 2 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 2 nip g nitt e s t n e rr u C 6 3 1 O C L S O C L S r o f 1 t u p t u o lo rt n o C 7 3 2 O C L S O C L S r o f 2 t u p t u o lo rt n o C 8 3 1 T S E T I 1 t u p ni ts e T 9 3 N I M F E I t u p ni + M F E / M F E 0 4 D D V A − o v r e s r o f A / D d n a D / A f o ylp p u s r e w o p V 5 1 4 S S V A − o v r e s r o f A / D d n a D / A f o D N G 2 4 O X U A O t u p t u o y r ailix u a A D 3 4 O D T L I T O t u p t u o la n gis lo rt n o c tli T 4 4 L A B T O t u p t u o la n gis lo rt n o c e c n ala b g nik c a r T 5 4 O D L S O t u p t u o la n gis lo rt n o c d el S 6 4 O D P S O t u p t u o la n gis lo rt n o c eld nip S 7 4 O D F O t u p t u o la n gis lo rt n o c s u c o F 8 4 O D T O t u p t u o la n gis lo rt n o c g nik c a r T 9 4 F E R V − o v r e s r o f A / D f o le v el e c n e r e f e R 0 5 4 T S E T I 4 t u p ni ts e T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DV-333 . o N e m a N n i P O /I n o it c n u F n i P 1 5 O I L F H O /I t u p t u o /t u p nila n gis n oitc e t e d r o rri M 2 5 R E S A L O lo rt n o c F F O / N O r e s al r o f nip t u p t u O 3 5 B D C _ D V D / 0 P P O /I t u p t u o la n gis n oit a ni m ir c sid c si D / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 4 5 B R R E C R C / 1 P P O /I t u p t u o la n gis tlu s e r C R C e d o c b u S / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 5 5 G F I t u p ni r e t n u o c G F 6 5 T N E V E / 2 P P O /I t u p ni r e t n u o c t n e v E / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 7 5 B S E R I t u p ni t e s e R 8 5 B S C I t u p ni tc ele s pih C 9 5 B D R I t u p nila n gis g nid a e r e t a ts la n r e t n I 0 6 B R W I t u p nila n gis g nitir w a t a d / d n a m m o C 1 6 2 D D V D − ylp p u s r e w o p V 5 2 6 S S V − D N G 3 6 0 P O /I t u p t u o /t u p ni a t a d / d n a m m o C 4 6 1 P 5 6 2 P 6 6 3 P 7 6 4 P 8 6 5 P 9 6 6 P 0 7 7 P 1 7 S S V − D N G 2 7 1 D D V D − la n r e t ni r o f ylp p u s r e w o p V 3 . 3 3 7 B Y S U B O s s e c o r p d n a m m o c f o t u p t u o la n gis y s u B 4 7 T U O Q S O Q e d o c b u s f o t u p t u o lair e S 5 7 B K C Q C I t u p t u o a t a d Q e d o c b u s r o f t u p ni k c olc tfih S 6 7 C W R I Q e d o c b u s f o t u p ni n ois si m r e p e t a d p U 7 7 Q R W O Q e d o c b u s f o r o tin o m y d a e r t u o d a e R 8 7 S S V A − k c olc m e ts y s la n r e t ni r o f D N G L L P 9 7 R F P R V − k c olc m e ts y s r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 0 8 C O C V I k c olc m e ts y s r o f r e tlif L L P a tc e n n o C 1 8 O D P V O 2 8 D D V A − k c olc m e ts y s r o f ylp p u s r e w o p V 5 L L P 3 8 1 O D P O /I k c a b y alp M F E r o f 1 nip n oitc e n n o c r e tlif L L P 4 8 2 O D P O /I k c a b y alp M F E r o f 2 nip n oitc e n n o c r e tlif L L P 5 8 3 O D P O /I k c a b y alp M F E r o f 3 nip n oitc e n n o c r e tlif L L P 6 8 S S V A − k c a b y alp M F E r o f D N G L L P 7 8 1 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 1 g nitt e s t n e rr u C 8 8 2 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 2 g nitt e s t n e rr u C 9 8 D D V A − k c a b y alp M F E r o f ylp p u s r e w o p V 5 L L P 0 9 R F D V D − 1 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 1 9 R F D C − 2 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 2 9 V J O k c a b y alp M F E r o f k c olc L L P f o t u p t u o r e ttiJ 3 9 K C P O k c a b y alp M F E r o f t u p t u o k c olc ti B 4 9 O A R D A I t u p ni s s e r d d A 5 9 Q E Y S D V D I t u p ni e slu p e zin o r h c n y s D V D 6 9 C N Y S D V D I t u p nila n gis s u o n o r h c n y s D V D 7 9 2 M F E L O 2 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O 8 9 1 D D V D − O /I r o f ylp p u s r e w o p V 3 . 3 9 9 S S V − D N G 0 0 1 M F E L O 1 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DV-333 PD3410A (DVDM ASSY : IC11) • System Control IC • Pin Function . o N k r a M e m a N n i P O /I n o it c n u F 1 L S A C X / 3 S C X 3 S C X O t u p t u o la n gis tc ele s pih c ) P I H C Y M ( A 5 9 9 4 D P 2 D N G D N G − D N G 3 K C K C U P C H O . C . N 4 C C V D 3 + V − D 3 + V 5 K L C I P − O /I . C . N 6 A T A D I P − O /I . C . N 7 D N G D N G − D N G 8 0 H T R O P − O . C . N 9 1 H T R O P − O . C . N 0 1 2 H T R O P H V M 6 3 O ]le d o m Y W [ )r o t a r e n e g k c ol C ( F 8 5 1 2 U B 1 1 3 H T R O P 2 L E S _ V O la ni m r e t trik s e h t f o t u p t u o la n gis g nih cti w s S / e tis o p m o C 2 1 C C V D 3 + V − D 3 + V 3 1 4 H T R O P − O . C . N 4 1 5 H T R O P − O . C . N 5 1 6 H T R O P − O . C . N 6 1 7 H T R O P − O . C . N 7 1 D N G D N G − D N G 8 1 L A T X E L A T X E I r o t a n o s e r ci m a r e c a tc e n n o C 9 1 L A T X L A T X O 0 2 C C V D 3 + V − D 3 + V 1 2 0 G T R O P 0 F D S C X O ( t u p t u o la n gis tc ele s pih c C A D ← ) 3 T A L X 2 2 1 G T R O P − O . C . N 3 2 2 G T R O P − O . C . N 4 2 3 G T R O P − O . C . N 5 2 4 G T R O P − O . C . N 6 2 D N G D N G − D N G 7 2 5 G T R O P − O . C . N 8 2 6 G T R O P − O . C . N 9 2 7 G T R O P E T U M A X O oid u a e h t f o t u p t u o la n gis e t u m e g a ts ts a L 0 3 0 F T R O P 8 4 X 4 4 O t u p t u o la n gis g nih cti w s S F 8 4 / 4 4 C A D 1 3 1 F T R O P − I . C . N 2 3 2 F T R O P N O D 3 O t u p t u o la n gis g nih cti w s s s a p y b / N O oid u a D 3 3 3 C C V D 3 + V − D 3 + V 4 3 3 F T R O P − O . C . N 5 3 4 F T R O P T S R S V A X O tr o p t e s e r .c n y S 6 3 5 F T R O P − O . C . N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DV-333 . o N k r a M e m a N n i P O /I n o it c n u F 7 3 6 F T R O P − O . C . N 8 3 7 F T R O P E V S C X O ]le d o m Y W [ r e d o c n e o e div e h t f o t u p t u o la n gis elb a n e n oit a cin u m m o c lair e S 9 3 D N G D N G − D N G 0 4 S S V A D N G − D N G 1 4 C C V A D 3 + V − D 3 + V 2 4 P _ A T U O V R D O L O t u p t u o e vir d g nid a o L 3 4 F E R V D 3 + V − D 3 + V 4 4 P _ B T U O I E T O t u p t u o la n gis t e sff o g nik c a r T 5 4 S S V A D N G − D N G 6 4 S S V A D N G − D N G 7 4 0 E T R O P L E S _ V O t u p t u o la n gis g nih cti w s e tis o p m o c/t n e n o p m o C 8 4 1 E T R O P − I . C . N 9 4 2 E T R O P − I . C . N 0 5 3 E T R O P 1 T S F O F O /I 1 t u p t u o t n e m ts ujd a t e sff o s u c o F 1 5 4 E T R O P 2 T S F O F O /I 2 t u p t u o t n e m ts ujd a t e sff o s u c o F 2 5 5 E T R O P H N I F D X O /I t u p t u o la n gis t n u h s tc e f e D 3 5 6 E T R O P D C X / D V D O t u p t u o la n gis g nih cti w s D C / D V D 4 5 7 E T R O P N O _ 1 D L O t u p t u o la n gis N O e d oid r e s al m n 0 5 6 5 5 0 D T R O P N O _ 2 D L O t u p t u o la n gis N O e d oid r e s al m n 0 8 7 6 5 C C V D 3 + V − D 3 + V 7 5 1 D T R O P E T / D P D O t u p t u o la n gis g nih cti w s s m a e b 3 / m a e b 1 8 5 2 D T R O P F F O G A O C I F R f o t u p t u o la n gis g nih cti w s F F O / N O C G A 9 5 3 D T R O P X 2 D C X O ) D C V ( k c a b y alp d e e p s elb u o d e h t g nih cti w s r o f t u p t u o la n gi S 0 6 4 D T R O P G C I E O O t u p t u o la n gis g nih cti w s nia g C I E O 1 6 D N G D N G − D N G 2 6 5 D T R O P N O M X O t u p t u o lo rt n o c r o t o m eld nip s e h t f o t u p t u o la n gis g nih cti w s F F O / N O 3 6 6 D T R O P − O . C . N 4 6 7 D T R O P − I . C . N 5 6 0 J T R O P T U M V R D X O t u p t u o e t u m r e vir D 6 6 1 J T R O P − O . C . N 7 6 2 J T R O P T S R P S D X O t e s e r P S D o v r e S 8 6 3 J T R O P − I . C . N 9 6 C C V D 3 + V − D 3 + V 0 7 4 J T R O P T N E _ M T I y rt n e e d o m ts e T 1 7 5 J T R O P − O . C . N 2 7 6 J T R O P W S _ L E S V I t u p ni W S e tis o p m o c/t n e n o p m o C 3 7 7 J T R O P − I . C . N 4 7 2 A C O I T / 0 B P Y S U B C X I t u p ni y s u b d n a m m o C 5 7 2 B C O I T / 1 B P Y S U B A X I t u p ni y s u b e c n e u q e s - o t u A 6 7 3 A C O I T / 2 B P 2 T N I X I ) 1 - V A ( 2 t u p ni t p u rr e t n I 7 7 C C V D 3 + V − D 3 + V 8 7 3 B C O I T / 3 B P 1 T L O r ello rt n o c L F e h t o t t u p t u o la n gis e s n o p s e r n oit a cin u m m o C 9 7 4 A C O I T / 4 B P Y S B S I t u p ni .c n y s k c olb e d o c b u S 0 8 T S E T M X − I ) D 3 + V ( la ni m r e t ts e T 1 8 D M U P C X − I ) D 3 + V ( la ni m r e t ts e T 2 8 S E R X T E S E R X I t u p ni t e s e R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DV-333 . o N k r a M e m a N n i P O /I n o it c n u F 3 8 D N G D N G − D N G 4 8 0 N A S O P D O L I t u p ni n oitis o p g nid a o L 5 8 1 N A S O P D L S I t u p ni n oitis o p r e dil S 6 8 2 N A − I . C . N 7 8 3 N A W S _ P A N I t u p ni W S L A P / O T U A / C S T N 8 8 4 N A M E O X I n oitc e t o r p le d o m M E O f o la ni m r e t t u p n I 9 8 5 N A D A E D D L I y alp sid e ula v t n e rr u c D L r o f t u p n I 0 9 6 N A − I . C . N 1 9 7 N A − I . C . N 2 9 f e r v A D 3 + V − D 3 + V 3 9 C C V A D 3 + V − D 3 + V 4 9 S S V A D N G − D N G 5 9 4 B C O I T / 5 B P − I . C . N 6 9 C K L C T / 4 A X C O I T / 6 B P F 2 C I t u p ni r o rr e 2 C 7 9 D K L C T / 4 B X C O I T / 7 B P Y D R X I r ello rt n o c L F e h t m o rf t u p ni ts e u q e r n oit a cin u m m o C 8 9 0 D x R / 8 B P I S S I )r ello rt n o c L F ( t u p ni a t a d lair e S 9 9 0 D x T / 9 B P O S S O )r ello rt n o c L F ( t u p t u o a t a d lair e S 0 0 1 C C V D 3 + V − D 3 + V 1 0 1 1 D x R / 0 1 B P D X R I C 2 3 2 - S R e h t f o t u p ni a t a D 2 0 1 1 D x T / 1 1 B P D X T O C 2 3 2 - S R e h t f o t u p t u o a t a D 3 0 1 0 K C S / 4 Q R I X / 2 1 B P K C S S O /I )r ello rt n o c L F ( t u p t u o k c olc lair e S 4 0 1 1 K C S / 5 Q R I X / 3 1 B P 0 1 L Q R I X I ) P I H C Y M ( 0 # t u p ni t p u rr e t n I 5 0 1 D N G D N G − D N G 6 0 1 6 Q R I X / 4 1 B P 1 1 L Q R I X I ) P I H C Y M ( 1 # t u p ni t p u rr e t n I 7 0 1 7 Q R I X / 5 1 B P 0 T N I X I ) 1 - V A ( 0 # t u p ni t p u rr e t n I 8 0 1 0 A C O I T / 4 S C X / 0 A P 4 S C X O t u p t u o la n gis tc ele s pih c P S D o v r e S 9 0 1 S A R X / 5 S C X / 1 A P − O . C . N 0 1 1 0 B C O I T / 6 S C X / 2 A P 6 S C X O t u p t u o la n gis tc ele s pih c 1 - V A 1 1 1 T I A W X T I A W X I t u p nila n gis tia W 2 1 1 L R W X L R W X O L t u p t u o e slu p e tir W 3 1 1 D N G D N G − D N G 4 1 1 H R W X H R W X O H t u p t u o e slu p e tir W 5 1 1 D R X D R X O t u p t u o e slu p d a e R 6 1 1 K C A B X / 7 A P T E D R U C X I t u p nila n gis n oitc e t e d t n e rr u c -r e v O 7 1 1 Q E R B X / 8 A P S T C I t u p ni ti m r e p r e fs n a rt C 2 3 2 - S R 8 1 1 / T U O Q R I X / H A X / 9 A P G R T D A X R T D O t u p t u o ti m r e p r e fs n a rt C 2 3 2 - S R 9 1 1 1 A C O I T / L P D / 0 1 A P 1 T N I X I ) 1 - V A ( 1 t u p ni t p u rr e t n I 0 2 1 1 B C O I T / H P D / 1 1 A P D L H T I t u p nila n gis dlo h g nik c a r T 1 2 1 C C V D 3 + V − D 3 + V 2 2 1 / 0 K C A D / 0 Q R I X / 2 1 A P A K L C T 0 K C A D O ) P I H C Y M ( t u p t u o e s n o p s e r A M D 3 2 1 / 1 Q R I X / 3 1 A P B K L C T / 0 Q E R D X 0 Q E R D X I ) P I H C Y M ( t u p ni ts e u q e r A M D 4 2 1 1 K C A D X / 2 Q R I X / 4 1 A P 1 K C A D X O ) 1 - V A ( t u p t u o e s n o p s e r A M D 5 2 1 1 Q E R D X / 3 Q R I X / 5 1 A P 1 Q E R D X I ) 1 - V A ( t u p ni ts e u q e r A M D 6 2 1 0 D A 0 D O /I 0 s u b a t a D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DV-333 . o N k r a M e m a N n i P O /I n o it c n u F 7 2 1 D N G D N G − D N G 8 2 1 1 D A 1 D O /I 1 s u b a t a D 9 2 1 2 D A 2 D O /I 2 s u b a t a D 0 3 1 3 D A 3 D O /I 3 s u b a t a D 1 3 1 4 D A 4 D O /I 4 s u b a t a D 2 3 1 5 D A 5 D O /I 5 s u b a t a D 3 3 1 6 D A 6 D O /I 6 s u b a t a D 4 3 1 C C V D 3 + V − D 3 + V 5 3 1 7 D A 7 D O /I 7 s u b a t a D 6 3 1 8 D A 8 D O /I 8 s u b a t a D 7 3 1 9 D A 9 D O /I 9 s u b a t a D 8 3 1 0 1 D A 0 1 D O /I 0 1 s u b a t a D 9 3 1 D N G D N G − D N G 0 4 1 1 1 D A 1 1 D O /I 1 1 s u b a t a D 1 4 1 2 1 D A 2 1 D O /I 2 1 s u b a t a D 2 4 1 3 1 D A 3 1 D O /I 3 1 s u b a t a D 3 4 1 4 1 D A 4 1 D O /I 4 1 s u b a t a D 4 4 1 C C V D 3 + V − D 3 + V 5 4 1 5 1 D A 5 1 D O /I 5 1 s u b a t a D 6 4 1 ) S B H X ( 0 A 0 A O 0 s u b s s e r d d A 7 4 1 1 A 1 A O 1 s u b s s e r d d A 8 4 1 2 A 2 A O 2 s u b s s e r d d A 9 4 1 D N G D N G − D N G 0 5 1 3 A 3 A O 3 s u b s s e r d d A 1 5 1 4 A 4 A O 4 s u b s s e r d d A 2 5 1 5 A 5 A O 5 s u b s s e r d d A 3 5 1 6 A 6 A O 6 s u b s s e r d d A 4 5 1 7 A 7 A O 7 s u b s s e r d d A 5 5 1 8 A 8 A O 8 s u b s s e r d d A 6 5 1 9 A 9 A O 9 s u b s s e r d d A 7 5 1 0 1 A 0 1 A O 0 1 s u b s s e r d d A 8 5 1 1 1 A 1 1 A O 1 1 s u b s s e r d d A 9 5 1 2 1 A 2 1 A O 2 1 s u b s s e r d d A 0 6 1 3 1 A 3 1 A O 3 1 s u b s s e r d d A 1 6 1 4 1 A 4 1 A O 4 1 s u b s s e r d d A 2 6 1 5 1 A 5 1 A O 5 1 s u b s s e r d d A 3 6 1 6 1 A 6 1 A O 6 1 s u b s s e r d d A 4 6 1 7 1 A 7 1 A O 7 1 s u b s s e r d d A 5 6 1 C C V D 3 + V − D 3 + V 6 6 1 8 1 A 8 1 A O 8 1 s u b s s e r d d A 7 6 1 9 1 A 9 1 A O 9 1 s u b s s e r d d A 8 6 1 0 2 A 0 2 A O ]le d o m M A R [ 0 2 s u b s s e r d d A 9 6 1 1 2 A 1 2 A O . C . N 0 7 1 I M N X I M N X I D 3 + V 1 7 1 D N G D N G − D N G 2 7 1 0 1 S C X − O . C . N 3 7 1 0 2 S C X 0 2 S C X O M O R h s alf e h t f o t u p t u o la n gis tc ele s pih C 4 7 1 2 2 S C X − O ]le d o m M E O [ M O R I U G e h t f o t u p t u o la n gis tc ele s pih C 5 7 1 3 2 S C X 3 2 S C X O M A R S e h t f o t u p t u o la n gis tc ele s pih C 6 7 1 2 S C X − O . C . N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DV-333 MB86373B (DVDM ASSY : IC18) • MPEG2 Decoder IC • Block Diagram Memory Controller Block Audio Clock Generation Block System Clock Generation Block Control Block Video Decoder Block Sync. Control Block Reset Signal Starting Signal NTSC/PAL Video Encoder DAC OSD Sub- picture MIX Audio Decoder Block System Clock Clock for video Clock for audio LPF VCO Clock Signal Video Output (Y,C,Comp/Y,Cb,Cr) Digital Signal Output (Component/ Composite) System Decoder Block CPU Interface CPU Clock Generation Block 27MHz Audio Output Internal Bus Reset Signal 16Mbit SDRAM Exclusive Parallel port Input Signal Picture Block Whole Control Block Video Output Block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DV-333 • Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 L E S K L C I ) F F O : " L " , N O : " H "( L L P f o la n gis F F O / N O 7 2 D D V − ylp p u s r e w o p V 5 . 2 2 7 N P C G I D O ) B S M ( t u p t u o la n gis t n e n o p m o c la tigi D ) B S M ( )tib - 9 ( t u p t u o la n gis Y la tigi D 8 2 4 P M O C G I D O t u p t u o la n gis e tis o p m o c la tigi D t u p t u o la n gis C la tigi D 3 S S V − D N G 9 2 3 P M O C G I D 4 6 N P C G I D O t u p t u o la n gis t n e n o p m o c la tigi D )tib - 9 ( t u p t u o la n gis Y la tigi D 0 3 2 P M O C G I D 5 5 N P C G I D 1 3 1 P M O C G I D 6 4 N P C G I D 2 3 0 P M O C G I D ) B S L ( t u p t u o la n gis e tis o p m o c la tigi D ) B S L ( t u p t u o la n gis C la tigi D 7 3 N P C G I D 3 3 K C A D O t u p t u o k c olc z H M 7 2 8 2 N P C G I D 4 3 . C . N − n oitc e n n o c n o N 9 1 N P C G I D 5 3 3 A S S V − )r e tr e v n o c A / D ( D N G 0 1 D D V − ylp p u s r e w o p V 5 . 2 6 3 C A N A O la n gis t u p t u o ) C ( r olo c g ola n A 1 1 0 N P C G I D O ) B S L ( t u p t u o la n gis t n e n o p m o c la tigi D ) B S L ( )tib - 9 ( t u p t u o la n gis Y la tigi D 7 3 3 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 2 1 L E S B R O la tigid e h t t a la n gis n oit a ni m ir c sid r C d n a b C .t u p t u o la n gis t n e n o p m o c .t u p t u o la n gis Y la tigid e h t t a B S L 8 3 2 A S S V − )r e tr e v n o c A / D ( D N G 3 1 S H X O la n gis t u p t u o .c n y s la t n o zir o H 9 3 Y A N A O la n gis t u p t u o ) Y ( e c n a ni m ul g ola n A 4 1 S V X O la n gis t u p t u o .c n y s la citr e V 0 4 2 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 5 1 S S V − D N G 1 4 F E R V I r e tr e v n o c A / D r o f e g a tlo v e c n e r e f e R 6 1 T E S E R X I la n gis t e s e r I S L 2 4 O R V O r e tr e v n o c A / D f o nip g nitt e s t n e rr u c la n r e t n I 7 1 C N Y S C D L X I ) e d o m D L ( t u p nila n gis .c n y s la n r e tx E 3 4 4 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 8 1 Y E K O y alr e v o D S O d n a D L r o f la n gis Y E K ) e d o m D L ( 4 4 1 A S S V − )r e tr e v n o c A / D ( D N G 9 1 D P O f o la n gis t u p t u o tlu s e r n o sir a p m o c e s a h P ) e d o m D L ( .c n y s la t n o zir o h 5 4 P M O C A N A O la n gis t u p t u o e tis o p m o c g ola n A 0 2 D L F V O la n gis la tigid e h t t a la n gis n oit a ni m ir c sid dlei F dleif d d o : L dleif n e v e : H t u p t u o 6 4 1 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 1 2 9 P M O C G I D O ) B S M ( t u p t u o la n gis e tis o p m o c la tigi D ) B S M ( t u p t u o la n gis C la tigi D 7 4 F B O la n gis g alf ts r u B 2 2 8 P M O C G I D t u p t u o la n gis e tis o p m o c la tigi D t u p t u o la n gis C la tigi D 8 4 K L B X O la n gis g nik n alb e tis o p m o c V / H 3 2 7 P M O C G I D 9 4 4 T S E T O ." n e p o " o t t e s ,ylla m r o N 4 2 6 P M O C G I D 0 5 S S V − D N G 5 2 5 P M O C G I D 1 5 0 T S E T I ." n e p o " o t t e s ,ylla m r o N 6 2 S S V − D N G 2 5 1 T S E T I ylla m r o n s u t a ts " L " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DV-333 . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 3 5 N II A D I ) F I D P S ( t u p nila n r e tx e f o t u p ni a t a d la tigi D 2 9 0 1 S R D A H I ) B S M ( la n gis s u b s s e r d d a U P C 4 5 A T A D D C I t u p nila n r e tx e f o t u p ni a t a d oid u A ) D C o t d n o p s e rr o c ( 3 9 9 S R D A H I la n gis s u b s s e r d d a U P C 5 5 R L D C I t u p nila n r e tx e f o t u p ni k c olc le n n a h c a t a D ) D C o t d n o p s e rr o c ( 4 9 8 S R D A H 6 5 K C B D C I t u p nila n r e tx e f o t u p ni k c olc a t a D ) D C o t d n o p s e rr o c ( 5 9 7 S R D A H 7 5 3 A T A D O A O a t a d e d o c e d oid u A 6 9 S S V − D N G 8 5 2 A T A D O A 7 9 D D V − ylp p u s r e w o p V 5 . 2 9 5 1 A T A D O A 8 9 6 S R D A H I la n gis s u b s s e r d d a U P C 0 6 S S V − D N G 9 9 5 S R D A H 1 6 D D V − ylp p u s r e w o p V 5 . 2 0 0 1 4 S R D A H 2 6 0 A T A D O A O a t a d e d o c e d oid u A 1 0 1 3 S R D A H 3 6 M C P O A O t u p t u o e c a fr e t ni oid u a la tigi D ) a t a d n ois s e r p m o c ( 2 0 1 2 S R D A H ) B S L ( la n gis s u b s s e r d d a U P C 4 6 I A D O A O ) a t a d e d o c e d ( t u p t u o e c a fr e t ni oid u a la tigi D 3 0 1 5 1 A T A D H O /I ) B S M ( la n gis s u b a t a d U P C 5 6 K C R L O r e tlif la tigid d n a A / D r o f k c olc le n n a h c a t a D 4 0 1 4 1 A T A D H la n gis s u b a t a d U P C 6 6 K C M O A O r e tlifla tigid d n a A / D r o f k c olc r e ts a M 5 0 1 3 1 A T A D H 7 6 K C B O r e tlifla tigid d n a A / D r o f k c olc ti B 6 0 1 2 1 A T A D H 8 6 2 T S E T I ." n e p o " o t t e s ,ylla m r o N 7 0 1 S S V − D N G 9 6 3 T S E T 8 0 1 1 1 A T A D H O /I la n gis s u b a t a d U P C 0 7 C N − n oitc e n n o c n o N 9 0 1 0 1 A T A D H 1 7 T S R P S D X I ." n e p o " o t t e s ,ylla m r o N 0 1 1 9 A T A D H 2 7 S S V − D N G 1 1 1 8 A T A D H 3 7 5 T S E T O ." n e p o " o t t e s ,ylla m r o N 2 1 1 7 A T A D H 4 7 C N − ." n e p o " o t t e s ,ylla m r o N 3 1 1 6 A T A D H 5 7 C N 4 1 1 D D V − ylp p u s r e w o p V 5 . 2 6 7 C N 5 1 1 5 A T A D H O /I la n gis s u b a t a d U P C 7 7 C N 6 1 1 4 A T A D H 8 7 7 D S I t u p ni a t a d lella r a P 7 1 1 3 A T A D H 9 7 D D V − ylp p u s r e w o p V 5 . 2 8 1 1 2 A T A D H 0 8 6 D S I t u p ni a t a d lella r a P 9 1 1 S S V − D N G 1 8 5 D S 0 2 1 1 A T A D H O /I la n gis s u b a t a d U P C 2 8 4 D S 1 2 1 0 A T A D H ) B S L ( la n gis s u b a t a d U P C 3 8 3 D S 2 2 1 L E S S U B I la n gis n oitc ele s h t di w s u B ) s u b tib - 6 1 : 1 ,s u b tib - 8 : 0 ( 4 8 2 D S 3 2 1 K C A D S O X I la n gis e g d el w o n k c a a t a d D S O 5 8 S S V − D N G 4 2 1 Q E R D S O X O la n gis ts e u q e r a t a d D S O 6 8 1 D S I t u p ni a t a d lella r a P 5 2 1 1 L E S U P C H I , C R A P S : 0 0 ( la n gis n oitc ele s U P C ) e v r e s e R : 1 1 , m e ts y s 8 6 : 0 1 , m e ts y s 6 8 : 1 0 7 8 0 D S 6 2 1 0 L E S U P C H 8 8 R R E X I la n gis t u p ni r o rr E 7 2 1 3 T N I X O U P C e h t o t la n gis ts e u q e r t p u rr e t n I 9 8 K C A S X I la n gis e g d el w o n k c A 8 2 1 2 T N I X 0 9 T S E T X I e s u la m r o n t a " H " o t t e S 9 2 1 1 T N I X 1 9 Q E R S O la n gis ts e u q e r a t a D 0 3 1 S S V − D N G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DV-333 . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 3 1 D D V − ylp p u s r e w o p V 5 . 2 0 7 1 S A C R D M X O M A R D S r o fla n gis S A C 2 3 1 0 T N I X O U P C o tla n gis ts e u q e r t p u rr e t n I 1 7 1 1 M Q D R D M X O r o fla n gis elb a n e t u p t u o / k s a m t u p n I M A R D S 3 3 1 Y D R T X E X O U P C o tla n gis y d a e R : m e ts y s 8 6 , C R A P S o tla n gis ) K C A ( e g d el w o n k c A : m e ts y s 6 8 U P C 2 7 1 S S V − D N G 4 3 1 W R H I la n gis e tir w / d a e r U P C 3 7 1 E W R D M X O M A R D S r o fla n gis elb a n e e tir W 5 3 1 N I K L C H I t u p ni k c olc ts o H 4 7 1 0 M Q D R D M X O r o fla n gis elb a n e t u p t u o / k s a m t u p n I M A R D S 6 3 1 S C H X I la n gis tc ele s pih c I S L 5 7 1 8 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 7 3 1 S A H X I e b o rts s s e r d d a U P C : m e ts y s 8 6 , C R A P S s u t a ts s s e r d d a U P C : m e ts y s 6 8 6 7 1 S S V − D N G 8 3 1 3 E B H X I la n gis elb a n e e ty b U P C 7 7 1 7 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 9 3 1 2 E B H X 8 7 1 9 T A D R D M 0 4 1 1 E B H X 9 7 1 6 T A D R D M 1 4 1 0 E B H X 0 8 1 0 1 T A D R D M 2 4 1 S S V − D N G 1 8 1 5 T A D R D M 3 4 1 4 R D A R D M O M A R D S r o fla n gis s s e r d d A 2 8 1 S S V − D N G 4 4 1 3 R D A R D M 3 8 1 D D V − ylp p u s r e w o p V 5 . 2 5 4 1 5 R D A R D M 4 8 1 1 1 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 6 4 1 2 R D A R D M 5 8 1 4 T A D R D M 7 4 1 D D V − ylp p u s r e w o p V 5 . 2 6 8 1 2 1 T A D R D M 8 4 1 S S V − D N G 7 8 1 3 T A D R D M 9 4 1 6 R D A R D M O M A R D S r o fla n gis s s e r d d A 8 8 1 3 1 T A D R D M 0 5 1 1 R D A R D M 9 8 1 S S V − D N G 1 5 1 7 R D A R D M 0 9 1 2 T A D R D M O /I M A R D S r o fla n gis s u b a t a D 2 5 1 0 R D A R D M ) B S L ( M A R D S r o fla n gis s s e r d d A 1 9 1 4 1 T A D R D M 3 5 1 8 R D A R D M M A R D S r o fla n gis s s e r d d A 2 9 1 1 T A D R D M 4 5 1 S S V − D N G 3 9 1 5 1 T A D R D M ) B S M ( M A R D S r o fla n gis s u b a t a D 5 5 1 6 T S E T I ylla m r o n s u t a ts " L " 4 9 1 0 T A D R D M O /I ) B S L ( M A R D S r o fla n gis s u b a t a D 6 5 1 7 T S E T 5 9 1 S S V − D N G 7 5 1 8 T S E T 6 9 1 . C . N − n oitc e n n o c n o N 8 5 1 9 T S E T 7 9 1 M 7 2 K C I I t u p ni k c olc m e ts y S 9 5 1 0 1 R D A R D M O M A R D S r o fla n gis s s e r d d A 8 9 1 S S V − D N G 0 6 1 9 R D A R D M 9 9 1 M 7 2 K C O O t u p t u o k c olc m e ts y S 1 6 1 1 1 R D A R D M ) B S M ( M A R D S r o fla n gis s s e r d d A 0 0 2 ) O C V ( A S S V − ) yln o O C V r o f( D N G 2 6 1 S C R D M X O M A R D S r o fla n gis tc ele s pih C 1 0 2 ) O C V ( A D D V − ) yln o O C V r o f( ylp p u s r e w o p V 5 . 2 3 6 1 E K C R D M O M A R D S r o fla n gis elb a n e k c ol C 2 0 2 F P L I O oid u a r o f t u p t u o r e tr e v ni k c olb L L P 4 6 1 S S V − D N G 3 0 2 F P L M I oid u a r o f t u p ni r e tr e v ni k c olb L L P 5 6 1 D D V − ylp p u s r e w o p V 5 . 2 4 0 2 F P L O O oid u a r o f t u p t u o r o tc e t e d e s a h P 6 6 1 S A R R D M X O M A R D S r o fla n gis S A R 5 0 2 O C V O I k c olc oid u a r o f t u p ni O C V 7 6 1 K L C R D M O M A R D S r o fla n gis t u p t u o k c ol C 6 0 2 S S V − D N G 8 6 1 S S V − D N G 7 0 2 T S R L L P X I la n gis t e s e r n oitc e s L L P 9 6 1 N I K L C R D M I M A R D S r o fla n gis t u p ni k c ol C 8 0 2 T S R C N Y S X I la n gis t e s e r C N Y S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DV-333 PE5185A (FLJB ASSY : IC101) • FL Control IC • Pin Function . o N k r a M e m a N n i P O /I n o it c n u F e v it c A 1 4 9 P 7 G O t u p t u o g ni m it L F N O : H 2 3 9 P 6 G 3 2 9 P 5 G 4 1 9 P 4 G 5 0 9 P 3 G 6 1 8 P 2 G 7 0 8 P 1 G 8 D D V ) V 5 ( − − 9 7 2 P 1 T E S L F I g nitt e s e b u t L F 0 1 6 2 P 2 T E S L F 1 1 5 2 P T E S Y E K I g nitt e s r e b m u n n oisivid y e K 2 1 4 2 P ) C N ( O − 3 1 3 2 P Y D A E R X O C I lo rt n o c m e ts y s h ti w e nil g nik a h s d n a h n oit a cin u m m o C n ois si m r e p n oit a cin u m m o C : L 4 1 2 2 P K C S O /I C I lo rt n o c m e ts y s h ti w t u p t u o k c olc n oit a cin u m m o C 5 1 1 2 P O S O /I C I lo rt n o c m e ts y s h ti w t u p t u o a t a d n oit a cin u m m o C 6 1 0 2 P I S I C I lo rt n o c m e ts y s h ti w t u p ni a t a d n oit a cin u m m o C 7 1 T E S E R N I T E S E R I t u p ni t e s e R t e s e R : L 8 1 4 7 P ) C N ( O − 9 1 3 7 P 0 2 S S V A ) D N G ( − − 1 2 7 1 P ) D N G ( I ) d e s u n U ( 2 2 6 1 P ) D N G ( 3 2 5 1 P − I − 4 2 4 1 P 2 N I K I t u p ni y e K 5 2 3 1 P 1 N I K 6 2 2 1 P 0 N I K 7 2 1 1 P 1 S M I t u p ni n oitc nitsid g nic u d n I 8 2 0 1 P 0 S M I t u p ni n oitc nitsid le d o M 9 2 D D V A ) V 5 ( − − 0 3 F E R V A ) V 5 ( − − 1 3 4 0 P ) D N G ( I ) d e s u n U ( 2 3 2 T X ) C N ( − − 3 3 S S V ) D N G ( − − 4 3 1 X 1 X I n oitc e n n o c k c olc r e t u p m o c o r ci M 5 3 2 X 2 X − 6 3 7 3 P ) C N ( O − 7 3 6 3 P 8 3 5 3 P 9 3 4 3 P A R A K / L A M R O N I ]le d o m M A R [ n oitc e t e d e c n e tsix e e n o h p o r ci M g niv a h e n o h p o r ci M : H 0 4 3 3 P ) C N ( O − www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DV-333 . o N k r a M e m a N n i P O /I n o it c n u F e v it c A 1 4 2 3 P N O R E W O P O F F O / N O V 5 W S N O : H 2 4 1 3 P T U O T E S E R O t u p t u o t e s e r m e ts y S t e s e R : L 3 4 0 3 P ) C N ( O − 4 4 3 0 P S E T I d e g g u b e d si C I lo rt n o c m e ts y s n e h w g nitt e S g nig g u b e d t A : H 5 4 2 0 P R E W O P N O I C I lo rt n o c L F f o e m it e h t t a h cti w s N O R E W O P / Y B T S p u g nid n a ts Y B T S : L 6 4 1 0 P T L I C I lo rt n o c m e ts y s h ti w e nil g nik a h s d n a h n oit a cin u m m o C n ois si m r e p n oit a cin u m m o C : H 7 4 0 0 P R I L E S I t u p nila n gis lo rt n o c e t o m e R 8 4 C I C I − − 9 4 2 7 P ) C N ( O − 0 5 1 7 P 1 5 0 7 P 2 5 D D V ) V 5 ( − − 3 5 7 2 1 P D E L N O . P O F F O / N O D E L Y B D N A T S N O : H 4 5 6 2 1 P M E O O t u p ni n oitc nitsid le d o m M E O M E O : H 5 5 5 2 1 P D E L F F O L F O F F O / N O D E L F F O L F N O : H 6 5 4 2 1 P ) C N ( O − 7 5 3 2 1 P 8 5 2 2 1 P 9 1 P O t u p t u o t n e m g e s L F N O : H 9 5 1 2 1 P 8 1 P 0 6 0 2 1 P 7 1 P 1 6 7 1 1 P 6 1 P 2 6 6 1 1 P 5 1 P 3 6 5 1 1 P 4 1 P 4 6 4 1 1 P 3 1 P 5 6 3 1 1 P 2 1 P 6 6 2 1 1 P 1 1 P 7 6 1 1 1 P 0 1 P 8 6 0 1 1 P 9 P 9 6 7 0 1 P 8 P 0 7 6 0 1 P 7 P 1 7 D A O L V V 7 2 - − V 7 2 - r o f t u p n I N O : H 2 7 5 0 1 P 6 P O t u p t u o t n e m g e s L F N O : H 3 7 4 0 1 P 5 P 4 7 3 0 1 P 4 P 5 7 2 0 1 P 3 P 6 7 1 0 1 P 2 P 7 7 0 0 1 P 1 P 8 7 7 9 P 0 1 G O t u p t u o g ni m it L F N O : H 9 7 6 9 P 9 G 0 8 5 9 P 8 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 DV-333 8. PANEL FACILITIES AND SPECIFICATIONS 8.1 PANEL FACILITIES 1 STANDBY/ON switch Press to switch the player on or to put in standby. 2 Disc tray When loading a disc, place discs in the disc tray with the label side facing up. 3 0 (open/close) button Press to open and close the disc tray. 4 7 (stop) button Press to stop playback. Pressing once enables playback to resume from a point shortly before the location where it stopped. Pressing twice causes the disc to return to the beginning of the disc if playback starts again. 5 8� (pause) button Press during playback to pause. Press again to resume playback. 6 3 (play) button Press to start or resume playback. 7 ¡ ¢ (forward) button Press to advance to chapters/tracks. Press and hold to perform fast-forward scanning. 8 4 1 (reverse) button Press to go back to previous chapters/tracks. Press and hold to perform reverse playback scanning . 9 Remote sensor Point the remote control toward the remote sensor to operate the player. 0 Display window Displays system information. Front Panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 DV-333 Display Window 1 VCD indicator VCD lights when a Video CD is loaded. CD lights when an audio CD is loaded. 2 DVD indicator Lights when a DVD is loaded. 3 indicator Indicates Multi-Angle playback is in progress. 4 TITLE indicator Indicates a title number is being displayed. 5 TRK indicator Indicates a track number is being displayed. 6 CHP indicator Indicates a chapter number is being displayed. 7 GUI indicator Indicates an on-screen menu operation is being performed. 8 REMAIN indicator Indicates that the remaining playback time of a title or chapter/ track is being displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DV-333 Rear Panel 1 COMPONENT VIDEO OUT jacks If your TV or monitor has component video inputs, you can produce a higher quality picture on your TV or monitor by connecting to the component video outputs on this unit. When using these jacks, be sure to set VIDEO OUT SELECT to the right position. 2 DIGITAL OUT jack (coaxial) Use to output the digital audio signal recorded on discs. You can output the digital signal via either coaxial output jack to an AV amplifier or receiver. 3 VIDEO OUT SELECT switch Use to set which output is used to output the video signals. Select either video/S-video or component video signal output depending on the connections you make. 4 DIGITAL OUT jack (optical (OPT.)) Use to output the digital audio signal recorded on discs. You can output the digital signal via either optical output jack to an AV amplifier or receiver. 5 CONTROL IN jack Use to connect this player to another component bearing the Pioneer Î mark. This lets you control this unit as though it were a component in a system. Player operations are then performed by pointing the remote control at the component that the player is connect to. 6 AC IN power cord connection terminal Use to connect the power cord to the wall outlet. 7 S-VIDEO OUT jack If your TV or monitor has an S-video input, clear picture reproduction is possible by connecting the player to your TV or monitor via the S-Video jack. When using this output, be sure to set VIDEO OUT SELECT to the left position. 8 VIDEO OUT jack Connect to the video input on a TV or monitor or AV amplifier or receiver with video input capability. When using this output, be sure to set VIDEO OUT SELECT to the left position. 9 AUDIO OUT jacks Use to output two-channel audio (analog) to the audio stereo inputs on a TV or stereo amplifier. If you are connecting to a receiver that has both digital and analog input jacks for DVD player connection, it may be beneficial to make both connections. COMPONENT VIDEO OUT DIGITAL OUT AUDIO OUT VIDEO OUT S-VIDEO OUT VIDEO OUT SELECT DIGITAL OUT OPT CONTROL IN AC IN Y PB PR L R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DV-333 (Buttons indicated with * are used for menu operation.) 1 LAST MEMORY button You can resume DVD or Video CD playback from the point you last watched even if the disc is removed from the player. Press LAST MEMORY during playback to set a Last Memory point. When you want to resume playback of that disc, press LAST MEMORY in the stop mode and playback starts from the memorized point. Last Memory locations can be stored for up to 5 DVDs and 1 Video CD. 2 (standby/on) button Press to switch the player on or to put in standby. 3 AUDIO button Press repeatedly to select one of the audio languages and/or audio formats programmed on a DVD. For Video CD and CD, each press changes the audio output as follows. 4 SUBTITLE button Press repeatedly to select one of the subtitle languages programmed on a DVD or to turn the subtitles off. 5 SETUP button* Press when the player is in either play or stop mode to open and close the Setup screen. 6 MENU button* Use to display or close the DVD menu screen. 7 DISPLAY button Press during playback to display statistical disc information. Press repeatedly to display different information. 8 Cursor buttons (2/3/5/∞)* Use to move through the options on menu screens and to change settings. 9 ENTER button* Use to implement settings selected with the cursor buttons or to set items highlighted in a menu. 0 PREV 4� (previous) During playback, press PREV 4 to go back to a previous chapter/track. - STOP 7 button Press to stop playback. Pressing once enables playback to resume from a point shortly before the location where it was stopped. Pressing twice causes the disc to return to the beginning of the disc when playback starts again. Remote Control = Stereo = 1/L (Left) = 2/R (Right) ¶� ¶� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 DV-333 ¡ 1 REV FWD ¡ (fast reverse/forward) buttons During playback of DVD and Video CD, press FWD ¡ to perform fast forward scanning. Press REV 1 to perform fast reverse scanning of DVD and Video CD. When a CD is loaded, audio scanning is performed. ™ CLEAR button Works in conjunction with a number of player functions. Use to cancel repeat and random playback, and to edit programs. £ SEARCH MODE button Press to perform a title, chapter/track or elapsed time search. = e� STEP/SLOW E buttons Press STEP/SLOW E during playback to view slow playback. In pause mode, press STEP/SLOW E to advance DVDs and Video CDs frame by frame and STEP/SLOW e to back up a few frames at a time. ~ Number buttons (1-9, 0, +10)* Use to perform direct title and chapter/track searches, and to input numerical values. ! RANDOM button Press to play chapters/tracks in random order. @ PROGRAM button You can program titles, chapters, or tracks to play back in a desired order. Programs can be a maximum of 24 steps. Additionally, DVD programs for up to 24 discs can be stored in the player’s memory for future use. # CONDITION MEMORY button You can store in memory the settings for up to 15 DVDs. Press CONDITION MEMORY during DVD playback to memorize the settings. $ OPEN/CLOSE button Press to open or close the disc tray. % ANGLE button Some DVDs are recorded with various camera angle playback options. Press ANGLE repeatedly to display different camera angles. ^ REPEAT button Press once to repeat playback of current chapter/track. Press twice to repeat playback of current title. & REPEAT A-B button Press at the beginning and end of the section you want to repeat or to mark a location you want to return to. * TOP MENU button* Press to call up the top menu programmed on the DVD. Depending on the DVD, the top menu may be identical to the DVD menu. ( RETURN button* Use to go one menu back (current settings are maintained). Use RETURN when you do not want to change the option setting in a menu. ) NEXT ¢ During playback, press NEXT ¢ to advance to the next chapter/track. _ PLAY 3 button Press to start disc playback. + PAUSE 8 button Press to pause playback of a disc. Press again to resume playback. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DV-333 8.2 SPECIFICATIONS * Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works, © 1992-1997 Dolby Laboratories. All rights reserved. ** "DTS" and "DTS Digital" are trademarks of Digital Theater System, Inc. Specifications General System ...................... DVD system and Compact Disc digital audio system Power requirements .............................................. AC 120 V, 60 Hz Power consumption ................................................................. 10 W Power consumption in standby mode ........................ less than 1 W Weight ........................................................................... 2.7 kg (6 lb) Dimensions ................................... 420 (W) x 281 (D) x 104 (H) mm (16 9/16 (W) x 11 1/8 (D) x 4 1/8 (H) in.) (Not including protruding cables, etc.) Operating temperature .................. +5°C to +35°C (+36°F to +96°F) Operating humidity ............................ 5% to 85% (no condensation) S-Video output Y (luminance) - Output level ...................................... 1 Vp-p (75 Ω) C (color) - Output level ........................................ 286 mVp-p (75 Ω) Jacks .......................................................................... S-VIDEO jack Video output Output level ................................................................ 1 Vp-p (75 Ω) Jacks ................................................................................. RCA jack Component video output (Y, PB, PR) Output level .......................................................... Y: 1.0 Vp-p (75 Ω) PB, PR: 0.7 Vp-p (75 Ω) Jacks ............................................................................... RCA jacks Audio output Output level During audio output .............................. 200 mVrms (1 kHz, –20 dB) Number of channels ....................................................................... 2 Jacks ............................................................................... RCA jacks Digital audio characteristics Frequency response .....................4 Hz to 44 kHz (DVD fs: 96 kHz) S/N ratio ................................................................................ 115 dB Dynamic range ...................................................................... 102 dB Total harmonic distortion ...................................................... 0.002% Wow and flutter .............................................. Limit of measurement (±0.001% W. PEAK) or lower Digital output Optical digital output ........................................... Optical digital jack Coaxial digital output ......................................................... RCA jack Other terminals CONTROL IN ...........................................................Minijack (3.5 ø) Accessories Remote control unit ........................................................................ 1 AA (R6P) dry cell batteries ............................................................. 2 Audio cord ...................................................................................... 1 Video cord ...................................................................................... 1 Power cord ..................................................................................... 1 Operating Instructions .................................................................... 1 Note The specifications and design of this product are subject to change without notice, due to improvement. Audio Cord (L=1.5m): VDE1052 (KUXJ, KCXJ) VDE1054 (KUXQ) Video Cord (L=1.5m): VDE1053 (KUXJ, KCXJ) VDE1055 (KUXQ) Power Cord: ADG7022 Remote Control Unit: VXX2702 Dry Cell Battery (R6P,AA): VEM-013 (KUXJ, KCXJ) VEM1010 (KUXQ) White Red Yellow Accessories ¶� ¶� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
