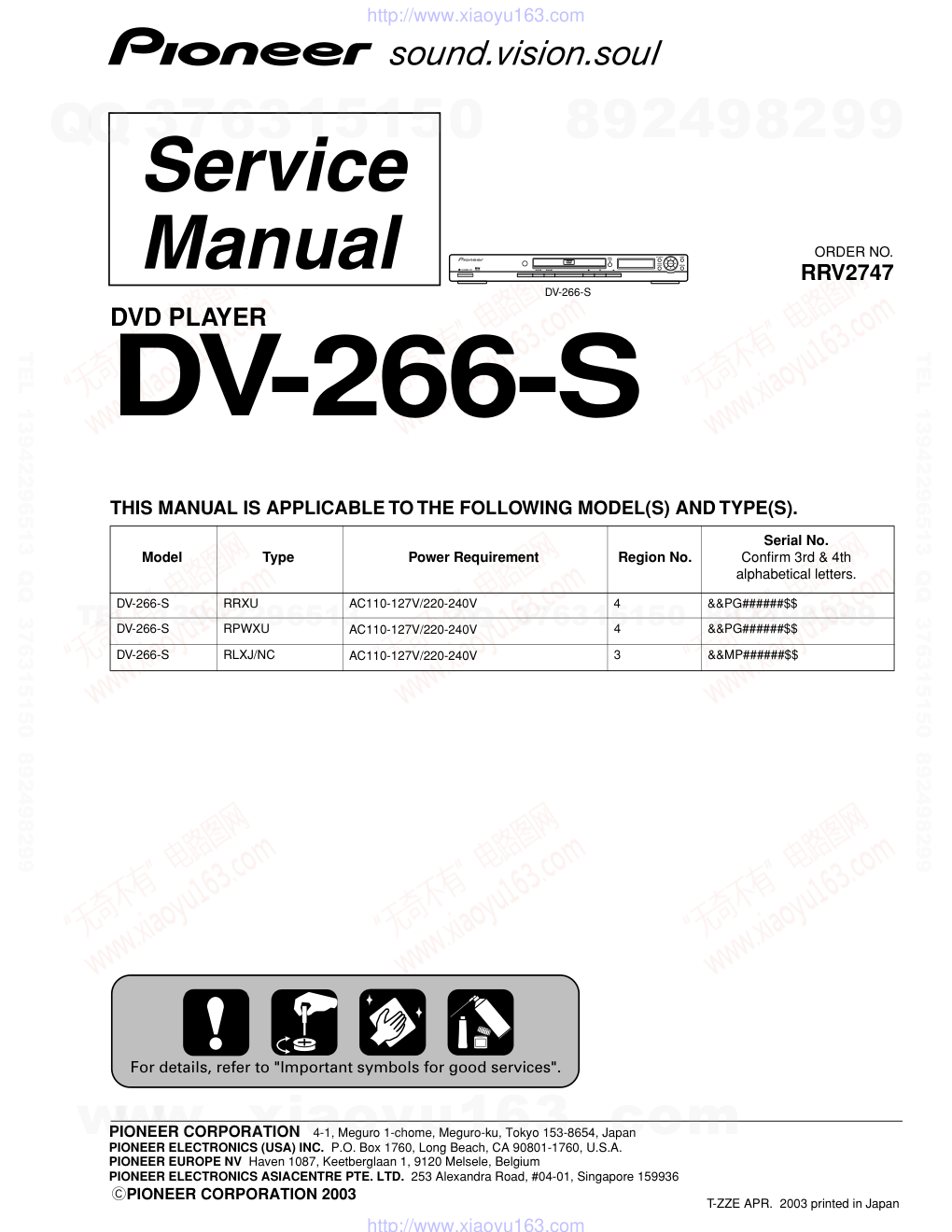

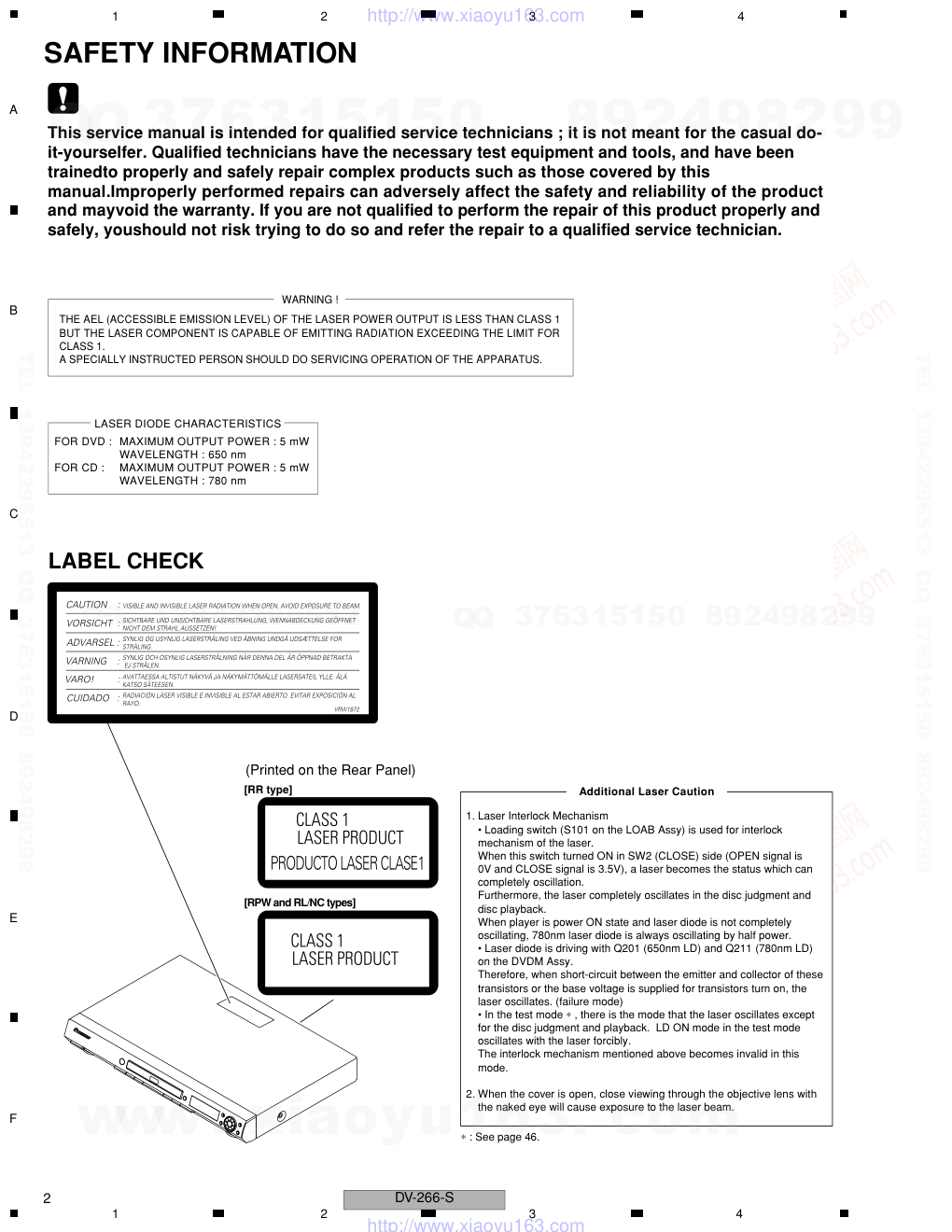

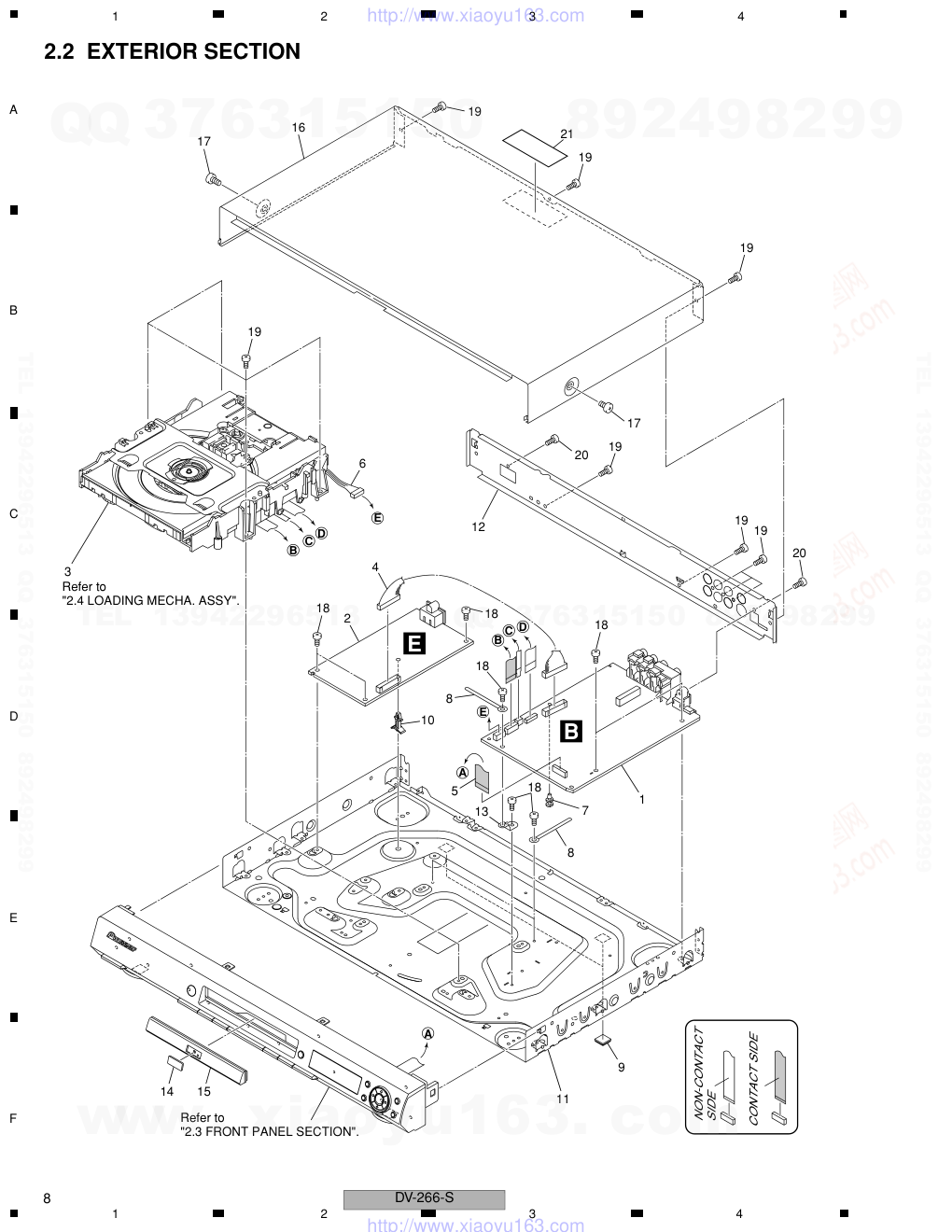

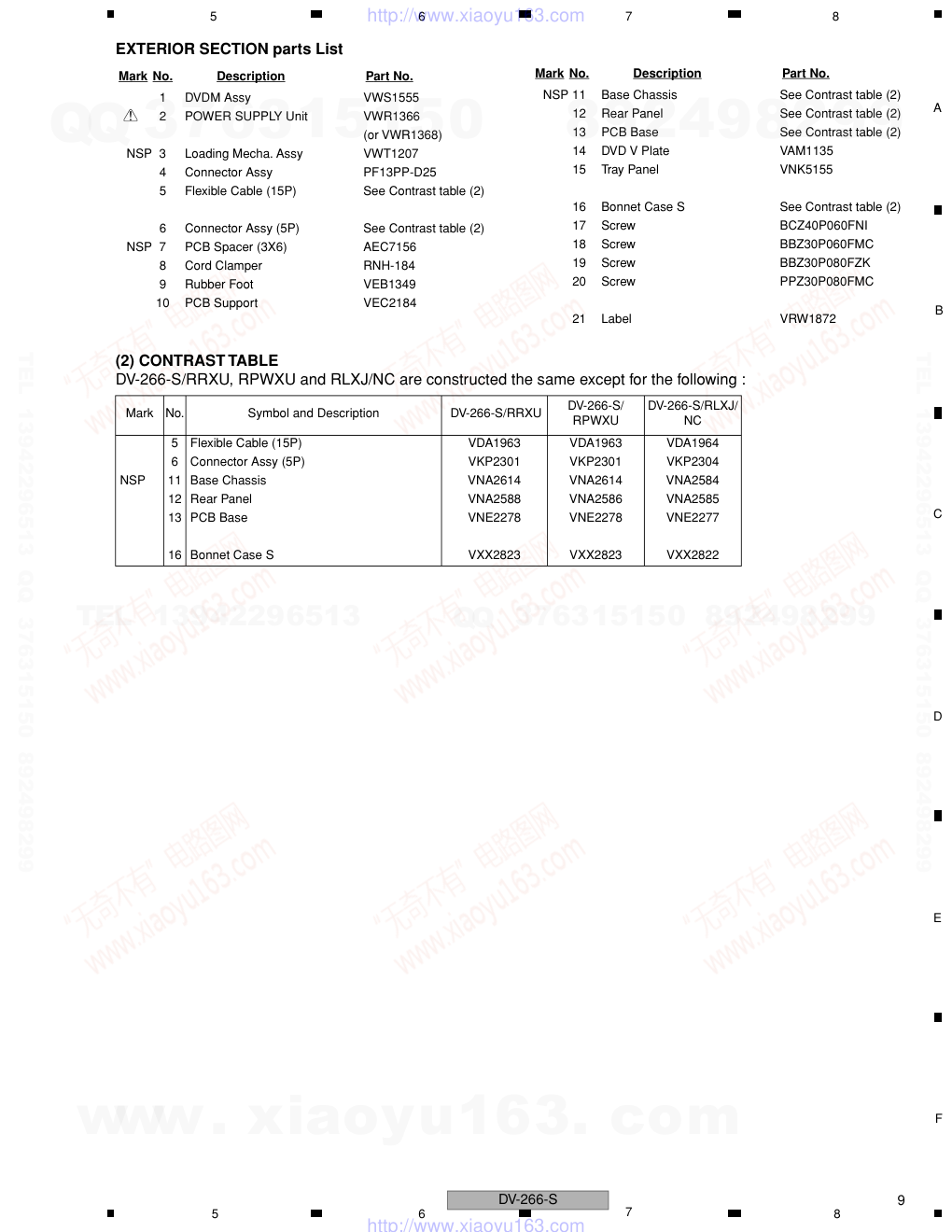

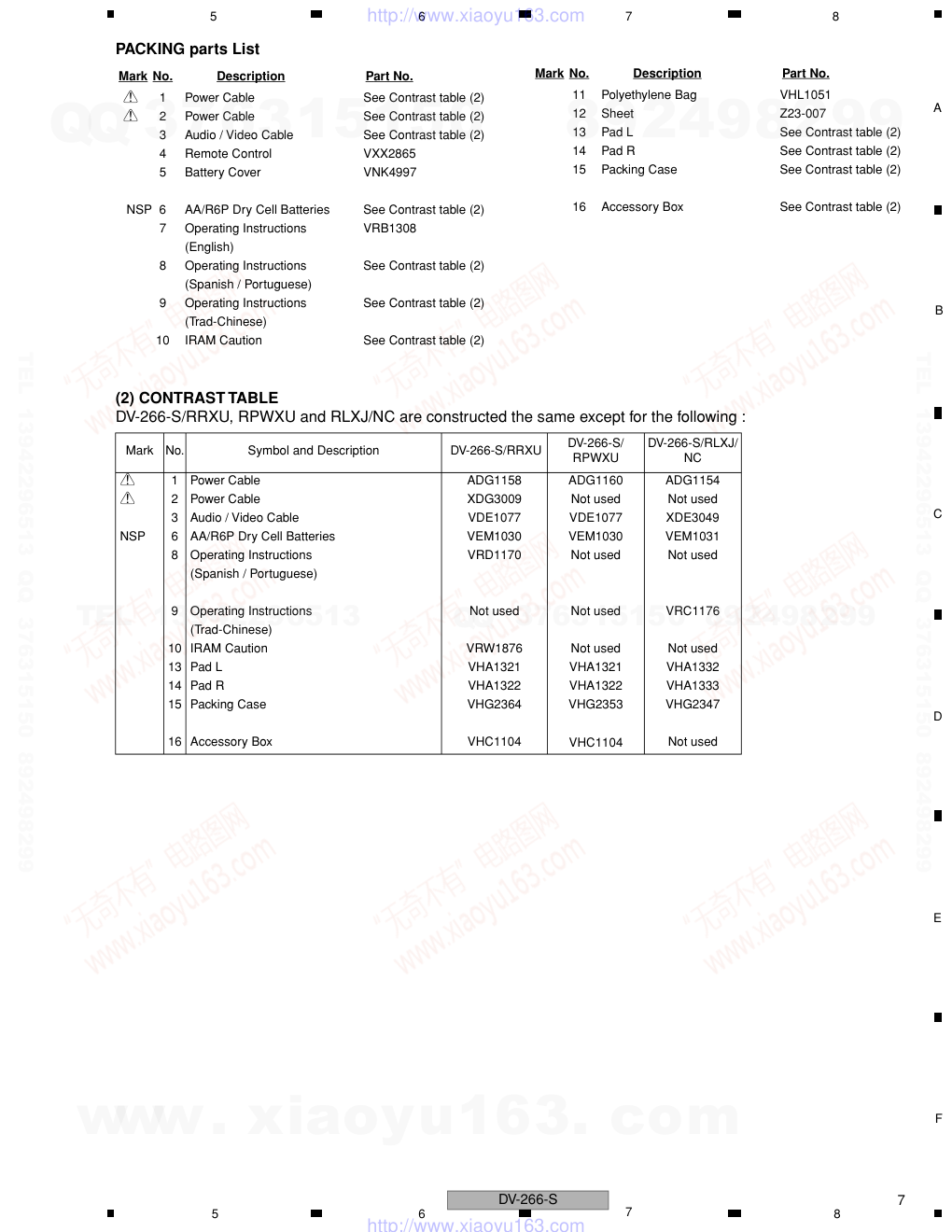

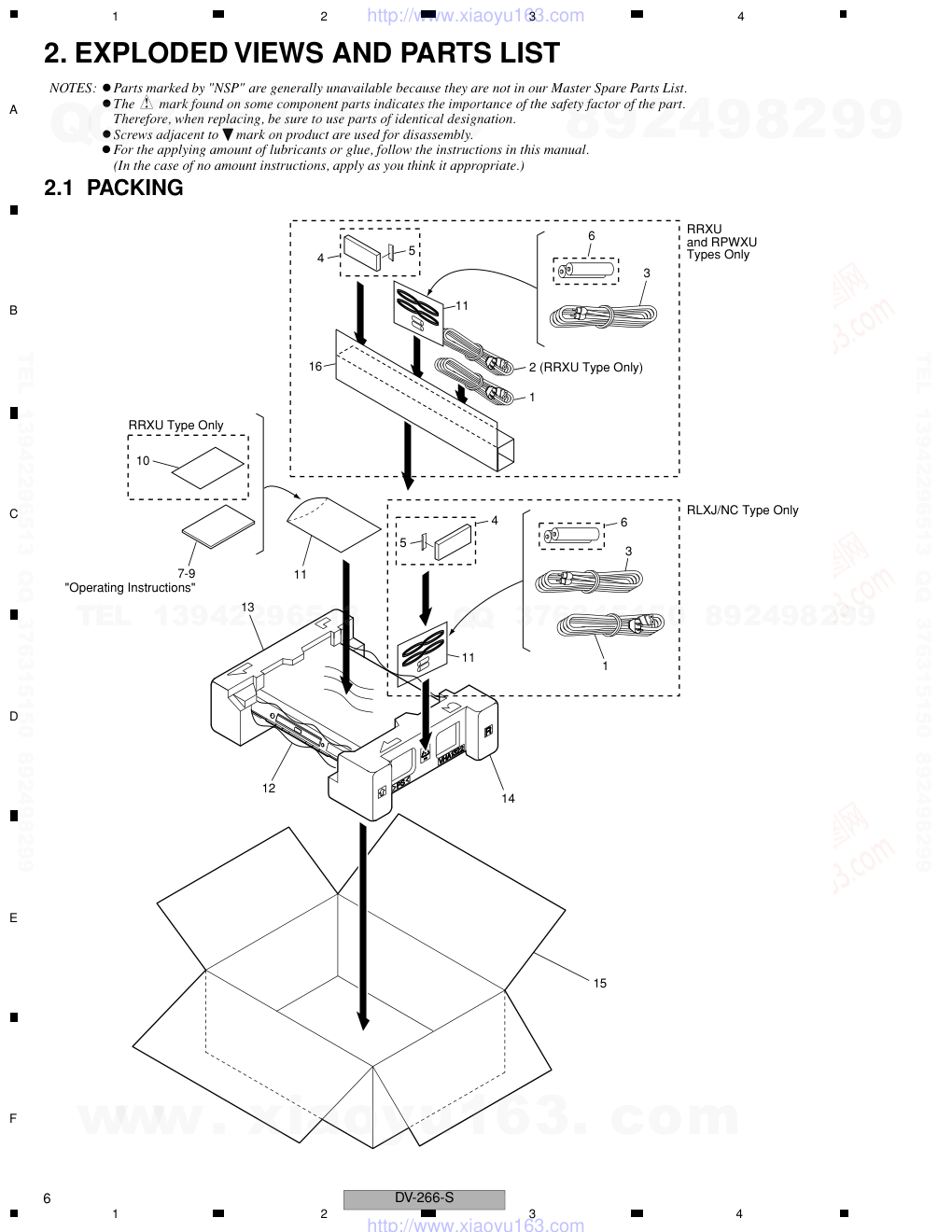

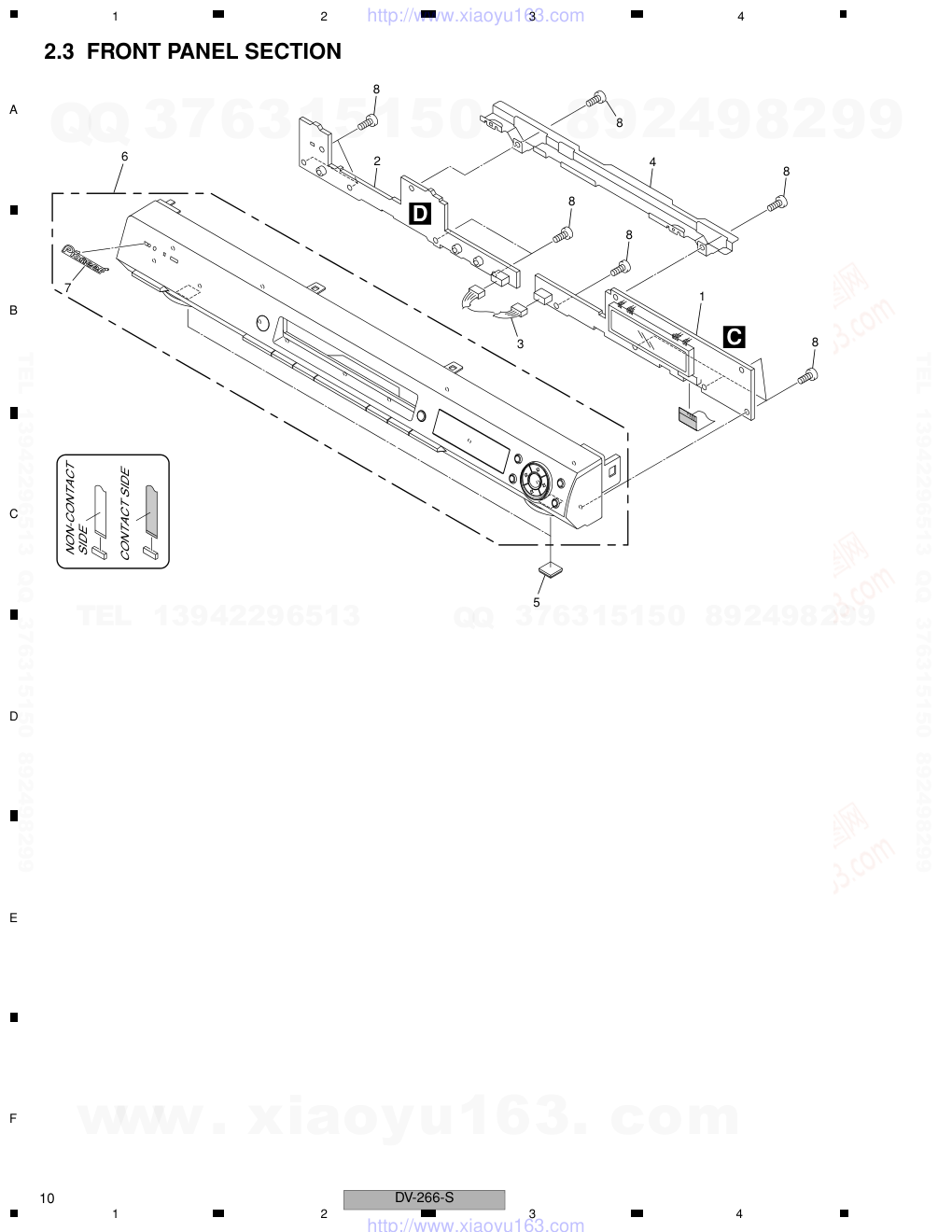

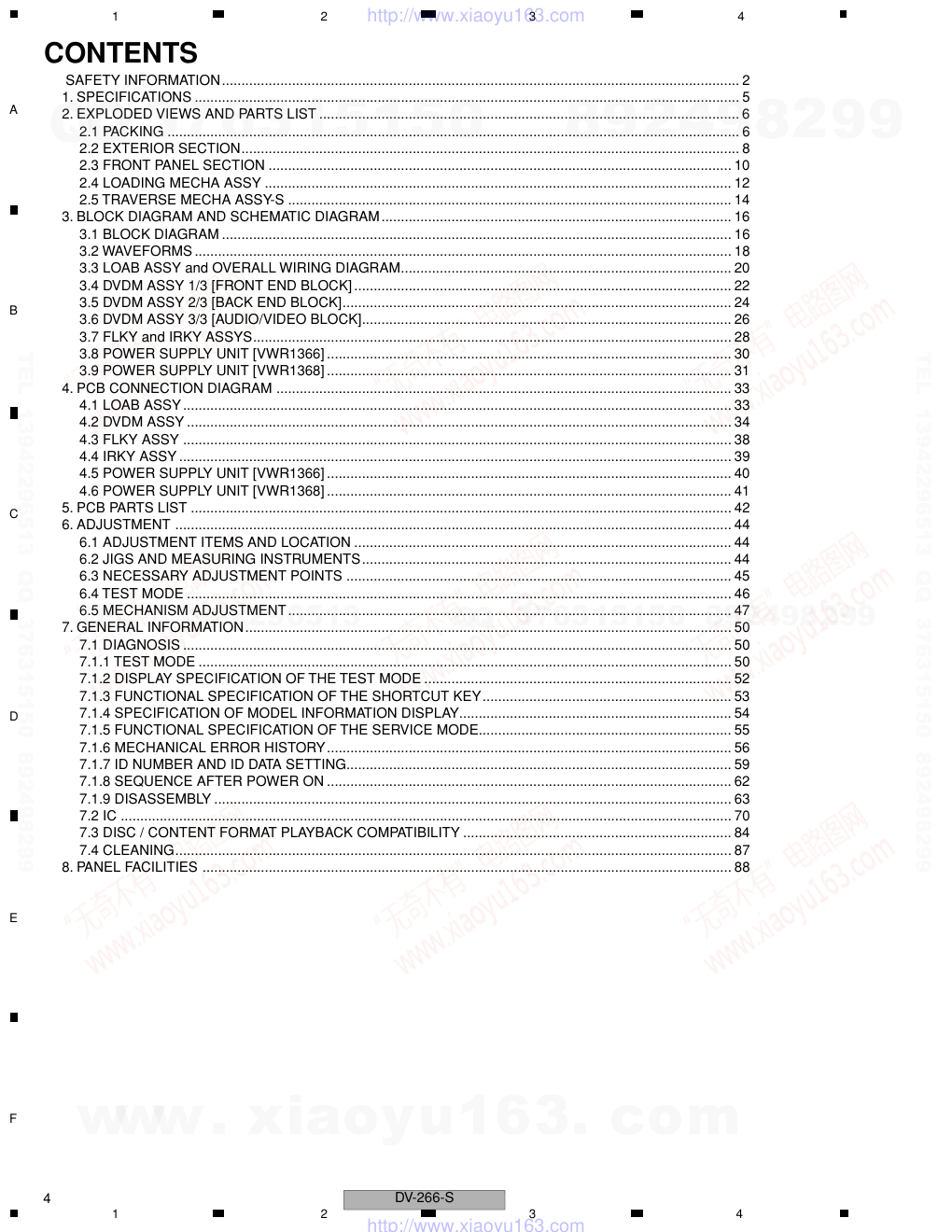

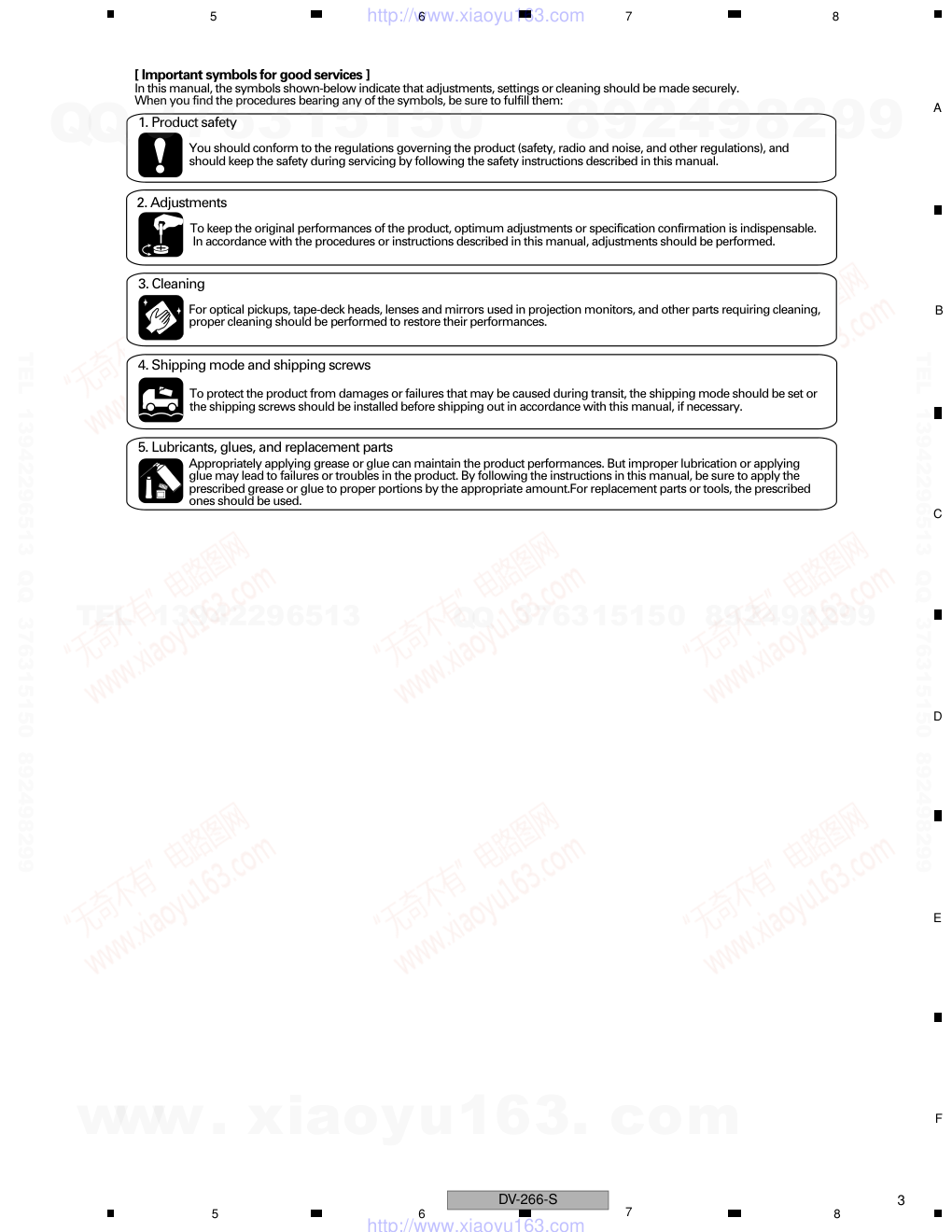

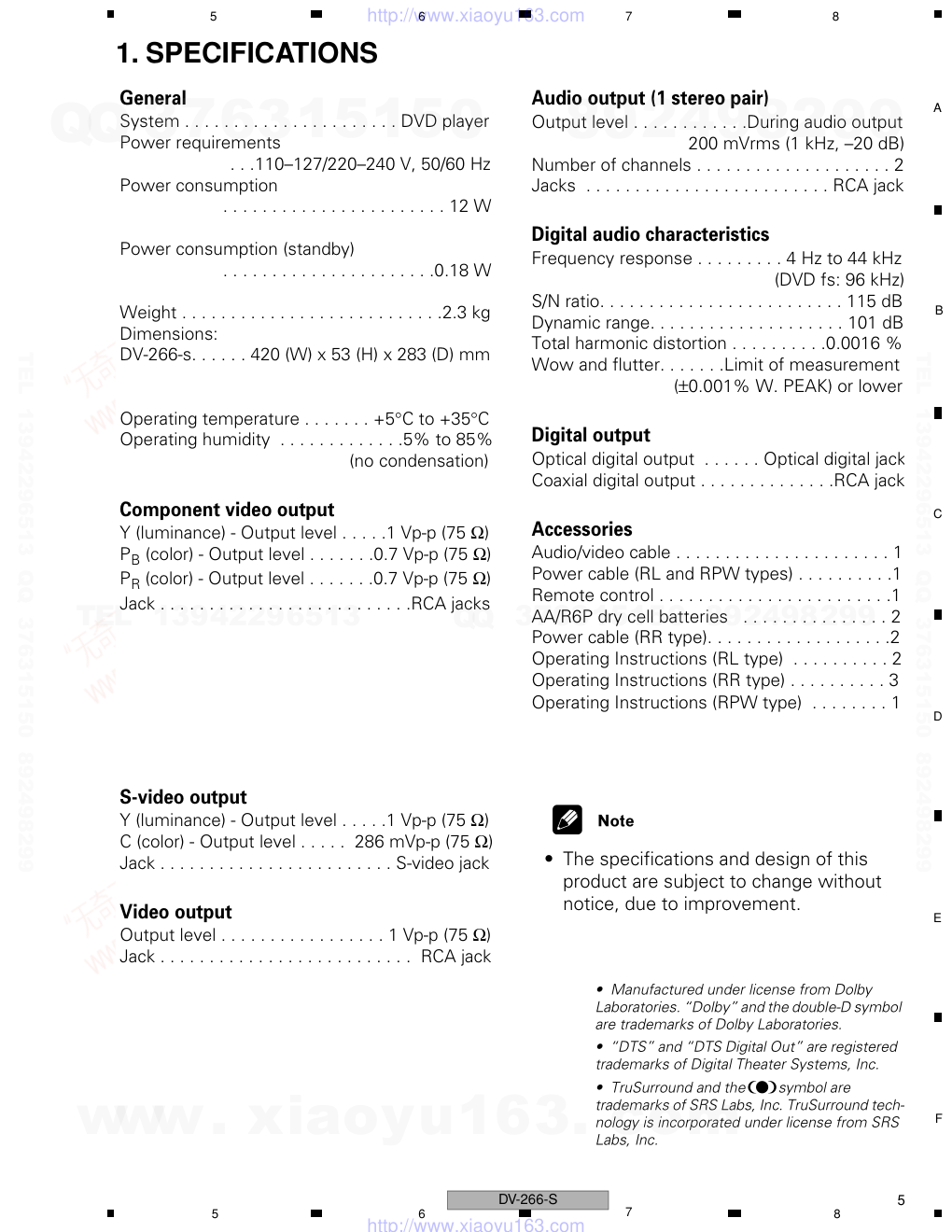

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 DV-266-S RRV2747 DVD PLAYER DV-266-S THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Serial No. Confirm 3rd & 4th alphabetical letters. DV-266-S RRXU AC110-127V/220-240V 4 &&PG######$$ DV-266-S RPWXU AC110-127V/220-240V 4 &&PG######$$ DV-266-S RLXJ/NC AC110-127V/220-240V 3 &&MP######$$ For details, refer to "Important symbols for good services". T-ZZE APR. 2003 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do- it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trainedto properly and safely repair complex products such as those covered by this manual.Improperly performed repairs can adversely affect the safety and reliability of the product and mayvoid the warranty. If you are not qualified to perform the repair of this product properly and safely, youshould not risk trying to do so and refer the repair to a qualified service technician. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 780 nm Additional Laser Caution ∗ : See page 46. 1. Laser Interlock Mechanism • Loading switch (S101 on the LOAB Assy) is used for interlock mechanism of the laser. When this switch turned ON in SW2 (CLOSE) side (OPEN signal is 0V and CLOSE signal is 3.5V), a laser becomes the status which can completely oscillation. Furthermore, the laser completely oscillates in the disc judgment and disc playback. When player is power ON state and laser diode is not completely oscillating, 780nm laser diode is always oscillating by half power. • Laser diode is driving with Q201 (650nm LD) and Q211 (780nm LD) on the DVDM Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) • In the test mode ∗ , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. The interlock mechanism mentioned above becomes invalid in this mode. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK (Printed on the Rear Panel) [RR type] [RPW and RL/NC types] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 3 5 6 7 8 5 6 7 8 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 EXTERIOR SECTION................................................................................................................................ 8 2.3 FRONT PANEL SECTION ....................................................................................................................... 10 2.4 LOADING MECHA ASSY ........................................................................................................................ 12 2.5 TRAVERSE MECHA ASSY-S .................................................................................................................. 14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 16 3.1 BLOCK DIAGRAM ................................................................................................................................... 16 3.2 WAVEFORMS .......................................................................................................................................... 18 3.3 LOAB ASSY and OVERALL WIRING DIAGRAM..................................................................................... 20 3.4 DVDM ASSY 1/3 [FRONT END BLOCK]................................................................................................. 22 3.5 DVDM ASSY 2/3 [BACK END BLOCK].................................................................................................... 24 3.6 DVDM ASSY 3/3 [AUDIO/VIDEO BLOCK]............................................................................................... 26 3.7 FLKY and IRKY ASSYS........................................................................................................................... 28 3.8 POWER SUPPLY UNIT [VWR1366] ........................................................................................................ 30 3.9 POWER SUPPLY UNIT [VWR1368] ........................................................................................................ 31 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 33 4.1 LOAB ASSY............................................................................................................................................. 33 4.2 DVDM ASSY ............................................................................................................................................ 34 4.3 FLKY ASSY ............................................................................................................................................. 38 4.4 IRKY ASSY .............................................................................................................................................. 39 4.5 POWER SUPPLY UNIT [VWR1366] ........................................................................................................ 40 4.6 POWER SUPPLY UNIT [VWR1368] ........................................................................................................ 41 5. PCB PARTS LIST ........................................................................................................................................... 42 6. ADJUSTMENT ............................................................................................................................................... 44 6.1 ADJUSTMENT ITEMS AND LOCATION ................................................................................................. 44 6.2 JIGS AND MEASURING INSTRUMENTS............................................................................................... 44 6.3 NECESSARY ADJUSTMENT POINTS ................................................................................................... 45 6.4 TEST MODE ............................................................................................................................................ 46 6.5 MECHANISM ADJUSTMENT.................................................................................................................. 47 7. GENERAL INFORMATION............................................................................................................................. 50 7.1 DIAGNOSIS ............................................................................................................................................. 50 7.1.1 TEST MODE ......................................................................................................................................... 50 7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE ............................................................................... 52 7.1.3 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY................................................................ 53 7.1.4 SPECIFICATION OF MODEL INFORMATION DISPLAY...................................................................... 54 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE................................................................. 55 7.1.6 MECHANICAL ERROR HISTORY........................................................................................................ 56 7.1.7 ID NUMBER AND ID DATA SETTING................................................................................................... 59 7.1.8 SEQUENCE AFTER POWER ON ........................................................................................................ 62 7.1.9 DISASSEMBLY ..................................................................................................................................... 63 7.2 IC ............................................................................................................................................................. 70 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY ..................................................................... 84 7.4 CLEANING............................................................................................................................................... 87 8. PANEL FACILITIES ........................................................................................................................................ 88 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS General System . . . . . . . . . . . . . . . . . . . . . . DVD player Power requirements . . .110–127/220–240 V, 50/60 Hz Power consumption . . . . . . . . . . . . . . . . . . . . . . . 12 W Power consumption (standby) . . . . . . . . . . . . . . . . . . . . . .0.18 W Weight . . . . . . . . . . . . . . . . . . . . . . . . . . .2.3 kg Dimensions: DV-266-s. . . . . . 420 (W) x 53 (H) x 283 (D) mm Operating temperature . . . . . . . +5°C to +35°C Operating humidity . . . . . . . . . . . . .5% to 85% (no condensation) Component video output Y (luminance) - Output level . . . . .1 Vp-p (75 Ω) PB (color) - Output level . . . . . . .0.7 Vp-p (75 Ω) PR (color) - Output level . . . . . . .0.7 Vp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . .RCA jacks S-video output Y (luminance) - Output level . . . . .1 Vp-p (75 Ω) C (color) - Output level . . . . . 286 mVp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . S-video jack Video output Output level . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Audio output (1 stereo pair) Output level . . . . . . . . . . . .During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . 2 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack Digital audio characteristics Frequency response . . . . . . . . . 4 Hz to 44 kHz (DVD fs: 96 kHz) S/N ratio. . . . . . . . . . . . . . . . . . . . . . . . . 115 dB Dynamic range. . . . . . . . . . . . . . . . . . . . 101 dB Total harmonic distortion . . . . . . . . . .0.0016 % Wow and flutter. . . . . . .Limit of measurement (±0.001% W. PEAK) or lower Digital output Optical digital output . . . . . . Optical digital jack Coaxial digital output . . . . . . . . . . . . . .RCA jack Accessories Audio/video cable . . . . . . . . . . . . . . . . . . . . . . 1 Power cable (RL and RPW types) . . . . . . . . . .1 Remote control . . . . . . . . . . . . . . . . . . . . . . . .1 AA/R6P dry cell batteries . . . . . . . . . . . . . . . 2 Power cable (RR type). . . . . . . . . . . . . . . . . . .2 Operating Instructions (RL type) . . . . . . . . . . 2 Operating Instructions (RR type) . . . . . . . . . . 3 Operating Instructions (RPW type) . . . . . . . . 1 • The specifications and design of this product are subject to change without notice, due to improvement. • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • “DTS” and “DTS Digital Out” are registered trademarks of Digital Theater Systems, Inc. • TruSurround and the symbol are trademarks of SRS Labs, Inc. TruSurround tech- nology is incorporated under license from SRS Labs, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: RLXJ/NC Type Only RRXU and RPWXU Types Only RRXU Type Only 15 14 12 11 4 5 7-9 "Operating Instructions" 10 13 11 1 2 (RRXU Type Only) 6 11 3 1 6 3 4 5 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 7 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE DV-266-S/RRXU, RPWXU and RLXJ/NC are constructed the same except for the following : Mark No. Description Part No. > 1 Power Cable See Contrast table (2) > 2 Power Cable See Contrast table (2) 3 Audio / Video Cable See Contrast table (2) 4 Remote Control VXX2865 5 Battery Cover VNK4997 NSP 6 AA/R6P Dry Cell Batteries See Contrast table (2) 7 Operating Instructions VRB1308 (English) 8 Operating Instructions See Contrast table (2) (Spanish / Portuguese) 9 Operating Instructions See Contrast table (2) (Trad-Chinese) 10 IRAM Caution See Contrast table (2) 11 Polyethylene Bag VHL1051 12 Sheet Z23-007 13 Pad L See Contrast table (2) 14 Pad R See Contrast table (2) 15 Packing Case See Contrast table (2) 16 Accessory Box See Contrast table (2) Mark No. Description Part No. Mark No. Symbol and Description DV-266-S/RRXU DV-266-S/ RPWXU DV-266-S/RLXJ/ NC > 1 Power Cable ADG1158 ADG1160 ADG1154 > 2 Power Cable XDG3009 Not used Not used 3 Audio / Video Cable VDE1077 VDE1077 XDE3049 NSP 6 AA/R6P Dry Cell Batteries VEM1030 VEM1030 VEM1031 8 Operating Instructions VRD1170 Not used Not used (Spanish / Portuguese) 9 Operating Instructions Not used Not used VRC1176 (Trad-Chinese) 10 IRAM Caution VRW1876 Not used Not used 13 Pad L VHA1321 VHA1321 VHA1332 14 Pad R VHA1322 VHA1322 VHA1333 15 Packing Case VHG2364 VHG2353 VHG2347 16 Accessory Box VHC1104 VHC1104 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION B B C C D D E E A A CONTACT SIDE NON-CONTACT SIDE 14 9 8 8 18 18 18 12 20 19 18 13 10 5 4 6 3 2 7 1 11 15 Refer to "2.3 FRONT PANEL SECTION". Refer to "2.4 LOADING MECHA. ASSY". B E 18 19 19 19 19 20 17 17 16 19 19 21 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List (2) CONTRAST TABLE DV-266-S/RRXU, RPWXU and RLXJ/NC are constructed the same except for the following : Mark No. Description Part No. 1 DVDM Assy VWS1555 > 2 POWER SUPPLY Unit VWR1366 (or VWR1368) NSP 3 Loading Mecha. Assy VWT1207 4 Connector Assy PF13PP-D25 5 Flexible Cable (15P) See Contrast table (2) 6 Connector Assy (5P) See Contrast table (2) NSP 7 PCB Spacer (3X6) AEC7156 8 Cord Clamper RNH-184 9 Rubber Foot VEB1349 10 PCB Support VEC2184 NSP 11 Base Chassis See Contrast table (2) 12 Rear Panel See Contrast table (2) 13 PCB Base See Contrast table (2) 14 DVD V Plate VAM1135 15 Tray Panel VNK5155 16 Bonnet Case S See Contrast table (2) 17 Screw BCZ40P060FNI 18 Screw BBZ30P060FMC 19 Screw BBZ30P080FZK 20 Screw PPZ30P080FMC 21 Label VRW1872 Mark No. Description Part No. Mark No. Symbol and Description DV-266-S/RRXU DV-266-S/ RPWXU DV-266-S/RLXJ/ NC 5 Flexible Cable (15P) VDA1963 VDA1963 VDA1964 6 Connector Assy (5P) VKP2301 VKP2301 VKP2304 NSP 11 Base Chassis VNA2614 VNA2614 VNA2584 12 Rear Panel VNA2588 VNA2586 VNA2585 13 PCB Base VNE2278 VNE2278 VNE2277 16 Bonnet Case S VXX2823 VXX2823 VXX2822 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 FRONT PANEL SECTION CONTACT SIDE NON-CONTACT SIDE D C 6 7 5 3 1 8 8 4 2 8 8 8 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 11 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List (2) CONTRAST TABLE DV-266-S/RRXU, RPWXU and RLXJ/NC are constructed the same except for the following : Mark No. Description Part No. 1 FLKY Assy VWG2409 NSP 2 IRKY Assy VWG2414 3 Connector Assy (4P) See Contrast table (2) 4 FP Angle VNE2297 5 Rubber Foot VEB1349 6 Front Panel Assy VXA2590 7 Pioneer Name Plate VAM1129 8 Screw PPZ30P080FMC Mark No. Description Part No. Mark No. Symbol and Description DV-266-S/RRXU DV-266-S/ RPWXU DV-266-S/RLXJ/ NC 3 Connector Assy (4P) VKP2300 VKP2300 VKP2303 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 12 1 2 3 4 1 2 3 4 C D F A B E 2.4 LOADING MECHA ASSY LOADING MECHA ASSY parts List A A To DVDM CN101 (Pickup Assy-S) To DVDM CN104 (Stepping Motor) To DVDM CN102 (Spindle Motor) 2 3 5 4 12 23 13 17 21 16 22 15 14 22 22 22 20 18 19 9 1 7 10 11 6 8 8 8 8 A Refer to "2.5 TRAVERSE MECHA. ASSY-S". Lubricating Oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 Mark No. Description Part No. NSP 1 LOAB Assy VWG2426 2 Traverse Mecha. Assy-S VXX2871 3 Loading Motor Assy VXX2872 4 Motor Pulley PNW1634 5 Motor VXM1105 6 Flexible Cable (24P) VDA1945 7 Connector Assy 2P VKP2253 8 Floating Rubber VEB1351 9 Belt VEB1330 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base DVD VNL1918 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate VNE2251 19 Bridge VNE2252 20 Clamper VNL1924 21 Screw JGZ17P028FMC 22 Screw Z39-019 23 Tray VNL1920 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 13 5 6 7 8 5 6 7 8 C D F A B E Application of Lubricant Lubricating Oil GYA1001 Around the shaft No. 11 Loading Base No. 23 Tray No. 13 Drive Cam No. 13 Drive Cam No. 23 Tray Front View Rear View Daifree GEM1036 Inner side of a ditch Concave of unevenness Top View Bottom View Daifree GEM1036 Daifree GEM1036 Side of the rib Lubricating Oil GYA1001 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 14 1 2 3 4 1 2 3 4 C D F A B E 2.5 TRAVERSE MECHA ASSY-S To DVDM CN104 (Stepping Motor) To DVDM CN102 (Spindle Motor) To DVDM CN101 (Pickup Assy) CONTACT SIDE NON-CONTACT SIDE 3 7 8 1 17 16 12 17 10 13 17 10 6 11 14 16 2 9 15 (Torque : 0.15 ± 0.01 N•m) 15 (Torque : 0.15 ± 0.01 N•m) 4 (Adjustment screw) 5 (Adjustment spring) Screw Tight GYL1001 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 15 5 6 7 8 5 6 7 8 C D F A B E TRAVERSE MECHA ASSY-S parts List Mark No. Description Part No. 1 Spindle Motor VXM1099 2 Stepping Motor VXM1101 3 Pickup Assy-S OXX8005 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mecha.Chassis VNE2248 12 Damper Sheet VEB1335 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw OBA8016 16 Screw BBZ20P050FZK 17 Screw PMA26P100FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 16 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM IC301 STM6316ATXXA FRONT END IC IC601 STM5589CVA BACK END IC 89 6 90 8 14 12 64 16 57 44 Q201,Q202 X601 27MHz (2/3) (3/3) IC604 TC7WU04FU Q211,Q212 IC603 VYW2095 FLASH ROM IC602 K4S641632F-TC75 64M SDRAM SPINDLE MOTOR LD(650) LD(780) LD1 LD2 A 21 E 20 F B C D OUT_DATA PC(6) 55 PD(0) 70 PE(1) 38 PC(2) IC101 M63018FP FTS DRIVER 30 26 31 34 40 35 6 120 TO- SPIN SPDL PDM LOAD DRV LOIN+ TO+ FO- SPDIF 52 PCM DATA0 33 C_OUT 34 CV_OUT 32 Y_OUT 26 G_OUT 25 B_OUT 27 R_OUT FE DATA FO+ HW- HW+ HV- HV+ HU- HU+ SL2- 5 SL2+ 9 SL1+ 10 SL1- PIXCLK B_DATA B1 B2 B3 B4 T DRV T RTN F DRV F RTN PICKUP ASSY-S OEIC A LOAB ASSY B DVDM ASSY STEPPING MOTOR ST2- CLOSE OPEN CLOSE OPEN ST2+ ST1+ ST1- M LOADING MOTOR ASSY 7 16 15 22 21 4 3 2 1 1 2 3 4 4 16 17 18 19 20 21 5 6 7 8 9 21 22 23 24 18 9 16 9 10 3 4 A C 17 19 8 6 CN101 (24P) CN1013 CN102 (12P) CN401 (13P) CN101 (CN2) (13P) LOAD+ SW2 V+3D LOAD- + – M S101 2 1 1 2 3 4 1 2 SW1 V+3D 5 5 3 4 CN103 (24P) CN601 13 12 11 8 7 V S_C S_Y G/Y B/Cb R/Cr D OUT 36 LO+ 37 LO- H1+ H1- H2+ H2- H3+ H3- CN602 5 3 2 6 CN104 5 4 2 13 12 11 8 7 5 4 2 -28V FL DC+ FL DC- EV+3.3V CN105 (15P) 4 6 2 5 -28V FL DC+ FL DC- +3.3V SW+1.8V EV+6V(A) EV+6V(B) SW+12V AC IN CN1 E POWER SUPPLY UNIT LIVE NEUTRAL 1 2 V+3_FEA V+6 V+1R8 V+1R8_BE V+1R8_FEA V+1R8_FED V+12 IC403 PQ1L333M2SP 3V REG. V+3_BE V+3A V+3E V+6B V+3_FED IC402 PQ1L333M2SP 3V REG. V+5 IC401 MM1565AF 5V REG. • RF Demodulation • Servo Control • Servo Decode • Error Correction Focus, Tracking, Stepper, Spindle, Loading Drive and FG Detection 36 33 PC(0) FACT 24 FG FG FOIN TOIN • System Control • MPEG Video Decode • Video Encode • Video DAC • Audio Decode (MP3, Dolby) • Sub-picture Decode 34 99 27 28 TACT 86 87 X301 20MHz RFSACD FROUT FRIN V+5A IC703 NJM78L05UA 5V REG. 14 10 13 11 12 12 U A1 V A2 W A3 RF(TP) A DATA0 51 DAC_SCLK A BCK 55 PCKCLK A MCLK 56 LRCLK A LRCK 2 1 16 15 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 17 5 6 7 8 5 6 7 8 C D F A B E JA701 Q791 D IRKY ASSY C FLKY ASSY FL101 FL TUBE IR101 Remote Sensor Unit RPM7240-H4 IC101 PE5374A FL CONTROL MICROCOMPUTER DATA VOUTL IC801 MM1623AF Video Driver Amp. IC701 PCM1742KE AUDIO DAC 4 7 2 6 10 12 14 23 Y Cb Cr V OUT C OUT Y OUT 26 21 18 16 20 COMPOSITE VIDEO OUTPUT COMPONENT VIDEO OUTPUT DIGITAL AUDIO OUTPUT COAXIAL OPTICAL JA801 S VIDEO OUTPUT V IN 2 C IN Y IN CY IN CY OUT Cb OUT Cr OUT Cb IN Cr IN 3 2 1 CN101 (15P) 12 10 14 11 1 2 4 1 2 4 -28V KEY1 - KEY3 KEY0 SEL IR V+3E V+3E V+3E V+3E 60 17 22 IR KEY 19-21 Y C CN102 (4P) CN104 (4P) ANALOG AUDIO OUTPUT L R VOUTR 8 6 5 7 IC702 BA4560F AUDIO LPF • LPF • AMP • Driver • Main Unit Key Input • Remote Control Receive • FL Display Control X101 5MHz 4 3 X1 X2 C832 C812 C822 C842 C852 C862 R651 R652 R655 R656 BCKIN 1 MCLK 16 LRCKIN 3 8 4 7 3 5 6 9 14 13 10 11 12 1– $: Refer to "3.2 WAVEFORMS". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 18 1 2 3 4 1 2 3 4 C D F A B E 3.2 WAVEFORMS DVDM ASSY B Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 2 and 9 to 14 : reference A1 (DVD), T2-chp 19, Color-bar No. 3 to 8 : reference A1 (DVD), T2-chp 1 1 IC301 - pin 99 [RF] V: 200mV/div. H: 0.1µsec/div. GND 3 Foot of R655 (IC701 - pin 16) [AUDIO DAC -MCLK] V: 1V/div. H: 20nsec/div. GND 4 Foot of R651 (IC701 - pin 1) [AUDIO DAC -BCK] V: 2V/div. H: 200nsec/div. 17 CN102 - pin10, 11, 12 (IC101 - pin 14, 13, 12) [FTS Driver -A1, A2, A3] V: 2V/div. H: 2msec/div. 9 Foot of C832 (IC801 - pin 23) [Composite Video out] V: 1V/div. H: 10µsec/div. V: 2V/div. H: 500nsec/div. 2 IC301 - pin 36 [FG] V: 1V/div. H: 5msec/div. 15 IC301 - pin 55 [LOAD_DRV] V: 1V/div. H: 500nsec/div. 5 Foot of R656 (IC701 - pin 3) [AUDIO DAC -LRCK] 6 Foot of R656 (IC701 - pin 3) [AUDIO DAC -LRCK] 7 Foot of R651 (IC701 - pin 1) [AUDIO DAC -BCK] 8 Foot of R652 (IC701 - pin 2) [AUDIO DAC -DATA] (Waveform of DATA is unsettled.) V: 2V/div. H: 5µsec/div. 6 7 8 10 Foot of C842 (IC801 - pin 20) [Component Video out -Y] V: 1V/div. H: 10µsec/div. 11 Foot of C852 (IC801 - pin 18) [Component Video out -Pb] V: 2V/div. H: 10µsec/div. 12 Foot of C862 (IC801 - pin 16) [Component Video out -Pr] V: 2V/div. H: 10µsec/div. 10 11 12 13 Foot of C822 (IC801 - pin 21) [S Video out -Y] V: 1V/div. H: 10µsec/div. 14 Foot of C812 (IC801 - pin 26) [S Video out -C] V: 1V/div. H: 10µsec/div. 13 14 [Tray stops] [Tray is opening] [Tray is closing] 16 IC301 - pin 44 [SPDL_PDM] STOP PLAY PLAY Accelertar ON Brakes ON [PLAY] [PLAY→STOP→PLAY] [STOP] V: 2V/div. H: 1sec/div. V: 2V/div. H: 500nsec/div. V: 2V/div. H: 500nsec/div. [PLAY] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 19 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 20 1 2 3 4 1 2 3 4 C D F A B E 3.3 LOAB ASSY and OVERALL WIRING DIAGRAM POWER SUPPLY UNIT (VWR1366) ( or VWR1368) E DVDM ASSY (VWS1555) B Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 21 5 6 7 8 5 6 7 8 C D F A B E A FLKY ASSY (VWG2409) C IRKY ASSY (VWG2414) D PICKUP ASSY-S (OXX8005) SPINDLE MOTOR : VXM1099 STEPPING MOTOR : VXM1101 LOADING MOTOR ASSY : VXX2872 LOAB ASSY (VWG2426) A F T T F S S S S : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (T) : STEPPING SERVO LOOP LINE (S) RF RF RF RF RF RF RF : RF SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 22 1 2 3 4 1 2 3 4 C D F A B E 3.4 DVDM ASSY 1/3 [FRONT END BLOCK] B 1/3 S S S S F F T T S S S S RF RF RF RF RF RF B 1/3 DVDM ASSY (VWS1555) CN601 STEPPING MOTOR SPINDLE MOTOR PICKUP ASSY-S A 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 23 5 6 7 8 5 6 7 8 C D F A B E B 1/3 : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE RF : RF SIGNAL ROUTE : FE_DATA SIGNAL ROUTE (F) (T) (S) RF RF 2/3 B 15 16 2 1 1, 2, @– $: Refer to "3.2 WAVEFORMS". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 24 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVDM ASSY 2/3 [BACK END BLOCK] B 2/3 VYW2095 S-Y S-C V B/Cb G/Y R/Cr D B 2/3 DVDM ASSY (VWS1555) 1/3 B 3/3 B 3/3 B 3/3 B 3/3 B 1/3 B 3/3 B 3/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 25 5 6 7 8 5 6 7 8 C D F A B E B 2/3 : The power supply is shown with the marked box. 15 15 15 15 15 15 R/Cr G/Y B/Cb V S-C S-Y S-C S-Y R/Cr G/Y B/Cb V : V SIGNAL ROUTE : S-VIDEO OUT C SIGNAL ROUTE : S-VIDEO OUT Y SIGNAL ROUTE : R/Cr SIGNAL ROUTE : G/Y SIGNAL ROUTE : B/Cb SIGNAL ROUTE : AUDIO SIGNAL ROUTE D : AUDIO(DIGITAL) SIGNAL ROUTE : FE_DATA SIGNAL ROUTE VWR1366: CN101 VWR1368: CN2 E CN101 C 3/3 B 3/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 26 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVDM ASSY 3/3 [AUDIO/VIDEO BLOCK] B 3/3 2.2K 1.5K MM1623AF S-C V S-Y G/Y B/Cb R/Cr S-C V S-Y B/Cb R/Cr G/Y B 3/3 DVDM ASSY (VWS1555) 2/3 B 2/3 B 2/3 B 2/3 B AUDIO DAC VIDEO DRIVER 3 7 4 6 5 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 27 5 6 7 8 5 6 7 8 C D F A B E B 3/3 : The power supply is shown with the marked box. 2.7K R724 680K 2.2K D D S-C V S-Y B/Cb R/Cr G/Y S-C S-Y V G/Y B/Cb R/Cr S-C S-Y R/Cr G/Y B/Cb V : V SIGNAL ROUTE : S-VIDEO OUT C SIGNAL ROUTE : S-VIDEO OUT Y SIGNAL ROUTE : R/Cr SIGNAL ROUTE : G/Y SIGNAL ROUTE : B/Cb SIGNAL ROUTE : AUDIO SIGNAL ROUTE D : AUDIO(DIGITAL) SIGNAL ROUTE 2/3 B 9 10 11 12 13 14 3– !: Refer to "3.2 WAVEFORMS". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 28 1 2 3 4 1 2 3 4 C D F A B E 3.7 FLKY and IRKY ASSYS C FLKY ASSY (VWG2409) C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 29 5 6 7 8 5 6 7 8 C D F A B E C D : The power supply is shown with the marked box. IRKY ASSY (VWG2414) D CN105 B 2/3 FLKY ASSY S105 : 7 S106 : 8 S107 : 0 S109 : 3 S110 : RETURN S111 : MENU S112 : \ S113 : » S114 : « S115 : ENTER S116 : | S117 : TOP MENU S118 : HOME MENU IRKY ASSY S101 : STANDBY ON S103 : 4 1 S104 : ¡ ¢ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 30 1 2 3 4 1 2 3 4 C D F A B E 3.8 POWER SUPPLY UNIT [VWR1366] E E P301 AEK7063 800mA P101 AEK7066 1.6A CN401 B 2/3 CN101 CN1 AC IN NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. POWER SUPPLY UNIT (VWR1366) E CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR P301 (AEK7063). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P101 (AEK7066). • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 31 5 6 7 8 5 6 7 8 C D F A B E 3.9 POWER SUPPLY UNIT [VWR1368] E E CP1 AEK7008 800mA CN401 B 2/3 CN2 CN1 AC IN NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. POWER SUPPLY UNIT (VWR1368) E CP4 AEK7012 1.6A CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR CP1 (AEK7008). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR CP4 (AEK7012). • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 32 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 33 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY SIDE A SIDE B A A C101 C102 V+3D SW2 (V+5D) LOAD- LOAD+ PYKC F6 GND 5 1 5 1 CN601 CN602 1 2 CN601 CN602 S101 VNP1910- VWG LOAB VWG2426- 5 1 1 2 1 5 (VNP1910-A) LOAB ASSY A LOADING MOTOR ASSY M CN103 B CN601 CN602 CN602 CN601 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 34 1 2 3 4 1 2 3 4 C D F A B E 4.2 DVDM ASSY SIDE A B C231 CN102 R115 R123 R102 R355 R116 R103 C102 R204 C201 CN104 C120 C118 C116 C126 R200 C200 C202 CN103 C230 R301 R310 R331 R202 R203 R201 R126 R344 C344 C357 Q202 R330 R394 R124 R101 R364 R361 R363 R365 R104 R106 C381 R369 R368 C124 L361 C342 C326 C323 C315 C309 C318 C348 C388 R393 C377 IC301 C373 C391 C300 C355 R107 R119 R118 R120 R117 C132 C139 C142 R182 R128 C128 R172 R127 C127 CN101 C232 C212 Q212 R214 C211 R213 R212 R211 IC101 C112 C113 C114 R152 R125 C125 X301 CN301 R378 R379 C233 R366 R374 R375 R380 R381 R382 R383 R384 C302 C301 Q390 L390 R390 R391 C393 C390 C392 C394 C303 Q201 Q211 C603 IC603 D603 R633 R630 R412 C408 IC601 IC602 C621 C625 R623 R644 R640 R620 C644 C640 X601 R642 CN609 CN608 CN607 R696 R609 R615 R624 R695 R694 R690 R675 R610 R612 R613 R626 IC604 C620 CN401 C626 C628 C627 C629 C602 L602 R408 C690 Q401 R441 R443 R442 Q402 R444 Q403 R657 C607 C619 C622 C624 R631 C636 C641 C659 C684 R614 R627 R625 R403 R402 C420 C422 C406 R405 R406 C413 C C404 C405 C403 CN105 IC400 R400 R411 R689 R688 Q603 R450 R239 R234 C415 R409 C134 R300 C136 C421 C409 R345 R440 C407 C130 R240 Q405 R445 C433 Q404 IC403 R636 R410 IC404 R338 R417 R2 R404 R233 R370 R1 C414 C480 R392 C310 PC CMKD-P3X 5 DC 0 2 4 7 6 9 8 VWS1 3 1 FC WARNING THIS PRODUCT CONTAINS LEAD IN SOLDER AND CERTAIN ELECTRICAL PARTS CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. 100 76 75 51 50 26 25 23 24 2 42 22 21 NP 24 48 25 157 156 105 104 27 28 54 24 24 1 2 29 30 13 15 1 0 1 2 3 4 5 6 7 8 0 1 2 3 0 0 1 CN CN601 A CN103 PICKUP ASSY CN101 CN104 CN102 STEPPING MOTOR M SPINDLE MOTOR M CN101 C CN105 IC403 IC404 Q405 Q404 Q202 IC301 IC101 IC603 IC601 IC602 IC604 IC400 Q603 Q212 Q390 Q201 Q211 Q401 Q402 Q403 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 35 5 6 7 8 5 6 7 8 C D F A B E SIDE A B 1 IC602 R551 R553 R552 R628 C664 C412 IC401 R695 R694 R675 CN601 R667 Q666 R663 R664 R666 C620 01 C628 C627 C629 L602 R665 R542 R543 R541 R531 R533 R532 R523 R521 R522 R513 R512 R511 Q501 R503 R502 R501 Q511 Q521 Q531 Q541 Q551 C604 C614 C623 C630 C637 R635 C648 C647 R651 R652 R655 R656 R657 C684 C698 R603 R602 C612 R611 R604 R606 R607 R608 C410 R402 C420 C422 C406 C401 C402 C405 C650 C651 R601 R689 R688 IC702 R711 R721 C702 R722 C722 C723 R723 C732 R725 C725 R726 R727 C727 R717 C717 R715 R716 R712 R713 C712 C715 C721 C711 C731 R756 D731 C706 C701 C705 IC701 C704 C703 R751 R752 R754 R753 C777 R746 C724 C714 C733 Q746 Q756 Q753 Q752 Q751 R701 IC703 L707 C707 R770 R777 R731 R702 R804 R803 R861 R851 C863 C853 L851 L861 C862 C861 R841 C843 C852 C842 C805 C851 C841 C833 R831 C832 D803 D804 D802 C831 C804 C823 R821 C822 D801 C802 C821 C811 C813 R811 C812 R801 C803 C801 R802 Q801 R796 Q803 Q802 C793 C792 Q791 R795 R794 R791 R793 Q804 R792 C791 JA701 R758 R728 Q758 R718 R748 Q748 C713 IC801 R812 CN801 R805 JA801 R71 R622 R807 C411 R413 R707 C615 R7210 R7230 R7110 R7130 L797 D730 R797 Q730 C756 R730 C730 Q805 R670 R660 R806 R600 R680 IC402 P3X 3 5 0 0 0 2 2 1 1 2 4 4 3 6 4 7 6 6 5 9 9 5 8 8 8 7 7 -A VWS1 9 3 1 DVDM CN802 VWS1554-A VWS1556-A VWS1555-A VNP1903- S CONTAIN CHEMICALS WHICH ARE KNOWN TO THE STATE OF HARM. HEALTH & SAFETY CODE SECTION 25249.2 - PROPOSITION 65 52 208 53 27 28 15 14 23 0 1 2 3 4 5 6 7 8 9 C B A CN101 [VWR1366] CN2 [VWR1368] E CN401 DVDM ASSY B (VNP1903-A) IC701 IC703 IC801 IC402 Q730 IC602 IC401 IC702 Q805 Q531 Q541 Q551 Q746 Q756 Q753 Q752 Q751 Q801 Q803 Q802 Q791 Q804 Q758 Q748 Q666 Q501 Q511 Q521 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 36 1 2 3 4 1 2 3 4 C D F A B E SIDE B B 1 7 10 20 1 23 CN C DVDM ASSY B (VNP1903-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 37 5 6 7 8 5 6 7 8 C D F A B E SIDE B B 1 12 1 4 1 5 1 15 CN103 CN102 CN104 CN101 23 24 2 CN401 13 CN105 CN401 CN101 CN104 CN102 CN103 CN105 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 38 1 2 3 4 1 2 3 4 C D F A B E 4.3 FLKY ASSY SIDE A SIDE B C C C152 R172 R124 R183 C151 R171 R197 R157 R155 R156 R114 R116 R115 R113 R135 R111 R112 R104 R106 R108 R107 R105 R103 R110 R109 C102 R117 R195 R196 IC101 C104 C103 C105 C183 R132 C195 C197 C199 R199 R131 R130 R129 R193 R194 C198 D104 R100 R101 R167 R165 R163 R191 R127 R128 C106 R198 C187 R162 R164 R166 R168 R169 R123 R118 R122 R126 R125 VWG2407- VWG2410- GND VWG2409- VWG2408- +3.3V GND IR V+3E KEY LED FLKY ASSY +3.3V GND VWG2411- VWG2413- 1.XREADY VWG2412- 14.FLDC- 15.GND 13.GND 12.VFDP 11.V+3E 10.FLDC+ 8.RESET 6.SCK 7.CTS 9.ACK 4.S(M TO F) 3.POWER ON 2. S(F TO M) 5.XRESET 1 5 21 40 41 60 61 80 1 20 1 15 CN102 CN103 CN101 W107 X101 W113 S106 S105 W101 FL102 W102 S109 S107 FL101 W103 C101 CN102 W124 W108 W110 W126 W112 W114 W115 W111 IR102 W120 W116 S115 S116 S114 S112 S110 S113 S118 W119 W122 S117 L102 W117 W121 W118 C188 S111 S108 CN101 W106 W123 W104 KPC 1694V-0 VWG2407- PLAY_L PAUSE VWG2408- VWG2409- GND +3.3V CN103 STOP FLKY ASSY EJECT GND +3.3V TOPMENU +3.3V GND RIGHT RETURN UP MENU SETUP DOWN PLAY_R VWG2410- VWG2411- VWG VWG2412- LEFT ENTER VWG2413- +3.3V 1 5 28 32 1 5 1 15 CN104 D CN102 CN105 B CN101 CN102 CN101 FLKY ASSY C (VNP1900-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 39 5 6 7 8 5 6 7 8 C D F A B E 4.4 IRKY ASSY SIDE A SIDE B D D R190 R182 R181 R152 D103 C182 D107 D106 R192 C186 R153 VWG2415- VWG2416- IRKY ASSY VWG2414- 1 5 KEY LED V+3E IR GND CN104 CN105 D105 C181 CN104 W125 IR101 S101 W128 L101 W127 S103 S104 W130 VWG GNDV VWG2416- KPC 1694V-0 +3.3V IRKY ASSY VWG2414- VWG2415- POWERON CN105 1 5 BACKWARD FORWARD PC CN102 C CN104 CN104 IRKY ASSY D (VNP1900-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 40 1 2 3 4 1 2 3 4 C D F A B E 4.5 POWER SUPPLY UNIT [VWR1366] SIDE A SIDE B E E P101 P301 CN401 B AC IN CN101 CN1 CN1 [VWR1366] POWER SUPPLY UNIT E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 41 5 6 7 8 5 6 7 8 C D F A B E 4.6 POWER SUPPLY UNIT [VWR1368] SIDE A SIDE A E E CP4 CP1 CN401 B AC IN CN2 CN1 [VWR1368] POWER SUPPLY UNIT E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 42 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES NSP 1..LOADING MECHA. ASSY VWT1207 NSP 2..LOAB ASSY VWG2426 1..DVDM ASSY VWS1555 NSP 1..FLKB ASSY VWM2172 2..FLKY ASSY VWG2409 NSP 2..IRKY ASSY VWG2414 > 1..POWER SUPPLY UNIT VWR1366 (or VWR1368) Mark No. Description Part No. ALOAB ASSY [VWG2426] SWITCHES AND RELAYS S101 REAF SWITCH VSK1011 OTHERS CN602 CONNCTOR S2B-PH-K CN601 CONNCTOR S5B-PH-K PRINTED CIRCUIT BOARD VNP1910 BDVDM ASSY [VWS1555] SEMICONDUCTORS IC702 BA4560F IC602 K4S641632F-TC75 IC101 M63018FP > IC401 MM1565AF IC801 MM1623AF > IC703 NJM78L05UA IC701 PCM1742KE > IC402, IC403 PQ1L333M2SP IC400 PST3228 IC601 STM5589CVA IC301 STM6316ATXXA IC604 TC7WU04FU IC603 VYW2095 Q390, Q753 2SA1576A Q401, Q403 2SA1602A Q202, Q212, Q402, Q730, Q791 2SC4081 Q746, Q756 2SD2114K Q666 DTC114TUA Q751, Q752 DTC114YUA Q201, Q211 HN1A01F Q603 RN4982 D730 1SS355 D603 RB501V-40 COILS AND FILTERS L707 LAU4R7J L390 LCYA2R7J2520 L361 CHIP BEADS VTL1083 L851, L861 CHIP BEADS VTL1089 CAPACITORS C390 CCSRCH180J50 C142 CCSRCH221J50 C200, C717, C727, C756 CCSRCH331J50 C407, C409, C414, C421, C690 CCSRCH470J50 C713, C723 CCSRCH470J50 C392 CCSRCH560J50 C393, C640, C644 CCSRCH7R0D50 C211 CEAT100M50 C408, C615, C621, C651, C703 CEAT101M10 C705, C711, C721, C731, C801 CEAT101M10 C804 CEAT101M10 C301, C701, C842 CEAT102M6R3 C792 CEAT1R0M50 C201 CEAT220M25 C715, C725, C733 CEAT470M16 C822, C832, C852, C862 CEAT471M6R3 C401 CKSQYB225K10 C127, C128, C381 CKSRYB102K50 C112–C114, C124, C125, C130 CKSRYB103K50 C134, C136, C355 CKSRYB103K50 C300 CKSRYB104K16 C394 CKSRYB152K50 C126, C344 CKSRYB223K50 C712, C722 CKSRYB391K50 C230, C232, C233, C309, C310 CKSRYF104Z25 C315, C318, C323, C326, C342 CKSRYF104Z25 C348, C357, C373, C377, C388 CKSRYF104Z25 C391, C402, C403, C603, C641 CKSRYF104Z25 C702, C704, C706, C714, C732 CKSRYF104Z25 C791, C802, C803, C805 CKSRYF104Z25 C811, C812, C851, C861 CKSRYF104Z25 C102, C132, C139, C415, C480 CKSRYF105Z10 C604, C607, C614, C619 CKSRYF105Z10 C622–C630, C636, C637 CKSRYF105Z10 C647, C648, C650, C659, C664 CKSRYF105Z10 C684, C698, C707, C821, C831 CKSRYF105Z10 C841 CKSRYF105Z10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 43 5 6 7 8 5 6 7 8 C D F A B E RESISTORS R201 RAB4C220J R211 RAB4C390J R711, R721 RN1/16SE1002D R713, R723 RN1/16SE1802D R753 RS1/10S182J R103, R106 RS1/10S1R0J R104, R107 RS1/10S1R8J R115–R120 RS1/10S4R7J R811, R821 RS1/10S75R0F R125, R152, R330, R331, R628 RS1/16S1002F R635 RS1/16S1002F R301 RS1/16S1202F R502, R512, R522, R532, R542 RS1/16S1500F R552 RS1/16S1500F R101, R102, R123, R172, R182 RS1/16S5600F R831, R841, R851, R861 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN401 CONNECTOR B13B-PH-K CN103 CONNECTOR B5B-PH-K JA701 OPT. LINK OUT JFJ1001 FLEXIBLE CABLE VDA1681 JA801 JACK VKB1179 CN104 4P CONNECTOR VKN1180 CN102 12P CONNECTOR VKN1188 CN105 15P CONNECTOR VKN1191 CN601 7P CONNECTOR VKN1211 CN101 24P CONNECTOR VKN1464 X601 (27MHz) VSS1168 X301 (20MHz) VSS1186 CFLKY ASSY [VWG2409] SEMICONDUCTORS IC101 PE5374A SWITCHES AND RELAYS S105–S107, S109–S118 ASG7013 CAPACITORS C183 CKSRYB102K50 C102, C105 CKSRYF104Z25 C104 CKSRYF104Z50 RESISTORS All Resistors RS1/16S###J OTHERS CN102 CONNECTOR B4B-PH-K V101 FLUORESCENT TUBE VAW1077 CN101 15P CONNECTOR VKN1219 FL HOLDER(FE) VNE2313 X101 (5MHz) VSS1142 DIRKY ASSY [VWG2414] SWITCHES AND RELAYS S101, S103, S104 ASG7013 CAPACITORS C182 CKSRYF104Z25 RESISTORS Mark No. Description Part No. All Resistors RS1/16S###J OTHERS CN104 CONNECTOR B4B-PH-K IC103 REMOTE RECEIVER RPM7240-H4 EPOWER SUPPLY UNIT [VWR1366] OTHERS > P301 PROTECTOR(800mA) AEK7063 > P101 PROTECTOR(1.6A) AEK7066 EPOWER SUPPLY UNIT [VWR1368] OTHERS > CP1 PROTECTOR(800mA) AEK7008 > CP4 PROTECTOR(1.6A) AEK7012 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 44 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 ADJUSTMENT ITEMS AND LOCATION 6.2 JIGS AND MEASURING INSTRUMENTS 1 1 2 2 3 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Initialize the Focus Sweep Setting Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1067) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 45 5 6 7 8 5 6 7 8 C D F A B E 6.3 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ, ! Ÿ, ! Mechanical point Electric point ! Mechanical point Electric point Mechanical point Electric point Be sure to perform the following step finally when replaced Pickup, Traverse Mechanism and Spindle Motor. Purpose: To set the sweep which was correct with the individual Traverse mechanism. Mechanical point Electric point LOAB and DVDM ASSYS ∗ GGF1067 Test mode remote control unit ESC CLEAR Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board (It is necessary when performed adjustment procedure Ÿ.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 46 1 2 3 4 1 2 3 4 C D F A B E 6.4 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1067 Test mode remote control unit GGF1067 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE (Player) TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD CAUTION: Perform only trace, video and audio outputs are nothing. • The TEST MODE functions that are used only during adjustment are described here. For details, see "7.1.1 TEST MODE". DVD disc POWER ON OFF POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 47 5 6 7 8 5 6 7 8 C D F A B E 6.5 MECHANISM ADJUSTMENT • Remove the Loading Mecha. Assy. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Loading Mecha. Assy (Float Base) with nippers. Cautions: Because there is not a Spacer for height adjustment in adjustment after the second time, will keep it at need. (This parts is Traverse mechanism exclusive use of a model for 2003 years) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Loading Mecha. Assy 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.1.9 DISASSEMBLY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 48 1 2 3 4 1 2 3 4 C D F A B E Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight, and go to step !. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 49 5 6 7 8 5 6 7 8 C D F A B E Initialize the Focus Sweep Setting 3 Turn on the Player ESC CLEAR POWER Note: Be sure to perform this step when replaced the Pickup or Traverse mechanism. Purpose: To set the sweep which was correct with the individual Traverse mechanism. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 50 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the Test mode remote control unit. • Light the all FL and LEDs, and goes out the FL and LEDs when pressing the keys of something. • OSD displays test mode. Refer to the "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". 2 Release the Test mode • Turn off the power. • Press the [ESC] (A8-5F) key of the remote control unit and reset it. 3 Tray open / close • Press the [REPEAT A-B] (A8 - 48) key of the remote control unit. • Press the [OPEN / CLOSE] key of the main unit from the stop state. 4 Playback stop 1. Press the [REPEAT] (A8 - 44) key of the remote control unit from the playback state. 2. Press the [STOP] key of the remote control unit or main unit from the playback state. (Playback stops, but the loaded disc keeps rotating.) 5 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). 6 Focus on / sweep 1. Lock the focus by pressing the [TEST] (A8-5E) and [2] (A8-02) keys in order. 2. Repeat focus sweep by pressing the [TEST] (A8-5E) and [3] (A8-03) keys in order. 7 Spindle FG servo CAV : Press the [TEST] (A8-5E) and [5] (A8-05) keys in order,then rise up the spindle and FG servo becomes on. CLV : Press the [TEST] (A8-5E) and [9] (A8-09) keys in order,then rise up the spindle and FG servo becomes on. 8 Tracking open / close 1. Open tracking by pressing the [STEP FWD] (A8-54) key of the remote control unit in the play state. 2. Close tracking by pressing the [STEP REV] (A8-50) key of the remote control unit in the play state. 9 Slider servo on/off 1. Turn on the slider servo by pressing the [TEST] (A8-5E) and [CX] (A8-0E) keys in order. 2. Turn off the slider servo by pressing the [TEST] (A8-5E) and [TV/LDP] (A8-0F) keys in order. 0 Slider in / out Slider in : In the tracking off state, press the [SCAN REV] (A8-11) key of the remote control unit. Slider out : In the tracking off state, press the [SCAN FWD] (A8-10) key of the remote control unit. - Play (perform only the ID search and trace to the specified location) Press the [TV/LDP] (A8-0F) key of the remote control unit from the stop state. Perform only trace, video and audio outputs are nothing. = Screen display ON/OFF 1. Turn off the display by pressing the [AUDIO] (A8-1E) key of the remote control unit. 2. Turn on the display by pressing the [DISPLAY] (A8-43) key of the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 51 5 6 7 8 5 6 7 8 C D F A B E ~ Search 1. Search address input entry • It becomes the address input mode when pressing the [+10] (A8-1F) key. (Most significant digit of an address displays "<".) • In this time, display the last address as the initial state. 2. Search address input • Press the [0] to [9] (A8-00 to 09) keys of the remote control unit. In the DVD, set an address with hexadecimal. • In the address input mode, turn to the hexadecimal input by pressing the [PROGRAM] (A8-4C) key (display a "∗" mark), and [1] to [6] keys are each input as A to F. • Hexadecimal input and decimal input can switch with toggle. • In case of CD, perform only the absolute time search. 3. Search execution • Press the [CHP/TM] (A8-13) key of the remote control unit. • After the search, perform only trace and video and audio outputs are nothing. 4. Release the Search address input • Clear the address by pressing the [CLEAR] (A8-45) key. Release the address input mode when pressing the [CLEAR] key once again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 52 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE Character in bold : Item name : Information display 1 5 6 10 13 11 8 9 3 2 12 17 18 19 16 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL – ∗ ∗ ∗] [OFF], [ACC/BRK], [CAV], [CLV] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] In Side Switch ON : [01] In Side Switch OFF : [00] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] - Jitter value [J – ∗ ∗ ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLASH = ∗ ∗] % Revision of the system controller [S: ∗. ∗ ∗ ∗ / ∗. ∗ ∗ ∗] version . revision / build number of the ST core ^ Revision of the DVD mechanism controller [M: ∗ ∗ / ∗ ∗ ∗] Kinds of version / firmware of the FE. RAM or ROM 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 53 5 6 7 8 5 6 7 8 C D F A B E 7.1.3 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY • Service mode indication (ESC + CHP/TIM keys) ID Address The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs. EDC/ID/AV 1 error history (ID Address, EDC/ID/AV 1 Error, last eight errors) Self-diagnosis functions (If a mechanical error has occurred, the mechanical-error history is also displayed.) • Calculation of the average error rate (ESC + "5" [Test mode remote control unit] keys) The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs) For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less • Indication of model information (ESC + CHAP keys) The items from 12 to 19 of the TEST MODE Indications are displayed. However, in the indications, S in the standard test mode is changed to B.E VERSION, and M is changed to F.E VERSION. For details, see 7.1.4. • Change of the background colors (ESC + "+10" [Test mode remote control unit] keys) Every time the keys are pressed, the background color is changed between blue and green alternately. (The green background is used in SETUP NAVIGATOR.) • Region confirmation mode (ESC + AUDIO [Test mode remote control unit] + "1"-"8" [Test mode remote control unit] keys) After you press the AUDIO key while holding the ESC key pressed and then input the region number, if the number is different from that set in the unit, an error message is displayed, and the tray opens. Command Contents Conditions Remote Control Key Name Remote Control Code Memory clear and resion / revision indication CLEAR (∗1) A8-45 Average value measurement of DVD error rate 5 (∗1) A8-05 CD error rate measurement 5 (∗1) A8-05 Aspect : Pan scan 2 AF-A2 Aspect : Letter box 3 AF-A3 Aspect : Wide 4 AF-A4 Digital : AC3 5 AF-A5 Digital : AC-3 > PCM 6 AF-A6 Virtual surround : OFF Only for models having the corresponding functions 7 AF-A7 Virtual surround : TruSurround 8 AF-A8 Digital output ON REPEAT A AF-E8 Digital output OFF REPEAT B AF-E4 DTS Digital output ON STEP FWD AF-B7 DTS Digtal output OFF STEP REV AF-B8 Scart terminal output : VIDEO WY, models equipped with Scart terminal AUDIO AF-BE Scart terminal output : S-VIDEO SUBTITLE AF-36 Scart terminal output : RGB ANGLE AF-B5 Progressive OFF Only for progressive models R_SKIP A3-9D Progressive ON F_SKIP A3-9C Audio 5.1 CH ON Only for models having the corresponding functions KD_ENTER AF-EF FL indication of EDC / ID error CX (∗1) A8-0E FL indication of ID number STEREO (∗1) A8-4A ZOOM ON (X4) ZOOM AF-37 ZOOM OFF < X3 (∗1) A8-59 Service mode indication (error rate indication, etc.) CHP/TIM (∗1) A8-13 Model information indication CHAP (∗1) A8-40 Background color change +10 (∗1) A8-1F Audio last stage mute ON 9 AF-A9 Audio last stage mute OFF 0 AF-A0 Title search Input mode IN Title No. input Search execution SIDE A (∗1) Numbers (∗1) PLAY (∗1) A8-4D A8-00 to A8-09 A8-17 Region confimation mode AUDIO (∗1) Numbers (∗1) A8-1E A8-01 to A8-08 Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC key of the remote control unit. To quit, press the ESC key ∗1 : Test mode remote control unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 54 1 2 3 4 1 2 3 4 C D F A B E 7.1.4 SPECIFICATION OF MODEL INFORMATION DISPLAY • Display contents Character in bold : Item name : Information display 1 2 12 3 4 5 6 7 8 9 10 11 1 Model name Display it according to model information set from the FL controller. 2 Destination indication Display it according to model information set from the FL controller. 3 Region No. 4 Part number 5 ROM version 6 Flash size 7 FL controller version 8 CHIP VERSION Version of ST CHIP CUT ID / JTAG ID (two columns) (eight columns) 9 B.E VERSION Version of BACK END (version of ST core software) . / softwareVersion . softwareRevision / buildNumber 0 F.E VERSION Version of FRONT END (version of mechanism controller CHIP software) / MainVersion / Kinds of firmware RAM or ROM - Remote control code = Key code of Main unit To display model information : Press the ESC key then the CHAP key. To close the model information display : Press the ESC key. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 55 5 6 7 8 5 6 7 8 C D F A B E 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE Indication plan contents Character in bold : Item name : Information display 1 2 4 • EDC / ID error FL display (shortcut function) EDC/ID error is displayed on the FL display if you press the CX key while holding the ESC key on the TEST MODE remote control unit pressed. To quit while an EDC/ID error is displayed, press the ESC key. FL display 0 0 / 0 0 / 0 1 ∗ • Display during Service Mode To enter Service Mode, press the CHP/TIM key while holding the ESC key pressed. To quit, press the ESC key. Service mode display 1 ID Address 2 Error rate (always displayed), in exponential notation ∗ ∗ ( ∗ ∗ ∗ ∗ ) 3 EDC/ID/AV1 error history (ID Address, EDC/ID/AV1 errors, last eight errors) Description of AV1 errors BIT0: In BE code, an EDC error, FEC I/F buffer overflow, or "not valid" is generated (B.E error) BIT1: In BE code, the ID is different from that of the target (B.E error) BIT2: An error was generated in FE-added 2-byte EDC data. (F.E error) 4 Self-diagnosis functions Whether F.E is normal or not is checked. FE OK: No abnormality in F.E FE Error: Abnormality is recognized in F.E. Pressing the CHP/TIM key again displays the mechanical error history. Each press of the CHP/TIM key changes the displays between the mechanical error history and the Service Mode display. For details on the mechanical error history, refer to the addendum. Number of sites where an EDC or ID error was generated ∗: Lights when an AV1 error was generated at least once. Number of retrials while an ID error is being generated (only displayed at the moment when an error is being generated), and for the ST models, the number of retrials made for the latest ID error Number of retrials while an EDC error is being generated (only displayed at the moment when an error is being generated), and the number of retrials made for the latest EDC error Number of error rates 02: Indicates use of the same method as for the 02 models, No indication: Indicates use of the method used for models before the 02 model 3 00 0 0 0 01 0 0 1 02 0 1 0 03 0 1 1 04 1 0 0 05 1 0 1 06 1 1 0 07 1 1 1 AV1 ERR 1 2 BIT 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 56 1 2 3 4 1 2 3 4 C D F A B E 7.1.6 MECHANICAL ERROR HISTORY Indication contents • List of the error codes • List of the servo states Note : 0 x & & code (Only this part is displayed to a display) 1 2 3 Description of the mechanical error history 1 Error number The first two digits are for the error code, and the second two digits are for the servo state. 2 Error number The elapsed time from the time when the system was turned on until an error was generated is displayed. Note: If a later error time is shorter than the previous error time, it means that the unit was turned off then on again. 3 Description of errors Error messages are displayed. Example: If the error code is 0x13 (Focus lost timeout) and the servo state is 0x05 (Disc judge), the message becomes "Focus lost timeout in Disc judge." Only if a mechanical error (FE error) has been generated, a mechanical error history containing up to the last eight errors is displayed if you press the CHP/TIM key in Service Mode. Errors are displayed in descending order, with the latest one at the top. Error Code Servo State 1 2 3 0x00 Reset 0x01 Stop (inside position) 0x02 Stop (any position) 0x03 Braking for stop 0x04 New disc 0x05 Disc judge 0x06 Reserved 1 0x07 Playing 0x08 Start up 0x09 Seeking 0x0A Pausing 0x0B Reading BCA 0x0C Reserved 2 Tray open Tray moving 0x0D 0x0E 0x0F FOCUS ERROR 0x0∗ FOCUS TIMEOUT 0x1∗ Focus on error 0x01 Focus on timeout 0x11 Focus off error 0x02 Focus off timeout 0x12 Focus lost error 0x03 Focus lost timeout 0x13 Focus balance adjust error 0x04 Focus balance adjust timeout 0x14 Focus gain adjust error 0x05 Focus gain adjust timeout 0x15 Focus sweep error 0x06 Focus sweep timeout 0x16 Focus reflection error 0x07 Focus reflection timeout 0x17 TRACKING ERROR 0x2∗ TRACKING TIMEOUT 0x3∗ Tracking on error 0x21 Tracking on timeout 0x31 Tracking off error 0x22 Tracking off timeout 0x32 Tracking lost error 0x23 Tracking lost timeout 0x33 Tracking balance adjust error 0x24 Tracking balance adjust timeout 0x34 Tracking gain adjust error 0x25 Tracking gain adjust timeout 0x35 STEPPING ERROR 0x4∗ STEPPING TIMEOUT 0x5∗ Stepping on error 0x41 Stepping on timeout 0x51 Stepping off error 0x42 Stepping off timeout 0x52 Stepping lost error 0x43 Stepping lost timeout 0x53 Stepping move error 0x44 Stepping move timeout 0x54 SPINDLE ERROR 0x6∗ SPINDLE TIMEOUT 0x7∗ Spindle on error 0x61 Spindle on timeout 0x71 Spindle off error 0x62 Spindle off timeout 0x72 Spindle lost error 0x63 Spindle lost timeout 0x73 Spindle CAV error 0x64 Spindle CAV timeout 0x74 Spindle CLV error 0x65 Spindle CLV timeout 0x75 ACQUISITION ERROR 0x8∗ ACQUISITION TIMEOUT 0x9∗ PLL lost error 0x83 PLL lost timeout 0x93 DECODER ERROR 0xa∗ DECODER TIMEOUT 0xb∗ ID lost error 0xa3 ID lost timeout 0xb3 DEVICE ERROR 0xd∗ SRAM error 0xd1 Note: When an error has been generated, if the servo state is "Disc judge," the disc tray opens, and if the servo state is other than "Disc judge," the unit stops (excluding a case of a device error with the error code 0xd∗). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 57 5 6 7 8 5 6 7 8 C D F A B E Error Name No. Causes Check Item Possibility of Trouble Remarks FOCUS ERROR (0 x 0∗) Focus on error 0 x 01 Focus on could not be completed Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. Front End IC Focus off error 0 x 02 Focus off could not be completed Unknown Focus lost error 0 x 03 Focus servo is lost Are not there a dirt or a scratch in the Disc? Does LD become weak? 1. Pickup Focus balance adjust error 0 x 04 AFB on could not be completed Focus gain adjust error 0 x 05 Focus AGC could not be completed Focus sweep error 0 x 06 Focus reflection error 0 x 07 Dimensions of S curve did not reach to the aim value Does LD become weak? 1. Pickup FOCUS TIMEOUT (0 x 1∗) Focus on timeout 0 x 11 Did timeout at focus on Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. Front End IC Focus off timeout 0 x 12 Did timeout at focus off Focus lost timeout 0 x 13 Did timeout at focus backup Focus balance adjust timeout 0 x 14 Did timeout at AFB Focus gain adjust timeout 0 x 15 Did timeout at AGC Focus sweep timeout 0 x 16 TRACKING ERROR (0 x 2∗) Tracking on error 0 x 21 Tracking on could not be completed 1. Pickup 2. Driver 3. Front End IC Tracking off error 0 x 22 Tracking off could not be completed Tracking lost error 0 x 23 Tracking servo is lost 1. Pickup Tracking balance adjust error 0 x 24 ATB could not be completed 1. Pickup Tracking gain adjust error 0 x 25 AGC could not be completed 1. Pickup Tracking jump error 0 x 26 Tracking jump could not be completed TRACKING TIMEOUT (0 x 3∗) Tracking on timeout 0 x 31 Did timeout at tracking on Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Driver 3. Front End IC Tracking off timeout 0 x 32 Did timeout at tracking off Tracking lost timeout 0 x 33 Did timeout at tracking backup Are not there a dirt or a scratch in the Disc? 1. Pickup Tracking balance adjust timeout 0 x 34 Did timeout at ATB 1. Pickup Tracking gain adjust timeout 0 x 35 Did timeout at AGC 1. Pickup Tracking jump timeout 0 x 36 Did timeout at tracking jump STEPPING ERROR (0 x 4∗) Stepping on error 0 x 41 Stepping on could not be completed 1. Pickup 2. Driver 3. Front End IC Stepping off error 0 x 42 Stepping off could not be completed Stepping lost error 0 x 43 Stepping servo is lost Stepping move error 0 x 44 Stepping could not move Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver STEPPING TIMEOUT (0 x 5∗) Stepping on timeout 0 x 51 Did timeout at stepping on 1. Pickup 2. Driver 3. Front End IC Stepping off timeout 0 x 52 Did timeout at stepping off Stepping lost timeout 0 x 53 Did timeout at stepping backup Stepping move timeout 0 x 54 Did timeout at stepping movement Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver ERROR CODE TABLE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 58 1 2 3 4 1 2 3 4 C D F A B E Error Name No. Causes Check Item Possibility of Trouble Remarks SPINDLE ERROR (0 x 6∗) Spindle on error 0 x 61 Spindle on could not be completed Spindle off error 0 x 62 Spindle off could not be completed Spindle lost error 0 x 63 Spindle lost control Spindle CAV error 0 x 64 CAV on could not be completed Spindle CLV error 0 x 65 CLV on could not be completed SPINDLE TIMEOUT (0 x 7∗) Spindle on timeout 0 x 71 Did timeout at spindle on Spindle off timeout 0 x 72 Did timeout at spindle stop Spindle lost timeout 0 x 73 Did timeout at spindle backup Are not there a dirt or a scratch in the Disc? Is FG output from the driver? 1. Spindle motor 2. Spindle driver Spindle CAV timeout 0 x 74 Did timeout at CAV on Is spindle rotating? Is FG output from the driver? Is the PDM output from Front End? 1. Spindle motor 2. Spindle driver 3. Front End IC Spindle CLV timeout 0 x 75 Did timeout at CLV on ACQUISITION ERROR (0 x 8∗) PLL lost error 0 x 83 PLL is lost Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC ACQUISITION TIMEOUT (0 x 9∗) PLL lost timeout 0 x 93 Did timeout at PLL backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DECODER ERROR (0 x a∗) ID lost error 0 x a3 ID is not readable Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DECODER TIMEOUT (0 x b∗) ID lost timeout 0xb3 Did timeout at ID backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DEVICE ERROR (0 x d∗) SRAM error 0 x d1 Cannot access SRAM Power supply of SRAM Is not bus line short-circuiting? 1. SRAM 2. Front End IC 3. Front End-SRAM bus line FAILSAFE (0 x e∗) Unexpected error 0 x e1 Unexpected error 1. software runaway 3. Software bug www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 59 5 6 7 8 5 6 7 8 C D F A B E 7.1.7 ID NUMBER AND ID DATA SETTING To enter ID Number Input Mode, with no ID number set, such as in a case of immediately after upgrading the firmware, press the ESC key then the STEREO key. Note: If a previous ID number and ID data, such as a factory- preset ID number and ID data, are maintained, the unit enters ID Number Confirmation Mode when the above keys are pressed. However, if only an ID number is maintained, the unit enters ID Data Input Mode. ID Number Input Mode [Player's ID Number Setting] ID Number ? > - - - - - - - - - Exit Input ID Number ! 1 This display appears when the PLAY key is pressed in Step 4. Enter a 9-digit number to compare. The number is also displayed on the FL display. 6 By pressing the CLEAR key without having input a number, the unit returns to Step 2 without doing anything else. Each press of this key after a number has been input deletes one digit. 7 After entering all 9 digits, if you press the PLAY key, the unit compares the numbers input in Steps 2 and 6, and only if the numbers match, that number is set as the ID. Then the unit automatically enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Input Mode. 8 Enter a 9-digit ID number. The ID number is also displayed on the FL display. 2 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 3 After entering all 9 digits, if you press the PLAY key, the unit enters Compare mode. Enter the same ID number again. Only if your two input numbers match, the ID number is set. Compare mode helps eliminate mistyping of the ID number. 4 After entering all 9 digits, if you press the SEARCH key, the unit unconditionally sets the input number as the ID number. Then the unit automatically enters Player's Data Input Mode. (The SEARCH key is not accepted after all 9 digits have been entered.) 5 2 3 [Player's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! 4 5 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Input ID Number ! 6 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Input ID Number ! 8 Note: Enter ID numbers while the unit is in Stop mode so that the values set will be immediately written to the flash ROM. The following operations are all made with the TEST MODE remote control unit (GGF1067). Caution: For the DVD players compatible with DVD-RW, for playback of a DVD-RW disc (CPRM), it is necessary that an individual ID number and ID data are set for each player. If the ID number and ID data be not properly set in the manner described below, future operations cannot be guaranteed. The ID number is written on the yellow label at the rear panel of the player. If there is no yellow label, before downloading FLASH ROM, take note of the ID number set following the procedures outlined in "ID Number Confirmation Mode" on the next page. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 2 without doing anything else. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 6 without doing anything else. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 60 1 2 3 4 1 2 3 4 C D F A B E To enter ID Number Confirmation Mode after the ID number and the ID data are set, press the ESC key then the STEREO key. ID Number Confirmation Mode 1 The ID number already set is displayed. (It is also displayed on the FL display.) 2 Enter a 9-digit number for comparison. This is not required when you only wish to check the ID number visually. (The number is also displayed on the FL display.) 3 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 4 After entering all 9 digits, if you press the PLAY key, the unit compares the number entered in Step 2 with the ID number set, and only if the numbers match, the unit automatically exits ID Number Confirmation Mode. If an ID data has not been entered, the unit enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Confirmation Mode. 5 After entering all 9 digits, if you press the STOP key, the unit compares the number entered in Step 3 with the ID number set, and only if the numbers match, the unit automatically deletes the ID number and exits this mode. If the numbers do not match, the disc tray is opened, and the unit exits this mode. (The STOP key is not accepted after all 9 digits have been entered.) 6 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit Input ID Number ! 3 2 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Memory Clear Input ID Number ! 5 6 Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 4 without doing anything else. • Indication of an ID number already set An ID number already set is displayed in the following cases: 1) When the ESC key then the CLEAR key are pressed, user settings are cleared, then the ID number set is displayed on the screen. In this case, the ID number is not displayed on the FL display. 2) When the unit enters ID Number Confirmation Mode by your pressing the ESC key then the CLEAR key, the ID number set is displayed. In this case, the ID number is also displayed on the FL display. If you only need to confirm the ID number, you can exit this mode by pressing the CLEAR key or turning off the power. • Indication when no ID number is set If no ID number is set, the message "No ID Number!" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 61 5 6 7 8 5 6 7 8 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1085) is loaded in this mode, the unit automatically starts reading the data. (If the DVD DATA DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1085), you cannot exit this 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 62 1 2 3 4 1 2 3 4 C D F A B E 7.1.8 SEQUENCE AFTER POWER ON STANDBY Power on operation by a user (remote controller key or product key) FL controller receives a message [FL controller] FL lighting / outputs a power on signal (POWER ON: "L"→"H") [FL controller] Release the reset for BACK END (XRESET: "L"→"H") [BACK END] Accesses flash ROM and 64M SDRAM [BACK END] Accesses FRON END [FL controller] Request communication to BACK END (FP_XRDY) [BACK END] Outputs the communicable signal to FL controller (FP_ACK) BACK END – FL controller communication The opening picture appears [FRONT END] Check the following: • Slider positioning (INSIDE SW) • Spindle FG stop Disc detection (Focus control) Spindle turn Read ID information code Various setting The picture appears Flow chart from power on to the picture output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 63 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 DISASSEMBLY 1 Remove the Bonnet by removing the five screws. 2 Press the STANDBY/ON button to turn on the power. 3 Press the 0 button to open the Tray. 4 Remove the Tray Panel. 5 Press the 0 button to close the Tray. 6 Press the STANDBY/ON button to turn off the power. Bonnet and Tray Panel 1 How to open the Tray when the power cannot be on Diagnosis of the DVDM Assy 2 6 3 3 5 5 4 Tray Panel Tray (SCRB Assy) This is not installed in your product. Slit Tray open Drive Gear Loading Mecha.Assy Screwdriver (small) Screwdriver (small) Projection Insert a screwdriver (small) into the slit located at the bottom of the unit, and slide the projection of the Drive Gear in the Loading Mecha. Assy in the direction of the arrow, as indicated in the photo. If the Tray pops out a little, fully pull it out by hand. Note: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 64 1 2 3 4 1 2 3 4 C D F A B E 1 Remove the six hooks. 2 Remove the front panel section. Front Panel Section 2 1 Remove the four screws. 2 Remove the three screws. 3 Remove the DVDM Assy and stand it against the other parts. DVDM Assy 3 Front panel section 2 1 1 1 1 1 1 ×2 ×3 1 1 1 DVDM Assy DVDM Assy 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 65 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the bridge by removing the one screw. 2 Pull out the tray, then remove it by pressing the hook. 3 Short-circuit two points of C and D by soldering. 4 Remove the four connectors from the Loading Mecha. Assy. Note: After replacement, connect the flexible cable, then remove the soldered joint (open). 5 Remove the four screws that secure the Loading Mecha. Assy to the unit. Loading Mecha. Assy 1 Rear View Front Side 1 3 -1 1 -2 2 -1 2 -2 Loading Base Triangle Drive Cam Pin Hook Bridge Tray Note when reinserting the Tray C D Removing the Traverse Mecha. Assy-S and Pickup Assy-S When reinserting the Tray, first align the triangle printed on the Loading Base and the pin of the Drive Cam, then insert the Tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 66 1 2 3 4 1 2 3 4 C D F A B E 1 Dislodge the flexible cables from their factory placement. 2 Remove the four hooks. 3 Remove the Traverse Mecha. Assy-S. Traverse Mecha. Assy-S 2 × 2 Bottom View Traverse Mecha. Assy-S Flexible cable for the pickup Flexible cable for the spindle motor 1 1 1 2 × 2 2 3 Flexible cable for the stepping motor Front Side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 67 5 6 7 8 5 6 7 8 C D F A B E 1 Dislodge the flexible cable for the pickup from its packaged placement. 2 Remove the flexible cable for the pickup. 3 Remove the two adjustment screws and two adjustment springs. 4 Remove the Pickup Assy-S. Pickup Assy-S 3 Note: The Pickup Assy-S can be removed without removing the Traverse Mecha. Assy-S. (shown as Step ø.) Bottom View Flexible cable for the pickup 1 4 3 3 1 2 Front Side Pickup Assy-S Adjustment screw (Skew screw) Adjustment screw (Skew screw) Adjustment spring (Skew spring) Adjustment spring (Skew spring) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 68 1 2 3 4 1 2 3 4 C D F A B E 5 5 5 Remove the two screws. Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Pickup Assy-S Note: The screws are secured with epoxy. Make sure to apply epoxy after reattaching the screws. Leaf Spring Joint Spring Joint 03 : Conductive surface Hook Hook Arrangement of the flexible cable for the spindle motor : Conductive surface Arrangement of the flexible cable for the stepping motor Front Side Front Side Bottom View Bottom View www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 69 5 6 7 8 5 6 7 8 C D F A B E Front Side Note: Be sure to move the Pickup Assy-S to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 2 1 3 7 Attach the flexible cable of the pickup to the connector. 1 Fold the flexible cable inward at the position of the reference line. 3 Fold the flexible cable of the pickup with the backing inward. 7 Pass the flexible cable below the hook, and fold it back. 8 Fold the flexible cable back at the hook. 9 Fold the flexible cable along the hook. 4 Pass the flexible cable through the hook not allowing any slack. 6 Hook the part folded in Step 1 to the hook. 5 Fold the flexible cable as indicated in the photo. Hook Bottom View 5 6 Make sure there is no slack in the cable Reference line Reference line Backing 97mm ± 2mm Reference line Hook Pass the cable below the hook Hook 8 Hook Hook 9 Make sure that the cable does not have any slack Make sure that the cable is loose 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 70 1 2 3 4 1 2 3 4 C D F A B E 7.2 IC 7 STM6316ATXXA (DVDM ASSY : IC301) • FRONT END IC ¶ Block Diagram • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC STM6316ATXXA, STM5589CVA, M63108FP, PE5374A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 71 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 F E R I F k 7 . 2 1 tr a p e c n e r e f e r k c olb g ola n A 2 I A D N G A D N G d n g g ola n a 3 N I F R r o tic a p a c k c olb n oit alu d o m e d a o t t u p ni n oit aic o s s a C la n gis F R 4 T U O F R r o tic a p a c k c olb g ola n a n a m o rf g nitsil e r u txi m 4 B + 3 B + 2 B + 1 B 5 8 1 A C C V A 8 V 1 8 V 1 g ola n a 6 A 1 B t u p ni 1 B - U P 7 N M D N G A D N G d n g g ola n a 8 B 2 B t u p ni 2 B - U P 9 N M 3 3 C C V A 3 V 3 3 V 3 g ola n a 0 1 D F E R p u k cip o t U P r o f t u p t u o 1 V 2 1 1 N M 8 1 C C V A 8 V 1 8 V 1 g ola n a 2 1 D 4 B t u p ni 4 B - U P 3 1 S I 8 1 A C C V A 8 V 1 8 V 1 g ola n a 4 1 C 3 B t u p ni 3 B - U P 5 1 S I 3 3 A C C V A 3 V 3 3 V 3 g ola n a 6 1 S I A D N G A D N G d n g g ola n a 7 1 D S 3 3 C C V A 3 V 3 3 V 3 g ola n a 8 1 D S 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 1 D S D N G A D N G d n g g ola n a 0 2 F C t u p ni C m a e b 3 - U P 1 2 E A t u p ni A m a e b 3 - U P 2 2 S I D L E I H S V A D N G d n g g ola n a 3 2 C D A 8 1 C C V A 8 V 1 8 V 1 g ola n a 4 2 C D A D N G A D N G d n g g ola n a 5 2 C D A D L E I H S V A D N G d n g g ola n a 6 2 C A D 3 3 C C V A 3 V 3 3 V 3 g ola n a 7 2 C A D D N G A D N G d n g g ola n a 8 2 E L D N I P S ) 2 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 9 2 E G D E L S ) 1 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 0 3 T X E F E R % 1 K 0 2 C A D r o f e c n e r e f e R 1 3 D N G F E R tx e f e r d n g g ola n a 2 3 C A D F E R % 1 m h o 0 6 5 e c n e r e f e r C A D 3 3 T C A F % 1 m h o 0 6 5 s u c o f r o f g nitsilt n e rr u c C A D 4 3 T C A T % 1 m h o 0 6 5 g nik c a rt r o f g nitsilt n e rr u c C A D 5 3 C A D 8 1 C C V A 8 V 1 8 V 1 g ola n a 6 3 0 C P G F t u p ni e slu p G F 7 3 1 C P S P la n gis lo rt n o c r e vir D 8 3 2 C P ) n e p o ( 1 W S y a rt n oitis o p N E P O y a rt r o f t u p ni W S 9 3 3 C P B S la n gis lo rt n o c r e vir D 0 4 4 C P n oitis o p D L S t u p ni W S e dis n I ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 72 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 4 S S V D D N G d n g la tigid 2 4 3 3 D D V D 3 V 3 3 V 3 la tigid 3 4 5 C P 0 5 6 X / 0 8 7 la n gis lo rt n o c e g n a h c D L m n 0 5 6 / m n 0 8 7 4 4 6 C P M D P e d nip s e vir d eld nip s r o f g nitsil M D P lo rt n o C 5 4 7 C P nia g cip o la n gis lo rt n o c nia g C I E O 6 4 7 D P U P 2 0 X / U P 3 0 t n e m eltt e s p u -llu P 7 4 S S V D D N G d n g la tigid 8 4 8 1 D D V D 8 V 1 8 V 1 la tigid 9 4 6 D P ) g u b e d ( ts e t 0 5 5 D P ) g u b e d ( ts e t 1 5 4 D P ) klc P S D ( ts e t 2 5 3 D P ) a t a d P S D ( ts e t 3 5 2 D P ) 1 b rts P S D ( ts e t 4 5 1 D P r o tin o m r o rr e ) d e e n d d a F P L z H K 0 3 ( r o tin o m r o rr e G K R T r o fla ni m r e T 5 5 0 D P e vir d M D P y a rt e vir d y a rt r o fla n gis M D P lo rt n o C 6 5 S S V D D N G d n g la tigid 7 5 3 3 D D V D 3 V 3 3 V 3 la tigid 8 5 R R E _ T U O R O R R E _ S R F /I A T A D E B 9 5 D I L A V E _ T U O N E _ R R E _ S R F /I A T A D E B 0 6 S S V D D N G d n g la tigid 1 6 K L C _ T U O K L C B _ S R F /I A T A D E B 2 6 8 1 D D V D 8 V 1 8 V 1 la tigid 3 6 D I L A V D _ T U O D I L A V D _ S R F /I A T A D E B 4 6 A T A D _ T U O A T A D _ S R F /I A T A D E B 5 6 C N Y S _ T U O T S B C C E _ S R F /I A T A D E B 6 6 5 E P ) A M D ( L C S t u p ni d a oln w o d e nit u o r E F 7 6 4 E P ) A M D ( A D S t u p ni d a oln w o d e nit u o r E F 8 6 3 E P L C S F /I d n a m m o c E B 9 6 2 E P A D S F /I d n a m m o c E B 0 7 1 E P ) e s olc ( 2 W S y a rt n oitis o p E S O L C y a rt r o f t u p ni W S 1 7 0 E P T N I X X D la n gis n oit a g a p o r p s u t a ts E F 2 7 S S V D D N G d n g la tigid 3 7 3 3 D D V D 3 V 3 3 V 3 la tigid 4 7 1 F P p ullu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 5 7 0 F P n w o dllu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 6 7 S S V D D N G d n g la tigid 7 7 8 1 D D V D 8 V 1 8 V 1 la tigid 8 7 1 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 9 7 0 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 0 8 T S E T n w o dllu p - K 0 1 ts e t www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 73 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 8 N _ T E S E R T E S E R t u p ni T E S E R 2 8 C D A S S V A D N G d n g g ola n a 3 8 C D A 8 1 D D V A 8 V 1 8 V 1 g ola n a 4 8 L L P D N G A D N G d n g g ola n a 5 8 F F O L L P A D N G d n g g ola n a 6 8 T U O E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 7 8 N I E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 8 8 L L P 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 8 1 D L D L m n 0 5 6 la n gis g nivir d D L m n 0 5 6 0 9 2 D L D L m n 0 8 7 la n gis g nivir d D L m n 0 8 7 1 9 3 3 A C C V A 3 V 3 3 V 3 la tigid 2 9 L E S W T D N G / R V _ D C D C r o fla ni m r e t n oitc n uj R V s e d oid r o tin o M 3 9 1 D M L 1 D M L / D M L la ni m r e t n oitc n uj e g a tlo v r o tin o M 4 9 2 D M L 2 D M L / R V _ D V D D V D r o fla ni m r e t n oitc n uj R V s e d oid r o tin o M 5 9 L D N G A D N G d n g g ola n a 6 9 M P _ T S T c n ts e t 7 9 E C I L S _ T S T c n ts e t 8 9 C D A _ T S T c n ts e t 9 9 D C A S F R C I _ D C A S t u p t u o la n gis F R 0 0 1 T L I F G B V r o tic a p a c ytilib a ts e c n e r e f e r e dis ni r o fla ni m r e t n oitc n uj r e s n e d n o C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 74 1 2 3 4 1 2 3 4 C D F A B E 7 STM5589CVA (DVDM ASSY : IC601) • BACK END IC . o N e m a N n i P .ri D n o it c n u F n i P 1 O S _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .t u p t u o a t a d r e fs n a rt la ir e S 2 3 A T A D _ A T U O d e v r e s e r 3 K L C V T U O d e v r e s e r 4 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 5 S S V - d n u o r G 6 A T A D _ B T U O d e v r e s e r 7 K L C B _ B T U O d e v r e s e r 8 G A L F _ B T U O d e v r e s e r 9 S O P Y R T T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O .t u p n i e sl u p n o it a t o r y a r T . d e s u e b n a c 0 N I _ E R U T P A C 0 1 E Z E E U Q S T U O .lo rt n o c 2 S / 1 S t u p t u o o e d i V - S r o f la n g is t u p t u O . e d o m t u p t u o e z e e u q s : ' H ' 1 1 S T R T U O .t u p t u o la n g is d n e S o T ts e u q e R ) C 2 3 2 - S R ( T R A U 2 1 R E T T E L T U O N O I T C N U F ( r o tc e n n o c ) T R A C S ( O R U E & lo rt n o c 2 S / 1 S t u p t u o o e d i V - S r o f la n g is t u p t u O .la n g is ) G N I H C T I W S . e d o m t u p t u o x o b -r e tt e l: ' H ' 3 1 S T C N I .t u p n ila n g is d n e S o T r a e l C ) C 2 3 2 - S R ( T R A U 4 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 5 1 S S V - d n u o r G 6 1 A T A D _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i a t a d la ir e S 7 1 K L C B _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i k c o lc la ir e S 8 1 D I L A V D _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i g a lf d ila v a t a D 9 1 C N Y S _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i g a lf e zi n o r h c n y s la ir e S 0 2 D I L A V E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .til p s _ S R r o f g a lf d ila v r o rr E 1 2 T S B C C E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .til p s _ S R r o f g a lf tr a ts k c o l b C C E 2 2 P X /I T U O .r e vir d o e d iv r o f t u p t u o e vis s e r g o r P / e c a lr e t n i f o e g n a h c a r o f la n g is t u p t u O e c a lr e t n i: ' H ' e vis s e r g o r p : 'L ' 3 2 B G R _ D D V - yl p p u s r e w o P V 3 . 3 ti u c ric B G R 4 2 B G R _ S S V - d n u o r G ti u c ric B G R 5 2 T U O _ B T U O b C / B 6 2 T U O _ G T U O Y / G 7 2 T U O _ R T U O r C / R 8 2 B G R _ F E R V N I e c n e r e f e r C A D B G R 9 2 B G R _ F E R I N I e c n e r e f e r t n e rr u c C A D B G R 0 3 C C Y _ D D V - yl p p u s r e w o P V 3 . 3 ti u c ric C Y 1 3 C C Y _ S S V - d n u o r G ti u c ric C Y 2 3 T U O _ Y T U O Y 3 3 T U O _ C T U O C 4 3 T U O _ V C T U O V C 5 3 C C Y _ F E R V N I e c n e r e f e r C A D C C Y 6 3 C C Y _ F E R I N I e c n e r e f e r t n e rr u c C A D C C Y 7 3 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 8 3 S S V - d n u o r G ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 75 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 9 3 E T U M V R D X T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI .r e g n a h C c si D 5 yl n O . g n it u m r e vir d r o t o m r o f la n g is t u p t u O g n it u m : 'L ' 0 4 N E P O T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p y a rt r o f la n g is t u p n I . n o itis o p N E P O e t e l p m o c : ' H ' 1 4 E S O L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p y a rt r o f la n g is t u p n I . n o itis o p E S O L C e t e l p m o c : ' H ' 2 4 P M A L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p p m a lc c si d g n i w o h s r o f la n g is t u p n I . n o itis o p p m a lc c si d e t e l p m o c : ' H ' 3 4 P M A L C N U T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p p m a lc - n u c si d g n i w o h s r o f la n g is t u p n I . n o itis o p p m a lc c si d e t e l p m o c : ' H ' 4 4 S N S _ C S I D T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . g n itsix e c si d r o f la n g is t u p n I g n itsix e : 'L ' 5 4 2 E T U M V R D X T U O d e v r e s e r 6 4 x - P T T U O d e v r e s e r 7 4 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 8 4 M C P _ D D V - yl p p u s r e w o P V 8 . 1 9 4 M C P _ S S V - d n u o r G 0 5 S S V - d n u o r G 1 5 K C B _ A T U O k c o lc C A D o i d u A 2 5 0 A T A D _ A T U O a t a d R , L t n o r F C A D o i d u A 3 5 1 A T A D _ A T U O d e v r e s e r 4 5 2 A T A D _ A T U O d e v r e s e r 5 5 K L C M _ A T U O k c o lc r e ts a M C A D o i d u A 6 5 K C R L _ A T U O k c o lc R / L C A D o i d u A 7 5 T U O D _ A T U O .t u p t u o o i d u a la ti g i d ) 8 5 9 0 6 C E I( F I D P / S 8 5 4 A _ I M S T U O s s e r d d A M A R D S I M S 9 5 5 A _ I M S 0 6 6 A _ I M S 1 6 7 A _ I M S 2 6 8 A _ I M S 3 6 9 A _ I M S 4 6 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 5 6 S S V - d n u o r G 6 6 3 A _ I M S T U O s s e r d d A M A R D S I M S 7 6 2 A _ I M S 8 6 1 A _ I M S 9 6 0 A _ I M S 0 7 0 1 A _ I M S 1 7 1 1 A _ I M S 2 7 2 1 A _ I M S 3 7 3 1 A _ I M S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 76 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 4 7 0 S C _ I M S T U O .'L'tc ele s pih c M A R D S I M S 5 7 1 S C _ I M S T U O d e v r e s e r 6 7 S A R _ I M S T U O 'L' S A R M A R D S I M S 7 7 S A C _ I M S T U O 'L' S A C M A R D S I M S 8 7 E W _ I M S T U O 'L' elb a n E e tir W M A R D S I M S 9 7 L M Q D _ I M S T U O M Q D r e w o L M A R D S I M S tc ele s r e w o L :'L' 0 8 U M Q D _ I M S T U O M Q D r e p p U M A R D S I M S tc ele s r e p p U :'L' 1 8 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 2 8 N I K L C _ I M S N I .t u p ni k c olc M A R D S la n r e tx E 3 8 S S V - d n u o r G 4 8 0 D _ I M S O /I a t a D M A R D S I M S 5 8 1 D _ I M S 6 8 2 D _ I M S 7 8 3 D _ I M S 8 8 4 D _ I M S 9 8 5 D _ I M S 0 9 6 D _ I M S 1 9 7 D _ I M S 2 9 8 D _ I M S 3 9 9 D _ I M S 4 9 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 5 9 T U O K L C _ I M S T U O .t u p t u o k c olc M A R D S 6 9 S S V - d n u o r G 7 9 0 1 D _ I M S O /I a t a D M A R D S I M S 8 9 1 1 D _ I M S 9 9 2 1 D _ I M S 0 0 1 3 1 D _ I M S 1 0 1 4 1 D _ I M S 2 0 1 5 1 D _ I M S 3 0 1 S S O R C _ K C A R T T U O d e v r e s e r 4 0 1 M C P X _ D S D T U O d e v r e s e r 5 0 1 T S R X _ C A D T U O d e v r e s e r 6 0 1 K L C M C P _ C D A T U O d e v r e s e r 7 0 1 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 8 0 1 S S V - d n u o r G 9 0 1 T S R T X N I e c a fr e t nitin U lo rt n o C cits o n g ai D 0 1 1 S M T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 1 1 1 O D T T U O e c a fr e t nitin U lo rt n o C cits o n g ai D 2 1 1 I D T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 3 1 1 K C T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 4 1 1 V R D T O R T U O .r e g n a h c c sid 5 yln O . n oit a t o r y a rt r o f t u p t u o M W P 5 1 1 M O R _ M O R F _ T O O B N I tc ele s t o o B . U C D m o rf t o o B :'L' . M O R m r o f t o o B :' H ' 6 1 1 V R D _ D A O L T U O .r e g n a h c c sid 5 yln O . e vir d e s ol C / n e p O y a rt r o f t u p t u o M W P 7 1 1 E O _ U P C T U O . e r a w m rif r o f y r o m e m H S A L F stib M 6 1 r o fla n gis E O elb a n e :'L' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 77 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 8 1 1 K C D S _ U P C T U O . e r a w m rif g n i g g u b e d r o f M A R D S s ti b M 4 6 r o f K C O L C 9 1 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 0 2 1 K L C X I P N I .t u p n i k c o lc m e ts y s z H M 7 2 r e ts a M 1 2 1 S S V - d n u o r G 2 2 1 L L P _ D D V - yl p p u s r e w o P V 8 . 1 ti u c ric L L P k c o l C 3 2 1 L L P _ S S V - d n u o r G ti u c ric L L P k c o l C 4 2 1 T E S E R X N I .la n g is T E S E R m e ts y s N O r e w o P t e s e r :'L ' 5 2 1 Q R I _ D C A S N I d e v r e s e r 6 2 1 Y D R X _ P F N I . e c a fr e t n ile n a P t n o r F .t u p n i e k a h s - d n a H 7 2 1 T N I _ E F N I . 6 1 3 6 L d n E -t n o r F m o rf la n g is t u p n i t p u rr e t n I 8 2 1 L M Q D _ D S , E W X _ F T U O . e l b a n e e tir w y r o m e m h s a l F . M Q D r e w o L M A R S / M A R D S g u b e D .tc e le s r e w o L , e l b a n e :'L ' 9 2 1 U M Q D _ D S T U O M Q D r e p p U M A R S / M A R D S g u b e D tc e le s r e p p u :'L ' 0 3 1 W X R _ D S T U O e tir W / d a e R M A R D S g u b e D d a e r:' H ' , e tir w :'L ' 1 3 1 T I A W _ U P C N I t u p n i' H ' tia w U P C 2 3 1 H S A L F _ E C T U O .'L ' e l b a n E p ih C y r o m e m h s a l F 3 3 1 2 E C _ U P C T U O d e v r e s e r 4 3 1 1 E C _ U P C T U O d e v r e s e r 5 3 1 S A R X _ D S T U O 'L ' S A R M A R D S g u b e D 'L ' e l b a n e p ih c M A R S g u b e D 6 3 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 7 3 1 S S V - d n u o r G 8 3 1 1 S A R _ U P C T U O d e v r e s e r 9 3 1 S A C X _ D S T U O 'L ' S A C M A R D S g u b e D 0 4 1 S C X _ D S T U O 'L ' tc e le S p ih C M A R D S g u b e D 1 4 1 0 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 4 1 1 D _ U P C 3 4 1 2 D _ U P C 4 4 1 3 D _ U P C 5 4 1 4 D _ U P C 6 4 1 5 D _ U P C 7 4 1 6 D _ U P C 8 4 1 7 D _ U P C 9 4 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 0 5 1 S S V - d n u o r G 1 5 1 8 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 5 1 9 D _ U P C 3 5 1 0 1 D _ U P C 4 5 1 1 1 D _ U P C 5 5 1 2 1 D _ U P C 6 5 1 3 1 D _ U P C 7 5 1 4 1 D _ U P C 8 5 1 5 1 D _ U P C 9 5 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 0 6 1 S S V - d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 78 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 6 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 2 6 1 2 A _ U P C 3 6 1 3 A _ U P C 4 6 1 4 A _ U P C 5 6 1 5 A _ U P C 6 6 1 6 A _ U P C 7 6 1 7 A _ U P C 8 6 1 8 A _ U P C 9 6 1 9 A _ U P C 0 7 1 0 1 A _ U P C 1 7 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 2 7 1 S S V - d n u o r G 3 7 1 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 4 7 1 2 1 A _ U P C 5 7 1 3 1 A _ U P C 6 7 1 4 1 A _ U P C 7 7 1 5 1 A _ U P C 8 7 1 6 1 A _ U P C 9 7 1 7 1 A _ U P C 0 8 1 8 1 A _ U P C 1 8 1 9 1 A _ U P C 2 8 1 0 2 A _ U P C 3 8 1 1 2 A _ U P C 4 8 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 5 8 1 S S V - d n u o r G 6 8 1 E P X E X T U O d e v r e s e r 7 8 1 R O R R E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F g a lf r o rr E C C E 8 8 1 1 L E S V T U O la n g is t u p t u o ) G N I K N I L B ( r o tc e n n o c ) T R A C S ( O R U E e l b a si d t u p t u o B G R : 'L ' e l b a n e t u p t u o B G R : ' H ' 9 8 1 2 L E S V T U O .la n g is C / R , Y / V r o tc e n n o c ) T R A C S ( O R U E B G C Y = t u p t u o B G R V : 'L ' B G R V = t u p t u o B G R V : ' H ' 0 9 1 T S R _ E F T U O . 6 1 3 6 L d n E -t n o r F .t u p t u o t e s e r e r a w d r a H t e s e r : 'L ' 1 9 1 T S R X _ D C A S T U O d e v r e s e r 2 9 1 E T U M M X T U O d e v r e s e r 3 9 1 C N Y S _ B T U O d e v r e s e r 4 9 1 A D S O /I e c a fr e t n i d n a m m o c 6 1 3 6 L d n E -t n o r F . e n il a t a d la ir e s s u b C 2 I 5 9 1 L C S T U O e c a fr e t n i d n a m m o c 6 1 3 6 L d n E -t n o r F . e n il k c o lc la ir e s s u b C 2 I 6 9 1 K L C W _ B T U O d e v r e s e r 7 9 1 D X T T U O t u p t u o a t a d ) C 2 3 2 - S R ( T R A U 8 9 1 8 V 1 _ D D V yl p p u s r e w o P V 8 . 1 9 9 1 S S V - d n u o r G 0 0 2 D X R N I t u p n i a t a d ) C 2 3 2 - S R ( T R A U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 79 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 0 2 E T U M A X T U O . g n it u m e n il t u p t u o o i d u a g o la n a r o f la n g is t u p t u O g n it u m : 'L ' 2 0 2 N I G I R T N I e c a fr e t n i ti n U lo rt n o C cits o n g a i D 3 0 2 T U O G I R T T U O e c a fr e t n i ti n U lo rt n o C cits o n g a i D 4 0 2 0 S C X _ C A D T U O .lo rt n o c la ir e s C A D o i d u a r o f e l b a n e p ih C e l b a n e : 'L ' 5 0 2 1 S C X _ C A D T U O d e v r e s e r 6 0 2 K C A _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .' H ' t u p t u o ) e g d e l w o n k c a ( e k a h s - d n a H 7 0 2 K C S _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .t u p t u o k c o lc r e fs n a rt la ir e S 8 0 2 I S _ P F N I . e c a fr e t n ile n a P t n o r F .t u p n i a t a d r e fs n a rt la ir e S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 80 1 2 3 4 1 2 3 4 C D F A B E 7 M63018FP (DVDM ASSY : IC101) • BTL Driver IC ¶ Pin Arrangement ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 81 5 6 7 8 5 6 7 8 C D F A B E ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 82 1 2 3 4 1 2 3 4 C D F A B E PE5374A (FLKY ASSY : IC101) • FL Control IC Pin Function No. Pin Name I/O Function 1 VDD1 − Positive Power Supply (3.3 V) 2 VSS1 − Ground Potential 3 X1 IN Crystal Connection for Main System Clock Oscillation 4 X2 − 5 IC − Internally Connected (Directly connect to VSS1) 6 RESET IN Reset Input 7 SCK1 IN Serial Clock Input of Serial Interface 8 SI1 IN Serial Data Input of Serial Interface 9 SO1 OUT Serial Data Output of Serial Interface 10 XRDY OUT Hand-shake (Ready) Output of Serial Interface 11 POWER ON OUT Power Control Output 12 RESET OUT OUT System Reset Output 13 RESERVE OUT OUT Reserved (NC on this model) 14 NC OUT NC 15 HALT IN Halt Port "NC" : Use Halt Mode 16 ACK IN Hand-shake (Acknowledge) Input of Serial Interface 17 SEL IR IN Remote Control Input (Timer input of 8-bit remote control timer) 18 AVSS − Ground Potential for A/D Converter 19 KEY3 IN 8 digit model(DV-260,263) : Key3 Input (Analog input for A/D converter) 20 KEY2 IN Key Input 2 (Analog input for A/D converter) 21 KEY1 IN Key Input 1 (Analog input for A/D converter) 22 KEY0 IN Key Input 0 (Analog input for A/D converter) 23 VSS0 − Ground Potential to Ports 24 AVDD − Analog Power/Reference Voltage Input to A/D Converter (3.3 V) 25 VDD0 − Positive Power Supply to Ports (3.3 V) 26 MS0_2 IN Model (of player) Select (Set with a combinaition of this 3 ports) 27 MS0_1 IN 28 MS0_0 IN 29 MS1_2 IN Destination (of player) Select (Set with a combinaition of this 3 ports) 30 MS1_1 IN 31 MS1_0 IN 32 TES IN H" : No System Reset mode , "L" : General mode 33 OEM IN H" : OEM Model , "L" : Pioneer Model 34 MIC IN IN Detection of Microphone "H" : Microphone connected 35 CHECKER IN H" : Checker Mode "L" : General Mode 36 ON POWER IN H" : Primary Power Switch Model , "L" : Secondary Power Switch Model 37 FL SET2 IN FL-Controller Mode Select FL SET1 / 2 = "L" / "L" : 8 digit model 38 FL SET1 IN 39 TEST2 OUT (Test Port) 40 STAND BY LED OUT Stand By LED Port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 83 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Function 41 LED5 OUT LED Port 5 42 LED4 OUT LED Port 4 43 LED3 OUT LED Port 3 44 LED2 OUT LED Port 2 45 LED1 OUT LED Port 1 46 LED0 OUT LED Port 0 47 TEST1 OUT (Test Port) 48 TEST0 OUT (Test Port) 49 NC OUT NC 50 NC OUT NC 51 P16 OUT FIP Segment 17 Output 52 P15 OUT FIP Segment 16 Output 53 NC OUT FIP Segment 15 Output 54 P14 OUT FIP Segment 14 Output 55 P13 OUT FIP Segment 13 Output 56 P12 OUT FIP Segment 12 Output 57 P11 OUT FIP Segment 11 Output 58 P10 OUT FIP Segment 10 Output 59 VDD2 − Positive Power Supply to FIP Controller/Driver (3.3 V) 60 VLOAD − Pull-down Resistor Connection of FIP Controller/Driver (-28V) 61 P9 OUT FIP Segment 9 Output 62 P8 OUT FIP Segment 8 Output 63 P7 OUT FIP Segment 7 Output 64 P6 OUT FIP Segment 6 Output 65 P5 OUT FIP Segment 5 Output 66 P4 OUT FIP Segment 4 Output 67 P3 OUT FIP Segment 3 Output 68 P2 OUT FIP Segment 2 Output 69 P1 OUT FIP Segment 1 Output 70 NC OUT FIP Grid 11 Output 71 NC OUT FIP Grid 10 Output 72 NC OUT FIP Grid 9 Output 73 G8 OUT FIP Grid 8 Output 74 G7 OUT FIP Grid 7 Output 75 G6 OUT FIP Grid 6 Output 76 G5 OUT FIP Grid 5 Output 77 G4 OUT FIP Grid 4 Output 78 G3 OUT FIP Grid 3 Output 79 G2 OUT FIP Grid 2 Output 80 G1 OUT FIP Grid 1 Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 84 1 2 3 4 1 2 3 4 C D F A B E 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY Disc / content format playback compatibility General disc compatibility This player was designed and engineered to be compatible with software bearing one or more of the following logos: • KODAK Picture CD • is a trademark of Fuji Photo Film Co. Ltd. This player supports the IEC’s Super VCD standard. Compared to the Video CD stan- dard, Super VCD offers superior picture quality, and allows two stereo soundtracks to be recorded. Super VCD also supports the widescreen size. Other formats, including but not limited to the following, are not playable in this player: DVD-Audio / SACD / DVD-RAM DVD-ROM / CD-ROM* * Except those that contain MP3, WMA or JPEG. See also Compressed audio compat- ibility and JPEG file compatibility below. DVD-R/RW and CD-R/RW discs (Audio CDs and Video CD/Super VCDs) recorded using a DVD recorder, CD recorder or personal computer may not be playable on this unit. This may be caused by a number of possibili- ties, including but not limited to: the type of disc used; the type of recording; damage, dirt or condensation on either the disc or the player’s pick-up lens. See below for notes about particular software and formats. CD-R/RW compatibility • This unit will play CD-R and CD-RW discs recorded in CD Audio or Video CD/Super VCD format, or as a CD-ROM containing MP3, WMA or JPEG files. However, any other content may cause the disc not to play, or create noise/distortion in the output. • This unit cannot record CD-R or CD-RW discs. • Unfinalized CD-R/RW discs recorded as CD Audio can be played, but the full Table of Contents (playing time, etc.) will not be displayed. DVD-R/RW compatibility • This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder. • This unit will play DVD-RW discs recorded using the Video Recording (VR) format. • DVD-RW shows in the display when a VR format DVD-RW disc is loading. DVD-Video DVD-R DVD-RW Video CD Fujicolor CD Audio CD CD-R CD-RW VIDEO CD Super Video CD (Super VCD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 85 5 6 7 8 5 6 7 8 C D F A B E • When playing a VR format DVD-RW discs that was edited on a DVD recorder, the screen may go momentarily black at edited points and/or you may see scenes from immediately before the edited point. • This unit cannot record DVD-R/RW discs. • Unfinalized DVD-R/RW discs cannot be played in this player. PC-created disc compatibility • If you record a disc using a personal computer, even if it is recorded in a “compatible format” as listed above, there will be cases in which the disc may not be playable in this machine due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. • Check the DVD-R/RW or CD-R/RW soft- ware disc boxes for additional compati- bility information. About WMA The Windows Media™ logo printed on the box indicates that this player can playback WMA data. WMA is short for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 8 (or less) or Windows Media Player for Windows XP. Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. Compressed audio compatibility • This unit will play CD-ROM, CD-R, and CD-RW discs containing files saved in the MPEG-1 Audio Layer 3 (MP3) or Windows Media Audio (WMA) format with a sampling rate of 32*, 44.1 or 48kHz. Incompatible files will not play and the message Can’t play this format will be displayed (NO PLAY in the front panel display). * This unit will not play 32kHz WMA files encoded at 20kbps. • Fixed bit-rate MP3 files are recom- mended. Variable bit-rate (VBR) MP3 files are playable, but playing time may not be shown correctly. • This player is compatible with WMA data encoded using Windows Media Player version 8 (or less) or Windows Media Player for Windows XP. • This player is not compatible with loss- less-encoding or variable bit-rate (VBR) WMA files. • WMA files encoded with DRM (Digital Rights Management) copy protection will not play and the message Can’t play this format will be displayed (NO PLAY in the front panel display). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 86 1 2 3 4 1 2 3 4 C D F A B E • The CD-ROM used to compile your WMA/ MP3 files must be ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible with this player. • Use CD-R or CD-RW media for recording your files. The disc must be finalized (i.e. the session must be closed) in order to play in this unit. This player is not compat- ible with multi-session discs. Only the first session of a multi-session disc will be recognized. • This player only plays tracks that are named with the file extension .mp3, .MP3, .wma, or .WMA. • When naming MP3 and WMA files, add the corresponding file name extension (.mp3 or .wma). Files are played according to the file extension. To prevent noise and malfunctions, do not use these extensions for other kinds of files. • This player can recognize up to 999 files (WMA/MP3/JPEG) and up to 499 folders. If a disc exceeds these limits, only files and folders up to these limits will be play- able. Files and folders are read/displayed in alphabetical order. Note that if the file structure is very complex, you may not be able to read/play all files on the disc. • Folder and track names (excluding the file extension) are displayed. • There are many different recording bit- rates available to encode MP3 files. This unit was designed to be compatible with all of them. Audio encoded at 128Kbps should sound close to regular CD Audio quality. This player will play lower bit-rate files, but please note that the sound quality becomes noticeably worse at lower bit-rates. JPEG file compatibility • Baseline JPEG and EXIF 2.1* still image files up to 8 mega-pixels are supported (maximum vertical and horizontal resolu- tion is 5120 pixels). (*File format used by digital still cameras) • The CD-ROM used to compile your JPEG files must be ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible with this player. • This player only displays files that are named with the file extension .jpg or .JPG. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 87 5 6 7 8 5 6 7 8 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 88 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES 1 13 16 3 14 7 9 8 4 10 15 5 6 DV-266-s 11 12 1 STANDBY/ON Press to switch the player on or into standby. 3 Disc tray 4 0 OPEN/CLOSE Press to open or close the disc tray. 5 8 Press to pause playback. Press again to restart. 6 3 Press to start or resume playback. 7 TOP MENU Press to display the top menu of a DVD disc. 8 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 9 MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD, Video CD/Super VCD, MP3, WMA or JPEG disc is loaded. 10 RETURN Press to return to a previous menu screen. 11 HOME MENU Press to display (or exit) the on-screen display. 12 7 Press to stop the disc (you can resume play- back by pressing 3 (play)). 13 Remote control sensor The remote control has a range of up to about 7m. 14 Display 15 41 and ¡¢ • Press and hold for fast reverse/forward scanning. • Press to jump to the previous/next chapter or track. 16 This mark indicates compatibility with DVD-RW discs recorded on a DVD recorder in Video Recording mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 89 5 6 7 8 5 6 7 8 C D F A B E 1 7 8 6 3 2 4 1 DIGITAL AUDIO OUT – COAXIAL This is a digital audio output for connection to a PCM, Dolby Digital, DTS and/or MPEG- compatible AV receiver that has a coaxial digital input. Connect using a commercially available coaxial digital audio cable. 2 COMPONENT VIDEO OUT This is a high quality video output for connec- tion to a TV, monitor or AV receiver that has component video inputs. Connect using a commercially available three-way component video cable. Be careful to match the colors of the jacks and cables for correct connection. 3 AUDIO OUT L / R This pair of analog audio outputs connects to your TV, AV receiver or stereo system. Even if you are connecting up one of the digital outputs, we still recommend you connect these jacks. Use the supplied audio/video cable when connecting these jacks. Match the colors of the jacks and cables for correct stereo sound. 4 AC IN Connect the supplied power cable here, then plug into a power outlet. 6 VIDEO OUT This is a standard video output that you can connect to your TV or AV receiver using the supplied audio/video cable. 7 S (S-video output) This is an S-video output that you can use instead of the video output described in 5 above. 8 DIGITAL AUDIO OUT – OPTICAL This is a digital audio output for connection to a PCM, Dolby Digital, DTS and/or MPEG- compatible AV receiver that has an optical digital input. Connect using a commercially available optical digital audio cable. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 90 1 2 3 4 1 2 3 4 C D F A B E 1 8 and 3 Indicates whether a disc is playing or paused. 2 CHP Indicates that the character display is showing a DVD chapter number. 3 TITLE Indicates that the character display is showing a DVD title number. 4 Lights when 2V/SRS TruSurround is selected. 5 Lights during multi-angle scenes on a DVD disc. 6 PRGSVE Lights when the player is set to output progressive scan video. 7 Lights in any of the repeat play modes. 8 REMAIN Indicates that the character display is showing the disc or title/chapter/track remain time. 9 Character display 9 1 2 3 4 5 6 7 8 DV-266-s www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 91 5 6 7 8 5 6 7 8 C D F A B E 1 Press to switch the player on or into standby. 2 AUDIO Press to select the audio channel or language. 3 SUBTITLE Press to select a subtitle display. 4 Number buttons 5 TOP MENU Press to display the top menu of a DVD disc. 6 ENTER & cursor buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command. 7 HOME MENU Press to display (or exit) the on-screen display. 8 Use for reverse slow motion playback, frame reverse and reverse scanning. 9 Press to start or resume playback. 10 Press to jump to the beginning of the current chapter or track, then to previous chapters/ tracks. 11 Press to pause playback; press again to restart. 12 PLAY MODE Press to display the Play Mode menu. (You can also get to the Play Mode menu by pressing HOME MENU and selecting Play Mode). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-266-S 92 1 2 3 4 1 2 3 4 C D F A B E 13 SURROUND Press to activate/switch off 2V/SRS TruSur- round. 14 Press to open or close the disc tray. 15 ANGLE Press to change the camera angle during DVD multi-angle scene playback. 16 CLEAR Press to clear a numeric entry. 17 ENTER Use to select menu options, etc. (works exactly the same as the ENTER button in 6 above). 18 MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD, Video CD , MP3, WMA or JPEG disc is loaded. 19 RETURN Press to return to a previous menu screen. 20 Use for forward slow motion playback, frame advance and forward scanning. 21 Press to jump to the next chapter or track. 22 Press to stop the disc (you can resume play- 23 DISPLAY Press to display information about the disc playing. 24 ZOOM Press to change the zoom level. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
