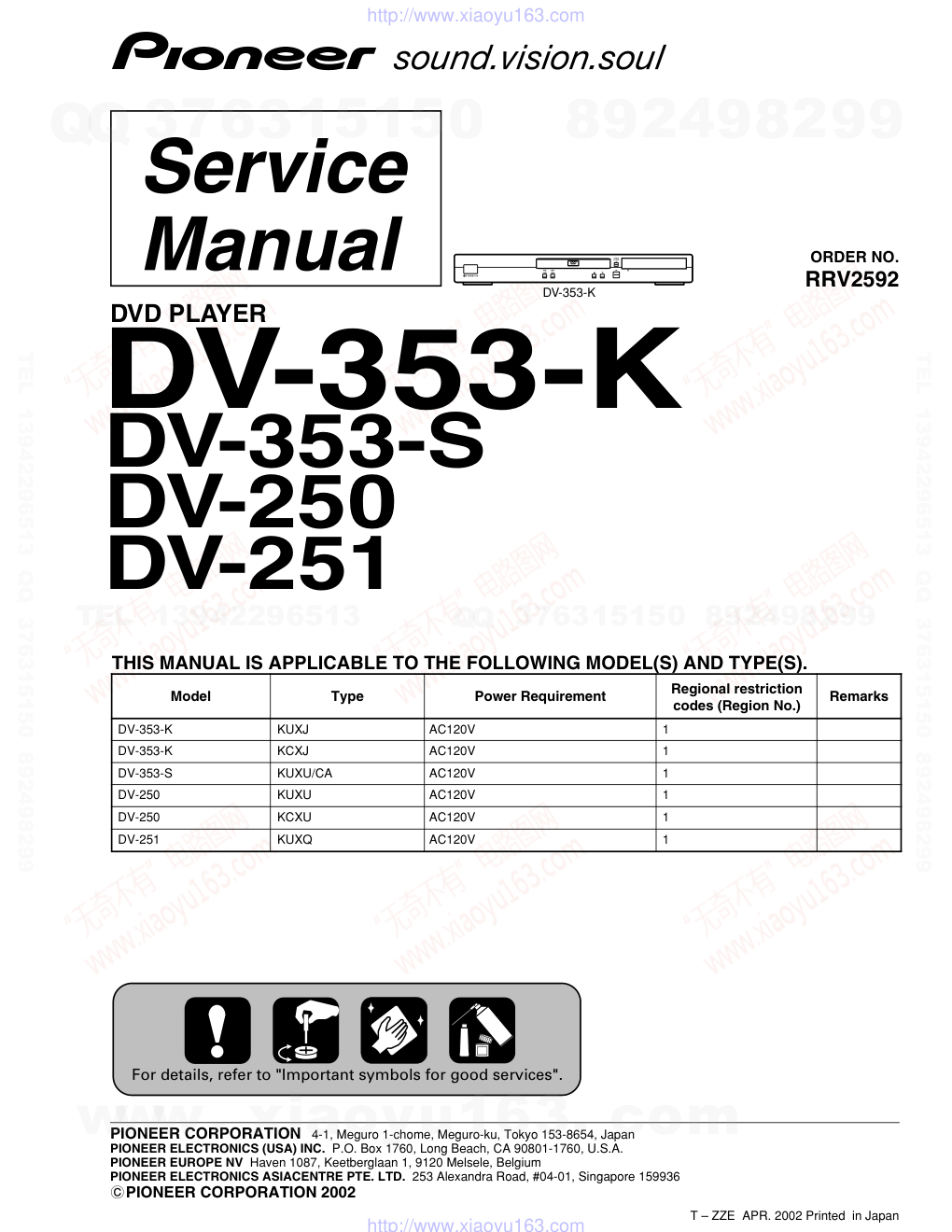

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2002 RRV2592 T – ZZE APR. 2002 Printed in Japan DVD PLAYER DV-353-K DV-353-S DV-250 DV-251 STANDBY/ON Î 3 OPEN/ CLOSE 0 8 7 1 4 ¡ ¢ THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Power Requirement Regional restriction codes (Region No.) Remarks DV-353-K AC120V 1 DV-353-K AC120V 1 DV-353-S AC120V 1 DV-250 DV-250 DV-251 AC120V 1 Type KUXJ KCXJ KUXU/CA KUXU KCXU KUXQ AC120V AC120V 1 1 For details, refer to "Important symbols for good services". DV-353-K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DV-353-K This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test SAFETY INFORMATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DV-353-K [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. Discs compatible with this player Any disc that displays one of the following logos should play in this player. Other formats, including DVD-Audio, DVD-RAM, DVD-ROM, CD-ROM (except those that contain MP3 files), SACD and Photo CD will not play. Audio-CD DVD-Video Video-CD CD-R CD-RW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DV-353-K 1. SPECIFICATIONS .................................................................................................................................................5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................... 6 2.1 PACKING ........................................................................................................................................................6 2.2 EXTERIOR SECTION .....................................................................................................................................8 2.3 LOADING MECHANISM ASSY ................................................................................................................... 10 2.4 TRAVERSE MECHANISM ASSY-S ............................................................................................................ 14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ............................................................................................ 16 3.1 BLOCK DIAGRAM ....................................................................................................................................... 16 3.1.1 SIGNAL ROUTE........................................................................................................................................ 16 3.1.2 POWER SUPPLY BLOCK ........................................................................................................................ 18 3.1.3 WAVEFORMS ........................................................................................................................................... 19 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM ........................................................................................ 20 3.3 FJMB ASSY 1/5 [FRONT END BLOCK] ...................................................................................................... 22 3.4 FJMB ASSY 2/5 [BACK END BLOCK] ........................................................................................................ 24 3.5 FJMB ASSY 3/5 [AUDIO BLOCK] ............................................................................................................... 26 3.6 FJMB ASSY 4/5 [VIDEO BLOCK]................................................................................................................ 28 3.7 FJMB ASSY 5/5 [FL CONTROL BLOCK] .................................................................................................... 30 3.8 IRKY and PSWB ASSYS ............................................................................................................................. 32 3.9 POWER SUPPLY UNIT (VWR1351) ........................................................................................................... 34 3.10 POWER SUPPLY UNIT (VWR1353) ......................................................................................................... 35 4. PCB CONNECTION DIAGRAM ......................................................................................................................... 37 4.1 LOAB ASSY ................................................................................................................................................. 37 4.2 FJMB ASSY.................................................................................................................................................. 38 4.3 IRKY and PSWB ASSYS ............................................................................................................................. 42 4.4 POWER SUPPLY UNIT (VWR1351) ........................................................................................................... 43 4.5 POWER SUPPLY UNIT (VWR1353) ........................................................................................................... 44 5. PCB PARTS LIST ............................................................................................................................................... 45 6. ADJUSTMENT.................................................................................................................................................... 48 6.1 ADJUSTMENT ITEMS AND LOCATION ..................................................................................................... 48 6.2 JIGS AND MEASURING INSTRUMENTS................................................................................................... 48 6.3 NECESSARY ADJUSTMENT POINTS ....................................................................................................... 49 6.4 TEST MODE................................................................................................................................................. 50 6.5 MECHANISM ADJUSTMENT ...................................................................................................................... 51 7. GENERAL INFORMATION ................................................................................................................................ 54 7.1 DIAGNOSIS.................................................................................................................................................. 54 7.1.1 TEST MODE.............................................................................................................................................. 54 7.1.2 DISPLAY OF THE MECHANISM ERROR HISTORY .............................................................................. 60 7.1.3 TEST POINTS LOCATION & WAVEFORMS ........................................................................................... 64 7.1.4 TROUBLE SHOOTING ............................................................................................................................. 68 7.1.5 SEQUENCE AFTER THE POWER ON .................................................................................................... 70 7.1.6 DISASSEMBLY ......................................................................................................................................... 71 7.2 IC .................................................................................................................................................................. 76 7.3 CLEANING ................................................................................................................................................... 94 8. PANEL FACILITIES............................................................................................................................................ 95 CONTENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DV-353-K General System............................DVD-Video, Video CD, CD and MP3 files Power requirements..................AC 120 V, 60 Hz Output level..............................Y: 1.0Vp-p (75 Ω) PB, PR: 0.7 Vp-p (75 Ω) Jacks...................................................RCA jacks Power consumption.....................................13 W Power consumption (standby)........................0.3 W Weight.........................................2.4 kg (5lb 5oz) Dimensions DV-353.............420 (W) x 55 (H) x 278 (D) mm (16 9/16 (W) x 2 3/16 (H) x 10 15/16 (D) in.) DV-250/251......420 (W) x 55 (H) x 276 (D) mm (16 9/16 (W) x 2 3/16 (H) x 10 14/16 (D) in.) Operating temperature.................+5°C to +35°C (+36°F to +96°F) Operating humidity.............................5% to 85% (no condensation) S-Video output Y (luminance) - Output level...........1 Vp-p (75 Ω) C (color) - Output level............286 mVp-p (75 Ω) Jack.................................................S-Video jack Video output Component Video output (Y, PB, PR) Output level....................................1 Vp-p (75 Ω) Jack......................................................RCA jack Audio output (1 stereo pair) Output level..........................During audio output 200 mVrms (1 kHz, –20 dB) Number of channels...........................................2 Jacks.....................................................RCA jack Digital audio characteristics Frequency response....................4 Hz to 44 kHz (DVD fs: 96 kHz) S/N ratio...................................................118 dB Dynamic range.........................................101 dB Total harmonic distortion......................0.0016 % Wow and flutter.................Limit of measurement (0.001% W. PEAK) or lower Digital output Optical digital output...............Optical digital jack Coaxial digital output............................RCA jack Accessories Audio/video cable...............................................1 Power cable....................................................... 1 Remote control...................................................1 AA/R6P dry cell batteries...................................2 Operating Instructions........................................1 Warranty card.................................................... 1 • The specifications and design of this product are subject to change without notice, due to improvement. • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • “DTS” is a registered trademark of Digital Theater Systems, Inc. • TruSurround and the ® symbol are trademarks of SRS Labs, Inc. TruSurround technology is incorporated under license from SRS Labs, Inc. Audio/Video Cable (L=1.5m): XDE3049 AA/R6P Dry Cell Batteries Power Cable : ADG7022 Remote Control : VXX2800 Accessories White Red Yellow 0 1 2 3 4 5 6 7 8 9 CLEAR ENTER ANGLE AUDIO TOP MENU SETUP SUBTITLE PLAY MODE SURROUND ZOOM DISPLAY MENU RETURN ENTER STANDBY/ON OPEN/CLOSE 4 /e E/ 1 3 ¡ ¢ 8 7 0 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DV-353-K 2. EXPLODED VIEWS AND PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: FRONT 5, 6 "Operating Instructions" 14 7 4 4 9 10 13 8 1 3 11 12 2 2.1 PACKING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DV-353-K (1) PACKING PARTS LIST Mark No. Description Part No. > 1 Power Cable ADG7022 NSP 2 Warranty Card See Contrast table (2) NSP 3 AA/R6P Dry Cell Battery See Contrast table (2) 4 Polyethylene Bag VHL1051 5 Operating Instructions VRB1285 (English) 6 Operating Instructions See Contrast table (2) (French) 7 Remote Control VXX2800 8 Audio/Video Cable (L=1.5m) XDE3049 9 Pad L See Contrast table (2) 10 Pad R See Contrast table (2) 11 Paper Board See Contrast table (2) 12 Packing Case See Contrast table (2) 13 Seat Z23-007 14 Battery Cover VNK4997 (2) CONTRAST TABLE Mark No. Remarks Symbol and Description Part No. DV-353-K DV-250 DV-251 DV-353-S KUXJ KCXJ KUXU/CA KUXU KCXU KUXQ NSP NSP 2 3 6 9 10 11 12 Warranty Card Dry Cell Battery (R6P, AA) Operating Instructions (French) Pad L Pad R Paper Board Packing Case ARY7057 VEM1031 Not used VHA1295 VHA1296 VHC1088 VHG2237 ARY7045 VEM1031 VRC1147 VHA1295 VHA1296 VHC1088 VHG2187 ARY7057 VEM1010 Not used VHA1297 VHA1298 VHC1089 VHG2169 ARY7057 VEM1030 Not used VHA1297 VHA1298 VHC1089 VHG2158 ARY7045 VEM1030 VRC1147 VHA1297 VHA1298 VHC1089 VHG2160 ARY7057 VEM1030 Not used VHA1297 VHA1298 VHC1089 VHG2197 DV-353-K/KUXJ, KCXJ, DV-353-S/KUXU/CA, DV-250/KUXU, KCXU and DV-251/KUXQ are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DV-353-K 2.2 EXTERIOR SECTION E D C F D A B E C B A F 15 18 21 16 16 20 19 24 2 1 4 6 11 22 22 13 23 23 8 23 25 9 3 12 7 24 24 24 24 24 24 24 24 24 22 23 23 23 23 22 22 22 25 26 B E C D 17 Refer to "2.3 LOADING MECHANISM ASSY". 5 10 14 22 NON-CONTACT SIDE CONTACT SIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DV-353-K (1) EXTERIOR PARTS LIST Mark No. Description Part No. NSP 1 IRKY Assy VWG2344 NSP 2 PWSB Assy VWG2345 3 FJMB Assy VWS1515 4 Connector Assy PF05PP-Q12 5 Connector Assy PF13PP-D25 6 Connector Assy PG05KK-E37 > 7 POWER SUPPLY Unit VWR1351 (or VWR1353) NSP 8 Loading Mechanism Assy See Cotrast table (2) 9 Leg Assy SX AEC7113 10 Cord Clamper RNH-184 11 Pcb Support VEC2184 NSP 12 Base Chassis See Cotrast table (2) 13 Rear Panel See Cotrast table (2) 14 PCB Base See Cotrast table (2) 15 DVD V Plate VAM1121 16 Rubber Foot VEB1325 17 FP Angle See Cotrast table (2) 18 Tray Panel See Cotrast table (2) 19 Front Panel Assy See Cotrast table (2) 20 Pioneer Badge See Cotrast table (2) NSP 21 Energy Star Label AAX7876 22 Screw BBZ30P060FMC 23 Screw BBZ30P080FZK 24 Screw BBZ30P100FZK 25 Screw See Cotrast table (2) 26 Bonnet Case S See Cotrast table (2) (2) CONTRAST TABLE Mark No. Remarks Symbol and Description Part No. DV-353-K DV-250 DV-251 DV-353-S KUXU/CA KUXU KCXU KUXJ KCXJ KUXQ NSP NSP 8 12 13 14 17 18 19 20 25 26 Loading Mechanism Assy Base Chassis Rear Panel PCB Base FP Angle Tray Panel Front Panel Assy Pioneer Badge Screw Bonnet Case S VWT1196 VNA2409 VNA2421 VNE2277 VNE2267 VNK4952 VXA2486 XAM3006 BCZ40P060FZK VXX2821 VWT1197 VNA2410 VNA2437 VNE2278 VNE2270 VNK4973 VXA2496 VAM1129 BCZ40P060FNI VXX2823 VWT1197 VNA2410 VNA2435 VNE2278 VNE2270 VNK4959 VXA2490 VAM1129 BCZ40P060FZK VXX2830 VWT1188 VNA2410 VNA2436 VNE2278 VNE2270 VNK4962 VXA2491 VAM1130 BCZ40P060FZK VXX2831 DV-353-K/KUXJ, KCXJ, DV-353-S/KUXU/CA, DV-250/KUXU, KCXU and DV-251/KUXQ are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DV-353-K 2.3 LOADING MECHANISM ASSY A A To FJMB CN251 2 8 3 5 4 Refer to "2.4 TRAVERSE MECHANISM ASSY-S". 8 8 12 23 13 17 21 16 22 15 14 22 22 22 22 20 18 19 9 1 7 11 10 6 8 A Lubricating Oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DV-353-K NSP 1 LOAB Assy See Contrast table (2) 2 Traverse Mechanism Assy-S VXX2782 3 Loading Motor Assy VXX2505 4 Motor Pulley PNW1634 5 Carriage DC Motor / 0.3W PXM1027 6 Flexible Cable (26P) See Contrast table (2) 7 Connector Assy 2P VKP2253 8 Float Rubber VEB1327 9 Belt VEB1330 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base DVD VNL1918 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate VNE2251 19 Bridge VNE2252 20 Clamper VNL1924 21 Screw JGZ17P028FMC 22 Screw Z39-019 23 Tray VNL1920 Mark No. Description Part No. (1) LOADING MECHANISM ASSY PARTS LIST Mark No. Symbol and Description Part No. Remarks VWT1196 VWT1197 VWT1188 NSP 1 6 LOAB Assy Flexible Cable (26P) VWG2346 VDA1864 VWG2279 VDA1865 (2) CONTRAST TABLE VWT1196, VWT1197 and VWT1188 are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DV-353-K Application of Lubricant No. 11 Loading Base Lubricating Oil GYA1001 Around the shaft Concave of unevenness Concave of unevenness Concave of unevenness No. 13 Drive Cam No. 13 Drive Cam No. 23 Tray No. 23 Tray Top View Rear View Top View Bottom View Daifree GEM1036 Daifree GEM1036 Daifree GEM1036 Daifree GEM1036 Daifree GEM1036 Side of the rib Inner side of a ditch Inner side of a ditch Lubricating Oil GYA1001 Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DV-353-K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DV-353-K 2.4 TRAVERSE MECHANISM ASSY-S 12 8 3 7 1 18 16 19 4 (Adjustment Screw) 18 10 13 18 10 6 5 5 11 15 14 9 16 2 Screw Tight GYL1001 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 17 (Torque : 0.12 ± 0.01 N•m) 17 (Torque : 0.12 ± 0.01 N•m) 17 (Torque : 0.12 ± 0.01 N•m) CONTACT SIDE NON-CONTACT SIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DV-353-K 1 Spindle Motor VXM1088 (or VXM1089) 2 Stepping Motor VXM1090 (or VXM1091) 3 Pickup Assy-S OXX8003 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Hold Spring VNC1017 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mechanism Chassis VNE2248 12 Slider VNL1811 13 Spacer VNL1913 14 Joint VNL1914 15 FFC Holder VNL1915 16 Screw BBZ20P050FZK 17 Tapping Screw OBA8009 18 Screw PMA26P100FMC 19 Damper Sheet VEB1335 • TRAVERSE MECHANISM ASSY-S PARTS LIST Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 C D F A B E DV-353-K CN3 (4P) IC301 L6315ATXXT FRONT END IC Spindle Motor B1 X301 20MHz B2 FACT B3 B4 A A RFSACD FREOUT FREIN OUT_DATA(0) S_DATA FE_DATA RF(TP) B C D E F VM4- VM4+ VM3+ VM3- C LOD+ LOD- Stepping Motor (Carriage) FDO T_DRV T_RTN F_RTN F_DRV ST1- ST1+ ST2+ ST2- PICKUP ASSY CN151 (26P) CN602 (2P) CN601 (5P) (26P) A LOAB ASSY M IC351 M56788AFP FTS Driver IC251 BA6664FM Spindle Driver IC11 PE5314A FL CONTROL MICROCOMPUTER 20 21 15 16 19 17 7 6 12 11 8 10 10 3 84 B_OUT 25 16 HSYNC _PWM0 131 123 TDO FG LOAD_DRV SPDL PDM FG SPDL PDM TACT IN4- VM1+ IN5- IN3- PC(2) PC(6) 124 116 132 PIXCLK 120 12 18 16 25 24 13 12 H1+ FG X1 X2 IR IR EC H1+ 9 24 22 10 9 42 38 3 20 34 VM1- 35 VM2- 31 VM2+ 32 VM5- 15 VM5+ 14 17 24 25 26 23 3 2 1 4 4 3 CN52 (5P) CN251 (12P) CN401 (13P) CN11 (5P) CN301 (5P) 1 9 2 1 2 1 2 2 1 IC302 K6T1008V2E-TB70 1M SRAM Work RAM for Error Correction IC604 K4S641632F-TC75 64M SDRAM Work RAM for MPEG Decode IC603 VYW1890 8M FLASH ROM V11 FL TUBE • RF Demodulation • Servo Control • Servo Decode • Error Correction IC601 STI5519AVB-B0C BACK END IC • System Control • MPEG Video Decode • Video Encode • Video DAC • Audio Decode (MP3, Dolby) • Sub-picture Decode • Spindle Drive • FG Detection • Main Unit Key Input • Remote Control Receive • FL Display Control Focus, Tracking, Stepper and Loading Drive X601 27MHz X11 5MHz Loading Motor Assy + – M H1- H1- 10 8 H2+ H2+ 11 7 H2- H2- 12 6 H3+ H3+ 13 5 H3- H3- 14 4 A1 A1 7 10 A2 A2 4 11 A3 A3 2 12 EV+6V(B) 1 2 3 4 5 6 7 8 9 3 5 6 2 IC605 TC7WU04FU G_OUT 26 R_OUT 27 DAC_SCLK 51 PCMDATA0 52 PCKCLK 55 Y_OUT 32 C_OUT 33 CV_OUT 34 SPDIF DOUT A_BCK 57 A_DATA0 A_MCLK LRCLK 56 A_LRCK 3 4 17 KEY1 KEY1 21 KEY0 KEY0 KEY3 J301 (3P) IC301 SPS-444L-H 22 5 2 1 5 2 1 1 1 D PSWB ASSY C IRKY ASSY E POWER SUPPLY UNIT REMOTE RECEIVER UNIT EV+6V(A) -28V FLDC+ FLDC- GND P-CONT GND SW+12V 10 GND 11 EV+4V 12 GND 13 1 2 1 2 3 4 5 6 7 8 9 10 11 12 13 SW+3.3V LIVE NEUTRAL AC IN CN1 (2P) F1 (13P) VWR1351: CN101 VWR1353: CN2 PIO381 7 PIO382 8 SQUEEZ LETTER 15 17 16 2 1 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 3.1.1 SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 5 6 7 8 C D F A B E DV-353-K B FJMB ASSY Cb IN YOUT b YOUT a COUT VOUT b VOUT a CYOUT b CYOUT a CrOUT b CrOUT a CbOUT b CbOUT a Y 14 28 27 V 31 30 G/Y 25 24 R/Cr 19 18 B/Cr C852 22 21 C 33 IC801 MM1567AJ 6 IN • 6 OUT VIDEO AMP BCKIN 1 DATA 2 MCLK 16 LRCKIN 3 IC711 PCM1742KE Audio 2ch DAC • VIDEO • LPF • AMP • Driver Q607 B/CB CY IN 12 Q606 G/Y Cr IN 16 Q605 R/CR Y IN 6 Q604 S_Y C IN 2 Q603 S_C R721 R722 R723 V IN 4 Q602 Q941 V JA950 S VIDEO COMPOSITE VIDEO OUT COMPONENT VIDEO OUT Y C Y Cr COAXIAL OPTICAL DIGITAL OUT L Cb Vout L LOUT 2 3 1 IC731-1/2 7 Vout R 8 ROUT 5 6 7 IC731-2/2 BA4560F AUDIO LPF C862 C842 C812 C822 C832 AUDIO OUT R Q807,Q808 Q805,Q806 11 12 10 9 14 13 4 7 8 3 5 6 1– $: Refer to "3.1.3 WAVEFORMS". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 C D F A B E DV-353-K F1 AC IN (13P) VWR1351: CN101 VWR1353: CN2 CN401 (13P) E POWER SUPPLY ASSY B FJMB ASSY A LOAB ASSY IC421 MM1565AF +5V Reg. EV+6V (B) V+6B -28V V+6A LIVE NEUTRAL 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 CN601 (5P) CN52 (5P) 4 4 EV+6V (A) -28V FLDC+ FLDC- GND P-CONT GND SW+12V GND EV+4V GND SW+3.3V V+5S V+5V V+3R5D V+3R5A V+1RBD V+1RBA1 V+1RBA2 IC901 NJM78L05A +5V Reg. V+12M V+5A V+12D 3 1 2 IC303 BA18BC0FP +1.8V Reg. 1 3 2 IC431 PQ025EZ01ZP +2.5V Reg. V+3D V+2R5 IN OUT IN OUT IC451 MM1385EN +3V Reg. V+4E V+3D V+3E IC441 PQ070XZ02ZP +3.5V Reg. V+3R5D VIN VOUT C IRKY ASSY CN301 (5P) CN11 (5P) 3 3 V+3E V+3E 3.1.2 POWER SUPPLY BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 5 6 7 8 C D F A B E DV-353-K 1 IC301 - pin 3 [RF] V: 200mV/div. H: 0.1µsec/div. 5 Foot of R723 (IC711 - pin 3) [AUDIO DAC -LRCK] V: 2V/div. H: 5µsec/div. 2 IC251 - pin 24 [FG] V: 1V/div. H: 5msec/div. 3 4 IC711 - pin 16 [AUDIO DAC -MCK] V: 1V/div. H: 20nsec/div. Foot of R721 (IC711 - pin 1) [AUDIO DAC -BCK] V: 2V/div. H: 200nsec/div. GND 15 IC601 - pin 116 [LOAD_DRV] V: 1V/div. H: 5µsec/div. 16 IC301 - pin 42 [SPDL_PDM] 7 6 Foot of R723 (IC711 - pin 3) [AUDIO DAC -LRCK] V: 2V/div. H: 500nsec/div. Foot of R721 (IC711 - pin 1) [AUDIO DAC -BCK] V: 2V/div. H: 500nsec/div. 8 Foot of R722 (IC711 - pin 2) [AUDIO DAC -DATA] V: 2V/div. H: 500nsec/div. 10 Foot of C842 (IC801 - pin 24, 25) [Component Video output -Y] V: 1V/div. H: 10µsec/div. 11 Foot of C852 (IC801 - pin 18, 19) [Component Video output -Pb] V: 2V/div. H: 10µsec/div. 13 Foot of C832 (IC801 - pin 27, 28) [S Video output -Y] V: 1V/div. H: 10µsec/div. 14 Foot of C822 (IC801 - pin 33) [S Video output -C] V: 1V/div. H: 10µsec/div. 12 Foot of C862 (IC801 - pin 21, 22) [Component Video output -Pr] V: 2V/div. H: 10µsec/div. 9 Foot of C812 (IC801 - pin 30, 31) [Composite Video output] V: 1V/div. H: 10µsec/div. 17 CN251 - pin 12, 11, 10 (IC251 - pin 2, 4, 7) [Spidle driver -A3, A2, A1] FJMB ASSY B Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 2 and 9 to 14 : reference A1 (DVD), T2-chp 19, Color-bar No. 3 to 8 : reference A1 (DVD), T2-chp 1 GND 6 7 8 10 11 13 14 12 [Tray stops] [Tray is opening] [Tray is closing] [PLAY] [PLAY] [STOP→PLAY→STOP] [STOP] STOP STOP PLAY Accelertar ON Brakes ON V: 2V/div. H: 500nsec/div. V: 2V/div. H: 500nsec/div. V: 2V/div. H: 2msec/div. V: 2V/div. H: 1sec/div. 3.1.3 WAVEFORMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 1 2 3 4 1 2 3 4 C D F A B E DV-353-K A B C D E PB PR FJMB ASSY (VWS1515) B 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 5 6 7 8 C D F A B E DV-353-K C D A B A LOAB ASSY (VWG2279) A LOADING MOTOR ASSY : VXX2505 SPINDLE MOTOR : VXX1088 PICKUP ASSY-S (OXX8003) STEPPING MOTOR : VXM1090 POWER SUPPLY UNIT (VWR1351 or VWR1353) H for ##XCN type PSWB ASSY (VWG2345) D IRKY ASSY (VWG2344) C : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (T) : SLIDER SERVO LOOP LINE (S) (F) (F) (F) (T) (F) (F) (F) (F) (F) (T) (F) (T) (T) (F) (S) (S) (S) (S) Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 1 2 3 4 1 2 3 4 C D F A B E DV-353-K 3.3 FJMB ASSY 1/5 [FRONT END BLOCK] B 1/5 PICKUP ASSY CN601 A SPINDLE MOTOR STEPPING MOTOR B 1/5 FJMB ASSY (VWS1515) 2/5 B (F) (F) (T) (T) (F) (F) (S) (S) (S) (S) (S) 2 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 5 6 7 8 5 6 7 8 C D F A B E DV-353-K B 1/5 VCC33DAC VCC18MN 2/5 B 1, 2, #, $: Refer to "3.1.3 WAVEFORMS". (F) (F) (F) (F) (T) (T) : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (F) (T) (S) 1 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 C D F A B E DV-353-K 3.4 FJMB ASSY 2/5 [BACK END BLOCK] B 2/5 (8M) B 2/5 FJMB ASSY (VWS1515) 3/5 B 1/5 B 2/5 B 5/5 B (S_Y) (S_C) (V) (D) (D) (B/Cb) (G/Y) (R/Cr) 15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 5 6 7 8 5 6 7 8 C D F A B E DV-353-K B 2/5 : The power supply is shown with the marked box. VWR1351: CN101 VWR1353: CN2 E 3/5 B 4/5 B 2/5 B 5/5 B @: Refer to "3.1.3 WAVEFORMS". (V) (S_C) (S_C) (S_Y) (S_Y) (R/Cr) (R/Cr) (G/Y) (B/Cb) (B/Cb) (G/Y) (V) : V SIGNAL ROUTE : S-VIDEO OUT C SIGNAL ROUTE : S-VIDEO OUT Y SIGNAL ROUTE : R/Cr SIGNAL ROUTE : G/Y SIGNAL ROUTE : B/Cb SIGNAL ROUTE : AUDIO SIGNAL ROUTE (D) : AUDIO(DIGITAL) SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 1 2 3 4 1 2 3 4 C D F A B E DV-353-K 3.5 FJMB ASSY 3/5 [AUDIO BLOCK] B 3/5 B 3/5 FJMB ASSY (VWS1515) 2/5 B 4 8 7 5 6 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 5 6 7 8 5 6 7 8 C D F A B E DV-353-K B 3/5 : The power supply is shown with the marked box. 4/5 B 3– 8: Refer to "3.1.3 WAVEFORMS". : AUDIO SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 1 2 3 4 1 2 3 4 C D F A B E DV-353-K 3.6 FJMB ASSY 4/5 [VIDEO BLOCK] B 4/5 B 4/5 FJMB ASSY (VWS1515) 2/5 B (V) (S_C) (S_Y) (R/Cr) (B/Cb) (G/Y) (V) (S_C) (S_Y) (R/Cr) (B/Cb) (G/Y) (D) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 5 6 7 8 5 6 7 8 C D F A B E DV-353-K B 4/5 3/5 B 9– !: Refer to "3.1.3 WAVEFORMS". (V) (S_C) (S_Y) (R/Cr) (B/Cb) (G/Y) (V) (S_C) (S_Y) (R/Cr) (B/Cb) (G/Y) (D) (D) (S_C) (S_Y) (R/Cr) (G/Y) (B/Cb) (V) : V SIGNAL ROUTE : S-VIDEO OUT C SIGNAL ROUTE : S-VIDEO OUT Y SIGNAL ROUTE : R/Cr SIGNAL ROUTE : G/Y SIGNAL ROUTE : B/Cb SIGNAL ROUTE : AUDIO SIGNAL ROUTE (D) : AUDIO(DIGITAL) SIGNAL ROUTE 12 11 10 9 13 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 1 2 3 4 1 2 3 4 C D F A B E DV-353-K 3.7 FJMB ASSY 5/5 [FL CONTROL BLOCK] B 5/5 B 5/5 FJMB ASSY (VWS1515) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 5 6 7 8 5 6 7 8 C D F A B E DV-353-K B 5/5 CN601 A 2/5 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 1 2 3 4 1 2 3 4 C D F A B E DV-353-K C IRKY ASSY (VWG2344) C CN11 B 5/5 S301 : 0 OPEN/CLOSE S302 : 3 S303 : 8 S304 : 7 S305 : ¡ ¢ S306 : 4 1 3.8 IRKY and PSWB ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 5 6 7 8 5 6 7 8 C D F A B E DV-353-K D : The power supply is shown with the marked box. for ##XCN type PSWB ASSY (VWG2345) D S401 : STANDBY/ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 1 2 3 4 1 2 3 4 C D F A B E DV-353-K E E NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. POWER SUPPLY UNIT (VWR1351) E CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR P101 (AEK7063). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P102 (AEK7066). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491002 MFD, BY LITTELFUSE INC. FOR P104 (AEK7067). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR P103 (AEK7012). • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CN401 B 1/3 CN101 CN1 AC IN AEK7063 800mA AEK7066 1.6A AEK7067 2.0A AEK7012 1.6A REK1077 1.6A C2, C6, C106, C303, Z1: STANDBY 3.9 POWER SUPPLY UNIT (VWR1351) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 5 6 7 8 5 6 7 8 C D F A B E DV-353-K E E NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. POWER SUPPLY UNIT (VWR1353) E CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.800 MFD, BY LITTELFUSE INC. FOR CP5 (AEK7063). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD, BY LITTELFUSE INC. FOR CP2, CP3 (AEK7066). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491002 MFD, BY LITTELFUSE INC. FOR CP1 (AEK7067). • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CN401 B 1/3 CN1 CN2 AC IN AEK7063 800mA AEK7066 1.6A AEK7066 1.6A AEK7067 2.0A AEK7012 1.6A REK1077 1.6A C19, R25, VS1: STANDBY 3.10 POWER SUPPLY UNIT (VWR1353) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 1 2 3 4 1 2 3 4 C D F A B E DV-353-K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 5 6 7 8 5 6 7 8 C D F A B E DV-353-K 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B A A SIDE A SIDE B (VNP1836-B) LOAB ASSY A LOADING MOTOR ASSY M CN52 B CN11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 1 2 3 4 1 2 3 4 C D F A B E DV-353-K 4.2 FJMB ASSY B SIDE A 24 1 48 25 156 105 104 157 8 1 5 4 22 42 1 21 1 5 60 41 40 21 20 1 80 61 1 32 16 17 5 1 25 26 1 4 5 1 1 2 8 7 26 1 25 27 14 17 1 8 1 5 4 13 1 28 54 1 27 8 5 4 1 5 1 15 30 28 1 29 14 16 9 8 1 72 37 36 1 144 109 108 73 1 24 25 48 104 105 156 157 1 4 5 8 1 21 22 42 1 23 24 2 1 2 5 1 20 21 40 41 60 61 80 1 16 17 32 25 26 1 4 1 26 13 14 27 25 1 17 1 4 5 8 1 10 13 54 28 27 1 1 4 5 8 1 2 5 1 28 15 14 30 29 16 1 8 9 1 23 24 2 1 23 24 2 1 36 37 72 73 108 109 144 C107 R45 C368 C157 R310 R46 R47 R48 C369 C158 C21 R12 R51 R52 R641 C641 Q601 R17 R643 R644 Q272 IC603 X601 R127 C304 C636 R662 C149 R349 R317 IC601 C18 C305 R318 R385 R645 R646 IC110 R276 C329 C317 C113 C111 C104 R325 IC351 R384 R630 C103 R128 C274 R289 R290 R296 CN6013 R118 R574 R354 C108 C278 R121 R126 IC303 C603 C605 C606 Q271 C614 R271 L272 CN11 R314 C613 C351 R272 L271 R14 R663 R129 R141 C353 C316 KN901 IC11 R172 IC302 R176 C22 R36 R38 R177 R178 R179 R171 R39 C615 Q101 R40 R43 C637 R16 R298 R11 IC12 L324 CN15 CN3 C331 C616 R74 C451 IC451 R84 C333 R567 C631 C638 C630 C604 R386 C365 R44 C366 Q83 C359 C340 V11 R648 R326 C632 C633 C634 C643 CN16 C277 C19 R152 R150 R376 R153 C276 R R154 R151 D601 IC271 L274 C323 C110 C112 C639 R C106 CN61 IC605 R261 R125 C650 R111 Q103 R275 Q104 C332 R593 R405 C328 R113 R588 R123 Q105 R192 R191 C322 R638 R115 R564 R355 R37 R356 R642 C325 KN902 R149 R394 R330 C29 CN12 C251 C327 C635 IC604 R273 L61 R146 C342 R147 R301 C640 R695 R142 R346 R345 R391 C11 IC111 R305 C15 C30 R372 C14 C301 C302 C311 C361 CN52 C255 IC251 Q102 R73 R589 C258 R647 R266 R304 R265 R320 D301 R145 R322 R332 R62 R362 C257 R13 R333 C253 C326 C313 R155 IC304 R319 CN6012 R547 R156 R566 C651 R565 R Q81 C17 R371 R344 R306 C271 C629 R262 C324 C330 C452 CN6011 R100 R71 R110 R312 C20 R27 R28 R31 R32 R35 C102 X11 R309 R639 R594 R15 R72 R297 R375 C319 C256 R374 R324 R70 C321 IC301 R640 C31 R673 X301 L-POS V+4E B4 C GND B3 RF- GND GND RF+ MPD78 LD65 MPD65 VCC LD78 GND GNDM V+3D MPDVR GND GNDS PC VSHF GND FJMB VREF V+4E Cross-grain CMKM-P3X SEDR- CN251 V+5S direction GND GN D-SENS T-POS CN15 SEDR+ (VNP1863-B) IC351 IC302 Q83 Q81 IC301 IC11 IC451 IC12 Q601 IC271 IC304 IC251 Q105 IC110 IC303 Q101 Q103 Q104 IC604 IC111 Q102 IC605 IC603 Q271 Q272 IC601 FJMB ASSY B CN301 C CN11 CN601 A CN52 CN15 STE CN3 CN251 M SPINDLE MOT M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 5 6 7 8 5 6 7 8 C D F A B E DV-353-K B SIDE A 44 1 4 1 7 5 8 1 9 16 7 1 53 52 1 208 2 1 25 26 1 17 18 34 1 13 1 8 1 27 20 1 8 1 1 44 1 4 5 7 1 8 9 16 1 7 1 52 53 208 1 2 25 26 1 2 3 4 5 6 7 8 9 10 12 1 2 13 27 1 1 10 20 1 8 C722 Q711 C107 CN901 C803 C951 L941 C943 C157 R562 R133 IC421 C158 R734 R761 C832 IC711 Q796 R765 R762 R676 CN1001 R758 R738 R773 R768 C802 R769 C636 R662 C149 R585 R682 C601 C751 R554 R7340 R774 R591 R544 R543 Q771 R572 C103 R686 R689 C619 JA950 Q772 C718 R771 R955 R574 C773 R590 R808 R575 C605 C606 R775 R681 R577 R623 Q768 Q769 JA702 R678 R949 R945 R587 R601 R580 R579 R578 R602 R658 R659 R661 R663 Q606 Q607 R561 Q941 D802 R584 C941 KN903 R172 R952 D801 C607 C608 C822 R171 C861 C637 R583 C736 CN151 C638 R721 R722 R723 R684 C421 R665 C812 IC801 C609 R552 R557 C610 JA701 C862 C422 C756 C741 CN401 C620 C611 R556 R621 R576 R625 R622 R821 R947 C647 R551 C648 C811 C649 C639 R827 C852 Q605 R624 IC431 D431 IC441 R687 R743 R660 R741 R675 R113 R433 R588 R432 C805 D804 R115 R581 R901 C717 R688 R677 R680 R683 R948 IC731 C735 R753 C753 R586 C754 R754 C725 604 L740 R746 C431 C441 C432 C433 R542 C842 R733 C734 Q604 C733 Q766 Q602 C724 IC921 R767 L741 R589 C405 R795 C713 R794 R7510 C617 R793 Q791 Q792 R612 Q794 C844 C723 R690 C831 Q795 C644 Q767 C645 R763 Q761 C771 C646 C410 C761 IC771 R764 C412 Q762 Q603 R674 C407 D803 R679 R726 R155 R766 R685 C772 C851 C755 R156 CN950 R944 R619 R946 C801 C821 R822 100 C721 C102 C711 C726 R613 C423 R7310 R620 C794 C148 C795 C841 C714 C731 R7540 R558 R553 IC901 CN951 R691 CANCER,BIRTH DEFECTS OR KNOWN TO TO CAUSE THE STATE OF CALIFORNIA AND CERTAIN ELECTRICAL PARTS - PROPOSITION 65 B4 C B3 RF- GND GND RF+ MPD78 VCC LD78 GND V+5V GND VSHF GND V+12M B T DRV F RTN T RTN A VREF B1 1/2SW F DRV SIDE B2 CN902 CN904 GND PRINTED V+5V DC FC V+5A CONTAIN CHEMICALS WHICH ARE THIS PRODUCT CONTAINS LEAD IN SOLDER GND OTHER REPRODUCTIVE HARM. HEALTH & SAFETY CODE SECTION WARNING CN903 ND GND GND 25249.2 C604 C601 Q606 IC421 IC431 IC441 Q711 IC711 Q772 IC771 Q771 Q604 Q602 IC921 Q607 Q605 Q603 Q941 IC801 Q796 Q769 IC731 Q766 Q791 Q792 Q794 Q795 Q767 Q761 Q762 Q768 IC901 VWR1351: CN101 VWR1353: CN2 E CN401 PICKUP ASSY CN151 STEPPING MOTOR M NDLE MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 1 2 3 4 1 2 3 4 C D F A B E DV-353-K B SIDE B 1 44 1 7 -A 1 5 5 5 4 4 4 3 3 3 2 2 2 1 1 1 0 0 0 20 1 8 1 L592 R776 R596 C402 R735 C843 C408 C411 Q776 Q777 R956 C618 R759 R541 R739 R777 C738 86 R864 C757 R559 R560 R807 R545 C953 R571 C727 R855 R582 R752 R732 D721 R744 C612 C101 R844 C758 L601 R605 R607 C804 Q806 R608 R609 R610 C944 R863 R832 R654 R671 Q808 Q807 Q805 R845 R846 C404 L851 Q651 C413 C823 R652 R653 R745 C813 C406 R431 R650 C942 R651 R421 R812 R867 C945 R857 R422 C952 L603 R742 R921 C602 Q652 R563 R817 R951 R902 R950 R666 R136 L861 R811 R668 R731 R751 R802 R670 R283 R755 R756 R737 R736 R443 R441 R442 R138 R139 R757 C737 R847 R865 R801 R797 R796 R730 R903 R710 R957 R837 Q274 C853 R854 R853 Q273 C863 R806 C833 R843 R805 C601 R831 C621 R600 GND FJMB V+4E V+12D -28V P-CONT ST1- ST2- ST2+ V+5V GNDA +5V XRESET MIC 44X48 KDSPTHRU KDSPXCS ADATA0IN LRCLKOUT GNDD BCKOUT GNDD BCKIN LRCLKIN +5V GND GND ADATA0OUT +3V DACSO DACSCK GNDA MCLK GNDD ALRCK ABCK ST1+ ADATA1 ADATA2 DACXCS0 NC 6CHMODE XAMUTE XAMUTE2 MIC MICON2 FLDC+ FLDC- MCLK DACSO DACSCK V+2R5 V+12M V+3D GND GND +12V GNDV GNDV +5V VSEL1 VSEL2 SQUEEZE V Y C AUDIO_L AUDIO_R G/Y B/CB R/CR +5V ASPECT GNDA +12V +5V GNDD GND V+12M V+6A V+12M V+6B V+5S +12V GNDA +3V XNOR/KARA ECHOVR V+3D GND GNDA MIC GNDA GND CN901 CN902 CN904 CN903 1 2 13 CN401 CN1001 CN951 CN950 Q806 Q808 Q807 Q805 Q776 Q777 Q651 Q652 Q27 Q273 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 5 6 7 8 5 6 7 8 C D F A B E DV-353-K B SIDE B 1 5 -A 1 9 9 9 8 8 8 7 7 7 6 6 6 5 5 5 4 4 4 3 3 3 2 2 2 1 1 1 0 0 0 4 1 1 17 1 13 1 5 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A L592 C698 L699 R596 C310 L300 Q300 C259 R56 R396 R49 R377 C309 R81 R321 R357 R50 R604 C195 R359 R316 C699 R286 R315 R360 R336 R380 R329 R350 R53 R293 C357 R258 R393 C101 R368 L310 R195 R395 C391 R313 R157 C404 R54 R55 R339 R311 R595 C194 R19 R20 R307 C299 R328 Q82 R327 R570 R569 R299 R364 C248 C249 C250 R82 L603 C362 R259 R563 R632 R568 R603 R285 R136 R361 R392 R283 R303 R546 R144 R282 R370 R358 C12 R42 R18 R137 R331 R158 R281 R138 R140 R390 R139 R378 C360 R373 R57 R58 R59 R302 R90 C81 R60 R340 R341 R351 R353 C334 Q274 Q273 R194 R254 R255 L308 R256 R334 C13 C336 R573 R25 R26 R631 R21 C622 R22 R23 R24 Q275 R291 R294 R41 C272 R335 R379 C335 C337 C307 R308 R83 R300 C308 R257 EV3IR SW2 LOAD- V+3E VWS FJMB GND -28V ST1- ST2- P-ON GND EV3 FLDC- FLDC+ V+4E V+3DSD V+3D V+5S ST2+ V+6B GND GND ST1+ GND KEY0 V+6A ST1- V+12M ST2+ ST1+ ST1+ KEY1 LT1 XRESET V+6B V+3R5D V+6A V+12M SCK S(FtoM) V+6B INSIDE H1+ V+5S A3 H3+ GNDS H1- H2+ ST2- H2- A2 V+5S H3- A1 S(MtoF) GND ND XREADY GND V+3D SW1 LOAD+ IR CN61 CN251 CN3 CN52 CN15 CN11 CN12 Q274 Q273 Q300 Q275 Q82 (VNP1863-B) FJMB ASSY B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 1 2 3 4 1 2 3 4 C D F A B E DV-353-K C D C D SIDE A SIDE B 5 2 1 5 4 3 1 1 1 3 1 3 1 S301 S302 S303 S304 S305 S306 S401 L321 CN301 IC301 C302 CN401 CN302 5 1 1 1 1 1 OPEN/ CLOSE PLAY PAUSE STOP FWD REV CMKS-P3X POWER ON PSWB VWG2344- IRKY VWG2345- VWG PC CMKS-P3X VWG R301 R302 R311 R312 R313 R314 R321 C301 R322 R303 R323 D301 KEY0 KEY1 V+3E IR GND 5 1 1 1 3 1 3 1 PSWB IRKY VWG2345- VWG2344- PAUSE STOP FWD REV 2.3.GND 1.KEY0 KEY0 GND OPEN/ PLAY CLOSE 1 1 POWER ON 3 1 CMKS-P3X CMKS-P3X GND VWG VWG GND KEY0 1 CN302 CN301 CN401 for OTHERS for ##XCN type CN11 B CN301 PSWB ASSY D PSWB ASSY D IRKY ASSY C IRKY ASSY C (VNP1864-B) (VNP1864-B) 4.3 IRKY and PSWB ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 5 6 7 8 5 6 7 8 C D F A B E DV-353-K 4.4 POWER SUPPLY UNIT (VWR1351) E E SIDE A SIDE A Q2 Q1 Q20 Q320 IC201 IC103 VR201 Q412 Q411 Q410 CN401 B AC IN CN101 POWER SUPPLY UNIT E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 1 2 3 4 1 2 3 4 C D F A B E DV-353-K E E SIDE A SIDE A IC3 IC2 IC1 IC4 Q6 CN401 B AC IN CN2 POWER SUPPLY UNIT E 4.5 POWER SUPPLY UNIT (VWR1353) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 Mark No. Description Part No. Mark No. Description Part No. DV-353-K 7 PCB PARTS LIST LOAB ASSY (VWG2346) SWITCHES AND RELAYS S101 REAF SWITCH VSK1011 OTHERS CN602 CONNCTOR S2B–PH–K CN601 CONNCTOR S5B–PH–K PRINTED CIRCUIT BOARD VNP1836 LOAB ASSY (VWG2279) SWITCHES AND RELAYS S101 REAF SWITCH VSK1011 OTHERS CN602 CONNCTOR S2B–PH–K CN601 CONNCTOR S5B–PH–K PRINTED CIRCUIT BOARD VNP1837 FJMB ASSY SEMICONDUCTORS IC110 BA10358FV > IC303 BA18BC0FP IC731 BA4560F IC251 BA6664FM IC604 K4S641632F–TC75 IC302 K6T1008V2E–TB70 IC301 L6315ATXXTY IC351 M56788AFP > IC451 MM1385EN > IC421 MM1565AF IC801 MM1567AJ > IC901 NJM78L05A IC711 PCM1742KE IC11 PE5314A > IC431 PQ025EZ01ZP > IC441 PQ070XZ02ZP IC12 PST3228 IC601 STI5519AVB–B0C IC605 TC7WU04FU KUXJ and KCXJ Types NSP 1..LOADING MECHANISM ASSY VWT1196 NSP 2..LOAB ASSY VWG2346 1..FJMB ASSY VWS1515 NSP 1..KEYB ASSY VWM2122 NSP 2..IRKY ASSY VWG2344 NSP 2..PSWB ASSY VWG2345 > 1..POWER SUPPLY UNIT VWR1351 (or VWR1353) KUXU/CA, KUXU and KCXU Types NSP 1..LOADING MECHANISM ASSY VWT1197 NSP 2..LOAB ASSY VWG2279 1..FJMB ASSY VWS1515 NSP 1..KEYB ASSY VWM2122 NSP 2..IRKY ASSY VWG2344 NSP 2..PSWB ASSY VWG2345 > 1..POWER SUPPLY UNIT VWR1351 (or VWR1353) KUXQ Types NSP 1..LOADING MECHANISM ASSY VWT1188 NSP 2..LOAB ASSY VWG2279 1..FJMB ASSY VWS1515 NSP 1..KEYB ASSY VWM2122 NSP 2..IRKY ASSY VWG2344 NSP 2..PSWB ASSY VWG2345 > 1..POWER SUPPLY UNIT VWR1351 (or VWR1353) Mark No. Description Part No. Mark No. Description Part No. 7 LIST OF ASSEMBLIES 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 Mark No. Description Part No. Mark No. Description Part No. DV-353-K IC603 VYW1890 Q300, Q602–Q607, Q762 2SA1037K Q81, Q83 2SA1602A Q103, Q104, Q82, Q941 2SC2412K Q766, Q767 2SD2114K Q652 DTC114TK Q711, Q761, Q805, Q807 DTC114YK Q101, Q102 HN1A01F Q806, Q808 PDTA124EK Q601 RN4982 D601 RB501V–40 D721 UDZS6.2B COILS AND FILTERS L741 LAU3R3J L699 LCYA2R2J2520 L300 LCYA2R7J2520 L324 CHIP BEADS VTL1083 L851, L861 CHIP BEADS VTL1089 CAPACITORS C301, C302 CCSRCH100D50 C310 CCSRCH151J50 C307 CCSRCH180J50 C360 CCSRCH330J50 C391, C737, C757 CCSRCH331J50 C351 CCSRCH470J50 C309 CCSRCH560J50 C308 CCSRCH7R0D50 C633, C634 CCSRCH8R0D50 C113 CEAT100M50 C104, C21, C316, C317, C368 CEAT101M10 C405, C412, C432, C614, C711 CEAT101M10 C721, C726, C731, C736, C751 CEAT101M10 C756, C801, C803 CEAT101M10 C617, C714, C842 CEAT102M6R3 C943 CEAT1R0M50 C111 CEAT220M25 C724 CEAT470M16 C812, C832, C852, C862 CEAT471M6R3 C342, C422 CKSQYB225K10 C699 CKSQYF225Z16 C14, C340, C641 CKSRYB102K50 C259, C311 CKSRYB103K50 C248–C251, C255 CKSRYB104K16 C257, C258 CKSRYB223K50 C733, C753 CKSRYB272K50 C357 CKSRYB472K50 C106, C11, C148, C157, C158 CKSRYF104Z25 C22, C253, C256, C304 CKSRYF104Z25 C321–C333, C365, C366, C451 CKSRYF104Z25 C602–C609, C612, C618 CKSRYF104Z25 C621, C622, C632, C637–C640 CKSRYF104Z25 C713, C717, C722, C725, C735 CKSRYF104Z25 C755, C802, C804, C805, C811 CKSRYF104Z25 C821, C822, C831, C844, C851 CKSRYF104Z25 C861, C952 CKSRYF104Z25 C30 CKSRYF104Z50 C411, C423, C431, C601 CKSRYF105Z10 C610, C611, C613, C615, C629 CKSRYF105Z10 C635, C636, C741 CKSRYF105Z10 C734, C754 (330P/50V) VCH1226 RESISTORS R121 RAB4C220J R123 RAB4C390J R731, R751 RN1/16SE2201D R734, R754 RN1/16SE4301D R341 RS1/10S101J R764 RS1/10S182J R126–R129, R176–R179 RS1/10S220J R254–R259 RS1/10S3R3J R822, R832 RS1/10S75R0F R326–R330, R443 RS1/16S1001F R147, R265, R266, R304, R322 RS1/16S1002F R377, R378, R392, R393 RS1/16S1002F R344, R351, R353, R354 RS1/16S1003D R359, R360, R368, R372 RS1/16S1003D R374, R375, R384, R385 RS1/16S1003D R335, R336 RS1/16S1003F R302 RS1/16S1202F R358, R394 RS1/16S1503F R146, R441 RS1/16S1801F R612, R613 RS1/16S1802F R442 RS1/16S1803F R675, R678, R681, R684, R687 RS1/16S2700F R690 RS1/16S2700F R345, R355, R370, R371 RS1/16S3902F R346, R356, R357, R362, R364 RS1/16S6802F R373 RS1/16S6802F R812, R844, R854, R864 RS1/16S75R0F R390 RS1/16S8202F Other Resistors RS1/16S###J OTHERS CN401 CONNECTOR B13B–PH–K CN11, CN52 CONNECTOR POST B5B–PH–K JA950 JFJ1001 OPT. LINK OUT 8MB/S V11 FL TUBE VAW1070 FLEXIBLE CABLE VDA1681 PCB BINDER VEF1040 JA701 JACK VKB1179 CN3 4P CONNECTOR VKN1235 CN251 12P CONNECTOR VKN1243 CN1001 7P CONNECTOR VKN1267 CN151 26P CONNECTOR VKN1790 FL HOLDER VNK4954 X11 (5MHz) VSS1142 X301 (20MHz) VSS1167 X601 (27MHz) VSS1168 IRKY ASSY SEMICONDUCTORS IC301 SPS–444L–H COILS AND FILTERS L301, L311 CHIP BEADS VTL1084 SWITCHES AND RELAYS S301–S306 ASG7013 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 Mark No. Description Part No. Mark No. Description Part No. DV-353-K CAPACITORS C301 CKSRYF104Z25 RESISTORS All Resistors RS1/16S###J OTHERS 3P CABLE HOLDER 51048–0300 J301 3P JUMPER WIRE D20PDD0315E CN301 CONNECTOR S5B–PH–K PSWB ASSY SWITCHES AND RELAYS S401 ASG7013 OTHERS 3P CABLE HOLDER 51048–0300 POWER SUPPLY UNIT (VWR1351) OTHERS > P103 PROTECTOR (1.6A) AEK7012 > P101 PROTECTOR (800mA) AEK7063 > P102 PROTECTOR (1.6A) AEK7066 > P104 PROTECTOR (2A) AEK7067 > F1 FUSE (1.6A) REK1077 POWER SUPPLY UNIT (VWR1353) OTHERS > CP5 PROTECTOR (800mA) AEK7063 > CP2, CP3 PROTECTOR (1.6A) AEK7066 > CP1 PROTECTOR (2A) AEK7067 > F1 FUSE (1.6A) REK1077 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DV-353-K 6. ADJUSTMENT 6.1 ADJUSTMENT ITEMS AND LOCATION 1 1 2 2 3 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Initialize the Focus Sweep Setting Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1067) Screw tight (GYL1001) Screwdriver (medium) 6.2 JIGS AND MEASURING INSTRUMENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DV-353-K 6.3 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ, ! Ÿ, ! Mechanical point Electric point ! Mechanical point Electric point Mechanical point Electric point Be sure to perform the following step finally when replaced Pickup, Traverse Mechanism and Spindle Motor. Purpose: To set the sweep which was correct with the individual Traverse mechanism. Mechanical point Electric point LOAB, FJMB ASSY ∗ GGF1067 Test mode remote control unit ESC CLEAR Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board (It is necessary when performed adjustment procedure Ÿ.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DV-353-K 6.4 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1067 Test mode remote control unit GGF1067 Test mode remote control unit POWER ON OPEN/CLOSE (Player or Remote Control Unit) OPEN/CLOSE (Player or Remote Control Unit) DVD disc TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC OFF POWER 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DV-353-K 6.5 MECHANISM ADJUSTMENT • Remove the servo mechanism. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Servo Mechanism (Float Base) with nippers. Cautions: Because there is not a Spacer for height adjustment in adjustment after the second time, will keep it at need. (This parts is Traverse mechanism exclusive use of a model for 2001 years) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) Note: Turn the Short switch to Short side when removing the Pickup Flexible Cable. (Refer to "7.1.6 DISASSEBLY".) START Tangential and Radial Height Coarse Adjustment 1 Servo Mechanism 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DV-353-K Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight, and go to step !. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.1 TEST MODE (Display Specification of the Test Mode)". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DV-353-K Initialize the Focus Sweep Setting 3 Turn on the Player ESC CLEAR POWER Note: Be sure to perform this step when replaced the Pickup or Traverse mechanism. Purpose: To set the sweep which was correct with the individual Traverse mechanism. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DV-353-K 7. GENERAL INFOMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the LD remote control unit. • Light the all FL and LEDs, and goes out the FL and LEDs when pressing the keys of something. • OSD displays test mode. Refer to the "Display Specification of the Test Mode". 2 Release the Test mode • Turn off the power. • Press the [ESC] (A8-5F) key of the remote control unit and reset it. 3 Tray open / close • Press the [REPEAT A-B] (A8 - 48) key of the remote control unit. • Press the [OPEN / CLOSE] key of the main unit from the stop state. 4 Playback stop • Press the [REPEAT] (A8 - 44) key of the remote control unit from the playback state. • Press the [STOP] key of the remote control unit or main unit from the playback state. 5 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). 6 Focus on / sweep 1. Lock the focus by pressing the [TEST] (A8-5E) and [2] (A8-02) keys in order. 2. Repeat focus sweep by pressing the [TEST] (A8-5E) and [3] (A8-03) keys in order. 7 Spindle FG servo CAV : Press the [TEST] (A8-5E) and [5] (A8-05) keys in order,then rise up the spindle and it becomes FG servo on. CLV : Press the [TEST] (A8-5E) and [9] (A8-09) keys in order,then rise up the spindle and it becomes FG servo on. 8 Tracking open / close 1. Open tracking by pressing the [STEP FWD] (A8-54) key of the remote control unit in the play state. 2. Close tracking by pressing the [STEP REV] (A8-50) key of the remote control unit in the play state. 9 Slider servo on/off 1. Turn on the slider servo by pressing the [TEST] (A8-5E) and [CX] (A8-0E) keys in order. 2. Turn off the slider servo by pressing the [TEST] (A8-5E) and [TV/LDP] (A8-0F) keys in order. 0 Slider in / out Slider in : In the tracking off state, press the [SCAN REV] (A8-11) key of the remote control unit. Slider out : In the tracking off state, press the [SCAN FWD] (A8-10) key of the remote control unit. - Play (perform only the ID search and trace to the specified location) Press the [TV/LDP] (A8-0F) key of the remote control unit from the stop state. Perform only trace, video and audio output are nothing. = Screen display ON/OFF 1. Turn off the display by pressing the [AUDIO] (A8-1E) key of the remote control unit. 2. Turn on the display by pressing the [DISPLAY] (A8-43) key of the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DV-353-K ~ Search 1. Search address input entry • It becomes the address input mode when pressing the [+10] (A8-1F) key. (Most significant digit of an address displays ">".) • In this time, display the last address as the initial state. 2. Search address input • Press the [0] to [9] (A8-00 to 09) keys of the remote control unit. In the DVD, set an address with hexadecimal. • In the address input mode, turn to the hexadecimal input by pressing the [PROGRAM] (A8-4C) key (display a "∗" mark), and [1] to [6] keys are each input as A to F. • In this time, do not accept the [7],[8],[9] and [0] keys. Hexadecimal input and decimal input can switch with toggle. • In case of CD, perform only the absolute time search. 3. Search execution • Press the [CHP/TM] (A8-13) key of the remote control unit. • After the search, perform only trace and video and audio outputs are nothing. 4. Release the Search address input • Clear the address by pressing the [CLEAR] (A8-45) key. Release the address input mode when pressing the [CLEAR] key once again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DV-353-K Display Specification of the Test Mode Character in bold : Item name : Information display 1 5 6 10 13 11 8 9 7 3 2 12 17 18 19 16 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL – ∗ ∗ ∗] [OFF], [A/B] (ACC/BRK), [CAV], [CLV] 7 Mechanism (loading) position value [M – ∗] Position code : [1] to [3] 8 Slider position [S – ∗ ∗ ∗ ∗] CD TOC area : [IN ] CD active area : [CD] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Skirt terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of skirt terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] - Jitter value [J – ∗ ∗ ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RAM/RL/RD, LB: /LB, WY: /WY # Part number of the flash ROM [∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLSH = ∗] % Revision of the system controller [S: ∗ . ∗ / ∗ ∗ ∗ ] ^ Revision of the DVD mechanism controller [M: ∗ / ∗ ∗] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DV-353-K Command Contents Conditions Remote Control Key Name Remote Control Code Memory clear & region / revision indication CLEAR (LD remote control unit) A8-45 Average value measurement of DVD error rate 5 (LD remote control unit) A8-05 CD error rate measurement 5 (LD remote control unit) A8-05 Aspect: Pan scan 2 AF-A2 Aspect: Letter box 3 AF-A3 Aspect: Wide 4 AF-A4 Digital: PCM 5 AF-A5 Digital: AC-3/PCM 6 AF-A6 Virtual Dolby: VDD=OFF Only correspondence model 7 AF-A7 Virtual Dolby: VDD=ON Only correspondence model 8 AF-A8 Digital output ON REPEAT A AF-E8 Digital output OFF REPEAT B AF-E4 DTS Digital Out ON STEP FWD AF-B7 DTS Digital Out OFF STEP REV AF-B8 Skirt terminal output: VIDEO WY, Model to include skirt AUDIO AF-BE Skirt terminal output: S-VIDEO WY, Model to include skirt SUBTITLE AF-36 Skirt terminal output: RGB WY, Model to include skirt ANGLE AF-B5 Audio 5.1CH ON Only correspondence model KD_ENTER AF-EF FL indication of EDC / ID error CX (LD remote control unit) A8-0E ZOOM ON Only correspondence model ZOOM AF-37 ZOOM OFF Only correspondence model < X3 (LD remote control unit) A8-59 Service mode indication (error rate indication, etc.) CHP/TIM (LD remote control unit) A8-13 Model information indication CHAP (LD remote control unit) A8-40 Background color change +10 (LD remote control unit) A8-1F Audio last stage mute ON 9 AF-A9 Audio last stage mute OFF 0 AF-A0 Title search Input mode IN Title No. input Search execution SIDE A (LD remote control unit) Numbers (LD remote control unit) PLAY (LD remote control unit) A8-4D A8-00 to A8-09 A8-17 Region confirmation mode AUDIO (LD remote control unit) Numbers (LD remote control unit) A8-1E A8-01 to A8-08 Shortcut key Functional Specification Only in the normal playback, the following setting can by pressing the required key after having pressed the "ESC" key of the remote control unit. How to release: Press the "ESC" key. (function with indication) • Service mode indication ID Address Always display error rate. Exponential indication ∗.∗∗e-∗ (with both DVD and CD) EDC/ID/AV1 error history (ID Address, EDC/ID/AV1 Error, errors of past eight times) Self-diagnostic function (when mechanism error occurred, display the mechanism error history) • Error rate average value total (ESC +5) Calculation number of times displays exponent from average value of eight times. After the calculation result, display OK/NG. Tray is open in case of NG (with both DVD and CD) DVD: OK with less than 8.0e-4 CD: OK with less than 7.6e-4 Note: Because an OK/NG judgment cannot be DVD with a static image mode as menu screen, confirm it by an animation. • Model information indication contents (ESC+CHAP) Display = to ^ in the test mode indication. However, Change the indication of S as B.E VERSION and it of M as F.E VERSION. Refer to the "Specification of Model Information Display". • Background color change Change blue and green with toggle whenever pressing the key (the background color that green is using with SETUP NAVIGATOR). • Region confirmation mode Input region No. after pressing the ESC+AUDIO keys. When it is different from the setting, display and open the tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DV-353-K Specification of Model Information Display • Display contents Character in bold : Item name : Information display 1 2 3 4 5 6 7 8 9 10 1 Model name Display it according to model information set from the FL controller. 2 Destination indication Display it according to model information set from the FL controller. 3 Region No. 4 Part number 5 ROM version 6 Flash size 7 FL controller version 8 CHIP VERSION Version of ST CHIP CUT ID / JTAG ID (two columns) (eight columns) 9 B.E VERSION Version of BACK END (version of ST core software) . / softwareVersion . softwareRevision / buildNumber 0 F.E VERSION Version of FRONT END (version of mechanism controller CHIP software) / MainVersion / SubVersion www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DV-353-K Functional Specification of the Service Mode Indication plan contents Character in bold : Item name : Information display 1 2 4 • FL indication of EDC / ID error (short cut function) Display it in FL with ESC+CX keys (LD remote control unit). Indication is released with ESC key during indication. FL indication contents 0 0 / 0 0 / 0 1 ∗ • Service mode screen display Display to the screen with ESC+CHP/TIM keys. Release the indication with ESC key. Indication contents ID Address 1 Always indicate error rate 2 and exponent indication EDC/ID/AV1 error history (ID Address, EDC/ID/AV1 Error, past eight times) 3 Contents of AV1 error BIT 0: EDC error, FEC I/F buffer overflow and not valid occur in the BE code (B.E error). BIT 1: ID is different from the target in the BE code (B.E error). BIT 2: There is error in the EDC data of 2 bytes which added to the FE (F.E error). • Self-diagnostic function 4 Check that the F.E is normal or not. FE OK : Abnormality is not found in the F.E. FE Error : Abnormality is found in the F.E. Indicate the mechanism error history by pressing the CHP/TIM key once again. Change indication by pressing the CHP/TIM key with toggle afterwards. Refer to the "Display of the Mechanism Error History". Display number of the location that caused EDC and ID errors Retry number of times at having caused ID error (error is displayed only in the occurring moment) Retry number of times of the latest ID error in the ST system Retry number of times at having caused EDC error (error is displayed only in the occurring moment) Retry number of times of the latest EDC error in the ST system ∗ mark: When even once causes AV1 error, lights. 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DV-353-K 7.1.2 DISPLAY OF THE MECHANISM ERROR HISTORY Indication contents • Table of Error Code • Table of Servo State 1 2 3 When mechanism error (FE error) occurred, the mechanism error history of maximum past eight times is displayed by pressing the CHP/TIM key during service mode screen display. Indication displayed in the screen upper part is new error. • Indication contents 1 Error code Two characters in the front represent the Error Code and two characters in the back represent the Servo State. The detail is as follows. 3 Error contents indication Indicate the error contents which occurred with character. Examples: When Error code is 0x13 (Focus lost timeout) and error state is 0x05 (Disc judge), "Focus lost timeout in Disc judge" ∗ Movement in the error occurrence: open the tray when SERVO STATE is Disc Judg, and others stop. However, error code is exception in the device error of 0xd∗. 2 Error occurrence time Error indicates the time which occurred after system turned on the power supply. ∗ When time of new error is short, it becomes assumed power off once. Error Code Servo State 1 2 3 0x00 Reset 0x01 Stop (inside position) 0x02 Stop (any position) 0x03 Braking for stop 0x04 New disc 0x05 Disc judge 0x06 Reserved 1 0x07 Playing 0x08 Start up 0x09 Seeking 0x0A Pausing 0x0B Reading BCA 0x0C Reserved 2 0x0D 0x0E 0x0F FOCUS ERROR 0x0∗ FOCUS TIMEOUT 0x1∗ Focus on error 0x01 Focus on timeout 0x11 Focus off error 0x02 Focus off timeout 0x12 Focus lost error 0x03 Focus lost timeout 0x13 Focus balance adjust error 0x04 Focus balance adjust timeout 0x14 Focus gain adjust error 0x05 Focus gain adjust timeout 0x15 Focus sweep error 0x06 Focus sweep timeout 0x16 Focus reflection error 0x07 Focus reflection timeout 0x17 TRACKING ERROR 0x2∗ TRACKING TIMEOUT 0x3∗ Tracking on error 0x21 Tracking on timeout 0x31 Tracking off error 0x22 Tracking off timeout 0x32 Tracking lost error 0x23 Tracking lost timeout 0x33 Tracking balance adjust error 0x24 Tracking balance adjust timeout 0x34 Tracking gain adjust error 0x25 Tracking gain adjust timeout 0x35 Tracking jump error 0x26 Tracking jump timeout 0x36 STEPPING ERROR 0x4∗ STEPPING TIMEOUT 0x5∗ Stepping on error 0x41 Stepping on timeout 0x51 Stepping off error 0x42 Stepping off timeout 0x52 Stepping lost error 0x43 Stepping lost timeout 0x53 Stepping move error 0x44 Stepping move timeout 0x54 SPINDLE ERROR 0x6∗ SPINDLE TIMEOUT 0x7∗ Spindle on error 0x61 Spindle on timeout 0x71 Spindle off error 0x62 Spindle off timeout 0x72 Spindle lost error 0x63 Spindle lost timeout 0x73 Spindle CAV error 0x64 Spindle CAV timeout 0x74 Spindle CLV error 0x65 Spindle CLV timeout 0x75 ACQUISITION ERROR 0x8∗ ACQUISITION TIMEOUT 0x9∗ PLL lost error 0x83 PLL lost timeout 0x93 DECODER ERROR 0xa∗ DECODER TIMEOUT 0xb∗ ID lost error 0xa3 ID lost timeout 0xb3 FAIL SAFE 0xe∗ unexpected error 0xe1 DEVICE ERROR 0xd∗ SRAM error 0xd1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DV-353-K Error Name No. Causes Check Item Possibility of Trouble Remarks FOCUS ERROR (0 x 0∗) Focus on error 0 x 01 Focus on could not be completed Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. L6315 (Front End IC) Focus off error 0 x 02 Focus off could not be completed Unknown Focus lost error 0 x 03 Focus servo is lost Are not there a dirt or a scratch in the Disc? Does LD become weak? 1. Pickup Focus balance adjust error 0 x 04 AFB on could not be completed Focus gain adjust error 0 x 05 Focus AGC could not be completed Focus sweep error 0 x 06 Focus reflection error 0 x 07 Dimensions of S curve did not reach to the aim value Does LD become weak? 1. Pickup FOCUS TIMEOUT (0 x 1∗) Focus on timeout 0 x 11 Did timeout at focus on Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. L6315 (Front End IC) Focus off timeout 0 x 12 Did timeout at focus off Focus lost timeout 0 x 13 Did timeout at focus backup Focus balance adjust timeout 0 x 14 Did timeout at AFB Focus gain adjust timeout 0 x 15 Did timeout at AGC Focus sweep timeout 0 x 16 TRACKING ERROR (0 x 2∗) Tracking on error 0 x 21 Tracking on could not be completed 1. Pickup 2. Driver 3. L6315 (Front End IC) Tracking off error 0 x 22 Tracking off could not be completed Tracking lost error 0 x 23 Tracking servo is lost 1. Pickup Tracking balance adjust error 0 x 24 ATB could not be completed 1. Pickup Tracking gain adjust error 0 x 25 AGC could not be completed 1. Pickup Tracking jump error 0 x 26 Tracking jump could not be completed TRACKING TIMEOUT (0 x 3∗) Tracking on timeout 0 x 31 Did timeout at tracking on Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Driver 3. L6315 (Front End IC) Tracking off timeout 0 x 32 Did timeout at tracking off Tracking lost timeout 0 x 33 Did timeout at tracking backup Are not there a dirt or a scratch in the Disc? 1. Pickup Tracking balance adjust timeout 0 x 34 Did timeout at ATB 1. Pickup Tracking gain adjust timeout 0 x 35 Did timeout at AGC 1. Pickup Tracking jump timeout 0 x 36 Did timeout at tracking jump STEPPING ERROR (0 x 4∗) Stepping on error 0 x 41 Stepping on could not be completed 1. Pickup 2. Driver 3. L6315 (Front End IC) Stepping off error 0 x 42 Stepping off could not be completed Stepping lost error 0 x 43 Stepping servo is lost Stepping move error 0 x 44 Stepping could not move Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver STEPPING TIMEOUT (0 x 5∗) Stepping on timeout 0 x 51 Did timeout at stepping on 1. Pickup 2. Driver 3. L6315 (Front End IC) Stepping off timeout 0 x 52 Did timeout at stepping off Stepping lost timeout 0 x 53 Did timeout at stepping backup Stepping move timeout 0 x 54 Did timeout at stepping movement Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver ERROR CODE TABLE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DV-353-K Error Name No. Causes Check Item Possibility of Trouble Remarks SPINDLE ERROR (0 x 6∗) Spindle on error 0 x 61 Spindle on could not be completed Spindle off error 0 x 62 Spindle off could not be completed Spindle lost error 0 x 63 Spindle lost control Spindle CAV error 0 x 64 CAV on could not be completed Spindle CLV error 0 x 65 CLV on could not be completed SPINDLE TIMEOUT (0 x 7∗) Spindle on timeout 0 x 71 Did timeout at spindle on Spindle off timeout 0 x 72 Did timeout at spindle stop Spindle lost timeout 0 x 73 Did timeout at spindle backup Are not there a dirt or a scratch in the Disc? Is FG output from the driver? 1. Spindle motor 2. Spindle driver Spindle CAV timeout 0 x 74 Did timeout at CAV on Is spindle rotating? Is FG output from the driver? Is the PDM output from L6315? 1. Spindle motor 2. Spindle driver 3. L6315 (Front End IC) Spindle CLV timeout 0 x 75 Did timeout at CLV on ACQUISITION ERROR (0 x 8∗) PLL lost error 0 x 83 PLL is lost Are not there a dirt or a scratch in the Disc? 1. Pickup 2. L6315 (Front End IC) ACQUISITION TIMEOUT (0 x 9∗) PLL lost timeout 0 x 93 Did timeout at PLL backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. L6315 (Front End IC) DECODER ERROR (0 x a∗) ID lost error 0 x a3 ID is not readable Are not there a dirt or a scratch in the Disc? 1. Pickup 2. L6315 (Front End IC) DECODER TIMEOUT (0 x b∗) ID lost timeout 0xb3 Did timeout at ID backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. L6315 (Front End IC) DEVICE ERROR (0 x d∗) SRAM error 0 x d1 Cannot access SRAM Power supply of SRAM Is not bus line short-circuiting? 1. SRAM 2. L6315 (Front End IC) 3. L6315-SRAM bus line FAILSAFE (0 x e∗) Unexpected error 0 x e1 Unexpected error 1. software runaway 3. Software bug www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DV-353-K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 1 2 3 4 1 2 3 4 C D F A B E DV-353-K 7.1.3 TEST POINT LOCATION & WAVEFORMS SIDE A 1 IC301 - pin 3 [RF] V: 200mV/div. H: 0.1µsec/div. 5 Foot of R723 (IC711 - pin 3) [AUDIO DAC -LRCK] V: 2V/div. H: 5µsec/div. 2 IC251 - pin 24 [FG] V: 1V/div. H: 5msec/div. 3 4 IC711 - pin 16 [AUDIO DAC -MCK] V: 1V/div. H: 20nsec/div. Foot of R721 (IC711 - pin 1) [AUDIO DAC -BCK] V: 2V/div. H: 200nsec/div. GND 16 IC3 7 6 8 Foot of R722 (IC711 - pin 2) [AUDIO DAC -DATA] V: 2V/div. H: 500nsec/div. 10 Foo [Co V: 1 11 Foo [Co V: 2 12 Foo [Co V: 2 9 Foot of C812 (IC801 - pin 30, 31) [Composite Video output] V: 1V/div. H: 10µsec/div. Measurement condition : No. 1 to 2 and 9 to 14 : reference A1 (DVD), T2-chp 19, Color-bar No. 3 to 8 : reference A1 (DVD), T2-chp 1 GND 6 7 8 WAVEFORMS Foot of R723 (IC711 - pin 3) [AUDIO DAC -LRCK] V: 2V/div. H: 500nsec/div. Foot of R721 (IC711 - pin 1) [AUDIO DAC -BCK] V: 2V/div. H: 500nsec/div. FJMB ASSY B 3.5V 2.5V RF (Through hole) 3.3V(E) POWER ON (P_CONT) XRESET XRDY KEY0 1.8V 27M (for BACK END (IC601)) 1 SPDL_PDM 16 FG 2 R261 IC301 IC251 CN52 IC351 R262 IC451 IC11 R17 R16 IC605 IC601 IC303 IC604 R121 R123 CN251 CN3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 5 6 7 8 5 6 7 8 C D F A B E DV-353-K SIDE A 16 IC301 - pin 42 [SPDL_PDM] 10 Foot of C842 (IC801 - pin 24, 25) [Component Video output -Y] V: 1V/div. H: 10µsec/div. 11 Foot of C852 (IC801 - pin 18, 19) [Component Video output -Pb] V: 2V/div. H: 10µsec/div. 13 Foot of C832 (IC801 - pin 27, 28) [S Video output -Y] V: 1V/div. H: 10µsec/div. 14 Foot of C822 (IC801 - pin 33) [S Video output -C] V: 1V/div. H: 10µsec/div. 12 Foot of C862 (IC801 - pin 21, 22) [Component Video output -Pr] V: 2V/div. H: 10µsec/div. 31) 10 11 13 14 12 [PLAY] [STOP→PLAY→STOP] [STOP] STOP STOP PLAY Accelertar ON Brakes ON V: 2V/div. H: 500nsec/div. V: 2V/div. H: 500nsec/div. V: 2V/div. H: 1sec/div. Pr (Color difference) Y (Color difference) Pb (Color difference) Y(S) C(S) V 6V 5V 3.5V 2.5V C832 C822 C812 C852 C842 10 14 LRCK BCK DATA 5 6 4 MCK (22M/24M) 3 D (IC601)) 7 8 11 9 R721 R722 R723 12 13 IC801 IC711 R623 IC601 C604 CN401 IC421 IC441 IC431 R433 3.3V R681 Q606 R687 R675 R688 Y(S) Pb Y Pr C V Video outputs of BACK END IC (IC601) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 1 2 3 4 1 2 3 4 C D F A B E DV-353-K SIDE B 1 2 13 CN401 CN1001 CN951 15 IC6 V: 1 W FCS_RTN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 5 6 7 8 5 6 7 8 C D F A B E DV-353-K SIDE B CN251 CN3 CN52 CN11 15 IC601 - pin 116 [LOAD_DRV] V: 1V/div. H: 5µsec/div. [Tray stops] [Tray is opening] [Tray is closing] WAVEFORMS 17 CN251 - pin 12, 11, 10 (IC251 - pin 2, 4, 7) [Spidle driver -A3, A2, A1] [PLAY] V: 2V/div. H: 2msec/div. FJMB ASSY B A2 FCS_DRV A3 A1 17 LOAD_DRV SPDL_PDM 15 FACT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DV-353-K 7.1.4 TROUBLE SHOOTING . o N s m o t p m y S s t n e t n o c s i s o n g a i D n o it p m u s s a s s e n e v it c e f e D s t n i o p 1 n o r e w o p t o n n a C C D L F d n a V 8 2 - , V 4 + E ( T I N U Y L P P U S R E W O P f o e g a tlo v h c a e k c e h C )t u p t u o T I N U Y L P P U S R E W O P f o r o tc e n n o c t u p t u o n e e w t e b tiu c ric - n e p o d n a tiu c ric -tr o h s e r e h t t o n e r A ? B M J F f o 1 0 4 N C d n a T I N U Y L P P U S R E W O P d o r e ri w / r o tc e n n o C . V 3 . 3 si 4 nip - 1 5 4 C I f o e g a tlo v t a h t k c e h C r o t alu g e r V 3 . 3 o d I n e h w y e k R E W O P a d e h s u p I n e h w V 3 . 3 ti si, V 0 : nip 2 2 - 1 1 C I B M J F ? ti h s u p t o n y e k a yln o f o e s a c ni( s eicti w s -tc a t ) G N ,tc u d o r p a f o la n gis a f o e g a s s e m a e vie c e r ) R I L E S ( 7 1 nip - 1 1 C I B M J F s e o D ? y e k r ello rt n o c e t o m e r s s ele ri w a d e h s u p I n e h w V 3 . 3 - V 0 n e e w t e b r ello rt n o c e t o m e r s s ele ri W yln o f o e s a c ni( tr a p t h gil r e vie c e r e t o m e r s s ele ri w a f o y e k a ) G N ,r ello rt n o c 2 t o n si n e e r c s g nin e p o n A r o tin o m a y b d e y alp sid a h c e m A . n o s n r u t L F ( ).k r o w t o n s e o d le v el " H " ) N O R E W O P ( 1 1 nip - 1 1 C I d n a ) T E S E R X ( 2 1 nip - 1 1 C I e r A ? r e h t e g o t ) 1 1 C I( m o c - u lo rt n o c L F ) V 3 . 3 + W S d n a V 6 + E ( T I N U Y L P P U S R E W O P f o e g a tlo v h c a e k c e h C • ? V 3 d n u o r a e r e h t e r a , Y T I N U Y L P P U S R E W O P f o T N O C - P r o f s A • T I N U Y L P P U S R E W O P V 8 . 1 : 3 nip - 3 0 3 C I , V 5 . 2 : 3 nip - 1 3 4 C I , V 5 . 3 : nip 3 - 1 4 4 C I ? t u p t u o h c a e e s e h t e r A r o t alu g e r h c a E r o t a n o s e r la ts y r c r e h t e h w d r a d n a ts a ni s n oit a r biv f o r e b m u n e r e h t sI ? n oit allic s o s e o d ,z H M 7 2 ( r o t a n o s e r la ts y r C ) z H M 0 2 .y alp sid L F y b d e y alp sid r o rr e E F a f o st n e t n o c o t r e f e R )r e h t o ,s s e n e vitc e f e d e nil n oit a cin u m m o c C 2 I ,s s e n e vitc e f e d M A R S ( ) 1 0 3 C I : C I D N E T N O R F ( 5 1 3 6 L L [ ? n o r e w o p r e tf a ts uj ) 3 E C ( 6 2 nip - 3 0 6 C I o t nit u p nila n gis a sI • ↔ ] H → M O R h s alf h ti w n oit a cin u m m o C nip 8 3 ,) 0 S C I M S ( nip 9 1 ,) E W I M S ( 6 1 - nip 4 0 6 C I o t nit u p nila n gis a sI • L [ ? ) K L C I M S ( ↔ ] H → M A R D S h ti w n oit a cin u m m o C ) 1 0 6 C I : C I D N E K C A B ( 9 1 5 5 I T S ? n o r e w o p r e tf a ts uj ) E O _ U P C ( 8 2 nip - 3 0 6 C I y b t u p t u o la n gis a sI L [ ↔ ] H ) 3 0 6 C I( M O R h s al F L [ ? ) K C A _ P F ( 6 1 nip - 1 1 C I o t nit u p nila n gis a sI ↔ ] H → m o c - u lo rt n o c L F h ti w n oit a cin u m m o C ) 1 0 6 C I : C I D N E K C A B ( 9 1 5 5 I T S L , V 3 - 0 d n u o r a ( ? ) Y D R X ( 0 1 nip - 1 1 C I y b t u p t u o la n gis a sI ↔ ) H ) 1 1 C I( m o c - u lo rt n o c L F ) V 3 - 0 d n u o r a ( ? 7 , 8 , 9 nip - 1 1 C I y b t u p t u o la n gis a sI D N E K C A B - m o c - u lo rt n o c L F e nil n oit a cin u m m o c 3 t o n si n e e r c s g nin e p o n A r o tin o m a y b d e y alp sid a h c e m A . n o s n r u t L F ( ).s k r o w k c olb .fc ( t u o - o e div n e e w t e b h t a p la n gis o e div d n a C I D N E K C A B k c e h C ) m a r g aid D N E K C A B r e tf a tiu c ric o e div e h T 4 y a rt a n e p o t o n n a C si n e e r c s g nin e p o n A ( )r o tin o m a y b d e y alp sid ? ylla m r o n e g n a h c 5 , 3 nip - 2 5 N C f o e g a tlo v s e o D g nio d d e h sinif s a h t a h t e t a ts e h t y b le v el " H " sitI :) E S O L C X ( 3 nip . E S O L C . N E P O g nio d d e h sinif s a h t a h t e t a ts e h t y b le v el " H " sitI :) N E P O ( 5 nip W S - y a r T ? e m o c la n gis V R D _ D A O L s e o D ) 1 0 6 C I : C I D N E K C A B ( 9 1 5 5 I T S ? ) nip 2 , 1 - 2 5 N C ( 5 1 , 4 1 nip - 1 5 3 C I y b t u p t u o la n gis a sI y a rt g nir u d V 0 t u o b a sitI , g nin e p o y a rt g nir u d V 6 t u o b a sitI : 5 1 nip ( ) g nis olc y a rt g nir u d V 6 t u o b a sitI , g nin e p o y a rt g nir u d V 0 t u o b a sitI : 4 1 nip ( ) g nis olc ) 1 5 3 C I( C I r e vir D S T F ? 2 5 N C , 3 N C ni e g a m a d ,t u o g ni m o c d o r e ri w e r e h t t o n e r A d o r e ri w / r o tc e n n o C s e o d , h cti w s e dis ni n a d e m le h w r e v o 1 nip - 1 5 2 N C a f o e g a tlo v e h t n e h W ? e g n a h c ti h cti w s e dis n I At first confirm error history. (Refer to "7.1.2 DISPLAY OF THE MECHANISM ERROR HISTORY") When a history was not displayed, refer to this list. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DV-353-K . o N s m o t p m y S s t n e t n o c s i s o n g a i D n o it p m u s s a s s e n e v it c e f e D s t n i o p 5 k c a b y alp t o n n a C ) n nit o n s e o d s u c o F ( ? 0 1 , 9 nip - 1 5 3 C I y b t u p t u o la n gis a sI ) 1 5 3 C I( C I r e vir D S T F n a t o n s e o D ? n w o d / p u o d s n el p u k cip a s e o D ? t h gilti m e D L 0 5 6 s e o D ? n r u t g nir p s r o t a u tc a P U K C I P f o ff o g nilla f e r e h t t o n e r A ? g nis si m tf a h s a , e g a m a d tr a p nis e r t o n e r A ? ytila m r o n b a n a el, elb a t n r u t y s s A m sin a h c e M elb a c elbix elf U P t o n sI ? 1 5 1 N C f o t u o g ni m o c d o r e ri w e r e h t t o n sI ? d e g a m a d r o tc e n n o c / elb a c elbix el F ? ) T C A F ( 3 2 1 nip - 1 0 3 C I y b t u p t u o la n gis sI sitI .ylla u s u t u p t u o si V m 0 0 5 d n u o r a f o lo rt n o c e civ e D ( ± V m 0 0 1 d n u o r a ). n w o d / p u s u c o f y b g ni w s ) 1 0 3 C I : C I D N E T N O R F ( 5 1 3 6 L 6 k c a b y alp t o n n a C ) n r u t t o n s e o d eld nip S ( ? ) 1 A ( 7 ,) 2 A ( 4 ,) 3 A ( 2 nip - 1 5 2 C I y b t u p t u o la n gis a sI d n a , d e xif siti r e h t e h w H G I H 8 1 nip - 1 5 2 C I e r e h t t o n si d n a , d e xif sitI ? W O L 3 2 nip - 1 5 2 C I t o n si e r e h t ) 1 5 2 C I( C I r e vir D eld nip S r o t o m eld nip s ni n ois e h d a e c n a ts b u s n eila ,ff o g nilla f tr a p e r e h t t o n e r A ? tr a p )r o t o m eld nip S ( y s s A m sin a h c e M ? 1 5 2 N C ni e g a m a d ,t u o g ni m o c d o r e ri w e r e h t t o n e r A r o tc e n n o c / elb a c elbix el F ? ) M D P _ L D P S ( 3 2 1 nip - 1 0 3 C I y b t u p t u o la n gis sI ) 1 0 3 C I : C I D N E T N O R F ( 5 1 3 6 L 7 k c a b y alp t o n n a C ) s p o ts k c a b y al P ( ? e t a r oir e t e d D L n 0 5 6 t o n s e o D D L n 0 5 6 , V 7 . 0 n a h t e r o m 1 2 1 R f o e g a tlo v s d n e h t o b e h t si e r e h t fI .yle r u s s e t a r oir e t e d .s e t a r oir e t e d D L n 0 5 6 ) D V D k c a b y alp t o n n a C ( ? e t a r oir e t e d D L n 0 8 7 t o n s e o D D L n 0 8 7 , V 2 . 1 n a h t e r o m 3 2 1 R f o e g a tlo v s d n e h t o b e h t si e r e h t fI .yle r u s s e t a r oir e t e d .s e t a r oir e t e d D L n 0 8 7 ) D C k c a b y alp t o n n a C ( ? m r o f e v a w G F ni ytila m r o n b a e r e h t t o n sI C I r e vir D eld nip S :t u p t u o G F ) 1 5 2 C I( ? c sid e h t n o trid a d n a d n u o w e r e h t t o n e r A c si D 8 e c n a b r u tsid e r u tci P k c a b y alp g nir u d , e z e e rf , e sio n k c olb ( )r e h t o ? c sid e h t n o trid a d n a d n u o w e r e h t t o n e r A ? e dist u o d r a d n a ts f o c sid a t e s u o y t o n o D c si D 9 t u p t u o t o n si oid u A )la m r o n si e r u tci P ( .) A T A D , K L C M , K C R L , K C B ( m r o f e v a w e h t k c e h C ) 1 0 6 C I : C I D N E K C A B ( 9 1 5 5 I T S ? 8 , 7 nip - 1 1 7 C I y b t u p t u o la n gis sI ) 1 1 7 C I( C I C A D O I D U A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 DV-353-K 7.1.5 SEQUENCE AFTER THE POWER ON STANDBY Power on operation by a user (remote controller key or product key) FL controller receives a message FL controller outputs FL lighting / a power on signal (POWER ON: "L"→"H") FL controller resets it for BACK END and removes it (XRESET: "L"→"H") BACK END accesses flash ROM and 64M SDRAM BACK END accesses FRONT END BACK END demands communication from a FL controller (FP_ACK) FL controller outputs the signal which can communicate in BACK END (FP_XRDY) BACK END – FL controller communication The opening picture output FRONT END identifies the following: • Slider positioning (INSIDE SW) • Spindle FG standstill Disc detection (Focus control) Spindle turn ID information code is caught Various setting The picture output Flow chart from power on to the picture output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DV-353-K Tray Tray 4 2 5 Bonnet and Tray Panel 1 DIAGNOSIS OF FJMB ASSY 1 Remove the Bonnet (Screws × 6) 2 Power ON 3 Tray open (0) 4 5 Tray close (0) 6 Pull out the Power Cable from the outlet. Remove the Tray Panel Tray Tray Panel In the reverse state, pass a small screwdriver through a slit and slide a protruding portion of the Drive Gear of the Loading Mechanism Assy to the direction of arrow. If the Tray moved toward the front about 2 or 3 cm, pull out the Tray by hands. How to Open the Tray by Manual Operating Slit Small Square-bar Screwdriver Small Square-bar Screwdriver Drive Gear Loading Mechanism Assy Protruding portion 1 Unclamp the wire. 2 Disconnect the wiring. 3 Unhook (×6) 4 Remove the Front Panel. Front Panel Assy 2 3 5 3 3 ×3 ×3 4 Front Panel 3 2 1 DOUT ASSY DOUT ASSY : This is not installed to this. : This is not installed to this. DOUT ASSY : This is not installed to this. 7.1.6 DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 DV-353-K from Front Panel Assy from Front Panel Assy FJMB Assy FJMB Assy 3 4 Diagnosis of FJMB Assy 3 1 Unscrew the Rear Panel and remove the Rear Panel. 2 Unscrew the FJMB Assy (Screw ×4). 3 Stand the FJMB Assy. FJMB Assy 4 5 Put the Power Cable in the outlet. 6 Power ON 7 Set the Test Disc. 8 Playback with a test disc, and diagnose the FJMB Assy. Set the Front Panel Assy (one connector) to the FJMB Assy. 2 2 2 2 3 FJMB Assy FJMB Assy FJMB Assy from Front Panel Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DV-353-K Bridge Bridge 2 6 Disassembly of the Traverse Mechanism Assy and the Pickup Assy 1 Remove the Bonnet and the Tray Panel. 2 Unclamp the wire. 3 Turn the Short SW to Short side. 4 5 Unscrew the Loading Mechanism Assy (Screws ×4). 6 7 Remove the Loading Mechanism Assy. Unhook (×2). Disconnect the wiring (×4). 5 ×4 ×2 4 Short Short SW 3 Open 10 Remove a screw. 11 11 FFC Holder Traverse Mechanism Assy Remove the FFC Holder with the state which Flexible Cable was atatched. 10 Bottom View Cautions: Screw is locked with Silicone Adhesive. Please lock it with Silicone Adhesive when installs it. Silicone Adhesive GEM1037 8 9 Pull out the Tray and remove it while unhooking a Hook. Remove the Bridge (Screw ×1). Bridge -1 8 -2 9 -2 9 -1 Hook 8 In the Tray insertion, insert it after matching a triangle mark of the Loading Base and a position of pin of the Drive Cam. Loading Base Triangle mark Drive Cam Pin Caution in the tray insertion www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DV-353-K Remove the Pickup Assy. Skew Spring Skew Spring Skew Screw Skew Screw Pickup Assy Joint Slider Hold Spring Pickup Assy Remove two Skew Screws and two Skew Springs. Remove two screws. When Removing The Pickup Assy Traverse Mechanism Assy Remove the Pickup Flexible Cable. 12 12 13 13 13 14 15 15 15 14 Exchange Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Cautions: Screw is locked with Silicone adhesive. Please lock it with Silicone adhesive when installs it. When Removing The Traverse Mechanism Assy Traverse Mechanism Assy 12 13 14 Unhook ( ×4) Remove the Traverse Mechanism Assy Remove the Pickup Flexible Cable × 2 × 2 Exchange Traverse Mechanism Assy Pickup Assy 14 12 13 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DV-353-K Lose slack Bottom View Fold position of step 6 7 8 Bottom View 9 10 Bottom View 11 12 Reference line Fold it at the position of reference line. Pickup Assy FFC Holder Conducting plane 1 1 2 2 Insert the Pickup Flexible Cable in connector, and lock it surely. 3 Perform the styling as shown in figure below. Caution: Move the Pickup to the innermost of the disc. Fold a edge of lining part of the Pickup Flexible Cable. Bottom View Bottom View 1 2 3 6 4 5 Styling the Pickup Flexible Cable 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DV-353-K 7.2 IC 7 M56788AFP (FJMB ASSY : IC351) • FTS Driver IC ¶ Block Diagram • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC M56788AFP, MM1567AJ, STI5519AVB-B0C, PE5314A, L6315ATXXTY, BA6664FM, PCM1742KE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DV-353-K No. Name Pin Function No. Name Pin Function 1 VCC1 VCC 18 CrOUT Signal output 2 CIN Croma input 19 CrSAG SAG correction 3 MUTE1 Mute select 20 GND2 GND 4 VIN Video input 21 CbOUT Signal output 5 YC MIX YC MIX select 22 CbSAG SAG correction 6 YIN Video input 23 GND2 GND 7 BIAS Bias 24 CYOUT Signal output 8 GND1 GND 25 CYSAG SAG correction 9 NC NC 26 GND2 GND 10 GND1 GND 27 YOUT Signal output 11 NC NC 28 YSAG SAG correction 12 CYIN Luminance input 29 GND2 GND 13 CLP Input clamp select 30 VOUT Signal output 14 CbIN Component input 31 VSAG SAG correction 15 MUTE2 Mute select 32 GND2 GND 16 CrIN Component input 33 COUT Croma output 17 GND2 GND 34 VCC2 VCC 7 MM1567AJ (FJMB ASSY : IC801) • DVD Video Amp IC ¶ Block Diagram ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DV-353-K 7 STI5519AVB-B0C (FJMB ASSY : IC601) • Back End IC ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DV-353-K . o N e m a n l a n g i S .ri D s n o it c n u F n i P 1 O S _ P F T U O . e c a fr e t nile n a P t n o r F .t u p t u o a t a d r e fs n a rt lair e S )tf o S ( 2 3 A T A D _ A T U O d e v r e s e R 3 E T U M A X T U O .'L' t u p t u o g nie t u m e nil t u p t u o oid u a g ola n A 4 3 V 3 _ D D V − ylp p u s r e w o P V 3 . 3 5 S S V − d n u o r G 6 S C X _ E Q A T U O d e v r e s e R .t u p t u o tc ele s - pih c s' C I r e c n a h n E ytila u Q oid u A 7 Z E E U Q S T U O .' H ' e d o m t u p t u o z e e u q s t a la n gis lo rt n o c 2 S / 1 S t u p t u o o e di V - S 8 R E T T E L T U O la n gis ) G N I H C T I W S N O I T C N U F ( r e tc e n n o c ) T R A C S ( O R U E & la n gis lo rt n o c 2 S / 1 S t u p t u o o e di V - S .' H ' e d o m t u p t u o x o b -r e tt el t a 9 S O P Y R T T U O )t u p t u o (. C . N si tr o p sih t ,r e g n a h c c sid 5 le s u r a c T O N f o e s a c n I S O P Y R T N I .yln o r e g n e h C c si D 5 le s u o r a C .t u p ni slu p e t e t o r y a r T . d e s u e b n a c n oitc n u f e r u t p a C 0 1 1 L E S _ V T U O la n gis ) G N I K N I L B ( r e tc e n n o c ) T R A C S ( O R U E r o F elb a n e t u p t u o B G R :' H ' elb a sid t u p t u o B G R :'L' 1 1 S T R T U O .t u p t u o la n gis d n e S o T ts e u q e R ) C 2 3 2 - S R ( T R A U 2 1 2 L E S _ V T U O tc ele s la n gis C / R , Y / V r e tc e n n o c ) T R A C S ( O R U E r o F " B G C Y = t u p t u o B G R V :' H ' B G R V = t u p t u o B G R V :'L' 3 1 S T C N I .t u p nila n gis d n e S o T r a el C ) C 2 3 2 - S R ( T R A U 4 1 5 V 2 _ D D V − ylp p u s r e w o P V 5 . 2 5 1 S S V − d n u o r G 6 1 A T A D _ E F N I . e c a fr e t ni m a e rts 5 1 3 6 L d n E -t n o r F .t u p ni a t a d lair a e S 7 1 K L C B _ E F N I . e c a fr e t ni m a e rts 5 1 3 6 L d n E -t n o r F .t u p ni k c olc lair a e S 8 1 D I L A V D _ E F N I . e c a fr e t ni m a e rts 5 1 3 6 L d n E -t n o r F .t u p ni g alf dila v a t a D 9 1 C N Y S _ E F N I . e c a fr e t ni m a e rts 5 1 3 6 L d n E -t n o r F .t u p ni g alf e zin o r h c n y s lair a e S 0 2 D I L A V E _ E F N I . e c a fr e t ni m a e rts 5 1 3 6 L d n E -t n o r F . g alf dila v r o rr e T I L P S - S R n e h t 8 8 5 5i T S fI 1 2 T S B C C E _ E F N I . e c a fr e t ni m a e rts 5 1 3 6 L d n E -t n o r F . g alf tr a t S k c ol B C C E T I L P S - S R n e h t 8 8 5 5i T S fI 2 2 - P T ) S C X _ E Q V ( T U O d e v r e s e R 3 2 B G R _ D D V − ylp p u s r e w o P V 5 . 2 tiu c ric B G R 4 2 B G R _ S S V − d n u o r G tiu c ric B G R 5 2 T U O _ B T U O b C / B 6 2 T U O _ G T U O Y / G 7 2 T U O _ C R T U O r C / R 8 2 B G R _ F E R V N I e c n e r e f e r C A D B G R 9 2 B G R _ F E R I N I e c n e r e f e r t n e rr u c cirtc ele C A D B G R 0 3 C C Y / D D V − ylp p u s r e w o P V 5 . 2 tiu c ric C Y 1 3 C C Y _ S S V − d n u o r G tiu c ric C Y 2 3 T U O _ Y T U O Y 3 3 T U O _ C T U O C 4 3 T U O _ V C T U O V C 5 3 C Y _ F E R V N I e c n e r e f e r C A D C C Y ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DV-353-K . o N e m a n l a n g i S .ri D s n o it c n u F n i P 6 3 C Y _ F E R I N I e c n e r e f e r t n e rr u c cirtc ele C A D C C Y 7 3 5 V 2 _ D D V − ylp p u s r e w o P V 5 . 2 8 3 S S V − d n u o r G 9 3 2 E T U M A X T U O ,le d o m e k o a r a K T O N f o e s a c n I .)t u p t u o (. C . N sitr o p sih t le d o m e k o a r a K .'L' t u p t u o g nie t u m oid u a e g a ts g nixi m C I M e r o f e B 0 4 1 N O X _ C I M T U O ,le d o m e k o a r a K T O N f o e s a c n I .)t u p t u o (. C . N sitr o p sih t le d o m e k o a r a K .t u p t u o lo rt n o c le n a h c g nixi m C I M 1 4 2 N O X _ C I M T U O ,le d o m e k o a r a K T O N f o e s a c n I .)t u p t u o (. C . N sitr o p sih t T U O e d o m : 1 N O _ C I M : 2 N O _ C I M . e s u t'n o D : 0 0 r e k a e p S r e t n e C o t xi M : 1 0 le n n a h c R / L nia m o t xi M : 0 1 F F O : 1 1 2 4 x - P T T U O d e v r e s e R 3 4 P M A L C T U O ,r e g n a h c c sid 5 le s u r a c T O N f o e s a c n I )t u p t u o (. C . N sitr o p sih t N I .yln o r e g n e h C c si D 5 le s u o r a C . n oits o p e t elp m o c e p m alc c sid w o h s ' H ' 4 4 P M A L C N U X T U O ,r e g n a h c c sid 5 le s u r a c T O N f o e s a c n I )t u p t u o (. C . N sitr o p sih t N I .yln o r e g n e h C c si D 5 le s u o r a C . n oits o p e t elp m o c e p m alc - n u c sid w o h s ' H ' 5 4 T S R _ P S D K T U O d e v r e s e R 6 4 8 4 X 4 4 T U O ,le d o m e k o a r a K T O N f o e s a c n I )t u p t u o (. C . N sitr o p sih t le d o m e k o a r a K .'L' e d o m 2 / 1 k c olc r e ts a m P S D - E K O A R A K 7 4 3 V 3 D D V − ylp p u s r e w o P V 3 . 3 8 4 M C P _ D D V − ylp p u s r e w o P V 5 . 2 9 4 M C P _ S S V − d n u o r G 0 5 S S V − d n u o r G 1 5 K C B _ A T U O k c olc C A D oid u A 2 5 0 A T A D _ A T U O a t a d R , L t n o r F C A D oid u A 3 5 1 A T A D _ A T U O a t a d E F L ,r e t n e C C A D oid u A 4 5 2 A T A D _ A T U O a t a d R , L d n u o rr u S C A D oid u A 5 5 K L C M _ A T U O k c olc r e ts a M C A D oid u A 6 5 K C R L _ A T U O k c olc R / L C A D oid u A 7 5 T U O D T U O .t u p t u o oid u a la tigid ) 8 5 9 0 6 C E I( F I D P / S 8 5 4 A _ I M S T U O s s s e r d d a M A R D S I M S 9 5 5 A _ I M S 0 6 6 A _ I M S 1 6 7 A _ I M S 2 6 8 A _ I M S 3 6 9 A _ I M S 4 6 4 V 2 _ D D V − ylp p u s r e w o P V 5 . 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DV-353-K . o N e m a n l a n g i S .ri D s n o it c n u F n i P 5 6 S S V − d n u o r G 6 6 3 A _ I M S T U O s s e r d d a M A R D S I M S 7 6 2 A _ I M S 8 6 1 A _ I M S 9 6 0 A _ I M S 0 7 0 1 A _ I M S 1 7 1 1 A _ I M S 2 7 2 1 A _ I M S 3 7 3 1 A _ I M S 4 7 0 S C _ I M S T U O tc ele s pih c M A R D S I M S 5 7 1 S C _ I M S T U O tc ele s pih c M A R D S I M S d n 2 6 7 S A R _ I M S T U O S A R M A R D S I M S 7 7 S A C _ I M S T U O S A C M A R D S I M S 8 7 E W _ I M S T U O elb a n E e tir W M A R D S I M S 9 7 L M Q D _ I M S T U O M Q D r e w o L M A R D S I M S 0 8 U M Q D _ I M S T U O M Q D r e p p U M A R D S I M S 1 8 3 V 3 _ D D V − ylp p u s r e w o P V 3 . 3 2 8 K L C _ I M S N I .t u p ni k c olc M A R D S 3 8 S S V − d n u o r G 4 8 0 D _ I M S O /I a t a d M A R D S I M S 5 8 1 D _ I M S 6 8 2 D _ I M S 7 8 3 D _ I M S 8 8 4 D _ I M S 9 8 5 D _ I M S 0 9 6 D _ I M S 1 9 7 D _ I M S 2 9 8 D _ I M S 3 9 9 D _ I M S 4 9 5 V 2 _ D D V − ylp p u s r e w o P V 5 . 2 5 9 K L C _ I M S T U O .t u p t u o k c olc M A R D S 6 9 S S V − d n u o r G 7 9 0 1 D _ I M S O /I a t a d M A R D S I M S 8 9 1 1 D _ I M S 9 9 2 1 D _ I M S 0 0 1 3 1 D _ I M S 1 0 1 4 1 D _ I M S 2 0 1 5 1 D _ I M S 3 0 1 S C X _ P S D K T U O ,le d o m e k o a r a K T O N f o e s a c n I .)t u p t u o (. C . N si tr o p sih t le d o m e k o a r a K .'L'tc ele s pih c P S D la n a r e tx E 4 0 1 U R H T _ P S D K T U O ,le d o m e k o a r a K T O N f o e s a c n I .)t u p t u o (. C . N si tr o p sih t le d o m e k o a r a K .'L' e d o m s s a p h g u o r h t P S D la n a r e tx E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 DV-353-K . o N e m a n l a n g i S .ri D s n o it c n u F n i P 5 0 1 N O E F L T U O d e v r e s e R .lo rt n o c E F L s'le d o m oid u a ytila u q - h gih r o f 6 0 1 - P T T U O . e s u t o N 7 0 1 3 V 3 _ D D V − ylp p u s r e w o P V 3 . 3 8 0 1 S S V − d n u o r G 9 0 1 T S R T e c a fr e t ni tin U elo rt n o C cits o n g ai D 0 1 1 S M T e c a fr e t ni tin U elo rt n o C cits o n g ai D 1 1 1 O T D T e c a fr e t ni tin U elo rt n o C cits o n g ai D 2 1 1 I T D T e c a fr e t ni tin U elo rt n o C cits o n g ai D 3 1 1 K C T e c a fr e t ni tin U elo rt n o C cits o n g ai D 4 1 1 V R D T O R T U O le d o m r e g n a h c c sid 5 le s u o r a C .t u p t u o M W P e vir d n oit a t o r y a r T 5 1 1 M O R _ F _ B N I tc ele s t o o B . U C D m o rf t o o B :'L' . M O R m r o f t o o B :' H ' 6 1 1 V R D _ D A O L T U O t u p t u o M W P e vir d e s ol C / n e p O y a r T ) L E S U O R A C & L G N I S ( 7 1 1 E O _ U P C T U O . e r a w m rif r o f y r o m e m H S A L F stib M 6 1 / M 8 8 1 1 K C D S _ U P C T U O . e r a w m rif g nig g u b e d r o f M A R D S stib M 4 6 9 1 1 5 V 2 _ D D V − ylp p u s r e w o P V 5 . 2 0 2 1 M 7 2 K L C N I .t u p ni k c olc m e ts y s z H M 7 2 r e ts a M 1 2 1 S S V − d n u o r G 2 2 1 L L P _ D D V − ylp p u s r e w o P V 5 . 2 tiu c ric L L P k c ol C 3 2 1 L L P _ S S V − d n u o r G tiu c ric L L P k c ol C 4 2 1 T E S E R N I .t u p ni'L'la n gis T E S E R m e ts y s N O r e w o P 5 2 1 S N S _ C S I D N I ,r e g n a h c c sid 5 le s u r a c T O N f o e s a c n I .)t u p ni(. C . N si tr o p sih t le d o m r e g n a h c c sid 5 le s u o r a C .t u p ni e s n e s c si D . d r a o b r e g n a h c r e h t o n a ni si r o tsis e r p u llu P 6 2 1 Y D R X _ P F N I . e c a fr e t nile n a P t n o r F .t u p ni )ts e u q e r( e k a h s - d n a H 7 2 1 T N I _ E F N I 5 1 3 6 L d n E -t n o r F .t u p ni ts e u q e r t p u rr e t n I 8 2 1 L M Q D _ D S T U O .'L' elb a n e e tir w y r o m e m h s al F . M Q D r e w o L M A R D S g u b e D 9 2 1 U M Q D _ D S T U O M Q D r e p p U M A R D S g u b e D 0 3 1 W X R _ D S e tir W ~ / d a e R M A R D S g u b e D 1 3 1 T I A W _ U P C T U O t u p ni' H 'tia w U P C 2 3 1 3 E C T U O 'L' elb a n e E pih C y r o m e m h s al F 3 3 1 − T U O x - P T 4 3 1 − T U O x - P T 5 3 1 S A R X _ D S T U O 'L' S A R M A R D S g u b e D 6 3 1 3 V 3 _ D D V − d d V V 3 . 3 7 3 1 S S V − D N G 8 3 1 − T U O x - P T 9 3 1 S A C X _ D S T U O 'L' S A C M A R D S g u b e D 0 4 1 S C X _ D S T U O 'L'tc ele S pih C M A R D S g u b e D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DV-353-K . o N e m a n l a n g i S .ri D s n o it c n u F n i P 1 4 1 0 D _ U P C O /I A T A D M A R D S g u b e D , H S A L F 2 4 1 1 D _ U P C 3 4 1 2 D _ U P C 4 4 1 3 D _ U P C 5 4 1 4 D _ U P C 6 4 1 5 D _ U P C 7 4 1 6 D _ U P C 8 4 1 7 D _ U P C 9 4 1 5 V 2 _ D D V − ylp p u s r e w o P V 5 . 2 0 5 1 S S V − d n u o r G 1 5 1 8 D _ U P C O /I A T A D M A R D S g u b e D , H S A L F 2 5 1 9 D _ U P C 3 5 1 0 1 D _ U P C 4 5 1 1 1 D _ U P C 5 5 1 2 1 D _ U P C 6 5 1 3 1 D _ U P C 7 5 1 4 1 D _ U P C 8 5 1 5 1 D _ U P C 9 5 1 3 V 3 _ D D V − ylp p u s r e w o P V 3 . 3 0 6 1 S S V − d n u o r G 1 6 1 1 A _ U P C T U O s s e r d d a M A R D S g u b e D , H S A L F 2 6 1 2 A _ U P C 3 6 1 3 A _ U P C 4 6 1 4 A _ U P C 5 6 1 5 A _ U P C 6 6 1 6 A _ U P C 7 6 1 7 A _ U P C 8 6 1 8 A _ U P C 9 6 1 9 A _ U P C 0 7 1 0 1 A _ U P C 1 7 1 5 V 2 _ D D V − ylp p u s r e w o P V 5 . 2 2 7 1 S S V − d n u o r G 3 7 1 1 1 A _ U P C T U O s s e r d d a M A R D S g u b e D , H S A L F 4 7 1 2 1 A _ U P C 5 7 1 3 1 A _ U P C 6 7 1 4 1 A _ U P C 7 7 1 5 1 A _ U P C 8 7 1 6 1 A _ U P C 9 7 1 7 1 A _ U P C 0 8 1 8 1 A _ U P C 1 8 1 9 1 A _ U P C 2 8 1 0 2 A _ U P C 3 8 1 1 2 A _ U P C 4 8 1 3 V 3 _ D D V − ylp p u s r e w o P V 3 . 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DV-353-K . o N e m a n l a n g i S .ri D s n o it c n u F n i P 5 8 1 S S V − d n u o r G 6 8 1 E T U M V R D X T U O .'L'la n gis g nit u m r e vir d r o t o M 7 8 1 R O R R E _ S R N I . e c a fr e t ni m a e rts 5 1 3 6 L d n E -t n o r F . g alf r o rr E C C E n e h t 8 8 5 5i T S fI 8 8 1 L E S _ C 2 I T U O d e v r e s e R ). e c a fr e t ni d n a m m o c 5 1 3 6 L d n E -t n o r F ( ) A M D _ C 2 I o t tc e n n o c s u b C 2 I : 'L'( ) D N A M O C _ C 2 I o t tc e n n o c s u b C 2 I :' H '( 9 8 1 K C S _ C A D T U O .t u p t u o k c olc lo rt n o c lair e s C A D oid u A 0 9 1 O S _ C A D T U O .t u p t u o a t a d lo rt n o c lair e s C A D oid u A 1 9 1 0 S C X _ C A D T U O .t u p t u o tc ele s pih c lo rt n o c lair e s C A D oid u A 2 9 1 1 S C X _ C A D T U O ) C A D n oitid d a r o F .t u p t u o tc ele s pih c lo rt n o c lair e s C A D oid u A ( d e v r e s e R 3 9 1 E D O M _ H C 6 T U O ,le d o m t u p t u o oid u a h c 6 T O N f o e s a c n I .)t u p t u o (. C . N si tr o p sih t le d o m t u p t u o oid u a h c 6 .t u p t u o la n gis lo rt n o c p u ytila u q oid u A 4 9 1 A D S A D S e s a fr e t ni d n a m m o c 5 1 3 6 L d n E -t n o r F . e nil a t a d lair e s s u b C 2 I 5 9 1 L C S L C S e s a fr e t ni d n a m m o c 5 1 3 6 L d n E -t n o r F . e nil k c olc lair e s s u b C 2 I 6 9 1 T S R _ E F T U O 5 1 3 6 L d n E -t n o r F .t u p t u o t e s e r d r a H 7 9 1 D X T D X T t u p t u o a t a d ) C 2 3 2 - S R ( T R A U 8 9 1 5 V 2 _ D D V ylp p u s r e w o P V 5 . 2 9 9 1 S S V N I d n u o r G 0 0 2 D X R D X R t u p ni a t a d ) C 2 3 2 - S R ( T R A U 1 0 2 x - P T T U O d e v r e s e R 2 0 2 N I G I R T − e c a fr e t ni tin U elo rt n o C cits o n g ai D 3 0 2 T U O G I R T − e c a fr e t ni tin U elo rt n o C cits o n g ai D 4 0 2 N E P O N I . n oitis o p e t elp m o c " N E P O " g nid a ol y a rt w o h s ' H ' 5 0 2 E S O L C X N I . n oitis o p e t elp m o c " E S O L C " g nid a ol y a rt w o h s ' H ' 6 0 2 K C A _ P F T U O . e c a fr e t nile n a P t n o r F .t u p t u o ) e g d el w o n k c a ( e k a h s - d n a H 7 0 2 K C S _ P F T U O . e c a fr e t nile n a P t n o r F .t u p t u o k c olc r e fs n a rt lair e S )tf o S ( 8 0 2 I S _ P F N I . e c a fr e t nile n a P t n o r F .t u p ni a t a d r e fs n a rt lair e S )tf o S ( www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 DV-353-K . o N e m a n l a n g i S .ri D s n o it c n u F n i P 1 V 1 D D − ) V 3 . 3 ( ylp p u S r e w o P e vitis o P 2 V 1 S S − lait n e t o P d n u o r G 3 1 X N I n oit allic s O k c ol C m e ts y S nia M r o f n oitc e n n o C la ts y r C 4 2 X − 5 C I − ) 1 S S V o t tc e n n o c yltc e ri D ( d e tc e n n o C ylla n r e t n I 6 T E S E R N I t u p n I t e s e R 7 1 K C S N I e c a fr e t n I lair e S f o t u p n I k c ol C lair e S 8 1 I S N I e c a fr e t n I lair e S f o t u p n I a t a D lair e S 9 1 O S T U O e c a fr e t n I lair e S f o t u p t u O a t a D lair e S 0 1 Y D R X T U O e c a fr e t n I lair e S f o t u p t u O ) y d a e R ( e k a h s - d n a H 1 1 N O R E W O P T U O t u p t u O lo rt n o C r e w o P 2 1 T U O T E S E R T U O t u p t u O t e s e R m e ts y S 3 1 T U O E V R E S E R T U O )le d o m sih t n o C N ( d e v r e s e R 4 1 8 D E L T U O )le d o m sih t n o C N ( 8 tr o P D E L 5 1 T L A H N I e d o M tla H e s U : " C N " tr o P tla H 6 1 K C A N I )le d o m sih t n o d e s u t o N ( e c a fr e t n I lair e S f o t u p n I ) e g d el w o n k c A ( e k a h s - d n a H 7 1 R I L E S N I )r e m it lo rt n o c e t o m e r tib - 8 f o t u p ni r e m i T ( t u p n I lo rt n o C e t o m e R 8 1 A S S V − r e tr e v n o C D / A r o f lait n e t o P d n u o r G 9 1 1 S M N I )r e tr e v n o C D / A r o f t u p n I g ola n A ( tc ele S )r e y alp f o ( n oit a nits e D 0 2 R V O H C E N I t u p n I e m ulo V o h c E : le d o m e k o a r a K )r e tr e v n o C D / A r o f t u p n I g ola n A ( C N : le d o m e k o a r a K o N 1 2 1 Y E K N I )r e tr e v n o c D / A r o f t u p ni g ola n A ( 1 t u p n I y e K 2 2 0 Y E K N I )r e tr e v n o c D / A r o f t u p ni g ola n A ( 0 t u p n I y e K 3 2 0 S S V − str o P o t lait n e t o P d n u o r G 4 2 D D V A − ) V 3 . 3 ( r e tr e v n o C D / A o t t u p n I e g a tlo V e c n e r e f e R /r e w o P g ola n A 5 2 0 D D V − ) V 3 . 3 ( str o P o t ylp p u S r e w o P e vitis o P 6 2 2 _ 0 S M N I ) str o p 3 sih t f o n oitia nib m o c a h ti w t e S ( tc ele S )r e y alp f o ( le d o M 7 2 1 _ 0 S M 8 2 0 _ 0 S M 9 2 7 D E L T U O )le d o m sih t n o C N ( 7 tr o P D E L 0 3 ) Y B D N A T S ( D E L T U O )le d o m sih t n o C N ( tr o P D E L y B d n a t S 1 3 C N − C N 2 3 S E T N I e d o m la r e n e G : " L " e d o m t e s e R m e ts y S o N : " H " 3 3 M E O N I le d o M r e e n oi P : " L " le d o M M E O : " H " 4 3 N I C I M N I d e tc e n n o c e n o h p o r ci M : " H " e n o h p o r ci M f o n oitc e t e D 5 3 R E K C E H C N I e d o m la r e n e G : " L " e d o M r e k c e h C : " H " 6 3 R E W O P N O N I le d o M h cti w S r e w o P y r a d n o c e S : " L " le d o M h cti w S r e w o P y r a m ir P : " H " 7 3 2 T E S L F N I tc ele S e d o M r ello rt n o C - L F )le d o m sih T ( 3 5 3 - V D : " H " / " H " = 2 / 1 T E S L F 7 U - V D : " L " / " H " = 2 / 1 T E S L F 5 0 5 C - V D : " H " / " L " = 2 / 1 T E S L F A 6 5 6 - V D : " L " / " L " = 2 / 1 T E S L F 8 3 1 T E S L F 9 3 2 T S E T T U O tr o P ts e T 0 4 6 D E L T U O )le d o m sih t n o C N ( 6 tr o P D E L 7 PE5314A (FJMB ASSY : IC11) • FL Controller ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DV-353-K . o N e m a n l a n g i S .ri D n o it c n u F n i P 1 4 5 D E L T U O )le d o m sih t n o C N ( 5 tr o P D E L 2 4 4 D E L )le d o m sih t n o C N ( 4 tr o P D E L 3 4 3 D E L )le d o m sih t n o C N ( 3 tr o P D E L 4 4 2 D E L )le d o m sih t n o C N ( 2 tr o P D E L 5 4 1 D E L )le d o m sih t n o C N ( 1 tr o P D E L 6 4 0 D E L )le d o m sih t n o C N ( 0 tr o P D E L 7 4 1 T S E T T U O tr o P ts e T 8 4 0 T S E T 9 4 C N − C N 0 5 C N 1 5 6 1 P T U O t u p t u O 6 1 t n e m g e S P I F 2 5 5 1 P T U O t u p t u O 5 1 t n e m g e S P I F 3 5 C N − C N 4 5 4 1 P T U O t u p t u O 4 1 t n e m g e S P I F 5 5 3 1 P t u p t u O 3 1 t n e m g e S P I F 6 5 2 1 P t u p t u O 2 1 t n e m g e S P I F 7 5 1 1 P t u p t u O 1 1 t n e m g e S P I F 8 5 0 1 P t u p t u O 0 1 t n e m g e S P I F 9 5 2 D D V − ) V 3 . 3 ( r e vir D /r ello rt n o C P I F o t ylp p u S r e w o P e vitis o P 0 6 V D A O L − ) V 8 2 -( r e vir D /r ello rt n o C P I F f o n oitc e n n o C r o tsis e R n w o d -llu P 1 6 9 P T U O t u p t u O 9 t n e m g e S P I F 2 6 8 P t u p t u O 8 t n e m g e S P I F 3 6 7 P t u p t u O 7 t n e m g e S P I F 4 6 6 P t u p t u O 6 t n e m g e S P I F 5 6 5 P t u p t u O 5 t n e m g e S P I F 6 6 4 P t u p t u O 4 t n e m g e S P I F 7 6 3 P t u p t u O 3 t n e m g e S P I F 8 6 2 P t u p t u O 2 t n e m g e S P I F 9 6 1 P t u p t u O 1 t n e m g e S P I F 0 7 1 1 G T U O t u p t u O 1 1 dir G P I F 1 7 0 1 G t u p t u O 0 1 dir G P I F 2 7 9 G t u p t u O 9 dir G P I F 3 7 8 G t u p t u O 8 dir G P I F 4 7 7 G t u p t u O 7 dir G P I F 5 7 6 G t u p t u O 6 dir G P I F 6 7 5 G t u p t u O 5 dir G P I F 7 7 4 G t u p t u O 4 dir G P I F 8 7 3 G t u p t u O 3 dir G P I F 9 7 2 G t u p t u O 2 dir G P I F 0 8 1 G t u p t u O 1 dir G P I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 DV-353-K 7 L6315ATXXTY (FJMB ASSY : IC301) • Front End IC ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 DV-353-K . o N e m a N e p y T n o it p ir c s e D 1 F E R I t u p ni g ola n A t u p ni g nir e tlif p a g d n a b 2 I A D N G d n u o r g g ola n A d n u o r g ylp p u s r e w o p g ola n a 3 D C A S F R t u p t u o g ola n A tr o p p u s D C - A S r o f t u p t u o F R 4 N I F R t u p ni g ola n A ) g nilp u o c C A r e tf a ( t u p ni a t a d h t a p F R 5 T U O F R t u p t u o g ola n A ) g nilp u o c C A e r o f e b ( t u p t u o a t a d h t a p F R 6 8 1 A C C V ylp p u s g ola n A ylp p u s r e w o p e g a ts t u p ni 7 C D A _ T S T t u p t u o g ola n A nip ts e t g ola n a h t a p F R 8 E C I L S _ T S T t u p t u o g ola n A nip ts e t g ola n a M P 9 M P _ T S T t u p t u o g ola n A nip ts e t g ola n a M P 0 1 A t u p ni g ola n A A e d oid r e s al s e g a ts t u p ni 1 1 N M D N G d n u o r g g ola n A nia m d n u o r g s e g a ts t u p ni 2 1 B t u p ni g ola n A B e d oid r e s al s e g a ts t u p ni 3 1 N M 3 3 C C V ylp p u s g ola n A .c si m V 3 . 3 s e g a ts t u p ni 4 1 D F E R t u p t u o g ola n A p u k cip r o f e g a tlo v e c n e r e f e r 5 1 S I 8 1 C C V ylp p u s g ola n A nia m V 8 . 1 s e g a ts t u p ni 6 1 D t u p ni g ola n A D e d oid r e s al s e g a ts t u p ni 7 1 S I 8 1 A C C V ylp p u s g ola n A .c si m V 8 . 1 s e g a ts t u p ni 8 1 C t u p ni g ola n A C e d oid r e s al s e g a ts t u p ni 9 1 S I 3 3 C C V ylp p u s g ola n A .c si m V 3 . 3 s e g a ts t u p ni 0 2 S I A D N G d n u o r g g ola n A .c si m d n u o r g s e g a ts t u p ni 1 2 D S 3 3 C C V ylp p u s g ola n A e dis V 3 . 3 s e g a ts t u p ni 2 2 D S 8 1 C C V ylp p u s g ola n A e dis V 8 . 1 s e g a ts t u p ni 3 2 D S D N G d n u o r g g ola n A e dis d n u o r g s e g a ts t u p ni 4 2 F t u p ni g ola n A F e d oid r e s al s e g a ts t u p ni 5 2 E t u p ni g ola n A E e d oid r e s al s e g a ts t u p ni 6 2 S I L E I H S V d n u o r g g ola n A dleih s S I 7 2 C D A D D V ylp p u s g ola n A ylp p u s r e w o p la tigid C D A 8 2 C D A S S V d n u o r g g ola n A ylp p u s d n u o r g la tigid C D A 9 2 C D A C C V ylp p u s g ola n A ylp p u s r e w o p g ola n a C D A 0 3 C D A D N G d n u o r g g ola n A ylp p u s d n u o r g g ola n a C D A 1 3 C D A D L E I H S V d n u o r g g ola n A dleih s C D A 2 3 C N - - 3 3 E D O M _ T O O B t u p nila tigi D e d o m t o o B 4 3 S S V d n u o r g la tigi D O /I S S V 5 3 3 D D V ylp p u s la tigi D ) V 3 . 3 ( O /I D D V 6 3 ) C N ( ] 0 [ C P O /Ila tigi D - 7 3 ) S P ( ] 1 [ C P O /Ila tigi D e v a s r e w o p C I r e vir D 8 3 ) G F ( ] 2 [ C P O /Ila tigi D t u p ni e slu p G F 9 3 ) B S ( ] 3 [ C P O /Ila tigi D e k a r b tr o h s eld nip S 0 4 ) S O P D L S ( ] 4 [ C P O /Ila tigi D t u p ni n oitis o p r e dil S ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 DV-353-K . o N e m a N e p y T n o it p ir c s e D 1 4 ) T S F O R V ( ] 5 [ C P O /Ila tigi D ) y b - d n a ts ( t n e m ts ujd a t e sff o F E R V 2 4 ) M D P _ L D P S ( ] 6 [ C P O /Ila tigi D t u o e vir d eld nip S 3 4 ) G C I E O ( ] 7 [ C P O /Ila tigi D w s nia g C I E O 4 4 S S V d n u o r g la tigi D e r o c S S V 5 4 S 3 D D V ylp p u s la tigi D e r o c D D V 6 4 L P S _ S S V d n u o r g la tigi D O /I S S V 7 4 M Q D _ M A R t u p t u o la tigi D M Q D M A R D S 8 4 N E W _ M A R t u p t u o la tigi D elb a n e e tir w M A R 9 4 4 1 r d a r S / N S A C _ M A R t u p t u o la tigi D s s e r d d a M A R S 0 5 5 1 r d a r S / N S A R _ M A R t u p t u o la tigi D s s e r d d a M A R S 1 5 ] 3 1 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 2 5 ] 2 1 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 3 5 ] 1 1 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 4 5 ] 0 1 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 5 5 ] 0 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 6 5 ] 1 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 7 5 ] 2 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 8 5 ] 3 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 9 5 ] 4 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 0 6 ] 5 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 1 6 ] 6 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 2 6 ] 7 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 3 6 ] 8 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 4 6 ] 9 [ A _ M A R t u p t u o la tigi D s s e r d d a M A R S 5 6 6 1 r d a r S / K L C _ M A R t u p t u o la tigi D s s e r d d a M A R S 6 6 L P S _ D D V ylp p u s la tigi D O /I D D V 7 6 3 D D V ylp p u s la tigi D O /I D D V 8 6 S S V d n u o r g la tigi D O /I S S V 9 6 ] 0 [ Q D _ M A R O /Ila tigi D a t a d M A R S 0 7 ] 1 [ Q D _ M A R O /Ila tigi D a t a d M A R S 1 7 ] 2 [ Q D _ M A R O /Ila tigi D a t a d M A R S 2 7 ] 3 [ Q D _ M A R O /Ila tigi D a t a d M A R S 3 7 ] 4 [ Q D _ M A R O /Ila tigi D a t a d M A R S 4 7 ] 5 [ Q D _ M A R O /Ila tigi D a t a d M A R S 5 7 ] 6 [ Q D _ M A R O /Ila tigi D a t a d M A R S 6 7 ] 7 [ Q D _ M A R O /Ila tigi D a t a d M A R S 7 7 S 3 D D V ylp p u s la tigi D e r o c D D V 8 7 S S V d n u o r g la tigi D e r o c S S V 9 7 Q E R _ T U O d e v r e s e R d n u o r g o t t e s e b ts u M 0 8 R R E _ T U O t u p t u o la tigi D e c a fr e t nit u p t u O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 DV-353-K . o N e m a N e p y T n o it p ir c s e D 1 8 C N Y S _ T U O t u p t u o la tigi D e c a fr e t nit u p t u O 2 8 D I L A V D _ T U O t u p t u o la tigi D e c a fr e t nit u p t u O 3 8 K L C _ T U O t u p t u o la tigi D e c a fr e t nit u p t u O 4 8 ) A T A D _ E F ( ] 0 [ A T A D _ T U O t u p t u o la tigi D e c a fr e t nit u p t u O 5 8 ) D I L A V E _ E F ( ] 1 [ A T A D _ T U O t u p t u o la tigi D m o c W B : e c a fr e t nit u p t u O 6 8 ) T S B C C E _ E F ( ] 2 [ A T A D _ T U O t u p t u o la tigi D m o c W B : e c a fr e t nit u p t u O 7 8 ] 3 [ A T A D _ T U O t u p t u o la tigi D d e v r e s e R 8 8 ] 4 [ A T A D _ T U O t u p t u o la tigi D d e v r e s e R 9 8 ] 5 [ A T A D _ T U O t u p t u o la tigi D d e v r e s e R 0 9 ] 6 [ A T A D _ T U O t u p t u o la tigi D d e v r e s e R 1 9 ] 7 [ A T A D _ T U O t u p t u o la tigi D d e v r e s e R 2 9 3 D D V ylp p u s la tigi D O /I D D V 3 9 S S V d n u o r g la tigi D O /I S S V 4 9 ) T I N I _ E F ( ] 0 [ E P O /Ila tigi D t u p ni e zilaitini E F 5 9 ) C N ( ] 1 [ E P O /Ila tigi D - 6 9 ) A M D ( ] 2 [ E P O /Ila tigi D t u p ni A M D 7 9 ) L C S ( ] 3 [ E P O /Ila tigi D t u p ni k c olc C 2 I 8 9 ) A D S ( ] 4 [ E P O /Ila tigi D t u p ni a t a d C 2 I 9 9 ) C N ( ] 0 [ D P O /Ila tigi D - 0 0 1 ) C N ( ] 1 [ D P O /Ila tigi D - 1 0 1 ) C N ( ] 2 [ D P O /Ila tigi D - 2 0 1 ) C N ( ] 3 [ D P O /Ila tigi D - 3 0 1 ) C N ( ] 4 [ D P O /Ila tigi D - 4 0 1 ) C N ( ] 5 [ D P O /Ila tigi D - 5 0 1 ) C N ( ] 6 [ D P O /Ila tigi D - 6 0 1 ) C N ( ] 7 [ D P O /Ila tigi D - 7 0 1 3 D D V ylp p u s la tigi D O /I D D V 8 0 1 S S V d n u o r g la tigi D O /I S S V 9 0 1 T S E T _ P P V t u p nila tigi D t u p nits e T 0 1 1 P Y B _ D C C V ylp p u s la tigi D e r o c D D V 1 1 1 T U O _ D C C V - d eilp p a e b o t e g a tlo v o N 2 1 1 S S V d n u o r g la tigi D e r o c S S V 3 1 1 S 3 D D V ylp p u s la tigi D e r o c D D V 4 1 1 S S V d n u o r g la tigi D O /I S S V 5 1 1 3 D D V ylp p u s la tigi D O /I D D V 6 1 1 N I _ T E S E R t u p nila tigi D la n gis t e s e r la b ol G 7 1 1 C A D 8 1 C C V ylp p u s g ola n A ylp p u s r e w o p g ola n a C A D 8 1 1 1 R E P E T S t u p t u o g ola n A r o t o m eld nip s C A D 9 1 1 2 R E P E T S t u p t u o g ola n A r o t o m d els C A D 0 2 1 T X E F E R t u p ni g ola n A e c n e r e f e r la n r e tx e C A D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 DV-353-K . o N e m a N e p y T n o it p ir c s e D 1 2 1 D N G F E R d n u o r g g ola n A ylp p u s d n u o r g g ola n a C A D 2 2 1 C A D F E R t u p t u o g ola n A e g a tlo v e c n e r e f e r C A D 3 2 1 T C A F t u p t u o g ola n A r o t a u tc a s u c o f C A D 4 2 1 T C A T t u p t u o la tigi D r o t a u tc a g nik c a rt C A D 5 2 1 C A D D N G d n u o r g g ola n A ylp p u s d n u o r g g ola n a C A D 6 2 1 C N - - 7 2 1 3 3 A C C V ylp p u s g ola n A ylp p u s r e w o p g ola n a C A D 8 2 1 C N - - 9 2 1 L L P D N G d n u o r g g ola n A ylp p u s d n u o r g g ola n a M P 0 3 1 F F O L L P t u p ni g ola n A L L P elb a sid e c n e r e f e r M P 1 3 1 T U O E R F t u p t u o g ola n A t u o y c n e u q e rf e c n e r e f e r M P 2 3 1 N I E R F t u p ni g ola n A ni y c n e u q e rf e c n e r e f e r M P 3 3 1 L L P C C V ylp p u s g ola n A ylp p u s r e w o p g ola n a M P 4 3 1 1 G E R S t u p t u o g ola n A e s a b r alo pib la n r e tx E 5 3 1 3 3 R C C V ylp p u s g ola n A r o t alu g e r r o f ylp p u s r e w o p g ola n A 6 3 1 2 G E R S t u p t u o g ola n A e s a b r alo pib la n r e tx E 7 3 1 1 D L t u p t u o g ola n A 1 e d oid r e s allo rt n o c r e s a L 8 3 1 2 D L t u p t u o g ola n A 2 e d oid r e s allo rt n o c r e s a L 9 3 1 3 3 A C C V ylp p u s g ola n A + s e g a ts t u p ni r o f ylp p u s r e w o p g ola n A 0 4 1 F E R C L t u p t u o g ola n A e c n e r e f e r C A D lo rt n o c r e s a L 1 4 1 1 D M L t u p ni g ola n A 1 e d oid r o tin o m lo rt n o c r e s a L 2 4 1 2 D M L t u p ni g ola n A 2 e d oid r o tin o m lo rt n o c r e s a L 3 4 1 L D N G d n u o r g g ola n A p u s d n u o r g r o tc e t e d lo rt n o c r e s a L 4 4 1 T L I F G B V t u p ni g ola n A t u p ni g nir e tlif p a g d n a B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 DV-353-K DRIVER TSD PS TORQUE CURRENT SENSE AMP SENSE AMP SHORT BRAKE D R Q CK Q TL GAIN CONTROL GAIN SWITCH Vcc Vcc Vcc A3 2 A2 4 A1 7 GND 8 H1+ 9 H1- 10 H2+ 11 H2- 12 H3+ 13 H3- 14 GSW 26 FG 24 VCC 25 RNF 28 VM 27 HALL AMP PS 23 EC 22 ECR 21 FR 20 FG2 19 SB 18 CNF 17 BR 16 VH 15 BRAKE MODE HALL BIAS No. Pin Name Pin Name Pin Function No. Pin Function 1 N.C. N.C. 16 BR Brake mode switching pin 2 A3 Output pin 17 CNF Capacitor connection pin for phase compensation 3 N.C. N.C. 18 SB Short brake pin 4 A2 Output pin 19 FG2 FG 3-phase mix signal output pin 5 N.C. N.C. 20 FR Rotation detecting pin 6 N.C. N.C. 21 ECR Control reference pin of output voltage 7 A1 Output pin 22 EC Output voltage control pin 8 GND GND pin 23 PS Power save pin 9 H1+ Hall signal input pins 24 FG FG signal output pin 10 H1- 25 VCC Power supply pin 11 H2+ 26 GSW Gain switching pin 12 H2- 27 VM Motor power pin 13 H3+ 28 RNF Resistor connection pin for output current detection 14 H3- FIN FIN GND 15 VH Hall bias pin 7 BA6664FM (FJMB ASSY : IC251) • Spindle Driver ¶ Block Diagram ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 DV-353-K 7 PCM1742KE (FJMB ASSY : IC711) • D/A Converter ¶ Pin Arrangement ¶ Pin Function ¶ Block Diagram 1 BCK 16 SCK 2 DATA 15 ML 3 LRCK 14 MC 4 DGND 13 MD 5 VDD 12 ZEROL/NA 6 VCC 11 ZEROR/ZEROA 7 VOUTL 10 VCOM 8 VOUTR 9 AGND Audio Serial Port Enhanced Multi-level Delta-Sigma Modulator 4× / 8× Oversampling Digital Filter with Function Controller Serial Control Port System Clock System Clock Manager BCK 1 LRCK 3 DATA 2 ML 15 MC 14 MD 13 SCK 16 DAC Output Amp and Low-pass Filter DAC Power Supply Output Amp and Low-pass Filter VOUTL 7 VOUTR 8 AGND 8 VCC 6 DGND 9 VDD ZEROR/ZEROA 5 11 ZEROL/NA 12 VCOM 10 Zero Detect No. Nmae I/O Pin Function 1 BCK I Audio data bit clock input 2 DATA I Audio data digital input 3 LRCK I L-channel and R-channel Audio data latch enable input 4 DGND − Digital ground 5 VDD − Digital power supply +3.3V 6 VCC − Analog power supply +5V 7 VOUTL O Analog output for L-channel 8 VOUTR O Analog output for R-channel 9 AGND − Analog ground 10 VCOM − Common voltage decoupling 11 ZEROR/ZEROA O Zero flag output for R-channel / Zero flag output for L/R-channel 12 ZEROL/NA O Zero flag output for L-channel / No assign 13 MD I Mode control data input 14 MC I Mode control clock input 15 ML I Mode control latch input 16 SCK I System clock input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 DV-353-K 7.3 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup leneses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 DV-353-K 8. PANEL FACILITIES 7 8 Press to pause playback. Press again to restart 8 7 Press to stop the disc (you can resume playback by pressing 3 (play)) 9 ¡ ¢ • Press and hold for fast forward scanning • Press to jump to the next chapter or track 10 4 1 • Press and hold for fast reverse scanning • Press to jump back to the beginning of the current chapter or track, then to previous chapters/tracks 1 STANDBY/ON Press to switch the player on or into standby 2 Disc tray 3 0 OPEN/CLOSE Press to open or close the disc tray 4 Remote control sensor The remote control has a range of up to about 7m (23ft.) 5 Display 6 3 Press to start or resume playback Front panel STANDBY/ON Î 3 OPEN/CLOSE 0 8 7 4 1 ¡ ¢ 2 3 5 4 1 10 9 8 7 6 DV-250/DV-251 STANDBY/ON Î 3 OPEN/ CLOSE 0 8 7 1 4 ¡ ¢ 2 3 5 4 1 10 9 8 7 6 DV-353 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 DV-353-K Display 1 12 9 11 10 2 3 4 5 6 7 8 Indicates that the character display is showing a DVD chapter number 8 REMAIN 7 CHP Lights when the character display is showing the time or number of tracks/titles/chapters remaining 9 Character display 10 8 Lights when a disc is paused 11 3 Lights when a disc is playing 12 2D Lights when a Dolby Digital soundtrack is playing Lights when a DTS soundtrack is playing 2 Lights during multi-angle scenes on a DVD disc 3 GUI (Graphical User Interface) 1 DTS Lights when a menu is displayed on-screen 4 TITLE Indicates that the character display is showing a DVD title number 5 Lights when 2V/TruSurround is active 6 TRK Indicates that the character display is showing a CD or Video CD track number www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 DV-353-K 4 AC IN Connect the supplied power cord here, then plug into a power outlet. 5 VIDEO OUT This is a standard video output that you can connect to your TV or AV receiver using the supplied audio/video cable. 6 S (S-Video output) This is an S-video output that you can use instead of the video output described in 5 above. 7 DIGITAL AUDIO OUT – OPTICAL This is a digital audio output for connection to a PCM, Dolby Digital, DTS and/or MPEG- compatible AV receiver that has an optical digital input. Connect using a commercially available optical digital audio cable. When connecting this player up to your TV, AV receiver or other components, make sure that all components are switched off and unplugged. 1 DIGITAL AUDIO OUT – COAXIAL This is a digital audio output for connection to a PCM, Dolby Digital, DTS and/or MPEG- compatible AV receiver that has a coaxial digital input. Connect using a commercially available coaxial digital audio cable. 2 COMPONENT VIDEO OUT This is a high quality video output for connection to a TV, monitor or AV receiver that has component video inputs. Connect using a commercially available three-way component video cable. Be careful to match the colors of the jacks and cables for correct connection. 3 AUDIO OUT L / R This pair of analog audio outputs connects to your TV, AV receiver or stereo system. Even if you are connecting up one of the digital outputs, we still recommend you connect these jacks. Use the supplied audio/video cable when connecting these jacks. Match the colors of the jacks and cables for correct stereo sound. Rear panel connections DIGITAL AUDIO OUT S L R PR PB Y COAXIAL OPTICAL COMPONENT VIDEO OUT AUDIO OUT VIDEO OUT 1 2 3 4 6 7 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 DV-353-K 1 STANDBY/ON Press to switch the player on or into standby 2 AUDIO Press to select the audio channel or language 3 SUBTITLE Press to select a subtitle display 4 Number buttons 5 TOP MENU Press to display the top menu of a DVD disc 6 ENTER & cursor control buttons Use to navigate on-screen displays and menus. Press ENTER to select an option or execute a command 7 SETUP 9 3 Press to display (or exit) the on-screen display 8 1 and /e Use for reverse slow motion playback, frame reverse and reverse scanning. Press to start or resume playback 10 4 Press to jump to the beginning of the current chapter or track, then to previous chapters/ tracks 11 8 Press to pause playback; press again to restart Remote control 0 1 2 3 4 5 6 7 8 9 CLEAR ENTER ANGLE AUDIO TOP MENU SETUP SUBTITLE PLAY MODE SURROUND ZOOM DISPLAY MENU RETURN ENTER STANDBY/ON OPEN/CLOSE 4 /e E/ 1 3 ¡ ¢ 8 7 0 1 14 15 16 17 18 19 20 21 23 2 4 5 6 7 8 10 12 13 3 9 11 22 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 DV-353-K 12 PLAY MODE Press to display the Play Mode menu (You can also get to the Play Mode menu by pressing SETUP and selecting Play Mode) 13 SURROUND Press to activate/switch off 2V/TruSurround 14 0 OPEN/CLOSE Press to open or close the disc tray 15 ANGLE Press to change the camera angle during DVD multi-angle scene playback 16 CLEAR Press to clear a numeric entry 17 ENTER Use to select menu options, etc. (works exactly the same as the ENTER button in 6 above) 18 MENU Press to display a DVD disc menu, or the Disc Navigator if a CD, Video CD or MP3 disc is loaded 19 RETURN Press to return to a previous menu screen 20 ¡ and E/ Use for forward slow motion playback, frame advance and forward scanning. 21 ¢ Press to jump to the next chapter or track 22 7 Press to stop the disc (you can resume playback by pressing 3 (play)) 23 DISPLAY Press to display information about the disc playing 24 ZOOM Press to change the zoom level www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
