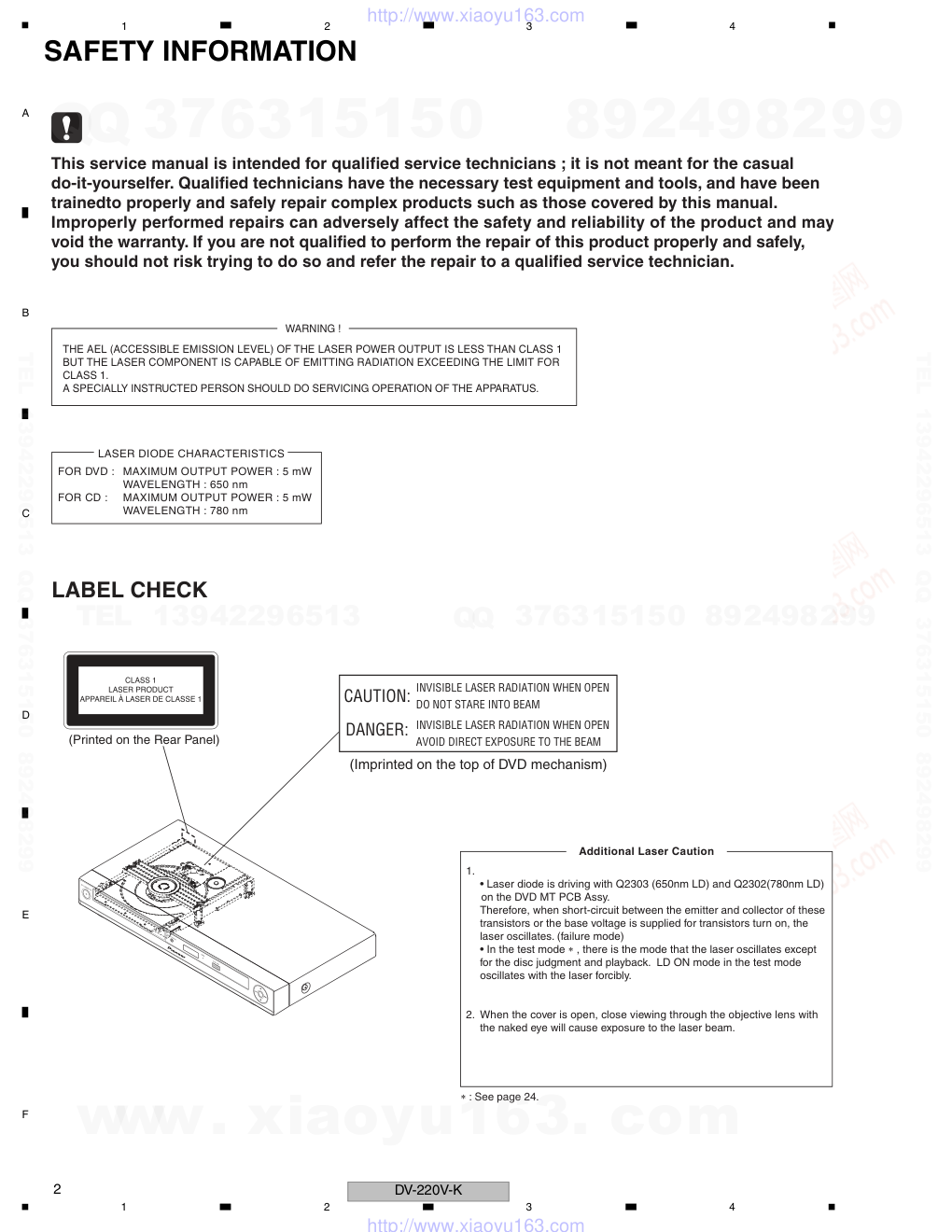

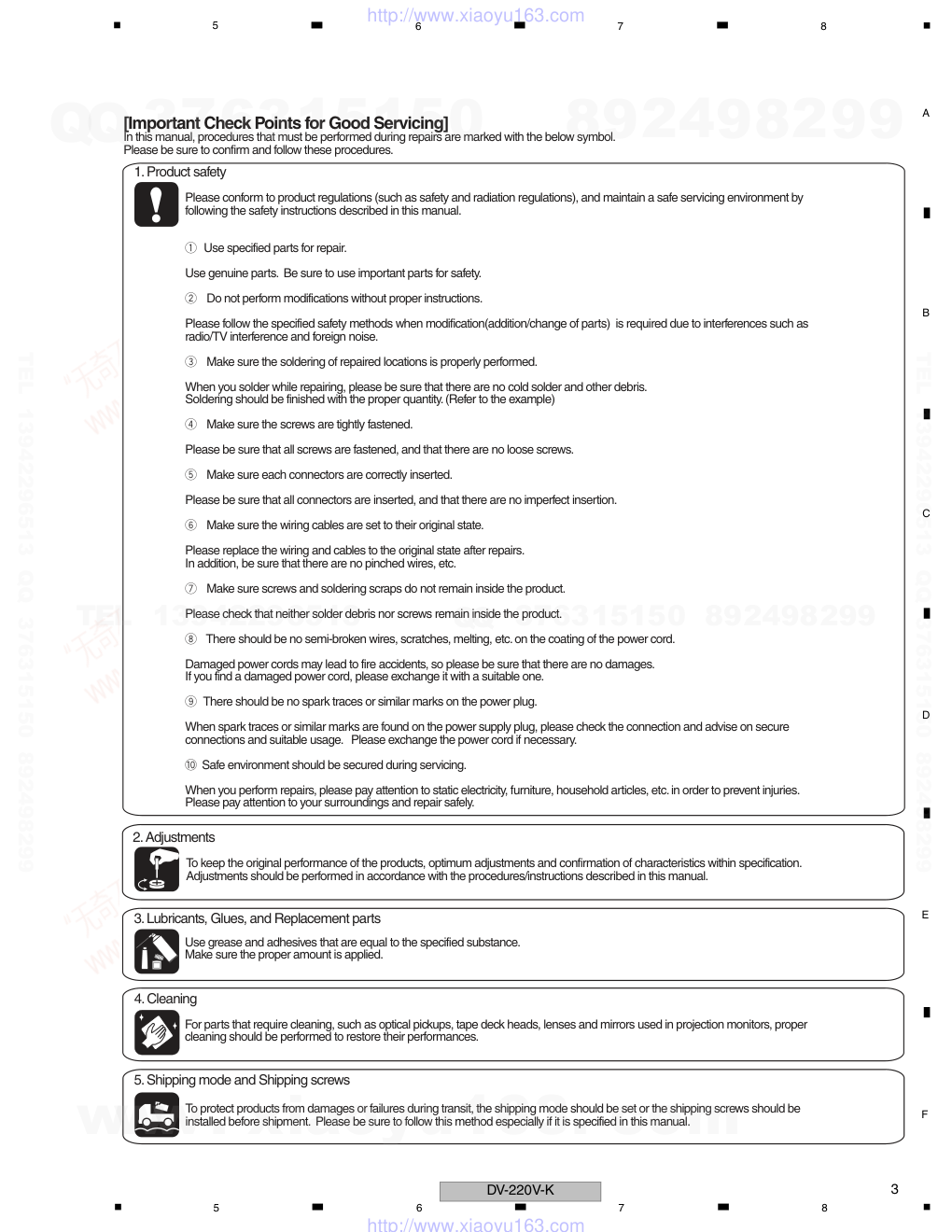

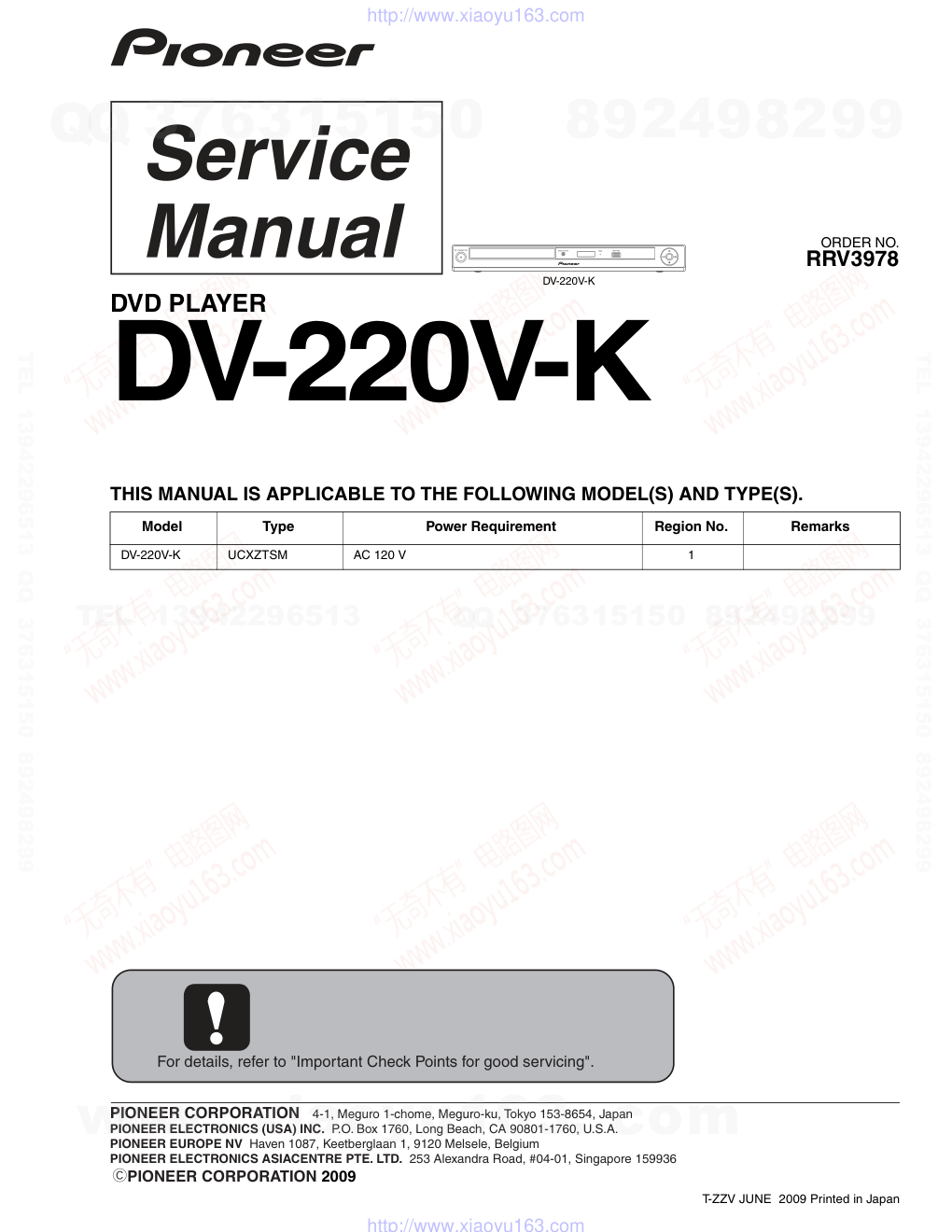

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2009 2009 Printed in Japan DV-220V-K RRV3978 DVD PLAYER DV-220V-K THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Remarks DV-220V-K UCXZTSM AC 120 V 1 For details, refer to "Important Check Points for good servicing". T-ZZV JUNE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trainedto properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 780 nm Additional Laser Caution ∗ : See page 24. 1. • Laser diode is driving with Q2303 (650nm LD) and Q2302(780nm LD) on the DVD MT PCB Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) • In the test mode ∗ , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK (Imprinted on the top of DVD mechanism) (Printed on the Rear Panel) CAUTION: DANGER: INVISIBLE LASER RADIATION WHEN OPEN DO NOT STARE INTO BEAM INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO THE BEAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 CONTENTS SAFETY INFORMATION..........................................................................................................................................................2 1. SERVICE PRECAUTIONS ....................................................................................................................................................5 2. SPECIFICATIONS .................................................................................................................................................................6 2.1 SPECIFICATIONS...........................................................................................................................................................6 2.2 DISC/CONTENT FORMAT .............................................................................................................................................7 2.3 PANEL FACILITIES .........................................................................................................................................................8 3. BASIC ITEMS FOR SERVICE.............................................................................................................................................11 3.1 CHECK POINTS AFTER SERVICING..........................................................................................................................11 3.2 PCB LOCATIONS .........................................................................................................................................................12 3.3 JIGS LIST......................................................................................................................................................................12 4. BLOCK DIAGRAM...............................................................................................................................................................14 4.1 OVERALL WIRING DIAGRAM......................................................................................................................................14 4.2 OVERALL BLOCK DIAGRAM.......................................................................................................................................16 4.3 DVD LOADER/MPEG BLOCK DIAGRAM.....................................................................................................................17 4.4 POWER BLOCK DIAGRAM..........................................................................................................................................18 5. DIAGNOSIS.........................................................................................................................................................................19 5.1 TROUBLE SHOOTING .................................................................................................................................................19 5.2 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY..............................................23 6. SERVICE MODE .................................................................................................................................................................24 6.1 SERVICE MODE PROCEDURE...................................................................................................................................24 6.2 SERVICE MODE IN ......................................................................................................................................................25 6.3 DISPLAY SPECIFICATION OF THE SERVICE MODE.................................................................................................25 6.4 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY........................................................................................26 6.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE ........................................................................................27 7. DISASSEMBLY....................................................................................................................................................................28 8. EACH SETTING AND ADJUSTMENT ................................................................................................................................30 8.1 RE-WRITE FOR DVD FIRMWARE ...............................................................................................................................30 9. EXPLODED VIEWS AND PARTS LIST...............................................................................................................................32 9.1 PACKING SECTION......................................................................................................................................................32 9.2 EXTERIOR SECTION...................................................................................................................................................34 10. SCHEMATIC DIAGRAM ....................................................................................................................................................36 10.1 DVD MT PCB ASSY (1/7) ...........................................................................................................................................36 10.2 DVD MT PCB ASSY (2/7) ...........................................................................................................................................38 10.3 DVD MT PCB ASSY (3/7) ...........................................................................................................................................40 10.4 DVD MT PCB ASSY (4/7) ...........................................................................................................................................42 10.5 DVD MT PCB ASSY (5/7) ...........................................................................................................................................44 10.6 DVD MT PCB ASSY (6/7) ...........................................................................................................................................46 10.7 DVD MT PCB ASSY (7/7) ...........................................................................................................................................48 10.8 OPERATION PCB ASSY ............................................................................................................................................50 10.9 USB PCB ASSY..........................................................................................................................................................52 10.10 POWER PCB ASSY..................................................................................................................................................54 10.11 WAVEFORMS...........................................................................................................................................................56 11. PCB CONNECTION DIAGRAM ........................................................................................................................................57 11.1 DVD MT PCB ASSY....................................................................................................................................................57 11.2 OPERATION PCB ASSY ............................................................................................................................................59 11.3 USB PCB ASSY..........................................................................................................................................................60 11.4 POWER PCB ASSY....................................................................................................................................................62 12. PCB PARTS LIST ..............................................................................................................................................................64 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 1. SERVICE PRECAUTIONS • For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. • Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 ºC. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 ºC in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Do NOT use a soldering iron whose tip temperature cannot be controlled. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: • Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. The laser diode used for a pickup head may be destroyed with external static electricity. Moreover, even if it is operating normally after repair, when static electricity discharge is received at the time of repair, the life of the product may be shortened. Please perform the following measure against static electricity, be careful of destruction of a laser diode at the time of repair. • Place the unit on a workstation equipped to protect against static electricity, such as conductive mat. • Soldering iron with ground wire or ceramic type is used. • A worker needs to use a ground conductive wrist strap for body. PREPARATION OF SERVICING If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps below. Set the DVD to the Stand-by Mode. Press and hold the 'STOP' key on the front panel. Simultaneously press and hold the POWER key on the front panel. The 4 digit password has now been cleared. 1. 2. 3. 4. PARENTAL CONTROL - RATING LEVEL 4 DIGIT PASSWORD CANCELLATION NOTE: The above procedure will reset ALL of the player's settings to the default factory state. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 2. SPECIFICATIONS 2.1 SPECIFICATIONS Power requirements . . . . . . . . . . . . . . . . .AC 120 V, 60 Hz Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . 11 W Power consumption (standby) . . . . . . . . . . . . . . . . . 0.6 W Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3 kg (2 lb 14 oz) External dimensions . . . . . . . . . . . . . . 360 (14 3/16 in, (W) x 1 11/16 in, (H) x 8 in, (D)) mm (W) x 42 mm (H) x 202 mm (D) Tolerable operating temperature . . . . . . . +5 (+41 °F to +95 °F) °C to +35 °C Tolerable operating humidity . . . . . . . . . . . . . 5 % to 85 % (no condensation) Video output Output level . . . . . . . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω) Output terminal. . . . . . . . . . . . . . . . . . . . . . . RCA terminal Componen HDMI output t video output (Y, CB/ PB, CR/ PR) Y output level . . . . . . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω) CB/ PB, CR/ PR output level. . . . . . . . . . . . .0.7 Vp-p (75 Ω) Output terminal. . . . . . . . . . . . . . . . . . . . . . . RCA terminal Output terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-pin Audio output (stereo L/ R) Audio output level. . . . . . . . . . 200 mVrms (1 kHz, -20 dB) Output terminal. . . . . . . . . . . . . . . . . . . . . . . RCA terminal Frequency response . . . . . . . . . . . . . . . . . 4 Hz to 44 kHz S/ N ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114 dB Dynamic range . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 dB Total harmonic distortion . . . . . . . . . . . . . . . . . . . 0.007 % Digital audio output Coaxial digital output . . . . . . . . . . . . . . . . . . RCA terminal Additional information USB port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A type Notes The specifi cations and design of this product are • subject to change without notice. This product includes FontAvenue • ® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 2.2 DISC/CONTENT FORMAT [1] Playable discs Commercially available DVD-Video discs DVD-R/-RW/-R DL and DVD+R/ +RW/ +R DL discs recorded in the Video mode and fi nalized DVD-R/-RW/-R DL discs recorded in the VR mode Video CDs (including Super VCDs) Commercially available audio CDs CD-R/-RW/-ROM discs containing music recorded in the CD-DA format JPEG fi les recorded on DVD-R/-RW/ -R DL discs, CD-R/-RW/-ROM discs or USB devices DivX video fi les recorded on DVD-R/ -RW/-R DL discs, CD-R/-RW/-ROM discs or USB devices WMA fi les recorded on DVD-R/-RW/ -R DL discs, CD-R/-RW/-ROM discs or USB devices MP3 fi les recorded on DVD-R/-RW/ -R DL discs, CD-R/-RW/-ROM discs or USB devices Fujicolor CD KODAK Picture CD Discs that cannot be played DVD Audio discs DVD-RAM discs SACDs CD-G Blu-ray discs HD DVDs Discs that have not been fi nalized Discs recorded with packet writing About region numbers DVD player and DVD-Video discs are assigned region numbers according to the region in which they are sold. This player’s region number(s) is (are) as shown below. DVD-Video: 1 Discs not including these numbers cannot be played. Discs playable on this player are as shown below. DVDs: 1 (including 1) and ALL Regarding copy protected CDs This player is designed to conform to the specifi cations of the audio CD format. This player does not support the playback or function of discs that do not conform to these specifi cations. About playing DualDiscs A DualDisc is a new two-sided disc, one side of which contains DVD content — video, audio, etc. — while the other side contains non-DVD content such as digital audio material. The DVD side of a DualDisc can be played on this player (excluding any DVD-Audio content). The non-DVD, audio side of the disc is not compatible with this player. It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable. For more detailed information on the DualDisc specifi cation, please refer to the disc manufacturer or disc retailer. Playing discs created on computers or BD/ DVD recorders It may not be possible to play discs recorded using a computer due to the application settings or computer’s environment settings. Record discs in a format playable on this player. For details, contact the dealer. It may not be possible to play discs recorded using a computer or a BD/DVD recorder, if burn quality is not good due to characteristics of the disc, scratches, dirt on the disc, dirt on the recorder’s lens, etc. Playable fi les Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played. Files protected by DRM (Digital Rights Management) cannot be played. Files other than the ones below (WMV, MPEG4-AAC,etc.) are not guaranteed to play. is a trademark of DVD Format/Logo Licensing Corporation. is a trademark of FUJIFILM Corporation. This label indicates playback compatibility with DVD-RW discs recorded in VR format (Video Recording format). However, for discs recorded with a record-only-once encrypted program, playback can only be achieved using a CPRM compatible device. Notes This player does not support multisession discs or multiborder recording. Multisession/ multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A “session” or “border” is one recording unit, consisting of a complete set of data from lead-in to lead-out. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 2.3 PANEL FACILITIES Playable fi le extensions Video fi les .divx .avi Files not containing DivX video signals cannot be played, even if they have the extension “.avi”. Image fi les .jpg .jpeg Audio fi les .wma .mp3 Supported video fi le formats DivX DivX is a media technology created by DivX, Inc. DivX media fi les contain image data. DivX fi les may also include such advanced playback functions as menu screens and selection of multiple subtitle languages/audio tracks. Plays DivX® video, including premium content DivX® is a registered trademark of DivX, Inc., and is used under license. Supported image fi le formats JPEG Resolution: Up to 3 072 x 2 048 pixels This player supports baseline JPEG. This player supports Exif Ver.2.2. This player does not support progressive JPEG. Supported audio fi le formats This player does not support VBR (Variable Bit Rate). This player does not support lossless Windows Media Audio (WMA) Sampling frequencies: 32 kHz, 44.1 kHz and 48 kHz Bit rate: Up to 192 kbps Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. This player supports fi les encoded using Windows Media Player Ver. 7/ 7.1, Windows Media Player for Windows XP and Windows Media Player 9 Series. MPEG-1 Audio Layer 3 (MP3) Sampling frequencies: 32 kHz, 44.1 kHz and 48 kHz [1] Front panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F [2] Remote control ENTER Use this to implement the selected item or enter a setting that you have changed. 7 HOME MENU Press to display/ hide the Home Menu. Audio Settings • Video Adjust • Play Mode • Disc Navigator • Initial Settings • CD -> USB Rec • 8 PLAY Press to start playback. 9 Press during playback to fast-reverse. • Press in the pause mode to move backward frame-by- • frame. Press and hold in while in the pause mode for slow • play in the reverse direction. 10 PREV Press to return to the beginning of the currently playing title, chapter, track or fi le. Press twice to move back to the beginning of the previous title, chapter, track or fi le. 11 PAUSE Press to stop playback temporarily. Press again to resume. 12 USB REC Press to display the CD -> USB Rec. 13 PLAY MODE Press to display/ hide the Play Mode screen. 1 STANDBY/ON Press to turn the power on and off. 2 AUDIO For discs or fi les including multiple audio streams/ channels, the audio stream/channel can be switched during playback. 3 SUBTITLE On DVD-Video or DivX discs containing subtitles in multiple languages, the subtitle can be switched during playback. 4 Number buttons (0 to 9) Use these to specify and play the title, chapter, track or fi le you want to view/listen to. Also use them to select items on menu screens, etc. 5 TOP MENU Press to display the top menu of the DVD-Video. 6 / / / Use these to select items, change settings and move the cursor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 A-B Repeat • The specifi ed section within a single title or track is played repeatedly. Repeat • Plays titles, chapters, tracks or fi les repeatedly. Random • Playes titles, chapters or tracks in random order. Program • Plays titles, chapters, tracks or fi les in the order in which you program them. Search Mode • Plays the specifi ed number or time within the title, chapter, track or fi le. The Play Mode function may not work for some discs or fi les. 14 OPEN/CLOSE Open the disc tray and load the disc. 15 ANGLE On DVD-Video discs containing multiple angles, the angle can be switched during playback. 16 DVD/USB Press to switch between the DVD and USB modes. 17 CLEAR Press to clear the selected item. Use this for example if you input the wrong number. 18 MENU Press to display the menu screen or Disc Navigator. • Select and play the title, chapter, track or fi le from the • Disc Navigator. Ex.: DVD video Disc Navigator 19 RETURN Press to return to the previous screen. 20 Press during playback to fast-forward. • Press in the pause mode to move forward frame-by- • frame. Press and hold in while in the pause mode for slow • play in the forward direction. 21 NEXT Press during playback to skips ahead to the beginning of the next title, chapter, track or fi le. 22 STOP When STOP is pressed during playback, the point at which playback was stopped is stored in the memory. When PLAY is pressed, playback resumes from the point at which it was stopped. 23 DISPLAY The elapsed time, amount remaining, etc., is displayed. 24 ZOOM Zooming on the image www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING Item to be checked regarding video Item to be checked regarding audio Block noise Distortion Horizontal noise Noise Dot noise Volume too low Disturbed image (video jumpiness) Volume too high Too dark Volume fluctuating Too bright Sound interrupted Mottled color No. Procedures Check points 1 2 3 4 5 Confirm the firmware version on Test Mode. The version of the firmware must be latest. Update firmware to the latest one, if it is not the latest. Confirm whether the customer complain has been solved. If the customer complain occurs with the specific disc, use it for the operation check. The customer complain must not be reappeared. Video, audio and operations must be normal. Play back a DVD. (Menu operation, Title/chapter search) Play back a CD. (track search) Audio and operations must be normal. Video, audio and operations must be normal. Check the appearance of the product. No scratches or dirt on its appearance after receiving it for service. Items to be checked after servicing / DV To keep the product quality after servicing, confirm recommended check points shown below. See the table below for the items to be checked regarding video and audio. No. Procedures Check points 1 Confirm playback error rates at the innermost and outermost tracks by using the following disc. DVD test disc (GGV1025) The error rates must be less than 5.0e-4. (This procedure can determine if the drive is degraded.) Specific Items to be Checked www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 3.2 PCB LOCATIONS 3.3 JIGS LIST OPERATION PCB ASSY POWER PCB ASSY USB PCB ASSY DVD MT PCB ASSY DECK CD Mark No. Description Part No. LIST OF ASSEMBLIES 1..DVD MT PCB ASSY A2M211A130 1..OPERATION PCB ASSY A2M211A270 1..USB PCB ASSY A2M109AFA0 > 1..POWER PCB ASSY A2M211A240 1..DECK CD 169B00047A Mark No. Description Part No. Service Remote Control Unit GGF1381 diagnosis Name Jig No. Remarks DVD Test Disc (DVD-Video,NTSC) GGV1025 Operation Check DVD Test Disc (DVD-Video,PAL) CD Test Disc GGV1101 STD-905 Operation Check Operation Check Jigs list www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 4. BLOCK DIAGRAM 4.1 OVERALL WIRING DIAGRAM DVD MT PC (1/7 - 7/7) (A2M211A1 OPERATION PCB ASSY (A2M211A270) USB PCB ASSY (A2M109AFA0) POWER PCB ASSY (A2M211A240) 15 14 13 12 11 10 9 8 7 6 4 5 3 2 1 CP4003_1 15 14 13 12 11 10 9 8 7 6 4 5 3 2 1 CP502_1 5 4 3 2 1 5 4 3 2 1 3 2 1 CP604 3 2 1 CP603 4 3 2 1 11 10 9 8 7 6 5 4 3 2 1 11 10 9 8 7 6 5 4 3 2 1 Vout B+ GND OS651 1 2 3 J501_1 AC INLET 1 2 CD501 AC120V_60Hz(US) CP5901 HDMI CONNECTOR 1 10 11 12 13 14 15 16 17 18 19 2 3 4 5 6 7 8 9 H1 H2 E H1 H2 E J7302 CVBS/Y/U/V 1 2 3 4 5 6 H E J8001 COAXIAL 1 2 PCB271 DMH111 PCB130 DVD MT PCB DEH160 PCBFA0 USB/KARAOKE PCB USBP USBN PGND VBUS GND(SHIELD) CD6601 SHIELD CABLE 3 2 5 4 1 3 2 5 4 1 CP4004 CP6601 CD601 10 3 2 9 8 7 6 5 4 1 3 2 9 8 7 6 5 4 1 11 10 11 DEH159 PCB240 DPH020 CP6602 +5V USB_DN USB_DP GND GND(SHIELD) VBUS PGND USBN USBP OPERATION2 PCB POWER SW2 GND 3 2 1 3 2 1 POWER SW2 GND COMMAND TRANSMITTER TM101 CP4002 DGND IR DGND DGND LEM_DIO LEM_STB LEM_CLK EV+3.3/6V EV+3.3/6V V+5V LED_CONT DEH158 DGND IR DGND DGND LEM_DIO LEM_STB LEM_CLK EV+3.3/6V EV+3.3/6V V+5V LED_CONT OPERATION PCB PCB270 CP601_1 POWER PCB AT+3.3V GND(D) GND(D) AT+3.3V AT+3.3V P.ON-H(STBY L) AT/P.CON+6V AT/P.CON+6V GND(M) GND(M) GND P.CON+12V P.CON+5V GND GND P.ON-H(STBY L) P.CON+12V GND P.CON+5V AT+3.3V AT+3.3V GND(D) GND(D) AT+3.3V AT/P.CON+6V AT/P.CON+6V GND(M) GND(M) GND GND 15 14 13 3 2 9 8 7 6 5 4 1 3 2 9 8 7 6 5 4 1 12 11 10 CD502 14 15 10 13 12 11 D2+ D2-S D2- D1+ D1-S D0+ D0-S D0- CLK-S CLK- CEC SCL SDA GND POWER HOTPLUG NC D1- CLK+ NC C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F DVD MT PCB ASSY (1/7 - 7/7) (A2M211A130) DECK CD (169B00047A) CP2302 LOAD/SLED/SPINDLE 24 23 22 21 20 19 2 1 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 CP2301 PICK-UP(GOLD) CP5901 HDMI CONNECTOR 1 10 11 12 13 14 15 16 17 18 19 2 3 4 5 6 7 8 9 H1 H2 E /U/V 4 5 6 H E J8001 COAXIAL 1 2 H1 H2 E J8003 AUDIO OUT 1 2 3 DMH111 PCB130 DVD MT PCB LOAD+ LOAD- SW_OUT COM SW_IN SPD- SPD+ SLD- SLD+ TTER NC CD-VR(780) NC VCC E MPD VC GND F B A CD-LD(780) DVD-VR(650) HFM-VCC RF SW D C T- T+ F+ F- LD-GND DVD-LD(650) 8 9 1 2 3 4 5 6 7 D2+ D2-S D2- D1+ D1-S D0+ D0-S D0- CLK-S CLK- CEC SCL SDA GND POWER HOTPLUG NC D1- CLK+ NC ATTENTION: LES PIECES REPAREES PAR UN ETANT DANGEREUSES AN POINT DE VUE SECURITE NUTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES CAUTION: SINCE THESE PARTS MARKED BY ARE CRITICAL FOR SAFETY, USE ONES DESCRIBED IN PARTS LIST ONLY NOTE: THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 4.2 OVERALL BLOCK DIAGRAM P.CON+12V AC120V X4001 27MHz AT+3.3V P.CON+6V P.CON+5V POWER SUPPLY DVD LOADER MOTOR DRIVER IC2301 AM5766 LEM DRIVER IC601 ET6202 FIP(V651) GYXS-2511CSR KEY SERVO RF SERVO IR LEM_STB, LEM_SCL,LEM_DIO RESET DVD_LD, CD_LD IR 108MHz TV Encoder MPEG-1/2/ JPEG VIDEO DECORDER RF IR RECEIVER (OS651) KSM-2001TC2P 16M SERIAL FLASH IC4004 ES25M16A 64Mbit SDRAM IC4005 M12L64164A-5TG2R XAMUTE MPEG/MICON IC4001 MT1389FE/M-L AUDIO CODEC/ INTERNAL DAC +1.8V SFLASH_CS,DO,CK,DI MA0~MA11, DQ0~DQ15 RESET IC IC4003 R3112N291A-TR-FA L R AUDIO AMP IC IC8003 NJM4565M(TE1) AUDIO_L, AUDIO_R ASPDIF CO COAXIAL V CVBS U Y VIDEO DRIVER IC7303 MM1510XNRE G/Y B/CB R/CR OVERALL WIRING BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 4.3 DVD LOADER/MPEG BLOCK DIAGRAM DVD Loader MPEG/MICON IC IC4001 MT1389FE/M-L V20 C RF, A, B, C, D, E, F, MDI1 DVD_LD, CD_LD Q2302,2303 CD,DVD LDO1, LDO2 MOTOR DRIVER IC IC2301 AM5766 DMSO, FMSO, TROPEN/IOA, TRCLOSE, TRSO, FOSO, STBY, V1P4 T+/-, F+/-, LOAD+/-, MOT_SLED+/-, MOT_SPDL+/- OPU SPINDLE/ STEPING/ SLED MOTOR TRIN,TROUT, OP+/- 16M SERIAL FLASH IC4004 ES25M16A MA0~MA11, DQ0~DQ15, DQM0, DQM1, DBA0,DBA1, SDCLK,DWE#,DRAS#, DCAS# A D SFLASH_CS,SFLASH_DO, SFLASH_CK,SFLASH_DI 64Mbit SDRAM IC4005 M12L64164A-5TG2R A A VIDEO DRIVER IC7303 MM1510XNRE A, B 3 5 Y U CVBS/Y/U/V J7302 2 V 6 CVBS A.......AT+3.3V B.......+1.8V C.......P.CON+5V D.......P.CON+6V E.......AT+12V F.......P.CON+12V G.......V+5V IR IR RECEIVER (OS651) KSM-2001TC2P IR GR1~5, S1~7,DP LEM DRIVER IC601 ET6202 FIP (V651) GYXS-2511CSR A A AUDIO AM P IC IC8003 NJM4565M(TE1) 3 2 R L AUDIO JACK J8003 AUDIO R AUDIO L AUDIO L, R F X4001 27MHz CVBS COAXIAL JACK J8001 ASPDIF RESET RESET IC IC4003 R3112N291A- TR-FA A XAMUTE Q8013 XAMUTE 2 G LEM_STB,LEM_SCL, LEM_DIO DVD LOADER/MPEG BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 4.4 POWER BLOCK DIAGRAM SWITCHING TRANS T501 AC IN AT+ 3.3V P.CON+6V P.CON+5V P.CON+12V P.ON-H Q510 P.CON +12V SW VOLTAGE CTL IC501 KIA431A-AT PHOTO COUPLER IC504 PS2561AL1-1-V (W) POWER CTL IC502 MIP2K40MSSCF +5V REG IC503 R1190H050D-T1-F REG+1.8V IC4006 LD1117AL-ADJ-AA3-A-R +1.8V POWER BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 5. DIAGNOSIS 5.1 TROUBLE SHOOTING POWER DOES NOT TURN ON Is the voltage at pin 1,2 and pin 3 of CP502 about 3.3V and at pin 11 of CP502 about 5V? No Yes No Is there waveform at X4001 about 3.0Vp-p ? Check X4001, IC4001 and peripheral circuit. Yes Write DVD FIRMWARE DATA. Check AT+3.3V line of POWER BLOCK. Check IC503 and peripheral circuit. No Yes No DECK DOES NOT ACCEPT OPEN/CLOSE Check P.CON 6V line of POWER BLOCK. Yes Is the lose connection at CP2302 to DECK ? Check CP2302 connection to DECK. Change DVD LOADER. Is the voltage at pin 8 and 19 of IC2301 about DC6V ? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 DOES NOT LIGHT ON DISPLAY Yes Is the voltage at pin 7 and pin 21 of IC601 about 3.0V ? Check AT+3.3V line of POWER BLOCK. No Replace V651 or IC601. NO PLAYBACK PICTURE OF AV JACK Is there video signal at pins 1 and 2 of IC7303 ? Change IC7303. No Yes No Yes Check J7302 and peripheral circuit. Is there a signal at pin 98 of IC4001 ? Check IC4001 and peripheral circuit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F NO DIGITAL AUDIO ON PLAYBACK OF COAXIAL JACK Is there waveform at pin 2 of J8001 about 0.5Vp-p? Check connection at RCA Cable. Yes Yes No No Change IC4001. Is there waveform at pin 80 of IC4001 about 3.3Vp-p ? Check Q8005 and peripheral circuit. NO ANALOG AUDIO ON PLAYBACK Is there AUDIO signal at pins 1 and 7 of IC8003 ? Yes Is there AUDIO signal at C8053 and C8051 ? No Check J8003 and peripheral circuit. Yes No Check at pins 111 and 113 of IC4001 Change IC8003. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 Symptoms That May Occur When Any Of The Following ICs Is In Failure IC Symptoms 16M Flash ROM (DVD MT PCB Assy : IC4004) The power cannot be turned on. Downloading of the firmware cannot be performed. DVD IC (DVD MT PCB Assy : IC4001) Any kind of symptoms (no power, a failure in any of the servo, video and audio systems, etc.) may be generated, because the DVD processing is performed by a single chip. 64M SDRAM (DVD MT PCB Assy : IC4005) No power. Block noise is generated during playback. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 5.2 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY SIDE A 1 33 65 97 CP5901 IC4005 CP2302 CP4004 J8001 J7302 J8003 L5901 L5902 R4066 L4001 CP2301 NR4002 R4027 C4050 C8038 R8039 Q8005 R8038 R8037 R8036 Q8018 Q8019 R8085 C8077 R8084 C8078 R8081 R8078 C8070 C8073 R8080 R8079 IC8003 C8067 R8063 R8061 R8048 R8049 C8051 C8053 C8066 C8058 C8059 B8004 Q8014 Q8013 R8056 C7316 C7317 C7319 C7318 W884 R7317 C7307 C7309 C7310 C4047 C4039 C7311 C4028 Q4002 R4034 W849 W850 IC2301 C2306 R2316 C2307 R2310 C2311 Q2302 Q2303 NR2301 C2320 C2321 R2306 W888 W889 W891 R2326 R2319 R2328 R2342 C2322 R2344 C2323 R2343 R2341 C4046 C4044 R4046 X4001 R4025 R4024 IC4003 IC4006 C4100 W822 R4011 R4012 R4013 W820 Q4005 C4078 L7301 W819 C4080 R4075 C4104 IC4009 R4063 IC4007 C4076 W844 C4077 IC5902 C4130 R5921 C5924 C5922 R5901 C5923 IC4004 D4002 D4003 W831 W809 R4048 W824 R4054 R4043 W810 R4047 R4040 R4044 C4114 C8036 W802 R4018 R4019 R4015 R4016 W881 W870 W880 W877 W879 W878 C4070 R4005 R4076 R4030 R4074 W839 C4023 C4122 C4133 C4043 C4051 C2305 C8074 W861 W860 W868 W862 W869 C5925 C4096 C4086 C4121 W833 R4002 R4017 R4029 R8073 W834 C4140 B4003 C4082 R4004 R4059 R4062 R4060 R4061 C4031 C4021 R4053 C2304 C4024 CP4002 L4003 IC4001 R4039 W832 C4040 W808 C5905 B4008 C2325 R2317 W835 C4036 CP4003_1 W872 W873 W871 D7312 D7311 D7310 DMH111A Case when this diagnosis is required : When playback of any disc, including a test disc (DVD: GGV1025, CD: STD-905), cannot be performed How to diagnose In the case mentioned above, degradation of the laser diodes (LDs) mounted on the PICKUP Assy is suspected. Measure the voltage between the two ends of one of the resistors mentioned below. Measure the voltage between the two ends of NR2301 on the DVD MT PCB Assy. If the voltage is 0.17 V or higher, the 650-nm LD is degraded. No playback of a DVD : Measure the voltage between the two ends of NR2301 on the DVD MT PCB Assy. If the voltage is 0.20 V or higher, the 780-nm LD is degraded. No playback of a CD : If the measurements show degradation of an LD, replace the PICKUP Assy. DVD MT PCB ASSY CP2301 R8061 R8048 R8049 C8051 C8053 C8066 C8058 C8059 013 C7 C7310 C4047 IC Q2302 Q2303 NR2301 C2320 C2321 R2306 W888 W889 W891 R2343 R2341 W802 R R W881 W870 W880 W877 W879 W878 W833 R4002 R4017 W834 B R4059 R4062 R4060 R4061 C2304 R2317 W872 W873 W871 2 1 for CD laser diode for DVD laser diode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 6. SERVICE MODE 6.1 SERVICE MODE PROCEDURE POWER ON DSC - GGF1381 Service remote control unit GGF1381 Service remote control unit OPEN/CLOSE (Player) OPEN/CLOSE Press the play key ( ) of the normal remote control unit. (Player) An address is displayed OR ESC ESC TEST CHECK DVD, CD DVD disc POWER ON OFF POWER DISC SET Notes: • After going into service mode, if you play back the disc, "DISC-NON" is displayed. • The video signal and the audio signal are outputted during the servicemode. • The SKIP key and the SCAN key are effective during the service mode. SERVICE MODE: PLAY SERVICE MODE: OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 6.2 SERVICE MODE IN 6.3 DISPLAY SPECIFICATION OF THE SERVICE MODE Service Mode Functional Specification � Service mode entry In the power ON state, press the [ESC] key and [TEST] key of the Service remote control unit. • Light the all FL and LEDs. • OSD displays test mode. Note: * When pressing the keys of something, the FL displays "NO DISC" and the LED lighting disappears. � Release the Service mode • Turn off the power. • Press the [ESC] key of the remote control unit. � LD ON DVD : Press the [TEST] and [1] keys in order, and turn on the laser diode (650n). CD : Press the [TEST] and [4] keys in order, and turn on the laser diode (780n). Character in bold : Item name : Information display 1 5 6 10 11 8 9 3 2 12 15 13 14 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : ID indication [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R − ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K − ∗ ∗] 5 Tracking status [TRKG − ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL − * * *] [OFF], [CLV] 7 Mechanism (loading) position value [M − ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S − ∗ ∗ ∗ ∗] In Side Switch ON: [01] In Side Switch OFF : [00] * Because there is no slider position switch on this Drive Mechanism. 9 Output video system [V − ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK − ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] a Disc sensing [DSC − ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] b Jitter value [J − ∗ ∗ ∗ ∗] Note:Don't use it. c Version of the FL controller [FL: ∗ ∗ ∗ ∗] d Region setting of the player [REG: ∗] Setting value : [1] to [6] e Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent code 01. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM, LB: /LB, WY: /WY f Version of the flash ROM [VERSION: ∗∗∗∗∗∗∗∗] 7 Not used Not used Not used Not used Not used Not used Not used Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 6.4 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY • Service mode indication (ESC + CHP/TIM keys) ID Address The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs. EDC/ID/AV 1 error history (ID Address, EDC/ID Error, last eight errors) • Calculation of the average error rate (ESC + "5" [Service remote control unit] keys) The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs) For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less • Indication of model information (ESC + CHAP keys) The items from 12 to 15 of the SERVICE MODE Indications are displayed. However, in the indications, S in the standard test mode is changed to CHIP VERSION, and M is changed to FL VERSION. (Not used FL VERSION) • Region confirmation mode (ESC + A.MON [Service remote control unit] + "1"-"8" [Service remote control unit] keys) After you press the A.MON key while holding the ESC key pressed and then input the region number, if the number is different from that set in the unit, an error message is displayed, and the tray opens. Command Contents Conditions Remote Control Key Name Memory clear and region / revision indication CLEAR (∗1) Average value measurement of DVD error rate 5 (∗1) CD error rate measurement 5 (∗1) Scart terminal output : VIDEO WY, models equipped with Scart terminal AUDIO Scart terminal output : S-VIDEO SUBTITLE Scart terminal output : RGB ANGLE Progressive OFF Only for progressive models R_SKIP Progressive ON F_SKIP ZOOM ON (X2 -> X4 -> x1) ZOOM Service mode indication (error rate indication, etc.) CHP/TIM (∗1) Model information indication CHAP (∗1) Title search Input mode IN Title No. input Search execution SIDE A (∗1) Numbers (∗1) PLAY (∗1) Region confimation mode A.MON (∗1) Numbers (∗1) Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC key of the remote control unit. To quit, press the ESC key ∗1 : Service remote control unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 6.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE Display during Service Mode To enter Service Mode, press the CHP/TIM key while holding the ESC key pressed. To quit, press the ESC key. Service mode display 1 ID Address 2 Error rate (always displayed), in exponential notation ERROR RATE : ∗ ∗ ∗ ∗ ∗ ∗ ∗ ( ∗ ∗ ∗ ∗ ) • Calculation of the average error rate For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less 3 EDC/ID error history (ID Address, EDC/ID errors, last eight errors) Note: ∗ Error of AV1 is not supported in this player. Number of error Indication plan contents Character in bold : Item name : Information display 1 2 3 ex) For DVDs • Step 1 e- e -6 : OK e -5 : OK e -4 : Refer to Step 2 e -3 : NG e -2 : NG • Step 2 e -4 3.0e -4 : OK 4.0e -4 : OK 5.0e -4 : OK 6.0e -4 : NG 7.0e -4 : NG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 7. DISASSEMBLY 1. 1-1: REMOVAL OF MECHANICAL PARTS AND P.C. BOARDS Remove the 5 screws (1). Remove the Top Cabinet in the direction of arrow (A). Disconnect the following connectors: (CP4002). Unlock the 4 supports (2). Remove the Front Cabinet in the direction of arrow (B). Remove the 7 screws (3). Remove the Operation PCB in the direction of arrow (C). TOP CABINET/FRONT CABINET AND OPERATION (Refer to Fig. 1-1) 1. 2. 3. 4. 5. 6. 7. 1. 2. 3. 4. Disconnect the following connectors: (CP4003). Remove the screw (1). Remove the 3 screws (2). Remove The Power PCB in the direction of arrow. 1-4: POWER PCB (Refer to Fig. 1-4) NOTE Before your operation, please read “PREPARATION OF SERVICING”. Use the Lead Free solder. Manual soldering conditions • Soldering temperature: 320 ± 20 oC • Soldering time: Within 3 seconds • Soldering combination: Sn-3.0Ag-0.5Cu When Soldering/Removing of solder, use the drawing equipment over the Pick Up Unit to keep the Flux smoke away from it. When installing the DVD Deck, remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD MT PCB connector. 1. 2. 3. 4. 5. 1-3: DVD DECK (Refer to Fig. 1-3) 1. 2. 3. Short circuit the position shown in Fig. 1-3 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged. Disconnect the following connectors: (CP2301 and CP2302). Remove the 2 screws (1). 4. Remove the DVD Deck in the direction of arrow. 1-2: USB PCB (Refer to Fig. 1-2) 1. 2. 4. 5. Disconnect the following connectors:(CP4004). Remove the 3 screws (1). 3. Remove the USB PCB in the direction of arrow (A). Remove the 2 screws (2). Remove the Angle PCB in the direction of arrow (B). (1) (1) (1) Top Cabinet (A) Fig. 1-4 Front Cabinet Ass'y Operation PCB (2) POWER PCB (2) (2) (1) (1) (B) (3) (3) (3) (3) (3)(3)(3) (C) (2) (2) ( ) (1) (C) Fig. 1-1 Fig. 1-2 Fig. 1-3 Front Cabinet Ass y Operation PCB (1) (1) (1) (A) USB PCB Short circuit using a soldering iron. (1) DVD Deck Pick Up PCB (1) (2) (2) (2) (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F Fig. 1-5 (1) (1) (1) (2) (2)(2)(2) DVD MT PCB 1. 2. 3. Remove the 3 screws (1). Remove the 4 screws (2). Remove the DVD MT PCB in the direction of arrow. 1-5 : DVD MT PCB (Refer to Fig. 1-5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 8. EACH SETTING AND ADJUSTMENT 8.1 RE-WRITE FOR DVD FIRMWARE 1. Purpose After replacing the DVD MT PCB Assy, be sure to update the firmware to the latest version. The firmware of the Assy for service may not be the latest. 3. Procedures for updating the firmware How to update: 1 Turn on the main unit and open the disc tray. 2 Place the disc for updating in the disc tray and close the tray. 3 Press the PLAY button. 4 Updating of the firmware is completed. 2. Procedures for creating the disc for updating Necessary tools: 1 PC with a CD-R/CD-RW drive 2 Blank CD-R or CD-RW 3 Firmware file (∗∗∗∗∗.BIN) How to create: 1 Start up the program for writing to CD. 2 Load a blank disc in the CD-R/CD-RW drive. 3 Enter "PIONEER" as the volume label. 4 Select the .BIN file. 5 Write the latest version of the firmware in ISO 9660 format. While the screen shown at left is being displayed, updating is in progress. DO NOT TURN OFF THE POWER DURING UPDATING. When the screen with the Pioneer logo is displayed, updating is completed. The time required for updating is about 2 minutes. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 4. How to confirm the version of the firmware Press the ESC then the CHAP key on the remote control unit for servicing. The version of the firmware is labeled ROM NUMBER. Check if the version is the latest one. YKD9601A AREA:K 10 02AA 1.16 1389FE ROM NUMBER REGION:1 REG CHK SUM CHK FL VERSION CHIP VERSION How to interpret the version code: Number of releases on the same release date Release date:(Example:2009.6.01) 9: Year 6: Month (1-9 [Jan-Sep], A-C [Oct-Dec]) 01: Day Fixed Y K D 9 6 0 1 A 5. Troubleshooting 1 If updating of the firmware failed If the main unit was turned off during updating, it cannot initialize and start up again properly. In such a case, replace the flash ROM on the DVD MT PCB Assy. 2 If updating of the firmware using the disc for updating failed • Was the disc for updating recognized properly? Check if the volume label of the disc is PIONEER. • Is playback of a disc other than the disc for updating possible? If playback of a test CD is also impossible, a reading section, such as PU, may be defective. In such a case, repair the defective part first. If playback of a test CD is possible, the disc for updating may be defective. Check for any scratches or foreign matter, such as fingerprints, on the reading surface. If no problem is found with the disc, create a new disc for updating again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING SECTION NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to b mark on product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F PACKING SECTION PARTS LIST Mark No. Description Part No. > 1 Power Cable 120Q119905 2 Audio/Video Cable 06EHBA2002 3 Remote Control 076E0PP141 4 . . . . . . . . 5 Operating Instructions (Es) J2M21101A 6 Operating Instructions (En/Fr) J2M21121A 7 . . . . . . . . 8 . . . . . . . . 9 Package 792WHAA301 10 Gift Box 793WCDE117 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 9.2 EXTERIOR SECTION CONTACT SIDE NON-CONTACT SIDE A A B B D D E E C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F EXTERIOR SECTION PARTS LIST Mark No. Description Part No. 1 DVD MT PCB ASSY A2M211A130 2 OPERATION PCB ASSY A2M211A270 3 USB PCB ASSY A2M109AFA0 > 4 POWER PCB ASSY A2M211A240 5 Deck CD 169B00047A 6 . . . . . . . . 7 Tray Front 712WPAA176 8 Angle PCB 761WSAA156 9 Cushion,Leg VEB1349 10 Cabinet,Top 702WSBA078 11 Spring Earth 743WKAA019 12 . . . . . . . . 13 Screw,Tap Tite(S)-R (3x5.5) 815223055U 14 Screw,Tap Tite(S) (3x5.5) 8107D3055U 15 Screw,Tap Tite(B)Pan (3x6) 810913060U 16 Screw,Tap Tite(P) (2.6x8) 811022680U 17 Screw,Tap Tite(P) 8110I2680U Bind WH7 (2.6x8) 18 Screw Pan M(3x6) 810213060U 19 Screw,Tap Tite(B) (3x6) 810923060S 20 Screw,Tap Tite(S) (3x6.3) 815223063U 21 Front, Cabi Assy 7A708A179A 22 Cord Jumper (CD502) 12C10H0601 23 Cord Jumper (CD601) 122H0B1003 24 . . . . . . . . 25 Cord Jumper (CD2301) 12C14O1902 26 . . . . . . . . 27 Cord Connector (CD2302) 06EH290901 28 Cord Connector (CD6601) 06EH250801 29 Spring Earth 753WUAA021 30 Spring Earth 753WUAA023 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10. SCHEMATIC DIAGRAM 10.1 DVD MT PCB ASSY (1/7) 1 MPEG/MICON/DSP SCHEM C4033 18PCH C4001 0.1 B C4020 0.1 B C4019 4.7 6.3V (2125) B C4045 0.0068 B C4070 1 B C4037 15P 50V CH C4089 0.015 B C4101 330P CH C4090 0.1 B C4102 330P CH C4002 10 10V (2125) B C4063 0.1 B C4072 100PCH C4058 18P CH C4007 0.1 B C4014 C4005 0.1 B C4059 0.0015 B C4038 1 B C4006 1 B C4031 0.1 B C4028 0.1 B C4012 100P CH C4032 4.7 B C4088 220P CH C4021 0.1 B C4003 0.1 B C4029 0.1 B C4030 10 10V (2125) B C4008 0.1 B C4046 C4039 10 25V KA_P C4044 470 6.3V YK_P C4047 1000 6.3V YK_P R4029 33 1/16W R4031 33 1/16W R4001 33 1/16W R4024 100K 1/16W R4006 10K 1/16W R4005 150 1/16W R4018 27K1/16W +-1% R4019 27K1/16W+-1% R4016 15K 1/16W+-1% R4015 10K1/16W+-1% R4039 5.1K 1/16W+-1% R4025 82 1/16W R4076 100 1/16W R401710K1/16W R4057 6.8 1/16W R4058 100 1/16W R4030 33 1/16W R4074 33 1/16W R4002 10K 1/16W R4054 33 1/16W R4053 33 1/16W TP4006 X4001 1003T02733 27MHz W813 W839 W829 W850 W842 W886 W870 W877 W878 W879 W880 W881 W849 W830 W824 B4003 EBMS160808 A102_RDC45 B4009 EBMS160808A 102_RDC45 B4012 EBMS160808 IC4001 MT1389FE/M-L MPEG/MICON IC 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 55 6 7 8 9 V+3 E F D A B C OP- OP+ RF V+3A TRIN AL AR TROUT XAMUTE ADAC_GND MDI1 V20 STBY A B C D E F V+3 LDO1 LDO2 V+1R8 DMSO FMSO TRCLOSE TROPEN/IOA TRSO FOSO OP+ OP- TRIN TROUT V1P4 RF V20 V1P4 GPIO14 DQM0 DQM1 DWE# DCAS# DRAS# DQ0 DQ1 LEM_SCL DQ2 MDI1 DQ3 LDO1 DQ4 LDO2 DQ5 DQ6 V+3 DQ7 DQ8 DMSO DQ9 DQ10 FMSO DQ11 DQ12 STBY DQ13 DQ14 TROPEN/IOA DQ15 DBA0 TRSO DBA1 MA0 FOSO MA1 MA2 USB_P_ON-L MA3 MA4 USBP MA5 MA6 USBN MA7 MA8 V+3D MA9 MA10 MA11 SDCLK SFLASH_CS SFLASH_DO SFLASH_DI SFLASH_CK V+1R8 USB_P_ON-L USB_FLAG SFLASH_CS USBN SFLASH_DO USBP SFLASH_DI IR LEM_STB SFLASH_CK LEM_DIO LEM_SCL HDMI_SDA V+3D HDMI_SCL USB_GND V+3D RXD/SQ TXD/LE RESET HDMI_CEC USB_FLAG LEM_STB LEM_DIO TRCLOSE DQ13 DQ12 DQ11 DQ10 PWDN# DQM0 DQ15 DQ14 V+1R8 V+3D DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 IR FROM/TO MEMORY/USB FROM/TO LOADER/MOTOR DRIVE 3.48 3.39 3.39 5.02 4.91 3.37 3.44 3.44 3.44 1.91 0.37 3.48 3.44 3.37 3.29 1.86 1.86 3.29 3.29 1.48 2.76 3.30 3.39 3.37 0.20 3.40 1.47 2.11 26.97 26.97 3.37 1.80 1.4 1.40 1.37 1.38 1.90 1.38 1.37 3.39 1.48 1.43 1.25 1.27 1.27 1.32 1.25 1.29 3.40 3.22 3.40 3.42 3.42 3.42 3.54 3.22 2 2 2.06 2.07 2.06 2.17 1.24 1.24 1.26 1.26 1.92 3.26 3.26 3.29 1.90 1.63 1.80 3.23 1.87 1.87 NC 1.87 3.36 3.36 1.4 NC AVDD18_2(RF) AVDD33_1(RF) XTALO XTALI V20 V14 MDI1 LDO1 VDD33_USB USB_DM USB_DP FG/GPIO2 FOSO TRSO FMSO DMSO AVDD33_2 LDO2 PAD_VRT VDD18_USB SF_CS SF_DO SF_DI SF_CK PRST# IR_IN 34 GPIO7/CKE RD0 RD1 RD3 RD4 RD2 RD5 RD6 RD7 DQM0 RD15 RD14 RD13 RD12 RD11 APLLCAP(A) ARF/ACLK/GPIO(A) ARS/ABCK/GPIO(A) ALF/ASDATA0/GPIO(A) ALS/ALRCK/GPIO(A) AL/ASDATA1/GPIO(A) AVCM(A) AR/ASDATA2/GPIO(A) ARS/ABCK/GPIO(A) RFIP(RF) RFIN/OPOUT(RF) RFH/OPINN(RF) RFG/OPINP(RF) DVDB(RF) DVDC(RF) AADVDD APLLVDD3 AVDD18 ADACVDD1 ADACVDD2 33 GPIO3/INT# 128 127 126 DVDD(RF) DVDE(RF) DVDF(RF) DVDD18 DVDD33 GPIO6(PD) GPIO13(PD) GPIO8(PD) GPIO9(PD) GPIO4(PD) UP1_6(PU)/SCL UP1_7(PU)/SDA GPIO11(P?) REXT/GPO5 DVDA(RF) IOA(TRCLOSE) STBY(TROPEN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F DVD MT PCB ASSY (1/7) (A2M211A130) 3 2 DSP SCHEMATIC DIAGRAM NOTE: THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE C4121 100P CH C4064 0.1 B C4035 0.1 B C4130 0.1 B C4045 0.0068 B C4040100P CH C4082 10 B C4063 0.1 B C4104 0.018 B C4057 100P CH C4013 0.1 B C4014 10 6.3V B C4059 0.0015 B C4023 0.1 B C4034 0.1 B C4012 100P CH C4091 0.1 B C4016 0.1 B C4080 220 6.3V YK_P C4046 470 6.3V YK_P C4039 10 25V KA_P C4044 470 6.3V YK_P R4034 100 1/16W R4046 560 1/16W +-1% R4061 75 1/16W+-1% R4009 2.7K 1/16W +-1% R4073 33K1/16W R4062 75 1/16W+-1% R4060 75 1/16W+-1% R4059 75 1/16W+-1% R4065 10K 1/16W R4066 33 1/16W R4057 6.8 1/16W R4075 4.7K 1/16W R4038 33 1/16W R4032 33 1/16W R4027 33 1/16W TP4003 JG4092 JG4093 JG4091 JG4094 TP4110 W832 W856 W855 W851 W840 W834 W833 W835 W886 W887 W845 W857 W858 W838 B4008 EBMS160808A 102_RDC45 B4007 MMZ1608R102CT B4010 EBMS160808A 102_RDC45 B4012 EBMS160808 A102_RDC45 NR4002 4D03WGJ0330T5E IC4003 R3112N291A-TR-FA RESET IC 1 2 3 4 5 001 9FE/M-L MICON IC 101 102 103 104 105 106 107 108 109 110 111 2 100 9 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 S D G Q4002 2N7002K-RTK/P SW V+3 AR V+3 XAMUTE GPIO14 V+5H R/CR V+3A B/CB V+3 G/Y V+1R8 CVBS PWDN# ADAC_GND D_GND R/CR B/CB G/Y CVBS TX2+ TX2- AL AR V+1R8 XAMUTE ASPDIF TX1+ TX1- GND TX0+ TX0- TXC+ TXC- A_GND TX2+ TX2- V+3D TX1+ TX1- TX0+ TX0- TXC+ TXC- V+5H HPD HDMI_SCL HDMI_SDA ASPDIF HDMI_CEC D_GND HPD V+1R8 MA3 MA2 MA1 MA0 MA10 DBA1 V+3D DBA0 DRAS# DCAS# DWE# MA4 MA5 MA6 RXD/SQ TXD/LE RESET DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 DQ15 DQ14 V+1R8 SDCLK DQM1 MA11 MA9 MA8 MA7 V+3 V+3D FROM/TO HDMI TO AUDIO JACK DMH111 TO VIDEO JACK FROM/TO POWER PORT 3.2 3.1 PCB130 3.01 3.01 1.81 3.01 3.01 3.18 1.22 1.23 1.50 1.71 1.71 1.55 2.11 1.95 1.90 1.56 1.62 3.21 2.94 2.65 2.95 1.94 2.04 2.25 2.10 3.27 3.01 3.01 1.81 3.01 3.01 2.30 2.20 2.10 2.20 3.57 1.77 1.68 1.40 1.42 1.40 1.37 1.38 1.90 1.38 .37 0.0 2.31 3.37 0 2.12 3.23 1.87 1.87 NC 1.87 3.36 3.36 1.42 1.31 1.39 3.15 2.19 2.14 2.14 1.25 1.48 NC V_OUT VSS NC CT VDD NC RD15 RD14 RD13 RD12 RD11 DQM1 SDCLK RA11 RA9 RA8 RA7 RA5 RA4 CAS# RAS# RWE# RD9 RD10 RA6 65 BA0 RA10 BA1 RA0 RA1 RA2 RA3 EXT_RES AVDD33_VPLL TXCP TX0N TX0P TX1N G/Y(V) B/CB/PB(V) R/CR/PR(V) APLLCAP(A) ARF/ACLK/GPIO(A) ARS/ABCK/GPIO(A) ( ) AR/ASDATA2/GPIO(A) ARS/ABCK/GPIO(A) AADVDD APLLVDD3 DACVDDB DACVDDC AVDD18_TX1 AGND18_TX1 AVDD18_TX1 DVDD18 DVDD33 ADVCM/GPIO20(ADC) AKIN2/GPIO19(ADC) AKIN1/GPIO21(ADC) FS(V) CVBS/C(V) VREF/GPIO14 97 96 98 RD8 DVDD18 GPIO10(PD) SPDIF/GPIO12(PD) TXCN TX2P TX2N TX1P 4.9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.2 DVD MT PCB ASSY (2/7) Therefore, when replacing, be sure to use parts of identical designation. When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". The > mark found on some component parts indicates the importance of the safety factor of the part. : The power supply is shown with the marked box. N MEMORY/USB SCHEMA IC4005 M12L64164A-5TG2R 64Mbit(4M*16) 200MHz SDRAM IC 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 31 32 33 34 35 36 37 38 39 4 40 41 42 43 44 45 46 47 48 49 5 50 51 52 53 54 6 7 8 9 Q K U C4049 0.1 B C4048 0.1 B C4055 0.1 B C4054 0.01 B C4053 0.01 B C4052 0.1 B C4051 0.1 B C4043 0.01 B C4050 220 6.3V YK_P R4026 10K 1/16W R4020 10K 1/16W TP4001 W810 B4006 EBMS160808A102_RDC45 DQ15 DQ0 SFLAS DQ14 DQ1 SFLAS DQ13 DQ2 DQ12 DQ3 GPIO14 SFLASH_CS SFLASH_CK DQ11 DQ4 SFLASH_DI SFLASH_DO DQ0 DQ1 DQ2 V+5V_ DQ3 DQ10 DQ5 DQ4 DQ5 DQ6 DQ9 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 USB_P DQ8 DQ7 DQ13 DQ14 DQ15 MA0 MA1 MA2 DQM0 MA3 MA4 MA5 DQM1 DWE# MA6 MA7 USB_F MA8 SDCLK DCAS# MA9 MA10 MA11 DRAS# DWE# DQM1 DQM0 DCAS# DRAS# DBA1 MA11 DBA0 GPIO14 DBA0 SDCLK USB_P_ON-L MA9 DBA1 USB_FLAG USBN USBP MA8 MA10 IR LEM_STB LEM_P LEM_DIO MA7 MA0 IR LEM_SCL V+3D MA6 MA1 LEM_S USB_GND LEM_D MA5 MA2 LEM_S V+3D MA4 MA3 V+5V LEM_PWR V+5V_USB USBN D_GND USBP USB+5 FROM HDMI FROM POWER PORT FROM/TO MPEG/MICON/DSP VSS DQ12 DQ11 DQ10 DQ9 VDDQ DQ8 VSS UDQM CKE NC A9 A10/AP A0 A2 A1 A3 VDD VSS A4 NC/RFU NC NC 3.3 1.5 3.3 1.5 1.5 0.0 1.5 1.5 3.3 1.5 1.5 0.0 1.5 3.3 2.0 3.3 3.3 3.3 3.3 3.3 1.0 0.0 1.7 1.7 1.7 1.7 3.3 0.0 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.9 1.7 1.9 0.0 1.5 3.3 1.5 1.5 0.0 1.5 1.5 3.3 1.5 1.5 0.0 1.5 0.0 WE# CAS# RAS# CS# VDD CLK A11 A8 A7 A6 A5 BA1/A12 BA0/A13 LDQM VDD DQ7 DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ VSSQ DQ15 VSSQ DQ13 VDDQ DQ14 DQ0 VDDQ DQ1 DQ2 VSSQ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F DVD MT PCB ASSY (2/7) (A2M211A130) CAUTION: DIGITAL TRANSISTOR NOTE:THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE B SCHEMATIC DIAGRAM CP4004 A2001WV-5A 1 2 3 4 5 IC4004 ES25M16A 16M SERIAL FLASH IC 1 2 3 4 5 6 7 8 IC4007 MP6205DD High Side SW(500mA) IC 1 2 3 4 5 6 7 8 Q4004 KTC3875S_Y_RTK LED CTL Q4003 KRC103SRTK USB_P_ON-H L4001 DLP11SN900HL2L 1 2 3 4 L4003 180uH D4002 AVRL161A1R1NT D4003 AVRL161A1R1NT CP4002 00_6232_011_006_800+ 1 10 11 2 3 4 5 6 7 8 9 C4122 100P CH C4062 0.1 B C4076 0.1 B C4077 0.1 B C4114 1 B C4135 100PCH C4134 33P CH C4133 100P CH C4024 330 6.3V YK_P R4043 33 1/16W R4033 150 1/16W R4047 10K 1/16W R4040 10K 1/16W R4021 10K 1/16W R4028 4.7K 1/16W R4048 2.2K 1/16W R4007 10K 1/16W R4010 47K 1/16W R4004 10K 1/16W R4044 10K 1/16W TP4035 TP4004 W844 W831 W810 W809 SFLASH_CS SFLASH_DO SFLASH_CK SFLASH_DI V+5V_USB USB_P_ON-L USB_FLAG GPIO14 D_GND LEM_PWR IR LEM_STB LEM_DIO LEM_SCL USBN USBP USB+5V (CP6601) FROM/TO USB/KARAOKE FROM/TO DISPLAY 0 4.67 (CP601_1) PCB130 DMH111 0 0 3.44 3.5 3.44 5.3 5.3 0 0 NC GND(SHIELD) VBUS PGND USBN USBP VCC VSS WP# SO CE# SCK SI NC 0.3 1.2 3.3 0 3.3 0 1.0 1.1 DGND IR DGND DGND 0 0 3.3 GND EN VIN VIN VOUT VOUT /FLG NC LEM_DIO LEM_STB LEM_CLK EV+3.3/6V EV+3.3/6V V+5V LED_CONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.3 DVD MT PCB ASSY (3/7) ATTENTION: LES PIECES REPAREES PAR UN ETANT DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES CAUTION: SINCE THESE PARTS MARKED BY ARE CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY LOADER/MOTOR DRIVE SCH CP2301 LD07T2-24ND-03 PICK-UP(GOLD) 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 3 4 5 6 7 8 9 D2302 KDR730E-RTK/P D2301 KDR730E-RTK/P 15 16 17 18 19 20 21 22 23 24 25 26 27 28 30 Q2306 UM6K1N VR CTL 1 2 3 4 5 6 CP2302 A2001WV-9A LOAD/SLED/SPINDLE 1 2 3 4 5 6 7 8 9 DK2301 CMS-LS1S CD2301 FFC05241900406T1-A04 (FFC P=0.5mm L=190mm) CD2302 EH290901 (P=2.0mm L=90mm) Q2301 KTC3875S_Y_RTK VCR_CTL C2325 100P CH C2323 0.22 B C2311 0.1 B C2307 0.1 B C2322 0.22 B C2303 0.1 B C2301 0.1 B C2302 0.1 B C2306 100 10V YK_P C2304 100 6.3V KA_P R2316 3.3K 1/16W R2341 10K1/16W R2343 10K1/16W R2310 10K 1/16W R2319 10K 1/16W R2342 10K 1/16W R2326 1 1/4W (2125) R2307 100K 1/16W R2306 100K 1/16W R2308 10K 1/16W R2309 10K 1/16W R2328 10K 1/16W R2344 10K 1/16W JG2318 JG2319 JG2316 JG2317 JG2323 T T TP2333 JG2326 JG2325 JG2328 JG2327 JG2322 JG2321 JG2320 TP2330 W889 (R2313) W802 W891 (R2325) V+5S TROPEN/IOA MDI1 E V+5S V20 F B A RF TROPEN/IOA D C T- T+ F+ F- FMSO TRSO STBY LOAD+ LOAD- V+6A TROUT TRIN V+3F OP- OP+ MOT_SPDL+ MOT_SLED- MOT_SLED+ MOT_SPDL- V+3F MOT_SLED- MOT_SLED+ T+ T- NC NC NC NC NC 5.0 0.0 0.0 1S 1D 1G 2D 2S 2G 0.0 0.0 0.0 0.2 4.9 0.0 3.2 1.4 1.4 NC 1.4 0 0 1.5 6.0 3.0 3.0 3.0 0 LOAD+ LOAD- SW_OUT COM SW_IN SPD- SPD+ SLD- SLD+ NC LD-GND CD-VR(780) NC VCC E MPD VC GND F B A CD-LD(780) DVD-LD(650) DVD-VR(650) HFM-VCC RF SW D C T- T+ F+ F- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F DVD MT PCB ASSY (3/7) (A2M211A130) NOTE: THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE RIVE SCHEMATIC DIAGRAM IC2301 AM5766 MOTOR DRIVER IC 1 10 11 12 13 14 15 16 17 18 19 2 20 21 22 23 24 25 26 27 28 29 3 30 4 5 6 7 8 9 Q2302 HN1A01FU-Y CD CTL 1 2 3 4 5 6 Q2303 HN1A01FU-Y DVD CTL 1 2 3 4 5 6 C2305 0.1 B C2320 100 10V YK_P C2321 100 10V YK_P R2317 10K 1/16W TP2342 TP2341 TP2332 TP2301 TP2329 TP2331 W888 (R2311) W889 (R2313) W802 W891 (R2325) NR2301 4D03WGJ04R7T5E V20 A B C V+3F D E F MDI1 LDO2 LDO1 LDO1 V1P4 TROUT TRIN STBY DMSO FMSO TRCLOSE TROPEN/IOA TRSO FOSO OP+ LDO2 OP- RF V+3F V+5S V+6A D_GND M_GND V1P4 FOSO DMSO TRCLOSE TROPEN/IOA MOT_SPDL- MOT_SPDL+ F+ F- LOAD+ LOAD- FROM POWER PORT DMH111 3.3 3.3 0 3.3 3.3 0 2.5 2.5 3.1 2.0 3.1 2.0 PCB130 FROM/TO MPEG/MICON/DSP Vcc1 VOTR- VOTR+ VOSL+ VOSL- VOFC- VOFC+ REGO 1 VINSL+ REGO 2 TRB_1 VINFC REV FWD VOTK- VOTK+ VOLD+ VOLD- VCTL Vcc2 GND VINLD TRB_2 VINTK BIAS MUTE PGND PGND OPOUT OPIN NC NC NC NC NC NC 3.2 1.4 1.4 NC 1.4 0 0 1.5 6.0 3.0 3.0 3.0 0 NC NC NC 1.4 1.7 0 0 0 6.0 0 0 4.0 1.8 3.0 3.0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.4 DVD MT PCB ASSY (4/7) 6 AUDIO JACK SCHEMAT H E J8001 RCA-117-01 COAXIAL 1 2 C8051 47 16V NA_P C8053 47 16V NA_P Q8005 KTC3875S_Y_RTK COAXIAL DRIV KR XA C8036 1 B C8042 100P CH C8057 C8056 C8074 330P CH C8038 1 50V KA_P R8040 100K 1/16W R8060 68K 1/16W +-1% R8059 12K 1/16W+-1% R8049 12K 1/16W +-1% R8048 68K 1/16W +-1% R8036 3.9K 1/16W R8037 1.8K 1/16W R8035 2.4K 1/16W R8038 220 1/16W R8070 2.2K 1/16W R8039 68 1/16W R 22K W859 B8004 EBMS160808A102_RDC45 V+5V XAMUTE MUTE_PWR V+12 V+5V D_GND ASPDIF XAMUTE ASPDIF AL AR GND AL AR GND V+12 FROM POWER PORT FROM MPEG/MICON/DSP 2.8 2.1 5.0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F DVD MT PCB ASSY (4/7) (A2M211A130) 4 5 CAUTION: DIGITAL TRANSISTOR NOTE: THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE SCHEMATIC DIAGRAM Q8014 KTA1504S_Y_RTK JACK MUTE(H:ON) H1 H2 E J8003 RCA-207B(CUSN)-02 AUDIO OUT 1 2 3 IC8003 NJM4565M(TE1) AUDIO AMP IC 1 2 3 4 5 6 7 8 Q8019 2SD1306NE MUTE SW Q8018 2SD1306NE MUTE SW Q8013 KRC407-RTK/P XAMUTE(L:ON) C8069 82P CH C8072 0.1 B C8067 82P CH C8057 560P CH C8056 560P CH C8058 0.1 B C8059 0.1 B C8078 330P CH C8077 330P CH C8073 47 16V YK_P C8070 47 16V YK_P C8066 100 10V YK_P R8069 22K 1/16W R8063 22K 1/16W +-1% R8074 22K 1/16W R8084 220 1/16W +-1% 060 1/16W -1% 059 16W+-1% 8049 1/16W +-1% 8048 1/16W -1% R8085 220 1/16W +-1% R8066 10K 1/16W +-1% R8067 22K 1/16W +-1% R8061 10K 1/16W +-1% R8056 4.7K 1/16W R8014 330 1/16W R8073 22K 1/16W R8079 220 1/16W +-1% R8078 470 1/16W R8070 2.2K 1/16W R8057 22K 1/16W R8081 470 1/16W R8080 220 1/16W +-1% XAMUTE MUTE_PWR V+12 DMH111 PCB130 6.3 6.3 6.3 6.3 6.3 6.3 0 12.5 + - - + +VS -VS 0 0.3 0.1 0 2.7 L R -1.2 0 0 -1.2 0 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.5 DVD MT PCB ASSY (5/7) VIDEO JACK SCHEMAT L7301 10uH0405 IC7303 MM1510XNRE VIDEO DRIVER 1 2 3 4 5 6 L7303 1.5uH MLF1608 L7304 1.5uH MLF1608 L7305 1.5uH MLF1608 C7303 0.1 B C7301 0.1 B C7312 1 10V B C7307 100P CH C7309 100P CH C7310 100P CH C7308 100P CH C7304 100P CH C7313 100P CH C7311 100 10V YK_P R7323 75 1/16W TP7302 TP7303 W819 B7303 BLM18BD601SN1D R/CR B/CB G/Y C CVBS V+5V CVBS G/Y B/CB R/CR V+5V D_GND D_GND FROM MPEG/MICON/DSP FROM POWER PORT U/B 4.84 0 1.45 4.84 1.09 1.55 CVBS Y/G V/R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F DVD MT PCB ASSY (5/7) (A2M211A130) 7 8 9 10 NOTE: THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE SCHEMATIC DIAGRAM H1 H2 E H1 H2 E J7302 RCA-405A(CUSN)-08 CVBS/Y/U/V 1 2 3 4 5 6 D7310 UDZSNP6.8B D7312 UDZSNP6.8B D7311 UDZSNP6.8B IC7303 MM1510XNRE VIDEO DRIVER 1 6 C7322 22P CH C7318 1000 6.3V YK_P C7317 470 6.3V YK_P C7319 1000 6.3V YK_P C7316 470 6.3V YK_P R7317 75 1/10W +-1% W873 W872 W871 W895 W897 W896 B7305 BLM18BD102SN1 B7304 BLM18BD102SN1 CVBS_OUT U_OUT V_OUT Y_OUT PCB130 DMH111 4.84 09 1.55 CVBS Y U V CVBS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.6 DVD MT PCB ASSY (6/7) NOTE:THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE HDMI SCHEMATIC D R5919 W836 W893 W861 W865 W892 W863 B59 BLM18B TX2+ V+5H TX2- TX1+ TX1- V+3D TX0+ TX0- TXC+ TX2+ TX2- TXC- TX1+ TX1- TX0+ TX0- V+5H TXC+ TXC- HPD HDMI_SCL HDMI_SDA HDMI_CEC HDMI_SCL D_GND HDMI_SDA A_GND HPD V+3D HDMI_CEC A_GND FROM/TO MPEG/MICON/DSP TO MEMORY/USB FROM POWER PORT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F DVD MT PCB ASSY (6/7) (A2M211A130) HEMATIC DIAGRAM CP5901 E110001-98 HDMI CONNECTOR 1 10 11 12 13 14 15 16 17 18 19 2 3 4 5 6 7 8 9 L5902 EXC28CG900U 1 2 3 4 5 6 7 8 L5901 EXC28CG900U 1 2 3 4 5 6 7 8 D5901 MA111 Q5906 UM6K1N PROTECT 1 2 3 4 5 6 C5905 100P CH C5921 4.7 10V (2125) B C5920 0.1 B C5925 100P CH C5901 0.01 B C5906 100P CH R5920 1.5K 1/16W R5919 1.5K 1/16W R5902 27K 1/16W W869 W884 W862 W860 W867 W868 W808 B5904 BLM18BD601SN1D B5903 BLM18BD601SN1D TX2+ TX2- TX1+ TX1- TX0+ TX0- TXC+ TXC- V+5H HDMI_SCL HDMI_SDA HPD V+3D HDMI_CEC PCB130 DMH111 0.2 0 4.9 0 0.2 4.9 NC TX2+ TX1+ TX1- TX0+ TX0- TXC- TXC+ TX2- 1S 1D 1G 2D 2S 2G D2+ D2-S D2- D1+ D1-S D0+ D0-S D0- CLK-S CLK- CEC SCL SDA GND POWER HOTPLUG NC D1- CLK+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.7 DVD MT PCB ASSY (7/7) :LES PIECES REPAREES PAR UN ETANT DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES ATTENTION :SINCE THESE PARTS MARKED BY ARE CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY CAUTION NOTE:THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE POWER PORT SCHEMAT IC4006 LD1117AL-ADJ-AA3-A-R REG+1.8V IC 1 2 3 S D G Q4005 KMA2D3P20S-RTK/P +6V SW CP4003_1 IMSA-9604S-15C 1 10 11 12 13 14 15 2 3 4 5 6 7 8 9 Q4006 KRC102SRTK P.CON SW C4096 1 B C4036 100P CH C4056 0.01 B C4093 1 B C4112 0.001 B C4086 1 B C4099 0.001 B C4098 1 B C4078 0.1 B C4100 220 6.3V YK_P R4012 68 1/16W +-1% R4011 15 1/16W R4013 39 1/16W +-1% R4055 10K 1/16W R4050 10K 1/16W R4051 1M 1/16W TP4002 W820 (B4004) W822(B4006) W821 (B4003) (CP502) FROM/TO POWER ADJ VOUT VIN 3.3 1.9 0.6 AT+3.3V GND(D) GND(D) P.ON-H(STBY L) AT+3.3V AT+3.3V 0 6.3 6.3 2.8 0 0 GND(M) GND(M) AT/P.CON+6V AT/P.CON+6V GND GND P.CON+12V P.CON+5V GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F DVD MT PCB ASSY (7/7) (A2M211A130) CAUTION: DIGITAL TRANSISTOR T SCHEMATIC DIAGRAM Q4001 KTC3875S_Y_RTK ADACVDD REG C4011 0.1 B C4116 0.001 B C5923 0.01 B C4139 2.2 10V B C4010 1 B C5922 0.1 B C5924 0.1 B C4140 4.7 10V (2125) B R5901 10K 1/16W R4063 10K1/16W R5921 10K 1/16W R4022 100K 1/16W R4035 390 1/16W +-1% R4008 1.5K 1/16W +-1% TP4036 W826 W815 820 04) 006) B4002 EBMS160808A102_RDC45 B4001 EBMS160808A102_RDC45 IC4009 S-1170B52UC-OULTFG VBUS REG(0.9W/1A} IC 1 2 3 4 5 IC5902 NJM2882F05 HDMI+5V REG(300mA) IC 1 2 3 4 5 V+5V V+5V V+12 MUTE_PWR D_GND V+5S V+5S V+3F V+3F V+6A V+6A M_GND D_GND V+5V D_GND V+5H V+5H V+3A ADAC_GND PWDN# V+3 V+3 V+1R8 V+1R8 D_GND LEM_PWR V+5V D_GND V+5V_USB TO MEMORY/USB TO LOADER/MOTOR DRIVE TO AUDIO JACK 5 1.2 5.8 0 5.4 TO HDMI FROM/TO MPEG/MICON/DSP TO VIDEO JACK 4.7 NC GND CE VDD VOUT 6.0 0 5.0 (MPEG/SDRAM/FLASH) 5.0 3.9 3.3 (AUDIO AMP) (VIDEO/OPT/COAX) VOUT GND VIN CTL NB (MOTOR) (F/E) (OPU) (CORE) DMH111 PCB130 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.8 OPERATION PCB ASSY Switches SW667 : POWER DISPLAY SCHEMATIC NOTE: THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. SW666 EVQ11L05R OPEN/CLOSE SW667 EVQ11L05R POWER SW664 EVQ11L05R PREV SW662 EVQ11L05R NEXT SW660 EVQ11L05R STOP SW663 EVQ11L05R PLAY Vout B+ GND OS651 KSM-2001TC2P 1 2 3 D660 LTL-1CHEE-002A HDMI LED(RED) CP603 B2013H02-3P 1 2 3 CP604 B2013H02-3P 1 2 3 V651 GYXS-2511CSR 1 10 11 12 13 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 5 6 7 8 9 C676 C651 0.1 25V B C675 1 10V B C653 47 6.3V KA_P C674 47 6.3V KA_P R657 10K 1/16W R658 10K 1/16W R666 47 1/16W R656 1K 1/16W R655 1K 1/16W IR EV+3OR5 GR5 GR4 GR3 GR2 GR1 DP/KS9 S7/KS8 S6/KS1 S5/KS2 S4/KS3 S3/KS4 S2/KS5 S1/KS6 GR1 GR2 GR3 GR4 GR5 S7/KS8 DP/KS9 SW2 S1/KS6 S2/KS5 S3/KS4 S4/KS3 S5/KS2 S6/KS1 EV+3OR5 IR SW1 PCB271 3 2.66 0 3.3 2.91 3.3 3.3 3.3 NC NC NC 3.3 3.3 3.3 3.3 3.3 2.49 2.47 3.3 2.96 NC NC 1.161.141.141.111.21 1 1.961.861.621.59 1.8 1.6 1.8 K1 K2 VDD SG1/KS1 SG2/KS2 SG3/KS3 SG4/KS4 SG5/KS5 SG6/KS6 SG7/KS7 SG8/KS8 SG9/KS9 SG10/KS10 SG13/GR5 SG12/GR6 SG11/GR7 VDD GND GR4 GR3 DIG5 DIG4 DIG3 DIG2 DIG1 DP1/2 S1(A) S2(B) S3(C) S4(D) S5(E) S6(F) S7(G) DIG1 DIG2 DIG3 DIG4 DIG5 F E C B A G D DP1 DP2 POWER GND POWER GND NC DEH159 SW1 SW1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F OPERATION PCB ASSY (A2M211A270) Switches SW660 : STOP SW662 : NEXT SW663 : PLAY SW664 : PREV SW666 : OPEN/CLOSE 1 CHEMATIC DIAGRAM NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE IC601 ET6202 LEM DRIVER IC 1 2 20 21 22 23 24 25 26 27 28 3 4 5 6 7 8 9 D604 MA111 MS1_0 CD601 2H0B1003 FFC(1.0mm pitch) CP601_1 00_6232_011_102_800+ 1 10 11 2 3 4 5 6 7 8 9 C604 33P 50V CH C676 0.1 25V B C675 1 10V B C653 47 6.3V KA_P R657 10K 1/16W R662 51K 1/16W R658 10K 1/16W GR4 GR5 LEM_CLK LEM_DIO LEM_STB IR EV+3OR5 S6/KS1 LEM_STB LEM_CLK LEM_DIO OP_GND FROM/TO MEMORY/USB (CP4002) PCB270 DEH158 0 0 2.78 2.81 3.07 2.66 0 3.3 2.91 2.49 2.47 3.3 2.96 2.96 3.23 3.29 3.24 DGND IR DGND DGND LEM_DIO LEM_STB LEM_CLK EV+3.3/6V EV+3.3/6V V+5V LED_CONT OSC DI/O CLK STB K1 K2 VDD SG1/KS1 SG2/KS2 SG13/GR5 VDD GND GR4 GR3 GND GR2 GR1 GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.9 USB PCB ASSY NOTE: THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE USB/KARAOKE SCHEMA C6601 100 16V KA_P CP6601 A2001WR-5A 1 2 3 4 5 CD6601 EH250801 SHIELD CABLE B6601 HCB2012K-600T2 (60 OHM 2.5A) B6602 HCB2012K-600T2 (60 OHM 2.5A) (CP4004) FROM/TO MEMORY/USB USBP USBN PGND VBUS GND(SHIELD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F USB PCB ASSY (A2M109AFA0) E SCHEMATIC DIAGRAM CP6602 USB-A1D05F-4B4N USB CONNECTOR 1 2 3 4 C6604 0.01 B B6601 HCB2012K-600T25 (60 OHM 2.5A) B6602 HCB2012K-600T25 (60 OHM 2.5A) +5V GND USB_DN USB_DP PCBFA0 DEH160 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.10 POWER PCB ASSY 1.6A 250V CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE 1.6A 250V{F501} ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE N’UTILISER QUE DES FUSIBLE DE MEME TYPE 1.6A 250V{F501} ATTENTION: LES PIECES REPAREES PAR UN ETANT DANGEREUSES AN POINT DE VUE SECURITE N’UTILISER QUE CELLS DECRITES DANS LA NOMENCLATURE DES PIECES CAUTION: SINCE THESE PARTS MARKED BY ARE CRITICAL FOR SAFETY,USE ONES DESCRIBED IN PARTS LIST ONLY POWER SCHEMATIC C510 47 400V WXA C523 L501 JLB20124 COIL,LINE FILTER 1 2 3 4 IC504 PS2561AL1-1-V(W) PHOTO COUPLER IC 1 2 3 4 IC501 KIA431A-AT VOLTAGE CTL IC 1 2 3 SH501 YQ-12 IC502 MIP2K4 POWER CTL IC 1 2 3 4 5 7 8 R505 100K 1W J501_1 YKE31-0149N AC INLET 1 2 T501 81220214 1 10 2 3 4 5 6 7 8 9 F501 392_1160_0440 1.6A(T) 250V CD501 P201-2476-2 AC120V_60Hz(US) D514 MTZJ30B D511 MTZJ30B D515 MTZJ30B D510 1N4937-F D502 1N4005-EIC D504 1N4005-EIC D509 SR240-F D505 1N4005-EIC D507 RL106F-E D527 SR240-F D512 1N4937-F D508 MA2JF210GL D503 1N4005-EIC C508 0.001 50V B C504 0.1 25V B C515 0.01 PP C513 47P 2KV SL C509 0.001 KX C516 0.0015 KX C506 220P 2KV R C518 220P 2KV R C505 0.0022 50V B C502 0.22 ECQUL C507 0.1 25V B C503 0.1 50V B C511 4.7 50V YK_P C522 R501 1.5M 1W(RCR) R503 15K 1/16W R502 270K 1/16W R514 2.2K 1/4W R515 1K 1/16W R513 3.3K 1/16W B501 W4BRH3.5X6X1.0X2 NC 13.18 0 240.4 81.45 2.42 0 0 2.86 5.35 12.05 1.49 0 1.49 14.5 0 0 298 Vdd FB CL Vcc D S S 2.45 6.44 2.55 9.9 0 3.9 10.9 GND OUT IN N L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F POWER PCB ASSY (A2M211A240) PCB240 DPH020 NOTE: THE DC VOLTAGE EACH PART WAS MEASURED WITH THE DIGITAL TESTER DURING PLAYBACK. NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE CHEMATIC DIAGRAM C521 120 16V ZL_P C527 330 16V ZL_P C523 470 25V YK_P C526 470 6.3V YK_P CD6003 PD03120010A BT601 R6P(AR)2P_WO_GM_PET_EU UM-4 CP502_1 IMSA-9604S-15C 1 10 11 12 13 14 15 2 3 4 5 6 7 8 9 L505 22uH Q510 KTA1281-Y(GP) P.CON+12V SW D510 1N4937-F D509 SR240-F D527 SR240-F D512 1N4937-F TM601 076E0PP141 CD502 FFC125150600610T1-G00 CORD JUMPER Q509 KTC3875S_Y_RTK REG+12V CTL Q511 KTC3875S_Y_RTK REG+12V CTL C541 0.01 50V B C506 220P 2KV R C518 220P 2KV R C531 4.7 10V (2125) B C530 4.7 10V (2125) B B C535 220 16V YK_P C522 1000 6.3V ZL_P R512 1M 1/16W R519 1M 1/16W R542 470 1/16W +-1% R504 10 1/16W 514 1/4W R540 680 1/16W R521 10K 1/16W R509 1K1/16W R543 4.7K 1/16W +-1% R541 5.6K 1/16W +-1% R516 10 1/16W R517 1.2K 1/16W +-1% R518 3.3K 1/16W +-1% W806 B502 HCB2012K-600T25 IC503 R1190H050D-T1-F +5V REG(1A,0.9W) IC 1 2 3 4 5 GND NC ACCESSORY FROM/TO POWER PORT 0 0 2.86 5.35 2.05 NC 4.5 12.3 5.0 VSS 3.2 0 NC P.CON+12V GND P.CON+5V AT+3.3V AT+3.3V GND(D) GND(D) P.ON-H(STBY L) AT+3.3V AT/P.CON+6V AT/P.CON+6V GND(M) GND(M) 5.0 6.3 GND GND (CP4003) 5.1 4.5 12.9 12.6 12.3 12.9 VIN VOUT SII:SW (RCO:NC) SII:NC (RCO:SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 10.11 WAVEFORMS AUDIO JACK VIDEO DVD MT PCB ASSY Note : The encircled numbers denote measuring point in the schematic diagram. MPEG/MICON/DSP 1 IC4001-pin60 (SDCLK) V:1.0V/div. H:2ns/div. IC4001-pin80(SPDIF) V:1.0V/div. H:200ns/div. 2 3 4 5 6 7 8 9 10 J8001-pin2 (Coaxial Out) V:500mV/div. H:200ns/div. J8003-Pin3 (Lch_Out) J8003-Pin2 (Rch_Out) OPERATION PCB ASSY 1 DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 11. PCB CONNECTION DIAGRAM 11.1 DVD MT PCB ASSY SIDE A SIDE A DVD MT PCB ASSY 1 33 65 97 CP5901 IC4005 CP2302 CP4004 J8001 J7302 J8003 L5901 L5902 R4066 L4001 CP2301 NR4002 R4027 C4050 C8038 R8039 Q8005 R8038 R8037 R8036 Q8018 Q8019 R8085 C8077 R8084 C8078 R8081 R8078 C8070 C8073 R8080 R8079 IC8003 C8067 R8063 R8061 R8048 R8049 C8051 C8053 C8066 C8058 C8059 B8004 Q8014 Q8013 R8056 C7316 C7317 C7319 C7318 W884 R7317 C7307 C7309 C7310 C4047 C4039 C7311 C4028 Q4002 R4034 W849 W850 IC2301 C2306 R2316 C2307 R2310 C2311 Q2302 Q2303 NR2301 C2320 C2321 R2306 W888 W889 W891 R2326 R2319 R2328 R2342 C2322 R2344 C2323 R2343 R2341 C4046 C4044 R4046 X4001 R4025 R4024 IC4003 IC4006 C4100 W822 R4011 R4012 R4013 W820 Q4005 C4078 L7301 W819 C4080 R4075 C4104 IC4009 R4063 IC4007 C4076 W844 C4077 IC5902 C4130 R5921 C5924 C5922 R5901 C5923 IC4004 D4002 D4003 W831 W809 R4048 W824 R4054 R4043 W810 R4047 R4040 R4044 C4114 C8036 W802 R4018 R4019 R4015 R4016 W881 W870 W880 W877 W879 W878 C4070 R4005 R4076 R4030 R4074 W839 C4023 C4122 C4133 C4043 C4051 C2305 C8074 W861 W860 W868 W862 W869 C5925 C4096 C4086 C4121 W833 R4002 R4017 R4029 R8073 W834 C4140 B4003 C4082 R4004 R4059 R4062 R4060 R4061 C4031 C4021 R4053 C2304 C4024 CP4002 L4003 IC4001 R4039 W832 C4040 W808 C5905 B4008 C2325 R2317 W835 C4036 CP4003_1 W872 W873 W871 D7312 D7311 D7310 DMH111A NOTE FOR PCB DIAGRAMS : 1. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 2. View point of PCB diagrams. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 SIDE B SIDE B DVD MT PCB ASSY Q5906 B4007 R8035 C8042 R8040 R8057 R8069 R8074 R8059 R8060 R8066 R8067 C8069 C7322 C5920 C5921 C5901 C7301 C7303 C7308 C7313 C7304 C4006 C4088 R4031 R4001 R8070 C4014 C4059 C4045 R4073 R4009 Q2306 Q2301 R2308 R2309 R2307 C2301 D2302 D2301 C4063 B4012 R4057 C4013 C4033 C4037 B4010 W821 W829 C4008 W887 Q4006 R4055 R4051 R4050 Q4001 R4022 C4011 W826 R4008 R4035 C4010 R4021 R4010 Q4003 R4007 C4052 C4053 C4054 C4055 R4026 R4020 C4030 C4002 C4029 W813 W842 C4019 C4020 B4002 W815 C4038 C4101 C4102 C4089 C4090 C4007 C4005 R4058 C4072 C4001 W886 C4012 C4064 C4034 C4035 C4048 C4049 C2302 C8072 C8056 C8057 R8014 C2303 W863 W865 R5920 R5919 C4112 C4056 C4098 C4099 R4032 R4038 W855 W856 C4032 D5901 R5902 R4006 C4091 C4062 C4139 W830 L7305 L7304 L7303 B7305 B7304 C4016 C4003 C4116 C4135 C4134 B4001 W892 W893 R4028 Q4004 R4033 IC7303 C7312 C5906 W836 B4006 W845 W840 W851 C4057 W859 W858 W857 B4009 C4058 B5903 B5904 B7303 W867 R7323 W896 W895 W897 C4093 W838 R4065 DMH111A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F 11.2 OPERATION PCB ASSY SIDE A SIDE B IC601 R 6 6 6 R 6 6 2 C 6 5 1 C 6 7 5 C 6 7 6 R 6 5 8 R 6 5 7 R 6 5 5 R 6 5 6 C 6 0 4 D 6 0 4 DEH158A 5 DEH159A 5 SW666 SW664 SW663 SW662 SW660 CP604 C674 C653 W006 W005 W004 W003 W002 V651 W001 OS651 CP603 SW667 D660 CP601_1 DEH158A 5 DEH159A 5 G A30C5 G A30C5 OPERATION PCB ASSY OPERATION PCB ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 11.3 USB PCB ASSY SIDE A SIDE A USB PCB ASSY CP6602 CP6601 C6601 W018 DEH160A 5 G A30C5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F SIDE B SIDE B USB PCB ASSY B6602 B6601 C6604 DEH160A 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 11.4 POWER PCB ASSY SIDE A SIDE A POWER PCB ASSY T501 D505 D503 IC502 B501 C513 C516 C502 C511 D512 C523 D510 C506 D527 C522 C527 IC504 D502 D504 C510 C515 C521 Q510 L501 IC501 R501 R514 C526 L505 W013 W011 W008 W010 D511 W009 C535 J501_1 F501 SH501 R505 D507 D509 W014 C518 W806 C509 W012 D514 D515 CP502_1 5 DPH020A RISK OF FIRE - REPLACE AS MARKED . G A30C5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DV-220V-K 5 6 7 8 5 6 7 8 A B C D E F SIDE B SIDE B POWER PCB ASSY D508 I C 5 0 3 Q 5 0 9 Q 5 1 1 R541 R 5 4 2 R543 R540 C530 C531 R515 R518 R517 R516 C503 R513 R521 R503 C507 C505 C504 C508 R502 R512 C541 R509 R504 R519 B502 5 DPH020A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DV-220V-K 1 2 3 4 A B C D E F 1 2 3 4 12. PCB PARTS LIST - Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V 5 6 2 1 1 R 0 R 5 0 5 6 1 4 7 3 NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47 k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω → 56 × 101 → 561 ...................................................................RD1/4PU J 47 kΩ → 47 × 103 → 473 ...................................................................RD1/4PU J 0.5 Ω → R50 .................................................................................................RN2H K 1 Ω → 1R0 .................................................................................................RS1P K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62 kΩ → 562 × 101 → 5621 .................................................................RN1/4PC F Mark No. Description Part No. LIST OF ASSEMBLIES 1..DVD MT PCB ASSY A2M211A130 1..OPERATION PCB ASSY A2M211A270 1..USB PCB ASSY A2M109AFA0 > 1..POWER PCB ASSY A2M211A240 Mark No. Description Part No. DVD MT PCB ASSY SEMICONDUCTORS IC 2301 IC AM5766 I1UFV5766S IC 4001 IC MT1389FE/L-L IC8K0389M0 IC 4003 IC R3112N291A-TR-FA IE1F0291A0 IC 4004 IC ES25M16A S2M202AF01 IC 4005 IC M12L64164A-5TG2R IF9J04164E IC 4006 IC LD1117AL-ADJ-AA3-A-R I1YF9117A0 IC 4007 IC MP6205DD-LF-Z I1JN062050 IC 4009 IC S-1170B52UC-OULTFG I5HJ9B52U0 IC 7303 IC MM1510XNRE I0UF015100 IC 8003 IC NJM4565M(TE1) I0QF045650 OTHERS X 4001 CRYSTAL (27MHz) 1003T02733 OPERATION PCB ASSY SEMICONDUCTORS IC 601 IC ET6202 IL3J062020 SWITCHES SW660, SW662-664, SW666, SW667 0504R01T38 OTHERS V 651 LED DISLAY 0041Y55002 OS651 REMOTE RECEIVER 077Q040004 USB PCB ASSY USB PCB ASSY has no service part. POWER PCB ASSY POWER PCB ASSY has no service part. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
