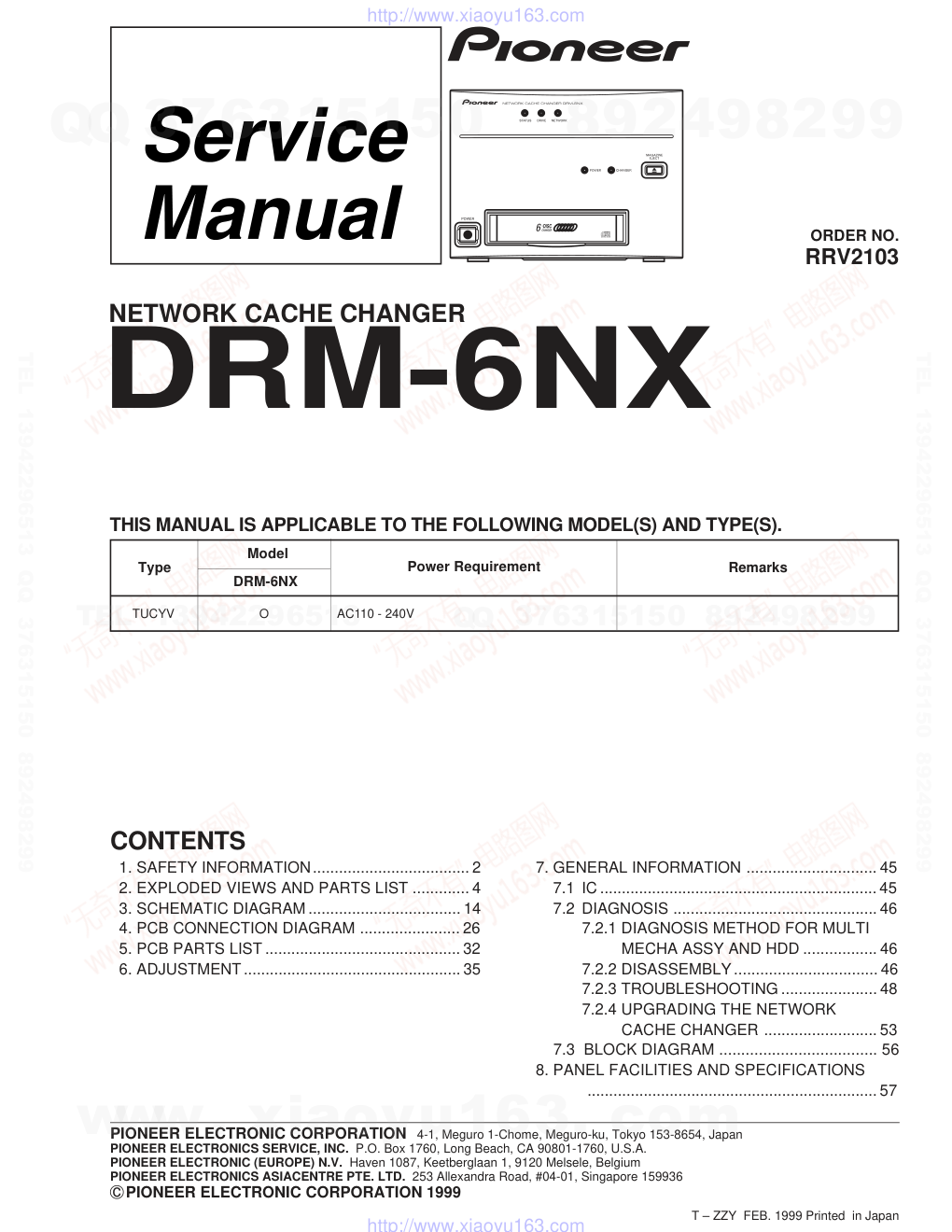

先锋PIONEER DRM-6NX电路图
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Allexandra Road, #04-01, Singapore 159936
� �
� �
� �
� �
� �PIONEER ELECTRONIC CORPORATION 1999
c
RRV2103
DRM-6NX
T – ZZY FEB. 1999 Printed in Japan
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
NETWORK CACHE CHANGER
Model
DRM-6NX
Type
Power Requirement
Remarks
TUCYV
O
AC110 - 240V
CONTENTS
1. SAFETY INFORMATION.................................... 2
2. EXPLODED VIEWS AND PARTS LIST ............. 4
3. SCHEMATIC DIAGRAM ................................... 14
4. PCB CONNECTION DIAGRAM ....................... 26
5. PCB PARTS LIST ............................................. 32
6. ADJUSTMENT.................................................. 35
7. GENERAL INFORMATION .............................. 45
7.1 IC ................................................................ 45
7.2 DIAGNOSIS ............................................... 46
7.2.1 DIAGNOSIS METHOD FOR MULTI
MECHA ASSY AND HDD ................. 46
7.2.2 DISASSEMBLY ................................. 46
7.2.3 TROUBLESHOOTING ...................... 48
7.2.4 UPGRADING THE NETWORK
CACHE CHANGER .......................... 53
7.3 BLOCK DIAGRAM .................................... 56
8. PANEL FACILITIES AND SPECIFICATIONS
................................................................... 57
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
2

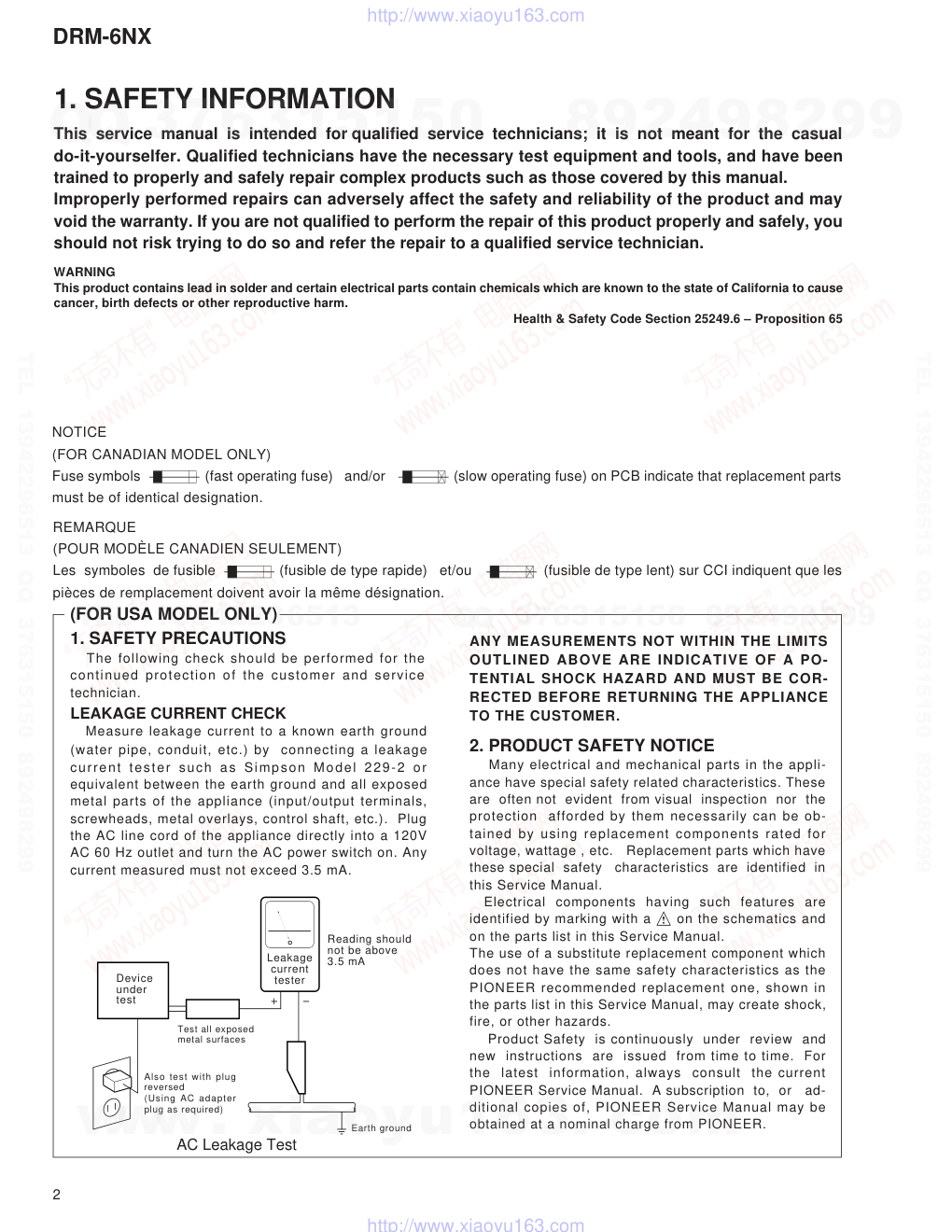

1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage, wattage , etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.
Electrical components having such features are
identified by marking with a
on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 3.5 mA.
(FOR USA MODEL ONLY)
Also test with plug
reversed
(Using AC adapter
plug as required)
Device
under
test
Test all exposed
metal surfaces
Earth ground
Leakage
current
tester
Reading should
not be above
3.5 mA
AC Leakage Test
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les
pièces de remplacement doivent avoir la même désignation.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts
must be of identical designation.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
3

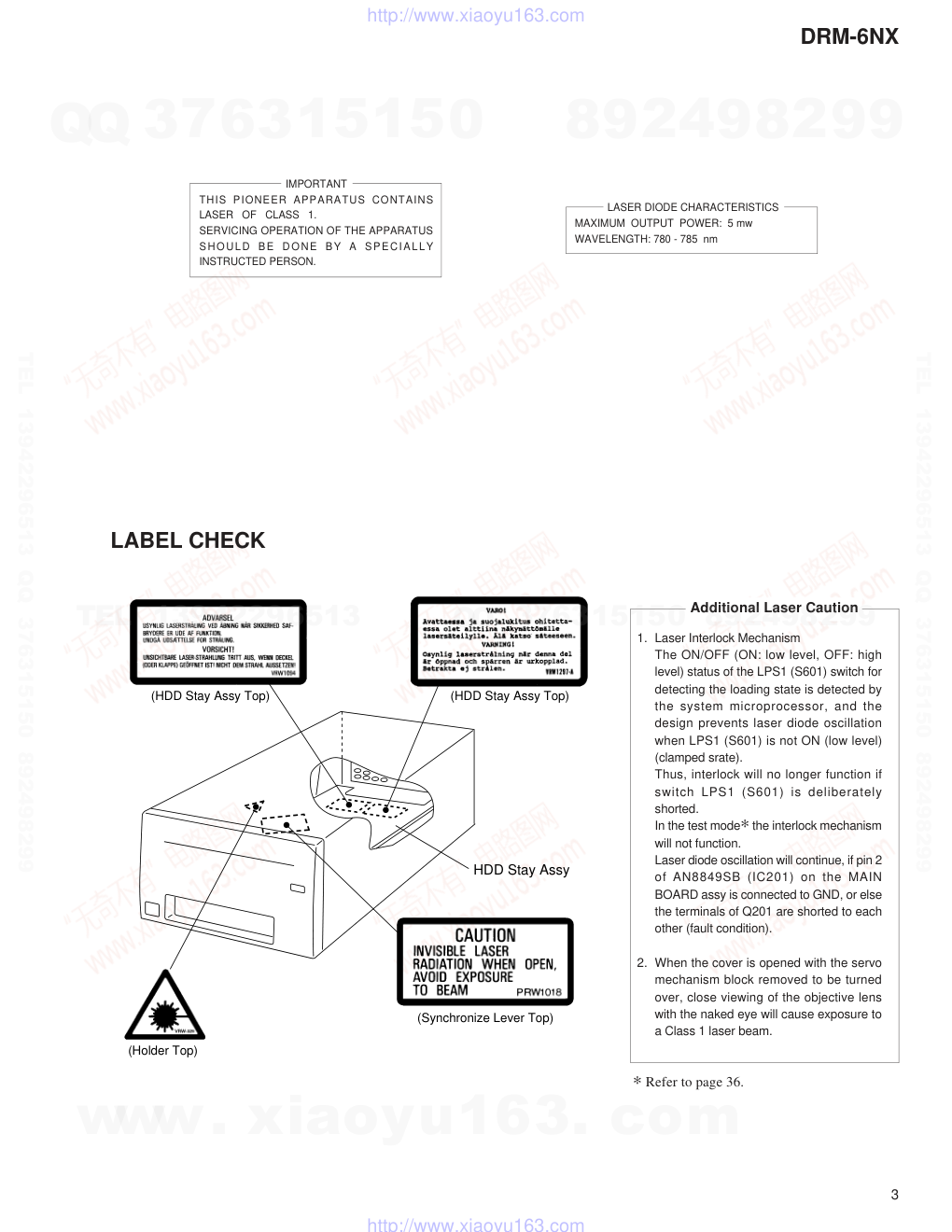

1. Laser Interlock Mechanism
The ON/OFF (ON: low level, OFF: high
level) status of the LPS1 (S601) switch for
detecting the loading state is detected by
the system microprocessor, and the
design prevents laser diode oscillation
when LPS1 (S601) is not ON (low level)
(clamped srate).
Thus, interlock will no longer function if
switch LPS1 (S601) is deliberately
shorted.
In the test mode∗ the interlock mechanism
will not function.
Laser diode oscillation will continue, if pin 2
of AN8849SB (IC201) on the MAIN
BOARD assy is connected to GND, or else
the terminals of Q201 are shorted to each
other (fault condition).
2. When the cover is opened with the servo
mechanism block removed to be turned
over, close viewing of the objective lens
with the naked eye will cause exposure to
a Class 1 laser beam.
Additional Laser Caution
LABEL CHECK
∗ Refer to page 36.
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780 - 785 nm
(Holder Top)
(Synchronize Lever Top)
(HDD Stay Assy Top)
(HDD Stay Assy Top)
HDD Stay Assy
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
DRM-6NX

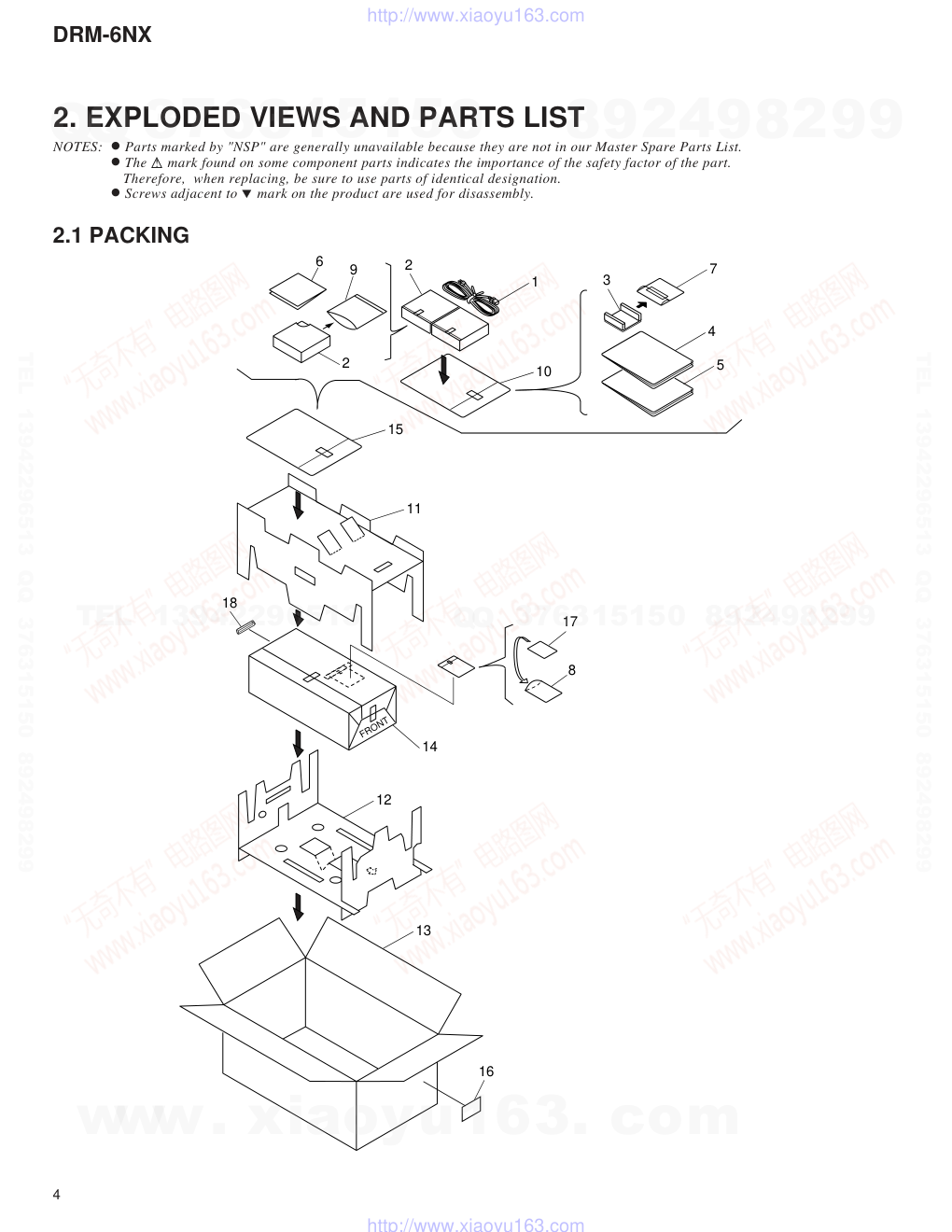

2.1 PACKING
2. EXPLODED VIEWS AND PARTS LIST
NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
• The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
• Screws adjacent to mark on the product are used for disassembly.
1
7
4
5
2
10
15
11
8
17
18
14
12
13
16
2
9
6
3
FRONT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
DRM-6NX

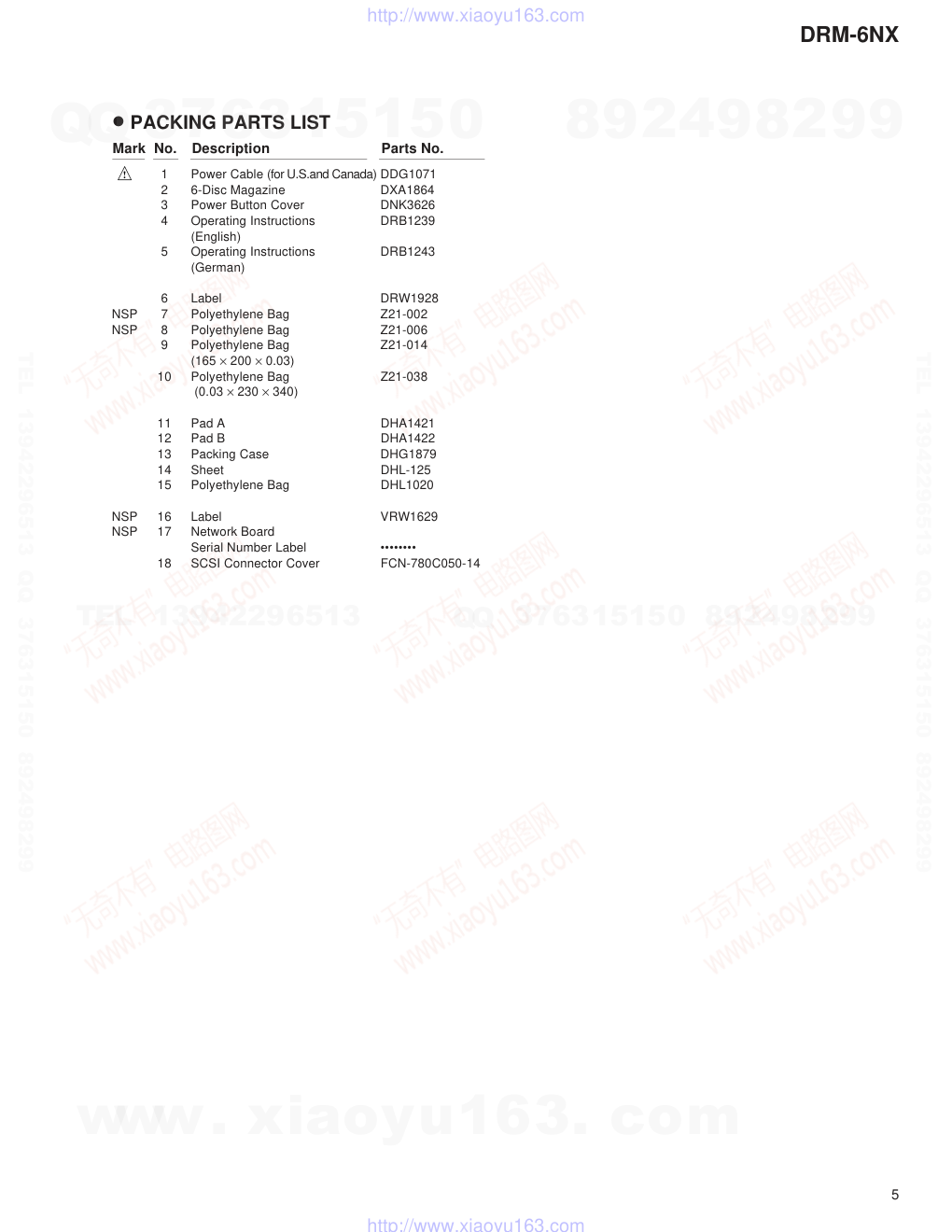

• PACKING PARTS LIST
1
Power Cable (for U.S.and Canada) DDG1071
2
6-Disc Magazine
DXA1864
3
Power Button Cover
DNK3626
4
Operating Instructions
DRB1239
(English)
5
Operating Instructions
DRB1243
(German)
6
Label
DRW1928
NSP
7
Polyethylene Bag
Z21-002
NSP
8
Polyethylene Bag
Z21-006
9
Polyethylene Bag
Z21-014
(165 × 200 × 0.03)
10
Polyethylene Bag
Z21-038
(0.03 × 230 × 340)
11
Pad A
DHA1421
12
Pad B
DHA1422
13
Packing Case
DHG1879
14
Sheet
DHL-125
15
Polyethylene Bag
DHL1020
NSP
16
Label
VRW1629
NSP
17
Network Board
Serial Number Label
••••••••
18
SCSI Connector Cover
FCN-780C050-14
Mark No.
Description
Parts No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
DRM-6NX

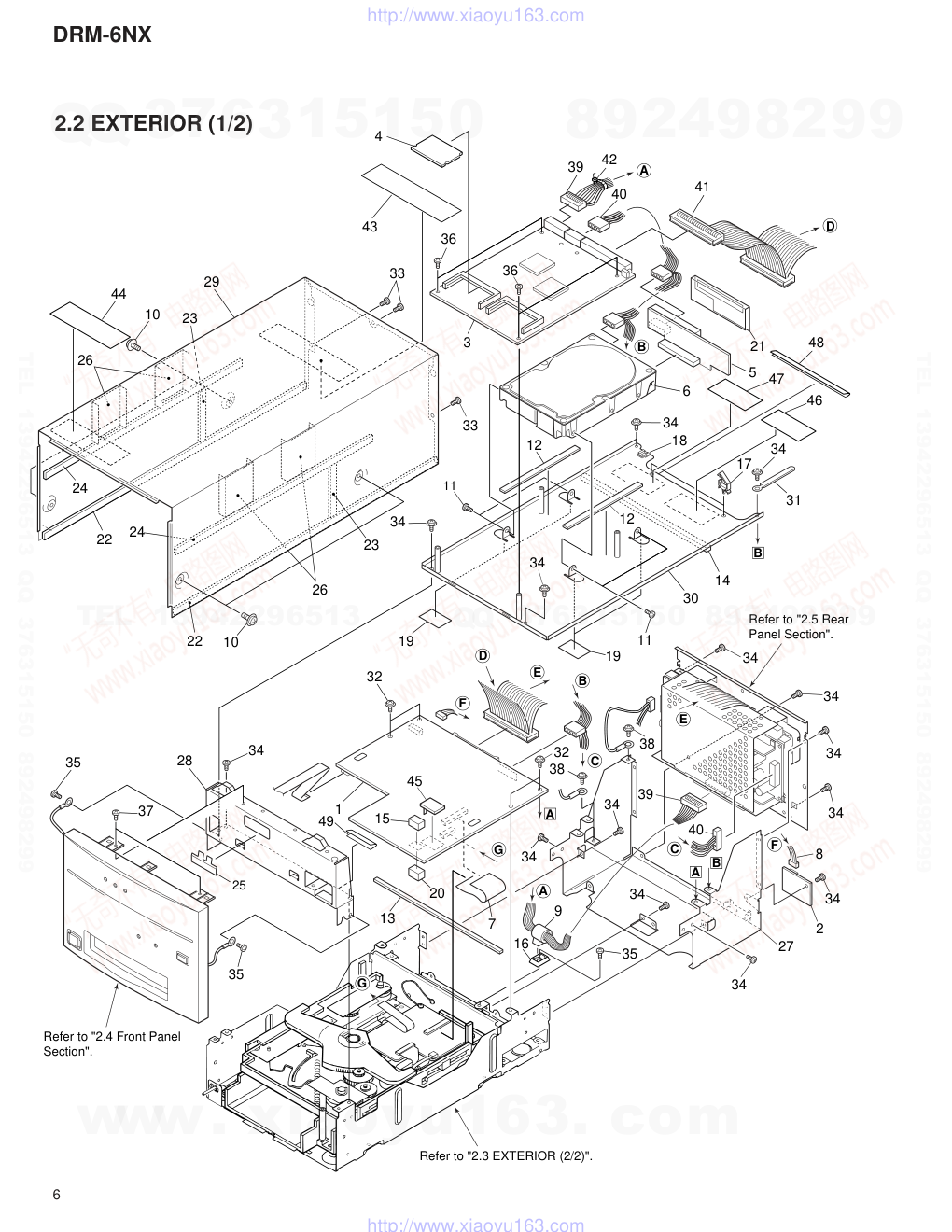

2.2 EXTERIOR (1/2)
A
A
D
D
F
F
E
B
B
A
C
C
E
G
G
A
B
B
Refer to "2.3 EXTERIOR (2/2)".
Refer to "2.5 Rear
Panel Section".
Refer to "2.4 Front Panel
Section".
35
35
34
35
28
1
10
10
26
29
24
22
24
22
26
33
33
36
3
36
32
32
19
19
11
12
12
34
34
34
11
31
34
17
5
21
30
14
15
45
9
34
34
34
34
2
34
34
34
34
27
8
34
39
38
38
20
7
13
37
25
16
49
6
48
18
47
46
40
44
39
42
41
40
4
43
23
23
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
DRM-6NX

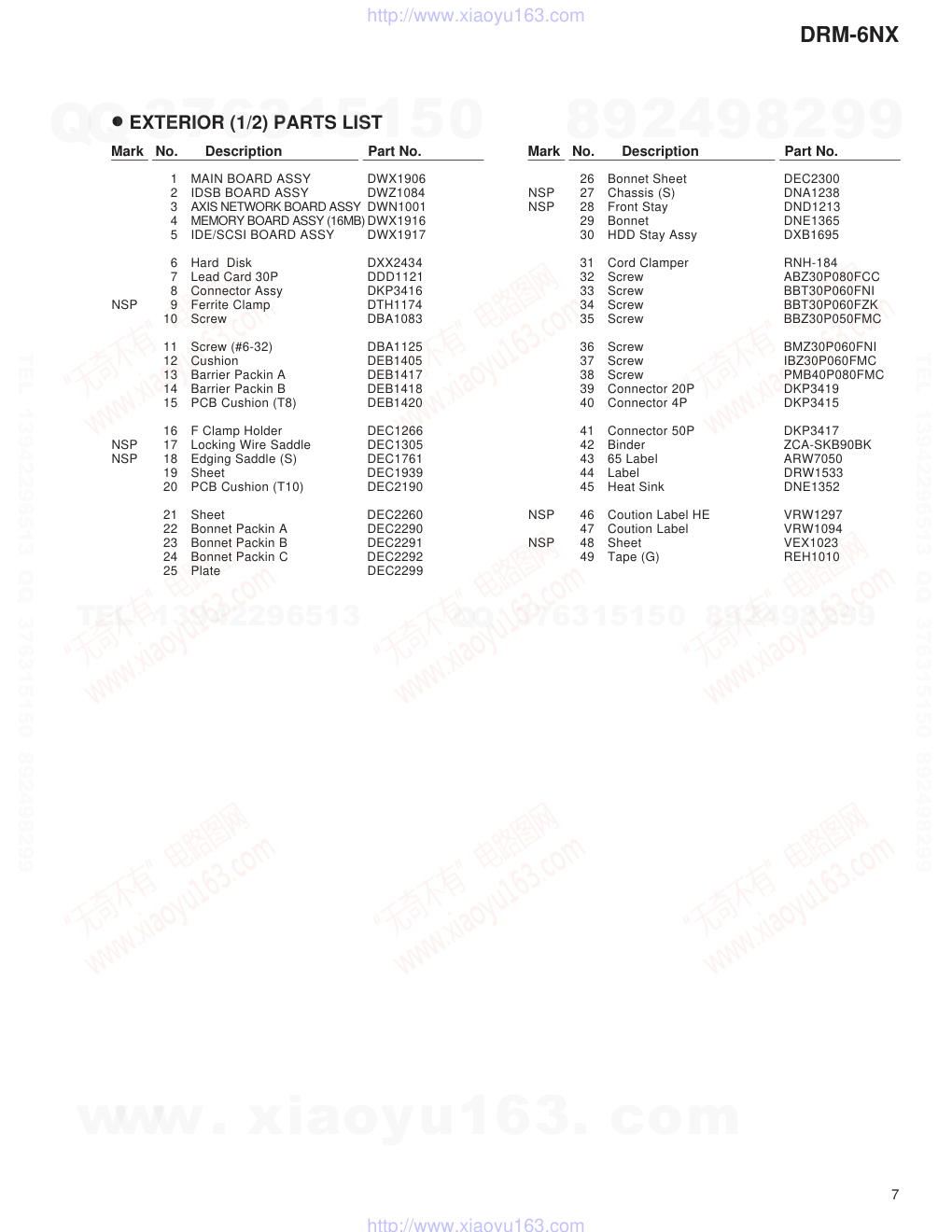

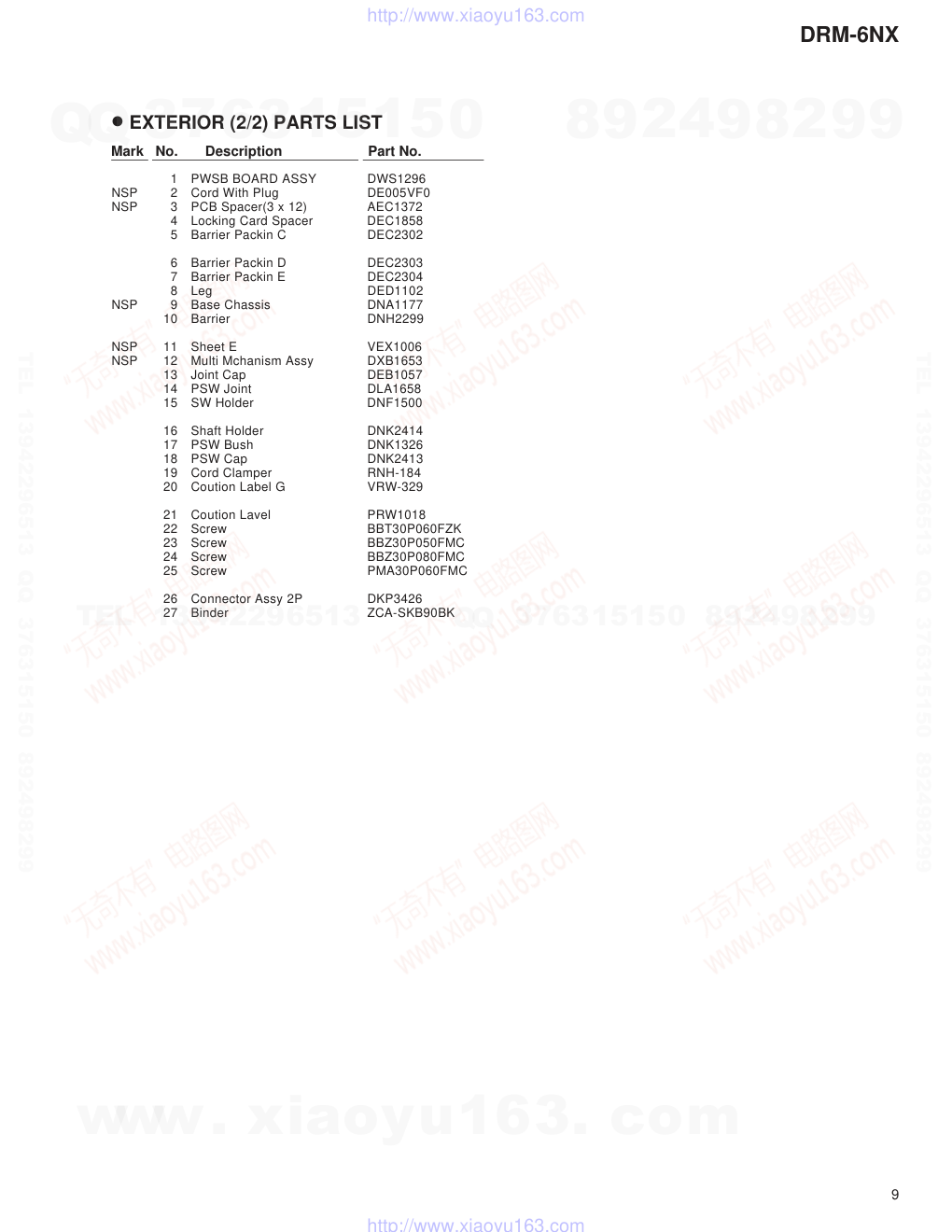

• EXTERIOR (1/2) PARTS LIST
Mark No. Description Part No.
1
MAIN BOARD ASSY
DWX1906
2
IDSB BOARD ASSY
DWZ1084
3
AXIS NETWORK BOARD ASSY DWN1001
4
MEMORY BOARD ASSY (16MB)DWX1916
5
IDE/SCSI BOARD ASSY
DWX1917
6
Hard Disk
DXX2434
7
Lead Card 30P
DDD1121
8
Connector Assy
DKP3416
NSP
9
Ferrite Clamp
DTH1174
10
Screw
DBA1083
11
Screw (#6-32)
DBA1125
12
Cushion
DEB1405
13
Barrier Packin A
DEB1417
14
Barrier Packin B
DEB1418
15
PCB Cushion (T8)
DEB1420
16
F Clamp Holder
DEC1266
NSP
17
Locking Wire Saddle
DEC1305
NSP
18
Edging Saddle (S)
DEC1761
19
Sheet
DEC1939
20
PCB Cushion (T10)
DEC2190
21
Sheet
DEC2260
22
Bonnet Packin A
DEC2290
23
Bonnet Packin B
DEC2291
24
Bonnet Packin C
DEC2292
25
Plate
DEC2299
Mark No. Description Part No.
26
Bonnet Sheet
DEC2300
NSP
27
Chassis (S)
DNA1238
NSP
28
Front Stay
DND1213
29
Bonnet
DNE1365
30
HDD Stay Assy
DXB1695
31
Cord Clamper
RNH-184
32
Screw
ABZ30P080FCC
33
Screw
BBT30P060FNI
34
Screw
BBT30P060FZK
35
Screw
BBZ30P050FMC
36
Screw
BMZ30P060FNI
37
Screw
IBZ30P060FMC
38
Screw
PMB40P080FMC
39
Connector 20P
DKP3419
40
Connector 4P
DKP3415
41
Connector 50P
DKP3417
42
Binder
ZCA-SKB90BK
43
65 Label
ARW7050
44
Label
DRW1533
45
Heat Sink
DNE1352
NSP
46
Coution Label HE
VRW1297
47
Coution Label
VRW1094
NSP
48
Sheet
VEX1023
49
Tape (G)
REH1010
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
DRM-6NX

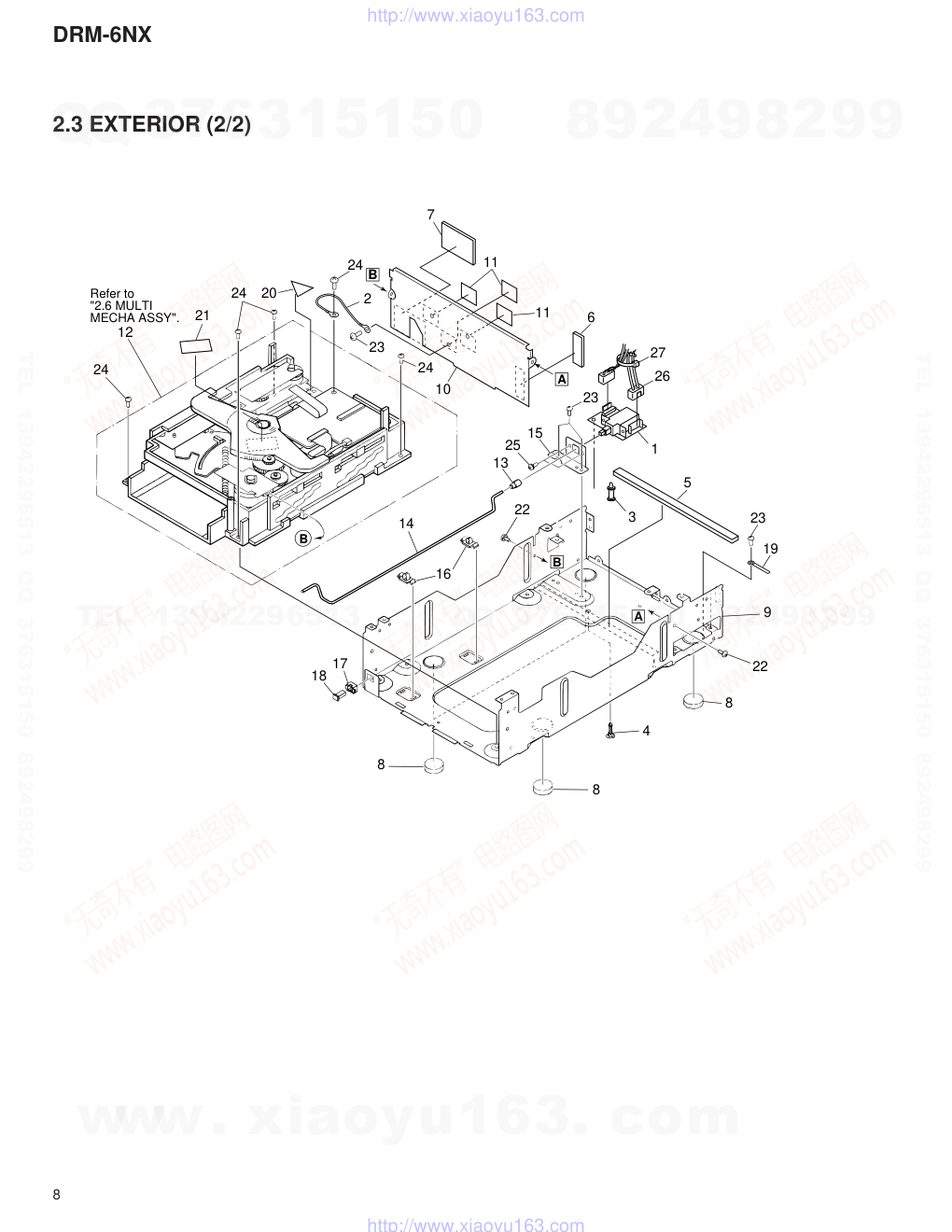

2.3 EXTERIOR (2/2)
12
2
24
21
24
24
23
24
13
15
25
22
22
23
11
11
20
1
10
4
8
8
8
17
16
18
14
9
3
26
27
A
B
A
B
B
Refer to
"2.6 MULTI
MECHA ASSY".
7
6
5
23
19
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
DRM-6NX
• EXTERIOR (2/2) PARTS LIST
Mark No. Description Part No.
1
PWSB BOARD ASSY
DWS1296
NSP
2
Cord With Plug
DE005VF0
NSP
3
PCB Spacer(3 x 12)
AEC1372
4
Locking Card Spacer
DEC1858
5
Barrier Packin C
DEC2302
6
Barrier Packin D
DEC2303
7
Barrier Packin E
DEC2304
8
Leg
DED1102
NSP
9
Base Chassis
DNA1177
10
Barrier
DNH2299
NSP
11
Sheet E
VEX1006
NSP
12
Multi Mchanism Assy
DXB1653
13
Joint Cap
DEB1057
14
PSW Joint
DLA1658
15
SW Holder
DNF1500
16
Shaft Holder
DNK2414
17
PSW Bush
DNK1326
18
PSW Cap
DNK2413
19
Cord Clamper
RNH-184
20
Coution Label G
VRW-329
21
Coution Lavel
PRW1018
22
Screw
BBT30P060FZK
23
Screw
BBZ30P050FMC
24
Screw
BBZ30P080FMC
25
Screw
PMA30P060FMC
26
Connector Assy 2P
DKP3426
27
Binder
ZCA-SKB90BK
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
DRM-6NX
Mark No. Description Part No.
• FRONT PANEL SECTION PARTS LIST
1
FRPB BOARD ASSY
DWZ1083
NSP
2
Door Name Plate
DAM1078
3
Power Button Spring
DBH1213
4
Reflector
DEC2283
5
Front Packin
DEC2301
6
Power Button
DNK2411
NSP
7
Door
DNK3112
8
Indicater Lens
DNK3624
9
Front Panel Assy
DXA1861
10
••••••••
11
Door Spring
PBH1022
12
12P F. F. C/30V
DDD1097
13
Tape (G)
REH1010
14
Screw
IPZ30P080FMC
15
••••••••
16
Door Assy-S
DXX2403
17
Nat
YP20FBT

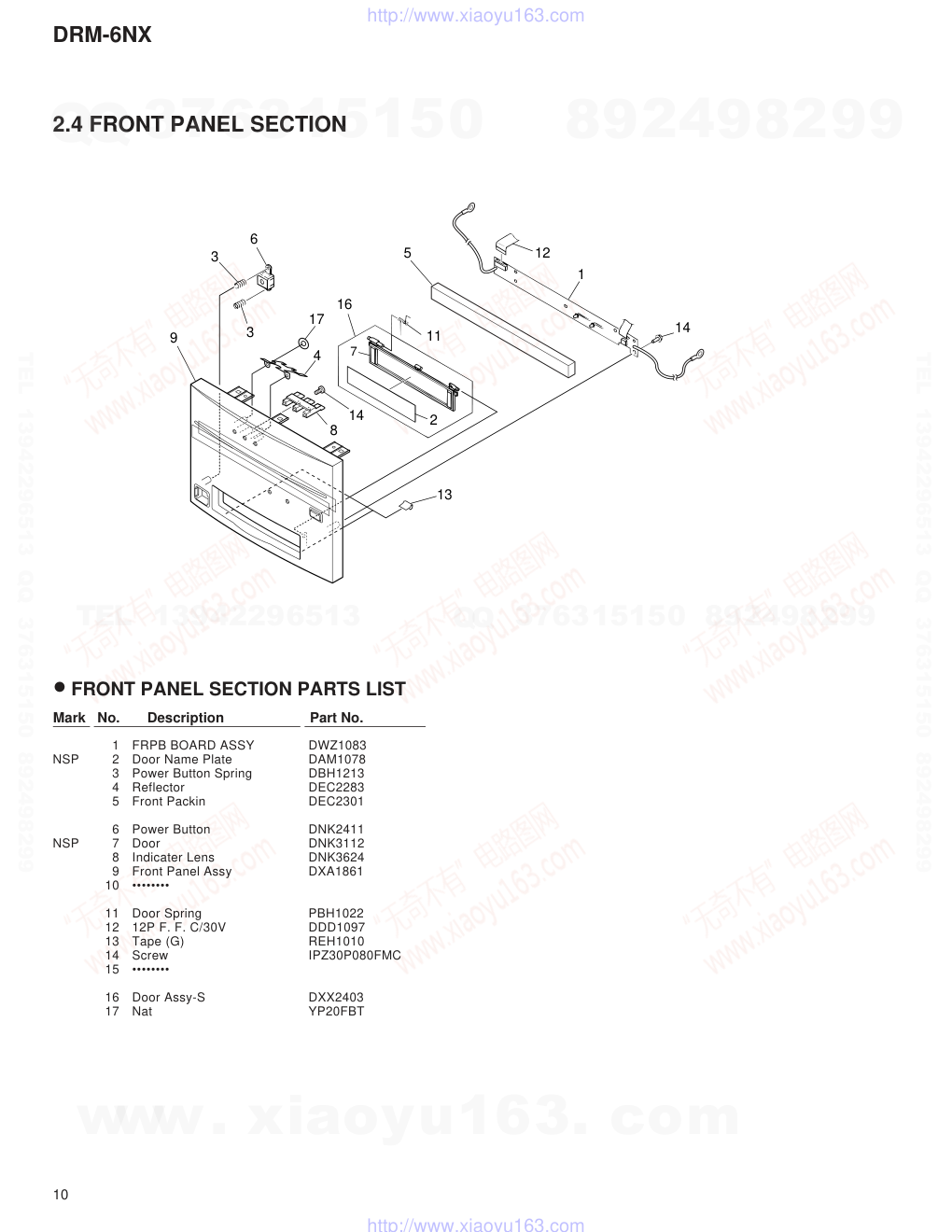

2.4 FRONT PANEL SECTION
12
14
1
7
2
16
6
3
3
5
14
9
8
11
4
17
13
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
DRM-6NX
Mark No. Description Part No.
• REAR PANEL SECTION PARTS LIST
1
PWRB BOARD ASSY
DWR1307
2
CONNECTOR BOARD ASSY
DWX1921
3
AC Inlet Assembly 3P
DKN1148
4
Ground Terminal
DKE-102
5
Connector Assy 50P
DKP3417
6
••••••••
7
DC Fan motor
VXM1069
NSP
8
Power Cover
DNH2426
9
••••••••
10
SCSI Connector Cover
FCN-780C050-14
11
Rear Panel
DNC1499
NSP
12
Power Stay
DND1215
13
Coner Cover
DEC2315
14
Rear Packin A
DEC2313
15
Rear Packin B
DEC2314
16
Screw
BMZ30P060FNI
17
Screw
AMZ40P160FZK
18
Screw
PMZ30P100FNI
19
Screw
CBZ30P080FZK
20
Screw
BBT30P060FZK
21
Nut
NB40FMC
22
••••••••
23
••••••••
24
ID SW Cover
DEC2269
2.5 REAR PANEL SECTION
20
8
20
20
1
12
21
17
4
20
11
5
10
3
19
20
24
16
2
14
15
18
7
13
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
DRM-6NX
2.6 MULTI MECHA ASSY
69
39
51
∗1 Label
∗2 Label
50
39
39
39
56
48
49
48
49
23
43
14
68
20
20
15
55
54
29
53
52
30
47
46
47
28
27
58
64
41
42
38
61
48
70
49
21
19
69
3
71
39
13
47
46
47
34
33
38
8
9
6
37
5
40
7
38
44
45
38
38
66
11
12
67
60
10
35
7
9
40
18
17
16
37
39
59
1
2
40
5
4
17
25
38
26
57
63
38
40
41
38
36
59
1
32
65
31
36
62
Refer to
"2.7 SERVO MECHA
ASSY".
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
DRM-6NX
2.7 SERVO MECHA ASSY
• SERVO MECHA ASSY PARTS LIST
6
14
14
13
1
11
10
2
9
3
6
8
7
4
5
12
1
Spindle Motor Assy
DXM1097
2
Screw Guide
DNK3238
3
Pulse Motor Frame
DXM1096
4
Screw
PMH20P040FMC
5
Cover Plate
DBK1138
6
Screw
CMZ20P060FMC
7
Guide Shaft
DLA1731
8
Sub Guide Shaft
DLA1372
9
Screw
ABA7022
NSP
10
Servo Mechanism Base
DNH2302
11
SPD Card
DDD1122
NSP
12
Pickup Assy
DWY1069
13
Earth Lead Unit
PDF1074
14
Screw
AMZ20P040FCC
Mark No.
Description
Parts No.
• MULTI MECHA PARTS LIST
Mark No.
Description
Parts No.
Mark No.
Description
Parts No.
1
Motor Pulley
PNW1634
2
Gear Holder
PNW1929
3
SIFB BOARD ASSY
DWZ1081
4
Cam Gear
PNW1923
5
Belt
PEB1138
6
Top Guide N
PNW2441
7
Gear Pulley
PNW1918
8
Gear S
PNW1919
9
Gear L
PNW1920
10
Eject Spring
PBH1107
11
SW Lever
PNW1927
12
Seven Bar
PNW1931
13
Sub Revolving Lever
PNW1933
14
Sub Revolving Lever Spring
PBH1111
15
Revolving Lever
PNW1932
16
Drive Plate
DNK3450
17
Motor Screw
PBA–112
18
Holder Lever Spring
PBH1110
19
Disc Holder
DNK3448
20
Cushion
DED1111
21
Holder Lever
DNK3449
22
••••••••
23
S Flexible Wire
DNP1748
24
••••••••
25
Release Lever
PNW1934
26
Release Spring
PBH1106
27
Clamper Cam
PNW1922
28
Clamper Holder
PNW1921
29
Centering Spring
DBH1389
30
Clamper Assy
DXB1651
31
Lock Lever
PNW1917
32
Lock Spring
PBH1108
33
Stair NL
PNW2443
34
Stair NR
PNW2444
35
Synchronize Lever
PNW1926
36
Motor Assy
PEA1130
(LOADING, DISC SELECT)
37
Screw
PMZ26P040FMC
38
Screw
PPZ30P080FMC
39
Screw
BBZ30P060FMC
40
Washer
WT26D047D025
41
Washer
WA31D054D025
42
E Ring
Z39–010
43
Screw
IPZ30P080FMC
44
Spacer
PEB1254
45
Spacer
PEB1179
46
Silent Ring
PBK1093
47
Washer
WA62D130D025
48
Screw
AMZ26P040FMC
49
Mount Bush 24
DEB1357
50
F Cushion C
DEB1151
51
Hold Plate
RNE1629
52
Clamper Assy S
DXX2391
53
Centering Arm
DNK3451
54
Washer
WT21D060D025
55
Washer
WA26D080D025
56
Holder
DNH2297
57
Connector Assy (4P)
PG04MM–F07
58
Clamp Spring
PBH1109
59
Carriage Motor
VXM1033
60
Eject Lever
PNB1306
61
Mechanism Base
DNH2305
62
Servo Mechanism Assy
DXB1654
NSP
63
LOAD BOARD Assy
PWZ2038
64
Sub Chassis N
PNW2440
65
Main Chassis
PNW2074
NSP
66
DSEL BOARD Assy
PWZ2533
NSP
67
MOTB BOARD Assy
PWZ2040
68
Hold Plate Assy
DXB1662
69
Screw
BBZ30P080FMC
70
Damp Sheet
VEX1021
71
Shield Case
DNH2292
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
14
A
B
C
D
1
2
3
4
1
2
3
4
FLEXIBLE CORD
DDD1122
PICKUP ASSY
(DWY1069)
PULSE MOTOR FRAME
(DXM1069)
SPINDLE MOTOR
(DXM1097)
SERVO MECHANISM ASSY (DXB1654)
STEPPING MOTOR
SIGNAL ROUTE
: RF & AUDIO SIGNAL ROUTE
3. SCHEMATIC DIAGRAM
Note: When ordering service parts, be sure to refer to "EXPLODED VIEWS AND PARTS LIST" or "PCB PARTS LIST".
3.1 OVERALL CONNECTION DIAGRAM (1/2)
(SIFB BOARD ASSY, LOAD BOARD ASSY and IDSB BOARD ASSY)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
15
A
B
C
D
5
6
7
8
5
6
7
8
FLEXIBLE
CORD
DDD1121
VIBRATION
SENSOR
LD POWER ADJ.
DIP SW
MODE SETTING
ON (SHORT)
TERMINATOR ON
OFF (OPEN)
TERMINATOR OFF
ON (SHORT)
TEST MODE ON
OFF (OPEN)
TEST MODE OFF
ON (SHORT)
EJECT ENABLE
OFF (OPEN)
EJECT DISABLE
TERMINATION
TEST
DISABLE EJECT
1
2
3
No.
S1001 (FUNCTION SW)
CONNECTOR
ASSY
DKP3416
CONNECTOR
ASSY
PG04MM-F07
SIFB BOARD ASSY (DWZ1081)
LOAD BOARD
ASSY
(PWZ2038)
IDSB BOARD ASSY
(DWS1084)
MAIN BOARD ASSY
(DWX1906)
A
B
C
( D 1/3 to D 3/3)
D
C
B
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
16
A
B
C
D
1
2
3
4
1
2
3
4
FRPB BOARD ASSY
(DWZ1083)
Test Remote Control
(RU-V101) Interface
MOTB BOARD
ASSY (PWZ2040)
DSEL BOARD
ASSY (PWZ2533)
L951–L956:
RTF1167
PEA1130
FLEXIBLE
CORD
DDD1097
Magazine IN
Magazine
(Existence/None)
S603:Magazine
(Existence/None)
Single
Multi/Single
S604: Multi/Single
N. C.
N. C.
CHANGER
POWER
EJECT
1: GND
3: GND
5: GND
7: GND
9: GND
11: GND
13: GND
15: GND
17: GND
19: GND
21: GND
23: OPEN
25: OPEN
27: OPEN
29: GND
31: GND
33: GND
35: GND
37: GND
39: GND
41: GND
43: GND
45: GND
47: GND
49: GND
2: DB0
4: DB1
6: DB2
8: DB3
10: DB4
12: DB5
14: DB6
16: DB7
18: DBP
20: GND
22: GND
24: OPEN
26: TERMPWR
28: OPEN
30: GND
32: ATN
34: GND
36: BSY
38: ACK
40: RST
42: MSG
44: SEL
46: C/D
48: REQ
50: I/O
E
F
G
MAIN BOARD ASSY
(DWX1906)
( D 1/3 to D 3/3)
D
PSG1010
DSG1016
DSG1016
DSG1016
S952: EJECT
3.2 OVERALL CONNECTION DIAGRAM (2/2)
(FRPB BOARD ASSY, MOTB BOARD ASSY, DSEL BOARD ASSY,
PWSB BOARD ASSY, PWRB ASSY, IDE/SCSI BOARD ASSY,
AXIS NETWORK BOARD ASSY, MEMORY BOARD ASSY and
CONNECTOR BOARD ASSY)
G
F
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
17
A
B
C
D
5
6
7
8
5
6
7
8
PWSB BOARD ASSY
(DWS1296)
PWRB ASSY
(DWR1307)
IDE/SCSI BOARD ASSY
(DWX1917)
CONNECTOR
BOARD ASSY
(DWX1917)
AXIS NETWORK
BOARD ASSY
(DWN1001)
MEMORY BOARD
ASSY (DWX1916)
HARD
DISK
UNIT
(DXB1696)
SCSI
I/F
L (BRN)
N (BLU)
L (BRN)
N
(BLU)
AC POWER CORD
DDG1071
(AC110-240V)
CONNECTOR
ASSY 4P
DKP3415
CONNECTOR
ASSY 50P
DKP3417
CONNECTOR
ASSY 20P
DKP3419
CONNECTOR
ASSY
DKP3426
STATUS
DRIVE
NETWORK
1: RESET
3: DB7
5: DB6
7: DB5
9: DB4
11: DB3
13: DB2
15: DB1
17: DB0
19: GND
21: OPEN
23: DIOW
25: DIOR
27: IORDY
29: OPEN
31: INTRQ
33: DA1
35: DA0
37: CS1FX
39: OPEN
2: GND
4: DB8
6: DB9
8: DB10
10: DB11
12: DB12
14: DB13
16: DB14
18: DB15
20: OPEN
22: GND
24: GND
26: GND
28: OPEN
30: GND
32: OPEN
34: OPEN
36: DA2
38: CS3FX
40: GND
1: JP1
3: JP2
5: JP3
7: JP4
9: JP5
11: JP6
13: JP7
15: JP8
17: JP9
19: JP10
21: JP11
2: GND
4: GND
6: GND
8: GND
10: GND
12: GND
14: GND
16: GND
18: GND
20: GND
22: GND
JP1
JP5, JP11: Short
JP11
16MB
72pin
DIMM
H
I
J
K
L
M
Note: As this circuit board is
an assembly purchase part,
no circuit diagram is listed.
Note: As this circuit board is
an assembly purchase part,
no circuit diagram is listed.
Note: As this circuit board is
an assembly purchase part,
no circuit diagram is listed.
Note: As this circuit board is
an assembly purchase part,
no circuit diagram is listed.
M
L
K
J
H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
18
A
B
C
D
1
2
3
4
1
2
3
4
POWER SUPPLY
3.3V REG.
VIN
IC111
PQ7VZ5
1
2
3
4
5
ON/OFF OADJ
VOUT
MAIN BOARD
ASSY (1/3)
(DWX1906)
D 1/3
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE NO. ICP–S1.0, MFD
BY ROHM CO., LTD. FOR IC23.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE NO. ICP–S2.3, MFD
BY ROHM CO., LTD. FOR IC24.
D 2/3
H C950
M CN3, HARD DISK UNIT
,
J
A
PWRB ASSY (DWR1307)
I
:This schematic diagrm is reference
information When it is repaired please
cope by assy exchange.
CAUTION: FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE.
REPLACE WITH SAME
TIME AND RATINGS ONLY.
NOTE FOR FUSE REPLACEMENT
D 1/3 I
3.3 MAIN BOARD ASSY (1/3) and
PWRB ASSY
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
19
A
B
C
D
5
6
7
8
5
6
7
8
STEPPING
MOTOR DRIVER
Q11, Q15:
DISC SELECT
MOTOR DRIVER
Q17, Q18:
LOADING MOTOR
DRIVER
SIGNAL ROUTE
: RF SIGNAL ROUTE
E CN952
C CN1003
A CN953
M CN1,
SCSI I/F
J
D 1/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
20
A
B
C
D
1
2
3
4
1
2
3
4
3.4 MAIN BOARD ASSY (2/3)
D 3/3
TEST REMOTE CONTROL (RU-V101)
Interface
B
SCSI
TERMINATOR
FLASH
ROM
CPU
1 Mbit DRAM
PD6287B
MB90T553PF
D 2/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
21
A
B
C
D
5
6
7
8
5
6
7
8
MAIN BOARD ASSY (2/3)
(DWX1906)
SIGNAL ROUTE
: RF SIGNAL ROUTE
D 2/3
D 1/3 A
CD-ROM DECODER
&
SCSI I/F
EEPROM
D 2/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
22
A
B
C
D
1
2
3
4
1
2
3
4
MAIN BOARD ASSY (3/3)
(DWX1906)
D 3/3
IC204: TRACKING SERVO
EQUALIZER SW
IC452: TRACKING SERVO
EQUALIZER SW
Q202:RF EQUALIZER
SW for CD-RW
5V REG.
ACTUATOR
&
LOADING MOTOR
DRIVER
HEAD
AMP
1
2
3
4
6
IC201 (AN8849SB)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
27
31
|
36
28
29
30
0
4.6
2.5
5
2.5
1.4
3.5
2.5
3.2
1.9
3
1.8
3.6
0
3.6
0
4.9
0
0
2.5
2.2
1.8
2.5
0.9
1.8
1.8
Voltage [ V ]
IC451 (M56759FP)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
12.4
2.5
0.3
1.2
2.1
12.4
0.6
0.3
0.1
0
0
0.1
0.1
0.2
12.4
0.2
0.6
0.6
1.5
0.6
Voltage [ V ]
Pin No.
22
23
24
25
26
27
0
22
0
5
0
0
5
2.5
Voltage [ V ]
Pin No.
28|31
32
33
34
35
36
37
38
39
40
41
42
0.6
0
0
0.2
0.2
0.8
1.3
2.1
0
0
5
3.7
Voltage [ V ]
IC501 (AN8480SBB)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
0
2.5
2.5
0
2.6
2.25
0.3
2.65
2.65
0
4.95
4.95
0
Voltage [ V ]
Pin No.
17
1.74
16
4.95
Voltage [ V ]
23|28
Pin No.
18
19
20
21
22
1.74
0
0.23
12.3
12.3
0
Voltage [ V ]
13|15
3.5 MAIN BOARD ASSY (3/3)
D 3/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
23
A
B
C
D
5
6
7
8
5
6
7
8
D 2/3 B
SIGNAL ROUTE
: RF SIGNAL ROUTE
To SPINDLE MOTOR
SPINDLE
DRIVER
IC282: RESET
DIGITAL SERVO
PROCESSOR
5
MN662752CDM1
D 3/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
24
Waveforms of MAIN BOARD Assy
– 2.1V
– 2.1V
– 2.1V
– 1.65V
– 1.65V
– 1.65V
– GND
– GND
– GND
– GND
1 RF – TP
0.2V/div., 0.5 µS/div.
× 1 PLAY
1 RF – TP
0.2V/div., 50 nS/div.
× 12 PLAY
1 RF – TP
0.2V/div., 20 nS/div.
× 24 PLAY
2 AGC RF – TP
0.2V/div., 50 nS/div.
× 12 PLAY
2 AGC RF – TP
0.2V/div., 20 nS/div.
× 24 PLAY
3 FE – TP
0.5V/div., 2 mS/div.
FOCUS IN
3 FE – TP
0.5V/div., 2 mS/div.
FOCUS
UP/DOWN
2 AGC RF – TP
0.2V/div., 0.5 µS/div.
× 1 PLAY
4 TE – TP
0.5V/div., 500 µS/div.
× 12 MULTI TRACK
JUMP (FWD)
4 TE – TP
0.5V/div., 500 µS/div.
× 12 MULTI TRACK
JUMP (REV)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
25
– GND
– GND
GND
(CH1)
GND
(CH2)
–
–
GND
(CH1)
GND
(CH2)
–
–
GND
(CH1)
GND
(CH2)
–
–
GND
(CH1)
GND
(CH2)
–
–
GND
(CH1)
GND
(CH2)
–
–
GND
(CH1)
GND
(CH2)
–
–
GND
(CH1)
GND
(CH2)
–
–
GND
(CH1)
GND
(CH2)
–
–
4 TE – TP
0.5V/div., 500 µS/div.
× 1 STILL
4 TE – TP
0.5V/div., 200 µS/div.
× 12 STILL
4 CH1: TE – TP
0.5V/div., 5 mS/div.
5 CH2: EC – TP
1V/div., 5 mS/div.
× 12 PLAY
(CAV)
4 CH1: TE – TP
0.5V/div., 5 mS/div.
5 CH2: EC – TP
1V/div., 5 mS/div.
× 24 PLAY
(CLV)
4 CH1: TE – TP
0.5V/div., 20 mS/div.
6 CH2: HK – TP
1V/div., 20 mS/div.
× 12 SEARCH
(FWD)
(20=40 min.)
4
5
4
4
5
6
4 CH1: TE – TP
0.5V/div., 20 mS/div.
6 CH2: HK – TP
1V/div., 20 mS/div.
× 12 SEARCH
(REV)
(40=20 min.)
4 CH1: TE – TP
0.5V/div., 100 mS/div.
5 CH2: EC – TP
2V/div., 100 mS/div.
× 12 SEARCH
(FWD FULL STROKE)
4
4
5
4 CH1: TE – TP
0.5V/div., 100 mS/div.
5 CH2: EC – TP
2V/div., 100 mS/div.
× 12 SEARCH
(REV FULL STROKE)
4 CH1: TE – TP
0.5V/div., 50 mS/div.
6 CH2: HK – TP
1V/div., 50 mS/div.
× 12 SEARCH
(FWD FULL STROKE)
4 CH1: TE – TP
0.5V/div., 50 mS/div.
6 CH2: HK – TP
1V/div., 50 mS/div.
× 12 SEARCH
(REV FULL STROKE)
4
5
4
6
4
6
6
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
26
A
B
C
D
1
2
3
4
1
2
3
4
S602
S601
PNZ1489-A
S601
S602
CN601
PWZ2038 -A
(PNP1331-A)
(DNP1882–C)
To SPINDLE
MOTOR
To PICKUP ASSY
To FAN MOTOR
To STEPPING
MOTOR
VR952
IC17
IC18
IC19
IC951
SIFB BOARD ASSY
LOAD BOARD ASSY
MAIN BOARD ASSY
A
B
D
NOTE FOR PCB DIAGRAMS:
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
Symbol in PCB
Diagrams
Symbol in Schematic
Diagrams
Part Name
Transistor
Transistor
with resistor
Field effect
transistor
B
C
E
B C E
B C E
D G S
B
C
E
B
C
E
B
C
E
D
G
S
D
G
S
Symbol in PCB
Diagrams
Symbol in Schematic
Diagrams
Part Name
3. The parts mounted on this PCB include all necessary parts
for several destination.
For further information for respective destinations, be sure
to check with the schematic diagram.
4. Viewpoint of PCB diagrams
Resistor array
3-terminal
regulator
Capacitor
Connector
P. C. Board
Chip Part
SIDE B
SIDE A
4. PCB CONNECTION DIAGRAM
4.1 SIFB BOARD ASSY, LOAD BOARD ASSY and
MAIN BOARD ASSY
D
B
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
27
A
B
C
D
5
6
7
8
5
6
7
8
(DNP1882–C)
CN1003
SCSI I/F
CN952
Test Remote
Control Interface
IC282
IC24
CONNECTOR ASSY 50P
CONNECTOR ASSY 4P
IC23
IC802
Q1001
IC801
Q21
Q1002
Q1003
IC702
IC703
Q621
Q622
Q13
IC704
IC12
IC11
IC705
IC706
Q19
Q651
Q652
IC13
Q20
Q11
Q14
Q12
Q15
IC301
IC302
IC101
IC452
IC701
IC232
IC204
IC231
IC15
Q16
Q17
IC205
IC20
IC411
Q411
IC21
IC451
Q201
IC201
Q202
Q18
IC16
Q22
E
C
CN2
I
CN3
CN1
To HARD DISK UNIT
M
J
J
M
D
SIDE A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
28
A
B
C
D
1
2
3
4
1
2
3
4
SIDE B
(DNP1882–C)
MAIN BOARD ASSY
D
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
29
A
B
C
D
5
6
7
8
5
6
7
8
(DNP1882–C)
SIFB BOARD ASSY
A
SIDE B
D
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
30
A
B
C
D
1
2
3
4
1
2
3
4
PNZ1491-A
S606
S603
S604
PNZ1491-A
J602
1 5
S603
S604
S605
S606
PWZ2533 -
J602
1
5
CN602
1 6
PWZ2040 -A
(PNP1331–A)
(PNP1331–A)
(DNP1882–C)
(DNP1882–C)
FRPB BOARD
ASSY
MOTB BOARD
ASSY
DSEL BOARD
ASSY
CN11
Q951
E
IDSB BOARD ASSY
C
F
G
D
CN1002
D
4.2 IDSB BOARD ASSY, FRPB BOARD ASSY, MOTB BOARD ASSY and
MAIN BOARD ASSY
F
E
C
G
SIDE B
SIDE B
SIDE A
SIDE A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
31
A
B
C
D
1
2
3
4
1
2
3
4
CN1
CN3
CN2
CN4
50
11
1
11
1
40
4
CN1
CN2
X3
X5
X6
X1
X8
X3
S2
X9
(26pin)
L (BRN)
L (BRN)
N (BLU)
N (BLU)
AC POWER CORD
AC110- 240V
PWSB BOARD ASSY
H
PWRB ASSY
I
MEMORY
BOARD
ASSY
K
AXIS NETWORK
BOARD ASSY
HARD DISK UNIT
SCSI I/F
J
IDE/SCSI
BOARD ASSY
M
CONNECTOR
BOARD ASSY
L
CN1001
D
CN1004
D
TERM POWER ON/OFF
J
I
H
K L M
4.3 PWSB BOARD ASSY, PWRB ASSY, AXIS NETWORK BOARD ASSY,
MEMORY BOARD ASSY, CONNECTOR BOARD ASSY and IDE/SCSI
BOARD ASSY
SIDE A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
32
LIST OF PCB ASSEMBLIES
MOTHER BOARD ASSY
DWM2084
PWSB BOARD ASSY
DWS1296
MAIN BOARD ASSY
DWX1906
SIFB BOARD ASSY
DWZ1081
FRPB BOARD ASSY
DWZ1083
IDSB BOARD ASSY
DWZ1084
NSP
MULTI MECHA ASSY
DXB1653
NSP
MECHA BOARD ASSY
PWX1279
NSP
LOAD BOARD ASSY
PWZ2038
NSP
MOTB BOARD ASSY
PWZ2040
NSP
DSEL BOARD ASSY
PWZ2533
∗
PWRB ASSY
DWR1307
∗
AXIS NETWORK BOARD ASSY
DWN1001
∗
CONNECTOR BOARD ASSY
DWX1921
∗
MEMORY BOARD ASSY
DWX1916
∗
IDE/SCSI BOARD ASSY
DWX1917
Note *: As these circuit boards are assembly purchase parts, no
parts table is listed. Please exchange the entire assembly.
PWSB BOARD ASSY
SWITCHES AND RELAYS
S951
DSA1020
RESISTORS
R951 (1.0 MΩ)
DCN1066
OTHERS
CN950
2P–VH CONNECTOR
B2P3–VH
CN951
2P–VH CONNECTOR
B2P3–VH–E
MAIN BOARD ASSY
SEMICONDUCTORS
IC501
AN8480SBB
IC201
AN8849SB
IC801
BH9595FP–Y
IC204
BU4S66
IC452
HD74HC4066FP
5. PCB PARTS LIST
NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷ The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷ When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1
When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, and K = 10%).
560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J
47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J
0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K
1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K
Ex. 2
When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F
IC703, IC704
HD74HC573FP
IC232
HD74HCT244FP
IC23
ICP–S1.0
IC24
ICP–S2.3
IC411
LB1836M
IC302
LC321667CJ–25
IC301
LC895126–LF4L
IC451
M56759FP
IC701
MB90T553PF
IC231
MN662752CDM1
IC12
NM93C66EM8
IC702
PD6287B
IC111
PQ7VZ5
IC282
S–80742AN–D6
IC705
TC7S04F
Q21, Q22
2PD601A
Q201
2SA1036K
Q11, Q17
2SB1132
Q202
2SC3082K
Q13, Q15, Q18
2SD1664
Q1001–Q1003, Q12, Q14, Q16
DTC124EK
Q411
DTC124EK
D14, D281
1SS355
D801, D802
RB160L–40
D12, D13
RB400D
COILS AND FILTERS
F801–F803
DTF1069
L201, L411 (4.7 µH)
DTL1024
L12–L14
OTL1040
F101
VTH1033
CAPACITORS
C210
CCSQCH100D50
C211
CCSQCH101J50
C302, C303
CCSQCH220J50
C317
CCSQCH330J50
C209
CCSQCH820J50
C227
CCSQCJ3R0C50
C115
CEAL101M6R3
C203, C205
CEAL220M6R3
C502
CEAL470M16
C208, C220, C459
CEAL470M6R3
Mark No.
Description
Part No.
Mark No.
Description
Part No.
H
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
33
C101
CEAT221M6R3
C20, C413
CEJA101M6R3
C802
CEJA470M10
C232, C240, C241
CKSQYB102K50
C223, C239, C250, C251, C306
CKSQYB104K25
C461, C471
CKSQYB104K25
C215, C216, C281
CKSQYB105K10
C247, C255, C258
CKSQYB154K16
C473
CKSQYB222K50
C219, C235, C242, C243
CKSQYB223K50
C212
CKSQYB272K50
C214, C217, C456, C462
CKSQYB273K50
C224, C226
CKSQYB392K50
C248, C254, C455, C504, C505
CKSQYB393K50
C213
CKSQYB472K50
C453, C454
CKSQYB473K25
C245
CKSQYB474K16
C457, C458
CKSQYB561K50
C102, C103, C111, C112
CKSQYF104Z25
C12–C14, C19, C201, C202
CKSQYF104Z25
C204, C218, C22, C221, C225
CKSQYF104Z25
C231, C233, C236, C249
CKSQYF104Z25
C252, C253, C256, C307, C412
CKSQYF104Z25
C451, C460, C472, C501, C503
CKSQYF104Z25
C701, C705–C710, C801, C803
CKSQYF104Z25
C301, C304, C305, C308–C316
CKSQYF105Z16
RESISTORS
R231 (47 Ω)
DCN1090
R312 (56 Ω)
DCN1091
R253, R301, R313–R317, R38 (100 Ω)
DCN1092
R306, R307, R37, R801 (10k Ω)
DCN1094
R112
RS1/10S1001F
R463–R466
RS1/10S1002F
R467, R468, R470, R471
RS1/10S1602F
R474–R477
RS1/10S1602F
R111
RS1/10S1801F
R461, R462
RS1/10S6202F
R30
RS1/2S120J
R20, R22
RS1/2S6R8J
R23
RS1/4S102J
R501–R503
RS1/4S1R0J
Other Resistors
RS1/10S J
OTHERS
CN501
FLEXIBLE CONNECTOR
52271–1590
CN12
FLEXIBLE CONNECTOR
52271–3090
CN11
FFC CONNECTOR
9610S–12B
X301
(33.86 MHz)
DSS1069
X701
(20 MHz)
DSS1095
CN1004
CONNECTOR
FAP–5001–1202–OBS
CN1001
LC CONNECTOR (4P)
LC–04A
CLAMP
LCC–04
CN13
KR CONNECTOR
S4B–PH–K–S
CN1002
ZH CONNECTOR
S7B–ZR
CN1005
ZK CONNECTOR
S2B-ZR
PCB BINDER
VEF1040
SIFB BOARD ASSY
SEMICONDUCTORS
IC951
BU3892FV
COILS AND FILTERS
L16 (4.7 µH)
DTL1024
SWITCHES AND RELAYS
S953
DSX1050
CAPACITORS
C959
CKSQYB103K50
C962
CKSQYB182K50
C957, C958
CKSQYB474K16
C960, C963
CKSQYF104Z25
RESISTORS
VR952 (10k Ω)
RCP1045
Other Resistors
RS1/10S J
OTHERS
CN955
MT CONNECTOR (4P)
173979–4
CN954
FLEXIBLE CONNECTOR
52271–1790
CN953
FLEXIBLE CONNECTOR
52271–3090
CN956
FFC CONNECTOR (4P)
VKN1208
KN951
EARTH METAL FITTING
VNF1084
FRPB BOARD ASSY
SEMICONDUCTORS
Q951
DTC124EK
D951
SLR–342MCT31
D952
SLR–342YCT31
COILS AND FILTERS
L951–L956
RTF1167
SWITCHES AND RELAYS
S952
RSG1030
CAPACITORS
C951
CKSQYB103K50
RESISTORS
R952
RS1/10S241J
R953
RS1/10S471J
OTHERS
CN952
FFC CONNECTOR
9610S–12B
J952
WIRE ASSY (6P)
D20PWY0610E
J954, J955
EARTH RUG ASSY
DDX1148
Mark No.
Description
Part No.
Mark No.
Description
Part No.
A
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
34
IDSB BOARD ASSY
SWITCHES AND RELAYS
S954
DSX1052
S1001
DSX1053
OTHERS
CN1003
ZH CONNECTOR
S7B–ZR
LOAD BOARD ASSY
SWITCHES AND RELAYS
S601, S602
DSG1016
OTHERS
CN601
CONNECTOR (4P)
4–173979–4
MOTB BOARD ASSY
OTHERS
CN602
6PJUMPER CONNECTOR
52151–0610
DSEL BOARD ASSY
SWITCHES AND RELAYS
S604–S606
DSG1016
S603
PSG1010
OTHERS
J602
WIRE ASSY (5P)
D20PWW0515E
Mark No.
Description
Part No.
B
F
G
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
35
6.1 PREPARATIONS
6.1.1 JIGS AND MEASURING INSTRUMENTS
6.1.2 NECESSARY ADJUSTMENT POINTS
When
Adjustment points
Exchange
MAIN BOARD ASSY
Exchange
SERVO MECH ASSY
1.2.3. = Page 39, 40
1.2.3. = Page 39, 40
CD TEST DISC
(YEDS-7 or STD-903)
screwdriver
(small)
Precise
screwdriver
screwdriver
(medium)
screwdriver
(large)
Low-frequency
oscillator
Dual-trace
oscilloscope
(10 : 1 probe)
Service remote
controller
(RU-V101)
External adder
amplifier
Interface
6. ADJUSTMENT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
36
1
4
CN13
1: VD5V
2: REMI
3: REMO
4: GNDD
CN13
MAIN BOARD ASSY
RU-V101
1
1
2
2
3
3
4
Q1
10k
2.2k
Q1: DTC124ES or UN4212
3P mini jack
Interface
PH type
connector
(4P)
V +5V
REMI
GND
SERVICE REMOTE CONTROLLER
6.2.1 HOW TO START/CANCEL TEST MODE
6.2 ADJUSTMENT
÷ Test Mode
Shows the function table of the remote controller (RU-V101) for service as follows. When operating the CD-ROM directly,
it is possible to operate as shown below by connecting the wired-remote control to the CD-ROM with the interface.
FUNCTION TABLE OF THE REMOTE CONTROLLER (RU-V101) FOR SERVICE
÷ Schematic Diagram of the Conversion Jig for Remote Control Operation
TEST MODE : ON
REAR PANEL
(IDSB BOARD ASSY)
REAR PANEL
(IDSB BOARD ASSY)
REAR PANEL
(IDSB BOARD ASSY)
ON
1 2
3
FUNCTION SW (S1001)
ID SW (S954)
TEST MODE/ON
TERM/ON
SW POSITION: 1 to 7
0
2
6
4
7
1
5
3
ID SW (S954)
SW POSITION: 0 only
0
2
6
4
7
1
5
3
TEST MODE 1
TEST MODE 2
Power Switch: ON
Power Switch: OFF
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
37
Key Operation
Command
Description
[0] + [TIME]
{0TM}
All servo OFF
[2] + [TIME]
{2TM}
Focus ON/OFF
[3] + [TIME]
{3TM}
Spindle ON (CAV: 500 rpm)
[4] + [TIME]
{4TM}
Tracking ON/OFF
[6] + [TIME]
{6TM}
Focus Up/Down
[8] + [TIME]
{8TM}
Spindle rotation control: CLV control (single speed)
[9] + [TIME]
{9TM}
Spindle rotation control : Pseudo CLV control (24 x speed)
[STILL/STEP >>]
{SF}
1 Track jump : FWD
[STILL/STEP <<]
{SR}
1 Track jump : REV
[∗] + [∗] + [∗] + [MULTI-SPEED +]
{∗∗∗MF}
∗∗∗ Track jump : FWD
[∗] + [∗] + [∗] + [MULTI-SPEED –]
{∗∗∗MR}
∗∗∗ Track jump : REV
REJECT
: Spindle Stop
REJECT
: Spindle stop
PAUSE
: Pause
PLAY
: Play (Trace)
STILL/STEP
E
: Test command
STILL/STEP
e
:
MULTI-SPEED +
: Test command
MULTI-SPEED –
:
CLEAR
: Clear
FRAME
: Frame set
TIME
: Time set
CHAPTER
: Track set
SEARCH
: Search
10 key
: Numerical input
DISPLAY
(FUNC + 1)
: No entry
STILL
(FUNC + 2)
: No entry
C-MODE
(FUNC + 3)
: No entry
VIDEO
(FUNC + 4)
: No entry
STOP. M
(FUNC + 5)
: Stop Marker
START
(FUNC + 6)
: Start
AUDIO
(FUNC + 7)
: No entry
SPEED
(FUNC + 8)
: No entry
OPEN
(FUNC + 9)
: Disc Return
[1] – [6] + CHAPTER
: Disc Select
[0] + FRAME
: Index Set
RU-V101
¶ Test Command
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
38
6.2.2 ADJUSTMENT LOCATIONS
MAIN BOARD ASSY
SIFB BOARD ASSY
SIDE B
SIDE A
VR952: RF LEVEL ADJ.
VR952
FE
TE
VB
VA
VC
VREF
GND
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
39
CD-ROM Player
1. Focus Offset Check
Focus Error Offset
and
Tracking Error Offset
Auto Adjustment
2. Tracking Error Barance Check
Oscilloscope
DC Mode
V: 1 V/div
H: 10 mSec/div
GND
Prove(10:1)
MAIN BOARD ASSY
FE
GND
START
GND
Prove(10:1)
VREF
VREF
GND
FCS.ERR
GND
(CH1)
(CH2)
A
B
Check
Oscilloscope
DC Mode
V: 500 mV/div
H: 5 mSec/div
GND
Prove(10:1)
PLAY
R=35mm
TEST DISC
PLAY
TEST DISC
Test mode 1
SPDL servo
=�CLOSE
FOCUS servo =�CLOSE
TRKG servo
=�OPEN
PLAY MODE
6.2.3 CHECK AND ADJUSTMENT
A=B
VREF
A
B
A≠B
VREF
A
C
B
START
TE
VREF
MAIN BOARD ASSY
CD-ROM Player
When there is a DC
component
When there is no DC
component
6.2 ADJUSTMENT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
40
3. RF Level Adjustment
330 mVP-P
±30 mV
Oscilloscope
AC Mode
V: 100 mV/div
H: 10 mSec/div
CD-ROM Player
GND
Prove(10:1)
AUTO PLAY (CLV) /
PAUSE
TEST DISC
VR952
SIFB BOARD ASSY
MAIN BOARD ASSY
VA
VREF
GND
VB
VC
START
+
–
+
–
+
–
+
–
+
+
+5V
–5V
4.7k
VC
VB
VA
4.7k
4.7k
10p
75
4.7k
4.7k
0.1µ
0.1µ
+
47/16
47/16
–
External Adder Amplifier
¶� Test mode 2
In test mode 2, the disc is started
automatically, single speed CLV (60
min) search is performed, and then
the unit goes into PAUSE status.
¶�
(AUTO PLAY MODE)
6.2 ADJUSTMENT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
41
ZO
MAGAZlNE OUT
Enters home mode by ejecting the magazine.
ZS
DISC SELECT
Enters park mode after removing the specified disc from the magazine and cramping it.
The address (DISC number) is to be specified prior to the command.
Example: 3ZS (to select the third disc from the top of the magazine)
ZR
DISC RETURN
Returns the disc to the magazine and enters home mode.
R J
REJECT
Stops the disc rotation and enters park mode.
SA
START
Starts the disc rotation. When the first track is an audio track, the disc will pause at the beginning
of the track while it will pause at 0 minutes 1 seconds 0 frames in a data track.
PL
PLAY
Enters play mode and plays the disc.
Automatically stops if the specified command adress is overrun during playback.
Example: TM2000PL (Pause at 20 min. 00 sec. frame.)
PA
PAUSE
Enters pause mode. stopping at the current point.
SE
SEARCH
Searches for the specified address and enters pause mode after the search operation.
Example: BK4500SE (to specify a block), TR5SE, 6SE (to specify a track)
6.3 FUNCTION OF PERSONAL COMPUTER FOR SERVICING
Use the floppy disc furnished with the product.
6.3.4 COMMAND LIST
Notes:
¶ The complete status "R" is returned when the execution of each
command is completed.
¶ Park mode
: A state in which the disc is cramped.
¶ Home mode : A state in which the disc is released (the disc has
returned to the magazine).
Fig. 1 MPC Window
Fig. 2 Sub-Window
ESC key
: Closes MPC window
[=] [+] [ ± ] [ ≠ ] key : Select functions
Space key or enter key
: Executes selected function
Direct Selection of Disc
When the cursor is at the [Disc] position..........
Directly input a number from 1 to 6 to select the disc.
Multi-play control (MPC) has one program to make it resident in
memory and another program that removes it from memory.
(1) MPC. COM
: Multi-play control program
(2) MPCRMV. COM
: Removes MPC from memory
MPC is executed as follows:
MPC [Enter]
This entry places MPC in memory. Execution of the next
program removes MPC from memory.
MPCRMV [Enter]
6.3.2 CALLING THE MPC WINDOW
When MPC has been placed in memory and your PC is in the key
input wait state..........
Press the GRPH key and the hyphen key at the same to make the
MPC window pop up.
6.3.3 CALLING A SUB WINDOW
Execute a [Command] function to make a sub-window pop up, and
then a mnemonic command can be executed. Use the ESC key to
cancel a sub-window.
¶ Command List
Explanation
Command
Command
Name
Multi Play Controler for DR-UA124X Ver 0.5
DISC:
Disc
Play
Pause
Track
Volume
Open
Command
[Esc] to exit
TRACK:
TIME:
PIONEER
Direct Commands
〉 TA3SEPL
[Esc] to exit
6.3.1 PROGRAM INSTALLATION AND
REMOVAL
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
42
SM
STOP MARKER
Sets a stop marker at the specified address.
Enters pause mode when passing over the stop marker during playback, clearing the marker.
The stop marker is also cleared when the CLEAR or REJECT command is supplied before the
stop marker is reached.
Example: BK200000SMPL (T0 pause at 20 minutes 0 second 0 frame sfter playback)
BK
BLOCK
Uses the address flag to specify blocks . Subsequently, an address entered is regarded as a
block number (BK + a 6-digit number).
TM
TIME
Uses the address flag to specify a tirne. Subsequently, an address entered is regarded as a time
code (TM + a 4-digit number).
TR
TRACK
Uses the address flag to specify a track. Subsequently, an address entered is regarded as a time
track number (TR + a 2-digit number).
IX
INDEX
Uses the address flag to specify an index. Subsequently, an address entered is regarded as an
index number (IX + a 4-digit number).
CL
CLEAR
Clears the digit buffer (numerical input) and cancels search mode, auto play mode or the stop
marker. When the buffer is cleared during a search operation, the pickup stops moving for a
pause. Resumes normal operation when the buffer is cleared during an auto play or stop marker
operation.
LO
LEAD OUT SYMBOL
Sets a point in the lead-out area to an address. To be used when setting the stop marker on
the last track of a disc having 99 tracks.
Example: TR99SELOPL
VL
VOLUME
Adjusts the audio playback level. 0: minimun, 255: maximum
AD
AUDIO CONTROL
Select the audio outputs.
0: OFF, 1: Lch, 2: Rch, 3: STEREO, 4: OFF, 5: Lch, 6: Rch, 7: STEREO
Example: 3AD
CM
COMMUNICATION
Sets the communication mode . With this model, only mode 3 can be set.
Example: 3CM
KL
KEY LOCK
Activates or deactivate the keys on the front panel.
0: Activate 1: Deactivate Example: IKL
?Z
DISC NUMBER
Displays a three-digit number which indicates the ordinal of the cramped disc from the top of the
REQUEST
magazine. If no disc is cramped, "XXX" is returned.
?B
BLOCK NUMBER
Returns the block number by a 6-digit number. The current address is returned during playback
REQUEST
and the pause target address is returned during pause. "XXXXXX" is returned in park mode and
"000000 " is returned in the lead-in area.
?T
TIME CODE
Returns the time code by a 4-digit number. The current address is returned during playback and
REQUEST
the pause traget address is returned during pause. "XXXX" is returned in park mode and "0000"
is returned in the lead-in area.
?R
TRACK NUMBER
Returns the track nurnber by a 2-digit number. The current address is returned during playback
REQUEST
and the pause traget address is returned during pause. "XX" is returned in park mode.
"00" is returned in the lead-in area and "AA" is returned in the lead-out area.
?I
lNDEX NUMBER
Simultaneously returns the track number and the index number by a 4-digit number. The current
REQUEST
address is returned during playback and the pause target address is returned during pause.
"XXXX" is returned in park mode, "0000" is returned in the lead-in area and "AA01 " is returned
in the lead-out area.
?A
ADDRESS
Returns the track number, the index number and the P time by a 10-digit number. The current
REQUEST
address is returned during playback and the pause target address is returned during pause.
"XXXXXXXXXX" is returned in park mode, "0000000000 " is returned in the lead-in area and
"AA01000000" is returned in the lead-out area.
Explanation
Command
Command
Name
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
43
?Q
TOC
Returns TOC data. When no track number is specified, the first track number, the last track
INFORMATION
number and the absolute time of the beginning of the lead-out area are returned by a 10-digit
number.
Example: 0109665544
01: Ist track number
09: Last track number
665544: The lead-out area begins at 66 minutes 55 seconds 44 blocks.
When a track number is specified, the absolute time of the beginning of the track and the code
to indicate whether the track is an audio track or a data track are returned by an 8-digit number.
Example: 10020000
100200: Track 5 begins at 10 minutes 02 seconds 00 blocks.
00: Track 5 is an audio track. (04 = data)
?G
CATALOG CODE
Returns the catalog code of the disc being played by a 13-digit number. If no catalog code is found
REQUEST
or in home mode, thirteen Xs are returned.
?O
ISRC CODE
Returns the ISRC code by a 14-digit number when ISRC code is written.
REQUEST
?P
PLAYER ACTIVE
Returns operation mode by three characters.
MODE REQUEST
P00: home mode (without magazine)
P02: Setup mode
P23: Eject mode
P20: home mode (with magazine)
P03: Reject mode
P08: Scan mode
P01: Park mode
P07: Search mode
P04: Play mode
P21: Disc select mode
P06: Pause mode
P22: Disc return mode
?K
DISC STATUS
Returns the attribute of the playback disc in 8 characters (Nl - N8).
REQUEST
Nl: Disc loading
0: no
1: yes
N2: Audio track
0: none
1: available
X: unknown
N3: Data track
0: none
1: available
X: unknown
N4: CDV
0: no
1: yes
X: unknown
N5: CD-I
0: no
1: yes
X: unknown
N6 - N8: (reserved)
Example: 11000XXX
?X
CDP MODEL NAME
Returns the model narne of the CD player. "P155001"
REQUEST
?M
COMMUNICATION
Returns communication mode " 3 " with this model.
MODE REQUEST
Explanation
Command
Command
Name
E00
COMMUNICATION ERROR
Cornmunication line error
¶ Framing error
¶ Buffer overflow
E04
FEATURE NOT AVAILABLE
An unusable command has been executed.
¶ Different command mnemonics or mode
E06
MISSlNG ARGUMENT
Required parameter has not been specified.
E11
DISC OR MAGAZINE NOT EXIST
No disc or no nagazine has not been installed.No disc can be detected.
E12
ADDRESS SEARCH ERROR
No search address has not been found.
E13
FOCUS SERVO FAILURE
Focus error and failure also on retry.
E14
TRACKING SERVO FAILURE
Tracking error and failure also on retry.
E15
FRAME SYNC TIME-OUT
PLL frame sync time-out.
Explanation
Command
Command
Name
6.3.5 ERROR MESSAGES
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
44
E16
INPUT OTHER DEVICE
The eject key had been depressed before the command execution was completed.
E90
DISC SELECT FAILURE
Tray/disc selection time-out.
E91
CAN'T EJECT MAGAZlNE
The magazine cannot be extruded.
E92
ELEVEATION FAILURE
Elevation time-out.
E96
START UP FAILURE
Unsuccessful start.
E99
PANlC
An unrecoverable error or an error with an unknown cause has occurred during drive
operation.
¶ The playback operation cannot be continued and stops.
Explanation
Command
Command
Name
6.3.6 CD-ROM STATUS CHART
P21
LOAD
P21
P00
HOME
MAGAZINE
(existence)
MAGAZINE
(none)
P22
P01
P03
P23
RETURN
PARK
STOP
(RESET)
SELECTOR UP
MAGAZINE EJECT
SET UP
TOC
SEARCH
PAUSE
SCAN
PLAY
P02
P02
P07
P08
P06
P04
Mode to return "R" when the command arrives
Normal chart (normal transition)
At reset
Brake by C/R, etc.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
45
N.C.
1
RY/BY
2
N.C.
3
A7
A0 – A16
4
A6
5
A5
6
A4
7
A3
8
A2
9
A1
10
A0
11
CS
12
Vss
13
OE
14
DQ0
15
DQ8
16
DQ1
17
DQ9
18
DQ2
19
DQ10
20
DQ3
21
DQ11
DQ0 – DQ15
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
RESET
RY/BY
Buffer
RY/BY
Control
Circuit
Write Circuit
Chip Enable
Output Enable
Circuit
Erace
Circuit
Y Decoder
X Decoder
Address Latch
STB
STB
Write/Erace
Pulse Timer
Low Vcc Det.
Circuit
WE
A8
A9
A10
A11
A12
Vss
A13
A14
A15
A16
BYTE
DQ15/A-1
A-1
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
Vcc
Vss
Vcc
WE
RESET
BYTE
CS
OE
Y Gate
Data Latch
Input/Output
Buffer
2,097,152
bits
Cell Matrix
14
14
3 – 11, 34 – 42
15 – 22, 24 – 31
12
44
33
43
2
7 PD6287B: (IC702: MAIN BOARD ASSY)
¶ Flash Memory
¶ The information shown in the list is basic information and may
not correspond exactly to that shown in the schematic diagrams.
7. GENERAL INFORMATION
7.1 IC
¶ Pin Assignment (Top View)
¶ Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
46
AXIS NETWORK
BOARD ASSY
Disconnect the
SCSI connector
SCSI Cable
PC/AT
REAR PANEL
(IDSB BOARD ASSY)
ON
1 2
3
FUNCTION SW (S1001)
TERMINATOR: OFF
HARD DISK UNIT
MASTER
(SLAVE)
IDE/SCSI BOARD ASSY
TERMINATOR:
OFF =�ON
JP11 (Closed) = (Open)
JP5
JP11
CN4
7.2 DIAGNOSIS
7.2.1 DIAGNOSIS METHOD FOR MULTI MECHA ASSY AND HDD
This unit is equipped with an external SCSI terminal. Accordingly, when the SCSI cable is
disconnected from the AXIS NETWORK BOARD Assy, the external SCSI terminal is connected
to the SCSI controller of the PC A/T, and the terminator setting is changed, the built-in HDD and
the MULTI MECHA Assy can be operated from the PC A/T as SCSI devices, and analysis is
possible.
7.2.2 DISASSEMBLY
2
3
3
4
3
Disconnect the
connectors.
AXIS NETWORK
BOARD ASSY
× 2
Removal of the AXIS Network Board Assy and
Hard Disk Unit
1 Remove the Bonnet.
6
7
5
Disconnect the
connector.
IDE/SCSI BOARD ASSY
HARD DISK
UNIT
× 2
7
8
× 2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
47
Removal of the Power Supply Assy
Rear Side
2
5
6
3
4
1
× 4
7
8
8
Power Supply
Assy
CN2
CN1
9
Power Supply
Assy
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
48
7.2.3 TROUBLESHOOTING
This section provides useful information to help you
resolve any difficulty you might have with your DRM-
6NX, namely:
÷ The front panel indicators
÷ Errors when accessing the DRM-6NX
÷ Problems running CD-ROM software
÷ Difficulties locating the DRM-6NX in NetWare
÷ Problems locating the domain controller in SMB
÷ Problems when accessing disc changers
÷ Restoring the factory default settings
The Front Panel Indicators
The front panel indicators show the status of the DRM-
6NX. The indicators have the following functions:
÷ Status - Flashes during startup. When the DRM-6NX
is ready for use, the light goes out. The LED remains
off, unless an error condition occurs.
÷ HDD - Flashes to indicate hard disk activity and SCSI
activity.
Caution!
Never turn off the power when the hard disk
drive is active (while HDD indicator is flashing).
÷ Network - Flashes to indicate the presence of network
traffic.
÷ CHANGER - Light when data is read from the internal
changer and when the SCSI bus is accessed.
÷ Power - Indicates that power is connected to the
DRM-6NX. This LED should remain lit and is only
used to indicate power is present in the DRM-6NX
unit.
Normal Conditions
The Power LED is controlled by hardware and is always
lit when power is connected.
This table shows the other front panel indicators under
normal conditions:
Event
Status LED
HDD LED Network LED
Initial power to unit
ON
ON
ON
During power-up/Self-test.
Approx. 30 seconds.
Flash
OFF
OFF
After power-up/Self-test
OFF
ON
Flash*
First disc inserted
OFF
ON
Flash*
Last disc removed
OFF
OFF
Flash*
Network Packet arrived
OFF
N/A
Flash*
Flash loading
1 Flash/sec 1 Flash/sec 1 Flash/sec
* The Network LED will flash when there is network traffic.
Status Indicator On
If the Status indicator remains lit after startup, this may
indicate an error. Most likely there is a problem with the
SCSI bus or with any of the connected disc drives. Make
sure all connected drives have unique SCSI addresses
and that only the last drive in the SCSI chain is terminated.
÷ If some drive error occurs during caching/reading,
caching/reading is canceled and the drive and discs
become disable.
Only restarting this product can clear this condition.
Error Conditions
This table shows the front panel indicators under various
error conditions:
Event
Status LED
HDD LED Network LED
CD-ROM has incorrect format
or SCSI bus not connected**
OFF
Flash
Flash*
Faulty network connection
OFF
OFF
Illegal serial no.
Flash
Flash
Flash
Flash load failed
Flash
OFF
OFF
Token-Ring loopback failure
Flash
Flash
OFF
Token-Ring speed error
ON
OFF
Flash
Error in EEPROM
Flash
OFF
OFF
Error in FLASH PROM
Flash
OFF
Flash
Error in SRAM
Flash
Flash
OFF
Error in DRAM/DIMM
Flash
OFF
OFF
Error in DRAM/DIMM
configuration error
Flash
Flash
OFF
Software/Hardware
combination error
Flash
Flash***
Flash***
Disconnect/reselect drive
error ****
Flash
* The Network LED will flash when there is network traffic.
** Check the logfile.txt file in the System folder for more information.
*** The HDD LED and Network LED will flash alternately in this condition.
**** Disable the function by setting the Disconnect/Reselect parameter to
off.
Errors when Accessing the Network
Cache Changer or Inserted Discs
If you get error messages when trying to access the
DRM-6NX or an inserted disc:
÷ Using TCP/IP, make sure that you have assigned a
unique Internet address to the DRM-6NX.
÷ Check the SCSI chain and ensure that all external disc
drives are switched on and that only the last unit is
terminated.
÷ Using Microsoft Windows Network, verify that you
have enabled the SMB protocol.
÷ Consult the error table in section “Error Conditions”
to see if the front panel indicators can help you
identify the problem.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
49
Problems Running CD-ROM Software
If you have inserted a CD-ROM successfully, but the
software on it refuses to run or produces error messages,
the software may expect the CD-ROM data to be at root
level. In NetWare as well as in the Microsoft and IBM
network operating system environments, you then
need to assign a drive letter to that particular CD-ROM.
In NetWare, the Show All Volumes parameter must be
enabled. See also “Accessing the Network Cache
Changer Resources”.
Some CD-ROMs, e.g the single user version of
“Computer Select”, requires the MSCDEX (Microsoft)
driver. The volume is usually released in a network
version as well. An MSCDEX emulation, called
PIONEERCDEX, is available on the Axis web site. The
PIONEERCDEX makes a CD-ROM on the DRM-6NX
look as if it was locally connected to the PC.
PIONEERCDEX supports Windows for Workgroups.
An MSCDEX emulation for Windows 95 is also available.
If the CD-ROM is a single user version, you must restrict
the number of simultaneous users to one.
Some applications look for information on the CD-ROM
using its default name - if you have set an alias name it
may not recognize the disc and fail to run.
Difficulties Locating the Network Cache
Changer in NetWare
Frame Types - Ethernet
There are basically two different frame types on Ethernet
networks, Ethernet II or IEEE 802.3. The IEEE 802.3
frame can be encapsulated in an IEEE 802.2 LLC frame
or a SNAP frame. All four frame types are enabled by
default with the value auto, which means that your DRM-
6NX automatically adapts to the frame type used on the
network. This will meet most requirements. Frame
types that are not in use in your network will not be used
by the DRM-6NX.
However, depending on your network, you may want
the DRM-6NX not to operate on some frame types. If
your network has multiple sections with different frame
types on some of the sections, then the DRM-6NX
might log on to the wrong network section and adapt to
a frame type incompatible with the intended network
section. For this reason, you have the option to disable
those frame types by changing the parameter from auto
to off.
Problems Locating the Domain Controller
in Windows (SMB)
If there is a problem locating the primary domain
controller when using user-level security mode in
Windows (SMB), all users will be denied access to the
DRM-6NX.
Web Browser
You can verify the configuration settings from the DRM-
6NX web interface. Within the Administration pages,
click Network Settings, Detailed View, and open the
Windows (SMB) tab to do that.
Local Administrator Account
In Windows NT, you can correct the problem by logging
on to the DRM-6NX as local administrator. Note that the
local administrator is not the same as an Administrator
with an account on the domain.
In the Map Network Drive dialog, specify the following:
Path:
The DRM-6NX name
Connect as:
Server name\Administrator
Password:
The password set in the
ServerPassword parameter
Example:
The host name of the DRM-6NX is cdserv.
Path:
\\cdserv\root
Connect as:
cdserv\Administrator
NOTE:
7 In Windows 95, you cannot tell the SMB client to change domain and user
when you are already logged in. Therefore, you cannot use the local
administrator account to solve domain problems in the Windows 95
environment.
Alternatively, it is possible to use the eight digit network
number appropriate to your segment of the network, in
the form xx-xx-xx-xx (e.g. 00-3F-B5-01). In all normal
cases this will not be necessary since autodetection will
handle most cases. However, this has to be done by
directly editing the config.txt file using a text editor.
Although you cannot enter the network number from a
Web browser, you can display the frame type and
change the value to auto or off, if required.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DRM-6NX
50
Problems When Accessing Disc Changers
Disc changer flutter can occur if a user requests access
to a CD-ROM when another user is already reading data
from another CD-ROM. The changer may then attempt
to service both requests by repeatedly changing
between the two CD-ROMs and transferring a small
amount of data each time. Because of the relatively long
time needed to change CD-ROMs, the data transfer
rate to both users will become unacceptably low.
The JukeBox Lock Time parameter in the DRM-6NX
configuration file specifies how long a user has exclusive
access to a CD-ROM during a data read operation. This
is to prevent disc change flutter in order to optimize
access speed when many users are accessing different
discs in the same changer.
The JukeBox Lock Time parameter will ensure that
when there are simultaneous requests for access to
different discs, a sizable block of data is transferred to
each user before the access is changed.
÷ If the JukeBox Lock Time parameter is set too low,
the data transfer rate will be unacceptably low.
÷ If the JukeBox Lock Time parameter is set too high,
the disc drive will time-out on a second user’s request
before the first user’s access is completed. This will
result in users receiving a ‘CD-ROM not available’
notice.
The default setting is 0 seconds which disables this
function.
NOTE:
7 If some drive error occurs during caching/reading,Caching/Reading is
canceled and the drive and discs become disable.
Only restarting this product cam clear this condition.
FTP
To restore the default settings using FTP:
1. Log in to the DRM-6NX with the command:
ftp
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
