先锋PIONEER DJM-3000电路图

分类：电子电工 日期： 点击：0

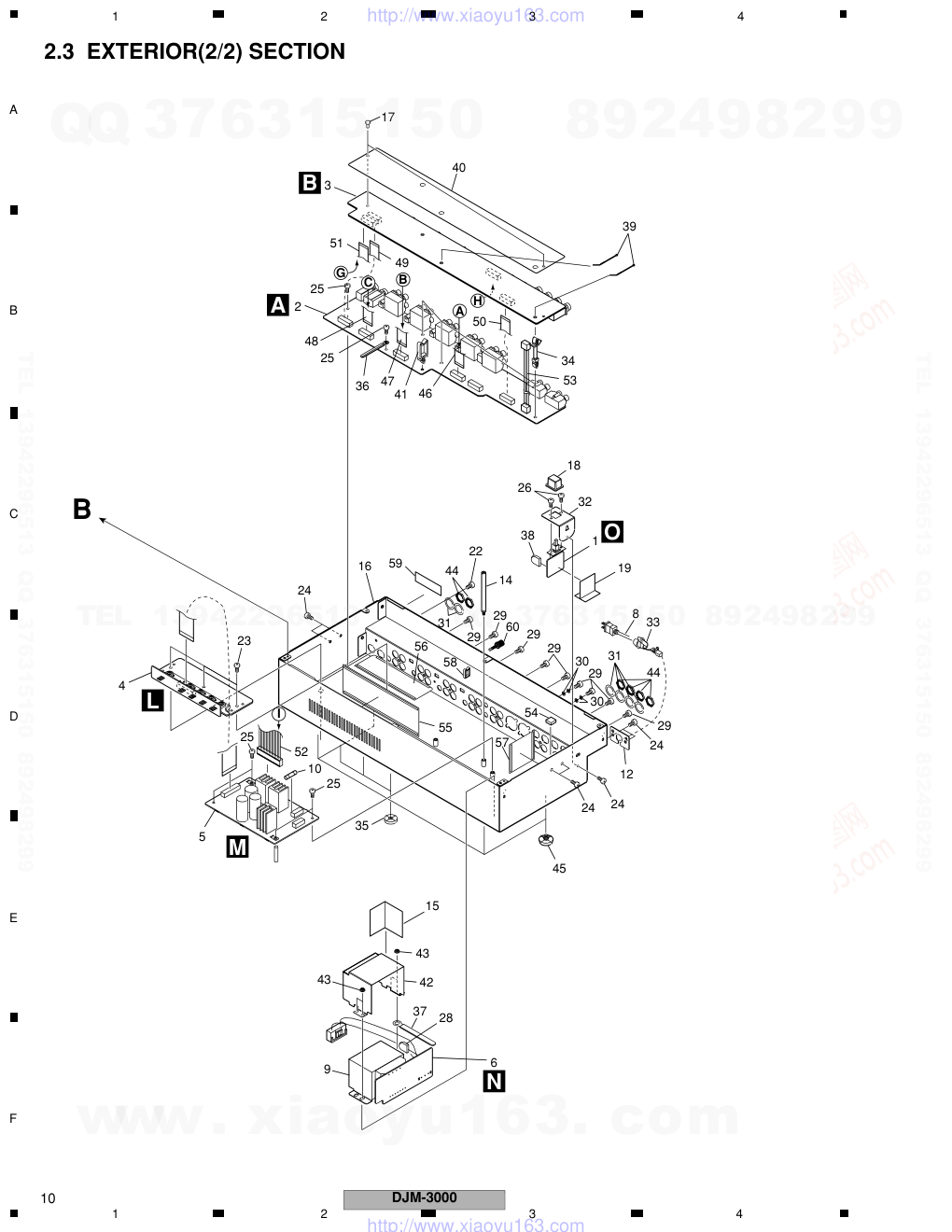

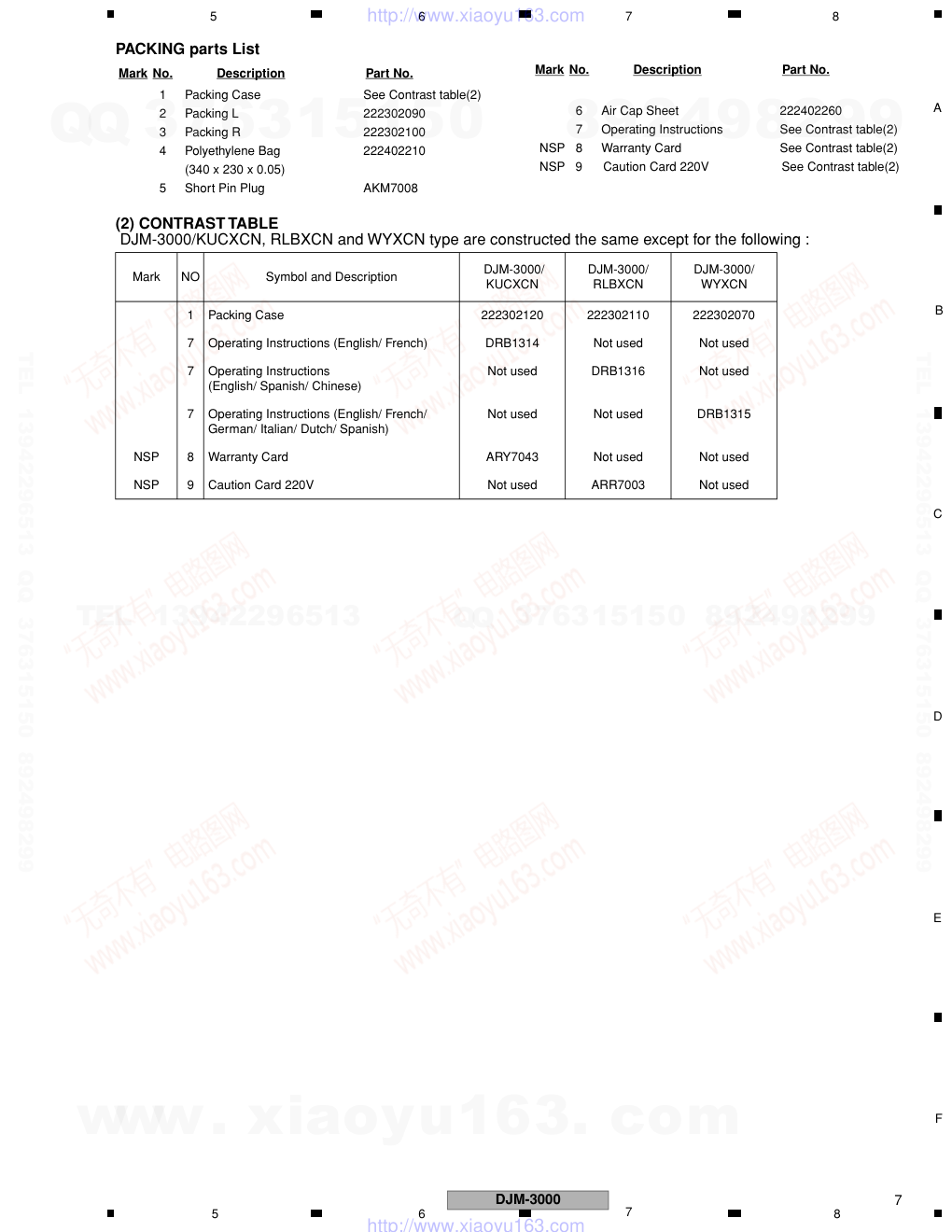

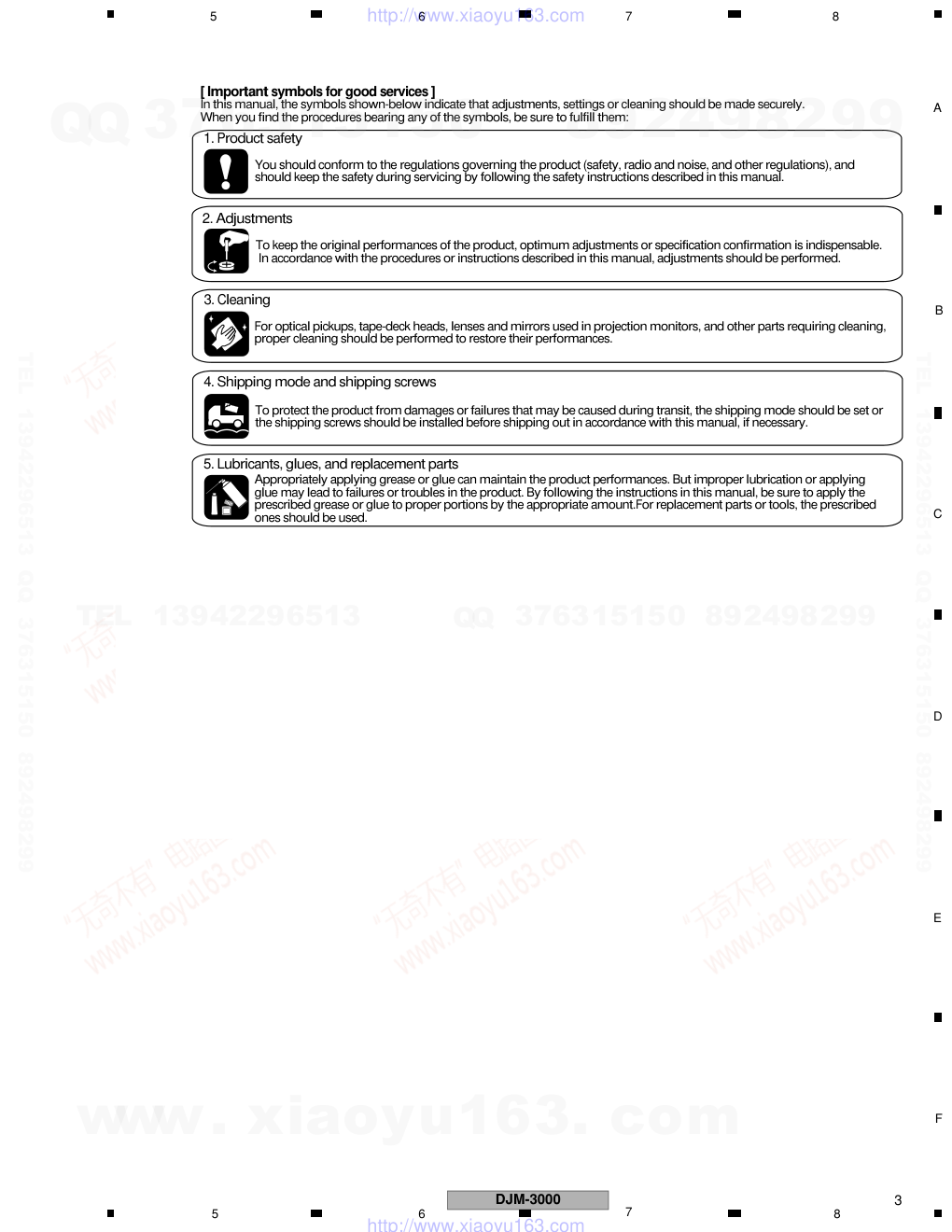

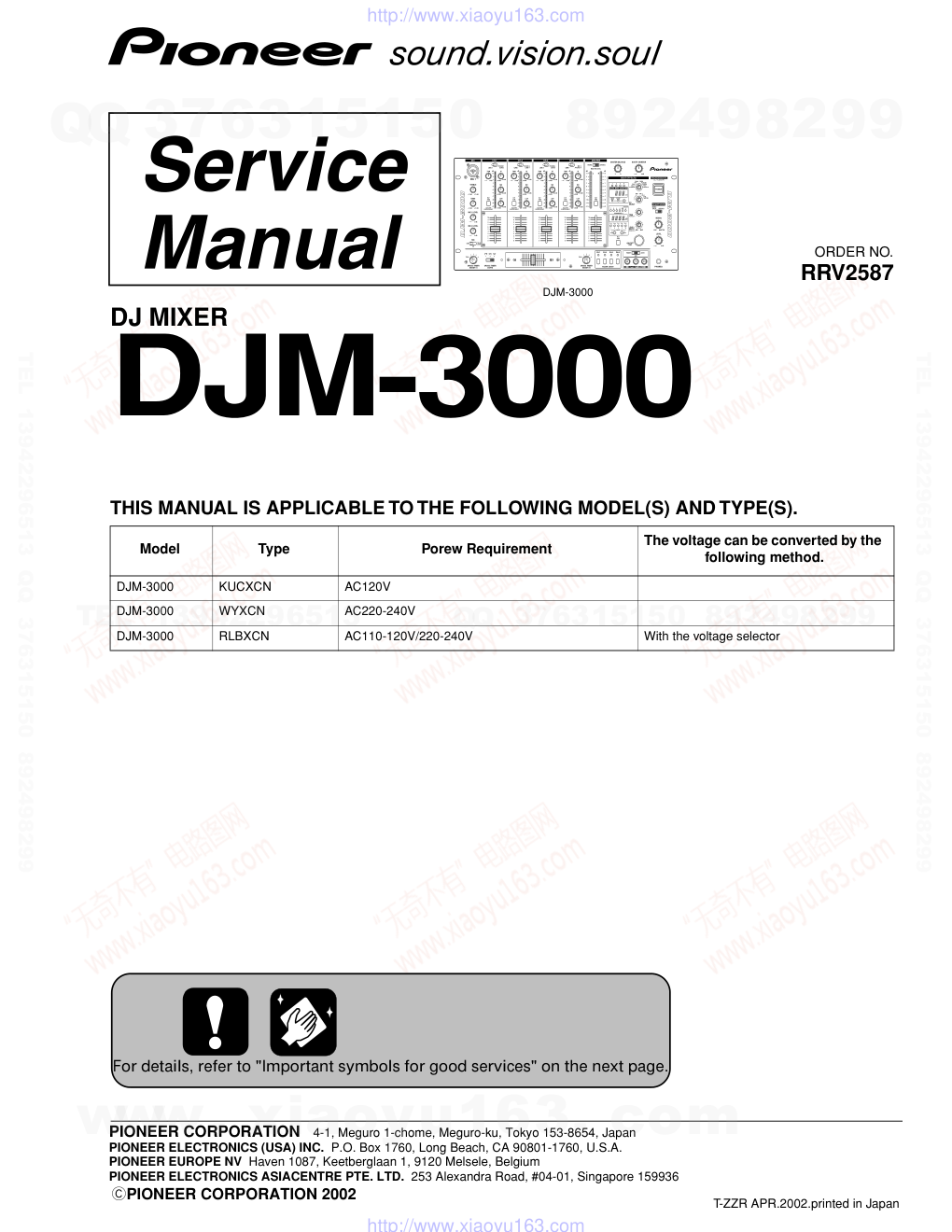

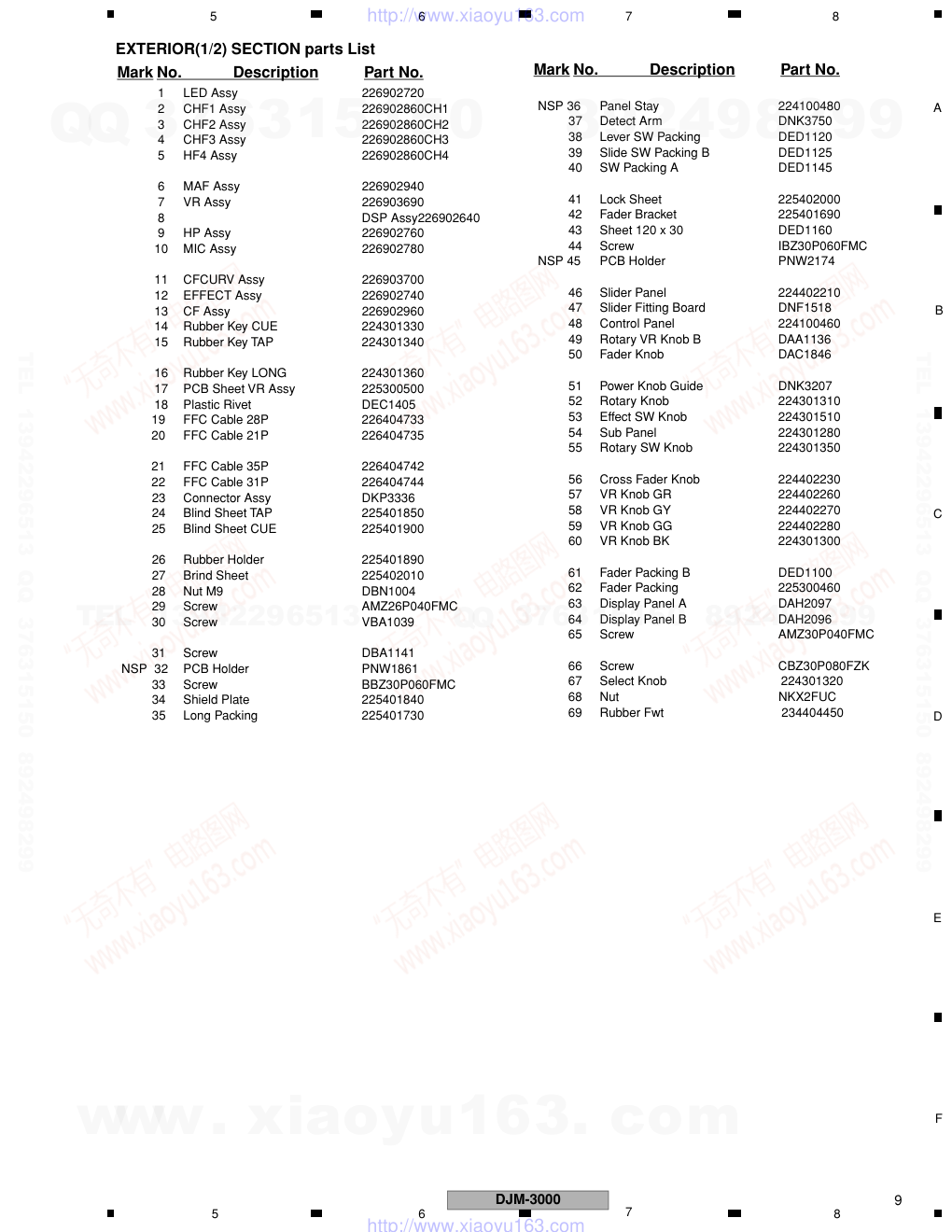

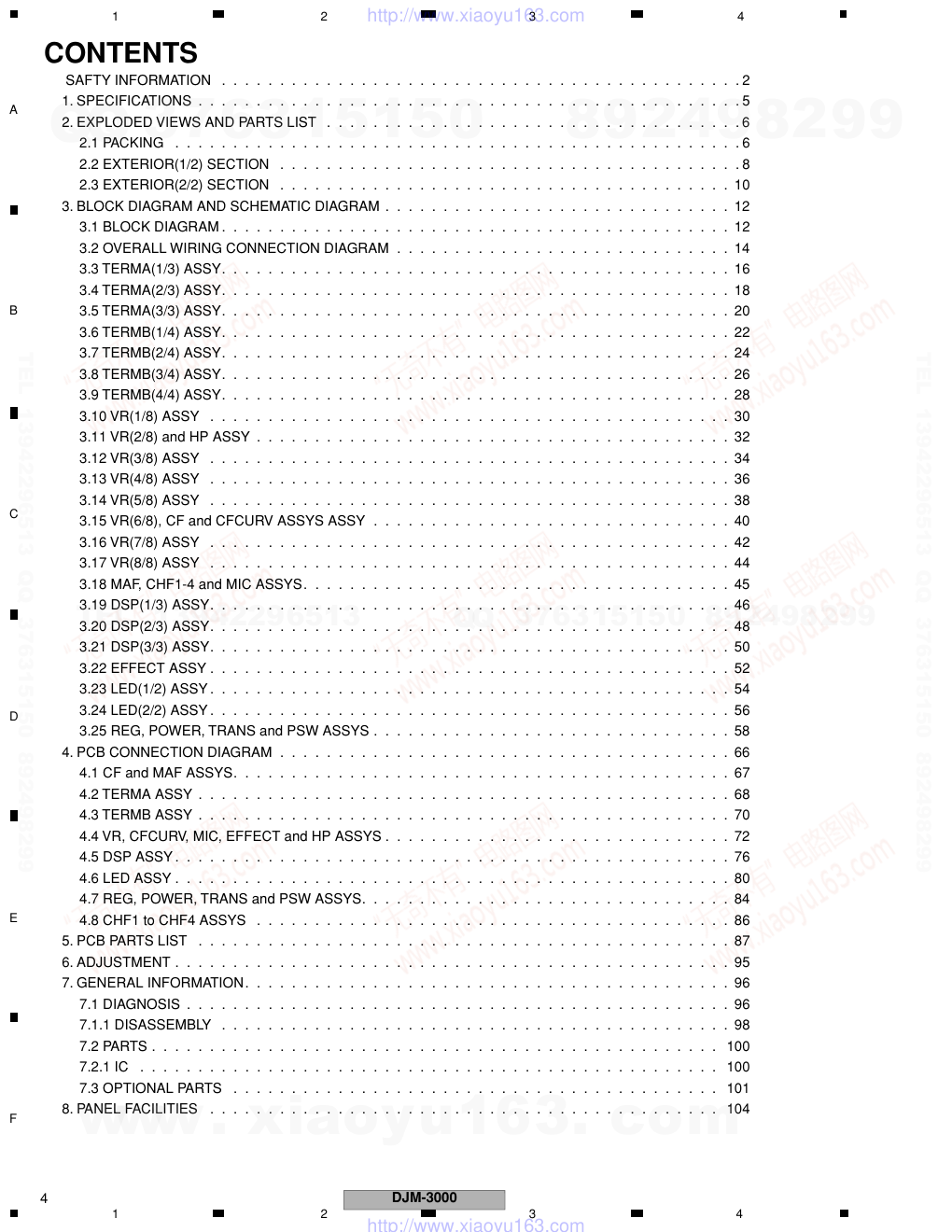

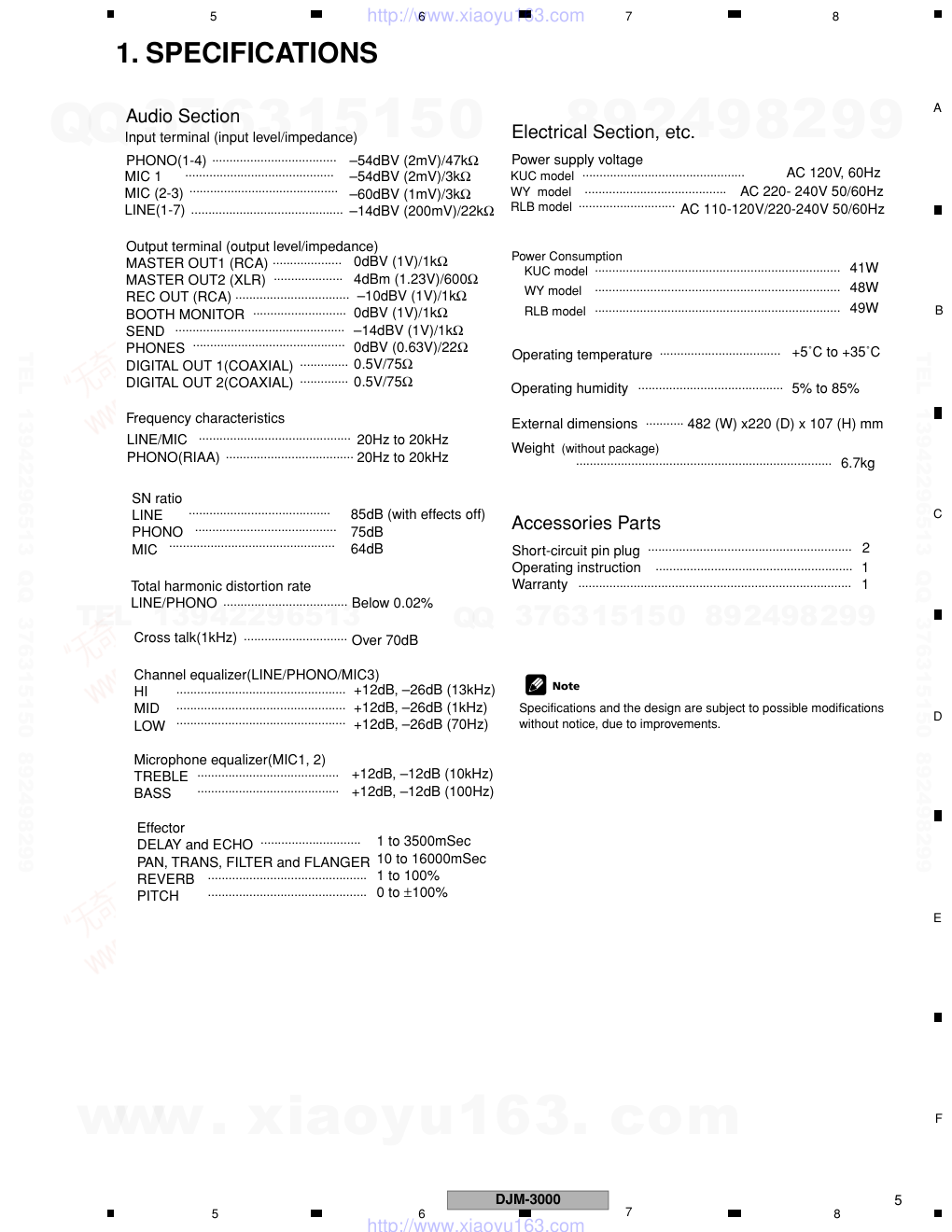

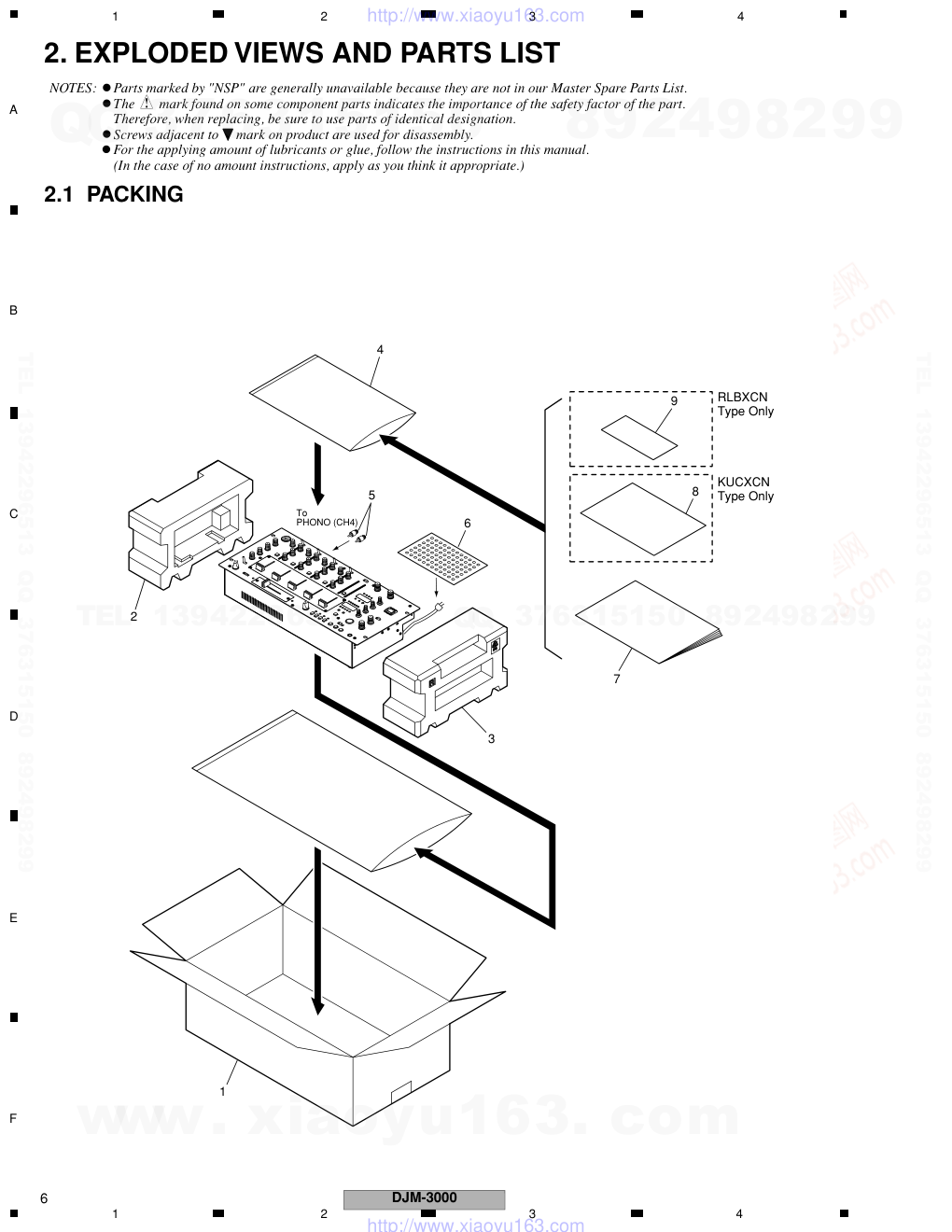

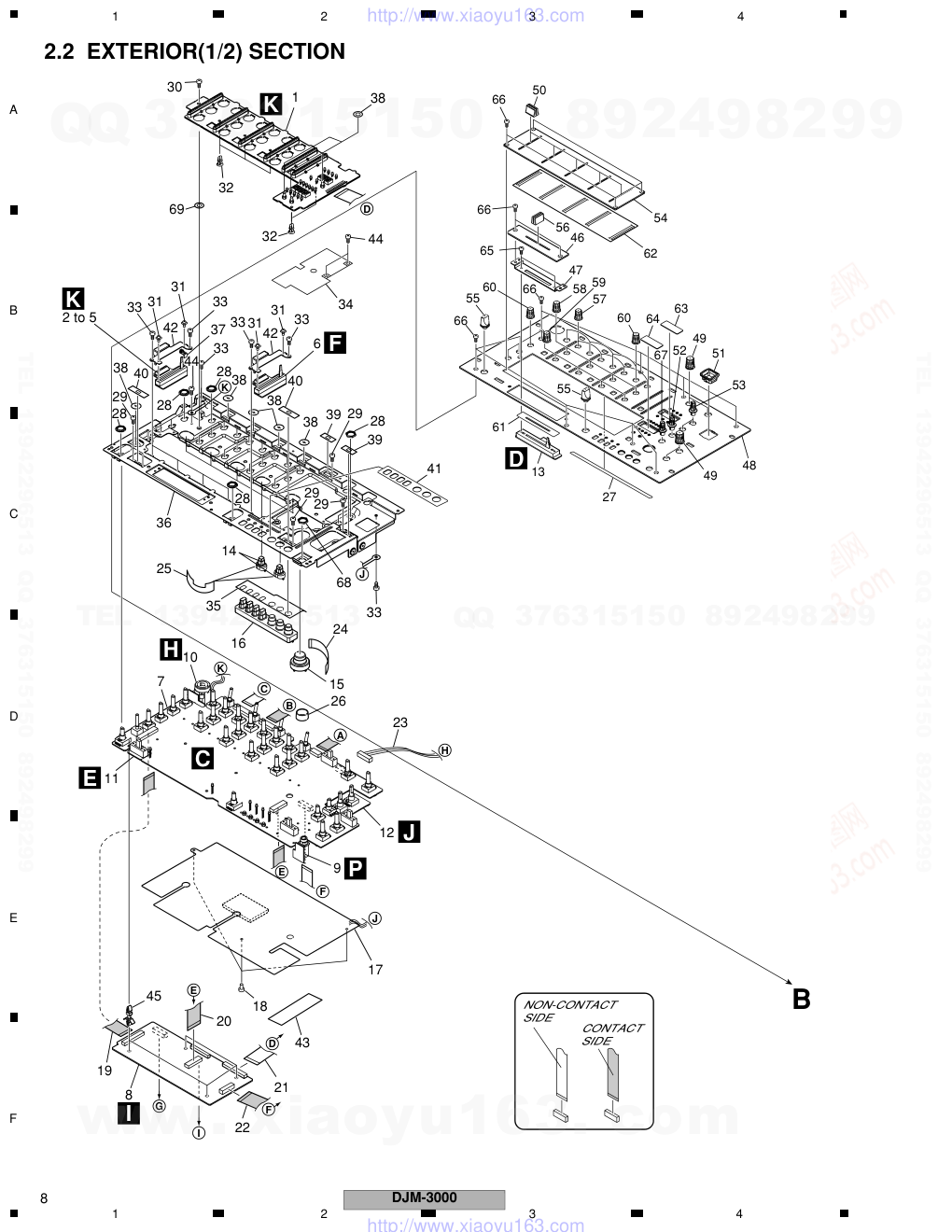

先锋PIONEER DJM-3000电路图-0 先锋PIONEER DJM-3000电路图-1 先锋PIONEER DJM-3000电路图-2 先锋PIONEER DJM-3000电路图-3 先锋PIONEER DJM-3000电路图-4 先锋PIONEER DJM-3000电路图-5 先锋PIONEER DJM-3000电路图-6 先锋PIONEER DJM-3000电路图-7 先锋PIONEER DJM-3000电路图-8 先锋PIONEER DJM-3000电路图-9

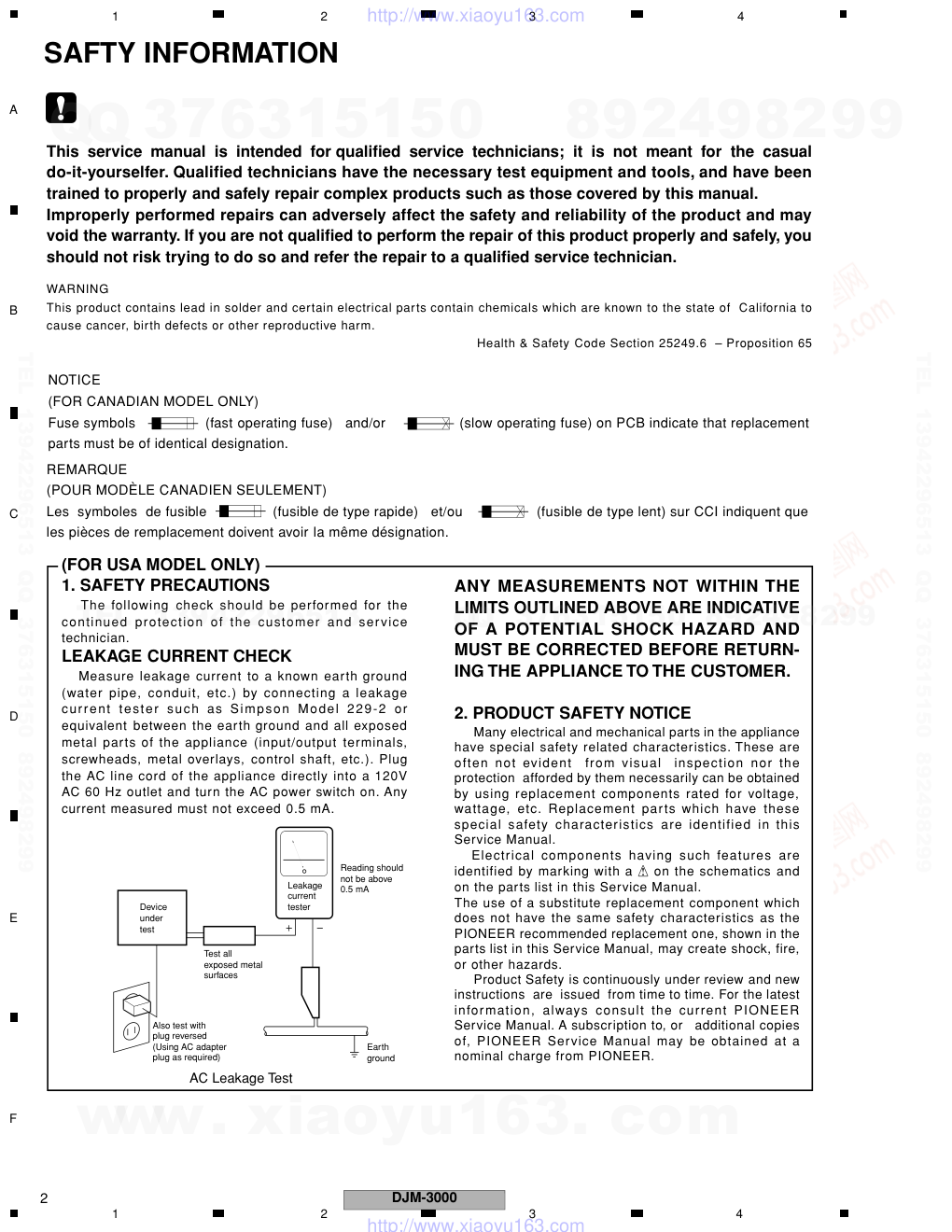

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2002 DJM-3000 RRV2587 DJ MIXER DJM-3000 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Porew Requirement The voltage can be converted by the following method. DJM-3000 KUCXCN AC120V DJM-3000 WYXCN AC220-240V DJM-3000 RLBXCN AC110-120V/220-240V With the voltage selector For details, refer to "Important symbols for good services" on the next page. T-ZZR APR.2002.printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 2 1 2 3 4 1 2 3 4 C D F A B E SAFTY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 3 5 6 7 8 5 6 7 8 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFTY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2. EXPLODED VIEWS AND PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 PACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 EXTERIOR(1/2) SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.3 EXTERIOR(2/2) SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.1 BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2 OVERALL WIRING CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3 TERMA(1/3) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.4 TERMA(2/3) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.5 TERMA(3/3) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.6 TERMB(1/4) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.7 TERMB(2/4) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 3.8 TERMB(3/4) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 3.9 TERMB(4/4) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 3.10 VR(1/8) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 3.11 VR(2/8) and HP ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.12 VR(3/8) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 3.13 VR(4/8) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 3.14 VR(5/8) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 3.15 VR(6/8), CF and CFCURV ASSYS ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 3.16 VR(7/8) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 3.17 VR(8/8) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 3.18 MAF, CHF1-4 and MIC ASSYS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 3.19 DSP(1/3) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 3.20 DSP(2/3) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 3.21 DSP(3/3) ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 3.22 EFFECT ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 3.23 LED(1/2) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 3.24 LED(2/2) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 3.25 REG, POWER, TRANS and PSW ASSYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 4. PCB CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 4.1 CF and MAF ASSYS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 4.2 TERMA ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 4.3 TERMB ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 4.4 VR, CFCURV, MIC, EFFECT and HP ASSYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 4.5 DSP ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 4.6 LED ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 4.7 REG, POWER, TRANS and PSW ASSYS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 4.8 CHF1 to CHF4 ASSYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 5. PCB PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 6. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 7. GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 7.1 DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 7.1.1 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 7.2 PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 7.2.1 IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 7.3 OPTIONAL PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 8. PANEL FACILITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS Audio Section PHONO(1-4) .................................... ........................................... ........................................... –54dBV (2mV)/47kΩ MIC 1 MIC (2-3) LINE(1-7) –54dBV (2mV)/3kΩ –60dBV (1mV)/3kΩ –14dBV (200mV)/22kΩ ............................................ Output terminal (output level/impedance) ......................................... ......................................... ................................................ ................................................. ............................................ ................................. 0dBV (1V)/1kΩ 4dBm (1.23V)/600Ω –10dBV (1V)/1kΩ 0dBV (1V)/1kΩ –14dBV (1V)/1kΩ 0dBV (0.63V)/22Ω 0.5V/75Ω 0.5V/75Ω MASTER OUT1 (RCA) MASTER OUT2 (XLR) REC OUT (RCA) BOOTH MONITOR SEND PHONES DIGITAL OUT 1(COAXIAL) DIGITAL OUT 2(COAXIAL) .................... ........................... .................... .............. .............. 20Hz to 20kHz 20Hz to 20kHz Below 0.02% Over 70dB 1 to 3500mSec 10 to 16000mSec 1 to 100% 0 to ±100% Effector DELAY and ECHO PAN, TRANS, FILTER and FLANGER REVERB PITCH +12dB, –12dB (10kHz) +12dB, –12dB (100Hz) Microphone equalizer(MIC1, 2) TREBLE BASS +12dB, –26dB (13kHz) +12dB, –26dB (1kHz) +12dB, –26dB (70Hz) Cross talk(1kHz) Channel equalizer(LINE/PHONO/MIC3) HI MID LOW 85dB (with effects off) 75dB 64dB LINE/MIC PHONO(RIAA) Frequency characteristics SN ratio LINE PHONO MIC ............................................ ..................................... Total harmonic distortion rate LINE/PHONO .............................................. .............................................. ......................................... ......................................... ................................................. ................................................. ................................................. .............................. .................................... ............................. Electrical Section, etc. Power supply voltage KUC model KUC model WY model RLB model ............................................... ......................................... ............................ AC 120V, 60Hz AC 220- 240V 50/60Hz AC 110-120V/220-240V 50/60Hz Power Consumption ....................................................................... 41W WY model ....................................................................... 48W RLB model ....................................................................... 49W +5˚C to +35˚C 5% to 85% Operating temperature External dimensions Operating humidity ........................................................... ........... ................................... .......................................... 482 (W) x220 (D) x 107 (H) mm Weight (without package) .......................................................................... 6.7kg Accessories Parts Short-circuit pin plug Operating instruction Warranty ............................................................................... 2 ......................................................... 1 1 Specifications and the design are subject to possible modifications without notice, due to improvements. Input terminal (input level/impedance) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: To PHONO (CH4) 1 3 2 4 5 6 7 8 KUCXCN Type Only RLBXCN Type Only 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 7 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE DJM-3000/KUCXCN, RLBXCN and WYXCN type are constructed the same except for the following : Mark No. Description Part No. 1 Packing Case See Contrast table(2) 2 Packing L 222302090 3 Packing R 222302100 4 Polyethylene Bag 222402210 (340 x 230 x 0.05) 5 Short Pin Plug AKM7008 6 Air Cap Sheet 222402260 7 Operating Instructions See Contrast table(2) NSP 8 Warranty Card See Contrast table(2) NSP 9 Caution Card 220V See Contrast table(2) Mark No. Description Part No. Mark NO Symbol and Description DJM-3000/ KUCXCN DJM-3000/ RLBXCN DJM-3000/ WYXCN 1 Packing Case 222302120 222302110 222302070 7 Operating Instructions (English/ French) DRB1314 Not used Not used 7 Operating Instructions (English/ Spanish/ Chinese) Not used DRB1316 Not used 7 Operating Instructions (English/ French/ German/ Italian/ Dutch/ Spanish) Not used Not used DRB1315 NSP 8 Warranty Card ARY7043 Not used Not used NSP 9 Caution Card 220V Not used ARR7003 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR(1/2) SECTION NON-CONTACT SIDE CONTACT SIDE 34 44 45 19 20 21 22 18 43 17 7 11 26 12 9 15 23 24 33 33 33 33 31 40 40 42 42 44 25 16 35 14 2929 29 29 33 39 39 41 31 32 32 30 31 33 31 37 38 38 38 38 68 28 28 28 28 36 8 6 1 2 to 5 E D F E F C B A H J K J K G I 10 38 28 69 D K K F C J P I E H B 50 54 62 56 46 47 58 57 59 55 55 60 60 63 49 51 53 52 67 49 48 64 66 66 61 13 66 65 66 27 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(1/2) SECTION parts List Mark No. Description Part No. 1 LED Assy 226902720 2 CHF1 Assy 226902860CH1 3 CHF2 Assy 226902860CH2 4 CHF3 Assy 226902860CH3 5 HF4 Assy 226902860CH4 6 MAF Assy 226902940 7 VR Assy 226903690 8 DSP Assy226902640 9 HP Assy 226902760 10 MIC Assy 226902780 11 CFCURV Assy 226903700 12 EFFECT Assy 226902740 13 CF Assy 226902960 14 Rubber Key CUE 224301330 15 Rubber Key TAP 224301340 16 Rubber Key LONG 224301360 17 PCB Sheet VR Assy 225300500 18 Plastic Rivet DEC1405 19 FFC Cable 28P 226404733 20 FFC Cable 21P 226404735 21 FFC Cable 35P 226404742 22 FFC Cable 31P 226404744 23 Connector Assy DKP3336 24 Blind Sheet TAP 225401850 25 Blind Sheet CUE 225401900 26 Rubber Holder 225401890 27 Brind Sheet 225402010 28 Nut M9 DBN1004 29 Screw AMZ26P040FMC 30 Screw VBA1039 31 Screw DBA1141 NSP 32 PCB Holder PNW1861 33 Screw BBZ30P060FMC 34 Shield Plate 225401840 35 Long Packing 225401730 NSP 36 Panel Stay 224100480 37 Detect Arm DNK3750 38 Lever SW Packing DED1120 39 Slide SW Packing B DED1125 40 SW Packing A DED1145 41 Lock Sheet 225402000 42 Fader Bracket 225401690 43 Sheet 120 x 30 DED1160 44 Screw IBZ30P060FMC NSP 45 PCB Holder PNW2174 46 Slider Panel 224402210 47 Slider Fitting Board DNF1518 48 Control Panel 224100460 49 Rotary VR Knob B DAA1136 50 Fader Knob DAC1846 51 Power Knob Guide DNK3207 52 Rotary Knob 224301310 53 Effect SW Knob 224301510 54 Sub Panel 224301280 55 Rotary SW Knob 224301350 56 Cross Fader Knob 224402230 57 VR Knob GR 224402260 58 VR Knob GY 224402270 59 VR Knob GG 224402280 60 VR Knob BK 224301300 61 Fader Packing B DED1100 62 Fader Packing 225300460 63 Display Panel A DAH2097 64 Display Panel B DAH2096 65 Screw AMZ30P040FMC 66 Screw CBZ30P080FZK 67 Select Knob 224301320 68 Nut NKX2FUC 69 Rubber Fwt 234404450 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 EXTERIOR(2/2) SECTION 17 40 49 50 34 53 51 36 48 47 41 59 52 35 9 43 42 37 28 43 10 14 18 32 44 31 29 29 29 38 19 15 29 29 29 45 57 54 58 56 55 24 24 24 12 30 44 31 8 33 30 60 16 46 39 25 25 24 25 25 23 22 26 3 2 1 4 5 6 G B H I C A B B A O L M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 11 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(2/2) SECTION parts List (2) CONTRAST TABLE DJM-3000/KUCXCN, RLBXCN and WYXCN type are constructed the same except for the following : Mark No. Description Part No. 1 PSW Assy 226902820 2 TERMA Assy 226902660 3 TERMB Assy 226902680 4 REG Assy 226902840 5 POWER Assy See Contrast table (2) 6 TRANS Assy See Contrast table (2) 7 • • • • • > 8 Power Cord See Contrast table (2) > 9 Power Transformer See Contrast table (2) > 10 Fuse (1A) See Contrast table (2) 11 • • • • • 12 Power Cord Fitting Board DNF1640 13 • • • • • 14 Stand 225401830 15 Insulation Sheet L 225401990 NSP 16 Chassis 224301490 17 Nyron Rivet 3 x 4.5 RBM-003 18 Power Knob DAC1847 19 SW Insulaton Sheet 225402040 20 • • • • • 21 Sheet RHX1006 22 Screw PMB30P060FZK 23 Screw BBZ30P060FMC 24 Screw BBZ30P060FZK 25 Screw BMZ30P060FMC 26 Screw AMZ30P040FMC 27 Screw AMZ26P040FMC 28 Capacitor Cover 16 See Contrast table (2) 29 Screw BPZ30P080FZK 30 Washer DEC2484 31 Washer DBE1010 32 SW Plate 225401630 33 Cord Stopper See Contrast table (2) NSP 34 PCB Support REC1248 35 Screw Guard 224402350 36 Clamper RNH-184 37 Wire Clamper RNH1005 38 Capacitor Cover 12.5 See Contrast table (2) 39 Binder ZCA-SKB90BK 40 PCB Sheet Rear 225300470 NSP 41 Wire Clip DEC1410 42 Trans. Shield 225300490 43 Nut M4 225401910 44 Nut NKX2FUC 45 Foot Assy REC-434 46 FFC Cable 12P 226404730 47 FFC Cable 19P 226404731 48 FFC Cable 24P 226404732 49 FFC Cable 21P 226404740 50 FFC Cable 15P 226404741 51 FFC Cable 20P 226404745 52 Connector Assy DKP3570 53 Connector Assy -DIG 226404650 54 Rubber Spacer 225401940 55 Net A 225401950 56 Net B 225401960 57 Insulation Sheet 225401970 NSP 58 Mini Clamp VEC1312 NSP 59 Serial Label See Contrast table (2) 60 Earth Terminal AKE-03 Mark No. Description Part No. Mark NO Symbol and Description DJM-3000/ KUCXCN DJM-3000/ RLBXCN DJM-3000/ WYXCN 5 POWER Assy 226903790 226902700 226902700 6 TRANS Assy 226902800 226902801 226902800 > 8 Power Cord ADG7024 VDG1061 VDG1061 > 9 Power Transformer 927001510 927001500 927001490 > 10 Fuse (1A) REK1075 Not used Not used > 10 Fuse (T500MA) Not used AEK1051 AEK1051 NSP 16 Chassis 224301480 224301470 224301460 33 Cord Stopper CM-22C CM-22B CM-22B 28 Capacitor Cover 16 Not used VEC1912 VEC1912 NSP 59 Serial Label DRW1871 RRW-168 RRW-168 38 Capacitor Cover 12.5 Not used 225500120 225500120 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 12 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM LINE1 MIC2 CH1 (LCH) C VR ASSY 3 1 IC600 MIC2 CH1-L1L CN4021 CN3021 5 7 IC1 RETURN SEND MIC3 7 1 3 7 5 5 IC17 IC502 IC18 1 2 7 6 IC101 IC102 PHONO1 /LINE2 5 7 IC2 LINE3 5 7 IC4 PHONO2 /LINE4 5 7 1 2 3 IC5 PHONO3 /LINE6 5 7 IC12 LINE5 5 7 IC14 PHONO4 5 7 IC16 IC19 S6 LINE7 5 7 9 11 10 IC15 5 7 IC49 IC53 IC50-IC52 REC OUT 1 CN4022 CN3022 5 CN401 CN301 9 CN482 CN582 CN480 CN580 1 1 14 15 14 15 5 1 15 11 4 8 14 18 1 5 9 1 1 5 1 15 11 4 8 14 18 IC700 4 11 10 3 1 CH2 (LCH) CH3 (LCH) CH4 (LCH) 7 5 IC505 7 L+ L– 5 IC503 1 2 IC503 1 3 3 7 1 4 IC7 IC500 MASTER2L LEVEL_L_O LEVEL_L_I SGLI DGL MASTER OUT1 7 6 IC9 VR201 VR26 VR2 VR1 VR32 VR22 VR21 VR14 VR13 VR10 VR9 VR6 VR5 1 2 1 3 IC9 IC21 7 5 5 IC24 1 3 IC13 7 IC23 3 1 3 1 IC74 IC15 7 6 IC67 1 2 IC101 BOOTH MONITOR DOUT1 3 7 1 4 IC501 DOUT2 MASTER OUT2 CH1-LPL CH2-L1L CH2-LPL CH3-LPL CH3-L1L CH4- P4M3L CH4-L7L RECL MTL2 BOTL DOUT CN261 CN583 11 RETURN_L RETURN_L 15 11 15 SEND_L SEND_L CN305 CN3005 CN205 19 19 CN335 9 9 2 2 1 2 3 S7 1 2 2 2 1 1 IC704 MIC2 IC57 IC60 3 1 3 1 3 3 S8 1 2 3 S5 MIC LEVEL BOOTH MONITOR LEVEL MASTER BALANCE TRIM VR EQ VR ×3 5 7 IC38 IC42 IC39-IC41 2 2 1 1 3 TRIM VR EQ VR ×3 5 7 IC33 IC37 IC34-IC36 2 2 1 1 3 TRIM VR EQ VR ×3 5 7 IC28 IC32 IC29-IC31 2 2 1 1 3 TRIM VR EQ VR ×3 MIC2 B TERMB ASSY (1/2) A TERMA ASSY F MAF ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 13 5 6 7 8 5 6 7 8 C D F A B E H MIC ASSY P HP ASSY MIC 1 PHONES 5 IC43 2 3 4 EL MICL BB4EL BB3EL BB2EL BB1EL BB4EL 3 1 IC7 7 J3072 J3071 3 J3082 J3081 1 3 HOT 1 HSLD CN304 CN204 SGLO 9 9 4EL 19 19 CN350 CN510 TALK _ML 1 1 2 2 1 IC9 IC10 MIC MIX 2 4 3 7 5 1 IC11 6 6 7 5 IC55 IC54 1 2 6 7 6 7 3 1 IC703 IC17 IC18 IC25 IC27 IC12 IC71 VR101 VR17 VR17 VR17 VR17 S9 TALK OVER SW MIC1 LEVEL 1GL 2GL 3GL 4GL 1GL 2GL 3GL 4GL 8 9 10 6 7 5 IC44 IC66 2 3 4 8 8 3 8 3 9 12 10 11 10 6 7 IC1 IC5 9 2 3 4 7 5 6 8 7 10 11 10 23 26 Q1 Q3 Q5 Q7 27 25 24 IC700 IC59 IC115 IC117 IC117 IC124 SGLO SCLK 2 3 5 6 6 7 7 2 1 4 5 6 2 3 IC3 5V 9 7 8 6 5 3 4 2 6 5 5 3 12 13 14 4 25 24 IC105 IC110 2 1 IC106 6 7 IC104 2 1 IC104 3 1 IC73 3EL 17 17 3 1 IC8 2EL 21 21 3 1 1 IC6 IC4 VCA IC2 VCA 1EL 24 24 4 4 COLD 1 3 3 4 5 6 7 3 1 IC56 BB3EL BB2EL BB1EL EL G CHF1 ASSY G CHF2 ASSY G CHF3 ASSY G CHF4 ASSY CN3001 CN331 8 8 1EL 4 4 1GL CN3002 CN331 8 8 2EL 4 4 2GL CN3003 CN331 8 8 3EL 4 4 3GL B TERMB ASSY (2/2) I DSP ASSY CN3004 CN331 8 8 4EL 4 4 4GL IC110 IC108 Microcomputer IC122 AD/DA IC119 DSP SDT0 SDTI LRCK AINL– AINL+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 14 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL WIRING CONNECTION DIAGRAM A 1/3- A 3/3 TERMA ASSY (226902660) A B 1/4- B 4/4 TERMB ASSY (226902680) B C 1/8- C 8/8 VR ASSY (226903690) C CHF1 ASSY (226902860CH1) G CHF2 ASSY (226902860CH2) G CHF3 ASSY (226902860CH3) G CHF4 ASSY (226902860CH4) G CF ASSY (226902960) D CFCURV ASSY (226903700) E MIC ASSY (226902780) H HP (22 P EFFECT ASSY (226902740) J MAF ASSY (226902940) F Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 15 5 6 7 8 5 6 7 8 C D F A B E K 1/2, K 2/2 LED ASSY (226902720) K I 1/3- I 3/3 DSP ASSY (226902640) I C 1/8- C 8/8 VR ASSY (226903690) C REG ASSY (226902840) L POWER ASSY (KUCXCN : 226903790) (WYXCN, RLBXCN : 226902700) M TRANS ASSY (KUCXCN, WYXCN : 226902800) (RLBXCN : 226902801) N PSW ASSY (226902820) O 1 ASSY 902860CH1) 2 ASSY 902860CH2) 3 ASSY 902860CH3) 4 ASSY 902860CH4) CF ASSY (226902960) D MIC ASSY (226902780) H HP ASSY (226902760) P MAF ASSY (226902940) F LIST". LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 16 1 2 3 4 1 2 3 4 C D F A B E 3.3 TERMA(1/3) ASSY A 1/3 CN301 C 5/8 CN3022 C 5/8 A A 2/3 A 2/3 A 2/3 A 2/3 A 2/3 A 2/3 A 2/3 A 2/3 A 1/3 TERMA ASSY (226902660) 1 5 2 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 17 5 6 7 8 5 6 7 8 C D F A B E CN3021 C 3/8 CN580 B 1/4 CN301 C 5/8 CN3022 C 5/8 A 3/3 A 3/3 A 3/3 A 3/3 A 2/3 A 2/3 A 2/3 CN121 A 1/3 M 6 4 3 : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (LINE1) (LI1) : AUDIO SIGNAL ROUTE (LINE3) (LI3) : AUDIO SIGNAL ROUTE (PHONO1) (PH1) : AUDIO SIGNAL ROUTE (PHONO2) (PH2) : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 18 1 2 3 4 1 2 3 4 C D F A B E 3.4 TERMA(2/3) ASSY A 2/3 A 2/3 TERMA ASSY (226902660) A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 19 5 6 7 8 5 6 7 8 C D F A B E CN581 B 1/4 A 1/3 A 1/3 A 2/3 A 1/3 1/3 1/3 A 1/3 7 10 9 8 : AUDIO SIGNAL ROUTE (LINE5) (LI5) : AUDIO SIGNAL ROUTE (LINE7) (LI7) : AUDIO SIGNAL ROUTE (PHONO4) (PH4) : AUDIO SIGNAL ROUTE (MIC2) (MIC2) : AUDIO SIGNAL ROUTE (MIC3) (MIC3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 20 1 2 3 4 1 2 3 4 C D F A B E 3.5 TERMA(3/3) ASSY A 3/3 CN582 B 2/4 A 3/3 TERMA ASSY (226902660) PULSE TRANS. CASE PULSE TRANS. CASE Mounted Parts Side Foil Side 12 13 15 14 > > > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 21 5 6 7 8 5 6 7 8 C D F A B E A 1/3 A 1/3 A 1/3 A 3/3 IC500 IC502 Mounted Parts Side Foil Side No. Voltage (V) 1 2.38 2 2.57 3 2.55 4 2.51 5 2.55 6 2.51 7 0 8 5.01 9 0 10 2.51 11 2.55 12 2.51 13 2.55 14 5.01 No. Voltage (V) 1 0 2 0 3 0 4 -15.29 5 0 6 0 7 0 8 14.96 11 : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (DOUT) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 22 1 2 3 4 1 2 3 4 C D F A B E 3.6 TERMB(1/4) ASSY B 1/4 CN481 A 2/3 B 2/4 B 2/4 B 1/4 TERMB ASSY (226902680) CN350 C 1/8 1 3 4 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 23 5 6 7 8 5 6 7 8 C D F A B E CN260 I 1/3 CN480 A 1/3 B 4/4 B 2/4 /4 B 2/4 B 2/4 B 1/4 B 3/4 B 3/4 B 4/4 : AUDIO SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 24 1 2 3 4 1 2 3 4 C D F A B E 3.7 TERMB(2/4) ASSY B 2/4 B 2/4 TERMB ASSY (226902680) B 1/4 B 1/4 B 1/4 B 3/4 MUTE CIRCUIT OF DIGITAL SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 25 5 6 7 8 5 6 7 8 C D F A B E CN482 A 3/3 B 2/4 B 3/4 B 3/4 B 1/4 2 ch MODE GENERAL FORMAT : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (DOUT) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 26 1 2 3 4 1 2 3 4 C D F A B E 3.8 TERMB(3/4) ASSY B 3/4 B 3/4 TERMB ASSY (226902680) B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 2/4 B 1/4 B 1/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 27 5 6 7 8 5 6 7 8 C D F A B E B 3/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 2/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 28 1 2 3 4 1 2 3 4 C D F A B E 3.9 TERMB(4/4) ASSY B 4/4 B 4/4 TERMB ASSY (226902680) B 1/ B 1 6 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 29 5 6 7 8 5 6 7 8 C D F A B E B 4/4 B 1/4 B 1/4 B 1/4 B 1/4 : AUDIO SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 30 1 2 3 4 1 2 3 4 C D F A B E 3.10 VR(1/8) ASSY C 1/8 C 1/8 VR ASSY (226903690) C 4/8 C 2/8,4/8,6/8 C 2/8,4/8,6/8 C 2/8,4/8,6/8 C 4/8,6/8 C 4/8,5/8 C 4/8,5/8 C 6/8 C 4/8 C 4/8 C 4/8 C 4/8 C 6 C 6/8 C 2/8,4/8 CROSS FADER ASSIGN 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 31 5 6 7 8 5 6 7 8 C D F A B E C 1/8 C 4/8,5/8 C 4/8,5/8 C 5/8 C 6/8 C 4/8 C 4/8 C 4/8 C 4/8 C 2/8,4/8 C 4/8,6/8 C 4/8 C 6/8 C 2/8 C 2/8 C 2/8 C 2/8 C 6/8 C 4/8 C 4/8 C 4/8 C 6/8 C 2/8 CN204 I 1/3 CN510 B 1/4 2 : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (MIC1) (MIC1) : AUDIO SIGNAL ROUTE (MIC2) (MIC2) : AUDIO SIGNAL ROUTE (CH1) (CH1) : AUDIO SIGNAL ROUTE (CH2) (CH2) : AUDIO SIGNAL ROUTE (CH3) (CH3) : AUDIO SIGNAL ROUTE (CH4) (CH4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 32 1 2 3 4 1 2 3 4 C D F A B E 3.11 VR(2/8) and HP ASSY C 2/8 C 2/8 VR ASSY (226903690) C C 5/8 C 6/8 C 1/8,4/8,6/8 C 1/8,4/8 C 1/8,4/8 C 1/8,4/8,6/8 C 1/8,4/8,6/8 MONITOR BALANCE HEADPHONE SPLIT MONITOR SW MASTER STEREO/MONO SW SPLIT SW CN335 F C 1/8,4/8 3 5 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 33 5 6 7 8 5 6 7 8 C D F A B E C 2/8 C 5/8 C 5/8 C 5/8 C 5/8 C 5/8 C 1/8 C 1/8 C 1/8 MONITOR LEVEL MONITOR BALANCE SPLIT SW 335 P HSL0 1 2 3 1 2 L JA302 YKB21-5264 R PHONES 3 GND HSR0 J3081 51048-0300 FTP910 FTP FTP913 FTP FTP916 FTP FTP915 FTP GNDB FTP914 FTP FTP911 FTP R502 0 R503 0 R504 0 C370 0.01U YF FTP912 FTP G_GND HP ASSY (226902760) P 1 4 : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (CH1) (CH1) : AUDIO SIGNAL ROUTE (CH2) (CH2) : AUDIO SIGNAL ROUTE (CH3) (CH3) : AUDIO SIGNAL ROUTE (CH4) (CH4) : AUDIO SIGNAL ROUTE (PHONES) (HP) (HP) (HP) (HP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 34 1 2 3 4 1 2 3 4 C D F A B E 3.12 VR(3/8) ASSY C 3/8 C 3/8 VR ASSY (226903690) C 5/8 C 5/8 CN4021 A 1/3 6 : AUDIO SIGN (LI1) : AUDIO SIGN (LI2) : AUDIO SIGN (LI5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 35 5 6 7 8 5 6 7 8 C D F A B E C 3/8 C 4/8,6/8 7 : AUDIO SIGNAL ROUTE (LINE1) (LI1) : AUDIO SIGNAL ROUTE (LINE2) (LI2) : AUDIO SIGNAL ROUTE (LINE5) (LI5) : AUDIO SIGNAL ROUTE (PHONO1) (PH1) : AUDIO SIGNAL ROUTE (PHONO2) (PH2) : AUDIO SIGNAL ROUTE (PHONO3) (PH3) : AUDIO SIGNAL ROUTE (CH1) (CH1) : AUDIO SIGNAL ROUTE (CH2) (CH2) : AUDIO SIGNAL ROUTE (CH3) (CH3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 36 1 2 3 4 1 2 3 4 C D F A B E 3.13 VR(4/8) ASSY C 4/8 C 4/8 VR ASSY (226903690) C 3/8,6/8 C 3/8,6/8 C 3/8,6/8 C 5/8,6/8 C 5/8,6/8 C 1/8,5/8 C 1/8,6/8 C 1/8,2/8,6/8 C 5/8,6/8 C 1/8 C 5/8,6/8 C C 1/8,2/8 C 1/8,2/8 C 1/8,2/8,6/8 C 1/8,2/8,6/8 C 1/8 C 1/8,5/8 C 1/8 C 1/8 C 1/8 C 1/8,2/8 C 1/8,2/8 C 1/8,2/8,6/8 C 1/8,2/8,6/8 C 1/8 C 1/8 C 1/8 C 1/8 C 1/8 C G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 37 5 6 7 8 5 6 7 8 C D F A B E C 4/8 1/8 C 3/8,6/8 C 5/8,6/8 C 1/8 CN331 CH1 G CN331 CH2 G CN331 CH3 G C 1/8 C 1/8 C 1/8 C 1/8 C 1/8,2/8 C 1/8,2/8,6/8 C 1/8 CN331 CH4 G : AUDIO SIGNAL ROUTE (MIC1) (MIC1) : AUDIO SIGNAL ROUTE (MIC2) (MIC2) : AUDIO SIGNAL ROUTE (CH1) (CH1) : AUDIO SIGNAL ROUTE (CH2) (CH2) : AUDIO SIGNAL ROUTE (CH3) (CH3) : AUDIO SIGNAL ROUTE (CH4) (CH4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 38 1 2 3 4 1 2 3 4 C D F A B E 3.14 VR(5/8) ASSY C 5/8 C 5/8 VR ASSY (226903690) C 3/8 C 3/8 C 2/8 C 3/8 C 1/8 J3071 H CN401 A 1/3 CN4022 A 1/3 8 ( ( (MI (MI (C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 39 5 6 7 8 5 6 7 8 C D F A B E C 5/8 C 4/8,6/8 C 4/8,6/8 C 1/8,4/8 3/8 9 : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (LINE7) (LI7) : AUDIO SIGNAL ROUTE (PHONO4) (PH4) : AUDIO SIGNAL ROUTE (MIC1) (MIC1) : AUDIO SIGNAL ROUTE (MIC2) (MIC2) : AUDIO SIGNAL ROUTE (CH4) (CH4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 40 1 2 3 4 1 2 3 4 C D F A B E 3.15 VR(6/8), CF and CFCURV ASSYS ASSY D 10 C 6/8 CF ASSY (226902960) C 1/8 C 4/8 C 1/8,2/8,4/8 C 1/8,2/8,4/8 C 1/8,2/8,4/8 C 1/8,2/8,4/8 C 1/8,4/8 C 3/8,4/8 C 3/8,4/8 C 4/8,5/8 C 4/8,5/8 C 4/8,5/8 C 4/8,5/8 C 6/8 C 2/8 C 2/8 C 1/8 C 1/8 C 1/8 CN205 I 3/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 41 5 6 7 8 5 6 7 8 C D F A B E E C 6/8 VR ASSY (226903690) C 6/8 C 1/8 1/8,2/8,4/8 C 1/8,4/8 ,5/8 8,5/8 /8 8 C 6/8 C 2/8 1/8 C 1/8 /8 CFCURV ASSY (226903700) E : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (MIC1) (MIC1) : AUDIO SIGNAL ROUTE (CH1) (CH1) : AUDIO SIGNAL ROUTE (CH2) (CH2) : AUDIO SIGNAL ROUTE (CH3) (CH3) : AUDIO SIGNAL ROUTE (CH4) (CH4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 42 1 2 3 4 1 2 3 4 C D F A B E 3.16 VR(7/8) ASSY C 7/8 C 7/8 VR ASSY (226903690) C 8/8 CN262 I 1/3 J3101 J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 43 5 6 7 8 5 6 7 8 C D F A B E C 7/8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 44 1 2 3 4 1 2 3 4 C D F A B E 3.17 VR(8/8) ASSY C 8/8 C 8/8 VR ASSY (226903690) C 7/8 C 7/8 C 7/8 C 7/8 C 7/8 C 7/8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 45 5 6 7 8 5 6 7 8 C D F A B E 3.18 MAF, CHF1-4 and MIC ASSYS MAF ASSY (226902940) F MIC ASSY (226902780) H CHF1 ASSY (226902860CH1) CHF2 ASSY (226902860CH2) CHF3 ASSY (226902860CH3) CHF4 ASSY (226902860CH4) G CN305 C 2/8 J3072 C 5/8 CN3001 (CH1) C 4/8 CN3002 (CH2) C 4/8 CN3003 (CH3) C 4/8 CN3004 (CH4) C 4/8 CH FADER VR CH FADER VR F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 46 1 2 3 4 1 2 3 4 C D F A B E 3.19 DSP(1/3) ASSY I 1/3 I 1/3 DSP ASSY (226902640) CN371 C 7/8 I 3/3 I 2/3 I 2/3 I 2/3,3/3 I 2/3 I 2/3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 47 5 6 7 8 5 6 7 8 C D F A B E I 1/3 CN371 C 7/8 CN100 K 1/2 CN583 B 1/4 CN304 C 1/8 I 2/3 I 2/3 I 3/3 I 2/3 I 2/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 48 1 2 3 4 1 2 3 4 C D F A B E 3.20 DSP(2/3) ASSY I 2/3 I 2/3 DSP ASSY (226902640) I 1/3 I 1/3 I 1/3 I 1/3 I 3/3 I 3/3 I 3/3 I 3/3 I 2/3 I 2/3 I 1/3 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 49 5 6 7 8 5 6 7 8 C D F A B E I 2/3 I 3/3 I 1/3 I 1/3 I 1/3 3 4.39V 1.25V 5V 1.345V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 50 1 2 3 4 1 2 3 4 C D F A B E 3.21 DSP(3/3) ASSY I 3/3 I 3/3 DSP ASSY I 2/3 I 1/3 I 2/3 I 2/3 CN119 M No. Voltage (V) 1 0 2 0 3 0 4 -15.13 5 0 6 0 7 0 8 14.92 IC124 IC601 No. Voltage (V) 1 0 2 0 3 0 4 -15.12 5 0 6 0 7 0 8 14.93 > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 51 5 6 7 8 5 6 7 8 C D F A B E I 3/3 I 1/3 I 1/3 I 2/3 I 2/3 I 2/3 CN305 C 6/8 5 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 52 1 2 3 4 1 2 3 4 C D F A B E 3.22 EFFECT ASSY J EFFECT ASSY (226902740) J310 C 7/8 J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 53 5 6 7 8 5 6 7 8 C D F A B E J No. Voltage (V) 1 1.48 2 0.2 3 0.2 4 0 5 0.2 6 0.2 7 1.47 8 7.9 IC100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 54 1 2 3 4 1 2 3 4 C D F A B E 3.23 LED(1/2) ASSY K 1/2 K 1/2 LED ASSY (226902720) K 2/2 K 2/2 CN261 JUMPER (CONNECTION POINT) J250-1 ↔ J250-2 J251-1 ↔ J251-2 J252-1 ↔ J252-2 I 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 55 5 6 7 8 5 6 7 8 C D F A B E K 1/2 K 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 56 1 2 3 4 1 2 3 4 C D F A B E 3.24 LED(2/2) ASSY K 2/2 K 2/2 LED ASSY (226902720) K 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 57 5 6 7 8 5 6 7 8 C D F A B E K 2/2 K 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 58 1 2 3 4 1 2 3 4 C D F A B E 3.25 REG, POWER, TRANS and PSW ASSYS L M POWER ASSY (KUCXCN : 226903790) (WYXCN, RLBXCN : 226902700) M REG ASSY (226902840) L CN209 I 3/3 J460 A 1/3 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - > > > > > > > > > > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 59 5 6 7 8 5 6 7 8 C D F A B E M N O PSW ASSY (226902820) O TRANS ASSY (KUCXCN, WYXCN : 226902800) (RLBXCN : 226902801) N No. Voltage (V) 1 8.26 2 5.04 3 0 4 5.04 No. Voltage (V) 1 19.3 2 0 3 8.03 IC550 POWER ASSY REG ASSY IC561 No. Voltage (V) 1 20.65 2 0 3 14.99 No. Voltage (V) 1 0 2 -20.92 3 -15.3 IC550 IC551 IC552 IC553 IC600 No. Voltage (V) 1 20.65 2 0 3 7.97 No. Voltage (V) 1 0 2 -20.99 3 -8.1 No. Voltage (V) 1 0 2 -20.92 3 -15.2 > > > > > > > > > > > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 60 1 2 3 4 1 2 3 4 C D F A B E 1 FTP1 V: 1V/div. H: 200µsec/div. (at LINE1 0dBV input) WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. TERMA ASSY A DSP ASSY I 1 FP32 (SENL) V: 0.5V/div. H: 200µsec/div. 2 CH1LL V: 0.5V/div. H: 200µsec/div. 3 MASTER2L V: 2V/div. H: 200µsec/div. 4 FTP81 (MASTER1 OUT L ch) V: 2V/div. H: 200µsec/div. 5 FTP5 V: 20V/div. H: 200µsec/div. (at PHONO1 -40dBV input) 6 CH1PLL V: 0.2V/div. H: 200µsec/div. 7 FTP108 V: 20V/div. H: 200µsec/div. (at MIC2 -50dBV input) 8 MIC2 V: 0.2V/div. H: 200µsec/div. 9 FTP113 V: 20V/div. H: 200µsec/div. (at MIC3 -50dBV input) 10 C213 − side V: 0.2V/div. H: 200µsec/div. 11 RECLA V: 1V/div. H: 200µsec/div. (at LINE1 0dBV input) 12 FTP147 V: 1V/div. H: 200µsec/div. (at LINE1 0dBV input) 13 FTP156 V: 2V/div. H: 200nsec/div. 14 FTP159 V: 0.5V/div. H: 200nsec/div. 15 FTP159 V: 0.5V/div. H: 200nsec/div. 2 IT398 (C204) V: 2V/div. H: 200µsec/div. 3 AINL + V: 2V/div. H: 200µsec/div. 4 IT371 (SGLI) V: 1V/div. H: 200µsec/div. 5 IT380 (SGLO) V: 2V/div. H: 500µsec/div. (PAN [500] DIPTH max) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 61 5 6 7 8 5 6 7 8 C D F A B E 1 FT74 V: 0.5V/div. H: 200µsec/div. (at 0dBV input) TERMB ASSY B HP ASSY P 2 RETL V: 1V/div. H: 200µsec/div. 3 FT68 V: 1V/div. H: 200µsec/div. (at LINE1 0dBV input) 4 SDL V: 1V/div. H: 200µsec/div. (at LINE1 0dBV input) 5 FT107 V: 20V/div. H: 200µsec/div. 6 FT104 V: 5V/div. H: 200µsec/div. 1 FTP913 (HSL0) V: 2V/div. H: 200µsec/div. (at LINE1 -10dBV input) 1 CFAL V: 0.5V/div. H: 200µsec/div. VR ASSY C 2 ML V: 1V/div. H: 200µsec/div. 3 MTL1 V: 1V/div. H: 200µsec/div. 4 MTL V: 1V/div. H: 200µsec/div. 5 HPL1 V: 1V/div. H: 200µsec/div. 6 CH1LA V: 0.2V/div. H: 200µsec/div. 7 CH1L V: 1V/div. H: 200µsec/div. 8 MIC1H, L V: 200mV/div. H: 200µsec/div. (at -40dBV input) 9 MIC V: 1V/div. H: 200µsec/div. 10 SGLI V: 1V/div. H: 200µsec/div. CH1 CH2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 62 1 2 3 4 1 2 3 4 C D F A B E IC1 IC19 IC2 VOLTAGES TERMA ASSY A TERMB ASSY B No. Voltage (V) 1 0 2 0 3 0 4 -8.1 5 0 6 0 7 0 8 7.95 IC8 IC13 IC15 IC9 IC10 IC14 IC107 IC503 IC505 IC507 IC500 No. Voltage (V) 1 2.52 2 2.46 3 0 4 0 5 4.99 6 2.53 7 2.53 8 4.99 IC12 IC16 IC101 IC502 No. Voltage (V) 1 0 2 0 3 0 4 -8.1 5 0 6 0 7 0 8 7.94 IC7 No. Voltage (V) 1 0 2 0 3 0 4 -15.29 5 0 6 0 7 0 8 14.97 IC600 No. Voltage (V) 1 0 2 0 3 0 4 -15.29 5 0 6 0 7 0 8 14.96 IC17 No. Voltage (V) 1 0 2 0 3 0 4 -15.29 5 0 6 0 7 0 8 14.96 IC18 No. Voltage (V) 1 1.55 2 1.55 3 1.55 4 -15.29 5 1.55 6 1.55 7 1.55 8 14.96 No. Voltage (V) 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 -15.29 9 0 10 0 11 0 12 0 13 0 14 0 15 0 16 14.96 No. Voltage (V) 1 2.5 2 2.5 3 2.5 4 0 5 2.48 6 2.48 7 2.48 8 4.99 No. Voltage (V) 1 2.5 2 2.5 3 2.5 4 0 5 2.49 6 2.49 7 2.47 8 4.99 No. Voltage (V) 1 4.99 2 2.46 3 4.99 4 4.99 5 4.99 6 4.99 7 4.99 8 0 9 4.99 10 4.99 11 2.49 12 2.49 13 2.49 14 2.48 15 0 16 4.99 No. Voltage (V) 1 4.99 2 2.46 3 4.99 4 4.99 5 4.99 6 4.99 7 0 8 0 9 4.99 10 0 11 2.49 12 2.49 13 2.49 14 2.49 15 0 16 4.99 No. Voltage (V) 1 2.46 2 2.5 3 2.35 4 4.98 5 0 6 2.47 7 2.5 8 0 9 4.99 10 0 11 0 12 4.99 13 0 14 0 15 0 16 4.99 17 2.46 18 2.48 19 2.49 20 4.99 21 1.58 22 0 23 0 24 4.99 No. Voltage (V) 1 0 2 0 3 0 4 2.49 5 2.48 6 1.58 7 0 8 0 9 4.99 10 0 11 0 12 0 13 2.46 14 0 15 2.43 16 2.38 17 0 18 0 19 4.99 20 0 21 0 22 0 23 0 24 2.49 25 0 26 0 27 0 28 4.99 No. Voltage (V) 1 0 2 4.99 3 0 4 4.99 5 0 6 4.99 7 0 8 2.49 9 2.49 10 4.99 11 0 12 4.99 13 0 14 4.99 No. Voltage (V) 1 0 2 0 3 0 4 -15.28 5 0 6 0 7 0 8 14.97 IC102 No. Voltage (V) 1 0 2 0 3 0 4 -15.29 5 0 6 0 7 0 8 14.97 No. Voltage (V) 1 0 2 0 3 0 4 0 5 7.93 6 - 7 -8.11 8 - 9 - 10 - 11 - 12 - 13 7.93 14 7.95 No. Voltage (V) 1 0 2 5.02 3 5 4 0 5 4.97 6 0 7 0 8 4.99 9 0 10 0 11 5 12 5.02 13 0 14 5.02 No. Voltage (V) 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 5.02 No. Voltage (V) 1 0 2 0 3 0 4 -15.29 5 0 6 0 7 0 8 14.96 No. Voltage (V) 1 0 2 0 3 0 4 -15.29 5 0 6 0 7 0 8 14.96 No. Voltage (V) 1 0 2 5.02 3 4.99 4 5.02 5 0 6 0 7 4.99 8 0 9 0 10 5.02 11 4.99 12 5.02 13 0 14 0 15 4.99 16 5.02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 63 5 6 7 8 5 6 7 8 C D F A B E IC1 IC4 IC10 IC17 IC21 IC29 IC43 IC54 IC55 IC56 IC59 IC63 IC30 IC31 IC32 IC44 IC45 IC23 IC24 IC25 IC27 IC28 IC11 IC12 IC13 IC18 IC19 IC16 IC20 IC5 IC3 IC6 IC9 VR ASSY C No. Voltage (V) 1 -15.25 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 0 15 5 16 0 17 0 18 0 19 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 14.92 No. Voltage (V) 1 -15.24 2 - 3 - 4 -14.99 5 -14.98 6 4.97 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 0 15 5 16 0 17 0 18 0 19 0 20 0 21 0 22 0 23 4.97 24 4.85 25 4.85 26 -8.08 27 -8.08 28 14.91 No. Voltage (V) 1 7.94 2 0.29 3 0 4 0 5 0 6 0 7 - 8 0 9 0 10 - 11 0 12 -8.09 13 -8.09 14 0 15 0.29 16 7.94 No. Voltage (V) 1 -15.25 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 0 15 5 16 0 17 0 18 0 19 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 14.92 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.9 No. Voltage (V) 1 0 2 0 3 0 4 -15.25 5 0 6 0 7 0 8 14.93 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.92 No. Voltage (V) 1 0 2 0 3 0 4 -15.25 5 0 6 0 7 0 8 14.92 No. Voltage (V) 1 0 2 4.97 3 0 4 0 5 0 6 0 7 0 8 -15.26 9 - 10 0 11 - 12 0 13 - 14 0 15 - 16 14.92 No. Voltage (V) 1 0 2 0 3 0 4 -15.23 5 0 6 0 7 0 8 14.9 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 -15.25 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 0 15 5.01 16 0 17 0 18 0 19 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 14.93 No. Voltage (V) 1 0 2 0 3 0 4 -8.08 5 0 6 0 7 0 8 7.95 No. Voltage (V) 1 0 2 0 3 0 4 -8.08 5 0 6 0 7 0 8 7.95 No. Voltage (V) 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 -8.09 9 0 10 0 11 0 12 0 13 0 14 0 15 0 16 7.95 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.92 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.88 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.88 No. Voltage (V) 1 0 2 0 3 0 4 -8.08 5 0 6 0 7 0 8 7.95 No. Voltage (V) 1 0 2 0 3 0 4 -8.09 5 0 6 0 7 0 8 8.02 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 -15.24 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 0 15 5 16 0 17 0 18 0 19 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 14.9 No. Voltage (V) 1 -15.24 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 0 15 5 16 0 17 0 18 0 19 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 14.9 No. Voltage (V) 1 0 2 0 3 0 4 -15.25 5 0 6 0 7 0 8 14.9 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.9 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.91 No. Voltage (V) 1 4.28 2 - 3 -8.09 4 -8.1 5 - 6 -8.1 7 -8.1 8 -8.1 9 7.9 10 7.9 11 7.9 12 -8.09 13 -4.5 14 -4.46 15 4.3 16 7.94 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 64 1 2 3 4 1 2 3 4 C D F A B E IC64 IC71 IC700 IC703 IC704 IC72 IC74 IC76 IC78 IC65 IC66 IC67 No. Voltage (V) 1 0.3 2 - 3 -8.1 4 -8.1 5 - 6 -8.1 7 -8.1 8 -8.1 9 7.8 10 7.8 11 7.9 12 -8.09 13 0 14 0 15 0 16 7.93 No. Voltage (V) 1 4.29 2 0 3 0 4 -8.1 5 0 6 0 7 0 8 4.98 No. Voltage (V) 1 -15.24 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 0 15 5 16 0 17 0 18 0 19 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 14.91 No. Voltage (V) 1 0 2 0 3 0 4 -15.26 5 0 6 0 7 0 8 14.92 No. Voltage (V) 1 7.92 2 2.47 3 3.72 4 0 5 1.23 6 2.47 7 0 8 4.98 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.9 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.89 No. Voltage (V) 1 1.2 to 2 2 0 3 1.2 to 2 4 0 5 0 6 0 7 0 8 1 to 2 9 0 10 0 11 0 12 0 13 0 14 4.96 No. Voltage (V) 1 5.01 2 0 3 4.96 4 - 5 - 6 4.96 7 0 8 0 9 0.3 10 0 11 4.96 12 - 13 - 14 4.96 15 0 16 4.96 No. Voltage (V) 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 -15.24 9 0 10 0 11 0 12 7.92 13 0 14 0 15 0 16 14.89 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.9 No. Voltage (V) 1 0 2 0 3 0 4 -15.24 5 0 6 0 7 0 8 14.9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 65 5 6 7 8 5 6 7 8 C D F A B E IC101 IC108 IC119 IC102 IC105 IC110 IC113 IC115 IC122 IC600 IC106 IC109 IC111 IC114 IC116 DSP ASSY I No. Voltage (V) 1 0 2 0 3 0 4 -15.13 5 15.12 6 0 7 0 8 14.93 No. Voltage (V) 1 0.35 2 0.35 3 0.35 4 -15.12 5 0.35 6 0.35 7 0.35 8 14.92 No. Voltage (V) 1 0.35 2 0.35 3 0.35 4 -15.13 5 0.35 6 0.35 7 0.35 8 14.92 No. Voltage (V) 1 0.35 2 0.35 3 0.35 4 -15.13 5 0.35 6 0.35 7 0.35 8 14.91 No. Voltage (V) No. Voltage (V) No. Voltage (V) No. Voltage (V) 1 0 to 5.06 21 0 to 5.06 41 0 to 5.06 61 0 to 5.06 2 0 to 5.06 22 0 to 5.06 42 0 to 5.06 62 0 to 5.06 3 0 to 5.06 23 0 to 5.06 43 0 to 5.06 63 0 to 5.06 4 0 to 5.06 24 0 to 5.06 44 0 to 5.06 64 0 to 5.06 5 0 to 5.06 25 0 to 5.06 45 0 to 5.06 65 0 to 5.06 6 0 to 5.06 26 0 to 5.06 46 0 to 5.06 66 0 to 5.06 7 0 to 5.06 27 0 to 5.06 47 0 to 5.06 67 0 to 5.06 8 5.06 28 0 to 5.06 48 0 68 0 to 5.06 9 0 to 5.06 29 5.06 49 0 to 5.06 69 0 to 5.06 10 0 to 5.06 30 5.06 50 0 to 5.06 70 0 to 5.06 11 0 to 5.06 31 0 51 0 to 5.06 71 0 12 0 to 5.06 32 0 to 5.06 52 5.06 72 0 to 5.06 13 0 to 5.06 33 0 53 0 to 5.06 73 0 to 5.06 14 0 to 5.06 34 0 to 5.06 54 0 to 5.06 74 0 to 5.06 15 0 to 5.06 35 0 to 5.06 55 0 to 5.06 75 0 to 5.06 16 0 to 5.06 36 0 to 5.06 56 0 to 5.06 76 0 to 5.06 17 0 to 5.06 37 0 to 5.06 57 0 to 5.06 77 0 to 5.06 18 0 to 5.06 38 0 to 5.06 58 0 to 5.06 78 0 to 5.06 19 0 to 5.06 39 0 to 5.06 59 0 to 5.06 79 0 to 5.06 20 0 40 0 to 5.06 60 0 to 5.06 80 0 to 5.06 No. Voltage (V) 1 2.5 2 1.5 3 1.51 4 1.68 5 2.54 6 0 7 0 8 0 9 4.18 10 4.18 11 4.18 12 3.04 13 0 14 0 15 2.33 16 5.04 No. Voltage (V) 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 4.2 10 4.2 11 4.2 12 0 13 0 14 0 15 0 16 5.04 No. Voltage (V) 1 5.05 2 0 to 5.05 3 0 to 5.05 4 5.05 5 0 to 5.05 6 0 7 0 8 0 9 0 10 5.05 11 0 12 0 13 5.05 14 5.05 No. Voltage (V) 1 3.45 2 0 3 0 4 0 5 0 6 3.45 7 3.45 8 0 9 3.45 10 3.45 11 3.45 12 3.45 13 3.45 14 3.45 15 0 16 3.45 17 3.45 18 3.45 19 3.45 20 3.45 21 3.45 22 3.45 23 3.45 24 0 25 0 26 0 27 0 28 0 No. Voltage (V) 1 1.72 2 2.52 3 1.72 4 2.52 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 5.04 No. Voltage (V) 1 -15 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0.5 14 0 15 5 16 0.6 17 0 18 0 19 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 14.96 No. Voltage (V) 1 2.48 2 2.48 3 2.48 4 0 5 2.5 6 2.5 7 2.5 8 4.98 No. Voltage (V) No. Voltage (V) No. Voltage (V) No. Voltage (V) 1 3.45 26 0 to 3.45 51 0 to 3.45 76 0 to 3.45 2 0 27 0 to 3.45 52 0 to 3.45 77 0 to 3.45 3 3.45 28 0 53 0 to 3.45 78 0 to 3.45 4 0 to 3.45 29 0 to 3.45 54 0 to 3.45 79 3.45 5 0 30 0 55 3.45 80 0 6 0 to 3.45 31 3.45 56 0 81 0 to 3.45 7 0 32 0 to 3.45 57 0 to 3.45 82 0 to 3.45 8 3.45 33 0 58 0 to 3.45 83 0 to 3.45 9 0 34 3.45 59 0 to 3.45 84 0 to 3.45 10 2.5 35 3.45 60 0 to 3.45 85 0 11 3.45 36 0 61 3.45 86 0 12 0 37 3.45 62 0 87 3.45 13 0 38 0 63 3.45 88 0 14 0 to 3.45 39 0 to 3.45 64 0 89 3.45 15 3.45 40 0 to 3.45 65 0 90 0 16 0 41 0 to 3.45 66 3.45 91 0 17 0 42 3.45 67 0 92 3.45 18 0 43 0 68 0 93 0 19 0 44 0 69 0 94 0 20 0 to 3.45 45 0 to 3.45 70 0 95 0 21 3.45 46 0 to 3.45 71 3.45 96 0 22 0 47 0 to 3.45 72 0 97 0 23 5 48 3.45 73 0 98 1.7 24 0 to 3.45 49 0 74 0 99 1.7 25 0 to 3.45 50 0 to 3.45 75 0 to 3.45 100 3.45 No. Voltage (V) 1 4.96 2 0 3 2.48 4 2.48 5 2.48 6 2.48 7 4.96 8 0 9 0 10 4.96 11 5.06 12 5.06 13 5.06 14 0 15 2.48 16 5.06 17 0 18 0 19 0 20 0 21 5.06 22 0 23 5.06 24 5.06 25 5.06 26 4.06 27 4.06 28 2.48 No. Voltage (V) 1 0 2 0 3 5.01 4 5.01 5 5.01 6 0 7 0 8 0 9 4.21 10 0 11 0 12 0 13 0 14 0 15 0 16 5.06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 66 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 67 5 6 7 8 5 6 7 8 C D F A B E 4.1 CF and MAF ASSYS SIDE A SIDE B F D CF ASSY(226902960) D MAF ASSY(226902940) F MAF ASSY(226902940) F CF ASSY(226902960) D J306 C CN336 CN3005 C CN335 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 68 1 2 3 4 1 2 3 4 C D F A B E 4.2 TERMA ASSY SIDE A A SIDE B TERMA ASSY (226902660) A TERMA ASSY (226902660) A CN581 B CN481 CN3021 C CN4021 CN3022 C CN4022 IC17 IC18 IC1 IC2 Q47 Q46 Q19 Q20 IC4 IC5 Q21 Q22 Q48 Q49 IC14 IC15 IC12 IC19 Q51 Q23 Q24 Q50 IC600 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 69 5 6 7 8 5 6 7 8 C D F A B E SIDE A SIDE B A CN301 C CN401 CN580 B CN480 CN582 B CN482 CN121 M J460 IC15 IC16 Q3 Q4 Q7 Q8 IC7 Q508 Q501 Q511 Q507 IC501 IC500 IC502 Q501 Q508 Q507 Q511 Q2 Q6 Q1 Q5 VR201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 70 1 2 3 4 1 2 3 4 C D F A B E 4.3 TERMB ASSY SIDE A B SIDE B TERMB ASSY (226902680) B TERMB ASSY (226902680) B CN260 I CN583 CN482 A CN582 C C CN5 CN481 A CN581 IC501 IC500 IC502 IC506 IC507 Q521 Q505 Q514 Q513 Q508Q520Q511Q512 IC16 IC13 Q516 Q502 Q507 Q515 Q500 IC10 IC12 IC15 IC14 IC9 IC8 Q506 Q509 Q501 Q510 Q503 Q519Q504 Q517Q518 Q500 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 71 5 6 7 8 5 6 7 8 C D F A B E SIDE A SIDE B B CN350 C CN510 CN480 A CN580 IC9 IC8 IC503 Q528 Q525 VR101 Q524 Q526 Q527 Q523 Q522 Q529 IC505 IC504 Q117 Q116 Q101 Q114 Q115 IC107 IC102 IC101 Q101 Q522 Q526 IC504 IC505 Q529 Q523 Q524 Q527 IC503 Q528 Q525 VR101 Q114 – Q117 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 72 1 2 3 4 1 2 3 4 C D F A B E 4.4 VR, CFCURV, MIC, EFFECT and HP ASSYS SIDE A C E H MIC ASSY (226902780) H CFCURV ASSY (226903700) E CN336 D J306 CN204 I CN304 CN331 (CH1) G CN3001 CN331 (CH2) G CN3002 CN331 (CH3) G CN3003 C ( G CN CN3021 CN4021 A CN3022 CN4022 A C A C IC101 Q700 Q20Q22 Q21 IC55 IC54 Q701 IC28 IC32 IC700 IC71 Q19 Q26 IC29 Q703 Q25 Q24 IC33 Q23 IC37 Q702 Q27 Q704 Q29 IC34 IC38 IC41 IC42 Q705 Q30 Q28 IC39 IC49 IC52 IC53 IC2 IC4 Q817 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 73 5 6 7 8 5 6 7 8 C D F A B E SIDE A EFFECT ASSY (226902740) J VR ASSY (226903690) C HP ASSY (226902760) P CN331 (CH3) CN3003 CN331 (CH4) G CN3004 CN3005 CN205 I CN305 CN335 F CN401 A CN301 C J P 28 IC39 IC49 IC52 IC53 IC2 IC4 Q817 IC13 IC16 IC50 IC74 IC702 IC23 IC24 IC78 Q17 IC20 IC27 IC26 Q9 Q10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 74 1 2 3 4 1 2 3 4 C D F A B E SIDE B C J P EFFECT ASSY J VR ASSY C HP ASSY P CN262 I CN371 CN510 B CN350 IC25 IC27 IC26 IC100 IC18 IC19 Q812 Q810 Q816 Q800 IC79 IC17 IC12 IC76 Q809 Q814 Q801 Q802 Q804 Q800 Q806 Q803 Q805 IC75 IC701 Q807 IC66 IC21 IC51 IC3 Q2 Q4 Q6 Q8 Q1 Q3 Q5 Q7 IC2 IC4 IC40 IC48 IC47 IC10 Q31 IC1 IC67 IC11 IC9 IC5 (226903690) (226902740) (226902760) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 75 5 6 7 8 5 6 7 8 C D F A B E SIDE B MIC ASSY H CFCURV ASSY E C E H IC51 IC3 Q6 Q8 Q5 Q7 IC2 IC4 IC40 IC44 IC35 IC36 IC46 IC30 IC31 IC43 IC72 IC8 IC73 IC64 Q38 IC65 IC7 IC45 Q813 IC63 Q815 IC48 IC47 IC10 Q31 IC1 IC56 Q811 IC57 IC703 IC704 IC60 IC59 IC6 (226903700) (226902780) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 76 1 2 3 4 1 2 3 4 C D F A B E 4.5 DSP ASSY SIDE A I DSP ASSY I CN119 M CN209 IC108 IC112 IC126 IC109 IC127 IC120 IC113 IC119 Q111 Q112 Q110 IC122 IC123 IC118 IC114 (226902640) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 77 5 6 7 8 5 6 7 8 C D F A B E SIDE A I CN304 C CN204 CN583 B CN260 IC115 IC122 IC123 IC118 IC114 IC110 IC121 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 78 1 2 3 4 1 2 3 4 C D F A B E SIDE B I DSP ASSY I Q105 Q104 Q103 Q102 Q109 Q108 Q107 Q106 IC103 IC102 IC105 IC106 IC101 IC121 IC501 IC124 IC125 (226902640) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 79 5 6 7 8 5 6 7 8 C D F A B E SIDE B I CN371 C CN262 CN100 K CN261 CN305 C CN205 501 IC124 IC125 IC127 IC600 IC111 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 80 1 2 3 4 1 2 3 4 C D F A B E 4.6 LED ASSY SIDE A K LED ASSY K (226902720) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 81 5 6 7 8 5 6 7 8 C D F A B E SIDE A K CN261 I CN100 Q106 Q103 Q104 Q105 Q107 Q111 IC100 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 82 1 2 3 4 1 2 3 4 C D F A B E SIDE B K LED ASSY K IC100 IC101 Q107 Q111 Q105 Q103 Q104 Q106 Q102 (226902720) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 83 5 6 7 8 5 6 7 8 C D F A B E SIDE B K Q102 Q101 Q100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 84 1 2 3 4 1 2 3 4 C D F A B E 4.7 REG, POWER, TRANS and PSW ASSYS SIDE A L M N O REG ASSY L PSW ASSY O POWER ASSY TRANS ASSY M CONNECTOR ASSY N IC550 IC552 IC553 IC600 IC551 IC551 IC557 Q550 IC554 IC555 IC556 IC560 IC558 IC559 Q551 J460 A CN121 J32 J152 CN152 AC IN LIVE J22 CN209 I CN119 J31 J21 CN4 J4 CN2 CN1 NEUTRAL CN1 CN2 1 2 3 4 5 J101 J102 (226902840) (226902820) (226902800) (226903790) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 85 5 6 7 8 5 6 7 8 C D F A B E L M N O SIDE B REG ASSY L PSW ASSY O POWER ASSY M TRANS ASSY N IC561 IC550 IC552 IC553 IC600 IC551 IC556 IC554 Q551 IC560 IC555 IC558 IC559 IC557 Q550 (226902800) (226903790) (226902820) (226902840) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 86 1 2 3 4 1 2 3 4 C D F A B E 4.8 CHF1 to CHF4 ASSYS SIDE A SIDE B G CHF4 ASSY G CHF3 ASSY G CHF2 ASSY G CHF1 ASSY G CHF4 ASSY G CHF3 ASSY G CHF2 ASSY G CHF1 ASSY G CN3004 C CN331 CN3003 C CN331 CN3002 C CN331 CN3001 C CN331 (226902860CH4) (226902860CH4) (226902860CH3) (226902860CH2) (226902860CH1) (226902860CH1) (226902860CH2) (226902860CH3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 87 5 6 7 8 5 6 7 8 C D F A B E 5. PCB PARTS LIST LIST OF WHOLE PCB ASSEMBLIES Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark Symbol and Description DJM-3000/ KUCXCN DJM-3000/WYXCN DJM-3000/ RLBXCN TERM ASSY 226902660 226902660 226902660 TERMA ASSY 226902660 226902660 226902660 TERMB ASSY 226902680 226902680 226902680 NSP VR ASSY 226100980 226100980 226100980 VR ASSY 226903690 226903690 226903690 NSP CFCURV ASSY 226903700 226903700 226903700 NSP EFFECT ASSY 226902740 226902740 226902740 NSP MIC ASSY 226902780 226902780 226902780 NSP HP ASSY 226902760 226902760 226902760 DSP ASSY 226902640 226902640 226902640 NSP SUB ASSY 226101022 226101020 226101020 CF ASSY 226902960 226902960 226902960 MAF ASSY 226902940 226902940 226902940 CHF1 ASSY 226902860CH1 226902860CH1 226902860CH1 CHF2 ASSY 226902860CH2 226902860CH2 226902860CH2 CHF3 ASSY 226902860CH3 226902860CH3 226902860CH3 CHF4 ASSY 226902860CH4 226902860CH4 226902860CH4 LED ASSY 226902720 226902720 226902720 REG ASSY 226902840 226902840 226902840 POWER ASSY 226903790 226902700 226902700 TRANS ASSY 226902800 226902800 226902800 PSW ASSY 226902820 226902820 226902820 N TRANS ASSY Mark Symbol and Description 226902800 226902801 S2 Voltage Selector Not used DSA1026 M POWER ASSY Although 226902700 and 226903790 are different in part number, they consist of the same components. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 88 1 2 3 4 1 2 3 4 C D F A B E Mark No. Description Part No. A TERMA ASSY SEMICONDUCTORS IC12,IC16,IC17,IC2,IC5 NJM2068M IC600 NJM2068M IC1,IC14,IC15,IC18,IC4 NJM4580M IC502,IC7 NJM4580M IC46-IC51 PC357N1 IC500,IC501 TC74HCU04AF IC19 TC9215AF Q501,Q507,Q508,Q511 2SC2878 Q1,Q19,Q2,Q20-Q24 2SC3326 Q3-Q8 2SC3326 D1-D6 1SS355 COILS > L702,L703,L705,L706 922607040 L600 LRCA101J L9,L10 PTL1003 L1-L8 (Puls Trans) VTL1105 CAPACITORS C198,C208 CCSQCH101J50 C197 CCSQCH220J50 C10,C102,C103,C11 CCSRCH101J50 C110-C119,C12,C120-C125 CCSRCH101J50 C13-C18,C186,C19,C193 CCSRCH101J50 C20,C5-C9,C92-C97 CCSRCH101J50 C217 CCSRCH220J50 C605,C606 CEAT471M16 C195 CEJQ100M16 C127,C128,C131,C132 CEJQ100M50 C135-C138,C145,C146 CEJQ100M50 C157,C158,C169,C170,C194 CEJQ100M50 C199,C21,C213-C216,C218 CEJQ100M50 C22-C24,C27-C30,C509 CEJQ100M50 C51,C518,C52,C523,C532 CEJQ100M50 C55,C56,C83-C90 CEJQ100M50 C701 CEJQ101M10 C141,C142,C153,C154 CEJQ220M25 C45-C48 CEJQ220M25 C159,C160,C71-C74 CEJQ330M50 C520,C527 CEJQ470M16 C600,C601,C604 CEJQNP330M25 C508,C522,C534,C536 CEJQNPR33M50 C75,C76,C79,C80 CEJQNPR33M50 C1,C104-C109,C181,C196 CKCYF103Z50 C2-C4 CKCYF103Z50 C177,C178,C200-C203,C91 CKCYF473Z50 C189,C191,C211,C602 CKSQYB103K50 C802,C803 CKSQYB103K50 C519,C526,C529,C530,C700 CKSQYB104K25 C151,C152,C175,C176 CKSRYB103K50 C182-C185,C187,C188,C190 CKSRYB103K50 C192,C204-C207,C209,C210 CKSRYB103K50 C212,C25,C26,C31,C32 CKSRYB103K50 C37,C38,C49,C50,C506 CKSRYB103K50 C514,C603,C69,C70 CKSRYB103K50 C98-C101 CQMA152J50 C57,C58,C61,C62,C149 CQMA222J50 C150,C163,C164 CQMA222J50 C65-C68,C155,C156,C167,C168 CQMA681J50 RESISTORS R190 RN1/10SE1000D R180,R181 RN1/10SE1001D R120,R177,R197 RN1/10SE1003D R176 RN1/10SE1201D R151,R178,R58,R62 RN1/10SE1203D R144,R145,R156,R157 RN1/10SE4703D R45,R46,R49,R50 RN1/10SE4703D R300-R315 RN1/10SE7503D R1,R104,R105,R108-R111 RN1/16SE1000D R173,R2,R5,R6 RN1/16SE1000D R96-R99 RN1/16SE1000D R136,R139,R148,R149 RN1/16SE1001D R33,R34,R37,R38 RN1/16SE1001D R123,R126,R127,R13-R16 RN1/16SE1003D R507,R509,R542,R553 RN1/16SE1003D R79-R82,R92-R95 RN1/16SE1003D R195 RN1/16SE1201D R150,R162,R163,R196,R57 RN1/16SE1203D R61 RN1/16SE1203D R10,R11,R114,R115 RN1/16SE1302D R118,R119,R12,R9 RN1/16SE1302D R106,R107,R112,R113,R174 RN1/16SE1502D R191,R3,R4,R546,R548 RN1/16SE1502D R7,R71,R72,R8 RN1/16SE1502D R164,R165,R193,R194 RN1/16SE2002D R140,R141,R152,R153,R175 RN1/16SE3301D R192,R39-R42 RN1/16SE3301D R516,R535,R545,R549 RN1/16SE4300D R83-R90 RN1/16SE4300D R539,R561,R75,R76 RN1/16SE4302D R116,R117,R124,R125 RN1/16SE5602D R198,R199,R31,R32 RN1/16SE5602D R523,R524,R526,R528,R705 RS1/10S0R0J R708,R710,R711 RS1/10S0R0J R170 RS1/10S102J R703,R704 RS1/10S122J R232,R233,R239 RS1/10S152J R182,R186 RS1/10S471J R168,R169 RS1/10S750J R100,R101,R67,R68 RS1/10S912J VR201 (10kB) DCS1056 Other Resistors RS1/16S###J OTHERS J460 CONNECTOR ASSY 226404700 JA10 YKB CONNECTOR 950001790 JA11 YKB CONNECTOR 950001800 CN1-CN4,CN9 4P PIN JACK AKB7015 CN482 CONNECTOR B3B-XH-A JA8 2P PIN JACK (ORG) DKB1027 CN401 FFC CONNECTOR 12P HLEM12S-1 CN480 FFC CONNECTOR 15P HLEM15S-1 CN4022 FFC CONNECTOR 19P HLEM19S-1 CN481 FFC CONNECTOR 21P HLEM21S-1 CN4021 FFC CONNECTOR 24P HLEM24S-1 JA12-JA15 REMOTE CON. JACK RKN1004 JA7 2P PIN JACK VKB1031 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 89 5 6 7 8 5 6 7 8 C D F A B E B TERMB ASSY SEMICONDUCTORS IC14 AK5351-VF IC107 BU4066BCF IC12,IC16,IC17,IC2,IC5 NJM2068M IC600 NJM2068M IC8,IC9 NJM2100M IC503-IC505 NJM4556AL IC101,IC102 NJM4558M IC1,IC14,IC15,IC18,IC4 NJM4580M IC502,IC7 NJM4580M IC506,IC507 TC74HC123AF IC500,IC501 TC74HC14AF IC12,IC13 TC74HC163AF IC502 TC74HC86AF IC500,IC501 TC74HCU04AF IC10 TC7WU04F IC19 TC9215AF IC15 TC9271F Q500 2SC1740S Q114-Q117,Q501,Q507,Q508 2SC2878 Q511,Q522-Q529 2SC2878 Q1,Q19,Q2,Q20-Q24 2SC3326 Q3-Q8 2SC3326 Q506-Q509,Q511-Q513,Q515 DTA114EK Q520 DTA114EK Q101 DTA124ES Q501-Q505,Q510,Q514 DTC114EK Q516-Q519,Q521 DTC114EK D504 1SS133 D1-D5,D500-D503 1SS355 D505-D517,D6 1SS355 SWITCH S101 945001240 COILS L101,L102,L600,L600 LRCA101J L1-L8 (Chip Beads BK2125LM252) VTL1105 CAPACITORS C108-C115,C198,C208 CCSQCH101J50 C197 CCSQCH220J50 C10,C102,C103,C11 CCSRCH101J50 C110-C119,C12,C120-C125 CCSRCH101J50 C13-C18,C186,C19,C193 CCSRCH101J50 C20,C5-C9,C92-C97 CCSRCH101J50 C173,C174 CCSRCH150J50 C514,C515,C517,C522 CCSRCH151J50 C525,C526,C532,C533 CCSRCH151J50 C217 CCSRCH220J50 C120-C123,C179-C182 CCSRCH270J50 C605,C606 CEAT471M16 C164-C166,C168,C169,C172 CEJQ100M16 C195,C602,C604,C608-C611 CEJQ100M16 C116-C119,C124,C125 CEJQ100M50 C127,C128,C131,C132 CEJQ100M50 C135-C138,C145,C146 CEJQ100M50 C157,C158,C169,C170,C194 CEJQ100M50 C199,C21,C213-C216,C218 CEJQ100M50 C22-C24,C27-C30,C509 CEJQ100M50 Mark No. Description Part No. C51,C518,C52,C523,C532 CEJQ100M50 C55,C56,C83-C90 CEJQ100M50 C167,C170,C171,C601,C701 CEJQ101M10 C518,C520,C524,C531 CEJQ101M25 C501,C503,C511 CEJQ1R0M50 C141,C142,C153,C154 CEJQ220M25 C45-C48 CEJQ220M25 C162,C163 CEJQ221M6R3 C159,C160,C71-C74 CEJQ330M50 C520,C527 CEJQ470M16 C600,C601,C604 CEJQNP330M25 C508,C516,C519,C522,C523 CEJQNPR33M50 C530,C534,C536,C75,C76 CEJQNPR33M50 C79,C80 CEJQNPR33M50 C103,C106 CGCYX104K25 C1,C104-C107,C107-C109 CKCYF103Z50 C181,C196,C2-C4 CKCYF103Z50 C534-C537 CKCYF103Z50 C177,C178,C200-C203,C91 CKCYF473Z50 C189,C191,C211,C602,C618 CKSQYB103K50 C620,C621,C802,C803 CKSQYB103K50 C502,C519,C526,C529,C530 CKSQYB104K25 C700 CKSQYB104K25 C613,C614 CKSQYB222K50 C606,C607,C612,C616,C617 CKSRYB102K50 C101,C102,C104,C105 CKSRYB103K50 C126,C127,C151,C152 CKSRYB103K50 C160,C161,C175,C176 CKSRYB103K50 C182-C185,C187,C188,C190 CKSRYB103K50 C192,C192,C204-C207 CKSRYB103K50 C209,C210,C212,C25,C26 CKSRYB103K50 C31,C32,C37,C38 CKSRYB103K50 C49,C50,C504,C506,C506 CKSRYB103K50 C508,C512-C514,C521 CKSRYB103K50 C527-C529,C603,C619 CKSRYB103K50 C69,C70 CKSRYB103K50 C175,C177,C178,C183,C184 CKSRYB104K25 C187,C190,C191,C193-C198 CKSRYB104K25 C509,C510,C600,C603,C605 CKSRYB104K25 C185,C186 CKSRYB152K50 C615 CKSRYB222K50 RESISTORS R579-R582 RD1/2PM101J R539,R552,R557,R571 RD1/4PU680J R106,R107,R109,R110,R190 RN1/10SE1000D R180,R181 RN1/10SE1001D R104,R105,R120,R120,R121 RN1/10SE1003D R177,R197 RN1/10SE1003D R176 RN1/10SE1201D R151,R178,R58,R62 RN1/10SE1203D R111,R112,R114,R115 RN1/10SE4300D R101-R103 RN1/10SE4702D R144,R145,R156,R157 RN1/10SE4703D R45,R46,R49,R50 RN1/10SE4703D R300-R315 RN1/10SE7503D R1,R104,R105,R108-R111 RN1/16SE1000D R173,R2,R5,R6 RN1/16SE1000D R96-R99 RN1/16SE1000D Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 90 1 2 3 4 1 2 3 4 C D F A B E R136,R139,R148,R149 RN1/16SE1001D R33,R34,R37,R38 RN1/16SE1001D R208,R209,R216-R221 RN1/16SE1002D R123,R126,R127,R13,R134 RN1/16SE1003D R137,R14-R16,R507,R509 RN1/16SE1003D R536,R542,R542,R549,R553 RN1/16SE1003D R553,R79-R82,R92-R95 RN1/16SE1003D R135,R136 RN1/16SE1101D R195 RN1/16SE1201D R150,R162,R163,R196,R57 RN1/16SE1203D R61 RN1/16SE1203D R10,R11,R114,R115 RN1/16SE1302D R118,R119,R12,R9 RN1/16SE1302D R106,R107,R112,R113 RN1/16SE1502D R126-R129,R132,R133,R174 RN1/16SE1502D R191,R3,R4,R546-R548 RN1/16SE1502D R560,R7,R71,R72,R8 RN1/16SE1502D R122,R123 RN1/16SE1802D R500,R503 RN1/16SE2001D R164,R165,R193,R194 RN1/16SE2002D R537,R546,R550,R551,R558 RN1/16SE2201D R565,R570,R572 RN1/16SE2201D R204,R205 RN1/16SE2202D R545,R563,R567,R568 RN1/16SE2700D R222-R225 RN1/16SE3300D R140,R141,R152,R153,R175 RN1/16SE3301D R192,R39-R42 RN1/16SE3301D R118,R119 RN1/16SE3302D R516,R535,R545,R549 RN1/16SE4300D R83-R90 RN1/16SE4300D R539,R543,R561,R564 RN1/16SE4302D R75,R76 RN1/16SE4302D R554,R559,R561,R562,R566 RN1/16SE5101D R569,R577,R578 RN1/16SE5101D R116,R117,R124,R125 RN1/16SE5602D R198,R199,R31,R32 RN1/16SE5602D R130,R131 RN1/16SE6201D R124,R125 RN1/16SE7502D R523,R524,R526,R528,R705 RS1/10S0R0J R708,R710,R711 RS1/10S0R0J R170,R711,R713,R714 RS1/10S102J R513,R526,R534 RS1/10S104J R703,R704 RS1/10S122J R232,R233,R239 RS1/10S152J R182,R186 RS1/10S471J R108,R512,R516 RS1/10S473J R168,R169 RS1/10S750J R701,R703 RS1/10S823J R100,R101,R67,R68 RS1/10S912J VR101,VR201 (10k-B) DCS1056 Other Resistors RS1/16S###J OTHERS JA5 NC3MAH-C 099820430 J500 PCB TERMINAL F4052 226500260 460 8P CABLE HOLDER 51048-0800 X1 LP-3.5 (11.2896MHz) 937006850 JA101 YKB CONNECTOR 950001790 CN510 3P CONNECTOR B3B-PH-K CN482,CN582 3P CONNECTOR B3B-XH-A Mark No. Description Part No. CN401 12P CONNECTOR HLEM12S-1 CN480,CN580 15P CONNECTOR HLEM15S-1 CN4022 19P CONNECTOR HLEM19S-1 CN583 20P CONNECTOR HLEM20S-1 CN481,CN581 21P CONNECTOR HLEM21S-1 CN4021 24P CONNECTOR HLEM24S-1 JA102 VKN1147 C VR ASSY SEMICONDUCTORS IC63,IC64 BU4053BCF IC76,IC79 BU4066BCF IC702 LB1740 IC2,IC4 M5283P IC54,IC55 NJM2068M IC71 NJM2903M IC26,IC27 NJM45556AD IC45-IC48,IC6,IC65,IC67 NJM4558M IC7,IC72,IC73,IC8 NJM4558M IC10,IC11,IC13,IC16 NJM4580M IC18,IC19,IC21,IC23-IC25 NJM4580M IC28-IC42,IC49-IC53 NJM4580M IC56,IC57,IC59,IC60 NJM4580M IC703,IC704,IC74,IC9 NJM4580M IC14 TC4S66F IC701,IC75,IC78 TC74HC175AF IC43,IC44,IC5 TC9162AF IC17,IC66 TC9163AF IC1,IC3 TC9164AF IC12,IC20,IC700 TC9215AF Q17 2SC1740S Q10,Q19-Q30,Q700-Q705 2SC3326 Q9 2SC3326 Q31,Q38,Q803-Q805,Q807 2SC4081 Q809,Q811,Q813,Q815,Q817 2SC4081 Q39 2SD1862 Q1-Q8 2SD2114K Q800-Q802,Q806,Q808,Q810 DTA124EK Q812,Q814,Q816 DTA124EK D1,D17-D19,D2 1SS355 D20-D29,D3,D4 1SS355 D31-D52 SLI-343YCW(RST) D11-D16 SLR-342DU3F SWITCHES S3,S4 947000640 S9 947000660 S11-S23,S25 ASG7005 S26 ASX7011 S1,S2 DSH1036 S24 DSH1050 S5-S8 DSK1010 CAPACITORS C103,C108,C229-C232,C27 CCSQCH101J50 C29,C3,C343,C345 CCSQCH101J50 C358,C359,C364,C4-C6 CCSQCH101J50 C74,C75 CCSQCH101J50 C278 CCSQCH220J50 C100,C101,C122,C339-C342 CCSQCH270J50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 91 5 6 7 8 5 6 7 8 C D F A B E C38,C44,C45,C47-C49 CCSQCH270J50 C87,C88,C90,C91 CCSQCH270J50 C235-C242,C279 CCSQCH470J50 C255,C258 CCSRCH101J50 C118,C119,C123,C141-C146 CCSRCH270J50 C183-C188,C261-C265 CCSRCH270J50 C292,C293,C89,C92 CCSRCH270J50 C153-C158,C270,C271 CCSRCH271J50 C272 CCSRCH470J50 C106,C107,C11,C111,C112 CEAL100M16 C13,C15,C16,C171-C176 CEAL100M16 C256,C257,C259,C26,C260 CEAL100M16 C266,C267,C273,C280,C281 CEAL100M16 C302,C303,C326-C329,C33 CEAL100M16 C332,C333,C348,C349,C41 CEAL100M16 C46,C50,C51,C64-C69 CEAL100M16 C7,C70,C71,C712,C713 CEAL100M16 C732,C733,C76,C77,C8 CEAL100M16 C126,C127 CEAL101M16 C109,C113,C286,C287 CEAL330M25 C94-C97 CEAL330M25 C189-C194,C298,C299 CEAL470M16 C715,C716 CEAL470M16 C120,C121,C124,C125 CEALNPR33M50 C147-C152,C268,C269 CFTNA473J50 C177-C182,C282,C283 CFTNA563J50 C1,C2,C225,C226,C28 CKSQYB102K50 C344,C708-C710,C73 CKSQYB102K50 C10,C105,C110,C12,C129 CKSQYB103K50 C134,C14,C17,C18 CKSQYB103K50 C207-C216,C227,C228,C23 CKSQYB103K50 C233,C234,C243-C250 CKSQYB103K50 C290,C291,C300,C301 CKSQYB103K50 C316-C319,C32,C320,C321 CKSQYB103K50 C325,C335-C338,C34,C35 CKSQYB103K50 C350-C355,C36,C37 CKSQYB103K50 C386,C387,C39,C40 CKSQYB103K50 C400,C401,C405-C410 CKSQYB103K50 C412-C414,C42,C43 CKSQYB103K50 C52,C53,C55-C59,C711 CKSQYB103K50 C714,C717-C723,C78,C79 CKSQYB103K50 C82,C83,C85,C9 CKSQYB103K50 C98,C99 CKSQYB103K50 C284,C285,C288,C289,C334 CKSQYB104K25 C346,C347,C725 CKSQYB104K25 C19-C22,C24,C25 CKSQYB224K16 C30,C31 CKSQYB224K16 C102,C128,C130,C131 CKSRYB103K50 C135-C137,C139,C140 CKSRYB103K50 C195-C206,C217-C224 CKSRYB103K50 C306,C307,C312-C315 CKSRYB103K50 C322-C324,C330,C331 CKSRYB103K50 C373-C376,C402-C404,C54 CKSRYB103K50 C60-C63,C706,C707,C726 CKSRYB103K50 C728-C731,C80,C84,C86 CKSRYB103K50 C93 CKSRYB103K50 C104 CKSRYB104K25 C294,C295 (4700pF-50v) DCE1008 C165-C170,C276,C277 (5600pF-50v) DCE1009 C159-C164,C274,C275 (0.47mF-50v) DCH1158 Mark No. Description Part No. C254 (0.01mF-50v) DCH1159 RESISTORS R198-R201 (430) DCN1137 R339 RD1/4PU101J R774,R775 RD1/4PU332J R141,R147,R166-R168,R171 RN1/10SE1001D R183,R184,R375,R405-R408 RN1/10SE1001D R222,R224,R371,R374 RN1/10SE1002D R380,R381,R384,R385 RN1/10SE1002D R387,R388,R390,R391,R56 RN1/10SE1002D R61,R71,R75 RN1/10SE1002D R105,R112,R17,R20 RN1/10SE1003D R286-R291,R396,R397 RN1/10SE1003D R409,R410,R43,R438,R439 RN1/10SE1003D R527,R529,R60,R603,R604 RN1/10SE1003D R63,R65,R69,R83 RN1/10SE1003D R89-R95,R97,R98 RN1/10SE1003D R66,R72 RN1/10SE1202D R376 RN1/10SE1203D R256-R261,R368,R369 RN1/10SE1300D R133,R134,R137,R146 RN1/10SE1501D R144,R149,R164,R165 RN1/10SE1502D R202,R203,R78,R79 RN1/10SE1502D R268-R271 RN1/10SE1800D R129-R131,R136 RN1/10SE1801D R101-R104,R107-R109,R11 RN1/10SE2202D R110,R111,R113,R12,R121 RN1/10SE2202D R124,R127,R128,R14,R148 RN1/10SE2202D R150-R154,R157,R159 RN1/10SE2202D R18,R19,R21,R22 RN1/10SE2202D R295,R296,R301,R304 RN1/10SE2202D R398,R399,R402,R404 RN1/10SE2202D R440-R443,R64,R67,R70 RN1/10SE2202D R73,R74,R77,R9 RN1/10SE2202D R33-R40,R54,R55 RN1/10SE2702D R58,R59 RN1/10SE2702D R138,R142 RN1/10SE3001D R116-R118,R46-R53 RN1/10SE3002D R394,R395 RN1/10SE3301D R192,R377 RN1/10SE3602D R196 RN1/10SE4302D R274-R277,R747-R750,R756 RN1/10SE4702D R758,R762,R766 RN1/10SE4702D R182,R191 RN1/10SE5101D R68,R76 RN1/10SE5600D R3,R5,R57,R62 RN1/10SE5602D R132,R135,R139,R143 RN1/10SE7501D R262-R267,R372,R373 RN1/10SE7502D R716,R718,R720,R722,R724 RN1/16SE1000D R726 RN1/16SE1000D R155,R156,R564,R566 RN1/16SE1001D R214-R221,R223,R225,R336 RN1/16SE1002D R338,R363,R364,R367,R468 RN1/16SE1002D R160,R161,R354,R41,R565 RN1/16SE1003D R567 RN1/16SE1003D R85,R99 RN1/16SE1102D R178,R179,R340,R342,R345 RN1/16SE1502D R244-R249,R272,R273 RN1/16SE1800D R361,R362,R378,R379 RN1/16SE1800D Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 92 1 2 3 4 1 2 3 4 C D F A B E R232-R237,R355,R356 RN1/16SE1802D R343,R344,R469 RN1/16SE2002D R114,R115,R119,R120 RN1/16SE2202D R122,R123,R125,R126 RN1/16SE2202D R180,R181 RN1/16SE2202D R210,R211 RN1/16SE2701D R346,R352,R386,R389,R471 RN1/16SE3301D R193 RN1/16SE3602D R82,R96 RN1/16SE3902D R226-R231,R349,R350 RN1/16SE4301D R197 RN1/16SE4302D R278,R279,R382,R383 RN1/16SE4702D R543,R545,R549,R551 RN1/16SE5100D R557,R558,R702,R704,R706 RN1/16SE5100D R708,R709,R711,R727-R730 RN1/16SE5100D R238-R243,R280-R285 RN1/16SE5101D R359,R360,R392,R393 RN1/16SE5101D R250-R255,R353,R357,R358 RN1/16SE6202D R365,R366 RN1/16SE6202D R470 RN1/16SE6801D R715,R717,R719,R721,R723 RN1/16SE7500D R725 RN1/16SE7500D R100,R213 RS1/16S0R0J R511 RS1/16S101J R514,R517 RS1/16S102J R510,R512,R513,R516 RS1/16S103J R607-R613,R805 RS1/16S103J R476 RS1/16S104J R475 RS1/16S113J R782 RS1/16S153J R772 RS1/16S182J R194,R520,R521 RS1/16S223J R509 RS1/16S303J R515,R540,R541,R546,R547 RS1/16S332J R552-R555,R560-R563,R701 RS1/16S332J R703,R705,R707,R710,R712 RS1/16S332J R158,R770 RS1/16S473J R461 RS1/16S561J R176,R177 RS1/16S912J VR29 RK14K1240036 942001370 VR25,VR26 (10KB) DCS1050 VR10-VR12,VR14-VR16 (10KB) DCS1053 VR22-VR24,VR27,VR28,VR3 (10KB) DCS1053 VR6-VR8 (10KB) DCS1053 VR13,VR2,VR21,VR4,VR5 (10KB) DCS1054 VR9 (10KB) DCS1054 VR1 (10KB) DCS1055 Other Resistors RS1/10S###J OTHERS 11-16 LEDS-LH-5-6 225500220 306 CONNECTOR ASSY-CF 226404660 3P CABLE HOLDER 51048-0300 5P CABLE HOLDER 51048-0500 8P CABLE HOLDER 51048-0800 CN301 CONNECTOR 12P 52492-1220 CN3022 CONNECTOR 19P 52492-1920 CN305 CONNECTOR 21P 52492-2120 CN3021 CONNECTOR 24P 52492-2420 CN304 CONNECTOR 28P 52492-2820 Mark No. Description Part No. CN350 CONNECTOR POST B3B-PH-K CN3001-CN3005 DKP3576 B TO B CONNECTOR 9P CN371 CONNECTOR HLEM31R-1 D CF ASSY RESISTOR VR31 (10k-B Slide VR) DCV1006 OTHERS CN336 MT CONNECTOR 6P 173979-6 E CFCURV ASSY SWITCH S10 DSH1050 OTHERS J3701 CONNECTOR ASSY3-L60 226404680 3701 3P CABLE HOLDER 51048-0300 F MAF ASSY RESISTOR VR32 (10k-B Slide VR) DCV1010 OTHERS CN335 B TO B CONNECTOR 9P DKP3598 G CHF1-CHF4 ASSYS SEMICONDUCTOR D10 GP1S94 RESISTOR R801 RD1/4PU181J R802 RS1/10S393J VR17 (10k-B Slide VR) DCV1010 OTHERS CN331 B TO B CONNECTOR 9P DKP3598 H MIC ASSY CAPACITORS C370 CKCYF103Z50 C253,C300 CKSQYB103K50 OTHERS J3071 CONNECTOR ASSY5-L60 226404690 3071 5P CABLE HOLDER 51048-0500 307 NCJ9FI-H-0 951001640 J1 EARTH LAGU ASSY DDX1170 I DSP ASSY SEMICONDUCTORS > IC127 (800mA) AEK7008 IC122 AK4520A IC109,IC110,IC600 BU4053BCF IC113 K4F160812D-FC60 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 93 5 6 7 8 5 6 7 8 C D F A B E IC120 M5237ML IC116,IC117 NJM2100M IC101-IC106,IC124,IC601 NJM4558MD > IC121 NJM78M05FA IC108 PE5312B IC111 TC74HC74AF IC114 TC74HCT7007AF IC112,IC602 TC7S04F IC118,IC123 TC7WU04F IC115 TC9163AF IC119 XCB56364 Q112 2SB1132 Q111 2SC1740S Q110 2SC2458 Q102-Q109 DTC124EK D129,D130 11E2 D101-D106,D110,D111 1SS355 D114-D128,D600,D601 1SS355 D100,D107-D109,D112,D113 UDZS5.6B COILS L108 CHIP SOLID INDUCTOR ATL7002 L109 CHIP COIL (4.7) DTL1024 L110,L111 LRCA101J L105,L106 CHIP SOLID INDUC. QTL1013 CAPACITORS C194,C195,C239,C244,C249 CCSQCH101J50 C253,C261,C262,C264,C265 CCSQCH101J50 C191,C198,C202 CCSQCH221J50 C282,C283 CCSRCH100D50 C217,C219-C221,C233,C238 CCSRCH101J50 C243,C250,C254,C263,C606 CCSRCH101J50 C112,C113,C293,C302 CCSRCH150J50 C257 CCSRCH221J50 C209,C210,C222,C223 CCSRCH270J50 C104,C105,C107,C108 CCSRCH470J50 C114-C117,C122,C123 CCSRCH470J50 C106,C109,C174,C175 CEHAR100M16 C180-C185,C203,C204 CEHAR100M16 C272,C273,C305 CEHAR100M16 C284 CEHAR100M50 C155,C186,C196,C229,C260 CEHAR101M10 C277,C281,C301 CEHAR101M10 C601,C602 CEHAR1R0M50 C101,C128,C129,C134,C135 CEHAR2R2M50 C138,C139 CEHAR2R2M50 C289,C290,C294-C297,C311 CEHAR470M16 C258 CEHAR4R7M50 C200,C201,C291 CEHAT221M6R3 C604,C605 CEHAT471M16 C187 CKSQYB102K50 C136,C137,C144,C145,C148 CKSQYB103K50 C188,C197,C199,C226,C228 CKSQYB103K50 C292,C300,C303,C607,C608 CKSQYB103K50 C141,C147,C156,C189 CKSQYB104K25 C205-C207,C240,C245,C248 CKSQYB104K25 C252,C256,C266,C267 CKSQYB104K25 C269,C270,C276,C298,C314 CKSQYB104K25 C230 CKSQYB562K50 C271 CKSRYB102K50 Mark No. Description Part No. C118-C121,C124,C125 CKSRYB103K50 C130-C133,C140,C142,C150 CKSRYB103K50 C163-C171,C176-C179,C227 CKSRYB103K50 C278,C279,C299,C600,C609 CKSRYB103K50 C143,C151-C154,C157-C162 CKSRYB104K25 C172,C173,C212-C215,C234 CKSRYB104K25 C237,C242,C251,C255,C259 CKSRYB104K25 C268,C274,C306,C307,C310 CKSRYB104K25 C312 CKSRYB104K25 C224,C225 CKSRYB152K50 C102,C103 CKSRYB473K25 C110,C111 (10mF-10v) DCH1160 RESISTORS R282-R286 RAB4C0R0J R170,R171,R175,R176,R178 RAB4C102J R180,R182 RAB4C102J R231 RAB4C473J R255,R256 RN1/10SE1002D R241 RN1/10SE2202D R292,R293 RN1/10SE4702D R244,R245 RN1/10SE8201D R106 RN1/16SE1001D R144,R145,R246,R247 RN1/16SE1002D R253,R254,R257,R258 RN1/16SE1002D R294,R295 RN1/16SE1202D R243 RN1/16SE2202D R134,R136 RN1/16SE2702D R265-R268 RN1/16SE3300D R296,R297 RN1/16SE6802D R113 RN1/16SE9101D R102,R174,R288,R614 RS1/10S0R0J R233 RS1/10S101J R232,R237,R238,R500,R501 RS1/10S102J R602-R609 RS1/10S102J R601 RS1/10S103J R192 RS1/10S104J R160 RS1/10S221J R242,R248,R250,R251,R613 RS1/10S472J R119,R221-R225 RS1/10S752J R290 RS1/16S4301F R289 RS1/16S7501F Other Resistors RS1/16S###J OTHERS X101 CERA. RESONATOR (4.9MHz) DSS1105 X102 CERA. RESONATOR20MHz DSS1110 X103 XTAL RES (OSC)(16.9MHz) PSS1008 CN205 FCC CONNECTOR 21P 52492-2120 CN204 CONNECTOR 28P 52492-2820 CN209 CONNECTOR B16B-PH-K CN260 CONNECTOR 20P HLEM20S-1 CN262 CONNECTOR 31P HLEM31S-1 CN261 CONNECTOR 35P HLEM35S-1 J EFFECT ASSY SEMICONDUCTOR IC100 NJM3404AM SWITCHES Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 94 1 2 3 4 1 2 3 4 C D F A B E S100,S101 DSG1067 CAPACITORS C100,C101 CKSQYB102K50 C102-C104 CKSQYB104K25 RESISTORS R100,R101 RN1/10SE2001D R102,R103 RN1/10SE2201D R104-R107 RN1/10SE2202D R108,R109 RN1/10SE3901D R110,R111 RN1/10SE4702D R112,R113 RN1/10SE8201D OTHERS J3101 CONNECTOR ASSY8-L30 226404701 3101 8P CABLE HOLDER 51048-0800 K LED ASSY SEMICONDUCTORS IC100,IC101 LB1740 IC100 NJM3404AM Q100-Q111 2SD1862 D175,D191,D192 1SS133 D104-D110,D115-D121 DEL1034 D126-D132,D137-D143 DEL1034 D148-D154,D159-D165 DEL1034 D100-D103,D111-D114 DEL1035 D122-D125,D133-D136 DEL1035 D144-D147,D155-D158 DEL1035 D170-D172,D182-D185 NKR131S D166-D169,D176-D181 SLR-342DUTB7 D173,D174,D186-D190 SLR-342VRTB7 SWITCHES S102 948000450 S100,S101 DSG1067 CAPACITORS C370 CKCYF103Z50 C100,C101 CKSQYB102K50 C253,C300 CKSQYB103K50 C102-C104 CKSQYB104K25 C100,C101 (0.01/50v) DCH1159 RESISTORS R110-R113 RD1/4PU181J R114-R116,R133,R135-R137 RD1/4PU390J R101,R103,R105,R107,R109 RD1/4PU473J R118-R120 RD1/4PU473J R121,R122,R130-R132,R134 RD1/4PU560J R143,R146,R148 RD1/4PU560J R123-R129,R138-R142,R144 RD1/4PU620J R145,R147 RD1/4PU620J R100,R101 RN1/10SE2001D R102,R103 RN1/10SE2201D R104-R107 RN1/10SE2202D R108,R109 RN1/10SE3901D R110,R111 RN1/10SE4702D R112,R113 RN1/10SE8201D Other Resistors RS1/10S###J OTHERS Mark No. Description Part No. LEVEL METER HOLDER 224301290 J250 1007C26BL55 226404790 J251 1007C26WH140 226404800 J252 1007C26RD190 226404810 3081 3P CABLE HOLDER 51048-0300 3071 5P CABLE HOLDER 51048-0500 3101 8P CABLE HOLDER 51048-0800 CN100 CONNECTOR 35P 52492-3520 J1 DDX1170 L REG ASSY SEMICONDUCTORS > IC550 NJM7815FA > IC552 NJM78M08FA > IC553 NJM79M08FA > IC600 NJM79M15FA > IC551 NJM7915FA > D573,D574 11EQS06 RESISTORS All Resistors RS1/10S###J OTHERS HEATSINK VR 225300450 J152 CONNECTOR ASSY 226404710 152 12P CABLE HOLDER 51048-1200 SCREW BBZ30P060FMC M POWER ASSY SEMICONDUCTORS > IC555-IC557 (1.25A) AEK7010 > IC558 (4A) AEK7018 > IC561 NJM78M08FA > IC554 PQ05RR12 Q551 2SC2458 > Q550 2SD2406 D563,D999 11E2 D565,D571 11EQS06 D562 1SS133 > D550 MTZJ6.2B > D5521-D5524 RB060L-40 > D551 S2VB20-F1 > D559-D561 S5688G CAPACITORS C570 CEHANP4R7M50 C562 CEHAT101M10 C554,C555 CEHAT101M16 C564 CEHAT103M16 C567 CEHAT221M16 C561,C572 CEHAT330M25 C552,C553,C601 CEHAT470M25 C571 CEHAT4R7M50 C550,C551,C563 CKCYF103Z50 C558-C560,C565,C566 CKSQYB103K50 C568,C569,C602 CKSQYB103K50 C556,C557 (3300/35) DCH1132 RESISTORS R554,R556 RD1/4PU102J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 95 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT There is no information to be shown in this chapter. R551 RD1/4PU103J R555 RD1/4PU104J R557-R559 RD1/4PU223J R550 RD1/4PU561J R552 RD1/4PU562J R553 RD1/4PU822J OTHERS TUBE 225401930 CN121 8P CONNECTOR 52147-0810 CN152 12P CONNECTOR 52147-1210 CN119 KR CONNECTOR B16B-PH-K > CN2 3P-VH CONNECTOR B3P5-VH SCREW BMZ30P060FMC HEAT SINK DNG1066 HEAT SINK DNG1085 CN4 5P CONNECTOR KPC5 SCREW PMH26P120FMC > CN1 AC CORD SOCKET RKP1751 H1,H2 FUSE HOLDER RKR1003 KN1,KN2 VNF1084 N TRANS ASSY SWITCH > S1 DSA1028 COIL > L1 LINE FILTER VTL-004 CAPACITORS > C1 (3300P/250V) ACG7030 > C2,C3 (10000P/250V) ACG7033 OTHERS J4 5-L125 226404720 J101 CONNECTOR ASSY 226404750 4 5P CABLE HOLDER 51052-0500 O PSW ASSY SWITCH > S1 AC SWITCH DSA1028 CAPACITOR > C1 (3300P/AC250V) ACG7030 RESISTORS All Resistors RS1/10S###J OTHERS > J22 CONNECTOR ASSY 226404670 > J32 CONNECTOR ASSY 226404671 P HP ASSY RESISTORS R502-R504 RS1/10S0R0J OTHERS J3081 CONNECTOR ASSY 226404680 JA302 YKB CONNECTOR 950001700 3081 3P CABLE HOLDER 51048-0300 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 96 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS How to Enter the Test Mode 1. Power supply OFF 2. EFFECT MIX: OFF 3. Turn ON the power while pressing the EFFECT Key and ROLL Key. When entered the test mode, [ F] is displayed on the lower 7 seg and test mode starts when releases the Key. Then the LED indication (lighting) will change when presses the EFFECT key as follows. 4. When release from the test mode, return to normal mode by turn on the power once again in the status that nothing presses. Level Meter 7 SEG BPM CH BPM H/L EFFECT CH BEAT LED 1 Lights out All "0" display Lights out Lights out CH-1 lighting 1/2 LED lighting 2 -15 lighting All "1" display CH-1 lighting LowLED lighting CH-2 lighting 2/3 LED lighting 3 -10 lighting All "2" display CH-2 lighting HighLED lighting CH-3 lighting 1/1 LED lighting 4 -7 lighting All "3" display CH-3 lighting Repeat 1 to 3 afterward CH-4 lighting 2/1 LED lighting 5 -4 lighting All "4" display CH-4 lighting MIC lighting 4/1 LED lighting 6 -2 lighting All '5' display Repeat 1 to 5 afterward Master lighting Repeat 1 to 5 afterward 7 0 lighting All "6" display Repeat 1 to 6 afterward 8 2 lighting All "7" display 9 5 lighting All "8" display 0 9 lighting All "9" display - 14 lighting Repeat 1 to 0 afterward Repeat 2 to = afterward = -22 lighting Indication A/B FADER START EFFECT MIX Key CH Monitor EFFECT Key 1 Lights out Lights out Lights out Lights out Lighting 2 Indication A lighting CH1 lighting ECHO lighting CH-1 monitor lighting Lighting 3 7 Indication B lighting CH2 lighting ZIP lighting CH-2 monitor lighting Effect monitor lighting Lights out 4 CH3 lighting ROLL lighting CH-3 monitor lighting Repeat 1 to 3 afterward Repeat 1 to 3 afterward 5 CH4 lighting CH-4 monitor lighting Master monitor lighting 6 Repeat 2 to 5 afterward Repeat 2 to 4 afterward Repeat 2 to 7 afterward www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 97 5 6 7 8 5 6 7 8 C D F A B E Power ON Main Start Register set of CPU I/O port setting of CPU Loop timer clear (10 msec) Check during mute (during mute) Key check SW check Fader start control Display control Timer control DSP data reception Return to Main (mute completion) (during RAM clear) (RAM clear completion) Effect CH select check RAM clear check Effect mode select Effect mode processing Level meter processing Timer setting A/D setting FIP controller setting IC reset set Analog SW initial setting Wait for DRAM clear 7 seg initial setting Mute OFF timer set Various effect & RAM initializing Microcomputer inside RAM initialization (zero clear) Output mute set (the same from power ON) Wait for voltage stability 50 msec DSP software 1 transfer : DSP initial setting DSP software 2 transfer : Filter initial setting Test mode check : Route diverges to the normal and test 5 msec wait DSP software 3 transfer : RAM initial setting DSP software 4 transfer : Sharing program transfer 5 msec wait 1000 msec wait 1000 msec ∗ Mute time is 2000 msec in total. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 98 1 2 3 4 1 2 3 4 C D F A B E 7.1.1 DISASSEMBLY Fader VR Section Control Panel Section FADER Knob ×5 Sub Panel FADER Knob ×5 Sub Panel CF Assy Disconnect a connector (CN336). MAF Assy CHF4 Assy Caution: These one screws are for the power switch section. Do not remove two screws because the power supply may short circuit. CHF3 Assy CHF2 Assy CHF1 Assy Remove other Fader VR Assys (CHF1 to CHF4 Assys) as same as steps 5 to 7. Fader Bracket Slider Panel CROSS FADER Knob ×2 3 ×2 1 ×2 1 ×2 6 ×2 1 ×2 2 ×2 2 ×2 1 ×2 1 5 5 7 8 9 10 2 CROSS FADER Knob Slider Panel 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 99 5 6 7 8 5 6 7 8 C D F A B E TERMA and TERMB Assys Screw ×4 Washer ×4 ×3 Screw Nut ×4 Washer ×4 CN305 Tear off a adhesive tape. Remove the Control Panel section. • Rear Panel side PCB Sheet VR Assy 1 2 2 2 7 7 8 10 5 4 3 6 TERMB Assy TERMA Assy TERMB Assy PSW Assy VR Assy HP Assy Wire Saddle Clip CN305 CN371 CN371 PCB Sheet Rear PCB Support Cutting Pliers, etc. EFFECT Assy TERMA Assy TERMB Assy MIC Assy Diagnosis VR Assy DSP Assy TRANS Assy POWER Assy REG Assy 9 3 6 5 4 7 8 3 7 Diagnosis www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 100 1 2 3 4 1 2 3 4 C D F A B E 7.2 PARTS 7.2.1 IC • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. Block Diagram Pin Arrangement (Top View) Pin Function K4F160812D-FC60 (DSP ASSY: IC113) • CMOS DRAM Control Clocks Refresh Timer Data In Buffer VBB Generator Refresh Control 7 Refresh Counter Row Address Buffer Col. Address Buffer Column Decoder 23 6 22 Data Out Buffer Row Decoder Memory Array 2,0970,152×8 Cells Sense Amps & I/O 9-13, 16-21 10-13, 16-20 2-5, 24-27 Vcc Vss DQ0 to DQ7 OE RAS CAS W A0 to A10 A0 to A8 Vcc 1 1,14 15,28 DQ0 2 DQ1 3 DQ2 4 DQ3 5 W 6 RAS 7 N.C 8 A10 9 A0 10 A1 11 A2 12 A3 13 Vcc Vss DQ7 DQ6 DQ5 DQ4 CAS OE A9 A8 A7 A6 A5 A4 Vss 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 No. Pin Name Pin Function 1 Vcc Power supply (+3.3V) 2 DQ0 Data In/Out 3 DQ1 4 DQ2 5 DQ3 6 W Read/Write input 7 RAS Row address Strobe 8 N.C No connection 9 A10 Address inputs 10 A0 11 A1 12 A2 13 A3 14 Vcc Power supply (+3.3V) 15 Vss Ground 16 A4 Address input 17 A5 18 A6 19 A7 20 A8 21 A9 22 OE Data output enable 23 CAS Column address strobe 24 DQ4 Data In/Out 25 DQ5 26 DQ6 27 DQ7 28 Vss Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 101 5 6 7 8 5 6 7 8 C D F A B E 7.3 OPTIONAL PARTS 5 2 3 4 6 7 1 Screw CBZ30P080FZK Control Panel 224100460 Panel Stay 224100480 Screw BBZ30P060FMC Screw BBZ30P060FMC 6 8 9 OPTIONAL (DJC-3000RV Rotary Volume Kit) 7-3-1. EXPLODED VIEWS and PARTS LIST Mar Mark No. Description Part No. OPTIONAL PARTS LIST 1 Fader Knob (AL) Assy DXA1931 2 VR Knob (SR) DAA1159 3 VR Knob (SY) DAA1160 4 VR Knob (SG) DAA1161 5 Sub Panel (RV) DAH2136 6 Fader Bracket(RV) DNF1673 7 Detect Arm (RV) DNK4029 8 MF VR ASSY-S DXX2517 9 CHF VR ASSY-S DXX2518 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 102 1 2 3 4 1 2 3 4 C D F A B E Mar Mark No. Description Part No. PCB PARTS LIST (DWX2258) WX2258) VR101 Volume DXA1931 CN101 B TO B Connector DKP3598 Mark No. Description Part No. PCB PARTS LIST (DWX2259) WX2259) D101 Phot interrupter GP1S53V CN101 B TO B Connector DKP3598 R101 Resistor RD1/4PU271J R102 Resistor RD1/4PU393J VR101 Volume DXA1931 7-3-2. SCHEMATIC DIAGRAM and PARTS LIST MASTER ASSY DWX2258 MF VR ASSY DNP2031 UNIT No. ASSY NAME PCB No. CH1 to CH4 ASSY DWX2259 CHF VR ASSY DNP2032 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 103 5 6 7 8 5 6 7 8 C D F A B E 7-3-3. PCB DIAGRAM MASTER DWX2258A MF VR ASSY 9 1 CN101 VR101 40V-0 GNDA W104 CN101 9. L_I 8. R_I 7. NC 6. NC 5. NC 4. R_O 3. GNDA 2. L_O 1. GNDA ( DNP2032-A) ( DNP2031-A) SIDE A SIDE A MF VR ASSY CHF VR ASSY DWX2259A CHF VR ASSY 9 1 CN101 VR101 D101 W101 GNDC V+5V W102 W103 R102 R101 GNDA W104 CN101 9. ER 8. EL 7. GNDC 6. CH 5. V+5V 4. GL 3. GNDA 2. GR 1. GNDA R 40V-0 R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 104 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES 8.1 PANEL FACILITIES Control Panel ¥ MIC (Microphone Controls) 1 MIC 1 input jack Use to connect a microphone with either XLR or PHONE type jack. 2 TREBLE control Adjusts high-range frequencies on microphone 1 and 2. Center click position is provided for flat response. Rotate the knob clockwise to augment treble response (to +12dB), and rotate counterclockwise to diminish treble response (to –12 dB). 3 BASS control Adjusts low-range frequencies on microphone 1 and 2. Center click position is provided for flat response. Rotate the knob clockwise to augment bass response (to +12dB), and rotate counterclockwise to diminish base response (to –12 dB). 4 MIC 1 LEVEL Controls sound volume on microphone 1 (attenuation: –∞ to 0 dB) 5 MIC 2 LEVEL Controls sound volume on microphone 2 (attenuation: –∞ to 0 dB) 6 MIC switch Use to select microphone input. OFF: Disables microphone 1 and 2 ON: Enables microphone 1 and 2 TALK OVER: Enables microphone 1 and 2 while attenuating other sound levels. The amount of attenuation can be controlled by setting the rear-panel TALK OVER LEVEL, within the range –4 dB to –20 dB. ø CH-1 to CH-4 (Channel Input Controls) 7 Input selector switches Use to select an input source from among the components connected to the various channels. CH-1: Switches between LINE 1 and PHONO 1/LINE 2 CH-2: Switches between LINE 3 and PHONO 2/LINE 4 CH-3: Switches between LINE 5 and PHONO 3/LINE 6 CH-4: Switches between LINE 7 and MIC 3/PHONO 4 ¶ On CH-1 to CH-3, the rear panel PHONO/LINE switches are used to switch between PHONO 1, 2, 3 and LINE 2, 4, and 6. ¶ On CH-4, switching between MIC 3 and PHONO 4 is based on the presence/absence of a plug in the MIC 3 connector (when a plug is inserted, MIC 3 is selected). 8 TRIM control Use to control the input signal level. Rotate clockwise to increase the level (to +9 dB); rotate counterclockwise to decrease the level (to –∞) 9 HI control (high-range equalizer) Use to adjust high-range frequency of input. When the dial is set to the center click setting, flat response is provided. Rotate clockwise to increase response (to +12 dB), and rotate counterclockwise to decrease response (to –26 dB). 0 MID control (mid-range equalizer) Use to adjust mid-range frequency of input. When the dial is set to the center click setting, flat response is provided. Rotate clockwise to increase response (to +12 dB), and rotate counterclockwise to decrease response (to –26 dB). - LOW control (low-range equalizer) Use to adjust low-range frequency of input. When the dial is set to the center click setting, flat response is provided. ¥ ø π [ “ ] \ ‘ 1 7 8 2 3 4 5 6 9 0 - ~ ! 7 9 0 - ~ ! 7 9 0 - ~ ! 7 9 0 - ~ ! % @ ^ & * # $ ( ) _ + ™ ¡ £ ¢ 8 8 8 = = = = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 105 5 6 7 8 5 6 7 8 C D F A B E Rotate clockwise to increase response (to +12 dB), and rotate counterclockwise to decrease response (to –26 dB). = H.P CUE (Headphones cue switch) When this switch is pressed it lights orange and the corresponding channel is output to headphones. When the switch is pressed again the light goes out and the channel’s output to the headphones is cut. When the beat effector function is set to AUTO BPM, this switch functions to select the BPM display channel. ~ Peak level meter Peak levels are displayed as they occur and maintained for 2 seconds. Displays output level before channel fader adjustment. Displayable range is from –22 dB to +14 dB. ! Channel fader lever Use to adjust the sound level at each channel. π MASTER (Master Controls) @ MONO/STEREO selector switch Use to select whether the master output and booth monitor output are monaural or stereo. # MASTER LEVEL meter Displays output level following adjustment of the MASTER fader lever, and holds the display for 2 seconds. Displayable range is from –22 dB to +14 dB. $ H.P CUE (Headphones cue switch) When this switch is pressed it lights orange and the master output is heard in the headphones. When the switch is pressed again the light goes out and the master output to the headphones is cut. % MASTER fader lever Use to control the master output level. The rear panel MASTER LEVEL ATT. control can also be used to reduce the output level. ^ MASTER BALANCE control Use to adjust the balance of right-left channels for master output and booth monitor output. [ BOOTH MONITOR Control Use to adjust the output at the BOOTH MONITOR connectors on the rear panel. Not affected by the MASTER fader lever (%). “ POWER Switch ] HEADPHONES Controls & MONO SPLIT/STEREO selector switch Use to select whether to split monitor sound on the left and right of the headphones or to keep sound in stereo form. When set to MONO SPLIT, the headphones output is set to 2-channel monaural; the Left channel becomes the source selected with the H.P CUE switch, while the Right channel becomes the master output sound (only when MASTER H.P CUE switch is set to ON). * MIXING control Use to adjust the headphones monitor sound. When rotated fully clockwise, the master output sound only is heard (only when MASTER H.P CUE switch is set to ON). When rotated fully counterclockwise, only the channel selected with the H.P CUE switch (other than MASTER) is heard. At the center click position, the master output and source selected with the H.P CUE switch are at equal levels. ( LEVEL control Use to control the headphones monitor level. When one of CH-1 to CH-4 is selected, this control is not affected by the MASTER fader lever (%) and the MASTER BALANCE control (^). ) PHONES (headphones jack) ‘ Cross Fader Controls _ CROSS FADER ASSIGN A switch When using the cross fader with two sources (A, B), this switch selects the source assigned to A. THRU: When cross fader is not used, sets to THRU. 1-4: Use to select the channel (CH-1 to CH-4) assigned to A. Channels other than those assigned to A and B can be output without passing through the cross fader. + CROSS FADER CURVE selector switch Use to select one of three rising curve patterns for the cross fader function. ¡ Fader display A During the effect mix mode, displays the output of sounds from the channel selected with the CROSS FADER ASSIGN A switch. ™ Cross fader lever Use to adjust the mix of sounds from the sources assigned to A and B by the ASSIGN switches (_) and (¢). £ Fader display B During the effect mix mode, displays the output of sounds from the channel selected with the CROSS FADER ASSIGN B switch. ¢ CROSS FADER ASSIGN B switch When using the cross fader with two sources (A, B), this switch selects the source assigned to B. THRU: When cross fader is not used, sets to THRU. 1-4: Use to select the channel (CH-1 to CH-4) assigned to B. Channels other than those assigned to A and B can be output without passing through the cross fader. \ FADER START Switches CH-1, CH-2, CH-3, CH-4 When a CD player (CMX-3000, CMX-5000, CDJ-1000, CDJ- 100S, CDJ-700S or CDJ-500II) is connected to one of the above channels of this unit via a control cord, the CD player’s CUE START/STOP operation will start when the channel fader is moved from “0” upwards, and will stop (back cue) when the channel fader is returned to “0”. The indicator of the selected channel will light orange during this operation. Also, if a channel is assigned to the cross fader, the cross fader is given priority; when the Cross fader lever begins moving from the A side toward B side, the CD player assigned to the B side will start, and when the lever reaches the B side, the A side source will stop (back cue). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 106 1 2 3 4 1 2 3 4 C D F A B E « BEAT EFFECTS Controls ∞ 1-4 (Channel displays) Displays the channel selected for BPM count. § AUTO BPM COUNTER When AUTO BPM is selected with the Effect selector switch (⁄), displays the BPM of the channel (CH-1 to CH-4) selected with the H.P CUE switch (=). The indicator flashes during counting, or if it is unable to count BPM. ¶ BPM counter range selector switch ¶ BPM can be selected in one of the ranges 70-139, 91-180, 70-180 or manual mode. Set the range best matching the track you are measuring. • BPM counter range displays ¶ Displays the BPM count range selected. When BPM count range 70-180 is selected, both indicators 70-139 BPM and 91-180 BPM light. ¶ If both indicators are out, it indicates manual mode. For more information about manual mode, see the item “BPM COUNTING”. If the Effect selector switch (⁄) is set to DELAY, ECHO, PAN, TRANS, FILTER or FLANGER, the indicator will display the BPM of the source selected with the Effect CH. SELECT switch (¤). ª 1-4, MIC, MASTER (Source displays) Displays the source selected with the Effect CH. SELECT switch (¤). ¶ If the Effect CH. SELECT switch is used to select “CF.A” or “CF.B”, the channel that lights will be the one (1-4) selected with the respective ASSIGN switch (_), (¢). º PARAMETER 1 (Parameter 1 / BPM counter) The display contents change in accordance with the setting of the Effect selector switch (⁄). ¶ When AUTO BPM is selected, the display shows the BPM of the source selected with the Effect CH. SELECT switch (¤). The indicator flashes during BPM counting, or when it is unable to count BPM. ¶ When SND/RTN is selected, nothing is displayed. ¶ When a setting other than AUTO BPM or SND/RTN is selected, the display shows the value of the effect set with Effect PARAMETER 1 control (‹). – BEAT (Effect synchronous displays / Beat displays) This display’s contents differ depending on the setting of the Effect selector switch (⁄). ¶ When DELAY, ECHO, PAN, or TRANS are selected, the display shows the equivalent parameter 1 value for the BPM of the selected source. The display lights when the beat is in the range 1/2 to 4/1. If the beat value is below 1/2, pressing the Effect beat selector switch (@) causes the value to become 1/4, and all display indicators go out. If the beat value is above 4/1, pressing the Effect beat selector switch (#) causes the value to become 8/1, and all display indicators go out. If the value does not match the number of beats, the indicator for the nearest beat value will flash. ¶ When FILTER or FLANGER are selected, the display shows the equivalent parameter 1 value for the BPM of the selected source. The display lights when the beat is in the range 1 to 16. If the beat value is below 1, pressing the Effect beat selector switch (@) causes the value to become 1/2, and all display indicators go out. If the value is above 16, pressing the Effect beat selector switch (#) causes the value to become 32, and all display indicators go out. If the value does not match the number of beats, the indicator for the nearest beat value will flash. ¶ When REVERB is selected, the display shows the amount of reverberation applied. ¶ When PITCH is selected, the display shows the amount of pitch modification applied. ¶ No display appears when AUTO BPM or SND/RTN are selected. « Å ∞ ¶ • ª ⁄ ¤ ‹ › fi fl ‡ · ° º – ≠ Ÿ § www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DJM-3000 107 5 6 7 8 5 6 7 8 C D F A B E ≠ Effect beat selector switches (@, #) Use this switch to change the value of Effect PARAMETER 1 control (‹) in accordance with the BPM of the source selected with the Effect CH. SELECT switch (¤). The setting value of this switch differs depending on the setting of the Effect selector switch (⁄). ¶ When DELAY, ECHO, PAN, or TRANS are selected, the parameter 1 value for the BPM of the selected source can be set to 1/4 beat, 1/2 beat, 1/1 beat, 2/1 beat, 4/1 beat, or 8/1 beat. ¶ When DELAY or ECHO are selected, values can be set to 1/4x, 1/2x, 1/1x, 2/1x, 4/1x or 8/1x, within a range such that the parameter 1 value does not exceed 3500 ms. ¶ When FILTER or FLANGER are selected, the parameter 1 value for the BPM of the selected source can be set to 1/2 beat, 1 beat, 2 beats, 4 beats, 8 beats, 16 beats, or 32 beats. ¶ When PITCH is selected, the value can be set to –100%, –50%, –33%, 0%, 33%, 50%, or 100%. ¶ When REVERB is selected, the value can be set to 10%, 20%, 35%, 50%, 65%, 80%, or 90%. ¶ This control is disabled when AUTO BPM or SND/RTN are selected. Ÿ H.P CUE (Headphones cue switch) When this switch is pressed it lights orange, and beat effects are output to the headphones. Pressing the switch again disconnects the beat effect to the headphones and turns off the switch lamp. ⁄ Effect selector switch Use to select desired effects. ¤ CH. SELECT (Effect channel selector switch) Use to select the source you wish to apply effects to. ‹ TIME (PARAMETER 1) (Effect parameter 1 control) This control is used to set the time parameter for the onboard effector. › LEVEL/DEPTH (PARAMETER 2) (Effect parameter 2 control) This control is used to set quantitative parameters for the onboard effector. fi ON/OFF, TAP (Effect ON/OFF switch, TAP switch) This switch produces different operations depending on the setting of the Effect selector switch (⁄) ¶ When DELAY, ECHO, PAN, TRANS, FILTER, FLANGER, REVERB, PITCH, or SND/RTN are selected, the switch operates to turn the selected effect ON/OFF. OFF: the orange lamp lights; ON: orange lamp flashes. ¶ When AUTO BPM is selected the switch becomes a “TAP” switch; by tapping the switch together with the source beat, the BPM can be input manually. When tapping the TAP switch to count the BPM, both BPM counter range displays (70-139 BPM and 91-180 BPM) go out, and the manual mode is enabled. Å EFFECT MIX Controls fl FADER/OFF/AUTO (EFFECT MIX selector switch) Use to select the cross fader effect mode. FADER: Selects Effect Mix Fader mode. When this is selected, the Cross fader lever (™) can be used to control effects and perform cue start and back cue. OFF: Normal mode AUTO: The Effect Mix Auto mode. When this is selected, the Effect select/start switches (‡, °, ·) can be used to control effects, perform cue start and back cue. ‡, °, · Effect select/start switches Use to select the type of Effect Mix desired (default is ECHO) ¶ The switch for the selected function flashes. ‡ ECHO switch ° ZIP switch · ROLL switch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
