先锋PIONEER DEX-G9767DVZTEW电路图

分类：电子电工日期：2023-04-08 点击：0

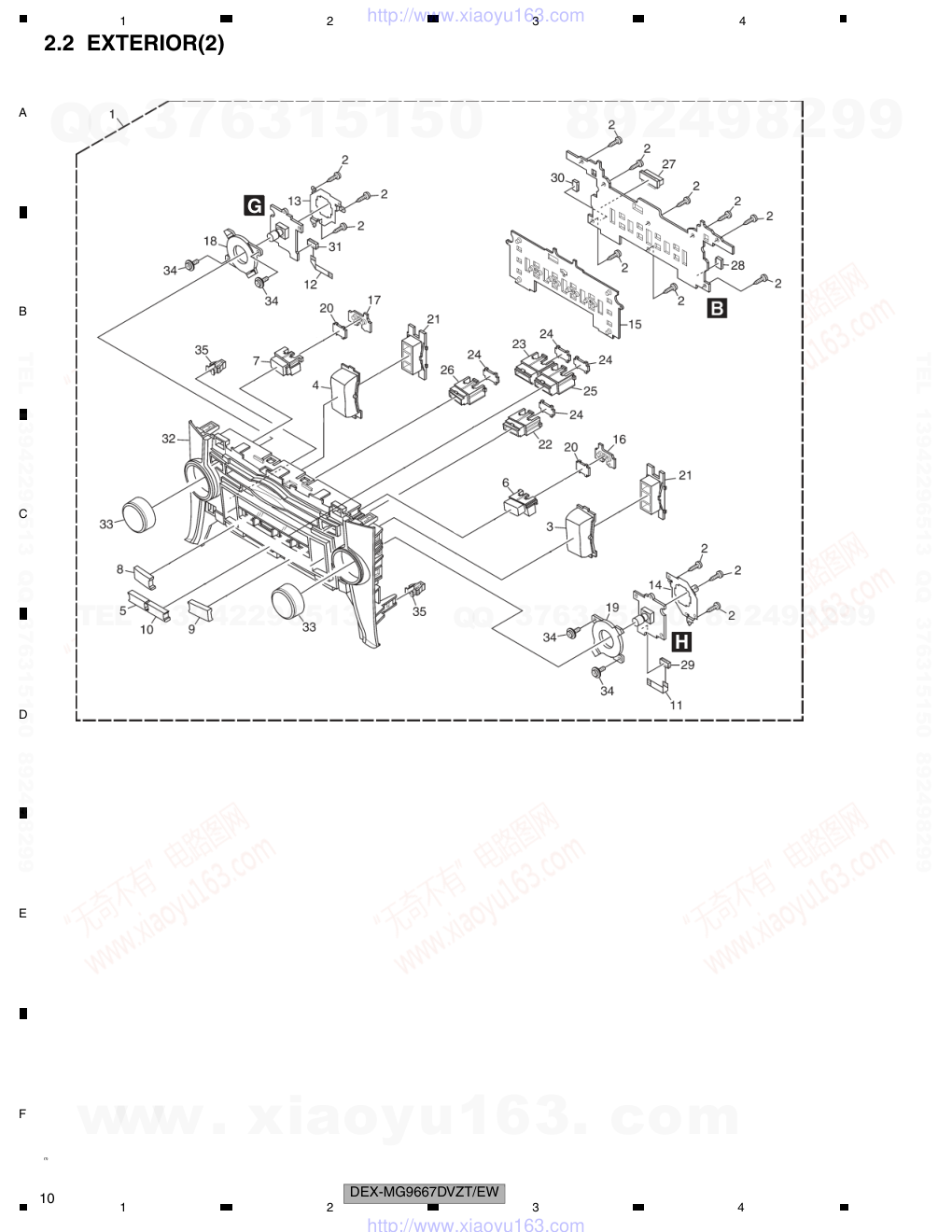

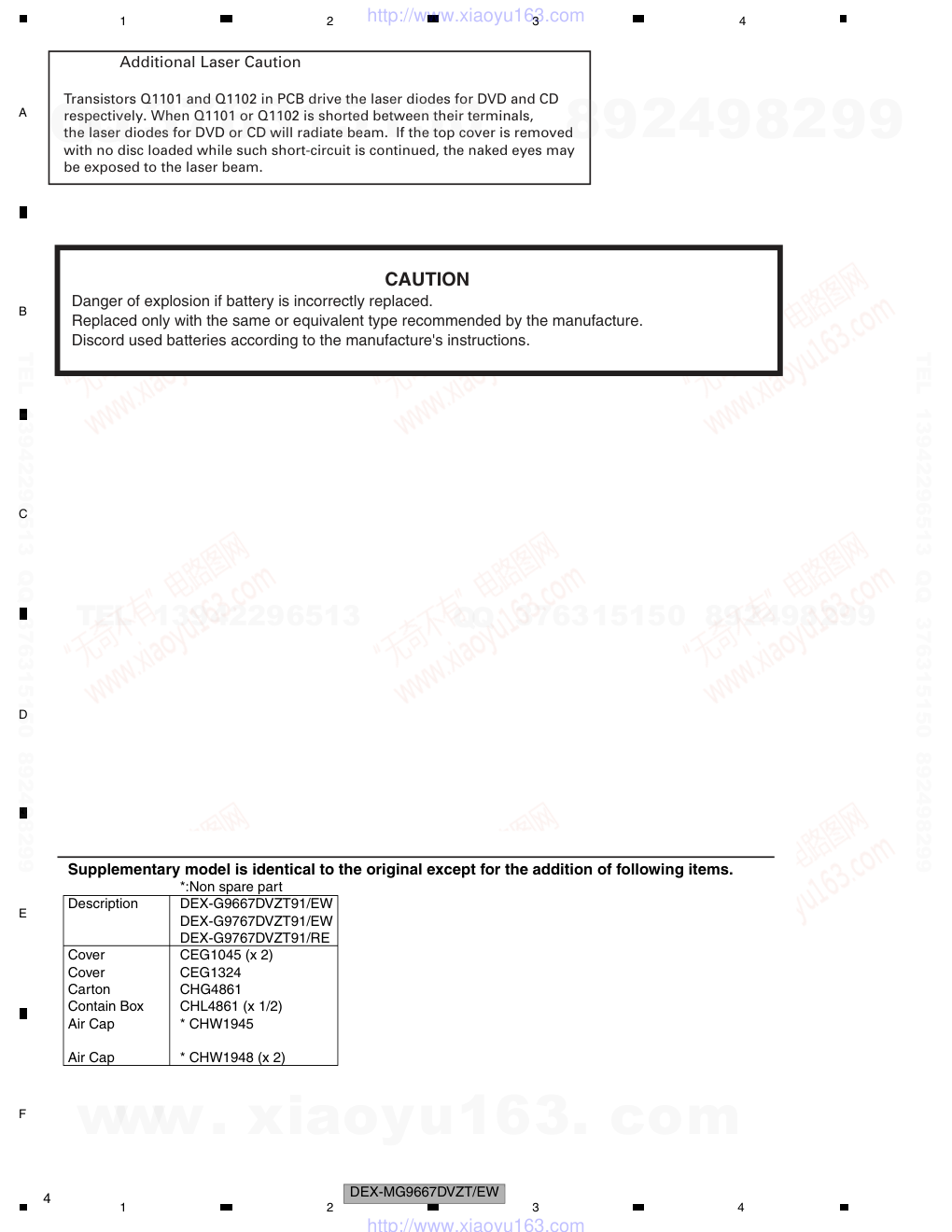

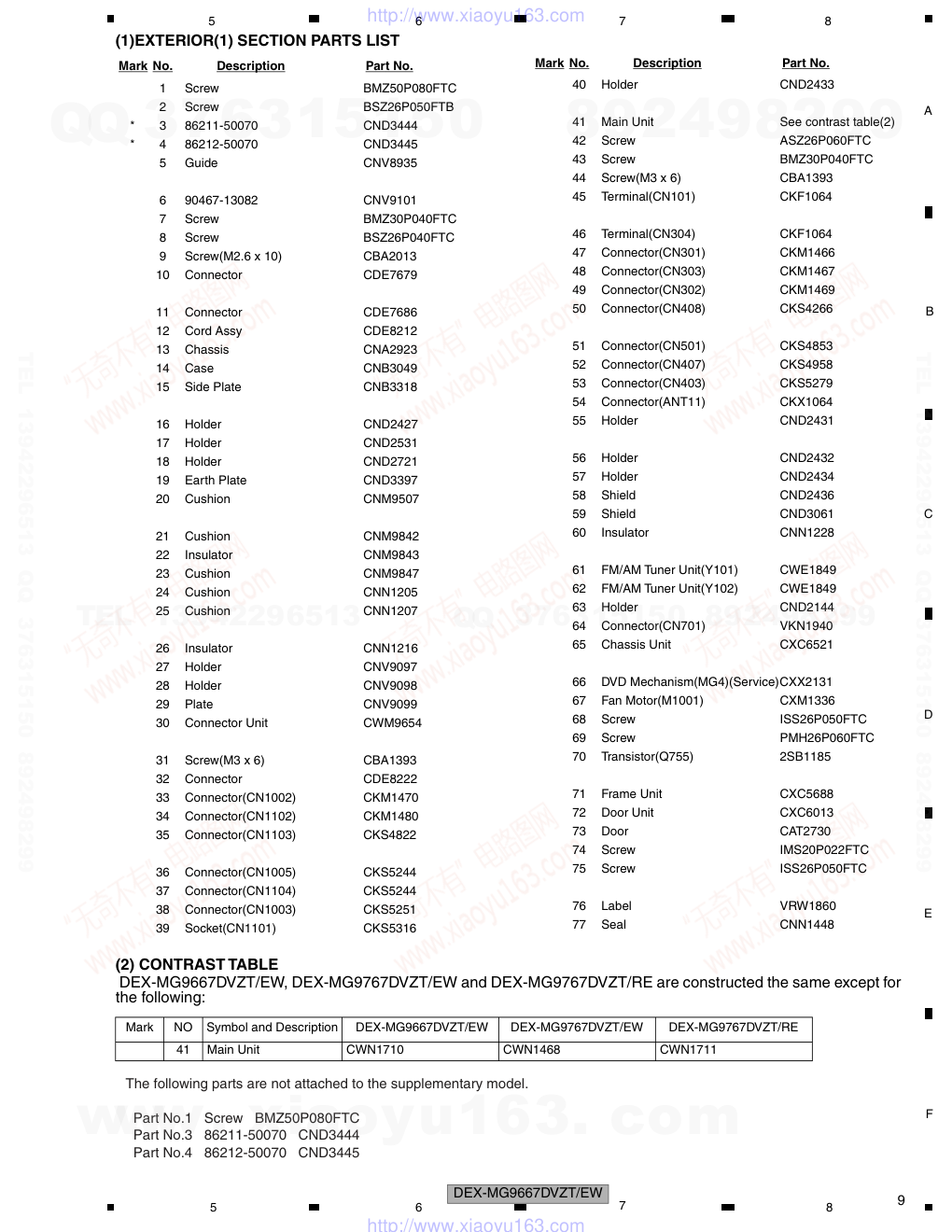

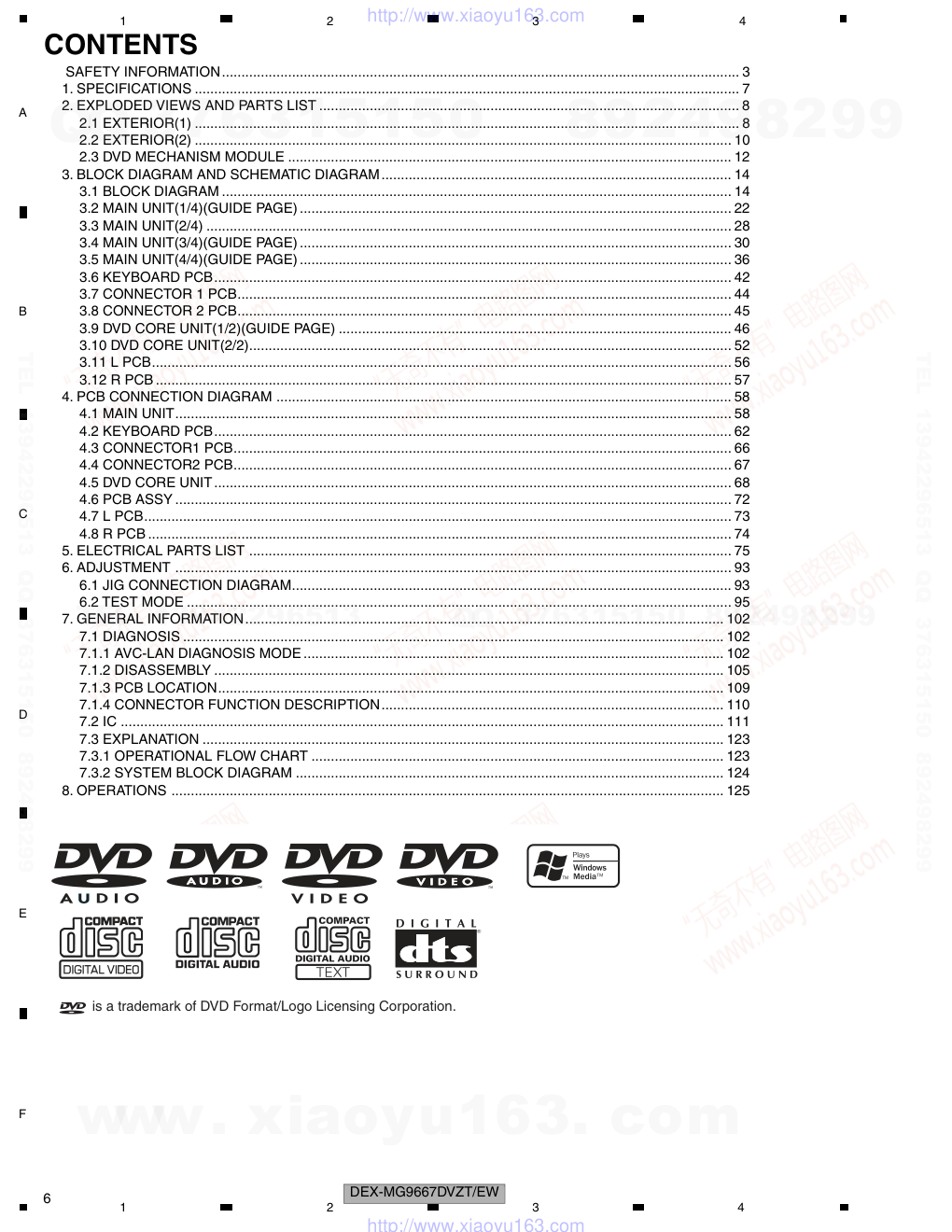

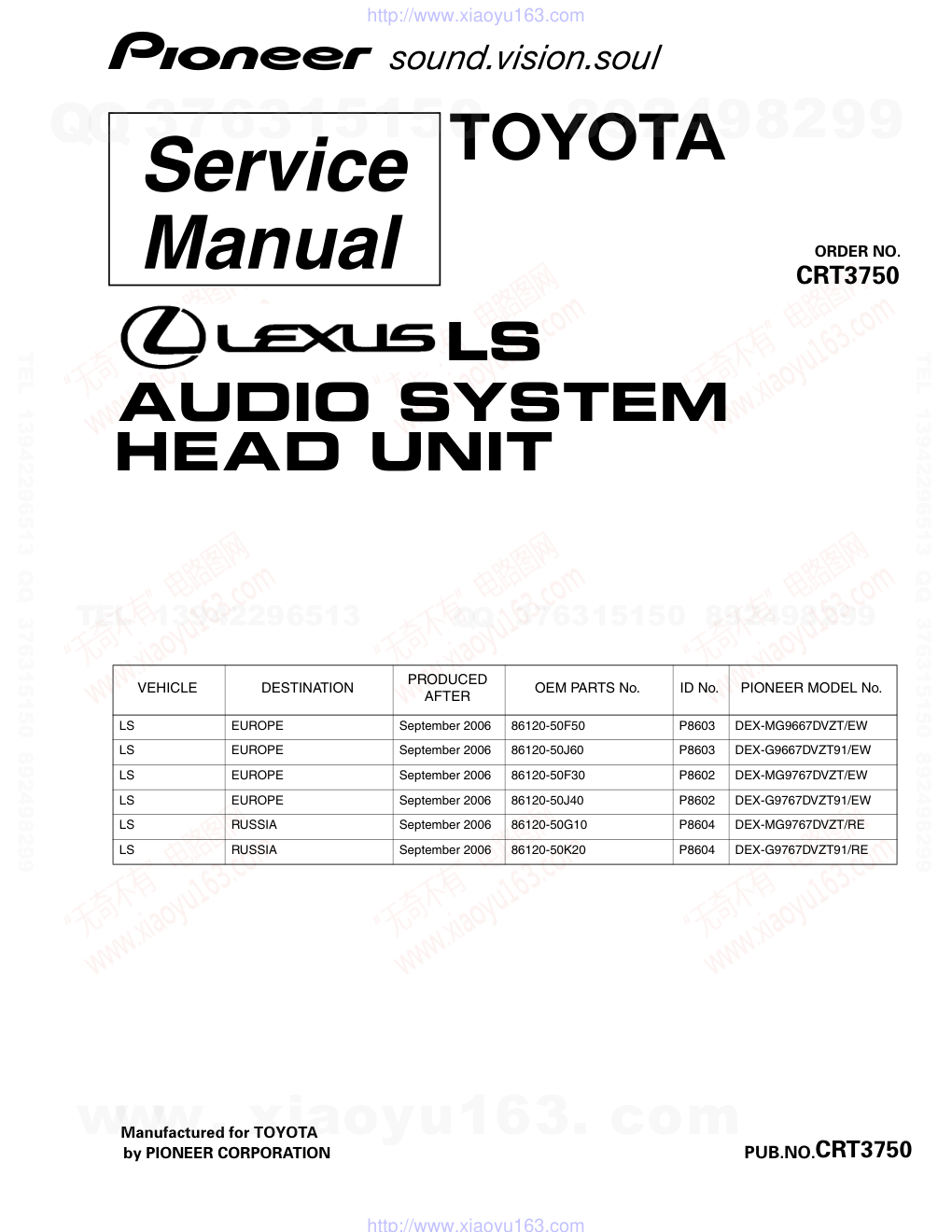

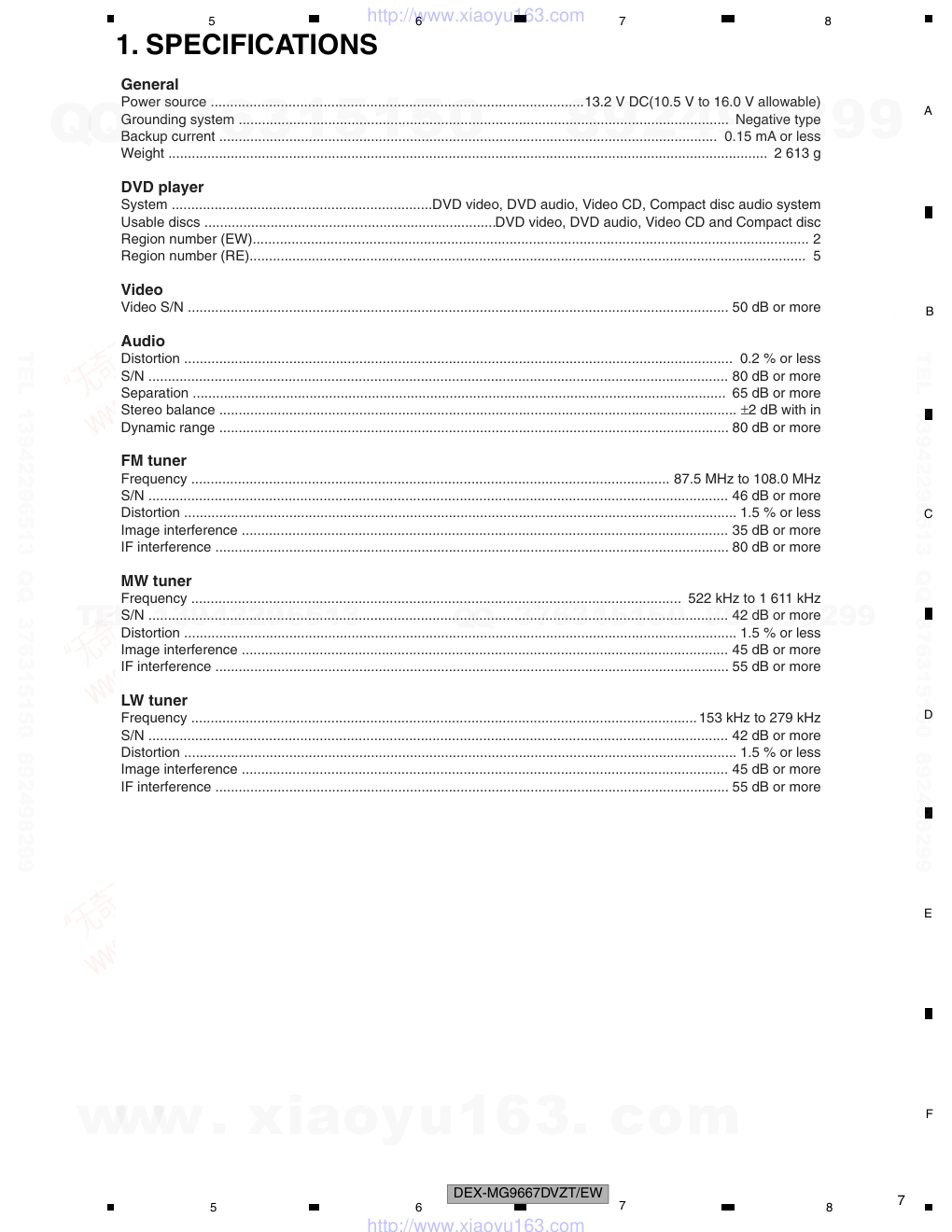

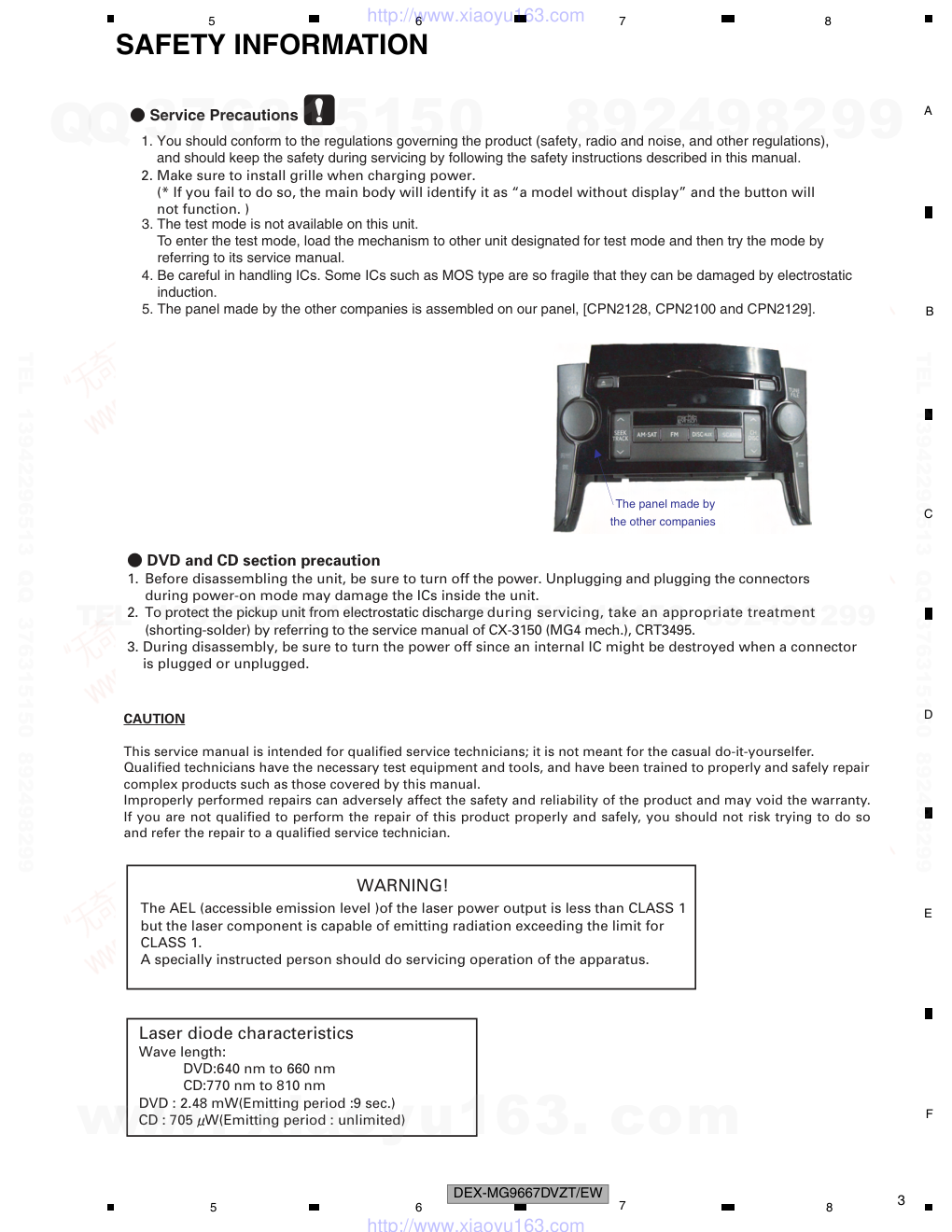

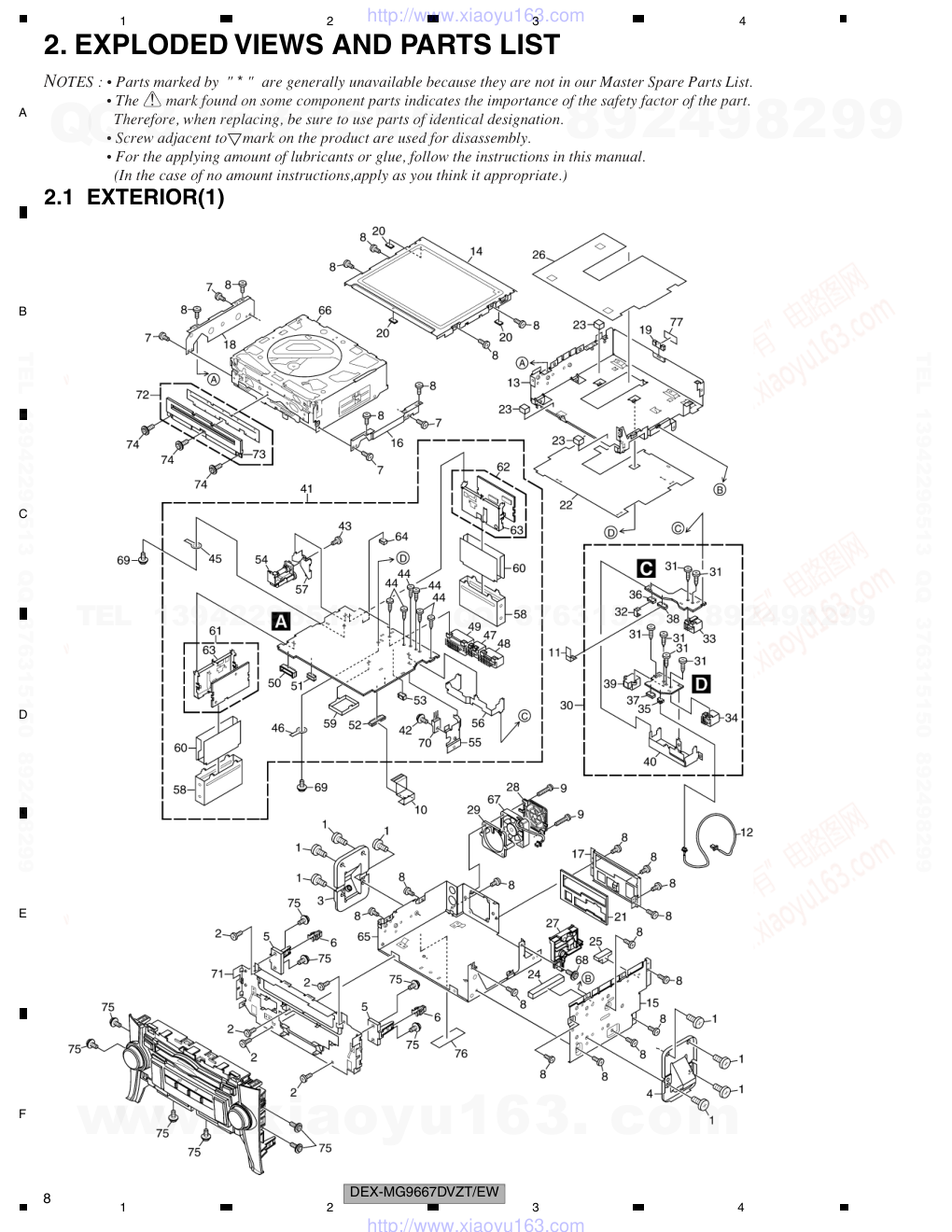

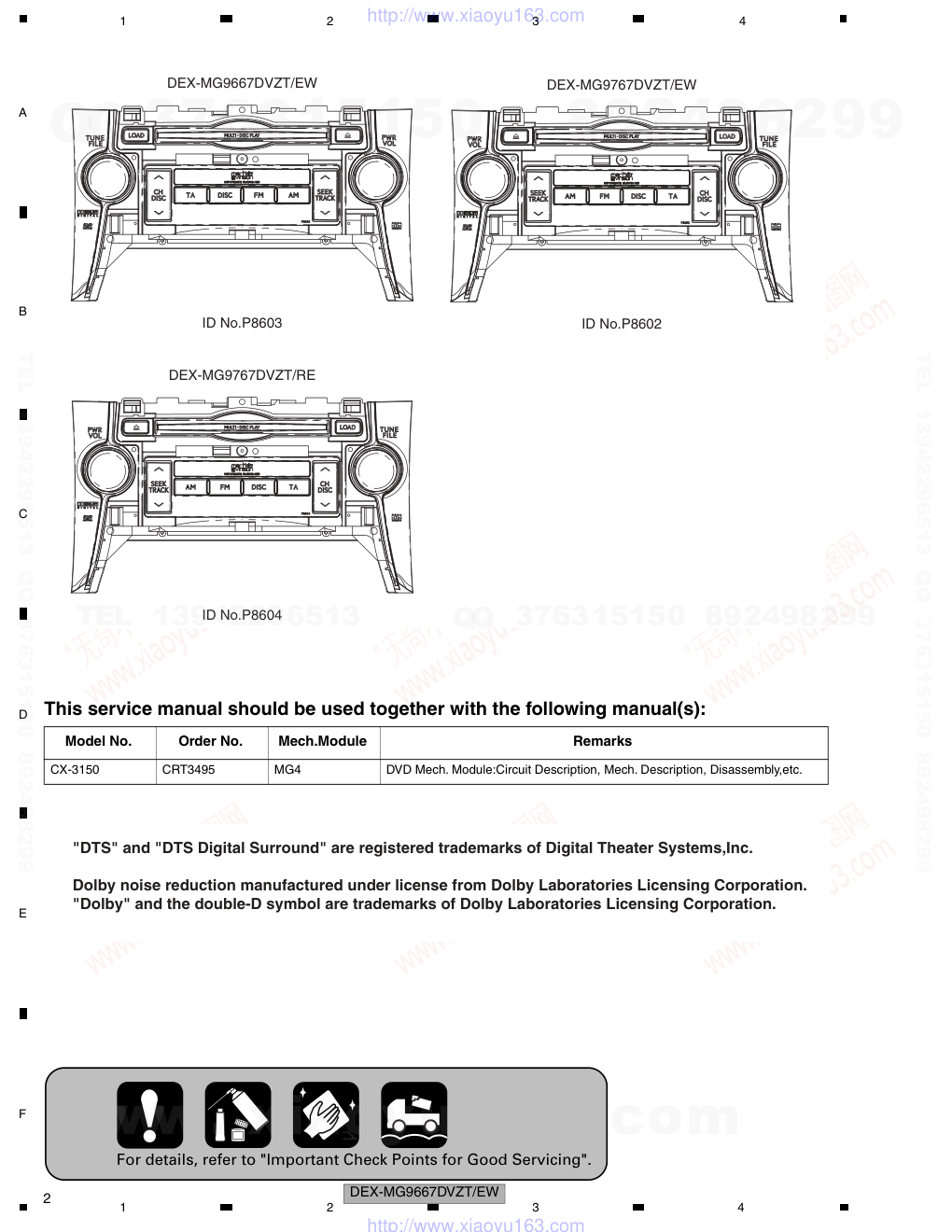

ORDER NO. CRT3750 LS AUDIO SYSTEM HEAD UNIT CRT3750 PUB.NO. Manufactured for TOYOTA by PIONEER CORPORATION VEHICLE DESTINATION PRODUCED AFTER OEM PARTS No. ID No. PIONEER MODEL No. LS EUROPE September 2006 86120-50F50 P8603 DEX-MG9667DVZT/EW LS EUROPE September 2006 86120-50J60 P8603 DEX-G9667DVZT91/EW LS EUROPE September 2006 86120-50F30 P8602 DEX-MG9767DVZT/EW LS EUROPE September 2006 86120-50J40 P8602 DEX-G9767DVZT91/EW LS RUSSIA September 2006 86120-50G10 P8604 DEX-MG9767DVZT/RE LS RUSSIA September 2006 86120-50K20 P8604 DEX-G9767DVZT91/RE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 2 1 2 3 4 1 2 3 4 C D F A B E DEX-MG9667DVZT/EW This service manual should be used together with the following manual(s): DEX-MG9767DVZT/EW ID No.P8602 DEX-MG9767DVZT/RE ID No.P8604 DEX-MG9667DVZT/EW ID No.P8603 Model No. Order No. Mech.Module Remarks CX-3150 CRT3495 MG4 DVD Mech. Module:Circuit Description, Mech. Description, Disassembly,etc. For details, refer to "Important Check Points for Good Servicing". "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems,Inc. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 3 5 6 7 8 5 6 7 8 C D F A B E SAFETY INFORMATION - DVD and CD section precaution 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to the service manual of CX-3150 (MG4 mech.), CRT3495. 3. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is plugged or unplugged. CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 2. Make sure to install grille when charging power. (* If you fail to do so, the main body will identify it as “a model without display” and the button will not function. ) - Service Precautions 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 3. The test mode is not available on this unit. To enter the test mode, load the mechanism to other unit designated for test mode and then try the mode by referring to its service manual. 4. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. Laser diode characteristics Wave length: DVD:640 nm to 660 nm CD:770 nm to 810 nm DVD : 2.48 mW(Emitting period :9 sec.) CD : 705 W(Emitting period : unlimited) 5. The panel made by the other companies is assembled on our panel, [CPN2128, CPN2100 and CPN2129]. The panel made by the other companies www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 4 1 2 3 4 1 2 3 4 C D F A B E CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacture. Discord used batteries according to the manufacture's instructions. Additional Laser Caution Transistors Q1101 and Q1102 in PCB drive the laser diodes for DVD and CD respectively. When Q1101 or Q1102 is shorted between their terminals, the laser diodes for DVD or CD will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. Supplementary model is identical to the original except for the addition of following items. *:Non spare part Description DEX-G9667DVZT91/EW DEX-G9767DVZT91/EW DEX-G9767DVZT91/RE Cover CEG1045 (x 2) Cover CEG1324 Carton CHG4861 Contain Box CHL4861 (x 1/2) Air Cap * CHW1945 Air Cap * CHW1948 (x 2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 5 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 6 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 3 1. SPECIFICATIONS ............................................................................................................................................ 7 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 8 2.1 EXTERIOR(1) ............................................................................................................................................ 8 2.2 EXTERIOR(2) .......................................................................................................................................... 10 2.3 DVD MECHANISM MODULE .................................................................................................................. 12 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 14 3.1 BLOCK DIAGRAM ................................................................................................................................... 14 3.2 MAIN UNIT(1/4)(GUIDE PAGE) ............................................................................................................... 22 3.3 MAIN UNIT(2/4) ....................................................................................................................................... 28 3.4 MAIN UNIT(3/4)(GUIDE PAGE) ............................................................................................................... 30 3.5 MAIN UNIT(4/4)(GUIDE PAGE) ............................................................................................................... 36 3.6 KEYBOARD PCB..................................................................................................................................... 42 3.7 CONNECTOR 1 PCB............................................................................................................................... 44 3.8 CONNECTOR 2 PCB............................................................................................................................... 45 3.9 DVD CORE UNIT(1/2)(GUIDE PAGE) ..................................................................................................... 46 3.10 DVD CORE UNIT(2/2)............................................................................................................................ 52 3.11 L PCB..................................................................................................................................................... 56 3.12 R PCB .................................................................................................................................................... 57 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 58 4.1 MAIN UNIT............................................................................................................................................... 58 4.2 KEYBOARD PCB..................................................................................................................................... 62 4.3 CONNECTOR1 PCB................................................................................................................................ 66 4.4 CONNECTOR2 PCB................................................................................................................................ 67 4.5 DVD CORE UNIT..................................................................................................................................... 68 4.6 PCB ASSY ............................................................................................................................................... 72 4.7 L PCB....................................................................................................................................................... 73 4.8 R PCB ...................................................................................................................................................... 74 5. ELECTRICAL PARTS LIST ............................................................................................................................ 75 6. ADJUSTMENT ............................................................................................................................................... 93 6.1 JIG CONNECTION DIAGRAM................................................................................................................. 93 6.2 TEST MODE ............................................................................................................................................ 95 7. GENERAL INFORMATION........................................................................................................................... 102 7.1 DIAGNOSIS ........................................................................................................................................... 102 7.1.1 AVC-LAN DIAGNOSIS MODE ............................................................................................................ 102 7.1.2 DISASSEMBLY ................................................................................................................................... 105 7.1.3 PCB LOCATION.................................................................................................................................. 109 7.1.4 CONNECTOR FUNCTION DESCRIPTION........................................................................................ 110 7.2 IC ........................................................................................................................................................... 111 7.3 EXPLANATION ...................................................................................................................................... 123 7.3.1 OPERATIONAL FLOW CHART .......................................................................................................... 123 7.3.2 SYSTEM BLOCK DIAGRAM .............................................................................................................. 124 8. OPERATIONS .............................................................................................................................................. 125 is a trademark of DVD Format/Logo Licensing Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 7 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS General Power source ................................................................................................ Grounding system .............................................................................................................................. Backup current ................................................................................................................................ Weight .......................................................................................................................................................... DVD player System ................................................................... Usable discs ........................................................................... Region number (EW)............................................................................................................................................... Region number (RE)............................................................................................................................................... Video Video S/N ........................................................................................................................................... Audio Distortion ............................................................................................................................................. S/N ..................................................................................................................................................... Separation ......................................................................................................................................... Stereo balance ..................................................................................................................................... Dynamic range ................................................................................................................................... FM tuner Frequency ........................................................................................................................... S/N ..................................................................................................................................................... Distortion .............................................................................................................................................. Image interference ............................................................................................................................. IF interference .................................................................................................................................... MW tuner Frequency .............................................................................................................................. S/N ..................................................................................................................................................... Distortion .............................................................................................................................................. Image interference ............................................................................................................................. IF interference .................................................................................................................................... LW tuner Frequency .................................................................................................................................. S/N ..................................................................................................................................................... Distortion .............................................................................................................................................. Image interference ............................................................................................................................. IF interference .................................................................................................................................... 13.2 V DC(10.5 V to 16.0 V allowable) Negative type 0.15 mA or less 2 613 g DVD video, DVD audio, Video CD, Compact disc audio system DVD video, DVD audio, Video CD and Compact disc 2 5 50 dB or more 0.2 % or less 80 dB or more 65 dB or more ±2 dB with in 80 dB or more 87.5 MHz to 108.0 MHz 46 dB or more 1.5 % or less 35 dB or more 80 dB or more 522 kHz to 1 611 kHz 42 dB or more 1.5 % or less 45 dB or more 55 dB or more 153 kHz to 279 kHz 42 dB or more 1.5 % or less 45 dB or more 55 dB or more www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 8 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 EXTERIOR(1) NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 9 5 6 7 8 5 6 7 8 C D F A B E (1)EXTERIOR(1) SECTION PARTS LIST (2) CONTRAST TABLE DEX-MG9667DVZT/EW, DEX-MG9767DVZT/EW and DEX-MG9767DVZT/RE are constructed the same except for the following: Mark No. Description Part No. 1 Screw BMZ50P080FTC 2 Screw BSZ26P050FTB * 3 86211-50070 CND3444 * 4 86212-50070 CND3445 5 Guide CNV8935 6 90467-13082 CNV9101 7 Screw BMZ30P040FTC 8 Screw BSZ26P040FTC 9 Screw(M2.6 x 10) CBA2013 10 Connector CDE7679 11 Connector CDE7686 12 Cord Assy CDE8212 13 Chassis CNA2923 14 Case CNB3049 15 Side Plate CNB3318 16 Holder CND2427 17 Holder CND2531 18 Holder CND2721 19 Earth Plate CND3397 20 Cushion CNM9507 21 Cushion CNM9842 22 Insulator CNM9843 23 Cushion CNM9847 24 Cushion CNN1205 25 Cushion CNN1207 26 Insulator CNN1216 27 Holder CNV9097 28 Holder CNV9098 29 Plate CNV9099 30 Connector Unit CWM9654 31 Screw(M3 x 6) CBA1393 32 Connector CDE8222 33 Connector(CN1002) CKM1470 34 Connector(CN1102) CKM1480 35 Connector(CN1103) CKS4822 36 Connector(CN1005) CKS5244 37 Connector(CN1104) CKS5244 38 Connector(CN1003) CKS5251 39 Socket(CN1101) CKS5316 40 Holder CND2433 41 Main Unit See contrast table(2) 42 Screw ASZ26P060FTC 43 Screw BMZ30P040FTC 44 Screw(M3 x 6) CBA1393 45 Terminal(CN101) CKF1064 46 Terminal(CN304) CKF1064 47 Connector(CN301) CKM1466 48 Connector(CN303) CKM1467 49 Connector(CN302) CKM1469 50 Connector(CN408) CKS4266 51 Connector(CN501) CKS4853 52 Connector(CN407) CKS4958 53 Connector(CN403) CKS5279 54 Connector(ANT11) CKX1064 55 Holder CND2431 56 Holder CND2432 57 Holder CND2434 58 Shield CND2436 59 Shield CND3061 60 Insulator CNN1228 61 FM/AM Tuner Unit(Y101) CWE1849 62 FM/AM Tuner Unit(Y102) CWE1849 63 Holder CND2144 64 Connector(CN701) VKN1940 65 Chassis Unit CXC6521 66 DVD Mechanism(MG4)(Service)CXX2131 67 Fan Motor(M1001) CXM1336 68 Screw ISS26P050FTC 69 Screw PMH26P060FTC 70 Transistor(Q755) 2SB1185 71 Frame Unit CXC5688 72 Door Unit CXC6013 73 Door CAT2730 74 Screw IMS20P022FTC 75 Screw ISS26P050FTC 76 Label VRW1860 77 Seal CNN1448 Mark No. Description Part No. Mark NO Symbol and Description DEX-MG9667DVZT/EW DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE 41 Main Unit CWN1710 CWN1468 CWN1711 The following parts are not attached to the supplementary model. Part No.1 Screw BMZ50P080FTC Part No.3 86211-50070 CND3444 Part No.4 86212-50070 CND3445 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 10 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR(2) (1) G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 11 5 6 7 8 5 6 7 8 C D F A B E (1)EXTERIOR(2) SECTION PARTS LIST (2) CONTRAST TABLE DEX-MG9667DVZT/EW, DEX-MG9767DVZT/EW and DEX-MG9767DVZT/RE are constructed the same except for the following: Mark No. Description Part No. 1 Panel Assy See contrast table(2) 2 Screw BPZ20P080FTC 3 Button See contrast table(2) 4 Button See contrast table(2) 5 Button See contrast table(2) 6 Button See contrast table(2) 7 Button See contrast table(2) 8 Button See contrast table(2) 9 Button See contrast table(2) 10 Button See contrast table(2) 11 Connector CDE8053 12 Connector CDE8054 13 Holder CND3123 14 Holder CND3124 15 Rubber CNV8822 16 Rubber CNV8823 17 Rubber CNV8824 18 Lighting Conductor CNV8837 19 Lighting Conductor CNV8838 20 Lighting Conductor CNV8839 21 Holder CNV8840 22 Holder CNV8841 23 Holder CNV8842 24 Lighting Conductor CNV8844 25 Holder CNV8948 26 Holder CNV8949 27 Connector(CN2001) CKS4771 28 Connector(CN2010) CKS5542 29 Connector(CN2011) CKS5542 30 Connector(CN2020) CKS5542 31 Connector(CN2021) CKS5542 32 Grille Unit See contrast table(2) 33 Knob Unit CXC6243 34 Screw IMS26P060FTC 35 90467-13082 CNV9101 Mark No. Description Part No. Mark NO Symbol and Description DEX-MG9667DVZT/EW DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE 1 Panel Assy CPN2128 CPN2100 CPN2129 3 Button CAC9539(SEEK TRACK) CAC9529(CH DISC) CAC9529(CH DISC) 4 Button CAC9538(CH DISC) CAC9528(SEEK TRACK) CAC9528(SEEK TRACK) 5 Button CAC9667(DISC) CAC9531(FM) CAC9531(FM) 6 Button CAC9545(EJECT) CAC9535(LOAD) CAC9535(LOAD) 7 Button CAC9670(LOAD) CAC9534(EJECT) CAC9534(EJECT) 8 Button CAC9666(TA) CAC9536(AM) CAC9536(AM) 9 Button CAC9669(AM) CAC9537(TA) CAC9537(TA) 10 Button CAC9668(FM) CAC9809(DISC) CAC9809(DISC) 32 Grille Unit CXC6232 CXC6224 CXC6225 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 DVD MECHANISM MODULE (A):GEM1024 (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) E F 23 39 40 38 59 21 25 39 40 38 33 18 10 32 32 32 50 56 56 56 56 56 57 11 48 42 40 38 24 54 53 53 35 14 26 27 46 45 8 5 4 9 7 3 2 1 14 28 12 16 44 15 34 13 52 37 13 36 13 14 20 43 55 19 31 30 55 55 55 55 32 49 22 6 (A) (A) (A) (A) A 12 17 12 12 12 29 58 61 62 60 (A) A (A) (A) 63 41 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 13 5 6 7 8 5 6 7 8 C D F A B E DVD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 DVD Core Unit CWX3360 2 Terminal(CN1902) CKF1064 3 Connector(CN1901) CKS3971 4 Connector(CN1201) CKS4273 5 Connector(CN1903) CKS4374 6 ••••• 7 Connector(CN1881) CKS4426 8 Connector(CN1101) CKS4625 9 Connector(CN1551) CKS4817 10 Mechanism Unit(Service) CXX2132 11 Screw BMZ20P025FTC 12 Screw(M2 x 2.5) CBA1623 13 Screw(M2 x 2.5) CBA1823 14 Washer CBF1064 15 Washer CBF1094 16 Spring CBH2720 17 Spring CBH2731 18 Spring CBH2732 19 Variable Resistor CCW1029 * 20 Gear CND1924 * 21 Arm CND3709 22 Stair CND1930 23 Stair CND1931 24 Stair CND1932 * 25 Arm CND1933 * 26 Gear CND1936 * 27 Gear CND1937 28 Gear CND1939 29 Case CND3597 30 Plate CND3105 31 Sheet CNM9746 32 Sheet CNM9680 33 Arm CNV9327 34 Gear CNV8944 35 Gear CNV7854 36 Gear CNV8945 37 Holder CNV7861 38 Cam CNV7866 39 Cam CNV8778 40 Cam CNV7868 41 Arm CNV7869 42 Cam CNV8779 43 PCB Assy CWX2986 * 44 Lever Unit CXC2392 * 45 Lever Unit CXC2393 * 46 Cam Gear Unit CXC2435 47 ••••• 48 PCB Assy CXC3142 * 49 Chassis Unit CXC6900 50 Holder Unit CXC2418 51 Stage Assy(Service) CXX2173 52 ELV Motor Assy CXC5910 53 Screw JFZ20P020FTC 54 Cam Motor Assy CXC5908 55 Screw IMS26P025FTC 56 Tray Assy CXC6726 57 Lower Tray Assy CXC6780 58 Shutter Assy CXC4411 59 Washer YE15FTC 60 Spring CBH2950 61 Spring CBL1728 62 Screw(M2 x 1.4) CBA2025 63 Load Arm Assy CXC7482 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 14 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM Q106 ANT11 MAIN SUB ANNTENA Q12 TU10V Q15 Q16 Q13 Q14 Q23 MAINFIX D11 Q11 MMAIN SMAIN Q18 TU10V Q21 Q22 Q19 Q20 D15 D102 Q17 MSUB MAIN DIVERSITY SUB DIVERSITY SSUB 9 8 3 4 17 13 22 Q102 AMPW (2/2) A FMANT Y101 1 14 AMANT Q103 Q104 AUD8.4 VDD33 AC5 VCC VDD3.3 DIVER ROMVDD 23 LCH 16 18 19 20 21 COMP RDSCK RDSDATA RDSLOCK RDSHSLK DO CE1 CK 10 DI 5 SL 6 CE2 7 WC PDI PCE1 PCK PDO PCE2 WC 9 8 3 4 17 13 22 FMANT Y102 14 AUD8.4 VDD3.3 AC5 VCC VDD3.3 DIVER ROMVDD 16 COMP DO CE1 CK 10 DI 5 SL 6 CE2 SPDI SPCE1 SPCK SPDO SSL SPCE2 D105 Q114 Q115 Q105 Q119 2 1 VIDEO AMP 7 5 IC102 NJM2068V Q116 Q117 SCOMP MCOMP SCPON COMPP COMPN MCPON AMPW (2/2) A TUL1 11 LDET LDET RCK RDSDT RDSLK RHSLK Q109 Q110 Q108 4 1,5 3 2 MAIN UNIT (1/2) 18 19 20 21 RDSCK RDSDATA RDSLOCK RDSHSLK 11 LDET SLDET SRCK SRDSDT SRDSLK SRHSLK Q125 Q126 Q123 B A A FM/AM TUNER UNIT SUB FM/AM TUNER UNIT MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 15 5 6 7 8 5 6 7 8 C D F A B E IC502(1/2) PEG215A SYSTEM MICROCOMPUTER 62 5 CMP- CMP+ 4 CN303(1/3) 11 12 15 16 118 115 119 117 116 126 128 9 10 30 8 29 63 3 7 5 4 61 60 SPDI SPCE1 SPCK SPDO SSL 25 59 57 58 55 SRCK SRDSDT SRDSLK SRHSLK 23 52 53 54 24 RCK RCK RDSDT RDSLK RHSLK LDET [LDET] SPCE2 SPDI SPCE1 [SPCK] SPDO SSL SL [SPCE2] AMSUB/SRCK MPP COMPN SCOMPON SCPON MCOMPON SBP1/SRDSLK SBP2/SRHSLK MBP1/[SLDET] MBP2/SRDSDT (2/2) A 1 2 16 3 4 5 6 7 8 9 10 11 14 15 ACC+B ACC+B ENCVOL+ ENCVOL- ACC9V ACC9V AC5V ICVDD ENCAUD+ ENCAUD- ENC1P ENC1N ENC2P ENC2N ENC1P ENC1N ENC2P ENC2N ENC1P ENC1M ENC2P ENC2M LCDDO LCDCK LCDCE LCDDI LDTI LCK LCE LDTO PWMBL PINFO LDTI LCK LCE LDTO PWMBL PINFO LDTI LCK LCE LDTO PWMBL PINFO PWMBL P-INFO CN408 31 PWMILL PWMILL PWMILL PWMILL PDI PCE1 PCK PDO PCE2 WC PDI PCE1 [PCK] PDO [PCE2] 4 3 1 2 5 6 9 10 12 13 14 15 16 17 18 19 20 11 8 7 CN303 B CN2001 MAINFIX 6 83 WC SHVSEN/RDSLK SHBSEN/RDSDT SHVCONT/RHSLK C 14 41 40 38 36 1 2 10 4 5 12 13 15 11 VDD5V 52PIN 61PIN SHBSEN BCK CNVSS BRXEN CN501 14 BSI BDATA BCK CNVSS [BRXEN] BSI BSO RESET RESET (2/2) D A SLDET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 16 1 2 3 4 1 2 3 4 C D F A B E IC502(2/2) SYSTEM MICROCOMPUTER 1 2 CN701 SWVDD DDCONF2 SYSPW SSW1 SSW2 ACCON ADIMIN BSEN ASEN MOTANT 77 76 78 79 95 123 82 86 81 121 AMPW AMPW FMPW SWVDD DDCONF2 SYSPW STSW1 STSW2 ACCON ADIM [BSEN[ [ASEN] MOTANT AMPW FMPW 67 68 122 80 69 98 97 102 89 88 VD AUD8V REGULATOR SWVDD Q702 Q701 BU BU2 AUD+B R FAN M 2 6 1 13 14 4 7 AMP IC202 NJM2068V 7 AMP 6 IC203 NJM4580V 7 AMP 5 IC205 NJM2068V 6 R TUL1 CDL1 VAL1 Q201 CDL1 Q402 Q401 AMUTE MUTE VAL1 94 ASWCONT VMUTE2 REMT FRMT RMUT1 LMUT1 REMUTE FRMUTE RSEMUTE LANMUTE F (1/2) A UTX SHASEN/WAKEUP CTS/IRQPW URX NC 42 51 45 HSTCMD WAKE UP MG ANALOUT CN407 CN403 Q801 IRQPWR VIDEO OUT SLVSTS 43 47 AMUTE5 2 12 CN1901 1 4 9 6 7 1 6 7 1 1 3 6 5 2 1 8 7 120 90 26 17 34 35 27 93 91 92 4 1 3 7 2 2 4 5 11 13 3 TX+ VAL TX- TXP TXN TXP TXN ADPG NTSC NTS1 NTS2 VV+ 15 VDD3.3 SWVDD33 19 16 15 AMUTE VDCONT XRESET VDCONT RESET VIDEO SELECTOR IC801 NJM2235V BUS DRIVER IC301 HA12240FP VIN1 VOUT SW1 STBN DIN1 DOUT AUXIN AUXIN RX2 [RESET] RX1 TX IPPW VSEL VMUTE1 VSEL1 VSEL2 SW2 VIN2 VIDEO FILTER VIDEO FILTER IC802 SM5304AV VF VOUT VIN VIDEO SELECTOR IC803 NJM2235V VIN1 VOUT SW1 SW2 VIN2 VIN3 IC804 SM5304AV VF VOUT VIN RESET CN1003 ISEN [ISEN] ILLIN ILL- VD Q715 AUD8.4 ANT+B REGULATOR FMPW AMPW S Q704 Q703 AMP+B REGULATOR Q706 ACC+B REGULATOR Q707 Q708 Q705 ANT+B SYSPW ACC+B AMP+B ACC9V REGULATOR Q710 Q709 ACC9V SW TU10V REGULATOR Q712 Q711 TU10V FAN+B REGULATOR SYSPW Q714 Q713 BU BUS- BUS+ VD8 VD5_ACC VD5 SRVDD VD8 VD5 VD5 SRVDD 29 31 24 27 22 23 (1/2) B A E H C XIN 20 18 XOUT X501 10MHz 20 21 BVC33 VAL1 MAIN UNIT (2/2) 2 TC7SET08FUS1 IC401 4 3V 5V 1Y 1A 3 1 2Y 2A 6 4 3Y 3A 8 9 IC504 TC74VHC08FTS1 5V 3V TC7SET08FUS1 IC503 2 4 INA OUTY 3V 5V SELCK SELDATA SELCK SELDATA PEG215A A A VDCONT1 ← ← ← www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 17 5 6 7 8 5 6 7 8 C D F A B E 18 17 BU AC5V ILLIN ISEN AC5VMUTE Q302 Q303 Q315 2 3 4 2 FU301 Q753 ACC BU ASEN Q755 Q754 DDCONF2 IC752 S-812C56AUA-C3K IC751 S-80940CNNB-G9A VDCONT1 Q603 2 1 TPS54350PWP IC604 PH2 LSG COMP VSENSE PH1 VIN1 VIN2 RT Q607 Q608 1,2 4 BA00BC0WFP IC603 3.3V REGULATOR 15 13 14 9 8 9 8 Q613 VD5 BU 2 3 S-812C39AMC-C2T IC753 D8V REGULATOR SWVDD Q702 Q701 BU RESET Q752 Q751 5 Q606 Q604 Q610 Q605 ATX- 1 12 3 2 13 2 4 3 1 2 5 20 15 5 6 9 10 12 11 8 7 ILL+ ANT 12 ILL- ILLP ILLN Q301 Q314 ATX+ TXN TXP ACC 7 11 MUTE L- 9 19 L+ B +B 1 MUTE 11 ACC 9 TXM+ 10 TXM- TXP TXN CN302 CN303(2/3) CN301 CN301 R-L- AMP+B 3 AMP CDL+ CDL- 19 3 RMUT ADIM 7 20 8 CN303(3/3) GND 10 SLD 17 SLD2 R-L+ 2 1 1 AMP AMP AMP AMP IC211 NJM2068V Q384 Q389 14 18 SWITCH LP LN 2 1 1 IC209 OPA2134UA Q383 Q386 2 IC210 NJM2068V 2 IC208 OPA2134UA 7 1 3 9 AMP 6 IC202 M2068V 7 AMP AUDIO SELECT 6 IC203 NJM4580V IC207 BD3842FS 7 AMP 5 IC205 NJM2068V 5 AMP 7 5 IC201 NJM2068V REMT BMUT INA1 INB1 INE1 INC1 TUL CDL AUXL CDL1 VAL1 LANL ALP ALN OUT1 RECA1 AC5V Q381 Q382 FRMT 9 TX+ 10 TX- TXP TXN AUD+B BU Q602 VDCONT Q614 Q609 VD8 VDD5V VD5_ACC VDD3.3 VDD33 SWVDD Q616 1 2 IC601 LSG RT 15 13 14 Q612 VCC84 BU 5 Q615 Q617 Q618 Q611 AC5V BU1 BU VCC5V DC-DC CONVERTER 8.4V DC-DC CONVERTER Q715 T+B REGULATOR FMPW AMPW SCPON Q704 Q703 P+B REGULATOR Q706 C+B REGULATOR Q707 Q708 Q705 SYSPW C9V REGULATOR Q710 Q709 5V REGULATOR 5V REGULATOR RESET Q756 Q762 SWVDD AC5V AC5 SRVDD SRVDD REGULATOR 10V REGULATOR Q712 Q711 N+B REGULATOR SYSPW Q714 Q713 BU 4 3 1 2 5 6 9 10 12 13 14 15 16 17 18 19 20 11 8 7 CN303 4 3 1 2 5 6 9 10 8 7 CN302 4 3 1 2 5 6 9 10 8 7 CN303 PH2 PH1 VIN1 VIN2 COMP VSENSE TPS54350PWP BSEN ACCON MOTANT SSW1 SSW2 NC SW1 SW2 Q312 Q313 ADIMIN RMUT Q309 Q310 Q311 Q308 RMUT1 LMUT1 (1/2) C A 12 13 14 15 16 17 18 19 20 11 12 13 14 15 16 17 18 19 20 11 ANT+B O/I2 I/O2 6 5 I/O1 O/I1 1 2 CT2 7 CT1 3 IC220 TC7W66FK AUD+B RESET (1/2) D A 22 23 SELCK SELDATA CL DA 8V REGULATOR Q601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 18 1 2 3 4 1 2 3 4 C D F A B E BUFFER 5 3 7 1 10 12 13 VAL ADPG VV+ VAL+ VA- ADPG VV+ VV- CN1005 SWVDD33 SWVDD33 SWVDD33 SWVDD33 6 1 4 3 5 CN1002 CN1102 CN1104 CN1103 IECIN CN1101 NTS1 NTS2 NTSC NTS1 NTS2 NTSC NTS1 NTS2 NTSC NTS1 NTS2 NTSC DOUT 8 7 5 3 8 7 5 3 6 5,7 7 1 8 1 1 IC1101 TC7W04FU 1 2 3 4 5 6 CN1004 7 5 3 1 8 6 2 4 CN1102 1 CN1101 CONNECTOR 1 PCB CONNECTOR 2 PCB D C E CN1551 A CN403 CN1003 1 2 16 3 5 6 7 8 9 10 11 14 15 ACC+B ACC+B IC-VDD ENCVOL+ ENCVOL- IC-VDD IC-VDD ENCAUD+ ENCAUD- KEY-DO KEY-CLK KEY-CE KEI-DI LDI LCK LCE LDO LDI LCK LCE LDO PWM-IND PANEL-INFO PWM-ILL IC2001 LC75700TS KEY CONTROL CN2001 CN2011 CN2010 CN2021 CN2020 KEY MATRIX ILLMINATION Q2001 Q2002 Q2019 Q2004 Q2008 ACC+B DO CE CLOK DI RSET IDAB IDGW KD1 KD2 KD3 KD4 KD4 (VOL) (ENC) IDAB IGDW 6 7 8 KST2 9 10 2 KST3 KST3 ILL3 ILL1 3 KST4 KST5 4 KST1 1 17 18 19 20 16 Q2013 RESET ILLMINATION ILLMINATION A CN408 EVLP EVLN EAUP EAUN 11 12 Q2018 S2021 S2022 1 2 3 3 1 2 4 5 EVLP EVLN GNDD GNDD KD4 KST3 ILL3 EVLP EVLN GNDD EAUP EAUN 7 8 6 2 5 1 7 8 6 2 5 1 ILL1 EAUP EAUN GNDD 7 8 6 1 7 8 6 1 KEYBOARD PCB 5 4 Q2005-2007,2009,2010, 2012,2014,2015,2021, 2022,2024 B R PCB H L PCB G KD1 KST3 KD1 KST3 2 5 2 5 ILLMINATION ILLMINATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 19 5 6 7 8 5 6 7 8 C D F A B E Y101 FM/AM TUNER UNIT(MAIN) A Y101 A Y101 A Y101 A FM ANT RFGND OSCGND DGND VCC VDD_3.3 WC CE2 ROM_VDD SL DI CK CE1 DO 7 13 5 10 8 14 1 3 2 12 15 4 17 AM ANT 16 23 COMP Lch 24 Rch 22 ANT1 6 9 IC4 5V 3.3V IC3 EEPROM IC2 DET/NC/MPC/MPX/DIV REG OSC X-tal CF IFT LPF TANK RF RF TANK ATT ATT LPF VCO IC1 MIX/IF/PLL ← Y101 FM/AM TUNER UNIT(SUB) A Y101 A Y101 A Y101 A FM ANT RFGND OSCGND DGND VCC VDD_3.3 WC CE2 ROM_VDD SL DI CK CE1 DO 7 13 5 10 8 14 1 3 2 12 15 4 17 AM ANT 16 23 COMP Lch 24 Rch 22 ANT1 6 9 IC4 5V 3.3V IC3 EEPROM IC2 DET/NC/MPC/MPX/DIV REG OSC X-tal CF IFT LPF TANK RF RF TANK ATT ATT LPF VCO IC1 MIX/IF/PLL ← www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 20 1 2 3 4 1 2 3 4 C D F A B E 11 15 23 9 10 14 16 6 13 18 17 3 234,237 12 7 8 6 CN1201 11 2 1 4 3 12 14 19 24 15 13 17 18 10 16 22 7 23 5 25 26 21 9 20 CN1101 F+ F- T- T+ 82 83 85 86 87 88 81 70 OEIC CD/DVD H1- HUM HUP HVM HVP HWM HWP HBM VD5PU COILU COILV COILW H1+ H2- H2+ H3- H3+ HB- HB+ 4 7 20 19 16 15 17 18 A1 A2 2 3 1 27,28 24,25 21,22 5 A3 LOADSWL 4 1 CLAMP CLAMP 19 LOADSWR 22 LOADPHT LOADSWL LOADSWR LOADPHT 24 INISW INISW 25 TEMP2 TEMP2 20 LED CN1551 CO+ CO- CO+ CO- B4 C RF+ B3 RF- B2 B1 A B4 C B3 B2 B1 A MDC Vcc VD5PU VD5PU Q1101 Q1102 Q1106 Q1107 Q1105 Q1104 Q1103 B4 C B3 B2 B1 A OPIN2- TD 12 FOP SW TEMP Vref VREF VSHF 78LD 78MD 65LD 65MD FOM TOM TOP 130 90 89 BD7962FM IC1240 OUT3+ OUT3- OUT2- OUT2+ OUT1+ OUT1- A11,A12 A21,A22 A31,A32 H3L H3H VHB H1L H1H H2L H2H IC1501(2/2) MDQ0-31 MA0-11 IC1570 EDS1232AATA-75 EXADT0-15 EXADR20 P15 XCSFM XCSSR REV XRES_M XCSSR NEXCE EXADR19 EXADR16 EXADR17 EXADR18 NEXWE NRST DSP MN35103UB 176 54 53 84 175 2 7 8 10 1 3 13 175 SRCK DMIX SRCK SDODAC SRCK SRCK 174 LRCK LRCK 178-180 ADOUT0-2 ADOUT0-2 ADOUT3 163 DAC4OUT SDRAM MONI7 MONI6 MONI5 MONI4 MONI3 MONI2 MONI1 MONI0 P8 P9 EXTRG1 EXTRGO TRCD0 TRCD2 TRCST TRCD3 TRCD1 TRCCLK XRES_M SDATA SCLOCK EXTRGO TRCST 170 BECLK BECLK MO1 AO1 SO1 FSEL SO2 AO2 MCK33 EXTCK 92 OSCI 172 EXTCK TRCDATA1 TRCDATA2 TRCDATA0 TRCDATA3 TRCCLK SDATA SCLOCK DRVO MDQ0-31 DQ0-31 MA0-11 BA0,BA1 BA0,BA1 BA0,BA1 DQM0-3 DQM0-3 DQM0-3 A0-11 DATA BUS ADDRESS BUS 232,238 225 223 22,23 18,19 17,20 68 239,242 XRAS,XCAS NRAS,NCAS /CAS,/RAS XWE,XCSM NWE,NCSM /WE,/CS MCK MCK CLK MCKI M F IC1671 1LE 48 25 2LE ADT0-15 A0-16 A16-18 A16-18 ADT0-15 ADT0-15 A0-15 1Q1-8 2Q1-8 1D1-8 2D1-8 ADT0-15 A0-19 TC74LCX16373AFT LATCH IC1602 TC7SH86FUS1 GATE GATE GATE 41 4 25,38, 26 47 33 39 68 18 1 2 XRD 17 6 XWR 11 XWR XWR 28 XCSFM A19 IC1672 TC7SZ08FU 4 1 2 1 2 IC1652 TC7SZ126FU 4 26 XRD VD8 SD1 CAMSNS SWDVDD CAMREF M2 VIN9 131 VIN10 127,123 VIN2,VIN6 126,122 VIN1,VIN5 129,125 VIN4,VIN8 128,124 VIN3,VIN7 121 RFINP 120 RFINN RFP RFM IC1501(1/2) DSP MN35103UB MOTOR DRIVE CD/DVD SWITCH 65LD SWITCH 78LD SWITCH AN8471SAT1 IC1201 MOTOR CONTROL LPC02 133 147 134 132 135 LPC01 TEMP LPC2 LPC1 OPIN1- FD DAC1 DAC0 10 OPOUT ECR EC EC 9 26 OPIN- MD DRV1 E/LVOL1 LDCONT2 E/LVOL2 8 LDCONT3 CAMVOL 9 27 MUTE DCONT0 29 OPIN3- SD0 32 IN6FWD CAMFWD 7 IN6REV CAMREV 6 OUT5- 150 2 OUT5+ 152 71 3 IN5FWD E/LFWD 4 IN5REV E/LREV 5 FG1 FG FG P3 DRV4 HOME HOME 10 START DCONT0 11 66 62 74 HOME M ELVSNS ELVREF ELEVATION/ LOAD MOTOR E/L+ E/L- 136 137 162 181 E/L+ E/L- M CAM MOTOR VR1551 AVCC33 VREF VREFH VREF IECOUT SE 12,2 13,1 T SE VHALF VHALF DATA VoutL VoutR Vcom BCKIN 16 DACCLK DACCLK MCLK LRCKIN MD 14 SCKDAC MC 15 LTDAC ML ADAC PCM1742KE IC1851 LP CLOCK GENERATOR 3 15 10 13 14 SM8707LV IC1801 9 X1801 27,000MHz XTO XTI 7 8 61 63 64 P4 P1 P2 IRQPWR_M STOM MTOS DVDMPD DVDMPD CDMPD CDMPD OEIC RFP RFM IECOUT AD1 46 XRD NEXOE CN1103 D 1 2 34 35 CAM- CAM+ CAM- CAM+ OUT6- OUT6+ E F STAGE ASSY (SERVICE) STAGE ASSY (SERVICE) PCB ASS Y DVD CORE UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 21 5 6 7 8 5 6 7 8 C D F A B E X2001 AMUTE EMPH VDCONT VCONTB 80 75 88 60 59 49 LOADSWL LOADSWR LOADPHT INISW TEMP2 26 92 57 58 98 93 78 87 76 94 95 96 97 7 30 6 77 47 90 89 42 41 91 46 73 72 CLAMP 17 16 15 14 3 4 5 6-8 19 1 RXD0 TXD0 RIP_P_HEAD RIP_P_HEAD XAVCHK_ENT IC1570 1232AATA-75 XRESET IRQPWR 14 20 AMUTE CONT_B CONT_A /SVCONT SVCONT EMPH VDCONT XRES_S IRQPWR AMUTE EMPH VDCONT /RESET IRQPWR MCKENA XRES_S VIDEO OUT ANALOG LOUT 21 EEPROM BR93L56RFVM-W IC2002 PE5558A IC2001 TC74VHC541FTS1 IC1881 STSCOMN CMDCOMN 25 61 83 /DEBUGIN 55 X2 X1 12 13 7 8 10 CN1901 DIGITAL 6ch 4 2 8 6 10 CN1881 COMPOSIT COMPOSIT LOUT ROUT DRAM 20 18 27 26 25 24 29 30 31 11 17 19 14 15 16 23 21 8 4 2 3 9 CN407 A AVCC5 +5V REGULATOR 1 5 S-L2980A50MC-C7J IC1001 3 AVCC33 +3.3V REGULATOR 2 4 BA033SFP IC1901 1 Q1002 VCC15 VCONTA VCONTB VD5PU VD5 DC-DC CONVERTER 6,7 4 LTC3411EMS IC1003 1 SRVDD BVC33 VD5PU VD5 VD5 VD5 VD5 VD8 VD8 VD8 SRVDD BVC33 ROMDATA REV ROMCK ROMCS 50 86 52 51 4 3 2 1 VIDEO GND SPD_SW1 AGND SPD_SW2 5 7 WAKE UP MG WAKEUPMG 1 VD8 SO DI SK CS ANALOG ROUT 6 WAKEUPMG WAKEUP CMDCOMN EXTRGO TRCD0 TRCD2 TRCST TRCD3 TRCD1 TRCCLK XRES_M STSCOMN SDATA SCLOCK DBG_DET 2 20 1 16 11 9 13 14 18 19 8 5 4 6 7 CN1903 XAVCHK_ENT DBG_DET MO1 AO1 SO1 FSEL DACCLK FSSW2 FSSW1 FSSW2 FSSW1 SO2 AO2 Y2 A2 Y3 A3 Y4 A4 Y5 A5-7 XG2 XG1 0-31 0,BA1 M0-3 -11 AS,/RAS E,/CS K IC1651 M5M5V216ATP-70HI SRAM(2M) IC1601 PD6566A FLASH MEMORY SYSTEM CONTROL ADT0-15 DQ1-16 A0-16 6-18 A0-16 15 ADT0-15 DQ0-15 A0-19 A0-20 41 XRD 17 6 XWR OE WE S 11 XWR /WE /OE /CE 28 XCSFM A19 26 XRD CD/DVD CD_DVD OEIC OEIC SD2 SD CLAMP SD1 SWDVDD BVC33 Q2001 LOADSWL LOADSWR LOADPHT INISW TEMP E/LVOL1 E/LVOL1 E/LVOL2 E/LVOL2 CAMVOL CAMVOL DCONT0 CONT DCONT2 SD0 CAMFWD CAMREV CAMFWD CAMREV E/LFWD E/LREV E/LFWD E/LREV HOME HOME CAMSNS CAMREF ELVSNS ELVREF CAMSNS CAMREF ELVSNS ELVREF SELECT SWITCH 12,2,5 13,1,3 TC74HC4053AFT IC2003 9,10,11 14,15,4 SELECT SWITCH 1 2 TC7WH157FU IC1802 5 6 BUFFER 1 3 NJM2904V IC2006 3 VoutL VoutR Vcom AC 742KE 851 LPF 3 5 NJM2100V IC1852 1 LPF BUFFER 3 5 NJM2100V IC1853 Q1551 1 LOCK GENERATOR 3 5 0 13 14 SM8707LV IC1801 9 XTO XTI 7 8 CRGCONT 38 39 44 43 IRQPWR_M XRES_M TXD1 RXD1 IRQPWR_M STOM MTOS XRES_M REV VCONTB VCONTA RIP_P_HEAD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 22 1 2 3 4 1 2 3 4 C D F A B E 3.2 MAIN UNIT(1/4)(GUIDE PAGE) A-a 1/4 1/4 A A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". 4/4 A 4/4 A 4/4 A 2/4 A 4/4 A B CN2001 C CN1003 2/4 A 3/4 A 3/4 A 2/4 A 4/4 A 3/4 A 2/4 A 2/4 A 4/4 A 3/4 A 3/4 A CN1901 2/2 E SYSTEM CONTROLLER AM -14dBs FM -17dBs +2.21dBs(1.0Vrms) +3.04dBs (1.1Vrms) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 23 5 6 7 8 5 6 7 8 C D F A B E A-b 1/4 A 1/4 : The power supply is shown with the marked box. 1/4 A 4/4 A MAIN UNIT(1/4) 4/4 A Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. > 1/4 A 3/4 A 3/4 4/4 A 4/4 A 4/4 A 3/4 A 2/4 A 2/4 A 4/4 A 2/4 A 1/4 A 3/4 A 2/4 A SELECTOR UNBALANCE TO BALANCE CONVERTER EM CONTROLLER 3/4 A AM:-1.7dBs FM:-4.7dBs MG4:8.04dBs Mini&VTR:7.71 dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 24 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1/4 1 2 1/4 A 4/4 A MAIN UNIT(1/4) > 1/4 A 3/4 A 3/4 4/4 A 4/4 A 2/4 A 4/4 A 2/4 A 1/4 A /4 2/4 A SELECTOR UNBALANCE TO BALANCE CONVERTER AM:-1.7dBs FM:-4.7dBs MG4:8.04dBs Mini&VTR:7.71 dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 25 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 1/4 4 3 : The power supply is shown with the marked box. 4/4 A Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. 2/4 A 2/4 A 3/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 26 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a 1/4 A-b 1/4 1 2 4/4 A 2/4 A 4/4 A B CN2001 2/4 A 3/4 A 3/4 A A 2/4 A 4/4 A 3/4 A 3/4 A CN1901 2/2 E AM -14dBs FM -17dBs +3.04dBs (1.1Vrms) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 27 5 6 7 8 5 6 7 8 C D F A B E A-b A-a A-a 1/4 A-b 1/4 4 3 4/4 A 4/4 A 2/4 A C CN1003 2/4 A 2/4 A 4/4 A 3/4 A SYSTEM CONTROLLER +2.21dBs(1.0Vrms) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 28 1 2 3 4 1 2 3 4 C D F A B E 3.3 MAIN UNIT(2/4) 2/4 A MAIN UNIT(2/4) 2/4 A 1/4 A 1/4 A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 29 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 30 1 2 3 4 1 2 3 4 C D F A B E 3.4 MAIN UNIT(3/4)(GUIDE PAGE) A-a 3/4 3/4 A 1/4 A 1/4 A 1/4 A 1/4 3.3 V A 1/4 A 1/4 A FAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 31 5 6 7 8 5 6 7 8 C D F A B E A-b 3/4 A 3/4 SOUND MAIN UNIT(3/4) 3/4 A 1/4 A 1/4 A 1/4 A 1/4 A 1/4 A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 32 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 3/4 1 2 MAIN UNIT(3/4) 3/4 A 1/4 A 1/4 A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 33 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 3/4 SOUND 1/4 A 1/4 A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 34 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a 3/4 A-b 3/4 1 2 1/4 A 1/4 A 1/4 A 1/4 3.3 V A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 35 5 6 7 8 5 6 7 8 C D F A B E A-b A-a A-a 3/4 A-b 3/4 1/4 A 1/4 A FAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 36 1 2 3 4 1 2 3 4 C D F A B E 3.5 MAIN UNIT(4/4)(GUIDE PAGE) A-a 4/4 4/4 A 1/4 A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 37 5 6 7 8 5 6 7 8 C D F A B E A-b 4/4 A 4/4 MAIN UNIT(4/4) 4/4 A 1/4 A 1/4 A 1/4 A 1/4 A 1/4 A 1/4 A 1/4 A CWE1849 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 38 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 4/4 1 2 3 CWE1849 MAIN UNIT(4/4) 4/4 A 1/4 A 1/4 A 1/4 A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 39 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 4/4 4 5 1/4 A 1/4 A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 40 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a 4/4 A-b 4/4 1 2 3 1/4 A 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 41 5 6 7 8 5 6 7 8 C D F A B E A-b A-a A-a 4/4 A-b 4/4 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 42 1 2 3 4 1 2 3 4 C D F A B E 3.6 KEYBOARD PCB B H CN2011 G CN2021 Keyboard Unit Consists of Keyboard PCB L PCB R PCB E:DEX-MG9667DVZT/EW F:DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE A:CH DISC B:SEEK TRACK A:SEEK TRACK B:CH DISC E:EJECT F:LOAD E:LOAD F:EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 43 5 6 7 8 5 6 7 8 C D F A B E B B KEYBOARD PCB CN408 1/4 A E:TA F:AM E:DISC F:FM E:FM F:DISC E:AM F:TA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 44 1 2 3 4 1 2 3 4 C D F A B E 3.7 CONNECTOR 1 PCB C C CONNECTOR 1 PCB VV+ VV- VA- (ADPG) (VAR+) (VAL+) D CN1104 LAN plus I/F VTR adapter minijack input CN403 Connector Unit Consists of Connector 1 PCB Connector 2 PCB 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 45 5 6 7 8 5 6 7 8 C D F A B E 3.8 CONNECTOR 2 PCB D D CONNECTOR 2 PCB C CN1005 CN1551 DOUT Digital output Video input/output Connector Unit Consists of Connector 1 PCB Connector 2 PCB 1/2 E (NTRI) (SGD3) SLD (SLD2) GND (SND4) NTSC (NTRO) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 46 1 2 3 4 1 2 3 4 C D F A B E 3.9 DVD CORE UNIT(1/2)(GUIDE PAGE) E-a 1/2 1/2 E D CN1103 F 8 9 0 7 6 5 PD6566A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 47 5 6 7 8 5 6 7 8 C D F A B E E-b 1/2 E 1/2 2/2 E 82K 1R2K 1R2K 6R8K 1/2 E M1 2/2 E 2/2 E R11 5R6K VR11 CCP1442 1k(B) R14 5R6K VR13 CCW1029 10k(B) R13 5R6K R12 4R7K VR12 CCP1442 1k(B) VR2 CCW1023 1k M2 F DVD CORE UNIT(1/2) PCB ASSY SERVICE STAGE ASSY SERVICE STAGE ASSY 3 3 4 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 48 1 2 3 4 1 2 3 4 C D F A B E E-a E-b E-b 1/2 F 1 2/2 E 82K 1R2K 1R2K 6R8K 1/2 E M1 R11 5R6K VR11 CCP1442 1k(B) R14 5R6K VR13 CCW1029 10k(B) R13 5R6K R12 4R7K VR12 CCP1442 1k(B) VR2 CCW1023 1k M2 F DVD CORE UNIT(1/2) PCB ASSY TAGE ASSY 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 49 5 6 7 8 5 6 7 8 C D F A B E E-a E-b E-b 1/2 82K 1R2K 1R2K 6R8K 2/2 E 2/2 E SERVICE STAGE ASSY SERVICE STAGE ASSY 3 3 4 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 50 1 2 3 4 1 2 3 4 C D F A B E A-a E-b E-a E-b 1/2 E-a 1/2 F 1 D CN1103 8 9 0 7 6 5 PD6566A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 51 5 6 7 8 5 6 7 8 C D F A B E A-a E-b E-a E-b 1/2 E-a 1/2 F PD6566A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 52 1 2 3 4 1 2 3 4 C D F A B E 3.10 DVD CORE UNIT(2/2) 2/2 E R2110 3R9K R2111 12K 1/2 E 1/2 E 1/2 E 1/2 E 9.830MHz NM PE5558A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 53 5 6 7 8 5 6 7 8 C D F A B E 2/2 E DVD CORE UNIT(2/2) 2/2 E CN407 1/4 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 54 1 2 3 4 1 2 3 4 C D F A B E 1 ANAMONI1 0.2 V/div. 0.1 µs/div. 0.2 V/div. 100 µs/div. 0.2 V/div. 0.1 µs/div. CDRF Interval 1 ANAMONI1 0.5 V/div. 100 µs/div. 1 ANAMONI1 DVDRF DVDRF(BD1 mm) 2 TDY 0.5 V/div. 100 µs/div. Interval FWD 2 TDY 0.5 V/div. 100 µs/div. Interval REV 2 TDY 2 CH1: TDY 3 CH2: (CO+)-(CO-) CH1: TDY CH2: (CO+)-(CO-) CH1: TDY CH2: (CO+)-(CO-) 2.0 V/div.5 ms/div. Traverse501FWD 0.5 V/div.5 ms/div. 2 3 2.0 V/div.5 ms/div. Traverse501REV 0.5 V/div.5 ms/div. 2 3 2.0 V/div.5 ms/div. Traverse 5000 FWD 0.5 V/div.5 ms/div. VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ 2 3 2.0 V/div.5 ms/div. Traverse5000REV 0.5 V/div.5 ms/div. 2 TDY Multi 32REV 0.5 V/div.500 µs/div. 2 TDY Multi 32FWD 0.5 V/div.500 µs/div. CH1: TDY CH2: (CO+)-(CO-) - Waveforms Note:1. The encircled number denote measuring pointes in the circuit diagram. 2. Reference voltage VHALF : 1.65 V(TD1,FD1,CRGDRV) : 2 V Center(ANAMONI1) In this waveform, it is seeing on the GND standard. Offset of 1.65 V or 2 V is put in. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 55 5 6 7 8 5 6 7 8 C D F A B E 2 TDY Play TD VHALF→ VHALF→ VHALF→ VHALF→ 0.5 V/div.20 ms/div. 4 FDY Focus jamp L 0 → L1 0.5 V/div.500 µs/div. 4 FDY Focus jamp L1 → L 0 0.5 V/div.500 µs/div. 4 FDY Play TD 0.5 V/div.20 ms/div. 4 FDY 0.5 V/div. 1 ms/div. Focus close VHALF→ 5 CH1: DMIX 6 CH2: SRCK 7 CH3: LRCK G→ 2 V/div. 2 µs/div. G→ G→ 8 CH1: LO 9 CH2: RO G→ 1V/div. 500 µs/div. G→ 0 CH1: COMPO 200 mV/div. 10 µs/div. [White 100 % output] G→ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 56 1 2 3 4 1 2 3 4 C D F A B E 3.11 L PCB G G L PCB Keyboard Unit Consists of Keyboard PCB L PCB R PCB B CN2020 A:DEX-MG9667DVZT/EW B:DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE A:TUNE FILE B:PWR VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 57 5 6 7 8 5 6 7 8 C D F A B E 3.12 R PCB H H R PCB Keyboard Unit Consists of Keyboard PCB L PCB R PCB B CN2010 A:DEX-MG9667DVZT/EW B:DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE A:PWR VOL B:TUNE FILE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 58 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 MAIN UNIT A A MAIN UNIT Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 10 20 30 40 50 60 70 X 0 140 130 120 110 100 90 80 70 60 50 40 30 20 10 Y E CN1901 C CN1003 CAR HARNESS CAR HARNESS CAR HARNESS FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 59 5 6 7 8 5 6 7 8 C D F A B E A SIDE A 0 70 80 90 100 110 120 130 140 150 160 170 FRONT FAN B CN2001 FM/AM TUNER UNIT SUB FM/AM TUNER UNIT MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 60 1 2 3 4 1 2 3 4 C D F A B E A A MAIN UNIT 6 70 80 90 100 110 120 130 140 150 160 170 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 61 5 6 7 8 5 6 7 8 C D F A B E A SIDE B 10 20 30 40 50 60 70 X 0 140 130 120 110 100 90 80 70 60 50 40 30 20 10 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 62 1 2 3 4 1 2 3 4 C D F A B E 4.2 KEYBOARD PCB B B KEYBOARD PCB 10 20 30 40 50 60 70 80 90 100 110 12 X 80 70 60 50 40 30 20 10 0 Y A:DEX-MG9667DVZT/EW B:DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE A:LOAD B:EJECT A:CH DISC B:SEEK TRACK A:TA B:AM A:DISC B:FM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 63 5 6 7 8 5 6 7 8 C D F A B E B SIDE A 110 120 130 140 150 160 170 180 190 200 210 220 230 SC M A:FM B:DISC A:AM B:TA A:SEEK TRACK B:CH DISC A:EJECT B:LOAD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 64 1 2 3 4 1 2 3 4 C D F A B E B B KEYBOARD PCB 110 120 130 140 150 160 170 180 190 200 210 220 230 H CN2011 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 65 5 6 7 8 5 6 7 8 C D F A B E B SIDE B 10 20 30 40 50 60 70 80 90 100 110 20 X 80 70 60 50 40 30 20 10 0 Y A CN408 G CN2021 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 66 1 2 3 4 1 2 3 4 C D F A B E 4.3 CONNECTOR1 PCB C CONNECTOR1 PCB C CONNECTOR1 PCB C SIDE A SIDE B A CN403 CAR HARNESS D CN1104 10 20 30 X 80 70 60 50 40 30 20 10 0 Y 10 20 30 X 80 70 60 50 40 30 20 10 0 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 67 5 6 7 8 5 6 7 8 C D F A B E 4.4 CONNECTOR2 PCB 30 20 10 10 20 30 40 X 0 10 20 30 40 X 0 Y 10 20 30 Y C CN1005 E CN1551 CAR HARNESS D D DOUT D CONNECTOR2 PCB CONNECTOR2 PCB SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 68 1 2 3 4 1 2 3 4 C D F A B E 4.5 DVD CORE UNIT E E DVD CORE UNIT X 100 90 80 70 60 50 40 30 20 10 0 Y 10 20 30 40 50 60 SERVICE STAGE ASSY SERVICE STAGE ASSY M1 A CN407 F D CN1103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 69 5 6 7 8 5 6 7 8 C D F A B E E SIDE A 60 70 80 90 100 110 120 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 70 1 2 3 4 1 2 3 4 C D F A B E E E 6 70 80 90 100 110 120 DVD CORE UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 71 5 6 7 8 5 6 7 8 C D F A B E E X 100 90 80 70 60 50 40 30 20 10 0 Y 10 20 30 40 50 60 0 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 72 1 2 3 4 1 2 3 4 C D F A B E 4.6 PCB ASSY F PCB ASSY F 0 10 20 30 10 20 30 X Y VR2 VR13 M2 M E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 73 5 6 7 8 5 6 7 8 C D F A B E 4.7 L PCB G SIDE B SIDE A G L PCB G L PCB 10 20 30 40 X 50 40 30 20 10 0 Y 10 20 30 40 X 50 40 30 20 10 0 Y B CN2020 A:DEX-MG9667DVZT/EW B:DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE A:TUNE FILE B:PWR VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 74 1 2 3 4 1 2 3 4 C D F A B E 4.8 R PCB H SIDE B SIDE A H R PCB H R PCB 10 20 30 40 X 50 40 30 20 10 0 Y 10 20 30 40 X 50 40 30 20 10 0 Y B CN2010 A:DEX-MG9667DVZT/EW B:DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE A:PWR VOL B:TUNE FILE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 75 5 6 7 8 5 6 7 8 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... • The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Circuit Symbol and No. Part No. Unit Number: CWN1710(MG9667DVZT/ EW) Unit Number: CWN1468(MG9767DVZT/ EW) Unit Number: CWN1711(MG9767DVZT/ RE) Unit Name : Main Unit Unit Number: (MG9767DVZT/EW,RE) Unit Name : Keyboard Unit Unit Number: (MG9667DVZT/EW) Unit Name : Keyboard Unit Unit Number : CWM9654 Unit Name : Connector Unit Unit Number: CWX3360 Unit Name : DVD Core Unit Unit Number: CWX2986 Unit Name : PCB Assy A Unit Number: CWN1710(MG9667DVZT/ EW) Unit Number: CWN1468(MG9767DVZT/ EW) Unit Number: CWN1711(MG9767DVZT/ RE) Unit Name : Main Unit MISCELLANEOUS IC 102 (A,129,101) IC NJM2068V IC 201 (A,95,99) IC NJM2068V IC 202 (A,104,93) IC NJM2068V IC 203 (A,103,98) IC NJM4580V IC 205 (A,87,96) IC NJM2068V IC 207 (A,103,83) IC BD3842FS IC 208 (B,87,73) IC OPA2134UA IC 209 (B,93,73) IC OPA2134UA IC 210 (B,102,72) IC NJM2068V IC 211 (B,102,76) IC NJM2068V IC 220 (B,84,89) IC TC7W66FK IC 221 (A,24,108) IC TC7W66FK IC 301 (B,96,26) IC HA12240FP IC 401 (B,22,37) IC TC7SET08FUS1 IC 502 (A,95,31) IC PEG215A IC 503 (A,117,23) IC TC7SET08FUS1 IC 504 (A,118,32) IC TC74VHC08FTS1 IC 601 (A,41,74) IC TPS54350PWP IC 603 (B,35,76) IC BA00BC0WFP IC 604 (A,51,74) IC TPS54350PWP IC 751 (B,25,88) IC S-80940CNNB-G9A IC 752 (B,21,95) IC S-812C56AUA-C3K IC 753 (B,21,102) IC S-812C39AMC-C2T IC 801 (B,49,97) IC NJM2235V IC 802 (B,39,98) IC SM5304AV IC 803 (B,49,92) IC NJM2235V IC 804 (B,39,91) IC SM5304AV Q 11 (A,136,66) Transistor 2SC3356 Q 12 (A,127,66) Transistor 2SC3356 Q 13 (B,139,61) Transistor 2SA1576 Q 14 (B,139,56) Transistor 2SC4081 Q 15 (B,128,56) Transistor 2SC4083 Q 16 (B,123,57) Transistor 2SC4083 Q 17 (A,136,82) Transistor 2SC3356 Q 18 (A,127,82) Transistor 2SC3356 Q 19 (B,139,78) Transistor 2SA1576 Q 20 (B,139,73) Transistor 2SC4081 Q 21 (B,128,73) Transistor 2SC4083 Q 22 (B,123,73) Transistor 2SC4083 Q 23 (B,160,112) Transistor 2SC4081 Q 102 (B,143,82) Transistor 2SC4081 Q 103 (B,149,81) Transistor UMX1N Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 76 1 2 3 4 1 2 3 4 C D F A B E Q 104 (B,146,81) Transistor UMH4N Q 105 (B,153,45) Transistor 2SA1576 Q 106 (B,156,28) Transistor 2SA1576 Q 107 (B,156,24) Transistor 2SA1576 Q 108 (A,149,61) Transistor DTC114EU Q 109 (B,171,50) Transistor UMH1N Q 110 (B,171,46) Transistor UMH1N Q 114 (A,146,115) Transistor 2SC4081 Q 115 (B,147,111) Transistor UMX1N Q 116 (A,129,95) Transistor 2SC4081 Q 117 (A,127,95) Transistor 2SC4081 Q 119 (A,127,105) Transistor 2SA1576 Q 123 (B,129,121) Transistor DTC114EU Q 125 (B,104,123) Transistor UMH1N Q 126 (B,95,123) Transistor UMH1N Q 201 (B,95,90) Transistor UMH4N Q 301 (A,91,53) Transistor 2SC4081 Q 302 (B,86,56) Transistor 2SC4081 Q 303 (A,84,56) Transistor 2SC4081 Q 308 (A,100,58) Transistor 2SC4081 Q 309 (A,97,51) Transistor 2SC4081 Q 310 (A,107,51) Transistor UMT2N Q 311 (A,105,57) Transistor DTC144EU Q 312 (A,94,51) Transistor DTA114EU Q 313 (A,96,55) Transistor 2SC4081 Q 314 (A,76,21) Transistor DTA114EU Q 315 (B,84,62) Transistor 2SC4081 Q 381 (A,101,67) Transistor UMZ1N Q 382 (A,104,65) Transistor UMZ1N Q 383 (B,82,73) Transistor FMG12 Q 384 (A,91,86) Transistor FMG12 Q 385 (B,82,76) Transistor FMG12 Q 386 (B,82,69) Transistor FMG12 Q 387 (B,82,80) Transistor FMG12 Q 388 (A,56,99) Transistor FMG12 Q 389 (B,90,89) Transistor FMG12 Q 390 (A,41,105) Transistor FMG12 Q 401 (A,26,37) Transistor UMH4N Q 402 (A,21,36) Transistor DTA144TK Q 601 (A,70,87) Transistor 2SC4081 Q 602 (B,46,77) Transistor DTC114EU Q 603 (A,68,79) Transistor 2SA1952 Q 604 (B,67,86) Transistor 2SA1576 Q 605 (A,53,85) Transistor DTC114EU Q 606 (A,59,85) Transistor 2SA1576 Q 607 (B,57,55) Transistor 2SB1689 Q 608 (B,57,50) Transistor 2SC4081 Q 609 (A,29,82) Transistor 2SC4081 Q 610 (A,56,86) Transistor UMD12N Q 611 (B,43,77) Transistor DTC114EU Q 612 (A,41,66) FET RSS090N03 Q 613 (A,51,66) FET RSS090N03 Q 614 (A,20,70) Transistor 2SB1427 Q 615 (B,66,59) Transistor 2SC4081 Q 616 (B,69,75) Transistor 2SA1952 Q 617 (B,63,49) Transistor 2SA1576 Q 618 (B,63,43) Transistor DTC114EU Q 701 (A,23,92) Transistor 2SB1184F5 Q 702 (B,32,93) Transistor UMX1N Q 703 (B,64,139) Transistor 2SB1260 Circuit Symbol and No. Part No. Q 704 (B,58,139) Transistor UMX1N Q 705 (B,74,137) Transistor DTC114EU Q 706 (B,68,138) Transistor UMT2N Q 707 (A,154,17) Transistor 2SB1260 Q 708 (A,157,19) Transistor 2SC4081 Q 709 (B,156,17) Transistor 2SB1184F5 Q 710 (A,161,15) Transistor UMX1N Q 711 (A,139,48) Transistor 2SB1260 Q 712 (A,134,48) Transistor UMX1N Q 713 (B,26,20) Transistor 2SB1260 Q 714 (B,34,21) Transistor UMX1N Q 715 (A,14,86) Transistor 2SB1184F5 Q 751 (B,24,94) Transistor UMD12N Q 752 (B,14,94) Transistor 2SC4081 Q 753 (B,14,86) Transistor 2SC4154-11 Q 754 (B,14,90) Transistor 2SA1602A Q 755 (A,8,90) Transistor 2SB1185 Q 756 (B,19,82) Transistor UMF5N Q 762 (A,21,102) Transistor 2SD1767 Q 801 (A,51,98) Transistor DTC144EU D 11 (B,136,66) Diode 1SV249 D 12 (A,141,58) Diode 1SS355 D 13 (B,132,57) Diode DAN217U D 14 (B,132,74) Diode DAN217U D 15 (B,136,83) Diode 1SV249 D 16 (A,141,75) Diode 1SS355 D 101 (A,149,81) Diode CPH5512 D 102 (B,148,69) Diode CPH5512 D 104 (B,145,113) Diode CPH5512 D 105 (B,149,122) Diode CPH5512 D 301 (A,68,103) Diode RM4LFJ10 D 302 (B,21,115) Diode UDZS10(B) D 303 (B,23,115) Diode UDZS10(B) D 304 (A,90,58) Diode HZU8R2(B1) D 305 (B,83,56) Diode HZU8R2(B1) D 306 (A,86,56) Diode HZU8R2(B1) D 307 (B,51,114) Diode UDZS18(B) D 308 (A,40,114) Diode UDZS18(B) D 311 (B,59,115) Diode UDZS18(B) D 312 (B,24,138) Diode UDZS18(B) D 313 (A,108,53) Diode 1SS355 D 314 (A,104,53) Diode HZU9R1(B1) D 316 (A,79,16) Diode UDZS8R2(B) D 317 (A,80,48) Diode 1SS355 D 318 (A,80,51) Diode 1SS355 D 319 (A,77,24) Diode 1SS355 D 320 (A,76,27) Diode 1SS355 D 322 (A,84,53) Diode 1SS355 D 323 (A,99,54) Diode DAP202U D 324 (A,100,50) Diode 1SS355 D 325 (A,102,52) Diode 1SS355 D 326 (B,19,84) Diode 1SS355 D 341 (B,61,131) Diode 1SS355 D 381 (A,94,61) Diode DAP202U D 382 (A,100,61) Diode 1SS355 D 383 (A,104,60) Diode 1SS355 D 384 (B,102,64) Diode 1SS355 D 401 (B,91,64) Diode UDZS4R7(B) D 402 (B,8,38) Diode RB520S-30 D 601 (A,68,73) Diode RSX201L-30 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 77 5 6 7 8 5 6 7 8 C D F A B E D 602 (B,67,82) Diode PTZ16(A) D 603 (A,31,80) Diode 1SS355 D 604 (B,66,55) Diode PTZ16(A) D 605 (B,59,53) Diode 1SS355 D 606 (A,44,84) Diode 1SR154-400 D 701 (B,132,134) Diode RB051L-40 D 702 (B,28,97) Diode HZU8R2(B1) D 703 (B,32,97) Diode 1SS355 D 704 (B,63,133) Diode RR264M-400 D 705 (B,63,135) Diode RR264M-400 D 706 (B,74,140) Diode DAN202U D 707 (B,74,142) Diode 1SS355 D 708 (B,68,133) Diode RR264M-400 D 709 (B,68,135) Diode RR264M-400 D 710 (A,154,14) Diode 1SS355 D 711 (A,162,17) Diode 1SS355 D 713 (B,30,22) Diode 1SS355 D 751 (B,125,134) Diode 1SR154-400 D 752 (B,19,86) Diode UDZS16(B) D 753 (B,18,89) Diode UDZS9R1(B) D 755 (B,20,90) Diode UDZS16(B) ZNR11 (B,160,102) Surge Protector IMSA-6801-01Y901 ZNR12 (B,161,106) Surge Protector IMSA-6801-01Y901 L 11 (B,159,104) Inductor LCYB68NJ1608 L 12 (A,159,99) Inductor LCYB12NJ1608 L 13 (A,141,65) Inductor LCYBR12J1608 L 14 (A,140,65) Inductor LCYBR12J1608 L 15 (A,135,60) Coil CTC1187 L 16 (A,132,67) Inductor LCYBR15J1608 L 17 (A,125,60) Coil CTC1187 L 18 (A,122,67) Inductor LCYBR15J1608 L 19 (B,159,108) Inductor LCYB68NJ1608 L 20 (A,158,107) Inductor LCYB12NJ1608 L 21 (A,141,82) Inductor LCYBR12J1608 L 22 (A,140,82) Inductor LCYBR12J1608 L 23 (A,135,77) Coil CTC1187 L 24 (A,132,84) Inductor LCYBR15J1608 L 25 (A,125,77) Coil CTC1187 L 26 (A,122,84) Inductor LCYBR15J1608 L 101 (B,146,72) Inductor LCTC6R8K1608 L 102 (B,148,72) Inductor LCTC6R8K1608 L 103 (B,155,85) Inductor LCTC6R8K1608 L 104 (A,146,63) Inductor CTF1473 L 105 (A,148,51) Inductor CTF1295 L 106 (A,147,56) Inductor CTF1473 L 107 (A,148,56) Inductor CTF1473 L 108 (A,158,103) Chip Coil LCTAW330J2520 L 110 (A,149,114) Inductor CTF1473 L 111 (B,141,113) Inductor LCTC6R8K1608 L 112 (B,141,112) Inductor LCTC6R8K1608 L 113 (A,94,115) Inductor CTF1295 L 114 (B,127,119) Inductor CTF1473 L 115 (B,121,123) Inductor CTF1473 L 116 (B,144,122) Inductor LCTC6R8K1608 L 201 (A,103,69) Inductor CTF1473 L 301 (A,119,140) Choke Coil 95 µH CTH1301 L 302 (B,90,26) Inductor CTF1473 L 413 (A,18,29) Inductor CTF1558 L 414 (B,23,39) Inductor CTF1473 L 416 (A,19,42) Inductor CTF1473 Circuit Symbol and No. Part No. L 417 (A,19,44) Inductor CTF1473 L 418 (B,10,43) Inductor CTF1306 L 420 (B,25,40) Inductor CTF1473 L 501 (B,100,39) Inductor CTF1473 L 502 (A,121,26) Inductor CTF1473 L 503 (A,122,32) Inductor CTF1473 L 601 (A,65,65) Inductor CTH1257 L 602 (A,42,57) Inductor CTH1257 L 603 (A,53,57) Inductor CTH1257 L 605 (A,47,10) Inductor CTF1295 L 701 (A,113,54) Inductor CTF1473 L 702 (A,136,9) Inductor CTF1295 L 801 (A,52,87) Inductor CTF1473 X 501 (A,95,19) Radiator 10.0 MHz CSS1577 >FU301 (B,52,139) Fuse 8 A CEK1263 Y 102 (A,153,126) FM/AM Tuner Unit CWE1849 Y 101 (A,161,87) FM/AM Tuner Unit CWE1849 EF601 (B,43,53) EMI Filter CCG1163 EF602 (B,53,53) EMI Filter CCG1163 ANT11 (A,168,134) Connector CKX1064 RESISTORS R 1 (A,133,25) RS1/16SS0R0J R 2 (A,128,22) RS1/16SS0R0J R 3 (B,137,61) RS1/16SS474J R 4 (B,138,54) RS1/16SS474J R 5 (B,137,78) RS1/16SS474J R 6 (B,136,75) RS1/16SS474J R 7 (B,131,55) RS1/16SS681J R 8 (B,131,72) RS1/16SS681J R 9 (A,10,50) RS1/16SS471J R 10 (A,12,50) (MG9667DVZT/EW) RS1/16SS821J (A,12,50) (MG9767DVZT/RE) RS1/16SS471J R 11 (B,138,64) RS1/16SS102J R 12 (A,140,61) RS1/16SS331J R 13 (A,137,68) RS1/16SS100J R 14 (A,133,64) RS1/16SS222J R 15 (A,137,57) RS1/16SS121J R 16 (A,134,67) RS1/16SS330J R 17 (A,133,57) RS1/16SS100J R 18 (A,133,67) RS1/16SS100J R 19 (A,128,68) RS1/16SS100J R 20 (A,124,65) RS1/16SS222J R 21 (A,127,57) RS1/16SS121J R 22 (A,125,67) RS1/16SS330J R 23 (A,124,57) RS1/16SS100J R 24 (A,124,67) RS1/16SS100J R 25 (B,137,58) RS1/16SS271J R 26 (B,140,58) RS1/16SS472J R 27 (B,135,58) RS1/16SS223J R 28 (B,138,59) RS1/16SS220J R 29 (B,126,56) RS1/16SS271J R 30 (B,126,58) RS1/16SS561J R 31 (B,126,59) RS1/16SS333J R 32 (B,124,60) RS1/16SS683J R 33 (B,124,59) RS1/16SS471J R 34 (B,138,81) RS1/16SS102J R 35 (A,140,78) RS1/16SS331J R 36 (A,137,85) RS1/16SS100J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 78 1 2 3 4 1 2 3 4 C D F A B E R 37 (A,133,81) RS1/16SS222J R 38 (A,137,73) RS1/16SS121J R 39 (A,135,84) RS1/16SS330J R 40 (A,133,73) RS1/16SS100J R 41 (A,133,83) RS1/16SS100J R 42 (A,128,85) RS1/16SS100J R 43 (A,124,81) RS1/16SS222J R 44 (A,127,73) RS1/16SS121J R 45 (A,125,84) RS1/16SS330J R 46 (A,124,73) RS1/16SS100J R 47 (A,124,83) RS1/16SS100J R 48 (B,137,75) RS1/16SS271J R 49 (B,140,75) RS1/16SS472J R 50 (B,135,74) RS1/16SS223J R 51 (B,138,76) RS1/16SS220J R 52 (B,126,72) RS1/16SS271J R 53 (B,126,74) RS1/16SS561J R 54 (B,126,76) RS1/16SS333J R 55 (B,124,77) RS1/16SS683J R 56 (B,124,76) RS1/16SS471J R 57 (B,162,114) RS1/16SS223J R 58 (B,162,113) RS1/16SS472J R 60 (B,128,35) RS1/16SS0R0J R 67 (B,130,26) RS1/16SS0R0J R 102 (B,148,83) RS1/16SS222J R 103 (B,146,83) RS1/16SS222J R 104 (A,148,78) RS1/16SS104J R 105 (A,147,77) RS1/16SS225J R 106 (A,150,75) RS1/16SS225J R 107 (B,145,69) RS1/16SS225J R 108 (B,150,69) RS1/16SS225J R 109 (A,150,77) RS1/16SS104J R 110 (B,148,78) RS1/16SS102J R 111 (B,151,76) RS1/10S821J R 114 (A,149,38) RS1/16SS471J R 115 (B,151,45) RS1/16SS272J R 116 (B,152,29) RS1/16SS272J R 118 (B,137,25) RS1/16SS272J R 120 (A,146,59) RS1/16SS103J R 122 (A,152,61) RS1/16SS681J R 123 (B,168,72) RS1/16SS681J R 124 (B,168,70) RS1/16SS681J R 125 (B,168,67) RS1/16SS681J R 126 (B,168,65) RS1/16SS681J R 127 (B,168,63) RS1/16SS681J R 128 (B,154,50) RS1/16SS222J R 129 (B,173,50) RS1/16SS223J R 130 (B,169,49) RS1/16SS223J R 131 (B,173,46) RS1/16SS223J R 132 (B,169,45) RS1/16SS223J R 135 (B,144,111) RS1/16SS222J R 136 (A,144,112) RS1/16SS222J R 137 (B,148,114) RS1/16SS104J R 141 (A,135,117) RS1/16SS471J R 145 (B,148,112) RS1/16SS104J R 146 (B,150,110) RS1/16SS472J R 147 (B,150,114) RS1/10S102J R 148 (A,125,116) RS1/16SS272J R 150 (A,172,49) RS1/16SS100J R 153 (B,126,122) RS1/16SS103J Circuit Symbol and No. Part No. R 155 (B,131,122) RS1/16SS681J R 156 (B,140,122) RS1/16SS681J R 157 (B,137,122) RS1/16SS681J R 158 (B,135,122) RS1/16SS681J R 159 (B,133,123) RS1/16SS681J R 160 (B,134,118) RS1/16SS681J R 161 (B,115,122) RS1/16SS222J R 165 (B,160,114) RS1/16SS473J R 167 (B,107,122) RS1/16SS223J R 169 (B,107,121) RS1/16SS223J R 170 (B,99,123) RS1/16SS223J R 171 (B,99,121) RS1/16SS223J R 176 (A,125,103) RS1/16SS683J R 177 (A,129,98) RS1/16SS682J R 178 (A,132,94) RS1/16SS223J R 179 (A,123,107) RS1/16SS101J R 180 (A,125,101) RS1/16SS223J R 181 (A,131,96) RS1/16SS472J R 183 (A,125,97) RS1/16SS223J R 184 (A,130,98) RS1/16SS682J R 185 (A,129,104) RS1/16SS101J R 186 (A,132,104) RS1/16SS683J R 187 (A,132,98) RS1/16SS683J R 188 (A,133,105) RS1/16SS682J R 189 (A,132,96) RS1/16SS223J R 190 (A,127,98) RS1/16SS222J R 201 (B,43,117) RS1/10S103J R 202 (B,39,115) RS1/10S103J R 203 (B,46,117) RS1/10S103J R 204 (B,48,115) RS1/10S103J R 205 (B,39,113) RS1/16SS562J R 206 (B,43,113) RS1/16SS562J R 207 (B,40,113) RS1/16SS562J R 208 (B,46,113) RS1/16SS562J R 209 (B,94,101) RS1/16SS473J R 210 (B,91,101) RS1/16SS473J R 211 (B,92,101) RS1/16SS473J R 212 (B,97,101) RS1/16SS473J R 213 (B,98,101) RS1/16SS473J R 214 (B,95,101) RS1/16SS473J R 215 (B,92,98) RS1/16SS473J R 216 (B,98,99) RS1/16SS473J R 217 (B,105,90) RS1/16SS153J R 218 (B,102,91) RS1/16SS153J R 219 (B,107,92) RS1/16SS223J R 220 (B,101,93) RS1/16SS223J R 221 (B,103,96) RS1/16SS333J R 222 (B,101,97) RS1/16SS333J R 223 (A,107,95) RS1/16SS223J R 224 (B,100,99) RS1/16SS223J R 230 (B,87,98) RS1/16SS223J R 231 (B,85,98) RS1/16SS333J R 232 (B,89,95) RS1/16SS333J R 233 (B,89,97) RS1/16SS223J R 236 (B,85,92) RS1/16SS223J R 237 (B,84,93) RS1/16SS333J R 238 (B,87,92) RS1/16SS333J R 239 (B,87,94) RS1/16SS223J R 241 (B,93,91) RS1/16SS182J R 242 (B,96,88) RS1/16SS182J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 79 5 6 7 8 5 6 7 8 C D F A B E R 245 (B,84,97) RS1/10S102J R 246 (B,82,97) RS1/10S102J R 248 (A,87,76) RS1/10S101J R 249 (A,87,73) RS1/10S101J R 250 (A,87,79) RS1/10S101J R 251 (A,87,81) RS1/10S101J R 252 (B,104,69) RS1/16SS103J R 253 (B,98,66) RS1/16SS392J R 254 (B,98,67) RS1/16SS153J R 255 (A,79,95) RS1/16SS223J R 256 (A,87,93) RS1/16SS223J R 257 (A,26,107) RS1/16SS223J R 258 (A,28,109) RS1/16SS223J R 263 (A,106,78) RS1/16SS471J R 264 (A,105,78) RS1/16SS471J R 265 (B,89,79) RS1/16SS153J R 266 (B,89,68) RS1/16SS153J R 267 (B,90,79) RS1/16SS153J R 268 (B,91,68) RS1/16SS153J R 269 (B,93,79) RS1/16SS153J R 270 (B,94,68) RS1/16SS153J R 271 (A,90,74) RS1/16SS223J R 272 (A,91,79) RS1/16SS223J R 273 (A,90,77) RS1/16SS223J R 274 (A,90,81) RS1/16SS223J R 275 (A,89,78) RS1/16SS101J R 276 (A,89,75) RS1/16SS101J R 277 (A,90,79) RS1/16SS101J R 278 (A,89,81) RS1/16SS101J R 279 (B,106,71) RS1/16SS153J R 280 (B,97,72) RS1/16SS153J R 281 (B,97,74) RS1/16SS153J R 282 (B,106,73) RS1/16SS153J R 283 (B,96,77) RS1/16SS153J R 284 (B,104,80) RS1/16SS153J R 285 (B,101,81) RS1/16SS104J R 286 (B,80,89) RS1/16SS104J R 287 (B,96,82) RS1/16SS104J R 288 (A,85,87) RS1/16SS104J R 289 (B,94,82) RS1/10S470J R 290 (B,101,83) RS1/10S470J R 291 (A,61,95) RS1/10S470J R 292 (A,61,97) RS1/10S470J R 295 (A,77,95) RS1/16SS224J R 296 (A,78,95) RS1/16SS224J R 297 (A,26,109) RS1/16SS224J R 298 (A,20,111) RS1/16SS224J R 301 (A,88,54) RS1/16SS223J R 302 (A,92,56) RS1/16SS223J R 303 (A,91,56) RS1/16SS473J R 304 (A,88,56) RS1/16SS103J R 305 (A,88,60) RS1/16SS222J R 306 (A,88,58) RS1/16SS222J R 307 (B,83,54) RS1/16SS223J R 308 (B,87,58) RS1/16SS223J R 309 (B,85,58) RS1/16SS473J R 310 (B,85,59) RS1/16SS103J R 311 (B,83,58) RS1/16SS222J R 312 (B,83,59) RS1/16SS222J R 313 (A,88,53) RS1/16SS223J Circuit Symbol and No. Part No. R 314 (A,86,59) RS1/16SS472J R 315 (A,84,59) RS1/16SS472J R 316 (B,101,27) RS1/16SS472J R 317 (B,101,28) RS1/16SS472J R 318 (A,48,114) RS1/4S101J R 319 (A,44,119) RS1PMF680J R 320 (A,37,115) RS1/4S101J R 327 (A,101,54) RS1/16SS472J R 328 (A,101,55) RS1/16SS103J R 329 (B,56,114) RS1/10S221J R 331 (A,97,49) RS1/16SS103J R 332 (B,23,133) RS1/10S221J R 333 (A,107,55) RS1/16SS473J R 334 (A,110,50) RS1/16SS473J R 335 (A,108,49) RS1/16SS103J R 336 (A,104,50) RS1/16SS103J R 337 (A,104,51) RS1/16SS103J R 338 (A,95,48) RS1/16SS473J R 339 (A,98,57) RS1/16SS471J R 340 (A,98,58) RS1/16SS392J R 341 (B,29,137) RS1/10S101J R 342 (A,79,23) RS1/16SS223J R 343 (A,78,22) RS1/16SS223J R 344 (A,77,19) RS1/16SS222J R 345 (B,60,133) RS1/10S472J R 346 (B,58,133) RS1/10S222J R 347 (A,81,39) RS1/16SS473J R 348 (A,76,26) RS1/16SS103J R 349 (A,79,24) RS1/16SS152J R 350 (B,17,142) RS1/10S102J R 351 (B,22,140) RS1/10S102J R 352 (A,78,26) RS1/16SS152J R 353 (B,86,63) RS1/16SS104J R 354 (B,87,63) RS1/16SS103J R 356 (A,80,39) RS1/16SS102J R 381 (A,97,60) RS1/16SS153J R 382 (A,100,63) RS1/16SS153J R 383 (A,102,58) RS1/16SS471J R 384 (A,96,60) RS1/16SS472J R 385 (A,104,62) RS1/16SS472J R 386 (A,100,69) RS1/16SS223J R 387 (A,107,64) RS1/16SS223J R 389 (A,102,78) RS1/16SS103J R 391 (A,100,78) RS1/16SS103J R 392 (A,87,86) RS1/10S470J R 393 (A,89,88) RS1/10S470J R 394 (B,101,69) RS1/16S103J R 395 (A,37,105) RS1/10S470J R 396 (A,53,102) RS1/10S470J R 397 (B,96,73) RS1/16SS103J R 400 (A,116,26) RS1/16SS473J R 401 (B,107,110) RS1/16SS473J R 403 (B,107,111) RS1/16SS473J R 418 (A,19,40) RS1/16S0R0J R 419 (A,31,22) RS1/16S0R0J R 423 (B,22,35) RS1/16SS471J R 424 (B,28,15) RS1/16SS473J R 431 (A,25,67) RS1/16SS0R0J R 435 (A,96,45) (MG9767DVZT/RE) RS1/16SS473J R 436 (A,95,46) (MG9767DVZT/EW) RS1/16SS473J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 80 1 2 3 4 1 2 3 4 C D F A B E (A,95,46) (MG9667DVZT/EW) RS1/16SS473J R 447 (A,17,35) RS1/16SS102J R 448 (B,13,38) RS1/16SS102J R 450 (B,17,34) RS1/16SS471J R 451 (B,16,34) RS1/16SS471J R 452 (B,14,34) RS1/16SS471J R 456 (A,17,39) RS1/16SS0R0J R 457 (A,17,40) RS1/16SS0R0J R 458 (A,21,42) RS1/16SS332J R 459 (A,21,44) RS1/16SS332J R 460 (B,14,43) RS1/16SS102J R 461 (B,145,7) RS1/16SS472J R 462 (B,147,7) RS1/16SS472J R 463 (B,149,7) RS1/16SS472J R 464 (B,152,7) RS1/16SS472J R 465 (B,88,64) RS1/16SS222J R 466 (B,153,7) RS1/16SS472J R 467 (B,160,7) RS1/16SS472J R 471 (A,81,31) RS1/16SS222J R 472 (A,82,31) RS1/16SS222J R 473 (A,82,29) RS1/16SS222J R 474 (A,86,21) RS1/16SS222J R 475 (A,86,19) RS1/16SS222J R 476 (A,88,21) RS1/16SS222J R 479 (B,124,36) RS1/16SS100J R 480 (B,120,35) RS1/16SS100J R 498 (B,98,43) RS1/16SS473J R 499 (A,111,39) RS1/16SS102J R 500 (A,80,21) (MG9667DVZT/EW) RS1/16SS473J R 505 (A,80,26) RS1/16SS102J R 506 (A,80,25) RS1/16SS102J R 507 (A,81,21) (MG9767DVZT/EW) RS1/16SS473J (A,81,21) (MG9667DVZT/EW) RS1/16SS103J (A,81,21) (MG9767DVZT/RE) RS1/16SS473J R 508 (A,83,16) RS1/16SS102J R 509 (A,83,18) RS1/16SS102J R 510 (A,82,21) (MG9767DVZT/EW) RS1/16SS473J (A,82,21) (MG9667DVZT/EW) RS1/16SS473J (A,82,21) (MG9767DVZT/RE) RS1/16SS103J R 511 (A,81,23) (MG9767DVZT/RE) RS1/16SS473J R 515 (A,90,48) RS1/16SS102J R 516 (A,91,48) RS1/16SS102J R 517 (A,92,50) RS1/16SS102J R 518 (A,93,48) RS1/16SS102J R 519 (A,94,48) RS1/16SS102J R 520 (A,92,44) RS1/16SS471J R 521 (A,88,18) RS1/16SS102J R 522 (A,88,16) RS1/16SS152J R 523 (A,89,19) RS1/16SS102J R 524 (A,89,16) RS1/16SS102J R 525 (A,90,19) RS1/16SS102J R 526 (B,91,14) RS1/16SS473J R 527 (A,93,42) RS1/16SS471J R 528 (B,95,41) RS1/16SS105J R 529 (A,97,42) RS1/16SS103J R 530 (A,99,47) RS1/16SS103J R 531 (A,98,42) RS1/16SS471J R 532 (A,100,46) RS1/16SS471J R 533 (A,95,42) RS1/16SS102J R 534 (A,91,19) RS1/16SS102J Circuit Symbol and No. Part No. R 535 (A,91,16) RS1/16SS102J R 536 (A,92,16) RS1/16SS102J R 537 (A,94,21) RS1/16SS0R0J R 538 (A,98,17) RS1/16SS473J R 539 (A,99,16) RS1/16SS471J R 540 (A,100,16) RS1/16SS102J R 541 (A,101,18) RS1/16SS471J R 542 (B,102,27) RS1/16SS102J R 547 (A,103,44) RS1/16SS473J R 548 (A,104,44) RS1/16SS102J R 549 (A,104,46) RS1/16SS102J R 550 (A,105,44) RS1/16SS102J R 551 (A,106,44) RS1/16SS102J R 552 (A,106,42) RS1/16SS102J R 553 (A,101,16) RS1/16SS102J R 554 (A,102,16) RS1/16SS102J R 555 (A,102,18) RS1/16SS102J R 556 (A,104,16) RS1/16SS102J R 559 (A,106,17) RS1/16SS102J R 560 (A,106,20) RS1/16S0R0J R 565 (A,109,37) RS1/16SS102J R 566 (A,111,37) RS1/16SS102J R 567 (A,109,36) RS1/16SS102J R 569 (A,111,34) RS1/16SS102J R 570 (A,109,33) RS1/16SS102J R 571 (A,111,33) RS1/16SS102J R 572 (A,109,32) RS1/16SS102J R 573 (A,111,31) RS1/16SS102J R 575 (A,111,30) RS1/16SS471J R 576 (B,102,38) RS1/16SS102J R 577 (A,109,29) RS1/16SS102J R 579 (A,109,27) RS1/16SS471J R 581 (A,112,25) RS1/16SS101J R 582 (A,112,24) RS1/16SS101J R 583 (A,107,23) RS1/16SS102J R 584 (A,109,22) RS1/16SS102J R 585 (A,110,23) RS1/16SS103J R 587 (A,114,28) RS1/16SS473J R 588 (A,107,17) RS1/16SS103J R 589 (A,108,22) RS1/16SS473J R 590 (A,110,22) RS1/16SS473J R 591 (A,117,26) RS1/16SS471J R 592 (B,118,29) RS1/16SS471J R 593 (A,115,28) RS1/16SS471J R 594 (A,114,37) RS1/16SS102J R 598 (A,94,44) RS1/16SS102J R 600 (A,115,37) RS1/16SS102J R 601 (B,66,85) RS1/16SS102J R 602 (B,64,51) RS1/16SS102J R 603 (B,70,67) RS1/16SS103J R 604 (A,65,86) RS1/16SS103J R 605 (A,56,84) RS1/16SS103J R 606 (B,69,86) RS1/16SS103J R 607 (A,62,82) RS1/16SS223J R 608 (A,63,83) RS1/16SS223J R 609 (B,46,80) RS1/16SS7503D R 610 (A,60,88) RS1/4SR22J R 611 (B,45,80) RS1/16SS1303D R 612 (B,41,78) RS1/16SS7503D R 613 (B,41,77) RS1/16SS1303D Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 81 5 6 7 8 5 6 7 8 C D F A B E R 614 (A,37,71) RS1/16SS750J R 615 (B,43,59) RS1/16SS1001D R 616 (B,41,59) RS1/16SS1000D R 617 (B,39,59) RS1/16SS24R0D R 618 (B,41,60) RS1/16SS160J R 619 (B,62,45) RS1/16SS103J R 620 (A,47,70) RS1/16SS750J R 621 (B,52,58) RS1/16SS1001D R 622 (B,54,58) RS1/16SS1800D R 623 (B,55,59) RS1/16SS33R0D R 624 (B,54,59) RS1/16SS160J R 625 (B,62,46) RS1/16SS103J R 627 (A,32,81) RS1/16SS220J R 628 (B,55,49) RS1/16SS391J R 629 (B,56,52) RS1/16SS223J R 631 (B,61,49) RS1/16SS472J R 632 (B,59,49) RS1/16SS220J R 633 (B,66,62) RS1/8S0R0J R 635 (A,68,86) RS1/16SS221J R 636 (B,64,57) RS1/16SS221J R 638 (B,40,83) RS1/16SS1203D R 639 (B,40,82) RS1/16SS1502D R 640 (B,40,81) RS1/16SS6802D R 641 (B,40,80) RS1/16SS1202D R 644 (A,21,74) RS1/16SS223J R 645 (A,32,84) RS1/10S121J R 646 (A,33,81) RS1/16SS102J R 647 (B,41,76) RS1/16SS103J R 648 (B,47,80) RS1/16SS103J R 651 (A,41,69) RS1/16SS100J R 652 (A,52,69) RS1/16SS100J R 701 (B,28,95) RS1/16SS221J R 702 (B,29,95) RS1/16SS471J R 703 (B,32,95) RS1/16SS331J R 704 (A,31,93) RS1/16SS223J R 705 (B,33,91) RS1/16SS471J R 706 (B,33,95) RS1/16SS223J R 707 (B,61,138) RS1/16SS333J R 708 (B,64,142) RS1/16SS223J R 709 (B,60,138) RS1/16SS473J R 710 (B,58,142) RS1/16SS152J R 711 (B,56,140) RS1/16SS222J R 712 (B,59,137) RS1/16SS223J R 713 (B,56,138) RS1/16SS473J R 714 (B,71,137) RS1/16SS153J R 715 (B,71,139) RS1/16SS180J R 716 (B,72,139) RS1/16SS223J R 717 (A,156,17) RS1/16SS470J R 718 (A,159,20) RS1/16SS152J R 719 (A,149,17) RS1/16SS223J R 720 (A,161,20) RS1/16SS472J R 721 (A,159,16) RS1/16SS821J R 722 (A,159,14) RS1/16SS153J R 723 (A,162,18) RS1/16SS470J R 724 (B,163,14) RS1/16SS223J R 725 (A,164,14) RS1/16SS222J R 726 (A,163,19) RS1/16SS472J R 727 (A,128,49) RS1/16SS152J R 728 (A,131,47) RS1/16SS822J R 729 (A,135,47) RS1/16SS223J Circuit Symbol and No. Part No. R 730 (A,132,47) RS1/16SS222J R 731 (A,142,46) RS1/16SS2R2J R 732 (A,130,49) RS1/16SS103J R 733 (B,30,21) RS1/16SS103J R 734 (B,34,23) RS1/16SS101J R 735 (B,23,20) RS1/16SS223J R 736 (B,30,20) RS1/16SS103J R 737 (B,37,23) RS1/16SS223J R 738 (B,36,19) RS1/16SS102J R 739 (A,30,91) RS1/16SS821J R 740 (A,14,93) RS1/16SS821J R 741 (B,22,82) RS1/8S511J R 742 (B,24,82) RS1/8S511J R 801 (B,51,94) RS1/16SS223J R 802 (B,54,98) RS1/16SS104J R 803 (B,53,100) RS1/16SS105J R 804 (B,54,96) RS1/16SS105J R 805 (B,42,101) RS1/16SS221J R 806 (B,19,99) RS1/16SS222J R 807 (B,24,91) RS1/16SS473J R 808 (B,25,91) RS1/16SS471J R 809 (B,16,86) RS1/16SS472J R 810 (B,13,83) RS1/16SS220J R 811 (B,12,88) RS1/16SS223J R 812 (B,11,89) RS1/16SS224J R 814 (B,14,97) RS1/16SS225J R 815 (B,19,98) RS1/16SS182J R 816 (B,16,83) RS1/16SS223J R 817 (B,16,84) RS1/16SS102J R 818 (B,44,98) RS1/16SS3301D R 819 (B,45,99) RS1/16SS1001D R 820 (B,54,88) RS1/16SS104J R 821 (B,54,92) RS1/16SS104J R 822 (B,54,94) RS1/16SS105J R 823 (B,54,90) RS1/16SS105J R 824 (B,44,90) RS1/16SS105J R 825 (B,42,94) RS1/16SS221J R 826 (B,44,92) RS1/16SS3301D R 827 (B,45,93) RS1/16SS1001D R 984 (B,58,22) RS1/16S0R0J CAPACITORS C 11 (B,162,104) CCSSCJ3R0C50 C 12 (A,158,99) CCSSCH220J50 C 13 (B,135,64) CKSSYB472K25 C 15 (A,141,69) CCSSCH220J50 C 16 (B,139,67) CKSSYB331K50 C 17 (A,141,67) CCSSCH150J50 C 18 (A,139,67) CCSSCH5R0C50 C 20 (A,141,61) CKSSYB103K16 C 22 (A,138,57) CKSSYB222K50 C 23 (A,132,57) CKSSYB472K25 C 24 (B,126,60) CCSSCH220J50 C 25 (A,131,64) CCSRCH8R0D50 C 26 (A,131,65) CKSSYB102K50 C 27 (A,128,57) CKSSYB222K50 C 29 (A,123,57) CKSSYB472K25 C 30 (A,122,64) CCSRCH8R0D50 C 31 (A,122,65) CKSSYB102K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 82 1 2 3 4 1 2 3 4 C D F A B E C 32 (B,136,56) CKSRYB105K10 C 33 (B,135,56) CKSSYB222K50 C 34 (B,130,56) CCSSCH220J50 C 35 (B,125,56) CKSSYB102K50 C 36 (B,162,107) CCSSCJ3R0C50 C 37 (A,158,108) CCSSCH220J50 C 38 (B,136,81) CKSSYB472K25 C 40 (A,141,85) CCSSCH220J50 C 41 (B,139,84) CKSSYB331K50 C 42 (A,141,84) CCSSCH150J50 C 43 (A,139,84) CCSSCH5R0C50 C 45 (A,141,78) CKSSYB103K16 C 47 (A,138,73) CKSSYB222K50 C 48 (A,132,73) CKSSYB472K25 C 49 (B,126,77) CCSSCH220J50 C 50 (A,131,81) CCSRCH8R0D50 C 51 (A,131,82) CKSSYB102K50 C 52 (A,128,73) CKSSYB222K50 C 54 (A,123,73) CKSSYB472K25 C 55 (A,122,81) CCSRCH8R0D50 C 56 (A,122,82) CKSSYB102K50 C 57 (B,136,73) CKSRYB105K10 C 58 (B,135,72) CKSSYB222K50 C 59 (B,130,72) CCSSCH220J50 C 60 (B,125,72) CKSSYB102K50 C 61 (B,163,111) CKSSYB103K16 C 62 (B,162,111) CCSSCH101J50 C 90 (A,139,68) CCSSCH8R0D50 C 91 (A,139,85) CCSSCH8R0D50 C 102 (B,157,84) CKSSYB222K50 C 103 (B,153,85) CKSSYB104K10 C 106 (A,149,39) CKSSYB103K16 C 107 (A,149,44) CEVW101M16 C 108 (B,156,26) CKSSYB222K50 C 109 (B,156,30) CKSSYB222K50 C 110 (B,155,46) CCSSCH151J50 C 111 (A,149,64) CCSSCH101J50 C 112 (A,149,69) CEVW101M16 C 113 (A,150,64) CKSSYB103K16 C 115 (A,151,51) CSZSR470M10 C 116 (A,148,53) CKSSYB103K16 C 118 (A,151,57) CSZSR470M10 C 119 (A,148,58) CKSSYB103K16 C 130 (A,157,100) CKSSYB103K16 C 132 (A,149,115) CCSSCH101J50 C 133 (B,143,121) CKSSYB104K10 C 134 (A,156,113) CEVW101M16 C 135 (A,151,115) CKSSYB103K16 C 138 (A,133,116) CKSSYB103K16 C 140 (A,108,114) CSZSR470M10 C 141 (A,129,113) CEVW101M16 C 142 (A,109,117) CKSSYB103K16 C 144 (B,145,123) CKSSYB222K50 C 145 (B,121,129) CSZSR470M10 C 146 (B,120,127) CKSSYB103K16 C 149 (B,103,88) CKSRYB105K10 C 150 (B,147,65) CKSSYB222K50 C 151 (A,118,115) CCSSCH151J50 C 152 (B,105,88) CKSRYB105K10 C 154 (B,133,49) CKSSYB222K50 Circuit Symbol and No. Part No. C 155 (A,131,94) CCSSCH101J50 C 156 (A,124,103) CCSSCH100D50 C 157 (A,133,94) CKSSYB104K10 C 159 (A,124,101) CKSSYB104K10 C 160 (A,125,98) CCSSCH101J50 C 161 (A,124,93) CKSSYB104K10 C 162 (A,128,98) CKSSYB102K50 C 163 (A,131,98) CCSSCH100D50 C 164 (A,130,104) CCSSCH100D50 C 175 (B,22,117) CKSSYB103K16 C 176 (B,26,121) CKSSYB103K16 C 201 (B,37,113) CCSQCH471J50 C 202 (B,45,112) CCSQCH471J50 C 203 (B,42,112) CCSQCH471J50 C 204 (B,48,112) CCSQCH471J50 C 205 (B,98,103) CKSRYB105K10 C 206 (B,96,103) CKSRYB105K10 C 207 (B,94,103) CKSRYB105K10 C 208 (B,92,103) CKSRYB105K10 C 209 (B,93,101) CCSSCH220J50 C 210 (B,96,101) CCSSCH220J50 C 211 (B,93,98) CCSSCH220J50 C 212 (B,98,98) CCSSCH220J50 C 213 (B,106,92) CKSSYB102K50 C 214 (B,102,93) CKSSYB102K50 C 215 (A,105,95) CCSSCH220J50 C 216 (B,101,99) CCSSCH220J50 C 219 (B,85,96) CKSRYB105K10 C 220 (B,86,98) CCSSCH220J50 C 221 (B,31,99) CKSSYB104K10 C 222 (B,89,98) CCSSCH220J50 C 223 (B,86,92) CCSSCH220J50 C 224 (B,83,94) CKSRYB105K10 C 225 (B,87,95) CCSSCH220J50 C 226 (A,96,86) CKSRYB105K10 C 227 (A,94,86) CKSRYB105K10 C 243 (A,104,78) CKSSYB103K16 C 244 (A,104,73) CEVW470M16 C 245 (B,88,79) CCSSCH220J50 C 246 (B,89,69) CCSSCH220J50 C 247 (A,90,90) CKSSYB104K10 C 249 (B,93,78) CCSSCH220J50 C 250 (B,94,69) CCSSCH220J50 C 251 (A,96,71) 10 µF/16 V CCH1585 C 252 (A,96,67) 10 µF/16 V CCH1585 C 253 (A,94,76) 10 µF/16 V CCH1585 C 254 (A,94,81) 10 µF/16 V CCH1585 C 255 (A,74,115) CKSQYB103K50 C 256 (A,70,115) CKSQYB103K50 C 257 (A,72,115) CKSQYB103K50 C 258 (A,68,115) CKSQYB103K50 C 259 (B,107,70) CCSSCH220J50 C 260 (B,96,71) CCSSCH220J50 C 261 (B,97,77) CCSSCH220J50 C 262 (B,104,79) CCSSCH220J50 C 263 (B,108,74) 10 µF CCG1182 C 264 (B,106,80) 10 µF CCG1182 C 265 (A,82,86) 10 µF CCG1182 C 266 (A,84,86) 10 µF CCG1182 C 267 (B,17,133) CKSQYB471K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 83 5 6 7 8 5 6 7 8 C D F A B E C 268 (B,14,133) CKSQYB471K50 C 269 (B,19,133) CKSQYB471K50 C 270 (B,15,133) CKSQYB471K50 C 271 (B,86,88) CKSSYB103K16 C 272 (B,88,88) CKSSYB103K16 C 273 (A,35,107) CKSSYB103K16 C 274 (A,33,107) CKSSYB103K16 C 301 (B,53,115) CKSQYB222K50 C 302 (B,34,140) CKSQYB223K50 C 303 (B,45,138) CKSQYB473K50 C 304 (B,49,137) CKSQYB103K50 C 305 (B,38,140) CKSQYB223K50 C 306 (B,49,139) CKSQYB473K50 C 308 (B,75,131) CKSQYB222K50 C 310 (B,56,134) CKSQYB223K50 C 311 (B,56,136) CKSQYB223K50 C 312 (B,24,119) CKSQYB103K50 C 313 (B,21,119) CKSQYB103K50 C 314 (B,15,138) CKSQYB102K50 C 315 (B,14,138) CKSQYB102K50 C 316 (A,88,57) CKSSYB104K10 C 317 (B,87,59) CKSRYB474K10 C 318 (B,91,27) CKSSYB104K10 C 320 (B,39,137) CCSQCH181J50 C 321 (B,32,137) CCSQCH181J50 C 322 (B,60,114) CKSSYB102K50 C 323 (B,22,136) CKSSYB102K50 C 324 (B,29,139) CKSRYB103K50 C 325 (A,80,19) CKSRYB105K10 C 326 (A,78,19) CKSRYB105K10 C 327 (B,60,135) CKSSYB472K25 C 328 (B,20,142) CKSRYB104K50 C 329 (B,21,137) CKSRYB102K50 C 330 (B,19,138) CKSQYB102K50 C 331 (B,17,138) CKSQYB102K50 C 332 (B,87,61) CKSSYB103K16 C 333 (B,74,134) CKSQYB102K50 C 334 (B,72,135) CKSQYB102K50 C 381 (B,101,68) CKSRYB102K50 C 382 (A,105,67) CKSSYB102K50 C 383 (A,97,63) CKSQYB225K10 C 384 (A,101,65) CKSQYB225K10 C 385 (A,82,72) 10 µF/16 V CCH1585 C 386 (A,82,67) 10 µF/16 V CCH1585 C 387 (A,82,76) 10 µF/16 V CCH1585 C 388 (A,82,81) 10 µF/16 V CCH1585 C 389 (A,24,120) 10 µF CCG1182 C 390 (A,24,115) 10 µF CCG1182 C 391 (A,21,115) 10 µF CCG1182 C 392 (A,22,120) 10 µF CCG1182 C 393 (A,81,94) 10 µF CCG1182 C 394 (A,85,91) 10 µF CCG1182 C 395 (A,31,109) 10 µF CCG1182 C 396 (A,30,107) 10 µF CCG1182 C 405 (A,24,41) CEVW100M10 C 406 (A,24,45) CEVW100M10 C 407 (A,24,35) CKSSYB102K50 C 408 (A,18,36) CKSQYB225K10 C 409 (B,146,7) CKSSYB102K50 C 410 (B,148,7) CKSSYB102K50 Circuit Symbol and No. Part No. C 411 (B,150,7) CKSSYB102K50 C 412 (B,151,7) CKSSYB102K50 C 413 (B,154,7) CCSSCH101J50 C 414 (B,155,7) CCSSCH101J50 C 415 (B,156,7) CCSSCH101J50 C 416 (B,157,7) CCSSCH101J50 C 417 (B,158,7) CCSSCH101J50 C 418 (B,159,7) CCSSCH101J50 C 419 (B,161,7) CKSSYB102K50 C 420 (B,162,7) CCSSCH101J50 C 421 (A,19,27) CKSSYB102K50 C 422 (B,25,34) CKSSYB102K50 C 423 (B,25,33) CKSSYB102K50 C 424 (B,20,37) CKSSYB102K50 C 425 (B,22,33) CKSSYB102K50 C 429 (A,22,16) CKSRYB102K50 C 431 (B,25,37) CKSSYB104K10 C 445 (B,86,64) CKSSYB104K10 C 446 (A,89,68) CEVW101M16 C 502 (B,97,40) CSZSR470M10 C 503 (B,95,39) CKSSYB102K50 C 504 (A,97,20) CKSSYB104K10 C 507 (A,119,25) CKSSYB104K10 C 508 (A,122,29) CKSSYB104K10 C 509 (A,85,21) CKSSYB472K25 C 510 (A,83,23) CKSSYB472K25 C 512 (B,150,89) CKSSYB223K16 C 602 (B,69,84) CKSRYB104K50 C 603 (A,28,72) 470 µF/10 V CCH1677 C 604 (B,60,77) CKSYB225K16 C 605 (A,92,139) 1 000 µF/16 V CCH1681(P45) C 606 (A,61,85) CKSQYB105K16 C 607 (A,65,54) CEVLW470M16 C 608 (A,45,79) 10 µF CCG1182 C 609 (A,46,76) 10 µF CCG1182 C 610 (A,44,76) 10 µF CCG1182 C 611 (A,36,75) CKSRYB154K10 C 612 (A,37,73) CKSSYB123K16 C 613 (A,43,69) CKSSYB104K10 C 614 (A,39,70) CKSRYB105K10 C 615 (B,43,55) 10 µF CCG1182 C 616 (B,43,57) 10 µF CCG1182 C 617 (B,43,60) CKSSYB473K10 C 618 (B,61,53) CKSRYB104K50 C 620 (A,47,8) CKSSYB102K50 C 621 (B,36,87) CKSSYB102K50 C 622 (B,36,84) CSZSR470M10 C 623 (B,33,83) CKSRYB474K10 C 624 (A,139,139) 2 200 µF/16 V CCH1405(P45) C 626 (A,55,79) 10 µF CCG1182 C 627 (A,46,70) CKSRYB154K10 C 628 (A,47,71) CKSSYB123K16 C 629 (A,54,69) CKSSYB104K10 C 630 (A,50,69) CKSRYB105K10 C 631 (B,52,55) 10 µF CCG1171 C 632 (B,52,57) 10 µF CCG1171 C 633 (B,52,59) CKSSYB473K10 C 634 (A,57,76) 10 µF CCG1182 C 635 (A,55,76) 10 µF CCG1182 C 636 (A,29,77) CKSRYB103K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 84 1 2 3 4 1 2 3 4 C D F A B E C 637 (A,33,83) CKSSYB103K16 C 640 (B,65,52) CKSRYB104K50 C 701 (B,132,137) CKSRYB473K50 C 702 (B,130,136) CKSRYB473K50 C 703 (A,151,140) 2 200 µF/16 V CCH1676(P45) C 704 (A,26,87) CKSRYB474K10 C 705 (A,23,81) 470 µF/10 V CCH1677 C 706 (B,31,95) CKSSYB102K50 C 707 (B,65,131) CKSQYB103K50 C 708 (B,70,131) CKSQYB103K50 C 709 (A,149,14) CKSRYB104K50 C 710 (A,160,20) CKSSYB104K10 C 711 (A,158,15) CKSQYB105K16 C 712 (A,164,15) CKSSYB104K10 C 713 (A,142,50) CKSRYB104K50 C 714 (A,130,50) CKSSYB103K16 C 715 (A,142,48) CKSRYB103K50 C 716 (B,21,24) CKSRYB104K50 C 717 (B,24,25) CKSYB475K16 C 718 (B,37,22) CKSSYB102K50 C 719 (B,58,141) CKSSYB103K16 C 721 (A,112,57) CKSSYB102K50 C 724 (A,137,11) CKSSYB102K50 C 751 (B,26,85) CKSSYB272K50 C 761 (B,124,137) CKSRYB473K50 C 762 (B,126,137) CKSRYB473K50 C 763 (A,103,140) 3 300 µF/16 V CCH1486(P45) C 764 (A,22,98) CSZSC101M10 C 765 (B,24,86) CKSRYB473K50 C 766 (A,10,99) CKSRYB105K10 C 767 (B,14,83) CCSSCH221J50 C 768 (B,16,90) CKSYB475K16 C 769 (B,15,97) CKSSYB104K10 C 770 (B,22,90) CKSYB225K16 C 771 (B,14,81) CKSRYB105K10 C 772 (B,22,100) CKSSYB104K10 C 773 (A,19,106) CKSSYB104K10 C 801 (B,48,88) CKSYB475K16 C 802 (B,54,100) CCSSCH470J50 C 803 (A,37,101) CKSYB475K16 C 804 (B,54,97) CCSSCH470J50 C 805 (B,45,96) CKSSYB104K10 C 806 (B,48,94) CKSSYB103K16 C 807 (A,52,92) CSZSC101M10 C 809 (B,39,101) CKSYB475K16 C 810 (B,36,101) CCSSCH470J50 C 812 (B,40,95) CKSSYB103K16 C 813 (A,43,98) CSZSR220M10 C 814 (A,47,99) CSZSC101M10 C 815 (B,54,93) CCSSCH470J50 C 816 (B,54,91) CCSSCH470J50 C 817 (B,52,89) CKSSYB103K16 C 819 (B,45,90) CCSSCH470J50 C 820 (A,41,89) CKSYB475K16 C 822 (B,39,94) CKSYB475K16 C 823 (B,36,94) CCSSCH470J50 C 825 (B,40,89) CKSSYB103K16 C 826 (A,43,92) CSZSR220M10 C 827 (A,47,91) CSZSC101M10 C 828 (A,37,98) CKSYB475K16 Circuit Symbol and No. Part No. C 926 (A,44,13) CKSSYB102K50 Keyboard Unit Consists of Keyboard PCB L PCB R PCB BGH Unit Number: (MG9767DVZT/EW,RE) Unit Name : Keyboard Unit MISCELLANEOUS IC 2001 (B,134,51) IC LC75700TS Q 2001 (B,119,64) Transistor IMX1 Q 2002 (B,115,56) Transistor 2SC4081 Q 2003 (B,88,29) Transistor 2SA1235A-12 Q 2004 (B,173,24) Transistor 2SA1235A-12 Q 2005 (B,13,72) Transistor 2SA1235A-12 Q 2006 (B,75,51) Transistor 2SA1235A-12 Q 2007 (B,75,31) Transistor 2SA1235A-12 Q 2010 (B,99,28) Transistor 2SA1235A-12 Q 2012 (B,149,28) Transistor 2SA1235A-12 Q 2013 (B,150,57) Transistor DTC144EU Q 2014 (B,174,41) Transistor 2SA1235A-12 Q 2015 (B,182,51) Transistor 2SA1235A-12 Q 2018 (B,173,33) Transistor 2SA1235A-12 Q 2019 (B,107,21) Transistor 2SC4081 Q 2024 (B,177,51) Transistor 2SA1235A-12 D 2001 (B,57,56) Diode 1SS355 D 2002 (A,108,69) LED VFY1105W-3CX2D D 2003 (A,127,69) LED VFY1105W-3CX2D D 2004 (B,62,8) Diode 1SS355 D 2005 (B,14,33) Diode 1SS355 D 2006 (A,113,69) LED VYPY1105W-3C42A D 2007 (A,122,69) LED VYPY1105W-3C42A D 2008 (A,5,46) LED VLW1158LDS-51 D 2009 (A,31,6) LED VLW1158LDS-51 D 2011 (A,37,46) LED VLW1158LDS-51 D 2012 (A,11,6) LED VLW1158LDS-51 D 2014 (B,173,51) Diode 1SS355 D 2015 (B,173,14) Diode 1SS355 D 2019 (A,14,73) LED VLW1158LDS-54 D 2021 (A,57,47) LED VLW1158LDS-46 D 2022 (A,41,77) LED VLW1158LDS-46 D 2023 (A,57,21) LED VLW1158LDS-46 D 2024 (A,57,34) LED VLW1158LDS-46 D 2029 (B,127,34) Diode 1SS355 D 2030 (B,58,60) Diode 1SS355 D 2031 (B,180,58) Diode 1SS355 D 2033 (B,149,33) Diode 1SS355 D 2035 (B,99,33) Diode 1SS355 D 2036 (B,74,35) Diode 1SS355 D 2040 (A,105,34) LED VLW1158LDS-46 D 2041 (A,81,34) LED VLW1158LDS-46 D 2046 (A,155,34) LED VLW1158LDS-46 D 2047 (A,130,34) LED VLW1158LDS-46 D 2050 (A,178,34) LED VLW1158LDS-46 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 85 5 6 7 8 5 6 7 8 C D F A B E D 2051 (A,178,21) LED VLW1158LDS-46 D 2052 (A,195,77) LED VLW1158LDS-46 D 2053 (A,178,47) LED VLW1158LDS-46 D 2073 (B,104,21) Diode UDZS5R1(B) D 2075 (A,221,73) LED VLW1158LDS-54 D 2076 (B,142,49) Diode 1SS355 L 2001 (B,124,53) Inductor LCTAW101J2520 S 2021 (A,20,28) Encoder(PWR VOL) CSD1130 S 2022 (A,22,28) Encoder(TUNE FILE) CSD1131 RESISTORS R 2001 (B,129,57) RS1/16S102J R 2002 (B,121,61) RS1/16S271J R 2003 (B,117,57) RS1/10S131J R 2004 (B,121,56) RS1/16S223J R 2005 (B,116,61) RS1/10S131J R 2006 (B,108,49) RS1/16S472J R 2007 (B,122,64) RS1/16S102J R 2008 (B,87,25) RS1/16S1800D R 2009 (B,172,19) RS1/16S1800D R 2010 (B,52,57) RS1/16S2200D R 2011 (B,74,47) RS1/16S2200D R 2012 (B,74,26) RS1/16S2000D R 2018 (B,98,24) RS1/16S2000D R 2020 (B,148,24) RS1/16S2000D R 2021 (B,132,57) RS1/16S393J R 2022 (B,173,37) RS1/16S2000D R 2023 (B,181,46) RS1/16S2200D R 2024 (B,125,55) RS1/16S473J R 2026 (B,153,45) RS1/16S102J R 2027 (B,154,45) RS1/16S102J R 2028 (B,156,45) RS1/16S102J R 2030 (B,141,51) RS1/16S102J R 2031 (B,145,57) RS1/16S102J R 2032 (B,143,57) RS1/16S102J R 2033 (B,140,57) RS1/16S102J R 2034 (B,137,57) RS1/16S102J R 2035 (B,128,53) RS1/16S472J R 2036 (B,172,29) RS1/16S3300D R 2037 (B,174,29) RS1/16S5600D R 2038 (B,107,18) RS1/16S271J R 2039 (B,113,21) RS1/16S223J R 2040 (B,110,21) RS1/16S472J R 2045 (B,176,47) RS1/16S2200D R 2046 (B,151,45) RS1/16S102J R 2048 (B,141,53) RS1/16S102J R 2049 (B,130,46) RS1/16S102J R 2050 (B,128,46) RS1/16S102J R 2051 (B,126,46) RS1/16S102J R 2052 (B,125,46) RS1/16S102J R 2053 (B,115,64) RS1/16S0R0J R 2055 (B,88,25) RS1/16S102J R 2056 (B,174,19) RS1/16S102J R 2057 (B,54,51) RS1/16S102J R 2058 (B,76,47) RS1/16S102J R 2059 (B,76,26) RS1/16S102J R 2062 (B,100,24) RS1/16S102J R 2063 (B,150,24) RS1/16S102J R 2064 (B,175,37) RS1/16S102J Circuit Symbol and No. Part No. R 2065 (B,183,46) RS1/16S102J R 2066 (B,9,72) RS1/16S331J R 2067 (B,226,72) RS1/16S331J R 2072 (B,178,47) RS1/16S102J R 2080 (B,69,21) RS1/16S0R0J R 2081 (B,69,17) RS1/16S0R0J R 2082 (B,65,23) RS1/16S0R0J R 2083 (B,65,19) RS1/16S0R0J R 2085 (B,160,32) RS1/16S0R0J R 2086 (B,136,36) RS1/16S0R0J R 2088 (B,111,37) RS1/16S0R0J R 2090 (B,87,38) RS1/16S0R0J CAPACITORS C 2001 (B,128,59) CKSRYB103K50 C 2002 (B,119,56) CKSRYB472K50 C 2003 (B,123,64) CKSRYB103K50 C 2004 (B,133,57) CKSRYB102K50 C 2005 (B,150,54) CKSRYB102K50 C 2006 (B,136,57) CCSRCH101J50 C 2007 (B,139,57) CCSRCH101J50 C 2008 (B,142,57) CCSRCH101J50 C 2009 (B,147,57) CCSRCH101J50 C 2010 (B,102,23) CKSRYB473K50 C 2011 (B,111,21) CKSRYB472K50 C 2012 (B,125,50) CKSRYB104K50 C 2013 (B,98,19) CKSRYB104K50 C 2014 (B,122,50) CKSRYB104K50 C 2015 (B,100,19) CKSRYB104K50 C 2017 (B,28,22) CCSRCH101J50 C 2018 (B,17,22) CCSRCH101J50 C 2021 (B,14,22) CCSRCH101J50 C 2022 (B,26,22) CCSRCH101J50 Keyboard Unit Consists of Keyboard PCB L PCB R PCB BGH Unit Number: (MG9667DVZT/EW) Unit Name : Keyboard Unit MISCELLANEOUS IC 2001 (B,134,51) IC LC75700TS Q 2001 (B,119,64) Transistor IMX1 Q 2002 (B,115,56) Transistor 2SC4081 Q 2003 (B,88,29) Transistor 2SA1235A-12 Q 2004 (B,173,24) Transistor 2SA1235A-12 Q 2005 (B,13,72) Transistor 2SA1235A-12 Q 2006 (B,75,51) Transistor 2SA1235A-12 Q 2007 (B,75,31) Transistor 2SA1235A-12 Q 2010 (B,99,28) Transistor 2SA1235A-12 Q 2012 (B,149,28) Transistor 2SA1235A-12 Q 2013 (B,150,57) Transistor DTC144EU Q 2014 (B,174,41) Transistor 2SA1235A-12 Q 2015 (B,182,51) Transistor 2SA1235A-12 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 86 1 2 3 4 1 2 3 4 C D F A B E Q 2018 (B,173,33) Transistor 2SA1235A-12 Q 2019 (B,107,21) Transistor 2SC4081 Q 2024 (B,177,51) Transistor 2SA1235A-12 D 2001 (B,57,56) Diode 1SS355 D 2002 (A,108,69) LED VFY1105W-3CX2D D 2003 (A,127,69) LED VFY1105W-3CX2D D 2004 (B,62,8) Diode 1SS355 D 2006 (A,113,69) LED VYPY1105W-3C42A D 2007 (A,122,69) LED VYPY1105W-3C42A D 2008 (A,5,46) LED VLW1158LDS-51 D 2009 (A,31,6) LED VLW1158LDS-51 D 2011 (A,37,46) LED VLW1158LDS-51 D 2012 (A,11,6) LED VLW1158LDS-51 D 2014 (B,173,51) Diode 1SS355 D 2015 (B,173,14) Diode 1SS355 D 2016 (B,28,33) Diode 1SS355 D 2019 (A,14,73) LED VLW1158LDS-54 D 2020 (B,144,53) Diode 1SS355 D 2021 (A,57,47) LED VLW1158LDS-46 D 2022 (A,41,77) LED VLW1158LDS-46 D 2023 (A,57,21) LED VLW1158LDS-46 D 2024 (A,57,34) LED VLW1158LDS-46 D 2030 (B,58,60) Diode 1SS355 D 2031 (B,180,58) Diode 1SS355 D 2032 (B,101,33) Diode 1SS355 D 2033 (B,149,33) Diode 1SS355 D 2034 (B,125,34) Diode 1SS355 D 2036 (B,74,35) Diode 1SS355 D 2040 (A,105,34) LED VLW1158LDS-46 D 2041 (A,81,34) LED VLW1158LDS-46 D 2046 (A,155,34) LED VLW1158LDS-46 D 2047 (A,130,34) LED VLW1158LDS-46 D 2050 (A,178,34) LED VLW1158LDS-46 D 2051 (A,178,21) LED VLW1158LDS-46 D 2052 (A,195,77) LED VLW1158LDS-46 D 2053 (A,178,47) LED VLW1158LDS-46 D 2073 (B,104,21) Diode UDZS5R1(B) D 2075 (A,221,73) LED VLW1158LDS-54 D 2076 (B,142,49) Diode 1SS355 L 2001 (B,124,53) Inductor LCTAW101J2520 S 2021 (A,20,28) Encoder(TUNE FILE) CSD1131 S 2022 (A,22,28) Encoder(PWR VOL) CSD1130 RESISTORS R 2001 (B,129,57) RS1/16S102J R 2002 (B,121,61) RS1/16S271J R 2003 (B,117,57) RS1/10S131J R 2004 (B,121,56) RS1/16S223J R 2005 (B,116,61) RS1/10S131J R 2006 (B,108,49) RS1/16S472J R 2007 (B,122,64) RS1/16S102J R 2008 (B,87,25) RS1/16S1800D R 2009 (B,172,19) RS1/16S1800D R 2010 (B,52,57) RS1/16S2200D R 2011 (B,74,47) RS1/16S2200D R 2012 (B,74,26) RS1/16S2000D R 2018 (B,98,24) RS1/16S2000D R 2020 (B,148,24) RS1/16S2000D R 2021 (B,132,57) RS1/16S393J Circuit Symbol and No. Part No. R 2022 (B,173,37) RS1/16S2000D R 2023 (B,181,46) RS1/16S2200D R 2024 (B,125,55) RS1/16S473J R 2026 (B,153,45) RS1/16S102J R 2027 (B,154,45) RS1/16S102J R 2028 (B,156,45) RS1/16S102J R 2030 (B,141,51) RS1/16S102J R 2031 (B,145,57) RS1/16S102J R 2032 (B,143,57) RS1/16S102J R 2033 (B,140,57) RS1/16S102J R 2034 (B,137,57) RS1/16S102J R 2035 (B,128,53) RS1/16S472J R 2036 (B,172,29) RS1/16S3300D R 2037 (B,174,29) RS1/16S5600D R 2038 (B,107,18) RS1/16S271J R 2039 (B,113,21) RS1/16S223J R 2040 (B,110,21) RS1/16S472J R 2045 (B,176,47) RS1/16S2200D R 2046 (B,151,45) RS1/16S102J R 2048 (B,141,53) RS1/16S102J R 2049 (B,130,46) RS1/16S102J R 2050 (B,128,46) RS1/16S102J R 2051 (B,126,46) RS1/16S102J R 2052 (B,125,46) RS1/16S102J R 2053 (B,115,64) RS1/16S0R0J R 2055 (B,88,25) RS1/16S102J R 2056 (B,174,19) RS1/16S102J R 2057 (B,54,51) RS1/16S102J R 2058 (B,76,47) RS1/16S102J R 2059 (B,76,26) RS1/16S102J R 2062 (B,100,24) RS1/16S102J R 2063 (B,150,24) RS1/16S102J R 2064 (B,175,37) RS1/16S102J R 2065 (B,183,46) RS1/16S102J R 2066 (B,9,72) RS1/16S331J R 2067 (B,226,72) RS1/16S331J R 2072 (B,178,47) RS1/16S102J R 2076 (B,69,23) RS1/16S0R0J R 2077 (B,69,19) RS1/16S0R0J R 2078 (B,65,21) RS1/16S0R0J R 2079 (B,65,17) RS1/16S0R0J R 2084 (B,160,36) RS1/16S0R0J R 2086 (B,136,36) RS1/16S0R0J R 2088 (B,111,37) RS1/16S0R0J R 2091 (B,87,34) RS1/16S0R0J CAPACITORS C 2001 (B,128,59) CKSRYB103K50 C 2002 (B,119,56) CKSRYB472K50 C 2003 (B,123,64) CKSRYB103K50 C 2004 (B,133,57) CKSRYB102K50 C 2005 (B,150,54) CKSRYB102K50 C 2006 (B,136,57) CCSRCH101J50 C 2007 (B,139,57) CCSRCH101J50 C 2008 (B,142,57) CCSRCH101J50 C 2009 (B,147,57) CCSRCH101J50 C 2010 (B,102,23) CKSRYB473K50 C 2011 (B,111,21) CKSRYB472K50 C 2012 (B,125,50) CKSRYB104K50 C 2013 (B,98,19) CKSRYB104K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 87 5 6 7 8 5 6 7 8 C D F A B E C 2014 (B,122,50) CKSRYB104K50 C 2015 (B,100,19) CKSRYB104K50 C 2017 (B,28,22) CCSRCH101J50 C 2018 (B,17,22) CCSRCH101J50 C 2021 (B,14,22) CCSRCH101J50 C 2022 (B,26,22) CCSRCH101J50 Connector Unit Consists of Connector 1 PCB Connector 2 PCB CD Unit Number : CWM9654 Unit Name : Connector Unit MISCELLANEOUS IC 1101 (A,27,3) IC TC7W04FU D 1003 (B,17,29) Diode NNCD6R8LG D 1004 (B,24,28) Diode UDZS18(B) D 1005 (B,26,28) Diode UDZS18(B) D 1006 (B,28,28) Diode UDZS18(B) D 1007 (B,30,28) Diode UDZS18(B) D 1101 (B,6,17) Diode UDZS18(B) D 1102 (B,11,8) Diode UDZS18(B) D 1103 (B,27,11) Diode UDZS18(B) D 1104 (B,27,14) Diode UDZS18(B) D 1105 (B,13,8) Diode UDZS18(B) D 1106 (B,6,19) Diode UDZS18(B) L 1101 (B,31,5) Inductor LCTAW101J2520 L 1102 (A,22,5) Inductor LCYB47NJ1608 L 1103 (A,26,13) Coil CTC1184 L 1104 (A,22,4) Inductor LCYB47NJ1608 EF1001 (A,63,11) EMI Filter CCG1076 EF1101 (A,7,17) EMI Filter CCG1076 EF1102 (A,7,13) EMI Filter CCG1076 EF1103 (A,7,21) EMI Filter CCG1076 RESISTORS R 1001 (A,65,11) RS1/10S750J R 1101 (A,31,10) RS1/10S271J R 1102 (A,31,12) RS1/10S101J R 1103 (A,23,9) RS1/16SS101J R 1104 (A,5,26) RS1/10S750J R 1106 (B,36,11) RS1/10S101J R 1107 (A,35,10) RS1/10S101J R 1108 (B,38,11) RS1/10S271J R 1109 (A,35,12) RS1/10S271J CAPACITORS C 1018 (B,18,25) CKSRYB102K50 C 1019 (B,22,28) CKSRYB102K50 C 1020 (B,33,26) CKSRYB102K50 C 1101 (B,24,5) CKSRYB105K6R3 C 1102 (A,22,9) CCSSCH470J50 C 1103 (A,27,5) CCSSCH680J50 C 1104 (A,25,5) CKSSYB103K16 C 1105 (A,26,7) CSZSR470M10 Circuit Symbol and No. Part No. C 1106 (A,23,3) CCSSCH5R0C50 C 1107 (A,22,7) CCSSCH5R0C50 E Unit Number: CWX3360 Unit Name : DVD Core Unit MISCELLANEOUS IC 1001 (A,7,9) IC S-L2980A50MC-C7J IC 1003 (A,83,36) IC LTC3411EMS IC 1201 (A,23,73) IC AN8471SAT1 IC 1240 (A,49,74) IC BD7962FM IC 1501 (A,86,79) IC MN35103UB IC 1570 (B,68,87) IC EDS1232AATA-75 IC 1601 (B,108,57) IC PD6566A IC 1602 (B,120,62) IC TC7SH86FUS1 IC 1651 (B,108,27) IC M5M5V216ATP-70HI IC 1652 (B,98,36) IC TC7SZ126FU IC 1671 (B,108,43) IC TC74LCX16373AFT IC 1672 (B,98,40) IC TC7SZ08FU IC 1801 (B,33,92) IC SM8707LV IC 1802 (B,33,81) IC TC7WH157FU IC 1851 (B,16,87) IC PCM1742KE IC 1852 (B,17,79) IC NJM2100V IC 1853 (B,17,74) IC NJM2100V IC 1881 (B,14,45) IC TC74VHC541FTS1 IC 1901 (A,23,56) IC BA033SFP IC 2001 (A,108,39) IC PE5558A IC 2002 (A,98,28) IC BR93L56RFVM-W IC 2003 (A,98,23) IC TC74HC4053AFT IC 2006 (B,122,25) IC NJM2904V Q 1002 (A,76,37) Transistor DTC114EU Q 1101 (A,53,91) Transistor 2SB1260 Q 1102 (A,53,97) Transistor 2SB1260 Q 1103 (A,58,102) Transistor DTC114EU Q 1104 (A,55,102) Transistor 2SA1576 Q 1105 (A,50,102) Transistor 2SC4081 Q 1106 (A,63,93) Transistor 2SC4081 Q 1107 (A,63,99) Transistor 2SC4081 Q 1551 (A,107,98) Transistor 2SA1576 Q 2001 (A,123,42) 2SA2018 D 1001 (A,12,7) Diode 1SR154-400 D 1101 (A,49,91) Diode 1SS355 D 1102 (A,49,96) Diode 1SS355 D 2001 (B,94,36) Diode DAN202U L 1001 (A,77,30) Inductor CTF1623 L 1002 (A,86,26) Inductor CTF1624 L 1022 (A,9,5) Inductor CTF1558 L 1101 (A,19,99) Inductor CTF1305 L 1501 (A,118,69) Inductor CTF1378 L 1502 (A,121,61) Inductor CTF1487 L 1503 (B,75,71) Inductor CTF1488 L 1554 (A,89,98) Inductor CTF1473 L 1555 (A,90,100) Inductor CTF1473 L 1556 (A,96,103) Inductor CTF1400 L 1557 (A,103,102) Inductor CTF1395 L 1558 (A,106,84) Inductor CTF1473 L 1559 (A,73,101) Inductor CTF1387 L 1561 (A,112,97) Inductor CTF1473 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 88 1 2 3 4 1 2 3 4 C D F A B E L 1601 (B,112,68) Inductor CTF1464 L 1651 (B,120,35) Inductor CTF1464 L 1671 (B,120,39) Inductor CTF1473 L 1801 (B,27,93) Inductor CTF1558 L 1802 (B,27,90) Inductor CTF1558 L 1803 (B,30,76) Inductor CTF1464 L 1804 (B,35,76) Inductor CTF1385 L 1805 (B,35,87) Inductor CTF1385 L 1851 (B,25,89) Inductor CTF1464 L 1852 (B,25,83) Inductor CTF1473 L 1881 (B,20,46) Inductor CTF1473 L 1883 (B,19,51) Ferrite Bead CTF1528 L 1884 (B,14,51) Inductor CTF1389 L 1885 (B,13,51) Ferrite Bead CTF1528 L 1886 (B,12,51) Ferrite Bead CTF1528 L 1901 (B,17,15) Inductor CTF1487 L 1902 (A,14,20) Inductor CTF1558 L 1903 (A,16,22) Inductor CTF1558 L 1904 (B,23,24) Inductor CTF1468 L 1907 (B,23,22) Inductor CTF1558 X 1801 (B,34,99) Reconator 27.000MHz CSS1661 X 2001 (A,109,50) Resonator 9.830MHz CSS1684 VR1551 (A,86,103) Semi-ﬁxed 10k Ω(B) CCP1448 EF1570 (B,75,74) EMI Filter DTF1106 EF1801 (B,27,87) EMI Filter DTL1106 EF1802 (B,30,79) EMI Filter DTL1106 EF1803 (B,27,96) EMI Filter DTL1106 EF1901 (A,11,20) EMI Filter DTL1106 EF1902 (A,13,22) EMI Filter DTL1106 EF1903 (B,21,24) EMI Filter DTL1106 EF1905 (B,13,15) EMI Filter DTF1106 EF1907 (B,21,22) EMI Filter DTL1106 RESISTORS R 1003 (A,85,41) RS1/16SS1003D R 1005 (A,83,41) RS1/16SS1501D R 1006 (A,85,42) RS1/16SS8202D R 1007 (A,83,42) RS1/16SS1502D R 1008 (A,81,42) RS1/16SS101J R 1010 (A,88,37) RS1/16SS105J R 1011 (A,79,37) RS1/16SS105J R 1013 (A,85,39) RS1/16SS103J R 1014 (A,79,39) RS1/16SS1203D R 1015 (A,78,39) RS1/16SS2402D R 1016 (A,77,39) RS1/16SS0R0J R 1017 (A,75,39) RS1/16SS0R0J R 1018 (A,89,37) RS1/16SS105J R 1021 (A,83,39) RS1/16SS122J R 1101 (A,61,90) RS1/16S6R8J R 1102 (A,57,91) RS1/16SS3R9J R 1103 (A,57,89) RS1/16SS3R9J R 1104 (A,56,89) RS1/16SS3R9J R 1105 (A,56,91) RS1/16SS3R9J R 1106 (A,61,97) RS1/16S6R8J R 1107 (A,57,98) RS1/16SS3R9J R 1108 (A,57,96) RS1/16SS3R9J R 1109 (A,56,96) RS1/16SS3R9J R 1110 (A,56,98) RS1/16SS3R9J R 1111 (A,54,104) RS1/16SS272J Circuit Symbol and No. Part No. R 1112 (A,57,104) RS1/16SS472J R 1113 (A,50,104) RS1/16SS102J R 1114 (A,56,94) RS1/16SS221J R 1115 (A,57,100) RS1/16SS221J R 1116 (A,63,95) RS1/16SS331J R 1117 (A,63,101) RS1/16SS221J R 1120 (A,57,93) RS1/16SS0R0J R 1201 (A,18,96) RS1/16SS181J R 1202 (A,14,95) RS1/16SS181J R 1203 (A,16,74) RS1/16SS513J R 1204 (A,16,71) RS1/16SS221J R 1206 (A,29,70) RS1/16SS513J R 1209 (A,19,88) RS1/10S391J R 1210 (A,15,88) RS1/10S391J R 1211 (A,29,76) RS1/16SS1R0J R 1212 (A,29,75) RS1/16SS1R0J R 1213 (A,29,74) RS1/16SS1R0J R 1214 (A,29,73) RS1/16SS1R0J R 1215 (A,29,72) RS1/16SS1R0J R 1216 (A,29,71) RS1/16SS1R0J R 1217 (A,15,75) RS1/16SS102J R 1251 (A,54,84) RS1/16SS102J R 1252 (A,51,85) RS1/16SS472J R 1253 (A,52,82) RS1/16SS823J R 1254 (A,52,84) RS1/16SS122J R 1255 (A,51,84) RS1/16SS122J R 1256 (A,51,82) RS1/16SS682J R 1257 (A,54,82) RAB4CQ103J R 1258 (A,47,84) RS1/16SS223J R 1259 (A,45,84) RS1/16SS223J R 1260 (A,46,82) RS1/16SS393J R 1261 (A,45,82) RS1/16SS393J R 1262 (A,54,67) RS1/16SS273J R 1263 (A,53,67) RS1/16SS153J R 1264 (A,52,67) RS1/16SS102J R 1265 (A,48,67) RS1/16SS183J R 1266 (A,47,67) RS1/16SS333J R 1272 (A,47,85) RS1/16SS102J R 1273 (A,45,85) RS1/16SS102J R 1274 (A,56,83) RS1/10S0R0J R 1501 (A,89,58) RS1/16SS0R0J R 1502 (A,80,63) RS1/16SS0R0J R 1503 (A,81,60) RAB4CQ101J R 1504 (A,82,58) RS1/16SS0R0J R 1505 (A,83,58) RS1/16SS0R0J R 1506 (A,84,60) RAB4CQ101J R 1507 (A,86,63) RS1/16SS0R0J R 1508 (A,87,60) RAB4CQ101J R 1509 (A,87,58) RS1/16SS0R0J R 1511 (A,90,60) RAB4CQ101J R 1512 (A,90,58) RS1/16SS0R0J R 1513 (A,92,59) RS1/16SS473J R 1514 (A,93,61) RS1/16SS104J R 1515 (A,105,66) RS1/16SS222J R 1521 (A,96,57) RS1/16SS0R0J R 1522 (A,103,68) RS1/16SS103J R 1523 (A,94,61) RS1/16SS104J R 1525 (A,95,59) RS1/16SS102J R 1526 (A,94,57) RS1/16SS0R0J R 1529 (A,95,57) RS1/16SS0R0J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 89 5 6 7 8 5 6 7 8 C D F A B E R 1530 (A,97,63) RS1/16SS104J R 1531 (A,99,60) RS1/16S221J R 1532 (A,100,60) RS1/16SS104J R 1536 (A,99,63) RS1/16SS104J R 1537 (A,100,63) RS1/16SS104J R 1539 (A,103,75) RS1/16SS104J R 1540 (A,103,70) RS1/16SS221J R 1541 (A,104,71) RS1/16SS473J R 1543 (A,103,72) RS1/16SS104J R 1544 (A,103,74) RS1/16SS102J R 1545 (A,104,74) RS1/16SS102J R 1546 (A,105,64) RS1/16SS104J R 1547 (A,104,75) RS1/16SS330J R 1548 (A,95,61) RS1/16SS104J R 1552 (A,73,102) RS1/16S101J R 1553 (A,76,101) RS1/16S101J R 1554 (A,77,101) RS1/16S101J R 1555 (A,79,98) RS1/16S101J R 1556 (A,80,101) RS1/16S101J R 1558 (A,85,96) RS1/16SS750J R 1561 (A,88,96) RS1/16SS153J R 1562 (A,109,96) RS1/16SS471J R 1563 (A,110,96) RS1/16SS471J R 1565 (A,112,95) RS1/16S68R0D R 1566 (A,114,95) RS1/16S4R7J R 1567 (A,83,102) RS1/16SS273J R 1568 (A,83,104) RS1/16SS183J R 1569 (A,84,98) RS1/16SS153J R 1570 (A,81,101) RS1/16SS222J R 1571 (A,73,99) RAB4CQ101J R 1572 (A,73,96) RAB4CQ101J R 1573 (A,67,91) RAB4CQ101J R 1574 (A,67,88) RAB4CQ101J R 1575 (A,67,86) RS1/16SS560J R 1576 (A,67,85) RS1/16SS560J R 1577 (A,67,83) RAB4CQ560J R 1578 (A,67,81) RAB4CQ560J R 1579 (A,69,79) RS1/16SS220J R 1580 (A,67,78) RAB4CQ560J R 1581 (A,67,76) RS1/16SS560J R 1582 (A,67,75) RS1/16SS560J R 1583 (A,67,74) RS1/16SS560J R 1584 (A,67,72) RAB4CQ560J R 1585 (A,67,70) RS1/16SS560J R 1586 (A,67,69) RS1/16SS560J R 1587 (A,67,67) RAB4CQ101J R 1588 (A,67,64) RAB4CQ101J R 1589 (A,74,60) RAB4CQ101J R 1590 (A,77,60) RAB4CQ101J R 1593 (B,61,86) RS1/16SS104J R 1595 (A,78,101) RS1/16SS101J R 1599 (A,71,101) RS1/16S221J R 1604 (B,120,60) RS1/16SS0R0J R 1608 (B,94,52) RS1/16SS104J R 1613 (B,96,64) RS1/16SS0R0J R 1621 (B,119,57) RS1/16SS0R0J R 1652 (B,103,35) RS1/16SS104J R 1653 (B,101,35) RS1/16SS510J R 1671 (B,103,49) RAB4CQ101J R 1672 (B,107,50) RAB4CQ101J Circuit Symbol and No. Part No. R 1673 (B,109,50) RAB4CQ101J R 1674 (B,113,49) RAB4CQ101J R 1675 (B,101,41) RS1/16SS331J R 1701 (A,103,69) RS1/16SS103J R 1702 (A,105,68) RS1/16SS103J R 1705 (A,90,98) RN1/16SE1002D R 1709 (A,93,100) RS1/16S1502D R 1710 (A,95,98) RS1/16SS102J R 1711 (A,97,99) RS1/16SS683J R 1712 (A,98,96) RS1/16SS103J R 1713 (A,99,96) RS1/16SS103J R 1714 (A,101,96) RS1/16SS0R0J R 1715 (A,104,94) RS1/16SS0R0J R 1716 (A,104,93) RS1/16SS0R0J R 1717 (A,104,92) RS1/16SS0R0J R 1718 (A,103,91) RS1/16SS103J R 1719 (A,104,91) RS1/16SS103J R 1720 (A,103,90) RS1/16SS103J R 1721 (A,104,90) RS1/16SS103J R 1723 (A,106,87) RN1/16SE3901D R 1729 (A,105,81) RAB4CQ220J R 1730 (A,105,78) RAB4CQ220J R 1733 (B,92,87) RS1/16SS104J R 1734 (B,91,87) RS1/16SS104J R 1801 (B,31,87) RS1/16S0R0J R 1802 (B,29,94) RS1/16S151J R 1803 (B,29,87) RS1/16S151J R 1804 (B,32,87) RS1/16S221J R 1805 (B,37,87) RS1/16S271J R 1806 (B,33,86) RS1/16SS104J R 1809 (B,33,77) RS1/16SS0R0J R 1811 (B,16,40) RS1/16SS0R0J R 1812 (B,15,40) RS1/16SS0R0J R 1813 (B,14,40) RS1/16SS0R0J R 1814 (B,13,40) RS1/16SS0R0J R 1821 (B,37,81) RS1/16SS222J R 1823 (B,36,96) RS1/16SS101J R 1825 (B,35,79) RS1/16SS101J R 1851 (B,11,91) RS1/16SS0R0J R 1855 (B,16,53) RS1/16S0R0J R 1856 (B,14,77) RS1/16SS102J R 1857 (B,14,82) RS1/16SS102J R 1858 (B,11,77) RS1/16SS222J R 1859 (B,11,82) RS1/16SS222J R 1860 (B,12,77) RS1/16SS332J R 1861 (B,12,82) RS1/16SS332J R 1862 (B,12,75) RS1/16SS332J R 1863 (B,12,80) RS1/16SS332J R 1864 (B,10,73) RS1/16SS103J R 1865 (B,10,78) RS1/16SS103J R 1866 (B,12,73) RS1/16SS472J R 1867 (B,12,78) RS1/16SS472J R 1868 (B,19,71) RS1/16SS821J R 1869 (B,12,71) RS1/16SS821J R 1870 (B,18,66) RS1/16SS104J R 1871 (B,12,66) RS1/16SS104J R 1875 (B,16,91) RS1/16SS0R0J R 1881 (B,20,49) RS1/16SS104J R 1882 (B,16,51) RS1/16S221J R 1889 (B,19,49) RS1/16SS221J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 90 1 2 3 4 1 2 3 4 C D F A B E R 1897 (B,37,84) RS1/16SS101J R 1899 (B,18,38) RS1/16SS473J R 1901 (A,18,24) RS1/16SS221J R 1903 (A,20,26) RS1/16SS221J R 1905 (A,18,50) RS1/16SS102J R 1922 (A,16,30) RS1/16SS0R0J R 1923 (A,117,82) RS1/16SS221J R 1924 (B,26,33) RS1/16S221J R 1927 (A,15,30) RS1/16SS0R0J R 1931 (B,25,26) RS1/16SS0R0J R 1933 (B,25,27) RS1/16SS0R0J R 1938 (A,16,36) RS1/16SS0R0J R 1945 (B,24,36) RS1/16SS0R0J R 1947 (A,115,77) RS1/16SS221J R 1954 (A,16,26) RS1/16SS221J R 1955 (A,18,27) RS1/16SS221J R 2000 (A,118,32) RS1/16SS104J R 2001 (A,120,32) RS1/16SS104J R 2002 (A,118,34) RS1/16SS472J R 2003 (A,118,35) RS1/16SS104J R 2006 (A,118,37) RS1/16SS104J R 2007 (A,120,37) RS1/16SS104J R 2008 (A,118,38) RS1/16SS104J R 2009 (A,120,38) RS1/16SS103J R 2010 (A,105,27) RS1/16SS473J R 2011 (A,118,40) RS1/16SS103J R 2012 (A,120,41) RS1/16SS103J R 2013 (A,120,42) RS1/16SS223J R 2016 (A,120,45) RS1/16SS184J R 2021 (A,104,52) RS1/16SS104J R 2022 (A,99,49) RS1/16S221J R 2023 (A,95,46) RS1/16S221J R 2037 (A,98,34) RS1/16SS104J R 2038 (A,96,32) RS1/16SS104J R 2040 (A,103,29) RS1/16SS104J R 2041 (A,104,27) RS1/16SS221J R 2042 (A,104,29) RS1/16SS104J R 2043 (A,106,29) RS1/16SS104J R 2044 (A,106,27) RS1/16SS104J R 2045 (A,107,29) RS1/16SS104J R 2046 (A,107,27) RS1/16SS104J R 2047 (A,108,29) RS1/16SS104J R 2048 (A,108,27) RS1/16SS104J R 2049 (A,109,29) RS1/16SS104J R 2050 (A,109,24) RS1/16SS104J R 2051 (A,112,24) RS1/16SS104J R 2054 (A,110,29) RS1/16SS104J R 2055 (A,112,29) RS1/16SS104J R 2057 (A,113,27) RS1/16SS104J R 2059 (A,120,34) RS1/16SS104J R 2060 (A,118,46) RS1/16SS473J R 2061 (A,118,45) RS1/16SS682J R 2062 (A,112,51) RS1/16SS473J R 2063 (A,106,54) RS1/16SS104J R 2064 (A,105,54) RS1/16SS222J R 2065 (A,106,52) RS1/16SS473J R 2067 (A,105,52) RS1/16SS473J R 2068 (A,104,49) RS1/16SS104J R 2073 (A,96,31) RS1/16SS473J R 2074 (A,98,31) RS1/16SS472J Circuit Symbol and No. Part No. R 2075 (A,102,29) RS1/16SS473J R 2076 (B,92,42) RS1/16SS0R0J R 2077 (A,122,39) RS1/16SS272J R 2078 (A,123,39) RS1/16SS103J R 2080 (A,103,23) RS1/16SS272J R 2081 (A,103,22) RS1/16SS243J R 2082 (A,104,50) RS1/16SS221J R 2083 (B,92,44) RS1/16SS221J R 2084 (A,97,35) RS1/16SS221J R 2086 (A,98,33) RS1/16SS0R0J R 2087 (A,83,51) RS1/16S0R0J R 2092 (A,105,25) RS1/16SS103J R 2093 (A,106,25) RS1/16SS103J R 2094 (A,120,28) RS1/16S0R0J R 2096 (A,98,48) RS1/16SS104J R 2097 (A,102,27) RS1/16SS104J R 2098 (A,115,29) RS1/16SS104J R 2109 (A,108,48) RS1/16SS105J R 2110 (A,75,55) RS1/16SS392J R 2111 (A,74,57) RS1/16SS123J CAPACITORS C 1001 (A,6,6) CKSRYB105K10 C 1005 (A,4,9) CKSRYB105K10 C 1006 (A,76,23) CKSRYB104K25 C 1007 (A,79,26) 22 µF CCG1178 C 1008 (A,84,32) 22 µF CCG1178 C 1009 (A,83,40) CCSSCH220J50 C 1010 (A,81,39) CKSSYB102K50 C 1012 (A,79,24) 22 µF CCG1178 C 1013 (A,84,30) 22 µF CCG1178 C 1101 (A,29,83) CSZSR220M16 C 1102 (A,59,91) CSZSR101M6R3 C 1103 (A,56,93) CKSSYB104K10 C 1104 (A,49,93) CKSSYB103K16 C 1105 (A,59,97) CSZSR101M6R3 C 1106 (A,56,100) CKSSYB104K10 C 1107 (A,49,98) CKSSYB103K16 C 1108 (A,52,103) CKSRYB104K25 C 1109 (A,56,104) CKSSYB473K10 C 1110 (A,47,104) CKSSYB473K10 C 1111 (A,41,88) CKSSYB103K16 C 1112 (A,41,104) CKSRYB105K10 C 1113 (A,40,104) CKSRYB105K10 C 1114 (A,40,99) CKSSYB103K16 C 1115 (A,35,83) CSZSR220M16 C 1201 (A,33,79) 10 µF CCG1138 C 1202 (A,29,78) CKSRYB104K25 C 1203 (A,21,64) CSZSR220M16 C 1204 (A,29,68) CKSRYB104K25 C 1205 (A,16,67) CKSRYB104K25 C 1206 (A,17,67) CKSRYB104K25 C 1207 (A,24,64) CSZSR220M16 C 1208 (A,17,80) CKSRYB104K25 C 1240 (A,46,81) CCSSCH470J50 C 1241 (A,45,81) CCSSCH5R0C50 C 1243 (A,38,73) 10 µF CCG1138 C 1244 (A,54,68) CKSSYB472K25 C 1245 (A,47,68) CKSSYB103K16 C 1501 (A,115,69) CSZSR470M10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 91 5 6 7 8 5 6 7 8 C D F A B E C 1502 (A,118,61) CSZSR101M6R3 C 1503 (A,114,61) CSZSR101M6R3 C 1504 (A,74,63) CKSSYB104K10 C 1505 (A,76,63) CKSSYB104K10 C 1506 (A,79,62) CKSSYB104K10 C 1507 (A,79,63) CKSSYB104K10 C 1508 (A,82,63) CKSSYB104K10 C 1509 (A,85,63) CKSSYB104K10 C 1510 (A,90,63) CKSSYB104K10 C 1511 (A,96,63) CKSSYB104K10 C 1512 (A,102,68) CKSSYB104K10 C 1513 (A,103,73) CKSSYB104K10 C 1514 (A,103,78) CKSSYB104K10 C 1515 (A,103,80) CKSSYB104K10 C 1516 (A,82,96) CKSSYB104K10 C 1517 (A,78,96) CKSSYB104K10 C 1518 (A,76,96) CKSSYB104K10 C 1519 (A,76,97) CKSSYB104K10 C 1520 (A,70,91) CKSSYB104K10 C 1521 (A,70,89) CKSSYB104K10 C 1522 (A,70,86) CKSSYB104K10 C 1523 (A,70,85) CKSSYB104K10 C 1524 (A,70,83) CKSSYB104K10 C 1525 (A,70,81) CKSSYB104K10 C 1526 (A,70,78) CKSSYB104K10 C 1527 (A,70,75) CKSSYB104K10 C 1528 (A,70,73) CKSSYB104K10 C 1529 (A,70,71) CKSSYB104K10 C 1530 (A,70,69) CKSSYB104K10 C 1531 (A,98,63) CKSSYB471K50 C 1532 (A,105,67) CKSSYB103K16 C 1533 (A,105,65) CKSSYB103K16 C 1552 (A,83,96) CKSSYB104K10 C 1553 (A,90,102) CKSRYB104K25 C 1554 (A,87,96) CKSSYB104K10 C 1555 (A,87,98) CKSRYB105K10 C 1556 (A,100,101) CSZSR470M10 C 1557 (A,89,96) CKSSYB104K10 C 1558 (A,111,98) CSZS4R7M16 C 1559 (A,84,100) CKSRYB105K10 C 1570 (B,67,73) CSZSR470M10 C 1571 (B,76,77) CKSRYB474K10 C 1572 (B,76,85) CKSRYB474K10 C 1573 (B,61,80) CKSRYB474K10 C 1574 (B,61,83) CKSRYB474K10 C 1575 (B,61,91) CKSRYB474K10 C 1576 (B,61,94) CKSRYB474K10 C 1577 (B,61,97) CKSRYB474K10 C 1578 (B,76,98) CKSRYB474K10 C 1579 (B,76,79) CKSRYB474K10 C 1580 (B,76,82) CKSRYB474K10 C 1581 (B,76,92) CKSRYB474K10 C 1582 (B,76,95) CKSRYB474K10 C 1583 (B,71,73) CSZSR470M10 C 1601 (B,110,65) CSZSR470M10 C 1603 (B,96,51) CKSSYB104K10 C 1651 (B,121,33) CSZSR470M10 C 1653 (B,108,20) CKSSYB104K10 C 1654 (B,98,34) CKSRYB104K25 C 1655 (B,108,34) CKSSYB104K10 Circuit Symbol and No. Part No. C 1671 (B,106,48) CKSSYB104K10 C 1672 (B,110,48) CKSSYB104K10 C 1673 (B,110,37) CKSSYB104K10 C 1674 (B,106,37) CKSSYB104K10 C 1675 (B,98,42) CKSRYB104K25 C 1676 (B,118,39) CKSYB106K6R3 C 1701 (A,106,67) CKSRYB104K25 C 1702 (A,105,69) CKSRYB104K25 C 1703 (A,90,96) CKSSYB104K10 C 1704 (A,91,96) CKSSYB103K16 C 1706 (A,92,96) CKSSYB104K10 C 1707 (A,96,100) CKSSYB104K10 C 1708 (A,95,100) CKSSYB103K16 C 1709 (A,92,98) CCSRCH221J50 C 1710 (A,97,98) CKSSYB152K50 C 1711 (A,94,97) CKSRYB105K10 C 1712 (A,96,97) CKSRYB105K10 C 1713 (A,97,97) CKSRYB105K10 C 1715 (A,104,89) CKSSYB104K10 C 1716 (A,103,88) CKSSYB104K10 C 1717 (A,104,88) CKSSYB104K10 C 1718 (A,103,87) CKSSYB104K10 C 1719 (A,104,87) CKSSYB562K25 C 1720 (A,103,86) CCSSCH101J50 C 1721 (A,104,86) CCSSCH470J50 C 1722 (A,103,85) CKSSYB103K16 C 1723 (A,104,85) CKSSYB104K10 C 1724 (A,103,84) CKSSYB104K10 C 1725 (A,104,84) CKSSYB104K10 C 1726 (A,103,83) CCSSCH330J50 C 1727 (A,104,83) CKSSYB333K16 C 1728 (A,103,82) CKSSYB104K10 C 1801 (B,31,96) CKSSYB104K10 C 1802 (B,33,96) CKSSYB104K10 C 1804 (B,34,87) CKSSYB104K10 C 1809 (B,32,101) CCSSCJ3R0C50 C 1810 (B,36,101) CCSSCK2R0C50 C 1811 (B,35,81) CKSSYB104K10 C 1851 (B,21,87) CKSSYB104K10 C 1852 (B,12,85) CKSSYB104K10 C 1853 (B,10,85) CKSYB106K6R3 C 1854 (B,23,84) CKSYB106K6R3 C 1855 (B,21,84) CKSRYB104K25 C 1856 (B,17,82) CKSQYB225K10 C 1857 (B,10,80) CCSRCH471J50 C 1858 (B,10,74) CCSRCH471J50 C 1859 (B,10,81) CCSRCH471J50 C 1860 (B,10,76) CCSRCH471J50 C 1861 (B,17,77) CKSQYB225K10 C 1862 (B,19,69) CKSSYB471K50 C 1863 (B,11,71) CKSSYB471K50 C 1864 (B,17,69) CKSYB475K10 C 1865 (B,14,69) CKSYB475K10 C 1881 (B,19,46) CKSSYB104K10 C 1901 (A,19,46) CKSRYB474K10 C 1902 (A,29,54) 22 µF/6.3 V CCH1300 C 1903 (A,28,48) CSZSC101M10 C 1910 (B,10,15) CKSRYB102K50 C 2001 (A,120,30) CKSYB106K6R3 C 2002 (A,114,48) CKSRYB105K10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 92 1 2 3 4 1 2 3 4 C D F A B E C 2003 (A,112,49) CKSSYB103K16 C 2004 (A,110,48) CKSSYB103K16 C 2005 (A,109,54) CKSQYB475K10 C 2006 (A,103,54) CKSSYB103K16 C 2007 (A,96,41) CKSSYB104K10 C 2008 (A,111,29) CKSSYB104K10 C 2009 (A,120,43) CKSSYB473K10 C 2010 (A,118,43) CKSSYB103K16 C 2011 (A,123,47) CKSRYB105K10 C 2015 (A,120,44) CKSSYB473K10 C 2016 (A,118,44) CKSSYB103K16 C 2017 (A,103,55) CKSSYB103K16 C 2018 (A,98,20) CKSRYB104K25 C 2020 (A,105,50) CKSSYB471K50 C 2021 (A,119,48) CKSRYB104K25 C 2022 (B,122,30) CKSRYB104K16 F Unit Number: CWX2986 Unit Name : PCB Assy MISCELLANEOUS VR11 (A,8,10) Semi-ﬁxed 1 kΩ(B) CCP1442 VR12 (A,9,23) Semi-ﬁxed 1 kΩ(B) CCP1442 R 11 (A,8,15) RS1/16S562J R 12 (A,10,15) RS1/16S472J R 13 (A,8,18) RS1/16S562J R 14 (A,9,6) RS1/16S562J Miscellaneous Parts List Stage Assy(Service) CXX2173 M 1 Cam Motor Assy(CAM) CXC5908 M 2 Motor Unit(E/L Motor) CXC5910 VR13 Variable Resistor 10 kΩ(B) CCW1029 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 93 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 JIG CONNECTION DIAGRAM Bullet connector (To DC Regulated Power Supply) GGD1488 SW1 SW2 SWG SW1 SW2 SWG Not used VTR (8P) DEX-MG9667DVZT/EW DEX-MG9767DVZT/EW DEX-MG9767DVZT/RE Steering SW H/U 12P 8P 20P 20P 2P 6P EMV-N 16P 28P 26P 6P 6P RSE 16P 12P AMP 6P 10P 10P 24P 2P 12P RRDisplay 32P 6P 6P 16P 26P 28P 20P 20P 12P 8P 6P 2P 26P 24P 26P 12P 16P 24P 32P 24P 12P 10P 10P 6P 2P 20P 12P 8P 26P Not used Mayday (26P) GGD1426 IR Headphone Not used Digital TV Tuner (12P) (20P) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 94 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 95 5 6 7 8 5 6 7 8 C D F A B E 6.2 TEST MODE 6.3 TEST MODE MG4 Test Mode Note) Mount the MG4 mechanism assembly on FX-MG8567DVZT before performing this test mode. 1. Syetem Configuration Video signal Not needed, FX-MG8567DVZT has an LCD. <> You can operate only MG4 test mode functions on FX-MG8567DVZT without EMV(N). but no DVD's normal functions. If you want to check DVD's normal function opreration, be sure to connect EMV(N). We checked that we can operate normal mode, when EMV(N) of 05GS was connected. 2. Operation Specification FX-MG8567DVZT: Press DISC button for 2 seconds. EMV (N) : Press and hold the Image Quality/Erase button for 2 seconds. Press DISC button, when the source is no CD. EMV(N) AVC-LAN FX-MG8567DVZT For operation of "Enter to DIAG Mode", see "2-1. DIAG Mode". Normal Mode Enter to DIAG Mode DIAG Mode " DISC EJECT +ILL ON/OFF : 3times" at H/U Test Mode in Preparation Close DIAG Mode Test Mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 96 1 2 3 4 1 2 3 4 C D F A B E Press and hold. Press three times. Upper Left Lower Left Touch the screen in the given order 2-1.DIAG Mode [System without EMV (N) ] 1. Press [DISC] button three times, while holding the [1] and [6] buttons (see the picture below). [System with EMV(N)] 1. Press [Image Quality/Erase] button of the EMV(N) to display the Image Quality Adjustment Screen (see the picture below). Note) This screen is different from the actual screen. Manipulate in accordance with your screen. 2. Touch inside of the framework on the lmage Quality Adjustment Screen in the following order: Upper Left -> Lower Left ->Upper Left -> Lower Left ->Upper Left -> Lower Left (see the picture below). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 97 5 6 7 8 5 6 7 8 C D F A B E B C D G F E A I H B C D E F G A I H 3. Operation Buttons In the Test Mode for service of MG4, the following buttons are used for implementation of different tests. >FX-MG8567DVZT >EMV(N) 4. Test Mode Move MG4 mechanism step by step. Move sequence of PLAY step by step. Note) When you turn off Acc in a static test mode, please be sure to check that the mechanism has sttopped. When you select the other test mode, please enter test mode again. Test Mode FX-MG8567DVZT EMV(N) A TEXT RPT Command for Test Mode : EJECT B 1 DISC1 Command for Test Mode : 1 C 2 DISC2 Command for Test Mode : 2 D 3 DISC3 Command for Test Mode : 3 E 4 DISC4 Command for Test Mode : 4 F 5 DISC5 Command for Test Mode : 5 G 6 DISC6 Command for Test Mode : 6 H TRACK UP RAND Command for Test Mode : 7 I TRACK DOWN SCAN Command for Test Mode : 8 Drawing No Button Application 1 DVD test select not changed 1 FE test select FE- -00-00 4 Mechanism test select xx-72-**-** 2 EDC1 test select ED-C1-00-00 3 EDC2 test select ED-C2-00-00 Command Operation Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 98 1 2 3 4 1 2 3 4 C D F A B E *3 FE test select FE- -00-00 DVD single select 00-00-00-00 DVD dual select 01-00-00-00 CD select 02-00-00-00 Power On *1 0F-FF-00-00 CD-RW select 03-00-00-00 CRG HOME 1D-00-00-00 LD ON LD OFF 11-00-00-00 10-00-00-00 F.Search 1A-00-00-00 CRG+ CRG- 1B-00-00-00 F.Close *2 1F-FF-00-00 F.Search Stop 11-00-00-00 1x-00-00-00 1C-00-00-00 Front-End test mode flow chart *1. Select Disc mode before the "PowerOn". *2. F.Close and F.Search can not be executed, unless LD-ON is set. If F.Close is not executed within 9 seconds after LD-ON. Focus Jump 20-00-00-00 CRG+ CRG- 2B-00-00-00 Tracking Balance 2F-FF-00-00 CRG+ CRG- 3B-00-00-00 Tracking Close 3F-FF-00-00 2x-00-00-00 30-00-00-00 21-00-00-00 2C-00-00-00 3C-00-00-00 A Reproduction speed switching Focus Jump Error Rate measurement 3F-FF-00-00 40-00-00-00 T.Jump 1D-00-00-00 Track Open ID Search 4A-00-00-00 *4 Track Num. specification Track number *3 ID Num. specification ID number Jump Start ID Search Start To A *3. Select ID number Select figure : 1 2 Change number : 3 4 Fix number : 5 *4. Select Track Number The track number is selected from the prepared number. Change number : 3 Fix number : 4 For CD: 1, 4, 10, 11 and 32 tracks For DVD: 1, 4, 10, 11, 32, 64 and 100 tracks. means that it adjusts automatically. TEST END 1 2 3 4 1 2 1 3/4 6 5 5 8 8 2 3/4 1 3/4 1 1 2 5 6 3/4 7 8 8 1/2/3/4 5 5 8 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 99 5 6 7 8 5 6 7 8 C D F A B E EDC1/EDC2 test mode flow chart If you stop the EDC test mode, please turn off ACC and B+ at the same time. 2 EDC1 test select ED-C1-00-00 2 Layer 1 select 11-03-00-00 1 Layer 0 select 10-03-00-00 Select ID number Select figure : Change number : 1/2/3/4 ID designation ID number 11-**-**-** 10-**-**-** **-**-**: Specified ID value 5 ECD1 start 20-**-**-** 21-**-**-** Layer 0 **-**-** : Present ID Layer 1 **-**-** : Present ID 2 3 4 1 3 EDC2 test select ED-C1-00-00 1 Layer 0 select 10-03-00-00 2 Layer 1 select 11-03-00-00 1/2/3/4 ID designation ID number 11-**-**-** 10-**-**-** Select ID number Select figure : 1 2 Change number : 3 4 **-**-**: Specified ID value 5 ECD2 start 20-**-**-** 21-**-**-** Layer 0 **-**-** : Present ID Layer 1 **-**-** : Present ID www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 100 1 2 3 4 1 2 3 4 C D F A B E Mechanism test mode flow chart 4 Mechanism test select xx-72-**-** 4 ELV MOTOR select xx-72-02-** 3 CAM MOTOR select xx-72-01-** means "turn and turn". Durability test select 1 Rotate CAM MOTOR xx-72-01-** 2 Rotate CAM MOTOR xx-72-01-** CAM address CAM address Rotate CAM MOTOR xx-72-01-** CAM address 1 Rotate ELV MOTOR xx-72-02-** ELV address Rotate ELV MOTOR xx-72-02-** ELV address 7 Durability test start xx-72-**-** **-**: Count Durability test mode The content of the test is different in the CAM position. CAM POSITION 1.Load durability test: [EJECT]-[LOAD] insert a disc and start test. 2.ELV durability test: [LOAD]-[CLAMP] 3.CAM durability test: [CLAMP]-[PLAY] 4.CLAMP durability test: [PLAY] 6 CLAMP select xx-72-03-00 1 CLAMP OFF xx-72-03-00 2 CLAMP ON xx-72-02-03 CLAMP xx-72-02-** 2 Rotate ELV MOTOR xx-72-02-** ELV address 1 Load xx-72-00-** 2 Eject xx-72-00-** Rotate LOAD MOTOR xx-72-00-** 5 LOAD MOTOR select xx-72-00-** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 101 5 6 7 8 5 6 7 8 C D F A B E DISC6 (PLAY) DISC5 (PLAY) DISC4 (PLAY) DISC3 (PLAY) DISC2 (PLAY) DISC1 (PLAY) DISC1 (LOAD) DISC2 (LOAD) DISC3 (LOAD) DISC4 (LOAD) DISC5 (LOAD) DISC6 (LOAD) Position Information Center permissible zone 000 145 207 213 371 136 1 1 1 1 1 1 2 2 2 2 2 2 1 1 1 1 1 1 2 2 2 2 2 2 Initialize Initialize Initialize Initialize Initialize Initialize ELV OK ELV OK ELV OK ELV OK ELV OK ELV OK ELV OK ELV OK 1 1 1 1 2 2 2 2 1 1 1 1 1 1 2 2 2 2 2 2 1 1 1 1 1 2 2 2 2 2 1 2 377 602 608 374 605 746 752 884 1023 749 887 The address of CAM MOTOR EJECT EJECT EJECT EJECT EJECT EJECT 1 1 1 1 2 2 2 1 1 2 2 2 210 LOAD LOAD LOAD LOAD LOAD LOAD PLAY PLAY PLAY PLAY PLAY PLAY CLAMP CLAMP CLAMP CLAMP CLAMP CLAMP 1 1 1 1 2 2 2 1 1 2 2 2 permissible Center zone 000 082 088 193 196 199 261 264 267 328 331 334 396 399 402 506 512 512 518 623 626 629 691 694 697 759 762 765 826 829 832 925 942 1023 T h e a d d r e s s o f E L V M O T O R ELV OK ELV OK ELV OK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 102 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 AVC-LAN DIAGNOSIS MODE 3. How to exit from the diagnostic test mode ->As it is, it waits for a while. (In general less than 1 minute) 1. To Service Check - SYSTEM WITH EMV 1. Press [OPTION] key of EMV . 2. Press [DISPLAY] key of EMV . 3. The position of A and B is order of pushed 6 times in A,B,A,B,A and B. ->Service Check screen is displayed. 2. Service Check Turn off the ACC or press DISPLAY key more than 1.7 sec. B A Check results Check menu Diagnosis clear Memory clear Recheck LAN monitor Device name LAN Mon Code CLR Memory CLR Recheck Old CHEK EXCH OK EMV : NAVI : CD-CH1 : CD-CH2 : MD-CH : NCON NRES CAMERA : MONET : System Check Mode Display SCREEN OFF ON BRIGHTNESS + + - CONTRAST - Menu Inspection result list No problem Exchange Check(diagnosis recorded) Not connected No response Old version OK EXCH CHEK NCON NRES Old www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 103 5 6 7 8 5 6 7 8 C D F A B E 00 01 10 11 12 13 20 21 22 23 24 25 26 27 28 29 2A 30 31 D0 D1 D2 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF E0 E1 E2 E3 E4 FF Communi -cation control 01H 10 11 40 41 42 43 44 45 50 10 11 40 41 42 43 44 45 46 10 40 41 42 43 44 42 43 40 Radio TV tuner Cassette tape HDD Audio VOL 60H 40H 61H 69H 74H 10 11 12 13 14 15 16 17 40 41 42 43 44 45 41 45 46 47 4A 4B 4C 40 41 40 41 42 43 50 51 52 53 54 55 56 57 D0 D1 D2 D4 FF 10 11 12 13 40 41 10 11 Navigation GPS FM multiplex (general) drawing VICS drawing FM multiplex (data) Optical beacon (data) Radio wave beacon (data) FM multiplex tuner Voice control Extended communication Information display/front monitors SW SW shifting with a name SW shifting Command SW 58H 80H 5AH 5BH 82H 83H 84H 9AH 85H 02H 32H 34H 21H 23H 24H 25H Diagnosis code table Logical address name Logical address Diagnosis code Diagnosis details Logical address name Logical address Diagnosis code Diagnosis details Logical address name Logical address Diagnosis code Diagnosis details No diagnosis Abnormal reset Abnormal +B Abnormal ACC Abnormal MUTE Fuse broken Microcomputer - abnormal ROM - abnormal RAM - abnormal Bus - abnormal F-ROM - abnormal V-RAM - abnormal Gate allay abnormal Paint controller abnormal Backup memory abnormal Voice output controller abnormal Internal power supply abnormal Sync signal abnormal (input) Sync signal abnormal (output) ECU not connected Transmission abnormal Connecting confirmation: abnormal Connecting confirmation: no response Registered device data missing (History of registered devices) Master unavailable Connecting confirmation: abnormal Connecting confirmation: no response Last mode abnormal Command/order: no response Mode status abnormal Transmission fault Master reset Slave reset Master abnormal Registration completion acknowledgement error Voice processor ON abnormal ON/OFF command or parameter abnormal Registration command transmission Multiple frames intermit. Diagnosis - no response AM tuner PLL unlocked FM tuner PLL unlocked No antenna connected Antenna power supply abnormal Tuner power supply abnormal AM tuner abnormal FM tuner abnormal SW tuner abnormal Internal IC abnormal TV tuner PLL unlocked FRONTEND abnormal TV divergence shifting error TV – no reception VNR screen error No antenna connected Antenna power supply abnormal SEL +B current – small SEL +B current – large Belt broken Mechanical failure or cassette broken EJECT failure TAPE jamming Dirty head Mech power supply abnormal Unable to playback (DSP abnormal) Playback data underflow Short circuited sense Gyroscope abnormal GPS receiver abnormal RTC abnormal SS section abnormal No Time updating TCXO abnormal PLL lock abnormal HDD abnormal GPS antenna abnormal GPS antenna power supply abnormal Map disc reading abnormal SPD signal abnormal Player abnormal High temperature abnormal Antenna power supply abnormal Radio wave beacon - no antenna connected Optical beacon - no antenna connected No FM antenna connected FM receiver abnormal Radio wave beacon abnormal Optical beacon abnormal Voice-control activation SW abnormal Voice-control Microphone abnormal Multi-CD-CH (optical cable) abnormal Multi-CD-CH (optical cable) not connected Multi-CD-CH (CarNet) abnormal Multi-CD-CH (CarNet) not connected HIT64 communication not connected HIT64 communication abnormal HIT64 BRQ disconnection HIT64 BRQ short-circuit HIT64 disconnection CarNet communication not connected CarNet communication abnormal CarNet periodical communication abnormal Device not connected Transmission abnormal Periodical communication no response Periodical communication abnormal Diagnostic - no response Video circuit abnormal Back light abnormal (with no current) Back light abnormal (with excessive current) Panel open/close mechanical operation abnormal Front seat monitor abnormal Heater abnormal Panel SW abnormal Touch SW failure www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 104 1 2 3 4 1 2 3 4 C D F A B E Mechanical abnormal Insertion ejection abnormal Read abnormal No disc Wrong disc Disc cannot be read CD-ROM abnormal CD/MD/DVD abnormal EJECT abnormal Disc scratch/reverse side/ Disc dirty_scratch_reverse side High temperature detection Excessivecurrent detection Tray insertion ejection abnormal Elevation abnormal Clamp abnormal DSP abnormal Unable to playback No file available for playback Copy right protection abnormal RF abnormal OFDM abnormal Decoder abnormal Antenna 1 connection abnormal Antenna 2 connection abnormal B_CAS card abnormal BML version mismatch (caution) TEL ECU abnormal Communication line serial line abnormal Radio PWR line abnormal Bluetooth module initialization failure DCM initialization failure DSP abnormal Unable to playback startup BGM Internal IC abnormal PLL unlocked CDEC communication error SSDEC communication error SSDEC no response NVM error CAP error No antenna connected Antenna short-circuited Disc cannot be read CD/MD/DVD abnormal EJECT abnormal Disc scratch/reverse side/ Disc dirty_scratch_reverse side Clamp abnormal 10 11 12 40 41 42 43 44 45 46 47 48 50 51 52 78 7D 7E 7F 10 11 12 40 41 42 43 10 40 41 47 48 40 41 42 11 12 13 14 15 16 40 41 42 44 45 46 52 H/W CD-CH DVD-P DVD-CH CD-P CD-CH MD-P MD-CH DTV(NTSC) DTV(RGB) Telephone drawing Telephone AUI XM DVD-P dedicated to rear seat 43H 44H 45H 62H 63H 64H 65H 46H 49H 57H 6DH A7 C0H D2H Camera image abnormal Steering sensor abnormal Steering sensor communication line abnormal VGRS abnormal VGRS communication line abnormal Shift information communication abnormal W/B (wheel base) information mismatch ECU abnormal IG voltage abnormal ACC voltage abnormal Back camera power supply abnormal Steering sensor +B disconnection Steering sensor signal fixing Vehicle height sensor power supply abnormal Vehicle sensor abnormal Vehicle sensor signal (AFS) abnormal Vehicle sensor signal (AFS) ineffective Sensor for IPA abnormal (left) Sensor for IPA abnormal (right) IPA communication bus abnormal Sensor for IPA frozen (left) Sensor for IPA frozen (right) CAN reception abnormal (from ENG, ETC, EHV) CAN reception abnormal (from VSC) CAN reception abnormal (from EPS) CAN reception abnormal (from AFS) CAN reception abnormal (from EPB) CAN reception abnormal (from PAD) CAN reception abnormal (from YGS) CAN reception abnormal (from AGN) CAN transmission abnormal (message register) CAN transmission abnormal ENG system abnormal HV system abnormal ENG TS mode in process judgment IPA ENG communication normal/abnormal judgment Brake system abnormal Wheel speed sensor ineffective IPA VSC communication abnormal VSC TS mode in process or brake hydraulic ineffective EPS system abnormal EPS system ineffective state IPA EPS communication abnormal VGRS system ineffective Buzzer abnormal EPB abnormal Outside air temperature sensor abnormal Back camera constant writing not done Left and right maximum steering angle writing not done Vehicle height sensor zero point writing not done G sensor zero point writing not done G sensor abnormal G sensor ineffective Outside air temperature display data not fixed 40 41 42 43 44 45 46 50 51 52 53 56 57 58 59 5A 5B 5C 5D 5E 5F 60 61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F 70 6F 71 72 73 74 75 76 77 7A 7D 7E 7F 80 81 82 5CH Self diagnosis error SAM error On-vehicle device registration information error DSRC certification error DSRC command error Communication without card inserted RF module abnormal Antenna disconnection (history) Card error Card certification error Setup not done Antenna disconnection (current status) Extension device error (DSP abnormal) Recording data overflow Telephone module defective Transceiver not connected White ROM/TEL no number Modem defective Auto maintenance call not established Main battery voltage low Auxiliary battery voltage low Auxiliary battery usage time over BEAN module defective Air bag life signal stopped Air bag sensor abnormal Communication error Position data no response Navigation system abnormal Position data ineffective Microcomputer internal ROM defective Microcomputer internal RAM defective External ROM defective External RAM defective EEPROM defective Notification button disconnection Notification button short Fault in DSP abnormal control RTC control fault Fault in audio composition LSI control PROM writing fault SIO G. A abnormal Device not connected Transmission abnormal Periodical communication no response Periodical communication abnormal Diagnostic no respose ID information abnormal Communication unit no response No antenna connected 0A 0B 0C 42 43 44 61 62 71 72 81 A1 40 41 41 42 43 44 45 51 52 53 61 62 63 71 72 73 74 91 92 93 94 95 A1 A2 B1 B2 B3 B4 B5 D0 D1 D2 D4 FF 31 32 40 ETC REC MAYDAY Communi -cation control Communi -cation module 87H 9EH A0H 01H 8EH Diagnosis code table Logical address name Logical address Diagnosis code Diagnosis details Logical address name Logical address Diagnosis code Diagnosis details Logical address name Logical address Diagnosis code Diagnosis details Monitoring camera ← ← ← www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 105 5 6 7 8 5 6 7 8 C D F A B E 7.1.2 DISASSEMBLY Fig.1 - Removing the Case (not shown) Grille Assy - Removing the Grille Assy (Fig.1) 1. Remove the four screws and then remove the Case. 1 1 1 Fig.2 Frame Unit - Removing the Frame Unit (Fig.2) Remove the five screws and then remove the Frame Unit. 1 1 Remove the four screws and then remove the Grille Assy. 1 - Removing the Holder (Fig.3) Remove the six screws and then remove the Holder. 1 Fig.3 Holder 1 1 1 1 1 1 1 1 1 1 1 *) While the photograph shown is slightly different from this model in shape, the disassembly procedure is the same. 1 1 plated part Please do not damage it. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 106 1 2 3 4 1 2 3 4 C D F A B E Fig.4 Holder Cord Assy - Removing the Holder (Fig.4) 1 1 Fig.5 DVD Mechanism Module - Removing the DVD Mechanism Module (Fig.5) Remove the four screws. 1 1 Remove the screw and then remove the Holder. 1 1 1 Disconnect the connector and then remove the DVD Mechanism Module. Fig.6 Holder - Removing the Holder (Fig.6) 1 Remove the four screws and then remove the Holder. 1 1 1 1 NOTE: Take care not to engage code when wire-processing the digital connecting code of DVD mechanism during assembly. (* For service use, this specification has a long code for detachable MG4-mechanism part enabling resin parts wire-processed between the Holder. ) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 107 5 6 7 8 5 6 7 8 C D F A B E Fig.7 Chassis Unit - Removing the Chassis Unit (Fig.7) Remove the four screws and then remove the Chassis Unit. 1 Fig.8 1 1 1 1 - Removing the Main Unit (Fig.8) 2 1 Main Unit 1 Straighten the tabs at three locations indicated. 1 1 2 2 Remove the two screws and then remove the Main Unit. * Please refer to Mechanism Manual (CRT3495) for removing module part of DVD mechanism. Three GGF1538 are necessary to build up MG4 mechanism. *) While the photograph shown is slightly different from this model in shape, the disassembly procedure is the same. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 108 1 2 3 4 1 2 3 4 C D F A B E four spots (It applies to this side half from the panel back side.) (Three one side,Under a rib) Button part Panel part Notice for changing buttons in Front Panel Grease in panel when replacing buttons. Please refer to the following procedure. Grease List(Jig No.) GGK1004 : syringe(w/o needle) GGL1011 : needle GEM1048 : Grease GGF1561 : Sample of Grease amount Procedure for applying Grease 1. Clean off the old Grease where the bottons are installed. 2. Install the needle in syringe and Grease in it. *Not to fall off the needle, install it tightly. 3. Use the syringe and apply Grease about 2.0 mg on the spots shown in the following pictures. *As for the amount of Grease, refer to the sample(GGF1561). 4. Install the buttons after applying Grease. Check the Grease if it is stuck out or not. *If the Grease is stuck out, return to Procedure Number 1. three spots three spots three spots three spots three spots four spots 12 poiints/1 button 12 poiints/1 button It applies to a panel part. It applies to a button part. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 109 5 6 7 8 5 6 7 8 C D F A B E 7.1.3 PCB LOCATION MAIN UNIT L PCB KEYBOARD PCB CONNECTOR 2 PCB CONNECTOR 1 PCB G R PCB H UNIT DVD CORE UN PCB PCB ASSY F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 110 1 2 3 4 1 2 3 4 C D F A B E 7.1.4 CONNECTOR FUNCTION DESCRIPTION SUB ANTENNA MAIN ANTENNA D OUT 2 3 7 5 4 8 1 6 5 1 4 2 6 3 17 3 6 12 11 1 2 13 4 14 5 15 10 20 19 9 8 18 7 16 3 9 6 5 4 2 1 12 7 8 11 10 18 13 4 5 9 11 7 1 8 14 15 12 16 19 17 20 10 6 2 3 1 : VV+ 2 : VAR+ V 3 : VAL+ V 4 : VV- 5 : VA- V 6 : ADPG 1 : MUTE 2 : CDL- 3 : CDL+ 4 : CDR- 5 : CDR+ 6 : SLDG 7 : GND 8 : NC 9 : TXM+ 10 : TXM- 11 : ACC 12 : +B 1 : +B 2 : ILL+ 3 : AMP 4 : ANTA 5 : ATX+ 6 : IVI+ 7 : MUTE 8 : R+ 9 : L+ 10 : SLDG 11 : ACC 12 : ILL- 13 : ANT 14 : ANTB 15 : ATX- 16 : IVI- 17 : SLDG2 18 : R- 19 : L- 20 : GND 1 : NTS2 2 : GND2 3 : SLDG 4 : SLDG 5 : GND 6 : GND1 7 : NTSC 8 : NTS1 1 : IO2+ 2 : IO2- 3 : MTOR 4 : CMP+ 5 : CMP- 6 : SWG 7 : SW1 8 : SW2 9 : TX+ 10 : TX- 11 : IO1+ 12 : IO1- 13 : SLD1 14 : RSLD 15 : R-R+ 16 : R-R- 17 : R-L+ 18 : R-L- 19 : RMUT 20 : ADIM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 111 5 6 7 8 5 6 7 8 C D F A B E 7.2 IC TC7W66FK VCC CONT 1 OUT/IN 2 IN/OUT 2 8 7 6 5 IN/OUT 1 OUT/IN 1 CONT 2 GND 4 3 2 1 TPS54350PWP 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 VIN VIN UVLO PWRGD RT SYNC ENA COMP BOOT PH PH LSG VBIAS PGND AGND VSENSE VIN : Input supply voltage, 4.5 V to 20 V. UVLO : Undervoltage lockout pin. PWRGD : Power good output. RT : Frequency setting pin. SYNC : Bidirectional synchronization I/O pin. ENA : Enable. COMP : Error amplifier output. VSENSE : Inverting node error amplifier. AGND : Analog ground. PGND : Power ground. VBIAS : Internal 8.0 V bias voltage. LSG : Gate drive for optional low side MOSFET. PH : Phase node - Connect to external L - C filter. BOOT : Bootstrap capacitor for high side gate driver. 14 VCC 13 4B 12 4A 11 4Y 10 3B 9 3A 8 3Y 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND TC74VHC08FTS1 TC7W66FK TC74VHC08FTS1 TPS54350PWP PEG215A S-80940CNNB-G9A S-812C39AMC-C2T PD6566B TC7SH86FUS1 EDS1232AATA-75 PE5558A MN35103UB LC75700TS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 112 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(PEG215A) Pin No. Pin Name I/O Function and Operation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 VREF AVCC PDI PDO pck pce@ PCE1 LDATAO LDATAI LCK ENC1P ENC1M BYTE CNVSS ENC2P ENC2M reset XOUT VSS XIN VCC nmi rdsck ldet srdsck RX2 IPPW lrst PWMBL LCE PWMILL NC NC RX1 TX NC VCC NC VSS NC NC UTX URX PLAY IRQPW mtl DVD_MUTE_RQ NR TEST NC WAKEUP RDSDATA rdslock rdshslk sldet LOFF I I O O O O O I O I I I I I I I I O I O O O O O I O I O O I O I/O O I O O I I O I I O O O O I O A/D reference voltage input AVCC PLL : Data input PLL : Data output PLL : Data clock output E2PROM : Chip enable output PLL : Chip enable output LCD Driver : Data output LCD Driver : Data input LCD Driver : Clock output Encoder 1+ input Encoder 1- input Connected to VSS(single chip) GND Encoder 2+ input Encoder 2- input Reset input Crystal oscillating element connection output GND Crystal oscillating element connection input Power supply(2.7 V to 5.5 V) Connected to VDD via the resistor RDS : Clock input PLL : Lock signal AM audio switching (Used for AVC-LAN) AVC-LAN : Power supply control output LCD Driver : Reset output Backlight control output(PWM output) LCD Driver : Chip enable output 1 Illumination control output(PWM output) P-BUS : Request input P-BUS : Reset output (Used for AVC-LAN) (Used for AVC-LAN) P-BUS : Data output Power supply P-BUS : Data input GND P-BUS : Data clock output P-BUS : Data reception enable input/output UART : Data output UART : Data input MS gain select output UART : Request signal output METAL detection input DVD mechanism : MUTE request input Dolby NR ON/OFF select output SH status input 1/Test mode SH status input 2 ASEN output for SH BSEN output for SH Power supply instantaneous interruption sens output Power supply control output for SH Main tuner : BP1 input(NF) LCD Driver : Display off output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 113 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Function and Operation 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 srdslock srdshslk SRDSDATA NC SCOMPON MAINFIX PANEL-INFO CSLOAD ANTA ANTB AMPW FMPW ACCON ROMDATA ROMCK ROMCS SC2 EJPANEL SC1 SYSMUTE1 SYSMUTE2 RSEMUTE LANMUTE ADIM SYSPW SWVDD WC REGION VCC DDCONF3 VSS SELDATA SELCK VSEL VSEL1 VSEL2 VMUTE1 REAR_ANALOGSW isen NC asen bsen NC NC NC MOTANT STBY MS fR CM NC NC NC POS ES NC I I I O O I I I O O O O O O O O O O I O O O O I O O I O O O O O O O O O I I I I I I I I O O O O I I O O O I Sub tuner : BP1 input(NF) Sub tuner : BP2 input(NF) Main tuner : BP2 input(NF) Main composite signal ON output Sub composite signal ON output Antenna control input Panel type detect input(L : without display H : with display ) Tape loading detect input ANT A control output ANT B control output TUNER : AM power supply control output TUNER : FM power supply control output BSENS power supply control output Sound generator LSI : Data output/ROM correction : Data input/output Sound generator LSI : Data input/ROM correction : Clock output Sound generator LSI : Clock output/ROM correction : Chip select output Cassette mechanism sub motor output 2 EJECT PANEL detection(H: only EJECT L: with driver) MD power supply 8.3 V/5 V change control SPOUT mute output RSEOUT mute output RSE unit mute output AVC-LAN mute output ADIM data input System power supply control output SWVDD control output Tuner test mode input Sound generator LSI : Standby select output(PD control) Power supply(2.7 V to 5.5 V) DD control frequency select output GND Audio selector control output Audio selector clock output Front monitor source select control output Rear monitor source select control output 1 Rear monitor source select control output 2 Front monitor mute output Rear analog switch output Illumination sense input Sound generator LSI : interrupt input ACC power sense input Back up power sense input Sound generator LSI : Write enable input Sound generator LSI : Ready input Sound generator LSI : Reset control input Motor antenna detect input AUI : Mute output AUI : Audio select output 1 AUI : Audio select output 2 DSP : Chip select output DSP : Write in ready input DSP : Output data ready signal input DSP : Request signal output DSP : System reset output DSP : Reset output DSP : Data input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 114 1 2 3 4 1 2 3 4 C D F A B E VOUT VSS VIN Reference voltage 1 VSS 3 VOUT 2 VIN 5 NC2 4 NC1 S-812C39AMC-C2T VREF + OUT VDD VSS 1 2 4 3 VSS VDD CD OUT CD Delay Circuit S-80940CNNB-G9A PEG215A 128 39 64 103 38 65 102 1 Pin No. Pin Name I/O Function and Operation 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 NC NC SPCE1 spce@ SPDO SPDI spck AUXI STSW1 STSW2 ILL- AREA 2NDMEDIA SSL AVSS SL O O O O O I O I I I I I I DSP : Data output DSP : Clock output Sub Tuner : Chip enable output Sub Tuner : Chip enable output(EEPROM) Sub Tuner : Data output Sub Tuner : Data input Sub Tuner : Clock output Used for VTR adapter/mini jack sense Steering switch 1 input Steering switch 2 input Illumination minus input Area distinguish input 2ND media sense and L/R steering wheel sense Sub Tuner : Signal level input Analog power GND TUNER : Signal level input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 115 5 6 7 8 5 6 7 8 C D F A B E 2 10 11 12 13 14 15 16 17 18 19 20 21 22 39 38 37 36 35 34 33 32 31 30 29 28 27 43 42 41 40 47 46 45 44 48 A15 A14 A13 A12 A11 A10 A9 A8 A19 A20 we reset NC ACC RY/by A18 A17 A7 A6 A5 A4 A3 A16 byte VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 oe VSS 23 24 26 25 A2 A1 ce A0 A-1 A0-A20 DQ0-D15 byte ce oe RY/by reset ACC VCC VSS 8 9 4 5 6 7 3 1 :Data output/Address input :Address input :Data input output :Mode select :Chip enable input :Output enable input :Ready/Busy output :Reset :Acc :Power supply :GND PD6566B 1 IN B 2 IN A 3 GND 4 OUT Y 5 VCC TC7SH86FUS1 VSS DQ15 VSSQ DQ14 DQ13 VDDQ DQ12 DQ11 VSSQ DQ10 DQ9 VDDQ DQ8 NC VSS DQM1 NC NC CLK CKE A9 A8 A7 A6 A5 A4 A3 DQM3 VSS NC DQ31 VDDQ DQ30 DQ29 VSSQ DQ28 DQ27 VDDQ DQ26 DQ25 VSSQ DQ24 VSS 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 NC VDD DQM0 /WE /CAS /RAS /CS A11 BA0 BA1 A10(AP) A0 A1 A2 DQM2 VDD NC DQ16 VSSQ DQ17 DQ18 VDDQ DQ19 DQ20 VSSQ DQ21 DQ22 VDDQ DQ23 VDD EDS1232AATA-75 A0 to A11 BA0,BA1 DQ0 to DQ31 /CS /RAS /CAS /WE Address Inputs Bank select Data Input/output Chip select Row address atrobe Column address strobe Write enable DQM0 to DQM3 CKE CLK VDD VSS VDDQ VSSQ NC DQ mask anable Clock enable Clock Input Supply voltage Ground Supply voliage for DQ Ground for DQ No connection 1 25 26 50 51 75 76 100 PE5558A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 116 1 2 3 4 1 2 3 4 C D F A B E Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31,32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O O O O O I I I O O I O I/O O I O O O O O O O O O O O O I O O I O I/O Format C C C C C C C N N N C C C C C C C /C Pin Name AVREF0 AVSS SD NC AVREF1 CAMVOL E/LVOL1 VPP/IC VDD REGC VSS X1 X2 /RESET XT1 XT2 PULLDOWN /BRST /CDSTBY IRQPWR WAKEUP BSI BSO BSCK TXDO RXDO ( BRXEN ) ( /BSRQ ) ( /CDSRQ ) E/LVOL2 NC EVSS EVDD ( SDA ) ( SCL ) ( COREPWR ) XRES_M IRQPWR_M NC E/LFWD E/LREV TXD1 RXD1 NC CRGCONT DCONT2 ROM1K VDCONT ROMDATA Function and Operation A/D converter reference voltage A power supply GND CRG drive output(controlled by claw) (Cannot used exept D/A) Not used Switching CAM motor driver output voltage Switching 1 ELV/LOAD motor driver output IC: Connected to VSS directry/ VPP:Pull-down Positive power supply (5 V) pin Connected to the capacity stabilizing output of the regulator ( 4.7 F electric capacitor) GND Connected to the oscillator for main-clock Connected to the oscillator for main-clock Mechanism microcomputer reset signal Connected to the oscillator for sub-clock (connected to VSS via the resistor) Connected to the oscillator for sub-clock (Open) Connected to EVDD or EVSS via the resistor (Reserve: P-BUS reset) (Reserve: IIC-BUS reset) Interruption to the reduced voltage Interruption to rise up the detection of DVD/CD DISC insert (Reserve: P-BUS serial-data input) (Reserve: P-BUS serial-data output) (Reserve: P-BUS serial-data input/output HOST(PC) UART data output/for flash rewriting (transmitted signal) HOST(PC) UART data input/for flash rewriting (received signal) (Reserva: P-BUS possible to receive signal) (Reserve: P-BUS demand for service request) (Reserve: IIC-BUS demand for request) Switching 2 ELV/LOAD motor driver output Not used E power supply GND E power supply positive power supply (Reserve: IIC-BUS data) (Reserve: IIC-BUS clock) Not used DVD microcomputer reset signal (L: RESET) Notice to reduce the voltage of DVD microcomputer Not used ELV/LOAD motor control output 2 ( FWD ) ELV/LOAD motor control output 1 ( REV ) DVD UART data output DVD UART data input Not used Output of the switching to servo driver control (H: acquirement) (Reserve: servo driver output ON/OFF control (H: ON) EEPROM switching to input 2k(L)/1k VD power supply control output E2PROM data input/output - Pin Functions(PE5558A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 117 5 6 7 8 5 6 7 8 C D F A B E Format Meaning C CMOS N Nch open drain 51 52 53 54 55 56 57 58 59 60 61 62 63-65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84,85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O O O I I I I I O O I I I I O O O O O O O O O O O O O I O O O I I I I I I Format C C C C C C C C C C C C C C C C C C C C C C ROMCS ROMCK /EPCS /TESTIN /DBBUGIN NC LOADSWL LOADSWR CONT_A CONT_B XAVCHK_ENT XUCHK_ENT NC SPD_SW1 SPD_SW2 NC BVSS BVDD HMCKENA FSSW1 FSSW2 DTR EMPH CD_DVD CONT OEIC BMUTE AMUTE NC RIPP RIP_P_HEAD NC REV INISW /SVCONT CAMREV CAMFWD HOME CLAMP TEMP CAMSNS CAMREF ELVSNS ELVREF LOADPHT VDSENS VHALF Function and Operation E2PROM chip selection output E2PROM clock output E2PROM input(L)/no input & (E2PROM chip selection (output)) Chip check test program starting up input Detection on-board debugger Not used LOAD operation sense L (DISC shape detecting, LOAD completed) LOAD operation sense R (DISC shape detecting, LOAD completed) DVD/CD power supply control A pin DVD/CD power supply control B pin AV check entry Unit check entry (Reserve: DVD IN Port) SW1 to set the speed of HOST (PC) UART SW2 to set the speed of HOST (PC) UART Not used B power supply GND B power supply positive power supply (3.3 V) Master clock output control for CD SW1 switching fs CG SW2 switching fs CG PC connected DTR Emphasis ON/OFF Switching CD/DVD (PLL LOCK detection) ACT driver mute Switching gain of pick-up OEIC BMUTE output Last stage of audio Mute (AVREF_SW) Port for CDDA ripping Detection the interval of music (eqivalent to ripping) H: normal/L: detecting the interval (Reserve: DVD OUT Port) Not used Disc/no disc sense input when initializing Switching the reference voltage CAM motor control output 1 (REV) CAM motor control output 2 (FWD) HOME SW sense input CLAMP SW sense input Temperature information sense input (Reserve) CAM position select input (linear position) Reference voltage for CAM sense ELV position select input (linear position) Reference voltage for ELV sense LOAD operation photo sense (no DISC, starting LOAD) VD power supply shorted air/ground sense input Servo driver center voltage input Pin No. Pin Name www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 118 1 2 3 4 1 2 3 4 C D F A B E 1 2,3 4 5,6 7 8-10 11 12,13 14 15 16 17 18 19-22 23 24 25,26 27,28 29 30 31,32 33 34-37 38,39 40,41 42 43 44,45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70-77 78 79 80 81 82 83 VDD33 MDQ VSS MDQ VDD33 MDQ VSS MDQ VDD33 VDD15 VSS EXADR NEXWE EXADT VDD33 VSS EXADR EXADT VDD33 VSS EXADT NEXCE EXADT EXADR EXADT VDD33 VSS EXADT NEXOE P15 P14 P13 P12 P11 P10 P9 P8 P7 VDD33 MMOD VSS P6 P5 P4 P3 P2 P1 P0 FG VDD15 NRST VSS DRV DRV8 VDD33 VSS SCLOCK EXTRG SDATA I / O I / O I / O I / O I / O O I / O I / O I / O I / O O I / O I / O I / O I / O O I / O I / O I / O I / O I / O I / O I / O I / O I / O I I / O I / O I / O I / O I / O I / O I / O I I I / O I / O I / O I / O I / O IO power supply SDRAM data GND SDRAM data IO power supply SDRAM data GND SDRAM data IO power supply Power supply GND Memory address Memory write enable Memory address data IO power supply GND Memory address Memory address data IO power supply GND Memory address data Memory chip select Memory address data Memory address Memory address data IO power supply GND Memory address data Memory output(Read) enable Memory address bus The flag of transmitting end The flag of transmitting start Serial clock Serial output data Serial input data Serial clock Serial output data Serial input data IO power supply Test mode setting GND Serial clock Serial output data Serial input data Serial clock Serial output data Serial input data Serial clock Motor FG Power supply Master reset GND Servo port Servo port IO power supply GND Input clock for debug I/O trigger for debug I/O data for debug - Pin Functions(MN35103UB) Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 119 5 6 7 8 5 6 7 8 C D F A B E 84 85 86-89 90 91 92 93 94-97 98 99 100-103 104 105 106 107 108-110 111 112 113 114 115 116 117 118 119 120 121 122-131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146-148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 EXTRG1 TRCCLK TRCDATA TRCST VDD33 OSCI VSS MONI VDD15 VSS MONI AVDDD PLFIL1 AVSSD PLFIL2 VREF VC0 RESI ANAMONI POFLT CDATA CCAPA CGD AVDDC AVSSC RFINN RFINP VIN LPC1 LPCO1 LPC2 LPCO2 VREFH VHALF AVSSB CTKC CSLFLT CWBLOUT CWBLIN VCOF RVI AVDDB AD AVDDA DAC1 AVSSA DAC0 AVDDE IREF1 AVSSE COMP1 AVDDF DAC1OUT AVSSF DAC2OUT DAC3OUT VREF DAC4OUT DAC5OUT I / O I / O I / O I / O I I / O I / O O O O I I O O O O O I I I I O I O O O O I O I I I I O O I I O O O I O O I/O trigger for debug Output trace clock for debug I/O trace data for debug Output trace status for debug Power supply Front end clock input GND Inside monitor Power supply GND Inside monitor Power supply DRC VCO GND DRC VCO Reference voltage gm-cEQ gm-cEQ Inside analog monitor DPDOFTR Inline data Inline capacitor Reference voltage Analog current Analog GND RF input RF input Head input DVDLPC input DVDLPC output CDLPC input CDLPC output Reference voltage Reference voltage Analog GND TC Capasitor DC cut for wobble DC cut for wobble JFVCO control voltage VREFH reference current Analog current AD input Analog current Tracking drive output Analog GND Focus drive output Analog current Inside DAC bias current Analog GND Inside DAC Analog current Analog signal Analog GND Analog signal Analog signal Reference voltage Analog signal Analog signal Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 120 1 2 3 4 1 2 3 4 C D F A B E 165 166 167 168 169 170 171 172 173 174 175 176 177 178-180 181 182 183 184,185 186 187,188 189 190-193 194 195 196,197 198 199-201 202 203-205 206 207,208 209 210 211 212 213 214 215 216,217 218 219,220 221 222 223 224 225 226 227-229 230 231 232 233 234 235 236 237 238 239 240 AVDDG IREF2 AVSSG COMP2 VSS BECLK VDD33 EXTCK PHCOMPO LRCK SRCK ADOUT3 VSS ADOUT IECOUT VDD33 VSS MDQ VDD15 MDQ VDD33 MDQ VSS VDD33 MDQ VSS MDQ VDD33 MDQ VSS DQM VDD33 MA VSS MA4 VDD15 MA2 VSS MA VDD33 MA VSS VDD15 MCKI VSS MCK VDD33 MA VSS MA NWE VDD33 BA0 MA VSS BA1 NCSM NRAS VDD33 I I I I O O O O O O I / O I / O I / O I / O I / O I / O O O O O O O I O O O O O O O O O Analog power suplly Inside DAC bias current Analog GND Inside DAC GND Backend clock input IO power supply Exterior audio clock Composite audio clock LR chanel clock output Bit clock output Audio down mixing GND Audio data IEC958 digital audio output IO power supply GND SDRAM data Power supply SDRAM data IO power supply SDRAM data GND IO power supply SDRAM data GND SDRAM data GND SDRAM data GND SDRAM data mask Power supply SDRAM address GND SDRAM address Power supply SDRAM address GND SDRAM address Power supply SDRAM address GND Power supply SDRAM output clock GND SDRAM input clock IO power supply SDRAM address GND SDRAM address SDRAM writte enable IO power supply SDRAM bank address SDRAM address GND SDRAM bank address SDRAM chip select SDRAM low address strobe IO power supply Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 121 5 6 7 8 5 6 7 8 C D F A B E 1 2 5 9 6 7 8 3 4 K11 K12 K15 P4/KS4 KS1 KS2 KS3 K13 K14 P3/KS5 20 19 16 12 15 14 13 18 17 11 DI CL res P1 VDD OSC VSS CE DO KS6/P2 10 KEY SCAN CONTROL REGISTER SHIFT REGISTER KEY BUFFER GENERAL PORT CLOCK GENERATOR CCB INTERFACE LC75700TS 1 64 65 128 129 192 193 256 MN35103UB 241 242 243 244 245 246 247 248 249 250 251-253 254 255,256 VSS NCAS DQM0 VDD15 VSS DQM MDQ VSS MDQ VDD33 MDQ VSS MDQ O O O I / O I / O I / O I / O GND SDRAM column address strobe SDRAM data mask Power supply GND SDRAM data mask SDRAM data GND SDRAM data IO power supply SDRAM data GND SDRAM data Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 122 1 2 3 4 1 2 3 4 C D F A B E FM ANT RFGND OSCGND DGND VCC VDD_3.3 WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 13 5 10 8 11 14 18 19 20 21 1 3 2 12 15 4 17 AM ANT 16 23 COMP Lch 24 Rch 22 ANT1 6 9 IC4 5 V 3.3 V IC3 EEPROM IC2 DET/NC/MPC/MPX/DIV/RDS REG OSC X-tal CF IFT LPF TANK RF RF TANK ATT ATT LPF VCO IC1 MIX/IF/PLL ← No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 33 µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75 Ω Surge absorber is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4 V ± 0.3 V 5 SL signal level Output of FM/AM signals level 6 CE2 I I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I I chip enable-1 Chip enable for AF•RF ”High” active 9 CK clock Clock data input 10 DI I data in Data input 11 LDET O lock detector “Low” active 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O O data out Data output 15 DGND digital ground Ground of digital block 16 COMP composite output FM composite signal output. 17 VDD_3.3 power supply The power supply for digital block. 3.3 V ± 0.2 V 18 RDS_CK O RDS clock Output of RDS clock(2.5 V) 19 RDS_DATA O RDS data Output of RDS data(2.5 V) 20 RDS_LOCK O O O RDS lock Output unit “High” active(2.5 V) (RDS_LOCK turns over by the external transistor. “Low” active) 21 RDS_HSLK RDS high speed lock Output unit “High” active(2.5 V)(RDS_HSLK turns over by the external transistor. “Low” active) 22 ANT1 diversity antenna control Antenna switch control signal output. “High” : MAIN, ”Low” : SUB 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 123 5 6 7 8 5 6 7 8 C D F A B E 7.3 EXPLANATION 7.3.1 OPERATIONAL FLOW CHART Power ON Completes power-on operation. (After that, proceed to each source operation) Source keys operative Source ON bsen=L 5V bsen 98 Pin SWVDD←L 82 Pin ACCON←H 69 Pin asen=L asen 97 Pin IPPW←H 27 Pin VCC=5V 21,37,85 Pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 124 1 2 3 4 1 2 3 4 C D F A B E 7.3.2 SYSTEM BLOCK DIAGRAM - System H/U + AMP + EMV-N or INTEGRATION-PANEL + RSE ECU + Rr Display +B,ACC EMV-Navi INTEGRATION-PANEL OHER MAKERS +B • ACC OTHER MAKERS SPEAKER AMPLIFIER Audio H/U PIONEER RSE ECU PIONEER or OTHER MAKERS OTHER MAKERS AVC-LAN step1 L/R Digital output FM COMP(EW) Steering Switch MAIN,SUB AVC-LAN step1 L/ R L/ R Video Video Head Phone Interruption audio Video L/ R Interruption audio Rr Display +B • ACC +B • ACC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 125 5 6 7 8 5 6 7 8 C D F A B E 8. OPERATIONS MANUAL TUNING FM TA AM POWER/VOLUME SEEK TUNING PRESET CHANNEL RECALL POWER/VOLUME FM AM TA MANUAL TUNING PRESET CHANNEL RECALL SEEK TUNING - DEX-MG9767DVZT/EW, DEX-MG9767DVZT/RE - DEX-MG9667DVZT/EW - Radio www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 126 1 2 3 4 1 2 3 4 C D F A B E DISC NUMBER SEARCH DVD,CD POWER/VOLUME TRACK NUMBER SEARCH / FAST+/FAST- DVD,CD EJECT DVD,CD LOAD TRACK NUMBER SEARCH / FAST+/FAST- DISC NUMBER SEARCH DVD,CD LOAD DVD,CD EJECT POWER/VOLUME DVD,CD - DEX-MG9767DVZT/EW, DEX-MG9767DVZT/RE - DEX-MG9667DVZT/EW - DVD / CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEX-MG9667DVZT/EW 127 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 K-ZZU.AUG. 2006 Printed in Japan - Jigs List Name Assembly jig Flexible extension Flexible extension Flexible extension Flexible extension Syringe(w/o needle) Needle Sample of Grease amount Jig No. GGF1538 GGD1170 GGD1422 GGD1426 GGD1488 GGK1004 GGL1011 GGF1561 Remarks Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools DVD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 - Grease List Name Grease Grease Jig No. GEM1024 GEM1048 Remarks Mechanism Module Unit(SERVICE) ( ) Front Panel - Internal multi-DVD shipping position mode setting Auto change to the SHIP MODE after ALL DISC EJECT. NOTE : Do not switch off ACC and +B at the same time immediately after ejecting DISC. (Switch off +B at 5 seconds after the shutter door is closed.) *PICK UP is made to be automatically shifted to SHIP MODE. However, the above action may discontinue operation, disabling a shift to SHIP MODE. Assembly jig for MG4 (3pcs) Flexible extension Flexible extension Flexible extension Flexible extension For front panel For front panel For front panel Portions to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
