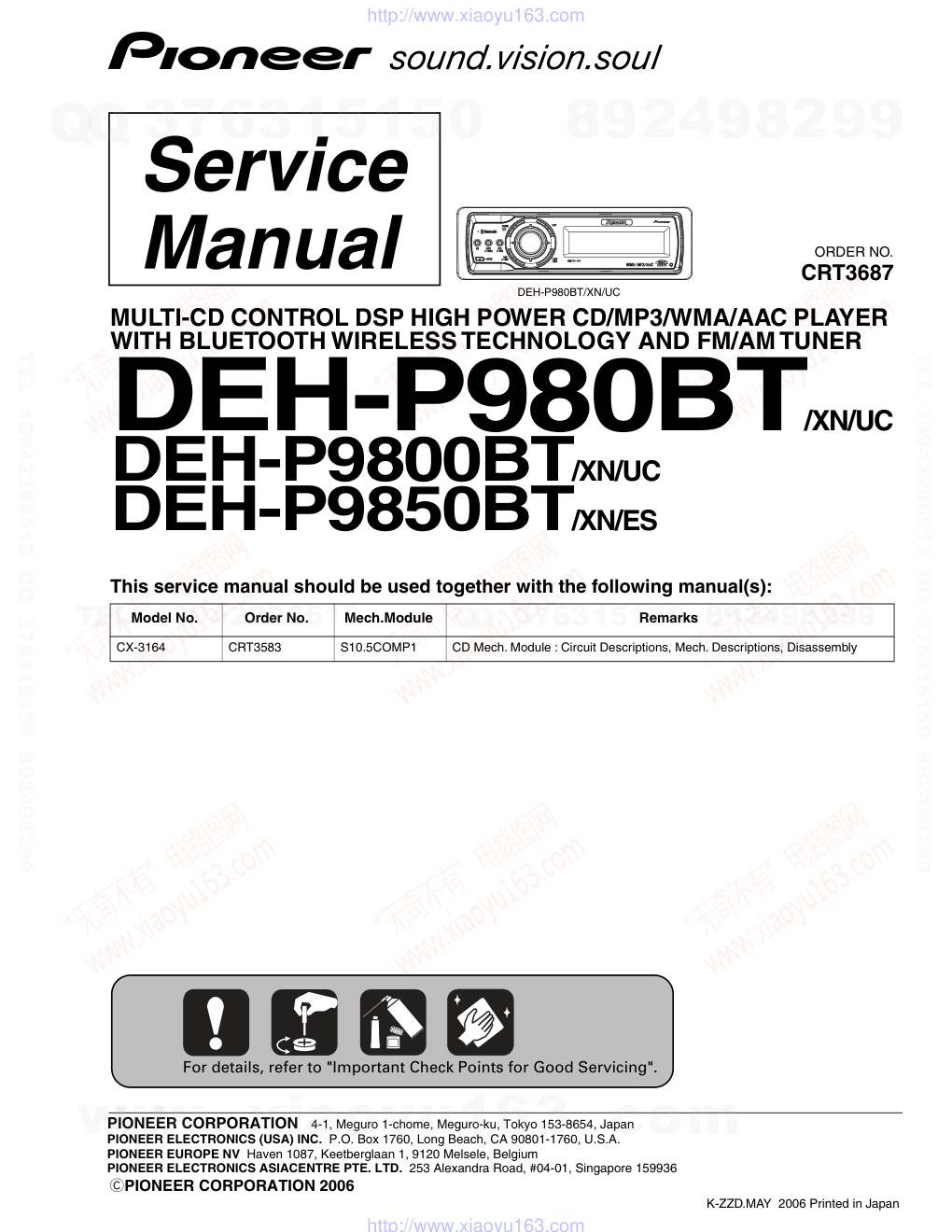

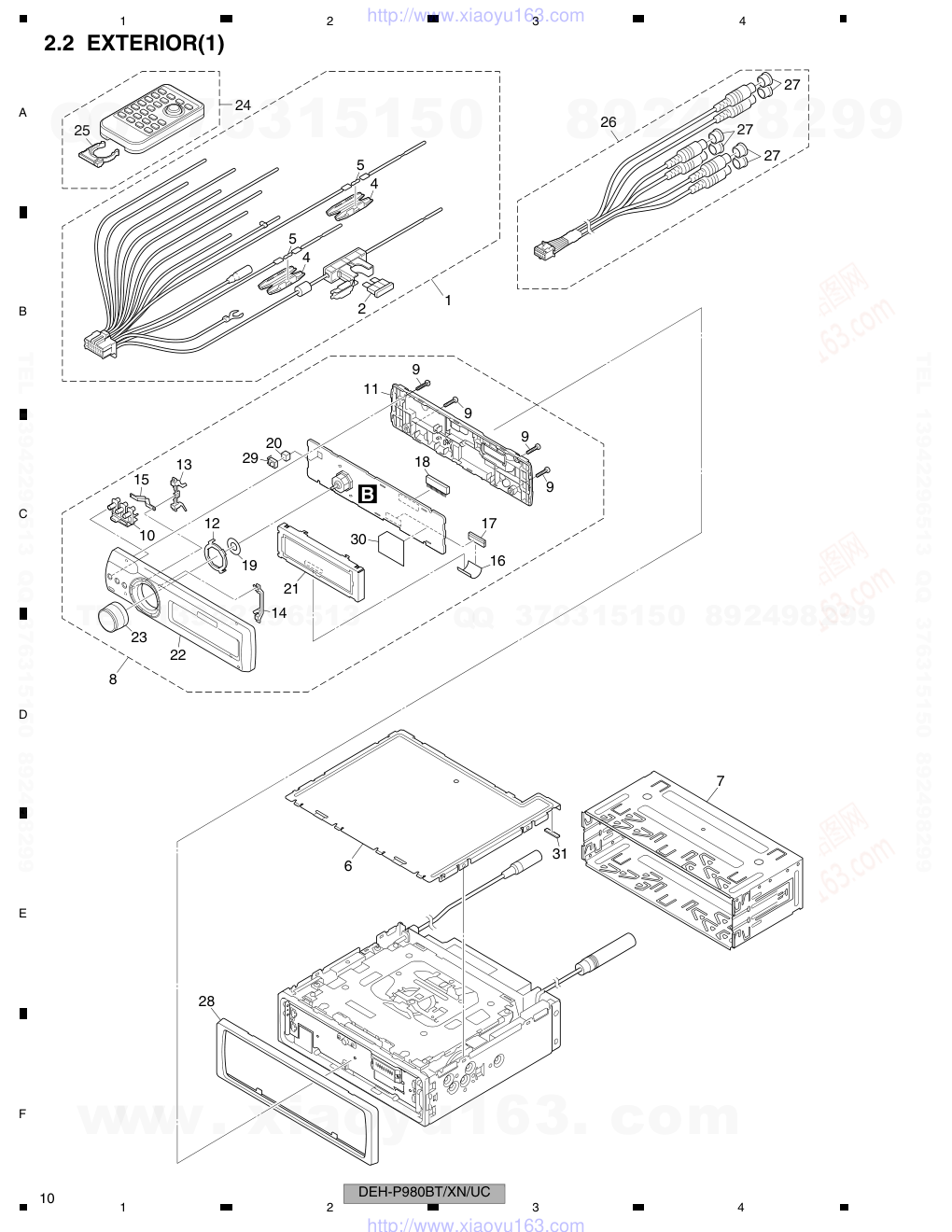

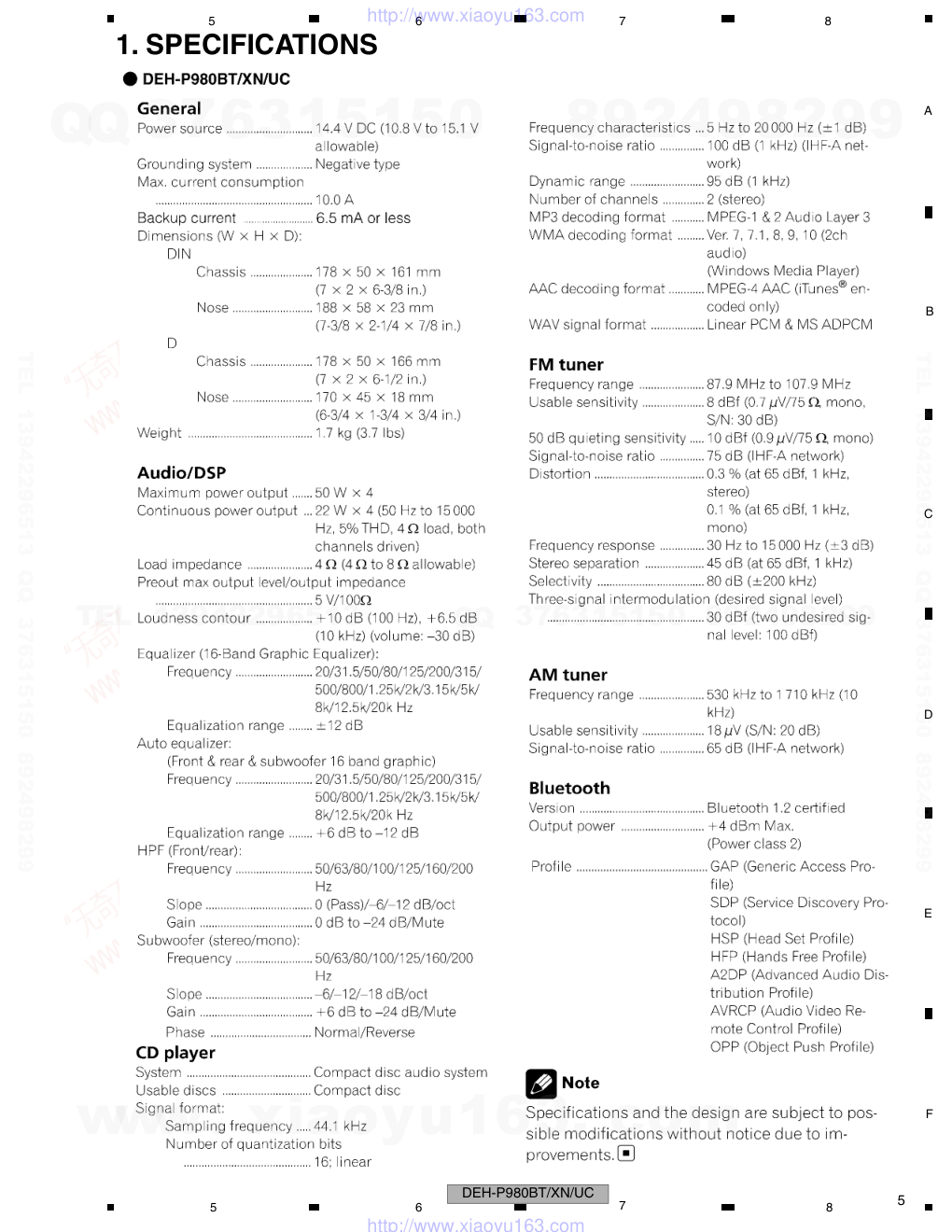

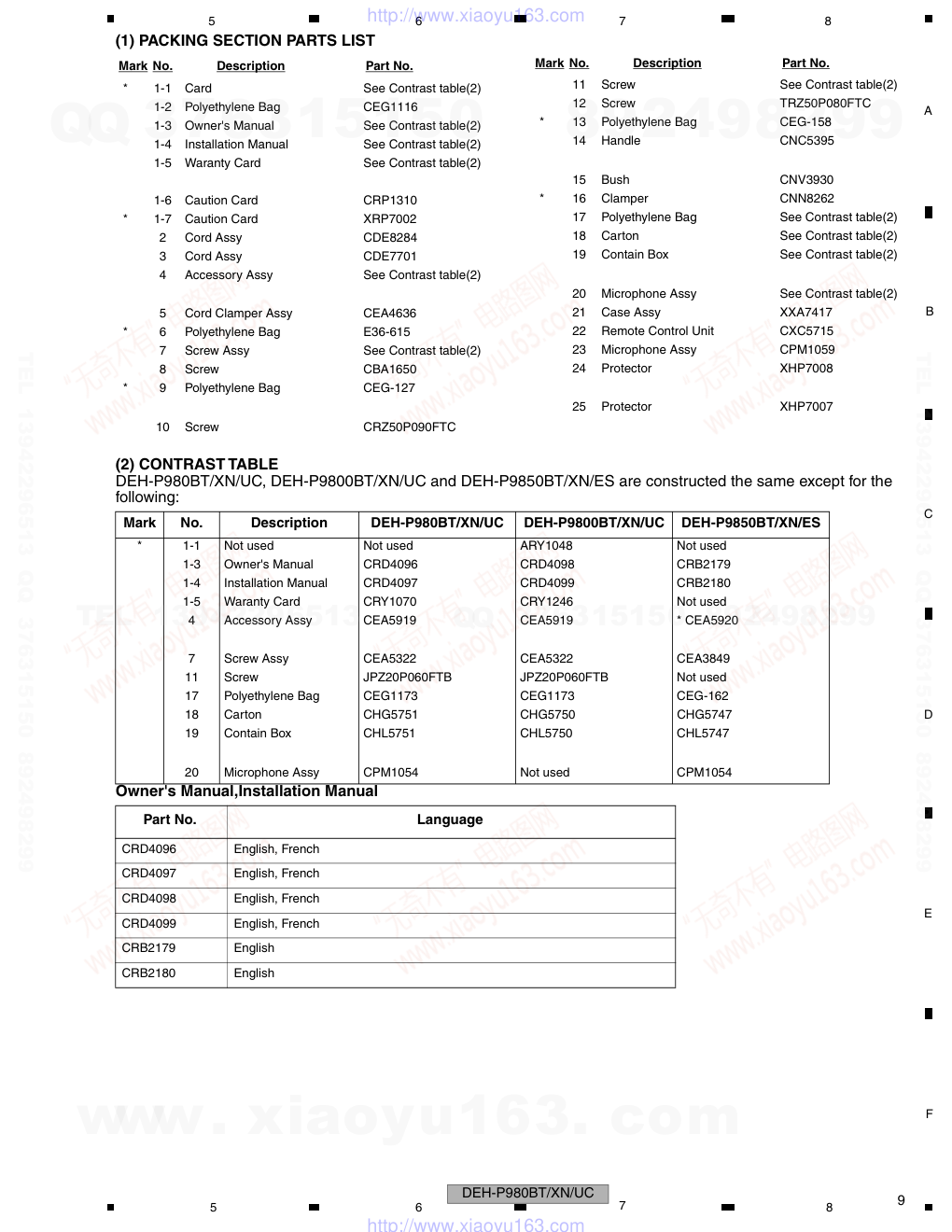

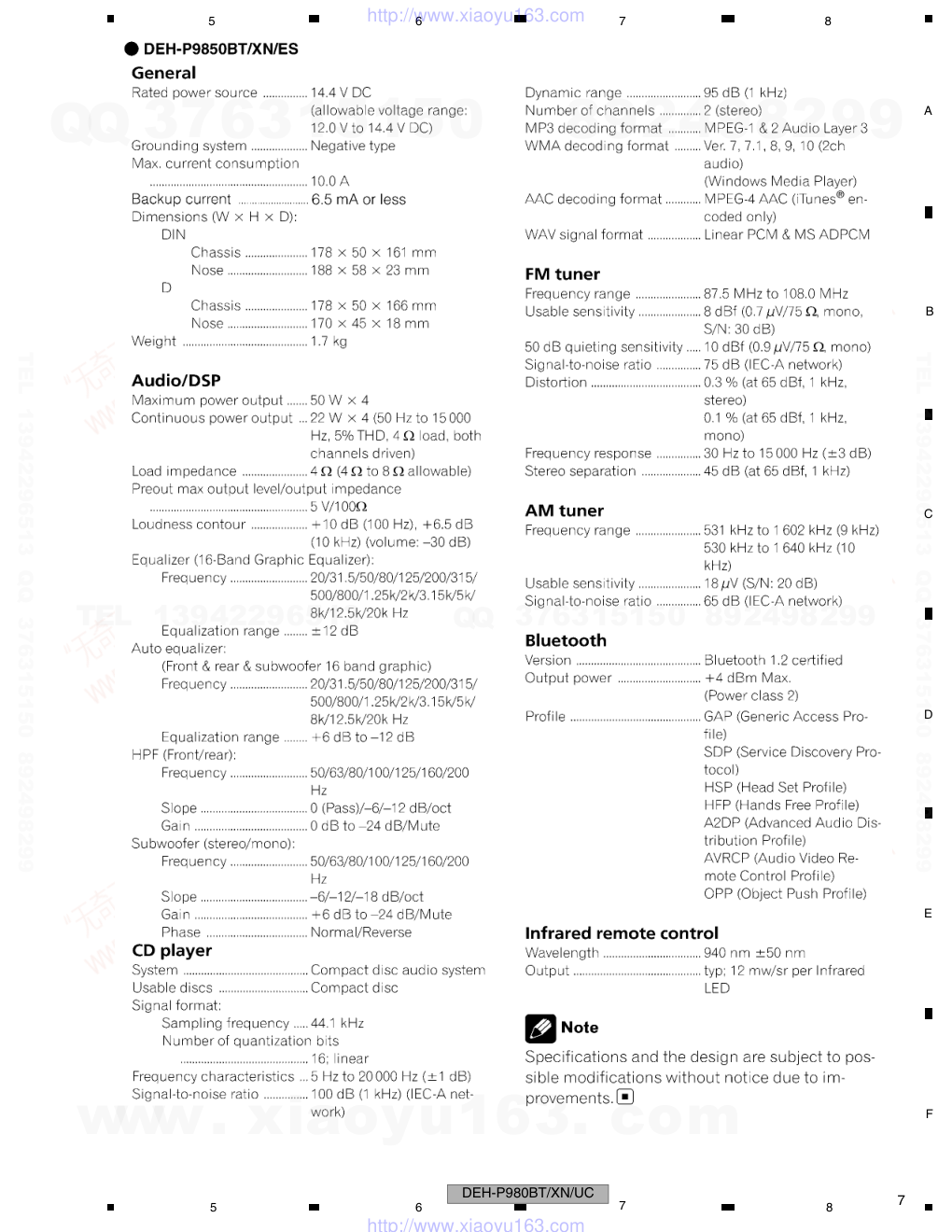

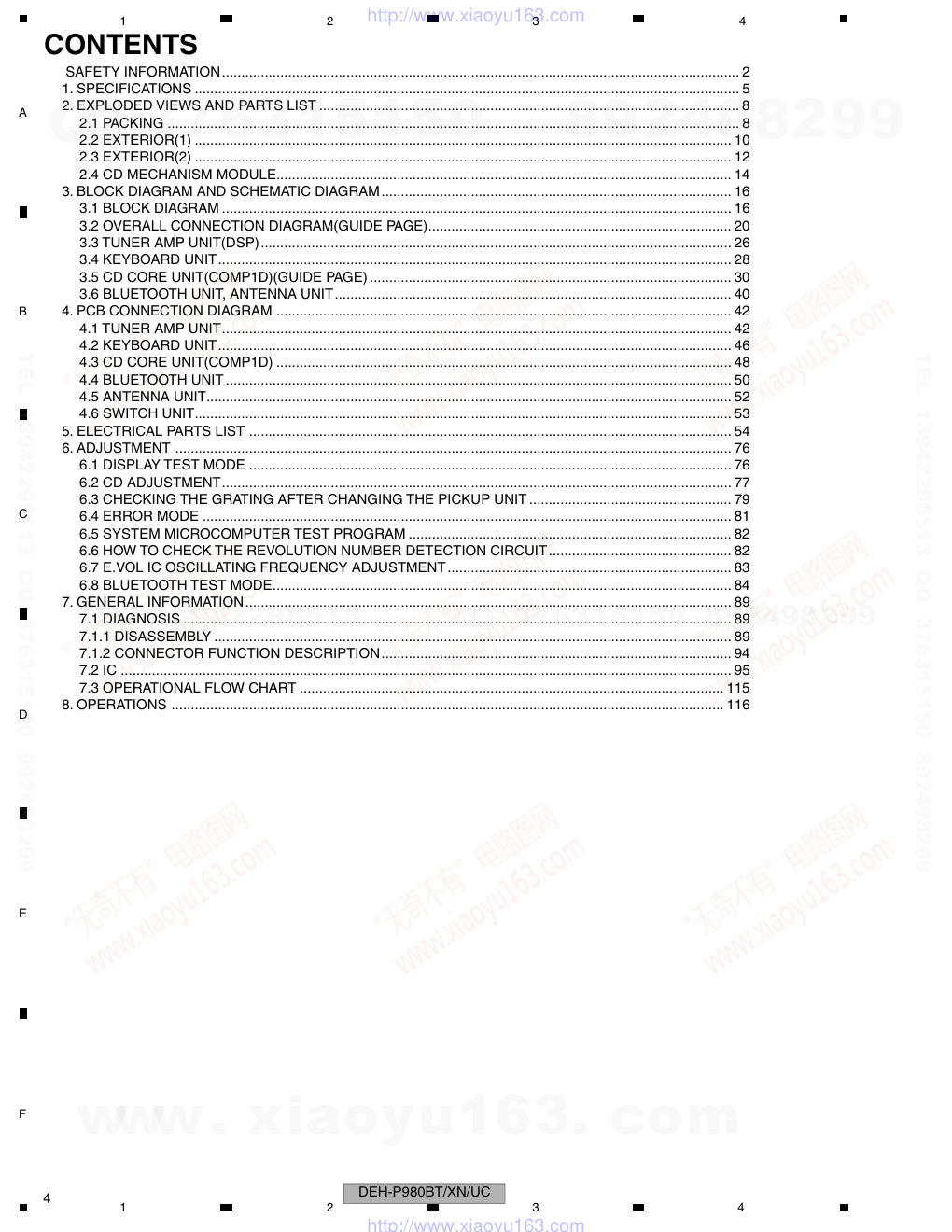

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 DEH-P980BT/XN/UC CRT3687 MULTI-CD CONTROL DSP HIGH POWER CD/MP3/WMA/AAC PLAYER WITH BLUETOOTH WIRELESS TECHNOLOGY AND FM/AM TUNER DEH-P980BT/XN/UC DEH-P9800BT/XN/UC DEH-P9850BT/XN/ES This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3164 CRT3583 S10.5COMP1 CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly For details, refer to "Important Check Points for Good Servicing". K-ZZD.MAY 2006 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION - Service Precaution 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY". 4. After replacing the pickup unit, be sure to check the grating. 5. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 - Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 8 2.1 PACKING ................................................................................................................................................... 8 2.2 EXTERIOR(1) .......................................................................................................................................... 10 2.3 EXTERIOR(2) .......................................................................................................................................... 12 2.4 CD MECHANISM MODULE..................................................................................................................... 14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 16 3.1 BLOCK DIAGRAM ................................................................................................................................... 16 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE).............................................................................. 20 3.3 TUNER AMP UNIT(DSP)......................................................................................................................... 26 3.4 KEYBOARD UNIT.................................................................................................................................... 28 3.5 CD CORE UNIT(COMP1D)(GUIDE PAGE) ............................................................................................. 30 3.6 BLUETOOTH UNIT, ANTENNA UNIT...................................................................................................... 40 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 42 4.1 TUNER AMP UNIT................................................................................................................................... 42 4.2 KEYBOARD UNIT.................................................................................................................................... 46 4.3 CD CORE UNIT(COMP1D) ..................................................................................................................... 48 4.4 BLUETOOTH UNIT.................................................................................................................................. 50 4.5 ANTENNA UNIT....................................................................................................................................... 52 4.6 SWITCH UNIT.......................................................................................................................................... 53 5. ELECTRICAL PARTS LIST ............................................................................................................................ 54 6. ADJUSTMENT ............................................................................................................................................... 76 6.1 DISPLAY TEST MODE ............................................................................................................................ 76 6.2 CD ADJUSTMENT................................................................................................................................... 77 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT .................................................... 79 6.4 ERROR MODE ........................................................................................................................................ 81 6.5 SYSTEM MICROCOMPUTER TEST PROGRAM ................................................................................... 82 6.6 HOW TO CHECK THE REVOLUTION NUMBER DETECTION CIRCUIT............................................... 82 6.7 E.VOL IC OSCILLATING FREQUENCY ADJUSTMENT......................................................................... 83 6.8 BLUETOOTH TEST MODE...................................................................................................................... 84 7. GENERAL INFORMATION............................................................................................................................. 89 7.1 DIAGNOSIS ............................................................................................................................................. 89 7.1.1 DISASSEMBLY ..................................................................................................................................... 89 7.1.2 CONNECTOR FUNCTION DESCRIPTION.......................................................................................... 94 7.2 IC ............................................................................................................................................................. 95 7.3 OPERATIONAL FLOW CHART ............................................................................................................. 115 8. OPERATIONS .............................................................................................................................................. 116 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 6 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 7 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 8 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " 20 22 1 25 24 19 17 3 2 4 23 13 15 14 14 7 8 9 11 12 10 5 6 16 16 16 21 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 9 5 6 7 8 5 6 7 8 C D F A B E (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE DEH-P980BT/XN/UC, DEH-P9800BT/XN/UC and DEH-P9850BT/XN/ES are constructed the same except for the following: Owner's Manual,Installation Manual Mark No. Description Part No. * 1-1 Card See Contrast table(2) 1-2 Polyethylene Bag CEG1116 1-3 Owner's Manual See Contrast table(2) 1-4 Installation Manual See Contrast table(2) 1-5 Waranty Card See Contrast table(2) 1-6 Caution Card CRP1310 * 1-7 Caution Card XRP7002 2 Cord Assy CDE8284 3 Cord Assy CDE7701 4 Accessory Assy See Contrast table(2) 5 Cord Clamper Assy CEA4636 * 6 Polyethylene Bag E36-615 7 Screw Assy See Contrast table(2) 8 Screw CBA1650 * 9 Polyethylene Bag CEG-127 10 Screw CRZ50P090FTC 11 Screw See Contrast table(2) 12 Screw TRZ50P080FTC * 13 Polyethylene Bag CEG-158 14 Handle CNC5395 15 Bush CNV3930 * 16 Clamper CNN8262 17 Polyethylene Bag See Contrast table(2) 18 Carton See Contrast table(2) 19 Contain Box See Contrast table(2) 20 Microphone Assy See Contrast table(2) 21 Case Assy XXA7417 22 Remote Control Unit CXC5715 23 Microphone Assy CPM1059 24 Protector XHP7008 25 Protector XHP7007 Mark No. Description Part No. Mark No. Description DEH-P980BT/XN/UC DEH-P9800BT/XN/UC DEH-P9850BT/XN/ES * 1-1 Not used Not used ARY1048 Not used 1-3 Owner's Manual CRD4096 CRD4098 CRB2179 1-4 Installation Manual CRD4097 CRD4099 CRB2180 1-5 Waranty Card CRY1070 CRY1246 Not used 4 Accessory Assy CEA5919 CEA5919 * CEA5920 7 Screw Assy CEA5322 CEA5322 CEA3849 11 Screw JPZ20P060FTB JPZ20P060FTB Not used 17 Polyethylene Bag CEG1173 CEG1173 CEG-162 18 Carton CHG5751 CHG5750 CHG5747 19 Contain Box CHL5751 CHL5750 CHL5747 20 Microphone Assy CPM1054 Not used CPM1054 Part No. Language CRD4096 English, French CRD4097 English, French CRD4098 English, French CRD4099 English, French CRB2179 English CRB2180 English www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 10 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR(1) B 24 9 9 9 9 18 11 17 30 16 21 28 6 7 31 8 23 22 10 15 13 12 19 14 29 20 1 26 27 27 27 25 4 5 2 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 11 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR(1) SECTION PARTS LIST (2) CONTRAST TABLE DEH-P980BT/XN/UC, DEH-P9800BT/XN/UC and DEH-P9850BT/XN/ES are constructed the same except for the following: Mark No. Description Part No. 1 Cord Assy CDE7701 > 2 Fuse(10 A) CEK1136 3 ••••• 4 Cap CNS1472 5 Resistor RS1/2PMF102J 6 Case Assy CXC6907 7 Holder CNC8659 8 Detach Grille Assy See Contrast table(2) 9 Screw BPZ20P080FTB 10 Button (EQ, DISP, CLOCK) CAC9527 11 Cover CNS8491 12 Holder CNV8834 13 Lighting Conductor CNV9010 14 Lighting Conductor CNV9011 15 Lighting Conductor CNV9013 16 Cable CDE8057 17 Connector(CN1931) CKS5090 18 Connector(CN1701) CKS5662 19 Sheet CNM8658 20 Cushion CNM9946 21 OEL Module MXK8230 22 Grille Unit See Contrast table(2) 23 Knob Unit(MULTI-CONTROL) CXC5674 24 Remote Control Unit CXC5715 25 Cover CZN5357 26 Cord Assy CDE8284 27 Cap CNV6727 28 Panel XNS7145 29 IC (IC1801) GP1UX51RK 30 Insulator CNN1327 31 Cushion CNN1405 Mark No. Description Part No. Mark No. Description DEH-P980BT/XN/UC DEH-P9800BT/XN/UC DEH-P9850BT/XN/ES 8 Detach Grille Assy CXC5593 CXC5594 CXC5595 22 Grille Unit CXC5601 CXC5602 CXC5603 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 EXTERIOR(2) A C D A B B C E E A E F D D F F 7 50 52 53 51 49 54 48 84 81 81 87 86 83 79 79 78 77 77 82 85 80 78 2 1 1 73 13 56 56 56 3 3 3 3 74 74 74 74 64 65 63 57 57 68 55 62 56 70 57 56 56 74 67 66 69 59 60 61 58 69 72 8 10 10 12 12 37 38 21 21 16 26 30 32 22 23 33 21 29 4 6 24 25 27 46 15 15 15 76 76 35 40 41 39 28 5 14 20 1 18 18 17 17 36 75 34 45 47 19 42 43 31 1 1 2 71 1 1 21 11 48 90 44 88 89 92 (1) (1) (1) (1) (3) (1) (1) (1) (1) (3) : GEM1069 (1) : GEM1024 93 9 91 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 13 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR(2) SECTION PARTS LIST (2) CONTRAST TABLE DEH-P980BT/XN/UC, DEH-P9800BT/XN/UC and DEH-P9850BT/XN/ES are constructed the same except for the following: Mark No. Description Part No. 1 Screw BSZ26P060FTC 2 Screw(M2.6 x 4) CBA1828 3 Screw(M2 x 2.5) CBA1924 4 Cord Assy CDE8315 5 Cord Assy See Contrast table(2) 6 Cable CDE8067 7 Cord Assy CDE8125 8 Insulator CNN1406 9 Holder XNX7017 10 Earth Plate CND2171 11 Shield CND3599 12 Cushion CNM9126 13 Insulator CNN1413 14 Tuner Amp Unit See Contrast table(2) 15 Screw ASZ26P060FTC 16 Screw BMZ26P040FTC 17 Screw BMZ26P120FTC 18 Screw BMZ26P180FTC 19 Screw(M2.6 x 14) CBA1632 20 Antenna Cable CDH1336 21 Clamper CEF1050 22 Plug(CN991) CKM1278 23 Connector(CN321) CKM1389 24 Plug(CN801) CKS-786 25 Connector(CN701) CKS3834 26 Connector(CN671) See Contrast table(2) 27 Connector(CN811) CKS4811 28 Connector(CN431) CKS4823 29 Connector(CN702) CKS4824 30 Connector(CN101) CKS5271 31 Connector(CN551) CKS5321 32 Connector(CN441) CKS5523 33 Holder(CN402) CNC5399 34 Holder See Contrast table(2) 35 Holder CND3133 36 Heat Sink CNR1869 37 FM/AM Tuner Unit CWE1952 38 Holder CND1054 39 Bluetooth Unit CWN1771 40 Connector(CN1) CKS5058 41 Connector(CN76) CKS5320 42 Shield CND3134 43 Sheet CNM9598 44 Insulator XNM7119 45 Fan Motor(M972) CXM1288 46 7P FFC Connector (CN561) VKN1299 47 ZH Connector 2P (CN971) VKN1928 48 Screw(M2 x 3.5) CBA2030 49 Earth Plate CND3138 50 Holder CND3139 51 Antenna Unit CWN1772 52 Connector(ANT1102) CKS5058 53 BT Antenna (ANT1101) CWX3132 54 Panel Unit CXC6608 55 Drive Unit CXC6618 56 Screw BMZ26P040FTC 57 Screw(M2 x 2) CBA1871 58 Cord CDE7392 59 Gear CNV7752 60 Gear CNV7753 61 Gear CNV7754 62 Gear CNV7755 63 Switch Unit CWS1389 64 Switch(S1) CSN1051 65 Switch(S2) CSN1052 66 Arm Unit CXC2199 67 Arm Unit CXC6623 68 Arm Unit CXC6624 69 Screw JFZ20P020FTC 70 Spring XBL7003 71 CD Mechanism Module (S10.5) CXK5754 72 Screw ISS26P055FTC 73 Holder CND3606 74 Washer YE15FTC 75 IC (IC351) PAL007B 76 Transistor (Q721,901,911,921) 2SD2396 77 Screw(M2 x 2) CBA1871 78 Screw(M2 x 2) CBA1935 79 Spring CBH2530 80 Connector CKS5273 81 Arm CNV6962 82 Guide CNV6967 83 Guide CNV8048 84 Case Unit CXC5695 85 Screw(M2 x 3.5) XBA7002 86 Holder XNC7019 87 Flexible PCB XNP7026 88 Holder Unit XXA7399 89 Motor Unit(M801) XXA7400 90 Holder Unit XXA7401 91 Arm Unit XXA7403 92 Gear Unit XXA7424 93 Insulator CNN1499 Mark No. Description Part No. Mark No. Description DEH-P980BT/XN/UC DEH-P9800BT/XN/UC DEH-P9850BT/XN/ES 5 Cord Assy CDE8062 CDE8144 CDE8062 14 Tuner Amp Unit CWN1436 CWN1437 CWN1438 26 Connector(CN671) CKS4124 CKS4124 Not used 34 Holder CND3132 CND3132 CND3161 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 14 1 2 3 4 1 2 3 4 C D F A B E 2.4 CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 15 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit(COMP1D) CWX3328 2 Connector(CN101) CKS4182 3 Connector(CN901) CKS4187 4 Screw BMZ20P025FTC 5 Screw BSZ20P040FTC 6 Screw(M2 x 3) CBA1511 7 Screw(M2 x 4) CBA1835 8 Washer CBF1038 9 ••••• 10 Spring CBH2609 11 Spring CBH2612 12 Spring CBH2614 13 Spring CBH2616 14 Spring CBH2617 15 Spring CBH2620 16 Spring CBH2855 17 Spring CBH2937 18 Spring CBH2735 19 Spring CBH2854 20 Spring CBH2642 21 Spring CBH2856 22 Spring CBH2857 23 Spring CBH2860 24 Spring CBH2861 25 Spring CBL1686 26 Arm CND1909 27 Frame CND2582 28 Bracket CND2583 29 Arm CND2584 30 Lever CND2585 31 Arm CND2586 32 Bracket CND2587 33 Arm CND2588 34 Lever CND2589 35 Holder CNV7201 36 Gear CNV7207 37 Gear CNV7208 38 Gear CNV7209 39 Gear CNV7210 40 Gear CNV7211 41 Gear CNV7212 42 Rack CNV7214 43 Arm CNV7216 44 Roller CNV7218 45 Gear CNV7219 46 Guide CNV7361 47 Gear CNV7595 48 Guide CNV7799 49 Arm CNV7805 50 Rack CNV8342 51 Roller CNV8343 52 Holder CNV8344 53 Arm CNV8345 54 Guide CNV8347 55 Arm CNV8348 56 Arm CNV8349 57 Arm CNV8350 58 Clamper CNV8365 59 Arm CNV8386 60 Guide CNV8396 61 Arm CNV8413 62 Collar CNV8938 63 Motor Unit(M2) CXC4026 64 Arm Unit CXC4027 65 Chassis Unit CXC4028 66 Gear Unit CXC4029 67 Frame Unit CXC4031 68 Motor Unit(M1) CXC6742 69 Screw Unit CXC6359 70 Screw JFZ20P020FTC 71 Screw JGZ17P022FTC 72 Washer YE20FTC 73 Pickup Unit(P10.5)(Service) CXX1942 74 Screw IMS26P030FTC 75 Connector(CN902) CKS4979 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 16 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM ASENBO MU XIN XOUT P AUIMU 65 37 36 64 SYSTEM CONTROLLE IC601(2/2) CN401 1 2,3 BUS- BUS+ TX RX IPPW SWV FCK 22 X601 20 TUNL AUBTL BUSL+ BUSL- DP KY KE 5 8 1 7 CN101 11 IC101 HA12241FP IP-BUS DRIVER 1 2 8 6 5 TX RX IPPW B.UP Q101 TUN3V VDD ANTENNA RO KEY 12 11 9 10 RO CN702 FLP CN701 20 12 4 19 4 10 VDD TUN3V REGULATOR Q801 Q812 NJM2885DL1-33 IC421 TUN8V 3 1 BUSL+ BUSL- CN801 5 2 3 20MHz AMP DSE TUNPCE2 SL TUNPDI TUNPCK TUNPCE1 TUNPDO IC271 TC7SH08FUS1 2 1 5 NJM4 IC 5 3 SDIN5A/JX0 CLK02 BITCLK_I 82 22 16 25 LRCLK_I 26 BRST,BRXEN,BSRQ BDATA,BSCK 13 7 6 5 CDDT CDBCK CDLRCK CDDT CDBCK CDLRCK LRCKOK IC201 AK7732VT DSP S_RE INIT_RE CK_RE RQ/C SCLK SI/C SDIN3 SDOUT1 SDOUT2 SDOUT3 F R SW DATA1 DATA2 DATA3 A A FL IC221 PCM1606EG D/A CONVERTER 1 2 3 37 35 36 SW MCKRQ AUISCK MCKRQ IP-BUS BITCLK_0 38 LRCLK_0 39 MCK1 BCK0 LRCK0 L res 4 83 110 84 55 24 BUSL+ BUSL- CN441 AUX CDMCKO CDRX MCK2 AUXL CDTX CN402 1 2 11 6 3 14 4 5 IC801 BA6288FS IC371 PM8003A AUTO FLAP MOTOR DRIVE FLAP MOTOR B.UP OUT2 RIN FIN OUT1 VM VCC RST2 BTAV_AUX 13 FLPPW FLPCLS FLPOPN FOPNSW FCLSSW 11 RESET LRCKOK MECHA VD AUI VD VDCOUNT B.UP Q721 Q722 CK SCKI BCK LRCK 20 RL SWL 10 12 18 19 8 NJM4 IC L R F BCK0 LRCK0 CLKO1 32 MCK1 D6/SCK 1 TUNER AMP UNIT LRCK DOUT BCK M BT OEL ILM DSP SYS DALM 1 3 4 XTI XTO 43 X201 42 16.9344MHz XT XT 14 X371 15 4.096MHz AUX SELECT 8 11 5,6 12,13 9,10 Q121 TC4066BFT IC122 SYS+B AUISDO 54 26 D7/DI AUICS 53 36 CS AUIWR 52 42 WR AUIBSY 63 3 BUSY1 AUIRST 56 9 RESET BTAVL A AUX AMP MCK SW 3 NJM4558MD IC441 1 FM/AM TUNER UNIT 3 2 2 1 29 AOUT C A OPEN CLOSE M SWITCH UNIT D M801 PEG260A PEG261A AB : C : PICKUP UNIT (P10.5)(SERVICE) CD CORE UNIT(COMP1D) BRST,BRXEN,BSRQ CN901 Q101 M LASER DIODE MONITOR DIODE S903 DSCSNS SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ LD- MD 15 5 HOLOGRAM UNIT IC301 BA5835FP IC201 UPD63763CGJ RF-AMP,CD DECODER, MP3 , WMA, DECODER, DIGITAL SERVO / DATA PROCESSOR CD DRIVER 1 VD VD 16 LRCK 11 CN101 16 SOP 15 SOM 18 LCOP 17 LCOM 22 LOEJ 50 LRCK 9 CONT TD,FD AC,BD F,E SD,MD S901 HOME S904 12EJ S905 8EJ LD+ 14 142 LD 143 PD 12EJ CONT LOEJ HOME 32 42 40 47 VDD IC203 NJM2886DL3-33 +3.3V REGULATOR V3R3D 3 4 VDCONT 49 CD CONTROLLER IC701 PE5552A 44 LRCKOK 2 V3R3D 9 BDATA,BSCK Q701 43 /CD3VON VDD 15 5 FOCUS ACT. TRACKING ACT. FOP TOP 2 1 TOP FOP 11 FOP 14 TOP 2 1 14 VD VDCONT 13 12 X701 X1 X2 8EJ 31 DSCSNS 30 SWVDD 14 RESET 8 10 /RESET LRCKOK 8 8 VREF REFO 133 REFOUT 3 3 FOM LOCK/RFOK FOM 12 FOM 4 4 TOM TOM 13 TOM 21 CLCONT CLCONT 41 46 CD3VON 1 4.00MHz XRST,XASTB,ADO,XCK, XSO,XSI,WAIT,XINT 56 63 LOCK DOUT DIN SCKO SCKIN 46 45 48 47 DATA BCLK 17 CD3VON MCKRQ 46 14 15 C 1 CN902 34 XTAL LRCKIN 49 3 4 26 25 FRXD FTXD FMRF ANT adj RF adj FM ANT T51 CF52 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V IC 2 2.5V NC CE2 ROM_VDD SL DI CK CE1 NC NC NC NC NC DO 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch A B C : DEH-P980BT/XN/UC : DEH-P9800BT/XN/UC : DEH-P9850BT/XN/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 17 5 6 7 8 5 6 7 8 C D F A B E SW L FRONT L 1 BSENS ASENS VDD B.UP B.UP 103 104 ASENBO 29 Vo1a 38 9,10 Vo3b Si3L,Si3R 58 MUTE XIN XOUT ILM+B ILM+B SWVDD 3 25 5 23 21 FL- VCC B.REMOTE FL+ RL- RL+ FL1 Si4L 11 Q281 Q291 Q282 PEE AUIMUTE 31 67 2 61 Si1L+ 1 Si1L- Si2L 2 6 65 37 36 64 FLIN 12 RLIN 14 22 4 RESET POWER AMP IC601(1/2) SYSTEM CONTROLLER IC601(2/2) IC121 PM9009A IC661 IC351 PAL007B BTPW BTPW BTPW2 Q791 Q931 TX RX IPPW ELECTRONIC VOLUME/ SOURCE SELECTOR SWVDD FCKSEL STBY MUTE 22 X601 20 2 TUNL AUBTL BUSL+ BUSL- DPDT DPDT KYDT KYDT AMPMUTE FLAP ILM SWL DACDT DACCK DACCS BTTEST BTRTS3 BTAVL BTAVL BTTX3 BTCTS3 BTRX3 DACDT BTRST BTHF_AEQ MICSEN DACCK DACCS BTTEST RTSO BTTX RCA OUT FL Q321 FU321 33 Vo5a 6 7 2 KEYD PRE-OUTMUTE SYSTEM CONTROLLER Q951 GAUGE TELIN 123 IO TB 136 BT8V REGULATOR BACKUP SENSE ACC SENSE TEL IN MUTE 5 9 11 12 10 1 8 4 2 CN991 BUZZER Q351 CN321 FP VER 1 2 TX RX PW B.UP SL TUNPCE2 TUNPCE1 TUNPDI TUNPDO 141 35 34 49 50 TUNPCK 51 TUNPCE2 TUNPCE1 TUNPDO TUNPDI TUNPCK B.UP 6,20 15 5 Q323 SWL FL ISENS 105 ILL SENSE 3 19 22 137 8 9 4 13 3 10 ROT1 ROT0 ROT1 KEYAD 12 11 9 10 ROT0 S-80835CNUA-B8U 25 CN811 CN671 FLPILM 112 OEL+B RL- RL+ GND ACC B.REM ILL TEL FL- FL+ B.UP SL BZ681 Q831 Q853 Q324 BATIND 134 Q941 Q793 Q792 9 1 3 2 24 4 5 35 34 33 BTRST 6 BTMIC 17 TELOUT BOOTE TX RX CN551(1/2) CN561 RX TX BOOTE RST BTPW2 BTPW2 MIC IN MIC MICCS 15 36 39 40 1 2 5 4 6 2 3 10 2 Q391 RL2 RL1 20MHz VDD Q661 1 3 NJM2885DL1-33 IC561 SYS+B BT3V BT3V REGULATOR 1,3 5 NJM2872F05 IC566 BT5V BT5V REGULATOR 1,3 5 NJM2872F05 IC861 DAC5V DAC5V REGULATOR 1 3 NJM2885DL1-33 IC871 D3V DSP3V REGULATOR BSENS ASENS BATIND ISENS TELIN AMPPW 97 92 AMPPW DSENS DSENS IC241 5 NJM4558MD IC281 5 3 1 7 NJM4558MD IC240 5 1,2 SYS+B 3 SDIN5A/JX0 CLK02 BITCLK_I 82 22 16 25 LRCLK_I 26 IC261 TC74VHCT08AFTS1 1 12 IC262 TC74VHC08FTS1 4 1 9 4 3 11 8 6 NJM4558MD 6 INPUT ADC 5V 3V Vi3(RL) Vi1(FL) ST,BRXEN,BSRQ ATA,BSCK LRCKOK 29 28 27 14 8 20 11 9 10 73 72 71 89 75 69 90 88 70 63 64 IC201 AK7732VT DSP S_RESET INIT_RESET CK_RESET RQ/CAD1 SCLK/SCL SI/CAD0 SDIN3/JX2 RDY SO SDOUT1 SDOUT2 SDOUT3 DATA1 DATA2 DATA3 AINL+ AINL- FL IC221 PCM1606EG D/A CONVERTER 1 2 3 37 35 36 DSPRQ MEMWP MEMCK MEMDO MEMDI BTRX BTCTS MEMCS DSPCK DSPOUT DSPRAMCLR DSPDRDY DSPIN CKRST DSPRST DSPIRST 43 44 45 SDA CS 60 EVOLCS SCK MCKRQ AUISCK 1 BITCLK_0 38 LRCLK_0 39 LPF SWL FL RL FL RL reset RESET 3 SWVDD 19 FL2 83 110 84 55 24 IC521 S99-50084 IC501 TC74VHCT08AFTS1 9 4 1 8 6 3 3V 5V IC511 TC74VHC08FTS1 8 11 3 6 6 5 2 1 3 9 12 5 6 45 47 94 78 66 44 46 95 114 115 116 7 87 86 1 4 5V 3V MEMORY 3V 5V OEL+B 9.0V RST2 BTAV_AUX 13 FLPPW FLPCLS FLPOPN FOPNSW FCLSSW RST1 ACC ILL TEL BRE FCKSEL 46 Q832 31 77 CKM[2] SMODE 7 6 SCKI BCK LRCK 20 RL SWL So1L 16 10 12 18 19 8 NJM4558MD IC282 LPF 7 Vi5(SWL) BUFFER CLKO1 32 Q322 5 6 RL REAR L Vo1b Vo3a 31 36 FL RL B.UP B.UP Q972 Q971 FAN DRIVE 1 2 FAN MOTOR CN971 1 124 125 135 107 144 TUN8V SYSPW SYSPW1 SYSPW SYSPW1 Q921 TUN8V REGULATOR Q922 Q911 SYS+B REGULATOR Q912 OEL+B 9.0V OELPW OELPW Q841 OEL+B REGULATOR Q842 ILM+B ILMPW ILMPW Q851 ILM+B REGULATOR Q852 VDD SYSPW2 DSPPW SYSPW DALMON DSPPW DSPPW SYSPW SYSPW DALMON DALMON BTPW OELPW ILMPW DSPPW SYSPW DALMON Q901 Q601 VDD REGULATOR Q902 B CN1701 AMP 1 NJM4558MD IC753(1/2) 2 AMP 7 NJM4558MD IC751 6 8 AMP 7 NJM4558MD IC753(2/2) 5 INV. F V 4 6 TC7S14FU IC754 2 1 NJM4151M IC752 SYS+B 3 111 100 99 98 CDRX WIRED REMOTE CONTROL CDTX VDD XTI XTO 43 X201 42 16.9344MHz SI SCK W# CS SO SYS+B AUTO EQ 3 2 8 11 5, 6 12,13 9,10 Q431 TC4066BFT IC431 1,4 SYS+B VDD Q182 AEQMIC AEQO AEQHFO Q181 Q183 AUISDO 54 26 AUICS 53 36 AUIWR 52 42 AUIBSY 63 3 AUIRST 56 9 A E CN76 E CN76 B B 8 9 11 12 10 BT3V BT5V SYS+B CN551(2/2) VDD CN431 13 BT8 Q531 BTMUTE 96 5 55 EX1+ C 2 3 1 M BACKUP FUSE 10A M972 PEG260A PEG261A AB : C : PEG260A PEG261A AB : C : AB 980BT/XN/UC 9800BT/XN/UC 9850BT/XN/ES AC B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 18 1 2 3 4 1 2 3 4 C D F A B E MULTI-CONTROL OEL+B RST 12 9 14 4 5 6 7 8 ILLUMINATION Xin Xout 13 BTLED Q1731 9 X1761 11 1 DSENS DPDT KYDT CDRX CDTX 8.0MHz RESET KEY MATRIX S1731,1732, S1734-1739 SWVDD5V IC1801 GP1UX51RK REMOTE CONTROL SENSOR OPT IN 3 1 IC1703 S-818A33AUC-BGN 3.3V REGULATOR 1 5,4 5V 3.3V 1.8V IC1702 NJM2870F18 1.8V REGULATOR 4 5,1 IC1763 PEG182A KEY/DISPLAY CONTROLLER 30 29 5 96 97 14 60 JOYST 89 ILM+B ROT0 ROT1 9V 10 OELX KD0-2,KS0-2 KYDT DPDT 2 3 34 33 CDTX CDRX REM Vref AVcc Vcc1 Vcc2 ROMDT ROMCK OELROMCS DRIVE_CS 2 4 100 1 3.3V 9V 22 3 4 5 6 7 39 9 10 5V CN1701 IC1831 IC1861 PD8161A PD8162A ROM IC1832 S-RAM ROMBK0 ROMBK1 ROMBK2 ROMBK0 ROMBK1 ROMBK2 D0-15 A20 A22 DATA BUS ADDRESS BUS DATA BUS ADDRESS BUS 13 12 36 24 27 A21 OE1 OE2 RD PD6544A IC1833 M5M5V216ATP-70HI FLASH ROM D0-15 A0-19 D0-15 A0-19 A0-19 D0-15 A0-16 26 15 FLBUSY FLBUSY CE WE 17 WRL WE OE S 41 CS2 6 RD OE RESET S1D13702F00A100 OEL CONTROL D0-15 RS A0 54 OELINT XCS CS1 cs1 BCLK OELRESET cs2 wr rd FLRESET CS2 WRL RD FLRESET 53 46 41 17 47 44 42 18 CLK BCLK 45 XRESET OELRESET 48 PD0-5 PDA0-5 DCLK LP1A LP2A GCLKRA GCLKGA GCLKBA GPSO DIS2A YD 11 WRL 28 FLRESET 12 RD XINT XWR XRD 56 59 WRL 55 RD 6 1 3 24 23 22 TC7WH34FU IC1762 2 7 5 TC7WT125FU OELINT FLBUSY OELINT P2CE_ON P2CECS cs0 FLCE_ON FLCECS 6 3 16 19 IC1761 2 5 1 2 5 20 45 21 6 3 TC7WH32FU IC1764 7 RY/BY 3V 5V 5V 3V 5V 3V KEYBOARD UNIT ILLUMINATION A CN811 Phase_B Phase_A 10 1 A0 OELGND B D1732-1742 : B,C : A A B C : DEH-P980BT/XN/UC : DEH-P9800BT/XN/UC : DEH-P9850BT/XN/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 19 5 6 7 8 5 6 7 8 C D F A B E 3.3V 9V 9V 9V 3.3V 5 7 8 6 9 1 16 15 14 13 12 11 10 4 3 17 22 22 3 4 5 6 7 39 9 10 PGND GND GND 2 24 5V 5V 26 24 29 30 25 23 28 PGND 27 CN1931 OEL MODULE 0 L PD0-5 PDA0-5 DCLK ADCS EEPCS EEPSCK EEPDI EEPDO LS DTLT CKAR CKAG CKAB SI2 LATCH D1 RST DCLK LP1A LP2A GCLKRA GCLKGA GCLKBA GPSO DIS2A YD OELX DGND OELGND COMPOUND UNIT ORX OTX BTRTS Q37 ORTS MICIN DACCS DACCK DACDT AUDIOL BTMUTE BTRST OCTS TELOUT CN76 RF_I/O VCC_RF REG_OUT SIOF_SS2 RESETP SIOF_RXD SCIF0_RXD SCIF0_TXD BOOT_E SCIF0_CTS SCIF0_RTS SIOF_TXD SIOF_SYNC SIOF_MCLK SCIF1_RXD SCIF1_TXD SCIF1_CTS SCIF1_RTS ANT1101 ANT1102 CN1 BT ANTENNA 1 A5 G9 G8 I1 3 2 4 7 N2 15 23 I2 H3 E3 Q1 F1 F2 H2 E2 2,3 12 9 8 10 11 5 4 3 2 1 40 39 36 38 37 6 7 17 24 33 34 35 15 DX BCLK SIOF_SCK SIOF_SS1 SCO_CLK_OUT MCK DR FS VFTN MUTEN RSTN GSR IC36 AK2301A Y1 CWX3340 CODEC LPF DAC 3 7 2 N3 1 N1 3 O2 13 14 15 16 5 PCM1742KE IC56 NJM4558V IC66 1 ALC 5 AN6123MS IC51 3 VoutL DATA BCKIN LRCKIN DATAO BCK LRCK MD MC ML MCLK Q36 BOOTE 22 Q1 BTTX Q2 BTTEST Q2 BTCTS BTRX P1 OSC 6 TC7PAU04FU IC22 CLOCK SELECT TC74VHC02FTS1 IC21 OSC TC7PAU04FU IC23 1 5 3 4 VCC VCC 6 11 12 4A 4B 2Y 1A 1B 4 2 HFMCK HFAV FSCHG MCK HFAV 3 O3 PTB1 T3 L1 O1 1 X21 11.2896MHz X22 12.288MHz 5 3 4 BLUETOOTH UNIT ANTENNA UNIT BT3V BT3V BT3V Q21 Q23 Q22 D3V D5V A8V BT3V D3V D5V A8V EXTAL BRCLK L9 L8 DATAI F E A CN551 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 20 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". D 1/2 A A-a 1/2 :PEG260A :PEG261A E CN75 C CN901 B CN1701 C CN902 TUNER AMP UNIT(DSP) 2/2 A D SWITCH UNIT 11 10 9 8 6 5 2 1 4 3 7 S2 OPEN CSN1052 S1 CLOSE CSN1051 M 2 3 1 FM/AM ANTENNA IP-BUS AUX INPUT MICROPHONE INPUT SYSTEM CONTROLLER FLAP MOTOR XXA7400 M801 : DEH-P980BT/XN/UC : DEH-P9800BT/XN/UC : DEH-P9850BT/XN/ES A B C AC B B AC AB C B AB IP-BUS:+2.2dBs FM(30%):-24.0dBs AM(30%):-24M.0dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 21 5 6 7 8 5 6 7 8 C D F A B E A-b 1/2 A 1/2 > B CN1701 ER AMP UNIT(DSP) 2/2 A TUNER AMP UNIT(MAIN) 1/2 A FAN MOTOR SUBWOOFER R CH SUBWOOFER L CH REAR R CH REAR L CH FRONT R CH FRONT L CH BACKUP GND RL— RL+ FL— FL+ B.REM ILL ACC TEL CEK1136 10A RR— RR+ FR— FR+ > 1K(1/2W) 1K(1/2W) M M972 A B AB AB FM:+0.0dBs AM:+0.0dBs IP-BUS: +16.1dBs CD: +15.8dBs FM:20.0dBs AM:20.0dBs IP-BUS: 36.1dBs CD: 35.1dBs FM:-2.4dBs AM:-2.4dBs IP-BUS:+10.1dBs CD: +9.8dBs FM:-13.8dBs AM:-13.8dBs IP-BUS: +2.3dBs CD: +3.0dBs Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. ROMDATA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 22 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1/2 1 > P) TUNER AMP UNIT(MAIN) 1/2 A SUBWOOFER R CH SUBWOOFER L CH REAR R CH REAR L CH FRONT R CH FRONT L CH B FM:+0.0dBs AM:+0.0dBs IP-BUS: +16.1dBs CD: +15.8dBs FM:20.0dBs AM:20.0dBs IP-BUS: 36.1dBs CD: 35.1dBs FM:-2.4dBs AM:-2.4dBs IP-BUS:+10.1dBs CD: +9.8dBs FM:-13.8dBs AM:-13.8dBs IP-BUS: +2.3dBs CD: +3.0dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 23 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 1/2 2 3 FAN MOTOR BACKUP GND RL— RL+ FL— FL+ B.REM ILL ACC TEL CEK1136 10A RR— RR+ FR— FR+ > 1K(1/2W) 1K(1/2W) M M972 A B B AB Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. ROMDATA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 24 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-a A-b 1/2 A-a 1/2 1 E CN75 C TUNER AMP UNIT(DSP) 2/2 A 11 10 9 8 6 5 2 1 4 3 7 IP-BUS AUX INPUT MICROPHONE INPUT SYSTEM CONTROLLER : DEH-P980BT/XN/UC : DEH-P9800BT/XN/UC : DEH-P9850BT/XN/ES A B C AC B B AC AB IP-BUS:+2.2dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 25 5 6 7 8 5 6 7 8 C D F A B E 2 3 PE5552A CD CONTROLLER CD DRIVER F S C S S C C F T T 8 9 # 4 6 7 NC SRAMLEVEL0 SRAMLEVEL1 ADENA SRAMLEVEL2 CD3VON(MCKRQ) NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC (S905) (S904) A-a A-b A-a A-b 1/2 A-a 1/2 D 2 3 :PEG260A :PEG261A C CN901 B CN1701 C CN902 D SWITCH UNIT S2 OPEN CSN1052 S1 CLOSE CSN1051 M 2 3 1 FM/AM ANTENNA SYSTEM CONTROLLER FLAP MOTOR XXA7400 M801 AC AB C A B AB FM(30%):-24.0dBs AM(30%):-24M.0dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 26 1 2 3 4 1 2 3 4 C D F A B E 3.3 TUNER AMP UNIT(DSP) 2/2 A 1/2 A 1/2 A 1/2 A 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 27 5 6 7 8 5 6 7 8 C D F A B E 2/2 A TUNER AMP UNIT(DSP) 2/2 A 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 28 1 2 3 4 1 2 3 4 C D F A B E 3.4 KEYBOARD UNIT B OEL MODULE MXK8230 TUNER AMP UNIT(MAIN) 1/2 A REMOTE CONTROL SENSOR RESET MULTI-CONTROL EQ PHONE SOURCE LIST BAND/ESC DISP CLOCK OPEN/EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 29 5 6 7 8 5 6 7 8 C D F A B E B A BC B KEYBOARD UNIT LE MXK8230 DISPLAY CONTROLLER : DEH-P980BT/XN/UC : DEH-P9800BT/XN/UC : DEH-P9850BT/XN/ES A B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 30 1 2 3 4 1 2 3 4 C D F A B E 3.5 CD CORE UNIT(COMP1D)(GUIDE PAGE) C-a C M1 CXC6742 SPINDLE MOTOR M2 CXC4026 LOADING/CARRIAGE MOTOR PICKUP UNIT(P10.5)(SERVICE) CD DRIVER F F T T F T C S F T C S T T F F T F F T F T F S C S S C C F T T S S C C 8 9 3 2 1 @ $ ! # 4 6 7 NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC SWITCHES: CD CORE UNIT(COMP1D) S901:HOME SWITCH..........ON-OFF S903:DSCSNS SWITCH......ON-OFF S904:12EJ SWITCH.............ON-OFF S905:8EJ SWITCH...............ON-OFF The underlined indicates the switch position. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 31 5 6 7 8 5 6 7 8 C D F A B E C-b C PE5552A CD CORE UNIT(COMP1D) C F SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S CN701 + 3.3 V REGULATOR CD CONTROLLER 0 ⁄ ( * 5 ) ¤ & NC SRAMLEVEL0 SRAMLEVEL1 ADENA SRAMLEVEL2 CD3VON(MCKRQ) NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC (S905) (S904) 1/2 A CN702 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 32 1 2 3 4 1 2 3 4 C D F A B E C-a C-b C-b 1 CD CORE UNIT(COMP1D) C F SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S CN702 + 3.3 V REGULATOR 1/2 A 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 33 5 6 7 8 5 6 7 8 C D F A B E C-a C-b C-b 2 3 PE5552A CN702 CD CONTROLLER 1/2 A CN701 1/2 A ⁄ ( * 5 ) ¤ & NC SRAMLEVEL0 SRAMLEVEL1 ADENA SRAMLEVEL2 CD3VON(MCKRQ) NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC (S905) (S904) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 34 1 2 3 4 1 2 3 4 C D F A B E A-a C-b C-a C-a C-b 1 PICKUP UNIT(P10.5)(SERVICE) SWITCHES: CD CORE UNIT(COMP1D) S901:HOME SWITCH..........ON-OFF S903:DSCSNS SWITCH......ON-OFF S904:12EJ SWITCH.............ON-OFF S905:8EJ SWITCH...............ON-OFF The underlined indicates the switch position. F F T T F T C S F T C S T T F F T F F T @ $ ! www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 35 5 6 7 8 5 6 7 8 C D F A B E A-a C-b C-a C-a C-b 2 3 M1 CXC6742 SPINDLE MOTOR M2 CXC4026 LOADING/CARRIAGE MOTOR CD DRIVER SWITCHES: CD CORE UNIT(COMP1D) S901:HOME SWITCH..........ON-OFF S903:DSCSNS SWITCH......ON-OFF S904:12EJ SWITCH.............ON-OFF S905:8EJ SWITCH...............ON-OFF The underlined indicates the switch position. F T F S C S S C C F T T S S C C 8 9 3 2 1 # 4 6 7 NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 36 1 2 3 4 1 2 3 4 C D F A B E - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65 V) 1 DSCSNS 2 8SNS 3 12SNS 5 V/div 5 V/div 5 V/div 500 ms/div 12 cm CD Loading operation Ref.: GND Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 5 V/div 5 V/div 5 V/div 500 ms/div Ref.: GND Mode: Normal 1 DSCSNS 4 CLCONT 5 VD 5 V/div 5 V/div 10 V/div 500 ms/div 12 cm CD Loading operation 8 cm CD Loading operation Ref.: GND Mode: Normal 9 FIN 0 RFOK 6 SIN 200 mV/div 2 V/div 2 V/div 500 ms/div 12 cm CD-DA Source On setup operation Ref.: REFO Mode: Normal @ FE 9 FIN ! TE 8 TIN 500 mV/div 500 mV/div 500 mV/div 500 mV/div 20 ms/div Ref.: REFO Mode: Normal ! TE @ FE 500 mV/div 500 mV/div 200 ms/div Source On setup operation CD-DA Play operation Ref.: REFO Mode: Normal @ FE 9 FIN ! TE 8 TIN 500 mV/div 500 mV/div 500 mV/div 500 mV/div 20 ms/div CD-ROM play operation(Regular track Jump) Ref.: REFO Mode: Normal # MDX 6 SIN 2 V/div 500 mV/div 5 µs/div Ref.: REFO Mode: Normal # MDX 6 SIN 2 V/div 200 mV/div 50 ms/div Spindle waveform during play operation Spindle waveform during play operation (Wider) Ref.: REFO Mode: Normal 6 SIN 7 CIN 8 TIN 1 V/div 500 mV/div 500 mV/div 1 s/div 12 cm CD-DA setup operation after loading 12 cm CD-ROM(3 sessions) setup operation after loading Ref.: REFO Mode: Normal 6 SIN 7 CIN 8 TIN 1 V/div 500 mV/div 500 mV/div 1 s/div Ref.: REFO Mode: Normal 6 SIN 7 CIN 8 TIN 1 V/div 500 mV/div 500 mV/div 1 s/div 12 cm CD-ROM(1 session) setup operation after loading Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 37 5 6 7 8 5 6 7 8 C D F A B E 9 FIN @ FE 500 mV/div 500 mV/div 200 ms/div Ref.: REFO Mode: TEST $ RFAGC ! TE 8 TIN 1 V/div 500 mV/div 500 mV/div 500 µs/div Ref.: REFO Mode: TEST ! TE $ RFAGC 500 mV/div 500 mV/div 2 ms/div Ref.: REFO Mode: TEST $ RFAGC ! TE 7 CIN 6 SIN 1 V/div 1 V/div 500 mV/div 2 V/div 200 ms/div Ref.: REFO Mode: Normal 6 SIN 7 CIN 8 TIN 1 V/div 500 mV/div 500 mV/div 500 ms/div Ref.: REFO Mode: Normal $ RFAGC ! TE 8 TIN 1 V/div 500 mV/div 500 mV/div 500 µs/div Ref.: REFO Mode: TEST $ RFAGC ! TE 8 TIN 1 V/div 500 mV/div 500 mV/div 2 ms/div Ref.: REFO Mode: TEST $ RFAGC ! TE 8 TIN 1 V/div 500 mV/div 500 mV/div 1 ms/div Ref.: REFO Mode: TEST 1 DSCSNS 5 CLCONT 4 LOEJ 5 V/div 5 V/div 5 V/div 500 ms/div Ref.: GND Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 5 V/div 5 V/div 5 V/div 500 ms/div Ref.: GND Mode: Normal Focus Search waveform Track Open waveform 1 Track Jump waveform Search operation(Outter to Inner) 8 cm CD Eject operation 4 Tracks Jump waveform 32 Tracks Jump waveform 10 Tracks Jump waveform 12 cm CD Eject operation 1 DSCSNS 2 8SNS 3 12SNS 5 V/div 5 V/div 5 V/div 500 ms/div Ref.: GND Mode: Normal 12 cm CD Eject operation CD-DA → CD-ROM mode change(Band key) 6 SIN 7 CIN 8 TIN 1 V/div 500 mV/div 500 mV/div 500 ms/div Ref.: REFO Mode: Normal CD-ROM → CD-DA mode change(Band key) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 38 1 2 3 4 1 2 3 4 C D F A B E ( CD3VON & LRCK ) LRCKOK 5 V/div 2 V/div 2 V/div 200 ms/div Ref.: REFO ( CD3VON & LRCK ) LRCKOK 5 V/div 2 V/div 2 V/div 200 ms/div Ref.: REFO ⁄ DOUT & LRCK * BCK 2 V/div 2 V/div 2 V/div 20 µs/div Mode: Normal Mode: Normal Ref.: GND Mode: Normal 12 cm CD Eject operation CD-DA play operation 12 cm CD-DA Source On setup operation 7 CIN ! TE ¤ EMPH 500 mV/div 500 mV/div 5 V/div 100 ms/div Ref.: GND Mode: Normal Tracks Jump(EMPH : OFF → ON) $ RFAGC 8 TIN ! TE 9 FIN 1 V/div 1 V/div 1 V/div 1 V/div 500 µs/div Ref.: REFO Mode: Normal Black dot(800 µm) during play www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 39 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 40 1 2 3 4 1 2 3 4 C D F A B E 3.6 BLUETOOTH UNIT, ANTENNA UNIT E F COMPOUND UNIT F ANTENNA UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 41 5 6 7 8 5 6 7 8 C D F A B E E E BLUETOOTH UNIT CN551 A 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 42 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT Capacitor Connector P.C.Board Chip Part A A TUNER AMP UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 10 20 30 40 50 60 70 80 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y X CORD ASSY (POWER SU WIRED REMOTE CONTROL INPUT (DEH-P980BT/XN/UC, DEH-P9800BT/XN/UC) 1 2 3 1 2 1 3 4 8 9 10 11 5 6 7 2 3 1 IP-BUS AUX INPUT 1 2 3 4 8 9 10 11 5 6 7 12 13 14 15 16 > FU 321 (A,136,130) Fuse 3 A CEK1286 E CN76 CORD ASSY (A-EQ MICROPHONE INPUT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 43 5 6 7 8 5 6 7 8 C D F A B E A SIDE A 70 80 90 100 110 120 130 140 150 160 170 180 CORD ASSY (POWER SUPPLY,SPEAKER) CORD ASSY (PRE OUTPUT) ANTENNA CABLE FRONT D M801 FLAP MOTOR B CN1701 C CN902 1 2 3 4 5 6 M972 FAN MOTOR 1 2 3 4 8 9 10 11 5 6 7 12 1 2 3 C CN901 1 2 3 4 8 9 10 11 5 6 7 12 13 14 15 16 18 17 FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 44 1 2 3 4 1 2 3 4 C D F A B E A A TUNER AMP UNIT 70 80 90 100 110 120 130 140 150 160 170 180 TESTIN PCL C- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 45 5 6 7 8 5 6 7 8 C D F A B E A SIDE B 10 20 30 40 50 60 70 80 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y X www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 46 1 2 3 4 1 2 3 4 C D F A B E 4.2 KEYBOARD UNIT B B KEYBOARD UNIT B KEYBOARD UNIT 10 20 30 40 50 60 70 80 X 40 30 20 10 10 20 30 40 0 10 20 30 40 50 60 70 80 X 0 Y Y MULTI-CONTROL EQ PHONE SOURCE LIST BAND/ESC DISP CLOCK OPEN/EJECT 2 5 3 1 4 10 6 9 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 47 5 6 7 8 5 6 7 8 C D F A B E B SIDE A SIDE B A CN811 OEL MODULE 140 150 160 80 90 100 110 120 130 140 150 160 80 90 100 110 120 130 RESET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 48 1 2 3 4 1 2 3 4 C D F A B E 4.3 CD CORE UNIT(COMP1D) C C CD CORE UNIT(COMP1D) SIDE A IC301 IC203 20 CN901 PICKUP UNIT(P10.5)(SERVICE) A CN701 A CN702 M2 LOADING /CARRIAGE MOTOR M1 SPINDLE MOTOR F E REFO1 HOME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 49 5 6 7 8 5 6 7 8 C D F A B E C C CD CORE UNIT(COMP1D) SIDE B DSCSNS 8EJ 12EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 50 1 2 3 4 1 2 3 4 C D F A B E 4.4 BLUETOOTH UNIT E E BLUETOOTH UNIT SIDE A A CN551 10 20 30 X 40 30 20 10 0 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 51 5 6 7 8 5 6 7 8 C D F A B E E E BLUETOOTH UNIT SIDE B 30 20 10 X 40 30 20 10 0 Y F ANT1102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 52 1 2 3 4 1 2 3 4 C D F A B E 4.5 ANTENNA UNIT F F ANTENNA UNIT SIDE A F ANTENNA UNIT SIDE B E CN1 BT ANTENNA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 53 5 6 7 8 5 6 7 8 C D F A B E 4.6 SWITCH UNIT D D SWITCH UNIT 1 2 3 CLOSE OPEN A CN801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 54 1 2 3 4 1 2 3 4 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... • The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Circuit Symbol and No. Part No. Unit Number: CWN1771 Unit Name : Bluetooth Unit Unit Number: CWN1436(DEH-P980BT/XN/UC) Unit Name : Tuner Amp Unit Unit Number: CWN1437(DEH-P9800BT/XN/UC) Unit Name : Tuner Amp Unit Unit Number: CWN1438(DEH-P9850BT/XN/ES) Unit Name : Tuner Amp Unit Unit Number: Unit Name : Keyboard Unit Unit Number: CWX3328 Unit Name : CD Core Unit(COMP1D) Unit Number: CWS1389 Unit Name : Switch Unit E Unit Number: CWN1771 Unit Name : Bluetooth Unit MISCELLANEOUS IC 21 (A,29,43) IC TC74VHC02FTS1 IC 22 (A,23,43) IC TC7PAU04FU IC 23 (B,22,40) IC TC7PAU04FU IC 36 (A,11,14) IC AK2301A IC 51 (A,16,27) IC AN6123MS IC 56 (B,10,13) IC PCM1742KE IC 66 (B,12,21) IC NJM4558V Q 1 (A,30,13) Transistor DTC124EUA Q 2 (A,34,29) Transistor DTC124EUA Q 21 (B,27,40) Transistor UMD2N Q 22 (B,31,43) Transistor DTC124EUA Q 23 (B,27,43) Transistor UMD2N Q 36 (A,17,8) Transistor DTC124EUA Q 37 (A,16,12) Transistor DTC124EUA L 1 (A,23,24) Inductor CTF1394 L 21 (A,26,39) Inductor CTF1379 L 22 (A,23,40) Inductor CTF1379 L 23 (B,23,44) Inductor CTF1379 L 36 (A,5,11) Inductor LCYC2R2K1608 L 51 (A,11,32) Inductor CTF1379 L 56 (B,17,7) Inductor CTF1379 L 57 (B,12,9) Inductor CTF1379 X 21 (A,19,41)Resonator 11.289 6 MHz CSS1670 X 22 (B,18,42) Resonator 12.288 MHz CSS1698 Y 1 (B,27,21) Compound Unit CWX3340 RESISTORS R 1 (A,22,12) RS1/16S334J R 2 (A,32,32) RS1/16S103J R 3 (A,35,26) RS1/16S473J R 4 (A,28,29) RS1/16S103J R 5 (A,20,24) RS1/16S103J R 6 (A,22,32) RS1/16S0R0J R 7 (A,35,23) RS1/16S103J R 8 (A,32,23) RS1/16S101J R 9 (A,32,20) RS1/16S103J R 21 (A,33,39) RS1/16S101J R 22 (B,21,38) RS1/16S473J R 23 (A,23,37) RS1/16S473J R 24 (B,24,40) RS1/16S101J R 25 (A,24,40) RS1/16S101J R 26 (A,21,41) RS1/16S332J R 27 (A,21,43) RS1/16S105J R 28 (B,20,43) RS1/16S332J R 29 (B,20,40) RS1/16S105J R 36 (A,15,5) RS1/16S103J R 37 (A,14,7) RS1/16S104J R 41 (A,8,22) RS1/16S103J R 43 (A,10,21) RS1/16S393J R 44 (A,8,20) RS1/16S393J R 45 (A,14,21) RAB4C101J R 46 (A,4,18) RS1/16S103J R 47 (A,16,15) RS1/16S203J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 55 5 6 7 8 5 6 7 8 C D F A B E R 48 (A,18,18) RS1/16S103J R 49 (A,7,8) RS1/16S203J R 50 (A,14,8) RS1/16S473J R 51 (A,20,28) RS1/16S105J R 52 (A,7,5) RS1/16S103J R 57 (B,15,15) RAB4C101J R 58 (A,30,36) RS1/16S821J R 66 (B,18,21) RS1/16S103J R 67 (B,16,24) RS1/16S103J R 68 (B,12,19) RS1/16S473J R 69 (B,11,24) RS1/16S103J R 70 (B,7,24) RS1/16S103J R 71 (B,9,19) RS1/16S473J R 72 (B,3,17) RS1/16S103J R 73 (B,5,19) RS1/16S103J R 76 (A,4,30) RS1/16S101J R 77 (B,5,31) RS1/16S101J R 78 (A,6,32) RS1/16S101J R 79 (B,11,32) RS1/16S0R0J R 80 (A,3,33) RS1/16S101J R 81 (B,10,29) RS1/16S101J R 82 (B,16,29) RS1/16S101J R 83 (B,9,32) RS1/16S101J R 84 (B,16,31) RS1/16S0R0J R 85 (B,9,39) RS1/16S101J R 86 (B,6,39) RAB4C101J R 87 (B,12,39) RAB4C101J CAPACITORS C 1 (A,28,12) CKSRYB104K16 C 4 (A,26,21) CSZS100M16 C 5 (A,22,16) CKSRYB104K16 C 7 (A,25,13) CSZS1R0M16 C 8 (A,23,21) CKSRYB104K16 C 9 (A,23,19) CKSRYB104K16 C 10 (A,22,15) CCSRCH101J50 C 21 (A,28,40) CKSRYB104K16 C 22 (A,21,38) CKSRYB105K10 C 23 (A,19,37) CCSRCH120J50 C 24 (A,19,45) CCSRCH120J50 C 25 (B,23,43) CKSRYB105K10 C 26 (B,15,42) CCSRCH120J50 C 27 (B,17,38) CCSRCH120J50 C 28 (A,27,36) CKSRYB102K50 C 36 (A,3,15) CKSYB106K6R3 C 37 (A,5,15) CKSRYB104K16 C 38 (A,10,22) CKSRYB105K10 C 41 (A,10,19) CCSRCH101J50 C 42 (A,7,20) CKSRYB105K10 C 43 (A,4,20) CKSRYB105K10 C 44 (A,11,8) CKSRYB334K10 C 45 (A,12,5) CKSRYB105K10 C 46 (A,16,17) CCSRCH101J50 C 47 (A,7,7) CCSRCH101J50 C 48 (A,9,5) CKSRYB105K10 C 49 (A,9,8) CKSRYB105K10 C 50 (A,17,20) CKSRYB105K10 C 51 (A,19,24) CKSRYB334K10 C 52 (A,16,24) CCSRCH331J50 Circuit Symbol and No. Part No. C 53 (A,19,29) CKSYB106K6R3 C 54 (A,15,30) CKSRYB105K10 C 55 (A,13,29) CKSRYB104K16 C 56 (B,8,7) CKSYB106K6R3 C 57 (B,15,12) CKSRYB102K50 C 58 (B,16,11) CKSYB106K6R3 C 59 (B,14,9) CKSRYB102K50 C 60 (B,10,7) CKSYB106K6R3 C 61 (B,14,6) CKSRYB102K50 C 66 (B,16,18) CKSYB475K16 C 67 (B,9,17) CKSYB475K16 C 68 (B,16,21) CCSRCH221J50 C 69 (B,16,26) CCSRCH391J50 C 70 (B,9,26) CKSYB106K6R3 C 71 (B,6,25) CKSRYB105K10 C 72 (B,4,19) CCSRCH391J50 C 73 (B,7,20) CCSRCH221J50 C 76 (A,13,45) CKSRYB102K50 A Unit Number: CWN1436(DEH-P980BT/XN/UC) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 (B,31,140) IC HA12241FP IC 121 (A,129,104) IC PM9009A IC 122 (A,111,94) IC TC4066BFT IC 201 (A,61,77) IC AK7732VT IC 221 (A,76,86) IC PCM1606EG IC 240 (B,75,96) IC NJM4558MD IC 241 (B,78,53) IC NJM4558MD IC 261 (A,58,64) IC TC74VHCT08AFTS1 IC 262 (A,96,62) IC TC74VHC08FTS1 IC 271 (A,81,71) IC TC7SH08FUS1 IC 281 (B,96,96) IC NJM4558MD IC 282 (B,96,74) IC NJM4558MD IC 283 (B,95,85) IC NJM4558MD IC 351 (A,102,139) IC PAL007B IC 371 (A,99,110) IC PM8003A IC 421 (B,160,88) IC NJM2885DL1-33 IC 431 (A,48,108) IC TC4066BFT IC 441 (A,46,122) IC NJM4558MD IC 501 (A,95,28) IC TC74VHCT08AFTS1 IC 511 (A,95,39) IC TC74VHC08FTS1 IC 521 (A,99,20) IC S99-50084 IC 561 (B,65,38) IC NJM2885DL1-33 IC 566 (B,50,39) IC NJM2872F05 IC 601 (A,133,67) IC PEG260A IC 661 (A,155,66) IC S-80835CNUA-B8U IC 751 (B,112,34) IC NJM4558MD IC 752 (B,126,47) IC NJM4151M IC 753 (B,127,34) IC NJM4558MD IC 754 (B,113,51) IC TC7S14FU IC 801 (A,147,40) IC BA6288FS IC 861 (A,65,98) IC NJM2872F05 IC 871 (B,57,99) IC NJM2885DL1-33 Q 101 (A,22,121) Transistor UMF23N Q 121 (A,111,89) Transistor UMD3N Q 181 (A,105,120) Transistor 2SC3052-12 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 56 1 2 3 4 1 2 3 4 C D F A B E Q 182 (A,108,130) Transistor UMD3N Q 183 (B,115,93) Transistor 2SC4081 Q 281 (A,104,95) Transistor UMH3N Q 282 (A,106,66) Transistor UMD3N Q 291 (A,104,73) Transistor UMH3N Q 301 (A,104,84) Transistor UMH3N Q 321 (A,154,131) Transistor IMH23 Q 322 (A,148,127) Transistor IMH23 Q 323 (A,139,127) Transistor IMH23 Q 324 (A,144,114) Transistor UMD3N Q 351 (A,125,124) Transistor DTC124EUA Q 391 (A,39,58) Transistor 2SC4081 Q 431 (A,46,114) Transistor UMD3N Q 531 (B,55,43) Transistor DTC314TU Q 601 (B,115,64) Transistor UMD3N Q 661 (B,155,56) Transistor 2SC4081 Q 721 (A,18,74) Transistor 2SD2396 Q 722 (A,36,72) Transistor UMD3N Q 791 (B,57,107) Transistor 2SD1760F5 Q 792 (A,57,103) Transistor UMD3N Q 793 (B,111,69) Transistor 2SC4081 Q 794 (A,39,96) Transistor 2SC4081 Q 795 (A,39,90) Transistor UMD3N Q 801 (B,151,22) Transistor 2SD1760F5 Q 812 (A,153,18) Transistor UMD3N Q 831 (A,68,17) Transistor 2SB710A Q 832 (B,76,27) Transistor DTC114EU Q 841 (A,34,19) Transistor 2SD1760F5 Q 842 (A,38,36) Transistor UMD3N Q 851 (B,63,24) Transistor 2SD1767 Q 852 (A,66,9) Transistor UMD3N Q 853 (A,132,34) Transistor 2SC4081 Q 901 (A,18,57) Transistor 2SD2396 Q 902 (A,34,50) Transistor UMD3N Q 911 (A,18,103) Transistor 2SD2396 Q 912 (A,22,118) Transistor UMD3N Q 921 (A,18,87) Transistor 2SD2396 Q 922 (B,23,80) Transistor UMD3N Q 931 (A,75,116) Transistor UMX1N Q 941 (A,83,116) Transistor DTC114EU Q 951 (A,92,121) Transistor 2SA1576 Q 971 (A,51,115) Transistor UMD3N Q 972 (A,57,117) Transistor 2SD1859 D 121 (B,128,115) Diode RB520S-30 D 132 (B,124,112) Diode 1SS355 D 133 (B,124,108) Diode RB521S-30 D 134 (B,124,110) Diode RB521S-30 D 181 (A,107,127) Diode HZU3R9(B1) D 281 (A,107,73) Diode DAN202U D 321 (A,138,117) Diode 1SS133 D 351 (A,117,130) Diode MPG06G-6415G50 D 352 (A,117,127) Diode MPG06G-6415G50 D 391 (A,44,69) Diode DAN202U D 392 (A,43,72) Diode HZU9L(A2) D 421 (A,161,84) Diode 1SR154-400 D 422 (A,161,88) Diode 1SR154-400 D 423 (A,161,91) Diode 1SR154-400 D 431 (A,32,125) Diode RSB6R8S D 441 (B,39,118) Diode RSB6R8S D 442 (B,50,121) Diode RSB6R8S Circuit Symbol and No. Part No. D 531 (B,53,46) Diode 1SS355 D 551 (B,54,59) Diode DAN202U D 601 (B,121,61) Diode DAN202U D 671 (B,19,140) Diode DAN202U D 672 (B,24,140) Diode DAP202U D 721 (A,30,72) Diode HZS9L(A2) D 751 (B,135,51) Diode Network DA204U D 752 (B,126,39) Diode Network DA204U D 791 (B,110,73) Diode HZU6L(B1) D 792 (B,80,109) Diode HZU7L(A1) D 793 (B,40,107) Diode 1SR154-400 D 794 (A,42,90) Diode HZU9L(B2) D 801 (A,148,30) Diode 1SS133 D 802 (A,148,34) Diode 1SS133 D 803 (A,149,23) Diode HZU7L(B2) D 811 (B,115,13) Diode DAN202U D 812 (B,124,13) Diode DAP202U D 813 (A,111,27) Diode DAN202U D 814 (A,107,27) Diode DAP202U D 815 (B,106,15) Diode DAN202U D 816 (B,106,19) Diode DAP202U D 817 (B,106,28) Diode DAN202U D 818 (B,106,24) Diode DAP202U D 841 (A,36,39) Diode HZS9L(C2) D 851 (A,66,13) Diode HZS11L(A1) D 853 (A,92,13) LED SML412BC5T(MN) D 901 (A,35,59) Diode MPG06G-6415G50 D 902 (A,29,59) Diode HZS6L(B1) D 911 (A,13,115) Diode HZS9L(B2) D 921 (A,30,83) Diode HZS9L(B2) D 931 (A,73,117) Diode HZU7L(A1) D 932 (A,69,118) Diode HZU7L(C3) D 941 (A,79,115) Diode 1SR154-400 D 951 (A,92,127) Diode DAN202U D 971 (A,57,114) Diode HZS11L(B2) D 981 (B,87,109) Diode Network DA204U D 982 (B,82,117) Diode HZU7L(C2) D 991 (A,98,126) Diode MPG06G-6415G50 D 992 (A,98,121) Diode MPG06G-6415G50 D 993 (A,61,103) Diode DAN202U ZNR401 (A,161,145)Surge Protector RCCA-201Q31UA-PI L 101 (B,24,134) Inductor LCTAW2R2J2520 L 121 (A,117,117) ATH1176 L 201 (A,55,85) Inductor CTF1379 L 206 (B,66,83) Inductor CTF1389 L 208 (A,63,68) Inductor CTF1389 L 221 (A,84,85) Inductor CTF1379 L 241 (B,84,52) Inductor CTF1389 L 261 (A,56,70) Inductor CTF1379 L 262 (A,95,66) Inductor CTF1379 L 271 (A,83,70) Inductor CTF1389 L 272 (A,84,72) Inductor CTF1379 L 371 (B,97,110) Inductor CTF1379 L 401 (A,160,105) Inductor LAU1R0K L 402 (A,154,106) Ferri-Inductor LAU100K L 403 (A,154,114) Inductor LAU1R0K L 404 (B,167,149) Chip Coil LCTAW4R7J2520 L 501 (B,95,22) Inductor CTF1379 L 511 (B,94,35) Inductor CTF1379 L 521 (B,84,23) Inductor CTF1379 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 57 5 6 7 8 5 6 7 8 C D F A B E L 554 (B,60,45) Inductor CTF1389 L 604 (A,139,90) Ferri-Inductor LAU100K L 701 (A,101,27) Inductor LCTAW2R2J3225 L 831 (A,76,17) Ferri-Inductor LAU100K L 841 (A,57,18) Inductor LAU2R2K L 872 (A,41,85) Inductor CTF1617 L 951 (A,86,115) Inductor LAU2R2K X 201 (A,59,91)Crystal Resonator 16.934 4 MHz CSS1052 X 371 (A,87,107)Ceramic Resonator 4.096 MHz CSS1429 X 601 (A,149,67)Cristal Resonator 20 MHz VSS1167 VR121 (A,120,112)Semi-fixed 15 kΩ(B) CCP1397 >FU321 (A,136,130) Fuse 3 A CEK1286 BZ681 (A,152,50) Buzzer CPV1062 M 972 Fan Motor CXM1288 FM/AM Tuner Unit CWE1952 RESISTORS R 101 (B,26,130) RS1/16S181J R 102 (B,36,124) RS1/16S181J R 103 (B,27,124) RS1/16S223J R 104 (B,33,122) RS1/16S223J R 105 (B,29,124) RS1/16S102J R 106 (B,31,122) RS1/16S102J R 107 (B,39,142) RS1/16S101J R 108 (B,39,137) RS1/16S101J R 109 (B,39,140) RS1/16S150J R 110 (B,39,138) RS1/16S470J R 111 (B,39,135) RS1/16S102J R 112 (A,26,124) RS1/16S222J R 113 (A,23,124) RS1/16S332J R 114 (A,20,124) RS1/16S562J R 122 (A,139,107) RS1/16S0R0J R 123 (A,138,103) RS1/16S0R0J R 124 (A,138,114) RS1/16S0R0J R 125 (A,138,113) RS1/16S0R0J R 126 (A,138,109) RS1/16S0R0J R 127 (A,138,107) RS1/16S0R0J R 128 (A,139,103) RS1/16S0R0J R 129 (A,141,101) RS1/16S0R0J R 130 (A,141,99) RS1/16S0R0J R 131 (A,141,98) RS1/16S0R0J R 132 (A,107,89) RS1/16S103J R 133 (A,114,89) RS1/16S103J R 134 (A,133,113) RAB4C102J R 135 (A,124,113) RS1/16S103J R 181 (A,102,130) RS1/16S104J R 182 (B,110,125) RS1/16S683J R 183 (A,98,130) RS1/16S153J R 184 (B,116,125) RS1/16S682J R 185 (A,104,124) RS1/16S152J R 186 (A,104,130) RS1/16S222J R 187 (A,105,130) RS1/16S561J R 188 (A,110,130) RS1/16S473J R 189 (B,107,97) RS1/16S103J R 190 (B,111,97) RS1/16S223J R 191 (B,115,97) RS1/16S104J R 201 (B,54,88) RS1/16S104J R 202 (B,52,88) RS1/16S104J R 203 (B,57,79) RS1/16S153J R 204 (B,63,84) RS1/16S222J Circuit Symbol and No. Part No. R 205 (A,59,68) RS1/16S681J R 206 (A,62,87) RS1/16S101J R 207 (A,61,68) RS1/16S681J R 208 (A,67,86) RAB4C101J R 212 (A,69,76) RS1/16S101J R 213 (A,68,71) RS1/16S101J R 214 (A,67,71) RS1/16S101J R 221 (B,78,89) RS1/16S103J R 222 (B,78,87) RS1/16S103J R 240 (B,83,99) RS1/16S223J R 241 (B,83,101) RS1/16S223J R 242 (B,84,96) RS1/16S153J R 243 (B,67,96) RS1/16S153J R 244 (B,72,91) RS1/16S101J R 247 (B,75,70) RS1/16S101J R 248 (B,79,65) RS1/16S473J R 249 (B,77,65) RS1/16S473J R 261 (B,58,66) RS1/16S681J R 262 (B,58,62) RS1/16S681J R 263 (A,69,66) RAB4C123J R 264 (B,69,63) RAB4C223J R 265 (A,103,63) RS1/16S681J R 266 (A,91,62) RS1/16S681J R 267 (A,91,63) RS1/16S681J R 268 (A,103,66) RS1/16S681J R 269 (A,102,66) RS1/16S681J R 270 (A,100,66) RS1/16S681J R 271 (A,77,72) RS1/16S0R0J R 273 (A,82,67) RS1/16S0R0J R 274 (A,87,72) RS1/16S0R0J R 275 (A,91,65) RS1/16S681J R 276 (A,93,66) RS1/16S681J R 281 (A,98,94) RS1/16S473J R 282 (A,98,96) RS1/16S473J R 283 (A,98,93) RS1/16S682J R 284 (A,98,97) RS1/16S682J R 285 (A,101,93) RS1/16S682J R 286 (A,101,97) RS1/16S682J R 287 (B,100,89) RS1/16S102J R 288 (B,103,94) RS1/16S102J R 289 (B,102,97) RS1/16S101J R 290 (B,89,94) RS1/16S101J R 291 (A,98,73) RS1/16S473J R 292 (A,98,74) RS1/16S473J R 293 (A,98,71) RS1/16S682J R 294 (A,98,76) RS1/16S682J R 295 (A,101,71) RS1/16S682J R 296 (A,101,76) RS1/16S682J R 297 (B,100,68) RS1/16S102J R 298 (B,103,71) RS1/16S102J R 299 (B,102,74) RS1/16S101J R 300 (B,89,70) RS1/16S101J R 301 (A,98,83) RS1/16S473J R 302 (A,98,85) RS1/16S473J R 303 (A,98,82) RS1/16S682J R 304 (A,98,86) RS1/16S682J R 305 (A,101,82) RS1/16S682J R 306 (A,101,86) RS1/16S682J R 307 (B,100,79) RS1/16S102J R 308 (B,103,83) RS1/16S102J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 58 1 2 3 4 1 2 3 4 C D F A B E R 309 (B,102,86) RS1/16S101J R 310 (B,89,82) RS1/16S101J R 321 (B,151,128) RS1/16S470J R 322 (B,149,125) RS1/16S470J R 323 (A,157,131) RS1/16S223J R 324 (A,154,128) RS1/16S223J R 325 (B,145,126) RS1/16S470J R 326 (B,139,126) RS1/16S470J R 327 (A,151,127) RS1/16S223J R 328 (A,145,127) RS1/16S223J R 329 (B,136,128) RS1/16S470J R 330 (B,136,134) RS1/16S470J R 331 (A,142,127) RS1/16S223J R 332 (A,134,130) RS1/16S223J R 333 (A,145,118) RS1/16S102J R 351 (B,99,147) RS1/16S103J R 352 (A,125,121) RS1/16S103J R 353 (A,125,126) RS1/16S103J R 354 (A,122,125) RS1/16S331J R 371 (B,91,108) RS1/16S0R0J R 372 (B,100,110) RS1/16S473J R 373 (B,130,78) RS1/16S104J R 391 (A,39,54) RS1/16S103J R 392 (A,40,65) RS1/16S223J R 393 (A,38,65) RS1/16S103J R 394 (A,37,65) RS1/16S473J R 405 (B,167,114) RS1/16S681J R 406 (B,173,130) RS1/16S681J R 407 (B,173,132) RS1/16S681J R 408 (B,173,134) RS1/16S681J R 409 (B,173,136) RS1/16S681J R 410 (B,174,140) RS1/16S681J R 431 (A,48,103) RS1/16S103J R 432 (A,48,105) RS1/16S103J R 441 (B,44,131) RS1/16S223J R 442 (B,51,131) RS1/16S223J R 443 (B,44,127) RS1/16S103J R 444 (B,51,127) RS1/16S103J R 445 (B,42,131) RS1/16S103J R 446 (B,53,131) RS1/16S103J R 447 (A,40,121) RS1/16S103J R 448 (A,40,119) RS1/16S103J R 449 (A,39,123) RS1/16S103J R 450 (A,52,122) RS1/16S103J R 451 (A,45,116) RS1/16S104J R 452 (A,47,117) RS1/16S104J R 501 (B,95,24) RS1/16S681J R 502 (B,95,26) RS1/16S681J R 503 (B,89,31) RAB4C681J R 511 (B,65,49) RS1/16S182J R 512 (B,82,40) RAB4C681J R 513 (B,65,51) RS1/16S332J R 514 (B,61,51) RS1/16S332J R 515 (B,89,40) RAB4C681J R 516 (B,65,53) RS1/16S182J R 521 (B,82,31) RAB4C101J R 522 (B,88,25) RS1/16S101J R 523 (B,88,23) RS1/16S101J R 531 (B,51,42) RS1/16S223J R 532 (B,49,43) RS1/16S102J Circuit Symbol and No. Part No. R 552 (B,45,69) RS1/16S0R0J R 554 (B,43,69) RS1/16S102J R 555 (B,41,51) RS1/16S220J R 556 (B,53,49) RS1/16S102J R 557 (B,48,54) RS1/16S0R0J R 601 (B,131,87) RS1/16S104J R 603 (B,131,85) RS1/16S104J R 604 (A,135,52) RS1/16S103J R 605 (B,131,83) RS1/16S104J R 606 (A,139,81) RS1/16S102J R 607 (B,132,73) RS1/16S104J R 608 (A,126,82) RS1/16S104J R 609 (A,119,71) RS1/16S102J R 611 (B,141,83) RS1/16S472J R 613 (B,140,85) RS1/16S472J R 615 (B,135,65) RS1/16S104J R 616 (B,135,69) RS1/16S104J R 617 (A,142,53) RAB4C104J R 619 (B,146,66) RS1/16S0R0J R 621 (A,119,60) RAB4C104J R 625 (A,119,69) RS1/16S104J R 627 (A,134,82) RAB4C681J R 628 (A,131,81) RS1/16S681J R 629 (B,127,78) RS1/16S681J R 631 (A,116,64) RS1/16S104J R 632 (A,131,52) RS1/16S104J R 633 (B,136,57) RS1/16S104J R 635 (A,117,57) RS1/16S104J R 640 (A,120,55) RS1/16S0R0J R 652 (A,149,76) RS1/16S104J R 661 (B,155,49) RS1/16S222J R 662 (A,153,59) RS1/16S102J R 664 (B,155,53) RS1/16S473J R 665 (A,156,61) RS1/16S183J R 671 (B,13,140) RS1/16S102J R 672 (B,15,140) RS1/16S102J R 681 (B,149,50) RS1/16S102J R 701 (B,96,43) RS1/16S682J R 702 (B,96,47) RS1/16S682J R 703 (A,98,47) RS1/16S682J R 704 (A,98,50) RS1/16S682J R 705 (B,96,51) RS1/16S221J R 706 (B,108,49) RS1/16S221J R 707 (B,96,49) RS1/16S221J R 708 (B,108,47) RS1/16S221J R 709 (B,96,45) RS1/16S221J R 710 (B,108,45) RS1/16S681J R 711 (B,106,40) RS1/16S473J R 712 (A,116,69) RS1/16S104J R 721 (B,24,65) RS1/4SA391J R 751 (B,135,39) RS1/16S393J R 752 (B,129,51) RS1/16S104J R 753 (B,135,41) RS1/16S472J R 754 (B,135,37) RS1/16S471J R 755 (B,133,48) RS1/16S273J R 757 (B,121,31) RS1/16S104J R 758 (B,119,35) RS1/16S222J R 759 (B,120,38) RS1/16S471J R 760 (B,120,28) RS1/16S471J R 761 (B,115,39) RS1/16S473J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 59 5 6 7 8 5 6 7 8 C D F A B E R 762 (B,112,40) RS1/16S473J R 763 (B,118,52) RS1/16S103J R 764 (B,129,53) RS1/16S103J R 765 (B,112,46) RS1/16S473J R 766 (B,112,44) RS1/16S473J R 767 (B,120,52) RS1/16S472J R 768 (B,118,47) RS1/16S103J R 769 (B,124,51) RS1/16S682J R 770 (B,136,34) RS1/16S333J R 771 (B,136,30) RS1/16S332J R 773 (B,117,50) RS1/16S0R0J R 774 (B,128,30) RS1/16S473J R 775 (B,130,38) RS1/16S473J R 776 (B,139,27) RS1/16S473J R 777 (B,140,30) RS1/16S473J R 791 (B,107,69) RS1/16S122J R 792 (A,54,105) RS1/16S821J R 793 (A,39,94) RS1/16S152J R 801 (A,152,42) RS1/16S102J R 802 (A,142,42) RS1/16S102J R 803 (B,149,38) RS1/16S103J R 804 (B,143,41) RS1/16S563J R 806 (B,152,42) RS1/16S102J R 807 (A,151,18) RS1/4SA102J R 808 (B,152,38) RS1/16S102J R 811 (B,110,26) RS1/16S222J R 812 (B,112,18) RS1/16S222J R 813 (B,110,28) RS1/16S222J R 814 (B,115,17) RS1/16S222J R 815 (A,116,27) RS1/16S222J R 816 (B,117,17) RS1/16S222J R 817 (B,120,17) RS1/16S222J R 818 (A,118,27) RS1/16S222J R 819 (A,120,27) RS1/16S104J R 820 (B,107,21) RS1/16S223J R 821 (B,109,12) RS1/16S473J R 831 (B,70,15) RS1/16S472J R 832 (B,72,27) RS1/16S821J R 833 (B,80,23) RS1/16S222J R 841 (A,39,24) RS1/16S1R0J R 842 (A,37,33) RS1/4SA271J R 851 (B,63,27) RS1/16S1R0J R 852 (B,59,20) RS1/4SA391J R 853 (A,134,34) RS1/16S562J R 854 (A,132,37) RS1/16S103J R 855 (A,89,16) RS1/16S151J R 901 (B,22,56) RS1/16S223J R 902 (A,36,50) RS1/16S272J R 911 (A,22,116) RS1/16S821J R 921 (B,16,85) RS1/16S821J R 931 (A,69,116) RS1/16S104J R 932 (A,75,118) RS1/16S103J R 933 (B,70,121) RS1/16S473J R 934 (B,68,121) RS1/16S473J R 935 (B,72,121) RS1/16S472J R 941 (A,82,118) RS1/16S103J R 951 (A,91,119) RS1/16S102J R 952 (A,89,121) RS1/16S472J R 953 (A,92,124) RS1/16S472J R 954 (A,90,124) RS1/16S153J Circuit Symbol and No. Part No. R 971 (A,52,119) RS1/16S391J R 972 (B,65,120) RS1/16S1R0J R 981 (B,79,112) RS1/16S102J R 982 (B,82,111) RS1/16S153J R 983 (B,75,118) RS1/16S102J CAPACITORS C 101 (B,34,134) CKSRYB104K16 C 102 (B,35,144) CKSRYB102K50 C 103 (B,39,144) CKSRYB102K50 C 121 (A,114,106) CKSQYB225K10 C 122 (A,114,104) CKSQYB225K10 C 123 (A,114,108) CKSQYB225K10 C 124 (A,114,102) CKSQYB225K10 C 125 (A,120,106) CKSRYB105K10 C 126 (A,120,104) CKSRYB105K10 C 127 (A,120,102) CKSRYB104K16 C 128 (A,120,101) CKSRYB104K16 C 129 (A,120,94) CEJQ4R7M35 C 130 (A,126,94) CEJQ4R7M35 C 131 (A,117,98) CKSQYB225K10 C 132 (A,114,113) CKSYB475K10 C 133 (A,114,111) CKSYB475K10 C 134 (A,127,113) CKSRYB105K10 C 135 (A,130,113) CKSRYB105K10 C 136 (A,122,117) CEJQ470M10 C 137 (A,129,117) CEJQ470M10 C 138 (A,107,90) CKSRYB104K16 C 139 (B,119,111) CKSRYB105K10 C 151 (B,129,113) CKSRYB105K10 C 181 (A,100,130) CCSRCH681J50 C 182 (A,105,124) CKSQYB225K10 C 183 (A,111,123) CEJQ101M6R3 C 201 (B,54,81) CKSRYB104K16 C 202 (B,56,82) CKSRYB682K50 C 203 (B,56,76) CKSRYB104K16 C 204 (B,54,74) CKSRYB104K16 C 205 (A,51,83) CEJQ100M16 C 206 (A,51,77) CEJQ100M16 C 207 (A,51,72) CEJQ100M16 C 208 (B,58,84) CKSRYB104K16 C 209 (B,57,87) CCSRCH8R0D50 C 210 (B,62,76) CKSRYB104K16 C 211 (B,62,87) CCSRCH8R0D50 C 212 (B,63,79) CKSRYB104K16 C 213 (B,64,75) CKSRYB104K16 C 214 (B,63,82) CCSRCH680J50 C 215 (B,65,79) CKSRYB104K16 C 216 (B,68,67) CCSRCH680J50 C 217 (B,50,88) CKSYB106K6R3 C 220 (B,65,94) CKSRYB103K50 C 221 (B,81,86) CCSRCH101J50 C 224 (A,81,77) CEVW100M10 C 225 (A,83,83) CKSRYB104K16 C 226 (A,87,77) CSZS100M16 C 227 (A,84,83) CKSRYB104K16 C 228 (A,93,87) CEVW100M10 C 229 (A,93,81) CEVW100M10 C 230 (A,93,76) CEVW100M10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 60 1 2 3 4 1 2 3 4 C D F A B E C 231 (A,93,70) CEVW100M10 C 232 (A,93,98) CEVW100M10 C 233 (A,93,92) CEVW100M10 C 240 (B,82,96) CCSRCH220J50 C 241 (B,69,96) CCSRCH220J50 C 242 (B,86,95) CKSRYB104K16 C 243 (B,66,71) CKSRYB332K50 C 244 (A,73,79) CKSYB106K6R3 C 245 (A,73,74) CKSYB106K6R3 C 246 (B,58,70) CKSRYB332K50 C 247 (B,70,86) CKSYB106K6R3 C 250 (A,73,69) CKSYB106K6R3 C 251 (A,74,63) CKSYB106K6R3 C 252 (B,78,48) CKSRYB104K16 C 261 (A,56,68) CKSRYB104K16 C 262 (A,98,66) CKSRYB104K16 C 272 (A,81,69) CCSRCH560J50 C 273 (A,85,70) CKSRYB103K50 C 281 (A,98,91) CCSRCH681J50 C 282 (A,98,99) CCSRCH681J50 C 283 (A,101,94) CCSRCH331J50 C 284 (A,101,96) CCSRCH331J50 C 285 (B,96,89) CKSRYB105K10 C 286 (B,104,98) CKSRYB105K10 C 287 (B,95,100) CKSRYB104K16 C 291 (A,98,70) CCSRCH681J50 C 292 (A,98,77) CCSRCH681J50 C 293 (A,101,73) CCSRCH331J50 C 294 (A,101,74) CCSRCH331J50 C 295 (B,96,68) CKSRYB105K10 C 296 (B,104,74) CKSRYB105K10 C 297 (B,89,76) CKSRYB104K16 C 301 (A,98,80) CCSRCH681J50 C 302 (A,98,88) CCSRCH681J50 C 303 (A,101,83) CCSRCH331J50 C 304 (A,101,85) CCSRCH331J50 C 305 (B,96,79) CKSRYB105K10 C 306 (B,104,86) CKSRYB105K10 C 307 (B,89,87) CKSRYB104K16 C 321 (A,153,122) CEJQNP100M10 C 322 (A,147,122) CEJQNP100M10 C 323 (A,140,122) CEJQNP100M10 C 324 (A,134,122) CEJQNP100M10 C 325 (A,130,127) CEJQNP100M10 C 326 (A,131,133) CEJQNP100M10 C 327 (A,154,134) CKSRYB102K50 C 328 (A,149,115) CEJQ220M16 C 351 (B,129,123) CKSQYB474K16 C 352 (B,124,124) CKSQYB474K16 C 353 (B,126,123) CKSQYB474K16 C 354 (B,122,124) CKSQYB474K16 C 355 (A,117,122) CEJQ330M10 C 357 (A,86,125) 3 300 µF/16 V CCH1486 C 358 (B,95,140) CKSRYB104K25 C 359 (A,124,130) CEHAR100M16 C 360 (A,124,135) CKSQYB225K10 C 361 (A,126,135) CKSQYB225K10 C 363 (B,122,140) CKSRYB474K10 C 364 (B,121,135) CKSRYB474K10 C 365 (B,122,138) CKSRYB474K10 Circuit Symbol and No. Part No. C 366 (B,121,133) CKSRYB474K10 C 371 (B,94,112) CKSRYB104K16 C 372 (B,99,112) CKSRYB104K16 C 373 (B,99,108) CKSRYB104K16 C 374 (A,110,116) CEAL100M16 C 378 (B,98,114) CKSRYB105K10 C 401 (B,173,109) CKSRYB103K50 C 402 (B,156,111) CKSRYB102K50 C 403 (A,160,111) CEJQ470M10 C 404 (B,167,110) CKSYB475K10 C 405 (B,174,142) CKSRYB103K50 C 406 (A,160,118) CEJQ101M10 C 408 (B,160,114) CKSRYB102K50 C 421 (A,161,96) CEJQ220M16 C 422 (B,157,93) CKSRYB103K50 C 423 (B,156,83) CKSYB475K10 C 424 (B,135,97) CKSRYB103K50 C 431 (A,48,112) CKSRYB104K16 C 432 (A,33,117) CKSQYB105K16 C 433 (A,36,118) CKSQYB105K16 C 441 (B,42,127) CKSQYB225K10 C 442 (B,53,127) CKSQYB225K10 C 443 (B,43,123) CKSQYB225K10 C 444 (B,50,123) CKSQYB225K10 C 445 (A,41,123) CCSRCH101J50 C 446 (A,51,122) CCSRCH101J50 C 447 (A,45,118) CKSRYB105K10 C 448 (A,40,115) CEVW100M10 C 501 (B,99,22) CKSRYB104K16 C 511 (B,94,37) CKSRYB104K16 C 521 (B,84,18) CKSRYB104K16 C 554 (A,46,63) CEJQ330M10 C 561 (A,51,66) CEJQ220M16 C 562 (B,63,43) CKSRYB103K50 C 563 (B,63,33) CKSYB475K10 C 566 (B,45,37) CKSRYB104K16 C 567 (B,55,40) CKSRYB103K50 C 568 (B,55,38) CKSRYB105K6R3 C 601 (A,128,83) CKSRYB104K16 C 602 (A,140,84) CKSRYB104K16 C 603 (A,124,83) CKSRYB104K16 C 605 (B,137,89) CKSRYB103K50 C 606 (A,134,90) CEJQ4R7M35 C 607 (B,151,68) CCSRCH7R0D50 C 608 (B,151,64) CCSRCH7R0D50 C 610 (A,118,65) CKSRYB104K16 C 611 (A,138,53) CKSRYB104K16 C 612 (A,134,54) CKSRYB104K16 C 613 (B,134,78) CCSRCH331J50 C 662 (B,155,51) CKSRYB104K16 C 663 (A,156,59) CKSRYB105K10 C 721 (B,30,74) CKSRYB473K25 C 722 (B,29,67) CKSRYB102K50 C 723 (A,29,65) CEJQ101M10 C 743 (A,96,54) CEJQ101M10 C 751 (A,138,41) CEJQ4R7M35 C 752 (A,138,46) CEJQ1R0M50 C 753 (A,138,35) CEJQ4R7M35 C 754 (B,112,38) CKSRYB104K16 C 755 (B,119,31) CKSRYB102K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 61 5 6 7 8 5 6 7 8 C D F A B E C 756 (B,121,35) CCSRCH101J50 C 758 (B,134,30) CKSRYB105K10 C 759 (B,124,53) CKSRYB104K16 C 760 (B,122,39) CKSRYB104K16 C 761 (B,128,28) CKSRYB104K16 C 762 (B,118,45) CKSRYB472K50 C 763 (B,119,49) CKSRYB102K50 C 764 (B,112,48) CKSRYB104K16 C 765 (B,134,34) CKSRYB471K50 C 768 (B,138,30) CKSRYB104K16 C 769 (B,75,112) CKSRYB153K50 C 791 (B,115,71) CKSRYB103K50 C 792 (A,66,107) CEJQ470M10 C 793 (B,75,109) CKSRYB103K50 C 794 (A,79,106) CCH1325 C 795 (A,71,111) CEJQ101M10 C 796 (A,44,90) CKSRYB103K50 C 801 (B,143,43) CKSRYB103K50 C 802 (B,153,32) CKSRYB102K50 C 803 (A,142,37) CCSRCH101J50 C 804 (A,152,37) CCSRCH101J50 C 806 (B,156,27) CKSRYB102K50 C 807 (A,157,20) CKSRYB104K16 C 808 (A,154,24) CEVW220M16 C 831 (B,80,21) CKSRYB104K16 C 832 (A,76,11) CEVW470M10 C 841 (A,57,12) CEVW470M16 C 842 (B,37,37) CKSRYB104K16 C 843 (B,36,31) CKSRYB102K50 C 844 (A,36,29) CEJQ330M16 C 851 (B,65,15) CKSRYB473K25 C 852 (A,92,14) CKSRYB104K16 C 861 (A,61,97) CKSRYB105K6R3 C 862 (A,61,99) CKSRYB103K50 C 863 (A,68,98) CKSRYB104K16 C 871 (A,43,75) CKSRYB104K16 C 873 (A,41,79) CEVW101M6R3 C 875 (A,38,85) CKSRYB105K10 C 877 (A,49,99) CEVW101M6R3 C 878 (A,55,100) CKSRYB103K50 C 879 (B,49,98) CKSYB475K10 C 901 (A,27,47) 2 200 µF/16 V CCH1405 C 903 (B,28,62) CKSRYB472K50 C 904 (B,28,52) CKSRYB103K50 C 905 (A,28,54) CEJQ470M10 C 911 (A,32,109) CEJQ221M10 C 912 (B,13,117) CKSRYB103K50 C 913 (A,13,120) CEJQ101M10 C 921 (A,31,99) 470 µF/16 V CCH1325 C 922 (B,30,81) CKSRYB103K50 C 923 (A,30,77) CEJQ101M10 C 932 (B,74,121) CKSRYB104K16 C 941 (A,83,114) CKSQYB105K16 C 963 (A,77,135) CKSQYB105K10 C 964 (B,74,132) CKSQYB105K16 C 965 (B,72,132) CKSQYB105K16 C 966 (B,73,145) CKSQYB105K16 C 967 (A,74,135) CKSQYB105K16 C 968 (A,72,135) CKSQYB105K16 C 969 (A,69,135) CKSQYB105K16 Circuit Symbol and No. Part No. C 971 (B,63,112) CKSRYB103K50 C 972 (B,62,116) CKSRYB103K50 C 973 (A,64,116) CEJQ100M16 C 981 (B,82,113) CKSRYB104K16 A Unit Number: CWN1437(DEH-P9800BT/XN/UC) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 (B,31,140) IC HA12241FP IC 121 (A,129,104) IC PM9009A IC 122 (A,111,94) IC TC4066BFT IC 201 (A,61,77) IC AK7732VT IC 221 (A,76,86) IC PCM1606EG IC 240 (B,75,96) IC NJM4558MD IC 241 (B,78,53) IC NJM4558MD IC 261 (A,58,64) IC TC74VHCT08AFTS1 IC 262 (A,96,62) IC TC74VHC08FTS1 IC 271 (A,81,71) IC TC7SH08FUS1 IC 281 (B,96,96) IC NJM4558MD IC 282 (B,96,74) IC NJM4558MD IC 283 (B,95,85) IC NJM4558MD IC 351 (A,102,139) IC PAL007B IC 371 (A,99,110) IC PM8003A IC 421 (B,160,88) IC NJM2885DL1-33 IC 441 (A,46,122) IC NJM4558MD IC 501 (A,95,28) IC TC74VHCT08AFTS1 IC 511 (A,95,39) IC TC74VHC08FTS1 IC 521 (A,99,20) IC S99-50084 IC 561 (B,65,38) IC NJM2885DL1-33 IC 566 (B,50,39) IC NJM2872F05 IC 601 (A,133,67) IC PEG260A IC 661 (A,155,66) IC S-80835CNUA-B8U IC 751 (B,112,34) IC NJM4558MD IC 752 (B,126,47) IC NJM4151M IC 753 (B,127,34) IC NJM4558MD IC 754 (B,113,51) IC TC7S14FU IC 801 (A,147,40) IC BA6288FS IC 861 (A,65,98) IC NJM2872F05 IC 871 (B,57,99) IC NJM2885DL1-33 Q 101 (A,22,121) Transistor UMF23N Q 121 (A,111,89) Transistor UMD3N Q 281 (A,104,95) Transistor UMH3N Q 282 (A,106,66) Transistor UMD3N Q 291 (A,104,73) Transistor UMH3N Q 301 (A,104,84) Transistor UMH3N Q 321 (A,154,131) Transistor IMH23 Q 322 (A,148,127) Transistor IMH23 Q 323 (A,139,127) Transistor IMH23 Q 324 (A,144,114) Transistor UMD3N Q 351 (A,125,124) Transistor DTC124EUA Q 391 (A,39,58) Transistor 2SC4081 Q 531 (B,55,43) Transistor DTC314TU Q 601 (B,115,64) Transistor UMD3N Q 661 (B,155,56) Transistor 2SC4081 Q 721 (A,18,74) Transistor 2SD2396 Q 722 (A,36,72) Transistor UMD3N Q 791 (B,57,107) Transistor 2SD1760F5 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 62 1 2 3 4 1 2 3 4 C D F A B E Q 792 (A,57,103) Transistor UMD3N Q 793 (B,111,69) Transistor 2SC4081 Q 794 (A,39,96) Transistor 2SC4081 Q 795 (A,39,90) Transistor UMD3N Q 801 (B,151,22) Transistor 2SD1760F5 Q 812 (A,153,18) Transistor UMD3N Q 831 (A,68,17) Transistor 2SB710A Q 832 (B,76,27) Transistor DTC114EU Q 841 (A,34,19) Transistor 2SD1760F5 Q 842 (A,38,36) Transistor UMD3N Q 851 (B,63,24) Transistor 2SD1767 Q 852 (A,66,9) Transistor UMD3N Q 853 (A,132,34) Transistor 2SC4081 Q 901 (A,18,57) Transistor 2SD2396 Q 902 (A,34,50) Transistor UMD3N Q 911 (A,18,103) Transistor 2SD2396 Q 912 (A,22,118) Transistor UMD3N Q 921 (A,18,87) Transistor 2SD2396 Q 922 (B,23,80) Transistor UMD3N Q 931 (A,75,116) Transistor UMX1N Q 941 (A,83,116) Transistor DTC114EU Q 951 (A,92,121) Transistor 2SA1576 Q 971 (A,51,115) Transistor UMD3N Q 972 (A,57,117) Transistor 2SD1859 D 121 (B,128,115) Diode RB520S-30 D 132 (B,124,112) Diode 1SS355 D 133 (B,124,108) Diode RB521S-30 D 134 (B,124,110) Diode RB521S-30 D 281 (A,107,73) Diode DAN202U D 321 (A,138,117) Diode 1SS133 D 351 (A,117,130) Diode MPG06G-6415G50 D 352 (A,117,127) Diode MPG06G-6415G50 D 391 (A,44,69) Diode DAN202U D 392 (A,43,72) Diode HZU9L(A2) D 421 (A,161,84) Diode 1SR154-400 D 422 (A,161,88) Diode 1SR154-400 D 423 (A,161,91) Diode 1SR154-400 D 431 (A,32,125) Diode RSB6R8S D 441 (B,39,118) Diode RSB6R8S D 442 (B,50,121) Diode RSB6R8S D 531 (B,53,46) Diode 1SS355 D 551 (B,54,59) Diode DAN202U D 601 (B,121,61) Diode DAN202U D 671 (B,19,140) Diode DAN202U D 672 (B,24,140) Diode DAP202U D 721 (A,30,72) Diode HZS9L(A2) D 751 (B,135,51) Diode Network DA204U D 752 (B,126,39) Diode Network DA204U D 791 (B,110,73) Diode HZU6L(B1) D 792 (B,80,109) Diode HZU7L(A1) D 793 (B,40,107) Diode 1SR154-400 D 794 (A,42,90) Diode HZU9L(B2) D 801 (A,148,30) Diode 1SS133 D 802 (A,148,34) Diode 1SS133 D 803 (A,149,23) Diode HZU7L(B2) D 811 (B,115,13) Diode DAN202U D 812 (B,124,13) Diode DAP202U D 813 (A,111,27) Diode DAN202U D 814 (A,107,27) Diode DAP202U D 815 (B,106,15) Diode DAN202U Circuit Symbol and No. Part No. D 816 (B,106,19) Diode DAP202U D 817 (B,106,28) Diode DAN202U D 818 (B,106,24) Diode DAP202U D 841 (A,36,39) Diode HZS9L(C2) D 851 (A,66,13) Diode HZS11L(A1) D 853 (A,92,13) LED SML412BC5T(MN) D 901 (A,35,59) Diode MPG06G-6415G50 D 902 (A,29,59) Diode HZS6L(B1) D 911 (A,13,115) Diode HZS9L(B2) D 921 (A,30,83) Diode HZS9L(B2) D 931 (A,73,117) Diode HZU7L(A1) D 932 (A,69,118) Diode HZU7L(C3) D 941 (A,79,115) Diode 1SR154-400 D 951 (A,92,127) Diode DAN202U D 971 (A,57,114) Diode HZS11L(B2) D 981 (B,87,109) Diode Network DA204U D 982 (B,82,117) Diode HZU7L(C2) D 991 (A,98,126) Diode MPG06G-6415G50 D 992 (A,98,121) Diode MPG06G-6415G50 D 993 (A,61,103) Diode DAN202U ZNR401 (A,161,145)Surge Protector RCCA-201Q31UA-PI L 101 (B,24,134) Inductor LCTAW2R2J2520 L 121 (A,117,117) Inductor ATH1176 L 201 (A,55,85) Inductor CTF1379 L 206 (B,66,83) Inductor CTF1389 L 208 (A,63,68) Inductor CTF1389 L 221 (A,84,85) Inductor CTF1379 L 241 (B,84,52) Inductor CTF1389 L 261 (A,56,70) Inductor CTF1379 L 262 (A,95,66) Inductor CTF1379 L 271 (A,83,70) Inductor CTF1389 L 272 (A,84,72) Inductor CTF1379 L 371 (B,97,110) Inductor CTF1379 L 401 (A,160,105) Inductor LAU1R0K L 402 (A,154,106) Ferri-Inductor LAU100K L 403 (A,154,114) Inductor LAU1R0K L 404 (B,167,149) Chip Coil LCTAW4R7J2520 L 501 (B,95,22) Inductor CTF1379 L 511 (B,94,35) Inductor CTF1379 L 521 (B,84,23) Inductor CTF1379 L 554 (B,60,45) Inductor CTF1389 L 604 (A,139,90) Ferri-Inductor LAU100K L 701 (A,101,27) Inductor LCTAW2R2J3225 L 831 (A,76,17) Ferri-Inductor LAU100K L 841 (A,57,18) Inductor LAU2R2K L 872 (A,41,85) Inductor CTF1617 L 951 (A,86,115) Inductor LAU2R2K X 201 (A,59,91)Crystal Resonator 16.934 4 MHz CSS1052 X 371 (A,87,107)Ceramic Resonator 4.096 MHz CSS1429 X 601 (A,149,67)Cristal Resonator 20 MHz VSS1167 VR121 (A,120,112) Semi-fixed 15 kΩ(B) CCP1397 >FU321 (A,136,130) Fuse 3 A CEK1286 BZ681 (A,152,50) Buzzer CPV1062 M 972 Fan Motor CXM1288 FM/AM Tuner Unit CWE1951 RESISTORS R 101 (B,26,130) RS1/16S181J R 102 (B,36,124) RS1/16S181J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 63 5 6 7 8 5 6 7 8 C D F A B E R 103 (B,27,124) RS1/16S223J R 104 (B,33,122) RS1/16S223J R 105 (B,29,124) RS1/16S102J R 106 (B,31,122) RS1/16S102J R 107 (B,39,142) RS1/16S101J R 108 (B,39,137) RS1/16S101J R 109 (B,39,140) RS1/16S150J R 110 (B,39,138) RS1/16S470J R 111 (B,39,135) RS1/16S102J R 112 (A,26,124) RS1/16S222J R 113 (A,23,124) RS1/16S332J R 114 (A,20,124) RS1/16S562J R 122 (A,139,107) RS1/16S0R0J R 123 (A,138,103) RS1/16S0R0J R 124 (A,138,114) RS1/16S0R0J R 125 (A,138,113) RS1/16S0R0J R 126 (A,138,109) RS1/16S0R0J R 127 (A,138,107) RS1/16S0R0J R 128 (A,139,103) RS1/16S0R0J R 129 (A,141,101) RS1/16S0R0J R 130 (A,141,99) RS1/16S0R0J R 131 (A,141,98) RS1/16S0R0J R 132 (A,107,89) RS1/16S103J R 133 (A,114,89) RS1/16S103J R 134 (A,133,113) RAB4C102J R 135 (A,124,113) RS1/16S103J R 201 (B,54,88) RS1/16S104J R 202 (B,52,88) RS1/16S104J R 203 (B,57,79) RS1/16S153J R 204 (B,63,84) RS1/16S222J R 205 (A,59,68) RS1/16S681J R 206 (A,62,87) RS1/16S101J R 207 (A,61,68) RS1/16S681J R 208 (A,67,86) RAB4C101J R 212 (A,69,76) RS1/16S101J R 213 (A,68,71) RS1/16S101J R 214 (A,67,71) RS1/16S101J R 221 (B,78,89) RS1/16S103J R 222 (B,78,87) RS1/16S103J R 240 (B,83,99) RS1/16S223J R 241 (B,83,101) RS1/16S223J R 242 (B,84,96) RS1/16S153J R 243 (B,67,96) RS1/16S153J R 244 (B,72,91) RS1/16S101J R 247 (B,75,70) RS1/16S101J R 248 (B,79,65) RS1/16S473J R 249 (B,77,65) RS1/16S473J R 261 (B,58,66) RS1/16S681J R 262 (B,58,62) RS1/16S681J R 263 (A,69,66) RAB4C123J R 264 (B,69,63) RAB4C223J R 265 (A,103,63) RS1/16S681J R 266 (A,91,62) RS1/16S681J R 267 (A,91,63) RS1/16S681J R 268 (A,103,66) RS1/16S681J R 269 (A,102,66) RS1/16S681J R 270 (A,100,66) RS1/16S681J R 271 (A,77,72) RS1/16S0R0J R 273 (A,82,67) RS1/16S0R0J R 274 (A,87,72) RS1/16S0R0J Circuit Symbol and No. Part No. R 275 (A,91,65) RS1/16S681J R 276 (A,93,66) RS1/16S681J R 281 (A,98,94) RS1/16S473J R 282 (A,98,96) RS1/16S473J R 283 (A,98,93) RS1/16S682J R 284 (A,98,97) RS1/16S682J R 285 (A,101,93) RS1/16S682J R 286 (A,101,97) RS1/16S682J R 287 (B,100,89) RS1/16S102J R 288 (B,103,94) RS1/16S102J R 289 (B,102,97) RS1/16S101J R 290 (B,89,94) RS1/16S101J R 291 (A,98,73) RS1/16S473J R 292 (A,98,74) RS1/16S473J R 293 (A,98,71) RS1/16S682J R 294 (A,98,76) RS1/16S682J R 295 (A,101,71) RS1/16S682J R 296 (A,101,76) RS1/16S682J R 297 (B,100,68) RS1/16S102J R 298 (B,103,71) RS1/16S102J R 299 (B,102,74) RS1/16S101J R 300 (B,89,70) RS1/16S101J R 301 (A,98,83) RS1/16S473J R 302 (A,98,85) RS1/16S473J R 303 (A,98,82) RS1/16S682J R 304 (A,98,86) RS1/16S682J R 305 (A,101,82) RS1/16S682J R 306 (A,101,86) RS1/16S682J R 307 (B,100,79) RS1/16S102J R 308 (B,103,83) RS1/16S102J R 309 (B,102,86) RS1/16S101J R 310 (B,89,82) RS1/16S101J R 321 (B,151,128) RS1/16S470J R 322 (B,149,125) RS1/16S470J R 323 (A,157,131) RS1/16S223J R 324 (A,154,128) RS1/16S223J R 325 (B,145,126) RS1/16S470J R 326 (B,139,126) RS1/16S470J R 327 (A,151,127) RS1/16S223J R 328 (A,145,127) RS1/16S223J R 329 (B,136,128) RS1/16S470J R 330 (B,136,134) RS1/16S470J R 331 (A,142,127) RS1/16S223J R 332 (A,134,130) RS1/16S223J R 333 (A,145,118) RS1/16S102J R 351 (B,99,147) RS1/16S103J R 352 (A,125,121) RS1/16S103J R 353 (A,125,126) RS1/16S103J R 354 (A,122,125) RS1/16S331J R 371 (B,91,108) RS1/16S0R0J R 372 (B,100,110) RS1/16S473J R 373 (B,130,78) RS1/16S104J R 391 (A,39,54) RS1/16S103J R 392 (A,40,65) RS1/16S223J R 393 (A,38,65) RS1/16S103J R 394 (A,37,65) RS1/16S473J R 405 (B,167,114) RS1/16S681J R 406 (B,173,130) RS1/16S681J R 407 (B,173,132) RS1/16S681J R 408 (B,173,134) RS1/16S681J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 64 1 2 3 4 1 2 3 4 C D F A B E R 409 (B,173,136) RS1/16S681J R 410 (B,174,140) RS1/16S681J R 433 (A,43,113) RS1/16S0R0J R 434 (A,51,103) RS1/16S0R0J R 441 (B,44,131) RS1/16S223J R 442 (B,51,131) RS1/16S223J R 443 (B,44,127) RS1/16S103J R 444 (B,51,127) RS1/16S103J R 445 (B,42,131) RS1/16S103J R 446 (B,53,131) RS1/16S103J R 447 (A,40,121) RS1/16S103J R 448 (A,40,119) RS1/16S103J R 449 (A,39,123) RS1/16S103J R 450 (A,52,122) RS1/16S103J R 451 (A,45,116) RS1/16S104J R 452 (A,47,117) RS1/16S104J R 501 (B,95,24) RS1/16S681J R 502 (B,95,26) RS1/16S681J R 503 (B,89,31) RAB4C681J R 511 (B,65,49) RS1/16S182J R 512 (B,82,40) RAB4C681J R 513 (B,65,51) RS1/16S332J R 514 (B,61,51) RS1/16S332J R 515 (B,89,40) RAB4C681J R 516 (B,65,53) RS1/16S182J R 521 (B,82,31) RAB4C101J R 522 (B,88,25) RS1/16S101J R 523 (B,88,23) RS1/16S101J R 531 (B,51,42) RS1/16S223J R 532 (B,49,43) RS1/16S102J R 552 (B,45,69) RS1/16S0R0J R 554 (B,43,69) RS1/16S102J R 555 (B,41,51) RS1/16S220J R 556 (B,53,49) RS1/16S102J R 557 (B,48,54) RS1/16S0R0J R 601 (B,131,87) RS1/16S104J R 603 (B,131,85) RS1/16S104J R 604 (A,135,52) RS1/16S103J R 605 (B,131,83) RS1/16S104J R 606 (A,139,81) RS1/16S102J R 607 (B,132,73) RS1/16S104J R 608 (A,126,82) RS1/16S104J R 609 (A,119,71) RS1/16S102J R 611 (B,141,83) RS1/16S472J R 613 (B,140,85) RS1/16S472J R 615 (B,135,65) RS1/16S104J R 616 (B,135,69) RS1/16S104J R 617 (A,142,53) RAB4C104J R 619 (B,146,66) RS1/16S0R0J R 621 (A,119,60) RAB4C104J R 625 (A,119,69) RS1/16S104J R 627 (A,134,82) RAB4C681J R 628 (A,131,81) RS1/16S681J R 629 (B,127,78) RS1/16S681J R 631 (A,116,64) RS1/16S104J R 632 (A,131,52) RS1/16S104J R 633 (B,136,57) RS1/16S104J R 636 (A,120,57) RS1/16S0R0J R 640 (A,120,55) RS1/16S0R0J R 652 (A,149,76) RS1/16S104J Circuit Symbol and No. Part No. R 661 (B,155,49) RS1/16S222J R 662 (A,153,59) RS1/16S102J R 664 (B,155,53) RS1/16S473J R 665 (A,156,61) RS1/16S183J R 671 (B,13,140) RS1/16S102J R 672 (B,15,140) RS1/16S102J R 681 (B,149,50) RS1/16S102J R 701 (B,96,43) RS1/16S682J R 702 (B,96,47) RS1/16S682J R 703 (A,98,47) RS1/16S682J R 704 (A,98,50) RS1/16S682J R 705 (B,96,51) RS1/16S221J R 706 (B,108,49) RS1/16S221J R 707 (B,96,49) RS1/16S221J R 708 (B,108,47) RS1/16S221J R 709 (B,96,45) RS1/16S221J R 710 (B,108,45) RS1/16S681J R 711 (B,106,40) RS1/16S473J R 712 (A,116,69) RS1/16S104J R 721 (B,24,65) RS1/4SA391J R 751 (B,135,39) RS1/16S393J R 752 (B,129,51) RS1/16S104J R 753 (B,135,41) RS1/16S472J R 754 (B,135,37) RS1/16S471J R 755 (B,133,48) RS1/16S273J R 757 (B,121,31) RS1/16S104J R 758 (B,119,35) RS1/16S222J R 759 (B,120,38) RS1/16S471J R 760 (B,120,28) RS1/16S471J R 761 (B,115,39) RS1/16S473J R 762 (B,112,40) RS1/16S473J R 763 (B,118,52) RS1/16S103J R 764 (B,129,53) RS1/16S103J R 765 (B,112,46) RS1/16S473J R 766 (B,112,44) RS1/16S473J R 767 (B,120,52) RS1/16S472J R 768 (B,118,47) RS1/16S103J R 769 (B,124,51) RS1/16S682J R 770 (B,136,34) RS1/16S333J R 771 (B,136,30) RS1/16S332J R 773 (B,117,50) RS1/16S0R0J R 774 (B,128,30) RS1/16S473J R 775 (B,130,38) RS1/16S473J R 776 (B,139,27) RS1/16S473J R 777 (B,140,30) RS1/16S473J R 791 (B,107,69) RS1/16S122J R 792 (A,54,105) RS1/16S821J R 793 (A,39,94) RS1/16S152J R 801 (A,152,42) RS1/16S102J R 802 (A,142,42) RS1/16S102J R 803 (B,149,38) RS1/16S103J R 804 (B,143,41) RS1/16S563J R 806 (B,152,42) RS1/16S102J R 807 (A,151,18) RS1/4SA102J R 808 (B,152,38) RS1/16S102J R 811 (B,110,26) RS1/16S222J R 812 (B,112,18) RS1/16S222J R 813 (B,110,28) RS1/16S222J R 814 (B,115,17) RS1/16S222J R 815 (A,116,27) RS1/16S222J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 65 5 6 7 8 5 6 7 8 C D F A B E R 816 (B,117,17) RS1/16S222J R 817 (B,120,17) RS1/16S222J R 818 (A,118,27) RS1/16S222J R 819 (A,120,27) RS1/16S104J R 820 (B,107,21) RS1/16S223J R 821 (B,109,12) RS1/16S473J R 831 (B,70,15) RS1/16S472J R 832 (B,72,27) RS1/16S821J R 833 (B,80,23) RS1/16S222J R 841 (A,39,24) RS1/16S1R0J R 842 (A,37,33) RS1/4SA271J R 851 (B,63,27) RS1/16S1R0J R 852 (B,59,20) RS1/4SA391J R 853 (A,134,34) RS1/16S562J R 854 (A,132,37) RS1/16S103J R 855 (A,89,16) RS1/16S151J R 901 (B,22,56) RS1/16S223J R 902 (A,36,50) RS1/16S272J R 911 (A,22,116) RS1/16S821J R 921 (B,16,85) RS1/16S821J R 931 (A,69,116) RS1/16S104J R 932 (A,75,118) RS1/16S103J R 933 (B,70,121) RS1/16S473J R 934 (B,68,121) RS1/16S473J R 935 (B,72,121) RS1/16S472J R 941 (A,82,118) RS1/16S103J R 951 (A,91,119) RS1/16S102J R 952 (A,89,121) RS1/16S472J R 953 (A,92,124) RS1/16S472J R 954 (A,90,124) RS1/16S153J R 971 (A,52,119) RS1/16S391J R 972 (B,65,120) RS1/16S1R0J R 981 (B,79,112) RS1/16S102J R 982 (B,82,111) RS1/16S153J R 983 (B,75,118) RS1/16S102J CAPACITORS C 101 (B,34,134) CKSRYB104K16 C 102 (B,35,144) CKSRYB102K50 C 103 (B,39,144) CKSRYB102K50 C 121 (A,114,106) CKSQYB225K10 C 122 (A,114,104) CKSQYB225K10 C 123 (A,114,108) CKSQYB225K10 C 124 (A,114,102) CKSQYB225K10 C 125 (A,120,106) CKSRYB105K10 C 126 (A,120,104) CKSRYB105K10 C 127 (A,120,102) CKSRYB104K16 C 128 (A,120,101) CKSRYB104K16 C 129 (A,120,94) CEJQ4R7M35 C 130 (A,126,94) CEJQ4R7M35 C 131 (A,117,98) CKSQYB225K10 C 132 (A,114,113) CKSYB475K10 C 133 (A,114,111) CKSYB475K10 C 134 (A,127,113) CKSRYB105K10 C 135 (A,130,113) CKSRYB105K10 C 136 (A,122,117) CEJQ470M10 C 137 (A,129,117) CEJQ470M10 C 138 (A,107,90) CKSRYB104K16 C 139 (B,119,111) CKSRYB105K10 Circuit Symbol and No. Part No. C 151 (B,129,113) CKSRYB105K10 C 201 (B,54,81) CKSRYB104K16 C 202 (B,56,82) CKSRYB682K50 C 203 (B,56,76) CKSRYB104K16 C 204 (B,54,74) CKSRYB104K16 C 205 (A,51,83) CEJQ100M16 C 206 (A,51,77) CEJQ100M16 C 207 (A,51,72) CEJQ100M16 C 208 (B,58,84) CKSRYB104K16 C 209 (B,57,87) CCSRCH8R0D50 C 210 (B,62,76) CKSRYB104K16 C 211 (B,62,87) CCSRCH8R0D50 C 212 (B,63,79) CKSRYB104K16 C 213 (B,64,75) CKSRYB104K16 C 214 (B,63,82) CCSRCH680J50 C 215 (B,65,79) CKSRYB104K16 C 216 (B,68,67) CCSRCH680J50 C 217 (B,50,88) CKSYB106K6R3 C 220 (B,65,94) CKSRYB103K50 C 221 (B,81,86) CCSRCH101J50 C 224 (A,81,77) CEVW100M10 C 225 (A,83,83) CKSRYB104K16 C 226 (A,87,77) CSZS100M16 C 227 (A,84,83) CKSRYB104K16 C 228 (A,93,87) CEVW100M10 C 229 (A,93,81) CEVW100M10 C 230 (A,93,76) CEVW100M10 C 231 (A,93,70) CEVW100M10 C 232 (A,93,98) CEVW100M10 C 233 (A,93,92) CEVW100M10 C 240 (B,82,96) CCSRCH220J50 C 241 (B,69,96) CCSRCH220J50 C 242 (B,86,95) CKSRYB104K16 C 243 (B,66,71) CKSRYB332K50 C 244 (A,73,79) CKSYB106K6R3 C 245 (A,73,74) CKSYB106K6R3 C 246 (B,58,70) CKSRYB332K50 C 247 (B,70,86) CKSYB106K6R3 C 250 (A,73,69) CKSYB106K6R3 C 251 (A,74,63) CKSYB106K6R3 C 252 (B,78,48) CKSRYB104K16 C 261 (A,56,68) CKSRYB104K16 C 262 (A,98,66) CKSRYB104K16 C 272 (A,81,69) CCSRCH560J50 C 273 (A,85,70) CKSRYB103K50 C 281 (A,98,91) CCSRCH681J50 C 282 (A,98,99) CCSRCH681J50 C 283 (A,101,94) CCSRCH331J50 C 284 (A,101,96) CCSRCH331J50 C 285 (B,96,89) CKSRYB105K10 C 286 (B,104,98) CKSRYB105K10 C 287 (B,95,100) CKSRYB104K16 C 291 (A,98,70) CCSRCH681J50 C 292 (A,98,77) CCSRCH681J50 C 293 (A,101,73) CCSRCH331J50 C 294 (A,101,74) CCSRCH331J50 C 295 (B,96,68) CKSRYB105K10 C 296 (B,104,74) CKSRYB105K10 C 297 (B,89,76) CKSRYB104K16 C 301 (A,98,80) CCSRCH681J50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 66 1 2 3 4 1 2 3 4 C D F A B E C 302 (A,98,88) CCSRCH681J50 C 303 (A,101,83) CCSRCH331J50 C 304 (A,101,85) CCSRCH331J50 C 305 (B,96,79) CKSRYB105K10 C 306 (B,104,86) CKSRYB105K10 C 307 (B,89,87) CKSRYB104K16 C 321 (A,153,122) CEJQNP100M10 C 322 (A,147,122) CEJQNP100M10 C 323 (A,140,122) CEJQNP100M10 C 324 (A,134,122) CEJQNP100M10 C 325 (A,130,127) CEJQNP100M10 C 326 (A,131,133) CEJQNP100M10 C 327 (A,154,134) CKSRYB102K50 C 328 (A,149,115) CEJQ220M16 C 351 (B,129,123) CKSQYB474K16 C 352 (B,124,124) CKSQYB474K16 C 353 (B,126,123) CKSQYB474K16 C 354 (B,122,124) CKSQYB474K16 C 355 (A,117,122) CEJQ330M10 C 357 (A,86,125) 3 300 µF/16 V CCH1486 C 358 (B,95,140) CKSRYB104K25 C 359 (A,124,130) CEHAR100M16 C 360 (A,124,135) CKSQYB225K10 C 361 (A,126,135) CKSQYB225K10 C 363 (B,122,140) CKSRYB474K10 C 364 (B,121,135) CKSRYB474K10 C 365 (B,122,138) CKSRYB474K10 C 366 (B,121,133) CKSRYB474K10 C 371 (B,94,112) CKSRYB104K16 C 372 (B,99,112) CKSRYB104K16 C 373 (B,99,108) CKSRYB104K16 C 374 (A,110,116) CEAL100M16 C 378 (B,98,114) CKSRYB105K10 C 401 (B,173,109) CKSRYB103K50 C 402 (B,156,111) CKSRYB102K50 C 403 (A,160,111) CEJQ470M10 C 404 (B,167,110) CKSYB475K10 C 405 (B,174,142) CKSRYB103K50 C 406 (A,160,118) CEJQ101M10 C 408 (B,160,114) CKSRYB102K50 C 421 (A,161,96) CEJQ220M16 C 422 (B,157,93) CKSRYB103K50 C 423 (B,156,83) CKSYB475K10 C 424 (B,135,97) CKSRYB103K50 C 432 (A,33,117) CKSQYB105K16 C 433 (A,36,118) CKSQYB105K16 C 441 (B,42,127) CKSQYB225K10 C 442 (B,53,127) CKSQYB225K10 C 443 (B,43,123) CKSQYB225K10 C 444 (B,50,123) CKSQYB225K10 C 445 (A,41,123) CCSRCH101J50 C 446 (A,51,122) CCSRCH101J50 C 447 (A,45,118) CKSRYB105K10 C 448 (A,40,115) CEVW100M10 C 501 (B,99,22) CKSRYB104K16 C 511 (B,94,37) CKSRYB104K16 C 521 (B,84,18) CKSRYB104K16 C 554 (A,46,63) CEJQ330M10 C 561 (A,51,66) CEJQ220M16 C 562 (B,63,43) CKSRYB103K50 Circuit Symbol and No. Part No. C 563 (B,63,33) CKSYB475K10 C 566 (B,45,37) CKSRYB104K16 C 567 (B,55,40) CKSRYB103K50 C 568 (B,55,38) CKSRYB105K6R3 C 601 (A,128,83) CKSRYB104K16 C 602 (A,140,84) CKSRYB104K16 C 603 (A,124,83) CKSRYB104K16 C 605 (B,137,89) CKSRYB103K50 C 606 (A,134,90) CEJQ4R7M35 C 607 (B,151,68) CCSRCH7R0D50 C 608 (B,151,64) CCSRCH7R0D50 C 610 (A,118,65) CKSRYB104K16 C 611 (A,138,53) CKSRYB104K16 C 612 (A,134,54) CKSRYB104K16 C 613 (B,134,78) CCSRCH331J50 C 662 (B,155,51) CKSRYB104K16 C 663 (A,156,59) CKSRYB105K10 C 721 (B,30,74) CKSRYB473K25 C 722 (B,29,67) CKSRYB102K50 C 723 (A,29,65) CEJQ101M10 C 743 (A,96,54) CEJQ101M10 C 751 (A,138,41) CEJQ4R7M35 C 752 (A,138,46) CEJQ1R0M50 C 753 (A,138,35) CEJQ4R7M35 C 754 (B,112,38) CKSRYB104K16 C 755 (B,119,31) CKSRYB102K50 C 756 (B,121,35) CCSRCH101J50 C 758 (B,134,30) CKSRYB105K10 C 759 (B,124,53) CKSRYB104K16 C 760 (B,122,39) CKSRYB104K16 C 761 (B,128,28) CKSRYB104K16 C 762 (B,118,45) CKSRYB472K50 C 763 (B,119,49) CKSRYB102K50 C 764 (B,112,48) CKSRYB104K16 C 765 (B,134,34) CKSRYB471K50 C 768 (B,138,30) CKSRYB104K16 C 769 (B,75,112) CKSRYB153K50 C 791 (B,115,71) CKSRYB103K50 C 792 (A,66,107) CEJQ470M10 C 793 (B,75,109) CKSRYB103K50 C 794 (A,79,106) CCH1325 C 795 (A,71,111) CEJQ101M10 C 796 (A,44,90) CKSRYB103K50 C 801 (B,143,43) CKSRYB103K50 C 802 (B,153,32) CKSRYB102K50 C 803 (A,142,37) CCSRCH101J50 C 804 (A,152,37) CCSRCH101J50 C 806 (B,156,27) CKSRYB102K50 C 807 (A,157,20) CKSRYB104K16 C 808 (A,154,24) CEVW220M16 C 831 (B,80,21) CKSRYB104K16 C 832 (A,76,11) CEVW470M10 C 841 (A,57,12) CEVW470M16 C 842 (B,37,37) CKSRYB104K16 C 843 (B,36,31) CKSRYB102K50 C 844 (A,36,29) CEJQ330M16 C 851 (B,65,15) CKSRYB473K25 C 852 (A,92,14) CKSRYB104K16 C 861 (A,61,97) CKSRYB105K6R3 C 862 (A,61,99) CKSRYB103K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 67 5 6 7 8 5 6 7 8 C D F A B E C 863 (A,68,98) CKSRYB104K16 C 871 (A,43,75) CKSRYB104K16 C 873 (A,41,79) CEVW101M6R3 C 875 (A,38,85) CKSRYB105K10 C 877 (A,49,99) CEVW101M6R3 C 878 (A,55,100) CKSRYB103K50 C 879 (B,49,98) CKSYB475K10 C 901 (A,27,47) 2 200 µF/16 V CCH1405 C 903 (B,28,62) CKSRYB472K50 C 904 (B,28,52) CKSRYB103K50 C 905 (A,28,54) CEJQ470M10 C 911 (A,32,109) CEJQ221M10 C 912 (B,13,117) CKSRYB103K50 C 913 (A,13,120) CEJQ101M10 C 921 (A,31,99) 470 µF/16 V CCH1325 C 922 (B,30,81) CKSRYB103K50 C 923 (A,30,77) CEJQ101M10 C 932 (B,74,121) CKSRYB104K16 C 941 (A,83,114) CKSQYB105K16 C 963 (A,77,135) CKSQYB105K10 C 964 (B,74,132) CKSQYB105K16 C 965 (B,72,132) CKSQYB105K16 C 966 (B,73,145) CKSQYB105K16 C 967 (A,74,135) CKSQYB105K16 C 968 (A,72,135) CKSQYB105K16 C 969 (A,69,135) CKSQYB105K16 C 971 (B,63,112) CKSRYB103K50 C 972 (B,62,116) CKSRYB103K50 C 973 (A,64,116) CEJQ100M16 C 981 (B,82,113) CKSRYB104K16 A Unit Number: CWN1438(DEH-P9850BT/XN/ES) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 (B,31,140) IC HA12241FP IC 121 (A,129,104) IC PM9009A IC 122 (A,111,94) IC TC4066BFT IC 201 (A,61,77) IC AK7732VT IC 221 (A,76,86) IC PCM1606EG IC 240 (B,75,96) IC NJM4558MD IC 241 (B,78,53) IC NJM4558MD IC 261 (A,58,64) IC TC74VHCT08AFTS1 IC 262 (A,96,62) IC TC74VHC08FTS1 IC 271 (A,81,71) IC TC7SH08FUS1 IC 281 (B,96,96) IC NJM4558MD IC 282 (B,96,74) IC NJM4558MD IC 283 (B,95,85) IC NJM4558MD IC 351 (A,102,139) IC PAL007B IC 371 (A,99,110) IC PM8003A IC 421 (B,160,88) IC NJM2885DL1-33 IC 431 (A,48,108) IC TC4066BFT IC 441 (A,46,122) IC NJM4558MD IC 501 (A,95,28) IC TC74VHCT08AFTS1 IC 511 (A,95,39) IC TC74VHC08FTS1 IC 521 (A,99,20) IC S99-50084 IC 561 (B,65,38) IC NJM2885DL1-33 IC 566 (B,50,39) IC NJM2872F05 Circuit Symbol and No. Part No. IC 601 (A,133,67) IC PEG261A IC 661 (A,155,66) IC S-80835CNUA-B8U IC 751 (B,112,34) IC NJM4558MD IC 752 (B,126,47) IC NJM4151M IC 753 (B,127,34) IC NJM4558MD IC 754 (B,113,51) IC TC7S14FU IC 801 (A,147,40) IC BA6288FS IC 861 (A,65,98) IC NJM2872F05 IC 871 (B,57,99) IC NJM2885DL1-33 Q 101 (A,22,121) Transistor UMF23N Q 121 (A,111,89) Transistor UMD3N Q 181 (A,105,120) Transistor 2SC3052-12 Q 182 (A,108,130) Transistor UMD3N Q 183 (B,115,93) Transistor 2SC4081 Q 281 (A,104,95) Transistor UMH3N Q 282 (A,106,66) Transistor UMD3N Q 291 (A,104,73) Transistor UMH3N Q 301 (A,104,84) Transistor UMH3N Q 321 (A,154,131) Transistor IMH23 Q 322 (A,148,127) Transistor IMH23 Q 323 (A,139,127) Transistor IMH23 Q 324 (A,144,114) Transistor UMD3N Q 351 (A,125,124) Transistor DTC124EUA Q 391 (A,39,58) Transistor 2SC4081 Q 431 (A,46,114) Transistor UMD3N Q 531 (B,55,43) Transistor DTC314TU Q 601 (B,115,64) Transistor UMD3N Q 661 (B,155,56) Transistor 2SC4081 Q 721 (A,18,74) Transistor 2SD2396 Q 722 (A,36,72) Transistor UMD3N Q 791 (B,57,107) Transistor 2SD1760F5 Q 792 (A,57,103) Transistor UMD3N Q 793 (B,111,69) Transistor 2SC4081 Q 794 (A,39,96) Transistor 2SC4081 Q 795 (A,39,90) Transistor UMD3N Q 801 (B,151,22) Transistor 2SD1760F5 Q 812 (A,153,18) Transistor UMD3N Q 831 (A,68,17) Transistor 2SB710A Q 832 (B,76,27) Transistor DTC114EU Q 841 (A,34,19) Transistor 2SD1760F5 Q 842 (A,38,36) Transistor UMD3N Q 851 (B,63,24) Transistor 2SD1767 Q 852 (A,66,9) Transistor UMD3N Q 853 (A,132,34) Transistor 2SC4081 Q 901 (A,18,57) Transistor 2SD2396 Q 902 (A,34,50) Transistor UMD3N Q 911 (A,18,103) Transistor 2SD2396 Q 912 (A,22,118) Transistor UMD3N Q 921 (A,18,87) Transistor 2SD2396 Q 922 (B,23,80) Transistor UMD3N Q 931 (A,75,116) Transistor UMX1N Q 941 (A,83,116) Transistor DTC114EU Q 951 (A,92,121) Transistor 2SA1576 Q 971 (A,51,115) Transistor UMD3N Q 972 (A,57,117) Transistor 2SD1859 D 121 (B,128,115) Diode RB520S-30 D 132 (B,124,112) Diode 1SS355 D 133 (B,124,108) Diode RB521S-30 D 134 (B,124,110) Diode RB521S-30 D 181 (A,107,127) Diode HZU3R9(B1) Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 68 1 2 3 4 1 2 3 4 C D F A B E D 281 (A,107,73) Diode DAN202U D 321 (A,138,117) Diode 1SS133 D 351 (A,117,130) Diode MPG06G-6415G50 D 352 (A,117,127) Diode MPG06G-6415G50 D 391 (A,44,69) Diode DAN202U D 392 (A,43,72) Diode HZU9L(A2) D 421 (A,161,84) Diode 1SR154-400 D 422 (A,161,88) Diode 1SR154-400 D 423 (A,161,91) Diode 1SR154-400 D 431 (A,32,125) Diode RSB6R8S D 441 (B,39,118) Diode RSB6R8S D 442 (B,50,121) Diode RSB6R8S D 531 (B,53,46) Diode 1SS355 D 551 (B,54,59) Diode DAN202U D 601 (B,121,61) Diode DAN202U D 721 (A,30,72) Diode HZS9L(A2) D 751 (B,135,51) Diode Network DA204U D 752 (B,126,39) Diode Network DA204U D 791 (B,110,73) Diode HZU6L(B1) D 792 (B,80,109) Diode HZU7L(A1) D 793 (B,40,107) Diode 1SR154-400 D 794 (A,42,90) Diode HZU9L(B2) D 801 (A,148,30) Diode 1SS133 D 802 (A,148,34) Diode 1SS133 D 803 (A,149,23) Diode HZU7L(B2) D 811 (B,115,13) Diode DAN202U D 812 (B,124,13) Diode DAP202U D 813 (A,111,27) Diode DAN202U D 814 (A,107,27) Diode DAP202U D 815 (B,106,15) Diode DAN202U D 816 (B,106,19) Diode DAP202U D 817 (B,106,28) Diode DAN202U D 818 (B,106,24) Diode DAP202U D 841 (A,36,39) Diode HZS9L(C2) D 851 (A,66,13) Diode HZS11L(A1) D 853 (A,92,13) LED SML412BC5T(MN) D 901 (A,35,59) Diode MPG06G-6415G50 D 902 (A,29,59) Diode HZS6L(B1) D 911 (A,13,115) Diode HZS9L(B2) D 921 (A,30,83) Diode HZS9L(B2) D 931 (A,73,117) Diode HZU7L(A1) D 932 (A,69,118) Diode HZU7L(C3) D 941 (A,79,115) Diode 1SR154-400 D 951 (A,92,127) Diode DAN202U D 971 (A,57,114) Diode HZS11L(B2) D 981 (B,87,109) Diode Network DA204U D 982 (B,82,117) Diode HZU7L(C2) D 991 (A,98,126) Diode MPG06G-6415G50 D 992 (A,98,121) Diode MPG06G-6415G50 D 993 (A,61,103) Diode DAN202U ZNR401 (A,161,145)Surge Protector RCCA-201Q31UA-PI L 101 (B,24,134) Inductor LCTAW2R2J2520 L 121 (A,117,117) Inductor ATH1176 L 201 (A,55,85) Inductor CTF1379 L 206 (B,66,83) Inductor CTF1389 L 208 (A,63,68) Inductor CTF1389 L 221 (A,84,85) Inductor CTF1379 L 241 (B,84,52) Inductor CTF1389 L 261 (A,56,70) Inductor CTF1379 L 262 (A,95,66) Inductor CTF1379 Circuit Symbol and No. Part No. L 271 (A,83,70) Inductor CTF1389 L 272 (A,84,72) Inductor CTF1379 L 371 (B,97,110) Inductor CTF1379 L 401 (A,160,105) Inductor LAU1R0K L 402 (A,154,106) Ferri-Inductor LAU100K L 403 (A,154,114) Inductor LAU1R0K L 404 (B,167,149) Chip Coil LCTAW4R7J2520 L 501 (B,95,22) Inductor CTF1379 L 511 (B,94,35) Inductor CTF1379 L 521 (B,84,23) Inductor CTF1379 L 554 (B,60,45) Inductor CTF1389 L 604 (A,139,90) Ferri-Inductor LAU100K L 701 (A,101,27) Inductor LCTAW2R2J3225 L 831 (A,76,17) Ferri-Inductor LAU100K L 841 (A,57,18) Inductor LAU2R2K L 872 (A,41,85) Inductor CTF1617 L 951 (A,86,115) Inductor LAU2R2K X 201 (A,59,91)Crystal Resonator 16.934 4 MHz CSS1052 X 371 (A,87,107)Ceramic Resonator 4.096 MHz CSS1429 X 601 (A,149,67)Crystal Resonator 20 MHz VSS1167 VR121 (A,120,112)Semi-fixed 15 kΩ(B) CCP1397 >FU321 (A,136,130) Fuse 3 A CEK1286 BZ681 (A,152,50) Buzzer CPV1062 M 972 Fan Motor CXM1288 FM/AM Tuner Unit CWE1952 RESISTORS R 101 (B,26,130) RS1/16S181J R 102 (B,36,124) RS1/16S181J R 103 (B,27,124) RS1/16S223J R 104 (B,33,122) RS1/16S223J R 105 (B,29,124) RS1/16S102J R 106 (B,31,122) RS1/16S102J R 107 (B,39,142) RS1/16S101J R 108 (B,39,137) RS1/16S101J R 109 (B,39,140) RS1/16S150J R 110 (B,39,138) RS1/16S470J R 111 (B,39,135) RS1/16S102J R 112 (A,26,124) RS1/16S222J R 113 (A,23,124) RS1/16S332J R 114 (A,20,124) RS1/16S562J R 122 (A,139,107) RS1/16S0R0J R 123 (A,138,103) RS1/16S0R0J R 124 (A,138,114) RS1/16S0R0J R 125 (A,138,113) RS1/16S0R0J R 126 (A,138,109) RS1/16S0R0J R 127 (A,138,107) RS1/16S0R0J R 128 (A,139,103) RS1/16S0R0J R 129 (A,141,101) RS1/16S0R0J R 130 (A,141,99) RS1/16S0R0J R 131 (A,141,98) RS1/16S0R0J R 132 (A,107,89) RS1/16S103J R 133 (A,114,89) RS1/16S103J R 134 (A,133,113) RAB4C102J R 135 (A,124,113) RS1/16S103J R 181 (A,102,130) RS1/16S104J R 182 (B,110,125) RS1/16S683J R 183 (A,98,130) RS1/16S153J R 184 (B,116,125) RS1/16S682J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 69 5 6 7 8 5 6 7 8 C D F A B E R 185 (A,104,124) RS1/16S152J R 186 (A,104,130) RS1/16S222J R 187 (A,105,130) RS1/16S561J R 188 (A,110,130) RS1/16S473J R 189 (B,107,97) RS1/16S103J R 190 (B,111,97) RS1/16S223J R 191 (B,115,97) RS1/16S104J R 201 (B,54,88) RS1/16S104J R 202 (B,52,88) RS1/16S104J R 203 (B,57,79) RS1/16S153J R 204 (B,63,84) RS1/16S222J R 205 (A,59,68) RS1/16S681J R 206 (A,62,87) RS1/16S101J R 207 (A,61,68) RS1/16S681J R 208 (A,67,86) RAB4C101J R 212 (A,69,76) RS1/16S101J R 213 (A,68,71) RS1/16S101J R 214 (A,67,71) RS1/16S101J R 221 (B,78,89) RS1/16S103J R 222 (B,78,87) RS1/16S103J R 240 (B,83,99) RS1/16S223J R 241 (B,83,101) RS1/16S223J R 242 (B,84,96) RS1/16S153J R 243 (B,67,96) RS1/16S153J R 244 (B,72,91) RS1/16S101J R 247 (B,75,70) RS1/16S101J R 248 (B,79,65) RS1/16S473J R 249 (B,77,65) RS1/16S473J R 261 (B,58,66) RS1/16S681J R 262 (B,58,62) RS1/16S681J R 263 (A,69,66) RAB4C123J R 264 (B,69,63) RAB4C223J R 265 (A,103,63) RS1/16S681J R 266 (A,91,62) RS1/16S681J R 267 (A,91,63) RS1/16S681J R 268 (A,103,66) RS1/16S681J R 269 (A,102,66) RS1/16S681J R 270 (A,100,66) RS1/16S681J R 271 (A,77,72) RS1/16S0R0J R 273 (A,82,67) RS1/16S0R0J R 274 (A,87,72) RS1/16S0R0J R 275 (A,91,65) RS1/16S681J R 276 (A,93,66) RS1/16S681J R 281 (A,98,94) RS1/16S473J R 282 (A,98,96) RS1/16S473J R 283 (A,98,93) RS1/16S682J R 284 (A,98,97) RS1/16S682J R 285 (A,101,93) RS1/16S682J R 286 (A,101,97) RS1/16S682J R 287 (B,100,89) RS1/16S102J R 288 (B,103,94) RS1/16S102J R 289 (B,102,97) RS1/16S101J R 290 (B,89,94) RS1/16S101J R 291 (A,98,73) RS1/16S473J R 292 (A,98,74) RS1/16S473J R 293 (A,98,71) RS1/16S682J R 294 (A,98,76) RS1/16S682J R 295 (A,101,71) RS1/16S682J R 296 (A,101,76) RS1/16S682J R 297 (B,100,68) RS1/16S102J Circuit Symbol and No. Part No. R 298 (B,103,71) RS1/16S102J R 299 (B,102,74) RS1/16S101J R 300 (B,89,70) RS1/16S101J R 301 (A,98,83) RS1/16S473J R 302 (A,98,85) RS1/16S473J R 303 (A,98,82) RS1/16S682J R 304 (A,98,86) RS1/16S682J R 305 (A,101,82) RS1/16S682J R 306 (A,101,86) RS1/16S682J R 307 (B,100,79) RS1/16S102J R 308 (B,103,83) RS1/16S102J R 309 (B,102,86) RS1/16S101J R 310 (B,89,82) RS1/16S101J R 321 (B,151,128) RS1/16S470J R 322 (B,149,125) RS1/16S470J R 323 (A,157,131) RS1/16S223J R 324 (A,154,128) RS1/16S223J R 325 (B,145,126) RS1/16S470J R 326 (B,139,126) RS1/16S470J R 327 (A,151,127) RS1/16S223J R 328 (A,145,127) RS1/16S223J R 329 (B,136,128) RS1/16S470J R 330 (B,136,134) RS1/16S470J R 331 (A,142,127) RS1/16S223J R 332 (A,134,130) RS1/16S223J R 333 (A,145,118) RS1/16S102J R 351 (B,99,147) RS1/16S103J R 352 (A,125,121) RS1/16S103J R 353 (A,125,126) RS1/16S103J R 354 (A,122,125) RS1/16S331J R 371 (B,91,108) RS1/16S0R0J R 372 (B,100,110) RS1/16S473J R 373 (B,130,78) RS1/16S104J R 391 (A,39,54) RS1/16S103J R 392 (A,40,65) RS1/16S223J R 393 (A,38,65) RS1/16S103J R 394 (A,37,65) RS1/16S473J R 405 (B,167,114) RS1/16S681J R 406 (B,173,130) RS1/16S681J R 407 (B,173,132) RS1/16S681J R 408 (B,173,134) RS1/16S681J R 409 (B,173,136) RS1/16S681J R 410 (B,174,140) RS1/16S681J R 431 (A,48,103) RS1/16S103J R 432 (A,48,105) RS1/16S103J R 441 (B,44,131) RS1/16S223J R 442 (B,51,131) RS1/16S223J R 443 (B,44,127) RS1/16S103J R 444 (B,51,127) RS1/16S103J R 445 (B,42,131) RS1/16S103J R 446 (B,53,131) RS1/16S103J R 447 (A,40,121) RS1/16S103J R 448 (A,40,119) RS1/16S103J R 449 (A,39,123) RS1/16S103J R 450 (A,52,122) RS1/16S103J R 451 (A,45,116) RS1/16S104J R 452 (A,47,117) RS1/16S104J R 501 (B,95,24) RS1/16S681J R 502 (B,95,26) RS1/16S681J R 503 (B,89,31) RAB4C681J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 70 1 2 3 4 1 2 3 4 C D F A B E R 511 (B,65,49) RS1/16S182J R 512 (B,82,40) RAB4C681J R 513 (B,65,51) RS1/16S332J R 514 (B,61,51) RS1/16S332J R 515 (B,89,40) RAB4C681J R 516 (B,65,53) RS1/16S182J R 521 (B,82,31) RAB4C101J R 522 (B,88,25) RS1/16S101J R 523 (B,88,23) RS1/16S101J R 531 (B,51,42) RS1/16S223J R 532 (B,49,43) RS1/16S102J R 552 (B,45,69) RS1/16S0R0J R 554 (B,43,69) RS1/16S102J R 555 (B,41,51) RS1/16S220J R 556 (B,53,49) RS1/16S102J R 557 (B,48,54) RS1/16S0R0J R 601 (B,131,87) RS1/16S104J R 603 (B,131,85) RS1/16S104J R 605 (B,131,83) RS1/16S104J R 606 (A,139,81) RS1/16S102J R 607 (B,132,73) RS1/16S104J R 608 (A,126,82) RS1/16S104J R 609 (A,119,71) RS1/16S102J R 611 (B,141,83) RS1/16S472J R 613 (B,140,85) RS1/16S472J R 615 (B,135,65) RS1/16S104J R 616 (B,135,69) RS1/16S104J R 617 (A,142,53) RAB4C104J R 619 (B,146,66) RS1/16S0R0J R 621 (A,119,60) RAB4C104J R 625 (A,119,69) RS1/16S104J R 627 (A,134,82) RAB4C681J R 628 (A,131,81) RS1/16S681J R 629 (B,127,78) RS1/16S681J R 631 (A,116,64) RS1/16S104J R 632 (A,131,52) RS1/16S104J R 633 (B,136,57) RS1/16S104J R 640 (A,120,55) RS1/16S0R0J R 652 (A,149,76) RS1/16S104J R 661 (B,155,49) RS1/16S222J R 662 (A,153,59) RS1/16S102J R 664 (B,155,53) RS1/16S473J R 665 (A,156,61) RS1/16S183J R 681 (B,149,50) RS1/16S102J R 701 (B,96,43) RS1/16S682J R 702 (B,96,47) RS1/16S682J R 703 (A,98,47) RS1/16S682J R 704 (A,98,50) RS1/16S682J R 705 (B,96,51) RS1/16S221J R 706 (B,108,49) RS1/16S221J R 707 (B,96,49) RS1/16S221J R 708 (B,108,47) RS1/16S221J R 709 (B,96,45) RS1/16S221J R 710 (B,108,45) RS1/16S681J R 711 (B,106,40) RS1/16S473J R 712 (A,116,69) RS1/16S104J R 721 (B,24,65) RS1/4SA391J R 751 (B,135,39) RS1/16S393J R 752 (B,129,51) RS1/16S104J R 753 (B,135,41) RS1/16S472J Circuit Symbol and No. Part No. R 754 (B,135,37) RS1/16S471J R 755 (B,133,48) RS1/16S273J R 757 (B,121,31) RS1/16S104J R 758 (B,119,35) RS1/16S222J R 759 (B,120,38) RS1/16S471J R 760 (B,120,28) RS1/16S471J R 761 (B,115,39) RS1/16S473J R 762 (B,112,40) RS1/16S473J R 763 (B,118,52) RS1/16S103J R 764 (B,129,53) RS1/16S103J R 765 (B,112,46) RS1/16S473J R 766 (B,112,44) RS1/16S473J R 767 (B,120,52) RS1/16S472J R 768 (B,118,47) RS1/16S103J R 769 (B,124,51) RS1/16S682J R 770 (B,136,34) RS1/16S333J R 771 (B,136,30) RS1/16S332J R 773 (B,117,50) RS1/16S0R0J R 774 (B,128,30) RS1/16S473J R 775 (B,130,38) RS1/16S473J R 776 (B,139,27) RS1/16S473J R 777 (B,140,30) RS1/16S473J R 791 (B,107,69) RS1/16S122J R 792 (A,54,105) RS1/16S821J R 793 (A,39,94) RS1/16S152J R 801 (A,152,42) RS1/16S102J R 802 (A,142,42) RS1/16S102J R 803 (B,149,38) RS1/16S103J R 804 (B,143,41) RS1/16S563J R 806 (B,152,42) RS1/16S102J R 807 (A,151,18) RS1/4SA102J R 808 (B,152,38) RS1/16S102J R 811 (B,110,26) RS1/16S222J R 812 (B,112,18) RS1/16S222J R 813 (B,110,28) RS1/16S222J R 814 (B,115,17) RS1/16S222J R 815 (A,116,27) RS1/16S222J R 816 (B,117,17) RS1/16S222J R 817 (B,120,17) RS1/16S222J R 818 (A,118,27) RS1/16S222J R 819 (A,120,27) RS1/16S104J R 820 (B,107,21) RS1/16S223J R 821 (B,109,12) RS1/16S473J R 831 (B,70,15) RS1/16S472J R 832 (B,72,27) RS1/16S821J R 833 (B,80,23) RS1/16S222J R 841 (A,39,24) RS1/16S1R0J R 842 (A,37,33) RS1/4SA271J R 851 (B,63,27) RS1/16S1R0J R 852 (B,59,20) RS1/4SA391J R 853 (A,134,34) RS1/16S562J R 854 (A,132,37) RS1/16S103J R 855 (A,89,16) RS1/16S151J R 901 (B,22,56) RS1/16S223J R 902 (A,36,50) RS1/16S272J R 911 (A,22,116) RS1/16S821J R 921 (B,16,85) RS1/16S821J R 931 (A,69,116) RS1/16S104J R 932 (A,75,118) RS1/16S103J R 933 (B,70,121) RS1/16S473J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 71 5 6 7 8 5 6 7 8 C D F A B E R 934 (B,68,121) RS1/16S473J R 935 (B,72,121) RS1/16S472J R 941 (A,82,118) RS1/16S103J R 951 (A,91,119) RS1/16S102J R 952 (A,89,121) RS1/16S472J R 953 (A,92,124) RS1/16S472J R 954 (A,90,124) RS1/16S153J R 971 (A,52,119) RS1/16S391J R 972 (B,65,120) RS1/16S1R0J R 981 (B,79,112) RS1/16S102J R 982 (B,82,111) RS1/16S153J R 983 (B,75,118) RS1/16S102J CAPACITORS C 101 (B,34,134) CKSRYB104K16 C 102 (B,35,144) CKSRYB102K50 C 103 (B,39,144) CKSRYB102K50 C 121 (A,114,106) CKSQYB225K10 C 122 (A,114,104) CKSQYB225K10 C 123 (A,114,108) CKSQYB225K10 C 124 (A,114,102) CKSQYB225K10 C 125 (A,120,106) CKSRYB105K10 C 126 (A,120,104) CKSRYB105K10 C 127 (A,120,102) CKSRYB104K16 C 128 (A,120,101) CKSRYB104K16 C 129 (A,120,94) CEJQ4R7M35 C 130 (A,126,94) CEJQ4R7M35 C 131 (A,117,98) CKSQYB225K10 C 132 (A,114,113) CKSYB475K10 C 133 (A,114,111) CKSYB475K10 C 134 (A,127,113) CKSRYB105K10 C 135 (A,130,113) CKSRYB105K10 C 136 (A,122,117) CEJQ470M10 C 137 (A,129,117) CEJQ470M10 C 138 (A,107,90) CKSRYB104K16 C 139 (B,119,111) CKSRYB105K10 C 151 (B,129,113) CKSRYB105K10 C 181 (A,100,130) CCSRCH681J50 C 182 (A,105,124) CKSQYB225K10 C 183 (A,111,123) CEJQ101M6R3 C 201 (B,54,81) CKSRYB104K16 C 202 (B,56,82) CKSRYB682K50 C 203 (B,56,76) CKSRYB104K16 C 204 (B,54,74) CKSRYB104K16 C 205 (A,51,83) CEJQ100M16 C 206 (A,51,77) CEJQ100M16 C 207 (A,51,72) CEJQ100M16 C 208 (B,58,84) CKSRYB104K16 C 209 (B,57,87) CCSRCH8R0D50 C 210 (B,62,76) CKSRYB104K16 C 211 (B,62,87) CCSRCH8R0D50 C 212 (B,63,79) CKSRYB104K16 C 213 (B,64,75) CKSRYB104K16 C 214 (B,63,82) CCSRCH680J50 C 215 (B,65,79) CKSRYB104K16 C 216 (B,68,67) CCSRCH680J50 C 217 (B,50,88) CKSYB106K6R3 C 220 (B,65,94) CKSRYB103K50 C 221 (B,81,86) CCSRCH101J50 Circuit Symbol and No. Part No. C 224 (A,81,77) CEVW100M10 C 225 (A,83,83) CKSRYB104K16 C 226 (A,87,77) CSZS100M16 C 227 (A,84,83) CKSRYB104K16 C 228 (A,93,87) CEVW100M10 C 229 (A,93,81) CEVW100M10 C 230 (A,93,76) CEVW100M10 C 231 (A,93,70) CEVW100M10 C 232 (A,93,98) CEVW100M10 C 233 (A,93,92) CEVW100M10 C 240 (B,82,96) CCSRCH220J50 C 241 (B,69,96) CCSRCH220J50 C 242 (B,86,95) CKSRYB104K16 C 243 (B,66,71) CKSRYB332K50 C 244 (A,73,79) CKSYB106K6R3 C 245 (A,73,74) CKSYB106K6R3 C 246 (B,58,70) CKSRYB332K50 C 247 (B,70,86) CKSYB106K6R3 C 250 (A,73,69) CKSYB106K6R3 C 251 (A,74,63) CKSYB106K6R3 C 252 (B,78,48) CKSRYB104K16 C 261 (A,56,68) CKSRYB104K16 C 262 (A,98,66) CKSRYB104K16 C 272 (A,81,69) CCSRCH560J50 C 273 (A,85,70) CKSRYB103K50 C 281 (A,98,91) CCSRCH681J50 C 282 (A,98,99) CCSRCH681J50 C 283 (A,101,94) CCSRCH331J50 C 284 (A,101,96) CCSRCH331J50 C 285 (B,96,89) CKSRYB105K10 C 286 (B,104,98) CKSRYB105K10 C 287 (B,95,100) CKSRYB104K16 C 291 (A,98,70) CCSRCH681J50 C 292 (A,98,77) CCSRCH681J50 C 293 (A,101,73) CCSRCH331J50 C 294 (A,101,74) CCSRCH331J50 C 295 (B,96,68) CKSRYB105K10 C 296 (B,104,74) CKSRYB105K10 C 297 (B,89,76) CKSRYB104K16 C 301 (A,98,80) CCSRCH681J50 C 302 (A,98,88) CCSRCH681J50 C 303 (A,101,83) CCSRCH331J50 C 304 (A,101,85) CCSRCH331J50 C 305 (B,96,79) CKSRYB105K10 C 306 (B,104,86) CKSRYB105K10 C 307 (B,89,87) CKSRYB104K16 C 321 (A,153,122) CEJQNP100M10 C 322 (A,147,122) CEJQNP100M10 C 323 (A,140,122) CEJQNP100M10 C 324 (A,134,122) CEJQNP100M10 C 325 (A,130,127) CEJQNP100M10 C 326 (A,131,133) CEJQNP100M10 C 327 (A,154,134) CKSRYB102K50 C 328 (A,149,115) CEJQ220M16 C 351 (B,129,123) CKSQYB474K16 C 352 (B,124,124) CKSQYB474K16 C 353 (B,126,123) CKSQYB474K16 C 354 (B,122,124) CKSQYB474K16 C 355 (A,117,122) CEJQ330M10 C 357 (A,86,125) 3 300 µF/16 V CCH1486 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 72 1 2 3 4 1 2 3 4 C D F A B E C 358 (B,95,140) CKSRYB104K25 C 359 (A,124,130) CEHAR100M16 C 360 (A,124,135) CKSQYB225K10 C 361 (A,126,135) CKSQYB225K10 C 363 (B,122,140) CKSRYB474K10 C 364 (B,121,135) CKSRYB474K10 C 365 (B,122,138) CKSRYB474K10 C 366 (B,121,133) CKSRYB474K10 C 371 (B,94,112) CKSRYB104K16 C 372 (B,99,112) CKSRYB104K16 C 373 (B,99,108) CKSRYB104K16 C 374 (A,110,116) CEAL100M16 C 378 (B,98,114) CKSRYB105K10 C 401 (B,173,109) CKSRYB103K50 C 402 (B,156,111) CKSRYB102K50 C 403 (A,160,111) CEJQ470M10 C 404 (B,167,110) CKSYB475K10 C 405 (B,174,142) CKSRYB103K50 C 406 (A,160,118) CEJQ101M10 C 408 (B,160,114) CKSRYB102K50 C 421 (A,161,96) CEJQ220M16 C 422 (B,157,93) CKSRYB103K50 C 423 (B,156,83) CKSYB475K10 C 424 (B,135,97) CKSRYB103K50 C 431 (A,48,112) CKSRYB104K16 C 432 (A,33,117) CKSQYB105K16 C 433 (A,36,118) CKSQYB105K16 C 441 (B,42,127) CKSQYB225K10 C 442 (B,53,127) CKSQYB225K10 C 443 (B,43,123) CKSQYB225K10 C 444 (B,50,123) CKSQYB225K10 C 445 (A,41,123) CCSRCH101J50 C 446 (A,51,122) CCSRCH101J50 C 447 (A,45,118) CKSRYB105K10 C 448 (A,40,115) CEVW100M10 C 501 (B,99,22) CKSRYB104K16 C 511 (B,94,37) CKSRYB104K16 C 521 (B,84,18) CKSRYB104K16 C 554 (A,46,63) CEJQ330M10 C 560 (B,46,54) CKSRYB102K50 C 561 (A,51,66) CEJQ220M16 C 562 (B,63,43) CKSRYB103K50 C 563 (B,63,33) CKSYB475K10 C 566 (B,45,37) CKSRYB104K16 C 567 (B,55,40) CKSRYB103K50 C 568 (B,55,38) CKSRYB105K6R3 C 601 (A,128,83) CKSRYB104K16 C 602 (A,140,84) CKSRYB104K16 C 603 (A,124,83) CKSRYB104K16 C 605 (B,137,89) CKSRYB103K50 C 606 (A,134,90) CEJQ4R7M35 C 607 (B,151,68) CCSRCH7R0D50 C 608 (B,151,64) CCSRCH7R0D50 C 610 (A,118,65) CKSRYB104K16 C 611 (A,138,53) CKSRYB104K16 C 612 (A,134,54) CKSRYB104K16 C 613 (B,134,78) CCSRCH331J50 C 662 (B,155,51) CKSRYB104K16 C 663 (A,156,59) CKSRYB105K10 C 721 (B,30,74) CKSRYB473K25 Circuit Symbol and No. Part No. C 722 (B,29,67) CKSRYB102K50 C 723 (A,29,65) CEJQ101M10 C 743 (A,96,54) CEJQ101M10 C 751 (A,138,41) CEJQ4R7M35 C 752 (A,138,46) CEJQ1R0M50 C 753 (A,138,35) CEJQ4R7M35 C 754 (B,112,38) CKSRYB104K16 C 755 (B,119,31) CKSRYB102K50 C 756 (B,121,35) CCSRCH101J50 C 758 (B,134,30) CKSRYB105K10 C 759 (B,124,53) CKSRYB104K16 C 760 (B,122,39) CKSRYB104K16 C 761 (B,128,28) CKSRYB104K16 C 762 (B,118,45) CKSRYB472K50 C 763 (B,119,49) CKSRYB102K50 C 764 (B,112,48) CKSRYB104K16 C 765 (B,134,34) CKSRYB471K50 C 768 (B,138,30) CKSRYB104K16 C 769 (B,75,112) CKSRYB153K50 C 791 (B,115,71) CKSRYB103K50 C 792 (A,66,107) CEJQ470M10 C 793 (B,75,109) CKSRYB103K50 C 794 (A,79,106) CCH1325 C 795 (A,71,111) CEJQ101M10 C 796 (A,44,90) CKSRYB103K50 C 801 (B,143,43) CKSRYB103K50 C 802 (B,153,32) CKSRYB102K50 C 803 (A,142,37) CCSRCH101J50 C 804 (A,152,37) CCSRCH101J50 C 806 (B,156,27) CKSRYB102K50 C 807 (A,157,20) CKSRYB104K16 C 808 (A,154,24) CEVW220M16 C 831 (B,80,21) CKSRYB104K16 C 832 (A,76,11) CEVW470M10 C 841 (A,57,12) CEVW470M16 C 842 (B,37,37) CKSRYB104K16 C 843 (B,36,31) CKSRYB102K50 C 844 (A,36,29) CEJQ330M16 C 851 (B,65,15) CKSRYB473K25 C 852 (A,92,14) CKSRYB104K16 C 861 (A,61,97) CKSRYB105K6R3 C 862 (A,61,99) CKSRYB103K50 C 863 (A,68,98) CKSRYB104K16 C 871 (A,43,75) CKSRYB104K16 C 873 (A,41,79) CEVW101M6R3 C 875 (A,38,85) CKSRYB105K10 C 877 (A,49,99) CEVW101M6R3 C 878 (A,55,100) CKSRYB103K50 C 879 (B,49,98) CKSYB475K10 C 901 (A,27,47) 2 200 µF/16 V CCH1405 C 903 (B,28,62) CKSRYB472K50 C 904 (B,28,52) CKSRYB103K50 C 905 (A,28,54) CEJQ470M10 C 911 (A,32,109) CEJQ221M10 C 912 (B,13,117) CKSRYB103K50 C 913 (A,13,120) CEJQ101M10 C 921 (A,31,99) 470 µF/16 V CCH1325 C 922 (B,30,81) CKSRYB103K50 C 923 (A,30,77) CEJQ101M10 C 932 (B,74,121) CKSRYB104K16 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 73 5 6 7 8 5 6 7 8 C D F A B E C 941 (A,83,114) CKSQYB105K16 C 963 (A,77,135) CKSQYB105K10 C 964 (B,74,132) CKSQYB105K16 C 965 (B,72,132) CKSQYB105K16 C 966 (B,73,145) CKSQYB105K16 C 967 (A,74,135) CKSQYB105K16 C 968 (A,72,135) CKSQYB105K16 C 969 (A,69,135) CKSQYB105K16 C 971 (B,63,112) CKSRYB103K50 C 972 (B,62,116) CKSRYB103K50 C 973 (A,64,116) CEJQ100M16 C 981 (B,82,113) CKSRYB104K16 B Unit Number: Unit Name : Keyboard Unit MISCELLANEOUS IC 1702 (B,145,31) IC NJM2870F18 IC 1703 (B,130,15) IC S-818A33AUC-BGN IC 1761 (A,96,34) IC TC7WT125FU IC 1762 (A,129,37) IC TC7WH34FU IC 1763 (B,97,26) IC PEG182A IC 1764 (A,121,31) IC TC7WH32FU IC 1801 (A,15,35) GP1UX51RK IC 1831 (A,157,27) IC(P980BT/XN/UC) PD8162A IC 1831 (A,157,27) IC PD8161A (P9800BT/XN/UC,P9850BT/XN/ES) IC 1832 (A,140,21) IC PD6544A IC 1833 (A,97,19) IC M5M5V216ATP-70HI IC 1861 (A,123,19) IC S1D13702F00A100 Q 1731 (B,10,38) Transistor DTC114EU D 1701 (A,122,37) Diode DAP202U D 1702 (A,119,37) Diode DAN202U D 1703 (A,114,37) Diode DAP202U D 1704 (A,112,37) Diode DAN202U D 1731 (A,8,33) LED SML412BC5T(MN) D 1732 (A,65,24) LED SML412BC5T(MN) D 1733 (A,50,38) LED SML412BC5T(MN) D 1734 (A,36,24) LED SML412BC5T(MN) D 1735 (A,50,9) LED SML412BC5T(MN) D 1736 (A,67,34) LED SML412BC5T(MN) D 1737 (A,67,14) LED SML412BC5T(MN) D 1738 (A,33,34) LED SML412BC5T(MN) D 1739 (A,33,14) LED SML412BC5T(MN) D 1740 (A,17,24) LED SML412BC5T(MN) D 1741 (A,9,11) LED SML412BC5T(MN) D 1751 (B,40,16) Diode HZU7R5(B2) D 1752 (B,66,17) Diode DAP202U D 1753 (B,66,22) Diode DAN202U D 1759 (B,36,16) Diode HZU7R5(B2) D 1761 (A,103,36) Diode 1SS355 L 1701 (B,121,19) Inductor CTF1379 L 1702 (B,124,21) Inductor CTF1379 L 1703 (B,143,23) Inductor CTF1617 L 1762 (B,144,16) Inductor CTF1617 L 1861 (B,159,19) Inductor CTF1617 L 1862 (A,113,14) Inductor LCTC1R0K2125 L 1863 (A,126,7) Inductor LCTC1R0K2125 Circuit Symbol and No. Part No. L 1931 (B,122,11) Inductor CTF1617 L 1932 (B,123,15)Chip Ferrite Bead CTF1399 L 1933 (B,149,15) Inductor ATH1167 X 1761 (A,109,27) 8.0 MHz CSS1675 S 1701 (A,163,6) Push Switch CSG1155 S 1731 (A,8,27) Push Switch CSG1155 S 1732 (A,35,39) Push Switch CSG1155 S 1733 (A,50,24)Switch(MULTI-CONTROL) CSX1065 S 1734 (A,35,9) Push Switch CSG1155 S 1735 (A,65,39) Push Switch CSG1155 S 1736 (A,65,9) Push Switch CSG1155 S 1737 (A,17,27) Push Switch CSG1155 S 1738 (A,6,11) Push Switch CSG1155 S 1739 (A,26,27) Push Switch CSG1155 OEL Module MXK8230 RESISTORS R 1703 (B,118,18) RS1/16S103J R 1704 (A,124,36) RS1/16S222J R 1705 (A,125,37) RS1/16S222J R 1706 (A,157,7) RS1/16S333J R 1707 (A,114,34) RS1/16S222J R 1708 (A,110,31) RS1/16S222J R 1709 (A,117,37) RS1/16S103J R 1731 (B,11,31) RS1/16S101J R 1733 (B,63,34) RS1/16S102J R 1734 (B,35,32) RS1/16S102J R 1735 (B,42,11) RS1/16S222J R 1737 (B,54,26) RS1/16S332J R 1738 (B,42,13) RS1/16S103J R 1739 (B,65,34) RS1/16S103J R 1740 (B,38,32) RS1/16S822J R 1741 (B,38,30) RS1/16S473J R 1742 (B,51,39) RS1/16S181J R 1743 (B,50,8) RS1/16S181J R 1744 (B,61,7) RS1/16S181J R 1745 (B,35,8) RS1/16S181J R 1746 (B,50,39) RS1/16S151J R 1747 (B,49,8) RS1/16S151J R 1748 (B,60,7) RS1/16S101J R 1749 (B,36,8) RS1/16S181J R 1750 (B,12,17) RS1/16S271J R 1751 (B,11,17) RS1/16S331J R 1752 (B,11,11) RS1/16S561J R 1753 (B,10,11) RS1/16S331J R 1761 (A,100,35) RS1/16S473J R 1762 (A,97,31) RS1/16S473J R 1763 (A,98,29) RS1/16S682J R 1764 (A,103,29) RS1/16S682J R 1765 (A,104,33) RS1/16S154J R 1766 (A,101,29) RS1/16S392J R 1767 (A,99,29) RS1/16S392J R 1768 (A,107,33) RS1/16S473J R 1769 (B,108,22) RAB4CQ101J R 1770 (B,108,31) RAB4CQ101J R 1771 (A,101,33) RS1/16S473J R 1772 (B,108,28) RS1/16S101J R 1773 (B,107,37) RS1/16S101J R 1775 (B,79,7) RAB4CQ101J R 1776 (B,105,37) RS1/16S101J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 74 1 2 3 4 1 2 3 4 C D F A B E R 1777 (A,86,37) RAB4CQ473J R 1778 (A,91,31) RS1/16S101J R 1779 (A,92,35) RS1/16S473J R 1780 (A,91,33) RS1/16S101J R 1781 (B,99,37) RAB4CQ101J R 1782 (B,99,16) RS1/16S473J R 1783 (B,97,16) RS1/16S473J R 1784 (B,95,16) RS1/16S101J R 1785 (A,83,34) RAB4CQ101J R 1786 (B,82,35) RAB4CQ101J R 1787 (B,85,33) RAB4CQ101J R 1789 (B,85,16) RAB4CQ101J R 1790 (B,80,18) RS1/16S101J R 1791 (B,80,16) RS1/16S101J R 1793 (B,82,31) RAB4CQ101J R 1794 (B,85,28) RAB4CQ101J R 1795 (B,82,27) RAB4CQ101J R 1796 (B,82,21) RAB4CQ101J R 1797 (B,85,20) RAB4CQ101J R 1798 (B,79,10) RAB4CQ101J R 1799 (A,128,33) RS1/16S0R0J R 1804 (B,108,20) RS1/16S101J R 1811 (B,19,30) RS1/16S101J R 1812 (B,24,34) RS1/16S103J R 1813 (B,22,37) RS1/16S2R2J R 1831 (A,129,7) RS1/16S473J R 1832 (A,132,7) RS1/16S101J R 1833 (A,133,11) RS1/16S473J R 1834 (A,134,33) RS1/16S473J R 1835 (A,154,13) RS1/16S471J R 1836 (A,150,13) RS1/16S471J R 1864 (A,133,17) RS1/16S473J R 1865 (A,132,19) RS1/16S473J R 1866 (A,132,27) RS1/16S101J R 1869 (A,113,10) RS1/16S102J R 1870 (A,132,22) RS1/16S102J R 1871 (A,128,29) RS1/16S102J R 1872 (A,130,28) RS1/16S102J R 1873 (A,132,21) RS1/16S102J R 1874 (A,110,10) RS1/16S102J R 1931 (B,113,16) RS1/16S101J R 1932 (B,112,16) RS1/16S101J R 1933 (B,109,16) RS1/16S101J R 1934 (B,107,16) RAB4CQ101J CAPACITORS C 1707 (B,129,21) CKSRYB474K10 C 1708 (B,143,30) CKSRYB474K10 C 1709 (B,148,32) CKSRYB223K50 C 1710 (B,137,15) CSZS4R7M10 C 1711 (B,151,30) CSZS4R7M10 C 1732 (A,67,24) CKSRYB104K16 C 1735 (A,34,24) CKSRYB104K16 C 1739 (A,10,35) CKSRYB104K16 C 1741 (A,50,40) CKSRYB104K16 C 1744 (A,50,7) CKSRYB104K16 C 1746 (A,16,20) CKSRYB104K16 C 1747 (A,11,11) CKSRYB104K16 C 1748 (B,62,26) CKSRYB103K50 Circuit Symbol and No. Part No. C 1749 (B,35,33) CKSRYB103K50 C 1750 (A,67,32) CKSRYB104K16 C 1751 (A,67,15) CKSRYB104K16 C 1752 (A,33,32) CKSRYB104K16 C 1753 (A,33,15) CKSRYB104K16 C 1761 (A,97,37) CKSRYB104K16 C 1762 (A,101,37) CKSRYB104K16 C 1763 (A,101,35) CKSRYB473K25 C 1764 (A,135,38) CKSRYB104K16 C 1765 (B,103,37) CKSRYB103K50 C 1766 (B,141,16) CKSRYB104K16 C 1767 (B,90,18) CKSRYB104K16 C 1768 (B,135,11) CKSRYB103K50 C 1769 (B,140,11) CSZS4R7M10 C 1770 (A,126,34) CKSRYB104K16 C 1801 (B,22,34) CSZS100M16 C 1831 (A,148,26) CKSRYB104K16 C 1832 (A,96,11) CKSRYB104K16 C 1833 (B,161,40) CKSRYB104K16 C 1834 (A,156,15) CCSRCH100D50 C 1835 (B,139,13) CCSRCH100D50 C 1862 (B,159,16) CKSRYB103K50 C 1863 (B,161,10) CSZS4R7M10 C 1864 (A,114,14) CKSRYB104K16 C 1865 (A,132,15) CKSRYB473K25 C 1867 (A,117,27) CKSRYB104K16 C 1868 (A,132,25) CKSRYB104K16 C 1869 (A,130,11) CKSRYB104K16 C 1870 (A,132,13) CKSRYB104K16 C 1871 (A,126,29) CCSRCH100D50 C 1872 (A,130,30) CCSRCH100D50 C 1873 (A,132,24) CCSRCH100D50 C 1874 (A,109,14) CKSYB106K10 C 1932 (B,118,11) CKSRYB103K50 C 1933 (B,117,13) CKSRYB104K16 C 1936 (B,117,15) CKSRYB104K16 C 1937 (B,93,11) CKSRYB104K16 C 1939 (B,154,15) CKSYB106K10 C 1941 (B,131,8) CKSYB106K10 C Unit Number: CWX3328 Unit Name : CD Core Unit(COMP1D) MISCELLANEOUS IC 201 (B,39,70) IC UPD63763CGJ IC 203 (A,12,16) IC NJM2886DL3-33 IC 301 (A,28,18) IC BA5835FP IC 701 (A,32,48) IC PE5552A Q 101 (B,60,89) Transistor 2SA1577 Q 701 (B,24,41) Transistor UN2111 X 701 (A,24,37) Ceramic Resonator 4.000 MHz CSS1652 S 901 (A,57,57) Switch(HOME) CSN1067 S 903 (B,23,78) Switch(DSCSNS) CSN1067 S 904 (B,42,87) Switch(12EJ) CSN1068 S 905 (B,28,88) Switch(8EJ) CSN1068 RESISTORS Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 75 5 6 7 8 5 6 7 8 C D F A B E R 101 (B,61,92) RS1/10SR2R4J R 102 (B,63,92) RS1/10SR2R4J R 103 (B,63,89) RS1/10SR2R7J R 104 (A,52,73) RS1/16SS102J R 201 (B,44,57) RS1/16SS102J R 202 (A,38,62) RS1/16SS473J R 203 (A,37,62) RS1/16SS473J R 210 (A,33,62) RS1/16SS0R0J R 214 (A,46,79) RS1/16SS472J R 216 (A,46,81) RS1/16SS472J R 221 (A,44,81) RS1/16SS103J R 222 (A,45,81) RS1/16SS103J R 225 (B,52,78) RS1/16SS103J R 226 (B,52,77) RS1/16SS393J R 227 (A,44,75) RS1/16SS562J R 228 (A,46,72) RS1/16SS122J R 229 (A,44,72) RS1/16SS472J R 232 (A,46,75) RS1/16SS122J R 237 (B,22,64) RS1/16SS221J R 238 (B,22,65) RS1/16SS221J R 239 (B,22,66) RS1/16SS221J R 241 (B,26,63) RS1/16SS333J R 243 (B,26,62) RS1/16SS333J R 245 (B,26,69) RS1/16SS333J R 248 (B,55,74) RS1/16SS105J R 307 (A,19,20) RS1/16SS183J R 308 (A,17,20) RS1/16SS183J R 309 (A,18,18) RS1/16SS183J R 310 (A,17,16) RS1/16SS183J R 701 (B,26,44) RS1/16SS221J R 707 (B,32,45) RS1/16SS473J R 709 (A,36,35) RS1/16SS222J R 710 (B,41,46) RS1/16SS102J R 712 (A,45,57) RS1/16SS222J R 713 (B,40,57) RS1/16SS222J R 716 (B,29,37) RS1/16SS472J R 724 (B,31,36) RS1/16S473J R 726 (B,23,47) RS1/16SS103J R 727 (B,31,42) RS1/16SS473J R 729 (B,20,48) RS1/16SS223J R 730 (B,20,46) RS1/16SS473J R 740 (A,38,59) RS1/16SS222J R 746 (A,13,38) RS1/16SS104J R 750 (A,40,66) RS1/16SS473J R 751 (B,40,46) RS1/16SS102J R 902 (A,20,36) RS1/16SS221J R 905 (A,21,36) RS1/16SS221J R 906 (B,20,36) RS1/16SS221J R 909 (B,16,65) RS1/16SS0R0J CAPACITORS C 103 (B,57,83) CEVW101M16 C 108 (A,47,66) CKSSYB104K10 C 201 (B,46,56) CKSSYB102K50 C 202 (B,47,58) CKSSYB104K10 C 205 (A,34,63) CKSSYB104K10 C 208 (B,34,54) CKSSYB104K10 C 209 (B,31,57) CKSSYB104K10 C 210 (A,31,66) CKSRYB105K10 Circuit Symbol and No. Part No. C 216 (B,53,77) CKSSYB332K50 C 217 (B,52,79) CKSSYB104K10 C 218 (B,52,76) CKSSYB473K10 C 219 (B,52,74) CKSSYB104K10 C 220 (A,46,77) CKSSYB182K50 C 221 (B,51,74) CKSSYB104K10 C 222 (A,46,73) CCSSCH560J50 C 223 (A,44,74) CCSSCH4R0C50 C 224 (B,52,68) CKSSYB104K10 C 225 (A,47,67) CKSSYB103K16 C 226 (A,49,67) CCSSCH680J50 C 227 (A,48,65) CCSSCH470J50 C 228 (A,46,62) CKSSYB103K16 C 232 (A,12,31) CKSRYB105K10 C 237 (A,31,67) CKSSYB104K10 C 239 (A,46,74) CCSSCH220J50 C 246 (A,42,80) CKSSYB104K10 C 249 (B,25,57) CKSSYB221K50 C 250 (A,42,81) CKSRYB102K50 C 251 (A,41,83) CKSRYB102K50 C 303 (A,18,20) CKSSYB472K25 C 304 (A,17,17) CKSSYB103K16 C 307 (A,34,15) CKSSYB104K10 C 308 (A,17,30) CKSRYB105K10 C 701 (B,25,47) CKSSYB104K10 C 703 (B,28,42) CKSSYB103K16 C 706 (B,34,43) CKSSYB104K10 C 707 (A,36,57) CKSSYB104K10 C 714 (A,24,41) CKSSYB104K10 C 722 (B,29,45) CKSQYB475K6R3 C 903 (B,14,54) CKSSYB471K50 D Unit Number: CWS1389 Unit Name : Switch Unit S 1 Switch(CLOSE) CSN1051 S 2 Switch(OPEN) CSN1052 Miscellaneous Parts List Pickup Unit(P10.5)(Service) CXX1942 M 1 Motor Unit(SPINDLE) CXC6742 M 2 Motor Unit(LOADING/CARRIAGE) CXC4026 M 801 Motor Unit(FLAP) XXA7400 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 76 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 DISPLAY TEST MODE - Display Test Mode [LIST]+[CLOCK] Key Reset Start Normal screen Screen-still All lights on [PHONE] + [BAND] key [EQ] + [CLOCK] key Normal display All lights on All lights off Data and address bus connection check Display of microcomputer version information Display of ROM correction version information BT antenna test BT flash memory test Service mode, Screen-still mode, or BT test mode BT Test Mode Service Mode Still image mode [LIST] + [CLOCK] key [LIST] + [CLOCK] key [EQ] + [CLOCK] key www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 77 5 6 7 8 5 6 7 8 C D F A B E 6.2 CD ADJUSTMENT 1) Cautions on adjustments • In this product the single voltage (3.3 V) is used for the regulator. The reference voltage is the REFO1 (1.65 V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. • Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. • For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. • In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. • The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1 k ohms in series. • The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. • To enter the test mode. While pressing the EQ and CLOCK keys at the same time, reset. • To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (→) key or (←) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0 dB, and the auto-adjustment values are reset to the default settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 78 1 2 3 4 1 2 3 4 C D F A B E [Key] Contents Display [EQ] + [CLOCK] + Reset or [EQ] + [CLOCK] + BU + ACC Test Mode In [CD] or [SOURCE] Source On TRK MIN SEC [BAND] Power On (T.Offset is adjusted) TRK MIN SEC 00 00 00 [3] Power On (T.Offset is not adjusted) 99 99 99 [2] RF AMP Gain switching GG GG GG *1 [4] SPINDLE Speed switching SP SP SP *9 [3] Focus Close S curve check TRK MIN SEC 91 91 91 [6] Focus Mode switching 0X 0X 0X *2 [1] Tracking Servo Close 00 00 00 or 99 99 99 [>] CRG + [2] Self-adjusting switching TRK MIN SEC ?? ?? ?? *3 *8 [<] CRG - *8 [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [1] T.Close & AGC Applicable servomechanism TRK MIN SEC ?tr ?min ?sec [6] [3] RF AGC / RF AGC coefficient display [>] CRG + 8X 8X 8X or 9X 9X 9X [2] T.Balance adjustment / T.BAL coefficient display TRK MIN SEC ?? ?? ?? [<] CRG - T.Close Applicable servomechanism ?? ?? ?? [1] F,T,RF AGC F.Bias display switching TRK MIN SEC TRK MIN SEC TRK MIN SEC TRK MIN SEC ?tr ?min ?sec TRK MIN SEC [3] [6] CRG/TR jump value switching [>] CRG/TR Jump + [2] Tracking Open [<] CRG/TR Jump - ?tr ?min ?sec TRK MIN SEC TRK MIN SEC TRK MIN SEC ?tr ?min ?sec 00 00 00 or 99 99 99 TRK MIN SEC TRK MIN SEC ?tr ?min ?sec 8X 8X 8X or 9X 9X 9X 8X 8X 8X or 9X 9X 9X 00 00 00 or 99 99 99 TRK MIN SEC ?tr ?min ?sec ?? ?? ?? *7 F,T AGC / F.Bias RF AGC 8X 8X 8X or 9X 9X 9X [2] Tracking Open *6 *5 *4 *4 Operation [Key] Test Mode [BAND] Power On/Off [>] CRG + / TR Jump + (Direction of the external surface) [<] CRG - / TR Jump - (Direction of the internal surface) [1] T. CLS & AGC & Applicable servomechanism / AGC,AGC display setting [2] RF Gain switching / Offset adjustment display / T.Balance adjustment / T. Open [3] F. Close,S Curve / Rough Servo and RF AGC / F,T,RF AGC [4] SPDL 1X/2X switching As for the double speed(2x), audio output cannot be supported. [5] Error Rate measurement ON : ERR 30Counts Start BER display data[%] [6] F. Mode switching / Tracking Close / CRG•TR Jump Switching *) • After the [Eject] key is pressed keys other than the [Eject] key should not be pressed, until disc ejection is complete. • When the key [2] or [3] is pressed during the Focus Search, the power supply should be immediately turned off (otherwise the lens sticks to Wall, causing the actuator to be damaged). • In the case of TR jump other than to 100TR, the function shall continue to be processed even if the TR jump key is released. As for the CRG Move and 100TR Jump, the mechanism shall be set to the Tracking Close mode when the key is released. • When the power is turned on/off the jump mode is reset to the Single TR (91) while the gain of the RFAMP is reset to 0 dB. At the same time all the self-adjusting values shall return to the default setting. *10 TRK MIN SEC [5] Gop Mode Gop Mode switching OL OL OL - Flow Chart Key of the head unit Key of the remote control unit *1) TYP → + 6 dB → + 12 dB TRK MIN SEC TRK06MIN06SEC06 TRK12MIN12SEC12 *2) Focus Close → S Curve check setting → F EQ measurement setting TRK00MIN00SEC00 TRK01MIN01SEC01 TRK02MIN02SEC02 (TRK99MIN99SEC99) *3) F.Offset Display → RF.Offset → T.Offset Display → Switch to the order of the original display *4) 1TR/4TR/10TR/32TR/100TR *5) Single → 4TR → 10TR → 32TR → 100TR → CRG Move 9x(8x):91(81) 92(82) 93(83) 94(84) 95(85) 96(86) *6) Only at the time of CRG move, 100TR jump *7) TRK/MIN/SEC → F.AGC → T.AGC Gain → F.Bias → RF AGC *8) CRG motor voltage = 2 [V] *9) TYP (1X) → 2X → 1X TRK MIN SEC TRK22MIN22SEC22 TRK11MIN11SEC11 *10) OFF(TYP) → FORCUS → TRACKING TRK MIN SEC TRK70MIN70SEC70 TRK71MIN71SEC71 • As for the double speed (2x), audio output cannot be supported *Press[1] - [6] keys on the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 79 5 6 7 8 5 6 7 8 C D F A B E 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT CD CORE UNIT(COMP1D) • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3 V regulator on. 2. Using the → and ← buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. Oscilloscope F E REFO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 80 1 2 3 4 1 2 3 4 C D F A B E Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 20 mV/div, AC Fch → Ych 20 mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 81 5 6 7 8 5 6 7 8 C D F A B E 6.4 ERROR MODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (minutes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. SERVO LSI Com- CRG can't be moved from inner diameter. munication Error → Failure on home switch or CRG move mechanism. Communication error between microcomputer and SERVO LSI. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). Subcode NG → Failure on spindle, stains or damages on disc, or excessive vibrations. A disc not containing CD-R data is found. Turned over disc are found, though rarely. CD signal error. 17 Electricity Setup NG AGC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations on REWRITABLE. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. 44 Electricity ALL Skip Skip setting for all track. (CD-R/RW) 50 Mechanism CD On Mech Error Mechanical error during CD ON. → Defective loading motor, mechanical lock and mechanical sensor. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 82 1 2 3 4 1 2 3 4 C D F A B E 6.5 SYSTEM MICROCOMPUTER TEST PROGRAM 6.6 HOW TO CHECK THE REVOLUTION NUMBER DETECTION CIRCUIT - PCL Output In the normal operation mode (with the detachable panel installed, the ACC switched ON, the standby mode cancelled), shift the TESTIN IC601(Pin 126) terminal to H. The clock signal is output from the PCL terminal IC601(Pin 62). The frequency of the clock signal is 625.000 kHz that is one 32nd of the fundamental frequency. The clock signal should be 625.000 kHz(- 25 Hz, + 25 Hz). If the clock signal is out of the range, the X'tal (X601) should be replaced with the new one. Acc BU DC Regulated Power Supply Audio Oscillator + 4.7 µF/16 V +12 V GND - Connection Diagram - Checking the Revolution Number Detection Circuit 1. Input 400 mVp-p sine waves and confirm change of output voltage according to frequency. 2.There is a definite relation between alternating current frequency and the engine revolution number. Frequency at 4 000 rpm can be set by user operation. Linear complement between 0 rpm = 0 Hz and 4 000 rpm. To microcomputer F/V IC HPF ACC Line - Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 83 5 6 7 8 5 6 7 8 C D F A B E 6.7 E.VOL IC OSCILLATING FREQUENCY ADJUSTMENT - Connection Diagram - E.VOL IC Oscillating Frequency Adjustment VR121 R135 IC121 Adjustment Point Adjustment Method Switch Position Frequency Counter : 400 kHz ± 10 kHz Source : except for AM VR121 E.VOL IC oscillating frequency adjustment when you change the VR121, R135 or IC121. Frequency Counter Pin 49(C-) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 84 1 2 3 4 1 2 3 4 C D F A B E 6.8 BLUETOOTH TEST MODE When resetting the microprocessor, the memory is initialized except for the following four items. This enables user to avoid the task of registering phones and transfering phone directory again even after resetting system at the time of battery exchange, etc. • Registration of phone • Phone directory • History of sending/arrival • Dial preset - About Memory Clear www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 85 5 6 7 8 5 6 7 8 C D F A B E Bluetooth DEH-P980BT/XN/UC DEH-P9800BT/XN/UC DEH-P9850BT/XN/ES Specifications for BT Built-in mobile phone The mobile phone compliant to Bluetooth Ver 1.1 requires at least *HFP and *OPP to be mounted. The model having validly accomplished connecting verification is desirable. The model capable of being in standby state is desirable. *HFP : Hands-Free Profile, OPP : Object Push Profile 1. Cautions [Important] * When conducting this Test Mode, writing into memory and others will be checked. Because of that, the data stored by the user will be deleted. Please obtain approval from the user beforehand. * On this product, the user's memory for telephone directory information will not be cleared even if BU power is turned off. If you register the telephone information to the unit in normal mode for checking the Bluetooth function, you have to delete the data which you registered before returning the unit to the user. * Note that if the user is already useing all of user's memory(No.1 - 3 and Guest 1,2), you need to delete user's data in order to check the Bluetooth function in normal mode. 2. Outline of Functions The following 3 items are to be confirmed for the simple BT action check by using BT-compliant mobile phone: • Confirmation of Bluetooth connection (certification connection and voice connection) • Confirmation of BT antenna sensitivity (connection) • Confirmation of FLASH memory action 3. Configuration Diagram - Function Specifications for Bluetooth Test Mode (when using BT-compliant mobile phone) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 86 1 2 3 4 1 2 3 4 C D F A B E - M o d e S e l e c t - * * * * * * * * * * * * F U N C : E Q + C L P H O T O : L I S T + C L B T : P H O N E + B A N D TEST - B T & F L A S H T E S T - C O N N E C T W A I T I N G A N T E N N A : S O U N D S T A T E : F L A S H M E M O R Y : TEST - B T & F L A S H T E S T - * * * * * * * * A N T E N N A : S O U N D S T A T E : F L A S H M E M O R Y : TEST - B T & F L A S H T E S T - * * * * * * * * A N T E N N A : - 3 5 S O U N D S T A T E : O F F F L A S H M E M O R Y : TEST - B T & F L A S H T E S T - * * * * * * * * A N T E N N A : - 3 5 S O U N D S T A T E : O N F L A S H M E M O R Y : TEST - B T & F L A S H T E S T - * * * * * * * * A N T E N N A : - 3 5 S O U N D S T A T E : O F F F L A S H M E M O R Y : TEST - B T & F L A S H T E S T - * * * * * * * * A N T E N N A : - 3 5 S O U N D S T A T E : O F F F L A S H M E M O R Y : C H K TEST - B T & F L A S H T E S T - * * * * * * * * A N T E N N A : - 3 5 S O U N D S T A T E : O F F F L A S H M E M O R Y : O K TEST K K 4. How to Start-up the Test Mode Specifications for Operation Operation Method ↓ ↓ ↓ ↓ ↓ ↓ ↓ RESET start while pressing CLOCK + LIST. ↓ DEH device name is displayed. Device name is displayed. Standby for connection from the device (mobile phone, etc.) Connection from DEH to the device cannot be made. When the connection is completed, the name of the connected device will be displayed. (MAX 12 one-byte characters) ANTENNA is checked automatically. The result of ANTENNA check is displayed. The value is only a guideline. The ANTENNA level displayed is -80 to -18. If an ANTENNA value outside of the range is displayed after con- nection,check the condition of the unit and try from the beginning again. SKIP the following two items by pressing the Center key as they are the ones checked at the time of manufacturing. Start FLASH check. FLASH check is conducted automatically according to the followi- ng steps. Delete Write Read Totally delete Read Read out the written data, and verify that both of them match. Read out after total delete, and verify that the deletion has been accomplished. Verification is OK if OK is displayed. Test is complete if everything progressed normally up to this point. Phone + BAND key Device connection completed ANTENNA check complete (automatic) Center key Center key Center key FLASH check complete ↓ ↓ ↓ ↓ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 87 5 6 7 8 5 6 7 8 C D F A B E 2.4 GHz-compliant spectrum analyzer A B C Remove CD mechanics and connect to ANT connector inside Bluetooth unit A: U.FL-SMA conversion adapter (Hirose Electric Co., Ltd CL311-0301-5) B: Coaxial cable for SMA microwave (Stack Electronics Co., Ltd. SMA • P-100-STF358) C: SMA conversion connector (Stack Electronics Co., Ltd. BA057) DEH-P980BT/XN/UC DEH-P9800BT/XN/UC DEH-P9850BT/XN/ES 1. Cautions * When the service site has a 2.4 GHz-compliant spectrum analyzer, the peripheral facilities shown below are also required. Also, the antenna terminal on BT unit must be directly connected to the cable. A white coaxial cable connected to the antenna connector on BT unit is removed by taking out the upper case and CD mechanics of the product. This task would be safer if a special connector-drawing jig is available. Next, the U.FL connector from spectrum analyzer is connected. The styling of cable must be taken good care so as not to add further burden on BT antenna connector and to break it. 2. Outline of Functions The following confirmation is to be conducted by test mode in order to simply check BT actions using 2.4 GHz-compliant spectrum analyzer. * Confirmation of output level of Bluetooth unit 3. Configuration Diagram - Function Specifications for Bluetooth Test Mode (when using 2.4 GHz-compliant spectrum analyzer) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 88 1 2 3 4 1 2 3 4 C D F A B E E E R P I O N - W I R E L E S S T E S T - S E T T I N G . . . L O O P B A C K TEST - W I R E L E S S T E S T - S E T T I N G . . . L O C A L T X N M TEST - W I R E L E S S T E S T - S E T T I N G . . . L O C A L T X N M T X F R E Q . : 0 2 - 2 4 0 2 TEST - W I R E L E S S T E S T - E X E C U T E . . . L O C A L T X N M T S : - - H M : - - P T : - - T X : 0 2 R X : - - T G : - - TEST 4. How to Start-up the Test Mode Specifications for Operation Operation Method ↓ ↓ ↓ ↓ Reset while pressing EQ+CLOCK. (Enter into "all sources test mode"). ↓ Press Phone key. Press the left/right key. Press the Center key. Center key [Normal demo screen] [Setting screen] [Local TX NM setting] [Local TX NM detail setting] [When executing Local TX NM] Select the frequency by pressing the up/down key. 02-2402 (Initial value) 41-2441 80-2480 95-2495 Measurement shall be taken at 02, 41 and 80. ← Return to the Local TX NM setting screen by pressing the BAND key. ← Set to "LOCAL TX NM" by pressing the left/right key. ← As per above, measure output level of each frequency with spectrum analyzer upon connection. A standard of judgment should be within the following range of output level V. "-6 dBm < V < 4 dBm" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 89 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the CD Mechanism Module (Fig.1) 1 Fig.1 - Removing the Case (not shown) - Removing the Cord Assy (Fig.2) 1. Remove the Case. CD Mechanism Module 1 1 1 1 Fig.2 Remove the four screws. 1 Disconnect the Cord Assy by Jig GGF1539. Disconnect the connector and then remove the CD Mechanism Module. 3 Cord Assy 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 90 1 2 3 4 1 2 3 4 C D F A B E 1 Fig.4 Fig.3 Grille Assy 2 1 1 1 1 When unplugging the cord assy, make sure to use jig GGF1539. If the antenna cable is directly unplugged without using jig GGF1539, you might damage your fingertip or fingernail. - How to Remove the Cord Assy When unplugging cord assy, hook the point of jig GGF1539 on the lid of cord assy and vertically draw out along with the engagement axis of connector. - How to Attach the Cord Assy For inserting cord assy, adjust cord assy with the engagement axis of connector and insert it as vertically as possible. Do not insert the cord assy in extreme slant, as the connector might suffer damage. Connector Cord Assy GGF1539 - Removing the Grille Assy (Fig.4) 1 Remove the four screws. Disconnect the connector and then remove the Grille Assy. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 91 5 6 7 8 5 6 7 8 C D F A B E Fig.5 Tuner Amp Unit - Removing the Tuner Amp Unit (Fig.5) Remove the three screws. 1 2 2 2 Straighten the tabs at three locations indicated. 2 Remove the screw and then remove the Tuner Amp Unit. 3 1 1 3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 92 1 2 3 4 1 2 3 4 C D F A B E A A B B Upper Frame Lower Frame B B B B a Damper Carriage Mechanism Damper Do not squeeze this area. - How to hold the Mechanism Unit - Removing the Upper and Lower Frames 1. With a disc inserted and clamped in the mechanism, remove the two Springs (A), the six Springs (B), and the four Screws. 2. Turn the Upper Frame using the part "a" as a pivot, and remove the Upper Frame. 3. While lifting the Carriage Mechanism, remove it from the three Dampers. Caution: When assembling, be sure to apply some alcohol to the Dampers and assemble the mechanism in a clamped state. 1. Hold the Upper and Lower Frames. 2. Do not hold the front portion of the Upper Frame, because it is not very solid. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 93 5 6 7 8 5 6 7 8 C D F A B E Screw Shorting Solder CD Core Unit Solder Chassis Pickup Rack Pickup Poly Washer Change Arm Pickup Lock Arm Feed Screw Planet Gear Inner Holder - How to remove the CD Core Unit 1. Apply Shorting Solder to the flexible cable of the Pickup, and disconnect it from the connector. 2. Unsolder the four leads, and loosen the Screw. 3. Remove the CD Core Unit. Caution: When assembling the CD Core Unit, assemble it with the SW in a clamped state so as not to damage it. - How to remove the Pickup Unit 1. Make the system in the carriage mechanism mode, and have it clamped. 2. Remove the CD Core Unit and remove the leads from the Inner Holder. 3. Remove the Poly Washer, Change Arm, and Pickup Lock Arm. 4. While releasing from the hook of the Inner Holder, lift the end of the Feed Screw. Caution: When assembling, move the Planet Gear to the load/eject position before setting the Feed Screw in the Inner Holder. Assemble the sub unit side of the Pickup, taking the plate (Chassis) in-between. When treating the leads of the Load Carriage Motor Assy, do not make them loose over the Feed Screw. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 94 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 CONNECTOR FUNCTION DESCRIPTION 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT WIRED REMOTE CONTROL (DEH-P980BT/XN/UC, DEH-P9800BT/XN/UC) 1. BACKUP 2. GND 3. ILM 4. B.REM 5. ACC 6. NC 7. NC 8. TEL MUTE 1 1 2 3 4 8 5 6 7 9 10 11 3 5 7 9 11 13 15 2 4 6 8 10 12 14 16 IP-BUS POWER SUPPLY, SPEAKER AUX INPUT 1. FL OUTPUT 2. GND 3. FR OUTPUT 4. GND 5. RL OUTPUT 6. GND 7. RR OUTPUT 8. GND 9. SWL OUTPUT 10. GND 11. SWR OUTPUT 12. GND PRE OUTPUT MICROPHONE INPUT ANTENNA JACK 12 2 4 6 8 10 11 1 3 5 7 9 9. RL- 10. FL- 11. RL+ 12. FL+ 13. RR- 14. FR- 15. RR+ 16. FR+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 95 5 6 7 8 5 6 7 8 C D F A B E 7.2 IC CONTROL 1 VIN 2 GND 3 VO 4 NC 5 Bandgap Reference Thermal Protection + - NJM2886DL3-33 NJM2886DL3-33 PD8161A PD8162A UPD63763CGJ PE5552A PEG182A TC7WH32FU PD6544A GP1UX51RK S1D13702F00A100 HA12241FP AK7732VT PM9009A PCM1606EG TC74VHCT08AFTS1 TC74VHC08FTS1 PAL007B NJM4151M PM8003A PEG260A D15 / A-1 : Data output / Address input A0 to A22 : Address inputs D0 to D14 : Data outputs CE# : Chip enable input OE# : Output enable input BYTE# : Word / Byte select input Vcc : Power supply voltage Vss : Ground BYTE# A16 A15 A14 A13 A12 A11 A10 A9 A8 A19 A21 A20 A18 A17 A7 A6 A5 A4 A3 A2 A1 A0 CE# Vss Vss D15/A-1 D7 D14 D6 D13 D5 D12 D4 Vcc Vcc A22 D11 D3 D10 D2 D9 D1 D8 D0 OE# Vss Vss PD8161A (DEH-P9800BT/XN/UC, DEH-P9850BT/XN/ES) PD8162A (DEH-P980BT/XN/UC) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 PEG261A S99-50084 TC4066BFT TC74VHC02FTS1 TC7PAU04FU AN6123MS AK2301A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 96 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions (UPD63763CGJ) Pin No. Pin Name I/O Function and Operation 1 2 3 4-8 9-16 17 18 19 20 21 22 23,24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39-41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 D.VDD D1.GND reset AB12-8 AD7-0 cs ASTB read write wait INTQ IFMODE0,1 D1.VDD DA.VDD ROUT DA.GND REGC DA.GND LOUT DA.VDD X.VDD XTAL xtal X.GND VDDREG15 PWMSW0 TEST3-1 PWMSW1 TESTEN D1.GND DIN DOUT SCKIN SCKO LRCKIN LRCK xtalen D1.VDD RFCK/HOLD WFCK/MIRR PLCK/RFOK LOCK/RFOK C1D1/C8M/(RA13) C1D2/C16M/(RA12) C2D1/RMUTE C2D2/LMUTE C2D3/SHOCK D1.GND C33M (rcs) RA11 (CKE) ras cas)(LDQM) cas!(UDQM) I I I/O I I I I O O I O O I O I I I I I O I O I O I O O O O O O O O O O O O O O O O Power supply for digital circuits Ground for 1.6 V digital circuits Input of reset Address bus 12-8 from the microcomputer Address/data bus 7-0 to the microcomputer Chip selection Address strobe Control signals(read) Control signals(write) Control signals(wait) Interruption signals to the external microcomputer Switching the microcomputer I/F 0, 1 Power supply for 1.6 V digital circuits Power supply for DAC Output of audio for the right channel Ground for DAC Connected to the capacitor for band gap Ground for DAC Output of audio for the left channel Power supply for DAC Power supply for the crystal oscillator Connected to the crystal oscillator(16.934 4 MHz) Connected to the crystal oscillator(16.934 4 MHz) Ground for the crystal oscillator Control of 1.6 V regulator Setup 0 for PWM output(SD, MD) Connected to Ground Setup 1 for PWM output(FD, TD) Connected to Ground Ground for 1.6 V digital circuits Input of audio data Output of audio data Clock input for audio data Clock output for audio data Input of LRCK for audio data Output LRCK for audio data Permission to oscillate 16.934 4 MHz Power supply for 1.6 V digital circuits Output of RFCK/HOLD signal Output of WFCK/MIRR signal Output of PLCK/Output of RFOK Output of LRCK/Output of RFOK Information on error correction/C8M : 8 MHz Information on error correction/C16M : 16 MHz Information on error correction/Mute for Rch Information on error correction/Mute for Lch Information on error correction/Detection of vibration Ground for 1.6 V digital circuits Output of 33.868 8 MHz(CLK for SDRAM) DRAM cs Output of DRAM address 11 Output of DRAM CKE Output of DRAM ras Output of DRAM lower cas(LDQM) Output of DRAM upper cas(UDQM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 97 5 6 7 8 5 6 7 8 C D F A B E 36 73 108 1 UPD63763CGJ 72 109 144 37 Pin No. Pin Name I/O Function and Operation 70 71 72 73-88 89-99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120,121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 we oe(cas) D.GND RDB0-15 RA0-10 D.VDD FD+ FD- TD+ TD- SD+ SD- MD+ MD- REFOUTSV AD.VDD EFM ASY ATEST RFI AD.GND AGCO C3T AGCI RFO EQ2,1 RF2- RF- A.GND A C B D F E VREFIN A.VDD REFOUT REFC FE- FEO ADIN TE- TEO TE2 TEC LD PD D.GND O O I/O O O O O O O O O O O O I O I O O I O I I I I I I I I I I O I I O I I O O I O I Output of DRAM we Output of DRAM oe(cas) Ground for digital circuits Input/output of DRAM data0-15 Output of DRAM address0-10 Power supply for digital circuits Output of focus drive PWM + Output of focus drive PWM - Output of tracking drive PWM + Output of tracking drive PWM - Output of thread drive PWM + Output of thread drive PWM - Output of spindle drive PWM + Output of spindle drive PWM - REFOUT for servo Power supply for ADC Output of EFM signals Input of asymmetry Analog tests Input of RF Ground for the analog system Output of RF Connection to the capacitor for detecting 3T Input of AGC Output of RF(AGC) Equalizer 2, 1 Reversal input of RF2 Reversal input of RF Ground for the analog system Input of A Input of C Input of B Input of D Input of F Input of E Input of reference voltage Power supply for the analog system Output of reference voltage Connected to the capacitor for output of REFOUT Reversal input of FE Output of FE Input of FE, TE A/D converter Reversal input of TE Output of TE TE2 TEC Output of LD Input of PD Ground for digital circuits www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 98 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions (PE5552A) Pin No. Pin Name I/O Format Function and Operation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35,36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 AVREF AVSS testin CLAMP EVDD FMODE FLRQ IC/FLMD0 VDD REGC VSS X1 X2 reset XT1 XT2 PULLDOWN ejsw xint NC brst BSI BSO bsck FTxD FRxD BRXEN bsrq dspok DSCSNS 8EJ(S905) 12EJ(S904) EVSS EVDD SRAMLEVEL0,1 EMPH emph CDMUTE LOEJ CLCONT HOME adena LRCKOK SRAMLEVEL2 CD3VON(MCKRQ) CONT xrst VDCONT xsi xso xck xwait XASTB AD0 INT I I I I I I I I O I/O O I I/O I/O I I I O O O I O O O O O O O I O O I O O C C /C C /C /C C C C C C C C C C C C C C C C C A power supply / Positive power supply(5 V) A power supply GND Chip check test program starting input Not used E power supply / Positive power supply For flash rewriting / L : flash rewriting mode For flash rewriting / Reset voltage control IC : VSS direct connection/FLMOD0 : Pull-down Positive power supply(5 V) Connected to the capacity stabilizing output of the regulator GND Oscillator connection for mainclock Oscillator connection for mainclock System reset input Connected to the oscillator for subclock(connected to VSS via the resistor) Connected to the oscillator for subclock(Open) Connected to EVDD or EVSS via the resistor Not used CD LSI interruption signal input Not used Bus reset input Bus serial data input Bus serial data output Bus serial clock input/output For flash rewriting(transmitted signal) For flash rewriting(received signal) Bus RX enable input/output Bus serial clock input/output Not used Disc state sense input input of detection of 8 cm disc ejection input of detection of 12 cm disc ejection E power supply GND E power supply / Positive power supply SRAM level meter output Emphasis information output Not used Not used Not used Driver input switching output Home SW sense input A/D reference voltage supply control output (DOUT mute output) SRAM level meter output CD + 3.3 V power supply control output(Digital output : MCKRQ) Servo driver power supply control output CD LSI reset control output VD power supply control output CD LSI serial data input CD LSI serial data output CD LSI serial clock output CD LSI wait control signal input CD LSI address strobe output Address/data Bus 0 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 99 5 6 7 8 5 6 7 8 C D F A B E 25 51 75 1 PE5552A 50 76 100 26 Format meaning C C MOS Pin No. Pin Name I/O Format Function and Operation 57 58 59 60,61 62 63 64-68 69 70 71-75 76 77-90 91-93 94 95 96,97 98 99 100 ROMDATA ROMCK ROMCS NC CLKOUT LOCK NC BVSS BVDD NC FLMD1 NC A/D csens TYPE_A/D NC TEMP VDSENS DSCSNS I/O O O I I/O I C /C E2PROM data input/output E2PROM clock output E2PROM chip selection output Not used Not used Spindle lock input Not used B power supply GND B power supply / Positive power supply Not used Address/Data Bus 5 Not used Not used Not used Not used Not used Not used VD power supply short sense input Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 100 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions (PEG182A) Pin No. Pin Name I/O Format Function and Operation 1 DRIVE_CS Anode driver IC chip select output 5 REM I Remote control reception input 6 BYTE I GND connection 7 CNVSS I GND connection 8 NC Not used OPEN 10 reset I Reset input 11 XOUT O Crystal oscillating element connection pin 12 VSS1 GND connection 13 XIN Crystal oscillating element connection pin 14 VCC1 VDD connection 15 nmi OELINT I I Pull up 16 OEL controller : VSYNC interrupt notification input 25 NC Not used 26-28 KS2-KS0 Key strobe output 30 DPDT I Display data input 29 KYDT O O O Key data output 31,32 NC Not used 33 CDTX CD mechanism : Data output I 34 CDRX CD mechanism : Data input 35,36 NC O Not used 37 rdy I 38 NC Not used OPEN 39 hold I O Pull up 40 NC OPEN 41 BCLK OEL controller : clock output 42 rd O Image ROM : Read stobe output 43 NC OPEN 44 wr O Write strobe output 45-47 cs)-cs@ O External ROM chip select output 48-59 A20-A9 O Address bus 20-19 output 60 VCC2 VDD connection 61 A8 O Address bus 8 output 62 VSS2 GND connection 63-70 A7-A0 C C C C C C C N Address bus 7-0 output 71-86 D15-D0 I/O C C Data bus 15-0 input / output 87,88 NC NC Not used 91-93 kd@-kd) Key data input Not used 94 AVSS GND connection 95 NC Not used 96 VREF GND connection 97 AVCC VCC connection 98,99 NC Not used 100 17 OELRESET O C OEL controller : Reset output 18 FLRESET O C Flash memory : Reset output 19 FLBUSY I Flash memory : READY and BUSY signal detect input 20 FLCE-ON O C Flash memory : Chip enable output 21 P2CE-ON O C P2ROM : Chip enable output 22 ROMBK2 O C Image ROM : Bank address output 23 ROMBK1 O C Image ROM : Bank address output 24 ROMBK0 O C Image ROM : Bank address output OELROMCS E2 ROM : Chip select output 89 90 JOYST I I Rotary commander data input 2 ROMDT 3 ROMCS 4 ROMCK O C /C C C I/O O O ROM correction : Data input/output ROM correction : Chip select output ROM correction : Clock output O 9 RDY signal input Bluetooth attestation LED output C O BTLED I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 101 5 6 7 8 5 6 7 8 C D F A B E PEG182A 25 26 50 51 75 76 100 1 Format Meaning C CMOS N Nch open drain 8 VCC 7 1Y 6 2B 5 2A 1A 1 1B 2 2Y 3 GND 4 TC7WH32FU - Pin Layout vout GND VCC 1 2 3 - Block Diagram Amp Limiter B.P.F Demodulator Integrator Comparator GND VCC vout 1 3 2 RL GP1UX51RK A15 A14 A13 A12 A11 A10 A9 A8 A19 N.C. WE RESET N.C. N.C. RY/BY A18 A17 A7 A6 A5 A4 A3 A2 A1 A16 BYTE VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 CE VSS CE A0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 A-1 : Address input A0-A19 : Address input DQ0-DQ15 : Data input/output CE : Chip enable input OE : Output enable input WE : Write enable input RESET : Reset input RY/BY : Ready / Busy input BYTE : 8 bit / 16 bit mode select input Vss : Ground Vcc : Power supply PD6544A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 102 1 2 3 4 1 2 3 4 C D F A B E S1D13702F00A100 HVDD VSS LVDD D[15] D[14] D[13] D[12] D[11] D[10] D[9] D[8] D[7] D[6] D[5] D[4] D[3] D[2] D[1] D[0] XWAIT HVDD VSS LVDD GCLKRA GCLKBB GCLKBA GCLKGB GCLKGA GCLKRB HVDD VSS LVDD PDA[0] PDA[1] PDA[2] PDA[3] PDA[4] PDA[5] LP1A LP1B LP2A LP2B DIS1A DIS1B DIS2A DIS2B GPRO[2] GPRO[4] GPRO[5] GPRO[6] GPRO[3] GPRO[0] GPRO[1] LVDD VSS HVDD XCD XCG XRESET CLK MPUSEL SWAP XCS RS XRD XWR XBHE XA0 DCLK YD XINT GPSO TESTEN SECS SECK SEDO SEDI PDA[7] PDA[6] GPRO[7] 1 20 40 21 41 60 80 61 - Block Diagram - Pin Layout MPUSEL SWAP HVDD LVDD VSS TESTEN PDA[7:0] 3.3 V 1.8 V XRESET DCLK XCD CLK XCG OSC General Purpose GPSO D[15:0] RS XBHE XA0 XCS XRD XWR XWAIT XINT Parallel GCLKBA GCLKGA GCLKRA DIS2A DIS1A LP1A YD1 GCLKBB GCLKGB GCLKRB DIS2B DIS1B OLED I/F Superposition Control Bit Processing Layer1 Layer2 YD2 REG GPRO[7:0] LP2A LP1B LP2B SEDI SECS SECK SEDO GPCK Serial I/F 512 byte Color Palette 72 K byte Frame Memory Memory Mediation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 103 5 6 7 8 5 6 7 8 C D F A B E I2CSEL EESEL BVSS DVDD DVSS XTI XTO DVSS DVDD LRCLK_O BITCLK_O SDOUT1 SDOUT2 SDOUT3 SDOUT4 SDOUT5 EECS EESO EECK EESI BVSS DVSS DVDD RQ/CAD1 RDY SO SI/CAD0 DVSS DVDD SCLK/SCL SDA CLKO2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 AINL+ AINL- AINR+ AINR- AVSS VREFL VCOM VREFH AVDD LFLT AVDD AVSS TESTI1 CKM[0] CKM[1] TESTI2 STO SDIN1 SDIN2/JX0 SDIN3/JX2 SDIN4/JX1 SDIN5A/JX0 DVDD DVSS BITCLK_I LRCLK_I INIT_RESET CK_RESET S_RESET CKM[3] CKM[2] CLKO1 AK7732VT 64pin LQFP - Pin Layout 1 3 2 S1 R out S2 GND -BUS +BUS VCC stb 4 5 6 7 8 BIAS DRIVER OUTPUT (current) + - - + COM RECEIVER OUTPUT HA12241FP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 104 1 2 3 4 1 2 3 4 C D F A B E AVDD AVSS BVSS DVDD DVSS SDOUT5 SDOUT4 SDOUT3 SDOUT2 SDOUT1 SWIRPT SWG1 SWG0 SWQ5 SWQ4 SWQ3 SWQ2 SWQ1 OUT5E_N OUT4E_N OUT3E_N OUT2E_N OUT1E_N RQ/CAD1 SCLK/SCL SI/CAD0 SO RDY SDA STO EESI EECK EECS EESO XTI XTO CLKO2 CLKO1 CLKO2E_N CLKO1E_N EESI EECK EECS EESO EEST EESEL TESTI1 TESTI2 INIT_RESET S_RESET CK_RESET CKM[3:0] I2CSEL LFLT BITCLK_I LRCLK_I BITCLK_O LRCLK_O EESEL CRC_E EEPIL CONTROLLER SMODE (Master="L",Slave="H") JX0 JX1 JX2 DSP JX0_E JX1_E JX2_E PLL&DIVIDER SDIN5A/JX0 SDIN4/JX1 SDIN3/JX2 SDIN2/JX0 SDIN1 SDIN5 SDIN4 SDIN3 SDIN2 SDIN1 SDOUT5 SDOUT4 SDOUT3 SDOUT2T SDOUT1T TEST GPO1 GPO0 RQ/CAD1 SCLK SI/CAD0 SO RDY SDA WDT CRC SWAD_N SDATA_AD AINL+ AINL- AINR+ AINR- VREFL VCOM VREFH ADC REF 5 5 2 2 2 4 - Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 105 5 6 7 8 5 6 7 8 C D F A B E PM9009A - Block Diagram - Pin Layout Selector Circuit CS SCK SDA EXi+ EXi- VCO Control Logic Differential Input (0 dB/-6 dB) FCKSEL ADJ Vcc C+ C- +Vcc -Vcc +7 V -7 V NEGOUT Change Pump Circuit Regulater Volume EX (+15 to -63 dB,-∞ dB) (Volume Circuit) Divider Fck Fck (Fcp) Monaural Source Circuit Volume Circuit GND Isolator Gain Adjuster 2 Gain Adjuster 1 Source Selector(1 ch / 2 ch) Volume(1 to 7 ch) (+23 to -79 dB,-∞ dB) Buffer Amp B (0 dB/-4.2 dB) Buffer Amp A (0 dB/+1.8 dB) Regulater Vo1a Vo2a Vo3a Vo4a Vo5a Vo6a Vo7a Vo1b Vo2b Vo3b Vo4b Vo5b Vo6b Vi1 Vi2 Vi3 Vi4 Vi5 Vi6 Vi7 So2L So2R So1L So1R Si1R- Si1R+ Si2R Si3R Si4R Si4L Si3L Si2L Si1L+ Si1L- MixingSwitch Power Supply Circuit Vee 1 2 3 4 5 6 7 8 9 1011121314 42 41 40 39 383736 35 34 3332313029 28 27 26 25 24 23 22 21 20 19 18 17 16 15 43 44 45 46 47 48 49 50 51 52 53 54 55 56 Vi7 S.GND.7 Vi6 Vi5 S.GND.6 Vi4 Vi3 S.GND.5 Vi2 Vi1 S.GND.4 So1R So1L So2R SDA SCK CS FCKSEL Vee NEGOUT C- P.GND C+ Vcc ADJ S.GND.MU Exi+ Exi- Si1L+ Si1L- Si1R- Si1R+ S.GND.1 Si2L Si2R S.GND.2 Si3L Si3R Si4L Si4R S.GND. SO2L D.GND Vo6b Vo5b Vo4b Vo3b Vo2b Vo1b Vo7a Vo6a Vo5a Vo4a Vo3a Vo2a Vo1a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 106 1 2 3 4 1 2 3 4 C D F A B E 1 DATA1 DATA2 FMT1 DATA3 FMT0 ZEROA AGND VOUT1 2 3 4 5 6 7 10 SCKI BCK DEMP1 LRCK DEMP0 VCC VCOM VOUT2 VOUT5 VOUT6 8 9 20 19 18 17 16 15 14 11 13 12 VOUT4 VOUT3 VOUT1 VOUT2 VOUT3 VCOM VOUT4 VOUT5 VOUT6 Output Amp and Low-Pass Filter Output Amp and Low-Pass Filter Output Amp and Low-Pass Filter Output Amp and Low-Pass Filter Output Amp and Low-Pass Filter Output Amp and Low-Pass Filter Power Supply AGND VCC ZEROA DAC DAC DAC DAC DAC DAC Serial Input I/F BCK LRCK DATA(1,2) DATA(3,4) DATA(5,6) DEMP1 DEMP0 FMT1 FMT0 SCKI 4x / 8x Oversampling Digital Filter with Function Controller Enhanced Multilevel ∑∆ Modulator Function Control I/F System Clock Manager System Clock Zero Detect 14 VCC 13 4B 12 4A 11 4Y 10 3B 9 3A 8 3Y 1A 1 1B 2 1Y 3 2A 4 2B 5 2Y 6 GND 7 TC74VHCT08AFTS1, TC74VHC08FTS1 - Block Diagram - Pin Layout PCM1606EG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 107 5 6 7 8 5 6 7 8 C D F A B E 1 TAB 2 P-GND2 3 OUT2- 4 STBY 5 OUT2+ 6 VCC 7 OUT1- 8 P-GND1 9 OUT1+ 10 SVR 11 IN1 12 IN2 13 S-GND 14 IN4 15 IN3 16 AC-GND 17 OUT3+ 18 P-GND3 19 OUT3- 20 VCC 21 OUT4+ 22 MUTE 23 OUT4- 24 P-GND4 SWITCH 25 + - + - Offset Detection + - + - + - + - + - + - Offset Detection Protector; Over current limit sw_vcc stby Protector; Short circuit amp_vcc Protector; Over voltage sw_vcc Protector; Thermal Reference amp_vcc PAL007B Stand-by Circuit Mute circuit Offset Detection Offset Detection NJM4151M 1 2 3 4 8 7 6 5 V+ IO Th RO V+ V1 F M Z N V R S P X T U V W 8 1 2 6 7 5 3 4 - Block Diagram - Pin Layout www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 108 1 2 3 4 1 2 3 4 C D F A B E PM8003A - Pin Layout NC SERIAL DGND AVDD AOUT DAO AGND D7/DI NC D6/SCK D5/DO 44 43 42 41 40 39 38 37 36 35 34 NC DVDD XT XT D0 DGND D1 D2 D3 D4 NC 33 32 31 30 29 28 27 26 25 24 23 12 13 14 15 16 17 18 19 20 21 22 NC BUSY2/ERR WR NC DVDD DGND NC OPTANA CS NC NC NC DW BUSY1 NCR2/DL NCR1/NDR RD TESTO1 TESTO2 RESET TEST NC 1 2 3 4 5 6 7 8 9 10 11 NCR1/NDR NCR2/DL BUSY1 BUSY2/ERR SERIAL D7/DI D6/SCK D5/DO D4 D3 D2 D1 D0 WR CS DW RD XT XT CPU interface OSC Timing Controller Commnad Controller 16 bit Address Controller 16 bit Multiplexer 1 Mbit ROM 16 Phrase Control Table Loop Volume Digital Filter 14 bit DAC 8 bit PCM 16 bit PCM Synthesizer&2 ch Mix 2 bit ADPCM2 /4 bit ADPCM2 Synthesizer OPTANA AVDD AGND AOUT DAO TESTO2 TESTO1 TEST RESET DGND DVDD - Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 109 5 6 7 8 5 6 7 8 C D F A B E - Pin Functions(PEG260A, PEG261A) Pin No. Pin Name I/O Function and Operation 1 DPDT O GRILLE : Data output 2 SWVDD O GRILLE : Chip enable output 3 OELPW OEL power supply output 4 NC Not used 5 MEMDO O External memory : Data output 6 MEMDI I External memory : Data input 7 MEMCK O External memory : Clock output 8 NC Not used 9 FLPOPN O Flap open operation output 10 FLPCLS O Flap close operation output 11 FOPNSW I Flap open sense input 12 FCLSSW I Flap close sense input 13 FLPPW O Flap motor operation output 14 NC Not used 15,16 BYTE1,2 I Connect to GND 17 NC Not used 18 ROMDATA I/O ROM correction : Data input/output 19 reset I Reset input 20 Xout O Clock output 21 Vss GND 22 Xin I Clock input 23 Vcc1 Power supply terminal 24 NMI I Not used 25 NC Not used 26 NC Not used 27 ROMCK O ROM correction : Clock output 28 NC Not used 29 ROMCS O ROM correction : Chip select output 30 NC Not used 31 PEE O PEE sound output 32 NC Not used 33 NC Not used 34 TUNPCE1 O TUNER : Chip enable output 35 TUNPCE2 O TUNER : Chip enable output 36 RX I IPBUS : Input 37 TX O IPBUS : Output 38 BSO O P-BUS output 39 VCC1 Power supply terminal 40 BSI I P-BUS input 41 VSS GND 42 BSCK O P-BUS clock output 43 NC Not used 44 BTTX O BT driver : Data output 45 BTRX I BT driver : Data input 46 RTS0 O BT driver : RTS output 47 BTCTS I BT driver : CTS input 48 NC Not used 49 TUNPDI I TUNER : PLL data input 50 TUNPDO O TUNER : PLL data output 51 TUNPCK O TUNER : PLL clock output 52 AUIWR O AUI : Write signal output 53 AUICS O AUI : Chip select output 54 AUISDO O AUI : Data output 55 AUISCK O AUI : Serial clock output 56 AUIRST O AUI : Reset output 57 VSS GND 58 MUTE O System mute output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 110 1 2 3 4 1 2 3 4 C D F A B E Pin No. Pin Name I/O Function and Operation 59 VCC Power supply terminal 60 EVOLCS O EVOL : Chip select output 61 FCKSEL O EVOL : Freguency select output 62 PCL O Output for clock adjustment 63 AUIBUSY I AUI : Busy input 64 IPPW O IPBUS : Driver power supply control output 65 ASENBO O IPBUS : Slave ACC sense output 66 MICSENS I Microphone sense input 67 AUIMUTE O AUI : Mute output 68 NC Not used 69 DSPCLR O DSP : RAM clear request output 70 DSPDRDY I DSP : Data write ready input 71 DSPIRST O DSP : Reset output 72 CKRST O DSP : Clock reset output 73 DSPRST O DSP : System reset output 74 VCC Power usupply terminal 75 DSPRQ O DSP : Interface request output 76 VSS GND 77 SMODE O Mode select output H : Master L : Slave 78 BTHF_AEQ O Source select output H : AUTO EQ L : Bluetooth H/F 79 brsq I P-BUS : Service request input 80 brst O P-BUS : Reset output 81 brxen I/O P-BUS : Reception enable input/output 82 LRCKOK I LR clock OK information input 83 RST2 O CD reset output 84 MCKRQ I Master clock request input 85 NC Not used 86 MEMCS O External memory : Chip select output 87 MEMWP O External memory : Write protect output 88 DSPIN I DSP : Data input 89 DSPCK I/O DSP : Clock input/output 90 DSPOUT O DSP : Data output 91 VCC Power supply terminal 92 AMPPW O Amp power supply control output 93 VSS GND 94 BTRST O BT driver : Reset output 95 BTTEST O BT driver : RF test output 96 BTMUTE O Mute output for Bluetooth sound codec 97 BTPW O BT driver : Power supply ON/OFF output 98 DALMON O For consumption current reduction output 99 SYSPW O System power control output 100 DSPPW O DSP : Power control output 101,102 NC Not used 103 asens I ACC sense input 104 bsens I Back up sense input 105 ISENS I Illumination sense input 106 NC Not used 107 KEYD I Wired remote control key input 108 MODEL I Model select select input 109 BTEXIST I Bluetooth model select input 110 BTAN_AUX O Source select output(Bluetooth AV profile/AUX) 111 ILMPW O Illumination output 112 FLPILM O Illumination output inside flap 113-122 NC Not used 123 TELIN I Mobile phone mute input 124 ROT1 I Rotary encoder pulse input 125 ROT0 I Rotary encoder pulse input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 111 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Function and Operation 126 TESTIN I Test program input 127-129 NC Not used 130 VSS GND 131 NC Not used 132 VCC Power supply terminal 133 NC Not used 134 BATIND I Battery indicator input 135 KEYAD I Wired remote control analog voltage input 136 GAUGE Gauge input 137 dsens I Detach sense input 138 NC Not used 139 ASLIN I ASL input 140 AVSS A/D converter ground 141 SL I TUNER : Signal level input 142 VREF A/D converter reference voltage 143 AVCC A/D converter power supply input terminal 144 KYDT I GRILLE : Data input PEG260A(DEH-P980BT/XN/UC, DEH-P9800BT/XN/UC) PEG261A(DEH-P9850BT/XN/ES) S99-50084 36 37 72 108 73 109 144 1 TC4066BFT 14 VCC 13 1C 12 4C 11 4I/O 10 4O/I 9 3O/I 8 3I/O 1I/O 1 1O/I 2 2O/I 3 2I/O 4 2C 5 3C 6 GND 7 CS# SO W# GND VCC HOLD# SCK SI 1 2 3 4 8 7 6 5 SCK : Serial clock input SI : Serial data input SO : Serial data output CS# : Chip select input W# : Write protect input HOLD#: Hold input Vcc : Power supply GND : Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 112 1 2 3 4 1 2 3 4 C D F A B E 14 VCC 13 4Y 12 4B 11 4A 10 3Y 9 3B 8 3A 1 1Y 2 1A 3 1B 4 2Y 5 2A 6 2B 7 GND TC74VHC02FTS1 TC7PAU04FU 1A 1Y GND Vcc 2A 2Y INPUT GND OUTPUT DET VCC 1 2 3 4 5 DET AN6123MS gm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 113 5 6 7 8 5 6 7 8 C D F A B E GST VFTN VFTP VR VFR GSR TAGND VREF VDD VSS AMP1O - Block Diagram - Pin Layout AMP1I AMP2O AMP2I TEST1 TEST2 TEST3 PLLC MUTEN RSTN DX DR FS BCLK AMPT AMPR AAF SMF BGREF Internal Main Clock A/D D/A CODEC Core PCM I/F PLL AMP1 -+ -+ -+ -+ AMP2 24 23 22 21 20 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 19 18 17 16 AK2301A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 114 1 2 3 4 1 2 3 4 C D F A B E No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7 µH. (LAU type inductor)A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75 Ω Surge absorber(DSP-201M-S00B)is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4 V ± 0.3 V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 NC non connection Not used 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 NC non connection Not used 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3 V ± 0.2 V 18 NC non connection Not used 19 NC non connection Not used 20 NC non connection Not used 21 NC non connection Not used 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3 V 2.5 V IC 4 3.3 V 2.5 V ← IC 2 2.5 V NC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3 V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0 V IC 5 5 V 3.3 V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 115 5 6 7 8 5 6 7 8 C D F A B E 7.3 OPERATIONAL FLOW CHART VCC1 = 5 V Pin 23 Power ON bsens = L asens = L 1.5 V < DSENS < 4.5 V bsens Pin 104 asens Pin 103 DSENS Pin 137 SWVDD←H Pin 2 ASENBO←H Pin 65 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H Pin 99 Starts communication with Grille microcomputer. Source ON 300 ms 300 ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300 msec, the oscillator may be defective. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 116 1 2 3 4 1 2 3 4 C D F A B E 8. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 117 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 118 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 119 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 120 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P980BT/XN/UC 122 1 2 3 4 1 2 3 4 C D F A B E - Jigs List Test Disc L.P.F. TCD-782 GGF1539 Checking the grating Checking the grating (Two pieces) Removing the cord assy(BT antenna cable) g y( ) Name Jig No. Remarks Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools g CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 g p p Portions to be cleaned Cleaning tools g Fans Cleaning paper : GED-008 - Grease List Name Grease Grease Grease Jig No. GEM1024 GEM1045 GEM1069 Remarks CD Mechanism Module, Drive Unit CD Mechanism Module Drive Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 CRT3583 CD MECHANISM MODULE(S10.5COMP1) CX-3164 Model Service Manual CD Mechanism Module DEH-2800MP/XN/UC CRT3554 CXK5752 DEH-2850MP/XN/ES DEH-2800MP/XN/EW CRT3555 CXK5752 DEH-2800MPB/XN/EW DEH-2820MP/XN/EW DEH-281MP/XN/EW DEH-3850MP/XU/ES CRT3556 CXK5750 DEH-3850MPH/XU/GS DEH-3850MP/XU/CN DEH-P3800MP/XU/UC CRT3557 CXK5750 DEH-P4800MP/XU/EW CRT3558 CXK5750 DEH-P580MP/XN/UC CRT3563 CXK5752 DEH-P5800MP/XN/UC DEH-P6800MP/XN/EW CRT3564 CXK5752 DEH-P5850MP/XN/ES CRT3565 CXK5752 DEH-P5850MPH/XN/GS DEH-P480MP/XU/UC CRT3566 CXK5750 DEH-P4800MP/XU/UC DEH-P4850MP/XU/ES CRT3567 CXK5750 DEH-P4850MPH/XU/GS DEH-P4850MP/XU/CN DEH-P680MP/XN/UC CRT3569 CXK5752 DEH-P6800MP/XN/UC DEH-P6850MP/XN/ES This service manual describes the operation of the CD mechanism module incorporated in models listed in the table below. When performing repairs use this manual together with the specific manual for model under repair. K-ZZA. OCT. 2005 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 2 1 2 3 4 1 2 3 4 C D F A B E CONTENTS 1. CIRCUIT DESCRIPTIONS ............................................................................................................................... 3 2. MECHANISM DESCRIPTIONS...................................................................................................................... 20 3. DISASSEMBLY............................................................................................................................................... 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 3 5 6 7 8 5 6 7 8 C D F A B E 1. CIRCUIT DESCRIPTIONS RF amplifier CD-ROM decoder Buffer memory controller(BMC) Digital servo EFM Signal processor DAC SRAM(1Mbit) Microcomputer A - F UPD63763CGJ Audio output MP3/WMA decoder UPD63763CGJ, multifunctional LSI used in this device, has built-in CD-ROM decoder and MP3/WMA decoder, as shown in Fig.1.0.1, as well as the conventional CD block, allowing to play CD-ROMs, in which MP3/WMA files are recorded, while the recent mainstay of the CD LSI is the LSI integrating the core DSP with DAC or RF amplifier, which are generally used as peripheral circuits. Fig.1.0.1 Block diagram of CD LSI UPD63763CGJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 4 1 2 3 4 1 2 3 4 C D F A B E 6.5k + - 1k 100k + - 6.5k 100k + - 110k 1k REG 1.25V Vref 3p 142 PD LD UPD63763CGJ 143 + 5 7 15 5 7 15 14 14 Pickup Unit CD CORE UNIT 2R4 × 2 2SA1577 100/16 LD- LD+ MD VR LDS APN 2R7 V3R3D(+ 3.3 V) In the preamplifier block, the pickup output signals are processed to generate signals that are used in the subsequent blocks: servo, demodulator, and control blocks. Signals from the pickup are I/V converted in the pickup with the preamplifier with built-in photo detectors, and after added with the RF amplifier, they are used to produce such signals as RF, FE, TE, and TE zero-cross signals. The preamplifier block is built in CD LSI UPD63763CGJ (IC201), whose parts are described individually below. Incidentally, as this LSI employs a single power supply (+ 3.3 V) specification, the reference voltages of this LSI and the pickup are the REFO (1.65 V) for both. The REFO is an output obtained from REFOUT in the LSI via the buffer amplifier, and is output from the pin 133 of this LSI. All measurements will be performed with this REFO as the reference. Caution: Be careful not to short-circuit the REFO and GND when measuring. 1.1.1 APC (Automatic Power Control) circuit Since laser diodes have extremely negative temperature characteristics in optical output when driven in constant current, it is necessary to control the current with the monitor diodes in order to keep the output constant. This is the feature of the APC circuit. The LD current is obtained by measuring the voltage between LD1 and V3R3D(+ 3.3 V), and divide the value by 7.5 (ohms), which becomes about 30 mA. Fig.1.1.1 APC 1.1 PREAMPLIFIER BLOCK (UPD63763CGJ: IC201) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 5 5 6 7 8 5 6 7 8 C D F A B E 13 6 A+C B+C VREF 13 6 10k 10k 8.8k 10k 10k 8.8k 61.0k 61.0k 111k R2 15.2k 15.2k 35k 20k 11.2k 7.05k 10k 10k 124 127 125 126 122 120 121 116 136 135 RFOFF setup FEOFF setup VREF VREF A B C D RFO AGCI RF2- RF- EQ2 EQ1 AGCO FEO FE- FE A/D 118 119 + - + - + - + - + - + - - + P3 P7 P9 P2 P4 P8 Pickup Unit CD CORE UNIT UPD63763CGJ 4.7k 5.6k 1.2k 1.2k 22p 56p 4p 123 For RFOK generation To DEFECT/A3T detection 1.1.2 RF and RFAGC amplifiers The output from the photo-detector (A + C) and (B + D) is provided from the RFO terminal as the RF signal (which can be used for eye-pattern check), after it is added, amplified, and equalized inside this LSI. The low frequency component of the voltage RFO is calculated as below. RFO = (A + B + C + D) x 2 The RFO is used for the FOK generation circuit and RF offset adjustment circuit. The RFO signal, output from the pin 119, is A/C-coupled externally, input to the pin 118, and amplified in the RFAGC amplifier to obtain the RFAGC signal. Also, this LSI is equipped with the RFAGC auto-adjustment function, explained below, which switches feedback gains of the RFAGC amplifier so that the RFO output will be 1.5 V. This RFO signal is also used for the EFM, DFCT, MIRR, and RFAGC auto-adjustment circuits. Fig.1.1.2 RF/AGC/FE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 6 1 2 3 4 1 2 3 4 C D F A B E 11 9 E F VREF 11 9 112k 112k 63k 45.36k 63k 160k 160k 45.36k 161k 80k 160k 60k 20k 130 129 TEOFF setup TE A/D Inside TEC Pickup Unit P5 P10 P1 P6 E F UPD63763CGJ CD CORE UNIT + - + - + - + - + - + - - + VREF TEO TE- TEC TE2 139 138 140 141 47p 10000p 1.1.3 Focus error amplifier The photo-detector outputs (A + C) and (B + D) are passed through the differential amplifier and the error amplifier, and (A + C - B - D) is provided from the pin 136 as the FE signal. The low frequency component of the voltage FE is calculated as below. FE = (A + C - B - D) x 8.8k / 10k x 111k / 61k x 160k / 72k = (A + C - B - D) x 3.5 For the FE outputs, an S-shaped curve of 1.5 Vp-p is obtained with the REFO as the reference. The cutoff frequency for the subsequent stage amplifiers is 14.6 kHz. 1.1.4 RFOK circuit This circuit generates the RFOK signal, which indicates the timing to close the focus loop and focus-close status during the play mode, from the pin 55. As for the signal, "H" is output in closing the focus loop and during the play mode. Additionally, the RFOK becomes "H" even in a non-pit area, since the DC level of the RFO signal is peak-held in the subsequent digital block and compared at a certain threshold level to generate the RFOK signal. Therefore, the focus is closed even on a mirror-surface area of a disc. This signal is also supplied to the microcomputer via the low-pass filer as the FOK signal, which is used for protection and gain switching of the RF amplifier. 1.1.5 Tracking error amplifier The photo-detector outputs E and F are passed through the differential amplifier and the error amplifier to obtain (E - F), and then provided from the pin 139 as the TE signal. The low frequency component of the voltage TE is calculated as below. TEO = (E - F) x 63k / 112k x 160k / 160k x 181k / 45.4k x 160k / 80k = (E - F) x 4.48 For the TE output, TE waveform of about 1.3 Vp-p with the REFO as the reference. The cutoff frequency in the subsequent is 21.1 kHz. Fig.1.1.3 TE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 7 5 6 7 8 5 6 7 8 C D F A B E 1.1.6 Tracking zero-cross amplifier The tracking zero-cross signal (hereinafter referred to as TEC signal) is obtained by amplifying the TE signal by fourfold, and used to detect the tracking-error zero-cross point. As the purpose of detecting the zero-cross point, the following two points can be named: 1. To use for track-counting in the carriage move and track jump modes 2. To use for detecting the direction in which the lens moves in tracking close. (Used in the tracking brake circuit to be explained later.) The frequency range of the TEC signal is from 300 Hz to 20 kHz, and TEC voltage = TE level x 4 The TEC level can be calculated at 4.62 V, which, at this level, exceeds the D range of the operational amplifier, and clips the signal, but, because the CD LSI only uses the signal at the zero-cross point, it poses no particular problem. 1.1.7 EFM circuit The EFM circuit converts the RF signal into digital signals of 0 and 1. The AGCO signal output from the pin 116 is A/C- coupled externally, input to the pin 114, and supplied to the EFM circuit. Missing RF signal due to scratches and stains on the disc, and asymmetry of the upper and lower parts of the RF, caused by variation in disc production, cannot be entirely eliminated in AC coupling process, the reference voltage ASY of the EFM comparator is controlled, using the probability that 0 and 1 occur at 50%. Thus, the comparator level will always stay around the center of the RFO signal. This reference voltage ASY is generated by passing the EFM comparator output through the low-pass filter. The EFM signal is output from the pin 111. Fig.1.1.4 EFM RFI 40k 40k 1.5k 7.5k 2k 114 112 111 Vdd Vdd EFM signal EFM ASY UPD63763CGJ + - + - + - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 8 1 2 3 4 1 2 3 4 C D F A B E The servo block performs servo control such as error signal equalizing, in-focus, track jump and carriage move. The DSP block is the signal-processing unit, where data decoding, error correction, and compensation are performed. The FE and TE signals, generated in the preamplifier stage, are A/D-converted, and output drive signals for the focus, tracking, and carriage systems via the servo block. Also, the EFM signal is decoded in the signal-processing unit, and ends up in outputting D/A-converted audio signals through the D/A converter. Furthermore, in this decoding process, the spindle servo error signal is generated, supplied to the spindle servo block, and used to output the spindle drive signal. Each drive signal for focus, tracking, carriage, and spindle servos (FD, TD, SD, and MD) are output as PWM3 data, and then converted to analog data through the LPF. These drive signals, after changed to analog form, can be monitored with the FIN, TIN, CIN, and SIN signals, respectively. Subsequently, the signals are amplified and supplied to the actuator and motor for each signal. 1.2.1 Focus servo system The main equalizer of the focus servo consists of the digital equalizer block. The figure 1.2.1 shows the block diagram of the focus servo system. In the focus servo system, it is necessary to move the lens within the in-focus range in order to close the focus loop. For that purpose, the in-focus point is looked for by moving the lens up and down with the focus search voltage of triangular signal. During this time, the rotation of the spindle motor is retained at a certain set speed by kicking the spindle motor. The servo LSI monitors the FE and RFOK signals and automatically performs the focus-close operations at an appropriate timing. The focus-close operation is performed when the following three conditions are satisfied at the same time: 1) The lens moves toward the disc surface. 2) RFOK = "H" 3) The FE signal is zero-crossed. Consequently, the FE converges to "0" (= REFO). When the above-mentioned conditions are met and the focus loop is closed, the FSS bit is shifted from "H" to "L," and then, in 10 ms, the microcomputer starts monitoring the RFOK signal obtained through the low-pass filter. If the RFOK signal is determined to be "L," the microcomputer takes several actions including protection. Fig.1.2.2 shows a series of actions concerning the focus close operations. (It shows a case where the focus loop cannot be closed.) With the focus mode selector displaying 01 in the test mode, pressing the focus close button, allows to check the S- shaped curve, search voltage, and actual lens behavior. Fig.1.2.1 Block diagram of the focus servo system 1.2 SERVO BLOCK (UPD63763CGJ: IC201) 125 128 A + C B + D PWM FD 101 IC201 UPD63763CGJ 6 11 12 FOP FOM LENS IC301 BA5835FP FE AMP A/D DIG. EQ FOCUS SEARCH TRIANGULAR WAVE GENERATOR CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 9 5 6 7 8 5 6 7 8 C D F A B E Fig.1.2.2 Timing chart for focus close operations 1.2.2 Tracking servo system The main equalizer of the tracking servo consists of the digital equalizer block. The figure 1.2.3 shows the block diagram of the tracking servo system. Fig.1.2.3 Block diagram of the tracking servo system E F LENS 130 129 PWM TD 103 3 14 13 TOP TOM IC301 BA5835FP IC201 UPD63763CGJ TE AMP A/D DIG. EQ JUMP PARAMETERS CONTROL FE controlling signals FSS bit of SRVSTS1 resistor RFOK signals Output from FD terminal A blind period Search start You can ignore this for blind periods. The broken line in the figure is assumed in the case without focus servo. The status of focus close is judged from the statuses of FSS and RFOK after about 10 mS. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 10 1 2 3 4 1 2 3 4 C D F A B E (a) The track jump operation is automatically performed by the auto-sequence function inside the LSI with a command from the microcomputer. For the track jumps used in the search mode, a single track jump and four to 100 multi-track jump are available in this system. In the test mode, out of these track jumps, 1, 32, and 32 * 3 track jumps, as well as carriage move can be performed and checked in mode selection. In a track jump, the microcomputer sets about half the number of the total tracks to jump (about five tracks for a 10-track jump), and the set number of tracks are counted using the TEC signal. By outputting the brake pulse for a certain period of time (set by the microcomputer) from the time the set number is counted, and stopping the lens, the tracking loop can be closed so that the normal play can be continued. Also, in order to facilitate closing of the tracking loop in a track jump, the brake circuit is kept ON for 50 msec, after the brake pulse is stopped, for increasing the tracking servo gain. The FF/REW action in the normal operation mode is realized by performing single jumps consecutively. The speed is approximately 10 times faster than in the normal mode. (b) Brake circuit Since the servo loop is not closed very well in the setup mode and track jump mode, the brake circuit is used for stabilizing the servo-loop close operation. The brake circuit detects the direction in which the lens moves, and outputs only the drive signal for the direction opposite to the movement to slow down the lens, thereby stabilizing the tracking servo-loop close operation. Additionally, the off-track direction is determined from the TEC and MIRR signals, as well as their phase relation. Fig.1.2.4 Single-track jump t1 t2 GAIN NORMAL TD KICK BRAKE TEC T. BRAKE EQUALIZER T. SERVO CLOSED OPEN NORMAL GAIN UP OFF ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 11 5 6 7 8 5 6 7 8 C D F A B E Fig.1.2.5 Multi-track jump Fig.1.2.6 Track brake t1 TD TEC (10 TRACK) EQUALIZER T. BRAKE SERVO SD 2.9mS (4.10 TRACK JUMP) 5.8mS (32 TRACK JUMP) GAIN UP NORMAL ON OFF OPEN CLOSED t2 t TEC TZC (TEC "SQUARED UP" ) (INTERNAL SIGNAL ) MIRR MIRR LATCHED AT TZC EDGES = SWITCHING PULSE EQUALIZER OUTPUT (SWITCHED) DRIVE DIRECTION Note : Equalizer output assumed to hava same phase as TEC. FORWARD LENS MOVING FORWARDS (INNER TRACK TO OUTER) LENS MOVING BACKWARDS Time REVERSE 50 mS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 12 1 2 3 4 1 2 3 4 C D F A B E 1.2.3 Carriage servo system The carriage servo system inputs the output of the low frequency component from the tracking equalizer (information on the lens position) to the carriage equalizer, and, after the gain is increased to a certain level, outputs the drive signal from the LSI. This signal is applied to the carriage motor via the driver IC. Specifically, since it is necessary to move the whole pickup to the FORWARD direction when the lens offset reaches a certain level during the play mode, the equalizer gain is set to output higher voltage than the carriage motor starting voltage at this time. In actual operations, a certain threshold level is preset in the servo LSI for the equalizer output, and only when it exceeds the threshold level, the drive voltage will be output. This can reduce the power consumption. Also, before the whole pickup starts moving, the equalizer output voltage may exceed the threshold level a few times, due to such causes as eccentricity of discs. In this case, the output waveform of the drive voltage from the LSI assumes a pulse- like form. Fig.1.2.7 Block diagram for the carriage servo block Fig.1.2.8 Waveforms of the carriage signal DRIVE ON/OFF THRESHOLD CARRIAGE MOVED AT THESE POINTS TRACKING DRIVE (LOW FREQUENCY) LENS POSITION CRG DRIVE (INSIDE UPD63763CGJ) CRG MOTOR VOLTAGE SD IC201 UPD63763CGJ 105 LCOP LCOM IC301 BA5835FP DIG. EQ KICK, BRAKE REGISTERS CONTROL PWM From TRACK EQ. 24 17 18 M CARRIAGE MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 13 5 6 7 8 5 6 7 8 C D F A B E 1.2.4 Spindle servo system In the spindle servo system, the following modes are available: 1) Kick Used to accelerate the disc rotation in the setup mode. 2) Offset a. Used in the setup mode after the kick mode, until the TBAL adjustment is completed. b. Used during the play mode when the focus loop is unlocked, until it is locked again. In both cases, the mode is used to keep the disc rotation approximately normal. 3) Applicable servo CLV servo mode, used in the normal operation. In the EFM demodulation block, by WFCK/16 sampling whether the frame sync signal and the internal frame counter output are synchronized, a signal is created to show if they are "in-sync" or "non-sync." The status is not recognized as asynchronous until the signal is "non-sync" for eight consecutive times; otherwise it is recognized as synchronous. In the applicable servo mode, the leading-in servo mode is automatically selected in the asynchronous status, and the normal servo mode in the synchronous status. 4) Brake Used to stop the spindle motor. In accordance with the microcomputer's command, the brake voltage is sent out from the servo LSI. At this time, the EFM waveform is monitored in the LSI, and when the longest EFM pattern exceeds a certain interval (or the rotation slows down enough), a flag is set inside the LSI, and the microcomputer switches off the brake voltage. If a flag is not set within a certain period, the microcomputer shifts the mode from the brake mode to the stop mode, and retains the mode for a certain period of time. If the mode switches to this stop mode in the eject operation, the disc will be ejected after the period of time mentioned above elapses. 5) Stop Used when the power is turned on and during the eject operation. In the stop mode, the voltage in both ends of the spindle motor is 0 V. 6) Rough servo Used in carriage feed (carriage move mode such as long search). By obtaining the linear velocity from the EFM waveform, the "H" or "L" level is input to the spindle equalizer. In the test mode, this mode is also used for grating confirmation. Fig.1.2.9 Block diagram of the spindle servo system PWM MD IC201 UPD63763CGJ 107 SOP SOM IC301 BA5835FP DIG. EQ DSP BLOCK EFM SIGNAL SPEED ERROR SIGNAL PHASE ERROR SIGNAL 26 15 16 M SPINDLE MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 14 1 2 3 4 1 2 3 4 C D F A B E In this system, all the circuit adjustments are automated inside the CD LSI. All adjustments are performed whenever a disc is inserted or the CD mode is selected by pressing the source key. Details of each adjustment will be explained below. 1.3.1 TE, FE, and RF offset auto-adjustment In this adjustment the TE, FE, and RF amplifier offsets of the preamplifier block in POWER ON are adjusted to the respective target values with the REFO as reference. (The target values for TE, FE, and RF offsets are 0 V, 0 V, and - 0.8 V, respectively.) Adjusting procedure 1) The microcomputer reads respective offsets through the servo LSI, when they are in LDOFF status. 2) The microcomputer calculates the voltages for correction from the values read in 1), and substitutes the corrected values to prescribed places to adjust. 1.3.2 Tracking balance (T.BAL) auto-adjustment This adjustment equalizes the output difference of the E-ch and F-ch from the pickup by changing the amplifier gain inside the LSI. In actual operation, adjustment is performed so that the TE waveform becomes symmetrical on each side of the REFO. Adjusting procedure 1) After closing the focus loop, 2) Kick the lens in the radial direction to ensure the generation of the TE waveform. 3) The microcomputer reads the offset amount of the TE signal calculated in the LSI at the time through the servo LSI. 4) The microcomputer determines the offset amount is 0, positive, or negative. - When the offset amount is 0, the adjustment is completed. - When the offset amount is positive or negative, the amp gains for E-ch and F-ch should be changed, following a certain rule. Then, steps 2) to 4) are repeated until the offset amount becomes 0 or the repetition reaches the limit number of times. 1.3.3 FE bias auto-adjustment This adjustment is to maximizes the RFO level by optimizing the focus point during the play mode, utilizing the phase difference between the 3T level waveform of the RF waveform and that of when focus error disturbance is input. This adjustment is performed at the same timing as the auto-gain control, which will be described later, since disturbance is input to the focus loop. Adjusting procedure 1) The microcomputer issues the command to introduce disturbance to the focus loop (inside the servo LSI). 2) The waver of the 3T component of the RF signal is detected in the LSI. 3) The relation between the 3T component above and the disturbance is processed inside the LSI to detect the volume and direction of the focus offset. 4) The microcomputer issues a command and reads out the detected results from the servo LSI. 5) The microcomputer calculates the necessary correction and substitutes the result to the bias adjustment term inside the servo LSI. Additionally, in this adjusting, a series of steps are repeated for better adjustment accuracy, the same as in the auto-gain control. 1.3 AUTOMATIC ADJUSTMENT FUNCTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 15 5 6 7 8 5 6 7 8 C D F A B E 1.3.4 Focus and tracking AGC This adjustment is to automatically adjust the focus and tracking servo loop gains. Adjusting procedure 1) Introduce disturbance to the servo loop. 2) The error signals (FE and TE) when disturbance is introduced are extracted through the band pass filter, to obtain the G1 and G2 signals. 3) The microcomputer reads the G1 and G2 signals through the servo LSI. 4) The microcomputer calculates the necessary correction and performs the loop gain adjustment inside the servo LSI. For increased adjustment accuracy, the same adjustment process is repeated a few times. 1.3.5 RF level auto-adjustment (RFAGC) This adjustment is to adjust the dispersion of the RF level (RFO), which may be caused by mechanism or disc-related factors, to a steady value for reliable signal transmission. The adjustment is performed by changing the amp gain between RFO and RFAGC. Adjusting procedure 1) The microcomputer issues a command and reads out the output from the RF level detection circuit inside the servo LSI. 2) From the read values, the microcomputer calculates the amp gain to change the RFAGC level to the target. 3) The microcomputer sends a command to the servo LSI to adjust the amp gain to the level calculated in 2). This adjustment is performed 1) when only the focus close operation is completed during the setup mode, and 2) immediately before the setup is completed (or when the play mode is about to start). 1.3.6 Adjustment of gains in preamplifier stage In this adjustment, when reflected beams from the disc surface are extremely weak, such as when the lens is dirty, or a CD-RW is played, gains in the whole RFAMP block (FE, TE, and RF amplifiers) are increased by + 6 dB or + 12 dB, depending on the situation. Adjusting procedure When the system determines that the reflected beams from the disc surface are extremely weak during the setup mode, the whole RFAMP gains will be increased by + 6 dB or + 12 dB. 1.3.7 Initial values in adjustment All automatic adjustments immediately after inserting a disc are performed based on the initial values. Automatic adjustments by source change or ACC ON are basically performed using the previous adjustment values as the initial values. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 16 1 2 3 4 1 2 3 4 C D F A B E 1.3.8 Coefficient display of adjustment results For some of the adjustments (FE and RF offset, FZD cancel, F and T gains, and RFAGC), the adjustment results can be displayed and confirmed in the test mode. The coefficient display in each auto adjustment is as follows: 1) FE and RF offset Reference value = 32 (coefficient of 32 indicates that no adjustment is required) The value is displayed in the unit of approximately 32mV. Ex. When the FE offset coefficient is 35, 35 - 32 = 3 x 32 mV = 96 mV The correction is about +96 mV, which means the FE offset before adjustment is - 96 mV. 2) F and T gain adjustment Reference value for focus and tracking = 20 The displayed coefficient / the reference value indicates the adjusted gain. Ex. When the AGC coefficient is 40, adjustment of 40 / 20 = 2 times (+ 6 dB) has been performed. (It means that the original loop gain was half the target, and the whole gain was doubled to obtain the target value.) 3) RF level adjustment (RFAGC) Reference value = 8 The coefficient of 9 to 15 indicates to increase the RF level (for more gains). The coefficient of 7 to 10 indicates to decrease the RF level (for less gains). When the coefficient changes by 1, the gain changes by 0.7 to 1 dB. When the coefficient is 15, the gain is the maximum at TYP + 7.9 dB. When the coefficient is 0, the gain is the minimum at TYP - 4.6 dB. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 17 5 6 7 8 5 6 7 8 C D F A B E For the power supply for this system, the VD (7.5 ± 0.5 V) and the VDD (5.0 ± 0.25 V), which are supplied from the motherboard, are used. The three power supplies, the VD mentioned above (for the drive system), the V3R3D obtained from the VD via the 3.3 V regulator (for the control system: 3.3 V) and the VDD (for the microcomputer: 5 V), are used in this system. The microcomputer controls ON/OFF with "CONT", except for Load/Eject of the CD driver, and ON/OFF of 3.3 V with "CD3VON". For ON/OFF of the Loading drive, no particular control terminals are available, but the input signal "LOEJ" assumes an equivalent role. Also, the LCO output switches LOADING MODE and CARRIAGE MODE with "CLCONT". Fig.1.4.1 Power supply/loading system circuit block Fig.1.4.2 Loading/carriage mode shift 1.4 POWER SUPPLY AND LOADING BLOCK Loading Mode Loading Mode CLCONT Carriage Mode IC301 BA5835FP CONT CLCONT LOEJ IC701 PE5505A 47 41 40 9 22 21 M 10 20 17 18 28 19 PGND VD LCOP LCOM LOADING MOTOR VDD GND 5VDD S903 S905 S904 DSCSNS VDCONT 49 4 11 9 12 18 1 2 19 20 CN901 30 2 VD 31 32 8EJ 12EJ IC203 NJM2886DL3-33 2 3 4 V3R3D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 18 1 2 3 4 1 2 3 4 C D F A B E The load/eject operation is controlled with the status changes of the HOME switch (also used for clamp detection) on the mechanism unit and the three switches on the control unit. The ON/OFF statuses of these switches are respectively detected at the input port of the microcomputer. Using the detection results in the microcomputer, each status (A to E) is determined. The disc size detection (8 or 12 cm) is also performed through this status change. Each status is shown in Fig.1.4.3 and the status change in Fig.1.4.4. Fig.1.4.3 DSCSNS status Status A B C D E DSCSNS SW1(S903) OFF ON ON ON ON 8SW SW2(S905) ON ON OFF OFF ON 12SW SW3(S904) ON ON ON OFF ON HOME SW4(S901) OFF OFF OFF OFF ON Mechanism state With no disc Clamp state SW_ON SW_OFF 12EJ 8EJ DSCSNS HOME CLCONT LOEJ MOTOR STOP LOAD STOP MOTOR Dead zone STOP LOAD STOP 12EJ 8EJ DSCSNS HOME CLCONT LOEJ It changes Load/Carriage LOADING 12cm 8cm SW CHANGES SW CHANGES CONTROL CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 19 5 6 7 8 5 6 7 8 C D F A B E Fig.1.4.4 Status change in LOAD and EJECT modes Dead zone STOP 12EJ 8EJ DSCSNS HOME CLCONT LOEJ MOTOR STOP EJECT STOP MOTOR EJECT STOP 12EJ 8EJ DSCSNS HOME CLCONT LOEJ EJECT 12cm 8cm SW CHANGES SW CHANGES CONTROL CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 20 1 2 3 4 1 2 3 4 C D F A B E 2. MECHANISM DESCRIPTIONS Centering Pin 8cm-Disc Guide Pin Centering Pin 12cm-Disc Guide Pin Guide Pin Centering Pin DISC Load Carriage Motor Pickup Unit SW3 SW2 SW1 SW Arm L SW Arm R Rubber Roller - Loading actions 1. When a disc is inserted, SW Arm L and R rotate and SW1 is switched from ON to OFF. When SW1 is switched from ON to OFF, the Load Carriage Motor is started and the rubber roller rotates. 2. If the disc is a 12cm-disc, SW3 is turned ON with SW Arm, and the microcomputer determines that the disc is a 12cm- disc. 3. In case of an 8cm-disc, SW3 is not turned ON, a clamp action is triggered, and the microcomputer determines that the disc is an 8cm-disc. (The left and right of SW Arm are coupled, and when only one side is pushed, the coupled joint will lock, and the arms will not open more than a certain width (SW3 will not be turned ON).) - Disc centering mechanism 1. 8cm-disc is centered by the Guide Pins and the Centering Pins. 2. 12cm-disc passes under the Guide Pins and the Centering Pins, and centered in the back position of the mechanism. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 21 5 6 7 8 5 6 7 8 C D F A B E 2 3 4 5 6 7 8 Loading Rack Gear Lock Arm 2-Stage Gear Roller Up Arm Planet Gear Clamp Lever Mech Lock Lever Feed Screw's Gear 1 1 Mech Lock Arm Detection Arm Clamp Arm Rubber Roller - Clamp actions mechanism 1. With an 8 or 12cm-disc centered on the spindle, the Detection Arm is moved. 2. The movement of the Detection Arm engages the Loading Rack with the 2-Stage Gear. 3. The Clamp Lever slides and lowers the Clamp Arm (the disc is clamped). At the same time, the Roller Up Arm is rotated, and the Rubber Roller is separated from the disc. Also the arm slides the Mechanical Lock Lever, turns the Mechanical Lock Arm, and releases the mechanical lock, completing the clamp operation. 4. When the clamp action is completed, the Clamp Lever rotates the Gear Lock Arm. When the arm is rotated, the Planet Gear is separated from the 2-Stage Gear and engaged with the gear of the pickup feed screw, and the carriage operation will start - Eject actions 1. When the Load Carriage Motor is rotated backward, and the pickup is fed to the inner periphery passing the home SW ON point, the eject action will start in the reverse order of the procedure mentioned earlier. 2. For a 12cm-disc, Eject is completed when SW3 is switched OFF, ON, and OFF again. 3. For an 8cm-disc, Eject is completed when SW2 is switched OFF, ON, and OFF again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 22 1 2 3 4 1 2 3 4 C D F A B E 3. DISASSEMBLY A A B B Upper Frame Lower Frame B B B B a Damper Carriage Mechanism Damper Do not squeeze this area. - How to hold the Mechanism Unit - Removing the Upper and Lower Frames 1. With a disc inserted and clamped in the mechanism, remove the two Springs (A), the six Springs (B), and the four Screws. 2. Turn the Upper Frame using the part "a" as a pivot, and remove the Upper Frame. 3. While lifting the Carriage Mechanism, remove it from the three Dampers. Caution: When assembling, be sure to apply some alcohol to the Dampers and assemble the mechanism in a clamped state. 1. Hold the Upper and Lower Frames. 2. Do not hold the front portion of the Upper Frame, because it is not very solid. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 23 5 6 7 8 5 6 7 8 C D F A B E Spring Spring 1 3 2 Guide Arm Assy Bevel Gear Bracket 1 - Removing the Guide Arm Assy 1. Remove the Upper and Lower Frames and set the mechanism to the eject mode. 2. Remove the two Screws and Bevel Gear Bracket. (Note that the gears will come off.) 3. Remove the two Springs from the left and right sides. 4. Slide the Guide Arm Assy to the left, and turn it upward. 5. When it is turned about 45 degrees, slide it to the right and remove. Caution: When assembling, assemble with the Bevel Gear Bracket moved to the direction of the arrow (1). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 24 1 2 3 4 1 2 3 4 C D F A B E Spring Spring Roller Arm Assy Screw Shorting Solder CD Core Unit Solder - How to remove the CD Core Unit - How to remove the Roller Arm Assy 1. Apply Shorting Solder to the flexible cable of the Pickup, and disconnect it from the connector. 2. Unsolder the four leads, and loosen the Screw. 3. Remove the CD Core Unit. Caution: When assembling the CD Core Unit, assemble it with the SW in a clamped state so as not to damage it. 1. Remove the Guide Arm Assy. 2. Remove the CD Core Unit. (If the Spring can be removed, the unit need not be removed, depending on the type of CD Core Unit.) 3. Remove the Spring. 4. Slide the Roller Arm Assy to the left. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 25 5 6 7 8 5 6 7 8 C D F A B E Chassis Pickup Rack Pickup Poly Washer Change Arm Pickup Lock Arm Feed Screw Planet Gear Inner Holder - How to remove the Pickup Unit 1. Make the system in the carriage mechanism mode, and have it clamped. 2. Remove the CD Core Unit and remove the leads from the Inner Holder. 3. Remove the Poly Washer, Change Arm, and Pickup Lock Arm. 4. While releasing from the hook of the Inner Holder, lift the end of the Feed Screw. Caution: When assembling, move the Planet Gear to the load/eject position before setting the Feed Screw in the Inner Holder. Assemble the sub unit side of the Pickup, taking the plate (Chassis) in-between. When treating the leads of the Load Carriage Motor Assy, do not make them loose over the Feed Screw. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 26 1 2 3 4 1 2 3 4 C D F A B E Change Arm Poly Washer Pickup Lock Arm Screw A Bevel Gear Bracket Screw B Gear Bracket 1 Screw C Load Carriage Motor Assy - How to remove the Load Carriage Motor Assy 1. Make the system in the carriage mechanism mode, and have it clamped. 2. Release the leads (orange and purple) of Load Carriage Motor Assy from the CD Core Unit and remove the holder. 3. Remove the Poly Washer, Change Arm, and Pickup Lock Arm. 4. Remove the two Screws (A) and the Bevel Gear Bracket (Note that the gears will come off). 5. Remove the two Screws (B) and the Gear Bracket (remove the CD Core Unit, if necessary), and remove all the gears. 6. Remove the two Screws (C) and the Load Carriage Motor Assy. Caution: When assembling the Load Carriage Motor Assy, move it to the direction shown in the illustration (1). When treating the leads of the Load Carriage Motor Assy, do not make them loose over the Feed Screw. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CX-3164 27 5 6 7 8 5 6 7 8 C D F A B E Spring Spring Spring A Clamp Arm Assy Detection Pin place the boss in the cam Detection Pin Spindle Motor Assy Screw - How to remove the Clamp Arm Assy 1. Make the system in the carriage mechanism mode, and set the mechanism to the eject mode. 2. Remove the three Springs. 3. While pressing the position A, turn the Clamp Arm Assy upward, slide it to the left, and remove. Caution: When assembling, place the boss of the Detection Pin in the cam unit of the Loading Rack. - How to remove the Spindle Motor Assy 1. Make the system in the carriage mechanism mode, and have it clamped. 2. Remove the CD Core Unit and remove the leads from the Inner Holder. 3. Set the mechanism to the eject mode and remove the Clamp Arm Assy. 4. Set the mechanism to the clamped and move the Pickup to circumference. 5. Remove the two Screws, and remove the Spindle Motor Assy. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
