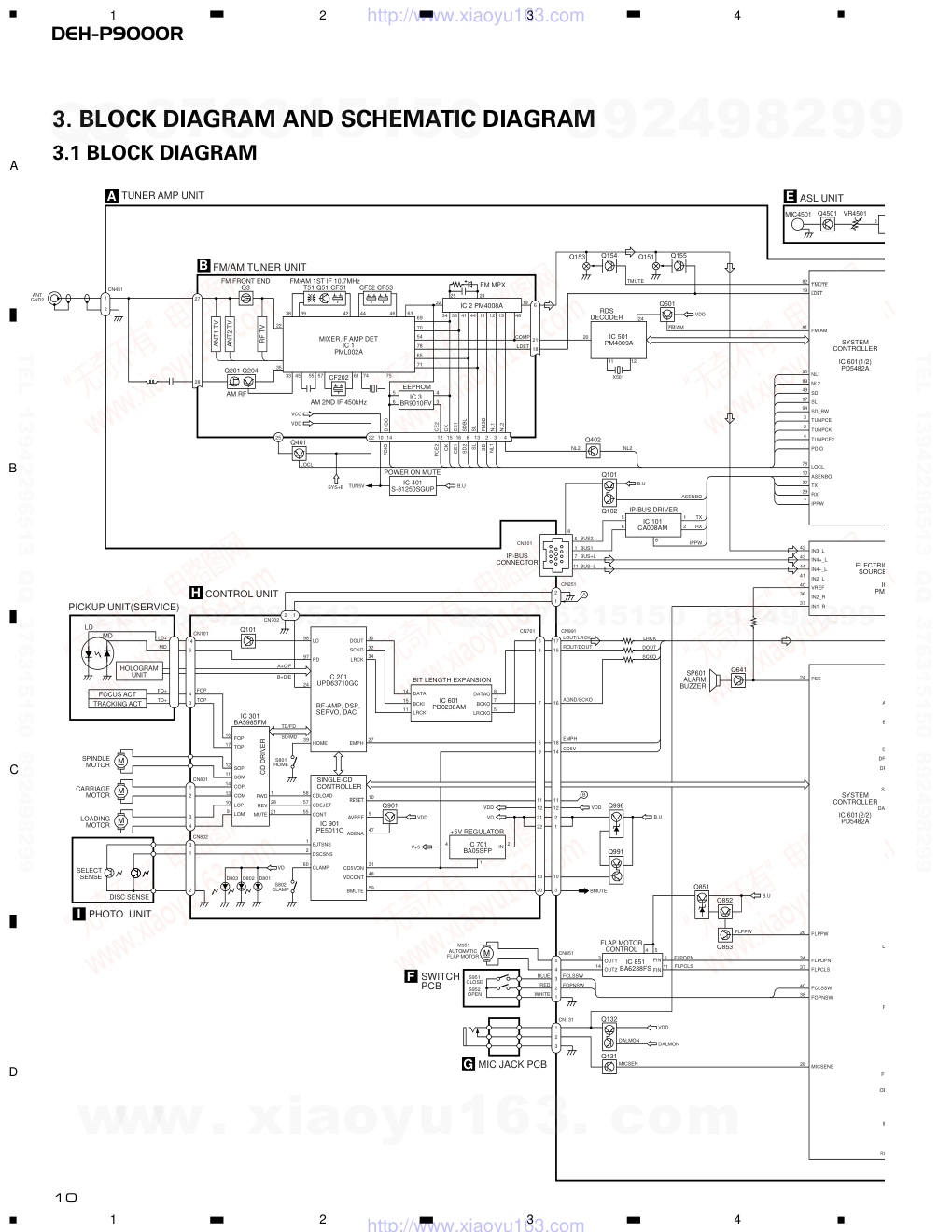

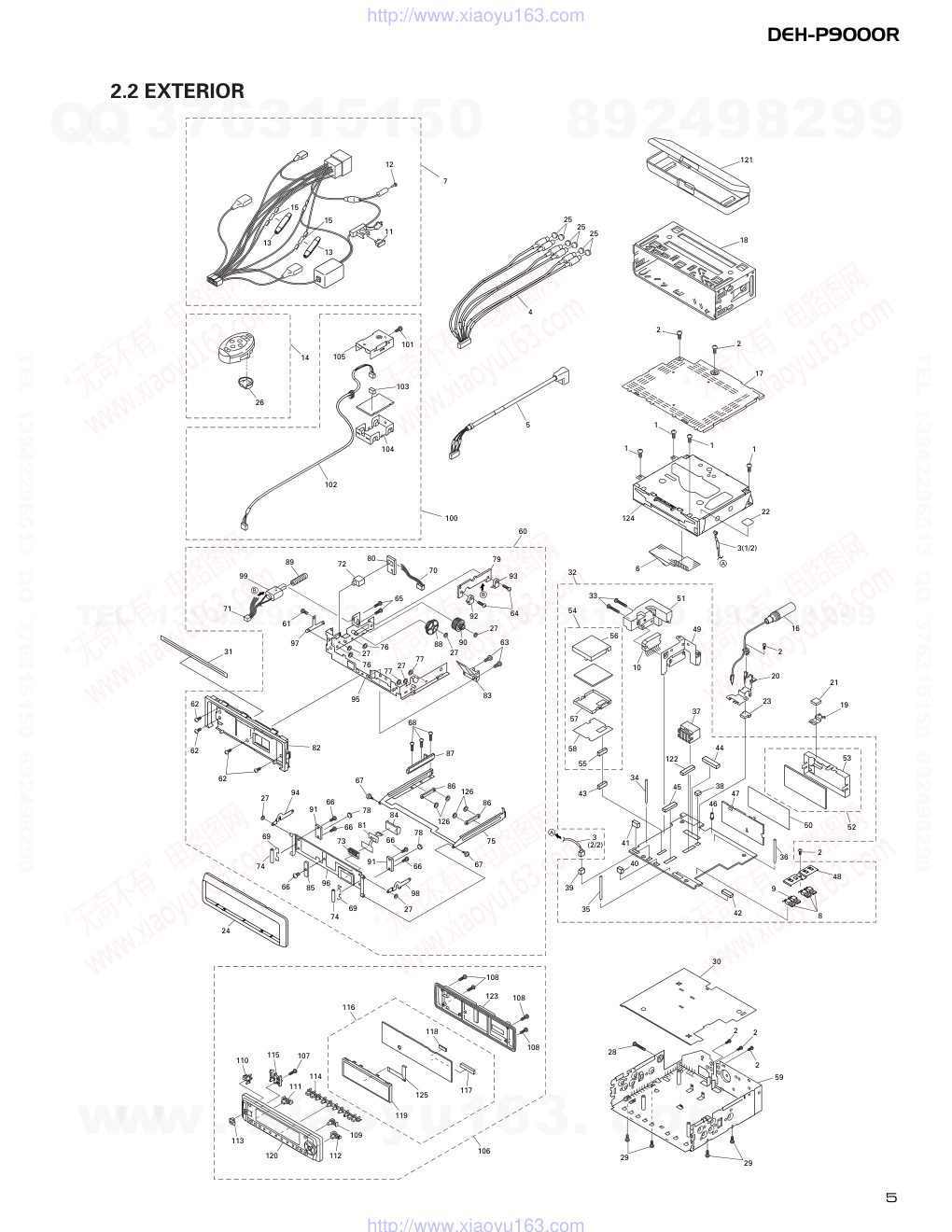

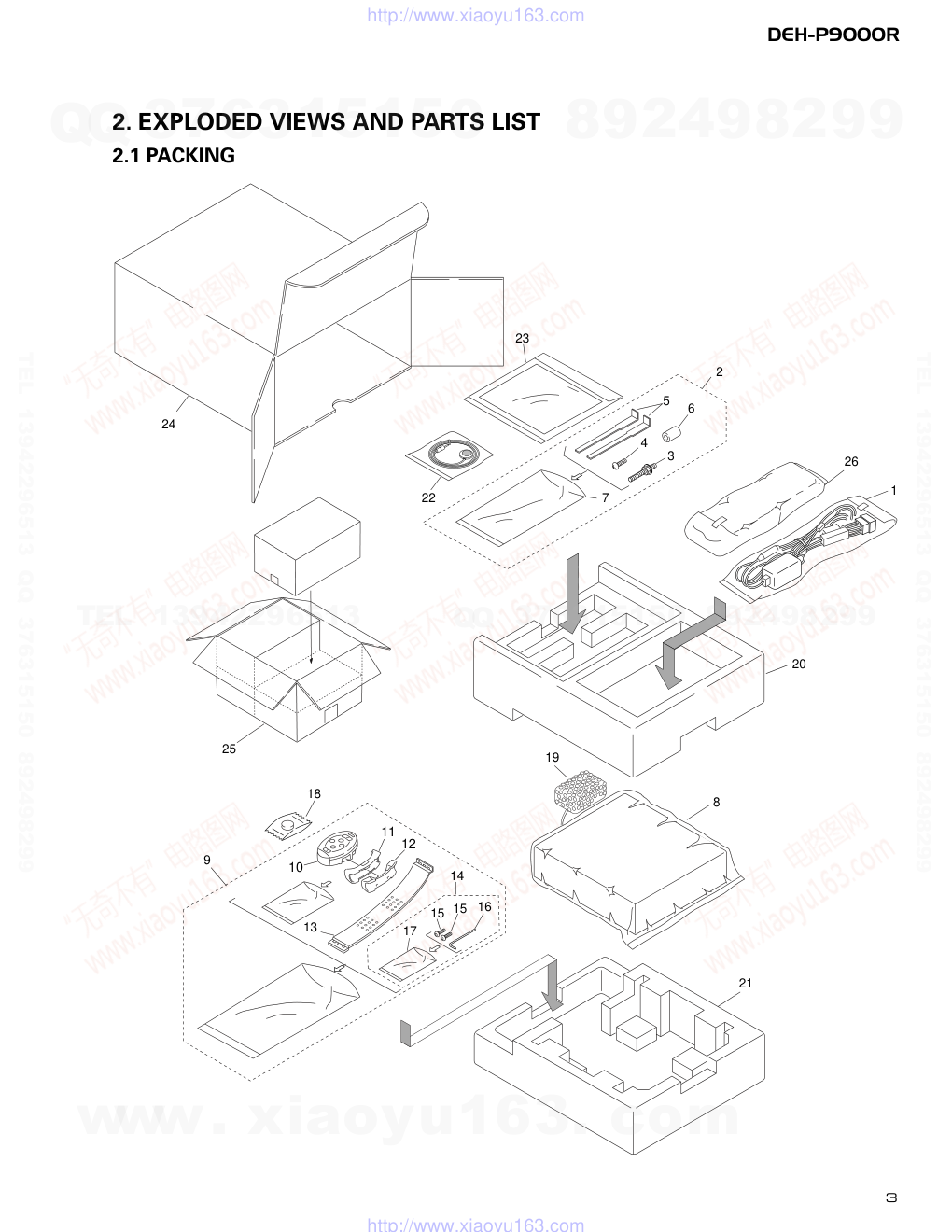

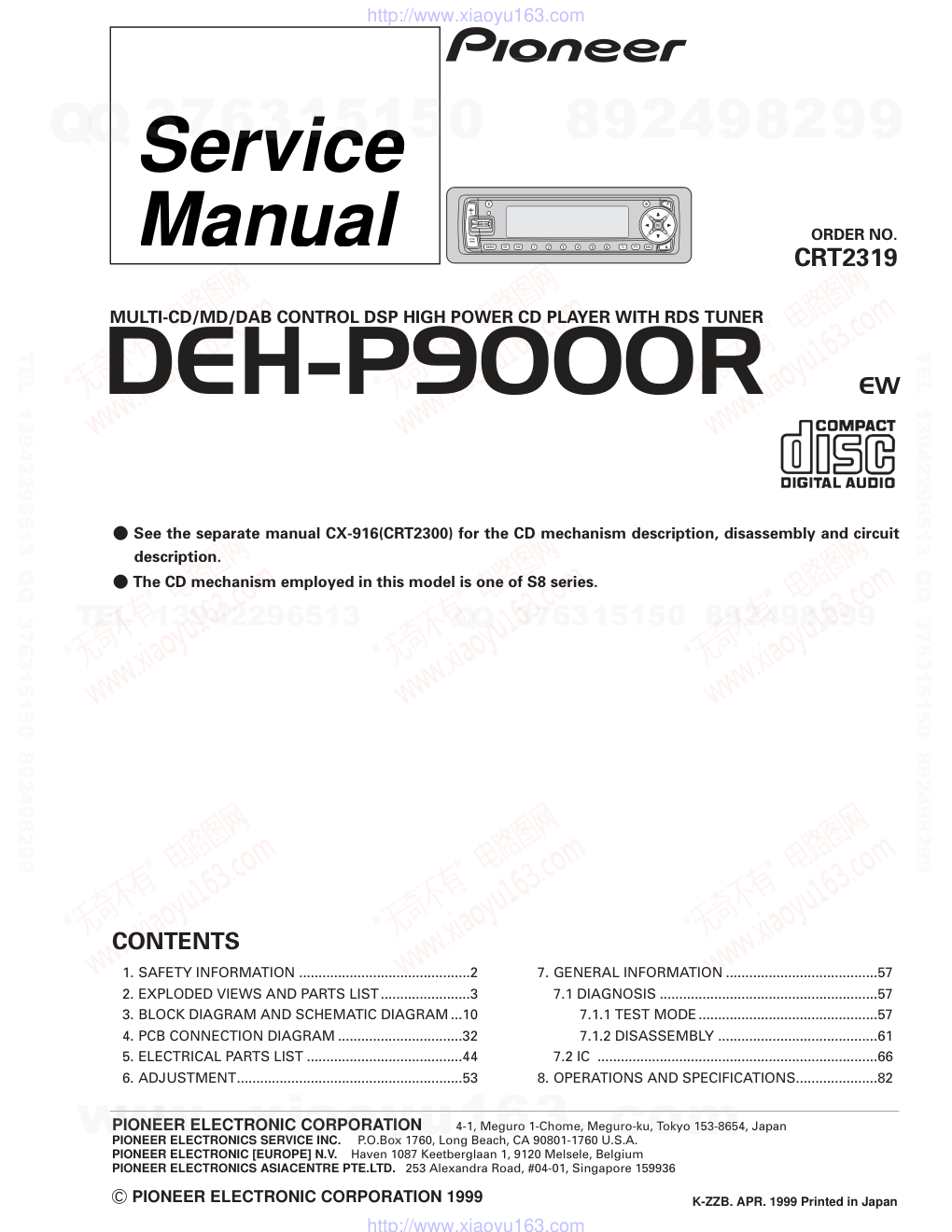

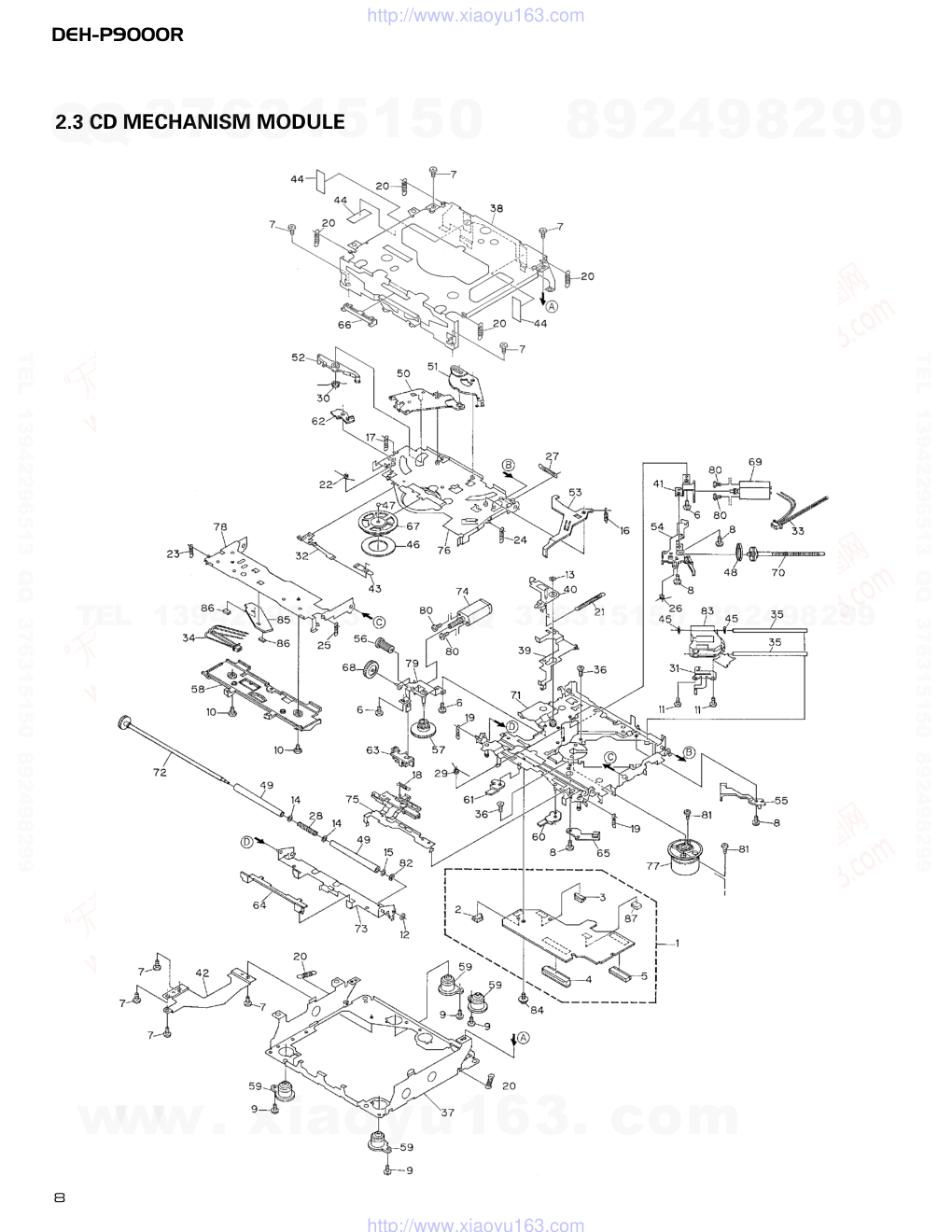

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER ELECTRONIC CORPORATION 1999 K-ZZB. APR. 1999 Printed in Japan ORDER NO. CRT2319 MULTI-CD/MD/DAB CONTROL DSP HIGH POWER CD PLAYER WITH RDS TUNER DEH-P9000R�EW Service Manual CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10 4. PCB CONNECTION DIAGRAM ................................32 5. ELECTRICAL PARTS LIST ........................................44 6. ADJUSTMENT..........................................................53 7. GENERAL INFORMATION .......................................57 7.1 DIAGNOSIS ........................................................57 7.1.1 TEST MODE..............................................57 7.1.2 DISASSEMBLY .........................................61 7.2 IC ........................................................................66 8. OPERATIONS AND SPECIFICATIONS.....................82 - See the separate manual CX-916(CRT2300) for the CD mechanism description, disassembly and circuit description. - The CD mechanism employed in this model is one of S8 series. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DEH-P9000R - CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 61). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin). 2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 55). 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A “CLASS 1 LASER PRODUCT” label is affixed to the bottom of the player. 3. The triangular label is attached to the mechanism unit frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers CLASS 1 LASER PRODUCT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P9000R 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 23 6 2 3 4 7 19 20 8 21 5 26 24 22 18 1 25 9 13 15 15 14 17 16 10 11 12 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DEH-P9000R - Owner's Manual, Installation Manual Part No. Language CRD2967 English, Spanish CRD2968 German, French CRD2969 Italian, Dutch CRD2970 English, Spanish, German, French, Italian, Dutch 1 Cord Assy CDE5855 2 Accessory Assy CEA2538 3 Screw CBA1002 4 Screw CBA1120 5 Handle CNC5395 6 Bush CNV1917 * 7 Polyethylene Bag E36-615 * 8 Cover CEG1088 9 Remote Control Assy CXB3488 10 Remote Control Assy CZX3231 11 Holder Assy CZX3172 12 Holder Assy CZX3173 13 Belt CZN6416 14 Screw Assy CZE3169 * 15 Screw RMZ30H060FBK * 16 Hexagonal Wrench CZE3176 * 17 Polyethylene Bag CEG-127 18 Battery CEX1030 19 Air Cushioned Bag CEG1192 20 Protector CHP2032 21 Protector CHP2033 22 Microphone Assy CPM1022 23-1 Owner’s Manual CRD2967 23-2 Owner’s Manual CRD2968 23-3 Owner’s Manual CRD2969 23-4 Installation Manual CRD2970 * 23-5 Caution Card CRP1207 23-6 Caution Card CRP1208 23-7 Passport CRY1013 * 23-8 Warranty Card CRY1087 23-9 Polyethylene Bag CEG1116 * 23-10 Caution Card CRP1210 24 Carton CHG3771 25 Contain Box CHL3771 26 Case Assy CXB3520 Mark No. Description Part No. Mark No. Description Part No. - PACKING SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DEH-P9000R A A B B 25 25 25 18 121 2 17 1 1 1 124 1 2 4 7 12 11 15 15 13 13 14 105 101 103 104 100 60 80 70 65 72 102 89 99 71 61 97 31 94 91 96 66 66 73 81 84 67 68 66 66 78 78 87 86 75 67 98 91 74 69 85 66 74 27 27 24 110 115 107 111 113 120 112 109 119 125 117 108 106 108 123 30 2 2 2 2 59 29 29 28 108 118 116 114 69 86 126 126 62 62 62 82 95 76 76 77 27 27 77 83 63 90 27 27 92 93 79 64 88 26 5 22 3(1/2) 6 16 2 20 23 21 19 53 52 50 48 8 36 9 42 35 40 39 34 55 43 58 57 56 54 32 33 51 10 49 37 44 122 45 38 46 47 41 3 (2/2) 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DEH-P9000R 1 Screw BSZ26P060FMC 2 Screw BSZ30P050FMC 3 Cord CDE5536 4 Cord Assy CDE5840 5 Cord Assy CDE5842 6 Connector CDE5846 7 Cord Assy CDE5855 8 Transistor(Q803,921,998) 2SD2396 9 IC(IC971) NJM7805FA 10 IC(IC301) PAL005A 11 Fuse(10A) CEK1136 12 Terminal Cap CKX-003 13 Cap CNS1472 14 Remote Control Assy CZX3231 15 Resistor RS1/2PMF102J 16 Antenna Cable CDH1256 17 Case CNB2426 18 Holder CNC6798 19 Earth Terminal CNC7358 20 Holder CNC8170 21 Spacer CNM6482 22 Cushion CNM6065 23 Cushion CNM6131 24 Panel CNS5256 25 Cap CNV2680 26 Cover CZN6410 27 Washer S-1821-0045-D2-00 28 Screw BSZ30P200FMC 29 Screw CBA1447 30 Insulator CNM6135 31 Cover CNM6489 32 Tuner Amp Unit CWM6212 33 Screw BMZ26P160FMC 34 Clamper CEF1004 35 Clamper CEF1008 36 Clamper CEF1009 37 Plug(CN901) CKM1278 38 Plug(CN141) CKS-766 39 Plug(CN251) CKS-783 40 Plug(CN131) CKS-784 41 Plug(CN851) CKS-786 42 Connector(CN801) CKS1532 43 Connector(CN252) CKS3781 44 Connector(CN351) CKS3606 45 Connector(CN991) CKS1960 46 Mini Pin Jack(CN451) CKX1046 47 Holder CNC7533 48 Holder CNC8168 49 Holder CNC8169 50 Insulator CNM5967 51 Heat Sink CNR1535 52 FM/AM Tuner Unit CWE1500 53 Holder CNC7532 54 DSP Unit CWX2323 55 Connector(CN3001) CKS3782 56 Case CNC8166 57 Case CNC8167 58 Insulator CNM6130 59 Chassis Unit CXB3557 60 Panel Assy CXB3578 61 Screw BMZ20P030FMC 62 Screw CBA1154 63 Screw BPZ20P060FMC 64 Screw CBA1060 65 Screw CBA1061 66 Screw CBA1082 67 Screw CBA1430 68 Screw CBA1454 69 Spring CBH2130 70 Cord CDE5856 71 Cord CDE5960 72 Mini Jack(CN4602) CKN1015 73 Connector CKS3997 74 Roller CLA3583 75 Frame CNC8201 76 Spacer CNM6155 77 Spacer CNM6156 78 Spacer CNM6419 79 PCB CNP5321 80 PCB CNP5341 81 PCB CNP5355 82 Panel CNS5232 83 Lighting Conductor CNV5605 84 Cover CNV5610 85 Guide CNV5672 86 Guide CNV5696 87 Rack CNV5697 88 Gear CNV5698 89 Gear CNV5761 90 Torque Limiter Unit CNV5762 91 Holder CNV5763 92 Switch(S952) CSN1022 93 Switch(S951) CSN1012 94 Arm Unit CXB3574 95 Frame Unit CXB3575 96 Holder Unit CXB3576 97 Bracket Unit CXB3577 98 Arm Unit CXB3866 99 Motor(M951) CXM1085 100 ASL Unit CWX2322 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P9000R 7 101 Screw BSZ30P055FMC 102 Cord Assy CDE5845 103 Plug(CN4501) CKS-784 104 Case CNB2299 105 Case CNB2300 106 Detach Grille Assy CXB3271 107 Screw BPZ20P060FMC 108 Screw BPZ20P080FZK 109 Button( ) CAC5890 110 Button(D) CAC5891 111 Button(SOURCE) CAC5892 112 Button( ) CAC5893 113 Button(EQ) CAC5894 114 Button(1-6) CAC5896 115 Housing CNV5606 116 Keyboard Unit CWM6225 117 Connector(CN1901) CKS3996 118 Connector(CN1902) CKS3995 119 OEL Module MXK8002 120 Grille Unit CXB3268 121 Case Assy CXB3520 * 122 Plug(CN101) CKS1058 123 Cover Unit CXB4309 124 CD Mechanism Module(S8) CXK5252 * 125 PCB CNP5508 126 Washer S-1816-0035-D2-00 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DEH-P9000R 2.3 CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DEH-P9000R Mark No. Description Part No. Mark No. Description Part No. 1 Control Unit CWX2359 2 Connector(CN802) CKS2192 3 Connector(CN801) CKS2193 4 Connector(CN701) CKS2771 5 Connector(CN101) CKS3486 6 Screw BMZ20P030FZK 7 Screw BSZ20P040FZK 8 Screw(M2×3) CBA1077 9 Screw(M2×6) CBA1489 10 Screw CBA1243 11 Screw(M2×4) CBA1362 12 Washer CBF1037 13 Washer CBF1038 14 Washer CBF1060 * 15 Washer CBF1075 16 Spring CBH2079 17 Spring CBH2117 18 Spring CBH2278 19 Spring CBH2110 20 Spring CBH2282 21 Spring CBH2114 22 Spring CBH2115 23 Spring CBH2080 24 Spring CBH2118 25 Spring CBH2161 26 Spring CBH2163 27 Spring CBH2189 28 Spring CBH2249 29 Spring CBH2260 30 Spring CBH2262 31 Spring CBL1367 32 Spring CBL1369 33 Connector CDE5531 34 Connector CDE5532 35 Shaft CLA3304 36 Screw(M2.6×6) CBA1458 37 Frame CNC7544 38 Frame CNC7545 39 Lever CNC7546 40 Arm CNC7739 41 Bracket CNC7798 42 Plate CNC8090 43 Spacer CNM3315 44 Sheet CNM6170 45 Cushion CNM6204 46 Sheet CNM6215 47 Ball CNR1189 48 Belt CNT1086 49 Roller CNV4509 50 Arm CNV5246 51 Arm CNV5247 52 Arm CNV5248 53 Arm CNV5249 54 Guide CNV5254 55 Guide CNV5255 56 Gear CNV5257 57 Gear CNV5256 58 Guide CNV5869 59 Damper CNV5266 60 Arm CNV5359 61 Arm CNV5360 62 Arm CNV5361 63 Guide CNV5509 64 Guide CNV5510 65 Holder CNV5578 66 Guide CNV5751 67 Clamper CNV5758 68 Gear CNV5813 69 Motor Unit(M1) CXB2190 70 Screw Unit CXB2191 71 Chassis Unit CXB2192 72 Gear Unit CXB2193 73 Arm Unit CXB2194 74 Motor Unit(M2) CXB2195 75 Lever Unit CXB2553 76 Arm Unit CXB2554 77 Motor Unit(M3) CXB2562 78 Arm Unit CXB2795 79 Bracket Unit CXB4071 80 Screw JFZ20P025FMC 81 Screw JGZ17P025FZK 82 Washer YE15FUC 83 Pickup Unit(Service)(P8) CXX1285 84 Screw IMS26P030FMC * 85 PCB CNX2982 86 Photo-transistor(Q1, 2) CPT230SX-TU 87 Connector(CN702) CKS2191 - CD MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM ANT1 TV ANT2 TV RF TV IC 3 BR9010FV AM 2ND IF 450kHz M M M M LD MD HOLOGRAM UNIT FOCUS ACT TRACKING ACT LD+ MD FO+ TO+ 14 5 4 3 PICKUP UNIT(SERVICE) SPINDLE MOTOR CARRIAGE MOTOR LOADING MOTOR 1 2 3 4 3 1 2 SELECT SENSE DISC SENSE I PHOTO UNIT CN801 CN802 D803 D802 D801 VD S802 CLAMP 58 57 55 1 2 60 10 1 28 21 9 47 31 48 59 CDLOAD CDEJET CONT EJTSNS DSCSNS CLAMP reset AVREF ADENA CD5VON VDCONT BMUTE IC 901 PE5011C VDD V+5 IC 701 BA05SFP IN +5V REGULATOR 2 4 1 VDD VD Q998 Q991 B VDD BMUTE B.U B.U Q851 Q852 Q853 FLAP MOTOR CONTROL IC 851 BA6288FS 4 5 FIN FIN OUT1 OUT2 6 3 14 11 FLPOPN FLPCLS 5 4 3 3 2 1 2 1 CN851 CN131 Q132 Q131 VDD DALMON DALMON MICSEN FCLSSW FOPNSW BLUE RED WHITE S951 CLOSE S952 OPEN G MIC JACK PCB F SWITCH PCB AUTOMATIC FLAP MOTOR ANT GND2 CN451 1 2 A TUNER AMP UNIT B FM/AM TUNER UNIT 27 28 FM FRONT END Q3 Q201 Q204 AM RF FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 MIXER.IF AMP DET IC 1 PML002A 38 39 42 44 46 63 32 19 46 6 21 18 LDET COMP 34 33 41 44 11 12 13 69 70 54 78 65 71 75 74 61 57 55 45 33 35 22 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VCC LOCL VDD Q401 SYS+B TUN5V B.U DI/DO CE2 CK CE1 SDBL SL FMSD PCE2 CK CE1 SD2 SL SD PDIO NL1 NL2 EEPROM 5 6 4 3 IC 2 PM4008A FM MPX POWER ON MUTE IC 401 S-81250SGUP CN101 IP-BUS CONNECTOR 8 5 1 7 11 B.U ASENBO TX RX IPPW 1 8 2 5 6 IP-BUS DRIVER IC 101 CA008AM BUS2 BUS1 BUS+L BUS–L Q402 Q101 Q102 NL2 NL2 Q153 Q151 Q154 Q155 RDS DECODER IC 501 PM4009A 20 11 12 24 X501 Q501 VDD TMUTE fm/AM 82 19 81 95 NL1 FM/AM ldet tmute NL2 SD SL SD_BW TUNPCE TUNPCK TUNPCE2 PDIO LOCL ASENBO TX RX IPPW IN3_L IN4+_L IN4–_L IN2_L VREF IN2_R IN1_R PEE 89 49 97 94 3 2 4 1 78 10 30 29 7 42 43 44 41 40 36 37 24 FLPPW FLPPW 26 FLPOPN 34 FLPCLS 37 FOPNSW 38 FCLSSW 40 MICSENS 28 SYSTEM CONTROLLER IC 601(1/2) PD5482A E ASL UNIT MIC4501 Q4501 VR4501 A 3 H CONTROL UNIT Q101 CN101 CN702 FOP TOP 2 1 A+C/F B+D/E 98 14 15 11 LD DATA BCKI LRCKI DOUT DATAO BCKO LRCKO SCKO LRCK EMPH PD HOME 97 24 39 TD/FD SD/MD RF-AMP, DSP, SERVO, DAC IC 201 UPD63710GC 30 8 7 5 32 34 27 IC 601 PD0236AM BIT LENGTH EXPANSION CN701 CN991 CN251 2 1 17 15 16 18 14 11 12 2 1 10 3 6 8 7 5 9 11 12 21 22 13 20 LOUT/LRCK ROUT/DOUT AGND/SCKO EMPH CD5V LRCK DOUT SCKO SP601 ALARM BUZZER IC 301 BA5985FM S801 HOME 12 16 17 11 14 13 10 9 SOP TOP FOP SOM COP COM LOP LOM FWD REV MUTE ELECTRIC SOURCE IC PM Q641 SYSTEM CONTROLLER IC 601(2/2) PD5482A A B I D DR DR SY DA D R OE IL SW FL A 25 24 Q901 SINGLE-CD CONTROLLER CD DRIVER M951 NL1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A ILM H:ORANGE L:PURE GREEN IC 4501 NJM2068 IC 971 NJM7805FA ADRESS DATA IC 1903 RS-140 REMOTE CONTROL SENSOR OPT IN SWVDD AVCC VDD REM KYDT DPDT KEY AND OEL MODULE CONTROLLER IC 1901 PD5471A ILMD ILB SWVDD 1 4 5 7 11 2 9 8 12 9 8 6 2 11 4 5 KEY MATRIX IC 1902 PD8051A SWVDD DATA ROM 25 4 97 14 1 5 YSTEM NTROLLER 601(1/2) D5482A VR4501 ASL AMP ASL FILTER IC 4502 NJM2068 3 3 1 1 2 2 CN141 NOISE 4 3 2 35 8 30 4 5 9 12 6 8 11 36 98 37 23 28 27 78 35 3 2 35 8 30 DOUT CN252 CN252 CN3001 CN3001 SCKO LRCK NOISE LIN– EMPH CD5V IC 3203(1/2) HD74HCT126FP 13 SDIN AOUTL1 CLKO BITCLK LRCLK AINL– IC 3101 AK7714 DSP, DAC X3101 VSTD/VDTD/VCKD LRCKK NOISE 58 74 8 10 12 9 40 41 42 59 EMPHIN X3001 DSP CONTROLLER IC 3001 PD5504A D DSP UNIT DSP5V PLL5V DSPPW MUTERQ NGO MCKOUT reset 1 29 18 6 17 16 1 29 18 6 17 16 ZDF MUTERQ RESET AMP IC 3301 NJM4580M IC 3201 74HC393AF 3 1 8 1 10 2 3 1 1 IC 3203(2/2) HD74HCT126FP 12 5 12 5 FREQUENCY CONVERSION IC 3202 TC9246F REF CKO CN3001 CN252 A LOUT DSPPW B.U B.U Q972 Q291 Q971 5V REG. 3 1 Q292 Q913 B.U VDD DALMON Q911 B.U BACKUP BACKUP GND RL– RL+ FL– FL+ RL– RL+ FL– FL+ B.REM B.REM ILL ACC ILL ACC MUTE DOOR SW TEL1 DOOR SW 1 2 9 11 10 12 4 3 5 8 7 ELECTRICAL VOLUME/ SOURCE SELECTOR IC 203 PML004AF YSTEM NTROLLER 601(2/2) D5482A ASENS 74 BSENS 73 ISENS 23 TELIN 11 DRSYS 87 DRSENS 86 DRELAY 76 SYSPW 22 DALMON DALMON 20 MUTE 27 DSENS 47 KYDT 36 DPDT 35 RESET 12 OEL PW 46 ILMPW 44 SWVDD 45 FLPILM 43 FL 10 PV IN_L 2 Setout_L 1 RL 11 PREL 9 DZF MUTERQ POWER AMP IC 301 PAL005A 12 14 22 4 25 5 3 21 23 FL MUTE STBY B.REM RL B.U B.U DRSENS DRSYS TELIN bsens asens ILL Q681 Q951 Q931 Q932 Q682 Q683 Q301 MUTE Q302 Q982 7 11 16 14 18 9 SWL1 RLI FLI FLO RLO SWLO IC 271 PA2028A HIGH OUT Q353 Q355 Q351 CN351 FRONT L CH REAR L CH SUB WOOFER L CH 7 6 3 2 11 10 C KEYBOARD UNIT CN1901 CN801 DSENS Q1901–1906 ILL, DUAL DRIVE ILB CN1902 OEL MODULE MXK8002 18 17 1-15 11 13 X1901 33 34 32 RST S1925 Q261 Q922 Q923 Q921 Q981 B.U B.U SYS+B SYSPW Q803 Q808 Q801 Q802 VDD B.U Q805 Q806 Q807 B.U B.U B.U RESET IC 961 S–80735ANDZI VDD 1 2 Q962 RESET B SYSPW BUFFER BUFFER RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page A SY IP-BUS AUTO-EQ CD MECHANISM TUNER RDS DECODER MOTOR DRIVE IP-BUS DRIVER 1 2 3 4 5 6 7 8 9 10 11 TUNER SIGNAL IP-BUS SIGNAL CD(DIGITAL) SIGNAL CD,TUNER,IP-BUS SIGNAL IP-BUS:+2.2dBs FM(100%):-15.5dBs AM(30%):-26dBs IP-BUS:+2.2dBs FM(100%):-16.5dBs AM(30%):-27dBs CN701 S951 CSN1012 S952 CSN1022 CLOSE OPEN M951 AUTOMATIC FLAP MOTOR CXM1085 CN4602 CN4501 H I CD MECHANISM MODULE E ASL UN C KEYBOAR F SWITCH PCB G MIC JACK PCB B FM/AM TUNER UNIT F G A-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A A SYSTEM CONTROLLER GRILLE BUZZER 8V REGULATOR MUTE VDD 5V SENSE TEL MUTE POWER AMP RESET PRE OUT DSP E-VOL ASL PRE OUT IP-BUS:+4.3dBs FM(100%):+1.6dBs AM(30%):-6.9dBs CD:+2.43dBs CD:+8.18dBs CD:+34.18dBs CD:+18.68dBs CN1901 1NIT A TUNER AMP UNIT RD UNIT D CN3001 RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP BACK UP GND ILL ACC RL- FL- RL+ FL+ RR- FR- RR+ FR+ CEK1136 10A B REMOTE DOOR SW MUTE H CN702 1K(1/2W) 1K(1/2W) A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A IP-BUS AUTO-EQ CD MECHANISM E-V ASL IP-BUS DRIVER 1 2 3 4 5 6 7 8 9 10 11 TUNER SIGNAL IP-BUS SIGNAL CD(DIGITAL) SIGNAL CD,TUNER,IP-BUS SIGNAL IP-BUS:+2.2dBs FM(100%):-15.5dBs AM(30%):-26dBs IP-BUS:+2.2dBs FM(100%):-16.5dBs AM(30%):-27dBs CD CN701 CN4602 CN4501 H I CD MECHANISM MODULE E ASL UNIT G MIC JACK PCB /AM TUNER UNIT A-a A-a A-b G 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A A-a A-a A-b SYSTEM CONT TUNER RDS DECODER MOTOR DRIVE S951 CSN1012 S952 CSN1022 CLOSE OPEN M951 AUTOMATIC FLAP MOTOR CXM1085 CN1901 C KEYBOARD UN F SWITCH PCB B FM/AM F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 D C B A A-a A-b A-b DEH-P9000R POWER AMP RESET PRE OUT DSP E-VOL ASL PRE OUT IP-BUS:+4.3dBs FM(100%):+1.6dBs AM(30%):-6.9dBs CD:+2.43dBs CD:+8.18dBs CD:+18.68dBs T A TUNER AMP UNIT D CN3001 RR + RR - H CN702 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A A-b A-a A-b TEM CONTROLLER GRILLE BUZZER 8V REGULATOR MUTE VDD 5V SENSE TEL MUTE CD:+34.18dBs CN1901 D UNIT RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP BACK UP GND ILL ACC RL- FL- RL+ FL+ RR- FR- RR+ FR+ CEK1136 10A B REMOTE DOOR SW MUTE 1K(1/2W) 1K(1/2W) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Voltage of IC Terminals KV1410(23) KV1410(23) Mark None F0 F65 F125 A0 A74 A125 Band – FM FM FM AM AM AM Input Level – 0dBf 65dBf 125dBf 0dBµ 74dBµ 125dBµ 18 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A B 3.3 FM/AM TUNER UNIT B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A B KV1410(23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S1901,1902:CSG1113 S1903,1904:CSG1111 S1905-1924:CSG1113 S1925:CSG1111 DISP VOL+ EQ+ EQ- VOL- SOURCE ENT PGM 1 2 3 5 4 6 TA PTY BAND AUDIO FUNC EJECT RESET 20 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A C A CN801 3.4 KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A C C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 3.5 DSP UNIT D FREQUENCY CONVERSION BUFFER DSP, DAC AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A A CN252 DSP CONTROLLER TUNER SIGNAL IP-BUS SIGNAL CD(DIGITAL) SIGNAL CD,TUNER,IP-BUS SIGNAL D DSP UNIT D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 3.6 ASL UNIT E ASL UNIT AMP FILTER MICROPHONE A CN141 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DEH-P9000R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 3.7 CD MECHANISM MODULE H SPINDLE MOTOR M3 CXB2562 Q1 CPT230SX-TU Q2 CPT230SX-TU CARRIAGE MOTOR M1 CXB2190 LOADING MOTOR M2 CXB2195 PHOTO UNIT CONTROL UNIT PICKUP UNIT(SERVICE) RF-A CD DRIVER 5V REGULATOR CN101 CN802 CN801 SWITCHES: CONTROL UNIT S801 : HOME SWITCH.....ON-OFF S802 : CLAMP SWITCH....ON-OFF The underlined indicates the switch position. I H I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A RF-AMP,SERVO,DSP,DAC SINGLE-CD CONTROLLER BIT LENGTH EXPANSION 8.380MHz CN701 CN702 A CN991 A CN251 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DEH-P9000R 1 RFI 0.5V/div. 0.5µs/div. Normal mode: play 1 CH1: RFI 1V/div. 2 CH2: MIRR 5V/div. Test mode: Tracking open 0.5ms/div. 1 CH1: RFI 1V/div. 2 CH2: MIRR 5V/div. Normal mode: The defect part passes 800µm 0.5ms/div. 3 CH1: FD 0.5V/div. 4 CH2: FO+ 2V/div. Test mode: No disc, Focus close 0.2s/div. 3 CH1: FD 0.5V/div. 5 CH2: FOK 2V/div. Normal mode: Focus close 0.2s/div. 6 CH1: FE 0.5V/div. 7 CH2: XSI 2V/div. Normal mode: Focus close 1ms/div. REFO → 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: 32 tracks jump (REV) 0.5ms/div. 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: Single jump (REV) 0.5ms/div. 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: 100 tracks jump (REV) 5ms/div. 6 CH1: FE 0.1V/div. 3 CH2: FD 0.2V/div. Normal mode: Play 20ms/div. 3 CH1: FD 0.5V/div. 0 CH2: MD 1V/div. Normal mode: Focus close (12cm) 0.5s/div. 3 CH1: FD 0.5V/div. 0 CH2: MD 1V/div. Normal mode: Focus close (8cm) 0.5s/div. REFO → REFO → REFO → REFO → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → - Waveforms Note:1. The encircled numbers denote measuring pointes in the circuit diagram. 2. Reference voltage REFO:2.5V REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 DEH-P9000R 8 CH1: TE 0.2V/div. 9 CH2: TD 0.2V/div. Normal mode: play 8 CH1: TE 0.5V/div. ! CH2: SD 0.5V/div. TEST mode: 100 Tracks jump(FWD) 5ms/div. 0 MD 0.5V/div. 0.1s/div. Normal mode: Play (12cm) 0 MD 1V/div. 10ms/div. Normal mode: Long Search (12cm) @ EFM 1V/div. 5µs/div. Normal mode: play 8 CH1: TE 1V/div. # CH2: TEC 1V/div. Test mode: Focus close Tracking open 2ms/div. 8 CH1: TE 0.5V/div. 6 CH2: FE 0.5V/div. Normal mode: AGC after focus close 0.2s/div. $ PLCK 2V/div. 0.5µs/div. Normal mode: play 20ms/div. % SCKO 2V/div. 1µs/div. Normal mode: play ^ Dout 2V/div. 10µs/div. Normal mode: play & LRCK 2V/div. 20µs/div. Normal mode: play * VD 5V/div. 50ms/div. Normal mode: No disc GND → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → GND → REFO → GND → REFO → GND → REFO → GND → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 DEH-P9000R 6 CH1: FE 0.2V/div. 3 CH2: FD 0.5V/div. Normal mode: During AGC 1ms/div. 8 CH1: TE 0.2V/div. 9 CH2: TD 0.5V/div. Normal mode: During AGC 1 CH1: RFI 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 1ms/div. 0.5ms/div. 3 CH1: FD 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.5ms/div. 9 CH1: TD 0.1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.5ms/div. REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DEH-P9000R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D CN3001 CORD ASSY MAIN ANTENNA 32 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams A A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B TUNER AMP UNIT M951 CN701 H SUB ANTENNA F CN702 G PRE OUT H CN4501 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A A SIDE A B IP-BUS IN CN1901 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DEH-P9000R 5 6 7 8 5 6 7 8 D C B A A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 4.2 FM/AM TUNER UNIT B B SIDE A FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A B B SIDE B FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 4.3 KEYBOARD UNIT A CN801 VOL+ DISP RESET EQ+ EQ- VOL- SOURCE ENT PGM 1 2 3 4 5 6 TA PTY EJECT FUNC BAND AUDIO SIDE A SIDE B OEL MODULE C C KEYBOARD UNIT C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 4.4 DSP UNIT SIDE A SIDE B A CN252 D D DSP UNIT D DSP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A E E ASL UNIT 4.5 ASL UNIT SIDE A SIDE B A CN141 E ASL UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A F SWITCH PCB A CN851 4.6 SWITCH PCB BLUE RED WHITE 4.7 MIC JACK PCB BLUE RED WHITE G MIC JACK PCB A CN131 F G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DEH-P9000R 1 2 3 4 1 2 3 4 D C B A 4.8 CD MECHANISM MODULE SIDE A H I CONTROL UNIT F E REFO M1 CARRIAGE MOTOR M2 LOADING MOTOR M3 SPINDLE MOTOR PICKUP UNIT(SERVICE) CN991 321 PHOTO UNIT H I A H CN802 I CN251 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DEH-P9000R D C B A 1 2 3 4 1 2 3 4 SIDE B H 1 100 76 26 50 25 75 51 CONTROL UNIT H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DEH-P9000R 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : CWM6212 Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC CA0008AM IC 203 IC PML004AF IC 271 IC PA2028A IC 301 IC PAL005A IC 401 IC S-81250SGUP IC 501 IC PM4009A IC 601 IC PD5482A IC 851 IC BA6288FS IC 961 IC S-80735ANDZI IC 971 IC NJM7805FA Q 101 Transistor 2SA1162 Q 102 Transistor DTC124EK Q 131 Transistor 2SC2412K Q 132 Transistor IMD2A Q 151 Transistor 2SD1757K Q 152 Transistor 2SD1757K Q 153 Transistor IMH3A Q 154 Transistor DTA114EK Q 155 Transistor 2SC2412K Q 261 Transistor IMD2A Q 291 Transistor 2SD1859 Q 292 Transistor IMD2A Q 301 Transistor DTC124EK Q 302 Transistor DTC124EK Q 351 Transistor 2SC3326 Q 352 Transistor 2SC3326 Q 353 Transistor 2SC3326 Q 354 Transistor 2SC3326 Q 355 Transistor 2SC3326 Q 356 Transistor 2SC3326 Q 401 Transistor 2SC2412K Q 402 Transistor 2SC2412K Q 501 Transistor DTA124EK Q 641 Transistor DTC114EK Q 681 Transistor 2SA1162 Q 682 Transistor DTC124EK Q 683 Transistor 2SC2412K Q 801 Transistor 2SD1760F5 Q 802 Transistor IMD2A Q 803 Transistor 2SD2396 Q 805 Transistor 2SC2412K Q 806 Transistor 2SB1238 Q 807 Transistor DTC143EK Q 808 Transistor IMD2A Q 851 Transistor 2SD1760F5 Q 852 Transistor DTA114EK Q 853 Transistor DTC124EK Q 911 Transistor 2SD1760F5 Q 913 Transistor IMD2A Q 921 Transistor 2SD2396 Q 922 Transistor DTC114EK Q 923 Transistor 2SB1238 Q 931 Transistor IMX1 Q 932 Transistor DTC114EK Q 951 Transistor 2SA1162 Q 962 Transistor 2SC2412K Q 971 Transistor DTC123EK Q 972 Transistor 2SB1238 Q 981 Transistor 2SC2412K Q 982 Transistor 2SC2412K Q 991 Transistor IMD2A Q 998 Transistor 2SD2396 D 131 Diode MA3039(L) D 291 Diode MA3056(M) D 401 Diode 1SR154-400 D 402 Diode HZS16(2) D 683 LED BR4361F D 801 Diode Network DA204U D 802 Diode Network DA204U D 803 Diode Network DA204U D 804 Diode Network DA204U D 805 Diode MA3056(M) D 806 Diode HZS9L(C2) D 807 LED CL170PGCD D 808 LED CL170PGCD D 809 LED CL170PGCD D 810 Diode MA3062(M) D 851 Diode HZS7L(C3) D 852 Diode 1SS133 D 853 Diode 1SS133 D 901 Diode ERA15-02VH D 902 Diode ERA15-02VH D 903 Diode ERA15-02VH D 911 Diode ERA15-02VH D 912 Diode HZS6L(B1) D 921 Diode HZS9L(C1) D 931 Diode HZS7L(A1) D 932 Diode HZS7L(C3) D 933 Diode ERA15-02VH D 951 Diode MA152WK D 961 Diode MA152K D 971 Diode MA152WK D 981 Diode MA152WK D 982 Diode HZS9L(A2) D 983 Diode MA152K D 984 Diode MA152WK D 985 Diode 1SS133 D 991 Diode HZS9L(B1) ZNR 451 Surge Protector DSPS-201M-S00B L 101 Inductor LAU3R3K L 141 Inductor CTF1420 L 251 Ferri-Inductor LAU2R2K L 252 Ferri-Inductor LAU1R0M L 271 Ferri-Inductor LAU101K L 401 Ferri-Inductor LAU2R2K =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com L 402 Inductor LCTB4R7K2125 L 403 Inductor CTF1420 L 404 Inductor LCTA1R0J3225 L 501 Inductor CTF1295 L 502 Inductor CTF1420 L 601 Inductor LAU100K L 801 Inductor LAU100K L 802 Inductor CTF1484 L 951 Ferri-Inductor LAU2R2K X 501 Crystal Resonator 3.648MHz CSS1447 X 601 Radiator 10.00MHz CSS1475 SP 641 Buzzer CPV1012 FM/AM Tuner Unit CWE1500 DSP Unit CWX2323 RESISTORS R 101 RS1/10S101J R 102 RS1/10S620J R 103 RS1/10S101J R 104 RS1/10S222J R 105 RS1/10S103J R 106 RS1/10S562J R 107 RS1/10S332J R 108 RS1/16S102J R 109 RS1/16S102J R 110 RS1/16S223J R 111 RS1/16S223J R 112 RS1/16S181J R 113 RS1/16S181J R 131 RS1/10S104J R 132 RS1/10S222J R 133 RS1/10S103J R 134 RS1/10S561J R 135 RS1/10S223J R 136 RS1/10S473J R 153 RS1/10S224J R 154 RS1/10S224J R 155 RS1/10S222J R 156 RS1/10S222J R 157 RS1/10S223J R 158 RS1/10S223J R 159 RS1/10S224J R 160 RS1/16S473J R 161 RS1/16S162J R 162 RS1/16S162J R 163 RS1/16S272J R 164 RS1/16S272J R 165 RS1/10S104J R 166 RS1/10S104J R 208 RS1/16S102J R 209 RS1/16S102J R 210 RS1/16S102J R 241 RS1/10S102J R 242 RS1/10S102J R 251 RS1/10S472J R 252 RS1/10S472J R 253 RS1/10S472J R 254 RS1/10S472J R 255 RS1/10S223J R 256 RS1/10S223J R 257 RS1/10S331J R 258 RS1/10S331J R 259 RS1/10S331J R 260 RS1/10S331J R 261 RN1/10SE4702D R 262 RN1/10SE4702D R 263 RS1/10S102J R 283 RS1/10S203J R 284 RS1/10S0R0J R 291 RD1/4PU911J R 301 RS1/10S103J R 302 RS1/10S103J R 303 RS1/10S103J R 304 RS1/10S331J R 351 RS1/10S820J R 352 RS1/10S820J R 353 RS1/10S820J R 354 RS1/10S820J R 355 RS1/10S820J R 356 RS1/10S820J R 357 RS1/16S223J R 358 RS1/16S223J R 359 RS1/16S223J R 360 RS1/16S223J R 361 RS1/16S223J R 362 RS1/16S223J R 363 RS1/16S103J R 364 RS1/16S103J R 365 RS1/16S103J R 366 RS1/16S103J R 367 RS1/16S103J R 368 RS1/16S103J R 369 RS1/16S471J R 370 RS1/16S471J R 371 RS1/16S471J R 372 RS1/16S471J R 373 RS1/16S471J R 374 RS1/16S471J R 375 RS1/10S0R0J R 376 RS1/10S0R0J R 377 RS1/10S0R0J R 401 RS1/10S473J R 402 RS1/10S473J R 403 RS1/10S681J R 404 RS1/10S681J R 405 RS1/10S681J R 406 RS1/10S102J R 407 RS1/10S473J R 409 RS1/16S681J R 410 RS1/16S103J R 411 RS1/16S681J R 412 RS1/16S681J R 413 RS1/16S681J R 414 RS1/16S473J R 415 RS1/16S472J R 416 RS1/16S473J R 417 RS1/16S473J R 418 RS1/10S473J R 419 RS1/10S222J R 420 RS1/10S222J R 421 RS1/16S681J R 422 RS1/16S681J R 423 RS1/10S0R0J R 424 RS1/16S393J R 426 RS1/16S153J R 427 RS1/16S474J R 428 RS1/16S681J R 431 RS1/8S151J R 501 RS1/16S102J R 502 RS1/16S102J R 503 RS1/16S102J DEH-P9000R =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 45 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DEH-P9000R R 507 RS1/10S0R0J R 508 RS1/16S0R0J R 511 RS1/16S102J R 512 RS1/16S0R0J R 513 RS1/16S225J R 514 RS1/10S0R0J R 518 RS1/16S681J R 601 RS1/16S473J R 602 RS1/16S472J R 603 RS1/16S221J R 604 RS1/16S682J R 605 RS1/16S221J R 606 RS1/16S682J R 607 RS1/16S102J R 608 RS1/16S102J R 609 RS1/16S473J R 610 RS1/16S473J R 611 RS1/16S473J R 612 RS1/16S221J R 613 RS1/16S682J R 614 RS1/16S221J R 615 RS1/16S682J R 616 RS1/16S221J R 617 RS1/16S473J R 618 RS1/16S221J R 619 RS1/16S682J R 620 RS1/16S473J R 623 RS1/16S473J R 627 RS1/16S473J R 628 RS1/16S473J R 633 RS1/10S0R0J R 634 RS1/10S102J R 637 RS1/16S473J R 641 RS1/10S202J R 642 RS1/10S102J R 651 RS1/10S0R0J R 652 RS1/10S0R0J R 653 RS1/10S0R0J R 658 RS1/16S473J R 681 RS1/8S102J R 686 RS1/10S103J R 687 RS1/10S223J R 688 RS1/10S223J R 689 RS1/10S223J R 690 RS1/10S272J R 695 RS1/16S473J R 698 RS1/8S471J R 699 RS1/10S102J R 700 RS1/10S103J R 801 RS1/8S222J R 802 RS1/8S222J R 803 RS1/8S222J R 804 RS1/8S103J R 805 RS1/8S472J R 806 RS2PMF220J R 807 RS1/8S221J R 809 RS1/10S103J R 810 RS1/10S222J R 811 RD1/4PU102J R 812 RS1/10S152J R 813 RS1/4S221J R 814 RD1/4PU391J R 818 RS1/10S103J R 819 RS1/8S221J R 820 RS1/10S1R0J R 821 RS1/10S1R0J R 851 RD1/4PU271J R 852 RS1/10S102J R 853 RS1/10S102J R 862 RS1/10S102J R 864 RS1/10S102J R 911 RS1/10S0R0J R 912 RS1/10S152J R 913 RS1/10S512J R 914 RS1/10S1R0J R 921 RS1/10S1R0J R 922 RD1/4PU221J R 923 RS1/10S102J R 924 RS1/4S152J R 926 RS1/10S223J R 931 RS1/10S472J R 932 RS1/10S473J R 933 RS1/10S103J R 934 RS1/10S473J R 935 RS1/10S103J R 936 RS1/10S103J R 951 RS1/8S153J R 952 RS1/10S472J R 953 RS1/10S472J R 954 RS1/16S102J R 962 RS1/10S102J R 963 RS1/10S473J R 964 RS1/10S822J R 971 RS1/10S102J R 972 RD1/4PU102J R 973 RS1/10S473J R 981 RS1/16S223J R 982 RS1/10S473J R 983 RS1/10S103J R 984 RS1/10S473J R 985 RS1/10S102J R 986 RS1/10S224J R 989 RS1/10S473J R 991 RD1/4PU221J R 992 RS1/10S221J CAPACITORS C 101 CKSQYB104K16 C 102 CKSQYB104K16 C 131 CKSQYB681K50 C 132 CEJA101M10 C 141 CCSQCH101J50 C 151 CEJA1R0M50 C 152 CEJA1R0M50 C 153 CKSQYB223K50 C 161 CKSQYB123K25 C 162 CKSQYB123K25 C 171 CEJA470M16 C 172 CKSQYB104K16 C 173 CEJA100M16 C 201 CKSYB105K16 C 205 CKSYB224K16 C 206 CKSYB224K16 C 207 CKSYB105K16 C 208 CKSYB105K16 C 209 CKSYB105K16 C 210 CKSYB105K16 C 211 CEJANP4R7M16 C 212 CEJANP4R7M16 C 213 CEJANP4R7M16 C 214 CEJANP4R7M16 C 215 CKSQYB473K50 C 216 CKSQYB473K50 C 217 CKSQYB473K50 C 218 CKSQYB473K50 C 219 CKSYB105K16 C 220 CKSYB105K16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P9000R C 221 CKSYB105K16 C 222 CKSYB105K16 C 223 CKSYB105K16 C 224 CKSYB105K16 C 225 CKSQYB333K50 C 226 CKSQYB123K50 C 227 CKSQYB473K50 C 228 CKSQYB153K50 C 229 CKSQYB153K50 C 241 CKSQYB152K50 C 242 CKSQYB152K50 C 251 CEJA4R7M35 C 252 CEJA4R7M35 C 253 CEJA100M16 C 254 CEJA100M16 C 255 CKSQYB104K16 C 256 CKSQYB104K16 C 257 CEJA100M16 C 258 CEJA100M16 C 259 CKSQYB103K50 C 260 CKSQYB103K50 C 261 CKSQYB103K50 C 262 CKSYB475K10 C 263 CEJANP100M10 C 277 CEJA4R7M35 C 278 CEJA101M16 C 279 CEJA100M16 C 280 CEJA100M16 C 281 CKSYB225K16 C 282 CEJA330M25 C 283 CEJA330M25 C 286 CASAQ3R3M16 C 287 CKSYB684K25 C 291 CKSYB225K16 C 292 CKSQYB103K50 C 293 CKSQYB103K50 C 301 CKSQYB224K16 C 302 CKSQYB224K16 C 303 CKSQYB224K16 C 304 CKSQYB224K16 C 306 CEJA330M10 C 307 470µF/16V CCH1339 C 309 CKSQYB104K16 C 310 CEJA100M16 C 311 CKSYB105K16 C 351 CEJA100M35 C 352 CEJA100M35 C 353 CEJA100M35 C 354 CEJA100M35 C 355 CEJA100M35 C 356 CEJA100M35 C 357 CKSRYB222K50 C 358 CKSRYB222K50 C 359 CKSRYB222K50 C 360 CKSRYB222K50 C 361 CKSRYB222K50 C 362 CKSRYB222K50 C 401 CKSQYB182K50 C 403 CKSQYB473K16 C 404 CEJA101M10 C 405 CKSQYB103K50 C 406 CEJA220M10 C 407 CKSQYB103K50 C 408 CKSQYB223K50 C 409 CKSQYB223K50 C 411 CKSRYB472K50 C 412 CKSQYB472K50 C 413 CKSQYB103K50 C 431 CEJA101M16 C 432 CKSQYB104K16 C 435 CCSQCH101J50 C 502 CCSQCH101J50 C 503 CCSQCH270J50 C 504 CCSQCH270J50 C 505 CKSQYB104K16 C 506 CKSQYB471K50 C 507 CKSQYB471K50 C 508 CKSQYB104K16 C 509 CEJA220M6R3 C 511 CKSQYB103K50 C 512 CCSRCH101J50 C 601 CEJA4R7M35 C 602 CKSQYB103K50 C 603 CCSQCH101J50 C 604 CCSQCH180J50 C 605 CCSQCH180J50 C 651 CKSYB225K16 C 683 CKSQYB103K50 C 686 CKSQYB473K16 C 801 CKSYB475K10 C 802 CKSQYB104K16 C 803 CEJA470M10 C 804 CKSQYB103K50 C 805 CEJA470M10 C 806 CKSQYB103K50 C 807 CKSQYB102K50 C 808 CKSYB221K50 C 809 CKSYB103K50 C 810 CKSYB475K10 C 811 CKSYB225K16 C 812 CCSCH101J50 C 813 CKSQYB103K50 C 814 CKSQYB105K10 C 851 CKSQYB103K50 C 852 CKSYB104K16 C 853 CEJA220M16 C 855 CKSQYB102K50 C 856 CCSQCH101J50 C 857 CCSQCH101J50 C 901 CKSYB103K50 C 911 470µF/16V CCH1183 C 912 CKSQYB472K50 C 913 CKSQYB103K50 C 914 CEJA470M10 C 915 470µF/16V CCH1183 C 921 330µF/10V CCH1181 C 922 CKSQYB103K50 C 923 CEJA101M16 C 931 CKSYB105K16 C 951 CKSYB103K50 C 961 CKSQYB102K50 C 962 CKSQYB104K16 C 963 CEJA2R2M50 C 971 CEJA101M16 C 972 CEJA100M16 C 973 CKSQYB103K50 C 975 CKSQYB102K50 C 981 CEJA220M16 C 991 CKSQYB473K50 C 992 CKSQYB102K50 C 993 CEJA101M10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 47 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Unit Number : CWE1500 Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PML002A IC 2 IC PM4008A IC 3 IC BR9010FV Q 1 Transistor 2SC4081 Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 51 Transistor 2SC4081 Q 201 FET 2SK932 Q 202 Transistor DTC124EU Q 204 Transistor 2SC4081 D 1 Diode KV1410(23) D 2 Diode 1SV248 D 4 Diode KV1410(23) D 6 Diode KV1410(23) D 101 Diode MA110 D 201 Diode MA143 D 202 Diode MA147 D 903 Diode KV1410(23) D 904 Diode SVC253 L 1 Coil CTC1155 L 2 Coil CTC1155 L 3 Inductor LCTB100K2125 L 4 Coil CTC1155 L 201 Inductor LCTB330K1608 L 202 Inductor CTF1287 L 203 Inductor LCTA121J3225 L 901 Coil CTC1154 L 902 Inductor LCTA3R3J3225 L 904 Inductor LCTBR47K1608 L 905 Inductor LCTBR47K1608 T 51 Coil CTE1132 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442 CF 202 Ceramic Filter CTF1476 X 901 Crystal Resonator 10.250MHz CSS1432 RESISTORS R 1 RS1/16S153J R 2 RS1/16S103J R 6 RS1/16S103J R 7 RS1/16S273J R 8 RS1/16S473J R 9 RS1/16S223J R 10 RS1/16S473J R 11 RS1/16S221J R 12 RS1/16S103J R 13 RS1/16S104J R 16 RS1/16S223J R 17 RS1/16S221J R 18 RS1/16S221J R 19 RS1/16S473J R 20 RS1/16S470J R 51 RS1/16S470J R 52 RS1/16S103J R 53 RS1/16S103J R 54 RS1/16S331J R 55 RS1/16S331J R 56 RS1/16S560J R 57 RS1/16S560J R 58 RS1/16S102J R 59 RS1/16S225J R 60 RS1/16S133J R 61 RS1/16S433J R 62 RS1/16S562J R 101 RS1/16S333J R 102 RS1/16S103J R 103 RS1/16S333J R 104 RS1/16S562J R 106 RS1/16S0R0J R 108 RS1/16S0R0J R 110 RS1/16S154J R 111 RS1/16S273J R 112 RS1/16S223J R 113 RS1/16S222J R 114 RS1/16S333J R 115 RS1/16S334J R 116 RS1/16S473J R 117 RS1/16S333J R 118 RS1/16S223J R 122 RS1/16S0R0J R 202 RS1/16S472J R 203 RS1/16S225J R 204 RS1/16S102J R 205 RS1/16S220J R 206 RS1/16S471J R 208 RS1/16S104J R 209 RS1/16S104J R 210 RS1/16S563J R 213 RS1/16S223J R 902 RS1/16S103J R 904 RS1/16S473J R 907 RS1/16S103J R 908 RS1/16S681J R 909 RS1/16S473J R 914 RS1/16S562J CAPACITORS C 1 CCSQCH5R0C50 C 2 CCSRCH5R0C50 C 4 CCSRCJ3R0C50 C 6 CKSQYB105K10 C 8 CKSRYB222K50 C 10 CCSRCH220J50 C 11 CCSRCH150J50 C 12 CCSRCH8R0D50 C 14 CCSRCJ3R0C50 C 15 CKSRYB103K50 C 16 CKSRYB222K50 C 17 CKSRYB222K50 C 18 CCSRCJ3R0C50 C 19 CKSRYB103K50 C 20 CKSRYB103K50 C 21 CKSRYB103K50 C 24 CKSQYB334K16 C 31 CKSRYB222K50 C 32 CCSRCH470J50 C 35 CKSRYB103K50 C 51 CKSRYB103K50 C 52 CKSRYB473K16 C 53 CCSRCK2R0C50 C 54 CKSRYB103K50 C 55 CKSRYB104K16 C 56 CKSRYB104K16 C 58 CKSQYB224K16 C 59 CKSRYB223K25 C 60 CKSRYB104K16 C 101 CEALNP100M10 48 DEH-P9000R =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 102 CCSRCH151J50 C 103 CKSRYB473K16 C 105 CKSRYB682K25 C 106 CEAL2R2M50 C 107 CKSRYB103K50 C 108 CKSQYB474K16 C 109 CKSQYB474K16 C 110 CKSRYB104K16 C 111 CKSRYB104K16 C 112 CKSRYB104K16 C 113 CKSRYB123K25 C 114 CEAL220M6R3 C 115 CKSRYB473K16 C 116 CEAL2R2M50 C 117 CKSRYB102K50 C 120 CKSRYB153K25 C 121 CKSRYB332K50 C 122 CKSRYB682K25 C 123 CKSRYB681K50 C 125 CKSRYB103K50 C 126 CKSRYB103K50 C 127 CEAL2R2M50 C 128 CKSRYB103K50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB104K16 C 204 CKSRYB332K50 C 205 CKSRYB103K50 C 206 CKSRYB104K16 C 207 CKSRYB473K16 C 208 CCSRCH560J50 C 209 CEAL470M6R3 C 210 CKSRYB103K50 C 211 CKSRYB103K50 C 212 CCSRCH101J50 C 215 CKSRYB223K25 C 216 CKSQYB334K16 C 217 CKSRYB103K50 C 219 CKSQYB105K10 C 220 CKSRYB104K16 C 221 CKSRYB473K16 C 222 CKSQYB334K16 C 223 CKSQYB474K16 C 224 CKSRYB104K16 C 225 CKSRYB272K50 C 226 CKSRYB682K25 C 902 CCSRCH270J50 C 904 CKSRYB223K25 C 905 CKSRYB103K50 C 906 CCSRTH100D50 C 907 CCSRTH150J50 C 909 CCSRTH100D50 C 910 CKSRYB332K50 C 912 CKSQYB474K16 C 913 CKSRYB223K25 C 914 CKSRYB682K25 C 915 CKSQYB223K25 C 916 CKSQYB474K16 C 917 CKSYB475K10 C 918 CKSRYB223K25 C 919 CKSQYB225K10 C 920 CCSRCH270J50 C 921 CCSRCH270J50 C 922 CKSYB105K16 C 923 CKSRYB103K50 Unit Number : CWM6225 Unit Name : Keyboard Unit MISCELLANEOUS IC 1901 IC PD5471A IC 1902 IC PD8051A IC 1903 HIC Module RS-140 Q 1901 Transistor DTC143TK Q 1902 Transistor IMH10A Q 1903 Transistor IMH10A Q 1904 Transistor IMH10A Q 1905 Transistor IMH10A Q 1906 Transistor IMH10A D 1901 Diode Network DA204U D 1902 Diode Network DA204U D 1904 Diode MA110 D 1905 LED CL170UBX L 1901 Chip Inductor LCTA2R2J3225 L 1902 Chip Inductor LCTA2R2J3225 L 1903 Inductor CTF1484 L 1904 Inductor LCTA220J2520 L 1905 Inductor Array CTF1421 L 1906 Inductor Array CTF1421 L 1907 Inductor CTF1295 L 1908 Inductor CTF1295 X 1901 Ceramic Resonator 15.62MHz CSS1458 S 1901 Push Switch CSG1113 S 1902 Push Switch CSG1113 S 1903 Push Switch CSG1111 S 1904 Push Switch CSG1111 S 1905 Push Switch CSG1113 S 1906 Push Switch CSG1113 S 1907 Push Switch CSG1113 S 1908 Push Switch CSG1113 S 1909 Push Switch CSG1113 S 1910 Push Switch CSG1113 S 1911 Push Switch CSG1113 S 1912 Push Switch CSG1113 S 1913 Push Switch CSG1113 S 1914 Push Switch CSG1113 S 1915 Push Switch CSG1113 S 1916 Push Switch CSG1113 S 1917 Push Switch CSG1113 S 1918 Push Switch CSG1113 S 1919 Push Switch CSG1113 S 1920 Push Switch CSG1113 S 1921 Push Switch CSG1113 S 1922 Push Switch CSG1113 S 1923 Push Switch CSG1113 S 1924 Push Switch CSG1113 S 1925 Push Switch CSG1111 RESISTORS R 1901 RS1/16S154J R 1902 RS1/16S473J R 1903 RA4C101J R 1904 RA3C101J R 1905 RA3C101J R 1906 RA4C101J R 1907 RS1/16S473J R 1908 RA3C101J R 1909 RA3C101J R 1910 RA4C101J R 1911 RA4C101J R 1912 RA4C101J R 1913 RA3C101J R 1914 RA4C101J R 1915 RA4C101J 49 DEH-P9000R =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DEH-P9000R R 1922 RS1/10S121J R 1923 RS1/10S2R2J R 1924 RS1/8S222J R 1925 RS1/8S222J R 1930 RS1/16S472J R 1931 RS1/16S473J R 1951 RS1/8S242J R 1952 RS1/8S242J R 1953 RS1/10S103J R 1954 RS1/8S242J R 1955 RS1/8S242J R 1960 RS1/8S911J R 1961 RS1/8S911J R 1962 RS1/10S511J R 1963 RS1/10S511J R 1964 RS1/10S511J R 1965 RS1/10S511J R 1966 RS1/8S511J R 1967 RS1/8S511J R 1968 RS1/8S511J R 1969 RS1/8S511J R 1970 RS1/8S511J R 1971 RS1/8S511J R 1972 RS1/8S511J R 1973 RS1/8S511J R 1974 RS1/8S751J R 1975 RS1/8S751J R 1976 RS1/8S751J R 1977 RS1/8S751J CAPACITORS C 1901 CKSQYB105K10 C 1902 CKSRYB103K25 C 1903 CSZS100M6R3 C 1904 CSZS100M6R3 C 1906 CKSQYB103K25 C 1907 CSZS100M6R3 C 1908 CKSRYB473K16 C 1911 CKSRYB473K16 C 1914 CKSRYB103K25 C 1916 CKSQYB104K25 C 1917 CSZSR100M16 C 1918 CKSRYB102K50 C 1919 CCSQCH221J50 Unit Number : CWX2323 Unit Name : DSP Unit MISCELLANEOUS IC 3001 IC PD5504A IC 3101 IC AK7714 IC 3201 IC TC74HC393AF IC 3202 IC TC9246F IC 3203 IC HD74HCT126FP IC 3301 IC NJM4580M D 3301 Diode MA8043(L) L 3001 High Loss Inductor CTF1410 L 3101 High Loss Inductor CTF1410 L 3201 High Loss Inductor CTF1410 L 3202 Inductor LCTB2R2K1608 L 3203 High Loss Inductor CTF1410 L 3301 High Loss Inductor CTF1410 L 3302 High Loss Inductor CTF1410 L 3303 High Loss Inductor CTF1410 L 3304 High Loss Inductor CTF1410 L 3305 High Loss Inductor CTF1410 L 3306 High Loss Inductor CTF1410 L 3307 High Loss Inductor CTF1410 L 3308 High Loss Inductor CTF1410 L 3309 High Loss Inductor CTF1410 L 3310 High Loss Inductor CTF1410 X 3001 Radiator 10.00MHz CSS1428 X 3101 Crystal Resonator 22.5792MHz CSS1403 RESISTORS R 3001 RA4C102J R 3004 RS1/16S102J R 3010 RS1/16S681J R 3011 RS1/16S102J R 3012 RS1/16S102J R 3013 RS1/16S102J R 3014 RS1/16S102J R 3018 RS1/16S102J R 3023 RA3C221J R 3024 RS1/16S102J R 3025 RA3C102J R 3026 RA4C681J R 3028 RS1/16S473J R 3029 RS1/16S473J R 3033 RS1/16S102J R 3034 RS1/16S102J R 3038 RS1/16S102J R 3039 RS1/16S102J R 3040 RS1/16S102J R 3041 RS1/16S102J R 3042 RS1/16S102J R 3043 RS1/16S102J R 3044 RS1/16S102J R 3045 RS1/16S473J R 3047 RS1/16S473J R 3048 RS1/16S473J R 3049 RS1/16S473J R 3101 RS1/16S0R0J R 3102 RS1/16S0R0J R 3103 RS1/16S471J R 3104 RS1/16S473J R 3105 RS1/16S473J R 3106 RS1/16S105J R 3107 RS1/16S102J R 3108 RS1/16S102J R 3109 RS1/16S102J R 3110 RS1/16S0R0J R 3201 RS1/16S332J R 3202 RS1/16S391J R 3203 RS1/16S101J R 3204 RS1/16S271J R 3301 RS1/16S273J R 3302 RS1/16S273J R 3303 RS1/16S512J R 3304 RS1/16S512J R 3305 RS1/16S272J R 3306 RS1/16S272J R 3307 RS1/16S681J CAPACITORS C 3001 CKSRYB103K50 C 3101 CCSRCH180J50 C 3102 CCSRCH180J50 C 3103 CKSQYB103K50 C 3104 CKSYB106K6R3 C 3105 CKSRYB104K16 C 3106 CKSRYB104K16 C 3107 CKSRYB104K16 C 3108 CKSRYB104K16 C 3201 CKSRYB103K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DEH-P9000R C 3202 CKSQYB474K16 C 3203 CKSRYB103K50 C 3204 CKSRYB123K25 C 3205 CKSRYB103K50 C 3206 CKSRYB103K50 C 3207 CCSRCH330J50 C 3208 CKSYB106K6R3 C 3301 CKSRYB332K50 C 3302 CKSRYB332K50 C 3303 CKSYB106K6R3 C 3304 CKSYB106K6R3 C 3305 CKSYB106K6R3 C 3306 CKSYB106K6R3 C 3307 CKSYB225K16 C 3308 CKSRYB104K16 C 3309 CKSYB106K6R3 C 3310 CKSRYB104K16 C 3311 CSZSR470M6R3 C 3312 CKSRYB104K16 C 3313 CKSYB106K6R3 C 3314 CKSRYB103K50 C 3315 CKSQYB105K10 Unit Number : CWX2322 Unit Name : ASL Unit MISCELLANEOUS IC 4501 IC NJM2068MD IC 4502 IC NJM2068MD Q 4501 Transistor 2SC2458 D 4501 Diode MA152WK D 4502 Diode MA3043(LMH) D 4503 Diode MA3075(M) VR 4501 Semi-fixed 10kΩ(B) CCP1319 MIC4501 Microphone CPM1011 RESISTORS R 4501 RS1/8S222J R 4502 RS1/8S683J R 4503 RS1/8S103J R 4504 RS1/8S472J R 4505 RS1/8S471J R 4506 RS1/8S682J R 4507 RS1/8S684J R 4508 RS1/8S562J R 4509 RS1/8S391J R 4510 RS1/8S472J R 4511 RS1/8S472J R 4512 RS1/8S472J R 4513 RS1/8S153J R 4514 RS1/8S153J R 4515 RS1/8S102J R 4517 RS1/8S270J CAPACITORS C 4501 CEJA470M10 C 4502 CEJA470M10 C 4503 CEJAR68M50 C 4504 CEJA100M16 C 4505 CEJA470M10 C 4506 CEJA470M16 C 4507 CEJA100M16 C 4508 CEJANP220M10 C 4509 CEJAR68M50 C 4510 CEJANP100M10 C 4511 CKSYB823K50 C 4512 CCSCH101J50 C 4513 CEJA470M10 Unit Number : Unit Name : Switch PCB S 951 Switch(CLOSE) CSN1012 S 952 Switch(OPEN) CSN1022 Unit Number : CWX2359 Unit Name : Control Unit MISCELLANEOUS IC 201 IC UPD63710GC IC 301 IC BA5985FM IC 601 IC PD0236AM IC 701 IC BA05SFP IC 901 IC PE5011C Q 101 Transistor 2SB1132 Q 901 Transistor UN2111 D 801 LED CL200IRX D 802 LED CL200IRX TH 901 Thermistor CCX1037 X 901 Radiator 8.380MHz CSS1453 S 801 Spring Switch(HOME) CSN1051 S 802 Spring Switch(CLAMP) CSN1052 RESISTORS R 101 RS1/8S120J R 102 RS1/8S100J R 103 RS1/16S222J R 201 RS1/16S104J R 205 RS1/16S103J R 206 RS1/16S393J R 207 RS1/16S182J R 208 RS1/16S304J R 210 RS1/16S0R0J R 212 RS1/16S103J R 213 RS1/16S103J R 214 RS1/16S123J R 215 RS1/16S273J R 216 RS1/16S273J R 217 RS1/16S681J R 218 RS1/16S681J R 309 RS1/16S473J R 310 RS1/16S473J R 501 RS1/16S102J R 502 RS1/16S681J R 503 RS1/16S681J R 504 RS1/16S681J R 505 RS1/16S681J R 506 RS1/16S681J R 507 RS1/16S0R0J R 511 RS1/16S0R0J R 512 RS1/16S512J R 605 RA4C0R0J R 801 RS1/8S751J R 802 RS1/8S751J R 901 RS1/16S222J R 902 RS1/16S473J R 903 RS1/16S222J R 904 RS1/16S473J R 905 RN1/16SE1502D R 907 RS1/16S473J R 908 RS1/16S222J R 909 RS1/16S104J R 910 RS1/16S103J R 911 RS1/16S223J R 912 RS1/16S473J R 917 RS1/16S0R0J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E F H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DEH-P9000R CAPACITORS C 101 CCSRCH102J25 C 102 CKSQYB104K16 C 103 CEV101M6R3 C 104 CEV470M6R3 C 105 CKSQYB334K16 C 106 CKSQYB334K16 C 107 CKSQYB334K16 C 201 CKSQYB104K16 C 202 CEV101M6R3 C 203 CKSQYB104K16 C 204 CKSRYB332K50 C 205 CKSQYB104K16 C 206 CKSRYB392K50 C 207 CKSQYB224K16 C 208 CCSRCH270J50 C 209 CCSRCJ3R0C50 C 210 CCSRCH221J50 C 211 CCSRCH101J50 C 212 CKSRYB682K25 C 213 CKSQYB104K16 C 214 CKSRYB104K16 C 215 CKSQYB104K16 C 216 CKSRYB104K16 C 217 CKSRYB104K16 C 218 CKSRYB104K16 C 219 CKSRYB104K16 C 220 CKSRYB104K16 C 223 CKSQYB471K50 C 301 CEV101M10 C 501 CKSRYB221K50 C 611 CKSRYB104K16 C 701 CEV101M6R3 C 702 22µF/6.3V CCH1300 C 703 CKSQYB334K16 C 801 CKSRYB103K25 C 802 CKSRYB103K25 C 901 CKSRYB472K50 C 902 CKSYB475K10 C 903 CKSRYB103K25 Unit Number : Unit Name : Photo Unit Q 1 Photo-transistor CPT230SX-TU Q 2 Photo-transistor CPT230SX-TU Miscellaneous Parts List Pickup Unit(Service)(P8) CXX1285 M 1 Motor Unit(CARRIAGE) CXB2190 M 2 Motor Unit(LOADING) CXB2195 M 3 Motor Unit(SPINDLE) CXB2562 M 951 Motor (AUTO FLAP) CXM1085 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DEH-P9000R 1) Precautions • This unit uses a single power supply (+5V) for the reg- ulator. The signal reference potential, therefore, is connected to REFO(approx. 2.5V) instead of GND. If REFO and GND are connected to each other by mis- take during adjustments, not only will it be impossi- ble to measure the potential correctly, but the servo will malfunction and a severe shock will be applied to the pick-up. To avoid this, take special note of the fol- lowing. Do not connect the negative probe of the measuring equipment to REFO and GND together. It is especially important not to connect the channel 1 negative probe of the oscilloscope to REFO with the channel 2 negative probe connected to GND. Since the frame of the measuring instrument is usual- ly at the same potential as the negative probe, change the frame of the measuring instrument to floating sta- tus. If by accident REFO comes in contact with GND, immediately switch the regulator or power OFF. • Always make sure the regulator is OFF when connect- ing and disconnecting the various filters and wiring required for measurements. • Before proceeding to further adjustments and mea- surements after switching regulator ON, let the player run for about one minute to allow the circuits to stabi- lize. • Since the protective systems in the unit's software are rendered inoperative in test mode, be very careful to avoid mechanical and /or electrical shocks to the sys- tem when making adjustment. • Disc detection during loading and eject operations is performed by means of a photo transistor in this unit.Consequently, if the inside of the unit is exposed to a strong light source when the outer casing is removed for repairs or adjustment, the following mal- functions may occur. *During PLAY, even if the eject button is pressed,the disc will not be ejected and the unit will remain in the PLAY mode. *The unit will not load a disc. When the unit malfunctions this way, either re-posi- tion the light source, move the unit or cover the photo transistor. 2) Test Mode This mode is used for adjusting the CD mechanism module of the device. • Test mode starting procedure Reset while pressing the 4 and 6 keys together. • Test mode cancellation Switch ACC, back-up OFF. • After pressing the EJECT key, do not press any other key until the disk is completely ejected. • If the ] or [ key is pressed while focus search is in progress, immediately turn the power off (otherwise the actuator may be damaged due to adhesion of the lenses). • Jump operation of TRs other than 100TR continues after releasing the key. CRG move and 100TR jump operations are brought into the “Tracking close” sta- tus when the key is released. • Powering Off/On resets the jump mode to “Single TR (91)”, the RF AMP gain setting to 0 dB, and the auto- matic adjustment value to the initial value. 6. ADJUSTMENT 6.1 CD ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DEH-P9000R - Flow Chart Focus Close *2 S Curve Check 01 01 01 00 00 00 (99 99 99) Display TYP 4 3 Reset SOURCE New test mode 6 [ BAND BAND BAND BAND BAND 3 *2 *1 +6dB +12dB *4 *5 6 6 6 6 1 2 1 2 ] ] [ 06 06 06 12 12 12 Sourse CD Single TR 32TRK 92(82) CRG Move 94(84) 100TRK 93(83) Focus Mode Select Focus Close/ S Curve Check CRG- Auto Adjustment Display Select CRG+ RF AGC Coefficient Display/ Rough Servo and RF AGC Tracking Open Display Tracking Open T. Close and Fit Servo *3 F.Offset Display RF.Offset Display F.Cansel Display *7 Single TR/32TR/100TR Voltage of CRG Motor = 2 [V] (F,T.AGC Gain = (Present Value/Initial Value) ¥ 20) *6 ] [ 1 3 Display 2 3 Display or 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or CRG- CRG+ T.Balance Adjustment *7 F, T, RF AGC/ F.Bias Display Select F, T AGC and RF AGC CRG Move, 100TR Jump Only TRK, MIN, SEC F.AGC Gain RF AGC Gain T.AGC Gain *8 Power ON (Adjustment for T.Offset) *5 *4 *4 *6 CRG/TR Jump NO. Select CRG+/TR Jump+ CRG-/TR Jump- Power OFF Display Display Display T.Close and F,T AGC and RF AGC and Fit Servo Display Power ON (Not adjustment for T.Offset) Display Display 2 RF AMP Gain Select 2 Power OFF Power OFF Power OFF 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 91 91 91 TRK SEC MIN 0x 0x 0x TRK SEC MIN 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN GG GG GG TRK SEC MIN Test Mode In *1 *8 *3 *8 F.Cancel Value = {Top Rank 8bit of Set Value (7F [H] to 80 [H] ) + 128} / 4 = 63 [D] to (32 [D] ) to 00 [D] 9x(8x):91(81) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DEH-P9000R • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mecha- nism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Oscilloscope, Two L.P.F. • Measuring Points • E, F, REFO • Disc • ABEX TCD-784 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 5V regulator on. 2. Using the ] and [ buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjust- ment the display should now read "81". Press key 3 2 times. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ- ence is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". F REFO E 100kΩ 390pF 100kΩ 390pF E REFO F REFO L.P.F. L.P.F. CONTROL UNIT Xch Ych Oscilloscope 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DEH-P9000R Grating waveform Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC 45° 0° 75° 60° 30° 90° www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DEH-P9000R 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (min- utes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Main unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx OR Err–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. CRG can't be moved from inner diameter. → Failure on home switch or CRG move mechanism. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). → Failure on spindle, stains or damages on disc, or excessive vibrations. Subcode NG A disc not containing CD-R data is found. Turned over disc are found, though rarely. → Failure on home switch or CRG move mechanism. RF AMP NG An appropriate RF AMP gain can't be determined. → CD signal error. 17 Electricity Setup NG APC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. A newly designed main unit must conform to the example given above. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DEH-P9000R - New Test Mode S-CD plays the same way as before. If an error such as off focus, spindle unlocking, unreadable sub-code, or sound skipping occurs after setup, its cause and time occurred (in absolute time) are displayed. During setup, operational status of the control software (internal RAM: CPOINT) is displayed. These displays and functions are prepared for enhancing aging in the servicing and efficiency of trouble analysis. (1) Shifting to the New Test Mode 1 Turn on the current test mode by starting the reset from the key (it varies between the products). 2 Select S-CD for the source through the specified procedure including use of the [SOURCE] key, and inserting the disc. Then, press the [ 6 ] key while maintaining the regulator turned off. 3 After the above operations, the new test mode remains on irrespective of whether the S-CD is turned on or off. You can reset the new test mode by turning on the reset start. * With some products, the new test mode can be reset through the same operations as that employed for shifting to the STBY mode (while maintaining the Acc turned off). (2) Key Correspondence Key Test mode New test mode Power Off Power On In-play Error Production BAND To power on To power off – Time/Err.No. switching (offset adjustment performed) ] – FWD-Kick FF/TR+ – [ – REV-Kick REV/TR- – 1 – T.Close (AGC performed) Scan – /parameter display switching 2 RF AMP gain switching Parameter display switching Mode – /T.BAL adjustment/T.Open 3 To power on F.Close/RF AGC/F.T.AGC – – (offset adjustment not performed) 6 – F.Mode switching Auto/Manu T.No./Time switching /T.Close (no AGC)/Jump switching Note: Eject and CD on/off is performed in the same procedure as that for the normal mode. (3) Cause of Error and Error Code Code Class Contents Description and cause 40 Electricity Off focus detected. FOK goes low. → Damages/stains on disc, vibrations or failure on servo. 41 Electricity Spindle unlocked. FOK = Low continued for 50 msec. → Damages/stains on disc, vibrations or failure on servo. 42 Electricity Sub-code unreadable. Sub-code was unreadable for 50 msec. → Damages/stains on disc, vibrations or failure on servo. 43 Electricity Sound skipping detected. Last address memory function was activated. → Damages/stains on disc, vibrations or failure on servo. Note: Mechanical errors during aging are not displayed. The error codes should be indicated in the same way as in the normal mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DEH-P9000R (4) Display of Operational Status (CPOINT) during Setup Status No. Contents Protective action 00 CD+5V ON process in progress. None 01 Servo LSI initialization (1/3) in progress. None 02 Servo LSI CRAM initialization in progress. None 03 Servo LSI initialization (2/3) in progress. None 04 Offset adjustment (1/3) in progress. None 05 Offset adjustment (2/3) in progress. None 06 Offset adjustment (3/3) in progress. None 07 FZD adjustment in progress. None 08 Servo LSI initialization (3/3) in progress. None 10 Carriage move to home position started. None 11 Carriage move to home position started. None 12 Carriage is moving toward inner diameter. Specified 10 seconds has been passed or failure on home switch. 13 Carriage is moving toward outer diameter. Specified 10 seconds has been passed or failure on home switch. 14 Carriage outer kick in progress. None 15 Carriage outer diameter feed (1 second) in progress. None 20 Servo close started. None 21 Pre-processing for focus search started. None 22 Spindle rotation and focus search started. None 23 Waiting for focus close (XSI=Low). Specified focus search time has been passed. 24 Standing by after focus close is over. Specified focus search time has been passed. 25 Focus search preprocessing is in None progress while setup protection is turned on. 26 Focus search preprocessing is in None progress while focus recovery is turned on. 27 Wait time after focus close is set up. Off focus. 28 Standing by after focus close is over. Off focus. 29 Setup (1/2) before T balance adjustment is started. Off focus. 30 Setup (2/2) before T balance adjustment is started. Off focus. 31 T balance adjustment started. Off focus. 32 T balance adjustment (1/2). Off focus. 33 T balance adjustment (2/2). Off focus. 34 Waiting for spindle rotation to end. Off focus. Spindle rough servo. 35 Standing by after spindle rough servo is over. Off focus. 36 RF AGC started. Off focus. 37 RF AGC started. Off focus. 38 RF AGC ending process in progress. Off focus. 39 Tracking close in progress. Off focus. 40 Standing by after tracking is closed. Off focus. Carriage closing in progress. 41 Focus/tracking AGC started. Off focus. 42 Focus AGC started. Off focus. 43 Focus AGC in progress. Off focus. 44 Tracking AGC in progress. Off focus. 45 Standing by after focus/tracking AGC are over. Off focus. 46 Spindle processes applicable servo. Off focus. 47 Check for servo close is started. Off focus. 48 Check of LOCK pin started. Off focus or spindle not locked. 49 RF AGC started. Off focus. 50 RF AGC in progress. Off focus. 51 Standing by after RF AGC is over. Off focus. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DEH-P9000R (5) Display Examples 1) During Setup (When status no. = 11) TRK No. MIN. SEC. 11 11' 11" 2) During Operation (TOC read, TRK search, Play, FF and REV) The same as in the normal mode. 3) When a Protection Error Occurred Switch to the following displays (A) and (B) using the [BAND] switch: (A) Error occurrence timing display in absolute time. An example: Error occurred in 12th tune at 34'56" in absolute time. TRK No. MIN. SEC. 12 34' 56" (B) Error No. display An example: Error #40 (Off focus is detected) ERROR-40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DEH-P9000R 7.1.2 DISASSEMBLY 7.1.2 DISASSEMBLY - Remove the Case (Not shown) 1. Remove the two screws, and then remove the Case. - Remove the CD Mechanism Module 1. Remove the four screws A. 2. Disconnect the two connectors, and then remove the CD Mechanism Module. - Remove the Tuner Amp Unit (1/2) 1. Disconnect the three connectors. 2. Remove the four screws A. 3. Disconnect the two stoppers indicated by arrows, and then remove the Grille Assy. A A A A CD Mechanism Module A Grille Assy A A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DEH-P9000R - Remove the Tuner Amp Unit (2/2) 1. Remove the screw A, four screws C, and then remove the Antenna Cable and Holder. 2. Remove the screw B. 3. Stretch the four tabs, and then remove the Tuner Amp Unit. - Remove the DSP Unit 1. Remove the three solder of tabs indicated by arrows, and then remove the Case. 2. Disconnect the connector, and then remove the DSP Unit. Antenna Cable A C C C C B Holder Tuner Amp Unit Case DSP Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DEH-P9000R - Removing the Upper Frame 1. Remove six Springs A, two Springs B and four Screws. 2. Remove two Tabs situated on rear side of the Upper Frame, remove two Arms on the front side, then remove two Tabs on the front side. - Removing the Carriage Mechanism 1. Disengage the Carriage Mechanism from the two dampers situated in the front side by driving it up, then disengage and remove the mechanism from the two dampers by driving it up aslant into front side direction. Note : When assembling the Carriage Mechanism, coat the dampers with alcohol prior to the assembly. - Removing the Clamp Arm Assy 1. Remove a Spring A, a B and a Spring C. 2. Drive the Clamp Arm Assy up into rear side direction, then disengage the arm from its current position Finally, drive the assembly approximately 45 degrees upward, then slide the assembly toward right side to remove it. B A B A A A Arm Arm A B C Upper Frame Carriage Mechanism Section Clamp Arm Assy Section A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DEH-P9000R - Removing the Guide Arm Assy 1. Remove a connector, a spring A and B 2. Drive the Guide Arm Assy up aslant into rear side direction, then remove it from a Pin. Finally, drive the assembly approximately 45 degrees upward, then slide the assembly toward left side to remove it. Note : When assembling the guide arm assembly, route the cord inside the assembly. In this operation, care must be exercised so that cord may be caught by the gear. - Removing the LO Arm Assy 1. Remove two Pins to dismount the LO Arm Assy. - Removing the Control Unit and the Spindle Motor 1. Remove from the connector after mounting the short pin on the flexible PCB of the pickup unit. 2. Remove two Soldered joints, then remove two Screws A. 3. Remove two connectors and a Screw B. 4. Disengage the Control Unit from two Tabs, then dis- mount the unit by sliding it toward left. 5. Dismount the Spindle Motor. A Guide Arm Assy Section B Pin LO Arm Assy Section Spindle Motor A A Control Unit Short Pin B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DEH-P9000R - Removing the Loading Motor and Carriage Motor 1. Remove the Spring and two Screws A. 2. Dismount the Loading Motor. 3. Remove the Belt, a Screw B, two Screws C, a Guide and a Screw Unit. 4. Dismount the Carriage Motor. Note : When assembling the Belt, use care so that it may not be contaminated by grease. - Removing the Pickup Unit 1. Remove two Screws and a Shaft. 2. Dismount the Pickup Unit. Pickup Unit Shaft C Guide B Screw Unit Carriage Motor A A C Belt Loading Motor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 DEH-P9000R 7.2 IC PML004AF PA2028A PAL005A S-81250SGUP PM4009A PD5482A BA6288FS BR9010FV PD5471A PD8051A PD5504A AK7714 TC74HC393AF TC9246F HD74HCT126FP NJM4580M UPD63710GC BA5985FM PD0236AM PE5011C PML004AF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 DEH-P9000R PA2028A PAL005A 1 2 3 4 5 6 7 Mute 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Mute Mute Mute STBY Protector Amp2 Amp1 Amp3 Amp4 TAB P-GND2 OUT2- OUT2+ STBY VCC OUT1- OUT1+ P-GND1 P-GND3 P-GND4 Switch_out MUTE OUT4+ OUT4- SVR IN1 IN2 IN4 S-GND IN3 Ac_gnd OUT3+ OUT3- VCC S-81250SGUP - + GND VIN VOUT 3 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DEH-P9000R PM4009A - Pin Functions (PD5482A) Pin No. Pin Name I/O Function and Operation 1 TUNPDO O PLL data output 2 TUNPCK O PLL clock output 3 TUNPCE O PLL chip enable output 4 TUNPCE2 O PLL chip enable output 2 5,6 NC Not used 7 IPPW O IP-BUS power supply control output 8,9 VSS1,2 GND 10 ASENBO O IP-BUS slave power supply control output 11 TELIN I Cellular mute input 12 RESET I Reset input 13 OSC1 O Oscillator connection pin 1 14 VSS3 GND 15 OSC2 O Oscillator connection pin 2 16 VCC1 5V 17 NMI I Pull up 18 rck I RDS clock input 19 ldet I PLL lock sense input 20 DALMON O DFS alarm output 21 RX2 I IP-BUS data input 2 22 SYSPW O System power supply control output 23 ISENS I Illumination sense input 24 PEE O Beep tone output 25 RDS57K I 57kHzBP-OUT sense input 26 FLPPW O Flap motor driver power ON/OFF output 27 MUTE O Mute output 28 MICSENS I Microphone sense input 29 RX I IP-BUS data input 30 TX O IP-BUS data output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DEH-P9000R Pin No. Pin Name I/O Function and Operation 31 BSO O P-BUS communication data output 32 BSI I P-BUS communication data input 33 BSCK I/O P-BUS serial clock input/output 34 FLPOPN O Flap motor open output 35 DPDT O Display serial data output 36 KYDT I Display enable data input 37 FLPCLS O Flap motor close output 38 FOPENSW I Flap open switch input 39 NC Not used 40 FCLSSW I Flap close switch input 41 DLED O Alarm LED output 42 NC Not used 43 FLPILM O Inside of flap illumination output 44 ILMPW O Illumination power supply control output 45 SWVDD O Display chip select output 46 OELPW O OEL module power supply control output 47 DSENS I Grille detach sense input 48 ST I FM stereo input 49 SD I SD input 50–61 NC Not used 62 VCC3 5V 63 NC Not used 64 VSS4 GND 65 VCK/ROMCLK O E-VOL clock output / ROM correction clock output 66 VDT/ROMDATA O/I E-VOL data output / ROM correction data input 67 VST/BSRQ2 O E-VOL strobe pulse output / P-BUS communication input/output 68 NC Not used 69 BRXEN I/O P-BUS communication input/output 70 BRST O P-BUS reset output 71 BSRQ I/O P-BUS communication request input/output 72 NC Not used 73 BSENS I Back up power sense input 74 ASENS I ACC power sense input 75,76 NC Not used 77 LOCH O Local “H” output 78 LOCL O Local “L” output 79 NC Not used 80 ANTFIX O Open 81 FM/AM O FM/AM power select output 82 TMUTE O Tuner mute output 83 DRST O RDS decoder reset output 84 RDSLK I RDS lock signal input 85 RDT I RDS data input 86 DRSENS I Door open/close sense input 87 DRSYS O Door system select output 88 TESTIN I Test mode IN/test enable 89 NL2 I RDS noise level input 2 90 CURRQ O Tuner voltage FIX output 91-93 NC Not used 94 SD_BW I SD input 95 NL I Noise level input 96 VSS5 GND 97 SL I Signal level input 98 VREF A/D converter reference voltage 99 VCC4 5V 100 TUNPDI I PLL data input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 DEH-P9000R IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. *PD5482A 30 31 50 51 80 81 100 1 16 15 14 13 12 11 10 9 RNF OUT2 VREF RIN 1 2 3 4 5 6 7 8 GND OUT1 VM VCC FIN CONTROL LOGIC TSD POWER SAVE DRIVER DRIVER BA6288FS NC VCC CS SK WC GND DO DI 1 2 3 4 8 7 6 5 CS SK DI DO WC : Chip select input : Serial data clock input : Serial data input : Serial data output : Write control input BR9010FV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DEH-P9000R - Pin Functions (PD5471A) Pin No. Pin Name I/O Format Function and Operation 1–4 NC Not used 5 REM I Remote control reception 6 BYTE I External data BUS width select input 7 CNVSS I Processor mode select input 8,9 NC Not used 10 reset I Reset input 11 XOUT O Crystal oscillating element connection pin 12 VSS GND 13 XIN I Crystal oscillating element connection pin 14 VDD VDD 15 nmi I NMI input 16 NC Not used 17–20 kd1-4 I Key data 1-4 21–26 ks1-6 I/O Key strobe input/output 1-6 27–31 NC Not used 32 ILMD O C Dual illumination 33 KYDT O C Key data output 34 DPDT I Display data input 35 NC Not used 36 OEL O C OEL controller ON 37 rdy I OEL controller ready input 38 NC Not used 39 hold I Hold input 40,41 NC Not used 42 rd O C Read strobe 43 NC Not used 44 wr O C Write strobe 45 NC Not used 46 cs2 O C Bank address (High) 47 cs1 O C Bank address (Low) 48 cs0 O C External ROM chip select 49 A19 O C Address bus Output 50 NC Not used 51-59 A17-9 O C Address bus Output 60 VDD VDD 61 A8 O C Address bus Output 62 VSS GND 63–69 A7-1 O C Address bus Output 70 NC Not used 71–86 D15-0 I/O Data bus input/output 87–93 NC Not used 94 AVSS Connect to VSS 95 NC Not used 96 VREF Connect to VSS 97 AVCC Connect to VCC 98-100 NC Not used Format Meaning C C MOS *PD5471A 25 26 50 51 75 76 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 DEH-P9000R 2 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 43 42 41 40 47 46 45 44 48 NC NC NC A18 A17 A7 A6 A5 A4 A3 A2 A1 A0 ce VSS oe D0 D8 D1 D9 D2 D10 D3 D11 NC NC NC A19 A8 A9 A10 A11 A12 A13 A14 A15 A16 byte VSS D15/A1 D7 D14 D6 D13 D5 D12 D4 VCC A0-A19 :Address input D0-D15 :Data output byte :8/16 bit mode select ce :Chip enable input oe :Output enable input VCC :Power supply VSS :GND 8 9 4 5 6 7 3 1 *PD5504A 80 1 20 21 40 41 60 61 PD8051A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DEH-P9000R - Pin Functions (PD5504A) Pin No. Pin Name I/O Format Function and Operation 1 NC VSS joint 2 NC Not used 3 VST O C Electronic volume strobe output 4 VDT O C Electronic volume data output 5 VCK O C Electronic volume clock output 6 CNVSS I VSS joint 7 MCKRQ I CD unit MCK request input 8 EMPHIN I CD unit emphasis data input 9 reset I Reset input 10 XOUT O O Crystal oscillating element connection pin 11 VSS GND 12 XIN I Crystal oscillating element connection pin 13 VCC 5V 14 NMI I NML joint 15 BMUTEIN I CD unit LR clock supply input 16 NC VSS joint 17 brst I P–BUS reset input 18–23 NC Not used 24 DSPOUT O C DSP serial data output 25 DSPIN I DSP serial data input 26 DSPCK O C DSP serial clock output 27 NC Not used 28 BSO O C P–BUS serial data output 29 BSI I P–BUS serial data input 30 BSCK I/O P-BUS serial clock input/output 31 NC Not used 32 bsrq I/O P-BUS service request output pin 33 brxen I/O Reception enable input/output 34,35 NC Not used 36 MICSENS I A.EQ microphone connection data input 37 IFHIZ I DSP microcomputer port Hiz set input 38 AQTEST I A.EQ test mode start input 39 testin I Test mode IN/test enable input 40 DSPPW O C Power supply for DSP 41 MUTERQ O C Hard mute output 42 NGO O C Digital zero output 43 SYSMUTE O C System mute output 44–47 NC Not used 48 PLLLOC I PLL Lock supply data input 49 PLLCLR O C PLL control clear output 50 PLLDT O C PLL control data output 51 PLLCK O C PLL control clock output 52–57 NC Not used 58 LRCKK O C LRCK/BCLK select control output 59 MCKOUT O C CD MCLK gate control 60 SMODE O C AK7714 master/slave select input 61 AKPD O C AK7714 power down 62 AKRST O C AK7714 reset 63 AKJMP O C AK7714 condition jump 64 dspcs O C AK7714 chip select output 65 akwrq O C AK7714 data output request 66 dspack I DSP data write ready supply input 67 akrdy I AK7714 data ready 68–72 NC Not used 73 MDSEL2 I Model select input 74 NOISE I ASL noise input 75 AVSS I A/D GND 76 NC Not used 77 VREF I A/D converter reference voltage input 78 AVCC A/D VCC 79 NC VSS joint 80 NC Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DEH-P9000R - Pin Functions (AK7714) Pin No. Pin Name I/O Function and Operation 1,2 NC Not used 3–6 TEST I Test terminal 1-4 7 DVB Power supply (5v) 8 NC Not used 9 DVDD Digital VDD (5V) 10,11 DVSS Digital GND (0V) 12 SDINA I DSP serial data input 13 NC Not used 14 SDOUTA O ADC serial data output 15 SDOUTD1 O DSP serial data output 16 NC Not used 17 SDINDI I DAC1 serial data input 18 SDIND2 I DAC2 serial data input 19 NC Not used 20 SDOUTD2 O DSP serial data output 21,22 NC Not used 23 SDIN1 I DSP serial data input 24 SDIN2 I DSP serial data input 25,26 NC Not used 27 XTI I Oscillation input 28 XTO O Oscillation output 29 NC Not used 30,31 DVSS Digital GND (0V) 32,33 DVDD Digital VDD (5V) 34 OPCL I ADC/DAC joint select input 35 CLKO O Clock output 36 LRCLK I/O L/R channel select input/output 37 BITCLK I/O Serial bit clock input/output 38 NC Not used 39 DRDY O Output data ready output for microcomputer interface 40 SO O Serial data output for microcomputer interface 41 RDY O Data write ready output for microcomputer interface 42,43 DVSS Digital GND (0V) 44,45 DVDD Digital VDD (5V) 46 NC Not used 47 wrq I Write request input for microcomputer interface 48 cs I Chip select input for microcomputer interface 49 JX I External condition Jump terminal 50–52 NC Not used 53 SI I Serial data input for microcomputer interface 54 NC Not used 55 SCLK I Serial data clock for microcomputer interface 56 NC Not used 57 dsp reset I Reset 58 code creset I Reset 59 initrese I Reset 60-62 NC Not used 63 CKS0 I Clock select input 64 CKS1 I Clock select input 65 SMODE I Slave mode/master mode select input 66,67 DVSS Digital GND (0V) 68 DVDD Digital VDD (5V) 69 NC Not used 70,71 DVB Power supply (5v) 72 NC Not used 73 AOUTR2 O DAC2 Rch analog output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DEH-P9000R Pin No. Pin Name I/O Function and Operation 74 AOUTL2 O DAC2 Lch analog output 75,76 NC Not used 77 AOUTR1 O DAC1 Rch analog output 78 AOUTL1 O DAC1 Lch analog output 79 NC Not used 80 AVB Power supply (5V) 81 NC Not used 82 VRDAL I DAC reference voltage input 83 AVSS Analog GND (0V) 84,85 AVDD Analog power supply (5V) 86 VRDAH I DAC reference voltage input 87,88 VCOM O Common voltage 89 VRADL I ADC reference voltage input 90 AVSS Analog GND (0V) 91,92 AVDD Analog power supply (5V) 93 VRADH I ADC reference voltage input 94 NC Not used 95 AINR- I ADC Rch analog inverted input 96 AINR+ I ADC Rch analog input 97 NC Not used 98 AINR- I ADC Rch analog inverted input 99 AINR+ I ADC Rch analog input 100 NC Not used *AK7714 25 26 50 51 75 76 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DEH-P9000R VCC 2ck 2CLR 2QA 2QB 2QC 2QD 1ck 1CLR 1QA 1QB 1QC 1QD GND 14 13 12 11 10 9 8 1 2 3 4 5 6 7 CK R q D CK R q D CK R q D CK R q D CK R q D CK R q D CK R q D CK R q D TC74HC393AF VDD LOCK S2 S1 M2 M1 CKO REF PD VDDA AMPI AMPO VSSA XI 16 15 14 13 12 11 10 1 2 3 4 5 6 7 VSS XO 9 8 Lock Detection Circuit Micon Interface Programmable Counter Phase Comparator VCO Selector VAR REF TC9246F VCC 4C 4A 4Y 3C 3A 3Y 1C 1A 1Y 2C 2A 2Y GND 14 13 12 11 10 9 8 1 2 3 4 5 6 7 HD74HCT126FP 8 7 6 5 V+ B OUT B-IN- B+IN 1 2 3 4 A OUT A-IN A+IN V- A B NJM4580M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DEH-P9000R - Pin Functions (UPD63710GC) Pin No. Pin Name I/O Function and Operation 1 GND Logic circuit GND 2 HOLD I/O Defect detection output 3 MIRR I/O MIRR output 4 FOK O RFOK signal output 5 rst I Reset signal input 6 A0 I Command/parameter identification signal input 7 stb I Data strobe signal input 8 sck I Clock signal input for serial data input/output 9 SO O Serial data and status signal output 10 SI I Serial data input 11 VDD Positive power supply terminal to logic circuit 12 DA.VDD Positive power supply terminal to D/A converter 13 NC Not used 14, 15 DA.GND D/A converter GND 16 NC Not used 17 DA.VDD Positive power supply terminal to D/A converter 18 R+ O Right channel audio data output 19 R- O Right channel audio data output 20 L- O Left channel audio data output 21 L+ O Left channel audio data output 22 X.VDD Positive power supply terminal to crystal oscillation circuit 23 xtal O Crystal oscillator connect pin 24 XTAL I Crystal oscillator connect pin 25 X.GND Crystal oscillation circuit GND 26 VDD Positive power supply terminal to logic circuit 27 EMPH O Output pin for the pre-emphasis data in the sub-Q code 28 FLAG O Flag output pin to indicate that audio data currently being output consists of noncorrectable data 29 DIN I Serial data input to internal DAC 30 DOUT O Serial audio data output 31 SCKIN I Serial clock input to internal DAC 32 SCKO O Audio data that is output from DOUT changes at rising edge of this clock 33 LRCKIN I LRCK signal input to internal DAC 34 LRCK O Signals to distinguish the right and left channels of the audio data output from DOUT 35 WDCK O Output double the frequency of LRCK 36 TX O Digital audio interface data output 37 GND Logic circuit GND 38 C16M O Oscillator clock buffering output 39 LIMIT I Status of the pin is output at Bit 5 of the status output 40 VDD Positive power supply terminal to logic circuit 41 LOCK O EFM synchronous detection signal 42 RFCK O Frame synchronous signal of XTAL-system 43 WFCK O Frame synchronous signal of PLL-system 44 PLCK O Monitor pin of bit clock 45 GND Logic circuit GND 46 C1D1 O Output pin for indicating the C1 error correction results 47 C1D2 O Output pin for indicating the C1 error correction results 48 C2D1 O Output pin for indicating the C2 error correction results 49 C2D2 O Output pin for indicating the C2 error correction results 50 C2D3 O Output pin for indicating the C2 error correction results 51 VDD Positive power supply terminal to logic circuit 52 PACK O CD-TEXT PACK synchronous signal 53 TSO O CD-TEXT data serial output 54 TSI I CD-TEXT control parameter serial input 55 tsck I CD-TEXT serial clock input 56 TSTB I CD-TEXT parameter strobe signal input 57 GND Logic circuit GND 58 TEST I Test pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DEH-P9000R Pin No. Pin Name I/O Function and Operation 59 ATEST I/O Test pin 60 RFMODE I Use/not use select for internal RF amplifier 61 A.GND Analog circuit GND 62 FD O Focus drive output 63 TD O Tracking drive output 64 SD O Sled drive output 65 MD O Spindle drive output 66 DACO O DAC output for adjustment 67 FBAL O DAC output for adjustment 68 TBAL O DAC output for adjustment 69 TEVCA O DAC output for adjustment 70 A.VDD Power supply terminal to analog circuit 71 EFM O EFM signal output 72 ASY I EFM comparator reference voltage input 73 C3T 3T detection capacitor additional pin 74 RFI I RF signal input for EFM data regulation 75 AGCO O RF signal output of after gain adjustment 76 AGCI I RF-AGC amplifier input 77 RFO O RF summing amplifier output 78 EQ2 RF amplifier equalizer parts additional pin 79 EQ1 RF amplifier equalizer parts additional pin 80 RF- I RF summing amplifier inverted input 81 A.GND Analog circuit GND 82 A I Photo detector A input 83 C I Photo detector C input 84 B I Photo detector B input 85 D I Photo detector D input 86 F I Photo detector F input 87 E I Photo detector E input 88 A.VDD Positive power supply terminal to analog circuit 89 REFOUT O Reference electric potential output 90 FE- I Focus error amplifier inverted input 91 FEO I/O Focus error amplifier output 92 TE- I Tracking error amplifier inverted input 93 TEO I/O Tracking error amplifier output 94 TE2 I/O Tracking error output of after amplification 95 TEC I Tracking comparator input 96 A.GND Analog circuit GND 97 PD I PD detection signal input for LD output monitor 98 LD O LD control current output 99 PN I APC circuit control polarity set pin 100 A.VDD Positive power supply terminal to analog circuit 25 26 50 51 75 76 100 1 *UPD63710GC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DEH-P9000R - Pin Functions (BA5985FM) Pin No. Pin Name I/O Function and Operation 1 FWD I Loading driver FWD input 2 OPIN1(+) I CH1 pre-amplifier input 3 OPIN1(−) I CH1 pre-amplifier inverted input 4 OPOUT1 O CH1 pre-amplifier output 5 OPIN2(+) I CH2 pre-amplifier input 6 OPIN2(−) I CH2 pre-amplifier inverted input 7 OPOUT2 O CH2 pre-amplifier output 8 VCC Power supply 9 VOL(−) O Loading driver negative output 10 VOL(+) O Loading driver positive output 11 VO2(−) O Driver CH2 negative output 12 VO2(+) O Driver CH2 positive output 13 VO1(−) O Driver CH1 negative output 14 VO1(+) O Driver CH1 positive output 15 VO4(+) O Driver CH4 positive output 16 VO4(−) O Driver CH4 negative output 17 VO3(+) O Driver CH3 positive output 18 VO3(−) O Driver CH3 negative output 19 GND GND 20 BIAS I Bias input 21 MUTE Mute control 22 OPOUT3 O CH3 pre-amplifier output 23 OPIN3(−) I CH3 pre-amplifier inverted input 24 OPIN3(+) I CH3 pre-amplifier input 25 OPOUT4 O CH4 pre-amplifier output 26 OPIN4(−) I CH4 pre-amplifier inverted input 27 OPIN4(+) I CH4 pre-amplifier input 28 REV I Loading driver REV input BA5985FM - Pin Functions (PD0236AM) Pin No. Pin Name I/O Function and Operation 1 BCSEL I Bit clock fs select 2 DASEL I Bit expand select 3 NC Not used 4 LRSEL LRCKO polarity select 5 LRCKO O LRCKO output 6 NC Not used 7 BCKO O Bit clock output 8 DATAO O Data output 9 GND GND 10 VDD Power supply terminal 11 LRCKI I LRCKO input 12,13 NC Not used 14 DATAI I Data input 15 BCKI I Bit clock input 16 NC Not used 17 SEL I Bit expand/input data output select 18 XRST I Reset input PD0236AM 1 9 10 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DEH-P9000R - Pin Functions(PE5011C) Pin No. Pin Name I/O Format Function and Operation 1 EJTSNS Disc eject position sense input 2 DSCSNS Disc insert position sense input 3 VDSENS VD power supply short sense input 4 TEMP Temperature sense input 5-8 NC Not used VSS 9 AVREF A/D reference voltage input 10 reset I System reset input 11 XT1 I VDD 12 XT2 Open 13 IC(VPP) VSS 14 X1 I Main clock radiator(8.38MHz)connection 15 X2 Main clock radiator(8.38MHz)connection 16 VDD Power supply(+5V) 17 VSS GND 18 xsck O C CD LSI serial clock output 19 XSO O C CD LSI serial data output 20 XSI I CD LSI serial data input 21 brst P-Bus reset input 22 pack CD-TEXT pack sync signal input 23, 24 NC Not used Open 25 XA0 O C CD LSI data discrimination control signal output 26 xstb O C CD LSI strobe output 27 xrst O C CD LSI reset output 28 FOK I Focus OK input 29 MIRR I Specular surface detection input 30 LOCK I Spindle lock input 31 CD5VON O C CD +5V power supply control output 32, 33 NC Not used Open 34 EMPH O C Emphasis information output 35-44 NC Not used Open 45 VSS GND 46 VDD Power supply(+5V) 47 adena O C A/D reference voltage supply control output 48 VDCONT O C VD power supply control output 49 NC Not used Open 50 csens I Flap close sense input 51 BRXEN I/O /C Input/output by which P-Bus can be received 52 bsrq O C P-Bus polling request output 53, 54 NC Not used Open 55 CONT O C Servo driver power supply control output 56 CDMUTE O C CD mute control output 57 CDEJET O C Load/Eject motor Eject control output 58 CDLOAD O C Load/Eject motor Load control output 59 BMUTE O C Bus mute output 60 clamp I Disc clamp input 61, 62 NC Not used Open 63-66 NC Not used VDD or VSS 67 TXARI I Tx output set selection input 68 fsck O C Flash writing clock input(Open) 69 FTXD O C Flash writing data output(Open) 70 FRXD O C Flash writing data input(Open) 71 bsck I/O /C P-Bus serial clock input/output 72 BDATA I/O /C P-Bus serial data input/output 73 testin I Test program start input 74 NC Not used Open 75 TSTB O C CD-TEXT strobe output 76 NC Not used Open www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DEH-P9000R Pin No. Pin Name I/O Format Function and Operation 77 tsck O C CD-TEXT serial clock output 78 TSO O C CD-TEXT serial data output 79 TSI I CD-TEXT serial data input 80 AVSS A/D GND *PE5011C 20 21 40 41 60 61 80 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8. OPERATIONS AND SPECIFICATIONS - Connection Diagram 82 DEH-P9000R + ≠� + ≠� + ≠� + ≠� + ≠� + ≠� 1* 2* 4* 3* 5* Subwoofer output or Non-Fading output This Product IP-BUS cable IP-BUS input (Blue) Blue/white To system control terminal of the power amp or Auto-anten- na relay control terminal. (Max. 300 mA 12 V DC.) System remote control Power amp (sold separately) Rear output Front output Rear speaker Subwoofer Subwoofer Rear speaker Front speaker Front speaker Perform these connections when using a different amp (sold separately). Power amp (sold separately) Power amp (sold separately) Antenna jack ASL unit Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. Multi-CD player (sold separately) White/yellow See the section “RFP Alert Installation”. Note: Depending on the kind of vehicle, the function of 3* and 5* may be different. If this is the case, be sure to connect 2* to 5* and 4* to 3*. Connect leads of the same color to each other. Speaker leads Cap (1*) When not using this terminal, do not remove the cap. ISO connector Fuse holder Yellow (2*) To terminal always supplied with power regardless of ignition switch position. Red (4*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Yellow (3*) Back-up (or accessory) Red (5*) Accessory (or back-up) Black (ground) To vehicle (metal) body. Orange/white To lighting switch terminal. Blue/white To Auto-antenna relay control terminal. (Max. 300 mA 12 V DC.) Note: In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. White White/black Gray Gray/black Green Green/black Violet Violet/black : Front left + : Front left ≠� : Front right + : Front right ≠� : Rear left + or Not used : Rear left ≠ or Not used : Rear right + or Subwoofer + : Rear right ≠ or Subwoofer ≠� Connecting cords with RCA pin plugs (sold separately) Fuse resistor Fuse resistor Note: When a subwoofer is connected to this unit instead of a rear right speaker, do not connect the rear left speaker lead to anything. For details, refer to the Initial Setting Menu in the Operation Manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DEH-P9000R 8.1 OPERATIONS 5/∞/2/3 buttons SOURCE/OFF button +/– button AUDIO button PTY button Buttons 1–6 TA button PGM button FUNCTION button EQ button DISPLAY button ENTERTAINMENT button EJECT button BAND button RESET button +/– button AUDIO button 2/3 buttons BAND button FUNCTION button SOURCE/OFF button ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level. 5/∞ buttons www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DEH-P9000R Basic Operation Basic Operation of Tuner This product’s AF function can be switched ON and OFF. AF should be switched OFF for normal tuning operations. Manual and Seek Tuning • You can select the tuning method by changing the length of time you press the 2/3 button. Manual Tuning (step by step) 0.5 seconds or less Seek Tuning 0.5 seconds or more Note: • If you continue pressing the button for longer than 0.5 seconds, you can skip broadcast stations. Seek Tuning starts as soon as you stop pressing the button. • “” stereo indicator lights when a stereo station is selected. Preset Tuning • You can memorize broadcast stations in buttons 1 through 6 for easy, one-touch station recall. Preset station recall 2 seconds or less Broadcast station preset memory 2 seconds or more Note: • Up to 18 FM stations (6 in FM-1, FM-2 and FM-3) and 6 MW/LW stations can be stored in memory. • You can also use the 5 or ∞ buttons to recall broadcast stations memorized in buttons 1 through 6. Preset Number Indicator Band Indicator Band FM-1 = FM-2 = FM-3 = MW/LW Frequency Indicator To Listen to Music The following explains the initial of operations required before you can listen to music. Note: • Loading a disc in this product. 1. Select the desired source (e.g. Tuner). Each press of the SOURCE/OFF button selects the desired source in the following order: Built-in CD player (Compact Disc) = Tuner = DAB (Digital Audio Broadcasting) Tuner = Multi-MD player = Multi-CD player = AUX Note: • In the following cases, the sound source will not change: * No Multi-CD player is connected to this product. * No Multi-MD player is connected to this product. * No DAB tuner is connected to this product. * No disc is set in this product. * No magazine is set in the Multi-CD player. * AUX (external input) is set to OFF. 2. Raise or lower the volume. 3. Source OFF. Hold for 1 second or more Each press changes the Source ... www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Switching the Display (only for CD TEXT Discs) Each press of the DISPLAY button changes the display in the following order: Playback mode (Play Time) = Disc Title= Disc Artist= Track Title= Track Artist With text longer than 20 letters, you can scroll to see the rest of the text by pressing the DIS- PLAY button for 2 seconds or more. Note: • A CD TEXT disc is a CD featuring recorded text information such as Disc Title, Artist Name and Track Title. • If you switch a display when the disc title has not been input, “No Title” is displayed. • If you switch a display when the disc artist has not been input, “No Artist Name” is displayed. • If you switch a display when the track title has not been input, “No Title” is displayed. • If you switch a display when the track artist has not been input, “No Artist Name” is displayed. 85 DEH-P9000R Basic Operation Basic Operation of Built-in CD Player Track Search and Fast Forward/Reverse • You can select between Track Search or Fast Forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast Forward/Reverse Continue pressing Disc Loading Slot If a CD is inserted, the front panel is closed automatically. The Built-in CD player plays one standard 12 cm or 8 cm (single) CD at a time. Do not use an adapter when playing 8 cm CD. Note: • If a disc cannot be inserted fully or playback fails, make sure the recorded side is down. Push the EJECT button and check the disc for damage before reinserting it. • If the Built-in CD player cannot operate properly, an error message (such as “ERROR-14”) appears on the display. Track Number Indicator Play Time Indicator Switching the Display Each press of the DISPLAY button changes the display in the following order: Playback mode (Play Time) = Disc Title Note: • If you switch a display when the disc title has not been input, “No Title” is displayed. Eject Press the EJECT button, and you can open the front panel before ejection. In case of opening the front panel, you can just eject a CD. Note: • The CD function can be turned ON/OFF with the disc remaining in this product. • Discs left partially inserted after ejection may incur dam- age or fall out. Open Press the EJECT button for 1 second or more, and you can open the front panel without ejecting a CD. In case of opening the front panel, you can close it. Note: • When opening the front panel, the 1 to 6 buttons are not available. WARNING: • Do not use with the front panel left open. If you do leave it open, it may result in injury in the event of an accident. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DEH-P9000R Basic Operation Basic Operation of Multi-CD Player This product can control a Multi-CD player. (With certain old type Multi-CD players, using a multiple connection adapter lets you connect multiple units which you can control with this product.) Track Search and Fast Forward/Reverse • You can select between Track Search or Fast Forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast Forward/Reverse Continue pressing Disc Number Search (for 6-Disc, 12-Disc types) • You can select discs directly with the 1 to 6 buttons. Just press the number corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds or longer. Disc Number Rough Search (for 50-Disc type only) This handy function lets you select discs loaded in a 50-Disc Multi-CD Player using the 1 to 5 buttons. The 50 discs are divided into five blocks, with each of the 1 to 5 buttons assigned to a block. • Select the desired block with the 1 to 5 buttons. Note: • After completing a rough search, use the 5 and ∞ buttons to select a desired disc. Note: • The Multi-CD player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for play- back. “READY” is displayed. • When a magazine is loaded into a 50-Disc type Multi-CD Player, information on all the discs in the magazine is read. If you start playing a disc on a 50-Disc type Multi-CD Player before reading of information on all discs has been completed, reading of information stops part way through. This will prevent you from using the ITS function. (If you try and use this function, “Not Ready” is displayed.) If this happens, reading of information begins again when you switch to a component other than the 50-Disc Type Multi-CD Player. • If the Multi-CD player cannot operate properly, an error message such as “ERROR-14” is dis- played. Refer to Multi-CD Player Owner’s Manual. • If there are no discs in the Multi-CD player magazine, “No Disc” is displayed. • “LOADING” will be displayed in the following cases: * If the disc in the extra tray in selected. * If the disc in moved from the extra tray to the magazine. (Refer to the 50-Disc Type Multi-CD Player Owner’s Manual.) • You cannot use the “Ejecting a Single Disc”, “Frequency Play”, “Music Group Play” or “ABC Disc Title Search” functions with this product. When playing a CD TEXT disc on a CD TEXT compatible Multi-CD Player: • You can use the following two functions. Refer to Multi-CD Player’s Owner’s Manual for opera- tion details. * Title display switching * Title scroll • You cannot switch to the Disc Title Input mode in the Detailed Setting Menu. Switching the Multi-CD Player When two or more Multi-CD players are connected using a multiple connection adapter, you can select the Multi-CD player by pressing the BAND button. Magazine 1 = Magazine 2 = Magazine 3 (Displayed about for 2 seconds.) Play Time Indicator Disc Search Disc Number Indicator Track Number Indicator Switching the Display Each press of the DISPLAY button changes the display in the following order: Playback mode (Play Time) = Disc Title Note: • If you switch displays when disc titles have not been input, “No Title” is displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 DEH-P9000R 8.2 SPECIFICATIONS Specifications General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (mounting size) ...... 178 (W) × 50 (H) × 155 (D) mm (front face) .............. 188 (W) × 58 (H) × 20 (D) mm Weight ...................................................................... 1.8 kg Audio/DSP Maximum power output ...................................... 45 W × 4 45 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for Subwoofer) Continuous power output .................................... 27 W × 4 (DIN45324, +B = 14.4 V) Load impedance ........ 4 Ω (4 – 8 Ω [2 Ω for 1 ch] allowable) Preout maximum output level/output impedance .......................... 4.0 V/100 Ω Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) Equalizer (13-Band Graphic Equalizer) Frequency ................ 50/80/125/200/315/500/800 Hz 1.3/2/3.2/5/8/12.5 kHz Equalization range .............................. ±12 dB (2 dB) Auto Equalizer (Front & Rear & Subwoofer 13-Band Graphic) Frequency ................ 50/80/125/200/315/500/800 Hz 1.3/2/3.2/5/8/12.5 kHz Equalization range .................... +6 — –12 dB (2 dB) Network HPF Frequency .................................... 50/80/125 Hz Slope ................................................ –12 dB/oct. Subwoofer Frequency .................................... 50/80/125 Hz Slope ................................................ –18 dB/oct. Gain ........................................................ ±12 dB Phase ........................................ Normal/Reverse CD player System .................................... Compact disc audio system Usable discs .................................................. Compact disc Signal format .................... Sampling frequency: 44.1 kHz Number of quantization bits: 20; linear Frequency characteristics .............. 5 – 20,000 Hz (±1 dB) Signal-to-noise ratio ...... 110 dB (1 kHz) (IEC-A network) Dynamic range ............................................ 94 dB (1 kHz) Number of channels ............................................ 2 (stereo) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity .................. 11 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 16 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) MW tuner Frequency range ...................................... 531 – 1,602 kHz Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) LW tuner Frequency range ........................................ 153 – 281 kHz Usable sensitivity .............................. 30 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) Note: • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
