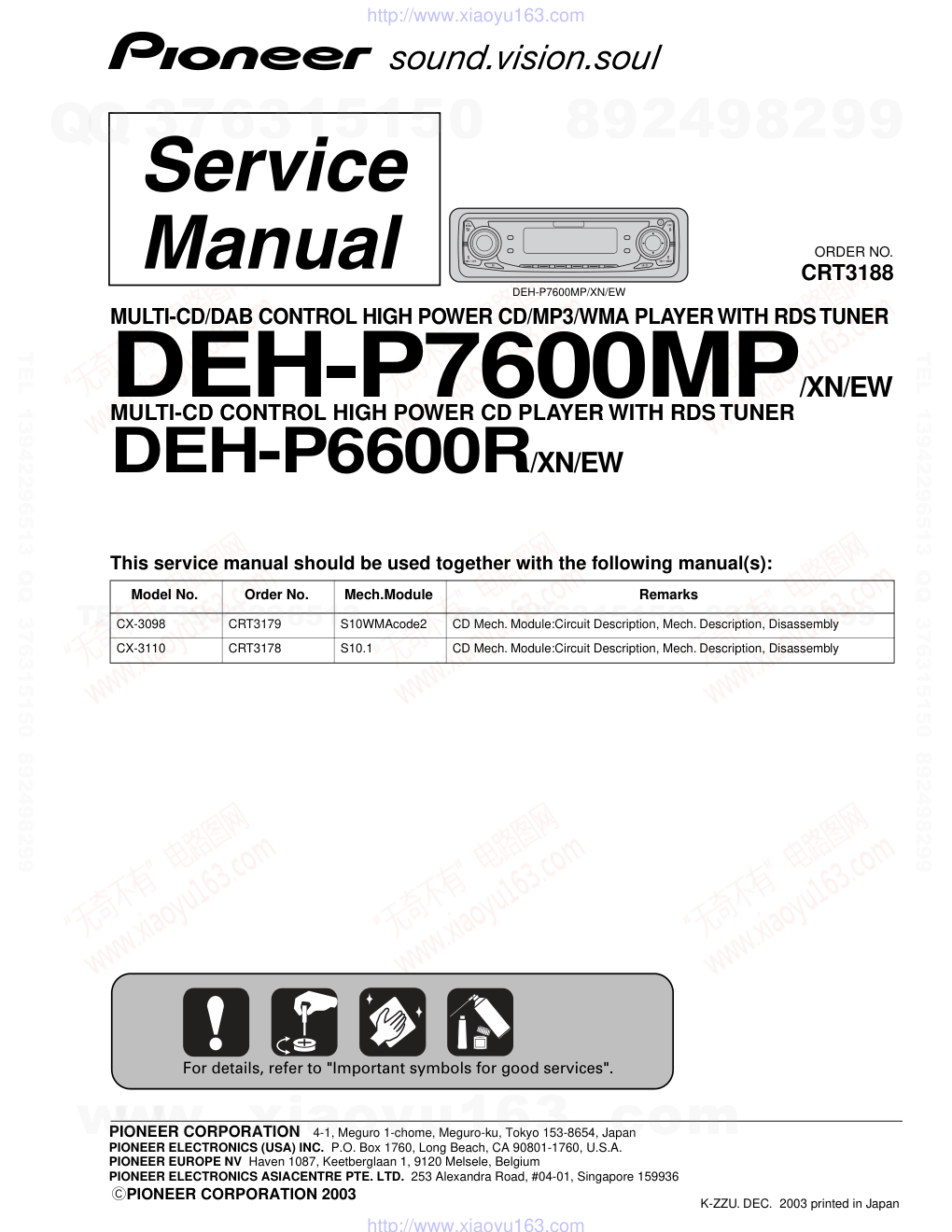

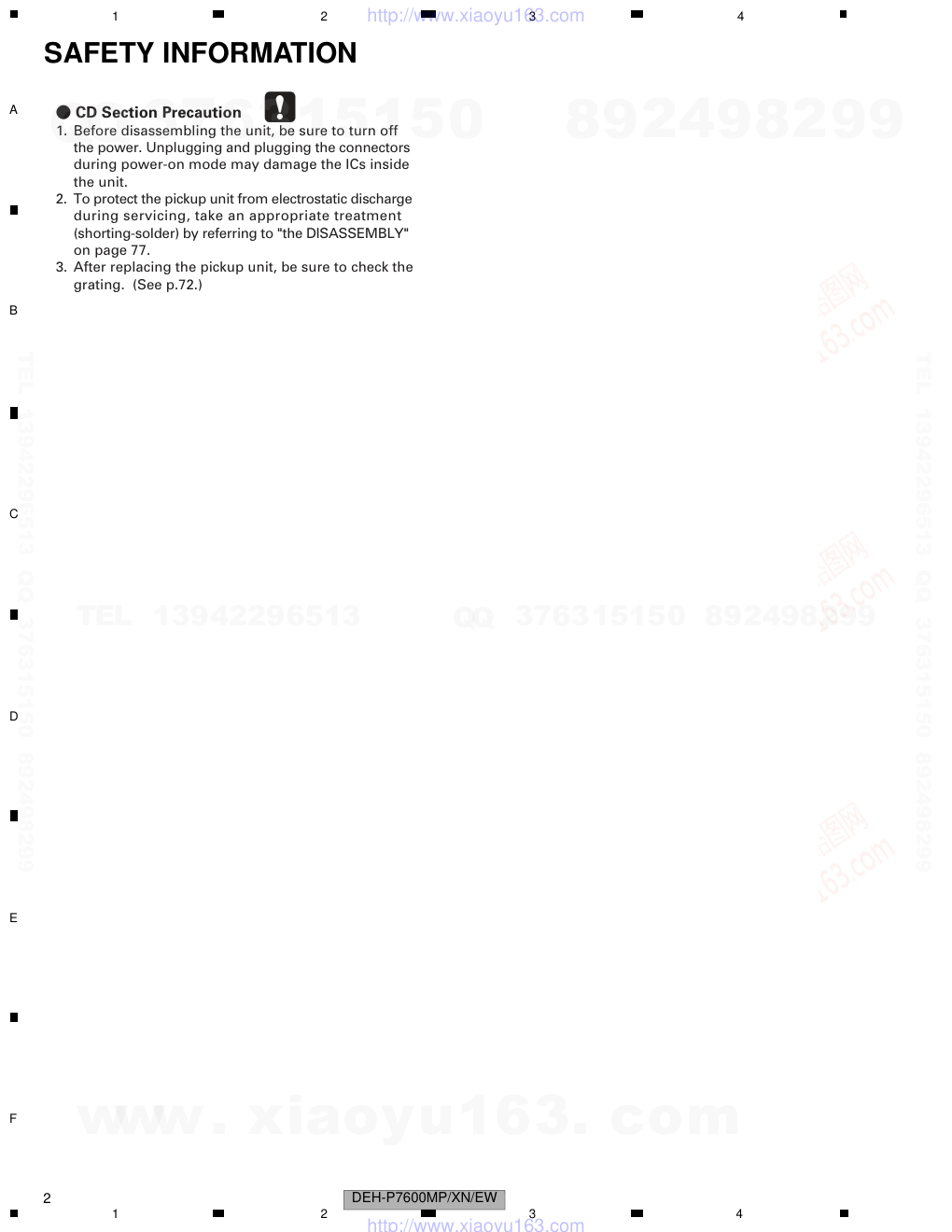

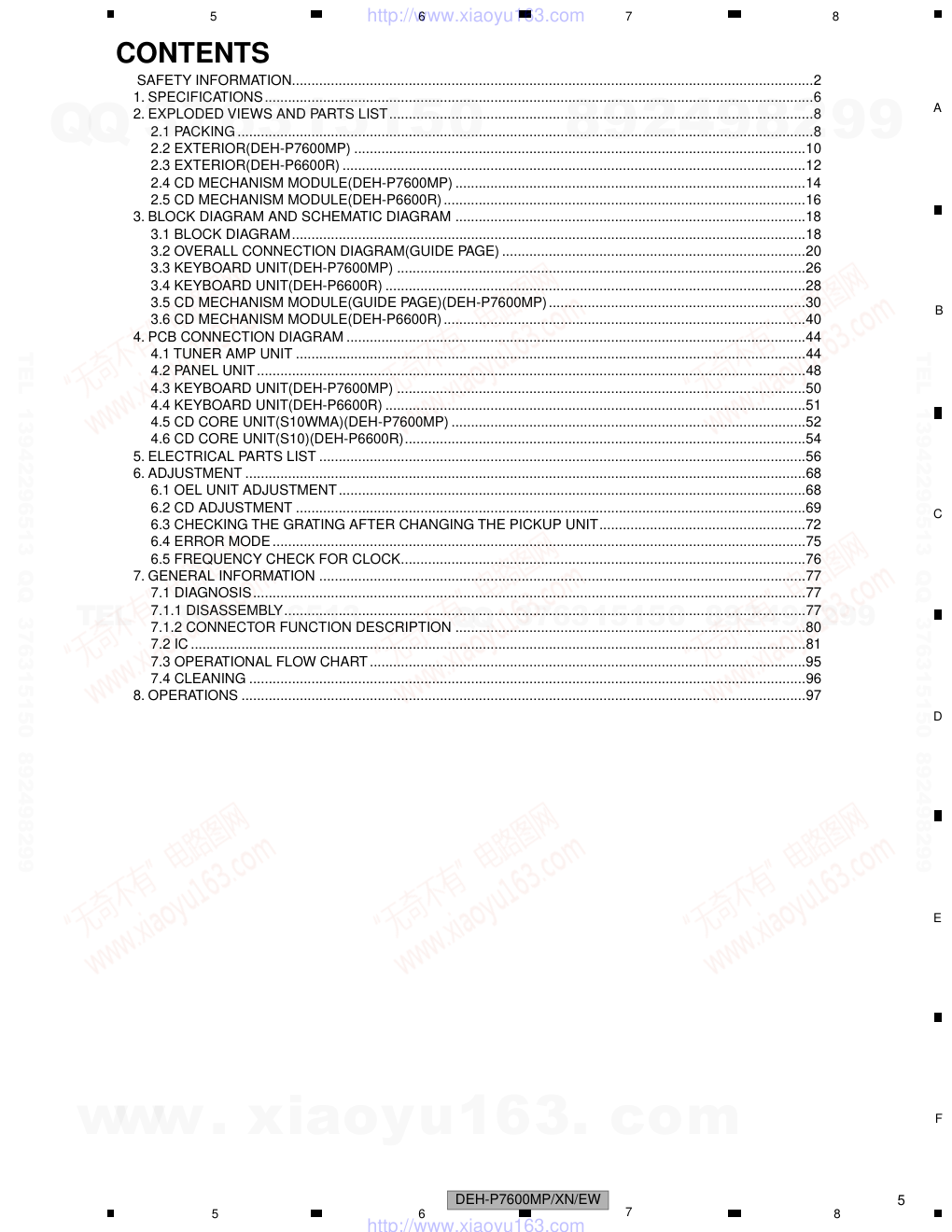

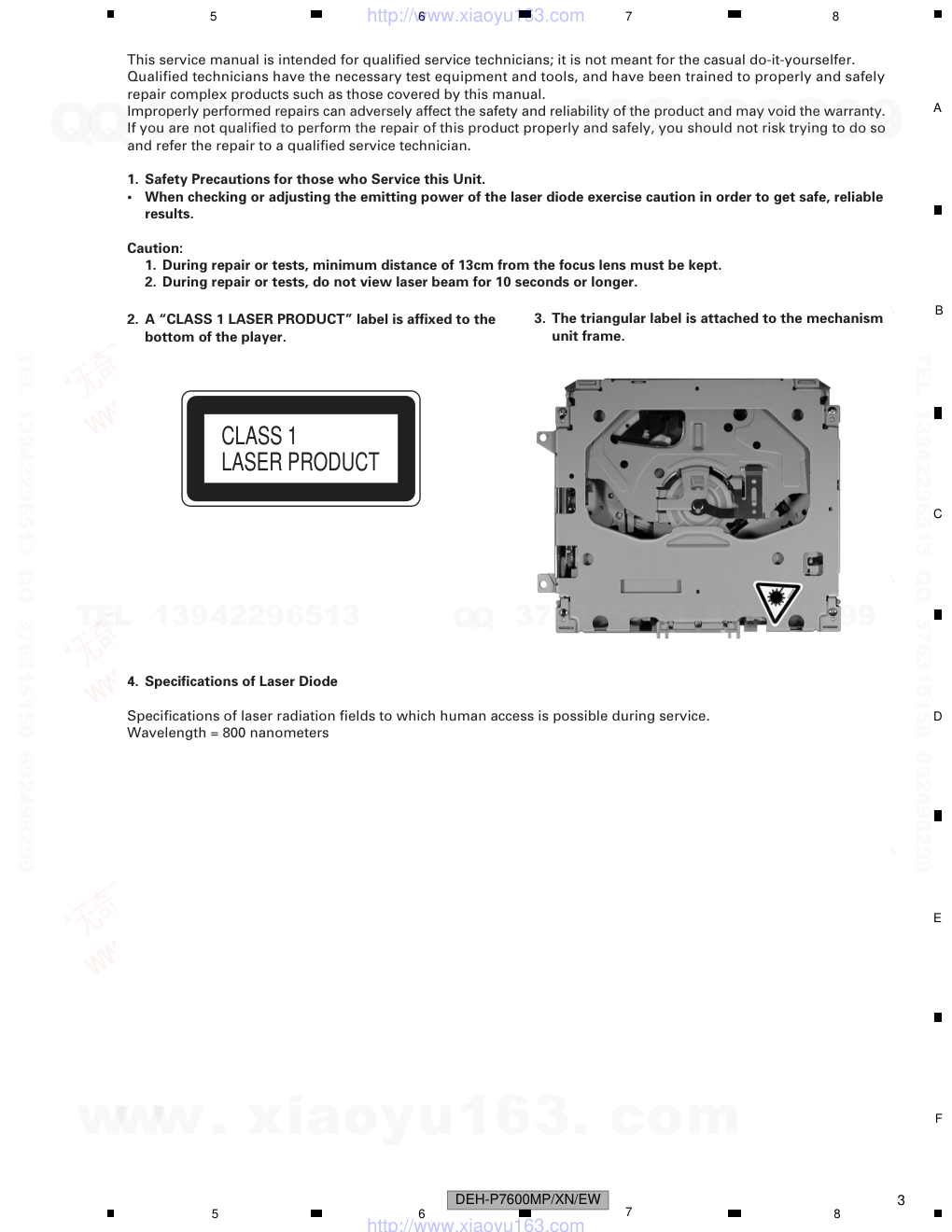

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 DEH-P7600MP/XN/EW CRT3188 MULTI-CD/DAB CONTROL HIGH POWER CD/MP3/WMA PLAYER WITH RDS TUNER DEH-P7600MP/XN/EW MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER DEH-P6600R/XN/EW This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3098 CRT3179 S10WMAcode2 CD Mech. Module:Circuit Description, Mech. Description, Disassembly CX-3110 CRT3178 S10.1 CD Mech. Module:Circuit Description, Mech. Description, Disassembly For details, refer to "Important symbols for good services". K-ZZU. DEC. 2003 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION - CD Section Precaution 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY" on page 77. 3. After replacing the pickup unit, be sure to check the grating. (See p.72.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 3 5 6 7 8 5 6 7 8 C D F A B E This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A “CLASS 1 LASER PRODUCT” label is affixed to the bottom of the player. 3. The triangular label is attached to the mechanism unit frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers CLASS 1 LASER PRODUCT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 4 1 2 3 4 1 2 3 4 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION......................................................................................................................................2 1. SPECIFICATIONS.............................................................................................................................................6 2. EXPLODED VIEWS AND PARTS LIST.............................................................................................................8 2.1 PACKING ....................................................................................................................................................8 2.2 EXTERIOR(DEH-P7600MP) ....................................................................................................................10 2.3 EXTERIOR(DEH-P6600R) .......................................................................................................................12 2.4 CD MECHANISM MODULE(DEH-P7600MP) ..........................................................................................14 2.5 CD MECHANISM MODULE(DEH-P6600R).............................................................................................16 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..........................................................................................18 3.1 BLOCK DIAGRAM....................................................................................................................................18 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) ..............................................................................20 3.3 KEYBOARD UNIT(DEH-P7600MP) .........................................................................................................26 3.4 KEYBOARD UNIT(DEH-P6600R) ............................................................................................................28 3.5 CD MECHANISM MODULE(GUIDE PAGE)(DEH-P7600MP)..................................................................30 3.6 CD MECHANISM MODULE(DEH-P6600R).............................................................................................40 4. PCB CONNECTION DIAGRAM ......................................................................................................................44 4.1 TUNER AMP UNIT ...................................................................................................................................44 4.2 PANEL UNIT.............................................................................................................................................48 4.3 KEYBOARD UNIT(DEH-P7600MP) .........................................................................................................50 4.4 KEYBOARD UNIT(DEH-P6600R) ............................................................................................................51 4.5 CD CORE UNIT(S10WMA)(DEH-P7600MP) ...........................................................................................52 4.6 CD CORE UNIT(S10)(DEH-P6600R).......................................................................................................54 5. ELECTRICAL PARTS LIST .............................................................................................................................56 6. ADJUSTMENT ................................................................................................................................................68 6.1 OEL UNIT ADJUSTMENT........................................................................................................................68 6.2 CD ADJUSTMENT ...................................................................................................................................69 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT.....................................................72 6.4 ERROR MODE.........................................................................................................................................75 6.5 FREQUENCY CHECK FOR CLOCK........................................................................................................76 7. GENERAL INFORMATION .............................................................................................................................77 7.1 DIAGNOSIS..............................................................................................................................................77 7.1.1 DISASSEMBLY......................................................................................................................................77 7.1.2 CONNECTOR FUNCTION DESCRIPTION ..........................................................................................80 7.2 IC ..............................................................................................................................................................81 7.3 OPERATIONAL FLOW CHART................................................................................................................95 7.4 CLEANING ...............................................................................................................................................96 8. OPERATIONS .................................................................................................................................................97 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 6 1 2 3 4 1 2 3 4 C D F A B E 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 7 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 8 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lobricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 9 5 6 7 8 5 6 7 8 C D F A B E PACKING SECTION PARTS LIST Owner's Manual,Installation Manual Mark No. Description Part No. 1 Cord Assy CDE7153 2 Accessory Assy CEA3376 3 Spring CBH1650 4 Screw Assy CEA3848 5 Fixing screw BPZ20P060FZK 6 Screw CBA1650 * 7 Polyethylene Bag CEG-127 8 Screw CRZ50P090FTC 9 Screw TRZ50P080FTC * 10 Polyethylene Bag CEG-158 11 Handle CNC5395 12 Holder CND1249 13 Holder CND1250 14 Bush CNV3930 15 Polyethylene Bag CEG-162 16 ••••• 17 Carton(P7600MP) XHG7023 Carton(P6600R) XHG7027 Contain Box(P7600MP) XHL7023 18 Contain Box(P6600R) XHL7027 19 Protector CHP2663 20 Protector CHP2664 21-1 Owner's Manual(P7600MP) XRD7018 Owner's Manual(P6600R) XRD7046 21-2 Owner's Manual(P7600MP) XRD7019 Owner's Manual(P6600R) XRD7047 21-3 Owner's Manual(P7600MP) XRD7020 Owner's Manual(P6600R) XRD7048 21-4 Installation Manual(P7600MP) XRD7017 Installation Manual(P6600R) XRD7049 * 21-5 Warranty Card CRY1157 * 21-6 Passport CRY1013 * 21-7 Caution Card CRP1207 * 21-8 Caution Card(P7600MP) XRP7001 22 Case Assy CXB3520 23 Inner Box XHW7001 Mark No. Description Part No. Part No. Language XRD7018,XRD7046 English,Spanish XRD7019,XRD7047 German,French XRD7020,XRD7048 Italian,Dutch XRD7017,XRD7049 English,Spanish,German,French,Italian,Dutch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 10 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR(DEH-P7600MP) A C C B D D B A B C A 46 8 7 2 2 70 70 77 70 70 79 78 3 50 50 95 95 63 96 68 56 58 60 57 55 62 64 52 16 51 53 54 61 59 65 49 11 28 35 36 34 24 22 39 30 37 29 23 32 26 25 38 31 27 33 21 21 21 20 45 42 41 44 40 14 43 4 4 4 19 1 1 47 66 67 9 13 83 80 82 80 81 84 71 72 75 92 87 75 76 74 89 86 88 73 69 85 2 5 10 12 48 6 15 90 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 11 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(DEH-P7600MP) SECTION PARTS LIST Mark No. Description Part No. 1 Screw BMZ30P040FZK 2 Screw BSZ26P060FTC 3 Screw BSZ30P060FTC 4 Screw BSZ30P200FTC 5 Cord Assy CDE7129 6 Cord Assy CDE7153 7 Case CNB2870 8 Holder CNC8659 9 Earth Plate CNC8915 10 Insulator CNM7682 11 Insulator CNM7935 12 Insulator CNM8174 13 Cushion CNM8890 14 Panel XNS7070 15 Cap CNV6727 16 Case Assy CXB3520 17 ••••• 18 ••••• 19 Chassis Unit XXA7222 20 Button(EJECT) CAC7752 21 Screw(M2x4.5) CBA1647 22 Screw(M2x4) CBA1649 23 Washer CBF1038 24 Spring CBH2650 25 Spring CBH2651 26 Spring CBH2652 27 Spring CBH2653 28 Holder CND1254 29 Gear CNV5997 30 Arm CNV7400 31 Arm CNV7401 32 Arm CNV7402 33 Arm CNV7403 34 Panel Unit CWM8758 35 Socket(CN1950) CKS3550 36 Connector(CN1951) CKS4806 37 Holder Unit CXB9501 38 Holder Unit CXB9502 39 Damper Unit CXB9503 40 Panel Unit(Service) CXX1691 41 Spring CBL1512 42 Cover CNM6854 43 Panel CNS7245 44 Pin CNV6486 45 Lighting Conductor CNV6487 46 CD Mechanism Module(S10CODE2)CXK5665 47 Screw ISS26P055FTC 48 Cable XDE7002 49 Tuner Amp Unit XWM7044 50 Screw ASZ26P060FTC 51 Screw BPZ26P080FTC 52 Screw BSZ26P160FTC 53 Fuse(10A) CEK1208 54 Pin Jack(CN352) CKB1051 55 Plug(CN901) CKM1376 56 Plug(CN351) CKS1238 57 Connector(CN101) CKS3408 58 Plug(CN801) CKS3537 59 Connector(CN651) CKS3837 60 Connector(CN161) CKS4124 61 Antenna Jack(CN401) CKX1056 62 Holder CND1270 63 Holder CND1352 64 Heat Sink CNR1668 65 Microphone(CN751) CPM1011 66 FM/AM Tuner Unit CWE1645 67 Holder CND1054 68 Insulator XNM7031 69 Detachable Assy XXA7166 70 Screw BPZ20P100FZK 71 Spring CBL1470 72 Knob XAA7018 73 Button(1-6) XAC7005 74 Button(OPEN) XAC7012 75 Button(TEXT/SCRL/AUDIO/FUNC)XAC7041 76 Spring XBH7001 77 Cover XNS7013 78 Keyboard Unit XWM7051 79 Connector(CN1901) CKS4524 80 Cushion CNM6633 81 Spacer CNM7697 82 Spacer CNM7698 83 Holder CNV6910 84 OEL Unit MXS8201 85 Holder XNC7006 86 Button Unit(EQ-EX) XXA7007 87 Button Unit(EQ) XXA7008 88 Sub Grille Assy XXA7159 89 Sub Button Assy XXA7227 90 Lavel VRW-329 91 ••••• 92 Cushion XNM7041 93,94 ••••• 95 Transistor(Q651,911,921) 2SD2396 96 Choke Coil(L301) CTH1280 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 EXTERIOR(DEH-P6600R) A C C B D D B A B C A 46 8 7 2 2 70 70 77 70 70 79 78 3 50 50 95 95 63 96 68 58 60 57 55 62 64 52 16 51 53 54 61 59 65 49 11 28 35 36 34 24 22 39 30 37 29 23 32 26 25 38 31 27 33 21 21 21 20 45 42 41 44 40 14 43 4 4 4 19 1 1 47 66 67 9 13 83 80 82 80 81 84 71 72 75 92 87 75 76 74 89 86 88 73 69 85 2 10 12 48 6 90 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 13 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(DEH-P6600R) SECTION PARTS LIST Mark No. Description Part No. 1 Screw BMZ30P040FZK 2 Screw BSZ26P060FTC 3 Screw BSZ30P060FTC 4 Screw BSZ30P200FTC 5 ••••• 6 Cord Assy CDE7153 7 Case CNB2793 8 Holder CNC8659 9 Earth Plate CNC8915 10 Insulator CNM7682 11 Insulator CNM7935 12 Insulator CNM8174 13 Cushion CNM8890 14 Panel XNS7070 15 ••••• 16 IC(IC301) PAL007A 17 ••••• 18 ••••• 19 Chassis Unit XXA7223 20 Button(EJECT) CAC7752 21 Screw(M2x4.5) CBA1647 22 Screw(M2x4) CBA1649 23 Washer CBF1038 24 Spring CBH2650 25 Spring CBH2651 26 Spring CBH2652 27 Spring CBH2653 28 Holder CND1254 29 Gear CNV5997 30 Arm CNV7400 31 Arm CNV7401 32 Arm CNV7402 33 Arm CNV7403 34 Panel Unit CWM8758 35 Socket(CN1950) CKS3550 36 Connector(CN1951) CKS4806 37 Holder Unit CXB9501 38 Holder Unit CXB9502 39 Damper Unit CXB9503 40 Panel Unit(Service) CXX1691 41 Spring CBL1512 42 Cover CNM6854 43 Panel CNS7245 44 Pin CNV6486 45 Lighting Conductor CNV6487 46 CD Mechanism Module(S10) CXK5602 47 Screw ISS26P055FTC 48 Cable XDE7003 49 Tuner Amp Unit XWM7048 50 Screw ASZ26P060FTC 51 Screw BPZ26P080FTC 52 Screw BSZ26P160FTC 53 Fuse CEK1208 54 Pin Jack(CN352) CKB1051 55 Plug(CN901) CKM1376 56 ••••• 57 Connector(CN101) CKS3408 58 Plug(CN801) CKS3537 59 Connector(CN651) CKS3835 60 Connector(CN161) CKS4124 61 Antenna Jack(CN401) CKX1056 62 Holder XNC7003 63 Holder CND1352 64 Heat Sink CNR1668 65 Microphone(CN751) CPM1011 66 FM/AM Tuner Unit CWE1645 67 Holder CND1054 68 Insulator XNM7031 69 Detachable Assy XXA7170 70 Screw BPZ20P100FZK 71 Spring CBL1470 72 Knob XAA7003 73 Button(1-6) XAC7005 74 Button(OPEN) XAC7012 75 Button(TEXT/SCRL/AUDIO/FUNC)XAC7041 76 Spring XBH7001 77 Cover XNS7013 78 Keyboard Unit XWM7054 79 Connector(CN1901) CKS4524 80 Cushion CNM6633 81 Spacer CNM7697 82 Spacer CNM7698 83 Holder CNV6910 84 OEL Unit MXS8201 85 Holder XNC7006 86 Button Unit(EQ-EX) XXA7007 87 Button Unit(EQ) XXA7008 88 Sub Grille Assy XXA7163 89 Sub Button Assy XXA7224 90 Lavel VRW-329 91 ••••• 92 Cushion XNM7041 93,94 ••••• 95 Transistor(Q651,911,921) 2SD2396 96 Choke Coil(L301) CTH1280 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 14 1 2 3 4 1 2 3 4 C D F A B E 2.4 CD MECHANISM MODULE(DEH-P7600MP) A D H L M N O Q R A B C D E F G H I J K L M N O Q B 16 25 13 83 42 68 28 82 4 71 23 J K 38 23 59 87 86 5 13 34 5 5 13 44 5 C 52 53 36 4 73 29 51 18 64 76 50 10 72 75 49 77 67 27 78 60 90 48 8 17 46 6 60 11 89 43 70 14 31 65 85 66 85 31 35 14 74 85 1 2 3 R 91 12 33 61 63 21 79 57 58 62 80 13 4 86 I 45 28 7 24 47 P 41 20 40 69 39 30 P 19 56 F E 22 81 15 G 26 4 54 37 55 93 92 10 D 1GEM1024 2GEM1045 3GEM1035 1 1 1 1 1 1 1 1 2 2 2 2 1 1 1 1 1 2 2 1 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 15 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE(DEH-P7600MP) SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit(S10WMA) CWX2851 2 Connector(CN101) CKS4182 3 Connector(CN901) CKS4017 4 Screw BMZ20P035FTC 5 Screw BSZ20P040FTC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1511 8 Screw(M2x3) CBA1527 9 ••••• 10 Washer CBF1038 11 Washer CBF1060 12 Spring CBH2390 13 Spring CBH2606 14 Spring CBH2607 15 Spring CBH2608 16 Spring CBH2609 17 Spring CBH2610 18 Spring CBH2735 19 Spring CBH2612 20 Spring CBH2613 21 Spring CBH2614 22 Spring CBH2615 23 Spring CBH2616 24 Spring CBH2617 25 Spring CBH2620 26 Spring CBH2621 27 Spring CBH2641 28 Spring CBH2642 29 Spring CBH2643 30 Spring CBH2659 31 Spring CBH2688 32 ••••• 33 Shaft CLA4441 34 Frame CNC9962 35 Frame CNC9963 36 Bracket CNC9966 37 Bracket CND1895 38 Arm CNC9968 39 Arm CND1909 40 Lever CND2032 41 Lever CNC9984 42 Sheet CNM8134 43 Collar CNV7798 44 Guide CNV7799 45 Arm CNV7800 46 Rack CNV7199 47 Holder CNV7201 48 Holder CNV7202 49 Arm CNV7203 50 Gear CNV7207 51 Gear CNV7208 52 Gear CNV7209 53 Gear CNV7210 54 Gear CNV7211 55 Gear CNV7212 56 Rack CNV7214 57 Arm CNV7215 58 Arm CNV7216 59 Guide CNV7217 60 Roller CNV7218 61 Gear CNV7219 62 Arm CNV7221 63 Arm CNV7220 64 Arm CNV7222 65 Damper CNV7313 66 Damper CNV7314 67 Arm CNV7341 68 Arm CNV7342 69 Guide CNV7360 70 Guide CNV7361 71 Holder CNV7437 72 Arm CNV7805 73 Gear CNV7595 74 Damper CNV7618 75 Motor Unit(M1) CXB6007 76 Chassis Unit CXC2318 77 Screw Unit CXB8729 78 Gear Unit CXC2397 79 Arm Unit CXC2316 80 Arm CND1896 81 Arm CND1894 82 Motor Unit(M2) CXB8933 83 Bracket CNC9985 84 ••••• 85 Screw(M2x5) EBA1028 86 Screw JFZ20P020FTC 87 Screw JGZ17P022FTC 88 ••••• 89 Washer YE20FTC 90 Pickup Unit(P10)(Service) CXX1641 91 Screw IMS26P030FTC 92 Spring CBL1635 93 Clamper CNV7197 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 16 1 2 3 4 1 2 3 4 C D F A B E 2.5 CD MECHANISM MODULE(DEH-P6600R) A D H L M N O Q R A B C D E F G H I J K L M N O Q B 16 25 13 83 42 68 28 82 4 71 23 J K 38 23 59 87 86 5 13 34 5 5 13 44 5 C 52 53 36 4 73 29 51 18 64 76 50 10 72 75 49 77 67 27 78 60 90 48 8 17 46 6 60 11 89 43 70 14 31 65 85 66 85 31 35 14 74 85 1 2 3 R 91 12 33 61 63 21 79 57 58 62 80 13 4 86 I 45 28 7 24 47 P 41 20 40 69 39 30 P 19 56 F E 22 81 15 G 26 4 54 37 55 93 92 10 D 1GEM1024 2GEM1045 3GEM1035 1 1 1 1 1 1 1 1 2 2 2 2 1 1 1 1 1 2 2 1 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 17 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE(DEH-P6600R) SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit(S10) CWX2947 2 Connector(CN101) CKS4182 3 Connector(CN701) CKS4188 4 Screw BMZ20P035FTC 5 Screw BSZ20P040FTC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1511 8 Screw(M2x3) CBA1527 9 ••••• 10 Washer CBF1038 11 Washer CBF1060 12 Spring CBH2390 13 Spring CBH2606 14 Spring CBH2607 15 Spring CBH2608 16 Spring CBH2609 17 Spring CBH2610 18 Spring CBH2735 19 Spring CBH2612 20 Spring CBH2613 21 Spring CBH2614 22 Spring CBH2615 23 Spring CBH2616 24 Spring CBH2617 25 Spring CBH2620 26 Spring CBH2621 27 Spring CBH2641 28 Spring CBH2642 29 Spring CBH2643 30 Spring CBH2659 31 Spring CBH2688 32 ••••• 33 Shaft CLA4441 34 Frame CNC9962 35 Frame CNC9963 36 Bracket CNC9966 37 Bracket CND1895 38 Arm CNC9968 39 Arm CND1909 40 Lever CND2032 41 Lever CNC9984 42 Sheet CNM8134 43 Collar CNV7798 44 Guide CNV7799 45 Arm CNV7800 46 Rack CNV7199 47 Holder CNV7201 48 Holder CNV7202 49 Arm CNV7203 50 Gear CNV7207 51 Gear CNV7208 52 Gear CNV7209 53 Gear CNV7210 54 Gear CNV7211 55 Gear CNV7212 56 Rack CNV7214 57 Arm CNV7215 58 Arm CNV7216 59 Guide CNV7217 60 Roller CNV7218 61 Gear CNV7219 62 Arm CNV7221 63 Arm CNV7220 64 Arm CNV7222 65 Damper CNV7313 66 Damper CNV7314 67 Arm CNV7341 68 Arm CNV7342 69 Guide CNV7360 70 Guide CNV7361 71 Holder CNV7437 72 Arm CNV7805 73 Gear CNV7595 74 Damper CNV7618 75 Motor Unit(M1) CXB6007 76 Chassis Unit CXC2318 77 Screw Unit CXB8729 78 Gear Unit CXC2397 79 Arm Unit CXC2316 80 Arm CND1896 81 Arm CND1894 82 Motor Unit(M2) CXB8933 83 Bracket CNC9985 84 ••••• 85 Screw(M2x5) EBA1028 86 Screw JFZ20P020FTC 87 Screw JGZ17P022FTC 88 ••••• 89 Washer YE20FTC 90 Pickup Unit(P10)(Service) CXX1641 91 Screw IMS26P030FTC 92 Spring CBL1635 93 Clamper CNV7197 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 18 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM ASENBO 85 MUTE XIN XOUT 41 PEE 22 38 43 44 42 80 28 27 79 SYSTEM CONTROLLER IC 601(2/2) PD5920A (P7600MP) PD5922A (P6600R) CN401 1 2 BUS- BUS+ BUS+L BUS-L TX RX IPPW SWVDD Q80 Q80 TUNER AMP UNIT 13 X601 11 EVST,EVCK,EVDT TUN L BUS+L BUS-L CD L 33 DPDT 34 KYDT 1 SYSPW EJTIN 42 41 ILMPW S802 DETACH SENSE SW 39 dsens A 5 8 1 7 CN101 11 BUZZER IC 101 HA12240FP IP-BUS DRIVER 1 2 8 6 5 TX RX IPPW BU Q101 TUN 3.3V SYS+B VDD ANTENNA 92 LVLINL LEVEL INDIC BU Q804 Q8 20 OELPW BU SP841 IC 801 2 4 35 ROT1 36 ROT0 VDD 15 ASLIN FLPILM 40 CN651 21 19 5 14 20 BRST,BRXEN,BSRQ BDATA,BSCK, CD5VON,DSPMUTE, DSPOKOUT,CDA/D VD Q650 22 BU Q652 Q651 VDD VD TC7SET08FU Q321 VDD SYSPW RDS_CK RDS_LO RDS_DAT RDS_HS RDS_CK RDS_DATA RDS_LOCK RDS_HSLK FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← WC CE2 ROM_VDD SL DI CK CE1 NC DO 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP 24 23 Rch Lch FM/AM TUNER UNIT DET, FM MPX, RDS DECODER IC 2 2.5V BRST,BRXEN,BSRQ Q601 Q603 MUTE D CN901 Q101 M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ TRACKING ACT. LD- MD FO+ TO+ 15 5 1 4 PICKUP UNIT (P10)(SERVICE) HOLOGRAM UNIT IC 301 BA5835FM IC 201 UPD63761GJ IC 703 +3.3V REGULATOR RF-AMP,CD DECODER, MP3 and WMA DECODER, DIGITAL SERVO / DATA PROCESSOR CD DRIVER 3 VD VD 3VDD 10 L-OUT 5 CN101 TOP FOP 16 SOP 15 SOM 18 LCOP 17 LCOM 22 2 LOEJ 31 LOUT 9 CONT 12 FOP TD/FD AC,BD F,E SD/MD 3 13 TOP HOME 12EJ SENSE 8EJ SENSE LD+ 14 142 LD 143 PD CD CORE UNIT(S10WMA)(P7600MP) 35 34 X201 DSCSNS CONT LOEJ HOME 32 97 53 47 VDD IC 203 NJM2391DL1-33 +3.3V REGULATOR V3R3D 1 3 VDCONT 49 S-812C33AUA-C2N CD CONTROLLER IC 701 PE5440A 55 CDMUTE 4 V3R3D 19 BDATA,BSCK VD2 2 15 5 1 4 14 CLAMP 4 VD2 VDCONT 30 31 8EJ 12EJ IC 501 S-L2980A15MC-C6A 1.5V REGULATOR V1R5 1,3 5 V3R3D 23 CD3VCONT CD3VON 46 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 19 5 6 7 8 5 6 7 8 C D F A B E 10 1 bsens asens VDD BU 72 73 10 FL 11 RL 85 UTE XIN OUT ILB SWDVDD 23 21 3 5 FL- FL+ RL- RL+ ACC IN3-L 41 IN4+L 43 IN4-L 44 IN2-L 42 FLIN 14 RLIN 12 22 4 RESET POWER AMP IC 601(1/2) PD5920A (P7600MP) PD5922A (P6600R) R IC201 PML009A IC602 IC 301 PAL007A reset VDD Q911 Q931 SYSPW ELECTRONIC VOLUME/ SOURCE SELECTOR STBY MUTE Q807 Q808 13 X601 11 2 EVST,EVCK,EVDT TUN L BUS+L BUS-L CD L DPDT KYDT BU Q922 Q923 1 PW BU Q301 MUTE PL SW L FL Q352 FRONT L 12 PL TIN 42 7 2 11 14 7 2 11 14 CN1950 CN1951 4 2 10 8 PANEL UNIT 41 ILMPW MUTE S802 DETACH SENSE SW 39 ens SYSTEM CONTROLLER Q951 VDD TELIN 8 25 B.REMOTE VDD REGULATOR BACKUP SENSE ACC SENSE TELEPHONE MUTE 3 9 11 12 10 1 8 6 3 9 11 12 10 1 8 6 2 2 B CN981 Q364 BU CN352 FUSE 10A SL tunpce@ TUNPCE1 TUNPDI TUNPDO 95 69 70 98 99 TUNPCK 100 ce@ CE1 6 2 Q921 DO DI CK Q913 DALMON 67 BU 6,20 Q501 10 10 5 Q353 PL FL Q932 isens 81 ILM SENSE 5 5 NJM4558MD IC 131 5 7 92 INL 1 SEL_OUT_L LEVEL INDICATOR MIC 13 MICIN MICROPHONE 1 BU Q804 Q803 ILB 20 PW BU Q852 Q851 IC851 NJM2360M 6 5 2 13 13 9 12 12 7 ROT1 ROT0 VDD S-80835CNUA-B8U 15 ASLIN 93 ASLIN NOISEDET CN801 8 8 S1970 EJECT 9 9 DGND BU 5 6 5 6 Q805 LM 40 RL Q351 2 CN351 RL REAR L OEL+B OEL+B U SYS+B VOLUME Q321 FL- FL+ RL- RL+ BACK UP GND RR + RR - FR + FR - FL + FL - RL + RL - ACC GND BACK UP B. REM ACC TELMUTE B.REM ILM ILM Q402 Q401 RDS_CK RDS_LOCK 45 rdslk 16 RDSDATA 46 rdshslk 44 rdslk RDS_DATA RDS_HSLK SYS 8.4V SYS 8.4V REGULATOR NJM2391DL1-33 IC 401 1 3 SYS 8.4V TUN 3.3V TUNER 3.3V REGULATOR KEYAD 3 KEYD KEYAD KEYD WIRED REMOTE CONTROL 2 CN161 89 2 ILB SWVDD OELB IC 1940 PD5932A KEY/OEL CONTROLLER 9 11 8 KEY DATA OEL DATA AVCC 97 CN1901 KEYBOARD UNIT 3 5 DPDT KYDT IC 1990 PD8119A(P7600MP) PD8123A(P6600R) FONT ROM IC 1901 RS-140 REMOTE CONTROL SENSOR OPT IN 4 1 5 REM 27 28 DPDT KTDT OEL UNIT 4,16 2,8 IC 1902 S-818A33AUC-BGN 3.3V REGULATOR 1 5 C S1901 3 2 1 4 6 ROT1 ROT0 ROT1 ROT0 KEY MATRIX ILLUMINATION Q1960 Q1961 IC1970 IC1971 VDD1 14 VDD2 60 23 VCC 16V 9V ILB ILB ce cs) 48 16V 3.3V XIN XOUT 13 X1940 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 20 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS "ELECTRICAL PARTS LIST". A-a A B HA12240FP : DEH-P7600MP/XN/EW : DEH-P6600R/XN/EW EJECT IP-BUS DRIVER IP-BUS FM/AM TUNER UNIT 3.3V REG. E-VOL SYSTEM CONTRO For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V C B PANEL UNIT CN1901 D CN701 CN901 FM(100%):-15.5dBs AM(30%):-26.0dBs IP-BUS:+2.2dBs CD:+0.36dBs FM:-16.5dBs AM:-27.0dBs IP-BUS:+2.2dBs CD: +0.36dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 21 5 6 7 8 5 6 7 8 C D F A B E A-b AND PARTS LIST" or A DETACH SENSE SW SYS+B REG. 600µH 3A 3A 10K(B) 5 6 7 8 LEVEL IND. WIRED REMOTE SYSTEM CONTROLLER VDD REG. DC/DC CONVERTER TEL MUTE B.UP SENSE ACC SENSE ILM SENSE POWER AMP RCA ASL A TUNER AMP UNIT SUB WOOFER R ch SUB WOOFER L ch FRONT R ch FRONT L ch REAR R ch REAR L ch > > RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP B. REM CEK1208 10A > FM:+6.6dBs AM: -1.9dBs IP-BUS:+10.3dBs CD:+10.46dBs IP-BUS:+9.5dBs FM:+32.6dBs AM:+24.1dBs IP-BUS:+35.3dBs CD:+36.46dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 22 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-a A-a A-b 1 2 HA12240FP IP-BUS DRIVER IP-BUS FM/AM TUNER UNIT 3.3V REG. E-VOL SYSTEM CONTROLLER FM(100%):-15.5dBs AM(30%):-26.0dBs IP-BUS:+2.2dBs FM:-16.5dBs AM:-27.0dBs IP-BUS:+2.2dBs CD: +0.36dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 23 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-a A-a A-b B 3 4 5 : DEH-P7600MP/XN/EW : DEH-P6600R/XN/EW EJECT SYSTEM CONTROLLER For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V C B PANEL UNIT CN1901 D CN701 CN901 CD:+0.36dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 24 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1 2 600µH 3A 3A 10K(B) 5 6 7 8 LEVEL IND. WIRED REMOTE TEM CONTROLLER OWER AMP RCA ASL A TUNER AMP UNIT SUB WOOFER R ch SUB WOOFER L ch FRONT R ch FRONT L ch REAR R ch REAR L ch > > CEK1208 10A > FM:+6.6dBs AM: -1.9dBs IP-BUS:+10.3dBs CD:+10.46dBs IP-BUS:+9.5dBs FM:+32.6dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 25 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 3 4 5 DETACH SENSE SW SYS+B REG. TEM CONTROLLER VDD REG. DC/DC CONVERTER TEL MUTE B.UP SENSE ACC SENSE ILM SENSE POWER AMP RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP B. REM CEK1208 10A > FM:+32.6dBs AM:+24.1dBs IP-BUS:+35.3dBs CD:+36.46dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 26 1 2 3 4 1 2 3 4 C D F A B E 3.3 KEYBOARD UNIT(DEH-P7600MP) C S-818A33AUC-BGN CL-190UB2-X TA CL-190UB2-X REMOTE CONTROL SENSOR 3.3V REG. VOLUME B CN1951 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 27 5 6 7 8 5 6 7 8 C D F A B E C 20K(B) 15K(B) PD8119A KEY / OEL CONTROLLER FONT ROM C KEYBOARD UNIT OEL UNIT For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V MXS8201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 28 1 2 3 4 1 2 3 4 C D F A B E 3.4 KEYBOARD UNIT(DEH-P6600R) C S-818A33AUC-BGN TA REMOTE CONTROL SENSOR 3.3V REG. VOLUME B CN1951 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 29 5 6 7 8 5 6 7 8 C D F A B E C 20K(B) 15K(B) PD8123A KEY / OEL CONTROLLER FONT ROM MXS8201 C KEYBOARD UNIT OEL UNIT For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 30 1 2 3 4 1 2 3 4 C D F A B E 3.5 CD MECHANISM MODULE(GUIDE PAGE)(DEH-P7600MP) D-a D L209 C217 R1 M1 CXB6007 SPINDLE MOTOR M2 CXB8933 LOADING/CARRIAGE MOTOR PICKUP UNIT(P10)(SERVICE) CD DRIVER 3.3 REGULATOR Pull-down 1 2 3 % # @ $ 7 8 5 9 0 4 F F F F F F F F F F F F F T S C T T S S C C C C S S S C T F S C T F T T T T T T T T T T F F T T F T S S C C AND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 31 5 6 7 8 5 6 7 8 C D F A B E D-b D 470P R01 C722 1 C906 R22 C910 2R2 16.934MHz SWITCHES: CD CORE UNIT(S10WMA) S901 : HOME SWITCH.........ON-OFF S902 : CLAMP SWITCH.......ON-OFF S903 : DSCSNS SWITCH.....ON-OFF S904 : 12EJ SWITCH............ON-OFF S905 : 8EJ SWITCH..............ON-OFF The underlined indicates the switch position. A D CN651 CD CORE UNIT(S10WMA) MICRO COMPUTER 1.5 REGULATOR 3.3 REGULATOR Pull-down ! 6 ^ & SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE F T C S AND PE5440A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 32 1 2 3 4 1 2 3 4 C D F A B E A-a D-b D-a D-a D-b 1 2 L209 C217 R1 AND PICKUP UNIT(P10)(SERVICE) % # @ F F F F F F F F F F S C T F S C T F T T T T T T T T T T F F T T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 33 5 6 7 8 5 6 7 8 C D F A B E A-a D-b D-a D-a D-b 2 3 4 5 M1 CXB6007 SPINDLE MOTOR M2 CXB8933 LOADING/CARRIAGE MOTOR CD DRIVER 3.3 REGULATOR Pull-down 1 2 3 $ 7 8 5 9 0 4 F F F T S C T T S S C C C C S S F T S S C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 34 1 2 3 4 1 2 3 4 C D F A B E D-a D-b D-b 1 2 16.934MHz AND SWITCHES: CD CORE UNIT(S10WMA) S901 : HOME SWITCH.........ON-OFF S902 : CLAMP SWITCH.......ON-OFF S903 : DSCSNS SWITCH.....ON-OFF S904 : 12EJ SWITCH............ON-OFF S905 : 8EJ SWITCH..............ON-OFF The underlined indicates the switch position. D CD CORE UNIT(S10WMA) 1.5 REGULATOR ! SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE F T C S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 35 5 6 7 8 5 6 7 8 C D F A B E D-a D-b D-b 2 3 4 5 470P R01 C722 1 C906 R22 C910 2R2 A CN651 MICRO COMPUTER 3.3 REGULATOR Pull-down 6 ^ & PE5440A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 36 1 2 3 4 1 2 3 4 C D F A B E - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65V) 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div 12 cm CD Loading operation Ref.: GND Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div Ref.: GND Mode: Normal 1 DSCSNS 5 CLCONT 4 LOEJ 6 VD 5V/div 5V/div 5V/div 10V/div 500ms/div 12 cm CD Loading operation 8 cm CD Loading operation Ref.: GND Mode: Normal 0 FIN ! RFOK 7 SIN 200mV/div 2V/div 2V/div 500ms/div 12 cm CD-DA Source On setup operation Ref.: REFO Mode: Normal # FE 0 FIN @ TE 9 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div Ref.: REFO Mode: Normal @ TE # FE 500mV/div 500mV/div 200ms/div Source On setup operation CD-DA Play operation Ref.: REFO Mode: Normal # FE 0 FIN @ TE 9 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div CD-ROM play operation(Regular track Jump) Ref.: REFO Mode: Normal $ MDX 7 SIN 2V/div 1V/div 5µs/div Ref.: REFO Mode: Normal $ MDX 7 SIN 1V/div 200mV/div 50ms/div Spindle waveform during play operation Spindle waveform during play operation (Wider) Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 2s/div 12 cm CD-DA setup operation after loading 12 cm CD-ROM(3 sessions) setup operation after loading Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 2s/div Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 1s/div 12 cm CD-ROM(1 session) setup operation after loading Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 37 5 6 7 8 5 6 7 8 C D F A B E 0 FIN # FE 500mV/div 500mV/div 200ms/div Focus Search waveform Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 500µs/div Ref.: REFO Mode: TEST @ TE % RFAGC 500mV/div 500mV/div 2ms/div Track Open waveform 1 Track Jump waveform Ref.: REFO Mode: TEST % RFAGC @ TE 8 CIN 7 SIN 1V/div 1V/div 500mV/div 2V/div 200ms/div Search operation(Outter to Inner) Ref.: REFO Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div Ref.: GND Mode: Normal ^ LOUT & ROUT 1V/div 1V/div 200µs/div Analog audio waveform 12 cm CD Eject operation Ref.: AGND Mode: Normal 1 DSCSNS 5 CLCONT 4 LOEJ 5V/div 5V/div 5V/div 500ms/div 12 cm CD Eject operation Ref.: GND Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div 8 cm CD Eject operation CD-DA >> CD-ROM mode change(Band key) Ref.: GND Mode: Normal % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 500µs/div 4 Tracks Jump waveform 32 Tracks Jump waveform Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 2ms/div Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 1ms/div 10 Tracks Jump waveform Ref.: REFO Mode: TEST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 38 1 2 3 4 1 2 3 4 C D F A B E 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 500ms/div CD-ROM >> CD-DA mode change(Band key) Ref.: REFO Mode: Normal % RFAGC 9 TIN @ TE 0 FIN 1V/div 1V/div 1V/div 1V/div 500µs/div Black dot(800µm) during play Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 39 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 40 1 2 3 4 1 2 3 4 C D F A B E 3.6 CD MECHANISM MODULE(DEH-P6600R) D PICKUP UNIT(P10)(SERVICE) BA5835FP R1 R1 R1 M1 CXB6007 SPINDLE MOTOR M2 CXB8933 LOADING/CARRIAGE MOTOR RF MOTOR DRIVER 3.3V REGULATOR F F F F F F F F F F F F F T S C T T S S C C C C S S T T T T T T T T T T 1 7 8 3 6 5 @ 9 0 ! # www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 41 5 6 7 8 5 6 7 8 C D F A B E D SWITCHES: CD CORE UNIT (S10) S901 : HOME SWITCH.........ON-OFF S902 : CLAMP SWITCH.......ON-OFF S903 : DSCSNS SWITCH.....ON-OFF S904 : 12EJ SWITCH............ON-OFF S905 : 8EJ SWITCH..............ON-OFF The underlined indicates the switch position. A D CN651 CD CORE UNIT(S10) RF AMP / SERVO / DSP / DAC / LPF SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE F T C S S C C S C T F S C T F 3 6 5 @ $% 4 2 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 42 1 2 3 4 1 2 3 4 C D F A B E - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65V) 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading a 12cm CD Ref.: GND Mode: Normal 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 2s/div When setting up after loading a 12cm CD-DA disc Ref.: REFO Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading an 8cm CD Ref.: GND Mode: Normal @ MDX 5 SIN 500mV/div 1V/div 5ms/div Spindle waveform during "Play" Ref.: REFO Mode: Normal # RFAGC 500mV/div 0.5µs/div Ref.: REFO Mode: Normal @ MDX 5 SIN 500mV/div 1V/div 5µs/div Spindle waveform during "Play"(Magnified) RF eye pattern Ref.: REFO Mode: Normal 8 FIN ! FE 500mV/div 500mV/div 200ms/div Focus Search Ref.: REFO Mode: TEST # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 500µs/div Ref.: REFO Mode: TEST 0 TE # RFAGC 500mV/div 500mV/div 2ms/div When "Tracking Open" 1 Track Jump Ref.: REFO Mode: TEST 8 FIN 9 RFOK 5 SIN 200mV/div 2V/div 2V/div 500ms/div When setting up "Source On"(12cm CD-DA) During "Play"(CD-DA) Ref.: REFO Mode: Normal ! FE 8 FIN 0 TE 7 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div Ref.: REFO Mode: Normal 0 TE ! FE 500mV/div 500mV/div 200ms/div When setting up "Source On" Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 43 5 6 7 8 5 6 7 8 C D F A B E # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 500ms/div 32 Track Jump Ref.: REFO Mode: TEST # RFAGC 7 TIN 0 TE 8 FIN 1V/div 1V/div 1V/div 1V/div 500µs/div Ref.: REFO Mode: Normal # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 5ms/div 100(32x3) Track Jump When reproducing black dots(1mm) Ref.: REFO Mode: TEST $ LOUT % ROUT 1V/div 1V/div 200µs/div Analog Audio Ref.: AGND Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 5V/div 5V/div 5V/div 200ms/div Ref.: GND Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 5V/div 5V/div 5V/div 200ms/div When "Eject"(12cm CD) When "Eject"(8cm CD) Ref.: GND Mode: Normal # RFAGC 0 TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 500µs/div When reproducing scratch(1mm) During inside/outside search (outer circumference → inner circumference) Ref.: REFO Mode: Normal # RFAGC 0 TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 500µs/div Ref.: REFO Mode: Normal # RFAGC 0 TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 5ms/div When reproducing fingerprint(65µm) Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 44 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT Capacitor Connector P.C.Board Chip Part A A TUNER AMP UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams CORD ASSY CORD ASSY IP-BUS WIRED REMOTE DETACH SENSE SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 45 5 6 7 8 5 6 7 8 C D F A B E A SIDE A CORD ASSY FRONT RCA ANTENNA FM/AM TUNER UNIT B CN1950 D CN901(P7600MP) CN701(P6600R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 46 1 2 3 4 1 2 3 4 C D F A B E A A TUNER AMP UNIT PCL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 47 5 6 7 8 5 6 7 8 C D F A B E A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 48 1 2 3 4 1 2 3 4 C D F A B E 4.2 PANEL UNIT B B PANEL UNIT B PANEL UNIT SIDE A SIDE B C CN1901 A CN801 EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 49 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 50 1 2 3 4 1 2 3 4 C D F A B E 4.3 KEYBOARD UNIT(DEH-P7600MP) C C KEYBOARD UNIT C KEYBOARD UNIT SIDE A SIDE B B CN1951 1 2 3 4 5 6 TA SOURCE EQ VOLUME DISPLAY TEXT FUNCTION AUDIO BAND ENT EQ-EX TP1 TP3 TP2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 51 5 6 7 8 5 6 7 8 C D F A B E 4.4 KEYBOARD UNIT(DEH-P6600R) C C KEYBOARD UNIT C KEYBOARD UNIT SIDE A SIDE B B CN1951 1 2 3 4 5 6 TA SOURCE EQ VOLUME DISPLAY TEXT FUNCTION AUDIO BAND ENT EQ-EX TP1 TP3 TP2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 52 1 2 3 4 1 2 3 4 C D F A B E 4.5 CD CORE UNIT(S10WMA)(DEH-P7600MP) D D CD CORE UNIT(S10WMA) SIDE A A CN651 M1 SPINDLE MOTOR M2 LOADING /CARRIAGE MOTOR PICKUP UNIT(P10)(SERVICE) HOME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 53 5 6 7 8 5 6 7 8 C D F A B E D D CD CORE UNIT(S10WMA) SIDE B CLAMP DSCSNS 8EJ 12EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 54 1 2 3 4 1 2 3 4 C D F A B E 4.6 CD CORE UNIT(S10)(DEH-P6600R) D D CD CORE UNIT(S10) SIDE A A CN651 PICKUP UNIT(P10)(SERVICE) M1 SPINDLE MOTOR M2 LOADING /CARRIAGE MOTOR HOME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 55 5 6 7 8 5 6 7 8 C D F A B E D D CD CORE UNIT(S10) SIDE B CLAMP DSCSNS 8EJ 12EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 56 1 2 3 4 1 2 3 4 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Circuit Symbol and No. Part No. A Unit Number:XWM7044(P7600MP) Unit Name:Tuner Amp Unit MISCELLANEOUS IC 101 IC HA12240FP IC 131 IC NJM4558MD IC 201 IC PML009A IC 301 IC PAL007A IC 401 IC NJM2391DL1-33 IC 601 IC PD5920A IC 602 IC S-80835CNUA-B8U IC 801 IC TC7SET08FU IC 851 IC NJM2360M Q 101 Transistor 2SA1576 Q 102 Transistor DTC114EU Q 301 Transistor DTC124EU Q 351 Transistor UMH3N Q 352 Transistor UMH3N Q 353 Transistor UMH3N Q 401 Transistor UMH1N Q 402 Transistor UMH1N Q 650 Transistor 2SD1760F5 Q 651 Transistor 2SD2396 Q 652 Transistor UMD2N Q 653 Transistor UMD2N Q 803 Transistor 2SD1767 Q 804 Transistor UMD2N Q 805 Transistor DTC143EU Q 807 Transistor 2SA1576 Q 808 Transistor DTC114EU Q 851 Transistor 2SD1760F5 Q 852 Transistor UMD2N Q 911 Transistor 2SD2396 Q 913 Transistor UMD2N Q 921 Transistor 2SD2396 Q 922 Transistor DTC114EU Q 923 Transistor 2SB1243 Q 931 Transistor UMX1N Q 932 Transistor DTC114EU Q 951 Transistor 2SA1576 Q 981 Transistor 2SC4081 Q 982 Transistor UMD2N D 131 Diode Network DA204U D 132 Diode Network DA204U D 133 Diode DAN202U D 134 Diode DAP202U D 301 Diode S5688G D 302 Diode S5688G D 303 Diode S5688G D 304 Diode S5688G D 401 Diode S5688G D 402 Diode S5688G D 403 Diode S5688G D 650 Diode HZS6L(C1) D 651 Diode HZS9L(B1) D 751 Diode RB706F-40 D 803 Diode Network DA204U D 804 Diode DAN202U D 805 Diode DAP202U D 806 Diode DAN202U D 807 Diode DAP202U D 808 Diode HZS11L(A1) D 851 Diode HZS11L(A1) D 852 Diode RB411D D 911 Diode S5688G D 912 Diode HZS6L(B1) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(A1) D 932 Diode HZS7L(C3) D 937 Diode MA111 D 951 Diode DAN202U D 981 Diode DAN202U D 982 Diode HZS9L(A2) L 101 Inductor LAU2R2K L 201 Ferri-Inductor LAU4R7K L 301 Choke Coil 600µ H CTH1280 L 401 Ferri-Inductor LAU4R7K L 403 Inductor LAU1R0K L 404 Inductor LAU1R0K L 405 Inductor LAUR47K L 406 Inductor CTF1385 L 601 Ferri-Inductor LAU100K L 683 Ferri-Inductor LAU100K L 802 Inductor CTF1382 L 852 Inductor CTF1510 L 853 Inductor CTF1489 L 951 Inductor LAU2R2K X 601 Radiator 10.00MHz CSS1599 S 802 Switch(DETACH SENSE) CSN1039 VR751 Semi-fixed 10kΩ(B) CCP1229 FU351 Fuse 3A CEK1286 FU353 Fuse 3A CEK1286 BZ641 Buzzer CPV1062 AR401 Surge Protector DSP-201M-S00B Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 57 5 6 7 8 5 6 7 8 C D F A B E Fuse 10A CEK1208 FM/AM Tuner Unit CWE1645 RESISTORS R 101 RS1/16S101J R 102 RS1/16S620J R 103 RS1/16S101J R 104 RS1/16S222J R 105 RS1/16S102J R 106 RS1/16S472J R 107 RS1/16S223J R 108 RS1/16S472J R 109 RS1/16S821J R 110 RS1/16S821J R 111 RS1/16S223J R 112 RS1/16S223J R 113 RS1/16S102J R 114 RS1/16S102J R 115 RS1/16S472J R 133 RS1/16S563J R 134 RS1/16S104J R 139 RS1/16S563J R 140 RS1/16S104J R 147 RS1/16S474J R 148 RS1/16S474J R 161 RS1/16S102J R 162 RS1/16S102J R 163 RS1/16S103J R 164 RS1/16S103J R 201 RAB4C102J R 241 RS1/16S102J R 242 RS1/16S102J R 247 RS1/16S101J R 248 RS1/16S101J R 249 RS1/16S101J R 250 RS1/16S101J R 301 RS1/16S103J R 302 RS1/16S103J R 303 RS1/16S153J R 304 RS1/16S331J R 351 RS1/16S821J R 352 RS1/16S821J R 353 RS1/16S821J R 354 RS1/16S821J R 355 RS1/16S821J R 356 RS1/16S821J R 357 RS1/16S223J R 358 RS1/16S223J R 359 RS1/16S223J R 360 RS1/16S223J R 361 RS1/16S223J R 362 RS1/16S223J R 403 RS1/16S681J R 405 RS1/16S681J R 406 RS1/16S681J R 407 RS1/16S681J R 408 RS1/16S681J R 409 RS1/16S681J Circuit Symbol and No. Part No. R 410 RS1/16S681J R 412 RAB4C223J R 416 RS1/16S681J R 417 RS1/16S681J R 419 RS1/16S681J R 421 RS1/16S681J R 605 RS1/16S0R0J R 606 RS1/16S104J R 607 RS1/16S822J R 608 RS1/16S221J R 609 RS1/16S221J R 610 RS1/16S682J R 611 RS1/16S682J R 612 RS1/16S104J R 613 RS1/16S102J R 616 RS1/16S473J R 617 RS1/16S102J R 630 RS1/16S104J R 632 RS1/16S104J R 641 RS1/16S102J R 645 RS1/16S271J R 651 RD1/4PU221J R 652 RD1/4PU221J R 656 RS1/16S102J R 657 RS1/16S102J R 665 RD1/4PU0R0J R 666 RS1/16S0R0J R 669 RS1/16S0R0J R 671 RS1/16S0R0J R 672 RS1/16S0R0J R 676 RS1/16S102J R 677 RS1/16S104J R 678 RS1/16S102J R 680 RS1/16S222J R 681 RS1/16S104J R 689 RS1/16S0R0J R 751 RS1/16S104J R 752 RS1/16S222J R 753 RS1/16S561J R 754 RS1/16S104J R 802 RS1/16S222J R 803 RS1/16S472J R 804 RS1/16S1R0J R 805 RS1/16S391J R 806 RS1/16S391J R 807 RS1/16S473J R 808 RS1/16S473J R 809 RS1/16S102J R 810 RS1/16S222J R 811 RS1/16S222J R 812 RS1/16S222J R 813 RS1/16S222J R 814 RS1/16S222J R 815 RS1/16S473J R 816 RS1/16S104J R 817 RD1/4PU391J R 818 RS1/16S104J R 819 RS1/16S222J R 820 RS1/16S222J R 823 RS1/16S102J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 58 1 2 3 4 1 2 3 4 C D F A B E R 824 RS1/16S473J R 825 RS1/16S102J R 826 RS1/16S102J R 827 RS1/16S102J R 828 RS1/16S102J R 851 RS1/16S331J R 852 RD1/4PU302J R 853 RD1/4PU302J R 854 RS1/16S121J R 855 RS1/16S391J R 856 RS1/16S1R0J R 857 RS1/16S331J R 903 RS1/16S223J R 912 RS1/16S222J R 913 RS1/16S223J R 914 RS1/16S104J R 915 RS1/16S104J R 916 RS1/16S104J R 923 RS1/16S103J R 924 RD1/4PU122J R 925 RS1/16S182J R 931 RS1/16S472J R 932 RS1/16S473J R 933 RS1/16S103J R 934 RS1/16S473J R 935 RS1/16S104J R 936 RS1/16S103J R 938 RD1/4PU102J R 939 RD1/4PU102J R 951 RD1/4PU153J R 952 RS1/16S472J R 953 RS1/16S472J R 954 RS1/16S102J R 983 RS1/16S223J R 984 RS1/16S473J R 985 RS1/16S102J CAPACITORS C 101 CKSRYB104K16 C 102 CKSRYB473K25 C 131 CKSRYB104K16 C 132 CKSRYB104K16 C 141 CKSRYB104K16 C 142 CKSRYB103K50 C 143 CKSRYB474K10 C 144 CKSRYB474K10 C 145 CCSRCH101J50 C 146 CCSRCH101J50 C 147 CKSRYB104K16 C 201 CEJQ1R0M50 C 202 CEJQ1R0M50 C 203 CKSRYB104K16 C 204 CKSRYB104K16 C 205 CKSRYB105K10 C 206 CEJQ470M16 C 207 CEJQ1R0M50 C 208 CEJQ1R0M50 C 209 CEJQ1R0M50 C 210 CEJQ1R0M50 Circuit Symbol and No. Part No. C 211 CEJQ4R7M35 C 212 CEJQ4R7M35 C 213 CEJQ4R7M35 C 214 CEJQ4R7M35 C 215 CEJQ4R7M35 C 216 CEJQ4R7M35 C 217 CEJQ4R7M35 C 218 CEJQ4R7M35 C 219 CCSRCH120J50 C 220 CCSRCH120J50 C 221 CCSRCH120J50 C 222 CCSRCH120J50 C 225 CEJQ100M16 C 241 CKSRYB152K50 C 242 CKSRYB152K50 C 306 CEJQ330M10 C 307 3300µ F/16V CCH1486 C 309 CKSRYB104K16 C 310 CEJQ100M16 C 311 CKSYB475K16 C 312 CKSYB475K16 C 317 CKSRYB474K10 C 318 CKSRYB474K10 C 321 CKSRYB474K10 C 322 CKSRYB474K10 C 323 CKSRYB474K10 C 324 CKSRYB474K10 C 325 CKSQYB225K10 C 326 CKSQYB225K10 C 327 CKSRYB474K10 C 328 CKSRYB474K10 C 351 CEJQ4R7M35 C 352 CEJQ4R7M35 C 353 CEJQ4R7M35 C 354 CEJQ4R7M35 C 355 CEJQ4R7M35 C 356 CEJQ4R7M35 C 363 CKSRYB104K16 C 401 CKSRYB103K50 C 402 CEJQ101M10 C 404 CKSYB475K16 C 405 CCSRCH680J50 C 406 CEJQ470M10 C 408 CKSYB475K16 C 409 CEJQ1R0M50 C 411 CCSRCH101J50 C 412 CCSRCH470J50 C 415 CCSRCH101J50 C 601 CEJQ4R7M35 C 602 CKSQYB105K16 C 603 CEJQ2R2M50 C 604 CCSRCH200J50 C 605 CCSRCH200J50 C 609 CCSRCH101J50 C 644 CEJQ101M10 C 645 CKSRYB473K16 C 646 CCSRCH470J50 C 647 CKSRYB683K16 C 651 CEJQ101M10 C 652 CKSRYB473K25 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 59 5 6 7 8 5 6 7 8 C D F A B E C 654 CKSRYB152K50 C 655 CKSRYB152K50 C 657 CCSRCH470J50 C 658 470µ F/16V CCH1183 C 662 CCSRCH471J50 C 751 CEJQ100M16 C 752 CEJQNP100M16 C 753 CEJQ220M10 C 754 CKSRYB474K10 C 756 CKSRYB474K10 C 805 CKSRYB473K25 C 806 CKSRYB473K25 C 807 CKSRYB473K25 C 851 CEJQ470M16 C 853 4.7µ F CCG1111 C 855 CEJQ100M25 C 856 CCSRCH331J50 C 857 CEJQ330M25 C 858 CKSRYB104K16 C 859 CEJQ101M10 C 860 CKSRYB104K16 C 861 CKSRYB223K50 C 911 470µ F/16V CCH1331 C 912 CKSRYB472K50 C 913 CKSRYB103K50 C 914 CEJQ470M10 C 921 CEJQ221M10 C 922 CKSRYB103K50 C 923 CEJQ101M16 C 931 CEJQ1R0M50 C 932 CKSRYB104K16 A Unit Number:XWM7048(P6600R) Unit Name:Tuner Amp Unit MISCELLANEOUS IC 101 IC HA12240FP IC 131 IC NJM4558MD IC 201 IC PML009A IC 301 IC PAL007A IC 401 IC NJM2391DL1-33 IC 601 IC PD5922A IC 602 IC S-80835CNUA-B8U IC 652 IC TC7SET08FU IC 653 IC TC7SET08FU IC 801 IC TC7SET08FU IC 851 IC NJM2360M Q 101 Transistor 2SA1576 Q 102 Transistor DTC114EU Q 301 Transistor DTC124EU Q 352 Transistor UMH3N Q 353 Transistor UMH3N Q 401 Transistor UMH1N Q 402 Transistor UMH1N Q 651 Transistor 2SD2396 Q 652 Transistor UMD2N Q 803 Transistor 2SD1767 Circuit Symbol and No. Part No. Q 804 Transistor UMD2N Q 805 Transistor DTC143EU Q 807 Transistor 2SA1576 Q 808 Transistor DTC114EU Q 851 Transistor 2SD1760F5 Q 852 Transistor UMD2N Q 911 Transistor 2SD2396 Q 913 Transistor UMD2N Q 921 Transistor 2SD2396 Q 922 Transistor DTC114EU Q 923 Transistor 2SB1243 Q 931 Transistor UMX1N Q 932 Transistor DTC114EU Q 951 Transistor 2SA1576 Q 981 Transistor 2SC4081 Q 982 Transistor UMD2N D 131 Diode Network DA204U D 132 Diode Network DA204U D 133 Diode DAN202U D 134 Diode DAP202U D 301 Diode S5688G D 302 Diode S5688G D 303 Diode S5688G D 304 Diode S5688G D 401 Diode S5688G D 402 Diode S5688G D 403 Diode S5688G D 651 Diode HZS9L(B1) D 751 Diode RB706F-40 D 803 Diode Network DA204U D 804 Diode DAN202U D 805 Diode DAP202U D 806 Diode DAN202U D 807 Diode DAP202U D 808 Diode HZS11L(A1) D 851 Diode HZS11L(A1) D 852 Diode RB411D D 911 Diode S5688G D 912 Diode HZS6L(B1) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(A1) D 932 Diode HZS7L(C3) D 937 Diode MA111 D 951 Diode DAN202U D 981 Diode DAN202U D 982 Diode HZS9L(A2) L 101 Inductor LAU2R2K L 201 Ferri-Inductor LAU4R7K L 301 Choke Coil 600µ H CTH1280 L 401 Ferri-Inductor LAU4R7K L 403 Inductor LAU1R0K L 404 Inductor LAU1R0K L 405 Inductor LAUR47K L 406 Inductor CTF1385 L 601 Ferri-Inductor LAU100K L 651 Inductor CTF1382 L 802 Inductor CTF1382 L 852 Inductor CTF1510 L 853 Inductor CTF1489 L 951 Inductor LAU2R2K Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 60 1 2 3 4 1 2 3 4 C D F A B E X 601 Radiator 10.00MHz CSS1599 S 802 Switch(DETACH SENSE) CSN1039 VR751 Semi-fixed 10kΩ(B) CCP1229 FU353 Fuse 3A CEK1286 BZ641 Buzzer CPV1062 AR401 Surge Protector DSP-201M-S00B Fuse 10A CEK1208 FM/AM Tuner Unit CWE1645 RESISTORS R 101 RS1/16S101J R 102 RS1/16S620J R 103 RS1/16S101J R 104 RS1/16S222J R 105 RS1/16S102J R 106 RS1/16S472J R 107 RS1/16S223J R 108 RS1/16S472J R 109 RS1/16S821J R 110 RS1/16S821J R 111 RS1/16S223J R 112 RS1/16S223J R 113 RS1/16S102J R 114 RS1/16S102J R 115 RS1/16S472J R 133 RS1/16S563J R 134 RS1/16S104J R 139 RS1/16S563J R 140 RS1/16S104J R 147 RS1/16S474J R 148 RS1/16S474J R 161 RS1/16S102J R 162 RS1/16S102J R 163 RS1/16S103J R 164 RS1/16S103J R 201 RAB4C102J R 241 RS1/16S0R0J R 242 RS1/16S0R0J R 247 RS1/16S101J R 248 RS1/16S101J R 249 RS1/16S101J R 250 RS1/16S101J R 301 RS1/16S103J R 302 RS1/16S103J R 303 RS1/16S153J R 304 RS1/16S331J R 353 RS1/16S821J R 354 RS1/16S821J R 355 RS1/16S821J R 356 RS1/16S821J R 359 RS1/16S223J R 360 RS1/16S223J R 361 RS1/16S223J R 362 RS1/16S223J R 403 RS1/16S681J R 405 RS1/16S681J R 406 RS1/16S681J R 407 RS1/16S681J R 408 RS1/16S681J Circuit Symbol and No. Part No. R 409 RS1/16S681J R 410 RS1/16S681J R 412 RAB4C223J R 416 RS1/16S681J R 417 RS1/16S681J R 419 RS1/16S681J R 421 RS1/16S681J R 606 RS1/16S104J R 607 RS1/16S822J R 616 RS1/16S473J R 617 RS1/16S102J R 630 RS1/16S104J R 632 RS1/16S104J R 641 RS1/16S102J R 648 RS1/16S221J R 649 RS1/16S221J R 651 RD1/4PU221J R 652 RD1/4PU221J R 653 RS1/16S472J R 654 RS1/16S222J R 655 RS1/16S102J R 656 RS1/16S0R0J R 657 RS1/16S0R0J R 658 RS1/16S102J R 659 RS1/16S221J R 660 RS1/16S221J R 661 RS1/16S221J R 662 RS1/16S221J R 663 RS1/16S102J R 664 RS1/16S221J R 665 RD1/4PU0R0J R 667 RS1/16S221J R 668 RS1/16S222J R 670 RS1/16S221J R 673 RS1/16S104J R 677 RS1/16S104J R 682 RS1/16S221J R 684 RS1/16S0R0J R 689 RS1/16S0R0J R 751 RS1/16S104J R 752 RS1/16S222J R 753 RS1/16S561J R 754 RS1/16S104J R 802 RS1/16S222J R 803 RS1/16S472J R 804 RS1/16S1R0J R 805 RS1/16S391J R 806 RS1/16S391J R 807 RS1/16S473J R 808 RS1/16S473J R 809 RS1/16S102J R 810 RS1/16S222J R 811 RS1/16S222J R 812 RS1/16S222J R 813 RS1/16S222J R 814 RS1/16S222J R 815 RS1/16S473J R 816 RS1/16S104J R 817 RD1/4PU391J R 818 RS1/16S104J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 61 5 6 7 8 5 6 7 8 C D F A B E R 819 RS1/16S222J R 820 RS1/16S222J R 823 RS1/16S102J R 824 RS1/16S473J R 825 RS1/16S102J R 826 RS1/16S102J R 827 RS1/16S102J R 828 RS1/16S102J R 851 RS1/16S331J R 852 RD1/4PU302J R 853 RD1/4PU302J R 854 RS1/16S121J R 855 RS1/16S391J R 856 RS1/16S1R0J R 857 RS1/16S331J R 903 RS1/16S223J R 912 RS1/16S222J R 913 RS1/16S223J R 914 RS1/16S104J R 915 RS1/16S104J R 916 RS1/16S104J R 923 RS1/16S103J R 924 RD1/4PU122J R 925 RS1/16S182J R 931 RS1/16S472J R 932 RS1/16S473J R 933 RS1/16S103J R 934 RS1/16S473J R 935 RS1/16S104J R 936 RS1/16S103J R 938 RD1/4PU102J R 939 RD1/4PU102J R 951 RD1/4PU153J R 952 RS1/16S472J R 953 RS1/16S472J R 954 RS1/16S102J R 983 RS1/16S223J R 984 RS1/16S473J R 985 RS1/16S102J CAPACITORS C 101 CKSRYB104K16 C 102 CKSRYB473K25 C 131 CKSRYB104K16 C 132 CKSRYB104K16 C 141 CKSRYB104K16 C 142 CKSRYB103K50 C 143 CKSRYB474K10 C 144 CKSRYB474K10 C 145 CCSRCH101J50 C 146 CCSRCH101J50 C 147 CKSRYB104K16 C 201 CEJQ1R0M50 C 202 CEJQ1R0M50 C 203 CKSRYB104K16 C 204 CKSRYB104K16 C 205 CKSRYB105K10 C 206 CEJQ470M16 C 207 CEJQ1R0M50 C 208 CEJQ1R0M50 Circuit Symbol and No. Part No. C 209 CEJQ1R0M50 C 210 CEJQ1R0M50 C 211 CEJQ4R7M35 C 212 CEJQ4R7M35 C 213 CEJQ4R7M35 C 214 CEJQ4R7M35 C 215 CEJQ4R7M35 C 216 CEJQ4R7M35 C 217 CEJQ4R7M35 C 218 CEJQ4R7M35 C 219 CCSRCH120J50 C 220 CCSRCH120J50 C 221 CCSRCH120J50 C 222 CCSRCH120J50 C 225 CEJQ100M16 C 306 CEJQ330M10 C 307 3300µ F/16V CCH1486 C 309 CKSRYB104K16 C 310 CEJQ100M16 C 311 CKSYB475K16 C 312 CKSYB475K16 C 317 CKSRYB474K10 C 318 CKSRYB474K10 C 321 CKSRYB474K10 C 322 CKSRYB474K10 C 323 CKSRYB474K10 C 324 CKSRYB474K10 C 325 CKSQYB225K10 C 326 CKSQYB225K10 C 327 CKSRYB474K10 C 328 CKSRYB474K10 C 353 CEJQ4R7M35 C 354 CEJQ4R7M35 C 355 CEJQ4R7M35 C 356 CEJQ4R7M35 C 401 CKSRYB103K50 C 402 CEJQ101M10 C 404 CKSYB475K16 C 405 CCSRCH680J50 C 406 CEJQ470M10 C 408 CKSYB475K16 C 409 CEJQ1R0M50 C 411 CCSRCH101J50 C 412 CCSRCH470J50 C 415 CCSRCH101J50 C 601 CEJQ4R7M35 C 602 CKSQYB105K16 C 603 CEJQ2R2M50 C 604 CCSRCH200J50 C 605 CCSRCH200J50 C 609 CCSRCH101J50 C 651 CEJQ101M10 C 652 CKSRYB473K25 C 653 CKSRYB473K25 C 656 CKSRYB473K25 C 657 CCSRCH470J50 C 662 CCSRCH471J50 C 751 CEJQ100M16 C 752 CEJQNP100M16 C 753 CEJQ220M10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 62 1 2 3 4 1 2 3 4 C D F A B E C 754 CKSRYB474K10 C 756 CKSRYB474K10 C 805 CKSRYB473K25 C 806 CKSRYB473K25 C 807 CKSRYB473K25 C 851 CEJQ470M16 C 853 4.7µ F CCG1111 C 855 CEJQ100M25 C 856 CCSRCH331J50 C 857 CEJQ330M25 C 858 CKSRYB104K16 C 859 CEJQ101M10 C 860 CKSRYB104K16 C 861 CKSRYB223K50 C 911 470µ F/16V CCH1331 C 912 CKSRYB472K50 C 913 CKSRYB103K50 C 914 CEJQ470M10 C 921 CEJQ221M10 C 922 CKSRYB103K50 C 923 CEJQ101M16 C 931 CEJQ1R0M50 C 932 CKSRYB104K16 C Unit Number:XWM7051(P7600MP) Unit Name:Keyboard Unit MISCELLANEOUS IC 1901 IC RS-140 IC 1902 IC S-818A33AUC-BGN IC 1940 IC PD5932A IC 1990 IC PD8119A Q 1901 Transistor DTC114EU Q 1902 Transistor DTC114EU Q 1903 Transistor DTC114EU Q 1904 Transistor 2SB710A Q 1905 Transistor 2SB710A Q 1960 Transistor 2SC4617 Q 1961 Transistor 2SC2411K D 1903 LED CL-190UB2-X D 1904 LED CL-190UB2-X D 1905 LED CL-190UB2-X D 1906 LED CL-190UB2-X D 1907 LED CL-190UB2-X D 1908 LED CL-190UB2-X D 1909 LED CL-190UB2-X D 1910 LED CL-190UB2-X D 1911 LED CL-190UB2-X D 1912 LED CL-190UB2-X D 1913 LED CL-195SR-CD D 1914 LED CL-195PG-CD D 1940 Diode 1SS355 L 1901 Inductor CTF1530 L 1940 Inductor CTF1530 TH1960 Thermistor CCX1037 X 1940 Radiator 10.0MHz CSS1577 S 1901 Encoder(vOLUME) XSD7002 Circuit Symbol and No. Part No. S 1902 Push Switch CSG1132 S 1903 Push Switch CSG1132 S 1904 Push Switch CSG1111 S 1905 Push Switch CSG1111 S 1906 Switch CSG1110 S 1907 Push Switch CSG1132 S 1908 Push Switch CSG1131 S 1909 Push Switch CSG1131 S 1910 Push Switch CSG1131 S 1911 Push Switch CSG1131 S 1912 Push Switch CSG1131 S 1913 Push Switch CSG1131 S 1914 Push Switch CSG1111 S 1915 Push Switch CSG1111 S 1916 Switch CSG1110 S 1917 Push Switch CSG1132 S 1918 Switch CSG1110 S 1919 Switch CSG1110 S 1921 Switch CSG1110 S 1922 Switch CSG1110 VR1970 Semi-fixed 20kΩ(B) CCP1231 VR1971 Semi-fixed 15kΩ(B) CCP1230 RESISTORS R 1901 RS1/16S222J R 1902 RS1/16S222J R 1903 RS1/16S473J R 1905 RS1/16S680J R 1906 RS1/16S680J R 1907 RS1/16S680J R 1908 RS1/16S680J R 1909 RS1/16S680J R 1910 RS1/16S680J R 1911 RS1/16S103J R 1912 RS1/16S682J R 1913 RS1/16S121J R 1914 RS1/16S184J R 1915 RS1/16S2R2J R 1916 RS1/16S680J R 1917 RS1/16S680J R 1918 RS1/16S680J R 1919 RS1/16S680J R 1920 RS1/16S181J R 1922 RS1/16S121J R 1923 RS1/16S121J R 1924 RS1/16S560J R 1926 RS1/16S121J R 1928 RS1/16S560J R 1930 RS1/16S473J R 1931 RS1/16S272J R 1932 RS1/16S473J R 1933 RS1/16S272J R 1934 RS1/16S472J R 1936 RS1/16S121J R 1940 RS1/16S222J R 1941 RS1/16S101J R 1943 RAB4C101J R 1944 RAB4C101J R 1945 RAB4C101J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 63 5 6 7 8 5 6 7 8 C D F A B E R 1946 RAB4C101J R 1947 RAB4C101J R 1948 RAB4C101J R 1949 RAB4C101J R 1950 RAB4C101J R 1952 RS1/16S101J R 1954 RAB4C473J R 1955 RS1/16S473J R 1956 RS1/16S103J R 1957 RAB4C101J R 1958 RS1/16S473J R 1959 RS1/16S154J R 1960 RS1/16S223J R 1961 RS1/16S683J R 1962 RS1/16S392J R 1963 RS1/16S393J R 1980 RS1/16S473J R 1991 RS1/16S101J R 1992 RS1/16S101J R 1993 RS1/16S101J R 1994 RS1/16S101J R 1995 RS1/16S473J R 1996 RS1/16S222J R 1997 RS1/16S332J R 1998 RS1/16S102J R 1999 RS1/16S102J R 2000 RAB4C102J R 2100 RS1/16S101J R 2101 RS1/16S101J R 2102 RS1/16S101J R 2103 RS1/16S101J CAPACITORS C 1908 CKSYF106Z10 C 1909 CSZSR4R7M16 C 1910 CSZSR4R7M10 C 1911 CKSRYB104K16 C 1912 CKSRYB104K16 C 1913 CKSRYB104K16 C 1914 CKSRYB104K16 C 1915 CKSRYB104K16 C 1916 CKSRYB104K16 C 1917 CKSRYB104K16 C 1918 CKSRYB104K16 C 1919 CKSRYB104K16 C 1920 CKSRYB104K16 C 1940 CKSRYB103K50 C 1941 CKSRYB473K25 C 1942 CKSRYB105K10 C 1943 CKSRYB103K50 C 1944 CSZSR4R7M10 C 1972 CKSRYB104K16 C 1973 CKSRYB104K25 C 1974 CKSRYB104K25 C 1975 CKSRYB104K25 C 1976 CKSRYB104K25 C 1990 CKSRYB103K50 C 1991 CKSRYB104K25 Circuit Symbol and No. Part No. C 1992 CKSRYB104K25 C Unit Number:XWM7054(P6600R) Unit Name:Keyboard Unit MISCELLANEOUS IC 1901 IC RS-140 IC 1902 IC S-818A33AUC-BGN IC 1940 IC PD5932A IC 1990 IC PD8123A Q 1901 Transistor DTC114EU Q 1902 Transistor DTC114EU Q 1903 Transistor DTC114EU Q 1904 Transistor 2SB710A Q 1905 Transistor 2SB710A Q 1960 Transistor 2SC4617 Q 1961 Transistor 2SC2411K D 1903 LED CL-190UB2-X D 1904 LED CL-190UB2-X D 1905 LED CL-190UB2-X D 1906 LED CL-190UB2-X D 1907 LED CL-195PG-CD D 1908 LED CL-195PG-CD D 1909 LED CL-190UB2-X D 1910 LED CL-190UB2-X D 1911 LED CL-190UB2-X D 1912 LED CL-190UB2-X D 1913 LED CL-195SR-CD D 1914 LED CL-195PG-CD D 1940 Diode 1SS355 L 1901 Inductor CTF1530 L 1940 Inductor CTF1530 TH1960 Thermistor CCX1037 X 1940 Radiator 10.0MHz CSS1577 S 1901 Encoder(VOLUME) XSD7002 S 1902 Push Switch CSG1132 S 1903 Push Switch CSG1132 S 1904 Push Switch CSG1111 S 1905 Push Switch CSG1111 S 1906 Switch CSG1110 S 1907 Push Switch CSG1132 S 1908 Push Switch CSG1131 S 1909 Push Switch CSG1131 S 1910 Push Switch CSG1131 S 1911 Push Switch CSG1131 S 1912 Push Switch CSG1131 S 1913 Push Switch CSG1131 S 1914 Push Switch CSG1111 S 1915 Push Switch CSG1111 S 1916 Switch CSG1110 S 1917 Push Switch CSG1132 S 1918 Switch CSG1110 S 1919 Switch CSG1110 S 1921 Switch CSG1110 S 1922 Switch CSG1110 VR1970 Semi-fixed 20kΩ(B) CCP1231 VR1971 Semi-fixed 15kΩ(B) CCP1230 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 64 1 2 3 4 1 2 3 4 C D F A B E RESISTORS R 1901 RS1/16S222J R 1902 RS1/16S222J R 1903 RS1/16S473J R 1905 RS1/16S680J R 1906 RS1/16S680J R 1907 RS1/16S680J R 1908 RS1/16S680J R 1909 RS1/16S181J R 1910 RS1/16S151J R 1911 RS1/16S103J R 1912 RS1/16S682J R 1913 RS1/16S121J R 1914 RS1/16S184J R 1915 RS1/16S2R2J R 1916 RS1/16S680J R 1917 RS1/16S680J R 1918 RS1/16S680J R 1919 RS1/16S680J R 1920 RS1/16S181J R 1922 RS1/16S121J R 1923 RS1/16S121J R 1924 RS1/16S560J R 1926 RS1/16S121J R 1928 RS1/16S560J R 1930 RS1/16S473J R 1931 RS1/16S272J R 1932 RS1/16S473J R 1933 RS1/16S272J R 1934 RS1/16S472J R 1936 RS1/16S121J R 1940 RS1/16S222J R 1941 RS1/16S101J R 1943 RAB4C101J R 1944 RAB4C101J R 1945 RAB4C101J R 1946 RAB4C101J R 1947 RAB4C101J R 1948 RAB4C101J R 1949 RAB4C101J R 1950 RAB4C101J R 1952 RS1/16S101J R 1954 RAB4C473J R 1955 RS1/16S473J R 1956 RS1/16S103J R 1957 RAB4C101J R 1958 RS1/16S473J R 1959 RS1/16S154J R 1960 RS1/16S223J R 1961 RS1/16S683J R 1962 RS1/16S392J R 1963 RS1/16S393J R 1980 RS1/16S473J R 1991 RS1/16S101J R 1992 RS1/16S101J R 1993 RS1/16S101J R 1994 RS1/16S101J R 1995 RS1/16S473J Circuit Symbol and No. Part No. R 1996 RS1/16S222J R 1997 RS1/16S332J R 1998 RS1/16S102J R 1999 RS1/16S102J R 2000 RAB4C102J R 2100 RS1/16S101J R 2101 RS1/16S101J R 2102 RS1/16S101J R 2103 RS1/16S101J CAPACITORS C 1908 CKSYF106Z10 C 1909 CSZSR4R7M16 C 1910 CSZSR4R7M10 C 1911 CKSRYB104K16 C 1912 CKSRYB104K16 C 1913 CKSRYB104K16 C 1914 CKSRYB104K16 C 1917 CKSRYB104K16 C 1918 CKSRYB104K16 C 1919 CKSRYB104K16 C 1920 CKSRYB104K16 C 1940 CKSRYB103K50 C 1941 CKSRYB473K25 C 1942 CKSRYB105K10 C 1943 CKSRYB103K50 C 1944 CSZSR4R7M10 C 1972 CKSRYB104K16 C 1973 CKSRYB104K25 C 1974 CKSRYB104K25 C 1975 CKSRYB104K25 C 1976 CKSRYB104K25 C 1990 CKSRYB103K50 C 1991 CKSRYB104K25 C 1992 CKSRYB104K25 B Unit Number:CWM8758 Unit Name:Panel Unit MISCELLANEOUS D 1970 LED CL220PGC S 1970 Push Switch(EJECT) CSG1112 RESISTORS R 1970 RS1/16S101J R 1971 RS1/16S101J R 1972 RS1/16S0R0J CAPACITORS C 1970 CKSRYB104K16 D Unit Number:CWX2851(DEH-P7600MP) Unit Name:CD CORE UNIT(S10WMA) MISCELLANEOUS Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 65 5 6 7 8 5 6 7 8 C D F A B E IC 201 IC UPD63761GJ IC 203 IC NJM2391DL1-33 IC 301 IC BA5835FM IC 501 IC S-L2980A15MC-C6A IC 701 IC PE5440A IC 703 IC S-812C33AUA-C2N Q 101 Transistor 2SB1132 Q 601 Transistor IMH20 Q 603 Transistor 2SB709A Q 701 Transistor UN2111 D 101 Diode 1SS355 D 601 Diode MA152WA L 203 Inductor CTF1389 L 207 Inductor CTF1389 L 209 Inductor CTF1389 L 703 Inductor CTF1389 X 201 Ceramic Resonator 16.934MHzCSS1603 X 701 Ceramic Resonator 4.00MHz CSS1652 S 901 Switch(HOME) CSN1051 S 902 Switch(CLAMP) CSN1051 S 903 Spring Switch(DSCSNS) CSN1052 S 904 Switch(12EJ) CSN1051 S 905 Switch(8EJ) CSN1051 RESISTORS R 101 RS1/10S1R5J R 102 RS1/10S1R5J R 103 RS1/10S1R5J R 104 RS1/10S1R5J R 105 RS1/10S1R5J R 107 RS1/16SS0R0J R 201 RS1/16SS102J R 202 RS1/16SS333J R 205 RS1/16SS473J R 207 RS1/16SS473J R 209 RS1/16SS473J R 214 RS1/16SS472J R 216 RS1/16SS472J R 218 RS1/16SS472J R 220 RS1/16SS472J R 221 RS1/16SS103J R 222 RS1/16SS103J R 223 RS1/16SS0R0J R 224 RS1/16SS0R0J R 225 RS1/16SS103J R 226 RS1/16SS393J R 227 RS1/16SS562J R 228 RS1/16SS122J R 229 RS1/16SS472J R 231 RS1/16SS0R0J R 232 RS1/16SS122J R 233 RS1/16SS0R0J R 240 RS1/16SS0R0J R 241 RS1/16SS333J R 242 RS1/16SS0R0J R 243 RS1/16SS333J R 245 RS1/16SS333J R 250 RS1/16SS0R0J R 256 RS1/16SS0R0J Circuit Symbol and No. Part No. R 261 RS1/16S0R0J R 262 RS1/16S0R0J R 263 RS1/16S0R0J R 264 RS1/16S0R0J R 267 RS1/16S0R0J R 301 RS1/16SS183J R 302 RS1/16SS822J R 304 RS1/16SS183J R 305 RS1/16SS822J R 307 RS1/16SS183J R 308 RS1/16SS183J R 309 RS1/16SS183J R 310 RS1/16SS183J R 501 RS1/16SS0R0J R 601 RS1/16S101J R 602 RS1/16S101J R 603 RS1/16S223J R 604 RS1/16S223J R 605 RS1/16SS103J R 606 RS1/16S0R0J R 701 RS1/16S0R0J R 702 RS1/16SS0R0J R 703 RS1/16SS104J R 704 RS1/16SS104J R 705 RS1/16SS221J R 706 RS1/16SS221J R 707 RS1/16SS0R0J R 708 RS1/16SS221J R 709 RS1/16SS473J R 710 RS1/16SS102J R 711 RS1/16SS102J R 712 RS1/16SS102J R 713 RS1/16SS102J R 714 RS1/16SS473J R 715 RS1/16SS0R0J R 716 RS1/16SS472J R 719 RS1/16SS221J R 720 RS1/16SS471J R 721 RS1/16S0R0J R 724 RS1/16S473J R 725 RS1/16SS222J R 726 RS1/16SS103J R 727 RS1/16SS473J R 729 RS1/16SS223J R 730 RS1/16SS473J R 731 RS1/16SS104J R 732 RS1/16SS104J R 733 RS1/16SS104J R 735 RS1/16SS473J R 737 RS1/16SS104J R 740 RS1/16SS473J R 742 RS1/16SS104J R 745 RS1/16SS473J R 746 RS1/16SS104J R 750 RS1/16SS473J R 754 RS1/16SS102J R 755 RS1/16SS102J R 756 RS1/16SS104J R 765 RAB4CQ221J R 769 RAB4CQ221J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 66 1 2 3 4 1 2 3 4 C D F A B E R 773 RAB4CQ221J R 777 RS1/16SS221J R 778 RS1/16SS221J R 779 RS1/16SS221J R 901 RAB4CQ221J R 902 RS1/16S0R0J R 905 RS1/16SS221J R 906 RS1/16SS221J R 908 RS1/16SS0R0J R 910 RS1/16SS0R0J CAPACITORS C 101 CKSSYB104K10 C 102 CKSSYB104K10 C 103 100µF/16V CCH1504 C 104 47µF/6.3V CCH1506 C 105 CKSSYB104K10 C 106 CCSSCH101J50 C 107 CKSRYB224K16 C 108 CKSSYB104K10 C 110 CKSSYB104K10 C 201 CKSSYB471K50 C 202 CKSSYB104K10 C 203 CKSSYB104K10 C 204 22µF/6.3V CCH1507 C 205 CKSSYB104K10 C 207 220µF/4V CCH1590 C 208 CKSSYB104K10 C 209 CKSSYB104K10 C 216 CKSSYB332K50 C 217 CKSSYB104K10 C 218 CKSSYB223K16 C 219 CKSSYB104K10 C 220 CKSSYB103K16 C 221 CKSSYB104K10 C 222 CCSSCH560J50 C 223 CCSSCH5R0C50 C 224 CKSSYB104K10 C 225 CKSSYB103K16 C 226 CCSSCH680J50 C 227 CCSSCH470J50 C 228 CKSSYB682K25 C 230 CKSSYB104K10 C 232 CKSSYB104K10 C 233 10µF/6.3V CCH1470 C 234 220µF/4V CCH1590 C 235 CKSRYB224K16 C 237 CKSSYB104K10 C 239 CCSSCH330J50 C 242 CKSSYB104K10 C 246 CKSSYB104K10 C 250 CKSRYB102K50 C 251 CKSRYB102K50 C 260 CKSSYB104K10 C 301 CKSSYB221K50 C 302 CKSSYB221K50 C 303 CKSSYB472K25 C 304 CKSSYB103K16 C 305 100µF/16V CCH1504 Circuit Symbol and No. Part No. C 306 CKSSYB104K10 C 307 CKSSYB104K10 C 501 CKSRYB224K16 C 505 CKSQYB475K6R3 C 601 CCSRCH102J50 C 602 CCSRCH102J50 C 603 4.7µF/25V CCH1568 C 604 4.7µF/25V CCH1568 C 701 CKSSYB104K10 C 702 CKSSYB471K50 C 703 CKSSYB103K16 C 704 4.7µF/25V CCH1592 C 706 CKSSYB104K10 C 707 CKSSYB104K10 C 712 CKSRYB224K16 C 713 CKSSYB104K10 C 714 CKSSYB104K10 C 716 CKSSYB103K16 C 720 CKSQYB225K10 C 722 CKSRYB105K10 C 903 CKSSYB471K50 C 906 CKSRYB224K16 C 907 CKSSYB103K16 C 910 CKSQYB225K10 D Unit Number:CWX2947(DEH-P6600R) Unit Name:CD Core Unit(S10) MISCELLANEOUS IC 201 IC UPD63712AGC IC 301 IC BA5835FP IC 701 IC NJM2391DL1-33 Q 101 Transistor 2SB1132 D 101 Diode 1SS355 D 701 Diode 1SR154-400 X 201 Ceramic Resonator 16.934MHzCSS1603 S 901 Switch(HOME) CSN1051 S 902 Switch(CLAMP) CSN1051 S 903 Spring Switch(DSCSNS) CSN1052 S 904 Switch(12EJ) CSN1051 S 905 Switch(8EJ) CSN1051 RESISTORS R 101 RS1/10S1R5J R 102 RS1/10S1R5J R 103 RS1/10S1R5J R 104 RS1/10S1R5J R 105 RS1/10S1R5J R 201 RS1/16S102J R 202 RS1/16S1002D R 203 RS1/16S1002D R 204 RS1/16S1002D R 205 RS1/16S1002D R 206 RS1/16S1002D R 207 RS1/16S1002D R 208 RS1/16S1002D R 209 RS1/16S1002D R 214 RS1/16S103J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 67 5 6 7 8 5 6 7 8 C D F A B E R 215 RS1/16S393J R 216 RS1/16S122J R 217 RS1/16S562J R 218 RS1/16S472J R 234 RS1/16S0R0J R 235 RS1/16S103J R 236 RS1/16S103J R 301 RS1/16S183J R 302 RS1/16S822J R 303 RS1/16S183J R 304 RS1/16S822J R 305 RS1/16S183J R 306 RS1/16S183J R 307 RS1/16S183J R 308 RS1/16S183J R 501 RS1/16S102J R 503 RS1/16S102J R 505 RS1/16S102J R 506 RS1/16S221J R 507 RS1/16S221J R 508 RS1/16S221J R 509 RS1/16S221J R 601 RS1/16S101J R 602 RS1/16S101J R 603 RS1/16S0R0J R 901 RS1/16S104J R 902 RS1/16S473J R 903 RS1/16S273J CAPACITORS C 101 CKSRYB104K16 C 102 CKSRYB104K16 C 103 100µF/16V CCH1504 C 104 47µF/6.3V CCH1506 C 108 CKSRYB104K16 C 109 CKSRYB104K16 C 201 CKSRYB104K16 C 202 CKSRYB471K50 C 205 22µF/6.3V CCH1507 C 206 CKSRYB103K25 C 207 CKSRYB104K16 C 209 CKSRYB104K16 C 210 CKSRYB104K16 C 211 CKSRYB104K16 C 212 CKSRYB104K16 C 213 CKSRYB332K50 C 214 CKSRYB473K25 C 215 CKSRYB104K16 C 216 CKSRYB103K25 C 217 CCSRCH560J50 C 218 CCSRCH5R0C50 C 219 CKSRYB104K16 C 220 CKSRYB104K16 C 221 CKSRYB104K16 C 222 CKSRYB103K25 C 223 CCSRCH680J50 C 224 CCSRCH470J50 C 225 CKSRYB682K50 C 231 CKSRYB102K50 Circuit Symbol and No. Part No. C 232 CKSRYB102K50 C 301 100µF/16V CCH1504 C 302 CCSRCH221J50 C 303 CCSRCH221J50 C 304 CKSRYB472K50 C 305 CKSRYB103K25 C 306 CKSRYB104K16 C 501 CKSRYB103K25 C 502 CKSRYB103K25 C 702 100µF/16V CCH1504 C 703 CKSRYB104K16 C 705 10µF/6.3V CCH1470 Miscellaneous Parts List Pickup Unit(P10)(Service) CXX1641 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE)CXB8933 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 68 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 OEL UNIT ADJUSTMENT 1. Use VR1970 to adjust the resistance between TP1 and TP3 to 11.4kΩ. 2. Use VR1971 to adjust the resistance between TP2 and TP3 to 5.8kΩ. Digital Multi-Meter KEYBOARD UNIT(SIDE B) Adjustment point TP1 TP3 TP2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 69 5 6 7 8 5 6 7 8 C D F A B E 6.2 CD ADJUSTMENT 1) Cautions on adjustments • In this product the single voltage (3.3V) is used for the regulator. The reference voltage is the REFO1 (1.65V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. • Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. • For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. • In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. • The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. • The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. • To enter the test mode. While pressing the 4 and 6 keys at the same time, reset. • To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (→) key or (←) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0dB, and the auto-adjustment values are reset to the default settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 70 1 2 3 4 1 2 3 4 C D F A B E [BAND] [BAND] [BAND] [BAND] [BAND] Power On (T.Offset is adjusted) TRK00 MIN00 SEC SEC 00 [CD]or[SOURCE] Source On TRK MIN [4]+[6]+Reset or [4]+[6]+BU+ACC Test Mode In [3] [1] [1] Power On (T.Offset is not adjusted) TRK99 MIN99 SEC99 [2] [2] [2] [2] Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Focus Close S.Curve check TRK91 MIN91 SEC91 [6] [1] [3] [6] [3] Focus Mode switching *2 TRK0xMIN0xSEC0x Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG- *8 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [→] [←] [→] [←] [→] [←] CRG+ *8 *9 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 Automatic adjustment display switching *3 TRK?? MIN?? SEC?? Applicable servomechanism TRK ?tr MIN ?min SEC ?sec [6] [3] T.Close Applicable servomechanism TRK MIN SEC RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? CRG+ TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x CRG- TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x T.Balance adjustment / T.Balance coefficient display TRK?? MIN?? SEC?? F, T, RF AGC F.Bias display switching *7 TRK?? MIN?? SEC?? F, T AGC / F.Bias RF AGC TRK MIN SEC CRG/TR Jump *5 value switching TRK MIN SEC CRG/TR Jump + *4 TRK MIN SEC CRG/TR Jump - *4 *6 TRK MIN SEC Tracking Open TRK8xMIN8xSEC8x or TRK9xMIN9xSEC9x Tracking Open TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x [Key] [BAND] [→] [6] [1] [2] [3] Power On/Off CRG + / TR Jump + (Direction of the external surface) CRG - / TR Jump - (Direction of the internal surface) T.CLS and AGC and Applicable servomechanism / AGC, AGC display switching RF Gain switching / Offset adjustment display / T.Balance adjustment / T.Open F.Close, S.Curve / Rough Servo and RF AGC / F, T, RF AGC SPDL 1X/2X switching As for the double speed (2x), audio output cannot be supported. F. Mode switching / Tracking Close / CRG, TR Jump switching Test Mode Operation [KEY] Contents Display *1) TYP → -6dB → -12dB TRK MIN SEC TRK 06 MIN 06 SEC 06 TRK 12 MIN 12 SEC 12 *2) Focus Close → S.Curve ckeck setting → F EQ measurement setting TRK 00 MIN 00 SEC 00 TRK 01 MIN 01 SEC 01 TRK 02 MIN 02 SEC 02 (TRK 99 MIN 99 SEC 99) *3) F.Offset Display → T.Offset Display → Switch to the order of the original display *4) 1TR / 32TR / 100TR *5) Single TR → 32TR → 100TR → CRG Move 9x(8x) : 91(81) 92(82) 93(83) 94(84) *6) Only at the time of CRG Move, 100TR Jump *7) TRK/MIN/SEC → F.AGC → T.AGC → F.Bias → RF AGC *8) CRG motor voltage = 2[V] [←] Error Rate measurement 1st-ON : ERR count beginning(30Sec) 2nd-ON : BER display data[%] [4] [5] - Flow Chart(DEH-P7600MP) RF AMP Gain switching TRKGGMINGGSECGG [2] SPINDLE Speed switching TRKSP MINSP SECSP [4] *1 T.Close and AGC *9) TYP(1X) → 2X → 1X TRK MIN SEC TRK 22 MIN 22 SEC 22 TRK 11 MIN 11 SEC 11 As for the double speed (2x), audio output cannot be supported. TYP(2X) → 1X → 2X TRK MIN SEC TRK 11 MIN 11 SEC 11 TRK 22 MIN 22 SEC 22 ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 71 5 6 7 8 5 6 7 8 C D F A B E [BAND] [BAND] [BAND] [BAND] [BAND] Power On (T.Offset is adjusted) TRK00 MIN00 SEC00 [CD]or[SOURCE] Source On TRK MIN [4]+[6]+Reset Test Mode In [3] [1] [1] Power On (T.Offset is not adjusted) TRK99 MIN99 SEC99 [2] [2] [2] [2] Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Focus Close / S curve check TRK91 MIN91 SEC91 [6] [1] [3] [6] [3] Focus Mode switching *2 TRK0xMIN0xSEC0x Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG- *8 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [→] [←] [→] [←] [→] [←] CRG+ *8 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 Automatic adjustment display switching *3 TRK?? MIN?? SEC?? T.Close and F,T AGC and RF AGC Applicable servomechanism TRKxx MINxx SECxx [6] [3] T.Close and Applicable servomechanism TRKxx MINxx SECxx RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? CRG+ TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x CRG- TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x T.Balance adjustment T.Balance coefficient display TRK?? MIN?? SEC?? F,T,RF AGC / F.Bias display switching *7 TRK?? MIN?? SEC?? F,T AGC /F.Bias RF AGC TRKxx MINxx SECxx CRG/TR Jump value *5 switching TRKxx MINxx SECxx CRG/TR Jump + *4 TRKxx MINxx SECxx CRG/TR Jump - *4 *6 TRK xx MINxx SEC xx Tracking Open TRK8xMIN8xSEC8x or TRK9xMIN9xSEC9x Tracking Open TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x [Key] [BAND] [→] [6] [1] [2] [3] - - Power On / Off CRG + / TR Jump + (Direction of the external surface) CRG - / TR Jump - (Direction of the internal surface) CLS and AGC and Applicable servomechanism / AGC, AGC display switching RF Gain switching / Offset adjustment display / T.Balance adjustment / T.Open Close, S.Curve / SPDL 1X / 2X switching (Double-speed compatibility only) Gop measurement Forcus Mode switching / Tracking Close / CRG, TR Jump switching Test Mode Operation [KEY] Contents Display Rough Servo and RF AGC / F, T, RF AGC *1) TYP → -12dB TRK MIN SEC TRK 12 MIN 12 SEC 12 *2) Focus Close → S.Curve → F EQ measurement setting TRK 00 MIN 00 SEC 00 TRK 01 MIN 01 SEC 01 TRK 02 MIN 02 SEC 02 (TRK 99 MIN 99 SEC 99) *3) F.Offset Display → RF.Offset Display → T.Offset Display *4) 1TR/32TR/100TR *5) Single TR → 32TR → 100TR → CRG Move 9x(8x) : 91(81) 92(82) 93(83) 94(84) *6) Only at the time of CRG Move or 100TR Jump *7) TRK/MIN/SEC → F.AGC → T.AGC Gain → F.bias → RF AGC *8) CRG motor voltage = 2[V] [←] - Flow Chart(DEH-P6600R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 72 1 2 3 4 1 2 3 4 C D F A B E 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • ABEX TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3V regulator on. 2. Using the → and ← buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. REFO1 F E CD CORE UNIT(S10WMA) Oscilloscope (DEH-P7600MP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 73 5 6 7 8 5 6 7 8 C D F A B E • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • ABEX TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3V regulator on. 2. Using the → and ← buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. REFO1 F E CD CORE UNIT(S10) Oscilloscope (DEH-P6600R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 74 1 2 3 4 1 2 3 4 C D F A B E Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 75 5 6 7 8 5 6 7 8 C D F A B E 6.4 ERROR MODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (minutes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. SERVO LSI Com- CRG can't be moved from inner diameter. munication Error → Failure on home switch or CRG move mechanism. Communication error between microcomputer and SERVO LSI. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). Subcode NG → Failure on spindle, stains or damages on disc, or excessive vibrations. A disc not containing CD-R data is found. Turned over disc are found, though rarely. CD signal error. 17 Electricity Setup NG AGC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations on REWRITABLE. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. 44 Electricity ALL Skip Skip setting for all track. (CD-R/RW) 50 Mechanism CD On Mech Error Mechanical error during CD ON. → Defective loading motor, mechanical lock and mechanical sensor. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 76 1 2 3 4 1 2 3 4 C D F A B E 6.5 FREQUENCY CHECK FOR CLOCK - PCL output In the normal operation mode (with the detachable panel installed, the ACC switched ON, the standby mode cancelled), shift the TESTIN (Pin 86) terminal to H. The clock signal is output from the PCL terminal (Pin 37). The frequency of the clock signal is 312.5kHz that is one 32th of the fundamental frequency. The clock signal should be 312.5kHz. If the clock signal is out of the range, the X'tal (X601) should be replaced with new one. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 77 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the CD Mechanism Module (Fig.1) 1 Fig.1 - Removing the Case (not shown) Grille Assy - Removing the Grille Assy (Fig.1) 1. Remove the Case. CD Mechanism Module 1 1 1 1 Fig.2 Tuner Amp Unit - Removing the Tuner Amp Unit (Fig.2) Remove the screw. 1 Remove the four screws. Disconnect the connector and then remove the CD Mechanism Module. 2 Remove the two screws and then remove the Grille Assy. 2 2 1 2 2 2 3 3 3 4 Remove the three screws. 2 Straighten the tabs at three locations indicated. 3 Remove the screw and then remove the Tuner Amp Unit. 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 78 1 2 3 4 1 2 3 4 C D F A B E - How to hold the Mechanism Unit 1. Hold the top and bottom frame. 2. Do not squeeze top frame's front portion too tight, because it is fragile. - Removing the Upper and Lower Frames 1. With a disc clamped, remove the four springs (A), the two springs (B), the two springs (C), and the four screws. 2. To remove the upper frame, open it on the fulcrum A. 3. While lifting the carriage mechanism, remove the three dampers. 4. With the frames removed, insert the connectors coming from the main unit and eject the disc. Caution: Before installing the carriage mechanism in the frames, be sure to apply some alcohol to the dampers and set the mechanism to the clamp mode. Do not squeeze. Lower Frame Damper Carriage Mechanism A C A B B Damper Damper C A A A Upper Frame www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 79 5 6 7 8 5 6 7 8 C D F A B E - Removing the Pickup Unit 1. Apply shorting solder to the Pickup flexible cable. Disconnect the cable. 2. Set the mechanism to the clamp mode. 3. Remove the lead wires from the inner holder. 4. Remove the washer, styling holder, change arm, and pickup lock arm. 5. While releasing from the hook of the inner holder, lift the end of the feed screw. Caution: In assembling, move the planet gear to the load/eject position before setting the feed screw in the inner holder. Shorting Solder Planet Gear Change Arm Inner Holder Styling Holder Feed Screw Washer Pickup Lock Arm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 80 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 CONNECTOR FUNCTION DESCRIPTION A 0 1 F SW 9. RL- 10. FL- 11. RL+ 12 FL+ 13. RR- 14. FR- 15. RR+ 16. FR+ 1. BACK UP 2. GND 3. ACC 4. NC 5. ILM 6. B.REM 7. NC 8. TEL MUTE ANTENNA JACK FRONT OUTPUT SUBWOOFER OUTPUT NON FADING OUTPUT 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT POWER SUPPLY,SPEAKER OUTPUT IP-BUS WIRED REMOTE CONTROL REAR OUTPUT (DEH-P7600MP/XN/EW) 15 1 13 11 9 7 5 3 16 2 14 12 10 8 6 4 11 10 9 8 7 6 5 4 3 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 81 5 6 7 8 5 6 7 8 C D F A B E 7.2 IC - Pin Functions(PD5920A,PD5922A) Pin No. Pin Name I/O Function and Operation 1 SYSPW O System power control output 2 KEYD I Key data input 3 XSO O S10 : Serial data output 4 XSI I S10 : Serial data input 5 XSCK O S10 : Clock output for serial communication 6 BYTE I External data bus width change input 7 CNVSS Processor mode change input 8 TELIN I TEL : Cellular mute input 9 HTELPW O Not used 10 reset I Reset input 11 XOUT O Clock output 12 VSS GND 13 XIN I Clock input 14 VCC Power supply input 15 NC Not used 16 rdsck I RDS clock input 17 ldet I PLL clock detection input 18 intq CD-TEXT PACK interruption 19 RX2 I IPBUS : Input 2 20 OELPW O OEL power supply output 21 CLCONT O S10 : Driver control change output 22 PEE O PEE sound output 23 CDLOEJ O S10 : Road/eject output 24 brst O Communication reset output 25 brxen I/O Communication input/output 26 bsrq I Communication request input 27 RX I IPBUS : Input 28 TX O IPBUS : Output 29 BSO O PBUS output 30 BSI I PBUS input 31 BSCK O PBUS clock output 32 VDCONT O S10 : VD power supply control output 33 DPDT O GRILLE : Data output 34 KYDT I GRILLE : Data input 35, 36 ROT1, 0 I Rotary encoder pulse input1, 0 37 PCL O Output for clock adjustment 38 SWVDD O GRILLE : Chip enable output 39 dsens I Detach sense input 40 FLPILM O Illumination output inside flap 41 ILMPW O Illumination output 42 ejtin I Eject key input 43 NC Not used 44 rdshslk I Connect with HSLK 45 rdslk I RDS data input 46 RDSDATA I RDS data input 47-55 NC Not used 56 CONT O S10 : Servo driver control output 57 EMUTE O EVOL : Mute output 58 xstb O S10 : Data strobe signal output 59 XA0 O S10 : Command/parameter discernment signal output 60 VCC Power supply input PD5920A PD5922A S-80835CNUA-B8U PD5932A HA12240FP PD8119A PD8123A BA5835FM BA5835FP UPD63761GJ S-L2980A15MC-C6A S-812C33AUA-C2N PE5440A UPD63712AGC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 82 1 2 3 4 1 2 3 4 C D F A B E Pin No. Pin Name I/O Function and Operation 61 xrst O S10 : Reset signal output 62 VSS GND 63-65 NC Not used 66 xtalen I Clamp signal input 67 DALMON O For consumption current reduction output 68 NC Not used 69 tunpce@ O TUNER : Chip enable output(EEPROM) 70 TUNPCE1 O TUNER : Chip enable output(PLL) 71 NC Not used 72 asens I ACC sense input 73 bsens I Back up sense input 74 NC Not used 75 ROMDATA I/O ROM correction : Data input/output 76 VST O EVOL : Strobe output 77 VDT O EVOL : Data output 78 VCK O EVOL : Clock output 79 IPPW O IPBUS : Driver power supply control output 80 ASENBO O IPBUS : Slave ACC sense output 81 isens I Illumination sense input 82 NC Not used 83 NC Not used 84 NC Not used 85 MUTE O MUTE output 86 TESTIN I Test program input 87 DSCSNS I S10 : Disc position detection input 88 VDSENS I S10 : VD power supply short sense input 89 KEYAD I Key data input 90 LVLINR I Level indicator Rch input 91 CSENS I Flap opening-and-closing sense input 92 LVLINL I Level indicator Lch input 93 ASLIN I ASL input 94 AVSS AD translation power supply input terminal 95 SL I TUNER : Signal level input 96 VREF AD translation reference voltage 97 AVCC AD translation power supply input terminal 98 TUNPDI I TUNER : PLL communication 99 TUNPDO O TUNER : Data output(PLL) 100 TUNPCK O TUNER : Clock output(PLL) * PD5920A,PD5922A * S-80835CNUA-B8U 25 26 50 51 75 76 100 1 IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. VREF 1 2 3 VDD VSS OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 83 5 6 7 8 5 6 7 8 C D F A B E - Pin Functions (PD5932A) Pin No. Pin Name I/O Format Function and Operation 1-4 NC Not used OPEN 5 REM I Remote control reception 6 BYTE I GND connection 7 CNVSS I GND connection 8, 9 NC Not used OPEN 10 reset I Pull up 11 XOUT O Crystal oscillating element connection pin 12 VSS1 GND connection 13 XIN I Crystal oscillating element connection pin 14 VDD1 VDD connection 15 nmi I Pull up 16-19 kd!-$ I Key data 1-4 20 CKC O C Cathode driver pulse 21 NC Not used OPEN 22 CKA O C Anode driver pulse 23 NC Not used OPEN 24 LS O C Line synchronous signal 25 NC Not used OPEN 26 CKD O C Data transfer and driver clock 27 DPDT I Display data communication 28 KYDT O N Key data communication 29 DA2 O C Display data MSB 30 NC Not used 31 CLK1 I UART1 clock input 32 ILMD O C Dual illumination 33 DA1 O C Display data LSB 34 NC Not used 35 CLK0 I UART0 clock input 36 NC O Not used OPEN 37 rdy I Not used Pull up 38 NC Not used OPEN 39 hold I Pull up 40 NC OPEN 41 cs#r Not used Pull up 42 rd O C Read strobe 43 NC OPEN 44 wr O C Not used OPEN 45 cs# O C Not used OPEN 46 cs@ O C Bank address 47 cs! O C Bank address 48 cs) O C External ROM chip select 49 A19 O C Address bus 19 50 NC O C OPEN 51-59 A17-9 O C Address bus 17-9 60 VDD2 VDD connection 61 A8 O C Address bus 8 62 VSS2 GND connection 63-69 A7-1 O C Address bus 7-0 70 NC O C OPEN 71-86 D15-0 I/O C Data bus 15-0 87-92 ks!-^ I/O C key strobe 93 flstby O C FLASH memory stand-by signal 94 AVSS GND connection 95 fl!@on O C Not used OPEN 96 VREF GND connection 97 AVCC VCC connection 98 flbusy I FLASH memory busy signal 99 NC OPEN 100 FWRST GND connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 84 1 2 3 4 1 2 3 4 C D F A B E * PD5932A HA12240FP 25 26 50 51 75 76 100 1 Format Meaning C CMOS N Nch open drain 1 3 2 S1 R S2 GND BUS- BUS+ VCC STB 4 5 6 7 8 BIAS DRIVER OUTPUT + - - + COM RECEIVER OUTPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 85 5 6 7 8 5 6 7 8 C D F A B E 2 10 11 12 13 14 15 16 17 18 19 20 21 22 35 34 33 32 31 30 29 28 27 26 25 24 23 39 38 37 36 43 42 41 40 44 NC CS1 A19 A8 A7 A6 A5 A4 A3 A2 A1 ROMCE GND RD D0 D8 D1 D9 D2 D10 D3 D11 NC CS2 A9 A10 A11 A12 A13 A14 A15 A16 A17 AVCC GND D15 D7 D14 D6 D13 D5 D12 D4 AVCC A0-A19 D0-D15 CS1, 2 ROMCE RD AVCC GND 8 9 4 5 6 7 3 1 :Address input :Data output :Bank address :Chip enable input :Read strobe :Power supply :GND * PD8119A, * PD8123A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 86 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(BA5835FM,BA5835FP) Pin No. Pin Name Function and Operation 1 VR Input pin for reference voltage 2 OPIN2(+) Input pin for non-inverting input for CH2 preamplifier 3 OPIN2(-) Input pin for inverting input for CH2 preamplifier 4 OPOUT2 Output pin for CH2 preamplifier 5 OPIN1(+) Input pin for non-inverting input for CH1 preamplifier 6 OPIN1(-) Input pin for inverting input from CH1 preamplifier 7 OPOUT1 Output pin for CH1 preamplifier 8 GND Ground pin 9 MUTE Mute control pin 10 POWVCC1 Power supply pin for CH1, CH2, and CH3 at "Power" stage 11 VO1(-) Driver CH1 - Negative output 12 VO1(+) Driver CH2 - Positive output 13 VO2(-) Driver CH2 - Negative output 14 VO2(+) Driver CH2 - Positive output 15 VO3(+) Driver CH2 - Positive output 16 VO3(-) Driver CH2 - Negative output 17 VO4(+) Driver CH4 - Positive output 18 VO4(-) Driver CH4 - Negative output 19 POWVCC2 Power supply pin for CH4 at "Power" stage 20 GND Ground pin 21 CNT Control pin 22 LDIN Loading input 23 OPOUTSL Output pin for preamplifier for thread 24 OPINLSL Input pin for preamplifier for thread 25 OPOUT3 CH3 preamplifier output pin 26 OPIN3(-) Input pin for inverting input for CH3 preamplifier 27 OPIN3(+) Input pin for non-inverting input for CH3 preamplifier 28 PREVCC PreVcc BA5835FM,BA5835FP 1 14 15 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 87 5 6 7 8 5 6 7 8 C D F A B E - Pin Functions(UPD63761GJ) Pin No. Pin Name I/O Function and Operation 1 D.VDD Power supply for digital circuits 2 D1.GND GND for 1.6V digital circuits 3 reset I Input of reset 4-8 AB12-8 I Address bus 12-8 from the microcomputer 9-16 AD7-0 I/O Address/data bus 7-0 to the microcomputer 17 cs I Chip selection 18 ASTB I Address strobe 19 read I Control signals(read) 20 write I Control signals(write) 21 wait O Control signals(wait) 22 INTQ O Interruption signals to the external microcomputer 23, 24 IFMODE0, 1 I Switching the microcomputer I/F 0, 1 25 D1.VDD Power supply for 1.6V digital circuits 26 DA.VDD Power supply for DAC 27 ROUT O Output of audio for the right channel 28 DA.GND GND for DAC 29 REGC Connected to the capacitor for band gap 30 DA.GND GND for DAC 31 LOUT O Output of audio for the left channel 32 DA.VDD Power supply for DAC 33 X.VDD Power supply for the crystal oscillator 34 XTAL I Connected to the crystal oscillator(16.9344MHz) 35 xtal O Connected to the crystal oscillator(16.9344MHz) 36 X.GND Ground for the crystal oscillator 37 VDDREG15 Control of 1.6V regulator 38 PWMSW0 I Setup 0 for PWM output(SD, MD) 39-41 TEST3-1 I Connected to GND 42 PWMSW1 I Setup 1 for PWM output(FD, TD) 43 TESTEN I Connected to GND 44 D1.GND GND for 1.6V digital circuits 45 DIN I Input of audio data 46 DOUT O Output of audio data 47 SCKIN I Clock input for audio data 48 SCKO O Clock output for audio data 49 LRCKIN I Input of LRCK for audio data 50 LRCK O Output LRCK for audio data 51 xtalen I Permission to oscillate 16.9344MHz 52 D1.VDD Power supply for 1.6V digital circuits 53 RFCK/HOLD O Output of RFCK/HOLD signal 54 WFCK/MIRR O Output of WFCK/MIRR signal 55 PLCK O Output of PLCK 56 LOCK/RFOK O Output of LRCK/Output of RFOK 57 C1D1/C8M O Information on error correction/C8M : 8MHz 58 C1D2/C16M O Information on error correction/C16M : 16MHz 59 C2D1/RMUTE O Information on error correction/Mute for Rch 60 C2D2/LMUTE O Information on error correction/Mute for Lch 61 C2D3/SHOCK O Information on error correction/Detection of vibration 62 D1.GND GND for 1.6V digital circuits 63 C33M O Output of 33.8688MHz(CLK for SDRAM) 64 (rcs) O DRAM cs 65 RA11 O Output of DRAM address 11 66 (CKE) O Output of DRAM CKE 67 ras O Output of DRAM ras 68 cas)(LDQM) O Output of DRAM lower cas(LDQM) 69 cas!(UDQM) O Output of DRAM upper cas(UDQM) 70 we O Output of DRAM we 71 oe(cas) O Output of DRAM oe(cas) 72 D.GND Ground for digital circuits 73-88 RDB0-15 I/O Input/output of DRAM data0-15 89-99 RA0-10 O Output of DRAM address0-10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 88 1 2 3 4 1 2 3 4 C D F A B E Pin No. Pin Name I/O Function and Operation 100 D.VDD Power supply for digital circuits 101 FD+ O Output of focus drive PWM + 102 FD- O Output of focus drive PWM - 103 TD+ O Output of tracking drive PWM + 104 TD- O Output of tracking drive PWM - 105 SD+ O Output of thread drive PWM + 106 SD- O Output of thread drive PWM - 107 MD+ O Output of spindle drive PWM + 108 MD- O Output of spindle drive PWM - 109 REFOUTSV O REFOUT for servo 110 AD.VDD Power supply for ADC 111 EFM O Output of EFM signals 112 ASY I Input of asymmetry 113 ATEST O Analog tests 114 RFI I Input of RF 115 AD.GND Ground for the analog system 116 AGCO O Output of RF 117 C3T O Connection to the capacitor for detecting 3T 118 AGCI I Input of AGC 119 RFO O Output of RF(AGC) 120, 121 EQ2, 1 I Equalizer 2, 1 122 RF2- I Reversal input of RF2 123 RF- I Reversal input of RF 124 A.GND Ground for the analog system 125 A I Input of A 126 C I Input of C 127 B I Input of B 128 D I Input of D 129 F I Input of F 130 E I Input of E 131 VREFIN I Input of reference voltage 132 A.VDD Power supply for the analog system 133 REFOUT O Output of reference voltage 134 REFC I Connected to the capacitor for output of REFOUT 135 FE- I Reversal input of FE 136 FEO O Output of FE 137 ADIN I Input of FE, TE A/D converter 138 TE- I Reversal input of TE 139 TEO O Output of TE 140 TE2 O TE2 141 TEC I TEC 142 LD O Output of LD 143 PD I Input of PD 144 D.GND Ground for digital circuits * UPD63761GJ 72 73 108 109 36 37 1 144www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 89 5 6 7 8 5 6 7 8 C D F A B E ON/OFF VSS VIN 3 2 1 5 4 NC VOUT * S-L2980A15MC-C6A - + Reference voltage ON/OFF circuit 1 2 3 VIN VOUT VSS Reference Voltage * S-812C33AUA-C2N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 90 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(PE5440A) Pin No. Pin Name I/O Format Function and Operation 1 AVREF A power supply Positive power supply(5V) 2 AVSS A power supply GND 3 RFOK O C Output of state of RFOK 4 CLAMP I C CLAMP SW sense input 5 EVDD E power supply Positive power supply 6 PWM For changer(PWM) 7 NC Not used 8 IC/FLMD0 IC : VSS direct connection/FLMOD0 : Pull-down 9 VDD Positive power supply(5V) 10 REGC Connected to the capacity stabilizing output of the regulator 11 VSS GND 12 X1 I Oscillator connection for mainclock 13 X2 Oscillator connection for mainclock 14 reset I System reset input 15 XT1 I Connected to the oscillator for subclock (connected to VSS via the resistor) 16 XT2 Connected to the oscillator for subclock(Open) 17 PULLDOWN I Connected to EVDD or EVSS via the resistor 18 ejsw I C Eject key input 19 xint C CD LSI interruption signal input 20 NC Not used 21 brst I P-Bus reset input 22 BSI I P-Bus serial data input 23 BSO O C P-Bus serial data output 24 bsck I/O /C P-Bus serial clock input/output 25 FTXD O C For flash rewriting(transmitted signal) 26 FRXD I For flash rewriting(received signal) 27 BRXEN I/O /C It is possible to receive P-Bus 28 bsrq I/O /C P-Bus service request demand 29 dspok I DSP microcomputer initialization OK input 30 DSCSNS(S903) I Disc state sense input 31 8EJ(S905) I Input of detection of 8 cm disc ejection 32 12EJ(S904) I Input of detection of 12 cm disc ejection 33 EVSS E power supply GND 34 EVDD E power supply Positive power supply 35, 36 SRAMLEVEL0, 1 O C SRAM level meter output 37 EMPH O C Emphasis information output 38 emph O C Emphasis information output 39-42 NC Not used 43 adena O C A/D reference voltage supply control output 44 LRCKOK O C (DOUT mute output) 45 SRAMLEVEL2 O C SRAM level meter output 46 CD3VON O C CD +3.3V power supply control output 47 CONT O C Servo driver power supply control output 48 xrst O C CD LSI reset control output 49 VDCONT O C VD power supply control output 50 ROMDATA I/O /C E2PROM data input/output 51 ROMCS O C E2PROM chip selection output 52 ROMCK O C E2PROM clock output 53 LOEJ O C The direction change output of LOAD/EJECT 54 CLCONT O C Driver input change output 55 CDMUTE O C CD mute control output 56-58 INT For changer(Interruption at the edge) 59 xcs O C CD LSI chip selection output 60 NC Not used 61 xwait I CD LSI write control signal output 62 CLKOUT O C Internal system clock output(Open) 63 LOCK I Spindle lock input 64 NC Not used 65 xwrite O CD LSI write control signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 91 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Format Function and Operation 66 NC Not used 67 xread O CD LSI read control signal output 68 XASTB O CD LSI address strobe output 69 BVSS B power supply GND 70 BVDD B power supply Positive power supply 71-86 AD0-15 I/O /C Address/data Bus 0-15 87-90 NC Not used 91-93 A/D For changer(A/D) 94 csens I Flap closing sense input 95 TYPE_A/D I CD-DA analog/digital output change setup 96 testin I Chip check test program starting input 97 HOME I Home SW sense input 98 TEMP Temperature information sense input 99 VDSENS VD power supply short sense input 100 NC Not used * PE5440A 25 26 50 51 75 76 100 1 Format Meaning C CMOS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 92 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(UPD63712AGC) Pin No. Pin Name I/O Function and Operation 1 LD O Output of LD 2 PD I Input of PD 3 PN I Assignment of pickup polarity 4 AVDD Power supply for the analog system 5 DGND Ground for digital circuits 6 RFOK O Output of RFOK 7 INTQ O Interruption signals to the external microcomputer 8 rst I Input of reset 9 A0 I Command/Parameter discrimination signal input 10 stb I Data strobe signal input 11 sck I Serial data clock input 12 SO O Serial data output 13 SI I Serial data input 14 DVDD Power supply for digital circuits 15 DAVDD Power supply for DAC 16 ROUT O Output of audio for the right channel 17 DAGND GND for DAC 18 REGC Connected to the capacitor for band gap 19 DAGND GND for DAC 20 LOUT O Output of audio for the left channel 21 DAVDD Power supply for DAC 22 XVDD Power supply for the crystal oscillator 23 xtal O Connected to the crystal oscillator 24 XTAL I Connected to the crystal oscillator 25 XGND Ground for the crystal oscillator 26 DVDD Power supply for digital circuits 27 C1D1 O Information on error correction 28 C1D2 O Information on error correction 29 C2D1 O Information on error correction 30 C2D2 O Information on error correction 31 C2D3 O Information on error correction 32 LOCK O Output of LOCK 33 MIRR O MIRR signal 34 HOLD O HOLD signal 35 PLCK O Output of PLCK 36 C16M O Output of 16.9344MHz 37 DGND Ground for digital circuits 38 TX O DAI output 39 EMPH O Pre-emphasis information output 40 FLAG O The flag for which output sound data cannot be corrected is outputted 41 DVDD Power supply for digital circuits 42 LIMIT I Signal is inputted when the register can be read 43 xtalen I Permission to oscillate 44 DGND Ground for digital circuits 45 DIN I Input of audio data 46 DOUT O Output of audio data 47 SCKIN I Clock input for audio data 48 SCKO O Clock output for audio data 49 LRCKIN I Input of LRCK for audio data 50 LRCK O Output LRCK for audio data 51 DVDD Power supply for digital circuits 52 FD+ O Output of focus drive PWM 53 FD- O Output of focus drive PWM 54 TD+ O Output of tracking drive PWM 55 TD- O Output of tracking drive PWM 56 SD+ O Output of thread drive PWM 57 SD- O Output of thread drive PWM 58 MD+ O Output of spindle drive PWM 59 MD- O Output of spindle drive PWM 60 DGND Ground for digital circuits www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 93 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Function and Operation 61 TESTEN I Connected to GND 62-66 TEST4-0 I Connected to GND 67 ADGND GND for DAC 68 EFM O Output of EFM signals 69 ASY I Input of asymmetry 70 ADVDD Power supply for DAC 71 RFI I Input of RF 72, 73 EQ2, 1 Equalizer 2, 1 74 RF- I Reversal input of RF 75 RF2- I Reversal input of RF2 76 AGCO O Output of RF 77 AGCI I Input of AGC 78 RFO O Output of RF 79 ATEST O Analog tests 80 C3T Connection to the capacitor for detecting 3T 81 AGND Ground for the analog system 82 A I Input of A 83 C I Input of C 84 B I Input of B 85 D I Input of D 86 F I Input of F 87 E I Input of E 88 VREFIN I Photo-detector input bias voltage 89 AVDD Power supply for the analog system 90 REFOUT O Output of reference voltage 91 REFC Connected to the capacitor for output of REFOUT 92 FE- I Reversal input of FE 93 FEO O Output of FE 94 ADCIN I TEST 95 TE- I Reversal input of TE 96 TEO O Output of TE 97 TE2 O TE2 98 TEC I TEC 99 AGND Ground for the analog system 100 PWMSW I Servo PWM mode switching * UPD63712AGC 25 26 50 51 75 76 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 94 1 2 3 4 1 2 3 4 C D F A B E No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 LDET O lock detector “Low” active 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 RDS_CK O RDS clock Output of RDS clock(2.5V) 19 RDS_DATA O RDS data Output of RDS data(2.5V) 20 RDS_LOCK O RDS lock Output unit “High” active(2.5V) (RDS_LOCK turns over by the external transistor. “Low” active) 21 RDS_HSLK O RDS high speed Output unit “High” active(2.5V)(RDS_HSLK turns over by the lock external transistor. “Low” active) 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 95 5 6 7 8 5 6 7 8 C D F A B E 7.3 OPERATIONAL FLOW CHART VCC=5V Pin 14 Power ON bsens=L asens=L dsens=L bsens Pin 73 asens Pin 72 dsens Pin 39 SWVDD←H Pin 38 ASENBO←H Pin 80 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H Pin 1 Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. CSENS Pin 91 2V < CSENS < 3V - CSENS 2V, 3V CSENS Last source returns. CD loading functions are available. Keys except for EJECT key are not available. < < = = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 96 1 2 3 4 1 2 3 4 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 97 5 6 7 8 5 6 7 8 C D F A B E 8. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 98 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 99 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 100 1 2 3 4 1 2 3 4 C D F A B E Fixing the front panel If you do not operate the removing and attaching the front panel function, use the supplied fixing screws and holders to fix the front panel to this unit. 1. Attach the holders to both sides of the front panel. 2. Replace the front panel to the unit. 3. Flip the holders into upright positions. 4. Fix the front panel to the unit using fixing screws. Fixing Screw BPZ20P060FZK Holder CND1249 Holder CND1250 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P7600MP/XN/EW 101 5 6 7 8 5 6 7 8 C D F A B E 1* 2* 4* 3* 5* 11. 3.Subwoofer output or non fading output 36. 4.Antenna jack 1.This product 2.Front output 5.Fuse 8.IP-BUS input (Blue) 9.IP-BUS cable Note: Depending on the kind of vehicle, the function of 3* and 5* may be different. In this case, be sure to connect 2* to 5* and 4* to 3*. 12. Connect leads of the same color to each other. 13. Cap (1*) When not using this terminal, do not remove the cap. 14. Yellow (3*) Back-up (or accessory) 15. Yellow (2*) To terminal always supplied with power regardless of ignition switch position. 16. Red (5*) Accessory (or back-up) 17. Red (4*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. 18. Orange/white To lighting switch terminal. 19. Black (ground) To vehicle (metal) body. 20. ISO connector Note: In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. 21. Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. 22. Speaker leads White : Front left + White/black: Front left ≠ Gray : Front right + Gray/black : Front right ≠ Green : Rear left + or Subwoofer + Green/black: Rear left ≠ or Subwoofer ≠ Violet : Rear right + or Subwoofer + Violet/black: Rear right ≠ or Subwoofer ≠ 23. Connecting cords with RCA pin plugs (sold separately) 10.Multi-CD player (sold separately) 25. Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). 26. System remote control 27. Blue/white (7*) To Auto-antenna relay control terminal (max. 300 mA 12 V DC). 28. Blue/white (6*) 29. The pin position of the ISO connector will differ depends on the type of vehicle. Connect 6* and 7* when Pin 5 is an antenna control type. In another type of vehicle, never connect 6* and 7*. 30. Front speaker 30. Front speaker 31. Left 32. Right 34. Subwoofer 34. Subwoofer 35. Perform these connections when using the optional amplifier. Note: Change the initial setting of this unit . The subwooferoutput of this unit is monaural. 33. Rear speaker 33. Rear speaker 24. Power amp (sold separately) 24. Power amp (sold separately) 24. Power amp (sold separately) 7.Rear output (16 cm) 6.Jack for the Wired Remote Control Please see the Instruction Manual for the Wired Remote Control (soldseparately). - CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
