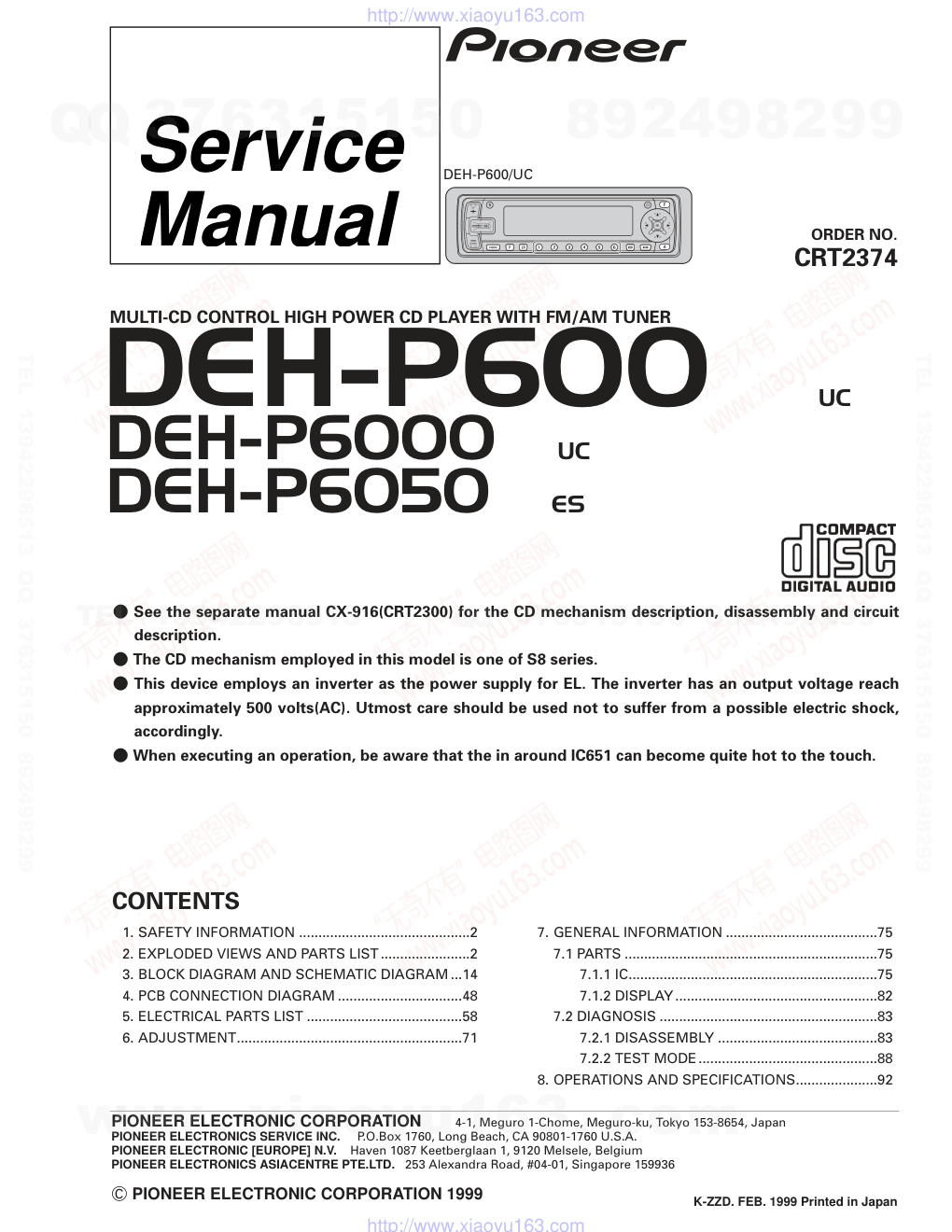

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER ELECTRONIC CORPORATION 1999 K-ZZD. FEB. 1999 Printed in Japan ORDER NO. CRT2374 MULTI-CD CONTROL HIGH POWER CD PLAYER WITH FM/AM TUNER DEH-P600�UC Service Manual CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................2 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...14 4. PCB CONNECTION DIAGRAM ................................48 5. ELECTRICAL PARTS LIST ........................................58 6. ADJUSTMENT..........................................................71 7. GENERAL INFORMATION .......................................75 7.1 PARTS .................................................................75 7.1.1 IC................................................................75 7.1.2 DISPLAY....................................................82 7.2 DIAGNOSIS ........................................................83 7.2.1 DISASSEMBLY .........................................83 7.2.2 TEST MODE..............................................88 8. OPERATIONS AND SPECIFICATIONS.....................92 - See the separate manual CX-916(CRT2300) for the CD mechanism description, disassembly and circuit description. - The CD mechanism employed in this model is one of S8 series. - This device employs an inverter as the power supply for EL. The inverter has an output voltage reach approximately 500 volts(AC). Utmost care should be used not to suffer from a possible electric shock, accordingly. - When executing an operation, be aware that the in around IC651 can become quite hot to the touch. DEH-P6000�UC DEH-P6050�ES DEH-P600/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DEH-P600,P6000,P6050 - CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 83). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin). 2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 73). CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1. SAFETY INFORMATION 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING(DEH-P600/UC) 20 19 15 12 16 17 4 7 11 3 10 9 8 6 5 2 14 1 13 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DEH-P600,P6000,P6050 1 Cord Assy CDE5829 * 2 Accessory Assy CEA2395 3 Spring CBH1650 * 4 Screw Assy CEA2396 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG1173 13 Battery CEX1030 14 Carton CHG3752 15 Contain Box CHL3752 16 Protector CHP2101 17 Protector CHP2102 18 Remote Control Unit CXB3455 19 Case Assy CXB3520 20-1 Owner’s Manual CRD2914 (English, French) 20-2 Installation Manual CRD2915 (English, French) * 20-3 Warranty Card CRY1070 20-4 Polyethylene Bag CEG1116 * 20-5 Label CRW1343 Mark No. Description Part No. Mark No. Description Part No. - PACKING SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DEH-P600,P6000,P6050 2.2 PACKING(DEH-P6000/UC) 20 19 15 12 16 17 4 7 11 3 10 9 8 6 5 2 14 1 1 Cord Assy CDE5827 * 2 Accessory Assy CEA2395 3 Spring CBH1650 * 4 Screw Assy CEA2396 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG1173 13 ••••• 14 Carton CHG3751 15 Contain Box CHL3751 16 Protector CHP2101 17 Protector CHP2102 18 ••••• 19 Case Assy CXB3520 20-1 Owner’s Manual CRD2916 (English, French) 20-2 Installation Manual CRD2917 (English, French) * 20-3 Card ARY1048 20-4 Polyethylene Bag CEG1116 * 20-5 Label CRW1343 Mark No. Description Part No. Mark No. Description Part No. - PACKING SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DEH-P600,P6000,P6050 2.3 PACKING(DEH-P6050/ES) 1 Cord Assy CDE5828 * 2 Accessory Assy CEA2395 3 Spring CBH1650 * 4 Screw Assy CEA2396 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG-162 13 Battery CEX1030 14 Carton CHG3754 15 Contain Box CHL3754 16 Protector CHP2101 17 Protector CHP2102 18 Remote Control Unit CXB3455 19 Case Assy CXB3520 20-1 Owner’s Manual CRD2922 (English, Spanish, Portuguese) 20-2 Owner’s Manual CRD2923 (Arabic, Chinese) 20-3 Installation Manual CRD2924 (English, Spanish, Portuguese, Arabic, Chinese) 20-4 Polyethylene Bag CEG1116 * 20-5 Label CAN3076 Mark No. Description Part No. Mark No. Description Part No. - PACKING SECTION PARTS LIST 20 19 15 12 16 17 4 7 11 3 10 9 8 6 5 2 14 1 13 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DEH-P600,P6000,P6050 107 A C B A C B 57 57 76 18 13 12 2 2 2 2 104 8 20 4 23 23 23 48 22 105 16 16 15 51 50 9 3 52 1 43 35 28 14 11 34 30 27 41 47 49 77 46 40 41 106 42 31 4 60 67 54 73 72 64 74 78 56 57 65 80 86 101 89 83 90 88 85 81 93 5 6 7 19 19 97 94 100 95 99 98 96 82 82 91 82 84 92 87 79 70 65 55 55 71 66 61 59 58 62 58 75 69 68 62 63 79 17 45 39 32 47 49 77 46 40 21 10 38 36 44 10 29 25 37 26 33 24 1 3 103 102 2.4 EXTERIOR(DEH-P600/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 1 Screw BMZ30P040FMC 2 Screw BSZ26P060FMC 3 Screw BSZ30P060FMC 4 Screw BSZ30P100FMC 5 Cord Assy CDE5821 6 Cord Assy CDE5829 7 Fuse(10A) CEK1136 8 Connector CDE6049 9 Antenna Cable CDH1266 10 Transistor(Q954,991) 2SD2396 11 IC(IC551) PAL005A 12 Case CNB2508 13 Holder CNC6798 14 Holder CNC8300 15 Holder CNC8357 16 Spacer CNM4913 17 Insulator CNM6075 18 Panel CNS5148 19 Cap CNV2680 20 Tuner Amp Unit CWM6192 21 Screw ASZ26P080FMC 22 Screw BPZ26P060FMC 23 Screw BSZ26P160FMC 24 Clamper CEF1009 25 Pin Jack(CN431) CKB1028 26 Terminal(CN501) CKF1059 27 Plug(CN951) CKM1296 28 Plug(CN652) CKS-783 29 Connector(CN411) CKS3408 30 Connector(CN433) CKS3602 31 Connector(CN681) CKS3838 32 Connector(CN651) CKS4077 33 Mini Pin Jack(CN502) CKX1046 34 Panel CNB2375 35 Holder CNC7533 36 Case CNC8138 37 Holder CNC8298 38 Holder CNC8299 39 Case CNC8301 40 Case CNC8376 41 Case CNC8377 42 Heat Sink CNC8437 43 Insulator CNM5967 44 Insulator CNM6249 45 Insulator CNM6250 46 Insulator CNM6298 47 Insulator CNM6299 48 Heat Sink CNR1550 49 Insulator CNV5816 50 FM/AM Tuner Unit CWE1501 51 Holder CNC7532 52 Chassis Unit CXB3306 53 ••••• 54 Screw BPZ20P060FMC 55 Screw CBA1082 56 Screw CBA1176 57 Washer CBF1001 58 Spring CBH2063 59 Spring CBH2204 60 Cord CDE5800 61 Connector CKS2780 62 Roller CLA3386 63 Sheet CNM6109 64 Cover CNM6118 65 Cushion CNM6376 66 PCB CNP5383 67 PCB CNP5430 68 Holder CNS5157 69 Holder CNS5165 70 Panel CNS5280 71 Cover CNS5389 72 Lighting Conductor CNV5540 73 Switch(S651) CSN1027 74 Holder Unit CXB3049 75 Holder Unit CXB3050 76 Holder Unit CXB3051 77 Coil(L652,L653) CTH1228 78 Damper Unit CXB3180 79 Screw IMS20P040FZK 80 Detach Grille Assy CXB3688 81 Screw BPZ20P060FMC 82 Screw BPZ20P080FZK 83 Button(OPEN) CAC5804 84 Button(EJECT) CAC5805 85 Button(SOURCE) CAC5806 86 Button(EQ) CAC5808 87 Button(DISP) CAC5809 88 Button(1-6) CAC5922 89 Button(BAND) CAC5936 90 Spring CBH2205 91 Cover CNS5146 92 Holder CNV5537 93 Keyboard Unit CWM6197 94 LCD CAW1518 95 EL CEL1592 96 Connector(CN901) CKS2733 97 Holder CNC8157 98 Spacer CNM6379 99 Double Sided Tape CNM6380 100 Connector CNV5539 101 Grille Unit CXB4094 102 Remote Control Unit CXB3455 103 Cover CNS4948 104 CD Mechanism Module CXK5200 105 Screw ISS26P055FUC 106 Screw CBA1492 107 Spacer CNM6421 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DEH-P600,P6000,P6050 107 A C B A C B 57 57 76 13 12 2 2 2 2 104 8 20 4 23 23 23 48 22 105 16 16 15 51 50 9 3 52 1 43 35 28 14 11 34 27 41 47 49 77 46 40 41 106 42 31 4 60 67 54 73 72 64 74 78 56 57 65 80 86 101 89 83 90 88 85 81 93 6 7 97 94 100 95 99 98 96 82 82 91 82 84 92 87 79 70 65 55 55 71 66 61 59 58 62 58 75 69 68 62 18 63 79 17 45 39 32 47 49 77 46 40 21 10 38 36 44 10 29 25 37 26 33 24 1 3 5 19 30 2.5 EXTERIOR(DEH-P6000/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 1 Screw BMZ30P040FMC 2 Screw BSZ26P060FMC 3 Screw BSZ30P060FMC 4 Screw BSZ30P100FMC 5 Cord Assy CDE5822 6 Cord Assy CDE5827 7 Fuse(10A) CEK1136 8 Connector CDE6049 9 Antenna Cable CDH1266 10 Transistor(Q954,991) 2SD2396 11 IC(IC551) PAL005A 12 Case CNB2508 13 Holder CNC6798 14 Holder CNC8300 15 Holder CNC8357 16 Spacer CNM4913 17 Insulator CNM6075 18 Panel CNS5148 19 Cap CNV2680 20 Tuner Amp Unit CWM6193 21 Screw ASZ26P080FMC 22 Screw BPZ26P060FMC 23 Screw BSZ26P160FMC 24 Clamper CEF1009 25 Pin Jack(CN431) CKB1028 26 Terminal(CN501) CKF1059 27 Plug(CN952) CKM1294 28 Plug(CN652) CKS-783 29 Connector(CN411) CKS3408 30 Connector(CN432) CKS3598 31 Connector(CN681) CKS3838 32 Connector(CN651) CKS4077 33 Mini Pin Jack(CN502) CKX1046 34 Panel CNB2378 35 Holder CNC7533 36 Case CNC8138 37 Holder CNC8298 38 Holder CNC8299 39 Case CNC8301 40 Case CNC8376 41 Case CNC8377 42 Heat Sink CNC8437 43 Insulator CNM5967 44 Insulator CNM6249 45 Insulator CNM6250 46 Insulator CNM6298 47 Insulator CNM6299 48 Heat Sink CNR1550 49 Insulator CNV5816 50 FM/AM Tuner Unit CWE1501 51 Holder CNC7532 52 Chassis Unit CXB3306 53 ••••• 54 Screw BPZ20P060FMC 55 Screw CBA1082 56 Screw CBA1176 57 Washer CBF1001 58 Spring CBH2063 59 Spring CBH2204 60 Cord CDE5800 61 Connector CKS2780 62 Roller CLA3386 63 Sheet CNM6109 64 Cover CNM6118 65 Cushion CNM6376 66 PCB CNP5383 67 PCB CNP5430 68 Holder CNS5157 69 Holder CNS5165 70 Panel CNS5280 71 Cover CNS5389 72 Lighting Conductor CNV5540 73 Switch(S651) CSN1027 74 Holder Unit CXB3049 75 Holder Unit CXB3050 76 Holder Unit CXB3051 77 Coil(L652,L653) CTH1228 78 Damper Unit CXB3180 79 Screw IMS20P040FZK 80 Detach Grille Assy CXB3689 81 Screw BPZ20P060FMC 82 Screw BPZ20P080FZK 83 Button(OPEN) CAC5804 84 Button(EJECT) CAC5805 85 Button(SOURCE) CAC5806 86 Button(EQ) CAC5808 87 Button(DISP) CAC5809 88 Button(1-6) CAC5922 89 Button(BAND) CAC5936 90 Spring CBH2205 91 Cover CNS5146 92 Holder CNV5537 93 Keyboard Unit CWM6197 94 LCD CAW1518 95 EL CEL1592 96 Connector(CN901) CKS2733 97 Holder CNC8157 98 Spacer CNM6379 99 Double Sided Tape CNM6380 100 Connector CNV5539 101 Grille Unit CXB4095 102 ••••• 103 ••••• 104 CD Mechanism Module CXK5200 105 Screw ISS26P055FUC 106 Screw CBA1492 107 Spacer CNM6421 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DEH-P600,P6000,P6050 107 A C B A C B 57 57 76 18 13 12 2 2 2 2 104 8 20 4 23 23 23 48 22 105 16 16 15 51 50 9 3 52 1 43 35 28 14 11 34 27 41 47 49 77 46 40 41 106 42 31 4 60 67 54 73 72 64 74 78 56 57 65 80 86 101 89 83 90 88 85 81 93 6 7 97 94 100 95 99 98 96 82 82 91 82 84 92 87 79 70 65 55 55 71 66 61 59 58 62 58 75 69 68 62 63 79 17 45 39 32 47 49 77 46 40 21 10 38 36 44 10 29 25 37 26 33 24 1 3 103 102 5 19 30 2.6 EXTERIOR(DEH-P6050/ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 1 Screw BMZ30P040FMC 2 Screw BSZ26P060FMC 3 Screw BSZ30P060FMC 4 Screw BSZ30P100FMC 5 Cord Assy CDE5822 6 Cord Assy CDE5828 7 Fuse(10A) CEK1136 8 Connector CDE6049 9 Antenna Cable CDH1266 10 Transistor(Q954,991) 2SD2396 11 IC(IC551) PAL005A 12 Case CNB2508 13 Holder CNC6798 14 Holder CNC8300 15 Holder CNC8357 16 Spacer CNM4913 17 Insulator CNM6075 18 Panel CNS5148 19 Cap CNV2680 20 Tuner Amp Unit CWM6195 21 Screw ASZ26P080FMC 22 Screw BPZ26P060FMC 23 Screw BSZ26P160FMC 24 Clamper CEF1009 25 Pin Jack(CN431) CKB1028 26 Terminal(CN501) CKF1059 27 Plug(CN951) CKM1296 28 Plug(CN652) CKS-783 29 Connector(CN411) CKS3408 30 Connector(CN432) CKS3598 31 Connector(CN681) CKS3838 32 Connector(CN651) CKS4077 33 Mini Pin Jack(CN502) CKX1046 34 Panel CNB2377 35 Holder CNC7533 36 Case CNC8138 37 Holder CNC8298 38 Holder CNC8299 39 Case CNC8301 40 Case CNC8376 41 Case CNC8377 42 Heat Sink CNC8437 43 Insulator CNM5967 44 Insulator CNM6249 45 Insulator CNM6250 46 Insulator CNM6298 47 Insulator CNM6299 48 Heat Sink CNR1550 49 Insulator CNV5816 50 FM/AM Tuner Unit CWE1501 51 Holder CNC7532 52 Chassis Unit CXB3306 53 ••••• 54 Screw BPZ20P060FMC 55 Screw CBA1082 56 Screw CBA1176 57 Washer CBF1001 58 Spring CBH2063 59 Spring CBH2204 60 Cord CDE5800 61 Connector CKS2780 62 Roller CLA3386 63 Sheet CNM6109 64 Cover CNM6118 65 Cushion CNM6376 66 PCB CNP5383 67 PCB CNP5430 68 Holder CNS5157 69 Holder CNS5165 70 Panel CNS5280 71 Cover CNS5389 72 Lighting Conductor CNV5540 73 Switch(S651) CSN1027 74 Holder Unit CXB3049 75 Holder Unit CXB3050 76 Holder Unit CXB3051 77 Coil(L652,L653) CTH1228 78 Damper Unit CXB3180 79 Screw IMS20P040FZK 80 Detach Grille Assy CXB3691 81 Screw BPZ20P060FMC 82 Screw BPZ20P080FZK 83 Button(OPEN) CAC5804 84 Button(EJECT) CAC5805 85 Button(SOURCE) CAC5806 86 Button(EQ) CAC5808 87 Button(DISP) CAC5809 88 Button(1-6) CAC5922 89 Button(BAND) CAC5936 90 Spring CBH2205 91 Cover CNS5146 92 Holder CNV5537 93 Keyboard Unit CWM6197 94 LCD CAW1518 95 EL CEL1592 96 Connector(CN901) CKS2733 97 Holder CNC8157 98 Spacer CNM6379 99 Double Sided Tape CNM6380 100 Connector CNV5539 101 Grille Unit CXB4097 102 Remote Control Unit CXB3455 103 Cover CNS4948 104 CD Mechanism Module CXK5200 105 Screw ISS26P055FUC 106 Screw CBA1492 107 Spacer CNM6421 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DEH-P600,P6000,P6050 2.7 CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DEH-P600,P6000,P6050 Mark No. Description Part No. Mark No. Description Part No. 1 Compound Unit CWX2235 2 Connector(CN802) CKS2192 3 Connector(CN801) CKS2193 4 Connector(CN701) CKS2773 5 Connector(CN101) CKS3486 6 Screw BMZ20P030FZK 7 Screw BSZ20P040FZK 8 Screw(M2×3) CBA1077 9 Screw(M2×6) CBA1230 10 Screw CBA1243 11 Screw(M2×4) CBA1362 12 Washer CBF1037 13 Washer CBF1038 14 Washer CBF1060 * 15 Washer CBF1075 16 Spring CBH2079 17 Spring CBH2117 18 Spring CBH2278 19 Spring CBH2110 20 Spring CBH2282 21 Spring CBH2114 22 Spring CBH2115 23 Spring CBH2080 24 Spring CBH2118 25 Spring CBH2161 26 Spring CBH2163 27 Spring CBH2189 28 Spring CBH2249 29 Spring CBH2260 30 Spring CBH2262 31 Spring CBL1367 32 Spring CBL1369 33 Connector CDE5531 34 Connector CDE5532 35 Shaft CLA3304 36 Screw(M2.6×6) CBA1458 37 Frame CNC7544 38 Frame CNC7545 39 Lever CNC7546 40 Arm CNC7739 41 Bracket CNC7798 42 Plate CNC8090 43 Spacer CNM3315 44 Sheet CNM6170 45 Cushion CNM6204 46 Sheet CNM6215 47 Ball CNR1189 48 Belt CNT1086 49 Roller CNV4509 50 Arm CNV5246 51 Arm CNV5247 52 Arm CNV5248 53 Arm CNV5249 54 Guide CNV5254 55 Guide CNV5255 56 Gear CNV5257 57 Gear CNV5256 58 Guide CNV5869 59 Damper CNV5266 60 Arm CNV5359 61 Arm CNV5360 62 Arm CNV5361 63 Guide CNV5509 64 Guide CNV5510 65 Holder CNV5578 66 Guide CNV5751 67 Clamper CNV5758 68 Gear CNV5813 69 Motor Unit(M1) CXB2190 70 Screw Unit CXB2191 71 Chassis Unit CXB2192 72 Gear Unit CXB2193 73 Arm Unit CXB2194 74 Motor Unit(M2) CXB2195 75 Lever Unit CXB2553 76 Arm Unit CXB2554 77 Motor Unit(M3) CXB2562 78 Arm Unit CXB2795 79 Bracket Unit CXB4071 80 Screw JFZ20P025FMC 81 Screw JGZ17P025FZK 82 Washer YE15FUC 83 Pickup Unit(Service)(P8) CXX1285 84 Screw IMS26P030FMC * 85 PCB CNX2982 86 Photo-transistor(Q1, 2) CPT230SX-TU - CD MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DEH-P600,P6000,P6050 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM(DEH-P600/UC) A TUNER AMP UNIT B FM/AM TUNER UNIT D COMPOUND UNIT PICKUP UNIT(SERVICE) PHOTO UNIT E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DEH-P600,P6000,P6050 KEYBOARD UNIT C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DEH-P600,P6000,P6050 3.2 BLOCK DIAGRAM(DEH-P6000/UC) A TUNER AMP UNIT B FM/AM TUNER UNIT PICKUP UNIT(SERVICE) PHOTO UNIT E D COMPOUND UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DEH-P600,P6000,P6050 KEYBOARD UNIT C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DEH-P600,P6000,P6050 3.3 BLOCK DIAGRAM(DEH-P6050/ES) A TUNER AMP UNIT B FM/AM TUNER UNIT PICKUP UNIT(SERVICE) PHOTO UNIT E D COMPOUND UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DEH-P600,P6000,P6050 KEYBOARD UNIT C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A 3.4 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(DEH-P600/UC) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page A A-a ANTENNA CABLE A B E D TUNER AMP UNIT FM/AM TUNER UNIT CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A A-b A CLOSE S651 CSN1027 150P CEK1136 C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A A-a A-a A-b A B TUNER AMP UNIT FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A 150P ANTENNA CABLE A-a A-a A-b E D CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 D C B A A-a A-b A-b DEH-P600,P6000,P6050 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A CLOSE S651 CSN1027 150P CEK1136 A-b A-a A-b KEYBOARD UNIT C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A 3.5 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(DEH-P6000/UC) A A-a ANTENNA CABLE A B E D TUNER AMP UNIT FM/AM TUNER UNIT CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A A-b A CLOSE S651 CSN1027 150P CEK1136 C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A A-a A-a A-b A B TUNER AMP UNIT FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A 150P ANTENNA CABLE A-a A-a A-b E D CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 1 2 3 4 1 2 3 4 D C B A A-a A-b A-b DEH-P600,P6000,P6050 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A CLOSE S651 CSN1027 150P CEK1136 A-b A-a A-b C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A 3.6 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(DEH-P6050/ES) A A-a ANTENNA CABLE A B E D TUNER AMP UNIT FM/AM TUNER UNIT CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A A-b A CLOSE S651 CSN1027 150P CEK1136 68K 33K C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A A-a A-a A-b A B TUNER AMP UNIT FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A 150P ANTENNA CABLE A-a A-a A-b E D CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 1 2 3 4 1 2 3 4 D C B A A-a A-b A-b DEH-P600,P6000,P6050 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A CLOSE S651 CSN1027 150P CEK1136 68K 33K A-b A-a A-b C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A B KV1410(23) Voltage of IC Terminals Mark None F0 F65 F125 A0 A74 A125 Band – FM FM FM AM AM AM Input Level – 0dBf 65dBf 125dBf 0dBµ 74dBµ 125dBµ 3.7 FM/AM TUNER UNIT B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A KV1410(23) B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A CAW1518 C 3.8 KEYBOARD UNIT C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 1 2 4 3 6 5 2 1 6 3 4 5 2 1 6 3 4 5 2 1 6 3 4 5 2 1 6 3 4 5 GREEN GREEN 1 2 4 3 6 5 C A CN651 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A PICKUP UNIT(SERVICE) PHOTO UNIT COMPOUND UNIT 10/6R3 3.9 CD MECHANISM MODULE D E D E 42 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A SWITCHES: COMPOUND UNIT S801 : HOME SWITCH.....ON-OFF S802 : CLAMP SWITCH....ON-OFF The underlined indicates the switch position. D A CN681 43 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DEH-P600,P6000,P6050 8 CH1: TE 0.2V/div. 9 CH2: TD 0.2V/div. Normal mode: play 8 CH1: TE 0.5V/div. ! CH2: SD 0.5V/div. TEST mode: 100 Tracks jump(FWD) 5ms/div. 0 MD 0.5V/div. 0.1s/div. Normal mode: Play (12cm) 0 MD 1V/div. 10ms/div. Normal mode: Long Search (12cm) @ EFM 1V/div. 5µs/div. Normal mode: play 8 CH1: TE 1V/div. # CH2: TEC 1V/div. Test mode: Focus close Tracking open 2ms/div. 8 CH1: TE 0.5V/div. 6 CH2: FE 0.5V/div. Normal mode: AGC after focus close 0.2s/div. $ PLCK 2V/div. 0.5µs/div. Normal mode: play 20ms/div. % SCKO 2V/div. 1µs/div. Normal mode: play ^ Dout 2V/div. 10µs/div. Normal mode: play & LRCK 2V/div. 20µs/div. Normal mode: play * VD 5V/div. 50ms/div. Normal mode: No disc GND → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → GND → REFO → GND → REFO → GND → REFO → GND → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DEH-P600,P6000,P6050 ( CH1: R OUT 1V/div. ) CH2: L OUT 1V/div. Normal mode: Play (1kHz 0dB) 6 CH1: FE 0.2V/div. 3 CH2: FD 0.5V/div. Normal mode: During AGC 1ms/div. 8 CH1: TE 0.2V/div. 9 CH2: TD 0.5V/div. Normal mode: During AGC 1 CH1: RFI 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.2ms/div. 1ms/div. 0.5ms/div. 3 CH1: FD 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.5ms/div. 9 CH1: TD 0.1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.5ms/div. REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DEH-P600,P6000,P6050 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A 1 2 5 10 15 20 23 24 CN681 C657 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams A A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B TUNER AMP UNIT CORD ASSY CN701 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A A L ch R ch SUB WOOFER SIDE A B C CN901 CORD ASSY ANTENNA CABLE CLOSE SWITCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DEH-P600,P6000,P6050 5 6 7 8 5 6 7 8 D C B A A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A 4.2 FM/AM TUNER UNIT B B SIDE A FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A B B SIDE B FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A 4.3 KEYBOARD UNIT VOL UP EQ+ VOL DOWN EQ– SOURCE D(PGM) 1 2 3 4 5 6 A(DISP) C(PTY/CLK) BAND FUNC AUDIO B(TA/LOUD) RIGHT LEFT UP DOWN C C SIDE A KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A EJECT EL C C SIDE B KEYBOARD UNIT A CN651 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DEH-P600,P6000,P6050 1 2 3 4 1 2 3 4 D C B A 4.4 CD MECHANISM MODULE COMPOUND UNIT E REFO F M1 CARRIAGE MOTOR M2 LOADING MOTOR M3 SPINDLE MOTOR PICKUP UNIT(SERVICE) CN802 CN681 321 PHOTO UNIT SIDE A A D E D D E E HOME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DEH-P600,P6000,P6050 D C B A 1 2 3 4 1 2 3 4 COMPOUND UNIT SIDE B D D CLAMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DEH-P600,P6000,P6050 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : CWM6192 Unit Name : Tuner Amp Unit(DEH-P600/UC) MISCELLANEOUS IC 411 IC CA0008AM IC 451 IC PML004AF IC 452 IC PA2028A IC 491 IC NJM4558MD IC 501 IC S-81250PGPD IC 551 IC PAL005A IC 601 IC PE5005A IC 631 IC S-80734ANDYI IC 651 IC PML006A IC 851 IC TPD1018F IC 852 IC TPD1018F Q 411 Transistor 2SA1586 Q 412 Transistor DTC124EK Q 431 Transistor HN1C03F Q 432 Transistor HN1C03F Q 433 Transistor HN1C03F Q 434 Transistor IMD2A Q 451 Transistor IMH3A Q 452 Transistor IMH3A Q 453 Transistor IMH3A Q 501 Transistor DTA124EK Q 502 Transistor 2SC1740S Q 551 Transistor DTC144EK Q 601 Transistor DTA114EK Q 641 Transistor DTC114EK Q 651 Transistor 2SA933S Q 652 Transistor 2SB1236 Q 653 Transistor DTC124EK Q 655 FET 2SK2356Z Q 656 Transistor 2SC3295 Q 657 Transistor 2SC2412K Q 851 Transistor 2SA1037K Q 852 Transistor DTC124EK Q 853 Transistor 2SC2412K Q 854 Transistor 2SC2412K Q 855 Transistor 2SC2412K Q 951 Transistor 2SA1037K Q 952 Transistor 2SC3673 Q 953 Transistor IMX1 Q 954 Transistor 2SD2396 Q 955 Transistor 2SB1238 Q 956 Transistor DTC114EK Q 957 Chip Transistor 2SC2712 Q 958 Transistor DTC114EK Q 991 Transistor 2SD2396 Q 992 Transistor IMD2A D 431 Diode MA152WK D 432 Diode 1SS133 D 491 Diode DA204K D 492 Diode DA204K D 501 Diode MA3160(L) D 551 Diode 1SR154-400 D 651 Diode MTZ5R6J(C) D 652 Diode DA204K D 653 Diode DA204K D 654 Diode DA204K D 656 Diode U1JU44 D 657 LED CL170PGCD(AB) D 659 Diode U1JU44 D 660 Diode U1JU44 D 662 Diode MA8082(M) D 663 Diode MA3062(M) D 851 LED BR4361F D 852 Diode ERA15-02VH D 853 Diode ERA15-02VH D 854 Diode ERA15-02VH D 855 Diode ERA15-02VH D 951 Diode ERA15-02VH D 952 Diode ERA15-02VH D 955 Diode MA152WK D 956 Diode HZS6L(B1) D 957 Diode HZS7L(C2) D 958 Diode HZS6L(C3) D 959 Diode HZS9L(A2) D 960 Diode HZS9L(B3) D 961 Diode ERA15-02VH D 973 Diode 1SR154-400 D 992 Diode HZS9L(B1) L 411 Inductor LAU3R3J L 451 Ferri-Inductor LAU101K L 501 Ferri-Inductor LAU4R7K L 502 Inductor CTF1399 L 503 Inductor CTF1399 L 601 Inductor LAU100K L 602 Ferri-Inductor LAU2R2K L 603 Ferri-Inductor LAU2R2K L 604 Ferri-Inductor LAU2R2K L 651 Ferri-Inductor LAU101K L 652 Coil CTH1228 L 653 Coil CTH1228 L 655 Inductor CTF1483 L 691 Inductor CTF1399 L 692 Inductor CTF1399 L 693 Inductor CTF1399 L 951 Ferri-Inductor LAU2R2K TH 601 Thermistor CCX1037 TH 651 Posistor CCX1042 X 601 Radiator 12.58291MHz CSS1402 FM/AM Tuner Unit CWE1501 BZ 601 Buzzer CPV1050 AR 501 DSP-201M =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 RESISTORS R 411 RS1/10S620J R 412 RS1/10S101J R 413 RS1/10S101J R 414 RS1/10S222J R 415 RS1/10S332J R 416 RS1/10S682J R 417 RS1/10S102J R 418 RS1/10S102J R 419 RS1/10S473J R 420 RS1/10S103J R 421 RS1/10S473J R 423 RS1/10S821J R 424 RS1/10S821J R 425 RS1/10S223J R 426 RS1/10S223J R 427 RS1/10S102J R 428 RS1/10S102J R 431 RS1/10S820J R 432 RS1/10S820J R 433 RS1/10S820J R 434 RS1/10S820J R 435 RS1/10S820J R 436 RS1/10S820J R 437 RS1/10S223J R 438 RS1/10S223J R 439 RS1/10S223J R 440 RS1/10S223J R 441 RS1/10S223J R 442 RS1/10S223J R 443 RS1/10S102J R 445 RS1/16S103J R 446 RS1/16S103J R 447 RS1/10S103J R 448 RS1/16S103J R 449 RS1/16S103J R 450 RS1/16S103J R 457 RS1/10S203J R 459 RS1/10S102J R 460 RS1/10S102J R 461 RS1/10S102J R 462 RS1/10S102J R 463 RS1/10S102J R 464 RS1/10S102J R 465 RS1/10S473J R 466 RS1/10S473J R 467 RS1/10S473J R 468 RS1/10S473J R 469 RS1/10S473J R 470 RS1/10S473J R 491 RS1/10S102J R 492 RS1/10S102J R 493 RS1/10S333J R 494 RS1/10S333J R 495 RS1/10S104J R 496 RS1/10S104J R 497 RS1/10S104J R 498 RS1/10S104J R 501 RS1/16S0R0J R 502 RS1/10S222J R 503 RS1/10S222J R 504 RS1/16S0R0J R 505 RS1/16S0R0J R 508 RS1/10S681J R 509 RS1/10S473J R 511 RS1/10S473J R 512 RS1/10S681J R 513 RS1/10S473J R 514 RS1/10S681J R 515 RS1/10S473J R 516 RS1/10S681J R 517 RS1/10S472J R 518 RS1/10S103J R 520 RS1/10S681J R 521 RS1/8S151J R 522 RS1/10S681J R 523 RS1/10S473J R 524 RS1/10S0R0J R 525 RS1/10S0R0J R 532 RS1/10S681J R 533 RS1/10S473J R 541 RS1/10S272J R 542 RS1/10S272J R 544 RS1/10S393J R 545 RS1/10S162J R 546 RS1/10S162J R 547 RS1/10S0R0J R 551 RS1/10S103J R 552 RS1/10S103J R 553 RS1/10S331J R 581 RS1/16S331J R 582 RS1/16S331J R 583 RS1/16S331J R 584 RS1/16S331J R 585 RS1/16S331J R 586 RS1/16S331J R 603 RS1/10S473J R 604 RS1/10S102J R 606 RS1/10S473J R 607 RA3C102J R 610 RS1/10S222J R 611 RN1/10SE2202D R 612 RS1/10S473J R 614 RS1/10S222J R 615 RS1/10S222J R 616 RS1/10S473J R 617 RS1/10S473J R 618 RS1/10S473J R 620 RS1/10S473J R 621 RS1/10S473J R 622 RS1/10S102J R 623 RS1/10S202J R 624 RS1/10S102J R 625 RS1/10S102J R 626 RS1/10S822J R 633 RS1/8S473J R 634 RS1/10S0R0J R 637 RS1/16S101J R 651 RS1/10S222J R 652 RS1/10S472J R 653 RS1/10S222J R 654 RS1/8S222J R 655 RS1/8S222J R 656 RS1/8S222J R 657 RS1/10S473J R 658 RS1/10S472J R 659 RS1/8S472J R 660 RD1/4PU102J R 661 RS1/10S1R0J R 662 RD1/2PM390J R 663 RD1/2PM390J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 59 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 R 664 RS1/16S473J R 667 RS1/10S103J R 668 RS1/10S472J R 669 RS1/16S912J R 670 RS1/10S103J R 671 RS1/10S472J R 672 RS1/8S151J R 673 RS1/8S225J R 674 RS1/8S225J R 675 RS1/16S473J R 676 RS1/8S474J R 677 RS1/8S474J R 678 RS1/8S105J R 679 RD1/2PM182J R 680 RD1/2PM182J R 681 RS1/10S681J R 682 RA3C102J R 685 RS1/10S152J R 686 RS1/16S622J R 687 RS1/8S151J R 688 RS1/16S912J R 690 RS1/8S151J R 691 RS1/10S102J R 692 RS1/8S391J R 693 RS1/8S391J R 694 RS1/16S473J R 851 RS1/10S223J R 852 RS1/16S223J R 853 RS1/10S103J R 854 RS1/10S272J R 855 RS1/10S223J R 856 RS1/10S473J R 857 RS1/16S473J R 858 RS1/16S473J R 859 RS1/8S471J R 860 RS1/10S223J R 861 RS1/10S272J R 862 RS1/10S223J R 863 RS1/10S272J R 864 RS1/10S103J R 865 RS1/8S102J R 866 RS1/8S102J R 867 RS1/16S103J R 868 RD1/4PU102J R 869 RS1/16S103J R 870 RS1/10S102J R 881 RS1/10S103J R 882 RS1/10S102J R 951 RD1/4PU102J R 952 RS1/10S153J R 953 RS1/16S472J R 954 RS1/16S472J R 955 RS1/10S102J R 956 RD1/4PU102J R 957 RS1/10S101J R 958 RS1/10S622J R 959 RS1/10S473J R 960 RS1/16S473J R 961 RS1/10S103J R 962 RS1/10S473J R 963 RS1/10S472J R 964 RS1/10S103J R 965 RS1/10S473J R 966 RS1/10S473J R 967 RS1/10S102J R 968 RS1/10S102J R 969 RD1/4PU221J R 970 RS1/10S1R0J R 971 RS1/10S473J R 972 RS1/16S103J R 973 RS1/16S473J R 974 RS1/10S103J R 975 RS1/16S473J R 991 RD1/4PU221J R 992 RD1/4PU221J R 993 RS1/10S472J R 994 RS1/10S222J CAPACITORS C 411 CKSQYB104K25 C 412 CKSQYB473K25 C 413 CKSYB105K16 C 414 CKSYB105K16 C 415 CKSYB105K16 C 416 CKSYB105K16 C 431 CEJA100M16 C 432 CEJA100M16 C 433 CEJA100M16 C 434 CEJA100M16 C 435 CEJA100M16 C 436 CEJA100M16 C 443 CEJA220M16 C 445 CKLSRB222K50 C 446 CKLSRB222K50 C 447 CKLSRB222K50 C 448 CKLSRB222K50 C 449 CKLSRB222K50 C 450 CKLSRB222K50 C 451 CKSYB224K25 C 452 CKSYB224K25 C 453 CKSYB105K16 C 454 CKSYB105K16 C 455 CEJANP4R7M16 C 456 CEJANP4R7M16 C 457 CEJANP4R7M16 C 458 CEJANP4R7M16 C 459 CKSQYB473K25 C 460 CKSQYB473K25 C 461 CKSQYB473K25 C 462 CKSQYB473K25 C 463 CEJA470M10 C 464 CKSQYB104K25 C 465 CEJA100M16 C 466 CKSQYB153K50 C 467 CKSQYB473K25 C 468 CKSQYB123K50 C 469 CKSQYB333K50 C 470 CKSQYB153K50 C 471 CEJA100M16 C 472 CKSQYB471K50 C 473 CEJA100M16 C 474 CEJA100M16 C 475 CEJA100M16 C 476 CEAL330M25 C 477 CKSYB105K16 C 478 CKSYB105K16 C 479 CKSYB105K16 C 480 CKSYB105K16 C 481 CKSYB105K16 C 482 CKSYB105K16 C 483 CEAL330M25 C 484 CASAQ4R7M16 C 485 CEAL4R7M35 C 486 CEAL4R7M35 C 487 CEAL4R7M35 C 488 CEAL4R7M35 C 489 CEAL4R7M35 C 490 CEAL4R7M35 C 491 CKLSQB152K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 60 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 C 492 CKLSQB152K50 C 493 CKSQYB104K25 C 494 CKSQYB104K25 C 495 CKSQYB104K25 C 496 CKSQYB104K25 C 497 CKSQYB104K25 C 498 CKSQYB104K25 C 499 CKSQYB103K25 C 500 CKSQYB104K25 C 501 CKSQYB103K25 C 502 CKSQYB223K50 C 503 CKSQYB223K50 C 504 CASAQ150K16 C 505 CKSQYB102K50 C 506 CEAL101M6R3 C 507 CKSQYB473K25 C 521 CKSRYB102K50 C 533 CKSQYB183K50 C 534 CKSQYB183K50 C 535 CKSQYB472K50 C 536 CCSQCH101J50 C 551 CKSYB224K25 C 552 CKSYB224K25 C 553 CKSYB224K25 C 554 CKSYB224K25 C 555 CEJA330M10 C 557 CKSYB105K16 C 558 10µF/16V CCH1219 C 559 CKSYB104K50 C 560 3300µF/16V CCH1330 C 561 CKSQYB473K25 C 601 CCSQCH200J50 C 602 CCSQCH200J50 C 603 CKSYB105K16 C 604 CEAL4R7M35 C 605 CCSQCH101J50 C 607 CCSQCH101J50 C 608 CCSQCH101J50 C 609 CCSQCH101J50 C 610 CCSQCH101J50 C 611 CCSQCH101J50 C 612 CEAL2R2M50 C 651 CCSQCH101J50 C 652 CEAL4R7M35 C 653 CKSRYB222K50 C 655 2.2µF/25V CCH1327 C 656 2.2µF/25V CCH1327 C 657 0.1µF CCG1096 C 658 4.7µF CCG1089 C 659 CEJA470M16 C 660 CKSQYB102K50 C 662 150pF CCG1095 C 670 CKSQYB473K25 C 851 CKSQYB473K25 C 853 CKSRYB473K16 C 881 CKSQYB473K25 C 951 470µF/16V CCH1325 C 952 CKSQYB473K25 C 953 CEJA101M10 C 954 CKSQYB473K25 C 955 CEJA101M16 C 956 CKSQYB103K25 C 957 330µF/16V CCH1326 C 958 CKSQYB102K50 C 959 CKSQYB105K16 C 989 470µF/16V CCH1183 C 991 CKSQYB473K25 C 992 CKSQYB102K50 C 993 CEJA101M10 Unit Number : CWM6193 Unit Name : Tuner Amp Unit(DEH-P6000/UC) MISCELLANEOUS IC 411 IC CA0008AM IC 451 IC PML004AF IC 452 IC PA2028A IC 491 IC NJM4558MD IC 501 IC S-81250PGPD IC 551 IC PAL005A IC 601 IC PE5005A IC 631 IC S-80734ANDYI IC 651 IC PML006A IC 851 IC TPD1018F Q 411 Transistor 2SA1586 Q 412 Transistor DTC124EK Q 431 Transistor HN1C03F Q 433 Transistor HN1C03F Q 434 Transistor IMD2A Q 451 Transistor IMH3A Q 453 Transistor IMH3A Q 501 Transistor DTA124EK Q 502 Transistor 2SC1740S Q 551 Transistor DTC144EK Q 601 Transistor DTA114EK Q 641 Transistor DTC114EK Q 651 Transistor 2SA933S Q 652 Transistor 2SB1236 Q 653 Transistor DTC124EK Q 655 FET 2SK2356Z Q 656 Transistor 2SC3295 Q 657 Transistor 2SC2412K Q 851 Transistor 2SA1037K Q 852 Transistor DTC124EK Q 853 Transistor 2SC2412K Q 951 Transistor 2SA1037K Q 952 Transistor 2SC3673 Q 953 Transistor IMX1 Q 954 Transistor 2SD2396 Q 955 Transistor 2SB1238 Q 956 Transistor DTC114EK Q 957 Chip Transistor 2SC2712 Q 958 Transistor DTC114EK Q 991 Transistor 2SD2396 Q 992 Transistor IMD2A D 431 Diode MA152WK D 432 Diode 1SS133 D 491 Diode DA204K D 492 Diode DA204K D 501 Diode MA3160(L) D 551 Diode 1SR154-400 D 651 Diode MTZ5R6J(C) D 652 Diode DA204K D 653 Diode DA204K D 654 Diode DA204K D 656 Diode U1JU44 D 657 LED CL170PGCD(AB) D 659 Diode U1JU44 D 660 Diode U1JU44 D 662 Diode MA8082(M) D 663 Diode MA3062(M) D 851 LED BR4361F D 852 Diode ERA15-02VH D 853 Diode ERA15-02VH D 951 Diode ERA15-02VH D 952 Diode ERA15-02VH D 955 Diode MA152WK D 956 Diode HZS6L(B1) D 957 Diode HZS7L(C2) =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A 61 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DEH-P600,P6000,P6050 D 958 Diode HZS6L(C3) D 959 Diode HZS9L(A2) D 960 Diode HZS9L(B3) D 961 Diode ERA15-02VH D 973 Diode 1SR154-400 D 992 Diode HZS9L(B1) L 411 Inductor LAU3R3J L 451 Ferri-Inductor LAU101K L 501 Ferri-Inductor LAU4R7K L 502 Inductor CTF1399 L 503 Inductor CTF1399 L 601 Inductor LAU100K L 602 Ferri-Inductor LAU2R2K L 603 Ferri-Inductor LAU2R2K L 604 Ferri-Inductor LAU2R2K L 651 Ferri-Inductor LAU101K L 652 Coil CTH1228 L 653 Coil CTH1228 L 655 Inductor CTF1483 L 691 Inductor CTF1399 L 692 Inductor CTF1399 L 693 Inductor CTF1399 L 951 Ferri-Inductor LAU2R2K TH 601 Thermistor CCX1037 TH 651 Posistor CCX1042 X 601 Radiator 12.58291MHz CSS1402 FM/AM Tuner Unit CWE1501 BZ 601 Buzzer CPV1050 AR 501 DSP-201M RESISTORS R 411 RS1/10S620J R 412 RS1/10S101J R 413 RS1/10S101J R 414 RS1/10S222J R 415 RS1/10S332J R 416 RS1/10S682J R 417 RS1/10S102J R 418 RS1/10S102J R 419 RS1/10S473J R 420 RS1/10S103J R 421 RS1/10S473J R 423 RS1/10S821J R 424 RS1/10S821J R 425 RS1/10S223J R 426 RS1/10S223J R 427 RS1/10S102J R 428 RS1/10S102J R 431 RS1/10S820J R 432 RS1/10S820J R 435 RS1/10S820J R 436 RS1/10S820J R 437 RS1/10S223J R 438 RS1/10S223J R 441 RS1/10S223J R 442 RS1/10S223J R 443 RS1/10S102J R 445 RS1/16S103J R 446 RS1/16S103J R 449 RS1/16S103J R 450 RS1/16S103J R 457 RS1/10S203J R 459 RS1/10S102J R 460 RS1/10S102J R 463 RS1/10S102J R 464 RS1/10S102J R 465 RS1/10S473J R 466 RS1/10S473J R 467 RS1/10S473J R 468 RS1/10S473J R 469 RS1/10S473J R 470 RS1/10S473J R 491 RS1/10S102J R 492 RS1/10S102J R 493 RS1/10S333J R 494 RS1/10S333J R 495 RS1/10S104J R 496 RS1/10S104J R 497 RS1/10S104J R 498 RS1/10S104J R 501 RS1/16S0R0J R 502 RS1/10S222J R 503 RS1/10S222J R 504 RS1/16S0R0J R 505 RS1/16S0R0J R 508 RS1/10S681J R 509 RS1/10S473J R 511 RS1/10S473J R 512 RS1/10S681J R 513 RS1/10S473J R 514 RS1/10S681J R 515 RS1/10S473J R 516 RS1/10S681J R 517 RS1/10S472J R 518 RS1/10S103J R 520 RS1/10S681J R 521 RS1/8S151J R 522 RS1/10S681J R 523 RS1/10S473J R 524 RS1/10S0R0J R 525 RS1/10S0R0J R 532 RS1/10S681J R 533 RS1/10S473J R 541 RS1/10S272J R 542 RS1/10S272J R 544 RS1/10S393J R 545 RS1/10S162J R 546 RS1/10S162J R 547 RS1/10S0R0J R 551 RS1/10S103J R 552 RS1/10S103J R 553 RS1/10S331J R 581 RS1/16S331J R 582 RS1/16S331J R 585 RS1/16S331J R 586 RS1/16S331J R 603 RS1/10S473J R 604 RS1/10S102J R 606 RS1/10S473J R 607 RA3C102J R 610 RS1/10S222J R 611 RN1/10SE2202D R 612 RS1/10S333J R 613 RS1/10S683J R 614 RS1/10S222J R 615 RS1/10S222J R 616 RS1/10S473J R 617 RS1/10S473J R 618 RS1/10S473J R 620 RS1/10S473J R 621 RS1/10S473J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DEH-P600,P6000,P6050 R 622 RS1/10S102J R 623 RS1/10S202J R 624 RS1/10S102J R 625 RS1/10S102J R 626 RS1/10S822J R 633 RS1/8S473J R 634 RS1/10S0R0J R 637 RS1/16S101J R 651 RS1/10S222J R 652 RS1/10S472J R 653 RS1/10S222J R 654 RS1/8S222J R 655 RS1/8S222J R 656 RS1/8S222J R 657 RS1/10S473J R 658 RS1/10S472J R 659 RS1/8S472J R 660 RD1/4PU102J R 661 RS1/10S1R0J R 662 RD1/2PM390J R 663 RD1/2PM390J R 664 RS1/16S473J R 667 RS1/10S103J R 668 RS1/10S472J R 669 RS1/16S912J R 670 RS1/10S103J R 671 RS1/10S472J R 672 RS1/8S151J R 673 RS1/8S225J R 674 RS1/8S225J R 675 RS1/16S473J R 676 RS1/8S474J R 677 RS1/8S474J R 678 RS1/8S105J R 679 RD1/2PM182J R 680 RD1/2PM182J R 681 RS1/10S681J R 682 RA3C102J R 685 RS1/10S152J R 686 RS1/16S622J R 687 RS1/8S151J R 688 RS1/16S912J R 690 RS1/8S151J R 691 RS1/10S102J R 692 RS1/8S391J R 693 RS1/8S391J R 694 RS1/16S473J R 851 RS1/10S223J R 852 RS1/16S223J R 853 RS1/10S103J R 854 RS1/10S272J R 855 RS1/10S223J R 856 RS1/10S473J R 857 RS1/16S473J R 858 RS1/16S473J R 859 RS1/8S471J R 867 RS1/16S103J R 868 RD1/4PU102J R 870 RS1/10S102J R 881 RS1/10S103J R 882 RS1/10S102J R 951 RD1/4PU102J R 952 RS1/10S153J R 953 RS1/16S472J R 954 RS1/16S472J R 955 RS1/10S102J R 956 RD1/4PU102J R 957 RS1/10S101J R 958 RS1/10S622J R 959 RS1/10S473J R 960 RS1/16S473J R 961 RS1/10S103J R 962 RS1/10S473J R 963 RS1/10S472J R 964 RS1/10S103J R 965 RS1/10S473J R 966 RS1/10S473J R 967 RS1/10S102J R 968 RS1/10S102J R 969 RD1/4PU221J R 970 RS1/10S1R0J R 971 RS1/10S473J R 972 RS1/16S103J R 973 RS1/16S473J R 974 RS1/10S103J R 975 RS1/16S473J R 991 RD1/4PU221J R 992 RD1/4PU221J R 993 RS1/10S472J R 994 RS1/10S222J CAPACITORS C 411 CKSQYB104K25 C 412 CKSQYB473K25 C 413 CKSYB105K16 C 414 CKSYB105K16 C 415 CKSYB105K16 C 416 CKSYB105K16 C 431 CEJA100M16 C 432 CEJA100M16 C 435 CEJA100M16 C 436 CEJA100M16 C 443 CEJA220M16 C 445 CKLSRB222K50 C 446 CKLSRB222K50 C 449 CKLSRB222K50 C 450 CKLSRB222K50 C 451 CKSYB224K25 C 452 CKSYB224K25 C 453 CKSYB105K16 C 454 CKSYB105K16 C 455 CEJANP4R7M16 C 456 CEJANP4R7M16 C 457 CEJANP4R7M16 C 458 CEJANP4R7M16 C 459 CKSQYB473K25 C 460 CKSQYB473K25 C 461 CKSQYB473K25 C 462 CKSQYB473K25 C 463 CEJA470M10 C 464 CKSQYB104K25 C 465 CEJA100M16 C 466 CKSQYB153K50 C 467 CKSQYB473K25 C 468 CKSQYB123K50 C 469 CKSQYB333K50 C 470 CKSQYB153K50 C 471 CEJA100M16 C 472 CKSQYB471K50 C 473 CEJA100M16 C 474 CEJA100M16 C 475 CEJA100M16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DEH-P600,P6000,P6050 C 476 CEAL330M25 C 477 CKSYB105K16 C 478 CKSYB105K16 C 479 CKSYB105K16 C 480 CKSYB105K16 C 481 CKSYB105K16 C 482 CKSYB105K16 C 483 CEAL330M25 C 484 CASAQ4R7M16 C 485 CEAL4R7M35 C 486 CEAL4R7M35 C 489 CEAL4R7M35 C 490 CEAL4R7M35 C 491 CKLSQB152K50 C 492 CKLSQB152K50 C 493 CKSQYB104K25 C 494 CKSQYB104K25 C 495 CKSQYB104K25 C 496 CKSQYB104K25 C 497 CKSQYB104K25 C 498 CKSQYB104K25 C 499 CKSQYB103K25 C 500 CKSQYB104K25 C 501 CKSQYB103K25 C 502 CKSQYB223K50 C 503 CKSQYB223K50 C 504 CASAQ150K16 C 505 CKSQYB102K50 C 506 CEAL101M6R3 C 507 CKSQYB473K25 C 521 CKSRYB102K50 C 533 CKSQYB183K50 C 534 CKSQYB183K50 C 535 CKSQYB472K50 C 536 CCSQCH101J50 C 551 CKSYB224K25 C 552 CKSYB224K25 C 553 CKSYB224K25 C 554 CKSYB224K25 C 555 CEJA330M10 C 557 CKSYB105K16 C 558 10µF/16V CCH1219 C 559 CKSYB104K50 C 560 3300µF/16V CCH1330 C 561 CKSQYB473K25 C 601 CCSQCH200J50 C 602 CCSQCH200J50 C 603 CKSYB105K16 C 604 CEAL4R7M35 C 605 CCSQCH101J50 C 607 CCSQCH101J50 C 608 CCSQCH101J50 C 609 CCSQCH101J50 C 610 CCSQCH101J50 C 611 CCSQCH101J50 C 612 CEAL2R2M50 C 651 CCSQCH101J50 C 652 CEAL4R7M35 C 653 CKSRYB222K50 C 655 2.2µF/25V CCH1327 C 656 2.2µF/25V CCH1327 C 657 0.1µF CCG1096 C 658 4.7µF CCG1089 C 659 CEJA470M16 C 660 CKSQYB102K50 C 662 150pF CCG1095 C 670 CKSQYB473K25 C 851 CKSQYB473K25 C 881 CKSQYB473K25 C 951 470µF/16V CCH1325 C 952 CKSQYB473K25 C 953 CEJA101M10 C 954 CKSQYB473K25 C 955 CEJA101M16 C 956 CKSQYB103K25 C 957 330µF/16V CCH1326 C 958 CKSQYB102K50 C 959 CKSQYB105K16 C 989 470µF/16V CCH1183 C 991 CKSQYB473K25 C 992 CKSQYB102K50 C 993 CEJA101M10 Unit Number : CWM6195 Unit Name : Tuner Amp Unit(DEH-P6050/ES) MISCELLANEOUS IC 411 IC CA0008AM IC 451 IC PML004AF IC 452 IC PA2028A IC 491 IC NJM4558MD IC 501 IC S-81250PGPD IC 551 IC PAL005A IC 601 IC PE5005A IC 631 IC S-80734ANDYI IC 651 IC PML006A IC 851 IC TPD1018F Q 411 Transistor 2SA1586 Q 412 Transistor DTC124EK Q 431 Transistor HN1C03F Q 433 Transistor HN1C03F Q 434 Transistor IMD2A Q 451 Transistor IMH3A Q 453 Transistor IMH3A Q 501 Transistor DTA124EK Q 502 Transistor 2SC1740S Q 551 Transistor DTC144EK Q 601 Transistor DTA114EK Q 641 Transistor DTC114EK Q 651 Transistor 2SA933S Q 652 Transistor 2SB1236 Q 653 Transistor DTC124EK Q 655 FET 2SK2356Z Q 656 Transistor 2SC3295 Q 657 Transistor 2SC2412K Q 851 Transistor 2SA1037K Q 852 Transistor DTC124EK Q 853 Transistor 2SC2412K Q 854 Transistor 2SC2412K Q 855 Transistor 2SC2412K Q 951 Transistor 2SA1037K Q 952 Transistor 2SC3673 Q 953 Transistor IMX1 Q 954 Transistor 2SD2396 Q 955 Transistor 2SB1238 Q 956 Transistor DTC114EK Q 957 Chip Transistor 2SC2712 Q 958 Transistor DTC114EK Q 991 Transistor 2SD2396 Q 992 Transistor IMD2A D 431 Diode MA152WK D 432 Diode 1SS133 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DEH-P600,P6000,P6050 D 491 Diode DA204K D 492 Diode DA204K D 501 Diode MA3160(L) D 551 Diode 1SR154-400 D 651 Diode MTZ5R6J(C) D 652 Diode DA204K D 653 Diode DA204K D 654 Diode DA204K D 656 Diode U1JU44 D 657 LED CL170PGCD(AB) D 659 Diode U1JU44 D 660 Diode U1JU44 D 662 Diode MA8082(M) D 663 Diode MA3062(M) D 851 LED BR4361F D 852 Diode ERA15-02VH D 853 Diode ERA15-02VH D 951 Diode ERA15-02VH D 952 Diode ERA15-02VH D 955 Diode MA152WK D 956 Diode HZS6L(B1) D 957 Diode HZS7L(C2) D 958 Diode HZS6L(C3) D 959 Diode HZS9L(A2) D 960 Diode HZS9L(B3) D 961 Diode ERA15-02VH D 973 Diode 1SR154-400 D 992 Diode HZS9L(B1) L 411 Inductor LAU3R3J L 451 Ferri-Inductor LAU101K L 501 Ferri-Inductor LAU4R7K L 502 Inductor CTF1399 L 503 Inductor CTF1399 L 601 Inductor LAU100K L 602 Ferri-Inductor LAU2R2K L 603 Ferri-Inductor LAU2R2K L 604 Ferri-Inductor LAU2R2K L 651 Ferri-Inductor LAU101K L 652 Coil CTH1228 L 653 Coil CTH1228 L 655 Inductor CTF1483 L 691 Inductor CTF1399 L 692 Inductor CTF1399 L 693 Inductor CTF1399 L 951 Ferri-Inductor LAU2R2K TH 601 Thermistor CCX1037 TH 651 Posistor CCX1042 X 601 Radiator 12.58291MHz CSS1402 FM/AM Tuner Unit CWE1501 BZ 601 Buzzer CPV1050 AR 501 DSP-201M RESISTORS R 411 RS1/10S620J R 412 RS1/10S101J R 413 RS1/10S101J R 414 RS1/10S222J R 415 RS1/10S332J R 416 RS1/10S682J R 417 RS1/10S102J R 418 RS1/10S102J R 419 RS1/10S473J R 420 RS1/10S103J R 421 RS1/10S473J R 423 RS1/10S821J R 424 RS1/10S821J R 425 RS1/10S223J R 426 RS1/10S223J R 427 RS1/10S102J R 428 RS1/10S102J R 431 RS1/10S820J R 432 RS1/10S820J R 435 RS1/10S820J R 436 RS1/10S820J R 437 RS1/10S223J R 438 RS1/10S223J R 441 RS1/10S223J R 442 RS1/10S223J R 443 RS1/10S102J R 445 RS1/16S103J R 446 RS1/16S103J R 449 RS1/16S103J R 450 RS1/16S103J R 457 RS1/10S203J R 459 RS1/10S102J R 460 RS1/10S102J R 463 RS1/10S102J R 464 RS1/10S102J R 465 RS1/10S473J R 466 RS1/10S473J R 467 RS1/10S473J R 468 RS1/10S473J R 469 RS1/10S473J R 470 RS1/10S473J R 491 RS1/10S102J R 492 RS1/10S102J R 493 RS1/10S333J R 494 RS1/10S333J R 495 RS1/10S104J R 496 RS1/10S104J R 497 RS1/10S104J R 498 RS1/10S104J R 501 RS1/16S0R0J R 502 RS1/10S222J R 503 RS1/10S222J R 504 RS1/16S0R0J R 505 RS1/16S0R0J R 506 RS1/10S0R0J R 508 RS1/10S681J R 509 RS1/10S473J R 511 RS1/10S473J R 512 RS1/10S681J R 513 RS1/10S473J R 514 RS1/10S681J R 515 RS1/10S473J R 516 RS1/10S681J R 517 RS1/10S472J R 518 RS1/10S103J R 520 RS1/10S681J R 521 RS1/8S151J R 522 RS1/10S681J R 523 RS1/10S473J R 524 RS1/10S0R0J R 525 RS1/10S0R0J R 532 RS1/10S681J R 533 RS1/10S473J R 541 RS1/10S272J R 542 RS1/10S272J R 544 RS1/10S393J R 545 RS1/10S162J R 546 RS1/10S162J R 547 RS1/10S0R0J R 551 RS1/10S103J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 R 552 RS1/10S103J R 553 RS1/10S331J R 581 RS1/16S331J R 582 RS1/16S331J R 585 RS1/16S331J R 586 RS1/16S331J R 603 RS1/10S473J R 604 RS1/10S102J R 606 RS1/10S473J R 607 RA3C102J R 610 RS1/10S222J R 611 RN1/10SE2202D R 612 RS1/10S683J R 613 RS1/10S333J R 614 RS1/10S222J R 615 RS1/10S222J R 616 RS1/10S473J R 617 RS1/10S473J R 618 RS1/10S473J R 620 RS1/10S473J R 621 RS1/10S473J R 622 RS1/10S102J R 623 RS1/10S202J R 624 RS1/10S102J R 625 RS1/10S102J R 626 RS1/10S822J R 633 RS1/8S473J R 634 RS1/10S0R0J R 637 RS1/16S101J R 651 RS1/10S222J R 652 RS1/10S472J R 653 RS1/10S222J R 654 RS1/8S222J R 655 RS1/8S222J R 656 RS1/8S222J R 657 RS1/10S473J R 658 RS1/10S472J R 659 RS1/8S472J R 660 RD1/4PU102J R 661 RS1/10S1R0J R 662 RD1/2PM390J R 663 RD1/2PM390J R 664 RS1/16S473J R 667 RS1/10S103J R 668 RS1/10S472J R 669 RS1/16S912J R 670 RS1/10S103J R 671 RS1/10S472J R 672 RS1/8S151J R 673 RS1/8S225J R 674 RS1/8S225J R 675 RS1/16S473J R 676 RS1/8S474J R 677 RS1/8S474J R 678 RS1/8S105J R 679 RD1/2PM182J R 680 RD1/2PM182J R 681 RS1/10S681J R 682 RA3C102J R 685 RS1/10S152J R 686 RS1/16S622J R 687 RS1/8S151J R 688 RS1/16S912J R 690 RS1/8S151J R 691 RS1/10S102J R 692 RS1/8S391J R 693 RS1/8S391J R 694 RS1/16S473J R 851 RS1/10S223J R 852 RS1/16S223J R 853 RS1/10S103J R 854 RS1/10S272J R 855 RS1/10S223J R 856 RS1/10S473J R 857 RS1/16S473J R 858 RS1/16S473J R 859 RS1/8S471J R 860 RS1/10S223J R 861 RS1/10S272J R 862 RS1/10S223J R 863 RS1/10S272J R 864 RS1/10S103J R 865 RS1/8S102J R 866 RS1/8S102J R 867 RS1/16S103J R 868 RD1/4PU102J R 870 RS1/10S102J R 881 RS1/10S103J R 882 RS1/10S102J R 951 RD1/4PU102J R 952 RS1/10S153J R 953 RS1/16S472J R 954 RS1/16S472J R 955 RS1/10S102J R 956 RD1/4PU102J R 957 RS1/10S101J R 958 RS1/10S622J R 959 RS1/10S473J R 960 RS1/16S473J R 961 RS1/10S103J R 962 RS1/10S473J R 963 RS1/10S472J R 964 RS1/10S103J R 965 RS1/10S473J R 966 RS1/10S473J R 967 RS1/10S102J R 968 RS1/10S102J R 969 RD1/4PU221J R 970 RS1/10S1R0J R 971 RS1/10S473J R 972 RS1/16S103J R 973 RS1/16S473J R 974 RS1/10S103J R 975 RS1/16S473J R 991 RD1/4PU221J R 992 RD1/4PU221J R 993 RS1/10S472J R 994 RS1/10S222J CAPACITORS C 411 CKSQYB104K25 C 412 CKSQYB473K25 C 413 CKSYB105K16 C 414 CKSYB105K16 C 415 CKSYB105K16 C 416 CKSYB105K16 C 431 CEJA100M16 C 432 CEJA100M16 C 435 CEJA100M16 C 436 CEJA100M16 C 443 CEJA220M16 C 445 CKLSRB222K50 C 446 CKLSRB222K50 C 449 CKLSRB222K50 C 450 CKLSRB222K50 C 451 CKSYB224K25 C 452 CKSYB224K25 C 453 CKSYB105K16 C 454 CKSYB105K16 C 455 CEJANP4R7M16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 66 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 C 456 CEJANP4R7M16 C 457 CEJANP4R7M16 C 458 CEJANP4R7M16 C 459 CKSQYB473K25 C 460 CKSQYB473K25 C 461 CKSQYB473K25 C 462 CKSQYB473K25 C 463 CEJA470M10 C 464 CKSQYB104K25 C 465 CEJA100M16 C 466 CKSQYB153K50 C 467 CKSQYB473K25 C 468 CKSQYB123K50 C 469 CKSQYB333K50 C 470 CKSQYB153K50 C 471 CEJA100M16 C 472 CKSQYB471K50 C 473 CEJA100M16 C 474 CEJA100M16 C 475 CEJA100M16 C 476 CEAL330M25 C 477 CKSYB105K16 C 478 CKSYB105K16 C 479 CKSYB105K16 C 480 CKSYB105K16 C 481 CKSYB105K16 C 482 CKSYB105K16 C 483 CEAL330M25 C 484 CASAQ4R7M16 C 485 CEAL4R7M35 C 486 CEAL4R7M35 C 489 CEAL4R7M35 C 490 CEAL4R7M35 C 491 CKLSQB152K50 C 492 CKLSQB152K50 C 493 CKSQYB104K25 C 494 CKSQYB104K25 C 495 CKSQYB104K25 C 496 CKSQYB104K25 C 497 CKSQYB104K25 C 498 CKSQYB104K25 C 499 CKSQYB103K25 C 500 CKSQYB104K25 C 501 CKSQYB103K25 C 502 CKSQYB223K50 C 503 CKSQYB223K50 C 504 CASAQ150K16 C 505 CKSQYB102K50 C 506 CEAL101M6R3 C 507 CKSQYB473K25 C 521 CKSRYB102K50 C 533 CKSQYB183K50 C 534 CKSQYB183K50 C 535 CKSQYB472K50 C 536 CCSQCH101J50 C 551 CKSYB224K25 C 552 CKSYB224K25 C 553 CKSYB224K25 C 554 CKSYB224K25 C 555 CEJA330M10 C 557 CKSYB105K16 C 558 10µF/16V CCH1219 C 559 CKSYB104K50 C 560 3300µF/16V CCH1330 C 561 CKSQYB473K25 C 601 CCSQCH200J50 C 602 CCSQCH200J50 C 603 CKSYB105K16 C 604 CEAL4R7M35 C 605 CCSQCH101J50 C 607 CCSQCH101J50 C 608 CCSQCH101J50 C 609 CCSQCH101J50 C 610 CCSQCH101J50 C 611 CCSQCH101J50 C 612 CEAL2R2M50 C 651 CCSQCH101J50 C 652 CEAL4R7M35 C 653 CKSRYB222K50 C 655 2.2µF/25V CCH1327 C 656 2.2µF/25V CCH1327 C 657 0.1µF CCG1096 C 658 4.7µF CCG1089 C 659 CEJA470M16 C 660 CKSQYB102K50 C 662 150pF CCG1095 C 670 CKSQYB473K25 C 851 CKSQYB473K25 C 881 CKSQYB473K25 C 951 470µF/16V CCH1325 C 952 CKSQYB473K25 C 953 CEJA101M10 C 954 CKSQYB473K25 C 955 CEJA101M16 C 956 CKSQYB103K25 C 957 330µF/16V CCH1326 C 958 CKSQYB102K50 C 959 CKSQYB105K16 C 989 470µF/16V CCH1183 C 991 CKSQYB473K25 C 992 CKSQYB102K50 C 993 CEJA101M10 Unit Number : CWE1501 Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PML002A IC 2 IC PM4008A IC 3 IC BR9010FV Q 1 Transistor 2SC4081 Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 51 Transistor 2SC4081 Q 201 FET 2SK932 Q 202 Transistor DTC124EU Q 204 Transistor 2SC4081 D 1 Diode KV1410(23) D 2 Diode 1SV248 D 6 Diode KV1410(23) D 201 Diode MA143 D 202 Diode MA147 D 903 Diode KV1410(23) D 904 Diode SVC253 L 1 Coil CTC1155 L 3 Inductor LCTB1R5K2125 L 4 Coil CTC1155 L 201 Inductor LCTB330K1608 L 202 Inductor CTF1287 L 203 Inductor LCTA121J3225 L 901 Coil CTC1154 L 902 Inductor LCTA3R3J3225 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 67 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DEH-P600,P6000,P6050 L 904 Inductor LCTBR47K1608 L 905 Inductor LCTBR47K1608 T 51 Coil CTE1132 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442 CF 202 Ceramic Filter CTF1476 X 901 Crystal Resonator 10.250MHz CSS1432 RESISTORS R 1 RS1/16S183J R 2 RS1/16S103J R 5 RS1/16S0R0J R 7 RS1/16S273J R 8 RS1/16S473J R 9 RS1/16S223J R 10 RS1/16S473J R 11 RS1/16S221J R 12 RS1/16S103J R 13 RS1/16S104J R 16 RS1/16S223J R 17 RS1/16S221J R 18 RS1/16S221J R 19 RS1/16S473J R 20 RS1/16S470J R 31 RS1/16S0R0J R 51 RS1/16S470J R 52 RS1/16S103J R 53 RS1/16S103J R 54 RS1/16S331J R 55 RS1/16S331J R 56 RS1/16S560J R 57 RS1/16S560J R 58 RS1/16S102J R 59 RS1/16S225J R 60 RS1/16S133J R 61 RS1/16S433J R 101 RS1/16S333J R 102 RS1/16S103J R 103 RS1/16S333J R 104 RS1/16S562J R 106 RS1/16S0R0J R 108 RS1/16S0R0J R 110 RS1/16S154J R 111 RS1/16S273J R 113 RS1/16S222J R 114 RS1/16S333J R 115 RS1/16S334J R 116 RS1/16S473J R 202 RS1/16S472J R 203 RS1/16S225J R 204 RS1/16S102J R 205 RS1/16S220J R 206 RS1/16S471J R 208 RS1/16S104J R 209 RS1/16S104J R 210 RS1/16S563J R 213 RS1/16S223J R 902 RS1/16S103J R 904 RS1/16S473J R 907 RS1/16S103J R 908 RS1/16S681J R 909 RS1/16S473J R 914 RS1/16S562J CAPACITORS C 1 CCSQCH4R0C50 C 6 CKSQYB105K10 C 8 CKSRYB222K50 C 10 CCSRCH220J50 C 11 CCSRCH150J50 C 12 CCSRCH8R0D50 C 14 CCSRCJ3R0C50 C 15 CKSRYB103K50 C 16 CKSRYB222K50 C 17 CKSRYB222K50 C 18 CCSRCJ3R0C50 C 19 CKSRYB103K50 C 20 CKSRYB103K50 C 21 CKSRYB103K50 C 24 CKSQYB334K16 C 26 CKSRYB472K50 C 30 CCSRCH220J50 C 32 CCSRCH470J50 C 35 CKSRYB103K50 C 51 CKSRYB103K50 C 52 CKSRYB473K16 C 53 CCSRCK2R0C50 C 54 CKSRYB103K50 C 55 CKSRYB104K16 C 56 CKSRYB104K16 C 58 CKSQYB224K16 C 101 CEALNP100M10 C 102 CCSRCH151J50 C 103 CKSRYB473K16 C 105 CKSRYB682K25 C 106 CEALR68M50 C 107 CKSRYB103K50 C 108 CKSQYB474K16 C 109 CKSQYB474K16 C 110 CKSRYB104K16 C 111 CKSRYB104K16 C 112 CKSRYB104K16 C 113 CKSRYB123K25 C 114 CEAL220M6R3 C 115 CKSRYB473K16 C 116 CEAL2R2M50 C 117 CKSRYB102K50 C 120 CKSRYB183K25 C 121 CKSRYB332K50 C 122 CKSRYB562K25 C 123 CKSRYB681K50 C 125 CKSRYB103K50 C 126 CKSRYB103K50 C 127 CEAL2R2M50 C 128 CKSRYB103K50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB104K16 C 204 CKSRYB332K50 C 205 CKSRYB103K50 C 206 CKSRYB104K16 C 207 CKSRYB473K16 C 208 CCSRCH560J50 C 209 CEAL470M6R3 C 210 CKSRYB103K50 C 211 CKSRYB103K50 C 212 CCSRCH101J50 C 215 CKSRYB223K25 C 216 CKSQYB334K16 C 217 CKSRYB103K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DEH-P600,P6000,P6050 C 219 CKSQYB105K10 C 220 CKSRYB104K16 C 221 CKSRYB473K16 C 222 CKSQYB334K16 C 223 CKSQYB474K16 C 224 CKSRYB104K16 C 225 CKSRYB272K50 C 226 CKSRYB682K25 C 902 CCSRCH270J50 C 904 CKSRYB223K25 C 905 CKSRYB103K50 C 906 CCSRTH100D50 C 907 CCSRTH150J50 C 909 CCSRTH100D50 C 910 CKSRYB332K50 C 912 CKSQYB474K16 C 913 CKSRYB223K25 C 914 CKSRYB682K25 C 915 CKSQYB223K25 C 916 CKSQYB474K16 C 917 CKSYB475K10 C 918 CKSRYB223K25 C 919 CKSQYB225K10 C 920 CCSRCH270J50 C 921 CCSRCH270J50 C 922 CKSYB105K16 C 923 CKSRYB103K50 Unit Number : CWM6197 Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC PD6279A IC 902 RS-140 D 901 Diode DAN202K D 902 Diode DAP202K D 903 LED CL170SBX D 904 LED CL170PGCD(AB) L 901 Inductor LCTA101J3225 X 901 Radiator 5.00MHz CSS1423 S 901 Switch CSG1107 S 902 Switch CSG1112 S 903 Switch CSG1111 S 904 Switch CSG1112 S 905 Switch CSG1112 S 907 Switch CSG1112 S 908 Switch CSG1112 S 909 Switch CSG1112 S 910 Switch CSG1112 S 911 Switch CSG1112 S 913 Switch CSG1107 S 914 Switch CSG1111 S 915 Switch CSG1112 S 916 Switch CSG1112 S 917 Switch CSG1112 S 919 Switch CSG1107 S 920 Switch CSG1112 S 921 Switch CSG1112 S 922 Switch CSG1107 S 995 Switch CSG1112 S 996 Switch CSG1112 S 997 Switch CSG1112 S 998 Switch CSG1112 LCD CAW1518 EL CEL1592 RESISTORS R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S472J R 904 RS1/10S121J R 905 RS1/10S2R2J R 906 RS1/10S470J R 907 RS1/10S470J R 909 RS1/8S561J R 910 RS1/8S561J R 911 RS1/8S561J R 912 RS1/8S561J R 913 RS1/8S561J R 914 RS1/8S561J R 915 RS1/8S751J R 916 RS1/8S751J R 917 RS1/8S561J R 918 RS1/8S561J R 919 RS1/8S561J R 920 RS1/8S561J R 921 RS1/8S561J R 922 RS1/8S561J R 923 RS1/8S621J R 929 RS1/8S0R0J R 930 RS1/8S152J R 931 RS1/8S152J R 932 RS1/8S102J R 933 RS1/8S102J CAPACITORS C 901 CSZSR100M16 C 902 CKSQYB104K50 C 903 CSZSR100M16 C 904 CKSQYB103K50 C 905 CKSQYB103K50 C 906 CKSQYB103K50 C 907 CKSQYB104K50 Unit Number : CWX2235 Unit Name : Compound Unit MISCELLANEOUS IC 201 IC UPD63710GC IC 301 IC BA5985FM IC 601 IC TA2063F IC 701 IC BA05SFP Q 101 Transistor 2SB1132 D 801 LED CL200IRX D 802 LED CL200IRX X 201 Ceramic Oscillator 16.934MHz CSS1456 S 801 Spring Switch(HOME) CSN1051 S 802 Spring Switch(CLAMP) CSN1052 RESISTORS R 101 RS1/8S120J R 102 RS1/8S100J R 103 RS1/16S222J R 201 RS1/16S104J R 205 RS1/16S103J R 206 RS1/16S393J R 207 RS1/16S182J R 208 RS1/16S304J R 210 RS1/16S0R0J R 212 RS1/16S103J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 R 213 RS1/16S103J R 214 RS1/16S123J R 215 RS1/16S273J R 216 RS1/16S273J R 309 RS1/16S473J R 310 RS1/16S473J R 503 RA4C681J R 504 RS1/16S102J R 601 RS1/16S102J R 602 RS1/16S102J R 603 RS1/16S223J R 604 RS1/16S223J R 801 RS1/8S751J R 802 RS1/8S751J CAPACITORS C 101 CCSRCH102J25 C 102 CKSQYB104K16 C 103 CEV101M6R3 C 104 CEV470M6R3 C 105 CKSQYB334K16 C 106 CKSQYB334K16 C 107 CKSQYB334K16 C 201 CKSQYB104K16 C 202 CEV101M6R3 C 203 CKSQYB104K16 C 204 CKSRYB332K50 C 205 CKSQYB104K16 C 206 CKSRYB392K50 C 207 CKSQYB224K16 C 208 CCSRCH270J50 C 209 CCSRCJ3R0C50 C 210 CCSRCH221J50 C 211 CCSRCH101J50 C 212 CKSQYB682K50 C 213 CKSQYB104K16 C 214 CKSQYB104K16 C 215 CKSQYB104K16 C 216 CKSQYB104K16 C 217 CKSQYB104K16 C 218 CKSQYB104K16 C 219 CKSQYB104K16 C 220 CKSQYB104K16 C 301 CEV470M16 C 502 CKSRYB471K50 C 601 CEV4R7M35 C 602 CEV4R7M35 C 603 CCSQSL152J50 C 604 CCSQSL152J50 C 605 CEV220M6R3 C 701 CEV101M6R3 C 702 10µF/6.3V CCH1338 C 703 CKSQYB334K16 Unit Number : Unit Name : Photo Unit Q 1 Photo-transistor CPT230SX-TU Q 2 Photo-transistor CPT230SX-TU Miscellaneous Parts List Pickup Unit(Service)(P8) CXX1285 M 1 Motor Unit(CARRIAGE) CXB2190 M 2 Motor Unit(LOADING) CXB2195 M 3 Motor Unit(SPINDLE) CXB2562 S 651 Switch(CLOSE) CSN1027 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E 70 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DEH-P600,P6000,P6050 1) Precautions • This unit uses a single power supply (+5V) for the reg- ulator. The signal reference potential, therefore, is connected to REFO(approx. 2.5V) instead of GND. If REFO and GND are connected to each other by mis- take during adjustments, not only will it be impossi- ble to measure the potential correctly, but the servo will malfunction and a severe shock will be applied to the pick-up. To avoid this, take special note of the fol- lowing. Do not connect the negative probe of the measuring equipment to REFO and GND together. It is especially important not to connect the channel 1 negative probe of the oscilloscope to REFO with the channel 2 negative probe connected to GND. Since the frame of the measuring instrument is usual- ly at the same potential as the negative probe, change the frame of the measuring instrument to floating sta- tus. If by accident REFO comes in contact with GND, immediately switch the regulator or power OFF. • Always make sure the regulator is OFF when connect- ing and disconnecting the various filters and wiring required for measurements. • Before proceeding to further adjustments and mea- surements after switching regulator ON, let the player run for about one minute to allow the circuits to stabi- lize. • Since the protective systems in the unit's software are rendered inoperative in test mode, be very careful to avoid mechanical and /or electrical shocks to the sys- tem when making adjustment. • Disc detection during loading and eject operations is performed by means of a photo transistor in this unit.Consequently, if the inside of the unit is exposed to a strong light source when the outer casing is removed for repairs or adjustment, the following mal- functions may occur. *During PLAY, even if the eject button is pressed,the disc will not be ejected and the unit will remain in the PLAY mode. *The unit will not load a disc. When the unit malfunctions this way, either re-posi- tion the light source, move the unit or cover the photo transistor. 2) Test Mode This mode is used for adjusting the CD mechanism module of the device. • Test mode starting procedure Reset while pressing the 4 and 6 keys together. • Test mode cancellation Switch ACC, back-up OFF. • After pressing the EJECT key, do not press any other key until the disk is completely ejected. • If the ] or [ key is pressed while focus search is in progress, immediately turn the power off (otherwise the actuator may be damaged due to adhesion of the lenses). • Jump operation of TRs other than 100TR continues after releasing the key. CRG move and 100TR jump operations are brought into the “Tracking close” sta- tus when the key is released. • Powering Off/On resets the jump mode to “Single TR (91)”, the RF AMP gain setting to 0 dB, and the auto- matic adjustment value to the initial value. 6. ADJUSTMENT 6.1 CD ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 DEH-P600,P6000,P6050 - Flow Chart Focus Close *2 S Curve Check 01 01 01 00 00 00 (99 99 99) Display TYP 4 3 Reset SOURCE New test mode 6 [ BAND BAND BAND BAND BAND 3 *2 *1 +6dB +12dB *4 *5 6 6 6 6 1 2 1 2 ] ] [ 06 06 06 12 12 12 Sourse CD Single TR 32TRK 92(82) CRG Move 94(84) 100TRK 93(83) Focus Mode Select Focus Close/ S Curve Check CRG- Auto Adjustment Display Select CRG+ RF AGC Coefficient Display/ Rough Servo and RF AGC Tracking Open Display Tracking Open T. Close and Fit Servo *3 F.Offset Display RF.Offset Display F.Cansel Display *7 Single TR/32TR/100TR Voltage of CRG Motor = 2 [V] (F,T.AGC Gain = (Present Value/Initial Value) ¥ 20) *6 ] [ 1 3 Display 2 3 Display or 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or CRG- CRG+ T.Balance Adjustment *7 F, T, RF AGC/ F.Bias Display Select F, T AGC and RF AGC CRG Move, 100TR Jump Only TRK, MIN, SEC F.AGC Gain RF AGC Gain T.AGC Gain *8 Power ON (Adjustment for T.Offset) *5 *4 *4 *6 CRG/TR Jump NO. Select CRG+/TR Jump+ CRG-/TR Jump- Power OFF Display Display Display T.Close and F,T AGC and RF AGC and Fit Servo Display Power ON (Not adjustment for T.Offset) Display Display 2 RF AMP Gain Select 2 Power OFF Power OFF Power OFF 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 91 91 91 TRK SEC MIN 0x 0x 0x TRK SEC MIN 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN GG GG GG TRK SEC MIN Test Mode In *1 *8 *3 *8 F.Cancel Value = {Top Rank 8bit of Set Value (7F [H] to 80 [H] ) + 128} / 4 = 63 [D] to (32 [D] ) to 00 [D] 9x(8x):91(81) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DEH-P600,P6000,P6050 • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mecha- nism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Oscilloscope, Two L.P.F. • Measuring Points • E, F, REFO • Disc • ABEX TCD-784 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 5V regulator on. 2. Using the ] and [ buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjust- ment the display should now read "81". Press key 3 2 times. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ- ence is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". E REFO F 100kΩ 390pF 100kΩ 390pF E REFO F REFO L.P.F. L.P.F. Xch Ych Oscilloscope 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT COMPOUND UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DEH-P600,P6000,P6050 Grating waveform Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC 45° 0° 75° 60° 30° 90° www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DEH-P600,P6000,P6050 7. GENERAL INFORMATION 7.1 PARTS 7.1.1 IC - Pin Functions (PE5005A) Pin No. Pin Name I/O Function and Operation 1 swvdd O Keyboard unit power supply control output 2 dsens I Grille detach sense input 3,4 NC Not used 5 TESTIN I Test program mode input 6 NC Not used 7 TELIN I Telephone mute input 8-10 NC Not used 11 reset I Reset input 12 XT2 Not used (open) 13 XT1 Connect to GND 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 Crystal oscillator connection pin 17 REGOFF Connect to VSS 18 REGC Capacitor for regulator connect pin 19 VDD Power supply 20 ILMPW O Illumination power supply control output 21 SYSPW O System power control output 22 ADPW O A/D converter power 23 LCDPW O LCD back light power supply control output 24 IPPW O Power supply control output for IP BUS interface IC 25 ASENBO O Slave power supply control output 26 ROMDATA O ROM correction data output 27 ROMCLK O ROM correction clock output 28 MUTE O System mute output 29 fm/AM O RDS decoder power supply control output 30 LOCL O Local L output 31 LOCH O Local H output 32 PCE2 O EEPROM chip enable output 33 VCK O Clock output for electronic volume 34 VST O Strobe pulse output for electronic volume 35 VDT O Data output for electronic volume 36 NC Not used 37 ROMCS O ROM correction chip select output 38 SD I Station detector input 39 st I FM stereo input 40 VSS GND 41 VDD Power supply 42 DIM O DIMMER select output 43 csens I Flap close sense input 44 NC Not used 45 currq O Tuner voltage FIX output 46 NC Not used 47 DRELAY O External relay control output 48 DRSENS I Door open/close sense input 49 DRSYS O Door system select output 50 dled O Alarm LED output 51 DLSENS I Door lock sense input 52 NC Not used 53 mosens I Motion/window damage sensor input 54 CD5VON O CD +5V power supply control output 55 CONT O CD servo driver power supply control 56 VDCONT O CD VD power control output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DEH-P600,P6000,P6050 *PE5005A Pin No. Pin Name I/O Function and Operation 57 CDMUTE O CD mute control output 58 CDEJET O CD load motor eject control output 59 CDLOAD O CD LOAD motor loading control output 60 LOCK I CD spindle lock detector input 61 FOK I CD focus OK signal input 62 PCL O Clock adjustment output 63 MIRR I CD mirror detection input 64 clamp I CD disc clamp input 65 xsck O CD clock output 66 XSI I CD LSI data input 67 XSO O CD LSI data output 68 XA0 O CD LSI command / data control output 69 xrst O CD LSI reset output 70 xstb O CD LSI strobe output 71,72 NC Not used 73 TEST I Test input terminal 74 SL I Signal level input from tuner 75 LLEVEL I Level indicator L channel input 76 MODEL1 I Model select input 77 RLEVEL I Level indicator R channel input 78 EJTSNS I CD disc EJECT position detect 79 DSCSNS I CD disc insert sense input 80 VDSENS I VD voltage sense input 81 TEMP I Temperature sense input (CD) 82 VDD A/D converter power supply terminal 83 VDD A/D converter reference voltage terminal 84 GND GND 85 RX I IP BUS data input 86 TX O IP BUS data output 87 GND GND 88 ldet I PLL lock sense input 89,90 NC Not used 91 isens I Illumination sense input 92 asens I ACC power sense input 93 bsens I Back up power sense input 94 TUNPDI I PLL IC data input 95 KYDT I Key data input 96 DPDT O Display data output 97 TUNPCK O PLL IC clock output 98 TUNPDO O PLL IC data output 99 TUNPCE O PLL IC chip enable output 100 PEE O Beep tone output 30 31 50 51 80 81 100 1 IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DEH-P600,P6000,P6050 PML004AF PA2028A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DEH-P600,P6000,P6050 - Pin Functions (PD6279A) Pin No. Pin Name I/O Function and Operation 1–42 SEG41–0 O LCD segment output 43–46 COM3–0 O LCD common output 47–49 V1–V3 LCD bias power supply 50 VCC Power supply terminal 51 LED O LED control output 52 SO O System micro computer UART communication data output 53 SI I System micro computer UART communication data input 54,55 MOD0,1 GND 56 RST I Reset signal input terminal 57 X0 Crystal oscillator connection pin 58 X1 Crystal oscillator connection pin 59 VSS GND 60 REMIN I Remote control reception input 61 DIM O Dimmer select output 62 GRN/amb O Illumination color select output 63–66 KDT4–1 I Key data input 67–72 KST6–1 O Key strobe output 73–100 SEG69-42 O LCD segment output *PD6279A 30 31 50 51 80 81 100 1 PAL005A 1 2 3 4 5 6 7 Mute 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Mute Mute Mute STBY Protector Amp2 Amp1 Amp3 Amp4 TAB P-GND2 OUT2- OUT2+ STBY VCC OUT1- OUT1+ P-GND1 P-GND3 P-GND4 Switch_out MUTE OUT4+ OUT4- SVR IN1 IN2 IN4 S-GND IN3 Ac_gnd OUT3+ OUT3- VCC BR9010FV NC VCC CS SK WC GND DO DI 1 2 3 4 8 7 6 5 CS SK DI DO WC : Chip select input : Serial data clock input : Serial data input : Serial data output : Write control input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DEH-P600,P6000,P6050 - Pin Functions (UPD63710GC) Pin No. Pin Name I/O Function and Operation 1 GND Logic circuit GND 2 HOLD I/O Defect detection output 3 MIRR I/O MIRR output 4 FOK O RFOK signal output 5 rst I Reset signal input 6 A0 I Command/parameter identification signal input 7 stb I Data strobe signal input 8 sck I Clock signal input for serial data input/output 9 SO O Serial data and status signal output 10 SI I Serial data input 11 VDD Positive power supply terminal to logic circuit 12 DA.VDD Positive power supply terminal to D/A converter 13 NC Not used 14, 15 DA.GND D/A converter GND 16 NC Not used 17 DA.VDD Positive power supply terminal to D/A converter 18 R+ O Right channel audio data output 19 R- O Right channel audio data output 20 L- O Left channel audio data output 21 L+ O Left channel audio data output 22 X.VDD Positive power supply terminal to crystal oscillation circuit 23 xtal O Crystal oscillator connect pin 24 XTAL I Crystal oscillator connect pin 25 X.GND Crystal oscillation circuit GND 26 VDD Positive power supply terminal to logic circuit 27 EMPH O Output pin for the pre-emphasis data in the sub-Q code 28 FLAG O Flag output pin to indicate that audio data currently being output consists of noncorrectable data 29 DIN I Serial data input to internal DAC 30 DOUT O Serial audio data output 31 SCKIN I Serial clock input to internal DAC 32 SCKO O Audio data that is output from DOUT changes at rising edge of this clock 33 LRCKIN I LRCK signal input to internal DAC 34 LRCK O Signals to distinguish the right and left channels of the audio data output from DOUT 35 WDCK O Output double the frequency of LRCK 36 TX O Digital audio interface data output 37 GND Logic circuit GND 38 C16M O Oscillator clock buffering output 39 LIMIT I Status of the pin is output at Bit 5 of the status output 40 VDD Positive power supply terminal to logic circuit 41 LOCK O EFM synchronous detection signal 42 RFCK O Frame synchronous signal of XTAL-system 43 WFCK O Frame synchronous signal of PLL-system 44 PLCK O Monitor pin of bit clock 45 GND Logic circuit GND 46 C1D1 O Output pin for indicating the C1 error correction results 47 C1D2 O Output pin for indicating the C1 error correction results 48 C2D1 O Output pin for indicating the C2 error correction results 49 C2D2 O Output pin for indicating the C2 error correction results 50 C2D3 O Output pin for indicating the C2 error correction results 51 VDD Positive power supply terminal to logic circuit 52 PACK O CD-TEXT PACK synchronous signal 53 TSO O CD-TEXT data serial output 54 TSI I CD-TEXT control parameter serial input 55 tsck I CD-TEXT serial clock input 56 TSTB I CD-TEXT parameter strobe signal input 57 GND Logic circuit GND 58 TEST I Test pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DEH-P600,P6000,P6050 Pin No. Pin Name I/O Function and Operation 59 ATEST I/O Test pin 60 RFMODE I Use/not use select for internal RF amplifier 61 A.GND Analog circuit GND 62 FD O Focus drive output 63 TD O Tracking drive output 64 SD O Sled drive output 65 MD O Spindle drive output 66 DACO O DAC output for adjustment 67 FBAL O DAC output for adjustment 68 TBAL O DAC output for adjustment 69 TEVCA O DAC output for adjustment 70 A.VDD Power supply terminal to analog circuit 71 EFM O EFM signal output 72 ASY I EFM comparator reference voltage input 73 C3T 3T detection capacitor additional pin 74 RFI I RF signal input for EFM data regulation 75 AGCO O RF signal output of after gain adjustment 76 AGCI I RF-AGC amplifier input 77 RFO O RF summing amplifier output 78 EQ2 RF amplifier equalizer parts additional pin 79 EQ1 RF amplifier equalizer parts additional pin 80 RF- I RF summing amplifier inverted input 81 A.GND Analog circuit GND 82 A I Photo detector A input 83 C I Photo detector C input 84 B I Photo detector B input 85 D I Photo detector D input 86 F I Photo detector F input 87 E I Photo detector E input 88 A.VDD Positive power supply terminal to analog circuit 89 REFOUT O Reference electric potential output 90 FE- I Focus error amplifier inverted input 91 FEO I/O Focus error amplifier output 92 TE- I Tracking error amplifier inverted input 93 TEO I/O Tracking error amplifier output 94 TE2 I/O Tracking error output of after amplification 95 TEC I Tracking comparator input 96 A.GND Analog circuit GND 97 PD I PD detection signal input for LD output monitor 98 LD O LD control current output 99 PN I APC circuit control polarity set pin 100 A.VDD Positive power supply terminal to analog circuit 20 21 40 41 60 61 80 1 100 76 26 1 25 75 51 50 *UPD63710GC BA5985FM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DEH-P600,P6000,P6050 - Pin Functions (BA5985FM) Pin No. Pin Name I/O Function and Operation 1 FWD I Loading driver FWD input 2 OPIN1(+) I CH1 pre-amplifier input 3 OPIN1(−) I CH1 pre-amplifier inverted input 4 OPOUT1 O CH1 pre-amplifier output 5 OPIN2(+) I CH2 pre-amplifier input 6 OPIN2(−) I CH2 pre-amplifier inverted input 7 OPOUT2 O CH2 pre-amplifier output 8 VCC Power supply 9 VOL(−) O Loading driver negative output 10 VOL(+) O Loading driver positive output 11 VO2(−) O Driver CH2 negative output 12 VO2(+) O Driver CH2 positive output 13 VO1(−) O Driver CH1 negative output 14 VO1(+) O Driver CH1 positive output 15 VO4(+) O Driver CH4 positive output 16 VO4(−) O Driver CH4 negative output 17 VO3(+) O Driver CH3 positive output 18 VO3(−) O Driver CH3 negative output 19 GND GND 20 BIAS I Bias input 21 MUTE Mute control 22 OPOUT3 O CH3 pre-amplifier output 23 OPIN3(−) I CH3 pre-amplifier inverted input 24 OPIN3(+) I CH3 pre-amplifier input 25 OPOUT4 O CH4 pre-amplifier output 26 OPIN4(−) I CH4 pre-amplifier inverted input 27 OPIN4(+) I CH4 pre-amplifier input 28 REV I Loading driver REV input PML006A VCC VCCO PGND GATE NC VDC EL1 EL2 CLKR CLKC VDM ISET-D ISET-N VDCSEN VSB GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P600,P6000,P6050 SEGMENT 7.1.2 DISPLAY - CAW1518 COMMON 82 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DEH-P600,P6000,P6050 7.2 DIAGNOSIS 7.2.1 DISASSEMBLY - Removing the Tuner Amp Unit(Fig.2,3) Remove the three screws. Remove the screw. Remove the two screws. Straighten the tabs at two locations indicated. Remove the Tuner Amp Unit. - Removing the Case Unit(not shown) 1.Remove the Case Unit. - Removing the Panel Assy(Fig.1) Remove the two screws. Disconnect the connectors and then remove the Panel Assy. - Removing the CD Mechanism Module (not shown) 1.Remove the four screws. 2.Disconnect the connector, and then remove the CD Mechanism Module. Panel Assy Tuner Amp Unit Fig.1 Fig.2 Fig.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DEH-P600,P6000,P6050 - Removing the Upper Frame 1. Remove six Springs A, two Springs B and four Screws. 2. Remove two Tabs situated on rear side of the Upper Frame, remove two Arms on the front side, then remove two Tabs on the front side. - Removing the Carriage Mechanism 1. Disengage the Carriage Mechanism from the two dampers situated in the front side by driving it up, then disengage and remove the mechanism from the two dampers by driving it up aslant into front side direction. Note : When assembling the Carriage Mechanism, coat the dampers with alcohol prior to the assembly. - Removing the Clamp Arm Assy 1. Remove a Spring A, a B and a Spring C. 2. Drive the Clamp Arm Assy up into rear side direction, then disengage the arm from its current position Finally, drive the assembly approximately 45 degrees upward, then slide the assembly toward right side to remove it. B A B A A A Arm Arm A B C Upper Frame Carriage Mechanism Section Clamp Arm Assy Section A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 DEH-P600,P6000,P6050 - Removing the Guide Arm Assy 1. Remove a connector, a spring A and B 2. Drive the Guide Arm Assy up aslant into rear side direction, then remove it from a Pin. Finally, drive the assembly approximately 45 degrees upward, then slide the assembly toward left side to remove it. Note : When assembling the guide arm assembly, route the cord inside the assembly. In this operation, care must be exercised so that cord may be caught by the gear. - Removing the LO Arm Assy 1. Remove two Pins to dismount the LO Arm Assy. - Removing the Control Unit and the Spindle Motor 1. Remove from the connector after mounting the short pin on the flexible PCB of the pickup unit. 2. Remove two Soldered joints, then remove two Screws A. 3. Remove two connectors and a Screw B. 4. Disengage the Control Unit from two Tabs, then dis- mount the unit by sliding it toward left. 5. Dismount the Spindle Motor. A Guide Arm Assy Section B Pin LO Arm Assy Section Spindle Motor A A Control Unit Short Pin B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DEH-P600,P6000,P6050 - Removing the Loading Motor and Carriage Motor 1. Remove the Spring and two Screws A. 2. Dismount the Loading Motor. 3. Remove the Belt, a Screw B, two Screws C, a Guide and a Screw Unit. 4. Dismount the Carriage Motor. Note : When assembling the Belt, use care so that it may not be contaminated by grease. - Removing the Pickup Unit 1. Remove two Screws and a Shaft. 2. Dismount the Pickup Unit. Pickup Unit Shaft C Guide B Screw Unit Carriage Motor A A C Belt Loading Motor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 DEH-P600,P6000,P6050 - Precautions on Holder mounting When mounting a holder on the keyboard unit PCB, do not bend the claws 8 to 10. Otherwise, an unstable LCD indica- tion may result when pressing a button. - Precautions on CD Mechanism Module mounting When mounting a CD mechanism module on the chassis unit, mount it with an angle, as shown in the figure, in order to prevent the holder from being bent. When mounting is completed, make sure that the holder is contacting the CD mechanism module. 1 5 4 6 8 7 2 9 10 3 Holder CD Mechanism Module Holder Chassis Unit PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 DEH-P600,P6000,P6050 7.2.2 TEST MODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (min- utes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx OR Err–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. CRG can't be moved from inner diameter. → Failure on home switch or CRG move mechanism. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). → Failure on spindle, stains or damages on disc, or excessive vibrations. Subcode NG A disc not containing CD-R data is found. Turned over disc are found, though rarely. → Failure on home switch or CRG move mechanism. RF AMP NG An appropriate RF AMP gain can't be determined. → CD signal error. 17 Electricity Setup NG APC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. A newly designed head unit must conform to the example given above. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 DEH-P600,P6000,P6050 - New Test Mode S-CD plays the same way as before. If an error such as off focus, spindle unlocking, unreadable sub-code, or sound skipping occurs after setup, its cause and time occurred (in absolute time) are displayed. During setup, operational status of the control software (internal RAM: CPOINT) is displayed. These displays and functions are prepared for enhancing aging in the servicing and efficiency of trouble analysis. (1) Shifting to the New Test Mode 1 Turn on the current test mode by starting the reset from the key (it varies between the products). 2 Select S-CD for the source through the specified procedure including use of the [SOURCE] key, and inserting the disc. Then, press the [Jump Mode Selector] key while maintaining the regulator turned off. 3 After the above operations, the new test mode remains on irrespective of whether the S-CD is turned on or off. You can reset the new test mode by turning on the reset start. * With some products, the new test mode can be reset through the same operations as that employed for shifting to the STBY mode (while maintaining the Acc turned off). (2) Key Correspondence Key Test mode New test mode (Example) Power Off Power On In-play Error Production BAND To power on To power off – Time/Err.No. switching (offset adjustment performed) ] – FWD-Kick FF/TR+ – [ – REV-Kick REV/TR- – 1 – T.Close (AGC performed) Scan – /parameter display switching 2 RF AMP gain switching Parameter display switching Mode – /T.BAL adjustment/T.Open 3 To power on F.Close/RF AGC/F.T.AGC – – (offset adjustment not performed) 6 – F.Mode switching Auto/Manu T.No./Time switching /T.Close (no AGC)/Jump switching Note: Eject and CD on/off is performed in the same procedure as that for the normal mode. (3) Cause of Error and Error Code Code Class Contents Description and cause 40 Electricity Off focus detected. FOK goes low. → Damages/stains on disc, vibrations or failure on servo. 41 Electricity Spindle unlocked. FOK = Low continued for 50 msec. → Damages/stains on disc, vibrations or failure on servo. 42 Electricity Sub-code unreadable. Sub-code was unreadable for 50 msec. → Damages/stains on disc, vibrations or failure on servo. 43 Electricity Sound skipping detected. Last address memory function was activated. → Damages/stains on disc, vibrations or failure on servo. Note: Mechanical errors during aging are not displayed. The error codes should be indicated in the same way as in the normal mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 DEH-P600,P6000,P6050 (4) Display of Operational Status (CPOINT) during Setup Status No. Contents Protective action 00 CD+5V ON process in progress. None 01 Servo LSI initialization (1/3) in progress. None 02 Servo LSI CRAM initialization in progress. None 03 Servo LSI initialization (2/3) in progress. None 04 Offset adjustment (1/3) in progress. None 05 Offset adjustment (2/3) in progress. None 06 Offset adjustment (3/3) in progress. None 07 FZD adjustment in progress. None 08 Servo LSI initialization (3/3) in progress. None 10 Carriage move to home position started. None 11 Carriage move to home position started. None 12 Carriage is moving toward inner diameter. Specified 10 seconds has been passed or failure on home switch. 13 Carriage is moving toward outer diameter. Specified 10 seconds has been passed or failure on home switch. 14 Carriage outer kick in progress. None 15 Carriage outer diameter feed (1 second) in progress. None 20 Servo close started. None 21 Pre-processing for focus search started. None 22 Spindle rotation and focus search started. None 23 Waiting for focus close (XSI=Low). Specified focus search time has been passed. 24 Standing by after focus close is over. Specified focus search time has been passed. 25 Focus search preprocessing is in None progress while setup protection is turned on. 26 Focus search preprocessing is in None progress while focus recovery is turned on. 27 Wait time after focus close is set up. Off focus. 28 Standing by after focus close is over. Off focus. 29 Setup (1/2) before T balance adjustment is started. Off focus. 30 Setup (2/2) before T balance adjustment is started. Off focus. 31 T balance adjustment started. Off focus. 32 T balance adjustment (1/2). Off focus. 33 T balance adjustment (2/2). Off focus. 34 Waiting for spindle rotation to end. Off focus. Spindle rough servo. 35 Standing by after spindle rough servo is over. Off focus. 36 RF AGC started. Off focus. 37 RF AGC started. Off focus. 38 RF AGC ending process in progress. Off focus. 39 Tracking close in progress. Off focus. 40 Standing by after tracking is closed. Off focus. Carriage closing in progress. 41 Focus/tracking AGC started. Off focus. 42 Focus AGC started. Off focus. 43 Focus AGC in progress. Off focus. 44 Tracking AGC in progress. Off focus. 45 Standing by after focus/tracking AGC are over. Off focus. 46 Spindle processes applicable servo. Off focus. 47 Check for servo close is started. Off focus. 48 Check of LOCK pin started. Off focus or spindle not locked. 49 RF AGC started. Off focus. 50 RF AGC in progress. Off focus. 51 Standing by after RF AGC is over. Off focus. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 DEH-P600,P6000,P6050 (5) Display Examples 1) During Setup (When status no. = 11) TRK No. MIN. SEC. 11 11' 11" 2) During Operation (TOC read, TRK search, Play, FF and REV) The same as in the normal mode. 3) When a Protection Error Occurred Switch to the following displays (A) and (B) using the [BAND] switch: (A) Error occurrence timing display in absolute time. An example: Error occurred in 12th tune at 34'56" in absolute time. TRK No. MIN. SEC. 12 34' 56" (B) Error No. display An example: Error #40 (Off focus is detected) ERROR-40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 DEH-P600,P6000,P6050 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS Key Finder Head Unit Remote Controller A remote controller that enables remote operation of the head unit is supplied. Operation is the same as when using buttons on the head unit. +/– button AUDIO button BAND button FUNCTION button CD button Press once to select a CD. ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level. 5/∞/2/3 buttons TUNER button Press once to select a tuner. PAUSE button Press once to pause play. 5/∞/2/3 buttons SOURCE/OFF button +/– button AUDIO button BAND button Buttons 1–6 CLOCK button LOUD button EQ button FUNCTION button DISPLAY button PGM button OPEN button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 DEH-P600,P6000,P6050 Basic Operation To Listen to Music The following explains the initial operations required before you can listen to music. Note: • Loading a disc in this product. 1. Select the desired source (e.g. tuner). 7 Head Unit Each press of the SOURCE/OFF button selects the desired source in the following order: Built-in CD player = Tuner = Multi-CD player = AUX 7 Remote Controller Each press of the button selects the desired source in the following order: TUNER button : Tuner = Sources OFF CD button : Built-in CD player = Multi-CD player = Sources OFF Note: • In the following cases, the sound source will not change: * No Multi-CD player is connected to this product. * No disc is set in this product. * No magazine is set in the Multi-CD player. * AUX (external input) is set to OFF. Continued overleaf. Each press changes the Source ... 2. Raise or lower the volume. 3. Source OFF. Hold for 1 second or more www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 DEH-P600,P6000,P6050 Basic Operation Basic Operation of Built-in CD Player Track Search and Fast Forward/Reverse • You can select between Track Search or Fast forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast forward/Reverse Continue pressing Note: • If a disc cannot be inserted fully or playback fails, make sure the recorded side is down. Push the EJECT button and check the disc for damage before reinserting it. • If the built-in CD player cannot operate properly, an error message (such as “ERROR-14”) appears on the display. Elapsed Play Time Indicator Track Number Indicator Switching the Display Each press of the DISPLAY button changes the display in the following order: Playback mode (Elapsed play time) = Disc Title Note: • If you switch displays when disc titles have not been input, “NO TITLE” is displayed. Open Note: • Use to open the front panel when loading or ejecting a CD. (The illustration on the right shows the front panel open.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 DEH-P600,P6000,P6050 Disc Loading Slot The built-in CD player plays one standard 12 cm or 8 cm (single) CD at a time. Do not use an adapter when playing 8 cm CD. Eject Note: • The CD function can be turned ON/OFF with the disc remaining in this product. • Discs left partially inserted after ejection may incur damage or fall out. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 DEH-P600,P6000,P6050 Basic Operation Basic Operation of Multi-CD Player This product can control a multi-CD player. (With certain old type multi-CD players, using a multiple connection adapter lets you connect multiple units which you can control with this product.) Track Search and Fast Forward/Reverse • You can select between Track Search or Fast forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast forward/Reverse Continue pressing Switching the Multi-CD Player Using a multiple connection adapter lets you connect up to three Multi-CD players. M-CD 1 = M-CD 2 = M-CD 3 (Displayed about for 2 seconds.) Elapsed Play Time Indicator Disc Search Disc Number Indicator Track Number Indicator Switching the Display Each press of the DISPLAY button changes the display in the following order: Playback mode (Elapsed play time) = Disc Title Note: • If you switch displays when disc titles have not been input, “NO TITLE” is displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 DEH-P600,P6000,P6050 Disc Number Search (for 6-Disc, 12-Disc types) • You can select discs directly with the 1 to 6 buttons. Just press the number corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds or longer. Disc Number Rough Search (for 50-Disc type only) This handy function lets you select discs loaded in a 50-Disc Multi-CD Player using the 1 to 5 buttons. The 50 discs are divided into five blocks, with each of the 1 to 5 buttons assigned to a block. • Select the desired block with the 1 to 5 buttons. Note: • After completing a rough search, use the 5 and ∞ buttons to select a desired disc. Note: • The multi-CD player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for playback. “READY” is displayed. • When a magazine is loaded into a 50-Disc type Multi-CD Player, information on all the discs in the magazine is read. If you start playing a disc on a 50-Disc type Multi-CD Player before reading of information on all discs has been completed, reading of information stops part way through. This will prevent you from using the ITS function. (If you try and use this function, “NOT READY” is displayed.) If this happens, reading of information begins again when you switch to a component other than the 50-Disc type Multi-CD Player. • If the multi-CD player cannot operate properly, an error message such as “ERROR-14” is displayed. Refer to the multi-CD player owner’s manual. • If there are no discs in the multi-CD player magazine, “NO DISC” is displayed. • “LOAD” will be displayed in the following cases: * If the disc in the extra tray in selected. * If the disc in moved from the extra tray to the magazine. (Refer to the 50-Disc type multi-CD player owner’s manual.) • You cannot use the “Ejecting a Single Disc”, “Frequency Play”, “Music Group Play” or “ABC Disc Title Search” functions with this product. When playing a CD TEXT disc on a CD TEXT compatible Multi-CD Player such as the CDX-P656: • You can use the following two functions. Refer to Multi-CD Player’s Owner’s Manual for opera- tion details. * Title display switching * Title scroll • You cannot switch to the Disc Title Input mode in the Detailed Setting Menu. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 DEH-P600,P6000,P6050 Basic Operation of Tuner Manual and Seek Tuning • You can select the tuning method by changing the length of time you press the 2/3 button. Manual Tuning (step by step) 0.5 seconds or less Seek Tuning 0.5 seconds or more Note: • If you continue pressing the button for longer than 0.5 seconds, you can skip broadcast stations. Seek Tuning starts as soon as you stop pressing the button. • “” stereo indicator lights when a stereo station is selected. Preset Tuning • You can memorize broadcast stations in buttons 1 through 6 for easy, one-touch station recall. Preset station recall 2 seconds or less Broadcast station preset memory 2 seconds or more Note: • Up to 18 FM stations (6 in FM1, FM2 and FM3) and 6 AM stations can be stored in memory. • You can also use the 5 or ∞ buttons to recall broadcast stations memorized in buttons 1 through 6. Preset Number Indicator Band Indicator Band F1 (FM 1) = F2 (FM 2) = F3 (FM 3) = A1 (AM) Frequency Indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 DEH-P600,P6000,P6050 Audio Adjustment Selecting the Equalizer Curve You can switch between Equalizer curves. • Move the EQ button up or down to select the desired Equalizer curve. POWERFUL += NATURAL += VOCAL += CUSTOM += EQ FLAT += SUPER BASS Note: • “CUSTOM” stores an equalizer curve you have made adjustments to. • You can create different “CUSTOM” curves for different sources. (The built-in CD player and multi-CD player are set to the same Equalizer Curve Adjustment setting automatically.) Entering the Audio Menu With this Menu, you can adjust the sound quality. Note: • After entering the Audio Menu, if you do not perform an operation within about 30 seconds, the Audio Menu is automatically canceled. • Audio Menu functions change depending on the Rear Speaker Lead and Subwoofer Controller set- ting in the Initial Setting Menu. 1. Select the desired mode in the Audio Menu. 2. Operate a mode. 3. Cancel the Audio Menu. Each press changes the Mode ... Equalizer curve www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 DEH-P600,P6000,P6050 Audio Menu Functions The Audio Menu features the following functions. Balance Adjustment (FADER) This function allows you to select a Fader/Balance setting that provides ideal listening con- ditions in all occupied seats. 1. Press the AUDIO button and select Fader/Balance mode (FADER) in the Audio Menu. Note: • When the Rear Speaker Lead setting is “REAR SP:S/W”, you cannot adjust front/rear speaker balance. • “FADER 0” is the proper setting when 2 speakers are in use. Equalizer Curve Adjustment (EQ-LOW/MID/HIGH) You can adjust equalizer curve settings as desired. Adjusted equalizer curve settings are memorized in “CUSTOM”. 1. Press the AUDIO button and select the Equalizer mode (EQ-LOW/MID/HIGH) in the Audio Menu. Note: • If you make adjustments when a curve other than “CUSTOM” is selected, the adjusted curve is stored in memory as a “CUSTOM” curve. Also, the displayed curve switches to that selected before adjustments were made. “CUSTOM” 3. Boost or attenuate the selected band with the 5/∞ buttons. The display shows “+6” – “–6”. 2. Select the band you want to adjust with the 2/3 buttons. EQ-LOW += EQ-MID += EQ-HIGH 3. Adjust left/right speaker bal- ance with the 2/3 buttons. “BAL L 9” – “BAL R 9” is displayed as it moves from left to right. 2. Adjust front/rear speaker bal- ance with the 5/∞ buttons. “FADER F15” – “FADER R15” is displayed as it moves from front to rear. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ Subwoofer output or Non Fading output This Product Multi-CD player (sold separately) IP-BUS cable IP-BUS input (Blue) Antenna jack Blue/white To system control terminal of the power amp or Auto-antenna relay control terminal. (Max. 300 mA 12 V DC.) Connecting cords with RCA pin plugs (sold separately) System remote control Power amp (sold separately) Rear output Front output Rear speaker Subwoofer Subwoofer Rear speaker Right Front speaker Rear speaker White Gray White/black Green Green/black Gray/black Violet Violet/black Front speaker Rear speaker Left Front speaker Front speaker Perform these connections when using a different amp (sold separately). With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. Yellow To terminal always supplied with power regardless of ignition switch position. Orange To lighting switch terminal. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. White/yellow Brown See the section “DFS Alarm Installation”. Power amp (sold separately) Power amp (sold separately) Blue/brown White/orange White/red Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. Black (ground) To vehicle (metal) body. Fuse holder 101 DEH-P600,P6000,P6050 - DEH-P600/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 DEH-P600,P6000,P6050 8.2 SPECIFICATIONS - DEH-P600/UC, DEH-P6000/UC General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (DIN) (chassis) ...... 178 (W) × 50 (H) × 157 (D) mm [7 (W) × 2 (H) × 6-1/8 (D) in] (nose) ............ 188 (W) × 58 (H) × 18 (D) mm [7-3/8 (W) × 2-1/4 (H) × 3/4 (D) in] (D) (chassis) ...... 178 (W) × 50 (H) × 162 (D) mm [7 (W) × 2 (H) × 6-3/8 (D) in] (nose) ............ 170 (W) × 46 (H) × 13 (D) mm [6-3/4 (W) × 1-3/4 (H) × 1/2 (D) in] Weight ........................................................ 1.6 kg (3.5 lbs) Amplifier Continuous power output is 22 W per channel min. into 4 ohms, both channels driven 50 to 15,000 Hz with no more than 5% THD. Maximum power output ...................................... 45 W × 4 45 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for Subwoofer) Load impedance ...................... 4 Ω (4 – 8 Ω [2 Ω for 1 ch] allowable) Preout maximum output level/ output impedance .................................. 4.0 V/100 Ω Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) HPF Frequency ............................................ 50/80/125 Hz Slope ........................................................ –12 dB/oct. Subwoofer output Frequency ............................................ 50/80/125 Hz Slope ........................................................ –18 dB/oct. Gain ................................................................ ±12 dB CD player System .................................... Compact disc audio system Usable discs .................................................. Compact disc Signal format .................... Sampling frequency: 44.1 kHz Number of quantization bits: 16; linear Frequency characteristics .............. 5 – 20,000 Hz (±1 dB) Signal-to-noise ratio ...... 94 dB (1 kHz) (IHF-A network) Dynamic range ............................................ 90 dB (1 kHz) Number of channels ............................................ 2 (stereo) FM tuner Frequency range .................................... 87.9 – 107.9 MHz Usable sensitivity .................................................... 10 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 15 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IHF-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) Selectivity .................................................... 70 dB (2ACA) Three-signal intermodulation (desired signal level) ........................................ 30 dBf (two undesired signal level: 100 dBf) AM tuner Frequency range ...................................... 530 – 1,710 kHz Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity ................................................ 50 dB (±10 kHz) Note: • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 DEH-P600,P6000,P6050 - DEH-P6050/ES General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (DIN) (chassis) ...... 178 (W) × 50 (H) × 157 (D) mm (nose) .......... 188 (W) × 58 (H) × 18 (D) mm (D) (chassis) ...... 178 (W) × 50 (H) × 162 (D) mm (nose) .......... 170 (W) × 46 (H) × 13 (D) mm Weight ...................................................................... 1.6 kg Amplifier Continuous power output is 22 W per channel min. into 4 ohms, both channels driven 50 to 15,000 Hz with no more than 5% THD. Maximum power output ...................................... 45 W × 4 45 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for Subwoofer) Load impedance ...................... 4 Ω (4 – 8 Ω [2 Ω for 1 ch] allowable) Preout maximum output level/ output impedance .................................. 4.0 V/100 Ω Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB Loudness contour (Low) ..................+3.5 dB (100 Hz), +3 dB (10 kHz) (Mid) ..................+10 dB (100 Hz), +6.5 dB (10 kHz) (High) ..................+11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) HPF Frequency ............................................ 50/80/125 Hz Slope ........................................................ –12 dB/oct. Subwoofer output Frequency ............................................ 50/80/125 Hz Slope ........................................................ –18 dB/oct. Level .............................................................. ±12 dB CD player System .................................... Compact disc audio system Usable discs .................................................. Compact disc Signal format .................... Sampling frequency: 44.1 kHz Number of quantization bits: 16; linear Frequency characteristics .............. 5 – 20,000 Hz (±1 dB) Signal-to-noise ratio ...... 94 dB (1 kHz) (IEC-A network) Dynamic range ............................................ 90 dB (1 kHz) Number of channels ............................................ 2 (stereo) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity .................. 10 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 15 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) AM tuner Frequency range ........................ 531 – 1,602 kHz (9 kHz) 530 – 1,710 kHz (10 kHz) Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) 50 dB (±10 kHz) Note: • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
