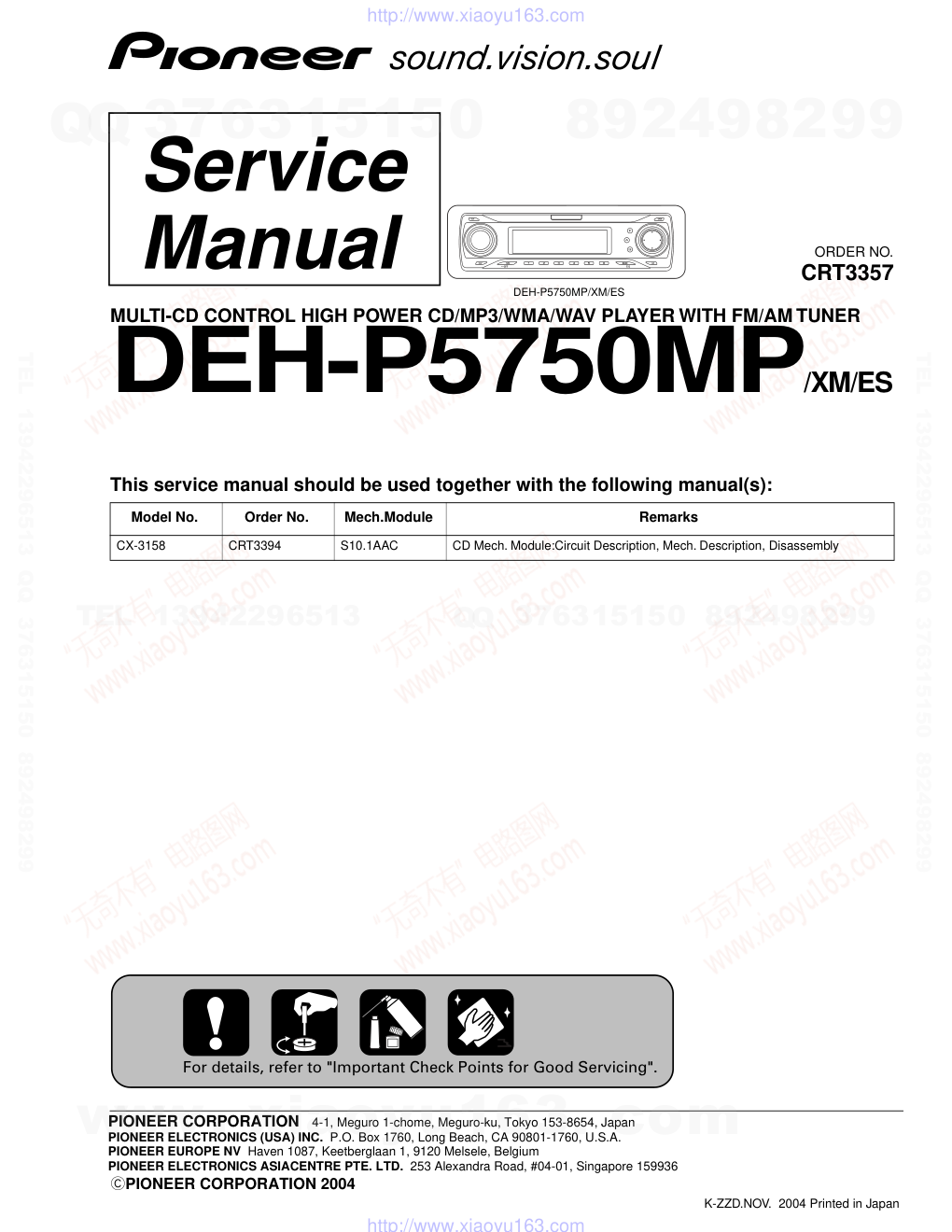

先锋PIONEER DEH-P5750MPXMES电路图
)
)
)
)
)
)
)
)
)
)

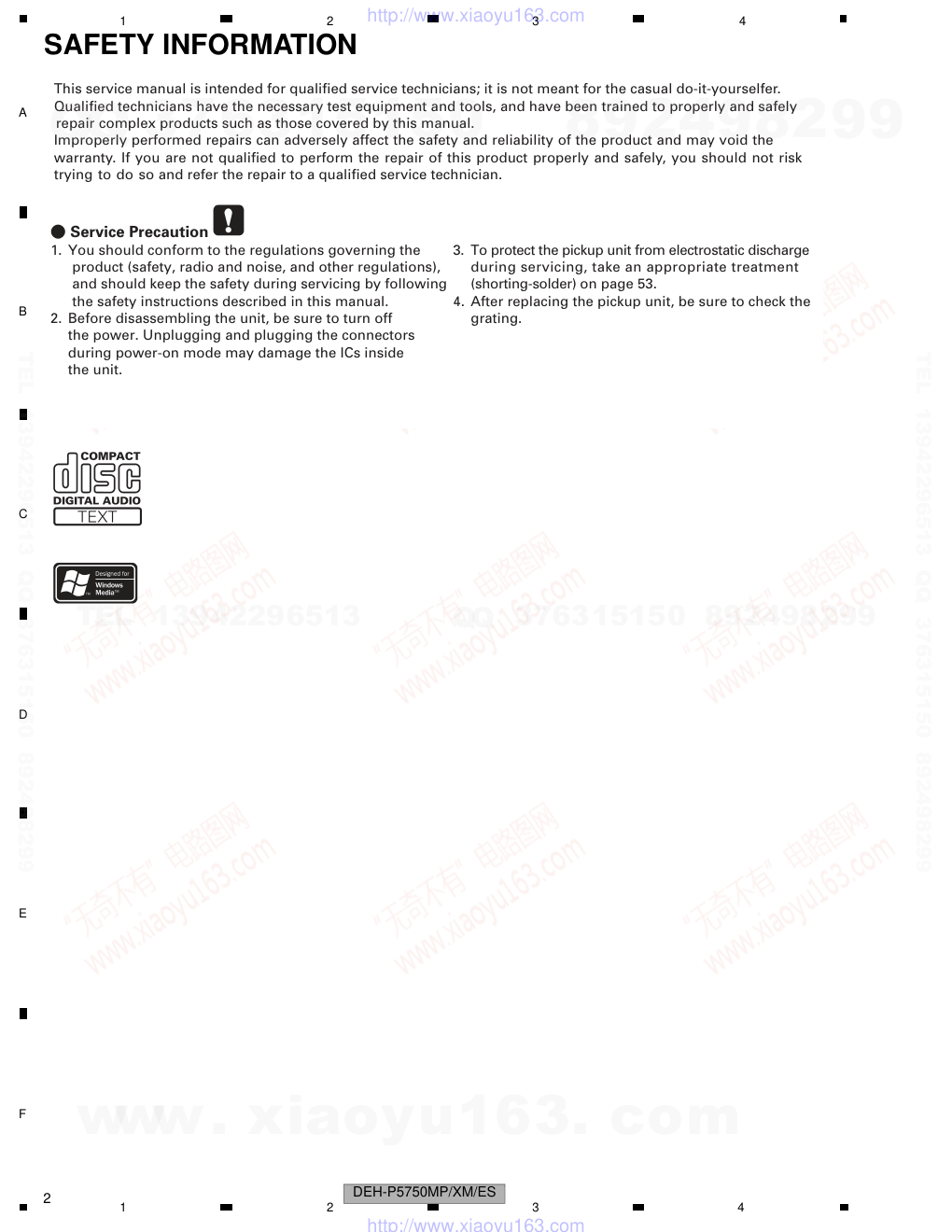

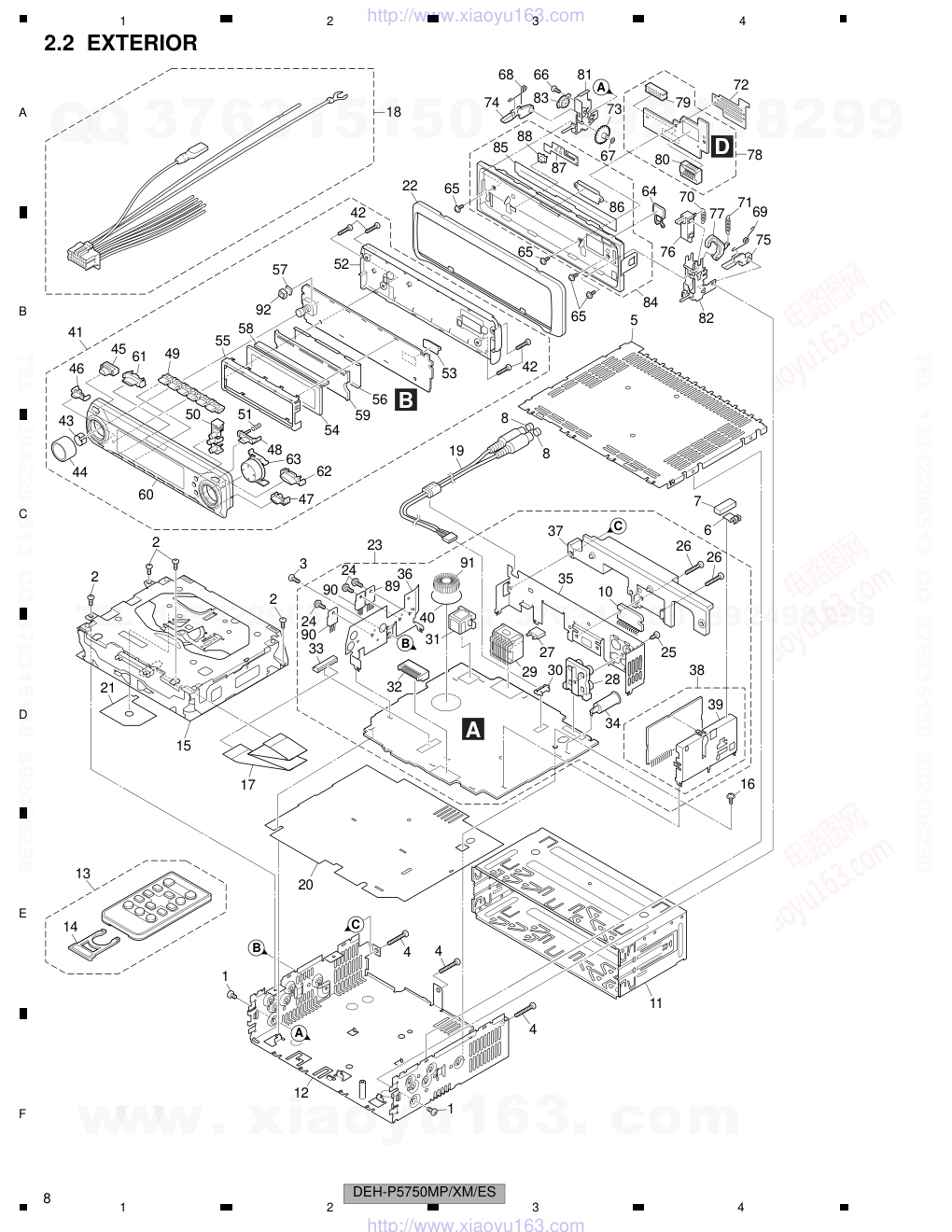

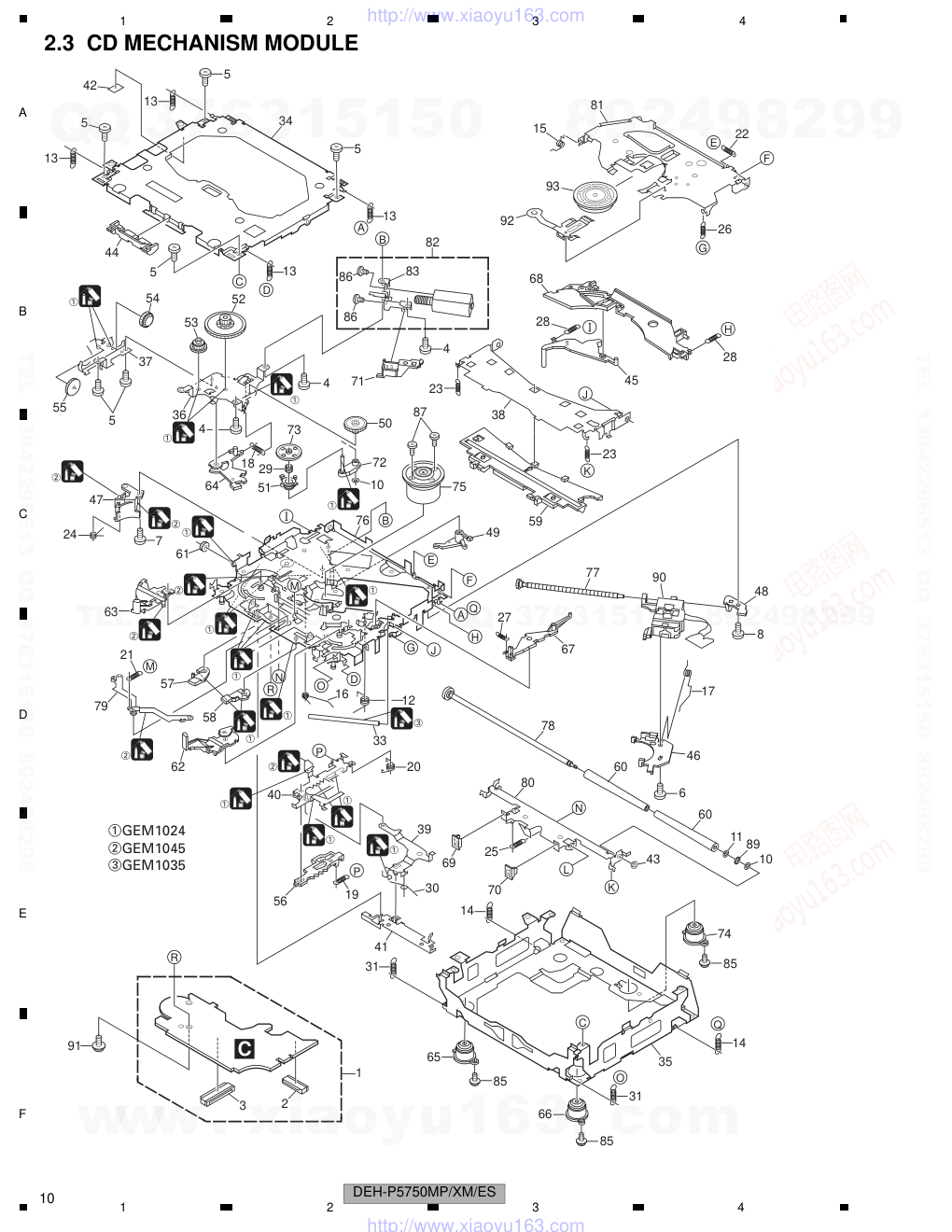

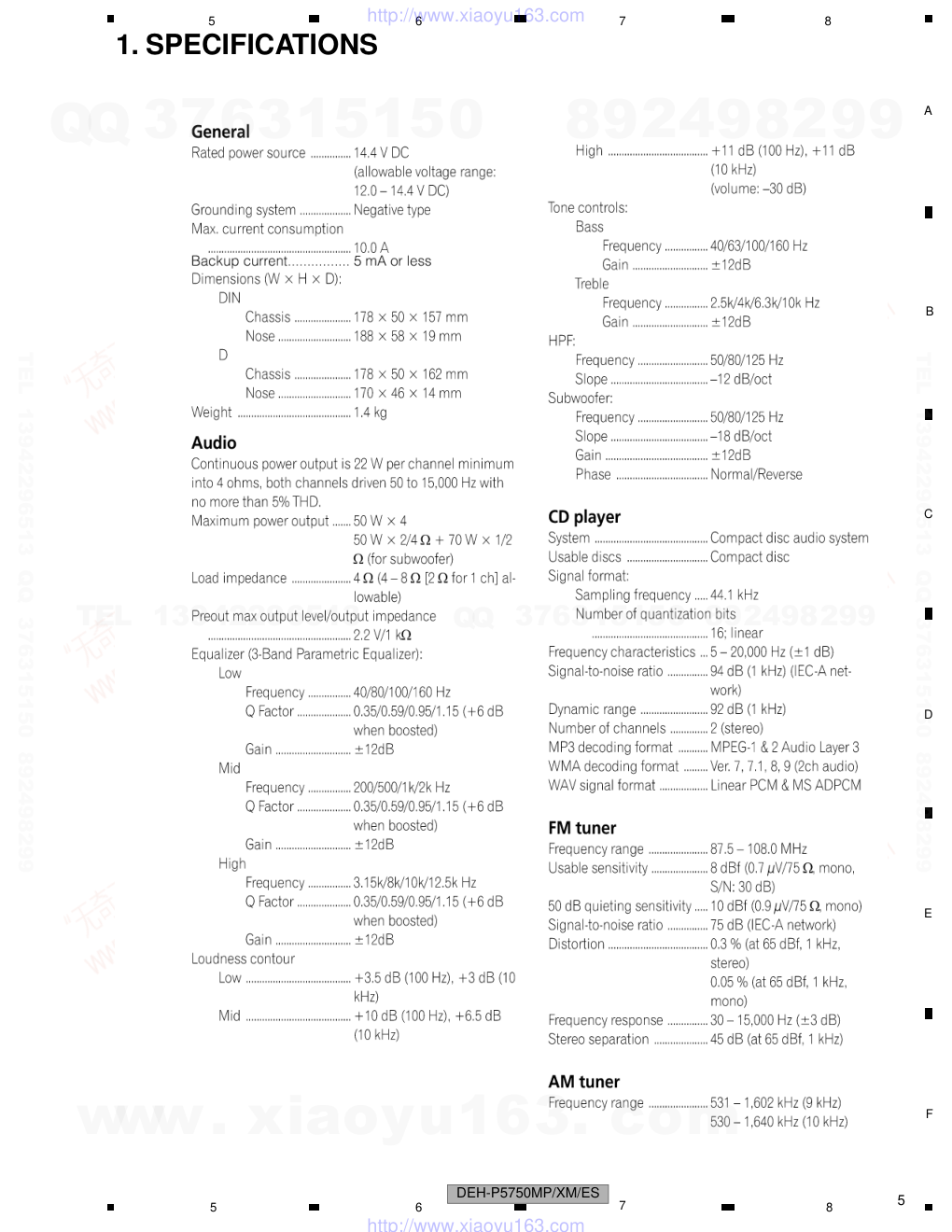

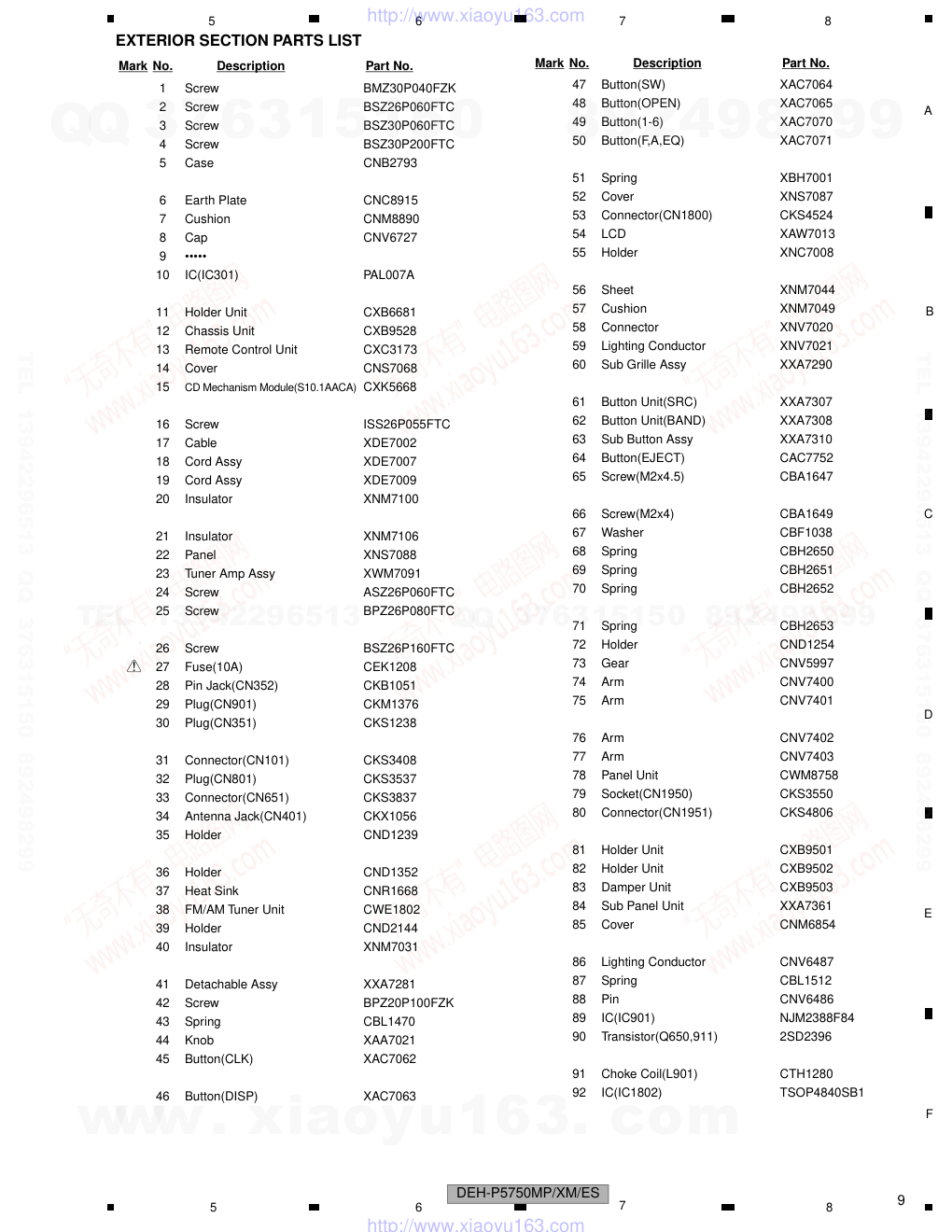

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2004 DEH-P5750MP/XM/ES CRT3357 MULTI-CD CONTROL HIGH POWER CD/MP3/WMA/WAV PLAYER WITH FM/AM TUNER DEH-P5750MP/XM/ES This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3158 CRT3394 S10.1AAC CD Mech. Module:Circuit Description, Mech. Description, Disassembly For details, refer to "Important Check Points for Good Servicing". K-ZZD.NOV. 2004 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the If you are not qualified to perform the repair of this product properly and safely, you should not risk and refer the repair to a qualified service technician. repair warranty. trying to do so - Service Precaution 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) on page 53. 4. After replacing the pickup unit, be sure to check the grating. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 EXTERIOR................................................................................................................................................. 8 2.3 CD MECHANISM MODULE..................................................................................................................... 10 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 12 3.1 BLOCK DIAGRAM ................................................................................................................................... 12 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE).............................................................................. 14 3.3 KEYBOARD UNIT.................................................................................................................................... 20 3.4 CD MECHANISM MODULE(GUIDE PAGE) ............................................................................................ 22 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 32 4.1 TUNER AMP ASSY ................................................................................................................................. 32 4.2 KEYBOARD UNIT.................................................................................................................................... 36 4.3 CD MECHAMODULE UNIT ..................................................................................................................... 38 4.4 PANEL UNIT ............................................................................................................................................ 40 5. ELECTRICAL PARTS LIST ............................................................................................................................ 41 6. ADJUSTMENT ............................................................................................................................................... 47 6.1 CD ADJUSTMENT................................................................................................................................... 47 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT .................................................... 49 6.3 ERROR MODE ........................................................................................................................................ 51 6.4 SYSTEM MICROCOMPUTER TEST PROGRAM ................................................................................... 52 7. GENERAL INFORMATION............................................................................................................................. 53 7.1 DIAGNOSIS ............................................................................................................................................. 53 7.1.1 DISASSEMBLY ..................................................................................................................................... 53 7.1.2 CONNECTOR FUNCTION DESCRIPTION.......................................................................................... 56 7.2 PARTS...................................................................................................................................................... 57 7.2.1 IC .......................................................................................................................................................... 57 7.2.2 DISPLAY ............................................................................................................................................... 65 7.3 OPERATIONAL FLOW CHART ............................................................................................................... 66 7.4 CLEANING............................................................................................................................................... 67 8. OPERATIONS ................................................................................................................................................ 68 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING PACKING SECTION PARTS LIST Owner's Manual,Installation Manual NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • The > mark found on some component parts indicatesthe importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lobricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " Mark No. Description Part No. 1 Polyethylene Bag CEG-162 2 Cord Assy XDE7007 3 Accessory Assy CEA4850 4 ••••• 5 Screw Assy CEA3849 6 ••••• 7 Screw CBA1650 * 8 Polyethylene Bag CEG-127 9 Screw CRZ50P090FTC 10 Screw TRZ50P080FTC * 11 Polyethylene Bag CEG-158 12 Handle CNC5395 13 ••••• 14 ••••• 15 Bush CNV3930 16 Remote Control Unit CXC3173 * 17 Battery CEX1065 18 Carton XHG7091 19 Contain Box XHL7091 20 Protector XHP7003 21 Protector XHP7004 22-1 Owner’s Manual XRD7062 22-2 Owner’s Manual XRD7063 22-3 Installation Manual XRD7064 22-4 Caution Card CRP1310 23 Case Assy CXB3520 Mark No. Description Part No. Part No. Language XRD7062 English, Spanish, Portuguese(B) XRD7063 Traditional Chinese, Arabic XRD7064 English, Spanish, Portuguese(B), Traditional Chinese, Arabic www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 7 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR A A B B C C 18 74 68 66 83 87 88 85 86 81 73 78 70 77 7169 79 72 80 67 64 76 75 82 5 84 65 65 65 22 42 42 52 57 92 58 55 49 61 45 46 43 44 60 47 62 63 48 51 54 59 56 53 19 23 36 91 33 32 24 24 90 90 89 2 2 2 15 21 17 20 13 14 12 4 1 1 4 4 3 8 7 6 8 50 41 40 31 29 27 35 37 26 26 25 28 10 30 34 16 11 38 39 A B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION PARTS LIST Mark No. Description Part No. 1 Screw BMZ30P040FZK 2 Screw BSZ26P060FTC 3 Screw BSZ30P060FTC 4 Screw BSZ30P200FTC 5 Case CNB2793 6 Earth Plate CNC8915 7 Cushion CNM8890 8 Cap CNV6727 9 ••••• 10 IC(IC301) PAL007A 11 Holder Unit CXB6681 12 Chassis Unit CXB9528 13 Remote Control Unit CXC3173 14 Cover CNS7068 15 CD Mechanism Module(S10.1AACA) CXK5668 16 Screw ISS26P055FTC 17 Cable XDE7002 18 Cord Assy XDE7007 19 Cord Assy XDE7009 20 Insulator XNM7100 21 Insulator XNM7106 22 Panel XNS7088 23 Tuner Amp Assy XWM7091 24 Screw ASZ26P060FTC 25 Screw BPZ26P080FTC 26 Screw BSZ26P160FTC > 27 Fuse(10A) CEK1208 28 Pin Jack(CN352) CKB1051 29 Plug(CN901) CKM1376 30 Plug(CN351) CKS1238 31 Connector(CN101) CKS3408 32 Plug(CN801) CKS3537 33 Connector(CN651) CKS3837 34 Antenna Jack(CN401) CKX1056 35 Holder CND1239 36 Holder CND1352 37 Heat Sink CNR1668 38 FM/AM Tuner Unit CWE1802 39 Holder CND2144 40 Insulator XNM7031 41 Detachable Assy XXA7281 42 Screw BPZ20P100FZK 43 Spring CBL1470 44 Knob XAA7021 45 Button(CLK) XAC7062 46 Button(DISP) XAC7063 47 Button(SW) XAC7064 48 Button(OPEN) XAC7065 49 Button(1-6) XAC7070 50 Button(F,A,EQ) XAC7071 51 Spring XBH7001 52 Cover XNS7087 53 Connector(CN1800) CKS4524 54 LCD XAW7013 55 Holder XNC7008 56 Sheet XNM7044 57 Cushion XNM7049 58 Connector XNV7020 59 Lighting Conductor XNV7021 60 Sub Grille Assy XXA7290 61 Button Unit(SRC) XXA7307 62 Button Unit(BAND) XXA7308 63 Sub Button Assy XXA7310 64 Button(EJECT) CAC7752 65 Screw(M2x4.5) CBA1647 66 Screw(M2x4) CBA1649 67 Washer CBF1038 68 Spring CBH2650 69 Spring CBH2651 70 Spring CBH2652 71 Spring CBH2653 72 Holder CND1254 73 Gear CNV5997 74 Arm CNV7400 75 Arm CNV7401 76 Arm CNV7402 77 Arm CNV7403 78 Panel Unit CWM8758 79 Socket(CN1950) CKS3550 80 Connector(CN1951) CKS4806 81 Holder Unit CXB9501 82 Holder Unit CXB9502 83 Damper Unit CXB9503 84 Sub Panel Unit XXA7361 85 Cover CNM6854 86 Lighting Conductor CNV6487 87 Spring CBL1512 88 Pin CNV6486 89 IC(IC901) NJM2388F84 90 Transistor(Q650,911) 2SD2396 91 Choke Coil(L901) CTH1280 92 IC(IC1802) TSOP4840SB1 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 CD MECHANISM MODULE A D H L M N O Q R A B C D E F G H I J K L M N O Q B 16 25 13 83 42 68 28 82 4 71 23 J K 38 23 59 87 86 5 13 34 5 5 13 44 5 C 52 53 36 4 73 29 51 18 64 76 50 10 72 75 49 77 67 27 78 60 90 48 8 17 46 6 60 11 89 43 70 14 31 65 85 66 85 31 35 14 74 85 1 2 3 R 91 12 33 61 63 21 79 57 58 62 80 13 4 86 I 45 28 7 24 47 P 41 20 40 69 39 30 P 19 56 F E 22 81 15 G 26 5 54 37 55 93 92 10 C 1GEM1024 2GEM1045 3GEM1035 1 1 1 1 1 1 1 1 2 2 2 2 1 1 1 1 1 2 2 1 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 11 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit(S10.1) CWX3096 2 Connector(CN101) CKS4182 3 Connector(CN901) CKS4017 4 Screw BMZ20P035FTC 5 Screw BSZ20P040FTC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1824 8 Screw(M2x3) CBA1825 9 ••••• 10 Washer CBF1038 11 Washer CBF1060 12 Spring CBH2390 13 Spring CBH2606 14 Spring CBH2607 15 Spring CBH2608 16 Spring CBH2609 17 Spring CBH2610 18 Spring CBH2735 19 Spring CBH2612 20 Spring CBH2613 21 Spring CBH2614 22 Spring CBH2615 23 Spring CBH2616 24 Spring CBH2617 25 Spring CBH2620 26 Spring CBH2621 27 Spring CBH2641 28 Spring CBH2642 29 Spring CBH2643 30 Spring CBH2659 31 Spring CBH2688 32 ••••• 33 Shaft CLA4441 34 Frame CNC9962 35 Frame CNC9963 36 Bracket CND2712 37 Bracket CND1895 38 Arm CNC9968 39 Arm CND1909 40 Lever CND2032 41 Lever CNC9984 42 Sheet CNM8134 43 Collar CNV7798 44 Guide CNV7799 45 Arm CNV8403 46 Rack CNV8374 47 Holder CNV8376 48 Holder CNV8377 49 Arm CNV8378 50 Gear CNV8379 51 Gear CNV8380 52 Gear CNV8381 53 Gear CNV8382 54 Gear CNV8383 55 Gear CNV8384 56 Rack CNV8385 57 Arm CNV8386 58 Arm CNV8387 59 Guide CNV8388 60 Roller CNV7218 61 Gear CNV8389 62 Arm CNV8391 63 Arm CNV8390 64 Arm CNV8392 65 Damper CNV7313 66 Damper CNV7314 67 Arm CNV8394 68 Arm CNV8395 69 Guide CNV8396 70 Guide CNV8397 71 Holder CNV8398 72 Arm CNV8402 73 Gear CNV8400 74 Damper CNV7618 75 Motor Unit(M1) CXC4440 76 Chassis Unit CXC2318 77 Screw Unit CXB8729 78 Gear Unit CXC2397 79 Arm Unit CXC2316 80 Arm CND1896 81 Arm CND1894 82 Motor Unit(M2) CXB8933 83 Bracket CNC9985 84 ••••• 85 Screw(M2x5) EBA1028 86 Screw JFZ20P020FTC 87 Screw JGZ17P022FTC 88 ••••• 89 Washer YE20FTC 90 Pickup Unit(P10)(Service) CXX1641 91 Screw IMS26P030FTC 92 Spring CBL1635 93 Clamper CNV8372 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 12 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM BRST,BRXEN,BSRQ C CN901 Q101 M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ TRACKING ACT. LD- MD FO+ TO+ 15 5 1 4 PICKUP UNIT (P10)(SERVICE) HOLOGRAM UNIT IC 301 BA5835FM IC 201 UPD63763GJ IC 703 +3.3V REGULATOR RF-AMP,CD DECODER, MP3 , WMA, DECODER, DIGITAL SERVO / DATA PROCESSOR CD DRIVER 3 VD VD 3VDD 10 L-OUT 5 CN101 TOP FOP 16 SOP 15 SOM 18 LCOP 17 LCOM 22 2 LOEJ 31 LOUT 9 CONT 12 FOP TD/FD AC,BD F,E SD/MD 3 13 TOP HOME 12EJ SENSE 8EJ SENSE LD+ 14 142 LD 143 PD CD CORE UNIT(S10.1) 35 34 X201 12EJ CONT LOEJ HOME 32 97 53 47 VDD IC 203 NJM2391DL1-33 +3.3V REGULATOR V3R3D 2 3 CD3VON 46 VDCONT 49 S-812C33AUA-C2N CD CONTROLLER IC 701 PE5454A 94 CSENSE 4 V3R3D 19 1 BDATA,BSCK VD2 2 Q701 43 ADENA VDD 15 5 1 4 14 CLAMP 4 VD2 VDCONT 1 CD3VON 13 12 X701 X1 X2 8EJ 31 DSCSNS 30 A/D REF CDL VD1 VDCONT VD2 14 RESET 14 15 ASENBO 85 MUTE XIN XOUT S IN2L 41 PEE 22 38 IN4L+ 43 IN4L- 44 IN3L 42 80 28 19 79 SYSTEM CONTROLLER IC 601(2/2) PEG063A CN401 1 2 BUS- BUS+ L+ L- TX RX2 IPPW ELECT SOUR SWVDD B.UP CN651 Q831 Q651 Q650 TUNER AMP ASSY 13 X601 11 VST,VCK,VDT TUN L CDL 33 DPDT 34 KYDT 1 SYSPW 41 ILMPW S802 DETACH SENSE SW 39 DSENS A 5 8 1 7 CN101 11 BUZZER 20 19 5 14 21 IC 101 HA12240FP IP-BUS DRIVER 1 2 8 6 5 TX RX IPPW B.UP Q101 Q102 NJM2391DL1-33 IC420 1 3 SYS 8.3V TUN 3.3V TUNER 3.3V REGULATOR VDD ANTENNA NJ 7 92 LVLINL LEV B.UP Q822 Q821 20 LCDPW/ OELPW ILB Q840 BZ621 35 ROT1 36 ROT0 VDD Q832 VDD BRST,BRXEN,BSRQ BDATA,BSCK EJTIN 42 FLPILM 40 VD 22 VD C Q Q642 Q641 23 NJM2391DL1-05 IC421 3 1 TUNER 5V REGULATOR Q841 Q404 DEEMPHASIS L+ L- CD3VCONT LCDPW B.UP CSENS LCD POWER ILB CONTROL 10.00MHz C MUTE 20 91 27 RX 9 10 CSENSEOUT 56 RESET FM ANT RFGND OSCGND DGND VCC VDD_3.3 WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 13 5 10 8 11 14 18 19 20 21 1 3 2 12 15 4 17 AM ANT 16 23 COMP Lch 24 Rch 22 ANT1 6 9 IC4 5V 3.3V IC3 EEPROM IC2 DET/NC/MPC/MPX/DIV/RDS REG OSC X-tal CF IFT LPF TANK RF RF TANK ATT ATT LPF VCO IC1 MIX/IF/PLL ← FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 13 5 6 7 8 5 6 7 8 C D F A B E 10 1 BSENS ASENS VDD B.UP 72 73 10 FOUTL 11 ROUTL ILB SWVDD 23 21 3 5 FL- FL+ RL- RL+ ACC IN2L 41 IN4L+ 43 IN4L- 44 IN3L 42 FLIN 14 RLIN 12 22 4 RESET POWER AMP IC 601(1/2) PEG063A IC 201 PML009A IC 602 IC 301 PAL007A VDD Q911 Q931 SYSPW L+ L- ELECTRONIC VOLUME/ SOURCE SELECTOR STBY MUTE Q831 X601 2 VST,VCK,VDT TUN L CDL DPDT KYDT SYS 8.3V B.UP Q301 MUTE PL FL Q352 12 PreOUTL 7 2 11 14 7 2 11 14 CN1950 CN1951 4 2 10 8 PANEL UNIT MUTING S802 DETACH SENSE SW SYSTEM CONTROLLER Q951 VDD TELIN 8 25 B.REM VDD REGULATOR BACKUP SENSE ACC SENSE TELEPHONE MUTE SYS 8.3V REGULATOR 3 9 11 12 10 1 8 6 3 9 11 12 10 1 8 6 2 2 D CN901 Q982 B.UP FUSE 10A SL TUNPCE1 TUNPDI TUNPDO 95 69 70 98 99 TUNPCK 100 CE1 DO DI CK Q912 DALMON 67 B.UP 6,20 Q981 10 10 5 Q353 PL FL Q941 ISENS 81 ILM SENSE 5 5 NJM4558MD IC131 5 7 1 SELOUTL LEVEL INDICATOR B.UP Q822 Q821 ILB ILB Q840 13 13 9 12 12 7 ROT1 ROT0 VDD Q832 S-80835CNUA-B8U NON-FAD/SW L FRONT L 8 8 S1970 EJECT 9 9 5 6 5 6 CN801 Q801 RL Q351 CN351 RL REAR L FL- FL+ RL- RL+ BACK UP GND ACC B.REM ILM TEL Q841 CN352 ASIS TUNPCE2 CE2 RESET B.UP 1 2 NJM2388F84 IC 901 4 SL 2 BL+B B.UP FILM+ FLIM- E-MUTE MUTE ILM TEL 4 4 3 LCD POWER ILB CONTROL 10.00MHz CSENS EMUTE 57 MUTE 20 RESET 2 6 IL+B SW+5V IC 1800 PD2072A LCD DRIVER/ KEY CONTROLLER KEY MATRIX 9 11 KEY DATA VDD 3 CN1800 KEYBOARD UNIT 3 5 DPDT KYDT IC 1802 TSOP4840SB1 REMOTE CONTROL SENSOR OPT IN 3 1 9 REM 19 18 SI SO LCD B DIM 6 8 BL+B Q1860 DIMMER 5 ILLUMINATION X1 X0 100 X1800 1 S1850 3 2 1 4 6 ROT1 ROT0 ROT1 ROT0 VOLUME (ENCODER) Q1861 4 93 V4 ADJ KDT0-3,KST1-6 IC1803 BD4834G RESET 1 2 RESET COM0-7,SEG0-55 DIMMER SWITCH ADJ SW CSENS 10 94 V3 95 V2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 14 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A D The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. B D PANEL UNIT FM/AM TUNER UNIT C CN901 ANTENNA CN1800 EJECT IP-BUS SYSTEM For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V NOTE : FM(100%):-19.5dBs AM(30%):-30.0dBs IP-BUS:+2.2dBs CD:+0.39dBs FM:-19.5dBs AM:-30.0dBs IP-BUS:+2.2dBs CD: +0.39dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 15 5 6 7 8 5 6 7 8 C D F A B E A-b A 3A BACK UP 10A > FUSE CEK1208 > A TUNER AMP ASSY SUB WOOFER R ch SUB WOOFER L ch FRONT R ch FRONT L ch REAR R ch REAR L ch DETACH SENSE POWER AMP SYSTEM CONTROLLER FM:+5.6dBs AM: -4.9dBs IP-BUS:+10.3dBs CD:+10.49dBs FM:+31.6dBs AM:+21.1dBs IP-BUS:+36.3dBs CD:+36.49dBs FM:4.8dBs AM:-5.7dBs IP-BUS:+8.5dBs CD: +9.2dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 16 1 2 3 4 1 2 3 4 C D F A B E 1 2 3 A-a A-b A-a A-a A-b FM/AM TUNER UNIT ANTENNA IP-BUS SYSTEM CONTROLLER FM(100%):-19.5dBs AM(30%):-30.0dBs IP-BUS:+2.2dBs FM:-19.5dBs AM:-30.0dBs IP-BUS:+2.2dBs CD: +0.39dBs F A IP-BUS CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 17 5 6 7 8 5 6 7 8 C D F A B E 4 5 6 7 A-a A-b A-a A-a A-b D The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. B D PANEL UNIT C CN901 CN1800 EJECT For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V NOTE : CD:+0.39dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 18 1 2 3 4 1 2 3 4 C D F A B E 1 2 3 A-a A-b A-b 3A > FUSE > A TUNER AMP ASSY SUB WOOFER R ch SUB WOOFER L ch FRONT R ch FRONT L ch REAR R ch REAR L ch MP EM CONTROLLER FM:+5.6dBs AM: -4.9dBs IP-BUS:+10.3dBs CD:+10.49dBs FM:4.8dBs AM:-5.7dBs IP-BUS:+8.5dBs CD: +9.2dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 19 5 6 7 8 5 6 7 8 C D F A B E 4 5 6 7 A-a A-b A-b BACK UP 10A > FUSE CEK1208 DETACH SENSE POWER AMP FM:+31.6dBs AM:+21.1dBs IP-BUS:+36.3dBs CD:+36.49dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 20 1 2 3 4 1 2 3 4 C D F A B E 3.3 KEYBOARD UNIT B CLK 3 2 B 6 ↑ FUNC DISP SW SRC EQ LCD DRIVER, KEY CONTROLLER REMOTE CONTROL SENSOR BD4834G → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 21 5 6 7 8 5 6 7 8 C D F A B E B D B KEYBOARD UNIT CN1951 2 1 BAND 6 5 4 UNC SW AUDIO EQ ← ↓ → VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 22 1 2 3 4 1 2 3 4 C D F A B E 3.4 CD MECHANISM MODULE(GUIDE PAGE) C-a C TY PICKUP UNIT(P10)(SERVICE) M1 CXC4440 SPINDLE MOTOR M2 CXB8933 LOADING /CARRIAGE MOTOR CD DRIVER T F F T T T F F F T C S T F S C F F T T S S C C C C S S T T F F 1 3 2 0 9 7 $ 8 5 4 @ # % Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 23 5 6 7 8 5 6 7 8 C D F A B E C-b C ras SRAMLEVEL0 SRAMLEVEL1 SRAMLEVEL2 TYPE_A/D SWITCHES: CD CORE UNIT(S10.1) S901:HOME SWITCH..........ON-OFF S903:DSCSNS SWITCH......ON-OFF S904:12EJ SWITCH.............ON-OFF S905:8EJ SWITCH...............ON-OFF The underlined indicates the switch position. CD CORE UNIT(S10.1) C A CN651 F SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S 3V REGULATOR 3.3V REGULATOR MICRO COMPUTER ! ^ & 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 24 1 2 3 4 1 2 3 4 C D F A B E A-a C-b C-a C-a C-b 1 2 PICKUP UNIT(P10)(SERVICE) Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. T F F T T T F F F T C S T T F F @ # % www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 25 5 6 7 8 5 6 7 8 C D F A B E A-a C-b C-a C-a C-b 2 3 4 5 6 M1 CXC4440 SPINDLE MOTOR M2 CXB8933 LOADING /CARRIAGE MOTOR CD DRIVER Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← discrete capacitors. T F S C F F T T S S C C C C S S 1 3 2 0 9 7 $ 8 5 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 26 1 2 3 4 1 2 3 4 C D F A B E C-a C-b C-b 1 2 ras SWITCHES: CD CORE UNIT(S10.1) S901:HOME SWITCH..........ON-OFF S903:DSCSNS SWITCH......ON-OFF S904:12EJ SWITCH.............ON-OFF S905:8EJ SWITCH...............ON-OFF The underlined indicates the switch position. CD CORE UNIT(S10.1) C F SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S 3.3V REGULATOR ! www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 27 5 6 7 8 5 6 7 8 C D F A B E C-a C-b C-b 2 3 4 5 6 SRAMLEVEL0 SRAMLEVEL1 SRAMLEVEL2 TYPE_A/D A CN651 3V REGULATOR MICRO COMPUTER ^ & 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 28 1 2 3 4 1 2 3 4 C D F A B E - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65V) 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div 12 cm CD Loading operation Ref.: GND Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div Ref.: GND Mode: Normal 1 DSCSNS 5 CLCONT 4 LOEJ 6 VD 5V/div 5V/div 5V/div 10V/div 500ms/div 12 cm CD Loading operation 8 cm CD Loading operation Ref.: GND Mode: Normal 0 FIN ! RFOK 7 SIN 200mV/div 2V/div 2V/div 500ms/div 12 cm CD-DA Source On setup operation Ref.: REFO Mode: Normal # FE 0 FIN @ TE 9 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div Ref.: REFO Mode: Normal @ TE # FE 500mV/div 500mV/div 200ms/div Source On setup operation CD-DA Play operation Ref.: REFO Mode: Normal # FE 0 FIN @ TE 9 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div CD-ROM play operation(Regular track Jump) Ref.: REFO Mode: Normal $ MDX 7 SIN 2V/div 1V/div 5µs/div Ref.: REFO Mode: Normal $ MDX 7 SIN 1V/div 200mV/div 50ms/div Spindle waveform during play operation Spindle waveform during play operation (Wider) Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 2s/div 12 cm CD-DA setup operation after loading 12 cm CD-ROM(3 sessions) setup operation after loading Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 2s/div Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 1s/div 12 cm CD-ROM(1 session) setup operation after loading Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 29 5 6 7 8 5 6 7 8 C D F A B E 0 FIN # FE 500mV/div 500mV/div 200ms/div Focus Search waveform Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 500µs/div Ref.: REFO Mode: TEST @ TE % RFAGC 500mV/div 500mV/div 2ms/div Track Open waveform 1 Track Jump waveform Ref.: REFO Mode: TEST % RFAGC @ TE 8 CIN 7 SIN 1V/div 1V/div 500mV/div 2V/div 200ms/div Ref.: REFO Mode: Normal Search operation(Outter to Inner) ^ LOUT & ROUT 1V/div 1V/div 200µs/div Analog audio waveform Ref.: AGND Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div 12 cm CD Eject operation CD-DA >> CD-ROM mode change(Band key) Ref.: GND Mode: Normal % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 500µs/div 4 Tracks Jump waveform 32 Tracks Jump waveform Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 2ms/div Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 1ms/div 10 Tracks Jump waveform Ref.: REFO Mode: TEST 1 DSCSNS 5 CLCONT 4 LOEJ 5V/div 5V/div 5V/div 500ms/div 12 cm CD Eject operation Ref.: GND Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div 8 cm CD Eject operation Ref.: GND Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 30 1 2 3 4 1 2 3 4 C D F A B E 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 500ms/div CD-ROM >> CD-DA mode change(Band key) Ref.: REFO Mode: Normal % RFAGC 9 TIN @ TE 0 FIN 1V/div 1V/div 1V/div 1V/div 500µs/div Black dot(800µm) during play Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 31 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 32 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP ASSY Capacitor Connector P.C.Board Chip Part A A TUNER AMP ASSY SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams IP-BUS C CN901 CORD DETACH SENSE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 33 5 6 7 8 5 6 7 8 C D F A B E A SIDE A D CN1950 FRONT RCA ANTENNA FM/AM TUNER UNIT 1 2 3 4 5 6 7 8 CORD ASSY CORD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 34 1 2 3 4 1 2 3 4 C D F A B E A A TUNER AMP ASSY PCL TESTIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 35 5 6 7 8 5 6 7 8 C D F A B E A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 36 1 2 3 4 1 2 3 4 C D F A B E 4.2 KEYBOARD UNIT B B KEYBOARD UNIT SIDE A VOLUME DISP SRC EQ CLK 1 2 3 4 5 6 SW BAND FUNC AUDIO LCD ↑ ← ↓ → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 37 5 6 7 8 5 6 7 8 C D F A B E B B KEYBOARD UNIT SIDE B D CN1951 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 38 1 2 3 4 1 2 3 4 C D F A B E 4.3 CD MECHAMODULE UNIT C C CD CORE UNIT(S10.1) SIDE A A CN651 PICKUP UNIT(P10)(SERVICE) HOME M2 LOADING /CARRIAGE MOTOR M1 SPINDLE MOTOR E F REFO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 39 5 6 7 8 5 6 7 8 C D F A B E C C CD CORE UNIT(S10.1) SIDE B 12EJ 8EJ DSCSNS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 40 1 2 3 4 1 2 3 4 C D F A B E 4.4 PANEL UNIT D D PANEL UNIT D PANEL UNIT SIDE A SIDE B B CN1800 A CN801 EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 41 5 6 7 8 5 6 7 8 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... • The > mark found on some component parts indicatesthe importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Circuit Symbol and No. Part No. A Unit Number:XWM7091 Unit Name:Tuner Amp Assy MISCELLANEOUS IC 101 (A,42,87) IC HA12240FP IC 131 (A,54,72) IC NJM4558MD IC 201 (A,82,88) IC PML009A IC 301 (A,92,133) IC PAL007A IC 420 (A,147,27) IC NJM2391DL1-33 IC 421 (A,133,27) IC NJM2391DL1-05 IC 601 (A,108,55) IC PEG063A IC 602 (A,82,65) IC S-80835CNUA-B8U IC 901 (A,5,121) IC NJM2388F84 Q 101 (B,40,105) Transistor 2SA1576 Q 102 (B,36,102) Transistor DTC114EU Q 301 (A,135,100) Transistor DTC124EU Q 351 (B,131,120) Transistor UMH3N Q 352 (B,136,129) Transistor UMH3N Q 353 (B,162,129) Transistor UMH3N Q 403 (B,154,40) Transistor 2SA1576 Q 404 (B,154,47) Transistor 2SA1576 Q 641 (B,30,56) Transistor 2SA1577 Q 642 (B,34,60) Transistor DTC114EU Q 650 (A,5,68) Transistor 2SD2396 Q 651 (B,21,61) Transistor UMD2N Q 801 (A,106,23) Transistor DTC143EU Q 821 (A,47,25) Transistor 2SD1767 Q 822 (B,76,19) Transistor UMD2N Q 831 (B,98,29) Transistor 2SA1576 Q 832 (B,91,21) Transistor DTC114EU Q 840 (B,52,17) Transistor 2SA1576 Q 841 (B,50,21) Transistor DTC114EU Q 911 (A,5,102) Transistor 2SD2396 Q 912 (B,19,77) Transistor UMD2N Q 931 (B,50,99) Transistor UMX1N Q 941 (B,106,86) Transistor DTC114EU Q 951 (A,45,94) Transistor 2SA1576 Q 981 (B,28,91) Transistor 2SC4081 Q 982 (A,130,100) Transistor UMD2N D 131 (A,63,66) Diode Network DA204U D 132 (A,46,70) Diode Network DA204U D 133 (A,56,61) Diode DAN202U D 301 (A,98,111) Diode S5688G D 302 (A,94,111) Diode S5688G D 650 (A,11,70) Diode HZS7L(C3) D 801 (B,100,33) Diode Network DA204U D 802 (B,106,36) Diode DAN202U D 803 (B,116,30) Diode DAP202U D 804 (B,112,30) Diode DAN202U D 805 (B,102,36) Diode DAP202U D 821 (A,77,13) Diode HZS11L(A1) D 901 (A,65,117) Diode S5688G D 902 (A,68,115) Diode S5688G D 911 (A,18,85) Diode S5688G D 912 (A,14,80) Diode HZS6L(B1) D 931 (A,53,113) Diode HZS7L(A1) D 932 (A,57,101) Diode HZS7L(C3) D 941 (A,72,107) Diode MA111 D 951 (A,41,94) Diode DAN202U D 981 (A,19,90) Diode HZS9L(A2) D 982 (A,94,70) Diode DAN202U L 101 (A,32,81) Inductor LAU2R2K L 201 (A,74,81) Ferri-Inductor LAU4R7K L 401 (A,145,53) Inductor LAUR47K L 402 (A,148,90) Inductor LAU1R0K L 403 (A,154,97) Ferri-Inductor LAU4R7K L 601 (A,81,60) Ferri-Inductor LAU100K L 640 (A,77,50) Ferri-Inductor LAU100K L 831 (A,102,22) Inductor LAU2R2K L 901 (A,31,108) Choke Coil 600µH CTH1280 L 951 (A,51,89) Inductor LAU2R2K X 601 (A,92,58) Radiator 10.00MHz CSS1599 S 802 (A,21,10) Switch(DETACH SENSE)CSN1039 FU351 (B,122,117) Fuse 3A CEK1286 BZ621 (A,36,17) Buzzer CPV1062 AR401 (A,159,119) Surge Protector DSP-201M-S00B > Fuse 10A CEK1208 FM/AM Tuner Unit CWE1802 RESISTORS R 101 (B,37,136) RS1/16S101J R 102 (B,37,133) RS1/16S620J R 103 (B,37,127) RS1/16S101J R 104 (A,38,83) RS1/16S102J R 105 (A,46,83) RS1/16S472J R 106 (A,47,86) RS1/16S472J R 107 (B,25,129) RS1/16S821J R 108 (B,23,129) RS1/16S223J Circuit Symbol and No. Part No. > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 42 1 2 3 4 1 2 3 4 C D F A B E R 109 (B,33,105) RS1/16S222J R 110 (B,30,121) RS1/16S821J R 111 (B,29,121) RS1/16S223J R 112 (B,27,121) RS1/16S102J R 113 (B,24,134) RS1/16S102J R 114 (B,42,107) RS1/16S223J R 115 (B,37,107) RS1/16S472J R 131 (A,60,69) RS1/16S563J R 132 (A,49,71) RS1/16S563J R 133 (A,60,72) RS1/16S104J R 134 (A,49,74) RS1/16S104J R 135 (A,61,62) RS1/16S474J R 136 (A,54,65) RS1/16S474J R 201 (A,111,73) RAB4C102J R 220 (A,76,95) RS1/16S102J R 221 (B,74,86) RS1/16S102J R 222 (B,90,96) RS1/16S471J R 223 (B,85,82) RS1/16S471J R 224 (B,92,94) RS1/16S471J R 225 (B,93,84) RS1/16S471J R 301 (A,138,97) RS1/16S103J R 302 (A,135,96) RS1/16S331J R 303 (A,135,98) RS1/16S103J R 304 (B,118,128) RS1/16S153J R 351 (B,144,108) RS1/16S471J R 352 (B,144,118) RS1/16S471J R 353 (B,139,121) RS1/16S471J R 354 (B,138,119) RS1/16S471J R 355 (B,158,124) RS1/16S821J R 356 (B,141,128) RS1/16S821J R 357 (B,132,117) RS1/16S223J R 358 (B,131,122) RS1/16S223J R 359 (B,139,129) RS1/16S223J R 360 (B,127,135) RS1/16S223J R 361 (B,159,133) RS1/16S223J R 362 (B,157,128) RS1/16S223J R 401 (B,145,62) RS1/16S0R0J R 403 (B,158,71) RS1/16S681J R 404 (A,99,72) RS1/16S681J R 406 (B,155,80) RS1/16S681J R 407 (B,113,50) RS1/16S681J R 408 (B,155,82) RS1/16S681J R 409 (B,155,84) RS1/16S681J R 410 (B,119,54) RS1/16S681J R 411 (B,155,86) RS1/16S681J R 412 (B,119,56) RS1/16S681J R 413 (B,157,90) RS1/16S681J R 416 (B,149,40) RS1/16S222J R 417 (B,149,42) RS1/16S561J R 418 (B,150,46) RS1/16S561J R 419 (B,152,50) RS1/16S222J R 421 (B,145,51) RS1/16S471J R 424 (A,98,67) RS1/16S471J R 603 (B,110,64) RS1/16S104J R 605 (B,107,61) RS1/16S104J R 606 (A,91,65) RS1/16S104J R 607 (B,64,58) RS1/16S822J R 608 (A,74,66) RS1/16S102J R 609 (A,95,45) RS1/16S102J R 610 (A,80,51) RS1/16S104J Circuit Symbol and No. Part No. R 611 (A,93,48) RS1/16S473J R 613 (B,85,34) RS1/16S221J R 614 (B,83,29) RS1/16S682J R 615 (A,65,30) RS1/16S682J R 616 (A,65,25) RS1/16S221J R 621 (B,42,19) RS1/16S102J R 631 (A,122,60) RS1/16S104J R 641 (B,33,51) RS1/16S103J R 643 (B,36,55) RS1/16S182J R 646 (B,81,41) RS1/16S102J R 647 (A,74,52) RS1/16S102J R 648 (B,52,31) RS1/16S222J R 649 (B,83,39) RS1/16S104J R 650 (A,11,64) RD1/4PU0R0J R 651 (A,16,61) RD1/4PU271J R 652 (A,16,67) RD1/4PU221J R 666 (B,55,44) RS1/16S104J R 667 (B,61,42) RS1/16S102J R 668 (B,59,36) RS1/16S102J R 801 (B,122,28) RS1/16S102J R 802 (B,26,20) RS1/16S104J R 803 (B,26,16) RS1/16S102J R 804 (B,122,24) RS1/16S222J R 805 (B,118,39) RS1/16S222J R 806 (B,120,24) RS1/16S222J R 807 (B,117,25) RS1/16S222J R 808 (B,111,23) RS1/16S222J R 809 (B,104,25) RS1/16S222J R 810 (B,115,43) RS1/16S102J R 811 (B,121,30) RS1/16S102J R 812 (B,111,34) RS1/16S102J R 813 (A,77,16) RS1/16S1R0J R 814 (B,107,24) RS1/16S222J R 815 (A,102,38) RS1/16S473J R 816 (B,111,26) RS1/16S473J R 817 (B,105,31) RS1/16S473J R 818 (B,115,45) RS1/16S104J R 821 (A,61,13) RD1/4PU391J R 822 (B,61,16) RS1/16S391J R 823 (B,66,16) RS1/16S391J R 824 (A,75,17) RS1/16S472J R 831 (B,94,29) RS1/16S473J R 832 (B,92,29) RS1/16S102J R 833 (B,99,23) RS1/16S222J R 840 (B,48,18) RS1/16S103J R 841 (B,46,20) RS1/16S103J R 901 (B,16,99) RS1/16S102J R 902 (B,18,102) RS1/16S103J R 911 (B,9,107) RS1/16S391J R 912 (B,11,81) RS1/16S222J R 913 (B,11,86) RS1/16S223J R 914 (B,48,94) RS1/16S104J R 915 (B,46,98) RS1/16S104J R 916 (A,106,73) RS1/16S104J R 931 (A,49,108) RD1/4PU102J R 932 (B,46,105) RS1/16S472J R 933 (B,52,102) RS1/16S473J R 934 (B,54,102) RS1/16S103J R 935 (B,48,105) RS1/16S473J R 936 (B,44,99) RS1/16S104J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 43 5 6 7 8 5 6 7 8 C D F A B E R 941 (A,63,101) RD1/4PU102J R 942 (A,76,110) RS1/16S103J R 951 (A,60,101) RD1/4PU153J R 952 (A,42,91) RS1/16S472J R 953 (A,46,91) RS1/16S472J R 954 (A,48,94) RS1/16S102J R 981 (B,23,92) RS1/16S683J R 982 (B,23,90) RS1/16S683J R 983 (B,22,84) RS1/16S223J R 984 (B,122,137) RS1/16S102J CAPACITORS C 101 (B,28,136) CKSRYB104K16 C 102 (A,42,82) CKSRYB473K25 C 103 (A,39,91) CKSRYB102K50 C 104 (A,42,83) CKSRYB102K50 C 131 (A,60,66) CKSRYB104K16 C 132 (A,50,68) CKSRYB104K16 C 133 (A,60,76) CKSRYB104K16 C 134 (A,47,73) CKSRYB104K16 C 135 (A,61,63) CKSRYB474K10 C 136 (A,51,65) CKSRYB474K10 C 137 (A,61,60) CCSRCH101J50 C 138 (A,53,65) CCSRCH101J50 C 139 (A,54,76) CKSRYB103K50 C 201 (A,73,75) CEJQ4R7M35 C 202 (A,73,100) CEJQ4R7M35 C 203 (A,76,75) CEJQ4R7M35 C 204 (A,80,102) CEJQ4R7M35 C 205 (A,82,75) CEJQ4R7M35 C 206 (A,90,102) CEJQ4R7M35 C 207 (A,88,76) CEJQ4R7M35 C 208 (A,86,102) CEJQ4R7M35 C 209 (A,66,97) CEJQ1R0M50 C 210 (A,60,97) CEJQ1R0M50 C 211 (A,66,92) CEJQ1R0M50 C 212 (A,60,86) CEJQ1R0M50 C 213 (B,77,85) CKSRYB104K16 C 214 (A,69,86) CEJQ470M16 C 215 (A,73,90) CKSRYB105K10 C 216 (B,78,83) CKSRYB104K16 C 217 (A,60,92) CEJQ1R0M50 C 218 (A,58,81) CEJQ1R0M50 C 220 (B,73,96) CKSRYB152K50 C 221 (B,78,88) CKSRYB152K50 C 222 (B,85,95) CCSRCH120J50 C 223 (B,82,84) CCSRCH120J50 C 224 (B,85,93) CCSRCH120J50 C 225 (B,88,85) CCSRCH120J50 C 226 (A,95,92) CEJQ100M16 C 230 (B,89,87) CKSRYB104K16 C 240 (B,52,86) CKSQYB225K10 C 301 (A,115,100) CFTNA224J50 C 302 (A,112,110) CFTNA224J50 C 303 (A,105,110) CFTNA224J50 C 304 (A,124,104) CFTNA224J50 C 309 (A,117,108) CEJQ330M10 C 310 (A,126,135) CKSQYB225K10 C 311 (A,127,131) CKSQYB225K10 Circuit Symbol and No. Part No. C 312 (A,122,130) CEHAR100M16 C 351 (A,140,106) CEJQ4R7M35 C 352 (A,142,118) CEJQ4R7M35 C 353 (A,137,112) CEJQ4R7M35 C 354 (A,135,119) CEJQ4R7M35 C 355 (A,144,112) CEJQ4R7M35 C 356 (A,132,108) CEJQ4R7M35 C 402 (B,158,58) CKSRYB104K16 C 405 (B,145,98) CKSRYB103K50 C 406 (A,148,97) CEJQ101M16 C 407 (B,164,75) CCSRCH101J50 C 411 (B,157,41) CKSRYB332K50 C 412 (B,157,46) CKSRYB332K50 C 414 (B,143,44) CKSRYB103K50 C 416 (A,152,65) CEJQ470M10 C 417 (A,145,47) CEJQ101M16 C 420 (A,143,40) CEJQ470M10 C 422 (A,143,34) CEJQ100M16 C 426 (B,134,24) CKSRYB104K16 C 430 (A,98,64) CCSRCH470J50 C 602 (A,86,55) CEJQ4R7M35 C 603 (B,83,56) CCSRCH101J50 C 604 (A,70,58) CEJQ2R2M50 C 605 (B,95,57) CCSRCH200J50 C 606 (B,95,54) CCSRCH200J50 C 608 (B,88,50) CKSRYB103K50 C 643 (B,78,46) CKSRYB683K16 C 644 (A,59,32) CEAT471M16 C 650 (B,17,58) CKSRYB473K25 C 651 (A,13,55) CEJQ101M16 C 652 (B,56,40) CKSRYB152K50 C 653 (B,54,37) CKSRYB152K50 C 654 (B,80,27) CCSRCH470J50 C 821 (B,75,11) CKSRYB473K25 C 822 (A,72,17) CKSRYB473K25 C 832 (B,93,25) CKSQYB105K16 C 901 (A,49,122) 3300µF/16V CCH1486 C 902 (B,59,120) CKSRYB104K25 C 903 (B,104,145) CKSYB225K16 C 904 (B,85,138) CKSYB225K16 C 911 (A,24,76) 470µF/16V CCH1331 C 912 (B,27,82) CKSRYB472K50 C 913 (B,13,78) CKSRYB103K50 C 914 (A,13,75) CEJQ470M10 C 922 (B,15,114) CKSRYB103K50 C 923 (A,13,118) CEJQ101M16 C 924 (B,26,95) CKSRYB103K50 C 925 (A,25,82) CEJQ221M10 C 931 (B,44,104) CKSRYB104K16 C 941 (A,117,92) CEJQ1R0M50 B Unit Number:XWM7092 Unit Name:Keyboard Assy MISCELLANEOUS IC 1800 (B,28,88) IC PD2072A IC 1802 (A,12,29) IC TSOP4840SB1 IC 1803 (B,20,62) IC BD4834G Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 44 1 2 3 4 1 2 3 4 C D F A B E Q 1860 (B,30,44) Transistor DTC123JU Q 1861 (B,31,69) Transistor DTC114EU D 1824 (A,11,163) LED CL-195PG-CD D 1829 (A,46,158) LED CL-195PG-CD D 1830 (A,23,34) LED CL-195PG-CD D 1831 (A,14,20) LED CL-195PG-CD D 1832 (A,29,10) LED CL-195PG-CD D 1833 (A,11,16) LED CL-195PG-CD D 1834 (A,45,140) LED CL-195PG-CD D 1835 (A,40,24) LED CL-195PG-CD D 1836 (A,46,21) LED CL-195PG-CD D 1837 (A,45,39) LED CL-195PG-CD D 1860 (A,29,129) White LED NSCW505C-3388 D 1861 (A,29,40) White LED NSCW505C-3388 D 1870 (A,19,140) LED CL-190UB2-X D 1871 (A,34,140) LED CL-190UB2-X D 1872 (A,27,140) LED CL-190UB2-X X 1800 (B,36,78) Ceramic Resonator 8.18MHzCSS1631 S 1801 (A,36,158) Switch CSG1107 S 1802 (A,19,158) Switch CSG1107 S 1803 (A,27,166) Switch CSG1107 S 1804 (A,27,149) Switch CSG1107 S 1805 (A,23,140) Push Switch CSG1155 S 1806 (A,45,136) Push Switch CSG1174 S 1807 (A,31,138) Push Switch CSG1155 S 1808 (A,14,15) Push Switch CSG1155 S 1809 (A,45,121) Push Switch CSG1174 S 1810 (A,45,106) Push Switch CSG1174 S 1811 (A,45,97) Push Switch CSG1174 S 1812 (A,45,82) Push Switch CSG1174 S 1813 (A,45,73) Push Switch CSG1174 S 1814 (A,45,58) Push Switch CSG1174 S 1815 (A,45,43) Push Switch CSG1174 S 1816 (A,44,158) Push Switch CSG1155 S 1817 (A,44,21) Push Switch CSG1155 S 1818 (A,38,140) Push Switch CSG1155 S 1850 (A,27,21) Encoder(VOLUME)XSD7001 LCD XAW7013 RESISTORS R 1800 (B,15,136) RS1/16S222J R 1801 (B,15,138) RS1/16S222J R 1802 (B,19,49) RS1/16S121J R 1803 (B,15,38) RS1/16S2R2J R 1804 (B,25,59) RS1/16S822J R 1805 (B,25,51) RS1/16S472J R 1806 (B,37,73) RS1/16S1801D R 1807 (B,24,73) RAB4C681J R 1808 (B,40,88) RAB4C681J R 1809 (B,40,92) RS1/16S681J R 1810 (B,42,158) RS1/16S151J R 1811 (B,38,158) RS1/16S181J R 1813 (B,34,69) RS1/16S473J R 1814 (B,37,64) RS1/16S473J R 1824 (B,36,42) RS1/16S560J R 1825 (B,44,124) RS1/16S560J R 1826 (B,42,119) RS1/16S560J R 1827 (B,39,42) RS1/16S560J R 1828 (B,35,157) RS1/16S560J Circuit Symbol and No. Part No. R 1850 (B,24,51) RS1/16S103J R 1860 (B,39,139) RS1/16S470J R 1861 (B,39,141) RS1/16S820J R 1865 (B,33,44) RS1/16S181J R 1870 (B,27,116) RS1/16S221J R 1871 (B,28,118) RS1/16S271J R 1873 (B,26,120) RS1/16S680J R 1874 (B,40,133) RS1/16S470J R 1880 (B,30,157) RS1/16S473J R 1881 (B,27,55) RS1/16S473J R 1883 (B,31,72) RS1/16S3300D R 1884 (B,38,71) RS1/16S1001D R 1885 (B,38,94) RS1/16S681J R 1886 (B,25,62) RS1/16S102J R 1887 (B,17,36) RS1/16S103J R 1888 (B,35,64) RS1/16S104J R 1889 (B,35,61) RS1/16S104J R 1890 (B,31,60) RS1/16S104J R 1891 (B,31,58) RS1/16S104J R 1892 (B,32,77) RS1/16S472J CAPACITORS C 1801 (B,17,33) CKSYF106Z10 C 1802 (B,24,54) CKSQYB225K10 C 1804 (B,33,72) CKSRYB104K16 C 1805 (B,40,74) CKSRYB104K16 C 1806 (B,40,81) CKSRYB104K16 C 1807 (B,40,78) CKSRYB104K16 C 1808 (B,38,80) CKSRYB104K16 C 1809 (B,41,71) CKSRYB104K16 C 1870 (A,19,138) CKSRYF104Z25 C 1871 (A,34,138) CKSRYF104Z25 C 1872 (A,27,138) CKSRYF104Z25 D Unit Number:CWM8758 Unit Name:Panel Unit MISCELLANEOUS D 1970 LED CL220PGC S 1970 Push Switch(EJECT) CSG1112 RESISTORS R 1970 RS1/16S101J R 1971 RS1/16S101J R 1972 RS1/16S0R0J CAPACITORS C 1970 CKSRYB104K16 C Unit Number:CWX3096 Unit Name:CD Core Unit(S10.1) MISCELLANEOUS IC 201 (A,39,24) IC UPD63763GJ Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 45 5 6 7 8 5 6 7 8 C D F A B E IC 203 (B,45,78) IC NJM2885DL1-33 IC 301 (A,49,88) IC BA5835FP IC 701 (A,48,51) IC PE5454A IC 703 (A,30,44) IC S-812C33AUA-C2N Q 101 (A,20,22) Transistor 2SA1577 Q 701 (B,62,59) Transistor UN2111 L 203 (A,53,32) Inductor CTF1389 L 207 (A,53,31) Inductor CTF1389 L 209 (A,26,20) Inductor CTF1389 L 703 (A,64,49) Inductor CTF1389 X 201 (A,51,35)Ceramic Resonator 16.934MHzCSS1603 X 701 (A,59,53)Ceramic Resonator 4.00MHz CSS1652 S 901 (A,15,43) Switch(HOME) CSN1067 S 903 (B,53,100) Switch(DSCSNS) CSN1068 S 904 (B,35,108) Switch(12EJ) CSN1067 S 905 (B,48,109) Switch(8EJ) CSN1067 RESISTORS R 101 (A,22,24) RS1/10SR2R4J R 102 (A,22,26) RS1/10SR2R4J R 103 (A,25,25) RS1/10SR2R7J R 201 (A,53,16) RS1/16SS102J R 202 (A,55,21) RS1/16SS333J R 221 (B,31,18) RS1/16SS103J R 222 (B,26,18) RS1/16SS103J R 225 (A,27,8) RS1/16SS103J R 226 (A,27,7) RS1/16SS393J R 227 (B,33,10) RS1/16SS562J R 228 (B,36,8) RS1/16SS122J R 229 (B,34,8) RS1/16SS472J R 232 (B,35,10) RS1/16SS122J R 241 (B,42,28) RS1/16SS333J R 243 (B,44,28) RS1/16SS333J R 245 (A,39,38) RS1/16SS333J R 301 (A,48,78) RS1/16SS183J R 302 (A,42,78) RS1/16SS822J R 304 (A,50,78) RS1/16SS183J R 305 (A,42,77) RS1/16SS822J R 307 (A,36,85) RS1/16SS183J R 308 (A,32,83) RS1/16SS183J R 309 (A,38,89) RS1/16SS183J R 310 (A,35,88) RS1/16SS183J R 601 (B,43,59) RS1/16S101J R 602 (B,41,62) RS1/16S101J R 606 (B,44,67) RS1/16S0R0J R 607 (B,43,56) RS1/16SS0R0J R 608 (B,36,67) RS1/16SS0R0J R 705 (B,50,59) RS1/16SS221J R 706 (B,57,61) RS1/16SS221J R 707 (A,62,47) RS1/16SS473J R 708 (B,50,57) RS1/16SS221J R 710 (A,28,77) RS1/16SS102J R 711 (B,44,53) RS1/16SS221J R 714 (B,51,53) RS1/16SS473J R 716 (A,63,56) RS1/16SS472J R 719 (B,49,45) RS1/16SS221J R 720 (B,46,52) RS1/16SS471J R 724 (A,62,42) RS1/16S473J R 725 (B,57,43) RS1/16SS222J Circuit Symbol and No. Part No. R 726 (A,52,41) RS1/16SS103J R 727 (B,50,54) RS1/16SS473J R 729 (A,57,40) RS1/16SS223J R 730 (A,65,41) RS1/16SS473J R 731 (A,53,41) RS1/16SS104J R 737 (A,41,42) RS1/16SS104J R 740 (A,35,46) RS1/16SS473J R 742 (A,50,41) RS1/16SS104J R 746 (B,60,56) RS1/16SS104J R 750 (A,39,59) RS1/16SS473J R 754 (B,48,60) RS1/16SS102J R 755 (A,43,61) RS1/16SS102J R 765 (B,51,40) RAB4CQ221J R 769 (B,48,40) RAB4CQ221J R 773 (B,39,37) RAB4CQ221J R 777 (B,48,51) RS1/16SS221J R 778 (B,48,52) RS1/16SS221J R 779 (B,45,54) RS1/16SS221J R 901 (B,52,65) RAB4CQ221J R 905 (B,54,60) RS1/16SS221J R 906 (B,56,68) RS1/16SS221J R 908 (B,45,69) RS1/16SS0R0J R 910 (B,44,69) RS1/16SS0R0J R 911 (B,40,73) RS1/16SS102J CAPACITORS C 103 (B,14,8) 100µF/16V CCH1504 C 105 (A,19,15) CKSSYB104K10 C 108 (B,39,16) CKSSYB104K10 C 110 (A,18,6) CKSSYB104K10 C 201 (A,51,14) CKSSYB102K50 C 202 (B,50,17) CKSSYB104K10 C 203 (A,55,23) CKSSYB104K10 C 204 (B,28,22) CEVW220M6R3 C 205 (A,53,25) CKSSYB104K10 C 208 (B,44,25) CKSSYB104K10 C 209 (A,54,29) CKSSYB104K10 C 212 (A,45,37) CKSRYB105K10 C 216 (A,25,8) CKSSYB332K50 C 217 (A,28,12) CKSSYB104K10 C 218 (A,25,7) CKSSYB473K10 C 219 (A,34,7) CKSSYB104K10 C 220 (A,33,11) CKSSYB182K50 C 221 (B,35,6) CKSSYB104K10 C 222 (B,35,8) CCSSCH560J50 C 223 (B,33,8) CCSSCH4R0C50 C 224 (B,40,16) CKSSYB104K10 C 225 (B,45,14) CKSSYB103K16 C 226 (B,43,12) CCSSCH680J50 C 227 (A,45,10) CCSSCH470J50 C 228 (A,49,9) CKSSYB103K16 C 234 (B,36,81) CEVW221M4 C 237 (B,38,29) CKSSYB104K10 C 239 (B,34,10) CCSSCH220J50 C 242 (B,58,32) CKSSYB104K10 C 243 (B,39,76) CKSSYB104K10 C 244 (B,49,70) CKSSYB104K10 C 246 (A,23,19) CKSSYB104K10 C 251 (B,28,31) CKSRYB102K50 C 260 (A,54,25) CKSSYB104K10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 46 1 2 3 4 1 2 3 4 C D F A B E C 301 (A,43,78) CKSSYB221K50 C 302 (A,50,79) CKSSYB221K50 C 303 (A,37,85) CKSSYB472K25 C 304 (A,39,89) CKSSYB103K16 C 305 (B,34,92) CEVW101M16 C 307 (B,56,90) CKSSYB104K10 C 601 (B,46,60) CCSRCH102J50 C 602 (B,41,65) CCSRCH102J50 C 701 (A,64,46) CKSSYB104K10 C 703 (B,50,61) CKSSYB103K16 C 706 (B,50,62) CKSSYB104K10 C 707 (A,36,45) CKSSYB104K10 C 712 (A,22,42) CKSRYB224K16 C 714 (B,60,45) CKSSYB104K10 C 716 (A,61,40) CKSSYB103K16 C 722 (B,52,48) CKSQYB475K6R3 C 723 (A,26,41) CKSRYB105K10 C 903 (B,56,70) CKSSYB471K50 C 906 (A,40,77) CKSRYB224K16 C 907 (A,47,76) CKSSYB103K16 C 910 (B,60,71) CKSQYB225K10 Miscellaneous Parts List Pickup Unit(P10)(Service) CXX1641 M 1 Motor Unit(SPINDLE) CXC4440 M 2 Motor Unit(LOADING/CARRIAGE) CXB8933 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 47 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 CD ADJUSTMENT 1) Cautions on adjustments • In this product the single voltage (3.3V) is used for the regulator. The reference voltage is the REFO1 (1.65V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. • Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. • For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. • In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. • The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. • The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. • To enter the test mode. While pressing the 4 and 6 keys at the same time, reset. • To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (→) key or (←) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0dB, and the auto-adjustment values are reset to the default settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 48 1 2 3 4 1 2 3 4 C D F A B E [BAND] [BAND] [BAND] [BAND] [BAND] Power On (T.Offset is adjusted) TRK00 MIN00 SEC SEC 00 [CD]or[SOURCE] Source On TRK MIN [4]+[6]+Reset or [4]+[6]+BU+ACC Test Mode In [3] [1] [1] Power On (T.Offset is not adjusted) TRK99 MIN99 SEC99 [2] [2] [2] [2] Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Focus Close S curve check T.Close and AGC Applicable servomechanism TRK91 MIN91 SEC91 [6] [1] [3] [6] [3] Focus Mode switching SPINDLE Speed switching RF AMP Gain switching TRK0xMIN0xSEC0x Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG- TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [→] [←] [→] [←] [→] [←] CRG+ TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 Automatic adjustment switching TRK?? MIN?? SEC?? T.Close Applicable servomechanism TRK?tr MIN?min SEC?sec [6] [3] TRK MIN SEC RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? CRG+ TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x CRG- TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x T.Balance adjustment / T.BAL coefficient display TRK?? MIN?? SEC?? F,T,RF AGC F.Bias display switching TRK?? MIN?? SEC?? F,T AGC / F.Bias RF AGC TRK MIN SEC CRG/TR Jump value switching TRK MIN SEC CRG/TR Jump + TRK MIN SEC CRG/TR Jump - TRK MIN SEC Tracking Open TRK8xMIN8xSEC8x or TRK9xMIN9xSEC9x Tracking Open TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x TRKSP MINSP SECSP [4] TRKGGMINGGSECGG [2] [Key] [BAND] [→] [6] [1] [2] [3] Power On / Off CRG + / TR Jump + (Direction of the external surface) CRG - / TR Jump - (Direction of the internal surface) U.CLS and AGC and Applicable servomechanism / AGC, AGC display setting RF Gain switching / Offset adjustment display / T.Balance adjustment / T.Open Close, S.Curve / Rough Servo and RF AGC / SPDL 1X / 2X switching As for the double speed (2x), audio output cannot be supported. Error Rate measurement 1st - ON : ERR count Beginning (30Sec) 2nd - ON : BER display data [%] F.Mode switching / Tracking Close / CRG • TR Jump switching Test Mode Operation [KEY] Contents Display F, T, RF AGC *1) TYP → -6dB → -12dB TRK MIN SEC TRK 06 MIN 06 SEC 06 TRK 12 MIN 12 SEC 12 *2) Focus Close → S.Curve check setting → F EQ measurement setting *9) Applicability : A, B, C, D, E, F As for the double speed (2x), audio output cannot be supported TRK 00 MIN 00 SEC 00 TRK 01 MIN 01 SEC 01 TRK 02 MIN 02 SEC 02 (TRK 99 MIN 99 SEC 99) *3) F.Offset Display → T.Offset Display → Switch to the order of the original display *4) 1TR / 32TR / 100TR *5) Single TR → 32TR → 100TR → CRG Move 9x(8x) : 91(81) 92(82) 93(83) 94(84) *6) Only at the time of CRG move, 100TR jump *7) TRK/MIN/SEC → F.AGC → T.AGC → F Bias → RF AGC *8) CRG motor voltage = 2[V] [←] - Flow Chart *1 *9 *2 *8 *8 *3 *7 *5 *4 *4 *6 ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec TYP(1X) → 2X → 1X TRK MIN SEC TRK 22 MIN 22 SEC 22 TRK 11 MIN 11 SEC 11 Applicability : G TYP(2X) → 1X → 2X TRK MIN SEC TRK 11 MIN 11 SEC 11 TRK 22 MIN 22 SEC 22 [4] [5] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 49 5 6 7 8 5 6 7 8 C D F A B E 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3V regulator on. 2. Using the → and ← buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. REFO1 F E CD CORE UNIT(S10.1) Oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 50 1 2 3 4 1 2 3 4 C D F A B E Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 51 5 6 7 8 5 6 7 8 C D F A B E 6.3 ERROR MODE - Error Messages Error is displayed with number for Error cause when CD is inoperative or stops with Error during operation. The purpose is to reduce nonsense calls from users as well as to assist all related analysis and repair for defects at service station. (1) Basic Display Method 1) When CSMOD (CD mode area for system) is SERRORM, Error code will be written in DMIN (minutes area for display), DSEC (seconds area for display). The same data shall be written in DMIN and DSEC. DTNO is blank as usual. 2) Display Example of Head Unit The following is about LCD display ability. xx is Error number. 8 digits 6 digits 4 digits ERROR–xx ERR–xx E–xx (2) Error Code List No. Classification Contents Details • Cause 10 Electricity Carriage Home NG CRG can’t move to the inner. CRG can’t move from the inner. → HOME SW failure, CRG movement failure. 11 Electricity Focus Search NG Focus can’t be caught. → Back of Disc / Severe dirt and vibration. 23 Disc File Format NG Contents are stored in an incompatible file format. → The contents in a CD-ROM disc inserted are recorded in a file format other than ISO9660 Level-1 and 2. 22 Disc Impossible to play There is no playable MP3 or WMA file present in a disc. → No MP3 or WMA file exists in a CD-ROM disc inserted. 17 Electricity Setup NG AGC protection doesn’t work, out of Focus soon. → Scratch on Disc/Severe dirt and vibration. 12 Electricity Spindle Lock NG Not spindle, lock. Wrong subcode (can’t read). Subcode NG RF-amp NG → Defective Spindle. Scratch and dirt on Disc. Intense vibration. The appropriate gain of the RF amp cannot be obtained. → Defective spindle. → Blanc CD-R disc. Disc inserted upside down. → Scratched or dirty disc. Severe vibration. Abnormal CD signals. 30 Electricity Search Time Out Can’t reach the target address. → Defective CRG/tracking, or scratch on Disc. → All TRK Nos. In a disc inserted are specified as a track which should be skipped, in the track skip information. 44 Disc Impossible to play There is no playable TRK No. present in a disc. 50 Mecha Disc Load / Eject NG Disc loading/ejection cannot be complete. → Foreign objects entered into the mechanism. Disc caught in between during loading/ejection. A0 System Power NG Power supply (VD) isn’t connected to the ground. → Defective SW transistor. Abnormal power (failed connector) OR Err–xx Note : Error doesn’t display in mechanism only. (CD off causes mechanism off) If TOC can’t be read, error wouldn’t occur, but mechanism still continues its operation. The upper digits of error code is mainly classified by 3 kinds as follows: 1x: Setup related error, 3x: Search related error, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 52 1 2 3 4 1 2 3 4 C D F A B E 6.4 SYSTEM MICROCOMPUTER TEST PROGRAM - PCL output In the normal operation mode (with the detachable panel installed, the ACC switched ON, the standby mode cancelled), shift the TESTIN (Pin 86) terminal to H. The clock signal is output from the PCL terminal (Pin 37). The frequency of the clock signal is 312.500kHz that is one 32nd of the fundamental frequency. The clock signal should be 312.500kHz ± 13Hz. If the clock signal is out of the range, the X'tal (X601) should be replaced with new one. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 53 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the CD Mechanism Module (Fig.1) 1 Fig.1 - Removing the Case (not shown) Grille Assy - Removing the Grille Assy (Fig.1) 1. Remove the Case. CD Mechanism Module 1 1 1 1 Fig.2 Tuner Amp Assy - Removing the Tuner Amp Assy (Fig.2) Remove the screw. 1 Remove the four screws. Disconnect the connector and then remove the CD Mechanism Module. 2 Remove the two screws and then remove the Grille Assy. 2 2 1 2 2 2 3 3 3 4 Remove the three screws. 2 Straighten the tabs at three locations indicated. 3 Remove the screw and then remove the Tuner Amp Assy. 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 54 1 2 3 4 1 2 3 4 C D F A B E - How to hold the Mechanism Unit 1. Hold the top and bottom frame. 2. Do not squeeze top frame's front portion too tight, because it is fragile. - Removing the Upper and Lower Frames 1. With a disc clamped, remove the four springs (A), the two springs (B), the two springs (C), and the four screws. 2. To remove the upper frame, open it on the fulcrum A. 3. While lifting the carriage mechanism, remove the three dampers. 4. With the frames removed, insert the connectors coming from the main unit and eject the disc. Caution: Before installing the carriage mechanism in the frames, be sure to apply some alcohol to the dampers and set the mechanism to the clamp mode. Do not squeeze. Lower Frame Damper Carriage Mechanism A C A B B Damper Damper C A A A Upper Frame www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 55 5 6 7 8 5 6 7 8 C D F A B E - Removing the Pickup Unit 1. Apply shorting solder to the Pickup flexible cable. Disconnect the cable. 2. Set the mechanism to the clamp mode. 3. Remove the lead wires from the inner holder. 4. Remove the washer, styling holder, change arm, and pickup lock arm. 5. While releasing from the hook of the inner holder, lift the end of the feed screw. Caution: In assembling, move the planet gear to the load/eject position before setting the feed screw in the inner holder. Shorting Solder Planet Gear Change Arm Inner Holder Styling Holder Feed Screw Washer Pickup Lock Arm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 56 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 CONNECTOR FUNCTION DESCRIPTION ANTENNA JACK FRONT OUTPUT SUBWOOFER OUTPUT NON FADING OUTPUT 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT REAR OUTPUT 9. RL- 10. FL- 11. RL+ 12. FL+ 13. RR- 14. FR- 15. RR+ 16. FR+ 1. BACKUP 2. GND 3. ACC 4. NC 5. ILM 6. B.REM 7. NC 8. TEL MUTE SW F 1 0 A 11 10 9 8 7 6 5 4 3 2 1 15 1 13 11 9 7 5 3 16 2 14 12 10 8 6 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 57 5 6 7 8 5 6 7 8 C D F A B E 7.2 PARTS 7.2.1 IC - Pin Functions(PEG063A) Pin No. Pin Name I/O Function and Operation 1 SYSPW O System power control output 2 KEYD I Wired remote control key input 3-5 NC Not used 6 BYTE I External data bus width change input 7 CNVSS I Processor mode change input 8 TELIN I TEL : Cellular mute input 9 NC Not used 10 reset I Reset input 11 XOUT O Clock output 12 VSS GND 13 XIN I Clock input 14 VCC Power supply input 15-18 NC Not used 19 RX2 I IPBUS : Input 2 20 LCDPW O Back light power supply output 21 NC Not used 22 PEE O PEE sound output 23 NC Not used 24 brst O PBUS : Reset output 25 brxen I/O PBUS : Communication input/output 26 bsrq I PBUS : Communication demand input 27 RX I IPBUS : Input 28 TX O IPBUS : Output 29 BSO O PBUS : Output 30 BSI I PBUS : Input 31 BSCK O PBUS : Clock output 32 NC Not used 33 DPDT O GRILL : Data output 34 KYDT I GRILL : Data input 35, 36 ROT1, 0 I Rotary encoder pulse input1, 0 37 PCL O Output for clock adjustment 38 SWVDD O GRILL : Chip enable output 39 dsens I Detach sense input 40 FLPILM O Illumination output inside flap 41 ILMPW O Illumination output 42 ejtin I Eject key input 43-55 NC Not used 56 CSENSOUT O CSENS state output(H : FLAP open) 57 EMUTE O EVOL : Mute output 58, 59 NC Not used 60 VCC I Power supply input 61 NC Not used 62 VSS I GND 63-66 NC Not used 67 DALMON O For consumption current reduction 68 NC Not used 69 tunpce@ O TUNER : Chip enable output(EEPROM) 70 TUNPCE1 O TUNER : Chip enable output(PLL) 71 NC Not used 72 asens I ACC sense input 73 bsens I Back up sense input 74 ROMCK O ROM correction : Clock output 75 ROMDATA I/O ROM correction : Data input/output 76 VST O EVOL : Strobe output 77 VDT O EVOL : Data output 78 VCK O EVOL : Clock output 79 IPPW O IPBUS : Driver power supply control output 80 ASENBO O IPBUS : Slave ACC sense output 81 isens I Illumination sense input 82,83 MODEL1,0 I Model select input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 58 1 2 3 4 1 2 3 4 C D F A B E Pin No. Pin Name I/O Format Function and Operation 84 NC Not used 85 MUTE O MUTE output 86 TESTIN I Test program input 87,89 NC Not used 89 KEYAD I Wired remote control key input 90 LVLINR I Level indicator R.ch input 91 CSENS I Flap opening-and-closing sense input 92 LVLINL I Level indicator L.ch input 93 NC Not used 94 AVSS GND 95 SL I TUNER : Signal level input 96 VREF AD translation reference voltage 97 AVCC AD translation power supply input terminal 98 TUNPDI I TUNER : PLL communication input 99 TUNPDO O TUNER : Data output(PLL) 100 TUNPCK O TUNER : Clock output(PLL) * PEG063A NJM2391DL1-05 IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. 25 26 50 51 75 76 100 1 NJM2388F84 IN OUT GND 1 3 2 Thermal Shutdown Over current protector VREF +- 1 2 3 4 VIN Bandgap Reference VOUT GND CONT ON/OFF control Over Voltage Protection Thermal Protection Over Current Protection + - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 59 5 6 7 8 5 6 7 8 C D F A B E - Pin Functions (PD2072A) Pin No. Pin Name I/O Function and Operation 4 DIM Dimmer output 2 test Test input 100 X1 Crystal oscillator connection pin X0 Crystal oscillator connection pin VDD Power supply 6 NC Not used O O 16,17 NC Not used NC Not used 12–15 I I Key data input SO O System micro computer UART communication data output SI I System micro computer UART communication data input NC Not used SEG55-1 O LCD segment output COM0-7 O RESET Reset input I O I LCD common output KST1-6 Key strobe output NC Not used V4-1 LCD drive power supply C1,C0 Not used * PD2072A 30 31 50 51 80 81 100 1 kdt0-3 1 3 5 adj LCD brightness adjustment output 7,8 9 REM Remote control reception input 10,11 VSS GND 99 18 19 20 21–75 76–84 85–90 91,92 93-96 97,98 1 2 3 VDD GND 5 4 VOUT N.C. N.C. Vref BD4834G 1 3 2 S1 R S2 GND BUS- BUS+ VCC STB 4 5 6 7 8 BIAS DRIVER OUTPUT + - - + COM RECEIVER OUTPUT HA12240FP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 60 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(PE5454A) Pin No. Pin Name I/O Format Function and Operation 1 AVREF A power supply Positive power supply(5V) 2 AVSS A power supply GND 3 RFOK O C Output of state of RFOK 4 NC Not used 5 EVDD E power supply Positive power supply 6, 7 NC Not used 8 IC/FLMD0 IC : VSS direct connection/FLMOD0 : Pull-down 9 VDD Positive power supply(5V) 10 REGC Connected to the capacity stabilizing output of the regulator 11 VSS GND 12 X1 I Oscillator connection for mainclock 13 X2 Oscillator connection for mainclock 14 reset I System reset input 15 XT1 I Connected to the oscillator for subclock (connected to VSS via the resistor) 16 XT2 Connected to the oscillator for subclock(Open) 17 NC Connected to EVDD or EVSS via the resistor 18 NC Not used 19 xint I C CD LSI interruption signal input 20 NC Connected to VSS via the resistor 21 brst I P-Bus reset input 22 BSI I P-Bus serial data input 23 BSO O C P-Bus serial data output 24 bsck I/O /C P-Bus serial clock input/output 25 FTXD O C For flash rewriting(transmitted signal) 26 FRXD I For flash rewriting(received signal) 27 BRXEN I/O /C It is possible to receive P-Bus 28 bsrq I/O /C P-Bus service request demand 29 NC Not used 30 DSCSNS I Disc state sense input 31 8EJ(S905) I Input of detection of 8 cm disc ejection 32 12EJ(S904) I Input of detection of 12 cm disc ejection 33 EVSS E power supply GND 34 EVDD E power supply Positive power supply 35, 36 SRAMLEVEL0, 1 O C SRAM level meter output 37 EMPH O C Emphasis information output 38 emph O C Emphasis information output 39-42 NC Not used 43 adena O C A/D reference voltage supply control output 44 LRCKOK O C (DOUT mute output) 45 SRAMLEVEL2 O C SRAM level meter output 46 CD3VON O C CD +3.3V power supply control output 47 CONT O C Servo driver power supply control output 48 xrst O C CD LSI reset control output 49 VDCONT O C VD power supply control output 50 ROMDATA I/O /C E2PROM data input/output 51 ROMCS O C E2PROM chip selection output 52 ROMCK O C E2PROM clock output 53 LOEJ O C The direction change output of LOAD/EJECT 54 CLCONT O C Driver input change output 55 CDMUTE O C CD mute control output 56-58 NC Not used 59 xcs O C CD LSI chip selection output 60 NC Not used 61 xwait I CD LSI write control signal output 62 CLKOUT O C Internal system clock output(Open) 63 LOCK I Spindle lock input 64 NC Not used 65 xwrite O CD LSI write control signal output 66 NC Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 61 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Format Function and Operation 67 xread O CD LSI read control signal output 68 XASTB O CD LSI address strobe output 69 BVSS B power supply GND 70 BVDD B power supply Positive power supply 71-83 AD0-12 I/O /C Address/data Bus 0-12 input/output 84-86 NC Not used 87 FMODE I For flash rewriting Connected to VSS via the resistor 88 FLRQ O C For flash rewriting output 89-93 NC Not used 94 csens I Flap closing sense input 95 TYPE_A/D I CD-DA analog/digital output change setup input 96 testin I Chip check test program starting input 97 HOME I Home SW sense input 98 TEMP I Temperature information sense input 99 VDSENS I VD power supply short sense input 100 NC Not used * PE5454A 25 26 50 51 75 76 100 1 Format Meaning C CMOS IN 1 GND 2 OUT 3 Bandgap Reference Thermal Protection +- NJM2885DL1-33 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 62 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(UPD63763GJ) Pin No. Pin Name I/O Function and Operation 1 D.VDD Power supply for digital circuits 2 D1.GND GND for 1.6V digital circuits 3 reset I Input of reset 4-8 AB12-8 I Address bus 12-8 from the microcomputer 9-16 AD7-0 I/O Address/data bus 7-0 to the microcomputer 17 cs I Chip selection 18 ASTB I Address strobe 19 read I Control signals(read) 20 write I Control signals(write) 21 wait O Control signals(wait) 22 INTQ O Interruption signals to the external microcomputer 23, 24 IFMODE0, 1 I Switching the microcomputer I/F 0, 1 25 D1.VDD Power supply for 1.6V digital circuits 26 DA.VDD Power supply for DAC 27 ROUT O Output of audio for the right channel 28 DA.GND GND for DAC 29 REGC Connected to the capacitor for band gap 30 DA.GND GND for DAC 31 LOUT O Output of audio for the left channel 32 DA.VDD Power supply for DAC 33 X.VDD Power supply for the crystal oscillator 34 XTAL I Connected to the crystal oscillator(16.9344MHz) 35 xtal O Connected to the crystal oscillator(16.9344MHz) 36 X.GND Ground for the crystal oscillator 37 VDDREG15 Control of 1.6V regulator 38 PWMSW0 I Setup 0 for PWM output(SD, MD) 39-41 TEST3-1 I Connected to GND 42 PWMSW1 I Setup 1 for PWM output(FD, TD) 43 TESTEN I Connected to GND 44 D1.GND GND for 1.6V digital circuits 45 DIN I Input of audio data 46 DOUT O Output of audio data 47 SCKIN I Clock input for audio data 48 SCKO O Clock output for audio data 49 LRCKIN I Input of LRCK for audio data 50 LRCK O Output LRCK for audio data 51 xtalen I Permission to oscillate 16.9344MHz 52 D1.VDD Power supply for 1.6V digital circuits 53 RFCK/HOLD O Output of RFCK/HOLD signal 54 WFCK/MIRR O Output of WFCK/MIRR signal 55 PLCK/RFOK O Output of PLCK/Output of RFOK 56 LOCK/RFOK O Output of LRCK/Output of RFOK 57 C1D1/C8M O Information on error correction/C8M : 8MHz 58 C1D2/C16M O Information on error correction/C16M : 16MHz 59 C2D1/RMUTE O Information on error correction/Mute for Rch 60 C2D2/LMUTE O Information on error correction/Mute for Lch 61 C2D3/SHOCK O Information on error correction/Detection of vibration 62 D1.GND GND for 1.6V digital circuits 63 C33M O Output of 33.8688MHz(CLK for SDRAM) 64 (rcs) O DRAM cs 65 RA11 O Output of DRAM address 11 66 (CKE) O Output of DRAM CKE 67 ras O Output of DRAM ras 68 cas)(LDQM) O Output of DRAM lower cas(LDQM) 69 cas!(UDQM) O Output of DRAM upper cas(UDQM) 70 we O Output of DRAM we 71 oe(cas) O Output of DRAM oe(cas) 72 D.GND Ground for digital circuits 73-88 RDB0-15 I/O Input/output of DRAM data0-15 89-99 RA0-10 O Output of DRAM address0-10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 63 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Function and Operation 100 D.VDD Power supply for digital circuits 101 FD+ O Output of focus drive PWM + 102 FD- O Output of focus drive PWM - 103 TD+ O Output of tracking drive PWM + 104 TD- O Output of tracking drive PWM - 105 SD+ O Output of thread drive PWM + 106 SD- O Output of thread drive PWM - 107 MD+ O Output of spindle drive PWM + 108 MD- O Output of spindle drive PWM - 109 REFOUTSV O REFOUT for servo 110 AD.VDD Power supply for ADC 111 EFM O Output of EFM signals 112 ASY I Input of asymmetry 113 ATEST O Analog tests 114 RFI I Input of RF 115 AD.GND Ground for the analog system 116 AGCO O Output of RF 117 C3T O Connection to the capacitor for detecting 3T 118 AGCI I Input of AGC 119 RFO O Output of RF(AGC) 120, 121 EQ2, 1 I Equalizer 2, 1 122 RF2- I Reversal input of RF2 123 RF- I Reversal input of RF 124 A.GND Ground for the analog system 125 A I Input of A 126 C I Input of C 127 B I Input of B 128 D I Input of D 129 F I Input of F 130 E I Input of E 131 VREFIN I Input of reference voltage 132 A.VDD Power supply for the analog system 133 REFOUT O Output of reference voltage 134 REFC I Connected to the capacitor for output of REFOUT 135 FE- I Reversal input of FE 136 FEO O Output of FE 137 ADIN I Input of FE, TE A/D converter 138 TE- I Reversal input of TE 139 TEO O Output of TE 140 TE2 O TE2 141 TEC I TEC 142 LD O Output of LD 143 PD I Input of PD 144 D.GND Ground for digital circuits * UPD63763GJ 72 73 108 109 36 37 1 144 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 64 1 2 3 4 1 2 3 4 C D F A B E FM ANT RFGND OSCGND DGND VCC VDD_3.3 WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 13 5 10 8 11 14 18 19 20 21 1 3 2 12 15 4 17 AM ANT 16 23 COMP Lch 24 Rch 22 ANT1 6 9 IC4 5V 3.3V IC3 EEPROM IC2 DET/NC/MPC/MPX/DIV/RDS REG OSC X-tal CF IFT LPF TANK RF RF TANK ATT ATT LPF VCO IC1 MIX/IF/PLL ← No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 33µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL signal level Output of FM/AM signals level 6 CE2 I I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I I chip enable-1 Chip enable for AF•RF ”High” active 9 CK clock Clock data input 10 DI I data in Data input 11 LDET O lock detector “Low” active 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O O data out Data output 15 DGND digital ground Ground of digital block 16 COMP composite output FM composite signal output. 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 02V 18 RDS_CK O RDS clock Output of RDS clock(2.5V) 19 RDS_DATA O RDS data Output of RDS data(2.5V) 20 RDS_LOCK O O O RDS lock Output unit “High” active(2.5V) (RDS_LOCK turns over by the external transistor. “Low” active) 21 RDS_HSLK RDS high speed lock Output unit “High” active(2.5V)(RDS_HSLK turns over by the external transistor. “Low” active) 22 ANT1 diversity antenna control Antenna switch control signal output. “High” : MAIN, ”Low”=SUB 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 65 5 6 7 8 5 6 7 8 C D F A B E 7.2.2 DISPLAY - LCD(XAW7013) COMMON SEGMENT SEG 00 SEG 01 SEG 02 SEG 03 SEG 04 SEG 5A SEG 06 SEG 07 SEG 08 SEG 09 SEG 10 SEG 11 SEG 12 SEG 13 SEG 14 SEG 15 SEG 5B SEG 16 SEG 17 SEG 18 SEG 19 SEG 20 SEG 5C SEG 21 SEG 22 SEG 23 SEG 24 SEG 25 SEG 26 SEG 27 SEG 28 SEG 29 SEG 30 SEG 31 SEG 32 SEG 33 SEG 34 SEG 35 SEG 36 SEG 37 SEG 38 SEG 39 SEG 40 SEG 41 SEG 42 SEG 43 SEG 44 SEG 45 SEG 46 SEG 47 SEG 48 SEG 49 SEG 50 SEG 51 COM 0 COM 1 COM 2 COM 3 COM 4 COM 5 COM 6 COM 7 SEG 52 SEG 53 SEG 54 SEG 55 COM 0 COM 1 COM 2 COM 3 COM 4 COM 5 COM 6 COM 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 66 1 2 3 4 1 2 3 4 C D F A B E 7.3 OPERATIONAL FLOW CHART VDD=5V Pin 14,60 ASENBO←H Pin 80 Power ON bsens=L asens=L dsens=L bsens Pin 73 asens Pin 72 dsens Pin 39 SWVDD←H Pin 38 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H Pin 1 Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. CSENS Pin 91 2V < CSENS < 3V - CSENS 2V, 3V CSENS Last source returns. CD loading functions are available. Keys except for EJECT key are not available. < < = = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 67 5 6 7 8 5 6 7 8 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 68 1 2 3 4 1 2 3 4 C D F A B E 8. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 69 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 70 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 71 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 72 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 73 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 74 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 75 5 6 7 8 5 6 7 8 C D F A B E Fixing the Front Panel If you do not operate the Detaching and Replacing the Front Panel Function, use the supplied fixing screws and fix the front panel to this unit. 1. Attach the holders to both sides of the front panel. 2. Replace the front panel to the unit. 3. Flip the holders into upright positions. 4. Fix the front panel to the unit using fixing screws. Fixing screw Holder CXX1644 Holder CXX1645 CXX1646 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 76 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 77 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5750MP/XM/ES 78 1 2 3 4 1 2 3 4 C D F A B E - Jigs List Test Disc L.P.F. TCD-784 Checking the grating g g g Checking the grating g g g (Two pieces) ( ) Name Jig No. Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
