先锋PIONEER DEH-P5600MPXMEW电路图
)
)
)
)
)
)
)
)
)
)

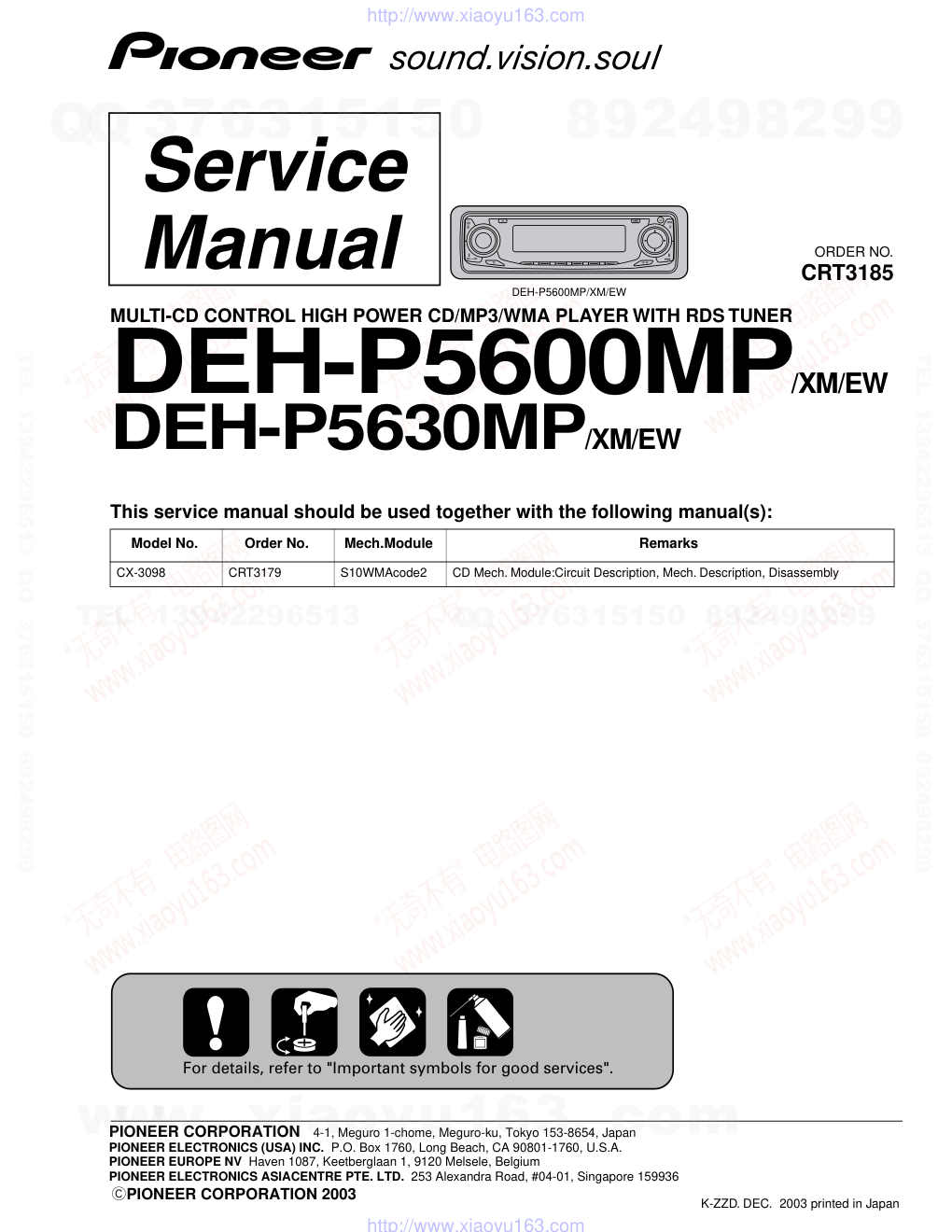

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 DEH-P5600MP/XM/EW CRT3185 MULTI-CD CONTROL HIGH POWER CD/MP3/WMA PLAYER WITH RDS TUNER DEH-P5600MP/XM/EW DEH-P5630MP/XM/EW This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3098 CRT3179 S10WMAcode2 CD Mech. Module:Circuit Description, Mech. Description, Disassembly For details, refer to "Important symbols for good services". K-ZZD. DEC. 2003 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A “CLASS 1 LASER PRODUCT” label is affixed to the bottom of the player. 3. The triangular label is attached to the mechanism unit frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers CLASS 1 LASER PRODUCT - CD Section Precaution 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY" on page 55. 3. After replacing the pickup unit, be sure to check the grating. (See p.51.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 3 5 6 7 8 5 6 7 8 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 EXTERIOR................................................................................................................................................. 8 2.3 CD MECHANISM MODULE..................................................................................................................... 12 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 14 3.1 BLOCK DIAGRAM ................................................................................................................................... 14 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE).............................................................................. 16 3.3 KEYBOARD UNIT.................................................................................................................................... 22 3.4 CD MECHANISM MODULE(GUIDE PAGE) ............................................................................................ 24 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 34 4.1 TUNER AMP UNIT................................................................................................................................... 34 4.2 PANEL UNIT ............................................................................................................................................ 38 4.3 KEYBOARD UNIT.................................................................................................................................... 39 4.4 CD CORE UNIT(S10WMA)...................................................................................................................... 40 5. ELECTRICAL PARTS LIST ............................................................................................................................ 42 6. ADJUSTMENT ............................................................................................................................................... 49 6.1 CD ADJUSTMENT................................................................................................................................... 49 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT .................................................... 51 6.3 ERROR MODE ........................................................................................................................................ 53 6.4 FREQUENCY CHECK FOR CLOCK....................................................................................................... 54 7. GENERAL INFORMATION............................................................................................................................. 55 7.1 DIAGNOSIS ............................................................................................................................................. 55 7.1.1 DISASSEMBLY ..................................................................................................................................... 55 7.1.2 CONNECTOR FUNCTION DESCRIPTION.......................................................................................... 58 7.2 PARTS...................................................................................................................................................... 59 7.2.1 IC .......................................................................................................................................................... 59 7.2.2 DISPLAY ............................................................................................................................................... 68 7.3 OPERATIONAL FLOW CHART ............................................................................................................... 69 7.4 CLEANING............................................................................................................................................... 70 8. OPERATIONS ................................................................................................................................................ 71 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING (1)PACKING SECTION PARTS LIST NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lobricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " Mark No. Description Part No. 1 Cord Assy CDE7153 2 Accessory Assy CEA3376 3 Spring CBH1650 4 Screw Assy CEA3848 5 Fixing Screw BPZ20P060FZK 6 Screw CBA1650 * 7 Polyethylene Bag CEG-127 8 Screw CRZ50P090FTC 9 Screw TRZ50P080FTC * 10 Polyethylene Bag CEG-158 11 Handle CNC5395 12 Holder CND1249 13 Holder CND1250 14 Bush CNV3930 15 Polyethylene Bag CEG-162 16 ••••• 17 Carton See Contrast table(2) 18 Contain Box See Contrast table(2) 19 Protector CHP2663 20 Protector CHP2664 21-1 Owner’s Manual XRD7004 21-2 Owner’s Manual XRD7005 21-3 Owner’s Manual XRD7006 21-4 Installation Manual XRD7007 * 21-5 Passport CRY1013 * 21-6 Warranty Card CRY1157 * 21-7 Caution Card XRP7001 22 Case Assy CXB3520 23 ••••• 24 Inner Box XHW7001 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 7 5 6 7 8 5 6 7 8 C D F A B E (2) CONTRAST TABLE DEH-P5600MP/XM/EW and DEH-P5630MP/XM/EW are constructed the same except for the following: Owner's Manual,Installation Manual Mark NO Description DEH-P5600MP/XM/EW DEH-P5630MP/XM/EW 17 Carton XHG7002 XHG7003 18 Contain Box XHL7002 XHL7003 Part No. Language XRD7004 English, Spanish XRD7005 German, French XRD7006 Italian, Dutch XRD7007 English, Spanish, German, French, Italian, Dutch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR A C C B D D B A B C A 43 7 7 7 31 24 13 22 29 11 12 23 6 36 33 32 21 9 18 28 30 8 10 27 25 26 15 1 1 87 4 4 4 40 48 59 58 49 62 65 60 57 56 52 55 61 54 38 42 50 63 47 41 39 2 45 37 2 20 2 51 64 53 3 49 35 34 46 67 67 67 75 67 79 80 83 78 81 69 68 76 71 85 72 73 14 84 70 86 74 82 77 66 5 44 19 17 17 17 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION PARTS LIST Mark No. Description Part No. 1 Screw BMZ30P040FZK 2 Screw BSZ26P060FTC 3 Screw BSZ30P060FTC 4 Screw BSZ30P200FTC 5 Cord Assy CDE7153 6 Button(EJECT) CAC7752 7 Screw(M2x4.5) CBA1647 8 Screw(M2x4) CBA1649 9 Washer CBF1038 10 Spring CBH2650 11 Spring CBH2651 12 Spring CBH2652 13 Spring CBH2653 14 Sub Button Assy(SELECT) Contrast table(2) 15 Holder CND1254 16 IC(IC301) PAL007A 17 Transistor(Q651,911,921) 2SD2396 18 Gear CNV5997 19 Choke Coil(L301) CTH1280 20 Label VRW-329 21 Arm CNV7400 22 Arm CNV7401 23 Arm CNV7402 24 Arm CNV7403 25 Panel Unit CWM8758 26 Socket(CN1950) CKS3550 27 Connector(CN1951) CKS4806 28 Holder Unit CXB9501 29 Holder Unit CXB9502 30 Damper Unit CXB9503 31 Service Panel Unit CXX1691 32 Spring CBL1512 33 Cover CNM6854 34 Panel Contrast table(2) 35 Pin CNV6486 36 Lighting Conductor CNV6487 37 Case CNB2870 38 Earth Plate CNC8915 39 Insulator CNM7682 40 Insulator CNM7935 41 Insulator CNM8174 42 Cushion CNM8890 43 Panel Contrast table(2) 44 Holder Unit CXB6681 45 CD Mechanism Module(S10CODE2)CXK5665 46 Screw ISS26P055FTC 47 Cable XDE7002 48 Tuner Amp Unit XWM7018 49 Screw ASZ26P060FTC 50 Screw BPZ26P080FTC 51 Screw BSZ26P160FTC 52 Fuse(10A) CEK1208 53 FM/AM Tuner Unit CWE1645 54 Holder CND1054 55 Pin Jack(CN352) CKB1051 56 Plug(CN901) CKM1376 57 Connector(CN101) CKS3408 58 Plug(CN801) CKS3537 59 Connector(CN651) CKS3837 60 Connector(CN161) CKS4124 61 Antenna Jack(CN401) CKX1056 62 Holder CND1352 63 Heat Sink CNR1668 64 Holder XNC7003 65 Insulator XNM7031 66 Detachable Assy Contrast table(2) 67 Screw BPZ20P100FZK 68 Spring CBL1470 69 Knob Contrast table(2) 70 Button(1-6) XAC7005 71 Button(TA) XAC7006 72 Button(BAND) XAC7007 73 Button(OPEN) Contrast table(2) 74 Spring XBH7001 75 Cover Contrast table(2) * 76 Lighting Conductor XNV7012 77 Keyboard Unit Contrast table(2) 78 LCD CAW1752 79 Connector(CN1901) CKS4524 80 Sheet CNM7921 81 Connector CNV7365 82 Holder XNC7001 83 Lighting Conductor XNV7003 84 Button Unit(EQ-EX) XXA7007 85 Button Unit(EQ) XXA7008 86 Sub Grille Assy Contrast table(2) 87 Chassis Unit Contrast table(2) Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 10 1 2 3 4 1 2 3 4 C D F A B E (2) CONTRAST TABLE DEH-P5600MP/XM/EW and DEH-P5630MP/XM/EW are constructed the same except for the following: Mark NO Description DEH-P5600MP/XM/EW DEH-P5630MP/XM/EW 14 Sub Button Assy(SELECT) XXA7229 XXA7228 34 Panel CNS7245 CNS7310 43 Panel CNS6935 XNS7071 66 Detachable Assy XXA7031 XXA7076 69 Knob XAA7009 XAA7003 73 Button(OPEN) XAC7026 XAC7046 75 Cover XNS7013 XNS7058 77 Keyboard Unit XWM7037 XWM7071 86 Sub Grille Assy XXA7039 XXA7077 87 Chassis Unit XXA7120 XXA7121 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 11 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 CD MECHANISM MODULE A D H L M N O Q R A B C D E F G H I J K L M N O Q B 16 25 13 83 42 68 28 82 4 71 23 J K 38 23 59 87 86 5 13 34 5 5 13 44 5 C 52 53 36 4 73 29 51 18 64 76 50 10 72 75 49 77 67 27 78 60 90 48 8 17 46 6 60 11 89 43 70 14 31 65 85 66 85 31 35 14 74 85 1 2 3 R 91 12 33 61 63 21 79 57 58 62 80 13 4 86 I 45 28 7 24 47 P 41 20 40 69 39 30 P 19 56 F E 22 81 15 G 26 4 54 37 55 93 92 10 D 1GEM1024 2GEM1045 3GEM1035 1 1 1 1 1 1 1 1 2 2 2 2 1 1 1 1 1 2 2 1 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 13 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit(S10WMA) CWX2851 2 Connector(CN101) CKS4182 3 Connector(CN901) CKS4017 4 Screw BMZ20P035FTC 5 Screw BSZ20P040FTC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1511 8 Screw(M2x3) CBA1527 9 ••••• 10 Washer CBF1038 11 Washer CBF1060 12 Spring CBH2390 13 Spring CBH2606 14 Spring CBH2607 15 Spring CBH2608 16 Spring CBH2609 17 Spring CBH2610 18 Spring CBH2735 19 Spring CBH2612 20 Spring CBH2613 21 Spring CBH2614 22 Spring CBH2615 23 Spring CBH2616 24 Spring CBH2617 25 Spring CBH2620 26 Spring CBH2621 27 Spring CBH2641 28 Spring CBH2642 29 Spring CBH2643 30 Spring CBH2659 31 Spring CBH2688 32 ••••• 33 Shaft CLA4441 34 Frame CNC9962 35 Frame CNC9963 36 Bracket CNC9966 37 Bracket CND1895 38 Arm CNC9968 39 Arm CND1909 40 Lever CND2032 41 Lever CNC9984 42 Sheet CNM8134 43 Collar CNV7798 44 Guide CNV7799 45 Arm CNV7800 46 Rack CNV7199 47 Holder CNV7201 48 Holder CNV7202 49 Arm CNV7203 50 Gear CNV7207 51 Gear CNV7208 52 Gear CNV7209 53 Gear CNV7210 54 Gear CNV7211 55 Gear CNV7212 56 Rack CNV7214 57 Arm CNV7215 58 Arm CNV7216 59 Guide CNV7217 60 Roller CNV7218 61 Gear CNV7219 62 Arm CNV7221 63 Arm CNV7220 64 Arm CNV7222 65 Damper CNV7313 66 Damper CNV7314 67 Arm CNV7341 68 Arm CNV7342 69 Guide CNV7360 70 Guide CNV7361 71 Holder CNV7437 72 Arm CNV7805 73 Gear CNV7595 74 Damper CNV7618 75 Motor Unit(M1) CXB6007 76 Chassis Unit CXC2318 77 Screw Unit CXB8729 78 Gear Unit CXC2397 79 Arm Unit CXC2316 80 Arm CND1896 81 Arm CND1894 82 Motor Unit(M2) CXB8933 83 Bracket CNC9985 84 ••••• 85 Screw(M2x5) EBA1028 86 Screw JFZ20P020FTC 87 Screw JGZ17P022FTC 88 ••••• 89 Washer YE20FTC 90 Pickup Unit(P10)(Service) CXX1641 91 Screw IMS26P030FTC 92 Spring CBL1635 93 Clamper CNV7197 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 14 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM BRST,BRXEN,BSRQ Q601 Q603 MUTE D CN901 Q101 M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ TRACKING ACT. LD- MD FO+ TO+ 15 5 1 4 PICKUP UNIT (P10)(SERVICE) HOLOGRAM UNIT IC 301 BA5835FM IC 201 UPD63761GJ IC 703 +3.3V REGULATOR RF-AMP,CD DECODER, MP3 , WMA, DECODER, DIGITAL SERVO / DATA PROCESSOR CD DRIVER 3 VD VD 3VDD 10 L-OUT 5 CN101 TOP FOP 16 SOP 15 SOM 18 LCOP 17 LCOM 22 2 LOEJ 31 LOUT 9 CONT 12 FOP TD/FD AC,BD F,E SD/MD 3 13 TOP HOME 12EJ SENSE 8EJ SENSE LD+ 14 142 LD 143 PD CD CORE UNIT(S10WMA) 35 34 X201 12EJ CONT LOEJ HOME 32 97 53 47 VDD IC 203 NJM2391DL1-33 +3.3V REGULATOR V3R3D 2 3 CD3VON 46 VDCONT 49 S-812C33AUA-C2N CD CONTROLLER IC 701 PE5440A 55 CDMUTE 4 V3R3D 19 1 BDATA,BSCK IC 501 +1.5V REGULATOR V1R5 1,3 5 VD2 2 Q701 43 ADENA VDD 15 5 1 4 14 CLAMP 4 VD2 VDCONT 1 CD3VON S-L2980A15MC-C6A 13 12 X701 X1 X2 V3R3D 8EJ 31 DSCSNS 30 A/D REF ASENBO 85 MUTE XIN XOUT 41 PEE 22 38 43 44 42 80 28 19 79 SYSTEM CONTROLLER IC 601(2/2) PD5918A CN401 1 2 BUS- BUS+ BUS+L BUS-L TX RX2 IPPW SWVDD BU CN651 Q80 Q652 Q651 TUNER AMP UNIT 13 X601 11 VST,VCK,VDT TUN L BUS+L BUS-L CD L 33 DPDT 34 KYDT 1 SYSPW 41 ILMPW S8 DETACH SENS 39 dsens A 5 8 1 7 CN101 11 BUZZER 20 19 5 14 21 IC 101 HA12240FP IP-BUS DRIVER 1 2 8 6 5 TX RX IPPW BU Q101 Q102 RDS_CK RDS_LO RDS_DA RDS_HS TUN 3.3V SYS 8.4V VDD 80 VDSENS ANTENNA 92 LVLINL LEVEL INDIC BU Q804 Q8 20 LCDPW ILB BZ 641 35 ROT1 36 ROT0 VDD Q80 VDD BRST,BRXEN,BSRQ BDATA,BSCK ejtin 42 FLPILM 40 VD 22 VD 2 KEYD 89 KEYAD Q653 Q650 23 FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 15 5 6 7 8 5 6 7 8 C D F A B E 10 1 bsens asens VDD BU 72 73 10 FL 11 RL 85 UTE XIN OUT ILB SWDVDD 23 21 3 5 FL- FL+ RL- RL+ ACC IN2-L 41 IN4+L 43 IN4-L 44 IN3-L 42 FLIN 14 RLIN 12 22 4 RESET POWER AMP IC 601(1/2) PD5918A R IC 201 PML009A IC 602 IC 301 PAL007A reset VDD Q911 Q931 SYSPW ELECTRONIC VOLUME/ SOURCE SELECTOR STBY MUTE Q807 13 X601 11 2 VST,VCK,VDT TUN L BUS+L BUS-L CD L DPDT KYDT SYS 8.4V BU Q923 Q922 1 PW BU Q301 MUTE PL FL Q352 12 PL 7 2 11 14 7 2 11 14 CN1950 CN1951 4 2 10 8 PANEL UNIT 41 ILMPW MUTE S802 DETACH SENSE SYSTEM CONTROLLER Q951 VDD TELIN 8 25 B.REMOTE FL- FL+ RL- RL+ VDD REGULATOR BACKUP SENSE ACC SENSE TELEPHONE MUTE SYS 8.4V REGULATOR 3 9 11 12 10 1 8 6 3 9 11 12 10 1 8 6 2 2 B CN901 Q982 BU CN352 BACK UP GND RR + RR - FR + FR - FL + FL - RL + RL - ACC GND BACK UP B. REM FUSE 10A ACC TELMUTE B.REM ldet SL tunpce@ TUNPCE1 TUNPDI TUNPDO 17 95 69 70 98 99 TUNPCK 100 ce@ CE1 Q402 Q401 RDS_CK RDS_LOCK 45 rdclk 16 RDSDATA 46 rdshslk 44 rdslk RDS_DATA RDS_HSLK 2 6 NJM2391DL1-33 IC 401 1 3 SYS 8.4V TUN 3.3V TUNER 3.3V REGULATOR Q921 DO DI CK Q913 DALMON 67 BU 6,20 Q981 10 10 5 CN161 1 3 2 Q353 1 PL FL Q932 isens 81 ILM SENSE ILM 5 5 KEYAD KEYD WIRED REMOTE CONTROL NJM4558MD IC 131 5 7 92 INL 1 SEL_OUT_L LEVEL INDICATOR BU Q804 Q803 ILB ILB Q806 13 13 9 12 12 7 ROT1 ROT0 VDD Q808 ILM S-80835CNUA-B8U NON-FAD/SW L FRONT L tin 42 8 8 S1970 EJECT 9 9 BU 5 6 5 6 LM 40 CN801 Q805 2 EYD 89 YAD ILB SWVDD IC 1900 PD6294A LCD DRIVER/ KEY CONTROLLER KEY MATRIX 9 11 KEY DATA VDD 23 CN1901 KEYBOARD UNIT 3 5 DPDT KYDT IC 1901 RS-140 REMOTE CONTROL SENSOR OPT IN 4 1 10 REMIN 9 8 DPDT KTDT LCD C VLCD 78 8 BL+B Q1910 DIMMER dimmer 7 ILLUMINATION X1 X0 2 X1900 3 S1950 3 2 1 4 6 ROT1 ROT0 ROT1 ROT0 VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 16 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A B IP-BUS DRIVER IP-BUS FM/AM TUNER UNIT 3.3V REG. E-VOL SYSTEM For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V C B PANEL UNIT CN1901 D CN901 RESET EJECT ANTENNA FM(100%):-15.5dBs AM(30%):-26.0dBs IP-BUS:+2.2dBs CD:+0.36dBs FM:-15.5dBs AM:-26.0dBs IP-BUS:+2.2dBs CD: +0.36dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 17 5 6 7 8 5 6 7 8 C D F A B E A-b A 600µH 3A E-VOL LEVEL IND. WIRED REMOTE SYSTEM CONTROLLER VDD REG. TEL MUTE B.UP SENSE ACC SENSE ILM SENSE POWER AMP RCA A TUNER AMP UNIT SUB WOOFER R ch SUB WOOFER L ch FRONT R ch FRONT L ch > RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP B. REM DETACH SENSE 10A > FUSE CEK1208 BACK UP FM:+7.6dBs AM: -0.9dBs IP-BUS:+9.3dBs CD:+10.46dBs FM:+33.6dBs AM:+25.1dBs IP-BUS:+35.3dBs CD:+36.46dBs FM:+6.8dBs AM: -1.7dBs IP-BUS:+8.5dBs CD:+9.66dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 18 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-a A-a A-b 1 2 IP-BUS DRIVER IP-BUS FM/AM TUNER UNIT 3.3V REG. E-VOL SYSTEM CONTROLLE RESET ANTENNA FM(100%):-15.5dBs AM(30%):-26.0dBs IP-BUS:+2.2dBs FM:-15.5dBs AM:-26.0dBs IP-BUS:+2.2dBs CD: +0.36dBs FM:+7. AM: -0. IP-BUS:+9. CD:+10.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 19 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-a A-a A-b B 3 4 5 6 For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V C B PANEL UNIT CN1901 D CN901 EJECT CD:+0.36dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 20 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1 2 600µH 3A LEVEL IND. WIRED REMOTE YSTEM CONTROLLER OWER AMP RCA A TUNER AMP UNIT SUB WOOFER R ch SUB WOOFER L ch FRONT R ch FRONT L ch > 10A > FUSE CEK1208 BACK UP FM:+7.6dBs AM: -0.9dBs IP-BUS:+9.3dBs CD:+10.46dBs FM:+6.8dBs AM: -1.7dBs IP-BUS:+8.5dBs CD:+9.66dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 21 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 3 4 5 6 VDD REG. TEL MUTE B.UP SENSE ACC SENSE ILM SENSE POWER AMP RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP B. REM DETACH SENSE 10A > FUSE CEK1208 BACK UP FM:+33.6dBs AM:+25.1dBs IP-BUS:+35.3dBs CD:+36.46dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 22 1 2 3 4 1 2 3 4 C D F A B E 3.3 KEYBOARD UNIT C (SUPER RED) (SUPER RED) (PURE GREEN) (PURE GREEN) P5600MP P5630MP S1902, S1903 S1910 CSG1112 CSG1135 S1901, S1904-S1909, S1911-S1916 CSG1107 CSG1133 REMOTE CONTROL SENSOR TA BAND DOWN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 23 5 6 7 8 5 6 7 8 C D F A B E C B CN1951 C KEYBOARD UNIT VOLUME REMOTE CONTROL SENSOR TA 3 2 1 BAND 6 5 4 DOWN UP RIGHT LEFT FUNC SCRL EQ-EX AUDIO SRC-OFF EQ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 24 1 2 3 4 1 2 3 4 C D F A B E 3.4 CD MECHANISM MODULE(GUIDE PAGE) D-a D L209 C217 R1 M1 CXB6007 SPINDLE MOTOR M2 CXB8933 LOADING/CARRIAGE MOTOR PICKUP UNIT(P10)(SERVICE) CD DRIVER 3.3V REGULATOR Pull-down 1 2 3 % # @ $ 7 8 5 9 0 4 F F F F F F F F F F F F F T S C T T S S C C C C S S S C T F S C T F T T T T T T T T T T F F T T F T S S C C AND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 25 5 6 7 8 5 6 7 8 C D F A B E D-b D 470P R01 C722 1 C906 R22 C910 2R2 16.934MHz SWITCHES: CD CORE UNIT(S10WMA) S901 : HOME SWITCH.........ON-OFF S902 : CLAMP SWITCH.......ON-OFF S903 : DSCSNS SWITCH.....ON-OFF S904 : 12EJ SWITCH............ON-OFF S905 : 8EJ SWITCH..............ON-OFF The underlined indicates the switch position. A D CN651 CD CORE UNIT(S10WMA) MICRO COMPUTER 1.5V REGULATOR 3.3V REGULATOR Pull-down ! 6 ^ & SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE F T C S AND PE5440A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 26 1 2 3 4 1 2 3 4 C D F A B E A-a D-b D-a D-a D-b 1 2 L209 C217 R1 AND PICKUP UNIT(P10)(SERVICE) % # @ F F F F F F F F F F S C T F S C T F T T T T T T T T T T F F T T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 27 5 6 7 8 5 6 7 8 C D F A B E A-a D-b D-a D-a D-b 2 3 4 5 M1 CXB6007 SPINDLE MOTOR M2 CXB8933 LOADING/CARRIAGE MOTOR CD DRIVER 3.3V REGULATOR Pull-down 1 2 3 $ 7 8 5 9 0 4 F F F T S C T T S S C C C C S S F T S S C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 28 1 2 3 4 1 2 3 4 C D F A B E D-a D-b D-b 1 2 16.934MHz AND SWITCHES: CD CORE UNIT(S10WMA) S901 : HOME SWITCH.........ON-OFF S902 : CLAMP SWITCH.......ON-OFF S903 : DSCSNS SWITCH.....ON-OFF S904 : 12EJ SWITCH............ON-OFF S905 : 8EJ SWITCH..............ON-OFF The underlined indicates the switch position. D CD CORE UNIT(S10WMA) 1.5V REGULATOR ! SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE F T C S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 29 5 6 7 8 5 6 7 8 C D F A B E D-a D-b D-b 2 3 4 5 470P R01 C722 1 C906 R22 C910 2R2 PE5440A A CN651 MICRO COMPUTER 3.3V REGULATOR Pull-down 6 ^ & www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 30 1 2 3 4 1 2 3 4 C D F A B E - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65V) 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div 12 cm CD Loading operation Ref.: GND Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div Ref.: GND Mode: Normal 1 DSCSNS 5 CLCONT 4 LOEJ 6 VD 5V/div 5V/div 5V/div 10V/div 500ms/div 12 cm CD Loading operation 8 cm CD Loading operation Ref.: GND Mode: Normal 0 FIN ! RFOK 7 SIN 200mV/div 2V/div 2V/div 500ms/div 12 cm CD-DA Source On setup operation Ref.: REFO Mode: Normal # FE 0 FIN @ TE 9 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div Ref.: REFO Mode: Normal @ TE # FE 500mV/div 500mV/div 200ms/div Source On setup operation CD-DA Play operation Ref.: REFO Mode: Normal # FE 0 FIN @ TE 9 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div CD-ROM play operation(Regular track Jump) Ref.: REFO Mode: Normal $ MDX 7 SIN 2V/div 1V/div 5µs/div Ref.: REFO Mode: Normal $ MDX 7 SIN 1V/div 200mV/div 50ms/div Spindle waveform during play operation Spindle waveform during play operation (Wider) Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 2s/div 12 cm CD-DA setup operation after loading 12 cm CD-ROM(3 sessions) setup operation after loading Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 2s/div Ref.: REFO Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 1s/div 12 cm CD-ROM(1 session) setup operation after loading Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 31 5 6 7 8 5 6 7 8 C D F A B E 0 FIN # FE 500mV/div 500mV/div 200ms/div Focus Search waveform Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 500µs/div Ref.: REFO Mode: TEST @ TE % RFAGC 500mV/div 500mV/div 2ms/div Track Open waveform 1 Track Jump waveform Ref.: REFO Mode: TEST % RFAGC @ TE 8 CIN 7 SIN 1V/div 1V/div 500mV/div 2V/div 200ms/div Search operation(Outter to Inner) Ref.: REFO Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div Ref.: GND Mode: Normal ^ LOUT & ROUT 1V/div 1V/div 200µs/div Analog audio waveform 12 cm CD Eject operation Ref.: AGND Mode: Normal 1 DSCSNS 5 CLCONT 4 LOEJ 5V/div 5V/div 5V/div 500ms/div 12 cm CD Eject operation Ref.: GND Mode: Normal 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal 1 DSCSNS 2 8SNS 3 12SNS 4 LOEJ 5V/div 5V/div 5V/div 5V/div 500ms/div 8 cm CD Eject operation CD-DA >> CD-ROM mode change(Band key) Ref.: GND Mode: Normal % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 500µs/div 4 Tracks Jump waveform 32 Tracks Jump waveform Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 2ms/div Ref.: REFO Mode: TEST % RFAGC @ TE 9 TIN 1V/div 500mV/div 500mV/div 1ms/div 10 Tracks Jump waveform Ref.: REFO Mode: TEST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 32 1 2 3 4 1 2 3 4 C D F A B E 7 SIN 8 CIN 9 TIN 1V/div 500mV/div 500mV/div 500ms/div CD-ROM >> CD-DA mode change(Band key) Ref.: REFO Mode: Normal % RFAGC 9 TIN @ TE 0 FIN 1V/div 1V/div 1V/div 1V/div 500µs/div Black dot(800µm) during play Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 33 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 34 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT Capacitor Connector P.C.Board Chip Part A A TUNER AMP UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams DETACH SENSE CORD ASSY IP-BUS WIRED REMOTE RCA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 35 5 6 7 8 5 6 7 8 C D F A B E A SIDE A 1 2 3 4 5 6 7 8 CORD ASSY FRONT RCA ANTENNA FM/AM TUNER UNIT D CN901 B CN1950 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 36 1 2 3 4 1 2 3 4 C D F A B E A A TUNER AMP UNIT PCL TESTIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 37 5 6 7 8 5 6 7 8 C D F A B E A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 38 1 2 3 4 1 2 3 4 C D F A B E 4.2 PANEL UNIT B B PANEL UNIT B PANEL UNIT SIDE A SIDE B C CN1901 A CN801 EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 39 5 6 7 8 5 6 7 8 C D F A B E 4.3 KEYBOARD UNIT C C KEYBOARD UNIT C KEYBOARD UNIT SIDE A SIDE B B CN1951 VOLUME SCRL SRC-OFF EQ TA 1 2 3 4 5 6 EQ-EX BAND FUNC AUDIO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 40 1 2 3 4 1 2 3 4 C D F A B E 4.4 CD CORE UNIT(S10WMA) D D CD CORE UNIT(S10WMA) SIDE A A CN651 M1 SPINDLE MOTOR M2 LOADING /CARRIAGE MOTOR PICKUP UNIT(P10)(SERVICE) HOME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 41 5 6 7 8 5 6 7 8 C D F A B E D D CD CORE UNIT(S10WMA) SIDE B CLAMP DSCSNS 8EJ 12EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 42 1 2 3 4 1 2 3 4 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Circuit Symbol and No. Part No. A Unit Number:XWM7018 Unit Name:Tuner Amp Unit MISCELLANEOUS IC 101 IC HA12240FP IC 131 IC NJM4558MD IC 201 IC PML009A IC 301 IC PAL007A IC 401 IC NJM2391DL1-33 IC 601 IC PD5918A IC 602 IC S-80835CNUA-B8U Q 101 Transistor 2SA1576 Q 102 Transistor DTC114EU Q 301 Transistor DTC124EU Q 352 Transistor UMH3N Q 353 Transistor UMH3N Q 401 Transistor UMH1N Q 402 Transistor UMH1N Q 650 Transistor 2SD1760F5 Q 651 Transistor 2SD2396 Q 652 Transistor UMD2N Q 653 Transistor UMD2N Q 803 Transistor 2SD1767 Q 804 Transistor UMD2N Q 805 Transistor DTC143EU Q 806 Transistor IMD14 Q 807 Transistor 2SA1576 Q 808 Transistor DTC114EU Q 911 Transistor 2SD2396 Q 913 Transistor UMD2N Q 921 Transistor 2SD2396 Q 922 Transistor DTC114EU Q 923 Transistor 2SB1243 Q 931 Transistor UMX1N Q 932 Transistor DTC114EU Q 951 Transistor 2SA1576 Q 981 Transistor 2SC4081 Q 982 Transistor UMD2N D 131 Diode Network DA204U D 132 Diode Network DA204U D 133 Diode DAN202U D 134 Diode DAP202U D 301 Diode S5688G D 302 Diode S5688G D 303 Diode S5688G D 304 Diode S5688G D 401 Diode S5688G D 402 Diode S5688G D 403 Diode S5688G D 650 Diode HZS6L(C1) D 651 Diode HZS9L(B1) D 803 Diode Network DA204U D 804 Diode DAN202U D 805 Diode DAP202U D 806 Diode DAN202U D 807 Diode DAP202U D 808 Diode HZS11L(A1) D 911 Diode S5688G D 912 Diode HZS6L(B1) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(A1) D 932 Diode HZS7L(C3) D 937 Diode MA111 D 951 Diode DAN202U D 981 Diode DAN202U D 982 Diode HZS9L(A2) L 101 Inductor LAU2R2K L 201 Ferri-Inductor LAU4R7K L 301 Choke Coil 600µH CTH1280 L 401 Ferri-Inductor LAU4R7K L 403 Inductor LAU1R0K L 404 Inductor LAU1R0K L 406 Inductor CTF1385 L 601 Ferri-Inductor LAU100K L 683 Ferri-Inductor LAU100K L 801 Inductor LAU2R2K L 951 Inductor LAU2R2K X 601 Radiator 10.00MHz CSS1599 S 802 Switch(DETACH SENSE) CSN1039 FU353 Fuse 3A CEK1286 BZ641 Buzzer CPV1062 AR401 Surge Protector DSP-201M-S00B Fuse 10A CEK1208 FM/AM Tuner Unit CWE1645 RESISTORS R 101 RS1/16S101J R 102 RS1/16S620J R 103 RS1/16S101J R 104 RS1/16S222J R 105 RS1/16S102J R 106 RS1/16S472J R 107 RS1/16S223J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 43 5 6 7 8 5 6 7 8 C D F A B E R 108 RS1/16S472J R 109 RS1/16S821J R 110 RS1/16S821J R 111 RS1/16S223J R 112 RS1/16S223J R 113 RS1/16S102J R 114 RS1/16S102J R 115 RS1/16S472J R 133 RS1/16S563J R 134 RS1/16S104J R 139 RS1/16S563J R 140 RS1/16S104J R 147 RS1/16S474J R 148 RS1/16S474J R 161 RS1/16S102J R 162 RS1/16S102J R 163 RS1/16S103J R 164 RS1/16S103J R 201 RAB4C102J R 241 RS1/16S102J R 242 RS1/16S102J R 247 RS1/16S101J R 248 RS1/16S101J R 249 RS1/16S101J R 250 RS1/16S101J R 301 RS1/16S103J R 302 RS1/16S103J R 303 RS1/16S153J R 304 RS1/16S331J R 353 RS1/16S821J R 354 RS1/16S821J R 355 RS1/16S821J R 356 RS1/16S821J R 359 RS1/16S223J R 360 RS1/16S223J R 361 RS1/16S223J R 362 RS1/16S223J R 403 RS1/16S681J R 404 RS1/16S0R0J R 405 RS1/16S681J R 406 RS1/16S681J R 407 RS1/16S681J R 408 RS1/16S681J R 409 RS1/16S681J R 410 RS1/16S681J R 412 RAB4C223J R 416 RS1/16S681J R 417 RS1/16S681J R 419 RS1/16S681J R 421 RS1/16S681J R 605 RS1/16S0R0J R 606 RS1/16S104J R 607 RS1/16S822J R 608 RS1/16S221J R 609 RS1/16S221J R 610 RS1/16S682J R 611 RS1/16S682J R 612 RS1/16S104J R 613 RS1/16S102J R 616 RS1/16S473J Circuit Symbol and No. Part No. R 617 RS1/16S102J R 619 RS1/16S104J R 630 RS1/16S104J R 632 RS1/16S104J R 641 RS1/16S102J R 645 RS1/16S271J R 651 RD1/4PU221J R 652 RD1/4PU221J R 656 RS1/16S102J R 657 RS1/16S102J R 665 RD1/4PU0R0J R 666 RS1/16S0R0J R 669 RS1/16S0R0J R 671 RS1/16S0R0J R 672 RS1/16S0R0J R 676 RS1/16S102J R 677 RS1/16S104J R 678 RS1/16S102J R 680 RS1/16S222J R 681 RS1/16S104J R 689 RS1/16S0R0J R 802 RS1/16S222J R 803 RS1/16S472J R 804 RS1/16S1R0J R 805 RS1/16S391J R 806 RS1/16S391J R 807 RS1/16S473J R 808 RS1/16S473J R 809 RS1/16S102J R 810 RS1/16S222J R 811 RS1/16S222J R 812 RS1/16S222J R 813 RS1/16S222J R 814 RS1/16S222J R 815 RS1/16S473J R 816 RS1/16S104J R 817 RD1/4PU391J R 818 RS1/16S104J R 819 RS1/16S222J R 820 RS1/16S222J R 821 RS1/16S472J R 822 RS1/16S0R0J R 823 RS1/16S102J R 824 RS1/16S473J R 825 RS1/16S102J R 826 RS1/16S102J R 827 RS1/16S102J R 828 RS1/16S102J R 903 RS1/16S223J R 912 RS1/16S222J R 913 RS1/16S223J R 914 RS1/16S104J R 915 RS1/16S104J R 916 RS1/16S104J R 923 RS1/16S103J R 924 RD1/4PU122J R 925 RS1/16S182J R 931 RS1/16S472J R 932 RS1/16S473J R 933 RS1/16S103J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 44 1 2 3 4 1 2 3 4 C D F A B E R 934 RS1/16S473J R 935 RS1/16S104J R 936 RS1/16S103J R 938 RD1/4PU102J R 939 RD1/4PU102J R 951 RD1/4PU153J R 952 RS1/16S472J R 953 RS1/16S472J R 954 RS1/16S102J R 983 RS1/16S223J R 984 RS1/16S473J R 985 RS1/16S102J CAPACITORS C 101 CKSRYB104K16 C 102 CKSRYB473K25 C 131 CKSRYB104K16 C 132 CKSRYB104K16 C 141 CKSRYB104K16 C 142 CKSRYB103K50 C 143 CKSRYB474K10 C 144 CKSRYB474K10 C 145 CCSRCH101J50 C 146 CCSRCH101J50 C 147 CKSRYB104K16 C 201 CEJQ1R0M50 C 202 CEJQ1R0M50 C 203 CKSRYB104K16 C 204 CKSRYB104K16 C 205 CKSRYB105K10 C 206 CEJQ470M16 C 207 CEJQ1R0M50 C 208 CEJQ1R0M50 C 209 CEJQ1R0M50 C 210 CEJQ1R0M50 C 211 CEJQ4R7M35 C 212 CEJQ4R7M35 C 213 CEJQ4R7M35 C 214 CEJQ4R7M35 C 215 CEJQ4R7M35 C 216 CEJQ4R7M35 C 217 CEJQ4R7M35 C 218 CEJQ4R7M35 C 219 CCSRCH120J50 C 220 CCSRCH120J50 C 221 CCSRCH120J50 C 222 CCSRCH120J50 C 225 CEJQ100M16 C 241 CKSRYB152K50 C 242 CKSRYB152K50 C 301 CKSRYB104K16 C 306 CEJQ330M10 C 307 3300µF/16V CCH1486 C 309 CKSRYB104K16 C 310 CEJQ100M16 C 311 CKSYB475K16 C 312 CKSYB475K16 C 317 CKSRYB474K10 C 318 CKSRYB474K10 Circuit Symbol and No. Part No. C 321 CKSRYB474K10 C 322 CKSRYB474K10 C 323 CKSRYB474K10 C 324 CKSRYB474K10 C 325 CKSQYB225K10 C 326 CKSQYB225K10 C 327 CKSRYB474K10 C 328 CKSRYB474K10 C 353 CEJQ4R7M35 C 354 CEJQ4R7M35 C 355 CEJQ4R7M35 C 356 CEJQ4R7M35 C 363 CKSRYB104K16 C 401 CKSRYB103K50 C 402 CEJQ101M10 C 403 CKSQYB105K16 C 404 CKSYB475K10 C 406 CEJQ470M10 C 408 CKSYB475K10 C 409 CEJQ1R0M50 C 411 CCSRCH101J50 C 412 CCSRCH470J50 C 415 CCSRCH101J50 C 601 CEJQ4R7M35 C 602 CKSQYB105K16 C 603 CEJQ2R2M50 C 604 CCSRCH200J50 C 605 CCSRCH200J50 C 609 CCSRCH101J50 C 644 CEJQ101M10 C 645 CKSRYB473K16 C 646 CCSRCH470J50 C 651 CEJQ101M10 C 652 CKSRYB473K25 C 654 CKSRYB152K50 C 655 CKSRYB152K50 C 657 CCSRCH470J50 C 658 470µF/16V CCH1183 C 662 CCSRCH471J50 C 755 CKSRYB104K16 C 806 CKSRYB473K25 C 807 CKSRYB473K25 C 808 CKSRYB104K16 C 811 CKSQYB105K16 C 854 CKSRYB473K25 C 911 470µF/16V CCH1331 C 912 CKSRYB472K50 C 913 CKSRYB103K50 C 914 CEJQ470M10 C 921 CEJQ221M10 C 922 CKSRYB103K50 C 923 CEJQ101M16 C 931 CEJQ1R0M50 C 932 CKSRYB104K16 B Unit Number:CWM8758 Unit Name:Panel Unit MISCELLANEOUS Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 45 5 6 7 8 5 6 7 8 C D F A B E D 1970 LED CL220PGC S 1970 Push Switch(EJECT) CSG1112 RESISTORS R 1970 RS1/16S101J R 1971 RS1/16S101J R 1972 RS1/16S0R0J CAPACITORS C 1970 CKSRYB104K16 C Unit Number:XWM7037(P5600MP) Unit Name:Keyboard Unit MISCELLANEOUS IC 1900 IC PD6294A IC 1901 HIC Module RS-140 Q 1910 Transistor DTC114EU D 1909 White LED NSCW505C-3388 D 1914 White LED NSCW505C-3388 D 1930 LED CL-195PG-CD D 1931 LED CL-195PG-CD D 1932 LED CL-195PG-CD D 1935 LED CL-195PG-CD D 1936 LED CL-195PG-CD D 1937 LED CL-195PG-CD D 1942 LED CL-190UB2-X D 1943 LED CL-190UB2-X D 1946 LED CL-195PG-CD X 1900 Ceramic Resonator 5.00MHz CSS1547 S 1901 Switch CSG1107 S 1902 Push Switch CSG1112 S 1903 Push Switch CSG1112 S 1904 Switch CSG1107 S 1905 Switch CSG1107 S 1906 Switch CSG1107 S 1907 Switch CSG1107 S 1908 Switch CSG1107 S 1909 Switch CSG1107 S 1910 Push Switch CSG1112 S 1911 Switch CSG1107 S 1912 Switch CSG1107 S 1913 Switch CSG1107 S 1914 Switch CSG1107 S 1915 Switch CSG1107 S 1916 Push Switch CSG1112 S 1917 Switch CSG1110 S 1918 Switch CSG1110 S 1950 Encoder(VOLUME) XSD7001 LCD CAW1752 RESISTORS R 1900 RS1/16S222J R 1901 RS1/16S222J R 1902 RS1/16S121J R 1903 RS1/16S2R2J R 1909 RS1/16S181J Circuit Symbol and No. Part No. R 1910 RS1/16S181J R 1914 RS1/16S181J R 1915 RS1/16S181J R 1919 RS1/16S101J R 1930 RS1/16S470J R 1931 RS1/16S470J R 1932 RS1/16S470J R 1933 RS1/16S121J R 1934 RS1/16S470J R 1938 RS1/16S620J R 1939 RS1/16S620J R 1940 RS1/16S470J R 1941 RS1/16S470J R 1950 RS1/16S472J R 1960 RS1/16S473J CAPACITORS C 1900 CKSRYB104K16 C 1901 CKSYF106Z10 C 1902 CKSRYB104K16 C 1903 CKSRYB104K16 C 1904 CKSRYB104K16 C 1942 CKSRYF104Z25 C 1943 CKSRYF104Z25 C Unit Number:XWM7071(P5630MP) Unit Name:Keyboard Unit MISCELLANEOUS IC 1900 IC PD6294A IC 1901 HIC Module RS-140 Q 1910 Transistor DTC114EU D 1909 White LED NSCW505C-3388 D 1914 White LED NSCW505C-3388 D 1930 LED CL-195SR-CD D 1931 LED CL-195SR-CD D 1932 LED CL-195SR-CD D 1935 LED CL-195SR-CD D 1936 LED CL-195SR-CD D 1937 LED CL-195SR-CD D 1942 LED CL-190UB2-X D 1943 LED CL-190UB2-X D 1946 LED CL-195SR-CD X 1900 Ceramic Resonator 5.00MHz CSS1547 S 1901 Push Switch CSG1133 S 1902 Push Switch CSG1135 S 1903 Push Switch CSG1135 S 1904 Push Switch CSG1133 S 1905 Push Switch CSG1133 S 1906 Push Switch CSG1133 S 1907 Push Switch CSG1133 S 1908 Push Switch CSG1133 S 1909 Push Switch CSG1133 S 1910 Push Switch CSG1135 S 1911 Push Switch CSG1133 S 1912 Push Switch CSG1133 S 1913 Push Switch CSG1133 S 1914 Push Switch CSG1133 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 46 1 2 3 4 1 2 3 4 C D F A B E S 1915 Push Switch CSG1133 S 1916 Push Switch CSG1135 S 1917 Switch CSG1110 S 1918 Switch CSG1110 S 1950 Encoder(VOLUME) XSD7001 LCD CAW1752 RESISTORS R 1900 RS1/16S222J R 1901 RS1/16S222J R 1902 RS1/16S121J R 1903 RS1/16S2R2J R 1909 RS1/16S181J R 1910 RS1/16S181J R 1914 RS1/16S181J R 1915 RS1/16S181J R 1919 RS1/16S101J R 1930 RS1/16S101J R 1931 RS1/16S101J R 1932 RS1/16S101J R 1933 RS1/16S121J R 1934 RS1/16S101J R 1938 RS1/16S620J R 1939 RS1/16S620J R 1940 RS1/16S101J R 1941 RS1/16S101J R 1950 RS1/16S472J R 1960 RS1/16S473J CAPACITORS C 1900 CKSRYB104K16 C 1901 CKSYF106Z10 C 1902 CKSRYB104K16 C 1903 CKSRYB104K16 C 1904 CKSRYB104K16 C 1942 CKSRYF104Z25 C 1943 CKSRYF104Z25 D Unit Number:CWX2851 Unit Name:CD CORE UNIT(S10WMA) MISCELLANEOUS IC 201 IC UPD63761GJ IC 203 IC NJM2391DL1-33 IC 301 IC BA5835FM IC 501 IC S-L2980A15MC-C6A IC 701 IC PE5440A IC 703 IC S-812C33AUA-C2N Q 101 Transistor 2SB1132 Q 601 Transistor IMH20 Q 603 Transistor 2SB709A Q 701 Transistor UN2111 D 101 Diode 1SS355 D 601 Diode MA152WA L 203 Inductor CTF1389 L 207 Inductor CTF1389 L 209 Inductor CTF1389 Circuit Symbol and No. Part No. L 703 Inductor CTF1389 X 201 Ceramic Resonator 16.934MHzCSS1603 X 701 Ceramic Resonator 4.00MHz CSS1652 S 901 Switch(HOME) CSN1051 S 902 Switch(CLAMP) CSN1051 S 903 Spring Switch(DSCSNS) CSN1052 S 904 Switch(12EJ) CSN1051 S 905 Switch(8EJ) CSN1051 RESISTORS R 101 RS1/10S1R5J R 102 RS1/10S1R5J R 103 RS1/10S1R5J R 104 RS1/10S1R5J R 105 RS1/10S1R5J R 107 RS1/16SS0R0J R 201 RS1/16SS102J R 202 RS1/16SS333J R 205 RS1/16SS473J R 207 RS1/16SS473J R 209 RS1/16SS473J R 214 RS1/16SS472J R 216 RS1/16SS472J R 218 RS1/16SS472J R 220 RS1/16SS472J R 221 RS1/16SS103J R 222 RS1/16SS103J R 223 RS1/16SS0R0J R 224 RS1/16SS0R0J R 225 RS1/16SS103J R 226 RS1/16SS393J R 227 RS1/16SS562J R 228 RS1/16SS122J R 229 RS1/16SS472J R 231 RS1/16SS0R0J R 232 RS1/16SS122J R 233 RS1/16SS0R0J R 240 RS1/16SS0R0J R 241 RS1/16SS333J R 242 RS1/16SS0R0J R 243 RS1/16SS333J R 245 RS1/16SS333J R 250 RS1/16SS0R0J R 256 RS1/16SS0R0J R 261 RS1/16S0R0J R 262 RS1/16S0R0J R 263 RS1/16S0R0J R 264 RS1/16S0R0J R 267 RS1/16S0R0J R 301 RS1/16SS183J R 302 RS1/16SS822J R 304 RS1/16SS183J R 305 RS1/16SS822J R 307 RS1/16SS183J R 308 RS1/16SS183J R 309 RS1/16SS183J R 310 RS1/16SS183J R 501 RS1/16SS0R0J R 601 RS1/16S101J R 602 RS1/16S101J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 47 5 6 7 8 5 6 7 8 C D F A B E R 603 RS1/16S223J R 604 RS1/16S223J R 605 RS1/16SS103J R 606 RS1/16S0R0J R 701 RS1/16S0R0J R 702 RS1/16SS0R0J R 703 RS1/16SS104J R 704 RS1/16SS104J R 705 RS1/16SS221J R 706 RS1/16SS221J R 707 RS1/16SS0R0J R 708 RS1/16SS221J R 709 RS1/16SS473J R 710 RS1/16SS102J R 711 RS1/16SS102J R 712 RS1/16SS102J R 713 RS1/16SS102J R 714 RS1/16SS473J R 715 RS1/16SS0R0J R 716 RS1/16SS472J R 719 RS1/16SS221J R 720 RS1/16SS471J R 721 RS1/16S0R0J R 724 RS1/16S473J R 725 RS1/16SS222J R 726 RS1/16SS103J R 727 RS1/16SS473J R 729 RS1/16SS223J R 730 RS1/16SS473J R 731 RS1/16SS104J R 732 RS1/16SS104J R 733 RS1/16SS104J R 735 RS1/16SS473J R 737 RS1/16SS104J R 740 RS1/16SS473J R 742 RS1/16SS104J R 745 RS1/16SS473J R 746 RS1/16SS104J R 750 RS1/16SS473J R 754 RS1/16SS102J R 755 RS1/16SS102J R 756 RS1/16SS104J R 765 RAB4CQ221J R 769 RAB4CQ221J R 773 RAB4CQ221J R 777 RS1/16SS221J R 778 RS1/16SS221J R 779 RS1/16SS221J R 901 RAB4CQ221J R 902 RS1/16S0R0J R 905 RS1/16SS221J R 906 RS1/16SS221J R 908 RS1/16SS0R0J R 910 RS1/16SS0R0J CAPACITORS C 101 CKSSYB104K10 C 102 CKSSYB104K10 C 103 100µF/16V CCH1504 Circuit Symbol and No. Part No. C 104 47µF/6.3V CCH1506 C 105 CKSSYB104K10 C 106 CCSSCH101J50 C 107 CKSRYB224K16 C 108 CKSSYB104K10 C 110 CKSSYB104K10 C 201 CKSSYB471K50 C 202 CKSSYB104K10 C 203 CKSSYB104K10 C 204 22µF/6.3V CCH1507 C 205 CKSSYB104K10 C 207 220µF/4V CCH1590 C 208 CKSSYB104K10 C 209 CKSSYB104K10 C 216 CKSSYB332K50 C 217 CKSSYB104K10 C 218 CKSSYB223K16 C 219 CKSSYB104K10 C 220 CKSSYB103K16 C 221 CKSSYB104K10 C 222 CCSSCH560J50 C 223 CCSSCH5R0C50 C 224 CKSSYB104K10 C 225 CKSSYB103K16 C 226 CCSSCH680J50 C 227 CCSSCH470J50 C 228 CKSSYB682K25 C 230 CKSSYB104K10 C 232 CKSSYB104K10 C 233 10µF/6.3V CCH1470 C 234 220µF/4V CCH1590 C 235 CKSRYB224K16 C 237 CKSSYB104K10 C 239 CCSSCH330J50 C 242 CKSSYB104K10 C 246 CKSSYB104K10 C 250 CKSRYB102K50 C 251 CKSRYB102K50 C 260 CKSSYB104K10 C 301 CKSSYB221K50 C 302 CKSSYB221K50 C 303 CKSSYB472K25 C 304 CKSSYB103K16 C 305 100µF/16V CCH1504 C 306 CKSSYB104K10 C 307 CKSSYB104K10 C 501 CKSRYB224K16 C 505 CKSQYB475K6R3 C 601 CCSRCH102J50 C 602 CCSRCH102J50 C 603 4.7µF/25V CCH1568 C 604 4.7µF/25V CCH1568 C 701 CKSSYB104K10 C 702 CKSSYB471K50 C 703 CKSSYB103K16 C 704 4.7µF/25V CCH1592 C 706 CKSSYB104K10 C 707 CKSSYB104K10 C 712 CKSRYB224K16 C 713 CKSSYB104K10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 48 1 2 3 4 1 2 3 4 C D F A B E C 714 CKSSYB104K10 C 716 CKSSYB103K16 C 720 CKSQYB225K10 C 722 CKSRYB105K10 C 903 CKSSYB471K50 C 906 CKSRYB224K16 C 907 CKSSYB103K16 C 910 CKSQYB225K10 Miscellaneous Parts List Pickup Unit(P10)(Service) CXX1641 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE) CXB8933 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 49 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 CD ADJUSTMENT 1) Cautions on adjustments • In this product the single voltage (3.3V) is used for the regulator. The reference voltage is the REFO1 (1.65V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. • Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. • For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. • In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. • The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. • The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. • To enter the test mode. While pressing the 4 and 6 keys at the same time, reset. • To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (→) key or (←) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0dB, and the auto-adjustment values are reset to the default settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 50 1 2 3 4 1 2 3 4 C D F A B E [BAND] [BAND] [BAND] [BAND] [BAND] Power On (T.Offset is adjusted) TRK00 MIN00 SEC SEC 00 [CD]or[SOURCE] Source On TRK MIN [4]+[6]+Reset or [4]+[6]+BU+ACC Test Mode In [3] [1] [1] Power On (T.Offset is not adjusted) TRK99 MIN99 SEC99 [2] [2] [2] [2] Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Focus Close S.Curve check TRK91 MIN91 SEC91 [6] [1] [3] [6] [3] Focus Mode switching *2 TRK0xMIN0xSEC0x Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG- *8 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [→] [←] [→] [←] [→] [←] CRG+ *8 *9 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 Automatic adjustment display switching *3 TRK?? MIN?? SEC?? Applicable servomechanism TRK ?tr MIN ?min SEC ?sec [6] [3] T.Close Applicable servomechanism TRK MIN SEC RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? CRG+ TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x CRG- TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x T.Balance adjustment / T.Balance coefficient display TRK?? MIN?? SEC?? F, T, RF AGC F.Bias display switching *7 TRK?? MIN?? SEC?? F, T AGC / F.Bias RF AGC TRK MIN SEC CRG/TR Jump *5 value switching TRK MIN SEC CRG/TR Jump + *4 TRK MIN SEC CRG/TR Jump - *4 *6 TRK MIN SEC Tracking Open TRK8xMIN8xSEC8x or TRK9xMIN9xSEC9x Tracking Open TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x [Key] [BAND] [→] [6] [1] [2] [3] Power On/Off CRG + / TR Jump + (Direction of the external surface) CRG - / TR Jump - (Direction of the internal surface) T.CLS and AGC and Applicable servomechanism / AGC, AGC display switching RF Gain switching / Offset adjustment display / T.Balance adjustment / T.Open F.Close, S.Curve / Rough Servo and RF AGC / F, T, RF AGC SPDL 1X/2X switching As for the double speed (2x), audio output cannot be supported. F. Mode switching / Tracking Close / CRG, TR Jump switching Test Mode Operation [KEY] Contents Display *1) TYP → -6dB → -12dB TRK MIN SEC TRK 06 MIN 06 SEC 06 TRK 12 MIN 12 SEC 12 *2) Focus Close → S.Curve ckeck setting → F EQ measurement setting TRK 00 MIN 00 SEC 00 TRK 01 MIN 01 SEC 01 TRK 02 MIN 02 SEC 02 (TRK 99 MIN 99 SEC 99) *3) F.Offset Display → T.Offset Display → Switch to the order of the original display *4) 1TR / 32TR / 100TR *5) Single TR → 32TR → 100TR → CRG Move 9x(8x) : 91(81) 92(82) 93(83) 94(84) *6) Only at the time of CRG Move, 100TR Jump *7) TRK/MIN/SEC → F.AGC → T.AGC → F.Bias → RF AGC *8) CRG motor voltage = 2[V] [←] Error Rate measurement 1st-ON : ERR count beginning(30Sec) 2nd-ON : BER display data[%] [4] [5] - Flow Chart RF AMP Gain switching TRKGGMINGGSECGG [2] SPINDLE Speed switching TRKSP MINSP SECSP [4] *1 T.Close and AGC *9) TYP(1X) → 2X → 1X TRK MIN SEC TRK 22 MIN 22 SEC 22 TRK 11 MIN 11 SEC 11 As for the double speed (2x), audio output cannot be supported. TYP(2X) → 1X → 2X TRK MIN SEC TRK 11 MIN 11 SEC 11 TRK 22 MIN 22 SEC 22 ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 51 5 6 7 8 5 6 7 8 C D F A B E 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • ABEX TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3V regulator on. 2. Using the → and ← buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. REFO1 F E CD CORE UNIT(S10WMA) Oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 52 1 2 3 4 1 2 3 4 C D F A B E Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 53 5 6 7 8 5 6 7 8 C D F A B E 6.3 ERROR MODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (minutes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. SERVO LSI Com- CRG can't be moved from inner diameter. munication Error → Failure on home switch or CRG move mechanism. Communication error between microcomputer and SERVO LSI. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). Subcode NG → Failure on spindle, stains or damages on disc, or excessive vibrations. A disc not containing CD-R data is found. Turned over disc are found, though rarely. CD signal error. 17 Electricity Setup NG AGC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations on REWRITABLE. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. 44 Electricity ALL Skip Skip setting for all track. (CD-R/RW) 50 Mechanism CD On Mech Error Mechanical error during CD ON. → Defective loading motor, mechanical lock and mechanical sensor. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 54 1 2 3 4 1 2 3 4 C D F A B E 6.4 FREQUENCY CHECK FOR CLOCK - PCL output In the normal operation mode (with the detachable panel installed, the ACC switched ON, the standby mode cancelled), shift the TESTIN (Pin 86) terminal to H. The clock signal is output from the PCL terminal (Pin 37). The frequency of the clock signal is 312.500kHz that is one 32nd of the fundamental frequency. The clock signal should be 312.500kHz ± 13Hz. If the clock signal is out of the range, the X'tal (X601) should be replaced with new one. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 55 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the CD Mechanism Module (Fig.1) 1 Fig.1 - Removing the Case (not shown) Grille Assy - Removing the Grille Assy (Fig.1) 1. Remove the Case. CD Mechanism Module 1 1 1 1 Fig.2 Tuner Amp Unit - Removing the Tuner Amp Unit (Fig.2) Remove the screw. 1 Remove the four screws. Disconnect the connector and then remove the CD Mechanism Module. 2 Remove the two screws and then remove the Grille Assy. 2 2 1 2 2 2 3 3 3 4 Remove the three screws. 2 Straighten the tabs at three locations indicated. 3 Remove the screw and then remove the Tuner Amp Unit. 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 56 1 2 3 4 1 2 3 4 C D F A B E - How to hold the Mechanism Unit 1. Hold the top and bottom frame. 2. Do not squeeze top frame's front portion too tight, because it is fragile. - Removing the Upper and Lower Frames 1. With a disc clamped, remove the four springs (A), the two springs (B), the two springs (C), and the four screws. 2. To remove the upper frame, open it on the fulcrum A. 3. While lifting the carriage mechanism, remove the three dampers. 4. With the frames removed, insert the connectors coming from the main unit and eject the disc. Caution: Before installing the carriage mechanism in the frames, be sure to apply some alcohol to the dampers and set the mechanism to the clamp mode. Do not squeeze. Lower Frame Damper Carriage Mechanism A C A B B Damper Damper C A A A Upper Frame www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 57 5 6 7 8 5 6 7 8 C D F A B E - Removing the Pickup Unit 1. Apply shorting solder to the Pickup flexible cable. Disconnect the cable. 2. Set the mechanism to the clamp mode. 3. Remove the lead wires from the inner holder. 4. Remove the washer, styling holder, change arm, and pickup lock arm. 5. While releasing from the hook of the inner holder, lift the end of the feed screw. Caution: In assembling, move the planet gear to the load/eject position before setting the feed screw in the inner holder. Shorting Solder Planet Gear Change Arm Inner Holder Styling Holder Feed Screw Washer Pickup Lock Arm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 58 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 CONNECTOR FUNCTION DESCRIPTION 9. RL- 10. FL- 11. RL+ 12. FL+ 13. RR- 14. FR- 15. RR+ 16. FR+ 1. BACKUP 2. GND 3. ACC 4. NC 5. ILM 6. B.REM 7. NC 8. TEL MUTE ANTENNA JACK FRONT OUTPUT SUBWOOFER OUTPUT NON FADING OUTPUT 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT WIRED REMOTE CONTROL SW F 1 0 A 15 1 13 11 9 7 5 3 16 2 14 12 10 8 6 4 11 10 9 8 7 6 5 4 3 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 59 5 6 7 8 5 6 7 8 C D F A B E 7.2 PARTS 7.2.1 IC - Pin Functions(PD5918A) Pin No. Pin Name I/O Function and Operation 1 SYSPW O System power control output 2 KEYD I Wired remote control key input 3-5 NC Not used 6 BYTE I External data bus width change input 7 CNVSS I Processor mode change input 8 TELIN I TEL : Cellular mute input 9 NC Not used 10 reset I Reset input 11 XOUT O Clock output 12 VSS GND 13 XIN I Clock input 14 VCC Power supply input 15 NC Not used 16 rdsck I RDS : Clock input 17 ldet I RDS : PLL lock detection input 18 NC Not used 19 RX2 I IPBUS : Input 2 20 LCDPW O Back light power supply output 21 NC Not used 22 PEE O PEE sound output 23 NC Not used 24 brst O PBUS : Reset output 25 brxen I/O PBUS : Communication input/output 26 bsrq I PBUS : Communication demand input 27 RX I IPBUS : Input 28 TX O IPBUS : Output 29 BSO O PBUS : Output 30 BSI I PBUS : Input 31 BSCK O PBUS : Clock output 32 NC Not used 33 DPDT O GRILL : Data output 34 KYDT I GRILL : Data input 35, 36 ROT1, 0 I Rotary encoder pulse input1, 0 37 PCL O Output for clock adjustment 38 SWVDD O GRILL : Chip enable output 39 dsens I Detach sense input 40 FLPILM O Illumination output inside flap 41 ILMPW O Illumination output 42 ejtin I Eject key input 43 NC Not used 44 rdshslk I RDS 57K input(Connect with HSLK) 45 rdslk I RDS : Lock signal input 46 RDSDATA I RDS : Data input 47-55 NC Not used 56 CSENSOUT O CSENS state output(H : FLAP open) 57 EMUTE O EVOL : Mute output 58, 59 NC Not used 60 VCC Power supply input 61 NC Not used 62 VSS GND 63-66 NC Not used 67 DALMON O For consumption current reduction 68 NC Not used 69 tunpce@ O TUNER : Chip enable output(EEPROM) 70 TUNPCE1 O TUNER : Chip enable output(PLL) 71 NC Not used 72 asens I ACC sense input 73 bsens I Back up sense input 74 NC Not used 75 ROMDATA I/O ROM correction : Data input/output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 60 1 2 3 4 1 2 3 4 C D F A B E Pin No. Pin Name I/O Format Function and Operation 76 VST O EVOL : Strobe output 77 VDT O EVOL : Data output 78 VCK O EVOL : Clock output 79 IPPW O IPBUS : Driver power supply control output 80 ASENBO O IPBUS : Slave ACC sense output 81 isens I Illumination sense input 82-84 NC Not used 85 MUTE O MUTE output 86 TESTIN I Test program input 87,88 NC Not used 89 KEYAD I Wired remote control key input 90 LVLINR I Level indicator R.ch input 91 CSENS I Flap opening-and-closing sense input 92 LVLINL I Level indicator L.ch input 93 NC Not used 94 AVSS GND 95 SL I TUNER : Signal level input 96 VREF AD translation reference voltage 97 AVCC AD translation power supply input terminal 98 TUNPDI I TUNER : PLL communication input 99 TUNPDO O TUNER : Data output(PLL) 100 TUNPCK O TUNER : Clock output(PLL) * PD5918A 25 26 50 51 75 76 100 1 VREF 1 2 3 VDD VSS OUT * S-80835CNUA-B8U IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 61 5 6 7 8 5 6 7 8 C D F A B E - Pin Functions (PD6294A) Pin No. Pin Name I/O Function and Operation 1 VSS GND 2 X1 Crystal oscillator connection pin 3 X0 Crystal oscillator connection pin 4 NC Not used 5,6 MOD1,0 I Connect to GND 7 dimmer O Dimmer select output 8 KYDT O Key data output 9 DPDT I Display data input 10 REMIN I Remote control pulse input 11 GRN Dual Illumination (Green) 12 AMB Dual Illumination (Amber) 13–16 KD4–1 I Key data input 17-22 KST6–1 O Key strobe output 23 VDD VDD 24-73 SEG49–0 O LCD segment output 74–77 COM3–0 O LCD common output 78 VLCD I LCD voltage input 79,80 V2,1 Power supply terminal *PD6294A 80 1 20 21 40 41 60 61 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 62 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(PE5440A) Pin No. Pin Name I/O Format Function and Operation 1 AVREF A power supply Positive power supply(5V) 2 AVSS A power supply GND 3 RFOK O C Output of state of RFOK 4 CLAMP I C CLAMP SW sense input 5 EVDD E power supply Positive power supply 6 PWM For changer(PWM) 7 NC Not used 8 IC/FLMD0 IC : VSS direct connection/FLMOD0 : Pull-down 9 VDD Positive power supply(5V) 10 REGC Connected to the capacity stabilizing output of the regulator 11 VSS GND 12 X1 I Oscillator connection for mainclock 13 X2 Oscillator connection for mainclock 14 reset I System reset input 15 XT1 I Connected to the oscillator for subclock (connected to VSS via the resistor) 16 XT2 Connected to the oscillator for subclock(Open) 17 PULLDOWN I Connected to EVDD or EVSS via the resistor 18 ejsw I C Eject key input 19 xint C CD LSI interruption signal input 20 NC Not used 21 brst I P-Bus reset input 22 BSI I P-Bus serial data input 23 BSO O C P-Bus serial data output 24 bsck I/O /C P-Bus serial clock input/output 25 FTXD O C For flash rewriting(transmitted signal) 26 FRXD I For flash rewriting(received signal) 27 BRXEN I/O /C It is possible to receive P-Bus 28 bsrq I/O /C P-Bus service request demand 29 dspok I DSP microcomputer initialization OK input 30 DSCSNS(S903) I Disc state sense input 31 8EJ(S905) I Input of detection of 8 cm disc ejection 32 12EJ(S904) I Input of detection of 12 cm disc ejection 33 EVSS E power supply GND 34 EVDD E power supply Positive power supply 35, 36 SRAMLEVEL0, 1 O C SRAM level meter output 37 EMPH O C Emphasis information output 38 emph O C Emphasis information output 39-42 NC Not used 43 adena O C A/D reference voltage supply control output 44 LRCKOK O C (DOUT mute output) 45 SRAMLEVEL2 O C SRAM level meter output 46 CD3VON O C CD +3.3V power supply control output 47 CONT O C Servo driver power supply control output 48 xrst O C CD LSI reset control output 49 VDCONT O C VD power supply control output 50 ROMDATA I/O /C E2PROM data input/output 51 ROMCS O C E2PROM chip selection output 52 ROMCK O C E2PROM clock output 53 LOEJ O C The direction change output of LOAD/EJECT 54 CLCONT O C Driver input change output 55 CDMUTE O C CD mute control output 56-58 INT For changer(Interruption at the edge) 59 xcs O C CD LSI chip selection output 60 NC Not used 61 xwait I CD LSI write control signal output 62 CLKOUT O C Internal system clock output(Open) 63 LOCK I Spindle lock input 64 NC Not used 65 xwrite O CD LSI write control signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 63 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Format Function and Operation 66 NC Not used 67 xread O CD LSI read control signal output 68 XASTB O CD LSI address strobe output 69 BVSS B power supply GND 70 BVDD B power supply Positive power supply 71-86 AD0-15 I/O /C Address/data Bus 0-15 87-90 NC Not used 91-93 A/D For changer(A/D) 94 csens I Flap closing sense input 95 TYPE_A/D I CD-DA analog/digital output change setup 96 testin I Chip check test program starting input 97 HOME I Home SW sense input 98 TEMP Temperature information sense input 99 VDSENS VD power supply short sense input 100 NC Not used * PE5440A 25 26 50 51 75 76 100 1 Format Meaning C CMOS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 64 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(UPD63761GJ) Pin No. Pin Name I/O Function and Operation 1 D.VDD Power supply for digital circuits 2 D1.GND GND for 1.6V digital circuits 3 reset I Input of reset 4-8 AB12-8 I Address bus 12-8 from the microcomputer 9-16 AD7-0 I/O Address/data bus 7-0 to the microcomputer 17 cs I Chip selection 18 ASTB I Address strobe 19 read I Control signals(read) 20 write I Control signals(write) 21 wait O Control signals(wait) 22 INTQ O Interruption signals to the external microcomputer 23, 24 IFMODE0, 1 I Switching the microcomputer I/F 0, 1 25 D1.VDD Power supply for 1.6V digital circuits 26 DA.VDD Power supply for DAC 27 ROUT O Output of audio for the right channel 28 DA.GND GND for DAC 29 REGC Connected to the capacitor for band gap 30 DA.GND GND for DAC 31 LOUT O Output of audio for the left channel 32 DA.VDD Power supply for DAC 33 X.VDD Power supply for the crystal oscillator 34 XTAL I Connected to the crystal oscillator(16.9344MHz) 35 xtal O Connected to the crystal oscillator(16.9344MHz) 36 X.GND Ground for the crystal oscillator 37 VDDREG15 Control of 1.6V regulator 38 PWMSW0 I Setup 0 for PWM output(SD, MD) 39-41 TEST3-1 I Connected to GND 42 PWMSW1 I Setup 1 for PWM output(FD, TD) 43 TESTEN I Connected to GND 44 D1.GND GND for 1.6V digital circuits 45 DIN I Input of audio data 46 DOUT O Output of audio data 47 SCKIN I Clock input for audio data 48 SCKO O Clock output for audio data 49 LRCKIN I Input of LRCK for audio data 50 LRCK O Output LRCK for audio data 51 xtalen I Permission to oscillate 16.9344MHz 52 D1.VDD Power supply for 1.6V digital circuits 53 RFCK/HOLD O Output of RFCK/HOLD signal 54 WFCK/MIRR O Output of WFCK/MIRR signal 55 PLCK O Output of PLCK 56 LOCK/RFOK O Output of LRCK/Output of RFOK 57 C1D1/C8M O Information on error correction/C8M : 8MHz 58 C1D2/C16M O Information on error correction/C16M : 16MHz 59 C2D1/RMUTE O Information on error correction/Mute for Rch 60 C2D2/LMUTE O Information on error correction/Mute for Lch 61 C2D3/SHOCK O Information on error correction/Detection of vibration 62 D1.GND GND for 1.6V digital circuits 63 C33M O Output of 33.8688MHz(CLK for SDRAM) 64 (rcs) O DRAM cs 65 RA11 O Output of DRAM address 11 66 (CKE) O Output of DRAM CKE 67 ras O Output of DRAM ras 68 cas)(LDQM) O Output of DRAM lower cas(LDQM) 69 cas!(UDQM) O Output of DRAM upper cas(UDQM) 70 we O Output of DRAM we 71 oe(cas) O Output of DRAM oe(cas) 72 D.GND Ground for digital circuits 73-88 RDB0-15 I/O Input/output of DRAM data0-15 89-99 RA0-10 O Output of DRAM address0-10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 65 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Function and Operation 100 D.VDD Power supply for digital circuits 101 FD+ O Output of focus drive PWM + 102 FD- O Output of focus drive PWM - 103 TD+ O Output of tracking drive PWM + 104 TD- O Output of tracking drive PWM - 105 SD+ O Output of thread drive PWM + 106 SD- O Output of thread drive PWM - 107 MD+ O Output of spindle drive PWM + 108 MD- O Output of spindle drive PWM - 109 REFOUTSV O REFOUT for servo 110 AD.VDD Power supply for ADC 111 EFM O Output of EFM signals 112 ASY I Input of asymmetry 113 ATEST O Analog tests 114 RFI I Input of RF 115 AD.GND Ground for the analog system 116 AGCO O Output of RF 117 C3T O Connection to the capacitor for detecting 3T 118 AGCI I Input of AGC 119 RFO O Output of RF(AGC) 120, 121 EQ2, 1 I Equalizer 2, 1 122 RF2- I Reversal input of RF2 123 RF- I Reversal input of RF 124 A.GND Ground for the analog system 125 A I Input of A 126 C I Input of C 127 B I Input of B 128 D I Input of D 129 F I Input of F 130 E I Input of E 131 VREFIN I Input of reference voltage 132 A.VDD Power supply for the analog system 133 REFOUT O Output of reference voltage 134 REFC I Connected to the capacitor for output of REFOUT 135 FE- I Reversal input of FE 136 FEO O Output of FE 137 ADIN I Input of FE, TE A/D converter 138 TE- I Reversal input of TE 139 TEO O Output of TE 140 TE2 O TE2 141 TEC I TEC 142 LD O Output of LD 143 PD I Input of PD 144 D.GND Ground for digital circuits * UPD63761GJ 72 73 108 109 36 37 1 144 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 66 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(BA5835FM) Pin No. Pin Name Function and Operation 1 VR Input pin for reference voltage 2 OPIN2(+) Input pin for non-inverting input for CH2 preamplifier 3 OPIN2(-) Input pin for inverting input for CH2 preamplifier 4 OPOUT2 Output pin for CH2 preamplifier 5 OPIN1(+) Input pin for non-inverting input for CH1 preamplifier 6 OPIN1(-) Input pin for inverting input from CH1 preamplifier 7 OPOUT1 Output pin for CH1 preamplifier 8 GND Ground pin 9 MUTE Mute control pin 10 POWVCC1 Power supply pin for CH1, CH2, and CH3 at "Power" stage 11 VO1(-) Driver CH1 - Negative output 12 VO1(+) Driver CH2 - Positive output 13 VO2(-) Driver CH2 - Negative output 14 VO2(+) Driver CH2 - Positive output 15 VO3(+) Driver CH2 - Positive output 16 VO3(-) Driver CH2 - Negative output 17 VO4(+) Driver CH4 - Positive output 18 VO4(-) Driver CH4 - Negative output 19 POWVCC2 Power supply pin for CH4 at "Power" stage 20 GND Ground pin 21 CNT Control pin 22 LDIN Loading input 23 OPOUTSL Output pin for preamplifier for thread 24 OPINLSL Input pin for preamplifier for thread 25 OPOUT3 CH3 preamplifier output pin 26 OPIN3(-) Input pin for inverting input for CH3 preamplifier 27 OPIN3(+) Input pin for non-inverting input for CH3 preamplifier 28 PREVCC PreVcc BA5835FM 1 14 15 28 ON/OFF VSS VIN 3 2 1 5 4 NC VOUT * S-L2980A15MC-C6A - + Reference voltage ON/OFF circuit 1 2 3 VIN VOUT VSS Reference Voltage * S-812C33AUA-C2N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 67 5 6 7 8 5 6 7 8 C D F A B E No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 LDET O lock detector “Low” active 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 RDS_CK O RDS clock Output of RDS clock(2.5V) 19 RDS_DATA O RDS data Output of RDS data(2.5V) 20 RDS_LOCK O RDS lock Output unit “High” active(2.5V) (RDS_LOCK turns over by the external transistor. “Low” active) 21 RDS_HSLK O RDS high speed Output unit “High” active(2.5V)(RDS_HSLK turns over by the lock external transistor. “Low” active) 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 68 1 2 3 4 1 2 3 4 C D F A B E 7.2.2 DISPLAY SEG49 COMMON SEGMENT SEG48 SEG47 SEG46 SEG45 SEG44 SEG43 SEG42 SEG41 SEG40 SEG39 SEG38 SEG37 SEG36 SEG35 SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 SEG23 SEG22 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 COM3 COM2B COM1B COM0B COM2A COM1A COM0A COM3 COM2B COM1B COM0B COM2A COM1A COM0A - LCD(CAW1752) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 69 5 6 7 8 5 6 7 8 C D F A B E 7.3 OPERATIONAL FLOW CHART VCC=5V Pin 14 ASENBO←H Pin 80 Power ON bsens=L asens=L dsens=L bsens Pin 73 asens Pin 72 dsens Pin 39 SWVDD←H Pin 38 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H Pin 1 Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. CSENS Pin 91 2V < CSENS < 3V - CSENS 2V, 3V CSENS Last source returns. CD loading functions are available. Keys except for EJECT key are not available. < < = = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 70 1 2 3 4 1 2 3 4 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 71 5 6 7 8 5 6 7 8 C D F A B E 8. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 72 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 73 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 74 1 2 3 4 1 2 3 4 C D F A B E Fixing the Front Panel If you do not operate the Detaching and Replacing the Front Panel Function, use the supplied fixing screws and fix the front panel to this unit. 1. Attach the holders to both sides of the front panel. 2. Replace the front panel to the unit. 3. Flip the holders into upright positions. 4. Fix the front panel to the unit using fixing screws. Fixing screw Holder CND1249 Holder CND1250 BPZ20P060FZK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5600MP/XM/EW 75 5 6 7 8 5 6 7 8 C D F A B E 1* 2* 4* 3* 5* Subwoofer output or non fading output Antenna jack This product Front output Fuse IP-BUS input (Blue) IP-BUS cable Note: Depending on the kind of vehicle, the function of 3* and 5* may be different. In this case, be sure to connect 2* to 5* and 4* to 3*. Connect leads of the same color to each other. Cap (1*) When not using this terminal, do not remove the cap. Yellow (3*) Back-up (or accessory) Yellow (2*) To terminal always supplied with power regardless of ignition switch position. Red (5*) Accessory (or back-up) Red (4*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Orange/white To lighting switch terminal. Black (ground) To vehicle (metal) body. ISO connector Note: In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. Speaker leads White : Front left + White/black: Front left ≠ Gray : Front right + Gray/black : Front right ≠ Green : Rear left + or Subwoofer + Green/black: Rear left ≠ or Subwoofer ≠ Violet : Rear right + or Subwoofer + Violet/black: Rear right ≠ or Subwoofer ≠ Connecting cords with RCA pin plugs (sold separately) Multi-CD player (sold separately) Power amp (sold separately) Power amp (sold separately) Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). System remote control Blue/white (7*) To Auto-antenna relay control terminal (max. 300 mA 12 V DC). Blue/white (6*) The pin position of the ISO connector will differ depends on the type of vehicle. Connect 6* and 7* when Pin 5 is an antenna control type. In another type of vehicle, never connect 6* and 7*. Front speaker Front speaker Left Right Subwoofer Subwoofer Perform these connections when using the optional amplifier. Jack for Wired Remote Control Please see the Instruction Manual for the Wired Remote Control (sold separately). - CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
