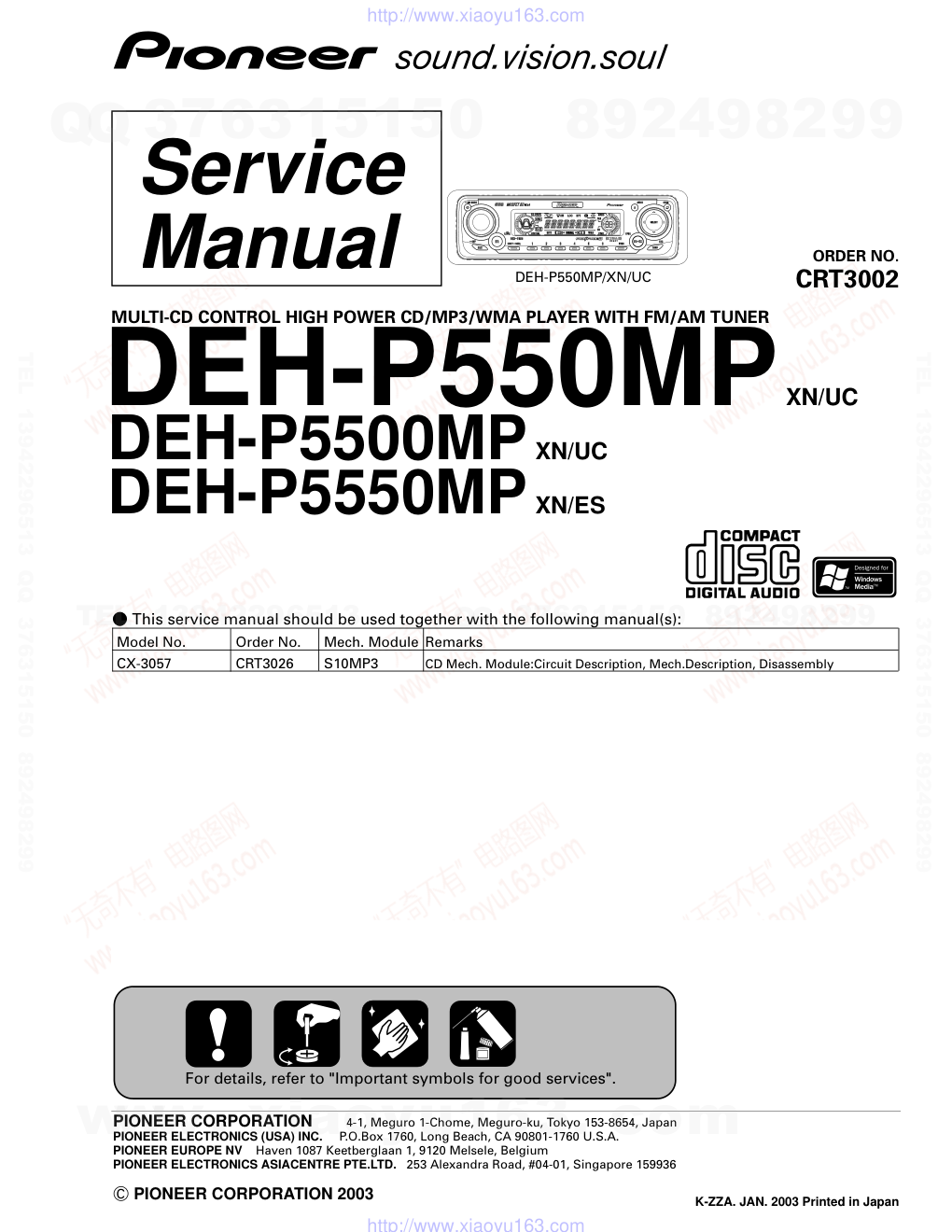

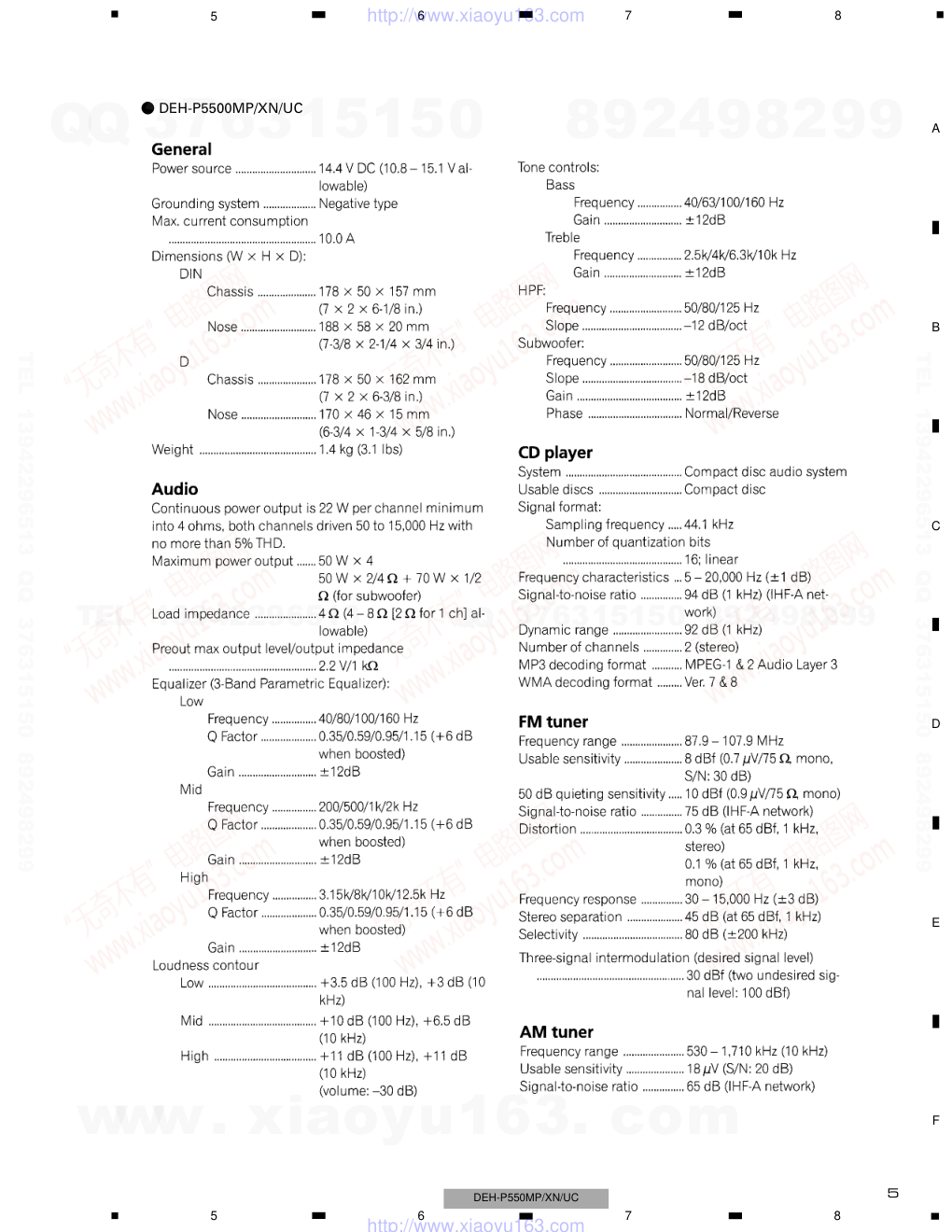

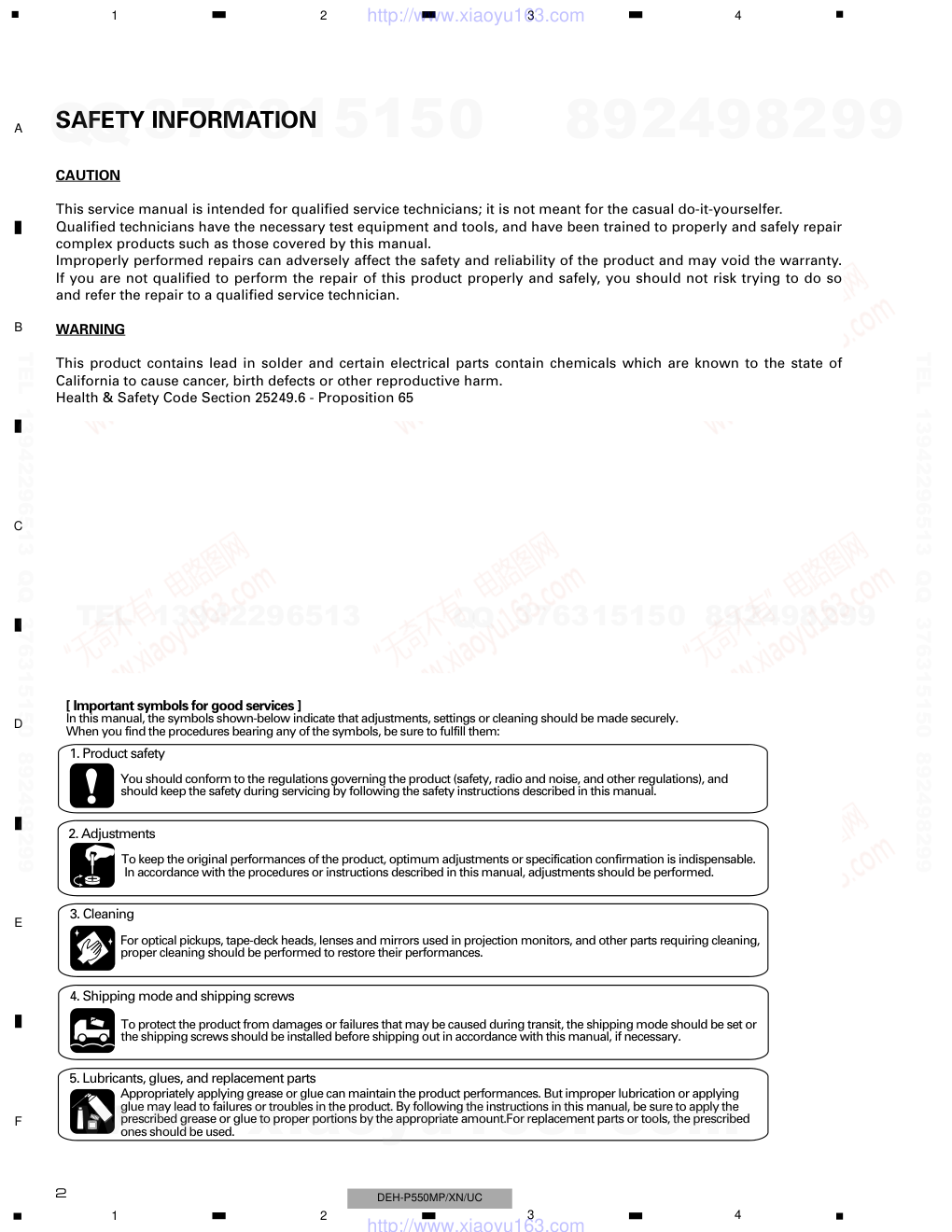

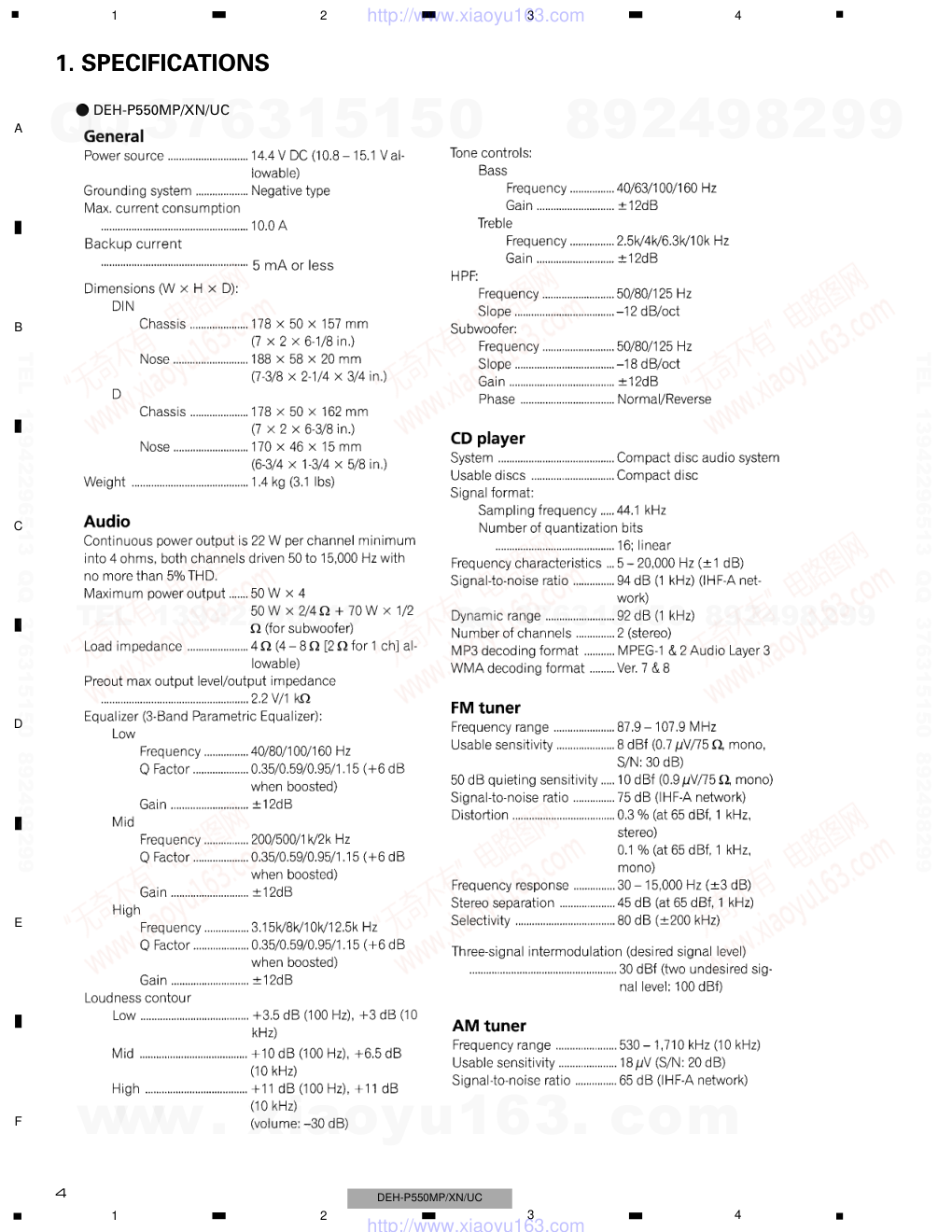

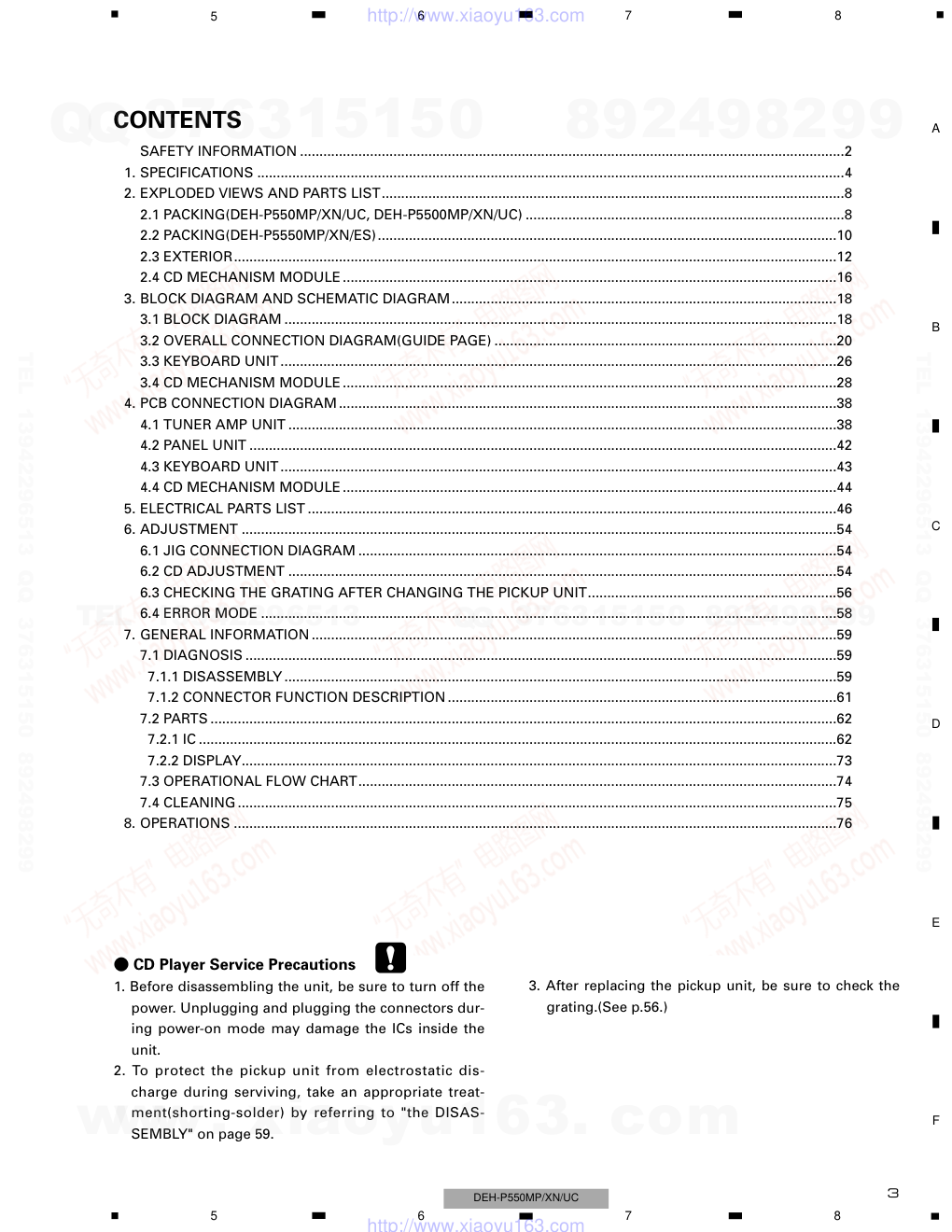

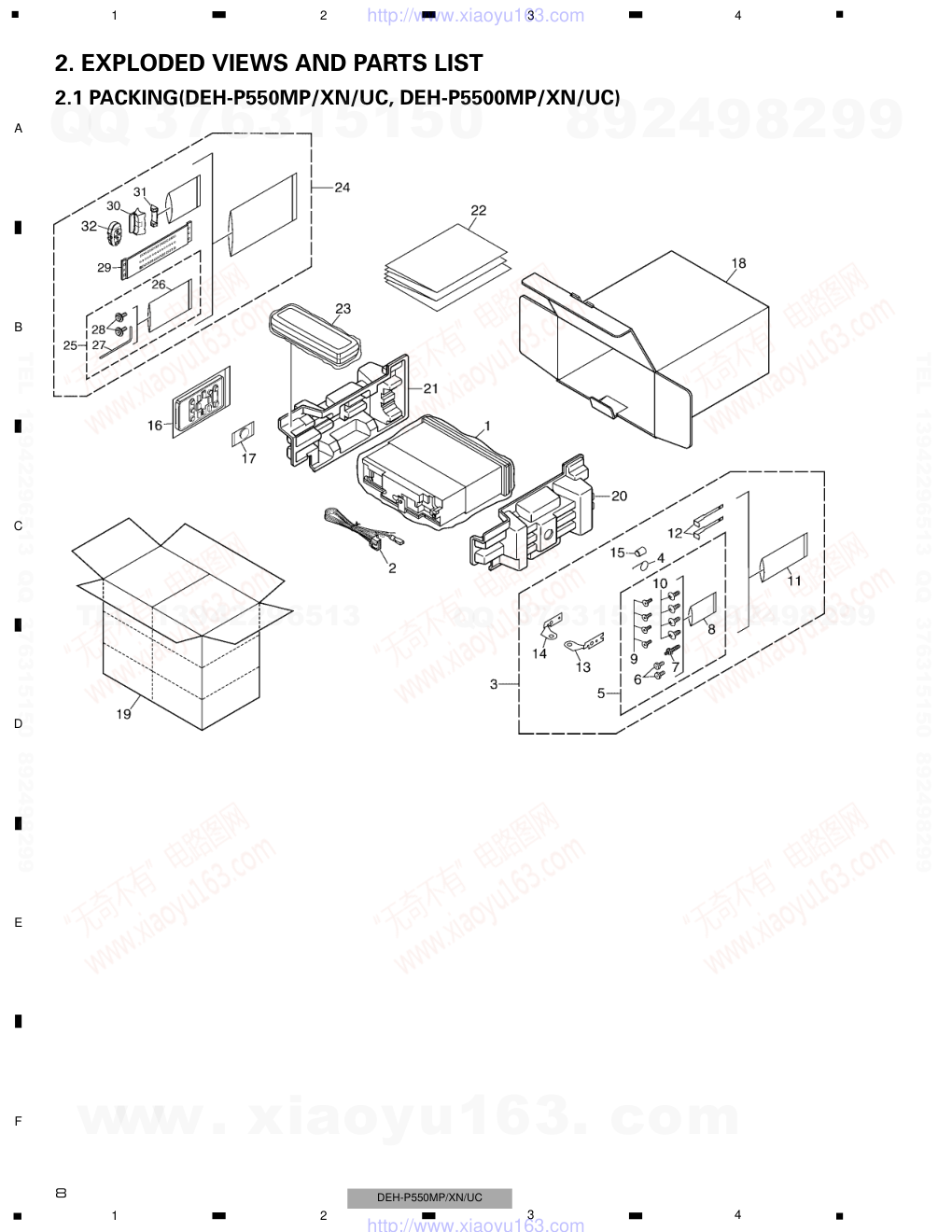

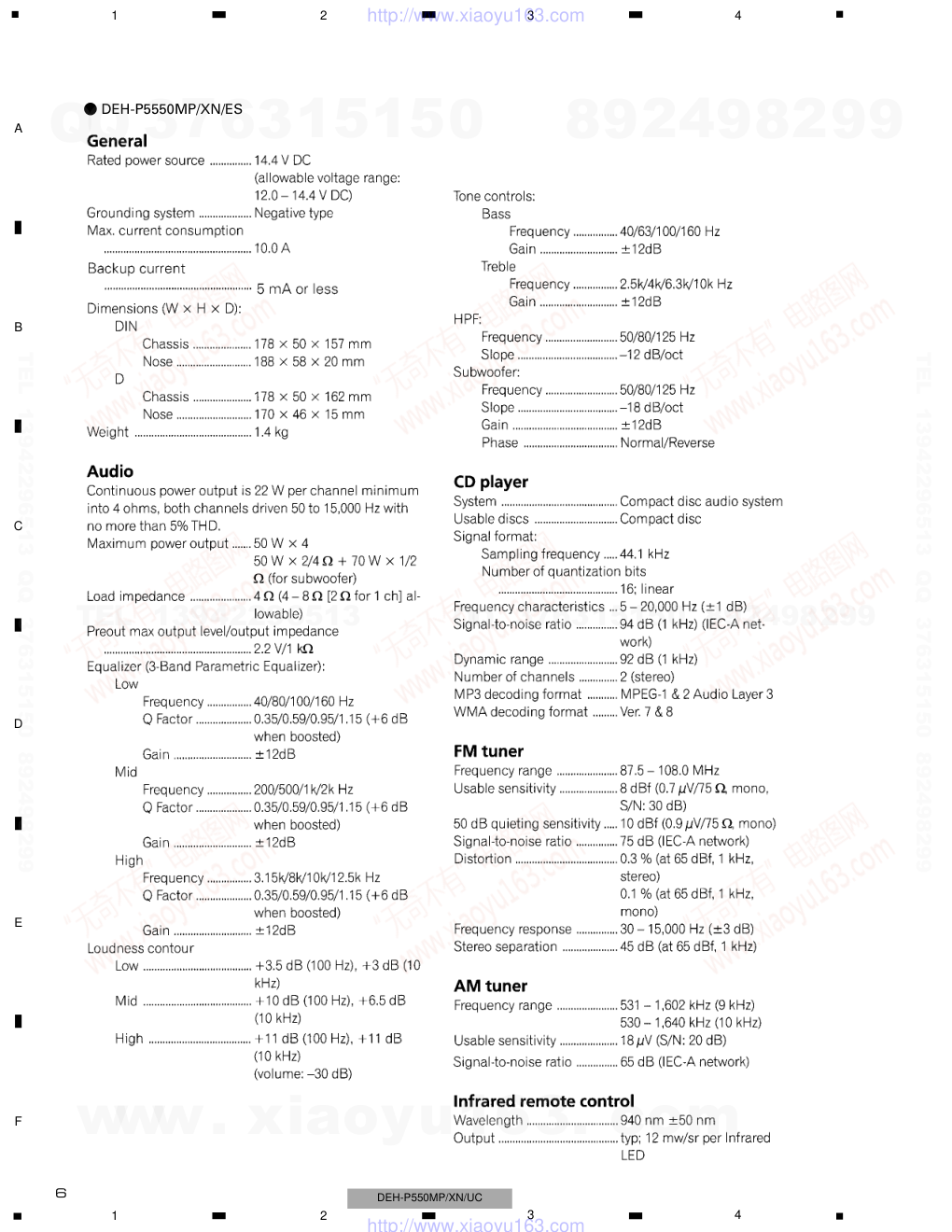

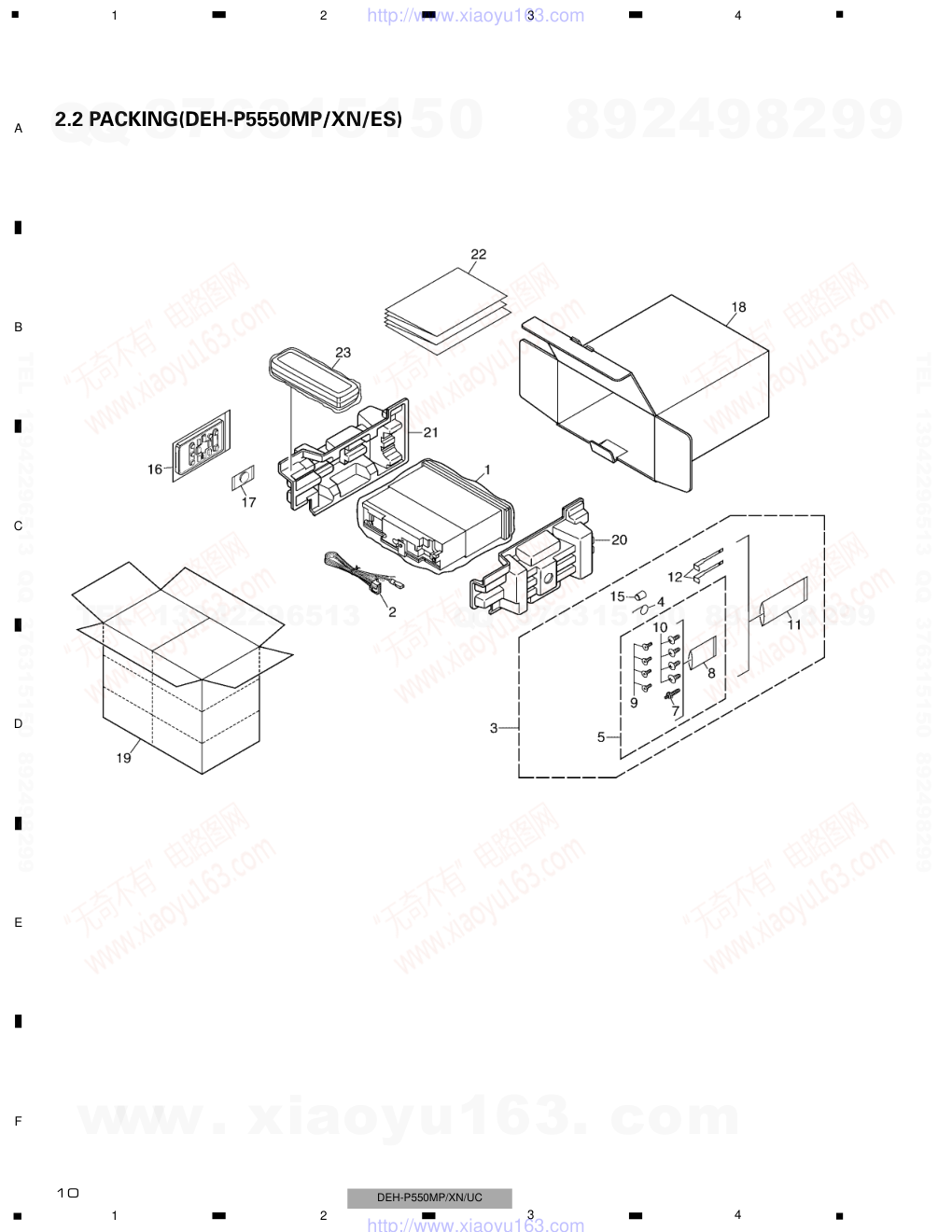

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2003 K-ZZA. JAN. 2003 Printed in Japan ORDER NO. CRT3002 MULTI-CD CONTROL HIGH POWER CD/MP3/WMA PLAYER WITH FM/AM TUNER DEH-P550MP XN/UC Service Manual DEH-P550MP/XN/UC - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-3057 CRT3026 S10MP3 CD Mech. Module:Circuit Description, Mech.Description, Disassembly DEH-P5500MP XN/UC For details, refer to "Important symbols for good services". DEH-P5550MP XN/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC SAFETY INFORMATION [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC - CD Player Service Precautions 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors dur- ing power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic dis- charge during serviving, take an appropriate treat- ment(shorting-solder) by referring to "the DISAS- SEMBLY" on page 59. 3. After replacing the pickup unit, be sure to check the grating.(See p.56.) CONTENTS SAFETY INFORMATION ............................................................................................................................................2 1. SPECIFICATIONS .......................................................................................................................................................4 2. EXPLODED VIEWS AND PARTS LIST.......................................................................................................................8 2.1 PACKING(DEH-P550MP/XN/UC, DEH-P5500MP/XN/UC) ..................................................................................8 2.2 PACKING(DEH-P5550MP/XN/ES)......................................................................................................................10 2.3 EXTERIOR...........................................................................................................................................................12 2.4 CD MECHANISM MODULE...............................................................................................................................16 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM...................................................................................................18 3.1 BLOCK DIAGRAM ..............................................................................................................................................18 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) ........................................................................................20 3.3 KEYBOARD UNIT...............................................................................................................................................26 3.4 CD MECHANISM MODULE...............................................................................................................................28 4. PCB CONNECTION DIAGRAM................................................................................................................................38 4.1 TUNER AMP UNIT .............................................................................................................................................38 4.2 PANEL UNIT .......................................................................................................................................................42 4.3 KEYBOARD UNIT...............................................................................................................................................43 4.4 CD MECHANISM MODULE...............................................................................................................................44 5. ELECTRICAL PARTS LIST ........................................................................................................................................46 6. ADJUSTMENT .........................................................................................................................................................54 6.1 JIG CONNECTION DIAGRAM ...........................................................................................................................54 6.2 CD ADJUSTMENT .............................................................................................................................................54 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT................................................................56 6.4 ERROR MODE ....................................................................................................................................................58 7. GENERAL INFORMATION .......................................................................................................................................59 7.1 DIAGNOSIS ........................................................................................................................................................59 7.1.1 DISASSEMBLY ..............................................................................................................................................59 7.1.2 CONNECTOR FUNCTION DESCRIPTION....................................................................................................61 7.2 PARTS .................................................................................................................................................................62 7.2.1 IC ....................................................................................................................................................................62 7.2.2 DISPLAY.........................................................................................................................................................73 7.3 OPERATIONAL FLOW CHART...........................................................................................................................74 7.4 CLEANING..........................................................................................................................................................75 8. OPERATIONS ...........................................................................................................................................................76 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 - DEH-P550MP/XN/UC 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 - DEH-P5500MP/XN/UC 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 - DEH-P5550MP/XN/ES 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING(DEH-P550MP/XN/UC, DEH-P5500MP/XN/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC - Owner's Manual, Installation Manual Model Part No. Language DEH-P550MP/XN/UC CRD3720 English, French, Spanish CRD3721 DEH-P5500MP/XN/UC CRD3722 English, French, Spanish CRD3723 1 Polyethylene Bag CEG1173 2 Cord Assy CDE7154 3 Accessory Assy CEA3376 4 Spring CBH1650 5 Screw Assy CEA3848 6 Fixing Screw BPZ20P060FZK 7 Screw CBA1650 * 8 Polyethylene Bag CEG-127 9 Screw CRZ50P090FTC 10 Screw TRZ50P080FTC * 11 Polyethylene Bag CEG-158 12 Handle CNC5395 13 Holder CND1249 14 Holder CND1250 15 Bush CNV3930 16 Remote Control Unit See Contrast table(2) * 17 Battery See Contrast table(2) 18 Carton See Contrast table(2) 19 Contain Box See Contrast table(2) 20 Protector CHP2663 21 Protector CHP2664 22-1 Owner’s Manual See Contrast table(2) 22-2 Installation Manual See Contrast table(2) * 22-3 Warranty Card See Contrast table(2) * 22-4 Card See Contrast table(2) 23 Case Assy CXB3520 24 Remote Control Assy See Contrast table(2) 25 Screw Assy See Contrast table(2) * 26 Polyethylene Bag See Contrast table(2) * 27 Hexagonal Wrench See Contrast table(2) * 28 Screw See Contrast table(2) 29 Belt See Contrast table(2) 30 Holder Assy See Contrast table(2) 31 Holder Assy See Contrast table(2) 32 Remote Control Assy See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. (1) PACKING(DEH-P550MP/XN/UC, DEH-P5500MP/XN/UC) SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Part No. Mark No. Symbol and Description DEH-P550MP/XN/UC DEH-P5500MP/XN/UC 16 Remote Control Unit Not used CXC1265 * 17 Battery CEX1030 CEX1065 18 Carton CHG4942 CHG4943 19 Contain Box CHL4942 CHL4943 22-1 Owner’s Manual CRD3720 CRD3722 22-2 Installation Manual CRD3721 CRD3723 * 22-3 Warranty Card CRY1070 Not used * 22-4 Card Not used ARY1048 24 Remote Control Assy CXB9202 Not used 25 Screw Assy CZE3169 Not used * 26 Polyethylene Bag CEG-127 Not used * 27 Hexagonal Wrench CZE3176 Not used * 28 Screw RMZ30H060FBK Not used 29 Belt CZN7661 Not used 30 Holder Assy CZX3172 Not used 31 Holder Assy CZX3173 Not used 32 Remote Control Assy CZX3257 Not used (2) CONTRAST TABLE DEH-P550MP/XN/UC and DEH-P5500MP/XN/UC are constructed the same except for the following: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 2.2 PACKING(DEH-P5550MP/XN/ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 1 Polyethylene Bag CEG-162 2 Cord Assy CDE7154 3 Accessory Assy CEA3439 4 Spring CBH1650 5 Screw Assy CEA3849 6 ••••• 7 Screw CBA1650 * 8 Polyethylene Bag CEG-127 9 Screw CRZ50P090FTC 10 Screw TRZ50P080FTC * 11 Polyethylene Bag CEG-158 12 Handle CNC5395 13 ••••• 14 ••••• 15 Bush CNV3930 16 Remote Control Unit CXC1265 * 17 Battery CEX1065 18 Carton CHG4944 19 Contain Box CHL4944 20 Protector CHP2663 21 Protector CHP2664 22-1 Owner’s Manual CRD3724 22-2 Owner’s Manual CRD3725 22-3 Installation Manual CRD3726 23 Case Assy CXB3520 Mark No. Description Part No. Mark No. Description Part No. - PACKING(DEH-P5550MP/XN/ES) SECTION PARTS LIST - Owner's Manual, Installation Manual Model Part No. Language DEH-P5550MP/XN/ES CRD3724 English, Spanish, Portuguese(B) CRD3725 Traditional Chinese, Arabic CRD3726 English, Spanish, Portuguese(B) Traditional Chinese, Arabic www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 2.3 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 1 Screw BMZ30P040FZK 2 Screw BSZ26P060FTC 3 Screw BSZ30P060FTC 4 Screw BSZ30P200FTC 5 Cable CDE7065 6 Cord Assy CDE7154 7 Case CNB2870 8 Holder CNC8659 9 Earth Plate CNC8915 10 Cushion CNM4870 11 Insulator CNM7682 12 Insulator CNM7935 13 Insulator CNM8174 14 Panel See Contrast table(2) 15 Tuner Amp Unit See Contrast table(2) 16 Screw ASZ26P060FTC 17 Screw BPZ26P080FTC 18 Screw BSZ26P160FTC 19 Fuse(10A) CEK1208 20 Pin Jack(CN352) CKB1051 21 Plug(CN901) CKM1376 22 Connector(CN101) CKS3408 23 Plug(CN801) CKS3537 24 Connector(CN651) CKS3837 25 Antenna Jack(CN401) CKX1056 26 Holder CND1352 27 Holder See Contrast table(2) 28 Insulator CNM8245 29 Heat Sink CNR1668 30 FM/AM Tuner Unit CWE1646 31 Holder CND1054 32 Chassis Unit CXB9528 33 Detach Grille Assy See Contrast table(2) 34 Screw BPZ20P060FTC 35 Screw BPZ20P100FZK 36 Knob See Contrast table(2) 37 Button(OPEN) CAC7728 38 Button(AUDIO) CAC7729 39 Button(DISP, 1-6, FUNC) CAC7730 40 Button(SELECT) See Contrast table(2) 41 Button(CLK) CAC7751 42 Spring CBH2654 43 Spring CBL1470 44 Cushion CNM8291 45 Cover CNS7247 46 Holder CNV7405 47 Keyboard Unit CWM8605 48 LCD CAW1755 49 Connector(CN1901) CKS4524 50 Holder CND1215 51 Sheet CNM7921 52 Connector CNV7365 53 Lighting Conductor CNV7406 54 Button Unit(SRC, EQ) CXB9924 55 Button Unit(BAND, EQ-EX) CXB9925 56 Sub Grille Assy See Contrast table(2) 57 Button(EJECT) CAC7752 58 Screw(M2x4) CBA1649 59 Washer CBF1038 60 Spring CBH2650 61 Spring CBH2651 62 Spring CBH2652 63 Spring CBH2653 64 Spring CBL1512 65 Holder CND1254 66 Cover CNM6854 67 Panel CNS7245 68 Gear CNV5997 69 Pin CNV6486 70 Lighting Conductor CNV6487 71 Arm CNV7400 72 Arm CNV7401 73 Arm CNV7402 74 Arm CNV7403 75 Panel Unit CWM8758 76 Socket(CN1950) CKS3550 77 Connector(CN1951) CKS4462 78 Holder Unit CXB9501 79 Holder Unit CXB9502 80 Damper Unit CXB9503 81 Service Panel Unit CXX1691 82 Screw IMS20P045FZK 83 Remote Control Unit See Contrast table(2) 84 Cover See Contrast table(2) 85 CD Mechanism Module(S10MP3) CXK5661 86 Screw ISS26P055FTC 87 Choke Coil(L301) CTH1280 88 IC(IC301) PAL007A 89 Transistor(Q651, 911, 921) 2SD2396 90 Cord Assy See Contrast table(2) 91 Plug(CN351) See Contrast table(2) 92 Remote Control Assy See Contrast table(2) 93 Cover See Contrast table(2) (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC Part No. Mark No. Symbol and Description DEH-P550MP/XN/UC DEH-P5500MP/XN/UC DEH-P5550MP/XN/ES 14 Panel CNS6935 CNS6934 CNS6935 15 Tuner Amp Unit CWM8588 CWM8589 CWM8590 27 Holder CND1239 CND1477 CND1477 33 Detach Grille Assy CXB9672 CXB9673 CXB9674 36 Knob CAA2755 CAA2753 CAA2755 40 Button(SELECT) CAC7733 CAC7731 CAC7733 56 Sub Grille Assy CXB9971 CXB9972 CXB9973 83 Remote Control Unit Not used CXC1265 CXC1265 84 Cover Not used CNS7068 CNS7068 90 Cord Assy CDE7129 Not used Not used 91 Plug(CN351) CKS1238 Not used Not used 92 Remote Control Assy CZX3257 Not used Not used 93 Cover CZN7655 Not used Not used (2) CONTRAST TABLE DEH-P550MP/XN/UC, DEH-P5500MP/XN/UC and DEH-P5550MP/XN/ES are constructed the same except for the following: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 1GEM1024 2GEM1045 3GEM1035 1 1 1 1 1 1 1 1 2 2 2 2 1 1 1 1 1 2 2 1 3 2.4 CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 17 Mark No. Description Part No. Mark No. Description Part No. 1 CD Core Unit(S10MP3) CWX2743 2 Connector(CN101) CKS4182 3 Connector(CN901) CKS4017 4 Screw BMZ20P035FTC 5 Screw BSZ20P040FTC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1511 8 Screw(M2x3) CBA1527 9 Washer CBF1037 10 Washer CBF1038 11 Washer CBF1060 12 Spring CBH2390 13 Spring CBH2606 14 Spring CBH2607 15 Spring CBH2608 16 Spring CBH2609 17 Spring CBH2610 18 Spring CBH2611 19 Spring CBH2612 20 Spring CBH2613 21 Spring CBH2614 22 Spring CBH2615 23 Spring CBH2616 24 Spring CBH2617 25 Spring CBH2620 26 Spring CBH2621 27 Spring CBH2641 28 Spring CBH2642 29 Spring CBH2643 30 Spring CBH2659 31 Spring CBH2688 * 32 Spring CBL1614 33 Shaft CLA3845 34 Frame CNC9962 35 Frame CNC9963 36 Bracket CNC9966 37 Bracket CNC9967 38 Arm CNC9968 39 Arm CNC9973 40 Lever CNC9983 41 Lever CNC9984 42 Sheet CNM8134 43 Collar CNV6906 44 Guide CNV6925 45 Arm CNV7198 46 Rack CNV7199 47 Holder CNV7201 48 Holder CNV7202 49 Arm CNV7203 50 Gear CNV7207 51 Gear CNV7208 52 Gear CNV7209 53 Gear CNV7210 54 Gear CNV7211 55 Gear CNV7212 56 Rack CNV7214 57 Arm CNV7215 58 Arm CNV7216 59 Guide CNV7217 60 Roller CNV7218 61 Gear CNV7219 62 Arm CNV7221 63 Arm CNV7220 64 Arm CNV7222 65 Damper CNV7313 66 Damper CNV7314 67 Arm CNV7341 68 Arm CNV7342 69 Guide CNV7360 70 Guide CNV7361 71 Holder CNV7437 72 Arm CNV7444 73 Gear CNV7595 74 Damper CNV7618 75 Motor Unit(M1) CXB6007 76 Chassis Unit CXB8728 77 Screw Unit CXB8729 78 Gear Unit CXB8731 79 Arm Unit CXB8732 80 Arm Unit CXB8735 81 Arm Unit CXB8852 82 Motor Unit(M2) CXB8933 83 Bracket CNC9985 84 Screw JFZ20P020FTC 85 Screw(M2x5) EBA1028 86 Screw JFZ20P020FTC 87 Screw JGZ17P022FTC 88 Washer YE15FTC 89 Washer YE20FTC 90 Pickup Unit(Service)(P10) CXX1641 91 Screw IMS26P030FMC - CD MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC BRST,BRXEN,BSRQ Q602 Q603 MUTE D CN901 Q101 M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ TRACKING ACT. LD- MD FO+ TO+ 15 5 1 4 PICKUP UNIT (SERVICE)(P10) HOLOGRAM UNIT IC 301 BA5996FM IC 201 UPD63760GJ IC 703 +3.3V REGULATOR RF-AMP,CD DECODER, MP3 DECODER, DIGITAL SERVO / DATA PROCESSOR CD DRIVER 3 VD VD 3VDD 10 L-OUT 5 CN101 TOP FOP 16 SOP 15 SOM 18 LCOP 17 LCOM 22 4,5 LOEJ 43 35 LOUT 42 9 CONT 12 FOP TD/FD AC,BD F,E SD/MD 1 13 TOP HOME 12EJ SENSE 8EJ SENSE LD+ 14 142 LD 141 PD CD CORE UNIT(S10MP3) 39 38 X201 X202 DSCSNS CONT LOEJ HOME 75 77 28 26 VDD IC 203 BA033SFP +3.3V REGULATOR V3R3D 2 4 VD2 CD3VON 25 VDCONT 24 1 S-818A33AUC-BGN CD CONTROLLER IC 701 PE5352B 33 CDMUTE 4 V3R3D WINT, WAIT, RFOK IC 501 UPD61002GC DRAM IC 202 MSM51V4265EP-70TS WMA DECODER TC74VHCT08AFT IC 702 XWINT, XWAIT, FOK 19 1 BDATA,BSCK IC 502 BA25BC0WFP +2.5V REGULATOR V2R5 2 4 VD2 1 2 Q701 17 ADENA 14 VCC VDD 15 5 1 4 14 CLAMP 93 VD2 VDCONT ASENBO 85 mute XIN XOUT 41 PEE 22 38 43 44 42 80 28 19 79 SYSTEM CONTROLLER IC 601(2/2) PD5800A CN401 1 2 BUS- BUS+ BUS+L BUS-L TX RX IPPW SWVDD BU CN651 Q8 Q652 Q651 TUNER AMP UNIT 13 X601 11 EVST,EVCK,EVD TUN L BUS+L BUS-L CD L 33 DPDT 34 KYDT 1 SYSPW 41 ILMPW S DSENS 39 dsens A 5 8 1 7 CN101 11 BUZZER 20 19 5 14 21 IC 101 HA12187FP IP-BUS DRIVER 1 2 8 6 5 TX RX IPPW BU Q101 Q102 TUN 3.3V SYS 8.4V VDD 80 VDSENS ANTENNA 92 LVLINL LEVEL INDIC BU Q804 Q 20 OELPW ILB BZ 641 35 ROT1 35 ROT0 VDD Q8 VDD BRST,BRXEN,BSRQ BDATA,BSCK EJTIN 42 FLPILM 40 VD Q650 22 VD FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch FM/AM TUNER UNIT 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 10 1 bsens asens VDD BU 72 73 10 FL 11 RL ILB SWDVDD 23 21 3 5 FL- FL+ RL- RL+ ACC IN2-L 41 IN4+L 43 IN4-L 44 IN3-L 42 FLIN 14 RLIN 12 22 4 RESET POWER AMP IC 601(1/2) PD5800A IC 201 PML009A IC 602 IC 301 PAL007A reset VDD Q911 Q931 SYSPW ELECTRONIC VOLUME/ SOURCE SELECTOR STBY MUTE Q807 2 EVST,EVCK,EVDT TUN L +L -L DPDT KYDT SYS 8.4V BU Q923 Q922 BU Q301 MUTE PL FL Q352 12 PL 7 2 11 14 7 2 11 14 CN1950 CN1951 4 2 10 8 PANEL UNIT MUTE S802 DSENSE SYSTEM CONTROLLER Q951 VDD TELIN 8 25 B.REMOTE VDD REGULATOR BACKUP SENSE ACC SENSE TELEPHONE MUTE SYS 8.4V REGULATOR 14 8 6 5 7 16 9 11 14 8 6 5 7 16 9 11 15 15 B CN901 Q982 BU CN352 FUSE 10A SL tunce@ TUNPCE1 TUNPDI TUNPDO 95 69 70 98 99 TUNPCK 100 ce@ CE1 2 6 NJM2391DL1-33 IC 401 1 3 SYS 8.4V TUN 3.3V TUNER 3.3V REGULATOR Q921 DO DI CK Q913 DALMON 67 BU 6,20 Q981 10 10 5 Q353 RL Q351 1 CN351 PL FL RL Q932 isens 81 ILM SENSE 12 12 NJM4558MD IC 131 5 7 1 SEL_OUT_L LEVEL INDICATOR Q804 Q803 ILB ILB Q806 13 13 9 12 12 7 ROT1 ROT0 VDD Q808 S-80835ANUP-EDZ NON-FAD/SW L FRONT L REAR L 8 8 S1970 EJECT 9 9 BU 5 6 5 6 CN831 Q805 FL- FL+ RL- RL+ BACK UP GND ACC B.REM ILM TEL MUTE ILB SWVDD IC 1900 PD6294A LCD DRIVER/ KEY CONTROLLER KEY MATRIX 9 11 KEY DATA VDD 55 CN1901 KEYBOARD UNIT 3 5 DPDT KYDT IC 1901 RS-140 REMOTE CONTROL SENSOR OPT IN 4 1 10 REMIN 9 8 DPDT KTDT LCD C VLCD 11 8 BL+B Q1910 DIMMER DIMMER 7 ILLUMINATION X1 X0 2 X1900 3 S1950 3 2 1 4 6 ROT1 ROT0 ROT1 ROT0 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC EJECT IP-BUS DRIVER For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V FM/AM TUNER UNIT D CD CORE UNIT (S10MP3) CN701 C KEYBOARD UNIT B PANEL UNIT UC ES 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page A B A-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 600µF SYSTEM CONTROLLER DSENSE SW B.UP SENSE ACC SENSE The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. REAR R CH REAR L CH FRONT R CH FRONT L CH SUB WOOFER R CH SUB WOOFER L CH FUSE 10A CEK1208 > A TUNER AMP UNIT BACKUP GND RL— RL+ FL— FL+ ACC ILM B.REM TEL RR— RR+ FR— FR+ DEH-P550MP/XN/UC A-b A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC A-a A-b A-a A-a A-b 1 3 2 SYSTEM CONTROLLE IP-BUS DRIVER FM/AM TUNER UNIT UC ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC A-a A-b A-a A-a A-b 4 5 7 6 EJECT For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V D CD CORE UNIT (S10MP3) CN701 C KEYBOARD UNIT B PANEL UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC A-a A-b A-b 1 3 2 600µF STEM CONTROLLER REAR R CH REAR L CH FRONT R CH FRONT L CH SUB WOOFER R CH SUB WOOFER L CH FUSE > A TUNER AMP UNIT DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC A-a A-b A-b 4 5 7 6 DSENSE SW B.UP SENSE ACC SENSE The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. FUSE 10A CEK1208 > BACKUP GND RL— RL+ FL— FL+ ACC ILM B.REM TEL RR— RR+ FR— FR+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC C CL-195PG-CD x3 CL-195PG-CD 3.3 KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC C CL-195PG-CD CL-195PG-CD B CN1951 C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 6R8K 6R8K PICKUP UNIT(SERVICE)(P10) 1R8K 9P 100P R756 100K M1 CXB6007 M2 CXB8933 LOADING/CARRIAGE MOTOR SPINDLE MOTOR SWITCHES: CD CORE UNIT(S10MP3) S901 : HOME SWITCH.....ON-OFF S902 : CLAMP SWITCH....ON-OFF S903 : DSCSNS SWITCH....ON-OFF S904 : 12EJ SWITCH....ON-OFF S905 : 8EJ SWITCH....ON-OFF The underlined indicates the original switch position. 1 8 6 5 0 ! 2 3 7 @ # F F T T T T T T T T F F F F F F C S T F C S T F C S T F F F T T S S C C S S C C F F T T 3.4 CD MECHANISM MODULE(GUIDE PAGE) D D-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC PE5352B MA152WA 4R7/25 4R7/25 R240 0R0 R241 220 0R0 R755 CD3VON D CD CORE UNIT (S10MP3) A CN651 4 9 $ % ^ & * F T C S SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE D-b D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC A-a D-b D-a D-a D-b 6R8K 6R8K PICKUP UNIT(SERVICE)(P10) 1R8K 9P 100P 0 ! # F F T T T T T T T T F F F F F F C S T F C S T F F F T T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC A-a D-b D-a D-a D-b 1 2 3 R756 100K M1 CXB6007 M2 CXB8933 LOADING/CARRIAGE MOTOR SPINDLE MOTOR SWITCHES: CD CORE UNIT(S10MP3) S901 : HOME SWITCH.....ON-OFF S902 : CLAMP SWITCH....ON-OFF S903 : DSCSNS SWITCH....ON-OFF S904 : 12EJ SWITCH....ON-OFF S905 : 8EJ SWITCH....ON-OFF The underlined indicates the original switch position. 1 8 6 5 2 3 7 @ C S T F F F T T S S C C S S C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC D-a D-b D-b R240 0R0 R241 220 D CD CORE UNIT (S10MP3) 9 $ % ^ F T C S SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC D-a D-b D-b 1 2 3 PE5352B MA152WA 4R7/25 4R7/25 0R0 R755 CD3VON A CN651 4 & * T C S TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65V) 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading a 12cm CD Ref.: GND Mode: Normal 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 2s/div When setting up after loading a 12cm CD-DA disc 5 SIN 6 CIN 7 TIN When setting up after loading a 12cm CD-ROM disc(1 session) When setting up after loading a 12cm CD-ROM disc(3 session) Ref.: REFO Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading an 8cm CD Ref.: GND Mode: Normal 0 TE ! FE 500mV/div 500mV/div 200ms/div When setting up "Source On" Ref.: REFO Mode: Normal ! FE 8 FIN 0 TE 7 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div Ref.: REFO Mode: Normal ! FE 8 FIN 0 TE 7 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div During "Play"(CD-DA) During "Play"(CD-ROM)(Track Jump is generated periodically)(Refer to Track Jump waveform) Ref.: REFO Mode: Normal @ MDX 5 SIN 500mV/div 200mV/div 50ms/div Spindle waveform during "Play" Ref.: REFO Mode: Normal # RFAGC 500mV/div 5µs/div Ref.: REFO Mode: Normal @ MDX 5 SIN 500mV/div 1V/div 5µs/div Spindle waveform during "Play"(Magnified) RF eye pattern Ref.: REFO Mode: Normal 1V/div 500mV/div 500mV/div 2s/div 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 2s/div When setting up "Source On"(12cm CD-DA) Ref.: REFO Mode: Normal 8 FIN 9 RFOK 5 SIN 200mV/div 2V/div 2V/div 500ms/div Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 8 FIN ! FE 500mV/div 500mV/div 200ms/div Focus Search Ref.: REFO Mode: TEST # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 500µs/div Ref.: REFO Mode: TEST 0 TE # RFAGC 500mV/div 500mV/div 2ms/div When "Tracking Open" 1 Track Jump Ref.: REFO Mode: TEST # RFAGC % TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 200ms/div Ref.: REFO Mode: Normal $ LRCKIN % DIN ^ SCKIN 2V/div 2V/div 2V/div 2µs/div Ref.: REFO Mode: Normal $ LRCKIN % DIN ^ SCKIN 2V/div 2V/div 2V/div 10µs/div Digital Audio Digital Audio(Magnified) Ref.: GND Mode: Normal # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 1ms/div 32 Track Jump Ref.: REFO Mode: TEST # RFAGC 7 TIN 0 TE 8 FIN 1V/div 1V/div 1V/div 1V/div 500µs/div Ref.: REFO Mode: Normal # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 5ms/div 100 Track Jump When passing black dots(800µm) Ref.: REFO Mode: TEST During inside/outside search (outer circumference → inner circumference) & LOUT * ROUT 1V/div 1V/div 200µs/div Ref.: AGND Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 5V/div 5V/div 5V/div 10µs/div Ref.: GND Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 5V/div 5V/div 5V/div 500ms/div When "Eject"(12cm CD) Analog Audio(sine wave, 1kHz) When "Eject"(8cm CD) Ref.: GND Mode: Normal 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal When switching to CD-ROM from CD-DA (BAND key) When switching to CD-DA from CD-ROM (BAND key) 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT Capacitor Connector P.C.Board Chip Part A A TUNER AMP UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams DSENSE CORD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC A SIDE A D CN701 B CN1950 ANTENNA FM/AM TUNER UNIT FRONT CN901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC B B PANEL UNIT B PANEL UNIT SIDE A SIDE B C CN1901 A CN831 EJECT 4.2 PANEL UNIT CN801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 C C KEYBOARD UNIT C KEYBOARD UNIT SIDE A SIDE B [ [ [ [ BAND AUDIO EQ-EX FUNC 6 5 4 3 2 1 DISP EQ SOURCE VOLUME CLK B CN1951 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 4.3 KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 4.4 CD MECHANISM MODULE D D CD CORE UNIT(S10MP3) SIDE A PICKUP UNIT (SERVICE) HOME M1 SPINDLE MOTOR M2 LOADING /CARRIAGE MOTOR A CN651 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC D D CD CORE UNIT(S10MP3) SIDE B CLAMP DSCSNS 8EJ 12EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : CWM8588(DEH-P550MP/XN/UC) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC HA12187FP IC 131 IC NJM4558MD IC 201 IC PML009A IC 301 IC PAL007A IC 401 IC NJM2391DL1-33 IC 601 IC PD5800A IC 602 IC S-80835ANUP-EDZ Q 101 Transistor 2SA1037K Q 102 Transistor DTC114EU Q 301 Transistor DTC124EU Q 351 Transistor IMH3A Q 352 Transistor IMH3A Q 353 Transistor IMH3A Q 650 Transistor 2SD1760F5 Q 651 Transistor 2SD2396 Q 652 Transistor IMD2A Q 803 Transistor 2SD1767 Q 804 Transistor IMD2A Q 805 Transistor DTC143EU Q 806 Transistor IMD14 Q 807 Transistor 2SA1037K Q 808 Transistor DTC114EU Q 911 Transistor 2SD2396 Q 913 Transistor IMD2A Q 921 Transistor 2SD2396 Q 922 Transistor DTC114EU Q 923 Transistor 2SB1243 Q 931 Transistor IMX1 Q 932 Transistor DTC114EU Q 951 Transistor 2SA1037K Q 981 Transistor 2SC2412K Q 982 Transistor IMD2A D 131 Diode Network DA204U D 132 Diode Network DA204U D 133 Diode DAN202U D 134 Diode DAP202U D 301 Diode S5688G D 302 Diode S5688G D 303 Diode S5688G D 304 Diode S5688G D 401 Diode S5688G D 402 Diode S5688G D 403 Diode S5688G D 650 Diode HZS6L(C1) D 651 Diode HZS9L(B1) D 803 Diode Network DA204U D 804 Diode DAN202U D 805 Diode DAP202U D 806 Diode DAN202U D 807 Diode DAP202U D 808 Diode HZS11L(A1) D 911 Diode S5688G D 912 Diode HZS6L(B2) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(A1) D 932 Diode HZS7L(C3) D 937 Diode MA110 D 951 Diode DAN202U D 981 Diode DAN202U D 982 Diode HZS9L(A2) L 101 Inductor LAU2R2K L 201 Ferri-Inductor LAU4R7K L 301 Choke Coil 600µH CTH1280 L 401 Ferri-Inductor LAU4R7K L 403 Inductor LAU1R0K L 404 Inductor LAU1R0K L 406 Inductor CTF1385 L 601 Ferri-Inductor LAU100K L 683 Ferri-Inductor LAU4R7K L 801 Inductor LAU2R2K L 951 Inductor LAU2R2K X 601 Radiator 10.00MHz CSS1599 S 802 Switch(DSENSE) CSN1039 FM/AM Tuner Unit CWE1646 Fuse 10A CEK1208 BZ 641 Buzzer CPV1062 AR 401 Surge Protector DSP-201M-S00B RESISTORS R 101 RS1/16S101J R 102 RS1/16S620J R 103 RS1/16S101J R 104 RS1/16S222J R 105 RS1/16S103J R 106 RS1/16S472J R 107 RS1/16S223J R 108 RS1/16S472J R 109 RS1/16S821J R 110 RS1/16S821J R 111 RS1/16S223J R 112 RS1/16S223J R 113 RS1/16S102J R 114 RS1/16S102J R 133 RS1/16S563J R 134 RS1/16S104J R 139 RS1/16S563J R 140 RS1/16S104J R 147 RS1/16S474J R 148 RS1/16S474J R 201 RAB4C102J R 241 RS1/16S102J R 242 RS1/16S102J R 247 RS1/16S101J R 248 RS1/16S101J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC R 249 RS1/16S101J R 250 RS1/16S101J R 301 RS1/16S103J R 302 RS1/16S103J R 303 RS1/16S153J R 304 RS1/16S331J R 351 RS1/16S821J R 352 RS1/16S821J R 353 RS1/16S821J R 354 RS1/16S821J R 355 RS1/16S821J R 356 RS1/16S821J R 357 RS1/16S223J R 358 RS1/16S223J R 359 RS1/16S223J R 360 RS1/16S223J R 361 RS1/16S223J R 362 RS1/16S223J R 403 RS1/16S681J R 404 RS1/16S0R0J R 405 RS1/16S681J R 406 RS1/16S681J R 407 RS1/16S681J R 408 RS1/16S681J R 410 RS1/16S681J R 413 RS1/16S0R0J R 416 RS1/16S681J R 417 RS1/16S681J R 419 RS1/16S681J R 421 RS1/16S681J R 423 RD1/4PU0R0J R 602 RS1/16S104J R 605 RS1/16S0R0J R 606 RS1/16S104J R 607 RS1/16S822J R 608 RS1/16S221J R 609 RS1/16S221J R 610 RS1/16S682J R 611 RS1/16S682J R 612 RS1/16S104J R 613 RS1/16S102J R 615 RS1/16S0R0J R 616 RS1/16S473J R 617 RS1/16S102J R 618 RS1/16S104J R 630 RS1/16S104J R 632 RS1/16S104J R 641 RS1/16S102J R 645 RS1/16S271J R 651 RD1/4PU221J R 652 RD1/4PU221J R 656 RS1/16S102J R 657 RS1/16S102J R 665 RD1/4PU0R0J R 666 RS1/16S0R0J R 669 RS1/16S0R0J R 671 RS1/16S0R0J R 672 RS1/16S0R0J R 676 RS1/16S102J R 677 RS1/16S104J R 678 RS1/16S102J R 680 RS1/16S222J R 681 RS1/16S104J R 689 RS1/16S0R0J R 802 RS1/16S222J R 803 RS1/16S472J R 804 RS1/16S1R0J R 805 RS1/16S391J R 806 RS1/16S391J R 807 RS1/16S473J R 808 RS1/16S473J R 809 RS1/16S102J R 810 RS1/16S222J R 811 RS1/16S222J R 812 RS1/16S222J R 813 RS1/16S222J R 814 RS1/16S222J R 815 RS1/16S473J R 816 RS1/16S104J R 817 RD1/4PU391J R 818 RS1/16S104J R 819 RS1/16S222J R 820 RS1/16S222J R 821 RS1/16S472J R 822 RS1/16S0R0J R 823 RS1/16S102J R 824 RS1/16S473J R 825 RS1/16S102J R 826 RS1/16S102J R 827 RS1/16S102J R 828 RS1/16S102J R 903 RS1/16S223J R 912 RS1/16S222J R 913 RS1/16S223J R 914 RS1/16S104J R 915 RS1/16S104J R 916 RS1/16S104J R 923 RS1/16S103J R 924 RD1/4PU122J R 925 RS1/16S182J R 931 RS1/16S472J R 932 RS1/16S473J R 933 RS1/16S103J R 934 RS1/16S473J R 935 RS1/16S104J R 936 RS1/16S103J R 938 RD1/4PU102J R 939 RD1/4PU102J R 951 RD1/4PU153J R 952 RS1/16S472J R 953 RS1/16S472J R 954 RS1/16S102J R 983 RS1/16S223J R 984 RS1/16S473J R 985 RS1/16S102J CAPACITORS C 101 CKSRYB104K16 C 102 CKSRYB473K25 C 131 CKSRYB104K16 C 132 CKSRYB104K16 C 141 CKSRYB104K16 C 142 CKSRYB103K50 C 143 CKSRYB474K10 C 144 CKSRYB474K10 C 145 CCSRCH101J50 C 146 CCSRCH101J50 C 147 CKSRYB104K16 C 201 CEJQ1R0M50 C 202 CEJQ1R0M50 C 203 CKSRYB104K16 C 204 CKSRYB104K16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC C 205 CKSRYB104K16 C 206 CEJQ470M16 C 207 CEJQ1R0M50 C 208 CEJQ1R0M50 C 209 CEJQ1R0M50 C 210 CEJQ1R0M50 C 211 CEJQ4R7M35 C 212 CEJQ4R7M35 C 213 CEJQ4R7M35 C 214 CEJQ4R7M35 C 215 CEJQ4R7M35 C 216 CEJQ4R7M35 C 217 CEJQ4R7M35 C 218 CEJQ4R7M35 C 219 CCSRCH120J50 C 220 CCSRCH120J50 C 221 CCSRCH120J50 C 222 CCSRCH120J50 C 225 CEJQ100M16 C 241 CKSRYB152K50 C 242 CKSRYB152K50 C 301 CKSRYB104K16 C 306 CEJQ330M10 C 307 3300µF/16V CCH1486 C 309 CKSRYB104K16 C 310 CEJQ100M16 C 311 CKSYB475K16 C 312 CKSYB475K16 C 317 CKSRYB474K10 C 318 CKSRYB474K10 C 319 CKSRYB474K10 C 320 CKSRYB474K10 C 321 CKSRYB474K10 C 322 CKSRYB474K10 C 323 CKSRYB474K10 C 324 CKSRYB474K10 C 325 CKSQYB225K10 C 326 CKSQYB225K10 C 351 CEJQ4R7M35 C 352 CEJQ4R7M35 C 353 CEJQ4R7M35 C 354 CEJQ4R7M35 C 355 CEJQ4R7M35 C 356 CEJQ4R7M35 C 401 CKSRYB103K50 C 402 CEJQ101M10 C 403 CKSQYB105K16 C 404 CKSYB475K10 C 406 CEJQ470M10 C 408 CKSYB475K10 C 409 CEJQ1R0M50 C 411 CCSRCH101J50 C 412 CCSRCH470J50 C 601 CEJQ4R7M35 C 602 CKSQYB105K16 C 603 CEJQ2R2M50 C 604 CCSRCH200J50 C 605 CCSRCH200J50 C 609 CCSRCH101J50 C 644 CEJQ101M10 C 645 CKSRYB473K25 C 646 CCSRCH470J50 C 651 CEJQ101M10 C 652 CKSRYB473K25 C 654 CKSRYB152K50 C 655 CKSRYB152K50 C 657 CCSRCH470J50 C 658 470µF/16V CCH1183 C 662 CCSRCH471J50 C 755 CKSRYB104K16 C 806 CKSRYB473K25 C 807 CKSRYB473K25 C 811 CKSQYB105K16 C 854 CKSRYB473K25 C 911 470µF/16V CCH1331 C 912 CKSRYB472K50 C 913 CKSRYB103K50 C 914 CEJQ470M10 C 921 CEJQ221M10 C 922 CKSRYB103K50 C 923 CEJQ101M16 C 931 CEJQ1R0M50 Unit Number : CWM8589(DEH-P5500MP/XN/UC) CWM8590(DEH-P5550MP/XN/ES) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC HA12187FP IC 131 IC NJM4558MD IC 201 IC PML009A IC 301 IC PAL007A IC 401 IC NJM2391DL1-33 IC 601 IC PD5800A IC 602 IC S-80835ANUP-EDZ Q 101 Transistor 2SA1037K Q 102 Transistor DTC114EU Q 301 Transistor DTC124EU Q 352 Transistor IMH3A Q 353 Transistor IMH3A Q 650 Transistor 2SD1760F5 Q 651 Transistor 2SD2396 Q 652 Transistor IMD2A Q 803 Transistor 2SD1767 Q 804 Transistor IMD2A Q 805 Transistor DTC143EU Q 806 Transistor IMD14 Q 807 Transistor 2SA1037K Q 808 Transistor DTC114EU Q 911 Transistor 2SD2396 Q 913 Transistor IMD2A Q 921 Transistor 2SD2396 Q 922 Transistor DTC114EU Q 923 Transistor 2SB1243 Q 931 Transistor IMX1 Q 932 Transistor DTC114EU Q 951 Transistor 2SA1037K Q 981 Transistor 2SC2412K Q 982 Transistor IMD2A D 131 Diode Network DA204U D 132 Diode Network DA204U D 133 Diode DAN202U D 134 Diode DAP202U D 301 Diode S5688G D 302 Diode S5688G D 303 Diode S5688G D 304 Diode S5688G D 401 Diode S5688G D 402 Diode S5688G D 403 Diode S5688G D 650 Diode HZS6L(C1) D 651 Diode HZS9L(B1) D 803 Diode Network DA204U =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC D 804 Diode DAN202U D 805 Diode DAP202U D 806 Diode DAN202U D 807 Diode DAP202U D 808 Diode HZS11L(A1) D 911 Diode S5688G D 912 Diode HZS6L(B2) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(A1) D 932 Diode HZS7L(C3) D 937 Diode MA110 D 951 Diode DAN202U D 981 Diode DAN202U D 982 Diode HZS9L(A2) L 101 Inductor LAU2R2K L 201 Ferri-Inductor LAU4R7K L 301 Choke Coil 600µH CTH1280 L 401 Ferri-Inductor LAU4R7K L 403 Inductor LAU1R0K L 404 Inductor LAU1R0K L 406 Inductor CTF1385 L 601 Ferri-Inductor LAU100K L 683 Ferri-Inductor LAU4R7K L 801 Inductor LAU2R2K L 951 Inductor LAU2R2K X 601 Radiator 10.00MHz CSS1599 S 802 Switch(DSENSE) CSN1039 Fuse 10A CEK1208 FM/AM Tuner Unit CWE1646 BZ 641 Buzzer CPV1062 AR 401 Surge Protector DSP-201M-S00B RESISTORS R 101 RS1/16S101J R 102 RS1/16S620J R 103 RS1/16S101J R 104 RS1/16S222J R 105 RS1/16S103J R 106 RS1/16S472J R 107 RS1/16S223J R 108 RS1/16S472J R 109 RS1/16S821J R 110 RS1/16S821J R 111 RS1/16S223J R 112 RS1/16S223J R 113 RS1/16S102J R 114 RS1/16S102J R 133 RS1/16S563J R 134 RS1/16S104J R 139 RS1/16S563J R 140 RS1/16S104J R 147 RS1/16S474J R 148 RS1/16S474J R 201 RAB4C102J R 241 RS1/16S102J R 242 RS1/16S102J R 247 RS1/16S101J R 248 RS1/16S101J R 249 RS1/16S101J R 250 RS1/16S101J R 301 RS1/16S103J R 302 RS1/16S103J R 303 RS1/16S153J R 304 RS1/16S331J R 353 RS1/16S821J R 354 RS1/16S821J R 355 RS1/16S821J R 356 RS1/16S821J R 359 RS1/16S223J R 360 RS1/16S223J R 361 RS1/16S223J R 362 RS1/16S223J R 403 RS1/16S681J R 404 RS1/16S0R0J R 405 RS1/16S681J R 406 RS1/16S681J R 407 RS1/16S681J R 408 RS1/16S681J R 410 RS1/16S681J R 413 RS1/16S0R0J R 416 RS1/16S681J R 417 RS1/16S681J R 419 RS1/16S681J R 421 RS1/16S681J R 423 RD1/4PU0R0J R 601 (DEH-P5550MP/XN/ES) RS1/16S104J R 602 (DEH-P5500MP/XN/UC) RS1/16S104J R 605 RS1/16S0R0J R 606 RS1/16S104J R 607 RS1/16S822J R 608 RS1/16S221J R 609 RS1/16S221J R 610 RS1/16S682J R 611 RS1/16S682J R 612 RS1/16S104J R 613 RS1/16S102J R 615 RS1/16S0R0J R 616 RS1/16S473J R 617 RS1/16S102J R 618 RS1/16S104J R 630 RS1/16S104J R 632 RS1/16S104J R 641 RS1/16S102J R 645 RS1/16S271J R 651 RD1/4PU221J R 652 RD1/4PU221J R 656 RS1/16S102J R 657 RS1/16S102J R 665 RD1/4PU0R0J R 666 RS1/16S0R0J R 669 RS1/16S0R0J R 671 RS1/16S0R0J R 672 RS1/16S0R0J R 676 RS1/16S102J R 677 RS1/16S104J R 678 RS1/16S102J R 680 RS1/16S222J R 681 RS1/16S104J R 689 RS1/16S0R0J R 802 RS1/16S222J R 803 RS1/16S472J R 804 RS1/16S1R0J R 805 RS1/16S391J R 806 RS1/16S391J R 807 RS1/16S473J R 808 RS1/16S473J R 809 RS1/16S102J R 810 RS1/16S222J R 811 RS1/16S222J R 812 RS1/16S222J R 813 RS1/16S222J R 814 RS1/16S222J R 815 RS1/16S473J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC R 816 RS1/16S104J R 817 RD1/4PU391J R 818 RS1/16S104J R 819 RS1/16S222J R 820 RS1/16S222J R 821 RS1/16S472J R 822 RS1/16S0R0J R 823 RS1/16S102J R 824 RS1/16S473J R 825 RS1/16S102J R 826 RS1/16S102J R 827 RS1/16S102J R 828 RS1/16S102J R 903 RS1/16S223J R 912 RS1/16S222J R 913 RS1/16S223J R 914 RS1/16S104J R 915 RS1/16S104J R 916 RS1/16S104J R 923 RS1/16S103J R 924 RD1/4PU122J R 925 RS1/16S182J R 931 RS1/16S472J R 932 RS1/16S473J R 933 RS1/16S103J R 934 RS1/16S473J R 935 RS1/16S104J R 936 RS1/16S103J R 938 RD1/4PU102J R 939 RD1/4PU102J R 951 RD1/4PU153J R 952 RS1/16S472J R 953 RS1/16S472J R 954 RS1/16S102J R 983 RS1/16S223J R 984 RS1/16S473J R 985 RS1/16S102J CAPACITORS C 101 CKSRYB104K16 C 102 CKSRYB473K25 C 131 CKSRYB104K16 C 132 CKSRYB104K16 C 141 CKSRYB104K16 C 142 CKSRYB103K50 C 143 CKSRYB474K10 C 144 CKSRYB474K10 C 145 CCSRCH101J50 C 146 CCSRCH101J50 C 147 CKSRYB104K16 C 201 CEJQ1R0M50 C 202 CEJQ1R0M50 C 203 CKSRYB104K16 C 204 CKSRYB104K16 C 205 CKSRYB104K16 C 206 CEJQ470M16 C 207 CEJQ1R0M50 C 208 CEJQ1R0M50 C 209 CEJQ1R0M50 C 210 CEJQ1R0M50 C 211 CEJQ4R7M35 C 212 CEJQ4R7M35 C 213 CEJQ4R7M35 C 214 CEJQ4R7M35 C 215 CEJQ4R7M35 C 216 CEJQ4R7M35 C 217 CEJQ4R7M35 C 218 CEJQ4R7M35 C 219 CCSRCH120J50 C 220 CCSRCH120J50 C 221 CCSRCH120J50 C 222 CCSRCH120J50 C 225 CEJQ100M16 C 241 CKSRYB152K50 C 242 CKSRYB152K50 C 301 CKSRYB104K16 C 306 CEJQ330M10 C 307 3300µF/16V CCH1486 C 309 CKSRYB104K16 C 310 CEJQ100M16 C 311 CKSYB475K16 C 312 CKSYB475K16 C 317 CKSRYB474K10 C 318 CKSRYB474K10 C 319 CKSRYB474K10 C 320 CKSRYB474K10 C 321 CKSRYB474K10 C 322 CKSRYB474K10 C 323 CKSRYB474K10 C 324 CKSRYB474K10 C 325 CKSQYB225K10 C 326 CKSQYB225K10 C 353 CEJQ4R7M35 C 354 CEJQ4R7M35 C 355 CEJQ4R7M35 C 356 CEJQ4R7M35 C 401 CKSRYB103K50 C 402 CEJQ101M10 C 403 CKSQYB105K16 C 404 CKSYB475K10 C 406 CEJQ470M10 C 408 CKSYB475K10 C 409 CEJQ1R0M50 C 411 CCSRCH101J50 C 412 CCSRCH470J50 C 601 CEJQ4R7M35 C 602 CKSQYB105K16 C 603 CEJQ2R2M50 C 604 CCSRCH200J50 C 605 CCSRCH200J50 C 609 CCSRCH101J50 C 644 CEJQ101M10 C 645 CKSRYB473K25 C 646 CCSRCH470J50 C 651 CEJQ101M10 C 652 CKSRYB473K25 C 654 CKSRYB152K50 C 655 CKSRYB152K50 C 657 CCSRCH470J50 C 658 470µF/16V CCH1183 C 662 CCSRCH471J50 C 755 CKSRYB104K16 C 806 CKSRYB473K25 C 807 CKSRYB473K25 C 811 CKSQYB105K16 C 854 CKSRYB473K25 C 911 470µF/16V CCH1331 C 912 CKSRYB472K50 C 913 CKSRYB103K50 C 914 CEJQ470M10 C 921 CEJQ221M10 C 922 CKSRYB103K50 C 923 CEJQ101M16 C 931 CEJQ1R0M50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC Unit Number : CWM8605 Unit Name : Keyboard Unit MISCELLANEOUS IC 1900 IC PD6294A IC 1901 HIC Module RS-140 Q 1910 Transistor DTC114EU D 1902 Diode Network DA204U D 1910 LED NSSW440-9159 D 1912 LED NSSW440-9159 D 1914 LED NSSW440-9159 D 1930 LED CL-195PG-CD D 1931 LED CL-195PG-CD D 1932 LED CL-195PG-CD D 1935 LED CL-195PG-CD D 1942 LED CL190UBX D 1943 LED CL190UBX D 1946 LED CL-195PG-CD D 1947 LED CL-195PG-CD X 1900 Ceramic Resonator 5.00MHz CSS1547 S 1901 Push Switch CSG1112 S 1902 Push Switch CSG1112 S 1903 Switch CSG1107 S 1904 Switch CSG1107 S 1905 Switch CSG1107 S 1906 Switch CSG1107 S 1907 Switch CSG1107 S 1908 Switch CSG1107 S 1909 Switch CSG1107 S 1910 Switch CSG1107 S 1911 Push Switch CSG1112 S 1912 Push Switch CSG1160 S 1913 Push Switch CSG1112 S 1914 Push Switch CSG1160 S 1915 Push Switch CSG1112 S 1916 Push Switch CSG1112 S 1917 Push Switch CSG1111 S 1918 Push Switch CSG1111 S 1950 Encoder CSD1059 LCD CAW1755 RESISTORS R 1900 RS1/16S222J R 1901 RS1/16S222J R 1902 RS1/16S121J R 1903 RS1/16S2R2J R 1910 RS1/16S101J R 1912 RS1/16S680J R 1914 RS1/16S181J R 1915 RS1/16S181J R 1919 RS1/16S101J R 1930 RS1/16S560J R 1932 RS1/16S560J R 1934 RS1/16S560J R 1936 RS1/16S560J R 1938 RS1/16S330J R 1939 RS1/16S680J R 1940 RS1/16S560J R 1941 RS1/16S151J R 1942 RS1/16S0R0J R 1943 RS1/16S151J R 1950 RS1/16S472J R 1960 RS1/16S473J CAPACITORS C 1900 CKSRYB104K16 C 1901 CKSYF106Z10 C 1902 CKSRYB104K16 C 1903 CKSRYB104K16 C 1904 CKSRYB104K16 C 1910 CKSRYF104Z25 C 1911 CKSRYF104Z25 C 1913 CKSRYF104Z25 C 1942 CKSRYF104Z25 C 1943 CKSRYF104Z25 Unit Number : CWM8758 Unit Name : Panel Unit MISCELLANEOUS D 1970 LED CL220PGC S 1970 Push Switch(EJECT) CSG1112 RESISTORS R 1970 RS1/16S101J R 1971 RS1/16S101J R 1972 RS1/16S0R0J CAPACITORS C 1970 CKSRYB104K16 Unit Number : CWX2743 Unit Name : CD Core Unit(S10MP3) MISCELLANEOUS IC 201 IC UPD63760GJ IC 202 IC MSM51V4265EP-70TS IC 203 IC BA033SFP IC 301 IC BA5996FM IC 501 IC UPD61002GC IC 502 IC BA25BC0WFP IC 701 IC PE5352B IC 702 IC TC74VHCT08AFT IC 703 IC S-818A33AUC-BGN Q 101 Transistor 2SB1132 Q 601 Transistor DTC323TK Q 602 Transistor DTC323TK Q 603 Transistor 2SB709A Q 701 Transistor UN2111 D 101 Diode 1SS355 D 201 Diode 1SR154-400 D 501 Diode 1SR154-400 D 601 Diode MA152WA L 201 Inductor CTF1386 L 202 Inductor CTF1386 L 204 Inductor CTF1386 L 205 Inductor CTF1386 L 206 Inductor CTF1386 L 207 Inductor CTF1386 L 208 Inductor CTF1386 L 209 Inductor CTF1386 L 211 Inductor CTF1386 L 212 Inductor CTF1386 L 501 Inductor CTF1386 L 502 Inductor CTF1386 L 503 Inductor CTF1386 L 701 Inductor CTF1386 L 702 Inductor LCYBR22J1608 L 703 Inductor CTF1386 L 704 Inductor CTF1386 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC TH 701 Thermistor CCX1037 X 201 Ceramic Resonator 16.934MHz CSS1603 X 202 Ceramic Resonator 24.57MHz CSS1615 X 701 Ceramic Resonator 16.00MHz CSS1616 S 901 Switch(HOME) CSN1051 S 902 Switch(CLAMP) CSN1051 S 903 Spring Switch(DSCSNS) CSN1052 S 904 Switch(12EJ) CSN1051 S 905 Switch(8EJ) CSN1051 RESISTORS R 101 RS1/10S1R5J R 102 RS1/10S1R5J R 103 RS1/10S1R5J R 104 RS1/10S1R5J R 105 RS1/10S1R5J R 201 RS1/16SS102J R 202 RS1/16SS333J R 203 RS1/16SS333J R 204 RS1/16SS333J R 206 RS1/16SS0R0J R 208 RS1/16SS0R0J R 210 RS1/16SS0R0J R 212 RS1/16SS221J R 213 RS1/16SS1002D R 214 RS1/16SS1002D R 215 RS1/16SS6801D R 216 RS1/16SS6801D R 217 RS1/16SS1002D R 218 RS1/16SS1002D R 219 RS1/16SS1002D R 220 RS1/16SS1002D R 221 RS1/16SS103J R 222 RS1/16SS103J R 223 RS1/16SS103J R 224 RS1/16SS103J R 225 RS1/16SS103J R 226 RS1/16SS393J R 227 RS1/16SS103J R 228 RS1/16SS182J R 229 RS1/16SS103J R 231 RS1/16SS0R0J R 232 RS1/16SS182J R 233 RS1/16SS0R0J R 237 RS1/16SS104J R 238 RS1/16SS473J R 240 RS1/16SS0R0J R 241 RS1/16SS221J R 301 RS1/16SS183J R 302 RS1/16SS822J R 303 RS1/16SS0R0J R 304 RS1/16SS183J R 305 RS1/16SS822J R 306 RS1/16SS0R0J R 307 RS1/16SS183J R 308 RS1/16SS822J R 309 RS1/16SS183J R 310 RS1/16SS822J R 311 RS1/16SS0R0J R 501 RS1/16SS221J R 502 RS1/16SS221J R 503 RS1/16SS221J R 504 RAB4CQ223J R 505 RAB4CQ223J R 506 RAB4CQ223J R 507 RS1/16SS223J R 508 RS1/16SS223J R 509 RS1/16SS102J R 510 RS1/16SS223J R 511 RS1/16SS223J R 512 RS1/16SS223J R 601 RS1/16S101J R 602 RS1/16S101J R 603 RS1/16S223J R 604 RS1/16S223J R 605 RS1/16SS103J R 707 RS1/16SS0R0J R 708 RS1/16SS102J R 709 RS1/16SS102J R 710 RS1/16SS102J R 711 RS1/16SS102J R 712 RS1/16SS102J R 713 RS1/16SS102J R 714 RS1/16SS473J R 715 RAB4CQ221J R 716 RAB4CQ221J R 717 RAB4CQ221J R 718 RAB4CQ221J R 719 RAB4CQ221J R 720 RS1/16SS471J R 721 RS1/16SS471J R 722 RAB4CQ221J R 723 RS1/16SS102J R 724 RN1/16SE1302D R 725 RS1/16SS222J R 726 RS1/16SS103J R 727 RS1/16SS473J R 728 RS1/16SS473J R 729 RS1/16SS223J R 730 RS1/16SS473J R 731 RS1/16SS104J R 732 RS1/16SS104J R 733 RS1/16SS104J R 737 RAB4CQ473J R 739 RAB4CQ473J R 740 RS1/16SS473J R 741 RS1/16SS104J R 742 RS1/16SS104J R 745 RS1/16SS473J R 746 RS1/16SS104J R 747 RS1/16SS104J R 748 RS1/16SS104J R 754 RS1/16SS102J R 755 RS1/16SS102J R 756 RS1/16SS104J R 801 RS1/16SS104J R 802 RS1/16SS473J R 803 RS1/16SS273J R 901 RS1/16SS221J R 902 RS1/16SS221J R 903 RS1/16SS221J R 904 RS1/16SS221J R 905 RS1/16SS221J R 906 RS1/16SS221J CAPACITORS C 101 CKSSYB104K10 C 102 CKSSYB104K10 C 103 CEV101M16 C 104 CEV101M4 C 105 CKSSYB104K10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC C 106 CCSRCH101J50 C 108 CKSSYB104K10 C 109 CEV100M16 C 201 CKSSYB471K50 C 202 CKSSYB104K10 C 203 CKSSYB104K10 C 204 CEV220M6R3 C 205 CKSSYB103K16 C 206 CKSSYB103K16 C 207 CEV221M4 C 208 CKSSYB104K10 C 209 CKSSYB104K10 C 210 CKSSYB104K10 C 211 CKSSYB104K10 C 216 CKSSYB332K50 C 217 CKSSYB104K10 C 218 CKSSYB223K16 C 219 CKSSYB104K10 C 220 CKSSYB103K16 C 221 CKSSYB104K10 C 222 CCSSCH270J50 C 223 CCSSCJ3R0C50 C 224 CKSSYB104K10 C 225 CKSSYB103K16 C 226 CCSSCH680J50 C 227 CCSSCH470J50 C 228 CKSSYB682K25 C 230 CKSSYB104K10 C 232 CKSSYB104K10 C 233 47µF/6.3V CCH1436 C 234 CEV221M4 C 235 CKSRYB224K16 C 237 CKSSYB104K10 C 238 CKSSYB104K10 C 239 CCSSCH9R0D50 C 242 CKSSYB104K10 C 243 CKSSYB104K10 C 245 CKSSYB104K10 C 246 CKSSYB104K10 C 301 CKSSYB331K50 C 302 CKSSYB331K50 C 303 CKSSYB472K25 C 304 CKSSYB472K25 C 305 CEV101M16 C 306 CKSRYB224K16 C 501 CKSSYB104K10 C 502 CKSSYB471K50 C 503 CKSSYB104K10 C 504 47µF/6.3V CCH1436 C 505 CKSRYB224K16 C 506 CKSSYB104K10 C 508 CKSSYB104K10 C 509 CKSSYB104K10 C 510 CKSSYB104K10 C 511 CKSSYB104K10 C 601 CCSRCH102J50 C 602 CCSRCH102J50 C 603 4.7µF/25V CCH1508 C 604 4.7µF/25V CCH1508 C 701 CKSSYB104K10 C 702 CKSSYB471K50 C 703 CKSSYB103K16 C 704 CEV1R0M50 C 705 CKSSYB104K10 C 706 CKSSYB471K50 C 707 CKSSYB104K10 C 708 CKSSYB104K10 C 709 CKSSYB103K16 C 710 CKSSYB104K10 C 711 10µF/10V CCH1349 C 712 CKSRYB224K16 C 713 CKSSYB104K10 C 714 CKSSYB104K10 C 715 CKSSYB103K16 C 716 CKSSYB103K16 C 901 CKSSYB104K10 C 903 CCSRCH101J50 Miscellaneous Parts List Pickup Unit(Service)(P10) CXX1641 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE) CXB8933 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 1) Cautions on adjustments • In this product the single voltage (3.3V) is used for the regulator. The reference voltage is the REFO1 (1.65V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. • Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. • For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. • In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. • The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. • The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. • To enter the test mode. While pressing the 4 and 6 keys at the same time, reset. • To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (→) key or (←) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0dB, and the auto-adjustment values are reset to the default settings. 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 6. ADJUSTMENT 6.1 JIG CONNECTION DIAGRAM KEYBOARD UNIT (SIDE B) CN1951 CN1901 PANEL UNIT (SIDE A) TUNER AMP UNIT GGD1316 RUBBER BAND RUBBER BAND 6.2 CD ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 [BAND] [BAND] [BAND] [BAND] [BAND] Power On (T.Offset is adjusted) TRK00 MIN00 SEC SEC 00 [CD]or[SOURCE] Source On TRK MIN [4]+[6]+Reset or [4]+[6]+BU+ACC Test Mode In [3] [1] [1] Power On (T.Offset is not adjusted) TRK99 MIN99 SEC99 [2] [2] [2] [2] Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Focus Close S curve check T.Close and AGC Applicable servomechanism TRK91 MIN91 SEC91 [6] [1] [3] [6] [3] Focus Mode switching SPINDLE Speed switching RF AMP Gain switching TRK0xMIN0xSEC0x Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG- TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [→] [←] [→] [←] [→] [←] CRG+ TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 Automatic adjustment switching TRK?? MIN?? SEC?? T.Close Applicable servomechanism TRK?tr MIN?min SEC?sec [6] [3] TRK MIN SEC RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? CRG+ TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x CRG- TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x T.Balance adjustment / T.BAL coefficient display TRK?? MIN?? SEC?? F,T,RF AGC F.Bias display switching TRK?? MIN?? SEC?? F,T AGC / F.Bias RF AGC TRK MIN SEC CRG/TR Jump value switching TRK MIN SEC CRG/TR Jump + TRK MIN SEC CRG/TR Jump - TRK MIN SEC Tracking Open TRK8xMIN8xSEC8x or TRK9xMIN9xSEC9x Tracking Open TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x TRKSP MINSP SECSP [4] TRKGGMINGGSECGG [2] [Key] [BAND] [→] [6] [1] [2] [3] Power On / Off CRG + / TR Jump + (Direction of the external surface) CRG - / TR Jump - (Direction of the internal surface) U.CLS and AGC and Applicable servomechanism / AGC, AGC display setting RF Gain switching / Offset adjustment display / T.Balance adjustment / T.Open Close, S.Curve / Rough Servo and RF AGC / SPDL 1X / 2X switching As for the double speed (2x), audio output cannot be supported. Error Rate measurement 1st - ON : ERR count Beginning (30Sec) 2nd - ON : BER display data [%] F.Mode switching / Tracking Close / CRG • TR Jump switching Test Mode Operation [KEY] Contents Display F, T, RF AGC *1) TYP → -6dB → -12dB TRK MIN SEC TRK 06 MIN 06 SEC 06 TRK 12 MIN 12 SEC 12 *2) Focus Close → S.Curve check setting → F EQ measurement setting *9) Applicability : A, B, C, D, E, F As for the double speed (2x), audio output cannot be supported TRK 00 MIN 00 SEC 00 TRK 01 MIN 01 SEC 01 TRK 02 MIN 02 SEC 02 (TRK 99 MIN 99 SEC 99) *3) F.Offset Display → T.Offset Display → Switch to the order of the original display *4) 1TR / 32TR / 100TR *5) Single TR → 32TR → 100TR → CRG Move 9x(8x) : 91(81) 92(82) 93(83) 94(84) *6) Only at the time of CRG move, 100TR jump *7) TRK/MIN/SEC → F.AGC → T.AGC → F Bias → RF AGC *8) CRG motor voltage = 2[V] [←] - Flow Chart *1 *9 *2 *8 *8 *3 *7 *5 *4 *4 *6 ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec TYP(1X) → 2X → 1X TRK MIN SEC TRK 22 MIN 22 SEC 22 TRK 11 MIN 11 SEC 11 Applicability : G TYP(2X) → 1X → 2X TRK MIN SEC TRK 11 MIN 11 SEC 11 TRK 22 MIN 22 SEC 22 [4] [5] 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • ABEX TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3V regulator on. 2. Using the → and ← buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. REFO1 F E CD CORE UNIT(S10MP3) Oscilloscope 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 - Error Messages Error is displayed with number for Error cause when CD is inoperative or stops with Error during operation. The purpose is to reduce nonsense calls from users as well as to assist all related analysis and repair for defects at service station. (1) Basic Display Method 1) When CSMOD (CD mode area for system) is SERRORM, Error code will be written in DMIN (minutes area for display), DSEC (seconds area for display). The same data shall be written in DMIN and DSEC. DTNO is blank as usual. 2) Display Example of Head Unit The following is about LCD display ability. xx is Error number. *) In case of OEM, Error display will follow the specification defined by OEM makers. 8 digits 6 digits 4 digits ERROR–xx ERR–xx E–xx (2) Error Code List No. Classification Contents Details • Cause 10 Electricity Carriage Home NG CRG can’t move to the inner. CRG can’t move from the inner. → HOME SW failure, CRG movement failure. 11 Electricity Focus Search NG Focus can’t be caught. → Back of Disc / Severe dirt and vibration. 23 Disc File Format NG Contents are stored in an incompatible file format. → The contents in a CD-ROM disc inserted are recorded in a file format other than ISO9660 Level-1 and 2. 22 Disc Impossible to play There is no playable MP3 or WMA file present in a disc. → No MP3 or WMA file exists in a CD-ROM disc inserted. 17 Electricity Setup NG AGC protection doesn’t work, out of Focus soon. → Scratch on Disc/Severe dirt and vibration. 12 Electricity Spindle Lock NG Not spindle, lock. Wrong subcode (can’t read). Subcode NG RF-amp NG → Defective Spindle. Scratch and dirt on Disc. Intense vibration. The appropriate gain of the RF amp cannot be obtained. → Defective spindle. → Blanc CD-R disc. Disc inserted upside down. → Scratched or dirty disc. Severe vibration. Abnormal CD signals. 30 Electricity Search Time Out Can’t reach the target address. → Defective CRG/tracking, or scratch on Disc. → All TRK Nos. In a disc inserted are specified as a track which should be skipped, in the track skip information. 44 Disc Impossible to play There is no playable TRK No. present in a disc. 50 Mecha Disc Load / Eject NG Disc loading/ejection cannot be complete. → Foreign objects entered into the mechanism. Disc caught in between during loading/ejection. A0 System Power NG Power supply (VD) isn’t connected to the ground. → Defective SW transistor. Abnormal power (failed connector) OR Err–xx Note : Error doesn’t display in mechanism only. (CD off causes mechanism off) If TOC can’t be read, error wouldn’t occur, but mechanism still continues its operation. When newly design head unit, be sure to apply as the display examples above. The upper digits of error code is mainly classified by 3 kinds as follows: 1x: Setup related error, 3x: Search related error, Ax: Other errors. 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 6.4 ERROR MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 1 1 Fig.1 Fig.2 - Removing the CD Mechanism Module (Fig.1) - Removing the Tuner Amp Unit (Fig.2) Remove the four screws. Remove the screw. 1. Remove the Case. - Removing the Case (not shown) Disconnect the connector and then remove the CD Mechanism Module. - Removing the Grille Assy (Fig.1) 2 Remove the two screws and then remove the Grille Assy. 1 1 2 2 CD Mechanism Module Grille Assy 1 2 2 2 3 3 3 4 Tuner Amp Unit 2 Remove the three screws. 3 Straight the tabs at three locations indicated. 4 Remove the screw and then remove the Tuner Amp Unit. 1 1 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC - How to hold the Mechanism Unit 1. Hold the top and bottom frame. 2. Do not squeeze top frame's front portion too tight, because it is fragile. - Removing the Upper and Lower Frames 1. With a disc clamped, remove the four springs (A), the two springs (B), the two springs (C), and the four screws. 2. To remove the upper frame, open it on the fulcrum A. 3. While lifting the carriage mechanism, remove the three dampers. 4. With the frames removed, insert the connectors coming from the main unit and eject the disc. Caution: Before installing the carriage mechanism in the frames, be sure to apply some alcohol to the dampers and set the mechanism to the clamp mode. Do not squeeze. Lower Frame Damper Carriage Mechanism A C A B B Damper Damper C A A A Upper Frame - Removing the Pickup Unit 1. Set the mechanism to the clamp mode. 2. Remove the lead wires from the inner holder. 3. Remove the two washers, styling holder, change arm, and pickup lock arm. 4. While releasing from the hook of the inner holder, lift the end of the feed screw. Caution: In assembling, move the planet gear to the load/eject position before setting the feed screw in the inner holder. Planet Gear Change Arm Inner Holder Styling Holder Feed Screw Washer Pickup Lock Arm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 1. FR+ 2. RR+ 3. FR- 4. RR- 5. FL+ 6. RL+ 7. FL- 8. RL- 9. TEL MUTE 10. NC 11. B.REM 12. ILM 13. NC 14. ACC 15. GND 16. BACK UP ANTENNA JACK FRONT OUTPUT SUBWOOFER OUTPUT NON FADING OUTPUT REAR OUTPUT (DEH-P550MP/XN/UC) 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT 10A 2 16 4 6 8 10 12 14 1 15 3 5 7 9 11 13 11 10 9 8 7 6 5 4 3 2 1 F SW 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 7.1.2 CONNECTOR FUNCTION DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 - Pin Functions (PD6294A) Pin No. Pin Name I/O Function and Operation 1 VSS GND 2 X1 Crystal oscillator connection pin 3 X0 Crystal oscillator connection pin 4 NC Not used 5,6 MOD1,0 I Connect to GND 7 DIMMER O Dimmer select output 8 KYDT O Key data output 9 DPDT I Display data input 10 REMIN I Remote control pulse input 11 GRN Dual Illumination (Green) 12 AMB Dual Illumination (Amber) 13–16 KD4–1 I Key data input 17-22 KST6–1 O Key strobe output 23 VDD VDD 24-73 SEG49–0 O LCD segment output 74–77 COM3–0 O LCD common output 78 VLCD I LCD voltage input 79,80 V2,1 Power supply terminal *PD6294A 80 1 20 21 40 41 60 61 IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 7.2 PARTS 7.2.1 IC NJM2391DL1-33 PD6294A NJM2391DL1-33 PD5800A MSM51V4265EP-70TS BA25BC0WFP UPD63760GJ UPD61002GC PE5352B IN OUT GND 1 3 2 Thermal Shutdown Over current protector VREF +- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 - Pin Functions(PD5800A) Pin No. Pin Name I/O Function and Operation 1 SYSPW O System power control output 2 DORAON O Tuner unit power supply output 3-5 NC Not used 6 BYTE I External data bus width change input 7 CNVSS I Processor mode change input 8 TELIN I TEL : Cellular mute input 9 NC Not used 10 RESET I Reset input 11 XOUT O Clock output 12 VSS I GND 13 XIN I Clock input 14 VCC I Power supply input 15-18 NC Not used 19 RX2 I IPBUS : Input 2 20 LCDPW O Back light power supply output 21 NC Not used 22 PEE O PEE sound output 23 NC Not used 24 BRST O PBUS : Reset output 25 BRXEN I/O PBUS : Communication input/output 26 BSRQ I PBUS : Communication demand input 27 RX I IPBUS : Input 28 TX O IPBUS : Output 29 BSO O PBUS : Output 30 BSI O PBUS : Input 31 BSCK O PBUS : Clock 32 NC Not used 33 DPDT O GRILL : Data output 34 KYDT I GRILL : Data input 35, 36 ROT1, 0 I Rotary encoder pulse input1, 0 37 PCL O Output for clock adjustment 38 SWVDD O GRILL : Chip enable output 39 dsens I Detach sense input 40 FLPILM O Illumination output inside flap 41 ILMPW O Illumination output 42 EJTIN I Eject key input 43-55 NC Not used 56 CSENSOUT O CSENS state output(H : FLAP open) 57 EMUTE O EVOL : Mute output 58, 59 NC Not used 60 VCC I Power supply input 61 NC Not used 62 VSS I GND 63-66 NC Not used 67 DALMON O For consumption current reduction 68 NC Not used 69 tunpce@ O TUNER : Chip enable output(EEPROM) 70 TUNPCE O TUNER : Chip enable output(PLL) 71 romcs O ROM correction : Chip select 72 asens I ACC sense 73 bsens I Back up sense 74 ROMCK O ROM correction : Clock output 75 ROMDATA I/O ROM correction : Data input/output 76 VST O EVOL : Strobe output 77 VDT O EVOL : Data output 78 VCK O EVOL : Clock output 79 IPPW O IPBUS : Driver power supply control output 80 ASENBO O IPBUS : Slave ACC sense output 81 isens I Illumination sense input 82-84 NC Not used 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 Pin No. Pin Name I/O Format Function and Operation 85 MUTE O MUTE output 86 TESTIN I Test program input 87-89 NC Not used 90 LVLINR I Level indicator R.ch input 91 csens I Flap opening-and-closing sense input 92 LVLINL I Level indicator L.ch input 93 MODEL0 Model 0 94 AVSS I GND 95 SL I TUNER : Signal level input 96 VREF AD translation reference voltage 97 AVCC I AD translation power supply input terminal 98 TUNPDI I TUNER : PLL communication 99 TUNPDO O TUNER : Data output(PLL) 100 TUNPCK O TUNER : Clock output(PLL) * PD5800A 25 26 50 51 75 76 100 1 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC BA25BC0WFP GND VCC CTL 3 2 1 OUT 4 NC 5 + NC Vref * MSM51V4265EP-70TS DQ1 2 DQ2 3 DQ3 4 DQ4 5 VCC 6 DQ5 7 DQ6 8 DQ7 9 DQ8 10 NC 13 NC 14 we 15 ras 16 NC 17 A0 18 A1 19 A2 20 A3 21 VCC 22 42 DQ15 41 DQ14 40 DQ13 39 VSS 38 DQ12 37 DQ11 36 DQ10 35 DQ9 32 NC 31 lcas 30 hcas 29 oe 28 A8 27 A7 26 A6 25 A5 24 A4 23 VSS VCC 1 43 DQ16 44 VSS A0-A8 :Address input ras : Row address strobe lcas : Lower column address strobe ucas : Upper column address strobe DQ1-DQ16 : Data input/data output oe : Output enable we : Write enable VCC : Power supply VSS : GND NC : No connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 - Pin Functions (UPD63760GJ) Pin No. Pin Name I/O Function and Operation 1 R.GND GND for DRAM I/F 2 rst I Input of reset 3-7 AB12-8 I Address bus 12-8 from the microcomputer 8-15 AD7-0 I/O Address/data bus 7-0 to the microcomputer 16 cs I Chip selection 17 ASTB I Address strobe 18 read I Control signals (read) 19 write I Control signals (write) 20 wait O Control signals (wait) 21 INTQ Interruption signals to the external microcomputer 22 IFMODE I Switching between the data buses (16bit/8bit) 23 D.VDD Power supply for digital circuits 24 xtalen! I Permission to oscillate 16.9344MHz 25 xtalen@ I Permission to oscillate 24.576MHz 26 DA.VDD Power supply for DAC 27 ROUT O Output of audio for the right channel 28 DA.GND GND for DAC 29 R+ O Output of the right channel audio PWM 30 R- O Output of the right channel audio PWM 31 REGC Connected to the capacitor for band gap 32 L- O Output of the left channel audio PWM 33 L+ O Output of the left channel audio PWM 34 DA.GND GND for DAC 35 LOUT O Output of audio for the left channel 36 DA.VDD Power supply for DAC 37 X.VDD Power supply for the crystal oscillator 38 XTAL1 Connected to the crystal oscillator (16.9344MHz) 39 xtal! Connected to the crystal oscillator (16.9344MHz) 40, 41 X.GND Ground for the crystal oscillator 42 xtal@ Connected to the crystal oscillator (24.576MHz) 43 XTAL2 Connected to the crystal oscillator (24.576MHz) 44 X.VDD Power supply for the crystal oscillator 45 D.GND GND for digital circuits 46 DIN I Input of audio data 47 DOUT O Output of audio data 48 SCKIN I Clock input for audio data 49 SCKO O Clock output for audio data 50 LRCKIN I Input of LRCK for audio data 51 LRCK O Output LRCK for audio data 52 TESTX O Output for tests 53 RFOK O Output of RFOK 54 C16M O Output of 16.9344MHz 55 TESTEN I Connected to GND 56 TEST4 I Connected to GND 57 D.VDD Power supply for digital circuits 58 RFCK/HOLD O Output of RFCK/HOLD signal 59 WFCK/MIRR O Output of WFCK/MIRR signal 60 PLCK O Output of PLCK 61 LOCK O Output of LOCK 62 C1D1 O Information on error correction 63 C1D2 O Information on error correction 64 C2D1(RMUTE) O Information on error correction (mute for Rch) 65 C2D2(LMUTE) O Information on error correction (mute for Lch) 66 C2D3 O Information on error correction 67 D.GND Ground for digital circuits 68 ras O Output of DRAM RAS 69 cas) O Output of DRAM Lower CAS 70 cas! O Output of DRAM Upper CAS 71 we O Output of DRAM WE 72 oe O Output of DRAM OE 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 Pin No. Pin Name I/O Function and Operation 73-88 RDB0-15 I/O Input/output of DRAM Data0-15 89 D.GND Ground for digital circuits 90-99 RA0-9 O Output of DRAM Address0-9 100 D.VDD Power supply for digital circuits 101-104 TEST0-3 I Connected to GND 105 FD O Output of focus drive PWM 106 TD O Output of tracking drive PWM 107 SD O Output of thread drive PWM 108 MD O Output of spindle drive PWM 109 A.VDD Power supply for the analog system 110 ATEST O Analog tests 111 EFM O Output of EFM signals 112 ASY I Input of asymmetry 113 C3T Connection to the capacitor for detecting 3T 114 A.GND Ground for the analog system 115 RFI I Input of RF 116 AGCO O Output of RF 117 AGCI I Input of AGC 118 RFO O Output of RF(AGC) 119, 120 EQ2, 1 Equalizer 2, 1 121 RF2- I Reversal input of RF2 122 RF- I Reversal input of RF 123 A.GND Ground for the analog system 124 A I Input of A 125 C I Input of C 126 B I Input of B 127 D I Input of D 128 F I Input of F 129 E I Input of E 130 A.VDD Power supply for the analog system 131 REFOUT O Output of reference voltage 132 REFC Connected to the capacitor for output of REFOUT 133 FE- I Reversal input of FE 134 FEO O Output of FE 135 TE- I Reversal input of TE 136 TEO O Output of TE 137 TE2 O TE2 138 TEC I TEC 139 A.GND Ground for the analog system 140 LDREGO O Output of REG voltage for APC 141 PD I Input of PD 142 LD O Output of LD 143 PN I Assignment of pickup polarity 144 A.VDD Power supply for the analog system * UPD63760GJ 36 37 72 73 144 1 109 108 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 - Pin Function (UPD61002GC) Pin No. Pin Name I/O Function and Operation 1 VDD3 I/O Power supply (3.3V) 2-4 NC Not used 5 GND3 GND 6,7 NC Not used 8 DO0 O PCM output data 9 VDD2 Power supply (2.5V) 10 CKI I Clock input 11 DVDD Power supply (PLL) (Digital) 12 AVDD Power supply (PLL) (Analog) 13 AGND GND (PLL) (Analog) 14 DGND GND (PLL) (Digital) 15 VDD3I Interface terminal protection 16 LRCKO O PCM output LRCK 17 BCKO O PCM output bit clock 18 NC Not used 19 VDD3 Power supply (3.3V) 20 GND2 GND 21 MCK44 I Audio master clock input 22 MCK48 I Audio master clock input 23,24 P10, 11 I/O Port 25 VDD2 Power supply (2.5V) 26 GND3 GND 27-32 P12-17 I/O Port 33 VDD2 Power supply (2.5V) 34 P00/INTP00 I/O Port 35,36 NC Not used 37 P03/INTP03 I/O Port 38 P04/INTP04 I/O Port 39 P05/INTP05 I/O Port 40 GND2 GND 41,42 P06, 07 I/O Port 43 VDD3 Power supply (3.3V) 44-49 HAD0-5 I/O Host address / Data bus 50 GND3 GND 51 VDD3 Power supply (3.3V) 52-55 HAD6-9 I/O Host address / Data bus 56 GND3 GND 57-59 HAD10-12 I/O Host address / Data bus 60 VDD2 Power supply (2.5V) 61-63 HAD13-15 I/O Host address / Data bus 64 VDD3 Power supply (3.3V) 65 HAST I Host address strobe 66 HCSB I Host chip select 67 HR/WB I Host read / Write status 68 HDSTB I Host data strobe 69 GND2 GND 70 NC Not used 71 EXTDIR I Bus direction flag from external 72,73 DBBWRDY0, 1 O DBB write ready flag 74 DBBRRDY0 O DBB read ready flag 75 VDD2 Power supply (2.5V) 76 GND3 GND 77 DBBRRDY1 O DBB read ready flag 78 GND3 GND 79 RESETB I Reset 80 GND3 GND 81 VDD3 Power supply (3.3V) 82 GND3 GND 83 PLLCONT I PLL control 84 GND3 GND 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 Pin No. Pin Name I/O Function and Operation 85 NC Not used 86 GND2 GND 87 DI3 I PCM input data 88 LRCKI3 I PCM input LRCK 89 BCKI3 I PCM input bit clock 90 DI2 I PCM input data 91 LRCKI2 I PCM input LRCK 92 BCKI2 I PCM input bit clock 93 DI1 I PCM input data 94 LRCKI1 I PCM input LRCK 95 BCKI1 I PCM input bit clock 96 VDD2 Power supply (2.5V) 97 DI0 I PCM input data 98 LRCKI0 I PCM input LRCK 99 BCKI0 I PCM input bit clock 100 GND2 GND *UPD61002GC 25 26 50 51 75 76 100 1 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 - Pin Functions (PE5352B) Pin No. Pin Name I/O Format Function and Operation 1 BSO O C P-Bus serial data output 2 bsck I/O /C P-Bus serial clock input/output 3, 4 DFS1, 2 O C DA I/F IC sampling frequency setting output 1, 2 5 DCKS O C DA I/F IC clock subharmonic number selection output 6 EVDD E power supply Positive power supply 7 EVSS E power supply GND 8 dspok I DSP microcomputer initialization OK input 9 DCOPY O C DA I/F IC copy flag setting output 10 crst O C Compression IC reset control output 11, 12 NC Not used 13 EMPH O C Emphasis information output 14 emph O C Emphasis information output 15 DSPMUTE O C DOUT mute output 16 DSET O C Disc set indicator lighting output 17 adena O C A/D reference voltage supply control output 18 IC/VPP IC : VSS direct connection/VPP : Pull-down 19 BRXEN I/O /C P-Bus reception is possible 20 bsrq I/O /C P-Bus service request demand 21 xtalen! O C CD LSI 16.9344MHz oscillation permission output 22 xtalen@ O C CD LSI 24.576MHz oscillation permission output 23 xrst O C CD LSI reset control output 24 VDCONT O C VD power supply control output 25 CD3VON O C CD +3.3V power supply control output 26 CONT O C Servo driver power supply control output 27 xwait I CD LSI wait control signal input 28 LOEJ O C The direction change output of LOAD/EJECT 29 CLCONT O C Driver input change output 30 CDMUTE O C CD mute control output 31 reset I System reset input 32 XT1 I Connected to the oscillator for subclock (connected to VSS via the resistor) 33 XT2 Connected to the oscillator for subclock (Open) 34 REGC Connected to the capacity stabilizing output of the regulator (an electrolytic capacitor of about 1µF) 35 X2 Oscillator connection for mainclock 36 X1 I Oscillator connection for mainclock 37 VSS GND 38 VDD Positive power supply (5V) 39 CLKOUT O C Internal system clock output (Open) 40 xwrite O CD LSI write control signal output 41 uben O Not used (Open) 42 WR/W O WMA decoder Read/Write control signal output 43 xread O CD LSI read control signal output 44 XASTB O CD LSI address strobe output 45 LOCK I Spindle lock input 46 wrst O C WMA decoder reset control output 47-54 AD0-7 I/O /C Address/Data bus 0-7 55 BVDD B power supply Positive power supply (3.3V) 56 BVSS B power supply GND 57-64 AD8-15 I/O /C Address/Data bus 8-15 65 xcs O C CD LSI chip selection output 66 wcs O C WMA decoder chip selection output 67, 68 DBBWRDY0, 1 I Input of write-ready flag with WMA decoder DBBI0, 1 69, 70 DBBRRDY0, 1 I Input of read-ready flag with WMA decoder DBBO0, 1 71 AVDD A power supply Positive power supply (5V) 72 AVSS A power supply GND 73 AVREF The reference voltage input for A/D converter 74 VDSENS VD power supply short sense input 75 DSCSNS Disc state sense input 76 TEMP Temperature information sense input 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 Pin No. Pin Name I/O Format Function and Operation 77 HOME I Home SW sense input 78 csens I Flap closing sense input 79 RFOKIN I RFOK input chatter count input 80-82 NC Connected to AVDD or AVSS via the resistor 83 WMAARI I Input of sensing existence of WMA decoder and DA I/F IC 84 TYPE_A/D I CD-DA Analog/Digital output change setup 85 testin I Chip check test program starting input 86 NC Connected to EVDD or EVSS via the resistor 87 xint CD LSI interruption signal input 88 wint WMA decoder interruption signal input 89 brst I P-Bus reset input 90 ejsw I Eject key input 91, 92 NC Open 93 CLAMP I C CLAMP SW sense input 94 ROMDATA I/O /C E2PROM data input/output 95 ROMCS O C E2PROM chip selection output 96 ROMCK O C E2PROM clock output 97 FRXD I For flash rewriting (received signal) 98 FTXD O C For flash rewriting (transmitted signal) 99 AO/DO O C The output for Analog/Digital voice output distinction 100 BSI I P-Bus serial data input * PE5352B 25 26 50 51 75 76 100 1 Format Meaning C CMOS 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the ham of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 NC non connection Not used 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 NC non connection Not used 19 NC non connection Not used 20 NC non connection Not used 21 NC non connection Not used 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch - FM/AM Tuner Unit 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 SEG49 COMMON SEGMENT SEG48 SEG47 SEG46 SEG45 SEG44 SEG43 SEG42 SEG41 SEG40 SEG39 SEG38 SEG37 SEG36 SEG35 SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 SEG23 SEG22 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 COM3 COM2B COM1B COM0B COM2A COM1A COM0A COM3 COM2B COM1B COM0B COM2A COM1A COM0A 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 7.2.2 DISPLAY - LCD(CAW1755) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 VCC=5V Pin 14 ASENBO←H Pin 80 Power ON BSENS=L ASENS=L DSENS=L bsens Pin 73 asens Pin 72 dsens Pin 39 SWVDD←H Pin 38 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H Pin 1 Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. csens Pin 91 2V < CSENS < 3V - CSENS 2V, 3V CSENS Last source returns. CD loading functions are available. Keys except for EJECT key are not available. < < = = 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 7.3 OPERATIONAL FLOW CHART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC 7.4 CLEANING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC 8. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC Fixing the Front Panel If you do not operate the Detaching and Replacing the Front Panel Function, use the supplied fixing screws and fix the front panel to this unit. 1. Attach the holders to both sides of the front panel. 2. Replace the front panel to the unit. 3. Flip the holders into upright positions. 4. Fix the front panel to the unit using fixing screws. Fixing screw Holder CND1249(UC) CXX1644(ES) BPZ20P060FZK(UC) CXX1646(ES) Holder CND1250(UC) CXX1645(ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 Subwoofer output or non fading output Antenna jack This product Front output Fuse IP-BUS input (Blue) Connecting cords with RCA pin plugs (sold separately) Power amp (sold separately) System remote control Front speaker Front speaker Left Right Perform these connections when using the optional amplifier. + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. Yellow To terminal always supplied with power regardless of ignition switch position. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Orange/white To lighting switch terminal. Black (ground) To vehicle (metal) body. Blue/white To system control terminal of the power amp or Auto-antenna relay control terminal (max. 300 mA 12 V DC). Front speaker Front speaker With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. Rear speaker Gray Gray/black Violet Violet/black White White/black Green Green/black Rear speaker Power amp (sold separately) Power amp (sold separately) Subwoofer Subwoofer + ≠ + ≠ Rear output 16 cm (6-1/4 in.) Rear speaker Rear speaker IP-BUS cable Multi-CD player (sold separately) 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC - CONNECTION DIAGRAM(DEH-P550MP/XN/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 Subwoofer output or non fading output Antenna jack This product Front output Fuse IP-BUS input (Blue) IP-BUS cable Connecting cords with RCA pin plugs (sold separately) Multi-CD player (sold separately) Power amp (sold separately) System remote control Front speaker Front speaker Left Right Subwoofer Subwoofer Perform these connections when using the optional amplifier. + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. Yellow To terminal always supplied with power regardless of ignition switch position. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Orange/white To lighting switch terminal. Black (ground) To vehicle (metal) body. Blue/white To system control terminal of the power amp or Auto-antenna relay control terminal (max. 300 mA 12 V DC). Front speaker Front speaker With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. Rear speaker Gray Gray/black Violet Violet/black White White/black Green Green/black Rear speaker Power amp (sold separately) 1 2 3 4 1 2 3 4 F E D C B A DEH-P550MP/XN/UC - CONNECTION DIAGRAM(DEH-P5500MP/XN/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 3.Subwoofer output or non fading output 4.Antenna jack 1.This product 2.Front output 5.Fuse 6.IP-BUS input (Blue) 7.IP-BUS cable 15. Connecting cords with RCA pin plugs (sold separately) 8.Multi-CD player (sold separately) 16. Power amp (sold separately) 16. Power amp (sold separately) 17. System remote control 18. Front speaker 18. Front speaker 23. Left 24. Right 30. Subwoofer 30. Subwoofer 32. Perform these connections when using the optional amplifier. + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ 9.Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. 10. Yellow To terminal always supplied with power regardless of ignition switch position. 11. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. 12. Orange/white To lighting switch terminal. 13. Black (ground) To vehicle (metal) body. 14. Blue/white To system control terminal of the power amp or Auto-antenna relay control terminal (max. 300 mA 12 V DC). 18. Front speaker 18. Front speaker 31. With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. 25. Rear speaker 21. Gray 22. Gray/black 28. Violet 29. Violet/black 19. White 20. White/black 26. Green 27. Green/black 25. Rear speaker 5 6 7 8 F E D C B A 5 6 7 8 DEH-P550MP/XN/UC - CONNECTION DIAGRAM(DEH-P5550MP/XN/ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
