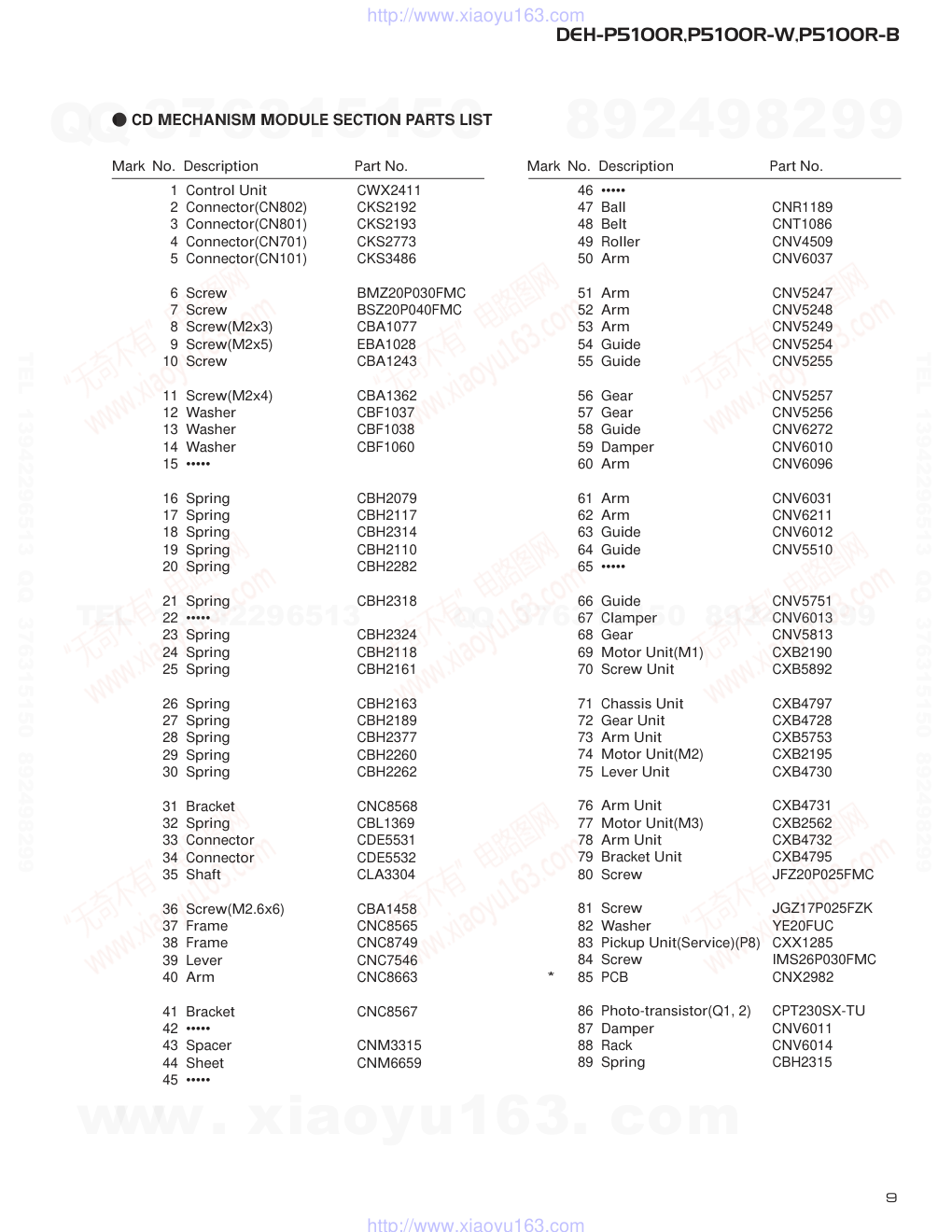

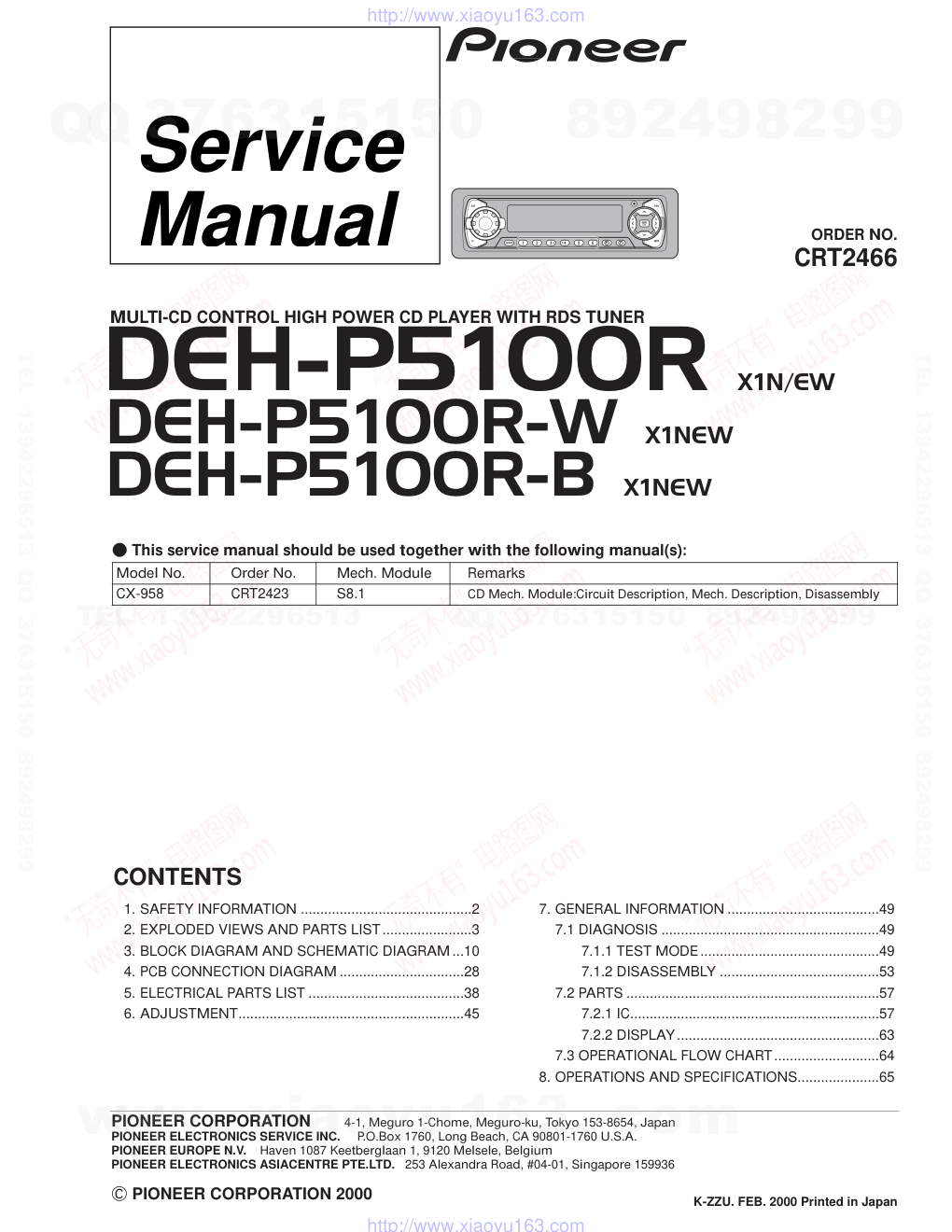

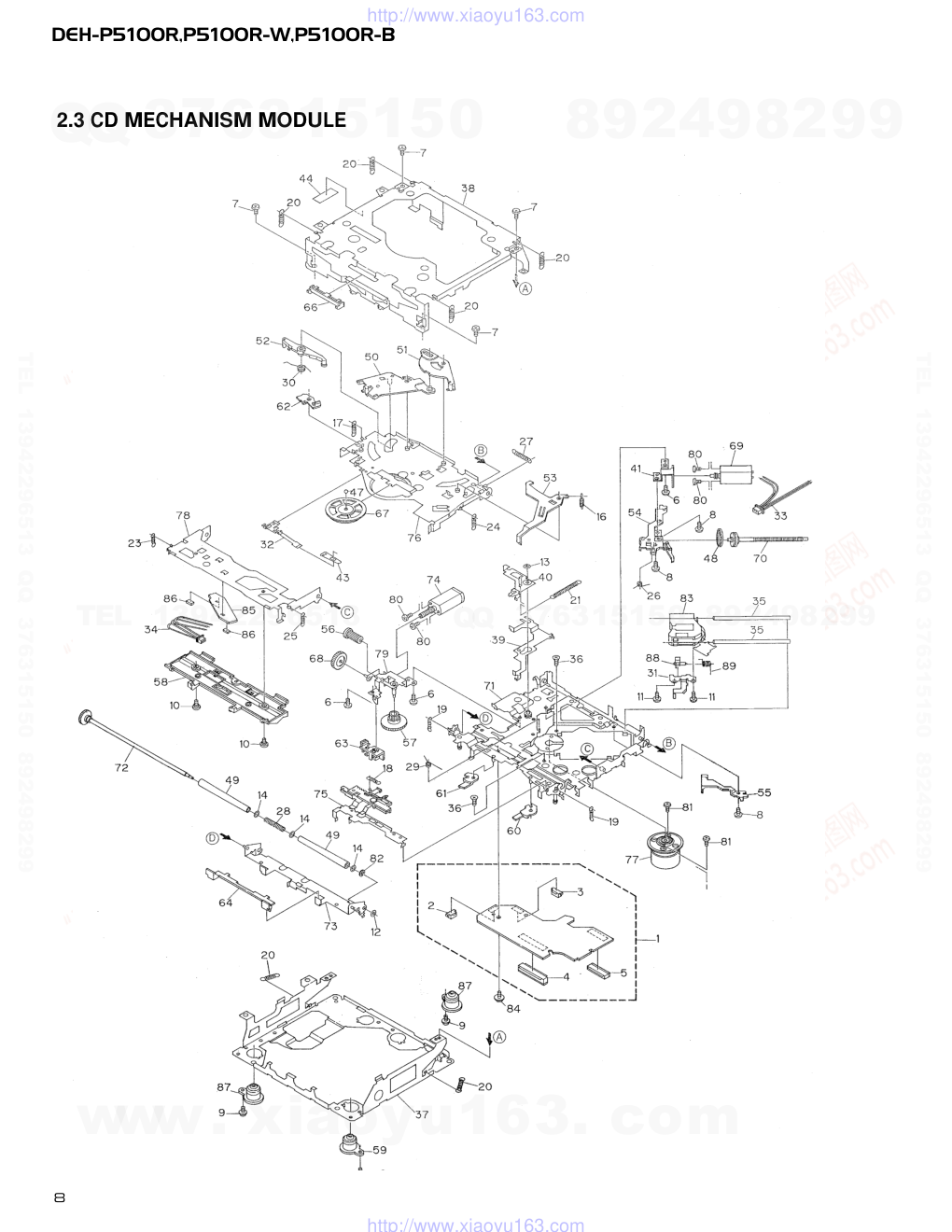

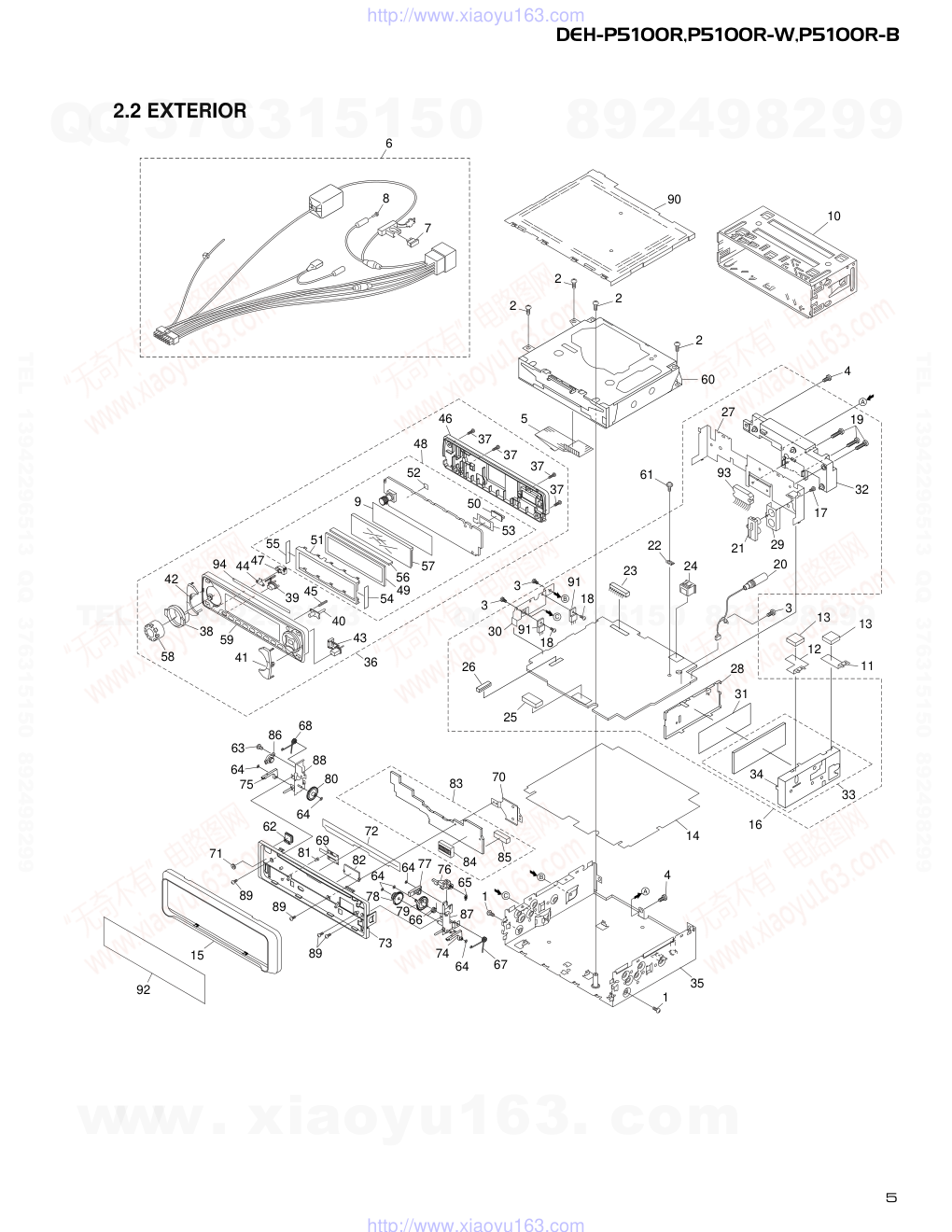

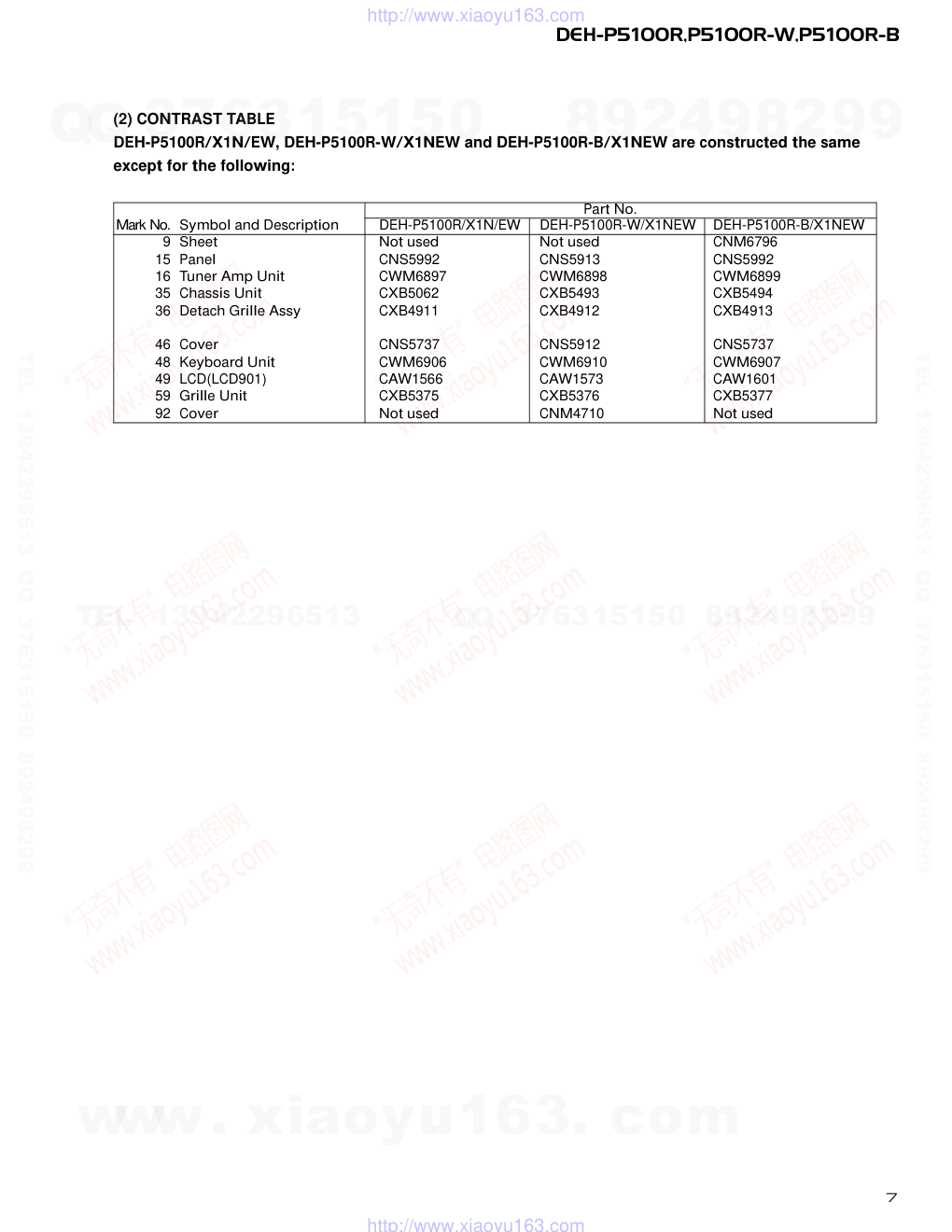

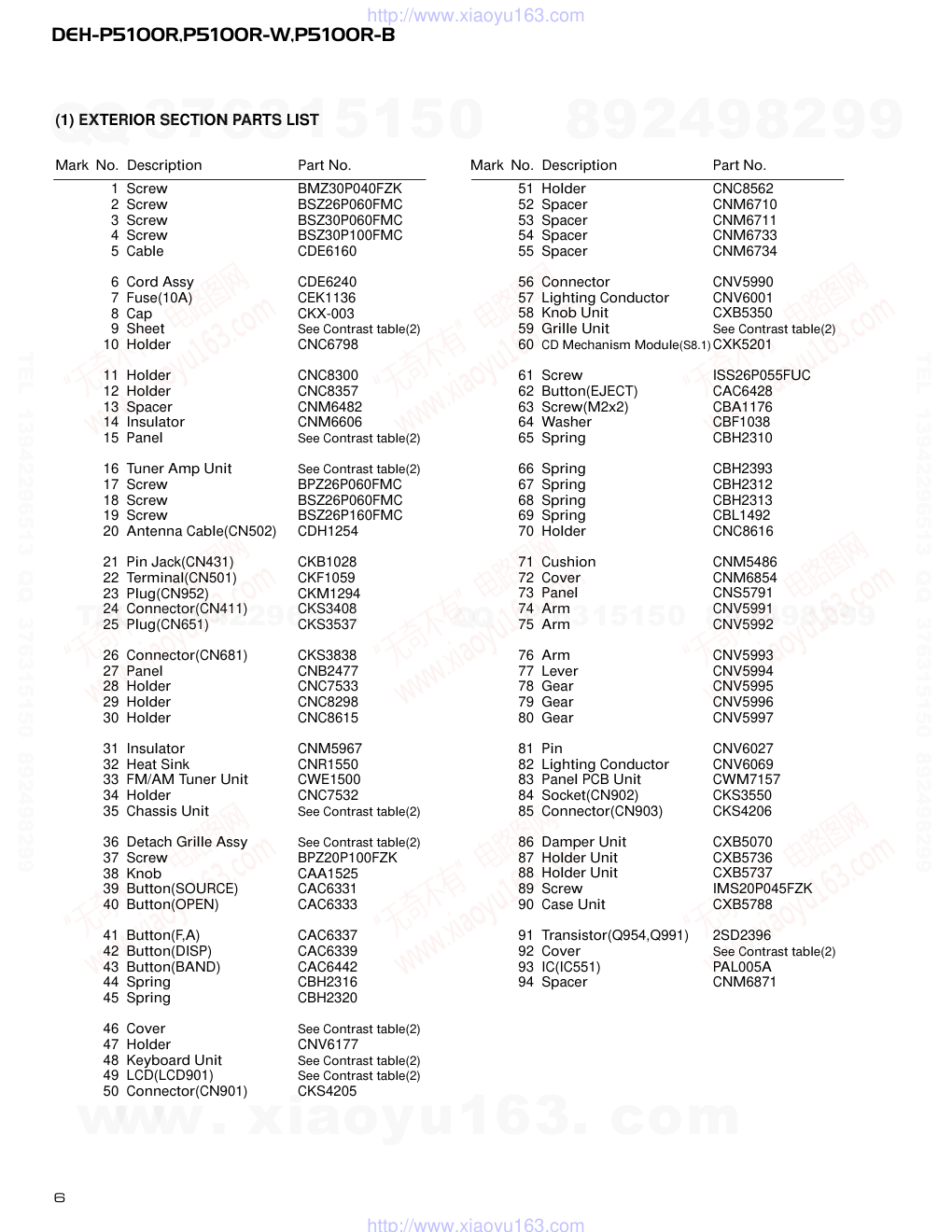

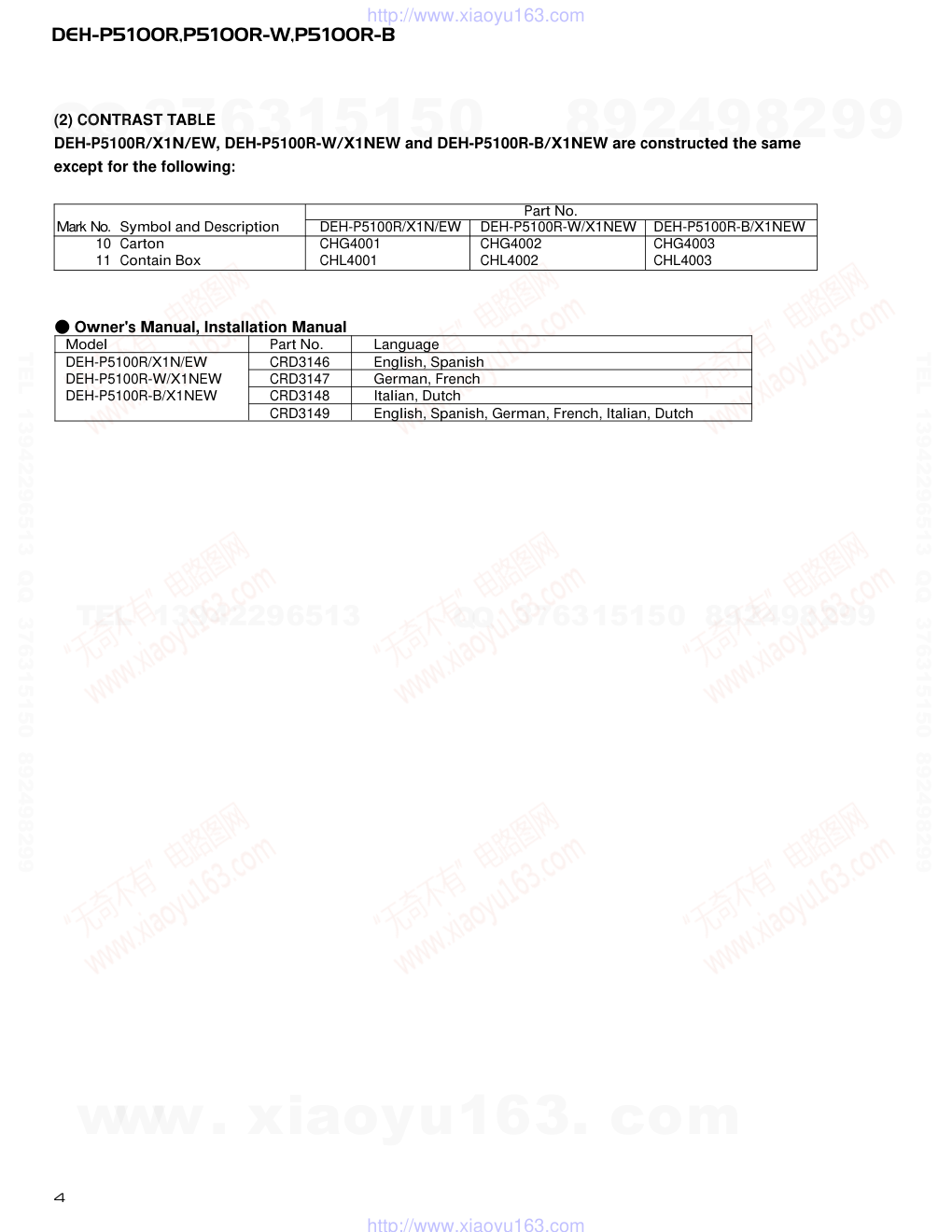

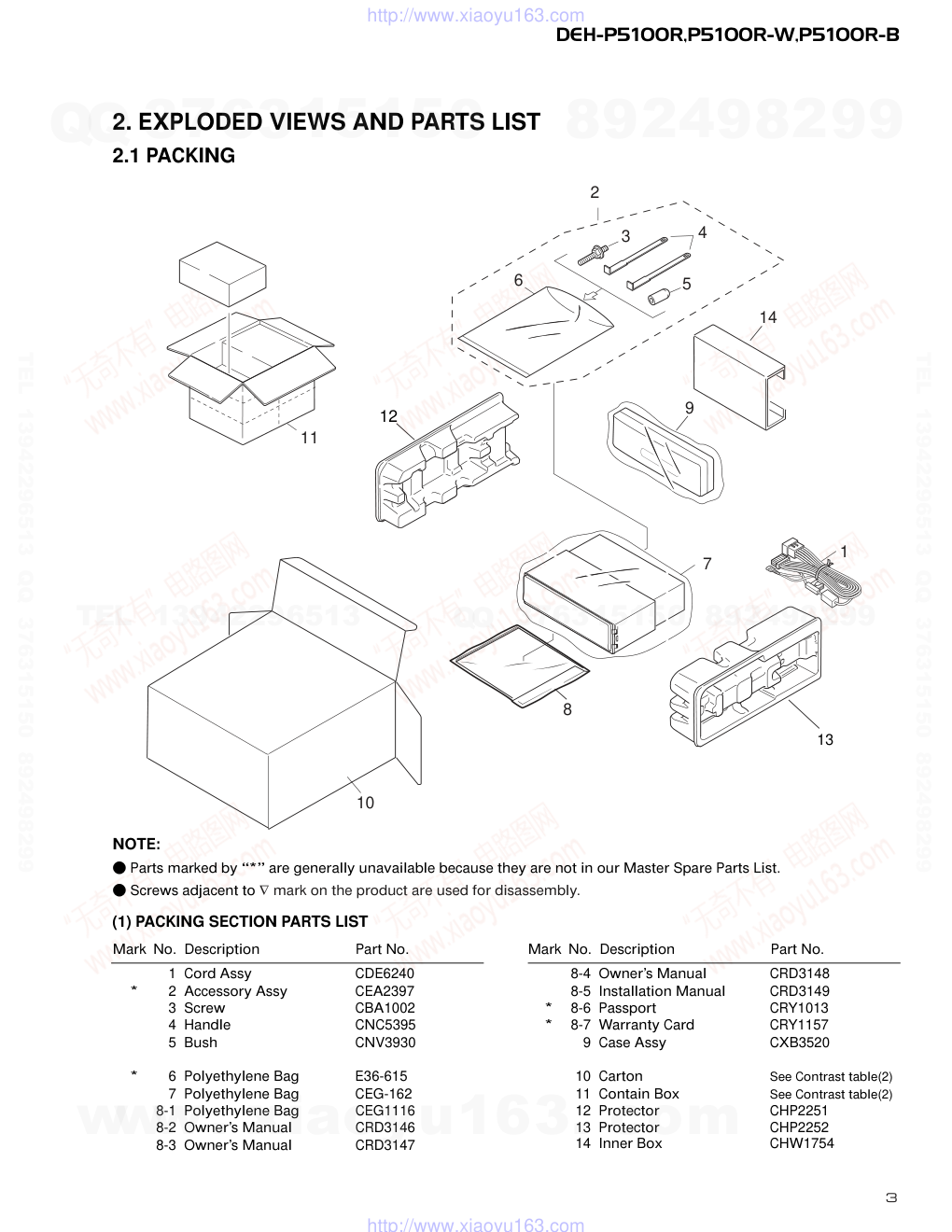

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2000 K-ZZU. FEB. 2000 Printed in Japan ORDER NO. CRT2466 MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER DEH-P5100R X1N/EW Service Manual DEH-P5100R-W X1NEW DEH-P5100R-B X1NEW - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech. Description, Disassembly CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10 4. PCB CONNECTION DIAGRAM ................................28 5. ELECTRICAL PARTS LIST ........................................38 6. ADJUSTMENT..........................................................45 7. GENERAL INFORMATION .......................................49 7.1 DIAGNOSIS ........................................................49 7.1.1 TEST MODE..............................................49 7.1.2 DISASSEMBLY .........................................53 7.2 PARTS .................................................................57 7.2.1 IC................................................................57 7.2.2 DISPLAY....................................................63 7.3 OPERATIONAL FLOW CHART...........................64 8. OPERATIONS AND SPECIFICATIONS.....................65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DEH-P5100R,P5100R-W,P5100R-B - CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 53) During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin). 2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 47). 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A “CLASS 1 LASER PRODUCT” label is affixed to the bottom of the player. 3. The triangular label is attached to the mechanism unit frame. CLASS 1 LASER PRODUCT 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5100R,P5100R-W,P5100R-B 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 11 8 9 5 4 6 3 2 7 12 13 10 1 14 1 Cord Assy CDE6240 * 2 Accessory Assy CEA2397 3 Screw CBA1002 4 Handle CNC5395 5 Bush CNV3930 * 6 Polyethylene Bag E36-615 7 Polyethylene Bag CEG-162 8-1 Polyethylene Bag CEG1116 8-2 Owner’s Manual CRD3146 8-3 Owner’s Manual CRD3147 8-4 Owner’s Manual CRD3148 8-5 Installation Manual CRD3149 * 8-6 Passport CRY1013 * 8-7 Warranty Card CRY1157 9 Case Assy CXB3520 10 Carton See Contrast table(2) 11 Contain Box See Contrast table(2) 12 Protector CHP2251 13 Protector CHP2252 14 Inner Box CHW1754 Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DEH-P5100R,P5100R-W,P5100R-B Part No. Mark No. Symbol and Description DEH-P5100R/X1N/EW DEH-P5100R-W/X1NEW DEH-P5100R-B/X1NEW 10 Carton CHG4001 CHG4002 CHG4003 11 Contain Box CHL4001 CHL4002 CHL4003 (2) CONTRAST TABLE DEH-P5100R/X1N/EW, DEH-P5100R-W/X1NEW and DEH-P5100R-B/X1NEW are constructed the same except for the following: - Owner's Manual, Installation Manual Model Part No. Language DEH-P5100R/X1N/EW CRD3146 English, Spanish DEH-P5100R-W/X1NEW CRD3147 German, French DEH-P5100R-B/X1NEW CRD3148 Italian, Dutch CRD3149 English, Spanish, German, French, Italian, Dutch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DEH-P5100R,P5100R-W,P5100R-B A A B C B C 10 90 2 37 37 37 37 2 60 2 2 6 8 61 19 32 17 27 93 20 21 24 22 23 29 91 3 30 3 18 91 18 50 53 52 57 54 86 15 92 59 51 56 49 55 9 89 73 71 62 81 64 78 7966 74 64 75 63 89 89 68 88 80 72 64 69 64 76 65 82 77 87 64 67 84 85 83 70 1 1 35 3 4 14 16 34 33 11 12 13 13 28 31 25 26 48 46 5 4 42 44 94 47 39 40 43 36 45 41 38 58 7 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DEH-P5100R,P5100R-W,P5100R-B 1 Screw BMZ30P040FZK 2 Screw BSZ26P060FMC 3 Screw BSZ30P060FMC 4 Screw BSZ30P100FMC 5 Cable CDE6160 6 Cord Assy CDE6240 7 Fuse(10A) CEK1136 8 Cap CKX-003 9 Sheet See Contrast table(2) 10 Holder CNC6798 11 Holder CNC8300 12 Holder CNC8357 13 Spacer CNM6482 14 Insulator CNM6606 15 Panel See Contrast table(2) 16 Tuner Amp Unit See Contrast table(2) 17 Screw BPZ26P060FMC 18 Screw BSZ26P060FMC 19 Screw BSZ26P160FMC 20 Antenna Cable(CN502) CDH1254 21 Pin Jack(CN431) CKB1028 22 Terminal(CN501) CKF1059 23 Plug(CN952) CKM1294 24 Connector(CN411) CKS3408 25 Plug(CN651) CKS3537 26 Connector(CN681) CKS3838 27 Panel CNB2477 28 Holder CNC7533 29 Holder CNC8298 30 Holder CNC8615 31 Insulator CNM5967 32 Heat Sink CNR1550 33 FM/AM Tuner Unit CWE1500 34 Holder CNC7532 35 Chassis Unit See Contrast table(2) 36 Detach Grille Assy See Contrast table(2) 37 Screw BPZ20P100FZK 38 Knob CAA1525 39 Button(SOURCE) CAC6331 40 Button(OPEN) CAC6333 41 Button(F,A) CAC6337 42 Button(DISP) CAC6339 43 Button(BAND) CAC6442 44 Spring CBH2316 45 Spring CBH2320 46 Cover See Contrast table(2) 47 Holder CNV6177 48 Keyboard Unit See Contrast table(2) 49 LCD(LCD901) See Contrast table(2) 50 Connector(CN901) CKS4205 51 Holder CNC8562 52 Spacer CNM6710 53 Spacer CNM6711 54 Spacer CNM6733 55 Spacer CNM6734 56 Connector CNV5990 57 Lighting Conductor CNV6001 58 Knob Unit CXB5350 59 Grille Unit See Contrast table(2) 60 CD Mechanism Module(S8.1)CXK5201 61 Screw ISS26P055FUC 62 Button(EJECT) CAC6428 63 Screw(M2x2) CBA1176 64 Washer CBF1038 65 Spring CBH2310 66 Spring CBH2393 67 Spring CBH2312 68 Spring CBH2313 69 Spring CBL1492 70 Holder CNC8616 71 Cushion CNM5486 72 Cover CNM6854 73 Panel CNS5791 74 Arm CNV5991 75 Arm CNV5992 76 Arm CNV5993 77 Lever CNV5994 78 Gear CNV5995 79 Gear CNV5996 80 Gear CNV5997 81 Pin CNV6027 82 Lighting Conductor CNV6069 83 Panel PCB Unit CWM7157 84 Socket(CN902) CKS3550 85 Connector(CN903) CKS4206 86 Damper Unit CXB5070 87 Holder Unit CXB5736 88 Holder Unit CXB5737 89 Screw IMS20P045FZK 90 Case Unit CXB5788 91 Transistor(Q954,Q991) 2SD2396 92 Cover See Contrast table(2) 93 IC(IC551) PAL005A 94 Spacer CNM6871 (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5100R,P5100R-W,P5100R-B 7 Part No. Mark No. Symbol and Description DEH-P5100R/X1N/EW DEH-P5100R-W/X1NEW DEH-P5100R-B/X1NEW 9 Sheet Not used Not used CNM6796 15 Panel CNS5992 CNS5913 CNS5992 16 Tuner Amp Unit CWM6897 CWM6898 CWM6899 35 Chassis Unit CXB5062 CXB5493 CXB5494 36 Detach Grille Assy CXB4911 CXB4912 CXB4913 46 Cover CNS5737 CNS5912 CNS5737 48 Keyboard Unit CWM6906 CWM6910 CWM6907 49 LCD(LCD901) CAW1566 CAW1573 CAW1601 59 Grille Unit CXB5375 CXB5376 CXB5377 92 Cover Not used CNM4710 Not used (2) CONTRAST TABLE DEH-P5100R/X1N/EW, DEH-P5100R-W/X1NEW and DEH-P5100R-B/X1NEW are constructed the same except for the following: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DEH-P5100R,P5100R-W,P5100R-B 2.3 CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DEH-P5100R,P5100R-W,P5100R-B 1 Control Unit CWX2411 2 Connector(CN802) CKS2192 3 Connector(CN801) CKS2193 4 Connector(CN701) CKS2773 5 Connector(CN101) CKS3486 6 Screw BMZ20P030FMC 7 Screw BSZ20P040FMC 8 Screw(M2x3) CBA1077 9 Screw(M2x5) EBA1028 10 Screw CBA1243 11 Screw(M2x4) CBA1362 12 Washer CBF1037 13 Washer CBF1038 14 Washer CBF1060 15 ••••• 16 Spring CBH2079 17 Spring CBH2117 18 Spring CBH2314 19 Spring CBH2110 20 Spring CBH2282 21 Spring CBH2318 22 ••••• 23 Spring CBH2324 24 Spring CBH2118 25 Spring CBH2161 26 Spring CBH2163 27 Spring CBH2189 28 Spring CBH2377 29 Spring CBH2260 30 Spring CBH2262 31 Bracket CNC8568 32 Spring CBL1369 33 Connector CDE5531 34 Connector CDE5532 35 Shaft CLA3304 36 Screw(M2.6x6) CBA1458 37 Frame CNC8565 38 Frame CNC8749 39 Lever CNC7546 40 Arm CNC8663 41 Bracket CNC8567 42 ••••• 43 Spacer CNM3315 44 Sheet CNM6659 45 ••••• 46 ••••• 47 Ball CNR1189 48 Belt CNT1086 49 Roller CNV4509 50 Arm CNV6037 51 Arm CNV5247 52 Arm CNV5248 53 Arm CNV5249 54 Guide CNV5254 55 Guide CNV5255 56 Gear CNV5257 57 Gear CNV5256 58 Guide CNV6272 59 Damper CNV6010 60 Arm CNV6096 61 Arm CNV6031 62 Arm CNV6211 63 Guide CNV6012 64 Guide CNV5510 65 ••••• 66 Guide CNV5751 67 Clamper CNV6013 68 Gear CNV5813 69 Motor Unit(M1) CXB2190 70 Screw Unit CXB5892 71 Chassis Unit CXB4797 72 Gear Unit CXB4728 73 Arm Unit CXB5753 74 Motor Unit(M2) CXB2195 75 Lever Unit CXB4730 76 Arm Unit CXB4731 77 Motor Unit(M3) CXB2562 78 Arm Unit CXB4732 79 Bracket Unit CXB4795 80 Screw JFZ20P025FMC 81 Screw JGZ17P025FZK 82 Washer YE20FUC 83 Pickup Unit(Service)(P8) CXX1285 84 Screw IMS26P030FMC * 85 PCB CNX2982 86 Photo-transistor(Q1, 2) CPT230SX-TU 87 Damper CNV6011 88 Rack CNV6014 89 Spring CBH2315 Mark No. Description Part No. Mark No. Description Part No. - CD MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM Q524 Q527 Q525 Q541 Q411 Q412 Q528 Q701 IC 701 PM4009A IC 411 CA0008AM X701 RDS DECODER IP-BUS DRIVER 12 11 20 8 28 MUTE X1 X2 B.U IL+B EJECT CSENS SW5V DPDT KYDT ROT1(H) ROT0(L) BL+B CDLOAD clamp PEE 54 61 100 CDEJET 55 CONT 59 EJTSNS 78 DSCSNS 79 CD5VON 58 VDCONT 56 LCDPW 23 eject 75 DPDT 96 KEYDT 95 KEYIN1 42 KEYIN2 43 1 20 SYSTEM -COM IC 601(2/2) PE5116B M M M 35 22 38 42 46 39 CN502 44 63 69 70 54 78 65 71 46 24 + 19 COMP LDET 6 21 18 25 32 DI/DO 34 33 41 44 11 12 13 33 45 55 57 61 74 75 4 3 8 CE2 CK CE1 SDBW SL FMSD NL1 NL2 5 6 CF202 AM 2ND IF 450kHz T51 Q51 CF51 CF52 CF53 FM MPX 22 10 14 7 12 15 16 8 13 3 2 4 VDD B U VDD VCC VCC VDD AM RF AM RF AGC Q201 Q3 ANT FM FRONT END FM/AM 1ST IF 10.7MHz Q204 1 27 28 2 8 21 6 5 11 22 23 7 24 2 5 4 2 1 3 4 3 FO + TO + FO + TO + 16 23 X201 S801 HOME S802 CLAMP CLAMP CDLOAD CDEJET CONT EJTSNS CDCSNS CD5VON VD VD V+5 VD ED/TD/SD/MD 97 14 5 4 3 98 21 LD PSW L + L — PD FDP TDP SOP F MUTE R SOM COP COM LOP LOM 20 10 11 6 LOUT 24 39 17 12 11 14 13 10 9 21 D802 DISC SENSE SELECT SENSE LOADING MOTOR CARRIAGE MOTOR SPINDLE MOTOR D801 28 DSCSNS CD5VON 1 CDLOAD LD + MD MD LD 2 1 ANT1 TV ANT2 TV RF TV HOLOGRAM UNIT FOCUS ACT TRACKING ACT MIXER,IF AMP DET IC 1 PML002A IC 3 BR9010FV IC 501 S-81250SGUP POWER ON MUTE EEPROM IC 601 TA2063F IC 2 PM4008A IC 201 UPD63710GC IC 301 BA5985FM CD DRIVER RF-AMP,SERVO,DSP,DAC LPF CN701 CN802 CN801 CN101 5V REGULATOR IC 701 BA05SFP PICKUP UNIT(SERVICE)(P8) BUS— B.U BUS+ BUS+L BUS—L 5 8 1 7 11 1 2 8 6 5 TX RX IPPW swvdd 44 csens ILMPW B.U VDD B.U 2 10 11 12 14 13 4 8 FLAP IL+ 5 FLAP IL— 6 7 CN651 CN681 CN411 Q652 B.U Q655 Q654 Q653 Q651 Q656 Q992 Q991 A TUNER AMP UNIT B FM/AM TUNER UNIT D CONTROL UNIT E PHOTO UNIT BZ601 ALARM BUZZER 16 TEMP 81 X601 TH601 15 17 4 19 20 14 3 2 18 1 FLPILM 77 (S8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A C 88 ldet 29 fM/AM 36 11 1 tnute adpw bsens asens NL2 VDD B.U B.U B.U NL1 7 91 92 93 83 72 22 SD SL SDBW PCE1 tunpck tunpce@ tunpdo ASENBO 10 FL 11 RL 9 B.U SYSPW IL+B COMGND CSENS SW5V DPDT KYDT KEYIN1 KEYIN2 BL+B Preout_L 23 10 12 9 11 RL— 21 RL+ 3 FL— 5 FL+ FL— FL+ RL— RL+ 8 B.REM SLO 7 MUTE 5 ILL 6 ACC 2 GND 1 BACK UP BACK UP GND TELIN isens (VDD) DALMON 3 76 38 74 TUN L 40 BUS+L 43 BUS—L 44 CD L 41 DFS 35 10 99 97 32 98 25 86 85 24 FLIN 12 RLIN 14 22 4 25 SYSTEM -COM RESET POWER AMP IC 601(1/2) PE5116B IC 451 PML004AF IC 631 S-80734ANDYI IC 551 PAL005A IC 902 RS-140 reset VDD Q601 Q952 Q959 Q953 Q951 Q434 Q431 SYSPW Q551 Q957 Q954 Q955 Q901 Q903 Q904 D904 D903 Q902 Q905 Q905 Q958 TX RX IPPW ELECTRONIC VOLUME/ SOURCE SELECTOR SYS+B B.REM STBY MUTE REMOTE CONTROL SENSOR IC 901 PD6279 LCD DRIVER KEY MATRIX LCD OPT IN 1 11 8 7 9 6 5 3 4 11 2 8 7 5 6 10 11 12 14 13 4 3 4 6 5 7 8 14 10 2 4 SI SO X0 X1 dim KEY DATA LCD DATA GRN/amb REMIN VCC 53 52 57 X901 58 61 48 50 60 62 CN903 CN901 CN902 S930 KEYBOARD UNIT F PANEL PCB UNIT 1 2 SUB W. CN431 ACC RL— RL+ ILL MUTE FL— FL+ B.REM RR— FR— FL— RL— RR+ FR+ FL+ RL+ BACK UP ILL GND B.REM ACC 2 CN952 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CN902 IL GND BL+ IL +B CSENS SW5V uGND DPDT KYDT ROT0(L) ROT1(H) NC NC CN901 CN903 12 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page A A-a A B E D TUNER AMP UNIT FM/AM TUNER UNIT CD MECHANISM MODULE F PANEL PCB UNIT C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RR+ RR- FR+ FL+ RL+ FR- FL- RL- BACK UP GND ACC B.REM ILL S-CD:36.5dBs CEK1136 13 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A A-b A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A A-a A-a A-b A B TUNER AMP UNIT FM/AM TUNER UNIT 1 2 3 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A CN902 IL GND BL+ IL +B CSENS SW5V uGND DPDT KYDT ROT0(L) ROT1(H) NC NC CN901 CN903 A-a A-a A-b E D CD MECHANISM MODULE 6 PANEL PCB UNIT F KEYBOARD UNIT C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 D C B A S-CD:36.5dBs A-a A-b A-b DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A RR+ RR- FR+ FL+ RL+ FR- FL- RL- BACK UP GND ACC B.REM ILL CEK1136 A-b A-a A-b 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A B 3.3 FM/AM TUNER UNIT B A KV1410(23) KV1410(23) Mark None F0 F65 F125 A0 A74 A125 Band – FM FM FM AM AM AM Input Level – 0dBf 65dBf 125dBf 0dBµ 74dBµ 125dBµ DAN217U DAN217U FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A B KV1410(23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A CAW1566(P5100R) CAW1600(P5100R-B) CAW1573(P5100R-W) P5100R,P5100R-W C 3.4 KEYBOARD UNIT C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A ROTARY VR P5100R-B P5100R,P5100R-W S902,S903,S906-S921:CSG1113(P5100R,P5100R-W) :CSG1135(P5100R-B) C F CN903 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A BA05SFP (SERVICE)(P8) PICKUP UNIT PHOTO UNIT(S8) CONTROL UNIT SPINDLE MOTOR Q2 CPT230SX-TU Q1 CPT230SX-TU M3 CXB2562 CARRIAGE MOTOR M1 CXB2190 M2 CXB2195 LOADING MOTOR RF-AMP, SE 5V REGULATOR CD DRIVER CN101 CN802 CN801 3.5 CD MECHANISM MODULE E D E D 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A MP, SERVO, DSP, DAC, LPF SWITCHES: CONTROL UNIT S801 : HOME SWITCH.....ON-OFF S802 : CLAMP SWITCH....ON-OFF The underlined indicates the switch position. CN701 A CN681 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DEH-P5100R,P5100R-W,P5100R-B 1 RFI 0.5V/div. 0.5µs/div. Normal mode: play 1 CH1: RFI 1V/div. 2 CH2: MIRR 5V/div. Test mode: Tracking open 0.5ms/div. 1 CH1: RFI 1V/div. 2 CH2: MIRR 5V/div. Normal mode: The defect part passes 800µm 0.5ms/div. 3 CH1: FD 0.5V/div. 4 CH2: FO+ 2V/div. Test mode: No disc, Focus close 0.2s/div. 3 CH1: FD 0.5V/div. 5 CH2: FOK 2V/div. Normal mode: Focus close 0.2s/div. 6 CH1: FE 0.5V/div. 7 CH2: XSI 2V/div. Normal mode: Focus close 1ms/div. REFO → 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: 32 tracks jump (FWD) 0.5ms/div. 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: Single jump (FWD) 0.5ms/div. 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: 100 tracks jump (FWD) 5ms/div. 6 CH1: FE 0.1V/div. 3 CH2: FD 0.2V/div. Normal mode: Play 20ms/div. 3 CH1: FD 0.5V/div. 0 CH2: MD 1V/div. Normal mode: Focus close (12cm) 0.5s/div. 3 CH1: FD 0.5V/div. 0 CH2: MD 1V/div. Normal mode: Focus close (8cm) 0.5s/div. REFO → REFO → REFO → REFO → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → - Waveforms Note:1. The encircled numbers denote measuring pointes in the circuit diagram. 2. Reference voltage REFO:2.5V REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DEH-P5100R,P5100R-W,P5100R-B 8 CH1: TE 0.2V/div. 9 CH2: TD 0.2V/div. Normal mode: play 8 CH1: TE 0.5V/div. ! CH2: SD 0.5V/div. TEST mode: 100 Tracks jump(FWD) 5ms/div. 0 MD 0.5V/div. 0.1s/div. Normal mode: Play (12cm) 0 MD 1V/div. 10ms/div. Normal mode: Long Search (12cm) @ EFM 1V/div. 5µs/div. Normal mode: play 8 CH1: TE 1V/div. # CH2: TEC 1V/div. Test mode: Focus close Tracking open 2ms/div. 8 CH1: TE 0.5V/div. 6 CH2: FE 0.5V/div. Normal mode: AGC after focus close 0.2s/div. $ PLCK 2V/div. 0.5µs/div. Normal mode: play 20ms/div. % SCKO 2V/div. 1µs/div. Normal mode: play ^ Dout 2V/div. 10µs/div. Normal mode: play & LRCK 2V/div. 20µs/div. Normal mode: play * VD 5V/div. 50ms/div. Normal mode: No disc GND → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → GND → REFO → GND → REFO → GND → REFO → GND → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DEH-P5100R,P5100R-W,P5100R-B ( CH1: R OUT 1V/div. ) CH2: L OUT 1V/div. Normal mode: Play (1kHz 0dB) 6 CH1: FE 0.2V/div. 3 CH2: FD 0.5V/div. Normal mode: During AGC 1ms/div. 8 CH1: TE 0.2V/div. 9 CH2: TD 0.5V/div. Normal mode: During AGC 1 CH1: RFI 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.2ms/div. 1ms/div. 0.5ms/div. 3 CH1: FD 0.5V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.5ms/div. 9 CH1: TD 0.1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.5ms/div. REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A ILGND IL+B NC BL+B FLAP IL+ FLAP IL- CSENS EJECT uGND SW5V DPDT KYDT ROT0(L) ROT1(H) IL GND BL+ IL +B CSENS SW5V uGND DPDT KYDT ROT0(L) ROT1(H) NC NC EJECT F 3.6 PANEL PCB UNIT F PANEL PCB UNIT A CN651 C CN901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A CN952 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams A A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B TUNER AMP UNIT CORD ASSY CN701 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A A SIDE A B F CN902 SUB.W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DEH-P5100R,P5100R-W,P5100R-B 5 6 7 8 5 6 7 8 D C B A A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A 4.2 FM/AM TUNER UNIT B SIDE A B FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A B SIDE B B FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A 4.3 KEYBOARD UNIT CN903 F PTY C C SIDE A KEYBOARD UNIT C KEYBOARD UNIT SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A F F PANEL PCB UNIT A CN651 SIDE A SIDE B F PANEL PCB UNIT 4.4 PANEL PCB UNIT C CN901 EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DEH-P5100R,P5100R-W,P5100R-B 1 2 3 4 1 2 3 4 D C B A 4.5 CD MECHANISM MODULE CONTROL UNIT HOME M1 CARRIAGE MOTOR M2 LOADING MOTOR M3 SPINDLE MOTOR PICKUP UNIT(SERVICE)(P8) CN802 CN681 321 PHOTO UNIT(S8) SIDE A A D E D D E E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DEH-P5100R,P5100R-W,P5100R-B D C B A 1 2 3 4 1 2 3 4 CLAMP SIDE B CONTROL UNIT D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DEH-P5100R,P5100R-W,P5100R-B 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : CWM6897(P5100R) : CWM6899(P5100R-B) : CWM6898(P5100R-W) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 411 IC HA12187FP IC 451 IC PML004AF IC 501 IC S-81250SGUP IC 551 IC PAL005A IC 601 IC PE5116B IC 631 IC S-80734ANDYI IC 701 IC PM4009A Q 411 Transistor 2SA1586 Q 412 Transistor DTC124EK Q 431 Transistor IMH3A Q 434 Transistor IMD2A Q 501 Transistor DTA124EK Q 502 Transistor 2SC2412K Q 524 Transistor IMH3A Q 525 Transistor DTA114EK Q 526 Transistor 2SD1757K Q 527 Transistor 2SD1757K Q 528 Transistor 2SC2412K Q 541 Transistor 2SC2412K Q 551 Transistor DTC144EK Q 601 Transistor DTA114EK Q 651 Transistor 2SA933S Q 652 Transistor 2SB710A Q 653 Transistor DTC114EK Q 654 Transistor DTC114EU Q 655 Transistor 2SA1037K Q 656 Transistor DTC114EK Q 701 Transistor DTA124EK Q 951 Transistor 2SA1037K Q 952 Transistor 2SC3673 Q 953 Transistor IMX1 Q 954 Transistor 2SD2396 Q 955 Transistor 2SB1238 Q 956 Transistor DTC114EK Q 957 Transistor 2SC2412K Q 958 Transistor DTC114EK Q 959 Transistor IMD2A Q 991 Transistor 2SD2396 Q 992 Transistor IMD2A D 431 Diode DAN202U D 432 Diode 1SS133 D 501 Diode MA3160(LMH) D 551 Diode 1SR154-400 D 552 Diode 1SR154-400 D 651 Diode MTZ5R6J(C) D 652 Diode DA204K D 653 Diode DA204K D 654 Diode DA204K D 655 Diode DA204K D 656 Diode DA204K D 657 Diode DA204K D 658 Diode DA204K D 951 Diode ERA15-02VH D 952 Diode ERA15-02VH D 955 Diode DAN202U D 956 Diode HZS6L(B2) D 957 Diode HZS7L(C2) D 958 Diode HZS6L(C3) D 959 Diode HZS9L(A2) D 960 Diode HZS9L(B3) D 961 Diode ERA15-02VH D 973 Diode 1SR154-400 D 992 Diode HZS9L(B1) L 411 Inductor LAU3R3J L 501 Ferri-Inductor LAU4R7K L 502 Inductor CTF1399 L 506 Ferri-Inductor LAU2R2K L 601 Inductor CTF1399 L 603 Ferri-Inductor LAU2R2K L 604 Ferri-Inductor LAU2R2K L 651 Ferri-Inductor LAU101K L 701 Ferri-Inductor LAU101K L 702 Ferri-Inductor LAU101K L 703 Inductor CTF1399 L 951 Ferri-Inductor LAU2R2K TH 601 Thermistor CCX1037 CF 701 Filter CTF1071 X 601 Radiator 12.582912MHz CSS1495 X 701 Radiator 3.648MHz CSS1500 S 651 Switch CSN1039 BZ 601 Buzzer CPV1050 AR 501 Arrester DSP-201M FM/AM Tuner Unit CWE1500 RESISTORS R 411 RS1/10S620J R 412 RS1/10S101J R 413 RS1/10S101J R 414 RS1/10S222J R 415 RS1/10S332J R 416 RS1/10S682J R 417 RS1/10S102J R 418 RS1/10S102J R 419 RS1/10S473J R 420 RS1/10S103J R 421 RS1/10S473J R 423 RS1/10S821J R 424 RS1/10S821J R 425 RS1/10S223J R 426 RS1/10S223J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DEH-P5100R,P5100R-W,P5100R-B R 427 RS1/10S102J R 428 RS1/10S102J R 431 RS1/10S821J R 432 RS1/10S821J R 437 RS1/10S223J R 438 RS1/10S223J R 443 RS1/10S102J R 445 RS1/16S0R0J R 446 RS1/16S0R0J R 451 RS1/10S0R0J R 452 RS1/10S0R0J R 467 RS1/10S0R0J R 468 RS1/10S0R0J R 491 RS1/10S102J R 492 RS1/10S102J R 501 RS1/10S0R0J R 502 RS1/10S222J R 503 RS1/10S222J R 506 RS1/10S0R0J R 507 RS1/10S0R0J R 508 RS1/10S681J R 509 RS1/10S473J R 510 RS1/10S681J R 511 RS1/10S473J R 512 RS1/10S681J R 513 RS1/10S473J R 514 RS1/10S681J R 515 RS1/10S473J R 516 RS1/10S681J R 517 RS1/10S472J R 518 RS1/10S103J R 519 RS1/10S473J R 520 RS1/10S681J R 521 RS1/8S151J R 522 RS1/10S681J R 523 RS1/10S473J R 530 RS1/10S681J R 531 RS1/10S473J R 532 RS1/10S681J R 533 RS1/10S473J R 534 RS1/10S222J R 535 RS1/10S222J R 536 RS1/10S223J R 537 RS1/10S223J R 538 RS1/10S224J R 539 RS1/10S224J R 540 RS1/10S224J R 541 RS1/10S162J R 542 RS1/10S162J R 543 RS1/10S102J R 544 RS1/10S393J R 545 RS1/10S272J R 546 RS1/10S272J R 547 RS1/10S0R0J R 548 RS1/10S153J R 549 RS1/10S474J R 550 RS1/10S473J R 551 RS1/10S103J R 552 RS1/10S103J R 553 RS1/10S331J R 601 (P5100R-B) RS1/10S473J R 602 (P5100R,P5100R-W) RS1/10S473J R 603 RS1/10S473J R 604 RS1/10S102J R 605 RS1/10S473J R 606 RS1/10S473J R 607 RA3C102J R 610 RS1/10S222J R 611 RN1/10SE2002D R 614 RS1/10S222J R 615 RS1/10S222J R 616 RS1/10S473J R 617 RS1/10S473J R 618 RS1/10S473J R 622 RS1/10S102J R 623 RS1/10S102J R 625 RS1/10S102J R 626 RS1/10S822J R 633 RS1/8S473J R 634 RS1/10S0R0J R 635 (P5100R) RS1/8S473J R 636 (P5100R-B,P5100R-W) RS1/10S473J R 637 RS1/16S101J R 651 RS1/10S222J R 652 RS1/10S472J R 653 RS1/10S222J R 654 RS1/8S472J R 655 RS1/8S222J R 656 RS1/8S222J R 657 RS1/10S473J R 658 RS1/8S472J R 659 RS1/8S472J R 660 RD1/4PU102J R 661 RS2PMF330J R 662 RD1/4PU471J R 663 RS1/10S473J R 664 RS1/10S473J R 665 RS1/8S4R7J R 668 RS1/10S473J R 669 RS1/8S222J R 670 RS1/8S472J R 671 RD1/4PU152J R 675 RS1/8S222J R 676 RS1/8S222J R 677 RS1/10S104J R 678 RS1/10S473J R 679 RS1/8S102J R 680 RS1/8S102J R 681 RS1/10S681J R 682 RS1/10S102J R 683 RS1/10S102J R 691 RS1/10S473J R 694 RS1/10S222J R 701 RS1/10S102J R 702 RS1/10S102J R 703 RS1/10S102J R 705 RS1/10S681J R 706 RS1/10S0R0J R 707 RS1/10S0R0J R 708 RS1/10S102J R 709 RS1/10S0R0J R 710 RS1/10S225J R 856 RS1/10S473J R 857 RS1/16S473J R 858 RS1/16S473J R 951 RD1/4PU102J R 952 RS1/10S153J R 953 RS1/16S472J R 954 RS1/16S472J R 955 RS1/10S102J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 956 RD1/4PU102J R 958 RS1/10S622J R 959 RS1/10S473J R 960 RS1/16S473J R 961 RS1/10S103J R 962 RS1/10S473J R 963 RS1/10S472J R 964 RS1/10S103J R 965 RS1/10S473J R 966 RS1/10S473J R 967 RS1/8S222J R 968 RS1/10S102J R 970 RS1/10S1R0J R 971 RS1/10S473J R 972 RS1/10S103J R 973 RS1/16S473J R 974 RS1/10S103J R 975 RS1/16S473J R 976 RS1/10S152J R 991 RD1/4PU221J R 992 RD1/4PU221J R 993 RS1/10S472J R 994 RS1/10S222J CAPACITORS C 411 CKSQYB104K50 C 412 CKSQYB473K50 C 413 CKSYB105K16 C 414 CKSYB105K16 C 415 CKSYB105K16 C 416 CKSYB105K16 C 431 CEJA100M16 C 432 CEJA100M16 C 443 CEJA220M16 C 451 CKSYB224K25 C 452 CKSYB224K25 C 453 CKSYB474K16 C 454 CKSYB474K16 C 455 CEJANP4R7M16 C 456 CEJANP4R7M16 C 457 CEJANP4R7M16 C 458 CEJANP4R7M16 C 459 CKSQYB473K50 C 460 CKSQYB473K50 C 461 CKSQYB473K50 C 462 CKSQYB473K50 C 463 CEJA470M10 C 464 CKSQYB104K50 C 465 CEJA100M16 C 466 CKSQYB153K50 C 467 CKSQYB473K50 C 468 CKSQYB123K50 C 469 CKSQYB333K50 C 470 CKSQYB153K50 C 491 CKSQYB152K50 C 492 CKSQYB152K50 C 501 CKSQYB103K50 C 502 CKSQYB223K50 C 503 CKSQYB223K50 C 504 CEJA220M16 C 505 CKSQYB102K50 C 506 CEAL101M6R3 C 507 CKSQYB473K50 C 521 CKSRYB102K50 C 522 CEJA101M16 C 523 CEJA101M16 C 524 CEAL1R0M50 C 525 CEAL1R0M50 C 531 CKSQYB182K50 C 532 CKSQYB223K50 C 533 CKSQYB123K50 C 534 CKSQYB123K50 C 535 CKSQYB472K50 C 536 CCSQCH101J50 C 537 CCSQCH101J50 C 541 CKSQYB472K50 C 551 CKSYB474K16 C 552 CKSYB474K16 C 553 CKSYB474K16 C 554 CKSYB474K16 C 555 CEJA330M10 C 557 CKSYB225K16 C 558 CEJA100M16 C 559 CKSYB104K50 C 560 3300µF/16V CCH1330 C 561 CKSQYB473K50 C 563 CKSYB474K16 C 564 CKSYB474K16 C 565 CKSYB474K16 C 566 CKSYB474K16 C 567 CKSYB225K16 C 601 CCSQCH270J50 C 602 CCSQCH270J50 C 603 CKSYB105K16 C 604 CEAL4R7M35 C 607 CCSQCH101J50 C 608 CCSQCH101J50 C 609 CCSQCH101J50 C 610 CCSQCH101J50 C 611 CCSQCH101J50 C 612 CEAL2R2M50 C 651 CCSQCH101J50 C 652 CEAL4R7M35 C 654 CKSYB103K50 C 670 CKSQYB473K50 C 675 CCSQCH101J50 C 701 CEJA220M6R3 C 702 CKSQYB104K50 C 703 CEJA220M6R3 C 704 CKSQYB104K50 C 705 CCSQCH270J50 C 706 CCSQCH270J50 C 707 CKSQYB104K50 C 708 CKSQYB471K50 C 709 CKSQYB471K50 C 710 CKSQYB103K50 C 951 470µF/16V CCH1325 C 952 CKSQYB473K50 C 953 CEJA101M10 C 954 CKSQYB473K50 C 955 CEJA101M16 C 956 CKSQYB103K50 C 957 330µF/16V CCH1326 C 958 CKSQYB102K50 C 959 CKSQYB105K16 C 960 CKSQYB103K50 C 989 470µF/16V CCH1183 C 991 CKSQYB473K50 C 992 CKSQYB102K50 C 993 CEJA101M10 40 DEH-P5100R,P5100R-W,P5100R-B =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DEH-P5100R,P5100R-W,P5100R-B Unit Number : CWM6906(P5100R) : CWM6910(P5100R-W) Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC PD6279A IC 902 IC RS-140 Q 901 Transistor 2SB710A Q 902 Transistor DTC114EU Q 903 Transistor 2SB710A Q 904 Transistor DTC114EU Q 905 Transistor DTC114EU Q 906 Transistor DTC114EU D 901 Diode DAN202U D 902 Diode DAP202U D 903 LED CL170UBX D 904 LED CL170UBX D 907 LED CL170PGCD(AB) D 908 LED CL170DCD D 909 LED NSSW440-9159 D 910 LED NSSW440-9159 D 911 LED NSSW440-9159 D 912 LED NSSW440-9159 L 901 Inductor LCTA101J3225 X 901 Radiator 5.00MHz CSS1423 S 902 Push Switch CSG1113 S 903 Push Switch CSG1113 S 904 Spring Switch CSN1052 S 905 Spring Switch CSN1051 S 906 Push Switch CSG1113 S 907 Push Switch CSG1113 S 908 Push Switch CSG1113 S 909 Push Switch CSG1113 S 910 Push Switch CSG1113 S 911 Push Switch CSG1113 S 912 Push Switch CSG1113 S 913 Push Switch CSG1113 S 914 Push Switch CSG1113 S 915 Push Switch CSG1113 S 916 Push Switch CSG1113 S 917 Push Switch CSG1113 S 918 Push Switch CSG1113 S 919 Push Switch CSG1113 S 920 Push Switch CSG1113 S 921 Push Switch CSG1113 S 922 Switch CSD1040 LCD 901 LCD(P5100R) CAW1566 LCD 901 LCD(P5100R-W) CAW1573 RESISTORS R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S472J R 904 RS1/10S121J R 905 RS1/10S2R2J R 906 RS1/10S470J R 907 RS1/10S470J R 908 RS1/10S472J R 909 RS1/8S751J R 910 RS1/8S751J R 911 RS1/8S561J R 912 RS1/8S561J R 913 RS1/8S561J R 914 RS1/8S561J R 915 RS1/8S561J R 916 RS1/8S561J R 917 RS1/8S561J R 918 RS1/8S561J R 919 RS1/8S561J R 920 RS1/8S561J R 921 RS1/8S561J R 922 RS1/8S561J R 924 RS1/10S473J R 925 RS1/10S272J R 926 RS1/10S473J R 927 RS1/10S272J R 930 RS1/10S103J R 931 RS1/8S821J R 932 RS1/8S821J R 933 RS1/8S821J R 934 RS1/8S821J R 935 RS1/8S152J R 936 RS1/8S152J R 937 RS1/8S152J R 938 RS1/10S431J R 939 RS1/10S431J CAPACITORS C 901 CSZSR100M16 C 902 CKSQYB104K50 C 903 CSZSR100M16 C 904 CKSQYB103K50 C 905 CKSQYB103K50 C 906 CKSQYB103K50 C 907 CKSQYB104K50 C 908 CKSQYB104K50 C 909 CKSQYB104K50 C 910 CKSQYB104K50 C 913 CKSQYB104K50 C 914 CKSQYB104K50 Unit Number : CWM6907(P5100R-B) Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC PD6279A IC 902 IC RS-140 Q 906 Transistor DTC114EU D 901 Diode DAN202U D 902 Diode DAP202U D 903 LED CL170UBX D 904 LED CL170UBX D 908 LED CL170SRCD D 909 LED NSSW440-9159 D 910 LED NSSW440-9159 D 911 LED NSSW440-9159 D 912 LED NSSW440-9159 L 901 Inductor LCTA101J3225 X 901 Radiator 5.00MHz CSS1423 S 902 Push Switch CSG1135 S 903 Push Switch CSG1135 S 904 Spring Switch CSN1052 S 905 Spring Switch CSN1051 S 906 Push Switch CSG1135 S 907 Push Switch CSG1135 S 908 Push Switch CSG1135 S 909 Push Switch CSG1135 S 910 Push Switch CSG1135 S 911 Push Switch CSG1135 S 912 Push Switch CSG1135 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S 913 Push Switch CSG1135 S 914 Push Switch CSG1135 S 915 Push Switch CSG1135 S 916 Push Switch CSG1135 S 917 Push Switch CSG1135 S 918 Push Switch CSG1135 S 919 Push Switch CSG1135 S 920 Push Switch CSG1135 S 921 Push Switch CSG1135 S 922 Switch CSD1040 LCD 901 LCD CAW1600 RESISTORS R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S472J R 904 RS1/10S121J R 905 RS1/10S2R2J R 906 RS1/10S470J R 907 RS1/10S470J R 909 RS1/8S751J R 910 RS1/8S751J R 911 RS1/8S561J R 912 RS1/8S561J R 913 RS1/8S561J R 914 RS1/8S561J R 915 RS1/8S561J R 916 RS1/8S561J R 917 RS1/8S561J R 918 RS1/8S561J R 919 RS1/8S561J R 920 RS1/8S561J R 921 RS1/8S561J R 922 RS1/8S561J R 928 RS1/8S0R0J R 930 RS1/10S103J R 931 RS1/8S821J R 932 RS1/8S821J R 933 RS1/8S821J R 934 RS1/8S821J R 935 RS1/8S152J R 936 RS1/8S152J R 937 RS1/8S152J R 938 RS1/10S431J R 939 RS1/10S431J CAPACITORS C 901 CSZSR100M16 C 902 CKSQYB104K50 C 903 CSZSR100M16 C 904 CKSQYB103K50 C 905 CKSQYB103K50 C 906 CKSQYB103K50 C 907 CKSQYB104K50 C 908 CKSQYB104K50 C 909 CKSQYB104K50 C 910 CKSQYB104K50 C 913 CKSQYB104K50 C 914 CKSQYB104K50 Unit Number : CWE1500 Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PML002A IC 2 IC PM4008A IC 3 IC BR9010FV Q 1 Transistor 2SC4081 Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 51 Transistor 2SC4081 Q 201 FET 2SK932 Q 202 Transistor DTC124EU Q 204 Transistor 2SC4081 D 1 Diode KV1410(23) D 2 Diode 1SV248 D 4 Diode KV1410(23) D 6 Diode KV1410(23) D 101 Diode 1SS355 D 201 Diode DAN217U D 202 Diode DAN217U D 903 Diode KV1410(23) D 904 Diode SVC253 L 1 Coil CTC1155 L 2 Coil CTC1155 L 3 Inductor LCTB100K2125 L 4 Coil CTC1155 L 201 Inductor LCTB330M1608 L 202 Inductor CTF1287 L 203 Inductor LCTA121J3225 L 901 Coil CTC1154 L 902 Inductor LCTA3R3J3225 L 904 Inductor LCTBR47M1608 L 905 Inductor LCTBR47M1608 T 51 Coil CTE1132 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442 CF 202 Ceramic Filter CTF1348 X 901 Crystal Resonator 10.250MHz CSS1432 RESISTORS R 1 RS1/16S153J R 2 RS1/16S103J R 6 RS1/16S103J R 7 RS1/16S273J R 8 RS1/16S473J R 9 RS1/16S223J R 10 RS1/16S473J R 11 RS1/16S221J R 12 RS1/16S103J R 13 RS1/16S104J R 16 RS1/16S223J R 17 RS1/16S221J R 18 RS1/16S221J R 19 RS1/16S473J R 20 RS1/16S470J R 51 RS1/16S470J R 52 RS1/16S103J R 53 RS1/16S103J R 54 RS1/16S331J R 55 RS1/16S331J R 56 RS1/16S560J R 57 RS1/16S560J R 58 RS1/16S102J R 59 RS1/16S225J R 60 RS1/16S133J 42 DEH-P5100R,P5100R-W,P5100R-B =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DEH-P5100R,P5100R-W,P5100R-B R 61 RS1/16S433J R 62 RS1/16S562J R 101 RS1/16S333J R 102 RS1/16S103J R 103 RS1/16S333J R 104 RS1/16S562J R 110 RS1/16S154J R 111 RS1/16S273J R 112 RS1/16S223J R 113 RS1/16S222J R 114 RS1/16S333J R 115 RS1/16S334J R 116 RS1/16S473J R 117 RS1/16S333J R 118 RS1/16S223J R 122 RS1/16S0R0J R 202 RS1/16S472J R 203 RS1/16S225J R 204 RS1/16S102J R 205 RS1/16S220J R 206 RS1/16S471J R 208 RS1/16S104J R 209 RS1/16S104J R 210 RS1/16S563J R 213 RS1/16S223J R 251 RS1/16S225J R 902 RS1/16S103J R 904 RS1/16S473J R 907 RS1/16S103J R 908 RS1/16S681J R 909 RS1/16S473J R 914 RS1/16S562J CAPACITORS C 1 CCSQCH5R0C50 C 2 CCSRCH5R0C50 C 4 CCSRCJ3R0C50 C 6 CKSQYB105K10 C 8 CKSRYB222K50 C 10 CCSRCH220J50 C 11 CCSRCH150J50 C 12 CCSRCH8R0D50 C 14 CCSRCJ3R0C50 C 15 CKSRYB103K50 C 16 CKSRYB222K50 C 17 CKSRYB222K50 C 18 CCSRCJ3R0C50 C 19 CKSRYB103K50 C 20 CKSRYB103K50 C 21 CKSRYB103K50 C 24 CKSQYB334K16 C 31 CKSRYB222K50 C 32 CCSRCH470J50 C 35 CKSRYB103K50 C 51 CKSRYB103K50 C 52 CKSRYB473K16 C 53 CCSRCK2R0C50 C 54 CKSRYB103K50 C 55 CKSRYB104K16 C 56 CKSRYB104K16 C 58 CKSQYB224K16 C 59 CKSRYB223K25 C 60 CKSRYB104K16 C 101 CEALNP100M10 C 102 CCSRCH151J50 C 103 CKSRYB473K16 C 105 CKSRYB682K25 C 106 CEAL2R2M50 C 107 CKSRYB103K50 C 108 CKSQYB474K16 C 109 CKSQYB474K16 C 110 CKSRYB104K16 C 111 CKSRYB104K16 C 112 CKSRYB104K16 C 113 CKSRYB123K25 C 114 CEAL220M6R3 C 115 CKSRYB473K16 C 116 CEAL2R2M50 C 117 CKSRYB102K50 C 120 CKSRYB153K25 C 121 CKSRYB332K50 C 122 CKSRYB682K25 C 123 CKSRYB681K50 C 125 CKSRYB103K50 C 126 CKSRYB103K50 C 127 CEAL2R2M50 C 128 CKSRYB103K50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB104K16 C 204 CKSRYB332K50 C 205 CKSRYB103K50 C 206 CKSRYB104K16 C 207 CKSRYB473K16 C 208 CCSRCH560J50 C 209 CEAL470M6R3 C 210 CKSRYB103K50 C 211 CKSRYB103K50 C 212 CCSRCH101J50 C 215 CKSRYB223K25 C 216 CKSQYB334K16 C 217 CKSRYB103K50 C 219 CKSQYB105K10 C 220 CKSRYB104K16 C 221 CKSRYB473K16 C 222 CKSQYB334K16 C 223 CKSQYB474K16 C 224 CKSRYB104K16 C 225 CKSRYB272K50 C 226 CKSRYB682K25 C 902 CCSRCH270J50 C 904 CKSRYB223K25 C 905 CKSRYB103K50 C 906 CCSRTH100D50 C 907 CCSRTH150J50 C 909 CCSRTH100D50 C 910 CKSRYB332K50 C 912 CKSQYB474K16 C 913 CKSRYB223K25 C 914 CKSRYB682K25 C 915 CKSQYB223K25 C 916 CKSQYB474K16 C 917 CKSYB475K10 C 918 CKSRYB223K25 C 919 CKSQYB225K10 C 920 CCSRCH270J50 C 921 CCSRCH270J50 C 922 CKSYB105K16 C 923 CKSRYB103K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DEH-P5100R,P5100R-W,P5100R-B Unit Number : CWM7157 Unit Name : Panel PCB Unit MISCELLANEOUS D 920 LED CL220PGC D 921 LED CL220PGC S 930 Switch(EJECT) CSG1112 Unit Number : CWX2411 Unit Name : Control Unit MISCELLANEOUS IC 201 IC UPD63711GC IC 301 IC BA5985FM IC 701 IC BA05SFP Q 101 Transistor 2SB1132 D 801 LED CL200IRX D 802 LED CL200IRX X 201 Ceramic Oscillator 16.934MHz CSS1456 S 801 Spring Switch(HOME) CSN1051 S 802 Spring Switch(CLAMP) CSN1052 RESISTORS R 101 RS1/8S120J R 102 RS1/8S100J R 103 RS1/16S222J R 201 RS1/16S104J R 202 RS1/16S103J R 203 RS1/16S393J R 204 RS1/16S103J R 205 RS1/16S103J R 206 RS1/16S182J R 207 RS1/16S123J R 302 RS1/16S153J R 303 RS1/16S103J R 501 RS1/16S102J R 502 RA4C681J R 601 RS1/16S102J R 602 RS1/16S102J R 605 RS1/16S0R0J R 606 RS1/16S0R0J R 801 RS1/8S751J R 803 RS1/8S751J R 902 RS1/16S0R0J R 906 RS1/16S0R0J CAPACITORS C 101 CKSRYB102K50 C 102 CKSRYB104K16 C 103 CEV101M6R3 C 104 CEV470M6R3 C 105 CKSQYB334K16 C 106 CKSQYB334K16 C 107 CKSQYB334K16 C 201 CKSRYB104K16 C 202 CKSRYB471K50 C 203 CKSRYB104K16 C 205 CEV101M6R3 C 206 CKSRYB104K16 C 207 CKSRYB104K16 C 208 CKSRYB104K16 C 209 CKSRYB104K16 C 210 CKSRYB332K50 C 211 CKSRYB104K16 C 212 CKSRYB104K16 C 213 CKSRYB392K50 C 214 CKSRYB104K16 C 215 CKSRYB104K16 C 216 CCSRCJ3R0C50 C 217 CCSRCH270J50 C 218 CKSRYB104K16 C 219 CCSRCH181J50 C 220 CCSRCH510J50 C 221 CKSRYB682K25 C 222 CEV220M6R3 C 223 CKSRYB103K25 C 224 CKSRYB224K10 C 301 CEV101M10 C 603 CCSQSL152J50 C 604 CCSQSL152J50 C 702 10µF/10V CCH1349 C 703 CKSQYB334K16 Unit Number : Unit Name : Photo Unit(S8) Q 1 Photo-transistor CPT230SX-TU Q 2 Photo-transistor CPT230SX-TU Miscellaneous Parts List Pickup Unit(Service)(P8) CXX1285 M 1 Motor Unit(CARRIAGE) CXB2190 M 2 Motor Unit(LOADING) CXB2195 M 3 Motor Unit(SPINDLE) CXB2562 E F D =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DEH-P5100R,P5100R-W,P5100R-B 1) Precautions • This unit uses a single power supply (+5V) for the reg- ulator. The signal reference potential, therefore, is connected to REFO(approx. 2.5V) instead of GND. If REFO and GND are connected to each other by mis- take during adjustments, not only will it be impossi- ble to measure the potential correctly, but the servo will malfunction and a severe shock will be applied to the pick-up. To avoid this, take special note of the fol- lowing. Do not connect the negative probe of the measuring equipment to REFO and GND together. It is especially important not to connect the channel 1 negative probe of the oscilloscope to REFO with the channel 2 negative probe connected to GND. Since the frame of the measuring instrument is usual- ly at the same potential as the negative probe, change the frame of the measuring instrument to floating sta- tus. If by accident REFO comes in contact with GND, immediately switch the regulator or power OFF. • Always make sure the regulator is OFF when connect- ing and disconnecting the various filters and wiring required for measurements. • Before proceeding to further adjustments and mea- surements after switching regulator ON, let the player run for about one minute to allow the circuits to stabi- lize. • Since the protective systems in the unit's software are rendered inoperative in test mode, be very careful to avoid mechanical and /or electrical shocks to the sys- tem when making adjustment. • Disc detection during loading and eject operations is performed by means of a photo transistor in this unit.Consequently, if the inside of the unit is exposed to a strong light source when the outer casing is removed for repairs or adjustment, the following mal- functions may occur. *During PLAY, even if the eject button is pressed,the disc will not be ejected and the unit will remain in the PLAY mode. *The unit will not load a disc. When the unit malfunctions this way, either re-posi- tion the light source, move the unit or cover the photo transistor. 2) Test Mode This mode is used for adjusting the CD mechanism module of the device. • Test mode starting procedure Reset while pressing the 4 and 6 keys together. • Test mode cancellation Switch ACC, back-up OFF. • After pressing the EJECT key, do not press any other key until the disk is completely ejected. • If the ] or [ key is pressed while focus search is in progress, immediately turn the power off (otherwise the actuator may be damaged due to adhesion of the lenses). • Jump operation of TRs other than 100TR continues after releasing the key. CRG move and 100TR jump operations are brought into the “Tracking close” sta- tus when the key is released. • Powering Off/On resets the jump mode to “Single TR (91)”, the RF AMP gain setting to 0 dB, and the auto- matic adjustment value to the initial value. 6. ADJUSTMENT 6.1 CD ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DEH-P5100R,P5100R-W,P5100R-B - Flow Chart Focus Close *2 S Curve Check 01 01 01 00 00 00 (99 99 99) Display TYP 4 3 Reset SOURCE New test mode 6 [ BAND BAND BAND BAND BAND 3 *2 *1 +6dB +12dB *4 *5 6 6 6 6 1 2 1 2 ] ] [ 06 06 06 12 12 12 Select CD Single TR 32TRK 92(82) CRG Move 94(84) 100TRK 93(83) Focus Mode Select Focus Close/ S Curve Check CRG- Auto Adjustment Display Select CRG+ RF AGC Coefficient Display/ Rough Servo and RF AGC Tracking Open Display Tracking Open T. Close and Fit Servo *3 F.Offset Display RF.Offset Display F.Cansel Display *7 Single TR/32TR/100TR Voltage of CRG Motor = 2 [V] (F,T.AGC Gain = (Present Value/Initial Value) × 20) *6 ] [ 1 3 Display 2 3 Display or 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or CRG- CRG+ T.Balance Adjustment *7 F, T, RF AGC/ F.Bias Display Select F, T AGC and RF AGC CRG Move, 100TR Jump Only TRK, MIN, SEC F.AGC Gain RF AGC Gain T.AGC Gain *8 Power ON (Adjustment for T.Offset) *5 *4 *4 *6 CRG/TR Jump NO. Select CRG+/TR Jump+ CRG-/TR Jump- Power OFF Display Display Display T.Close and F,T AGC and RF AGC and Fit Servo Display Power ON (Not adjustment for T.Offset) Display Display 2 RF AMP Gain Select 2 Power OFF Power OFF Power OFF 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 91 91 91 TRK SEC MIN 0x 0x 0x TRK SEC MIN 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN GG GG GG TRK SEC MIN Test Mode In *1 *8 *3 *8 F.Cancel Value = {Top Rank 8bit of Set Value (7F [H] to 80 [H] ) + 128} / 4 = 63 [D] to (32 [D] ) to 00 [D] 9x(8x):91(81) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DEH-P5100R,P5100R-W,P5100R-B • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mecha- nism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Oscilloscope, Two L.P.F. • Measuring Points • E, F, REFOUT • Disc • ABEX TCD-784 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 5V regulator on. 2. Using the ] and [ buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjust- ment the display should now read "81". Press key 3 2 times. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ- ence is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". F REFO E 100kΩ 390pF 100kΩ 390pF E REFO F REFO L.P.F. L.P.F. CONTROL UNIT Xch Ych Oscilloscope 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DEH-P5100R,P5100R-W,P5100R-B Grating waveform Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC 45° 0° 75° 60° 30° 90° www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DEH-P5100R,P5100R-W,P5100R-B 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (min- utes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx OR Err–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. CRG can't be moved from inner diameter. → Failure on home switch or CRG move mechanism. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). → Failure on spindle, stains or damages on disc, or excessive vibrations. Subcode NG A disc not containing CD-R data is found. Turned over disc are found, though rarely. → Failure on home switch or CRG move mechanism. RF AMP NG An appropriate RF AMP gain can't be determined. → CD signal error. 17 Electricity Setup NG APC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. A newly designed head unit must conform to the example given above. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DEH-P5100R,P5100R-W,P5100R-B - New Test Mode S-CD plays the same way as before. If an error such as off focus, spindle unlocking, unreadable sub-code, or sound skipping occurs after setup, its cause and time occurred (in absolute time) are displayed. During setup, operational status of the control software (internal RAM: CPOINT) is displayed. These displays and functions are prepared for enhancing aging in the servicing and efficiency of trouble analysis. (1) Shifting to the New Test Mode 1 Turn on the current test mode by starting the reset from the key. 2 Select S-CD for the source through the specified procedure including use of the [SOURCE] key, and inserting the disc. Then, press the [Jump Mode Selector] key while maintaining the regulator turned off. 3 After the above operations, the new test mode remains on irrespective of whether the S-CD is turned on or off. You can reset the new test mode by turning on the reset start. * With some products, the new test mode can be reset through the same operations as that employed for shifting to the STBY mode (while maintaining the Acc turned off). (2) Key Correspondence Key Test mode New test mode (Example) Power Off Power On In-play Error Production BAND To power on To power off – Time/Err.No. switching (offset adjustment performed) ] – FWD-Kick FF/TR+ – [ – REV-Kick REV/TR- – 1 – T.Close (AGC performed) Scan – /parameter display switching 2 RF AMP gain switching Parameter display switching Mode – /T.BAL adjustment/T.Open 3 To power on F.Close/RF AGC/F.T.AGC – – (offset adjustment not performed) 6 – F.Mode switching Auto/Manu T.No./Time switching /T.Close (no AGC)/Jump switching Note: Eject and CD on/off is performed in the same procedure as that for the normal mode. (3) Cause of Error and Error Code Code Class Contents Description and cause 40 Electricity Off focus detected. FOK goes low. → Damages/stains on disc, vibrations or failure on servo. 41 Electricity Spindle unlocked. FOK = Low continued for 50 msec. → Damages/stains on disc, vibrations or failure on servo. 42 Electricity Sub-code unreadable. Sub-code was unreadable for 50 msec. → Damages/stains on disc, vibrations or failure on servo. 43 Electricity Sound skipping detected. Last address memory function was activated. → Damages/stains on disc, vibrations or failure on servo. Note: Mechanical errors during aging are not displayed. The error codes should be indicated in the same way as in the normal mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DEH-P5100R,P5100R-W,P5100R-B (4) Display of Operational Status (CPOINT) during Setup Status No. Contents Protective action 00 CD+5V ON process in progress. None 01 Servo LSI initialization (1/3) in progress. None 02 Servo LSI CRAM initialization in progress. None 03 Servo LSI initialization (2/3) in progress. None 04 Offset adjustment (1/3) in progress. None 05 Offset adjustment (2/3) in progress. None 06 Offset adjustment (3/3) in progress. None 07 FZD adjustment in progress. None 08 Servo LSI initialization (3/3) in progress. None 10 Carriage move to home position started. None 11 Carriage move to home position started. None 12 Carriage is moving toward inner diameter. Specified 10 seconds has been passed or failure on home switch. 13 Carriage is moving toward outer diameter. Specified 10 seconds has been passed or failure on home switch. 14 Carriage outer kick in progress. None 15 Carriage outer diameter feed (1 second) in progress. None 20 Servo close started. None 21 Pre-processing for focus search started. None 22 Spindle rotation and focus search started. None 23 Waiting for focus close (XSI=Low). Specified focus search time has been passed. 24 Standing by after focus close is over. Specified focus search time has been passed. 25 Focus search preprocessing is in None progress while setup protection is turned on. 26 Focus search preprocessing is in None progress while focus recovery is turned on. 27 Wait time after focus close is set up. Off focus. 28 Standing by after focus close is over. Off focus. 29 Setup (1/2) before T balance adjustment is started. Off focus. 30 Setup (2/2) before T balance adjustment is started. Off focus. 31 T balance adjustment started. Off focus. 32 T balance adjustment (1/2). Off focus. 33 T balance adjustment (2/2). Off focus. 34 Waiting for spindle rotation to end. Off focus. Spindle rough servo. 35 Standing by after spindle rough servo is over. Off focus. 36 RF AGC started. Off focus. 37 RF AGC started. Off focus. 38 RF AGC ending process in progress. Off focus. 39 Tracking close in progress. Off focus. 40 Standing by after tracking is closed. Off focus. Carriage closing in progress. 41 Focus/tracking AGC started. Off focus. 42 Focus AGC started. Off focus. 43 Focus AGC in progress. Off focus. 44 Tracking AGC in progress. Off focus. 45 Standing by after focus/tracking AGC are over. Off focus. 46 Spindle processes applicable servo. Off focus. 47 Check for servo close is started. Off focus. 48 Check of LOCK pin started. Off focus or spindle not locked. 49 RF AGC started. Off focus. 50 RF AGC in progress. Off focus. 51 Standing by after RF AGC is over. Off focus. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DEH-P5100R,P5100R-W,P5100R-B (5) Display Examples 1) During Setup (When status no. = 11) TRK No. MIN. SEC. 11 11' 11" 2) During Operation (TOC read, TRK search, Play, FF and REV) The same as in the normal mode. 3) When a Protection Error Occurred Switch to the following displays (A) and (B) using the [BAND] switch: (A) Error occurrence timing display in absolute time. An example: Error occurred in 12th tune at 34'56" in absolute time. TRK No. MIN. SEC. 12 34' 56" (B) Error No. display An example: Error #40 (Off focus is detected) ERROR-40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DEH-P5100R,P5100R-W,P5100R-B 7.1.2 DISASSEMBLY - Removing the Tuner Amp Unit (Fig.2) Remove the three screws. Remove the two screws. Remove the screw. Unbend the four claws and then remove the Tuner Amp Unit. - Removing the Case Unit (not shown) Remove the case unit. - Removing the CD Mechanism Module (Fig.1) Remove the four screws. Disconnect the connector and then remove the CD Mechanism Module (not shown). - Removing the Panel Assy (Fig.1) Remove the two screws. Disconnect the two stoppers and then remove the Panel Assy (not shown). Fig.1 Fig.2 Tuner Amp Unit CD Mechanism Module Panel Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DEH-P5100R,P5100R-W,P5100R-B - Removing the Upper Frame 1. Remove six Springs A, two Springs B and four Screws. 2. Remove two Tabs situated on rear side of the Upper Frame, remove two Arms on the front side, then remove two Tabs on the front side. - Removing the Carriage Mechanism 1. Disengage the Carriage Mechanism from the two dampers situated in the front side by driving it up, then disengage and remove the mechanism from the one damper by driving it up aslant into front side direction. Note : When assembling the Carriage Mechanism, coat the dampers with alcohol prior to the assembly. - Removing the Clamp Arm Assy 1. Remove a Spring A, a B and a Spring C. 2. Drive the Clamp Arm Assy up into rear side direction, then disengage the arm from its current position Finally, drive the assembly approximately 45 degrees upward, then slide the assembly toward right side to remove it. B A B A A A Arm Arm A B C Upper Frame Carriage Mechanism Section Clamp Arm Assy Section A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DEH-P5100R,P5100R-W,P5100R-B - Removing the Guide Arm Assy 1. Remove a connector, a spring A and B 2. Drive the Guide Arm Assy up aslant into rear side direction, then remove it from a Pin. Finally, drive the assembly approximately 45 degrees upward, then slide the assembly toward left side to remove it. Note : When assembling the guide arm assembly, route the cord inside the assembly. In this operation, care must be exercised so that cord may be caught by the gear. - Removing the LO Arm Assy 1. Remove two Pins to dismount the LO Arm Assy. - Removing the Control Unit and the Spindle Motor 1. Remove from the connector after mounting the short pin on the flexible PCB of the pickup unit. 2. Remove two Soldered joints, then remove two Screws A. 3. Remove two connectors and a Screw B. 4. Disengage the Control Unit from two Tabs, then dis- mount the unit by sliding it toward left. 5. Dismount the Spindle Motor. A Guide Arm Assy Section B Pin LO Arm Assy Section Spindle Motor A A Control Unit Short Pin B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DEH-P5100R,P5100R-W,P5100R-B - Removing the Loading Motor and Carriage Motor 1. Remove the Spring and two Screws A. 2. Dismount the Loading Motor. 3. Remove the Belt, a Screw B, two Screws C, a Guide and a Screw Unit. 4. Dismount the Carriage Motor. Note : When assembling the Belt, use care so that it may not be contaminated by grease. - Removing the Pickup Unit 1. Remove two Screws and a Shaft. 2. Dismount the Pickup Unit. Pickup Unit Shaft C Guide B Screw Unit Carriage Motor A A C Belt Loading Motor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DEH-P5100R,P5100R-W,P5100R-B - Pin Functions (UPD63711GC) Pin No. Pin Name I/O Function and Operation 1 D.GND Logic circuit GND 2 RFOK O RFOK signal output 3 rst I Reset signal input 4 A0 I Command/parameter identification signal input 5 stb I Data strobe signal input 6 sck I Clock signal input for serial data input/output 7 SO O Serial data and status signal output 8 SI I Serial data input 9 xtalen I Crystal oscillation control pin 10 D.VDD Positive power supply terminal to logic circuit 11 DA.VDD Positive power supply terminal to D/A converter 12 R_OUT O Right channel audio output signal 13 DA.GND D/A converter GND 14 REGC I The outside putting capacitor connection pin for SCF regulator 15 DA.GND D/A converter GND 16 L_OUT O Left channel audio output signal 17 DA.VDD Positive power supply terminal to D/A converter 18 R+ O Right channel audio data output 19 R- O Right channel audio data output 20 L- O Left channel audio data output 21 L+ O Left channel audio data output 22 X.VDD Positive power supply terminal to crystal oscillation circuit 23 XTAL I Crystal oscillator connect pin 24 xtal O Crystal oscillator connect pin 25 X.GND Crystal oscillation circuit GND 26 D.VDD Positive power supply terminal to logic circuit 27 EMPH O Output pin for the pre-emphasis data in the sub-Q code 28 FLAG O Flag output pin to indicate that audio data currently being output consists of noncorrectable data 29 DIN I Serial data input to internal DAC 30 DOUT O Serial audio data output 31 SCKIN I Serial clock input to internal DAC 32 SCKO O Audio data that is output from DOUT changes at rising edge of this clock 33 LRCKIN I LRCK signal input to internal DAC 34 LRCK O Signals to distinguish the right and left channels of the audio data output from DOUT 35 HOLD O Defect detection output 36 TX O Digital audio interface data output 37 D.GND Logic circuit GND 38 C16M O Oscillator clock buffering output 39 LIMIT I Status of the pin is output at Bit 5 of the status output 40 D.VDD Positive power supply terminal to logic circuit 41 LOCK O EFM synchronous detection signal 42 RFCK O Frame synchronous signal of XTAL-system 43 MIRR O MIRR output 44 PLCK O Monitor pin of bit clock 45 D.GND Logic circuit GND 46 C1D1 O Output pin for indicating the C1 error correction results 47 C1D2 O Output pin for indicating the C1 error correction results 48 C2D1 O Output pin for indicating the C2 error correction results 49 C2D2 O Output pin for indicating the C2 error correction results 50 C2D3 O Output pin for indicating the C2 error correction results 51 D.VDD Positive power supply terminal to logic circuit 52 PACK O CD-TEXT PACK synchronous signal 53 TSO O CD-TEXT data serial output 54 TSI I CD-TEXT control parameter serial input 55 tsck I CD-TEXT serial clock input 7.2 PARTS 7.2.1 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DEH-P5100R,P5100R-W,P5100R-B Pin No. Pin Name I/O Function and Operation 56 TSTB I CD-TEXT parameter strobe signal input 57 D.GND Logic circuit GND 58 TEST0 I Test pin 59 TEST1 I Test pin 60 ATEST O Test pin 61 A.GND Analog circuit GND 62 FD O Focus drive output 63 TD O Tracking drive output 64 SD O Sled drive output 65 MD O Spindle drive output 66 DAC0 O DAC output for adjustment 67 DAC1 O DAC output for adjustment 68 DAC2 O DAC output for adjustment 69 DAC3 O DAC output for adjustment 70 A.VDD Positive power supply terminal to analog circuit 71 EFM O EFM signal output 72 ASY I EFM comparator reference voltage input 73 C3T 3T detection capacitor additional pin 74 RFI I RF signal input for EFM data regulation 75 AGCO O RF signal output of after gain adjustment 76 AGCI I RF-AGC amplifier input 77 RFO O RF summing amplifier output 78 EQ2 RF amplifier equalizer parts additional pin 79 EQ1 RF amplifier equalizer parts additional pin 80 RF- I RF summing amplifier inverted input 81 A.GND Analog circuit GND 82 A I Photo detector A input 83 C I Photo detector C input 84 B I Photo detector B input 85 D I Photo detector D input 86 F I Photo detector F input 87 E I Photo detector E input 88 A.VDD Positive power supply terminal to analog circuit 89 REFOUT O Reference electric potential output 90 FE- I Focus error amplifier inverted input 91 FEO O Focus error amplifier output 92 TE- I Tracking error amplifier inverted input 93 TEO O Tracking error amplifier output 94 TE2 O Tracking error output of after amplification 95 TEC I Tracking comparator input 96 A.GND Analog circuit GND 97 PD I PD detection signal input for LD output monitor 98 LD O LD control current output 99 PN I APC circuit control polarity set pin 100 A.VDD Positive power supply terminal to analog circuit *UPD63711GC 30 31 50 51 80 81 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DEH-P5100R,P5100R-W,P5100R-B S-81250SGUP - + GND VIN VOUT 3 2 1 PML004AF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DEH-P5100R,P5100R-W,P5100R-B - Pin Functions (PE5116B) Pin No. Pin Name I/O Function and Operation 1 swvdd O Keyboard unit power supply control output 2 dsens I Grille detach sense input 3 NL2DT I RDS noise level input 2 4 MODELIN Model select input 5 TESTIN I Test program mode input 6 drst O RDS reset output 7 TELIN I Telephone mute input 8 MODEL3 I Model select 3 9 RECIVE O RDS decoder receiving output 10 SDBW I SDBW input 11 reset I Reset input 12 XT2 Not used (open) 13 XT1 Connect to VSS 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 Crystal oscillator connection pin 17 REGOFF Connect to VSS 18 REGC Connect to VSS 19 VDD Power supply 20 ILMPW O Illumination power supply control output 21 SYSPW O System power control output 22 adpw O A/D converter power supply control output 23 LCDPW O LCD back light power supply control output 24 IPPW O Power supply control output for IP BUS interface IC 25 ASENBO O Slave power supply control output 26 ROMDATA O ROM collection data output 27 ROMCLK O ROM collection clock output 28 MUTE O System mute output 29 fm/AM O RDS decoder power supply control output 30 LOCL O Local L output 31 LOCH O Local H output 32 tunpce2 O EEPROM chip enable output 33 VCK O Clock output for electronic volume 34 VST O Strobe pulse output for electronic volume 35 VDT O Data output for electronic volume 36 tmute O Tuner mute output 37 ROMCS O ROM collection chip select output 38 SD I Station detector input 39 st I FM stereo input 40 VSS GND 41 VDD Power supply 42 DIM O DIMMER select output 43 csens I Flap close sense input 44 rdslk I RDS LK input 45 currq O Tuner voltage FIX output 46 RDT RDS data input 47 DRELAY O External relay control output 48 DRSENS I Door open/close sense input 49 DRSYS O Door system select output 50 dled O Alarm LED output 51 DLSENS I Door lock sense input 52 NC Not used 53 mosens I Motion/window damage sensor input 54 CD5VON O CD +5V power supply control output 55 CONT O CD servo driver power supply control output 56 VDCONT O CD VD power control output 57 CDMUTE O CD mute control output 58 CDEJET O CD load motor eject control output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DEH-P5100R,P5100R-W,P5100R-B Pin No. Pin Name I/O Function and Operation 59 CDLOAD O CD LOAD motor loading control output 60 LOCK I CD spindle lock detector input 61 FOK I CD focus OK signal input 62 PCL O Clock adjustment output 63 MIRR I CD mirror detection input 64 clamp I CD disc clamp input 65 xsck O CD LSI clock output 66 XSI I CD LSI data input 67 XSO O CD LSI data output 68 XA0 O CD LSI command / data control output 69 xrst O CD LSI reset control output 70 xstb O CD LSI strobe output 71,72 NC Not used 73 TEST(GND) I GND 74 SL I Signal level input 75 eject I Eject sense input 76 NL1 I RDS noise level input 1 (A/D) 77 FLPILM I Flap illumination input 78 EJTSNS I CD disc EJECT position detect input 79 DSCSNS I CD disc insert sense input 80 VDSENS I VD voltage sense input 81 TEMP I Temperature sense input (CD) 82 VDD A/D converter power supply terminal 83 VDD A/D converter reference voltage terminal 84 GND GND 85 RX I IP BUS data input 86 TX O IP BUS data output 87 GND GND 88 ldet I PLL lock sense input 89 rck I RDS clock input 90 RDS57K I RDS 57kHz pulse count input 91 isens I Illumination sense input 92 asens I ACC power sense input 93 bsens I Back up power sense input 94 TUNPDI I PLL IC data input 95 KYDT I Grille data input 96 DPDT O Grille data output 97 TUNPCK O PLL IC clock output 98 TUNPDO O PLL IC data output 99 TUNPCE O PLL IC chip enable output 100 PEE O Beep tone output *PE5116B 30 31 50 51 80 81 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DEH-P5100R,P5100R-W,P5100R-B - Pin Functions (PD6279A) Pin No. Pin Name I/O Function and Operation 1–42 SEG41–0 O LCD segment output 43–46 COM3–0 O LCD common output 47–49 V1–V3 LCD bias power supply 50 VCC Power supply terminal 51 LED O LED control output 52 SO O System micro computer UART communication data output 53 SI I System micro computer UART communication data input 54,55 MOD0,1 GND 56 RST I Reset signal input terminal 57 X0 Crystal oscillator connection pin 58 X1 Crystal oscillator connection pin 59 VSS GND 60 REMIN I Remote control reception input 61 DIM O Dimmer select output 62 GRN/amb O Illumination color select output 63–66 KDT4–1 I Key data input 67–72 KST6–1 O Key strobe output 73–100 SEG69-42 O LCD segment output *PD6279A 30 31 50 51 80 81 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DEH-P5100R,P5100R-W,P5100R-B COM.3A COM.0A COM.3B COM.1A COM.2 COM.1B COM.0B NC SEG.59 SEG.58 SEG.1 SEG.2 SEG.3 SEG.4 NC SEG.5 SEG.6 SEG.8 SEG.9 SEG.10 SEG.11 SEG.12 SEG.0 SEG.13 SEG.14 SEG.15 SEG.16 SEG.17 SEG.18 SEG.19 SEG.20 SEG.21 SEG.22 SEG.23 SEG.24 SEG.25 SEG.26 SEG.27 SEG.28 SEG.29 SEG.30 SEG.31 SEG.32 SEG.33 SEG.34 SEG.35 SEG.36 SEG.37 SEG.38 SEG.39 SEG.40 SEG.41 SEG.42 SEG.43 SEG.44 SEG.45 SEG.46 SEG.47 SEG.48 SEG.49 SEG.50 SEG.51 SEG.52 SEG.53 SEG.54 SEG.55 SEG.56 SEG.57 COMMON SEGMENT 7.2.2 DISPLAY - CAW1566(DEH-P5100R/EW),CAW1600(DEH-P5100R-B/EW),CAW1573(DEH-P5100R-W/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DEH-P5100R,P5100R-W,P5100R-B 7.3 OPERATIONAL FLOW CHART VDD=5V 19pin Power ON L L YES L bsens 93pin asens 92pin dsens 2pin adpw←H 22pin swvdd←L 1pin Source keys operative To each source's flow chart SYSPW←H 21pin Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DEH-P5100R,P5100R-W,P5100R-B 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS Head Unit Steering Remote Controller (CD-SR77) The steering remote controller (CD-SR77) enabling remote control of the head unit is sold separately. Operation is the same as when using buttons on the head unit. +/– button Raise or lower the volume. AUDIO button 2/3 buttons BAND button FUNCTION button SOURCE/OFF button ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level. 5/∞ buttons FUNCTION button OPEN button BAND button Buttons 1–6 5/∞/2/3�buttons DISPLAY button TA�button VOLUME EQ selector AUDIO button PTY button PGM button SOURCE/OFF button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 DEH-P5100R,P5100R-W,P5100R-B To Listen to Music The following explains the initial operations required before you can listen to music. Note: • Loading a disc in this product. 1. Select the desired source. (e.g. Tuner) Each press of the SOURCE/OFF button selects the desired source in the following order: Built-in CD player = TV = Tuner = DAB (Digital Audio Broadcasting) = Multi-MD player = Multi-CD player = External Unit = AUX Note: • External Unit refers to a Pioneer product (such as one available in the future) that, although incom- patible as a source, enables control of basic functions by this product. Only one External Unit can be controlled by this product. • In the following cases, the sound source will not change: * When a product corresponding to each source is not connected to this product. * When no disc is set in this product. * When no magazine is set in the Multi-CD player. * No disc is set in the Multi-MD player. * When the AUX (external input) is set to OFF. • When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal, the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna, switch the source OFF. 2. Extend the VOLUME forward. When you press the VOLUME, it extends forward so that it becomes easier to roll. To retract the VOLUME, press it again. Each press changes the Source ... 3. Raise or lower the volume. Rolling the VOLUME changes the volume level. Note: • Roll clockwise to raise the volume level. • Roll counterclockwise to lower the volume level. 4. Turn the source OFF. Hold for 1 second www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 DEH-P5100R,P5100R-W,P5100R-B Basic Operation of Tuner This product’s AF function can be switched ON and OFF. AF should be switched OFF for normal tuning operations. Manual and Seek Tuning • You can select the tuning method by changing the length of time you press the 2/3 button. Manual Tuning (step by step) 0.5 seconds or less Seek Tuning 0.5 seconds or more Note: • If you continue pressing the button for longer than 0.5 seconds, you can skip broadcasting stations. Seek Tuning starts as soon as you release the button. • Stereo indicator “” lights when a stereo station is selected. Preset Tuning • You can memorize broadcast stations in buttons 1 through 6 for easy, one-touch station recall. Preset station recall 2 seconds or less Broadcast station preset memory 2 seconds or more Note: • Up to 18 FM stations (6 in F1 (FM1), F2 (FM2) and F3 (FM3)) and 6 MW/LW stations can be stored in memory. • You can also use the 5 or ∞ buttons to recall broadcast sta- tions memorized in buttons 1 through 6. Preset Number Indicator Band F1 (FM1) = F2 (FM2) = F3 (FM3) = MW/LW Band Indicator Frequency Indicator Basic Operation of Built-in CD Player Track Search and Fast Forward/Reverse • You can select between Track Search or Fast Forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast Forward/Reverse Continue pressing Note: • If a disc cannot be inserted fully or playback fails, make sure the recorded side is down. Press the EJECT button and check the disc for damage before reinserting it. • If a CD is inserted with the recorded side up, it will be ejected automatically after a few moments. • If the Built-in CD player cannot operate properly, an error message (such as “ERROR-14”) appears on the display. Refer to “Built-in CD Player’s Error Message”. • The Built-in CD player is not equipped with CD TEXT function. • A CD TEXT disc is a CD featuring recorded text information such as Disc Title, Artist Name and Track Title. Play Time Indicator Track Number Indicator Switching the Display Each press of the DISPLAY button changes the display in the following order: Playback mode (Elapsed play time) = Disc Title Note: • If you switch displays when disc titles have not been input, “NO TITLE” is displayed. Open Note: • Use to open the front panel when loading or ejecting a CD. (The illustration on the right shows the front panel open.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DEH-P5100R,P5100R-W,P5100R-B Basic Operation of Multi-CD Player This product can control a Multi-CD player (sold separately). Track Search and Fast Forward/Reverse • You can select between Track Search or Fast Forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast Forward/Reverse Continue pressing Play Time Indicator Track Number Indicator Disc Search Disc Number Indicator Disc Number Search (for 6-Disc, 12-Disc types) • You can select discs directly with the 1 to 6 buttons. Just press the num- ber corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds. Note: • The Multi-CD player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for playback. “READY” is displayed. • If the Multi-CD player cannot operate properly, an error message such as “ERROR-14” is displayed. Refer to the Multi-CD player owner’s manual. • If there are no discs in the Multi-CD player magazine, “NO DISC” is displayed. Corresponding Display Indications and Buttons This product’s display features Key Guidance Indicators. These light to indicate which of the 5/∞/2/3, FUNCTION and AUDIO buttons you can use. When you’re in the Function Menu, Detailed Setting Menu, Initial Setting Menu or Audio Menu, they also make it easy to see which 5/∞/2/3 buttons you can use to switch functions ON/OFF, switch repeat selections and perform other operations. Indicator and corresponding buttons are shown below. 7 Head Unit 7 Steering Remote 7 Display Controller When 1 is lit in the display, perform appropriate operations with the z buttons. When 2 is lit in the display, it indicates that you are in the Function Menu, Detailed Setting Menu or Initial Setting Menu. You can switch between each of these menus and between different modes in the menus using button x on the head unit or steering remote controller. When 3 is lit in the display, it indicates you are in the Audio Menu. You can switch between modes in the Audio Menu using button c on the head unit or steering remote controller. z z x c c x 1 3 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DEH-P5100R,P5100R-W,P5100R-B 20. Connecting cords with RCA pin plugs (sold separately) Cap (9*) When not using this terminal, do not remove the cap. 17. ISO connector Note: In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. 25. System remote control 14. Fuse holder 9* 10* 12* 11* 13* Yellow (10*) To terminal always supplied with power regardless of ignition switch position. Red (12*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Yellow (11*) Back-up (or accessory) Red (13*) Accessory (or back-up) 16. Black (ground) To vehicle (metal) body. 15. Orange To lighting switch terminal. 8. Connect leads of the same color to each other. 22. Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). 4. Multi-CD player (sold separately) 6. IP-BUS cable 19. Speaker leads White White/black Gray Gray/black Green Green/black Violet Violet/black : Front left + : Front left ≠ : Front right + : Front right ≠ : Rear left + or Not used : Rear left ≠ or Not used : Rear right + or Subwoofer + : Rear right ≠ or Subwoofer ≠ 23. Blue/white To Auto-antenna relay control terminal (max. 300 mA 12 V DC). Note: When a subwoofer is connected to this unit instead of a rear right speaker, do not connect the rear left speaker lead to anything. For details, refer to the Initial Setting in the Operation Manual. 28. 24. Note: Depending on the kind of vehicle, the function of 11* and 13* may be different. In this case, be sure to connect 10* to 13* and 12* to 11*. 7. 1. This Product 5. IP-BUS input (Blue) 3. Antenna jack 18. Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. 2. Subwoofer Output or Non Fading Output 21. Power amp (sold separately) + ≠ 26. Subwoofer + ≠ 26. Subwoofer 27. Perform these connections when using a different amp (sold separately). Blue/white The pin position of the ISO connector will differ depends on the type of vehicle. Connect 23 and 24 when Pin 5 is an antenna control type. In another type of vehicle, never connect 23 and 24. 7 When not connecting a rear speaker lead to a Subwoofer - CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-P5100R,P5100R-W,P5100R-B 8.2 SPECIFICATIONS General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (mounting size) ...... 178 (W) × 50 (H) × 157 (D) mm (front face) .............. 188 (W) × 58 (H) × 19 (D) mm Weight ...................................................................... 1.7 kg Amplifier Maximum power output ...................................... 45 W × 4 45 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for Subwoofer) Continuous power output .................................... 27 W × 4 (DIN45324, +B = 14.4 V) Load impedance ...................... 4 Ω (4 – 8 Ω [2 Ω for 1 ch] allowable) Preout maximum output level/output impedance ............................ 2.2 V/1 kΩ Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) HPF Frequency ............................................ 50/80/125 Hz Slope ........................................................ –12 dB/oct. Subwoofer output Frequency ............................................ 50/80/125 Hz Slope ........................................................ –18 dB/oct. Gain ................................................................ ±12 dB CD player System .................................... Compact disc audio system Usable discs .................................................. Compact disc Signal format .................... Sampling frequency: 44.1 kHz Number of quantization bits: 16; linear Frequency characteristics .............. 5 – 20,000 Hz (±1 dB) Signal-to-noise ratio ...... 94 dB (1 kHz) (IEC-A network) Dynamic range ............................................ 92 dB (1 kHz) Number of channels ............................................ 2 (stereo) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity .................................................... 11 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity ........................................ 16 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) MW tuner Frequency range ........................ 531 – 1,602 kHz (9 kHz) Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) LW tuner Frequency range ........................................ 153 – 281 kHz Usable sensitivity .............................. 30 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) Note: • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
