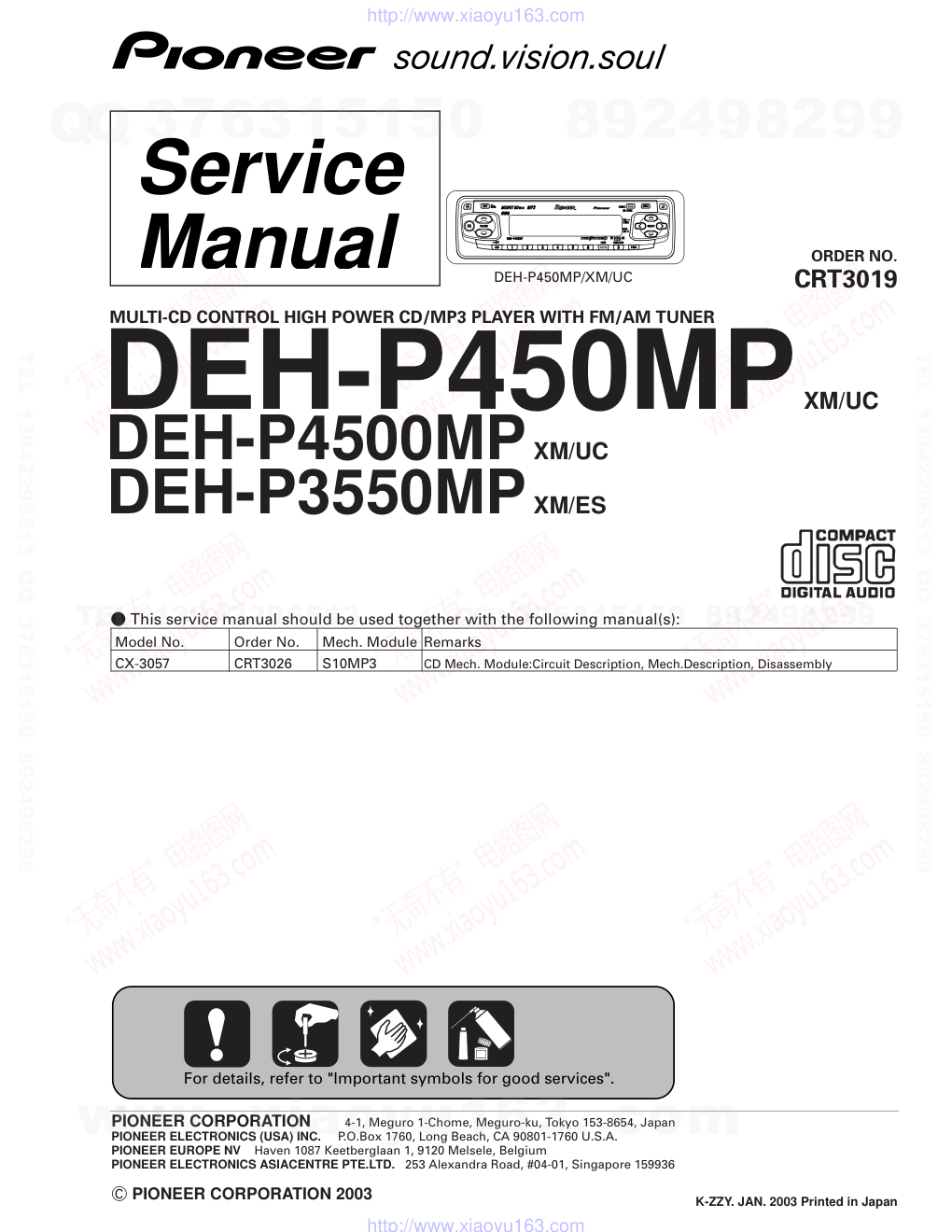

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2003 K-ZZY. JAN. 2003 Printed in Japan ORDER NO. CRT3019 MULTI-CD CONTROL HIGH POWER CD/MP3 PLAYER WITH FM/AM TUNER DEH-P450MP XM/UC Service Manual DEH-P450MP/XM/UC - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-3057 CRT3026 S10MP3 CD Mech. Module:Circuit Description, Mech.Description, Disassembly DEH-P4500MP XM/UC For details, refer to "Important symbols for good services". DEH-P3550MP XM/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC SAFETY INFORMATION [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC - CD Player Service Precautions 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors dur- ing power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic dis- charge during serviving, take an appropriate treat- ment(shorting-solder) by referring to "the DISAS- SEMBLY" on page 55. 3. After replacing the pickup unit, be sure to check the grating.(See p.52.) CONTENTS SAFETY INFORMATION ............................................................................................................................................2 1. SPECIFICATIONS .......................................................................................................................................................4 2. EXPLODED VIEWS AND PARTS LIST.......................................................................................................................6 2.1 PACKING...............................................................................................................................................................6 2.2 EXTERIOR (DEH-P450MP, P4500MP)..................................................................................................................8 2.3 EXTERIOR (DEH-P3550MP)...............................................................................................................................12 2.4 CD MECHANISM MODULE...............................................................................................................................14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM...................................................................................................16 3.1 BLOCK DIAGRAM ..............................................................................................................................................16 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) ........................................................................................18 3.3 KEYBOARD UNIT...............................................................................................................................................24 3.4 CD MECHANISM MODULE...............................................................................................................................26 4. PCB CONNECTION DIAGRAM................................................................................................................................36 4.1 TUNER AMP UNIT .............................................................................................................................................36 4.2 PANEL UNIT .......................................................................................................................................................40 4.3 KEYBOARD UNIT...............................................................................................................................................41 4.4 CD MECHANISM MODULE...............................................................................................................................42 5. ELECTRICAL PARTS LIST ........................................................................................................................................44 6. ADJUSTMENT .........................................................................................................................................................49 6.1 JIG CONNECTION DIAGRAM ...........................................................................................................................49 6.2 CD ADJUSTMENT .............................................................................................................................................50 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT................................................................52 6.4 ERROR MODE ....................................................................................................................................................54 7. GENERAL INFORMATION .......................................................................................................................................55 7.1 DIAGNOSIS ........................................................................................................................................................55 7.1.1 DISASSEMBLY ..............................................................................................................................................55 7.1.2 CONNECTOR FUNCTION DESCRIPTION....................................................................................................57 7.2 PARTS .................................................................................................................................................................59 7.2.1 IC ....................................................................................................................................................................59 7.2.2 DISPLAY.........................................................................................................................................................68 7.3 OPERATIONAL FLOW CHART...........................................................................................................................70 7.4 CLEANING..........................................................................................................................................................71 8. OPERATIONS ...........................................................................................................................................................72 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1. SPECIFICATIONS 4 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC - DEH-P450MP/XM/UC, P4500MP/XM/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC - DEH-P3550MP/XM/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC - PACKING SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) - Owner's Manual, Installation Manual Model Part No. Language DEH-P450MP/XM/UC CRD3676 English, French, Spanish CRD3677 DEH-P4500MP/XM/UC CRD3678 English, French, Spanish CRD3679 DEH-P3550MP/XM/ES CRD3680 English, Spanish, Portuguese(B) CRD3681 Arabic, Chinese CRD3682 English, Spanish, Portuguese(B), Arabic, Chinese Part No. Mark No. Symbol and Description DEH-P450MP/XM/UC DEH-P4500MP/XM/UC DEH-P3550MP/XM/ES 1 Cord Assy CDE7060 CDE7060 CDE7060 2 Accessory Assy CEA3376 CEA3376 CEA3439 3 Spring CBH1650 CBH1650 CBH1650 4 Screw Assy CEA3445 CEA3445 CEA3437 5 Fixing Screw BPZ20P060FZK BPZ20P060FZK Not used 6 Screw CBA1002 CBA1002 CBA1002 * 7 Polyethylene Bag CEG-127 CEG-127 CEG-127 8 Screw CRZ50P090FTC CRZ50P090FTC CRZ50P090FTC 9 Screw TRZ50P080FTC TRZ50P080FTC TRZ50P080FTC * 10 Polyethylene Bag CEG-158 CEG-158 CEG-158 11 Handle CNC5395 CNC5395 CNC5395 12 Holder CND1249 CND1249 Not used 13 Holder CND1250 CND1250 Not used 14 Bush CNV3930 CNV3930 CNV3930 15 Polyethylene Bag CEG1173 CEG1173 CEG-162 * 16 Battery CEX1030 CEX1065 Not used 17 Carton CHG4952 CHG4953 CHG4954 18 Contain Box CHL4952 CHL4953 CHL4954 19 Protector CHP2663 CHP2663 CHP2663 20 Protector CHP2664 CHP2664 CHP2664 21-1 Owner’s Manual CRD3676 CRD3678 CRD3680 21-2 Owner’s Manual Not used Not used CRD3681 21-3 Installation Manual CRD3677 CRD3679 CRD3682 * 21-4 Warranty Card CRY1070 Not used Not used * 21-5 Card Not used ARY1048 Not used * 21-6 Caution Card Not used CRP1294 Not used 22 Case Assy CXB3520 CXB3520 CXB3520 23 Remote Control Unit Not used CXC1265 Not used 24 Remote Control Assy CXB9202 Not used Not used 25 Screw Assy CZE3169 Not used Not used * 26 Polyethylene Bag CEG-127 Not used Not used * 27 Hexagonal Wrench CZE3176 Not used Not used * 28 Screw RMZ30H060FBK Not used Not used 29 Belt CZN7661 Not used Not used 30 Holder Assy CZX3172 Not used Not used 31 Holder Assy CZX3173 Not used Not used 32 Remote Control Assy CZX3257 Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 2.2 EXTERIOR (DEH-P450MP, P4500MP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 1 Remote Control Unit See Contrast table(2) 2 Cover See Contrast table(2) 3 Screw ISS26P055FTC 4 Screw BMZ30P040FZK 5 Screw BSZ26P060FTC 6 Screw BSZ30P060FTC 7 Screw BSZ30P200FTC 8 Cord Assy CDE7060 9 Cable CDE7189 10 CD Mechanism Module(S10MP3)CXK5660 11 Case CNB2870 12 Earth Plate CNC8915 13 Cushion CNM4870 14 Insulator CNM7935 15 Insulator CNM8174 16 Panel See Contrast table(2) 17 Tuner Amp Unit CWM8653 18 Screw ASZ26P060FTC 19 Screw BPZ26P080FTC 20 Screw BSZ26P160FTC 21 Fuse(10A) CEK1208 22 FM/AM Tuner Unit CWE1646 23 Holder CND1054 24 Pin Jack(CN351) CKB1051 25 Plug(CN981) CKM1376 26 Connector(CN101) CKS3408 27 Plug(CN831) CKS3537 28 Connector(CN721) CKS3837 29 Antenna Jack(CN401) CKX1056 30 Holder CND1238 31 Holder CND1352 32 Insulator CNM8245 33 Heat Sink CNR1668 34 Terminal(CN402) VNF1084 35 Holder Unit CXB6681 36 Chassis Unit CXB9528 37 Button(EJECT) CAC7752 38 Screw(M2x2) CBA1176 39 Washer CBF1038 40 Spring CBH2650 41 Spring CBH2651 42 Spring CBH2652 43 Spring CBH2653 44 Spring CBL1512 45 Holder CND1254 46 Cover CNM6854 47 Panel CNS7245 48 Gear CNV5997 49 Pin CNV6486 50 Lighting Conductor CNV6487 51 Arm CNV7400 52 Arm CNV7401 53 Arm CNV7402 54 Arm CNV7403 55 Panel Unit CWM8758 56 Socket(CN1950) CKS3550 57 Connector(CN1951) CKS4462 58 Holder Unit CXB9501 59 Holder Unit CXB9502 60 Damper Unit CXB9503 61 Service Panel Unit CXX1691 62 Screw IMS20P045FZK 63 Detach Grille Assy See Contrast table(2) 64 Screw BPZ20P100FZK 65 Button(DISP) CAC7779 66 Button(PAUSE) CAC7780 67 Button(AUDIO) CAC7781 68 Button(OPEN) CAC7782 69 Button(VOLUME) See Contrast table(2) 70 Button(SELECT) See Contrast table(2) 71 Button(SRC) CAC7785 72 Button(FUNC) CAC7786 73 Button(1-6) CAC7787 74 Button(CLK, EQ) CAC7808 75 Spring CBH2630 76 Cover CNS7269 77 Lighting Conductor CNV7421 78 Rubber CNV7422 79 Keyboard Unit CWM8635 80 LCD(LCD1901) CAW1759 81 Connector(CN1901) CKS4524 82 Holder CNC9757 83 Sheet CNM7647 84 Cushion CNM8092 85 Connector CNV6440 86 Lighting Conductor CNV7711 87 Grille Unit See Contrast table(2) 88 Transistor(Q752, 901, 911) 2SD2375 89 IC(IC301) PAL007A 90 IC(IC1902) TSOP4840SB1 91 Holder See Contrast table(2) 92 Screw See Contrast table(2) 93 Choke Coil(L981) CTH1280 94 Remote Control Assy See Contrast table(2) 95 Cover See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. (1) EXTERIOR (DEH-P450MP, P4500MP) SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC Part No. Mark No. Symbol and Description DEH-P450MP/XM/UC DEH-P4500MP/XM/UC 1 Remote Control Unit Not used CXC1265 2 Cover Not used CNS7068 16 Panel CNS6935 CNS6934 63 Detach Grille Assy CXB9593 CXB9594 69 Button(VOLUME) CAC7810 CAC7809 70 Button(SELECT) CAC7812 CAC7811 87 Grille Unit CXB9621 CXB9622 91 Holder Not used CNV7619 92 Screw Not used BMZ40P140FTC 94 Remote Control Assy CZX3257 Not used 95 Cover CZN7655 Not used (2) CONTRAST TABLE DEH-P450MP/XM/UC and DEH-P4500MP/XM/UC are constructed the same except for the following: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 2.3 EXTERIOR (DEH-P3550MP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 1 Choke Coil(L981) CTH1280 2 Sheet CNM8386 3 Screw ISS26P055FTC 4 Screw BMZ30P040FZK 5 Screw BSZ26P060FTC 6 Screw BSZ30P060FTC 7 Screw BSZ30P200FTC 8 Cord Assy CDE7060 9 Cable CDE7189 10 CD Mechanism Module(S10MP3)CXK5660 11 Case CNB2870 12 Earth Plate CNC8915 13 Cushion CNM4870 14 Insulator CNM7935 15 Insulator CNM8174 16 Panel CNS6935 17 Tuner Amp Unit CWM8654 18 Screw ASZ26P060FTC 19 Screw BPZ26P080FTC 20 Screw BSZ26P160FTC 21 Fuse(10A) CEK1208 22 FM/AM Tuner Unit CWE1646 23 Holder CND1054 24 Pin Jack(CN351) CKB1059 25 Plug(CN981) CKM1376 26 Connector(CN101) CKS3408 27 Plug(CN831) CKS3537 28 Connector(CN721) CKS3837 29 Antenna Jack(CN401) CKX1056 30 Holder CND1237 31 Holder CND1352 32 Insulator CNM8245 33 Heat Sink CNR1668 34 Terminal(CN402) VNF1084 35 Holder Unit CXB6681 36 Chassis Unit CXB9528 37 Button(EJECT) CAC7752 38 Screw(M2x2) CBA1176 39 Washer CBF1038 40 Spring CBH2650 41 Spring CBH2651 42 Spring CBH2652 43 Spring CBH2653 44 Spring CBL1512 45 Holder CND1254 46 Cover CNM6854 47 Panel CNS7245 48 Gear CNV5997 49 Pin CNV6486 50 Lighting Conductor CNV6487 51 Arm CNV7400 52 Arm CNV7401 53 Arm CNV7402 54 Arm CNV7403 55 Panel Unit CWM8758 56 Socket(CN1950) CKS3550 57 Connector(CN1951) CKS4462 58 Holder Unit CXB9501 59 Holder Unit CXB9502 60 Damper Unit CXB9503 61 Service Panel Unit CXX1691 62 Screw IMS20P045FZK 63 Detach Grille Assy CXB9596 64 Screw BPZ20P100FZK 65 Button(DISP) CAC7779 66 Button(PAUSE) CAC7842 67 Button(AUDIO) CAC7781 68 Button(OPEN) CAC7782 69 Button(VOLUME) CAC7810 70 Button(SELECT) CAC7812 71 Button(SRC) CAC7785 72 Button(FUNC) CAC7786 73 Button(1-6) CAC7813 74 Button(CLK, EQ) CAC7808 75 Spring CBH2630 76 Cover CNS7269 77 Lighting Conductor CNV7421 78 Rubber CNV7422 79 Keyboard Unit CWM8631 80 LCD(LCD1901) CAW1762 81 Connector(CN1901) CKS4524 82 Holder CNC9757 83 Sheet CNM7647 84 Cushion CNM8092 85 Connector CNV6440 86 Lighting Conductor CNV7711 87 Grille Unit CXB9624 88 Transistor(Q752, 901, 911) 2SD2375 89 IC(IC301) PAL007A 90 IC(IC1902) TSOP4840SB1 Mark No. Description Part No. Mark No. Description Part No. - EXTERIOR (DEH-P3550MP) SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 1GEM1024 2GEM1045 3GEM1035 1 1 1 1 1 1 1 1 2 2 2 2 1 1 1 1 1 2 2 1 3 2.4 CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 15 Mark No. Description Part No. Mark No. Description Part No. 1 CD Core Unit(S10MP3) CWX2742 2 Connector(CN101) CKS4182 3 Connector(CN901) CKS4017 4 Screw BMZ20P035FTC 5 Screw BSZ20P040FTC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1511 8 Screw(M2x3) CBA1527 9 Washer CBF1037 10 Washer CBF1038 11 Washer CBF1060 12 Spring CBH2390 13 Spring CBH2606 14 Spring CBH2607 15 Spring CBH2608 16 Spring CBH2609 17 Spring CBH2610 18 Spring CBH2611 19 Spring CBH2612 20 Spring CBH2613 21 Spring CBH2614 22 Spring CBH2615 23 Spring CBH2616 24 Spring CBH2617 25 Spring CBH2620 26 Spring CBH2621 27 Spring CBH2641 28 Spring CBH2642 29 Spring CBH2643 30 Spring CBH2659 31 Spring CBH2688 * 32 Spring CBL1614 33 Shaft CLA3845 34 Frame CNC9962 35 Frame CNC9963 36 Bracket CNC9966 37 Bracket CNC9967 38 Arm CNC9968 39 Arm CNC9973 40 Lever CNC9983 41 Lever CNC9984 42 Sheet CNM8134 43 Collar CNV6906 44 Guide CNV6925 45 Arm CNV7198 46 Rack CNV7199 47 Holder CNV7201 48 Holder CNV7202 49 Arm CNV7203 50 Gear CNV7207 51 Gear CNV7208 52 Gear CNV7209 53 Gear CNV7210 54 Gear CNV7211 55 Gear CNV7212 56 Rack CNV7214 57 Arm CNV7215 58 Arm CNV7216 59 Guide CNV7217 60 Roller CNV7218 61 Gear CNV7219 62 Arm CNV7221 63 Arm CNV7220 64 Arm CNV7222 65 Damper CNV7313 66 Damper CNV7314 67 Arm CNV7341 68 Arm CNV7342 69 Guide CNV7360 70 Guide CNV7361 71 Holder CNV7437 72 Arm CNV7444 73 Gear CNV7595 74 Damper CNV7618 75 Motor Unit(M1) CXB6007 76 Chassis Unit CXB8728 77 Screw Unit CXB8729 78 Gear Unit CXB8731 79 Arm Unit CXB8732 80 Arm Unit CXB8735 81 Arm Unit CXB8852 82 Motor Unit(M2) CXB8933 83 Bracket CNC9985 84 Screw JFZ20P020FTC 85 Screw(M2x5) EBA1028 86 Screw JFZ20P020FTC 87 Screw JGZ17P022FTC 88 Washer YE15FTC 89 Washer YE20FTC 90 Pickup Unit(Service)(P10) CXX1641 91 Screw IMS26P030FMC - CD MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC BRST,BRXEN,BSRQ Q602 Q603 MUTE D CN901 Q101 M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ TRACKING ACT. LD- MD FO+ TO+ 15 5 1 4 PICKUP UNIT (SERVICE)(P10) HOLOGRAM UNIT IC 301 BA5996FM IC 201 UPD63760GJ IC 703 +3.3V REGULATOR RF-AMP,CD DECODER, MP3 DECODER, DIGITAL SERVO / DATA PROCESSOR CD DRIVER 3 VD VD 3VDD 10 L-OUT 5 CN101 TOP FOP 16 SOP 15 SOM 18 LCOP 17 LCOM 22 4,5 LOEJ 43 35 LOUT 42 9 CONT 12 FOP TD/FD AC,BD F,E SD/MD 1 13 TOP HOME 12EJ SENSE 8EJ SENSE LD+ 14 142 LD 141 PD CD CORE UNIT(S10MP3) 39 38 X201 X202 DSCSNS CONT LOEJ HOME 75 77 28 26 VDD IC 203 BA033SFP +3.3V REGULATOR V3R3D 2 4 CD3VON 25 VDCONT 24 1 S-818A33AUC-BGN CD CONTROLLER IC 701 PE5352B 33 CDMUTE 4 V3R3D WINT, WAIT, RFOK DRAM IC 202 MSM51V4265EP-70TS TC74VHCT08AFT IC 702 XWINT, XWAIT, FOK 19 1 BDATA,BSCK VD2 2 Q701 17 ADENA 14 VCC VDD 15 5 1 4 14 CLAMP 93 VD2 VDCONT ASENBO 37 mute X1 X2 PEE 100 41 71 86 85 24 SYSTEM CONTROLLER IC 601(2/2) PE5393A CN401 1 2 BUS- BUS+ BUS+L BUS-L TX RX IPPW swvdd BU VDD CN721 TUNER AMP UNIT 16 X601 15 EVST,EVC TUN L BUS+L BUS-L CD L 96 DPDT 95 KYDT 21 SYSPW 20 ILMPW 90 dsens A 5 8 1 7 CN101 11 BUZZER 14 IC 101 HA12187FP IP-BUS DRIVER 1 2 8 6 5 TX RX IPPW BU Q101 Q102 TUN 3.3V SYS 8.4V VDD ANTENNA FLPILM 9 ejectin 8 BU Q751 Q752 20 19 5 21 80 VDSENS VDD BRST,BRXEN,BSRQ BDATA,BSCK VD Q754 22 VD Q601 83 AVREF 22 adpw FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch FM/AM TUNER UNIT 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 11 1 bsens asens VDD BU 92 93 10 FL 11 RL 37 ILB SWVDD ILB SWDVDD 23 21 3 5 FL- FL+ RL- RL+ ACC IN2-L 3 IN4+L 5 IN4-L 6 IN3-L 4 FLIN 14 RLIN 12 22 4 RESET POWER AMP IC 601(1/2) PE5393A IC 131 PML003AM IC 651 BD4834G IC 301 PAL007A reset VDD Q901 Q931 SYSPW ELECTRONIC VOLUME/ SOURCE SELECTOR BU VDD STBY MUTE IC 1901 PD6340A LCD DRIVER/ KEY CONTROLLER KEY MATRIX 9 11 KEY DATA VDD 55 CN1901 Q961 Q962 Q971 KEYBOARD UNIT 16 X601 15 2 EVST,EVCK,EVDT TUN L BUS+L BUS-L CD L DPDT 3 5 DPDT KYDT SYS 8.4V BU Q912 Q913 21 BU Q301 MUTE Q351 7 2 11 14 7 2 11 14 CN1950 CN1951 KYDT 4 2 10 8 IC 1902 TSOP4840SB1 REMOTE CONTROL SENSOR OPT IN 3 1 17 RFM 18 20 DPDT KTDT LCD PANEL UNIT MUTE RL S831 DSENS SYSTEM CONTROLLER 25 B.REMOTE VDD REGULATOR BACKUP SENSE ACC SENSE SYS 8.4V REGULATOR 14 8 6 5 7 16 11 14 8 6 5 7 16 11 15 15 B C CN981 Q502 BU FUSE 10A SL TUNPCE2 TUNPCE1 TUNPDI TUNPDO 74 32 99 94 98 TUNPCK 97 CE2 CE1 BA033FP IC 921 1 3 SYS 8.4V TUN 3.3V TUNER 3.3V REGULATOR Q911 DO DI CK Q902 DALMON 10 BU 20 Q501 VLCD 11 8 10 10 5 BL+B CN831 8 8 S1970 EJECT 9 9 DGND BU 5 6 5 6 Q831 9 8 FL RL CN351 4 8 Q352 FL Q601 83 22 VDD FL- FL+ RL- RL+ BACK UP GND ACC B.REM DEH-P450MP/XM/UC DEH-P4500MP/XM/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC EJECT DETACH SENSE R9403 0R0 R9101 0R0 FM/AM TUNER UNIT CN901 CD CORE UNIT(S10MP3) D KEYBOARD UNIT C CN1901 PANEL UNIT B FM:-31 AM:-31 CD IP-BUS:+2 CD:0dBs IP-BUS:+2.2dBs FM(30%):-30.0dBs AM(30%):-30.0dBs 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page A B A-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC BACKUP GND RL— RL+ FL— FL+ B.REM ACC RR— RR+ FR— FR+ AND 600µH > FRONT R CH FRONT L CH REAR R CH REAR L CH Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. TUNER AMP UNIT A UC ES UC only FM:+30dBs AM:+20dBs CD:+36dBs IP-BUS:+36dBs FM:-6.66dBs AM:-6.66dBs CD:+9.34dBs IP-BUS:+9.54dBs FM:-5.9dBs AM:-5.9dBs CD:+10.1dBs IP-BUS:+10.3dBs 1.0dBs 1.0dBs D:0dBs 2.2dBs A-b A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC A-a A-b A-a A-a A-b 1 2 R9101 0R0 CN901 CD CORE UNIT(S10MP3) D FM:-31.0dBs AM:-31.0dBs CD:0dBs IP-BUS:+2.2dBs CD:0dBs IP-BUS:+2.2dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC A-a A-b A-a A-a A-b B 3 4 EJECT DETACH SENSE R9403 0R0 FM/AM TUNER UNIT KEYBOARD UNIT C CN1901 PANEL UNIT B E FM(30%):-30.0dBs AM(30%):-30.0dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC A-a A-b A-b 1 2 FRONT R CH FRONT L CH REAR R CH REAR L CH TUNER AMP UNIT A UC only FM:-6.66dBs AM:-6.66dBs CD:+9.34dBs IP-BUS:+9.54dBs FM:-5.9dBs AM:-5.9dBs CD:+10.1dBs IP-BUS:+10.3dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC A-a A-b A-b 3 4 BACKUP GND RL— RL+ FL— FL+ B.REM ACC RR— RR+ FR— FR+ AND 600µH > Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. UC ES FM:+30dBs AM:+20dBs CD:+36dBs IP-BUS:+36dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 3.3 KEYBOARD UNIT C C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC C B CN1951 P450MP P4500MP LCD1901 CAW1759 D1801, 1802 NSSW440-9159 150 150 150 150 CEL1651 CEL1651 SML-310PT SML-310PT SML-310PT SML-310PT SML-310PT SML-310PT SML-310PT SML-310PT SML-310PT SML-310PT SML-310PT SML-310PT P3550MP CAW1762 NSSW440-2549 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC R744 PICKUP UNIT(SERVICE)(P10) 6R8K 6R8K 1R8K R756 100K 100P 9P SWITCHES: CD CORE UNIT S901 : HOME SWITCH.....ON-OFF S902 : CLAMP SWITCH....ON-OFF S903 : DSCSNS SWITCH....ON-OFF S904 : 12EJ SWITCH....ON-OFF S905 : 8EJ SWITCH....ON-OFF The underlined indicates the original switch position. M1 CXB6007 M2 CXB8933 LOADING/CARRIAGE MOTOR SPINDLE MOTOR 1 8 6 5 0 ! 2 3 7 @ # F F T T T T T T T T F F F F F F C S T F C S T F C S T F F F T T S S C C S S C C F F T T 3.4 CD MECHANISM MODULE(GUIDE PAGE) D D-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC R205 R240 0R0 R209 R207 R239 PE5352B MA152WA 0R0 R755 CD3VON 4R7/25 4R7/25 D CD CORE UNIT (S10MP3) A CN721 4 9 $ % ^ & * F T C S SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE D-b D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC A-a D-b D-a D-a D-b PICKUP UNIT(SERVICE)(P10) 6R8K 6R8K 1R8K 100P 9P 0 ! # F F T T T T T T T T F F F F F F C S T F C S T F F F T T 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC A-a D-b D-a D-a D-b 1 2 3 R744 R756 100K SWITCHES: CD CORE UNIT S901 : HOME SWITCH.....ON-OFF S902 : CLAMP SWITCH....ON-OFF S903 : DSCSNS SWITCH....ON-OFF S904 : 12EJ SWITCH....ON-OFF S905 : 8EJ SWITCH....ON-OFF The underlined indicates the original switch position. M1 CXB6007 M2 CXB8933 LOADING/CARRIAGE MOTOR SPINDLE MOTOR 1 8 6 5 2 3 7 @ C S T F F F T T S S C C S S C C 29 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC D-a D-b D-b R205 R240 0R0 R209 R207 D CD CORE UNIT (S10MP3) 9 $ % ^ F T C S SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC D-a D-b D-b 1 2 3 44 R239 PE5352B MA152WA 0R0 R755 CD3VON 4R7/25 4R7/25 A CN721 4 & * T C S TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65V) 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading a 12cm CD Ref.: GND Mode: Normal 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 2s/div When setting up after loading a 12cm CD-DA disc 5 SIN 6 CIN 7 TIN When setting up after loading a 12cm CD-ROM disc(1 session) When setting up after loading a 12cm CD-ROM disc(3 session) Ref.: REFO Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading an 8cm CD Ref.: GND Mode: Normal 0 TE ! FE 500mV/div 500mV/div 200ms/div When setting up "Source On" Ref.: REFO Mode: Normal ! FE 8 FIN 0 TE 7 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div Ref.: REFO Mode: Normal ! FE 8 FIN 0 TE 7 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div During "Play"(CD-DA) During "Play"(CD-ROM)(Track Jump is generated periodically)(Refer to Track Jump waveform) Ref.: REFO Mode: Normal @ MDX 5 SIN 500mV/div 200mV/div 50ms/div Spindle waveform during "Play" Ref.: REFO Mode: Normal # RFAGC 500mV/div 5µs/div Ref.: REFO Mode: Normal @ MDX 5 SIN 500mV/div 1V/div 5µs/div Spindle waveform during "Play"(Magnified) RF eye pattern Ref.: REFO Mode: Normal 1V/div 500mV/div 500mV/div 2s/div 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 2s/div When setting up "Source On"(12cm CD-DA) Ref.: REFO Mode: Normal 8 FIN 9 RFOK 5 SIN 200mV/div 2V/div 2V/div 500ms/div Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 8 FIN ! FE 500mV/div 500mV/div 200ms/div Focus Search Ref.: REFO Mode: TEST # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 500µs/div Ref.: REFO Mode: TEST 0 TE # RFAGC 500mV/div 500mV/div 2ms/div When "Tracking Open" 1 Track Jump Ref.: REFO Mode: TEST # RFAGC % TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 200ms/div Ref.: REFO Mode: Norma $ LRCKIN DIN ^ SCKIN 2V/div 2V/div 2V/div 2µs/div Ref.: REFO Mode: Norma $ LRCKIN DIN ^ SCKIN 2V/div 2V/div 2V/div 10µs/div Digital Audio Digital Audio(Magnified) Ref.: GND Mode: Norma # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 1ms/div 32 Track Jump Ref.: REFO Mode: TEST # RFAGC 7 TIN 0 TE 8 FIN 1V/div 1V/div 1V/div 1V/div 500µs/div Ref.: REFO Mode: Norma # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 5ms/div 100 Track Jump When passing black dots(800µm) Ref.: REFO Mode: TEST During inside/outside search (outer circumference → inner circumference) & LOUT * ROUT 1V/div 1V/div 200µs/div Ref.: AGND Mode: Norma 1 DSCSNS CLCONT 3 LOEJ 5V/div 5V/div 5V/div 10µs/div Ref.: GND Mode: Norma 1 DSCSNS 3 LOEJ 5V/div 5V/div 5V/div 500ms/div When "Eject"(12cm CD) Analog Audio(sine wave, 1kHz) When "Eject"(8cm CD) Ref.: GND Mode: Norma www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal When switching to CD-ROM from CD-DA (BAND key) When switching to CD-DA from CD-ROM (BAND key) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT Capacitor Connector P.C.Board Chip Part A A TUNER AMP UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams IP-BUS CORD ASSY L981 D CN901 DETACH SENSE 1 2 15 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC A SIDE A IC,Q RCA OUT ANTENNA FM/AM TUNER UNIT B CN1950 FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC A A TUNER AMP UNIT IC,Q 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC A SIDE B 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC B B PANEL UNIT B PANEL UNIT SIDE A SIDE B C CN1901 A CN831 EJECT 4.2 PANEL UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 C C KEYBOARD UNIT C KEYBOARD UNIT SIDE A SIDE B IC,Q IC,Q B CN1951 CLK DISP SRC 6 LOUD BAND/ESC FUNC PAUSE AUDIO 1 2 3 4 5 EQ ↓ ↓ ↓ ↓ ↓ ↓ 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 4.3 KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 4.4 CD MECHANISM MODULE D D CD CORE UNIT(S10MP3) SIDE A PICKUP UNIT (SERVICE) HOME M1 SPINDLE MOTOR M2 LOADING /CARRIAGE MOTOR A CN721 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC D D CD CORE UNIT(S10MP3) SIDE B CLAMP DSCSNS 8EJ 12EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : CWM8653 (P450MP/XM/UC, P4500MP/XM/UC) : CWM8654 (P3550MP/XM/ES) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC HA12187FP IC 131 IC PML003AM IC 301 IC PAL007A IC 601 IC PE5393A IC 651 IC BD4834G IC 921 IC BA033FP Q 101 Transistor 2SA1037K Q 102 Transistor DTC124EK Q 301 Transistor DTC124EK Q 351 Transistor IMH3A Q 352 Transistor (P450MP, P4500MP) IMH3A Q 501 Transistor 2SC2412K Q 502 Transistor IMD2A Q 601 Transistor DTA114EK Q 751 Transistor IMD2A Q 752 Transistor 2SD2375 Q 754 Transistor 2SD1760F5 Q 831 Transistor DTC143EK Q 901 Transistor 2SD2375 Q 902 Transistor IMD2A Q 911 Transistor 2SD2375 Q 912 Transistor 2SB1238 Q 913 Transistor DTC114EK Q 931 Transistor IMX1 Q 961 Transistor 2SB1238 Q 962 Transistor DTC114EK Q 971 Transistor 2SA1036K D 501 Diode DAN202U D 502 Diode HZS9L(A2) D 571 Diode MPG06G-6415G50 D 572 Diode MPG06G-6415G50 D 751 Diode HZS9L(B1) D 753 Diode HZS6L(C1) D 831 Diode DAN202U D 832 Diode DAN202U D 833 Diode DAP202U D 834 Diode DAP202U D 901 Diode HZS6L(B1) D 902 Diode MPG06G-6415G50 D 911 Diode HZS9L(B3) D 921 Diode 1SR154-400 D 922 Diode 1SR154-400 D 923 Diode 1SR154-400 D 931 Diode HZS7L(C3) D 932 Diode HZS7L(A1) D 981 Diode MPG06G-6415G50 D 982 Diode MPG06G-6415G50 ZNR 401 Arrester DSP-201M L 131 Inductor LCTA2R2J2520 L 401 Ferri-Inductor LAU4R7K L 402 Inductor LAU1R0K L 404 Inductor LAU1R0K L 601 Inductor LAU2R2K L 721 Inductor LAU2R2K L 971 Inductor LAU2R2K L 981 Choke Coil 600µH CTH1280 X 601 Radiator 12.58291MHz CSS1402 S 831 Switch(DETACH SENSE) CSN1039 SP 601 Buzzer CPV1062 FM/AM Tuner Unit CWE1646 RESISTORS R 101 RS1/16S150J R 102 RS1/16S470J R 103 RS1/16S101J R 104 RS1/16S101J R 105 RS1/16S181J R 106 RS1/16S181J R 107 RS1/16S223J R 108 RS1/16S223J R 109 RS1/16S102J R 110 RS1/16S102J R 111 RS1/16S222J R 112 RS1/16S103J R 113 RS1/16S332J R 114 RS1/16S562J R 131 RS1/16S471J R 132 RS1/16S471J R 133 RAB4C102J R 137 RS1/16S101J R 138 RS1/16S101J R 139 RS1/16S101J R 140 RS1/16S101J R 141 RS1/16S0R0J R 142 RS1/16S0R0J R 301 RS1/16S153J R 302 RS1/16S103J R 303 RS1/16S103J R 304 RS1/16S331J R 351 RS1/16S821J R 352 RS1/16S821J R 353 (P450MP, P4500MP) RS1/16S821J R 354 (P450MP, P4500MP) RS1/16S821J R 359 RS1/16S223J R 360 RS1/16S223J R 361 (P450MP, P4500MP) RS1/16S223J R 362 (P450MP, P4500MP) RS1/16S223J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC R 401 RS1/16S681J R 403 RS1/16S122J R 404 RS1/16S681J R 405 RS1/16S681J R 406 RS1/16S681J R 501 RS1/16S103J R 502 RS1/16S473J R 504 RS1/16S102J R 601 RS1/16S102J R 603 RS1/16S473J R 605 RS1/16S102J R 606 RS1/16S473J R 607 RS1/16S104J R 612 RS1/16S0R0J R 617 (P3550MP) RS1/16S104J R 618 (P450MP, P4500MP) RS1/16S104J R 620 RS1/16S473J R 621 RS1/16S473J R 622 RS1/16S473J R 623 RS1/16S473J R 624 RS1/16S473J R 625 RS1/16S473J R 626 RS1/16S681J R 627 RS1/16S681J R 628 RS1/16S681J R 640 RS1/16S0R0J R 651 RS1/16S102J R 652 RS1/16S183J R 711 RS1/16S682J R 718 RS1/16S473J R 721 RS1/16S0R0J R 722 RS1/16S682J R 723 RS1/16S682J R 724 RS1/16S682J R 726 RS1/16S0R0J R 727 RS1/16S821J R 728 RS1/16S821J R 734 RS1/16S102J R 738 RS1/16S0R0J R 739 RS1/16S0R0J R 743 RS1/16S221J R 744 RS1/16S221J R 745 RS1/16S221J R 746 RS1/16S221J R 747 RS1/16S221J R 748 RS1/16S221J R 751 RD1/4PU821J R 752 RD1/4PU221J R 755 RS1/16S331J R 757 RD1/4PU0R0J R 831 RS1/16S222J R 832 RS1/16S222J R 833 RS1/16S222J R 834 RS1/16S222J R 835 RS1/16S473J R 836 RS1/16S473J R 837 RD1/4PU391J R 838 RS1/16S102J R 839 RS1/16S102J R 840 RS1/16S102J R 841 RS1/16S102J R 845 RS1/16S102J R 901 RD1/4PU221J R 902 RS1/16S223J R 903 RS1/16S821J R 904 RS1/16S821J R 905 RS1/16S0R0J R 911 RS1/16S223J R 914 RS1/16S152J R 915 RD1/4PU152J R 916 RS1/16S223J R 921 RD1/4PU1R8J R 931 RS1/16S104J R 932 RS1/16S473J R 933 RS1/16S103J R 934 RS1/16S473J R 935 RS1/16S472J R 961 RS1/16S223J R 962 RS1/16S182J R 963 RD1/4PU1R0J R 965 RS1/16S182J R 971 RS1/16S153J R 972 RS1/16S153J R 973 RS1/16S222J R 981 RD1/4PU102J R 9101 RD1/4PU0R0J R 9403 RD1/4PU0R0J R 9405 RD1/4PU0R0J CAPACITORS C 101 CKSRYB104K25 C 131 CEJQ1R0M50 C 132 CEJQ1R0M50 C 133 CKSRYB104K25 C 134 CKSRYB104K25 C 135 CEJQ1R0M50 C 136 CEJQ1R0M50 C 137 CEJQ1R0M50 C 138 CEJQ1R0M50 C 139 CEJQ470M16 C 140 CKSRYB104K25 C 141 CCSRCH102J25 C 143 CEJQ100M16 C 145 CKSRYB105K10 C 146 CKSRYB105K10 C 147 CKSRYB153K50 C 148 CKSRYB153K50 C 172 CCSRCH102J25 C 301 CKSRYB474K10 C 302 CKSRYB474K10 C 303 CKSRYB474K10 C 304 CKSRYB474K10 C 305 CKSRYB474K10 C 306 CKSRYB474K10 C 307 CKSRYB474K10 C 308 CKSRYB474K10 C 309 CEHAR330M10 C 310 3300µF/16V CCH1486 C 311 CKSRYB104K25 C 312 CEHAR100M16 C 313 CKSQYB225K10 C 314 CKSQYB225K10 C 316 CKSQYB105K16 C 351 CEJQ100M16 C 352 CEJQ100M16 C 353 (P450MP, P4500MP) CEJQ100M16 C 354 (P450MP, P4500MP) CEJQ100M16 C 401 CKSRYB103K50 C 402 CEJQ470M6R3 C 403 CKSRYB103K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC C 404 CKSRYB103K50 C 405 CEJQ101M16 C 407 CKSYB475K10 C 602 CKSRYB105K10 C 603 CCSRCH200J50 C 604 CCSRCH200J50 C 605 CEJQ4R7M35 C 606 CKSRYB104K25 C 608 CCSRCH101J50 C 609 CCSRCH470J50 C 611 CKSRYB104K25 C 652 CKSRYB105K10 C 725 CCSRCH102J25 C 726 CCSRCH102J25 C 727 470µF/16V CCH1331 C 751 CKSRYB224K10 C 752 CKSRYB102K50 C 753 CEJQ101M16 C 754 CKSRYB473K50 C 755 CEJQ101M16 C 901 CEJQ470M10 C 902 CKSRYB103K50 C 903 CKSRYB472K50 C 904 470µF/16V CCH1331 C 911 CEJQ221M10 C 912 CKSRYB103K50 C 913 CEJQ101M16 C 921 CEJQ220M10 C 922 CKSRYB103K50 C 923 CKSYB475K10 C 931 CKSRYB104K25 C 961 CKSRYB473K50 Unit Number : CWM8635 (P450MP/XM/UC, P4500MP/XM/UC) CWM8631 (P3550MP/XM/ES) Unit Name : Keyboard Unit MISCELLANEOUS IC 1901 IC PD6340A IC 1902 IC TSOP4840SB1 D 1801 LED (P450MP, P4500MP) NSSW440-9159 D 1801 LED (P3550MP) NSSW440-2549 D 1802 LED (P450MP, P4500MP) NSSW440-9159 D 1802 LED (P3550MP) NSSW440-2549 D 1803 LED SML-310PT D 1804 LED SML-310PT D 1805 LED SML-310PT D 1806 LED SML-310PT D 1807 LED SML-310PT D 1808 LED SML-310PT D 1809 LED SML-310PT D 1810 LED SML-310PT D 1811 LED SML-310PT D 1812 LED SML-310PT D 1813 LED SML-310PT D 1814 LED SML-310PT D 1901 Diode DAN202U D 1902 Diode DAP202U X 1901 Ceramic Resonator 4.97MHz CSS1422 IL 1801 Lamp 14V 40mA CEL1651 IL 1802 Lamp 14V 40mA CEL1651 LCD1901 LCD (P450MP, P4500MP) CAW1759 LCD1901 LCD (P3550MP) CAW1762 RESISTORS R 1801 RS1/16S151J R 1802 RS1/16S151J R 1803 RS1/16S151J R 1804 RS1/16S181J R 1805 RS1/16S151J R 1806 RS1/16S181J R 1807 RS1/16S181J R 1808 RS1/16S151J R 1809 RS1/16S181J R 1810 RS1/16S181J R 1811 RS1/16S151J R 1812 RS1/16S181J R 1813 RS1/16S181J R 1814 RS1/16S151J R 1815 RS1/16S181J R 1901 RS1/16S121J R 1902 RS1/16S2R2J R 1904 RS1/16S222J R 1905 RS1/16S222J R 1906 RS1/16S473J CAPACITORS C 1801 CKSRYB104K16 C 1802 CKSRYB104K16 C 1901 CKSRYB224K10 C 1902 CSZS4R7M16 Unit Number : CWM8758 Unit Name : Panel Unit MISCELLANEOUS D 1970 LED CL220PGC S 1970 Push Switch(EJECT) CSG1112 RESISTORS R 1970 RS1/16S101J R 1971 RS1/16S101J R 1972 RS1/16S0R0J CAPACITORS C 1970 CKSRYB104K16 Unit Number : CWX2742 Unit Name : CD Core Unit(S10MP3) MISCELLANEOUS IC 201 IC UPD63760GJ IC 202 IC MSM51V4265EP-70TS IC 203 IC BA033SFP IC 301 IC BA5996FM IC 701 IC PE5352B IC 702 IC TC74VHCT08AFT IC 703 IC S-818A33AUC-BGN Q 101 Transistor 2SB1132 Q 601 Transistor DTC323TK Q 602 Transistor DTC323TK Q 603 Transistor 2SB709A Q 701 Transistor UN2111 D 101 Diode 1SS355 D 201 Diode 1SR154-400 D 601 Diode MA152WA L 201 Inductor CTF1386 L 202 Inductor CTF1386 L 204 Inductor CTF1386 L 205 Inductor CTF1386 L 206 Inductor CTF1386 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC L 207 Inductor CTF1386 L 208 Inductor CTF1386 L 209 Inductor CTF1386 L 211 Inductor CTF1386 L 212 Inductor CTF1386 L 701 Inductor CTF1386 L 702 Inductor LCYBR22J1608 L 703 Inductor CTF1386 L 704 Inductor CTF1386 TH 701 Thermistor CCX1037 X 201 Ceramic Resonator 16.934MHz CSS1603 X 701 Ceramic Resonator 16.00MHz CSS1616 S 901 Switch(HOME) CSN1051 S 902 Switch(CLAMP) CSN1051 S 903 Spring Switch(DSCSNS) CSN1052 S 904 Switch(12EJ) CSN1051 S 905 Switch(8EJ) CSN1051 RESISTORS R 101 RS1/10S1R5J R 102 RS1/10S1R5J R 103 RS1/10S1R5J R 104 RS1/10S1R5J R 105 RS1/10S1R5J R 201 RS1/16SS102J R 202 RS1/16SS333J R 203 RS1/16SS333J R 205 RS1/16SS0R0J R 207 RS1/16SS0R0J R 209 RS1/16SS0R0J R 212 RS1/16SS221J R 213 RS1/16SS1002D R 214 RS1/16SS1002D R 215 RS1/16SS6801D R 216 RS1/16SS6801D R 217 RS1/16SS1002D R 218 RS1/16SS1002D R 219 RS1/16SS1002D R 220 RS1/16SS1002D R 221 RS1/16SS103J R 222 RS1/16SS103J R 223 RS1/16SS103J R 224 RS1/16SS103J R 225 RS1/16SS103J R 226 RS1/16SS393J R 227 RS1/16SS103J R 228 RS1/16SS182J R 229 RS1/16SS103J R 231 RS1/16SS0R0J R 232 RS1/16SS182J R 233 RS1/16SS0R0J R 237 RS1/16SS104J R 238 RS1/16SS473J R 239 RS1/16SS333J R 240 RS1/16SS0R0J R 301 RS1/16SS183J R 302 RS1/16SS822J R 303 RS1/16SS0R0J R 304 RS1/16SS183J R 305 RS1/16SS822J R 306 RS1/16SS0R0J R 307 RS1/16SS183J R 308 RS1/16SS822J R 309 RS1/16SS183J R 310 RS1/16SS822J R 311 RS1/16SS0R0J R 601 RS1/16S101J R 602 RS1/16S101J R 603 RS1/16S223J R 604 RS1/16S223J R 605 RS1/16SS103J R 707 RS1/16SS0R0J R 708 RS1/16SS102J R 710 RS1/16SS102J R 711 RS1/16SS102J R 712 RS1/16SS102J R 713 RS1/16SS102J R 714 RS1/16SS473J R 715 RAB4CQ221J R 716 RAB4CQ221J R 717 RAB4CQ221J R 718 RAB4CQ221J R 719 RAB4CQ221J R 720 RS1/16SS471J R 721 RS1/16SS471J R 722 RAB4CQ221J R 723 RS1/16SS102J R 724 RN1/16SE1302D R 725 RS1/16SS222J R 726 RS1/16SS103J R 727 RS1/16SS473J R 728 RS1/16SS473J R 729 RS1/16SS223J R 730 RS1/16SS473J R 731 RS1/16SS104J R 732 RS1/16SS104J R 733 RS1/16SS104J R 737 RAB4CQ473J R 739 RAB4CQ473J R 740 RS1/16SS473J R 742 RS1/16SS104J R 744 RS1/16SS104J R 745 RS1/16SS473J R 746 RS1/16SS104J R 747 RS1/16SS104J R 748 RS1/16SS104J R 754 RS1/16SS102J R 755 RS1/16SS102J R 756 RS1/16SS104J R 801 RS1/16SS104J R 802 RS1/16SS473J R 803 RS1/16SS273J R 901 RS1/16SS221J R 902 RS1/16SS221J R 903 RS1/16SS221J R 904 RS1/16SS221J R 905 RS1/16SS221J R 906 RS1/16SS221J CAPACITORS C 101 CKSSYB104K10 C 102 CKSSYB104K10 C 103 CEV101M16 C 104 CEV101M4 C 105 CKSSYB104K10 C 106 CCSRCH101J50 C 108 CKSSYB104K10 C 109 CEV100M16 C 201 CKSSYB471K50 C 202 CKSSYB104K10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC C 203 CKSSYB104K10 C 204 CEV220M6R3 C 205 CKSSYB103K16 C 206 CKSSYB103K16 C 207 CEV221M4 C 208 CKSSYB104K10 C 209 CKSSYB104K10 C 210 CKSSYB104K10 C 211 CKSSYB104K10 C 216 CKSSYB332K50 C 217 CKSSYB104K10 C 218 CKSSYB223K16 C 219 CKSSYB104K10 C 220 CKSSYB103K16 C 221 CKSSYB104K10 C 222 CCSSCH270J50 C 223 CCSSCJ3R0C50 C 224 CKSSYB104K10 C 225 CKSSYB103K16 C 226 CCSSCH680J50 C 227 CCSSCH470J50 C 228 CKSSYB682K25 C 230 CKSSYB104K10 C 232 CKSSYB104K10 C 233 47µF/6.3V CCH1436 C 234 CEV221M4 C 235 CKSRYB224K16 C 237 CKSSYB104K10 C 238 CKSSYB104K10 C 239 CCSSCH9R0D50 C 242 CKSSYB104K10 C 243 CKSSYB104K10 C 245 CKSSYB104K10 C 246 CKSSYB104K10 C 301 CKSSYB331K50 C 302 CKSSYB331K50 C 303 CKSSYB472K25 C 304 CKSSYB472K25 C 305 CEV101M16 C 306 CKSRYB224K16 C 601 CCSRCH102J50 C 602 CCSRCH102J50 C 603 4.7µF/25V CCH1508 C 604 4.7µF/25V CCH1508 C 701 CKSSYB104K10 C 702 CKSSYB471K50 C 703 CKSSYB103K16 C 704 CEV1R0M50 C 705 CKSSYB104K10 C 706 CKSSYB471K50 C 707 CKSSYB104K10 C 708 CKSSYB104K10 C 709 CKSSYB103K16 C 710 CKSSYB104K10 C 711 10µF/10V CCH1349 C 712 CKSRYB224K16 C 713 CKSSYB104K10 C 714 CKSSYB104K10 C 715 CKSSYB103K16 C 716 CKSSYB103K16 C 901 CKSSYB104K10 C 903 CCSRCH101J50 Miscellaneous Parts List Pickup Unit(Service)(P10) CXX1641 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE) CXB8933 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 6. ADJUSTMENT 6.1 JIG CONNECTION DIAGRAM KEYBOARD UNIT (SIDE B) CN1951 CN1901 PANEL UNIT (SIDE A) TUNER AMP UNIT GGD1316 RUBBER BAND RUBBER BAND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 1) Cautions on adjustments • In this product the single voltage (3.3V) is used for the regulator. The reference voltage is the REFO1 (1.65V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. • Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. • For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. • In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. • The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. • The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. • To enter the test mode. While pressing the 4 and 6 keys at the same time, reset. • To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (→) key or (←) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0dB, and the auto-adjustment values are reset to the default settings. 6.2 CD ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC [BAND] [BAND] [BAND] [BAND] [BAND] Power On (T.Offset is adjusted) TRK00 MIN00 SEC SEC 00 [CD]or[SOURCE] Source On TRK MIN [4]+[6]+Reset or [4]+[6]+BU+ACC Test Mode In [3] [1] [1] Power On (T.Offset is not adjusted) TRK99 MIN99 SEC99 [2] [2] [2] [2] Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Focus Close S curve check T.Close and AGC Applicable servomechanism TRK91 MIN91 SEC91 [6] [1] [3] [6] [3] Focus Mode switching SPINDLE Speed switching RF AMP Gain switching TRK0xMIN0xSEC0x Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG- TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [→] [←] [→] [←] [→] [←] CRG+ TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 Automatic adjustment switching TRK?? MIN?? SEC?? T.Close Applicable servomechanism TRK?tr MIN?min SEC?sec [6] [3] TRK MIN SEC RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? CRG+ TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x CRG- TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x T.Balance adjustment / T.BAL coefficient display TRK?? MIN?? SEC?? F,T,RF AGC F.Bias display switching TRK?? MIN?? SEC?? F,T AGC / F.Bias RF AGC TRK MIN SEC CRG/TR Jump value switching TRK MIN SEC CRG/TR Jump + TRK MIN SEC CRG/TR Jump - TRK MIN SEC Tracking Open TRK8xMIN8xSEC8x or TRK9xMIN9xSEC9x Tracking Open TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x TRKSP MINSP SECSP [4] TRKGGMINGGSECGG [2] [Key] [BAND] [→] [6] [1] [2] [3] Power On / Off CRG + / TR Jump + (Direction of the external surface) CRG - / TR Jump - (Direction of the internal surface) U.CLS and AGC and Applicable servomechanism / AGC, AGC display setting RF Gain switching / Offset adjustment display / T.Balance adjustment / T.Open Close, S.Curve / Rough Servo and RF AGC / SPDL 1X / 2X switching As for the double speed (2x), audio output cannot be supported. Error Rate measurement 1st - ON : ERR count Beginning (30Sec) 2nd - ON : BER display data [%] F.Mode switching / Tracking Close / CRG • TR Jump switching Test Mode Operation [KEY] Contents Display F, T, RF AGC *1) TYP → -6dB → -12dB TRK MIN SEC TRK 06 MIN 06 SEC 06 TRK 12 MIN 12 SEC 12 *2) Focus Close → S.Curve check setting → F EQ measurement setting *9) Applicability : A, B, C, D, E, F As for the double speed (2x), audio output cannot be supported TRK 00 MIN 00 SEC 00 TRK 01 MIN 01 SEC 01 TRK 02 MIN 02 SEC 02 (TRK 99 MIN 99 SEC 99) *3) F.Offset Display → T.Offset Display → Switch to the order of the original display *4) 1TR / 32TR / 100TR *5) Single TR → 32TR → 100TR → CRG Move 9x(8x) : 91(81) 92(82) 93(83) 94(84) *6) Only at the time of CRG move, 100TR jump *7) TRK/MIN/SEC → F.AGC → T.AGC → F Bias → RF AGC *8) CRG motor voltage = 2[V] [←] - Flow Chart *1 *9 *2 *8 *8 *3 *7 *5 *4 *4 *6 ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec TYP(1X) → 2X → 1X TRK MIN SEC TRK 22 MIN 22 SEC 22 TRK 11 MIN 11 SEC 11 Applicability : G TYP(2X) → 1X → 2X TRK MIN SEC TRK 11 MIN 11 SEC 11 TRK 22 MIN 22 SEC 22 [4] [5] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • ABEX TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3V regulator on. 2. Using the → and ← buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. REFO1 F E CD CORE UNIT(S10MP3) Oscilloscope 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC - Error Messages Error is displayed with number for Error cause when CD is inoperative or stops with Error during operation. The purpose is to reduce nonsense calls from users as well as to assist all related analysis and repair for defects at service station. (1) Basic Display Method 1) When CSMOD (CD mode area for system) is SERRORM, Error code will be written in DMIN (minutes area for display), DSEC (seconds area for display). The same data shall be written in DMIN and DSEC. DTNO is blank as usual. 2) Display Example of Head Unit The following is about LCD display ability. xx is Error number. *) In case of OEM, Error display will follow the specification defined by OEM makers. 8 digits 6 digits 4 digits ERROR–xx ERR–xx E–xx (2) Error Code List No. Classification Contents Details • Cause 10 Electricity Carriage Home NG CRG can’t move to the inner. CRG can’t move from the inner. → HOME SW failure, CRG movement failure. 11 Electricity Focus Search NG Focus can’t be caught. → Back of Disc / Severe dirt and vibration. 23 Disc File Format NG Contents are stored in an incompatible file format. → The contents in a CD-ROM disc inserted are recorded in a file format other than ISO9660 Level-1 and 2. 22 Disc Impossible to play There is no playable MP3 or WMA file present in a disc. → No MP3 or WMA file exists in a CD-ROM disc inserted. 17 Electricity Setup NG AGC protection doesn’t work, out of Focus soon. → Scratch on Disc/Severe dirt and vibration. 12 Electricity Spindle Lock NG Not spindle, lock. Wrong subcode (can’t read). Subcode NG RF-amp NG → Defective Spindle. Scratch and dirt on Disc. Intense vibration. The appropriate gain of the RF amp cannot be obtained. → Defective spindle. → Blanc CD-R disc. Disc inserted upside down. → Scratched or dirty disc. Severe vibration. Abnormal CD signals. 30 Electricity Search Time Out Can’t reach the target address. → Defective CRG/tracking, or scratch on Disc. → All TRK Nos. In a disc inserted are specified as a track which should be skipped, in the track skip information. 44 Disc Impossible to play There is no playable TRK No. present in a disc. 50 Mecha Disc Load / Eject NG Disc loading/ejection cannot be complete. → Foreign objects entered into the mechanism. Disc caught in between during loading/ejection. A0 System Power NG Power supply (VD) isn’t connected to the ground. → Defective SW transistor. Abnormal power (failed connector) OR Err–xx Note : Error doesn’t display in mechanism only. (CD off causes mechanism off) If TOC can’t be read, error wouldn’t occur, but mechanism still continues its operation. When newly design head unit, be sure to apply as the display examples above. The upper digits of error code is mainly classified by 3 kinds as follows: 1x: Setup related error, 3x: Search related error, Ax: Other errors. 6.4 ERROR MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 1 1 Fig.1 Fig.2 - Removing the CD Mechanism Module (Fig.1) - Removing the Tuner Amp Unit (Fig.2) Remove the four screws. Remove the screw. 1. Remove the Case. - Removing the Case (not shown) Disconnect the connector and then remove the CD Mechanism Module. - Removing the Grille Assy (Fig.1) 2 Remove the two screws and then remove the Grille Assy. 1 1 2 2 CD Mechanism Module Grille Assy 1 2 2 2 3 3 3 4 Tuner Amp Unit 2 Remove the three screws. 3 Straight the tabs at three locations indicated. 4 Remove the screw and then remove the Tuner Amp Unit. 1 1 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC - Removing the Pickup Unit 1. Set the mechanism to the clamp mode. 2. Remove the lead wires from the inner holder. 3. Remove the two washers, styling holder, change arm, and pickup lock arm. 4. While releasing from the hook of the inner holder, lift the end of the feed screw. Caution: In assembling, move the planet gear to the load/eject position before setting the feed screw in the inner holder. Planet Gear Change Arm Inner Holder Styling Holder Feed Screw Washer Pickup Lock Arm - How to hold the Mechanism Unit 1. Hold the top and bottom frame. 2. Do not squeeze top frame's front portion too tight, because it is fragile. - Removing the Upper and Lower Frames 1. With a disc clamped, remove the four springs (A), the two springs (B), the two springs (C), and the four screws. 2. To remove the upper frame, open it on the fulcrum A. 3. While lifting the carriage mechanism, remove the three dampers. 4. With the frames removed, insert the connectors coming from the main unit and eject the disc. Caution: Before installing the carriage mechanism in the frames, be sure to apply some alcohol to the dampers and set the mechanism to the clamp mode. Do not squeeze. Lower Frame Damper Carriage Mechanism A C A B B Damper Damper C A A A Upper Frame www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 10A 2 16 4 6 8 10 12 14 1 15 3 5 7 9 11 13 1. FR+ 2. RR+ 3. FR- 4. RR- 5. FL+ 6. RL+ 7. FL- 8. RL- 9. NC 10. NC 11. B.REM 12. NC 13. NC 14. ACC 15. GND 16. BACK UP 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT 11 10 9 8 7 6 5 4 3 2 1 POWER SUPPLY IP-BUS ANTENNA JACK REAR OUTPUT FRONT OUTPUT 7.1.2 CONNECTOR FUNCTION DESCRIPTION - DEH-P450MP/XM/UC, P4500MP/XM/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 10A 2 16 4 6 8 10 12 14 1 15 3 5 7 9 11 13 1. FR+ 2. RR+ 3. FR- 4. RR- 5. FL+ 6. RL+ 7. FL- 8. RL- 9. NC 10. NC 11. B.REM 12. NC 13. NC 14. ACC 15. GND 16. BACK UP ANTENNA JACK REAR OUTPUT 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT 11 10 9 8 7 6 5 4 3 2 1 POWER SUPPLY IP-BUS - DEH-P3550MP/XM/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC - Pin Functions(PE5393A) Pin No. Pin Name I/O Format Function and Operation 1 swvdd O C Grille : Chip enable output 2-4 NC Not used 5 TESTIN I Test program mode input 6 LCDPW O C LCD back light power supply control output 7 TELIN I Telephone mute input 8 ejectin I Eject sense input 9 FLPILM I Flap illumination input 10 DALMON I/O C For consumption low-current 11 reset I Reset input 12 XT2 Not used 13 XT1 I Clock connection pin 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 I Crystal oscillator connection pin 17 REGOFF I Regulator operation specification signal 18 REGC Capacitor for regulator connect pin 19 VDD Power supply 20 ILMPW O Illumination power supply control output 21 SYSPW O C System power control output 22 adpw O C A/D converter power supply control output 23 NC Not used 24 IPPW O C Power supply control output for IP BUS interface IC 25 NC Not used 26 ROMDATA O C ROM correction data output 27 ROMCLK O C ROM correction clock output 28 ROMCS O ROM correction chip select output 29-31 NC Not used 32 tunpce@ O PLL chip enable output2 33 VST O E.VOL : Strobe output 34 VCK O E.VOL : Clock output 35 VDT O E.VOL : Data output 36 ANTPW O Antenna power output 37 MUTE O C System mute output 38, 39 NC Not used 40 VSS GND 41 VDD Power supply 42 RDS57K I 57kHz count pulse input 43 drst O C RDS : Decoder reset output 44 rdslk I C RDS : Decoder clock input 45 RDT O C RDS : Decoder data input 46 DORAON O C TUNER : 3V power supply 47-57 NC Not used 58 STRKEY2 I Steering remote controller input 59 CDLOEJ O C CD : Load Moter Load/Eject output 60 CLCONT I CD : Driver input switch output 61 CONT O C CD : Servo driver power supply control output 62 PCL O C Clock adjustment 63 CLAMPSW I Clamp SW input 64 VDCONT O C CD : VD power control output 65 xsck(TSCK) O CD LSI clock output 66 XSI(TSI) I CD LSI data input 67 XSO(TSO) O C CD LSI data output 68 XAO O C CD LSI command/data control output 69 xrst O C CD : LSI reset control output 70 xstb O CD LSI strobe output 71 ASENBO O IP-BUS : Slave power supply control output 72 EMUTE O E.VOL : Mute control output 73 TEST GND 74 SL I C TUNER : Signal level input 75 STRKEY1 I C Steering remote controller input 7.2 PARTS 7.2.1 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC Pin No. Pin Name I/O Format Function and Operation 76 MODELIN I Model select input 77 CSENS I Flap close sense input 78 NC Not used 79 DSCSNS I CD : Disc insert sense input 80 VDSENS I CD : VD voltage sense input 81 TEMP I CD : Temperature sense input 82 AVDD A/D converter power supply terminal 83 AVREF A/D converter reference voltage terminal 84 AVSS GND 85 RX I IP-BUS : Data input 86 TX O IP-BUS : Data output 87 NMI GND 88 ldet I PLL lock sense input 89 rck I RDS : Clock input 90 dsens I Grille detach sense input 91 PACK I PACK input 92 asens I ACC power sense input 93 bsens I Back up power sense input 94 TUNPDI I PLL IC data input 95 KYDT I Grille data input 96 DPDT O C Grille data output 97 TUNPCK O PLL clock output 98 TUNPDO O C PLL data output 99 TUNPCE O C PLL chip enable output 100 PEE O C Beep tone output * PE5393A 30 31 50 51 80 81 100 1 Format Meaning C CMOS IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. 1 2 3 VDD GND 5 4 VOUT N.C. N.C. Vref BD4834G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC 1 TAB 2 P-GND2 3 OUT2- 4 STBY 5 OUT2+ 6 VCC 7 OUT1- 8 P-GND1 9 OUT1+ 10 SVR 11 IN1 12 IN2 13 S-GND 14 IN4 15 IN3 16 AC-GND 17 OUT3+ 18 P-GND3 19 OUT3- 20 VCC 21 OUT4+ 22 MUTE 23 OUT4- 24 P-GND4 SWITCH 25 + - + - Offset Detection + - + - Offset Detection + - + - Offset Detection + - + - Offset Detection Protector; Over current limit sw_vcc stby Protector; Short circuit Mute circuit amp_vcc Stand-by Circuit Protector; Over voltage sw_vcc Protector; Thermal Reference amp_vcc PAL007A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC TSOP4840SB1 - Pin Functions (PD6340A) Pin No. Pin Name I/O Function and Operation 1-5 SEG4-0 O LCD segment output 6-9 COM3-0 O LCD common output 10 VLCD LCD drive power supply 11-14 KST3-0 O Key strobe output 15,16 KDT0,1 I Key data input (analogue input) 17 REM I Remote control reception input 18 DPDT I Display data input 19 NC Not used 20 KYDT O Key data output 21 MODA GND 22 X0 Crystal oscillator connection pin 23 X1 Crystal oscillator connection pin 24 VSS GND 25,26 KDT2,3 I Key data input 27 NC Not used 28 KST4 O Key strobe output 29-32 NC Not used 33-55 SEG35-13 O LCD segment output 56 VDD Power supply 57-64 SEG12-5 O LCD segment output *PD6340A 16 17 32 33 48 49 64 1 OUT GND VCC PIN 1 2 3 Control Circuit Band Pass AGC Input Demodu- lator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC - Pin Functions (UPD63760GJ) Pin No. Pin Name I/O Function and Operation 1 R.GND GND for DRAM I/F 2 rst I Input of reset 3-7 AB12-8 I Address bus 12-8 from the microcomputer 8-15 AD7-0 I/O Address/data bus 7-0 to the microcomputer 16 cs I Chip selection 17 ASTB I Address strobe 18 read I Control signals (read) 19 write I Control signals (write) 20 wait O Control signals (wait) 21 INTQ Interruption signals to the external microcomputer 22 IFMODE I Switching between the data buses (16bit/8bit) 23 D.VDD Power supply for digital circuits 24 xtalen! I Permission to oscillate 16.9344MHz 25 xtalen@ I Permission to oscillate 24.576MHz 26 DA.VDD Power supply for DAC 27 ROUT O Output of audio for the right channel 28 DA.GND GND for DAC 29 R+ O Output of the right channel audio PWM 30 R- O Output of the right channel audio PWM 31 REGC Connected to the capacitor for band gap 32 L- O Output of the left channel audio PWM 33 L+ O Output of the left channel audio PWM 34 DA.GND GND for DAC 35 LOUT O Output of audio for the left channel 36 DA.VDD Power supply for DAC 37 X.VDD Power supply for the crystal oscillator 38 XTAL1 Connected to the crystal oscillator (16.9344MHz) 39 xtal! Connected to the crystal oscillator (16.9344MHz) 40, 41 X.GND Ground for the crystal oscillator 42 xtal@ Connected to the crystal oscillator (24.576MHz) 43 XTAL2 Connected to the crystal oscillator (24.576MHz) 44 X.VDD Power supply for the crystal oscillator 45 D.GND GND for digital circuits 46 DIN I Input of audio data 47 DOUT O Output of audio data 48 SCKIN I Clock input for audio data 49 SCKO O Clock output for audio data 50 LRCKIN I Input of LRCK for audio data 51 LRCK O Output LRCK for audio data 52 TESTX O Output for tests 53 RFOK O Output of RFOK 54 C16M O Output of 16.9344MHz 55 TESTEN I Connected to GND 56 TEST4 I Connected to GND 57 D.VDD Power supply for digital circuits 58 RFCK/HOLD O Output of RFCK/HOLD signal 59 WFCK/MIRR O Output of WFCK/MIRR signal 60 PLCK O Output of PLCK 61 LOCK O Output of LOCK 62 C1D1 O Information on error correction 63 C1D2 O Information on error correction 64 C2D1(RMUTE) O Information on error correction (mute for Rch) 65 C2D2(LMUTE) O Information on error correction (mute for Lch) 66 C2D3 O Information on error correction 67 D.GND Ground for digital circuits 68 ras O Output of DRAM RAS 69 cas) O Output of DRAM Lower CAS 70 cas! O Output of DRAM Upper CAS 71 we O Output of DRAM WE 72 oe O Output of DRAM OE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC Pin No. Pin Name I/O Function and Operation 73-88 RDB0-15 I/O Input/output of DRAM Data0-15 89 D.GND Ground for digital circuits 90-99 RA0-9 O Output of DRAM Address0-9 100 D.VDD Power supply for digital circuits 101-104 TEST0-3 I Connected to GND 105 FD O Output of focus drive PWM 106 TD O Output of tracking drive PWM 107 SD O Output of thread drive PWM 108 MD O Output of spindle drive PWM 109 A.VDD Power supply for the analog system 110 ATEST O Analog tests 111 EFM O Output of EFM signals 112 ASY I Input of asymmetry 113 C3T Connection to the capacitor for detecting 3T 114 A.GND Ground for the analog system 115 RFI I Input of RF 116 AGCO O Output of RF 117 AGCI I Input of AGC 118 RFO O Output of RF(AGC) 119, 120 EQ2, 1 Equalizer 2, 1 121 RF2- I Reversal input of RF2 122 RF- I Reversal input of RF 123 A.GND Ground for the analog system 124 A I Input of A 125 C I Input of C 126 B I Input of B 127 D I Input of D 128 F I Input of F 129 E I Input of E 130 A.VDD Power supply for the analog system 131 REFOUT O Output of reference voltage 132 REFC Connected to the capacitor for output of REFOUT 133 FE- I Reversal input of FE 134 FEO O Output of FE 135 TE- I Reversal input of TE 136 TEO O Output of TE 137 TE2 O TE2 138 TEC I TEC 139 A.GND Ground for the analog system 140 LDREGO O Output of REG voltage for APC 141 PD I Input of PD 142 LD O Output of LD 143 PN I Assignment of pickup polarity 144 A.VDD Power supply for the analog system * UPD63760GJ 36 37 72 73 144 1 109 108www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC - Pin Functions (PE5352B) Pin No. Pin Name I/O Format Function and Operation 1 BSO O C P-Bus serial data output 2 bsck I/O /C P-Bus serial clock input/output 3, 4 DFS1, 2 O C DA I/F IC sampling frequency setting output 1, 2 5 DCKS O C DA I/F IC clock subharmonic number selection output 6 EVDD E power supply Positive power supply 7 EVSS E power supply GND 8 dspok I DSP microcomputer initialization OK input 9 DCOPY O C DA I/F IC copy flag setting output 10 crst O C Compression IC reset control output 11, 12 NC Not used 13 EMPH O C Emphasis information output 14 emph O C Emphasis information output 15 DSPMUTE O C DOUT mute output 16 DSET O C Disc set indicator lighting output 17 adena O C A/D reference voltage supply control output 18 IC/VPP IC : VSS direct connection/VPP : Pull-down 19 BRXEN I/O /C P-Bus reception is possible 20 bsrq I/O /C P-Bus service request demand 21 xtalen! O C CD LSI 16.9344MHz oscillation permission output 22 xtalen@ O C CD LSI 24.576MHz oscillation permission output 23 xrst O C CD LSI reset control output 24 VDCONT O C VD power supply control output 25 CD3VON O C CD +3.3V power supply control output 26 CONT O C Servo driver power supply control output 27 xwait I CD LSI wait control signal input 28 LOEJ O C The direction change output of LOAD/EJECT 29 CLCONT O C Driver input change output 30 CDMUTE O C CD mute control output 31 reset I System reset input 32 XT1 I Connected to the oscillator for subclock (connected to VSS via the resistor) 33 XT2 Connected to the oscillator for subclock (Open) 34 REGC Connected to the capacity stabilizing output of the regulator (an electrolytic capacitor of about 1µF) 35 X2 Oscillator connection for mainclock 36 X1 I Oscillator connection for mainclock 37 VSS GND 38 VDD Positive power supply (5V) 39 CLKOUT O C Internal system clock output (Open) 40 xwrite O CD LSI write control signal output 41 uben O Not used (Open) 42 WR/W O WMA decoder Read/Write control signal output 43 xread O CD LSI read control signal output 44 XASTB O CD LSI address strobe output 45 LOCK I Spindle lock input 46 wrst O C WMA decoder reset control output 47-54 AD0-7 I/O /C Address/Data bus 0-7 55 BVDD B power supply Positive power supply (3.3V) 56 BVSS B power supply GND 57-64 AD8-15 I/O /C Address/Data bus 8-15 65 xcs O C CD LSI chip selection output 66 wcs O C WMA decoder chip selection output 67, 68 DBBWRDY0, 1 I Input of write-ready flag with WMA decoder DBBI0, 1 69, 70 DBBRRDY0, 1 I Input of read-ready flag with WMA decoder DBBO0, 1 71 AVDD A power supply Positive power supply (5V) 72 AVSS A power supply GND 73 AVREF The reference voltage input for A/D converter 74 VDSENS VD power supply short sense input 75 DSCSNS Disc state sense input 76 TEMP Temperature information sense input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC Pin No. Pin Name I/O Format Function and Operation 77 HOME I Home SW sense input 78 csens I Flap closing sense input 79 RFOKIN I RFOK input chatter count input 80-82 NC Connected to AVDD or AVSS via the resistor 83 WMAARI I Input of sensing existence of WMA decoder and DA I/F IC 84 TYPE_A/D I CD-DA Analog/Digital output change setup 85 testin I Chip check test program starting input 86 NC Connected to EVDD or EVSS via the resistor 87 xint CD LSI interruption signal input 88 wint WMA decoder interruption signal input 89 brst I P-Bus reset input 90 ejsw I Eject key input 91, 92 NC Open 93 CLAMP I C CLAMP SW sense input 94 ROMDATA I/O /C E2PROM data input/output 95 ROMCS O C E2PROM chip selection output 96 ROMCK O C E2PROM clock output 97 FRXD I For flash rewriting (received signal) 98 FTXD O C For flash rewriting (transmitted signal) 99 AO/DO O C The output for Analog/Digital voice output distinction 100 BSI I P-Bus serial data input * PE5352B 25 26 50 51 75 76 100 1 Format Meaning C CMOS DQ1 2 DQ2 3 DQ3 4 DQ4 5 VCC 6 DQ5 7 DQ6 8 DQ7 9 DQ8 10 NC 13 NC 14 we 15 ras 16 NC 17 A0 18 A1 19 A2 20 A3 21 VCC 22 42 DQ15 41 DQ14 40 DQ13 39 VSS 38 DQ12 37 DQ11 36 DQ10 35 DQ9 32 NC 31 lcas 30 hcas 29 oe 28 A8 27 A7 26 A6 25 A5 24 A4 23 VSS VCC 1 43 DQ16 44 VSS A0-A8 :Address input ras : Row address strobe lcas : Lower column address strobe ucas : Upper column address strobe DQ1-DQ16 : Data input/data output oe : Output enable we : Write enable VCC : Power supply VSS : GND NC : No connection MSM51V4265EP-70TS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the ham of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 NC non connection Not used 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 NC non connection Not used 19 NC non connection Not used 20 NC non connection Not used 21 NC non connection Not used 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC SEG39 SEG38 SEG37 SEG36 COM3 COM2 COM1 COM0 SEG35 SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 SEG23 SEG22 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 COM3 COMMON SEGMENT COM2 COM1 COM0 7.2.2 DISPLAY - LCD (CAW1759 (DEH-P450MP/XM/UC, DEH-P4500MP/XM/UC)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC SEG39 SEG38 SEG37 SEG36 COM3 COM2 COM1 COM0 SEG35 SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 SEG23 SEG22 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 COM3 COMMON SEGMENT COM2 COM1 COM0 - LCD (CAW1762 (DEH-P3550MP/XM/ES)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC VDD=5V Pin 41 ASENBO←H Pin 71 Power ON bsens=L asens=L dsens=L bsens Pin 93 asens Pin 92 dsens Pin 90 swvdd←H Pin 1 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H Pin 21 Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. CSENS Pin 77 2V < CSENS < 3V - CSENS 2V, 3V CSENS Last source returns. CD loading functions are available. Keys except for EJECT key are not available. < < = = 7.3 OPERATIONAL FLOW CHART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 7.4 CLEANING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC 8. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 5 6 7 8 F E D C B A 5 6 7 8 DEH-P450MP/XM/UC Fixing the Front Panel If you do not operate the Detaching and Replacing the Front Panel Function, use the supplied fixing screws and fix the front panel to this unit. 1. Attach the holders to both sides of the front panel. 2. Replace the front panel to the unit. 3. Flip the holders into upright positions. 4. Fix the front panel to the unit using fixing screws. Fixing screw Holder CND1249 (UC) CXX1644 (ES) Holder CND1250 (UC) CXX1645 (ES) BPZ20P060FZK (UC) CXX1646 (ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 1 2 3 4 1 2 3 4 F E D C B A DEH-P450MP/XM/UC - CONNECTION DIAGRAM + ≠� + ≠� + ≠� + ≠� IP-BUS input (Blue) This Product Blue/white To system control terminal of the power amp or Auto-antenna relay control terminal (max. 300 mA 12 V DC). Connecting cords with RCA pin plugs (sold separately) System remote control Rear speaker Rear speaker Right Front speaker Rear speaker White Gray White/black Green Green/black Gray/black Violet Violet/black Front speaker Rear speaker Left With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. Yellow To terminal always supplied with power regardless of ignition switch position. Black (ground) To vehicle (metal) body. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Antenna jack Rear output Perform these connections when using the optional amplifier. Front output Power amp (sold separately) Front speaker Front speaker Right Left IP-BUS cable Multi-CD player (sold separately) Fuse + ≠� + ≠� + ≠� + ≠� Power amp (sold separately) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
