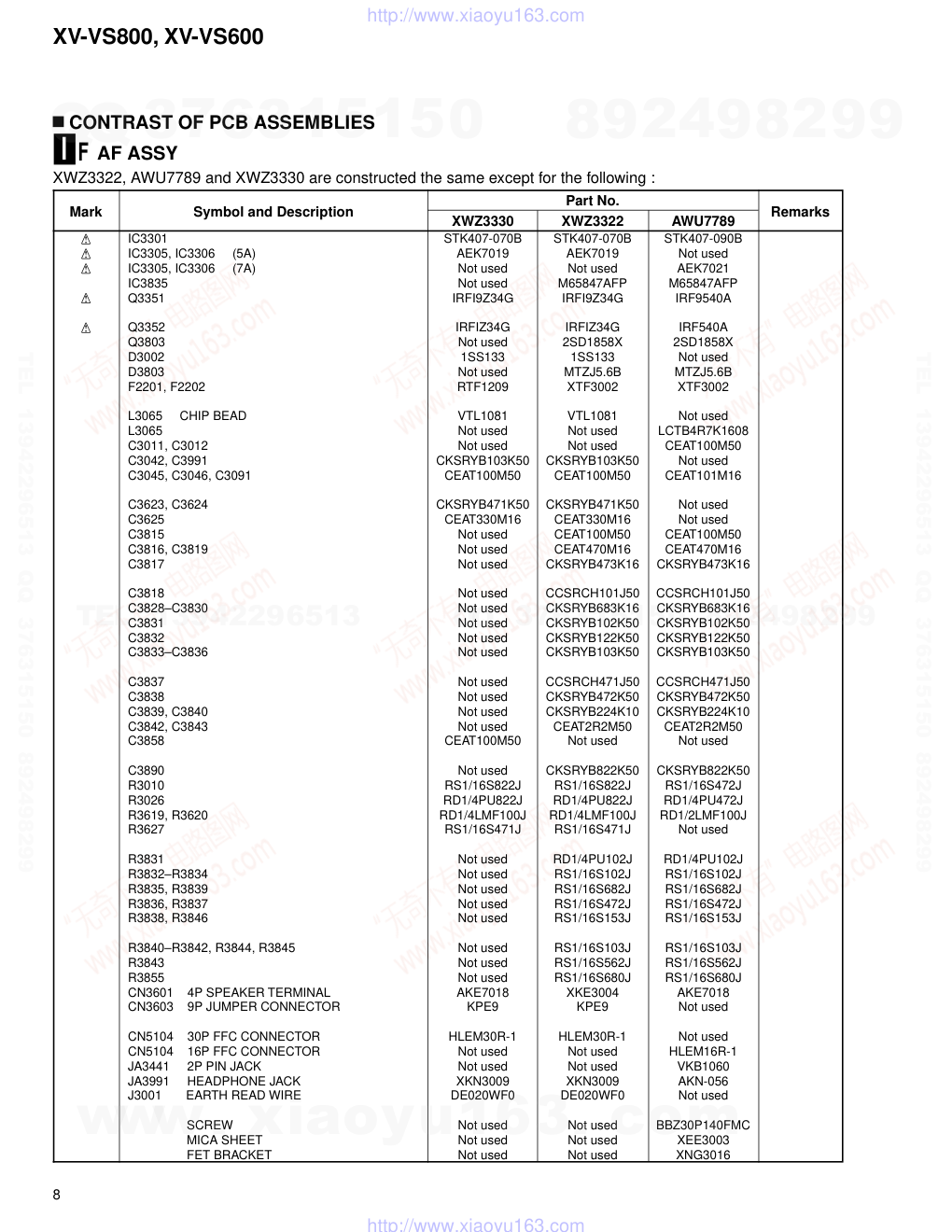

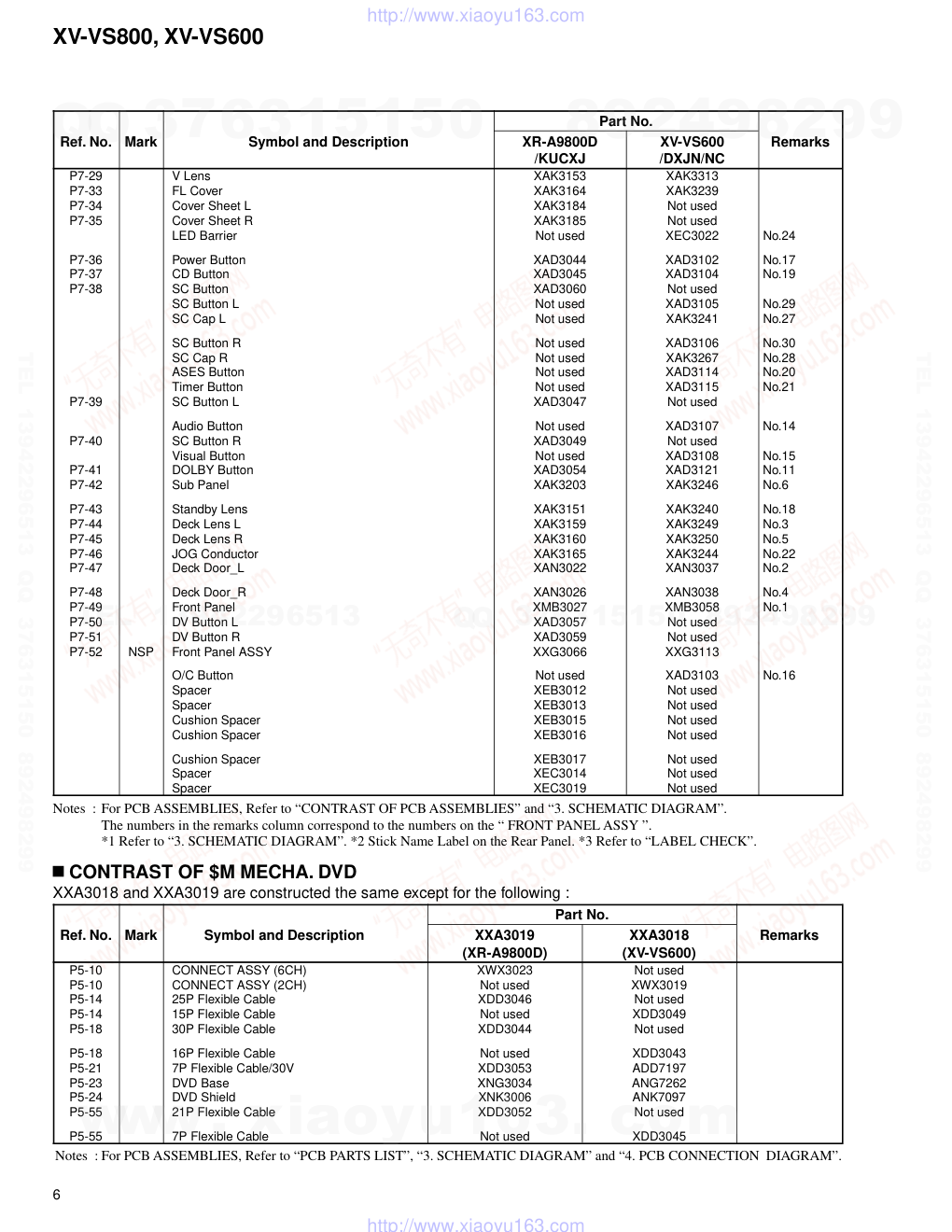

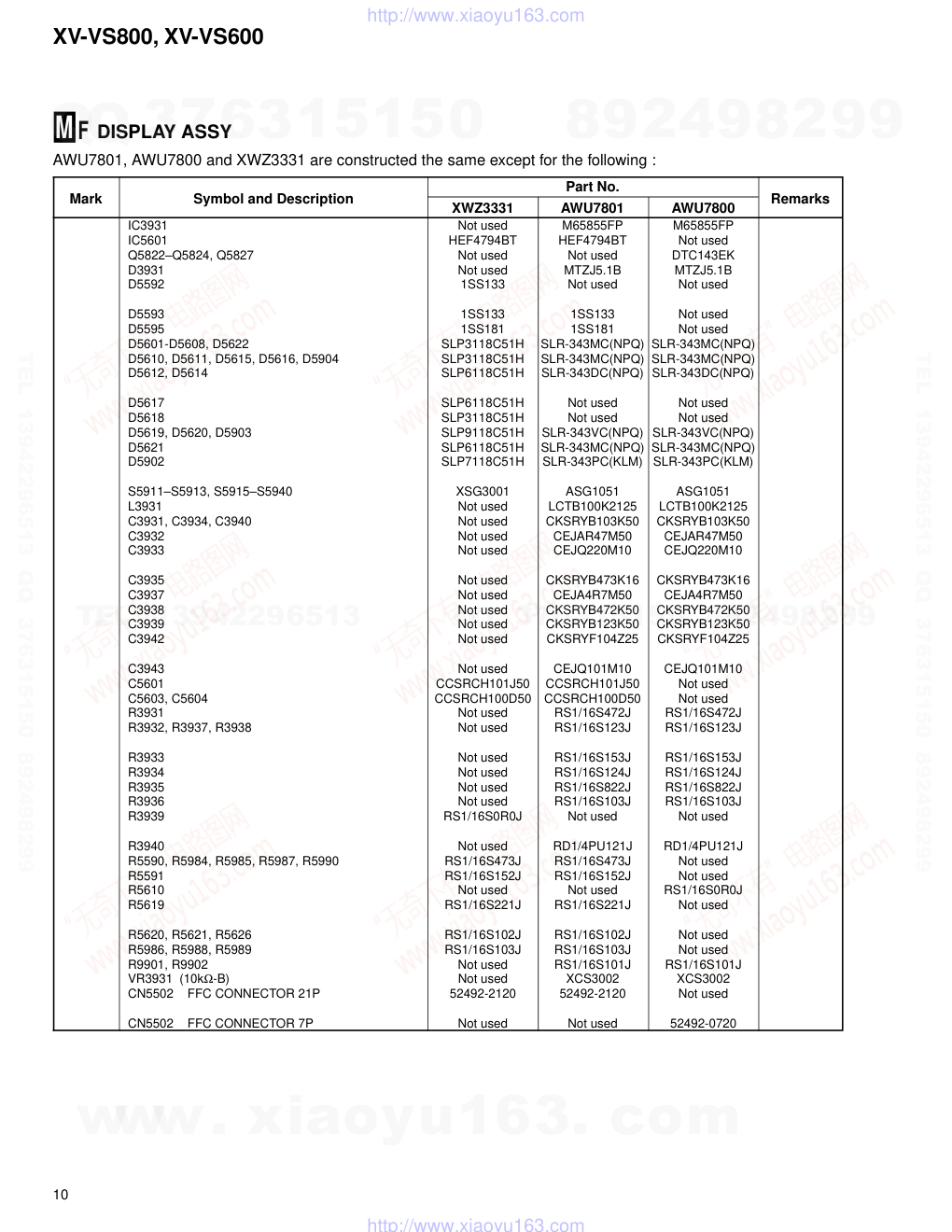

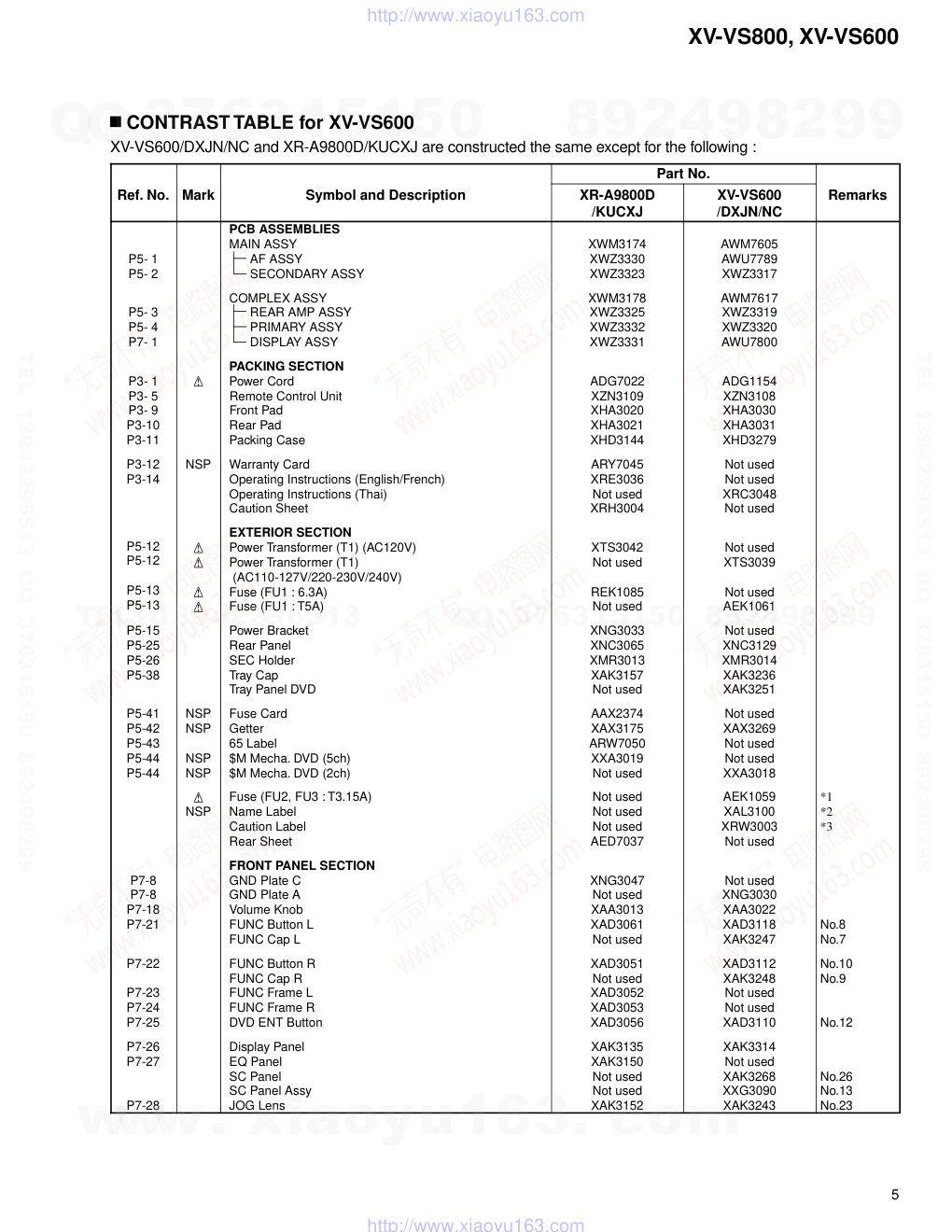

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2001 ORDER NO. RRV2534 T – ZZK SEPT. 2001 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model No. Order No. Remarks XR-A9800D/KUCXJ RRV2329 ¶ This service manual should be used together with the following manual(s): STEREO DVD CASSETTE DECK RECEIVER XV-VS800 XV-VS600 CONTENTS 1. SAFETY INFORMATION ...................................... 2 2. CONTRAST OF MISCELLANEOUS PARTS ........ 3 3. SCHEMATIC DIAGRAM ..................................... 12 4. PCB CONNECTION DIAGRAM .......................... 22 Type Model Power Requirement Region The voltage can be converted by XV-VS800 XV-VS600 No. the following method. DXJN/NC AC110-127V/220-230V/240V 3 With the voltage selector www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 2 1. SAFETY INFORMATION Printed on the Rear Panel LABEL CHECK LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 655 nm FOR CD : MAXIMUM OUTPUT POWER : 5mW WAVELENGTH : 785 nm Additional Laser Caution 1. Inside detection switch (S201 on the SMEB assy) and loading- status detection switch (S9503 on the MOTOR assy) are detected by the microprocessor (IC11 in the DVDM assy). • To permit the laser diode to oscillate, it is required to set the inside detection switch for the inside position (S201 : ON) and to set the loading-status detection switch for the clamp position (the center terminal of S9503 is shorted to +5V). The 655 nm laser diode for DVD oscillation will continue if pin 19 of IC1 is shorted to +5V (fault condition) in the DVDM assy. The 785 nm laser diode for CD oscillates if pin 20 of IC1 is shorted to +5V in the DVDM assy. In the test mode ∗ , the laser diode oscillates when microproces- sor detects a PLAY signal, or when the PLAY key is pressed (S5931 ON in the DISPLAY assy), with the above requirements satisfied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. ∗ : Refer to page 82 on the service manual RRV2329. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 3 2. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 CONTRAST TABLE for XV-VS800 XV-VS800/DXJN/NC and XR-A9800D/KUCXJ are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description XR-A9800D XV-VS800 Remarks /KUCXJ /DXJN/NC PCB ASSEMBLIES MAIN ASSY XWM3174 XWM3172 P5- 1 AF ASSY XWZ3330 XWZ3322 COMPLEX ASSY XWM3178 AWM7618 P5- 4 PRIMARY ASSY XWZ3332 XWZ3326 P7- 1 DISPLAY ASSY XWZ3331 AWU7801 PACKING SECTION P3- 1 Power Cord ADG7022 ADG1154 P3- 5 Remote Control Unit XZN3109 XZN3110 P3- 9 Front Pad XHA3020 XHA3030 P3-10 Rear Pad XHA3021 XHA3031 P3-11 Packing Case XHD3144 XHD3282 P3-12 NSP Warranty Card ARY7045 Not used P3-14 Operating Instructions (English/French) XRE3036 Not used Operating Instructions (Thai) Not used XRC3048 Caution Sheet XRH3004 Not used EXTERIOR SECTION P5-12 Power Transformer (T1) (AC120V) XTS3042 Not used P5-12 Power Transformer (T1) Not used XTS3055 (AC110-127V/220-230V/240V) P5-13 Fuse (FU1 : 6.3A) REK1085 Not used P5-13 Fuse (FU1 : T5A) Not used AEK1061 P5-25 Rear Panel XNC3065 XNC3132 P5-38 Tray Cap XAK3157 XAK3236 Tray Panel DVD Not used XAK3251 For Tray Cap P5-41 NSP Fuse Card AAX2374 Not used P5-42 NSP Getter XAX3175 XAX3271 P5-43 65 Label ARW7050 Not used Fuse (FU2, FU3 : T3.15A) Not used AEK1059 *1 NSP Name Label Not used XAL3102 *2 Caution Label Not used XRW3003 *3 Rear Sheet AED7037 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 4 Notes : For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES” and “3. SCHEMATIC DIAGRAM”. The numbers in the remarks column correspond to the numbers on the “ FRONT PANEL ASSY ”. *1 Refer to “3. SCHEMATIC DIAGRAM”. *2 Stick Name Label on the Rear Panel. *3 Refer to “LABEL CHECK”. Part No. Ref. No. Mark Symbol and Description XR-A9800D XV-VS800 Remarks /KUCXJ /DXJN/NC FRONT PANEL SECTION P7-8 GND Plate C XNG3047 Not used P7-8 GND Plate A Not used XNG3030 P7-18 Volume Knob XAA3013 XAA3022 P7-21 FUNC Button L XAD3061 XAD3118 No.8 FUNC Cap L Not used XAK3247 No.7 P7-22 FUNC Button R XAD3051 XAD3112 No.10 FUNC Cap R Not used XAK3248 No.9 P7-23 FUNC Frame L XAD3052 Not used P7-24 FUNC Frame R XAD3053 Not used P7-25 DVD ENT Button XAD3056 XAD3110 No.12 P7-26 Display Panel XAK3135 XAK3315 P7-27 EQ Panel XAK3150 Not used SC Panel Not used XAK3268 No.26 SC Panel Assy Not used XXG3090 No.13 P7-28 JOG Lens XAK3152 XAK3243 No.23 P7-29 V Lens XAK3153 XAK3313 P7-33 FL Cover XAK3164 XAK3239 P7-34 Cover Sheet L XAK3184 Not used P7-35 Cover Sheet R XAK3185 Not used LED Barrier Not used XEC3022 No.24 P7-36 Power Button XAD3044 XAD3102 No.17 P7-37 CD Button XAD3045 XAD3104 No.19 P7-38 SC Button XAD3060 Not used SC Button L Not used XAD3105 No.29 SC Cap L Not used XAK3241 No.27 SC Button R Not used XAD3106 No.30 SC Cap R Not used XAK3267 No.28 ASES Button Not used XAD3114 No.20 Timer Button Not used XAD3115 No.21 P7-39 SC Button L XAD3047 Not used Audio Button Not used XAD3107 No.14 P7-40 SC Button R XAD3049 Not used Visual Button Not used XAD3108 No.15 P7-41 DOLBY Button XAD3054 XAD3121 No.11 P7-42 Sub Panel XAK3203 XAK3271 No.6 P7-43 Standby Lens XAK3151 XAK3240 No.18 P7-44 Deck Lens L XAK3159 XAK3249 No.3 P7-45 Deck Lens R XAK3160 XAK3250 No.5 P7-46 JOG Conductor XAK3165 XAK3244 No.22 P7-47 Deck Door_L XAN3022 XAN3037 No.2 P7-48 Deck Door_R XAN3026 XAN3038 No.4 P7-49 Front Panel XMB3027 XMB3058 No.1 P7-50 DV Button L XAD3057 Not used P7-51 DV Button R XAD3059 Not used P7-52 NSP Front Panel ASSY XXG3066 XXG3117 O/C Button Not used XAD3103 No.16 Spacer XEB3012 Not used Spacer XEB3013 Not used Cushion Spacer XEB3015 Not used Cushion Spacer XEB3016 Not used Cushion Spacer XEB3017 Not used Spacer XEC3014 Not used Spacer XEC3019 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 5 XV-VS600/DXJN/NC and XR-A9800D/KUCXJ are constructed the same except for the following : CONTRAST TABLE for XV-VS600 Part No. Ref. No. Mark Symbol and Description XR-A9800D XV-VS600 Remarks /KUCXJ /DXJN/NC PCB ASSEMBLIES MAIN ASSY XWM3174 AWM7605 P5- 1 AF ASSY XWZ3330 AWU7789 P5- 2 SECONDARY ASSY XWZ3323 XWZ3317 COMPLEX ASSY XWM3178 AWM7617 P5- 3 REAR AMP ASSY XWZ3325 XWZ3319 P5- 4 PRIMARY ASSY XWZ3332 XWZ3320 P7- 1 DISPLAY ASSY XWZ3331 AWU7800 PACKING SECTION P3- 1 Power Cord ADG7022 ADG1154 P3- 5 Remote Control Unit XZN3109 XZN3108 P3- 9 Front Pad XHA3020 XHA3030 P3-10 Rear Pad XHA3021 XHA3031 P3-11 Packing Case XHD3144 XHD3279 P3-12 NSP Warranty Card ARY7045 Not used P3-14 Operating Instructions (English/French) XRE3036 Not used Operating Instructions (Thai) Not used XRC3048 Caution Sheet XRH3004 Not used EXTERIOR SECTION P5-12 Power Transformer (T1) (AC120V) XTS3042 Not used P5-12 Power Transformer (T1) Not used XTS3039 (AC110-127V/220-230V/240V) P5-13 Fuse (FU1 : 6.3A) REK1085 Not used P5-13 Fuse (FU1 : T5A) Not used AEK1061 P5-15 Power Bracket XNG3033 Not used P5-25 Rear Panel XNC3065 XNC3129 P5-26 SEC Holder XMR3013 XMR3014 P5-38 Tray Cap XAK3157 XAK3236 Tray Panel DVD Not used XAK3251 P5-41 NSP Fuse Card AAX2374 Not used P5-42 NSP Getter XAX3175 XAX3269 P5-43 65 Label ARW7050 Not used P5-44 NSP $M Mecha. DVD (5ch) XXA3019 Not used P5-44 NSP $M Mecha. DVD (2ch) Not used XXA3018 Fuse (FU2, FU3 : T3.15A) Not used AEK1059 *1 NSP Name Label Not used XAL3100 *2 Caution Label Not used XRW3003 *3 Rear Sheet AED7037 Not used FRONT PANEL SECTION P7-8 GND Plate C XNG3047 Not used P7-8 GND Plate A Not used XNG3030 P7-18 Volume Knob XAA3013 XAA3022 P7-21 FUNC Button L XAD3061 XAD3118 No.8 FUNC Cap L Not used XAK3247 No.7 P7-22 FUNC Button R XAD3051 XAD3112 No.10 FUNC Cap R Not used XAK3248 No.9 P7-23 FUNC Frame L XAD3052 Not used P7-24 FUNC Frame R XAD3053 Not used P7-25 DVD ENT Button XAD3056 XAD3110 No.12 P7-26 Display Panel XAK3135 XAK3314 P7-27 EQ Panel XAK3150 Not used SC Panel Not used XAK3268 No.26 SC Panel Assy Not used XXG3090 No.13 P7-28 JOG Lens XAK3152 XAK3243 No.23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 6 Notes : For PCB ASSEMBLIES, Refer to “PCB PARTS LIST”, “3. SCHEMATIC DIAGRAM” and “4. PCB CONNECTION DIAGRAM”. Part No. Ref. No. Mark Symbol and Description XXA3019 XXA3018 Remarks (XR-A9800D) (XV-VS600) P5-10 CONNECT ASSY (6CH) XWX3023 Not used P5-10 CONNECT ASSY (2CH) Not used XWX3019 P5-14 25P Flexible Cable XDD3046 Not used P5-14 15P Flexible Cable Not used XDD3049 P5-18 30P Flexible Cable XDD3044 Not used P5-18 16P Flexible Cable Not used XDD3043 P5-21 7P Flexible Cable/30V XDD3053 ADD7197 P5-23 DVD Base XNG3034 ANG7262 P5-24 DVD Shield XNK3006 ANK7097 P5-55 21P Flexible Cable XDD3052 Not used P5-55 7P Flexible Cable Not used XDD3045 XXA3018 and XXA3019 are constructed the same except for the following : CONTRAST OF $M MECHA. DVD Part No. Ref. No. Mark Symbol and Description XR-A9800D XV-VS600 Remarks /KUCXJ /DXJN/NC P7-29 V Lens XAK3153 XAK3313 P7-33 FL Cover XAK3164 XAK3239 P7-34 Cover Sheet L XAK3184 Not used P7-35 Cover Sheet R XAK3185 Not used LED Barrier Not used XEC3022 No.24 P7-36 Power Button XAD3044 XAD3102 No.17 P7-37 CD Button XAD3045 XAD3104 No.19 P7-38 SC Button XAD3060 Not used SC Button L Not used XAD3105 No.29 SC Cap L Not used XAK3241 No.27 SC Button R Not used XAD3106 No.30 SC Cap R Not used XAK3267 No.28 ASES Button Not used XAD3114 No.20 Timer Button Not used XAD3115 No.21 P7-39 SC Button L XAD3047 Not used Audio Button Not used XAD3107 No.14 P7-40 SC Button R XAD3049 Not used Visual Button Not used XAD3108 No.15 P7-41 DOLBY Button XAD3054 XAD3121 No.11 P7-42 Sub Panel XAK3203 XAK3246 No.6 P7-43 Standby Lens XAK3151 XAK3240 No.18 P7-44 Deck Lens L XAK3159 XAK3249 No.3 P7-45 Deck Lens R XAK3160 XAK3250 No.5 P7-46 JOG Conductor XAK3165 XAK3244 No.22 P7-47 Deck Door_L XAN3022 XAN3037 No.2 P7-48 Deck Door_R XAN3026 XAN3038 No.4 P7-49 Front Panel XMB3027 XMB3058 No.1 P7-50 DV Button L XAD3057 Not used P7-51 DV Button R XAD3059 Not used P7-52 NSP Front Panel ASSY XXG3066 XXG3113 O/C Button Not used XAD3103 No.16 Spacer XEB3012 Not used Spacer XEB3013 Not used Cushion Spacer XEB3015 Not used Cushion Spacer XEB3016 Not used Cushion Spacer XEB3017 Not used Spacer XEC3014 Not used Spacer XEC3019 Not used Notes : For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES” and “3. SCHEMATIC DIAGRAM”. The numbers in the remarks column correspond to the numbers on the “ FRONT PANEL ASSY ”. *1 Refer to “3. SCHEMATIC DIAGRAM”. *2 Stick Name Label on the Rear Panel. *3 Refer to “LABEL CHECK”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 7 (1) FRONT PANEL ASSY PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Front Panel XMB3058 2 Deck Door_L XAN3037 3 Deck Lens L XAK3249 4 Deck Door_R XAN3038 5 Deck Lens R XAK3250 6 Sub Panel See Contrast table (2) 7 FUNC Cap L XAK3247 8 FUNC Button L XAD3118 9 FUNC Cap R XAK3248 10 FUNC Button R XAD3112 11 DOLBY Button XAD3121 12 CD ENT Button XAD3110 13 SC Panel Assy XXG3090 14 Audio Button XAD3107 15 Visual Button XAD3108 16 O/C Button XAD3103 17 Power Button XAD3102 18 Standby Lens XAK3240 19 CD Button XAD3104 20 ASES Button XAD3114 21 Timer Button XAD3115 22 JOG Conductor XAK3244 23 JOG Lens XAK3243 24 LED Barrier XEC3022 25 Screw BPZ30P080FMC 26 SC Panel XAK3268 27 SC Cap L XAK3241 28 SC Cap R XAK3267 29 SC Button L XAD3105 30 SC Button R XAD3106 FRONT PANEL ASSY (2) CONTRAST TABLE XV-VS600 and XV-VS800 are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks XV-VS800 XV-VS600 6 Sub Panel XAK3271 XAK3246 12 1 13 15 18 17 19 16 24 22 25 21 9 6 10 11 5 4 25 23 14 20 7 8 3 2 27, 29 26 28, 30 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 8 AF ASSY F I XWZ3322, AWU7789 and XWZ3330 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3330 XWZ3322 AWU7789 IC3301 STK407-070B STK407-070B STK407-090B IC3305, IC3306 (5A) AEK7019 AEK7019 Not used IC3305, IC3306 (7A) Not used Not used AEK7021 IC3835 Not used M65847AFP M65847AFP Q3351 IRFI9Z34G IRFI9Z34G IRF9540A Q3352 IRFIZ34G IRFIZ34G IRF540A Q3803 Not used 2SD1858X 2SD1858X D3002 1SS133 1SS133 Not used D3803 Not used MTZJ5.6B MTZJ5.6B F2201, F2202 RTF1209 XTF3002 XTF3002 L3065 CHIP BEAD VTL1081 VTL1081 Not used L3065 Not used Not used LCTB4R7K1608 C3011, C3012 Not used Not used CEAT100M50 C3042, C3991 CKSRYB103K50 CKSRYB103K50 Not used C3045, C3046, C3091 CEAT100M50 CEAT100M50 CEAT101M16 C3623, C3624 CKSRYB471K50 CKSRYB471K50 Not used C3625 CEAT330M16 CEAT330M16 Not used C3815 Not used CEAT100M50 CEAT100M50 C3816, C3819 Not used CEAT470M16 CEAT470M16 C3817 Not used CKSRYB473K16 CKSRYB473K16 C3818 Not used CCSRCH101J50 CCSRCH101J50 C3828–C3830 Not used CKSRYB683K16 CKSRYB683K16 C3831 Not used CKSRYB102K50 CKSRYB102K50 C3832 Not used CKSRYB122K50 CKSRYB122K50 C3833–C3836 Not used CKSRYB103K50 CKSRYB103K50 C3837 Not used CCSRCH471J50 CCSRCH471J50 C3838 Not used CKSRYB472K50 CKSRYB472K50 C3839, C3840 Not used CKSRYB224K10 CKSRYB224K10 C3842, C3843 Not used CEAT2R2M50 CEAT2R2M50 C3858 CEAT100M50 Not used Not used C3890 Not used CKSRYB822K50 CKSRYB822K50 R3010 RS1/16S822J RS1/16S822J RS1/16S472J R3026 RD1/4PU822J RD1/4PU822J RD1/4PU472J R3619, R3620 RD1/4LMF100J RD1/4LMF100J RD1/2LMF100J R3627 RS1/16S471J RS1/16S471J Not used R3831 Not used RD1/4PU102J RD1/4PU102J R3832–R3834 Not used RS1/16S102J RS1/16S102J R3835, R3839 Not used RS1/16S682J RS1/16S682J R3836, R3837 Not used RS1/16S472J RS1/16S472J R3838, R3846 Not used RS1/16S153J RS1/16S153J R3840–R3842, R3844, R3845 Not used RS1/16S103J RS1/16S103J R3843 Not used RS1/16S562J RS1/16S562J R3855 Not used RS1/16S680J RS1/16S680J CN3601 4P SPEAKER TERMINAL AKE7018 XKE3004 AKE7018 CN3603 9P JUMPER CONNECTOR KPE9 KPE9 Not used CN5104 30P FFC CONNECTOR HLEM30R-1 HLEM30R-1 Not used CN5104 16P FFC CONNECTOR Not used Not used HLEM16R-1 JA3441 2P PIN JACK Not used Not used VKB1060 JA3991 HEADPHONE JACK XKN3009 XKN3009 AKN-056 J3001 EARTH READ WIRE DE020WF0 DE020WF0 Not used SCREW Not used Not used BBZ30P140FMC MICA SHEET Not used Not used XEE3003 FET BRACKET Not used Not used XNG3016 CONTRAST OF PCB ASSEMBLIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 9 REAR AMP ASSY F K XWZ3319 and XWZ3325 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3325 XWZ3319 IC3401 STK402-230 Not used Q3401–Q3404 2SD2114K Not used Q3405, Q3410 DTA124EK Not used Q3406–Q3409, Q3411–Q3413, Q3415 2SC2412K Not used Q3414, Q3471, Q3472 2SA1037K Not used D3425, D3426, D3471, D3472 1SS355 Not used D3403–D3406, D3408, D3427, D3428 1SS133 Not used D3409 MTZJ12C Not used D3429 MTZJ4.7B Not used L3401–L3403 AF CHOKE COIL ATH-133 Not used L3404 CHIP BEAD VTL1081 Not used RY3401, RY3402 ASR7017 Not used C3401–C3403 CEANP2R2M50 Not used C3404–C3406 CKSRYB222K50 Not used C3407–C3409 CCSRCH221J50 Not used C3410–C3412 CEANP100M35 Not used C3413–C3415 CCSRCJ3R0C50 Not used C3416, C3417, C3431 CEAT101M50 Not used C3419 CEATR47M50 Not used C3420 CEAT101M10 Not used C3421 CEAT100M50 Not used C3422, C3471, C3472 CCSRCH100D50 Not used C3423, C3424, C3429 CKSRYB103K50 Not used C3425–C3428 CKSRYF104Z25 Not used C3432 CEAT221M16 Not used R3401–R3404 RS1/16S332J Not used R3405–R3408 RS1/16S102J Not used R3409–R3411 RS1/10S273J Not used R3412 RS1/10S104J Not used R3413–R3415 RS1/16S563J Not used R3416–R3418 RS1/10S561J Not used R3419–R3421 RD1/4PU563J Not used R3422 RS1/10S223J Not used R3424 RS1/16S102J Not used R3425–R3428 RS1/10S823J Not used R3429, R3430, R3432 RS1/10S153J Not used R3433 RS1/16S273J Not used R3434, R3475, R3476 RS1/10S392J Not used R3435 RS1/16S104J Not used R3436, R3437, R3439, R3440 RS1/16S223J Not used R3438 RS1/16S103J Not used R3441 RS1/16S224J Not used R3442–R3444 RD1/4LMF100J Not used R3445–R3447 RS1/16S100J Not used R3448 RS3LMF102J Not used R3449 RD1/4PU681J Not used R3471–R3473 RS1LMFR22J Not used R3477–R3478 RD1/4MUF101J Not used R3474 RS1/16S0R0J Not used CN3401 1P PIN JACK AKB7042 Not used CN3404 FFC CONNECTOR 25P HLEM25R-1 Not used CN3404 FFC CONNECTOR 15P Not used HLEM15R-1 J3401 JUMPER WIRE D15A09-100-2651 Not used JA3403 AUDIO 3P PIN JACK XKB3007 Not used J3409 JUMPER WIRE DB018NT0 Not used 9P CABLE HOLDER 51063-0905 51063-1105 11P CABLE HOLDER 51063-1105 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 10 AWU7801, AWU7800 and XWZ3331 are constructed the same except for the following : DISPLAY ASSY F M Mark Symbol and Description Part No. Remarks XWZ3331 AWU7801 AWU7800 IC3931 Not used M65855FP M65855FP IC5601 HEF4794BT HEF4794BT Not used Q5822–Q5824, Q5827 Not used Not used DTC143EK D3931 Not used MTZJ5.1B MTZJ5.1B D5592 1SS133 Not used Not used D5593 1SS133 1SS133 Not used D5595 1SS181 1SS181 Not used D5601-D5608, D5622 SLP3118C51H SLR-343MC(NPQ) SLR-343MC(NPQ) D5610, D5611, D5615, D5616, D5904 SLP3118C51H SLR-343MC(NPQ) SLR-343MC(NPQ) D5612, D5614 SLP6118C51H SLR-343DC(NPQ) SLR-343DC(NPQ) D5617 SLP6118C51H Not used Not used D5618 SLP3118C51H Not used Not used D5619, D5620, D5903 SLP9118C51H SLR-343VC(NPQ) SLR-343VC(NPQ) D5621 SLP6118C51H SLR-343MC(NPQ) SLR-343MC(NPQ) D5902 SLP7118C51H SLR-343PC(KLM) SLR-343PC(KLM) S5911–S5913, S5915–S5940 XSG3001 ASG1051 ASG1051 L3931 Not used LCTB100K2125 LCTB100K2125 C3931, C3934, C3940 Not used CKSRYB103K50 CKSRYB103K50 C3932 Not used CEJAR47M50 CEJAR47M50 C3933 Not used CEJQ220M10 CEJQ220M10 C3935 Not used CKSRYB473K16 CKSRYB473K16 C3937 Not used CEJA4R7M50 CEJA4R7M50 C3938 Not used CKSRYB472K50 CKSRYB472K50 C3939 Not used CKSRYB123K50 CKSRYB123K50 C3942 Not used CKSRYF104Z25 CKSRYF104Z25 C3943 Not used CEJQ101M10 CEJQ101M10 C5601 CCSRCH101J50 CCSRCH101J50 Not used C5603, C5604 CCSRCH100D50 CCSRCH100D50 Not used R3931 Not used RS1/16S472J RS1/16S472J R3932, R3937, R3938 Not used RS1/16S123J RS1/16S123J R3933 Not used RS1/16S153J RS1/16S153J R3934 Not used RS1/16S124J RS1/16S124J R3935 Not used RS1/16S822J RS1/16S822J R3936 Not used RS1/16S103J RS1/16S103J R3939 RS1/16S0R0J Not used Not used R3940 Not used RD1/4PU121J RD1/4PU121J R5590, R5984, R5985, R5987, R5990 RS1/16S473J RS1/16S473J Not used R5591 RS1/16S152J RS1/16S152J Not used R5610 Not used Not used RS1/16S0R0J R5619 RS1/16S221J RS1/16S221J Not used R5620, R5621, R5626 RS1/16S102J RS1/16S102J Not used R5986, R5988, R5989 RS1/16S103J RS1/16S103J Not used R9901, R9902 Not used RS1/16S101J RS1/16S101J VR3931 (10kΩ-B) Not used XCS3002 XCS3002 CN5502 FFC CONNECTOR 21P 52492-2120 52492-2120 Not used CN5502 FFC CONNECTOR 7P Not used Not used 52492-0720 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 11 Mark No. Description Part No. Mark No. Description Part No. ÷ PCB PARTS LIST for XV-VS600 CONNECT ASSY (2CH) SEMICONDUCTORS IC8202 LA7137M IC8203 NJM78L08A IC8301 PCM1716E IC8201 TA7302P Q8203, Q8204 2PB709A Q8205, Q8206 2SD2114K Q8302 DTA124EK Q8201 DTC114YK Q8301 DTC124EK Q8202 PDTA124EK D8304, D8305 1SS355 COILS AND FILTERS L8201 LCTA470J2520 L8241–L8245 CHIP BEADS VTL1081 L8103 CHIP BEADS VTL1095 L8205 CHIP SOLID INDUCTOR VTL1145 CAPACITORS C8104 CCSRCH101J50 C8105, C8106, C8109, C8110, C8316 CCSRCH221J50 C8201 CCSRCH390J50 C8111 CEAT102M10 C8311, C8312 CEJA100M16 F G Mark Symbol and Description Part No. Remarks XWZ3332 XWZ3326 XWZ3320 S1 VOLTAGE SELECTOR Not used XKX3001 XKX3001 R1 (2.2MΩ/ 1/2W) RCN1080 Not used Not used AN1 1P AC INLET XKP3042 XKP3041 XKP3041 CN2 4P VH CONNECTOR Not used B4P7-VH B4P7-VH H3–H6 FUSE CLIP Not used AKR7001 AKR7001 PRIMARY ASSY F L XWZ3326, XWZ3320 and XWZ3332 are constructed the same except for the following : SECONDARY ASSY F J XWZ3317 and XWZ3323 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3323 XWZ3317 C33, C34 (4700µF/80V) ACH7071 Not used C33, C34 (4700µF/71V) Not used XCH3001 C8209, C8210, C8217, C8226, C8227 CEJA101M10 C8235 CEJA101M10 C8212, C8223 CEJA331M6R3 C8302, C8305, C8306, C8309 CEJA470M10 C8317 CEJQ470M10 C8301, C8315 CGCYX104K25 C8101, C8232, C8233, C8304 CKSRYB103K50 C8202–C8206, C8208, C8211 CKSRYB104K16 C8213, C8214, C8216, C8221, C8222 CKSRYB104K16 C8228, C8236, C8237, C8308 CKSRYB104K16 C8313, C8314 CKSRYB681K50 RESISTORS All Resistors RS1/16S&&&J OTHERS CN8202 4P MINI DIN SOCKET AKP7008 JA8203 OPTICAL LINK OUT GP1F32T CN8105 FFC CONNECTOR 15P HLEM15S-1 CN8103 FFC CONNECTOR 16P HLEM16S-1 CN8104 FFC CONNECTOR 7P HLEM7S-1 JA8201 1P PIN JACK VKB1063 CN8106 7P FFC CONNECTOR VKN1183 CN8102 27P FFC CONNECTOR VKN1203 CN8107 7P FFC CONNECTOR VKN1211 CN8101 32P FFC CONNECTOR VKN1263 KN8301 EARTH METAL FITTING VNF1084 S8201 SLIDE SWITCH VSH1020 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 12 A B C D 1 2 3 4 1 2 3 4 CN80 F 3/3F CN20 F 1/3 (V) (C) (V) (Y) (C) (D) (D) (D) (Y) (Y) (Y) (Y) (V) (V) (C) (C) (Y) (Y) F G 3.1 CONNECT ASSY (2CH) for XV-VS600 3. SCHEMATIC DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 13 A B C D 5 6 7 8 5 6 7 8 G F CONNECT ASSY (2 CH) (XWX3019) CN6 F 2/3 : The power supply is shown with the marked box. : DVD AUDIO SIGNAL ROUTE : V SIGNAL ROUTE : Y SIGNAL ROUTE : C SIGNAL ROUTE (V) (Y) (C) (D) CN5104 I 2/3F MFCN5502 CN3404 K : AUDIO SIGNAL ROUTE F G Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 14 A B C D 1 2 3 4 1 2 3 4 3/3F I CN5501 LC75396NE CN8103 G 4/4 CN8103 G F FOR XV-VS600 FOR XV-VS800 MF XV-VS800 ONLY L3065 XV-VS800 : VTL1081 XV-VS600 : 4.7µH R3026 XV-VS800 : 8.2k XV-VS600 : 4.7k R3010 XV-VS800 : 8.2k XV-VS600 : 4.7k XV-VS600 ONLY : DECK REC SIGNAL ROUTE (PB) : KARAOKE SIGNAL ROUTE (REC) : AUDIO SIGNAL ROUTE : AUDIO (FRONT) SIGNAL ROUTE (F) (K) : MIC SIGNAL ROUTE (MIC) : TUNER AUDIO SIGNAL ROUTE (TA) (TA) (TA) (TA) (OUT) (OUT) (PB) (PB) (MIC) (F) (F) (F) (MIC) (OUT) (TA) (PB) (F) (F) (F) (PB) (OUT) : REC OUT SIGNAL ROUTE (OUT) : DECK PB SIGNAL ROUTE 3.2 AF ASSY (2/3) 2/3F I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 15 A B C D 5 6 7 8 5 6 7 8 I 2/3F AF ASSY (XV-VS800 : XWZ3322) (XV-VS600 : AWU7789) 3/3F I 3/3 I 3/3F I 3/3F I 3/3F I 1/3,3/3F I 1/3 I CN6201 H BA4558F-HT BA4558F-HT BA4558F-HT BA4558F-HT XV-VS800 ONLY (MIC) (TA) (PB) (PB) (REC) (REC) (PB) (MIC) (MIC) (MIC) (F) (K) (F) (F) (F) (F) (K) (MIC) (K) (K) (TA) 2/3F I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 16 A B C D 1 2 3 4 1 2 3 4 2/3F I 1/3 I 2/3F I 1/3 I 2/3F I 2/3F I J3401 K J3402 K 1SR139-100 1SR139-100 1/2 1/2 2/2 2/2 IC3305, IC3306 XV-VS800 : AEK7019 XV-VS600 : AEK7021 IC3301 XV-VS800 : STK407-070B XV-VS600 : STK407-090B Q3351 XV-VS800 : IRFI9Z34G XV-VS600 : IRF9540A Q3352 XV-VS800 : IRFIZ34G XV-VS600 : IRF540A XV-VS800 ONLY (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) I 3/3F AF ASSY (XV-VS800 : XWZ3322) (XV-VS600 : AWU7789) 3.3 AF (3/3) and SECONDARY ASSYS 3/3F I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 17 A B C D 5 6 7 8 5 6 7 8 2/3F I SECONDARY ASSY (XV-VS800 : XWZ3323) (XV-VS600 : XWZ3317) JA3991 XKN3007 FAN MOTOR To POWER TRANSFORMER CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491005 MFD, BY LITTELFUSE INC. FOR IC15, IC3305 AND IC3306 (AEK7019). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.630 MFD, BY LITTELFUSE INC. FOR IC17 (AEK7006). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 4911.25 MFD, BY LITTELFUSE INC. FOR IC3302 (AEK7010). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491004 MFD, BY LITTELFUSE INC. FOR IC16 (AEK7018). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491010 MFD, BY LITTELFUSE INC. FOR IC11 AND IC12 (AEK7022). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491010F MFD, BY LITTELFUSE INC. FOR IC13 AND IC14 (AEK7068). XV-VS800 : XKE3004 XV-VS600 : AKE7018 C33, C34 XV-VS800 : ACH7071 XV-VS600 : XCH3001 JA3991 XV-VS800 : XKN3009 XV-VS600 : AKN-056 XV-VS800 ONLY XV-VS800 ONLY XV-VS800 ONLY XV-VS600 ONLY : AUDIO (FRONT) SIGNAL ROUTE (F) (F) (F) (F) (F) (F) (F) (F) (F) J F F J 3/3F I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 18 A B C D 1 2 3 4 1 2 3 4 F L 3.4 PRIMARY ASSY POWER TRANSFORMER XV-VS800 : XTS3055 XV-VS600 : XTS3039 J81 SECONDARY ASSY M F J F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 19 A B C D 5 6 7 8 5 6 7 8F L AEK1061 (T5A) AEK1059 (T3.15A) AEK1059 (T3.15A) • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - PRIMARY ASSY (XV-VS800 : XWZ3326) (XV-VS600 : XWZ3320) L F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 20 A B C D 1 2 3 4 1 2 3 4 DISPLAY ASSY (XV-VS800 : AWU7801) (XV-VS600 : AWU7800) BLUE LED ASSY (XWZ3321) N orange SLR-343DC(NPQ) green SLR-343MC(NPQ) green SLR-343MC(NPQ) D5619,D5620: red SLR-343VC(NPQ) FL TUBE 10MHz PDC064A D5601-D5608, D5621, D5622 : SLR-343MC(NPQ) XV-VS800 ONLY M F (MIC) (MIC) (MIC) (MIC) (MIC) (MIC) MIC F M 3.5 DISPLAY and BLUE LED ASSYS N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 21 A B C D 5 6 7 8 5 6 7 8 CN81 To DECK MECHANISM UNIT CN5105 I 2/3F CN8104 G 4/4 CN8104 G F : The power supply is shown with the marked box. D5902: SLR-343PC(KLM) D5903: SLR-343VC(NPQ) D5904: SLR-343MC(NPQ) S5911 : DISC 1 S5912 : DISC 3 S5913 : DISC 2 S5914 : STANDBY/ON S5915 : DISC CHANGE S5916 : OPEN/CLOSE S5917 : EQUALIZER S5918 : AUDIO MODE S5919 : ZOOM SURROUND S5920 : ASES/COPY S5921 : REC/STOP S5922 : DOLBY/DTS S5923 : TAPE Ι/ΙΙ S5924 : AUX S5925 : DVD/CD S5926 : TUNER BAND S5927 : 2NR ON/OFF S5928 : VIDEO NR S5929 : SET S5930 : THEATER CONTROL S5931 : P.BASS(DEMO) S5932 : DISPLAY MODE S5933 : VISUAL MODE S5934 : MONO S5935 : FREQ/STATION S5936 : TIMER/CLOCK ADJ S5937 : 7 (STOP/ST.MEMORY) S5938 : ¢/¡• + (TUNING+) S5939 : ` /8 (PLAY/PAUSE) S5940 : – •1/4 (TUNING–) S5951 : VOLUME UP/DPWN S5952 : JOG dial XV-VS800 ONLY XV-VS800 ONLY XV-VS800 ONLY ASG1051 S5911-S5913, S5915-S5941 XSG3002 S5914 Q5822-Q5824 XV-VS600 ONLY FOR XV-VS600 FOR XV-VS600 FOR XV-VS800 FOR XV-VS800 L F : MIC SIGNAL ROUTE (MIC) (MIC) (MIC) (MIC) J81 F M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 22 A B C D 1 2 3 4 1 2 3 4 4. PCB CONNECTION DIAGRAM 4.1 CONNECT ASSY (2CH) for XV-VS600 F G (XNP3030-B) IC8201 IC8203 CN20 F CONNECT ASSY (2CH) CN5104 I CN6 F CN80 F CN5502 M CN3404 K SIDE A G F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-VS800, XV-VS600 23 A B C D 1 2 3 4 1 2 3 4F G IC8204 IC8301 Q8202 Q8201 Q8204 Q8203 Q8205 Q8301 Q8302 Q8206 IC8202 (XNP3030-B) SIDE B CONNECT ASSY (2CH) G F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
