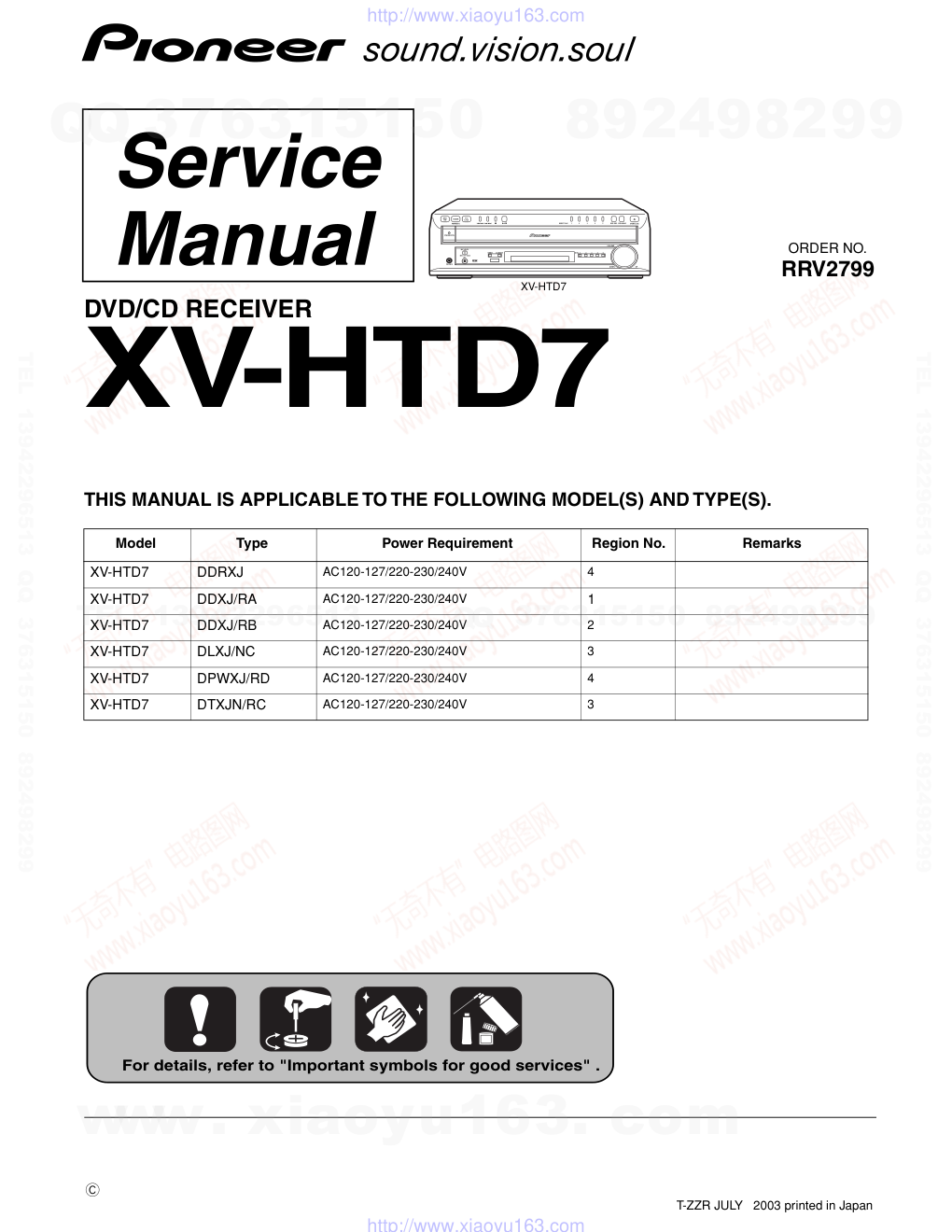

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 TIMER CD MODE DISC 1 2 3 4 5 PHONES STANDBY/ON DOWN UP VOLUME TUNER DVD /CD TV/ L1/L2 FM/AM/ST. DIRECT PLAY DISC SKIP EXCHANGE OPEN/CLOSE 1 2 3 4 5 MIC MIN MAX MIC LEVEL XV-HTD7 RRV2799 DVD/CD RECEIVER XV-HTD7 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Remarks XV-HTD7 DDRXJ AC120-127/220-230/240V 4 XV-HTD7 DDXJ/RA AC120-127/220-230/240V 1 XV-HTD7 DDXJ/RB AC120-127/220-230/240V 2 XV-HTD7 DLXJ/NC AC120-127/220-230/240V 3 XV-HTD7 DPWXJ/RD AC120-127/220-230/240V 4 XV-HTD7 DTXJN/RC AC120-127/220-230/240V 3 For details, refer to "Important symbols for good services" . T-ZZR JULY 2003 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 2 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 3 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION......................................................................................................................................2 1. SPECIFICATIONS.............................................................................................................................................5 2. EXPLODED VIEWS AND PARTS LIST.............................................................................................................6 2.1 PACKING ....................................................................................................................................................6 2.2 EXTERIOR SECTION ................................................................................................................................8 2.3 FRONT PANEL SECTION ........................................................................................................................10 2.4 TABLE MECHANISM SECTION...............................................................................................................12 2.5 TRAVERSE MECHANISM ASSY-S ..........................................................................................................14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..........................................................................................16 3.1 BLOCK DIAGRAM DVD SECTION...........................................................................................................16 3.2 BLOCK DIAGRAM MAIN SECTION.........................................................................................................18 3.3 OVERALL WIRING DIAGRAM .................................................................................................................20 3.4 TRSB, SSRB, LOMB and SSIB ASSYS ...................................................................................................22 3.5 DVDM ASSY (1/3) ....................................................................................................................................24 3.6 DVDM ASSY (2/3) ....................................................................................................................................26 3.7 DVDM ASSY (3/3) ....................................................................................................................................28 3.8 FM/AM TUNER MODULE.........................................................................................................................30 3.9 AF ASSY (1/4) ..........................................................................................................................................32 3.10 AF ASSY (2/4) ........................................................................................................................................34 3.11 AF ASSY (3/4) ........................................................................................................................................36 3.12 AF(4/4), DIODE L and DIODE S ASSYS................................................................................................38 3.13 6CH AMP ASSY .....................................................................................................................................40 3.14 DSP ASSY (1/2) .....................................................................................................................................42 3.15 DSP ASSY (2/2) .....................................................................................................................................44 3.16 AMP TRADE, DSP TRADE, VIDEO JACK and PRIMARY ASSYS ........................................................46 [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 4 1 2 3 4 1 2 3 4 C D F A B E 3.17 DISPLAY, JOG, DISC KEY, HP MIC and FUNCTION KEY ASSYS....................................................... 48 3.18 DVDM WAVEFORMS............................................................................................................................. 50 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 52 4.1 TRSB, SSRB, LOMB and SSIB ASSYS................................................................................................... 53 4.2 DVDM ASSY ............................................................................................................................................ 54 4.3 AF ASSY.................................................................................................................................................. 56 4.4 6CH AMP, DIODE S and DIODE L ASSYS.............................................................................................. 60 4.5 DSP, DSP TRADE and AMP TRADE ASSYS .......................................................................................... 62 4.6 VIDEO JACK and PRIMARY ASSYS....................................................................................................... 64 4.7 DISPLAY, JOG, DISC KEY, HP MIC and FUNCTION KEY ASSYS......................................................... 66 4.8 FM/AM TUNER MODULE........................................................................................................................ 70 5. PCB PARTS LIST ........................................................................................................................................... 71 6. ADJUSTMENT ............................................................................................................................................... 83 6.1 TUNER SECTION.................................................................................................................................... 83 6.2 ADJUSTMENT ITEMS AND LOCATION ................................................................................................. 84 6.3 JIGS AND MEASURING INSTRUMENTS............................................................................................... 84 6.4 NECESSARY ADJUSTMENT POINTS ................................................................................................... 85 6.5 TEST MODE ............................................................................................................................................ 86 6.6 MECHANISM ADJUSTMENT.................................................................................................................. 87 7. GENERAL INFORMATION............................................................................................................................. 89 7.1 DIAGNOSIS ............................................................................................................................................. 89 7.1.1 TEST MODE...................................................................................................................................... 89 7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE............................................................................ 91 7.1.3 FUNCTIONAL SPECIFICAION OF THE SHORTCUT KEY .............................................................. 92 7.1.4 SPECIFICAION OF MODEL INFORMATION DISPLAY.................................................................... 93 7.1.5 FUNCTIONAL SPECIFICAION OF THE SERVICE MODE............................................................... 94 7.1.6 MECHANICAL ERROR HISTORY..................................................................................................... 95 7.1.7 ID NUMBER AND ID DATA SETTING ............................................................................................... 99 7.1.8 TROUBLE SHOOTING.................................................................................................................... 102 7.1.9 DSP TROUBLE SHOOTNG ............................................................................................................ 107 7.1.10 POWER ON SEQUENCE.............................................................................................................. 111 7.1.11 WAVEFORM POINTS LOCATION................................................................................................. 112 7.1.12 PROTECTION CIRCUIT................................................................................................................ 114 7.1.13 DISASSEMBLY.............................................................................................................................. 119 7.2 PARTS.................................................................................................................................................... 133 7.2.1 IC ..................................................................................................................................................... 133 7.2.2 DISPLAY.......................................................................................................................................... 146 7.2.3 CLEANING ...................................................................................................................................... 147 8. PANEL FACILITIES ...................................................................................................................................... 148 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS Accessories Remote Control Unit x 1 (AXD7353) FM Antenna x 1 (ADH7004) AM Loop Antenna x 1 (ATB7009) AA/R6P Dry Cell Batteries x 2 Power Cord x 1 (ADG1158) Video Cord x 1 (VDE1065) Yellow (L=1.5m) Power Cord x 1 (ADG1160) OPEN/CLOSE STANDBY/ON L1/L2 FM/AM AUDIO SUBTITLE ANGLE ZOOM AUTO FOLDER MUTE SURROUND SYSTEM SETUP HOME MENU TOP MENU DVD MENU SOUND MODE RETURN SHIFT QUIET/ MIDNIGHT ADVANCED ROOM SETUP BASS MODE VIR.SB DIALOGUE ST TUNE VOLUME ST TUNE DVD/CD CLEAR ENTER ENTER TUNER TV LINE DVD FOLDER PROGRAM REPEAT RANDOM TEST TONE CH LEVEL TIMER DISPLAY DISC 1 DISC 2 DISC 3 DISC 4 SURROUND 5.1ch DVD SYSTEM DISC 5 CD MODE DISC SKIP DIMMER Specifications Amplifier section Continuous Power Output (RMS): Front, center, surround. . . . .100 W per channel (1 kHz, 10 % T.H.D., 6 Ω) Subwoofer . . .100 W (100 Hz, 10 % T.H.D., 6 Ω) Disc section Digital audio characteristics . . . . . . . . DVD fs: 96 kHz, 24-bit Type. . . . . . . DVD system, video CD system and compact disc digital audio system Frequency response . . . . . . . . . . 4 Hz to 44 kHz Wow and Flutter. . . . . . . .Limit of measurement (±0.001 % W.PEAK) or less (JEITA) FM tuner section Frequency range . . . . . . . . . . . . .87.5 – 108 MHz Antenna . . . . . . . . . . . . . . . . . 75 Ω, unbalanced AM tuner section Frequency range With 9 kHz step . . . . . . . . . 531 kHz to 1,602 kHz With 10 kHz step . . . . . . . . 530 kHz to 1,700 kHz (Except for Saudi Arabia model) Antenna . . . . . . . . . . . . . . . . . . . . .Loop antenna Miscellaneous Power requirements . . . . . . AC 120-127V / 220-230V / 240V / 50/60Hz Power consumption . . . . . . . . . . . . . . . . . 180 W Power consumption in standby . . . . . . . . . . . . . . . . . . . . . . . . 0.40 W (120V/ 60Hz) . . . . . . . . . . . . . . . . . . . . .0.58 W (127V/ 50/60Hz) Dimensions . . . 420 (W) x 125 (H) x 448 (D) mm Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.8 kg Accessories (DVD/CD receiver) Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . 1 AA/R6P dry cell batteries. . . . . . . . . . . . . . . . . . 2 Video cable (yellow plugs). . . . . . . . . . . . . . . . . 1 AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . 1 FM antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Power cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 (Central and South American model x2) Power plug adapter . . . . . . . . . . . . . . . . . . . . . .1 (Central and South American model, PX model and Duty-free model within Japan only) Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . .1 (Australian and New Zealand model only) Operating instructions Speaker System Front speakers Enclosure . . . . . . . . .Closed-box bookshelf type (magnetically shielded) System. . . . . . . . . . . . . . . . . . . . . . .2-way system Speakers Woofer . . . . . . . . . . . . . . . . . 10 cm cone type Tweeter . . . . . . . . . . . . . . . . .5.2 cm cone type Nominal impedance. . . . . . . . . . . . . . . . . . . .6 Ω Frequency range . . . . . . . . . . . .60 Hz to 20 kHz Maximum Input Power. . . . . . . . . . . . . . . .100 W Dimensions. . . .145 (W) x 235 (H) x 204 (D) mm Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 kg Center speaker Enclosure . . . . . . . . .Closed-box bookshelf type (magnetically shielded) System. . . . . . . . . . . . . . . . .8.7 cm 1-way system Speakers . . . . . . . . . . . . . . . . . .8.7 cm cone type Nominal impedance. . . . . . . . . . . . . . . . . . . .6 Ω Frequency range . . . . . . . . . . . .70 Hz to 20 kHz Maximum Input Power. . . . . . . . . . . . . . . .100 W Dimensions. . . . .310 (W) x 110 (H) x 85 (D) mm Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 kg Surround speakers Enclosure . . . . . . . . .Closed-box bookshelf type (magnetically shielded) System. . . . . . . . . . . . . . . . .8.7 cm 1-way system Speakers . . . . . . . . . . . . . . . . . .8.7 cm cone type Nominal impedance. . . . . . . . . . . . . . . . . . . . 6 Ω Frequency range . . . . . . . . . . . .90 Hz to 20 kHz Maximum Input Power. . . . . . . . . . . . . . . .100 W Dimensions . . . . .110 (W) x 155 (H) x 82 (D) mm Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8 kg Subwoofer Enclosure . . . . . . . . . . . . . Bass-reflex floor type System. . . . . . . . . . . . . . . . . 16 cm 1-way system Speaker . . . . . . . . . . . . . . . . . . . 16 cm cone type Nominal impedance. . . . . . . . . . . . . . . . . . . . 6 Ω Frequency range . . . . . . . . . . . . .35 Hz to 2 kHz Maximum Input Power. . . . . . . . . . . . . . . .100 W Dimensions . . . .190 (W) x 360 (H) x 327 (D) mm Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0 kg Accessories (Speaker system) Speaker cables. . . . . . . . . . . . . . . . . . . . . . . . . . .6 non-skid pads. . . . . . . . . . . . . . . . . . . . . . 1 sheet • Specifications and design subject to possible modification without notice, due to improvements. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: FRONT 10 DDRXJ and DDXJ/RA Types Only 8 9 18 5 7 2 6 1 16 4 3 15 13 14 12 11 DDRXJ Type Only DDRXJ and DPWXJ/RD Types Only 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 7 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE XV-HTD7/DDRXJ, DDXJ/RA, DDXJ/RB, DLXJ/NC, DPWXJ/RD and DTXJN/RC are constructed the same except for the following : Mark No. Description Part No. > 1 Power Cord See Contrast table(2) 2 Video Cord (L = 1.5m) VDE1065 3 Remote Control Unit AXD7353 4 Battery Cover AZN7933 NSP 5 Dry Cell Battery (R6P, AA) VEM1031 6 FM Antenna ADH7004 7 AM Loop Antenna ATB7009 8 Operating Instructions See Contrast table(2) (English) 9 Operating Instructions See Contrast table(2) 10 Caution Sheet See Contrast table(2) NSP 11 Polyethylene Bag Z21-038 (0.03 x 230 x 340) 12 Packing Sheet AHG7010 13 Front Pad HTM AHA7412 14 Rear Pad HTM AHA7413 15 Packing Case HTM See Contrast table(2) > 16 Power Cord See Contrast table(2) 17 Power Plug Adapter See Contrast table(2) NSP 18 Warranty Card See Contrast table(2) Mark No. Description Part No. Mark No. Symbol and Description XV-HTD7 DDRXJ DDXJ/RA DDXJ/RB DLXJ/NC DPWXJ/RD DTXJN/RC > 1 AC Power Cord ADG1158 ADG1158 ADG1158 ADG1154 Not used ADG1154 8 Operating Instructions (English) ARB7295 ARB7295 ARB7295 ARB7295 ARB7295 Not used 9 Operating Instructions ARC7512 (Spanish) Not used ARC7513 (Arabic) ARC7514 (Chinese) Not used ARC7515 (Thai) 10 Caution Sheet XRH3002 Not used Not used Not used Not used Not used 15 Packing Case AHD8210 AHD8211 AHD8212 AHD8213 AHD8214 AHD8233 > 16 AC Power Cord XDG3009 Not used Not used Not used ADG1160 Not used 17 Power Plug Adapter XKM3002 XKM3002 Not used Not used Not used Not used NSP 18 Warranty Card Not used Not used Not used Not used ARY7047 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION C B D F F E B C D E P P A H I I J K L K L H G G A M M J CONTACT SIDE NON-CONTACT SIDE Refer to "2.3 FRONT PANEL SECTION". 40 48 41 39 48 Refer to "2.4 TABLE MECHANISM SECTION". 45 35 33 46 46 33 6 14 23 30 19 48 48 48 48 47 32 47 50 50 54 56 56 34 56 56 56 56 52 57 57 56 55 53 53 53 55 9 30 8 54 12 56 59 20 25 3 4 2 5 26 50 48 48 48 48 48 48 48 24 16 11 18 17 10 13 21 36 42 31 43 48 48 48 48 48 49 51 48 48 38 38 38 38 38 49 49 38 44 7 29 15 27 28 22 58 37 1 27 48 48 48 49 49 49 49 51 J L P I H K D O F N M E G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR parts List (2) CONTRAST TABLE XV-HTD7/DDRXJ,DDXJ/RA, DDXJ/RB, DLXJ/NC, DPWXJ/RD and DTXJN/RC are constructed the same except for the following : Mark No. Description Part No. 1 DVDM Assy AWM7807 2 DSP Assy AWX8251 3 AF Assy AWU8094 4 DIODE L Assy AWU8095 5 DIODE S Assy AWU8071 6 SSIB Assy AWU8157 7 PRIMARY Assy AWU8066 8 DISPLAY Assy AWU8058 9 AMP TRADE Assy AWU8059 10 DSP TRADE Assy AWU8060 11 VIDEO JACK Assy AWU8061 12 6CH AMP Assy AWM7720 13 FM/AM TUNER Module AXQ7228 > 14 Power Transformer (T1) ATS7355 > 15 Fuse (FU1 : 5.0A/250V) REK1029 16 18P F.F.C/60V ADD7409 (DVDM CN923 - AF CN5102) 17 17P F.F.C/30V ADD7410 (AF CN5103 - VIDIO JACK CN8001) 18 13P F.F.C/30V ADD7411 (AF CN5701 - TUNER CN201) 19 27P F.F.C/60V ADD7412 (AF CN5711 - DISPLAY CN5721) NSP 20 Chassis HTM See Contrast table(2) 21 Rear Panel HTM See Contrast table(2) 22 Mecha Frame HTM See Contrast table(2) 23 Front Frame HTM ANG7452 24 DSP Holder HTM ANG7455 25 DVD Angle HTM ANG7457 26 PCB Angle XNG3057 27 Push Rivet AEC7370 28 Barrier A HTM AEC7469 29 Wire Saddle AEC7477 30 PCB Holder HTM See Contrast table(2) 31 Fan Cover HTM AMR7451 32 Disc Guard See Contrast table(2) 33 Mech. Spacer(T1.5) VEB1339 NSP 34 PC Support VEC1749 35 Rotary Tray VNK4923 36 Bonnet Cushion XEB3027 NSP 37 PCB Support XEC3020 38 Screw BPZ30P100FZK 39 Tray Cap Assy HTM See Contrast table(2) 40 Tray Cap HTM AAK8099 41 Name Plate VAM1129 42 Bonnet HTM AZN7932 43 Speaker Label HTM AAX7976 44 VS Knob AAD7690 45 Screw ABA7069 46 Screw ABA7094 47 Screw ASZ40P060FMC 48 Screw BBZ30P060FMC 49 Screw BBZ30P060FZK 50 Screw IPZ30P080FMC 51 Screw VPZ30P100FZK 52 DC Fan Motor AXM7025 53 FET Bracket A ANG7418 54 Fan Plate See Contrast table(2) NSP 55 Heat Sink See Contrast table(2) 56 Screw BBZ30P140FMC 57 Screw BBZ30P300FZK 58 Screw Z39-019 59 Barrier B HTM AEC7470 Mark No. Description Part No. Mark No. Symbol and Description XV-HTD7 DDRXJ DDXJ/RA DDXJ/RB DLXJ/NC DPWXJ/RD DTXJN/RC NSP 20 Chassis HTM ANA7153 ANA7153 ANA7153 ANA7153 ANA7153 ANA7160 21 Rear Panel HTM ANC8238 ANC8239 ANC8240 ANC8177 ANC8241 ANC8242 22 Mech.Frame HTM ANG7451 ANG7451 ANG7451 ANG7451 ANG7451 ANG7477 30 PCB Holder HTM AMR7450 AMR7450 AMR7450 AMR7450 AMR7450 AMR7473 32 Disc Guard PNM1245 PNM1245 PNM1245 PNM1245 PNM1245 Not used 32 S-Cover Not used Not used Not used Not used Not used AEB7262 39 Tray Cap Assy HTM AXG7199 AXG7199 AXG7199 AXG7199 AXG7199 AXG7219 54 Fan Plate ANG7462 ANG7462 ANG7462 ANG7462 ANG7462 ANG7425 NSP 55 Heat Sink ANH7166 ANH7166 ANH7166 ANH7166 ANH7166 ANH7161 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 FRONT PANEL SECTION A A 19 6 3 19 19 1 20 20 2 19 7 9 11 13 16 (1/2) 16 (2/2) 14 12 15 18 8 10 21 5 4 19 19 17 T S R Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 11 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List (2) CONTRAST TABLE XV-HTD7/DDRXJ,DDXJ/RA, DDXJ/RB, DLXJ/NC, DPWXJ/RD and DTXJN/RC are constructed the same except for the following : Mark No. Description Part No. 1 FUNCTION KEY Assy AWU8062 2 DISC KEY Assy AWU8063 3 H. P MIC Assy AWU8068 4 JOG Assy AWU8065 5 VOL Ring ABH7230 6 GND Plate L HTM ANG7453 7 Top Frame XNG3077 8 Leg AEB7090 9 Sensor Cushion XEB3026 10 VOL Knob HTM AAK8103 11 FL Filter HTM AAK8100 12 Front Panel Assy HTM See Contrast table(2) 13 Disc Button HTM AAD7701 14 Func. Button HTM AAD7702 15 Power Cap HTM AAK8095 16 Lens HTM AAK8096 17 Display Window HTM AAK8102 18 Front Panel HTM AMB7845 19 Screw BPZ30P100FZK 20 Screw BPZ30P100FMC 21 MIC knob See Contrast table(2) Mark No. Description Part No. Mark No. Symbol and Description XV-HTD7 DDRXJ DDXJ/RA DDXJ/RB DLXJ/NC DPWXJ/RD DTXJN/RC 12 Front Panel Assy HTM AXG7216 AXG7216 AXG7216 AXG7216 AXG7216 AXG7220 21 MIC knob XAA3024 XAA3024 XAA3024 XAA3024 XAA3024 XAA3025 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 12 1 2 3 4 1 2 3 4 C D F A B E 2.4 TABLE MECHANISM SECTION 4 9 From DVDM CN123 To DVDM CN121 To SSIB CN2 To SSIB CN1 To DVDM CN124 CONTACT SIDE NON-CONTACT SIDE 37 (2/6 - 5/6) [Roller Cover] 36 35 28 2 37 (1/6) 37 (6/6) [PCB Cover] 32 38 33 40 34 30 39 31 30 30 41 Refer to "2.5 TRAVERSE MECHANISM ASSY-S". 1 29 43 20 16 18 14 6 14 7 14 45 8 14 30 30 30 44 30 19 (2/3) 19 (1/3) 19 (3/3) 13 3 21 11 12 10 5 26 25 30 30 27 22 24 15 17 23 30 B C A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 13 5 6 7 8 5 6 7 8 C D F A B E TABLE MECHANISM SECTION parts List Mark No. Description Part No. NSP 1 5C Mech. Base Assy AXA7129 NSP 2 5C Table Mech. Assy AXA7130 NSP 3 TRSB Assy AWU8154 NSP 4 SSRB Assy AWU8155 NSP 5 LOMB Assy AWU8156 6 Traverse Mechanism Assy-S VXX2871 7 Flexible Cable 24P ADD7418 8 Flexible Cable 17P ADD7419 9 Flexible Cable 8P ADD7420 10 Housing Assy 2P VKP2249 11 Slider Motor (LOADING) VXM1033 12 Motor Pulley PNW1634 13 Spring VBH1333 14 Floating Rubber VEB1351 15 Load Belt VEB1316 16 Clamper Plate VNE2251 17 Mech. Base VNK5340 18 Clamper VNL1935 19 Float Base VNL1933 20 Clamper Holder VNL1939 21 Clamp Cam VNL1934 22 Planet Base ANW7258 23 Gear Pulley ANW7261 24 Loading Gear (1) ANW7262 25 Loading Gear (2) ANW7263 26 Drive Gear ANW7264 27 Change Gear ANW7260 28 CR cushion T2 XEB3020 29 Screw BPZ30P100FMC 30 Screw Z39-019 31 Motor (TRAY) DXM1143 32 Flexible Cable (7P) VDA1835 33 Motor Pulley PNW1634 34 Tray Belt VEB1317 35 Rubber Roller VEB1318 36 Roller Shaft VLL1511 37 Slide Table VNK4751 38 Motor Holder ANW7259 39 Worm Gear ANW7269 40 Tray Gear ANW7265 41 Screw JGZ17P028FMC 42 • • • • • 43 Cap VNL1936 44 TM Stopper ANG7460 45 Thrust Spring VBH1339 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 14 1 2 3 4 1 2 3 4 C D F A B E 2.5 TRAVERSE MECHANISM ASSY-S To SSIB CN2 (Stepping Motor) To SSIB CN1 (Spindle Motor) To DVDM CN101 (Pickup Assy) CONTACT SIDE NON-CONTACT SIDE 3 7 8 1 17 16 17 10 13 17 10 6 5 5 11 14 16 2 9 15 (Torque : 0.12 ± 0.01 N•m) 15 (Torque : 0.12 ± 0.01 N•m) 4 (Adjustment Screw) Screw Tight GYL1001 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 15 5 6 7 8 5 6 7 8 C D F A B E TRAVERSE MECHANISM ASSY-S parts List Mark No. Description Part No. 1 Spindle Motor VXM1099 2 Stepping Motor VXM1101 3 Pickup assy-S OXX8005 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mechanism Chassis VNE2248 12 Damper Sheet VEB1335 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw OBA8016 16 Screw BBZ20P050FZK 17 Screw PMA26P100FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 16 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM DVD SECTION 16 18 8 21 64 16 89 86 87 90 20 6 8 14 12 44 55 6 9 10 3 4 23 22 21 24 IC301 STM6316ATXXA Front End IC IC601 STM5589CVA Back End IC IC603 VYW2078 Flash ROM IC602 K4S641632F-TC75 SDRAM SPINDLE MOTOR IC101 M63018FP FTS Driver LD (780) LD (650) A C B1 B2 B3 B4 TRKG DRV TRKG RTN FOCS DRV FOCS RTN PICKUP ASSY-S OEIC E DVDM ASSY D SSIB ASSY STEPPING MOTOR M 9 7 17 19 16 15 22 21 9 10 11 12 13 14 H1+ H1- H2+ H2- H3+ 9 10 11 12 13 14 H1+ H1- H2+ H2- H3+ H3- 9 8 7 6 5 H3+ 4 1 ST1+ 1 3 2 ST1- 2 4 2 5 ST2- ST1+ ST1- ST2+ ST2- 5 1 2 3 4 1 30 26 31 34 35 6 TO- PC (6) SPDL PDM LOAD DRV PD (0) PIO4[5] SPIN 40 LOIN+ LD1 LD2 OUT_DATA FE DATA E F A B C D TO+ FO- FO+ HW- HW+ HV- HV+ HU- HU+ SL2- 5 SL2+ 9 SL1+ 10 SL1- 16 17 18 19 20 21 C LOMB ASSY LOADING MOTOR + – M 1 2 2 1 X601 27MHz (2/3) (3/3) IC604 TC7WU04FU 120 PIXCLK 5 3 2 6 X301 20MHz CN1013 (24P) CN3 (17P) CN31 (2P) CN21 (7P) CN11 (8P) CN12 (7P) CN124 (8P) CN122 (17P) CN123 (2P) CN1 (12P) CN2 (4P) CN121 (24P) Q201,Q202 Q191 Q211,Q212 57 SPDIF DOUT DOUT 34 CV_OUT V 32 Y_OUT S_Y 33 C_OUT S_C 27 R_OUT R/Cr 26 G_OUT G/Y 25 44 PIO4[3] 42 PIO3[3] 9 PIO4[1] 40 PWM2 PWM0 B_OUT B/Cb V S_Y S_C R/Cr G/Y B/Cb 4 ST2+ 4 16 V+5S V+5D ROT DRV V+5S LOAD- LOAD+ 16 DISC CLAMP DET. SW S11 DISC SENS DISCSNS CLAMP TRYPOS OPENC DISC SENS SEDR+ SEDR- SEDR+ SEDR- CLAMP TRAY POS TRAY POS LOAD POS LOAD POS A TRSB ASSY B SSRB ASSY + - M S21 LOADING POSITION DET. SW PC21 PC22 TRAY MOTOR 4 3 5 6 8 7 4 3 5 6 8 7 3 1 5 4 2 5 7 3 4 6 IC151 BA5912AFP-Y Carousel Driver 9 22 17 8 6 5 DISCSNS CLAMP TRYPOS OPENC LOAD DRVC ROT DRV LOAD DRVC 16 V+3D V+3D +3.3V 16 6 V+3D +3.3V +3.3V 2 Q193 114 116 System Control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 17 5 6 7 8 5 6 7 8 C D F A B E 16 18 14 12 8 10 DOUT V S_Y S_C R/Cr G/Y B/Cb V S_Y S_C R/Cr G/Y B/Cb V S_Y S_C R/Cr G/Y B/Cb V S_Y S_C R/Cr G/Y B/Cb IC501 MM1623AF Video Driver Amp. IC901 TC74VHCT125AFT 3V → 5V Converter 4 2 6 10 12 14 23 V OUT C OUT Y OUT 26 21 18 16 20 V IN C IN Y IN CY IN CY OUT Cb OUT Cr OUT Cb IN Cr IN CN923 (18P) CN5102 G 21 30 DOUT VDVD+12 CN911 (30P) CN5101 G VDVD+12 V+12 V+3R3 V+3R3_FED V+3R3_FEA V+1R8_BE System Control System Control V+5 V+5V V+5D V+3D IC401 R1224N102H 3.3V Reg. Q451 29 VPR+8 28 VPR+8 VPR+8 27 VPR+8M 26 VPR+8M VPR+8M 6 3 IC431 MM1565AF 5V Reg. 7 1 V+6 IC441 PQ20WZ11 6V Reg. 1 3 IC421 PQ018EH01ZP 1.8V Reg. 1 3 V+1R8_FEA V+1R8_FED IC411 PQ018EZ01ZP 1.8V Reg. 1 3 IC911 TC74VHC08FT 5V → 3V Converter www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 18 1 2 3 4 1 2 3 4 C D F A B E 3.2 BLOCK DIAGRAM MAIN SECTION 3 2 7 9 3 7 5 11 Lch FM FM ANTENNA IC201 BA1451F 1 FMIF IN INN1 FL FL SW SL C SW FL INN2 SLIN CIN SWIN FLIN OUT1 FLOUT SLOUT COUT SWOUT L-ch BN201 (4P) JA3001 (1/2) CN201 (13P) CN5701 (13P) SBLO SBLO Rch +10V 20 15 13 3 2 14 5 11 4 11 R-ch 10 AM RF IN F FM/AM TUNER MODULE G AF ASSY N VIDEO JACK ASSY V10 VE+56 VX+10 TV LINE1 AUDIO IN L R L R IC3001 BU4052BCF Audio Input Select 2 IC3003 (1/2) NJM4558MD Buffer Q3009,Q3005 10dB Attenuator 3 1 11 10 IC3121 BU4066BCF SW Mix / Gain IC3201 (2/2) NJM4558MD IC3241 (2/2) NJM4558MD IC3181 BD3814FV E-VOL IC5501 PDC111A System µ-com 3 4 3 1 IC3101 (1/2) NJM4558MD LPF & Gain 2 3 1 IC3131 (1/2) NJM4558MD LPF & Gain 2 3 1 IC3161 (1/2) NJM4558MD LPF & Gain 2 6 7 IC3161 (2/2) NJM4558MD LPF & Gain T1 POWER TRANSFORMER 5 16 18 14 12 8 10 9 11 7 5 1 3 9 11 7 5 1 3 V S_Y S_C R/Cr G/Y B/Cb V S_Y S_C R/Cr G/Y B/Cb CN5102 (18P) CN8001 (18P) JA8802 JA8851 CN5103 (17P) CN923 E 21 30 DOUT VDVD+12 CN5101 (30P) CN911 G 29 VPR+8 28 VPR+8 27 VPR+8M 26 VPR+8M VDVD+12 VPR+8 5 7 6 SL 5 7 6 IC3261 (1/2) NJM4558MD C 3 1 2 IC3261 (2/2) NJM4558MD IC3252 (2/2) NJM4558MD SW 5 7 6 2 1 3 2 6 13 15 9 19 3 27 30 29 32 VIDEO OUT PR PB Y VIDEO S-VIDEO OUT COMPONENT VIDEO OUT HPL Andrew 3 3 1 2 3 4 5 6 7 8 9 10 VE+56 FLAC AC IN O PRIMARY ASSY LIVE NEUTRAL 1 2 AN1 J51 (8P) CN11 (10P) CN51 (8P) 1 2 CN1 FLAC AC5V AC5V VL VL VH GND VH VFDP FLAC1 FLAC2 AC5V AC5V VL VL VH VH VFDP HPL LIN FL SL C SW DOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 19 5 6 7 8 5 6 7 8 C D F A B E 14 17 7 8 3 4 22 23 18 19 14 15 10 11 20 21 18 19 2 3 8 9 10 22 23 12 1 2 14 17 20 21 18 19 2 3 8 9 10 22 23 14 17 20 21 18 19 2 3 8 9 10 22 23 4 2 8 6 12 10 16 14 20 18 4 2 LIN CN5603 (23P) CN5613 (23P) CN5612 (23P) RIN FLO FRO SLO SRO CO SWO SBLO SBLO SBLO SBRO IC8201 AK4114VQ DIR & DIT IC8501 DSPD56367PV150 DSP IC8401 AK4529VQ 8ch CODEC IC3301 STK402-270 Power Amp. 7 42 25 RX7 RX0 LIN RIN SDTI1 SDTI2 SDTI3 SDTI4 SDTO 10 4 5 6 7 6 9 31 32 7 8 12 SDI1 SDO0 SDO1 SDO2 SDO3 M DSP TRADE ASSY L AMP TRADE ASSY (1/2) L AMP TRADE ASSY (2/2) J 6CH AMP ASSY K DSP ASSY P DISPLAY ASSY T HP MIC ASSY S FUNCTION KEY ASSY R DISC KEY ASSY Q JOG ASSY VD+5 VD+5 VD+5 VA+5 VA+5 VA+5 PHONES JA8103 COAXIAL IN 8 6 12 10 16 14 20 18 14 17 FLIN CN3032 (23P) CN3022 (23P) CN3001 (23P) CN3031 (23P) CN3012 (23P) CN3002 (23P) CN3021 (23P) FRIN SLIN SRIN CIN SWIN 20 21 18 19 UN+8V 2 UN+8V 3 VD+5 8 VA-12 9 VP+15 10 VPR+8 22 VPR+8 FLIN FRIN SLIN SRIN CIN SWIN UN+8V UN+8V VD+5 VA-12 VP+15 VPR+8 VPR+8 23 22 23 19 22 23 19 3 1 7 5 11 9 15 13 19 17 CN5622 (19P) 3 1 7 5 11 9 15 13 19 17 CN8007 (19P) CN5621 (13P) CN5623 (19P) CN8011 (19P) 9 8 12 3 CN8003 (13P) 9 8 12 3 CN5602 (23P) VA+5 VD+5 OPTIN FLAC1 7 8 13 14 19 21 25 22 24 CN5711 (27P) 7 8 13 14 19 21 25 22 24 CN5721 (27P) FLAC2 VD+5 VD+5 VD+5 VFDP VE+5 VA+12 VA-12 VFDP VE+5 VA+12 VA-12 UN+8V VD+5 VA-12 VP+15 VH+ VH+ VH- VH- 13 7 8 3 4 22 23 18 19 14 15 10 11 12 1 2 13 7 8 3 4 22 23 18 19 14 15 10 11 12 1 2 13 7 8 3 4 22 23 18 19 14 15 10 11 12 1 2 13 VPR+8 V5A V5D1 FL FR SL SR C SW SBL SBR LIN RIN OPTIN FDTI VA+5 VD+5 VD+5 LOUT1 ROUT1 27 28 28 CH1 IN CH2 IN 1 15 CH3 IN 16 IC3401 STK402-270 Power Amp. CH1 IN CH2 IN 1 15 CH3 IN 16 CH1+VE CH2+VE 6 10 CH3+VE 18 CH1+VE CH2+VE 6 10 CH3+VE 18 26 22 LOUT2 ROUT2 25 LOUT3 23 ROUT3 24 LOUT4 ROUT4 21 FDTO SDTO CDTO BDTO V5D1 V3D IC8901 NJM2391DL1-33 3V Reg. 3 1 V5D1 V1R8 IC8902 NJU7223DL1-18 1.8V Reg. IC8701 TC74LVX244FT 5V > 3V Converter 1 2 IC3731 (2/2) NJM4558MD MIC MIX 5 7 6 6 7 IC3901 (2/2) NJM4560M HP Amp. 5 HPL VA-12 VA+12 VE+5 VFDP VD+5 FLAC2 FLAC1 FLAC2 FLAC1 SR 11 10 2 8 6 CN5803 (13P) 11 10 2 8 6 J5801 (13P) J5803 (5P) J5805 (4P) J5811 (3P) JA3901 VA+12 VD+5 HPL HPR VA-12 HPR V5601 XAV3020 FL TUBE 5951 Remote Sensor Unit IC5601 MSM9202-01 FL Driver IC5651 HEF4794BT LED Driver KEY KEY JOG VD+5 VA+12 VA-12 JOG KEY VA+12 VA-12 UN+8V VD+5 VA-12 VP+15 VPR+8 FLOUT FLOUT FROUT FROUT SLOUT SLOUT SROUT SROUT COUT COUT SWOUT SWOUT VH+ VH+ VH- VH- CN3301 L R FRONT SURROUND SPEAKER L R CENTER SUBWOOFER JA3001 (2/2) LINE1 AUDIO OUT L R FLOUT FLOUT FROUT FROUT SLOUT SLOUT SROUT SROUT COUT COUT SWOUT SWOUT VH+ VH+ VH- VH- CN3011 (23P) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 20 1 2 3 4 1 2 3 4 C D F A B E 3.3 OVERALL WIRING DIAGRAM T1 POWER TRANSFORMER (ATS7355) Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". PRIMARY ASSY (AWU8066) O DIODE S ASSY (AWU8071) I DIODE L ASSY (AWU8095) H 6CH AMP ASSY (AWM7720) J AMP TRADE ASSY (AWU8059) L POWER CORD (ADG1158) SYSTEM DOWNLOAD VNK1277 PICKUP ASSY-S (OXX8005) TRAVERSE MECHA. ASSY-S (VXX2871) AMP MODULE 6CH (AXQ7242) 5C MECH BASE ASSY (AXA7129) E 1/3 - E 3/3 DVDM ASSY (AWM7807) E TRSB ASSY (AWU8154) A SSRB ASSY (AWU8155) MOTOR (TRAY) (DXM1143) B LOMB ASSY (AWU8156) C SSIB ASSY (AWU8157) D MOTOR (LOADING) (VXM1033) SPINDLE MOTOR (VXM1099) STEPPING MOTOR (VXM1101) J51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 21 5 6 7 8 5 6 7 8 C D F A B E DC FAN MOTOR (AXM7025) AKE7097 DSP TRADE ASSY (AWU8060) M DISPLAY ASSY (AWU8058) P K 1/2 - K 2/2 DSP ASSY (AWX8251) K G 1/4 - G 4/4 AF ASSY (AWU8094 : Other) (AWU8151 : DDXJ/RB Only) G HP MIC ASSY (AWU8068) T FUNCTION KEY ASSY (AWU8062) S DISC KEY ASSY (AWU8063) R JOG ASSY (AWU8065) Q VIDEO JACK ASSY (AWU8061) N FM/AM TUNER MODULE (AXQ7228) F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 22 1 2 3 4 1 2 3 4 C D F A B E 3.4 TRSB, SSRB, LOMB and SSIB ASSYS A B C CARRIAGE MOTOR (LOADING) : VXM1033 LOMB ASSY (AWU8156) C SSRB ASSY (AWU8155) B TRSB ASSY (AWU8154) A CN123 E 1/3 CN124 E 1/3 : The power supply is shown with the marked box. TRAY MOTOR DXM1143 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 23 5 6 7 8 5 6 7 8 C D F A B E D SSIB ASSY (AWU8157) D CN121 E 1/3 CN122 E 1/3 SPINDLE MOTOR : VXM1099 STEPPING MOTOR : VXM1101 PICKUP ASSY-S (OXX8005) CN3 : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE (F) (RF) (RF) (RF) (RF) (RF) (RF) (T) : RF SIGNAL ROUTE (RF) (F) (F) (T) (T) (F) (F) (T) (T) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 24 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVDM ASSY (1/3) E 1/3 CN11 A CN31 C CN3 PICKUP ASSY-S CN1013 D (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (F) (F) (T) (T) (F) (F) (T) (T) (F) (F) (T) (T) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) 7 6 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 25 5 6 7 8 5 6 7 8 C D F A B E E 1/3 DVDM ASSY (AWM7807) E 1/3 E 2/3 : The power supply is shown with the marked box. R1011 R1012 R1013 (TO CHASSIS GND) : DVD DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE (F) (DVD) : RF SIGNAL ROUTE (RF) (T) (S) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (DVD) (DVD) (DVD) (DVD) 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 26 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVDM ASSY (2/3) E 2/3 E 2/3 DVDM ASSY (AWM7807) (DVD) (DVD) (DVD) (DVD) (Y) (C) (CV) (AD) (AD) (AD) (AD) (AD) (CY/G) (Cr/R) (Cb/B) 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 27 5 6 7 8 5 6 7 8 C D F A B E E 2/3 E 3/3 E 3/3 E 3/3 E 1/3 : DVD DATA SIGNAL ROUTE (DVD) : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (C) (C) : S VIDEO SIGNAL ROUTE (C/V) (C/V) : AUDIO DATA SIGNAL ROUTE (AD) (Y) (Y) (Y) (Y) (Y) (C) (C) (C) (C) (Y) (C/V) (C/V) (C/V) (C) (C) (C/V) (C/V) (C/V) (DVD) (DVD) (DVD) (AD) (AD) (AD) : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (Cr/R) (Cr/R) : VIDEO SIGNAL ROUTE (Cb/B) (Cb/B) (CY/G) (CY/G) (CY/G) (CY/G) (CY/G) (Cr/R) (Cr/R) (Cr/R) (Cr/R) (Cr/R) (Cb/B) (Cb/B) (Cb/B) (Cb/B) (Cb/B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 28 1 2 3 4 1 2 3 4 C D F A B E 3.7 DVDM ASSY (3/3) E 3/3 3V REG. E 2/3 (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 29 5 6 7 8 5 6 7 8 C D F A B E E 3/3 DVDM ASSY (AWM7807) E 3/3 CN5101 G 1/4 CN5102 G 1/4 E 2/3 E 2/3 : The power supply is shown with the marked box. : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (C) (C) : S VIDEO SIGNAL ROUTE (C/V) (C/V) (Y) (C) (C/V) (Y) (C) (C/V) (Y) (C) (C/V) (Y) (C) (C/V) : AUDIO DATA SIGNAL ROUTE (AD) (AD) (AD) (AD) (AD) (AD) (AD) : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (Cr/R) (Cr/R) : VIDEO SIGNAL ROUTE (Cb/B) (Cb/B) (CY/G) (CY/G) (CY/G) (CY/G) (Cr/R) (Cr/R) (Cr/R) (Cr/R) (Cb/B) (Cb/B) (Cb/B) (Cb/B) 10 11 13 12 9 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 30 1 2 3 4 1 2 3 4 C D F A B E 3.8 FM/AM TUNER MODULE F FM FRONT END AM RF TUNING BLOCK OSC : 981 - 2052kHz 9k step (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) FM/AM TUNER MODULE (AXQ7228) F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 31 5 6 7 8 5 6 7 8 C D F A B E F L201 ATE7003 (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. : TUNER AUDIO SIGNAL ROUTE (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) 3/4 G CN5701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 32 1 2 3 4 1 2 3 4 C D F A B E 3.9 AF ASSY (1/4) G 1/4 CN5613 M CN5612 M G 1/4 AF ASSY (AWU8094 : Other) (AWU8151 : DDXJ/RB Only) (AD) (FL) (FL) (FL) (FL) (FL) (FL) (AD) (AD) (FL) (SL) (C) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 33 5 6 7 8 5 6 7 8 C D F A B E G 1/4 CN911 CN8001 E 3/3 CN923 E 3/3 N J51 O CN5721 P G 4/4 G 3/4 G 2/4 G 2/4-4/4 G 2/4, 3/4 : The power supply is shown with the marked box. : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (C) (C) : S VIDEO SIGNAL ROUTE (C/V) (C/V) : AUDIO DATA SIGNAL ROUTE (AD) : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (Y) (C) (C/V) (Y) (C) (C/V) (FL) (SL) (C) (SW) : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (Cr/R) (Cr/R) : VIDEO SIGNAL ROUTE (Cb/B) (Cb/B) (CY/G) (Cr/R) (Cb/B) (CY/G) (Cr/R) (Cb/B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 34 1 2 3 4 1 2 3 4 C D F A B E 3.10 AF ASSY (2/4) G 2/4 G 2/4 AF ASSY (AWU8094) G 1/4 G 1/4, 3/4 XDSPMUTE RECDSPMUTE (FL) (FL) (SL) (SL) (SL) (SL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) (SW) (SW) (SW) (SW) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 35 5 6 7 8 5 6 7 8 C D F A B E G 2/4 G 4/4 G 1/4, 3/4, 4/4 : The power supply is shown with the marked box. VOLMUTE 95 : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (SL) (SL) (SL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) (SW) (SW) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 36 1 2 3 4 1 2 3 4 C D F A B E 3.11 AF ASSY (3/4) G 3/4 G 1/4 470k : AUDIO SIGNAL ROUTE (TV L ch) (TV) (TV) (TV) (TV) (TV) : AUDIO SIGNAL ROUTE (LINE 1 L ch) (L1) : AUDIO SIGNAL ROUTE (Tuner L ch) (TX) : AUDIO SIGNAL ROUTE (Front L ch) (FL) (L1) (L1) (L1) (FL) (FL) (FL) (FL) (FL) (FL) (TX) (TX) (TX) (TX) (TX) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 37 5 6 7 8 5 6 7 8 C D F A B E G 3/4 CN201 F G 3/4 AF ASSY (AWU8094) G 1/4, 2/4 G 1/4, 2/4, 4/4 : The power supply is shown with the marked box. R9901 0 R9902 0 (FL) (FL) (FL) (FL) (FL) (FL) (TX) (TX) (TX) (TX) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 38 1 2 3 4 1 2 3 4 C D F A B E 3.12 AF(4/4), DIODE L and DIODE S ASSYS 2 5 G 4/4 DIODE S ASSY (AWU8071) I I DIODE L ASSY (AWU8095) H H CN3011 L To POWER TRANSFORMER (T1) CN3012 L G 2/4 G 1/4 G 1/4-3/4 (FL) (SL) (C) (SW) (FL) (SL) (C) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 39 5 6 7 8 5 6 7 8 C D F A B E : Refer to 7. 1.12 1 1 1 7 7 7 1 4 7 G 4/4 G 4/4 : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (FL) (FL) (FL) (FL) (FL) (FL) (SL) (SL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) (SW) AF ASSY (AWU8094) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 40 1 2 3 4 1 2 3 4 C D F A B E 3.13 6CH AMP ASSY 3 5 2 J CN3022 L CN3021 To DC FAN MOTOR L 6CH AMP ASSY (AWM7720) J (FL) (FL) (SL) (SL) (C) (C) (SW) (SW) (FL) (SL) (C) (SW) (FL) (SL) (C) (SW) (FL) (SL) (C) (SW) (FL) (FL) (SL) (SL) (SL) (C) (C) (SW) (FL) (C) (SW) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 41 5 6 7 8 5 6 7 8 C D F A B E : Refer to 7. 1.12 J : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (FL) (SL) (C) (SW) (FL) (FL) (SL) (SL) (SL) (C) (C) (C) (C) (SW) (SW) (SW) (FL) (FL) (FL) (FL) (FL) (FL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 42 1 2 3 4 1 2 3 4 C D F A B E 3.14 DSP ASSY (1/2) K 1/2 K 1/2 DSP ASSY (AWX8251) K 2/2 K 2/2 K 2/2 (L2) (L2) (L2) (L2) (AD) (AD) (AD) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 43 5 6 7 8 5 6 7 8 C D F A B E K 1/2 CN5621 M CN5622 M : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (LINE 2 COAXIAL) (L2) : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (FL) (FL) (FL) (FL) (SL) (SL) (C) (C) (SW) (SW) : AUDIO DATA SIGNAL ROUTE (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 44 1 2 3 4 1 2 3 4 C D F A B E 3.15 DSP ASSY (2/2) K 2/2 K 2/2 DSP ASSY (AWX8251) CN5623 M K 1/2 K 1/2 K 1/2 (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 45 5 6 7 8 5 6 7 8 C D F A B E K 2/2 : The power supply is shown with the marked box. : AUDIO DATA SIGNAL ROUTE (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 46 1 2 3 4 1 2 3 4 C D F A B E 3.16 AMP TRADE, DSP TRADE, VIDEO JACK and PRIMARY ASSYS L M O CN8003 K 1/2 CN8007 K 1/2 CN8011 K 1/2 CN5602 G 1/4 CN5603 G 1/4 CN3031 G 4/4 CN3032 G 4/4 PRIMARY ASSY (AWU8066 : Other) PRIMARY ASSY (AWU8067 : DPW ) O DSP TRADE ASSY (AWU8060) M AMP TRADE ASSY (AWU8059) L CN3001 J CN3002 J • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - (T5AL250V) EXCEPT DPW Model : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (PR/R) (PR/R) : VIDEO SIGNAL ROUTE (PB/B) (PB/B) : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (Y) (C) : S VIDEO SIGNAL ROUTE (C/V) (C/V) : AUDIO DATA SIGNAL ROUTE (AD) : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (AD) (AD) (AD) (AD) (AD) (FL) (SL) (C) (SW) (FL) (SL) (C) (SW) (FL) (SL) (C) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 47 5 6 7 8 5 6 7 8 C D F A B E N O CN5103 DVD DOWNLOAD SYSTEM DOWNLOAD G 1/4 CN11 G 4/4 CN51 G 1/4 VIDEO JACK ASSY (AWU8061) N : The power supply is shown with the marked box. ATT7080 DPW model Only DPW model Only (Y) (Y) (Y) (Y) (Y) (C) (C) (C) (C) (C/V) (C/V) (C/V) (C/V) (C/V) (CY/G) (CY/G) (CY/G) (CY/G) (CY/G) (PR/R) (PR/R) (PR/R) (PR/R) (PB/B) (PB/B) (PB/B) (PB/B) (PR/R) (PB/B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 48 1 2 3 4 1 2 3 4 C D F A B E 3.17 DISPLAY, JOG, DISC KEY, HP MIC and FUNCTION KEY ASSYS P Q R CN5711 G 1/4 DISC KEY ASSY (AWU8063) R JOG ASSY (AWU8065) Q (FL) (FL) (FL) (FL) (FL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 49 5 6 7 8 5 6 7 8 C D F A B E P R S T DISPLAY ASSY (AWU8058) P HP MIC ASSY (AWU8068) T FUNCTION KEY ASSY (AWU8062) S : The power supply is shown with the marked box. JOG ASSY S5861 : VOLUME UP ↔ DOWN DISC KEY ASSY S5851 : DISC 1 S5852 : DISC 2 S5853 : DISC 3 S5854 : DISC 4 S5855 : DISC 5 S5856 : DISC SKIP S5857 : EXCHANGE S5858 : OPEN/CLOSE (0) FUNCTION KEY ASSY S5841 : DVD/CD S5842 : TUNER (FM/AM/ST.) S5843 : TV/L1/L2 S5844 : 4 1 (REVERSE) S5845 : ¡ ¢ (FORWARD) S5846 : 7 (STOP) S5847 : 6 (PLAY/PAUSE) HP MIC ASSY S5831 : STAND BY/ON : AUDIO SIGNAL ROUTE (Front L ch) (FL) (FL) (FL) (FL) (FL) (FL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 50 1 2 3 4 1 2 3 4 C D F A B E 3.18 DVDM WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 2 and 8 to 13 : reference A1 (DVD), T2-chp 19, Color -bar DVDM ASSY E 1 IC301-pin 4 (RFOUT) V: 200mV/div. H: 0.1µsec/div. 8 CN923-pin 16 (Composite Video out) V: 1V/div. H: 10µsec/div. 9 CN923-pin 8 (Component Video out-Y) V: 1V/div. H: 10µsec/div. 10 CN923-pin 10 (Component Video out-Pb) V: 2V/div. H: 10µsec/div. 11 9 10 12 13 11 CN923-pin 12 (Component Video out-Pr) V: 2V/div. H: 10µsec/div. 12 CN923-pin 18 (S Video out-Y) V: 1V/div. H: 10µsec/div. 13 CN923-pin 14 (S Video out-C) V: 1V/div. H: 10µsec/div. 2 IC301-pin 36 (FG) V: 1V/div. H: 5msec/div. 3 IC301-pin 44 (SPDL_PDM) 6 CN124-pin 5 (TRAY POS) CN124-pin 7, 8 (Rotating Tray Motor drive voltage) 7 CN124-pin 4, 5, 6, 3 IC601-pin 114 CN124-pin 4 (DISC SENS), CN124-pin 5 (TRAY POS) CN124-pin 6 (OPEN), CN124-pin 3 (CLAMP) IC601-pin 114 (ROT_DRV) 4 CN122-pin 8, 7, 6 (FTS Driver -A1, A2, A3) V: 2V/div. H: 2msec/div. GND [PLAY → STOP → PLAY] [PLAY] [PLAY] [Tray stops] [Tray close] [Tray move] [Tray open] [Tray close] Elements on larger [Tray closing] [Tray opening] [STOP] V: 2V/div. H: 1sec/div. V: 2V/div. H: 500msec/div. Rotary tray move DISC 2 DISC 3 DISC 4 DISC 5 DISC 5 Loading close Loading open Clamp Unclamp Rotary tray stop Rotary tray move Rotary tray stop V: 2V/div. H: 1sec/div. V: 2V/div. H: 500msec/div. V: 2V/div. H: 10µsec/div. V: 2V/div. H: 200msec/div. PLAY STOP Right-hand Left-hand V: 2V/div. H: 500nsec/div. V: 2V/div. H: 500nsec/div. PLAY PLAY Brakes ON Accelerator ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 51 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 52 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 53 5 6 7 8 5 6 7 8 C D F A B E 4.1 TRSB, SSRB, LOMB and SSIB ASSYS 1 7 CN31 S21 1 AWU8156- 1.LOAD+ LOMB + 2.LOAD- FR1S 7 POS SW SSRB 2 1 4 3 1 3 4 2 1 W21 W22 W23 PC21 W26 CN21 W24 W25 PC22 W27 DISC SENSOR TRAY POSITION 5 1 7 1 AWU8155- FR1S +3.3V GND 4.SEDR- 2.+3.3V 3.LOAD POS 7.TRAY POS 5.DISC SENS 6.SEDR+ 1.GND GND 8 1 7 1 S11 W12 CN11 CN12 W13 W11 7.SEDR+ 1.GND 5 1 3.DISC SENS 8.SEDR- 4.SEDR- TRSB 8 1 GND 5.LOAD POS 3.CLAMP 1.TRAY POS 2.+3.3V 4.DISC SENS 7.GND 2.SEDR+ 6.LOAD POS 6.+3.3V 5.TRAY POS AWU8154- 7 1 FR1S 12 1 17 1 4 1 CN1 CN3 CN2 H1+ 12 1 A1 ST2- AWU H1- Contact Side [ST1+] H2+ ST2- 17 1 H2- SSIB ST1+ ST1- INSIDE V+5S A2 [ST1+] H1- ST1+ A3 Contact Side H3- H2- H3- INSIDE H1+ SSIB Contact Side H2+ H3+ 4 GNDS 1 ST1- Contact Side AWU8157- ST2+ A1 ST2+ Contact Side H3+ V+5S A3 A2 GNDS Contact Side FR1S AWU8154- TRSB CLAMP SW GND 1 5 8 1 1 6.+3.3V 5.LOAD POS 2.+3.3V 3.DISC SENS 4.DISC SENS 1 8 2.SEDR+ 3.CLAMP 5 5 2 2 7.GND 6.LOAD POS 1.GND 4.SEDR- 5 7.SEDR+ 1.TRAY POS 5.TRAY POS 8.SEDR- 6 R11 7 1 1 5 SENSOR C DISC AWU8155- SSRB 6 3 4 2 4 2 B E 1 5.DISC SENS +3.3V 3.LOAD POS 6.SEDR+ 5 7.TRAY POS GND 4.SEDR- 3 2.+3.3V GND 1.GND E C B 2 TRAY POSITION 1 R27 Q21 R23 R24 R25 C21 R26 Q22 R21 R22 Black Red 1 +LOMB Label Side LOADING MOTOR 1.LOAD+ 2.LOAD- AWU8156- C31 SSIB AWU8157- AWU 4 1 12 1 17 1 GND C2 C1 (ANP7473-A) (ANP7473-A) (ANP7473-A) (ANP7473-A) (ANP7473-A) (ANP7473-A) LOADING MOTOR TRAY MOTOR M CN123 E TRSB ASSY A TRSB ASSY A SSRB ASSY B SSRB ASSY B LOMB ASSY C CN124 E SIDE B M SIDE A SIDE B CN11 CN11 CN12 CN12 CN21 CN21 CN31 CN31 A B C D A B C D SSIB ASSY D SSIB ASSY D SIDE A SIDE B SPINDLE MOTOR M M CN122 E CN2 (ANP7473-A) CN1 CN3 CN2 (ANP7473-A) STEPPING MOTOR CN1 CN3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 54 1 2 3 4 1 2 3 4 C D F A B E 4.2 DVDM ASSY E C425 R354 1 12 1 4 1 5 1 4 5 8 1 25 26 50 51 75 76 100 1 24 1 2 9 10 1 23 24 2 1 17 1 2 1 8 1 52 53 104 105 156 157 208 1 23 24 2 1 23 24 2 1 4 5 8 1 8 9 16 30 29 1 2 1 7 8 14 1 30 1 11 1 4 5 7 1 11 1 18 1 30 1 18 1 3 4 5 12 1 1 4 5 1 1 4 5 8 50 51 75 100 1 25 26 1 24 22 42 1 21 NP 1 2 10 9 24 23 2 1 1 17 2 1 1 8 104 53 52 1 208 157 156 105 24 2 1 23 23 24 2 1 1 5 4 8 1 9 16 2 1 29 30 7 1 14 8 5 7 1 4 1 11 1 30 1 18 3 1 5 4 C231 CN105 R123 R102 C102 C101 R204 C201 CN104 C120 C118 C116 C126 C202 CN103 R202 R203 IC201 C221 R201 R346 C346 R221 R223 C357 C335 Q202 R124 R222 R101 C362 R364 R361 R363 R365 R369 R368 C222 C124 L361 C342 C326 C323 C315 C309 C318 C348 C388 C377 IC301 C373 C391 C300 C132 C139 C142 C128 C127 CN101 C212 Q212 R214 C211 R213 R212 R211 IC101 C112 C113 C114 C130 R131 R135 C134 Q201 X301 CN301 R220 R366 R367 C301 C302 C304 C305 R390 Q390 L390 R392 R391 C393 C390 C392 C394 C303 Q211 C151 Q193 Q192 R151 L191 L192 L193 L194 C307 C306 C354 C133 R191 R192 R194 R196 R197 R199 R378 R379 R382 R383 R385 R386 R384 R394 R396 R310 R301 R334 R333 R332 R336 R337 R338 R339 R340 R341 R342 R344 R397 R398 CN121 CN122 CN123 CN124 R389 R300 IC601 C621 C644 C640 X601 C664 CN609 CN608 IC604 C690 C604 C614 C623 C630 C637 C648 C647 C681 C694 C607 C619 C622 C636 C649 C641 C659 C671 C684 C698 C660 C650 C651 C564 R1069 R1084 C561 C707 C706 C705 C708 R721 C709 R714 C710 C703 C702 R715 R716 IC701 R713 R712 R711 R724 Q722 Q721 R561 C731 R731 R733 C734 R726 Q726 Q725 R725 C732 R732 R734 C733 R719 R718 C717 R600 C600 R717 C652 Q723 C634 C605 R620 R640 R644 R609 R610 R612 R613 R626 R688 R689 R694 R695 R664 R602 R603 R606 R607 R608 R616 R617 R618 R619 R611 R662 R663 R665 R628 R635 R621 R641 R634 R636 R638 R637 R639 R651 R652 R657 R656 R655 R654 R653 R658 R675 R696 CN607 C642 L641 R741 R742 R744 R961 Q951 C1563 C1562 R907 R906 IC901 R903 R905 R904 R902 R901 C902 Q911 R918 CN901 CN902 IC421 IC411 IC441 IC431 D401 R410 R409 C410 C409 C491 C404 C403 C423 C424 C461 C415 C414 C422 R451 C452 C401 D432 C431 C433 C432 C434 D431 C441 C442 C443 C451 CN904 R960 R433 R444 R951 C413 C412 C462 C463 R461 R462 R421 C411 C421 IC461 C921 R921 R401 R411 C901 C951 Q922 Q921 Q923 R922 D922 R926 R925 R923 R924 R934 R933 D927 D925 D923 Q925 R908 R909 Q926 R932 R931 R441 R443 R442 D402 R402 C406 C407 R408 R407 C408 R403 R952 R953 R954 R955 R956 R957 R958 R959 R964 R965 R966 R967 R968 R969 R1081 Q451 D926 C405 R1082 R1083 R962 R963 R400 R937 R936 Q928 Q927 R938 R939 R935 Q930 Q929 C103 CN903 Q401 R111 CN921 CN923 IC401 R562 C308 C121 C383 C382 C312 C311 C310 R3 R4 R416 R647 R648 L402 R981 L421 D928 R723 R1 R722 Q724 R982 R984 R983 R2 L411 CONTACT SIDE CONTACT SIDE BOTTOM SIDE BOTTOM SIDE BOTTOM SIDE CONTACT UP SIDE SIDE UP SIDE D F A B C UP SIDE UP SIDE CONTACT SIDE (650) SIDE CONTACT D 1/2 (780) 30 UP SIDE D 11 1 A A B B C C 1 GNDD V+5D LD2 LD1 RFOUT 18 1 4 (L600) (L111) DVDM ASSY E (ANP7463-B) PICKUP ASSY E E SIDE A SIDE A CN11 A CN31 C CN124 CN5102 G CN923 CN121 CN123 CN3 D CN122 IC201 IC701 IC101 IC601 IC301 IC901 IC421 IC411 IC441 IC431 IC461 IC401 IC604 IC401 IC461 IC431 IC441 IC411 IC421 IC901 IC701 IC604 IC601 IC101 IC301 IC201 Q724 Q202 Q193 Q192 Q201 Q723 Q725 Q726 Q721 Q722 Q211 Q212 Q911 Q922 Q921 Q923 Q401 Q451 Q928 Q927 Q930 Q929 Q925 Q926 Q724 Q390 Q401 Q929 Q930 Q927 Q928 Q451 Q926 Q925 Q923 Q921 Q922 Q911 Q951 Q723 Q725 Q726 Q721 Q722 Q192 Q193 Q951 Q211 Q390 Q201 Q212 Q202 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 55 5 6 7 8 5 6 7 8 C D F A B E 1 30 1 30 1 7 8 14 1 2 30 29 1 23 24 2 28 15 14 1 54 28 27 1 1 2 1 8 1 17 1 13 14 25 27 26 1 30 14 8 7 1 1 2 29 30 2 1 24 23 24 1 48 25 1 28 15 14 27 1 54 28 2 1 1 8 1 17 14 27 25 1 26 13 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A C629 C913 R916 R911 C627 R1063 R9521 R9501 R1051 CN941 C628 C626 R355 C620 R743 R200 C200 R417 C541 C521 C565 C531 C551 Q603 R917 R928 R927 L401 R1064 CN931 R915 R913 R912 R914 C912 IC911 R976 R973 R388 D924 CN911 R659 R660 Q452 R975 R974 R972 R971 R970 R454 R930 R929 Q924 R431 R422 R413 R412 C911 D921 R406 C402 R453 R452 R572 R571 R533 R532 R531 R553 R552 R551 R543 R542 R541 R523 R522 R521 R503 R502 R501 R511 R513 R512 R604 R601 R690 C602 Q511 C624 R432 R415 R414 R405 D403 C232 R183 R182 R178 R172 R171 R169 R170 R168 R167 R166 R165 R164 R109 R110 R120 R119 R118 R117 R116 R100 CN111 IC603 D603 R633 R630 R198 R156 R157 R159 R155 R158 C215 C205 R615 R614 R627 R631 R625 R152 R161 R160 R163 R162 C603 C355 R143 R128 R142 R127 R154 R1013 R1012 R977 R173 R174 R175 R176 R393 R395 R330 R331 R328 R329 R343 R345 R370 R399 R1065 R1623 C501 C511 IC501 R375 R374 C233 R115 R177 R179 R180 R181 C135 R622 C625 IC602 C563 C562 R702 C704 R144 R125 C125 R701 C701 C571 C631 C632 R623 C633 Q501 Q521 Q541 Q551 Q531 R632 C903 R645 R646 R642 R624 R373 R376 R380 R381 R1062 R108 R107 R106 R105 R104 R103 R190 R193 R195 CN113 C158 C155 C160 C161 C152 R1061 R1059 R1057 R1058 R153 CN114 CN112 Q191 Q194 C176 C174 C181 C171 C167 C177 C182 C163 C172 IC151 C230 R126 C381 C643 C639 C638 C635 C203 R9511 R9541 C1053 C1054 R9551 Q977 C210 R9531 R210 R306 R305 R304 R303 C204 R387 R360 R362 R666 R650 C1056 C1055 C1051 R629 R1052 R1053 R1054 R1055 R1066 C1052 R649 R1049 R1050 R605 C213 R1060 C214 R1056 R661 R643 R1011 8 SIDE CONTACT SIDE CONTACT UP SIDE UP SIDE 3 CONTACT SIDE 6 5 2 2 1 1 0 AWM7 HEAT-RESISITANCE PRE-FLAX NORMAL SOLDER LEAD FREE SOLDER ICT FC 0 9 CONTACT SIDE UP SIDE 4 7 DVDM ASSY 0 1 2 3 3 (L210) 4 4 8 9 9 5 5 6 6 7 7 1 30 (L100) 8 (L623) CN5101 G DVDM ASSY E (ANP7463-B) E E SIDE B SIDE B CN911 IC151 IC602 IC501 IC603 IC911 IC911 IC501 IC602 IC603 IC151 Q977 Q194 Q191 Q531 Q551 Q541 Q521 Q501 Q511 Q924 Q452 Q603 Q452 Q924 Q531 Q551 Q541 Q603 Q191 Q194 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 56 1 2 3 4 1 2 3 4 C D F A B E 4.3 AF ASSY 100 81 1 30 31 50 51 80 1 2 3 4 1 3 4 30 1 1 30 1 27 1 19 1 2 8 1 5 1 4 1 2 4 1 10 30 1 NP NP 1 30 27 1 1 18 1 19 1 5 4 1 1 4 D31 D32 C32 D22 C23 CN11 C16 C13 C12 C15 R11 R37 R36 D36 R35 D35 C34 R31 C35 R3635 C33 D33 D34 C24 C25 IC61 C67 D67 W205 CN5105 W182 Q32 C84 IC82 D83 W280 C3195 C3196 C3213 C3214 C3701 C3702 W496 C3907 C3908 C3912 C3911 C3917 C3918 C3906 C3919 C3920 W424 R3911 R3912 R3907 R3908 C5578 C5576 C5575 L5571 C5572 X5501 W349 W251 W252 W254 W208 W256 W183 W505 CN5101 W444 W211 W374 W221 W246 W172 W139 W377 W382 W113 W140 W178 W253 W210 W203 W392 W222 W247 W302 W281 W304 W303 W209 W215 W282 W255 W342 W343 W250 CN5711 CN5102 W522 W204 W112 W120 CN5104 W123 W118 W105 W104 W107 W106 W110 W109 W111 W108 W102 W103 W168 W169 W170 W133 W198 W199 W200 W242 W241 W101 W131 W245 W202 W514 W136 W135 W138 W128 W141 W142 W206 W181 W383 W171 W345 W513 W240 W269 W268 W144 W248 W244 W249 W379 W375 W376 W124 W134 W122 W121 W294 W143 W174 W503 W180 W176 W510 W173 W145 W177 W130 W129 W164 W378 W127 W126 W132 W163 W162 CN51 W468 W469 W381 W236 W238 W237 W332 W296 W271 W291 W165 W166 W243 J12 W270 W331 W273 W426 W380 W335 W384 W389 W347 W344 W346 W295 W293 W292 W333 W197 W310 W4 W3 W305 W442 W445 W402 W390 W167 W334 W470 W429 W239 W471 W439 W330 W427 W437 W428 W523 W476 W430 W472 W435 W477 W473 W436 W433 W431 W432 W474 W338 W434 W391 W386 W394 W385 W504 W443 W387 W388 W274 W272 W275 W276 W339 W340 W277 W279 W298 W300 W297 W301 W299 W278 W440 W506 W438 W475 J21 W395 W441 W396 W398 W399 W401 W393 W397 W403 C3709 W400 CN52 J5105 W137 W119 W117 W467 W201 W499 W495 C8885 W497 D3751 W520 123mm 123mm PCB BIND A B C GNDA FC VDVD+12 DOUT DC DOUT GNDD PCB BINDER CONTACT SIDE 8 1 FC DC Prod PCB BINDER VFDP VFL+5 GNDD FLAC2 FLAC1 GNDFL VA+12 HPAC VA-12 VA+12 VA-12 VD+5 GNDD HPL GNDHP HPR MIC GNDD DOUT GNDD(UGRTN) VX+12 MIC GNDX GNDD GNDA SWIN CIN FLIN FRIN S S S S S S SLIN SRIN GNDD DOUT GNDM UN+8V VP+15 VA-12 XPROTECT RYR VDET VDVD+12 VE+5 VE+5 XDVDRST DVDON/OFF VE+5 VA-12 VA+12 VE+5 GNDD VU+5 VE+5 4 CONTACT SIDE GNDA PCB SUPPORT VE+56 VX+12 VE+56 GNDD RYFSC VFL+5 GNDA VRY+12 GNDD VDVD+12 AF ASSY G G SIDE A CN923 E CN5721 P POWER TRANSFORMER J52 O CN22 H CN911 E CN13 I Q32 IC82 IC61 CN11 CN51 CN52 CN5711 CN5102 J21 J12 CN5101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 57 5 6 7 8 5 6 7 8 C D F A B E 1 7 8 14 1 20 21 40 8 1 9 16 8 1 9 16 8 1 9 16 8 1 9 16 8 1 9 16 1 1 23 1 23 1 2 3 8 10 5 9 4 11 6 7 12 1 10 13 1 10 17 1 23 1 23 1 23 1 1 23 1 13 1 17 1 23 23 1 C3632 R3361 R3607 L3361 RY3643 RY3641 W185 C23 CN11 R11 CN3031 CN3032 R3631 R3632 D3631 D3634 R3635 D3632 C3631 D3633 L3362 R3362 R3561 L3561 RY3642 R3661 L3661 L3461 R3461 R3462 L3462 C24 R3608 R3627 R3628 R3617 R3618 C3633 CN3301 Q3641 C3195 C3196 C3174 C3172 C3162 C3112 C3173 C3171 C3146 C3144 C3132 C3145 C3143 C3131 C3102 C3118 C3117 C3101 C3111 C3115 C3116 C3212 C3211 C3161 W422 R3199 R3200 C3262 C3213 C3214 C3701 C3702 C3721 C5711 C5712 CN5701 C3029 C3027 C3028 C5731 C5732 C3017 C3018 W457 W493 W491 W492 W490 W157 W486 JA3001 C3036 C3035 C3037 C3038 C3734 C3733 JA3801 C3030 C3823 C3824 W349 W327 W421 W458 W312 W251 W252 W254 W208 W256 W153 W152 W321 W359 W184 W183 CN5103 W444 W357 C5596 C5595 W459 W367 W211 W221 W161 W232 W218 W262 W231 W194 W325 W360 W316 W353 W315 W356 W355 W448 W415 W416 W479 W288 W456 CN5603 W362 W462 W461 W369 W485 W411 W319 W455 W487 W465 W484 W481 W489 W480 W500 W214 W213 W212 W253 W210 W413 W494 W406 W478 W235 W290 W160 W190 W261 W159 W265 W260 W228 W191 W188 W158 W189 W222 W196 W195 W259 W266 W267 W234 W226 W192 W193 W233 W263 W209 W289 W311 W215 W230 W229 W258 W419 W224 W225 W227 W463 W326 W186 W216 W255 W156 W223 W219 W418 W155 W217 W488 W512 W482 W466 W464 W366 W451 CN5602 W483 W371 W454 W417 W420 W460 W309 W154 W320 W370 W322 W345 W452 W307 W317 W414 W511 W363 W361 W358 W453 W364 W318 W264 W373 W352 W314 W351 W508 W187 W510 W328 W372 W329 W323 W368 W365 W285 W284 W287 W286 W449 W405 W313 W450 W509 W423 W354 W308 W283 W347 W344 W346 W257 W310 W348 W409 W350 W306 W305 W412 W410 W442 W445 W404 W407 W402 W447 W446 W443 W401 W403 W498 W400 W502 W501 PCB BINDER C CMK-P3X CONTACT SIDE AWU8151- VPR+8 GNDS VL+ VL- VH- GNDP VL+ VH+ DC CONTACT SIDE AF ASS'Y AWU8069- DC Production Code AWU8073- AWU8074- AWU8075- AWU8094- FRIN EVOLSWOUT VA-12 EVOLSLOUT GNDD VD+5 VA+12 VA-12 SACDC SACDSW SACDSL SACDFL SACDSR SACDFR GNDA GNDA EVOLSLIN EVOLSRIN EVOLCIN EVOLSWIN VUA-12 VUA+12 VD+5 VRY+12 VCOMG GNDA VH- VH+ VL- GNDF FLIN GNDA FRIN CIN SWIN SLIN SRIN UN+8V GREG HPAC VD+5 (CODEC) VA-12 GNDA GNDA GNDA VRY+12 GNDD G SIDE A (ANP7457-D) CN201 F CN5613 M CN5612 M CN3012 L CN8001 N Q3641 CN5701 CN3032 CN3011 L CN3031 CN5103 CN5602 CN5603 6ch SPEAKER OUT TV LINE1 LINEOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 58 1 2 3 4 1 2 3 4 C D F A B E 1 7 8 14 1 20 21 40 8 1 9 16 8 1 9 16 8 1 9 16 8 1 9 16 8 1 9 16 1 7 8 14 1 20 21 40 8 1 9 16 8 1 9 16 8 1 9 16 8 1 9 16 8 1 9 16 1 23 23 1 NP 8 5 4 1 1 4 5 8 5 8 1 4 8 5 4 1 8 14 7 1 8 5 4 1 5 8 4 1 1 20 21 40 1 13 16 9 8 1 8 5 4 1 8 9 16 1 1 8 9 16 1 4 5 8 8 5 4 1 1 10 17 16 1 9 8 16 1 9 8 23 1 23 1 R3638 C3369 C3363 C3361 R3363 R3605 R3601 R3615 R3644 R3642 R3643 D3641 D3602 R3604 C3368 C3366 C3367 C3365 C3567 C3565 R3633 R3634 R3646 D3635 D3603 D3623 D3644 R3641 R3645 D3637 C3362 R3364 C3364 R3602 R3603 D3601 R3606 C3370 C3569 R3625 R3621 D3642 C3561 R3563 C3563 C3663 R3663 C3661 R3626 R3622 R3623 R3624 D3622 D3621 C3470 C3469 C3669 C3468 C3467 C3667 C3465 C3466 C3665 R3466 R3465 R3665 C3461 R3463 C3463 D3643 C3462 R3464 C3464 R3611 R3616 D3613 R3612 R3614 D3612 R3613 D3611 D3636 R3647 C3627 Q3631 Q3611 Q3612 Q3642 Q3644 Q3621 Q3622 Q3601 Q3602 Q3635 Q3636 Q3645 Q3633 Q3632 Q3637 Q3638 Q3640 Q3639 R3639 R3468 R3467 R3667 R3367 R3365 R3366 R3368 R3566 R3565 D3182 C3197 R3191 R3192 R3193 C3193 C3191 C3192 C3198 C3194 R3164 R3178 C3170 C3168 R3162 R3180 R3179 R3175 IC3161 R3177 C3176 C3140 R3140 R3138 R3136 R3132 IC3131 C3134 C3142 R3137 R3135 C3133 R3131 C3139 R3139 C3110 R3110 C3108 R3108 R3106 R3102 R3114 R3116 C3106 C3104 R3115 C3105 C3103 R3113 C3109 C3107 R3107 R3105 R3109 R3101 C3113 C3114 R3176 IC3701 R3111 R3112 C3175 R3118 C3294 R3270 IC3261 R3272 C3210 C3209 C3219 R3209 C3217 C3203 R3201 R3203 R3205 IC3121 R3183 R3187 R3185 R3186 R3184 R3188 R3189 R3190 R3123 R3124 R3253 C3135 R3143 R3144 C3136 R3169 C3163 R3167 R3165 R3161 R3171 C3169 C3167 C3165 Q3802 R3103 R3104 R3133 R3134 R3163 C3276 R3268 R3264 C3274 R3266 R3262 IC3252 C3264 R3170 R3168 C3297 C3298 Q3172 Q3171 Q3174 Q3122 Q3124 Q3101 Q3102 Q3123 Q3125 R3141 R3142 R3173 R3181 R3182 R3213 R3713 R3297 R3298 IC3101 R3166 C3282 C3286 C3284 C3288 C3292 C3290 C3266 C3268 C3270 IC3181 R3706 R3704 R3710 R3712 R3709 R3711 R3708 R3707 R3703 R3722 R3724 R3721 R3725 R3723 R3705 C3190 C3189 C3188 C3187 C3186 C3185 R3194 R3195 R3204 R3202 C3218 R3210 C3220 R3214 C3204 R3206 R3234 R3232 R3231 C3295 R3267 R3265 C3265 R3271 R3269 R3261 C3263 R3263 D3121 D5711 C5792 R5726 R5725 R5712 R5711 R5724 R5723 D5721 R5722 R3016 R3021 R3022 R3017 R3018 R3015 IC3001 D3003 D3004 R3042 R3041 R3024 R3023 R5728 C3025 C3026 R3039 R3040 R5731 R5732 C5791 C5723 C5721 C5722 R5791 C5793 C5795 C5794 D5712 R3019 R3020 C3013 R3008 L3008 C3009 C3010 R3009 L3009 C3012 L3007 R3007 C3016 C3015 C3014 C3006 R3014 C3008 R3006 L3006 C3005 C3007 R3004 L3005 L3004 C3011 R3013 R3002 R3005 C3002 R3012 C3004 L3003 L3002 C3001 R3011 C3003 R3003 L3001 R3801 Q5711 Q3002 Q3001 Q3007 Q3009 R3047 R3048 Q3010 R3045 R3046 R3049 R3050 C5790 IC3003 R3027 R3029 R3028 R3030 C3033 C3034 R3033 R3034 R3740 C3736 C3735 R3739 R3811 IC3801 C3805 R3812 C3806 IC3051 Q3005 R3025 R3031 R3032 Q3006 R3026 Q3004 R3733 R3734 R3732 R3731 C3740 R3737 R3735 R3738 IC3731 R3744 R3741 R3742 R3001 R3802 C3803 C3802 C3801 R3805 R3806 C3825 C3826 IC3821 R3824 R3822 R3821 C3822 C3821 R3823 C3051 C3052 R3051 R3052 C3269 C3296 IC3061 IC3062 R5597 R5598 Q5595 R5596 R5595 R3061 R3062 R3064 R3063 Q3061 Q3742 C3061 C3739 R3736 C3062 R3813 R9101 R3810 R3172 D3604 R9162 R9161 R9132 R9131 R9102 R3807 D3801 R3808 Q3741 Q3801 R9801 R3233 L3802 R3053 R3055 R3054 R3743 R9005 R9006 R9631 R3747 R3748 R3750 R9007 R3236 R3809 L3801 VL+ VD+5 GNDD Cb/B VH+ CTS GNDD SC GNDD GNDP RTS SY GNDD CY/G VH- VL- TXD V GNDD Cr/R GNDD RXD GNDS VPR+8 DSPDO 8 5 4 VPR+8 VPR+8 SRIN SLIN SWIN CIN FRIN GNDA GNDA FLIN MUTE MUTEC VFL+5 VP+15 VA-12 VD+5 TUNER XPRCT GREG GREG UN+8V UN+8V GNDF SLOUT SLOUT VL- VL- SROUT SROUT VL+ VL+ COUT COUT VH+ VH+ SWOUT SWOUT GNDS FLOUT FLOUT GNDP GNDP FROUT FROUT VH- VH- GNDA GNDA GNDC GNDC GNDC GNDC GNDC RIN LIN FRO FLO SRO SLO SWO CO SBRO SBLO GNDA GNDA XTLO DIRERR DIRRST DIRCS DIRDO DSPMODE DSPHREQ DSPCS DSPRST DSPCK DSPDI DECMUTE DSPMUTE MUTEOUT NC NC UGRTN UGRTN DOUT DGRTN DGRTN VD+5 VD+5 NC RDS +10V TUNE STEREO MUTE/IFREQ TXL GND TXR DO CLK DI CE VA-12 EVOLSLOUT GNDD EVOLSWOUT VD+5 VA+12 VA-12 SACDC SACDSW SACDSL SAC SAC SACDFR GNDA GNDA GNDA GNDA GNDA VCOMG VUA-12 VUA+12 EVOLSLIN EVOLSRIN EVOLCIN EVOLSWIN VRY+12 HPAC FLIN GNDA FRIN CIN SWIN SLIN SRIN VH- VH+ VL- VL- GNDF VD+5 1 TV LINE1 LINE OUT SL SR C SW FR FL R R L R L R L R L UN+8V GREG VD+5 VD+5 (CODEC) VA-12 GNDA GNDA GNDA GNDD Q3601 Q3635 Q3602 Q3642 Q3621 Q3644 Q3611 Q3631 IC3062 IC5501 IC3821 IC3731 IC3051 IC3801 IC3003 IC3901 IC3001 IC3241 IC3181 IC3101 IC3252 IC3121 IC3201 IC3261 IC3701 IC3131 IC3161 Q131 Q3801 Q3741 Q3803 Q3742 Q3061 Q5595 Q5573 Q5501 Q5572 Q5571 Q3902 Q3901 Q3903 Q3904 Q3004 Q3006 Q3005 Q3905 Q3003 Q3908 Q3907 Q3010 Q3009 Q3007 Q3906 Q3001 Q3002 Q5711 Q3202 Q3201 Q3125Q3123 Q3102 Q3101 Q3124 Q3122 Q3174 Q3131 Q3132 Q3171 Q3172 Q3121 Q3645 Q3633 Q3632 Q3637 Q3638 Q3640 Q3639 Q114 Q115 Q3802 Q3636 Q3622 Q3612 AF ASSY G G SIDE B CN5602 CN5701 CN3032 CN3031 CN5603 CN5103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 59 5 6 7 8 5 6 7 8 C D F A B E 100 81 1 30 31 50 51 80 100 81 1 30 31 50 51 80 1 10 1 30 1 4 5 8 8 5 4 1 8 5 4 1 5 8 4 1 100 81 80 51 50 31 30 1 30 1 1 27 18 19 1 1 5 1 4 1 4 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A C66 D103 Q114 R111 R112 R113 R114 Q115 C83 D3181 D3182 R9003 R9004 R3191 R3192 R3193 C3193 C3191 C3192 R3122 R3146 R3150 R3148 R3147 R3145 R3149 C3141 IC3701 C3705 C3706 R3117 IC3201 C3210 C3209 C3219 R3209 C3217 C3203 R3201 R3203 R3205 R3254 R3253 C3297 Q3121 Q3132 Q3131 R3213 R3714 R3713 R3297 R3298 R3121 C3121 R3225 R3227 Q3201 Q3202 R3228 R3226 R3224 R3223 C3215 C3216 R3229 R3230 R3701 R3702 C3190 C3189 C3188 C3187 C3186 C3185 R3194 R3195 C3707 R3715 R3716 R3215 R3217 R3219 R3221 R3204 R3202 C3218 R3210 C3220 R3214 C3204 R3206 R3216 R3220 R3222 R3218 R3234 R3252 R3244 R3242 C3244 C3250 IC3241 R3250 R3248 C3246 R3246 C3249 R3232 R3251 R3247 R3249 C3245 R3245 R3231 R3243 C3243 R3241 D3121 R3010 IC3901 R3923 R3924 R3925 R3926 C3913 C3909 C3910 R3921 R3922 R3927 R3928 C3914 C3915 C3916 R3918 R3919 R3917 R3929 R3930 R3933 R3934 Q3906 D3901 R3901 Q3907 Q3908 R3939 R3940 C3921 C3922 R3935 R3937 R3936 R3938 R3942 R3941 Q3003 Q3905 Q3904 Q3903 R3914 R3913 Q3901 Q3902 R3909 R3910 R5575 C5577 D5572 C5571 R5576 C3247 C3248 R5573 R5574 C5573 C5574 R5572 R5571 R5539 R5532 C5579 R5577 D5575 C5513 R5559 IC5501 L8881 R5519 R5520 R5527 R5548 R5550 R5552 R5553 R5554 C5510 R5560 R5561 R5562 R5563 R5564 R5568 R5580 R5579 R5557 R5537 R5538 R5536 R5514 R5513 R5512 R5516 R5510 R5542 R5507 R5508 R5506 R5505 R5504 R5522 R5523 R5558 R5547 R5546 R5545 C5504 R5518 C5508 R5549 R5541 R5540 R5502 R5503 R5517 R5551 R5555 R5556 R5570 R5578 R5509 C5502 C5503 R5534 C5507 C5506 C5509 C5511 R5529 R5524 R5528 R5525 R5530 C5501 R5501 R5581 R5582 R5569 Q5571 Q5572 Q5501 R5565 R5567 R5583 R5584 R5533 R5535 Q5573 R5588 R5531 R5566 R5591 C5580 R5590 R5589 C5514 C5515 C5516 R5543 R5544 C5517 C5518 R5511 R5587 R5586 R5585 C8881 C8882 C8883 C8884 R8881 R5593 R3064 R3063 R5526 Q3061 C3708 R9721 R9702 R9001 R9701 R9002 R5602 R5521 R132 R133 Q3803 R3916 Q131 TH131 R5515 R3233 R131 R3717 R5601 R5600 R3235 R9631 R3236 123mm 123mm AWU8094- 25.VA-12 DVDPOWER AWU8074- VPR+8 VPR+8M VPR+8 GNDD GNDD GNDD VPR+8M GNDM GNDM XDVDRST GNDD AWU8073- AWU8075- AF ASS'Y TEST MODE AWU8151- AWU8069- VDVD+12 DOUT UTEST VPR+8 VDVD+12 12.EXPCLK 11.EXPDATA 5.SR 6.GNDFL 7.FLAC1 8.FLAC2 9.GNDD 10.EXPCE 4.FLCLK 3.FLDATA 2.XFLCS 1.XFLRST 22.HPL 23.GNDHP 24.HPR 20.HPDET 21.VA+12 26.GNDMIC 27.MIC 18 1 SYSCS1 SYSCS2 SCLK SDATA GNDD VDET DVDMUTE MDATA ACK GNDD TRKUP XVMUTE TXD RXD RTS CTS VDVD+12 CTS RXD XVMUTE RTS TXD DVDMUTE VDET MDATA SCLK SYSCS1 DVDPOWER ACK SDATA SYSCS2 XDVDRST GNDD DOUT S Y V S C Cr/R Cb/B GNDD GNDD GNDD GNDD GNDD GNDD CY/G RGB P/XI ASPECT LETTER SQUEEZE VSEL2 VSEL1 GNDA SR GNDA SL GNDA LFE GNDA C GNDA FR GNDA FL 19.VE+5 18.VOLJOG 17.KEY1 16.KEY2 15.TIMERLED 14.VFDP 13.VD+5 SIMUKE DOUT VA-12 EVOLSLOUT GNDD EVOLSWOUT VD+5 VA+12 VA-12 SACDC SACDSW SACDSL SACDSR SACDFL SACDFR GNDA FLIN GNDA FRIN CIN SWIN SLIN SRIN VL- VA-12 VP+15 UN+8V GNDM GNDD DOUT RYSFC RYR XPROTECT FLIN FRIN CIN SWIN GNDA GNDD GNDD GNDD(UGRTN) DOUT GNDX MIC VX+12 MIC HPR GNDHP HPL GNDD VD+5 VA-12 VA+12 VA+12 VA+12 VA-12 VA-12 HPAC VFDP VFL+5 GNDD GNDFL FLAC2 FLAC1 VE+5 DVDON/OFF GNDD VU+5 VE+5 VDVD+12 VDET VE+5 VE+5 XDVDRST VE+5 LEVEL MODEL GNDA GNDA GNDD VE+56 DOUT VX+12 GNDD VE+56 VD+5 (CODEC) VFL+5 2 NDA GNDA VRY+12 WD0 WEN/DI GNDD VDVD+12 SYSPOW GNDD VE+56 RST AC WCLK G (ANP7457-D) CN11 CN51,52 J12 J21 CN5101 CN5711 CN5102 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 60 1 2 3 4 1 2 3 4 C D F A B E 4.4 6CH AMP, DIODE S and DIODE L ASSYS 19 10 1 23 1 1 FLOUT 1 word surface 1 23 AWM SLOUT GNDS SWOUT VA-12 GNDREG SROUT VD+5 VPF+15 VP+15 XPROTECT VF-12 +B GNDP GNDP VL+ VL- IRFI9Z34G -B VL- 2SD2012 NJM7912FA Surface Word IRFIZ34G D3393 W205 D3389 W198 R3388 W170 W143 W142 C3423 W147 W171 W190 IC3401 W144 W146 W127 W197 Q61 D3391 W111 W112 Q62 D3385 IC71 D3392 Q3383 W182 W199 W181 W175 W180 Q3384 D3387 D72 D3388 W202 C72 W200 W201 W183 W185 W207 R3387 D3386 W206 C63 W184 W203 W204 D3322 D3390 D3394 23 1 19 10 1 23 1 IRFI9Z34G FLOUT SWOUT SROUT 1 23 word surface 19 10 1 19 10 1 AMP Assy 7788 GNDP VH+ VL+ VL- NJM7805FA 1 23 FROUT VH+ VH- AWM -B +B GNDP SLOUT GNDS GNDP FR1S P Production Code Word Surface UN+8 VA-12 FC DC 7787 7786 7720 SWOUT VA-12 GNDREG SROUT VD+5 VPF+15 VP+15 XPROTECT VF-12 +B -B GNDP GNDP GNDP VL+ VL+ VL- +B IRFI9Z34G -B VL- Surface IRFIZ34G D3393 R3318 D3389 W198 R3388 W120 W170 W143 C3478 W138 W139 W140 Q91 W142 R3427 W141 W154 C3377 C3577 R3520 C3402 D3325 W123 C98 D3324 C3424 C91 C3317 C3578 C3423 C3422 D98 D3328 W124 C3501 D3651 D3652 W104 D3653 D3654 W121 W126 D3326 W159 W151 W158 W105 W125 W145 W148 W147 D3323 W172 W171 W107 W173 IC81 C3301 D82 C3652 C3651 D3655 W106 W109 W110 W108 W119 C3508 R3657 Q3654 W192 W122 C3653 W161 W195 W196 W194 W160 CN3002 IC3301 W190 W169 IC3401 W168 D3427 D3428 D3422 W187 W162 D3423 R3519 D3421 W167 R3517 W188 W166 R3417 W163 W150 C3323 C3307 W144 W193 W146 W127 D3426 R3422 R3420 R3419 W191 W197 R3418 W164 D3391 W129 C3408 C3507 D3424 W128 CN3001 W111 W113 W130 W135 W112 W165 W189 Q62 C82 W103 W101 W117 D3385 D3425 IC71 W131 W132 C101 D3392 Q3383 W149 W136 W116 W118 R3428 W115 W114 W133 W157 W177 W179 W176 R3421 W182 W178 W174 W199 W181 W175 W180 C3407 C3421 Q3384 W137 D3387 D72 C3378 IC3303 D3388 D3327 W202 C72 C3322 R3328 R3327 C3318 W200 W201 W183 W185 W152 W207 R3387 D3386 W206 W184 C3179 W203 R3320 C102 C3167 R3317 W102 C3178 C3302 D3322 C3401 D3321 C3308 W153 C3321 R3321 R3322 W155 R3518 C3502 C3324 D3390 W156 C3477 D3394 R3319 C3168 1 2 3 4 1 4 4 1 C21 D21 CN22 CMK-P3X AWU8095- ASS'Y DIODE L AWU8070- ASS'Y DIODE L AWU8070- 1 2 3 4 1 5 5 1 C11 D11 CN13 CMK-P3X DIODE S ASS'Y AWU8071- H J SIDE A SIDE A (ANP7461-A) (ANP7457-D) (ANP7457-D) CN3022 L 6CH AMP ASSY J DIODE S ASSY I I J DIODE L ASSY H H I CN3021 L DC FAN MOTOR IC81 Q61 Q3654 Q3383 Q3384 Q62 Q91 IC3401 IC71 IC3301 IC3303 CN3302 J12 G J21 G CN22 CN13 CN3001 CN3651 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 61 5 6 7 8 5 6 7 8 C D F A B E 1 4 1 5 ASS'Y AWU8071- AWU8070- DIODE L DIODE S ASS'Y AWU8095- NP NP D 23 1 23 1 SWOUT SWOUT VH+ VH+ VH- VH+ VL+ VA-12 VP+15 VD+5 VL- TUNER XPRCT GNDR GNDR UN+8 UN+8 GNDF SLOUT SLOUT VL+ VL+ SROUT SROUT VL- VH- VL- FLOUT SWOUT SROUT 1 VH- AMP Assy SROUT GNDREG GNDP 7788 COUT FROUT GNDP FROUT COUT IC3301 FROUT VH+ FAN SIDE FLOUT FLOUT GNDS GNDP C2 E2 -B GNDP +B GNDP SWOUT SLOUT GNDS G S FR1S P VPR+8 VPR+8 SRIN SLIN SWIN CIN FRIN GNDA SEN+8 FLIN MUTE MUTEC VFL+5 UN+8 VA-12 AWM 7720 7786 7787 C1 B1 B2 E1 IC3401 VD+5 VPF+15 VP+15 XPROTECT VF-12 VL+ VA-12 GNDP +B VL+ +B GNDP -B VL- GNDP -B VL- 1 B C E S D G G D S C3509 R3511 R63 R3412 C3410 R3411 C3409 D3341 R3571 R3513 R3501 D104 R121 D3381 R3478 R3574 R3378 R3414 R3471 R3577 TH121 Q121 Q43 Q3433 R3377 D3443 R3443 R3439 R3435 R3576 Q92 D3441 R3345 R47 R45 D3582 R91 D91 C81 R46 R3476 Q3301 Q3372 R3373 R3375 R3374 R3376 C97 Q3371 C92 R3472 R3503 R95 R3426 R3416 R48 C3426 R92 R123 R114 R113 R3371 R111 Q111 R93 R96 R122 R3512 R97 R3313 R112 D3581 Q3653 R3301 Q3531 R3303 Q3652 R3651 D3657 R3506 TH111 D3658 R94 R3658 R3656 R3655 R3654 C3504 Q3651 Q107 R108 Q106 D42 R3307 R3509 R3507 R3505 Q3532 R3492 D3482 D3481 R3491 Q3432 R3531 C3503 R3545 C3305 R3316 R3305 C3303 R3309 R3532 R3537 R3533 D106 R3543 R3539 R3432 R3438 R3434 R3591 R3424 R3538 R3575 R3451 R3534 R3544 R3540 R3592 D3382 C3506 C3406 Q101 Q102 Q104 Q103 C61 C3505 R3406 R3311 R3312 C3309 R3408 C3404 C71 R3351 C62 R3410 D3343 R109 R67 D102 R65 R3510 R3508 Q63 Q3431 R3431 R3437 R3433 C3405 R3407 R3423 Q3434 R101 Q3501 Q3533 R3391 R3405 Q3401 R3392 C3403 C3510 Q3333 Q3334 R3409 R64 R68 R3340 R3344 D3344 R3343 R3383 Q3402 Q3504 R3339 C3310 R3334 Q3502 R103 Q3302 R3382 R3384 D105 R3386 R3332 D101 R62 Q3332 R61 R102 R3385 Q3382 R3390 R104 Q3331 R3326 Q3534 R105 R106 Q3381 D3544 R3381 R66 C3326 R3338 R3514 R3335 R3304 R3502 R3302 R3337 R3403 R3401 R3331 R3333 R3402 R3323 R3324 C3304 R3573 C3306 R3310 R3306 R3308 R3404 R3389 D3543 Q3572 R3572 R3578 R3446 D3444 R3444 R3372 R3500 R3504 R3477 R3314 R3440 R3445 R3413 R3546 R3346 Q3571 Q3471 Q3472 R3473 R3475 R3474 H J SIDE B SIDE B (ANP7461-A) (ANP7457-D) (ANP7457-D) 6CH AMP ASSY J CN3002 CN3001 CN3561 CN22 CN13 Q3332 Q3334 Q3532 Q3534 Q3381 Q3382 IC3301 Q102 Q3331 Q3333 Q3651 Q101 Q3653 Q106 Q103 Q107 Q3652 Q104 Q111 Q43 Q3433 Q92 Q92 Q3431 Q121 Q63 Q3533 Q3531 Q3501 Q3571 Q3402 Q3472 Q3401 Q3471 Q3504 Q3502 Q3572 Q3301 Q3371 Q3302 Q3372 Q3434 Q3432 IC3401 DIODE S ASSY I I J DIODE L ASSY H H I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 62 1 2 3 4 1 2 3 4 C D F A B E 4.5 DSP, DSP TRADE and AMP TRADE ASSYS 9 1 36 37 72 73 108 109 144 16 1 8 9 20 11 10 1 1 4 5 8 1 10 20 11 10 1 1 11 12 22 23 33 34 44 1 2 3 48 37 36 25 24 13 12 1 1 11 1 22 1 1 1 22 44 1 1 17 1 36 37 73 72 108 109 144 9 16 1 8 17 32 16 1 1 10 8 5 1 1 10 20 1 11 10 15 1 48 37 36 24 25 13 12 R 1 11 1 6 6 1 1 22 17 44 23 1 R8225 R8705 R8708 R8706 R8707 C8423 CN8001 D8401 CN8005 CN8004 R8554 R8232 R8231 R8230 R8229 JA8101 IC8501 C8302 IC8301 R8411 KN8501 IC8603 C8610 C8705 R8551 Q8501 R8533 R8531 R8534 R8503 R8226 C8543 IC8701 CN8002 R8345 C8408 C8407 IC8502 C8525 R8206 R8203 R8211 C8701 C8545 R8205 R8204 C8209 C8901 R8103 C8405 C8404 C8406 R8219 L8205 C8904 C8902 C8215 C8214 L8204 R8213 R8215 R8209 R8214 R8015 X8201 C8422 CN8010 R8416 R8413 R8412 R8414 CN8007 R8553 R8552 R8016 R8017 R8410 R8409 R8408 D8501 C8706 L8702 C8704 C8225 CN8017 C8218 C8219 C8221 L8402 C8419 C8418 C8420 IC8702 R8550 CN8008 IC8401 C8222 R8339 CN8009 C8533 JA8103 C8532 KN8102 IC8201 L8203 C8217 C8212 C8213 C8201 C8202 L8201 C8210 R8539 C8536 C8537 R8506 JA8102 C8105 C8113 C8603 C8604 C8547 R8543 KN8201 R8227 C8546 R8335 R8331 R8330 R8329 CN8018 C8226 C8549 R8522 R8521 Q8341 C8515 C8516 CN8006 R8524 R8519 C8301 Q8504 CN8019 L8301 C8554 C8509 C8507 C8223 R8222 R8223 KN8101 R8110 C8003 C8004 C8001 C8002 C8112 C8107 C8504 C8505 C8513 C8512 C8523 C8522 R8511 R8512 R8513 R8514 R8704 R8810 R8337 R8336 R8210 C8524 R8530 C8527 C8526 C8528 C8530 R8333 R8332 R8207 R8405 R8406 R8404 R8328 R8216 L8202 CN8003 R8009 R8109 R8107 R8111 R8010 R8102 R8701 R8702 R8703 C8703 C8108 C8702 R8556 R8557 CN8016 CN8013 C8541 R8346 R8804 C8601 R8501 CN8011 C8511 R8803 R8805 IC8601 CN8015 C8503 R8502 R8802 R8601 C8602 CN8012 CN8014 R8606 R8608 R8605 L8603 C8609 L8504 C8550 C8551 C8548 R8540 R8541 X8501 C8613 C8415 C8421 L8601 A 15 13 1 B 33 34 FC 1 ICT I I H 94V-0 F G C 1 7 19 A E G H 12 11 F E J JTAG 23 22 H C T-163 B C 44 1 1 19 D D J 13 1 19 1 23 1 19 1 23 1 1 13 19 1 23 1 1 19 23 1 VD+5 VD+5 DGRTN UGRTN UGRTN DGRTN DSP TRADE ASSY AWU8060 CMK-P3X VD+5 CN5621 CN5622 CN5612 CN5623 CN5613 W124 W126 W122 W116 W115 W125 W123 W127 W121 23 1 23 1 23 1 23 1 23 1 1 23 23 1 1 23 CAUTION REPLACE WITH SAME TYPE NO.491007 FOR IC25 MFD.BY LITTELFUSE INC. 7A125V 491007 AMP TRADE ASSY AWU8059 CMK-P3X GNDA GNDREG GNDS UPSIDE CN3012 CN3022 IC25 CN3011 CN3021 W154 W156 W155 W153 W137 W152 W157 W136 W158 IC8501 IC8301 IC8603 IC8701 IC8502 IC8702 IC8401 IC8201 IC8601 Q8501 Q8341 Q8504 K L M L K M SIDE A SIDE A (ANP2022-B) (ANP7456-B) (ANP7456-B) CN3031 G AMP TRADE ASSY L DSP TRADE ASSY M DSP ASSY K CN3001 J CN5602 G CN5603 G CN3612 CN3011 CN3032 G CN3012 CN3021 CN3002 J CN3022 CN3613 CN5621 CN8003 CN5622 CN8007 CN5623 CN8011 5 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 63 5 6 7 8 5 6 7 8 C D F A B E 13 1 CN3012 1 23 1 23 CN3022 1 19 CN5622 23 1 CN5612 1 23 CN3011 1 23 CN3021 19 1 23 1 CN5613 CN5623 CN5621 GNDREG GNDA SLOUT VPR+8 VPR+8 SRIN SLIN SWIN CIN FRIN GNDA GNDA FLIN MUTE TUNER VD+5 VA-12 VP+15 VFL+5 MUTEC GNDREG GNDREG XPROTECT UN+8V UN+8V GNDF SLOUT VL- VL- SROUT SROUT VL+ VL+ COUT COUT VH+ VH+ SWOUT SWOUT GNDS FLOUT FLOUT GNDP GNDP FROUT FROUT VH- VH- VPR+8 VPR+8 SRIN SLIN SWIN CIN FRIN GNDA SENSE+8 FLIN MUTE MUTEC VFL+5 VP+15 VA-12 VD+5 TUNER XPROTECT GNDREG GNDREG UN+8V UN+8V GNDF SLOUT SLOUT VL- VL- SROUT SROUT VL+ VL+ COUT COUT VH+ VH+ SWOUT SWOUT GNDS FLOUT FLOUT GNDP GNDP FROUT FROUT VH- VH- AMP TRADE ASSY AWU8059 ATTENTION EN CAS DE REMPLACEMENT DES FUSIBLES IC25 N'UTILISER QUE LA REFERENCE 491007 DE CHEZ LITTELFUSE INC. DSP TRADE ASSY AWU8060 IC25 7A125V 491007 CMK-P3X CMK-P3X UPSIDE GNDP VD+5 DGRTN VD+5 VD+5 DGTRN UGRTN R98 R5622 R5621 C5789 C5799 1 15 9 1 19 15 32 17 16 1 14 1 7 8 13 1 19 IN GND OUT IN GND OUT 8 5 4 1 32 17 16 1 14 1 7 8 C8555 L8005 R8005 R8004 L8004 R8003 L8003 R8002 L8002 D8402 C8411 C8410 R8234 R8233 R8228 C8605 C8009 R8504 R8529 R8528 R8555 R8807 R8808 R8806 R8809 L8801 C8501 C8502 R8510 R8509 R8508 C8542 C8544 L8701 R8114 C8403 C8402 R8115 C8208 D8303 R8202 R8407 C8204 C8207 L8401 IC8902 IC8901 C8903 R8001 L8001 R8019 R8105 R8417 C8114 C8111 R8108 R8507 C8417 C8416 C8414 C8413 C8412 R8013 C8409 R8006 L8505 Q8503 D8503 D8502 R8538 R8547 R8548 R8338 C8531 R8014 R8201 C8203 L8501 R8224 C8534 R8526 C8535 R8104 C8115 R8112 R8515 IC8503 R8516 L8104 R8321 R8320 R8340 C8007 R8309 R8344 R8308 R8310 L8502 C8607 C8608 IC8602 R8311 R8536 R8523 R8520 R8505 R8545 D8301 R8549 R8527 C8517 R8544 C8514 C8552 R8518 R8517 R8542 R8546 C8553 D8302 R8341 R8343 C8220 L8102 C8224 R8221 R8220 R8116 IC8101 C8005 C8110 C8109 L8103 C8006 C8521 C8520 C8518 C8012 C8011 C8010 C8008 R8113 R8212 C8206 C8205 C8529 R8018 R8403 R8402 R8401 R8334 R8008 R8532 R8007 R8011 R8012 C8104 C8106 R8106 L8101 C8211 C8216 C8540 C8539 R8811 C8538 R8801 R8602 R8603 R8812 R8813 C8606 C8014 C8013 R8326 R8314 R8313 R8312 R8558 R8537 R8322 R8415 C8401 L8602 B GCH AWX8239 V36 GNDD AWX8254 AWX AWX8241 PRODUCTION CODE AWX8240 AWX8252 A 17 7 1 GDAC GNDD 4 1 5 AWX1082 8 GNDD GNDD V11 C C AWX8253 AWX8255 A B AWX1083 AWX8250 AWX8251 Q8503 IC8902 IC8901 IC8503 IC8602 IC8101 K M L L K M SIDE B SIDE B (ANP7456-B) (ANP7456-B) (ANP2022-B) DSP TRADE ASSY M AMP TRADE ASSY L DSP ASSY K CN8011 CN5623 CN3021 CN3022 CN3012 CN3011 CN8003 CN5621 CN5613 CN5612 CN8007 CN5622 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 64 1 2 3 4 1 2 3 4 C D F A B E 4.6 VIDEO JACK and PRIMARY ASSYS 1 5 1 9 5 4 1 8 1 7 1 4 1 only AWU8057 STBY RISK OF FIRE - TUBE SIDE 2 1 5 1 8 1 7 1 CONTACT SIDE PRIMARY SECONDARY PRIMARY ASSY AWU8057 AWU8066 AWU8067 FU1 A V FU2 STAND BY FU3 STAND BY REPLACE FUSE AS MARKED. 4 1 CMK-P3X VE+56 GNDD KN1 R1 C1 C51 C52 C54 H1 H2 AN1 L1 RY1 IC51 CN1 CN2 C2 H4 H3 H6 H5 S101 S102 Q51 T2 W135 W148 W146 W120 W144 W140 W131 W134 W145 W133 W160 W165 W185 W149 W147 W164 W163 W139 W161 W166 W119 W173 W174 W132 W143 W159 W129 W162 W128 W151 W138 W130 W142 W141 W150 W110 W109 J51 W111 7 1 17 1 6 1 6 5 4 3 2 1 7 1 17 1 CONTACT SIDE UP VIDEO ASSY AWU8061 SIDE UP CONTACT CMK-P3X C8871 C8861 C8851 C8831 JA8802 C8821 CN8003 CN8001 JA8851 W117 W112 W118 W113 W114 CN3 W184 J52 N O (ANP7456-B) (ANP7456-B) CN52 G CN51 G PRIMARY ASSY O VIDEO JACK ASSY N CN5103 G POWER TRANSFORMER AC IN N O SIDE A SIDE A CN 1 AN 1 J52 J51 CN8001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 65 5 6 7 8 5 6 7 8 C D F A B E ~ ~ + - 2 1 5 1 7 1 17 1 8 1 7 1 1 4 CN8001 IC51 NEUTRAL J51 GNDD AC SYSPOW VE+56 CTS RTS RXD TXD VD+5 GNDV GNDV GNDV GNDV GNDV GNDV CY/G Cb/B Cr/R S C V S Y RST WCLK WD0 WEN/DI LIVE 240 230 220- 127 120- 240 230 220- 127 120- PRIMARY SECONDARY VIDEO ASSY AWU8061 AWU8066 AWU8067 AWU8057 CN3 J52 CN8003 CMK-P3X CMK-P3X 1 2 3 4 5 6 7 8 5 6 7 8 4 3 2 1 VE+56 GNDD C57 C56 D53 R53 R52 C53 D54 D51 D52 R55 R56 D55 R8875 R8876 C8872 R8865 R8866 C8862 R8873 R8871 R8862 R8864 R8872 R8874 L8851 L8861 L8871 R8856 R8855 C8852 R8854 R8863 R8861 R8853 R8851 F8841 R8841 R8842 C8842 F8831 R8831 C8832 R8832 R8823 C8823 R8822 C8822 F8821 R8821 R8852 R8881 R8882 R8883 R8884 R54 Q52 C5501 R5501 C58 N O O N SIDE B SIDE B (ANP7456-B) (ANP7456-B) PRIMARY ASSY O VIDEO JACK ASSY N J52 J51 CN8003 AC IN CN1 CN8001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 66 1 2 3 4 1 2 3 4 C D F A B E 4.7 DISPLAY, JOG, DISC KEY, HP MIC and FUNCTION KEY ASSYS 4 1 4 1 5 1 4 1 4 1 1 5 PLAY/PAUSE STOP FORWARD REVERSE TV/AUX TUNER/BAND DVD/CD AWU8062 FUNCTION KEY ASSY J5805 CMK-P3X S5847 S5841 S5842 S5843 S5844 S5845 S5846 J5804 J5805 J5803 4 1 4 1 5 1 4 1 4 1 1 5 PLAY/PAUSE STOP FORWARD REVERSE TV/AUX TUNER/BAND DVD/CD AWU8062 FUNCTION KEY ASSY J5805 CMK-P3X S5847 S5841 S5842 S5843 S5844 S5845 S5846 J5804 J5805 J5803 1 3 2 1 2 3 4 5 6 7 1 2 3 4 5 6 7 5 1 13 10 1 5 1 13 1 STANDBY/ON AWU8064 AWU8068 J5803 MIC HP CMK-P3X GNDMIC VA-12 VA+12 GNDD GNDMIC GNDHP GNDD S5831 C5806 C5803 VR5801 C5808 JA5801 JA3901 J5802 J5801 C5802 W177 W168 W176 W175 W169 W186 W167 W172 W171 W170 W178 C5814 1 3 2 1 2 3 4 5 6 7 1 2 3 4 5 6 7 5 1 13 10 1 5 1 13 1 STANDBY/ON HP MIC ASSY AWU8064 AWU8068 J5803 MIC HP CMK-P3X GNDMIC VA-12 VA+12 GNDD GNDMIC GNDHP GNDD S5831 C5806 C5803 VR5801 C5808 JA5801 JA3901 J5802 J5801 C5802 W177 W168 W176 W175 W169 W186 W167 W172 W171 W170 W178 C5814 1 62 13 1 27 1 62 58 37 31 1 13 X 27 1 SPACER CONTACT SIDE CONTACT SIDE FL FLAC1 VA+12 FLAC1 GNDFL GNDD GNDHP VE+5 GNDFL C5953 5951 V5601 C5678 C5679 L5563 CN5803 D5657 D5656 CN5721 W181 W101 W107 W106 W102 W104 W103 W105 W180 W179 W183 W182 CD MODE TIMER SIDE A (ANP7456-B) (ANP7456-B) P S T DISPLAY ASSY P FUNCTION KEY ASSY S HP MIC ASSY T CN5711 G CN5721 J5805 J5803 J5803 J5805 J5801 CN5803 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 67 5 6 7 8 5 6 7 8 C D F A B E 3 1 4 1 5 1 1 4 1 1 5 OPEN/CLOSE EXCHANDE DISC SKIP DISC 5 DISC 4 DISC 3 DISC 2 DISC 1 DISC KEY ASSY AWU8063 J5811 CMK-P3X S5858 S5857 S5855 S5856 S5854 S5851 S5853 J5806 J5805 J5803 S5852 3 1 1 3 2 4 1 5 1 3 1 1 4 1 1 5 1 Production code OPEN/CLOSE EXCHANDE DISC SKIP DISC 5 DISC 4 DISC 3 DISC 2 DISC 1 DISC KEY ASSY AWU8063 JOG ASSY AWU8065 J5811 FC DC CMK-P3X CMK-P3X S5858 S5857 S5855 S5856 S5854 S5851 S5853 J5806 S5861 J5805 J5803 J5811 S5852 1 3 5 1 SPACER DISPLAY ASSY AWU8058 CMK-P3X FL VD+5 L5562 C5564 C5678 C5680 L5563 D5652 D5654 D5653 D5655 D5651 W108 DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 SIDE A (ANP7456-B) (ANP7456-B) (ANP7456-B) P Q R DISC KEY ASSY R JOG ASSY Q J5811 J5803 J5811 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 68 1 2 3 4 1 2 3 4 C D F A B E 64 49 48 33 32 17 16 1 1 8 16 9 5 8 1 4 3 1 1 4 5 1 13 1 10 5 1 64 17 49 32 33 16 48 1 1 8 9 16 AWU8068 Only CN 2.GNDD 1.KEY2 J5801 DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 REVERSE TV/AUX TUNER/BAND DVD/CD OPEN/C FORWARD STOP PLAY/PAUSE STANDBY/ON 1.GNDD 2.VD+5 3.KEY2 4.KEY1 5.JOG 6.HPL 7.GNDHP 8.HPR 9.HPDET 10.VA+12 11.VA-12 12.GNDMIC GNDD KEY2 KEY1 VD+5 JOG 1 2 3 4 5 6 7 8 9 10 11 12 1.GNDD 2.KEY1 3.VD+5 4.JOG 1.GNDD 2.VD+5 3.JOG 13.MIC 13 AWU8068 AWU8064 HP MIC ASSY AWU8062 FUNCTION KEY ASSY CMK-P3X GNDD GNDD VA+12 VA-12 GNDMIC GNDHP GNDMIC DISPLAY ASSY AWU8058 A E D C B CMK-P3X 3.KEY1 4.VD+5 5.JOG J5803 J5803 J5805 J5811 J5811 CMK-P3X VD+5 PLATE L GND R5846 R58 R5842 R5841 R5843 R5844 R5845 R5831 C3906 C3907 C3905 C3904 R3906 C3903 R3903 R3916 C5812 R5813 C5813 R5806 C5805 R5808 R5805 C5807 R5803 R5809 C5809 IC5801 C5804 R5810 R5802 C5811 R5801 C5801 R5674 IC5601 R5693 R5695 C5674 R5691 Q5691 R5661 C5671 C5673 C5677 C5676 C5675 R5664 R5663 C5562 C5563 D5561 C5665 C5666 D5662 C5669 C5670 C5663 C5664 R5652 R5654 R5653 R5655 C5651 C5642 C5643 R5642 R5641 R5643 C5641 IC5651 R5651 R3905 R3904 R3913 L3913 L3912 R3912 R3911 L3911 R5811 R5804 C5810 C5815 SIDE B (ANP7456-A) (ANP7456-A) P S T DISPLAY ASSY P FUNCTION KEY ASSY S HP MIC ASSY T IC5601 IC5651 Q5691 J5805 J5811 J5801 J5803 J5803 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 69 5 6 7 8 5 6 7 8 C D F A B E 64 49 48 17 16 1 3 1 1 4 1 4 3 1 64 49 16 1 13 1 1 27 CN5721 CN5803 J5805 TIMER 1.GNDD XFLRST XFLCS FLDATA SR FLCLK FLAC1 GNDFL GNDD FLAC2 EXPCE EXPCLK EXPDATA VD+5 TIMERLED VFDP KEY2 KEY1 VE+5 JOG HPL GNDHP HPR HP_DET VA+12 GNDMIC MIC 7.GNDHP 6.HPL 5.JOG 4.KEY1 3.KEY2 2.VD+5 8.HPR 9.HPDET 10.VA+12 11.VA-12 12.GNDMIC CD MODE OPEN/CLOSE EXCHANGE DISC SKIP DISC 5 DISC 4 DISC 3 DISC 2 DISC 1 1.GNDD 2.KEY1 3.VD+5 4.JOG 1.GNDD 2.KEY1 3.VD+5 4.JOG 1.GNDD 2.VD+5 3.JOG 1.GNDD 2.VD+5 3.JOG AWU8063 JOG ASSY AWU8065 DISC KEY ASSY VA-12 J5805 811 J5811 J5811 13.MIC CMK-P3X CMK-P3X FLAC1 GNDD FLAC1 GNDFL GNDHP VE+5 VA+12 R5851 R5853 R5854 R5855 R5856 R5857 R5852 C5861 R5864 R5863 R5861 R5862 C5862 C5952 R5952 R5951 R5953 R5674 C5674 R5661 R5662 C5671 C5672 C5673 C5677 C5676 R5664 R5663 D5561 C5668 C5662 C5667 C5661 R5696 R5697 R5657 R5656 R5658 SIDE B (ANP7456-A) (ANP7456-A) (ANP7456-A) P Q R DISC KEY ASSY R JOG ASSY Q 5601 J5805 J5811 CN5721 J5805 J5811 CN5803 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 70 1 2 3 4 1 2 3 4 C D F A B E 4.8 FM/AM TUNER MODULE (ANP7338-B) (ANP7338-B) CN5701 G FM/AM TUNER MODULE F FM/AM TUNER MODULE F IC201 Q205 Q204 Q203 IC202 Q201 Q202 F F SIDE A SIDE A SIDE B CN201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 71 5 6 7 8 5 6 7 8 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES NSP 1..MECB ASSY AWM7873 NSP 2..TRSB ASSY AWU8154 NSP 2..SSRB ASSY AWU8155 NSP 2..LOMB ASSY AWU8156 NSP 2..SSIB ASSY AWU8157 1..DVDM ASSY AWM7807 1..FM/AM TUNER MODULE AXQ7228 NSP 1..MAIN ASSY AWM7829 2..AF ASSY AWU8094 2..DIODE L ASSY AWU8095 2..DIODE S ASSY AWU8071 NSP 1..AMP MODULE 6CH AXQ7242 2..6CH AMP ASSY AWM7720 1..DSP ASSY AWX8251 NSP 1..COMPLEX ASSY AWM7801 2..AMP TRADE ASSY AWU8059 2..DSP TRADE ASSY AWU8060 2..VIDEO JACK ASSY AWU8061 2..PRIMARY ASSY AWU8066 2..DISPLAY ASSY AWU8058 2..JOG ASSY AWU8065 2..DISC KEY ASSY AWU8063 2..FUNCTION KEY ASSY AWU8062 2..HP MIC ASSY AWU8068 Mark No. Description Part No. ATRSB ASSY SWITCHES AND RELAYS S11 REAF SWITCH VSK1011 RESISTORS R11 RESISTOR RS1/10S0R0J OTHERS CN11 8P CONNECTOR VKN1268 CN12 7P CONNECTOR VKN1267 BSSRB ASSY SEMICONDUCTORS Q21 TRANSISTOR 2SC2412K Q22 TRANSISTOR DTC124EK PC21 PHOTO INTERRUPTER GP2S28 PC22 PHOTO INTERRUPTER RPI-574 SWITCHES AND RELAYS S21 REAF SWITCH VSK1011 CAPACITORS C21 CAPACITOR CKSQYB102K50 RESISTORS All Resistors RS1/10S###J OTHERS CN21 7P CONNECTOR VKN1267 CLOMB ASSY CAPACITORS C31 CAPACITOR CKSQYB102K50 OTHERS CN31 CONNECTOR POST B2B-PH-K DSSIB ASSY OTHERS CN1 12P CONNECTOR VKN1272 CN2 4P CONNECTOR VKN1264 CN3 17P CONNECTOR VKN1277 EDVDM ASSY SEMICONDUCTORS IC101 6CH BTL DRIVER IC M63018FP IC151 DRIVER IC BA5912AFP-Y IC301 FRONT END IC STM6316ATXXA > IC401 DC/DC CONTROLLER IC R1224N102H > IC411 REGULATOR IC (1.8V) PQ018EZ01ZP > IC421 REGULATOR IC PQ018EH01ZP > IC431 REGULATOR IC (5.0V) MM1565AF > IC441 REGULATOR IC PQ20WZ11 IC501 DVD VIDEO AMP IC MM1623AF IC601 BACK END IC STM5589CVA Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 72 1 2 3 4 1 2 3 4 C D F A B E IC602 SDRAM (64M) K4S641632F-TC75 IC603 FLASH ROM VYW2078 IC604 IC TC7WU04FU IC901 IC TC74VHCT125AFT IC911 IC TC74VHC08FT Q191 TRANSISTOR 2SC4081 Q192 TRANSISTOR 2SA1576A Q193 TRANSISTOR 2SC4081 Q194 TRANSISTOR 2SA1576A Q201 CHIP TRANSISTOR HN1A01F Q202 TRANSISTOR 2SC4081 Q211 CHIP TRANSISTOR HN1A01F Q212 TRANSISTOR 2SC4081 Q390 TRANSISTOR 2SA1576A > Q401 POWER MOS FET CPH6314 > Q451 TRANSISTOR 2SA1576A Q452 TRANSISTOR 2SC4081 Q603 CHIP TRANSISTOR RN4982 Q724 CHIP TRANSISTOR DTC114YUA Q911 CHIP TRANSISTOR RN1903 Q921 CHIP DIGITAL TRANS. DTA124EUA Q922 DIGITAL TRANSISTOR DTC124EUA Q923 TRANSISTOR 2SA1576A Q924 TRANSISTOR 2SA1576A Q925 DIGITAL TRANSISTOR DTC124EUA Q926 TRANSISTOR 2SA1576A Q951 CHIP TRANSISTOR DTC114TUA Q977 CHIP TRANSISTOR DTC114YUA D401 DIODE RB051L-40 D402 DIODE 1SS355 D403 DIODE 1SS355 D431 DIODE 1SR154-400 D432 DIODE 1SR154-400 D603 CHIP DIODE RB501V-40 D921 CHIP ZENER DIODE UDZS4.7B D922 DIODE 1SS355 D923 DIODE 1SS355 D924 DIODE 1SS355 D925 DIODE 1SS355 D926 DIODE 1SS355 D927 DIODE 1SS355 COILS AND FILTERS L100 CHIP BEADS ATL7010 L111 CHIP BEADS ATL7010 L390 CHIP COIL LCYA2R7J2520 L401 POWER INDUCTOR ATH7011 L402 INDUCTOR CTH1254 L623 CHIP BEADS ATL7010 CAPACITORS C101 CAPACITOR CEV101M16 C102 CAPACITOR CKSRYB104K16 C103 CAPACITOR CKSRYB103K50 C112 CAPACITOR CKSRYB103K50 C113 CAPACITOR CKSRYB103K50 C114 CAPACITOR CKSRYB103K50 C124 CAPACITOR CKSRYB103K50 C125 CAPACITOR CKSRYB103K50 C126 CAPACITOR CKSRYB223K50 C127 CAPACITOR CKSRYB102K50 Mark No. Description Part No. C128 CAPACITOR CKSRYB102K50 C130 CAPACITOR CKSRYB102K50 C132 CAPACITOR CKSRYB104K16 C133 CAPACITOR CKSRYB103K50 C134 CAPACITOR CKSRYB103K50 C139 CAPACITOR CKSRYB104K16 C142 CAPACITOR CCSRCH221J50 C151 CAPACITOR CEV101M16 C152 CAPACITOR CKSRYB104K16 C155 CAPACITOR CKSRYB103K50 C158 CAPACITOR CKSRYB103K50 C160 CAPACITOR CKSRYB104K16 C161 CAPACITOR CKSRYB104K16 C163 CAPACITOR CKSRYB104K16 C172 CAPACITOR CKSRYB103K50 C174 CAPACITOR CKSRYB104K16 C176 CAPACITOR CKSRYB104K16 C182 CAPACITOR CKSRYB103K50 C200 CAPACITOR CCSRCH331J50 C201 CAPACITOR CEV470M16 C202 CAPACITOR CKSRYB472K50 C205 CAPACITOR CKSRYB472K50 C211 CAPACITOR CEV470M16 C212 CAPACITOR CKSRYB472K50 C215 CAPACITOR CKSRYB472K50 C230 CAPACITOR CKSRYB104K16 C232 CAPACITOR CKSRYB104K16 C233 CAPACITOR CKSRYB104K16 C300 CAPACITOR CKSRYB104K16 C307 CAPACITOR CKSRYB104K16 C309 CAPACITOR CKSRYB104K16 C315 CAPACITOR CKSRYB104K16 C318 CAPACITOR CKSRYB104K16 C323 CAPACITOR CKSRYB104K16 C326 CAPACITOR CKSRYB104K16 C335 CAPACITOR CKSRYB104K16 C342 CAPACITOR CKSRYB104K16 C346 CAPACITOR CKSRYB223K50 C348 CAPACITOR CKSRYB104K16 C355 CAPACITOR CKSRYB103K50 C357 CAPACITOR CKSRYB104K16 C362 CAPACITOR CKSRYB104K16 C373 CAPACITOR CKSRYB104K16 C377 CAPACITOR CKSRYB104K16 C381 CAPACITOR CKSRYB102K50 C388 CAPACITOR CKSRYB104K16 C390 CAPACITOR CCSRCH180J50 C391 CAPACITOR CKSRYB104K16 C392 CAPACITOR CCSRCH560J50 C393 CAPACITOR CCSRCH7R0D50 C394 CAPACITOR CKSRYB152K50 C401 CAPACITOR CEV101M16 C402 CHIP CERAMIC C. DCH1165 C403 CHIP CERAMIC C. DCH1165 C404 CAPACITOR CEV101M16 C405 CHIP CERAMIC C. DCH1165 C406 CAPACITOR CKSQYB104K25 C408 CAPACITOR CCSRCH121J50 C409 CHIP CERAMIC C. DCH1165 C410 CAPACITOR CEV101M16 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 73 5 6 7 8 5 6 7 8 C D F A B E C412 CAPACITOR CEV101M16 C413 CAPACITOR CKSRYB104K16 C414 CAPACITOR CKSRYB104K16 C415 CAPACITOR CEV101M40 C422 CAPACITOR CEV101M16 C423 CAPACITOR CKSRYB104K16 C424 CAPACITOR CKSRYB104K16 C425 CAPACITOR CEV101M40 C431 CAPACITOR CKSQYB105K16 C433 CAPACITOR CKSQYB225K10 C441 CAPACITOR CKSRYB104K16 C442 CAPACITOR CKSRYB104K16 C443 CAPACITOR CEV101M16 C451 CAPACITOR CKSRYB104K16 C452 CAPACITOR CEV100M16 C501 CAPACITOR CKSRYB105K10 C511 CAPACITOR CKSRYB104K16 C521 CAPACITOR CKSRYB105K10 C531 CAPACITOR CKSRYB104K16 C541 CAPACITOR CKSRYB105K10 C551 CAPACITOR CKSRYB104K16 C561 CAPACITOR CEV101M16 C562 CAPACITOR CKSRYB102K50 C563 CAPACITOR CKSRYB102K50 C564 CAPACITOR CEV101M16 C565 CAPACITOR CKSRYB104K16 C571 CAPACITOR CKSRYB104K16 C600 CAPACITOR CEV101M16 C603 CAPACITOR CKSRYB105K10 C604 CAPACITOR CKSRYB104K16 C607 CAPACITOR CKSRYB104K16 C614 CAPACITOR CKSRYB104K16 C619 CAPACITOR CKSRYB104K16 C620 CAPACITOR CKSRYB105K10 C621 CAPACITOR CEV101M16 C622 CAPACITOR CKSRYB104K16 C623 CAPACITOR CKSRYB104K16 C624 CAPACITOR CKSRYB102K50 C625 CAPACITOR CKSRYB105K10 C626 CAPACITOR CKSRYB104K16 C627 CAPACITOR CKSRYB104K16 C628 CAPACITOR CKSRYB104K16 C629 CAPACITOR CKSRYB104K16 C630 CAPACITOR CKSRYB104K16 C631 CAPACITOR CKSRYB104K16 C632 CAPACITOR CKSRYB104K16 C636 CAPACITOR CKSRYB104K16 C637 CAPACITOR CKSRYB104K16 C640 CAPACITOR CCSRCH7R0D50 C641 CAPACITOR CKSRYB104K16 C644 CAPACITOR CCSRCH7R0D50 C647 CAPACITOR CKSRYB104K16 C648 CAPACITOR CKSRYB104K16 C649 CAPACITOR CKSRYB104K16 C659 CAPACITOR CKSRYB104K16 C660 CAPACITOR CEV101M16 C664 CAPACITOR CKSRYB104K16 C671 CAPACITOR CKSRYB104K16 C681 CAPACITOR CKSRYB104K16 C684 CAPACITOR CKSRYB104K16 Mark No. Description Part No. C690 CAPACITOR CCSRCH470J50 C694 CAPACITOR CKSRYB104K16 C698 CAPACITOR CKSRYB104K16 C902 CAPACITOR CKSRYB104K16 C912 CAPACITOR CKSRYB104K16 C921 CAPACITOR CKSRYB104K16 RESISTORS R101 RESISTOR RS1/16S5600F R1011 RESISTOR RS1/10S0R0J R1012 RESISTOR RS1/10S0R0J R1013 RESISTOR RS1/10S0R0J R102 RESISTOR RS1/16S5600F R104 RESISTOR RS1/10S6R8J R105 RESISTOR RS1/10S4R7J R115 RESISTOR RS1/10S4R7J R116 RESISTOR RS1/10S4R7J R117 RESISTOR RS1/10S4R7J R118 RESISTOR RS1/10S4R7J R119 RESISTOR RS1/10S4R7J R120 RESISTOR RS1/10S4R7J R123 RESISTOR RS1/16S5600F R125 RESISTOR RS1/16S1002F R142 RESISTOR RS1/16S5600F R143 RESISTOR RS1/16S5600F R144 RESISTOR RS1/16S1002F R151 RESISTOR RS1/10S0R0J R168 RESISTOR RS1/16S1102F R169 RESISTOR RS1/16S1002F R172 RESISTOR RS1/16S1002F R173 RESISTOR RS1/16S1002F R174 RESISTOR RS1/16S1002F R175 RESISTOR RS1/16S1002F R176 RESISTOR RS1/16S1002F R178 RESISTOR RS1/16S1602F R179 RESISTOR RS1/16S1002F R182 RESISTOR RS1/16S1002F R201 RESISTOR RAB4C220J R210 RESISTOR RS1/10S0R0J R211 CHIP RESISTOR ARRAY RAB4C390J R301 RESISTOR RS1/16S1202F R330 RESISTOR RS1/16S1002F R331 RESISTOR RS1/16S1002F R387 RESISTOR RS1/10S0R0J R388 RESISTOR RS1/10S0R0J R389 RESISTOR RS1/10S0R0J R403 RESISTOR RS1/10S100J R408 RESISTOR RS1/16S1502F R409 RESISTOR RS1/16S2702F R410 RESISTOR RS1/16S1802F R411 RESISTOR RS1/8S0R0J R412 RESISTOR RS1/10S0R0J R413 RESISTOR RS1/10S0R0J R414 RESISTOR RS1/10S0R0J R415 RESISTOR RS1/10S0R0J R417 RESISTOR RS1/10S0R0J R421 RESISTOR RS1/10S0R0J R422 RESISTOR RS1/10S0R0J R441 RESISTOR RS1/16S4701F Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 74 1 2 3 4 1 2 3 4 C D F A B E R442 RESISTOR RS1/16S6801F R443 RESISTOR RS1/16S2001F R502 RESISTOR RS1/16S1500F R512 RESISTOR RS1/16S1500F R522 RESISTOR RS1/16S1500F R532 RESISTOR RS1/16S1500F R542 RESISTOR RS1/16S1500F R552 RESISTOR RS1/16S1500F R561 RESISTOR RS1/10S0R0J R600 RESISTOR RS1/10S0R0J R628 RESISTOR RS1/16S1002F R635 RESISTOR RS1/16S1002F Other Resistors RS1/16S###J OTHERS 0 FLEXIBLE CABLE VDA1681 CN121 24P CONNECTOR VKN1464 CN122 17P CONNECTOR VKN1421 CN123 CONNECTOR B2B-PH-SM3 CN124 8P CONNECTOR VKN1412 CN911 CONNECTOR VKN1626 CN923 18P CONNECTOR VKN1422 X301 CERAMIC RESONATOR VSS1186 (20MHz) X601 CRYSTAL RESONATOR VSS1172 (27MHz) FFM/AM TUNER MODULE SEMICONDUCTORS IC201 AM/FM IF+MPX IC BA1451F IC202 PLL IC LC72131MD Q201 TRANSISTOR 2SC2412K Q202 TRANSISTOR DTA124ES Q203 TRANSISTOR DTC124EK Q204 TRANSISTOR 2SC2412K Q205 TRANSISTOR 2SC2412K D201 DIODE 1SS133 D202 ZENER DIODE MTZJ5.1C COILS AND FILTERS F201 CERAMIC FILTER ATF-119 F202 CERAMIC FILTER ATF-107 F203 AM CERAMIC FILTER ATF1155 L201 FM DETECTOR COIL ATE7003 CAPACITORS C101 CAPACITOR CKSRYB103K50 C102 CAPACITOR CKSRYB103K50 C201 CAPACITOR CKSRYB223K50 C202 CAPACITOR CKSRYB473K16 C204 CAPACITOR CKSRYB102K50 C205 CAPACITOR CKSRYB223K50 C206 CAPACITOR CCSRCH100D50 C208 CAPACITOR CKSRYB103K50 C209 CAPACITOR CKSRYB223K50 C210 CAPACITOR CEJQ470M16 C211 CAPACITOR CEJA1R0M50 C212 CAPACITOR CCSRCH101J50 C213 CAPACITOR CCSRCH101J50 C214 CAPACITOR CKSRYB223K50 C215 CAPACITOR CKSRYB681K50 C216 CAPACITOR CKSRYB123K50 Mark No. Description Part No. C217 CAPACITOR CKSRYB123K50 C220 CAPACITOR CKSRYB103K50 C221 CAPACITOR CKSRYB224K10 C222 CAPACITOR CKSRYB473K16 C223 CAPACITOR CEAT100M50 C224 CAPACITOR CEAT1R0M50 C225 CAPACITOR CKSRYB153K50 C226 CAPACITOR CCSRCH101J50 C227 ELECT. CAPACITOR CEAT220M25 C228 CAPACITOR CEAT3R3M50 C229 CAPACITOR CEAT101M10 C230 CAPACITOR CKSRYB223K50 C231 CAPACITOR CCSRCH150J50 C232 CAPACITOR CCSRCH150J50 C233 CAPACITOR CCSRCH101J50 C234 CAPACITOR CCSRCH101J50 C235 CAPACITOR CCSRCH101J50 C236 CAPACITOR CKSRYB223K50 C237 CAPACITOR CEAT470M10 C238 CAPACITOR CKSRYB102K50 C239 CAPACITOR CKSRYB103K50 C240 CAPACITOR CCSRCH101J50 C241 CAPACITOR CEAT2R2M50 C242 CAPACITOR CKSRYB103K50 C243 CAPACITOR CEAT330M16 C601 CAPACITOR CKSRYB103K50 C602 CAPACITOR CKSRYB102K50 C603 CAPACITOR CKSRYB223K50 RESISTORS R103 RESISTOR RS1/10S331J R104 RESISTOR RS1/10S391J R211 RESISTOR RD1/4PU221J R221 RESISTOR RD1/4PU222J R233 RESISTOR RD1/4PU391J R243 RESISTOR RS1/10S0R0J Other Resistors RS1/16S###J OTHERS 0 PRODUCT SPEC. HSS-0294 0 SHIELDCASE T(MTL) ANK7072 0 SHIELDCASE B(MTL) ANK7073 1 FM FRONT END AXF7003 2 AM RF TUNING BLOCK AXX7071 BN201 TERMINAL 4-P AKA7003 CN201 13P CONNECTOR 52044-1345 X201 CRYSTAL RESONATOR ASS1093 (7.2MHz) GAF ASSY SEMICONDUCTORS IC3001 LOGICIC BU4052BCF IC3003 IC NJM4558MD IC3101 IC NJM4558MD IC3121 IC BU4066BCF IC3131 IC NJM4558MD IC3161 IC NJM4558MD IC3181 ELECTRIC VOL IC 6CH BD3814FV IC3201 IC NJM4558MD IC3241 IC NJM4558MD IC3252 IC NJM4558MD IC3261 IC NJM4558MD Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 75 5 6 7 8 5 6 7 8 C D F A B E IC3731 IC NJM4558MD IC3901 OP-AMP IC NJM4560M IC5501 CPU PDC111A > IC61 REGULATOR IC NJM7812FA > IC82 IC NJM7805FA Q114 TRANSISTOR 2SD2114K Q115 CHIP DIGITAL TRANS. DTA124EUA Q131 TRANSISTOR 2SC4081 Q3001 TRANSISTOR 2SD2114K Q3002 TRANSISTOR 2SD2114K Q3003 CHIP DIGITAL TRANS. DTA124EUA Q3004 CHIP DIGITAL TRANS. DTA124EUA Q3005 TRANSISTOR 2SC4081 Q3006 TRANSISTOR 2SC4081 Q3007 CHIP DIGITAL TRANS. DTA124EUA Q3009 TRANSISTOR 2SC4081 Q3010 TRANSISTOR 2SC4081 Q3061 CHIP DIGITAL TRANS. DTA124EUA Q3122 CHIP DIGITAL TRANS. DTA124EUA Q3101 TRANSISTOR 2SD2114K Q3102 TRANSISTOR 2SD2114K Q3131 TRANSISTOR 2SD2114K Q3132 TRANSISTOR 2SD2114K Q3171, Q3172, Q3174 2SD2114K Q3123 DIGITAL TRANSISTOR DTC124EUA Q3124 CHIP DIGITAL TRANS. DTA124EUA Q3125 DIGITAL TRANSISTOR DTC124EUA > Q32 TRANSISTOR 2SB1375 Q3601 TRANSISTOR 2SC4081 Q3602 TRANSISTOR 2SC4081 Q3611 TRANSISTOR 2SC4081 Q3612 TRANSISTOR 2SC4081 Q3621 TRANSISTOR 2SC4081 Q3622 TRANSISTOR 2SC4081 Q3631 TRANSISTOR 2SC4081 Q3632 CHIP TR (PNP X2) UMB1N Q3633 CHIP TRANSISTOR RN1901 Q3635 CHIP DIGITAL TRANS. DTA124EUA Q3636 DIGITAL TRANSISTOR DTC124EUA Q3637 TRANSISTOR 2SC4081 Q3638 TRANSISTOR 2SC4081 Q3639 CHIP DIGITAL TRANS. DTA124EUA Q3640 DIGITAL TRANSISTOR DTC124EUA Q3641 TRANSISTOR 2SD1858X Q3642 TRANSISTOR 2SC4081 Q3644 TRANSISTOR 2SC4081 Q3645 DIGITAL TRANSISTOR DTA143EUA Q3741 TRANSISTOR 2SD2114K Q3742 TRANSISTOR 2SD2114K Q3901 TRANSISTOR 2SD2114K Q3902 TRANSISTOR 2SD2114K Q3903 TRANSISTOR 2SD2114K Q3904 TRANSISTOR 2SD2114K Q3906 TRANSISTOR 2SA1576A Q5501 TRANSISTOR 2SC4081 Q5571 DIGITAL TRANSISTOR DTC143EUA Q5572 TRANSISTOR 2SC4081 Q5573 DIGITAL TRANSISTOR DTC143EUA Q5595 CHIP TR (DUAL) RN2901 Q5711 TRANSISTOR 2SC4081 Mark No. Description Part No. D103 DIODE 1SS355 > D22 DIODE D5SBA20F20 D3003 CHIP ZENER DIODE UDZS6.2B D3004 CHIP ZENER DIODE UDZS6.2B D31 DIODE S5688G D3181 CHIP ZENER DIODE UDZS6.8B D3182 CHIP ZENER DIODE UDZS6.8B D32 DIODE S5688G D33 ZENERDIODE MTZJ16A D34 ZENER DIODE MTZJ16A D35 DIODE 1SS133 D36 ZENER DIODE MTZJ6.8B D3601 DIODE 1SS355 D3602 DIODE 1SS355 D3603 DIODE DAP202K D3604 DIODE 1SS355 D3611 DIODE 1SS355 D3612 DIODE 1SS355 D3613 DIODE DAP202K D3621 DIODE 1SS355 D3622 DIODE 1SS355 D3623 DIODE DAP202K D3631 ZINER DIODE MTZJ5.1A D3632 DIODE 1SS133 D3633 DIODE 1SS133 D3635 DIODE DAN202K D3636 DIODE 1SS355 D3637 DIODE 1SS355 D3641 DIODE 1SS355 D3642 DIODE 1SS355 D3643 DIODE 1SS355 D3644 DIODE DAN217 D3751 DIODE 1SS133 D3901 DIODE DAP202K D5575 DIODE 1SS355 D5711 CHIP ZENER DIODE UDZS11B D5712 DIODE 1SS355 D5721 DIODE 1SS355 D83 ZENER DIODE MTZJ7.5C > TH131 THERMISTOR NCP18WF104J03RB SWITCHES AND RELAYS RY3641 SP RELAY ASR7008 RY3642 SP RELAY ASR7008 RY3643 SP RELAY ASR7008 COILS AND FILTERS L3361 COIL ATH-059 L3362 COIL ATH-059 L3461 COIL ATH-059 L3462 COIL ATH-059 L3561 COIL ATH-059 L3661 COIL ATH-059 L5571 AXIAL INDUCTOR LAU220J L8881 CHIP BEADS VTL1075 CAPACITORS C15 ELECT. CAPACITOR ACH7182 C16 ELECT. CAPACITOR ACH7182 C23 ELECT. CAPACITOR ACH7181 C24 ELECT. CAPACITOR ACH7181 C25 ELECT. CAPACITOR ACH7183 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 76 1 2 3 4 1 2 3 4 C D F A B E C3001 CAPACITOR CCSRCH221J50 C3002 CAPACITOR CCSRCH221J50 C3003 CAPACITOR CCSRCH221J50 C3004 CAPACITOR CCSRCH221J50 C3005 CAPACITOR CCSRCH221J50 C3006 CAPACITOR CCSRCH221J50 C3007 CAPACITOR CCSRCH221J50 C3008 CAPACITOR CCSRCH221J50 C3009 CAPACITOR CCSRCH821J50 C3010 CAPACITOR CCSRCH821J50 C3014 CAPACITOR CKSRYB104K16 C3015 CAPACITOR CKSRYB104K16 C3016 CAPACITOR CKSRYB104K16 C3025 CAPACITOR CKSRYB103K50 C3026 CAPACITOR CKSRYB103K50 C3027 CAPACITOR CEAT470M16 C3028 CAPACITOR CEAT470M16 C3029 CAPACITOR CEAL100M16 C3030 CAPACITOR CEAL100M16 C3033 CAPACITOR CKSRYB103K50 C3034 CAPACITOR CKSRYB103K50 C3035 CAPACITOR CEAL100M16 C3036 CAPACITOR CEAL100M16 C3037 CAPACITOR CEAT100M50 C3038 CAPACITOR CEAT100M50 C3101 CAPACITOR CEAT100M50 C3102 CAPACITOR CEAT100M50 C3103 CAPACITOR CCSRCH331J50 C3104 CAPACITOR CCSRCH331J50 C3105 CAPACITOR CCSRCH821J50 C3106 CAPACITOR CCSRCH821J50 C3109 CAPACITOR CCSRCH680J50 C3110 CAPACITOR CCSRCH680J50 C3111 CAPACITOR CEAT470M16 C3112 CAPACITOR CEAT470M16 C3113 CAPACITOR CKSRYB103K50 C3114 CAPACITOR CKSRYB103K50 C3115 CAPACITOR CEAT100M50 C3116 CAPACITOR CEAT100M50 C3117 CAPACITOR CEAT100M50 C3118 CAPACITOR CEAT100M50 C3131 CAPACITOR CEAT100M50 C3132 CAPACITOR CEAT100M50 C3133 CAPACITOR CKSRYB152K50 C3134 CAPACITOR CKSRYB152K50 C3135 CAPACITOR CKSRYB152K50 C3136 CAPACITOR CKSRYB152K50 C3139 CAPACITOR CCSRCH821J50 C3140 CAPACITOR CCSRCH821J50 C3141 CAPACITOR CKSRYB103K50 C3142 CAPACITOR CKSRYB103K50 C3143 CAPACITOR CEAT100M50 C3144 CAPACITOR CEAT100M50 C3145 CAPACITOR CEAT100M50 C3146 CAPACITOR CEAT100M50 C3161 CAPACITOR CEAT100M50 C3162 CAPACITOR CEAT100M50 C3163 CAPACITOR CKSRYB152K50 C3165 CAPACITOR CKSRYB152K50 C3169 CAPACITOR CCSRCH821J50 Mark No. Description Part No. C3170 CAPACITOR CKSRYB682K50 C3171 CAPACITOR CEAT100M50 C3172 CAPACITOR CEAT100M50 C3173 CAPACITOR CEAT100M50 C3174 CAPACITOR CEAT100M50 C3175 CAPACITOR CKSRYB103K50 C3176 CAPACITOR CKSRYB103K50 C3185 CAPACITOR CKSRYB104K16 C3186 CAPACITOR CKSRYB104K16 C3187 CAPACITOR CKSRYB104K16 C3188 CAPACITOR CKSRYB104K16 C3189 CAPACITOR CKSRYB472K50 C3190 CAPACITOR CKSRYB472K50 C3191 CAPACITOR CCSRCH101J50 C3192 CAPACITOR CCSRCH101J50 C3193 CAPACITOR CCSRCH101J50 C3195 CAPACITOR CEAT221M10 C3196 CAPACITOR CEAT221M10 C3197 CAPACITOR CKSRYB103K50 C3198 CAPACITOR CKSRYB103K50 C32 ELECT. CAPACITOR CEAT221M63 C3209 CAPACITOR CKSRYB103K50 C3210 CAPACITOR CKSRYB103K50 C3211 CAPACITOR CEAT470M16 C3212 CAPACITOR CEAT470M16 C3213 CAPACITOR CEAT100M50 C3214 CAPACITOR CEAT100M50 C3217 CAPACITOR CKSRYB123K50 C3218 CAPACITOR CKSRYB123K50 C3219 CAPACITOR CKSRYB104K16 C3220 CAPACITOR CKSRYB104K16 C3243 CAPACITOR CKSRYB182K50 C3244 CAPACITOR CKSRYB182K50 C3245 CAPACITOR CKSRYB683K16 C3246 CAPACITOR CKSRYB683K16 C3247 CHIP CAPACITOR CKSRYB683K25 C3248 CHIP CAPACITOR CKSRYB683K25 C3249 CAPACITOR CKSRYB103K50 C3250 CAPACITOR CKSRYB103K50 C3251, C3252 CAPACITOR CKSRYB153K50 C3261 CAPACITOR CKSRYB153K50 C3262 CAPACITOR CEAT100M50 C3263 CAPACITOR CKSRYB182K50 C3265 CHIP CAPACITOR CKSRYB683K25 C3266 CAPACITOR CKSRYB273K16 C3269 CAPACITOR CKSRYB393K25 C3276 CAPACITOR CKSRYB102K50 C3282 CAPACITOR CKSRYB333K16 C3284 CAPACITOR CKSRYB473K50 C3286 CAPACITOR CKSRYB473K50 C3288 CAPACITOR CKSRYB104K16 C3290 CAPACITOR CKSRYB104K16 C3292 CAPACITOR CKSRYB273K16 C3294 CAPACITOR CCSRCH470J50 C3295 CAPACITOR CKSRYB103K50 C3296 CAPACITOR CKSRYB103K50 C3297 CAPACITOR CKSRYB103K50 C3298 CAPACITOR CKSRYB103K50 C33 ELECT. CAPACITOR CEAT330M50 C3361 CAPACITOR CKSRYB223K50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 79 5 6 7 8 5 6 7 8 C D F A B E C3168 CAPACITOR CEAT2R2M50 C3178 CAPACITOR CEAT2R2M50 C3179 CAPACITOR CEAT2R2M50 C3301 CAPACITOR CEAT2R2M50 C3302 CAPACITOR CEAT2R2M50 C3303 CAPACITOR CKSRYB102K50 C3304 CAPACITOR CKSRYB102K50 C3305 CAPACITOR CCSRCH221J50 C3306 CAPACITOR CCSRCH221J50 C3307 CAPACITOR CEAL100M16 C3308 CAPACITOR CEAL100M16 C3309 CAPACITOR CCSRCJ3R0C50 C3310 CAPACITOR CCSRCJ3R0C50 C3317 CAPACITOR CEAT2R2M50 C3318 CAPACITOR CEAT2R2M50 C3323 CAPACITOR CEAT221M50 C3324 CAPACITOR CEAT221M50 C3401 CAPACITOR CEAT2R2M50 C3402 CAPACITOR CEAT2R2M50 C3403 CAPACITOR CKSRYB102K50 C3404 CAPACITOR CKSRYB102K50 C3405 CAPACITOR CCSRCH221J50 C3406 CAPACITOR CCSRCH221J50 C3407 CAPACITOR CEAL100M16 C3408 CAPACITOR CEAL100M16 C3409 CAPACITOR CCSRCJ3R0C50 C3410 CAPACITOR CCSRCJ3R0C50 C3423 CAPACITOR CEAT221M50 C3424 CAPACITOR CEAT221M50 C3501 CAPACITOR CEAT2R2M50 C3502 CAPACITOR CEAT2R2M50 C3503 CAPACITOR CKSRYB102K50 C3504 CAPACITOR CKSRYB102K50 C3505 CAPACITOR CCSRCH221J50 C3506 CAPACITOR CCSRCH221J50 C3507 CAPACITOR CEAL470M6R3 C3508 CAPACITOR CEAL100M16 C3509 CAPACITOR CCSRCJ3R0C50 C3510 CAPACITOR CCSRCJ3R0C50 C3651 CAPACITOR CEAT101M25 C3652 ELECT. CAPACITOR CEAT470M25 C3653 ELECT. CAPACITOR CEAT470M35 C62 CAPACITOR CCSRCH221J50 C63 ELECT. CAPACITOR CEAT470M25 C71 CAPACITOR CKSRYB473K50 C72 CAPACITOR CEAT100M50 C81 CAPACITOR CKSRYB473K50 C82 ELECT. CAPACITOR CEAT470M25 C92 CAPACITOR CKSRYB104K16 C97 CAPACITOR CCSRCH221J50 C98 ELECT. CAPACITOR CEAT470M25 RESISTORS R3317 METALOXIDE RESISTOR ACN7122 R3318 METALOXIDE RESISTOR ACN7122 R3319 METALOXIDE RESISTOR ACN7122 R3320 METALOXIDE RESISTOR ACN7122 > R3323 RESISTOR RS1/16S1R0J > R3324 RESISTOR RS1/16S1R0J > R3327 CARBON FILM RESISTOR RD1/4MUF470J Mark No. Description Part No. > R3328 CARBON FILM RESISTOR RD1/4MUF470J > R3351 RESISTOR RS1/16S1R0J R3387 RESISTOR RD1/4PU101J R3388 RESISTOR RD1/4PU101J R3417 METALOXIDE RESISTOR ACN7122 R3418 METALOXIDE RESISTOR ACN7122 R3419 METALOXIDE RESISTOR ACN7122 R3420 METALOXIDE RESISTOR ACN7122 > R3423 RESISTOR RS1/16S1R0J > R3424 RESISTOR RS1/16S1R0J > R3427 CARBON FILM RESISTOR RD1/4MUF470J > R3428 CARBON FILM RESISTOR RD1/4MUF470J > R3451 RESISTOR RS1/16S1R0J R3517 METALOXIDE RESISTOR ACN7122 R3518 METALOXIDE RESISTOR ACN7122 R3519 METALOXIDE RESISTOR ACN7122 R3520 METALOXIDE RESISTOR ACN7122 R3657 RESISTOR RD1/4PU330J > R62 RESISTOR RS1/16S330J R65 RESISTOR RS1/16S4700F R67 CHIP RESISTOR RS1/16S2201F R68 CHIP RESISTOR RS1/16S2201F R94 RESISTOR RS1/16S2701F R95 RESISTOR RS1/16S2701F R96 RESISTOR RS1/16S1002F R97 RESISTOR RS1/16S1002F Other Resistors RS1/16S###J OTHERS CN3001 23P PLUG AKP7064 CN3002 23P PLUG AKP7064 CN3651 PLUG (2P) KM200SA2 KDSP ASSY SEMICONDUCTORS IC8101 IC TC74HCU04AF IC8201 DA I/F TRANSCEIVER AK4114VQ IC8401 CODEC IC AK4529VQ IC8501 DSP IC DSPD56367PV150 IC8502 IC TC7WU04FU IC8701 IC TC74LVX244FT IC8702 OCTAL BUS BUFFER IC TC74VHCT244AFT IC8901 IC NJM2391DL1-33 IC8902 REGULATOR IC NJU7223DL1-18 Q8503 DIGITAL TR (PNP) UN5112 Q8504 TRANSISTOR UMD2N D8401 DIODE DAN202K D8402 DIODE DAP202K D8501 DIODE 1SS355 D8502 DIODE DAP202K D8503 DIODE DAP202K COILS AND FILTERS L8002 CHIP SOLID INDUCTOR ATL7002 L8004 CHIP SOLID INDUCTOR ATL7002 L8101 CHIP SOLID INDUCTOR QTL1013 L8103 CHIP SOLID INDUCTOR QTL1013 L8201 CHIP SOLID INDUCTOR QTL1013 L8203 CHIP SOLID INDUCTOR QTL1013 L8204 CHIP SOLID INDUCTOR QTL1013 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 80 1 2 3 4 1 2 3 4 C D F A B E L8401 CHIP SOLID INDUCTOR QTL1013 L8402 CHIP SOLID INDUCTOR QTL1013 L8501 CHIP SOLID INDUCTOR ATL7002 L8502 CHIP SOLID INDUCTOR ATL7002 L8504 CHIP SOLID INDUCTOR QTL1013 L8701 CHIP SOLID INDUCTOR QTL1013 L8702 CHIP SOLID INDUCTOR QTL1013 CAPACITORS C8007 CAPACITOR CCSRCH471J50 C8008 CAPACITOR CCSRCH471J50 C8009 CAPACITOR CKSRYB103K50 C8010 CAPACITOR CKSRYB104K16 C8104 CAPACITOR CKSRYB103K50 C8105 CAPACITOR CEV101M16 C8106 CAPACITOR CCSRCH221J50 C8107 CAPACITOR CCSRCH470J50 C8109 CAPACITOR CCSRCH471J50 C8110 CAPACITOR CKSRYB105K6R3 C8201 CAPACITOR CCSRCH471J50 C8202 CAPACITOR CKSRYB104K16 C8203 CAPACITOR CKSRYB473K50 C8204 CAPACITOR CKSRYB102K50 C8207 CAPACITOR CKSRYB104K16 C8209 CAPACITOR CCSRCH100D50 C8210 CAPACITOR CCSRCH100D50 C8212 CAPACITOR CCSRCH471J50 C8213 CAPACITOR CKSRYB104K16 C8214 CAPACITOR CCSRCH471J50 C8215 CAPACITOR CKSRYB104K16 C8217 CAPACITOR CEV470M6R3 C8225 CAPACITOR CEV470M6R3 C8404 CAPACITOR CCSRCH471J50 C8405 CAPACITOR CKSRYB103K50 C8406 CAPACITOR CEV101M16 C8407 CAPACITOR CKSRYB104K16 C8408 CAPACITOR CEV470M6R3 C8409 CAPACITOR CCSRCH471J50 C8410 CAPACITOR CCSRCH471J50 C8411 CAPACITOR CCSRCH471J50 C8412 CAPACITOR CCSRCH471J50 C8413 CAPACITOR CCSRCH471J50 C8414 CAPACITOR CCSRCH471J50 C8415 CAPACITOR CEV101M16 C8416 CAPACITOR CCSRCH471J50 C8417 CAPACITOR CCSRCH471J50 C8418 CAPACITOR CKSRYB103K50 C8419 CAPACITOR CCSRCH471J50 C8420 CAPACITOR CKSRYB104K16 C8421 CAPACITOR CCSRCH101J50 C8422 CAPACITOR CKSRYB104K16 C8504 CAPACITOR CKSRYB104K16 C8505 CAPACITOR CCSRCH471J50 C8507 CAPACITOR CCSRCH471J50 C8509 CAPACITOR CCSRCH471J50 C8511 CAPACITOR CCSRCH471J50 C8512 CAPACITOR CCSRCH471J50 C8513 CAPACITOR CKSRYB104K16 C8514 CAPACITOR CKSRYB333K16 C8515 CAPACITOR CCSRCH471J50 Mark No. Description Part No. C8516 CAPACITOR CKSRYB105K6R3 C8517 CAPACITOR CKSRYB103K50 C8518 CAPACITOR CCSRCH471J50 C8520 CAPACITOR CCSRCH471J50 C8521 CAPACITOR CKSRYB104K16 C8522 CAPACITOR CCSRCH471J50 C8523 CAPACITOR CKSRYB104K16 C8524 CAPACITOR CCSRCH471J50 C8525 CAPACITOR CKSRYB104K16 C8526 CAPACITOR CCSRCH471J50 C8527 CAPACITOR CKSRYB104K16 C8528 CAPACITOR CCSRCH471J50 C8529 CAPACITOR CKSRYB104K16 C8530 CAPACITOR CCSRCH471J50 C8531 CAPACITOR CKSRYB104K16 C8532 CAPACITOR CCSRCH471J50 C8533 CAPACITOR CKSRYB104K16 C8534 CAPACITOR CCSRCH471J50 C8535 CAPACITOR CKSRYB104K16 C8536 CAPACITOR CCSRCH471J50 C8537 CAPACITOR CKSRYB104K16 C8538 CAPACITOR CKSRYB104K16 C8539 CAPACITOR CCSRCH471J50 C8540 CAPACITOR CKSRYB104K16 C8541 CAPACITOR CCSRCH471J50 C8542 CAPACITOR CKSRYB104K16 C8543 CAPACITOR CCSRCH471J50 C8544 CAPACITOR CKSRYB104K16 C8545 CAPACITOR CCSRCH471J50 C8546 CAPACITOR CEV101M16 C8547 CAPACITOR CEV101M16 C8548 CAPACITOR CCSRCH8R0D50 C8549 CAPACITOR CCSRCH8R0D50 C8550 CAPACITOR CKSRYB104K16 C8551 CAPACITOR CCSRCH471J50 C8554 CAPACITOR CKSRYB103K50 C8555 CAPACITOR CKSRYB102K50 C8701 CAPACITOR CEV100M16 C8702 CAPACITOR CKSRYB104K16 C8703 CAPACITOR CCSRCH471J50 C8704 CAPACITOR CEV100M16 C8705 CAPACITOR CKSRYB104K16 C8706 CAPACITOR CCSRCH471J50 C8901 CAPACITOR CKSRYB104K16 C8902 CAPACITOR CEV101M16 C8903 CAPACITOR CKSRYB104K16 C8904 CAPACITOR CEV101M16 RESISTORS R8201 RESISTOR RS1/16S1802F R8506 RESISTOR RAB4C101J Other Resistors RS1/16S###J OTHERS CN8003 13P SOCKET AKP7070 CN8007 19P SOCKET AKP7073 CN8011 19P SOCKET AKP7073 JA8103 JACK VKB1159 X8201 CRYSTAL RESONATOR XSS3003 (24.576MHz) Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 81 5 6 7 8 5 6 7 8 C D F A B E X8501 CRYSTAL RESONATOR VSS1171 (20MHz) LAMP TRADE ASSY SEMICONDUCTORS > IC25 PROTECTOR (7A) AEK7047 RESISTORS All Resistors RS1/16S###J OTHERS CN3011 23P SOCKET AKP7075 CN3012 23P SOCKET AKP7075 CN3021 23P SOCKET AKP7075 CN3022 23P SOCKET AKP7075 MDSP TRADE ASSY RESISTORS All Resistors RS1/16S###J OTHERS CN5612 23P SOCKET AKP7075 CN5613 23P SOCKET AKP7075 CN5621 13P PLUG AKP7059 CN5622 19P PLUG AKP7062 CN5623 19P PLUG AKP7062 NVIDEO JACK ASSY COILS AND FILTERS L8861 CHIP BEADS VTL1089 L8871 CHIP BEADS VTL1089 CAPACITORS C8821 ELECT. CAPACITOR CEAT102M6R3 C8822 CAPACITOR CCSRCH470J50 C8831 ELECT. CAPACITOR CEAT102M6R3 C8832 CAPACITOR CCSRCH470J50 C8842 CAPACITOR CCSRCH470J50 C8851 ELECT. CAPACITOR CEAT102M6R3 C8852 CAPACITOR CCSRCH470J50 C8861 CAPACITOR CEAT471M6R3 C8862 CAPACITOR CCSRCH470J50 C8871 CAPACITOR CEAT471M6R3 C8872 CAPACITOR CCSRCH470J50 RESISTORS All Resistors RS1/16S###F OTHERS CN8001 17P CONNECTOR 52044-1745 CN8003 7P CONNECTOR VKN1267 JA8802 JACK VKB1178 JA8851 JACK VKB1150 OPRIMARY ASSY SEMICONDUCTORS > IC51 REGULATORIC NJM78M56FA Q51 TRANSISTOR 2SD1858X Q52 TRANSISTOR 2SC4081 Mark No. Description Part No. > D51 BRIDGE DIODE S1WB(A)60SD D52 DIODE 1SS355 D53 DIODE DAN217 D55 CHIP ZENERDIODE UDZS20B COILS AND RELAYS > L1 LINE FILTER ATF7018 > RY1 RELAY ASR7027 CAPACITORS > C1 FILM CAPACITOR ACE7022 > C2 FILM CAPACITOR ACE7022 > C52 ELECT. CAPACITOR CEAT102M25 C53 CAPACITOR CKSRYB103K50 C54 CAPACITOR CEAT470M16 C56 CAPACITOR CKSRYB473K50 C57 CAPACITOR CKSRYB473K50 C58 CAPACITOR CKSRYB473K50 RESISTORS > R1 RESISTOR(2.2M, 1/2W) RCN1080 Other Resistors RS1/16S###J OTHERS 1 8P CABLE HOLDER 51048-0800 > AN1 ACINLET 1P XKP3042 > CN1 CONNECTOR B2P3-VH CN3 CONNECTOR7P 52492-0720 H1 FUSE CLIP AKR7001 H2 FUSE CLIP AKR7001 J51 JUMPERWIRE D20PYY0820E KN1 WRAPPING TERMINAL VNF1084 > T2 STANDBY TRANSFORMER ATT7079 PDISPLAY ASSY SEMICONDUCTORS IC5601 DISPLAY IC MSM9202-01 IC5651 LOGICIC HEF4794BT Q5691 TRANSISTOR 2SC4081 D5651 LED(GREEN) SLR-343MC D5652 LED(GREEN) SLR-343MC D5653 LED(GREEN) SLR-343MC D5654 LED(GREEN) SLR-343MC D5655 LED(GREEN) SLR-343MC D5656 LED(GREEN) SLR-343MC D5657 LED(GREEN) SLR-343MC COILS AND FILTERS L5562 INDUCTOR LFEA220J L5563 RADIALINDUCTOR LFEA100J CAPACITORS C5562 CAPACITOR CKSRYB223K50 C5563 CAPACITOR CKSRYB223K50 C5564 CAPACITOR CEJQ101M6R3 C5641 CAPACITOR CCSRCH101J50 C5642 CAPACITOR CCSRCH101J50 C5643 CAPACITOR CCSRCH101J50 C5651 CAPACITOR CKSRYB104K16 C5665 CAPACITOR CKSRYB223K50 C5666 CAPACITOR CKSRYB223K50 C5671 CAPACITOR CKSRYB102K50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 82 1 2 3 4 1 2 3 4 C D F A B E C5672 CAPACITOR CKSRYB102K50 C5673 CAPACITOR CKSRYB102K50 C5674 CAPACITOR CCSRCH470J50 C5675 CAPACITOR CKSRYB223K50 C5676 CAPACITOR CKSRYB102K50 C5677 CAPACITOR CKSRYB103K50 C5678 ELECT. CAPACITOR CEJQ220M35 C5679 CAPACITOR CEJQ1R0M50 C5680 CAPACITOR CEJQ1R0M50 C5952 CAPACITOR CKSRYB223K50 C5953 CAPACITOR CEJQ470M16 RESISTORS All Resistors RS1/16S###J OTHERS 5671 FLSPACER AEB7069 5951 REMOTE RECEIVERUNIT GP1UM27XK CN5721 27P CONNECTOR 52045-2745 CN5803 13PJUMPERCONNECTOR 52151-1310 V5601 FL TUBE XAV3020 QJOG ASSY SWITCHES AND RELAYS S5861 ROTARY ENCODER XSX3007 CAPACITORS C5861 CAPACITOR CKSRYB102K50 C5862 CAPACITOR CKSRYB104K16 RESISTORS All Resistors RS1/16S###J OTHERS 0 3P CABLE HOLDER 51048-0300 J5811 JUMPERWIRE D20PYY0310E RDISC KEY ASSY SWITCHES AND RELAYS S5851 SWITCH ASG7013 S5852 SWITCH ASG7013 S5853 SWITCH ASG7013 S5854 SWITCH ASG7013 S5855 SWITCH ASG7013 S5856 SWITCH ASG7013 S5857 SWITCH ASG7013 S5858 SWITCH ASG7013 RESISTORS All Resistors RS1/16S###J OTHERS 0 3P CABLE HOLDER 51048-0300 0 4P CABLE HOLDER 51048-0400 J5805 JUMPERWIRE D20PYY0410E SFUNCTION KEY ASSY SWITCHES AND RELAYS S5841 SWITCH ASG7013 S5842 SWITCH ASG7013 Mark No. Description Part No. S5843 SWITCH ASG7013 S5844 SWITCH ASG7013 S5845 SWITCH ASG7013 S5846 SWITCH ASG7013 S5847 SWITCH ASG7013 RESISTORS All Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 0 5P CABLE HOLDER 51048-0500 J5803 JUMPER WIRE D20PYY0510E THP MIC ASSY SEMICONDUCTORS IC5801 IC NJM4558MD SWITCHES AND RELAYS S5831 SWITCH ASG7013 CAPACITORS C3903 CAPACITOR CKSRYB223K50 C3904 CAPACITOR CKSRYB223K50 C3905 CAPACITOR CKSRYB104K16 C3906 CAPACITOR CKSRYB103K50 C3907 CAPACITOR CKSRYB104K16 C5801, C5807 CCSRCH101J50 C5802, C5806, C5808 CEAL100M16 C5804, C5810 CKSRYB474K50 C5805 CAPACITOR CCSRCH471J50 C5811 CAPACITOR CKSRYB104K16 C5809 CAPACITOR CCSRCH681J50 C5816 CAPACITOR CKSRYB33K25 RESISTORS VR5801 XCS3007 All Resistors RS1/16S###J OTHERS 0 5P CABLE HOLDER 51048-0500 0 13P CABLE HOLDER 51048-1300 J5801 JUMPER WIRE 13P D20PYY1315E JA3901 MINI TURE JACK AKN7005 JA5801 MINI STEREO JACK AKN7005 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 83 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 TUNER SECTION MPX SG FM SG PRODUCT DC Voltmeter L201 IC201 pin 21 pin 23 FM/AM TUNER MODULE F SIDE B Step No. Adjustment Title ANT. Input level and signal condition Adjustment Input Level (dBµV) Adjust point Contents Frequency (MHz) Modulation 1 T-METER Adjustment 98 OFF 80 L201 Adjust L201 so that the DC voltage between Pin 21 and Pin 23 of IC201 (Test point Vtm) gets within 0 ± 50mV. AM Tuner Section • There is no adjustment in the AM tuner. FM75Ω antenna terminal Fig.1 Adjustment Wiring Diagram Fig.2 Adjustment Point FM Tuner Section • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 84 1 2 3 4 1 2 3 4 C D F A B E 6.2 ADJUSTMENT ITEMS AND LOCATION 6.3 JIGS AND MEASURING INSTRUMENTS 1 1 2 2 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 85 5 6 7 8 5 6 7 8 C D F A B E 6.4 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ Ÿ Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point LOAB and DVDM ASSY Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 86 1 2 3 4 1 2 3 4 C D F A B E 6.5 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE (Player) TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD CAUTION: Perform only trace, video and audio outputs are nothing. • The TEST MODE functions that are used only during adjustment are described here. For details, see "7.1.1 TEST MODE". DVD disc POWER ON OFF POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 87 5 6 7 8 5 6 7 8 C D F A B E 6.6 MECHANISM ADJUSTMENT • Remove the servo mechanism. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Servo Mechanism (Float Base) with nippers. Cautions: Because there is not a Spacer for height adjustment in adjustment after the second time, will keep it at need. (This parts is Traverse mechanism exclusive use of a model for 2003 years) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.2 ADJUSTMENT ITEMS AND LOCATION".) Note: Turn the Short switch to Short side when removing the Pickup Flexible Cable. (Refer to "7.1.13 DISASSEBLY".) START Tangential and Radial Height Coarse Adjustment 1 Servo Mechanism 7.3mm Turn a flat side into bottom Float Base Spacer for Height adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 88 1 2 3 4 1 2 3 4 C D F A B E Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 89 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the Test mode remote control unit. • Light the all FL and LEDs, and goes out the FL and LEDs when pressing the keys of something. • OSD displays test mode. Refer to the "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". 2 Release the Test mode • Turn off the power. • Press the [ESC] (A8-5F) key of the remote control unit and reset it. 3 Tray open / close • Press the [REPEAT A-B] (A8 - 48) key of the remote control unit. • Press the [OPEN / CLOSE] key of the main unit from the stop state. 4 Playback stop 1. Press the [REPEAT] (A8 - 44) key of the remote control unit from the playback state. 2. Press the [STOP] key of the remote control unit or main unit from the playback state. (Playback stops, but the loaded disc keeps rotating.) 5 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). 6 Focus on / sweep 1. Lock the focus by pressing the [TEST] (A8-5E) and [2] (A8-02) keys in order. 2. Repeat focus sweep by pressing the [TEST] (A8-5E) and [3] (A8-03) keys in order. 7 Spindle FG servo CAV : Press the [TEST] (A8-5E) and [5] (A8-05) keys in order,then rise up the spindle and FG servo becomes on. CLV : Press the [TEST] (A8-5E) and [9] (A8-09) keys in order,then rise up the spindle and FG servo becomes on. 8 Tracking open / close 1. Open tracking by pressing the [STEP FWD] (A8-54) key of the remote control unit in the play state. 2. Close tracking by pressing the [STEP REV] (A8-50) key of the remote control unit in the play state. 9 Slider servo on/off 1. Turn on the slider servo by pressing the [TEST] (A8-5E) and [CX] (A8-0E) keys in order. 2. Turn off the slider servo by pressing the [TEST] (A8-5E) and [TV/LDP] (A8-0F) keys in order. 0 Slider in / out Slider in : In the tracking off state, press the [SCAN REV] (A8-11) key of the remote control unit. Slider out : In the tracking off state, press the [SCAN FWD] (A8-10) key of the remote control unit. - Play (perform only the ID search and trace to the specified location) Press the [TV/LDP] (A8-0F) key of the remote control unit from the stop state. Perform only trace, video and audio outputs are nothing. = Screen display ON/OFF 1. Turn off the display by pressing the [AUDIO] (A8-1E) key of the remote control unit. 2. Turn on the display by pressing the [DISPLAY] (A8-43) key of the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 90 1 2 3 4 1 2 3 4 C D F A B E ~ Search 1. Search address input entry • It becomes the address input mode when pressing the [+10] (A8-1F) key. (Most significant digit of an address displays "<".) • In this time, display the last address as the initial state. 2. Search address input • Press the [0] to [9] (A8-00 to 09) keys of the remote control unit. In the DVD, set an address with hexadecimal. • In the address input mode, turn to the hexadecimal input by pressing the [PROGRAM] (A8-4C) key (display a "∗" mark), and [1] to [6] keys are each input as A to F. • Hexadecimal input and decimal input can switch with toggle. • In case of CD, perform only the absolute time search. 3. Search execution • Press the [CHP/TM] (A8-13) key of the remote control unit. • After the search, perform only trace and video and audio outputs are nothing. 4. Release the Search address input • Clear the address by pressing the [CLEAR] (A8-45) key. Release the address input mode when pressing the [CLEAR] key once again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 91 5 6 7 8 5 6 7 8 C D F A B E 7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE Character in bold : Item name : Information display 1 5 6 10 13 11 8 9 3 2 12 17 18 19 16 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL – ∗ ∗ ∗] [OFF], [ACC/BRK], [CAV], [CLV] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] In Side Switch ON : [01] In Side Switch OFF : [00] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] - Jitter value [J – ∗ ∗ ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLASH = ∗ ∗] % Revision of the system controller [S: ∗. ∗ ∗ ∗ / ∗. ∗ ∗ ∗] version . revision / build number of the ST core ^ Revision of the DVD mechanism controller [M: ∗ ∗ / ∗ ∗ ∗] Kinds of version / firmware of the FE. RAM or ROM 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 92 1 2 3 4 1 2 3 4 C D F A B E 7.1.3 FUNCTIONAL SPECIFICAION OF THE SHORTCUT KEY • Service mode indication (ESC + CHP/TIM keys) ID Address The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs. EDC/ID/AV 1 error history (ID Address, EDC/ID/AV 1 Error, last eight errors) Self-diagnosis functions (If a mechanical error has occurred, the mechanical-error history is also displayed.) • Calculation of the average error rate (ESC + "5" [Test mode remote control unit] keys) The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs) For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less • Indication of model information (ESC + CHAP keys) The items from 12 to 19 of the TEST MODE Indications are displayed. However, in the indications, S in the standard test mode is changed to B.E VERSION, and M is changed to F.E VERSION. For details, see 7.1.4. • Change of the background colors (ESC + "+10" [Test mode remote control unit] keys) Every time the keys are pressed, the background color is changed between blue and green alternately. (The green background is used in SETUP NAVIGATOR.) • Region confirmation mode (ESC + AUDIO [Test mode remote control unit] + "1"-"8" [Test mode remote control unit] keys) After you press the AUDIO key while holding the ESC key pressed and then input the region number, if the number is different from that set in the unit, an error message is displayed, and the tray opens. Command Contents Conditions Remote Control Key Name Remote Control Code Memory clear and resion / revision indication CLEAR (∗1) A8-45 Average value measurement of DVD error rate 5 (∗1) A8-05 CD error rate measurement 5 (∗1) A8-05 Aspect : Pan scan 2 AF-A2 Aspect : Letter box 3 AF-A3 Aspect : Wide 4 AF-A4 Digital : AC3 5 AF-A5 Digital : AC-3 > PCM 6 AF-A6 Virtual surround : OFF Only for models having the corresponding functions 7 AF-A7 Virtual surround : TruSurround 8 AF-A8 Digital output ON REPEAT A AF-E8 Digital output OFF REPEAT B AF-E4 DTS Digital output ON STEP FWD AF-B7 DTS Digtal output OFF STEP REV AF-B8 Scart terminal output : VIDEO WY, models equipped with Scart terminal AUDIO AF-BE Scart terminal output : S-VIDEO SUBTITLE AF-36 Scart terminal output : RGB ANGLE AF-B5 Progressive OFF Only for progressive models R_SKIP A3-9D Progressive ON F_SKIP A3-9C Audio 5.1 CH ON Only for models having the corresponding functions KD_ENTER AF-EF FL indication of EDC / ID error CX (∗1) A8-0E FL indication of ID number STEREO (∗1) A8-4A ZOOM ON (X4) ZOOM AF-37 ZOOM OFF < X3 (∗1) A8-59 Service mode indication (error rate indication, etc.) CHP/TIM (∗1) A8-13 Model information indication CHAP (∗1) A8-40 Background color change +10 (∗1) A8-1F Audio last stage mute ON 9 AF-A9 Audio last stage mute OFF 0 AF-A0 Title search Input mode IN Title No. input Search execution SIDE A (∗1) Numbers (∗1) PLAY (∗1) A8-4D A8-00 to A8-09 A8-17 Region confimation mode AUDIO (∗1) Numbers (∗1) A8-1E A8-01 to A8-08 Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC key of the remote control unit. To quit, press the ESC key ∗1 : Test mode remote control unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 93 5 6 7 8 5 6 7 8 C D F A B E 7.1.4 SPECIFICAION OF MODEL INFORMATION DISPLAY • Display contents Character in bold : Item name : Information display 1 2 12 3 4 5 6 7 8 9 10 11 1 Model name Display it according to model information set from the FL controller. 2 Destination indication Display it according to model information set from the FL controller. 3 Region No. 4 Part number 5 ROM version 6 Flash size 7 FL controller version 8 CHIP VERSION Version of ST CHIP CUT ID / JTAG ID (two columns) (eight columns) 9 B.E VERSION Version of BACK END (version of ST core software) . / softwareVersion . softwareRevision / buildNumber 0 F.E VERSION Version of FRONT END (version of mechanism controller CHIP software) / MainVersion / Kinds of firmware RAM or ROM - Remote control code = Key code of Main unit To display model information : Press the ESC key then the CHAP key. To close the model information display : Press the ESC key. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 94 1 2 3 4 1 2 3 4 C D F A B E 7.1.5 FUNCTIONAL SPECIFICAION OF THE SERVICE MODE Indication plan contents Character in bold : Item name : Information display 1 2 4 • EDC / ID error FL display (shortcut function) EDC/ID error is displayed on the FL display if you press the CX key while holding the ESC key on the TEST MODE remote control unit pressed. To quit while an EDC/ID error is displayed, press the ESC key. FL display 0 0 / 0 0 / 0 1 ∗ • Display during Service Mode To enter Service Mode, press the CHP/TIM key while holding the ESC key pressed. To quit, press the ESC key. Service mode display 1 ID Address 2 Error rate (always displayed), in exponential notation ∗ ∗ ( ∗ ∗ ∗ ∗ ) 3 EDC/ID/AV1 error history (ID Address, EDC/ID/AV1 errors, last eight errors) Description of AV1 errors BIT0: In BE code, an EDC error, FEC I/F buffer overflow, or "not valid" is generated (B.E error) BIT1: In BE code, the ID is different from that of the target (B.E error) BIT2: An error was generated in FE-added 2-byte EDC data. (F.E error) 4 Self-diagnosis functions Whether F.E is normal or not is checked. FE OK: No abnormality in F.E FE Error: Abnormality is recognized in F.E. Pressing the CHP/TIM key again displays the mechanical error history. Each press of the CHP/TIM key changes the displays between the mechanical error history and the Service Mode display. For details on the mechanical error history, refer to the addendum. Number of sites where an EDC or ID error was generated ∗: Lights when an AV1 error was generated at least once. Number of retrials while an ID error is being generated (only displayed at the moment when an error is being generated), and for the ST models, the number of retrials made for the latest ID error Number of retrials while an EDC error is being generated (only displayed at the moment when an error is being generated), and the number of retrials made for the latest EDC error Number of error rates 02: Indicates use of the same method as for the 02 models, No indication: Indicates use of the method used for models before the 02 model 3 00 0 0 0 01 0 0 1 02 0 1 0 03 0 1 1 04 1 0 0 05 1 0 1 06 1 1 0 07 1 1 1 AV1 ERR 1 2 BIT 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 95 5 6 7 8 5 6 7 8 C D F A B E 7.1.6 MECHANICAL ERROR HISTORY Indication contents • List of the error codes • List of the servo states Note : 0 x & & code (Only this part is displayed to a display) 1 2 3 Description of the mechanical error history 1 Error number The first two digits are for the error code, and the second two digits are for the servo state. 2 Error number The elapsed time from the time when the system was turned on until an error was generated is displayed. Note: If a later error time is shorter than the previous error time, it means that the unit was turned off then on again. 3 Description of errors Error messages are displayed. Example: If the error code is 0x13 (Focus lost timeout) and the servo state is 0x05 (Disc judge), the message becomes "Focus lost timeout in Disc judge." Only if a mechanical error (FE error) has been generated, a mechanical error history containing up to the last eight errors is displayed if you press the CHP/TIM key in Service Mode. Errors are displayed in descending order, with the latest one at the top. Error Code Servo State 1 2 3 0x00 Reset 0x01 Stop (inside position) 0x02 Stop (any position) 0x03 Braking for stop 0x04 New disc 0x05 Disc judge 0x06 Reserved 1 0x07 Playing 0x08 Start up 0x09 Seeking 0x0A Pausing 0x0B Reading BCA 0x0C Reserved 2 Tray open Tray moving 0x0D 0x0E 0x0F FOCUS ERROR 0x0∗ FOCUS TIMEOUT 0x1∗ Focus on error 0x01 Focus on timeout 0x11 Focus off error 0x02 Focus off timeout 0x12 Focus lost error 0x03 Focus lost timeout 0x13 Focus balance adjust error 0x04 Focus balance adjust timeout 0x14 Focus gain adjust error 0x05 Focus gain adjust timeout 0x15 Focus sweep error 0x06 Focus sweep timeout 0x16 TRACKING ERROR 0x2∗ TRACKING TIMEOUT 0x3∗ Tracking on error 0x21 Tracking on timeout 0x31 Tracking off error 0x22 Tracking off timeout 0x32 Tracking lost error 0x23 Tracking lost timeout 0x33 Tracking balance adjust error 0x24 Tracking balance adjust timeout 0x34 Tracking gain adjust error 0x25 Tracking gain adjust timeout 0x35 STEPPING ERROR 0x4∗ STEPPING TIMEOUT 0x5∗ Stepping on error 0x41 Stepping on timeout 0x51 Stepping off error 0x42 Stepping off timeout 0x52 Stepping lost error 0x43 Stepping lost timeout 0x53 Stepping move error 0x44 Stepping move timeout 0x54 SPINDLE ERROR 0x6∗ SPINDLE TIMEOUT 0x7∗ Spindle on error 0x61 Spindle on timeout 0x71 Spindle off error 0x62 Spindle off timeout 0x72 Spindle lost error 0x63 Spindle lost timeout 0x73 Spindle CAV error 0x64 Spindle CAV timeout 0x74 Spindle CLV error 0x65 Spindle CLV timeout 0x75 ACQUISITION ERROR 0x8∗ ACQUISITION TIMEOUT 0x9∗ PLL lost error 0x83 PLL lost timeout 0x93 DECODER ERROR 0xa∗ DECODER TIMEOUT 0xb∗ ID lost error 0xa3 ID lost timeout 0xb3 0xe∗ FAIL SAFE 0xe1 Note: When an error has been generated, if the servo state is "Disc judge," the disc tray opens, and if the servo state is other than "Disc judge," the unit stops (excluding a case of a device error with the error code 0xd∗). Mechanical Error History Unexpected error www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 96 1 2 3 4 1 2 3 4 C D F A B E Protection Specifications and Service Mode 1. Specific conditions for Service Test mode • VDET is neglected. • XPROTECT is neglected. • Even if the unit is urgently shut down in failure in Normal mode, you can turn it on without waiting for one minute. 2. How to enter Service Test mode • While holding the DISK 1 key and STOP key pressed, connect AC power cord. 3. How to quit Service Test mode, and the conditions for quitting • To quit Service Test mode, turn the power off or disconnect the AC power cord. • When quitting Service Test mode, only data on protection in RAM are cleared. 4. Indications when Service Test mode starts • Indications on the FL display when Service Test mode starts differ depending on whether the unit was turned off normally or if the unit was urgently shut down because the abnormality of the power, as described below. Protection Specifications The system microcomputer (AF Assy IC5501) for this unit always monitors if abnormality of the power is generated, and as soon as an abnormality is detected shuts off the power. The specifications of the microcomputer terminal for monitoring are as follows: In abnormal conditions or in failure, the TIMER LED flashes after the power is shut off. If the power was shut off because of an abnormality, it can be turned on by pressing the STANDBY/ON key. However, if the power was shut off because of failure, for one minute after a shutdown the STANDBY/ON key is disabled in order to protect against possible ignition of fumes. If the AC power cord is pulled out during this one minute of standby, when the AC power cord is reconnected, the STANDBY/ON key will still be disabled until the remaining seconds have elapsed. This unit has Service Test mode for analyzing the above power abnormality. Its specifications are as follows: ∗Vdd = Approx. 5 V (depending on the unit) 5. Operations during Service Test mode • Basically, operations in Service Test mode are the same as in Normal mode. However, to clarify that it is in Service Test mode, during this mode, when functions are changed, the indications on the FL display become as follows: W e l c o m e ! [After the power is turned off normally] [After the power is shut down because of an abnormality in the AMP system] FL display V o l u m e 0 FL display D V S E R V I C E FL display P R T C T W N G FL display V o l u m e 0 FL display D V S E R V I C E FL display P R T C T E R R FL display V o l u m e 0 FL display D V S E R V I C E FL display D V S E R V I C E DVD/CD T X S E R V I C E TUNER L 1 S E R V I C E LINE1 D V D P R T E C T FL display V o l u m e 0 FL display D V S E R V I C E FL display [After the power is shut down because of a failure in the AMP system] [After the power is shut down because of a failure in the DVD system] Name of microcomputer terminal XPROTECT (Pin 22) VDET (Pin 17) Monitoring item Abnormality of AMP-system power Short-circuiting of the SP terminal, etc. Abnormality of power inside the DVDM Assy Voltage at terminal In normal conditions 0.71 Vdd∗ or more 0.5 Vdd-0.85 Vdd∗ In abnormal conditions 0.36 Vdd-0.71 Vdd∗ In failure 0.36 Vdd∗ or less 0.85 Vdd∗ or more 0.5 Vdd∗ or less Monitoring start time 1.5 sec after power is turned on 1.5 sec after power is turned on Time required for determining abnormality 0.5 sec after detection 0.5 sec after detection [Functions] [Indications on the FL display] L 2 S E R V I C E LINE2 T V S E R V I C E TV [Functions] [Indications on the FL display] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 97 5 6 7 8 5 6 7 8 C D F A B E Error Name No. Causes Check Item Possibility of Trouble Remarks FOCUS ERROR (0 x 0∗) Focus on error 0 x 01 Focus on could not be completed Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. Front End IC Focus off error 0 x 02 Focus off could not be completed Unknown Focus lost error 0 x 03 Focus servo is lost Are not there a dirt or a scratch in the Disc? Does LD become weak? 1. Pickup Focus balance adjust error 0 x 04 AFB on could not be completed Focus gain adjust error 0 x 05 Focus AGC could not be completed Focus sweep error 0 x 06 FOCUS TIMEOUT (0 x 1∗) Focus on timeout 0 x 11 Did timeout at focus on Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. Front End IC Focus off timeout 0 x 12 Did timeout at focus off Focus lost timeout 0 x 13 Did timeout at focus backup Focus balance adjust timeout 0 x 14 Did timeout at AFB Focus gain adjust timeout 0 x 15 Did timeout at AGC Focus sweep timeout 0 x 16 TRACKING ERROR (0 x 2∗) Tracking on error 0 x 21 Tracking on could not be completed 1. Pickup 2. Driver 3. Front End IC Tracking off error 0 x 22 Tracking off could not be completed Tracking lost error 0 x 23 Tracking servo is lost 1. Pickup Tracking balance adjust error 0 x 24 ATB could not be completed 1. Pickup Tracking gain adjust error 0 x 25 AGC could not be completed 1. Pickup Tracking jump error 0 x 26 Tracking jump could not be completed TRACKING TIMEOUT (0 x 3∗) Tracking on timeout 0 x 31 Did timeout at tracking on Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Driver 3. Front End IC Tracking off timeout 0 x 32 Did timeout at tracking off Tracking lost timeout 0 x 33 Did timeout at tracking backup Are not there a dirt or a scratch in the Disc? 1. Pickup Tracking balance adjust timeout 0 x 34 Did timeout at ATB 1. Pickup Tracking gain adjust timeout 0 x 35 Did timeout at AGC 1. Pickup Tracking jump timeout 0 x 36 Did timeout at tracking jump STEPPING ERROR (0 x 4∗) Stepping on error 0 x 41 Stepping on could not be completed 1. Pickup 2. Driver 3. Front End IC Stepping off error 0 x 42 Stepping off could not be completed Stepping lost error 0 x 43 Stepping servo is lost Stepping move error 0 x 44 Stepping could not move Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver STEPPING TIMEOUT (0 x 5∗) Stepping on timeout 0 x 51 Did timeout at stepping on 1. Pickup 2. Driver 3. Front End IC Stepping off timeout 0 x 52 Did timeout at stepping off Stepping lost timeout 0 x 53 Did timeout at stepping backup Stepping move timeout 0 x 54 Did timeout at stepping movement Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver Error Code Table www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 98 1 2 3 4 1 2 3 4 C D F A B E Error Name No. Causes Check Item Possibility of Trouble Remarks SPINDLE ERROR (0 x 6∗) Spindle on error 0 x 61 Spindle on could not be completed Spindle off error 0 x 62 Spindle off could not be completed Spindle lost error 0 x 63 Spindle lost control Spindle CAV error 0 x 64 CAV on could not be completed Spindle CLV error 0 x 65 CLV on could not be completed SPINDLE TIMEOUT (0 x 7∗) Spindle on timeout 0 x 71 Did timeout at spindle on Spindle off timeout 0 x 72 Did timeout at spindle stop Spindle lost timeout 0 x 73 Did timeout at spindle backup Are not there a dirt or a scratch in the Disc? Is FG output from the driver? 1. Spindle motor 2. Spindle driver Spindle CAV timeout 0 x 74 Did timeout at CAV on Is spindle rotating? Is FG output from the driver? Is the PDM output from Front End? 1. Spindle motor 2. Spindle driver 3. Front End IC Spindle CLV timeout 0 x 75 Did timeout at CLV on ACQUISITION ERROR (0 x 8∗) PLL lost error 0 x 83 PLL is lost Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC ACQUISITION TIMEOUT (0 x 9∗) PLL lost timeout 0 x 93 Did timeout at PLL backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DECODER ERROR (0 x a∗) ID lost error 0 x a3 ID is not readable Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DECODER TIMEOUT (0 x b∗) ID lost timeout 0xb3 Did timeout at ID backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC FAILSAFE (0 x e∗) Unexpected error 0 x e1 Unexpected error 1. Hardware broken 2. Software bug www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 99 5 6 7 8 5 6 7 8 C D F A B E 7.1.7 ID NUMBER AND ID DATA SETTING To enter ID Number Input Mode, with no ID number set, such as in a case of immediately after upgrading the firmware, press the ESC key then the STEREO key. Note: If a previous ID number and ID data, such as a factory- preset ID number and ID data, are maintained, the unit enters ID Number Confirmation Mode when the above keys are pressed. However, if only an ID number is maintained, the unit enters ID Data Input Mode. ID Number Input Mode [Player's ID Number Setting] ID Number ? > - - - - - - - - - Exit Input ID Number ! 1 This display appears when the PLAY key is pressed in Step 4. Enter a 9-digit number to compare. The number is also displayed on the FL display. 6 By pressing the CLEAR key without having input a number, the unit returns to Step 2 without doing anything else. Each press of this key after a number has been input deletes one digit. 7 After entering all 9 digits, if you press the PLAY key, the unit compares the numbers input in Steps 2 and 6, and only if the numbers match, that number is set as the ID. Then the unit automatically enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Input Mode. 8 Enter a 9-digit ID number. The ID number is also displayed on the FL display. 2 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 3 After entering all 9 digits, if you press the PLAY key, the unit enters Compare mode. Enter the same ID number again. Only if your two input numbers match, the ID number is set. Compare mode helps eliminate mistyping of the ID number. 4 After entering all 9 digits, if you press the SEARCH key, the unit unconditionally sets the input number as the ID number. Then the unit automatically enters Player's Data Input Mode. (The SEARCH key is not accepted after all 9 digits have been entered.) 5 2 3 [Player's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! 4 5 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Input ID Number ! 6 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Input ID Number ! 8 Note: Enter ID numbers while the unit is in Stop mode so that the values set will be immediately written to the flash ROM. The following operations are all made with the TEST MODE remote control unit (GGF1381). Caution: For the DVD players compatible with DVD-RW, for playback of a DVD-RW disc (CPRM), it is necessary that an individual ID number and ID data are set for each player. If the ID number and ID data be not properly set in the manner described below, future operations cannot be guaranteed. The ID number is written on the yellow label at the rear panel of the player. If there is no yellow label, before downloading FLASH ROM, take note of the ID number set following the procedures outlined in "ID Number Confirmation Mode" on the next page. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 2 without doing anything else. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 6 without doing anything else. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 100 1 2 3 4 1 2 3 4 C D F A B E To enter ID Number Confirmation Mode after the ID number and the ID data are set, press the ESC key then the STEREO key. ID Number Confirmation Mode 1 The ID number already set is displayed. (It is also displayed on the FL display.) 2 Enter a 9-digit number for comparison. This is not required when you only wish to check the ID number visually. (The number is also displayed on the FL display.) 3 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 4 After entering all 9 digits, if you press the PLAY key, the unit compares the number entered in Step 2 with the ID number set, and only if the numbers match, the unit automatically exits ID Number Confirmation Mode. If an ID data has not been entered, the unit enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Confirmation Mode. 5 After entering all 9 digits, if you press the STOP key, the unit compares the number entered in Step 3 with the ID number set, and only if the numbers match, the unit automatically deletes the ID number and exits this mode. If the numbers do not match, the disc tray is opened, and the unit exits this mode. (The STOP key is not accepted after all 9 digits have been entered.) 6 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit Input ID Number ! 3 2 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Memory Clear Input ID Number ! 5 6 Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 4 without doing anything else. • Indication of an ID number already set An ID number already set is displayed in the following cases: 1) When the ESC key then the CLEAR key are pressed, user settings are cleared, then the ID number set is displayed on the screen. In this case, the ID number is not displayed on the FL display. 2) When the unit enters ID Number Confirmation Mode by your pressing the ESC key then the CLEAR key, the ID number set is displayed. In this case, the ID number is also displayed on the FL display. If you only need to confirm the ID number, you can exit this mode by pressing the CLEAR key or turning off the power. • Indication when no ID number is set If no ID number is set, the message "No ID Number!" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 101 5 6 7 8 5 6 7 8 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1133) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1133), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 102 1 2 3 4 1 2 3 4 C D F A B E 7.1.8 TROUBLE SHOOTING Microcomputer Section (AF Assy : IC5501) Symptom Possible Cause Check Method • The unit cannot be turned on. The microcomputer was not reset. Check if the level of the terminal XRESET (Pin 8) is "H." If it is not, check the RESET circuit. The AC pulse is not input. Check if the AC pulse is input to Pin 4 of the AC input terminal. If it is not, check the AC pulse generation circuit. The oscillation circuit of the microcomputer does not function. The microcomputer or the oscillation circuit is broken. Change the microcomputer or the oscillation circuit. The unit shuts itself off soon after it is turned on. • If the Function is DVD, the voltage of the VDET input (Pin 17) is either 0.5 Vdd or less or 0.85 Vdd or more. • The voltage of the PROTECT input (Pin 22) is 0.71 Vdd or less. If the voltage at Pin 17 of the VDET terminal of the microcomputer is either 0.5 Vdd or less or 0.85 Vdd or more, adjust so that it stays between 0.5 and 0.85 Vdd. • DVD does not operate at all. • Time is not displayed in FL display during DVD function. Communication with the DVD microcomputer has not been established. • Check that the terminal (Pins 23-25, 29, and 30) for communication with the DVD microcomputer is live, and if it is not, check if the flexible cable is disconnected. • Check if an "H" signal is output to Pin 93 of the XDVDRST terminal. All operation keys re disabled. The unit recognizes that an operation key has already been pressed. If no operation key has been pressed, check if the voltage at Pins 18 and 19 of the KEY input terminal is 5 V. If it is not, check if the operation switch on the line is in failure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 103 5 6 7 8 5 6 7 8 C D F A B E DVD Section No. Symptoms Diagnosis Contents Possible Defective Points 1 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Is the level at both IC5501-pin 93 (XDVDRST) and pin 1(DVD ON/OFF) on the AF Assy "H" ? µcom (AF IC5501) Check the voltage of CN911-pin 28 and 29 (VPR+8) on the DVDM Assy. DVDM Assy CN911 Check that the following voltages are output : IC411-pin 3 : 1.8V, IC421-pin 3 : 1.8V and IC431-pin 1 : 5V on the DVDM Assy Each regulator on the DVDM Assy Are resonators (27MHz, 20MHz) on the DVDM Assy oscillating ? Crystal resonator (DVDM Assy X601 and X301) Refer to contents of an FE error displayed on the FL display. (SRAM defectiveness, I2C communication line defectiveness, etc.) FRONT END IC (DVDM IC301) • Is a signal input into IC601-pin 132 (CE3) on the DVDM Assy ? (Is a signal fluctuating for several seconds after the power is turned on ?) → Communication with flash ROM • Are the signals input into IC602-pin 16 (SMIWE), pin 19 (SMICS0) and pin 38 (SMICLK) on the DVDM Assy ? (Is a signal fluctuating ?) → Communication with flash ROM • BACK END IC (DVDM IC601) • Flash ROM (DVDM IC603) • 64M SDRAM (DVDM IC602) Is a signal output from IC603-pin 28 (CPU_OE) on the DVDM Assy? (Is a signal fluctuating for several seconds after the power is turned on ?) µcom (AF IC5501) Is a signal input into IC5501-pin 67 (DVDACK) on the AF Assy ? (Is a signal fluctuating ?) → Communication with µcom • BACK END IC (DVDM IC601) • Flash ROM (DVDM IC603) Is a signal output from IC5501-pin 29 and 30 (SYS_1, 2) on the AF Assy ? (Is a signal fluctuating in the range of 0-5V ?) µcom (AF IC5501) Are the signals output from IC5501-pin 23, 24 and 25 on the AF Assy ? (in the range of 0-5V) µcom (AF IC5501) – BACK END IC (DVDM IC601) communication line 2 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Check the video signal path between BACK END IC (DVDM IC601) and video-out terminal (see the block diagram) DVDM Assy • Video circuit • after BACK END IC (IC601) 3 4 A tray cannot be opened. (An opening screen is displayed on the monitor) Rotary tray does not turn (Opening screen is OK) • Are wires of CN123 on the DVDM Assy disconnected or damaged ? • Does the voltage of CN124 pin 3 to pin 6 on the DVDM Assy change normally ? • CN124 pin 6 (OPEN): Tray is fully closed: "H", Tray is fully opened: "L" • CN124 pin 3 (CLAMP): Clamping: "L", Releasing the clamper: "H" • Check each cable (DVDM – TRSB/TRSB – SSRB/SSRB – TRAY motor) • Is a signal output from IC601-pin 114 (ROT DRV) on the DVDM Assy ? (Is a signal fluctuating of 0-3.3V ?) • Is the motor drive voltage output it at CN124 pin 7 and pin 8 ? Connector / wire LOADING SW (SSRB S21) CLAMP SW (TRSB S11) Connector / cable BACK END IC (DVDM IC601) IC151 and peripheral parts of the DVDM Assy • Is a LOAD-DRVC signal reaching ? • Are the signals output from IC151 pin 9 and pin 8 on the DVDM Assy ? Pin 9: Approx. 6V during opening tray approx. 0V during closing tray. Pin 8: Approx. 0V during opening tray approx. 6V during closing tray. • Does the voltage of CN122 pin 17 change by pressing the Inside switch. BACK END IC (DVDM IC601) Carousel driver (DVDM IC151) Inside switch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 104 1 2 3 4 1 2 3 4 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1133) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1133), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. No. Symptoms Diagnosis Contents Possible Defective Points 6 Playback impossible (no focusing) Are the signals output from IC101-pin 34 (F_DRV) and pin 35 (F_RTN) on the DVDM Assy ? FTS Driver IC (DVDM IC101) Does 650-nm LD emit light ? Does a pickup lens move up / down ? Does an actuator spring bend ? Pickup • Are plastic parts damaged? Or is a shaft detached? • Is the turntable detached or tilted? Mechanism section Is flexible cable of CN121 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC301-pin 33 (FACT) on the DVDM Assy ? (Device control of about 2.6 V is output usually. It is fluctuated by about ± 100 mV with focus up / down.) FRONT END IC (DVDM IC301) 7 Playback impossible (Spindle does not turn) Are the signals output from IC101-pin 12 (A3), pin 13 (A2) and pin 14 (A1) on the DVDM Assy ? Is pin 41 fixed LOW and is pin 38 fixed HIGH ? FTS Driver IC (DVDM IC101) Is there any part detached from the spindle motor? Or Is there any foreign object lodged in it? Mechanism section (Spindle motor) Are wires of CN122 (DVDM Assy) and CN3 (SSIB Assy) disconnected or damaged ? Flexible cable / connector Is signal output from IC301-pin 44 (SPDL_PDM) on the DVDM Assy ? FRONT END IC (DVDM IC301) 8 Playback impossible (Playback stops) Does 650-nm LD deteriorate ? If the voltage at both ends of R201 on the DVDM Assy is 0.7 V or more, the 650-nm LD is definitely deteriorated. 650-nm LD deteriorated. (When playback of a DVD is impossible) Does 780-nm LD deteriorate ? If the voltage at both ends of R211 on the DVDM Assy is 1.5 V or more, the 780-nm LD is definitely deteriorated. 780-nm LD deteriorated. (When playback of CD is impossible) Is there abnormality in FG waveform ? FG output : FTS Driver IC (DVDM IC101) Are there scratches or dirt on the disc ? Disc 9 Picture disturbance during playback (block noise, freeze, other) 10 No sound (Picture is normal) Is signal output from DOUT signal (CN911-pin 21) on the DVDM Assy ? DVDM CN911-pin 21 Are there scratches or dirt on the disc ? Disc Is there a problem with the format of the disc? Disc 5 Initialization operation of the table mechanism is not completed. (Rotary tray does not stop at the right position.) • While a tray rotates, is a signal output from CN124-pin 5 (TRAY POS) on the DVDM Assy ? (Is a signal fluctuating in the range of 0-3V ?) • While a tray rotates, is a signal outputting from CN124-pin 4 (DISC SENS) on the DVDM Assy ? (Is a signal fluctuating in the range of 0-3V ?) Connector / cable Tray Position Sensor (SSRB PC22) Disc Sensor (SSRB PC21) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 105 5 6 7 8 5 6 7 8 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1133) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1133), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. Symptom Possible Cause Location of Trouble The tray does not open. (Nothing works) Press the 0 (OPEN) key. → The "OPEN" indication does not disappear. Press the 3 (PLAY) key. → The indication changes from "NO DISC" to "OPEN," and the unit does not operate. (When a disc is not loaded in the tray.) • Damage of the loading motor • Disconnection, breaking, or damage of the jumper wire The tray opens by itself when the power is turned on and stays open. • Disconnection, breaking, or damage of the flexible cable (8P) The rotary tray does not stop at its home position. (It may stop suddenly during rotation.) • Breaking or damage of the tray position detect sensor (PC22) The indication "CHANGE" does not change when the power is turned on. The rotary tray does not rotate. (Opening and closing of the tray are possible.) • Damage of the motor for the rotary tray drive • Disconnection, breaking, or damage of the jumper wire A clatter is heard when the disc is clamped. • The gears of the planet base are not engaged correctly. The rotation of the rotary tray does not stop after the power is turned on. Two or more disc loading indications light for tray Nos. 1 to 5. The slit part on the bottom of the rotary tray is damaged. The rotary tray rattles while rotating. When the rotary tray rotates, a rattling sound is heard. • Damage of the worm gear • Insufficient lubricant Even during playback, the indication "NO DISC" is displayed. It takes longer than normal until playback starts. • Breaking or damage of the disc detect sensor (PC21) 1 4 5 6 7 8 9 10 Examples: Normal condition: One indication lights. Abnormal condition: Two indications light. Table Mechanism Section DISC 1 2 3 4 5 DISC 1 2 3 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 106 1 2 3 4 1 2 3 4 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1133) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1133), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. Disc Clamp Detect SW (S11 : VSK1011) Clamp Clamp Unclamp Unclamp Open Close Open Close Tray Open/Close Position Detect SW (S21 : VSK1011) Motor : DXM1143 (for Rotary Tray Drive) Operation : Tray open → close Traverse Mecha. clamp → unclamp * When continued turning Gear pulley by hand Tray open → close → Disc clamp → open ↓ Continuous action Disc exchange operation Carriage Motor : VXM1033 (for LOADING) 1 Planet Base : ANW7258 7 Flexible Cable (8P) (TRSB CN11 ↔ DVDM CN124) 4 Tray position Detect Sensor (PC22 : RPI-574) 5 Disc Detect Sensor (PC21 : GP2S28) 10 Worm Gear : ANW7269 9 Rotary Tray : VNK4923 8 3 6 Location www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 107 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 DSP TROUBLE SHOOTING IC8501-pin 21 Yes No Is output signal "L"? Does the COAX terminal install with screws in the rear panel ? Is connector inserted tightly ? • When a sound is not out in the surround mode with the digital signal input. • Suppose CR to be poor contact and that is not damaged. • This shows failure analysis of DSP Assy. Step 1 Replace IC8501. Replace IC8702. Replace IC8901. IC8901 Yes No Is 5V inputting ? Step 2 IC8902 Check CN8003 and other assemblies. IC8702 No Do perform 3V→5V conversion for pin 17 ? Step 3 Pin 3 Yes No Is 3.3V outputting ? Replace IC8902. Yes End Yes Yes Replace IC8702. No Do perform 3V→5V conversion for pin 15 ? Pin 5 Replace IC8702. No Do perform 3V→5V conversion for pin 13 ? Pin 7 Yes Yes No Is 1.8V outputting ? No Insert it tightly. JA8103 Yes Yes No CN8003 Is connector inserted tightly ? No Insert it tightly. CN8007 Yes Is connector inserted tightly ? No Insert it tightly. CN8011 Yes End Tighten screws. A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 108 1 2 3 4 1 2 3 4 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1133) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1133), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. Replace IC8701. Yes IC8701 No Do perform 5V→3V conversion for pin 17 ? Step 4 Pin 3 End Yes Replace IC8701. No Do perform 5V→3V conversion for pin 15 ? Pin 5 Replace IC8701. No Do perform 5V→3V conversion for pin 13 ? Pin 7 Replace IC8702. No Do perform 3V→5V conversion for pin 11 ? Pin 9 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 8 ? Pin 12 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 6 ? Pin 14 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 4 ? Pin 16 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 2 ? Pin 18 Yes End Replace IC8701. No Do perform 5V→3V conversion for pin 11 ? Pin 9 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 8 ? Pin 12 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 6 ? Pin 14 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 4 ? Pin 16 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 2 ? Pin 18 Yes Yes A B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 109 5 6 7 8 5 6 7 8 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1133) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1133), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. Step 5 End Replace IC8101. Replace IC8201. Replace IC8201. Is SPDIF signal coming? (be different with Function) IC8201 IC8502-pin2 Yes Check the other assemblies. (AF Assy or DVDM Assy) Check the other assemblies. (periphery of microcomputer on the AF Assy) No Check the DVD/CD (pin 7). Yes No Check the COAX (pin 42). Yes Yes No Is MCKO1 (pin 23) outputting it? No Is LRCK (pin 24) outputting it? Replace IC8201. Yes No Is SDTO (pin 25) outputting it? Replace IC8201. Yes No Is BCK (pin 26) outputting it? Replace IC8502 or X8501. Yes No Is 20MHz clock outputting it? Yes No Is input signal of PDN (pin 31) "H"? Is output signal of INT0 (pin 36) "H"? Yes No Do not oscillate of XTO (pin 29)? Yes No Note: X8201 oscillates only in analog input. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 110 1 2 3 4 1 2 3 4 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1133) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1133), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. Replace IC8701. Yes IC8701 No Do perform 5V→3V conversion for pin 17 ? Step 4 Pin 3 End Yes Replace IC8701. No Do perform 5V→3V conversion for pin 15 ? Pin 5 Replace IC8701. No Do perform 5V→3V conversion for pin 13 ? Pin 7 Replace IC8702. No Do perform 3V→5V conversion for pin 11 ? Pin 9 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 8 ? Pin 12 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 6 ? Pin 14 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 4 ? Pin 16 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 2 ? Pin 18 Yes End Replace IC8701. No Do perform 5V→3V conversion for pin 11 ? Pin 9 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 8 ? Pin 12 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 6 ? Pin 14 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 4 ? Pin 16 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 2 ? Pin 18 Yes Yes A B B Yes IC8501 Step 6 End Replace IC8501. No Pin 4 Does a signal output it? Yes Replace IC8501. No Pin 5 Does a signal output it? Yes Replace IC8501. No Pin 6 Does a signal output it? Yes Replace IC8501. No Pin 7 Does a signal output it? Yes IC8401 Step 7 End Replace IC8401. No Pin 21 Does a signal output it? Yes Replace IC8401. No Pin 22 Does a signal output it? Yes Replace IC8401. No Pin 23 Does a signal output it? Yes Replace IC8401. No Pin 24 Does a signal output it? Yes Replace IC8401. No Pin 25 Does a signal output it? Yes Replace IC8401. No Pin 26 Does a signal output it? Yes Replace IC8401. No Pin 27 Does a signal output it? Yes Replace IC8401. No Pin 28 Does a signal output it? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 111 5 6 7 8 5 6 7 8 C D F A B E 7.1.10 POWER ON SEQUENCE Reset Start Demonstration mode ? Yes : Power ON Yes No No Microcomputer initialization Model identification Standby setting • It starts when the XRESET terminal (Pin 8) is "H" level. • The inputs to Pins 15 and 16 are inspected and the model identification is performed. Demonstration mode permission Demonstration mode System power supply on DVD microcomputer start-up Relay release Demonstration mode or Normal power ON mode • The level of the POWER terminal (Pin 93) is "H". • Only in DVD function, the level of the DVD RESET terminal (Pin 93) is "H". • The speaker relay is turned on about four seconds after the power is turned on. • The level at the RELAY ON/OFF terminal (Pins 34 and 35) are "H." • The conditions are different depending on whether the headphones are connected via the Headphones jack, or on the DPS mode. • If no pulse is input to the AC terminal (Pin 4) for about 60 msec when the microcomputer is in Memory Backup mode, it will not do any processing. • The unit will recover from Memory Backup mode if a reset command is input to the XRESET terminal (Pin 8). • The system mute is released about four seconds after the power is turned on. The level of the SYSMUTE terminal (Pin 94) is "H". • Muting is not released in the following cases. • When the main volume is 0. • When the digital LEVEL 2 function input signal is not locked, or when the DSP MUTE terminal (Pin 87) is in error. • Whether Demonstration mode is entered or not can be determined by inspecting the backup data. • The default setting is "Demonstration mode OK." Standby Initialization routine Main loop processing Microcomputer IC (PDC103A) (AF Assy : IC5501) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 112 1 2 3 4 1 2 3 4 C D F A B E 7.1.11 WAVEFORM POINTS LOCATION SIDE A SIDE A DVDM ASSY Front Side E IC601 CN923 CN121 CN122 CN124 CN123 IC101 IC301 RFOUT FG 1 2 ROT_DRV 7 SPDL_PDM 3 S_Y 12 V 8 Cr 11 Y 9 S_C 13 Cb 10 A1 A3 A2 4 4 4 TRAY POS SEDR+ DISCSENS SEDR- 6 7 CLAMP 7 OPEN 7 7 6 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 113 5 6 7 8 5 6 7 8 C D F A B E Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 2 and 8 to 13 : reference A1 (DVD), T2-chp 19, Color -bar DVDM ASSY E 1 IC301-pin 4 (RFOUT) V: 200mV/div. H: 0.1µsec/div. 8 CN923-pin 16 (Composite Video out) V: 1V/div. H: 10µsec/div. 9 CN923-pin 8 (Component Video out-Y) V: 1V/div. H: 10µsec/div. 10 CN923-pin 10 (Component Video out-Pb) V: 2V/div. H: 10µsec/div. 11 9 10 12 13 11 CN923-pin 12 (Component Video out-Pr) V: 2V/div. H: 10µsec/div. 12 CN923-pin 18 (S Video out-Y) V: 1V/div. H: 10µsec/div. 13 CN923-pin 14 (S Video out-C) V: 1V/div. H: 10µsec/div. 2 IC301-pin 36 (FG) V: 1V/div. H: 5msec/div. 3 IC301-pin 44 (SPDL_PDM) 6 CN124-pin 5 (TRAY POS) CN124-pin 7, 8 (Rotating Tray Motor drive voltage) 7 CN124-pin 4, 5, 6, 3 IC601-pin 114 CN124-pin 4 (DISC SENS), CN124-pin 5 (TRAY POS) CN124-pin 6 (OPEN), CN124-pin 3 (CLAMP) IC601-pin 114 (ROT_DRV) 4 CN122-pin 8, 7, 6 (FTS Driver -A1, A2, A3) V: 2V/div. H: 2msec/div. GND [PLAY → STOP → PLAY] [PLAY] [PLAY] [Tray stops] [Tray close] [Tray move] [Tray open] [Tray close] Elements on larger [Tray closing] [Tray opening] [STOP] V: 2V/div. H: 1sec/div. V: 2V/div. H: 500msec/div. Rotary tray move DISC 2 DISC 3 DISC 4 DISC 5 DISC 5 Loading close Loading open Clamp Unclamp Rotary tray stop Rotary tray move Rotary tray stop V: 2V/div. H: 1sec/div. V: 2V/div. H: 500msec/div. V: 2V/div. H: 10µsec/div. V: 2V/div. H: 200msec/div. PLAY STOP Right-hand Left-hand V: 2V/div. H: 500nsec/div. V: 2V/div. H: 500nsec/div. PLAY PLAY Brakes ON Accelerator ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 114 1 2 3 4 1 2 3 4 C D F A B E 7.1.12 PROTECTION CIRCUIT SIDE A SIDE A DVDM ASSY Front Side E IC601 CN923 CN121 CN122 CN124 CN123 IC101 IC301 RFOUT FG 1 2 ROT_DRV 7 SPDL_PDM 3 S_Y 12 V 8 Cr 11 Y 9 S_C 13 Cb 10 A1 A3 A2 4 4 4 TRAY POS SEDR+ DISCSENS SEDR- 6 7 CLAMP 7 OPEN 7 7 6 6 If the TIMER LED on the front panel flashes, check the protection circuit. Note: If the protection circuit activates, the unit will not recover for 60 seconds even if the AC power cord is disconnected then reconnected. If you activate Service Test mode, the protection circuit becomes invalid, which makes diagnosis easy. (To activate Service Test mode, while holding the STOP key and the DISC 1 key pressed, press the STANDBY/ON key.) There are three types of operations for the protection circuit, which are indicated on the FL display when Service Test mode is entered: PRTCT WNG: The unit was shut down because of an abnormality in the AMP system. (The PROTECT line operates at the MID level.) PRTCT ERR: The unit was shut down because of a failure in the AMP system. (The PROTECT line operates at the LO level.) DVD PRTECT: The unit was shut down because of a failure in the DVD system. (The VDET line operates at the HI or LO level.) Conditions for the protect circuit operations Protection circuit that activates against a PRTCT WNG error Voltage Conditions FL display in Service Test mode PROTECT HI level >3.55V Normal MID level 1.8V - 3.5V The unit is shut down because of an abnormality. PRTCT WNG LO level <1.8V The unit is shut down because of a failure. PRTCT ERR VDET HI level >4.25V The unit is shut down because of a failure. DVD PRTECT MID level 3.3V Normal LO level <2.5V The unit is shut down because of an abnormality. DVD PRTECT The possible failures for each error message are as follows: PRTCT WNG: • The Speaker terminal became overloaded because of short-circuit. (See 1.) PRTCT ERR: • The main power supply became LO level because of short-circuit or disconnection of connectors. (See 2.) • Disconnection of the FAN connector or interruption of rotation of the fan (See 3.) • DC was generated at the output because of a failure in the AMP system, etc. (See 4.) • Abnormal temperature was detected by the thermistor. (See 5.) DVD PRTECT: • An error was generated in the main power supply inside the DVDM. (See 6.) 1 When the Speaker terminal becomes overloaded Q3601 Q3639 Q3640 B E C +5V D3603 DAP202K C3633 10/50 D3601 R3607 0 R3639 27k R5559 270k R108 27k Front L ch to XPROTECT GND FL R3601 1.8k R3603 33k B A VD+5 + AF Assy G 6CH AMP Assy J In Normal mode, the speaker (6 ohms) is connected between the FL and GND FL points. Because the voltage at Point A is higher than that at Point B, Q3601 does not operate. If the resistance between the FL and GND FL points becomes 1.83 ohms or less, Q3601 begins to operate, Q3639 is turned on, Q3640 (E, C, and B)is turned on, and the level of XPROTECT becomes MID. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 115 5 6 7 8 5 6 7 8 C D F A B E Protection circuit that activates against a PRTCT ERR error B A A C101 (C102) 1/50 + + to XPROTECT (µ-com) 6CH AMP Assy J R108 27k R101 (R104) 1k R102 (R105) 10k R103 (R106) 10k R109 820 D105 (D106) Q102_1/2 (Q104_1/2) Q102_2/2 (Q104_2/2) Q101_1/2 (Q103_1/2) Q101_2/2 (Q103_2/2) D101 (D102) VD+5 VD+5 VH+ (VP+15) VH– (VA–12) 2 -1 Short-circuit-detection circuit for the amplifier power circuit (+15 V[VP+15], VD+5, -12 V [VA-12]) Circuit for shutting the power off when VP+15, VD+5, or VA-12 is short-circuited to ground (GND) 2 -3 Short-circuit-detection circuit for VFDP 2 -2 Short-circuit-detection circuit for the DVD power supply (VP+8) XPROTECT TUNER 6CH AMP Assy J VD+5 R108 27k D104 1SS355 Q106 DTC124EUA Q107 DTA124EUA VP+8 • In Normal mode, as Q101 (Q103) (E2, B2, C2) and Q102 (Q104) (E2, B2, C2) are on, the voltage at Point A is about 5 V. The voltage at Point B is therefore about the same. As Q101 (Q103) (E, C, B) is off, Q102 (Q104) (E, C, B) is also off. (1) When VH+(VP+15) is short-circuited to GND As the voltage at Point B becomes almost ground potential, and Q101 (Q103) (E, C, B) then Q102 (Q104) (E, C, B) are turned on, the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. (2) When VH-(VA-12) is short-circuited As the electric potential of VE at Q102 (Q104) (E2, C2, B2) becomes the same as that at VB, Q102 (Q104) (E2, C2, B2) is turned off. Following this, Q101 (Q103) (E2, B2, C2) is turned off, which changes the voltage at Points A and B to a value other than 5 V. Therefore, Q101 (Q103) (E, C, B) then Q102 (Q104) (E, C, B) are turned on, the level of XPROTECT becomes low. (3) When VD+5 is short-circuited The level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. C C E to XPROTECT (µ-com) R108 27k R112 1k R113 220k R114 82k Q115 DTA124EUA Q114 2SD2114K (VW) VD+5 FL AC1 VA-12 E B B B2 B2 E2 E2 C2 C2 As the TUNER line is fixed to GND level, Q107 is always on. If the level at VP+8 falls to GND level because of short-circuit, etc., Q106 is turned on, and the level of the XPROTECT line becomes low. ← The microcomputer detects the XPROTECT level and shuts the power to the unit off. AF Assy G 6CH AMP Assy J to XPROTECT (µ-com) R108 27k Q3651_2/2 RN1901 Q3651_1/2 RN1901 C2 C E B E2 B2 VD+5 FAN+ VPF+15 V-12F R3654 1.8k D3658 UDZS7.5B D3657 1SS355 D3655 1SS355 D3656 S5688G R3655 8.2k R3656 22k R3658 2.2k R3657 33(1/4W) Q3652 DTA124TK Q3654 2SD2144S C3652 47/50 6CH AMP Assy J If VFDP is short-circuited to GND, or if the DC electric potential at FL AC1 becomes GND level (in Normal mode: about -27 V) because of a failure in the DC bias circuit of FL AC1, Q107 then Q115 are turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. 2 When the main power supply becomes LO level because of short-circuit or disconnection of connectors 3 When the FAN connector is disconnected or when rotation of the fan is interrupted FAN– If no fan is connected between FAN+ and FAN-, or when the fan cannot rotate because of a foreign object caught in the blades, current will not flow to R3657, and Q3652 and Q3651-1/2 (E, C, B) are turned off. Then Q3651 (E2, B2, C2) is turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. When FAN+ and FAN- are short-circuited, the electric potential at Point A becomes higher than GND level by the addition of the values at D3656 and D3657. As this value is lower than that at D3658, Q3651 (E, C, B) is turned off, Q3651 (E2, B2, C2) is turned on, and the level of XPROTECT becomes low. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 116 1 2 3 4 1 2 3 4 C D F A B E 4 When DC is generated at the output because of a failure in the AMP system, etc. 5 When abnormally high temperature is detected by the thermistor R3605 (R3625) (R3615) 27k R3606 (R3626) (R3616) 27k R3638 10k Front L ch (SW, SL) +5V C3632 470/6.3 Q3637 Q111 2SC4081 R113 220 IC81 R112 1k TH111 NCP18WF104J03RB R111 1k Q3638 Q3632 Q3633 B C E + XPROTECT to XPROTECT AF Assy G R108 27k VD+5 VD+5 6CH AMP Assy J Front R ch (C, SR) • In Normal mode, both Q3637 and Q3638 are off. (1) When positive (+) DC voltage is generated at the SP terminal When positive (+) DC voltage is generated at the L or R channel, and VB of Q3637 becomes higher than that at the operation point, Q3632 (E, C, B) is turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. (2) When negative (-) DC voltage was generated at the SP terminal Q3638 is turned on, and XPROTECT is activated. 5 -1 IC81 abnormal temperature detection circuit 5 -2 D22 abnormal temperature detection circuit A Q131 2SC4081 R133 220 D22 R132 680 1% TH131 NCP18WF104J03RB R131 560 1% to XPROTECT VFL+5 A The voltage at Point A becomes the divided voltage of TH111 and R111//R112 (combined resistance of parallel-connected resistors R111 and R112.) In Normal mode, the resistance at TH111 is much higher than R111//R112, and Q111 is off. (Note that the resistance at TH111 becomes lower as the temperature increases.) If the solder temperature at IC81 increases abnormally, the temperature at TH111 (thermistor) mounted closest to the land of IC81 increases accordingly, and the resistance at TH111 decreases. When the temperature at TH111 reaches 90-110_C (varying according to conditions,) the voltage at Point (A) becomes high enough to turn Q111 on, and the level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. If the solder temperature at D22 becomes abnormally high because of short-circuiting between AC - and +, or AC - and -, this protection circuit is activated. The voltage at Point A becomes the divided voltage of TH131 and R131//R132 (combined resistance of parallel-connected resistors R131 and R132.) In Normal mode, the resistance at TH131 is much higher than R131//R132, and Q131 is off. (Note that the resistance at TH131 becomes lower as the temperature increases.) If the solder temperature at D22 increases abnormally, the temperature at TH131 (thermistor) mounted closest to the land of D22 increases accordingly, and the resistance at TH131 decreases. When the temperature at TH131 reaches 107-125_C (varying according to conditions,) the voltage at Point (A) becomes high enough to turn Q131 on, and the level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 117 5 6 7 8 5 6 7 8 C D F A B E 4 When DC is generated at the output because of a failure in the AMP system, etc. 5 When abnormally high temperature is detected by the thermistor R3605 (R3625) (R3615) 27k R3606 (R3626) (R3616) 27k R3638 10k Front L ch (SW, SL) +5V C3632 470/6.3 Q3637 Q111 2SC4081 R113 220 IC81 R112 1k TH111 NCP18WF104J03RB R111 1k Q3638 Q3632 Q3633 B C E + XPROTECT to XPROTECT AF Assy G R108 27k VD+5 VD+5 6CH AMP Assy J Front R ch (C, SR) • In Normal mode, both Q3637 and Q3638 are off. (1) When positive (+) DC voltage is generated at the SP terminal When positive (+) DC voltage is generated at the L or R channel, and VB of Q3637 becomes higher than that at the operation point, Q3632 (E, C, B) is turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. (2) When negative (-) DC voltage was generated at the SP terminal Q3638 is turned on, and XPROTECT is activated. 5 -1 IC81 abnormal temperature detection circuit 5 -2 D22 abnormal temperature detection circuit A Q131 2SC4081 R133 220 D22 R132 680 1% TH131 NCP18WF104J03RB R131 560 1% to XPROTECT VFL+5 A The voltage at Point A becomes the divided voltage of TH111 and R111//R112 (combined resistance of parallel-connected resistors R111 and R112.) In Normal mode, the resistance at TH111 is much higher than R111//R112, and Q111 is off. (Note that the resistance at TH111 becomes lower as the temperature increases.) If the solder temperature at IC81 increases abnormally, the temperature at TH111 (thermistor) mounted closest to the land of IC81 increases accordingly, and the resistance at TH111 decreases. When the temperature at TH111 reaches 90-110_C (varying according to conditions,) the voltage at Point (A) becomes high enough to turn Q111 on, and the level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. If the solder temperature at D22 becomes abnormally high because of short-circuiting between AC - and +, or AC - and -, this protection circuit is activated. The voltage at Point A becomes the divided voltage of TH131 and R131//R132 (combined resistance of parallel-connected resistors R131 and R132.) In Normal mode, the resistance at TH131 is much higher than R131//R132, and Q131 is off. (Note that the resistance at TH131 becomes lower as the temperature increases.) If the solder temperature at D22 increases abnormally, the temperature at TH131 (thermistor) mounted closest to the land of D22 increases accordingly, and the resistance at TH131 decreases. When the temperature at TH131 reaches 107-125_C (varying according to conditions,) the voltage at Point (A) becomes high enough to turn Q131 on, and the level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. Protection circuit that activates against a DVD PRTECT error 6 The DVDM monitors the voltage of the main power supply by VDET signals. In Normal mode, the VDET signal is at the MID level (3.3 V). In the following conditions, the VDET signal level becomes L or H, and the microcomputer is notified of this abnormality. DVDM Assy E AF Assy G 10k 10k 4.7k 47k Q924 Q923 470 D922 Q922 Q925 D921 UDZS4.7B Q926 Q921 V+5 V+12 470 1M 0.1 V+3R3 10k 10k V+12 V+5 V+6 0 10k 47k VPR+8 V+12 V+12 47k 0.01 VDET µcom Items to be detected by VDET (1) When the power voltages inside the DVDM become abnormal, as shown in the table below (2) When the VDET signal to the microcomputer is interrupted because of defective soldering of the 30-pin connector or incomplete insertion of FFC → The VDET level is lowered by the pull-down resistor (1 Mohms) on the side of the microcomputer. Status Power Voltage Operation VDET voltage Q923 Q924 Q922 Q921 D921 D922 Q926 Q925 In Normal mode off off off off off off off off Mid When an abnormality is generat VDVD+12 <1V (on) (on) (on) (off) off on off off L >15.5V off off off off off off on on L VPR+8 <5.2V − off off off off − on on L >12.6V − on on on on − off off H V+6 <3V − − − − − − on on L V+5 <3.6V − off off off off − on on L >6.6V − on on on on − off off H V+3R3 <2.5V − − − − − − − − L >4.25V − − − − (on) − − − H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 118 1 2 3 4 1 2 3 4 C D F A B E • The base voltage at Q3631 is a voltage between Points A and B divided by R3633 and R3634. As this voltage is negative (-) in Normal mode, Q3631 is off. When the AC power cord is disconnected and there is no AC power input, the base voltage at Q3631 becomes +0.6 V or more, and Q3631 is turned on. Then, the operations below follow. (1) SP Relay Q3632 (E2, C2, B2), Q3633, and Q3636 (E, C, B) are turned on, the line to activate the SP relay becomes low level, and the SP Relay is turned off. (2) HP MUTE Q3635 is turned on, and the MUTE circuit for HP is turned on. Other protection circuit AC detection circuit This is a protection circuit that prevents popping sounds in the Speaker and Headphones output when the AC power cord is connected or disconnected. AF Assy G • The voltage at Point A is a DC voltage which has been generated by half-wave rectification on the minus side of the AC power. • The voltage at Point B is approx. 5 V. Q3633 Q3636 Q3632 Q3635 Q3631 D3636 D3634 R3634 4.7k R3633 10k D3635 DAN202K R3641 10k B C C2 B2 E2 E + RYF to SP Relay Circuit to SP Relay Circuit to HP MUTE V+5D V+B R3632 3.3k R3631 3.3k R3642 1k RYR ACB B A D3631 MTZJ5.1A D3633 D3622 C3631 2.2/50 R3635 3.3k www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 119 5 6 7 8 5 6 7 8 C D F A B E 7.1.13 DISASSEMBLY DIAGNOSIS OF PCBs Note: For performing the diagnosis shown below, the following jig cables for service are required: • GGD1160 • GGD1228 • GGD1315 (×2) 1 Remove the bonnet by removing the eleven screws. 2 Press the STANDBY/ON button to turn on the power. 3 Press the 0 OPEN/CLOSE button to open the tray. 4 Remove the tray cap. 5 Press the 0 OPEN/CLOSE button to close the tray. 6 Press the STANDBY/ON button to turn off the power. 1 Remove the two screws. Rear Panel Table Mechanism Section 2 Create a little gap between the main unit and the Table Mechanism Section by holding and pulling up the rear side of the Table Mechanism Section by hand. 3 Insert your hand through the gap below the Table Mechanism Section. 4 Turn the gear pulley counterclockwise as viewed from the top. 5 If the tray pops out a little, fully pull it out by a hand. 3 5 4 3 1 5 2 6 Tray Cap 2 3 4 Note when reattaching the bonnet When reattaching the bonnet, to avoid damaging the unit, hook the bonnet by supporting and lightly pushing it upward by hand from the rear, as shown in the photo below. How to open the Tray when the power cannot be on Hook Bonnet 1 5 Gear Pulley 4 Gear Pulley Bonnet and Tray Cap 1 Bottom View NOTE : This photograph is XV-HTD330/KUXJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 120 1 2 3 4 1 2 3 4 C D F A B E 1 Remove the bonnet and tray cap. (See Step ¥.) 2 Remove the three screws. 3 Remove the one screw. 4 Remove the four hooks. 5 Remove the Front Panel Section. Front Panel Section 2 5 3 4 4 4 4 2 Front Panel Section GND Plate L HTM ×3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 121 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the bonnet and tray cap. (See Step ¥.) 2 Remove the Front Panel Section. (See Step ø.) DVDM Assy 3 3 Remove the clamper holder by removing the two screws. 4 Short-circuit two points of C and D by soldering. 5 Reattatch the clamper holder by tighten the two screws. Note : After replacement, connect the flexible cable, then remove the soldered joint (open). 8 8 8 8 3 18 18 18 3 3 Clamper Holder Table Mechanism Section DVDM Assy Rear View 4 C D 6 Remove the DISPLAY Assy by removing the two hooks. 8 Disconnect the three flexible cables and the one connector. 9 Remove the Table Mechanism Section. 10 Reattach the DISPLAY Assy. 7 Remove the four screws. 6 6 6 9 DISPLAY Assy Table Mechanism Section Rear Panel DISPLAY Assy 7 7 7 7 10 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 122 1 2 3 4 1 2 3 4 C D F A B E Remove the three screws. Remove the PCB support. Remove the flexible cable and disconnect the connector. 14 11 12 13 Remove the DVDM Assy. 15 15 15 Connect the two jig cables. 16 Reattatch the three flexible cables(A ) and the one connector (A) from the Table Mechanism Section. 17 Remove the soldered joint pickup short point. 18 Reattatch the clamper holder by reattatching the two screws. 19 Insert the insulation sheet between the DVDM Assy and the chassis. 20 Arrange the cables as shown in the photo below. Flexible cable CN923 CN5102 CN5101 CN911 DVDM Assy AF Assy Jig cable (GGD1228) To DVDM CN923 To DVDM CN911 Jig cable (GGD1160) 13 13 13 14 11 11 11 A Cutting Pliers PCB Support 12 DVDM Assy 19 Insulation sheet www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 123 5 6 7 8 5 6 7 8 C D F A B E 7 1 17 1 6 1 6 5 4 3 2 1 7 1 17 1 CONTACT SIDE UP VIDEO ASSY AWU8061 SIDE UP CONTACT CMK-P3X C8871 C8861 C8851 C8831 JA8802 C8821 CN8003 CN8001 JA8851 W117 W112 W118 W113 W114 CN8001 AMP Module Section 4 1 Remove the bonnet and tray cap. (See Step ¥.) 2 Remove the Front Panel Section. (See Step ø.) 3 Remove the Table Mechanism Section. (See Step π.) (Do not disconnect the flexible cables that connects to the DVDM Assy.) 4 Remove the VIDEO JACK Assy by removing the two screws. 5 Remove the four screws. 6 Disconnect the two connectors. 7 Remove the Amp Module Section. 8 Reattatch the VIDEO JACK Assy by tighten the two screws. The screw(5) of AMP Module can be removed even if it does not remove VIDEO JASK Assy. Note : Connect the two jig cables. 10 Arrange the cables as shown in the photo below. AMP Module Section A silk part is cut by nippers cut. ×2 ×2 ×2 DVDM Assy VIDEO JACK Assy AMP TRADE Assy 4 4 8 8 5 5 6 6 7 9 6CH AMP Assy AMP TRADE Assy Jig cable (GGD1315) CN3032 CN3031 CN3032 CN3031 CN3012 CN3011 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 124 1 2 3 4 1 2 3 4 C D F A B E AF Assy 5 1 Remove the bonnet and tray cap. (See Step ¥.) 9 Reattach the Table Mechanism Section. (Be sure to secure it in place with screws.) Turn the AF Assy with the Table Mechanism Section attached to the upright position. Arrange the cables as shown in the photo below. 12 11 10 Connect the AF Assy with the AMP Module Section using a jig cable. 2 Remove the Front Panel Section. (See Step ø.) 3 Remove the Table Mechanism Section. (See Step π.) 4 Remove the AMP Module Section. (See Step [.) 6 Remove the four screws. 5 Remove the DVD Angle HTM by removing the two screws. 7 Remove the four screws. 8 Loosen the cord holder. Rear Panel AF Assy DVDM Assy AF Assy Jig cable (GGD1315) Table Mechanism Section AMP Module Section PRIMARY Assy 6 A A A 7 8 7 7 12 10 11 7 6 6 6 5 Note on handling the rear panel During diagnosis, be sure NOT to remove the four screws marked A in the above photo. This unit will not operate if the Audio Output connectors and the Speaker Output connectors of the AF Assy are separated from the rear panel, because that would break the circuit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 124 1 2 3 4 1 2 3 4 C D F A B E AF Assy 5 1 Remove the bonnet and tray cap. (See Step ¥.) 9 Reattach the Table Mechanism Section. (Be sure to secure it in place with screws.) Turn the AF Assy with the Table Mechanism Section attached to the upright position. Arrange the cables as shown in the photo below. 12 11 10 Connect the AF Assy with the AMP Module Section using a jig cable. 2 Remove the Front Panel Section. (See Step ø.) 3 Remove the Table Mechanism Section. (See Step π.) 4 Remove the AMP Module Section. (See Step [.) 6 Remove the four screws. 5 Remove the DVD Angle HTM by removing the two screws. 7 Remove the four screws. 8 Loosen the cord holder. Rear Panel AF Assy DVDM Assy AF Assy Jig cable (GGD1315) Table Mechanism Section AMP Module Section PRIMARY Assy 6 A A A 7 8 7 7 12 10 11 7 6 6 6 5 Note on handling the rear panel During diagnosis, be sure NOT to remove the four screws marked A in the above photo. This unit will not operate if the Audio Output connectors and the Speaker Output connectors of the AF Assy are separated from the rear panel, because that would break the circuit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 126 1 2 3 4 1 2 3 4 C D F A B E Table Mechanism Section Disconnect the flexible cable. Remove the Table Mechanism Section by unhooking at the two points. 10 11 11 10 11 11 9 9 Gear Pulley 9 Open the tray by turning the gear pulley counterclockwise viewed from the top. (After the tray pops out a little, fully pull it out by hand.) If the Table Mechanism Section cannot be removed Note: It is not necessary to set the Disc No. of the rotary tray, because the Automatic Disc No. Detection system will function. Adjust the position of the rotary tray so that the center hole can be seen. Rotary Tray Remove. Tighten. Displacement of the rotary tray may be the cause. (If this is the case, in Step - above, the two hooks cannot be seen, because they are covered by the rotary tray.) In this case, set the rotary tray in the correct position, following the steps below. 1 3 2 Bottom View www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 126 1 2 3 4 1 2 3 4 C D F A B E Table Mechanism Section Disconnect the flexible cable. Remove the Table Mechanism Section by unhooking at the two points. 10 11 11 10 11 11 9 9 Gear Pulley 9 Open the tray by turning the gear pulley counterclockwise viewed from the top. (After the tray pops out a little, fully pull it out by hand.) If the Table Mechanism Section cannot be removed Note: It is not necessary to set the Disc No. of the rotary tray, because the Automatic Disc No. Detection system will function. Adjust the position of the rotary tray so that the center hole can be seen. Rotary Tray Remove. Tighten. Displacement of the rotary tray may be the cause. (If this is the case, in Step - above, the two hooks cannot be seen, because they are covered by the rotary tray.) In this case, set the rotary tray in the correct position, following the steps below. 1 3 2 Bottom View www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 128 1 2 3 4 1 2 3 4 C D F A B E 14 14 15 Remove the three flexible cables. Set the arranged flexible cables out of the way. 16 Remove the five screws. 17 Remove the Traverse Mecha. Assy-S. 14 15 15 14 24P Flexible cable 24P Flexible cable To Pickup connector 78 mm SSIB Assy 17P Flexible cable ×2 ×4 16 ×2 16 17 16 Traverse Mecha. Assy-S Float Rubber Note on the Float Rubber Installation Styling the Pickup flexible cable Hook ×2 Float Rubber Pole of the Float Base NG OK 17P Flexible cable 24P Flexible cable Styling the flexible cable installation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 129 5 6 7 8 5 6 7 8 C D F A B E 1 Turn the planet base as shown below. 2 Mount the Table Mechanism Section on the Mechanism Base Section. 3 Connect the flexible cable. 4 Bring an extra flexible cable close to the front side. Change Gear If the first teeth (marked by dots) of the gears engage, it is OK. If the engaged teeth of the gears are displaced by two teeth or more, a strange sound is generated, and a problem occurs. Planet Base Mechanism Base Section Flexible cable Table Mechanism Section Turn until it stops. OK NG Mechanism Base Section 1 3 4 2 2 2 Side View Side View Procedures and Notes on Assembling the Table Mechanism Section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 131 5 6 7 8 5 6 7 8 C D F A B E 4 9 Notes on Assembling the Mechanism Section 1 2 5 3 Motor (for Tray) Motor Pulley (for Tray Motor) Motor (for Loading) Motor Pulley (for Loading Motor) Motor Holder 4 Tray Gear Clamper Plate Worm Gear, Tray Belt 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 132 1 2 3 4 1 2 3 4 C D F A B E 1 Motor (for Tray), Motor Pulley (for Tray Motor) 2 Motor Holder Adjust the height of the motor pulley to 2.4mm. Tuck the lead wires under the hook of the motor holder so that they do not disturb the tray's opening or closing. 4 Tray Gear 5 Clamper Plate Apply lubricating oil (GYA1001) to the holder part. 3 Worm Gear and Tray Belt Be carefull not to damage it when exchanging. 2.4mm Motor Pulley Motor Motor Motor Holder Tray Gear Apply lubricating oil (GYA1001). Apply lubricating oil (GYA1001). 6 Motor (for Loading), Motor Pulley (for Loading Motor) Adjust the height of the motor pulley to 6.2mm. 6.2mm Motor Pulley Motor SSRB Assy Clamper Plate Apply adhesive on the inside of hooks. (Prevention of dripping) Black Black Red Red Motor Holder Worm Gear Apply lubricating oil (GYA1001) once. Apply lubricating oil (GYA1001) once. Tray Belt www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 133 5 6 7 8 5 6 7 8 C D F A B E 7.2 PARTS 7.2.1 IC 7 STM6316ATXXA (DVDM ASSY : IC301) • FRONT END IC ¶ Block Diagram • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC STM6316ATXXA, STM5589CVA, PDC111A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 134 1 2 3 4 1 2 3 4 C D F A B E ¶ Pin Function . o N e m a n N I P n o it p ir c s e d li a t e d 1 F E R I F k 7 . 2 1 tr a p e c n e r e f e r k c olb g ola n A 2 I A D N G A D N G d n g g ola n a 3 N I F R r o tic a p a c k c olb n oit alu d o m e d a o t t u p ni n oit aic o s s a C la n gis F R 4 T U O F R r o tic a p a c k c olb g ola n a n a m o rf g nitsil e r u txi m 4 B + 3 B + 2 B + 1 B 5 8 1 A C C V A 8 V 1 8 V 1 g ola n a 6 A 1 B t u p ni 1 B - U P 7 N M D N G A D N G d n g g ola n a 8 B 2 B t u p ni 2 B - U P 9 N M 3 3 C C V A 3 V 3 3 V 3 g ola n a 0 1 D F E R p u k cip o t U P r o f t u p t u o 1 V 2 1 1 N M 8 1 C C V A 8 V 1 8 V 1 g ola n a 2 1 D 4 B t u p ni 4 B - U P 3 1 S I 8 1 A C C V A 8 V 1 8 V 1 g ola n a 4 1 C 3 B t u p ni 3 B - U P 5 1 S I 3 3 A C C V A 3 V 3 3 V 3 g ola n a 6 1 S I A D N G A D N G d n g g ola n a 7 1 D S 3 3 C C V A 3 V 3 3 V 3 g ola n a 8 1 D S 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 1 D S D N G A D N G d n g g ola n a 0 2 F C t u p ni C m a e b 3 - U P 1 2 E A t u p ni A m a e b 3 - U P 2 2 S I D L E I H S V A D N G d n g g ola n a 3 2 C D A 8 1 C C V A 8 V 1 8 V 1 g ola n a 4 2 C D A D N G A D N G d n g g ola n a 5 2 C D A D L E I H S V A D N G d n g g ola n a 6 2 C A D 3 3 C C V A 3 V 3 3 V 3 g ola n a 7 2 C A D D N G A D N G d n g g ola n a 8 2 E L D N I P S ) 2 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 9 2 E G D E L S ) 1 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 0 3 T X E F E R % 1 K 0 2 C A D r o f e c n e r e f e R 1 3 D N G F E R tx e f e r d n g g ola n a 2 3 C A D F E R % 1 m h o 0 6 5 e c n e r e f e r C A D 3 3 T C A F % 1 m h o 0 6 5 s u c o f r o f g nitsilt n e rr u c C A D 4 3 T C A T % 1 m h o 0 6 5 g nik c a rt r o f g nitsilt n e rr u c C A D 5 3 C A D 8 1 C C V A 8 V 1 8 V 1 g ola n a 6 3 0 C P G F t u p ni e slu p G F 7 3 1 C P S P la n gis lo rt n o c r e vir D 8 3 2 C P ) n e p o ( 1 W S y a rt n oitis o p N E P O y a rt r o f t u p ni W S 9 3 3 C P B S la n gis lo rt n o c r e vir D 0 4 4 C P n oitis o p D L S t u p ni W S e dis n I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 135 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 4 S S V D D N G d n g la tigid 2 4 3 3 D D V D 3 V 3 3 V 3 la tigid 3 4 5 C P 0 5 6 X / 0 8 7 la n gis lo rt n o c e g n a h c D L m n 0 5 6 / m n 0 8 7 4 4 6 C P M D P e d nip s e vir d eld nip s r o f g nitsil M D P lo rt n o C 5 4 7 C P nia g cip o la n gis lo rt n o c nia g C I E O 6 4 7 D P U P 2 0 X / U P 3 0 t n e m eltt e s p u -llu P 7 4 S S V D D N G d n g la tigid 8 4 8 1 D D V D 8 V 1 8 V 1 la tigid 9 4 6 D P ) g u b e d ( ts e t 0 5 5 D P ) g u b e d ( ts e t 1 5 4 D P ) klc P S D ( ts e t 2 5 3 D P ) a t a d P S D ( ts e t 3 5 2 D P ) 1 b rts P S D ( ts e t 4 5 1 D P r o tin o m r o rr e ) d e e n d d a F P L z H K 0 3 ( r o tin o m r o rr e G K R T r o fla ni m r e T 5 5 0 D P e vir d M D P y a rt e vir d y a rt r o fla n gis M D P lo rt n o C 6 5 S S V D D N G d n g la tigid 7 5 3 3 D D V D 3 V 3 3 V 3 la tigid 8 5 R R E _ T U O R O R R E _ S R F /I A T A D E B 9 5 D I L A V E _ T U O N E _ R R E _ S R F /I A T A D E B 0 6 S S V D D N G d n g la tigid 1 6 K L C _ T U O K L C B _ S R F /I A T A D E B 2 6 8 1 D D V D 8 V 1 8 V 1 la tigid 3 6 D I L A V D _ T U O D I L A V D _ S R F /I A T A D E B 4 6 A T A D _ T U O A T A D _ S R F /I A T A D E B 5 6 C N Y S _ T U O T S B C C E _ S R F /I A T A D E B 6 6 5 E P ) A M D ( L C S t u p ni d a oln w o d e nit u o r E F 7 6 4 E P ) A M D ( A D S t u p ni d a oln w o d e nit u o r E F 8 6 3 E P L C S F /I d n a m m o c E B 9 6 2 E P A D S F /I d n a m m o c E B 0 7 1 E P ) e s olc ( 2 W S y a rt n oitis o p E S O L C y a rt r o f t u p ni W S 1 7 0 E P T N I X X D la n gis n oit a g a p o r p s u t a ts E F 2 7 S S V D D N G d n g la tigid 3 7 3 3 D D V D 3 V 3 3 V 3 la tigid 4 7 1 F P p ullu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 5 7 0 F P n w o dllu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 6 7 S S V D D N G d n g la tigid 7 7 8 1 D D V D 8 V 1 8 V 1 la tigid 8 7 1 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 9 7 0 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 0 8 T S E T n w o dllu p - K 0 1 ts e t www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 136 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 8 N _ T E S E R T E S E R t u p ni T E S E R 2 8 C D A S S V A D N G d n g g ola n a 3 8 C D A 8 1 D D V A 8 V 1 8 V 1 g ola n a 4 8 L L P D N G A D N G d n g g ola n a 5 8 F F O L L P A D N G d n g g ola n a 6 8 T U O E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 7 8 N I E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 8 8 L L P 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 8 1 D L D L m n 0 5 6 la n gis g nivir d D L m n 0 5 6 0 9 2 D L D L m n 0 8 7 la n gis g nivir d D L m n 0 8 7 1 9 3 3 A C C V A 3 V 3 3 V 3 la tigid 2 9 L E S W T D N G / R V _ D C D C r o fla ni m r e t n oitc n uj R V s e d oid r o tin o M 3 9 1 D M L 1 D M L / D M L la ni m r e t n oitc n uj e g a tlo v r o tin o M 4 9 2 D M L 2 D M L / R V _ D V D D V D r o fla ni m r e t n oitc n uj R V s e d oid r o tin o M 5 9 L D N G A D N G d n g g ola n a 6 9 M P _ T S T c n t e st 7 9 E C I L S _ T S T c n ts e t 8 9 C D A _ T S T c n ts e t 9 9 D C A S F R C I _ D C A S t u p t u o la n gis F R 0 0 1 T L I F G B V r o tic a p a c ytilib a ts e c n e r e f e r e dis ni r o fla ni m r e t n oitc n uj r e s n e d n o C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 137 5 6 7 8 5 6 7 8 C D F A B E 7 STM5589CVA (DVDM ASSY : IC601) • BACK END IC ¶ Pin Function . o N e m a N n i P .ri D n o it c n u F n i P 1 O S _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .t u p t u o a t a d r e fs n a rt la ir e S 2 3 A T A D _ A T U O d e v r e s e r 3 K L C V T U O d e v r e s e r 4 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 5 S S V - d n u o r G 6 A T A D _ B T U O d e v r e s e r 7 K L C B _ B T U O d e v r e s e r 8 G A L F _ B T U O d e v r e s e r 9 S O P Y R T T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O .t u p n i e sl u p n o it a t o r y a r T . d e s u e b n a c 0 N I _ E R U T P A C 0 1 E Z E E U Q S T U O .lo rt n o c 2 S / 1 S t u p t u o o e d i V - S r o f la n g is t u p t u O . e d o m t u p t u o e z e e u q s : ' H ' 1 1 S T R T U O .t u p t u o la n g is d n e S o T ts e u q e R ) C 2 3 2 - S R ( T R A U 2 1 R E T T E L T U O N O I T C N U F ( r o tc e n n o c ) T R A C S ( O R U E & lo rt n o c 2 S / 1 S t u p t u o o e d i V - S r o f la n g is t u p t u O .la n g is ) G N I H C T I W S . e d o m t u p t u o x o b -r e tt e l: ' H ' 3 1 S T C N I .t u p n ila n g is d n e S o T r a e l C ) C 2 3 2 - S R ( T R A U 4 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 5 1 S S V - d n u o r G 6 1 A T A D _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i a t a d la ir e S 7 1 K L C B _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i k c o lc la ir e S 8 1 D I L A V D _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i g a lf d ila v a t a D 9 1 C N Y S _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i g a lf e zi n o r h c n y s la ir e S 0 2 D I L A V E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .til p s _ S R r o f g a lf d ila v r o rr E 1 2 T S B C C E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .til p s _ S R r o f g a lf tr a ts k c o l b C C E 2 2 P X /I T U O .r e vir d o e d iv r o f t u p t u o e vis s e r g o r P / e c a lr e t n i f o e g n a h c a r o f la n g is t u p t u O e c a lr e t n i: ' H ' e vis s e r g o r p : 'L ' 3 2 B G R _ D D V - yl p p u s r e w o P V 3 . 3 ti u c ric B G R 4 2 B G R _ S S V - d n u o r G ti u c ric B G R 5 2 T U O _ B T U O b C / B 6 2 T U O _ G T U O Y / G 7 2 T U O _ R T U O r C / R 8 2 B G R _ F E R V N I e c n e r e f e r C A D B G R 9 2 B G R _ F E R I N I e c n e r e f e r t n e rr u c C A D B G R 0 3 C C Y _ D D V - yl p p u s r e w o P V 3 . 3 ti u c ric C Y 1 3 C C Y _ S S V - d n u o r G ti u c ric C Y 2 3 T U O _ Y T U O Y 3 3 T U O _ C T U O C 4 3 T U O _ V C T U O V C 5 3 C C Y _ F E R V N I e c n e r e f e r C A D C C Y 6 3 C C Y _ F E R I N I e c n e r e f e r t n e rr u c C A D C C Y 7 3 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 8 3 S S V - d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 138 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 9 3 E T U M V R D X T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI .r e g n a h C c si D 5 yl n O . g n it u m r e vir d r o t o m r o f la n g is t u p t u O g n it u m : 'L ' 0 4 N E P O T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p y a rt r o f la n g is t u p n I . n o itis o p N E P O e t e l p m o c : ' H ' 1 4 E S O L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p y a rt r o f la n g is t u p n I . n o itis o p E S O L C e t e l p m o c : ' H ' 2 4 P M A L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p p m a lc c si d g n i w o h s r o f la n g is t u p n I . n o itis o p p m a lc c si d e t e l p m o c : ' H ' 3 4 P M A L C N U T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p p m a lc - n u c si d g n i w o h s r o f la n g is t u p n I . n o itis o p p m a lc c si d e t e l p m o c : ' H ' 4 4 S N S _ C S I D T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . g n itsix e c si d r o f la n g is t u p n I g n itsix e : 'L ' 5 4 2 E T U M V R D X T U O d e v r e s e r 6 4 x - P T T U O d e v r e s e r 7 4 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 8 4 M C P _ D D V - yl p p u s r e w o P V 8 . 1 9 4 M C P _ S S V - d n u o r G 0 5 S S V - d n u o r G 1 5 K C B _ A T U O k c o lc C A D o i d u A 2 5 0 A T A D _ A T U O a t a d R , L t n o r F C A D o i d u A 3 5 1 A T A D _ A T U O d e v r e s e r 4 5 2 A T A D _ A T U O d e v r e s e r 5 5 K L C M _ A T U O k c o lc r e ts a M C A D o i d u A 6 5 K C R L _ A T U O k c o lc R / L C A D o i d u A 7 5 T U O D _ A T U O .t u p t u o o i d u a la ti g i d ) 8 5 9 0 6 C E I( F I D P / S 8 5 4 A _ I M S T U O s s e r d d A M A R D S I M S 9 5 5 A _ I M S 0 6 6 A _ I M S 1 6 7 A _ I M S 2 6 8 A _ I M S 3 6 9 A _ I M S 4 6 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 5 6 S S V - d n u o r G 6 6 3 A _ I M S T U O s s e r d d A M A R D S I M S 7 6 2 A _ I M S 8 6 1 A _ I M S 9 6 0 A _ I M S 0 7 0 1 A _ I M S 1 7 1 1 A _ I M S 2 7 2 1 A _ I M S 3 7 3 1 A _ I M S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 139 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 4 7 0 S C _ I M S T U O .'L'tc ele s pih c M A R D S I M S 5 7 1 S C _ I M S T U O d e v r e s e r 6 7 S A R _ I M S T U O 'L' S A R M A R D S I M S 7 7 S A C _ I M S T U O 'L' S A C M A R D S I M S 8 7 E W _ I M S T U O 'L' elb a n E e tir W M A R D S I M S 9 7 L M Q D _ I M S T U O M Q D r e w o L M A R D S I M S tc ele s r e w o L :'L' 0 8 U M Q D _ I M S T U O M Q D r e p p U M A R D S I M S tc ele s r e p p U :'L' 1 8 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 2 8 N I K L C _ I M S N I .t u p ni k c olc M A R D S la n r e tx E 3 8 S S V - d n u o r G 4 8 0 D _ I M S O /I a t a D M A R D S I M S 5 8 1 D _ I M S 6 8 2 D _ I M S 7 8 3 D _ I M S 8 8 4 D _ I M S 9 8 5 D _ I M S 0 9 6 D _ I M S 1 9 7 D _ I M S 2 9 8 D _ I M S 3 9 9 D _ I M S 4 9 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 5 9 T U O K L C _ I M S T U O .t u p t u o k c olc M A R D S 6 9 S S V - d n u o r G 7 9 0 1 D _ I M S O /I a t a D M A R D S I M S 8 9 1 1 D _ I M S 9 9 2 1 D _ I M S 0 0 1 3 1 D _ I M S 1 0 1 4 1 D _ I M S 2 0 1 5 1 D _ I M S 3 0 1 S S O R C _ K C A R T T U O d e v r e s e r 4 0 1 M C P X _ D S D T U O d e v r e s e r 5 0 1 T S R X _ C A D T U O d e v r e s e r 6 0 1 K L C M C P _ C D A T U O d e v r e s e r 7 0 1 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 8 0 1 S S V - d n u o r G 9 0 1 T S R T X N I e c a fr e t nitin U lo rt n o C cits o n g ai D 0 1 1 S M T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 1 1 1 O D T T U O e c a fr e t nitin U lo rt n o C cits o n g ai D 2 1 1 I D T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 3 1 1 K C T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 4 1 1 V R D T O R T U O .r e g n a h c c sid 5 yln O . n oit a t o r y a rt r o f t u p t u o M W P 5 1 1 M O R _ M O R F _ T O O B N I tc ele s t o o B . U C D m o rf t o o B :'L' . M O R m r o f t o o B :' H ' 6 1 1 V R D _ D A O L T U O .r e g n a h c c sid 5 yln O . e vir d e s ol C / n e p O y a rt r o f t u p t u o M W P 7 1 1 E O _ U P C T U O . e r a w m rif r o f y r o m e m H S A L F stib M 6 1 r o fla n gis E O elb a n e :'L' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 140 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 8 1 1 K C D S _ U P C T U O . e r a w m rif g n i g g u b e d r o f M A R D S s ti b M 4 6 r o f K C O L C 9 1 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 0 2 1 K L C X I P N I .t u p n i k c o lc m e ts y s z H M 7 2 r e ts a M 1 2 1 S S V - d n u o r G 2 2 1 L L P _ D D V - yl p p u s r e w o P V 8 . 1 ti u c ric L L P k c o l C 3 2 1 L L P _ S S V - d n u o r G ti u c ric L L P k c o l C 4 2 1 T E S E R X N I .la n g is T E S E R m e ts y s N O r e w o P t e s e r :'L ' 5 2 1 Q R I _ D C A S N I d e v r e s e r 6 2 1 Y D R X _ P F N I . e c a fr e t n ile n a P t n o r F .t u p n i e k a h s - d n a H 7 2 1 T N I _ E F N I . 6 1 3 6 L d n E -t n o r F m o rf la n g is t u p n i t p u rr e t n I 8 2 1 L M Q D _ D S , E W X _ F T U O . e l b a n e e tir w y r o m e m h s a l F . M Q D r e w o L M A R S / M A R D S g u b e D .tc e le s r e w o L , e l b a n e :'L ' 9 2 1 U M Q D _ D S T U O M Q D r e p p U M A R S / M A R D S g u b e D tc e le s r e p p u :'L ' 0 3 1 W X R _ D S T U O e tir W / d a e R M A R D S g u b e D d a e r:' H ' , e tir w :'L ' 1 3 1 T I A W _ U P C N I t u p n i' H ' tia w U P C 2 3 1 H S A L F _ E C T U O .'L ' e l b a n E p ih C y r o m e m h s a l F 3 3 1 2 E C _ U P C T U O d e v r e s e r 4 3 1 1 E C _ U P C T U O d e v r e s e r 5 3 1 S A R X _ D S T U O 'L ' S A R M A R D S g u b e D 'L ' e l b a n e p ih c M A R S g u b e D 6 3 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 7 3 1 S S V - d n u o r G 8 3 1 1 S A R _ U P C T U O d e v r e s e r 9 3 1 S A C X _ D S T U O 'L ' S A C M A R D S g u b e D 0 4 1 S C X _ D S T U O 'L ' tc e le S p ih C M A R D S g u b e D 1 4 1 0 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 4 1 1 D _ U P C 3 4 1 2 D _ U P C 4 4 1 3 D _ U P C 5 4 1 4 D _ U P C 6 4 1 5 D _ U P C 7 4 1 6 D _ U P C 8 4 1 7 D _ U P C 9 4 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 0 5 1 S S V - d n u o r G 1 5 1 8 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 5 1 9 D _ U P C 3 5 1 0 1 D _ U P C 4 5 1 1 1 D _ U P C 5 5 1 2 1 D _ U P C 6 5 1 3 1 D _ U P C 7 5 1 4 1 D _ U P C 8 5 1 5 1 D _ U P C 9 5 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 0 6 1 S S V - d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 141 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 6 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 2 6 1 2 A _ U P C 3 6 1 3 A _ U P C 4 6 1 4 A _ U P C 5 6 1 5 A _ U P C 6 6 1 6 A _ U P C 7 6 1 7 A _ U P C 8 6 1 8 A _ U P C 9 6 1 9 A _ U P C 0 7 1 0 1 A _ U P C 1 7 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 2 7 1 S S V - d n u o r G 3 7 1 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 4 7 1 2 1 A _ U P C 5 7 1 3 1 A _ U P C 6 7 1 4 1 A _ U P C 7 7 1 5 1 A _ U P C 8 7 1 6 1 A _ U P C 9 7 1 7 1 A _ U P C 0 8 1 8 1 A _ U P C 1 8 1 9 1 A _ U P C 2 8 1 0 2 A _ U P C 3 8 1 1 2 A _ U P C 4 8 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 5 8 1 S S V - d n u o r G 6 8 1 E P X E X T U O d e v r e s e r 7 8 1 R O R R E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F g a lf r o rr E C C E 8 8 1 1 L E S V T U O la n g is t u p t u o ) G N I K N I L B ( r o tc e n n o c ) T R A C S ( O R U E e l b a si d t u p t u o B G R : 'L ' e l b a n e t u p t u o B G R : ' H ' 9 8 1 2 L E S V T U O .la n g is C / R , Y / V r o tc e n n o c ) T R A C S ( O R U E B G C Y = t u p t u o B G R V : 'L ' B G R V = t u p t u o B G R V : ' H ' 0 9 1 T S R _ E F T U O . 6 1 3 6 L d n E -t n o r F .t u p t u o t e s e r e r a w d r a H t e s e r : 'L ' 1 9 1 T S R X _ D C A S T U O d e v r e s e r 2 9 1 E T U M M X T U O d e v r e s e r 3 9 1 C N Y S _ B T U O d e v r e s e r 4 9 1 A D S O /I e c a fr e t n i d n a m m o c 6 1 3 6 L d n E -t n o r F . e n il a t a d la ir e s s u b C 2 I 5 9 1 L C S T U O e c a fr e t n i d n a m m o c 6 1 3 6 L d n E -t n o r F . e n il k c o lc la ir e s s u b C 2 I 6 9 1 K L C W _ B T U O d e v r e s e r 7 9 1 D X T T U O t u p t u o a t a d ) C 2 3 2 - S R ( T R A U 8 9 1 8 V 1 _ D D V yl p p u s r e w o P V 8 . 1 9 9 1 S S V - d n u o r G 0 0 2 D X R N I t u p n i a t a d ) C 2 3 2 - S R ( T R A U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 142 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 0 2 E T U M A X T U O . g n it u m e n il t u p t u o o i d u a g o la n a r o f la n g is t u p t u O g n it u m : 'L ' 2 0 2 N I G I R T N I e c a fr e t n i ti n U lo rt n o C cits o n g a i D 3 0 2 T U O G I R T T U O e c a fr e t n i ti n U lo rt n o C cits o n g a i D 4 0 2 0 S C X _ C A D T U O .lo rt n o c la ir e s C A D o i d u a r o f e l b a n e p ih C e l b a n e : 'L ' 5 0 2 1 S C X _ C A D T U O d e v r e s e r 6 0 2 K C A _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .' H ' t u p t u o ) e g d e l w o n k c a ( e k a h s - d n a H 7 0 2 K C S _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .t u p t u o k c o lc r e fs n a rt la ir e S 8 0 2 I S _ P F N I . e c a fr e t n ile n a P t n o r F .t u p n i a t a d r e fs n a rt la ir e S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 143 5 6 7 8 5 6 7 8 C D F A B E PDC111A (AF ASSY : IC5501) • System Control Microcomputer Pin Functions No. Mark Pin Name I/O Function 1 PA3/WR# DVDON/OFF O Control power supply for DVD module 2 PA4/RD# HPDET I Detect to insert headphone 3 PA5/RS NC O NC 4 P70 / INT0 / T0LCP / AN8 ACPULSE I AC PULSE input (Interruption) 5 P71 / INT1 / T0HCP / AN9 NC O NC 6 P72 / INT2 / T0IN NC I (O) NC 7 P73 / INT3 / T0IN REMOCON I REMOCON signal input (Interruption) 8 RES# XRESET I µ-com reset input 9 XT1 / AN10 XT1 − (When this port don't use , please connect VDD) 10 XT2 / AN11 XT2 − (When this port don't use , please set open) 11 VSS1 VSS1 − 12 CF1 CF1 − 13 CF2 CF2 − 14 VDD1 VDD1 − 15 P80 / AN0 SIMUKE I Destination distinction input 16 P81 / AN1 MODEL I model distinction input 17 P82 / AN2 VDET I DVD 3.3V detection input 18 P83 / AN3 KEY1 I Key1 input 19 P84 / AN4 KEY2 I (O) Key2 20 P85 / AN5 VOLJOG I (O) VOLME JOG key input 21 P86 / AN6 ST/TUNE I STEREO tuned detection input 22 P87 / AN7 XPROTECT I Protection and Fan Error detection input 23 P10/SO0 SDATA O System bus data output (AMP side output) 24 P11 / SI0 / SB0 MDATA I System bus data input (AMP side input) 25 P12 / SCK0 SCLK I System bus clock input 26 P13 / SO1 DSPDI O Data output to DSP (MOTOROLA) and DIR 27 P14 / SI1 / SB1 DSPDO I Data input from DSP (MOTOROLA) 28 P15 / SCK1 DSPCK O Clock output to DSP (MOTOROLA) and DIR 29 P16/T1PWML SYSCS2 O Chip select 2 for system bus 30 P17/T1PWMH/BUZ SYSCS1 O Chip select 1 for system bus 31 PE0 XHPMUTE O HP MUTE ON/OFF 32 PE1 XRECMUTE O REC OUTPUT MUTE ON/OFF 33 PE2 XMUTEC O Cch MUTE ON/OFF 34 PE3 RYR O REAR RELAY ON/OFF 35 PE4 RYFSC O FRONT/SW/CENTER RELAY ON/OFF 36 PE5 NC O 37 PE6 TIMERLED O Control TIMER LED 38 PE7 LEVELSHIFT O VOL 0 to 5 : H 39 VSS4 VSS4 40 VDD4 VDD4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 144 1 2 3 4 1 2 3 4 C D F A B E No. Mark Pin Name I/O Function 41 PF0 ATT10dB O Control ATT 10dB 42 PF1 ATT6dB O Control ATT 6dB 43 PF2 STEST I Set TEST MODE for Service 44 PF3 UTEST I Set UNIT CHECK for checker 45 PF4 DTSDMIX O Cntrol of gain-up for dts down-mix 46 PF5 SWFMIX O Control for subwoofer mix 47 PF6 NC I (When this port don't use , please connect GND) 48 PF7 NC I (When this port don't use , please connect GND) 49 SI2P0/SO2 FLDAT O Data for FL driver 50 SI2P1/SI2/SB2 FLCS O Chip enable for FL driver 51 SI2P2/SCK2 FLCLK O Clock for FL driver 52 SI2P3/SCK20 XFLRST O Reset for FL driver 53 PWM1 NC NC 54 PWM0 NC NC 55 VDD2 VDD2 56 VSS2 VSS2 57 P00 TXCE O Chip enable for tuner LSI 58 P01 EXPCE O Chip enable for expander of LED control 59 P02 EXPDATA O DATA for expander of LED control 60 P03 EXPCLK O Clock for expander of LED control 61 P04 TXCLK O Clock for tuner LSI 62 P05 TXODATA O Data for tuner LSI 63 P06 TXMUTE O Control mute of tuner 64 P07 NC O NC 65 P20/INT4/T1IN NC I (O) NC 66 P21/INT4/T1IN TXIDATA I Input data from tuner LSI 67 P22/INT4/T1IN DVDACK I Ackknowlegement from DVD MODULE (Interruption) 68 P23/INT4/T1IN XVMUTE O VIDEO MUTE request to DVD MODULE 69 P24/INT5/T1IN DVDMUTE I Request of MUTE from DVD MODULE (Interruption) 70 P25/INT5/T1IN AUDIOSELA O SW for AUDIO in DVD-A MODEL 71 P26/INT5/T1IN NC O NC 72 P27/INT5/T1IN XWMUTE O WIRE LESS MUTE request 73 P30 WSELA O WIRE LESS OUTPUT SELECT A 74 P31 INPUTSELB O AUDIO INPUT SELECT B 75 P32 INPUTSELA O AUDIO INPUT SELECT A 76 P33 XTL0 O Selection X'tal to DIR 77 P34 DIRERR I LOCK/UNLOCK from DIR 78 P35 DIRRST O Reset to DIR /CODEC 79 P36 DIRCS O Chip select to DIR/CODEC 80 PB7/D7 DIRDO I Data input from DIR/CODEC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 145 5 6 7 8 5 6 7 8 C D F A B E • Port0 (P00-P07) can be selected for input or output by each 4 bits (P00-P03,P04-P07). Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port1 (P10-P17) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1bit in option. • Port2 (P20-P27) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port3 (P30-P36) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port7 (P70-P73) can be selected for input or output by each 1 bit. Set for input when reset. • Port8 (P80-P87) can be selected for input or output by each 1 bit. Set for input when reset. • PortA (PA0-PA5) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortB (PB0-PB7) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortC (PC0-PC7) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortE and PortF can be selected for input or output by each 2 bits. • In case of without RDS, it is best that RDSDATA and RDSCLK are assigned as I/O port which can be set output and output low level. No. Mark Pin Name I/O Function 81 PB6/D6 DSPMODE O MODE selection (ROM/RAM) to DSP (MOTOROLA) 82 PB5/D5 DSPHREQ I Error detection from DSP (MOTOROLA) 83 PB4/D4 NC O NC 84 PB3/D3 DSPSS O Slave selection to DSP (MOTOROLA) 85 PB2/D2 XDSPRST O RESET to DSP (MOTOROLA) MODULE 86 PB1/D1 DECMUTE I Detection of 1st DSP boot success from DSP MODULE 87 PB0/D0 XDSPMUTE O MUTE requeat to DSP MODULE 88 VSS3 VSS3 − 89 VDD3 VDD3 − 90 PC7/A7 NC O NC 91 PC6/A6 SYSPOW O Control power supply of system 92 PC5/A5 NC O NC 93 PC4/A4 XDVDRST O RESET to DVD MODULE 94 PC3/A3 XSYSMUTE O Control mute of system 95 PC2/A2 (VOLMUTE) O (Contorol mute of E-vol IC) 96 PC1/A1 VOLCLK O Clock for E-vol IC 97 PC0/A0 VOLDATA/CE O Data/CE for E-vol IC 98 PA0/CS2# FLASHE/D − for FLASH writing 99 PA1/CS1# FLASHDO − for FLASH writing 100 PA2/CS0# FLASHCLK − for FLASH writing www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 146 1 2 3 4 1 2 3 4 C D F A B E 7.2.2 DISPLAY 14 15 16 17 18 19 20 21 3G 2G 1G P35 P34 P33 P32 P31 Pin Assignment Pin Connection Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 Connection F1 NX NP NP 12G 11G 10G 9G 8G 7G 6G 5G 4G 35 36 37 38 39 40 41 NX NX P20 P19 P18 P17 P16 42 P15 Pin No. 22 23 24 25 26 27 28 29 30 31 32 33 34 Connection P30 P29 P28 P27 P26 P25 P24 P23 P22 P21 NX NX NX 56 57 58 59 60 61 62 P1 P37 P36 NP NP NX F2 Pin No. 43 44 45 46 47 48 49 50 51 52 53 54 55 Connection P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 Note (1) F1, F2 : Filament (2) NP : No pin (3) NX : No extend pin (4) DL : Datum Line (5) 1G to 12G : Grid XAV3020 (DISPLAY ASSY :V5601) • FL DISPLAY 62 1 Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 147 5 6 7 8 5 6 7 8 C D F A B E 7.2.3 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Position to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 148 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES Front panel TIMER CD MODE DISC 1 2 3 4 5 PHONES STANDBY/ON DOWN UP VOLUME TUNER DVD /CD TV/ L1/L2 FM/AM/ST. DIRECT PLAY DISC SKIP EXCHANGE OPEN/CLOSE 1 2 3 4 5 1 STANDBY/ON Press to switch the system on or into standby. 2 DVD/CD Press to switch to the DVD/CD function. Also starts/pauses/resumes playback. 3 TUNER FM/AM/ST. Press to switch to the tuner function, then between bands and station presets. 4 TV/L1/L2 Press to switch between the external sources, TV, LINE 1 (L1) and LINE 2 (L2). 5 and Press to skip tracks/chapters; press and hold to scan backwards/forwards. • When in listening to the tuner, use to tune to stations or select presets. 6 � � Press to stop playback. 7 Press to start or resume playback. During playback, press to pause; press again to restart playback. 8 DIRECT PLAY buttons Press to start playback of any disc in the player. 9 DISC SKIP • During playback, press to start playing the next disc in the player. • If the disc tray is open while no disc is playing, the tray rotates one disc space. • If the disc tray was opened using the EXCHANGE button, then pressing DISC SKIP rotates the disc tray two disc spaces. 10 EXCHANGE Press during playback to open the disc tray without stopping playback. Press again to close the disc tray. 11 OPEN/CLOSE Press to open/close the disc tray. 12 Disc tray 13 VOLUME control Use to adjust the volume. 14 DISC indicators Shows which disc spaces are currently occupied. 15 Display See Display for detailed information. 16 CD MODE indicator Lights when the CD Mode is on. In this mode, the system only plays audio CDs and WMA/ MP3 discs. 17 Remote sensor 18 Timer indicator Lights when the timer is set. 19 This mark indicates compatibility with DVD- RW discs recorded on a DVD recorder in Video Recording (VR) mode. 20 Mic jack 21 MIC volume 22 PHONES jack Headphone jack. MIC MIN MAX MIC LEVEL 4 1 ¡ ¢ 7 6 22 19 17 18 16 15 14 13 12 2 1 3 4 5 6 7 8 9 10 11 0 20 21 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 149 5 6 7 8 5 6 7 8 C D F A B E MIDNIGHT QUIET PGM RPT - 1 RDM ATT REC MODE kHz ADV.SURR. Neo:6 DIGITAL MHz PRGSVE PRO LOGIC 15 16 17 18 19 20 2 1 3 4 6 7 5 8 9 10 11 12 13 14 Display 2 3 MIDNIGHT Lights during multi-angle scenes on a DVD disc 4 QUIET 5 Lights to indicate random or repeat play of all discs loaded. 6 PGM Indicates the unit of the frequency shown in the character display (kHz for AM, MHz for FM) 7 RPT and RPT-1 12 PRO LOGIC II Lights during Dolby Pro Logic decoding. 13 DIGITAL Lights during playback of a Dolby Digital source. 14 Speaker indicators Thees show which speakers are being used to output the current source. The illustrations below show some example displays. 5.1 channel surround sound Stereo (2.1 channel) sound 3.1 channel sound with Dialogue enhancement on the center channel 5.1 channel surround sound with Virtual Surround Back mode active (When headphones are connected, none of the speaker indicators are lit.) 15 PRGSVE Lights when progressive scan video output is selected. 16 ADV. SURR. Lights when one of the Advanced Surround listening modes is selected. 17 DTS Lights during playback of a DTS source. 18 kHz / MHz 8 RDM 19 Character display 10 REC MODE Lights when Rec Mode is on. 11 Timer indicators Lights when the timer is set Lights when the sleep timer is active Lights when the Midnight mode is selected. Lights when the Quiet mode is selected. Lights when a program list has been programmed. RPT lights during repeat play. RPT-1 lights during repeat one-track play. Lights during random play. 9 ATT Lights when the input attenuator is active for the currently selected analog input. 1 Tuner indicators Lights when a broadcast is being received. Lights when a stereo FM broadcast is being received in auto stereo mode. Lights when FM mono reception is selected. 20 Lights when a disc is playing. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 150 1 2 3 4 1 2 3 4 C D F A B E 1 STANDBY/ON Press to switch the system on or into standby. 2 OPEN/CLOSE Press to open/close the disc tray. 3 Function select buttons Press to select the source you want to listen to (DVD/CD, TUNER, TV, LINE) 4 DVD buttons AUDIO Press to select an audio channel or language. SUBTITLE Press to display/change the subtitle display. ANGLE Press to change the camera angle during DVD multi-angle scene playback. ZOOM Press to change the screen zoom level. 5 Surround sound mode buttons AUTO Press to select the default decoding for the current source. SURROUND Use to select a Surround mode. ADVANCED Use to select an Advanced Surround mode. 6 ROOM SETUP Press to start Room Setup. 7 Sound enhancement buttons BASS MODE Use to select a Bass Modes. VIR. SB Press to switch the Virtual Surround back speaker effect on/off. DIALOGUE Use to select a Dialogue mode. 8 MUTE Press to mute all sound from the speakers and headphones (press again to cancel). 9 VOLUME Use to adjust the volume. 10 HOME MENU / SYSTEM SETUP • Press to display (or exit) the on-screen menu for lnitial Settings, Play Mode functions, etc. • Use with SHIFT for SYSTEM SETUP: Use to make various system and surround sound settings. 11 DVD MENU / TOP MENU • Press to display a DVD-Video disc menu, or the Disc Navigator if a VR mode DVD-RW, CD, Video CD , MP3, WMA or JPEG disc is loaded. • Use with SHIFT for TOP MENU: Use to display the top menu of a DVD disc in the play position (this may be the same as pressing DVD MENU) 12 TUNE +/-, ST +/-, cursor control buttons and ENTER • Use the TUNE +/- and ST +/- buttons when listening to the radio to tune into stations, or select preset stations. • Use the cursor buttons ( » / « / | / \) and enter to navigate on-screen displays and menus; ENTER selects an option or executes a command. 13 SOUND MODE / QUIET/MIDNIGHT • Use to adjust the tone and effect level. • Use with SHIFT for QUIET/MIDNIGHT: Use to select the Quiet and Midnight modes. 14 RETURN Press to return to a previous menu screen. Remote control OPEN/CLOSE STANDBY/ON L1/L2 FM/AM AUDIO SUBTITLE ANGLE ZOOM AUTO FOLDER MUTE SURROUND SYSTEM SETUP HOME MENU TOP MENU DVD MENU SOUND MODE RETURN SHIFT QUIET/ MIDNIGHT ADVANCED ROOM SETUP BASS MODE VIR.SB DIALOGUE ST TUNE VOLUME ST TUNE DVD/CD CLEAR ENTER ENTER TUNER TV LINE DVD FOLDER PROGRAM REPEAT RANDOM TEST TONE CH LEVEL TIMER DISPLAY DISC 1 DISC 2 DISC 3 DISC 4 SURROUND 5.1ch DVD SYSTEM DISC 5 CD MODE DISC SKIP DIMMER 1 3 4 5 7 9 10 12 13 15 16 18 2 6 8 11 14 17 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-HTD7 151 5 6 7 8 5 6 7 8 C D F A B E RANDOM (SHIFT +3) Use to select a random play mode. TEST TONE (SHIFT + 4) Use to output the test tone (for speaker setup). CH LEVEL (SHIFT +5) Use to adjust the speaker level. TIMER (SHIFT +6) Press to display the clock and to access the timer menu. DISPLAY (SHIFT +8) Press to display/change disc information shown on-screen. DIMMER (SHIFT +9) Press to switch between normal and dimmed front panel display. CLEAR Press to clear an entry. ENTER Press to select menu options, etc. (works exactly the same as the ENTER button in 12 above). 17 Disc selection buttons DISC select buttons Use to select discs in the player. DISC SKIP / CD MODE • During playback, press to start playing the next disc in the player. • If the disc tray is open while no disc is playing, the tray rotates one disc space. • If the disc tray was opened using the EXCHANGE button (front panel only), then pressing DISC SKIP rotates the disc tray two disc spaces. • Use with SHIFT for CD MODE: Use to switch CD Mode on/off. 18 SHIFT Use to access the functions/commands printed in green on the remote (press the button for the function you want while holding down SHIFT). Press to Stop playback. 16 Number buttons and SHIFT functions Use the number buttons for selecting chapters /tracks from a disc directly; use with the SHIFT button to access the functions printed in green. PROGRAM (SHIFT + 1) Use to program/play a program list. REPEAT (SHIFT + 2) Use to select a repeat play mode. / FOLDER + Press to jump to the next chapter/track (or folder by pressing SHIFT + ). Press to pause playback; press again to restart. 15 Playback controls Press to start or resume playback. Use for reverse slow motion playback, frame reverse and reverse scanning. Use for forward slow motion playback, frame advance and forward scanning. / FOLDER – Press to jump to the beginning of the current chapter/track, then to previous chapters/tracks. Press SHIFT + to jump to the beginning of the previous folder and / and / www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
