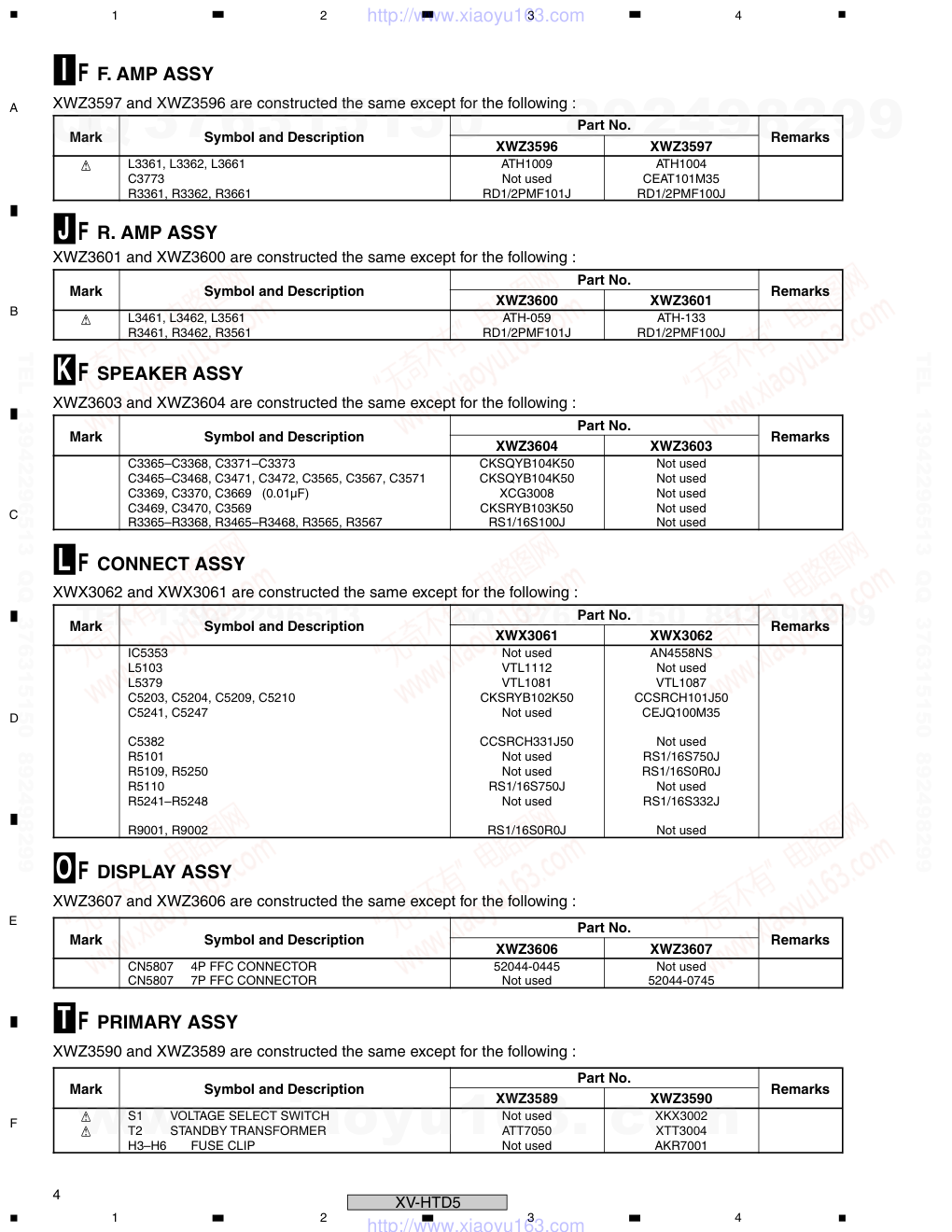

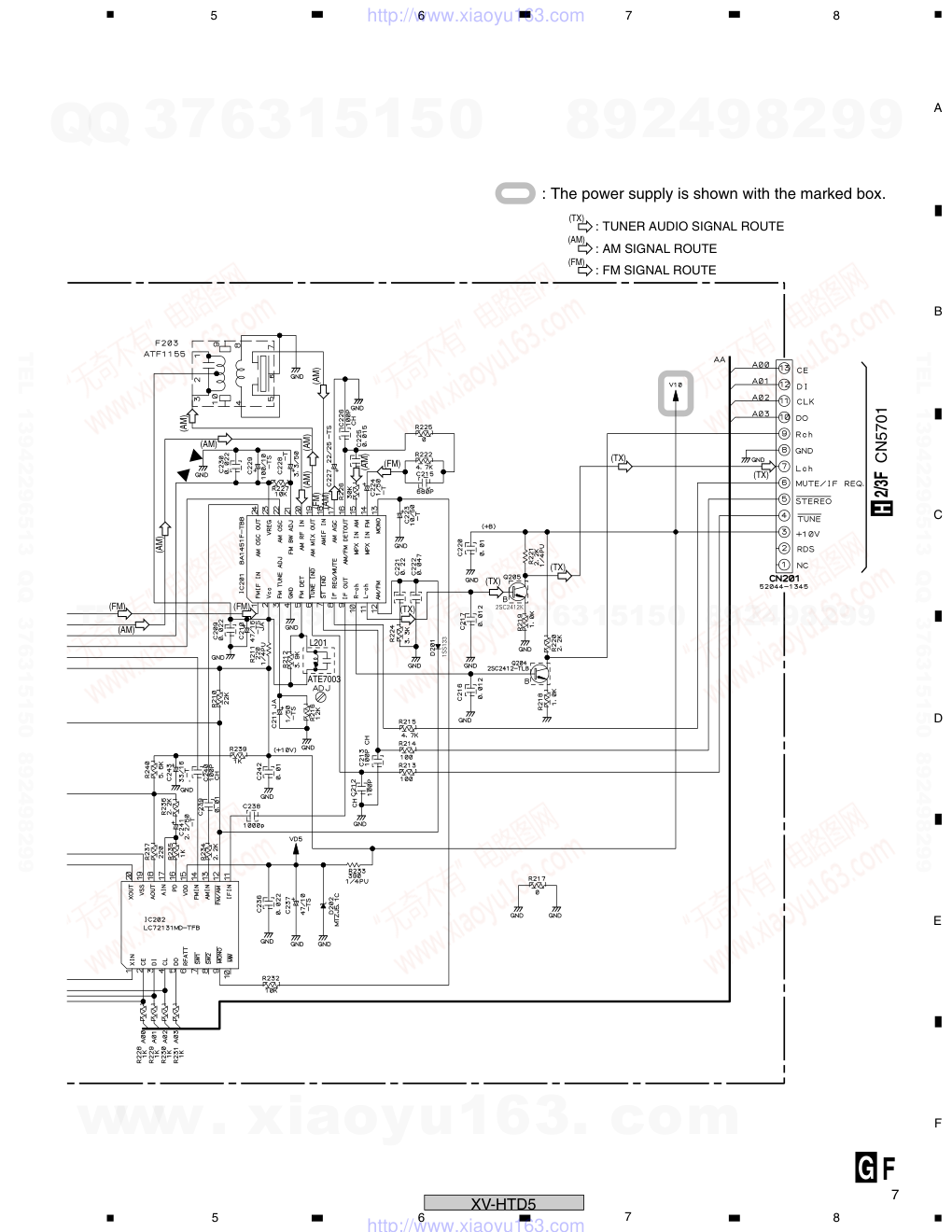

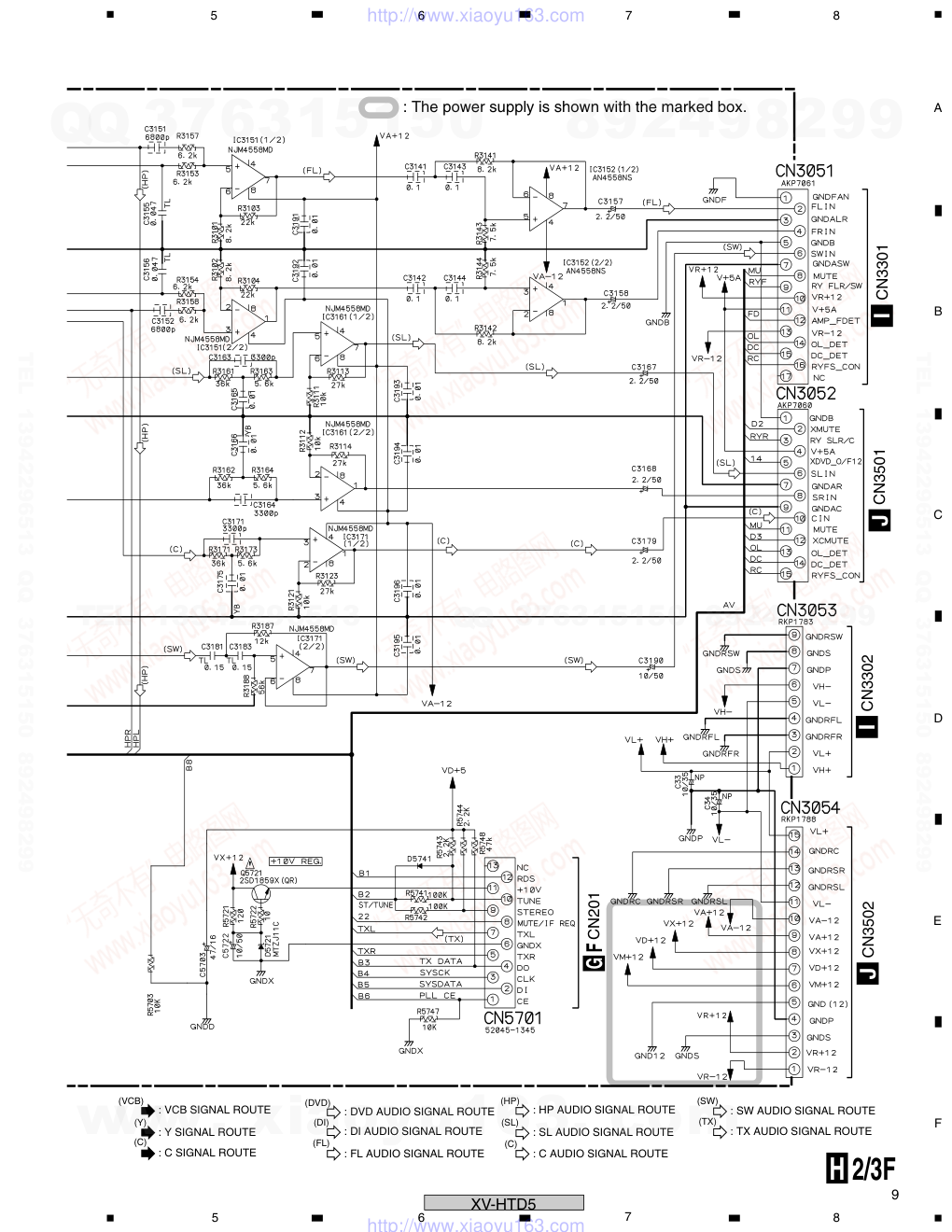

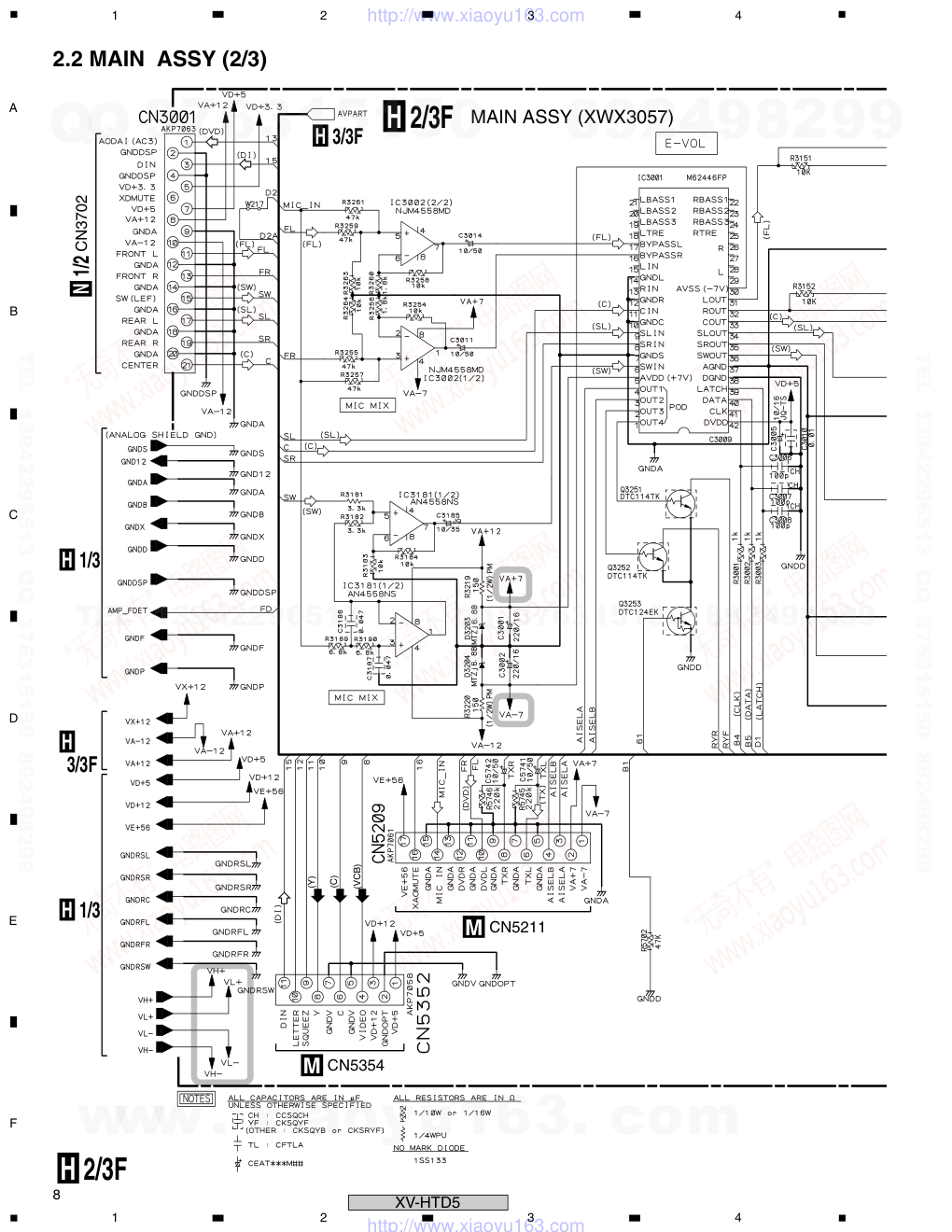

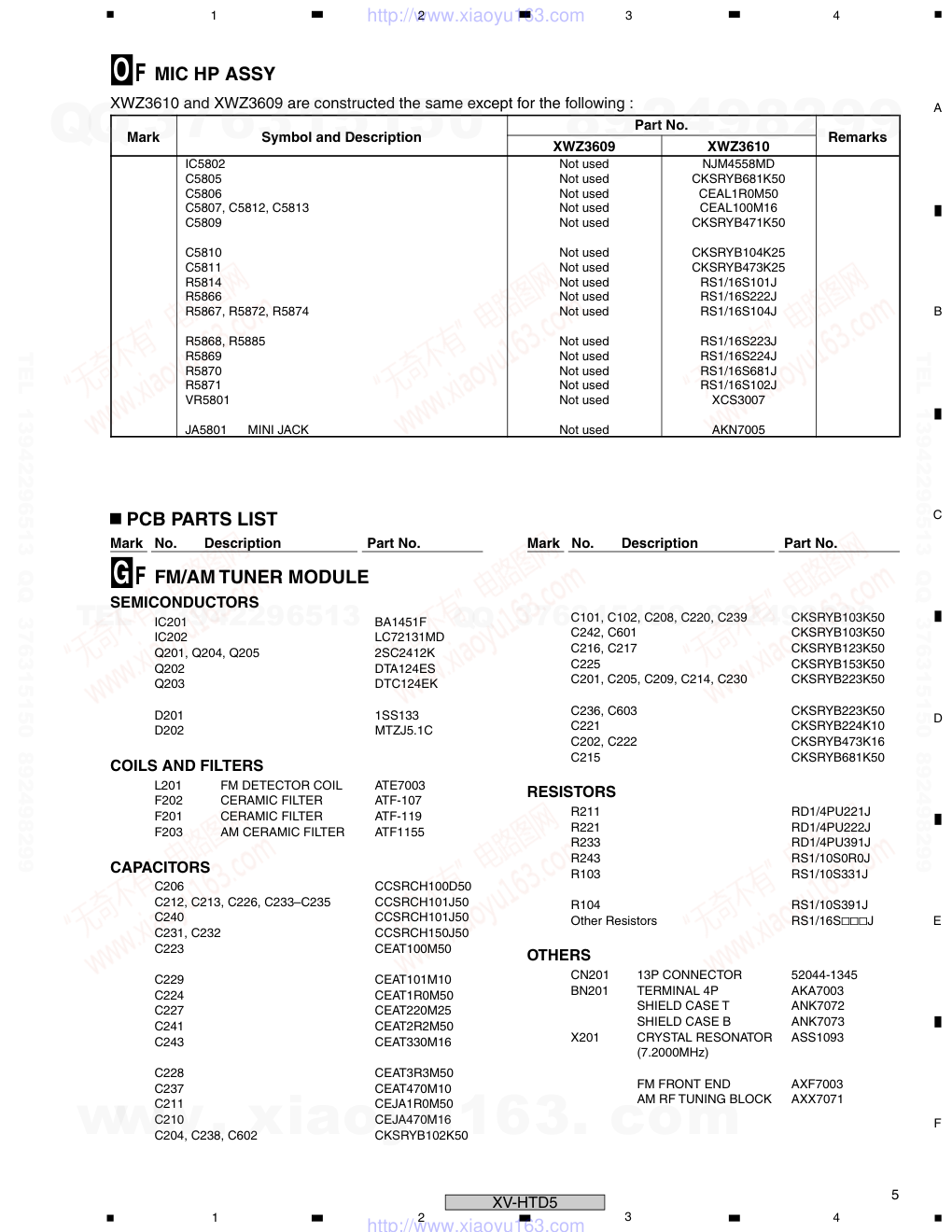

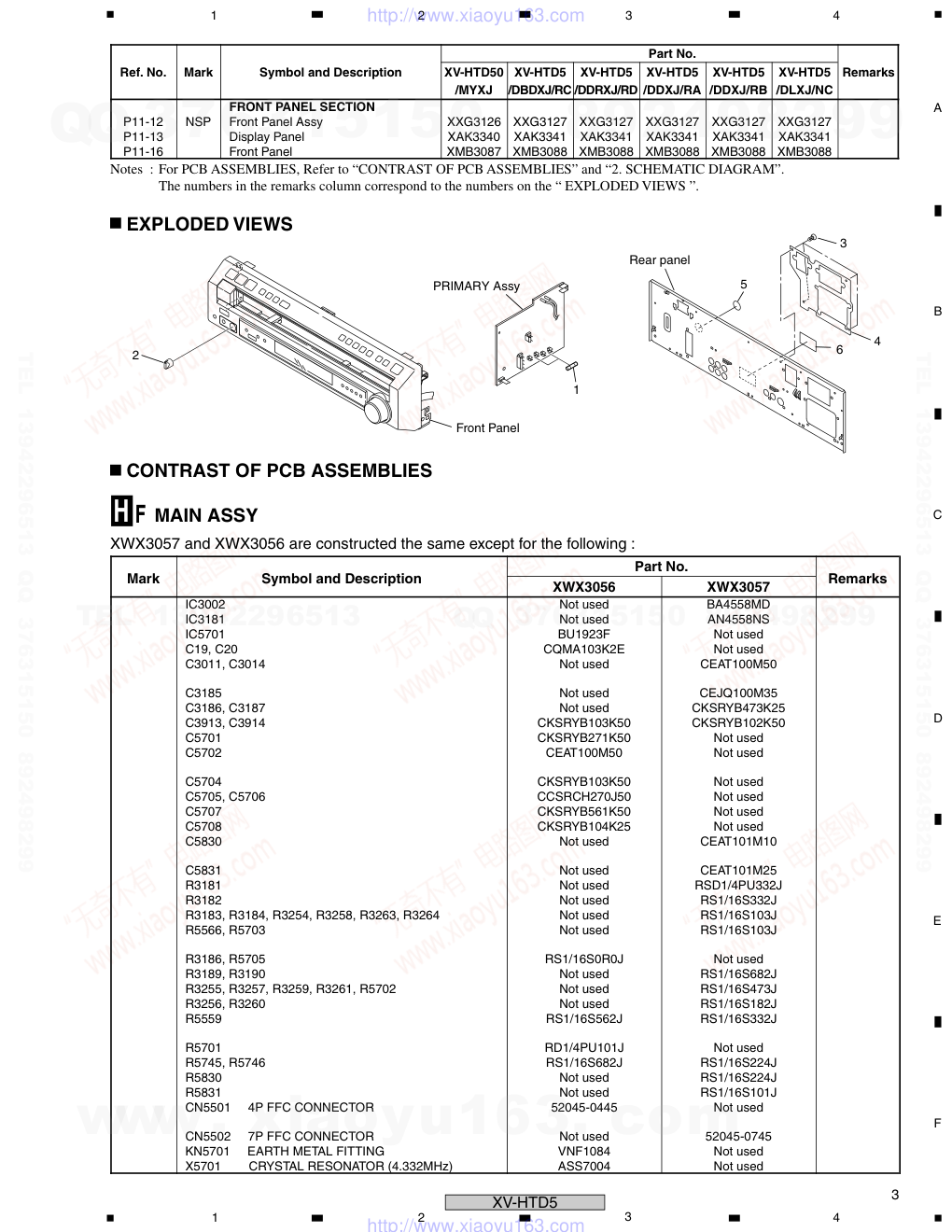

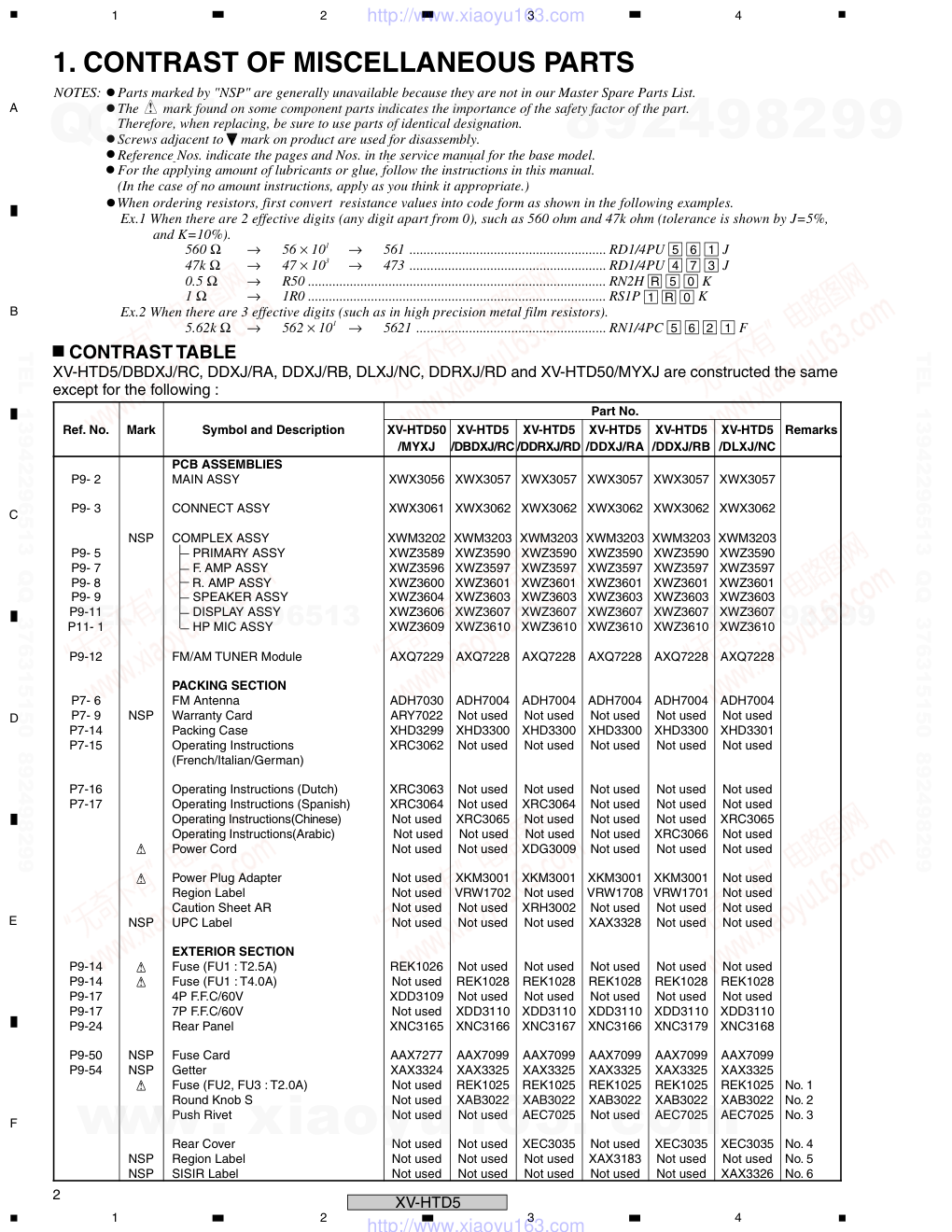

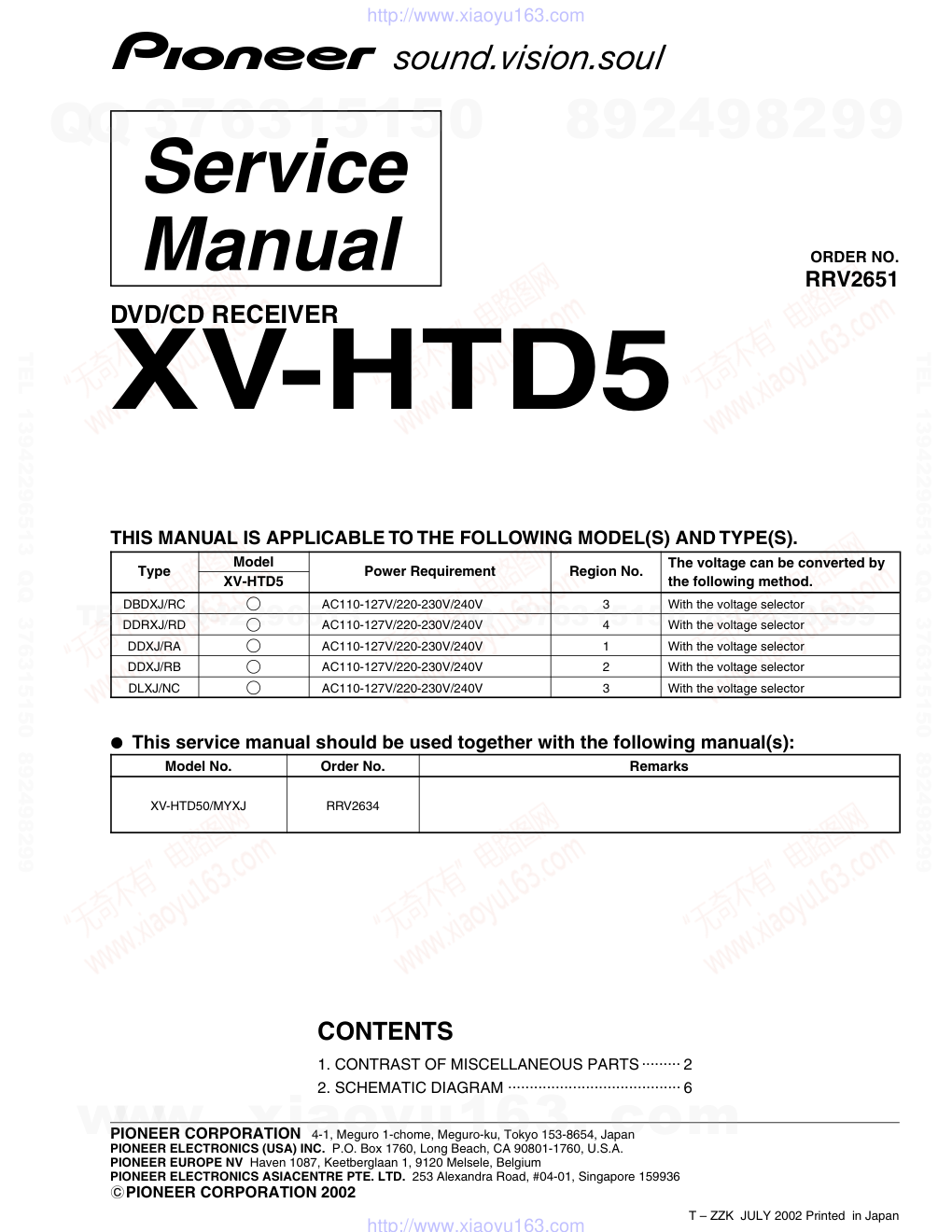

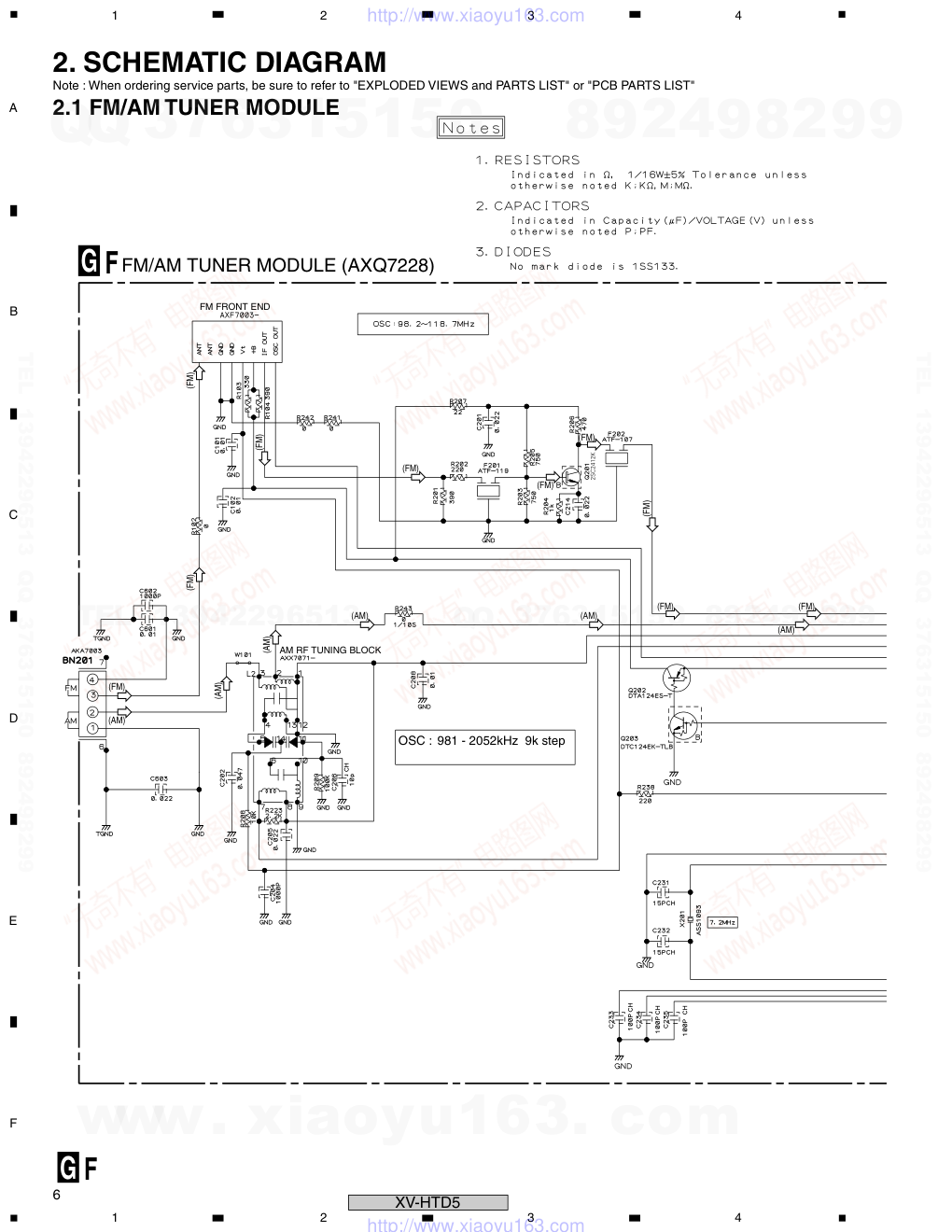

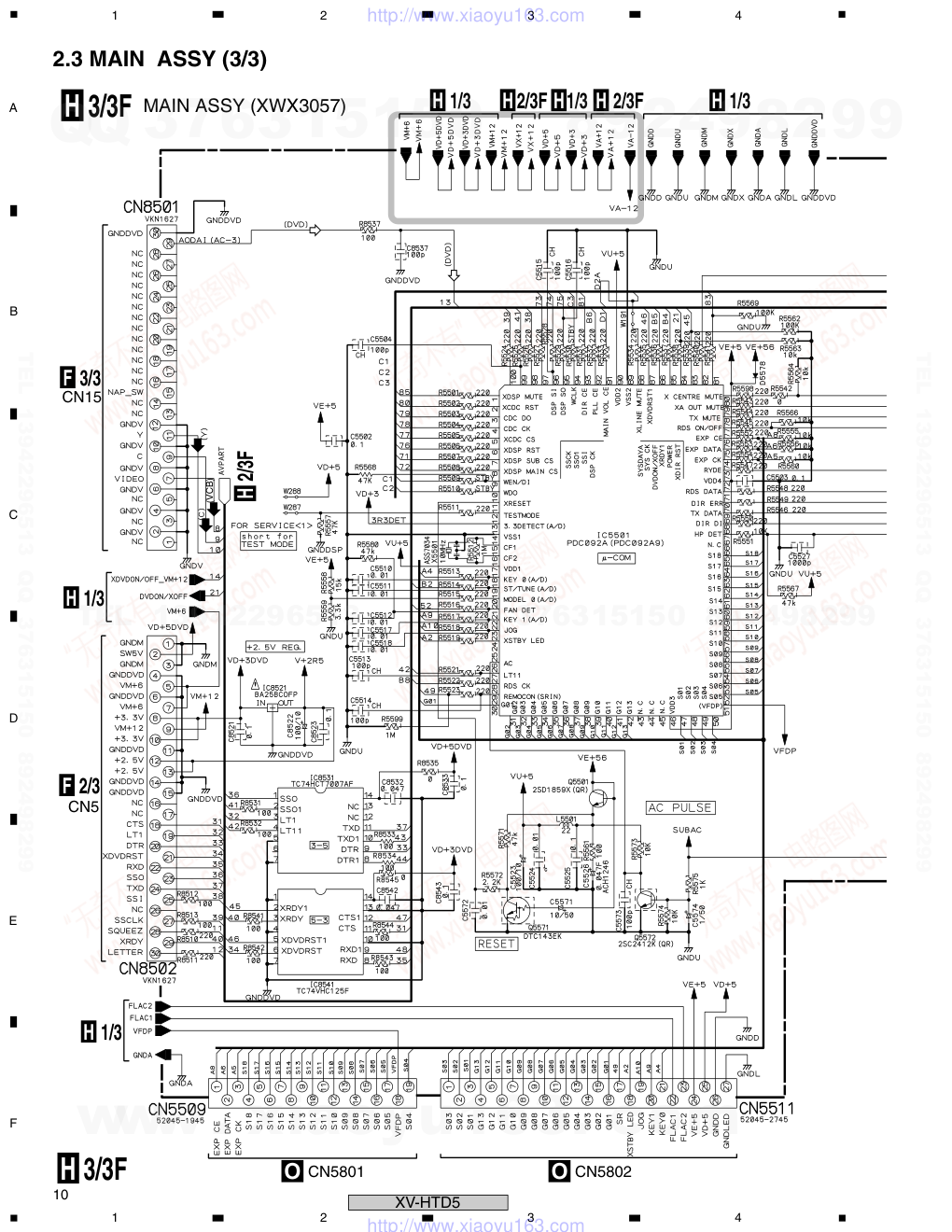

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2002 RRV2651 T – ZZK JULY 2002 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model No. Order No. Remarks XV-HTD50/MYXJ RRV2634 ¶ This service manual should be used together with the following manual(s): DVD/CD RECEIVER XV-HTD5 CONTENTS 1. CONTRAST OF MISCELLANEOUS PARTS ......... 2 2. SCHEMATIC DIAGRAM ........................................ 6 Type Model Power Requirement Region No. The voltage can be converted by XV-HTD5 the following method. DBDXJ/RC AC110-127V/220-230V/240V 3 With the voltage selector DDRXJ/RD AC110-127V/220-230V/240V 4 With the voltage selector DDXJ/RA AC110-127V/220-230V/240V 1 With the voltage selector DDXJ/RB AC110-127V/220-230V/240V 2 With the voltage selector DLXJ/NC AC110-127V/220-230V/240V 3 With the voltage selector www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 1. CONTRAST OF MISCELLANEOUS PARTS j p f y For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description XV-HTD50 XV-HTD5 XV-HTD5 XV-HTD5 XV-HTD5 XV-HTD5 Remarks /MYXJ /DBDXJ/RC /DDRXJ/RD /DDXJ/RA /DDXJ/RB /DLXJ/NC PCB ASSEMBLIES P9- 2 MAIN ASSY XWX3056 XWX3057 XWX3057 XWX3057 XWX3057 XWX3057 P9- 3 CONNECT ASSY XWX3061 XWX3062 XWX3062 XWX3062 XWX3062 XWX3062 NSP COMPLEX ASSY XWM3202 XWM3203 XWM3203 XWM3203 XWM3203 XWM3203 P9- 5 PRIMARY ASSY XWZ3589 XWZ3590 XWZ3590 XWZ3590 XWZ3590 XWZ3590 P9- 7 F. AMP ASSY XWZ3596 XWZ3597 XWZ3597 XWZ3597 XWZ3597 XWZ3597 P9- 8 R. AMP ASSY XWZ3600 XWZ3601 XWZ3601 XWZ3601 XWZ3601 XWZ3601 P9- 9 SPEAKER ASSY XWZ3604 XWZ3603 XWZ3603 XWZ3603 XWZ3603 XWZ3603 P9-11 DISPLAY ASSY XWZ3606 XWZ3607 XWZ3607 XWZ3607 XWZ3607 XWZ3607 P11- 1 HP MIC ASSY XWZ3609 XWZ3610 XWZ3610 XWZ3610 XWZ3610 XWZ3610 P9-12 FM/AM TUNER Module AXQ7229 AXQ7228 AXQ7228 AXQ7228 AXQ7228 AXQ7228 PACKING SECTION P7- 6 FM Antenna ADH7030 ADH7004 ADH7004 ADH7004 ADH7004 ADH7004 P7- 9 NSP Warranty Card ARY7022 Not used Not used Not used Not used Not used P7-14 Packing Case XHD3299 XHD3300 XHD3300 XHD3300 XHD3300 XHD3301 P7-15 Operating Instructions XRC3062 Not used Not used Not used Not used Not used (French/Italian/German) P7-16 Operating Instructions (Dutch) XRC3063 Not used Not used Not used Not used Not used P7-17 Operating Instructions (Spanish) XRC3064 Not used XRC3064 Not used Not used Not used Operating Instructions(Chinese) Not used XRC3065 Not used Not used Not used XRC3065 Operating Instructions(Arabic) Not used Not used Not used Not used XRC3066 Not used Power Cord Not used Not used XDG3009 Not used Not used Not used Power Plug Adapter Not used XKM3001 XKM3001 XKM3001 XKM3001 Not used Region Label Not used VRW1702 Not used VRW1708 VRW1701 Not used Caution Sheet AR Not used Not used XRH3002 Not used Not used Not used NSP UPC Label Not used Not used Not used XAX3328 Not used Not used EXTERIOR SECTION P9-14 Fuse (FU1 : T2.5A) REK1026 Not used Not used Not used Not used Not used P9-14 Fuse (FU1 : T4.0A) Not used REK1028 REK1028 REK1028 REK1028 REK1028 P9-17 4P F.F.C/60V XDD3109 Not used Not used Not used Not used Not used P9-17 7P F.F.C/60V Not used XDD3110 XDD3110 XDD3110 XDD3110 XDD3110 P9-24 Rear Panel XNC3165 XNC3166 XNC3167 XNC3166 XNC3179 XNC3168 P9-50 NSP Fuse Card AAX7277 AAX7099 AAX7099 AAX7099 AAX7099 AAX7099 P9-54 NSP Getter XAX3324 XAX3325 XAX3325 XAX3325 XAX3325 XAX3325 Fuse (FU2, FU3 : T2.0A) Not used REK1025 REK1025 REK1025 REK1025 REK1025 No. 1 Round Knob S Not used XAB3022 XAB3022 XAB3022 XAB3022 XAB3022 No. 2 Push Rivet Not used Not used AEC7025 Not used AEC7025 AEC7025 No. 3 Rear Cover Not used Not used XEC3035 Not used XEC3035 XEC3035 No. 4 NSP Region Label Not used Not used Not used XAX3183 Not used Not used No. 5 NSP SISIR Label Not used Not used Not used Not used Not used XAX3326 No. 6 XV-HTD5/DBDXJ/RC, DDXJ/RA, DDXJ/RB, DLXJ/NC, DDRXJ/RD and XV-HTD50/MYXJ are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 Front Panel 2 6 3 4 Rear panel 5 PRIMARY Assy 1 CONTRAST OF PCB ASSEMBLIES Notes : For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES” and “2. SCHEMATIC DIAGRAM”. The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”. EXPLODED VIEWS MAIN ASSY F H Mark Symbol and Description Part No. Remarks XWX3056 XWX3057 IC3002 Not used BA4558MD IC3181 Not used AN4558NS IC5701 BU1923F Not used C19, C20 CQMA103K2E Not used C3011, C3014 Not used CEAT100M50 C3185 Not used CEJQ100M35 C3186, C3187 Not used CKSRYB473K25 C3913, C3914 CKSRYB103K50 CKSRYB102K50 C5701 CKSRYB271K50 Not used C5702 CEAT100M50 Not used C5704 CKSRYB103K50 Not used C5705, C5706 CCSRCH270J50 Not used C5707 CKSRYB561K50 Not used C5708 CKSRYB104K25 Not used C5830 Not used CEAT101M10 C5831 Not used CEAT101M25 R3181 Not used RSD1/4PU332J R3182 Not used RS1/16S332J R3183, R3184, R3254, R3258, R3263, R3264 Not used RS1/16S103J R5566, R5703 Not used RS1/16S103J R3186, R5705 RS1/16S0R0J Not used R3189, R3190 Not used RS1/16S682J R3255, R3257, R3259, R3261, R5702 Not used RS1/16S473J R3256, R3260 Not used RS1/16S182J R5559 RS1/16S562J RS1/16S332J R5701 RD1/4PU101J Not used R5745, R5746 RS1/16S682J RS1/16S224J R5830 Not used RS1/16S224J R5831 Not used RS1/16S101J CN5501 4P FFC CONNECTOR 52045-0445 Not used CN5502 7P FFC CONNECTOR Not used 52045-0745 KN5701 EARTH METAL FITTING VNF1084 Not used X5701 CRYSTAL RESONATOR (4.332MHz) ASS7004 Not used XWX3057 and XWX3056 are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description XV-HTD50 XV-HTD5 XV-HTD5 XV-HTD5 XV-HTD5 XV-HTD5 Remarks /MYXJ /DBDXJ/RC /DDRXJ/RD /DDXJ/RA /DDXJ/RB /DLXJ/NC FRONT PANEL SECTION P11-12 NSP Front Panel Assy XXG3126 XXG3127 XXG3127 XXG3127 XXG3127 XXG3127 P11-13 Display Panel XAK3340 XAK3341 XAK3341 XAK3341 XAK3341 XAK3341 P11-16 Front Panel XMB3087 XMB3088 XMB3088 XMB3088 XMB3088 XMB3088 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 F. AMP ASSY F I R. AMP ASSY F J Mark Symbol and Description Part No. Remarks XWZ3596 XWZ3597 L3361, L3362, L3661 ATH1009 ATH1004 C3773 Not used CEAT101M35 R3361, R3362, R3661 RD1/2PMF101J RD1/2PMF100J XWZ3597 and XWZ3596 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3600 XWZ3601 L3461, L3462, L3561 ATH-059 ATH-133 R3461, R3462, R3561 RD1/2PMF101J RD1/2PMF100J XWZ3601 and XWZ3600 are constructed the same except for the following : CONNECT ASSY F L Mark Symbol and Description Part No. Remarks XWX3061 XWX3062 IC5353 Not used AN4558NS L5103 VTL1112 Not used L5379 VTL1081 VTL1087 C5203, C5204, C5209, C5210 CKSRYB102K50 CCSRCH101J50 C5241, C5247 Not used CEJQ100M35 C5382 CCSRCH331J50 Not used R5101 Not used RS1/16S750J R5109, R5250 Not used RS1/16S0R0J R5110 RS1/16S750J Not used R5241–R5248 Not used RS1/16S332J R9001, R9002 RS1/16S0R0J Not used XWX3062 and XWX3061 are constructed the same except for the following : PRIMARY ASSY F T Mark Symbol and Description Part No. Remarks XWZ3604 XWZ3603 C3365–C3368, C3371–C3373 CKSQYB104K50 Not used C3465–C3468, C3471, C3472, C3565, C3567, C3571 CKSQYB104K50 Not used C3369, C3370, C3669 (0.01µF) XCG3008 Not used C3469, C3470, C3569 CKSRYB103K50 Not used R3365–R3368, R3465–R3468, R3565, R3567 RS1/16S100J Not used SPEAKER ASSY F K XWZ3603 and XWZ3604 are constructed the same except for the following : DISPLAY ASSY F O XWZ3607 and XWZ3606 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3606 XWZ3607 CN5807 4P FFC CONNECTOR 52044-0445 Not used CN5807 7P FFC CONNECTOR Not used 52044-0745 XWZ3590 and XWZ3589 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3589 XWZ3590 S1 VOLTAGE SELECT SWITCH Not used XKX3002 T2 STANDBY TRANSFORMER ATT7050 XTT3004 H3–H6 FUSE CLIP Not used AKR7001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 PCB PARTS LIST Mark No. Description Part No. Mark No. Description Part No. F G FM/AM TUNER MODULE SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD Q201, Q204, Q205 2SC2412K Q202 DTA124ES Q203 DTC124EK D201 1SS133 D202 MTZJ5.1C COILS AND FILTERS L201 FM DETECTOR COIL ATE7003 F202 CERAMIC FILTER ATF-107 F201 CERAMIC FILTER ATF-119 F203 AM CERAMIC FILTER ATF1155 CAPACITORS C206 CCSRCH100D50 C212, C213, C226, C233–C235 CCSRCH101J50 C240 CCSRCH101J50 C231, C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 C228 CEAT3R3M50 C237 CEAT470M10 C211 CEJA1R0M50 C210 CEJA470M16 C204, C238, C602 CKSRYB102K50 C101, C102, C208, C220, C239 CKSRYB103K50 C242, C601 CKSRYB103K50 C216, C217 CKSRYB123K50 C225 CKSRYB153K50 C201, C205, C209, C214, C230 CKSRYB223K50 C236, C603 CKSRYB223K50 C221 CKSRYB224K10 C202, C222 CKSRYB473K16 C215 CKSRYB681K50 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R243 RS1/10S0R0J R103 RS1/10S331J R104 RS1/10S391J Other Resistors RS1/16S&&&J OTHERS CN201 13P CONNECTOR 52044-1345 BN201 TERMINAL 4P AKA7003 SHIELD CASE T ANK7072 SHIELD CASE B ANK7073 X201 CRYSTAL RESONATOR ASS1093 (7.2000MHz) FM FRONT END AXF7003 AM RF TUNING BLOCK AXX7071 MIC HP ASSY F O Mark Symbol and Description Part No. Remarks XWZ3609 XWZ3610 IC5802 Not used NJM4558MD C5805 Not used CKSRYB681K50 C5806 Not used CEAL1R0M50 C5807, C5812, C5813 Not used CEAL100M16 C5809 Not used CKSRYB471K50 C5810 Not used CKSRYB104K25 C5811 Not used CKSRYB473K25 R5814 Not used RS1/16S101J R5866 Not used RS1/16S222J R5867, R5872, R5874 Not used RS1/16S104J R5868, R5885 Not used RS1/16S223J R5869 Not used RS1/16S224J R5870 Not used RS1/16S681J R5871 Not used RS1/16S102J VR5801 Not used XCS3007 JA5801 MINI JACK Not used AKN7005 XWZ3610 and XWZ3609 are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 G F FM FRONT END AM RF TUNING BLOCK OSC : 981 - 2052kHz 9k step (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) G F FM/AM TUNER MODULE (AXQ7228) 2. SCHEMATIC DIAGRAM Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" 2.1 FM/AM TUNER MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 5 6 7 8 5 6 7 8 C D F A B E XV-HTD5 G F 2/3F H CN5701 L201 ATE7003 : TUNER AUDIO SIGNAL ROUTE (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 2.2 MAIN ASSY (2/3) H 2/3F H 2/3F MAIN ASSY (XWX3057) CN3702 CN5211 N 1/2 H 3/3F H 1/3 H 1/3 H 3/3F M CN5354 M (VCB) (C) (Y) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 5 6 7 8 C D F A B E XV-HTD5 H 2/3F CN3301 I CN3302 I CN3501 J CN3502 J CN201 : C SIGNAL ROUTE : DVD AUDIO SIGNAL ROUTE : VCB SIGNAL ROUTE : Y SIGNAL ROUTE (Y) (VCB) (C) (DVD) : SL AUDIO SIGNAL ROUTE : C AUDIO SIGNAL ROUTE : DI AUDIO SIGNAL ROUTE : FL AUDIO SIGNAL ROUTE (FL) (DI) (SL) (C) : TX AUDIO SIGNAL ROUTE : HP AUDIO SIGNAL ROUTE : SW AUDIO SIGNAL ROUTE (SW) (HP) (TX) : The power supply is shown with the marked box. G F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 2.3 MAIN ASSY (3/3) H 3/3F H 3/3F MAIN ASSY (XWX3057) CN15 CN5801 F 3/3 H 1/3 H 2/3F H 1/3 H 2/3F H 2/3F H1/3 H 1/3 H 1/3 CN5 F 2/3 O CN5802 O (VCB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 5 6 7 8 5 6 7 8 C D F A B E XV-HTD5 H 3/3F CN3701 N 1/2 CN55 F 2/3 T F O 2/3F H 1/3 CN11 A CN5807 J13 For DOWNLOAD : C SIGNAL ROUTE : DVD AUDIO SIGNAL ROUTE : VCB SIGNAL ROUTE : Y SIGNAL ROUTE (Y) (VCB) (C) (DVD) : TRAY POSITION SERVO LOOP LINE (T) : SEDO SERVO LOOP LINE (S) : HP AUDIO SIGNAL ROUTE (HP) : The power supply is shown with the marked box. 5 DISC TURN DRIVER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 2.4 CONNECT and B TO B ASSYS CONNECT ASSY (XWX3063) L F L F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 5 6 7 8 C D F A B E XV-HTD5 M B TO B ASSY (XWZ3615) M : The power supply is shown with the marked box. CN5209 H 2/3F CN3703 N 1/2 CN5352 H 2/3F : C SIGNAL ROUTE : DVD AUDIO SIGNAL ROUTE : VCB SIGNAL ROUTE : Y SIGNAL ROUTE (Y) (VCB) (VCB) (VCB) (VCB) (VCB) (VCB) (VCB) (VCB) (C) (DVD) : AUX OUT AUDIO SIGNAL ROUTE : TV AUDIO SIGNAL ROUTE : DI AUDIO SIGNAL ROUTE : FL AUDIO SIGNAL ROUTE (FL) (DI) (AO) (TV) : TX AUDIO SIGNAL ROUTE : AUX IN AUDIO SIGNAL ROUTE (AI) (TX) L F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 2.5 F. AMP ASSY CN3305 DC FAN MOTOR K KM200SA2 F. AMP ASSY (XWZ3597) I F I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 5 6 7 8 C D F A B E XV-HTD5 2.6 DISPLAY and HP MIC ASSYS HP MIC ASSY (XWZ3610) CN5502 H 3/3F PHONES : HP AUDIO SIGNAL ROUTE (HP) R F DISPLAY ASSY (XWZ3607) O F O F R F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 C D F A B E XV-HTD5 2.7 PRIMARY and INLET ASSY PRIMARY ASSY (XWZ3590) CN5011 H 1/3 CN5012 H 1/3 CN8503 H 3/3F T F T F XTT3004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 5 6 7 8 C D F A B E XV-HTD5 INLET ASSY (XWZ3594) AC IN U • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - U T F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
