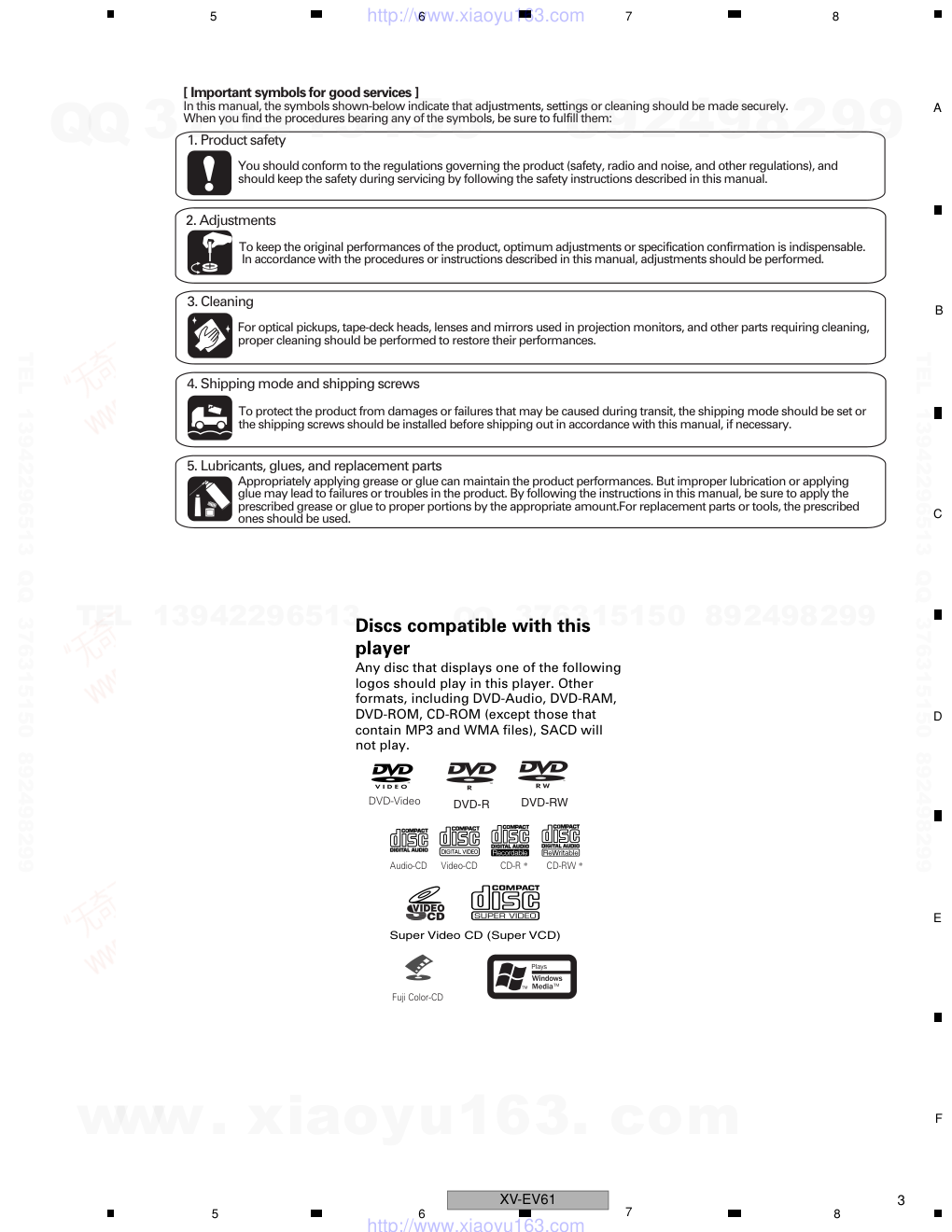

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 PGM ADV.SURR. SFC 96kHz LINE REC RDM RPT– 1 MONO RDS TUNED STEREO SUB Wf NR B.CUT REC ASES REC WAKE– UP KARAOKE L R ECHO KEY PRO LOGIC DIGITAL XV-EV61 RRV2793 STEREO DVD TUNER DECK RECEIVER XV-EV61 XV-EV31 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). This product is component of system. Model Type Power Requirement Regionalrestriction codes (Region No.) The voltage can be converted by the following method. XV-EV61 DLXJ/NC 110-127V/220-230V/240V 3 With the voltage selector XV-EV31 DLXJ/NC 110-127V/220-230V/240V 3 With the voltage selector Component System System Service manual MINI SYSTEM X-EV61D X-EV31D Stereo DVD Tuner Deck Receiver XV-EV61 XV-EV31 RRV2793(This manual) Speaker System S-EV61V S-EV31V RRV2776(EV61), RRV2800(EV31) T-ZZR JULY 2003 printed in Japan For details, refer to "Important symbols for good services" . www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do- it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 7 mW WAVELENGTH : 780 nm Additional Laser Caution ∗ : See page 107 1. Laser Interlock Mechanism • Loading switch (S101 on the LOAB Assy) is used for interlock mechanism of the laser. When this switch turned ON in SW2 (XCLOSE) side (OPEN signal is 0V and XCLOSE signal is 3.5V), a laser becomes the status which can completely oscillation. Furthermore, the laser completely oscillates in the disc judgment and disc playback. When player is power ON state and laser diode is not completely oscillating, 780nm laser diode is always oscillating by half power. • Laser diode is driving with Q101 (650nm LD) and Q102 (780nm LD) on the DVDM Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) • In the test mode ∗ , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. The interlock mechanism mentioned above becomes invalid in this mode. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK XV-EV61/DLXJ/NC (Printed on the Rear Panel B) SOUND MODE ADVANCED SURROUND SURROUND STANDBY/ON ST. MEMORY TIMER/CLOCK ADJ SYSTEM DISPLAY ENTER TIMER KARAOKE VOLUME STEREO DVD CASSETTE DECK RECEIVER EV61 DVD FULL LOGIC AUTO REVERSE STEREO CASSETTE DECK DVD/CD TUNER TAPE LINE OPEN/CLOSE DOLBY NR (DEMO) ASES MIC VOL PHONES MAX MIN MAIN MIC SUB REVERSE MODE REC/STOP PUSH OPEN TUNING – TUNING + 4 1 7 3/8 ¡ ¢ PGM ADV.SURR. SFC 96kHz LINE REC RDM RPT– 1 MONO RDS TUNED STEREO SUB Wf NR B.CUT REC ASES REC WAKE– UP KARAOKE L R ECHO KEY PRO LOGIC DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 3 5 6 7 8 5 6 7 8 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. Discs compatible with this player Any disc that displays one of the following logos should play in this player. Other formats, including DVD-Audio, DVD-RAM, DVD-ROM, CD-ROM (except those that contain MP3 and WMA files), SACD will not play. Audio-CD Fuji Color-CD DVD-Video Video-CD CD-R * CD-RW * DVD-R DVD-RW Super Video CD (Super VCD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 EXTERIOR SECTION................................................................................................................................ 8 2.3 AMP SECTION ........................................................................................................................................ 10 2.4 FRONT PANEL SECTION ....................................................................................................................... 12 2.5 LOADING MECHANISM ASSY ............................................................................................................... 14 2.6 TRAVERSE MECHANISM ASSY............................................................................................................. 16 2.7 DECK MECHANISM ASSY ..................................................................................................................... 18 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 20 3.1 OVERALL BLOCK DIAGRAM.................................................................................................................. 20 3.2 DVD SECTION BLOCK DIAGRAM.......................................................................................................... 22 3.3 OVERALL WIRING DIAGAM ................................................................................................................... 24 3.4 FM/AM TUNER MODULE........................................................................................................................ 28 3.5 DVDM ASSY(1/3)..................................................................................................................................... 30 3.6 DVDM ASSY(2/3)..................................................................................................................................... 32 3.7 DVDM ASSY(3/3)..................................................................................................................................... 34 3.8 DECK ASSY ............................................................................................................................................ 36 3.9 IF/AF ASSY(1/3) ...................................................................................................................................... 38 3.10 IF/AF ASSY(2/3) .................................................................................................................................... 40 3.11 IF/AF ASSY(3/3) .................................................................................................................................... 42 3.12 DSP ASSY(1/2)...................................................................................................................................... 44 3.13 DSP ASSY (2/2)..................................................................................................................................... 46 3.14 DISP ASSY ............................................................................................................................................ 48 3.15 MIC ASSY.............................................................................................................................................. 50 3.16 EVOL ASSY........................................................................................................................................... 52 3.17 MOD. AMP ASSY................................................................................................................................... 54 3.18 SP-TERMINAL and TRADE ASSYS...................................................................................................... 56 3.19 PRIMARY ASSY .................................................................................................................................... 58 3.20 SECONDARY ASSY.............................................................................................................................. 60 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 62 4.1 LOAB ASSY............................................................................................................................................. 62 4.2 FM/AM TUNER MODULE........................................................................................................................ 63 4.3 DVDM ASSY ............................................................................................................................................ 64 4.4 IF/AF ASSY.............................................................................................................................................. 66 4.5 DSP ASSY (XV-EV61 Only)..................................................................................................................... 70 4.6 MIC ASSY................................................................................................................................................ 71 4.7 DECK ASSY ............................................................................................................................................ 72 4.8 DISP1, DISP2 and DISP3 ASSYS........................................................................................................... 74 4.9 EVOL ASSY............................................................................................................................................. 76 4.10 SP-TERMINAL and TRADE ASSYS...................................................................................................... 80 4.11 MOD. AMP ASSY................................................................................................................................... 82 4.12 PRIMARY ASSY .................................................................................................................................... 84 4.13 SECONDARY......................................................................................................................................... 86 5. PCB PARTS LIST ........................................................................................................................................... 88 6. ADJUSTMENT ............................................................................................................................................. 101 6.1 DECK SECTION .................................................................................................................................... 101 6.1.1 Adjustment condition ....................................................................................................................... 101 6.1.2 Playback and Recording section ..................................................................................................... 102 6.2 TUNER SECTION.................................................................................................................................. 104 6.3 DVD SECTION ADJUSTMENT ITEMS ana LOCATION........................................................................ 105 6.4 JIGS and MEASURING INSTRUMENTS .............................................................................................. 105 6.5 NECESSARY ADJUSTMENT POINTS ................................................................................................. 106 6.6 TEST MODE .......................................................................................................................................... 107 6.7 MECHANISM ADJUSTMENT................................................................................................................ 108 7. GENERAL INFORMATION........................................................................................................................... 110 7.1 DIAGNOSIS ........................................................................................................................................... 110 7.2 PARTS.................................................................................................................................................... 145 7.3 CLEANING............................................................................................................................................. 158 8. PANEL FACILITIES ...................................................................................................................................... 159 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS Accessories Remote control unit (XXD3060 : EV61) (XXD3061 : EV31) AM loop antenna (ATB7009) FM wire antenna AC Power Cord (ADH7004) (ADG1154) AA size IEC R6P Dry cell batteries (x2) Specifications Manufactured under license from Dolby Laboratories. “Dolby” , “Pro Logic” , and the double-D symbol are trademarks of Dolby Laboratories. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. Manufactured under license from Digital Theater Systems, Inc. • Specifications and design subject to possible modification without notice, due to improvements. Video Cord (VDE1065) Amplifier Section X-EV61DVD model Continuous power output: Front . . . . . . . . . . . . . . . . . . . . . 75 W per channel (1kHz, 10 % T.H.D., 6 Ω) Center . . . . . . . . . 75 W (1kHz, 10 % T.H.D., 6 Ω) Surround . . . . . . . . . . . . . . . . . 75 W per channel (1kHz, 10 % T.H.D., 6 Ω) Subwoofer . . . . . 75 W (100Hz, 10 % T.H.D., 6 Ω) X-EV31DVD model Front . . . . . . . . . . . . . . . . . . . . . . . . . . 75 W + 75W (1 kHz, 10 % T.H.D., 6 Ω) Subwoofer . . . . 100 W (100Hz, 10 % T.H.D., 6 Ω) Disc section Digital audio characteristics . . . . . . . . . DVD fs: 96 kHz, 24-bit Type .DVD system, Video CD/Super VCD system and Compact Disc digital audio system Frequency response . . . . . . . . . . . 4 Hz to 44 kHz S/N ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . .95 dB Dynamic range . . . . . . . . . . . . . . . . . . . . . . .95 dB Total harmonic distortion . . . . . . . . . . . . . 0.005 % Wow and Flutter . . . . . . . .Limit of measurement (±0.001 % W.PEAK) or less (JEITA) Cassette deck section Systems . . . . . . . . . . . . 4 track, 2-channel stereo Heads . . . . . . . . . . . Recording/playback head x 1 Erasing head x 1 Motor . . . . . . . . . . . . . . . . . . . DC servo motor x 1 Tape types . . . . . . . . . . . . . . . . . . Type I (Normal) FM tuner section Frequency range . . . . . . . . . . . . . . 87.5 – 108MHz Antenna . . . . . . . . . . . . . . . . . . 75 Ω, unbalanced AM tuner section Frequency range With 9 kHz step . . . . . . . . 531 kHz to 1,602 kHz With 10 kHz step . . . . . . . 530 kHz to 1,700 kHz Antenna . . . . . . . . . . . . . . . . . . . . . . Loop antenna Miscellaneous Power requirements . . . . . .AC 110-127/220-230/ 240 V (switchable), 50/60 Hz Power consumption X-EV61DVD model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 W X-EV31DVD model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 W Power consumption in standby mode . . . 0.5 W Dimensions: DVD Tuner Deck Receiver . . . . . . . . . . . . . 170 (W) x 350.5 (H) x 335 (D) mm Weight: DVD Tuner Deck Receiver XV-EV61 . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3 kg XV-EV31 . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2 kg Accessories (Stereo DVD Cassette Deck Receiver) Remote control . . . . . . . . . . . . . . . . . . . . . . . . . 1 Power cord . . . . . . . . . . . . . . . . . . . . . . . 1 Video cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . . 1 FM antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Dry cell batteries (AA/R6) . . . . . . . . . . . . . . . . . . 2 Operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1 2 3 4 5 6 7 8 9 0 CLEAR ENTER SYSTEM SETUP HOME MENU TOP MENU DVD MENU SHIFT CHANNEL VOLUME INPUT SUBTITLE VOLUME ANGLE ZOOM ADVANCED MONO SYSTEM DISP DVD DISP ECHO DSP AUDIO DVD/CD TAPE FM/AM LINE SURROUND PROGRAM TEST TONE REPEAT CH LEVEL RANDOM SLEEP KARAOKE I — KEYCON —i TIMER CLOCK ADJ. MUTE RETURN FOLDER + FOLDER – SOUND MODE ENTER STANDBY/ON 4 /e E/ 1 ¡ ¢ 8 7 3 3 3 TUNE + ST + ST – TUNE – DVD 5.1ch DVD SURROUND SYSTEM XXD3060 TV CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: Yellow TV CONTROL 1 2 3 4 5 6 7 8 9 0 CLEAR ENTER SYSTEM SETUP DVD SETUP TOP MENU DVD MENU SHIFT CHANNELVOLUME INPUT SELECT SUBTITLE VOLUME ANGLE ZOOM ADVANCED MONOSYSTEM DISP DVD DISP ECHO DSP AUDIO DVD/CD TAPE FM/AM LINE SURROUND PROGRAM TEST TONE REPEAT CH LEVEL RANDOM SLEEP KARAOKE I — KEYCON — i TIMER CLOCK ADJ. MUTE RETURN FOLDER + FOLDER – SOUND MODE ENTER STANDBY/ON 4 /e E/ 1 ¡ ¢ 8 7 3 3 3 TUNE + TUNE – 1 3 4 5 6 7 2 9 Junction 10 11 15 12 13 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 7 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE XV-EV61/DLXJ/NC and XV-EV31/DLXJ/NC are constructed the same except for the following : Mark No. Description Part No. 1 Operating Instructions XRB3026 (English) 2 Operating Instructions XRC3109 (Chinese) NSP 3 Polyethylene Bag AHG1180 (0.03 x 230 x 340) 4 Packing Sheet XHG3010 5 Front Pad XHA3136 6 Rear Pad XHA3137 7 Packing Case See Contrast table (2) 8 • • • • > 9 AC Power Cord ADG1154 10 Remote Control Unit See Contrast table (2) 11 Battery Cover AZA7424 12 FM Anternna ADH7004 13 AM Loop Anternna ATB7009 14 Video Cord (Yellow 1P) VDE1065 NSP 15 Dry Cell Battery (AA/R6) VEM1031 Mark No. Description Part No. Mark No. Symbol and Description XV-EV61/DLXJ/NC XV-EV31/DLXJ/NC 7 Packing Case XHD3355 XHD3360 10 Remote Control Unit XXD3060 XXD3061 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION H F G E I H G F E D B A C J M L K To Cassete Deck D I J B L M A C C K Refer to "2.4 FRONT PANEL SECTION". Refer to "2.4 LOADING MECHA. ASSY". Refer to "2.3 AMP SECTION". C M F E D B CONTACT SIDE NON-CONTACT SIDE 30 49 29 28 4 38 7 32 10 12 18 16 23 14 13 21 32 31 32 24 25 2 10 47 46 43 40 17 32 31 32 5 12 3 48 46 32 45 34 34 45 27 32 15 32 9 32 11 8 35 26 46 32 14 32 1 22 XV-EV61 Only 38 47 11 38 36 33 33 6 33 33 37 from Secondary Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 9 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List (2) CONTRAST TABLE XV-EV61/DLXJ/NC and XV-EV31/DLXJ/NC are constructed the same except for the following : Mark No. Description Part No. 1 FM/AM TUNER Module AXQ7228 2 IF_AF Assy See Contrast table (2) 3 DECK Assy See Contrast table (2) 4 DVDM Assy See Contrast table (2) 5 DSP Assy See Contrast table (2) NSP 6 LOADING MECHA Assy VWT1208 NSP 7 Earth Lead Wire DE007VF0 NSP 8 Earth Lead Wire DE015VF0 9 11P Flat Flexible Cable XDD3142 10 13P Flat Flexible Cable XDD3140 11 30P Flat Flexible Cable XDD3137 12 30P Flat Flexible Cable XDD3143 NSP 13 DVD ASSY See Contrast table (2) 14 12P Flat Flexible Cable XDD3141 NSP 15 Laser Caution Label VRW1699 16 Mecha Frame XNG3102 17 Rear Panel A See Contrast table (2) 18 Rear Panel B See Contrast table (2) 19 • • • • 20 • • • • 21 DVD Shield XNG3103 22 Pri Holder XMR3084 23 Barrier S AEC7429 24 FFC Barrier A XEC3048 25 FFC Barrier B XEC3053 26 DECK PCB Holder XNG3115 27 Bonnet Case XZN3132 NSP 28 Tray Panel XAK3398 NSP 29 Tray Cap XAK3397 30 Front Panel Assy See Contrast table (2) 31 Screw VPZ30P080FZK 32 Screw BBZ30P080FZK 33 Screw BBZ30P080FMC 34 Screw BBZ30P080FNI 35 Push Rivet XEC3034 36 Adaptor 02 L ANW7267 37 Adaptor 02 R ANW7268 38 Screw BPZ30P080FMC 39 • • • • NSP 40 SISIR Label XAX3397 41 • • • • 42 • • • • NSP 43 ID Label VXW1002 44 • • • • 45 Screw BPZ30P080FNI 46 Screw BCZ30P060FMC NSP 47 FFC Cable See Contrast table (2) 48 Rivet AEC7205 49 Tray Cap Assy XXG3155 Mark No. Description Part No. Mark No Symbol and Description XV-EV61/ DLXJ/NC XV-EV31/ DLXJ/NC 2 IF_AF Assy XWZ3726 XWZ3733 3 DECK Assy XWX3072 XWX3073 4 DVDM Assy AXM7808 AXM7809 5 DSP Assy AWX8254 Not used NSP 13 DVD Assy AXA7121 AXA7122 17 Rear Panel A XNC3205 XNC3226 18 Rear Panel B XNC3206 XNC3233 30 Front Panel Assy XXG3156 XXG3158 NSP 47 FFC Cable XDD3138 XDD3139 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 AMP SECTION A A B B C C D D 35 33 27 35 35 27 27 28 27 38 36 28 6 10 10 9 5 4 1 14 41 22 26 19 27 29 33 35 16 13 36 31 39 27 32 32 Q P N K M L 40 To IF/AF Assy 27 11 29 35 35 31 27 35 34 27 27 7 27 3 35 2 26 26 23 21 23 CONTACT SIDE NON-CONTACT SIDE 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 11 5 6 7 8 5 6 7 8 C D F A B E AMP SECTION parts List (2) CONTRAST TABLE XV-EV61/DLXJ/NC and XV-EV31/DLXJ/NC are constructed the same except for the following : Mark No. Description Part No. 1 E-VOL Assy See Contrast table (2) 2 TRADE Assy See Contrast table (2) 3 AMP Assy See Contrast table (2) 4 SP-TERMINAL Assy See Contrast table (2) 5 SECONDARY Assy See Contrast table (2) 6 PRIMARY Assy XWZ3738 7 16P F. F. C./30V XDD3144 8 13P Jumper Connector 52151-1310 > 9 Fuse (FU1 : T5A) REK1029 > 10 Fuse (FU2, FU3 : T2.5A) See Contrast table (2) > 11 Power Transformer (T1) See Contrast table (2) 12 14P Jumper Connector 52151-1410 NSP 13 Chassis XNA3016 14 Rear Panel B See Contrast table (2) 15 • • • • • • • • 16 Module Holder F XNG3112 17 4P Jumper Connector 52151-0410 18 Push Rivet AEC7120 19 Leg Cushion XEB3028 20 • • • • • • • • 21 FAN Barrier XEC3050 22 Primary Holder XMR3084 23 Push Rivet XEC3034 24 • • • • • • • • 25 • • • • • • • • 26 Binder ZCA-SKB90BK 27 Screw BBZ30P080FZK 28 Screw VPZ30P080FZK 29 Screw ASZ40P060FMC 30 FAN Holder ANG7417 31 FET Bracket A ANG7418 32 Heat Sink ANH7159 33 FAN Plate ANG7462 34 DC FAN Motor AXM7025 35 Screw BBZ30P140FMC 36 Screw BBZ30P300FZK 37 • • • • • • • • 38 Screw BCZ30P060FMC 39 Module Holder R XNG3113 40 J1 Wire Cable XDX3065 41 Speaker Label See Contrast table (2) Mark No. Description Part No. Mark No Symbol and Description XV-EV61 /DLXJ/NC XV-EV31 /DLXJ/NC 1 E-VOL Assy XWZ3736 XWZ3741 2 TRADE Assy XWZ3740 XWZ3745 3 AMP Assy AWM7720 AWM7787 4 SP-TERMINAL Assy XWZ3737 XWZ3742 5 SECONDARY Assy XWZ3739 XWZ3743 > 10 Fuse (FU2, FU3) AEK1058 AEK1059 (2.5A/250V) (3.15A/250V) > 11 Power Transformer (T1) XTS3070 XTS3071 14 Rear Panel A XNC3205 XNC3226 41 Speaker Label XAX3401 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 12 1 2 3 4 1 2 3 4 C D F A B E 2.4 FRONT PANEL SECTION A A B B CONTACT SIDE NON-CONTACT SIDE I G H O J 1 6 8 9 11 13 7 14 21 22 26 35 24 25 29 27 17 17 18 3 19 2 23 34 31 40 32 20 10 5 4 30 15 12 37 16 39 36 43 41 38 33 33 33 33 33 42 33 33 33 33 33 33 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 13 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List (2) CONTRAST TABLE XV-EV61/DLXJ/NC and XV-EV31/DLXJ/NC are constructed the same except for the following : Mark No. Description Part No. 1 DISP 1 Assy XWZ3727 2 DISP 2 Assy XWZ3728 3 DISP 3 Assy XWZ3729 4 H.P Assy XWZ3731 5 MIC Assy See Contrast table (2) 6 4P Jumper Connector D20PYY0420E 7 LCD XAV3017 8 8P Jumper Connector D20PYY0805E 9 LCD Holder XMR3074 10 MIC Knob XAA3024 11 Diffusion Sheet XAK3400 NSP 12 Display Window XAK3392 13 LCD LT Cond XAK3399 NSP 14 Grille Panel A See Contrast table (2) 15 Sensor Cover XAK3396 16 Timer Lens XAK3403 17 FUNC. LT Cond XAK3401 18 Ratch Mold R XMR3002 19 Ratch Spring R ABH7131 NSP 20 Grille Panel B XAK3395 21 Display Button L XAD3165 22 Display Button R XAD3166 23 VOL. Button Assy XXG3159 24 Dolby Button L XAD3167 25 Dolby Button R XAD3168 26 FUNC. Button XAD3169 27 Play LT Cond XAK3402 28 • • • • 29 Play Button XAD3171 NSP 30 Front Panel See Contrast table (2) 31 Damper Assy AXA7052 32 Leg Cushion XEB3028 33 Screw VPZ30P080FZK NSP 34 DECK Door XAN3052 35 DECK Mechanism Unit XYM3016 36 Front Panel Assy See Contrast table (2) NSP 37 DECK Panel XAK3394 38 Door Spring R XBH3002 39 Earth Led Wire DE007VEO 40 GND Plate XNG3104 41 Binder ZCA-SKB90BK 42 DECK Shield Wire XDE3062 43 DECK Door Assy XZN3136 Mark No. Description Part No. Mark No. Symbol and Description XV-EV61/DLXJ/NC XV-EV31/DLXJ/NC 5 MIC Assy XWZ3730 XWZ3734 14 Grille Panel A XAK3393 XAK3420 NSP 30 Front Panel XMB3123 XMB3125 36 Front Panel ASSY XZN3134 XZN3135 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 14 1 2 3 4 1 2 3 4 C D F A B E 2.5 LOADING MECHANISM ASSY LOADING MECHANISM ASSY parts List A A To DVDM CN101 (Pickup Assy-S) To DVDM CN104 (Stepping Motor) To DVDM CN105 (Spindle Motor) 2 3 5 4 12 23 13 17 21 16 22 15 14 22 22 22 20 18 19 9 1 7 10 11 6 8 8 8 8 A Refer to "2.7 TRAVERSE MECHA. ASSY-S". Lubricating Oil GYA1001 Lubricating Oil GYA1001 Daifree GEM1036 " Application of Lubricant" Note: Mark No. Description Part No. NSP 1 LOAB Assy VWG2346 2 Traverse Mechanism Assy-S VXX2871 3 Loading Motor Assy VXX2872 4 Motor Pulley PNW1634 5 Carriage DC Motor / 0.3W VXM1105 6 Flexible Cable (26P) VDA1944 7 Connector Assy 2P VKP2286 8 Float Rubber VEB1351 9 Belt VEB1330 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base DVD VNL1918 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate VNE2251 19 Bridge VNE2252 20 Clamper VNL1924 21 Screw JGZ17P028FMC 22 Screw Z39-019 23 Tray VNL1920 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 15 5 6 7 8 5 6 7 8 C D F A B E Around the shaft Front View Rear View Inner side of a ditch Side of the rib Top View Bottom View Application of Lubricant No. 11 Loading Base No. 13 Drive Cam No. 13 Drive cam No. 23 Tray No. 23 Tray Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Daifree GEM1036 Daifree GEM1036 Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 16 1 2 3 4 1 2 3 4 C D F A B E 2.6 TRAVERSE MECHANISM ASSY To DVDM CN104 (Stepping Motor) To DVDM CN105 (Spindle Motor) To DVDM CN101 (Pickup Assy) CONTACT SIDE NON-CONTACT SIDE 12 3 7 8 1 17 16 17 10 13 17 10 6 5 4 (Adjustment spring) (Adjustment screw) 11 14 16 2 9 Screw Tight GYL1001 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 15 (Torque: 0.12 ± 0.01 N•m) 15 (Torque: 0.12 ± 0.01 N•m) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 17 5 6 7 8 5 6 7 8 C D F A B E TRAVERSE MECHANISM ASSY parts List Mark No. Description Part No. 1 Spindle Motor VXM1099 2 Stepping Motor VXM1101 > 3 Pickup Assy-S OXX8005 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mechanism Chassis VNE2248 12 Damper Sheet VEB1335 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw OBA8021 16 Screw BBZ20P050FZK 17 Screw PMA26P100FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 18 1 2 3 4 1 2 3 4 C D F A B E 2.7 DECK MECHANISM ASSY A A CONTACT SIDE NON-CONTACT SIDE 7 1 2 8 10 6 5 4 9 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 19 5 6 7 8 5 6 7 8 C D F A B E DECK MECHANISM ASSY parts List Mark No. Description Part No. 1 Main Belt FF19N-22 2 F/R Belt FF19S-31 3 Plate HD Blk F513-847 4 Roller Pinch Blk R F514-133 5 Roller Pinch Blk L F514-134 6 Clutch Assy Blk F522-063 7 Motor Main Blk F525-334 8 PCB Control Blk F567-705 9 11P F. F. C / 30V XDD3142 10 18P F. F. C / 30V XDD3138 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 20 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 OVERALL BLOCK DIAGRAM CN CN5903 CN5905 EV-61 : PDC108A EV-31 : PDC109A 16,17 5,6 8,9 7 7 7 12 3 3 3 4 61 62 2 20 21,22 11 2 RECL PBL 17 16 2 IC 901 IC 701 IC 501 VDVD VPR IC8501 IC8201 DSPD56367PV150 AK4114VQ 89 3 2 DSP ASSY XV-EV61 Only F DECK ASSY D IF/AF ASSY E DVDM ASSY B DISP1 ASSY I (D) (D) (V) (Y) (C) 3.1.1 SIGNAL ROUTE(1/2) (REC) Refer to 3.1.2 SIGNAL ROUTE(2/2) CN5509 CN5501 CN5505 CN5801 CN2506 CN5101 CN8003 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 21 5 6 7 8 5 6 7 8 C D F A B E CN8303 JA5401 CN3002 CN3008 CN5506 BD3814FV JA5903 HP AMP CN8007 CN5506 AK4529VQ CN5701 IC3401 STK402-270 IC8301 J3902 JA3901 CN3012 CN3307 CN3305 CN3002 CN3011 CN3007 FL OUT SW OUT SL C SW FL MIC ASSY J H.P ASSY O M SP-TERMINAL ASSY N EVOL ASSY K FM/AM TUNER MODULE C SIGNAL ROUTE : PB SIGNAL : RECORDING SIGNAL (D) (PB) (PB) (PB) (PB) (PB) (TX) (REC) (REC) : AUDIO SIGNAL (TUNER) (V) (V) (TX) (TX) : V SIGNAL VIDEO (Y) (Y) : Y SIGNAL VIDEO (C) (C) : C SIGNAL VIDEO (SL) (FL) : SL AUDIO SIGNAL : FL AUDIO SIGNAL : C AUDIO SIGNAL (SW) (C) : SW AUDIO SIGNAL : DIGITAL AUDIO ROUTE CN5401 CN5105 6ch AMP ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 22 1 2 3 4 1 2 3 4 C D F A B E 3.2 DVD SECTION BLOCK DIAGRAM 18 16 8 6 9 10 3 4 23 22 21 24 IC601 STM5589CVA Back End IC IC603 VYW2077 FLASH ROM IC602 K4S641632F-TC75 64M SDRAM 16 B_DATA B DVDM ASSY SPINDLE MOTOR LD(650) PICKUP ASSY-S OEIC 7 LD(780) 9 A 17 C 19 B1 16 B2 15 B3 22 B4 21 TRKG DRV 2 TRKG RTN 3 FOCS DRV 4 FOCS RTN 1 X601 27MHz (2/3) (3/3) IC604 TC7WU04FU 120 PIXCLK 5 3 2 6 X301 20MHz IC301 STM6316ATXXA Front End IC 89 6 90 8 14 12 64 87 86 Q201,Q202 Q211,Q212 LD1 LD2 A 21 E 20 F B C D OUT_DATA 44 PC(6) 55 PD(0) FREIN FREOUT 70 PE(1) 38 PC(2) IC101 M63018FP FTS Driver 30 31 34 35 TO- SPDL PDM LOAD DRV 26 40 SPIN LOIN+ TO+ FO- FE DATA FO+ A LOAB ASSY CLOSE OPEN CLOSE OPEN LOADING MOTOR ASSY LOAD+ SW2 V+3D LOAD- + – M S101 2 1 1 2 3 4 1 2 SW1 5 5 3 4 CN103 CN601 LO- CN602 4 5 6 7 8 9 CN105 (12P) H1+ H1- H2+ H2- H3+ H3- STEPPING MOTOR ST2- ST2+ ST1+ ST1- M 4 3 2 1 CN104 52 PCMDATA0 A DATA0 57 SPDIF DOUT CN1013 (24P) CN101 (24P) HW- HW+ HV- HV+ HU- HU+ 16 17 18 19 20 21 6 SL2- 5 SL2+ 9 SL1+ 10 SL1- 36 LO+ 37 V+3R3_FED V+3R3 V+3R3_FED V+3R3_FEA V+1R8_BE V+3D IC421 PQ018EH01ZP 1.8V Reg. 1 3 V+1R8_FEA V+1R8_FED IC411 PQ018EZ01ZP 1.8V Reg. 1 3 34 CV_OUT V 32 Y_OUT S_Y 33 C_OUT S_C 27 R_OUT R/Cr 26 G_OUT G/Y 25 B_OUT B/Cb V S_Y S_C R/Cr G/Y B/Cb 3.1.2 SIGNAL ROUT(2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 23 5 6 7 8 5 6 7 8 C D F A B E V C Y DVDL DVDR IC701 PCM1742KE Audio 2ch DAC IC911 TC74VHC08FT 5V → 3V Converter IC901 TC74VHC125AFT 3V → 5V Converter A DATA0 DOUT 2 7 VoutL DATA MUTE2 MUTE1 4 6 2 8 10 CN902 (11P) CN923 (18P) DOUT DVDPOWER XDVDRST SYS_CS1 SYS_CS2 SDATA XVMUTE SCLK ACK VDET 21 18 17 16 15 13 5 14 11 8 CN901 (30P) 8 VoutR CN5904 E CN5903 E MDATA 12 DVDTRKUP 7 V+5 V+5V V+5D IC401 R1224N102H 3V Reg. Q451 29 VPR+8 28 VPR+8 VPR+8 30 VDVD+12 VDVD+12 V+12 27 VPR+8M 26 VPR+8M VPR+8M 6 3 IC431 MM1565AF 5V Reg. 7 1 V+6 IC441 PQ20WZ11 6V Reg. 1 3 16 18 14 12 8 10 V S_Y S_C R/Cr G/Y B/Cb V S_Y S_C R/Cr G/Y B/Cb V S_Y S_C R/Cr G/Y B/Cb V S_Y S_C R/Cr G/Y B/Cb IC501 MM1623AF Video Driver Amp. 4 2 6 10 12 14 23 V OUT C OUT Y OUT 26 21 18 16 20 V IN C IN Y IN CY IN CY OUT Cb OUT Cr OUT Cb IN Cr IN CN5905 EV61 Only EV31 Only E 3 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 24 1 2 3 4 1 2 3 4 C D F A B E 3.3 OVERALL WIRING DIAGAM DECK MECHA. (XYM3016) DSP ASSY (AWX8254 / XV-EV61) 1/2 F - 2/2 MIC ASSY (XWZ3730/ XV-EV61) (XWZ3734/ XV-EV31) J DECK ASSY (XWX3072/XV-EV61) (XWX3073/XV-EV31) D I F DISP3 ASSY (XWZ3729) DISP2 ASSY (XWZ3728) DISP1 ASSY (XWZ3727) G H 3.3.1 OVERALL WIRING DIAGRAM (1/2) To-OVERALL WIRING DIAGRAM (2/2) CN2506 CN2302 CN8334 CN8281 CN2301 CN8280 J5102 CN5505 CN8003 CN5507 CN8011 CN5506 CN8007 CN8302 CN5105 CN5501 CN5503 J5103 CN5102 CN5104 J3002 D20PYY1520E K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 25 5 6 7 8 5 6 7 8 C D F A B E IF/AF ASSY (XWZ3726 / XV-EV61) (XWZ3733 / XV-EV31) E C FM/AM TUNER MODULE (AXQ7228) 1/2- E E 2/2 To-OVERALL WIRING DIAGRAM (2/2) CN5502 CN5903 CN5801 CN8303 CN5904 CN5905 CN5902 CN901 CN903 CN902 CN5701 CN201 CN3001 ( ( LOAB ASSY (VWG2346) A A K PICKUP ASSY-S (OXX8005) DVD ASSY (AXA7123) STEPPING MOTOR : VXM1101 LOADING MOTOR ASSY : VXX2505 SPINDLE MOTOR : VXM1099 B 1/3- B 3/3 B DVDM ASSY (AXM7809/XV-EV31) DVDM ASSY (AXM7808/XV-EV61) (F) (F) (T) (T) (S) (S) (S) (S) (RF) (RF) (RF) (RF) (RF) (RF) Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" XDD3143 : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE (F) (T) : RF SIGNAL ROUTE (RF) (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 26 1 2 3 4 1 2 3 4 C D F A B E CN8302 E AMP MODULE ASSY (AWM7720 / XV-EV61) (AWM7787 / XV-EV31) M IF/AF ASSY E TRADE ASSY (XWZ3740/XV-EV61) (XWZ3745/XV-EV31) L SP-TERMINAL ASSY (XWZ3737 /XV-EV61) (XWZ3742 /XV-EV31) N K E-VOL ASSY (XWZ3736/XV-EV61) (XWZ3741/XV-EV31) 3.3.2 OVERALL WIRING DIAGARAM (2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 27 5 6 7 8 5 6 7 8 C D F A B E CN8303 E SECONDARY ASSY (XWZ3739/XV-EV61) (XWZ3743/XV-EV31) Q IF/AF ASSY E PRIMARY ASSY (XWZ3738) P K HP ASSY (XWZ3731) O E-VOL ASSY (XWZ3736/XV-EV61) (XWZ3741/XV-EV31) T1 POWER TRANSFORMER XTS3070:XV-EV61 XTS3071:XV-EV31 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 28 1 2 3 4 1 2 3 4 C D F A B E 3.4 FM/AM TUNER MODULE C FM FRONT END MW RF TUNING BLOCK C OSC : 981 - 2052kHz 9k step FM/AM TUNER MODULE (AXQ7228) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 29 5 6 7 8 5 6 7 8 C D F A B E C L201 ATE7003 CN5701 E CN201 : AUDIO SIGNAL ROUTE (TUNER) (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 30 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVDM ASSY(1/3) B 1/3 B 1/3 DVDM ASSY (AWM7808/XV-EV61) (AWM7809/XV-EV31) PICKUP ASSY-S SPINDLE MOTOR STEPPING MOTOR CN601 A 3 (F) (F) (RF) (RF) (RF) (RF) (RF) (RF) (T) (T) (S) (S) (S) (S) (S) (S) (S) (S) (F) (F) (T) (T) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 31 5 6 7 8 5 6 7 8 C D F A B E B 1/3 B 2/3 1 2 4 5 : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE (F) : RF SIGNAL ROUTE (RF) : FE DATA SIGNAL ROUTE (T) (S) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) (RF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 32 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVDM ASSY(2/3) B 2/3 B 2/3 DVDM ASSY (AWM7808/XV-EV61) (AWM7809/XV-EV31) (Y) (C) (C/V) (AD) (AD) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 33 5 6 7 8 5 6 7 8 C D F A B E B 2/3 B 3/3 B 1/3 6 9 8 10 11 7 14 12 13 15 16 17 : RF SIGNAL ROUTE (RF) : FE_DATA SIGNAL ROUTE : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (C) (C) : VIDEO SIGNAL ROUTE (C/V) (C/V) : AUDIO DATA SIGNAL ROUTE (AD) : AUDIO SIGNAL ROUTE (DIGITAL) (D) : AUDIO SIGNAL ROUTE (DVD_L ch) (DVD) (DVD) (DVD) (DVD) (Y) (Y) (Y) (C) (C) (C) (Y) (C/V) (C) (C) (C/V) (C/V) (C/V) (C/V) (AD) XV-EV31 Only XV-EV31 Only XV-EV61 Only XV-EV61 Only B 3/3 (Y) (CY/G) (PR/R) (PB/B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 34 1 2 3 4 1 2 3 4 C D F A B E 3.7 DVDM ASSY(3/3) B 3/3 B 2/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 35 5 6 7 8 5 6 7 8 C D F A B E B 3/3 B 3/3 CN5904 CN5903 E 1/3 B 2/3 E B 2/3 B 2/3 : The power supply is shown with the marked box. DVDM ASSY (AWM7808/XV-EV61) (AWM7809/XV-EV31) XV-EV31 Only XV-EV31 Only B 2/3 (Y) (C) (C/V) (Y) (C) (C/V) (Y) (C) (C/V) (Y) (C) (C/V) (CY/G) (CY/G) (CY/G) (CY/G) (Cr/R) (Cr/R) (Cr/R) (Cr/R) (Cb/B) (Cb/B) (Cb/B) (Cb/B) 10 11 13 12 9 8 : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (C) (C) : S VIDEO SIGNAL ROUTE (C/V) (C/V) : DIGITAL AUDIO SIGNAL ROUTE (D) : AUDIO SIGNAL ROUTE (DVD_L ch) (DVD) (DVD) (Y) (C) (C/V) (Y) (C) (C/V) (Y) (C) (C/V) (D) (D) CN5905 E 1/3 : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (Cr/R) (Cr/R) : VIDEO SIGNAL ROUTE (Cb/B) (Cb/B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 36 1 2 3 4 1 2 3 4 C D F A B E 3.8 DECK ASSY D DECK ASSY (XWX3072/XV-EV61) (XWX3073/XV-EV31) D (PB) (PB) (REC) (REC) (REC) (REC) (REC) CN2301 CN2302 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 37 5 6 7 8 5 6 7 8 C D F A B E D EV-61 EV-31 EV61:-16.3dBV EV31:- 6.5dBV : The power supply is shown with the marked box. CN2506 E CN5801 SIGNAL ROUTE : PB SIGNAL : RECORDING SIGNAL (REC) (REC) (PB) (PB) (PB) (PB) (PB) (PB) (PB) (REC) (REC) (REC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 38 1 2 3 4 1 2 3 4 C D F A B E 3.9 IF/AF ASSY(1/3) E 1/3 J1 from Secondary Assy IF/AF ASSY (XWZ3726/ XV-EV61) (XWZ3733/ XV-EV31) E B Q CN901 CN5505 CN5506 CN5902 CN5903 CN8007 CN8011 CN8003 F 2/2 F 1/2 F 1/2 CN5507 CN5502 (D) (D) XV-EV61 Only XV-EV61 Only XV-EV61 Only XV-EV61 Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 39 5 6 7 8 5 6 7 8 C D F A B E E 1/3 EV61 : The power supply is shown with the marked box. D CN2506 B CN903,CN902 I CN5101 C CN201 To. Mecha Deck SIGNAL ROUTE : CD AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (TUNER) : DIGITAL SIGNAL ROUTE (TX) (CD) CN5501 CN5701 CN5905 CN5904 E 2/3 E 2/3 E 2/3 XV-EV61 Only XV-EV31 Only CN5503 CN5801 (TX) (D) XV-EV31 Only (S_C) (S_Y) (S_Y) (S_C) : S-VIDEO OUT C SIGNAL ROUTE (V) : V SIGNAL ROUTE : S-VIDEO OUT Y SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 40 1 2 3 4 1 2 3 4 C D F A B E 3.10 IF/AF ASSY(2/3) E 2/3 E 1/3 E 3/3 E 1/3 (REC) (TX) (TX) (TX) (TX) (TX) (PB) (CD) (CD) (AUX) (CD) (CD) (AUX) (AUX) (AUX) (AUX) (AUX) XV-EV31 Only XV-EV61 Only XV-EV31 Only XV-EV31 Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 41 5 6 7 8 5 6 7 8 C D F A B E E 2/3 : The power supply is shown with the marked box. IF/AF ASSY (XWZ3726 / XV-EV61) (XWZ3733 / XV-EV31) E SIGNAL ROUTE : PB SIGNAL : RECORDING SIGNAL (PB) CN5105 2/3 J J5401 (REC) (REC) (REC) (REC) (REC) (REC) (TX) (TX) : AUDIO SIGNAL (TUNER) (CD) (TX) : CD SIGNAL (AUX) : AUX SIGNAL (MIC) (MIC) (MIC) (MIC) (MIC) : MIC OUT SIGNAL XV-EV61 Only EV31 Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 42 1 2 3 4 1 2 3 4 C D F A B E 3.11 IF/AF ASSY(3/3) E 3/3 E 1/3 E 1/3 E 1/3 E 1/3 SIGNAL ROUT : AUDIO SIGNAL (TUNER) (TX) (TX) (TX) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 43 5 6 7 8 5 6 7 8 C D F A B E E 3/3 K CN3001 CN8303 CN8302 K J3002 IF/AF ASSY (XWZ3726 / XV-EV61) (XWZ3733 / XV-EV31) E 3/3 XV-EV61 Only : The power supply is shown with the marked box. (TX) (TX) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 44 1 2 3 4 1 2 3 4 C D F A B E 3.12 DSP ASSY(1/2) F 1/2 F 1/2 DSP ASSY (AWX8254) XV-EV61 : Only F 2/2 F 2/2 F 2/2 (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 45 5 6 7 8 5 6 7 8 C D F A B E F 1/2 3.3V Reg. 1.8V Reg. : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (DIGITAL) (D) : AUDIO SIGNAL ROUTE (DVD Lch) (DVD) : AUDIO SIGNAL ROUTE (L ch) : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) : AUDIO DATA SIGNAL ROUTE (AD) (D) (D) (D) (D) (D) (D) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (FL) (FL) (SL) (SL) (C) (C) (SW) (SW) (DVD) (DVD) (DVD) E 1/3 CN5505 E 1/3 CN5506 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 46 1 2 3 4 1 2 3 4 C D F A B E 3.13 DSP ASSY (2/2) F 2/2 F 2/2 DSP ASSY (AWX8254) XV-EV61 : Only F 1/2 F 1/2 F 1/2 : The power supply is shown with the marked box. (D) (D) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) E 1/3 CN5507 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 47 5 6 7 8 5 6 7 8 C D F A B E F 2/2 : AUDIO SIGNAL ROUTE (DIGITAL) (D) : AUDIO DATA SIGNAL ROUTE (AD) (D) (D) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 48 1 2 3 4 1 2 3 4 C D F A B E 3.14 DISP ASSY G H I DISP 3 ASSY (XWZ3728) G DISP 1 ASSY (XWZ3727) I DISP 2 ASSY (XWZ3728) H CN5104 J5103 J5103 DISP 3 ASSY S5301: KARAOKE S5202: DOBLY NR S5203: ASES S5204: PLAY/PAUSE S5305: TUNING- S5306: TUNING+ S5307: STOP S5308: REVERSE S5309: REC/STOP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 49 5 6 7 8 5 6 7 8 C D F A B E H I : The power supply is shown with the marked box. DISP 2 ASSY (XWZ3728) H E CN5501 J5202 CN5102 CN5101 DISP 2 ASSY S5201: DVD/CD S5202: TAPE S5203: TUNER S5204: LINE S5205: OPEN/CLOSE S5206: VOL - S5207: VOL+ DISP 1 ASSY S5101: Sound by/ ON S5102: SOUND MODE S5103: EV-61_Advance Surround EV-31_Virtual Surround S5104: EV-61_Surround EV-31_SFC S5105: Enter S5106: ST Memory S5107: Display S5108: TIME/CLOCK ADJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 50 1 2 3 4 1 2 3 4 C D F A B E 3.15 MIC ASSY J H.P ASSY (XWZ3731) O O K CN3008 JA5401 JA5402 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 51 5 6 7 8 5 6 7 8 C D F A B E J : The power supply is shown with the marked box. MIC ASSY (XWZ3730 / XV-EV61) (XWZ3734 / XV-EV31) J E CN5105 J5401 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 52 1 2 3 4 1 2 3 4 C D F A B E 3.16 EVOL ASSY CN3 CN8302 Q J3902 O E 3/3 CN8303 E 3/3 K (FL) (FL) (SW) (FL) (SL) (SL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (FL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 53 5 6 7 8 5 6 7 8 C D F A B E R3955 R3955 EV61 : 270 /3W EV31 : 390 /3W CN3307 N : The power supply is shown with the marked box. J3033 L J3032 L CN3031 L E-VOL ASSY (XWZ3736/XV-EV61) (XWZ3741/XV-EV31) CN3305 N K K : FL AUDIO SIGNAL ROUTE (FL) : SL AUDIO SIGNAL ROUTE (SL) : C AUDIO SIGNAL ROUTE (C) (FL) (FL) (FL) (FL) (FL) (SW) (FL) (FL) (FL) (C) (SW) (FL) (SL) (C) (SW) (SL) (SL) (SL) (SW) (SL) (C) (C) (C) (C) (C) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491005 FOR IC3102 MFD, BY LITTELFUSE INC. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 54 1 2 3 4 1 2 3 4 C D F A B E 3.17 MOD. AMP ASSY (FL) (SL) (FL) (FL) (FL) (C) M MOD. AMP ASSY (AWM7720/XV-EV61) (AWM7787/XV-EV31) M CN3021 L CN3022 L To Fan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 55 5 6 7 8 5 6 7 8 C D F A B E : AUDIO SIGNAL ROUTE (FL) M : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 56 1 2 3 4 1 2 3 4 C D F A B E 3.18 SP-TERMINAL and TRADE ASSYS STBY STBY STBY STBY STBY N SP-TERMINAL ASSY (XWZ3737 / XV-EV61) (XWZ3742 / XV-EV31) N : The power supply is shown with the marked box. CN3007 K CN3006 K (FL) (FL) (SW) (SL) (SL) (SL) (C) (C) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 57 5 6 7 8 5 6 7 8 C D F A B E TRADE ASSY (XWZ3740 / XV-EV61) (XWZ3745 / XV-EV31) L CN3001 M CN3002 M CN3011 K CN3012 K CN3013 K L : FL AUDIO SIGNAL ROUTE (FL) : SL AUDIO SIGNAL ROUTE (SL) : C AUDIO SIGNAL ROUTE (C) (FL) (FL) (SL) (SL) (C) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 58 1 2 3 4 1 2 3 4 C D F A B E 3.19 PRIMARY ASSY P J3009 K 1SS133 1SS133 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 59 5 6 7 8 5 6 7 8 C D F A B E PRIMARY ASSY (XWZ3738) P • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - P REK1029 AC IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 60 1 2 3 4 1 2 3 4 C D F A B E 3.20 SECONDARY ASSY Power Transformer XV-EV61 : XTS3070 XV-EV31 : XTS3071 SECONDARY ASSY (XWZ3739 / XV-EV61) (XWZ3743 / XV-EV31) Q Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 61 5 6 7 8 5 6 7 8 C D F A B E J1 XDE3065 To Q K CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491005 FOR IC31 AND IC41 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491007 FOR IC21 AND IC22 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491010 FOR IC11 AND IC12 MFD, BY LITTELFUSE INC. CN3003 E 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 62 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY SIDE A SIDE B A A C101 C102 V+3D SW2 (V+5D) LOAD- LOAD+ PYKC F6 GND 5 1 5 1 CN601 CN602 1 2 CN601 CN602 S101 VNP1910- VWG LOAB VWG2426- 5 1 1 2 1 5 (VNP1910-A) LOAB ASSY A LOADING MOTOR ASSY M CN103 B CN601 CN602 CN602 CN601 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 63 5 6 7 8 5 6 7 8 C D F A B E 4.2 FM/AM TUNER MODULE (ANP7338-B) (ANP7338-B) CN5701 E FM/AM TUNER MODULE C FM/AM TUNER MODULE C IC201 Q205 Q204 Q203 IC202 Q201 Q202 C C SIDE A SIDE A SIDE B CN201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 64 1 2 3 4 1 2 3 4 C D F A B E 4.3 DVDM ASSY E C425 R354 1 12 1 4 5 8 26 50 51 75 76 2 10 17 1 2 1 53 105 156 208 24 1 4 5 8 1 8 9 16 29 1 14 1 30 1 11 1 11 1 18 18 1 3 4 5 5 1 1 4 51 75 100 1 25 1 24 22 42 1 21 NP 1 9 24 23 2 1 1 8 104 53 52 1 157 156 2 1 23 23 24 2 1 1 5 4 2 30 7 1 8 5 7 1 4 1 30 1 18 5 C231 CN105 R123 R102 C102 C101 R204 C201 CN104 C120 C118 C116 C126 C202 CN103 R202 R203 IC201 C221 R201 R346 C346 R221 R223 C357 C335 Q202 R124 R222 R101 C362 R364 R361 R363 R365 R369 R368 C222 C124 L361 C342 C326 C323 C315 C309 C318 C348 C388 C377 IC301 C373 C391 C300 C132 C139 C142 C128 C127 CN101 C212 Q212 R214 C211 R213 R212 R211 IC101 C112 C113 C114 C130 R131 R135 C134 Q201 X301 CN301 R220 R366 R367 C301 C302 C304 C305 R390 Q390 L390 R392 R391 C393 C390 C392 C394 C303 Q211 C151 Q193 Q192 R151 L191 L192 L193 L194 C307 C306 C354 C133 R191 R192 R194 R196 R197 R199 R378 R379 R382 R383 R385 R386 R384 R394 R396 R310 R301 R334 R333 R332 R336 R337 R338 R339 R340 R341 R342 R344 R397 R398 CN121 CN122 CN123 CN124 R389 R300 IC601 C621 C644 C640 X601 C664 CN609 CN608 IC604 C690 C604 C614 C623 C630 C637 C648 C647 C681 C694 C607 C619 C622 C636 C649 C641 C659 C671 C684 C698 C660 C650 C651 C564 R1069 R1084 C561 C707 C706 C705 C708 R721 C709 R714 C710 C703 C702 R715 R716 IC701 R713 R712 R711 R724 Q722 Q721 R561 C731 R731 R733 C734 R726 Q726 Q725 R725 C732 R732 R734 C733 R719 R718 C717 R600 C600 R717 C652 Q723 C634 C605 R620 R640 R644 R609 R610 R612 R613 R626 R688 R689 R694 R695 R664 R602 R603 R606 R607 R608 R616 R617 R618 R619 R611 R662 R663 R665 R628 R635 R621 R641 R634 R636 R638 R637 R639 R651 R652 R657 R656 R655 R654 R653 R658 R675 R696 CN607 C642 L641 R741 R742 R744 R961 Q951 C1563 C1562 R907 R906 IC901 R903 R905 R904 R902 R901 C902 Q911 R918 CN901 CN902 IC421 IC411 IC441 IC431 D401 R410 R409 C410 C409 C491 C404 C403 C423 C424 C461 C415 C414 C422 R451 C452 C401 D432 C431 C433 C432 C434 D431 C441 C442 C443 C451 CN904 R960 R433 R444 R951 C413 C412 C462 C463 R461 R462 R421 C411 C421 IC461 C921 R921 R401 R411 C901 C951 Q922 Q921 Q923 R922 D922 R926 R925 R923 R924 R934 R933 D927 D925 D923 Q925 R908 R909 Q926 R932 R931 R441 R443 R442 D402 R402 C406 C407 R408 R407 C408 R403 R952 R953 R954 R955 R956 R957 R958 R959 R964 R965 R966 R967 R968 R969 R1081 Q451 D926 C405 R1082 R1083 R962 R963 R400 R937 R936 Q928 Q927 R938 R939 R935 Q930 Q929 C103 CN903 Q401 R111 CN921 CN923 IC401 R562 C308 C121 C383 C382 C312 C311 C310 R3 R4 R416 R647 R648 L402 R981 L421 D928 R723 R1 R722 Q724 R982 R984 R983 R2 L411 CONTACT SIDE CONTACT SIDE BOTTOM SIDE BOTTOM SIDE BOTTOM SIDE CONTACT UP SIDE SIDE UP SIDE D F A B C UP SIDE UP SIDE CONTACT SIDE (650) SIDE CONTACT D 1/2 (780) 30 UP SIDE D A A B B C C 1 GNDD V+5D LD2 LD1 RFOUT (L600) (L111) DVDM ASSY B (ANP7463-B) PICKUP ASSY CN1013 STEPPING MOTOR SPINDLE MOTOR B B SIDE A SIDE A CN5905 E CN5904 E CN903 CN902 CN103 CN101 CN104 CN105 CN5903 E CN601 A CN901 IC201 IC701 IC101 IC601 IC301 IC901 IC421 IC411 IC441 IC431 IC461 IC401 IC604 IC401 IC461 IC431 IC441 IC411 IC421 IC901 IC701 IC604 IC601 IC101 IC301 IC201 Q724 Q202 Q193 Q192 Q201 Q723 Q725 Q726 Q721 Q722 Q211 Q212 Q911 Q922 Q921 Q923 Q401 Q451 Q928 Q927 Q930 Q929 Q925 Q926 Q724 Q390 Q401 Q929 Q930 Q927 Q928 Q451 Q926 Q925 Q923 Q921 Q922 Q911 Q951 Q723 Q725 Q726 Q721 Q722 Q192 Q193 Q951 Q211 Q390 Q201 Q212 Q202 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 65 5 6 7 8 5 6 7 8 C D F A B E 1 1 30 8 14 1 2 30 29 1 23 24 2 1 8 25 27 30 7 1 1 24 1 48 25 1 28 15 14 27 1 54 28 2 1 1 1 17 14 1 26 13 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A C629 C913 R916 R911 C627 R1063 R9521 R9501 R1051 CN941 C628 C626 R355 C620 R743 R200 C200 R417 C541 C521 C565 C531 C551 Q603 R917 R928 R927 L401 R1064 CN931 R915 R913 R912 R914 C912 IC911 R976 R973 R388 D924 CN911 R659 R660 Q452 R975 R974 R972 R971 R970 R454 R930 R929 Q924 R431 R422 R413 R412 C911 D921 R406 C402 R453 R452 R572 R571 R533 R532 R531 R553 R552 R551 R543 R542 R541 R523 R522 R521 R503 R502 R501 R511 R513 R512 R604 R601 R690 C602 Q511 C624 R432 R415 R414 R405 D403 C232 R183 R182 R178 R172 R171 R169 R170 R168 R167 R166 R165 R164 R109 R110 R120 R119 R118 R117 R116 R100 CN111 IC603 D603 R633 R630 R198 R156 R157 R159 R155 R158 C215 C205 R615 R614 R627 R631 R625 R152 R161 R160 R163 R162 C603 C355 R143 R128 R142 R127 R154 R1013 R1012 R977 R173 R174 R175 R176 R393 R395 R330 R331 R328 R329 R343 R345 R370 R399 R1065 R1623 C501 C511 IC501 R375 R374 C233 R115 R177 R179 R180 R181 C135 R622 C625 IC602 C563 C562 R702 C704 R144 R125 C125 R701 C701 C571 C631 C632 R623 C633 Q501 Q521 Q541 Q551 Q531 R632 C903 R645 R646 R642 R624 R373 R376 R380 R381 R1062 R108 R107 R106 R105 R104 R103 R190 R193 R195 CN113 C158 C155 C160 C161 C152 R1061 R1059 R1057 R1058 R153 CN114 CN112 Q191 Q194 C176 C174 C181 C171 C167 C177 C182 C163 C172 IC151 C230 R126 C381 C643 C639 C638 C635 C203 R9511 R9541 C1053 C1054 R9551 Q977 C210 R9531 R210 R306 R305 R304 R303 C204 R387 R360 R362 R666 R650 C1056 C1055 C1051 R629 R1052 R1053 R1054 R1055 R1066 C1052 R649 R1049 R1050 R605 C213 R1060 C214 R1056 R661 R643 R1011 8 SIDE CONTACT SIDE CONTACT UP SIDE UP SIDE 3 CONTACT SIDE 6 5 2 2 1 1 0 AWM7 HEAT-RESISITANCE PRE-FLAX NORMAL SOLDER LEAD FREE SOLDER ICT FC 0 9 CONTACT SIDE UP SIDE 4 7 DVDM ASSY 0 1 2 3 3 (L210) 4 4 8 9 9 5 5 6 6 7 7 30 (L100) 8 (L623) DVDM ASSY B (ANP7463-B) B B SIDE B SIDE B IC151 IC602 IC501 IC603 IC911 IC911 IC501 IC602 IC603 IC151 Q977 Q194 Q191 Q531 Q551 Q541 Q521 Q501 Q511 Q924 Q452 Q603 Q452 Q924 Q531 Q551 Q541 Q603 Q191 Q194 CN903 CN902 CN901 CN101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 66 1 2 3 4 1 2 3 4 C D F A B E 4.4 IF/AF ASSY 17 1 7 1 11 10 1 11 1 30 1 12 10 1 1 30 5 1 15 10 2 1 R8216 C8221 D8201 C8222 C8305 C8308 L8201 Q8201 C8307 C8213 C8310 C8309 C8201 W224 C8312 C8829 C8910 W359 C8771 C8773 C5716 D5711 W196 W111 R5636 W330 W114 W329 X5501 CN5801 R5804 R5807 R5802 KN5502 D5502 W172 C5511 L5501 C5502 C5506 W294 W159 CN5502 C5610 C5608 C5963 C5966 C5968 CN5503 D5955 CN5904 W138 W140 W146 W290 W154 W105 W323 W226 W104 W291 W107 W143 W170 W156 W349 W256 W211 W212 W296 W213 W259 W255 W209 W210 W179 W167 W218 W214 W155 W151 W149 W148 W163 CN8303 W289 W292 W327 W293 W165 W254 W283 W253 W208 W144 W158 W324 W103 W142 W303 W147 W217 W141 W223 W328 W350 W332 W123 W257 W260 W108 W110 W113 W109 W194 W153 W118 W286 W325 W112 W285 W287 Q8771 CN5501 W352 W363 C5433 W354 W355 W358 W301 W182 W195 W150 W173 W115 W116 W139 W137 W145 W331 W161 W258 W157 W334 C8631 C8632 R8637 R8638 W101 W102 W106 W336 W288 W162 W174 W335 W222 W295 W181 W176 W178 W177 W119 W152 CN5903 W219 W164 W160 W117 W121 W120 W333 W198 W171 W339 R5637 W197 W122 W169 W168 W184 W199 W215 W297 W166 W183 W261 W302 W262 W263 W264 W267 W180 W221 W265 W304 W299 W300 W298 W269 W220 W227 W270 W308 W305 W268 W306 W307 W225 Q5402 W175 CN5105 W357 C5501 C8834 C8833 CN8302 17 1 1 7 1 11 1 1 FOR BINDER B D TEST SERVICE IC8301 IC8201 12 1 A PRINTED SIDE 2SD2012 E B IC IFAF ASSY PRODUCTION CODE IC5591 IC5501 IC5801 15 1 10 GNDD DVDMUTE VDVD+12 22 CONTACT SIDE CONTACT 30 CONTACT SIDE CONTACT SIDE CONTACT SIDE CONTACT SIDE 30 1 1 SIDE OPEN SIDE 1 5 C VA+12 VA+12TX VA-12 MUTE GNDA VA+12 VD+5 VA-12 SYSPOW GNDD VM+12 VA+12 LVLSHIFT DVDMUTE XAUXMUTE GNDU GNDMDVD GNDU VE+56 XPROT GNDA XAUXMUTE ATT6 GNDU VA+12 SW CENTRE VD+5 XTUNER VPR+8 RECL GNDU VA-12 VA+5 SPDIF FL 1 GNDA FR FL SL RECR RECL RECR MICGND VOCALC VOCALA VOCALB LEVELIN ECHOCTRL1 LCDDAT LCDCLK ECHOCTRL1 SCLK MDATA SDATA VDET GNDU DVDPOWER GNDU VE+5 ATT10 GNDU DTSMIX SWMIX KCONCLK KCONSTB GNDA TCMSIN VD+5 VA+12 GNDD INPUTSELA ATT10 ST/TUNE TCHALF TCMODE TCRECF TCRECR TCPULSE GNDU VA+12 LVLSHIFT VD+5 XVMUTE DVDACK XDVDRST VDET SYS CS1 DVDPOWER GNDD GNDMDVD SYS CS2 D BINDER FOR W326 SIDE A IF/AF ASSY E E CN901 B CN5101 I CN5903 CN2506 D CN5801 J5401 J CN5105 CN902 B CN3001 K J3002 K DECK MECHA. CN5503 CN8303 CN8302 CN5501 Q8771 IC5501 CN5904 IC8301 IC8201 IC5591 IC5801 Q5402 Q8201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 67 5 6 7 8 5 6 7 8 C D F A B E 13 10 1 7 1 1 19 1 19 1 18 1 1 13 1 C8510 C8509 R8216 D8201 L8201 C8307 C8831 C8829 W360 W361 R8904 D8902 C8908 C8907 D8901 R8901 C8122 C8116 C8120 C8119 C8121 C8115 W362 W359 CN8401 C8722 C8721 C8702 C8701 C8604 C8616 C8615 C8603 C8752 C8751 C8620 C8618 C8619 C8617 C8716 C8715 C8737 C8728 C8711 C8712 C8621 C8622 W205 D5703 CN5701 CN5902 CN5510 C5719 C5718 C5803 C5804 CN5507 CN5506 C5902 C5901 C5715 D5715 C5717 W246 W247 W321 W282 CN5905 C5640 C5632 C5711 L5701 W131 R5712 X5701 C5709 W281 W322 W319 CN5904 JA5903 W134 W126 W310 W252 W226 W278 W317 W242 W243 W345 W351 W245 W191 W136 W228 W130 W123 CN5505 W353 2 W129 W182 W343 W124 C8631 C8632 D8601 D8602 R8637 R8638 W348 W250 W318 W279 W249 W244 W248 W280 W316 W238 W313 W251 W127 W346 W275 W347 W344 W132 W133 W135 W311 W190 W276 W128 W125 W189 W340 W234 W206 W241 W207 W185 W184 W236 W239 W240 W237 W204 W203 W274 W277 W202 W273 W230 W201 W312 W188 W186 W183 W187 W235 W200 W232 W229 W271 W231 W314 W309 W342 W341 W272 W233 W269 W227 W270 W308 W315 5501 C8834 C8833 C8835 C8836 1 13 7 1 1 19 1 19 1 1 18 11 A AUX IN AUX OUT 1 13 C IC8111 IC8703 IC8101 IC8701 IC8601 IC8624 IC8702 IC8801 IC8602 C FOR UPPER SIDE CONTACT B FC ICT IC5701 CONTACT BINDER SIDE SIDE SIDE OPEN SIDE OPEN OPEN SIDE (1 RED 2 BLACK) 1 1 1 CONTACT FOR BINDER C V GNDA FR FL GNDA VA+12 VA-12 VA+5 FL C FR CENTRE SW VA+12 VA-12 GNDDSP VA-12 GNDU GNDA DNMIXR DNMIXL GNDA ATT6 HPAC1 VA-12 VA+12 PBL DNMIXL AUXL DNMIXR SR TXL SLO SRO FRO FLO GNDA VUA-12 VUA+12 FL GNDA VA-12 TXR GNDU TXL VA+12TX GNDTX GNDV DVDL DVDR INPUTSELB INPUTSELA ATT10 ST/TUNE SIDE A (XNP3071-B) E CN903 B CN5905 CN201 C CN5701 CN902 DVD Download F CN5902 CN8007 F CN8011 F CN8003 CN5506 CN5505 CN5507 N5904 IC8703 IC8601 IC8624 IC8702 IC8801 IC8602 IC8111 IC8701 IC5701 IC8101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 68 1 2 3 4 1 2 3 4 C D F A B E C8103 C8101 IC8101 R8802 R8801 C8513 C8514 R8512 R8517 R8516 Q8502 R8514 R8515 Q8501 R8513 R8402 R8511 C8402 R8404 R8406 C8404 C8406 C8401 R8411 R8405 C8403 C8405 Q8503 R8403 R8401 R8215 C8306 R8203 R8202 C8218 C8204 C8205 C8203 R8204 R8205 C8217 R8207 C8202 R8201 R8206 C8215 C8214 C8216 C8209 C8206 IC8201 C8207 C8208 R8307 R8306 IC8801 C8803 R8805 R8816 C8830 C8828 C8516 C8517 C8518 C8316 R8112 R8108 R8122 R8114 R8120 R8116 IC8111 Q8114 Q8112 C8108 R8106 R8104 Q8113 R8119 R8115 Q8111 C8107 R8105 R8103 R8121 R8113 R8111 R8107 R8518 R8803 C8117 C8118 R8124 R8125 R8118 R8117 Q8115 Q8116 R8804 R8726 C8726 R8722 C8724 R8724 IC8702 R8739 R8737 C8731 R8731 C8723 R8723 C8725 C8735 C8733 C8729 R8727 R8729 R8725 R8721 R8735 C8727 R8733 C8706 R8714 R8712 C8708 IC8701 C8710 R8710 R8706 R8708 R8702 C8704 R8704 R8709 C8709 R8701 C8703 C8713 C8714 C8707 R8705 R8707 R8703 R8713 C8705 R8711 R8602 C8602 C8612 R8610 R8614 C8610 R8612 R8608 IC8601 C8608 R8606 C8606 R8604 C8614 C8607 R8605 C8605 R8603 R8601 R8616 R8615 C8613 C8611 R8611 R8609 R8613 C8609 R8607 C8601 C8762 R8758 R8760 C8760 R8756 R8754 C8764 IC8703 C8758 C8754 C8757 C8753 R8752 R8751 C8763 C8761 R8757 R8759 C8759 R8755 R8753 R8624 Q8626 R8630 R8628 R8626 R8632 Q8625 IC8602 R8627 R8625 R8631 R8629 R8623 Q8623 Q8624 Q8622 R8618 R8620 R8622 Q8621 R8617 R8621 R8619 Q8720 R8720 R8718 Q8719 R8719 R8717 R8741 R8743 Q8743 Q8745 R8747 R8749 R8745 R8732 Q8744 R8730 R8728 C8765 R8763 R8762 Q8762 R8716 R8715 C8627 C8623 IC8624 C8624 C8625 R8633 C8628 R8634 C8626 C8629 C8630 R8635 R8636 R5706 R5707 R5710 R5709 C5706 C5705 C5712 R5708 R5703 R5705 R5704 R5713 R5714 L5903 R5905 R5906 C5906 L5902 R5903 C5904 R5904 L5901 R5902 C5903 R5901 R5715 R5716 R5631 C5639 C5631 C5720 R5702 C5710 C5708 C5707 C5713 C5714 IC5701 C5704 R5701 R5711 R5907 R5908 R5909 R5910 D5716 R5616 D8501 R5809 R5808 C5806 R8126 C5805 R8127 D5901 Q5701 IC5701 R5720 8 9 1 16 8 9 1 28 4 5 8 1 4 5 8 1 1 4 5 8 8 5 4 1 14 8 7 1 8 5 4 1 1 13 7 1 19 1 19 1 18 1 11 1 13 1 Y C V FR FL SL CENTRE SW SR 1 4 5 8 GNDA GNDA GNDA GNDA 1 4 5 8 VA+12 VA-12 AUX AUX IN OUT CN5506 16 9 8 CN5902 CN5701 CN5904 CN5507 VA+5 VA-12 VA-12 VA+12 GNDA L R L R D5715 D8901 D8902 D5703 D8201 D8601 D8602 XWZ3726 IFAF ASSY CN5505 18.XDSPMUTE 1.GNDD 15.GNDDSP 3.XTLO 2.LSSN 14.VD+5 4.DIRERR 3.AC3IN 11.SLO 12.GNDA 13.SWO 14.GNDA 15.CO 2.GNDU 16.GNDA 8.RECMUTE 7.N.C. 9.SRO 6.GNDD 5.VD+5 4.CTS 3.RTS 1.N.C. 2.RXD 1.N.C. 2.RDS 1.TXD 3.V+10 4.TUNE 10.GNDA 5.ST/TUNE 11.GNDMTC 10.GNDA 7.FLO 6.VCOMG 5.DIRRST 2.GNDA 1.RIN 13.GNDD 6.DIRCS 7.DIRDO 6.TXMUTE 7.TXL 12.VP+15 8.GNDTX 9.VD+5 9.TXR 10.TXODATA 11.TXCLK 8.DSPMODE 12.TXIDATA 13.TXCE 1.VSEL1 2.VSEL2 3.SQUEEZE 4.LETTER 9.DSPHREQ 5.ASPECT 1.GNDB 10.BUSY 11.DSPSS 6.P/XI 7.RGB 13.V+5A 8.CY/G 9.GNDV 10.CB/B 11.GNDV 12.CR/R 13.GNDV 14.C 15.GNDV 8.VD+5 7.GNDD 6.GNDD 5.N.C. 16.V 17.GNDV 15.DSPDI 14.DSPDO 5.FRO 4.GNDA 3.LIN 18.Y 12.V+5A 12.DSPRST 4.GNDD1 11.GNDA 13.DSPCK 16.DECMUTE 17.MODC 19.SBLO 19.MUTEOUT 18.GNDA 17.SBRO 11.DVDR 10.GNDA 9.DVDL 8.GNDA G CN5905 XWZ3732 XWZ3733 XWZ3735 C GNDU TXR TXL VA+12TX GNDTX V C GNDV DVDL DVDR INPUTSELB INPUTSELA ATT10 ST/TUNE Q8201 TCHALF TCMODE TCRECF FRO SRO SLO VA-12 VA+12 FLO TXL DNMIXL AUXL DNMIXL DNMIXR DNMIXR GNDU FL FR C VA+12 GNDDSP VM+12 GNDU VA-12 GNDA GNDU VA-12 FR FL ATT6 HPAC1 PBL VA-12 VA+12 16 9 1 8 9 8 28 1 8 5 1 4 8 5 1 4 14 8 7 1 16 9 1 8 SIDE B IF/AF ASSY E E CN5904 CN5905 CN5701 CN5505 CN5506 CN5507 CN5902 IC8101 Q8502 Q8501 Q8503 Q8114 Q8112 Q8113 Q8111 Q8115 Q8116 IC8701 Q8719 IC8601 IC8703 Q8720 Q8744 Q8762 Q5701 IC8801 Q8626 Q8625 IC8602 Q8623 Q8624 Q8622 Q8621 Q8743 Q8745 IC8624 Q8201 IC8201 IC8111 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 69 5 6 7 8 5 6 7 8 C D F A B E C8223 C8306 R8203 R8202 R8211 C8304 R8208 C8218 R8209 C8204 C8205 R8210 C8220 C8302 C8303 C8203 R8308 R8204 R8205 C8217 R8207 C8219 R8213 R8212 C8211 R8214 C8212 R8303 C8301 R8301 R8302 IC8301 C8202 R8201 R8206 C8215 C8214 C8216 C8209 C8210 R8217 C8206 IC8201 C8207 C8208 R8304 R8307 R8305 C8313 C8315 C8912 C8772 R8771 R8772 Q5711 R5718 R5719 R5717 R5603 R5502 R5579 R5582 C5514 C5513 R5586 R5585 R5584 R5583 C5518 C5517 C5516 R5565 R5577 R5570 R5506 R5507 R5509 R5575 R5576 R5571 R5572 R5573 R5574 R5569 R5568 R5567 R5530 R5531 R5532 R5535 R5538 R5537 R5543 R5542 R5540 R5544 R5536 R5564 R5562 R5563 R5558 R5559 R5560 R5561 R5554 R5553 R5552 R5551 R5555 R5556 R5557 R5546 R5545 R5548 R5547 R5549 R5550 R5510 R5511 R5512 R5516 R5514 R5513 R5520 R5519 R5518 R5517 R5524 R5523 R5522 R5521 R5528 R5527 R5526 R5525 C5515 C5520 C5519 R5578 R5529 R5601 R5604 R5605 R5803 C5801 C5802 IC5801 IC5501 R5534 R5533 R5539 R5541 R5590 R5597 R5598 C5591 IC5591 C5592 R5591 R5621 D5801 Q5801 R5801 R5805 D5952 R5806 Q5804 Q5803 R5966 C5961 R5963 R5964 R5965 C5960 R5812 R5811 Q5808 Q5807 D5954 R5593 R5813 R5814 R5815 R5816 R5967 C5962 Q5501 C5509 R5501 C5508 R5504 C5507 R5503 C5505 Q5502 R5581 R5508 Q5503 R5580 C5504 R5505 R5595 R5594 R5632 R5633 R5592 R5588 C5535 R5610 R5609 R5608 R5607 R5634 C5964 C5965 C5967 R5515 R5962 R5969 R5968 R5611 R5612 R5613 R5614 R5615 R5961 R5960 R5885 R5886 R5887 R5888 R5889 C5599 D8701 Q5805 Q5802 R5432 D8702 R5639 R5434 Q5607 R5638 C5969 R5431 R5635 L5502 8 9 1 16 14 1 15 28 8 9 1 16 100 31 81 50 51 30 80 1 8 9 1 16 17 1 7 1 11 1 10 1 30 1 12 10 1 1 30 S G D CN5502 FR GNDU GNDU GNDU CN8302 VA+5 VD+5 ECHOCTRL1 VD+5 VDVD+12 VA-12 VA+12 VP+15 VD+5 VA+12 VA+12 CN5503 GNDA GNDD GNDD GNDMDVD Q8771 22.GNDD D5502 D5711 D5955 XWZ3726 CN5801 CN5501 CN5903 VD+5 VA+12 VDET VM+12 LVLSHIFT 1.ECHOVOL 2.VA+12 3.MIC 5.GNDMIC 5.VPR+8 6.GNDD 23.GNDD 15.GNDDSP 14.VD+5 24.GNDM 15.GNDA 25.GNDM 26.VPR+8M 14.PBR 27.VPR+8M 28.VPR+8 29.VPR+8 30.VDVD+12 3.GNDU 2.REMCON 1.TIMERLED 4. PULSE 13.RECR 5. HALF 4.VP+15 5.GNDU 6.VE+5 7.KEY3 8.KEY2 9.KEY1 10.GNDLED 11.LCDDATA 12.XPBMUTE 17.XHPMUTE 18.EDATA 19.ECLK 20.EMUTE 23.MUTE 22.HPAC1 12.LCDCLK 25.RYR 24.RYF 21.SYSPOW 4.VPR+8 7.SW 7.N.C. 6.GNDU 5.VE+56 4.XRESET 3.F_CLK 2.F.DO 1.F_E/D 11.DOLBY 11.GNDMTC 8.VPR+8M 9.VPR+8M 10.GNDMDVD 7.GNDD 12.GNDA 8. VD+5V 6. MODE 7. GNDM 11.FR 10.RECMUTE 9.PB/XREC 4.GNDA 3.SL 9.FL 8.GNDA 2. SOL 16.HPDET 12.VP+15 8.XBEATCUT 7.BIAS 6.GNDD 5.VA+12 1.VSEL1 2.VSEL2 4.VA+12 15.SUBAC 3.MS 2.VB+12 1.GNDB 1.CTS 13.V+5A 13.XPROT 2.RTS 3.RXD 4.TXD 5.DVDWKUP 6.DVDMUTE 7.TRKUP 8.VDET 26.MUTEC 2.V+12TX 3.VA-12 30.GNDU 1.VA+12 27.GNDHP 28.LVLSHIFT 29.VE+56 9.GNDD 3. N.C. 14.SCLK 13.SDATA 10.GNDA 12.MDATA 11.DVDACK 10.GNDD 3.GNDD 2.C 1.GNDD 2.GNDA 17.XDVDRST 16.SYSCS1 4.V 15.SYSCS2 11.RECR 17.RECL 11.DVDR 10.GNDA 18.DVDPOWER 9.DVDL 8.GNDA 7.GNDD 6.Y 5.GNDD 1.C 14.XTUNER 19.GNDD 1. GNDM 5.SR 10.MOTOR 9. RECF 21.AC3 16.PBL 20.GNDD CN8303 6.GNDA GNDA GNDD GNDMDVD 1 10 D S 4.MIC SW Q5402 1 DVDMUTE SYS CS1 DVDPOWER SYS CS2 XDVDRST DVDACK XVMUTE LVLSHIFT ATT6 LEVELIN XPROT XAUXMUTE SYSPOW DVDMUTE TCHALF TCMODE TCRECF TCRECR TCPULSE GNDD VA+12 VD+5 TCMSIN KCONSTB KCONCLK SWMIX DTSMIX ATT10 VDET GNDU GNDU VE+5 DVDPOWER VDET SDATA MDATA SCLK ECHOCTRL1 LCDCLK LCDDAT VOCALA VOCALB VOCALC MICGND SL SR RECR RECL RECL RECR VPR+8 XAUXMUTE SW CENTRE VD+5 SPDIF VA+12 VA+12TX VA-12 GNDU VPR+8 GNDU VE+56 VA-12 GNDA MUTE XTUNER GNDU 16 9 1 8 28 15 14 1 16 9 1 8 80 51 50 31 30 1 81 100 16 9 1 8 SIDE B (XNP3071-B) E CN5903 4 CN5801 CN8302 CN8303 CN5503 CN5502 CN5501 201 IC8301 IC8201 IC5801 Q5808 Q5807 Q5711 IC5501 IC5591 Q5801 Q5804 Q5803 Q5501 Q5502 Q5503 Q5805 Q5802 Q5607 Q8771 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 70 1 2 3 4 1 2 3 4 C D F A B E 4.5 DSP ASSY (XV-EV61 Only) F F SIDE A SIDE A SIDE B (ANP2022-B) 9 1 36 37 72 73 108 109 144 16 1 8 9 20 11 10 1 1 4 5 8 1 10 20 11 10 1 1 11 12 22 23 33 34 44 1 2 3 48 37 36 25 24 13 12 1 1 11 1 22 1 1 1 22 44 1 1 17 1 36 37 73 72 108 109 144 9 16 1 8 17 32 16 1 1 10 8 5 1 1 10 20 1 11 10 15 1 48 37 36 24 25 13 12 1 11 1 6 6 1 1 22 17 44 23 1 R8225 R8705 R8708 R8706 R8707 C8423 CN8001 D8401 CN8005 CN8004 R8554 R8232 R8231 R8230 R8229 JA8101 IC8501 C8302 IC8301 R8411 KN8501 IC8603 C8610 C8705 R8551 Q8501 R8533 R8531 R8534 R8503 R8226 C8543 IC8701 CN8002 R8345 C8408 C8407 IC8502 C8525 R8206 R8203 R8211 C8701 C8545 R8205 R8204 C8209 C8901 R8103 C8405 C8404 C8406 R8219 L8205 C8904 C8902 C8215 C8214 L8204 R8213 R8215 R8209 R8214 R8015 X8201 C8422 CN8010 R8416 R8413 R8412 R8414 CN8007 R8553 R8552 R8016 R8017 R8410 R8409 R8408 D8501 C8706 L8702 C8704 C8225 CN8017 C8218 C8219 C8221 L8402 C8419 C8418 C8420 IC8702 R8550 CN8008 IC8401 C8222 R8339 CN8009 C8533 JA8103 C8532 KN8102 IC8201 L8203 C8217 C8212 C8213 C8201 C8202 L8201 C8210 R8539 C8536 C8537 R8506 JA8102 C8105 C8113 C8603 C8604 C8547 R8543 KN8201 R8227 C8546 R8335 R8331 R8330 R8329 CN8018 C8226 C8549 R8522 R8521 Q8341 C8515 C8516 CN8006 R8524 R8519 C8301 Q8504 CN8019 L8301 C8554 C8509 C8507 C8223 R8222 R8223 KN8101 R8110 C8003 C8004 C8001 C8002 C8112 C8107 C8504 C8505 C8513 C8512 C8523 C8522 R8511 R8512 R8513 R8514 R8704 R8810 R8337 R8336 R8210 C8524 R8530 C8527 C8526 C8528 C8530 R8333 R8332 R8207 R8405 R8406 R8404 R8328 R8216 L8202 CN8003 R8009 R8109 R8107 R8111 R8010 R8102 R8701 R8702 R8703 C8703 C8108 C8702 R8556 R8557 CN8016 CN8013 C8541 R8346 R8804 C8601 R8501 CN8011 C8511 R8803 R8805 IC8601 CN8015 C8503 R8502 R8802 R8601 C8602 CN8012 CN8014 R8606 R8608 R8605 L8603 C8609 L8504 C8550 C8551 C8548 R8540 R8541 X8501 C8613 C8415 C8421 L8601 A 15 13 1 B 33 34 FC 1 ICT I I H 94V-0 F G C 1 7 19 A E G H 12 11 F E J JTAG 23 22 H C T-163 B C 44 1 1 19 D D J 1 15 9 1 19 15 32 17 16 1 14 1 7 8 13 1 19 IN GND OUT IN GND OUT 8 5 4 1 32 17 16 1 14 1 7 8 C8555 L8005 R8005 R8004 L8004 R8003 L8003 R8002 L8002 D8402 C8411 C8410 R8234 R8233 R8228 C8605 C8009 R8504 R8529 R8528 R8555 R8807 R8808 R8806 R8809 L8801 C8501 C8502 R8510 R8509 R8508 C8542 C8544 L8701 R8114 C8403 C8402 R8115 C8208 D8303 R8202 R8407 C8204 C8207 L8401 IC8902 IC8901 C8903 R8001 L8001 R8019 R8105 R8417 C8114 C8111 R8108 R8507 C8417 C8416 C8414 C8413 C8412 R8013 C8409 R8006 L8505 Q8503 D8503 D8502 R8538 R8547 R8548 R8338 C8531 R8014 R8201 C8203 L8501 R8224 C8534 R8526 C8535 R8104 C8115 R8112 R8515 IC8503 R8516 L8104 R8321 R8320 R8340 C8007 R8309 R8344 R8308 R8310 L8502 C8607 C8608 IC8602 R8311 R8536 R8523 R8520 R8505 R8545 D8301 R8549 R8527 C8517 R8544 C8514 C8552 R8518 R8517 R8542 R8546 C8553 D8302 R8341 R8343 C8220 L8102 C8224 R8221 R8220 R8116 IC8101 C8005 C8110 C8109 L8103 C8006 C8521 C8520 C8518 C8012 C8011 C8010 C8008 R8113 R8212 C8206 C8205 C8529 R8018 R8403 R8402 R8401 R8334 R8008 R8532 R8007 R8011 R8012 C8104 C8106 R8106 L8101 C8211 C8216 C8540 C8539 R8811 C8538 R8801 R8602 R8603 R8812 R8813 C8606 C8014 C8013 R8326 R8314 R8313 R8312 R8558 R8537 R8322 R8415 C8401 L8602 B GCH AWX8239 V36 GNDD AWX8254 AWX AWX8241 PRODUCTION CODE AWX8240 AWX8252 A 17 7 1 GDAC GNDD 4 1 5 AWX1082 8 GNDD GNDD V11 C C AWX8253 AWX8255 A B AWX1083 AWX8250 AWX8251 CN5507 E CN5506 E CN5505 E CN8003 CN8007 CN8011 (ANP2022-B) DSP ASSY(XV-EV61_Only) F IC8501 IC8301 IC8603 IC8701 IC8502 IC8702 IC8401 IC8201 IC8601 Q8501 Q8341 Q8504 Q8503 IC8902 IC8901 IC8503 IC8602 IC8101 CN8011 CN8003 CN8007 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 71 5 6 7 8 5 6 7 8 C D F A B E 4.6 MIC ASSY J J SIDE A SIDE A SIDE B 5 4 3 1 1 3 2 5 4 3 1 5 1 JA5401 C5420 C5409 VR5401 C5422 C5431 C5426 C5413 C5421 C5432 W419 W420 JA5402 W418 C5410 W417 C5401 W356 R5411 D5401 L5401 R5401 C5416 W454 J5401 IC5401 IC5402 MIC ASSY 5 1 C5415 R5415 R5418 R5416 R5419 R5427 Q5403 IC5402 R5421 C5424 R5425 R5423 R5412 C5412 R5413 R5420 C5423 Q5401 R5430 C5434 C5436 R5426 R5404 C5406 R5405 R5406 C5407 R5407 C5408 R5403 C5405 C5404 C5403 C5411 R5409 R5408 R5410 C5402 R5402 IC5401 R5429 C5430 C5429 R5417 C5419 C5425 R5422 C5427 C5414 C5428 R5414 R5435 8 5 4 1 5 1 16 8 9 A 4.MICSW 1.ECHOVOL 5.GNDA 2.VA+12 3.MIC 3 4 4 5 5 3 1 1 J5401 MIC ASSY D5401 XWZ3734 XWZ3730 1 8 9 16 (XNP3071-B) (XNP3071-B) CN5105 E MIC ASSY J IC5401 IC5402 IC5401 IC5402 Q5403 Q5401 J5401 J5401 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 72 1 2 3 4 1 2 3 4 C D F A B E 4.7 DECK ASSY D SIDE A 5 4 3 2 1 5 4 3 2 1 2 1 6 4 3 1 17 1 3 1 4 1 Q2802 W246 F2201 W248 F2202 W229 C2810 CN2302 C2206 Q2803 C2203 L2802 C2307 C2308 C2309 C2420 C2809 C2421 C2310 C2311 C2312 C2314 C2404 C2208 D2306 C2407 C2403 C2408 C2409 C2425 C2801 C2417 C2802 C2803 C2804 C2410 C2215 C2217 C2405 VR2301 C2805 C2806 C2418 C2807 C2218 C2808 W257 Q2301 Q2805 Q2302 L2801 R2321 C2201 C2205 C2202 CN2506 W253 W255 W240 VR2802 C2207 C2422 C2419 CN2507 W227 W239 W254 C2216 W225 C2204 W263 W230 W222 VR2402 W256 C2406 VR2302 W218 W224 R2803 D2303 D2304 D2256 D2301 D2305 C2251 W247 C2255 R2806 W238 D2201 W244 C2254 VR2801 W243 C2262 W261 C2210 C2209 C2261 W228 Q2806 W242 W250 W249 W236 W220 W259 W223 R2805 VR2401 W219 W241 W260 W235 W252 W251 W258 W221 W237 W232 W234 W262 D2302 W231 W233 L2401 L2402 L2403 L2404 Q2801 CN2301 IC2202 GNDA A 2 1 OPEN 4 CMKS-P3X RCH LCH OPEN Production Code 1 BIG 1 17 DECK ASSY IC2401 XNP3061-B 1 3 VA12 15.GNDA IC2201 SIDE Lch P PBL VA12 I R PRINTED GNDA GNDA VREF Adj. Adj. PB LEVEL DECK TP Lch PRINTED CONTACT SIDE ICT FC REC L 1.GNDB VB+12 MS VA+12 5.VA+12 LEVEL BIG VA12 D BIAS SIDE VA12 GNDA Adj. VA12 Rch MS GNDA SIDE PRINTED RECR XPBMUTE DOL ON\OFF 10.RECMUTE PB/XREC XBEATCUT BIAS Rch DGND Lch PBR 17.RECL VREF GNDA VREF VA12 VREF GNDA VREF IC2301 Rch CN5801 E DECK MECHA IC2202 IC2201 Q2302 Q2806 Q2803 IC2401 Q2805 IC2301 VR2401 VR2402 VR2301 VR2302 VR2802 VR2801 Q2301 Q2801 Q2802 (XNP3061-B) DECK ASSY D DECK MECHA CN2301 CN2302 CN2506 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 73 5 6 7 8 5 6 7 8 C D F A B E D SIDE B Q2263 Q2352 Q2353 C2302 R2319 C2231 R2320 D2254 D2253 R2815 IC2202 R2801 R2418 R2419 R2816 R2271 C2402 R2204 C2211 IC2301 R2205 R2309 R2163 D2255 R2409 R2898 R2813 C2212 C2230 R2211 D2252 R2425 R2277 C2424 R2814 R2266 R2810 R2811 R2203 R2399 R2308 R2401 R2306 R2307 Q2351 R2415 Q2262 Q2261 R2291 C2257 R2410 D2307 D2401 D2308 Q2460 Q2454 C2256 Q2453 Q2455 Q2402 Q2305 Q2804 Q2255 R2260 Q2304 R2261 R2213 R2255 R2411 Q2401 R2206 Q2306 R2809 R2251 R2281 Q2452 R2807 R2256 C2431 C2451 C2452 C2432 Q2254 R2254 R2808 R2262 R2210 R2252 Q2451 R9008 R2164 R2253 R9006 R2257 R2201 C2401 R9005 IC2401 R2202 Q2253 R2404 R2412 Q2252 Q2303 Q2251 Q2456 R2899 R2423 R2416 R2259 R2263 R2264 R2265 R2274 R2424 R2417 R2413 R2420 R2276 R2414 R2301 C2423 R2421 R2422 R2802 C2304 R2208 C2323 R2310 C2411 R2426 C2412 R2431 R2432 R2402 R2403 R2303 R2304 R2275 R2283 C2324 R2498 R2499 IC2201 R2451 R2311 C2315 R2267 C2321 C2303 R2282 R2351 C2252 R2268 R2269 C2301 R2352 C2253 R2305 R2207 R2452 R2453 C2322 R2455 R2270 R2272 R2273 R2302 R2456 R2312 1 8 5 4 1 8 5 4 1 1 17 A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 5 8 1 4 1 8 9 16 GNDA GNDA Q2302 1 3 REC Adj. R L BIAS CN2301 CN2302 L2403 CN2507 VR2401 L2801 F2202 F2201 VR2801 L2402 D2304 D2201 D2256 L2802 D2302 D2303 D2301 1 VREF BIG R L VREF XWX3066 1 L2404 D2305 D2306 Q2806 Adj. XNP3061-A BIG VA12 VREF 16.PBL 17.RECL 15.GNDA VREF GNDA GNDA VA12 13.RECR 12.XPBMUTE 11.DOL ON 10.RMUTE 9.PB/XREC 8.XBEATCUT 7.BIAS 6.DGND 5.VA+12 4.VA+12 3.MS 2.VB+12 1.GNDB VR2402 L2401 Q2805 Q2801 Q2802 TP2 CN2506 XWX3067 VA12 VREF TP1 Q2803 CMKS-P3X E R VREF L VR2302 VR2301 14.PBR GNDA VREF GNDA MS VA12 VA12 GNDA Q2301 VR2802 R R LEVEL LEVEL Adj. L L PB 1 8 9 16 Q2801 Q2456 Q2401 Q2455 VR2801 Q2304 Q2303 Q2302 Q2802 Q2302 Q2301 Q2305 Q2306 Q2451 VR2402 VR2401 VR2301 VR2302 Q2460 Q2453 Q2454 Q2262 Q2201 Q2263 Q2452 Q2353 Q2352 Q2351 Q2252 Q2253 Q2252 Q2251 Q2254 Q2803 Q2804 Q2805 IC2401 IC2201 IC2202 IC2201 VR2801 Q2806 (XNP3061-B) CN2301 CN2302 CN2506 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 74 1 2 3 4 1 2 3 4 C D F A B E 4.8 DISP1, DISP2 and DISP3 ASSYS G H I SIDE A 1 4 1 8 1 W416 D5207 W404 D5217 R5213 D5209 S5204 S5203 S5202 S5201 C5204 S5206 S5207 S5205 S5308 S5309 S5304 S5306 S5307 S5303 5201 S5302 S5301 D5205 D5203 W402 J5103 S5305 J5102 D5302 DISP3 ASSY DISP2 ASSY DVD/CD TAPE TUNER LINE OPEN/CLOSE VOL- VOL+ KARAOKE DOLBY NR ASES PLAY/PAUSE TUNING- TUNING+ STOP REVERSE REC/STOP 1 4 8 1 12 1 8 1 10 1 4 1 W409 W410 W414 W408 W406 S5105 D5201 S5106 S5107 S5108 S5104 W405 S5103 W401 CN5101 S5102 S5101 CN5102 CN5104 W407 W403 R5210 W411 J5103 L5101 C5103 D5110 UPPER SIDE ASSY DISP1 12 1 1 8 STANDBY/ON SOUND MODE ADV SURR SURROUND ENTER ST MEMORY DISPLAY TIMER/CLK 10 1 CONTACT 4 1 (XNP3071-B) (XNP3071-B) (XNP3071-B) CN5501 E CN5101 CN5102 J5103 J5103 J5102 DISP1 ASSY I DISP3 ASSY G DISP2 ASSY H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 75 5 6 7 8 5 6 7 8 C D F A B E H I G SIDE B R5304 R5211 R5107 R5106 C5209 Q5110 R5105 R5301 D5202 C5211 R5202 R5203 R5308 R5307 R5303 R5302 R5217 R5204 C5201 R5215 D5216 D5215 D5218 D5211 R5101 R5111 R5110 C5104 R5305 C5207 R5206 R5205 R5208 Q5201 D5213 Q5203 R5109 C5106 R5108 C5301 R5104 D5301 R5102 R5103 R5209 R5201 C5205 C5202 C5102 C5101 C5105 R5306 12 1 A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 10 1 1 4 1 4 8 1 A C B E D D C A B S5207 S5206 S5204 CN5101 J5102 J5103 SIDE CONTACT DISP2 ASSY DISP3 ASSY XWZ3729 CN5102 D5205 D5201 XWZ3746 D5209 S5203 XWZ3728 B S5205 DISP1 ASSY CN5104 A J5103 6.GNDU 1.VPR+15 12.LCDCLK 3.REMOCON 1.VPR+15 7.GNDLED 4.VE+5 4.GNGU 11.LCDDATA 3.VPR+15 2.LEDCN2 5.GNDU 6.VE+5 2.REMOCON 1.TIMERLED 10.GNDLED 8.KEY2 9.KEY1 7.KEY3 1.NC 2.VLCD 3.GNDU 4.VLCD 5.VLCD 6.LCDDATA 8.LCDDATA 7.LCDCLK 9.NC 10.NC 1.LEDCN1 2.LEDCN2 3.KEY3 4.GNDU 4.GNDU 3.KEY3 2.LEDCN2 1.LEDCN1 STANDBY/ON SOUND MODE AD SUR SURROUND ENTER ST MEMORY DISPLAY TIMER/CLK DVD/CD TAPE TUNER LINE OPEN/CLOSE VOL- VOL+ KARAOKE DOLBY NR ASES PLAY/PAUSE TUNING- TUNING+ STOP REVERSE REC/STOP 1 8 5.GNGU 8.KEY2 XWZ3727 S5201 S5303 S5302 S5301 D5203 D5207 D5302 S5305 S5202 D5217 S5107 S5105 S5106 D5110 S5103 S5102 S5101 S5307 S5108 S5104 S5304 S5306 S5309 S5308 2.LEDCN2 3.REMOCON 4.VE+5 5.GNDU 6.GNDU 7.GNDLED 8.KEY2 DISP3ASSY G DISP2 ASSY H DISP1 ASSY I Q5101 Q5203 (XNP3071-B) (XNP3071-B) (XNP3071-B) CN5101 CN5102 J5103 J5203 J5102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 76 1 2 3 4 1 2 3 4 C D F A B E 4.9 EVOL ASSY 12 1 20 1 16 1 13 1 14 1 7 1 12 1 20 1 (3CH) 13 1 14 1 FC ICT EVOL ASSY PRODUCT 11.VFL+5 10.VP+15 9.VA-12 8.VD+5 7.GNDREG 6.UN+8V 5.UN+8V 3.SENS+8 1.XPROT 2.XTUNER 13.VPR+8 12.VPR+8 9.GNDA 8.FRIN 7.GNDA 6.FLIN 5.MUTE 4.MUTEC 15.GNDA 14.SLIN 13.GNDA 12.SWIN 11.GNDA 10.CIN 2.GNDM 16.SRIN 1.GNDDSP 3.GNDM 4.GNDD 5.GNDD 6.UN+8V 7.GNDREG 8.GNDB 9.AC1 10.RETGND 11.RETGND 12.VL- 13.GNDA 14.GNDTX 20.VH- 19.GNDP 18.GNDS 17.VH+ 16.GNDF 15.VL+ 4.GNDF 4.GNDP 3.FROUT 2.VH- 1.VH- 1.VL- 14.SROUT 13.VL+ 12.VL+ 11.COUT 10.VH+ 9.VH+ 8.SWOUT 7.GNDS 6.FLOUT 5.GNDP 2.VL- 3.SLOUT IC3071 IC3072 7 1 1 16 12 1 12 7 1 1 1 NJM7812 1 CONTACT SIDE CONTACT UPPER SIDE CONTACT ON SIDE CONTACT 2.RETGND 1.FROUT 9.V+5D 8.RY-F 7.VH+ 6.GNDB 5.SWOUT 4.RETGND 4.GNDB 3.SROUT 2.GNDB 1.COUT 12.AC1 11.HPAC SIDE PRINTED SIDE 6CH 3CH IC3057 IC3 (6CH) (6CH) (3CH) (3CH) (3CH) (3CH) 7.VF+12 3.FLOUT 6.RY-R 10.XPROT 5.SLOUT C3149 C3189 C3190 CN3007 CN3003 W584 R3796 D3796 R3758 CN3011 C3753 C3754 3001 CN3012 CN3013 C3757 W481 C3795 W544 W510 W512 C3955 W649 C3197 W508 W507 W590 W504 W529 W505 W644 W588 W585 W530 W558 W506 D3756 W560 W582 W531 W532 W586 W614 W501 W502 W629 W521 W542 W519 W514 W543 W518 W520 W515 W591 W534 W513 W568 W565 W533 W511 W538 W535 W536 W562 W632 W539 W541 W592 W589 W540 W628 W593 W561 W587 W566 R3164 W627 W648 W606 W546 W634 CN3006 W563 W631 W633 D3591 R3757 W482 IC3951 C3954 C3951 C3111 W516 W545 C3112 W483 W484 W594 W595 W597 W646 W642 C3758 W635 W617 W618 D3060 D3061 C3198 W641 W583 J3002 W643 W630 W645 D3755 W647 IC3101 SIDE A K EVOL ASSY K IC3101 J3033 L CN3013 J3032 L CN3012 CN3031 L CN3011 CN3031 52044-1645 XV-EV61 52044-1245 XV-EV31 L CN3011 CN3 Q CN3003 CN3305 N CN3007 CN3307 N CN3006 IC3951 IC3071 IC3072 IC3057 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 77 5 6 7 8 5 6 7 8 C D F A B E 4 1 J3902 3901 W460 4 1 HP ASSY J1 4 1 4 1 30 1 15 10 1 1 4 1 (3CH) (6CH) (6CH) 15 4 1 XNP3072-B FC ICT PRODUCTION CODE 2.GNDU 1.SYSPOW 3.VE+56 4.SUBAC 1.HPDET 2.HPR 3.GNDHP 4.HPL 1.C 2.GNDA 3.SL 4.GNDA 5.SR 6.GNDA 7.SW 8.GNDA 9.FL 10.GNDA 11.FR 12.GNDA 13.XPROT 14.XTUNER 15.SUBAC 16.HPDET 17.XHPMUTE 18.EDATA 19.ECLK 20.EMUTE 21.SYSPOW 22.HPAC1 30.GNDU 29.VE+56 28.LVLSHFT 27.GNDHP 26.MUTEC 25.RY-R 24.RY-F 23.MUTE IC3072 15.GNDDSP 14.VD+5 13.VA+5 12.VP+15 11.GNDM 10.GNDM 9.VPR+8M 8.VPR+8M 7.GNDD 6.GNDD 5.VPR+8 4.VPR+8 3.VA-12 2.VF+12 1 SIDE CONTACT UPPER SIDE CONTACT ON IDE ON B4 1.VA+12 1 30 IC3057 IC3056 IC3055 IC3058 IC3901 (3CH) (3CH) (3CH) C3113 C3114 C3174 C3173 C3166 C3164 C3150 R3177 R3119 R3118 C3134 C3136 C3139 C3140 C3189 C3190 C3151 C3152 C3196 C3908 C3925 C3912 C3924 C3918 C3911 C3923 C3917 C3907 C3906 C3063 C3064 C3096 C3095 W576 J3009 W494 W650 C3926 R3911 R3912 R3902 R3901 CN3008 CN3001 W581 W527 W569 W570 W556 R3206 C3955 W526 W579 W503 W557 W605 W575 W525 W522 W493 W578 W523 W613 W604 W603 W580 W553 W528 W491 W492 W552 W577 W610 W549 W555 W551 W524 W550 W548 W547 W611 W612 W572 W600 W615 W608 W574 W599 W568 W571 W607 W639 R3164 W573 W601 W546 W554 W616 W567 J3002 O SIDE A K HP ASSY O CN8303 E CN3001 CN3008 CN8302 E J3002 CN7 P J3009 (XNP3072-B) (XNP3072-B) J3902 IC3072 IC3057 IC3056 IC3055 IC3058 IC3901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 78 1 2 3 4 1 2 3 4 C D F A B E 40 21 20 1 1 4 5 8 8 1 4 5 1 4 1 A B C 9 15 1 10 8 4 GNDA 1 20 21 40 1 4 5 8 1 5 4 5 8 1 4 1 4 1 SL 1.C GNDA GNDA 5.SR SW GNDA FL 10.GNDA FR GNDA XPROT XTUNER 15.SUBAC HPDET XHPMUTE EDATA ECLK 20.EMUT SYSPOW HPAC1 MUTE RY-F 25.RYR MUTEC GNDHP LVLSHFT VE+56 30.GNDU 14.VD+5 15.GNDDSP 13.VA+5 12.VP+15 11.GNDM 10.GNDM 9.VPR+8M 8.VPR+8M 7.GNDD 6.GNDD 5.VPR+8 4.VPR+8 3.VA-12 2.VF+12 1.VA+12 1.HPDET 2.HPR 3.GNDHP 4.HPL 1.SYSPOW 2.GNDU 3.VE+56 4.SUBAC J3009 CN3008 J3002 CN3001 30 1 8 5 VD+5 VD+5 VD+5 VA+7 VA-12 VA-12 VA+7 VA+12 VA-12 VA+12 VA+12 VA-12 D3052 D3053 C3115 R3140 R3141 R3142 C3133 C3131 C3132 C3116 C3128 R3143 C3168 R3182 IC3058 C3170 R3184 C3159 C3160 C3146 IC3056 R3154 R3152 C3142 C3148 R3160 R3158 R3156 C3144 C3147 R3159 R3157 R3155 C3145 C3141 R3153 R3151 R3131 R3132 R3163 R3178 C3138 R3147 R3145 C3137 R3146 R3144 IC3055 C3135 R3149 C3117 C3118 R3150 C3171 C3172 R3205 R3207 R3208 C3176 C3177 C3178 C3179 C3180 C3181 C3186 C3187 C3182 C3183 C3184 C3185 R3702 R3701 IC3062 R3109 R3105 R3103 C3143 R3107 R3106 R3108 R3110 R3104 C3154 R3112 R3170 C3194 C3156 R3168 R3117 IC3057 R3176 R3175 R3174 R3172 R3173 R3171 R3115 R3113 C3193 R3169 R3167 R3111 C3155 C3153 R3165 R3137 R3139 R3186 R3187 R3185 R3180 R3138 C3195 R3181 C3165 R3183 R3130 C3163 R3934 R3928 C3910 R3938 R3922 R3924 C3914 R3926 C3916 R3930 R3936 R3921 R3923 C3913 R3925 C3915 R3929 C3909 R3933 R3927 R3937 R3935 R3943 R3916 R3944 Q3909 IC3901 C3335 R3335 R3334 C3334 C3336 R3302 R3303 C3337 R3098 R3096 R3133 R3134 R3336 R3337 R3338 R3339 R3340 C3338 C3339 R3341 R3940 R3941 C3921 Q3907 R3942 C3922 Q3908 R3939 R3148 C3129 R3135 R3136 R3123 R3124 R3179 C3130 C3121 C3122 C3123 C3124 C3125 C3126 R3101 R3102 IC3072 Q3903 R3906 R3918 R3917 R3905 Q3906 Q3905 Q3902 Q3901 C3901 C3902 R3910 R3774 Q3065 R3190 D3901 D3702 R3769 R3191 R3241 C3255 C3235 C3236 C3256 R3242 R3255 C3267 C3223 C3224 R3256 C3268 C3279 R3265 C3283 R3776 D3701 R3772 R3770 C3341 R3342 C3169 C3905 C3907 C3906 R3904 L3902 R3909 L3903 R3914 C3904 R3908 R3915 L3901 R3903 R3913 C3903 R3907 C3910 1 4 7 2.HPR 1.HPDET 3.GNDHP 4.HPL 5 2 6 J3902 1 4 3 HP ASSY XWZ3731 K O SIDE B EVOL ASSY K H.P ASSY O CN3008 J3009 J3902 (XNP3071-B) J3002 CN3001 IC3058 Q3909 IC3901 Q3907 Q3908 Q3903 Q3906 Q3905 Q3902 Q3901 Q3065 IC3055 IC3062 IC3056 IC3072 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 79 5 6 7 8 5 6 7 8 C D F A B E 20 1 1 1 4 8 5 14 1 A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 XWZ3736 XWZ3741 EVOL ASSY 8 16 3.FLOUT 1.FROUT 4.RETGND SHORT 1 491007 MARKED.MFD BY LITTELFUSE INC. REPLACE IC LINKS AS CAUTION INC. CHEZ LITTELFUSE COMME INDIQUE.DE REMPLACER LE IC LINKS ATTENTION 8 1 1 13 1 D3796 D3755 7.VH+ 5.SWOUT 2.RETGND IC3951 1.VH- 2.VH- 3.FROUT 4.GNDP 5.GNDP 6.FLOUT 7.GNDS 8.SWOUT 9.VH+ 10.VH+ 11.COUT 12.VL+ 13.VL+ 2.VL- 14.SROUT 1.VL- 3.SLOUT 4.GNDF 5.UN+8V 6.UN+8V 7.GNDREG 8.VD+5 9.VA-12 10.VP+15 11.VFL+5 12.VPR+8 13.VPR+8 XTUNER 1.XPROT SENS+8 MUTEC 5.MUTE FLIN GNDA FRIN GNDA 10.CIN GNDA SWIN GNDA SLIN 15.GNDA SRIN 15.VL+ 16.GNDF 14.GNDTX 13.GNDA 12.VL- 11.RETGND 10.RETGND 9.AC1 8.GNDB 7.GNDREG 6.UN+8V 5.GNDD 4.GNDD 3.GNDM 2.GNDM 1.GNDDSP 17.VH+ 19.GNDP 18.GNDS 20.VH- FLOUT FROUT 9.V+5D 6.GNDB 8.RY-F 10.XPROT 11.HPAC 12.AC1 1.COUT 2.GNDB 3.SROUT 4.GNDB 5.SLOUT 6.RY-R 7.VF+12 D3756 D3591 CN3013 CN3012 CN3011 D3061 D3060 IC3101 1 7 1 SERVICE CN3006 CN3007 12 FOR RETGND RETGND AC1 GNDB VL- GNDREG UN+8V GNDD GNDM HPAC VF+12 VP+15 VA+12 VH- VA+12 VA-12 VPR+8 GNDD VPR+8M GNDM VP+15 GNDREG GNDDSP VD+5 VA-12 C3159 C3160 R3154 R3160 C3147 R3163 R3702 R3701 R3109 R3108 R3116 R3114 C3194 R3166 R3122 IC3057 R3115 R3113 R3169 R3167 R3706 Q3068 C3192 C3191 R3162 R3705 Q3067 R3161 R3703 R3704 R3751 R3753 R3775 72 R3765 R3353 R3351 R3355 R3352 R3354 R3356 R3754 C3755 IC3071 R3752 R3767 R3766 Q3351 Q3352 Q3754 Q3752 Q3753 Q3751 R3711 R3773 R3771 R3769 R3760 C3796 R3776 R3755 R3759 D3753 C3751 D3754 R3756 C3752 C3756 R3768 C3953 C3952 C3340 C3341 R3342 R3343 C3342 C3343 R3370 R3764 R3763 R3369 R3712 K SIDE B (XNP3072-B) CN3003 CN3011 CN3007 CN3006 CN3012 CN3013 IC3057 IC3071 Q3352 Q3351 Q3067 IC3951 Q3754 Q3752 Q3753 Q3751 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 80 1 2 3 4 1 2 3 4 C D F A B E 4.10 SP-TERMINAL and TRADE ASSYS 13 10 1 14 10 1 12 1 7 1 16 10 1 12 7 6 11 4 9 5 10 8 3 2 1 23 1 6 5 4 3 2 1 6 3 5 2 4 1 23 1 SPK ASSY 3.FLOUT 9.VA-12 5.MUTE 9.VA-12 8.VD+5 23.SLOUT 22.SLOUT 21.VL- 20.VL- 19.SROUT 4.MUTEC 3.SENS+8 13 1 18.SROUT 17.VL+ 21.SRIN 16.VL+ 15.COUT 14.COUT 13.VH+ 12.VH+ 11.SWOUT 10.SWOUT 9.GNDS 8.FLOUT 7.FLOUT 6.GNDP 5.GNDP 4.FROUT 3.FROUT 2.VH- 1.VH- 9.VH+ 8.SWOUT 6.FLIN 1.FROUT 2.RETGND 4.RETGND 5.SWOUT 6.GNDB 7.VH+ 8.RY-F 9.V+5D 10.XPROT 11.HPAC 12.AC1 1.COUT 2.GNDB 3.SROUT 4.GNDB 5.SLOUT 6.RY-R 7.VF+12 CONTACT SIDE SIDE 1.XPROT 15.GNDA 16.SRIN 1.GNDF 1.VL- CONTACT 10.VH+ 5.UN+8V 2.VL- 14.SROUT 13.VL+ 12.VL+ 11.COUT 1 3.FROUT 2.VH- 1.VH- SIDE 1 6.UN+8V 2.UN+8V 3.UN+8V 4.GNDREG 14 5.GNDREG 13.GNDA 2.XTUNER 13.VPR+8 1 6.XPROT 7.TUNER 8.VD+5 12 1 4.GNDF TRADE ASSY 13 CONTACT SIDE CONTACT SIDE CONTACT 12.VPR+8 11.VFL+5 10.VP+15 7.GNDA 8.FRIN 10.VP+15 11.VFL+5 12.SENS+8 13.MUTEC 7.GNDS 22.VPR+8 23.VPR+8 14.SLIN 4.GNDP 5.GNDP 6.FLOUT 9.GNDA 10.CIN 11.GNDA 14.MUTE 1 23 1 15.FLIN 16.GNDA 23 17.FRIN 18.CIN 19.SWIN 20.SLIN 1 16 7.GNDREG 3.SLOUT 12.SWIN 1 12 1 7 6CH 3CH (3CH) (6CH) (6CH) (3CH) (3CH) (6CH) (3CH) 3CH J3032 W351 W353 J3033 R3361 R3607 L3361 RY3643 RY3641 R3631 R3632 D3631 R3634 D3634 R3635 D3632 C3631 D3633 L3362 R3362 R3561 L3561 RY3642 R3608 R3627 C3633 CN3305 CN3307 R3617 L3461 R3461 R3618 L3462 R3628 L3661 R3462 R3661 Q3641 W318 W327 W352 W495 CN3031 JA3301 3603 W312 W313 W301 W302 W306 W325 W322 C3671 W324 W326 W314 W315 W308 W307 W328 W329 W303 W304 R3633 W311 W321 W319 W310 W316 R3668 W317 W309 W496 C3632 W320 CN3021 JA3302 CN3022 W354 W497 W498 W330 CN3007 K CN3305 CN3006 K CN3307 CN3011 EV31/12P K CN3031 CN3011 EV61/16P K CN3031 CN3013 K J3033 CN3012 K J3032 CN3001 M CN3022 CN3002 M CN3021 SIDE A SIDE A L N L N SP-TERMINAL ASSY N TRADE ASSY L (XNP3072-B) (XNP3072-B) Q3702 Q3352 Q3351 Q3701 Q3713 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 81 5 6 7 8 5 6 7 8 C D F A B E 13 1 10 14 1 10 NP XWZ3737 XWZ3742 SPK ASSY 3.SENS+8 9.VA-12 1.GNDF 2.UN+8V 3.UN+8V 4.GNDREG 5.GNDREG 6.GNDP 8.FLOUT 7.FLOUT 15.GNDA 2.VH- 1.VH- 10.SWOUT 9.GNDS B 6.UN+8V 4.GNDF 5.UN+8V UMB1N Q3632 18.SROUT 2.XTUNER 13.MUTEC 14.MUTE 15.FLIN 3.SLOUT 23.VPR+8 RN1901 Q3633 C B E E C 19.SWIN 18.CIN 17.FRIN 22.VPR+8 10.VP+15 9.VA-12 8.VD+5 13.VPR+8 C 12.VPR+8 22k E B C 9.VH+ 4.7k 21.SRIN 20.SLIN 11.VFL+5 14.SROUT 16.VL+ 7.GNDREG 10.VH+ 5.GNDP 16.GNDA 11.COUT 15.COUT 4.GNDP 3.FROUT 2.VH- 1.VH- 1.VL- 2.VL- 6.FLOUT E 16.SRIN 13.VH+ TRADE ASSY XWZ3740 11.SWOUT 12.VH+ 22.SLOUT CN3305 D3633 D3632 D3631 17.VL+ 23.SLOUT 8.SWOUT 6.XPROT 7.TUNER 8.VD+5 1.XPROT 5.GNDP 4.FROUT 3.FROUT 11.VFL+5 12.SENS+8 10.VP+15 14.SLIN 13.GNDA 12.SWIN 11.GNDA 10.CIN 9.GNDA 8.FRIN 7.GNDA 6.FLIN 5.MUTE 4.MUTEC 21.VL- 12.VL+ 7.GNDS 13.VL+ 14.COUT B XWZ3745 20.VL- 19.SROUT 1.FROUT 2.RETGND 3.FLOUT 4.RETGND 5.SWOUT 6.GNDB 7.VH+ 8.RY-F 9.V+5D 10.XPROT 11.HPAC 12.AC1 2.GNDB 1.COUT 3.SROUT 4.GNDB 5.SLOUT 7.VF+12 6.RY-R D3634 Q3641 12 1 CN3031 7 J3032 J3033 CN3022 CN3021 1 16 10 1 CN3307 1 23 1 23 R3350 R3651 R3638 C3363 C3361 R3363 R3605 R3601 R3644 R3642 R3643 D3641 D3602 R3604 C3368 C3366 C3367 C3365 C3567 C3565 R3646 D3635 D3603 D3644 R3641 R3645 D3637 C3362 R3364 C3364 R3602 R3603 D3601 R3606 R3625 R3621 D3642 C3561 R3563 C3563 R3623 D3621 C3469 C3468 C3467 C3667 C3465 C3466 C3665 R3467 R3665 D3636 R3647 C3627 Q3631 Q3642 Q3644 Q3621 Q3601 Q3602 Q3635 Q3636 Q3645 Q3633 Q3632 Q3637 Q3638 Q3640 Q3639 R3639 R3667 R3466 R3468 C3462 R3464 C3464 C3463 R3463 C3461 C3564 R3562 C3562 R3611 R3615 R3613 R3616 R3612 R3614 R3626 R3624 R3622 D3622 D3612 D3611 D3623 D3613 Q3622 Q3612 Q3611 C3569 R3465 D3643 C3669 R3648 R3649 R3650 C3470 C3370 C3668 R3669 C3369 C3670 R3565 R3566 R3366 R3368 R3365 R3367 C3672 C3673 C3674 C3675 C3676 C3677 CN3307 CN3305 SIDE B SIDE B N L N L SP-TERMINAL ASSY N TRADE ASSY L (XNP3072-B) (XNP3072-B) J3302 CN3022 CN3021 J3032 CN3031 J3033 Q3632 Q3633 Q3641 Q3631 Q3642 Q3644 Q3621 Q3601 Q3602 Q3635 Q3636 Q3645 Q3633 Q3632 Q3637 Q3638 Q3640 Q3639 Q3622 Q3612 Q3611 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 82 1 2 3 4 1 2 3 4 C D F A B E 4.11 MOD. AMP ASSY 19 10 1 23 1 1 FLOUT 1 word surface 1 23 AWM SLOUT GNDS SWOUT VA-12 GNDREG SROUT VD+5 VPF+15 VP+15 XPROTECT VF-12 +B GNDP GNDP VL+ VL- IRFI9Z34G -B VL- 2SD2012 NJM7912FA Surface Word IRFIZ34G D3393 W205 D3389 W198 R3388 W170 W143 W142 C3423 W147 W171 W190 IC3401 W144 W146 W127 W197 Q61 D3391 W111 W112 Q62 D3385 IC71 D3392 Q3383 W182 W199 W181 W175 W180 Q3384 D3387 D72 D3388 W202 C72 W200 W201 W183 W185 W207 R3387 D3386 W206 C63 W184 W203 W204 D3322 D3390 D3394 23 1 19 10 1 23 1 IRFI9Z34G FLOUT SWOUT SROUT 1 23 word surface 19 10 1 19 10 1 AMP Assy 7788 GNDP VH+ VL+ VL- NJM7805FA 1 23 FROUT VH+ VH- AWM -B +B GNDP SLOUT GNDS GNDP FR1S P Production Code Word Surface UN+8 VA-12 FC DC 7787 7786 7720 SWOUT VA-12 GNDREG SROUT VD+5 VPF+15 VP+15 XPROTECT VF-12 +B -B GNDP GNDP GNDP VL+ VL+ VL- +B IRFI9Z34G -B VL- Surface IRFIZ34G D3393 R3318 D3389 W198 R3388 W120 W170 W143 C3478 W138 W139 W140 Q91 W142 R3427 W141 W154 C3377 C3577 R3520 C3402 D3325 W123 C98 D3324 C3424 C91 C3317 C3578 C3423 C3422 D98 D3328 W124 C3501 D3651 D3652 W104 D3653 D3654 W121 W126 D3326 W159 W151 W158 W105 W125 W145 W148 W147 D3323 W172 W171 W107 W173 IC81 C3301 D82 C3652 C3651 D3655 W106 W109 W110 W108 W119 C3508 R3657 Q3654 W192 W122 C3653 W161 W195 W196 W194 W160 CN3002 IC3301 W190 W169 IC3401 W168 D3427 D3428 D3422 W187 W162 D3423 R3519 D3421 W167 R3517 W188 W166 R3417 W163 W150 C3323 C3307 W144 W193 W146 W127 D3426 R3422 R3420 R3419 W191 W197 R3418 W164 D3391 W129 C3408 C3507 D3424 W128 CN3001 W111 W113 W130 W135 W112 W165 W189 Q62 C82 W103 W101 W117 D3385 D3425 IC71 W131 W132 C101 D3392 Q3383 W149 W136 W116 W118 R3428 W115 W114 W133 W157 W177 W179 W176 R3421 W182 W178 W174 W199 W181 W175 W180 C3407 C3421 Q3384 W137 D3387 D72 C3378 IC3303 D3388 D3327 W202 C72 C3322 R3328 R3327 C3318 W200 W201 W183 W185 W152 W207 R3387 D3386 W206 W184 C3179 W203 R3320 C102 C3167 R3317 W102 C3178 C3302 D3322 C3401 D3321 C3308 W153 C3321 R3321 R3322 W155 R3518 C3502 C3324 D3390 W156 C3477 D3394 R3319 C3168 M M SIDE A SIDE A (ANP7461-A) CN3022 L MOD. AMP ASSY M CN3021 L DC FAN MOTOR IC81 Q61 Q3654 Q3383 Q3384 Q62 Q91 IC3401 IC71 IC3301 IC3303 CN3302 CN3001 CN3651 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 83 5 6 7 8 5 6 7 8 C D F A B E NP NP D 23 1 23 1 SWOUT SWOUT VH+ VH+ VH- VH+ VL+ VA-12 VP+15 VD+5 VL- TUNER XPRCT GNDR GNDR UN+8 UN+8 GNDF SLOUT SLOUT VL+ VL+ SROUT SROUT VL- VH- VL- FLOUT SWOUT SROUT 1 VH- AMP Assy SROUT GNDREG GNDP 7788 COUT FROUT GNDP FROUT COUT IC3301 FROUT VH+ FAN SIDE FLOUT FLOUT GNDS GNDP C2 E2 -B GNDP +B GNDP SWOUT SLOUT GNDS G S FR1S P VPR+8 VPR+8 SRIN SLIN SWIN CIN FRIN GNDA SEN+8 FLIN MUTE MUTEC VFL+5 UN+8 VA-12 AWM 7720 7786 7787 C1 B1 B2 E1 IC3401 VD+5 VPF+15 VP+15 XPROTECT VF-12 VL+ VA-12 GNDP +B VL+ +B GNDP -B VL- GNDP -B VL- 1 B C E S D G G D S C3509 R3511 R63 R3412 C3410 R3411 C3409 D3341 R3571 R3513 R3501 D104 R121 D3381 R3478 R3574 R3378 R3414 R3471 R3577 TH121 Q121 Q43 Q3433 R3377 D3443 R3443 R3439 R3435 R3576 Q92 D3441 R3345 R47 R45 D3582 R91 D91 C81 R46 R3476 Q3301 Q3372 R3373 R3375 R3374 R3376 C97 Q3371 C92 R3472 R3503 R95 R3426 R3416 R48 C3426 R92 R123 R114 R113 R3371 R111 Q111 R93 R96 R122 R3512 R97 R3313 R112 D3581 Q3653 R3301 Q3531 R3303 Q3652 R3651 D3657 R3506 TH111 D3658 R94 R3658 R3656 R3655 R3654 C3504 Q3651 Q107 R108 Q106 D42 R3307 R3509 R3507 R3505 Q3532 R3492 D3482 D3481 R3491 Q3432 R3531 C3503 R3545 C3305 R3316 R3305 C3303 R3309 R3532 R3537 R3533 D106 R3543 R3539 R3432 R3438 R3434 R3591 R3424 R3538 R3575 R3451 R3534 R3544 R3540 R3592 D3382 C3506 C3406 Q101 Q102 Q104 Q103 C61 C3505 R3406 R3311 R3312 C3309 R3408 C3404 C71 R3351 C62 R3410 D3343 R109 R67 D102 R65 R3510 R3508 Q63 Q3431 R3431 R3437 R3433 C3405 R3407 R3423 Q3434 R101 Q3501 Q3533 R3391 R3405 Q3401 R3392 C3403 C3510 Q3333 Q3334 R3409 R64 R68 R3340 R3344 D3344 R3343 R3383 Q3402 Q3504 R3339 C3310 R3334 Q3502 R103 Q3302 R3382 R3384 D105 R3386 R3332 D101 R62 Q3332 R61 R102 R3385 Q3382 R3390 R104 Q3331 R3326 Q3534 R105 R106 Q3381 D3544 R3381 R66 C3326 R3338 R3514 R3335 R3304 R3502 R3302 R3337 R3403 R3401 R3331 R3333 R3402 R3323 R3324 C3304 R3573 C3306 R3310 R3306 R3308 R3404 R3389 D3543 Q3572 R3572 R3578 R3446 D3444 R3444 R3372 R3500 R3504 R3477 R3314 R3440 R3445 R3413 R3546 R3346 Q3571 Q3471 Q3472 R3473 R3475 R3474 M M SIDE B SIDE B (ANP7461-A) MOD. AMP ASSY M CN3002 CN3001 CN3561 Q3332 Q3334 Q3532 Q3534 Q3381 Q3382 IC3301 Q102 Q3331 Q3333 Q3651 Q101 Q3653 Q106 Q103 Q107 Q3652 Q104 Q111 Q43 Q3433 Q92 Q92 Q3431 Q121 Q63 Q3533 Q3531 Q3501 Q3571 Q3402 Q3472 Q3401 Q3471 Q3504 Q3502 Q3572 Q3301 Q3371 Q3302 Q3372 Q3434 Q3432 IC3401 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 84 1 2 3 4 1 2 3 4 C D F A B E 4.12 PRIMARY ASSY 1 1 1 3 1 4 1 4 3 2 1 XWK3114 XWK3115 PRI ASSY SIDE b a j l MY/NV/NK WIRE WIRE k KUC/JP MY/NV/NK JP /YPW YPW h g SIDE i JP N L 2 1 1 ALL ALL DD/DBD/DL DD/DBD/DL SECONDARY PRIMARY REPLACE FUSE RISK OF FU1 ALL EXCEPT NK W132 W111 DD/DBD/DL AS MARK O I FU3 FU2 c e f d KUC 4 1 PRIMARY ASSY 4 OPEN SIDE OPEN PRINTED SIDE SIDE CHK TX WINDING TX WINDING CHK DD/DBD/DL NK 4 1 78M56 SIDE CONTACT B2 B3 FIRE W451 W452 W453 W153 W106 W104 W152 Q81 W129 W132 W116 W131 W123 W148 W149 T2 S1 W138 C1 C3 C5 D89 W124 W125 W107 W128 W114 W113 W109 CN1 CN2 R84 RY81 H5 H6 H4 H3 H1 H2 W150 W105 W122 W130 W147 KN1 W117 W135 W137 AN1 W108 R1 IC5508 C82 W134 D87 D88 W146 W110 W136 C83 W115 CN7 C84 R86 W176 W133 W101 W102 W111 W151 W177 L1 W175 T1 POWER TRANSFORMER CN2 CN1 J3009 K CN7 SIDE A SIDE A P P PRIMARY ASSY P (XNP3072-B) Q81 IC5508 AC IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 85 5 6 7 8 5 6 7 8 C D F A B E 2 1 CN1 4 1 ∼ ∼ - + 4 1 PRI ASSY XWZ3738 AS MARK REPLACE FUSE RISK OF FIRE 4.SUBAC 3.VE+56 2.GNDU 1.SYSPOW KUC YPW DD/DBD/DL FU3 /YPW TX WIRE JP MY/NV/NK N DD/DBD/DL FU2 MY/NV/NK WIRE JP A V DD/DBD/DL KUC/JP FU1 V A L W132 W111 D87 AMP-MAIN ASSY XWK3114 XWK3115 CHK WINDING DD/DBD/DL ALL EXCEPT NK NK IC5508 Q81 CN2 CN7 D89 D88 PRIMARY SIDE SECONDARY SIDE Q80 R83 R85 R81 D80 C85 CN2 CN1 CN7 SIDE B SIDE B P P PRIMARY ASSY P (XNP3072-B) Q81 Q80 IC5508 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 86 1 2 3 4 1 2 3 4 C D F A B E 4.13 SECONDARY 4 3 1 4 3 2 1 20 1 4 3 2 1 4 3 2 1 SEC ASSY INDIQUE.DE CHEZ FRONT D C B LITTELFUSE INC. 491007 A AC1 GNDTX GNDA 20.VH- 15.VL+ GNDP GNDS VH+ RETGND VL- GNDF GNDMTC GNDD 5.GNDD UN8V GNDB 1.GNDDSP 20 1 LINKS COMME REPLACE IC LINKS AS CAUTION REMPLACER LE IC ATTENTION LITTELFUSE INC. GNDMDVD GNDREG 10.RETGND MARKED.MFD BY B1 SIDE OPEN BOND BOND BOND BOND BOND BOND BOND BOND 7.SUBAC1 6.SUBAC1 5.BHAC2 4.BLAC2 3.GND 2.BLAC1 1.BHAC1 1 7 W208 CN4 C41 C9012 IC22 W211 C9013 D41 CN3 R9011 IC11 C22 C21 IC41 W202 IC25 W210 C9022 W201 IC12 C9021 R9021 C9023 C9011 C11 D21 IC21 W203 IC23 C9041 W209 D11 W204 W206 W207 C12 W213 W205 W216 W215 W214 W212 T1 POWER TRANSFORMER CN4 CN3003 K CN3 SIDE A SIDE A Q Q SECONDARY ASSY Q (XNP3072-B) IC11 IC21 IC25 IC23 IC12 IC22 IC41 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 87 5 6 7 8 5 6 7 8 C D F A B E 20 1 SEC ASSY XWZ3739 XWZ3743 IC23 IC25 D11 D21 CN4 CN3 REPLACE IC LINKS AS CAUTION ATTENTION REMPLACER LE IC LINKS COMME INDIQUE. DE CHEZ LITTELFUSE INC. MARKED.MFD BY LITTELFUSE INC. 491007 20 1 1.GNDDSP 2.GNDM 3.GNDM 4.GNDD 5.GNDD 6.UN+8V 7.GNDREG 8.GNDB 9.AC1 10.RETGND 11.RETGND 12.VL- 13.GNDA 14.GNDTX 15.VL+ 16.GNDF 17.VH+ 18.GNDS 19.GNDP 20.VH- IC11 IC41 IC21 IC12 IC22 D21 D41 D11 1.BHAC1 1 7.SUBAC1 6.SUBAC1 5.BHAC2 4.BLAC2 3.GND 2.BLAC1 7 CN4 CN3 SIDE B SIDE B Q Q SECONDARY ASSY Q (XNP3072-B) IC41 IC25 IC12 IC22 IC21 IC23 IC11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 88 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES XV-EV61/DLXJ/NC 1..DSP ASSY AWX8254 NSP 1..MEDIA ASSY XWM3226 2..IF/AF ASSY XWZ3726 2..DISP 1 ASSY XWZ3727 2..DISP 2 ASSY XWZ3728 2..DISP 3 ASSY XWZ3729 2..MIC ASSY XWZ3730 2..H.P ASSY XWZ3731 NSP 1..AMP ASSY XWK3114 2..E-VOL ASSY XWZ3736 2..SP-TERMINAL ASSY XWZ3737 2..PRIMARY ASSY XWZ3738 2..SECONDARY ASSY XWZ3739 2..TRADE ASSY XWZ3740 1..DECK ASSY XWZ3072 NSP 1..DVD ASSY AXA7121 2..DVDM ASSY AWM7808 NSP 1..LOADING MECHANISM ASSY VWT1208 NSP 2..LOAB ASSY VWG2347 1..AMP MODULE AXQ7242 2..6CH AMP ASSY AWM7720 1..FM/AM TUNER MODULE AXQ7228 XV-EV31/DLXJ/NC NSP 1..MEDIA ASSY XWM3228 2..IF/AF ASSY XWZ3733 2..DISP 1 ASSY XWZ3727 2..DISP 2 ASSY XWZ3728 2..DISP 3 ASSY XWZ3729 2..HP ASSY XWZ3731 2..MIC ASSY XWZ3734 NSP 1..AMP ASSY XWK3115 2..E-VOL ASSY XWZ3741 2..SP-TERMINAL ASSY XWZ3742 2..PRIMARY ASSY XWZ3738 2..SECONDARY ASSY XWZ3743 2..TRADE ASSY XWZ3745 1..DECK ASSY XWZ3073 NSP 1..DVD ASSY AXA7122 2..DVDM ASSY AWM7809 NSP 1..LOADING MECHANISM ASSY VWT1208 NSP 2..LOAB ASSY VWG2346 1..AMP MODULE AXQ7248 2..3CH AMP ASSY AWM7787 1..FM/AM TUNER MODULE AXQ7228 Mark No. Description Part No. A LOAB ASSY OTHERS CN602 KR Connector S2B-PH-K CN601 KR Connector S5B-PH-K PCB BORD VNP1836 101 Reaf SWITCH VSK1011 C FM/AM TUNER MODULE SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD Q201, Q204, Q205 2SC2412K Q202 DTA124ES Q203 DTC124EK D201 1SS133 D202 MTZJ5.1C COILS AND FILTERS L201 (FM Detector coil) ATE7003 F202 (Ceramic filter) ATF-107 F201 (Ceramic filter) ATF-119 F203 (AM Ceramic filter) ATF1155 CAPACITORS C206 CCSRCH100D50 C212, C213, C226, C233-C235 CCSRCH101J50 C240 CCSRCH101J50 C231, C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 C228 CEAT3R3M50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 89 5 6 7 8 5 6 7 8 C D F A B E C237 CEAT470M10 C211 CEJA1R0M50 C210 CEJA470M16 C204, C238, C602 CKSRYB102K50 C101, C102, C208, C220, C239 CKSRYB103K50 C242, C601 CKSRYB103K50 C216, C217 CKSRYB123K50 C225 CKSRYB153K50 C201, C205, C209, C214, C230 CKSRYB223K50 C236, C603 CKSRYB223K50 C221 CKSRYB224K10 C202, C222 CKSRYB473K16 C215 CKSRYB681K50 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R243 RS1/10S0R0J R103 RS1/10S331J R104 RS1/10S391J Other Resistors RS1/16S###J OTHERS CN201 13P Connector 52044-1345 BN201 4P Terminal AKA7003 Shield Case T ANK7072 Shield Case B ANK7073 X201 Crystal RES.(7.2MHz) ASS1093 E IF/AF ASSY (XWZ3726) SEMICONDUCTORS IC8111, IC8801 AN4558NS IC8301 BA3838F IC8101 BU4052BCF IC8602 BU4066BCF IC5591, IC5801 BU4094BCF IC8201 M65847AFP IC8601, IC8624, IC8701-IC8703 NJM4558MD IC5501 PDC108A Q5801, Q5804 2SB1132 Q5502, Q5503, Q5701, Q8111-Q8114 2SC4081 Q8201 2SD1858X > Q8771 2SD2012 Q5711, Q8501, Q8502, Q8621, Q8622 2SD2114K Q8719, Q8720, Q8743, Q8745 2SD2114K Q5402 2SJ103 Q5803, Q8115, Q8116, Q8503, Q8623 DTA124EUA Q8625, Q8762 DTA124EUA Q8624, Q8626 DTC124EUA Q5501, Q5802, Q5805, Q5807, Q5808 DTC143EUA Q5607 RN2901 D5502, D5703, D5711 1SS133 D5716, D5801, D5952, D5954, D8501 1SS355 D8701, D8702 1SS355 D5715 MTZJ11C D5955, D8201, D8901, D8902 MTZJ5.6B D8601, D8602 MTZJ6.8B D5901 UDZS15B Mark No. Description Part No. COILS AND FILTERS L5501 LAU220J L5502 VTL1075 L5901 VTL1086 CAPACITORS C5501 (0.047F/5.5V) ACH1246 C5504, C8212 CCSRCH101J50 C5592, C5801, C8401, C8402 CCSRCH221J50 C5903, C5904, C5906, C8723 CCSRCH470J50 C8761, C8762 CCSRCH470J50 C8611, C8612 CCSRCH680J50 C5511, C5715, C5718, C5719 CEAT100M50 C5803, C5804, C8115, C8116 CEAT100M50 C8121, C8122, C8221, C8509, C8510 CEAT100M50 C8603, C8604, C8617-C8620 CEAT100M50 C8701, C8702, C8711, C8712 CEAT100M50 C8715, C8716, C8721, C8722, C8728 CEAT100M50 C8737, C8751, C8752, C8833-C8835 CEAT100M50 C5502 CEAT101M10 C5640, C8615, C8616 CEAT101M16 C5901, C5902 CEAT102M6R3 C5506, C8773 CEAT1R0M50 C5608, C5610 CEAT220M25 C5716 CEAT220M50 C8305, C8308-C8310 CEAT2R2M50 C5963, C5966, C5968, C8201, C8213 CEAT470M16 C8222, C8307, C8771, C8907, C8908 CEAT470M16 C8910 CEAT470M16 C8631, C8632 CEAT470M50 C8312 CEAT4R7M50 C5433 CEJQR22M50 C8220 CKSRYB102K50 C5505, C5508, C5516-C5518, C5712 CKSRYB103K50 C5962, C8101, C8103, C8107, C8108 CKSRYB103K50 C8203-C8205, C8218, C8313 CKSRYB103K50 C8713, C8714, C8733, C8735, C8828 CKSRYB103K50 C8830, C8912 CKSRYB103K50 C5639, C5964, C5965, C5967 CKSRYB104K16 C8613, C8614, C8623, C8624 CKSRYB104K16 C5507, C5515, C5591, C5802, C5960 CKSRYB104K25 C8301-C8303, C8763, C8764 CKSRYB104K25 C8219 CKSRYB122K50 C8703, C8704, C8709, C8710, C8725 CKSRYB152K50 C8731 CKSRYB152K50 C5961, C8214, C8215, C8304 CKSRYB224K16 C8605, C8606, C8753, C8754 CKSRYB331K50 C8726 CKSRYB332K50 C8217, C8516, C8517, C8705, C8706 CKSRYB471K50 C8216 CKSRYB472K50 C8202, C8223, C8306, C8772 CKSRYB473K25 C8207-C8209 CKSRYB683K25 C8607, C8608, C8727, C8757, C8758 CKSRYB821K50 C8206 CKSRYB822K50 RESISTORS R5802, R5804, R5807, R8216 RD1/4PU102J R8637, R8638, R8901, R8904 RD1/4PU102J R5636 RD1/4PU223J R5637 RD1/4PU473J R5903-R5906 RS1/16S1500F Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 90 1 2 3 4 1 2 3 4 C D F A B E R5901 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN5503 11P FFC CONNECTOR 52045-1145 CN5501 12P FFC CONNECTOR 52045-1245 CN5701 13P FFC CONNECTOR 52045-1345 CN8303 30P FFC CONNECTOR 52045-3045 CN5105 5P JUMPER CONNECTOR 52147-0510 CN8302 15P JUMPER CONNECTOR 52147-1510 CN8401 4P PIN JACK AKB7015 JA5903 COMB. JACK AKB7146 CN5505 13P PLUG AKP7059 CN5801 17P PLUG AKP7061 CN5506, CN5507 19P PLUG AKP7062 X5501 CRYSTARL RESO. ASS7034 CN5502 7P FFC CONNECTOR HLEM7S-1 0 - 3 PCB BUNDER VEF1040 CN5905 18P FFC CONNECTOR VKN1249 CN5903 30P FFC CONNECTOR VKN1261 CN5902 7P CONNECTOR VKN1267 E IF/AF ASSY(XWZ3733) SEMICONDUCTORS IC8111, IC8801 AN4558NS IC8301 BA3838F IC8101 BU4052BCF IC5801 BU4094BCF IC8201 M65847AFP IC5501 PDC109A Q5801, Q5804 2SB1132 Q5502, Q5503, Q5701, Q8111, Q8112 2SC4081 Q8201 2SD1858X > Q8771 2SD2012 Q5711, Q8501, Q8502 2SD2114K Q5402 2SJ103 Q5803, Q8115, Q8503 DTA124EUA Q5501, Q5802, Q5805, Q5807, Q5808 DTC143EUA Q5607 RN2901 D5502, D5703, D5711 1SS133 D5716, D5801, D5952, D5954, D8501 1SS355 D8701, D8702 1SS355 D5715 MTZJ11C D5955, D8201, D8901, D8902 MTZJ5.6B D5901 UDZS15B COILS AND FILTERS L5501 LAU220J L5901 VTL1086 CAPACITORS C5501 (0.047F/5.5V) ACH1246 C5504, C8212 CCSRCH101J50 C5801, C8401, C8402 CCSRCH221J50 C5903, C5904, C5906 CCSRCH470J50 C5511, C5715, C5718, C5719 CEAT100M50 C5803, C5804, C8115, C8116 CEAT100M50 C8121, C8122, C8221, C8509, C8510 CEAT100M50 C8833, C8834 CEAT100M50 C5502 CEAT101M10 C5901, C5902 CEAT102M6R3 Mark No. Description Part No. C5506, C8773 CEAT1R0M50 C5608, C5610 CEAT220M25 C5716 CEAT220M50 C8305, C8308-C8310 CEAT2R2M50 C5963, C5966, C5968, C8201, C8213 CEAT470M16 C8222, C8307, C8771, C8907, C8908 CEAT470M16 C8910 CEAT470M16 C8312 CEAT4R7M50 C5433 CEJQR22M50 C5805, C5806, C8220 CKSRYB102K50 C5505, C5508, C5516-C5518, C5712 CKSRYB103K50 C5962, C8101, C8103, C8107, C8108 CKSRYB103K50 C8203-C8205, C8218, C8313 CKSRYB103K50 C8623, C8624, C8828, C8830, C8912 CKSRYB103K50 C5964, C5965, C5967, C8763, C8764 CKSRYB104K16 C5507, C5515, C5802, C5960 CKSRYB104K25 C8301-C8303 CKSRYB104K25 C8219 CKSRYB122K50 C5961, C8214, C8215, C8304 CKSRYB224K16 C8217, C8516, C8517 CKSRYB471K50 C8216 CKSRYB472K50 C8202, C8223, C8306, C8772 CKSRYB473K25 C8207-C8209 CKSRYB683K25 C8206 CKSRYB822K50 RESISTORS R5802, R5804, R5807, R8216, R8901 RD1/4PU102J R8904 RD1/4PU102J R5636 RD1/4PU223J R5637 RD1/4PU473J R5903-R5906 RS1/16S1500F R5901 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN5503 11P FFC CONNECTOR 52045-1145 CN5501 12P FFC CONNECTOR 52045-1245 CN5701 13P FFC CONNECTOR 52045-1345 CN8303 301P FFC CONNECTOR 52045-3045 CN5105 5P JUMPER CONNECTOR 52147-0510 CN8302 15P JUMPER CONNECTOR 52147-1510 CN8401 4P PIN JACK AKB7015 JA5903 COMB. JACK AKB7146 CN5801 17P PLUG AKP7061 X5501 CRYSTARL RESO. ASS7034 CN5502 7P FFC CONNECTOR HLEM7S-1 0-3 PCB BUNDER VEF1040 CN5904 10P FFC CONNECTOR VKN1242 CN5903 30P FFC CONNECTOR VKN1261 CN5902 7P CONNECTOR VKN1267 D8901, D8902 MTZJ6.8B D8601, D8602 UDZS6.8B Mark No. Description Part No. D DECK ASSY(XWZ3072) SEMICONDUCTORS IC2202, IC2301, IC2401 BA4558F-HT Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 91 5 6 7 8 5 6 7 8 C D F A B E IC2201 HA12136AF Q2254 2SA1037K Q2801, Q2802, Q2805 2SC1815 Q2806 2SC2240 Q2251-Q2253 2SC2412K Q2261, Q2262, Q2451, Q2452 2SD2114K Q2301, Q2302 2SK373 Q2351, Q2460 DTA124EK Q2303, Q2304 DTC114TK Q2255, Q2352, Q2353, Q2453 DTC124EK Q2263 DTC143EK D2256, D2301-D2306 1SS133 D2252-D2255, D2307 1SS355 D2201 MTZJ6.2A COILS AND FILTERS L2802 LFA121J L2801 RTD1082 L2401, L2402 RTF1004 L2403, L2404 RTF1021 F2201, F2202 RTF1217 CAPACITORS C2809 CCCSL151K2H C2301, C2302 CCSRCH100D50 C2423, C2424 CCSRCH221J50 C2253 CCSRCH271J50 C2256, C2257, C2321-C2324 CCSRCH470J50 C2401, C2402 CCSRCH470J50 C2303, C2304 CCSRCH681J50 C2807 CEAL470M6R3 C2203, C2204, C2207, C2311, C2312 CEAT100M50 C2215 CEAT101M16 C2201, C2202, C2217, C2218, C2255 CEAT1R0M50 C2404, C2419, C2420 CEAT1R0M50 C2251 CEAT220M50 C2216 CEAT221M16 C2254 CEAT2R2M50 C2309, C2310, C2407, C2408 CEAT330M50 C2425 CEAT470M16 C2261, C2262 CEAT4R7M50 C2208 CEATR10M50 C2205, C2206 CEATR22M50 C2403 CEJQ1R0M50 C2805, C2806, C2810 CEJQ330M10 C2314 CEJQ470M16 C2315 CKSRYB102K50 C2231 CKSRYB103K50 C2431, C2432 CKSRYB122K50 C2211, C2212 CKSRYB152K50 C2252 CKSRYB334K10 C2808 CQHA822J2A C2801 CQMA123J50 C2421, C2422 CQMA152J50 C2409, C2410 CQMA223J50 C2803, C2804 CQMA472J50 C2802 CQMA682J50 C2209, C2210 CQMBA103J50 C2307, C2308 CQMBA682J50 C2405, C2406 CQMBA683J50 Mark No. Description Part No. RESISTORS R2805 RD1/2VM161J R2803 RD1/2VM4R7J VR2301, VR2302, VR2401, VR2402 PCP1028 VR2801, VR2802 PCP1032 Other Resistors RS1/16S###J OTHERS CN2506 17P SOCKET AKP7072 CN2302 CONNECTOR POST B2B-PH-K CN2507 3P CONNECTOR B3P-SHF-1AA CN2301 KR CONNECTOR B4B-PH-K I DISP1 ASSY SEMICONDUCTORS Q5110 DTC143EUA D5110 SLR-343MC COILS AND FILTERS L5101 LAU220J SWITCHES AND RELAYS S5101-S5108 VSG1009 CAPACITORS C5105 CCSRCH100D50 C5106 CCSRCH220J50 C5103 CEAL470M16 C5101 CKSRYB102K50 C5104 CKSRYB104K16 RESISTORS R5210 RD1/4PU271J Other Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 CN5101 12P FFC CONNECTOR 52044-1245 CN5102 8P JUMPER CONNECTOR 52151-0810 CN5104 10P FFC CONNECTOR 52492-1020 H DISP2 ASSY SEMICONDUCTORS Q5201, Q5203 2SC2412K D5215, D5216 1SS355 D5207 NSPBF50S-3026 D5203 NSPW500BS-2146 D5209, D5217 NSPWF50BS-9706 D5202, D5211, D5213 UDZS6.8B SWITCHES AND RELAYS S5201-S5207 VSG1009 CAPACITORS C5204 CEAL101M10 C5202 CKSRYB103K50 RESISTORS R5213 RD1/4PU101J Other Resistors RS1/16S###J OTHERS 0 8P CABLE HOLDER 51048-0800 J5102 8P WIRE D20PYY0805E Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 92 1 2 3 4 1 2 3 4 C D F A B E 5201 REMOTE CONTROL UNIT GP1UM28XK G DISP3 ASSY SEMICONDUCTORS D5302 NSPW500BS-2146 D5301 UDZS6.8B SWITCHES AND RELAYS S5301-S5309 VSG1009 RESISTORS Other Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 J5103 4P WIRE D20PYY0420E J MIC ASSY (XWZ3730) SEMICONDUCTORS IC5401 M65855FP IC5402 NJM4558MD Q5401 DTA143EUA D5401 MTZJ5.1B COILS AND FILTERS L5401 LAU100J CAPACITORS C5419, C5427, C5428 CCSRCH101J50 C5423 CCSRCH102J50 C5409 CEAL220M16 C5416, C5422, C5426 CEAL2R2M50 C5431, C5432 CEAL4R7M50 C5401 CEJQ101M16 C5421 CEJQ2R2M50 C5420 CEJQ470M16 C5410 CEJQR47M50 C5404, C5408, C5411, C5430 CKSRYB103K50 C5402, C5412, C5429, C5436 CKSRYB104K25 C5414 CKSRYB122K50 C5405 CKSRYB123K50 C5406 CKSRYB472K50 C5407 CKSRYB473K25 RESISTORS R5401 RD1/4PU681J VR5401 XCS3007 Other Resistors RS1/16S###J OTHERS 0 5P CABLE HOLDER 51048-0500 J5401 5P WIRE D20PYY0545E JA5401, JA5402 MIC JACK XKN3012 O HP ASSY COILS AND FILTERS L3901, L3902 VTL1096 CAPACITORS C3905 CKSRYB103K50 C3903, C3904 CKSRYB473K25 Mark No. Description Part No. RESISTORS Other Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 3901 MINI JACK AKN7003 J3902 4P WIRE D20PYY0410E K EVOL ASSY(XWZ3736) SEMICONDUCTORS > IC3101 AEK7021 IC3071, IC3072 AN4558NS IC3062 BD3814FV IC3055-IC3058 NJM4558MD IC3901 NJM4560M > IC3951 NJM7812FA Q3909 2SA1576A Q3751, Q3752 2SC4081 Q3901, Q3902, Q3905, Q3906 2SD2114K Q3351, Q3352 2SK368 Q3753, Q3754, Q3903 DTA124EUA D3755, D3756 1SS133 D3753, D3754 1SS355 D3901 DAP202K D3796 MTZJ3.3B D3052, D3053 UDZS6.8B CAPACITORS C3129-C3133, C3913, C3914 CCSRCH101J50 C3168, C3909, C3910 CCSRCH470J50 C3189 CEAL100M16 C3906, C3918 CEAL100M50 C3951 CEAL1R0M50 C3954 CEAL470M16 C3753, C3754 CEALR47M50 C3063, C3064, C3095, C3096 CEAT100M50 C3173, C3174, C3190, C3917 CEAT100M50 C3923, C3924 CEAT100M50 C3925, C3926 CEAT101M16 C3795 CEAT101M63 C3955 CEAT102M25 C3111, C3112, C3197, C3198 CEAT1R0M50 C3757, C3758 CEAT1R0M50 C3113, C3114 CEAT221M10 C3149, C3911, C3912 CEAT470M16 C3150 CEJQ470M16 C3901, C3902 CKSRYB102K50 C3115, C3116, C3147, C3148 CKSRYB103K50 C3171, C3172 CKSRYB103K50 C3159, C3160, C3169, C3170 CKSRYB104K16 C3180, C3181, C3186, C3796 CKSRYB104K16 C3121-C3124, C3915, C3916 CKSRYB104K25 C3283 CKSRYB123K50 C3138 CKSRYB152K50 C3223, C3224 CKSRYB153K50 C3182 CKSRYB224K16 C3235, C3236 CKSRYB273K16 C3267, C3268 CKSRYB332K50 C3176, C3183, C3279 CKSRYB333K25 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 93 5 6 7 8 5 6 7 8 C D F A B E C3125, C3126, C3755, C3756 CKSRYB472K50 C3177, C3179 CKSRYB473K25 C3255, C3256 CKSRYB822K50 RESISTORS R3118, R3119 RD1/2PM151J R3757, R3758 RD1/4PU103J R3164, R3177, R3206 RD1/4PU220J R3796 RD1/4PU223J R3901, R3902, R3911, R3912 RD1/4PU330J Other Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 CN3011 16P FFC CONNECTOR 52044-1645 CN3001 30P FFC CONNECTOR 52044-3045 CN3008 4P JUMPER WIRE 52151-0410 CN3012 13P JUMPER WIRE 52151-1310 CN3003 20P CONNECTOR PLUG AKM7074 CN3006 7P CONNECTOR SOCKET AKP7149 CN3007 12P CONNECTOR SOCKET AKP7154 J3009 4P WIRE D20PYY0425E J3002 15P WIRE D20PYY1520E 3001 SCREW TERMINAL VNE1948 N SP-TERMINAL ASSY(XWZ3737) SEMICONDUCTORS Q3639 2SA1576A Q3601, Q3602, Q3611, Q3612 2SC4081 Q3621, Q3622, Q3631, Q3637, Q3638 2SC4081 Q3642, Q3644 2SC4081 Q3641 2SD1858X Q3635 DTA124EUA Q3645 DTA143EUA Q3636, Q3640 DTC124EUA Q3633 RN1901 Q3632 UMB1N D3632-D3634 1SS133 D3601, D3602, D3611, D3612 1SS355 D3621, D3622, D3636, D3637 1SS355 D3641-D3643 1SS355 D3635 DAN202K D3644 DAN217 D3603, D3613, D3623 DAP202K D3631 MTZJ5.1A COILS AND FILTERS L3361, L3362, L3461, L3462 ATH-959 L3661 ATH-059 SWITCHES AND RELAYS RY3641-RY3643 ASR7008 CAPACITORS C3631 CEAL2R2M50 C3633 CEAT100M50 C3632 CEAT471M6R3 C3668 CKSRYB103K50 C3361-C3364, C3461-C3464 CKSRYB223K50 C3561-C3564 CKSRYB223K50 C3365-C3368, C3465-C3468, C3565 CKSRYB473K50 Mark No. Description Part No. C3567, C3665, C3667 CKSRYB473K50 C3369, C3370, C3469, C3470,C3569 XCG3008 C3669 XCG3008 RESISTORS R3607, R3608, R3617,R3618 ACN7112 R3627, R3628 (0.1ohm, 2W) ACN7112 R3361, R3362, R3461, R3462, R3561 RD1/2PMF101J R3661 RD1/2PMF101J R3668 RD1/4PU223J R3634 RD1/4PU272J R3635 RD1/4PU332J R3631, R3632 RD1/4PU472J R3633 RD1/4PU682J R3365-R3368, R3465-R3468 RS1/10S220J R3565, R3566, R3665, R3667 RS1/10S220J Other Resistors RS1/16S###J OTHERS CN3307 7P CONNECTOR PLUG AKM7061 CN3305 12P CONNECTOR AKM7066 JA3301 12P SPEAKER TERMINAL XKE3022 P PRIMARY ASSY SEMICONDUCTORS > IC5508 NJM78M56FA Q81 2SD1858X Q80 DTC124EK D87-D89 1SS133 D80 DF06SA COILS AND FILTERS > L1 XTF3003 SWITCHES AND RELAYS > RY81 ASR7027 CAPACITORS > C1, C3 (0.01/AC275V) ACE7013 C84 CEAT100M50 C82 CEAT102M25 C83 CEAT1R0M50 C85 CKSRYB103K50 RESISTORS Other Resistors RS1/16S###J OTHERS CN7 4P JUMPER CONNECTOR 52151-0410 H1 - H6 FUSE CLIP AKR7001 > T2 SUB TRANS FORMER ATT7080 CN1 2P-VH CONNECTOR B2P3-VH CN2 4P-VH CONNECTOR B4P7-VH 0 PCB BINDER VEF1040 > AN1 1P AC INLET XKP3041 > S1 VOLTAGE SELECTOR XKX3001 Q SECONDARY ASSY SEMICONDUCTORS > IC41 (7A) AEK7021 D11, D21, D41 D5SBA20(B) Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 94 1 2 3 4 1 2 3 4 C D F A B E CAPACITORS C21, C22 (4700uF/35) ACH7166 C41 CEAT682M25 C9011, C9021, C9041 CQMA333K2E C11, C12 (2200uF/63) XCH3020 OTHERS CN3 20P CONNECTOR AKP7162 CN4 7P-VE CONNECTOR B7P-VH 0 PCB BINDER VEF1040 LTRADE ASSY(XWZ3740) RESISTORS Other Resistors RS1/16S###J OTHERS 0 13P CABLE HOLDER 51048-1300 CN3031 16P FFC CONNECTOR 52045-1645 CN3021, CN3022 23P SOCKET AKP7075 J3032 13P WIRE D20PYY1315E J3033 14P WIRE D20PYY1415E M MOD.AMP ASSY(AWM7720) SEMICONDUCTORS > IC81 NJM7805FA > IC71 NJM7912FA > IC3301, IC3401 STK402-270 Q3382, Q43 2SA1576A Q62 2SB1237X Q111, Q3381, Q63, Q92 2SC4081 > Q61 2SD2012 Q3301, Q3302, Q3401, Q3402 2SD2114K Q3501, Q3502, Q3504 2SD2114K Q3654 2SD2144S Q107, Q3653 DTA124EUA Q3652 DTA124TK Q106 DTC124EUA > Q3383, Q91 IRFI9Z34G > Q3384 IRFIZ34G Q3651 RN1901 Q101, Q103 UMB1N Q102, Q104 UMH1N > D3321-D3326 1SR139-400 D3327, D3328 1SR139-400 > D3421-D3426 1SR139-400 D3427, D3428 1SR139-400 D3387, D3388, D3651-D3655 1SS133 D101, D102, D104, D3657, D42 1SS355 > D3391, D3392 30PDA20-FC6 > D3381, D3382, D3481, D3482 DAN217 > D3581, D3582 DAN217 D3389, D3390 MTZJ10C > D98 MTZJ11B > D72 MTZJ15C D3393, D3394 MTZJ18B/C > D63 MTZJ18C D3385, D3386 MTZJ36A > D82 MTZJ7.5C D91 UDZS18B D105, Mark No. Description Part No. TH111 NCP18WF104J03RB CAPACITORS C3305, C3306, C3405, C3406 CCSRCH221J50 C3505, C3506, C62, C97 CCSRCH221J50 C3309, C3310, C3409, C3410 CCSRCJ3R0C50 C3509, C3510 CCSRCJ3R0C50 C3307, C3308, C3407, C3408, C3508 CEAL100M16 C3507 CEAL470M6R3 C72 CEAT100M50 C3651 CEAT101M25 C101, C102 CEAT1R0M50 C3323, C3324, C3423, C3424 CEAT221M50 C3167, C3168, C3178, C3179 CEAT2R2M50 C3301, C3302, C3317, C3318 CEAT2R2M50 C3401, C3402, C3501, C3502 CEAT2R2M50 C3652, C63, C82, C98 CEAT470M25 C3653 CEAT470M35 C3303, C3304, C3403, C3404 CKSRYB102K50 C3503, C3504 CKSRYB102K50 C92 CKSRYB104K16 C71, C81 CKSRYB473K50 RESISTORS R3317-R3320, R3417-R3420 ACN7122 R3517-R3520 (0.22ohm, 2W) ACN7122 > R3327, R3328, R3427, R3428 RD1/4MUF470J R3387, R3388 RD1/4PU101J R3657 RD1/4PU330J R96, R97 RS1/16S1002F > R3323, R3324, R3351, R3423, R3424 RS1/16S1R0J > R3451 RS1/16S1R0J R67, R68 RS1/16S2201F R94, R95 RS1/16S2701F > R62 RS1/16S330J R65 RS1/16S4700F R47, R48 RS1/16S4701F Other Resistors RS1/16S###J OTHERS CN3001, CN3002 23P PLUG AKP7064 CN3651 PLUG(2P) KM200SA2 B DVD MAIN ASSY(AWM7808) SEMICONDUCTORS IC602 K4S641632F-TC75 IC101 M63018FP > IC431 MM1565AF IC501 MM1623AF > IC421 PQ018EH01ZP > IC411 PQ018EZ01ZP > IC441 PQ20WZ11 > IC401 R1224N102H IC601 STM5589CVA IC301 STM6316ATXXA IC911 TC74VHC08FT IC901 TC74VHCT125AFT IC604 TC7WU04FU IC603 VYW2096 Q390 2SA1576A > Q451 2SA1576A Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 95 5 6 7 8 5 6 7 8 C D F A B E Q923, Q924, Q926 2SA1576A Q202, Q212, Q452 2SC4081 > Q401 CPH6314 Q921 DTA124EUA Q951 DTC114TUA Q724, Q977 DTC114YUA Q922, Q925 DTC124EUA Q201, Q211 HN1A01F Q911 RN1903 Q603 RN4982 D431, D432 1SR154-400 D402, D403, D922–D927 1SS355 D401 RB051L-40 D603 RB501V-40 D921 UDZS4.7B COILS AND FILTERS L401 ATH7011 L402 CTH1254 L390 LCYA2R7J2520 L1056-L1061 VTL1078 CAPACITORS C408 CCSRCH121J50 C390 CCSRCH180J50 C142 CCSRCH221J50 C200 CCSRCH331J50 C690 CCSRCH470J50 C392 CCSRCH560J50 C393, C640, C644 CCSRCH7R0D50 C452 CEV100M16 C101, C401, C404, C410,C412 CEV101M16 C422, C443, C561, C564,C600 CEV101M16 C621, C660 CEV101M16 C415, C425 CEV101M4 C201, C211 CEV470M16 C406 CKSQYB104K25 C431 CKSQYB105K16 C433 CKSQYB225K10 C127, C128, C381, C562, C563 CKSRYB102K50 C624 CKSRYB102K50 C112-C114, C124, C125, C130 CKSRYB103K50 C133, C134, C355 CKSRYB103K50 C102, C132, C139, C230 CKSRYB104K16 C232, C233, C300, C307, C309 CKSRYB104K16 C315, C318, C323, C326, C335 CKSRYB104K16 C342, C348, C357, C362, C373 CKSRYB104K16 C377, C388, C391, C413, C414 CKSRYB104K16 C423, C424, C441, C442, C451 CKSRYB104K16 C511, C531, C551, C565, C571 CKSRYB104K16 C604, C607, C614, C619 CKSRYB104K16 C622, C623, C626–C632 CKSRYB104K16 C636, C637, C641, C647–C649 CKSRYB104K16 C659, C664, C671, C681, C684 CKSRYB104K16 C694, C698, C902, C912, C921 CKSRYB104K16 C501, C521, C541, C603, C620 CKSRYB105K10 C625 CKSRYB105K10 C394 CKSRYB152K50 C126, C346 CKSRYB223K50 C202, C205, C212, C215 CKSRYB472K50 C402, C403, C405, C409 (10u/25) DCH1165 Mark No. Description Part No. RESISTORS R201 RAB4C220J R211 RAB4C390J R100, R1011-R1013, R111, R210 RS1/10S0R0J R387–R389, R412–R415, R417 RS1/10S0R0J R421, R422, R561, R600, R623 RS1/10S0R0J R403 RS1/10S100J R105, R106, R115–R120 RS1/10S4R7J R104, R107 RS1/10S6R8J R125, R144, R330, R331, R628 RS1/16S1002F R635 RS1/16S1002F R301 RS1/16S1202F R502, R512, R522, R532, R542 RS1/16S1500F R552 RS1/16S1500F R408 RS1/16S1502F R410 RS1/16S1802F R443 RS1/16S2001F R409 RS1/16S2702F R441 RS1/16S4701F R101, R102, R123, R142, R143 RS1/16S5600F R442 RS1/16S6801F R411 RS1/8S0R0J Other Resistors RS1/16S###J OTHERS CN104 4P CONNECTOR AKN7035 CN105 12P FFC CONNECTOR RKN1053 CN103 PH FFC CONNECTOR S5B-PH-SM3 0 FLEXIBLE CABLE VDA1681 CN903 18P FFC CONNECTOR VKN1310 CN901 30P FFC CONNECTOR VKN1322 CN101 24P CONNECTOR VKN1482 X601 RESO. (27MHz) VSS1172 X301 RESO. (20MHz) VSS1186 F DSP ASSY (EV61 Only) SEMICONDUCTORS IC8201 AK4114VQ IC8401 AK4628VQ IC8501 DSPD56367PV150 IC8901 NJM2391DL1-33 IC8902 NJU7223DL1-18 IC8701 TC74LVX244FT IC8702 TC74VHCT244AFT IC8502 TC7WU04FU Q8504 UMD2N Q8503 UN5112 D8501 1SS355 D8401 DAN202K D8402, D8502, D8503 DAP202K COILS AND FILTERS L8002, L8004, L8501,L8502 ATL7002 L8201, L8203, L8204, L8401, L8402 QTL1013 L8504, L8702 QTL1013 X8501 RESO.(20MHz) VSS1171 X8201 RESO. (24.576MHz) XSS3003 CAPACITORS C8209, C8210 CCSRCH100D50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 96 1 2 3 4 1 2 3 4 C D F A B E C8421 CCSRCH101J50 C8007, C8008, C8201, C8212, C8214 CCSRCH471J50 C8404, C8409-C8414, C8416, C8417 CCSRCH471J50 C8419, C8505, C8507, C8509 CCSRCH471J50 C8511, C8512, C8515, C8518, C8520 CCSRCH471J50 C8522, C8524, C8526, C8528, C8530 CCSRCH471J50 C8532, C8534, C8536, C8539, C8541 CCSRCH471J50 C8543, C8545, C8551, C8703, C8706 CCSRCH471J50 C8548, C8549 CCSRCH8R0D50 C8701, C8704 CEV100M16 C8406, C8415, C8546, C8547, C8902 CEV101M16 C8904 CEV101M16 C8217, C8225, C8408 CEV470M6R3 C8204, C8555 CKSRYB102K50 C8009, C8405, C8418, C8517, C8554 CKSRYB103K50 C8010, C8202, C8207, C8213, C8215 CKSRYB104K16 C8407, C8420, C8422, C8504, C8513 CKSRYB104K16 C8521, C8523, C8525, C8527, C8529 CKSRYB104K16 C8531, C8533, C8535, C8537, C8538 CKSRYB104K16 C8540, C8542, C8544, C8550, C8702 CKSRYB104K16 C8705, C8901, C8903 CKSRYB104K16 C8516 CKSRYB105K6R3 C8514 CKSRYB333K16 C8203 CKSRYB473K50 RESISTORS R8506 RAB4C101J R8201 RS1/16S1802F Other Resistors RS1/16S###J OTHERS CN8003 13P SOCKET AKP7070 CN8007, CN8011 19P SOCKET AKP7073 8101 SCREW TERMINAL VNE1948 M 3CH AMP ASSY (AWM7787) SEMICONDUCTORS > IC81 NJM7805FA > IC71 NJM7912FA > IC3301 STK402-270 Q3382, Q43 2SA1576A Q62 2SB1237X Q111, Q3381, Q63, Q92 2SC4081 > Q61 2SD2012 Q3301, Q3302, Q3502, Q3504 2SD2114K Q3654 2SD2144S Q107, Q3653 DTA124EUA Q3652 DTA124TK Q106 DTC124EUA > Q3383, Q91 IRFI9Z34G > Q3384 IRFIZ34G Q3651 RN1901 Q101, Q103 UMB1N Q102, Q104 UMH1N > D3321-D3326 1SR139-400 D3327, D3328 1SR139-400 D3387, D3388, D3651-D3655 1SS133 D101, D102, D104, D3657, D42 1SS355 > D3391, D3392 30PDA20-FC6 > D3381, D3382, D3582 DAN217 Mark No. Description Part No. D3389, D3390 MTZJ10C > D98 MTZJ11B > D72 MTZJ15C D3393, D3394 MTZJ18B/C > D63 MTZJ18C D3385, D3386 MTZJ36A > D82 MTZJ7.5C D91 UDZS18B D105, D106, D3658 UDZS7.5B TH111 NCP18WF104J03RB CAPACITORS C3305, C3306, C3506, C62, C97 CCSRCH221J50 C3309, C3310, C3510 CCSRCJ3R0C50 C3307, C3308, C3508 CEAL100M16 C72 CEAT100M50 C3651 CEAT101M25 C101, C102 CEAT1R0M50 C3323, C3324 CEAT221M50 C3179, C3301, C3302, C3317, C3318 CEAT2R2M50 C3502 CEAT2R2M50 C3652, C63, C82, C98 CEAT470M25 C3653 CEAT470M35 C3303, C3304, C3504 CKSRYB102K50 C92 CKSRYB104K16 C71, C81 CKSRYB473K50 RESISTORS R3317-R3320, R3518, R3520 ACN7122 > R3327, R3328 RD1/4MUF470J R3387, R3388 RD1/4PU101J R3657 RD1/4PU330J R96, R97 RS1/16S1002F > R3323, R3324, R3351 RS1/16S1R0J R67, R68 RS1/16S2201F R94, R95 RS1/16S2701F > R62 RS1/16S330J R65 RS1/16S4700F R47, R48 RS1/16S4701F Other Resistors RS1/16S###J OTHERS CN3001, CN3002 23P PLUG AKP7064 CN3651 2P PLUG KM200SA2 B DVDM ASSY (AWM7809) SEMICONDUCTORS IC602 K4S641632F-TC75 IC101 M63018FP > IC431 MM1565AF IC501 MM1623AF IC701 PCM1742KE > IC421 PQ018EH01ZP > IC411 PQ018EZ01ZP > IC441 PQ20WZ11 > IC401 R1224N102H IC601 STM5589CVA IC301 STM6316ATXXA IC911 TC74VHC08FT IC901 TC74VHCT125AFT IC604 TC7WU04FU Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 97 5 6 7 8 5 6 7 8 C D F A B E IC603 VYW2096 Q390 2SA1576A > Q451 2SA1576A Q723, Q923, Q924, Q926 2SA1576A Q202, Q212, Q452 2SC4081 Q725, Q726 2SD2114K > Q401 CPH6314 Q921 DTA124EUA Q951 DTC114TUA Q721, Q922, Q925 DTC124EUA Q201, Q211 HN1A01F Q911 RN1903 Q603 RN4982 D431, D432 1SR154-400 D402, D403, D922-D927 1SS355 D401 RB051L-40 D603 RB501V-40 D921 UDZS4.7B COILS AND FILTERS L401 ATH7011 L402 CTH1254 L390 LCYA2R7J2520 L1056-L1058 VTL1078 CAPACITORS C733, C734 CCSRCH102J50 C408 CCSRCH121J50 C390 CCSRCH180J50 C142 CCSRCH221J50 C200 CCSRCH331J50 C690 CCSRCH470J50 C392 CCSRCH560J50 C393, C640, C644 CCSRCH7R0D50 C452, C731,C732 CEV100M16 C101, C401, C404, C410,C412 CEV101M16 C422, C443, C561,C564,C600 CEV101M16 C621, C660, C705,C706 CEV101M16 C415, C425, C702 CEV101M4 C201, C211 CKSQYB104K25 C406 CKSQYB104K25 C431 CKSQYB105K16 C433 CKSQYB225K10 C127, C128, C381, C562, C563 CKSRYB102K50 C624 CKSRYB102K50 C112-C114, C124, C125, C130 CKSRYB103K50 C133, C134, C355 CKSRYB103K50 C102, C132, C139, C230 CKSRYB104K16 C232, C233, C300, C307, C309 CKSRYB104K16 C315, C318, C323, C326, C335 CKSRYB104K16 C342, C348, C357, C362, C373 CKSRYB104K16 C377, C388, C391, C413, C414 CKSRYB104K16 C423, C424, C441, C442, C451 CKSRYB104K16 C511, C531, C551, C565, C571 CKSRYB104K16 C604, C607, C614, C619 CKSRYB104K16 C622, C623, C626-C632 CKSRYB104K16 C636, C637, C641, C647-C649 CKSRYB104K16 C659, C664, C671, C681, C684 CKSRYB104K16 C694, C698, C703, C704, C707 CKSRYB104K16 C709, C902, C912, C921 CKSRYB104K16 Mark No. Description Part No. C501, C521, C541, C603, C620 CKSRYB105K10 C625 CKSRYB105K10 C394 CKSRYB152K50 C126, C346 CKSRYB223K50 C202, C205, C212, C215 CKSRYB472K50 C402, C403, C405, C409 (10u/25) DCH1165 RESISTORS R201 RAB4C220J R211 RAB4C390J R100, R1011-R1013, R111, R210 RS1/10S0R0J R387-R389, R412-R415, R417 RS1/10S0R0J R421, R422, R561, R600, R623 RS1/10S0R0J R403 RS1/10S100J R105, R106, R115-R120 RS1/10S4R7J R104, R107 RS1/10S6R8J R125, R144, R330, R331, R628 RS1/16S1002F R635 RS1/16S1002F R301 RS1/16S1202F R502, R512, R522, R532, R542 RS1/16S1500F R552 RS1/16S1500F R408 RS1/16S1502F R410 RS1/16S1802F R443 RS1/16S2001F R409 RS1/16S2702F R441 RS1/16S4701F R101, R102, R123, R142, R143 RS1/16S5600F R442 RS1/16S6801F R411 RS1/8S0R0J Other Resistors RS1/16S###J OTHERS CN104 4P CONNECTOR AKN7035 CN105 12P FFC CONNECTOR RKN1053 CN103 PH CONNECTOR S5B-PH-SM3 0 FLEXIBLE CABLE VDA1681 CN902 11P FFC CONNECTOR VKN1303 CN901 30P FFC CONNECTOR VKN1322 CN101 24P CONNECTOR VKN1482 X601 RESO. (27MHz) VSS1172 X301 RESO. (20MHz) VSS1186 D DECK ASSY(XWZ3073) SEMICONDUCTORS IC2202, IC2301, IC2401 BA4558F-HT IC2201 HA12136AF Q2254 2SA1037K Q2801,Q2802, Q2805 2SC1815 Q2806 2SC2240 Q2251-Q2253 2SC2412K Q2261, Q2262, Q2451, Q2452 2SD2114K Q2301, Q2302 2SK373 Q2351, Q2460 DTA124EK Q2303, Q2304 DTC114TK Q2255, Q2352, Q2353, Q2453 DTC124EK Q2263 DTC143EK D2256, D2301-D2306 1SS133 D2252-D2255, D2307 1SS355 D2201 MTZJ6.2A Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 98 1 2 3 4 1 2 3 4 C D F A B E COILS AND FILTERS L2802 LFA121J L2801 OSC COIL RTD1082 L2401, L2402 10mH RTF1004 L2403, L2404 4.7mH RTF1021 F2201, F2202 MPX COIL RTF1217 CAPACITORS C2809 CCCSL151K2H C2301, C2302 CCSRCH100D50 C2423, C2424 CCSRCH221J50 C2253 CCSRCH271J50 C2256, C2257, C2321-C2324 CCSRCH470J50 C2401, C2402 CCSRCH470J50 C2303, C2304 CCSRCH681J50 C2807 CEAL470M6R3 C2203, C2204, C2207, C2311, C2312 CEAT100M50 C2215 CEAT101M16 C2201, C2202, C2217, C2218, C2255 CEAT1R0M50 C2404, C2419, C2420 CEAT1R0M50 C2251 CEAT220M50 C2216 CEAT221M16 C2254 CEAT2R2M50 C2309, C2310, C2407, C2408 CEAT330M50 C2425 CEAT470M16 C2261, C2262 CEAT4R7M50 C2208 CEATR10M50 C2205, C2206 CEATR22M50 C2403 CEJQ1R0M50 C2805, C2806, C2810 CEJQ330M10 C2314 CEJQ470M16 C2315 CKSRYB102K50 C2231 CKSRYB103K50 C2431, C2432 CKSRYB122K50 C2211, C2212 CKSRYB152K50 C2252 CKSRYB334K10 C2808 CQHA822J2A C2801 CQMA123J50 C2421, C2422 CQMA152J50 C2409, C2410 CQMA223J50 C2803, C2804 CQMA472J50 C2802 CQMA682J50 C2209, C2210 CQMBA103J50 C2307, C2308 CQMBA682J50 C2405, C2406 CQMBA683J50 RESISTORS R2805 RD1/2VM161J R2803 RD1/2VM4R7J VR2301, VR2302, VR2401, VR2402 PCP1028 VR2801, VR2802 PCP1032 Other Resistors RS1/16S###J OTHERS CN2506 17P SOCKET AKP7072 CN2302 KR CONNECTOR B2B-PH-K CN2507 3P TOP POST B3P-SHF-1AA CN2301 KR CONNECTOR B4B-PH-K I DISP1 ASSY SEMICONDUCTORS Q5110 DTC143EUA Mark No. Description Part No. D5110 SLR-343MC(NPQ) COILS AND FILTERS L5101 LAU220J SWITCHES AND RELAYS S5101-S5108 VSG1009 CAPACITORS C5105 CCSRCH100D50 C5106 CCSRCH220J50 C5103 CEAL470M16 C5101 CKSRYB102K50 C5104 CKSRYB104K16 RESISTORS R5210 RD1/4PU271J Other Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 CN5101 12P FFC CONNECTOR 52044-1245 CN5102 8P JUMPER CONNECTOR 52151-0810 CN5104 1OP FFC CONNECTOR 52492-1020 H DISP2 ASSY SEMICONDUCTORS Q5201, Q5203 2SC2412K D5215, D5216 1SS355 D5207 NSPBF50S-3026 D5203 NSPW500BS-2146 D5209, D5217 NSPWF50BS-9706 D5202, D5211, D5213 UDZS6.8B SWITCHES AND RELAYS S5201-S5207 VSG1009 CAPACITORS C5204 CEAL101M10 C5202 CKSRYB103K50 RESISTORS R5213 RD1/4PU101J Other Resistors RS1/16S###J OTHERS 0 8P CABLE HOLDER 51048-0800 J5102 8P WIRE D20PYY0805E 5201 REMOTE CONTROL UNIT GP1UM28XK G DISP3 ASSY SEMICONDUCTORS D5302 NSPW500BS-2146 D5301 UDZS6.8B SWITCHES AND RELAYS S5301-S5309 VSG1009 RESISTORS Other Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 J5103 4P WIRE D20PYY0420E Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 99 5 6 7 8 5 6 7 8 C D F A B E O HP ASSY COILS AND FILTERS L3901, L3902 VTL1096 CAPACITORS C3905 CKSRYB103K50 C3903, C3904 CKSRYB473K25 RESISTORS Other Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 3901 MINI JACK AKN7003 J3902 4P WIRE D20PYY0410E J MIC ASSY (XWZ3734) SEMICONDUCTORS IC5401 M65855FP IC5402 NJM4558MD Q5401 DTA143EUA D5401 MTZJ5.1B COILS AND FILTERS L5401 LAU100J CAPACITORS C5419, C5427, C5428 CCSRCH101J50 C5423 CCSRCH331J50 C5409 CEAL220M16 C5416, C5422, C5426 CEAL2R2M50 C5431, C5432 CEAL4R7M50 C5401 CEJQ101M16 C5421 CEJQ2R2M50 C5420 CEJQ470M16 C5410 CEJQR47M50 C5404, C5408, C5411, C5430 CKSRYB103K50 C5402, C5412, C5429, C5436 CKSRYB104K25 C5414 CKSRYB122K50 C5405 CKSRYB123K50 C5406 CKSRYB472K50 C5407 CKSRYB473K25 RESISTORS R5401 RD1/4PU681J VR5401 ROTARY ENCODER XCS3007 Other Resistors RS1/16S###J OTHERS 0 5P CABLE HOLDER 51048-0500 J5401 5P WIRE D20PYY0545E JA5401, JA5402 MIC JACK XKN3012 K EVOL ASSY (XWZ3741) SEMICONDUCTORS > IC3101 AEK7021 IC3071, IC3072 AN4558NS IC3062 BD3814FV IC3055-IC3058 NJM4558MD IC3901 NJM4560M Mark No. Description Part No. > IC3951 NJM7812FA Q3909 2SA1576A Q3751, Q3752 2SC4081 Q3901, Q3902, Q3905, Q3906 2SD2114K Q3351, Q3352 2SK368 Q3753, Q3754, Q3903 DTA124EUA D3755, D3756 1SS133 D3753, D3754 1SS355 D3901 DAP202K D3796 MTZJ3.3B D3052, D3053 UDZS6.8B CAPACITORS C3129-C3133, C3913, C3914 CCSRCH101J50 C3336, C3337 CCSRCH221J50 C3168, C3909, C3910 CCSRCH470J50 C3906, C3918 CEAL100M50 C3189, C3197, C3198, C3951 CEAL1R0M50 C3954 CEAL470M16 C3753, C3754 CEALR47M50 C3063, C3064, C3173, C3174, C3917 CEAT100M50 C3923, C3924 CEAT100M50 C3925, C3926 CEAT101M16 C3795 CEAT101M63 C3955 CEAT102M25 C3111, C3112, C3190, C3757, C3758 CEAT1R0M50 C3113, C3114 CEAT221M10 C3149, C3911, C3912 CEAT470M16 C3150 CEJQ470M16 C3901, C3902 CKSRYB102K50 C3115, C3116, C3147, C3148 CKSRYB103K50 C3159, C3160, C3170-C3172 CKSRYB103K50 C3334, C3335 CKSRYB103K50 C3180, C3181, C3183, C3186, C3796 CKSRYB104K16 C3121-C3124, C3340-C3343 CKSRYB104K25 C3915, C3916 CKSRYB104K25 C3138 CKSRYB152K50 C3182 CKSRYB224K10 C3176 CKSRYB333K25 C3184, C3185 CKSRYB393K25 C3125, C3126, C3755, C3756 CKSRYB472K50 C3177, C3179 CKSRYB473K25 RESISTORS R3118, R3119 RD1/2PM151J R3757, R3758 RD1/4PU103J R3164, R3177, R3206 RD1/4PU220J R3796 RD1/4PU223J R3901, R3902, R3911, R3912 RD1/4PU330J Other Resistors RS1/16S###J OTHERS 0 4P CABLE HOLDER 51048-0400 CN3011 12P FFC CONNECTOR 52044-1245 CN3001 30P FFC CONNECTOR 52044-3045 CN3008 4P JUMPER WIRE 52151-0410 CN3012 13P JUMPER WIRE 52151-1310 CN3003 20P CONNECTOR AKM7074 CN3007 12P CONNECTOR SOCKET AKP7154 J3009 4P WIRE D20PYY0425E Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 100 1 2 3 4 1 2 3 4 C D F A B E J3002 15P WIRE D20PYY1520E 3001 SCREW TERMINAL VNE1948 N SP-TERMINAL ASSY(XWZ3742) SEMICONDUCTORS Q3639 2SA1576A Q3601, Q3602, Q3621,Q3631 2SC4081 Q3637, Q3644 2SC4081 Q3641 2SD1858X Q3635 DTA124EUA Q3645 DTA143EUA Q3636, Q3640 DTC124EUA Q3633 RN1901 Q3632 UMB1N D3632-D3634 1SS133 D3601, D3602, D3621, D3636, D3637 1SS355 D3641, D3642 1SS355 D3635 DAN202K D3644 DAN217 D3603, D3623 DAP202K D3631 MTZJ5.1A COILS AND FILTERS L3361,L3362, L3561 ATH-059 SWITCHES AND RELAYS RY3641, RY3642 ASR7008 CAPACITORS C3631 CEAL2R2M50 C3633 CEAT100M50 C3632 CEAT471M6R3 C3668 CKSRYB103K50 C3361-C3364, C3561, C3563 CKSRYB223K50 C3365-C3368, C3565, C3567 CKSRYB473K50 C3369, RESISTORS R3607, R3361, R3362, R3561 RD1/2PMF101J R3668 RD1/4PU223J R3634 RD1/4PU272J R3635 RD1/4PU332J R3631, R3632 RD1/4PU472J R3633 RD1/4PU682J R3365-R3368, R3565, R3566 RS1/10S220J Other Resistors RS1/16S###J OTHERS 3603 2P PIN JACK AKB1233 CN3305 12P CONNECTOR PLUG AKM7066 JA3302 6P SPEAKER TERMINAL XKE3023 Q SECONDARY ASSY(XWZ3743) SEMICONDUCTORS > IC41 (7A) AEK7021 D11, D21, D41 D5SBA20(B) CAPACITORS C21, C22 (4700uF/35) ACH7166 C41 CEAT682M25 Mark No. Description Part No. C9011, C9041 CQMA103K2E C9021 CQMA473K2E C11, C12 (2200uF/63) XCH3020 OTHERS CN3 20P CONNECTOR SOCKET AKP7162 CN4 7P-VH CONNECTOR B7P-VH 0 PCB BINDER VEF1040 L TRADE ASSY(XWZ3745) RESISTORS Other Resistors RS1/16S###J OTHERS 0 13P CABLE HOLDER 51048-1300 CN3031 12PFFC CONNECTOR 52045-1245 CN3021, CN3022 23P SOCKET AKP7075 J3032 13P WIRE D20PYY1315E J3033 14P WIRE D20PYY1415E Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 101 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 DECK SECTION 6.1.1 Adjustment condition 7 Adjustment Condition (1) The ground at the time of adjustment shall be W166. (Refer to Fig. 6–3). (2) Clean the heads and demagnetize them using a head eraser. (3) Set the measurement level to 0 dBV = 1 Vrms. (4) Use the specified tape for adjustment. Use the labeled (A) side of the test tape. NCT–111 : For Tape Speed adjustment NCT-112 : For Playback adjustment STD–633 : Normal blank tape * As the reference recording level is 250 nwb/m for NCT– 112, the recording level will be higher than 4 dB for NCT– 112 (160nwb/m). When adjusting, pay carefully attention to the type of tape used. (5) Provide yourself with the following measuring devides: ÷ AC millivoltmeter ÷ Low-frequency oscillator ÷ Attenuator ÷ Oscilloscope (6) Adjust both right and left channels unless other wise specified. (7) Turn the DOLBY NR switch off unless otherwize specified. (8) Warm up the unit for several minutes before adjustment. In particular, be sure to warm up the unit in the REC/PLAY mode for 3 to 5 minutes before starting recording/playback frequency characteristics adjustment. (9) Always follow the indicated adjustment order. Otherwise, a complete adjustment may not be achieved. 7 List of Adjustments ¶ Playback Section (1) Tape Speed Confirmation (2) Head Azimuth Adjustment (3) Playback Level Adjustment ¶ Recording Section (1) Recording Bias Adjustment (2) Recording Level Adjustment Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Fig. 6-2 Test Tape NCT– 112 Fig. 6-1 Frequency Characteristics 0 dB –20 dB 30s 0 dB: 315 Hz, 250 nwb/m 315 Hz 6.3 kHz 10 kHz 315 Hz 14 kHz 12.5 kHz 6.3 kHz 500 Hz 250 Hz 125 Hz 10 kHz 8 kHz 4 kHz 2 kHz 63 Hz 40 Hz 1 kHz 30 s 30 s 30 s 10s 10s .......................................................................................................... 10s 250 3dB 10k 12.5k 3dB 4dB PLAY BACK 250 3dB 10k 12.5k 3dB 5dB RECORDING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 102 1 2 3 4 1 2 3 4 C D F A B E 6.1.2 Playback and Recording section NCT-111 (3 kHz) VR2701 (DECK ASSY) (Refer to Fig. 6-3) No. Mode Input Signal/Test Tape Adjustment Points Measurement Points Adjustment Value Remarks PLAY 1 P1 R (CN2507) (DECK ASSY) 3000 Hz Hz (1) Tape Speed Confirmation (1) Recording Bias Adjustment ¶ After the adjustment, caution should be exercised so as not to become under bias by checking the distortion rate. NCT-110 test tape (Playback: 10 kHz, –20 dB) Head azimuth adjustment Screw (Refer to Fig. 6-3) Remarks PLAY 1 P3 L (CN2507) P1 R (CN2507) (DECK ASSY) Max. Playback signal level (2) Head Azimuth Adjustment ¶ This unit is equipped with auto tape selector. ¶ Do not switch between forward and reverse operation with the screwdriver inserted. +10 –10 Playback Section After adjustment, apply silicon bond to the head azimuth adjustment screw. VR2301 PLAY 1 (3) Playback Level Adjustment ¶ Since this adjustment determines playback DolbyNR level, Perform it carefully. L ch R ch VR2302 P3 L (CN2507) P1 R (CN2507) (DECK ASSY) Recording Section VR2801 REC/ PAUSE 1 Input a 315Hz signal to the LINE - IN terminal. ∗ L ch R ch VR2802 P3 L (CN2507) P1 R (CN2507) (DECK ASSY) –3.7 dBV Input signal level –23.7 dBV REC = PLAY 2 Load the STD–633 test tape and record/playback the 315Hz and 10kHz signals. (see the Note below) Repeat adjustment until playback level of the 10kHz signal is within 0dBV ±0.5dB from that of the 315Hz signal. (2) Recording Level Adjustment VR2401 REC/ PAUSE 1 L ch R ch VR2402 P3 L (CN2507) P1 R (CN2507) (DECK ASSY) Input signal level –7.7 dBV REC = PLAY 2 STD–633 test tape and record/ playback the 315Hz signal. Repeat recording, playback and adjustment until playback level of the 315Hz signal becomes –7.7dBV±0.5dB. Note: Set the 10kHz input signal level to the same value as the 315Hz input signal level of step 1. Input a 315Hz signal to the LINE- IN terminal.∗ No. Mode Input Signal/Test Tape Adjustment Points Measurement Points Adjustment Value Remarks No. Mode Input Signal/Test Tape Adjustment Points Measurement Points Adjustment Value NCT-112 test tape (Playback: 315 Hz, 4 dB) Remarks No. Mode Input Signal/Test Tape Adjustment Points Measurement Points Adjustment Value Remarks No. Mode Input Signal/Test Tape Adjustment Points Measurement Points Adjustment Value FWD adjustment REV Confirmation ( 3000 Hz Hz ) +40 –40 7 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 103 5 6 7 8 5 6 7 8 C D F A B E REV Azimuth Adjustment Screw FWD Azimuth Adjustment Screw MECHANISM UNIT IC2202 GNDA A 2 1 OPEN 4 CMKS-P3X RCH LCH OPEN Production Code 1 BIG 1 17 DECK ASSY IC2401 XNP3061-A 1 3 VA12 15.GNDA IC2201 SIDE Lch P PBL VA12 I R PRINTED GNDA GNDA VREF Adj. Adj. PB LEVEL DECK TP Lch PRINTED CONTACT SIDE ICT FC REC L 1.GNDB VB+12 MS VA+12 5.VA+12 LEVEL BIG VA12 D BIAS SIDE VA12 GNDA Adj. VA12 Rch MS GNDA SIDE PRINTED RECR XPBMUTE DOL ON\OFF 10.RECMUTE PB/XREC XBEATCUT BIAS Rch DGND Lch PBR 17.RECL VREF GNDA VREF VA12 VREF GNDA VREF IC2301 Rch Q2802 W246 F2201 W248 F2202 W229 C2810 CN2302 C2206 Q2803 C2203 L2802 C2307 C2308 C2309 C2420 C2809 C2421 C2310 C2311 C2312 C2314 C2404 C2208 D2306 C2407 C2403 C2408 C2409 C2425 C2801 C2417 C2802 C2803 C2804 C2410 C2215 C2217 C2405 C2805 C2806 C2418 C2807 C2218 C2808 W257 Q2301 Q2805 Q2302 L2801 R2321 C2201 C2205 C2202 CN2506 W253 W255 W240 VR2802 C2207 C2422 C2419 CN2507 W227 W239 W254 C2216 W225 C2204 W263 W230 W222 W256 C2406 W218 W224 R2803 D2303 D2304 D2256 D2301 D2305 C2251 W247 C2255 R2806 W238 D2201 W244 C2254 W243 C2262 W261 C2210 C2209 C2261 W228 Q2806 W242 W250 W249 W236 W220 W259 W223 R2805 W219 W241 W260 W235 W252 W251 W258 W221 W237 W232 W234 W262 D2302 W231 W233 L2401 L2402 L2403 L2404 Q2801 CN2301 5 4 3 2 1 5 4 3 2 1 2 1 6 4 3 1 17 1 3 1 4 1 VR2801 VR2401 VR2402 VR2301 VR2302 DECK ASSY D REC LEVEL PB LEVEL BIAS VR2301 (Lch) VR2302 (Rch) VR2402 (Rch) VR2401 (Lch) VR2801 (Lch) VR2802 (Rch) SIDE A Fig. 6-3 Adjustment and Measurement Points CN2507 (DECK TP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 104 1 2 3 4 1 2 3 4 C D F A B E 6.2 TUNER SECTION MPX SG FM SG PRODUCT DC Voltmeter L201 IC201 pin 21 pin 23 FM/AM TUNER MODULE C SIDE B Step No. Adjustment Title ANT. Input level and signal condition Adjustment Input Level (dBµV) Adjust point Contents Frequency (MHz) Modulation 1 T-METER Adjustment 98 OFF 80 L201 Adjust L201 so that the DC voltage between Pin 21 and Pin 23 of IC201 (Test point Vtm) gets within 0 ± 50mV. AM Tuner Section • There is no adjustment in the AM tuner. FM75Ω antenna terminal Fig.1 Adjustment Wiring Diagram Fig.2 Adjustment Point FM Tuner Section • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 105 5 6 7 8 5 6 7 8 C D F A B E 6.3 DVD SECTION ADJUSTMENT ITEMS ana LOCATION 6.4 JIGS and MEASURING INSTRUMENTS 1 1 2 2 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 106 1 2 3 4 1 2 3 4 C D F A B E 6.5 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ Ÿ Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point LOAB and DVDM ASSY Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 107 5 6 7 8 5 6 7 8 C D F A B E 6.6 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1381 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE (Player) TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM CHECK DVD, CD CAUTION: Perform only trace, video and audio outputs are nothing. • The TEST MODE functions that are used only during adjustment are described here. For details, see "7.1.1 TEST MODE". DVD disc DVD Tuner Deck POWER ON Power POWER Power OFF GGF1381 Test mode remote control unit ESC TEST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 108 1 2 3 4 1 2 3 4 C D F A B E 6.7 MECHANISM ADJUSTMENT • Remove the Loading Mecha. Assy. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Loading Mecha. Assy (Float Base) with nippers. Cautions: Because there is not a Spacer for height adjustment in adjustment after the second time, will keep it at need. (This parts is Traverse mechanism exclusive use of a model for 2003 years) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.3 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Loading Mecha. Assy 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.1.13 DISASSEMBLY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 109 5 6 7 8 5 6 7 8 C D F A B E Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". Player www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 110 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the Test mode remote control unit. • Light the all FL and LEDs, and goes out the FL and LEDs when pressing the keys of something. • OSD displays test mode. Refer to the "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". 2 Release the Test mode • Turn off the power. • Press the [ESC] (A8-5F) key of the remote control unit and reset it. 3 Tray open / close • Press the [REPEAT A-B] (A8 - 48) key of the remote control unit. • Press the [OPEN / CLOSE] key of the main unit from the stop state. 4 Playback stop 1. Press the [REPEAT] (A8 - 44) key of the remote control unit from the playback state. 2. Press the [STOP] key of the remote control unit or main unit from the playback state. (Playback stops, but the loaded disc keeps rotating.) 5 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). 6 Focus on / sweep 1. Lock the focus by pressing the [TEST] (A8-5E) and [2] (A8-02) keys in order. 2. Repeat focus sweep by pressing the [TEST] (A8-5E) and [3] (A8-03) keys in order. 7 Spindle FG servo CAV : Press the [TEST] (A8-5E) and [5] (A8-05) keys in order,then rise up the spindle and FG servo becomes on. CLV : Press the [TEST] (A8-5E) and [9] (A8-09) keys in order,then rise up the spindle and FG servo becomes on. 8 Tracking open / close 1. Open tracking by pressing the [STEP FWD] (A8-54) key of the remote control unit in the play state. 2. Close tracking by pressing the [STEP REV] (A8-50) key of the remote control unit in the play state. 9 Slider servo on/off 1. Turn on the slider servo by pressing the [TEST] (A8-5E) and [CX] (A8-0E) keys in order. 2. Turn off the slider servo by pressing the [TEST] (A8-5E) and [TV/LDP] (A8-0F) keys in order. 0 Slider in / out Slider in : In the tracking off state, press the [SCAN REV] (A8-11) key of the remote control unit. Slider out : In the tracking off state, press the [SCAN FWD] (A8-10) key of the remote control unit. - Play (perform only the ID search and trace to the specified location) Press the [TV/LDP] (A8-0F) key of the remote control unit from the stop state. Perform only trace, video and audio outputs are nothing. = Screen display ON/OFF 1. Turn off the display by pressing the [AUDIO] (A8-1E) key of the remote control unit. 2. Turn on the display by pressing the [DISPLAY] (A8-43) key of the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 111 5 6 7 8 5 6 7 8 C D F A B E ~ Search 1. Search address input entry • It becomes the address input mode when pressing the [+10] (A8-1F) key. (Most significant digit of an address displays "<".) • In this time, display the last address as the initial state. 2. Search address input • Press the [0] to [9] (A8-00 to 09) keys of the remote control unit. In the DVD, set an address with hexadecimal. • In the address input mode, turn to the hexadecimal input by pressing the [PROGRAM] (A8-4C) key (display a "∗" mark), and [1] to [6] keys are each input as A to F. • Hexadecimal input and decimal input can switch with toggle. • In case of CD, perform only the absolute time search. 3. Search execution • Press the [CHP/TM] (A8-13) key of the remote control unit. • After the search, perform only trace and video and audio outputs are nothing. 4. Release the Search address input • Clear the address by pressing the [CLEAR] (A8-45) key. Release the address input mode when pressing the [CLEAR] key once again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 112 1 2 3 4 1 2 3 4 C D F A B E Character in bold : Item name : Information display 1 5 6 10 13 11 8 9 3 2 12 17 18 19 16 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL – ∗ ∗ ∗] [OFF], [ACC/BRK], [CAV], [CLV] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] In Side Switch ON : [01] In Side Switch OFF : [00] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] - Jitter value [J – ∗ ∗ ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLASH = ∗ ∗] % Revision of the system controller [S: ∗. ∗ ∗ ∗ / ∗. ∗ ∗ ∗] version . revision / build number of the ST core ^ Revision of the DVD mechanism controller [M: ∗ ∗ / ∗ ∗ ∗] Kinds of version / firmware of the FE. RAM or ROM 7 Display Specification of the Test Mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 113 5 6 7 8 5 6 7 8 C D F A B E • Service mode indication (ESC + CHP/TIM keys) ID Address The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs. EDC/ID/AV 1 error history (ID Address, EDC/ID/AV 1 Error, last eight errors) Self-diagnosis functions (If a mechanical error has occurred, the mechanical-error history is also displayed.) • Calculation of the average error rate (ESC + "5" [Test mode remote control unit] keys) The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs) For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less • Indication of model information (ESC + CHAP keys) The items from 12 to 19 of the TEST MODE Indications are displayed. However, in the indications, S in the standard test mode is changed to B.E VERSION, and M is changed to F.E VERSION. For details, see 7.1.4. • Change of the background colors (ESC + "+10" [Test mode remote control unit] keys) Every time the keys are pressed, the background color is changed between blue and green alternately. (The green background is used in SETUP NAVIGATOR.) • Region confirmation mode (ESC + AUDIO [Test mode remote control unit] + "1"-"8" [Test mode remote control unit] keys) After you press the AUDIO key while holding the ESC key pressed and then input the region number, if the number is different from that set in the unit, an error message is displayed, and the tray opens. Command Contents Conditions Remote Control Key Name Remote Control Code Memory clear and resion / revision indication CLEAR (∗1) A8-45 Average value measurement of DVD error rate 5 (∗1) A8-05 CD error rate measurement 5 (∗1) A8-05 Aspect : Pan scan 2 AF-A2 Aspect : Letter box 3 AF-A3 Aspect : Wide 4 AF-A4 Digital : AC3 5 AF-A5 Digital : AC-3 > PCM 6 AF-A6 Virtual surround : OFF Only for models having the corresponding functions 7 AF-A7 Virtual surround : TruSurround 8 AF-A8 Digital output ON REPEAT A AF-E8 Digital output OFF REPEAT B AF-E4 DTS Digital output ON STEP FWD AF-B7 DTS Digtal output OFF STEP REV AF-B8 Scart terminal output : VIDEO WY, models equipped with Scart terminal AUDIO AF-BE Scart terminal output : S-VIDEO SUBTITLE AF-36 Scart terminal output : RGB ANGLE AF-B5 Progressive OFF Only for progressive models R_SKIP A3-9D Progressive ON F_SKIP A3-9C Audio 5.1 CH ON Only for models having the corresponding functions KD_ENTER AF-EF FL indication of EDC / ID error CX (∗1) A8-0E FL indication of ID number STEREO (∗1) A8-4A ZOOM ON (X4) ZOOM AF-37 ZOOM OFF < X3 (∗1) A8-59 Service mode indication (error rate indication, etc.) CHP/TIM (∗1) A8-13 Model information indication CHAP (∗1) A8-40 Background color change +10 (∗1) A8-1F Audio last stage mute ON 9 AF-A9 Audio last stage mute OFF 0 AF-A0 Title search Input mode IN Title No. input Search execution SIDE A (∗1) Numbers (∗1) PLAY (∗1) A8-4D A8-00 to A8-09 A8-17 Region confimation mode AUDIO (∗1) Numbers (∗1) A8-1E A8-01 to A8-08 Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC key of the remote control unit. To quit, press the ESC key ∗1 : Test mode remote control unit Functional Specification of the Shortcut key www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 114 1 2 3 4 1 2 3 4 C D F A B E • Display contents Character in bold : Item name : Information display 1 2 12 3 4 5 6 7 8 9 10 11 1 Model name Display it according to model information set from the FL controller. 2 Destination indication Display it according to model information set from the FL controller. 3 Region No. 4 Part number 5 ROM version 6 Flash size 7 FL controller version 8 CHIP VERSION Version of ST CHIP CUT ID / JTAG ID (two columns) (eight columns) 9 B.E VERSION Version of BACK END (version of ST core software) . / softwareVersion . softwareRevision / buildNumber 0 F.E VERSION Version of FRONT END (version of mechanism controller CHIP software) / MainVersion / Kinds of firmware RAM or ROM - Remote control code = Key code of Main unit To display model information : Press the ESC key then the CHAP key. To close the model information display : Press the ESC key. Specification of Model Information Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 115 5 6 7 8 5 6 7 8 C D F A B E Indication plan contents Character in bold : Item name : Information display 1 2 4 • EDC / ID error FL display (shortcut function) EDC/ID error is displayed on the FL display if you press the CX key while holding the ESC key on the TEST MODE remote control unit pressed. To quit while an EDC/ID error is displayed, press the ESC key. FL display 0 0 / 0 0 / 0 1 ∗ • Display during Service Mode To enter Service Mode, press the CHP/TIM key while holding the ESC key pressed. To quit, press the ESC key. Service mode display 1 ID Address 2 Error rate (always displayed), in exponential notation ∗ ∗ ( ∗ ∗ ∗ ∗ ) 3 EDC/ID/AV1 error history (ID Address, EDC/ID/AV1 errors, last eight errors) Description of AV1 errors BIT0: In BE code, an EDC error, FEC I/F buffer overflow, or "not valid" is generated (B.E error) BIT1: In BE code, the ID is different from that of the target (B.E error) BIT2: An error was generated in FE-added 2-byte EDC data. (F.E error) 4 Self-diagnosis functions Whether F.E is normal or not is checked. FE OK: No abnormality in F.E FE Error: Abnormality is recognized in F.E. Pressing the CHP/TIM key again displays the mechanical error history. Each press of the CHP/TIM key changes the displays between the mechanical error history and the Service Mode display. For details on the mechanical error history, refer to the addendum. Number of sites where an EDC or ID error was generated ∗: Lights when an AV1 error was generated at least once. Number of retrials while an ID error is being generated (only displayed at the moment when an error is being generated), and for the ST models, the number of retrials made for the latest ID error Number of retrials while an EDC error is being generated (only displayed at the moment when an error is being generated), and the number of retrials made for the latest EDC error Number of error rates 02: Indicates use of the same method as for the 02 models, No indication: Indicates use of the method used for models before the 02 model 3 00 0 0 0 01 0 0 1 02 0 1 0 03 0 1 1 04 1 0 0 05 1 0 1 06 1 1 0 07 1 1 1 AV1 ERR 1 2 BIT 0 Functional Specification of the Service Mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 116 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 DISPLAY OF THE MECHANISM ERROR HISTORY Indication contents • List of the error codes • List of the servo states Note : 0 x & & code (Only this part is displayed to a display) 1 2 3 Description of the mechanical error history 1 Error number The first two digits are for the error code, and the second two digits are for the servo state. 2 Error number The elapsed time from the time when the system was turned on until an error was generated is displayed. Note: If a later error time is shorter than the previous error time, it means that the unit was turned off then on again. 3 Description of errors Error messages are displayed. Example: If the error code is 0x13 (Focus lost timeout) and the servo state is 0x05 (Disc judge), the message becomes "Focus lost timeout in Disc judge." Only if a mechanical error (FE error) has been generated, a mechanical error history containing up to the last eight errors is displayed if you press the CHP/TIM key in Service Mode. Errors are displayed in descending order, with the latest one at the top. Error Code Servo State 1 2 3 0x00 Reset 0x01 Stop (inside position) 0x02 Stop (any position) 0x03 Braking for stop 0x04 New disc 0x05 Disc judge 0x06 Reserved 1 0x07 Playing 0x08 Start up 0x09 Seeking 0x0A Pausing 0x0B Reading BCA 0x0C Reserved 2 Tray open Tray moving 0x0D 0x0E 0x0F FOCUS ERROR 0x0∗ FOCUS TIMEOUT 0x1∗ Focus on error 0x01 Focus on timeout 0x11 Focus off error 0x02 Focus off timeout 0x12 Focus lost error 0x03 Focus lost timeout 0x13 Focus balance adjust error 0x04 Focus balance adjust timeout 0x14 Focus gain adjust error 0x05 Focus gain adjust timeout 0x15 Focus sweep error 0x06 Focus sweep timeout 0x16 Focus reflection error 0x07 Focus reflection timeout 0x17 TRACKING ERROR 0x2∗ TRACKING TIMEOUT 0x3∗ Tracking on error 0x21 Tracking on timeout 0x31 Tracking off error 0x22 Tracking off timeout 0x32 Tracking lost error 0x23 Tracking lost timeout 0x33 Tracking balance adjust error 0x24 Tracking balance adjust timeout 0x34 Tracking gain adjust error 0x25 Tracking gain adjust timeout 0x35 STEPPING ERROR 0x4∗ STEPPING TIMEOUT 0x5∗ Stepping on error 0x41 Stepping on timeout 0x51 Stepping off error 0x42 Stepping off timeout 0x52 Stepping lost error 0x43 Stepping lost timeout 0x53 Stepping move error 0x44 Stepping move timeout 0x54 SPINDLE ERROR 0x6∗ SPINDLE TIMEOUT 0x7∗ Spindle on error 0x61 Spindle on timeout 0x71 Spindle off error 0x62 Spindle off timeout 0x72 Spindle lost error 0x63 Spindle lost timeout 0x73 Spindle CAV error 0x64 Spindle CAV timeout 0x74 Spindle CLV error 0x65 Spindle CLV timeout 0x75 ACQUISITION ERROR 0x8∗ ACQUISITION TIMEOUT 0x9∗ PLL lost error 0x83 PLL lost timeout 0x93 DECODER ERROR 0xa∗ DECODER TIMEOUT 0xb∗ ID lost error 0xa3 ID lost timeout 0xb3 DEVICE ERROR 0xd∗ SRAM error 0xd1 Note: When an error has been generated, if the servo state is "Disc judge," the disc tray opens, and if the servo state is other than "Disc judge," the unit stops (excluding a case of a device error with the error code 0xd∗). Mechanical Error History www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 117 5 6 7 8 5 6 7 8 C D F A B E Error Name No. Causes Check Item Possibility of Trouble Remarks FOCUS ERROR (0 x 0∗) Focus on error 0 x 01 Focus on could not be completed Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. Front End IC Focus off error 0 x 02 Focus off could not be completed Unknown Focus lost error 0 x 03 Focus servo is lost Are not there a dirt or a scratch in the Disc? Does LD become weak? 1. Pickup Focus balance adjust error 0 x 04 AFB on could not be completed Focus gain adjust error 0 x 05 Focus AGC could not be completed Focus sweep error 0 x 06 Focus reflection error 0 x 07 Dimensions of S curve did not reach to the aim value Does LD become weak? 1. Pickup FOCUS TIMEOUT (0 x 1∗) Focus on timeout 0 x 11 Did timeout at focus on Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. Front End IC Focus off timeout 0 x 12 Did timeout at focus off Focus lost timeout 0 x 13 Did timeout at focus backup Focus balance adjust timeout 0 x 14 Did timeout at AFB Focus gain adjust timeout 0 x 15 Did timeout at AGC Focus sweep timeout 0 x 16 TRACKING ERROR (0 x 2∗) Tracking on error 0 x 21 Tracking on could not be completed 1. Pickup 2. Driver 3. Front End IC Tracking off error 0 x 22 Tracking off could not be completed Tracking lost error 0 x 23 Tracking servo is lost 1. Pickup Tracking balance adjust error 0 x 24 ATB could not be completed 1. Pickup Tracking gain adjust error 0 x 25 AGC could not be completed 1. Pickup Tracking jump error 0 x 26 Tracking jump could not be completed TRACKING TIMEOUT (0 x 3∗) Tracking on timeout 0 x 31 Did timeout at tracking on Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Driver 3. Front End IC Tracking off timeout 0 x 32 Did timeout at tracking off Tracking lost timeout 0 x 33 Did timeout at tracking backup Are not there a dirt or a scratch in the Disc? 1. Pickup Tracking balance adjust timeout 0 x 34 Did timeout at ATB 1. Pickup Tracking gain adjust timeout 0 x 35 Did timeout at AGC 1. Pickup Tracking jump timeout 0 x 36 Did timeout at tracking jump STEPPING ERROR (0 x 4∗) Stepping on error 0 x 41 Stepping on could not be completed 1. Pickup 2. Driver 3. Front End IC Stepping off error 0 x 42 Stepping off could not be completed Stepping lost error 0 x 43 Stepping servo is lost Stepping move error 0 x 44 Stepping could not move Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver STEPPING TIMEOUT (0 x 5∗) Stepping on timeout 0 x 51 Did timeout at stepping on 1. Pickup 2. Driver 3. Front End IC Stepping off timeout 0 x 52 Did timeout at stepping off Stepping lost timeout 0 x 53 Did timeout at stepping backup Stepping move timeout 0 x 54 Did timeout at stepping movement Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver Error Code Table www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 118 1 2 3 4 1 2 3 4 C D F A B E Error Name No. Causes Check Item Possibility of Trouble Remarks SPINDLE ERROR (0 x 6∗) Spindle on error 0 x 61 Spindle on could not be completed Spindle off error 0 x 62 Spindle off could not be completed Spindle lost error 0 x 63 Spindle lost control Spindle CAV error 0 x 64 CAV on could not be completed Spindle CLV error 0 x 65 CLV on could not be completed SPINDLE TIMEOUT (0 x 7∗) Spindle on timeout 0 x 71 Did timeout at spindle on Spindle off timeout 0 x 72 Did timeout at spindle stop Spindle lost timeout 0 x 73 Did timeout at spindle backup Are not there a dirt or a scratch in the Disc? Is FG output from the driver? 1. Spindle motor 2. Spindle driver Spindle CAV timeout 0 x 74 Did timeout at CAV on Is spindle rotating? Is FG output from the driver? Is the PDM output from Front End? 1. Spindle motor 2. Spindle driver 3. Front End IC Spindle CLV timeout 0 x 75 Did timeout at CLV on ACQUISITION ERROR (0 x 8∗) PLL lost error 0 x 83 PLL is lost Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC ACQUISITION TIMEOUT (0 x 9∗) PLL lost timeout 0 x 93 Did timeout at PLL backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DECODER ERROR (0 x a∗) ID lost error 0 x a3 ID is not readable Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DECODER TIMEOUT (0 x b∗) ID lost timeout 0xb3 Did timeout at ID backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DEVICE ERROR (0 x d∗) SRAM error 0 x d1 Cannot access SRAM Power supply of SRAM Is not bus line short-circuiting? 1. SRAM 2. Front End IC 3. Front End-SRAM bus line FAILSAFE (0 x e∗) Unexpected error 0 x e1 Unexpected error 1. software runaway 3. Software bug www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 119 5 6 7 8 5 6 7 8 C D F A B E 7.1.3 ID NUMBER AND ID DATA SETTING To enter ID Number Input Mode, with no ID number set, such as in a case of immediately after upgrading the firmware, press the ESC key then the STEREO key. Note: If a previous ID number and ID data, such as a factory- preset ID number and ID data, are maintained, the unit enters ID Number Confirmation Mode when the above keys are pressed. However, if only an ID number is maintained, the unit enters ID Data Input Mode. ID Number Input Mode [Player's ID Number Setting] ID Number ? > - - - - - - - - - Exit Input ID Number ! 1 This display appears when the PLAY key is pressed in Step 4. Enter a 9-digit number to compare. The number is also displayed on the FL display. 6 By pressing the CLEAR key without having input a number, the unit returns to Step 2 without doing anything else. Each press of this key after a number has been input deletes one digit. 7 After entering all 9 digits, if you press the PLAY key, the unit compares the numbers input in Steps 2 and 6, and only if the numbers match, that number is set as the ID. Then the unit automatically enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Input Mode. 8 Enter a 9-digit ID number. The ID number is also displayed on the FL display. 2 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 3 After entering all 9 digits, if you press the PLAY key, the unit enters Compare mode. Enter the same ID number again. Only if your two input numbers match, the ID number is set. Compare mode helps eliminate mistyping of the ID number. 4 After entering all 9 digits, if you press the SEARCH key, the unit unconditionally sets the input number as the ID number. Then the unit automatically enters Player's Data Input Mode. (The SEARCH key is not accepted after all 9 digits have been entered.) 5 2 3 [Player's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! 4 5 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Input ID Number ! 6 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Input ID Number ! 8 Note: Enter ID numbers while the unit is in Stop mode so that the values set will be immediately written to the flash ROM. The following operations are all made with the TEST MODE remote control unit (GGF1381). Caution: For the DVD players compatible with DVD-RW, for playback of a DVD-RW disc (CPRM), it is necessary that an individual ID number and ID data are set for each player. If the ID number and ID data be not properly set in the manner described below, future operations cannot be guaranteed. The ID number is written on the yellow label at the rear panel of the player. If there is no yellow label, before downloading FLASH ROM, take note of the ID number set following the procedures outlined in "ID Number Confirmation Mode" on the next page. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 2 without doing anything else. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 6 without doing anything else. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 120 1 2 3 4 1 2 3 4 C D F A B E To enter ID Number Confirmation Mode after the ID number and the ID data are set, press the ESC key then the STEREO key. ID Number Confirmation Mode 1 The ID number already set is displayed. (It is also displayed on the FL display.) 2 Enter a 9-digit number for comparison. This is not required when you only wish to check the ID number visually. (The number is also displayed on the FL display.) 3 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 4 After entering all 9 digits, if you press the PLAY key, the unit compares the number entered in Step 2 with the ID number set, and only if the numbers match, the unit automatically exits ID Number Confirmation Mode. If an ID data has not been entered, the unit enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Confirmation Mode. 5 After entering all 9 digits, if you press the STOP key, the unit compares the number entered in Step 3 with the ID number set, and only if the numbers match, the unit automatically deletes the ID number and exits this mode. If the numbers do not match, the disc tray is opened, and the unit exits this mode. (The STOP key is not accepted after all 9 digits have been entered.) 6 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit Input ID Number ! 3 2 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Memory Clear Input ID Number ! 5 6 Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 4 without doing anything else. • Indication of an ID number already set An ID number already set is displayed in the following cases: 1) When the ESC key then the CLEAR key are pressed, user settings are cleared, then the ID number set is displayed on the screen. In this case, the ID number is not displayed on the FL display. 2) When the unit enters ID Number Confirmation Mode by your pressing the ESC key then the CLEAR key, the ID number set is displayed. In this case, the ID number is also displayed on the FL display. If you only need to confirm the ID number, you can exit this mode by pressing the CLEAR key or turning off the power. • Indication when no ID number is set If no ID number is set, the message "No ID Number!" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 121 5 6 7 8 5 6 7 8 C D F A B E To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1085) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1085), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 122 1 2 3 4 1 2 3 4 C D F A B E 7.1.4 TROUBLE SHOOTING Microcomputer Section (IF/AF Assy : IC5501) Symptom Possible Cause Check Method • The unit cannot be turned on. The microcomputer was not reset. Check if the level of the terminal XRESET (Pin 8) is "H." If it is not, check the RESET circuit. The AC pulse is not input. Check if the AC pulse is input to Pin 4 of the AC input terminal. If it is not, check the AC pulse generation circuit. The oscillation circuit of the microcomputer does not function. The microcomputer or the oscillation circuit is broken. Change the microcomputer or the oscillation circuit. The unit shuts itself off soon after it is turned on. • If the Function is DVD, the voltage of the VDET input (Pin 17) is either 0.5 Vdd* or less or 0.85 Vdd* or more. • The voltage of the PROTECT input (Pin 22) is 0.71 Vdd* or less. If the voltage at Pin 17 of the VDET terminal of the microcomputer is either 0.5 Vdd or less or 0.85 Vdd or more, adjust so that it stays between 0.5 and 0.85 Vdd. • DVD does not operate at all. • Time is not displayed in FL display during DVD function. Communication with the DVD microcomputer has not been established. • Check that the terminal (Pins 23-25, 29, and 30) for communication with the DVD microcomputer is live, and if it is not, check if the flexible cable is disconnected. • Check if an "H" signal is output to Pin 93 of the XDVDRST terminal. All operation keys are disabled. The unit recognizes that an operation key has already been pressed. If no operation key has been pressed, check if the voltage at Pins 18 of the KEY input terminal is 5 V. If it is not, check if the operation switch on the line is in failure. * Vdd= Approx. 5V (depending on the unit) ex.) 0.85Vdd= 0.85 × 5 (V) = 4.25 (V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 123 5 6 7 8 5 6 7 8 C D F A B E DVD Section No. Symptoms Diagnosis Contents Possible Defective Points 1 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Is the level at both IC5501-pin 67(XDVDRST) and pin66 (DVDON/OFF) on the CONTROL Assy "H" ? µcom (IF/AF IC5501) Check the voltage of CN901-pin 28 and 29 (VPR+8) on the DVDM Assy. DVDM Assy CN901 Check that the following voltages are output : IC411-pin 3 : 1.8V, IC421-pin 3 : 1.8V and IC431-pin 1 : 5V on the DVDM Assy Each regulator on the DVDM Assy Are resonators (27MHz, 20MHz) on the DVDM Assy oscillating ? Crystal resonator (DVDM Assy X601 and X301) Refer to contents of an FE error displayed on the FL display. (SRAM defectiveness, I2C communication line defectiveness, etc.) FRONT END IC (DVDM IC301) • Is a signal input into IC601-pin 132 (CE3) on the DVDM Assy ? (Is a signal fluctuating for several seconds after the power is turned on ?) → Communication with flash ROM • Are the signals input into IC602-pin 16 (SMIWE), pin 19 (SMICS0) and pin 38 (SMICLK) on the DVDM Assy ? (Is a signal fluctuating ?) → Communication with flash ROM • BACK END IC (DVDM IC601) • Flash ROM (DVDM IC603) • 64M SDRAM (DVDM IC602) Is a signal output from IC603-pin 28 (CPU_OE) on the DVDM Assy? (Is a signal fluctuating for several seconds after the power is turned on ?) µcom (IF/AF IC5501) Is a signal input into IC5501-pin 70 (DVDACK) on the CONTROL Assy? (Is a signal fluctuating ?) → Communication with µcom • BACK END IC (DVDM IC601) • Flash ROM (DVDM IC603) Is a signal output from IC5501-pin 57 and 58 (SYS_1, 2) on the AF Assy ? (Is a signal fluctuating in the range of 0-5V ?) µcom (IF/AF IC5501) Are the signals output from IC5501-pin 23, 24 and 25 on the CONTROL Assy? (in the range of 0-5V) µcom (AF IC5501) – BACK END IC (DVDM IC601) communication line 2 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) DVDM Assy • Video circuit • after BACK END IC (IC601) 3 A tray cannot be opened. (An opening screen is displayed on the monitor) • Are wires of CN103 on the DVDM Assy disconnected or damaged ? Connector / wire LOADING SW (LOAB S101) • Is a LOAD-DRVC signal reaching ? • Does the voltage of CN105 pin 1 change by pressing the Inside switch. BACK END IC (DVDM IC601) Inside switch Check the video signal path between BACK END IC (DVDM IC601) and video-out terminal (see the block diagram) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 124 1 2 3 4 1 2 3 4 C D F A B E No. Symptoms Diagnosis Contents Possible Defective Points 4 Playback impossible (no focusing) Are the signals output from IC101-pin 34 (F_DRV) and pin 35 (F_RTN) on the DVDM Assy ? FTS Driver IC (DVDM IC101) Does 650-nm LD emit light ? Does a pickup lens move up / down ? Does an actuator spring bend ? Pickup • Are plastic parts damaged? Or is a shaft detached? • Is the turntable detached or tilted? Mechanism section Is flexible cable of CN101 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC301-pin 33 (FACT) on the DVDM Assy ? (Device control of about 2.6 V is output usually. It is fluctuated by about ± 100 mV with focus up / down.) FRONT END IC (DVDM IC301) 5 Playback impossible (Spindle does not turn) Are the signals output from IC101-pin 12 (A3), pin 13 (A2) and pin 14 (A1) on the DVDM Assy ? Is pin 41 fixed LOW and is pin 38 fixed HIGH ? FTS Driver IC (DVDM IC101) Is there any part detached from the spindle motor? Or Is there any foreign object lodged in it? Mechanism section (Spindle motor) Are wires of CN105 (DVDM Assy) disconnected or damaged ? Flexible cable / connector Is signal output from IC301-pin 44 (SPDL_PDM) on the DVDM Assy ? FRONT END IC (DVDM IC301) 6 Playback impossible (Playback stops) Does 650-nm LD deteriorate ? If the voltage at both ends of R201 on the DVDM Assy is 0.7 V or more, the 650-nm LD is definitely deteriorated. 650-nm LD deteriorated. (When playback of a DVD is impossible) Does 780-nm LD deteriorate ? If the voltage at both ends of R211 on the DVDM Assy is 1.5 V or more, the 780-nm LD is definitely deteriorated. 780-nm LD deteriorated. (When playback of CD is impossible) Is there abnormality in FG waveform ? FG output : FTS Driver IC (DVDM IC101) Are there scratches or dirt on the disc ? Disc 7 Picture disturbance during playback (block noise, freeze, other) 8 No sound (Picture is normal) Is signal output from DOUT signal (CN901-pin 21) on the DVDM Assy ? DVDM CN901-pin 21 Are there scratches or dirt on the disc ? Disc Is there a problem with the format of the disc? Disc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 125 5 6 7 8 5 6 7 8 C D F A B E 7.1.5 DSP TROUBLE SHOOTING (XV-EV61 Only) IC8501-pin 21 Yes No Is output signal "L"? Step 1 Replace IC8501. Replace IC8702. Replace IC8901. IC8901 Yes No Is 5V inputting ? Step 2 IC8902 Check CN8003 and other assemblies. IC8702 No Do perform 3V→5V conversion for pin 17 ? Step 3 Pin 3 Yes No Is 3.3V outputting ? Replace IC8902. Yes End Yes Yes Replace IC8702. No Do perform 3V→5V conversion for pin 15 ? Pin 5 Replace IC8702. No Do perform 3V→5V conversion for pin 13 ? Pin 7 Yes Yes No Is 1.8V outputting ? Is connector inserted tightly ? No Insert it tightly. CN8007 Yes Is connector inserted tightly ? No Insert it tightly. CN8011 Yes End A XV-EV61 Type Only • When a sound is not out in the surround mode with the digital signal input. • Suppose C,R parts to be poor contact and that is not damaged. • This shows failure analysis of DSP Assy. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 126 1 2 3 4 1 2 3 4 C D F A B E Replace IC8701. Yes IC8701 No Do perform 5V→3V conversion for pin 17 ? Step 4 Pin 3 End Yes Replace IC8701. No Do perform 5V→3V conversion for pin 15 ? Pin 5 Replace IC8701. No Do perform 5V→3V conversion for pin 13 ? Pin 7 Replace IC8702. No Do perform 3V→5V conversion for pin 11 ? Pin 9 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 8 ? Pin 12 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 6 ? Pin 14 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 4 ? Pin 16 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 2 ? Pin 18 Yes End Replace IC8701. No Do perform 5V→3V conversion for pin 11 ? Pin 9 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 8 ? Pin 12 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 6 ? Pin 14 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 4 ? Pin 16 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 2 ? Pin 18 Yes Yes A B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 127 5 6 7 8 5 6 7 8 C D F A B E Step 5 End Replace IC8201. Replace IC8201. Is SPDIF signal coming? (be different with Function) IC8201 IC8502-pin2 Yes Check the other assemblies. (AF Assy or DVDM Assy) Check the other assemblies. (periphery of microcomputer on the AF Assy) No Check the DVD/CD (pin 7). Yes Yes Yes No Is MCKO1 (pin 23) outputting it? No Is LRCK (pin 24) outputting it? Replace IC8201. Yes No Is SDTO (pin 25) outputting it? Replace IC8201. Yes No Is BCK (pin 26) outputting it? Replace IC8502 or X8501. Yes No Is 20MHz clock outputting it? Yes No Is input signal of PDN (pin 31) "H"? Is output signal of INT0 (pin 36) "H"? Yes No Do not oscillate of XTO (pin 29)? Yes No Note: X8201 oscillates only in analog input. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 128 1 2 3 4 1 2 3 4 C D F A B E Yes IC8501 Step 6 End Replace IC8501. No Pin 4 Does a signal output it? Yes Replace IC8501. No Pin 5 Does a signal output it? Yes Replace IC8501. No Pin 6 Does a signal output it? Yes Replace IC8501. No Pin 7 Does a signal output it? Yes IC8401 Step 7 End Replace IC8401. No Pin 21 Does a signal output it? Yes Replace IC8401. No Pin 22 Does a signal output it? Yes Replace IC8401. No Pin 23 Does a signal output it? Yes Replace IC8401. No Pin 24 Does a signal output it? Yes Replace IC8401. No Pin 25 Does a signal output it? Yes Replace IC8401. No Pin 26 Does a signal output it? Yes Replace IC8401. No Pin 27 Does a signal output it? Yes Replace IC8401. No Pin 28 Does a signal output it? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 129 5 6 7 8 5 6 7 8 C D F A B E 7.1.6 SEQUENCE AFTER POWER ON Reset Start Demonstration mode ? Yes : Power ON Yes No No Microcomputer initialization Model identification Standby setting • It starts when the XRESET terminal (Pin 8) is "H" level. • The inputs to Pins 15 are inspected and the model identification is performed. Demonstration mode permission Demonstration mode System power supply on DVD microcomputer start-up Relay release Demonstration mode or Normal power ON mode • The level of the SYSPOW terminal (Pin 91) is "H". • Only in DVD function, the level of the XDVD RESET terminal (Pin 67) is "H". • The speaker relay is turned on about four seconds after the power is turned on. • The level at the RELAY ON/OFF terminal (Pins 86 and 87) are "H." • The conditions are different depending on whether the headphones are connected via the Headphones jack, or on the DSP mode. • If no pulse is input to the AC terminal (Pin 4) for about 60 msec when the microcomputer is in Memory Backup mode, it will not do any processing. • The unit will recover from Memory Backup mode if a reset command is input to the XRESET terminal (Pin 8). • The system mute is released about four seconds after the power is turned on. The level of the XSYSMUTE terminal (Pin 94) is "L". • Muting is not released in the following cases. • When the main volume is 0. • Whether Demonstration mode is entered or not can be determined by inspecting the backup data. • The default setting is "Demonstration mode OK." Standby Initialization routine Main loop processing Microcomputer IC (PDC108A) (IF/AF Assy : IC5501) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 130 1 2 3 4 1 2 3 4 C D F A B E 7.1.7 PROTECTION CIRCUIT If the TIMER LED on the front panel flashes, check the protection circuit. Note: If the protection circuit activates, the unit will not recover for 60 seconds even if the AC power cord is disconnected then reconnected. If you activate Service Test mode, the protection circuit becomes invalid, which makes diagnosis easy. (To activate Service Test mode, while connecting SERVICE port (IC5501 pin69)to "+5V", connect AC power cord.) There are three types of operations for the protection circuit, which are indicated on the LCD display when Service Test mode is entered: (Short W138 and W139) POW WNG: The unit was shut down because of an abnormality in the AMP system. (The PROTECT line operates at the MID level.) POW ERR: The unit was shut down because of a failure in the AMP system. (The PROTECT line operates at the LO level.) DVD ERR: The unit was shut down because of a failure in the DVD system. (The VDET line operates at the HI or LO level.) Conditions for the protect circuit operations Protection circuit that activates against a POW ERR error Voltage Conditions FL display in Service Test mode PROTECT HI level >3.55V Normal MID level 1.8V - 3.5V The unit is shut down because of an abnormality. LO level <1.8V The unit is shut down because of a failure. POW ERR VDET HI level >4.25V The unit is shut down because of a failure. DVD ERR MID level 3.3V Normal LO level <2.5V The unit is shut down because of an abnormality. DVD ERR The possible failures for each error message are as follows: POW ERR: • The Speaker terminal became overloaded because of short-circuit. (See 1.) • The main power supply became LO level because of short-circuit or disconnection of connectors. (See 2.) • Disconnection of the FAN connector or interruption of rotation of the fan (See 3.) • DC was generated at the output because of a failure in the AMP system, etc. (See 4.) • Abnormal temperature was detected by the thermistor. (See 5.) DVD ERR: • An error was generated in the main power supply inside the DVDM. (See 6.) 1 When the Speaker terminal becomes overloaded Q3601 Q3639 Q3640 B E C +5V D3603 DAP202K C3633 10/50 D3601 R3607 0 R3668 22k R3669 22k R3639 27k R108 27k Front L ch to XPROTECT GND FL R3601 1.8k R3603 33k B A VD+5 + SP-TERMINAL Assy N EVOL Assy K In Normal mode, the speaker (6 ohms) is connected between the FL and GND FL points. Because the voltage at Point A is higher than that at Point B, Q3601 does not operate. If the resistance between the FL and GND FL points becomes 1.83 ohms or less, Q3601 begins to operate, Q3639 is turned on, Q3640 (E, C, and B)is turned on, and the level of XPROTECT becomes MID. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. → After power off, unit recovers. (no reed to unit for 60 seconds) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 131 5 6 7 8 5 6 7 8 C D F A B E Protection circuit that activates against a POW ERR error B A A C101 (C102) 1/50 + C8773 1/50 C8772 0.047 + C8771 1/50 + + to XPROTECT (µ-com) MOD. AMP Assy M R108 27k R101 (R104) 1k R102 (R105) 10k R103 (R106) 10k R109 820 D105 (D106) Q102_1/2 (Q104_1/2) Q102_2/2 (Q104_2/2) Q101_1/2 (Q103_1/2) Q101_2/2 (Q103_2/2) D101 (D102) VD+5 VD+5 VH+ (VP+15) VH– (VA–12) 2 -1 Short-circuit-detection circuit for the amplifier power circuit (+15 V[VP+15], VD+5, -12 V [VA-12]) Circuit for shutting the power off when VP+15, VD+5, or VA-12 is short-circuited to ground (GND) 2 -3 Checking for VA+12 or VM+12 is short to Gnd or Not. 2 -2 Short-circuit-detection circuit for the DVD power supply (VP+8) XPROTECT TUNER MOD. AMP Assy M VD+5 R108 27k D104 1SS355 Q106 DTC124EUA Q107 DTA124EUA VP+8 D8701 D8702 • In Normal mode, as Q101 (Q103) (E2, B2, C2) and Q102 (Q104) (E2, B2, C2) are on, the voltage at Point A is about 5 V. The voltage at Point B is therefore about the same. As Q101 (Q103) (E, C, B) is off, Q102 (Q104) (E, C, B) is also off. (1) When VH+(VP+15) is short-circuited to GND As the voltage at Point B becomes almost ground potential, and Q101 (Q103) (E, C, B) then Q102 (Q104) (E, C, B) are turned on, the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. (2) When VH-(VA-12) is short-circuited As the electric potential of VE at Q102 (Q104) (E2, C2, B2) becomes the same as that at VB, Q102 (Q104) (E2, C2, B2) is turned off. Following this, Q101 (Q103) (E2, B2, C2) is turned off, which changes the voltage at Points A and B to a value other than 5 V. Therefore, Q101 (Q103) (E, C, B) then Q102 (Q104) (E, C, B) are turned on, the level of XPROTECT becomes low. (3) When VD+5 is short-circuited The level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. C C E to XPROTECT (µ-com) R8771 10k Q8771 2SD2012 VD+12 DVD+12 GNDM VP+15 VA+12 VP+15 VA+12 R8772 10 E B B B2 B2 E2 E2 C2 C2 As the TUNER line is fixed to GND level, Q107 is always on. If the level at VP+8 falls to GND level because of short-circuit, etc., Q106 is turned on, and the level of the XPROTECT line becomes low. ← The microcomputer detects the XPROTECT level and shuts the power to the unit off. IF/AF Assy E to XPROTECT (µ-com) R108 27k Q3651_2/2 RN1901 Q3651_1/2 RN1901 C2 C E B E2 B2 VD+5 FAN+ VPF+15 V-12F R3654 1.8k D3658 UDZS7.5B D3657 1SS355 D3655 1SS355 D3656 S5688G R3655 8.2k R3656 22k R3658 2.2k R3657 33(1/4W) Q3652 DTA124TK Q3654 2SD2144S C3652 47/50 MOD. AMP Assy M If VFDP is short-circuited to GND, or if the DC electric potential at FL AC1 becomes GND level (in Normal mode: about -27 V) because of a failure in the DC bias circuit of FL AC1, Q107 then Q115 are turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. 2 When the main power supply becomes LO level because of short-circuit or disconnection of connectors 3 When the FAN connector is disconnected or when rotation of the fan is interrupted FAN– If no fan is connected between FAN+ and FAN-, or when the fan cannot rotate because of a foreign object caught in the blades, the BASE of Q3652 becomes OPEN, and Q3652 and Q3651 (E, C, B) are turned off. Then Q3651 (E2, B2, C2) is turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. When FAN+ and FAN- are short-circuited, the electric potential at Point A becomes higher than GND level by the addition of the values at D3656 and D3657. As this value is lower than that at D3658, Q3651 (E, C, B) is turned off, Q3651 (E2, B2, C2) is turned on, and the level of XPROTECT becomes low. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 132 1 2 3 4 1 2 3 4 C D F A B E 4 When DC is generated at the output because of a failure in the AMP system, etc. 5 When abnormally high temperature is detected by the thermistor R3605 (R3625) (R3615) 27k R3606 (R3626) (R3616) 27k R3638 10k Front L ch (SW, SL) +5V C3632 470/6.3 Q3637 Q111 2SC4081 R113 220 IC81 R112 1k TH111 NCP18WF104J03RB R111 1k Q3638 Q3632 Q3633 B C E + XPROTECT to XPROTECT SP-TERMINAL Assy N R108 27k VD+5 VD+5 EVOL Assy K Front R ch (C, SR) • In Normal mode, both Q3637 and Q3638 are off. (1) When positive (+) DC voltage is generated at the SP terminal When positive (+) DC voltage is generated at the L or R channel, and VB of Q3637 becomes higher than that at the operation point, Q3632 (E, C, B) is turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. (2) When negative (-) DC voltage was generated at the SP terminal Q3638 is turned on, and XPROTECT is activated. 5 -1 IC81 abnormal temperature detection circuit 5 -2 D22 abnormal temperature detection circuit A Q131 2SC4081 R133 220 D22 R132 680 1% TH131 NCP18WF104J03RB R131 560 1% to XPROTECT VFL+5 A The voltage at Point A becomes the divided voltage of TH111 and R111//R112 (combined resistance of parallel-connected resistors R111 and R112.) In Normal mode, the resistance at TH111 is much higher than R111//R112, and Q111 is off. (Note that the resistance at TH111 becomes lower as the temperature increases.) If the solder temperature at IC81 increases abnormally, the temperature at TH111 (thermistor) mounted closest to the land of IC81 increases accordingly, and the resistance at TH111 decreases. When the temperature at TH111 reaches 90-110_C (varying according to conditions,) the voltage at Point (A) becomes high enough to turn Q111 on, and the level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. If the solder temperature at D22 becomes abnormally high because of short-circuiting between AC - and +, or AC - and -, this protection circuit is activated. The voltage at Point A becomes the divided voltage of TH131 and R131//R132 (combined resistance of parallel-connected resistors R131 and R132.) In Normal mode, the resistance at TH131 is much higher than R131//R132, and Q131 is off. (Note that the resistance at TH131 becomes lower as the temperature increases.) If the solder temperature at D22 increases abnormally, the temperature at TH131 (thermistor) mounted closest to the land of D22 increases accordingly, and the resistance at TH131 decreases. When the temperature at TH131 reaches 107-125_C (varying according to conditions,) the voltage at Point (A) becomes high enough to turn Q131 on, and the level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 133 5 6 7 8 5 6 7 8 C D F A B E Protection circuit that activates against a DVD ERR error 6 The DVDM monitors the voltage of the main power supply by VDET signals. In Normal mode, the VDET signal is at the MID level (3.3 V). In the following conditions, the VDET signal level becomes L or H, and the microcomputer is notified of this abnormality. DVDM Assy B IF/AF Assy E 10k 10k 4.7k 47k Q924 Q923 470 D922 Q922 Q925 D921 UDZS4.7B Q926 Q921 V+5 V+12 470 220 17 1M 0.1 V+3R3 15k 10k V+12 V+5 V+6 0 10k 47k VPR+8 V+12 V+12 47k 0.01 VDET µcom IC5501 PDC108A:EV61 PDC109A:EV31 Items to be detected by VDET (1) When the power voltages inside the DVDM become abnormal, as shown in the table below (2) When the VDET signal to the microcomputer is interrupted because of defective soldering of the 30-pin connector or incomplete insertion of FFC → The VDET level is lowered by the pull-down resistor (1 Mohms) on the side of the microcomputer. Status Power Voltage Operation VDET voltage Q923 Q924 Q922 Q921 D921 D922 Q926 Q925 In Normal mode off off off off off off off off Mid When an abnormality is generated. VDVD+12 <1V (on) (on) (on) (off) off on off off L >15.5V off off off off off off on on L VPR+8 <5.2V − off off off off − on on L >12.6V − on on on on − off off H V+6 <3V − − − − − − on on L V+5 <3.6V − off off off off − on on L >6.6V − on on on on − off off H V+3R3 <2.5V − − − − − − − − L >4.25V − − − − (on) − − − H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 134 1 2 3 4 1 2 3 4 C D F A B E • The base voltage at Q3631 is a voltage between Points A and B divided by R3633 and R3634. As this voltage is negative (-) in Normal mode, Q3631 is off. When the AC power cord is disconnected and there is no AC power input, the base voltage at Q3631 becomes +0.6 V or more, and Q3631 is turned on. Then, the operations below follow. (1) SP Relay Q3632 (E2, C2, B2), Q3633, and Q3636 (E, C, B) are turned on, the line to activate the SP relay becomes low level, and the SP Relay is turned off. (2) HP MUTE Q3635 is turned on, and the MUTE circuit for HP is turned on. Other protection circuit AC detection circuit This is a protection circuit that prevents popping sounds in the Speaker and Headphones output when the AC power cord is connected or disconnected. SP-TERMINAL Assy N • The voltage at Point A is a DC voltage which has been generated by half-wave rectification on the minus side of the AC power. • The voltage at Point B is approx. 5 V. Q3633 Q3636 Q3632 Q3635 Q3631 D3636 D3634 R3634 2.7k R3633 6.8k D3635 DAN202K R3641 10k B C C2 B2 E2 E + RYF to SP Relay Circuit to SP Relay Circuit to HP MUTE V+5D V+B R3632 22k R3631 22k R3642 1k RYR ACB B A D3631 MTZJ5.1A D3633 D3622 C3631 2.2/50 R3635 3.3k www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 135 5 6 7 8 5 6 7 8 C D F A B E Protection Specifications and Service Mode 1. Specific conditions for Service Test mode • VDET is neglected. • XPROTECT is neglected. • Even if the unit is urgently shut down in failure in Normal mode, you can turn it on without waiting for one minute. 2. How to enter Service Test mode • While connecting STEST port (IC5501 Pin69) to "+5V", connect AC power cord. (See next page.) 3. How to quit Service Test mode, and the conditions for quitting • To quit Service Test mode, turn the power off or disconnect the AC power cord. • When quitting Service Test mode, only data on protection in RAM are cleared. 4. Indications when Service Test mode starts • Indications on the LCD display when Service Test mode starts differ depending on whether the unit was turned off normally or if the unit was urgently shut down because the abnormality of the power, as described below. Protection Specifications The system microcomputer (CONTRL Assy IC5501) for this unit always monitors if abnormality of the power is generated, and as soon as an abnormality is detected shuts off the power. The specifications of the microcomputer terminal for monitoring are as follows: In abnormal conditions or in failure, the TIMER LED flashes after the power is shut off. If the power was shut off because of an abnormality, it can be turned on by pressing the STANDBY/ON key. However, if the power was shut off because of failure, for one minute after a shutdown the STANDBY/ON key is disabled in order to protect against possible ignition of fumes. If the AC power cord is pulled out during this one minute of standby, when the AC power cord is reconnected, the STANDBY/ON key will still be disabled until the remaining seconds have elapsed. This unit has Service Test mode for analyzing the above power abnormality. Its specifications are as follows: ∗Vdd = Approx. 5 V (depending on the unit) 5. Operations during Service Test mode • Basically, operations in Service Test mode are the same as in Normal mode. [After the power is shut down because of an failure/abnormality in the AMP system] P R T C T W N G FL display V o l u m e 0 FL display P O W E R R FL display D V D P R T E C T FL display V o l u m e 0 FL display D V D E R R FL display [After the power is shut down because of a failure in the DVD system] Name of microcomputer terminal XPROTECT (Pin 22) VDET (Pin 17) Monitoring item Abnormality of AMP-system power Short-circuiting of the SP terminal, etc. Abnormality of power inside the DVDM Assy Voltage at terminal In normal conditions 0.71× Vdd∗ or more 0.5 xVdd-0.85 xVdd∗ In abnormal conditions 0.36×Vdd–0.71× Vdd∗ In failure 0.36×Vdd∗ or less 0.85 Vdd∗ or more 0.5 xVdd∗ or less Monitoring start time 1.5 sec after power is turned on 1.5 sec after power is turned on Time required for determining abnormality 0.5 sec after detection 0.5 sec after detection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 136 1 2 3 4 1 2 3 4 C D F A B E 1 10 1 1 30 C8771 C8773 W196 W111 R5636 W114 X5501 W159 C C5963 C5966 C5968 W138 W140 W146 W154 W105 W104 W107 W143 W156 W211 W212 W213 W259 W255 W209 W210 W218 W214 W155 W151 W149 W148 W163 W208 W144 W158 W103 W142 W147 W217 W141 W257 W108 W110 W113 W109 W194 W153 W112 Q8771 CN5501 W358 W195 W150 W115 W116 W139 W137 W145 W161 W258 W157 W101 W102 W106 W162 W152 CN5903 W21 W160 R5637 W215 W261 W262 W263 7 1 D TEST SERVICE 1 PRINTED SIDE 2SD2012 E B IFAF ASSY PRODUCTION CODE IC5591 IC5501 IC5801 GNDD DVDMUTE VDVD+12 SIDE CONTACT 30 1 C LEV ECHOCT LCDDAT LCDCLK ECHOCTRL1 SCLK MDATA SDATA VDET GNDU DVDPOWER GNDU VE+5 LVLSHIFT VD+5 XVMUTE DVDACK XDVDRST VDET SYS CS1 DVDPOWER GNDD GNDMDVD SYS CS2 SIDE A SIDE A IF/AF ASSY Connecting point Service Test mode connecting point E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 137 5 6 7 8 5 6 7 8 C D F A B E 7.1.8 DISASSEMBLY 1 Remove the Bonnet L and R (below BBZ30P080FNI x4) Remove the Bonnet L and R (up VPZ30P080FNI x2) 2 Remove eight screws 3 Remove the Front Panel Section (FFC × 2, connectors × 1) Remove of Bonnet Section 1 4 Remove two cable from deck PCB 5 Remove the screw 9 Remove x4 screw 10 Cut the cable binder 6 Remove × 4 catches 7 Remove X4 screw from bottom of Front Panel Front Panel and Deck Section 2 Front Panel and Deck Section 2 Front Panel Assy IF/AF Assy Note : Operation check of the main unit is possible even if removes the Deck Mechanism Section. Note : Front Panel can removes with the state which Tray Panel was attached to it. In this time, remove bottom part of the Front Panel first so that the Tray Panel is not caught. Deck Mechanism Section For troublshoot of Front Panel, replace the service Jig ( XZD3001) DECK Assy Earth Lead Wire (x2) Remove Front Panel from this direction Rear View 2 8 6 6 10 3 3 4 4 3 5 9 1 1 2 CN5601 CN5501 CN5503 CN8280 CN8281 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 138 1 2 3 4 1 2 3 4 C D F A B E 1 Remove three screws 3 Remove four screws Turn the PCB with Rear Panel to as shown above 4 Remove Deck holder 5 Disconnect x2 cables 6 Disconnect x2 FFC Do not remove any screw from the output terminator connect-this will cause no grounding. Do not remove the ground wire between the two rear panel. 2 CAUTION CAUTION AF / IF PCB For 6CH Only Troubleshooting AF/IF, Replacc with Jig cable ( GGD1222 ) For 3CH Only For troubieshooting of AF/IF, disconnect all FFC and connect to Line Input AF/IF PCB Section 3 Rear View Top View 2 2 3 3 2 1 4 6 5 3 3 Note : If the Power is turned On when the DSP Holder (DSP GND) is not connected to the rear panel (chassis), the parts below may be destroyed at the DSP ASSY. IC8702 : TC74VHCT244AFT IC8401 : AK4529VQ R8415 : 4.7Ω If the above parts are destroyed, the audio signal can not be out. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 139 5 6 7 8 5 6 7 8 C D F A B E 1 1 1 1 1 Remove x4 screws. Remove Tunner Module Mecha Frame DVD Mecha from Mecha Frame DVD Shield Jig cable ( XZD3001) 1 Remove (screws ×4). 2 Remove the Module Holder R . 3 Cut the cable binder Remove of DVD Mecha Section 4 Remove of Power Module Section 5 1 1 1 3 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 140 1 2 3 4 1 2 3 4 C D F A B E 1 Remove the bridge by removing the one screw 2 Pull out the tray, then remove it by pressing the hook 3 Short-circuit two points of C and D by soldering 4 Remove the four connectors from the Loading Mecha. Assy Note: After replacement, connect the flexible cable, then remove the soldered joint (open). 5 Remove the four screws that secure the Loading Mecha. Assy to the unit Loading Mecha. Assy 1 Rear View Front Side 1 3 -1 1 -2 2 -1 2 -2 Loading Base Triangle Drive Cam Pin Hook Bridge Tray Note when reinserting the Tray C D Removing the Traverse Mecha. Assy-S and Pickup Assy When reinserting the Tray, first align the triangle printed on the Loading Base and the pin of the Drive Cam, then insert the Tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 141 5 6 7 8 5 6 7 8 C D F A B E 1 Dislodge the flexible cables from their packaged placement 2 Remove the four hooks 3 Remove the Traverse Mecha. Assy-S Traverse Mecha. Assy-S 2 × 2 Bottom View Traverse Mecha. Assy-S Flexible cable for the pickup Flexible cable for the spindle motor 1 1 1 2 × 2 2 3 Flexible cable for the stepping motor Front Side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 142 1 2 3 4 1 2 3 4 C D F A B E 1 Dislodge the flexible cable for the pickup from its packaged placement 2 Remove the flexible cable for the pickup 3 Remove the two skew screws and two skew springs 4 Remove the Pickup Assy Pickup Assy 3 Note: The Pickup Assy can be removed without removing the Traverse Mecha. Assy-S. (shown as Step ø.) Bottom View Flexible cable for the pickup 1 4 3 3 1 2 Front Side Pickup Assy Skew screw Skew screw Skew spring Skew spring www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 143 5 6 7 8 5 6 7 8 C D F A B E 5 5 5 Remove the two screws Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Pickup Assy Note: The screws are secured with epoxy. Make sure to apply epoxy after reattaching the screws. Leaf Spring Joint Spring Joint 03 : Conductive surface Hook Hook Arrangement of the flexible cable for the spindle motor : Conductive surface Arrangement of the flexible cable for the stepping motor Front Side Front Side Bottom View Bottom View www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 144 1 2 3 4 1 2 3 4 C D F A B E Front Side Note: Be sure to move the Pickup Assy to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 2 1 3 7 Attach the flexible cable of the pickup to the connector 1 Fold the flexible cable inward at the position of the reference line 3 Fold the flexible cable of the pickup with the backing inward 7 Pass the flexible cable below the hook, and fold it back 8 Fold the flexible cable back at the hook 9 Fold the flexible cable along the hook 4 Pass the flexible cable through the hook not allowing any slack 6 Hook the part folded in Step 1 to the hook 5 Fold the flexible cable as indicated in the photo Hook Bottom View 5 6 Make sure there is no slack in the cable Reference line Reference line Backing 97mm ± 2mm Reference line Hook Pass the cable below the hook Hook 8 Hook Hook 9 Make sure that the cable does not have any slack Make sure that the cable is loose 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 145 5 6 7 8 5 6 7 8 C D F A B E 7.2 PARTS 7 STM6316ATXXA (DVDM ASSY : IC301) • FRONT END IC ¶ Block Diagram • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC STM6316ATXXA, STM5589C, PDC108A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 146 1 2 3 4 1 2 3 4 C D F A B E ¶ Pin Function . o N e m a n N I P n o it p ir c s e d li a t e d 1 F E R I F k 7 . 2 1 tr a p e c n e r e f e r k c olb g ola n A 2 I A D N G A D N G d n g g ola n a 3 N I F R r o tic a p a c k c olb n oit alu d o m e d a o t t u p ni n oit aic o s s a C la n gis F R 4 T U O F R r o tic a p a c k c olb g ola n a n a m o rf g nitsil e r u txi m 4 B + 3 B + 2 B + 1 B 5 8 1 A C C V A 8 V 1 8 V 1 g ola n a 6 A 1 B t u p ni 1 B - U P 7 N M D N G A D N G d n g g ola n a 8 B 2 B t u p ni 2 B - U P 9 N M 3 3 C C V A 3 V 3 3 V 3 g ola n a 0 1 D F E R p u k cip o t U P r o f t u p t u o 1 V 2 1 1 N M 8 1 C C V A 8 V 1 8 V 1 g ola n a 2 1 D 4 B t u p ni 4 B - U P 3 1 S I 8 1 A C C V A 8 V 1 8 V 1 g ola n a 4 1 C 3 B t u p ni 3 B - U P 5 1 S I 3 3 A C C V A 3 V 3 3 V 3 g ola n a 6 1 S I A D N G A D N G d n g g ola n a 7 1 D S 3 3 C C V A 3 V 3 3 V 3 g ola n a 8 1 D S 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 1 D S D N G A D N G d n g g ola n a 0 2 F C t u p ni C m a e b 3 - U P 1 2 E A t u p ni A m a e b 3 - U P 2 2 S I D L E I H S V A D N G d n g g ola n a 3 2 C D A 8 1 C C V A 8 V 1 8 V 1 g ola n a 4 2 C D A D N G A D N G d n g g ola n a 5 2 C D A D L E I H S V A D N G d n g g ola n a 6 2 C A D 3 3 C C V A 3 V 3 3 V 3 g ola n a 7 2 C A D D N G A D N G d n g g ola n a 8 2 E L D N I P S ) 2 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 9 2 E G D E L S ) 1 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 0 3 T X E F E R % 1 K 0 2 C A D r o f e c n e r e f e R 1 3 D N G F E R tx e f e r d n g g ola n a 2 3 C A D F E R % 1 m h o 0 6 5 e c n e r e f e r C A D 3 3 T C A F % 1 m h o 0 6 5 s u c o f r o f g nitsilt n e rr u c C A D 4 3 T C A T % 1 m h o 0 6 5 g nik c a rt r o f g nitsilt n e rr u c C A D 5 3 C A D 8 1 C C V A 8 V 1 8 V 1 g ola n a 6 3 0 C P G F t u p ni e slu p G F 7 3 1 C P S P la n gis lo rt n o c r e vir D 8 3 2 C P ) n e p o ( 1 W S y a rt n oitis o p N E P O y a rt r o f t u p ni W S 9 3 3 C P B S la n gis lo rt n o c r e vir D 0 4 4 C P n oitis o p D L S t u p ni W S e dis n I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 147 5 6 7 8 5 6 7 8 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 4 S S V D D N G d n g la tigid 2 4 3 3 D D V D 3 V 3 3 V 3 la tigid 3 4 5 C P 0 5 6 X / 0 8 7 la n gis lo rt n o c e g n a h c D L m n 0 5 6 / m n 0 8 7 4 4 6 C P M D P e d nip s e vir d eld nip s r o f g nitsil M D P lo rt n o C 5 4 7 C P nia g cip o la n gis lo rt n o c nia g C I E O 6 4 7 D P U P 2 0 X / U P 3 0 t n e m eltt e s p u -llu P 7 4 S S V D D N G d n g la tigid 8 4 8 1 D D V D 8 V 1 8 V 1 la tigid 9 4 6 D P ) g u b e d ( ts e t 0 5 5 D P ) g u b e d ( ts e t 1 5 4 D P ) klc P S D ( ts e t 2 5 3 D P ) a t a d P S D ( ts e t 3 5 2 D P ) 1 b rts P S D ( ts e t 4 5 1 D P r o tin o m r o rr e ) d e e n d d a F P L z H K 0 3 ( r o tin o m r o rr e G K R T r o fla ni m r e T 5 5 0 D P e vir d M D P y a rt e vir d y a rt r o fla n gis M D P lo rt n o C 6 5 S S V D D N G d n g la tigid 7 5 3 3 D D V D 3 V 3 3 V 3 la tigid 8 5 R R E _ T U O R O R R E _ S R F /I A T A D E B 9 5 D I L A V E _ T U O N E _ R R E _ S R F /I A T A D E B 0 6 S S V D D N G d n g la tigid 1 6 K L C _ T U O K L C B _ S R F /I A T A D E B 2 6 8 1 D D V D 8 V 1 8 V 1 la tigid 3 6 D I L A V D _ T U O D I L A V D _ S R F /I A T A D E B 4 6 A T A D _ T U O A T A D _ S R F /I A T A D E B 5 6 C N Y S _ T U O T S B C C E _ S R F /I A T A D E B 6 6 5 E P ) A M D ( L C S t u p ni d a oln w o d e nit u o r E F 7 6 4 E P ) A M D ( A D S t u p ni d a oln w o d e nit u o r E F 8 6 3 E P L C S F /I d n a m m o c E B 9 6 2 E P A D S F /I d n a m m o c E B 0 7 1 E P ) e s olc ( 2 W S y a rt n oitis o p E S O L C y a rt r o f t u p ni W S 1 7 0 E P T N I X X D la n gis n oit a g a p o r p s u t a ts E F 2 7 S S V D D N G d n g la tigid 3 7 3 3 D D V D 3 V 3 3 V 3 la tigid 4 7 1 F P p ullu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 5 7 0 F P n w o dllu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 6 7 S S V D D N G d n g la tigid 7 7 8 1 D D V D 8 V 1 8 V 1 la tigid 8 7 1 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 9 7 0 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 0 8 T S E T n w o dllu p - K 0 1 ts e t www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 148 1 2 3 4 1 2 3 4 C D F A B E . o N e m a n N I P n o it p ir c s e d li a t e d 1 8 N _ T E S E R T E S E R t u p ni T E S E R 2 8 C D A S S V A D N G d n g g ola n a 3 8 C D A 8 1 D D V A 8 V 1 8 V 1 g ola n a 4 8 L L P D N G A D N G d n g g ola n a 5 8 F F O L L P A D N G d n g g ola n a 6 8 T U O E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 7 8 N I E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 8 8 L L P 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 8 1 D L D L m n 0 5 6 la n gis g nivir d D L m n 0 5 6 0 9 2 D L D L m n 0 8 7 la n gis g nivir d D L m n 0 8 7 1 9 3 3 A C C V A 3 V 3 3 V 3 la tigid 2 9 L E S W T D N G / R V _ D C D C r o fla ni m r e t n oitc n uj R V s e d oid r o tin o M 3 9 1 D M L 1 D M L / D M L la ni m r e t n oitc n uj e g a tlo v r o tin o M 4 9 2 D M L 2 D M L / R V _ D V D D V D r o fla ni m r e t n oitc n uj R V s e d oid r o tin o M 5 9 L D N G A D N G d n g g ola n a 6 9 M P _ T S T c n t e st 7 9 E C I L S _ T S T c n ts e t 8 9 C D A _ T S T c n ts e t 9 9 D C A S F R C I _ D C A S t u p t u o la n gis F R 0 0 1 T L I F G B V r o tic a p a c ytilib a ts e c n e r e f e r e dis ni r o fla ni m r e t n oitc n uj r e s n e d n o C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 149 5 6 7 8 5 6 7 8 C D F A B E 7 STM5589CVA (DVDM ASSY : IC601) • BACK END IC ¶ Pin Function . o N e m a N n i P .ri D n o it c n u F n i P 1 O S _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .t u p t u o a t a d r e fs n a rt la ir e S 2 3 A T A D _ A T U O d e v r e s e r 3 K L C V T U O d e v r e s e r 4 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 5 S S V - d n u o r G 6 A T A D _ B T U O d e v r e s e r 7 K L C B _ B T U O d e v r e s e r 8 G A L F _ B T U O d e v r e s e r 9 S O P Y R T T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O .t u p n i e sl u p n o it a t o r y a r T . d e s u e b n a c 0 N I _ E R U T P A C 0 1 E Z E E U Q S T U O .lo rt n o c 2 S / 1 S t u p t u o o e d i V - S r o f la n g is t u p t u O . e d o m t u p t u o e z e e u q s : ' H ' 1 1 S T R T U O .t u p t u o la n g is d n e S o T ts e u q e R ) C 2 3 2 - S R ( T R A U 2 1 R E T T E L T U O N O I T C N U F ( r o tc e n n o c ) T R A C S ( O R U E & lo rt n o c 2 S / 1 S t u p t u o o e d i V - S r o f la n g is t u p t u O .la n g is ) G N I H C T I W S . e d o m t u p t u o x o b -r e tt e l: ' H ' 3 1 S T C N I .t u p n ila n g is d n e S o T r a e l C ) C 2 3 2 - S R ( T R A U 4 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 5 1 S S V - d n u o r G 6 1 A T A D _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i a t a d la ir e S 7 1 K L C B _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i k c o lc la ir e S 8 1 D I L A V D _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i g a lf d ila v a t a D 9 1 C N Y S _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i g a lf e zi n o r h c n y s la ir e S 0 2 D I L A V E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .til p s _ S R r o f g a lf d ila v r o rr E 1 2 T S B C C E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .til p s _ S R r o f g a lf tr a ts k c o l b C C E 2 2 P X /I T U O .r e vir d o e d iv r o f t u p t u o e vis s e r g o r P / e c a lr e t n i f o e g n a h c a r o f la n g is t u p t u O e c a lr e t n i: ' H ' e vis s e r g o r p : 'L ' 3 2 B G R _ D D V - yl p p u s r e w o P V 3 . 3 ti u c ric B G R 4 2 B G R _ S S V - d n u o r G ti u c ric B G R 5 2 T U O _ B T U O b C / B 6 2 T U O _ G T U O Y / G 7 2 T U O _ R T U O r C / R 8 2 B G R _ F E R V N I e c n e r e f e r C A D B G R 9 2 B G R _ F E R I N I e c n e r e f e r t n e rr u c C A D B G R 0 3 C C Y _ D D V - yl p p u s r e w o P V 3 . 3 ti u c ric C Y 1 3 C C Y _ S S V - d n u o r G ti u c ric C Y 2 3 T U O _ Y T U O Y 3 3 T U O _ C T U O C 4 3 T U O _ V C T U O V C 5 3 C C Y _ F E R V N I e c n e r e f e r C A D C C Y 6 3 C C Y _ F E R I N I e c n e r e f e r t n e rr u c C A D C C Y 7 3 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 8 3 S S V - d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 150 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 9 3 E T U M V R D X T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI .r e g n a h C c si D 5 yl n O . g n it u m r e vir d r o t o m r o f la n g is t u p t u O g n it u m : 'L ' 0 4 N E P O T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p y a rt r o f la n g is t u p n I . n o itis o p N E P O e t e l p m o c : ' H ' 1 4 E S O L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p y a rt r o f la n g is t u p n I . n o itis o p E S O L C e t e l p m o c : ' H ' 2 4 P M A L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p p m a lc c si d g n i w o h s r o f la n g is t u p n I . n o itis o p p m a lc c si d e t e l p m o c : ' H ' 3 4 P M A L C N U T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p p m a lc - n u c si d g n i w o h s r o f la n g is t u p n I . n o itis o p p m a lc c si d e t e l p m o c : ' H ' 4 4 S N S _ C S I D T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . g n itsix e c si d r o f la n g is t u p n I g n itsix e : 'L ' 5 4 2 E T U M V R D X T U O d e v r e s e r 6 4 x - P T T U O d e v r e s e r 7 4 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 8 4 M C P _ D D V - yl p p u s r e w o P V 8 . 1 9 4 M C P _ S S V - d n u o r G 0 5 S S V - d n u o r G 1 5 K C B _ A T U O k c o lc C A D o i d u A 2 5 0 A T A D _ A T U O a t a d R , L t n o r F C A D o i d u A 3 5 1 A T A D _ A T U O d e v r e s e r 4 5 2 A T A D _ A T U O d e v r e s e r 5 5 K L C M _ A T U O k c o lc r e ts a M C A D o i d u A 6 5 K C R L _ A T U O k c o lc R / L C A D o i d u A 7 5 T U O D _ A T U O .t u p t u o o i d u a la ti g i d ) 8 5 9 0 6 C E I( F I D P / S 8 5 4 A _ I M S T U O s s e r d d A M A R D S I M S 9 5 5 A _ I M S 0 6 6 A _ I M S 1 6 7 A _ I M S 2 6 8 A _ I M S 3 6 9 A _ I M S 4 6 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 5 6 S S V - d n u o r G 6 6 3 A _ I M S T U O s s e r d d A M A R D S I M S 7 6 2 A _ I M S 8 6 1 A _ I M S 9 6 0 A _ I M S 0 7 0 1 A _ I M S 1 7 1 1 A _ I M S 2 7 2 1 A _ I M S 3 7 3 1 A _ I M Swww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 151 5 6 7 8 5 6 7 8 C D F A B E 1 2 3 4 5 6 7 8 9 0 CLEAR ENTER SYSTEM SETUP HOME MENU TOP MENU DVD MENU SHIFT CHANNEL VOLUME INPUT SUBTITLE VOLUME ANGLE ZOOM ADVANCED MONO SYSTEM DISP DVD DISP ECHO DSP AUDIO DVD/CD TAPE FM/AM LINE SURROUND PROGRAM TEST TONE REPEAT CH LEVEL RANDOM SLEEP KARAOKE I — KEYCON —i TIMER CLOCK ADJ. MUTE RETURN FOLDER + FOLDER – SOUND MODE ENTER STANDBY/ON 4 /e E/ 1 ¡ ¢ 8 7 3 3 3 TUNE + ST + ST – TUNE – DVD 5.1ch DVD SURROUND SYSTEM XXD3060 TV CONTROL 1 2 3 6 7 8 9 10 11 12 5 19 18 17 15 13 14 16 4 11 SYSTEM DISPLAY Switches between information and clock displays . 12 ST. MEMORY Use for saving and listening to station presets 13 ENTER Select an option or execute a command 14 VOLUME +/– Adjusts the volume level 15 OPEN/CLOSE Opens/closes the disc tray 16 REVERSE MODE Selects the playback mode for tapes. 17 REC/STOP Starts/stops recording on the tape deck 18 TUNING and playback control buttons The tuning/scan/skip buttons are used for tuning into stations, skipping or scanning tracks on discs or tapes. The playback control button is used for playing, pausing and stopping playback. 19 PUSH OPEN indicator Pressing down on this side on the cassette door will open the tape deck 20 MIC VOL Controls the volume of the karaoke mics 21 MIC input jacks 22 PHONES jack Headphone jack Remote control The remote control for the EV61DVD model is shown in the illustration below. 1 STANDBY/ON ( ) Switches the player on or into standby 2 Function select buttons Selects the source you want to listen to 3 DVD control buttons AUDIO Selects the audio channel or language . o N e m a N n i P .ri D n o it c n u F n i P 4 7 0 S C _ I M S T U O .'L'tc ele s pih c M A R D S I M S 5 7 1 S C _ I M S T U O d e v r e s e r 6 7 S A R _ I M S T U O 'L' S A R M A R D S I M S 7 7 S A C _ I M S T U O 'L' S A C M A R D S I M S 8 7 E W _ I M S T U O 'L' elb a n E e tir W M A R D S I M S 9 7 L M Q D _ I M S T U O M Q D r e w o L M A R D S I M S tc ele s r e w o L :'L' 0 8 U M Q D _ I M S T U O M Q D r e p p U M A R D S I M S tc ele s r e p p U :'L' 1 8 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 2 8 N I K L C _ I M S N I .t u p ni k c olc M A R D S la n r e tx E 3 8 S S V - d n u o r G 4 8 0 D _ I M S O /I a t a D M A R D S I M S 5 8 1 D _ I M S 6 8 2 D _ I M S 7 8 3 D _ I M S 8 8 4 D _ I M S 9 8 5 D _ I M S 0 9 6 D _ I M S 1 9 7 D _ I M S 2 9 8 D _ I M S 3 9 9 D _ I M S 4 9 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 5 9 T U O K L C _ I M S T U O .t u p t u o k c olc M A R D S 6 9 S S V - d n u o r G 7 9 0 1 D _ I M S O /I a t a D M A R D S I M S 8 9 1 1 D _ I M S 9 9 2 1 D _ I M S 0 0 1 3 1 D _ I M S 1 0 1 4 1 D _ I M S 2 0 1 5 1 D _ I M S 3 0 1 S S O R C _ K C A R T T U O d e v r e s e r 4 0 1 M C P X _ D S D T U O d e v r e s e r 5 0 1 T S R X _ C A D T U O d e v r e s e r 6 0 1 K L C M C P _ C D A T U O d e v r e s e r 7 0 1 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 8 0 1 S S V - d n u o r G 9 0 1 T S R T X N I e c a fr e t nitin U lo rt n o C cits o n g ai D 0 1 1 S M T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 1 1 1 O D T T U O e c a fr e t nitin U lo rt n o C cits o n g ai D 2 1 1 I D T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 3 1 1 K C T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 4 1 1 V R D T O R T U O .r e g n a h c c sid 5 yln O . n oit a t o r y a rt r o f t u p t u o M W P 5 1 1 M O R _ M O R F _ T O O B N I tc ele s t o o B . U C D m o rf t o o B :'L' . M O R m r o f t o o B :' H ' 6 1 1 V R D _ D A O L T U O .r e g n a h c c sid 5 yln O . e vir d e s ol C / n e p O y a rt r o f t u p t u o M W P 7 1 1 E O _ U P C T U O . e r a w m rif r o f y r o m e m H S A L F stib M 6 1 r o fla n gis E O elb a n e :'L' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 152 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 8 1 1 K C D S _ U P C T U O . e r a w m rif g n i g g u b e d r o f M A R D S s ti b M 4 6 r o f K C O L C 9 1 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 0 2 1 K L C X I P N I .t u p n i k c o lc m e ts y s z H M 7 2 r e ts a M 1 2 1 S S V - d n u o r G 2 2 1 L L P _ D D V - yl p p u s r e w o P V 8 . 1 ti u c ric L L P k c o l C 3 2 1 L L P _ S S V - d n u o r G ti u c ric L L P k c o l C 4 2 1 T E S E R X N I .la n g is T E S E R m e ts y s N O r e w o P t e s e r :'L ' 5 2 1 Q R I _ D C A S N I d e v r e s e r 6 2 1 Y D R X _ P F N I . e c a fr e t n ile n a P t n o r F .t u p n i e k a h s - d n a H 7 2 1 T N I _ E F N I . 6 1 3 6 L d n E -t n o r F m o rf la n g is t u p n i t p u rr e t n I 8 2 1 L M Q D _ D S , E W X _ F T U O . e l b a n e e tir w y r o m e m h s a l F . M Q D r e w o L M A R S / M A R D S g u b e D .tc e le s r e w o L , e l b a n e :'L ' 9 2 1 U M Q D _ D S T U O M Q D r e p p U M A R S / M A R D S g u b e D tc e le s r e p p u :'L ' 0 3 1 W X R _ D S T U O e tir W / d a e R M A R D S g u b e D d a e r:' H ' , e tir w :'L ' 1 3 1 T I A W _ U P C N I t u p n i' H ' tia w U P C 2 3 1 H S A L F _ E C T U O .'L ' e l b a n E p ih C y r o m e m h s a l F 3 3 1 2 E C _ U P C T U O d e v r e s e r 4 3 1 1 E C _ U P C T U O d e v r e s e r 5 3 1 S A R X _ D S T U O 'L ' S A R M A R D S g u b e D 'L ' e l b a n e p ih c M A R S g u b e D 6 3 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 7 3 1 S S V - d n u o r G 8 3 1 1 S A R _ U P C T U O d e v r e s e r 9 3 1 S A C X _ D S T U O 'L ' S A C M A R D S g u b e D 0 4 1 S C X _ D S T U O 'L ' tc e le S p ih C M A R D S g u b e D 1 4 1 0 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 4 1 1 D _ U P C 3 4 1 2 D _ U P C 4 4 1 3 D _ U P C 5 4 1 4 D _ U P C 6 4 1 5 D _ U P C 7 4 1 6 D _ U P C 8 4 1 7 D _ U P C 9 4 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 0 5 1 S S V - d n u o r G 1 5 1 8 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 5 1 9 D _ U P C 3 5 1 0 1 D _ U P C 4 5 1 1 1 D _ U P C 5 5 1 2 1 D _ U P C 6 5 1 3 1 D _ U P C 7 5 1 4 1 D _ U P C 8 5 1 5 1 D _ U P C 9 5 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 0 6 1 S S V - d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 153 5 6 7 8 5 6 7 8 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 6 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 2 6 1 2 A _ U P C 3 6 1 3 A _ U P C 4 6 1 4 A _ U P C 5 6 1 5 A _ U P C 6 6 1 6 A _ U P C 7 6 1 7 A _ U P C 8 6 1 8 A _ U P C 9 6 1 9 A _ U P C 0 7 1 0 1 A _ U P C 1 7 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 2 7 1 S S V - d n u o r G 3 7 1 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 4 7 1 2 1 A _ U P C 5 7 1 3 1 A _ U P C 6 7 1 4 1 A _ U P C 7 7 1 5 1 A _ U P C 8 7 1 6 1 A _ U P C 9 7 1 7 1 A _ U P C 0 8 1 8 1 A _ U P C 1 8 1 9 1 A _ U P C 2 8 1 0 2 A _ U P C 3 8 1 1 2 A _ U P C 4 8 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 5 8 1 S S V - d n u o r G 6 8 1 E P X E X T U O d e v r e s e r 7 8 1 R O R R E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F g a lf r o rr E C C E 8 8 1 1 L E S V T U O la n g is t u p t u o ) G N I K N I L B ( r o tc e n n o c ) T R A C S ( O R U E e l b a si d t u p t u o B G R : 'L ' e l b a n e t u p t u o B G R : ' H ' 9 8 1 2 L E S V T U O .la n g is C / R , Y / V r o tc e n n o c ) T R A C S ( O R U E B G C Y = t u p t u o B G R V : 'L ' B G R V = t u p t u o B G R V : ' H ' 0 9 1 T S R _ E F T U O . 6 1 3 6 L d n E -t n o r F .t u p t u o t e s e r e r a w d r a H t e s e r : 'L ' 1 9 1 T S R X _ D C A S T U O d e v r e s e r 2 9 1 E T U M M X T U O d e v r e s e r 3 9 1 C N Y S _ B T U O d e v r e s e r 4 9 1 A D S O /I e c a fr e t n i d n a m m o c 6 1 3 6 L d n E -t n o r F . e n il a t a d la ir e s s u b C 2 I 5 9 1 L C S T U O e c a fr e t n i d n a m m o c 6 1 3 6 L d n E -t n o r F . e n il k c o lc la ir e s s u b C 2 I 6 9 1 K L C W _ B T U O d e v r e s e r 7 9 1 D X T T U O t u p t u o a t a d ) C 2 3 2 - S R ( T R A U 8 9 1 8 V 1 _ D D V yl p p u s r e w o P V 8 . 1 9 9 1 S S V - d n u o r G 0 0 2 D X R N I t u p n i a t a d ) C 2 3 2 - S R ( T R A U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 154 1 2 3 4 1 2 3 4 C D F A B E . o N e m a N n i P .ri D n o it c n u F n i P 1 0 2 E T U M A X T U O . g n it u m e n il t u p t u o o i d u a g o la n a r o f la n g is t u p t u O g n it u m : 'L ' 2 0 2 N I G I R T N I e c a fr e t n i ti n U lo rt n o C cits o n g a i D 3 0 2 T U O G I R T T U O e c a fr e t n i ti n U lo rt n o C cits o n g a i D 4 0 2 0 S C X _ C A D T U O .lo rt n o c la ir e s C A D o i d u a r o f e l b a n e p ih C e l b a n e : 'L ' 5 0 2 1 S C X _ C A D T U O d e v r e s e r 6 0 2 K C A _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .' H ' t u p t u o ) e g d e l w o n k c a ( e k a h s - d n a H 7 0 2 K C S _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .t u p t u o k c o lc r e fs n a rt la ir e S 8 0 2 I S _ P F N I . e c a fr e t n ile n a P t n o r F .t u p n i a t a d r e fs n a rt la ir e S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 155 5 6 7 8 5 6 7 8 C D F A B E PDC108A (IF/AF ASSY : IC5501) • System Control Microcomputer Pin Functions No. Mark Pin Name I/O Function 1 PA3/WR# XHPMUTE O Control of Headphone mute 2 PA4/RD# HPDET I Detect to insert headphone 3 PA5/RS ATT6 O Control for ATT 6dB 4 P70 / INT0 / T0LCP / AN8 ACPULSE I AC PULSE input (Interruption) 5 P71 / INT1 / T0HCP / AN9 TIMER LED O Control mute of timer LED 6 P72 / INT2 / T0IN RDS CLK I Clock input from RDS decoder 7 P73 / INT3 / T0IN REMOCON I REMOCON signal input (Interruption) 8 RES# XRESET I µ-com reset input 9 XT1 / AN10 XT1 − (When this port don't use , please connect VDD) 10 XT2 / AN11 XT2 − (When this port don't use , please set open) 11 VSS1 VSS1 − 12 CF1 CF1 − 13 CF2 CF2 − 14 VDD1 VDD1 − 15 P80 / AN0 SIMUKE I Destination distinction input 16 P81 / AN1 LEVELIN I Level meter signal input 17 P82 / AN2 VDET I DVD 3.3V detection input 18 P83 / AN3 XPROTECT I Protection and Fan Error detection input 19 P84 / AN4 ST/TUNE I STEREO tuned detection input 20 P85 / AN5 KEY 1 I key1 input 21 P86 / AN6 KEY 2 I Key 2 input 22 P87 / AN7 KEY 3 I Key 3 input 23 P10/SO0 SDATA O System bus data output (AMP side output) 24 P11 / SI0 / SB0 MDATA I System bus data input (AMP side input) 25 P12 / SCK0 SCLK I System bus clock input 26 P13 / SO1 DSPDI O Data output to DSP (MOTOROLA) and DIR 27 P14 / SI1 / SB1 DSPDO I Data input from DSP (MOTOROLA) Data input from DIR/CODEC 28 P15 / SCK1 DSPCK O Clock output to DSP (MOTOROLA) and DIR 29 P16/T1PWML XDSPMUTE O MUTE request to DSP module 30 P17/T1PWMH/BUZ DEC MUTE I Detection of 1st DSP boot success from DSP module 31 PE0 DSPRST O RESET to DSP(MOTOROLA) Module 32 PE1 DSPSS O Slave selection to DSP(MOTOROLA) 33 PE2 BUSY I For MCACC 34 PE3 DSPHREQ I Error detection from DSP(MOTOROLA) 35 PE4 DIRERR I LOCK/UNLOCK from DIR 36 PE5 DIRDD I 37 PE6 DIRCS O Data output to DIR/CODEC 38 PE7 DIRRST O Reset to DIR /CODEC 39 VSS4 VSS4 40 VDD4 VDD4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 156 1 2 3 4 1 2 3 4 C D F A B E No. Mark Pin Name I/O Function 41 PF0 DSPMODE O MODE selection(ROM/RAM) to DSP(MOTOROLA) 42 PF1 XTL0 O Selection X'tal to DIR 43 PF2 TXCE O Chip enable for tuner LSI 44 PF3 TXCLK O Clock for tuner LSI 45 PF4 TXIDATA O Data for tuner LSI 46 PF5 TXMUTE O Control mute of tuner 47 PF6 TCMSIN I Input MS signal 48 PF7 TXODATA I input data from tuner LSI 49 SI2P0/SO2 TCEXPOE O Output enable to EXPAND IC for deck 50 SI2P1/SI2/SB2 TCEXPCLK O Clock to EXPAND IC for deck 51 SI2P2/SCK2 TCEXPCE O Chip enable to EXPAND IC for deck 52 SI2P3/SCK20 TCEXPDAT O Data toEXPAND EXPAND IC for deck 53 PWM1 NC NC 54 PWM0 NC NC 55 VDD2 VDD2 56 VSS2 VSS2 57 P00 SYS_CS2 O Chip select 2 for system bus 58 P01 SYS_CS1 O Chip select 1 for system bus 59 P02 EXPOE O Output enable to EXPAND IC for Vocal fader, level shift and echo 60 P03 EXPCE O Chip enable to EXPAND IC for Vocal fader, level shift and echo 61 P04 LCDDAT O Data for tuner FL(LCD) driver 62 P05 LCDCLK O Clock for tuner FL(LCD) driver 63 P06 VOCALC O Control for vocal C 64 P07 VOCALB O Control for vocal B 65 P20/INT4/T1IN VOCALA O Control for vocal A 66 P21/INT4/T1IN DVDPOWER O Control power supply for DVD module 67 P22/INT4/T1IN XDVDRST O Control mute of AUX output 68 P23/INT4/T1IN TESTMODE l Set TEST MODE for product line (service) and unit checker 69 P24/INT5/T1IN SERIVCE I Set SELF CHECK for service 70 P25/INT5/T1IN DVDACK I Ackknowiegement from DVD MODULE (Interruption) 71 P26/INT5/T1IN XVMUTE O Wake up request to DVD MODULE 72 P27/INT5/T1IN ECHCNT1 O Control of echo level 1 73 P30 ECHCNT2 O Control of echo level 2 74 P31 KCCONSTB O Strobe for Key Control IC 75 P32 KCONCLK O Clock for Key Control IC 76 P33 KCONDATA O Data for Key Control IC 77 P34 INPUTSELB O AUDIO source SELECT B 78 P35 INPUTSELA O AUDIO source SELECT A(CD,TUNER,TAPE,AUX) BU4052 79 P36 TCHALF l Input switch of mecha half 80 PB7/D7 TCMODE I Input switch of mecha mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 157 5 6 7 8 5 6 7 8 C D F A B E • Port0 (P00-P07) can be selected for input or output by each 4 bits (P00-P03,P04-P07). Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port1 (P10-P17) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1bit in option. • Port2 (P20-P27) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port3 (P30-P36) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port7 (P70-P73) can be selected for input or output by each 1 bit. Set for input when reset. • Port8 (P80-P87) can be selected for input or output by each 1 bit. Set for input when reset. • PortA (PA0-PA5) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortB (PB0-PB7) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortC (PC0-PC7) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortE and PortF can be selected for input or output by each 2 bits. • In case of without RDS, it is best that RDSDATA and RDSCLK are assigned as I/O port which can be set output and output low level. No. Mark Pin Name I/O Function 81 PB6/D6 TCRECF l Input switch of mecha during recording forward 82 PB5/D5 TCRECR I Input switch of mecha during recording reverse 83 PB4/D4 RDSPOW l Control power supply of RDS ( L : POWER ON) 84 PB3/D3 RDSDATA O Input RDS data 85 PB2/D2 TCPULSE O Input pulse of TC reel 86 PB1/D1 RYR O REAR RELAY ON/OFF 87 PB0/D0 RYFSC O FRONT / SW / CENTER RELAY ON/OFF 88 VSS3 VSS3 − 89 VDD3 VDD3 − 90 PC7/A7 XAUXMUTE O Control mute AUX output 91 PC6/A6 SYSPOW O Control power supply of system 92 PC5/A5 DVDMUTE I Control mute of DVD MODULE(Interrruption) 93 PC4/A4 XMUTEC O C ch MUTE ON/OFF 94 PC3/A3 XSYSMUTE O Control mute of system 95 PC2/A2 (VOLMUTE) O (Contorol mute of E-vol IC) 96 PC1/A1 VOLCLK O Clock for E-vol IC 97 PC0/A0 VOLDATA/CE O Data/CE for E-vol IC 98 PA0/CS2# FLASHE/D − for FLASH writing 99 PA1/CS1# FLASHDO − for FLASH writing 100 PA2/CS0# FLASHCLK − for FLASH writing www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 158 1 2 3 4 1 2 3 4 C D F A B E 7.3 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 159 5 6 7 8 5 6 7 8 C D F A B E 8. PANEL FACILITIES Front panel The front panel controls for the EV61DVD model are shown in the illustrations below. 1 TIMER indicator Lights in standby when the timer has been set 2 STANDBY/ON Switches the player on or into standby 3 SOUND MODE Adjusts the tone. Also use to adjust the balance (EV31DVD model only) and DSP controls (EV61DVD model only) 4 ADVANCED SURROUND (EV61DVD model) Selects an advanced listening mode VIRTUAL SURROUND (EV31DVD model) Switches the Virtual Surround effect on or off 5 SURROUND (EV61DVD model) Selects a surround listening mode SFC (EV31DVD model) Selects sound modes or custom settings from the Sound Field Control 6 Function select buttons Selects the source you want to listen to 7 KARAOKE Selects audio channels for karaoke 8 DOLBY NR (DEMO) Switches Dolby Noise Reduction on or off 9 ASES Press for CD-to-tape synchro recording 10 TIMER/CLOCK ADJ. Use for setting the clock , as well as for setting and checking the timers PGM ADV.SURR. SFC 96kHz LINE REC RDM RPT– 1 MONO RDS TUNED STEREO SUB Wf NR B.CUT REC ASES REC WAKE–UP KARAOKE L R ECHO KEY PRO LOGIC DIGITAL 2 1 3 4 7 8 9 5 10 11 12 13 14 15 16 19 20 21 22 17 18 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 160 1 2 3 4 1 2 3 4 C D F A B E 1 2 3 4 5 6 7 8 9 0 CLEAR ENTER SYSTEM SETUP HOME MENU TOP MENU DVD MENU SHIFT CHANNEL VOLUME INPUT SUBTITLE VOLUME ANGLE ZOOM ADVANCED MONO SYSTEM DISP DVD DISP ECHO DSP AUDIO DVD/CD TAPE FM/AM LINE SURROUND PROGRAM TEST TONE REPEAT CH LEVEL RANDOM SLEEP KARAOKE I — KEYCON —i TIMER CLOCK ADJ. MUTE RETURN FOLDER + FOLDER – SOUND MODE ENTER STANDBY/ON 4 /e E/ 1 ¡ ¢ 8 7 3 3 3 TUNE + ST + ST – TUNE – DVD 5.1ch DVD SURROUND SYSTEM XXD3060 TV CONTROL 1 2 3 6 7 8 9 10 11 12 5 19 18 17 15 13 14 16 4 11 SYSTEM DISPLAY Switches between information and clock displays . 12 ST. MEMORY Use for saving and listening to station presets 13 ENTER Select an option or execute a command 14 VOLUME +/– Adjusts the volume level 15 OPEN/CLOSE Opens/closes the disc tray 16 REVERSE MODE Selects the playback mode for tapes. 17 REC/STOP Starts/stops recording on the tape deck 18 TUNING and playback control buttons The tuning/scan/skip buttons are used for tuning into stations, skipping or scanning tracks on discs or tapes. The playback control button is used for playing, pausing and stopping playback. 19 PUSH OPEN indicator Pressing down on this side on the cassette door will open the tape deck 20 MIC VOL Controls the volume of the karaoke mics 21 MIC input jacks 22 PHONES jack Headphone jack Remote control The remote control for the EV61DVD model is shown in the illustration below. 1 STANDBY/ON ( ) Switches the player on or into standby 2 Function select buttons Selects the source you want to listen to 3 DVD control buttons AUDIO Selects the audio channel or language www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 161 5 6 7 8 5 6 7 8 C D F A B E 3 8 1 ¢ 4 e E ¡ SUBTITLE Selects a subtitle display ANGLE Changes the camera angle during DVD multi-angle scene playback ZOOM Changes the zoom level 4 DSP buttons (EV61DVD model) SURROUND Use to select a surround mode ADVANCED Use to select an Advanced surround mode Sound Field buttons (EV31DVD model) SFC Selects sound modes or custom settings from the Sound Field Control VIRTL. SURR. Switches the Virtual Surround effect on or off 5 KARAOKE buttons KARAOKE Selects audio channels for karaoke ECHO Changes the echo level on the karaoke mics KEYCON (SHIFT+KARAOKE/ECHO) Lowers/raises the pitch of the backing track 6 VOLUME Adjusts the volume level 7 HOME MENU Press to display (or exit) the on-screen menu for Initial Settings, Play Mode functions, etc. SYSTEM SETUP (SHIFT+HOME MENU) (EV61DVD model) Use to make various system and surround sound settings 8 ENTER, TUNE & cursor control buttons Navigates on-screen displays and menus. ENTER selects an option or executes a command. 9 SOUND MODE Adjusts the tone. Also use to adjust the balance (EV31DVD model only) and DSP controls (EV61DVD model only) 10 Playback controls Starts/resumes playback and and / Use for reverse slow motion playback, frame reverse and reverse scanning � � and / Use for forward slow motion playback, frame advance and forward scanning Jumps to the next chapter or track Jumps to the beginning of the current chapter or track, then to previous chapters/ tracks Pauses playback; press again to restart Stops playback 11 Number buttons and SHIFT functions The number buttons can be used for selecting tracks directly, the functions above the buttons are accessed by pressing SHIFT at the same time as the button. PROGRAM (SHIFT+1) Use to program/play a program list REPEAT (SHIFT+2) Selects a repeat play mode RANDOM (SHIFT+3) Selects a random play mode TEST TONE (SHIFT+4) (EV61DVD model only) Press to output the test tone for speaker setup 7 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 162 1 2 3 4 1 2 3 4 C D F A B E CH LEVEL (SHIFT+5) (EV61DVD model only) Use to adjust the speaker level SLEEP (SHIFT+6) Switches the sleep timer on or off CLEAR Clears an entry ENTER Selects menu options, etc. (works exactly the same as the ENTER button in 8 above) 12 SHIFT Press to access the functions/commands written in green on the remote 13 SYSTEM DISP Switches between information and clock displays DVD DISP (SHIFT+SYSTEM DISP) Changes the information shown in the display 14 MONO Press to listen to a stereo FM broadcast in mono (sound quality is usually improved) 15 MUTE Mutes the volume 16 TIMER/CLOCK ADJ. Use for setting the clock , as well as for setting and checking the timers 17 DVD MENU Displays the DVD menu (for CDs, Video CD/ Super VCDs, and WMA/MP3 discs, the Disc Navigator screen appears) TOP MENU (SHIFT+DVD MENU) Displays the top menu of a DVD disc 18 RETURN Press to return to a previous menu screen 19 TV CONTROL Switches the TV on or into standby INPUT Switches the TV input CHANNEL +/– Selects channels VOLUME +/– Adjusts the volume on the TV • Refer to Setting up the remote to control your TV on to use these controls with your TV. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 163 5 6 7 8 5 6 7 8 C D F A B E Display The front panel display for the EV61DVD model is shown in the illustration below. 1 Character display 2 RDM Lights during random playback 3 PGM Lights during program play 4 ADV. SURR. (EV61DVD model only) Lights when one of the Advanced Surround listening modes is selected 5 LINE REC (EV61DVD model only) Lights when the line recording mode is switched on (see Recording mode on page 60). 6 RPT-1 RPT lights during repeat play (RPT-1 lights during repeat one-track play) 7 SFC (EV31DVD model only) Lights when one of the Sound Field Control listening modes is selected 8 Format indicator (EV61DVD model only) These indicators will light according to which channels are encoded on the Dolby Digital or DTS multichannel disc currently in the player. LFE lights when the disc has an LFE channel. 9 MONO Lights when FM mono reception is selected 10 Lights during multi-angle scenes on a DVD disc 11 (EV31DVD model only) Lights when Virtual Surround is switched on 12 96 kHz Lights when a 96kHz source is detected (may not light correctly if the source is copy– protected) 13 TUNED Lights when a broadcast is being received 14 STEREO Lights when a stereo FM broadcast is being received in auto stereo mode 15 Level meter Shows the sound levels of the source selected 16 2 PRO LOGIC II (EV61DVD model only) Lights during Dolby Pro Logic decoding 17 2 DIGITAL Lights during playback of a Dolby Digital signal 18 DTS (EV61DVD model only) Lights during playback of a DTS source 6 7 8 9 10 11 14 13 12 1 2 3 5 4 NR B.CUT 2 REC ASES REC WAKEñUP KARAOKE L R ECHO KEY 20 21 22 23 24 25 26 32 31 30 29 28 27 16 17 15 19 18 SUB Wf PRO LOGIC DIGITAL 96kHz LINE REC PGM ADV.SURR. SFC RDM RPTñ1 MONO RDS TUNED STEREO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-EV61 164 1 2 3 4 1 2 3 4 C D F A B E 19 Speaker and playback indicators The playback indicator ( ) lights during playback, and the speaker indicators show which speakers are being used to output the current source. The illustrations below show some example displays. (When headphones are connected, none of the speaker indicators are lit.) 20 2 NR Lights when Dolby Noise Reduction is on 21 B.CUT Lights when the beat cut mode has been switched to B.CUT 2 22 REC Lights when recording to the tape deck 23 Indicates the direction of tape playback 24 Indicates the reverse mode: • – Single side playback • – Auto-reverse playback: stops after finishing playback in the ‘reverse’ (2 ) direction • – Continuous playback (up to 16 complete plays) 25 ASES Lights during ASES recording 26 Lights when the sleep timer is active 27 REC Lights when the record timer is set and flashes when the timer starts recording 28 Lights when either timer is set and flashes when they activate 29 WAKE-UP Lights when the wake-up timer is set and flashes when the wake-up timer activates 30 KARAOKE L R Lights when one of the Karaoke modes is selected: • KARAOKE (Vocal cancel) – Vocals in the backing track are partially eliminated using EQ. • L – Left channel only. Use for tracks that have a vocal recorded in the right channel. • R – Right channel only. Use for tracks that have a vocal recorded in the left channel. • L R – Use to put a single-channel vocal track into the center of the mix. 31 KEY Lights when the Karaoke pitch control is selected 32 ECHO Lights when the Karaoke ECHO effect is selected 5.1 channel surround sound with Extra Power mode or Extra Power Surround mode active (EV61DVD model only) 5.1 channel surround sound (EV61DVD model only) Stereo (2.1 channel) sound (with subwoofer) 5.1 channel surround sound with Dialogue enhancement and the Virtual Surround Back mode active (EV61DVD model only) SUB Wf SUB Wf SUB Wf SUB Wf 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
