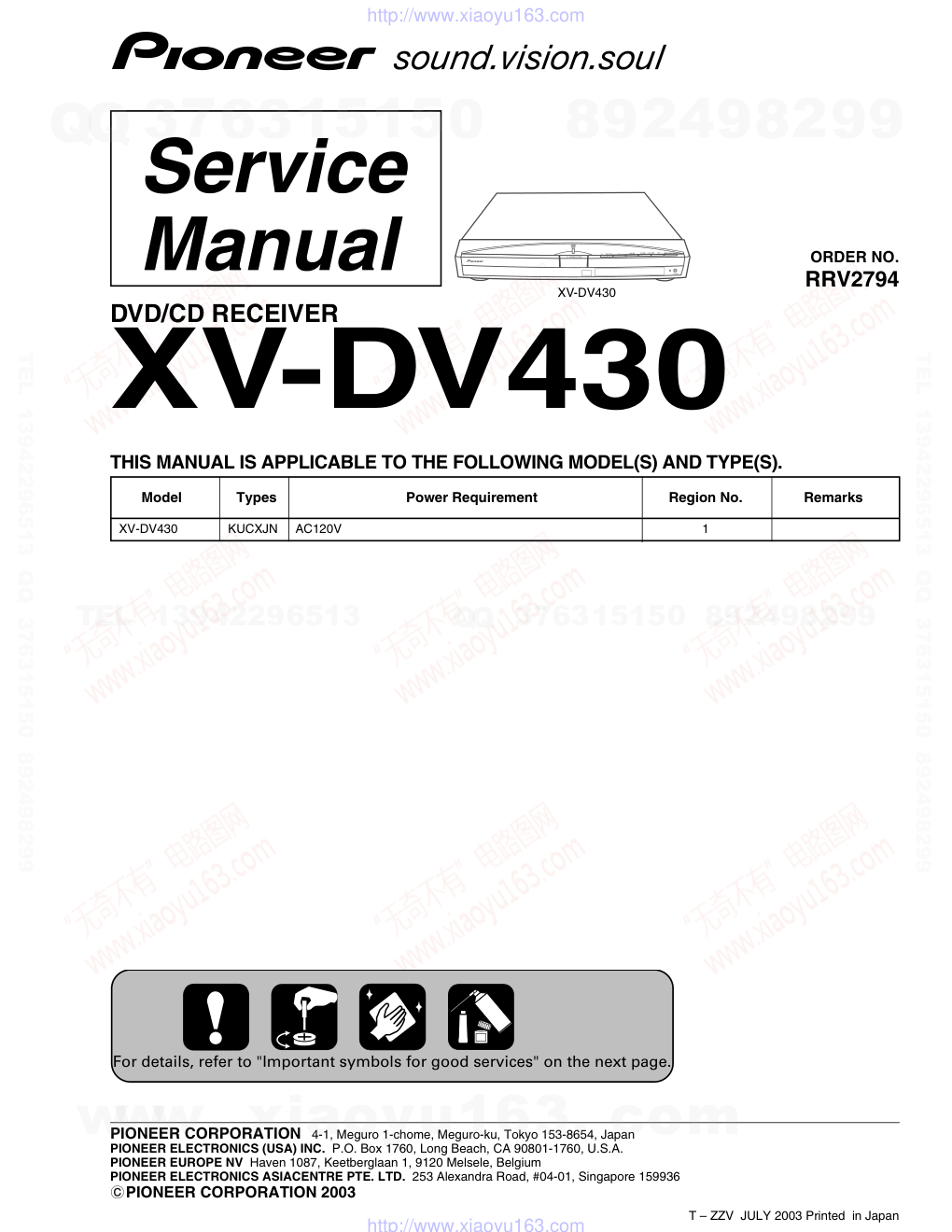

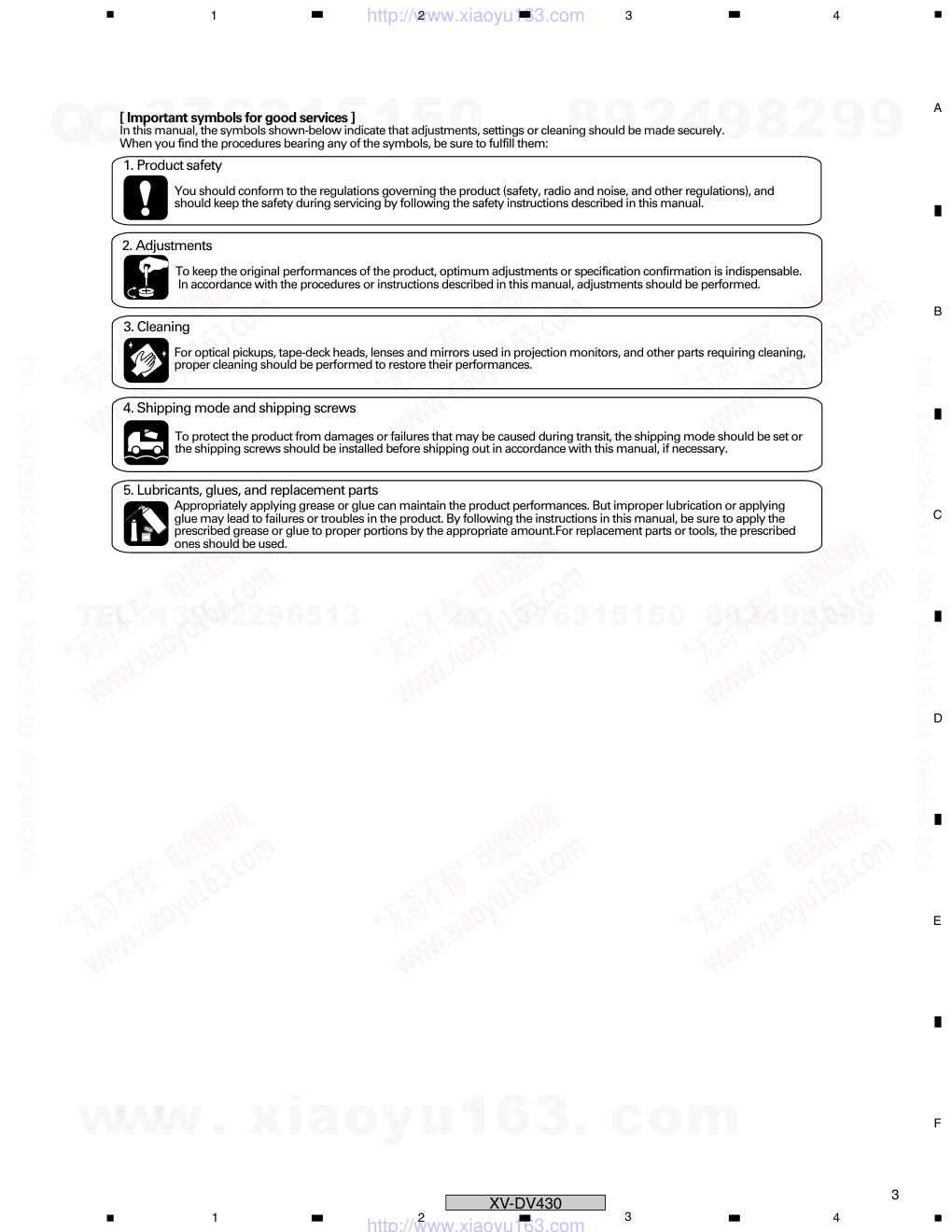

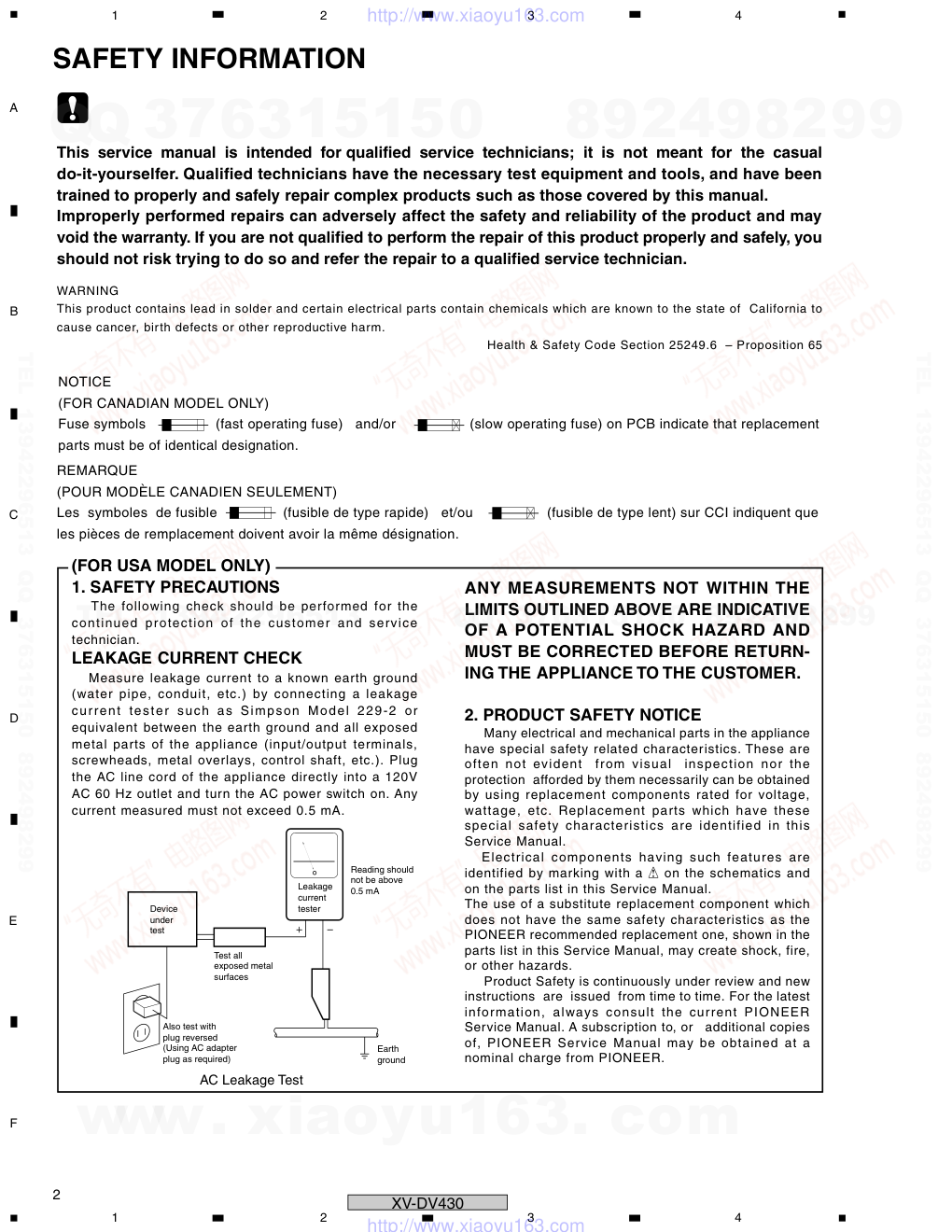

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 RRV2794 DVD/CD RECEIVER XV-DV430 T – ZZV JULY 2003 Printed in Japan XV-DV430 0 OPEN/CLOSE 6 DVD /CD FM/AM – DOWN VOLUME UP + STANDBY/ON PHONES 7 ¶ 7 Model Types Power Requirement Region No. Remarks XV-DV430 KUCXJN AC120V 1 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). For details, refer to "Important symbols for good services" on the next page. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 CONTENTS SAFETY INFORMATION ......................................................................................................................................2 1. SPECIFICATIONS ............................................................................................................................................5 2. EXPLODED VIEWS AND PARTS LIST .......................................................................................................... 6 2.1 PACKING....................................................................................................................................................6 2.2 EXTERIOR SECTION ............................................................................................................................... 8 2.3 FRONT SECTION ................................................................................................................................... 10 2.4 LOADING MECANISM ASSY ................................................................................................................. 12 2.5 TRAVERSE MECHA. ASSY ................................................................................................................... 15 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ........................................................................................ 16 3.1 BLOCK DIAGRAM................................................................................................................................... 16 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM ................................................................................... 18 3.3 DVDM ASSY (1/3) ................................................................................................................................... 20 3.4 DVDM ASSY (2/3) ................................................................................................................................... 22 3.5 DVDM ASSY (3/3) ................................................................................................................................... 24 3.6 DSP ASSY (1/2) ...................................................................................................................................... 26 3.7 DSP ASSY (2/2) ...................................................................................................................................... 28 3.8 6CH AMP ASSY ...................................................................................................................................... 30 3.9 FM/AM TUNER MODULE ....................................................................................................................... 32 3.10 CONTROL (1/4), TRADE3 and TRADE2 ASSYS ................................................................................ 34 3.11 CONTROL ASSY (2/4) .......................................................................................................................... 36 3.12 CONTROL ASSY (3/4) .......................................................................................................................... 38 3.13 CONTROL (4/4) and HP ASSYS .......................................................................................................... 40 3.14 POWER ASSY (1/2 ) ............................................................................................................................. 42 3.15 POWER (2/2) and TRADE1 ASSYS ..................................................................................................... 44 3.16 VIDEO ASSY ......................................................................................................................................... 46 3.17 DISPLAY and LED ASSYS ................................................................................................................... 48 3.18 WAVEFORMS ....................................................................................................................................... 50 4. PCB CONNECTION DIAGRAM..................................................................................................................... 52 4.1 LOAB ASSY ............................................................................................................................................ 52 4.2 DVDM ASSY ........................................................................................................................................... 53 4.3 DSP ASSY ............................................................................................................................................... 55 4.4 6CH AMP ASSY ...................................................................................................................................... 57 4.5 FM/AM TUNER MODULE ....................................................................................................................... 59 4.6 CONTROL ASSY .................................................................................................................................... 60 4.7 TRADE2 ,TRADE3 and HP ASSYS ........................................................................................................ 64 4.8 POWER ASSY ........................................................................................................................................ 66 4.9 TRADE1, VIDEO, DISPLAY and LED ASSYS ....................................................................................... 70 5. PCB PARTS LIST .......................................................................................................................................... 74 6. ADJUSTMENT ............................................................................................................................................... 80 7. GENERAL INFORMATION............................................................................................................................ 87 7.1 DIAGNOSIS............................................................................................................................................. 87 7.1.1 TEST MODE .................................................................................................................................... 87 7.1.2 DISPLAY SPECIFICATIONS OF THE TEST MODE ...................................................................... 89 7.1.3 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY ......................................................... 90 7.1.4 SPECIFICATION OF MODEL INFORMATION DISPALY ............................................................. 91 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE .......................................................... 92 7.1.6 MECHANICAL ERROR HISTORY .................................................................................................. 93 7.1.7 ID NUMBER AND DATA SETTING................................................................................................. 98 7.1.8 TROUBLE SHOOTING .................................................................................................................. 101 7.1.9 DSP TROUBLE SHOOTING ......................................................................................................... 104 7.1.10 SEQUENCE AFTER POWER ON............................................................................................... 108 7.1.11 PROTECTION CIRCUIT.............................................................................................................. 109 7.1.12 DISASSEMBLY............................................................................................................................ 114 7.2 IC ........................................................................................................................................................... 123 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY ................................................................ 138 7.4 CLEANING ............................................................................................................................................ 139 8. PANEL FACILITIES ..................................................................................................................................... 140 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Subwoofer Enclosure . . . . . . . . . . . . Bass-reflex floor type (magnetically shielded) System. . . . . . . . . . . . . . . .16 cm 1-way system Speaker . . . . . . . . . . . . . . . . .16 cm cone type Nominal impedance. . . . . . . . . . . . . . . . . . . 6Ω Frequency range . . . . . . . . . . 35 Hz to 2.8 kHz Maximum Input Power. . . . . . . . . . . . . . . 75 W Dimensions . . . 130 (W) x 360 (H) x 360 (D) mm Accessories (Speaker system) Speaker cables . . . . . . . . . . . . . . . . . . . . . . . . . 6 4 Non-slip pads(Small). . . . . . . . . . . . . . . . . . . Non-slip pads(Large). . . . . . . . . . . . . . . . . . . 20 • Specifications and design subject to possible modification without notice, due to improvements. Accessories • Power cord (ADG7022) • FM Antenna (ADH7028) • AM Loop Antenna (ATB7009) • Video Cord (L = 1.5m)(VDE1065) • Remote Control Unit (XXD3058) • Dry Cell Battery (R6P, AA) Yellow ST+ TUNE+ ENTER TUNE– MASTER VOLUM E ST– STANDBY/ON CD FM/AM OPEN/CLOSE DISPLAY DVD TUNER TV LINE L1/L2 1 4 4 ¡ 8 3 7 0 DVD MENU RETURN SOUND TV CONTROL CH VOL INPUT MUTE TEST TONE 1 2 3 ZOOM TOP MENU CH LEVEL DIMMER REPEAT AUDIO ANGLE RANDOM SUBTITLE PROGRAM 4 5 6 7 8 9 0 MAIN SUB FOLDER– WIRELESS ROOM SETUP CLR ENTER FOLDER+ MENU HOME SETUP SYSTEM MIDNIGHT QUIET/ CLOCK TIMER/ BASS MODE DIALOGUE VIRTUAL SB AUTO SURROUND ADVANCED Weight. . . . . . . . . . . . . . . . . . . 4.5kg /9 lb. 15 oz 5 (W) x 14 (H) x 14 (D) in. 3/16 3/16 1/8 Amplifier section Continuous Power Output (RMS): Front, center, surround. . . . . 75 W per channel (1 kHz, 10 % T.H.D., 6Ω ) Subwoofer . . . 75 W (100 Hz, 10 % T.H.D., 6Ω ) Continuous Power Output : Front, center, surround. . . . . 62 W per channel (1 kHz, 1 % T.H.D., 6Ω ) Subwoofer . . . . 62 W (100 Hz, 1 % T.H.D., 6Ω ) Disc section Digital audio characteristics . . . . . . . DVD fs: 96 kHz, 24-bit Type. . . . . . DVD system, video CD system and compact disc digital audio system Frequency response . . . . . . . . . 4 Hz to 44 kHz Wow and Flutter. . . . . . . Limit of measurement (±0.001 % W.PEAK) or less (JEITA) FM tuner section Frequency range . . . . . . . . . . . 87.5 – 108 MHz Antenna . . . . . . . . . . . . . . . . 75Ω , unbalanced AM tuner section Frequency range With 9kHz step . . . . . . 530 kHz to 1,700 kHz With 10kHz step . . . . . 531 kHz to 1,602 kHz Antenna . . . . . . . . . . . . . . . . . . . Loop antenna Miscellaneous Power requirements . . . . . . . . . AC 120V, 60Hz Power consumption . . . . . . . . . . . . . . . . . 165W Power consumption in standby. . . . . . . . .0.42W Weight. . . . . . . . . . . . . . . . . . . 7.4kg /16 lb. 6 oz Dimensions. . . . .420(W) x 70(H) x 403.5(D)mm 16 (W) x 2 (H) x 15 (D) in. Accessories (DVD/CD receiver) Remote control. . . . . . . . . . . . . . . . . . . . . . . . . 1 AA/R6 dry cell batteries. . . . . . . . . . . . . . . . . 2 Video cable (yellow plugs). . . . . . . . . . . . . . . .1 AM loop antenna . . . . . . . . . . . . . . . . . . . . . .1 FM antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Power cord . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Setup Guide. . . . . . . . . . . . . . . . . . . . . . . . . . .1 These operating instructions. . . . . . . . . . . . . .1 Warranty Card . . . . . . . . . . . . . . . . . . . . . . . .1 Speaker System Front and surround speakers Enclosure . . . . . . . . Closed-box bookshelf type (magnetically shielded) System. . . . . . . . . . . . . . 15x6 cm 1-way system Speakers . . . . . . . . . . . . . . .15x6 cm cone type Nominal impedance. . . . . . . . . . . . . . . . . . 6Ω Frequency range . . . . . . . . . . .90 Hz to 20 kHz Maximum Input Power. . . . . . . . . . . . . . . 75 W Center speaker Enclosure . . . . . . . . Closed-box bookshelf type (magnetically shielded) System. . . . . . . . . . . . . .15x6 cm 1-way system Speakers . . . . . . . . . . . . . . .15x6 cm cone type Nominal impedance. . . . . . . . . . . . . . . . . . 6Ω Frequency range . . . . . . . . . . .78 Hz to 20 kHz Maximum Input Power. . . . . . . . . . . . . . . 75 W Dimensions . . . . . 240 (W) x 85 (H) x 96 (D) mm 13/16 15/16 9/16 Weight. . . . . . . . . . . . . . . . . . . . 0.7kg /1 lb. 9 oz Dimensions. . . . . . .78(W) x 210(H) x 82(D)mm 3 (W) x 8 (H) x 3 (D) in. 5/16 1/4 1/8 Weight. . . . . . . . . . . . . . . . . . 0.75kg /1 lb. 11 oz 9 (W) x 3 (H) x 3 (D) in. 3/8 13/16 1/2 This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. This product is intended for household purposes. Any failure due to use for other than household purposes (such as long- term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even in the warranty period. KO41_En 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 5 15 11 1 8 9 10 4 2 3 7 6 12 14 13 16 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 (1) PACKING PARTS LIST > 1 Power Cord ADG7022 2 FM Antena ADH7028 3 AM Loop Antenna ATB7009 4 Video Cable VDE1065 5 Remote Control XXD3058 6 Battery Cover XZN3130 NSP 7 Dry Cell Batteries(R6P,AA) VEM1031 8 Operating Instructions XRB3025 (English) 9 Operating Instructions XRC3091 (French) 10 Operating Instructions Basic XRE3074 (English, French) NSP 11 Warranty Card ARY7045 12 Front Pad XHA3140 13 Rear Pad XHA3139 14 Packing Sheet AHG7010 15 Packing Case XHD3363 NSP 16 Polyethylene Bag Z21-038 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 2.2 EXTERIOR SECTION A A B B C G F E D F G H E D C L K H L K I I 41 CONTACT SIDE NON-CONTACT SIDE Refer to "2.4 LOADING MECHANISM ASSY". Refer to "2.3 FRONT PANEL". 53 53 65 65 5 6 2 1 34 34 28 30 44 51 12 71 71 37 27 32 36 64 64 71 71 71 61 3 9 20 7 4 8 62 62 71 59 66 62 62 60 23 25 13 43 66 66 62 60 63 59 58 59 62 62 16 17 14 15 50 33 18 19 33 27 52 56 56 56 54 55 65 64 64 38 24 57 67 67 67 64 64 67 64 64 64 64 64 64 64 64 64 64 35 39 39 39 64 64 64 64 48 65 F K L H E D J C B G 56 68 68 47 67 70 42 45 40 26 7 21 41 72 73 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 DVDM ASSY AWM7808 2 DSP ASSY AWX8253 3 6CH AMP AZW7283 4 FM/AM TUNER MODULE AXQ7228 5 CONTROL ASSY XWZ3707 6 TRADE3 ASSY XWZ3714 7 TRADE2 ASSY XWX3071 8 POWER ASSY XWZ3718 9 TRADE1 ASSY XWZ3725 10 VIDEO ASSY XWZ3722 11 • • • • • • NSP 12 Loading Mechanism ASSY VWT1208 > 13 Power Transformer (T1) XTS3068 > 14 Fuse (FU1 : 6.3A) REK1069 > 15 Fuse (FU2 : 6.3A) REK1069 16 30P F.F.C/60V XDD3128 17 18P F.F.C/60V XDD3129 18 15P F.F.C/60V XDD3130 19 5P F.F.C/60V XDD3131 20 13P F.F.C/60V XDD3132 21 5P F.F.C/60V XDD3136 22 • • • • • • NSP 23 Chassis XNA3017 24 Rear Panel XNC3209 25 Trans Frame XNG3106 26 Spacer XEC3052 27 Control Angle XNG3108 28 DSP Holder XNG3109 29 • • • • • • 30 DSP Shield XNK3010 31 • • • • • • 32 PCB Spacer AEB7206 33 S Cover AEB7262 NSP 34 PCB Spacer(3x6) AEC7156 35 Locking Card Spacer AEC7372 36 Bottom Plate AEC7420 37 Barrier S AEC7429 38 Fan Cover XMR3086 39 Card Spacer DNK2769 NSP 40 Spacer PNY-404 NSP 41 Fuse Card AAX2374 42 Cushion Rubber XEB3036 43 Trans Barrier XEC3046 44 DSP Barrier XEC3047 45 Locking Card Spacer XEC3051 46 • • • • • • 47 Tray Cap XAK3389 48 Bonnet Case XZN3129 49 • • • • • • 50 Name Label XAX3376 NSP 51 DVD Assy AXA7121 52 Connector Assy PG05KK-E25 53 Cushion AEB7267 54 Adapter02 L ANW7267 55 Adapter02 R ANW7268 56 Screw BPZ30P080FMC NSP 57 AMP Module 6ch AXQ7242 58 DC Fan Motor AXM7025 59 FET Bracket A ANG7418 60 Fan Plate ANG7425 NSP 61 Heat Sink ANH7161 62 Screw BBZ30P140FMC 63 Screw BBZ30P300FZK 64 Screw BBZ30P060FMC 65 Screw BBZ30P080FNI 66 Screw BBZ40P060FMC 67 Screw BPZ30P080FZK 68 Screw CBZ30P080FMC 69 • • • • • • 70 Screw VPZ30P140FMC 71 Screw VBZ30P080FMC NSP 72 Energy Star Label AAX7876 NSP 73 Getter/KUC XAX3372 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 2.3 FRONT SECTION 15 15 15 15 15 15 15 15 1515 15 15 6 2 4 1 3 9 11 12 19 13 7 7 8 8 17 17 17 17 5 N M I CONTACT SIDE NON-CONTACT SIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 FRONT SECTION PARTS LIST Mark No. Description Part No. 1 DISPLAY ASSY XWZ3720 2 LED ASSY XWZ3721 3 HP ASSY XWZ3715 4 15P F.F.C/60V XDD3130 5 5P F.F.C/60V XDD3131 6 Top Frame XNG3107 7 Leg AEB7090 8 Rubber Cover XEB3034 9 Display Panel XAK3413 NSP 10 Front Panel Assy XXG3161 11 Front Cap XAK3390 12 Front Panel XMB3131 13 Top Panel Assy XZN3131 14 • • • • • 15 Screw VPZ30P080FZK 16 • • • • • 17 Screw PBA1096 18 • • • • • NSP 19 HP Press ASSY • • • • • www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 2.4 LOADING MECHANISM ASSY A A 2 3 5 4 12 23 13 17 21 16 22 15 14 22 22 22 20 18 19 9 1 7 10 11 6 8 8 8 8 A Refer to "2.5 TRAVERSE MECHA. ASSY-S". Lubricating Oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 To DVDM CN101 (Pickup Assy-S) To DVDM CN104 (Stepping Motor) To DVDM CN105 (Spindle Motor) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Mark No. Description Part No. LOADING MECHANISM ASSY PARTS LIST NSP 1 LOAB Assy VWG2279 2 Traverse Mechanism Assy-S VXX2871 3 Loading Motor Assy VXX2872 4 Motor Pulley PNW1634 5 Motor VXM1105 6 Flexible Cable (24P) VDA1947 7 Connector Assy 2P VKP2253 8 Floating Rubber VEB1351 9 Belt VEB1330 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base DVD VNL1918 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate VNE2251 19 Bridge VNE2252 20 Clamper VNL1924 21 Screw JGZ17P028FMC 22 Screw Z39-019 23 Tray VNL1950 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Application of Lubricant Lubricating Oil GYA1001 Around the shaft No. 11 Loading Base No. 23 Tray No. 13 Drive Cam No. 13 Drive Cam No. 23 Tray Front View Rear View Daifree GEM1036 Inner side of a ditch Concave of unevenness Top View Bottom View Daifree GEM1036 Daifree GEM1036 Side of the rib Lubricating Oil GYA1001 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 To DVDM CN104 (Stepping Motor) To DVDM CN105 (Spindle Motor) To DVDM CN101 (Pickup Assy) CONTACT SIDE NON-CONTACT SIDE 3 7 8 1 17 16 17 10 13 17 10 6 11 14 16 2 9 15 (Torque : 0.15 ± 0.01 N•m) 15 (Torque : 0.15 ± 0.01 N•m) 4 (Adjustment screw) 5 (Adjustment spring) Screw Tight GYL1001 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 2.5 TRAVERSE MECHA. ASSY-S Mark No. Description Part No. TRAVERSE MECHA. ASSY-S PARTS LIST 1 Spindle Motor VXM1099 2 Stepping Motor VXM1101 > 3 Pickup Assy-S OXX8005 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mechanism Chassis VNE2248 12 • • • • • • 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw OBA8016 16 Screw BBZ20P050FZK 17 Screw PMA26P100FMC Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 - 6dB - 10dB system control MPEG Video Decoder Video Encoder (withPictureControl) Video DAC (Progressive: 54MHz) Audeo Decoder -DD MPEG JPEG Viewer WMA Playback RW Playback (VRmode with CPRM) IC802 64M SDRAM IC603 16M FLASH ROM SPINDLE Motor 03SD PU PlCK UP ASSY DVD MODULE FTS&SPDL DRlVER Steppingtor M + - VlDEO AMP DRlVER 6IN-6OUT M63018FP IC101 MM1623 L 20MHz IC601 IC501 STM5589CVA BACK END IC 27MHz IC301 STM6316ATXXA FRONT END IC LoadMotor M + - *single disc mecha DOUT DolbyDigital Decoder Dolby PrologicII DTS Decoder IC8501 DSPD56367 DSP IC8201 DIR AK4114 IC3001 INPUT SELECTOR IC8401 AK4529 8ch CODEC LINE 1 IN TV IN LINE 2 IN JA8602 (OPT DIGITAL) BUFFER IC3003 ATTENUATOR DVDM ASSY B DSP ASSY C FM/AM TUNER MODULE E Traverse Mechanism Assy VWT1199 CN201 CN5701 CN5620 CN8011 CN5612(1/2) CN8007(1/2) CN8007(2/2) CN901 CN101 CN1013 CN103 CN105 CN104 CN903 CN5502 CN8801 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 V C Y B/PB R/PR G/Y LPF LPF LPF LPF LPF 6ch E-vol IC3062 JA3001 IC3901 IC3059 IC3056 IC3057 IC3058 BD3814FV E-VOL IC3301 STK402- 270 STK402- 270 3ch Power Amp Headphone AMP COMPOSITE VIDEO OUT COMPONENT VIDEO OUT S-VIDEO OUT SW Center HEADPHONE OUT FL/FR OUT SW OUT CENTRE OUT SL/SR OUT micro Processoer IC5601 FL Driver IC LINE OUT ANDREW FL Tube IR SENSOR KEY PDC104A IC5501 V5601 POWER AMP MODULE SPEAKER RELAY - + SW MIX/GAIN FL/FR SL/SR REC OUT CONTROL ASSY F POWER ASSY(1/2) J DISPLAY ASSY M 6CH AMP ASSY POWER ASSY(2/2) HP ASSY D J I VIDEO ASSY L CN5612(2/2) CN3501 CN5531 CN3902 CN3901 JA3901 CN5611 (2/2) CN8807 CN8001 CN5611 (2/2) CN5601 (2/2) CN3001 CN3031 JA3301 CN5611 (1 /2) CN5601 (1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM VIDEO ASSY(XWZ3722) L J 1/2, J 2/2 J POWER ASSY (XWZ3718) POWER CORD : ADG7022 LOAB ASSY (VWG2279) A PICKUP ASSY-S (OXX8005) DVD ASSY (AXA7121) STEPPING MOTOR : VXM1101 LOADING MOTOR ASSY : VXX2505 SPINDLE MOTOR : VXM1099 B 1/3- B 3/3 B DVDM ASSY (AWM7808) A CN8003 T1 POWER TRANSFORMER XTS3068 : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE (F) (RF) (T) (S) (RF) (RF) (RF) (RF) (RF) (RF) (F) (F) (T) (T) (S) (S) (S) (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 6CH AMP (AZW7283) D FM/AM TUNER MODULE (AXQ7228) E HP ASSY (XWZ3715) I DISPLAY ASSY (XWZ3720) M LED ASSY (XWZ3721) N TRADE 1 ASSY (XWZ3725) K TRADE 2 ASSY (XWX3071) H PHONES F 1/4- F 4/4 F CONTROL ASSY C 1/2, C 2/2 C DSP ASSY (AWX8253) G TRADE 3 ASSY (XWZ3714) AMP MODULE 6CH (AXQ7242) Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". CN8007 CN8011 CN3651 XKE3021 CN201 52044-1315 (XWZ3707) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.3 DVDM ASSY(1/3) B 1/3 B 1/3 CN601 STEPPING MOTOR PICKUP ASSY CN1013 DVDM ASSY (AWM7808) A SPINDLE MOTOR 3 (F) (F) (T) (T) (S) (S) (S) (S) (S) (S) (S) (S) (F) (F) (T) (T) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 B 2/3 B 1/3 1 2 4 5 : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE (F) : FE DATA SIGNAL ROUTE (T) (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.4 DVDM ASSY(2/3) B 2/3 B 2/3 DVDM ASSY (AWM7808) (Y) (C) (C/V) (D) (D) (D) (CY/G) (PR/R) (PB/B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 B 2/3 B 1/3 B 3/3 B 3/3 B 3/3 6 7 8 9 10 11 : FE DATA SIGNAL ROUTE : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (Y) (C) : VIDEO SIGNAL ROUTE (C/V) (C/V) : AUDIO SIGNAL ROUTE (DIGITAL) (D) (D) (D) (D) (Y) (Y) (Y) (Y) (C) (C) (C) (Y) (C/V) (C) (C) (C/V) (C/V) (C/V) (C/V) : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (PR/R) (PR/R) : VIDEO SIGNAL ROUTE (PB/B) (PB/B) (CY/G) (CY/G) (PR/R) (PR/R) (PB/B) (PB/B) (CY/G) (PR/R) (PB/B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.5 DVDM ASSY(3/3) B 3/3 B 3/3 DVDM ASSY (AWM7808) B 2/3 1.8V Reg. 1.8V Reg. (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 B 3/3 B 2/3 B 2/3 CN5102 J 1/2 CN8801 J 2/2 : The power supply is shown with the marked box. 5V Reg. : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (Y) (C) : VIDEO SIGNAL ROUTE (C/V) (C/V) : AUDIO SIGNAL ROUTE (DIGITAL) (D) : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (PR/R) (PR/R) : VIDEO SIGNAL ROUTE (PB/B) (PB/B) (Y) (C) (C/V) (CY/G) (PR/R) (PB/B) (Y) (C) (C/V) (CY/G) (PR/R) (PB/B) (Y) (C) (C/V) (CY/G) (PR/R) (PB/B) (D) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.6 DSP ASSY(1/2) C 1/2 C 1/2 DSP ASSY (AWX8253) C 2/2 C 2/2 C 2/2 (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 C 1/2 CN5614 G CN5615 G 3.3V Reg. 1.8V Reg. : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (DIGITAL) (D) : AUDIO SIGNAL ROUTE (DVD Lch) (DVD) : AUDIO SIGNAL ROUTE (L ch) : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) : AUDIO DATA SIGNAL ROUTE (AD) (D) (D) (D) (D) (D) (D) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (FL) (FL) (SL) (SL) (C) (C) (SW) (SW) (DVD) (DVD) (DVD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.7 DSP ASSY(2/2) C 2/2 C 2/2 DSP ASSY (AWX8253) CN5618 G C 1/2 C 1/2 C 1/2 : The power supply is shown with the marked box. (D) (D) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 C 2/2 : AUDIO SIGNAL ROUTE (DIGITAL) (D) : AUDIO DATA SIGNAL ROUTE (AD) (D) (D) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.8 6CH AMP ASSY Non Distortion Circuit 2 3 5 D CN3011 K CN3012 K CN3651 CN3001 CN3002 to FAN Motor 6CH AMP (AZW7283) D (SL) (FL) (SW) (C) (SL) (FL) (SW) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 D : The power supply is shown with the marked box. at SEARCH : 2.3A AT NORMAL : 950mA 30PDA20-FC6 30PDA20-FC6 (C) (FL) (SW) (SL) : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) : Refer to "7.1.11 PROTECTION CIRCUIT"(P109). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.9 FM/AM TUNER MODULE FM FRONT END : AXF7003 FM/AM TUNER MODULE (AXQ7228) E (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (AM) (FM) (AM) (AM) (FM) (FM) (FM) (FM) (AM) (FM) PLL IC Ewww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 1SS133 CN5701 F 3/4 (TX) : AUDIO SIGNAL ROUTE (TUNER) (AM) : AM SIGNAL ROUTE (FM) : FM SIGNAL ROUTE (TX) (TX) (TX) (TX) (TX) (AM) (AM) (AM) (AM) (AM) (AM) (FM) : The power supply is shown with the marked box. IC201 AM/FM IF +MPX IC E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.10 CONTROL(1/4), TRADE3 and TRADE2 ASSYS F 1/4 G CN8003 C 1/2 CN8007 C 1/2 CN8011 C 2/2 TRADE 3 ASSY (XWZ3714) G F 2/4-4/4 F 2/4, 3/4 (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (FL) (FL) (SL) (SL) (C) (C) (SW) (SW) (DVD) (DVD) (DVD) (DVD) (DVD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 F 1/4 CONTROL ASSY (XWZ3707) F 1/4 H CN5531 CN5601 J 1/2 CN5532 J 1/2 M TRADE 2 ASSY (XWX3071) H F 2/4 F 2/4 F 3/4, 4/4 F 2/4-4/4 : The power supply is shown with the marked box. 2 : AUDIO SIGNAL ROUTE (DIGITAL) (D) : AUDIO SIGNAL ROUTE (L ch) : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (D) (D) (D) (D) (D) (D) (D) (FL) (SL) (C) (SW) (FL) (FL) (FL) (SL) (C) (SW) (SL) (SL) (C) (C) (SW) (SW) : AUDIO SIGNAL ROUTE (DVD Lch) (DVD) : Refer to "7.1.11 PROTECTION CIRCUIT" (P109). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.11 CONTROL ASSY(2/4) F 2/4 F 2/4 CONTROL ASSY F 1/4 F 1/4 (XWZ3707) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (SL) (SL) (SL) (SL) (SL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) (SW) (SW) (SW) (SW) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 F 2/4 F 1/4 F 1/4, 3/4, 4/4 : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (SL) (SL) (SL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) (SW) (SW) (SW) (SW) (SW) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.12 CONTROL ASSY(3/4) F 3/4 CONTROL ASSY (XWZ3707) F 3/4 (TX) (TX) (TX) (TX) (TX) (TX) (TX) (L1) (L1) (L1) (L1) (TV) (TV) (TV) (TV) (TV) (TV) (TV) (TV) (TV) (DVD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 F 3/4 CN201 E F 1/4, 4/4 F 1/4 F 1/4, 2/4, 4/4 : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (LINE 1 L ch) (L1) : AUDIO SIGNAL ROUTE (L ch) : AUDIO SIGNAL ROUTE (DVD L ch) : AUDIO SIGNAL ROUTE (TV L ch) (TV) : AUDIO SIGNAL ROUTE (TUNER L ch) (TX) : AUDIO SIGNAL ROUTE (SCART TV L ch) (STV) (TX) (TX) (TX) (TX) (TX) (DVD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.13 CONTROL ASSY(4/4) and HP ASSYS F 4/4 F 4/4 CONTROL ASSY F 1/4-3/4 F 1/4, 3/4 F 1/4 (XWZ3707) (D) (D) (D) (D) (D) (FL) (FL) (FL) (FL) (FL) (FL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 I HP ASSY (XWZ3715) I PHONES : The power supply is shown with the marked box. JA3901 : AUDIO SIGNAL ROUTE (DIGITAL) (D) : AUDIO SIGNAL ROUTE (Front L ch) (FL) (FL) (FL) (FL) (FL) (FL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.14 POWER ASSY(1/2) J 1/2 CN3021 K CN3022 K CN5521 H CN5522 H J 2/2 XTS3068 ATT7079 REK1069 REK1069 ADG7022 (D) (D) (D) (D) (FL) (SL) (C) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 J 1/2 CN901 DVD DOWNLOAD B 3/3 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - J 1/2 POWER ASSY (XWZ3718) : The power supply is shown with the marked box. 1 1 1 7 7 7 7 1 7 4 : AUDIO SIGNAL ROUTE (DIGITAL) (D) : AUDIO SIGNAL ROUTE (Front L ch) (FL) : AUDIO SIGNAL ROUTE (Surround L ch) (SL) : AUDIO SIGNAL ROUTE (Center ch) (C) : AUDIO SIGNAL ROUTE (Sub Woofer ch) (SW) (D) (D) (D) (FL) (FL) (FL) (FL) (FL) (FL) (SL) (SL) (SL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) (SW) (SW) (SW) : Refer to "7.1.11 PROTECTION CIRCUIT" (P109). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.15 POWER ASSY(2/2) and TRADE1 ASSYS (Y) (C) (Y) (C) (Y) (C) (PR/R) (PB/B) (CY/G) (CY/G) (PR/R) (PB/B) J 2/2 CN903 B 3/3 CN8001 L J 2/2 POWER ASSY (XWZ3718) J 1/2 J 1/2 : The power supply is shown with the marked box. (Y) (Y) (Y) (C) (C/V) (C/V) (C/V) (C/V) (C/V) (C/V) (CY/G) (PR/R) (PB/B) (CY/G) (PR/R) (PB/B) (CY/G) (PR/R) (PB/B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 (Y) (C) (Y) (C) J 2/2 CN3031 J 1/2 CN3032 J 1/2 CN3001 D CN3002 D TRADE 1 ASSY (XWZ3725) K K : S VIDEO SIGNAL ROUTE (Y) (Y) : S VIDEO SIGNAL ROUTE (Y) (C) : VIDEO SIGNAL ROUTE (C/V) (C/V) : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (PR/R) (PR/R) : VIDEO SIGNAL ROUTE (PB/B) (PB/B) (C/V) (C/V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.16 VIDEO ASSY (CY/G) (CY/G) (PB/B) (PR/R) (PR/R) (PB/B) CN8807 J 2/2 VIDEO ASSY (XWZ3722) L Lwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 : VIDEO SIGNAL ROUTE (CY/G) (CY/G) : VIDEO SIGNAL ROUTE (PR/R) (PR/R) : VIDEO SIGNAL ROUTE (PB/B) (PB/B) (CY/G) (PR/R) (PB/B) L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.17 DISPALY and LED ASSYS M CN5611 F 1/4 DISPLAY ASSY (XWZ3720) M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 N M LED ASSY (XWZ3721) N DISPLAY ASSY S5921 : STANDBY/ON S5922 : UP + S5923 : – DOWN S5924 : FM/AM S5925 : 7 (STOP) S5926 : 6 DVD/CD (PLAY/PAUSE) S5927 : 0 OPEN/CLOSE VOLUME : The power supply is shown with the marked box. Switches www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 3.18 WAVEFORMS 1 IC301 - pin 4 [RFOUT] V: 200mV/div. H: 0.1µsec/div. 6 IC501 - pin 23 [Composite Video out] V: 1V/div. H: 10µsec/div. 7 IC501 - pin 21 [S Video out-Y] V: 1V/div. H: 10µsec/div. 8 IC501 - pin 26 [S Video out-C] V: 1V/div. H: 10µsec/div. 9 IC501 - pin 20 [Component Video out-Y] V: 1V/div. H: 10µsec/div. 10 IC501 - pin 18 [Component Video out-Pb] V: 2V/div. H: 10µsec/div. 11 IC501 - pin 16 [Component Video out-Pr] V: 2V/div. H: 10µsec/div. 2 IC301 - pin 36 [FG] V: 1V/div. H: 5msec/div. 3 IC101 - pin 14 [A1], 13 [A2], 12 [A3] V: 2V/div. H: 2msec/div. 4 IC301 - pin 55 [LOAD_DRV] V: 1V/div. H: 500nsec/div. 5 IC301 - pin 44 [SPDL_PDM] DVDM ASSY B Measurement condition ; No. 1, 2 and 12 to 17 : MJK1, Title 1-chp 1 No. 13, 14 and 17 : DVD-REF-A1, T2-Chap.1 No. 8 : CD, ABEX-784 Track 1 No. 3 to 5 : DVD-REF-A1, T2-Chap.19 Note : The encircled numbers denote measuring point in the schematic diagram. GND [Tray stops] [PLAY → STOP → PLAY] [PLAY] [STOP] [Tray is opening] [Tray is closing] V: 2V/div. H: 1sec/div. PLAY STOP PLAY V: 2V/div. H: 500nsec/div. V: 2V/div. H: 500nsec/div. Brakes ON Accelerator ON 7 8 9 10 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4.1 LOAB ASSY 1 5 5 1 SW2 (V+5D) V+3D LOAD- LOAD+ GND PNE-1B1 C102 C101 CN602 CN601 1 2 5 1 VWG2346- VWG2279- 5 VWG LOAB 5 1 VNP1836-C CN602 S101 CN601 SIDE A SIDE B LOAB ASSY A LOAB ASSY A CN103 B (VNP1836-C) (VNP1836-C) LOADING MOTOR ASSY M CN601 CN602 CN601 CN602 A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4.2 DVDM ASSY E C425 R354 1 12 1 4 5 8 26 50 51 75 76 2 10 17 1 2 1 53 105 156 208 24 1 4 5 8 1 8 9 16 29 1 14 1 30 1 11 1 11 1 18 18 1 3 4 5 5 1 1 4 51 75 100 1 25 1 24 22 42 1 21 NP 1 9 24 23 2 1 1 8 104 53 52 1 157 156 2 1 23 23 24 2 1 1 5 4 2 30 7 1 8 5 7 1 4 1 30 1 18 5 C231 CN105 R123 R102 C102 C101 R204 C201 CN104 C120 C118 C116 C126 C202 CN103 R202 R203 IC201 C221 R201 R346 C346 R221 R223 C357 C335 Q202 R124 R222 R101 C362 R364 R361 R363 R365 R369 R368 C222 C124 L361 C342 C326 C323 C315 C309 C318 C348 C388 C377 IC301 C373 C391 C300 C132 C139 C142 C128 C127 CN101 C212 Q212 R214 C211 R213 R212 R211 IC101 C112 C113 C114 C130 R131 R135 C134 Q201 X301 CN301 R220 R366 R367 C301 C302 C304 C305 R390 Q390 L390 R392 R391 C393 C390 C392 C394 C303 Q211 C151 Q193 Q192 R151 L191 L192 L193 L194 C307 C306 C354 C133 R191 R192 R194 R196 R197 R199 R378 R379 R382 R383 R385 R386 R384 R394 R396 R310 R301 R334 R333 R332 R336 R337 R338 R339 R340 R341 R342 R344 R397 R398 CN121 CN122 CN123 CN124 R389 R300 IC601 C621 C644 C640 X601 C664 CN609 CN608 IC604 C690 C604 C614 C623 C630 C637 C648 C647 C681 C694 C607 C619 C622 C636 C649 C641 C659 C671 C684 C698 C660 C650 C651 C564 R1069 R1084 C561 C707 C706 C705 C708 R721 C709 R714 C710 C703 C702 R715 R716 IC701 R713 R712 R711 R724 Q722 Q721 R561 C731 R731 R733 C734 R726 Q726 Q725 R725 C732 R732 R734 C733 R719 R718 C717 R600 C600 R717 C652 Q723 C634 C605 R620 R640 R644 R609 R610 R612 R613 R626 R688 R689 R694 R695 R664 R602 R603 R606 R607 R608 R616 R617 R618 R619 R611 R662 R663 R665 R628 R635 R621 R641 R634 R636 R638 R637 R639 R651 R652 R657 R656 R655 R654 R653 R658 R675 R696 CN607 C642 L641 R741 R742 R744 R961 Q951 C1563 C1562 R907 R906 IC901 R903 R905 R904 R902 R901 C902 Q911 R918 CN901 CN902 IC421 IC411 IC441 IC431 D401 R410 R409 C410 C409 C491 C404 C403 C423 C424 C461 C415 C414 C422 R451 C452 C401 D432 C431 C433 C432 C434 D431 C441 C442 C443 C451 CN904 R960 R433 R444 R951 C413 C412 C462 C463 R461 R462 R421 C411 C421 IC461 C921 R921 R401 R411 C901 C951 Q922 Q921 Q923 R922 D922 R926 R925 R923 R924 R934 R933 D927 D925 D923 Q925 R908 R909 Q926 R932 R931 R441 R443 R442 D402 R402 C406 C407 R408 R407 C408 R403 R952 R953 R954 R955 R956 R957 R958 R959 R964 R965 R966 R967 R968 R969 R1081 Q451 D926 C405 R1082 R1083 R962 R963 R400 R937 R936 Q928 Q927 R938 R939 R935 Q930 Q929 C103 CN903 Q401 R111 CN921 CN923 IC401 R562 C308 C121 C383 C382 C312 C311 C310 R3 R4 R416 R647 R648 L402 R981 L421 D928 R723 R1 R722 Q724 R982 R984 R983 R2 L411 CONTACT SIDE CONTACT SIDE BOTTOM SIDE BOTTOM SIDE BOTTOM SIDE CONTACT UP SIDE SIDE UP SIDE D F A B C UP SIDE UP SIDE CONTACT SIDE (650) SIDE CONTACT D 1/2 (780) 30 UP SIDE D A A B B C C 1 GNDD V+5D LD2 LD1 RFOUT (L600) (L111) DVDM ASSY B (ANP7463-B) PICKUP ASSY CN1013 STEPPING MOTOR SPINDLE MOTOR B B SIDE A SIDE A CN8801 J CN903 CN103 CN101 CN104 CN105 CN5102 J CN601 A CN901 IC201 IC701 IC101 IC601 IC301 IC901 IC421 IC411 IC441 IC431 IC461 IC401 IC604 IC401 IC461 IC431 IC441 IC411 IC421 IC901 IC701 IC604 IC601 IC101 IC301 IC201 Q724 Q202 Q193 Q192 Q201 Q723 Q725 Q726 Q721 Q722 Q211 Q212 Q911 Q922 Q921 Q923 Q401 Q451 Q928 Q927 Q930 Q929 Q925 Q926 Q724 Q390 Q401 Q929 Q930 Q927 Q928 Q451 Q926 Q925 Q923 Q921 Q922 Q911 Q951 Q723 Q725 Q726 Q721 Q722 Q192 Q193 Q951 Q211 Q390 Q201 Q212 Q202 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 1 30 8 14 1 2 30 29 1 23 24 2 1 8 25 27 30 7 1 1 24 1 48 25 1 28 15 14 27 1 54 28 2 1 1 1 17 14 1 26 13 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A C629 C913 R916 R911 C627 R1063 R9521 R9501 R1051 CN941 C628 C626 R355 C620 R743 R200 C200 R417 C541 C521 C565 C531 C551 Q603 R917 R928 R927 L401 R1064 CN931 R915 R913 R912 R914 C912 IC911 R976 R973 R388 D924 CN911 R659 R660 Q452 R975 R974 R972 R971 R970 R454 R930 R929 Q924 R431 R422 R413 R412 C911 D921 R406 C402 R453 R452 R572 R571 R533 R532 R531 R553 R552 R551 R543 R542 R541 R523 R522 R521 R503 R502 R501 R511 R513 R512 R604 R601 R690 C602 Q511 C624 R432 R415 R414 R405 D403 C232 R183 R182 R178 R172 R171 R169 R170 R168 R167 R166 R165 R164 R109 R110 R120 R119 R118 R117 R116 R100 CN111 IC603 D603 R633 R630 R198 R156 R157 R159 R155 R158 C215 C205 R615 R614 R627 R631 R625 R152 R161 R160 R163 R162 C603 C355 R143 R128 R142 R127 R154 R1013 R1012 R977 R173 R174 R175 R176 R393 R395 R330 R331 R328 R329 R343 R345 R370 R399 R1065 R1623 C501 C511 IC501 R375 R374 C233 R115 R177 R179 R180 R181 C135 R622 C625 IC602 C563 C562 R702 C704 R144 R125 C125 R701 C701 C571 C631 C632 R623 C633 Q501 Q521 Q541 Q551 Q531 R632 C903 R645 R646 R642 R624 R373 R376 R380 R381 R1062 R108 R107 R106 R105 R104 R103 R190 R193 R195 CN113 C158 C155 C160 C161 C152 R1061 R1059 R1057 R1058 R153 CN114 CN112 Q191 Q194 C176 C174 C181 C171 C167 C177 C182 C163 C172 IC151 C230 R126 C381 C643 C639 C638 C635 C203 R9511 R9541 C1053 C1054 R9551 Q977 C210 R9531 R210 R306 R305 R304 R303 C204 R387 R360 R362 R666 R650 C1056 C1055 C1051 R629 R1052 R1053 R1054 R1055 R1066 C1052 R649 R1049 R1050 R605 C213 R1060 C214 R1056 R661 R643 R1011 8 SIDE CONTACT SIDE CONTACT UP SIDE UP SIDE 3 CONTACT SIDE 6 5 2 2 1 1 0 AWM7 HEAT-RESISITANCE PRE-FLAX NORMAL SOLDER LEAD FREE SOLDER ICT FC 0 9 CONTACT SIDE UP SIDE 4 7 DVDM ASSY 0 1 2 3 3 (L210) 4 4 8 9 9 5 5 6 6 7 7 30 (L100) 8 (L623) DVDM ASSY B (ANP7463-B) B B SIDE B SIDE B IC151 IC602 IC501 IC603 IC911 IC911 IC501 IC602 IC603 IC151 Q977 Q194 Q191 Q531 Q551 Q541 Q521 Q501 Q511 Q924 Q452 Q603 Q452 Q924 Q531 Q551 Q541 Q603 Q191 Q194 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4.3 DSP ASSY 9 1 36 37 72 108 109 144 9 16 1 8 17 32 16 1 20 1 10 11 8 5 1 10 20 1 10 1 48 37 36 24 25 13 1 11 1 6 6 1 1 22 17 44 1 R8225 R8705 R8708 R8706 R8707 C8423 CN8001 D8401 CN8005 CN8004 R8554 R8232 R8231 R8230 R8229 JA8101 IC8501 C8302 IC8301 R8411 KN8501 IC8603 C8610 C8705 R8551 Q8501 R8533 R8531 R8534 R8503 R8226 C8543 IC8701 CN8002 R8345 C8408 C8407 IC8502 C8525 R8206 R8203 R8211 C8701 C8545 R8205 R8204 C8209 C8901 R8103 C8405 C8404 C8406 R8219 L8205 C8904 C8902 C8215 C8214 L8204 R8213 R8215 R8209 R8214 R8015 X8201 C8422 CN8010 R8416 R8413 R8412 R8414 CN8007 R8553 R8552 R8016 R8017 R8410 R8409 R8408 D8501 C8706 L8702 C8704 C8225 CN8017 C8218 C8219 C8221 L8402 C8419 C8418 C8420 IC8702 R8550 CN8008 IC8401 C8222 R8339 CN8009 C8533 JA8103 C8532 KN8102 IC8201 L8203 C8217 C8212 C8213 C8201 C8202 L8201 C8210 R8539 C8536 C8537 R8506 JA8102 C8105 C8113 C8603 C8604 C8547 R8543 KN8201 R8227 C8546 R8335 R8331 R8330 R8329 CN8018 C8226 C8549 R8522 R8521 Q8341 C8515 C8516 CN8006 R8524 R8519 C8301 Q8504 CN8019 L8301 C8554 C8509 C8507 C8223 R8222 R8223 KN8101 R8110 C8003 C8004 C8001 C8002 C8112 C8107 C8504 C8505 C8513 C8512 C8523 C8522 R8511 R8512 R8513 R8514 R8704 R8810 R8337 R8336 R8210 C8524 R8530 C8527 C8526 C8528 C8530 R8333 R8332 R8207 R8405 R8406 R8404 R8328 R8216 L8202 CN8003 R8009 R8109 R8107 R8111 R8010 R8102 R8701 R8702 R8703 C8703 C8108 C8702 R8556 R8557 CN8016 CN8013 C8541 R8346 R8804 C8601 R8501 CN8011 C8511 R8803 R8805 IC8601 CN8015 C8503 R8502 R8802 R8601 C8602 CN8012 CN8014 R8606 R8608 R8605 L8603 C8609 L8504 C8550 C8551 C8548 R8540 R8541 X8501 C8613 C8415 C8421 L8601 A 13 B 33 34 FC ICT 4 I I H 94V-0 F G C 1 7 A E G H 11 F E J JTAG 23 H C T-163 B C 1 19 D D J IC8501 IC8301 IC8603 IC8701 IC8502 IC8702 IC8401 IC8201 IC8601 Q8501 Q8341 Q8504 15 9 73 144 1 8 9 20 10 15 1 4 5 8 1 15 1 1 11 1 12 22 44 1 15 1 2 3 36 12 1 9 1 22 1 7 1 22 23 1 1 19 1 17 DSP ASSY C CN5614 G CN5618 G C C SIDE A SIDE A CN8011 CN8007 CN5615 G CN8003 (ANP2022-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 15 9 1 19 15 14 8 13 1 19 C8555 L8005 R8005 R8004 L8004 R8003 L8003 R8002 L8002 D8402 C8411 C8410 R8234 R8233 R8228 C8605 C8009 R8504 R8529 R8528 R8555 R8807 R8808 R8806 R8809 L8801 C8501 C8502 R8510 R8509 R8508 C8542 C8544 L8701 R8114 C8403 C8402 R8115 C8208 D8303 R8202 R8407 C8204 C8207 L8401 IC8902 IC8901 C8903 R8001 L8001 R8019 R8105 R8417 C8114 C8111 R8108 R8507 C8417 C8416 C8414 C8413 C8412 R8013 C8409 R8006 L8505 Q8503 D8503 D8502 R8538 R8547 R8548 R8338 C8531 R8014 R8201 C8203 L8501 R8224 C8534 R8526 C8535 R8104 C8115 R8112 R8515 IC8503 R8516 L8104 R8321 R8320 R8340 C8007 R8309 R8344 R8308 R8310 L8502 C8607 C8608 IC8602 R8311 R8536 R8523 R8520 R8505 R8545 D8301 R8549 R8527 C8517 R8544 C8514 C8552 R8518 R8517 R8542 R8546 C8553 D8302 R8341 R8343 C8220 L8102 C8224 R8221 R8220 R8116 IC8101 C8005 C8110 C8109 L8103 C8006 C8521 C8520 C8518 C8012 C8011 C8010 C8008 R8113 R8212 C8206 C8205 C8529 R8018 R8403 R8402 R8401 R8334 R8008 R8532 R8007 R8011 R8012 C8104 C8106 R8106 L8101 C8211 C8216 C8540 C8539 R8811 C8538 R8801 R8602 R8603 R8812 R8813 C8606 C8014 C8013 R8326 R8314 R8313 R8312 R8558 R8537 R8322 R8415 C8401 L8602 B GCH AWX8239 V36 GNDD AWX8254 AWX AWX8241 PRODUCTION CODE AWX8240 AWX8252 A 17 7 1 GDAC GNDD 4 5 AWX1082 8 GNDD GNDD V11 C C AWX8253 AWX8255 A B AWX1083 AWX8250 AWX8251 Q8503 IC8902 IC8901 IC8503 IC8602 IC8101 IN GND OUT IN GND OUT 1 32 17 16 1 14 1 7 8 DSP ASSY C C C SIDE B SIDE B CN8011 CN8011 CN8007 CN8003 CN8007 CN8003 (ANP2022-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4.4 6CH AMP ASSY IRFI9Z34G FLOUT SWOUT SROUT 1 23 word surface 19 10 1 word surface 19 10 1 AMP Assy 7788 GNDP VH+ VL+ VL- NJM7805FA 1 23 FROUT VH+ VH- AWM -B +B GNDP SLOUT GNDS GNDP Production Code Word Surface UN+8 VA-12 FC DC 7787 7786 7720 SWOUT VA-12 GNDREG SROUT VD+5 VPF+15 VP+15 XPROTECT VF-12 +B -B GNDP GNDP GNDP VL+ VL+ VL- +B IRFI9Z34G -B VL- 2SD2012 NJM7912FA Surface Word IRFIZ34G D3393 W205 R3318 D3389 W198 R3388 W120 W170 W143 C3478 W138 W139 W140 Q91 W142 R3427 W141 W154 C3377 C3577 R3520 C3402 D3325 W123 C98 D3324 C3424 C91 C3317 C3578 C3423 C3422 D98 D3328 W124 C3501 D3651 D3652 W104 D3653 D3654 W121 W126 D3326 W159 W151 W158 W105 W125 W145 W148 W147 D3323 W172 W171 W107 W173 IC81 C3301 D82 C3652 C3651 D3655 W106 W109 W110 W108 W119 C3508 R3657 Q3654 W192 W122 C3653 W161 W195 W196 W194 W160 CN3002 IC3301 W190 W169 IC3401 W168 D3427 D3428 D3422 W187 W162 D3423 R3519 D3421 W167 R3517 W188 W166 R3417 W163 W150 C3323 C3307 W144 W193 W146 W127 D3426 R3422 R3420 R3419 W191 W197 Q61 R3418 W164 D3391 D63 W129 C3408 C3507 D3424 W128 CN3001 W111 W113 W130 W135 W112 W165 W189 Q62 C82 W103 W101 W117 D3385 D3425 IC71 W131 W132 C101 D3392 Q3383 W149 W136 W116 W118 R3428 W115 CN3651 W114 W133 W157 W177 W179 W176 R3421 W182 W178 W174 W199 W181 W175 W180 C3407 C3421 Q3384 W137 D3387 D72 C3378 IC3303 D3388 D3327 W202 C72 C3322 R3328 R3327 C3318 W200 W201 W183 W185 W152 W207 R3387 D3386 W206 C63 W184 C3179 W203 R3320 C102 W204 C3167 R3317 W102 C3178 C3302 D3322 C3401 D3321 C3308 W153 C3321 R3321 R3322 W155 R3518 C3502 C3324 D3390 W156 C3477 D3394 R3319 C3168 19 10 1 19 10 1 1 SIDE A SIDE A D D (ANP7440-D) 6CH AMP ASSY D CN3011 K CN3001 CN3012 K CN3002 IC3303 IC81 IC3301 Q91 IC71 IC3401 Q62 Q3384 Q3654 Q61 Q3383 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 NP NP D 23 1 23 1 SWOUT SWOUT VH+ VH+ VH- VH+ VL+ VA-12 VP+15 VD+5 VL- TUNER XPRCT GNDR GNDR UN+8 UN+8 GNDF SLOUT SLOUT VL+ VL+ SROUT SROUT VL- VH- VL- FLOUT SWOUT SROUT 1 VH- AMP Assy SROUT GNDREG GNDP 7788 COUT FROUT GNDP FROUT COUT IC3301 FROUT VH+ FAN SIDE FLOUT FLOUT GNDS GNDP C2 E2 -B GNDP +B GNDP SWOUT SLOUT GNDS G S VPR+8 VPR+8 SRIN SLIN SWIN CIN FRIN GNDA SEN+8 FLIN MUTE MUTEC VFL+5 UN+8 VA-12 AWM 7720 7786 7787 C1 B1 B2 E1 IC3401 VD+5 VPF+15 VP+15 XPROTECT VF-12 VL+ VA-12 GNDP +B VL+ +B GNDP -B VL- GNDP -B VL- 1 B C E S D G G D S C3509 R3511 R63 R3412 C3410 R3411 C3409 D3341 R3571 R3513 R3501 D104 R121 D3381 R3478 R3574 R3378 R3414 R3471 R3577 TH121 Q121 Q43 Q3433 R3377 D3443 R3443 R3439 R3435 R3576 Q92 D3441 R3345 R47 R45 D3582 R91 D91 C81 R46 R3476 Q3301 Q3372 R3373 R3375 R3374 R3376 C97 Q3371 C92 R3472 R3503 R95 R3426 R3416 R48 C3426 R92 R123 R114 R113 R3371 R111 Q111 R93 R96 R122 R3512 R97 R3313 R112 D3581 Q3653 R3301 Q3531 R3303 Q3652 R3651 D3657 R3506 TH111 D3658 R94 R3658 R3656 R3655 R3654 C3504 Q3651 Q107 R108 Q106 D42 R3307 R3509 R3507 R3505 Q3532 R3492 D3482 D3481 R3491 Q3432 R3531 C3503 R3545 C3305 R3316 R3305 C3303 R3309 R3532 R3537 R3533 D106 R3543 R3539 R3432 R3438 R3434 R3591 R3424 R3538 R3575 R3451 R3534 R3544 R3540 R3592 D3382 C3506 C3406 Q101 Q102 Q104 Q103 C61 C3505 R3406 R3311 R3312 C3309 R3408 C3404 C71 R3351 C62 R3410 D3343 R109 R67 D102 R65 R3510 R3508 Q63 Q3431 R3431 R3437 R3433 C3405 R3407 R3423 Q3434 R101 Q3501 Q3533 R3391 R3405 Q3401 R3392 C3403 C3510 Q3333 Q3334 R3409 R64 R68 R3340 R3344 D3344 R3343 R3383 Q3402 Q3504 R3339 C3310 R3334 Q3502 R103 Q3302 R3382 R3384 D105 R3386 R3332 D101 R62 Q3332 R61 R102 R3385 Q3382 R3390 R104 Q3331 R3326 Q3534 R105 R106 Q3381 D3544 R3381 R66 C3326 R3338 R3514 R3335 R3304 R3502 R3302 R3337 R3403 R3401 R3331 R3333 R3402 R3323 R3324 C3304 R3573 C3306 R3310 R3306 R3308 R3404 R3389 D3543 Q3572 R3572 R3578 R3446 D3444 R3444 R3372 R3500 R3504 R3477 R3314 R3440 R3445 R3413 R3546 R3346 Q3571 Q3471 Q3472 R3473 R3475 R3474 CN3002 CN3001 SIDE B SIDE B Q92 Q3301 Q3402 Q3504 Q3502 Q3302 Q3401 Q3382 Q3332 Q3331 Q3432 Q3334 Q3333 Q3653 Q3652 Q3532 Q3381 Q3534 Q63 Q104 Q3651 Q107 Q106 Q101 Q102 Q103 Q121 Q43 Q3471 Q3572 Q3372 Q3371 Q111 Q3533 D D (ANP7440-D) 6CH AMP ASSY D CN3001 CN3002 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4.5 FM/AM TUNER MODULE (ANP7338-B) (ANP7338-B) CN5701 F FM/AM TUNER MODULE E FM/AM TUNER MODULE E IC201 Q205 Q204 Q203 IC202 Q201 Q202 E E SIDE A SIDE A SIDE B SIDE B CN201 CN201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4.6 CONTROL ASSY 1 23 1 5 1 10 15 1 2 3 W243 W232 W236 C3919 W360 W154 W354 W355 W290 W195 W204 C3920 W202 C3907 W292 C3202 C3908 CN5502 C9091 C9092 W405 C3024 W353 W272 W165 W333 C3023 W298 R3119 W287 C3113 C3095 W242 W168 C3912 W237 W407 W101 W411 W335 W198 C3082 C3151 C3201 CN5501 W296 W238 W358 C3065 W233 W299 W276 W207 W122 JA9091 C3020 W392 R3118 W2 C3081 W291 C3019 W125 W166 C9084 C3038 C3189 W169 C3027 W171 C3028 W295 W389 W415 W273 C3063 C3096 W211 W155 C3079 C3152 C3039 C3040 W326 W393 W300 W363 W395 C3157 C JA3001 W105 W231 C3150 W362 W390 CN3902 C3062 W294 C3064 C3166 C3114 C3061 C3164 W167 KN5501 W325 W328 W365 W203 W269 C5732 W156 W289 C3139 W120 W124 W266 W364 W127 C3037 W104 W208 W330 W327 W173 W205 C5731 W170 W361 W332 W161 W293 W356 W268 C3924 W265 W288 W270 C3923 W331 W397 W388 W160 W239 W159 W158 W157 W164 W194 W301 W240 W286 W102 C3134 W267 C3173 C3149 W114 W274 CN5611 C3911 W271 W414 W334 W162 W339 W196 C3190 W118 W206 W163 J9001A C3917 W352 W235 W172 W394 C3080 W117 W329 W297 W387 C8305 W121 W115 W357 W199 W197 C8306 W119 W116 W359 W234 W391 C3140 C3017 W406 C3174 W241 C3018 W200 C3918 W123 W209 W201 C3136 C3906 W103 W210 W413 W412 W418 C3036 C3035 W417 MY Except WL DC PRODUCTION CODE FC MY Only Except MY Except Except WL White Side CONTACT SIDE Binder CONTACT SIDE VE+56 VE+56 VE+56 23 1 23 1 1 5 1 15 1 3 SIDE A F CONTROL ASSY F CN3901 I CN5511 H CN3902 M CN5611 CN5501 CN5512 H CN5502 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 1 7 1 3 1 1 1 2 3 1 10 15 10 C5705 W243 W184 W277 CN5504 JA8602 W360 C70 W337 W336 W290 W403 W324 W178 W316 X5501 W224 W255 C9091 W174 W349 W380 W259 W350 C8622 W228 CN8301 W250 W408 C3095 W242 W168 W386 W346 W257 W149 W407 W260 W254 W383 W258 W176 W256 W341 W252 W131 W187 W251 C3201 W409 W358 C3065 C3052 W343 W299 C3086 C8610 W276 W139 C5601 W370 W264 W249 W244 W340 W222 W247 W275 C3081 W263 W262 W185 W281 C3189 W169 W133 W310 W126 C5712 W129 W304 W171 W219 W311 W415 W371 W373 W372 W410 W273 W375 W212 W312 C3096 W211 W229 W376 C3079 W179 W216 W368 W106 C3040 W130 W142 W300 W363 JA8621 W186 C3094 W105 C3150 W362 W223 W374 W226 KN5791 C3085 W167 W319 W253 W279 W245 W177 W128 W366 W282 W148 CN5613 W134 W365 W248 W220 CN5620 W364 W127 W221 W225 W138 W377 W321 W208 W173 C9107 W170 W214 W342 W361 W107 W109 W213 C9108 W309 W400 W314 W137 W378 W188 W379 J9001 W145 C3093 W397 W348 CN5612 W143 C9105 W320 C5711 W301 C9106 W108 W416 W322 W136 W218 W323 W318 W217 W144 W274 CN5611 CN5701 W146 W284 W283 W135 W414 W227 W140 W175 W339 W367 W313 90 W338 W246 W382 W402 C5602 W308 W344 W278 W172 W141 W147 C5578 W307 W399 W303 W398 W183 W345 W280 W369 W347 W285 W384 W351 C5576 C5575 L5571 C5572 W215 C3066 X5701 W317 W261 W306 W209 W180 W182 W385 W305 W181 W210 W315 W132 W413 W381 L62 L61 C3029 C3030 C5701 C3051 C3070 C3069 C69 XWZ3711 XWZ3707 White Side XWZ3708 XWZ3713 XWZ3706 CONTROL ASSY XWZ3703 XWZ3704 XWZ3705 except JJ XWZ3709 XWZ3710 NTACT SIDE SIDE CONTACT SIDE CONTACT VE+56 XWZ3712 STBY VE+56 (BASE) 1 7 13 19 1 3 1 19 15 1 13 + - SIDE A F (XNP3068-B) CN5601 M N5611 CN5617 G CN5613 CN801 L CN8301 CN201 E CN5701 CN5616 G CN5612 CN5619 G CN5620 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 8 1 9 16 1 16 4 5 4 5 1 7 8 14 4 1 5 8 1 5 8 100 81 1 30 31 50 51 80 R5530 R5525 C3071 D5712 C5607 R3057 C3090 C5501 R5705 Q3071 R5607 IC5701 IC9091 R9101 IC30 R5508 R5527 C5513 R8610 R3084 R5506 C3056 C9097 R9111 C5790 R5548 R5550 C9098 R5520 R5533 R5539 R9102 C3088 R9112 R3189 C3053 R5609 C5579 R3190 R5501 R5524 R5505 C8623 R5711 C3068 IC8301 Q3003 R5578 R3086 R5603 R5504 R8301 R5581 R5511 C8621 C5503 R5509 C3054 R5577 C5502 R3195 R5591 C5580 R5552 R5565 C5706 R5522 C5509 R8302 C3193 R5569 R3099 R3135 R5605 R3280 R5553 R3101 C5703 F8621 C3091 C8608 R3072 R3095 R5523 R5554 C3175 F8604 C3092 R3074 C3055 R3151 R5507 R3068 R3136 C5510 R3053 R3133 C3072 C5612 R5558 R558 R5560 R5601 R5712 R5583 C8611 R5561 C5702 R5547 C3089 R3070 R5546 D5575 C3084 R5567 Q3056 C5799 R5597 C3087 R3094 C3141 R5562 R5598 C8613 R3088 IC3053 R3071 R3073 C5789 R5725 R3090 R3069 Q8301 C5611 C5609 C8302 C8301 C5514 IC9092 R5602 R9105 R5545 C5606 R5611 R3087 R3089 R3085 R3035 R5596 R3109 R9106 D5711 C3043 Q3055 R3100 R9107 C8609 Q8303 R3201 R9108 C9103 R5563 C5792 R5781 C5515 R5544 C9104 C5504 R5564 R5568 R5724 R5580 R5579 R5557 R5537 R5543 C5511 R5529 R5723 R5538 R5535 R3707 R5612 R3097 R5536 R5706 R5518 C5507 R5534 C5506 R5728 R3091 C5704 R5582 R5514 C5516 C9102 R5592 R3103 C9101 R5585 R5593 Q5711 C3077 C3057 R3180 Q5571 R5513 R3153 R3134 C5508 C5603 C3044 C9999 Q9093 C3143 R3055 D5721 C5791 R5594 R3155 R3188 R3107 R3058 C5800 C5723 R3054 C5604 R5549 C3078 R3157 C5605 R5512 R5515 R5541 R5595 R3092 R5722 R8611 R317 IC62 C8614 C68 R5610 R5606 C5721 C3145 R5528 Q5572 IC5601 Q8307 Q5501 R5726 Q3201 R3056 R3052 C3097 R5516 C5722 R5540 C3075 C5610 R3051 R5502 R5503 R5586 C5797 R3300 C5793 C5795 R5526 R5517 C8303 R5782 C8304 R5575 C5577 C5571 R5576 R5573 R5574 C5573 R5510 R5532 C5707 C5574 C5794 IC5501 R5572 R5571 R3093 C5608 R5542 R5551 R3067 R5555 R5556 R5570 R5608 C3041 R5519 R5604 R3083 R5531 R5588 R5566 R9110 R9113 C71 B 15 P LED GNDA 1.ROUT TEST UTEST ESTVL GNDA 5.ESTVR GNDA LOUT XWZ3705 XWZ3706 XWZ3707 XWZ3710 XWZ3712 XWZ3713 XWZ3711 A D VE+56 XWZ3704 XWZ3703 XWZ3709 XWZ3708 1 7 9 16 9 5 7 1 1 7 8 14 8 5 NP 8 5 4 1 13 1 1 19 1 19 15 13 1 4 51 80 81 100 1 30 31 50 CN5613 CN8301 CN5701 CN5612 CN5620 SIDE B F CONTROL ASSY F CN5613 CN8301 CN5701 CN5612 CN5620 IC9091 IC9092 IC62 IC8301 Q9093 Q8303 IC3053 IC5701 IC5601 Q3055 Q5711 Q5501 Q5506 Q3071 IC5501 Q5571 Q5572 Q3003 Q8307 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 1 16 4 1 5 8 4 1 5 8 4 1 5 8 1 7 8 14 1 8 1 20 21 40 8 1 9 16 1 7 8 14 4 1 8 4 1 8 R3105 C3006 C3071 D5712 R9104 C3169 R3106 R3038 R3057 C3090 R9103 R3014 R3033 R3034 R3183 R3164 IC9091 R3205 R3204 R3203 R3019 R9101 IC3051 F8154 F8156 C3008 Q3062 R3111 R3082 C9097 Q3069 C9098 R3016 C9096 R8402 R3006 R3021 R3020 C3111 R3080 R9102 C3088 IC3901 R9095 Q3068 R3169 R3022 C3124 R3017 L3006 R9093 IC3057 R3018 C3122 R3114 D3901 R3078 R3167 R3176 C9094 R3120 R5711 C3005 C3068 IC3052 IC8301 R3015 C3177 C3155 IC3056 R8301 C3007 C3194 R5577 R3923 R3004 Q3061 C3076 C3910 C3148 L3005 L9092 C3180 C3179 R3192 R8302 C3193 R3122 IC3062 L3004 R3008 R3036 R3101 R3010 R3059 C3133 R3072 R3095 IC3002 R3924 C3128 R3013 R3074 L3008 R3168 R3151 IC3001 C3117 Q3060 C3123 R3002 C3192 C3168 R3131 C3191 C3909 C3176 C3067 R3079 C3125 R3705 C3121 C3072 C3171 R3162 R5558 C3116 R3027 R3043 R5584 R3005 C3009 R3096 R3185 R5712 R5583 R3170 R3213 C3002 Q3907 R3044 Q3067 R3012 C3083 C3159 C3060 C3031 R3063 Q3908 IC3059 R3028 R3939 C3084 R3940 C3165 C3032 Q3056 R3166 R5597 R3159 C3921 R3113 R3094 L9093 D3003 C3073 C3141 5562 R3116 R3088 R3071 R3206 R3138 L9091 R3115 C9095 C3156 C3922 R3139 C3004 R3137 C3010 L3003 D3004 R3073 R3117 R3187 Q3004 L3002 R3090 R3069 R3186 C3913 R3926 R3173 R3009 R3935 Q3065 C3195 R3181 R3163 R3143 C8302 R3142 R3152 R9097 C3001 R3141 R3140 R3175 Q3052 C3138 R3145 R3144 C3074 C3115 D3053 R3921 R3031 R3207 D3052 Q3051 R9105 R3925 R3032 R3109 D5711 R3112 C3132 Q3055 R3100 C3153 R3024 R3701 C3112 C9093 R3937 R3201 R3023 R3025 R3104 D3902 R3214 C3144 R3936 R3938 R9083 R5580 R5579 R5557 R3026 R3125 C3188 IC3055 R3011 R3097 C3003 R3003 C3187 R3182 C3181 R3102 C3178 C3186 R3208 R3942 R3165 L3001 R3158 R3941 R3161 R3030 R3029 R3121 C3025 R3703 R3001 R3103 C9101 C3026 Q3005 R3146 R3039 R3148 L3009 R3040 Q3006 Q3070 R9091 R3193 R3922 C3161 R5731 R8303 R9089 Q3002 C3077 C3057 R3060 R3153 IC3003 C3059 R3075 Q3001 L3007 Q8306 C3147 Q3009 R3061 C3034 R5732 C3118 Q9093 C3143 R3007 R9081 R3706 C3154 Q9090 R8304 R3130 R3065 R3132 R3702 R3047 R3155 R3188 C3163 R3048 R3704 R3107 R3058 Q3054 Q8305 R3129 Q3053 R3197 Q3057 R3064 D9100 C3078 R8308 R3062 C3162 R3174 R3081 R3157 R3077 R3191 R3092 Q3010 Q3906 R9082 R3045 R3066 R3178 R8307 R3046 R3049 R3110 R3108 R3927 C3915 R3928 C3914 C3145 72 C3170 R3050 Q5501 C3137 C3033 R3147 Q3201 R3160 C3058 C3146 R3156 C3075 C3142 R3212 C3160 R3194 R3154 C3126 R8306 R3123 R8305 R3076 R5576 R3184 532 R3098 R3211 R3202 C3130 R3126 C5798 R3196 R3124 IC3058 R3177 R8309 C3131 Q9091 R8401 R3128 R3149 C3916 R3916 C3172 C3184 C3185 R3917 R3918 R3929 R3930 R3933 R3934 C3135 C3182 C3183 R3127 R9084 R9109 Q9092 R9114 R9110 R3041 R3042 R9113 FLIN 5.RYFSC SRIN 20.SLIN SWIN DVDMUTE NC 1.NC GNDLED 15.P_LED T_LED VE+5 REMO 10.KEY1 FLAC2 FLAC1 GNDFL VFL+5 5.FLDA FLCK FLCS 1.VFDP XFLRST CIN 23.SYPOW XDVDRST 5.MUTE GNDD GNDD GNDD 5.DOUT GNDU VE+56 SUBAC MUTE HP_DET XVMUTE GNDA HPR 15.GNDA GNDA DVDACK 10.FLAC1 FLAC2 GNDFL VFDP VPR+8/VD+5 VFL+5 15.MUTEC XPROTECT MDATA FRIN VA+12 C 1.HPAC RYR VD+5 SDATA SCLK 20.VDET DON/OFF VX+12 GNDX 10.SYS_C1 SYS_C2 VA-12 1.HPL THIS PRODUCT CONTAINS LEAD IN SOLDER AND CONTAIN WARNING ELECTRICAL PARTS CONTAIN CHEMICALS WHICH TO CAUSE CANCER,BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. ARE KNOWN TO THE STATE OF CALIFORNIA HEALTH AND SAFTY CODE SECTION 25249.6 - PROPOSITION 65 9 8 5 8 1 4 5 23 1 1 7 8 14 4 5 1 23 1 20 21 40 1 8 5 4 9 16 1 8 1 7 8 14 NP 1 5 8 5 4 5 8 1 1 10 15 5 CN3902 CN5611 CN5501 CN5502 SIDE B F (XNP3068-B) CN3902 CN5611 CN5501 CN5502 Q9091 Q9092 Q3001 Q3009 Q3005 Q8305 IC3051 IC3052 Q3056 Q3053 IC3062 IC3055 IC3059 Q3054 Q3051 Q3052 Q3069 Q3061 Q3070 Q3060 Q3062 Q3057 IC3056 IC5501 IC3058 Q3065 Q3068 Q3067 Q3906 Q3201 IC3901 Q3908 Q3907 Q3002 IC3002 IC3003 IC3001 Q9090 Q3006 Q3010 Q8306 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4.7 TRADE2, TRADE3 and HP ASSYS 1 19 1 19 1 13 1 13 1 19 1 19 CN5618 CN5614 CN5615 CN5617 CN5616 CN5619 VD+5 GNDC SBRO GNDC CO GNDC GNDA (DA) V+5A GNDA (DA) DOUT GNDD* DSPDO DECMUTE DSPDI SWO GNDC (IN) GNDC (IN) LIN GNDC SLO GNDC SRO RECMUTE FLO VCOMG FRO RIN GNDU TRADE3 ASSY MODC MUTEOUT DSPMUTE GNDD GNDD VD+5 XWZ3714 DSPCLK LSSN XTLO DIRERR DIRRST DIRCS DIRDO DSPMODE DSPHREQ BUSY DSPSS DIN GNDD1 AC3IN DSPRST GNDD SBLO 19 1 1 19 1 13 1 13 19 1 19 1 1 5 W404 CN3901 JA3901 XWZ3715 J1 HP ASSY SIDE CONTACT 1 5 TRADE2 ASSY UPSIDE POWER CONTROL XWX3071 23 1 23 1 1 23 23 1 DC FC CN5512 CN5511 CN5521 CN5522 23 1 23 1 23 1 23 1 SIDE A SIDE A G H I G H I TRADE 3 ASSY G TRADE 2 ASSY H HP ASSY I CN5620 F CN5619 CN5531 J CN5521 CN5532 J CN5522 CN5612 F CN5616 CN5613 F CN8003 C CN5617 CN5615 CN5502 F CN5512 CN5501 F CN3902 F CN5511 CN3901 CN8007 C CN5614 CN8011 C CN5618 (XNP3068-B) (XNP3070-B) (XNP3068-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 DSPDO DSPDI DECMUTE MODC DSPMUTE MUTEOUT GNDD LSSN XTLO DIRERR DIRRST DIRCS DIRDO DSPMODE DSPHREQ BUSY DSPSS DSPRST DSPCLK DOUT GNDD* GNDD V+5A VD+5 GNDA (DA) GNDA (DA) RIN GNDC (IN) LIN GNDC (IN) FRO VCOMG FLO RECMUTE SRO XWZ3714 GNDC SLO GNDC SWO GNDC CO GNDC SBRO GNDC SBLO VD+5 GNDD GNDD1 AC3IN DIN GNDU TRADE3 ASSY 1 19 1 19 1 13 1 13 1 19 19 1 L3903 C3905 L3901 C3903 R3963 Q3901 Q3921 R3962 R3961 R3902 Q3903 R3911 C3901 R3919 R3901 C3926 Q3922 R3914 R3908 L3902 R3905 R3904 C3925 Q3902 C3904 R3903 R3915 C3902 R3964 R3906 R3920 R3907 R3909 R3913 R3912 JA3901 CN3901 HPR GNDHP XWZ3715 J1 HPL HP MUTE HP ASSY HPDET 5 1 23 1 23 1 23 1 1 23 FLIN MUTE VA+12 10.VA-12 GNDX VX+12 VD+5 RYR 5.RYFSC XWX3071 SWIN CIN MUTEC FRIN GNDA VE+56 DVDMUTE SRIN 20.SLIN XDVDRST ACK VDET SY_CS2 SY_CS1 20.SCLK SDATA MDATA 15.WAKEUP GNDFL VFL+5 VFDP SYSPOW 10.FLAC2 FLAC1 SUBAC VE+56 GNDU 5.DOUT GNDD GNDD 1.NC GNDD XPROTECT UN+8V DVDON/OFF 15.GNDA TRADE2 ASSY 1.HPAC R111 Q114 Q115 R5559 R112 R113 R114 CN5619 CN5616 CN5617 CN5615 CN5614 CN5618 CN5521 CN5522 CN5512 CN5511 CN3901 SIDE B SIDE B G H I G H I TRADE 3 ASSY G TRADE 2 ASSY H HP ASSY I CN5619 CN5521 CN5522 CN5616 CN5617 CN5615 CN5512 CN5511 CN3901 CN5614 CN5618 (XNP3068-B) (XNP3070-B) Q114 Q115 (XNP3068-B) Q3921 Q3922 Q3902 Q3901 Q3903 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4.8 POWER ASSY 1 7 4 1 1 4 5 9 1 23 23 1 2 5 1 1 9 1 10 17 1 2 6 7 12 13 14 1 1 2 3 4 C3632 C8821 R3361 R3607 L3361 RY3643 RY3641 CN8003 D21 C23 C15 T2 C51 C1 W114 H1 H2 R1 AN1 CN3031 CN3032 R3631 R3632 D3631 D3634 C3631 D3633 L3362 R3362 R3561 L3561 RY3642 R3661 L3661 L3461 R3461 R3462 L3462 C24 R3608 R3627 R3628 R3617 R3618 Q3641 C8831 CN8802 JA8803 W229 W215 W175 W174 W232 W185 W172 W187 W144 W164 W168 W194 W212 W190 W211 W156 W169 W170 W213 W214 W191 W177 W189 W231 W196 W161 W141 W2 W171 W210 W165 W192 W227 W143 W186 W145 W228 W158 W233 W146 W230 W235 W193 W173 W134 W129 CN8807 KN2 CN8803 W130 W234 W133 W159 W147 W166 W157 W188 C3633 W195 JA3301 W167 W142 W120 W155 W123 W116 W119 W121 W115 W122 W241 W240 W125 W154 CN8801 L1 W216 W104 W127 BOND 1 GNDSP GNDSP VH+ 94V-0 C VD+5 PRODUCTION COD PRIMARY RISK OF FIRE REPLACE GNDSP 9 pin CONTACTSIDE VD+5 1 GNDSP FU1 OPENSIDE OPENSIDE 7 CONTACT 1 SIDE GNDFL GNDFR GNDSL GNDSL GNDSW GNDC 1 23 GNDP VH- GNDS VL- GNDFAN UN+8 UN+8 VH- VH- VH+ VL- VL+ VL- REGGND XPROTECT DVDPOWER RYR GND VD+5 SLOUT GNDSR VH+ FROUT VD+5 FUSE AS MARKED. CONTACTSIDE FC DC 17 5 pin ASPECT SQUEEZE C V V+12M BOND 1 9 1 18 SIDE A J POWER ASSY J IC61 IC22 IC21 IC12 IC11 IC31 Q32 IC51 Q51 Q3461 CN9 B CN3022 K CN3032 CN3021 K CN3031 DVD DOWNLOAD CN8003 CN8801 CN101 L CN8803 AC IN L N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 1 2 3 4 1 2 3 4 1 3 4 1 2 3 4 1 1 23 1 1 23 30 1 1 18 D31 D32 C32 KN11 D22 D21 CN11 C16 D11 C15 R11 R37 R36 D36 R35 D35 R31 C35 CN2 C2 C52 D54 C51 D53 RY1 D52 IC51 C54 KN1 C33 C13 CN5532 3032 R3635 D3632 D3633 D33 D34 C36 C37 C24 C25 IC61 C67 D67 W808 Q51 Q32 W151 W152 W197 W175 W232 W126 W180 H4 W202 W181 W805 W179 W198 W218 W238 W219 W177 W200 W124 W196 W161 W176 W217 CN5531 W113 W233 W153 W235 W239 W203 W148 W234 W806 W204 W136 C22 H3 W199 W221 W149 IC11 C8885 C34 W201 CN5102 W222 W139 W150 W237 IC31 IC22 IC21 IC12 W220 C8886 W137 W163 W807 W131 W112 W132 W138 C12 W125 W135 CN8801 W216 W127 FIRE REPLACE FUSE AS MARKED. OF BOND FU2 XWZ3716 PCB BINDER GNDD DVDMUTE DVDPOWER VX+12 RXD VD+5 GNDD PRODUCTION CODE SECONDARY XWZ3717 A VH~ GNDV 23 VH~ CTS PRINTED SIDE PRINTED SIDE OPENSIDE OPENSIDE CONTACTSIDE 16 XWZ3719 UN+8 VPR+8 GND GND GND GND VH+ VL- GNDD GNDM V+12 VFL+5 VFL+5 VH- VPR+8M VPR+8 VX+12 VA+12 VF+12 REGGND XPROTECT GND VD+5 GND VD+5 BOND VEF1040- RISK VPR+8M ASSY VEF1040- POWER XWZ3718 D V+12 GNDD GNDV B UN8V~ VL~ VL~ GNDFL IC11 IC12 IC21 IC22 IC31 LITTELFUSE INC. MFD.BY #491007 FOR WITH SAME TYPE REPLACE CAUTION_ PCB BINDER 94V-0 23 1 VPR+8 BOND BOND 1 10 1 2 23 1 1 30 18 1 SIDE A J (XNP3069-B) CN903 B CN5522 H CN5532 T1 PT CN5521 H CN5531 CN3022 K CN3032 CN901 B CN5102 CN8801 CN11 CN2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 C8881 C8882 R53 D51 R52 R51 C53 C57 C56 C55 R9505 R9504 C66 C8883 R9501 R8846 R8847 R9503 R54 D103 L3701 R3701 C8884 R3780 C9901 UN+8 GND GND GND GND VH+ GNDD GNDM VD 5 CN8801 COMME INDIQUE.DE CHEZ 6.P/XI 8.CY/G 7.RGB 5.ASPECT 4.LETTER 3.SQUEEZE VH~ V+12 17.GNDV CN5531 SECONDARY 18.Y CTS 23 14.C 9.GNDV 13.GNDV 11.GNDV 12.Cr/R 15.GNDV 10.Cb/B 1.HPAC 2.XTUNER 3.UN+8V 4.XPROTECT 5.RYFSC 6.RYR 7.VD+5 8.VX+12 9.GNDX 10.VA-12 11.VA+12 12.MUTEC 13.MUTE 15.GNDA 14.FLIN 16.GNDA 17.FRIN 18.CIN 19.SWIN 20.SLIN 21.SRIN 22.DVDMUTE 23.NC 13.VFL+5 1.NC 2.GNDD 3.GNDD 4.GNDD 5.DOUT 6.GNDU 7.VE+56 8.SUBAC 9.FLAC1 10.FLAC2 11.SYSPOW 12.VFDP 14.GNDFL 15.WAKEUP 16.VDET 17.ACK 18.MDATA 19.SDATA 20.SCLK 21.SYS_CS2 22.SYS_CS1 23.XDVDRST 8.VDET 9.GNDD 10.GNDD 11.ACK 12.MDATA 13.SDATA 14.SCLK 15.SYS_CS2 16.SYS_CS1 17.XDVDRST 18.DVDPOWER 19.GNDD 20.GNDD 21.DOUT(AC3) 22.GNDD 23.GNDD 24.GNDM 26.VPR+8(M) 25.GNDM 27.VPR+8(M) 29.VPR+8 28.VPR+8 30.VDVD12 1.CTS 2.RTS 3.RXD 4.TXD 5.WAKEUP 6.DVDMUTE 7.NC 2.VSEL2 1.VSEL1 1 GNDV CN3032 GNDV RXD LITTELFUSE INC. W W194 VD+5 CN8801 DVDMUTE REMPLACER LE IC LINKS 16.V GNDC GNDD GNDD GNDD VPR+8M VPR+8 V+12 ATTENTION_ DVDPOWER CN5102 W806 W808 W805 W807 XWZ3719 XWZ3718 XWZ3717 XWZ3716 ASSY POWER CN5532 1 10 1 2 + - 1 23 1 23 30 1 1 CN11 CN2 SIDE B J POWER ASSY J CN5532 CN5531 CN3032 CN5102 CN2 CN8801 CN11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 R3638 C8842 C8832 C8823 C8822 C3370 C3363 C3361 R3363 R3605 R3601 R3366 R3615 R3644 R3642 R3643 D3641 D3602 R3604 C3367 C3365 C3368 C3366 C3567 C3565 C55 R3633 R3634 R3646 D3635 D3603 D3623 D3644 R3641 R3645 D3637 C3362 R3364 C3364 R3602 R3603 D3601 R3606 C3369 C3569 R3365 R3565 R3625 R3621 D3642 C3561 R3563 C3563 C3663 R3663 C3661 R3626 R3622 R3623 R3624 D3622 D3621 4 C3470 C3469 C3669 C3468 C3467 C3667 C3465 C3466 C3665 R3466 R3465 R3665 C3461 R3463 C3463 D3643 C3462 R3464 C3464 R3611 R3616 D3613 R3612 R3614 D3612 R3613 D3611 D3636 R3667 R3367 R3647 C3627 Q3631 Q3611 Q3612 Q3642 Q3644 Q3621 Q3622 Q3601 Q3602 R3467 Q3635 R3566 Q3636 Q3645 Q3633 Q3632 R3468 R3368 Q3637 R8821 R8822 R8823 R8831 R8832 R8841 R8842 R8846 R8847 L8821 F8831 F8841 R3649 R3648 Q3638 Q3639 Q3640 R3639 R3630 R3640 R3650 UN+8 VD+5 GND GNDC GND VH- VL- GND GNDFAN XPROTECT REGGND UN+8 DVDPOWER RYR VD+5 GNDSL GNDSL SLOUT GNDSR GNDSW GNDFL VL- GNDS VH- GNDP VH+ FROUT GNDFR CN8803 CN8801 OL DET 3.VSEL1 VH- 6.P/XI 4.GNDV 8.GNDV VL- VH+ 8.CY/G 7.RGB 7.Cb/B 1 5.Cr/R NEUTRAL 9.CY/G VH+ 17.GNDV CN5531 PRIMARY 18.Y VH+ VL+ 14.C 9.GNDV 13.GNDV 11.GNDV 12.Cr/R 15.GNDV 10.Cb/B 1.VH- 2.VH- 3.FROUT 4.FROUT 5.GNDP 7.FLOUT 8.FLOUT 9.GNDS 6.GNDP 10.SWOUT 11.SWOUT 12.VH+ 13.VH+ 14.COUT 15.COUT 16.VL+ 17.VL+ 18.SROUT 19.SROUT 20.VL- 21.VL- 22.SLOUT 23.SLOUT 1.HPAC 2.XTUNER 3.UN+8V 4.XPROTECT 5.RYFSC 13.MUTE 14.FLIN 1.GNDFAN 2.UN+8V 3.UN+8V 4.GNDR 5.GNDR 6.XPROTECT 7.TUNER 11.VFL+5 8.VD+5 10.VP+15 9.VA-12 12.MUTEC 13.MUTE 14.FLIN 15.GNDA 16.GNDA 17.FRIN 18.CIN 19.SWIN 20.SLIN 21.SRIN 22.VPR+8 23.VPR+8 23 1 1.P/XI 2.GNDV GNDSP CN3031 NC GNDD VD+5 CTS DTR RXD TXD E E B B C C GNDSP CN8807 LIVE W195 W194 94V-0 CN8801 3.ASPECT 5.VSEL2 ASPECT GNDSP GNDSP 6.GNDV 1.SQUEEZE 2.V+5V 4.V+12M 7.CY/G 10.GNDV 9.Cb/B 6.GNDV 11.Cr/R 8.GNDV 13.C 12.GNDV 14.GNDV 17.Y 16.V 15.V 16.GNDV C SQUEEZE V 1 7 1 2 1 1 9 1 10 17 1 18 CN2 CN8003 SIDE B J (XNP3069-B) Q3602 Q3601 Q3621 Q3644 Q3645 Q3642 Q3633 Q3637 Q3611 Q3622 Q3612 Q3638 Q3636 Q3631 Q3635 Q3639 Q3640 5531 CN3032 CN3031 CN8003 CN2 CN8801 CN8803 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4.9 TRADE1, VIDEO, DISPLAY and LED ASSYS 1 J5602 D5932 LED ASSY 1.VFL+5 2.LED XWZ3721 94V-0 1 1 15 1 1 CN5601 L5562 S5927 C5564 W107 W101 W105 W108 W117 C5953 W109 D5561 C5679 S5925 W102 5951 J5602 S5926 W106 6.KEY PLAY/PAUSE XWZ3720 13.FLCS 5.REMOCON 7.FLAC1 12.FLCLK 4.VE+5 VE+5 2.LED 1.VFL+5 GNDLED 9.GNDFL 14.XFLRST 11.FLDATA 10.VFL+5 STOP OPEN/CLOSE GNDFL 8.FLAC2 DISPLAY ASSY VFL+5 15.VFDP 1.POWER-LED 3.TIMERLED 2.GNDLED 1 15 58 62 1 1 23 1 23 1 23 1 23 CN3012 IC25 CN3022 CN3011 CN3021 IC24 W118 W103 REPLACE CAUTION- CONTACT CONTACT CONTACT CONTACT SIDE LITTELFUSE INC. MFD.BY #491007 WITH 7A125V SAME TYPE FOR IC25 and IC24 TRADE1 ASSY AMP-POWER XWZ3725 94V-0 SIDE SIDE 491007 SIDE UPSIDE 1 23 1 23 23 1 1 23 SIDE A K M N (XNP3069-B) (XNP3069-B) IC24 IC25 TRADE 1 ASSY K LED ASSY N DISPLAY ASSY M CN3001 D CN3011 CN3002 D CN3012 CN3032 J CN3022 J5602 J5602 CN3031 J CN3021 CN5611 F CN5601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 1 V5601 S5923 S5922 W111 W110 L5563 D5662 S5925 S5921 C5678 C5680 S5924 D5931 VOL UP POWER ON VOL DOWN BAND STOP VE+5 GNDLED 1 5 31 37 1 2 8 9 1 9 W140 W128 JA8951 C8871 C8861 C8971 C8851 C8961 C8951 CN8851 CN8001 94V-0 XWZ3723 2.YGND 6.GNDV 7.ASPECT 8.GNDV 9.P/XI 3.Cb 5.Cr 1.Y Y(GREEN) Cb(BLUE) 4.CbGND Cr(RED) VIDEO ASSY XWZ3722 5pin 9 9pin 5 SIDE 1 CONTACT SIDE A M L (XNP3069-B) ASSY VIDEO ASSY L (XNP3069-B) CN8807 J CN8001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 16 17 32 33 48 49 64 R5932 R5695 C5665 R5674 IC5601 R5925 R5921 R5693 R5922 C5675 C5664 R5931 C5666 C5669 C5663 Q5691 R5691 R5924 C5670 Q5693 R5923 13.FLCS POWER ON 5.REMOCON 7.FLAC1 12.FLCLK 9.GNDFL 1 VE+5 GNDLED 6.KEY STOP XWZ3720 DISPLAY ASSY 8.FLAC2 10.VFL+5 11.FLDATA 15.VFDP VOL UP VOL DOWN BAND 14.XFLRST G F 1 48 16 33 32 49 17 64 R8891 C8992 R8862 R8864 R8872 R8874 L8861 R8975 R8976 C8972 L8971 R8965 L8851 R8856 R8855 C8852 R8966 R8854 R8863 R8861 C8962 R8873 R8875 R8876 C8872 R8962 R8881 R8964 R8971 R8972 R8973 R8974 L8951 L8961 R8955 R8956 C8952 R8871 L8871 R8865 R8866 R8954 R8961 R8963 R8951 R8953 R8851 R8853 C8862 94V-0 XWZ3723 VIDEO ASSY XWZ3722 1 9 SIDE B L M DISPLAY ASSY M VIDEO ASSY L Q5693 Q5691 IC5601 (XNP3069-B) CN8001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 5 6 7 8 5 6 7 8 C D F A B E XV-DV430 R9506 R9507 R9509 R9510 R9511 R98 IC24 ET IC25 GNDFAN UN+8V SEN+8 VA-12 VP+15 VD+5 VFL+5 TUNER XPROTECT GNDR GNDR UN+8V QUE LA 491007 LITTELFUSE INC. DE CHEZ N'UTILISER DES FUSIBLES EN CAS DE REMPLACEMENT ATTENTION- 7A125V MUTEC MUTE REFERENCE FLIN IC24 GNDA CIN FRIN VH- VH- FROUT FROUT GNDP GNDP FLOUT FLOUT GNDS SWOUT SWOUT VH+ VH+ COUT COUT VL+ VL+ SROUT SROUT VL- VL- SLOUT SLOUT SWIN SLIN SRIN VP+8 VP+8 94V-0 IC25 491007 1 23 1 23 1 23 1 23 D5933 1.VFL+5 LED ASSY XWZ3721 D5932 2.LED 1 1 64 R5927 R5661 R5674 IC560 C5673 C5563 R5662 C5952 C5562 C5668 R5953 C5667 C5661 C5676 R5926 Q5692 R5663 R5952 R5664 R5954 C5671 C5672 C5674 C5662 C5677 R5951 C5681 CN5601 13.FLCS GNDLED 5.REMOCON 7.FLAC1 2.GNDLED 1.POWER-LED 12.FLCLK 4.VE+5 9.GNDFL 62 GNDFL OPEN/CLOSE VFDP 2.GNDLED 6.KEY 3.TIMERLED STOP 8.FLAC2 10.VFL+5 11.FLDATA 1.POWER-LED 15.VFDP PLAY/PAUSE 14.XFLRST VFL+5 VE+5 J5602 J5602 H I E 1 15 1 64 1 CN3022 CN3021 CN3011 CN3012 SIDE B N M K (XNP3069-B) (XNP3069-B) (XNP3069-B) TRADE 1 ASSY K LED ASSY N CN3011 CN3012 CN3022 J5602 J5602 CN3021 CN5601 IC25 IC24 Q5692 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Mark No. Description Part No. Mark No. Description Part No. LIST OF ASSEMBLIES NSP 1..DVD ASSY AXA7121 2..DVDM ASSY AWM7808 NSP 2..LOADING MECHA ASSY VWT1208 3..LOAB ASSY VWG2279 1..DSP ASSY AWX8253 NSP 1..AMP MODULE 6CH AXQ7242 2..6CH AMP ASSY AZW7283 NSP 1..MAIN ASSY XWM3215 2..CONTROL ASSY XWZ3707 2..TRADE3 ASSY XWZ3714 2..HP ASSY XWZ3715 1..TRADE2 ASSY XWX3071 NSP 1..COMPLEX ASSY XWM3224 2..TRADE1 ASSY XWZ3725 2..POWER ASSY XWZ3718 2..VIDEO ASSY XWZ3722 2..DISPLAY ASSY XWZ3720 2..LED ASSY XWZ3721 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F LOAB ASSY SWITCHES AND RELAYS S101 VSK1011 OTHERS CN602 KR CONNECTOR S2B-PH-K CN601 KR CONNECTOR S5B-PH-K DVDM ASSY SEMICONDUCTORS IC602 K4S641632F-TC75 IC101 M63018FP > IC431 MM1565AF IC501 MM1623AF > IC421 PQ018EH01ZP > IC411 PQ018EZ01ZP > IC441 PQ20WZ11 > IC401 R1224N102H IC601 STM5589CVA IC301 STM6316ATXXA IC911 TC74VHC08FT IC901 TC74VHCT125AFT IC604 TC7WU04FU IC603 VYW2077 Q390 2SA1576A > Q451 2SA1576A Q923,Q924,Q926 2SA1576A Q202,Q212,Q452 2SC4081 > Q401 CPH6314 Q921 DTA124EUA Q951 DTC114TUA Q724,Q977 DTC114YUA Q922,Q925 DTC124EUA Q201,Q211 HN1A01F Q911 RN1903 Q603 RN4982 D431,D432 1SR154-400 D402,D403,D922-D927 1SS355 D401 RB051L-40 D603 RB501V-40 D921 UDZS4.7B COILS AND FILTERS L401 POWER INDUCTOR ATH7011 L402 INDUCTOR CTH1254 L390 LCYA2R7J2520 L1056-L1061 CHIP BEAD VTL1078 CAPACITORS C408 CCSRCH121J50 C390 CCSRCH180J50 C142 CCSRCH221J50 C200 CCSRCH331J50 C690 CCSRCH470J50 C392 CCSRCH560J50 C393,C640,C644 CCSRCH7R0D50 C452 CEV100M16 C101,C401,C404,C410,C412 CEV101M16 C422,C443,C561,C564,C600 CEV101M16 C621,C660 CEV101M16 C415,C425 CEV101M4 C201,C211 CEV470M16 C406 CKSQYB104K25 C431 CKSQYB105K16 C433 CKSQYB225K10 C127,C128,C381,C562,C563 CKSRYB102K50 C624 CKSRYB102K50 C112-C114,C124,C125,C130 CKSRYB103K50 C133,C134,C355 CKSRYB103K50 C102,C132,C139,C230 CKSRYB104K16 A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 C232,C233,C300,C307,C309 CKSRYB104K16 C315,C318,C323,C326,C335 CKSRYB104K16 C342,C348,C357,C362,C373 CKSRYB104K16 C377,C388,C391,C413,C414 CKSRYB104K16 C423,C424,C441,C442,C451 CKSRYB104K16 C511,C531,C551,C565,C571 CKSRYB104K16 C604,C607,C614,C619 CKSRYB104K16 C622,C623,C626-C632 CKSRYB104K16 C636,C637,C641,C647-C649 CKSRYB104K16 C659,C664,C671,C681,C684 CKSRYB104K16 C694,C698,C902,C912,C921 CKSRYB104K16 C501,C521,C541,C603,C620 CKSRYB105K10 C625 CKSRYB105K10 C394 CKSRYB152K50 C126,C346 CKSRYB223K50 C202,C205,C212,C215 CKSRYB472K50 C402,C403,C405,C409 DCH1165 RESISTORS R201 RAB4C220J R211 RAB4C390J R100,R1011-R1013,R111,R210 RS1/10S0R0J R387-R389,R412-R415,R417 RS1/10S0R0J R421,R422,R561,R600,R623 RS1/10S0R0J R403 RS1/10S100J R105,R106,R115-R120 RS1/10S4R7J R104,R107 RS1/10S6R8J R125,R144,R330,R331,R628 RS1/16S1002F R635 RS1/16S1002F R301 RS1/16S1202F R502,R512,R522,R532,R542 RS1/16S1500F R552 RS1/16S1500F R408 RS1/16S1502F R410 RS1/16S1802F R443 RS1/16S2001F R409 RS1/16S2702F R441 RS1/16S4701F R101,R102,R123,R142,R143 RS1/16S5600F R442 RS1/16S6801F R411 RS1/8S0R0J Other Resistors RS1/16S###J OTHERS CN104 4P CONNECTOR AKN7035 CN105 12P FFC CONNECTOR RKN1053 CN103 PH CONNECTOR S5B-PH-SM3 FLEXIBLE CABLE 7P VDA1681 CN903 18P FFC CONNECTOR VKN1310 CN901 30P FFC CONNECTOR VKN1322 CN101 0.5-24P CONNECTOR VKN1482 X601 CRYSTAL RESONATOR VSS1172 (27MHz) X301 CHIP CERAMIC RESONATOR VSS1186 (20MHz) DSP ASSY SEMICONDUCTORS IC8201 AK4114VQ IC8401 AK4529VQ IC8501 DSPD56367PV150 IC8901 NJM2391DL1-33 IC8902 NJU7223DL1-18 IC8701 TC74LVX244FT IC8702 TC74VHCT244AFT IC8502 TC7WU04FU Q8504 UMD2N Q8503 UN5112 D8501 1SS355 D8401 DAN202K D8402,D8502,D8503 DAP202K COILS AND FILTERS L8002,L8004,L8501,L8502 ATL7002 CHIP FERRITE BEAD L8201,L8203,L8204,L8401,L8402 QTL1013 CHIP SOLID INDUCTOR L8504,L8701,L8702 QTL1013 CHIP SOLID INDUCTOR CAPACITORS C8209,C8210 CCSRCH100D50 C8421 CCSRCH101J50 C8007,C8008,C8201,C8212,C8214 CCSRCH471J50 C8404,C8409-C8414,C8416,C8417 CCSRCH471J50 C8419,C8505,C8507,C8509 CCSRCH471J50 C8511,C8512,C8515,C8518,C8520 CCSRCH471J50 C8522,C8524,C8526,C8528,C8530 CCSRCH471J50 C8532,C8534,C8536,C8539,C8541 CCSRCH471J50 C8543,C8545,C8551,C8703,C8706 CCSRCH471J50 C8548,C8549 CCSRCH8R0D50 C8701,C8704 CEV100M16 C8406,C8415,C8546,C8547,C8902 CEV101M16 C8904 CEV101M16 C8217,C8225,C8408 CEV470M6R3 C8204,C8555 CKSRYB102K50 C8009,C8405,C8418,C8517,C8554 CKSRYB103K50 C8010,C8202,C8207,C8213,C8215 CKSRYB104K16 C8407,C8420,C8422,C8504,C8513 CKSRYB104K16 C8521,C8523,C8525,C8527,C8529 CKSRYB104K16 C8531,C8533,C8535,C8537,C8538 CKSRYB104K16 C8540,C8542,C8544,C8550,C8702 CKSRYB104K16 C8705,C8901,C8903 CKSRYB104K16 C8516 CKSRYB105K6R3 C8514 CKSRYB333K16 C8203 CKSRYB473K50 RESISTORS R8506 RAB4C101J R8201 RS1/16S1802F Other Resistors RS1/16S###J OTHERS X8501 CRYSTAL RESONATOR VSS1171 (20MHz) X8201 CRYSTAL RESONATOR XSS3003 (24.576MHz) CN8003 13P SOCKET AKP7070 CN8007,CN8011 19P SOCKET AKP7073 KN8102 WRAPPING TERMINAL VNF1084 6CH AMP ASSY SEMICONDUCTORS > IC81 NJM7805FA > IC71 NJM7912FA > IC3301,IC3401 STK402-270 Mark No. Description Part No. Mark No. Description Part No. C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Q3382,Q43 2SA1576A Q62 2SB1237X Q111,Q3381,Q63,Q92 2SC4081 > Q61 2SD2012 Q3301,Q3302,Q3401,Q3402 2SD2114K Q3501,Q3502,Q3504 2SD2114K Q3654 2SD2144S Q107,Q3653 DTA124EUA Q3652 DTA124TK Q106 DTC124EUA > Q3383,Q91 IRFI9Z34G > Q3384 IRFIZ34G Q3651 RN1901 Q101,Q103 UMB1N Q102,Q104 UMH1N > D3321-D3326 1SR139-400 D3327,D3328 1SR139-400 > D3421-D3426 1SR139-400 D3427,D3428 1SR139-400 D3387,D3388,D3651-D3655 1SS133 D101,D102,D104,D3657,D42 1SS355 D3391,D3392 30PDA20-FC6 > D3381,D3382,D3481,D3482 DAN217 > D3581,D3582 DAN217 D3389,D3390 MTZJ10C > D98 MTZJ11B > D72 MTZJ15C D3393,D3394 MTZJ18B > D63 MTZJ18C D3385,D3386 MTZJ36A > D82 MTZJ7.5C D91 UDZS18B D105,D106,D3658 UDZS7.5B TH111 NCP18WF104J03RB CAPACITORS C3305,C3306,C3405,C3406 CCSRCH221J50 C3505,C3506,C62,C97 CCSRCH221J50 C3309,C3310,C3409,C3410 CCSRCJ3R0C50 C3509,C3510 CCSRCJ3R0C50 C3307,C3308,C3407,C3408,C3508 CEAL100M16 C3507 CEAL470M6R3 C72 CEAT100M50 C3651 CEAT101M25 C101,C102 CEAT1R0M50 C3323,C3324,C3423,C3424 CEAT221M50 C3167,C3168,C3178,C3179 CEAT2R2M50 C3301,C3302,C3317,C3318 CEAT2R2M50 C3401,C3402,C3501,C3502 CEAT2R2M50 C3652,C63,C82,C98 CEAT470M25 C3653 CEAT470M35 C3303,C3304,C3403,C3404 CKSRYB102K50 C3503,C3504 CKSRYB102K50 C92 CKSRYB104K16 C71,C81 CKSRYB473K50 RESISTORS R3317-R3320,R3417-R3420 ACN7122 R3517-R3520 (0.22Ω/2W) ACN7122 > R3327,R3328,R3427,R3428 RD1/4MUF470J R3387,R3388 RD1/4PU101J R3657 RD1/4PU330J R96,R97 RS1/16S1002F > R3323,R3324,R3351,R3423,R3424 RS1/16S1R0J > R3451 RS1/16S1R0J R67,R68 RS1/16S2201F R94,R95 RS1/16S2701F > R62 RS1/16S330J R65 RS1/16S4700F R47,R48 RS1/16S4701F Other Resistors RS1/16S###J OTHERS CN3001,CN3002 23P PLUG AKP7064 CN3651 2P PLUG KM200SA2 FM/AM TUNER MODULE SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD Q201,Q204,Q205 2SC2412K Q202 DTA124ES Q203 DTC124EK D201 1SS133 D202 MTZJ5.1C COIL AND FILTERS L201 FM DETECTOR COIL ATE7003 F202 FM CERAMIC FILTER ATF-107 F201 FM CERAMIC FILTER ATF-119 F203 AM CERAMIC FILTER ATF1155 CAPACITORS C206 CCSRCH100D50 C212,C213,C226,C233-C235 CCSRCH101J50 C240 CCSRCH101J50 C231,C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 C228 CEAT3R3M50 C237 CEAT470M10 C211 CEJA1R0M50 C210 CEJA470M16 C204,C238,C602 CKSRYB102K50 C101,C102,C208,C220,C239 CKSRYB103K50 C242,C601 CKSRYB103K50 C216,C217 CKSRYB123K50 C225 CKSRYB153K50 C201,C205,C209,C214,C230 CKSRYB223K50 C236,C603 CKSRYB223K50 C221 CKSRYB224K10 C202,C222 CKSRYB473K16 C215 CKSRYB681K50 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R243 RS1/10S0R0J R103 RS1/10S331J R104 RS1/10S391J Other Resistors RS1/16S J Mark No. Description Part No. Mark No. Description Part No. E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 OTHERS CN201 13P FFC CONNECTOR 52044-1345 BN201 4P ANTENNA TERMINAL AKA7003 SHIELD CASE T ANK7072 SHIELD CASE B ANK7073 X201 CRYSTAL RESONATOR ASS1093 (7.2MHz) L1 FM FRONT END AXF7003 L2 AM RF TUNING BLOCK AXX7071 CONTROL ASSY SEMICONDUCTORS IC3062 BD3814FV IC3001 BU4052BCF IC3059 BU4066BCF IC3003, IC3051-IC3053 NJM4558MD IC3055-IC3058 NJM4558MD IC5601 NJM4558MD IC3901 NJM4560M IC5501 PDC104A Q3906 2SA1576A Q3005, Q3006, Q3009, Q3010, Q5501 2SC4081 Q5572, Q5711 2SC4081 Q3001, Q3002, Q3067, Q3068 2SD2114K Q3907, Q3908 2SD2114K Q3003, Q3061, Q3065, Q3069, Q3071 DTA124EUA Q3060, Q3070 DTC124EUA Q5571 DTC143EUA Q3201 RN2901 Q3004 UMB1N D5575, D5712, D5721 1SS355 D3901 DAP202K D5711 UDZS11B D3003, D3004 UDZS5.6B D3052, D3053 UDZS6.8B COILS AND FILTERS L5571 LFEA220J F8604 CHIP SOLID INDUCTOR VTF1096 CAPACITORS C5575 (0.047F/5.5V) ACH1246 C3111, C3112, C3130, C3145, C3146 CCSRCH100D50 C3131-C3133, C3913, C3914 CCSRCH101J50 C5510, C5511, C5577, C5722, C5723 CCSRCH101J50 C3001-C3008 CCSRCH221J50 C3053, C3054 CCSRCH331J50 C3041, C3168, C3909, C3910 CCSRCH470J50 C5609, C5610 CCSRCH470J50 C3059, C3060 CCSRCH680J50 C3009, C3010 CCSRCH681J50 C3055, C3056, C3077, C3078, C3089 CCSRCH821J50 C3134, C3189, C3190, C3906, C5711 CEAL100M16 C3149, C3150 CEAL470M16 C3017-C3020, C3037, C3038 CEAT100M50 C3079, C3080, C3085, C3086 CEAT100M50 C3093, C3094, C3173, C3174 CEAT100M50 C3917, C3918, C5576, C5601, C5602 CEAT100M50 C5572 CEAT101M10 C5578 CEAT1R0M50 C3113, C3114 CEAT221M10 C3027, C3028, C3911, C3912 CEAT470M16 C3919, C3920, C8610 CEAT470M16 C3051, C3052, C3061, C3062 CEJQ100M16 C3069, C3070 CEJQ100M16 C3201, C3202 CEJQ220M25 C3065, C3066 CEJQ470M16 C5731, C5732 CEJQ4R7M50 C5504, C5789, C5793, C5795 CKSRYB102K50 C3025, C3026, C3033, C3034 CKSRYB103K50 C3067, C3068, C3083, C3084 CKSRYB103K50 C3091, C3092, C3115, C3116 CKSRYB103K50 C3141, C3142, C3147, C3148 CKSRYB103K50 C3155, C3156, C3159, C3160, C3165 CKSRYB103K50 C3169-C3172, C3191, C3192 CKSRYB103K50 C5506-C5508, C5571, C5573, C5580 CKSRYB103K50 C5794, C5798, C5799 CKSRYB103K50 C3121-C3124, C3180, C3182, C3186 CKSRYB104K16 C5513-C5516, C5574, C5611, C5612 CKSRYB104K16 C5791, C8609, C8611 CKSRYB104K16 C3071, C3072, C3075, C3076, C3087 CKSRYB152K50 C3097, C3138 CKSRYB152K50 C3181 CKSRYB273K16 C5603, C5604 CKSRYB331K50 C3176 CKSRYB333K16 C3161, C3162, C3193, C3194 CKSRYB334K10 C3195 CKSRYB393K16 C3125, C3126 CKSRYB472K50 C3177, C3179 CKSRYB473K25 C3090 CKSRYB682K50 C3183 CKSRYB683K16 C5605, C5606 CKSRYB821K50 RESISTORS R3118, R3119 RD1/2VM151J R3041, R3042 RS1/10S182J Other Resistors RS1/16S###J OTHERS CN3902 5P FFC CONNECTOR 52045-0545 CN5701 13P FFC CONNECTOR 52045-1345 CN5611 15P FFC CONNECTOR 52045-1545 JA3001 6P PIN JACK AKB7050 CN5613 13P PLUG AKP7059 CN5612, CN5620 19P PLUG AKP7062 CN5501, CN5502 23P PLUG AKP7064 X5501 (10MHz) ASS7034 JA8602 OPTICAL INPUT JACK TORX179PL KN5501, KN5791 TERMAINAL VNF1084 TRADE 3 ASSY OTHERS CN5615 13P PLUG AKP7059 CN5614,CN5618 19P PLUG AKP7062 CN5617 13P SOCKET AKP7070 CN5616,CN5619 19P SOCKET AKP7073 TRADE 2 ASSY SEMICONDUCTORS Q114 2SD2114K Q115 DTA124EUA Mark No. Description Part No. Mark No. Description Part No. G H F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 RESISTORS All Resistors RS1/16S###J OTHERS CN5511,CN5512,CN5521,CN5522 AKP7075 23P SOCKET HP ASSY SEMICONDUCTORS Q3901,Q3902,Q3921,Q3922 2SD2114K Q3903 DTA124EUA COILS AND FILTERS L3901,L3902 CHIP BEAD VTL1096 CAPACITORS C3901,C3902 CKSRYB102K50 C3905 CKSRYB103K50 C3925 CKSRYB104K16 C3903,C3904 CKSRYB473K25 RESISTORS R3901,R3902,R3911,R3912 RS1/10S330J R3961-R3964 RS1/10S330J Other Resistors RS1/16S###J OTHERS CN3901 5P FFC CONNECTOR 52044-0545 JA3901 MINI JACK AKN7003 POWER ASSY SEMICONDUCTORS > IC61 NJM7812FA > IC51 NJM78M56FA > Q32 2SA965 Q3601,Q3602,Q3611,Q3612 2SC4081 Q3621,Q3622,Q3631,Q3637,Q3638 2SC4081 Q3642,Q3644 2SC4081 Q3641,Q51 2SD1858X Q3635,Q3639 DTA124EUA Q3645 DTA143EUA Q3636,Q3640 DTC124EUA Q3633 RN1901 Q3632 UMB1N > D31,D32 11ES2 D35,D3632-D3634,D52-D54 1SS133 D103,D3601,D3602,D3611,D3612 1SS355 D3621,D3622,D3636,D3637 1SS355 D3641-D3643 1SS355 > D11 D3SBA20(B) > D21,D22 D5SBA20(B) D3635 DAN202K D3644 DAN217 D3603,D3613,D3623 DAP202K > D51 DF06SA D33,D34 MTZJ16B D3631 MTZJ5.1A D36 MTZJ6.8B COILS AND FILTERS L3361,L3362,L3461,L3462,L3561 ATH-059 AF CHOKE COIL L3661 AF CHOKE COIL ATH-059 L3701 CHIP BEAD VTL1075 L8821 CHIP BEAD VTL1086 > L1 LINE FILTER XTF3003 TRANSFORMERS > T2 ATT7079 SWITCHES AND RELAYS RY3641-RY3643 ASR7008 > RY1 ASR7027 CAPACITORS > C1,C2 ACE7022 C23,C24 ACH7166 C15,C16 ACH7167 C25 ACH7183 C3633 CEAT100M50 C52 CEAT102M16 C67 CEAT220M50 C32 CEAT221M63 C54 CEAT470M16 C8885,C8886 CEAT471M16 C3632 CEAT471M6R3 C35 CEJQ100M50 C33,C34 CEJQ220M50 C3631 CEJQ2R2M50 C53 CKSRYB103K50 C3361-C3364,C3461-C3464,C3561 CKSRYB223K50 C3563,C3661,C3663 CKSRYB223K50 C3365-C3368,C3465-C3468,C3565 CKSRYB473K50 C3567,C3665,C3667,C55-C57 CKSRYB473K50 C66 CKSRYB473K50 C12,C13,C22 CQMA472J50 C3369,C3370,C3469,C3470,C3569 XCG3008 C3669 XCG3008 C8821, C8831 (1000µF/6.3V) XCH3017 RESISTORS R3607,R3608,R3617,R3618 ACN7112 R3627,R3628 (0.1Ω/2W) ACN7112 > R1 (2.2MΩ/1/2W) RCN1080 R11 RD1/2PMF100J R3361,R3362,R3461,R3462,R3561 RD1/2PMF101J R3661 RD1/2PMF101J R31 RD1/2PMF332J R36,R37 RD1/4PU101J R3635 RD1/4PU332J R3631,R3632 RD1/4PU333J R35 RD1/4PU472J R3365-R3368,R3465-R3468 RS1/10S220J R3565,R3566,R3665,R3667 RS1/10S220J R8821 RS1/16S75R0F Other Resistors RS1/16S###J OTHERS CN8807 5P FFC CONNECTOR 52045-0545 CN3031,CN3032,CN5531,CN5532 AKP7064 23P PLUG H1-H4 FUSE CLIP AKR7001 CN11 10P VH CONNECTOR B10P-VH Mark No. Description Part No. Mark No. Description Part No. J I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 > CN2 2P VH CONNECTOR B2P3-VH SCREW BBZ30P080FMC PCB BINDER VEF1040 JA8803 1P PIN JACK VKB1122 CN8801 18P FFC CONNECTOR VKN1249 CN5102 30P FFC CONNECTOR VKN1261 CN8003 7P FFC CONNECTOR VKN1267 KN1,KN2 WRAPPING TERMINAL VNF1084 JA3301 6CH SPEAKER JACK XKE3021 > AN1 1P AC INLET XKP3042 CN8802 S-VIDEO SOCKET AKP7179 D. HEAT SINK XNH3030 TRADE 1 ASSY SEMICONDUCTORS > IC25 (7A) AEK7021 RESISTORS All Resistors RS1/16S###J OTHERS CN3011,CN3012,CN3021,CN3022 AKP7075 23P SOCKET VIDEO ASSY COILS AND FILTERS L8951 VTL1086 L8961, L8971 VTL1089 CAPACITORS C8952, C8962, C8972 CCSRCH470J50 C8951 CEAT102M6R3 C8961, C8971 CEAT471M6R3 RESISTORS R8953, R8963, R8973 RS1/16S75R0F OTHERS CN8001 5P FFC CONNECTOR 52045-0545 JA8951 JACK VKB1150 DISPLAY ASSY SEMICONDUCTORS IC5601 MSM9202-01 Q5691 2SC4081 Q5692,Q5693 DTC143EUA D5931 SLR-56MC COILS AND FILTERS L5563 LAU100J L5562 LAU220J SWITCHES AND RELAYS S5921-S5927 RSG1031 CAPACITORS C5674 CCSRCH470J50 C5661,C5663 CCSRCH471J50 C5564 CEAL101M6R3 C5679,C5680 CEAL1R0M50 C5678 CEAL220M35 C5953 CEAL470M16 C5671-C5673 CKSRYB102K50 C5677,C5681 CKSRYB103K50 C5562,C5563,C5665,C5666,C5675 CKSRYB223K50 C5952 CKSRYB223K50 RESISTORS All Resistors RS1/16S###J OTHERS 2P CABLE HOLDER 51048-0200 CN5601 15P FFC CONNECTOR 52044-1545 REMOTE RECEIVER UNIT GP1UM27XK FL HOLDER VNF1122 V5601 FL TUBE XAV3021 LED ASSY SEMICONDUCTORS D5932 NSPW312BS-2009 D5933 UDZS6.8B OTHERS 2P CABLE HOLDER 51048-0200 J5602 JUMPER WIRE 2P D20PYY0210E Mark No. Description Part No. Mark No. Description Part No. K L M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 MPX SG FM SG PRODUCT DC Voltmeter L201 IC201 pin 21 pin 23 FM/AM TUNER MODULE F SIDE B AM Tuner Section • There is no adjustment in the AM tuner. FM75Ω antenna terminal Fig.1 Adjustment Wiring Diagram Fig.2 Adjustment Point FM Tuner Section Step No. Adjustment Title Measurement point Adjustment point Adjustment value Adjustment State 1 T-METER Adjustment L201 0 ± 50mV IC201 Pin 21/Pin23 Adjust L201 so that the DC voltage between Pin 21 and Pin 23 of IC201 (Test point "Vtm") gets within 0 ± 50mV. • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. [ANT. INPUT SIGNAL] • Frequency : 98 MHz • Modulation : OFF • Input Level : 80 dBµV 6. ADJUSTMENT 6.1 TUNER SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 1 2 2 3 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Initialize the Focus Sweep Setting Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. 6.2 ADJUSTMENT ITEMS AND LOCATION 6.3 JIGS AND MEASURING INSTRUMENTS Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1067) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ, ! Ÿ, ! Mechanical point Electric point ! Mechanical point Electric point Mechanical point Electric point Be sure to perform the following step finally when replaced Pickup, Traverse Mechanism and Spindle Motor. Purpose: To set the sweep which was correct with the individual Traverse mechanism. Mechanical point Electric point LOAB and DVDM ASSY ∗ GGF1067 Test mode remote control unit ESC CLEAR Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board (It is necessary when performed adjustment procedure Ÿ.) 6.4 NECESSARY ADJUSTMENT POINTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1067 Test mode remote control unit GGF1067 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE (Player) TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD CAUTION: Perform only trace, video and audio outputs are nothing. • The TEST MODE functions that are used only during adjustment are described here. For details, see "7.1.1 TEST MODE". DVD disc POWER ON POWER OFF 6.5 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 • Remove the Loading Mecha. Assy. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Loading Mecha. Assy (Float Base) with nippers. Cautions: Because there is not a Spacer for height adjustment in adjustment after the second time, will keep it at need. (This parts is Traverse mechanism exclusive use of a model for 2003 years) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Loading Mecha. Assy 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.1.9 DISASSEMBLY". 6.6 MECHANISM ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight, and go to step !. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.5 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". 0 OPEN/CLOSE 6 DVD /CD FM/AM – DOWN VOLUME UP + STANDBY/ON PHONES 7 ¶ Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. J : Min www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Initialize the Focus Sweep Setting 3 Turn on the Player ESC CLEAR POWER Note: Be sure to perform this step when replaced the Pickup or Traverse mechanism. Purpose: To set the sweep which was correct with the individual Traverse mechanism. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST / RANDOM] (A8-5E) key in order of the Test mode remote control unit. • Light the all FL and LEDs, and goes out the FL and LEDs when pressing the keys of something. • OSD displays test mode. Refer to the "7.1.2 DISPLAY SPECIFICATION OF THE TEST MODE". 2 Release the Test mode • Turn off the power. • Press the [ESC] (A8-5F) key of the remote control unit and reset it. 3 Tray open / close • Press the [REPEAT A-B] (A8 - 48) key of the remote control unit. • Press the [OPEN / CLOSE] key of the main unit from the stop state. 4 Playback stop 1. Press the [REPEAT] (A8 - 44) key of the remote control unit from the playback state. 2. Press the [STOP] key of the remote control unit or main unit from the playback state. (Playback stops, but the loaded disc keeps rotating.) 5 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650n). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780n). 6 Focus on / sweep 1. Lock the focus by pressing the [TEST] (A8-5E) and [2] (A8-02) keys in order. 2. Repeat focus sweep by pressing the [TEST] (A8-5E) and [3] (A8-03) keys in order. 7 Spindle FG servo CAV : Press the [TEST] (A8-5E) and [5] (A8-05) keys in order,then rise up the spindle and FG servo becomes on. CLV : Press the [TEST] (A8-5E) and [9] (A8-09) keys in order,then rise up the spindle and FG servo becomes on. 8 Tracking open / close 1. Open tracking by pressing the [STEP FWD] (A8-54) key of the remote control unit in the play state. 2. Close tracking by pressing the [STEP REV] (A8-50) key of the remote control unit in the play state. 9 Slider servo on/off 1. Turn on the slider servo by pressing the [TEST] (A8-5E) and [CX] (A8-0E) keys in order. 2. Turn off the slider servo by pressing the [TEST] (A8-5E) and [TV/LDP] (A8-0F) keys in order. 0 Slider in / out Slider in : In the tracking off state, press the [SCAN REV] (A8-11) key of the remote control unit. Slider out : In the tracking off state, press the [SCAN FWD] (A8-10) key of the remote control unit. - Play (perform only the ID search and trace to the specified location) Press the [TV/LDP] (A8-0F) key of the remote control unit from the stop state. Perform only trace, video and audio outputs are nothing. = Screen display ON/OFF 1. Turn off the display by pressing the [AUDIO] (A8-1E) key of the remote control unit. 2. Turn on the display by pressing the [DISPLAY] (A8-43) key of the remote control unit. 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 ~ Search 1. Search address input entry • It becomes the address input mode when pressing the [+10] (A8-1F) key. (Most significant digit of an address displays "<".) • In this time, display the last address as the initial state. 2. Search address input • Press the [0] to [9] (A8-00 to 09) keys of the remote control unit. In the DVD, set an address with hexadecimal. • In the address input mode, turn to the hexadecimal input by pressing the [PROGRAM] (A8-4C) key (display a "∗" mark), and [1] to [6] keys are each input as A to F. • Hexadecimal input and decimal input can switch with toggle. • In case of CD, perform only the absolute time search. 3. Search execution • Press the [CHP/TM] (A8-13) key of the remote control unit. • After the search, perform only trace and video and audio outputs are nothing. 4. Release the Search address input • Clear the address by pressing the [CLEAR] (A8-45) key. Release the address input mode when pressing the [CLEAR] key once again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Character in bold : Item name : Information display 1 5 6 10 13 11 8 9 3 2 12 17 18 19 16 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] 6 Spindle status [SPDL – ∗ ∗ ∗] [OFF], [ACC/BRK], [CAV], [CLV] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] In Side Switch ON : [01] In Side Switch OFF : [00] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] - Jitter value [J – ∗ ∗ ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the FL controller [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLASH = ∗ ∗] % Revision of the system controller [S: ∗. ∗ ∗ ∗ / ∗. ∗ ∗ ∗] version . revision / build number of the ST core ^ Revision of the DVD mechanism controller [M: ∗ ∗ / ∗ ∗ ∗] Kinds of version / firmware of the FE. RAM or ROM 7 7.1.2 DISPLAY SPECIFICATIONS OF THE TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 • Service mode indication (ESC + CHP/TIM keys) ID Address The error rate is always displayed in exponential notation, e.g., ∗.∗ ∗ e - ∗, for both DVDs and CDs. EDC/ID/AV 1 error history (ID Address, EDC/ID/AV 1 Error, last eight errors) Self-diagnosis functions (If a mechanical error has occurred, the mechanical-error history is also displayed.) • Calculation of the average error rate (ESC + "5" [Test mode remote control unit] keys) The average of the last eight error rates is calculated and indicated in exponential notation. After the calculation is completed, "OK" or "NG" is displayed. If "NG" is displayed, the disc tray will open (for both DVDs and CDs) For DVDs: OK with 5.0e-4 or less, for CDs: OK with 7.6e-3 or less • Indication of model information (ESC + CHAP keys) The items from 12 to 19 of the TEST MODE Indications are displayed. However, in the indications, S in the standard test mode is changed to B.E VERSION, and M is changed to F.E VERSION. For details, see 7.1.4. • Change of the background colors (ESC + "+10" [Test mode remote control unit] keys) Every time the keys are pressed, the background color is changed between blue and green alternately. (The green background is used in SETUP NAVIGATOR.) • Region confirmation mode (ESC + AUDIO [Test mode remote control unit] + "1"-"8" [Test mode remote control unit] keys) After you press the AUDIO key while holding the ESC key pressed and then input the region number, if the number is different from that set in the unit, an error message is displayed, and the tray opens. Command Contents Conditions Remote Control Key Name Remote Control Code Memory clear and resion / revision indication CLEAR (∗1) A8-45 Average value measurement of DVD error rate 5 (∗1) A8-05 CD error rate measurement 5 (∗1) A8-05 Aspect : Pan scan 2 AF-A2 Aspect : Letter box 3 AF-A3 Aspect : Wide 4 AF-A4 Digital : AC3 5 AF-A5 Digital : AC-3 > PCM 6 AF-A6 Virtual surround : OFF Only for models having the corresponding functions 7 AF-A7 Virtual surround : TruSurround 8 AF-A8 Digital output ON REPEAT A AF-E8 Digital output OFF REPEAT B AF-E4 DTS Digital output ON STEP FWD AF-B7 DTS Digtal output OFF STEP REV AF-B8 Scart terminal output : VIDEO WY, models equipped with Scart terminal AUDIO AF-BE Scart terminal output : S-VIDEO SUBTITLE AF-36 Scart terminal output : RGB ANGLE AF-B5 Progressive OFF Only for progressive models R_SKIP A3-9D Progressive ON F_SKIP A3-9C Audio 5.1 CH ON Only for models having the corresponding functions KD_ENTER AF-EF FL indication of EDC / ID error CX (∗1) A8-0E FL indication of ID number STEREO (∗1) A8-4A ZOOM ON (X4) ZOOM AF-37 ZOOM OFF < X3 (∗1) A8-59 Service mode indication (error rate indication, etc.) CHP/TIM (∗1) A8-13 Model information indication CHAP (∗1) A8-40 Background color change +10 (∗1) A8-1F Audio last stage mute ON 9 AF-A9 Audio last stage mute OFF 0 AF-A0 Title search Input mode IN Title No. input Search execution SIDE A (∗1) Numbers (∗1) PLAY (∗1) A8-4D A8-00 to A8-09 A8-17 Region confimation mode AUDIO (∗1) Numbers (∗1) A8-1E A8-01 to A8-08 Only during normal playback, the following shortcut keys can be assigned by pressing a required key after pressing the ESC key of the remote control unit. To quit, press the ESC key ∗1 : Test mode remote control unit 7.1.3 FUNCTIONAL SPECIFICATION OF THE SHORTCUT KEY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 • Display contents Character in bold : Item name : Information display 1 2 12 3 4 5 6 7 8 9 10 11 1 Model name Display it according to model information set from the FL controller. 2 Destination indication Display it according to model information set from the FL controller. 3 Region No. 4 Part number 5 ROM version 6 Flash size 7 FL controller version 8 CHIP VERSION Version of ST CHIP CUT ID / JTAG ID (two columns) (eight columns) 9 B.E VERSION Version of BACK END (version of ST core software) . / softwareVersion . softwareRevision / buildNumber 0 F.E VERSION Version of FRONT END (version of mechanism controller CHIP software) / MainVersion / Kinds of firmware RAM or ROM - Remote control code = Key code of Main unit To display model information : Press the ESC key then the CHAP key. To close the model information display : Press the ESC key. 7.1.4 SPECIFICATION OF MODEL INFORMATION DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Indication plan contents Character in bold : Item name : Information display 1 2 4 • EDC / ID error FL display (shortcut function) EDC/ID error is displayed on the FL display if you press the CX key while holding the ESC key on the TEST MODE remote control unit pressed. To quit while an EDC/ID error is displayed, press the ESC key. FL display 0 0 / 0 0 / 0 1 ∗ • Display during Service Mode To enter Service Mode, press the CHP/TIM key while holding the ESC key pressed. To quit, press the ESC key. Service mode display 1 ID Address 2 Error rate (always displayed), in exponential notation ∗ ∗ ( ∗ ∗ ∗ ∗ ) 3 EDC/ID/AV1 error history (ID Address, EDC/ID/AV1 errors, last eight errors) Description of AV1 errors BIT0: In BE code, an EDC error, FEC I/F buffer overflow, or "not valid" is generated (B.E error) BIT1: In BE code, the ID is different from that of the target (B.E error) BIT2: An error was generated in FE-added 2-byte EDC data. (F.E error) 4 Self-diagnosis functions Whether F.E is normal or not is checked. FE OK: No abnormality in F.E FE Error: Abnormality is recognized in F.E. Pressing the CHP/TIM key again displays the mechanical error history. Each press of the CHP/TIM key changes the displays between the mechanical error history and the Service Mode display. For details on the mechanical error history, refer to the addendum. Number of sites where an EDC or ID error was generated ∗: Lights when an AV1 error was generated at least once. Number of retrials while an ID error is being generated (only displayed at the moment when an error is being generated), and for the ST models, the number of retrials made for the latest ID error Number of retrials while an EDC error is being generated (only displayed at the moment when an error is being generated), and the number of retrials made for the latest EDC error Number of error rates 02: Indicates use of the same method as for the 02 models, No indication: Indicates use of the method used for models before the 02 model 3 00 0 0 0 01 0 0 1 02 0 1 0 03 0 1 1 04 1 0 0 05 1 0 1 06 1 1 0 07 1 1 1 AV1 ERR 1 2 BIT 0 7.1.5 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Indication contents • List of the error codes • List of the servo states Note : 0 x & & code (Only this part is displayed to a display) 1 2 3 Description of the mechanical error history 1 Error number The first two digits are for the error code, and the second two digits are for the servo state. 2 Error number The elapsed time from the time when the system was turned on until an error was generated is displayed. Note: If a later error time is shorter than the previous error time, it means that the unit was turned off then on again. 3 Description of errors Error messages are displayed. Example: If the error code is 0x13 (Focus lost timeout) and the servo state is 0x05 (Disc judge), the message becomes "Focus lost timeout in Disc judge." Only if a mechanical error (FE error) has been generated, a mechanical error history containing up to the last eight errors is displayed if you press the "ESC" + "CHP/TIM" key in Normal Mode. Errors are displayed in descending order, with the latest one at the top. Error Code Servo State 1 2 3 0x00 Reset 0x01 Stop (inside position) 0x02 Stop (any position) 0x03 Braking for stop 0x04 New disc 0x05 Disc judge 0x06 Reserved 1 0x07 Playing 0x08 Start up 0x09 Seeking 0x0A Pausing 0x0B Reading BCA 0x0C Reserved 2 Tray open Tray moving 0x0D 0x0E 0x0F FOCUS ERROR 0x0∗ FOCUS TIMEOUT 0x1∗ Focus on error 0x01 Focus on timeout 0x11 Focus off error 0x02 Focus off timeout 0x12 Focus lost error 0x03 Focus lost timeout 0x13 Focus balance adjust error 0x04 Focus balance adjust timeout 0x14 Focus gain adjust error 0x05 Focus gain adjust timeout 0x15 Focus sweep error 0x06 Focus sweep timeout 0x16 Focus reflection error 0x07 Focus reflection timeout 0x17 TRACKING ERROR 0x2∗ TRACKING TIMEOUT 0x3∗ Tracking on error 0x21 Tracking on timeout 0x31 Tracking off error 0x22 Tracking off timeout 0x32 Tracking lost error 0x23 Tracking lost timeout 0x33 Tracking balance adjust error 0x24 Tracking balance adjust timeout 0x34 Tracking gain adjust error 0x25 Tracking gain adjust timeout 0x35 STEPPING ERROR 0x4∗ STEPPING TIMEOUT 0x5∗ Stepping on error 0x41 Stepping on timeout 0x51 Stepping off error 0x42 Stepping off timeout 0x52 Stepping lost error 0x43 Stepping lost timeout 0x53 Stepping move error 0x44 Stepping move timeout 0x54 SPINDLE ERROR 0x6∗ SPINDLE TIMEOUT 0x7∗ Spindle on error 0x61 Spindle on timeout 0x71 Spindle off error 0x62 Spindle off timeout 0x72 Spindle lost error 0x63 Spindle lost timeout 0x73 Spindle CAV error 0x64 Spindle CAV timeout 0x74 Spindle CLV error 0x65 Spindle CLV timeout 0x75 ACQUISITION ERROR 0x8∗ ACQUISITION TIMEOUT 0x9∗ PLL lost error 0x83 PLL lost timeout 0x93 DECODER ERROR 0xa∗ DECODER TIMEOUT 0xb∗ ID lost error 0xa3 ID lost timeout 0xb3 DEVICE ERROR 0xd∗ SRAM error 0xd1 Note: When an error has been generated, if the servo state is "Disc judge," the disc tray opens, and if the servo state is other than "Disc judge," the unit stops (excluding a case of a device error with the error code 0xd∗). Mechanical Error History 7.1.6 MECHANICAL ERROR HISTORY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Error Name No. Causes Check Item Possibility of Trouble Remarks FOCUS ERROR (0 x 0∗) Focus on error 0 x 01 Focus on could not be completed Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. Front End IC Focus off error 0 x 02 Focus off could not be completed Unknown Focus lost error 0 x 03 Focus servo is lost Are not there a dirt or a scratch in the Disc? Does LD become weak? 1. Pickup Focus balance adjust error 0 x 04 AFB on could not be completed Focus gain adjust error 0 x 05 Focus AGC could not be completed Focus sweep error 0 x 06 Focus reflection error 0 x 07 Dimensions of S curve did not reach to the aim value Does LD become weak? 1. Pickup FOCUS TIMEOUT (0 x 1∗) Focus on timeout 0 x 11 Did timeout at focus on Are not there a dirt or a scratch in the Disc? Does LD become weak? Does the lens move up and down? 1. Pickup 2. Driver 3. Front End IC Focus off timeout 0 x 12 Did timeout at focus off Focus lost timeout 0 x 13 Did timeout at focus backup Focus balance adjust timeout 0 x 14 Did timeout at AFB Focus gain adjust timeout 0 x 15 Did timeout at AGC Focus sweep timeout 0 x 16 TRACKING ERROR (0 x 2∗) Tracking on error 0 x 21 Tracking on could not be completed 1. Pickup 2. Driver 3. Front End IC Tracking off error 0 x 22 Tracking off could not be completed Tracking lost error 0 x 23 Tracking servo is lost 1. Pickup Tracking balance adjust error 0 x 24 ATB could not be completed 1. Pickup Tracking gain adjust error 0 x 25 AGC could not be completed 1. Pickup Tracking jump error 0 x 26 Tracking jump could not be completed TRACKING TIMEOUT (0 x 3∗) Tracking on timeout 0 x 31 Did timeout at tracking on Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Driver 3. Front End IC Tracking off timeout 0 x 32 Did timeout at tracking off Tracking lost timeout 0 x 33 Did timeout at tracking backup Are not there a dirt or a scratch in the Disc? 1. Pickup Tracking balance adjust timeout 0 x 34 Did timeout at ATB 1. Pickup Tracking gain adjust timeout 0 x 35 Did timeout at AGC 1. Pickup Tracking jump timeout 0 x 36 Did timeout at tracking jump STEPPING ERROR (0 x 4∗) Stepping on error 0 x 41 Stepping on could not be completed 1. Pickup 2. Driver 3. Front End IC Stepping off error 0 x 42 Stepping off could not be completed Stepping lost error 0 x 43 Stepping servo is lost Stepping move error 0 x 44 Stepping could not move Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver STEPPING TIMEOUT (0 x 5∗) Stepping on timeout 0 x 51 Did timeout at stepping on 1. Pickup 2. Driver 3. Front End IC Stepping off timeout 0 x 52 Did timeout at stepping off Stepping lost timeout 0 x 53 Did timeout at stepping backup Stepping move timeout 0 x 54 Did timeout at stepping movement Do move to inner and outer periphery of the stepping in the test mode? Do indicate "S-04" at the most inner periphery of the stepping? 1. Stepping motor 2. Inside switch 3. Driver ERROR CODE TABLE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Error Name No. Causes Check Item Possibility of Trouble Remarks SPINDLE ERROR (0 x 6∗) Spindle on error 0 x 61 Spindle on could not be completed Spindle off error 0 x 62 Spindle off could not be completed Spindle lost error 0 x 63 Spindle lost control Spindle CAV error 0 x 64 CAV on could not be completed Spindle CLV error 0 x 65 CLV on could not be completed SPINDLE TIMEOUT (0 x 7∗) Spindle on timeout 0 x 71 Did timeout at spindle on Spindle off timeout 0 x 72 Did timeout at spindle stop Spindle lost timeout 0 x 73 Did timeout at spindle backup Are not there a dirt or a scratch in the Disc? Is FG output from the driver? 1. Spindle motor 2. Spindle driver Spindle CAV timeout 0 x 74 Did timeout at CAV on Is spindle rotating? Is FG output from the driver? Is the PDM output from L6315? 1. Spindle motor 2. Spindle driver 3. Front End IC Spindle CLV timeout 0 x 75 Did timeout at CLV on ACQUISITION ERROR (0 x 8∗) PLL lost error 0 x 83 PLL is lost Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC ACQUISITION TIMEOUT (0 x 9∗) PLL lost timeout 0 x 93 Did timeout at PLL backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DECODER ERROR (0 x a∗) ID lost error 0 x a3 ID is not readable Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DECODER TIMEOUT (0 x b∗) ID lost timeout 0xb3 Did timeout at ID backup Are not there a dirt or a scratch in the Disc? 1. Pickup 2. Front End IC DEVICE ERROR (0 x d∗) SRAM error 0 x d1 Cannot access SRAM Power supply of SRAM Is not bus line short-circuiting? 1. SRAM 2. Front End IC 3. Front End-SRAM bus line FAILSAFE (0 x e∗) Unexpected error 0 x e1 Unexpected error 1. software runaway 3. Software bug www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Protection Specifications and Service Mode 1. Specific conditions for Service Test mode • VDET is neglected. • XPROTECT is neglected. • Even if the unit is urgently shut down in failure in Normal mode, you can turn it on without waiting for one minute. 2. How to enter Service Test mode • While connecting STEST port (IC5501 Pin43) to "+5V", connect AC power cord. (See next page.) 3. How to quit Service Test mode, and the conditions for quitting • To quit Service Test mode, turn the power off or disconnect the AC power cord. • When quitting Service Test mode, only data on protection in RAM are cleared. 4. Indications when Service Test mode starts • Indications on the FL display when Service Test mode starts differ depending on whether the unit was turned off normally or if the unit was urgently shut down because the abnormality of the power, as described below. Protection Specifications The system microcomputer (CONTRL Assy IC5501) for this unit always monitors if abnormality of the power is generated, and as soon as an abnormality is detected shuts off the power. The specifications of the microcomputer terminal for monitoring are as follows: In abnormal conditions or in failure, the TIMER LED flashes after the power is shut off. If the power was shut off because of an abnormality, it can be turned on by pressing the STANDBY/ON key. However, if the power was shut off because of failure, for one minute after a shutdown the STANDBY/ON key is disabled in order to protect against possible ignition of fumes. If the AC power cord is pulled out during this one minute of standby, when the AC power cord is reconnected, the STANDBY/ON key will still be disabled until the remaining seconds have elapsed. This unit has Service Test mode for analyzing the above power abnormality. Its specifications are as follows: ∗Vdd = Approx. 5 V (depending on the unit) 5. Operations during Service Test mode • Basically, operations in Service Test mode are the same as in Normal mode. However, to clarify that it is in Service Test mode, during this mode, when functions are changed, the indications on the FL display become as follows: W e l c o m e ! [After the power is turned off normally] [After the power is shut down because of an abnormality in the AMP system] FL display V o l u m e 0 FL display D V S E R V I C E FL display P R T C T W N G FL display V o l u m e 0 FL display D V S E R V I C E FL display P R T C T E R R FL display V o l u m e 0 FL display D V S E R V I C E FL display D V S E R V I C E DVD/CD T X S E R V I C E TUNER L 1 S E R V I C E LINE1 D V D P R T E C T FL display V o l u m e 0 FL display D V S E R V I C E FL display [After the power is shut down because of a failure in the AMP system] [After the power is shut down because of a failure in the DVD system] Name of microcomputer terminal XPROTECT (Pin 22) VDET (Pin 17) Monitoring item Abnormality of AMP-system power Short-circuiting of the SP terminal, etc. Abnormality of power inside the DVDM Assy Voltage at terminal In normal conditions 0.71× Vdd∗ or more 0.5 Vdd-0.85 Vdd∗ In abnormal conditions 0.36×Vdd–0.71× Vdd∗ In failure 0.36×Vdd∗ or less 0.85 Vdd∗ or more 0.5 Vdd∗ or less Monitoring start time 1.5 sec after power is turned on 1.5 sec after power is turned on Time required for determining abnormality 0.5 sec after detection 0.5 sec after detection [Functions] [Indications on the FL display] L 2 S E R V I C E LINE2 T V S E R V I C E TV [Functions] [Indications on the FL display] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 100 81 1 30 31 50 51 80 C5501 R5508 R5527 C5513 R5506 R5548 R5550 R5520 R5539 C5579 R5501 R5505 Q3003 R5578 R5504 R5581 C5503 R5509 C5502 R5565 R5569 R5507 R5560 R5561 R5547 R5546 D5575 R5567 R5598 C5514 R5545 R5596 R5563 C5792 C5515 C5504 R5564 R5568 R5543 R5538 R5535 R3707 R5518 C5507 R5534 C5506 R558 C5516 R5592 R5585 R5593 Q5571 C5508 C9999 R5594 R5549 R5541 Q8307 R5540 R5502 R5503 R5586 R5526 C5571 R5573 C5573 R5510 C5574 IC5501 R5572 R5571 R R5542 R5555 R5556 R5570 R5519 R5531 R5588 R5566 TEST UTEST XWZ3705 XWZ3706 XWZ3707 XWZ3710 XWZ3712 XWZ3713 XWZ3711 D VE+56 XWZ3704 XWZ3703 XWZ3709 XWZ3708 51 80 81 100 1 30 31 50 SIDE B SIDE B CONTROL ASSY Connecting point Service Test mode connecting point F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 To enter ID Number Input Mode, with no ID number set, such as in a case of immediately after upgrading the firmware, press the ESC key then the STEREO key. Note: If a previous ID number and ID data, such as a factory- preset ID number and ID data, are maintained, the unit enters ID Number Confirmation Mode when the above keys are pressed. However, if only an ID number is maintained, the unit enters ID Data Input Mode. ID Number Input Mode [Player's ID Number Setting] ID Number ? > - - - - - - - - - Exit Input ID Number ! 1 This display appears when the PLAY key is pressed in Step 4. Enter a 9-digit number to compare. The number is also displayed on the FL display. 6 By pressing the CLEAR key without having input a number, the unit returns to Step 2 without doing anything else. Each press of this key after a number has been input deletes one digit. 7 After entering all 9 digits, if you press the PLAY key, the unit compares the numbers input in Steps 2 and 6, and only if the numbers match, that number is set as the ID. Then the unit automatically enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Input Mode. 8 Enter a 9-digit ID number. The ID number is also displayed on the FL display. 2 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 3 After entering all 9 digits, if you press the PLAY key, the unit enters Compare mode. Enter the same ID number again. Only if your two input numbers match, the ID number is set. Compare mode helps eliminate mistyping of the ID number. 4 After entering all 9 digits, if you press the SEARCH key, the unit unconditionally sets the input number as the ID number. Then the unit automatically enters Player's Data Input Mode. (The SEARCH key is not accepted after all 9 digits have been entered.) 5 2 3 [Player's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! 4 5 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Input ID Number ! 6 [Player's ID Number Setting] ID Number ? 0 0 0 0 0 0 0 0 1 Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Input ID Number ! 8 Note: Enter ID numbers while the unit is in Stop mode so that the values set will be immediately written to the flash ROM. The following operations are all made with the TEST MODE remote control unit (GGF1067). Caution: For the DVD players compatible with DVD-RW, for playback of a DVD-RW disc (CPRM), it is necessary that an individual ID number and ID data are set for each player. If the ID number and ID data be not properly set in the manner described below, future operations cannot be guaranteed. The ID number is written on the yellow label at the rear panel of the player. If there is no yellow label, before downloading FLASH ROM, take note of the ID number set following the procedures outlined in "ID Number Confirmation Mode" on the next page. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 2 without doing anything else. Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 6 without doing anything else. 7.1.7 ID NUMBER AND DATA SETTING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 To enter ID Number Confirmation Mode after the ID number and the ID data are set, press the ESC key then the STEREO key. ID Number Confirmation Mode 1 The ID number already set is displayed. (It is also displayed on the FL display.) 2 Enter a 9-digit number for comparison. This is not required when you only wish to check the ID number visually. (The number is also displayed on the FL display.) 3 By pressing the CLEAR key without having input a number, you can exit this mode. Each press of this key after a number has been input deletes one digit. 4 After entering all 9 digits, if you press the PLAY key, the unit compares the number entered in Step 2 with the ID number set, and only if the numbers match, the unit automatically exits ID Number Confirmation Mode. If an ID data has not been entered, the unit enters ID DATA Input Mode. If the numbers do not match, the disc tray is opened, and the unit exits ID Number Confirmation Mode. 5 After entering all 9 digits, if you press the STOP key, the unit compares the number entered in Step 3 with the ID number set, and only if the numbers match, the unit automatically deletes the ID number and exits this mode. If the numbers do not match, the disc tray is opened, and the unit exits this mode. (The STOP key is not accepted after all 9 digits have been entered.) 6 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit Input ID Number ! 3 2 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > 0 0 0 0 0 0 0 0 1 OK? Enter Memory Clear Input ID Number ! 5 6 Note: If you press the PLAY button before inputting a 9-digit ID number, the unit returns to Step 4 without doing anything else. • Indication of an ID number already set An ID number already set is displayed in the following cases: 1) When the ESC key then the CLEAR key are pressed, user settings are cleared, then the ID number set is displayed on the screen. In this case, the ID number is not displayed on the FL display. 2) When the unit enters ID Number Confirmation Mode by your pressing the ESC key then the CLEAR key, the ID number set is displayed. In this case, the ID number is also displayed on the FL display. If you only need to confirm the ID number, you can exit this mode by pressing the CLEAR key or turning off the power. • Indication when no ID number is set If no ID number is set, the message "No ID Number!" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 To enter ID DATA Input Mode, with the ID number set, press the ESC key then the STEREO key. ID DATA Input Mode 1 When writing of the data read from the disc to flash ROM is completed, "Rom Write OK!" is displayed. After seeing this message, you can exit this mode by pressing the CLEAR key. 5 If the data cannot be read from the disc, "Disc Error!" is displayed on the screen, and the disc is ejected. 6 When the STEREO key is pressed, the unit enters ID DATA Input Mode. 2 If the DVD DATA DISC (GGV1085) is loaded in this mode, the unit automatically starts reading the data. (If the ID DISC has already been loaded, the unit does not start reading the data. In this case, open then close the tray.) 3 To exit this mode, press the CLEAR key. While data are being read from the DVD DATA DISC (GGV1085), you cannot exit this mode. 4 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1 ] Compare > ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ Exit ID Data Setting Mode Input ID Number ! 2 [Player's Data Input Mode] Exit Insert The ID Data Disc ! 4 [Player's Data Input Mode] Rom Write OK! Exit 5 [Player's Data Input Mode] Disc Error! Exit 6 Note: Whether or not the data have been written to flash ROM can be confirmed by watching for the message "Rom Write OK!" being displayed after the disc is read. • Indication when the data have not been set If no ID data are set after the ID number is changed, the message "NO ID DATA" flashes on the screen and FL display for a few seconds after the power is turned on or during Stop mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Microcomputer Section (CONTROL Assy : IC5501) Symptom Possible Cause Check Method • The unit cannot be turned on. The microcomputer was not reset. Check if the level of the terminal XRESET (Pin 8) is "H." If it is not, check the RESET circuit. The AC pulse is not input. Check if the AC pulse is input to Pin 4 of the AC input terminal. If it is not, check the AC pulse generation circuit. The oscillation circuit of the microcomputer does not function. The microcomputer or the oscillation circuit is broken. Change the microcomputer or the oscillation circuit. The unit shuts itself off soon after it is turned on. • If the Function is DVD, the voltage of the VDET input (Pin 17) is either 0.5 Vdd* or less or 0.85 Vdd* or more. • The voltage of the PROTECT input (Pin 22) is 0.71 Vdd* or less. If the voltage at Pin 17 of the VDET terminal of the microcomputer is either 0.5 Vdd or less or 0.85 Vdd or more, adjust so that it stays between 0.5 and 0.85 Vdd. • DVD does not operate at all. • Time is not displayed in FL display during DVD function. Communication with the DVD microcomputer has not been established. • Check that the terminal (Pins 23-25, 29, and 30) for communication with the DVD microcomputer is live, and if it is not, check if the flexible cable is disconnected. • Check if an "H" signal is output to Pin 93 of the XDVDRST terminal. All operation keys are disabled. The unit recognizes that an operation key has already been pressed. If no operation key has been pressed, check if the voltage at Pins 18 of the KEY input terminal is 5 V. If it is not, check if the operation switch on the line is in failure. * Vdd= Approx. 5V (depending on the unit) ex.) 0.85Vdd= 0.85 × 5 (V) = 4.25 (V) 7.1.8 TROUBLE SHOOTING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 DVD Section No. Symptoms Diagnosis Contents Possible Defective Points 1 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Is the level at both IC5501-pin 93 (XDVDRST) and pin 1(DVD ON/OFF) on the CONTROL Assy "H" ? µcom (CONTROL IC5501) Check the voltage of CN901-pin 28 and 29 (VPR+8) on the DVDM Assy. DVDM Assy CN901 Check that the following voltages are output : IC411-pin 3 : 1.8V, IC421-pin 3 : 1.8V and IC431-pin 1 : 5V on the DVDM Assy Each regulator on the DVDM Assy Are resonators (27MHz, 20MHz) on the DVDM Assy oscillating ? Crystal resonator (DVDM Assy X601 and X301) Refer to contents of an FE error displayed on the FL display. (SRAM defectiveness, I2C communication line defectiveness, etc.) FRONT END IC (DVDM IC301) • Is a signal input into IC601-pin 132 (CE3) on the DVDM Assy ? (Is a signal fluctuating for several seconds after the power is turned on ?) → Communication with flash ROM • Are the signals input into IC602-pin 16 (SMIWE), pin 19 (SMICS0) and pin 38 (SMICLK) on the DVDM Assy ? (Is a signal fluctuating ?) → Communication with flash ROM • BACK END IC (DVDM IC601) • Flash ROM (DVDM IC603) • 64M SDRAM (DVDM IC602) Is a signal output from IC603-pin 28 (CPU_OE) on the DVDM Assy? (Is a signal fluctuating for several seconds after the power is turned on ?) µcom (CONTROL IC5501) Is a signal input into IC5501-pin 67 (DVDACK) on the CONTROL Assy ? (Is a signal fluctuating ?) • BACK END IC (DVDM IC601) • Flash ROM (DVDM IC603) Is a signal output from IC5501-pin 29 and 30 (SYS_1, 2) on the AF Assy ? (Is a signal fluctuating in the range of 0-5V ?) µcom (CONTROL IC5501) Are the signals output from IC5501-pin 23, 24 and 25 on the CONTROL Assy? (in the range of 0-5V) µcom (AF IC5501) – BACK END IC (DVDM IC601) communication line 2 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) DVDM Assy • Video circuit • after BACK END IC (IC601) 3 A tray cannot be opened. (An opening screen is displayed on the monitor) • Are wires of CN103 on the DVDM Assy disconnected or damaged ? Connector / wire LOADING SW (LOAB S101) • Is a LOAD-DRVC signal reaching ? • Does the voltage of CN105 pin 1 change by pressing the Inside switch BACK END IC (DVDM IC601) Inside switch Check the video signal path between BACK END IC (DVDM IC601) and video-out terminal (see the block diagram) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 No. Symptoms Diagnosis Contents Possible Defective Points 4 Playback impossible (no focusing) Are the signals output from IC101-pin 34 (F_DRV) and pin 35 (F_RTN) on the DVDM Assy ? FTS Driver IC (DVDM IC101) Does 650-nm LD emit light ? Does a pickup lens move up / down ? Does an actuator spring bend ? Pickup • Are plastic parts damaged? Or is a shaft detached? • Is the turntable detached or tilted? Mechanism section Is flexible cable of CN101 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC301-pin 33 (FACT) on the DVDM Assy ? (Device control of about 2.6 V is output usually. It is fluctuated by about ± 100 mV with focus up / down.) FRONT END IC (DVDM IC301) 5 Playback impossible (Spindle does not turn) Are the signals output from IC101-pin 12 (A3), pin 13 (A2) and pin 14 (A1) on the DVDM Assy ? Is pin 41 fixed LOW and is pin 38 fixed HIGH ? FTS Driver IC (DVDM IC101) Is there any part detached from the spindle motor? Or Is there any foreign object lodged in it? Mechanism section (Spindle motor) Are wires of CN105 (DVDM Assy) disconnected or damaged ? Flexible cable / connector Is signal output from IC301-pin 44 (SPDL_PDM) on the DVDM Assy ? FRONT END IC (DVDM IC301) 6 Playback impossible (Playback stops) Does 650-nm LD deteriorate ? If the voltage at both ends of R201 on the DVDM Assy is 0.7 V or more, the 650-nm LD is definitely deteriorated. 650-nm LD deteriorated. (When playback of a DVD is impossible) Does 780-nm LD deteriorate ? If the voltage at both ends of R211 on the DVDM Assy is 1.5 V or more, the 780-nm LD is definitely deteriorated. 780-nm LD deteriorated. (When playback of CD is impossible) Is there abnormality in FG waveform ? FG output : FTS Driver IC (DVDM IC101) Are there scratches or dirt on the disc ? Disc 7 Picture disturbance during playback (block noise, freeze, other) 8 No sound (Picture is normal) Is signal output from DOUT signal (CN901-pin 21) on the DVDM Assy ? BACK END IC (DVDM IC601) Are there scratches or dirt on the disc ? Disc Is there a problem with the format of the disc? Disc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 IC8501-pin 21 Yes No Is output signal "L"? Is the screw is fastened at KN8102 (earth point)? Is connector inserted tightly ? • When a sound is not out in the surround mode with the digital signal input. • Suppose C,R parts to be poor contact and that is not damaged. • This shows failure analysis of DSP Assy. Step 1 Replace IC8501. Replace IC8702. Replace IC8901. IC8901 Yes No Is 5V inputting ? Step 2 IC8902 Check CN8003 and other assemblies. IC8702 No Do perform 3V→5V conversion for pin 17 ? Step 3 Pin 3 Yes No Is 3.3V outputting ? Replace IC8902. Yes End Yes Yes Replace IC8702. No Do perform 3V→5V conversion for pin 15 ? Pin 5 Replace IC8702. No Do perform 3V→5V conversion for pin 13 ? Pin 7 Yes Yes No Is 1.8V outputting ? No Insert it tightly. KN8102 Yes Yes No CN8003 Is connector inserted tightly ? No Insert it tightly. CN8007 Yes Is connector inserted tightly ? No Insert it tightly. CN8011 Yes End Tighten screws. A 7.1.9 DSP TROUBLE SHOOTING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Replace IC8701. Yes IC8701 No Do perform 5V→3V conversion for pin 17 ? Step 4 Pin 3 End Yes Replace IC8701. No Do perform 5V→3V conversion for pin 15 ? Pin 5 Replace IC8701. No Do perform 5V→3V conversion for pin 13 ? Pin 7 Replace IC8702. No Do perform 3V→5V conversion for pin 11 ? Pin 9 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 8 ? Pin 12 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 6 ? Pin 14 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 4 ? Pin 16 Yes Replace IC8702. No Do perform 3V→5V conversion for pin 2 ? Pin 18 Yes End Replace IC8701. No Do perform 5V→3V conversion for pin 11 ? Pin 9 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 8 ? Pin 12 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 6 ? Pin 14 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 4 ? Pin 16 Yes Replace IC8701. No Do perform 5V→3V conversion for pin 2 ? Pin 18 Yes Yes A B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Step 5 End Replace IC8201. Replace IC8201. Is SPDIF signal coming? (be different with Function) IC8201 IC8502-pin2 Yes Check the other assemblies. (AF Assy or DVDM Assy) Check the OPTICAL IN line. (Optical Input Jack or Connectors) Check the other assemblies. (periphery of microcomputer on the AF Assy) No Check the DVD/CD (pin 7). Yes No Check the OPTICAL IN (pin 48). Yes Yes No Is MCKO1 (pin 23) outputting it? No Is LRCK (pin 24) outputting it? Replace IC8201. Yes No Is SDTO (pin 25) outputting it? Replace IC8201. Yes No Is BCK (pin 26) outputting it? Replace IC8502 or X8501. Yes No Is 20MHz clock outputting it? Yes No Is input signal of PDN (pin 31) "H"? Is output signal of INT0 (pin 36) "H"? Yes No Do not oscillate of XTO (pin 29)? Yes No Note: X8201 oscillates only in analog input. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Yes IC8501 Step 6 End Replace IC8501. No Pin 4 Does a signal output it? Yes Replace IC8501. No Pin 5 Does a signal output it? Yes Replace IC8501. No Pin 6 Does a signal output it? Yes Replace IC8501. No Pin 7 Does a signal output it? Yes IC8401 Step 7 End Replace IC8401. No Pin 21 Does a signal output it? Yes Replace IC8401. No Pin 22 Does a signal output it? Yes Replace IC8401. No Pin 23 Does a signal output it? Yes Replace IC8401. No Pin 24 Does a signal output it? Yes Replace IC8401. No Pin 25 Does a signal output it? Yes Replace IC8401. No Pin 26 Does a signal output it? Yes Replace IC8401. No Pin 27 Does a signal output it? Yes Replace IC8401. No Pin 28 Does a signal output it? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Reset Start Demonstration mode ? Yes : Power ON Yes No No Microcomputer initialization Model identification Standby setting • It starts when the XRESET terminal (Pin 8) is "H" level. • The inputs to Pins 15 and 16 are inspected and the model identification is performed. Demonstration mode permission Demonstration mode System power supply on DVD microcomputer start-up Relay release Demonstration mode or Normal power ON mode • The level of the POWER terminal (Pin 91) is "H". • Only in DVD function, the level of the DVD RESET terminal (Pin 93) is "H". • The speaker relay is turned on about four seconds after the power is turned on. • The level at the RELAY ON/OFF terminal (Pins 34 and 35) are "H." • The conditions are different depending on whether the headphones are connected via the Headphones jack, or on the DPS mode. • If no pulse is input to the AC terminal (Pin 4) for about 60 msec when the microcomputer is in Memory Backup mode, it will not do any processing. • The unit will recover from Memory Backup mode if a reset command is input to the XRESET terminal (Pin 8). • The system mute is released about four seconds after the power is turned on. The level of the SYSMUTE terminal (Pin 94) is "H". • Muting is not released in the following cases. • When the main volume is 0. • When the digital LINE 2 function input signal is not locked, or when the DSP MUTE terminal (Pin 87) is in error. • Whether Demonstration mode is entered or not can be determined by inspecting the backup data. • The default setting is "Demonstration mode OK." Standby Initialization routine Main loop processing Microcomputer IC (PDC104A) (CONTROL Assy : IC5501) 7.1.10 SEQUENCE AFTER POWER ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 If the TIMER LED on the front panel flashes, check the protection circuit. Note: If the protection circuit activates, the unit will not recover for 60 seconds even if the AC power cord is disconnected then reconnected. If you activate Service Test mode, the protection circuit becomes invalid, which makes diagnosis easy. (To activate Service Test mode, while connecting STEST port (IC5501 Pin43) to "+5V", connect AC power cord.) There are three types of operations for the protection circuit, which are indicated on the FL display when Service Test mode is entered: PRTCT WNG: The unit was shut down because of an abnormality in the AMP system. (The PROTECT line operates at the MID level.) PRTCT ERR: The unit was shut down because of a failure in the AMP system. (The PROTECT line operates at the LO level.) DVD PRTECT: The unit was shut down because of a failure in the DVD system. (The VDET line operates at the HI or LO level.) Conditions for the protect circuit operations Protection circuit that activates against a PRTCT WNG error Voltage Conditions FL display in Service Test mode PROTECT HI level >3.55V Normal MID level 1.8V - 3.5V The unit is shut down because of an abnormality. PRTCT WNG LO level <1.8V The unit is shut down because of a failure. PRTCT ERR VDET HI level >4.25V The unit is shut down because of a failure. DVD PRTECT MID level 3.3V Normal LO level <2.5V The unit is shut down because of an abnormality. DVD PRTECT The possible failures for each error message are as follows: PRTCT WNG: • The Speaker terminal became overloaded because of short-circuit. (See 1.) PRTCT ERR: • The main power supply became LO level because of short-circuit or disconnection of connectors. (See 2.) • Disconnection of the FAN connector or interruption of rotation of the fan (See 3.) • DC was generated at the output because of a failure in the AMP system, etc. (See 4.) • Abnormal temperature was detected by the thermistor. (See 5.) DVD PRTECT: • An error was generated in the main power supply inside the DVDM. (See 6.) 1 When the Speaker terminal becomes overloaded Q3601 Q3639 Q3640 B E C +5V D3603 DAP202K C3633 10/50 D3601 R3607 0.1 R3639 27k R5559 270k R108 27k Front L ch to XPROTECT GND FL R3601 1.8k R3603 33k B A VD+5 + POWER Assy J 6CH AMP Assy D TRADE2 Assy H In Normal mode, the speaker (6 ohms) is connected between the FL and GND FL points. Because the voltage at Point A is higher than that at Point B, Q3601 does not operate. If the resistance between the FL and GND FL points becomes 1.83 ohms or less, Q3601 begins to operate, Q3639 is turned on, Q3640 (E, C, and B)is turned on, and the level of XPROTECT becomes MID. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. 7.1.11 PROTECTION CIRCUIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Protection circuit that activates against a PRTCT ERR error B A A C101 (C102) 1/50 + + to XPROTECT (µ-com) 6CH AMP Assy D R108 27k R101 (R104) 1k R102 (R105) 10k R103 (R106) 10k R109 820 D105 (D106) Q102_1/2 (Q104_1/2) Q102_2/2 (Q104_2/2) Q101_1/2 (Q103_1/2) Q101_2/2 (Q103_2/2) D101 (D102) VD+5 VD+5 VH+ (VP+15) VH– (VA–12) 2 -1 Short-circuit-detection circuit for the amplifier power circuit (VH+[VP+15], VD+5, -12 V [VA-12]) Circuit for shutting the power off when VP+15, VD+5, or VA-12 is short-circuited to ground (GND) 2 -3 Short-circuit-detection circuit for VFDP 2 -2 Short-circuit-detection circuit for the DVD power supply (VP+8) XPROTECT TUNER 6CH AMP Assy D VD+5 R108 27k D104 1SS355 Q106 DTC124EUA Q107 DTA124EUA VP+8 • In Normal mode, as Q101 (Q103) (E2, B2, C2) and Q102 (Q104) (E2, B2, C2) are on, the voltage at Point A is about 5 V. The voltage at Point B is therefore about the same. As Q101 (Q103) (E, C, B) is off, Q102 (Q104) (E, C, B) is also off. (1) When VH+(VP+15) is short-circuited to GND As the voltage at Point B becomes almost ground potential, and Q101 (Q103) (E, C, B) then Q102 (Q104) (E, C, B) are turned on, the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. (2) When VH-(VA-12) is short-circuited As the electric potential of VE at Q102 (Q104) (E2, C2, B2) becomes the same as that at VB, Q102 (Q104) (E2, C2, B2) is turned off. Following this, Q101 (Q103) (E2, B2, C2) is turned off, which changes the voltage at Points A and B to a value other than 5 V. Therefore, Q101 (Q103) (E, C, B) then Q102 (Q104) (E, C, B) are turned on, the level of XPROTECT becomes low. (3) When VD+5 is short-circuited The level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. C C E to XPROTECT (µ-com) R108 27k R112 1k R113 220k R114 82k Q115 DTA124EUA Q114 2SD2114K (VW) VD+5 FL AC2 VA-12 E B B B2 B2 E2 E2 C2 C2 As the TUNER line is fixed to GND level, Q107 is always on. If the level at VP+8 falls to GND level because of short-circuit, etc., Q106 is turned on, and the level of the XPROTECT line becomes low. ← The microcomputer detects the XPROTECT level and shuts the power to the unit off. TRADE2 Assy H 6CH AMP Assy D to XPROTECT (µ-com) R108 27k Q3651_2/2 RN1901 Q3651_1/2 RN1901 C2 C E B E2 B2 VD+5 FAN+ VPF+15 V-12F R3654 1.8k D3658 UDZS7.5B D3657 1SS355 D3655 1SS133 D3651-D3654 1SS133×4 R3655 8.2k R3656 22k R3658 2.2k R3657 33(1/4W) Q3652 DTA124TK Q3654 2SD2144S C3652 47/50 6CH AMP Assy D If VFDP is short-circuited to GND, or if the DC electric potential at FL AC1 becomes GND level (in Normal mode: about -27 V) because of a failure in the DC bias circuit of FL AC1, Q114 then Q115 are turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. 2 When the main power supply becomes LO level because of short-circuit or disconnection of connectors 3 When the FAN connector is disconnected or when rotation of the fan is interrupted FAN– If no fan is connected between FAN+ and FAN-, or when the fan cannot rotate because of a foreign object caught in the blades, the BASE of Q3652 becomes OPEN, and Q3652 and Q3651-1/2 (E, C, B) are turned off. Then Q3651-2/2 (E2, B2, C2) is turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. When FAN+ and FAN- are short-circuited, the electric potential at Point A becomes higher than GND level by the addition of the values at D3656 and D3657. As this value is lower than that at D3658, Q3651 (E, C, B) is turned off, Q3651 (E2, B2, C2) is turned on, and the level of XPROTECT becomes low. * ( )means the wiring No. of VP+15 line. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 4 When DC is generated at the output because of a failure in the AMP system, etc. 5 When abnormally high temperature is detected by the thermistor R3605 (R3625) (R3615) 27k R3606 (R3626) (R3616) 27k R3638 10k Front L ch (SW, SL) +5V C3632 470/6.3 Q3637 Q111 2SC4081 R113 220 IC81 NJM7805FA R112 1k TH111 NCP18WF104J03RB R111 1k Q3638 Q3632 Q3633 B C E + XPROTECT to XPROTECT POWER Assy J R108 27k VD+5 VD+5 6CH AMP Assy D 6CH AMP Assy D Front R ch (C, SR) • In Normal mode, both Q3637 and Q3638 are off. (1) When positive (+) DC voltage is generated at the SP terminal When positive (+) DC voltage is generated at the L or R channel, and VB of Q3637 becomes higher than that at the operation point, Q3632 (E, C, B) is turned on, and the level of XPROTECT becomes low. → The microcomputer detects the XPROTECT level and shuts the power to the unit off. (2) When negative (-) DC voltage was generated at the SP terminal Q3638 is turned on, and XPROTECT is activated. 5 -1 IC81 abnormal temperature detection circuit A The voltage at Point A becomes the divided voltage of TH111 and R111//R112 (combined resistance of parallel-connected resistors R111 and R112.) In Normal mode, the resistance at TH111 is much higher than R111//R112, and Q111 is off. (Note that the resistance at TH111 becomes lower as the temperature increases.) If the solder temperature at IC81 increases abnormally, the temperature at TH111 (thermistor) mounted closest to the land of IC81 increases accordingly, and the resistance at TH111 decreases. When the temperature at TH111 reaches 90-110_C (varying according to conditions,) the voltage at Point (A) becomes high enough to turn Q111 on, and the level of the XPROTECT line becomes low. The microcomputer detects the XPROTECT level and shuts the power to the unit off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Protection circuit that activates against a DVD PRTECT error 6 The DVDM monitors the voltage of the main power supply by VDET signals. In Normal mode, the VDET signal is at the MID level (3.3 V). In the following conditions, the VDET signal level becomes L or H, and the microcomputer is notified of this abnormality. DVDM Assy B CONTROL Assy F R929 10k R930 10k R928 4.7k R927 47k Q924 Q923 R922 470 D922 D923 D924 IC5501 PDC104A Q922 Q925 D925 D927 D926 D921 UDZS4.7B Q926 Q921 V+5 V+12 R921 470 R5591 1M R5588 220 C921 0.1 V+3R3 R933 15k R934 10k V+12 V+5 V+6 R925 0 R924 10k R923 47k VPR+8 V+12 V+12 R931 47k C5580 0.01 17 20 8 VDET Through TRADE2 POWER CN5502 CN901 µcom Items to be detected by VDET (1) When the power voltages inside the DVDM become abnormal, as shown in the table below (2) When the VDET signal to the microcomputer is interrupted because of defective soldering of the 30-pin connector or incomplete insertion of FFC → The VDET level is lowered by the pull-down resistor (1 Mohms) on the side of the microcomputer. Status Power Voltage Operation VDET voltage Q923 Q924 Q922 Q921 D921 D922 Q926 Q925 In Normal mode off off off off off off off off Mid When an abnormality is generat VDVD+12 <1V (on) (on) (on) (off) off on off off L >15.5V off off off off off off on on L VPR+8 <5.2V − off off off off − on on L >12.6V − on on on on − off off H V+6 <3V − − − − − − on on L V+5 <3.6V − off off off off − on on L >6.6V − on on on on − off off H V+3R3 <2.5V − − − − − − − − L >4.25V − − − − (on) − − − H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 • The base voltage at Q3631 is a voltage between Points A and B divided by R3633 and R3634. As this voltage is negative (-) in Normal mode, Q3631 is off. When the AC power cord is disconnected and there is no AC power input, the base voltage at Q3631 becomes +0.6 V or more, and Q3631 is turned on. Then, the operations below follow. (1) SP Relay Q3632 (E2, C2, B2), Q3633, and Q3636 (E, C, B) are turned on, the line to activate the SP relay becomes low level, and the SP Relay is turned off. (2) HP MUTE Q3635 is turned on, and the MUTE circuit for HP is turned on. Other protection circuit AC detection circuit 7 This is a protection circuit that prevents popping sounds in the Speaker and Headphones output when the AC power cord is connected or disconnected. POWER Assy J • The voltage at Point A is a DC voltage which has been generated by half-wave rectification on the minus side of the AC power. • The voltage at Point B is approx. 5 V. Q3633 Q3636 Q3632 Q3635 Q3631 D3636 D3634 R3634 4.7k R3633 10k D3635 DAN202K R3641 10k B C C2 B2 E2 E + RYF to SP Relay Circuit to SP Relay Circuit to HP MUTE VD+5 VH+ R3632 33k R3631 33k R3642 1k RYR ACB B A D3631 MTZJ5.1A D3633 D3632 C3631 2.2/50 R3635 3.3k www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Note: For performing the diagnosis shown below, the following jig cables for service are required: • GGD1266 (×2) • GGD1222 • GGD1160 1 Remove the bonnet by removing the seven screws. 2 Press the STANDBY/ON button to turn on the power. 3 Press the 0 OPEN/CLOSE button to open the tray. 4 Remove the tray panel. 5 Press the 0 OPEN/CLOSE button to close the tray. 6 Press the STANDBY/ON button to turn off the power. Bonnet and Tray panel 1 1 Set the test disc. 2 Press the 0 OPEN/CLOSE button to close the tray. (The test disc is clamped.) 3 Press the STANDBY/ON button to turn off the power. 4 Pull out the power cord from the outlet Test disc set 2 3 5 2 4 2 6 3 2 3 5 Tray panel Tray Tray Test disc 1 How to open the Tray when the power cannot be on Slit Tray open Drive gear Loading Mecha. Assy Screwdriver (small) Screwdriver (small) Projection Insert a screwdriver (small) into the slit located at the bottom of the unit, and slide the projection of the drive gear in the Loading Mecha. Assy in the direction of the arrow, as indicated in the photo. If the Tray pops out a little, fully pull it out by a hand. Bottom View 7.1.12 DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 Remove the two screws. 2 Remove the one screw. 3 Remove the four hooks. 4 Disconnect the two flexible cables. 5 Remove the front panel section. Front panel section 3 1 Remove the four screws. Note: This photograph shows other models. However, the work method is the same. 2 Remove the two screws. 3 Disconnect the two flexible cables. 4 Disconnect the two connectors. 5 Remove the CONTROL Assy. CONTROL Assy 4 × 2 1 2 5 3 4 4 3 2 4 3 5 2 3 3 1 1 1 1 Front panel section CONTROL Assy CONTROL Assy CN5611 CN5701 CN5502 CN5501 CN8301 CN3902 Rear View F F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 6 Connect the two jig cables. 7 Be sure to connect the GND terminal of the DSP ASSY (DSP Holder) to the rear panel (chassis) by the lead wire. Note : If the Power is turned On when the DSP Holder (DSP GND) is not connected to the rear panel (chassis), the parts below may be destroyed at the DSP ASSY. IC8702 : TC74VHCT244AFT IC8401 : AK4529VQ R8415 : 4.7Ω If the above parts are destroyed, the audio signal can not be out. Front Panel section CONTROL ASSY Jig cable (GGD1266) 6CH AMP Assy Ground Line (Chassis–DSP Holder(DSP GND)) 6 7 F D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 Remove the two screws. 2 Remove the two flexible cables. 3 Remove the Loading Mecha. Assy. 4 Reverse the Loading Mecha. Assy. 8 Reattatch the CONTROL Assy. 9 Reattatch the front panel section. Arrange the Loading Mecha. Assy and the DVDM Assy as shown in the photo below. 10 11 Connect the two jig cables. 5 Remove the three hooks. 6 Remove the two screws. 7 Remove and reverse the DVDM Assy. Diagnosis of DVDM Assy 5 1 1 6 6 Loading Mecha. Assy CONTROL Assy TRADE 2 Assy Jig cable (GGD1266) Front panel section DVDM Assy 6CH AMP Assy POWER Assy Spacer Spacer Spacer Loading Mecha. Assy (Reverse state) DVDM Assy 3 2 2 7 5 8 9 5 5 Bottom View (Rear side) Diagnosis Jig cable (GGD1160) Jig cable (GGD1222) 11 11 CN923 CN901 CN8801 CN8801 CN5102 CN5102 B J D H F B Ground Line (Chassis–DSP Holder(DSP GND)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 Remove the bridge by removing the one screw. 2 Pull out the tray, then remove it by pressing the hook. 3 Short-circuit two points of C and D by soldering. (*1) 4 Remove the four connectors from the Loading Mecha. Assy. Note: After replacement, connect the flexible cable, then remove the soldered joint (open). 5 Remove the four screws that secure the Loading Mecha. Assy to the unit. *1 : To protect from the electrostatic resisting pressure. Loading Mecha. Assy 1 Rear View Front Side 1 3 -1 1 -2 2 -1 2 -2 Loading Base Triangle Drive Cam Pin Hook Bridge Tray Note when reinserting the Tray C D Removing the Traverse Mecha. Assy-S and Pickup Assy-S When reinserting the Tray, first align the triangle printed on the Loading Base and the pin of the Drive Cam, then insert the Tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 Dislodge the flexible cables from their packaged placement. 2 Remove the four hooks. 3 Remove the Traverse Mecha. Assy-S. Traverse Mecha. Assy-S 2 × 2 Bottom View Traverse Mecha. Assy-S Flexible cable for the pickup Flexible cable for the spindle motor 1 1 1 2 × 2 2 3 Flexible cable for the stepping motor Front Side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 1 Dislodge the flexible cable for the pickup from its packaged placement. 2 Remove the flexible cable for the pickup. 3 Remove the two skew screws and two skew springs. 4 Remove the Pickup Assy-S. Pickup Assy-S 3 Note: The Pickup Assy-S can be removed without removing the Traverse Mecha. Assy-S. (shown as Step ø.) Bottom View Flexible cable for the pickup 1 4 3 3 1 2 Front Side Pickup Assy-S Adjustment screw (Skew screw) Adjustment screw (Skew screw) Skew spring Skew spring www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 121 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 5 5 5 Remove the two screws. Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Pickup Assy-S Note: The screws are secured with epoxy. Make sure to apply epoxy after reattaching the screws. Leaf Spring Joint Spring Joint 03 : Conductive surface Hook Hook Arrangement of the flexible cable for the spindle motor : Conductive surface Arrangement of the flexible cable for the stepping motor Front Side Front Side Bottom View Bottom View www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 122 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Front Side Note: Be sure to move the Pickup Assy-S to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 2 1 3 7 Attach the flexible cable of the pickup to the connector 1 Fold the flexible cable inward at the position of the reference line 3 Fold the flexible cable of the pickup with the backing inward 7 Pass the flexible cable below the hook, and fold it back 8 Fold the flexible cable back at the hook 9 Fold the flexible cable along the hook 4 Pass the flexible cable through the hook not allowing any slack 6 Hook the part folded in Step 1 to the hook 5 Fold the flexible cable as indicated in the photo Hook Bottom View 5 6 Make sure there is no slack in the cable Reference line Reference line Backing 97mm ± 2mm Reference line Hook Pass the cable below the hook Hook 8 Hook Hook 9 Make sure that the cable does not have any slack Make sure that the cable is loose 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 123 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 7 STM6316ATXXA (DVDM ASSY : IC301) • FRONT END IC ¶ Block Diagram • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC STM6316ATXXA, STM5589CVA, M63108FP, PDC104A, BU1924F 7.2 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 124 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 ¶ Pin Function . o N e m a n N I P n o it p ir c s e d li a t e d 1 F E R I F k 7 . 2 1 tr a p e c n e r e f e r k c olb g ola n A 2 I A D N G A D N G d n g g ola n a 3 N I F R r o tic a p a c k c olb n oit alu d o m e d a o t t u p ni n oit aic o s s a C la n gis F R 4 T U O F R r o tic a p a c k c olb g ola n a n a m o rf g nitsil e r u txi m 4 B + 3 B + 2 B + 1 B 5 8 1 A C C V A 8 V 1 8 V 1 g ola n a 6 A 1 B t u p ni 1 B - U P 7 N M D N G A D N G d n g g ola n a 8 B 2 B t u p ni 2 B - U P 9 N M 3 3 C C V A 3 V 3 3 V 3 g ola n a 0 1 D F E R p u k cip o t U P r o f t u p t u o 1 V 2 1 1 N M 8 1 C C V A 8 V 1 8 V 1 g ola n a 2 1 D 4 B t u p ni 4 B - U P 3 1 S I 8 1 A C C V A 8 V 1 8 V 1 g ola n a 4 1 C 3 B t u p ni 3 B - U P 5 1 S I 3 3 A C C V A 3 V 3 3 V 3 g ola n a 6 1 S I A D N G A D N G d n g g ola n a 7 1 D S 3 3 C C V A 3 V 3 3 V 3 g ola n a 8 1 D S 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 1 D S D N G A D N G d n g g ola n a 0 2 F C t u p ni C m a e b 3 - U P 1 2 E A t u p ni A m a e b 3 - U P 2 2 S I D L E I H S V A D N G d n g g ola n a 3 2 C D A 8 1 C C V A 8 V 1 8 V 1 g ola n a 4 2 C D A D N G A D N G d n g g ola n a 5 2 C D A D L E I H S V A D N G d n g g ola n a 6 2 C A D 3 3 C C V A 3 V 3 3 V 3 g ola n a 7 2 C A D D N G A D N G d n g g ola n a 8 2 E L D N I P S ) 2 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 9 2 E G D E L S ) 1 ts ( m h o 0 6 5 e vir d r e p p e ts r o f g nitsilt n e rr u c C A D 0 3 T X E F E R % 1 K 0 2 C A D r o f e c n e r e f e R 1 3 D N G F E R tx e f e r d n g g ola n a 2 3 C A D F E R % 1 m h o 0 6 5 e c n e r e f e r C A D 3 3 T C A F % 1 m h o 0 6 5 s u c o f r o f g nitsilt n e rr u c C A D 4 3 T C A T % 1 m h o 0 6 5 g nik c a rt r o f g nitsilt n e rr u c C A D 5 3 C A D 8 1 C C V A 8 V 1 8 V 1 g ola n a 6 3 0 C P G F t u p ni e slu p G F 7 3 1 C P S P la n gis lo rt n o c r e vir D 8 3 2 C P ) n e p o ( 1 W S y a rt n oitis o p N E P O y a rt r o f t u p ni W S 9 3 3 C P B S la n gis lo rt n o c r e vir D 0 4 4 C P n oitis o p D L S t u p ni W S e dis n I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 125 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 . o N e m a n N I P n o it p ir c s e d li a t e d 1 4 S S V D D N G d n g la tigid 2 4 3 3 D D V D 3 V 3 3 V 3 la tigid 3 4 5 C P 0 5 6 X / 0 8 7 la n gis lo rt n o c e g n a h c D L m n 0 5 6 / m n 0 8 7 4 4 6 C P M D P e d nip s e vir d eld nip s r o f g nitsil M D P lo rt n o C 5 4 7 C P nia g cip o la n gis lo rt n o c nia g C I E O 6 4 7 D P U P 2 0 X / U P 3 0 t n e m eltt e s p u -llu P 7 4 S S V D D N G d n g la tigid 8 4 8 1 D D V D 8 V 1 8 V 1 la tigid 9 4 6 D P ) g u b e d ( ts e t 0 5 5 D P ) g u b e d ( ts e t 1 5 4 D P ) klc P S D ( ts e t 2 5 3 D P ) a t a d P S D ( ts e t 3 5 2 D P ) 1 b rts P S D ( ts e t 4 5 1 D P r o tin o m r o rr e ) d e e n d d a F P L z H K 0 3 ( r o tin o m r o rr e G K R T r o f la ni m r e T 5 5 0 D P e vir d M D P y a rt e vir d y a rt r o f la n gis M D P lo rt n o C 6 5 S S V D D N G d n g la tigid 7 5 3 3 D D V D 3 V 3 3 V 3 la tigid 8 5 R R E _ T U O R O R R E _ S R F /I A T A D E B 9 5 D I L A V E _ T U O N E _ R R E _ S R F /I A T A D E B 0 6 S S V D D N G d n g la tigid 1 6 K L C _ T U O K L C B _ S R F /I A T A D E B 2 6 8 1 D D V D 8 V 1 8 V 1 la tigid 3 6 D I L A V D _ T U O D I L A V D _ S R F /I A T A D E B 4 6 A T A D _ T U O A T A D _ S R F /I A T A D E B 5 6 C N Y S _ T U O T S B C C E _ S R F /I A T A D E B 6 6 5 E P ) A M D ( L C S t u p ni d a oln w o d e nit u o r E F 7 6 4 E P ) A M D ( A D S t u p ni d a oln w o d e nit u o r E F 8 6 3 E P L C S F /I d n a m m o c E B 9 6 2 E P A D S F /I d n a m m o c E B 0 7 1 E P ) e s olc ( 2 W S y a rt n oitis o p E S O L C y a rt r o f t u p ni W S 1 7 0 E P T N I X X D la n gis n oit a g a p o r p s u t a ts E F 2 7 S S V D D N G d n g la tigid 3 7 3 3 D D V D 3 V 3 3 V 3 la tigid 4 7 1 F P p ullu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 5 7 0 F P n w o dllu p - K 0 1 la ni m r e t g nitt e s ytilic a f ni-tliu B 6 7 S S V D D N G d n g la tigid 7 7 8 1 D D V D 8 V 1 8 V 1 la tigid 8 7 1 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 9 7 0 G P R O T A L U M E o t la ni m r e t g nitt e s ytilic a f ni-tliu B 0 8 T S E T n w o dllu p - K 0 1 ts e t www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 126 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 . o N e m a n N I P n o it p ir c s e d li a t e d 1 8 N _ T E S E R T E S E R t u p ni T E S E R 2 8 C D A S S V A D N G d n g g ola n a 3 8 C D A 8 1 D D V A 8 V 1 8 V 1 g ola n a 4 8 L L P D N G A D N G d n g g ola n a 5 8 F F O L L P A D N G d n g g ola n a 6 8 T U O E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 7 8 N I E R F la t X M 0 2 tiu c ric g nit allic s o K L C M E T S Y S 8 8 L L P 8 1 C C V A 8 V 1 8 V 1 g ola n a 9 8 1 D L D L m n 0 5 6 la n gis g nivir d D L m n 0 5 6 0 9 2 D L D L m n 0 8 7 la n gis g nivir d D L m n 0 8 7 1 9 3 3 A C C V A 3 V 3 3 V 3 la tigid 2 9 L E S W T D N G / R V _ D C D C r o f la ni m r e t n oitc n uj R V s e d oid r o tin o M 3 9 1 D M L 1 D M L / D M L la ni m r e t n oitc n uj e g a tlo v r o tin o M 4 9 2 D M L 2 D M L / R V _ D V D D V D r o f la ni m r e t n oitc n uj R V s e d oid r o tin o M 5 9 L D N G A D N G d n g g ola n a 6 9 M P _ T S T c n t e st 7 9 E C I L S _ T S T c n ts e t 8 9 C D A _ T S T c n ts e t 9 9 D C A S F R C I _ D C A S t u p t u o la n gis F R 0 0 1 T L I F G B V r o tic a p a c ytilib a ts e c n e r e f e r e dis ni r o f la ni m r e t n oitc n uj r e s n e d n o C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 127 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 7 STM5589CVA (DVDM ASSY : IC601) • BACK END IC ¶ Pin Function . o N e m a N n i P .ri D n o it c n u F n i P 1 O S _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .t u p t u o a t a d r e fs n a rt la ir e S 2 3 A T A D _ A T U O d e v r e s e r 3 K L C V T U O d e v r e s e r 4 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 5 S S V - d n u o r G 6 A T A D _ B T U O d e v r e s e r 7 K L C B _ B T U O d e v r e s e r 8 G A L F _ B T U O d e v r e s e r 9 S O P Y R T T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O .t u p n i e sl u p n o it a t o r y a r T . d e s u e b n a c 0 N I _ E R U T P A C 0 1 E Z E E U Q S T U O .lo rt n o c 2 S / 1 S t u p t u o o e d i V - S r o f la n g is t u p t u O . e d o m t u p t u o e z e e u q s : ' H ' 1 1 S T R T U O .t u p t u o la n g is d n e S o T ts e u q e R ) C 2 3 2 - S R ( T R A U 2 1 R E T T E L T U O N O I T C N U F ( r o tc e n n o c ) T R A C S ( O R U E & lo rt n o c 2 S / 1 S t u p t u o o e d i V - S r o f la n g is t u p t u O .la n g is ) G N I H C T I W S . e d o m t u p t u o x o b -r e tt e l: ' H ' 3 1 S T C N I .t u p n ila n g is d n e S o T r a e l C ) C 2 3 2 - S R ( T R A U 4 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 5 1 S S V - d n u o r G 6 1 A T A D _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i a t a d la ir e S 7 1 K L C B _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i k c o lc la ir e S 8 1 D I L A V D _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i g a lf d ila v a t a D 9 1 C N Y S _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .t u p n i g a lf e zi n o r h c n y s la ir e S 0 2 D I L A V E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .til p s _ S R r o f g a lf d ila v r o rr E 1 2 T S B C C E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F .til p s _ S R r o f g a lf tr a ts k c o l b C C E 2 2 P X /I T U O .r e vir d o e d iv r o f t u p t u o e vis s e r g o r P / e c a lr e t n i f o e g n a h c a r o f la n g is t u p t u O e c a lr e t n i: ' H ' e vis s e r g o r p : 'L ' 3 2 B G R _ D D V - yl p p u s r e w o P V 3 . 3 ti u c ric B G R 4 2 B G R _ S S V - d n u o r G ti u c ric B G R 5 2 T U O _ B T U O b C / B 6 2 T U O _ G T U O Y / G 7 2 T U O _ R T U O r C / R 8 2 B G R _ F E R V N I e c n e r e f e r C A D B G R 9 2 B G R _ F E R I N I e c n e r e f e r t n e rr u c C A D B G R 0 3 C C Y _ D D V - yl p p u s r e w o P V 3 . 3 ti u c ric C Y 1 3 C C Y _ S S V - d n u o r G ti u c ric C Y 2 3 T U O _ Y T U O Y 3 3 T U O _ C T U O C 4 3 T U O _ V C T U O V C 5 3 C C Y _ F E R V N I e c n e r e f e r C A D C C Y 6 3 C C Y _ F E R I N I e c n e r e f e r t n e rr u c C A D C C Y 7 3 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 8 3 S S V - d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 128 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 . o N e m a N n i P .ri D n o it c n u F n i P 9 3 E T U M V R D X T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI .r e g n a h C c si D 5 yl n O . g n it u m r e vir d r o t o m r o f la n g is t u p t u O g n it u m : 'L ' 0 4 N E P O T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p y a rt r o f la n g is t u p n I . n o itis o p N E P O e t e l p m o c : ' H ' 1 4 E S O L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p y a rt r o f la n g is t u p n I . n o itis o p E S O L C e t e l p m o c : ' H ' 2 4 P M A L C T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p p m a lc c si d g n i w o h s r o f la n g is t u p n I . n o itis o p p m a lc c si d e t e l p m o c : ' H ' 3 4 P M A L C N U T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . n o itis o p p m a lc - n u c si d g n i w o h s r o f la n g is t u p n I . n o itis o p p m a lc c si d e t e l p m o c : ' H ' 4 4 S N S _ C S I D T U O .r e g n a h C c si D 5 t p e c x e d e tc e n n o c t o n si tI N I .r e g n a h C c si D 5 yl n O . g n itsix e c si d r o f la n g is t u p n I g n itsix e : 'L ' 5 4 2 E T U M V R D X T U O d e v r e s e r 6 4 x - P T T U O d e v r e s e r 7 4 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 8 4 M C P _ D D V - yl p p u s r e w o P V 8 . 1 9 4 M C P _ S S V - d n u o r G 0 5 S S V - d n u o r G 1 5 K C B _ A T U O k c o lc C A D o i d u A 2 5 0 A T A D _ A T U O a t a d R , L t n o r F C A D o i d u A 3 5 1 A T A D _ A T U O d e v r e s e r 4 5 2 A T A D _ A T U O d e v r e s e r 5 5 K L C M _ A T U O k c o lc r e ts a M C A D o i d u A 6 5 K C R L _ A T U O k c o lc R / L C A D o i d u A 7 5 T U O D _ A T U O .t u p t u o o i d u a la ti g i d ) 8 5 9 0 6 C E I( F I D P / S 8 5 4 A _ I M S T U O s s e r d d A M A R D S I M S 9 5 5 A _ I M S 0 6 6 A _ I M S 1 6 7 A _ I M S 2 6 8 A _ I M S 3 6 9 A _ I M S 4 6 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 5 6 S S V - d n u o r G 6 6 3 A _ I M S T U O s s e r d d A M A R D S I M S 7 6 2 A _ I M S 8 6 1 A _ I M S 9 6 0 A _ I M S 0 7 0 1 A _ I M S 1 7 1 1 A _ I M S 2 7 2 1 A _ I M S 3 7 3 1 A _ I M Swww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 129 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 . o N e m a N n i P .ri D n o it c n u F n i P 4 7 0 S C _ I M S T U O .'L'tc ele s pih c M A R D S I M S 5 7 1 S C _ I M S T U O d e v r e s e r 6 7 S A R _ I M S T U O 'L' S A R M A R D S I M S 7 7 S A C _ I M S T U O 'L' S A C M A R D S I M S 8 7 E W _ I M S T U O 'L' elb a n E e tir W M A R D S I M S 9 7 L M Q D _ I M S T U O M Q D r e w o L M A R D S I M S tc ele s r e w o L :'L' 0 8 U M Q D _ I M S T U O M Q D r e p p U M A R D S I M S tc ele s r e p p U :'L' 1 8 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 2 8 N I K L C _ I M S N I .t u p ni k c olc M A R D S la n r e tx E 3 8 S S V - d n u o r G 4 8 0 D _ I M S O /I a t a D M A R D S I M S 5 8 1 D _ I M S 6 8 2 D _ I M S 7 8 3 D _ I M S 8 8 4 D _ I M S 9 8 5 D _ I M S 0 9 6 D _ I M S 1 9 7 D _ I M S 2 9 8 D _ I M S 3 9 9 D _ I M S 4 9 8 V 1 _ D D V - ylp p u s r e w o P V 8 . 1 5 9 T U O K L C _ I M S T U O .t u p t u o k c olc M A R D S 6 9 S S V - d n u o r G 7 9 0 1 D _ I M S O /I a t a D M A R D S I M S 8 9 1 1 D _ I M S 9 9 2 1 D _ I M S 0 0 1 3 1 D _ I M S 1 0 1 4 1 D _ I M S 2 0 1 5 1 D _ I M S 3 0 1 S S O R C _ K C A R T T U O d e v r e s e r 4 0 1 M C P X _ D S D T U O d e v r e s e r 5 0 1 T S R X _ C A D T U O d e v r e s e r 6 0 1 K L C M C P _ C D A T U O d e v r e s e r 7 0 1 3 V 3 _ D D V - ylp p u s r e w o P V 3 . 3 8 0 1 S S V - d n u o r G 9 0 1 T S R T X N I e c a fr e t nitin U lo rt n o C cits o n g ai D 0 1 1 S M T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 1 1 1 O D T T U O e c a fr e t nitin U lo rt n o C cits o n g ai D 2 1 1 I D T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 3 1 1 K C T N I e c a fr e t nitin U lo rt n o C cits o n g ai D 4 1 1 V R D T O R T U O .r e g n a h c c sid 5 yln O . n oit a t o r y a rt r o f t u p t u o M W P 5 1 1 M O R _ M O R F _ T O O B N I tc ele s t o o B . U C D m o rf t o o B :'L' . M O R m r o f t o o B :' H ' 6 1 1 V R D _ D A O L T U O .r e g n a h c c sid 5 yln O . e vir d e s ol C / n e p O y a rt r o f t u p t u o M W P 7 1 1 E O _ U P C T U O . e r a w m rif r o f y r o m e m H S A L F stib M 6 1 r o f la n gis E O elb a n e :'L' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 130 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 . o N e m a N n i P .ri D n o it c n u F n i P 8 1 1 K C D S _ U P C T U O . e r a w m rif g n i g g u b e d r o f M A R D S s ti b M 4 6 r o f K C O L C 9 1 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 0 2 1 K L C X I P N I .t u p n i k c o lc m e ts y s z H M 7 2 r e ts a M 1 2 1 S S V - d n u o r G 2 2 1 L L P _ D D V - yl p p u s r e w o P V 8 . 1 ti u c ric L L P k c o l C 3 2 1 L L P _ S S V - d n u o r G ti u c ric L L P k c o l C 4 2 1 T E S E R X N I .la n g is T E S E R m e ts y s N O r e w o P t e s e r :'L ' 5 2 1 Q R I _ D C A S N I d e v r e s e r 6 2 1 Y D R X _ P F N I . e c a fr e t n ile n a P t n o r F .t u p n i e k a h s - d n a H 7 2 1 T N I _ E F N I . 6 1 3 6 L d n E -t n o r F m o rf la n g is t u p n i t p u rr e t n I 8 2 1 L M Q D _ D S , E W X _ F T U O . e l b a n e e tir w y r o m e m h s a l F . M Q D r e w o L M A R S / M A R D S g u b e D .tc e le s r e w o L , e l b a n e :'L ' 9 2 1 U M Q D _ D S T U O M Q D r e p p U M A R S / M A R D S g u b e D tc e le s r e p p u :'L ' 0 3 1 W X R _ D S T U O e tir W / d a e R M A R D S g u b e D d a e r:' H ' , e tir w :'L ' 1 3 1 T I A W _ U P C N I t u p n i' H ' tia w U P C 2 3 1 H S A L F _ E C T U O .'L ' e l b a n E p ih C y r o m e m h s a l F 3 3 1 2 E C _ U P C T U O d e v r e s e r 4 3 1 1 E C _ U P C T U O d e v r e s e r 5 3 1 S A R X _ D S T U O 'L ' S A R M A R D S g u b e D 'L ' e l b a n e p ih c M A R S g u b e D 6 3 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 7 3 1 S S V - d n u o r G 8 3 1 1 S A R _ U P C T U O d e v r e s e r 9 3 1 S A C X _ D S T U O 'L ' S A C M A R D S g u b e D 0 4 1 S C X _ D S T U O 'L ' tc e le S p ih C M A R D S g u b e D 1 4 1 0 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 4 1 1 D _ U P C 3 4 1 2 D _ U P C 4 4 1 3 D _ U P C 5 4 1 4 D _ U P C 6 4 1 5 D _ U P C 7 4 1 6 D _ U P C 8 4 1 7 D _ U P C 9 4 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 0 5 1 S S V - d n u o r G 1 5 1 8 D _ U P C O /I a t a d M A R S / M A R D S g u b e D , H S A L F 2 5 1 9 D _ U P C 3 5 1 0 1 D _ U P C 4 5 1 1 1 D _ U P C 5 5 1 2 1 D _ U P C 6 5 1 3 1 D _ U P C 7 5 1 4 1 D _ U P C 8 5 1 5 1 D _ U P C 9 5 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 0 6 1 S S V - d n u o r G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 131 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 . o N e m a N n i P .ri D n o it c n u F n i P 1 6 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 2 6 1 2 A _ U P C 3 6 1 3 A _ U P C 4 6 1 4 A _ U P C 5 6 1 5 A _ U P C 6 6 1 6 A _ U P C 7 6 1 7 A _ U P C 8 6 1 8 A _ U P C 9 6 1 9 A _ U P C 0 7 1 0 1 A _ U P C 1 7 1 8 V 1 _ D D V - yl p p u s r e w o P V 8 . 1 2 7 1 S S V - d n u o r G 3 7 1 1 1 A _ U P C T U O s s e r d d A M A R S / M A R D S g u b e D , H S A L F 4 7 1 2 1 A _ U P C 5 7 1 3 1 A _ U P C 6 7 1 4 1 A _ U P C 7 7 1 5 1 A _ U P C 8 7 1 6 1 A _ U P C 9 7 1 7 1 A _ U P C 0 8 1 8 1 A _ U P C 1 8 1 9 1 A _ U P C 2 8 1 0 2 A _ U P C 3 8 1 1 2 A _ U P C 4 8 1 3 V 3 _ D D V - yl p p u s r e w o P V 3 . 3 5 8 1 S S V - d n u o r G 6 8 1 E P X E X T U O d e v r e s e r 7 8 1 R O R R E _ E F N I . e c a fr e t n i m a e rts 6 1 3 6 L d n E -t n o r F g a lf r o rr E C C E 8 8 1 1 L E S V T U O la n g is t u p t u o ) G N I K N I L B ( r o tc e n n o c ) T R A C S ( O R U E e l b a si d t u p t u o B G R : 'L ' e l b a n e t u p t u o B G R : ' H ' 9 8 1 2 L E S V T U O .la n g is C / R , Y / V r o tc e n n o c ) T R A C S ( O R U E B G C Y = t u p t u o B G R V : 'L ' B G R V = t u p t u o B G R V : ' H ' 0 9 1 T S R _ E F T U O . 6 1 3 6 L d n E -t n o r F .t u p t u o t e s e r e r a w d r a H t e s e r : 'L ' 1 9 1 T S R X _ D C A S T U O d e v r e s e r 2 9 1 E T U M M X T U O d e v r e s e r 3 9 1 C N Y S _ B T U O d e v r e s e r 4 9 1 A D S O /I e c a fr e t n i d n a m m o c 6 1 3 6 L d n E -t n o r F . e n il a t a d la ir e s s u b C 2 I 5 9 1 L C S T U O e c a fr e t n i d n a m m o c 6 1 3 6 L d n E -t n o r F . e n il k c o lc la ir e s s u b C 2 I 6 9 1 K L C W _ B T U O d e v r e s e r 7 9 1 D X T T U O t u p t u o a t a d ) C 2 3 2 - S R ( T R A U 8 9 1 8 V 1 _ D D V yl p p u s r e w o P V 8 . 1 9 9 1 S S V - d n u o r G 0 0 2 D X R N I t u p n i a t a d ) C 2 3 2 - S R ( T R A U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 132 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 . o N e m a N n i P .ri D n o it c n u F n i P 1 0 2 E T U M A X T U O . g n it u m e n il t u p t u o o i d u a g o la n a r o f la n g is t u p t u O g n it u m : 'L ' 2 0 2 N I G I R T N I e c a fr e t n i ti n U lo rt n o C cits o n g a i D 3 0 2 T U O G I R T T U O e c a fr e t n i ti n U lo rt n o C cits o n g a i D 4 0 2 0 S C X _ C A D T U O .lo rt n o c la ir e s C A D o i d u a r o f e l b a n e p ih C e l b a n e : 'L ' 5 0 2 1 S C X _ C A D T U O d e v r e s e r 6 0 2 K C A _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .' H ' t u p t u o ) e g d e l w o n k c a ( e k a h s - d n a H 7 0 2 K C S _ P F T U O . e c a fr e t n i C A D / le n a P t n o r F .t u p t u o k c o lc r e fs n a rt la ir e S 8 0 2 I S _ P F N I . e c a fr e t n ile n a P t n o r F .t u p n i a t a d r e fs n a rt la ir e S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 133 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 7 M63018FP (DVDM ASSY : IC101) • FTS Driver IC ¶ Pin Arrangement ¶ Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 134 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 ¶ Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 135 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 PDC104A (CONTROL ASSY : IC5501) • System Control Microcomputer Pin Functions No. Mark Pin Name I/O Function 1 PA3/WR# DVDON/OFF O Control power supply for DVD module 2 PA4/RD# HPDET I Detect to insert headphone 3 PA5/RS (POWERLED) O Control POWER LED (Active : H) (standby) 4 P70 / INT0 / T0LCP / AN8 ACPULSE I AC PULSE input (Interruption) 5 P71 / INT1 / T0HCP / AN9 NC O NC 6 P72 / INT2 / T0IN RDSCLK I (O) Clock input from RDS decoder (without RDS : Low input) 7 P73 / INT3 / T0IN REMOCON I REMOCON signal input (Interruption) 8 RES# XRESET I µ-com reset input 9 XT1 / AN10 XT1 − (When this port don't use , please connect VDD) 10 XT2 / AN11 XT2 − (When this port don't use , please set open) 11 VSS1 VSS1 − 12 CF1 CF1 − 13 CF2 CF2 − 14 VDD1 VDD1 − 15 P80 / AN0 SIMUKE I Destination distinction input 16 P81 / AN1 MODEL I model distinction input 17 P82 / AN2 VDET I DVD 3.3V detection input 18 P83 / AN3 KEY1 I Key1 input 19 P84 / AN4 NC O 20 P85 / AN5 NC O 21 P86 / AN6 ST/TUNE I STEREO tuned detection input 22 P87 / AN7 XPROTECT I Protection and Fan Error detection input 23 P10/SO0 SDATA O System bus data output (AMP side output) 24 P11 / SI0 / SB0 MDATA I System bus data input (AMP side input) 25 P12 / SCK0 SCLK I System bus clock input 26 P13 / SO1 DSPDI O Data output to DSP (MOTOROLA) and DIR 27 P14 / SI1 / SB1 DSPDO I Data input from DSP (MOTOROLA) 28 P15 / SCK1 DSPCK O Clock output to DSP (MOTOROLA) and DIR 29 P16/T1PWML SYSCS2 O Chip select 2 for system bus 30 P17/T1PWMH/BUZ SYSCS1 O Chip select 1 for system bus 31 PE0 XHPMUTE O HP MUTE ON/OFF 32 PE1 XRECMUTE O REC OUTPUT MUTE ON/OFF 33 PE2 XMUTEC O Cch MUTE ON/OFF 34 PE3 RYR O REAR RELAY ON/OFF 35 PE4 RYFSC O FRONT/SW/CENTER RELAY ON/OFF 36 PE5 NC O 37 PE6 TIMERLED O Control TIMER LED 38 PE7 LEVELSHIFT O VOL 0 to 5 : H 39 VSS4 VSS4 40 VDD4 VDD4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 136 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 No. Mark Pin Name I/O Function 41 PF0 ATT10dB O Control ATT 10dB 42 PF1 ATT6dB O Control ATT 6dB 43 PF2 STEST I Set TEST MODE for Service 44 PF3 UTEST I Set UNIT CHECK for checker 45 PF4 DTSDMIX O Cntrol of gain-up for dts down-mix 46 PF5 SWFMIX O Control for subwoofer mix 47 PF6 NC I (When this port don't use , please connect GND) 48 PF7 NC I (When this port don't use , please connect GND) 49 SI2P0/SO2 FLDAT O Data for FL driver 50 SI2P1/SI2/SB2 FLCS O Chip enable for FL driver 51 SI2P2/SCK2 FLCLK O Clock for FL driver 52 SI2P3/SCK20 XFLRST O Reset for FL driver 53 PWM1 NC NC 54 PWM0 NC NC 55 VDD2 VDD2 56 VSS2 VSS2 57 P00 TXCE O Chip enable for tuner LSI 58 P01 NC O 59 P02 NC O 60 P03 NC O 61 P04 TXCLK O Clock for tuner LSI 62 P05 TXODATA O Data for tuner LSI 63 P06 TXMUTE O Control mute of tuner 64 P07 RDSPOW O Control power supply of RDS (L : POWER ON) 65 P20/INT4/T1IN RDSDATA I (O) Input RDS data 66 P21/INT4/T1IN TXIDATA I Input data from tuner LSI 67 P22/INT4/T1IN DVDACK I Ackknowlegement from DVD MODULE (Interruption) 68 P23/INT4/T1IN XVMUTE O VIDEO MUTE request to DVD MODULE 69 P24/INT5/T1IN DVDMUTE I Request of MUTE from DVD MODULE (Interruption) 70 P25/INT5/T1IN NC O 71 P26/INT5/T1IN TVSEL O TV Audio Input Select 72 P27/INT5/T1IN XWMUTE O WIRE LESS MUTE request 73 P30 WSELA O WIRE LESS OUTPUT SELECT A 74 P31 INPUTSELB O AUDIO INPUT SELECT B 75 P32 INPUTSELA O AUDIO INPUT SELECT A 76 P33 XTL0 O Selection X'tal to DIR 77 P34 DIRERR I LOCK/UNLOCK from DIR 78 P35 DIRRST O Reset to DIR /CODEC 79 P36 DIRCS O Chip select to DIR/CODEC 80 PB7/D7 DIRDO I Data input from DIR/CODEC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 137 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 • Port0 (P00-P07) can be selected for input or output by each 4 bits (P00-P03,P04-P07). Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port1 (P10-P17) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1bit in option. • Port2 (P20-P27) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port3 (P30-P36) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • Port7 (P70-P73) can be selected for input or output by each 1 bit. Set for input when reset. • Port8 (P80-P87) can be selected for input or output by each 1 bit. Set for input when reset. • PortA (PA0-PA5) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortB (PB0-PB7) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortC (PC0-PC7) can be selected for input or output by each 1 bit. Set for input when reset. And it can be set C-MOS or Nch-OD by each 1 bit in option. • PortE and PortF can be selected for input or output by each 2 bits. • In case of without RDS, it is best that RDSDATA and RDSCLK are assigned as I/O port which can be set output and output low level. No. Mark Pin Name I/O Function 81 PB6/D6 DSPMODE O MODE selection (ROM/RAM) to DSP (MOTOROLA) 82 PB5/D5 DSPHREQ I Error detection from DSP (MOTOROLA) 83 PB4/D4 NC O NC 84 PB3/D3 DSPSS O Slave selection to DSP (MOTOROLA) 85 PB2/D2 XDSPRST O RESET to DSP (MOTOROLA) MODULE 86 PB1/D1 DECMUTE I Detection of 1st DSP boot success from DSP MODULE 87 PB0/D0 XDSPMUTE O MUTE requeat to DSP MODULE 88 VSS3 VSS3 − 89 VDD3 VDD3 − 90 PC7/A7 NC O NC 91 PC6/A6 SYSPOW O Control power supply of system 92 PC5/A5 NC O NC 93 PC4/A4 XDVDRST O RESET to DVD MODULE 94 PC3/A3 XSYSMUTE O Control mute of system 95 PC2/A2 (VOLMUTE) O (Contorol mute of E-vol IC) 96 PC1/A1 VOLCLK O Clock for E-vol IC 97 PC0/A0 VOLDATA/CE O Data/CE for E-vol IC 98 PA0/CS2# FLASHE/D − for FLASH writing 99 PA1/CS1# FLASHDO − for FLASH writing 100 PA2/CS0# FLASHCLK − for FLASH writing www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 138 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Disc / content format playback compatibility General disc compatibility This player was designed and engineered to be compatible with software bearing one or more of the following logos: • KODAK Picture CD • is a trademark of Fuji Photo Film Co. Ltd. Other formats, including but not limited to the following, are not playable in this player: DVD-Audio / SACD / DVD-RAM DVD-ROM / CD-ROM* * Except those that contain MP3, WMA or JPEG. See also Compressed audio compat- ibility and JPEG file compatibility below. DVD-R/RW and CD-R/RW discs (Audio CDs and Video CDs) recorded using a DVD recorder, CD recorder or personal computer may not be playable on this unit. This may be caused by a number of possibilities, including but not limited to: the type of disc used; the type of recording; damage, dirt or condensa- tion on either the disc or the player’s pick-up lens. See below for notes about particular software and formats. CD-R/RW compatibility • This unit will play CD-R and CD-RW discs recorded in CD Audio or Video CD format, or as a CD-ROM containing MP3, WMA or JPEG files. However, any other content may cause the disc not to play, or create noise/distortion in the output. • This unit cannot record CD-R or CD-RW discs. • Unfinalized CD-R/RW discs recorded as CD Audio can be played, but the full Table of Contents (playing time, etc.) will not be displayed. DVD-R/RW compatibility • This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder. • This unit will play DVD-RW discs recorded using the Video Recording (VR) format. • DVD-RW shows in the display when a VR format DVD-RW disc is loading. • When playing a VR format DVD-RW discs that was edited on a DVD recorder, the screen may go momentarily black at edited points and/or you may see scenes from immediately before the edited point. • This unit cannot record DVD-R/RW discs. • Unfinalized DVD-R/RW discs cannot be played in this player. PC-created disc compatibility • If you record a disc using a personal computer, even if it is recorded in a “compatible format” as listed above, there will be cases in which the disc may not be playable in this machine due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. • Check the DVD-R/RW or CD-R/RW soft- ware disc boxes for additional compati- bility information. 7.3 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 139 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 7.4 CLEANING Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Position to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 140 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Front panel 1 OPEN/CLOSE Press to open/close the disc tray. 2 Operation indicator 3 DVD/CD Press to switch to the DVD/CD function. Also press to start/pause/resume playback. 4 Press to stop playback. 5 FM/AM Press to switch to the tuner function, then to toggle between the FM and AM bands. 6 VOLUME buttons Use to adjust the volume. 7 STANDBY/ON Press to switch the system on or into standby. 8 PHONES jack Headphone jack. 9 Timer indicator Lights when the wake-up timer is set. 10 Display See Display on page 141 for detailed information. 11 Remote sensor 12 Disc tray 0 OPEN/CLOSE 6 DVD /CD FM/AM – DOWN VOLUME UP + STANDBY/ON PHONES 7 ¶ 1 3 4 5 6 7 9 10 11 12 8 2 0 7 6 8. PANEL FACILITIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 141 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Display 1 Tuner indicators Lights when a broadcast is being received. Lights when a stereo FM broadcast is being received in auto stereo mode. Lights when FM mono reception is selected. 2 Lights when a disc is playing. 3 MIDNIGHT Lights when the Midnight mode is selected. 4 QUIET Lights when the Quiet mode is selected. 5 PGM Lights when a program list has been programmed. 6 RPT and RPT-1 RPT lights during repeat play. RPT-1 lights during repeat one-track play. 7 RDM Lights during random play. 8 ATT Lights when the input attenuator is active for the currently selected analog input. 9 REC MODE Lights when Rec Mode is active. 10 Timer indicators Lights when the wake-up timer is set. Lights when the sleep timer is active. 11 PRO LOGIC II Lights during Dolby Pro Logic decoding. 12 DIGITAL Lights during playback of a Dolby Digital source. MIDNIGHT QUIET PGM RPT - 1 RDM ATT REC MODE kHz ADV .SURR. PRGSVE DIGITAL MHz PRO LOGIC 15 14 16 17 18 19 2 1 3 4 5 6 7 8 9 10 11 12 13 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 142 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 13 Speaker indicators These show which speakers are being used to output the current source. The illustrations below show some example displays. 14 PRGSVE Lights when progressive scan video output is selected. 15 ADV.SURR. Lights when one of the Advanced Surround listening modes is selected. 16 DTS Lights during playback of a DTS source. 17 kHz / MHz Indicates the unit of the frequency shown in the character display (kHz for AM, MHz for FM). 18 Character display 19 Lights during multi-angle scenes on a DVD disc. 5.1 channel surround sound Stereo (2.1 channel) sound 3.1 channel sound with Dialogue enhancement on the center channel 5.1 channel surround sound with Virtual Surround Back mode active www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 143 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 Remote control • Functions printed in green on the remote control are accessed by switching the MAIN/SUB switch to SUB. 1 STANDBY/ON Press to switch the system on or into standby. 2 Function select buttons Press to select the source you want to listen to (DVD (CD). TUNER, TV, LINE) 3 DISPLAY Press to display/change disc information shown on-screen. 4 Disc playback controls Press to start or resume playback. and 3 8 7 4 1 ¡ Use for reverse slow motion playback, frame reverse and reverse scanning. and Use for forward slow motion playback, frame advance and forward scanning. Press to pause playback; press again to restart. Press to stop playback. 5 Press to jump to the beginning of the current chapter/track, then to previous chapters/ tracks. 6 DVD MENU Press to display a DVD disc menu, or the Disc Navigator if a VR format DVD-RW, CD, Video CD , MP3, WMA or JPEG disc is loaded. 7 Cursor buttons, ENTER and tuning buttons Cursor buttons Use the cursor buttons (» / « / | / \ ) to navigate on-screen displays and menus. ENTER Press to select an option or execute a command. TUNE +/– Use to tune the radio. ST +/– Use to select station presets when listening to the radio. ST+ TUNE+ ENTER TUNE– MASTER VOLUM E ST– STANDBY/ON CD FM/AM OPEN/CLOSE DISPLAY DVD TUNER TV LINE L1/L2 1 4 4 ¡ 8 3 7 0 DVD MENU RETURN SOUND TV CONTROL CH VOL INPUT MUTE TEST TONE 1 2 3 ZOOM TOP MENU CH LEVEL DIMMER REPEAT AUDIO ANGLE RANDOM SUBTITLE PROGRAM 4 5 6 7 8 9 0 MAIN SUB FOLDER– CLR ENTER FOLDER+ MENU HOME SETUP SYSTEM MIDNIGHT QUIET/ CLOCK TIMER/ BASS MODE DIALOGUE VIRTUAL SB AUTO SURROUND ADVANCED 1 2 3 4 5 6 7 8 9 10 15 16 17 18 19 21 20 11 12 13 14 22 / / www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 144 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 8 MUTE Press to mute all sound from the speakers and headphones (press again to cancel). 9 MASTER VOLUME Use to adjust the volume. 10 TV CONTROL Press to switch the TV on or into standby. INPUT Press to switch the TV input. CH +/– Use to select channels on the TV. VOL +/– Use to adjust the volume on the TV. 11 OPEN/CLOSE Press to open/close the disc tray. 12 Press to jump to the next chapter/track. 13 RETURN Press to return to a previous menu screen. 14 SOUND Press to access the sound menu, from which you can adjust the DSP effect level, bass and treble, etc. 15 Surround sound mode/sound enhancement buttons AUTO Press to select the default decoding for the current source. SURROUND Use to select a Surround mode. ADVANCED Use to select an Advanced Surround. BASS MODE Use to select a Bass Mode. DIALOGUE Use to select a Dialogue mode. VIRTUAL SB Press to switch the Virtual Surround Back speaker effect on/off. 16 DVD/CD buttons AUDIO Press to select an audio channel or language. SUBTITLE Press to display/change the DVD subtitle display. ANGLE Press to change camera angle during DVD multi-angle scene playback. PROGRAM Use to program/play a program list. REPEAT Use to select a repeat play mode. RANDOM Use to select a random play mode. 17 ZOOM Press to change the screen zoom level. TOP MENU Use to display the top menu of a DVD disc in the play position (this may be the same as pressing DVD MENU). HOME MENU Press to display (or exit) the on-screen menu for Initial Settings, Play Mode functions, etc. 0 ¢ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 145 1 2 3 4 1 2 3 4 C D F A B E XV-DV430 18 SYSTEM SETUP Use to make various system and surround sound settings. TEST TONE Use to output the test tone (for speaker setup). CH LEVEL Use to adjust the speaker level. 19 DIMMER Press to switch between normal and dimmed front panel display. QUIET/MIDNIGHT Use to select the Quiet and Midnight modes. TIMER/CLOCK Press to display the clock and to access the timer menu. 20 CLR Press to clear an entry. FOLDER – Press to jump to previous folders. FOLDER + Press to jump to the next folder. ENTER Selects menu options, etc. (works exactly the same as the ENTER button in 7 above). 21 MAIN /SUB Change from MAIN to SUB to access the functions/commands printed in green on the remote. ROOM SETUP Press to start Room Setup. 22 Number buttons Use the number buttons for selecting chapters/tracks from a disc directly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
