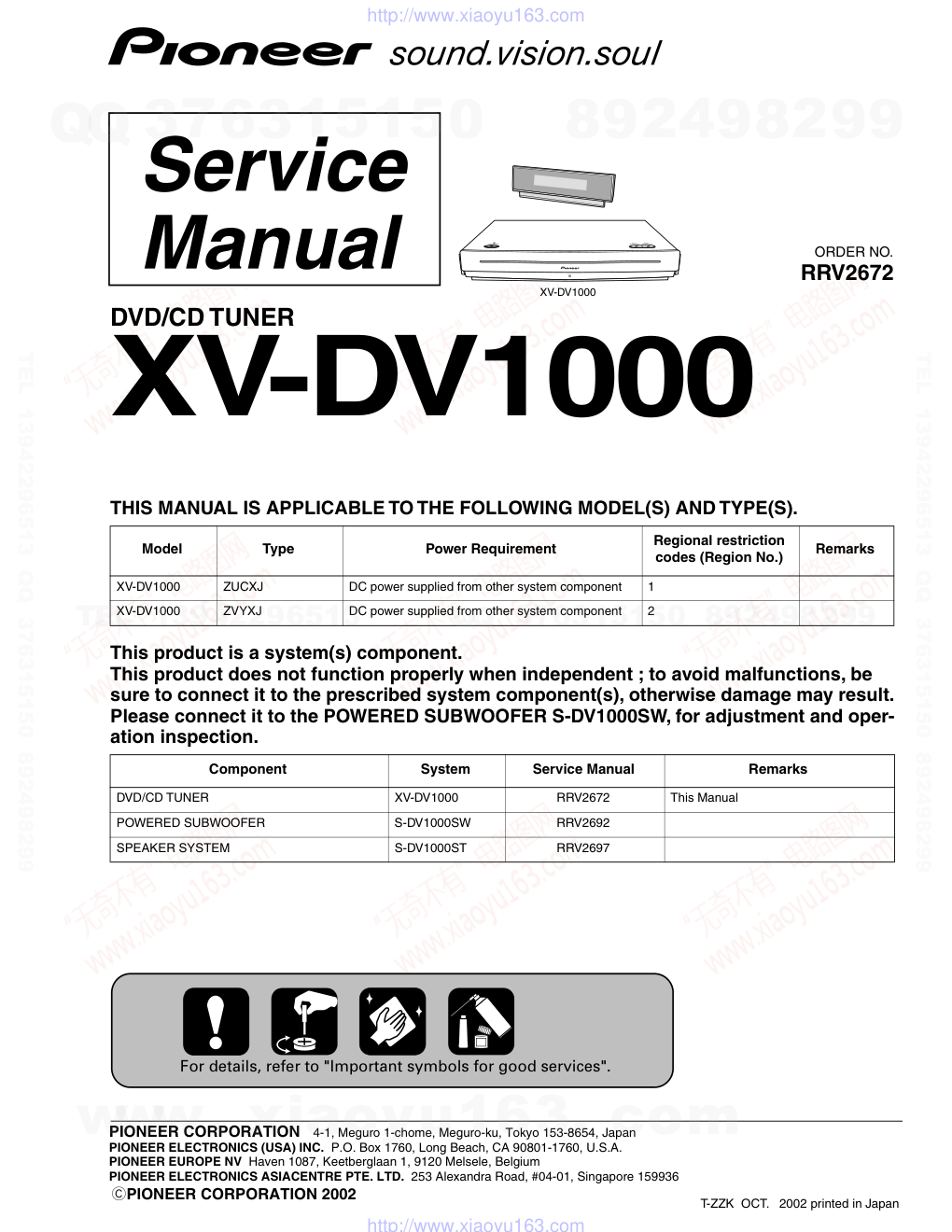

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2002 XV-DV1000 RRV2672 DVD/CD TUNER XV-DV1000 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). This product is a system(s) component. This product does not function properly when independent ; to avoid malfunctions, be sure to connect it to the prescribed system component(s), otherwise damage may result. Please connect it to the POWERED SUBWOOFER S-DV1000SW, for adjustment and oper- ation inspection. Model Type Power Requirement Regional restriction codes (Region No.) Remarks XV-DV1000 ZUCXJ DC power supplied from other system component 1 XV-DV1000 ZVYXJ DC power supplied from other system component 2 Component System Service Manual Remarks DVD/CD TUNER XV-DV1000 RRV2672 This Manual POWERED SUBWOOFER S-DV1000SW RRV2692 SPEAKER SYSTEM S-DV1000ST RRV2697 For details, refer to "Important symbols for good services". T-ZZK OCT. 2002 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 3 5 6 7 8 5 6 7 8 C D F A B E WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 780 nm Additional Laser Caution ∗ : See page 91. 1. Laser Interlock Mechanism • Loading switch (S101 on the LOAB Assy) is used for interlock mechanism of the laser. When this switch turned ON in SW2 (XCLOSE) side (OPEN signal is 0V and XCLOSE signal is 3.5V), a laser becomes the status which can completely oscillation. Furthermore, the laser completely oscillates in the disc judgment and disc playback. When player is power ON state and laser diode is not completely oscillating, 780nm laser diode is always oscillating by half power. • Laser diode is driving with Q101 (650nm LD) and Q102 (780nm LD) on the DVDM Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) • In the test mode ∗ , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. The interlock mechanism mentioned above becomes invalid in this mode. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK Name Lavel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 4 1 2 3 4 1 2 3 4 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. Disc / Content Format Play- back Compatibility General Disc Compatibility • This player was designed and engi- neered to be compatible with software bearing one or more of the following logos. DVD-Video DVD-R DVD-RW DVD-Audio Video CD Super Audio CD Super VCD Audio CD CD-R CD-RW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION.......................................................................................................................................................2 1. SPECIFICATIONS..............................................................................................................................................................6 2. EXPLODED VIEWS AND PARTS LIST..............................................................................................................................8 2.1 PACKING .....................................................................................................................................................................8 2.2 EXTERIOR SECTION ...............................................................................................................................................10 2.3 FRONT PANEL SECTION .........................................................................................................................................12 2.4 LOADING MECHA ASSY..........................................................................................................................................14 2.5 TRAVERSE MECHANISM ASSY-S ...........................................................................................................................16 2.6 DISPLAY UNIT ..........................................................................................................................................................17 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...........................................................................................................18 3.1 DVD and Video Section BLOCK DIAGRAM ..............................................................................................................18 3.2 DSP and Control Section BLOCK DIAGRAM............................................................................................................20 3.3 Power Supply Section BLOCK DIAGRAM.................................................................................................................22 3.4 LOAB ASSY and OVERALL WIRING DIAGRAM ......................................................................................................24 3.5 DVDM ASSY (1/4) .....................................................................................................................................................26 3.6 DVDM ASSY (2/4) .....................................................................................................................................................28 3.7 DVDM ASSY (3/4) .....................................................................................................................................................30 3.8 DVDM ASSY (4/4) .....................................................................................................................................................32 3.9 SACDB ASSY............................................................................................................................................................34 3.10 VIDEO (1/2) and REG ASSYS.................................................................................................................................36 3.11 VIDEO (2/2) and COMPONENT ASSYS.................................................................................................................38 3.12 IF ASSY...................................................................................................................................................................40 3.13 FM/AM TUNER MODULE (AXQ7228).....................................................................................................................42 3.14 FM/AM TUNER MODULE (AXQ7229).....................................................................................................................44 3.15 DSP ASSY...............................................................................................................................................................46 3.16 DSP TRADE and CONTROL (1/4) ASSYS .............................................................................................................48 3.17 CONTROL ASSY (2/4) ............................................................................................................................................50 3.18 CONTROL ASSY (3/4) ............................................................................................................................................52 3.19 CONT.(4/4), STBY KEY, D.SW2, KEY L, TIMER LED, KEY R, O/C KEY, MOTOR, D.SW, and HP ASSYS..............54 3.20 OEL CONT and OEL JACK ASSYS ........................................................................................................................56 3.21 WAVEFORMS..........................................................................................................................................................58 4. PCB CONNECTION DIAGRAM .......................................................................................................................................59 4.1 LOAB ASSY...............................................................................................................................................................59 4.2 DVDM ASSY..............................................................................................................................................................60 4.3 SACDB ASSY............................................................................................................................................................62 4.4 FM/AM TUNER MODULE..........................................................................................................................................63 4.5 VIDEO, REG and COMPONENT ASSYS..................................................................................................................64 4.6 IF ASSY.....................................................................................................................................................................68 4.7 DSP ASSY.................................................................................................................................................................70 4.8 DSP TRADE ASSY....................................................................................................................................................71 4.9 CONTROL, MOTOR, DOOR SW and HP ASSYS.....................................................................................................72 4.10 STBY KEY, DOOR SW2, KEY L, TIMER LED, KEY R and O/C KEY ASSYS.........................................................76 4.11 OEL CONT and OEL JACK ASSYS ........................................................................................................................78 5. PCB PARTS LIST.............................................................................................................................................................79 6. ADJUSTMENT .................................................................................................................................................................89 6.1 DVD SECTION ADJUSTMENT .................................................................................................................................89 6.1.1 Adjustment Items and Location ..............................................................................................................................89 6.1.2 Jigs and Measuring Instruments.............................................................................................................................89 6.1.3 Necessary Adjustment Points.................................................................................................................................90 6.1.4 Test Mode ...............................................................................................................................................................91 6.1.5 Mechanism Adjustment ..........................................................................................................................................92 6.2 TUNER SECTION ADJUSTMENT ............................................................................................................................95 7. GENERAL INFORMATION ..............................................................................................................................................96 7.1 DIAGNOSIS...............................................................................................................................................................96 7.1.1 ID NUMBER AND ID DATA SETTING ....................................................................................................................96 7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DETECTIVE ....................................................................................98 7.1.3 TEST MODE SCREEN DISPLAY ...........................................................................................................................99 7.1.4 SELF-DIAGNOSIS FUNCTION ............................................................................................................................101 7.1.5 FUNCTION SPECIFICATION OF THE SERVICE MODE.....................................................................................102 7.1.6 ERROR DISPLAY.................................................................................................................................................103 7.1.7 TEST POINTS LOCATION AND WAVEFORMS...................................................................................................106 7.1.8 TROUBLE SHOOTING.........................................................................................................................................108 7.1.9 SERVICE TEST MODE ........................................................................................................................................109 7.1.10 STANDBY ON TIMING WAVEFORM..................................................................................................................110 7.1.11 SINGLE OPERATION METHOD ........................................................................................................................111 7.1.12 DISASSEMBLY...................................................................................................................................................112 7.2 IC .............................................................................................................................................................................121 7.3 CLEANING ..............................................................................................................................................................160 8. PANEL FACILITIES ........................................................................................................................................................161 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 6 1 2 3 4 1 2 3 4 C D F A B E 1. SPECIFICATIONS Amplifier Section Continuous Power (RMS)..............................75 W / channel (1 kHz, THD 10%, 6 W) Disc section Digital audio characteristics..................................DVD fs: 192 kHz, 24-bit Type..............................DVD system, Video CD system and Compact Disc digital audio system Frequency response 48 kHz sampling.........................................4 Hz − 22 kHz 96 kHz sampling.........................................4 Hz − 44 kHz 192 kHz sampling.......................................4 Hz − 88 kHz S/N ratio......................................................................110 dB Dynamic range..............................................................98 dB Total harmonic distortion...........................................0.004 % Wow and Flutter...................................Limit of measurement (±0.001 % W.PEAK) or less (EIAJ) FM tuner section Frequency Range...........................................87.5 - 108MHz Antenna......................................................75 Ω, unbalanced AM tuner section FrequencyRange With 9 kHz step...............................531 kHz to 1,602 kHz With 10 kHz step.............................530 kHz to 1,700 kHz • Frequency step options available with U.S. model only Antenna............................................................Loop antenna Miscellaneous Power Requirements European model........................220 − 230 V / 50 − 60 Hz North American model.................................120 V / 60 Hz Power Consumption European model.....................................................176 W North American model............................................180 W Power Consumption in standby mode..........................0.4 W Dimensions: DVD/CD Tuner.................380 (W) x 71 (H) x 299 (D) mm 15.5 (W) x 2.9 (H) x 12.2 (D) in. Display Unit........................220 (W) x 61 (H) x 35 (D) mm Weight: DVD/CD Tuner...........................................4.1 kg (6.8 lb.) Display Unit..............................................0.22 kg (0.4 lb.) Accessories Operating Instructions..........................................................1 Setup guide..........................................................................1 Display unit...........................................................................1 Remote control unit .............................................................1 Power cord...........................................................................1 Video Cord...........................................................................1 Display cable (gray plugs)....................................................1 Control cable (blue plugs)....................................................1 Control cable (black plugs)...................................................1 FM antenna..........................................................................1 AM loop antenna..................................................................1 Dry cell batteries (AA/R6).....................................................2 Allen key wrench..................................................................1 Side panel replacement screws...........................................4 Speaker cords (15ft. / 5 m)...................................................3 Speaker cords (30 ft. / 10 m)................................................2 Sheet of small non-slip pads..............................................20 Sheet of large non-slip pads................................................4 Subwoofer isolation feet (European model)........................4 Warranty Card......................................................................1 Note : • The specifications and design of this product are subject to change without notice, due to improvement. • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • “DTS” is a registered trademark of DigitalTheater Systems, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 7 5 6 7 8 5 6 7 8 C D F A B E accessories Remote control unit ST+ TUNE+ ENTER TUNE– MASTER VOLUME ST– STANDBY/ON CD TRAY OPEN CLOSE DOOR OPEN CLO SE DVD FM/AM TV VIDEO V1/V2/V3 0 1 4 4 ¡ 8 3 7 0 DVD MENU RETURN SOUND TV CONTROL PV OL INPUT MUTE PROGRAM REPEAT RANDOM AUTO ROOM SETU P TEST TONE 123 DVD SYSTEM CH LEVE LT CP MENU SYS MENU DIMMER DVD DISP SYS DISP SET UP SURROUN D ANGLE AUDIOS UBTITLE ZOOM ADVANCED 45 6 7 89 0 LANGUAGE MAIN AX0000 SUB PCM TELETEXT ON/OFF TIMER (CLOCK ADJ) FOLDER – CLR ENTE R / –– – FOLDER+ Dry cell batteries (size AA/R6P) x 2 Display unit (AXX7142) AM loop antenna FM antenna Control cable A Control cable B Display cable Video cord Gray Yellow plugs Blue plugs Power cord Speaker cords 5 m x 3 (for center, front L-R speakers) Operating instructions / Warranty Non-slip pads x20 10 m x 2 (for rear L-R speakers) Black plugs Non-slip pads (subwoofer) x4 European model only: Isolation feet x4 Allen key wrench & 4 screws (ATB7009) (KUCXJI : ADH7007) (MYXJI, NVXJI : ADH7010) (KUCXJI : ADG7022) (MYXJI : ADG1154) (NVXJI : ADG1156) (VDE1024) (ADE7077) (ADE7079) (ADE7064) (SDS1115) (SDS1116) (SDS1117) (SDS1118) (SDS1119) (SEC1635) (SXK1049) (SEC1563) (AEF7007) (ABA7089) (KUCXJI : AXD7340) (MYXJI, NVXJI : AXD7339) This product's instructions are contained within the instruction manual of the related system component(s). The manual is packed with those component(s). This product's accessories etc. are packed with its related component(s). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 8 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 7 1 3 5 4 2 (1/2) 2 (2/2) 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 9 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE XV-DV1000/ZUCXJ and ZVYXJ are constructed the same except for the following : Mark No. Description Part No. 1 Front Pad AHA7393 2 Rear Pad AHA7394 3 Spacer AHB7066 4 Packing Case See Contrast table (2) 5 Packing Sheet AHG7015 6 Packing Sheet AHG7073 NSP 7 Warranty Card See Contrast table (2) Mark No. Description Part No. Mark NO Symbol and Description XV-DV1000/ ZUCXJ XV-DV1000/ ZVYXJ 4 Packing Case AHD8095 AHD8094 NSP 7 Warranty Card EL ARY7007 Not used NSP 7 Warranty Card Not used ARY7022 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 10 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION S D C T B A A Z Z B D H W G F U E T U H W J Q K R C S I J R L I G F P O N V M L E O P N M Q K V D G K H J E F I B L Q C Refer to "2.4 LOADING MECHA ASSY". 13 21 27 57 55 17 18 25 14 48 39 40 32 31 32 54 45 44 11 33 29 26 51 49 59 50 43 42 24 35 4 6 9 5 34 37 23 38 46 53 XV-DV1000/ZUCXJ Only 58 52 47 (1/2) 47 (2/2) 12 41 20 30 15 2 19 7 36 56 3 8 XV-DV1000/ ZUCXJ Only 10 16 22 1 28 Refer to "2.3 FRONT PANEL SECTION". 63 62 61 61 CONTACT SIDE NON-CONTACT SIDE 58 57 55 55 59 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 57 55 55 55 55 60 55 55 55 55 55 55 55 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 11 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List (2) CONTRAST TABLE XV-DV1000/ZUCXJ and ZVYXJ are constructed the same except for the following : Mark No. Description Part No. 1 DVDM Assy AWX8156 2 SACDB Assy AWX8157 3 DSP Assy AWX8188 4 DSP TRADE Assy AWU7981 5 CONTROL Assy See Contrast table (2) 6 VIDEO Assy See Contrast table (2) 7 REG Assy AWU8046 8 COMPONENT Assy See Contrast table (2) 9 IF Assy AWU7987 10 STBY KEY Assy AWU7992 11 O/C KEY Assy AWU7993 12 FM/AM TUNER Module See Contrast table (2) NSP 13 LOADING MECHA Assy VWT1188 14 20P FFC/30V ADD7383 15 40P FFC/30V ADD7384 16 07P FFC/30V ADD7385 17 30P FFC/30V ADD7386 18 21P FFC/30V ADD7387 19 21P FFC/30V ADD7388 20 13P FFC/30V ADD7391 21 Connector Assy PG05KK-G15 22 Connector Assy PG13KK-G25 23 Connector Assy PG14KK-G17 24 DC FAN Motor AXM7024 25 Ferrite Core ATH7009 26 Earth Spring ABH7223 27 Adapter 12 L ANW7231 28 Adapter 12 R ANW7245 29 Bottom Plate ANA7143 30 Rear Panel See Contrast table (2) 31 Bottom Base AMA7027 32 Leg AEB7090 NSP 33 PC Support VEC1749 34 MSPLS Support AEC7450 35 DSP Angle ANG7436 36 Rubber Bushing AEB7291 37 FFC Barrier AEC7451 NSP 38 PCB Spacer (3X6) AEC7156 39 Angle L ANG7434 40 Angle R ANG7435 41 Leg AEB7197 42 FAN Barrier AEC7452 43 Push Rivet AEC7025 44 Tray Cap AAK8052 45 DVD-A/V Plate VAM1118 46 Top Panel ANE7301 47 Top Button Assy AXG7166 48 Side Panel L See Contrast table (2) 49 Side Panel R See Contrast table (2) 50 Side Sheet L AWL7062 51 Side Sheet R AWL7063 52 Label VRW1872 53 65 Label See Contrast table (2) NSP 54 Name Label See Contrast table (2) 55 Screw BPZ30P080FZK 56 Screw (3*11.5) ABA7071 57 Screw BBZ30P080FMC 58 Screw A ABA7088 59 Screw C ABA7091 60 Screw PSC30P080FNI 61 FAN Spaser AEB7293 NSP 62 ID Label VRW1877 NSP 63 Label VRW1629 Mark No. Description Part No. Mark NO Symbol and Description XV-DV1000/ ZUCXJ XV-DV1000/ ZVYXJ 5 CONTROL Assy AWU7982 AWU7979 6 VIDEO Assy AWU7983 AWU7980 8 COMPONENT Assy AWU7984 Not used 12 FM/AM TUNER Module AXQ7228 AXQ7229 30 Rear Panel ANC8110 ANC8093 48 Side Panel L AAK8081 AAK8050 49 Side Panel R AAK8082 AAK8051 53 65 Label ARW7050 Not used NSP 54 Name Label AAK7295 AAK7294 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 FRONT PANEL SECTION A A T P O N M R S 38 32 12 18 25 26 14 CONTACT SIDE NON-CONTACT SIDE 14 18 1 9 18 18 42 42 39 42 39 Refer to "Cable Styling in Main Unit Assembly" of "7.1.12 DISASSEMBLY" 43 41 42 42 42 13 33 34 35 36 42 42 40 28 17 21 23 11 4 6 7 5 2 8 41 41 24 20 30 10 31 29 29 41 41 15 41 41 41 19 (2/2) 37 (4/4) 37 (1/4) 37 (3/4) 37 (2/4) 19 (1/2) 27 22 16 41 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 13 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List (2) CONTRAST TABLE XV-DV1000/ZUCXJ and ZVYXJ are constructed the same except for the following : Mark No. Description Part No. 1 HP Assy AWU7988 2 KEY L Assy AWU7989 3 DOOR SW2 Assy AWU7990 4 KEY R Assy AWU7991 5 TIMER LED Assy AWU7994 6 MOTOR Assy AWU7995 7 DOOR SW Assy AWU7996 8 07P FFC/30V ADD7389 9 Connector Assy 5P ADE7089 10 Slider Motor VXM1033 11 Ferrite Core ATH7010 12 Door Cover ANG7437 13 Reflector Sheet AAK8073 14 Door Spring ABH7224 15 Spring AL ABH7225 16 Spring AR ABH7226 17 Belt AEB7171 18 Cushion AEB7292 19 Gear Holder L AMR7427 20 Gear Holder R AMR7428 21 Cam Gear L AMR7429 22 Cam Gear R AMR7430 23 Cam L AMR7431 24 Cam R AMR7432 25 Arm L ANG7421 26 Arm R ANG7422 27 Gear A ANW7063 28 Gear Pulley A ANW7066 29 Gear B ANW7250 30 Shaft Assy AXG7161 31 Motor Pulley PNW1634 32 Door Escutcheon AAK8046 33 DVD Lens AAK8048 34 STBY Lens AAK8049 35 Front Panel AMB7821 36 Front Panel See Contrast table (2) 37 Front Button Assy AXG7167 38 Door Assy See Contrast table (2) NSP 39 Binder (BK-1) ZCA-BK1 40 Screw PMZ26P040FMC 41 Screw Z39-019 42 Screw BPZ30P080FZK 43 Screw With Washer ABA1005 Mark No. Description Part No. Mark NO Symbol and Description XV-DV1000/ ZUCXJ XV-DV1000/ ZVYXJ 36 Front Panel ANB7304 ANB7293 38 Door Assy AXG7178 AXG7168 Shaft bearing Axis of rotation for Cam Gear R, Boss for sliding gutter of Cam R Gear Pulley A Cam Gear L Cam L Shaft Gear Holder L Gear Holder R Synchro Gear Axis of rotation for Gear A and Gear B Sliding part of Cam R and Arm R Axis of rotation for Gear Pulley A Front Panel Synchro Gear Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Application of Lubricant Lubricating Oil GYA1001 Lubricating Oil GYA1001 Axis of rotation for Cam Gear L, Boss for sliding gutter of Cam L Lubricating Oil GYA1001 Sliding part of Cam L and Arm L Lubricating Oil GYA1001 Cam Gear R Cam R Shaft bearing Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 14 1 2 3 4 1 2 3 4 C D F A B E 2.4 LOADING MECHA ASSY LOADING MECHA ASSY parts List A A To DVDM CN101 (pickup) To DVDM CN104 (stepping) To DVDM CN105 (spindle) 2 3 5 4 12 23 13 17 21 16 22 15 14 22 22 22 20 18 19 9 1 7 11 10 6 8 8 8 8 22 A Refer to "2.5 TRAVERSE MECHANISM ASSY-S". Lubricating Oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 Mark No. Description Part No. NSP 1 LOAB Assy VWG2279 2 Traverse Mechanism Assy-S VXX2782 3 Loading Motor Assy VXX2505 4 Motor Pulley PNW1634 5 Carriage DC Motor / 0.3W PXM1027 6 Flexible Cable (26P) VDA1864 7 Connector Assy 2P VKP2253 8 Floating Rubber VEB1327 9 Belt VEB1330 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base DVD VNL1918 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate VNE2251 19 Bridge VNE2252 20 Clamper VNL1924 21 Screw JGZ17P028FMC 22 Screw Z39-019 23 Tray VNL1920 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 15 5 6 7 8 5 6 7 8 C D F A B E Application of Lubricant No. 11 Loading Base Lubricating Oil GYA1001 Around the shaft Concave of unevenness Concave of unevenness Concave of unevenness No. 13 Drive Cam No. 13 Drive Cam No. 23 Tray No. 23 Tray Top View Rear View Top View Bottom View Daifree GEM1036 Daifree GEM1036 Daifree GEM1036 Daifree GEM1036 Daifree GEM1036 Side of the rib Inner side of a ditch Inner side of a ditch Lubricating Oil GYA1001 Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 16 1 2 3 4 1 2 3 4 C D F A B E 2.5 TRAVERSE MECHANISM ASSY-S TRAVERSE MECHANISM ASSY-S parts List To DVDM CN101 To DVDM CN104 To DVDM CN105 CONTACT SIDE NON-CONTACT SIDE 4 (Adjustment Screw) Screw Tight GYL1001 Silicone Adhesive GEM1037 17 (Torque : 0.12 ± 0.01 N•m) Silicone Adhesive GEM1037 17 (Torque : 0.12 ± 0.01 N•m) Silicone Adhesive GEM1037 17 (Torque : 0.12 ± 0.01 N•m) 12 8 3 7 1 18 16 19 18 10 13 18 10 6 5 5 11 15 14 9 16 2 Mark No. Description Part No. 1 Spindle Motor VXM1088 2 Stepping Motor VXM1090 > 3 Pickup Assy-S OXX8003 4 Skew Screw VBA1080 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Hold Spring VNC1017 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mechanism Chassis VNE2248 12 Slider VNL1811 13 Spacer VNL1913 14 Joint VNL1914 15 FFC Holder VNL1915 16 Screw BBZ20P050FZK 17 Tapping Screw OBA8009 18 Screw PMA26P100FMC 19 Damper Sheet VEB1335 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 17 5 6 7 8 5 6 7 8 C D F A B E 2.6 DISPLAY UNIT DISPLAY UNIT parts List U V 8 9 10 3 1 7 5 5 12 12 13 11 12 6 4 2 CONTACT SIDE NON-CONTACT SIDE Mark No. Description Part No. 1 OEL CONT Assy AWU7999 2 OEL JACK Assy AWU8000 3 OEL Module MXK8044 4 18P FFC / 30V ADD7392 5 Leg AEB7090 6 OEL Cushion AEB7273 7 Shield Cover ANG7438 8 Window AAK8045 9 Disp AL AAP7089 10 Disp Panel AMB7828 11 Disp Cover AMC7049 12 Screw BPZ30P080FZK 13 Screw PSC30P080FNI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 18 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 DVD and Video Section BLOCK DIAGRAM V CN912 (30P) 15 17 21 23 25 Y C Y/G/P_Y DATA1 DATA2 DATA1 DATA2 Cb/B/P_Cb Cr/R/P_Cr 13,14, 19-24 201-208 184-186, 188-192 IC101 LA9704W RF IC 3 5 4 7 6 60 4 5 49 52 41 42 IC251 BA6664FM Spindle Driver SPDO 44×48 PB0-PB9 PC0-PC9 16M 36M 33M SPDO AN7 PK4 XIN 21 9-14 Q106 IC901 CXD2753R SACD Decoder 126 185 194 106 163 172 169-176 IC902 HY57V161610DTC-8 16M SDRAM IC741 HY57V16160DTC-8 16M SDRAM IC781 M2V64S40DTP-7 64M SDRAM IC901 HY57V161610DTC-8 16M SDRAM SPINDLE MOTOR RF+ RFP PD2 PD1 PD4 PD3 RFO BHMIX BH FE ADATA0 TE IC351 M56788AFP FTS Driver IC201 LC78652W Servo DSP IC701 PE5286A DVD Decoder EBY-CHIP IC751 M65776AFP MPEG2 Decoder AV-1 IC902 PM0033A Progressive and High-Quality Video Encoder IC831 ADV7300AKST 12 Bit Video Encoder IC601 PD6345A System Control CPU FR IC603 VYW2060 16M Flash Memory IC481 SM8707DV Clock Generator 12 13 9 10 35 3 20 47 48 27M 164 22/24AV1 VM4+ VM4- VM3- FDO AIN CDDT DMCK DMACKI 189 16M CKCD CDDIN AO0 166 AO1 167 AO2 RFO AIN CDDATA 170 DOUT0 DSPRF BH PH FE TE TDO VM3+ VM1- 34 VM1+ 31 15 14 VM2- 32 32 33 30 39 3 31 VM2+ VM5- VM5+ TE FE RF PH RF BH EFMIN ROMXA CLKIN 172 ACLKI FSEL1 CLK27M CLK16M 36M 22/24M CLK33M IN3- IN4- B1 B2 B3 B4 T DRV T RTN F DRV F RTN PICKUP ASSY OEIC A LOAB ASSY B DVDM ASSY C SACDB ASSY STEPPING MOTOR ST1+ LOD POS (For IC751) 27M (For IC201,IC701) 16M (For IC701) 36M (For IC751) 22/24AV1 (For IC701) 33M ST1- ST2+ ST2- M LOADING MOTOR ASSY 11 20 21 15 16 25 24 23 26 3 4 2 1 25 24 23 26 11 20 21 15 16 CN101 (26P) CN104 (4P) CN105 (12P) LOAD+ SW2 SW1(GNDS) LOAD- 3.3V CN602 (2P) + – M S101 2 1 1 2 4 5 1 2 4 5 CN103 (5P) (26P) 4-9 CN601 (5P) 17 24 BD0-BD7 BD0-BD7 BD0-BD7 PD0-PD7 CN901 (40P) CN542 (40P) 3 2 IC211 TK15404M 7 IC786 TC74VHC541FT RFSACD AO00 3 DATA1A0 2 13 17 18 DATA2A0 AO0 DATA1A DATA2A DATA2 RFSACD RFSACD 46 46 57 14 3 13 9 10 15 44 105 IC801 XCA56367PV150 DVD-Audio DSP 10 138 48 69 71 74 64 DSD_L DSD_LS DSD_LFE DSD_C 55 DVADML DSD_L CN999 (21P) 10 14 16 18 2 OUT_V Q932 43 OUT_YS Q933 42 OUT_C Q934 39 OUT_Y/G Q936 38 OUT_CB/B Q939 37 OUT_CR/R Q938 4-6, 29-33 CN513 (20P) 15 14 13 4 3 2 CN801 (20P) 6 14 13 17 18 19 DATA1 DATA0B DATA0S DATA1S DATA2S DSD_LS DSD_LFE DSD_C DSADML DATA0 CN561 (21P) 11 14 DOUT DATA0A DATA1A DATA2A 6 SD02 5 SD01 4 SD00 DATA2R DATA1R DATA0R 8-12, 35-37 123-126, 128,129, 131-134 137-140, 143,144, 146-149 14-16, 17,18, 26-30 2-9, 12,13 27-34 a 19 4 2 a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 19 5 6 7 8 5 6 7 8 C D F A B E CN8801 (30P) 15 17 21 23 25 19 4 2 CN8805 (4P) 1 2 3 CN8604 (17P) 17 13 9 7 5 CN8603 (17P) 8 5 15 JA8805 (21P) 3 6 19 15 11 7 J8806 (4P) 1 2 3 V Y C Y/G/P_Y V IN Y IN C IN Y/G IN CB/B IN Cr/R IN V OUT L OUT L IN V/Y OUT R/C G B L H Y OUT Y C Y C C OUT Y/G OUT Y CB/B OUT Cr/R OUT DATA1 DATA2 Cb/B/P_Cb Cr/R/P_Cr D VIDEO ASSY F COMPONENT ASSY G IF ASSY IC1401 DSD1702EG FL 1 9 4 IC1402 DSD1702EG SL 1 9 4 IC1403 DSD1702EG C / SW 1 9 10 4 IC1404 DSD1702EG REC L IC8803 V SEL IC8802-IC8804 TC74HC4052AFT IC8801 LA73054 Video Driver Amp. IC8809 MM1505XN 1 9 15 2 8 6 14 12 11 13 CN1401 (21P) 12 8 6 4 20 DSD_LS DSD_LFE DSD_C DSADML CN8606 (21P) 11 14 DATA0 DOUT FL SL C SW SCARTOUTL DMIXRECL SCARTINL DOUT CN8605 (18P) CN1402 (18P) 9 12 9 12 DATA0 DOUT CN8601 (16P) CN1403 (16P) 1 15 1 13 DOUT SCART OUT L CN8602 (18P) CN1404 (18P) 8 8 SL C SW DMIXRECL SCARTINL DSD_L Cb Cr Y Cb Cr 11 14 16 33 6 2 4 28 31 25 23 21 2 IC8802 Y SEL 15 14 12 11 13 IC8804 C SEL 15 14 12 11 13 VIDEO1 IN SVIDEO1 IN JA8803 COMPONENT XV-DV1000/ZUCXJ ONLY XV-DV1000/ZVYXJ ONLY JA8807 VIDEO2 IN JA8801 JA8806 SVIDEO1 VIDEO1 JA8806 MONOTOR JA8806 SVIDEO2 IN JA8802 SVIDEO3 IN JA8802 VIDEO3 IN JA8801 JA8803 MONITOR JA8803 SVIDEO OUT VIDEO OUT AV CONNECTOR (RGB)-TV L H IC8808 MM1507XN 6 2 4 L H IC8807 MM1507XN 6 2 4 L H IC8810 MM1505XN 6 2 4 L H IC8806 MM1505XN 6 2 4 4 4 12 12 14 14 18 18 3 3 FL 3 IC8601 (1/2) NJM4560M 2 1 3 IC8602 (1/2) NJM4560M 2 1 3 IC8603 (1/2) NJM4560M 2 1 6 IC8603 (2/2) NJM4560M 5 7 3 IC8604 (1/2) NJM4560M 2 1 CN8302 K CN8301 K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 20 1 2 3 4 1 2 3 4 C D F A B E 3.2 DSP and Control Section BLOCK DIAGRAM IC8101 CS493292 DSP IC8301 AK4586VQ Codec & DIR IC8201 PD8104A ROM for D.D & DTS 39-41 11-13 K CONTROL ASSY I DSP ASSY U OEL CONT ASSY H FM/AM TUNER MODULE DISPLAY UNIT V OEL JACK ASSY J DSP TRADE ASSY IC8202, IC8203 TC74VHC574F Flip Flop IC1902 PD3430AK OEL Controller OEL Module MXK8044 IC201 BA1451F AM/FM IF + MPX IC IC1901 PD5797A Display µCOM IC5101 RPM7140-HS IC1903 PD8103A Font ROM IC5501 PDC099A µCOM SD01-SD03 D0-D7 D0-D7 A0-A14 RECL 32 6 43 41 39 37 FL LS SW C CN8003 (15P) CN8706 (15P) CN8705 (11P) CN8701 (23P) CN8702 (23P) CN8001 (21P) CN8704 (21P) 3 7 11 13 15 3 7 11 13 15 13 9 22 23 21 5 3 1 CN5503 (23P) 13 9 22 23 21 5 3 1 CN8002 (11P) 2 3 6 4 5 2 2 1 CN5502 (23P) 2 1 3 6 4 5 CN8302 (17P) CN5001 (10P) CN5101 (10P) CN5651 (10P) 17 CN201 (13P) 7 CN5701 (13P) 7 13 9 7 5 CN8301 (17P) 8 5 15 FL SL C SW SCARTOUTL DMIXRECL 1 SCARTINL DOUT CN8604 G CN8603 G 30 28 27 26 RX4 RX3 RX4 RX3 TX TX RX2 RX1 RX2 COAX IN OPTOUT OPTIN DOUT Control RX1 RECL FL LS SW C CN5003 CN5201 (10P) FM TXL AM ANTENNA 20 11 BN201 VIDEO1 L IN JA8103 VIDEO2 L IN JA8101 VIDEO3 L IN JA8101 TV L IN DIGITAL COAX IN DIGITAL OPT IN JA8101 JA8201 JA8203 JA8202 IC8101 BU4051BCF Audio Input Selector 5 2 4 1 13 14 15 3 6 IC8103 (2/2) NJM4558M Buffer 5 7 DIGITAL OPT OUT IC8201 TC74HCU04F 4 3 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 21 5 6 7 8 5 6 7 8 C D F A B E 2 3 10 12 5 1 11 7 T HP ASSY CN8001 (4P) 1 J8004 (2P) 2 CN8003 (2P) 2 3 4 J8001 (4P) CN1901 (7P) CN1902 (7P) 1 3 4 SWITCH OPEN OPEN CLOSE To Subwoofer CLOSE OUT1 OUT2 FIN RIN JA3901 VIDEO1 L OUT JA8103 PHONES IC8401 BA4053BCF 1 IC3902 LC75344M 1 2 2 15 13 12 14 IC8402 BA4053BCF 13 5 14 IC8001 BA6417F Motor 4 5 1 7 3 12 4 3 IC8301 (1/2) BA4558F LPF & Gain 0 dB 11 dB 11 dB 8 dB 2 1 2 IC8501 (1/2) BA4558F IC3901 (2/2) NJM4560M HP Amp. 3 1 5 IC8501 (2/2) BA4558F 6 7 5 6 7 2 IC8503 (1/2) BA4558F 3 1 5 IC8503 (2/2) BA4558F 6 7 2 IC8506 (1/2) BA4558F 3 1 5 IC8506 (2/2) BA4558F 6 7 2 IC8505 (1/2) BA4558F 3 1 5 IC8505 (2/2) BA4558F 6 7 2 IC8302 (1/2) BA4558F 3 1 5 IC8303 (2/2) BA4558F 6 7 2 IC8303 (1/2) BA4558F 3 1 CN8501 (12P) FLN HPL FLP SLN SLP SWP SWN CN CP A CN3901 (5P) 1 CN3902 (5P) 1 SWITCH DOOR MOTOR M R MOTOR ASSY S DOOR SW ASSY CN1916 (2P) J1905 (2P) M DOOR SW2 ASSY N KEY L ASSY CN1906 (2P) J1915 (2P) J1901 (4P) J1903 (3P) J1901 (4P) L STBY KEY ASSY O TIMER LED ASSY J1903 (3P) J1913 (2P) P KEY R ASSY CN1914 (2P) Q O/C KEY ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 22 1 2 3 4 1 2 3 4 C D F A B E 3.3 Power Supply Section BLOCK DIAGRAM A LOAB ASSY CN601 (5P) CN103 (5P) V+3D SPINDLE MOTOR PICKUP ASSY-S CN101 (26P) CN105 (12P) 8 8 3 7 11 3 3 19 19 V+5S V+5S V+3D C SACDB ASSY D VIDEO ASSY V OEL JACK ASSY J DSP TRADE ASSY U OEL CONTROL ASSY B DVDM ASSY E REG ASSY IC906 BA25BC0FP 2.5V REG IC791 MM1561JF 1.8V REG IC1015 BA05ST 5V REG V+25V V+6M V+6EV V+3D V+3D CN801 (20P) CN513 (20P) VD+5DVD VM+6DVD VM+12DVD V+25DVD V+33DVD CN401 (13P) CN1002 (13P) 1 2 9 11 13 1 2 9 11 13 VP+3 V+33OEL V+11OEL VP+12 VD+5DSP VP+6 VP+6 CN1001 (14P) CN5507 (14P) CN5201 (10P) CN5101 (10P) CN5651 (10P) CN5001 (10P) CN5506 (20P) 11 7 9 4 12 2 1 11 7 9 3 9 10 3 9 10 4 12 2 1 VP+6 VP+6 VP+12 VP+3 UNE+56 VA-12 2 3 V+11OEL VD+5 2 9 V+33OEL 1 2 9 1 4 6 8 10 VOUT VIN J1003 (4P) CN1003 (4P) 3 1 3 1 V+5D SW+5 V+5S V+12 V18D IC1017 PQ025EH01ZP 2.5V REG Q1001 IC1016 S-8540B00FN-IMA DC-DC Converter IC1010 BA06SFP 6V REG IC5504 NJM7805DL1A 5V REG IC1013 BA05FP 5V REG IC1011 BA12FP 12V REG Q1007 IC1012 BA05FP 5V REG IC1018 BA12FP 12V REG IC1014 BA033FP 3.3V REG IC1019 V+3D V3VD V+33DVD V+33DAC VP+6 VOUT VIN VD+5 VV+5 VA+5DAC VA+12 VV+12 VX+12 V12M V+25V Q5701 10V REG VX+12 From Subwoofer VD+5 VD+5 VA+12 VA-12 V+33OEL V+11OEL VP+12 VA+12 VA-12 VE+56 CN8301 (17P) CN8603 (17P) VA-12 VA+12 10 12 VD+5 9 10 12 9 CN5502 (23P) CN8701 (23P) VD+5 20 21 VD+5 20 21 I DSP ASSY G IF ASSY CN8704 (21P) CN8001 (21P) VD+5 3 4 VD+5 VD+5 VD+5 VA+5 VD+5 3 4 VD+5 H FM/AM TUNER MODULE CN5701 (13P) CN201 (13P) 11 +10V 11 +10V Q8113 VA-12 VA+12 VA+7 VA-7 VA-5 Q8114 R8433 D8401 D8402 VA+12 VA-12 VA-12 R8434 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 23 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 24 1 2 3 4 1 2 3 4 C D F A B E 3.4 LOAB ASSY and OVERALL WIRING DIAGRAM S101 VSK1011 S2B-PH-K S5B-PH-K LOAB ASSY (VWG2279) A PICKUP ASSY-S (OXX8003) LOADING MOTOR ASSY (VXX2505) STEPPING MOTOR (VXM1090) SPINDLE MOTOR (VXM1088) B 1/4- B 4/4 B DVDM ASSY (AWX8156) D 1/2- D 2/2 D VIDEO ASSY (XV-DV1000/ZUCXJ : AWU7983) (XV-DV1000/ZVYXJ : AWU7980) I DSP ASSY (AWX8188) J DSP TRADE ASSY (AWU7981) (RF) (RF) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (T) (T) (T) (T) (T) (T) (T) (T) (S) (S) (S) (S) SACDB ASSY (AWX8157) C DOOR SW2 ASSY (AWU7990) M STBY KEY ASSY (AWU7992) L Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". CN101 CN105 CN104 CN103 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 25 5 6 7 8 5 6 7 8 C D F A B E K 1/4- K 4/4 K CONTROL ASSY (XV-DV1000/ZUCXJ : AWU7982) (XV-DV1000/ZVYXJ : AWU7979) G IF ASSY (AWU7987) FM/AM TUNER MODULE (XV-DV1000/ZUCXJ : AXQ7228) (XV-DV1000/ZVYXJ : AXQ7229) H DOOR SW ASSY (AWU7996) S MOTOR ASSY (AWU7995) R OEL JACK ASSY (AWU8000) V OEL CONT ASSY (AWU7999) DISPLAY UNIT U HP ASSY (AWU7988) T O/C KEY ASSY (AWU7993) Q KEY R ASSY (AWU7991) P KEY L ASSY (AWU7989) N REG ASSY (AWU8046) E COMPONENT ASSY (AWU7984) F TIMER LED ASSY (AWU7994) O To Subwoofer (S-DV1000SW) COMPONENT AV CONNECTOR (RGB)-TV XV-DV1000/ZUCXJ ONLY DC FAN MOTOR (AXM7024) DVD DOWNLOAD OPTICAL DIGITAL OUTPUT DIGITAL INPUT OPTICAL COAXIAL VIDEO1 INPUT VIDEO2 INPUT VIDEO3 INPUT TV INPUT VIDEO1 OUTPUT L R L R L R L R L R A B CN5651 CN5101 CN5001 XV-DV1000/ZVYXJ ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 26 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVDM ASSY (1/4) B 1/4 CN601 PICKUP ASSY-S STEPPING MOTOR A SPINDLE MOTOR B 1/4 DVDM ASSY (AWX8156) RF IC LD Driver for DVD LD Driver for CD SW for Detect Signal Buffer (RF) Buffer (RF) Buffer (RF) Focus, Tracking and Loading Driver B 2/4 B 2/4 B 2/4 B 2/4 B 2/4 : RF SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE (F) (AD) (RF) (RF) (RF) : RF (VIDEO) SIGNAL ROUTE (RF_V) (RF_V) (RF_V) : RF (AUDIO) SIGNAL ROUTE (RF_A) (RF_A) (RF_A) (RF_A) (T) (S) (F) (F) (T) (F) (T) (T) (F) (F) (F) (F) (T) (T) 1 2 4 (F) (T) (T) (F) (F) (F) (F) (F) (T) (T) (T) (T) (T) (F) (F) (S) (S) (S) (S) (T) (T) (F) (F) (S) (S) (S) (S) (RF) (RF) (RF) (RF) (RF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 27 5 6 7 8 5 6 7 8 C D F A B E B 1/4 Servo DSP VCO Circuit Spindle Drive IC B 3/4 B 2/4 B 3/4 B 3/4 B 2/4 B 2/4 B 2/4 B 3/4 B 2/4 B 3/4 B 2/4 B 3/4 B 3/4 B 2/4 B 3/4 1/2 2/2 1/2 2/2 (RF_V) (RF_V) (RF_V) (RF_V) (RF_V) (RF_A) (RF_A) (RF_A) (AD) (RF_A) 5 6 7 8 9 11 10 (T) (T) (F) (T) (F) (F) (T) (F) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 28 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVDM ASSY (2/4) B 2/4 B 2/4 DVDM ASSY (AWX8156) VYW2060 PGM Flash Memory FR CPU B 3/4 B 3/4 B 3/4 B 3/4 B 4/4 B 1/4 B 1/4 B 3/4 B 3/4 B 1/4 B 3/4 B 3/4 B 3/4 B 4/4 B 4/4 B 4/4 B 4/4 B 4/4 B 3/4 B 3/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 1/4 B 4/4 B 1/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 29 5 6 7 8 5 6 7 8 C D F A B E B 2/4 CN5505 CN901 K 1/4 CN1002 D 1/2 C Clock Generator B 1/4 B 3/4 B 1/4 B 3/4 B 3/4 B 3/4 B 3/4 B 3/4 B 3/4 B 1/4 B 4/4 B 3/4 B 4/4 B 4/4 : The power supply is shown with the marked box. : AUDIO DATA SIGNAL ROUTE (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 30 1 2 3 4 1 2 3 4 C D F A B E 3.7 DVDM ASSY (3/4) B 3/4 B 3/4 DVDM ASSY (AWX8156) 16M SDRAM DVD Data Decoder EBY-CHIP B 2/4 B 2/4, 3/4 B 2/4 B 2/4 B 2/4 B 4/4 B 1/4 B 1/4 B 2/4 B 1/4 B 1/4 B 1/4 B 1/4 B 2/4 B 4/4 B 2/4 (RF_V) (RF_V) (RF_V) (VD) (VD) (AD) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 31 5 6 7 8 5 6 7 8 C D F A B E B 3/4 1.8V Regulator MPEG, DVD-Audio, DTS Decoder and Progressive Scan Processor MITSUBISHI AVI 64M SDRAM B 2/4 B 4/4 B 4/4 B 1/4 B 2/4 B 4/4 B 2/4 : The power supply is shown with the marked box. : AUDIO DATA SIGNAL ROUTE (AD) : AUDIO (DIGITAL) SIGNAL ROUTE (D) : VIDEO DATA SIGNAL ROUTE (VD) : RF (VIDEO) SIGNAL ROUTE (RF_V) (VD) (VD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (D) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (D) (D) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 32 1 2 3 4 1 2 3 4 C D F A B E 3.8 DVDM ASSY (4/4) B 4/4 Progressive and Hi-Quality Video Encoder PRO-2 Video Encoder 16M SDRAM B 2/4 B 3/4 (VD) (VD) (VD) (VD) (VD) (VD) (VD) (VD) (VD) (VD) (VD) (VD) (V) (S_Y) (S_C) (P_Y) (P_Pb) (P_Pr) (V) (V) (S_Y) (S_Y) (S_C) (S_C) (P_Y) (P_Y) (P_Pb) (P_Pb) (P_Pr) (P_Pr) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 33 5 6 7 8 5 6 7 8 C D F A B E B 4/4 B 4/4 DVDM ASSY (AWX8156) CN8801 CN801 D 2/2 C CN8606 G Buffer Buffer Buffer Buffer Buffer Buffer B 2/4 B 2/4 B 2/4 B 2/4 B 3/4 B 3/4 B 3/4 B 3/4 : VIDEO DATA SIGNAL ROUTE (VD) : PROGRESSIVE SCAN VIDEO SIGNAL ROUTE (Y) (P_Y) : PROGRESSIVE SCAN VIDEO SIGNAL ROUTE (Pb) (P_Pb) : PROGRESSIVE SCAN VIDEO SIGNAL ROUTE (Pr) (P_Pr) : VIDEO SIGNAL ROUTE (V) : S VIDEO SIGNAL ROUTE (Y) (S_Y) : S VIDEO SIGNAL ROUTE (C) (S_C) : AUDIO DATA SIGNAL ROUTE (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) : AUDIO (DIGITAL) SIGNAL ROUTE (D) (D) (V) (V) (V) (V) (V) (S_Y) (S_Y) (S_Y) (S_Y) (S_C) (S_C) (S_C) (S_C) (P_Y) (P_Y) (P_Y) (P_Y) (P_Pb) (P_Pb) (P_Pb) (P_Pr) (P_Pr) (P_Pr) (P_Pr) (P_Y) (P_Pb) (P_Pr) 12 14 13 18 16 19 15 20 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 34 1 2 3 4 1 2 3 4 C D F A B E 3.9 SACDB ASSY C SACDB ASSY (AWX8157) C CN513 B 4/4 CN542 B 2/4 (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 35 5 6 7 8 5 6 7 8 C D F A B E C CN1401 D 1/2 BA25BC0FP : The power supply is shown with the marked box. : AUDIO DATA SIGNAL ROUTE (AD) : AUDIO SIGNAL ROUTE (FRONT L ch) (F) : AUDIO SIGNAL ROUTE (SURROUND L ch) (S) : AUDIO SIGNAL ROUTE (CENTER ch) (C) (AD) (AD) (AD) (S) (F) (C) (F) (S) (C) (F) (S) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 36 1 2 3 4 1 2 3 4 C D F A B E 3.10 VIDEO (1/2) and REG ASSYS E D 1/2 REG ASSY (AWU8046) E CN5507 K 1/4 CN401 DC FAN MOTOR B 2/4 D 2/2 11.45 8.03 5.02 13.67 11.98 8.85 6.08 5.07 11.95 8.06 5.08 5.03 3.31 2.5 3.34 8.7 3.25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 37 5 6 7 8 5 6 7 8 C D F A B E D 1/2 D 1/2 VIDEO ASSY (XV-DV1000/ZUCXJ : AWU7983) (XV-DV1000/ZVYXJ : AWU7980) CN999 C CN8605 G CN8601 G CN8602 G D 2/2 D 2/2 D 2/2 D 2/2 XV-DV1000/ZVYXJ ONLY : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (FRONT L ch) (F) : AUDIO SIGNAL ROUTE (SURROUND L ch) (S) : AUDIO SIGNAL ROUTE (CENTER ch) (C) (F) (F) (F) (F) (F) (S) (C) (S) (S) (S) (S) (C) (F) (C) (C) (C) (F) (S) (C) (F) (S) (C) (F) (S) (C) : AUDIO DATA SIGNAL ROUTE (AD) : AUDIO (DIGITAL) SIGNAL ROUTE (D) (AD) (D) (D) (D) (AD) : AUDIO SIGNAL ROUTE (L ch) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 38 1 2 3 4 1 2 3 4 C D F A B E 3.11 VIDEO (2/2) and COMPONENT ASSYS D 2/2 D 2/2 VIDEO ASSY (XV-DV1000/ZUCXJ : AWU7983) (XV-DV1000/ZVYXJ : AWU7980) CN912 DVD DOWNLOAD B 4/4 D 1/2 D 1/2 XV-DV1000/ZUCXJ ONLY D 1/2 (S_C) (S_Y) (S_C) (S_Y) (S_C) (S_C) (S_C) (S_C) (S_C) (S_C) (S_C) (S_C) (S_Y) (S_Y) (S_Y) (S_Y) (S_Y) (S_Y) (S_Y) (S_C) (S_C) (S_Y) (S_Y) (S_C) (S_Y) (S_Y) (S_Y) (S_C) (S_Y) (S_C) (S_Y) (P_Y) (P_Y) (P_Y) (P_Y) (P_Pb) (P_Pb) (P_Pb) (P_Pr) (P_Pr) (P_Pr) (P_Y) (P_Pb) (P_Pr) (V) (V) (V) (V) (S_C) (S_Y) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (S_C) (S_C) (S_C) (S_Y) (V) (V) (V) (V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 39 5 6 7 8 5 6 7 8 C D F A B E F D 2/2 COMPONENT ASSY (AWU7984) Non Connection Non Connection XV-DV1000/ZUCXJ ONLY XV-DV1000/ZVYXJ ONLY COMPONENT AV CONNECTOR (RGB-TV) F D 1/2 D 1/2 D 1/2 D 1/2 : The power supply is shown with the marked box. -5.09 : AUDIO SIGNAL ROUTE (L ch) (S_C) (S_Y) (S_C) (S_Y) (S_C) (S_C) (S_C) (S_Y) (S_Y) : PROGRESSIVE SCAN VIDEO SIGNAL ROUTE (Y) (P_Y) : PROGRESSIVE SCAN VIDEO SIGNAL ROUTE (Pb) (P_Pb) : PROGRESSIVE SCAN VIDEO SIGNAL ROUTE (Pr) (P_Pr) (P_Y) (P_Pb) (P_Pr) (P_Y) (P_Pb) (P_Pr) (P_Y) (P_Pb) (P_Y) (P_Y) (P_Pb) (P_Pb) (P_Pr) (P_Y) (P_Pb) (P_Pr) (P_Y)(P_Pb) (P_Y) (P_Pb) (P_Pr) : VIDEO SIGNAL ROUTE (V) (V) (V) (V) (S_C) (S_Y) (S_C) (S_C) (S_C) (V/S_Y) (V/S_Y) (V/S_Y) (V) (S_C) (S_Y) (S_C) (S_Y) (V) (V) (S_C) (S_Y) (V) : S VIDEO SIGNAL ROUTE (Y) (S_Y) : S VIDEO SIGNAL ROUTE (C) (S_C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 40 1 2 3 4 1 2 3 4 C D F A B E 3.12 IF ASSY G CN1403 D 1/2 CN1404 D 1/2 CN1402 D 1/2 CN561 B 4/4 (F) (S) (C) (F) (F) (F) (F) (F) (F) (S) (S) (S) (S) (S) (C) (C) (C) (C) (AD) (D) (AD) (AD) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 41 5 6 7 8 5 6 7 8 C D F A B E IF ASSY (AWU7987) G G CN8301 K 3/4 CN8302 K 3/4 : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (FRONT L ch) (F) : AUDIO SIGNAL ROUTE (SURROUND L ch) (S) : AUDIO SIGNAL ROUTE (CENTER ch) (C) (F) (F) (F) (F) (F) (S) (S) (S) (S) (S) (C) (C) (C) (C) : AUDIO DATA SIGNAL ROUTE (AD) : AUDIO (DIGITAL) SIGNAL ROUTE (D) (D) : AUDIO SIGNAL ROUTE (L ch) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 42 1 2 3 4 1 2 3 4 C D F A B E 3.13 FM/AM TUNER MODULE (AXQ7228) H FM FRONT END AM RF TUNING BLOCK FM/AM TUNER MODULE (AXQ7228) H OSC : 981 - 2052kHz 9k step (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 43 5 6 7 8 5 6 7 8 C D F A B E H 1/4 K CN5701 L201 ATE7003 : AUDIO SIGNAL ROUTE (TUNER) (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 44 1 2 3 4 1 2 3 4 C D F A B E 3.14 FM/AM TUNER MODULE (AXQ7229) FM FRONT END MW RF TUNING BLOCK FM/AM TUNER MODULE (AXQ7229) H OSC : 981 - 2052kHz 9k step H (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 45 5 6 7 8 5 6 7 8 C D F A B E L201 ATE7003 H 1/4 K CN5701 : AUDIO SIGNAL ROUTE (TUNER) (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 46 1 2 3 4 1 2 3 4 C D F A B E 3.15 DSP ASSY DSP ASSY (AWX8188) I I Regulator Regulator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 47 5 6 7 8 5 6 7 8 C D F A B E I CN8706 J CN8705 J CN8704 J : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (FRONT L ch) : AUDIO SIGNAL ROUTE (L ch) (F) : AUDIO SIGNAL ROUTE (SURROUND L ch) (S) : AUDIO SIGNAL ROUTE (CENTER ch) (C) (F) (F) (S) (S) (C) (C) : AUDIO (DIGITAL) SIGNAL ROUTE (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 48 1 2 3 4 1 2 3 4 C D F A B E 3.16 DSP TRADE and CONTROL (1/4) ASSYS CN8001 I CN8002 I CN8003 I J K 1/4 DSP TRADE ASSY (AWU7981) J XV-DV1000/ ZUCXJ ONLY XV-DV1000/ ZUCXJ : 39k XV-DV1000/ ZVYXJ : 47k K 3/4 K 3/4 K 2/4 K 2/4 (F) (S) (C) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 49 5 6 7 8 5 6 7 8 C D F A B E To Subwoofer (S-DV1000SW) K 1/4 K 1/4 CONTROL ASSY (XV-DV1000/ZUCXJ : AWU7982) (XV-DV1000/ZVYXJ : AWU7979) B CN412 B 2/4 CN1001 D 1/2 CN201 H Regulator XV-DV1000/ ZUCXJ : 100k XV-DV1000/ ZVYXJ : 6.8k XV-DV1000/ZVYXJ ONLY XV-DV1000/ ZUCXJ ONLY XV-DV1000/ ZUCXJ ONLY K 2/4 AEK7050 K 4/4 K 3/4 K 3/4 K 4/4 K 3/4, 4/4 K 2/4 K 2/4, 3/4, 4/4 K 3/4 K 2/4 K 2/4, 3/4 K 2/4, 4/4 : The power supply is shown with the marked box. 11.53 5.76 : AUDIO SIGNAL ROUTE (TUNER) (TX) (TX) (TX) (TX) : AUDIO SIGNAL ROUTE (FRONT L ch) (F) : AUDIO SIGNAL ROUTE (SURROUND L ch) (S) : AUDIO SIGNAL ROUTE (CENTER ch) (C) : AUDIO (DIGITAL) SIGNAL ROUTE (D) : AUDIO SIGNAL ROUTE (L ch) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491003 MFD, BY LITTELFUSE INK. FOR IC1019(AEK7050). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 50 1 2 3 4 1 2 3 4 C D F A B E 3.17 CONTROL ASSY (2/4) K 2/4 CONTROL ASSY (XV-DV1000/ZUCXJ : AWU7982) (XV-DV1000/ZVYXJ : AWU7979) K 2/4 C8127 C8128 R8173 R8174 XV-DV1000/ZVYXJ ONLY (TX) (TX) (D) (D) (D) (D) (D) (D) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 51 5 6 7 8 5 6 7 8 C D F A B E K 2/4 : The power supply is shown with the marked box. K 1/4 K 1/4, 4/4 K 3/4 K 3/4 K 3/4 K 3/4 K 1/4 K 1/4 K 4/4 K 1/4 K 1/4 K 1/4, 2/4 K 1/4, 3/4 K 3/4, 4/4 K 4/4 K 3/4 K 3/4 : AUDIO SIGNAL ROUTE (TUNER) (TX) (TX) (TX) : AUDIO (DIGITAL) SIGNAL ROUTE (D) : AUDIO SIGNAL ROUTE (L ch) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 52 1 2 3 4 1 2 3 4 C D F A B E 3.18 CONTROL ASSY (3/4) K 3/4 CN8603 G CN8604 G K 1/4 K 2/4 K 2/4 K 1/4 K 1/4 K 1/4 (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) (C) (C) (C) (F) (S) (C) (C) (C) (C) (C) (C) (C) (D) (D) (D) (D) (F) (S) (C) (F) (S) (F) (F) (S) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 53 5 6 7 8 5 6 7 8 C D F A B E K 3/4 To Subwoofer (S-DV1000SW) A K 3/4 CONTROL ASSY (XV-DV1000/ZUCXJ : AWU7982) (XV-DV1000/ZVYXJ : AWU7979) : The power supply is shown with the marked box. K 2/4 K 4/4 K 1/4 K 2/4 K 2/4 K 1/4 K 2/4 K 1/4 K 1/4, 2/4 K 2/4, 4/4 : AUDIO SIGNAL ROUTE (FRONT L ch) (F) : AUDIO SIGNAL ROUTE (SURROUND L ch) (S) : AUDIO SIGNAL ROUTE (CENTER ch) (C) (F) (F) (F) (F) (F) (F) (F) (F) (S) (S) (S) (S) (S) (S) (S) (C) (C) (C) (C) (C) : AUDIO (DIGITAL) SIGNAL ROUTE (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 54 1 2 3 4 1 2 3 4 C D F A B E 3.19 CONT.(4/4), STBY KEY, D.SW2, KEY L, TIMER LED, KEY R, O/C KEY, MOTOR, D.SW, and HP ASSYS L M N O P Q K 4/4 STBY KEY ASSY (AWU7992) L DOOR SW2 ASSY (AWU7990) M O/C KEY ASSY (AWU7993) Q KEY R ASSY (AWU7991) P KEY L ASSY (AWU7989) N TIMER LED ASSY (AWU7994) O K 4/4 CONTROL ASSY (XV-DV1000/ZUCXJ : AWU7982) (XV-DV1000/ZVYXJ : AWU7979) VSG1023 CN5651 V K 3/4 K 2/4 K 3/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 55 5 6 7 8 5 6 7 8 C D F A B E R S T K 4/4 DOOR SW ASSY (AWU7996) S MOTOR ASSY (AWU7995) R HP ASSY (AWU7988) PHONES T K 1/4, 2/4 K 1/4 K 1/4 K 1/4 K 2/4 K 1/4 K 2/4, 3/4 K 1/4 K 1/4 : The power supply is shown with the marked box. : AUDIO SIGNAL ROUTE (L ch) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 56 1 2 3 4 1 2 3 4 C D F A B E 3.20 OEL CONT and OEL JACK ASSYS U V CN5201 K 4/4 OEL JACK ASSY (AWU8000) V OEL CONT ASSY (AWU7999) U 9.88 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 57 5 6 7 8 5 6 7 8 C D F A B E U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 58 1 2 3 4 1 2 3 4 C D F A B E 3.21 WAVEFORMS 1 IC101-pin 3 (RF) V: 200mV/div. H: 0.1µsec/div. 2 Q106-emitter (RFO) V: 500mV/div. H: 0.1µsec/div. 3 4 IC101-pin 42 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC201 - pin 39 (EFM before slice) V: 0.5V/div. H: 0.2µsec/div. 6 IC201 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC251 - pin 24 (FG) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 10µsec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 10µsec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 0.2msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 Foot of R964 (V) V: 0.2V/div. H: 10µsec/div. 13 Foot of R963 (C) V: 0.2V/div. H: 10µsec/div. 14 Foot of R960 (Y) V: 0.2V/div. H: 10µsec/div. 19 Foot of R958 (Pb) V: 0.2V/div. H: 10µsec/div. 20 Foot of R957 (Pr) V: 0.2V/div. H: 10µsec/div. 15 Foot of R959 (Y) V: 0.2V/div. H: 10µsec/div. 16 Foot of R958 (Pb) V: 0.2V/div. H: 10µsec/div. 17 Foot of R957 (Pr) V: 0.2V/div. H: 10µsec/div. 18 Foot of R959 (Y) V: 0.2V/div. H: 10µsec/div. GND AC mode GND AC mode GND AC mode GND GND DVDM ASSY B Measurement condition ; No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 12 to 14 : DVD-REF-A1, T2-Chap.1 No. 5 : CD, ABEX-784 Track 1 No. 15 to 20 : DVD-REF-A1, T2-Chap.19 GND GND GND GND GND Note : The encircled numbers denote measuring point in the schematic diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 59 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B SIDE A SIDE B LOAB ASSY A LOAB ASSY A CN103 B (VNP1836-B) (VNP1836-B) LOADING MOTOR ASSY M CN601 CN602 CN601 CN602 A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 60 1 2 3 4 1 2 3 4 C D F A B E 4.2 DVDM ASSY 5 8 4 1 1 2 29 30 19 20 1 2 2 40 1 39 1 30 7 1 4 5 132 133 176 1 44 45 88 89 13 1 53 52 1 208 157 156 105 104 5 4 1 8 48 37 36 25 24 13 12 1 1 12 2 1 25 26 1 4 1 17 24 1 25 26 50 1 1 16 17 32 33 48 49 64 1 16 8 9 NP 1 12 26 1 1 4 5 1 1 8 5 4 1 8 5 4 75 51 50 26 25 1 100 76 1 21 1 21 R167 C806 R804 R150 IC271 R611 R314 R624 R312 R633 R669 R313 R664 R663 CN951 R694 R695 R661 C470 R406 C933 R950 C815 C751 C752 C766 C754 R754 C753 C756 C931 C755 R936 C932 R948 CN502 CN531 R753 C794 R119 C103 C106 C208 C117 R204 R121 C205 R908 R923 R120 R875 R535 R534 R531 R389 C315 R322 C757 C758 C761 R662 R666 R627 C802 R224 R390 R418 CN901 R536 C428 R667 R488 C108 R798 IC791 R628 R481 IC601 R602 C615 R676 C603 C604 C616 C614 C657 C658 C662 C745 R693 R725 C799 C803 R811 R816 R815 R818 R801 C414 R741 R806 C809 R809 R404 R495 R487 C412 R476 C489 R635 C426 D402 R482 C227 R898 C902 R288 R286 C273 C285 R264 R229 R231 R640 C484 C401 IC403 C422 CN401 R492 R655 R683 C261 R232 C299 C231 C217 C216 C226 R208 C201 R129 C206 R117 R403 R945 R943 R638 IC751 R134 C123 C762 R808 R821 R822 R823 R951 C816 R817 C207 C811 R311 C107 R118 R211 C326 C128 R269 C265 C263 R271 R270 R266 IC261 C266 C314 R310 R272 R986 R985 R599 R598 R593 R592 R590 C951 R583 C212 R268 R261 IC801 C771 C772 C780 C779 C778 R752 C487 C213 C281 R290 R285 R210 C225 R209 R201 R781 C795 C793 C203 C204 CN115 CN111 CN114 R283 R622 C471 CN402 R652 Q934 Q933 Q932 R957 R803 C807 R838 R837 R316 C286 R755 R751 C760 C759 C768 C924 C767 R845 C805 R807 R810 C840 R844 CN701 R480 R475 R474 R473 R471 R472 R493 C846 C847 C845 C844 C843 R842 C842 R846 R841 R859 R839 C917 C916 C913 R856 R873 C834 R422 R959 R942 IC901 C909 C849 C908 R907 C852 C903 R762 R724 IC831 R835 R958 R963 R964 R960 R934 R931 R935 R568 C832 R833 C912 R872 C839 C838 C837 C851 R871 R864 R868 R865 R866 R939 R863 R836 R938 R843 R862 R855 C850 R854 R139 C848 C313 C317 C271 C233 C274 R579 R563 R555 R284 R287 C841 R759 R944 R760 R761 R486 R490 R483 C777 C776 R812 C804 R805 C812 C810 R814 R802 X481 C480 C481 C475 C474 C477 C808 R813 C775 C774 C773 C770 C769 C764 C763 R947 R954 R940 R946 R933 R937 L481 C476 R489 R485 IC481 R647 C618 R631 R637 R615 R641 R623 R668 R620 R630 R629 R607 R606 R605 C666 R408 R414 R681 C610 R645 X601 C613 C607 C605 R626 C997 C998 C956 C748 C617 C818 C817 C925 C926 C782 C781 R791 R671 C791 C792 R223 R222 C796 C215 C230 R672 C222 C790 C801 C221 R221 R417 R328 C833 R758 R757 R756 R673 R674 R675 C472 R202 R540 C100 R539 C486 R570 R577 Q931 R831 R832 CN105 R212 R138 C236 C392 C358 C369 C368 CN101 C101 R651 CN104 C241 R241 R242 R391 C391 R341 R115 R301 CN103 R317 R318 C264 C224 C223 C312 R350 Q103 R280 R240 C126 C200 C202 C393 R236 R281 C119 R149 R282 R289 C283 C284 IC281 C282 IC302 C319 R491 C270 C272 R262 C695 C411 C693 IC201 R263 R696 R409 R410 R411 R412 R413 C667 R168 R726 R632 R997 R161 C701 R705 R706 R701 R704 C711 R713 R714 R718 C702 R721 R441 R537 R533 R996 R215 R162 R166 R165 R164 R163 C798 CN551 R928 R619 C427 C831 C531 C534 C532 C533 C485 C955 R538 CN561 CN912 KN2 C127 KN1 R497 R929 D401 RF+ VREF FL DVI PW CONTACT SIDE LDREAD (SECOND) VWS1533- VWS1534- RFO AWX8156- VWS15 - JACK(AUDIO) 27M TE RF- B4 B3 CONTACT SIDE 94V-0 FDRV FG LOAD PU RPWM PPWM FPWM VPWM B2 B1 C A GNDM JACK(VIDEO) EV3 12V 6M iLINK SACD DSP T.O. SLDR SPDL EV4 EV6 5V 5S 2.5V FE A A C C D D VWS1531- CONTACT SIDE CONTACT SIDE BAR CODE DVDM SIDE A CONTACT SIDE CONTACT SIDE CONTACT SIDE CONTACT SIDE CONTACT SIDE HCT163 VNP1886-C VWS1532- VWS1539- PRI-FLUX HEAT RESISTANCE CONTACT SIDE VWS1535- 1 4 5 8 30 29 1 2 1 2 19 20 1 2 39 40 1 30 1 4 5 7 1 13 1 52 53 104 105 156 157 208 48 37 36 25 24 13 12 1 1 12 1 2 25 26 1 4 1 17 1 24 1 16 17 32 33 48 49 64 16 1 8 9 1 12 1 26 29 30 1 5 1 211 21 1 30 CN1002 D CN401 CN103 CN101 CN8801 D CN912 CN601 A CN8606 G CN561 SPINDLE MOTOR PICKUP ASSY-S CN104 STEPPING MOTOR M M DVDM ASSY B (VNP1886-D) SIDE A SIDE A B B IC403 IC601 IC801 IC901 IC751 IC261 Q103 IC271 IC791 IC481 IC201 IC302 IC281 IC831 Q931 Q932 Q933 Q934 CN105 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 61 5 6 7 8 5 6 7 8 C D F A B E 54 28 27 1 1 7 5 4 1 24 13 12 1 3 4 5 26 50 1 25 11 12 22 23 33 1 44 34 2 20 19 1 80 41 40 1 160 121 120 81 1 6 4 8 1 5 4 9 8 1 16 24 1 48 25 0 1 2 3 4 5 6 7 8 9 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 A- 49 48 33 32 17 16 1 64 3 1 5 4 4 3 1 5 42 22 21 1 15 14 29 1 28 30 NP NP NP 4 3 1 5 4 3 1 5 104 105 156 157 208 1 53 52 2 40 1 39 1 10 11 20 1 7 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A R911 C915 C914 C911 C910 C907 C906 C901 C905 R922 C930 C923 R920 R919 R565 C920 C922 C921 R914 R918 R917 C919 R916 R913 R915 R912 R910 C918 C787 C783 R621 R113 R111 C786 C785 IC781 C789 C788 C784 R610 C423 R793 R998 Q941 R589 C936 R581 IC402 C746 C741 C742 C743 C927 C124 C929 R532 R330 R332 R329 R331 IC552 R659 IC404 R909 R618 C944 C494 C493 R763 R582 R665 C404 R171 R795 R797 R405 R114 R796 R978 C736 R642 R609 R680 C619 C609 R682 D601 R689 C310 C418 C417 C406 R925 R921 R799 R924 C420 R320 C900 IC741 C407 C409 R401 R601 R600 R616 C419 R976 R897 C716 C254 R252 C725 R128 R971 R639 C115 R203 C405 C940 C328 C425 IC491 Q601 C424 C114 C121 R135 C109 R988 R987 R597 R596 R595 R594 R992 R990 R984 R983 R588 R421 CN513 R982 R586 R550 R585 C252 C255 IC902 C904 C893 C765 IC211 C403 R402 C410 C421 IC553 IC931 Q935 Q940 Q937 Q939 Q936 Q938 C555 C814 C813 R820 R819 R561 R560 R553 R552 R551 C553 C552 R559 C554 C744 C415 C413 C416 C896 R246 R106 R105 C895 R893 C894 R903 R902 R901 R894 R974 R967 C836 R900 R899 C891 R891 R941 R906 R905 R904 R965 R932 R557 R834 R558 C125 R226 R225 C134 R218 C390 C234 R227 C232 R564 R567 R554 R556 R140 R315 C835 R840 L751 R977 R980 R979 R956 R952 C934 R973 C937 R962 R970 C935 R961 C747 C608 C623 R625 R614 R612 C629 R650 C650 C297 R298 R617 C601 C602 C999 C957 C954 C953 C952 C950 C606 C621 IC603 R219 R966 C939 R975 L304 C321 C322 C320 R794 C938 R126 C120 C122 C928 C110 C941 C703 R677 R927 C945 R172 R896 R419 C898 C897 R685 C556 R895 R684 R571 R572 R576 R574 R562 R969 R968 R342 C332 R345 C330 R344 C333 C335 C334 R333 R214 R213 C105 C214 C329 R334 C336 R4 R2 R1 R131 R130 L330 D302 C237 C256 R257 IC101 R3 C324 IC303 IC304 D303 R335 R336 R353 C359 R358 R359 C360 R351 C357 R357 R360 C351 C353 IC351 C365 R372 R363 R373 R368 C361 R364 R361 R362 R354 C354 R355 C355 R356 C356 R371 C371 R370 C370 R321 R258 R259 R124 R125 C366 R137 TP1 TP2 R112 R374 R375 R369 R366 R365 C242 IC251 C250 C249 C248 R256 C247 C246 R255 C245 R254 C251 C253 C258 R251 R141 R142 R143 R144 R146 R147 R148 R145 R152 R153 R154 R151 Q210 Q241 R116 R101 R156 R155 R122 R234 C104 R133 R127 C118 R136 Q104 C113 R109 R110 R107 R108 R104 R103 R102 R132 R220 Q101 C116 C111 C130 R157 Q102 R123 R260 Q106 IC305 R972 C133 C899 C102 R158 IC306 C323 R233 R228 C112 C631 C622 R981 R949 R955 C220 R926 R999 C946 R792 IC701 R343 R995 R994 R993 C708 C705 R710 C714 C710 R709 C717 R703 R711 C709 C707 C706 C704 C735 C713 C712 C715 C718 C720 C722 C726 C727 C730 C731 C732 C733 C729 C728 C724 C723 C721 C719 R707 R708 R702 R712 R715 R716 R717 R720 R719 R722 CN542 R159 C488 R634 R613 C495 C490 C491 C797 IC786 CN412 R253 C943 C599 C948 R498 R727 R499 R496 C947 C235 R723 C942 CONTACT SIDE CONTACT SIDE CONTACT SIDE IREF RFO AWX8 VWS1 (FIRST) SIDE B 54 28 27 1 1 4 5 7 24 13 12 1 1 11 12 22 23 33 34 44 1 2 19 20 1 40 41 80 81 120 121 160 1 4 5 8 16 1 8 9 1 16 17 32 33 48 49 64 5 4 3 1 5 4 3 1 1 28 15 14 5 4 3 1 5 4 3 1 208 157 156 105 104 53 52 1 1 2 39 40 1 10 11 20 1 7 SIDE B SIDE B B B DVDM ASSY B (VNP1886-D) Q104 Q102 Q106 Q937 Q101 IC552 IC211 IC351 IC304 Q210 Q241 IC404 IC741 IC491 IC902 IC553 IC931 IC603 IC101 IC251 IC402 Q941 Q601 Q935 IC786 IC701 Q940 IC781 Q938 Q936 Q939 CN801 C CN513 CN901 C CN542 CN5505 K CN412 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 62 1 2 3 4 1 2 3 4 C D F A B E 4.3 SACDB ASSY 19 1 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A 1 5 C979 R800 R824 R827 R829 R831 R833 R901 R839 R840 R801 R998 C952 R999 R981 R983 R984 R985 R986 R987 R966 R965 R964 R962 R960 R958 R848 R843 R842 R841 C908 C932 R834 R951 R955 R919 R918 R967 R845 R980 R972 R982 R957 R968 R959 R961 C978 R973 R974 R977 R978 R979 R976 R855 R844 R846 R856 R830 R832 R941 R942 R913 R949 R946 C950 R947 R948 R847 R944 R945 R943 R828 R817 R816 R819 R815 R818 R807 R808 R806 C931 R925 R929 R953 R952 R956 R992 C991 IC991 R914 R854 R991 C910 R971 R975 DSADML DSADMR 18.DSDMCK 16.DSD C 14.DSD LFE 12.DSD LS 10.DSD RS 8.DSD L 6.DSD R 4.DSDBCK 2.SACDSL AWX 8 0 0 0 1 2 3 4 5 6 7 8 9 2 VWG 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 7 1 5 4 1 3 4 5 1 3 4 5 2 40 1 39 1 3 4 5 1 13 1 3 4 5 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A CN801 C975 C974 C972 C973 R810 C844 C902 C901 C924 C832 C828 R814 C843 C840 C841 IC808 R809 C834 C947 IC804 C824 C802 C833 R849 C971 C835 C836 C826 C827 C839 C830 IC901 R924 IC905 R922 IC904 R923 R927 CN901 C956 R917 C929 C927 C976 C955 C977 C951 R812 IC801 R823 R822 C837 IC806 C842 CN903 IC903 R902 C904 C903 R904 C914 C915 C916 C917 R915 CN902 R905 R903 R909 R910 R906 R907 C907 R911 R912 C913 C918 C909 C919 C920 C911 C923 C928 C809 C905 C906 C912 C823 L801 C820 C816 C808 C810 C812 C807 C829 C811 C831 C934 C933 R928 C935 C936 C937 R930 C940 C941 C943 R931 IC902 C922 C925 R916 C926 C930 R921 R920 R926 C938 C946 C942 C944 C945 C821 C819 C815 C822 C801 C921 R908 IC906 2/4 CONTACT SIDE CONTACT SIDE 2 CONTACT SIDE 20 C 144 IC801 1 CONTACT 19 SIDE 72 CN999 21 132 133 N 50 VWG2353- VWG2352- VNP1885-B SACDB VWG2378- VWG E M C2 AWX8157- 1 1 89 88 PC 37 1 109 25 FC DC 1 36 B 1 176 IC901 IC902 1 8 4 19 A 108 73 26 44 45 1 2 19 20 1 4 5 7 1 4 5 8 1 2 39 40 1 36 37 73 108 109 144 1 13 1 19 SIDE A SIDE A SIDE B SIDE B C C SACDB ASSY C SACDB ASSY C (VNP1885-B) IC801 IC806 IC808 IC804 IC904 IC905 IC906 IC991 IC902 IC903 IC901 (VNP1885-B) CN1401 D CN513 B CN542 B CN999 CN801 CN901 CN999 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 63 5 6 7 8 5 6 7 8 C D F A B E 4.4 FM/AM TUNER MODULE (ANP7338-B) (ANP7338-B) IC201 Q205 Q204 Q203 Q601 IC202 Q201 Q602 Q202 SIDE A SIDE A SIDE B SIDE B H H FM/AM TUNER MODULE H FM/AM TUNER MODULE H CN5701 K CN201 CN201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 64 1 2 3 4 1 2 3 4 C D F A B E 4.5 VIDEO, REG and COMPONENT ASSYS 1 4 1 18 19 36 1 2 8 9 16 1 8 9 16 1 8 9 16 1 8 9 16 1 8 9 1 30 1 13 1 4 5 8 1 18 1 1 14 1 4 1 4 46- SSY R8924 Q8809 R8837 IC8801 C8801 C8811 R8864 C8869 R8869 C8871 CN8803 R8876 C8881 R8878 L8810 C8882 R8880 C8883 L8811 R8871 R8872 D88 D8808 D8810 D8812 D8803 C8834 R8829 R8832 R8834 C8833 R8831 R8833 IC8805 IC8802 IC8803 IC8804 C8851 JA8805 C8893 C8892 R8893 R8892 C8891 C8896 C8895 C8894 C8899 C8898 C8897 R8855 C8857 R8856 R8853 R8852 R8854 C8856 C8858 C8860 IC8806 C8859 CN8801 R8804 C8803 C8804 C8805 C8806 C8807 C8808 C8802 C8812 C8852 C8848 C8844 C8838 C8839 R8836 R8835 C8840 C8841 R8842 R8841 C8900 D8816 D8817 IC8807 C8862 C8863 D8814 D8815 R8898 R8899 R8904 R8905 C8870 C8874 C8876 R8863 R8881 R8879 R8877 R8870 R8886 R8887 C8887 C8888 R8889 R8888 C8902 R8911 R8912 R8913 R8914 R8916 R8915 Q8807 C8903 Q8802 Q8801 Q8806 Q8805 R8838 KN1001 C1007 C1009 R1009 C1012 R1002 C1003 R1001 C1002 IC1011 C1001 C1006 C1021 CN1002 IC1017 C1024 R1023 C1023 D1004 R1016 D1005 IC1016 C1030 C1031 R1022 R1021 C1029 L1001 R1017 CN1402 C8847 C1403 IC1012 C1011 C1010 C1013 IC1013 C1014 R1466 C1466 CN1701 C1702 C1032 C1033 R1706 L1003 L1002 D1007 R1020 D1008 CN1001 IC1010 Q1001 Q1005 IC1018 C1008 Q1006 CN1003 JA8806 C1040 C8904 R8919 R8918 CN8805 D8828 D8827 D8826 Q8810 R8925 R8923 C8842 D8822 D8824 D8825 D8820 R8920 D8902 D8821 D1011 D1716 D1717 D1718 D1719 IC8808 C8916 C8912 C8918 C8914 C8910 R8922 R8921 D8818 D8819 Q8808 C8917 IC8810 C8915 C8911 IC8809 R1007 SIDE CONTACT AWU7980- Y Cb Cr Gnd A A VIDEO ASSY PRODUCTION CODE AWU7986- AWU7983- 1 4 1 18 19 36 1 8 9 16 1 8 9 16 1 8 9 16 1 8 9 16 4 6 1 3 1 30 4 6 1 3 1 13 8 1 5 4 1 18 1 1 14 1 4 1 4 1 3 6 4 4 3 1 6 1 3 6 4 SIDE A D VIDEO ASSY D E IC1017 IC1016 IC1011 IC1013 IC8806 IC8807 IC1018 Q8806 Q8810 Q1001 Q1005 Q8808 Q8802 Q8801 Q8809 Q8807 IC8810 IC8809 IC8808 IC8805 IC1012 IC8801 IC8802-IC8804 Q8805 Q1006 IC1010 CN1003 CN1002 CN8801 CN1701 J1003 CN8805 CN401 DC FAN MOTOR B CN1402 CN8605 G CN1001 CN5507 K CN912 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 65 5 6 7 8 5 6 7 8 C D F A B E 1 2 3 4 5 6 1 4 1 4 1 7 20 11 10 1 20 11 10 1 20 11 10 1 20 11 10 1 1 18 1 16 1 21 C1015 J1003 IC1015 AWU8046- REG ASSY CE3 JA8807 J8806 Y Cb Cr COMPONENT ASSY AWU7984- CE3 C8864 C8865 R8862 R8864 C8869 R8868 R8869 C8873 C8871 R8871 R8872 D8802 D8806 R8828 R8820 R8816 C8824 L8802 C8820 R8814 C8835 R8829 L8807 C8827 R8823 R8824 C8830 R8827 R8830 C8836 CN8802 JA8802 C8875 C8870 C8874 C8876 R8861 R8863 R8826 R8821 R8822 R8815 R8819 R8817 R8870 R8867 JA8803 IC1401 IC1402 IC1403 IC1404 C1424 C1422 C1418 C1416 C1412 C1410 C1405 C1406 C1403 C1404 C1408 C1414 C1420 C1426 D1001 C1004 C1431 C1432 C1430 C1427 C1428 C1455 C1453 C1456 R1424 R1412 R1401 R1402 R1403 R1404 R1405 R1406 R1407 R1408 R1409 R1410 R1411 R1413 R1414 R1415 R1416 R1417 R1418 R1419 R1420 R1422 R1423 R1425 R1426 R1427 R1428 R1429 R1430 R1431 R1432 R1434 R1435 R1438 R1439 R1440 R1445 R1446 R1441 R1442 R1443 R1704 R1705 R1421 R1433 R1444 R1437 R1436 R1456 C1454 C1429 CN1404 CN1403 R1452 R1451 R1449 R1450 R1447 R1448 R1453 R1457 R1458 JA8801 JA8806 C8909 4 25 CN1401 Q1007 L1412 L1424 C8916 17 8810 A A E CONTACT SIDE CE3 1 4 1 4 1 7 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 1 18 1 16 1 21 4 3 1 6 SIDE A E D F REG ASSY E COMPONENT ASSY XV-DV1000/ZUCXJ ONLY F (ANP7433-D) (ANP7433-D) IC8810 Q1007 IC1401 IC1402 IC1403 IC1404 IC1015 (ANP7433-D) J1003 J8806 CN8802 DVD DOWNLOAD CN1404 CN8602 G CN1403 CN8601 G CN1401 CN999 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 66 1 2 3 4 1 2 3 4 C D F A B E C8878 R8873 C8879 R8874 C8880 R8875 CE3 COMPONENT ASSY AWU7984- J8806 Y Cb Cr Gnd JA8807 C1018 C1019 R1015 AWU8046- CE3 REG ASSY VD+5DVD GNDD VP+6 DVDON/OFF J1003 D8901 R8860 R8865 D8804 L8806 L8805 R8818 C8822 L8804 R8812 L8803 R8809 L8801 C8815 R8808 L8808 L8809 C8829 R8825 C8866 C8867 C8872 R8859 R8866 R8810 R8807 R1003 R1004 C1005 C1402 C1401 D1712 D1713 D1709 R1475 R1476 R1473 R1474 R1472 R1471 R1469 R1470 Q1704 Q1710 Q1707 C1433 C1434 C1436 D8823 C1437 C1435 IC1405 C1438 C8913 R1454 IC1406 C1421 Q1007 5.ZERO 18.DMIXL 17.GNDA 16.DMIXR 15.GNDA 14.SW 13.GNDA 12.C 11.GNDA 10.SR 9.GNDA 8.SL 7.GNDA 6.FR 5.GNDA 4.FL 3.SCINL 2.GNDASCI 1.SCINR 1.GNDD 3.GNDD 5.GNDD 7.GNDD 9.GNDD 11.GNDD 13.GNDD 15.GNDD 17.GNDD 18.GNDD 19.GNDD 2.DSDMCK 4.DSDC 6.DSDLFE 8.DSDLs 10.DSDRs 12.DSDL 14.DSDR 16.DSDBCK 20.DSDDMIXL 21.DSDDMIXR 6.XPROTECT 4.VSELB 3.DVDON/OFF 1.DOUT 2.VSELA 7.V+33DVD 8.XAMUTE 9.VD+5 11.VA+12 10.VSELEC 12.VX+12 13.SCOUTL 14.GNDASC 15.SCOUTR 16.VA-12 CN1404 CN1403 CN1401 JA8801 JA8802 CN8802 JA8803 JA8806 Point -13V Supply For Service 16 1 4 1 4 1 7 1 18 1 16 1 21 1 5 SIDE B D E F REG ASSY E COMPONENT ASSY F (ANP7433-D) (ANP7433-D) Q1707 Q1710 IC1406 Q1704 J1003 J8806 CN8802 CN1404 CN1403 CN1401 Q1007 IC14 XV-DV1000/ZUCXJ ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 67 5 6 7 8 5 6 7 8 C D F A B E R1015 J1003 D8901 R8865 D8804 D8811 D8809 D8807 D8805 D8801 R8882 R8883 L8804 R8812 R8811 C8817 R8895 R8894 R8890 R8848 R8847 R8850 R8843 C8854 R8849 R8844 R8846 R8845 C8853 R8851 C8855 D8813 R8900 R8901 R8896 R8907 R8906 R8902 R8885 R8884 R8801 R8803 R8802 C8809 C8810 C8850 C8849 C8901 R8910 R8908 R8858 R8857 C8872 C8884 C8885 C8886 R8866 R8891 R8897 R8903 R8909 R8813 C8889 C8890 R8806 R8917 Q8803 Q8804 D1006 D1003 R1010 IC1014 C1020 C1022 C1025 C1026 C1027 C1028 C8813 R1019 R1018 R1003 R1014 R1013 R1012 R1011 R1468 R1467 R1465 R1464 R1463 R1462 R1461 R1460 R1459 C1464 C1465 C1463 C1462 C1461 C1460 C1459 C1458 C1457 C1402 D1711 D1704 D1706 D1705 D1708 D1707 D1714 D1710 C1034 C1035 Q1708 Q1709 Q1706 R1005 R1025 R1006 C8908 C8906 C8907 C8905 C1036 C1037 C1038 C1039 D1010 D1012 R1024 R1999 R1998 D8823 D1715 IC1405 C1438 C8913 CN1003 GNDD VD+5DVD DVDON/OFF GNDM-GNDD SHORT POINT For Service GNDD-GNDA CE3 VP+6-VP+3 6.GNDM SHORT POINT 5.NC 2.VD+5DVD For Service 1.VM+6DVD AWU7986- AWU7983- AWU7980- VIDEO ASSY 8.GNDDVD 3.NC 4.NC 7.NC 9.VM+12DVD 10.GNDDVD 11.V+25DVD 12.GNDDVD 13.V+33DVD 1.XDFSO 2.XDFSCK 3.XCSDF0 4.XAMUTE 5.LRCK0 6.GNDD 18.GNDD 17.PCMMCK 16.GNDD 15.DATA3 14.GNDD 13.GNDD 12.DOUT 11.GNDD 10.XCSDF3 9.DATA0 8.GNDD 7.BCK0 1.VP+6 2.VP+6 3.GNDM 4.VP+12 5.GNDR 6.GNDR 7.VP+3 8.GNDD 9.V+11OEL 10.GNDOEL 11.V+33OEL 12.VD+5DSP 13.GNDDSP 14.GNDA C VP+6 CN1002 CN1001 CN1402 CN8803 CN8805 JA8805 Y Cb Cr Gnd Point +13V Supply For Service 14 Point +7V Supply For Service 1 2 21 20 1 13 1 18 1 1 1 4 1 4 1 5 SIDE B D VIDEO ASSY D Y 3-D) (ANP7433-D) CN1003 CN1002 CN1701 J1003 CN8805 CN1402 CN1001 IC1405 Q1706 IC1014 Q8803 Q1709 Q1708 Q8804 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 68 1 2 3 4 1 2 3 4 C D F A B E 4.6 IF ASSY 1 18 1 21 1 17 1 17 1 16 1 18 C8602 C8601 W110 W109 W127 C8607 W106 W125 W123 W124 W107 W108 C8608 W126 CN8605 CN8606 C8624 C8618 C8626 C8625 CN8604 C8637 C8635 CN8603 W104 W116 W115 W120 W117 W112 W119 W121 W114 W118 W113 W103 W129 W111 CN8601 W122 W105 CN8602 GNDASCO IC8604 XPROTECT VA+12 VA-12 VA+12 OPEN SIDE VSELC SCARTOUTR GNDADMI DMIXRECR GNDASCO VX+12 XAMUTE VSELC V+33DVD VA+12 ZERO DVD ON/OFF 1.DOUT VSELA VSELB VD+5 VX+12 VA-12 GNDASCO SCARTOUTL SCARTOUTR GNDASCI GNDADMI SCARTOUTL GNDADMI E M PF2 IC8603 VA-12 OPEN SIDE GNDA VA-12 VA+12 VA+12 AWU7987 IF ASSY NC GNDA SW GNDA C GNDA 10.RR GNDA RL GNDA FR FL GNDASCI SCARTINL DMIXRECR GNDADMI DMIXRECL XPROTECT GNDA SCARTOUTR SCARTOUTL GNDASCO SW GNDA C RR GNDA RL GNDA FR GNDA FL 1.XAMUTE 10.GNDA IC8602 IC8601 OPEN SIDE CONTACT SIDE VA+12 VA-12 GNDA NC PCMMCK GNDD DATA3 NC DOUT GNDD GNDD XCSDF3 DATA0 GNDD BCK0 NC PCMMCK GNDD DATA3 NC NC 1.SCARTINR GNDD LRCK0 XAMUTE XCSDF0 XDFSCK XDFSO GNDD DOUT GNDD DATA0 XCSDF3 GNDD BCK0 GNDD LRCK0 XAMUTE XCSDF0 XDFSCK XDFSO NC NC XDFSCK XCSDF0 LRCK0 SCARTINL 1.VX+12 GNDASCI VSELC SCARTINR VSELB VSELA DOUT DVD ON/OFF ZERO VA+12 V+33DVD 10.VD+5 VA-12 DMIXRECL GNDADMI DMIXRECR N OPEN SIDE DMIXRECL OPEN SIDE 18 1 21 1 17 1 1 17 16 1 1 18 SIDE A SIDE A G G IF ASSY G (ANP7434-C) CN8606 CN561 B CN8604 CN8302 K CN8603 CN8301 K CN8605 CN1402 IC8601 IC8602 IC8603 IC8604 D CN8602 CN1404 D CN8601 CN1403 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 69 5 6 7 8 5 6 7 8 C D F A B E C8606 R8602 R8604 C8634 C8640 IC8602 C8614 C8605 C8636 C8616 R8607 R8613 R8611 C8609 R8616 R8614 R8641 R8605 R8601 C8651 R8609 R8603 R8606 C8604 C8652 R8631 IC8604 C8622 R8636 R8637 R8643 IC8603 R8621 C8642 C8621 C8603 IC8601 R8608 R8628 C8630 R8630 R8632 C8632 C8617 C8620 R8618 R8623 C8623 C8644 C8619 R8624 R8620 C8628 C8633 R8633 R8626 R8625 C8627 R8629 R8627 C8646 C8629 C8631 R8617 C8638 C8613 C8611 C8615 R8615 C8612 C8610 R8610 R8612 R8619 C8648 R8634 R8635 R8642 E M PF2 CN8601 CN8602 VA+12 GNDADMI ZERO VA+12 V+33DVD SCARTOUTL XPROTECT XAMUTE 10.VSELC 16 VSELC DVD ON/OFF 1.DOUT VSELA GNDASCO VA+12 GNDADMI DMIXRECR VA-12 GNDASCO SCARTOUTR VSELB VD+5 VX+12 VX+12 SCARTOUTL GNDASCI SCARTINR VA-12 GNDASCO SCARTOUTR AWU7987 IF ASSY N 18 1 GNDA GNDADMI 4 5 1 8 1 C 10.GNDA RR GNDA RL GNDA FR GNDA FL 10.RR GNDA CGNDA DMIXRECL GNDADMI DMIXRECR SW GNDA 1.SCARTINR GNDASCI RL FR GNDA FL SCARTINL GNDA VA+12 VA+12 VA-12 NC CN8605 18 VA-12 GNDA VA+12 VA-12 1.XDFSO XCSDF0 XDFSCK XAMUTE LRCK0 BCK0 GNDD GNDD DATA0 XCSDF3 GNDD DOUT GNDD NC DATA3 GNDD PCMMCK NC 1.XDFSO PCMMCK GNDD DATA3 NC NC NC GNDD DOUT GNDD XCSDF3 DATA0 GNDD BCK0 GNDD LRCK0 XAMUTE XCSDF0 NC XDFSCK NC CN8606 1 XDFSCK XCSDF0 LRCK0 VSELC GNDASCI 1.VX+12 CN8603 SCARTINL DMIXRECR GNDADMI DMIXRECL VA-12 V+33DVD VA+12 ZERO DVD ON/OFF DOUT VSELA VSELB 10.VD+5 DMIXRECL CN8604 1.XAMUTE XPROTECT GNDA SCARTOUTR SCARTOUTL GNDASCO SW GNDA 1 4 5 8 4 5 8 1 5 8 4 1 1 21 17 1 17 1 SIDE B SIDE B G G IF ASSY G (ANP7434-C) CN8606 CN8604 CN8603 CN8605 CN8602 CN8601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 70 1 2 3 4 1 2 3 4 C D F A B E 4.7 DSP ASSY SIDE A SIDE A SIDE B SIDE B I I DSP ASSY I DSP ASSY I (ANP7442-B) (ANP7442-B) IC8202 Q8353 IC8203 IC8011 IC8201 IC8601 IC8501 IC8101 IC8102 IC8301 IC8401 IC8021 IC8204 Q8301 Q8351 Q8201 CN8704 J CN8001 CN8705 J CN8002 CN8706 J CN8003 CN8001 CN8002 CN8003 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 71 5 6 7 8 5 6 7 8 C D F A B E 4.8 DSP TRADE ASSY C8702 C8701 2.GNDD 1.GNDD 3.VD+5 4.VD+5 5.CDERR 6.ABOOT 8.FS96 9.DSPCLK 10.CA15 11.CA16 12.CA17 13.DSPREQ 14.DSPOUT 15.DSPCS 16.CDOF 17.CA19 18.DSPDIN 19.CA18 20.XUDSPMUTE 21.XDSPMUTE 1.GNDD 2.RX1 3.RX2 4.RX3 5.RX4 6.TX 7.GNDD 8.XCDCPDN 9.DSPCS 10.XDSPRST 11.A/DMODE 1.REC R 2.GNDA 3.REC L 4.GNDA 5.FR 6.GNDA 7.FL 8.GNDA 9.RS 10.GNDA 11.LS 12.GNDA 13.SW 14.GNDA 15.C 7.NC DSPTRADE ASSY AWU7981- CN8704 CN8705 CN8706 CN8702 CN8701 CE3 11 1 1 21 15 1 1 23 1 23 1 11 1 21 1 15 1 23 1 23 CN8705 CN8704 CN8706 CN8701 CN8702 CE3 AWU7981- DSPTRADE ASSY 1 11 1 21 1 15 1 23 1 23 SIDE A SIDE A SIDE B SIDE B J J DSP TRADE ASSY J DSP TRADE ASSY J (ANP7433-D) (ANP7433-D) CN8705 CN8002 I CN8706 CN8003 I CN8704 CN8705 CN8706 CN8704 CN8001 I CN8701 CN5502 K CN8702 CN8701 CN8702 CN5503 K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 72 1 2 3 4 1 2 3 4 C D F A B E 4.9 CONTROL, MOTOR, DOOR SW and HP ASSYS 1 7 100 81 1 30 31 50 51 80 1 20 1 14 IN GND OUT 9 16 8 1 9 16 8 1 17 1 7 1 8 4 5 1 4 1 7 1 23 1 23 1 7 C5516 C5513 R5589 C5514 R5586 R5584 L5501 C5518 X5501 CN5501 R5588 IC5501 R5501 R5502 R5504 R5505 R5506 R5517 R5520 R5521 R5522 R5523 R5525 R5526 R5528 R5534 R5543 R5542 R5555 R5553 R5554 R5556 R5569 R5570 R5571 R5568 R5567 R5572 R5573 R5514 R5577 R5576 R5578 R5579 R5580 R5563 R5562 R5544 R5549 R5550 R5551 R5552 C5501 R5503 R5519 R5513 R5511 R5582 R5581 R5566 R5545 R5524 R5538 R5539 R5575 R5507 R5558 R5561 R5559 R5560 R5557 R5537 R5535 R5536 Q5503 R5529 R5531 R5530 R5540 R5541 R5574 CN5506 R5527 R5533 R5532 R5510 R5548 R5547 R5546 R5515 D5504 D5503 D5505 D5508 D5507 D5506 C5529 C5528 C5527 D5509 C5531 C5530 R5591 R5598 C5532 C5533 C5534 R5607 R5608 R5609 R5610 R5611 R5612 Q5504 Q5505 Q5506 CN5507 IC5504 R5613 JA8203 C8215 C8214 L8205 R8212 C8213 R8214 R8213 JA8103 D81 R8501 C8501 R8503 C8311 C8507 IC8301 R8307 C8305 R8303 C8303 R8301 R8309 R8302 R8304 R8308 R8310 C8306 C8304 R8318 R8316 R8314 R8324 IC8302 C8316 R8323 C8315 R8317 R8315 R8313 R8330 R8328 R8326 R8334 C8330 C8328 R8333 C8327 IC8303 R8329 R8327 R8325 IC8501 C8312 C8324 C8323 C8336 C8335 C8509 C8510 R8502 C8508 R8504 C8526 R8510 C8524 R8512 C8516 IC8504 C8525 R8509 C8523 R8511 C8515 IC8503 C8542 R8518 C8540 R8520 C8532 IC8506 C8541 R8517 C8539 R8519 C8531 IC8505 IC8502 C8549 C8551 C8502 C8517 C8518 C8533 C8534 C8409 C8411 C8412 C8414 C8413 C8301 C8302 C8313 C8314 C8325 C8326 CN8501 R8505 R8507 R8506 R8508 R8513 R8515 R8514 R8516 R8521 R8523 R8522 R8524 IC8401 IC8402 C8553 C8554 C8339 C8340 R8338 R8339 R8525 R8526 C8424 C8557 C8558 CN8302 C8404 R8407 C8403 Q8403 C8004 C8003 C5203 C5201 D5202 D5201 D5204 C5204 L5202 D5203 C5206 CN5201 L5206 R1908 R1901 R1907 R1903 R1902 CN1901 L5203 L5209 R1904 IC8001 C8005 C8006 Q1901 Q1903 J8001 CN1991 R5699 KN8401 C1041 CN5502 CN5503 C5535 CN1993 C1042 R8536 R8532 R8535 C5598 R8531 R8444 IC1019 SIDE AWU7982- AWU7985- AWU8047- CONTROL ASSY AWU7979- CAUTION REPLACE WITH SAME TYPE #491003 FOR IC1019 MFD. DC FC CONTACT A UNIT SERVICE VE+5 REFERENCE 491003 DE CHEZ LITTELFUSE INC. FUSIBLES IC1091 N'UTILISER QUE LA EN CAS REMPLACEMENT DES ATTENTION BY LITTELFUSE INC. 123.0mm TEST For Service +7V Supply Point 7 1 1 80 30 51 31 100 50 81 20 1 1 14 TZ 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 16 1 9 8 16 1 9 8 17 7 1 1 8 5 4 1 4 7 1 1 23 1 23 1 7 SIDE A K CONTROL ASSY K IC5504 IC1019 IC8501 IC8502 IC8504 IC8506 IC8503 IC8505 IC8402 IC8401 CN5507 CN5506 CN1001 To Subwoofer CN8501 D CN1901 CN1902 N CN8702 J CN5503 CN5651 V CN5201 CN8701 J CN5502 CN8 G CN83 J8001 A B IC5501 Q5503 IC8301 IC8302 IC8303 IC8001 Q5504-Q5506 Q1901 Q1903 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 73 5 6 7 8 5 6 7 8 C D F A B E 1 2 4 1 1 2 1 2 5 J8004 MOTOR ASSY NE M PF2 OPEN CLOSE GNDD SWITCH OPEN SIDE SWITCH GNDD AWU7995 LABEL SIDE CN8001 CN8003 S8002 W130 S8001 < WHITE > SWITCH GNDD NE M PF2 AWU7996 DOOR SW ASSY On OPENED CLOSED CN3902 W128 JA3901 J3901 OPEN SIDE J3999 1 5 HP DET GNDS HP R GNDHP HP L GNDS HP ASSY AWU7988 NE M PF2 4 1 1 1 2 1 5 1 5 1 13 9 16 8 1 1 7 8 14 1 7 8 14 1 7 14 1 7 8 9 16 8 1 9 16 8 1 8 14 1 7 1 17 1 17 1 5 D8202 R5703 C5708 C5702 C5701 D5703 C5705 R5709 C5706 R5710 C5707 R5708 CN5701 X5701 C5710 IC5701 C5709 R5701 R5702 IC5502 IC5503 C5519 C5521 R5594 R5596 R5597 R5592 R5593 R5595 CN5505 R5599 R5601 R5602 R5603 R5604 R5605 R5606 Q5701 JA8201 JA8202 C8202 R8204 C8203 R8205 R8206 C8204 L8203 C8208 C8206 IC8201 L8204 R8207 C8115 C8118 C8134 C8136 C8142 C8114 R8158 IC8103 C8135 R8157 C8113 C8133 C8141 R8161 R8162 R8170 R8155 R8156 Q8105 C8126 R8130 R8126 R8124 C8125 R8129 R8125 R8123 03 L8113 R8121 L8114 R8122 C8121 C8122 C8131 C8132 R8159 R8169 R8160 R8132 R8131 Q8104 Q8103 R8135 R8136 R8171 D8105 D8108 D8109 JA8102 JA8101 IC8101 IC8102 Q8115 Q8116 Q8108 C8409 C8410 C8411 C8412 C8414 C8413 IC8403 IC8404 R8432 R8422 R8424 R8426 R8425 R8421 R8423 R8431 C8417 C8415 C8416 C8553 C8554 R8427 R8428 C8423 C8424 C8427 C8428 CN8301 CN8302 R8408 C8404 R8407 C8403 Q8403 C3914 C3906 C3905 C3910 R3912 R3909 R3910 R3908 C3903 IC3901 C3907 R3941 R3911 C3909 C3904 R3907 C3913 C3908 R3926 C3917 R3927 R3916 R3915 KN8402 CN3901 R3906 R3905 IC3902 C3918 C3920 C3919 C3921 R3904 R3903 C3902 R3902 R3901 C3911 C3912 C3901 R3939 R3943 R3944 R3940 R3942 R3949 R3945 R3947 R3950 R3948 R3946 Q3906 R8210 D8203 D8201 D8111 Q3910 Q3909 C8210 C8209 D8204 Q8202 R8133 Q8201 R8536 R8532 R8535 R8531 R8211 R8216 R8116 D8102 Q8117 R8444 C8127 R8174 R8173 C8128 CE3 CONTACT CONTACT B SIDE SIDE 123.0mm 1 13 16 1 9 8 1 7 8 14 1 7 8 14 1 7 R 1 7 8 14 1 4 5 8 16 1 9 8 16 1 9 8 1 7 8 14 1 4 5 8 1 17 1 17 1 4 5 8 1 5 1 5 6 10 NP NP SIDE A S T HP ASSY T MOTOR ASSY R DOOR SW ASSY S R K (ANP7433-D) IC8403 IC8404 IC8103 IC8101 IC8102 IC8201 IC5701 Q8105 Q8117 Q8115 Q8201 Q8202 Q5701 Q3909 Q3906 Q3910 IC3902 IC3901 IC5503 IC5502 Q8116 Q8108 Q8104 Q8103 (ANP7434-C) (ANP7434-C) (ANP7434-C) CN5701 CN201 H CN8001 CN8604 G CN8302 CN8603 G CN8301 CN412 B CN5505 J8004 CN8003 CN3902 CN3901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 74 1 2 3 4 1 2 3 4 C D F A B E D8008 C8002 D8005 D8006 D8007 R8002 MOTOR ASSY AWU7995 E M PF2 N GNDD CLOSE OPEN GNDD SWITCH SWITCH CN8001 J8004 1 1 R8009 R8010 GNDD SWITCH NE M PF2 1 CN8003 C DOOR SW ASSY AWU7996 L3904 C3924 C3927 C3925 R3955 C3923 L3901 L3902 L3903 C3933 C3936 C3935 C3931 C3928 C3926 C3930 C3929 R3956 R3954 R3953 R3952 R3951 R3925 CN3902 5.HP DET GNDS HP R GNDHP 1.HP L AWU7988 HP ASSY GNDS E M PF2 N 5 1 1 5 5 1 C5704 C5703 R5711 R5713 R5712 R5705 R5704 C5712 C5713 R5714 R5707 D5701 R5706 D5702 C5711 R5715 C5520 C5522 R8202 C8201 R8208 C8207 C8205 R8209 L8201 L8202 R8201 R8110 L8109 L8106 C8110 R8112 C8112 C8117 C8116 L8105 R8115 C8109 R8111 C8111 C8138 R8109 R8106 R8154 L8104 L8108 L8103 R8114 C8106 C8105 R8108 R8153 C8137 R8105 R8107 R8102 L8107 L8102 C8102 R8104 C8104 C8101 R8101 L8101 R8113 R8103 C8103 C8108 C8107 R8147 R8148 R8144 R8143 R8145 R8146 R8165 R8167 C8143 R8128 Q8102 R8127 Q8101 L8111 R8117 L8112 R8118 C8119 C8120 R8119 R8120 C8123 C8124 C8130 C8129 R8203 R8152 R8151 R8149 R8150 D8103 D8104 R8138 R8139 R8140 R8141 R8168 R8166 C8144 C8145 C8146 R8215 R8142 Q8106 Q8107 Q8114 Q8110 Q8112 Q8109 Q8111 Q8113 C8419 C8422 C8420 C8418 C8421 R8438 D8401 R8433 D8402 R8434 R8430 R8429 R8436 R8406 R8404 R8412 R8405 Q8402 R8411 Q8401 R8403 Q8410 Q8408 Q8407 Q8409 R3920 R3919 R3928 R3961 R3962 D3907 C3915 C3916 D3901 R3930 R3929 R3921 R3922 D3902 R3913 R3914 R3931 R3932 R3933 C3922 C3923 C3924 D3903 D3905 D3906 Q3907 Q3901 Q3902 Q3903 Q3904 L8119 C8199 C8198 R8527 C8211 R8199 R8528 R8534 R8533 C5714 D8101 R8442 R8443 R8441 1.VX+12 2.VSELECT 3.SCARTINR 4.GNDASCI 5.SCARTINL 6.DMIXRECR 7.GNDADMI 8.DMIXRECL 9.VA-12 10.VD+5 11.V+33DVD 12.VA+12 13.ZERO 14.DVDON/OFF 15.DOUT 16.VSELA 17.VSELB 1.XAMUTE 2.XPROTECT 4.GNDA 3.SCARTOUTR 5.SCARTOUTL 6.GNDA 10.GNDA 9.C 8.GNDA 7.SW 1.CE 2.DI 3.CLK 4.DO 1.HP L 5.TXR 6.GNDX 7.TXL 8.MUTE/IF 9.STEREO 10.TUNE 11.+10V 12.RDS 13.NC 2.GNDHP 3.HP R 4.GNDS 5.HPDET 1.LT1 2.XRESET 3.XREADY 4.SSCK 5.S(MtoF) 6.S(FtoM) 7.GNDD 1 CN3901 CN5505 CN5701 JA8202 JA8201 JA8102 JA8101 JA8103 CN8301 CN8302 1 13 1 7 1 17 1 17 5 1 SIDE B S T CONTROL ASSY K HP ASSY T MOTOR ASSY R DOOR SW ASSY S R K (ANP7434-C) (ANP7434-C) (ANP7434-C) CN5701 CN8001 CN8302 CN8301 CN5505 J8004 CN8003 CN3902 CN3901 Q8113 Q3907 Q3902 Q3901 Q3904 Q3903 Q8114 Q8109 Q8110 Q8111 Q8106 Q8101 Q8402 Q8401 Q8102 Q8107 Q8112 Q8407-Q8410 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 75 5 6 7 8 5 6 7 8 C D F A B E C5599 R5590 C5515 C5509 R5587 C5510 C5511 R5585 R5509 R5508 D8002 D8003 D8004 C5512 D5502 C5517 R5512 R8440 C5502 C5505 C5504 C5503 C5507 C5508 C5525 R5583 Q5502 Q5501 R5516 R5564 R5565 C5506 R5518 C5523 C5524 C5526 C8145 C8146 D8501 D8507 C8307 C8309 R8305 C8308 C8310 R8306 C8322 C8320 C8318 C8317 C8321 C8319 R8311 C8334 C8332 R8400 C8329 C8333 C8331 C8337 C8338 C8503 C8505 C8506 C8504 C8522 C8520 C8521 C8519 C8538 C8536 C8537 C8535 C8547 D8503 D8505 D8506 D8504 D8508 D8502 D8511 D8509 D8513 D8515 D8512 D8510 D8514 D8516 D8519 D8517 D8521 D8523 D8520 D8518 D8522 D8524 C8346 C8345 C8341 C8342 L8501 C8402 C8401 R8321 R8319 R8312 R8322 R8320 R8335 R8332 R8331 R8337 R8336 R8401 R8402 R8340 Q8401 R8403 Q8302 Q8305 Q8301 Q8303 L5204 C5205 L5205 L5201 L5207 L5208 C5207 C5202 R8001 D8001 R5615 R8439 R8534 R8533 R5614 C8001 R8442 R8443 R8441 8.CA19 15.CA15 22.GNDD 6.GNDR 7.VP+3 8.GNDD 9.V+11OEL 10.GNDOEL 11.V+33OEL 12.VD+5DSP 13.GNDDSP 14.GNDA 14.CA16 21.VD+5 5.GNDR 13.CA17 20.VD+5 4.VP+12 3.GNDM 2.VP+6 1.VP+6 23.GNDD 19.CDERR 18.ABOOT 17.FS96 16.DSPCLK 12.DSPREQ 11.DSPOUT 10.DSPCS 1.GNDA 2.VP+6 3.VP+6 4.VP+12 5.GNDM 6.VP+3 7.GND 8.UNE+56 9.GND 10.VA-12 12.VOLCLK 11.VOLDATA 13.GNDM 14.GNDM 15.VOLCS 16.GNDM 17.XSYSMUTE 18.SUBAC 19.XPROTECT 20.SYSPOW 1.XAMUTE 2.XPROTECT 4.GNDA 3.SCARTOUTR 5.SCARTOUTL 6.GNDA 16.GNDA 15.FR 14.GNDA 13.RL 12.GNDA 11.RR 10.GNDA 9.C 8.GNDA 7.SW 17.FL 9.CDOF 1.SWN 2.FLN 3.FLP 1.TMR ON 2.VE+56 3.V+12LED 5.KEY 4.BLED ON 6.SW1 7.GNDD 1.SW1 2.GNDD 3.OPEN 4.CLOSE 1.C 2.GNDA 3.SW 4.GNDA 5.LS 6.GNDA 7.RS 8.GNDA 9.FL 10.GNDA 11.FR 12.GNDA 13.REC L 14.GNDA 15.REC R 16.A/DMODE 17.XDSPRST 18.DSPCS 19.XCDCPDN 20.GNDD 21.TX 22.RX4 23.RX3 1.RX2 2.RX1 3.GNDD 4.XDSPMUTE 5.XUDSPMUTE 6.CA18 7.DSPDIN 1.OELDTI 2.GNDDISP 3.V+11OEL 4.OELRST 9.V+33OEL 5.REMOCON 6.VE+56 7.GNDOEL 8.OELDTO 10.VD+5 CONTROL ASSY AWU7979- AWU7982- AWU7985- AWU8047- 6.FRN 4.FRP 5.SWP 7.CP 8.SRN 9.SRP 10.SLN 11.CN 12.SLP 1 JA8103 CN8302 JA8203 CN5201 CN8501 CN5507 CN8501 CN5501 CN5502 CN5503 CN1991 CN1901 CN1993 J8001 CE3 1 7 1 CN5506 20 14 1 17 7 1 1 4 1 7 1 23 1 23 1 7 SIDE B K (ANP7433-D) CN5507 CN5506 CN8501 CN1901 CN5503 CN5201 CN5502 8302 J8001 Q8401 Q8305 Q8301-Q8303 Q5502 Q5501 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 76 1 2 3 4 1 2 3 4 C D F A B E 4.10 STBY KEY, DOOR SW2, KEY L, TIMER LED, KEY R and O/C KEY ASSYS 1 2 1 4 1 1 1 7 1 3 1 4 1 3 1 1 2 1 2 S1909 CN1916 1 AWU7990 < RED > N DOOR SW2 ASSY E M PF2 D1901 1911 1910 GNDD KEY GNDD TIMER LED ASSY AWU7994 E M PF2 J1901 N KEY GNDD VE+56 TMR ON 1909 S1902 J1905 J1915 S1904 S1903 1999 CN1902 D1903 W101 W102 SWITCH2 PCB BINDER BLED AWU7989 TMR ON VE+56 GNDD V+12LED BLEDON KEY V+12LED KEY L ASSY TUNER GNDD SWITCH2 KEY GNDD E M PF2 VOL + VOL - N TMR ON VE+56 GNDD KEY 1913 S1905 S1906 J1913 KEY R ASSY AWU7991 GNDD KEY GNDD STOP KEY GNDD NE M PF2 PLAY J1903 S1907 S1908 CN1914 E M PF2 B O/C KEY ASSY GNDD KEY N TRAY DOOR AWU7993 1 1 4 1 1 1 4 1 1 7 1 2 1 1 2 S1901 CN1906 E M PF2 N A POWER AWU7992 GNDD STBY KEY ASSY < WHITE > KEY SIDE A SIDE A L M N O P Q L M N O P Q KEY R ASSY P O/C KEY ASSY Q KEY L ASSY N TIMER LED ASSY O DOOR SW2 ASSY M STBY KEY ASSY L (ANP7434-C) (ANP7434-C) (ANP7434-C) (ANP7434-C) (ANP7434-C) (ANP7434-C) CN1901 K CN1902 J1905 J1915 CN1906 CN1916 J1901 J1903 J1903 J1913 CN1914 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 77 5 6 7 8 5 6 7 8 C D F A B E AWU7990 GNDD SWITCH2 DOOR SW2 ASSY N CN1916 E M PF2 R1910 R1909 R1911 C1902 GNDD AWU7989 CN1902 J1915 E M PF2 TUNER V+12LED VOL + 1 1 BLED KEY GNDD VE+56 TMR ON VOL - D J1905 N SWITCH2 GNDD KEY V+12LED BLEDON VE+56 TMR ON GNDD KEY SWITCH2 E KEY L ASSY GNDD KEY GNDD AWU7994 TIMER LED ASSY KEY GNDD VE+56 TMR ON E M PF2 N F R1913 R1912 PLAY KEY GNDD GNDD GNDD KEY 1 J1913 H G STOP E M PF2 N AWU7991 KEY R ASSY R1915 R1914 C1903 O/C KEY ASSY TRAY AWU7993 DOOR GNDD CN1914 KEY NE M PF2 1 C1904 KEY GNDD N CN1906 E M PF2 1 POWER STBY KEY ASSY AWU7992 1 4 7 1 1 3 1 4 1 3 SIDE B SIDE B L M N O P Q L M N O P Q KEY R ASSY P O/C KEY ASSY Q KEY L ASSY N TIMER LED ASSY O DOOR SW2 ASSY M STBY KEY ASSY L (ANP7434-C) (ANP7434-C) (ANP7434-C) (ANP7434-C) (ANP7434-C) (ANP7434-C) CN1902 J1905 J1915 CN1906 CN1916 J1901 J1901 J1903 J1903 J1913 CN1914 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 78 1 2 3 4 1 2 3 4 C D F A B E 4.11 OEL CONT and OEL JACK ASSYS 51 75 76 100 25 26 50 1 2 9 8 1 18 1 4 5 8 1 23 22 44 1 3 4 5 1 10 IC1901 CN5002 C5003 R5022 D5103 D5101 D5104 D5105 D5106 D5102 C5029 CN5003 R5019 R5020 IC1905 R5010 R5009 R5007 R5005 R5006 R5002 R5011 R5012 L5041 R5001 X1901 R5004 C5001 L5001 R5008 C5002 L5058 R5017 C5018 C5015 C5016 C5017 L5042 IC1903 R5016 C5021 C5019 L5044 L5045 L5046 L5043 C5022 C5023 C5024 L5101 R5101 C5102 R5021 L5056 C5030 C5031 C5032 C5033 C5034 C5036 C5037 C5038 L5051 L5047 L5002 L5005 L5009 L5013 L5017 L5021 L5025 L5029 L5033 L5037 IC1904 R5018 R5023 C5027 Q1901 KN5001 R5102 R5104 R5105 C5104 C5103 L5004 L5003 R5026 R5025 R5024 R5027 C5020 C5025 C5028 C5026 R5028 R5029 D5107 CN5001 R5051 KN5002 R5030 R5106 R5031 R5042 R5043 R5045 R5046 R5047 C5040 C5039 C5041 R5050 R5048 R5049 ) FR4 P FR4 P HOLD ( V+11OEL GNDOEL B C E OELXRST 5.OELDTI 1.VD+5 GNDD OELDTO GNDD V+33OEL 10.GNDS 1.ENABLE VDD GNDD RESET 5.TXD1 RTS1 CLK1 RXD OEL+B OEL+B OEL18V 15.OELGND OELGND DGND DGND VDD 10.VDD CKD CKA LS ADL0 5. ADL1 ADR0 ADR1 CDL 1. CDR 6 SOLDER 3 4 5 7 8 CONTACT SIDE 1 2 3 4 9 5 6 7 8 10 1.OELDTI 2.GNDDISP 3.V+10OEL 4.OELXRST 5.REMOCON(IR) 6.VE+56 7.GNDOEL 8.OELDTO 9.V+33OEL 10.VD+5 CONTACT SIDE CONTACT SIDE 10 9 2 5 3 4 SOLDER 6 7 1 CN5651 2 1 1 1 25 26 50 51 75 76 100 1 2 8 9 1 18 1 4 5 8 1 10 64 1 16 17 32 33 49 48 1 2 9 10 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A IC1902 CN5651 L5057 C5006 C5005 C5014 C5012 C5013 C5011 C5010 R5014 R5015 C5009 R5013 C5007 C5008 C5101 R5103 R5036 IC5101 CN5101 R5041 R5044 KN5003 FR4 P FR4 P DC FC OEL CONTROL ASSY 1.VD+5 V+11OEL GNDOEL OELXRST 5.OELDTI OELDTO GNDD GNDD V+33OEL 10.GNDS AWU7999 AWU8000 OEL JACK ASSY 1 16 17 32 33 48 49 64 1 1 2 9 10 SIDE A SIDE A SIDE B SIDE B U V U V OEL CONT ASSY U OEL CONT ASSY U OEL JACK ASSY V OEL JACK ASSY V (ANP7435-B) (ANP7435-B) (ANP7435-B) (ANP7435-B) IC1902 IC1904 IC1905 IC1901 Q1901 IC1903 IC5101 CN5201 K CN5651 CN5101 CN5001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 79 5 6 7 8 5 6 7 8 C D F A B E 5. PCB PARTS LIST • LIST OF WHOLE PCB ASSEMBLIES Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark Symbol and Description XV-DV1000/ ZUCXJ XV-DV1000/ ZVYXJ NSP 1..LOADING MECHA ASSY VWT1188 VWT1188 NSP 2..LOAB ASSY VWG2279 VWG2279 1..DVDM ASSY AWX8156 AWX8156 1..SACDB ASSY AWX8157 AWX8157 1..FM/AM TUNER MODULE AXQ7228 AXQ7229 1..DSP ASSY AWX8188 AWX8188 NSP 1..DVD COMP ASSY AWM7701 AWM7700 2..VIDEO ASSY AWU7983 AWU7980 2..REG ASSY AWU8046 AWU8046 2..COMPONENT ASSY AWU7984 Not used 2..DSP TRADE ASSY AWU7981 AWU7981 2..CONTROL ASSY AWU7982 AWU7979 NSP 1..DVD SUB ASSY AWM7703 AWM7703 2..IF ASSY AWU7987 AWU7987 2..STBY KEY ASSY AWU7992 AWU7992 2..DOOR SW2 ASSY AWU7990 AWU7990 2..KEY L ASSY AWU7989 AWU7989 2..TIMER LED ASSY AWU7994 AWU7994 2..KEY R ASSY AWU7991 AWU7991 2..O/C KEY ASSY AWU7993 AWU7993 2..MOTOR ASSY AWU7995 AWU7995 2..DOOR SW ASSY AWU7996 AWU7996 2..HP ASSY AWU7988 AWU7988 NSP 1..DISPLAY ASSY AWM7706 AWM7706 2..OEL CONT ASSY AWU7999 AWU7999 2..OEL JACK ASSY AWU8000 AWU8000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 80 1 2 3 4 1 2 3 4 C D F A B E • CONTRAST OF PCB ASSEMBLIES DVIDEO ASSY AWU7983 and AWU7980 are constructed the same except for the following : Mark Symbol and Description AWU7983 AWU7980 IC8806 Not used MM1505XN IC8807 Not used MM1507XN Q8803, Q8805 Not used 2SA1576A Q8804, Q8806 Not used 2SC4081 Q8810 UN5212 Not used D8813-D8817, D8901, D8902 Not used 1SS355 D8826-D8828 1SS355 Not used L8810, L8811 CHIP BEAD VTL1089 Not used C8853, C8855, C8856, C8858, C8859, C8862 Not used CKSRYB104K25 C8863 Not used CKSRYB104K25 C8860 Not used CEAT100M50 C8881 CEAT102M6R3 Not used C8882, C8883 CEAT471M6R3 Not used C8887, C8888 Not used CCSRCH391J50 C8891, C8894, C8897 Not used CEAT101M10 C8900 Not used CEAT102M6R3 C8903 Not used CEAT470M16 C8904-C8907 Not used CCSRCH101J50 R8843 Not used RS1/16S682J R8844 Not used RS1/16S152J R8845, R8846, R8853 Not used RS1/16S122J R8847 Not used RS1/16S821J R8848 Not used RS1/16S561J R8849, R8854 Not used RS1/16S472J R8850 Not used RS1/16S822J R8851, R8855 Not used RS1/16S563J R8852 Not used RS1/16S223J R8856 Not used RS1/16S68R0F R8857, R8858, R8888, R8889, R8894, R8895 Not used RS1/16S0R0J R8900, R8901, R8906, R8907, R8910 Not used RS1/16S0R0J R8876-R8881 RS1/16S1500F Not used R8884, R8885 RS1/16S103J Not used R8886, R8887 Not used RS1/16S471J R8890, R8891, R8896, R8897, R8902, R8903 Not used RS1/16S1500F R8908, R8909 Not used RS1/16S1500F R8917 Not used RS1/16S102J R8918, R8919 Not used RS1/16S331J R8923 Not used RS1/16S473J R8925 RS1/16S473J Not used CN8805 KR CONNECTOR B4B-PH-K-S Not used JA8805 RGB CONNECTOR Not used VKB1157 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 81 5 6 7 8 5 6 7 8 C D F A B E KCONTROL ASSY AWU7982 and AWU7979 are constructed the same except for the following : Mark Symbol and Description AWU7982 AWU7979 IC5701 Not used BU1923F Q8103, Q8104 Not used 2SD2114K Q8108, Q8810 Not used UN5112 D8105, D8108, D8826-D8828 Not used 1SS355 C5708 Not used CCSRCH561J50 C5709 Not used CCSRCH271J50 C5710, C8127, C8128 Not used CEAT100M50 C5711, C5712 Not used CCSRCH270J50 C5713 Not used CKSRYB103K50 R5508 RS1/16S333J Not used R5509 RS1/16S393J RS1/16S473J R5701, R5702 RS1/16S104J RS1/16S682J R5712, R5713 RS1/16S103J Not used R5714 RS1/16S473J Not used R5715 Not used RS1/16S101J R8131, R8132, R8135, R8136 Not used RS1/16S222J R8171, R8925 Not used RS1/16S473J R8173, R8174 Not used RS1/16S104J X5701 CRYSTAL RESONATOR Not used ASS7004 Mark No. Description Part No. ALOAB ASSY SWITCHES AND RELAYS S101 VSK1011 OTHERS CN602 KR CONNECTOR S2B-PH-K CN601 KR CONNECTOR S5B-PH-K PC BOARD LOAB VNP1836 BDVDM ASSY SEMICONDUCTORS IC831 ADV7300AKST IC261,IC302 BA4510F IC251 BA6664FM IC741,IC901 HY57V161610DTC-8 IC101 LA9704W IC201 LC78652W IC781 M2V64S40DTP-7 IC351 M56788AFP IC751 M65776AFP IC791 MM1561JF IC601 PD6345A IC701 PE5286A IC902 PM0033A IC481 SM8707HV IC786 TC74VHC541FT IC303,IC304,IC306 TC7SZU04F IC211 TK15404M IC603 VYW2060 Q210,Q932-Q934,Q936 2SA1576A Q938,Q939 2SA1576A Q241 DTC114EUA Q101,Q102,Q106 HN1A01F Q103,Q104 HN1B04FU Q931 RN1911 Q601,Q941 RN4982 D302,D303 KV1470 D601 RB501V-40 COILS AND FILTERS L304 LCYA1R2J2520 L3150,L4080,L4090,L4100,L4110 VTL1074 CHIP BEAD L4120,L4130,L4880,L4910 VTL1074 CHIP BEAD L4870 CHIP BEAD VTL1079 L4830,L4890,L4900 CHIP BEAD VTL1081 L4800,L481 CHIP BEAD VTL1084 CAPACITORS C101,C103 (47/6.3) ACH7174 C474,C480,C481,C662 CCSRCH100D50 C121,C532 CCSRCH101J50 C314,C798 CCSRCH150J50 C100,C133 CCSRCH151J50 C120 CCSRCH181J50 C484,C485,C487,C491 CCSRCH220J50 C134,C324,C391,C392 CCSRCH331J50 C945,C946 CCSRCH331J50 C109 CCSRCH391J50 C297,C555 CCSRCH470J50 C241 CCSRCH560J50 C107,C360 CCSRCH681J50 C488,C490 CCSRCH820J50 C489 CCSRCH8R0D50 C117,C123,C128,C201,C233 CEV101M16 C254,C368,C369,C403,C405 CEV101M16 C411,C413,C414,C419 CEV101M16 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 82 1 2 3 4 1 2 3 4 C D F A B E C119,C205,C326,C421,C422 CEV221M4 C424,C470,C472,C601,C623 CEV221M4 C701,C702,C711,C745 CEV221M4 C751,C752,C766,C781,C791 CEV221M4 C793,C835,C891,C903,C908 CEV221M4 C116,C127,C223,C224,C264 CKSQYB105K10 C312,C415,C416,C477 CKSQYB105K10 C794,C795 CKSQYB105K10 C216,C313,C351,C531 CKSRYB102K50 C533,C534 CKSRYB102K50 C110,C113,C203,C220,C225 CKSRYB103K50 C234,C261,C320-C322,C330 CKSRYB103K50 C426,C619,C920 CKSRYB103K50 C108,C111,C114,C115 CKSRYB104K16 C212,C213,C227,C231 CKSRYB104K16 C248-C251,C255,C263,C315 CKSRYB104K16 C317 CKSRYB104K16 C106 CKSRYB152K50 C208 CKSRYB222K50 C266 CKSRYB224K10 C206,C214,C242,C357 CKSRYB472K50 C105,C118,C122,C253,C256 CKSRYF104Z25 C332,C353,C359,C365,C366 CKSRYF104Z25 C609,C622,C631,C723,C755 CKSRYF104Z25 C758,C761,C762,C767,C768 CKSRYF104Z25 C836,C840,C848,C849 CKSRYF104Z25 C895-C899,C902,C933,C939 CKSRYF104Z25 C112,C125,C126,C130,C200 CKSRYF105Z10 C202,C204,C215,C217 CKSRYF105Z10 C221,C222,C226,C230,C232 CKSRYF105Z10 C236,C258,C265,C299,C310 CKSRYF105Z10 C319,C323,C328,C329,C412 CKSRYF105Z10 C418,C423,C475,C476 CKSRYF105Z10 C552-C554,C556,C602-C605 CKSRYF105Z10 C607,C608,C610,C613-C616 CKSRYF105Z10 C618,C657,C658,C704 CKSRYF105Z10 C706-C710,C712-C716 CKSRYF105Z10 C718-C722,C724-C732,C735 CKSRYF105Z10 C741-C744,C746,C747 CKSRYF105Z10 C753,C754,C756,C757 CKSRYF105Z10 C759,C760,C763-C765 CKSRYF105Z10 C769-C780,C782-C790,C792 CKSRYF105Z10 C797,C832-C834,C837-C839 CKSRYF105Z10 C842-C846,C893,C900,C901 CKSRYF105Z10 C904-C907,C909-C918 CKSRYF105Z10 C921-C924,C927-C930 CKSRYF105Z10 RESISTORS R831,R832 RAB4C0R0J R924-R927 RAB4C101J R631,R713 RAB4C103J R111 RAB4C220J R113,R534,R537,R704,R705 RAB4C470J R138 RS1/10S0R0J R341 RS1/10S101J R141-R148 RS1/10S220J R364,R369,R373,R375 RS1/16S1003F R123 RS1/16S1202F R843,R855 RS1/16S1501F R358,R361 RS1/16S1503F Mark No. Description Part No. R755 RS1/16S1801F R936,R944,R950,R966,R973 RS1/16S3000F R978 RS1/16S3000F R754 RS1/16S3001F R751 RS1/16S3301F R132 RS1/16S4702F R357,R362,R363,R368,R372 RS1/16S6802F R374 RS1/16S6802F R257 (1.0 ohm) VCN1127 R258,R259 (2.2 ohm) VCN1128 Other Resistors RS1/16S###J OTHERS CN104 4P FFC CONNECTOR DKN1223 CN401 PH CONNECTOR (SMT) S13B-PH-SM3 CN103 PH CONNECTOR (SMT) S5B-PH-SM3 CN561 21P FFC CONNECTOR VKN1313 CN912 30P FFC CONNECTOR VKN1322 CN412 7P FFC CONNECTOR VKN1411 CN513 20P FFC CONNECTOR VKN1460 CN101 FFC CONNECTOR VKN1787 CN542 40P FFC CONNECTOR VKN1794 CN105 12P FFC CONNECTOR VKN1795 X481 CRYSTAL RESONATOR VSS1159 (27.000MHz) X601 CERAMIC RESONATOR VSS1160 (16.5MHz) CSACDB ASSY SEMICONDUCTORS > IC906 BA25BC0FP IC901 CXD2753R IC902 HY57V161610DTC-8 > IC808 MM1561JF IC904 TC7SH00FU IC806 TC7SH04FU IC991 TC7SHU04F IC905 TC7WH74FU IC801 XCA56367PV150 COILS AND FILTERS L801 LCYA1R0J2520 L992 CHIP BEAD VTL1080 CAPACITORS C903 CCSRCH100D50 C950 CCSRCH102J50 C931 CCSRCH470J50 C801,C829,C839,C840,C844 CEJQ221M6R3 C901,C909,C911,C922,C926 CEJQ221M6R3 C944,C951 CEJQ221M6R3 C828,C908,C916 CKSRYB103K50 C827 CKSRYB473K25 C807-C812,C815,C816 CKSRYF105Z10 C819-C824,C826,C830-C837 CKSRYF105Z10 C841,C843,C902,C905-C907 CKSRYF105Z10 C912-C915,C917-C921 CKSRYF105Z10 C923-C925,C927-C930,C934 CKSRYF105Z10 C937,C938,C940,C943 CKSRYF105Z10 C945-C947,C955,C956,C991 CKSRYF105Z10 RESISTORS Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 83 5 6 7 8 5 6 7 8 C D F A B E All Resistors RS1/16S###J OTHERS CN999 FFC CONNECTOR 5597-21CPB CN801 20P FFC CONNECTOR VKN1460 CN901 40P FFC CONNECTOR VKN1794 DVIDEO ASSY SEMICONDUCTORS > IC1014 BA033FP > IC1012,IC1013 BA05FP > IC1010 BA06SFP > IC1011,IC1018 BA12FP IC1401-IC1404 DSD1702EG IC8801 LA73054 IC8810 MM1505XN IC8808,IC8809 MM1507XN > IC1017 PQ025EH01ZP > IC1016 S-8540B00FN-IMA IC8802-IC8805 TC74HC4052AFT IC1405,IC1406 TC7SHU04F Q1001,Q8801 2SA1576A > Q8807 2SA1576A Q1005,Q8802 2SC4081 > Q1007 2SD1858X > Q1006 CPH6312 Q1707 UN5112 Q1704,Q1706,Q1708-Q1710 UN5212 Q8808-Q8810 UN5212 D1003,D1010,D1011,D1716-D1719 1SR154-400 D1004,D1007,D1704-D1715 1SS355 D8801-D8812,D8818-D8828 1SS355 D1006 HZU2.0B D1005 RB051L-40 D1001,D1012 UDZS5.6B COILS AND FILTERS L1001-L1003 ATL7003 SMD POWER INDUCTOR L1468 CHIP BEAD VTL1080 L1412,L1424,L8810,L8811 VTL1089 CHIP BEAD CAPACITORS C1031 CCSRCH220J50 C8834-C8836 CCSRCH221J50 C1014 CEAL100M16 C1702 CEAL101M16 C1004,C1012 CEAL220M16 C1003 CEAL470M16 C1002,C1011,C1021 CEAT100M50 C1009,C8801 CEAT101M10 C1006,C1024,C1030,C1033 CEAT101M16 C8864,C8865,C8869,C8873,C8881 CEAT102M6R3 C1029 CEAT221M10 C1403,C1405,C1408,C1414,C1420 CEAT331M6R3 C1426 CEAT331M6R3 C8811,C8882,C8883 CEAT471M6R3 C8847 CEJQ100M50 C1026,C1438,C8810 CKSQYB105K10 C1005,C1035,C1039,C1401,C1402 CKSRYB103K50 Mark No. Description Part No. C1404,C1406,C1410,C1412,C1416 CKSRYB103K50 C1418,C1422,C1424,C1433-C1436 CKSRYB103K50 C8813,C8833,C8838,C8841,C8842 CKSRYB103K50 C8844,C8848,C8852,C8902 CKSRYB103K50 C1001,C1007,C1008,C1010,C1013 CKSRYB104K25 C1020,C1027,C1032,C1437 CKSRYB104K25 C8802-C8809,C8812,C8817,C8824 CKSRYB104K25 C8830,C8870,C8874,C8910-C8918 CKSRYB104K25 C1421 CKSRYB105K10 C1022,C1025,C1034 CKSYB475K16 C1023,C1028 (10u) DCH1148 RESISTORS R1017 (0.068 ohm, 1/4W) ACN7113 R1019 (0.1 ohm, 1/10W) ACN7114 R1024,R1025 RS1/10S0R0J R1007 RS1/10S1R0J R1021 RS1/16S1002F R1023 RS1/16S1003F R8807-R8810,R8812-R8817 RS1/16S1500F R8819-R8824,R8826,R8827 RS1/16S1500F R8859-R8870,R8876-R8881 RS1/16S1500F R1022 RS1/16S2203F Other Resistors RS1/16S###J OTHERS CN1401 21P FFC CONNECTOR 52045-2145 JA8803 3P PIN JACK AKB7155 JA8802 4P MINI DIN SOCKET AKP7116 JA8806 3P S TERMINAL AKP7173 CN1001 KR CONNECTOR B14B-PH-K CN1003,CN8805 KR CONNECTOR B4B-PH-K CN1002 KR CONNECTOR S13B-PH-K CN1701 KR CONNECTOR S2B-PH-K PCB BINDER VEF1040 JA8801 2P PIN JACK VKB1123 CN8802 7P FFC CONNECTOR VKN1267 CN1403 B TO B CONNECTOR 16P VKN1401 CN1402,CN1404 VKN1402 B TO B CONNECTOR 18P CN8801 30P FFC CONNECTOR VKN1434 KN1001 EARTH METAL FITTING VNF1084 EREG ASSY SEMICONDUCTORS > IC1015 BA05ST CAPACITORS C1015 CEAT101M10 C1018,C1019 CKSRYB103K50 RESISTORS All Resistors RS1/16S###J OTHERS J1003 CONNECTOR ASSY PF04PG-Q20 FCOMPONENT ASSY OTHERS Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 84 1 2 3 4 1 2 3 4 C D F A B E JA8807 3P PIN JACK AKB7125 J8806 CONNECTOR ASSY PF04PG-B15 GIF ASSY SEMICONDUCTORS IC8601-IC8604 NJM4560M CAPACITORS C8651,C8652 CCSRCH151J50 C8603,C8604,C8613,C8614,C8621 CCSRCH271J50 C8629,C8630 CCSRCH271J50 C8601,C8602,C8607,C8608,C8618 CEAT100M50 C8624-C8626 CEAT100M50 C8635,C8637 CEAT470M16 C8609,C8610,C8615-C8617,C8623 CKSQYB225K10 C8631,C8632 CKSQYB225K10 C8605,C8606 CKSRYB102K50 C8634,C8636,C8638,C8640,C8642 CKSRYB104K25 C8644,C8646,C8648 CKSRYB104K25 C8633 CKSRYB223K25 C8611,C8612,C8619,C8627,C8628 CKSRYB272K50 C8620,C8622 CKSRYB473K25 RESISTORS All Resistors RS1/16S###J OTHERS CN8603,CN8604 17P SOCKET AKP7072 CN8606 21P FFC CONNECTOR VKN1197 CN8601 B TO B CONNECTOR 16P VKN1388 CN8602,CN8605 VKN1389 B TO B CONNECTOR 18P HFM/AM TUNER MODULE (AXQ7228) SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD Q201,Q204,Q205 2SC2412K Q202 DTA124ES Q203 DTC124EK D201 1SS133 D202 MTZJ5.1C COILS AND FILTERS L201 FM DETECTOR COIL ATE7003 F202 FM CERAMIC FILTER ATF-107 F201 FM CERAMIC FILTER ATF-119 F203 AM CERAMIC FILTER ATF1155 CAPACITORS C206 CCSRCH100D50 C212,C213,C226,C233-C235 CCSRCH101J50 C240 CCSRCH101J50 C231,C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 C228 CEAT3R3M50 Mark No. Description Part No. C237 CEAT470M10 C211 CEJA1R0M50 C210 CEJA470M16 C204,C238,C602 CKSRYB102K50 C101,C102,C208,C220,C239 CKSRYB103K50 C242,C601 CKSRYB103K50 C216,C217 CKSRYB123K50 C225 CKSRYB153K50 C201,C205,C209,C214,C230 CKSRYB223K50 C236,C603 CKSRYB223K50 C221 CKSRYB224K10 C202,C222 CKSRYB473K16 C215 CKSRYB681K50 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R243 RS1/10S0R0J R103 RS1/10S331J R104 RS1/10S391J Other Resistors RS1/16S###J OTHERS CN201 13P FFC CONNECTOR 52044-1345 BN201 4P ANTENNA TERMINAL AKA7003 SHIELD CASE T ANK7072 SHIELD CASE B ANK7073 X201 CRYSTAL RESONATOR ASS1093 (7.2MHz) HFM/AM TUNER MODULE (AXQ7229) SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD Q201,Q204,Q205,Q601 2SC2412K Q202 DTA124ES Q203 DTC124EK D201 1SS133 D202 MTZJ5.1C D101 UDZS6.8B COILS AND FILTERS L201 FM DETECTOR COIL ATE7003 F202 FM CERAMIC FILTER ATF-107 F201 FM CERAMIC FILTER ATF-119 F203 AM CERAMIC FILTER ATF1155 F601 ANTIBIRDY FILTER ATF7025 L601 LCTA270J2520 CAPACITORS C605 CCSQCH680J50 C212,C213,C226,C233-C235 CCSRCH101J50 C240,C614 CCSRCH101J50 C206 CCSRCH120J50 C231,C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 85 5 6 7 8 5 6 7 8 C D F A B E C228 CEAT3R3M50 C237 CEAT470M10 C211 CEJA1R0M50 C210 CEJA470M16 C103,C104,C204,C238 CKSRYB102K50 C102,C208,C216,C217,C220 CKSRYB103K50 C239,C242,C604,C615 CKSRYB103K50 C225 CKSRYB153K50 C607,C608 CKSRYB182K50 C201,C205,C214,C230,C236 CKSRYB223K50 C244 CKSRYB223K50 C221 CKSRYB224K10 C603 CKSRYB392K50 C215 CKSRYB471K50 C202,C222 CKSRYB473K16 C606 CKSRYB561K50 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R103,R104 RS1/10S221J Other Resistors RS1/16S###J OTHERS CN201 13P FFC CONNECTOR 52044-1345 BN201 AKA7002 2P ANTENNA TERMINAL WITH PAL SHIELD CASE T ANK7072 SHIELD CASE B ANK7073 X201 CRYSTAL RESONATOR ASS1093 (7.2MHz) IDSP ASSY SEMICONDUCTORS IC8301 AK4586VQ IC8101 CS493292 > IC8021 NJM2391DL1-25 > IC8011 NJM2391DL1-33 IC8201 PD8104A IC8501 TC74LVX244FT IC8202,IC8203 TC74VHC574F IC8601 TC74VHCT08AFT IC8102 TC7WU04FU Q8351 RN2903 Q8301 UMD2N Q8353 UN5212 D8301-D8304 1SS355 D8353 DAN202K D8351,D8352 DAP202K COILS AND FILTERS L8011,L8021,L8101 ATL7002 CHIP FERRITE BEAD L8102,L8201,L8301,L8302,L8501 QTL1013 CHIP SOLID INDUCTOR L8601 CHIP SOLID INDUCTOR QTL1013 L8305 CHIP BEAD VTL1089 CAPACITORS C8305,C8306 CCSRCH120J50 C8117 CCSRCH271J50 Mark No. Description Part No. C8107,C8109,C8113,C8120,C8122 CCSRCH471J50 C8205,C8206,C8209,C8210,C8308 CCSRCH471J50 C8318,C8503,C8603 CCSRCH471J50 C8115,C8116 CCSRCH6R0D50 C8302,C8501,C8601 CEAL100M16 C8001,C8014,C8024,C8103,C8307 CEAL101M10 C8316,C8323 CEAL101M10 C8320 CEAL220M6R3 C8123 CEAL2R2M50 C8011,C8021 CEAL4R7M16 C8906 CKSRYB102K50 C8102,C8106,C8108,C8114 CKSRYB103K50 C8118,C8119,C8121,C8124,C8202 CKSRYB103K50 C8204,C8207,C8208,C8211,C8309 CKSRYB103K50 C8317,C8324,C8502,C8602,C8920 CKSRYB103K50 C8319,C8329-C8332,C8903,C8907 CKSRYB104K25 C8911 CKSRYB104K25 C8301,C8304,C8321 CKSRYB473K25 RESISTORS R8313,R8501 RAB4C101J R8312 RS1/16S1802F Other Resistors RS1/16S###J OTHERS CN8002 11P SOCKET AKP7069 CN8003 15P SOCKET AKP7071 CN8001 21P SOCKET AKP7074 X8301 CRYSTAL RESONATOR ASS7046 (12.288MHZ) 8903 SCREW TERMINAL VNE1948 KN8901,KN8902 VNF1084 EARTH METAL FITTING X8101 CRYSTAL RESONATOR VSS1172 (27MHz) JDSP TRADE ASSY CAPACITORS C8701,C8702 CKSRYB104K25 OTHERS CN8705 11P PLUG AKP7058 CN8706 15P PLUG AKP7060 CN8704 21P PLUG AKP7063 CN8701,CN8702 23P SOCKET AKP7178 PCB BINDER VEF1040 KCONTROL ASSY SEMICONDUCTORS > IC1019 (3A) AEK7050 IC8103,IC8301-IC8303,IC8404 BA4558F-HT IC8501-IC8506 BA4558F-HT IC8001 BA6417F IC8101,IC8102 BU4051BCF IC8401,IC8402 BU4053BCF IC8403 BU4066BCF IC3902 LC75344M IC3901 NJM4560M IC5504 NJM7805DL1A IC5501 PDC099A IC8201 TC74HCU04AF Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 86 1 2 3 4 1 2 3 4 C D F A B E IC5502,IC5503 TC74VHCT08AFT Q3906,Q8114 2SA1576A Q1901,Q1903,Q3907,Q5501,Q5503 2SC4081 > Q5701 2SC4081 Q8109-Q8113 2SC4081 Q3901-Q3904,Q3909,Q3910 2SD2114K Q8101,Q8102,Q8401,Q8402 2SD2114K Q5504-Q5506,Q8105,Q8115,Q8116 UN5112 Q8301,Q8303,Q8403,Q8407,Q8409 UN5112 Q8202 UN511L Q5502,Q8106,Q8107,Q8201,Q8302 UN5212 Q8305,Q8408,Q8410 UN5212 D8002-D8004 1SR154-400 D3902,D3903,D3905-D3907,D5502 1SS355 D5509,D5701,D5702,D8103,D8104 1SS355 D8109,D8111,D8201-D8204 1SS355 D3901,D5703 UDZS11B D8001 UDZS3.9B D8401,D8402 UDZS6.8B D5201-D5204,D5503-D5508 UDZS8.2B COILS AND FILTERS L5501 LFEA220J L8201,L8203-L8205 CHIP BEAD VTL1076 CAPACITORS C5514 ACH1246 C8204 CCSRCH100D50 C3909,C3910,C5201,C5204,C5502 CCSRCH101J50 C5508,C5515,C8101-C8112 CCSRCH101J50 C8119-C8124 CCSRCH101J50 C3905,C3906,C8203 CCSRCH470J50 C8321,C8322 CCSRCH471J50 C8309,C8310 CCSRCH680J50 C8333 CCSRCH821J50 C3901-C3904,C3907,C3908 CEAT100M50 C3918,C3919,C5513,C5533,C5534 CEAT100M50 C5701,C5702,C5706,C8133,C8134 CEAT100M50 C8141,C8142,C8301,C8302 CEAT100M50 C8311-C8314,C8323-C8326 CEAT100M50 C8335,C8336,C8403,C8404 CEAT100M50 C8409-C8414,C8423,C8424 CEAT100M50 C8553,C8554 CEAT100M50 C5206,C5519,C5521,C5530,C5532 CEAT101M10 C8006,C8131,C8132,C8206,C8210 CEAT101M10 C8214 CEAT101M10 C8549,C8551 CEAT101M16 C5516 CEAT1R0M50 C3917 CEAT220M50 C5518 CEAT221M6R3 C1041 CEAT222M10 C8005 CEAT331M10 C8125,C8126 CEAT470M16 C3913,C3914,C3921,C5707 CEAT470M25 C1042 CEAT471M16 C3911,C3912 CEJQNP101M16 C5501,C5531,C5704 CKSRYB102K50 C3920,C5203,C5503-C5506 CKSRYB103K50 C5509,C5510,C5520,C5522-C5524 CKSRYB103K50 C5535,C8114,C8117,C8118 CKSRYB103K50 C8129,C8130,C8137,C8138 CKSRYB103K50 Mark No. Description Part No. C8143,C8144,C8199,C8337,C8338 CKSRYB103K50 C8341,C8342,C8345,C8346 CKSRYB103K50 C8401,C8402,C8417,C8418 CKSRYB103K50 C8421,C8422,C8503-C8510 CKSRYB103K50 C8519-C8526,C8535-C8542,C8547 CKSRYB103K50 C5205,C5511,C5517,C5703,C8001 CKSRYB104K25 C8003,C8004,C8145,C8146 CKSRYB104K25 C8201,C8202 CKSRYB104K25 C8315-C8318,C8327,C8329 CKSRYB152K50 C8334 CKSRYB222K50 C8330 CKSRYB224K16 C8303,C8304 CKSRYB331K50 C8207-C8209,C8211,C8213,C8215 CKSRYB473K50 C8305,C8306 CKSRYB821K50 RESISTORS R3939-R3950 RS1/10S101J R8501-R8504,R8509-R8512 RS1/16S1002F R8517-R8520 RS1/16S1002F Other Resistors RS1/16S###J OTHERS X5501 CERAMIC RESONATOR ASS7034 (10MHz) CN1901,CN5501 52045-0745 7P FFC CONNECTOR CN5701 13P FFC CONNECTOR 52045-1345 JA8102 3P PIN JACK AKB7153 JA8101 3P PIN JACK AKB7154 CN8301,CN8302 17P PLUG AKP7061 CN5502,CN5503 23P PLUG AKP7064 CN5506 20P SOCKET AKP7129 CN8501 12P CONNECTOR AKP7131 CN5201 10P CONNECTOR AKP7134 CN5507 KR CONNECTOR B14B-PH-K CN3901 KR CONNECTOR B5B-PH-K JA8203 OPTICAL LINK OUT GP1FA502TZ JA8202 OPTICAL LINK IN GP1FA512RZB J8001 CONNECTOR ASSY PF04PG-B10 PCB BINDER VEF1040 JA8103 4P PIN JACK VKB1070 JA8201 1P PIN JACK (AU, BLK) VKB1074 CN5505 7P FFC CONNECTOR VKN1183 KN8401,KN8402 VNF1084 EARTH METAL FITTING LSTBY KEY ASSY SWITCHES AND RELAYS S1901 VSG1023 OTHERS CN1906 KR CONNECTOR S2B-PH-K MDOOR SW2 ASSY SWITCHES AND RELAYS S1909 ASG7023 NKEY L ASSY Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 87 5 6 7 8 5 6 7 8 C D F A B E SEMICONDUCTORS D1903 NSPB500-0008 SWITCHES AND RELAYS S1902-S1904 ASG7013 CAPACITORS C1902 CKSRYB103K50 RESISTORS All Resistors RS1/16S###J OTHERS 1909 4P CABLE HOLDER 51048-0400 CN1902 7P FFC CONNECTOR 52044-0745 J1901 4P JUMPER WIRE D20PDD0410E J1915 CONNECTOR ASSY PF02PG-B12 J1905 CONNECTOR ASSY PF02PG2B12 PCB BINDER VEF1040 OTIMER LED ASSY SEMICONDUCTORS D1901 SLR-343PC OTHERS 1911 3P CABLE HOLDER 51048-0300 1910 4P CABLE HOLDER 51048-0400 J1903 3P JUMPER WIRE D20PDD0310E PKEY R ASSY SWITCHES AND RELAYS S1905,S1906 ASG7013 RESISTORS All Resistors RS1/16S###J OTHERS 1913 3P CABLE HOLDER 51048-0300 J1913 CONNECTOR ASSY PF02PG-B12 QO/C KEY ASSY SWITCHES AND RELAYS S1907,S1908 VSG1023 RESISTORS All Resistors RS1/16S###J OTHERS CN1914 KR CONNECTOR S2B-PH-K RMOTOR ASSY SEMICONDUCTORS D8005-D8008 1SR154-400 CAPACITORS C8002 CKSRYB104K25 OTHERS J8004 CONNECTOR ASSY PF02PG-B12 Mark No. Description Part No. CN8001 KR CONNECTOR S4B-PH-K SDOOR SW ASSY SWITCHES AND RELAYS S8001 VSK1011 RESISTORS All Resistors RS1/16S###J OTHERS CN8003 KR CONNECTOR S2B-PH-K THP ASSY COILS AND FILTERS L3901,L3902 CHIP BEAD VTL1110 CAPACITORS C3925,C3926 CKSRYB102K50 C3923,C3924,C3929,C3931 CKSRYB104K25 C3927,C3928 CKSRYB223K50 RESISTORS R3934,R3997 RS1/16S0R0J R3925 RS1/16S680J Other Resistors RS1/10S###J OTHERS J3901 EARTH LEAD UNIT ADF7004 JA3901 MINI JACK AKN7026 CN3902 KR CONNECTOR B5B-PH-K UOEL CONT ASSY SEMICONDUCTORS IC1902 PD3430A IC1901 PD5797A IC1903 PD8103A IC1904 TC7SH08FU Q1901 UN5212 COILS AND FILTERS L5056 CHIP COIL (2.2u) ATH1086 L5043 CHIP COIL ATL7006 F5044-F5046 CHIP BEAD DTF1067 L5002,L5005,L5009,L5013,L5017 DTL1066 CHIP BEAD FILTER L5021,L5025,L5029,L5033,L5037 DTL1066 CHIP BEAD FILTER L5047,L5051 CHIP BEAD FILTER DTL1066 L5001,L5041,L5042,L5058 LCTA2R2J2520 L5003 LCTA4R7J2520 L5004 LCTA8R2J2520 L5057 CHIP BEAD VTL1087 CAPACITORS C5014,C5024,C5036,C5038 CCSRCH101J50 C5007,C5008 CCSRCH470J50 C5029 CEV100M16 C5017,C5020,C5025,C5028,C5041 CEV101M16 C5023 CKSRYB102K50 C5018,C5026,C5027 CKSRYB103K50 C5001-C5003,C5006,C5010,C5011 CKSRYB104K25 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 88 1 2 3 4 1 2 3 4 C D F A B E C5013 CKSRYB104K25 C5037 CKSRYB105K10 C5031 CKSYB475K16 C5022,C5034 DCH1121 RESISTORS R5048-R5051 RS1/8S820J Other Resistors RS1/16S###J OTHERS X1901 CHIP CERA LOCK ASS7051 (20.000MHz) CN5003 FLEXIBLE CONNECTOR 52745-1890 CN5001 B TO B PLUG 10P AKP7175 CN5002 9P FFC CONNECTOR VKN1495 KN5001,KN5002 VNF1109 EARTH METAL FITTING VOEL JACK ASSY SEMICONDUCTORS IC5101 RPM7140-H5 D5101 1SS355 D5102,D5107 HZU2.0B D5103-D5106 UDZS8.2B CAPACITORS C5101 CEV470M16 C5102 CKSRYB104K25 RESISTORS All Resistors RS1/16S###J OTHERS CN5651 10P CONNECTOR AKP7134 CN5101 B TO B SOCKET 10P AKP7174 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 89 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 DVD SECTION ADJUSTMENT 6.1.1 Adjustment Items and Location 6.1.2 Jigs and Measuring Instruments 1 1 2 2 3 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD Jitter Adjustment Initialize the Focus Sweep Setting Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1067) Screw tight (GYL1001) Screwdriver (medium) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 90 1 2 3 4 1 2 3 4 C D F A B E 6.1.3 Necessary Adjustment Points ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. ~, Ÿ, ! Ÿ, ! Mechanical point Electric point ! Mechanical point Electric point Mechanical point Electric point Be sure to perform the following step finally when replaced Pickup, Traverse Mechanism and Spindle Motor. Purpose: To set the sweep which was correct with the individual Traverse mechanism. Mechanical point Electric point LOAB, DVDM ASSY ∗ GGF1067 Test mode remote control unit ESC CLEAR Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board (It is necessary when performed adjustment procedure Ÿ.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 91 5 6 7 8 5 6 7 8 C D F A B E 6.1.4 Test Mode TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1067 Test mode remote control unit GGF1067 Test mode remote control unit TRAY OPEN/CLOSE (Player or Remote Control Unit) TRAY OPEN/CLOSE (Player or Remote Control Unit) TEST MODE: PLAY TEST MODE: OFF An address is displayed For example, when playback with # 30000 During PLAY Press keys in order OR ESC 030000 < When playback with the target address of disc (DVD)> TV/LDP +10 3 0 0 0 0 CHP/TIM ESC TEST CHECK DVD, CD STANDBY/ON ON DVD disc OFF STANDBY/ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 92 1 2 3 4 1 2 3 4 C D F A B E 6.1.5 Mechanism Adjustment • Remove the servo mechanism. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Servo Mechanism (Float Base) with nippers. Cautions: Because there is not a Spacer for height adjustment in adjustment after the second time, will keep it at need. (This parts is Traverse mechanism exclusive use of a model for 2001 years) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) Note: Turn the Short switch to Short side when removing the Pickup Flexible Cable. (Refer to "7.1.12 DISASSEBLY".) START Tangential and Radial Height Coarse Adjustment 1 Servo Mechanism 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 93 5 6 7 8 5 6 7 8 C D F A B E Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 J4 : - - - - J4 : Min J4 : Min Test mode end J4 : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight, and go to step !. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ER (av): 2.5e - 5-*OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.1.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.3 TEST MODE SCREEN DISPLAY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 94 1 2 3 4 1 2 3 4 C D F A B E Initialize the Focus Sweep Setting 3 Turn on the Player ESC CLEAR STANDBY/ON Note: Be sure to perform this step when replaced the Pickup or Traverse mechanism. Purpose: To set the sweep which was correct with the individual Traverse mechanism. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 95 5 6 7 8 5 6 7 8 C D F A B E 6.2 TUNER SECTION ADJUSTMENT MPX SG FM SG PRODUCT DC Voltmeter L201 IC201 pin 21 pin 23 FM/AM TUNER MODULE H SIDE B Step No. Adjustment Title ANT. Input level and signal condition Adjustment Input Level (dBµV) Adjust point Contents Frequency (MHz) Modulation 1 T-METER Adjustment 98 OFF 80 L201 Adjust L201 so that the DC voltage between Pin 21 and Pin 23 of IC201 (Test point Vtm) gets within 0 ± 50mV. AM Tuner Section • There is no adjustment in the AM tuner. FM75Ω antenna terminal Fig.1 Adjustment Wiring Diagram Fig.2 Adjustment Point FM Tuner Section • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 96 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 ID NUMBER AND ID DATA SETTING Entering the ID Number and ID Data for Players with DVD-Audio and DVD-RW Compatibility To enter the input mode, press ESC + STEREO in a status with no ID number set, such as after FLASH-ROM downloading. • Downloading FLASH-ROM is finished. (The latest version must be downloaded when a repair is made.) • "No ID Number" is displayed on the screen or OEL display immediately after the power is turned on or in Stop mode. • If "No ID DATA" is displayed, the ID data must be entered. Important: If no yellow label is found on the rear panel, write down the specified ID number by checking it according to "How to confirm the ID number" shown below. Note: Be sure to enter the ID number in Stop mode. Use the service remote control (GGF1067) for operations. Only opening/closing of the tray are performed from the player. Use Disc No. : GGV1084 It is necessary for a player with DVD-audio and DVD-RW compatibility to set an individual number (ID number) and ID data. If the number and data are not set correctly with the following procedure, operations in the future may not be guaranteed. You will find the ID number to be set on the yellow label on the rear panel. The Input is Necessary When: How to Input the ID Number and ID Data [Player's ID Number Setting] ID Number ? > - - - - - - - - - Exit Input ID Number ! 1 As number input is enabled when the unit enters the input mode, input the 9-digit ID number. (The entered number is also displayed on the OEL display.) 2 2 [Player's ID Data Setting] Exit Insert The ID Data Disc ! When the ID number has been registered, the unit enters the ID data input mode. (The OEL display indicates "NO ID DATA.") In this condition, place the ID data disc on the tray and close the tray using the CLOSE key "7/0" on the player. 4 4 [Player's ID Data Setting] Loading The ID Data Disc ! While the data are being read, the message shown in the figure at left is displayed on the screen. (The OEL display indicates "RD ID DATA.") 5 5 [Player's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! After inputting the number, press SEARCH to register the ID number. 3 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 97 5 6 7 8 5 6 7 8 C D F A B E How to Confirm the ID Number How to Clear the ID Number [Player's ID Data Setting] Wait Rom Writing ! When the ID data have been read, the data are written to the FLASH-ROM. (The OEL display indicates "WR ID DATA.") 6 6 [Player's ID Data Setting] Rom Write OK ! Exit When the ID data have been written to the FLASH-ROM, the message "Rom Write OK" is displayed on the screen. (The OEL display indicates "ID DATA OK.") After confirming this message, press CLEAR to exit the input mode. 7 8 7 8 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > * * * * * * * * * Exit Input ID Number ! Press ESC + STEREO with an ID number set, and the unit enters the ID number confirmation mode. The set ID number is displayed on the screen (and on the OEL display), permitting you to confirm it. To exit this mode, press CLEAR . 1 Press ESC + STEREO with an ID number set, and the unit enters the ID number confirmation mode. Input the same number as the ID number you have set. 1 2 2 3 2 3 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > * * * * * * * * * Exit Input ID Number ! 2 After inputting the number, press STOP . Only when the entered number matches the set ID number, the ID number is cleared and the unit exits this mode. If the numbers do not match, you must return to step 2. ( STOP is not accepted until 9 digits are entered.) 3 [Player's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > 0 0 0 0 0 0 0 0 1 OK ? Enter Memory Clear Input ID Number ! 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 98 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DETECTIVE Character in bold : Item name : Information display Laser diode current value Symptom • Indicates "No Disc" in OEL display. • Player does not playback, etc.. This unit can confirm the laser diode current value (DVD: 650nm, CD: 780nm) of pickup on the Test Mode screen. (Press the ESC → TEST keys in order on the test mode remote control unit (GGF1067) to enter the test mode.) Note : When a DVD disc or a CD disc is played in the test mode, this function is effective. Procedure of Self-Diagnosis 1 Enter the Test mode. 2 When diagnosing the 650nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When diagnosing the 780nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When let it turn on once again after performed 2 once, After pressed REP.B key once 650nm: Press the → keys in order 780nm: Press the → keys in order 3 Confirm the indicated value of the laser diode current (LDI). (Refer to following figure.) 4 When indicated value is more than 100, pickup is defective. → Replacement is necessary Replace the Traverse Mechanism Assy or Pickup. TEST 1 TEST 1 TEST 4 TEST 4 It's effective in case of the following condition. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 99 5 6 7 8 5 6 7 8 C D F A B E 7.1.3 TEST MODE SCREEN DISPLAY Display Specification of the Test Mode Character in bold : Item name : Information display 1 5 6 10 21 22 23 24 11 8 9 3 2 12 17 18 19 16 13 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 4 Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗ ] 5 (1) Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] (2) Laser diode current value [LDI – ∗ ∗ ∗] 6 (1) Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] (2) AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] 7 Mechanism (loading) position value [M – ∗ ∗] Unknown : [01] or [41] Open state : [04] Close state : [08] During opening : [12] During closing : [22] 8 Slider position [S – ∗ ∗ ∗ ∗] CD TOC area : [IN ] CD active area : [CD] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] Scart terminal output [SK – ∗ ∗] (Display only the WY model which can do the output setting of scart terminal.) VIDEO : [00] S-VIDEO : [01] RGB : [02] 0 (1) Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] (2) CD 1/3 beam switch [BM – ∗ ∗ ] - Jitter value [J – ∗ ∗ ∗ ∗] Make the jitter four times, and renew it in every 0.5 second. [J4 – ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Not used [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗] Setting value : [1] to [6] @ Destination setting of the FL controller [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ∗] Four characters in the front represent the type of model. Three characters in the back represent the destination code. J: /J, K: /KU, /KC, /KU/KC, R: /RAM/RL/RD, LB: /LB, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLSH = ∗] % Revision of the system controller [S: ∗ . ∗ / ∗ ∗ ∗ ] 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 100 1 2 3 4 1 2 3 4 C D F A B E ^ (1) Revision of the DVD mechanism controller [M: ∗ / ∗ ∗] (2) Part number of the GUI-ROM (OEM model) [GUI: ∗ ∗ ∗] (3) Not used [HOST: ∗ ∗ ∗] * AGC setting [AGC – ∗ ∗ ∗ [∗] ] AGC on : [AGC-ON] AGC off : [AGC-OFF] [1] : RFAGC on [0] : RFAGC off ( FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. ) Error rate indication 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] _ Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 101 5 6 7 8 5 6 7 8 C D F A B E 7.1.4 SELF-DIAGNOSIS FUNCTION Display screen of mechanism error history and self diagnosis result 2 (a) (b) (c) (d) (e) (f) (g) (h) When enter the service mode, self diagnosis mode operates with the "ESC"+"CHP/TIM" keys automatically. 1 Mechanism Error History (past eight times of error is displayed) Two columns of the beginning display the error status for mechanism controller. (the details of error contents refer to "7.1.4 Error Display".) Eight columns of the back display the count UP value (turned count up every 20msec) from the power-up. Example) 32h ⋅=. 1 sec, BB8h ⋅=. 1 min, 2BF20h ⋅=. 1 hour In addition, when there was error after power-up immediately (till initial setting is completed), turn the most significant bit to ON. 2 Check Item Display of Self Diagnosis Function a) AV1 Host Bus check (possible the check only during stop) (Read & Write process of an internal specific register) AV_1 : OK : −− ⇒ not yet check : HOST BUS NG ⇒ HOST bus NG b) Bus check between AV1 SDRAM (possible the check only during stop) (Read & Write process to the SDRAM) AV_2 : OK : −− ⇒ not yet check : AV1-SDRAM BUS NG ⇒ Bus NG between AV1 and SDRAM c) DMA transfer port check from F.E. to AV1 (during stop, possible the check only in DVD or NO DISC) (writing from F.E to SDRAM and reading of SDRAM) AV_3 : OK : −− ⇒ not yet check : FE-AV1 DMA NG ⇒ Bus NG between F.E and SDRAM installed outside of AV1 d) Video encoder (ADV∗∗∗∗) check (Read of the specific register) VE : OK : NG ADV, ⇒ ADV register reading NG : NG > ADV, ⇒ ADV communication NG of FR to video encoder : NG > PRO ⇒ Communication NG from EBY to progressive decoder e) DSP check (Read of the specific register) DSP : OK : NG ⇒ DASP NG f) SACD check (Read of the specific register) SACD : OK : NG ⇒ SACD NG g) Not used HOST : – – h) Not used MERC : – – Display the mechanism error history and self diagnosis result by pressing the "CHP / TIM" key once again. Afterwards press the "CHP / TIM" key with toggle and change the display. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 102 1 2 3 4 1 2 3 4 C D F A B E 7.1.5 FUNCTION SPECIFICATION OF THE SERVICE MODE Indication contents 1 2 3 4 • OEL indication of EDC / ID error (short cut function) Indicate it in OEL with the "ESC"+"CX" keys (LD remote control unit). Indication is released with the "ESC" key during display. OEL indication contents 0 0 / 0 0 / 0 1 ∗ Indicate number of the location that caused EDC and ID errors Retry number of times at having caused ID error (error is indicated only in the occurring moment) Retry number of times of the latest ID error in the ST system Retry number of times at having caused EDC error (error is indicated only in the occurring moment) Retry number of times of the latest EDC error in the ST system ∗ Mark: When even once causes AV1 error, lights. • Screen display of the service mode Indicate to the screen with the "ESC"+"CHP/TIM" keys. Release the indication with the "ESC" key. Indication contents 1 ID Address 2 DVD in playback: Error rate regular indication and exponent indication CD/VCD in playback indicates the number of correct frame of C1 error /5 seconds. 3 Self diagnosis indication Indicate the self diagnosis result whether the F.E is normal. Self Check : During FE checks Self Check OK : Abnormality is not found in F.E. Self Check Error : Abnormality is found in F.E. Indicate the mechanism error history and self diagnosis result by pressing the "CHP / TIM" key once again. Afterwards press the "CHP / TIM" key with toggle and change the display. Indication of the mechanism error history and self diagnosis result refer to "7.1.1 self diagnosis function". 4 Error information indication of the AV decoder (a) When a retry occurred in reading from the disc, a history indicates the occurrence location and the occurrence reason. History is indicated to past seven times. Eight columns of the beginning show the physical address which occurred of retry. As for four columns of next, bitmap indicates EDC status. LSB shows the first sector during a block and MSB shows a last sector. Following field indicates the retry number of times. One digit in front of " / " shows number of times of the retry by EDC Error which occurred in the same block in succession. One digit after " / " shows number of times of the retry by ID Check Error which occurred in the same block in succession. " * " of last one digit shows the EDC Check NG Count Over. " # " shows the ID Check NG Count Over. When " * " and " # " are not indicated, show that data were rightly readable by retry process. (b) Indicate the error information that detected with the Audio/Video Decoder. When error occurred, a history indicates the occurrence time and the occurrence reason. History is indicated to past seven times. Field in front of ":" indicates the error information of Audio/Video Decoder. (Indication information is different from Fujitsu Decoder with Mitsubishi Decoder) XV-DV1000 is Mitsubishi model. • Specification for the Audio/Video Decoder (M65773FP) model of Mitsubishi bit7: VLD Fatal Error detection bit6: VLD Not Fatal Error detection bit5: Number of Macro Block mismatch bit4: Decode error bit3: VLD Sequence Layer Fatal Error detection bit2: VLD Picture Layer Fatal Error detection bit1: VLD Slice Layer Fatal Error detection bit0: Start-up Sequence Time-out Error detection Following field in " : " indicates a value of STC (System Time Clock) which detected the above Audio/Video Decoder error. ∗ When often perform the switch of debug screen, an error history will be increased. As for this, CPU power is used for update of OSD drawing, symptoms occur so that control of VBR Buffer is not in time. (a) 4 (b) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 103 5 6 7 8 5 6 7 8 C D F A B E 7.1.6 ERROR DISPLAY OEL Display Possible causes Operation of the unit AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with the specific audio. CPU AERR CPU address error (Hardware is unusual.) No operation DMA AERR DMA address error (Hardware is unusual.) No operation FLASH ID Difference in versions of the internal ROM of the system controller and of the flash ROM, or bus line failure or reverse installation No operation FLASH WRP Write protect error of the flash ROM No operation FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used was used.) No operation FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation (Hardware is unusual.) No operation FLASH SIZ Size error of the flash ROM (Use 4 or 8 M-bit.) No operation GUI ROM ERROR Difference in version of GUI ROM and system controller software. Operate as the OSD model ILLGAL The system controller fetched a code other than an operation code (Hardware is unusual.) No operation MECHA CPU Difference in version of the internal ROM of the mechanism controller and of the flash ROM. No operation RESERVE Undefined interrupt (Hardware is unusual.) No operation SLOT Inappropriate slot command issued (Hardware is unusual.) No operation OEL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 11 Search timeout Search could not be complete within 7 seconds. Search could not be complete within 7 seconds, and it could not enter the target area within 7 seconds by VCD scan. CD : Stops, DVD: Continues operation 12 Search retry error More beyond the target while the read-in search was converging. A search could not be completed after 3 retries while the unit was tracing 11 tracks. A search could not be completed after retry when timeout occurs at read-in. CD: Stops, DVD: Continues operation 19 Tracing timeout while converging Timeout (10.5 seconds) while tracing at the stage of convergence of a search. Stop 1B Index 0 search error During Track (Index) Search, the search for the beginning of a program could not be completed within 3 seconds (20 seconds in the case of Index Search) after positioning based on the TOC data was completed. Stop 1C Embossment plunge error (only a model corresponding to RW) Plunged into unreadable embossment of DVD-RW player. 1. In wobble nothing (error distinction) : search to address 2E400h 2. In wobble existence: Tray open 22 Timeout of slider inner circumference Inside switch could not ON within 3 seconds. Stop 23 Timeout of slider outer circumference Inside switch could not OFF within the following times: at ATB: 2 seconds, at Backup: 2 or 2.02 seconds. Stop 33 No FOK pulse during playback When the focus was deviated continuously 20 times. Adjusts focus at the innermost circumference and tries to return to its position where the error was generated (for 3 times),then opens. If the same error persists after one retry, the tray opens. (No FOK pulse) 38 Disc-type- sensing error Were not able to playback from the disc distinction process. PLAY or STOP was not completed by backup operation of the disc distinction. Distinguished it from the blank disc in the ATB process completion. Open Error codes that are displayed on the OEL display without using the remote control unit Error codes that are displayed on the OEL display by using the remote control unit (Mechanism controller error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the OEL display To display the error history: ESC + DISPLAY + One shot; Location of the display: TV screen www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 104 1 2 3 4 1 2 3 4 C D F A B E OEL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 39 SGC converge timeout SGC could not converge during detects the peak Open 41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command. Disc distinction is not completed even if passes for 10 seconds after the spindle turned. Stop 48 Spindle FG transition timeout Did not reach to the rotating speed that ATB was possible for less than 10 seconds. Did not reach aim CAV lock speed (high: 10%, low: 50%) for less than 10 seconds. CAV process passed more than 5 seconds or abnormal speed was detected. Spindle does not lock for less than 3 seconds in the BCA read start or end. Stops. (FG timeout) 49 Spindle PLL transition timeout CAV process passed more than 5 seconds. Abnormal speed was detected. Stops. ("73" is displayed during starting process.) 4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB. Stops. ("73" is displayed during starting process.) 51 Auto sequence timeout of peak detection ABUSY did not return within 1 second after the DDTCT (peak detection) command was sent. Stop 52 Auto sequence timeout of focus jump down ABUSY did not return within 30 mS after the FJMPD (Focus jump 1 to 0) command was sent. Open 53 Auto sequence timeout of focus jump up ABUSY did not return within 30 mS after the FJMPU (Focus jump 0 to 1) command was sent. Open 54 Auto sequence timeout of play AGC ABUSY did not return within 50 mS after the GSUMON (play-AGC-measuring) command was sent. Stop 55 Auto sequence timeout of disc-type- sensing ABUSY did not return within 2 seconds after the DJSRT (disc-sensing) command was sent. Stop 56 Auto sequence timeout of ATB2 ABUSY did not return within 1 second after the TBLOFS (Internal ATB after the completion of external ATB) command was sent. Stop 57 Auto sequence timeout of tracking servo ON ABUSY did not return within 0.5 sec. after the TSON (tracking servo ON) command was sent. Stop 58 Auto sequence timeout of ATB1 ABUSY did not return within 0.2 sec. after the TBL (external ATB) command was sent. Stop 59 Auto sequence timeout of focus gain adjustment ABUSY did not return within 2 seconds after the FGN (focus gain adjustment) command was sent. Stop 5A Auto sequence timeout of tracking gain adjustment ABUSY did not return within 2 seconds after TGN (tracking gain adjustment) command was sent. Stop 5B Auto sequence timeout of offset adjustment ABUSY did not return within 1 second after the AVE (offset adjustment) command was sent. Stop 5C Auto sequence timeout of modulation factor measurement ABUSY did not return within 200 mS after the ADJMIR (modulation factor measurement) command was sent. Stop 5D Auto sequence timeout of auto focus bias ABUSY did not return within 2 seconds after the AFB (auto focus bias) command was sent. Stop 5F Auto sequence already busy A command could not be sent because ABUSY was low. ABUSY did not return within 200 mS after TLV command was sent. Stop 62 Pause retry error Pause mode could not be restored within three retries after it had been released. Continues operation 71 ID reading check during playback An ID could not be read for 1 second or more. Stop 72 Subcode check failure during playback No frame could be read for 3 seconds or more. Stop 73 ID can not read during startup An ID could not be read within 1 second after the AFB tracking on. Opens (ID readout failure) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 105 5 6 7 8 5 6 7 8 C D F A B E OEL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 74 Subcode check failure during startup Subcode could not be read within 1 second after the tracking on. Opens (Subcode readout failure). A1 Communication timeout of DSP command A command could not be issued to DSP because Command Busy (XCBUSY) was in force (XCBUSY = L) for a specified time (about 200 µS). Open A2 Communication timeout for reading DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 200 µS) before and after a coefficient read command was issued to DSP, or the address echo-back after command issuance did not match the setup address. Open A4 Communication timeout for continuously writing DSP coefficient Command Busy (XCBUSY) was in force for 200 µS during continuous coefficient writing, or before and after a continuous write command was issued to DSP. Open B1 Timeout error for backup In the backup sequence, codes could not be read for fixed time. Stops B2 Retry error for backup Cannot close tracking even if performs backup fixed number of times. Stops B3 Retry error for trace During tracing, do not restore after the runaway detection backup was performed several times. Stops C3 Detection of tracking overcurrent During playback, the overcurrent detection port was at L for 300 ms or more continuously. Stops (the mechanical controller operates independently). (C5) Short-circuit test corresponding error After the overcurrent detection (C3 error), furthermore the overcurrent detection port was at L for 300 mS or more continuously. Turns off the power instantly (No indication on the OEL display and no writing to flash memory) F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other than Open by an external force. Closes F6 Code reading NG (PH code nothing) When Philips code is not readable during LD starting, and a code was not readable after the slider moved to FWD and REV directions slowly each for five seconds. (PRD) In the CD starting, when a subcode of TOC part was not readable, but the subcode of the program area was readable. Search, scan and special playback prohibition, Playback as playback CD-R (PRD mode) as it is. F8 Loading timeout Loading or unloading could not be completed within a specified time (about 10 seconds). Though a portable cover is opening, when a close command was issued from the system controller. Reverses the loading direction. It timeout is repeated upon retry, the unit stops. FC Focus • Focus ON sequence could not be completed more than two seconds. • Auto sequence command was finished, actually focus ON was not completed. • Focus did not enter even if retried it eight times. Stops wherever possible then opens (stops in the case of side B). OEL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit bit4=1 10 etc. Mechanism controller RAM check sum error No operation or it becomes debugging indication if the power is able to ON. bit3=1 08 etc. AV1 access error (read, write NG) bit2=1 04 etc. LSI11 access error bit0=1 01 etc. SRAM access error Error codes that are displayed on the OEL display by using the remote control unit (Device error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of left of the OEL display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 106 1 2 3 4 1 2 3 4 C D F A B E 7.1.7 TEST POINTS LOCATION AND WAVEFORMS CN551 R476 C484 R492 R474 C480 R485 R491 R481 R475 R473 R490 C476 R489 IC481 C471 27M C R488 CN901 C933 C931 R948 Q934 Q932 R963 R964 R933 R996 C932 Q933 R960 R944 R947 R940 R945 R957 R959 R958 RFO TE FE CN401 CN103 CN111 CN115 CN114 CN502 CN531 CN402 R264 R266 C266 R261 R262 R263 RPWM PPWM FPWM VPWM IC261 IC801 IC201 IC302 IC601 DVDM ASSY B RFO 2 TE 4 FPWM 8 VPWM 9 PPWM 10 RPWM 11 Pr 20 17 Pb 19 16 Y V C Y 18 14 13 12 15 22/24AV1 22/24M 16MEBY 16MDSP 33MEBY1 33MSACD 36MEBY 27MDSP 27MAV1 SIDE A SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 107 5 6 7 8 5 6 7 8 C D F A B E 1 IC101-pin 3 (RF) V: 200mV/div. H: 0.1µsec/div. 2 Q106-emitter (RFO) V: 500mV/div. H: 0.1µsec/div. 3 4 IC101-pin 42 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC201 - pin 39 (EFM before slice) V: 0.5V/div. H: 0.2µsec/div. 6 IC201 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC251 - pin 24 (FG) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 10µsec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 10µsec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 0.2msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 Foot of R964 (V) V: 0.2V/div. H: 10µsec/div. 13 Foot of R963 (C) V: 0.2V/div. H: 10µsec/div. 14 Foot of R960 (Y) V: 0.2V/div. H: 10µsec/div. 19 Foot of R958 (Pb) V: 0.2V/div. H: 10µsec/div. 20 Foot of R957 (Pr) V: 0.2V/div. H: 10µsec/div. 15 Foot of R959 (Y) V: 0.2V/div. H: 10µsec/div. 16 Foot of R958 (Pb) V: 0.2V/div. H: 10µsec/div. 17 Foot of R957 (Pr) V: 0.2V/div. H: 10µsec/div. 18 Foot of R959 (Y) V: 0.2V/div. H: 10µsec/div. GND AC mode GND AC mode GND AC mode GND GND GND GND GND GND GND WAVEFORMS DVDM ASSY B Measurement condition ; No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 No. 12 to 14 : DVD-REF-A1, T2-Chap.1 No. 5 : CD, ABEX-784 Track 1 No. 15 to 20 : DVD-REF-A1, T2-Chap.19 Note : The encircled numbers denote measuring point in the schematic diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 108 1 2 3 4 1 2 3 4 C D F A B E 7.1.8 TROUBLE SHOOTING START Is OEL turn on ? Is tray open ? Is the indication of OEL normal ? Power ON Yes Yes Yes No No No Turn on the power again after 2 - 3 minutes. OEL indication is dark or flickers. Indicates the error message Refer to the section "7.1.6 ERROR DISPLAY". • Tact-switch (STBY Assy S1901) is damaged. (incase of only a key NG) Is CONTROL Assy IC5501-pin 18 (KEY1) around +1.2V when POWER keyis pressed ? • Remote control unit or IR, SEL IR signal line are damaged. (incase of only a key of remote control unit NG) • Microcomputer is damaged on DISPLAY Unit. • Check the following connections : Display Unit ↔ Product DVDM Assy ↔ VIDEO Assy • Check the voltage regulator of DVDM Assy IC791-pin 1 (+1.8V) • Check each voltage • Check the address bus and data bus of signal interface between FR CPU (IC601) ↔ AV1 (IC751), Eby-Chip (IC701) and Servo DSP (IC201). Clock generator IC481 or crystal resonator X481 is damaged. Check waveform of each pin whether IC481 does oscillation. • Check the following connections : DVDM Assy CN103 ↔ LOAB Assy CN601 DVDM Assy CN105-pin 12 (INSIDE SW signal) • Check the loading drive signal : IC351-pin 14, 15, 16 • Check the +6V and +12V power supply voltages Do the video and sound come on? or beeing damaged? (noisy) Yes No Refer to the section "7.1.6 ERROR DISPLAY". Indicate the error message. Carriage does not move. (Stepping positioning) Yes Yes • Laser diode does not light. • Focus does not in. Yes No No Spindle does not turn. No OK • Check the following connections and FTS drive IC : DVDM Assy CN104 (4P flexible cable) Check the Stepping motor signals, IC351-pin 31, 32, 34, 35 and IC601-pin 47, 48. • Check the +6V and +12V power supply voltages • Check the following connections and spindle drive IC : DVDM Assy CN105 (12P flexible cable) Check the Spindle motor signals and IC251-each pins. • Check the +6V and +12V power supply voltages • Check the connection between VIDEO Assy and DVDM Assy. • Check voltage regulator of VIDEO Assy IC8801-pin 1 (+5V) for Video circuit, • Check the interface of 16M SDRAM (IC741) for Eby-chip (IC701) and 64M SDRAM (IC781) for AV1 (IC751). • Check digital data of video and audio signals (audio signals: 3 line data, video signals: 8bit data) shown to each schematic diagram and an analog signal line. In addition, check CLK. audio system: 22/24MHz, video system: 27MHz • Check the following connections (IC351, IC101, IC201) : DVDM Assy CN101 ↔ Pickup Assy (26P flexible cable) IC351-pin 9, 10, IC101-pin 41 and IC201-pin 32, 47 for Focus Drive • Check the +6V and +12V power supply voltages • Check it whether the pickup is defectiveness. Perform the section "7.1.2 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE" and check the LD current value. C101 (for DVD LD) and C103 (for CD LD) of DVDM are missing. • Regarding DVD LD (650nm) : Check each signals of CN101-pin 1 (MPD), pin 2 (LD Drive), IC101-pin 15 and Q101 Regarding CD LD (780nm) : Check each signals of CN101-pin 1 (MPD), pin 7 (LD Drive), IC101-pin 17 and Q102 MPD: Monitor Power Diode (signal output) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 109 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 SERVICE TEST MODE 1. How to enter the test mode • Turn the power on while short-circuiting with short circuit point SERVICE (pin 43) and VE +5 on the PC Board. • To release the test mode, pull out the AC power cord or turn the power off. 2. Start operation • Initial function is a DVD / CD and cannot enter the DEMO mode. 3. Function and operation in the service test mode Difference with the normal mode • Even if there is not an AC pulse, operation is possible. Operation can only in the DVD tuner section if it supplies necessary DC power supply even if there is not the amplifier section. • Release the forced power off function by the protection function. It is easy to perform the diagnosis of the malfunction point. • Other functions and operations are the same as the normal mode. 4. Version indication of the microcomputer • When pressing the STOP key for about 8 seconds, version indication of the microcomputer and number of times of operation of the door (count ups by close completion) and total time of the power supply on are indicated. Indicated condition is the function except a tuner mode in the power on state. (Memory is cleared in the tuner mode.) • So that number of times of operation of a door and total time time of the power supply on are backing it up, it is effective so long as backup power supply does not break down. Do not clear it by the memory clear and the line test mode. PDC099A SYS 1. 00 PD5797A OEL 1. 00 0123456789 012345H First and second lines PD number Microcomputer Version Third line Door Open/Close counter Power ON time (for inspection in the service) About the Protection Circuit When product fails in the normal operation, protection circuit works, Timer LED flashes on and off and become the standby state, and cannot turn the power on for 60 seconds. When activate the product in the service test mode then, operation of the protection circuit is released and turn the power on. Even if failed state continues, the protection circuit does not work. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 110 1 2 3 4 1 2 3 4 C D F A B E 7.1.10 STANDBY ON TIMING WAVEFORM Power ON Standby Key input msec 300 600 900 1200 1500 1800 2100 2400 2700 3000 3300 3600 3900 4200 4500 4800 PON2 150 msec PON3 480 msec PON4 1500 msec PON5 1890 msec PON6 2010 msec PON6 4020 msec PON7 4050 msec PON1 30 msec VOLUME LAST data VOLUME = 0 data and expansion port set (port set) H/L output after this Set a port in arbitrary data Start the BUS communication Start the communication Start the TUNER control communication POWER relay (pin 91) speaker relay (Q1 Q3, Q4 of M62446) SYS MUTE (pin 94) HP MUTE (pin 31) TV MUTE (pin 33) DOUT MUTE (pin 3) DVD power supply (pin 1) function setting (BU4051 & HC4052) (pin 78, 79, 47, 59, 60) Volume 0 transmission (Request) CODEC (with D.R release reset) (pin 90) DSP reset (pin 86) DSP communication (pin 49-51, 82, 83) Door initialization TUNER control (pin 61-63) Each output port set OEL controller control Wach ATT control port timer LED other switching function OEL controller reset (pin 28) controller reset (control with OEL controller) (OEL controller pin 88 : OELON) OEL controller communication (pin 26, 27) DVD control DVD reset (pin 93) System BUS commnication (DVD communication) (pin 23-25) REC MUTE (VIDEO OUT1 / pin 31) VOLUME setting (MAIN + HP pin 95-97, 58) DSP control Shift to the normal communication after the initialization communication competion * When initialization communication is not completed by a state of DSP hardware, do not release mute Reset time is 10 msec Start indication after shortest 64 msec after decoding displayed data www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 111 5 6 7 8 5 6 7 8 C D F A B E 7.1.11 SINGLE OPERATION METHOD TEST MODE TEST MODE : ON TEST MODE TEST MODE : STOP CONTROL Assy TEST mode short point SERVICE VE+5 Connect each power supply firmly stabilizing as shown in the figure below. Turn off power switch of DC power supply. Turn off power switch of DC power supply. Turn on power switch of DC power supply. Service TEST mode To come off the test mode, AC OFF. The test mode is not completely cleared in POWER OFF key and AC OFF, please. • Please connect DISPLAY UNIT (AXX7142) in order to use Remote Control Unit. CONTROL ASSY K 1 4 5 8 7 1 1 8 5 4 1 4 7 1 1 1 7 R8330 R8328 R8326 C8330 C8328 C8327 IC8303 R8329 R8327 R8325 C8336 C8335 C8325 C8326 C8004 C8003 CN1901 R1904 IC8001 C8005 C8006 J8001 CN1991 CN1993 SIDE CONTACT UNIT SERVICE VE+5 TEST 1 7 1 8 4 5 1 4 1 7 1 1 7 DC +7V power supply DC +7V and DC +13V power supply Short GND DC -13V power supply short GND 20 1 CN5506 R5607 R5608 R5609 R5610 R5611 R5612 C8501 R8503 CN8501 L5203 L5209 C1041 C1042 For Service +7V Supply Point 1 20 13 1 C1038 C1039 D1715 GNDM-GNDD SHORT POINT For Service 6.GNDM 5.NC 2.VD+5DVD 1.VM+6DVD 8.GNDDVD 3.NC 4.NC 7.NC 9.VM+12DVD 10.GNDDVD 11.V+25DVD 12.GNDDVD 13.V+33DVD C CN1002 1 C8901 R8908 D1006 D1003 D1711 R1999 GNDD-GNDA CE3 VP+6-VP+3 SHORT POINT For Service 1.VP+6 2.VP+6 3.GNDM 4.VP+12 5.GNDR 6.GNDR 7.VP+3 8.GNDD 9.V+11OEL 10.GNDOEL 11.V+33OEL 12.VD+5DSP 13.GNDDSP 14.GNDA CN1001 Point +13V Supply For Service 14 Point +7V Supply For Service 1 16 D1709 20.DSDDMIXL 21.DSDDMIXR 6.XPROTECT 7.V+33DVD 8.XAMUTE 9.VD+5 11.VA+12 10.VSELEC 12.VX+12 13.SCOUTL 14.GNDASC 15.SCOUTR 16.VA-12 CN1403 Point -13V Supply For Service 16 SIDE B SIDE A VIDEO ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 112 1 2 3 4 1 2 3 4 C D F A B E 7.1.12 DISASSEMBLY 1 Remove four screws to remove the Side Panel L and R with Hexagonal Lench 2 Remove four screws to remove the Top Panel with Hexagonal Lench 1 Turn the Gear Pulley A counterclockwise as figure below and open the door. 2 Side Panel L, R and Top Panel 1 1 Turn the power on 2 Open the Door 3 Open the Tray 4 Remove the Tray Cap 5 Close the Tray 6 Close the Door 7 Turn the power off Tray Cap 2 How to open the tray by manual operating Side Panel R Side Panel L Top Panel Tray Cap Tray Tray O/C KEY Assy STBY KEY Assy Slit Drive Gear LOADING MECHA Assy Small square-bar Screwdriver Small square-bar Screwdriver Protruding portion 1 ×2 1 ×2 2 ×2 2 ×2 Pass a small square-bar screwdriver through a slit and slide a protruding portion of the Drive Gear of the LOADING MECHA Assy to the direction of arrow. If the Tray moved toward the front about 2 or 3 cm, pull out the Tray by hands. Gear Pulley A 2 2 1 6 1 6 3 5 4 3 5 1 7 Door Door www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 113 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the Earth Spring 2 Remove nine screws 3 Unhook four position 4 Remove the front panel section Front Panel Section, Door Section 3 5 Remove the Spring AL and Spring AR 6 Unhook two position 7 Remove the door section 9 Remove the Front Panel 8 Unhook three position Caution : Be careful that STBY Lens comes off and falls. Earth Spring Spring AL Front panel section ×3 1 5 6 6 3 3 4 3 3 7 9 8 8 8 Front panel 2 ×2 2 ×2 2 2 2 Left Side View Right Side View Spring AR 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 114 1 2 3 4 1 2 3 4 C D F A B E Cable Styling in the Front Panel Section Assembly Align the Gear in the Door Section Assembly Cam Gear R Hole for synchronization Hole for synchronization Cam Gear L Cam L Screw (Z39-019) Screw (Z39-019) Gear Holder L Gear Holder R Gear Holder R Cam R Synchro Gear (Shaft Assy) Gear Holder and Cam Gear include hole (φ3) for synchronization, and please assemble it with the condition which turned the hole into the same position. (L, R) At tightening screw (Z39-019), Cam Gear turns, and hole position moves. After tightening screw, please turn the hole into the same position by turning Gear Pulley. And please confirm that it is keeping the hole position. (L, R) Please insert round bar of φ3 (Guide Bar : VLL1514) into the hole before tightening screw, so that the hole position does not move. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 115 5 6 7 8 5 6 7 8 C D F A B E 1 Remove two screws 2 Disconnect all flexible cables and connectors from product 4 Remove two screws 5 Remove the DVDM Assy 3 Remove the mechanism section 6 Connect all flexible cables and connectors with product 7 Styling the mechanism section as figure below Diagnosing the DVDM Assy 4 Mechanism section 1 1 DVDM Assy LOADING MECHA Assy 4 4 Bottom View DVDM Assy LOADING MECHA Assy Spacer Spacer 3 5 Diagnosis www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 116 1 2 3 4 1 2 3 4 C D F A B E PCB Location LOADING MECHA Assy DOOR SW Assy MOTOR Assy DVDM Assy R B LOAB Assy A S KEY L Assy N DOOR SW2 Assy M STBY KEY Assy L O/C KEY Assy Q HP Assy T SACDB Assy C FM/AM TUNER Module H VIDEO Assy D COMPONENT Assy (ZUCXJ Only) F REG Assy E DSP TRADE Assy J DSP Assy I KEY R Assy P TIMER LED Assy O IF Assy G CONTROL Assy K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 117 5 6 7 8 5 6 7 8 C D F A B E Cable Styling in the Main Unit Assembly www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 118 1 2 3 4 1 2 3 4 C D F A B E In the tray insertion, insert it after mathing a triangle mark of the Loading Base and a position of pin of the Drive Cam. 2 2 2 4 -2 Bridge DVDM Assy Loading Base Triangle mark Drive Cam Pin 4 -1 Hook Caution in the tray insertion RearView Short SW 1 Short Open 5 Remove a screw 6 FFC Holder Traverse Mechanism Assy-S Remove the FFC Holder with the state which Flexible Cable was atatched 5 Bottom View Cautions : Screw is locked with Silicone Adhesive. Please lock it with Silicone Adhesive when installs it. 1 2 Disconnect three connectors 3 Remove a screw to remove the Bridge 4 Pull out the tray and remove it while unhooking a hook Turn the short switch to short side Traverse Mechanism Assy-S and Pickup Assy-S 5 3 -1 -2 3 6 Silicone Adhesuve GEM1037 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 119 5 6 7 8 5 6 7 8 C D F A B E 7 8 9 8 9 Traverse Mechanism Assy-S Traverse Mechanism Assy-S Unhook four position Remove the Traverse Mechanism Assy-S Remove the Pickup Flexible Cable × 2 7 9 9 8 × 2 8 8 8 Exchange Remove the Pickup Assy-s Skew Screw Skew Screw Pickup Assy-S Pickup Assy-S Remove two skew screws and two skew springs Remove two screws Cautions : Screw is locked with Silicone Adhesive. Please lock it with Silicone Adhesive when installs it. Remove the Pickup Flexible Cable 10 10 10 7 7 When Removing The Traverse Mechanism Assy-S When Removing The Pickup Assy-S Skew Spring Skew Spring Joint Slider Hold Spring Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Exchange www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 120 1 2 3 4 1 2 3 4 C D F A B E Fold position of step Lose slack Bottom View 6 7 8 Bottom View 9 10 Bottom View 11 12 Reference line Fold at the position of reference line. Pickup Assy-S FFC Holder Conducting Plane 1 1 2 2 Insert the Pickup Flexible Cable in connector, and lock it surely. 3 Perform the styling as shown in figure below. Caution : Move the Pickup to the innermost of the disc FOLD a edge of lining part of the Pickup Flexible Cable. Bottom View Bottom View 1 2 3 6 4 5 STYLING THE PICKUP FLEXIBLE CABLE 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 121 5 6 7 8 5 6 7 8 C D F A B E 7.2 IC LA9704W (DVDM ASSY : IC101) • RF IC • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. List of IC LA9704W, LC78652W, BA6664FM, M56788AFP, SM8707HV, PD6345A, PE5286A, M65776AFP, CXD2753R, DSD1702EG, LA73054, PDC099A, LC75344M, PD5797A, PD3430A Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 122 1 2 3 4 1 2 3 4 C D F A B E Pin Function No. Pin name Pin Functions 1 RFN RF- input 2 VCC Power supply terminal (for DPD) 3 RFP RF+ nput 4 PD1 Pickup signal input 5 PD2 6 PD3 7 PD4 8 GND Ground (for DPD) 9 PIN1 Pickup signal input 10 PIN2 11 TIN1 12 TIN2 13 FIN1 14 FIN2 15 LDD1 APC1 output 16 LDS1 APC1 monitor input 17 LDD2 APC2 output 18 LDS2 APC2 monitor input 19 GND Ground (Servo system) 20 LDTH APC1 threshold change (H: VCC-1.5V, L: 180mV) 21 LDON Laser ON terminal (H: ON) 22 LDSEL APC change terminal (H: APC1) 23 AGOF RFAGC off terminal 24 BCA PH electric discharge coefficient change (H: BCA mode) 25 GU RF, Servo signal gain up terminal (H: Gain up) 26 DVD/CD RF- equalizer band change terminal (H: DVD) 27 DPD/TE TE output change terminal (H: DPD) 28 PP/TE TS output change terminal (H: PP) 29 VCC Power supply terminal (Servo system) 30 EQSCT EQ change for CD (H: 62 pin choice) 31 WO/BH BHMIX output change terminal (H: WOBLE) 32 RFSEL RF amplifier gain change (H: 6dB up) 33 LDDM LDD monitor terminal 34 TH Tracking hold (H: hold) 35 XHTR Tracking, Bottom band change (L: High bandwidth) 36 SGC Servo gain control terminal (FE, PP, TE) 37 FEBL FE balance adjustment terminal 38 TEBL TE balance adjustment terminal 39 CP Resistance for charge pump gain setting, a condenser connection terminal 40 THC Volume connection terminal for tracking hold 41 FE Focus error output 42 TE Tracking error output 43 PPN Ohms connection terminal for push-pull gain setting 44 PP Push-pull output terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 123 5 6 7 8 5 6 7 8 C D F A B E No. Pin name Pin Functions 45 TS Tracking cross signal output 46 TESI TES comparator input terminal 47 TES TES output 48 DEF Deffect search 49 BHMIX PH, BH, woble change output 50 BHACI BH–AC input 51 BH RF bottom detection output 52 PH RF peak detection output 53 WOC Volume connection terminal for DC cut 54 ISET Ohms connection terminal for BPF center frequency setting 55 BCAI Ohms connection terminal for peak hold detection fixed number setting (In BCA) 56 PHC PH detection condenser connection terminal for RF-AGC 57 LPC Condenser connection terminal for RF DC servo 58 DEFC Volume connection terminal for deffect search 59 GND Ground (RF system) 60 RFO RF output terminal 61 REF Reference output terminal 62 EQC1 Equalizer setting terminal for CD 63 VCC Power supply terminal (RF system) 64 EQC2 Equalizer setting terminal for CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 124 1 2 3 4 1 2 3 4 C D F A B E LC78652W (DVDM ASSY : IC201) • Servo DSP IC Block Diagram 33 FE 32 TE 29 TILTE 30 RF_PH 31 RF_BH 28 JITT 26 TES 51 HFLIO 81 VPDO 15 XOUT 73 BUSYB 8 XTALOUT 100 LEFM 97 LEFM2 52 LASER 92 JV MPX Servo Processor (16×16+32→32) 8bit A/D 8bit D/A CMP Track Counter 56 PP2/EVENT Event Counter 55 FG 39 EFMIN 80 VCOC 96 DVDSYNC 14 XIN 58 CSB 94 ADRAO 60 WRB 59 RDB 91 CDFR 90 DVDFR 1 EFMOUT SLCIST1,2 FG Counter SLC CLV PLL Frame Synchronous Detection, Protection, Insertion EFM Demodulation Error Detect Correction C1-Twofold, C2-Fourfold Supplement/Mute D Attenuate Deemphasis Filter Clock Generator Command Interface 34,35 SLCO1,2 36,37 PCKIST1,2 87,88 PD01-3 83-85 P0-7 63-70 PP0-3 93 PCK For De-Interleave 16k SRAM DOUT Serial Out Sub Code Decode CRC DVD Lock Detection 74 SQOUT 47 FDO 48 TDO 45 SLDO 46 SPDO 44 TBAL 43 TILTDO 42 AUXO 24 DRF 22 FAST 95 DVDSYEQ 23 V_PB 21 FSEQ 77 WRQ 17 EMPH 4 ROMCK 5 LRSY 19 DOUT 3 ROMXA 57 RESB 2 C2F 20 EFLG 9 FSX 12 PW 18 SBSY 11 SFSY 75 CQCKB TEST1-4 76 RWC 10 SBCK 25,27 38,50 7 FBUSYB General Purpose Register 53,54 ,56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 125 5 6 7 8 5 6 7 8 C D F A B E Pin Function No. Pin Name I/O Pin Function 1 EFMOUT O Output the state that was binary-stated value EFM 2 C2F O C2 flag output 3 ROMXA O CD-ROM data output 4 ROMCK O Shift clock output for CD-ROM data output 5 LRSY O L/R clock output for CD-ROM data output 6 PP3 I/O General-purpose port input/output / DVD sync. signal input N ch-OD output 7 FBUSYB O Busy signal output of DSP process operation N ch-OD output 8 XTALOUT O External system clock output 9 FSX O CD 1 frame sync. signal output 10 SBCK I Subcode reading out clock input 11 SFSY O Frame sync. signal output of subcode 12 PW O Subcode P, Q, R, S, T, U, V and W output 13 VSS − GND pin 14 XIN I Connect a crystal resonator (16.9344MHz) 15 XOUT O Connect a crystal resonator 16 DVDD1 − 3.3V power supply of the oscillation circuit 17 EMPH O Monitor pin of the deemphasis 18 SBSY O Sync. signal output of the subcode block 19 DOUT O Audio EIAJ data output 20 EFLG O Error correction state monitor of the error correction C1 and C2 21 FSEQ O Detection monitor of the CD/DVD frame sync. signal 22 FAST O Playback speed monitor N ch-OD output 23 V_PB O Monitor output of the rough servo/CLV control 24 DRF O In focus monitor 25 TEST3 I Test input 3 26 TES I Tracking error signal input 27 TEST2 I Test input 2 28 JITT I Jitter quantity detecting signal input of EFM PLL 29 TILTE I Tilt error signal input 30 RF_PH I RF peak hold signal input 31 RF_BH I RF bottom hold signal input 32 TE I Tracking error signal input 33 FE I Focus error signal input 34 SLCIST1 − Current setting pin 1 of the constant current charge pump for SLC 35 SLCIST2 − Current setting pin 2 of the constant current charge pump for SLC 36 SLCO1 O Control output 1 for SLC 37 SLCO2 O Control output 2 for SLC 38 TEST1 I Test input 1 39 EFMIN I EFM/EFM + input 40 AVDD − 5V power supply of A/D and D/A for servo 41 AVSS − GND of A/D and D/A for servo 42 AUXO O DA auxiliary output 43 TILTDO O Tilt control signal output 44 TBAL O Tracking balance control signal output 45 SLDO O Sled control signal output 46 SPDO O Spindle control signal output 47 FDO O Focus control signal output 48 TDO O Tracking control signal output 49 VREF − Reference level of D/A for servo 50 TEST4 I Test input 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 126 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function 51 HFLIO I/O Mirror detection signal input/output 52 LASER O Output pin for laser ON/OFF control 53 PP0/DVD_CDB I/O General-purpose port input/output / Disc discrimination signal output 54 PP1/CRCERRB I/O General-purpose port input/output / Subcode CRC result signal output 55 FG I FG counter input 56 PP2/EVENT I/O General-purpose port input/output / Event counter input 57 RESB I Reset input 58 CSB I Chip select input 59 RDB I Internal state reading signal input 60 WRB I Command / data writing signal input 61 DVDD2 − 5V power supply 62 VSS − GND 63 P0 I/O Command / data input/output 64 P1 65 P2 66 P3 67 P4 68 P5 69 P6 70 P7 71 VSS − GND 72 DVDD1 − 3.3V power supply for internal 73 BUSYB O Busy signal output of command process 74 SQOUT O Serial output of subcode Q 75 CQCKB I Shift clock input for subcode Q data output 76 RWC I Update permission input of subcode Q 77 WRQ O Read out ready monitor of subcode Q 78 AVSS − PLL GND for internal system clock 79 VRPFR − VCO oscillation range setting of PLL for system clock 80 VCOC I Connect a PLL filter for system clock 81 VPDO O 82 AVDD − PLL 5V power supply for system clock 83 PDO1 I/O PLL filter connection pin 1 for EFM playback 84 PDO2 I/O PLL filter connection pin 2 for EFM playback 85 PDO3 I/O PLL filter connection pin 3 for EFM playback 86 AVSS − PLL GND for EFM playback 87 PCKIST1 − Current setting 1 of PLL constant current charge pump for EFM playback 88 PCKIST2 − Current setting 2 of PLL constant current charge pump for EFM playback 89 AVDD − PLL 5V power supply for EFM playback 90 DVDFR − VCO oscillation range setting of PLL for EFM playback 1 91 CDFR − VCO oscillation range setting of PLL for EFM playback 2 92 JV O Jitter output of PLL clock for EFM playback 93 PCK O Bit clock output for EFM playback 94 ADRAO I Address input 95 DVDSYEQ I DVD synchronize pulse input 96 DVDSYNC I DVD synchronous signal input 97 LEFM2 O Output the state that cut and out a signal which was binary-stated value EFM with PCK 2 98 DVDD1 − 3.3V power supply for I/O 99 VSS − GND 100 LEFM O Output the state that cut and out a signal which was binary-stated value EFM with PCK 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 127 5 6 7 8 5 6 7 8 C D F A B E BA6664FM (DVDM ASSY : IC251) • Spindle Driver DRIVER TSD PS TORQUE CURRENT SENSE AMP SENSE AMP SHORT BRAKE D R Q CK Q TL GAIN CONTROL GAIN SWITCH Vcc Vcc Vcc A3 2 A2 4 A1 7 GND 8 H1+ 9 H1- 10 H2+ 11 H2- 12 H3+ 13 H3- 14 GSW 26 FG 24 VCC 25 RNF 28 VM 27 HALL AMP PS 23 EC 22 ECR 21 FR 20 FG2 19 SB 18 CNF 17 BR 16 VH 15 BRAKE MODE HALL BIAS Block Diagram Pin Function No. Pin Name Pin Name Pin Function No. Pin Function 1 N.C. N.C. 16 BR Brake mode switching pin 2 A3 Output pin 17 CNF Capacitor connection pin for phase compensation 3 N.C. N.C. 18 SB Short brake pin 4 A2 Output pin 19 FG2 FG 3-phase mix signal output pin 5 N.C. N.C. 20 FR Rotation detecting pin 6 N.C. N.C. 21 ECR Control reference pin of output voltage 7 A1 Output pin 22 EC Output voltage control pin 8 GND GND pin 23 PS Power save pin 9 H1+ Hall signal input pins 24 FG FG signal output pin 10 H1- 25 VCC Power supply pin 11 H2+ 26 GSW Gain switching pin 12 H2- 27 VM Motor power pin 13 H3+ 28 RNF Resistor connection pin for output current detection 14 H3- FIN FIN GND 15 VH Hall bias pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 128 1 2 3 4 1 2 3 4 C D F A B E M56788AFP (DVDM ASSY : IC351) • FTS Driver IC Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 129 5 6 7 8 5 6 7 8 C D F A B E SM8707HV (DVDM ASSY : IC481) • Clock Generate IC Pin Arrangement Pin Function 1 VDD1 2 VSS1 3 MO1 4 MO2 5 VDD2 6 VSS2 7 XTI 8 16 15 14 13 12 11 10 9 XTO NC SO3 FSEL SO2 VDD3 VSS3 AO1 SO1 (Top View) No. Pin name Dir. Pin Functions 1 VDD1 PWR Power supply terminal 1 (digital business) 2 VSS1 GND Earth terminal 1 (digital business) 3 MO1 OUT Video output terminal 1 (the 27MHz fixed output) 4 MO2 OUT Video output terminal 2 (the 27MHz fixed output) 5 VDD2 PWR Power supply terminal 2 (analog business) 6 VSS2 GND Earth terminal 2 (analog business) 7 XTI IN External clock input terminal or crystal resonator connection 8 XTO OUT Crystal resonator connection terminal 9 SO1 OUT Signal conditioning system output terminal 1 (36.8640MHz fixation) 10 AO1 OUT Sound output terminal 1 (the 512fs output) 11 VSS3 GND Earth terminal 3 (digital business) 12 VDD3 PWR Power supply terminal 3 (digital business) 13 SO2 OUT Signal conditioning system output terminal 2 (16.9344MHz fixation) 14 FSEL IN Sampling frequency change terminal FSEL= "L": fs=48kHz FSEL= "H": fs=44.1kHz (There is inside pull-up resister, Schmidt trigger input) 15 SO3 OUT Signal conditioning system output terminal 3 (33.8688MHz fixation) 16 NC − Unused terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 130 1 2 3 4 1 2 3 4 C D F A B E PD6345A (DVDM ASSY : IC601) • FR CPU Pin Function No. Mark Pin Name I/O Pin Function 1 P20/D16 D0 I/O Data bus input/output 2 P21/D17 D1 3 P22/D18 D2 4 P23/D19 D3 5 P24/D20 D4 6 P25/D21 D5 7 P26/D22 D6 8 P27/D23 D7 9 P30/D24 D8 10 P31/D25 D9 11 P32/D26 D10 12 P33/D27 D11 13 P34/D28 D12 14 P35/D29 D13 15 P36/D30 D14 16 P37/D31 D15 17 VSS GND − Ground 18 P40/A00 A0 O Address bus output 19 P41/A01 A1 20 P42/A02 A2 21 P43/A03 A3 22 P44/A04 A4 23 P45/A05 A5 24 P46/A06 A6 25 P47/A07 A7 26 VCC3 V+3.3D − Power supply 27 VCC2 V+2.5D − Power supply 28 P50/A08 A8 O Address bus output 29 P51/A09 A9 30 P52/A10 A10 31 P53/A11 A11 32 P54/A12 A12 33 P55/A13 A13 34 P56/A14 A14 35 P57/A15 A15 36 VSS GND − Ground 37 P60/A16 A16 O Address bus output 38 P61/A17 A17 39 P62/A18 A18 40 P63/A19 A19 41 P64/A20 A20 42 P65/A21 A21 43 P66/A22 A22 44 P67/A23 WBL O For Wobble detection corresponding to DVD R/W (main) 45 DAVS GND − Ground 46 DAVC V+3.3D − Power supply 47 DA0 STEP1 I For stepping motor control 48 DA1 STEP2 I 49 DA2 LODRV I Loading, door and select motor drive www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 131 5 6 7 8 5 6 7 8 C D F A B E No. Mark Pin Name I/O Pin Function 50 AN0 NC I NC 51 AN1 NC I NC 52 AN2 NC I NC 53 AN3 XOEM I OEM model protection input 54 AN4 LDREAD I Input for LD current value indication 55 AN5 NC I NC 56 AN6 NC I NC 57 AN7 LODPOS I Loading clamp position SW input 58 AVCC V+3.3D − Power supply 59 AVRH V+3.3D − Power supply 60 AVSS/AVRI GND − Ground 61 VSS GND − Ground 62 PP0/ATGX SLDPOS I SW input of slider inside position 63 PP1/FRCK GSW O Gain up at ACBR (at ACBR: H, others: L) 64 PP2/IN0 780ON I ON/OFF control signal of 780nm laser diode 65 PP3/IN1 GU O RF, servo signal gain up terminal (H: Gain up) 66 PP4/IN2 XMON O Mute of DRV (spindle motor ON: H) 67 PP5/IN3 XDRVMUT O FTS driver mute output 68 PP6 LT1_3V O Communication response to the FL controller 69 PP7 XRDY_3V I Communication request from the FL controller 70 VCC3 V+3.3D − Power supply 71 VCC2 V+2.5D − Power supply 72 PO0/OC0 XCURDET I Actuator current detection input Servo OFF for "L" 300ms 73 PO1/OC1 XCBUSY I Busy signal of command process Command acceptable : "L" 74 PO2/OC2 XDSPRST O Servo DSP reset 75 PO3/OC3 BCA − BCA read signal (at BCA read: H) (Not used) 76 PO4/OC4 NC I NC 77 PO5/OC5 PPCNT O Switch of TZC in WBL traversal (at PP: H) 78 PO6/OC6 XDFINH O Defect signal control (DEFECT ON: Hi-Z; OFF: "L") 79 PO7/OC7 DPD/TE O H=1 beam, L=3 beams 80 VSS GND − Ground 81 PN0/AIN0 DVD/XCD O RF EQ switching signal at DVD/CD "H": DVD, "L": CD 82 PN1/BIN0 AGOFF O H": Turn off AGC of RFI 83 PN2/AIN1 650X780 O 780nm/650nm switching signal 84 PN3/BIN1 LD ON O ON/OFF control signal of laser diode 85 PN4/AIN2 WBLSEL O NC 86 PN5/BIN2 RFSEL O RF amplifier gain change terminal (H: Gain up) 87 PN6/AIN3 XCD2X O For VCD double speed playback 88 PN7/BIN3 OEICG O H": Gain of OEIC up to 6d 89 PM0/ZIN0 EN33M O NC 90 PM1/ZIN1 EN24M O NC 91 PM2/ZIN2 V SEL O (Composite, S) / (YCbCr) or (RGB) switch 92 PM3/ZIN3 V SEL2 O (Composite) of scart terminal / (S) switch 93 PL0/SDA1 SDAI 12C Serial 12C control lines 94 PL1/SDA0 NC − NC 95 PL2/SCL1 SCLI 12C Serial 12C control lines 96 PL3/SCL0 NC − NC 97 PL4 CTS I RS-232C clear to send input 98 PL5 DTR O RS-232C clear to send output 99 PL6/UC0 NC O NC 100 VSS GND − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 132 1 2 3 4 1 2 3 4 C D F A B E No. Mark Pin Name I/O Pin Function 101 PK0/TIN0 XVQERST O VQE3 reset signal 102 PK1/TIN1 XCSPRO1 − Serial communication enable of the progressive converter IC 103 PK2/TIN2 XCSVQE5 − Serial communication enable of VQE5 IC 104 PK3/TIN3 EN16M O N.C. 105 PK4/TOT0 44X48 O DAC and DASP supply clock fs 44/48 selection 106 PK5/TOT1 1394XRDY I N.C. 107 PK6/TOT2 AOSEL1 O AV-1/audio DSP switch (front L/R data) 108 PK7/TOT3 P/XI O Progressive/Inter race change signal 109 VCC3 V+3.3D − Power supply 110 VCC2 V+2.5D − Power supply 111 PJ0/INT0 XINT0 I 112 PJ1/INT1 XINT1 I 113 PJ2/INT2 XIRQ10 I MY chip interrupt #0 114 PJ3/INT3 XIRQ11 I MY chip interrupt #1 115 PJ4/INT4 XABUSY I Busy signal of DSP process operation "L" 116 PJ5/INT5 THLD I Playback speed monitoring signal 117 PJ6/INT6 SBSY I Sync. signal of subcode block (period SO+SI "H") 118 PJ7/INT7 N.C. I N.C. 119 PI0/SI0 SSI I Serial bus data input 120 PI1/SO0 SSO_3V O Serial bus data output 121 PI2/SCK0 SSCK_3V I Serial bus clock input 122 PI3/SI1 RXD_3V I RS-232C RXD 123 PI4/SO1 TXD_3V O RS-232C TXD 124 PI5/SCK1 NC O NC 125 PH0/SI2 1394LT O NC 126 PH1/SO2 DSPICM I Audio system DSP serial communication Readv signal 127 PH2/SCK2 NC I NC 128 MD0 GND − Ground 129 MD1 GND − 130 MD2 GND − 131 VSS GND − Ground 132 VCC2 V+2.5D − Power supply 133 VSS GND − Ground 134 X1 EXTAL O 135 X0 XTAL I 136 VCC3 V+3.3D − Power supply 137 PC0/DREQ2 RESET1 O Audio system DSP reset 138 PC1/DACK2 XCSADSP0 O Chip select port for audio system DSP 139 PC2/DEOP2 XCSDF2 O DAC chip select (for surround system L/R) 140 PB0/DREQ0 XDREQ0 I DMA response output to BY Chip 141 PB1/DACK0 DACK0 O DMA request input from BY Chip 142 PB2/DEOP0 ENCD O N.C. 143 PB3/DREQ1 XDREQ1 I DMA response output to AV-1 Chip 144 PB4/DACK1 XDACK1 O DMA request input from AV-1 Chip 145 PB5/DEOP1 EN_FLOW O N.C. 146 PB6/IOWRX XCOMP O RGB/color difference change of video driver 147 PB7/IORDX XCSDF3 O N.C. 148 VSS GND − Ground 149 PA0/CSOX XCS20 O Chip select output to Flash ROM 150 PA1/CS1X XCS6 O AV-1 Chip select www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 133 5 6 7 8 5 6 7 8 C D F A B E No. Mark Pin Name I/O Pin Function 151 PA2/CS2X XCS3 O Chip select of PD4995A (MY Chip) 152 PA3/CS3X XCS4 O Chip select of servo DSP 153 PA4/CS4X XCS23 O Chip select output to SRAM (1M) 154 PA5/CS5X N.C. O N.C. 155 PA6/CS6X N.C. O N.C. 156 PA7/CS7X N.C. O N.C. 157 VCC3 V+3.3D − Power supply 158 VCC2 V+2.5D − Power supply 159 NMIX − − V+3.3D fixed 160 HSTX − − V+2.5D fixed 161 INITX XINIT I 162 P80/RDY RDY I 163 P81/BGRNTX XAMUTE I Final stage mute of 2 ch audio output 164 P82/BRQ XMMUTE O Audio multi channel mute 165 P83/RDX XRD O 166 P84/WR0X XWR0 O 167 P85/WR1X XWR1 O 168 VSS GND − Ground 169 P90/SYSCLK SYSCLK O N.C. 170 P91 DFRST − DAC reset (for front L/R) 171 P92/MCLK DFRST1 − DAC reset (for center, surround and LFE) 172 P93 XCSDF0 O DAC chip select (¨ XLAT3) 173 P94/LBAX XCSDF1 O DAC chip select for center, surround and LFE 174 P95/BAAX XAQRST O AQE reset 175 P96 XCSAQE O AQE chip select 176 P97/WEX TM ENT I Test mode entry www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 134 1 2 3 4 1 2 3 4 C D F A B E PE5286A (DVDM ASSY : IC701) • DVD Data Processor Pin Function No. Pin name Dir. Pin Functions 3, 40, 50, 54, 84, 103, 107, 145, 154, 158, 207 VDD3.3 − It is a power supply of digital circuit. Be connected to +3.3V. 15, 18, 27, 53, 64, 74, 78, 92, 104, 130, 157, 164, 183, 191, 208 VDD2.5 − It is a power supply of digital circuit. Be connected to +2.5V. 1, 2, 16, 17, 26, 41, 51, 52, 63, 73, 79, 85, 91, 105, 106, 131, 144, 150, 155, 156, 178, 182, 190 GND − It is a ground of digital circuit. 167, 171, 175 NC − It is a non-use pin. Fix it in GND or VDD. 165 166 AVDD − It is a power supply supply terminal for built-in analog-to-digital converter. Supply +2.5V (analog). 176 177 AGND − It is a GND terminal for built-in D/A converter. 6 BUNRI IN It is a separation test control terminal of inside RAM. Input LOW in use usually. 90 TMC1 IN It is a test terminal. Input LOW in use usually. 148 TMC2 IN 4 DMCK/RF_A IN It is the system clock input of DVD/CD-ROM decoder. Input 10-54MHz. 189 CKCD IN It is master clock of an audio system I/F block. In audio out of a CD, input 16.9MHz of reference clock. 5 DMACKI/PD4 IN Fix unused time (unused usually) in GND or VDD. 149 VCOCLK IN With system clock of spindle demodulator, it is connected to VCO of outside charge account. 161 XRESET IN By the input of a LOW level, It initialize the whole large scale integrated circuit system. 135 SA19 I/O Connect address bus of central processing unit. 134 SA18 133 SA17 132 SA16 129 SA15 128 SA14 127 SA13 126 SA12 125 SA11 124 SA10 123 SA9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 135 5 6 7 8 5 6 7 8 C D F A B E No. Pin name Dir. Pin Functions 122 SA8 IN Connect address bus of central processing unit. 121 SA7 120 SA6 119 SA5 118 SA4 117 SA3 116 SA2 115 SA1 114 SA0 99 SAD7 I/O Connect a data bus of central processing unit. 100 SAD6 101 SAD5 102 SAD4 108 SAD3 109 SAD2 110 SAD1 111 SAD0 97 XSRD IN Be connected to a RD signal of central processing unit. 98 XSWR IN Be connected to a WR signal of central processing unit. 96 XSCL1 IN It is chip select signal from central processing unit. XSRD/XSWR becomes effective at the time of LOW this signal. 95 XSWAIT OUT It is the WAIT output for central processing unit. This terminal must leave access from central processing unit at the time of LOW. 94 XSDREQ OUT It is a DMA demand for central processing unit. LOW level hip of this terminal falls down and activates DMA transfer with an edge. 93 SDACK IN It is DMA answer back. Data are output with HIGH this signal by SAD (7:0). 112 XIRQ10 OUT It demand interrupt for central processing unit with LOW. Both terminals can set it with a register whether they output it. 113 XIRQ11 141 FGPL/PE3 IN Input a turn pulse from spindle motor. 147 FPWM OUT It is 7bitPWM output terminal for FG servo. It is the 3 value output of HIGH,LOW, high impedance. 146 VPWM OUT It is 5bitPWM output terminal for speed servo. It is the 3 value output of HIGH,LOW, high impedance. 143 PPWM OUT It is pulse width modulation output terminal for phase servo. It is the 3 value output of HIGH,LOW, high impedance. 142 RERR OUT It is control output for rough servo. It is the 3 value output of HIGH,LOW, high impedance. 31 PA7 I/O It is general-purpose I/O port. By setting of a $70 register, You can select a function. CDDO inputs a digital out signal from a CD decoder. DIFOUT is digital audio output terminal based on IEC958. BCA is terminal to input a BCA code into. RWDIN is terminal to input a WOBBLE signal into. BCA/RWDIN terminal becomes necessary with RW revitalization machines. 32 PA6 33 PA5 34 PA4 35 CDDO/PA3 36 DIFOUT 196 BCA/PA1 195 RWDIN/PA0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 136 1 2 3 4 1 2 3 4 C D F A B E No. Pin name Dir. Pin Functions 138 PD7/STATUS2 OUT It output a various monitor signal (STATUS (2:0)). By setting of a $ 70 register, You can use it as a general-purpose I/O port port. 139 PD6/STATUS1 140 PD5/STATUS0 151 DUTY50 OUT It always output a pulse of duty 50%. It give reference voltage of a various PWD signal of the recovery system. 160 ASC OUT It output frequency error of a sink period as a PWD pulse. 153 APC OUT It output a phase error of phase locked loop as a PWD pulse. 159 ATC OUT It output a direct current error of a RF signal as a PWD pulse. 152 AFC OUT It output VC OCL k and frequency error of reference clock as a PWD pulse. It is the 3 value output of HIGH,LOW, high impedance. 163 DEFECT/PE1 IN It is the diffect signal input from the outside. Then a phase error of phase locked loop outputs this terminal in HIGH (APC), and it is done front value hold. 162 T_DET/PC7 OUT It output a tangential-tilt search result as a pulse width modulation pulse. 70 DA13 OUT It is address signal of DRAM for a VBR buffer. 71 DA12 72 DA11 75 DA10 76 DA9 77 DA8 80 DA7 81 DA6 82 DA5 83 DA4 86 DA3 87 DA2 88 DA1 89 DA0 39 DD15 I/O It is a data bus of DRAM for a VBR buffer. 42 DD14 43 DD13 44 DD12 45 DD11 46 DD10 47 DD9 48 DD8 49 DD7 55 DD6 56 DD5 57 DD4 58 DD3 59 DD2 60 DD1 61 DD0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 137 5 6 7 8 5 6 7 8 C D F A B E No. Pin name Dir. Pin Functions 69 XDRAS OUT It is a RAS signal of DRAM of a VBR buffer. 67 XDCAS/XDCASL OUT It is a CAS signal of DRAM of a VBR buffer. 66 XDOE/DQML OUT It is an OE signal of DRAM of a VBR buffer. 65 XDWE OUT It is a WE signal of DRAM of a VBR buffer. 13 SDATA7 OUT It is a data output bus of a VIDEO_DMA channel. Be connected to MPEG decoder. 14 SDATA6 19 SDATA5 20 SDATA4 21 SDATA3 22 SDATA2 23 SDATA1 24 SDATA0 29 SREQ IN It is a data transfer demand terminal of a VIDEO_DMA channel. Be connected to MPEG decoder. You can change polarity by setting. 25 XSACK/PC5 OUT It is a transfer reply terminal of a VIDEO_DMA channel. Be connected to MPEG decoder. Output form varies with setting. 28 XWR OUT It is a transfer reply terminal of a VIDEO_DMA channel. Be connected to MPEG decoder. Output form varies with setting. 30 XAVTRM/PC6 OUT It is a signal to show the top of a sector of transfer data of a VIDEO_DMA channel in. 7 DSPA0/PC0 OUT When it connects Motorola Digital Signal Processor as destination of an AUDIO_DMA channel, it is the signal which gives a DMA address to Motorola Digital Signal Processor. 8 DSPA1/PC1 9 DSPA2/PC2 206 ASDATA0/PB0 I/O It is general-purpose I/O port. By setting of a $70 register, It become a data output bus of an AUDIO_DMA channel besides a port. 205 ASDATA1/PB1 204 ASDATA2/PB2 203 ASDATA3/PB3 202 ASDATA4/PB4 201 ASDATA5/PB5 200 ASDATA6/PB6 199 ASDATA7/PB7 10 XAWR OUT It is a transfer reply terminal of an AUDIO_DMA channel. Output form varies with setting. 11 XASACK OUT It is a transfer reply terminal of an AUDIO_DMA channel. Output form varies with setting. 12 ASREQ IN It is a transfer demand terminal of an AUDIO_DMA channel. You can change polarity by setting. 192 BCK OUT It is the bit clock output to DAC. 193 LRCK OUT It is the LRCK signal output to DAC. 194 ADATA0 OUT It is the serial data output to DAC. 187 CDBCK IN It input a bit clock from a CD decoder. Prospective frequency is 2.1168MHz(48fs). 186 CDLR IN It input a LRCK signal from a CD decoder. 185 CDDT IN It input audio system data from a CD decoder. 181 WFCK IN It is frame clock signal of a CD. 180 SCOR IN It is input terminal of assistant code sink of a CD. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 138 1 2 3 4 1 2 3 4 C D F A B E No. Pin name Dir. Pin Functions 179 SBSO IN It is an assistant code data input terminal of a CD. 184 EXCK OUT It is a shift clock making timeliness to send data forth on a SBSO terminal. 188 C2FI/PE2 IN It is input terminal of C2 error flag from a CD decoder. 136 FSX/STATUS4 I/O It input a FSX signal from a CD decoder. FSX signal is 7.35Khz at normal speed with frame alignment signal of error correction of CIRC. By setting of a $7F register, It become the internal monitor output (STATUS 4). 137 EFLG/STATUS3 I/O It input an EFLG signal from a CD decoder. An EFLG signal is a monitor signal of error correction processing movement of CIRC. By setting of a $7F register, It become the internal monitor output (STATUS 3). 172 AIN IN It is analog RF signal input terminal to built-in A/D converter. 168 VRT IN It is reference voltage input terminal of built-in A/D converter. 169 VRTS OUT Connect with VRT. 170 VRC OUT It is center voltage output terminal of built-in A/D converter. 174 VRB IN It is reference voltage input terminal of built-in A/D converter. 173 VRBS OUT Connect with VRB. 37 CKE/PD3 OUT It is an Enable signal of SDCLK. 38 CSB/PD2 OUT It is chip select signal of SDRAM. 62 SDCLK OUT It is a terminal outputting a movement clock of SDRAM. 68 XCASH/DOMH OUT When it uses DRAM of bus 16 wide bit, it is a CAS signal of high rank 8bit. 197 VREQEN/PD1 I/O It is an Enable signal of Video-REQ. 198 AREQEN/PD0 I/O It is an Enable signal of Audio-REQ. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 139 5 6 7 8 5 6 7 8 C D F A B E M65776AFP (DVDM ASSY : IC751) • MPEG2 Decoder IC Block Diagram SDRAM Controller Video Decoder Stream Interface Descrambler System Decoder Host Interface Sub Picture Decoder Display Processor 525P Encoder Trick Play Processor Audio Decoder Host Bus SDRAM Bus SDRAM Streams Video Output (Digital) (Progressive/Analog) Audio Output Host CPU www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 140 1 2 3 4 1 2 3 4 C D F A B E Pin Function No. Pin name Dir. Pin Functions 201-208 BD [7:0] IN Bit stream data entry pin 2 BCLK IN Strobe signal of BD pin (clock) 3 BDEN IN This order effective / invalidity of data done a sample of by BD pin. It is done a sample with a start edge of BCLK. 4 BDREQ OUT Data demand signal 5 BSECH IN This order it whether data of BD pin are with top byte of a sector. 84-87, 90-95, 97-102 MD [15:0] I/O Data transfer line with SDRAM 53-55, 58-63, 65, 67, 69 MA [11:0] OUT Address line of SDRAM 66, 68 MBA [1:0] OUT SDRAM bank choice line 70 DCS OUT Chip select of SDRAM 73 DCS2 74 DCS3 75 DCS4 76 DCS5 77 RAS OUT RAS (Row Address Strobe) control line of SDRAM 78 CAS OUT CAS (Column Address Strobe) control line of SDRAM 82 DQMU OUT DQM control line of SDRAM 83 DQML OUT DQM control line of SDRAM 80 DWE OUT WE control line of SDRAM 79 MCLK OUT Movement clock of SDRAM 183 PXCLK OUT 27MHz pixel clock 182 PXCLKP OUT 54MHz pixel clock 157, 158, 184-186, 188-192 PD [7:0] OUT Digital pixel data. Y/Cb/Cr is done multiple of by 8 bit bus, and it is output. 178 CSYNC IN Composite SYNC signal input terminal 179 OSDKEY OUT OSD key flag output 177 PWD OUT The phase comparator output for external synchronization movement 181 HSYNC OUT Horizontal synchronizing signal output pin 180 VSYNC OUT Vertical synchronizing signal output pin 164 AO0 OUT Serial PCM data for DAC It output Lf/Rf data. 166 AO1 OUT Serial PCM data for DAC It output C/Sw data. 167 AO2 OUT Serial PCM data for DAC It output Ls/Rs data. 168 AOD OUT Serial PCM data for DAC It is for the down mixture output. 169 AAD OUT Anciallary data output 176 DOCLK OUT PCM bit clock 159 LRCLK OUT Clock for channel distinction of pulse code modulation audio system data (L/R) 173 DACCLK OUT Exaggerated sample movement clock of DAC 161 CDBCK IN The pulse code modulation bit clock which is input by CDDSP 160 CDLRCK IN The L/R clock which is input by CDDSP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 141 5 6 7 8 5 6 7 8 C D F A B E No. Pin name Dir. Pin Functions 163 CDDIN IN PCM audio system data which are input by CDDSP 162 CDDATA IN Digital audio interface input 170 DOUT0 OUT Digital audio interface output 171 DOUT1 OUT Digital audio interface output 6-11, 14-19, 21-24 HD [15:0] I/O Data I/O pin 25, 26, 29-34, 36-39 HA [11:0] IN Address input pin 45 BHE IN Byte High Enable signal input pin 41 RE IN Read Enable signal input pin 44 WE IN Write Enable signal input pin 40 CS IN Chip Select signal input pin 46 RDY OUT The acknowledge signal which shows that readout of data or a note was completed 47 INT1 OUT It is an interrupt request signal for outside CPU from M65776AFP 48 INT2 49 INT3 51 DREQ OUT DMA request signal for OSD BitMap transfer 52 DACK IN DMA acknowledge signal for OSD BitMap transfer 194, 195 HMODE [1:0] IN Host interface mode of operation setting pin 117 IREF IN Reference electric current input pin 115 AVRI IN Reference voltage input pin 120 BIAS1 IN Bias voltage impression pin of current source 118 BIAS2 119 PAY OUT Analog electric current output pin (for Y) 116 PAB OUT Analog electric current output pin (for Pb) 122 PAR OUT Analog electric current output pin (for Pr) 114 DAOUTB OUT Be connected to an analog ground. 113, 121, 123 AVDD33 − 3.3V analog power supply 124 AGND33 − Analog ground 106 CLKIN IN System clock input terminal It input 27MHz clock. 105 CLKO OUT 27MHz clock output 172 ACLKI IN Audio system clock input terminal 193 RESET IN Hardware reset terminal 196, 197, 200 TEST [2:0] IN Fix it in "L" potential. 12, 27, 42, 56, 71, 88, 103, 134, 155, 174, 198 VDD18 − 1.8V power supply terminal 13, 28, 43, 57, 72, 89, 104, 135, 156, 175, 199 VDD33 − 3.3V power supply terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 142 1 2 3 4 1 2 3 4 C D F A B E No. Pin name Dir. Pin Functions 1, 20, 35, 50, 64, 81, 96, 112, 125, 145, 165, 187 GND − Ground terminal 107 AVDD18 − 1.8V power supply terminal for inside PLL 108 AGND18 − Ground terminal for inside PLL 109-111, 126-133, 136-144, 146-154 NC0 NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 143 5 6 7 8 5 6 7 8 C D F A B E CXD2753R (SACDB ASSY : IC901) • SACD Decoder Pin Arrangement www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 144 1 2 3 4 1 2 3 4 C D F A B E Pin Function No. Pin Name I/O Pin Function 1 VSC − Ground terminal for core 2 XMSLAT I Latched input terminal for microcomputer serial communication 3 MSCK Shift clock input terminal for microcomputer serial communication 4 MSDAI Data entry terminal for microcomputer serial communication 5 VDC − Power supply terminal for core 6 MSDATO O Data output terminal for microcomputer serial communication 7 MSREADY Output preparation completion flag for microcomputer serial communication 8 XMSDOE Output enable terminal for microcomputer serial communication 9 XRST I Reset terminal resets the whole lC with "L". 10 SMUTE Ipd Software mute removes audio out with "L" with "H" a soft mute terminal. 11 MCKI I Master clock input terminal 12 VSIO − Ground terminal for I/O 13 EXCKO1 O Outside output clock terminal 1 14 EXCKO2 Outside output clock terminal 2 15 LRCK 1Fs (44.1kHz) clock output terminal 16 FRAME Frame signal output terminal 17 VDIO − Power supply terminal for I/O 18 MNT0 O Monitor output terminal 19 MNT1 20 MNT2 21 MNT3 22 TESTO Output terminal for test 23 24 25 26 TCK I It is fixation in "L" a clock input terminal for test. 27 TDI Ipu Input terminal for test 28 VSC − Ground terminal for core 29 TDO O Output terminal for test 30 TMS Ipu Input terminal for test 31 TRST Reset terminal for test 32 TEST1 I It is fixation in "L" a clock input terminal for test. 33 TEST2 34 TEST3 35 VDC − Power supply terminal for core 36 TESTO O Output terminal for test 37 XBIT DST connection monitor terminal 38 SUPDT0 Supplementary data output terminal (LSB) 39 SUPDT1 Supplementary data output terminal 40 SUPDT2 41 SUPDT3 42 VSIO − Ground terminal for I/O 43 SUPDT4 O Supplementary data output terminal 44 SUPDT5 45 VDIO − Power supply terminal for I/O 46 SUPDT6 O Supplementary data output terminal 47 SUPDT7 Supplementary data output terminal (MSB) 48 XSUPAK Supplementary data output terminal 49 VSC − Ground terminal for core 50 TESTO O Output terminal for test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 145 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function 51 TESTI I It is fixation in "L" a test input terminal. 52 53 TESTO O Output terminal for test 54 VDC − Power supply terminal for core 55 DSADML O DSD data output terminal for Lch Down Mix 56 DSADMR DSD data output terminal for Rch Down Mix 57 BCKASL I Input and output choice terminal of a 1 bit clock for DSD data output.L= input (slave), H = output (master). 58 VSDSD − Ground terminal for DSD data output 59 BCKAI I Bit clock input terminal for DSD data output 60 BCKAO O Bit clock output terminal for DSD data output 61 PHREFI I Phase reference signal input terminal for DSD output phase modulation 62 PHREFO O Phase reference signal output terminal for DSD output phase modulation 63 ZDFL Zero Lch data search flag 64 DSAL DSD data output terminal for Lch loud speaker 65 ZDFR Zero Rch data search flag 66 DSAR DSD data output terminal for Rch loud speaker 67 VDDSD − Power supply Mizuko for DSD data output 68 ZDFC O Zero Cch data search flag 69 DSAC DSD data output terminal for Cch loud speaker 70 ZDFLFE Zero LFEch data search flag 71 DSASW DSD data output terminal for SWch loud speaker 72 VSDSD − Ground terminal for DSD data output 73 ZDFLS O Zero LSch data search flag 74 DSALS DSD data output terminal child for LSch loud speaker 75 ZDFRS Zero RSch data search flag 76 DSARS DSD data output terminal for RSch loud speaker 77 VDDSD − Power supply Mizuko for DSD data output 78 IOUT0 O Data output terminal 0 for IEEE1394 link tip I/F 79 IOUT1 Data output terminal 1 for IEEE1394 link tip I/F 80 VSC − Ground terminal for core 81 IOUT2 O Data output terminal 2 for IEEE1394 link tip I/F 82 IOUT3 Data output terminal 3 for IEEE1394 link tip I/F 83 VDC − Power supply terminal for co 84 IOUT4 O Data output terminal 4 for IEEE1394 link tip I/F 85 IOUT5 Data output terminal 5 for IEEE1394 link tip I/F 86 VSIO − Ground terminal for I/O 87 IANCO O Transmission information data output terminal for IEEE1394 link tip I/F 88 IFULL I Data transmission hold demand signal input terminal for IEEE1394 link tip I/F 89 IEMPTY High speed transmission demand signal input terminal for IEEE1394 link tip I/F 90 VDIO − Power supply terminal for I/O 91 IFRM O Frame reference signal output Mizuko for IEEE1394 link tip I/F 92 IOUTE Enable signal output terminal for IEEE1394 link tip I/F 93 IBCK Data transmission clock output terminal for IEEE1394 link tip I/F 94 VSC − Ground terminal for core 95 TESTI I It is fixation in "H" a test input terminal. 96 It is fixation in "L" a test input terminal. 97 Ipu It is fixation in "H" a test input terminal. 98 TESTO O Output terminal for test 99 VDC − Power supply terminal for co 100 TESTI I It is fixation in "L" a test input terminal. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 146 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function 101 TESTI I It is fixation in "L" a test input terminal. 102 103 104 105 106 VSIO − Ground terminal for I/O 107 TESTI I It is fixation in "L" a test input terminal. 108 109 110 VDIO − Power supply terminal for I/O 111 WAD0 I Outside A/D data entry terminal for PSP Physical Disc Mark search (LSB) 112 WAD1 Outside A/D data entry terminal for PSP Physical Disc Mark search 113 WAD2 114 WAD3 115 VSIO − Ground terminal for I/O 116 VSC − Ground terminal for core 117 WAD4 I Outside A/D data entry terminal for PSP Physical Disc Mark search 118 WAD5 119 WAD6 120 WAD7 Outside A/D data entry terminal for PSP Physical Disc Mark search (MSB) 121 VDC − Power supply terminal for core 122 TESTI I It is fixation in "L" a test input terminal. 123 WCK Movement clock for PSP Physical Disc Mark search 124 WAVDD − A/D power supply terminal for PSP Physical Disc Mark search 125 126 WARFI Ai Analog RF signal input terminal for PSP Physical Disc Mark search 127 WAVRB A/D bottom reference terminal for PSP Physical Disc Mark search 128 WAVSS − A/D ground terminal for PSP Physical Disc Mark search 129 130 VSIO − Ground terminal for I/O 131 DQ7 I/O SDRAM data input-output terminal (MSB) 132 DQ6 SDRAM data input-output terminal 133 DQ5 134 DQ4 135 VDIO − Power supply terminal for I/O 136 DQ3 I/O SDRAM data input-output terminal 137 DQ2 138 DQ1 139 DQ0 SDRAM data input-output terminal (LSB) 140 VSIO − Ground terminal for I/O 141 DCLK O Clock output terminal for SDRAM 142 DCKE Clock enable output terminal for SDRAM 143 XWE Wright enable output terminal for SDRAM 144 XCAS Column address strobe output terminal for SDRAM 145 XRAS Row address strobe output terminal for SDRAM 146 VDIO − Power supply terminal for I/O 147 TESTO O Output terminal for test 148 A11 Address output terminal for SDRAM (MSB) 149 A10 Address output terminal for SDRAM 150 VSC − Ground terminal for core www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 147 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function 151 A9 O Address output terminal for SDRAM 152 A8 153 VDC − Power supply terminal for core 154 A7 O Address output terminal for SDRAM 155 A6 156 A5 157 A4 158 VSIO − Ground terminal for I/O 159 A3 O Address output terminal for SDRAM 160 A2 161 A1 162 A0 Address output terminal for SDRAM (LSB) 163 VDIO − Power supply terminal for I/O 164 XSRQ O Data request output terminal to input into a front end processor 165 XSHD I Input terminal of a header flag output by a front end processor 166 SDCK Input terminal of a data carrier clock output by a front end processor 167 XSAK Input terminal of data partial response flag output by a front end processor 168 SDEF Input terminal of error flag output by a front end processor 169 SD0 The stream data input terminal which is output by a front end processor (LSB) 170 SD1 The stream data input terminal which is output by a front end processor 171 SD2 172 SD3 173 SD4 174 SD5 175 SD6 176 SD7 The stream data input terminal which is output by a front end processor (MSB) Ipu : Pull-up input, Ipd : Pull-down input, Ai : Analog input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 148 1 2 3 4 1 2 3 4 C D F A B E DSD1702EG (VIDEO ASSY : IC1401-IC1404) • D/A Converter IC Block Diagram Pin Arrangement Pin Function PCM I/F MUX MUX PCM Filter (x8 DF) Multi-Level Delta-Sigma Modulator Power Control Analog LPF PLRCK VOUTL VCOM VOUTR VCC DGND AGND VDD ZEROR/ZEROA ZEROL PBCK PDATA PSCK DSCK Multi-Level DAC DSD I/F DSD Filter DBCK DSDL DSDR Mode Control MS MC MD 1 DSDL 2 DSDR 3 PBCK 4 PDATA 5 PLRCK 6 DGND 7 VDD 8 VCC 9 VOUTL 10 VOUTR 20 DBCK 19 DSCK 18 PSCK 17 MS 16 MC 15 MD 14 ZEROR/ZEROA 13 ZROL/NA 12 VCOM 11 AGND No. Pin Name I/O Function 1 DSDL I Audio data digital input (DSD-L ch) (1) 2 DSDR Audio data digital input (DSD-R ch) (1) 3 PBCK I Audio data bit clock input (PCM) (1) 4 PDATA Audio data digital input (PCM) (1) 5 PLRCK Audio data latch enable input (PCM) (1) 6 DGND − Digital ground 7 VDD Digital power supply +3.3V 8 VCC Analog power supply +5V 9 VOUTL O Analog output for L ch 10 VOUTR Analog output for R ch 11 AGND − Analog ground 12 VCOM Common voltage decuppling 13 ZEROR/ZEROA O Zero flag output for R ch / Zero flag output for L/R ch 14 ZEROL/NA Zero flag output for L ch / No assign 15 MD I Mode control data input (2) 16 MC Mode control clock input (2) 17 MS Chip select for mode control (2) 18 PSCK I System clock input (PCM) (1) 19 DSCK System clock input (DSD) (1) 20 DBCK Audio data bit input (DSD) (1) Note : (1) Schmit trigger input, 5V tolerant. (2) Schmit trigger input with internal pull-down, 5V tolerant. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 149 5 6 7 8 5 6 7 8 C D F A B E LA73054 (VIDEO ASSY : IC8801) • DVD Video Amplifier Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 150 1 2 3 4 1 2 3 4 C D F A B E Pin Function No. Pin Functions 0–0.7V (LOW) 2.6–5V (HIGH) 36 AMP-GAIN change for composite/S 6 dB 9 dB 15 AMP-GAIN change for component 6 dB 9 dB 35 Drive electric current change for composite/S 2 system drive 1 system drive 19 Drive electric current change for component 2 system drive 1 system drive 5 Mute control for composite/S In 10 pin LOW It is not do mute 33, 31, 28 pin mute In 10 pin HIGH It is not do mute 31, 28 pin mute 12 Mute control for component It is not do mute 25, 23, 21 pin mute 9 The control of Y/C–MIX In composite In Y/C–MIX 10 11 pin input form change In the component input In the baseband input 13 LPF characteristic change for component Inter race correspondence Progressive correspondence 2 pin falls to GND in Y/C-MIX. 11 pin is clamp, and the Y signal input, 14, 16 pin input a CB, CR signal into NTSC (in the component input) with pedestal clamp. 8 pin is clamp, and the Y signal input, 11, 14, 16 pin input a R, G, B signal into PAL (in the baseband input) with pedestal clamp. It prohibit mute of 5 pin when It do Y/C-MIX in PAL (in the baseband input). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 151 5 6 7 8 5 6 7 8 C D F A B E PDC099A (CONTROL ASSY : IC5501) • Main microcomputer Pin Function No. Mark Pin Name I/O Pin Function Active 1 PORT DVD ON/OFF O DVD power control H 2 PORT HPDET I Headphone detection input H 3 PORT NC O NC H 4 INT0 PORT ACPULSE I AC pulse input − 5 INT1 PORT CDERR I ERR and OVER input from DIR − 6 INT2 PORT RDSCLK I RDS clock (input) L output for no RDS model. − 7 INT3 PORT REMOCON I Remote control input − 8 RESET XRESET I Reset input L 9 for OSC − I − − 10 for OSC − O (Set to specification to oscillate, and open it.) − 11 GND − − − − 12 for OSC − I − − 13 for OSC − O − − 14 VDD − − − − 15 ANALOG INPUT SIMUKE I Destination switch − 16 ANALOG INPUT NC O NC − 17 ANALOG INPUT 3.3DETECT I DVD 3.3Vdetection (2 to 4V are normal) − 18 ANALOG INPUT KEY1 I Key input (for AMP) − 19 ANALOG INPUT ST/TUNE I STEREO/tuned input − 20 ANALOG INPUT XPROTECT I Protection / fan restraint detection − 21 ANALOG INPUT DOOR SW I For door SW detection − 22 ANALOG INPUT NC O NC − 23 HARD SERIAL S(FtoM) O System bus data output (AMP side output) Communication from SYS control to DVD control − 24 HARD SERIAL S(MtoF) I System bus data input (AMP side input) Communication from DVD control to SYS control − 25 HARD SERIAL SSCK O System bus clock output − 26 HARD SERIAL OELDAT I Communication data input of OEL controller Communication from OEL control to SYS control − 27 HARD SERIAL DISPDAT O Communication data (DISP data) output of OEL controller (UART communication) Communication from SYS control to OEL control − 28 HARD SERIAL OELRST O Reset the OEL controller L 29 PORT XREADY O XREADY (DVD) − 30 PORT TRAYSW I Tray open detection switch − 31 PORT XHPMUTE O HP MUTE ON/OFF L 32 PORT XRECMUTE O MUTE ON/OFF for REC mode L 33 PORT XTVMUTE O TV audio mute ON L 34 PORT DVDA6DBATT O DVDA6DBATT H 35 PORT XTMRLED O Timer LED control H 36 PORT XBLEDH O BLUE LED-H L 37 PORT XBLEDM O BLUE LED-M L 38 PORT XBLEDL O BLUE LED-L L 39 GND − − − 40 VDD − − − www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 152 1 2 3 4 1 2 3 4 C D F A B E No. Mark Pin Name I/O Pin Function Active 41 PORT ATTCONT O Control ATT of AUX (+10dB) H 42 PORT ATTCNT2 O Control ATT of AUX 2(+6dB) H 43 PORT SERVICE I Single operation for service − 44 PORT UNIT TEST I Unit test mode (Operation mode for checker) − 45 PORT DTSDMIX O Gain adjustment for dts down-mix H 46 PORT SWFMIX O subwoofer mix control H 47 PORT ASSELC O Audio source select C − 48 PORT NC O NC − 49 PORTorSIO DSPDI O CODEC+DIR IC data input, CRISTAL's DSP(AMP side input) [DSPcoreCDDO+CSDO] * Port name is matched with the DSP module. − 50 PORT DSPDO I CODEC+DIR IC data output, CRISTAL's DSP (AMP side output)[DSPcoreCDDI+CSDI] * Port name is matched with the DSP module. − 51 PORTorSIO DSPCLK O CODEC+DIR IC clock, CRISTAL's DSP[DSPcoreCDCK+CSCK] − 52 PORT NC O NC NC NC − 53 PWM PORT O − 54 PWM PORT − O − 55 VDD − − − 56 GND − − − 57 PORT TXCE O CE for tuner − 58 PORT HP CE O IC CE for headphone − 59 PORT VSSELB O Video SW B − 60 PORT VSSELA O Video SW A − 61 PORT TXCLK O CLK for tuner − 62 PORT TXDO O DATA for tuner − 63 PORT TXMUTE O Tuner mute H 64 PORT RDSPOW O Control power supply of RDS H 65 PORT RDSDATA I Input RDS data − 66 PORT TXDI I Input data from tuner LSI − 67 PORT XUDSPMUTE O Control mute of DSP(board) L 68 PORT A/D MODE O DSP mute when ANALOG H 69 PORT XDSP MUTE I XDSP MUTE − 70 INT5 LT1 I Input latch signal from DVD connection − 71 PORT VSELC O COMPOSIT OR S-VIDEO SW − 72 PORT NC O NC − 73 PORT CA15 O BOOT ADRESS for SRAM/P2ROM (CRISTAL's DSP) − 74 PORT CA16 O BOOT ADRESS for SRAM/P2ROM (CRISTAL's DSP) − 75 PORT CA17 O BOOT ADRESS for SRAM/P2ROM (CRISTAL's DSP) − 76 PORT CA18 O BOOT ADRESS for SRAM/P2ROM (CRISTAL's DSP) − 77 PORT CA19 O BOOT ADRESS for SRAM/P2ROM (CRISTAL's DSP) − 78 PORT ASSELB O Audio source select B − 79 PORT ASSELA O Audio source select A (CD,TUNER,TAPE,AUX) BU4051 − 80 PORT DOOR OP O For door control (OPEN) H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 153 5 6 7 8 5 6 7 8 C D F A B E No. Mark Pin Name I/O Pin Function Active 81 PORT DOOR CL O For door control (CLOSE) H 82 PORT DSPCS O Chip select for CRISTAL's DSP − 83 PORT DSPRQ I Request input from CRISTAL's DSP − 84 PORT FS96 I 96K input from CODEC − 85 PORT ABOOT O Chip select for SRAM/P2ROM − 86 PORT XDSPRST O RESET for CRISTAL's DSP − 87 PORT CDCCS O Chip select for CODEC − 88 GND − − − − 89 VDD − − − − 90 PORT XCDCPDN O Power down (RESET) for CODEC L 91 PORT SYSPOW O Control power supply of system H 92 PORT DSP SW O SW control for DVD-A&SACD H 93 PORT XDVDRST O DVD RESET L 94 PORT XSYSMUTE O Control mute of system L 95 PORT VOLCE O Volume IC CE − 96 PORT VOLCLK O Volume IC Clock − 97 PORT VOLDATA O Volume IC Data − 98 PORT FLASH E/D − For flash writing − 99 PORT FLASH DO − For flash writing − 100 PORT FLASH CLK − For flash writing − EXPAND port in E-vol IC (M62446FP) (S-DV1000SW AF ASSY : IC3001) No. Mark Pin Name Pin Function Active 4 Q1 NOISEHELP Noise help H 3 Q2 CMUTE Control C mute H 2 Q3 SPRYRC Control relay for rear and center speaker H 1 Q4 SPRYS Control relay for front speaker H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 154 1 2 3 4 1 2 3 4 C D F A B E 1 LIN 2 LOUT 3 VDD 4 DI 5 CL 10 RIN (Top View) 9 ROUT 8 VSS 7 Vref 6 CE LIN LOUT VDD DI CL RIN ROUT VSS Vref CE 1 2 3 4 5 6 7 8 9 10 Control Circuit Control Circuit CCB Interface L Vref R Vref Logic Circuit LC75344M (CONTROL ASSY : IC3902) • One Chip El. Volume System IC Pin Arrangement Block Diagram Pin Function No. Pin Name Pin Function 1 LIN Volume input pin 2 LOUT Volume output pin 3 VDD Power supply pin 4 DI Serial data and clock input for control 5 CL 6 CE Chip enable pin 7 Vref 0.5VDD voltage generator for analog ground 8 VSS Ground pin 9 ROUT Volume output pin 10 RIN Volume input pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 155 5 6 7 8 5 6 7 8 C D F A B E PD5797A (OEL CONT ASSY : IC1901) • Microcomputer Pin Function No. Mark Pin Name I/O Pin Function 1 P94 CS O Chip select output 2 P93 (NC) O Not used 3 P92 (NC) O Not used 4 P91 (NC) O Not used 5 P90 (NC) O Not used 6 BYTE BYTE I External bus width switch (L: 16 bit width, H: 8 bit width, Connect to VSS when does not use external data bus.) 7 CNVSS CNVSS I Processor mode (L: Single chip (memory expansion) mode, H: Microprocessor mode / "H" at download 8 P87 GND I Not used 9 P86 (NC) O Not used 10 RESET OELXRST I Use it as reset at reset / download. 11 XOUT XOUT O Ceramic oscillator connection pin 12 VSS VSS1 − GND 13 XIN XIN I Ceramic oscillator connection pin 14 VCC VCC1 − VCC 15 NMI NMI I NMI input (VDD pull-up) 16 P84 (NC) O Not used 17 P83 (NC) O Not used 18 P82 (NC) O Not used 19 P81 (NC) O Not used 20 P80 (NC) O Not used 21 P77 (NC) O Not used 22 P76 (NC) O Not used 23 P75 (NC) O Not used 24 P74 (NC) O Not used 25 P73 (NC) O Not used 26 P72 OELDTI O Communication data output of OEL controller 27 P71 (NC) O Not used 28 P70 (NC) O Not used 29 TxD1 TXD1 O Not used / TxD output at download 30 RxD1 DISPDAT/RXD1 I Display data input / RxD input at download 31 P65 CLK1 O Not used / SCLK input at download 32 P64 RTS1 O Not used / RTS1 (BUSY) output at download 33 P63 (NC) O Not used 34 P62 (NC) O Not used 35 P61 (NC) O Not used 36 P60 (NC) O Not used 37 RDY XRDY I OEL controller ready input 38 P56 (NC) O Not used 39 HOLD HOLD I (VCC pull-up / GND at download) 40 P56 (NC) O Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 156 1 2 3 4 1 2 3 4 C D F A B E No. Mark Pin Name I/O Pin Function 41 BCLK BCLK O Bus clock 42 RD XRD O RD pin 43 P51 (NC) O Not used 44 WR WR O WR pin (VCC pull-up) It is necessary to be done pull-up at download. 45 CS0 CS0 O Chip select 46 CS1 CS1 O Chip select 47 A21 A21 O Address bus 48 A20 A20 O Address bus 49 A19 A19 O Address bus 50 A18 A18 O Address bus 51 A17 A17 O Address bus 52 A16 A16 O Address bus 53 A15 A15 O Address bus 54 A14 A14 O Address bus 55 A13 A13 O Address bus 56 A12 A12 O Address bus 57 A11 A11 O Address bus 58 A10 A10 O Address bus 59 A9 A9 O Address bus 60 VCC VCC2 − VCC 61 A8 A8 O Address bus 62 VSS VSS2 − GND 63 A7 A7 O Address bus 64 A6 A6 O Address bus 65 A5 A5 O Address bus 66 A4 A4 O Address bus 67 A3 A3 O Address bus 68 A2 A2 O Address bus 69 A1 A1 O Address bus 70 A0 (NC) O Not used 71 D15 D15 I/O Data bus 72 D14 D14 I/O Data bus 73 D13 D13 I/O Data bus 74 D12 D12 I/O Data bus 75 D11 D11 I/O Data bus 76 D10 D10 I/O Data bus 77 D9 D9 I/O Data bus 78 D8 D8 I/O Data bus 79 D7 D7 I/O Data bus 80 D6 D6 I/O Data bus www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 157 5 6 7 8 5 6 7 8 C D F A B E No. Mark Pin Name I/O Pin Function 81 D5 D5 I/O Data bus 82 D4 D4 I/O Data bus 83 D3 D3 I/O Data bus 84 D2 D2 I/O Data bus 85 D1 D1 I/O Data bus 86 D0 D0 I/O Data bus 87 P107 (NC) O Not used 88 P106 OELON O OEL controller control 89 P105 (NC) O Not used 90 P104 (NC) O Not used 91 P103 (NC) O Not used 92 P102 (NC) O Not used 93 P101 (NC) O Not used 94 AVSS AVSS − Power supply input for A-D converter Connect to VSS. 95 P100 (NC) O Not used 96 VREF VREF I Reference voltage input of A-D converter 97 AVCC VCC3 − Power supply voltage input of A-D converter Connct to VCC. 98 P97 BSDATA I/O Data input and output 99 P96 (NC) O Not used 100 P95 BSCK O Clock output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 158 1 2 3 4 1 2 3 4 C D F A B E PD3430A (OEL CONT ASSY : IC1902) • OEL Module Controller Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 159 5 6 7 8 5 6 7 8 C D F A B E Pin Function No. Pin Name I/O Pin Function 1 DB12 I/O Data bus 12 DB (15:0) is CS (1:0) = 10B/RDB = L output, others are input 2 DB13 I/O Data bus 13 3 DB14 I/O Data bus 14 4 DB15 I/O Data bus 15 5 IR I Instruction register selection input CS (1:0) = 10B, IR = H; Access to instruction register CS (1:0) = 10B, IR = L; Access to data register 6 CS1 I Chip select 1 input CS (1:0) = 10B, Access to register into PD3430A CS (1:0) = 00B, IR = L; Assert the CSOUT (external chip select) 7 CS0B I Chip select 0 input 8 WRB I Write strobe input 9 RDB I Read strobe input 10 BCLK I Bus clock input 11 RDYB O TESTSEL (1:0) = 00B; RDY signal output TESTSEL (1:0) ≠ 00B; Ghost scanning selection input (OBKSEL) of display test mode Ghost scans for L = 3LS, ghost scans for H = 16LS 12 CSOUT O TESTSEL (1:0) = 00B; CSOUT (external chip select) output TESTSEL (1:0) ≠ 00B; Scanning selection input (SCANSEL) of display test mode Ghost scans for L = with soft key, ghost scans for H = without soft key 13 VCC3 − 3.3V power supply 14 GND − Ground 15 VCC5 − 5V power supply 16 GND − Ground 17 CKD O Transfer clock output of serial data Connect the all driver to use to TAB CKD 18 UCKA O Cathode drive clock output (for upper part TAB of the panel) 19 LS O Line sync. signal output Connect the all driver to use to TAB LS 20 UADL0 O Serial data output 0 of cathode TAB (upper part / left of the panel) 21 UADL1 O Serial data output 1 of cathode TAB (upper part / left of the panel) 22 UADR0 O Serial data output 0 of cathode TAB (upper part / right of the panel) 23 UADR1 O Serial data output 1 of cathode TAB (upper part / right of the panel) 24 PVCCK O Scanning clock for PVC cathode TAB (panel) 25 UCD O Serial data output of cathode TAB (top half of the panel) 26 VCC3 − 3.3V power supply for 5V I/O 27 GND − Ground for 5V I/O 28 LCD O Cathode drive clock output (bottom half of the panel) 29 LCKA O Serial data output of cathode TAB (for under part TAB of the panel) 30 LADL0 O Serial data output 0 of cathode TAB (under part / left of the panel) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 160 1 2 3 4 1 2 3 4 C D F A B E 7.3 CLEANING No. Pin Name I/O Pin Function 31 LADL1 O Serial data output 1 of cathode TAB (under part / left of the panel) 32 LADR0 O Serial data output 0 of cathode TAB (under part / right of the panel) 33 LADR1 O Serial data output 1 of cathode TAB (under part / right of the panel) 34 SEGCKA O Cathode drive clock output (for segment TAB) 35 SEGAD0 O Serial data output 0 of cathode TAB (for segment) 36 SEGAD1 O Serial data output 1 of cathode TAB (for segment) 37 VCC5 − 5V power supply 38 GND − Ground 39 VCC3 − 3.3V power supply 40 GND − Ground 41 PVCSEL0 I Cathode TAB selection 0 Select the UCD pin output mode. PVCTAB mode for H. 42 PVCSEL1 I Cathode TAB selection 1 Select the LCD pin output mode. PVCTAB mode for H. 43 TESTRAM I L Macro test mode setting input of internal RAM L at normal use. It becomes ASIC test (RAMTEST) mode with L 44 TESTSEL0 I L Pattern setting input 0 of the display test 45 TESTSEL1 I L Pattern setting input 1 of the display test 46 PNLSEL0 I Panel selection input 0 47 PNLSEL1 I Panel selection input 1 48 T − H: diagnosis H at normal use. 49 W − H: diagnosis H at normal use. 50 RB I Reset input RB = L: standby Reset the user gate section and stop the serial system. RB = H: active 51 DB0 I/O Data bus 0 52 DB1 I/O Data bus 1 53 DB2 I/O Data bus 2 54 DB3 I/O Data bus 3 55 DB4 I/O Data bus 4 56 DB5 I/O Data bus 5 57 GND − Ground 58 VCC3 − 3.3V power supply 59 DB6 I/O Data bus 6 60 DB7 I/O Data bus 7 61 DB8 I/O Data bus 8 62 DB9 I/O Data bus 9 63 DB10 I/O Data bus 10 64 DB11 I/O Data bus 11 Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup leneses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Position to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 161 5 6 7 8 5 6 7 8 C D F A B E 8. PANEL FACILITIES 8.1 FRONT PANEL 13 13 ¥ STANDBY/ON Switches the player on or into standby ø VOLUME buttons Adjusts the volume π TUNER (FM/AM ) Switches to the tuner function and toggles between the AM and FM bands [ DVD / CD indicator Lights when the DVD/CD function is selected “ Disc tray ] 7 Stops playback ‘ TRAY OPEN/CLOSE Opens/closes the disc tray \ DOOR OPEN/CLOSE Opens/closes the front panel door « PHONES jack Headphone jack Å 6 Switches to the DVD/CD function and starts/pauses/resumes playback Í Front panel door Î Timer indicator Lights in standby to indicate that the wake up timer has been set (When protection circuit works, flashes on and off and become the standby state, and cannot turn the power on for 60 seconds.) Ï Removeable side panels For instructions on removing these www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 162 1 2 3 4 1 2 3 4 C D F A B E 8.2 REMOTE CONTROL UNIT ¥ STANDBY/ON Switches the player on or into standby ø Function select buttons Selects the source you want to listen to π TRAY OPEN/CLOSE 0 Press to open/close the disc tray [ DOOR OPEN/CLOSE Press to open/close the front panel door “ Disc playback controls 3 Starts/resumes playback 8 Pauses playback; press again to restart ¡ and Use for forward slow motion playback, frame advance and forward scanning 7 Stops playback 1 and Use for reverse slow motion playback, frame reverse and reverse scanning ] 4 Jumps to the beginning of the current chapter or track, then to previous chapters/tracks ‘ ¢ Jumps to the next chapter or track \ DVD MENU Displays the DVD menu (for non-DVD discs, the Disc Navigator screen appears) « RETURN Press to return to the previous on-screen menu without saving the changes made in the current screen ST+ TUNE+ ENTER TUNE– MASTER VOLUME ST– STANDBY/ON CD FM/AM TRAY OPEN/CLOSE DOOR OPEN/CLOSE DVD TUNER TV VIDEO V1/V2/V3 0 1 4 4 ¡ 8 3 7 DVD MENU RETURN SOUND TV CONTROL P VOL INPUT MUTE PROGRAM REPEAT RANDOM AUTO ROOM SETUP TEST TONE 1 2 3 DVD SYSTEM CH LEVEL TCP MENU SYS MENU DIMMER DVD DISP SYS DISP SET UP SURROUND ANGLE AUDIO SUBTITLE ZOOM ADVANCED 4 5 6 7 8 9 0 LANGUAGE MAIN AX0000 SUB PCM TELETEXT ON/OFF TIMER (CLOCK ADJ) FOLDER– CLR ENTER / – – – FOLDER+ 1 2 3 10 8 11 13 14 15 4 6 12 9 7 5 (Illustration shows European model) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 163 5 6 7 8 5 6 7 8 C D F A B E Å Cursor buttons, ENTER and tuning buttons Cursor buttons Use to navigate menus and on-screen displays ENTER Selects the currently highlighted option TUNE + / – Use to tune the radio ST + / – Use to select preset station when listening to the radio Í MUTE Press to mute the sound from the speakers and headphones. Press again to restore the sound Î SOUND Press to access the Sound menu, from which you can adjust the DSP effect level, bass and treble, and so on Ï MASTER VOLUME + / – Use to adjust the overall volume level Ì TV CONTROL Switches the TV on or into standby INPUT Switches the TV input P + / – (US model : CH + / –) Selects channels on the TV VOL + / – Adjusts the volume on the TV Ó Sliding cover ¥ PROGRAM Use to program/play a program list AUTO Automatically selects a decoding format depending on the source REPEAT Use to select a repeat play mode SURROUND Use to select a surround mode RANDOM Use to select a random play mode ADVANCED Use to select a DSP mode Most of the buttons under the sliding cover have more than one function. Function names printed in green are accessed by first sliding the switch at the bottom of the remote to SUB. For other functions, move the switch to MAIN. European model only : Set switch to PDP for Teletext control on a Pioneea PDP display. PROGRAM REPEAT RANDOM AUTO TEST TONE DVD SYSTEM CH LEVEL TOP MENU SYS MENU DIMMER DVD DISP SYS DISP SET UP SURROUND ANGLE AUDIO SUBTITLE ADVANCED MC RL RR FL FR 0 LANGUAGE MAIN SUB PDP TIMER (CLOCK ADJ) FOLDER– CLR ENTER / – – – FOLDER+ SEAT POSITION 1 2 3 4 5 6 7 8 9 ROOM SETUP 1 2 3 6 5 7 8 4 (European model) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 164 1 2 3 4 1 2 3 4 C D F A B E ø ROOM SETUP Press to start the room setup sequence for basic surround sound setup ANGLE Changes the camera angle during DVD multi-angle scene playback AUDIO Selects the audio channel or language SUBTITLE Selects a subtitle language π Number buttons Use in Room Setup, when searching a disc, and selecting station presets TEST TONE Press to output (or cancel) the test tone when setting up surround sound channel levels DVD SETUP Displays (or exits) the on-screen DVD display SYSTEM SETUP Press to make surround sound settings [ CH LEVEL Use to setup the channel levels for surround sound TOP MENU Displays the top menu of a DVD disc SYS MENU Press to access the system menu “ DIMMER Press to change the display brightness DVD DISP Changes the displayed information on the display SYS DISP Displays the clock and RDS information (European model only) ] LANGUAGE Press to change the display language FOLDER + / – Use to select the next / previous folder in an MP3 disc ‘ MAIN / SUB / PDP (European model) MAIN / SUB (US model) Change from MAIN to SUB to access functions printed in green. Switch to PDP to be able to use teletext with Pioneer plasma displays (see Teletext on/off below) \ TIMER (CLOCK ADJUST) Press to set the wake up and sleep timers, and to set the clock Teletext on/off (European model only) Press to display/hide the teletext screen. (Use the number buttons and the blue, green and yellow buttons to navigate teletext screens when using with a Pioneer plasma display.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 165 5 6 7 8 5 6 7 8 C D F A B E 8.3 DISPLAY 8.3.1 Discs ¥ DVD / CD function indicator ø Lights when the wake-up timer is set π Lights when the sleep timer is active [ Lights during multi-angle scenes on a DVD disc “ V-PART Lights when a video part of a DVD-Audio or DVD-Video disc is playing ] PGM / RDM / RPT / RPT-1 / PGM RPT Indicates program (PGM), random (RDM), repeat (RPT or RPT-1), or program-repeat (PGM RPT) play ‘ PROGRESSIVE (US model only) Lights when the player is outputting progressive-scan video \ Character display « Surround indicator Indicates the surround type; ADV. SURR, SURR OFF or DOWNMIX Å Dolby PLII Lights when Dolby Pro Logic II decoding is selected Í Audio decoding format indicator Shows the decoding format in use; Dolby D (Dolby Digital), DTS Î Sampling frequency indicator Shows the sampling frequency when a linear PCM soundtrack is playing Ï Channel indicators Show which channels are encoded in the currently playing soundtrack Ì Disc type / GUI Shows what kind of disc is loaded; DVD-A, DVD, DVD-RW, SACD, CD, VCD, MP3. If no disc is loaded, ‘No Disc’ is displayed GUI lights when an OSD is shown on-screen V–PART 1 2 1 2 3 1 2 3 4 5 : Dolby D 96kHz Dolby PL II ADV. SURR [ L ] [ C ] [ R ] [LS] [LFE] [RS] DVD-A TRACK GROUP REMAIN PGM RPT 1 11 12 13 14 10 9 2 3 4 5 PROGRESSIVE 7 6 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 166 1 2 3 4 1 2 3 4 C D F A B E 8.3.2 Tuner ¥ Tuner function indicator ø Lights when the wake-up timer is set π Lights when the sleep timer is active [ TUNED Lights when a radio broadcast is correctly tuned “ STEREO / MONO Indicates whether an FM broadcast is being listened to in mono or stereo ] RDS (European model only) Lights when receiving an RDS broadcast ‘ PTY SEARCH (European model only) Lights during a program type search \ Character display Shows the tuner frequency or preset station number « Surround indicator Shows Adv. Surr. when an Advanced Surround mode is selected, or Surr. Off Å Dolby PLΙΙ Lights when Dolby Pro Logic ΙΙ decoding is selected Í AM / FM Indicates AM or FM band TUNED 1 0 0 . 0 5 M H z ADV. SURR FM S T 3 0 STEREO RDS PTY SEARCH 1 11 8 9 Dolby PL II 10 2 3 4 5 6 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-DV1000 167 5 6 7 8 5 6 7 8 C D F A B E 8.3.3 Others ¥ TV/Video function indicator Shows the type of connection for the current input (Analog, Optical, Coaxial or (European model only) SCART) ø Lights when the wake-up timer is set π Lights when the sleep timer is active [ Character display Shows the input function (Television, Video 1, Video 2 or Video 3) “ ATT Lights when the analog input attenuator is on for the current input ] DIGITAL Lights when the input is digital ‘ Surround indicator Indicates the surround type ; ADV, SURR, SURR OFF or DOWNMIX \ Dolby PLΙΙ Lights when Dolby Pro Logic ΙΙ decoding is selected « Audio decoding format indicator Shows the decoding format in use ; Dolby D (Dolby Digital), DTS Å Sampling frequency indicator Sjows the sampling frequency when a linear PCM soundtrack is playing Í Channel indicators Show which channels are encoded in the currently playing soundtrack 1 11 10 9 8 7 2 3 4 5 6 ATT DIGITAL V i d e o 3 COAXIAL Dolby D 96kHz Dolby PL II Adv. Surr. [ L ] [ C ] [ R ] [LS] [LFE] [RS] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
