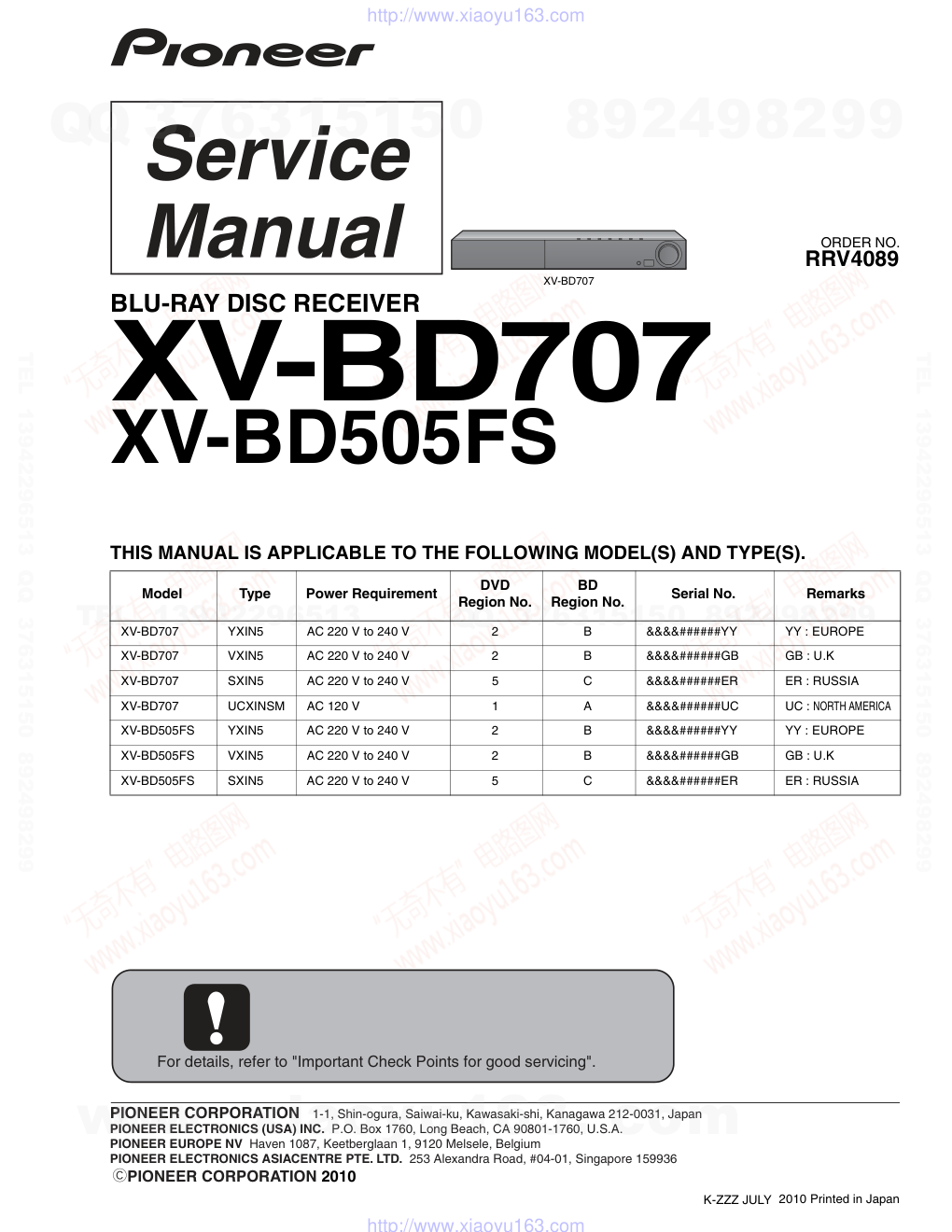

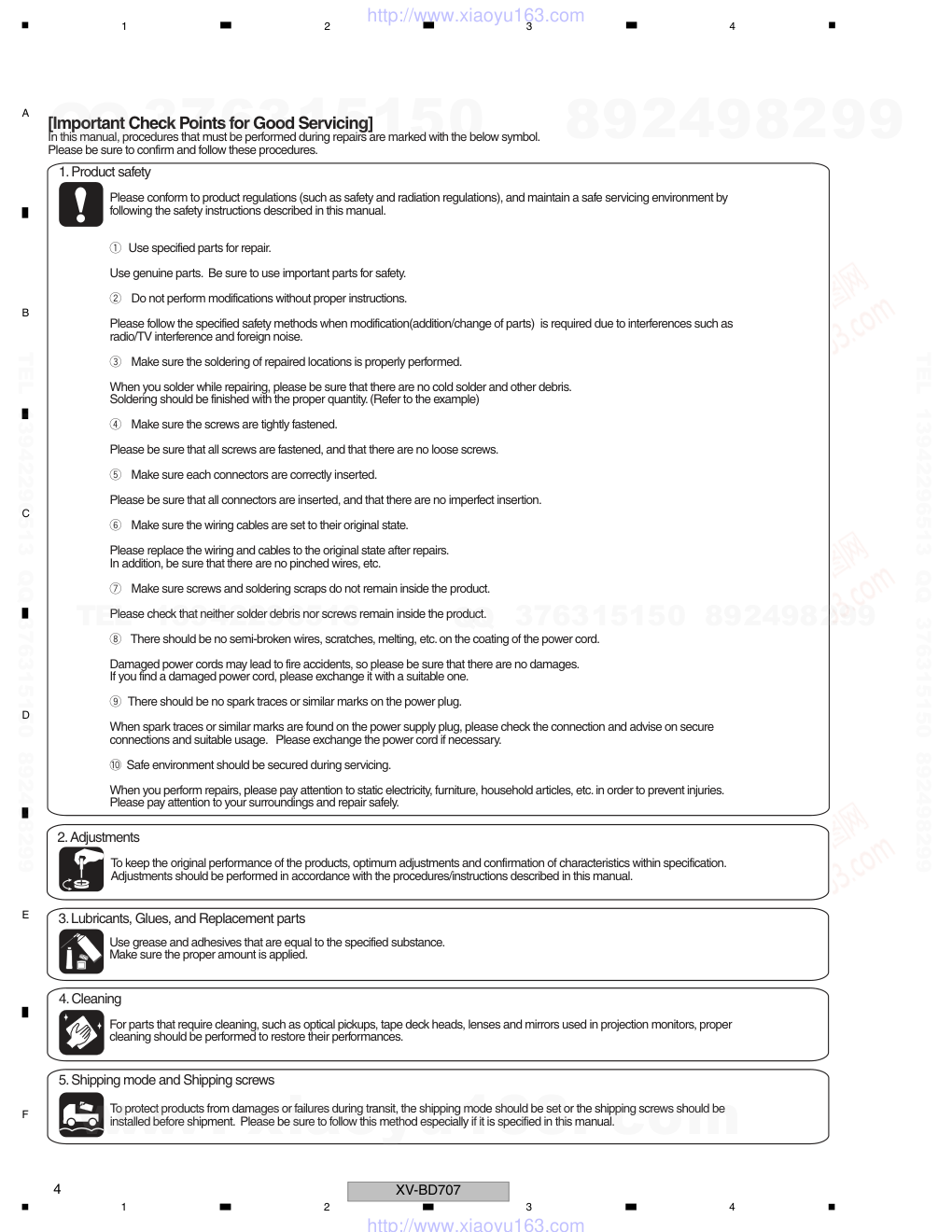

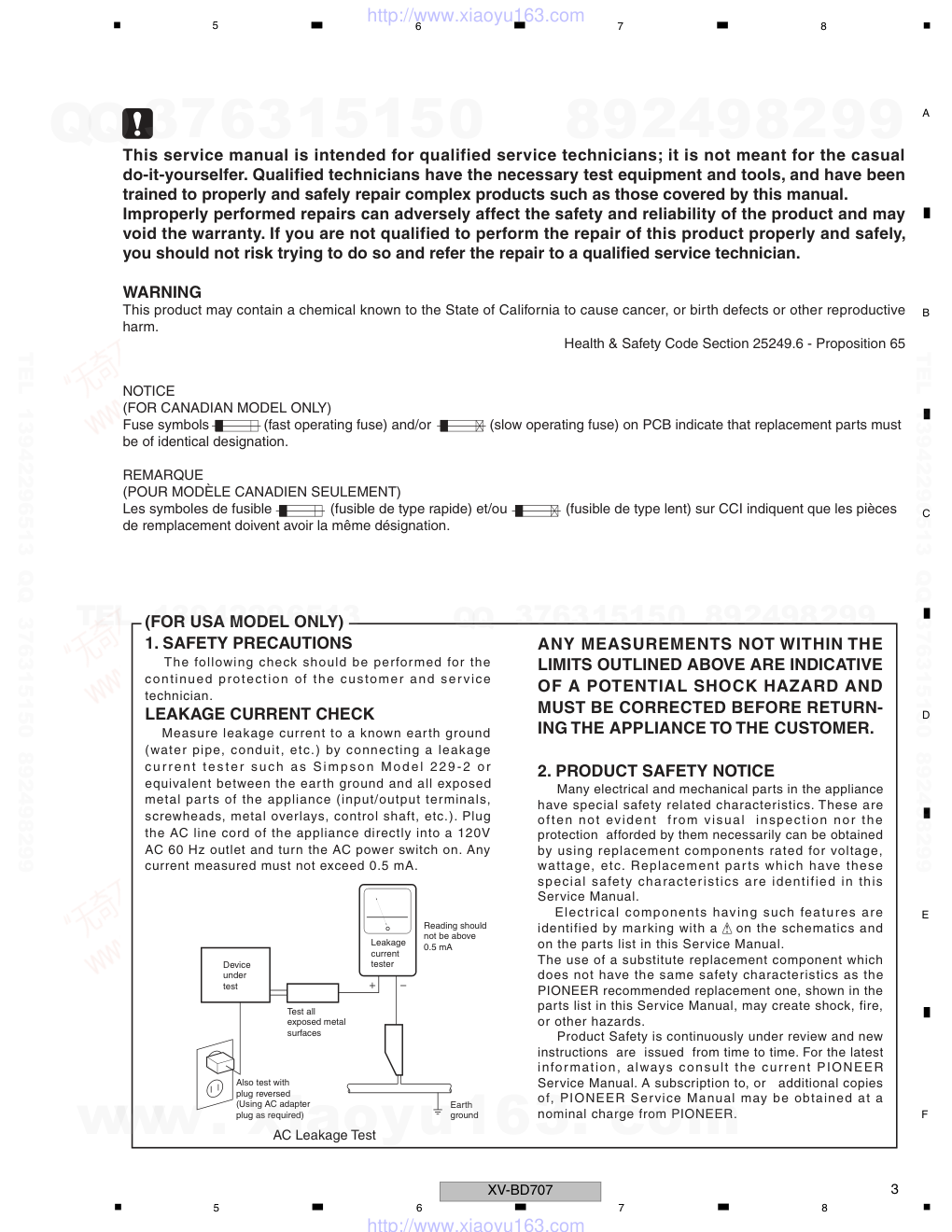

ORDER NO. PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2010 2010 Printed in Japan XV-BD707 RRV4089 BLU-RAY DISC RECEIVER XV-BD707 XV-BD505FS THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement DVD Region No. BD Region No. Serial No. Remarks XV-BD707 YXIN5 AC 220 V to 240 V 2 B &&&&######YY YY : EUROPE XV-BD707 VXIN5 AC 220 V to 240 V 2 B &&&&######GB GB : U.K XV-BD707 SXIN5 AC 220 V to 240 V 5 C &&&&######ER ER : RUSSIA XV-BD707 UCXINSM AC 120 V 1 A &&&&######UC UC : NORTH AMERICA XV-BD505FS YXIN5 AC 220 V to 240 V 2 B &&&&######YY YY : EUROPE XV-BD505FS VXIN5 AC 220 V to 240 V 2 B &&&&######GB GB : U.K XV-BD505FS SXIN5 AC 220 V to 240 V 5 C &&&&######ER ER : RUSSIA For details, refer to "Important Check Points for good servicing". K-ZZZ JULY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 XV-BD707 1 2 3 4 A B C D E F 1 2 3 4 SAFETY INFORMATION LABEL CHECK WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS For BD : Wave Length: 405 nm Operating output: SL : 0.42 mW DL : 0.84 mW CW, Class 1 Maximum output: Class 1M For DVD : Wave Length: 655 nm Operating output: 0.26 mW CW, Class 1 Maximum output: Class 1M For CD : Wave Length: 790 nm Operating output: 0.18 mW CW, Class 1 Maximum output: Class 1 This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. YXIN5, VXIN5, SXIN5 UXINSM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 XV-BD707 5 6 7 8 5 6 7 8 A B C D E F NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 XV-BD707 1 2 3 4 A B C D E F 1 2 3 4 [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 CONTENTS SECTION 1 ........SUMMARY SECTION 2 ........ELECTRICAL SECTION 3 ........CABINET & MAIN CHASSIS SECTION 4 ........BCM7630 F/E LOADER PART SECTION 5 ........REPLACEMENT PARTS LIST SECTION 6 ........DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 SECTION 1 SUMMARY CONTENTS PRODUCT SAFETY SERVICING GUIDELINES FOR BLU-RAY DISC PLAYER PRODUCTS .............. 1-3 SERVICING PRECAUTIONS .......................................................................................................................... 1-4 GENERAL SERVICING PRECAUTIONS INSULATION CHECKING PRODEDURE ELECTROSTATICALLY SENSITIVE (ES) DEVICES SYSTEM INFORMATION ............................................................................................................................... 1-7 SOFTWARE UPDATE..................................................................................................................................... 1-6 NECESSARY ADJUSTMENT ........................................................................................................................ 1-5 SPECIFICATIONS ............................................................................................................................................ 1-8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 PRODUCT SAFETY SERVICING GUIDELINES FOR BLU-RAY DISC PLAYER PRODUCTS IMPORTANT SAFETY NOTICE This manual was prepared for use only by properly trained audio-video service technicians. When servicing this product, under no circumstances should the original design be modified or altered without permission from Pioneer Corporation. All components should be replaced only with types identical to those in the original circuit and their physical location, wiring and lead dress must conform to original layout upon completion of repairs. Special components are also used to prevent x-radiation, shock and fire hazard. These components are indicated by the letter “x” included in their component des- ignators and are required to maintain safe performance. No deviations are allowed without prior approval by Pioneer Corporation. Circuit diagrams may occasionally differ from the actual circuit used. This way, implementation of the latest safety and performance improvement changes into the set is not delayed until the new service literature is printed. CAUTION : Do not attempt to modify this product in any way. Never perform cus- tomized installations without manufacturer’s approval. Unauthorized modifications will not only void the warranty, but may lead to property damage or user injury. Service work should be performed only after you are thoroughly familiar with these safety checks and servicing guidelines. GRAPHIC SYMBOLS The exclamation point within an equilateral triangle is intended to alert the service personnel to important safety information in the service literature. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the service personnel to the presence of noninsulated “dangerous voltage” that may be of sufficient magnitude to constitute a risk of electric shock. The pictorial representation of a fuse and its rating within an equi- lateral triangle is intended to convey to the service personnel the following fuse replacement caution notice: CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ALL FUSES WITH THE SAME TYPE AND RATING AS MARKED NEAR EACH FUSE. SERVICE INFORMATION While servicing, use an isolation transformer for protection from AC line shock. After the original service problem has been corrected, make a check of the following: FIRE AND SHOCK HAZARD 1. Be sure that all components are positioned to avoid a possibility of adjacent component shorts. This is especially important on items trans-ported to and from the repair shop. 2. Verify that all protective devices such as insulators, barriers, covers, shields, strain reliefs, power supply cords, and other hardware have been reinstalled per the original design. Be sure that the safety purpose of the polarized line plug has not been defeated. 3. Soldering must be inspected to discover possible cold solder joints, solder splashes, or sharp solder points. Be certain to remove all loose foreign par- ticles. 4. Check for physical evidence of damage or deterioration to parts and compo- nents, for frayed leads or damaged insulation (including the AC cord), and replace if necessary. 5. No lead or component should touch a high current device or a resistor rated at 1 watt or more. Lead tension around protruding metal surfaces must be avoided. 6. After reassembly of the set, always perform an AC leakage test on all exposed metallic parts of the cabinet (the channel selector knobs, antenna terminals, handle and screws) to be sure that set is safe to operate without danger of electrical shock. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS TEST. Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the following manner: Connect a 1500 ohm, 10 watt resistor, paralleled by a .15 mfd 150V AC type capacitor between a known good earth ground water pipe, conduit, etc.) and the exposed metallic parts, one at a time. Measure the AC volt- age across the combination of 1500 ohm resistor and .15 mfd capacitor. Reverse the AC plug by using a non-polarized adaptor and repeat AC voltage measure- ments for each exposed metallic part. Voltage measured must not exceed 0.75 volts RMS. This corresponds to 0.5 milliamp AC. Any value exceeding this limit constitutes a potential shock hazard and must be corrected immediately. TIPS ON PROPER INSTALLATION 1. Never install any receiver in a closed-in recess, cubbyhole, or closely fitting shelf space over, or close to, a heat duct, or in the path of heated air flow. 2. Avoid conditions of high humidity such as: outdoor patio installations where dew is a factor, near steam radiators where steam leakage is a factor, etc. 3. Avoid placement where draperies may obstruct venting. The customer should also avoid the use of decorative scarves or other coverings that might obstruct ventilation. 4. Wall- and shelf-mounted installations using a commercial mounting kit must follow the factory-approved mounting instructions. A product mounted to a shelf or platform must retain its original feet (or the equivalent thickness in spacers) to provide adequate air flow across the bottom. Bolts or screws used for fasteners must not touch any parts or wiring. Perform leakage tests on customized instal- lations. 5. Caution customers against mounting a product on a sloping shelf or in a tilted position, unless the receiver is properly secured. 6. A product on a roll-about cart should be stable in its mounting to the cart. Caution the customer on the hazards of trying to roll a cart with small casters across thresholds or deep pile carpets. 7. Caution customers against using extension cords. Explain that a forest of exten- sions, sprouting from a single outlet, can lead to disastrous consequences to home and family. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 SERVICING PRECAUTIONS CAUTION: Before servicing the Blu-ray Disc Receiver cov- ered by this service data and its supplements and addends, read and follow the SAFETY PRECAUTIONS. NOTE: if unforeseen circumstances create conflict between the follow- ing servicing precautions and any of the safety precautions in this publications, always follow the safety precautions. Remember Safety First : General Servicing Precautions 1. Always unplug the Blu-ray Disc Receiver AC power cord from the AC power source before: (1) Removing or reinstalling any component, circuit board, module, or any other assembly. (2) Disconnecting or reconnecting any internal electrical plug or other electrical connection. (3) Connecting a test substitute in parallel with an electro- lytic capacitor. Caution : A wrong part substitution or incorrect polar- ity installation of electrolytic capacitors may result in an explosion hazard. 2. Do not spray chemicals on or near this BLU-RAY DISC PLAYER or any of its assemblies. 3. Unless specified otherwise in this service data, clean elec- trical contacts by applying an appropriate contact cleaning solution to the contacts with a pipe cleaner, cotton-tipped swab, or comparable soft applicator. Unless specified otherwise in this service data, lubrication of contacts is not required. 4. Do not defeat any plug/socket B+ voltage interlocks with whitch instruments covered by this service manual might be equipped. 5. Do not apply AC power to this BLU-RAY DISC PLAYER and / or any of its electrical assemblies unless all solidstate device heat sinks are correctly installed. 6. Always connect the test instrument ground lead to an appropriate ground before connecting the test instrument positive lead. Always remove the test instrument ground lead last. Insulation Checking Procedure Disconnect the attachment plug from the AC outlet and turn the power on. Connect an insulation resistance meter (500V) to the blades of the attachment plug. The insulation resistance between each blade of the attachment plug and accessible conductive parts (Note 1) should be more than 1Mohm. Note 1 : Accessible Conductive Parts include Metal panels, Input terminals, Earphone jacks,etc. Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity. 1. Immediately before handling any semiconductor compo- nent or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate an electrical charge sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil,or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution: Be sure no power is applied to the chassis or cir- cuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Normally harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static elec- tricity sufficient to damage an ES device.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5 NECESSARY ADJUSTMENT None None 1. SA-Reset 1. SA-Reset 2. Software updata if firmware is not the latest version Mechanical point Electric point [1] Exchange Parts of Mechanism [2] Exchange PCB Assy NOTE: Detail of SA-Reset is mentioned "HOW TO USE THE SA RESET FUNCTION" in Section 4. When Adjustment Points Exchange the DECK MECHANISM Assembly (A60) or Pick Up Assembly (1049) Exchange Option Code Assembly Mechanical point Electric point www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6 SOFTWARE UPDATE Burn a DVD recordable disc or USB with a file that is named to ‘PI_HB_5000B30.ROM-00’ & ‘PI_HB_5000B30.ROM-01’. Insert a upgrading disc or USB. Show help message for disc update as follows. < in the case of Back End program & Front End program > Press enter key to update and it will show progress information After completing update then power is off. Power on the unit and check the new version by the following steps. HOME MENU -> OTHERS -> Software Information www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7 SYSTEM INFORMATION 1. Power on the unit with no any type of disc (HOME MENU OSD is displayed) 2. Move the cursor to the following location. "SET UP" -> "DISPLAY" -> "TV ASPECT" -> "16:9" 3. Press remote control keys in the following order. "1" -> "3" -> "9" -> "7" -> "1" -> "3" -> "9" -> "ENTER" 4. "SYSTEM INFORMATION OSD is displayed. 5. When pressing "PAUSE" key on the remote control, the OSD is disappeared and unit is back to normal operation. ( Note: At the same time, all of settings are back to factory default settings) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8 • GENERAL Power requirements: AC 220-240 V, 50/ 60 Hz (/YXIN5, /VXIN5, /SXIN5) AC 120 V, 60 Hz (/UCXINSM) Power consumption: 150 W In Standby mode: Less than 0.5 W Dimensions (W x H x D): Approx. 430 × 64 × 304 mm Net Weight (Approx.): 3.6 kg Operating temperature: 41 °F to 95 °F (5 °C to 35 °C) Operating humidity: 5 % to 90 % Bus Power supply (USB): DC 5V 500 mA • INPUTS / OUTPUTS VIDEO OUT: 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1 COMPONENT VIDEO OUT: (Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1, (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2 HDMI OUT (video/audio): 19 pin (HDMI standard, Type A, Version 1.3) ANALOG AUDIO IN: 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 DIGITAL IN (OPTICAL 1/2): 3 V (p-p), Optical jack x 2 PORT. IN: 0.5 Vrms (3.5 mm stereo jack) • TUNER FM Tuning Range: 87.5 to 108.0 MHz or 87.50 to 108.00 MHz • AMPLIFIER Power output, (PEAK), (4 Ω / 3 Ω) Total: 1100 W Front: 180 W x 2 Center: 180 W Rear: 180 W x 2 Sub-Woofer: 200 W (Passive) Power output, (RMS), THD 10% (4 Ω / 3 Ω) Total: 930 W Front: 150 W x 2 Center: 150 W Rear: 150 W x 2 Sub-Woofer: 180 W (Passive) • SYSTEM Laser: Semiconductor laser, Wavelength: 405 nm / 650 nm Signal system: Standard NTSC/PAL colour TV system (/YXIN5, /VXIN5, /SXIN5) Standard NTSC colour TV system (/UCXINSM) Frequency response: 20 Hz to 20 kHz (48 kHz, 96 kHz) LAN port: Ethernet jack x 1, 10BASE-T/100BASE-TX SPECIFICATIONS XV-BD707 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9 • GENERAL z H 0 6 / 0 5 , V 0 4 2 - 0 2 2 C A :st n e m e riu q e r r e w o P W 5 . 0 n a h t s s e L : e d o m y b d n a t S n I W 5 9 : n oit p m u s n o c r e w o P Dimensions (W x H x D): Approx. 430 × 64 × 304 mm g k 6 . 3 :).x o r p p A ( t h gie W t e N ) C ° 5 3 o t C ° 5 ( F ° 5 9 o t F ° 1 4 : e r u t a r e p m e t g nit a r e p O % 0 9 o t % 5 :ytidi m u h g nit a r e p O Bus Power supply (USB): DC 5V 500 mA • INPUTS / OUTPUTS 5 7 ,) p - p ( V 0 . 1 : T U O O E D I V Ω, sync negative, RCA jack x 1 COMPONENT VIDEO OUT: (Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1, 5 7 ,) p - p ( V 7 . 0 )r P (/) b P ( Ω, RCA jack x 2 HDMI OUT (video/audio): 19 pin (HDMI standard, Type A, Version 1.3) 0 0 6 ,) B d 0 ,z H k 1 ( s m r V 0 . 2 : N I O I D U A G O L A N A Ω, RCA jack (L, R) x 1 DIGITAL IN (OPTICAL 1/2): 3 V (p-p), Optical jack x 2 ) k c aj o e r e ts m m 5 . 3 ( s m r V 5 . 0 : N I . T R O P • TUNER z H M 0 0 . 8 0 1 o t 0 5 . 7 8 r o z H M 0 . 8 0 1 o t 5 . 7 8 : e g n a R g nin u T M F • AMPLIFIER Power output, (PEAK), (4 Ω / 3 Ω) Total: 560 W 2 x W 0 8 1 :t n o r F ) e vis s a P ( W 0 0 2 :r e f o o W - b u S Power output, (RMS), THD 10% (4 Ω / 3 Ω) Total: 480 W 2 x W 0 5 1 :t n o r F ) e vis s a P ( W 0 8 1 :r e f o o W - b u S • SYSTEM m n 0 5 6 / m n 5 0 4 : h t g n ele v a W ,r e s al r o tc u d n o ci m e S :r e s a L m e ts y s V T r u olo c L A P / C S T N d r a d n a t S : m e ts y s la n gi S ) g nilp m a s z H k 2 9 1 ,z H k 6 9 ,z H k 8 4 ( z H k 0 2 o t z H 0 2 : e s n o p s e r y c n e u q e r F X T - E S A B 0 0 1 / T - E S A B 0 1 , 1 x k c aj t e n r e h t E :tr o p N A L XV-BD505FS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-1 SECTION 2 ELECTRICAL CONTENTS DIGITAL DISPLAY & MEDIA TRAINING MASTER ..................................................................................... 2-2 1. DISTORTED PICTURE ........................................................................................................................... 2-2 2. NO PICTURE .......................................................................................................................................... 2-7 3. PICTURE COLOR ................................................................................................................................. 2-12 4. NOISE/AUDIO PROBLEMS .................................................................................................................. 2-14 5. MISCELLANEOUS ................................................................................................................................ 2-17 6. BLU-RAY PLAYER ............................................................................................................................... 2-26 7. HOME LINK .......................................................................................................................................... 2-27 ELECTRICAL TROUBLESHOOTING GUIDE ............................................................................................. 2-41 1. SMPS BOARD ...................................................................................................................................... 2-41 2. FRONT BOARD .................................................................................................................................... 2-43 3. NO AUDIO CHECK ............................................................................................................................... 2-44 4. NO VIDEO CHECK ............................................................................................................................... 2-46 5. HDMI NO AUDIO/VIDEO CHECK ........................................................................................................ 2-48 WAVEFORMS ................................................................................................................................................. 2-49 1. SYSTEM PART-1 (X-TAL) .................................................................................................................... 2-49 2. SYSTEM PART-2 (DDR3 MEMORY) ................................................................................................... 2-50 3. VIDEO PART (100% FULL COLOR-BAR) ........................................................................................... 2-51 4. HDMI PART .......................................................................................................................................... 2-52 5. MICOM AND MPEG I/F PART.............................................................................................................. 2-53 WIRING DIAGRAM ........................................................................................................................................ 2-55 BLOCK DIAGRAM ......................................................................................................................................... 2-57 CIRCUIT DIAGRAMS .................................................................................................................................... 2-59 1. SMPS - POWER CIRCUIT DIAGRAM.................................................................................................. 2-59 2. MAIN - CPU1 CIRCUIT DIAGRAM ....................................................................................................... 2-61 3. MAIN - CPU2 CIRCUIT DIAGRAM ....................................................................................................... 2-63 4. MAIN - DDR3, NAND, CP CIRCUIT DIAGRAM ................................................................................... 2-65 5. MAIN - FRONT END CIRCUIT DIAGRAM ........................................................................................... 2-67 6. MAIN - MICOM CIRCUIT DIAGRAM .................................................................................................... 2-69 7. MAIN - HDMI CIRCUIT DIAGRAM ....................................................................................................... 2-71 8. MAIN - ADC, DIR CIRCUIT DIAGRAM ................................................................................................ 2-73 9. MAIN - DSP CIRCUIT DIAGRAM ......................................................................................................... 2-75 10. MAIN - POWER CIRCUIT DIAGRAM ................................................................................................... 2-77 11. MAIN - I/O CIRCUIT DIAGRAM ............................................................................................................ 2-79 12. AMP1 CIRCUIT DIAGRAM ................................................................................................................... 2-81 13. AMP2 CIRCUIT DIAGRAM ................................................................................................................... 2-83 14. FRONT CIRCUIT DIAGRAM ................................................................................................................ 2-85 15. FRONT JACK CIRCUIT DIAGRAM ...................................................................................................... 2-87 CIRCUIT VOLTAGE CHART ........................................................................................................................ 2-89 PRINTED CIRCUIT BOARD DIAGRAMS .................................................................................................... 2-91 1. MAIN P.C.BOARD ................................................................................................................................ 2-91 2. SMPS P.C.BOARD ............................................................................................................................... 2-95 3. AMP P.C.BOARD .................................................................................................................................. 2-97 4. FRONT P.C.BOARD ............................................................................................................................. 2-99 5. FRONT JACK P.C.BOARD ................................................................................................................. 2-100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-2 DIGITAL DISPLAY & MEDIA TRAINING MASTER Objective: To provide clear and concise guidelines for customer service agents to handle calls on box goods calls. 1. DISTORTED PICTURE 1-1. Lines on Picture Distorted picture refers to the customer getting video, but there is a problem with the video. What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older DVD models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Do lines appear when watching multiple discs? NO YES One disc displaying the issue is a problem with the disc. Multiple discs displaying the problem could indicate the BD lens needs to be cleaned. Recommend the customer use a lens cleaner on the BD. A lens cleaner is available at any local electronics retailer. Do lines appear when watching a TV program? NO YES Lines appearing when watching a TV program indicates an issue with the display. If the TV program is fine, then connect the BD to another input on the display to determine if the problem is following the BD. Do lines appear when the BD is connected to another TV? NO YES Connect the BD to another TV and play a disc. No lines during disc play back indicates a problem with the first TV. Please refer to the owners manual for instructions on how to connect the BD to a TV. If the BD has a problem on the second TV, then see service chart for service information. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-3 DIGITAL DISPLAY & MEDIA TRAINING MASTER What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Do ghosting appear when watching multiple discs? NO YES One disc displaying the issue is a problem with the disc. Multiple discs displaying the problem could indicate the BD lens needs to be cleaned. Recommend the customer use a lens cleaner on the BD. A lens cleaner is available at any local electronics retailer. Do lines appear when watching a TV program? NO YES Ghosting appearing when watching a TV program indicates an issue with the display. If the TV program is fine, then connect the BD to another input on the display to determine if the problem is following the BD. Does ghosting appear when the BD is connected to another TV? NO YES Connect the BD to another TV and play a disc. No ghosting during disc play back indicates a problem with the first TV. Please refer to the owners manual for instructions on how to connect the BD to a TV. If the BD has a problem on the second TV, then see service chart for service information. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. 1-2. Ghost Picture Distorted picture refers to the customer getting video, but there is a problem with the video. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-4 DIGITAL DISPLAY & MEDIA TRAINING MASTER What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Does rolling appear when watching multiple discs? NO YES One disc displaying the issue is a problem with the disc. Multiple discs displaying the problem could indicate the BD lens needs to be cleaned. Recommend the customer use a lens cleaner on the BD. A lens cleaner is available at any local electronics retailer. Does rolling appear when watching a TV program? NO YES Rolling appearing when watching a TV program indicates an issue with the display. If the TV program is fine, then connect the BD to another input on the display to determine if the problem is following the BD. Does rolling appear when the BD is connected to another TV? NO YES Connect the BD to another TV and play a disc. No lines during disc play back indicates a problem with the first TV. Please refer to the owners manual for instructions on how to connect the BD to a TV. If the BD has a problem on the second TV, then see service chart for service information. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. 1-3. Rolling Picture Distorted picture refers to the customer getting video, but there is a problem with the video. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-5 DIGITAL DISPLAY & MEDIA TRAINING MASTER What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Does shaking appear when watching multiple discs? NO YES One disc displaying the issue is a problem with the disc. Multiple discs displaying the problem could indicate the BD lens needs to be cleaned. Recommend the customer use a lens cleaner on the BD. A lens cleaner is available at any local electronics retailer. Does shaking appear when watching a TV program? NO YES Shaking appearing when watching a TV program indicates n issue with the display. If the TV program is fine, then connect the BD to another input on the display to determine if the problem is following the BD. Does shaking appear when the BD is connected to another TV? NO YES Connect the BD to another TV and play a disc. No shaking during disc play back indicates a problem with the first TV. Please refer to the owners manual for instructions on how to connect the BD to a TV. If the BD has a problem on the second TV, then see service chart for service information. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. 1-4. Shaky Picture Distorted picture refers to the customer getting video, but there is a problem with the video. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-6 DIGITAL DISPLAY & MEDIA TRAINING MASTER What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Does blurriness appear when watching multiple discs? NO YES One disc displaying the issue is a problem with the disc. Multiple discs displaying the problem could indicate the BD lens needs to be cleaned. Recommend the customer use a lens cleaner on the BD. A lens cleaner is available at any local electronics retailer. Does blurriness appear when watching a TV program? NO YES Blurriness appearing when watching a TV program indicates an issue with the display. If the TV program is fine, then connect the BD to another input on the display to determine if the problem is following the BD. Does blurriness appear when the BD is connected to another TV? NO YES Connect the BD to another TV and play a disc. No blurriness during disc play back indicates a problem with the first TV. Please refer to the owners manual for instructions on how to connect the BD to a TV. If the BD has a problem on the second TV, then see service chart for service information. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. 1-5. Blurry Picture Distorted picture refers to the customer getting video, but there is a problem with the video. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-7 DIGITAL DISPLAY & MEDIA TRAINING MASTER 2. NO PICTURE 2-1. Black Screen The entire screen is black. Does the BD on-screen menu appear? NO YES Make sure the customer did not select 480i resolution in the menu of the BD player if using HDMI connections. Change resolution on upconversion BD player by pushing the resolution button of the remote con- troller. HDMI don’t support 480i resolution. What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Is the customer able to watch TV programming? NO YES If the customer is not able to watch television then he may have a problem with his television, especially if the cable signal comes through on a different input. If the customer can not get a TV program, then he still may have a problem with the particular input on his TV. Can the customer connect the BD to another TV? NO YES Have the customer connect the BD to another TV in order to determine if the problem is the BD or the TV. Refer to the OM for connections assistance. If the BD works on the second TV, then the customer has a problem with his TV. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-8 DIGITAL DISPLAY & MEDIA TRAINING MASTER Does the BD on-screen menu appear? NO YES Make sure the customer did not select 480i resolution in the menu of the BD player if using HDMI connections. Change resolution on upconversion BD player by pushing the resolution button of the remote con- troller. HDMI don’t support 480i resolution. What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Is the customer able to watch TV programming? NO YES If the customer is not able to watch television then he may have a problem with his television, especially if the cable signal comes through on a different input. If the customer can not get a TV program, then he still may have a problem with the particular input on his TV. Can the customer connect the BD to another TV? NO YES Have the customer connect the BD to another TV in order to determine if the problem is the BD or the TV. Refer to the OM for connections assistance. If the BD works on the second TV, then the customer has a problem with his TV. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. 2-2. Blue Screen The entire screen is a solid blue color. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-9 DIGITAL DISPLAY & MEDIA TRAINING MASTER Does the BD on-screen menu appear? NO YES Make sure the customer did not select 480i resolution in the menu of the BD player if using HDMI connections. Change resolution on upconversion BD player by pushing the resolution button of the remote con- troller. HDMI don’t support 480i resolution. What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Is the customer able to watch TV programming? NO YES If the customer is not able to watch television then he may have a problem with his television, especially if the cable signal comes through on a different input. If the customer can not get a TV program, then he still may have a problem with the particular input on his TV. Can the customer connect the BD to another TV? NO YES Have the customer connect the BD to another TV in order to determine if the problem is the BD or the TV. Refer to the OM for connections assistance. If the BD works on the second TV, then the customer has a problem with his TV. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. 2-3. Snowy Screen A snowy picture is when black and white dots are all over the screen. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-10 DIGITAL DISPLAY & MEDIA TRAINING MASTER Does the BD on-screen menu appear? NO YES Make sure the customer did not select 480i resolution in the menu of the BD player if using HDMI connections. Change resolution on upconversion BD player by pushing the resolution button of the remote con- troller. HDMI don’t support 480i resolution. What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR or BD to DVD Recorder. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input. Turn TV off, then on to determine input. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Is the customer able to watch TV programming? NO YES If the customer is not able to watch television then he may have a problem with his television, especially if the cable signal comes through on a different input. If the customer can not get a TV program, then he still may have a problem with the particular input on his TV. Can the customer connect the BD to another TV? NO YES Have the customer connect the BD to another TV in order to determine if the problem is the BD or the TV. Refer to the OM for connections assistance. If the BD works on the second TV, then the customer has a problem with his TV. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. 2-4. No Signal A “no signal” message appears on the screen of the display. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-11 DIGITAL DISPLAY & MEDIA TRAINING MASTER Is the customer using a digital cable connection? NO YES Make sure the customer’s simultaneously connecting analog component cable with HDMI cable. And then If Copy Protected Disc is playing back, analog component output is no picture. Only when the analog output is 480i, you can see the picture. In case of No Copy Protected Disc, you can see the picture regardless of the resolution. Is the customer using an analog cable connection? NO YES Customer’s using an DVI, or HDMI cable connection need to set the resolution on the product above 480i. HDMI, DVI connections can not process a 480i resolution. They can only process a 480p, 720p, 1080i, or 1080p resolution. Is the display HDCP compliant? NO YES Make sure the display is HDCP compliant when using a DVI or HDMI connection. A lack of HDCP compliancy on the display may cause an invalid format or format not supported message to appear. It can also cause a copy protection OSD to appear. Has the customer tried the device on another display? NO YES Ask the customer to connect the device to another display. If the device starts working, then the problem may be the original display. The customer will need to troubleshoot the display. If the device still does not work, then the problem may be the device or the cable. Has the customer tried another cable? NO Ask the customer to replace the cable between the device and display. If the problem is corrected, then the problem was with the cable. If the problem continues, then the device is the problem. Set up service according to in warranty or out of warranty procedures. 2-5. Invalid Format or Format Not Supported www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-12 DIGITAL DISPLAY & MEDIA TRAINING MASTER 3. PICTURE COLOR 3-1. No Color The video displays no color and only shows in black and white. What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input according to the connections in use. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Does color appear when watching multiple discs? NO YES One disc displaying the issue is a problem with the disc. Make sure the discs the customer is using are compatible with the BD by checking “playable discs” in the owners manual. Multiple discs displaying the problem indicates a problem with the BD player. Does color appear when watching a TV program? NO YES If the cable or satellite programming is connected through another input and the customer does not get color, the customer has a problem with his television. If a TV program does have the color, the problem may be the BD player, the cables being used, or the TV itself. Does color appear when the BD is connected to another TV? NO YES Connect the BD to another TV and play a disc. Good color during disc play back indicates a problem with the first TV. Please refer to the owners manual for instructions on how to connect the BD to a TV. If the BD has a problem on the second TV, then see service chart for service information. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If the BD is the problem, please see service chart for service information. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-13 DIGITAL DISPLAY & MEDIA TRAINING MASTER What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer is not connecting a BD to VCR. Copy protection can distort the picture on older VCR models. Is the TV set to the correct input? NO YES Make sure the TV is on the correct input according to the connections in use. Video when using composite, or component. DVI when using DVI, and HDMI when using HDMI. Is color fine when watching multiple discs? NO YES One disc displaying the issue is a problem with the disc. Make sure the discs the customer is using are compatible with the BD by checking “playable discs” in the owners manual. Multiple discs displaying the problem indicates a problem with the BD player. Is color fine when watching a TV program? NO YES If the cable or satellite programming is connected through another input and the customer does not get color, the customer has a problem with his television. If a TV program does have the color, the problem may be the BD player, the cables being used, or the TV itself. Is color fine when the BD is connected to another TV? NO YES Connect the BD to another TV and play a disc. Good color during disc play back indicates a problem with the first TV. Please refer to the owners manual for instructions on how to connect the BD to a TV. If the BD has a problem on the second TV, then see service chart for service information. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause video problems. Test the cable with another device to the TV to also determine if the TV is bad. If the BD is the problem, please see service chart for service information. 3-2. Poor Color The color is poor. Examples would be washed out colors, colors bleeding into one another, or a solid tint to a screen. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-14 DIGITAL DISPLAY & MEDIA TRAINING MASTER 4. NOISE/AUDIO PROBLEMS 4-1. No Audio The customer is not able to get audio. What cables is the customer using to connect the BD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer has audio cables connected if using an HDMI to DVI adapter or video-only cables (DVI, component, etc). Is the customer able to see video? NO YES Make sure the customer has not routed video and audio to separate inputs. Does issue occur on more than one disc? NO YES Problem occurring on one disc indicates a problem with the disc. Problem occurring on multiple discs could indicate a lens cleaner is needed. The customer can purchase a lens cleaner at any electronics retailer. Problem occur when watching TV program? NO YES No audio from a TV program on a different channel or input means there is a problem with the television. If a TV program does have the audio, the problem may be the BD player, the cables being used, or the TV itself. Does the problem occur when BD is connected to another TV? NO YES Audio is fine when the BD is connected to another TV indicates the problem is with the television. Refer to the owners manual for assistance with connecting BD to another TV. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause audio problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-15 DIGITAL DISPLAY & MEDIA TRAINING MASTER What cables is the customer using to connect the DVD? NO YES Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. Tighten any loose cables. Make sure the customer has audio cables connected if using an HDMI to DVI adapter or video-only cables (DVI, component, etc). Is the customer able to see video? NO YES Make sure the customer has not routed video and audio to separate inputs. Does issue occur on more than one disc? NO YES Problem occurring on one disc indicates a problem with the disc. Problem occurring on multiple discs could indicate a lens cleaner is needed. The customer can purchase a lens cleaner at any electronics retailer. Problem occur when watching TV program? NO YES Distorted audio from a TV program on a different channel or input means there is a problem with the television. If a TV program does have the audio, the problem may be the BD player, the cables being used, or the TV itself. Does the problem occur when DVD is connected to another TV? NO YES Audio is fine when the BD is connected to another TV indicates the problem is with the television. Refer to the owners manual for assistance with connecting BD to another TV. Has the customer tried another set of cables? NO Have the customer try another set of cables. A bad cable can also cause audio problems. Test the cable with another device to the TV to also determine if the TV is bad. If BD is problem, please see service chart for service information. 4-2. Distorted Audio The audio sounds muffled, scratchy, or the audio skips. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-16 DIGITAL DISPLAY & MEDIA TRAINING MASTER 4-3. Humming/Clicking Noise The unit is making a humming noise or a clicking noise. Does the noise only happen when a disc is playing? NO YES BDs make a slight hum when playing discs. A clicking noise or a noise interfering with audio may indicate a problem. Try multiple discs. Multiple discs with the same issue means the BD may need service or be professionally cleaned. Check BD service for service instructions. Does the noise happen when the BD is turned on? NO Check to see if a disc is inserted into the BD and eject the disc. A humming or clicking noise when the disc is not inserted may be a cooling fan. Check OM to see if cooling fan is present. If not, unit will need service. See BD service for service instructions. Has the customer tried multiple tapes and discs? NO YES YES If the issue only shows up on one disc, then the problem is with that disc. Have the customer try multiple tapes or discs. If the issue happens on multiple discs and tapes, then ask the customer to try a lens or a head cleaner. Has the customer connected to another TV? NO Ask the customer to connect the product to another TV. If the issue persists, try another set of cables. If the issue still persists, then the issue is with the unit. The unit will need service. Arrange service following proper procedure. How are the cables routed? NO Make sure cables are routed properly. Make sure audio and video cables are routed to the same source (if possible). Routed audio and video to separate products can cause a bit of a delay between the devices as not all devices will process audio and video signals at the same speed. 4-4. Audio/Video Out of Synch The audio and video do not match up. People look to be talking, but their voices are delayed by a few seconds. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-17 DIGITAL DISPLAY & MEDIA TRAINING MASTER LGE Internal Use Only 5. MISCELLANEOUS 5-1. No Power The unit will not turn on. Is the unit plugged in? NO YES Make sure the unit is plugged into a surge protector or the wall. Does the unit turn on when the power button is pressed on the unit? NO YES See if the unit will turn on when the power button the unit is pressed. If the unit turns on, then troubleshoot the remote control using the Remote Control Not Working call flow. Is the unit plugged into a surge protector? NO YES Make sure the surge protector is plugged into a wall outlet. Also make sure the surge protector is turned on or does not need to be reset due to a recent surge. Does the unit work when plugged into another outlet? NO YES Test the unit in another outlet. If the unit works, then the problem is the outlet where the unit was connected. If the issue is the BD, then set up service for BD according to BD service guide. Have there been any lightning strikes or power outages? NO If BD failed due to lightning strike or a power surge, this is not covered by warranty. Follow guidelines for service for a BD out of warranty. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-18 DIGITAL DISPLAY & MEDIA TRAINING MASTER Is the disc inserted into the BD player properly? NO YES Make sure the disc has been inserted into the BD player properly. The player can not read a disc inserted into the unit upside down. What type of disc is the customer using? NO YES Determine the type of disc the customer is not able to play. If the customer is using a store-bought movie BD, then please skip the next three questions. If it’s a recorded disc, move onto the next question. Did the customer burn this disc in a DVD recorder? NO YES Make sure the customer finalized the disc in the DVD recorder. Make sure the type of disc the customer is using is compatible with the BD player. If the customer initialized a DVD-RW in VR mode, make sure the owners manual has the RW logo to show compatibility for the VR format. Did the customer burn the disc in a computer? NO YES Make sure the customer burned a compatible format (such as VCD, SVCD, or DivX). Make sure the file meets the specifications required for the player to play the disc. Check the owners manual for specifications. Disc may still not be compatible. Refer customer to section of OM regarding burned discs. Has the customer tried multiple discs? NO One disc with the problem is a problem with the disc. BD players can play scratched or dirty BDs (DVDs) and not have any issues during playback. Multiple discs with the issue can mean the lens on the BD player needs to be cleaned. Recommend a lens cleaner. Service BD if lens cleaner was used. 5-2. Disc Error The unit displays “disc error” when a disc is inserted into the BD player. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-19 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-3. Unit Locks Up Unit does not respond to any commands. Does the unit respond to the buttons on the unit? NO YES If the unit will turn on or off with the button on the unit, troubleshoot the remote control. Please refer to Remote Control Not Working call flow. Has the customer reset the unit? NO If the unit does no respond to any buttons, then reset the unit by unplugging it for 15 to 30 seconds. If the unit does not respond after the reset, arrange for service on the BD. Does the open/close button on the unit work? NO YES Press the open/close button on the unit. If the disc ejects, troubleshoot the remote using the Remote Control not working call flow. Has the customer reset the unit? NO Ask the customer to reset the unit by unplugging the unit from the electrical outlet for 15 to 30 seconds. If the disc remains stuck in the unit after the reset, the unit will need service. 5-4. Disc Stuck A BD disc is stuck in the unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-20 DIGITAL DISPLAY & MEDIA TRAINING MASTER Does the unit respond to buttons on the front of the unit? NO YES If the buttons on the front of the unit do not respond, determine if the product has locked up or if the unit will not turn on. The problem is not the remote control. Make sure the remote control is the remote that goes with that particular model. Does the remote control any component? NO YES Determine which product the remote is not working. The customer may need to press the appropriate mode button to make the remote operate another component. The remote may even need to be programmed to the other component, especially if the batteries were just changed. Have the batteries been changed? NO YES Ask the customer to change batteries. Make sure the batteries are new and fresh. The batteries do not need to come from a “spare” battery drawer. Do not mix used and new batteries. Is the remote working at all? NO YES YES If the remote does not work anything, then walk the customer through a remote drain. Remove the batteries from the remote control. Then press and hold any button down for a minute. This will drain the power out of the remote and reset it. Universal remotes will have to be reprogrammed. Does any remote work the unit? NO If another remote works the unit, then follow the procedure to FOC the customer a new remote. If two remotes do not work the unit, the unit will need service. Does the customer want to program their remote? NO Please refer to the OM for instructions on how to program remote to TV. Customer wants to program a remote other than PIONEER, the customer will need to contact the manufacturer of the remote control. Codes do not work, remote is not compatible. 5-5. Remote Control Not Working www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-21 DIGITAL DISPLAY & MEDIA TRAINING MASTER Is the disc inserted into the BD player properly? NO YES Make sure the disc has been inserted into the BD player properly. The player can not read a disc inserted into the unit upside down. What type of disc is the customer using? NO YES Determine the type of disc the customer is not able to play. If the customer is using a store-bought BD, then please skip the next three questions. If it’s a recorded disc, move onto the next question. Did the customer burn this disc in a DVD recorder? NO YES Make sure the customer finalized the disc in the DVD recorder. Make sure the type of disc the customer is using is compatible with the BD player. If the customer initialized a DVD-RW in VR mode, make sure the owners manual has the RW logo to show compatibility for the VR format. Did the customer burn the disc in a computer? NO YES Make sure the customer burned a compatible format (such as VCD, SVCD, or DivX). Make sure the file meets the specifications required for the player to play the disc. Check the owners manual for specifications. Disc may still not be compatible. Refer customer to section of OM regarding burned discs. Has the customer tried multiple discs? NO One disc with the problem is a problem with the disc. BD players can play scratched or dirty BDs (DVDs) and not have any issues during playback. Multiple discs with the issue can mean the lens on the BD player needs to be cleaned. Recommend a lens cleaner. Service BD if lens cleaner was used. 5-6. Will Not Play Disc The unit will not play a disc when a disc is inserted into the player. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-22 DIGITAL DISPLAY & MEDIA TRAINING MASTER Is the disc inserted into the BD player properly? NO YES Make sure the disc has been inserted into the BD player properly. The player can not read a disc inserted into the unit upside down. What type of disc is the customer using? NO YES Determine the type of disc the customer is not able to play. If the customer is using a store-bought BD, then please skip the next three questions. If it’s a recorded disc, move onto the next question. Did the customer burn this disc in a DVD recorder? NO YES Make sure the customer finalized the disc in the DVD recorder. Make sure the type of disc the customer is using is compatible with the BD player. If the customer initialized a DVD-RW in VR mode, make sure the owners manual has the RW logo to show compatibility for the VR format. Did the customer burn the disc in a computer? NO YES Make sure the customer burned a compatible format (such as VCD, SVCD, or DivX). Make sure the file meets the specifications required for the player to play the disc. Check the owners manual for specifications. Disc may still not be compatible. Refer customer to section of OM regarding burned discs. Has the customer tried multiple discs? NO One disc with the problem is a problem with the disc. BD players can play scratched or dirty BDs (DVDs) and not have any issues during playback. Multiple discs with the issue can mean the lens on the BD player needs to be cleaned. Recommend a lens cleaner. Service BD if lens cleaner was used. 5-7. Disc Freezes or Skips The audio and video freeze and skip during play back of a BD or DVD disc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-23 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-8. Can Access Menu, but Not Play a Movie The disc menu is displayed but the disc will not play. Check the system information screen of the BD player. NO YES Go into the system information screen of the BD player. To access this menu, bring up the main menu. Go to TV aspect, highlight 16:9, press 1397139 and hit enter. If sold in the US, this should be DVD region code 1 and BD region code A. In case of HD-DVD, there is no region code. What is the region code of the BD disc? NO YES If the region code of the BD disc is not A, then the BD disc will not play on a player sold in the US. The player can play only BD discs labeled same as the rear of the unit. What is the region code of the DVD disc? NO YES If the region code of the DVD disc is not 1, then the DVD disc will not play on a player sold in the US. The player can play only DVD discs labeled same as the rear of the unit. Is the disc locking up on a disclaimer screen when the customer presses play? NO The disc locking up on a feature needs to be reported to Q&E. See instructions on reporting problems to Q&E. For a work around the problem, advise the customer to access the chapter list. Start play back from chapter 1 to start the movie and avoid any feature lock ups. How do I report a problem to Quality and Engineering? NO Get the micom version from the system information screen. Get the ISBN number from the back of the BD box cover (the number under the barcode). Get the exact problem the customer is describing Email this information to Matt Wedgman so the issue can be reported to the factory. 5-9. Reporting a problem to Quality & Engineering Reporting a problem that may require a firmware update to fix. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-24 DIGITAL DISPLAY & MEDIA TRAINING MASTER Is the movie wide screen or full screen? NO YES A full screen movie played on a wide screen TV will have bars on the left and right side of the TV. The customer needs to make sure they choose the appropriate type of movie they want to view. What is the aspect ratio of the DVD disc being played? NO YES If the aspect ratio is 1.33:1 then the movie is set up for full screen viewing. Bars will appear on the left and right side of the screen if the TV is wide screen. If the aspect ratio is 1.85:1 or 2.35:1, then there will be bars on the top and bottom as that ratio is bigger than widescreen TVs (1.78:1). What is the aspect ratio of the BD player set at? NO YES Make sure the BD player aspect ratio is set to the appropriate setting, depending on the aspect ratio of the TV. If the customer chose 4:3 Letterbox, then bars will appear on the top and bottom. The customer can choose the panscan setting to get rid of the bars. What is the resolution of the BD player set at? NO YES Try changing the resolution to 480p. 720p, 1080i and 1080p resolution require a widescreen aspect ratio which means bars will be placed on the left and right side for full screen movies. What is the aspect ratio of the television set at? NO Make sure the aspect of the television is set appropriately. If the aspect ratio of the television is set at 4:3 when the TV is wide screen, then a wide screen movie will show up as letterbox with bars on the top and bottom and bars on the sides. 5-10. Aspect Ratio The customer has bars on the top and bottom of the screen, the left and right of the screen, or both. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-25 DIGITAL DISPLAY & MEDIA TRAINING MASTER Is the disc currently playing? NO YES Ask the customer to press stop to stop the disc from playing. Ask the customer to press the resolution button to change the resolution. The BD player will not change resolutions while the disc is playing. Is the customer using component (red, blue, and green) cables? NO YES Discs with copy protection will not upconvert above 480p when using component cables. The component output does not have HDCP (highbandwidth digital content protection) compliancy which causes the BD player to switch from 720p or 1080i to 480p. Is the customer using any sort of adapter cable? NO YES RGB to DVI or RGB to HDMI adapters will not upconvert. RGB outputs and inputs are not HDCP compliant. If the customer sees an error message about HDCP, this is the issue. Copy protected discs will not upconvert when HDCP is not found on the input or output. Is the customer using an HDMI or DVI cable? NO YES Regular discs can convert to 1080p over the HDMI output and only the HDMI output. The TV has to have HDCP compliancy on the HDMI input. The display has to accept the resolution (480p, 720p, 1080i, or 1080p). Is the customer using an HDMI to DVI cable? NO YES Some movie companies will not allow their discs to upconvert past 480p. If only one disc poses a problem, then the issue is the disc. The customer will need to try multiple discs. Has the customer tried multiple discs? NO One disc not upconverting means the disc may not upconvert. Some movie companies will not allow their discs to upconvert. If multiple discs display the issue, remove the disc and change the resolution with no disc in the unit. If resolution will not change, the unit needs service. 5-11. My Unit Won’t Upconvert The customer has a problem with getting the unit to change resolutions to 480p, 720p, 1080i, or 1080p. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-26 DIGITAL DISPLAY & MEDIA TRAINING MASTER 6. BLU-RAY PLAYER 6-1. Slow Loading Times for BDs Why does it take so long to load my BDs? NO The loading times for a blu-ray disc is 30 seconds. When a customer switches from one disc to another, the lens will change which is what causes the delay. Blu Ray require different lasers to read the discs. Why does it take so long to boot my BD? NO The booting times for the BD is 20 seconds. When the set is booted, it takes a little long time to loading the OS program. 6-2. Booting Times 6-3. Ethernet Port What is the purpose of the ethernet port on the BD Player? NO NO This is used for the unit to access a network dealing with interactive BD movie menu. BD Player can support BD2.0 so that network function is active in the BD disc. Why is not the item downloaded through the network? Make sure the customer insert the LAN cable into the Ethernet jack. Make sure the network is active. If it is active, the disc may have a problem. If not active, see the network section of OM. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-27 DIGITAL DISPLAY & MEDIA TRAINING MASTER Home link is a Media File Sharing Function. User can play most of media fi les in my PC or my NAS ( Network Attached Storage ). General DLNA compatible server shares Media Files on local network. To connect DLNA server, user must have PC with DLNA server program or NAS with DLNA server certifi ed. Another way is to use just fi le sharing method, this is based on the standard of CIFS (Common Internet File System). User don’t need any program, just set folder sharing on your PC. Home link server search menu can search user-shared folders. Home link support this media: JPG,PNG,MP3,WMA,PCM,MPEG1,2,DivX(subtitle support),XviD,MKV,MP4 Other DLNA Servers: Nero Media home, Cyberlink server, Twonky, Window Media Player11, QNAP NAS etc. Restrictions: 1. PC and BD Player must be connected in one access point. 2. Anti-Virus program may block media sharing. Before installing SW, stop the Anti-Virus program. 3. Media types support is variable by each DLNA server. 7-2. What is Home link Feature? Home link is composed of the screens of selecting server, browsing files, playing video, playing audio, playing photo. You can move up, down, left, right and select in file browser. 7. HOME LINK 7-1. What is Home link? Home link menu Select Server File Browsing www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-28 DIGITAL DISPLAY & MEDIA TRAINING MASTER 7-3. How can I connect network? DLNA Servers or NAS Share Folder DLNA Server Software or PC Share Folder AP External Internet DLNA/CIFS File Sharing Range AV Connection Network Connection In home network, Access Point is connected to PC, NAS, BD player, etc. Home link operation is guaranteed within only one Access Point. Only in this case you can play your media normally. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-29 DIGITAL DISPLAY & MEDIA TRAINING MASTER 7-4. How can I Install PC bundle program for DLNA? Check your network PC and BD Player are connected to one access point. Check Setup -> Network Status, is it connected normally? Install PC Bundle SW Insert bundle CD in your PC and install program. PC Server adds Firewall Exception of nero mdeia server automatically. Share your media files Add/Remove PC media folder in share item. Check “Network Item” You can check wired or wireless network. Check “Start Server” Check “Start Server” button. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-30 DIGITAL DISPLAY & MEDIA TRAINING MASTER Add new files and folders Cannot display subtitle 1. Double-click the “Nero MediaHome 4 Essentials” icon on the desktop tray. 2. Click [Network] icon on the left and define your network name in the [Network name] field. The Network name you enter will be recognized by your player. 3. Click [Shares] icon on the left. 4. Click [Local Folders] tab on the [Shared] screen. 5. Click [Add] icon to open the [Browse Folder] window. 6. Select the folder containing the files you want to share. The selected folder is added to the list of shared folders. 7. Click [Start Server] icon to start the server. 1. Check the subtitle file name. The subtitle file name must match the video file name. For example, the following files will be accepted as subtiles for a given movie. “Time_Machine.avi” --------video “Time_Machine.srt” --------subtitle “Time_Machine.sub” -------subtitle “Time_Machine.smi” -------subtitle 2. Check the subtitle file size. The file size is limited 2Mbytes. 3. Check the subtitle format. Supported subtitle format is as below. SubRip(.srt/.txt), SAMI(.smi), Substation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), Subtitle System(.txt), Vobsub(.sub/.idx) Shared folders or files are not dis- played on the player one more subtitle files 1.Click the folder on the [Local Folders] tab and click [Rescan Folder] at the [More] button. 2.If you want more information, see Help menu. Visit the www.nero.comfor more information and software tools. 1. Display priority : If there are several subtitle files in a folder, display priority is this. Priority High Low File extension “.smi” “.idx” “.sub” “.srt” “.txt” “.ssa” For example, if there are “Time_Machine.smi” and “Time_Machine.srt” in a folder, “Time_Machine.smi” will be displayed. 7-5. How can I Share new files and folders using DLNA? 10-6. How many DivX subtitle is supported? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-31 DIGITAL DISPLAY & MEDIA TRAINING MASTER No Server Found 1. Check unit Network Status 2. Check the server and BD Player are connected to same access pointer. 3. Check server turn on. Network Error, Congestion Error Network Busy Error 1.Check Server status 2.if Server is ok, retry to conect server 3.if server has no response, restart server 4.if Computer has no response, restart computer. 5.If congestion error or network busy error is occurred repeatedly, 5.1 Turn off other devices that is connected to access point. 5.2 Restart Router Access Deny 1.Check if Nero is set with access deny. Nero Server -> device (left menu) -> select devices -> change Access Control -> set Access Allow 7-7. Network Error case www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-32 DIGITAL DISPLAY & MEDIA TRAINING MASTER Cannot play this file 1. Check your share folders on the media server program in the PC. 2. Find file you want to play. 3. Check that file extension is avi, mpg, mpeg. 4. Even if the file extension is avi, mpg or mpeg, the file may be not avi, mpg or mpeg internally. Not Supported Video Codec 1. Check your share folders on the media server program in the PC. 2. Find the file you want to play. 3. Check video codec of the file is DIVX3.xx, DIVX4.xx, DIVX5.xx,XVID, DIVX6.xx(Standard playback only), DIVX-HD, MPEG1 System Stream, Mpeg2 Program Stream, Mpeg2 Transport Stream. This is supported. Not Supported Audio Codec Unknown Video Format 1. Check your share folders on the media server program in the PC. 2. Find the file you want to play. 3. Check audio codec of the file is Dolby Digital, DTS, MP3, WMA, AAC, AC3, MPEG Layer 1 or Layer 2. This is supported. 4. Not all the WMA and AAC Audio format is compatible. 5. Check the file are recorded with GMC or Qpel. This is not supported. 1. Check your share folders on the media server program on the PC 2. Find the file you want to play 3. The file that video codec and audio codec are not playable on the set is displayed with this pop-up message 4. Check that the file is playable in the PC. 5. Even if the file might be playable in the PC, this may be not supported by our set. 7-8. Video Media Error case www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-33 DIGITAL DISPLAY & MEDIA TRAINING MASTER Check Unit Network Statu 1.Local Area Network Should be connected Check PC Network status Check Nero SW 1.Check that computer’s IP Address subset is same with player’s. (ex, Unit 192.168.1.15, computer 192.168.1.xxx ) 1.Check Network Interface. Network -> Network Interface 2. If it is wired connected, check wired network interface 3. Start Server 7-9. I can not find Nero media server www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-34 DIGITAL DISPLAY & MEDIA TRAINING MASTER ResumeStop/Search/Marker are not supported 1. Check video codec : ResumeStop/Search/Marker are not supported when the video codec is MPEG1 2. Check AVI file structure : A AVI file without index table does not support ResumeStop/Search/Marker 3. Change DLNA server : ResumeStop/Search/Marker is depended on DLNA Server ability. Please use Bundle Nero Server. Scan is not supported 1. Check video codec : Scan are not supported when the video codec is MPEG1, MPEG2 PS/TS 2. Check AVI file structure : A AVI file without index table supports only 2 step scan. What is PC/OS Requirements? 1. OS Requirements : Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required) 2. PC Requirements : 1.2 GHz Intel® Pentium® III or AMD Sempron™ 2200+ processors 3. Network Requirements : 100 Mb Ethernet, WLAN (IEEE 802.11b/g/n) 4. Detail Reference of File Share Settings : If you use Windows® XP or Windows Vista®, visit link below for more information on file share settings Windows ® XP: http://support.microsoft.com/kb/304040 Windows Vista®: http://support.microsoft.com/kb/961498 Don’t support another OS like Mac OS? Some Mac OS may be supported. But, We don’t guarantee PC sharing service on another OS. 7-10. Movie Playability Error Case 7-11. PC Requirements www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-35 DIGITAL DISPLAY & MEDIA TRAINING MASTER 7-12. Folder Sharing in Windows XP 1. Right-click the appropriate folder > Click Sharing and Security... > As shown below [picture 1] and [picture 2], Properties window is shown. Properties window is changed as shown below [Picture 1] and [Picture 2] with check [Use simple fi le sharing] in [Tools]-[Folder options]-[View] but available to set sharing with check or not. 2. After Check and set sharing as shown above [Picture 1] and [Picture 2], there is an icon of a hand holding the shared folder. 3. PC with shared folder and Unit are connected to same router. If user select Home link, user can use CIFS Feature. (After selecting folder, usage is same as DLNA’s) [Picture 1] [Picture 2] [Picture 3] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-36 DIGITAL DISPLAY & MEDIA TRAINING MASTER 7-13. Folder Sharing in Windows Vista 1. By default, folder sharing process is same as Windows XP. 2. The other things is the menu as shown below picture and Remember to release “Password-protected sharing” option. In control panel > Network and Sharing Center > Password-protected sharing > Release Password-protected sharing www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-37 DIGITAL DISPLAY & MEDIA TRAINING MASTER 7-14. No Server Found No Server Found (No Server icon At server Menu) 1. Check Computer Turn On 2. Check Computer is same network router. 3. Try Rescanning Button (Blue Button) 4. Then if Server is not found at Server Menu, Check Network property. Start -> Network Environment (right click)->Property -> Local Area Network (right click) -> Property 5. Check Microsoft Network Client is Checked 6. Disable Anti virus SW. Must be Checked at “Microsoft Network Client” V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-38 DIGITAL DISPLAY & MEDIA TRAINING MASTER Check your Network Sharing 1. Check the network sharing is based on DLNA or CIFS - Server displayed on “Select a Server” has blue ball ( ) is based on DLNA. If Network Sharing is DLNA? 1. Go to check your folder sharing on Item 10-5. If Network Sharing is CIFS? 1. Check to clear guest password In control panel ->Users->Guest-> clear password 2. Check to clear Password-protected sharing” option In control panel > Network and Sharing Center > Password-protected sharing > Release Password-protected sharing 3. Check to clear all Firewall option In control panel > Windows Firewall > Off 4. Check to stop AntiVirus Program If CIFS Sharing is right set? 1. If OS is Window XP, go to check on Item10-12. 2. If OS is Window Vista, go to check on Item10-13. 3. If OS is Others. Go and check OS supporting web site on your right OS. 7-15. I can not find shared folder on the Select a Server window www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-39 DIGITAL DISPLAY & MEDIA TRAINING MASTER 7-16. User can go directly last used folder after power up. But it may happen not to go directly last used folder. Can’t find the used folder when you enter the Home link after Power On • Wait 5 or 6 second after displaying the Home Menu, then enter the My Media Menu (See the following figure) : If you enter the Home link during the background server search time, Unit can’t find the used folder. • Check the Server IP : If Server IP was changed (by DHCP or by Manually), Unit can’t find the used folder Power ON Network Connect OSD displayed for a while Booting 20 Sec. Home Menu displayed Elapsed Time Network Connection 3 Sec. Server Search 3 Sec. Normal Operation Background Server Search Time Enter My Media www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-40 DIGITAL DISPLAY & MEDIA TRAINING MASTER 7-17. What do I input for requiring ID and Password? When you share folder on your PC, you may share folder with user ID and Password. If it’s needed ID/Password for using the shared folder, you can enter ID/Password by using Keyboard menu. If you can not see folder’ contents, please check your PC folder sharing setup. Unit can remember 50 ID/Password. ID / Password Certification DLNA/CIFS Network Playback ID/Password Keyboard DLNA and CIFS features are together in Home Link menu. DLNA and CIFS action’s Look & Feel are same. CIFS DLNA Select a DLNA Server Select a CIFS Folder Home Menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-41 ELECTRICAL TROUBLESHOOTING GUIDE 1. SMPS BOARD YES YES YES YES YES No power Replace SMPS board. Connect the open line. Check SMPS second part lines short. Check 3.7 V lines short. Check MAIN or AMP board short. NO NO NO NO Replace SMPS board. Replace SMPS board. Replace SMPS board. NO Check the AC line pattern. Check fuse F901. Check C963 voltage. (5.6 V) Check C976 voltage. (3.9 V) Check IC901 Vcc voltage. (10 V ~ 30 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-42 ELECTRICAL TROUBLESHOOTING GUIDE YES YES No sound. Replace IC961, IC901 or SMPS board. Check no power list, AC input voltage. Check AMP module short. Replace PC951, IC901. NO NO Check IC961 Vcc voltage.(34 V ~ 43 V) Check C955 voltage. (25 V or 36 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-43 ELECTRICAL TROUBLESHOOTING GUIDE Power on FRONT board ok. YES YES YES Connect 12p FFC cable. Replace VOL301. Check SMPS board. Check SMPS board. Check MAIN board. Replace IC301. Replace DIS301. YES YES YES YES YES YES Digitron (DIS301) ok? Check MAIN board. Replace LED. (LD301 ~ LD306) “WELCOME PLEASE WAIT” Display on VFD ok? When you turn the volume knob, count is change? Volume LED (LD301 ~ LD306) turn on? NO NO NO NO NO NO NO NO NO NO CN301 cable connection ok? CN301 pin10, 11 signal ok? CN302 pin6, 7 +5.6 V ok? CN302 pin4, 5, 6 power ok? CN301 pin2, 3, 4 data signal ok? IC301 check ok? 2. FRONT BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-44 ELECTRICAL TROUBLESHOOTING GUIDE 3. NO AUDIO CHECK NO CD/DVD/BD Disc or USB play Check IC500. IC511 pin4, 6, 8, 17 I2S input signal ok? NO NO Check Micom IC. (IC101) Check IC511. IC511 pin1 LOW signal? IC511 pin3, 12,14,16 I2S output signal ok? YES YES YES YES A NO OPTICAL function Check JK203, JK204. IC201 pin5, 6 audio signal ok? YES YES C NO AUX function Check JK251. IC200 pin9,10 audio L/R ok? YES YES B NO PORTABLE function Check JK3U2. IC200 pin9, 10 audio L/R ok? YES YES B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-45 ELECTRICAL TROUBLESHOOTING GUIDE NO IPOD function Check IPOD connection or JK1. IPOD cradle B/D JK1 pin27, 28 audio L/R ok? NO NO Check iPod cradle connection. Check IC203. MAIN B/D JK299 pin21, 23 ok? IC200 pin23, 24 audio signal ok? YES YES YES YES B NO NO NO NO NO NO NO NO NO NO NO TUNER Function Check Tuner (TUN01) and Antenna connection. Check Micom. (IC101) Check IC200. Check IC401, IC402, IC404 and X400. Check IC602 and IC605. Check IC201 and X200. Check IC205. Check 22p FFC cable and CN601 connection. Check IC201 and X200. Check IC404. Check IC701 . Check AMP IC output stage and JK701. IC200 pin11,12 audio L/R ok? IC205 pin1 LOW signal? IC200 pin41 I2S output signal ok? IC205 pin4, 6, 8 I2S input signal ok? IC602, IC605 audio output signal ok? IC200 pin42, 43, 44 I2S clock ok? IC205 pin12, 14,16,18 I2S output signal ok? AMP B/D CN601 pin5, 6, 7, 8 I2S signal ok? IC205 pin2, 4, 6, 8 I2S input signal ok? IC404 pin3,12,14,16 I2S output signal ok? IC701 audio output signal ok? YES YES YES YES YES YES YES YES YES YES YES YES B C A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-46 ELECTRICAL TROUBLESHOOTING GUIDE 4. NO VIDEO CHECK COMPONENT video out Check IC500. YES NO IC251 pin1, 2, 3 video signal ok? Check IC251. YES NO IC251 pin6, 7, 8 video signal ok? Check JK251. CVBS video out Check JK251. YES Check Micom (IC101). YES Check IC250. IC250 pin2 video signal ok? NO NO IC250 pin1 LOW signal? IC253 pin8 video signal ok? IC250 pin6 video signal ok? NO NO Check IC253. Check IC500. YES YES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-47 ELECTRICAL TROUBLESHOOTING GUIDE CVBS video out (IPOD video) Check JK251. YES Check Micom. (IC101) YES Check IC250. IC250 pin2 video signal ok? NO NO IC250 pin1 HIGH signal? IC253 pin8 video signal ok? iPod cradle B/D JK1 pin23 video signal ok? MAIN B/D IC254 pin4 ok? MAIN B/D JK299 pin17 ok? IC250 pin4 video signal ok? NO NO NO NO NO Check IC253. Check IPOD connection or JK1. Check JK299 and connection. Check iPod cradle connection. Check IC254. YES YES YES YES YES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-48 ELECTRICAL TROUBLESHOOTING GUIDE 5. HDMI NO AUDIO/VIDEO CHECK HDMI OUT function Check IC500. Resoler JK803. IC500 TMDS Data(R831~R838) signal ok? YES JK803 pin1,3, 4,6,7,9,10,12 TMDS Data signal ok? YES Check JK803 and HDMI cable connection. NO NO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-49 X101, 20 MHz 2 X200, 24.57 MHz 3 X500, 27 MHz 1 WAVEFORMS 1. SYSTEM PART-1 (X-TAL) 1 3 2 IC500 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-50 2. SYSTEM PART-2 (DDR3 MEMORY) DDR3_BA0 4 DDR3_nWE 5 DDR3_nCAS 6 DDR3_CLK01_P 7 IC500 4 5 6 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-51 3. VIDEO PART (100% FULL COLOR-BAR) COMPOSITE 8 COMP_Y 9 COMP_Pb 10 COMP_Pr 11 10 11 9 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-52 HPD_TX 12 DDC_SDA 13 DDC_SCL 14 TXC+ 15 14 13 15 12 4. HDMI PART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-53 5. MICOM AND MPEG I/F PART BCM_nRESET 16 18 17 16 MICOM_UART_RX2 17 MICOM_UART_TX2 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-54 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com L HDMI IPOD OPT OPT R SPK JACK A N OUT IN2 IN1 C A TUNER FAN CN701 AMP CN401 CN150 SCN703 CN601 AMP C 50 SCN701 MD MAIN CN602 CN951 AMP SMPS 10pin B to B CN250 CN101 CN251 CN951 SMPS CN952 CN953 CN302 CN301 FRONT VFD USB CN3U1 PTB USB FAN B/T WIRING DIAGRAM 2-55 2-56 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24.576 MHZ 24.576 MHZ 12C(1) 12C SPI 2ch ADC 3.3V_M 3.3/5V 12C DC DC VCC_12V 1.2V DIR CS8422 Audio DSP CS497024 Flash SDRAM i-pod Portable Tuner I2S 12C NJM2794 (CS5346) 20MHZ MICOM NEC 100P 3.3V_M 1.2/3.3V 3.3V 3.3V 3.3V E2P ROM A AUX DC-DC MP8706 TJ3965 VCC_3.7VA 3.3V 1.5V •Sound Effect •Bass Management •ChDelay I2S(6ch) - Decoding - Processing Optical x2 SPDIF I2S SPDIF UART AUX DAC CS4353 TAS5613 MC4580 FL/FR(2ch) 3.3V +7V 36V/12V I2C 74ALVC244 74ALVC244 •AV sync •Downmix I2S(6ch) Ethernet EPHY_TDP/N EPHY_RDP/N 3.3V (D0/D1/D2) CS4353 DAC CS4353 MC4580 TAS5613 C/W(2ch) LPF 5.1ch D0 : FL/RL D1 : SW/C D2 FR/RR BCM7630 74ALVC244 27MHZ 244_ CTRL1 CTRL3 UART To MD 45/16p FFC D+,D-,5V USB I2S A/B/C/D/E/F/G/H/RF 3.3V DAC CS4353 MC4580 TAS5613 RL/RR(2ch) D2 : FR/RR 2.1ch D0 : FL/FR D1 : SW D2 : No Signal 27MHZ TMDS Motor Driver(7ch) (R2A30234SP) TRD, FOD SLD, SPD TILT, LOAD 1.2/1.5/3.3V 5V 5V THS7314 MM1507 THS7316 Video Drive Y,Pb,Pr/CVBS 3.3V DDR3 X3 Motor Driver(2ch) LB1848M COLD MD 1.5V 3.3V 3.3V 5V THS7314 Video Drive MM1507 Video SW V NJM2505 5V 3.3V IPOD (512MB) (256MB) CP Chip HDMI out UART BTM RX OPU NAND DDR3 X3 DC DC - MP2208 LDO TJ3965 VIDEO OUT BLOCK DIAGRAM 2-57 2-58 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VKK,FL,12V,5.6V No Power IC961 is Defective VKK No Power D963 is Defective FL No Power D964 is Defective 12V No Power D962 is Defective No Power D907,D906 are Defective 5.6V No Power D961 is Defective A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T F901 T8AH 250V (8A 250V) CAUTION: Danger if fuse is incorrectly replaced. Replace only with the type identical to fuse rating and(or) model name described in main label. Warning Parts that are shaded are critical with respect to risk of fire or electrical shock. No Power F901 is Defective No Power BD901 is Defective Amp No Power D951,D953 are Defective Switching Error PC951 is Defective No Power Q901 is Defective Switching Error IC901 is Defective No Power R920 is Defective No Power D910 is Defective Switching Error PC971, IC971 are Defective No Power IC902 is Defective IMPORTANT SAFETY NOTICE WHEN SERVICING THIS CHASSIS, UNDER NO CIRCUMSTANCES SHOULD THE ORIGINAL DESIGN BE MODIFIED OR ALTERED WITH OUT PERMISSION FROM THE PIONEER CORPORATION. ALL COMPONENTS SHOULD BE REPLACED ONLY WITH TYPES IDENTICAL TO THOSE IN THE ORIGINAL CIRCUIT. SPECIAL COMPONENTS ARE SHADED ON THE SCHEMATIC FOR EASY IDENTIFICATION. THIS CIRCUIT DIAGRAM MAY OCCASIONALLY DIFFER FROM THE ACTUAL CIRCUIT USED. THIS WAY, IMPLEMENTATION OF THE LATEST SAFETY AND PERFORMANCE IMPROVEMENT CHANGES INTO THE SET IS NOT DELAYED UNTIL THE NEW SERVICE LITERATURE IS PRINTED. NOTE : 1. Shaded( ) parts are critical for safety. Replace only with specified part number. 2. Voltages are DC-measured with a digital voltmeter during Play mode. 2-59 2-60 CIRCUIT DIAGRAMS 1. SMPS - POWER CIRCUIT DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com : WAVEFORM NUMBER 1 A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T CPU_1 EBY60868601_2 Rev 5.2 2010. 05. 17 2. MAIN - CPU1 CIRCUIT DIAGRAM 2-61 2-62 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 5 6 7 : WAVEFORM NUMBER A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T CPU_2 EBY60868601_3 Rev 5.2 2010. 05. 17 3. MAIN - CPU2 CIRCUIT DIAGRAM 2-63 2-64 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T DDR3 NAND CP EBY60868601_4 Rev 5.2 2010. 05. 17 4. MAIN - DDR3, NAND, CP CIRCUIT DIAGRAM 2-65 2-66 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T FRONT END EBY60868601_5 Rev 5.2 2010. 05. 17 5. MAIN - FRONT END CIRCUIT DIAGRAM 2-67 2-68 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 17 16 : WAVEFORM NUMBER 2 A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T MICOM EBY60868601_6 Rev 5.2 2010. 05. 17 6. MAIN - MICOM CIRCUIT DIAGRAM 2-69 2-70 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 13 15 12 : WAVEFORM NUMBER A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T HDMI EBY60868601_7 Rev 5.2 2010. 05. 17 7. MAIN - HDMI CIRCUIT DIAGRAM 2-71 2-72 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T ADC, DIR EBY60868601_8 Rev 5.2 2010. 05. 17 8. MAIN - ADC, DIR CIRCUIT DIAGRAM 2-73 2-74 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T DSP EBY60868601_9 Rev 5.2 2010. 05. 17 9. MAIN - DSP CIRCUIT DIAGRAM 2-75 2-76 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T POWER EBY60868601_10 Rev 5.2 2010. 05. 17 10. MAIN - POWER CIRCUIT DIAGRAM 2-77 2-78 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 11 9 8 : WAVEFORM NUMBER A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T I/O EBY60868601_11 Rev 5.2 2010. 05. 17 11. MAIN - I/O CIRCUIT DIAGRAM 2-79 2-80 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T AMP_1 EBY60684101 Rev 9.4 2010. 05. 17 12. AMP1 CIRCUIT DIAGRAM 2-81 2-82 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XV-BD707 only A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T AMP_2 EBY60688401 Rev 9.4 2010. 05. 17 13. AMP2 CIRCUIT DIAGRAM 2-83 2-84 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T FRONT EBY60868701 Rev 3.2 2010. 05. 17 14. FRONT CIRCUIT DIAGRAM 2-85 2-86 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I J K L M N O P Q R S T FRONT JACK EBY60868901 Rev 3.3 2010. 05. 17 15. FRONT JACK CIRCUIT DIAGRAM 2-87 2-88 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CIRCUIT VOLTAGE CHART 1. IC’S VOLTAGE 2. CAPACITOR’S VOLTAGE LOCA. NO. VALUE (uF/V) ( + ) ( - ) MAIN BOARD CA514 47uF/16V 1.486V 0 CA515 47uF/16V 1.486V 0 SCA709 22uF/16V 5.06V 0 SCA704 220uF/16V 5.85V 0 SCA701 100uF/16V 8.26V 0 SCA702 100uF/16V 11.89V 0 SCA703 100uF/16V 5.06V 0 C436 47uF/16V 3.3V 0 CA402 100uF/16V 3.276V 0 CA407 10uF/16V 1.839V 0 CA102 47uF/16V 3.24V 0 CA160 220uF/16V 5.86V 0 CA156 100uF/16V 3.278V 0 CA157 100uF/16V 3.5V 0 C250 47uF/16V 5.19V 0 C223 220uF/16V 5.06V 0 AMP BOARD C713 470uF/50V 36.2V 0 C734 470uF/50V 36.2V 0 C753 470uF/50V 36.2V 0 C774 470uF/50V 36.2V 0 C793 470uF/50V 36.2V 0 C7B4 470uF/50V 36.2V 0 C633 47uF/16V 3.3V 0 C635 47uF/16V 6.9V 0 C6B8 10uF/16V 3.4V 0 C6C0 10uF/16V 3.4V 0 C6C2 10uF/16V 3.4V 0 C6C4 10uF/16V 3.4V 0 C6C6 10uF/16V 3.4V 0 C6C8 10uF/16V 3.4V 0 C706 10uF/16V 12.2V 0 C746 10uF/16V 12.2V 0 C786 10uF/16V 12.2V 0 C702 220uF/16V 12.2V 0 FRONT BOARD C307 47uF/16V 18.21 21.44V C3A1 100uF/6.3V 3.3V 0 C309 220uF/6.3 V 3.14V 0 NAME LOCATION NO. SYMBOL PIN NUMBER SPEC. (V) VOLTAGE (V) MAIN BOARD 74HCT244 IC205,IC511 Vcc 20 4.5~5.5 3.31 BCM7630 IC500 VDD12 T18,V20 1.14~1.26 1.17 PLLVDD H18 1.14~1.26 1.17 XTAL_VDD12 H8,J8,K8,L8,M8,P8,R8, H9,J9,P9,R9,H10,R10, H11,R11,H12,R12,H13, R13,H14,J14,R14,H15, J15,K15,L15,M15,N15, P15,R15” 1.14~1.26 1.17 VDD33 AA21D1,K1,U1,A4,G4,N4,D7, K7,T7,A10,G10,D13 3.135~3.465 3.31 AVDD33 J18 2.97~3.63 3.3 VDD15 AB6,W7,T10,T13,W16, AB17 1.425~1.575 1.47 CP2.0B IC508 Vcc 5 2.8~3.6 3.31 CS497024 IC401 VDD 1,2,3,4,5,6,7,8 1.71~1.89 1.81 VDDA 21 3.13~3.46 3.33 VDDIO 8,28,50,62,73,89,100,120 3.13~3.46 3.32 CS5346_ADC IC200 VA 14,30 4.75~5.25 5.08 VD 47 3.13~3.47 3.31 VLS 36 3.13~5.25 3.31 VLC 5 3.13~5.25 3.31 CS8422_DIR IC201 VL 22 1.71~5.25 3.31 VA 3 3.135~3.465 3.31 V_REG 19 3.135~3.465 3.31 M12L64164A-7TG2M IC402 VDD 1,27 3.0~3.6 3.31 VDDQ 3,9,43,49 3.0~3.6 3.31 K4B1G0846E-HCH9 IC503,IC509 VDD M9,M1,K9,K1,G8,G2,D7, A9,A2,E9,E2,C1,B9 1.425~1.575 1.46 NAND08GW3B2C IC501 VCC 12,37 2.64~3.6 3.31 LM1117_ ADJ TO252 1.8V SIC707 VIN 3 3.3~12 3.31 Vout 1 1.782~1.818 1.81 LM39102-ADJ IC154,IC299,IC202 VIN 2 2.25~16 5.67 VOUT 3 5.01 EN 1 1.23 M24C16 IC102 VCC 8 1.8~5.5 4.87 MM1507XNRE IC250 VCC 3 4.5~13 5.1 MP2208 IC150 VCC 8 3~6 5.67 VIN 5,10 3~16 12.02 Vout 4,11 0.8~10.8 1.35 MP8706 IC151 VIN 1 4.5~20 12.02 Vout 2,3 1.53 MX25L3205D IC403 VCC 8 2.7~3.6 3.31 NJM2505 IC254 V+ 3 4.5~9 5.1 NJM2794RB2 IC203 V+ 4 4.3~13 5.09 S7127F_AUK IC103 VCC 0.3~15 3.59 Vout 2.55~2.85 3.19 THS7314 IC253 Vs+ 4 3~5 3.31 THS7316 IC251 Vs+ 4 3~5 3.31 TJ3965D-ADJ IC153 VIN 2 2.5~6 3.62 UPD78F1164 IC101 VDD 99 1.8~5.5 3.34 EVDD 30,100 - - R2A30234SP SIC704 VM1 22 7~13.2 12..02 VM2 5 7~13.2 12.02 VM3 26 7~13.2 12.02 5VCC 32 4.5~5.5 5.05 LB1848M SIC705 VCC 1 5.05 LM358 SIC706 VCC 8 3~32 5.05 NT5CB64M16AP IC502 VDD B2,D9,G7,K2,K8,N1,N9 R1,R9 1.425~1.575 1.46 VDDQ A1,A8,C1,C9,D2,F9,F1, H2,H9 - 1.46 KIA1117AF00 IC405 VIN 3 3.3~12 3.31 Vout 2 1.782~1.818 1.81 NAME LOCATION NO. SYMBOL PIN NUMBER SPEC. (V) VOLTAGE (V) LM29152RS-ADJ SIC710 VIN 2 2.25~16 5.67 VOUT 4 5.01 EN 1 5.67 PCA9530DP IC104 VDD 8 2.3~5.5V 3.31 AMP BOARD KIA1117ST33 IC601 Vin 3 10 5..68 Vout 2 3.234~3.366 3.29 LD1117A-7V ADJ IC611 IN 3 12.02 OUT 2 6.97 CS4353 IC602,IC603 IC604(HB485 DEL) VCP 6 3.13~3.47 3.28 VA 17 3.13~3.47 3.28 VL 3 0.9~3.3 3.28 MC4580 IC605,IC606, IC607,IC608,IC609, IC610(HB485 DEL) VEE 3 3.48 VDD 8 6.96 TAS5613 IC701,IC702, IC703(HB485 DEL) PVDD_X 30,31,38,39,42,43,50,51 36.18 GVDD_X 25,26,55,56 12.02 VDD 64 12.02 FRONT BOARD ET16315 IC301 VDD 13,43 3.0~5.5 3.33 2-89 2-90 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 6 5 4 3 2 1 A B C D E F G H I J K 9 8 PRINTED CIRCUIT BOARD DIAGRAMS 1. MAIN P.C.BOARD (TOP VIEW) 2-91 2-92 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 6 5 4 3 2 1 A B C D E F G H I J K 9 8 MAIN P.C.BOARD (BOTTOM VIEW) 2-93 2-94 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 6 5 4 3 2 1 A B C D E F G 10 9 8 Please use this fuse. Please don’t use this fuse. 7 6 5 4 3 2 1 A B C D E F G 10 9 8 2. SMPS P.C.BOARD (TOP VIEW) (BOTTOM VIEW) Warning Parts that are shaded are critical with respect to risk of fire or electrical shock. 2-95 2-96 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 6 5 4 3 2 1 A B C D E F G H 8 I 7 6 5 4 3 2 1 A B C D E F G H 8 I 3. AMP P.C.BOARD (TOP VIEW) (BOTTOM VIEW) 2-97 2-98 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 2 1 A B C D E F G H I J K L 3 2 1 A B C D E F G H I J K L 4. FRONT P.C.BOARD (TOP VIEW) (BOTTOM VIEW) 5. FRONT JACK P.C.BOARD (TOP VIEW) (BOTTOM VIEW) 3 2 1 A B C D E 3 2 1 A B C D E 2-99 2-100 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-101 2-102 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3-1 SECTION 3 CABINET & MAIN CHASSIS CONTENTS EXPLODED VIEWS AND PARTS LIST ......................................................................................................... 3-3 1. CABINET AND MAIN FRAME SECTION ................................................................................................. 3-3 2. DECK MECHANISM SECTION (BM09T) ................................................................................................. 3-7 3. PACKING ACCESSORY SECTION ......................................................................................................... 3-9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3-2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3-3 3-4 EXPLODED VIEWS AND PARTS LIST 1. CABINET AND MAIN FRAME SECTION CABLE5 B 279 I 300 E A 271 270 A50 A60 463 H C B F G G A E F J I H MAIN SMPS AMP A45 A47 A44 261 320 464 464 470 464 265 261 261 272 269 273 268 463 463 A46 CABLE1 264 276 A43 462 250 462 462 D J 464 274 275 464 CABLE4 484 C Bluetooth CABLE2 D 479 A52 463 463 463 CABLE3 464 464 The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MODEL: XV-BD707 Applicable Model: /YXIN5 /VXIN5 /UCXINSM / SXIN5 . CABINET AND MAIN FRAME SECTION NSP : Non SVC Parts S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS ASSEMBLY PARTS SECTION A43 AGL73135601-LG Panel Assembly,Front HOME HB985 PIONEER FRONT A44 ADV73505702-LG Frame Assembly HOME THEATER HB985 PIONEER FM, A45 EBR70055801-LG PCB Assembly HB985 AMP TOTAL A46 EBR70213102-LG Option Code Assembly 444501902953EA4C 2000000200000 YXIN5 A46 EBR70213104-LG Option Code Assembly 4742008F2953EA4C 2000000200000 VXIN5 A46 EBR70213106-LG Option Code Assembly 5255008C2953EA4C 2000000200000 SXIN5 A47 EAY60911903-LG SMPS,AC/DC 3H329W 90VTO264V 1.1KW 50/60HZ YXIN5/VXIN5/UCXINSM A47 EAY60911904-LG SMPS,AC/DC 3H329W-1 90VTO264V 1.1KW 50/60 SXIN5 A50 EBR70054611-LG PCB Assembly HB985 FRONT TOTAL A52 EAT60733 EAZ54850490-LG Deck Assembly, DVD 202-LG Module,Bluetooth MB0502C0 HCI.CLASS2 2.7VTO3.6V A60 PARTS SECTION 250 MCK62787304-LG Cover PRESS PCM 0.5T HOME THEATER HB 261 5040R-0069X-LG Damper VCR RC10000 OTHER DW-PMF-01 19 264 MCK63314101-LG Cover MOLD HIPS 60HR HOME THEATER HB 265 EAL60658102-LG Fan Module FD125015LL(1N2I-L01) 2.2KRPM D 268 MEG58371702-LG Holder MOLD ABS AF342T HOME THEATER H 269 MEG61895901-LG Holder MOLD HIPS 60HR HOME THEATER HB 270 MDS61951105-LG Gasket CUTTING AL HOME THEATER HB905 271 MDS61951106-LG Gasket CUTTING AL HOME THEATER HB905 272 MCQ63084901-LG Damper CUTTING SILICON HOME THEATER H 273 MCQ63084902-LG Damper CUTTING SILICON HOME THEATER H 274 MGJ62321401-LG Plate,Ground PRESS SUS 304 0.3 USB HB985 PI 275 3300RCH001B-LG Plate PRESS STS 301 0.2 DKS-5000 PRE 276 4850RL0002J-LG Damper CUTTING FE HOME THEATER LH-TK9 279 AEZ73033801-LG Knob Assembly HOME HT385 PIONEER VOLUME ASS 300 EAD60816608-LG Power Cord Europe-1770-HIT-core SH936 TJC YXIN5/ SXIN5 YXIN5/VXIN5/SXIN5 YXIN5/VXIN5/SXIN5 UCXINSM UCXINSM UCXINSM UCXINSM 300 EAD60816707-LG Power Cord KJTS03-146 HP1 (3A) GP390-3S-C VXIN5 320 MGC61877020-LG Panel,Rear PRESS SECC 0.6T HOME PIONEER H CABLES CABLE1 EAD43155305-LG Cable,FFC AT10022070C01 70MM 1.00MM 22P CABLE2 EAD35665113-LG Cable,FFC 10012120C02 120MM 1.00MM 12P W CABLE3 EAD35665114-LG Cable,FFC 10012180C02 180MM 1.00MM 12P W CABLE4 EAD42218211-LG Harness,Single TJC2508-07 To TJC19-07_L=120MM CABLE5 EAD52753703-LG Harness,Single TJC2004-08 To TJC19-08_L=410MM SCREWS 462 1SZZR-0098H-LG Screw,Customized - + 3MM 8MM MSWR FZW SIN JIN 463 1SZZR-0098G-LG Screw,Customized 1SZZR-0098G FH + 3MM 8MM MSWR 464 1SZZR-0097K-LG Screw,Customized 1SZZR-0097K BH + 3MM 10MM MSWR 470 353-022S-LG Screw,Customized BZN BK (CR +3) SPECIAL + 3MM 6 479 1SZZR-0098D-LG Screw,Customized - + 3MM 14MM MSWR FZY SIN JIN 484 353-025W-LG Screw,Customized - - 3MM 10.5MM - FBK SIN JIN RUN DATE : 17-May-2010 NSP YXIN5/VXIN5/SXIN5 PARTS LIST The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. A43 AGL73135604-LG Panel Assembly,Front HOME HB985 PIONEER US ONLY FR A44 ADV73505717-LG Frame Assembly HOME THEATER HB985 PIONEER US NSP 300 EAD60816611-LG Power Cord North America-1770-HIT-polar,c 320 MGC61877019-LG Panel,Rear PRESS SECC 0.6T HOME PIONEER H UCXINSM A46 EBR70213107-LG Option Code Assembly 555300002953EA44 2000000200000 MODEL: XV-BD505FS Applicable Model: /YXIN5 Applicable Model: /VXIN5 Applicable Model: / SXIN5 . CABINET AND MAIN FRAME SECTION NSP : Non SVC Parts S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS ASSEMBLY PARTS SECTION A43 AGL73135602-LG Panel Assembly,Front HOME HB485 PIONEER FRONT A44 ADV73505707-LG Frame Assembly HOME THEATER HB485 PIONEER 2.1 NSP A45 EBR70056101-LG PCB Assembly HB485 AMP TOTAL A46 EBR70213101-LG Option Code Assembly 444501902953EA4C 2000000200000 YXIN5 A46 EBR70213103-LG Option Code Assembly 4742008F2953EA4C 2000000200000 VXIN5 A46 EBR70213105-LG Option Code Assembly 5255008C2953EA4C 2000000200000 SXIN5 A47 EAY60911903-LG SMPS,AC/DC 3H329W 90VTO264V 1.1KW 50/60HZ YXIN5/ VXIN5 A47 EAY60911904-LG SMPS,AC/DC 3H329W-1 90VTO264V 1.1KW 50/60 SXIN5 A50 EBR70054611-LG PCB Assembly HB985 FRONT TOTAL A52 A60 EAT60733202-LG Module,Bluetooth MB0502C0 HCI.CLASS2 2.7VTO3.6V PARTS SECTION 250 MCK62787304-LG Cover PRESS PCM 0.5T HOME THEATER HB 261 5040R-0069X-LG Damper VCR RC10000 OTHER DW-PMF-01 19 264 MCK63314101-LG Cover MOLD HIPS 60HR HOME THEATER HB 265 EAL60658102-LG Fan Module FD125015LL(1N2I-L01) 2.2KRPM D 268 MEG58371702-LG Holder MOLD ABS AF342T HOME THEATER H 269 MEG61895901-LG Holder MOLD HIPS 60HR HOME THEATER HB 270 MDS61951105-LG Gasket CUTTING AL HOME THEATER HB905 271 MDS61951106-LG Gasket CUTTING AL HOME THEATER HB905 272 MCQ63084901-LG Damper CUTTING SILICON HOME THEATER H 273 MCQ63084902-LG Damper CUTTING SILICON HOME THEATER H 274 MGJ62321401-LG Plate,Ground PRESS SUS 304 0.3 USB HB985 PI 275 3300RCH001B-LG Plate PRESS STS 301 0.2 DKS-5000 PRE 276 4850RL0002J-LG Damper CUTTING FE HOME THEATER LH-TK9 279 AEZ73033801-LG Knob Assembly HOME HT385 PIONEER VOLUME ASS 300 EAD60816608-LG Power Cord Europe-1770-HIT-core SH936 TJC YXIN5/ SXIN5 300 EAD60816707-LG Power Cord KJTS03-146 HP1 (3A) GP390-3S-C VXIN5 320 MGC61877021-LG Panel,Rear PRESS SECC 0.6T HOME PIONEER H CABLES CABLE1 EAD43155305-LG Cable,FFC AT10022070C01 70MM 1.00MM 22P CABLE2 EAD35665113-LG Cable,FFC 10012120C02 120MM 1.00MM 12P W CABLE3 EAD35665114-LG Cable,FFC 10012180C02 180MM 1.00MM 12P W CABLE4 EAD42218211-LG Harness,Single TJC2508-07 To TJC19-07_L=120MM CABLE5 EAD52753703-LG Harness,Single TJC2004-08 To TJC19-08_L=410MM SCREWS 462 1SZZR-0098H-LG Screw,Customized - + 3MM 8MM MSWR FZW SIN JIN 463 1SZZR-0098G-LG Screw,Customized 1SZZR-0098G FH + 3MM 8MM MSWR 464 1SZZR-0097K-LG Screw,Customized 1SZZR-0097K BH + 3MM 10MM MSWR 470 353-022S-LG Screw,Customized BZN BK (CR +3) SPECIAL + 3MM 6 479 1SZZR-0098D-LG Screw,Customized - + 3MM 14MM MSWR FZY SIN JIN 484 353-025W-LG Screw,Customized - - 3MM 10.5MM - FBK SIN JIN RUN DATE : 17-May-2010 EAZ54850490-LG Deck Assembly, DVD 3-5 3-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3-7 3-8 2. DECK MECHANISM SECTION (BM09T) 1439 1026 A001 1002 1006 1005 1001 1049 1437 1437 1437 1025 1025 1030 1024 1011 1012 1431 1019 1018 1439 1043 1031 1045 A005 A006 1017 1016 1013 1433 1015 1020 1024 1004 1003 LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS A001 ACQ65103213-LG Cover Assembly DECK/MECHA BD06 top - IN NSP NSP NSP NSP NSP NSP NSP NSP NSP NSP NSP A005 EBR40307106-LG PCB Assembly,Deck BD06 FRONT (Loading) IN A006 EBR52819479-LG PCB Assembly DECK BM08A/BM09T Junction from 1001 ACA65103311-LG Clamp Assembly DECK/MECHA BD04 - IN 1002 MCK62126201-LG Cover PRESS SECC 0.6 DECK/MECHA BD06 1003 MBU51178201-LG Clamp MOLD POM LUCEL N109-LD DECK/ME 1004 RAB31561501-LG Magnet,NdFeB 10 x 4.1 x 1.5 NEO REC 35H (fo 1005 3300R-D049A-LG Plate PRESS EGI T0.8 dr02_ bd04 PRES 1006 MCK30125801-LG Cover PRESS SECC 0.5 DECK/MECHA RS-0 1011 MAM61847301-LG Base MOLD LUPOS GP-2100 BD06 MOLD u 1012 MEA61856701-LG Guide MOLD POM(LUCEL N109-LD) DECK/M 1013 MDT30123101-LG Gear MOLD LUCEL N109-LD DECK/MECHA 1015 4400H-1014D-LG Belt LOADING PT HZ NM 1016 MDT61842401-LG Gear MOLD POM LUCEL N109-LD DECK/ME 1017 MDT61842301-LG Gear MOLD POM LUCEL N109-LD DECK/ME 1018 4680R-E008A-LG Motor,DC RF-300EA-1D390(80MM) 2V 90mA 2 1019 4560H-1005A-LG Pulley MOLD POM F20.03 motor ALL 1 1020 MAM61862701-LG Base MOLD ABS XR-401 BD-09 MOLD Mai 1024 MCQ62066401-LG Damper CUTTING BUTHYL IIR 40 DECK/MEC 1025 MCQ62066402-LG Damper CUTTING BUTHYL IIR 30 DECK/MEC 1026 MJS61851201-LG Tray MOLD ABS XR-401 HOME THEATER H 1030 EAD56949607-LG Cable,FFC AT05045250C03 250MM 0.50MM 45P 1031 EAD57536607-LG Cable,FFC AT10016160G01 160MM 1.00MM 16P 1043 6600KW3004G-LG Switch,Micro JDS 2160 2C2P 5VDC 0.01A VERTI 1043 6600KW3004C-LG Switch,Micro SW2AB-254-10 2C2P 5VDC 0.01A H ALTERNATE 1043 6600HXF102A-LG Switch,Detector MPU20160MLB0 2C1P 5VDC 0.7MA V ALTERNATE 1045 EAD43082702-LG Cable,FFC AT10005080E01 80MM 1.00MM 5P W 1049 EAZ54166606-LG Pick Up Assembly TRV-BD412VH04R H/H SANYO 1 DIS 1431 1SZZR-0011A-LG Screw,Customized MACHINE 1433 1SZZR-0075A-LG Screw,Customized - + 1.7MM 10MM SWRCH FZW SIN 1437 1SZZH-1003E-LG Screw,Customized PWH + 2MM 13MM SWRCH NIY SIN 1439 1SZZH-1007B-LG Screw,Customized + D2.0 6MM SWRCH16A/ZNBK 4MM 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3-9 3. PACKING ACCESSORY SECTION 811 Video cable 900 Remote control 808 Battery 801 Owner's manual 825 FM antenna 814A iPod cradle 803 Packing, casing 803 Packing, casing 802 Box 804 Bag 802A Accessory box NSP : Non SVC Parts S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS 801 AFN74551807-LG Manual Assembly HOME THEATER HB985-FB.BUSAPPK 802 MAY63314270-LG Box,Master BOX DW2 512 148 369 1 COLOR HB 802A MAY41408922-LG Box BOX SW3 W350 H230 D35 NO PRINT 803 MFZ62138915-LG Packing CASTING EPS HOME THEATER HB985 804 3880SCS001E-LG Bag CUTTING LDPE 600 500 0.3MM - 808 EAC44080001-LG Primary Cell Battery,Carbon Zi AAA(R03) 1battery R03 1.5V 500 NSP 811 6850R-PAA5F-LG Cable,Assembly KCA-RA-1-0047 RCA PLUG RCA PLU 814A EBR36932327-LG PCB Assembly IPOD CONNECTOR ASSEMBLY PIONEE 825 5010R-T001D-LG Antenna,T T13021F-2 SINGLE 0DB 0OHM 0 1. 900 AKB72913841-LG Remote Controller Assembly CB1 HB985/485-A Ohsung BD HTS NSP : Non SVC Parts S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS 801 AFN74551814-LG Manual Assembly HOME THEATER HB485-DB.BDEUPPK MAY63314241-LG Box,Master BOX DW2 517 154 394 3 COLOR HB AFN74551815-LG Manual Assembly HOME THEATER HB485-DB.BGBRPPK MAY63314250-LG Box,Master BOX DW2 517 154 394 3 COLOR HB AFN74551816-LG Manual Assembly HOME THEATER HB485-FB.BRUSPPK MAY63314249-LG Box,Master BOX DW2 517 154 394 3 COLOR HB MAY41408922-LG Box BOX SW3 W350 H230 D35 NO PRINT MFZ62138915-LG Packing CASTING EPS HOME THEATER HB985 3880SCS001E-LG Bag CUTTING LDPE 600 500 0.3MM - EAC44080001-LG Primary Cell Battery,Carbon Zi AAA(R03) 1battery R03 1.5V 500 NSP 6850R-PAA5F-LG Cable,Assembly KCA-RA-1-0047 RCA PLUG RCA PLU EBR36932327-LG PCB Assembly IPOD CONNECTOR ASSEMBLY PIONEE 5010R-T001D-LG Antenna,T T13021F-2 SINGLE 0DB 0OHM 0 1. 900 AKB72913843-LG Remote Controller Assembly CB1 HB985/485-D Ohsung BD HTS YXIN5/ VXIN5 900 AKB72913841-LG Remote Controller Assembly CB1 HB985/485-A Ohsung BD HTS SXIN5 VXIN5 SXIN5 YXIN5 . PACKING ACCESSORY SECTION . PACKING ACCESSORY SECTION . PACKING ACCESSORY SECTION NSP : Non SVC Parts S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS 801 AFN74551804-LG Manual Assembly HOME THEATER HB985-DB.BDEUPPK 802 MAY63314240-LG Box,Master BOX DW2 517 154 394 3 COLOR HT 801 AFN74551805-LG Manual Assembly HOME THEATER HB985-DB.BGBRPPK 802 MAY63314248-LG Box,Master BOX DW2 517 154 394 3 COLOR HT 801 AFN74551806-LG Manual Assembly HOME THEATER HB985-FB.BRUSPPK 802 MAY63314247-LG Box,Master BOX DW2 517 154 394 3 COLOR HT 802A MAY41408922-LG Box BOX SW3 W350 H230 D35 NO PRINT 803 MFZ62138915-LG Packing CASTING EPS HOME THEATER HB985 804 3880SCS001E-LG Bag CUTTING LDPE 600 500 0.3MM - 808 EAC44080001-LG Primary Cell Battery,Carbon Zi AAA(R03) 1battery R03 1.5V 500 NSP 811 6850R-PAA5F-LG Cable,Assembly KCA-RA-1-0047 RCA PLUG RCA PLU 814A EBR36932327-LG PCB Assembly IPOD CONNECTOR ASSEMBLY PIONEE 825 5010R-T001D-LG Antenna,T T13021F-2 SINGLE 0DB 0OHM 0 1. 900 AKB72913843-LG Remote Controller Assembly CB1 HB985/485-D Ohsung BD HTS YXIN5/ VXIN5 900 AKB72913841-LG Remote Controller Assembly CB1 HB985/485-A Ohsung BD HTS SXIN5 VXIN5 SXIN5 YXIN5 MODEL: XV-BD707 Applicable Mode MODEL: XV-BD707 Applicable Model: l: /YXIN5 /VXIN5 /UCXINSM / SXIN5 MODEL: XV-BD505FS Applicable Model: /YXIN5 /VXIN5 / SXIN5 PARTS LIST 3-10 802 801 802 801 802 802A 803 804 808 811 814A 825 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-1 SECTION 4 BCM7630 F/E LOADER PART CONTENTS COMPONENT REPAIR GUIDE ............................................................................................................... 4-2 1. ABNORMAL MD OPERATION ................................................................................................................. 4-2 2. "ALL BD DISC" READING ERROR .......................................................................................................... 4-3 3. "ALL DVD DISC" READING ERROR ....................................................................................................... 4-4 4. "ALL CD DISC" READING ERROR .......................................................................................................... 4-5 5. ABNORMAL SERVO OPERATION .......................................................................................................... 4-6 HOW TO USE THE SA RESET FUNCTION ....................................................................................... 4-7 1. PURPOSE ................................................................................................................................................. 4-7 2. REQUIRED SA RESET. ........................................................................................................................... 4-7 3. SA RESET PROCEDURE ........................................................................................................................ 4-7 MAJOR IC INTERNAL BLOCK DIAGRAM AND PIN DESCRIPTION ...................................... 4-9 1. BCM7630 .................................................................................................................................................. 4-9 2. SIC704 (R2A30209SP-W02Z): SPINDLE MOTOR AND 6CH ACTUATOR DRIVER ............................ 4-12 3. PICK-UP CONNECTOR TERMINAL PIN ASSIGNMENTS (SF-BD412) ............................................... 4-14 BLOCK DIAGRAM .................................................................................................................................... 4-15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-2 COMPONENT REPAIR GUIDE 1. ABNORMAL MD OPERATION Abnormal disc reading or abnormal tray open/close. � Replace new MD and test if it is operated normally. 1-1. Component 1) Traverse assembly 2) MD junction board 3) FFC cable from main board to MD 1-2. How to troubleshoot (Countermeasure) 1) Check the connection between main board and FFC cable, confirm the connection point. 2) Check the connection of MD junction board cable. 3) If all the cable connections are normal, replace the traverse assembly. 1-3. Service hint (Any picture / Remark) � After changing MD(Traverse assembly), you must perform "SA Reset". Refer to the next chapter "How to use the SA reset function". For Pick-up For Sled Motor For Motors For Motors For Pick-up For Spindle Motor For Loading Motor & Tray SW < MD Bottom View > < MD Top View > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-3 COMPONENT REPAIR GUIDE 2. "ALL BD DISC" READING ERROR - All the Blu-ray disc is not operated, but DVD and CD are operated normally. - If the LDO for APC of BD laser diode is abnormal, BD doesn't work. - If the LD current control is abnormal, BD doesn't work. 2-1. Component 1) MD (Traverse Assembly) 2) SIC707 – Adjustable LDO 2-2. How to troubleshoot (Countermeasure) 1) Check MD (Traverse, pick-up) first of all. 2) Check input/output voltage of LDO SIC707 (12 V, 8 V). 3) If output voltage is abnormal, check the periphery of SIC707 and replace it. 4) Check the BD LD Control input/output. If input signal (LTHR_LPF) is ok But no output (LDI_BD), Check the TR SQ714, SQ716. 2-3. Service hint (Any picture / Remark) 12 V OUTPUT(TO PICK-UP) INPUT(FROM MAIN CHIP) 8 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-4 COMPONENT REPAIR GUIDE 3. "ALL DVD DISC" READING ERROR - All the DVD disc is not operated, but BD and CD are operated normally. - If the LD current control is abnormal, DVD doesn't work. 3-1. Component 1) MD (Traverse Assembly) 2) SQ712, SQ717 3-2. How to troubleshoot (Countermeasure) 1) Check MD (Traverse, pick-up) first of all. 2) Check the DVD LD Control input / output. If input signal ( LDELO_LPF) is ok, but no output (LDI_DVD), check the TR SQ712, SQ717. 3-3. Service hint (Any picture / Remark) INPUT (FROM MAIN CHIP) OUTPUT(TO PICK-UP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-5 COMPONENT REPAIR GUIDE 4. "ALL CD DISC" READING ERROR - All the CD disc is not operated, but BD and DVD are operated normally. - If the LD current control is abnormal, CD doesn't work. 4-1. Component 1) MD (Traverse Assembly) 2) SQ713, SQ715 4-2. How to troubleshoot (Countermeasure) 1) Check MD (Traverse, pick-up) first of all. 2) Check the CD LD Control input / output. If input signal ( LDEL1_LPF) is ok, but no output (LDI_CD), check the TR SQ712, SQ717. 4-3. Service hint (Any picture / Remark) INPUT (FROM MAIN CHIP) OUTPUT (TO PICK-UP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-6 5. ABNORMAL SERVO OPERATION - The actuator, spindle and sled operation of pick-up are abnormal. - After changing MD, the motors are abnormal operations. - After changing Motor Drive IC, the motors are abnormal operations. 5-1. Component 1) MD (Traverse Assembly) 2) SIC706 – LM358 5-2. How to troubleshoot (Countermeasure) 1) Check if the input/output voltage of SIC706 (Pin5 and Pin7) is 1.67 V. 5-3. Service hint (Any picture / Remark) 1.67 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-7 1. PURPOSE In order to insert the new SA adjustment values, it need clearing SA initial values of the flash memory. 2. REQUIRED SA RESET - After changing Traverse. - After changing Main Board Assembly. - After changing Main Board Flash IC. 3. SA RESET PROCEDURE 1) After the set turn on.(then, mode is the home menu) HOW TO USE THE SA RESET FUNCTION 2) Press HOME key to escape from home menu. 3) to display debug window. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-8 Barcode 1 EA How to check the BD Single Layer and Double Layer Disc Barcode 2 EA BD Single Layer Disc BD Double Layer Disc 5) Press Return key or Pause key to finish debug mode. 6) Playback once BD test disc "GGV1368" more than 3 seconds. (If you do not have GGV1368, you must find out any BD-ROM single layer disc and use it to SA-Reset.) 4) Select 6 on debug window to perform SA Reset. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-9 MAJOR IC INTERNAL BLOCK DIAGRAM AND PIN DESCRIPTION 1. BCM7630 1-1. Front End Block Diagram ADC ADC ADC AFE PDM DACs Laser Control DFE Demodulator, Wobble Detector Servo DSP CD,DVD,BD Decoders ARM Cortex R4 FE Control Processor RF IN A~J IN FORCUS, TRACKING, MOTOR LASER PICK-UP & MOTOR OSC, MEMORY(DDR, FLASH) : B/END SHARING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-10 1-2. Pin Function OFE – Motor Driver Interface Label Function I/O IO PU/PD Tol.(V) Loc. Description OFE_MDI_FG I I/O PU 3.3 E8 Spindle Motor Feedback OFE_MDI_DMO O O – 3.3 E9 Spindle Motor Output OFE_MDI_STEP1 O O – 3.3 F9 Sled Step Motor PDM DAC OFE_MDI_STEP2 O O – 3.3 G9 Sled Step Motor PDM DAC OFE_MDI_FOO O O – 3.3 B9 Focus PDM Output/Focus Tilt PDM Output OFE_MDI_TILT O O – 3.3 E10 Tilt PDM Output/Focus Tilt PDM Output OFE_MDI_TRO O O – 3.3 G8 Tracking PDM Output OFE_MDI_COLLSIN O O – 3.3 F8 Collimator Sine PDM Output OFE_MDI_COLLCOS O O – 3.3 F10 Collimator Cosine PDM Output OFE_OPU_VREFPDM O I/O – 3.3 C9 Reference Voltage PDM Output OFE – Optical Pickup Unit (OPU) Interface Label Function I/O IO PU/PD Tol.(V) Loc. Description OFE_OPU_DVDFPDIPVREF AIO AIO – - C18 DVD Fwd Photodiode and Ref Voltage OFE_OPU_DVDFPDINVREF AIO AIO – - C19 DVD Fwd Photodiode and Ref Voltage OFE_OPU_BDFPDIP AI AI – – B17 BD Fwd Photodiode In OFE_OPU_BDFPDIN AI AI – – B16 BD Fwd Photodiode In OFE_OPU_GAINSW O I/O – 3.3 C12 OPU Gain Switch OFE_OPU_GPADC1 AI AI – – B19 General Purpose ADC Channel Input OFE_OPU_GPADC2 AI AI – – B18 General Purpose ADC Channel Input OFE_OPU_VREF AO AO – – E16 Reference Voltage OFE_OPU_VREFB AO AO – – E18 Reference Voltage for OEIC (1.5 to 2.55 V) OFE_OPU_AIN AI AI – – C22 Photodiode Input A OFE_OPU_BIN AI AI – – D21 Photodiode Input B OFE_OPU_CIN AI AI – – D22 Photodiode Input C OFE_OPU_DIN AI AI – – E21 Photodiode Input D OFE_OPU_EIN AI AI – – E22 Photodiode Input E OFE_OPU_FIN AI AI – – F21 Photodiode Input F OFE_OPU_GIN AI AI – – F22 Photodiode Input G OFE_OPU_HIN AI AI – – F20 Photodiode Input H OFE_OPU_DVDRFP AI AI – – F19 Summed RF Input Port OFE_OPU_DVDRFN AI AI – – G19 Summed RF Input Port OFE_OPU_BDRFP AI AI – – F18 2nd Summed RF Input Port OFE_OPU_BDRFN AI AI – – G18 2nd Summed RF Input Port OFE_OPU_ANATP1P AIO AIO – – C17 Differential high-speed output debug port 1 OFE_OPU_ANATP1N AIO AIO – – C16 Differential high-speed output debug port 1 OFE_OPU_ANATP2P AIO AIO – – D17 Differential high-speed output debug port 2 OFE_OPU_ANATP2N AIO AIO – – D16 Differential high-speed output debug port 2 OFE_OPU_LDEL1 O T/O – 3.3 C11 Laser Control PDM Output OFE_OPU_LDEL0 O T/O – 3.3 C10 Laser Control PDM Output OFE_OPU_LTHR O T/O – 3.3 B10 Laser Control PDM Output OFE_OPU_PLLTP AO AO – – G16 OPU PLL test pin–Do not connect OFE_OPU_PLLTN AO AO – – G15 Test pin–Do not connect www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-11 OFE–Serial Interface Label Function I/O IO PU/PD Tol.(V) Loc. Description OFE_SER_SEN2 I/O STI/O PU 3.3 C7 SSI Enable Out OFE_SER_SCLK I/O I/O PU 3.3 A9 SSI Clock Out OFE_SER_SDATA I/O I/O PU 3.3 D9 SSI Data In/out OFE_SER_SBUSY I/O I/O PD 3.3 E7 SSI Busy In/SEN4 OFE–General Purpose Label Function I/O IO PU/PD Tol.(V) Loc. Description OFE_GP_PA0 I/O I/O – 3.3 F13 OFE_GP_PA0/Gain SW2 OFE_GP_PA1 I/O I/O – 3.3 E13 OFE_GP_PA1/SEN4 OFE_GP_PA2 I/O I/O – 3.3 F12 OFE_GP_PA2/SEN3 OFE_GP_PA3 I/O I/O – 3.3 G12 OFE_GP_PA3/AlphaSIN OFE_GP_PA4 I/O I/O – 3.3 G11 OFE_GP_PA4/AlphaCOS OFE_GP_PA5 I/O I/O – 3.3 F11 OFE_GP_PA5/PanicIn OFE_GP_PA6 I/O I/O – 3.3 E12 OFE_GP_PA6/ExtINT_ OFE_GP_PA7 I/O I/O – 3.3 D11 OFE_GP_PA7 OFE_GP_PB0 I/O I/O – 3.3 D14 OFE_GP_PB0/MIOCLK OFE_GP_PB1 I/O I/O – 3.3 E14 OFE_GP_PB1/Land OFE_GP_PB2 I/O I/O – 3.3 F14 OFE_GP_PB2 OFE_GP_PB3 I/O I/O – 3.3 G14 OFE_GP_PB3 OFE_GP_PB4 I/O I/O – 3.3 C13 OFE_GP_PB4/MIO0/DIGTP1 OFE_GP_PB5 I/O I/O – 3.3 B13 OFE_GP_PB5/MIO1/DIGTP2 OFE_GP_PB6 I/O I/O – 3.3 D12 OFE_GP_PB6/MIO2/DIGTP3 OFE_GP_PB7 I/O I/O – 3.3 E11 OFE_GP_PB7/MIO3 OFE–Analog Supply Label Function I/O IO PU/D Tol.(V) Loc. Description OFE_AVDD1P2RFDPD APWR APWR – 1.2 A19 Analog Power for RF and DPD (1.2 V) OFE_AVSSRFDPD AGND AGND – A18 Analog Ground for RF and DPD OFE_AVDD1P2SERVOADC APWR APWR – 1.2 A16 Analog Power for Servo ADC (1.2 V) OFE_AVSSSERVOADC AGND AGND – A17 Analog Ground for Servo ADC OFE_AVDD1P2WOBBLE APWR APWR – 1.2 B20 Analog Power for Wobble (1.2 V) OFE_AVSSWOBBLE AGND AGND – C20 Analog Ground for Wobble OFE_AVDD1P2ADCPLL APWR APWR – 1.2 B21 Analog Power for ADC PLL (1.2 V) OFE_AVSSADCPLL AGND AGND – C21 Analog Ground for ADC PLL OFE_AVDD3P3 APWR APWR – 3.3 B14 Analog Power for 2.5 V Regulator (3.3 V) OFE_AVDD2P5CAP AGND AGND – A14 Output cap for 2.5 V regulator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-12 2. SIC704 (R2A30209SP-W02Z) : SPINDLE MOTOR AND 6CH ACTUATOR DRIVER 2-1. Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-13 2-2. Pin Function PIN NO SYMBOL FUNCTION 1 SPIN Spindle control voltage input 2 SL1IN Slide control voltage input 1 3 SL2IN Slide control voltage input 2 4 SPLIM Input terminal for spindle current limit 5 VM2 Motor Power Supply 2(for Slide) 6 SL2+ Slide non-inverted output 2 7 GND GND 8 SL2- Slide inverted output 2 9 SL1+ Slide non-inverted output 1 10 SL1- Slide inverted output 1 11 GND GND 12 U Motor drive output U 13 V Motor drive output V 14 W Motor drive output W 15 TSDFLG TSD fl ag output 16 COMMON Motor common 17 IPRO2 Input terminal for ACT2 current protect 18 SLLIM Input terminal for slide current limit 19 FG Frequency generator output 20 EN1 Input terminal for enable 1 21 EN2 Input terminal for enable 2 22 VM1 Motor Power Supply 1(for Spindle) 23 SPGS Input terminal for gain select SPM 24 IPRO1 Input terminal for ACT13 current protect 25 ACGS Input terminal for gain select ACT 26 VM3 Power Supply3(for Loading) 27 LO+ Loading non-inverted output 28 LO- Loading inverted output 29 GND GND 30 ACT2- ACT2+ inverted output 31 ACT2+ ACT2+ non-inverted output 32 5VCC 5 V Power Supply (for FS,TS,TL) 33 GND GND 34 ACT1+ ACT1 non-inverted output 35 ACT1- ACT1 inverted output 36 ACT3+ ACT3 non-inverted output 37 ACT3- ACT3 inverted output 38 ACT3IN ACT3 control voltage input 39 ACT2IN ACT2 control voltage input 40 ACT1IN ACT1 control voltage input 41 LOIN Loading control input 42 REF Reference voltage input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-14 3. PICK-UP CONNECTOR TERMINAL PIN ASSIGNMENTS (SF-BD412) PIN NO. PIN NAME DESCRIPTION 1 FCS2+ ACT FOCUSING2+ 2 FCS2- FOCUSING2- 3 TRK+ TRACKING+ 4 FCS1+ FOCUSING1+ 5 TRK- TRACKING- 6 FCS1- FOCUSING1- 7 A- CL SHIFTER Stepping Motor A- Terminal 8 B- Stepping Motor B- Terminal 9 A+ Stepping Motor A+ Terminal 10 B+ Stepping Motor B+ Terminal 11 NC NC 12 NC NC 13 NC/(GND) NC 14 A PDIC A output 15 B B output 16 C C output 17 D D output 18 SA SA output 19 SB SB output 20 SC SC output 21 SD SD output 22 SW3 PDIC BD Sub Output Switch Port (‘L’,’OPEN’) 23 RF+ RF+ output 24 RF- RF- output 25 SWB2 SW for PDIC, BD Gain and sleep 26 SWB1 SW for PDIC, BD Gain and sleep 27 VREF_PD PDIC Reference Supply Terminal 2.1 V 28 VCC_+5PD PDIC Power Terminal 5 V 29 GND_PD GND for PDIC 30 SW 2-Wavelength PDIC DVD/CD/Sleep Changeover SW 31 GND1 LD HFM IC Monitor GND for LD and HFM IC 32 LDI BD LD control for LD,BD 33 LDI CD LD control for LD,CD 34 LDI DVD LD control for LD,DVD 35 GND1 GND for LD and HFM IC 36 TEMP Thermister 37 VCC Vcc for HFM IC 38 MON_CD/DVD Monitor Output for DVD & CD 39 MON_BD Monitor Output for BD 40 SEL_DVD Select Input for DVD Monitor(L:Enable) 41 SEL_CD Select Input for CD Monitor(L:Enable) 42 NC NC 43 NC NC 44 GND1 GND for LD and HFM IC 45 GND_BDBM GND for Back monitor PD,BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-15 BLOCK DIAGRAM BCM7630 F/E BLOCK (Broadcom) Flash - RF Amp ALPC Servo Signal Processor - Function DSP/Servo control Decoder Encoder Servo signal for Motor Power Circuit 1.MAIN: 5 V, 12 V, 1.2 V, 3.3 V 2.LM1117: Adj. regulator. - 1.8 V (For BD LD) Loading Motor ARM Processor FO TRK TILT Active CP SPINDLE Motor SLED Motor OPU :SF-BD412V Feed Mecha. R2A30209SP AACS (Advanced Access Content System) DRAM RF / Servo Signal / Monitor LD(BD/DVD/CD) Power Spindle & 6ch Actuator Driver Sensor-less spindle driver. V/I LB1848M Stepping Driver (For Active CP) OSC B/END BLOCK SHARING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MODEL: XV-BD707 Applicable Model: YXIN5 (Europe) Applicable Model: VXIN5 (UK) Applicable Model: SXIN5 (Russia) NSP : Non SVC Parts . ELECTRICAL SECTION S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS A45 PCB Assembly, AMP A45 EBR70055801-LG PCB Assembly HB985 AMP TOTAL CN601 6630XE00122-LG Connector,FFC/FPC/PIC 04-6232-022-010-000 22P 1.00MM CN602 6630R-BF072-LG Connector,BtoB JE117-A32T-10 10P 2.54MM STRAI CN701 561-661B-LG Connector,Wafer 99990986 2P 2.50MM 1R STRAIGHT IC701 EAN60995901-LG IC,Power Amplifier TAS5613PHD 10.8V TO 13.2V 0 0. IC702 EAN60995901-LG IC,Power Amplifier TAS5613PHD 10.8V TO 13.2V 0 0. IC703 EAN60995901-LG IC,Power Amplifier TAS5613PHD 10.8V TO 13.2V 0 0. JK701 6640000070D-LG Connector,Terminal Block PTB-1201C-00-04 12P 13.00MM AN TH701 6322A00017A-LG Thermistor,NTC NTCG163JF103F. 10KOHM 1% 0V 0A A46 Option Code Assembly, MAIN A46 EBR70213102-LG Option Code Assembly 444501902953EA4C 2000000200000 YXIN5 A46 EBR70213104-LG Option Code Assembly 4742008F2953EA4C 2000000200000 VXIN5 A46 EBR70213106-LG Option Code Assembly 5255008C2953EA4C 2000000200000 SXIN5 CN101 6630R-FB11L-LG Connector,FFC/FPC/PIC 04-6232-112-102-800 12P 1.00MM CN103 6630XE00105-LG Connector,FFC/FPC/PIC JE500-B1.0-T05 5P 1.00MM FFC S CN150 6602T25008J-LG Connector,Wafer SMW250-10P 10P 2.50MM 1R STRAI CN250 6630XE00112-LG Connector,FFC/FPC/PIC JE500-B1.0-T12 12P 1.00MM FFC CN251 6602T20009G-LG Connector,Wafer SMAW200-08P 8P 2.00MM 1R ANGLE CN401 6630XE00122-LG Connector,FFC/FPC/PIC 04-6232-022-010-000 22P 1.00MM CN402 6630XE00109-LG Connector,FFC/FPC/PIC 04-6232-009-010-000 9P 1.00MM CN501 6630VL01006-LG Connector,BtoB JE118-A8G-06 6P 2.54MM STRAIGH IC203 EAN60153201-LG IC,Isolation Amplifier NJM2794RB2 4.9V TO 13V 0.00000 IC250 0ILNRMT003A-LG IC,Power Driver MM1507XNRE 4.5TO13V 1.350V 200 IC254 EAN60668301-LG IC,Isolation Amplifier NJM2505AF(TE1) 4.5to9.0 0.1 0 IC508 341S2164 IC,I/O Support Chip 341S2164_Buyer Class 6 3.6 3.2 JK203 6612K00010B-LG Jack,Fiber Optic JSR1164-B 3P RX 2.54MM ANGLE 1 JK204 6612K00010B-LG Jack,Fiber Optic JSR1164-B 3P RX 2.54MM ANGLE 1 JK250 EAG32089102-LG Jack,Modular RB1-105B8K2A 8P 1.27MM ANGLE T JK251 EAG61072101-LG Jack,RCA RCA-638A-00-08 15.0MM 2RX3C AN JK299 EAG57068001-LG Connector,I/O MHS-0024-201-004 24P 0.5MM ANG JK803 EAG40562101-LG Connector,DSUB HMR29-AK5210 HDMI 19P 1.5MM AN SCN701 6630XE00116-LG Connector,FFC/FPC/PIC 04-6232-016-010-801+ 16P 1.00M SCN702 6630XE00106-LG Connector,FFC/FPC/PIC JE500-B1.0-T06 6P 1.00MM FFC S SCN703 6630X60142J-LG Connector,FFC/FPC/PIC 04-6263-245-000-894+ 45P 0.50M TUN01 EBL60720902-LG Tuner,Analog KST-MW104FV1-S71 FM/RDS 87.5HZ YXIN5/ VXIN5 TUN01 EBL60720802-LG Tuner,Analog KST-MW004FV0-S71 FM 87.5HZTO10 SXIN5 X101 6212AB2220C-LG Crystal HC-49/SM 20.0000MHZ 20MHZ 50PP X200 6212AB2246C-LG Crystal HC-49/SM 24.576MHZ 15PPM 24.57 X400 6212AB2246C-LG Crystal HC-49/SM 24.576MHZ 15PPM 24.57 X500 EAW32919201-LG Crystal HC49SMD 27MHZ 27MHZ 20PPM 15pF A47 SMPS,AC/DC A47 EAY60911903-LG SMPS,AC/DC 3H329W 90VTO264V 1.1KW 50/60HZ YXIN5/ VXIN5 A47 EAY60911904-LG SMPS,AC/DC 3H329W-1 90VTO264V 1.1KW 50/60 SXIN5 IC508 341S2164 IC,I/O 341S IC501A SAA35141401-LG S/W,System Program HB985 HB985/ BCM7630/PIONEER - IC101A SAA35141501-LG S/W,System Program HB985 AUDIO MICOM PROGRAM - WO NOTES) If you want to purchase Flash memory, you must order "IC501A" or "IC403A" or "IC101A". SECTION 5 REPLACEMENT PARTS LIST The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. 5-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS A50 PCB Assembly, Front Total A50 EBR70054611-LG PCB Assembly HB985 FRONT TOTAL CN301 6630R-FB11L-LG Connector,FFC/FPC/PIC 04-6232-112-102-800 12P 1.00MM CN302 561-712G-LG Connector,Wafer GIL-S-07P-S2L2-EF 7P 2.00MM 1R CN3U1 561-711H-LG Connector,Wafer GIL-S-08P-S2T2-EF 8P 2.00MM 1R DIS301 EAJ60868401-LG VFD 9-BT-200NK 90x14.2 1.5KCD 24V JK3U1 EAG43125201-LG Connector,USB U250FD004S117XY A 1P 2.50/2.00 JK3U2 6612R-A002A-LG Jack,Phone PPJ35G 1P 3P STRAIGHT TR 3.6mM LD301 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD302 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD303 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD304 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD305 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD306 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 SW301 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW302 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW303 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW304 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW305 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW306 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW307 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR VOL301 6110E00019G-LG Switch,Encoder EVE HD2 F30 24M ENCODER 5VDC 0 A52 Module,Bluetooth A52 EAT60733202-LG Module,Bluetooth MB0502C0 HCI.CLASS2 2.7VTO3.6V 5-2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MODEL: XV-BD707 Applicable Model: UCXINSM (NORTH AMERICA) NSP : Non SVC Parts . ELECTRICAL SECTION S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS A45 PCB Assembly, AMP A45 EBR70055801-LG PCB Assembly HB985 AMP TOTAL CN601 6630XE00122-LG Connector,FFC/FPC/PIC 04-6232-022-010-000 22P 1.00MM CN602 6630R-BF072-LG Connector,BtoB JE117-A32T-10 10P 2.54MM STRAI CN701 561-661B-LG Connector,Wafer 99990986 2P 2.50MM 1R STRAIGHT IC701 EAN60995901-LG IC,Power Amplifier TAS5613PHD 10.8V TO 13.2V 0 0. IC702 EAN60995901-LG IC,Power Amplifier TAS5613PHD 10.8V TO 13.2V 0 0. IC703 EAN60995901-LG IC,Power Amplifier TAS5613PHD 10.8V TO 13.2V 0 0. JK701 6640000070D-LG Connector,Terminal Block PTB-1201C-00-04 12P 13.00MM AN TH701 6322A00017A-LG Thermistor,NTC NTCG163JF103F. 10KOHM 1% 0V 0A A46 Option Code Assembly, MAIN A46 EBR70213107-LG Option Code Assembly 555300002953EA44 2000000200000 CN101 6630R-FB11L-LG Connector,FFC/FPC/PIC 04-6232-112-102-800 12P 1.00MM CN103 6630XE00105-LG Connector,FFC/FPC/PIC JE500-B1.0-T05 5P 1.00MM FFC S CN150 6602T25008J-LG Connector,Wafer SMW250-10P 10P 2.50MM 1R STRAI CN250 6630XE00112-LG Connector,FFC/FPC/PIC JE500-B1.0-T12 12P 1.00MM FFC CN251 6602T20009G-LG Connector,Wafer SMAW200-08P 8P 2.00MM 1R ANGLE CN401 6630XE00122-LG Connector,FFC/FPC/PIC 04-6232-022-010-000 22P 1.00MM CN402 6630XE00109-LG Connector,FFC/FPC/PIC 04-6232-009-010-000 9P 1.00MM CN501 6630VL01006-LG Connector,BtoB JE118-A8G-06 6P 2.54MM STRAIGH IC203 EAN60153201-LG IC,Isolation Amplifier NJM2794RB2 4.9V TO 13V 0.00000 IC250 0ILNRMT003A-LG IC,Power Driver MM1507XNRE 4.5TO13V 1.350V 200 IC254 EAN60668301-LG IC,Isolation Amplifier NJM2505AF(TE1) 4.5to9.0 0.1 0 IC508 341S2164 IC,I/O Support Chip 341S2164_Buyer Class 6 3.6 3.2 JK203 6612K00010B-LG Jack,Fiber Optic JSR1164-B 3P RX 2.54MM ANGLE 1 JK204 6612K00010B-LG Jack,Fiber Optic JSR1164-B 3P RX 2.54MM ANGLE 1 JK250 EAG32089102-LG Jack,Modular RB1-105B8K2A 8P 1.27MM ANGLE T JK251 EAG61072101-LG Jack,RCA RCA-638A-00-08 15.0MM 2RX3C AN JK299 EAG57068001-LG Connector,I/O MHS-0024-201-004 24P 0.5MM ANG JK803 EAG40562101-LG Connector,DSUB HMR29-AK5210 HDMI 19P 1.5MM AN SCN701 6630XE00116-LG Connector,FFC/FPC/PIC 04-6232-016-010-801+ 16P 1.00M SCN702 6630XE00106-LG Connector,FFC/FPC/PIC JE500-B1.0-T06 6P 1.00MM FFC S SCN703 6630X60142J-LG Connector,FFC/FPC/PIC 04-6263-245-000-894+ 45P 0.50M TUN01 EBL60720802-LG Tuner,Analog KST-MW004FV0-S71 FM 87.5HZTO10 X101 6212AB2220C-LG Crystal HC-49/SM 20.0000MHZ 20MHZ 50PP X200 6212AB2246C-LG Crystal HC-49/SM 24.576MHZ 15PPM 24.57 X400 6212AB2246C-LG Crystal HC-49/SM 24.576MHZ 15PPM 24.57 X500 EAW32919201-LG Crystal HC49SMD 27MHZ 27MHZ 20PPM 15pF A47 SMPS,AC/DC A47 EAY60911903-LG SMPS,AC/DC 3H329W 90VTO264V 1.1KW 50/60HZ A50 PCB Assembly, Front Total A50 EBR70054611-LG PCB Assembly HB985 FRONT TOTAL CN301 6630R-FB11L-LG Connector,FFC/FPC/PIC 04-6232-112-102-800 12P 1.00MM CN302 561-712G-LG Connector,Wafer GIL-S-07P-S2L2-EF 7P 2.00MM 1R CN3U1 561-711H-LG Connector,Wafer GIL-S-08P-S2T2-EF 8P 2.00MM 1R DIS301 EAJ60868401-LG VFD 9-BT-200NK 90x14.2 1.5KCD 24V JK3U1 EAG43125201-LG Connector,USB U250FD004S117XY A 1P 2.50/2.00 JK3U2 6612R-A002A-LG Jack,Phone PPJ35G 1P 3P STRAIGHT TR 3.6mM LD301 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD302 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD303 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD304 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD305 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 LD306 EAV60792401-LG LED,Chip LWH1035N WHITE 2.95 TO 3.5V 30 SW301 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW302 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW303 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW304 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW305 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW306 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR SW307 6600R000005-LG Switch,Tact EVQPNF04M 1C1P 12VDC 0.05A HOR VOL301 6110E00019G-LG Switch,Encoder EVE HD2 F30 24M ENCODER 5VDC 0 A52 Module,Bluetooth A52 EAT60733202-LG Module,Bluetooth MB0502C0 HCI.CLASS2 2.7VTO3.6V IC101A SAA35141501-LG S/W,System Program HB985 AUDIO MICOM PROGRAM - WO IC501A SAA35141401-LG S/W,System Program HB985 HB985/ BCM7630/PIONEER - 5-3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MODEL: XV-BD505FS Applicable Model: YXIN5 (Europe) Applicable Model: VXIN5 (UK) Applicable Model: SXIN5 (Russia) NSP : Non SVC Parts . ELECTRICAL SECTION S AL LOCA. NO. PART NO. DESCRIPTION REMARKS A45 PCB Assembly, AMP A45 EBR70056101-LG PCB Assembly CN601 6630XE00122-LG Connector,FFC/FPC/PIC CN602 6630R-BF072-LG Connector,BtoB CN701 561-661B-LG Connector,Wafer IC701 EAN60995901-LG IC,Power Amplifier IC702 EAN60995901-LG IC,Power Amplifier JK702 6640000071A-LG Connector,Terminal Block TH701 6322A00017A-LG Thermistor,NTC A46 Option Code Assembly, MAIN A46 EBR70213101-LG Option Code Assembly YXIN5 A46 EBR70213103-LG Option Code Assembly VXIN5 A46 EBR70213105-LG Option Code Assembly SXIN5 IC501A SAA35141401-LG S/W,System Program IC101A SAA35141501-LG S/W,System Program CN101 6630R-FB11L-LG Connector,FFC/FPC/PIC CN103 6630XE00105-LG Connector,FFC/FPC/PIC CN150 6602T25008J-LG Connector,Wafer CN250 6630XE00112-LG Connector,FFC/FPC/PIC CN251 6602T20009G-LG Connector,Wafer CN401 6630XE00122-LG Connector,FFC/FPC/PIC CN402 6630XE00109-LG Connector,FFC/FPC/PIC CN501 6630VL01006-LG Connector,BtoB IC203 EAN60153201-LG IC,Isolation Amplifier IC250 0ILNRMT003A-LG IC,Power Driver IC254 EAN60668301-LG IC,Isolation Amplifier IC508 341S2164 IC,I/O Support Chip JK203 6612K00010B-LG Jack,Fiber Optic JK204 6612K00010B-LG Jack,Fiber Optic JK250 EAG32089102-LG Jack,Modular JK251 EAG61072101-LG Jack,RCA JK299 EAG57068001-LG Connector,I/O JK803 EAG40562101-LG Connector,DSUB SCN701 6630XE00116-LG Connector,FFC/FPC/PIC SCN702 6630XE00106-LG Connector,FFC/FPC/PIC SCN703 6630X60142J-LG Connector,FFC/FPC/PIC TUN01 EBL60720902-LG Tuner,Analog YXIN5/ VXIN5 TUN01 EBL60720802-LG Tuner,Analog SXIN5 X101 6212AB2220C-LG Crystal X200 6212AB2246C-LG Crystal X400 6212AB2246C-LG Crystal X500 EAW32919201-LG Crystal A47 SMPS,AC/DC A47 EAY60911903-LG SMPS,AC/DC YXIN5/ VXIN5 A47 EAY60911904-LG SMPS,AC/DC SXIN5 5-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S AL LOCA. NO. PART NO. DESCRIPTION REMARKS A50 PCB Assembly, Front Total A50 EBR70054611-LG PCB Assembly CN301 6630R-FB11L-LG Connector,FFC/FPC/PIC CN302 561-712G-LG Connector,Wafer CN3U1 561-711H-LG Connector,Wafer DIS301 EAJ60868401-LG VFD JK3U1 EAG43125201-LG Connector,USB JK3U2 6612R-A002A-LG Jack,Phone LD301 EAV60792401-LG LED,Chip LD302 EAV60792401-LG LED,Chip LD303 EAV60792401-LG LED,Chip LD304 EAV60792401-LG LED,Chip LD305 EAV60792401-LG LED,Chip LD306 EAV60792401-LG LED,Chip SW301 6600R000005-LG Switch,Tact SW302 6600R000005-LG Switch,Tact SW303 6600R000005-LG Switch,Tact SW304 6600R000005-LG Switch,Tact SW305 6600R000005-LG Switch,Tact SW306 6600R000005-LG Switch,Tact SW307 6600R000005-LG Switch,Tact VOL301 6110E00019G-LG Switch,Encoder A52 Module,Bluetooth A52 EAT60733202-LG Module,Bluetooth 5-5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-1 XV-BD707 1 2 3 4 A B C D E F 1 2 3 4 SECTION 6 DISASSEMBLY 1. Diagnosis 2 1 1 2 2 2 3 4 (1) Disconnect the two flexible cables. (SCN701, SCN703) (2) Remove the four screws. (3) Unhook the one hook. (4) Remove the DECK Assy, DVD. Remove the Case by removing the five screws. DECK Assy, DVD SCN701 SCN703 Note: (1) Do NOT look directly into the pickup lens. The laser beam may cause eye injury. (2) Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-2 XV-BD707 5 6 7 8 5 6 7 8 A B C D E F 6 6 7 1 3 2 (5) Arrange the unit as shown in the photo below. (6) Reconnect the two flexible cables. (SCN701, SCN703) (7) Insert the insulation sheet. DECK Assy, DVD Insulation sheet Thin minus screwdriver Tray Cam gear OPTION CODE Assy SCN701 SCN703 Diagnosis 2. Cleaning of the Pickup lenses (1) Insert the thin minus screwdriver. (2) Turn the cam gear to the counterclockwise direction. (Lock is released.) (3) Pull out the tray by hand. How to open the tray when the power cannot be on Thin minus screwdriver www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-3 XV-BD707 1 2 3 4 A B C D E F 1 2 3 4 (1) Remove the two screws. (2) Unhook the two hooks. (3) Remove the top cover. Cleaning 3 Top cover Pickup lenses 1 2 2 1 Clean the pickup lenses when it is stained, using the following cleaning materials: Cleaning liquid : GEM1004 Cleaning paper: GED-008 Caution: The pickup for Blu-ray is a high-precision component; therefore, clean the lens with enough care so as not to cause a misalignment in the optical axis. After cleaning the lens, make sure that the playback test with a BD disc is normal. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-4 XV-BD707 5 6 7 8 5 6 7 8 A B C D E F 3. Disassembly [1] Front Panel Section (1) Disconnect the one flexible cable and two connectors. (CN250, CN251, CN953) (2) Remove the one screw. (3) Unhook the seven hooks. (4) Remove the front panel section. (5) Remove the knob Assy. (6) Remove the five screws. (7) Remove the PCB Assy FRONT (1/2). (8) Remove the two screws. (9) Remove the PCB Assy FRONT (2/2). (1) Remove the Case by removing the five screws. (2) Remove the DECK Assy, DVD. (See "1. Diagnosis".) 1 1 1 5 4 7 9 3 3 3 3 3 3 3 6 8 8 6 6 6 6 Front panel section PCB Assy FRONT (1/2) PCB Assy FRONT (2/2) Knob Assy • Bottom view CN251 CN250 CN953 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-5 XV-BD707 1 2 3 4 A B C D E F 1 2 3 4 [2] Module, BLUETOOTH (1) Disconnect the one flexible cable. (CON2) (2) Remove the two screws. (3) Unhook the two hooks. (4) Remove the Module, BLUETOOTH. (1) Remove the Case by removing the five screws. (2) Remove the DECK Assy, DVD. (See "1. Diagnosis".) [3] OPTION CODE Assy (1) Remove the five screws. (2) Disconnect the three flexible cables and two connectors. (CN101, CN150, CN250, CN251, CN401) (3) Remove the two screws. (4) Remove the OPTION CODE Assy. (1) Remove the Case by removing the five screws. (2) Remove the DECK Assy, DVD. (See "1. Diagnosis".) 1 4 2 3 3 2 1 1 1 1 1 Module, BLUETOOTH CON2 4 OPTION CODE Assy • Rear view 3 3 CN251 CN101 CN250 CN150 CN401 2 2 2 2 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-6 XV-BD707 5 6 7 8 5 6 7 8 A B C D E F [4] SMPS, AC/DC and PCB Assy AMP [4-1] SMPS, AC/DC (1) Disconnect the three connectors. (PN901, CN952, CN953) (2) Remove the five screws. (3) Disconnect the one board connector. (CN951) (4) Remove the SMPS, AC/DC. [4-2] PCB Assy AMP (1) Remove the two screws. (2) Disconnect the one flexible cable and one connectors. (CN601, CN701) (3) Remove the four screws. (4) Remove the PCB Assy AMP. Remove the Case by removing the five screws. 1 1 SMPS, AC/DC PCB Assy AMP 4 4 • Rear view 2 2 2 3 3 3 3 2 2 CN601 CN701 CN952 CN953 PN901 CN951 2 2 1 3 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-7 XV-BD707 1 2 3 4 A B C D E F 1 2 3 4 PCB LOCATIONS MODULE, BLUETOOTH PCB ASSY FRONT (1/2) PCB ASSY FRONT (2/2) DECK ASSY, DVD OPTION CODE ASSY PCB ASSY AMP SMPS, AC/DC Mark No. Description Part No. LIST OF ASSEMBLIES 1..OPTION CODE ASSY (YXIN5) XV-BD707 EBR70213102-LG 1..OPTION CODE ASSY (VXIN5) EBR70213104-LG 1..OPTION CODE ASSY (SXIN5) EBR70213106-LG 1..OPTION CODE ASSY (UCXINSM) EBR70213107-LG 1..PCB ASSY AMP EBR70055801-LG 1..PCB ASSY FRONT EBR70054611-LG 1..MODULE, BLUETOOTH EAT60733202-LG > 1..SMPS, AC/DC (YXIN5,VXIN5,UCXINSM) EAY60911903-LG > 1..SMPS, AC/DC (SXIN5) EAY60911904-LG 1..DECK ASSY, DVD Mark 1..OPTION CODE ASSY (YXIN5) XV-BD505FS EBR70213101-LG 1..OPTION CODE ASSY (VXIN5) EBR70213103-LG 1..OPTION CODE ASSY (SXIN5) EBR70213105-LG 1..PCB ASSY AMP EBR70056101-LG 1..PCB ASSY FRONT EBR70054611-LG 1..MODULE, BLUETOOTH EAT60733202-LG > 1..SMPS, AC/DC (YXIN5,VXIN5,UCXINSM) EAY60911903-LG > 1..SMPS, AC/DC (SXIN5) EAY60911904-LG EAZ54850490-LG EAZ54850490-LG 1..DECK ASSY, DVD No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
