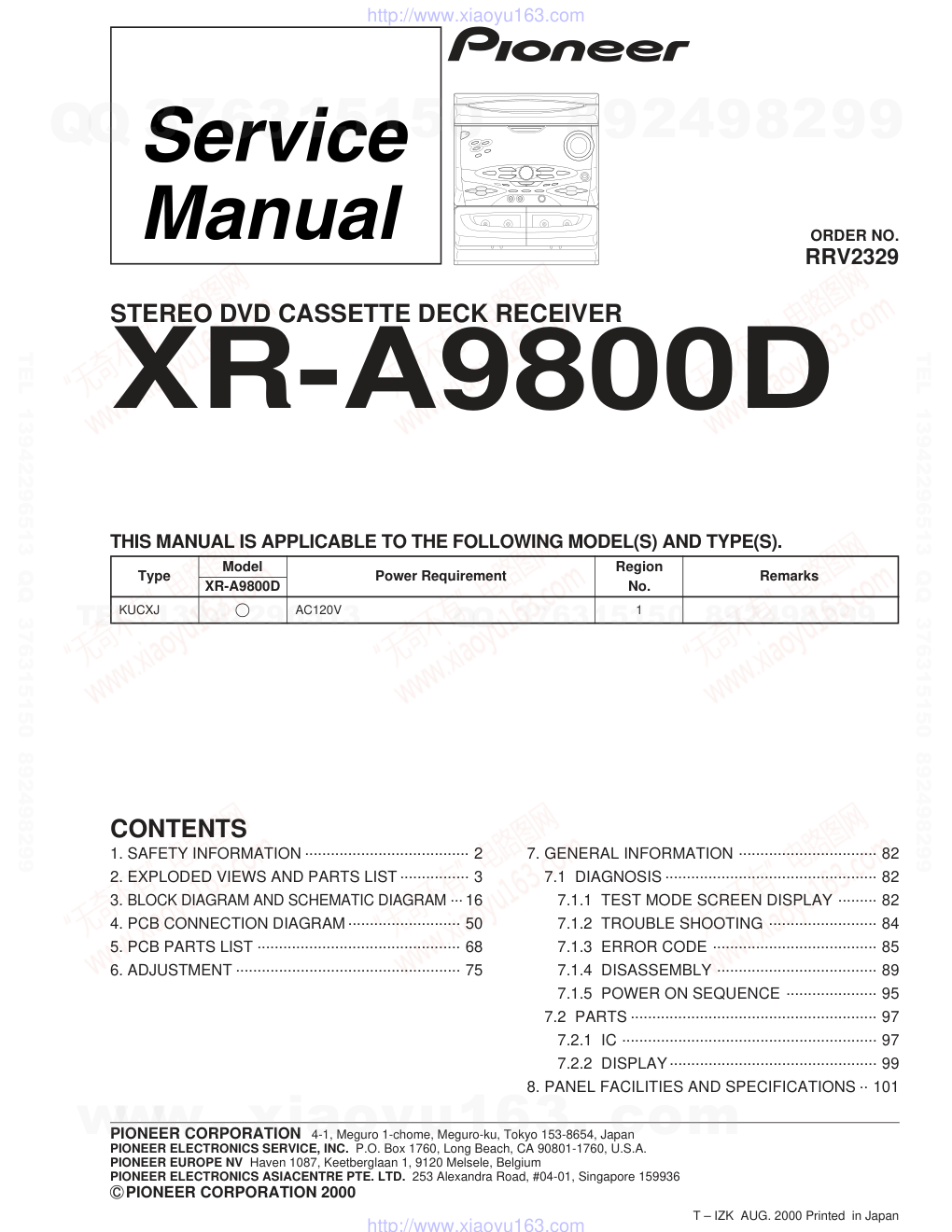

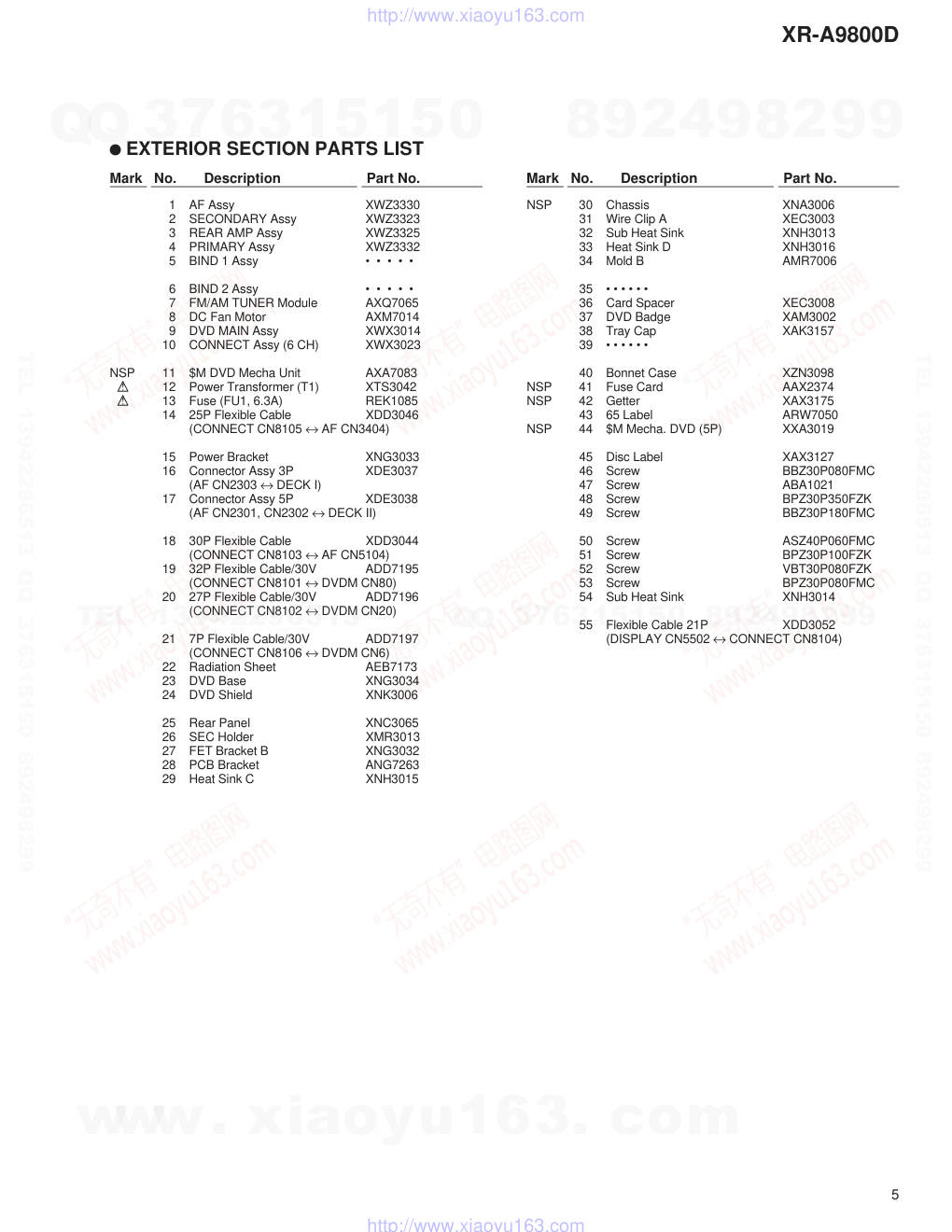

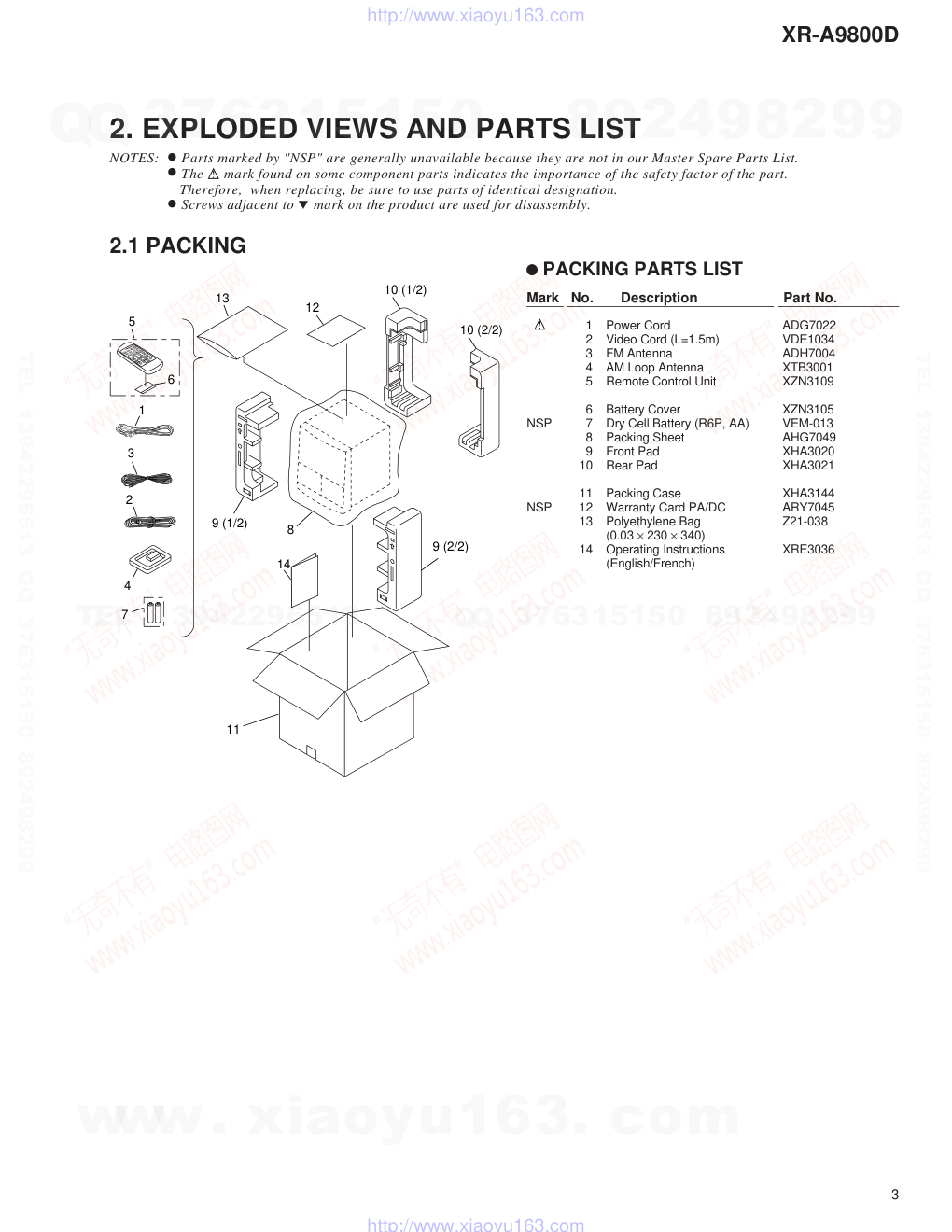

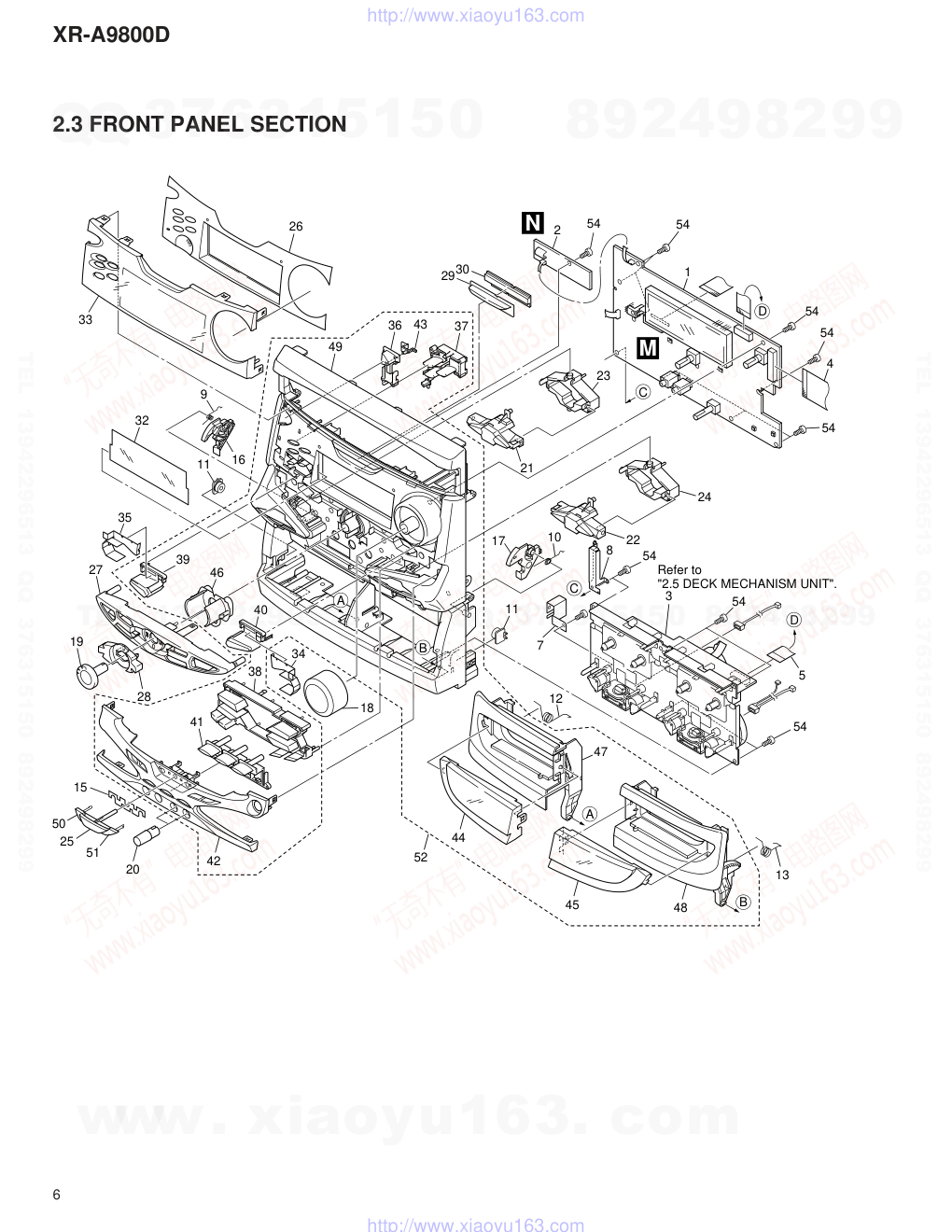

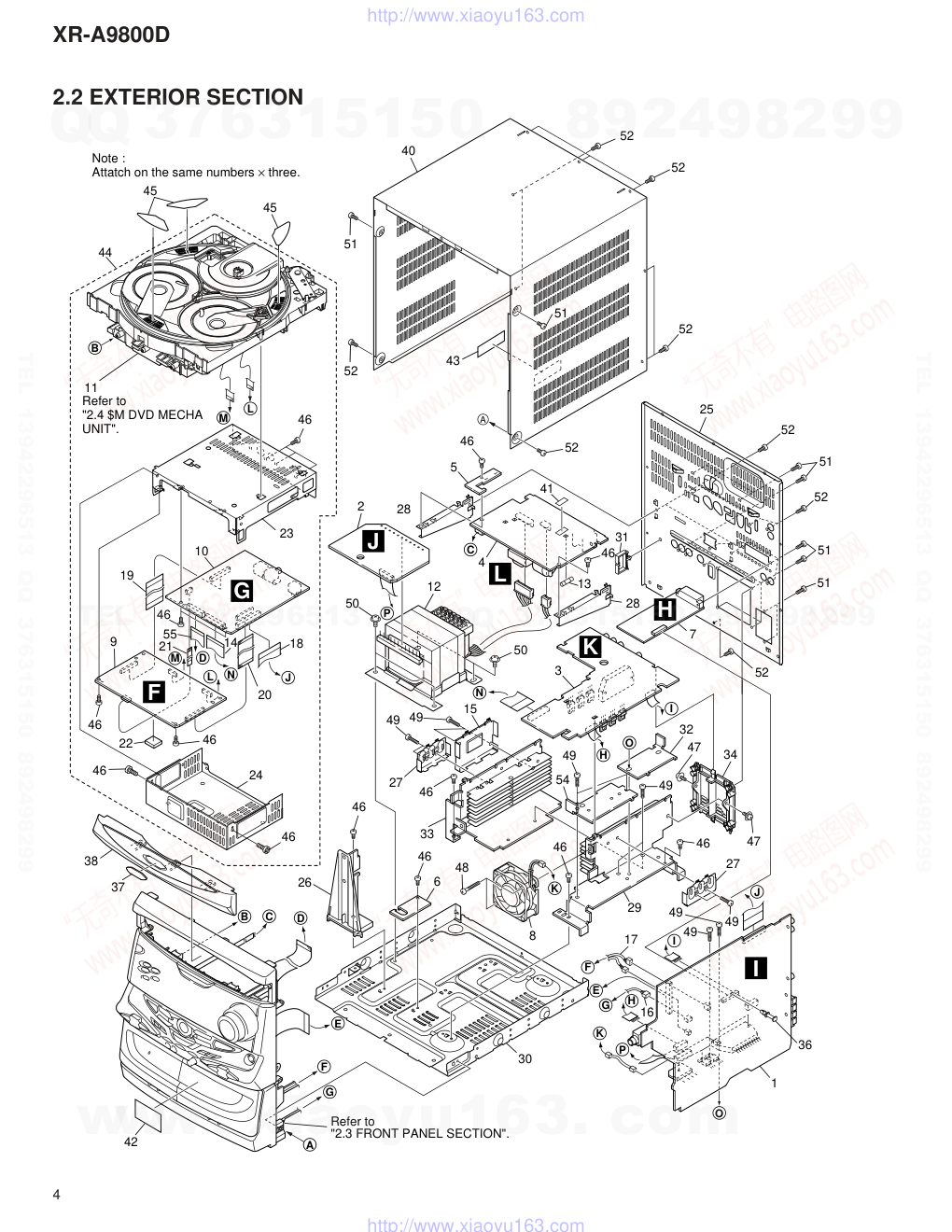

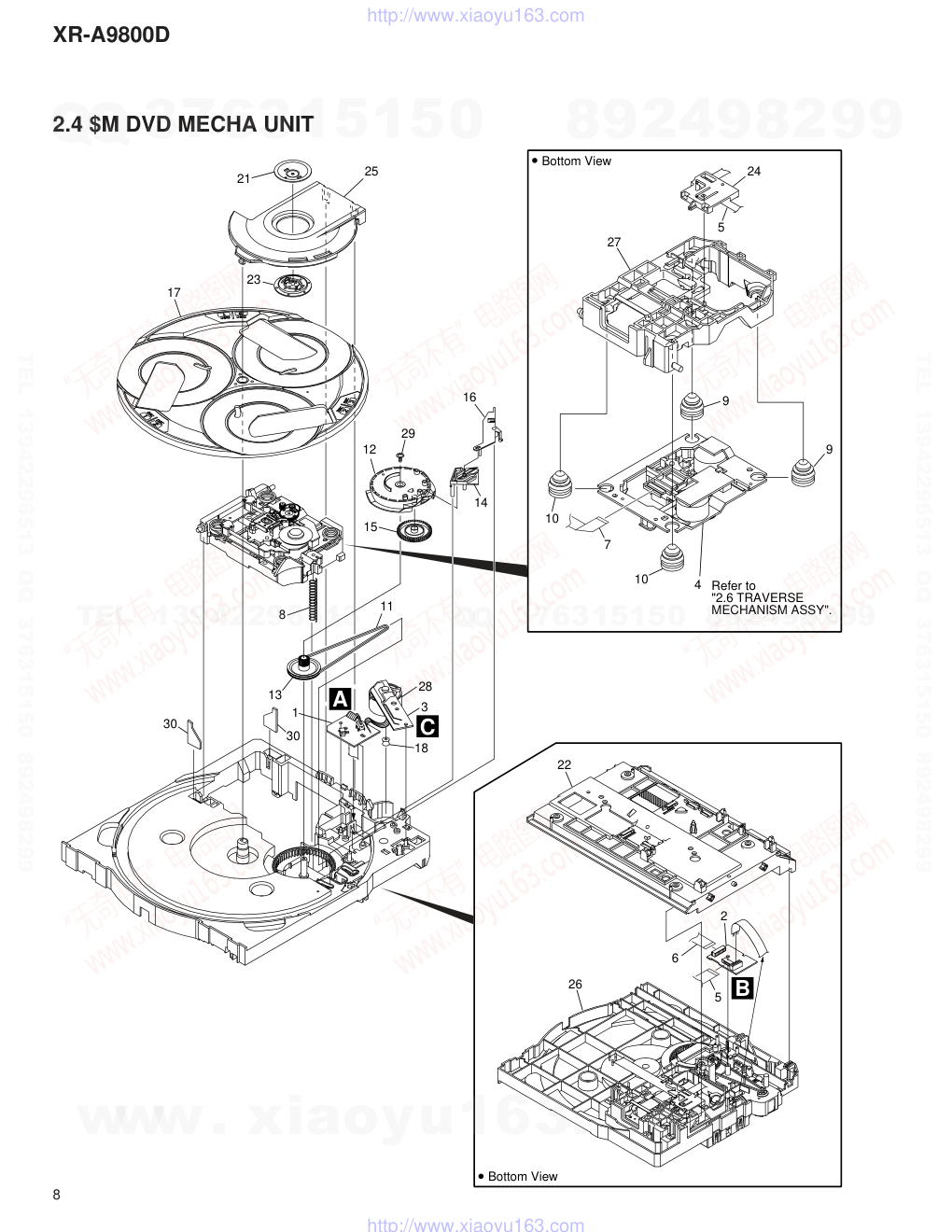

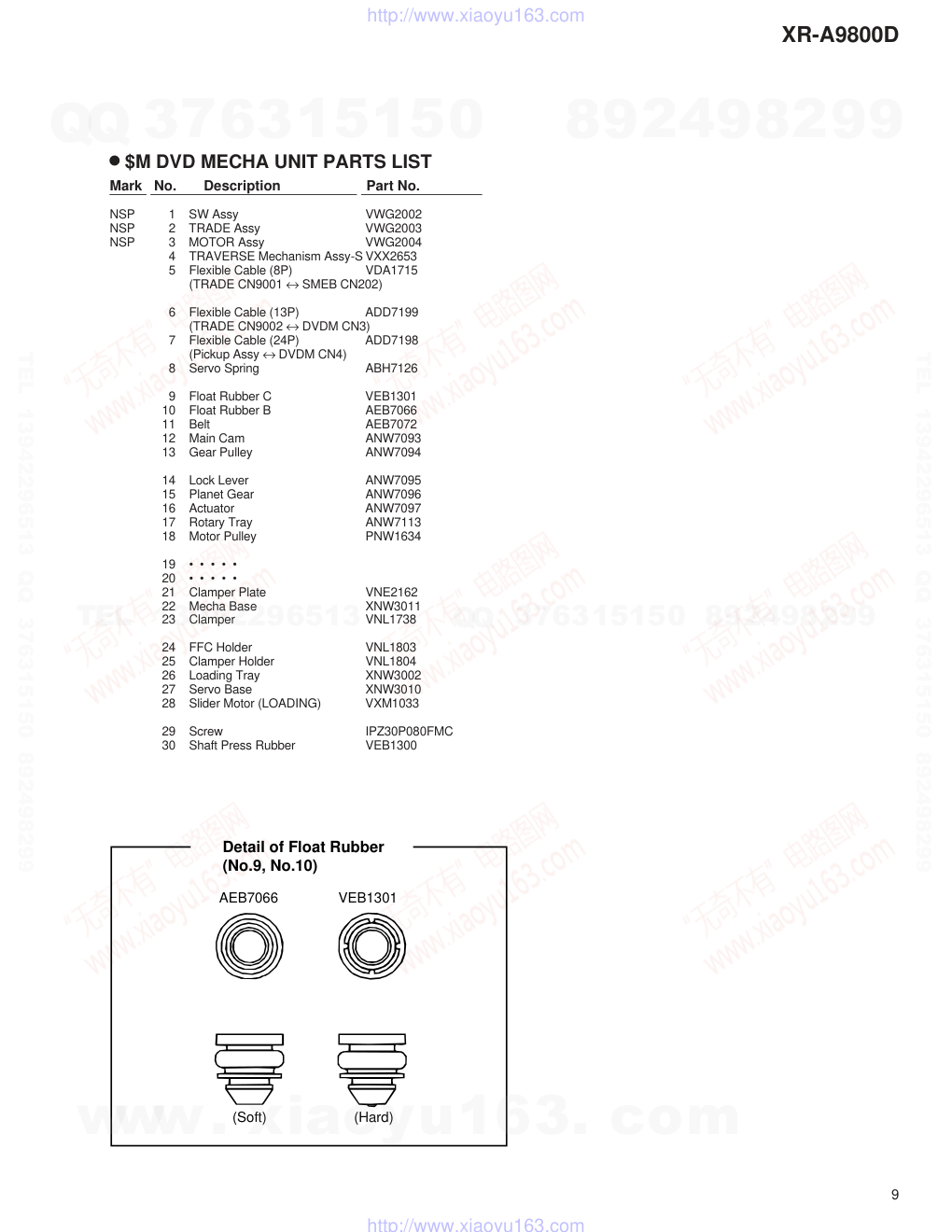

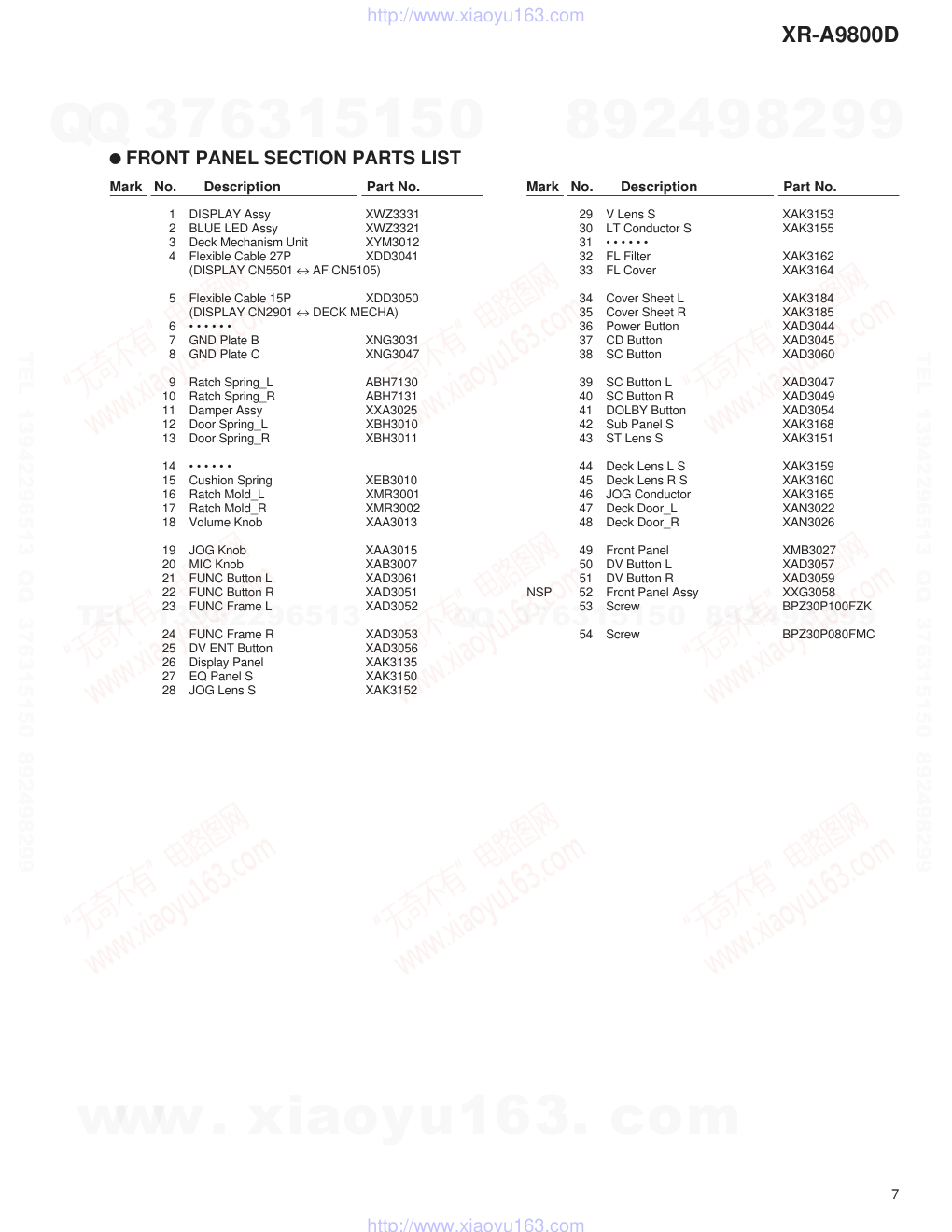

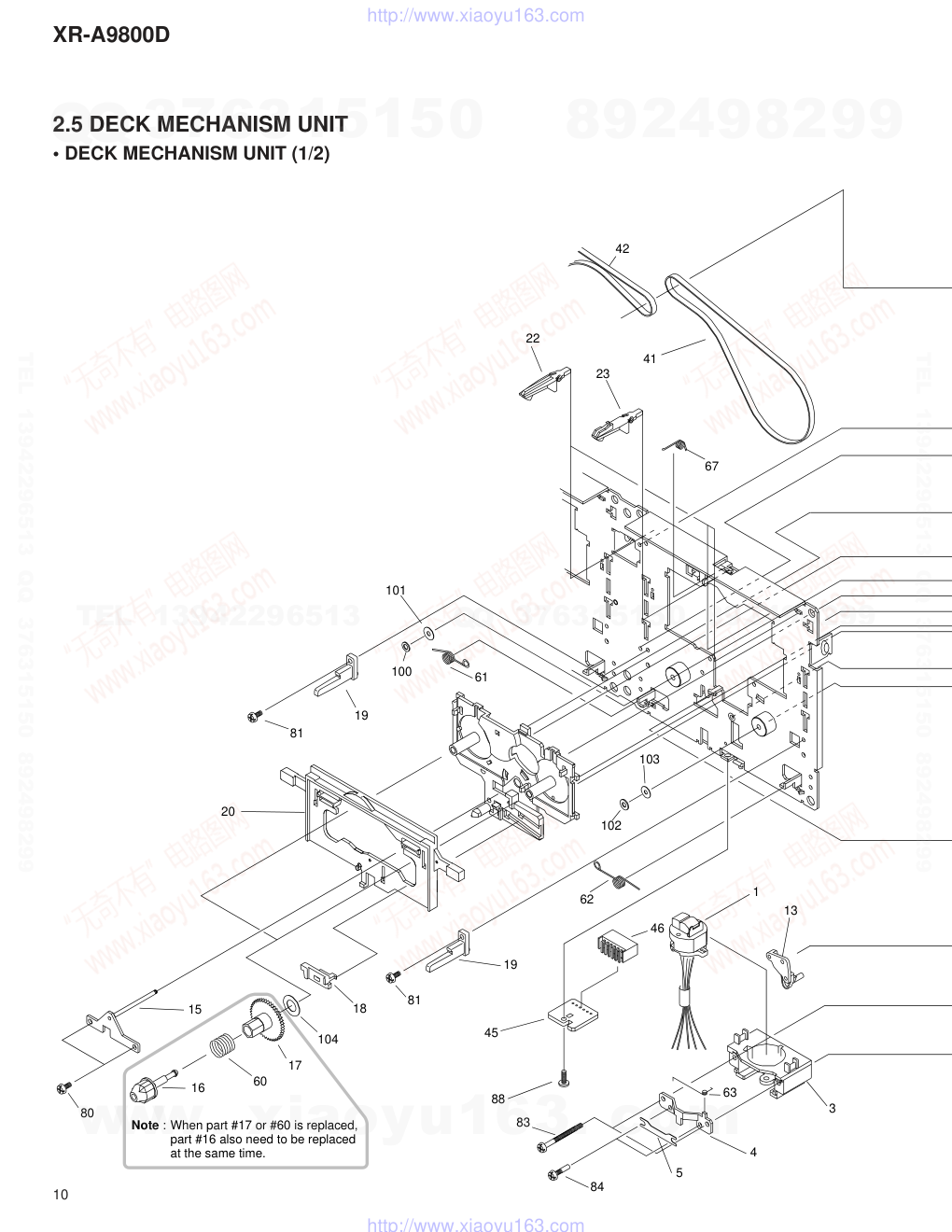

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2000 c XR-A9800D RRV2329 1. SAFETY INFORMATION ...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................ 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ... 16 4. PCB CONNECTION DIAGRAM .......................... 50 5. PCB PARTS LIST ............................................... 68 6. ADJUSTMENT .................................................... 75 CONTENTS 7. GENERAL INFORMATION ................................ 82 7.1 DIAGNOSIS ................................................. 82 7.1.1 TEST MODE SCREEN DISPLAY ......... 82 7.1.2 TROUBLE SHOOTING ......................... 84 7.1.3 ERROR CODE ...................................... 85 7.1.4 DISASSEMBLY ..................................... 89 7.1.5 POWER ON SEQUENCE ..................... 95 7.2 PARTS ......................................................... 97 7.2.1 IC ........................................................... 97 7.2.2 DISPLAY................................................ 99 8. PANEL FACILITIES AND SPECIFICATIONS .. 101 T – IZK AUG. 2000 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). STEREO DVD CASSETTE DECK RECEIVER Type Model Power Requirement Region Remarks XR-A9800D No. KUCXJ AC120V 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 XR-A9800D 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 XR-A9800D 2.1 PACKING 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. VOL KARAOKE SFC DISC DISC DISC CLEAR STATION REMOTE CONTROL UNIT CU-XR025 MONO BAND PGM REPEAT RANDOM AUX P.BASS DISPLAY SLEEP POWER 3 2 4 13 9 (1/2) 8 10 (1/2) 10 (2/2) 1 14 12 5 11 9 (2/2) 6 7 1 Power Cord ADG7022 2 Video Cord (L=1.5m) VDE1034 3 FM Antenna ADH7004 4 AM Loop Antenna XTB3001 5 Remote Control Unit XZN3109 6 Battery Cover XZN3105 NSP 7 Dry Cell Battery (R6P, AA) VEM-013 8 Packing Sheet AHG7049 9 Front Pad XHA3020 10 Rear Pad XHA3021 11 Packing Case XHA3144 NSP 12 Warranty Card PA/DC ARY7045 13 Polyethylene Bag Z21-038 (0.03 × 230 × 340) 14 Operating Instructions XRE3036 (English/French) PACKING PARTS LIST Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 XR-A9800D A G F E B C D K F E G H K P I O J O I C P J N L D L M B M N H A Note : Attatch on the same numbers × three. Refer to "2.3 FRONT PANEL SECTION". 24 22 9 18 20 21 10 23 11 45 45 40 43 52 46 46 46 46 46 46 46 46 48 46 46 46 47 47 49 32 54 49 49 49 50 50 46 52 51 51 52 51 52 52 52 52 52 46 49 49 49 2 5 28 12 4 41 31 13 28 7 25 3 14 34 27 36 1 16 17 29 8 6 26 33 27 15 30 42 37 38 Refer to "2.4 $M DVD MECHA UNIT". 55 19 51 44 51 L G F H K I J 2.2 EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 XR-A9800D 1 AF Assy XWZ3330 2 SECONDARY Assy XWZ3323 3 REAR AMP Assy XWZ3325 4 PRIMARY Assy XWZ3332 5 BIND 1 Assy • • • • • 6 BIND 2 Assy • • • • • 7 FM/AM TUNER Module AXQ7065 8 DC Fan Motor AXM7014 9 DVD MAIN Assy XWX3014 10 CONNECT Assy (6 CH) XWX3023 NSP 11 $M DVD Mecha Unit AXA7083 12 Power Transformer (T1) XTS3042 13 Fuse (FU1, 6.3A) REK1085 14 25P Flexible Cable XDD3046 (CONNECT CN8105 ↔ AF CN3404) 15 Power Bracket XNG3033 16 Connector Assy 3P XDE3037 (AF CN2303 ↔ DECK I) 17 Connector Assy 5P XDE3038 (AF CN2301, CN2302 ↔ DECK II) 18 30P Flexible Cable XDD3044 (CONNECT CN8103 ↔ AF CN5104) 19 32P Flexible Cable/30V ADD7195 (CONNECT CN8101 ↔ DVDM CN80) 20 27P Flexible Cable/30V ADD7196 (CONNECT CN8102 ↔ DVDM CN20) 21 7P Flexible Cable/30V ADD7197 (CONNECT CN8106 ↔ DVDM CN6) 22 Radiation Sheet AEB7173 23 DVD Base XNG3034 24 DVD Shield XNK3006 25 Rear Panel XNC3065 26 SEC Holder XMR3013 27 FET Bracket B XNG3032 28 PCB Bracket ANG7263 29 Heat Sink C XNH3015 EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. NSP 30 Chassis XNA3006 31 Wire Clip A XEC3003 32 Sub Heat Sink XNH3013 33 Heat Sink D XNH3016 34 Mold B AMR7006 35 • • • • • • 36 Card Spacer XEC3008 37 DVD Badge XAM3002 38 Tray Cap XAK3157 39 • • • • • • 40 Bonnet Case XZN3098 NSP 41 Fuse Card AAX2374 NSP 42 Getter XAX3175 43 65 Label ARW7050 NSP 44 $M Mecha. DVD (5P) XXA3019 45 Disc Label XAX3127 46 Screw BBZ30P080FMC 47 Screw ABA1021 48 Screw BPZ30P350FZK 49 Screw BBZ30P180FMC 50 Screw ASZ40P060FMC 51 Screw BPZ30P100FZK 52 Screw VBT30P080FZK 53 Screw BPZ30P080FMC 54 Sub Heat Sink XNH3014 55 Flexible Cable 21P XDD3052 (DISPLAY CN5502 ↔ CONNECT CN8104) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 XR-A9800D 2.3 FRONT PANEL SECTION C D C B A B A D 26 33 32 49 36 43 37 2930 2 16 46 40 38 11 9 35 39 27 28 25 51 50 18 41 34 19 15 20 42 44 52 45 48 47 13 12 11 17 10 22 54 54 54 54 54 54 54 54 21 24 23 7 8 5 3 Refer to "2.5 DECK MECHANISM UNIT". 1 4 M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 XR-A9800D FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 DISPLAY Assy XWZ3331 2 BLUE LED Assy XWZ3321 3 Deck Mechanism Unit XYM3012 4 Flexible Cable 27P XDD3041 (DISPLAY CN5501 ↔ AF CN5105) 5 Flexible Cable 15P XDD3050 (DISPLAY CN2901 ↔ DECK MECHA) 6 • • • • • • 7 GND Plate B XNG3031 8 GND Plate C XNG3047 9 Ratch Spring_L ABH7130 10 Ratch Spring_R ABH7131 11 Damper Assy XXA3025 12 Door Spring_L XBH3010 13 Door Spring_R XBH3011 14 • • • • • • 15 Cushion Spring XEB3010 16 Ratch Mold_L XMR3001 17 Ratch Mold_R XMR3002 18 Volume Knob XAA3013 19 JOG Knob XAA3015 20 MIC Knob XAB3007 21 FUNC Button L XAD3061 22 FUNC Button R XAD3051 23 FUNC Frame L XAD3052 24 FUNC Frame R XAD3053 25 DV ENT Button XAD3056 26 Display Panel XAK3135 27 EQ Panel S XAK3150 28 JOG Lens S XAK3152 29 V Lens S XAK3153 30 LT Conductor S XAK3155 31 • • • • • • 32 FL Filter XAK3162 33 FL Cover XAK3164 34 Cover Sheet L XAK3184 35 Cover Sheet R XAK3185 36 Power Button XAD3044 37 CD Button XAD3045 38 SC Button XAD3060 39 SC Button L XAD3047 40 SC Button R XAD3049 41 DOLBY Button XAD3054 42 Sub Panel S XAK3168 43 ST Lens S XAK3151 44 Deck Lens L S XAK3159 45 Deck Lens R S XAK3160 46 JOG Conductor XAK3165 47 Deck Door_L XAN3022 48 Deck Door_R XAN3026 49 Front Panel XMB3027 50 DV Button L XAD3057 51 DV Button R XAD3059 NSP 52 Front Panel Assy XXG3058 53 Screw BPZ30P100FZK 54 Screw BPZ30P080FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 XR-A9800D Bottom View Bottom View 21 23 17 16 27 5 9 9 10 10 4 Refer to "2.6 TRAVERSE MECHANISM ASSY". 24 14 15 13 28 18 22 26 6 5 2 3 1 11 8 29 12 25 30 30 7 B C A 2.4 $M DVD MECHA UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 XR-A9800D $M DVD MECHA UNIT PARTS LIST NSP 1 SW Assy VWG2002 NSP 2 TRADE Assy VWG2003 NSP 3 MOTOR Assy VWG2004 4 TRAVERSE Mechanism Assy-S VXX2653 5 Flexible Cable (8P) VDA1715 (TRADE CN9001 ↔ SMEB CN202) 6 Flexible Cable (13P) ADD7199 (TRADE CN9002 ↔ DVDM CN3) 7 Flexible Cable (24P) ADD7198 (Pickup Assy ↔ DVDM CN4) 8 Servo Spring ABH7126 9 Float Rubber C VEB1301 10 Float Rubber B AEB7066 11 Belt AEB7072 12 Main Cam ANW7093 13 Gear Pulley ANW7094 14 Lock Lever ANW7095 15 Planet Gear ANW7096 16 Actuator ANW7097 17 Rotary Tray ANW7113 18 Motor Pulley PNW1634 19 • • • • • 20 • • • • • 21 Clamper Plate VNE2162 22 Mecha Base XNW3011 23 Clamper VNL1738 24 FFC Holder VNL1803 25 Clamper Holder VNL1804 26 Loading Tray XNW3002 27 Servo Base XNW3010 28 Slider Motor (LOADING) VXM1033 29 Screw IPZ30P080FMC 30 Shaft Press Rubber VEB1300 Mark No. Description Part No. Detail of Float Rubber (No.9, No.10) AEB7066 (Soft) (Hard) VEB1301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 XR-A9800D 16 104 80 101 81 19 100 61 20 60 17 15 18 81 19 46 1 13 102 103 45 88 83 84 5 4 63 3 62 42 41 23 67 22 Note : When part #17 or #60 is replaced, part #16 also need to be replaced at the same time. • DECK MECHANISM UNIT (1/2) 2.5 DECK MECHANISM UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 XR-A9800D 32 82 30 29 50 28 85 106 52 87 36 43 107 35 39 80 86 34 70 33 80 105 51 25 68 69 27 66 14 64 11 12 14 65 6 37 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 XR-A9800D Note : When part #17 or #60 is replaced, part #16 also need to be replaced at the same time. 60 104 16 15 81 19 20 18 67 53 107 101 100 17 80 61 2 13 47 62 19 81 45 82 83 84 5 4 63 3 103 102 23 22 • DECK MECHANISM UNIT (2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 XR-A9800D 34 106 85 6 66 14 64 11 65 14 12 28 29 30 87 31 70 35 107 37 43 36 33 32 26 105 25 68 69 48 107 27 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 XR-A9800D Mark No. Description Part No. Mark No. Description Part No. • DECK MECHANISM UNIT PARTS LIST 1 Assy’y HD Holder 50-093-4373 2 Assy’y HD Holder 50-093-4104 3 Frame HD 50-219-3024 4 Plate AZ 50-119-4046 5 Spring AZ 50-160-4108 6 Lever HD 50-259-3342 11 Chassis HD 50-112-3045 12 Cap Pinch R 50-219-4033 13 Cap Pinch L 50-219-4034 14 Roller Pinch 50-027-41054 15 Ass’y Plate D 50-219-4311 16 Cap Reel 50-228-4020 17 Gear Reel 50-222-4006 18 Lever ST 50-259-4041 19 Guide C 50-219-4014 20 Lever Brake 50-259-3251 22 Arm SW 50-239-4027 23 Arm CS 50-239-4026 25 Ass’y Cover 50-093-4063 26 Ass’y Flywheel LA 50-093-3366 27 Arm Trigger 50-268-3016 28 Arm Cam 50-139-4292 29 Gear Cam 50-221-3009 30 Coller 03-300-4455 31 Ass’y Flywheel RA 50-093-3360 32 Ass’y Clutch 50-093-4069 33 Arm UD A 50-239-4017 34 Gear UD 50-222-4007 35 Pulley D 50-223-4254 36 Plunger 03-300-4442 37 Ass’y Bobbin 50-093-4125 39 Ass’y Motor 50-093-4316 41 Belt BR 02-084-4205 42 Belt AR 02-084-4203 43 Belt FR 02-083-4188 45 PCB HD 50-070-4057 46 Housing S5BPHKS 47 Housing S3BPHKS 48 Pulley IDL 50-223-4023 50 Ass’y PCB 50-093-4363 51 Ass’y Flywheel L 50-093-3367 52 Ass’y Flywheel RB 50-093-3361 53 Pulley 33-229-4264 60 Spring 01-081-4601 61 Spring 01-082-4652 62 Spring 01-082-4651 63 Spring 01-082-4650 64 Spring 01-080-4649 65 Spring 01-080-4607 66 Spring 01-080-4635 67 Spring 01-082-4654 68 Spring 01-082-4598 69 Spring 01-082-4597 70 Spring 01-081-4657 80 Screw GSE10A2003 81 Screw GSE20A2005 82 Screw GSE10A2004 83 Screw GSD10A2018 84 Screw 03-300-4056 85 Screw GSL10A1704 86 Screw GSP10A2603 87 Screw GSP11A2012 88 Screw GSE20A2004 100 Washer GWN21X040040 101 Washer GWM19X055035S 102 Washer GWM19S035035 103 Washer GWM17S050035S 104 Washer GWM48X075010 105 Washer GWP23X040020 106 Washer GWP21X045020 107 Washer GWP12X030040S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 XR-A9800D NSP 1 SMEB Assy VWG2048 NSP 2 FGSB Assy VWG2009 NSP 3 Motor VXM1079 NSP 4 Motor VXM1078 NSP 5 Pickup Assy VWY1055 6 Table Sheet DEC2040 7 Screw VBA1058 8 Centering Spring VBH1278 9 Hook Spring VBH1317 10 Skew Spring VBH1303 11 Gear Spring VBH1308 NSP 12 Reflected Sheet VEC1959 13 Guide Bar VLL1504 14 Sub-guide Bar VLL1505 15 Hold Spring VNC1017 NSP 16 Magnet Holder VNE2070 NSP 17 Motor Base VNE2154 NSP 18 Cover VNE2155 19 Centering Ring VNL1746 NSP 20 Disc Table VNL1747 2.6 TRAVERSE MECHANISM ASSY-S 21 Hook VNL1770 22 FFC Holder VNL1802 23 Mechanism Base VNL1806 24 FG Holder VNL1807 25 Gear A VNL1808 26 Gear B VNL1809 27 Gear C VNL1810 28 Slider VNL1811 29 Gear D VNL1814 NSP 30 Magnet VYM1024 31 Screw JFZ17P025FZK 32 Screw JGZ17P028FMC 33 Screw VBA1051 34 Magnet Holder Assy VXX2507 35 Spindle Motor Assy VXX2649 36 Carriage Motor Assy VXX2650 NSP 37 Screw PBA1069 TRAVERSE MECHANISM ASSY-S PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 30 16 34 19 8 15 10 10 22 33 23 5 14 10 37 18 32 13 10 37 18 26 25 27 29 7 7 7 3 1 11 28 33 6 35 20 12 21 4 9 31 37 17 24 37 36 2 Top View D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 16 A B C D 1 2 3 4 1 2 3 4 SPDL MOTOR TRKG F_DRV FCS 18,19 22,23 15 3 2 4 1 7,6, 3,2 57-60 63-66 10 22 23 21 3 54 56 55 46 56 57 42 35 31 10 9 13 12 3 20 17 28 46 14 45 48 47 32 33 30 31 39 24 8 15 4 34 7 32 10 14 6 35 37 9 8 4 7 10 6 9 OEIC PICKUP ASSY F_RTN RF RF B1-B4 (24P) (24P) T_DRV T_RTN SPDL+ SPDO LODDRV 16M 4 27M 27M 16M XSACK SREQ ADAI(AC3) VOUT YOUT COUT SD0-SD7 SLDO TDO FDO TE Q105 FE PH BH DSPRF RFO SPDL- SLDR_R SLDR_F LOAD+ LOAD- LCH RECL VR2301 F2201 MPX PBL RECL PBL PBL PBL LOADING MOTOR CARRIAGE MOTOR CN4 RF IC IC1 LA9701M DVD DECODER MY CHIP IC12 PE5108A MPEG2 DECODER AV-1 16M SDRAM IC18 MB86373B IC19 MB811171622A -100FN WORK SRAM (1M) IC14 KM68V1000CLG-7L SYSTEM CONTROL CPU IC11 PD3410A FLASH MEMORY IC13 XYW3001 4M DRAM IC15 MN414800CSJ-07 CLOCK GENERATOR IC21 CY2081SL-638 SPDL & FTS DRIVER SERVO DSP PB AMP DOLBY NR REC AMP IC3 M56788FP IC2 LC78652W (13P) CN30 (13P) (8P) (8P) (6P) CN9002 CN9501 (6P) J9501 (4P) J9502 (4P) J9502 CN9001 CN202 (14P) FM AM CN6201 (14P) CN3051 CN2303 (30P) CN5104 CN201 6-9 170 107 27M 197 36/16M 205 B TRADE ASSY D SMEB ASSY C MOTOR ASSY A SW ASSY E FGSB ASSY H FM/AM TUNER MODULE (AXQ7065) F DVD MAIN ASSY I AF ASSY (D) 2 1 M M 2 6 1 4 7 7 7 1 2 3 17 21 3 8 5 78,80-84 86,87 91 89 64 45 39 36 6 16M 5 36/16M 1 IC2301 HA1221NT IC2201 HA12136AF 8 5 19 14 27 9 2 42 IC3001 LC75396NE 53 1 2 2 1 3 1 2 2 1 TAPE DECK (PB) DECK MECHA. UNIT TAPE DECK (REC/PB) Vref Q2301 D2301 D2303 VR3901 MIC LEVEL 5 3 11 16 IC3901-1/2 BA4558F IC3901-2/2 BA4558F – + – + – + – + – + + – – + 52 51 49 46 48 31 33 32 34 45 50 54 55 REC OUT L R AUX L R CN2301 1 2 3 Vref DECK CONTROL MIC MAIN SUB (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) 3. BLOCKDIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 17 A B C D 5 6 7 8 5 6 7 8 ADAI (AC3) MIC IC8502 W24257AJ-12 LSFI LSO RLIN CIN SWIN CTRO CFI LFEI LFI DIRO DIRIN0 A0-A14, D0-D7 LIN- LIN+ (Y) (V) 10 VIDEO AMP DIR AMP IC8202 LA7137M IC8204 TC74HCT7007AF 29 27 31 (32P) CN8101 (30P) CN8103 (21P) (25P) CN8104 CN3404 13 (32P) CN80 17 21 23 (25P) CN8105 7 5 1,2 (27P) (27P) I O CN20 CN8102 : Audio Signal Route (L ch) : DVD Audio Signal Route (L ch) : V Signal Route (V) : Y Signal Route (Y) : C Signal Route (C) (D) : Audio (FRONT) Signal Route (L ch) (F) : Audio (REAR) Signal Route (L ch) (R) : Audio (CENTER) Signal Route (C) : Audio ( PREOUT SW) Signal Route (S) (V) (Y) (C) (V) (Y) (C) (D) (D) (D) (D) : RF Signal Route V/CB/S Y C/CR 13 12 13 VIDEO FILTER F1 Q83 Q81 Q85 Q84 Q82 Q86 21 17 (27P) (27P) CN5105 CN5501 (15P) (21P) CN2901 CN5502 2 V2R5 +3.3V M + 6V +12V +12V SW+5V IC401 PQ2TZ15 REG 6 AMP 17 3 IC8401 LC89055W IC8706-1/2 BA4558F IC8701,IC8703,IC8704,IC8851 BA4558F IC8703-1/2 IC8704-1/2 IC8704-2/2 IC8701-2/2 IC8851-2/2 16 3 DECODER DTS PRO LOGIC AC3 LS,RS VOLUME CONTROL C.LFE VOLUME CONTROL IC8501 YSS912C VOCAL FADER IC3836 BA3838F IC8601 AK4527VQ V5621 FL DISPLAY X5901 SYSTEM CONTROL IC5501 PDC064A 45 6 29 30 27 85 IC8802 M62429FP IC8801 M62429FP 2 1 2 1 7 6 AMP 21 JA8203 OPTICAL OUT PHONES REMOTE SENSOR KEY SW FRONT SPEAKER S VIDEO OUTPUT CN8202 COMPOSITE VIDEO OUT JA8201 PRE-OUT SW 3 4 (C) G CONNECT ASSY(6 CH) K REAR AMP ASSY M DISPLAY ASSY 13 | 16 10 | 12 21 23 12 | 15 16 | 18 26 27 (D) (D) 46 7 (D) 47 8 (D) SDOUT 84 9 (R) (C) (S) (F) (D) (V) (Y) (C) 2 3 1 SW1 SW2 RY3601 CONTROL CONTROL 2 3 1 2 3 1 6 5 7 5 6 7 6 5 7 – + POWER AMP IC3301 STK407-070B 14 7 POWER AMP IC3401 STK402-230 1 16 + – + – 24 + – 23 + – 25 + – 29 27 31 13 (Y) (V) (C) (R) (C) (S) 17 21 23 (R) (C) (S) (F) (F) (F) (F) (F) – + – + – + 6 3 2 RY3402 RY3401 R L SPEAKER R REAR CENTER L (R) (C) (R) (C) 6 7 18 19 (S) (S) 2 2 (F) (F) (F) (F) (F) (F) (F) (F) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 18 A B C D 1 2 3 4 1 2 3 4 F 1/3- F 3/3 DVD MAIN ASSY (XWX3014) F CN8102 VKN1258 CN8107 VKN1267 CN20 VKN1583 CN8101 VKN1263 CN80 VKN1518 CN8104 HLEM21S-1 CN5502 52492-2120 CN5501 HLEM27R-1 CN2901 HLEM15R-1 CN82 J81 CN5105 HLEM27S-1 CN8103 HLEM30S-1 CN5104 HLEM30R-1 J5601 51048-0200 J5602 51048-0200 CLFEVOL LSRSVOL DIRLOCK DIRCS CDCCS CDATA DSPD0 CCLK DIR DATA HP DSPCS SDSPCS REAR RY R MUTE XRDY1 3.3DET SSI SSO SSCK XDVDRESET LT11 GND(12M) GND(12D) GND(5) GND(3) GND(3) DVD ON/OFF DVDL DVDR FL OUT_E FR OUT_E FL IN_DVD LINE MUTE EXP DATA EXP CE E+5.0 GND(12M) GND(5) GND(3) GND(3) GND(3) GNDA GNDA GNDA GNDA GNDA GNDA FR IN_DVD EXP CLK E+5.0 HP DETECT BLUE LED ASSY (XWZ3321) N DISPLAY ASSY (XWZ3331) DECK MECHANISM UNIT (XYM3012) DECK Ι MECHA. DC FAN MOTOR AXM7014 DECK ΙΙ MECHA. M G 1/4- G 4/4 CONNECT ASSY (6CH) (XWX3023) G I 1/3- I 3/3 AF ASSY (XWZ3330) I PICKUP ASSY (VWY1055) 24 1 3.2 OVERALL CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 19 A B C D 5 6 7 8 5 6 7 8 TRADE ASSY (VWG2003) B SMEB ASSY (VWG2048) D FGSB ASSY (VWG2009) CN201 CN8106 VKN1238 CN8105 HLEM25S-1 CN3404 HLEM25R-1 J3401 D15A09-100-2651 CN3603 KPE9 CN3051 KP200IB14 J11 CN6201 KP200IA14L CN3604 KPE11 CN1 B2P3 CN81 D20PYY0430E AN1 XKP3042 AC120V 60Hz POWER CORD ADG7022 J3402 D15A11-100-2651 E+12 V+3.3 V+3.3 VD+5 VM+6 VM+12 E-12 DVD_ON/OFF RLIN RRIN CIN SWIN HP DETECT E+3.3 V+3.3 VD+5 E+5 VM+6 VM+12 VD+12 RMUTE GNDA GNDA GNDA RRYON/OFF CN6 VKN1299 CN202 E REAR AMP ASSY (XWZ3325) K SECONDARY ASSY (XWZ3323) T1 POWER TRANSFORMER XTS3042 FU1 REK1085 (6.3A) REC OUT PHONES T2 SUB TRANSFORMER J PRIMARY ASSY (XWZ3332) L FM/AM TUNER MODULE (AXQ7065) H MOTOR ASSY (VWG2004) C SW ASSY (VWG2002) A V+5S V+5S 1 1 1 8 8 3 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 20 A B C D 1 2 3 4 1 2 3 4 A CN201 52044-0345 S201 DSG1016 PC101 GP2S60 CN202 VKN1212 ASG7009 ASG7009 DSG1017 CARRIAGE MOTOR ASSY (VXX2650) (SLIDER) SPINDLE MOTOR ASSY (VXX2649) SLIDER MOTOR (LOADING) VXM1033 PICKUP ASSY (VWY1055) CN4 F 1/3 CN30 F 1/3 : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (T) : SLIDER SERVO LOOP LINE (S) (F) (F) (F) (F) (T) (T) (T) (T) (S) (S) (S) (S) (S) (S) (S) (S) (S) (S) SW ASSY (VWG2002) A SMEB ASSY (VWG2048) D FGSB ASSY (VWG2009) E TRADE ASSY (VWG2003) B MOTOR ASSY (VWG2004) C 3.3 PICKUP, SW, TRADE, MOTOR, SMEB and FGSB ASSYS B C D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 21 A B C D 5 6 7 8 5 6 7 8 WAVEFORMS for DVD MAIN ASSY Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 4 and 6 to 11 : Disc MA1, Title 1-chp 1 No. 5 : CD, ABEX-784 Track 1 No. 12 to 14 : MJK1, Title 1-chp 4 No. 15 to 17 : MJK1, Title 1-chp 5 1 Foot of R169 (RF) V: 100mV/div. H: 0.2µsec/div. 2 CN7 - pin 5, 6 (RFO) V: 500mV/div. H: 0.1µsec/div. 3 IC12 - pin 170 (MY CHIP input) V: 1V/div. H: 0.2µsec/div. 4 CN7 - pin 9, 10 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC2 - pin 39 (EFM before slice) V: 1V/div. H: 1µsec/div. 6 IC2 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 Q281 - Collector (FG) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 5msec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 5msec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 5msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 IC18 - pin 45 (Composite Video output) V: 2V/div. H: 1msec/div. 13 IC18 - pin 39 (Y output) V: 0.2V/div. H: 5msec/div. 14 IC18 - pin 36 (C output) V: 0.2V/div. H: 5msec/div. 15 IC18 - pin 45 (CB output when selecting color difference output) V: 0.2V/div. H: 5msec/div. 16 IC18 - pin 39 (Y output when selecting color difference output) V: 0.2V/div. H: 5msec/div. 17 IC18 - pin 36 (CR output when selecting color difference output) V: 2V/div. H: 5msec/div. GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 22 A B C D 1 2 3 4 1 2 3 4 CN20 VKN1583 CN4 VKN1464 CN30 VKN1472 CN8102 CN9002 B PICKUP ASSY 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F SH_2 FOFST SH_1 SH_3 G1/4 2 4 1 (DVD) (DVD) (DVD) (CD) (CD) (DVD) (T) (T) (T) (T) (T) (T) (T) (T) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (T) (S)(S) (T) (F) (T) (S) (S) (T) (T) (T) (F) (S) (S) (S) (S) (F) (T) (T) (F) (F) (F) (F) (F) 3.4 DVD MAIN ASSY (1/3) 1/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 23 A B C D 5 6 7 8 5 6 7 8 F 1/3 DVD MAIN ASSY (XWX3014) 2/3 F 2/3 F 2/3 F 2/3 F DATABUS RESET MY_3 2/3 F 2/3 F 3/3 F 2/3 F 2/3 F 2/3 F ADDRESS MY_2 MY_4 SH_4 MY_5 2/3 F : The power supply is shown with the marked box. : RF SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE 6 (F) (T) (S) 8 9 10 11 5 7 (CD) (CD) (DVD) (DVD) (F) (F) (T) (F) (S) (S) (T) (F) (T) (T) 1/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 24 A B C D 1 2 3 4 1 2 3 4 F 2/3 DVD MAIN ASSY (XWX3014) 3/3 F 3/3 F 1/3 F 1/3 F 1/3 F 1/3 F 3/3 F 3/3 F 3/3 F MY_1 MY_5 1/3 F MY_4 1/3 F MY_3 1/3 F 3/3 F 3/3 F MY_2 AV1_2 AV1_1 3/3 F XYW3001 PE5108A : DVD AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : The power supply is shown with the marked box. 3 (D) (D) (D) (D) 3.5 DVD MAIN ASSY (2/3) 2/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 25 A B C D 5 6 7 8 5 6 7 8 NO CONNECTION 3/3 F 3/3 F SH_7 1/3, 3/3 F 1/3, 3/3 F 3/3 F ADDRESS DATABUS SH_5 3/3 F 1/3 F 1/3 F 1/3 F 1/3 F 1/3 F 3/3 F 1/3 F 1/3 F 1/3, 3/3 F 1/3 F 3/3 F SH_6 SH_4 SH_3 SH_1 SH_2 FOFST RESET IR 20MHz CN6 VKN1299 CN8106 G1/4 2/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 26 A B C D 1 2 3 4 1 2 3 4 F 3/3 DVD MAIN ASSY (XWX3014) 2/3 F ADDRESS 2/3 F 2/3 F 2/3 F 2/3 F SH_5 DATABUS AV1_1 AV1_2 2/3 F 2/3 F (V) (V) (V) (D) (D) (D) (V) (Y) (Y) (C) (C) (Y) (C) 14 17 13 16 12 15 3.6 DVD MAIN ASSY (3/3) 3/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 27 A B C D 5 6 7 8 5 6 7 8 NO CONNECTION NO CONNECTION SHL_7 MY_1 RESET 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F 2/3 F IR 2/3 F 2/3 F 1/3 F CN80 VKN1518 Q81-Q86 : 2SA1576A CN8101 G1/4 : DVD AUDIO SIGNAL ROUTE : V SIGNAL ROUTE : Y SIGNAL ROUTE : C SIGNAL ROUTE : ROM DATA SIGNAL ROUTE (V) (Y) (C) (D) (D) (D) (V) (V) (V) (V) (V) (V) (V) (Y) (Y) (Y) (Y) (Y) (Y) (Y) (C) (C) (C) (C) (C) (C) 3/3 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 28 A B C D 1 2 3 4 1 2 3 4 G 1/4 CONNECT ASSY (6 CH) (XWX3023) 4/4 G CN80 F 3/3 CN20 F 1/3 (V) (Y) (C) (D) (D) (D) (Y) (Y) (Y) (Y) (Y) 3.7 CONNECT ASSY (6 CH) (1/4) 1/4 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 29 A B C D 5 6 7 8 5 6 7 8 2/4 G CN6 F 2/3 : The power supply is shown with the marked box. : DVD AUDIO SIGNAL ROUTE : V SIGNAL ROUTE : Y SIGNAL ROUTE : C SIGNAL ROUTE (V) (Y) (C) (V) (V) (V) (C) (C) (C) (D) (D) (D) (D) (D) (Y) (Y) (Y) (Y) (Y) 1/4 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 30 A B C D 1 2 3 4 1 2 3 4 1/4 G : DVD AUDIO SIGNAL ROUTE (D) (D) (D) (D) (D) 3.8 CONNECT ASSY (6 CH) (2/4) 2/4 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 31 A B C D 5 6 7 8 5 6 7 8 G 2/4 CONNECT ASSY (6 CH) (XWX3023) UDZS5.1B 4/4 G 4/4 G (D) (D) 2/4 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 32 A B C D 1 2 3 4 1 2 3 4 G 3/4 CONNECT ASSY (6 CH) (XWX3023) 4/4 G 2/2 1/2 2/2 1/2 2/2 1/2 (F) (F) (F) (F) (R) (R) (R) (R) (C) (C) (C) (C) 3.9 CONNECT ASSY (6 CH) (3/4) 3/4 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 33 A B C D 5 6 7 8 5 6 7 8 4/4 G 4/4 G : AUDIO (FRONT) SIGNAL ROUTE (F) (F) (F) (F) (F) : AUDIO (REAR) SIGNAL ROUTE (R) (R) (R) (R) : AUDIO (CENTER) SIGNAL ROUTE (C) (C) (C) (C) 3/4 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 34 A B C D 1 2 3 4 1 2 3 4 G 4/4 CONNECT ASSY (6 CH) (XWX3023) 2/4 G 1/4,2/4 G 3/4 G 2/2 1/2 AK4527VQ (F) (R) (C) (F) (R) (C) (D) 3.10 CONNECT ASSY (6 CH) (4/4) 4/4 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 35 A B C D 5 6 7 8 5 6 7 8 3/4 G 3/4 G 1/2 2/2 CN5104 I 2/3 CN5502 M CN3404 K : The power supply is shown with the marked box. : AUDIO (FRONT) SIGNAL ROUTE (F) (F) : DVD AUDIO SIGNAL ROUTE (D) : AUDIO SIGNAL ROUTE : AUDIO (REAR) SIGNAL ROUTE (R) (R) (R) : AUDIO (CENTER) SIGNAL ROUTE (C) (R) (C) (C) (C) 4/4 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 36 A B C D 1 2 3 4 1 2 3 4 RF AMP 1T378A 1T378A MIX AMP BUFFER IF AMP FM +B SW MW RF TUNING BLOCK AKX7041 OSC 3.11 FM/AM TUNER MODULE H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 37 A B C D 5 6 7 8 5 6 7 8 FM/AM TUNER MODULE (AXQ7065) CN6201 KP200IA14L H : The power supply is shown with the marked box. AF AMP REGULATOR PLL AF AMP 2/3 I CN3051 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 38 A B C D 1 2 3 4 1 2 3 4 I 1/3 AF ASSY (XWZ3330) : DECK PB SIGNAL ROUTE (PB) (PB) (PB) (PB) (PB) (PB) (PB) (PB) (REC) (REC) (REC) (REC) (REC) (REC) (REC) : DECK REC SIGNAL ROUTE (REC) 3.12 AF ASSY (1/3) 1/3 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 39 A B C D 5 6 7 8 5 6 7 8 : The power supply is shown with the marked box. 2/3 I BA4558F-HT BA4558F-HT RTF1209 RTF1209 2/3 I 3/3 I 2/3 I 2/3, 3/3 I 2/3 I (PB) (PB) (PB) (PB) (PB) (REC) (REC) (REC) (REC) (REC) 1/3 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 40 A B C D 1 2 3 4 1 2 3 4 3/3 I CN8103 G4/4 CN5501 M LC75396NE (TA) (TA) (TA) (OUT) (OUT) (PB) (PB) (MIC) (F) (F) (F) (MIC) (OUT) (TA) (TA) (PB) (F) (F) (F) (PB) (OUT) 3.13 AF ASSY (2/3) 2/3 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 41 A B C D 5 6 7 8 5 6 7 8 I 2/3 AF ASSY (XWZ3330) 3/3 I 3/3 I 3/3 I 3/3 I 3/3 I 1/3,3/3 I 1/3 I CN6201 H BA4558F-HT BA4558F-HT BA4558F-HT BA4558F-HT : DECK REC SIGNAL ROUTE (PB) : KARAOKE SIGNAL ROUTE (REC) : AUDIO SIGNAL ROUTE : AUDIO (FRONT) SIGNAL ROUTE (F) (K) : MIC SIGNAL ROUTE (MIC) (MIC) : TUNER AUDIO SIGNAL ROUTE (TA) (TA) (PB) (PB) (REC) (REC) (PB) (MIC) (MIC) (MIC) (F) (K) (F) (F) (F) (F) (K) (MIC) (K) (K) (TA) : REC OUT SIGNAL ROUTE (OUT) : DECK PB SIGNAL ROUTE 2/3 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 42 A B C D 1 2 3 4 1 2 3 4 I 3/3 AF ASSY (XWZ3330) 2/3 I 1/3 I 2/3 I 1/3 I 2/3 I 2/3 I J3401 K J3402 K 1SR139-100 1SR139-100 1/2 1/2 2/2 2/2 (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) (F) 3.14 AF ASSY (3/3) and SECONDARY ASSY 3/3 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 43 A B C D 5 6 7 8 5 6 7 8 2/3 I SECONDARY ASSY (XWZ3323) J JA3991 XKN3007 FAN MOTOR To POWER TRANSFORMER CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491005 MFD, BY LITTELFUSE INC. FOR IC15, IC3305 AND IC3306 (AEK7019). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.630 MFD, BY LITTELFUSE INC. FOR IC17 (AEK7006). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 4911.25 MFD, BY LITTELFUSE INC. FOR IC3302 (AEK7010). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491004 MFD, BY LITTELFUSE INC. FOR IC16 (AEK7018). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491010 MFD, BY LITTELFUSE INC. FOR IC11 AND IC12 (AEK7022). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491010F MFD, BY LITTELFUSE INC. FOR IC13 AND IC14 (AEK7068). : AUDIO (FRONT) SIGNAL ROUTE (F) (F) (F) (F) (F) (F) (F) (F) (F) 3/3 I J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 44 A B C D 1 2 3 4 1 2 3 4 REAR AMP ASSY (XWZ3325) K CN3401 AKB7042 JA3403 XKB3007 CN3603 I 3/3 CN3604 I 3/3 (R) (R) (R) (R) (R) (C) (C) (C) (C) (C) 3.15 REAR AMP ASSY K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 45 A B C D 5 6 7 8 5 6 7 8 CN8105 G4/4 MTZJ4.7B : The power supply is shown with the marked box. : AUDIO (REAR) SIGNAL ROUTE (R) (R) (R) (R) (R) (R) (C) (C) (R) (C) (C) (C) (C) (C) : AUDIO (CENTER) SIGNAL ROUTE (C) K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 46 A B C D 1 2 3 4 1 2 3 4 J81 M SECONDARY ASSY J POWER TRANSFORMER XTS3042 NJM7805FA S1WB(A)60SD 1SS133 1SS133 1SS133 3.16 PRIMARY ASSY L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 47 A B C D 5 6 7 8 5 6 7 8 PRIMARY ASSY (XWZ3332) L R1 2.2M (1/2W) 6.3A REK1085 ATF1136 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 48 A B C D 1 2 3 4 1 2 3 4 DISPLAY ASSY (XWZ3331) M BLUE LED ASSY (XWZ3321) N orange SLP6118C51H green SLP3118C51H green SLP3118C51H D5619,D5620: red SLP9118C51H FL TUBE 10MHz PDC064A (MIC) (MIC) (MIC) (MIC) (MIC) (MIC) MIC 3.17 DISPLAY and BLUE LED ASSYS N M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 49 A B C D 5 6 7 8 5 6 7 8 CN81 L To DECK MECHANISM UNIT CN5105 I 2/3 CN8104 G4/4 : The power supply is shown with the marked box. D5902: SLP7118C51H D5903: SLP9118C51H D5904: SLP3118C51H S5911 : DISC 1 S5912 : DISC 3 S5913 : DISC 2 S5914 : STANDBY/ON S5915 : DISC CHANGE S5916 : OPEN/CLOSE S5917 : EQUALIZER S5918 : AUDIO MODE S5919 : ZOOM SURROUND S5920 : ASES/COPY S5921 : REC/STOP S5922 : DOLBY/DTS S5923 : TAPE Ι/ΙΙ S5924 : AUX S5925 : DVD/CD S5926 : TUNER BAND S5927 : 2NR ON/OFF S5928 : VIDEO NR S5929 : SET S5930 : THEATER CONTROL S5931 : P.BASS(DEMO) S5932 : DISPLAY MODE S5933 : VISUAL MODE S5934 : MONO S5935 : FREQ/STATION S5936 : TIMER/CLOCK ADJ S5937 : 7�(STOP/ST.MEMORY) S5938 : ¢/¡• +�(TUNING+) S5939 : ` /8�(PLAY/PAUSE) S5940 : – •1/4�(TUNING–) S5951 : VOLUME UP/DPWN S5952 : JOG dial : MIC SIGNAL ROUTE (MIC) (MIC) (MIC) (MIC) J81 M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 50 A B C D 1 2 3 4 1 2 3 4 M PC101 R101 (VNP1661-B) M 4.1 SW, TRADE, MOTOR, SMEB and FGSB ASSYS 4. PCB CONNECTION DIAGRAM (VNP1669-A) (VNP1669-A) (VNP1669-A) CN30 F TRADE ASSY B SW ASSY A MOTOR ASSY C LOADING MOTOR NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B (VNP1722-A) SMEB ASSY D FGSB ASSY E CARRIAGE MOTOR SPINDLE MOTOR SIDE A A B C D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 51 A B C D 1 2 3 4 1 2 3 4 4.2 FM/AM TUNER MODULE H VR6201 Q6203 Q6204 Q6304 Q6306 Q6401 Q6303 Q6302 Q6301 Q6214 Q6402 Q6403 Q6404 Q6202 Q6201 IC6202 IC6201 Q6205 CN3051 I (ANP7159-B) SIDE A SIDE B FM/AM TUNER MODULE H FM/AM TUNER MODULE H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 52 A B C D 1 2 3 4 1 2 3 4 (VNP1719-A) VC1 IC15 IC8 Q109 Q101 IC1 Q102 IC3 Q84 Q83 Q81 Q85 IC5 IC7 IC22 Q106 IC11 Q103 Q7 Q82 IC18 Q86 IC25 IC401 Q6 CN8102 G DVD MAIN ASSY F CN8101 G PICKUP ASSY CN9002 B CN8106 G SIDE A 16M 4.3 DVD MAIN ASSY F • This diagram has four layers. In the two middle layers, mainly Vcc and GND are Connected. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 53 A B C D 1 2 3 4 1 2 3 4 (VNP1719-A) DVD MAIN ASSY F SIDE B Q88 Q90 Q92 Q1 IC14 IC19 Q3 IC13 Q114 Q113 Q281 IC17 IC16 IC27 Q112 Q251 Q105 Q107 Q108 IC21 IC2 Q87 IC26 Q89 Q91 IC12 F • This diagram has four layers. In the two middle layers, mainly Vcc and GND are Connected. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 54 A B C D 1 2 3 4 1 2 3 4 IC8201 IC8202 IC8401 IC8501 IC8502 IC8706 IC8601 IC8701 IC8702 IC8802 IC8851 Q8922 Q8726 Q8871 Q8872 Q8918 Q8917 Q8916 Q8747 Q8741 Q8722 Q8921 Q8728 Q8725 Q8721 IC8901 IC8203 Q8205 (XNP3031-B) CONNECT ASSY (6 CH) G CN5104 I CN3404 K CN5502 M CN20 F CN6 F CN80 F SIDE A 4.4 CONNECT ASSY (6CH) G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 55 A B C D 1 2 3 4 1 2 3 4 IC8204 Q8201-Q8204 Q8535 Q8925 Q8731 Q8733 Q8727 Q8924 Q8742 Q8732 Q8874 Q8915 IC8704 IC8703 IC8801 Q8873 Q8875 Q8734 (XNP3031-B) CONNECT ASSY (6 CH) G SIDE B G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 56 A B C D 1 2 3 4 1 2 3 4 AF ASSY I CN8103 G CN6201 H J3401 K VR2301 Q3803 Q3081 IC3302 IC3301 Q3352 Q3351 Q81 IC3306 Q2804 Q2803 Q2803 VR2302 VR2801 VR2802 4.5 AF ASSY I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 57 A B C D 5 6 7 8 5 6 7 8 CN5501 M J3402 K J11 J DECK MECHANISM UNIT DC FAN MOTOR (XNP3028-B) VR2303 VR2305 VR2304 VR2306 Q3351 Q81 IC3306 IC3305 Q2803 IC2301 2 VR2801 VR2802 SIDE A I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 58 A B C D 1 2 3 4 1 2 3 4 AF ASSY I Q3009 Q2802 Q2306 Q2301 Q2302 Q3608 Q3607 Q3621 Q82-Q65 Q3353 Q3602 Q Q3354 Q Q2807 Q2805 Q2201-Q2204 Q2103-Q2105 Q2102 IC2201 IC5891 IC5892 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 59 A B C D 5 6 7 8 5 6 7 8 (XNP3028-B) Q82-Q65 Q3602 Q3601 Q3606 Q3605 Q3354 Q3603 Q2807 Q2805 IC3836 IC3001 IC3835 04 Q3311-Q3314 Q3315 Q3318 Q3102 Q3001-Q3003 Q3006 Q3005 Q3101 IC5691 Q3317 IC3304 IC3303 SIDE B I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 60 A B C D 1 2 3 4 1 2 3 4 (XNP3029-B) Q60 Q55 Q52 Q51 Q62 IC54 IC52 Q57 IC51 Q64 IC53 IC3401 IC3402 REAR AMP ASSY K CN3603 I CN3604 I CN8105 G SIDE A 4.6 REAR AMP ASSY K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 61 A B C D 1 2 3 4 1 2 3 4 Q3472 IC53 IC51 Q57 IC52 Q64 Q62 Q52 Q51 Q55 Q60 Q54 Q3403 Q3402 Q3401 Q3404 Q53 Q3417 Q3405 Q63 Q3406-Q3415 Q3471 REAR AMP ASSY K SIDE B (XNP3029-B) K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 62 A B C D 1 2 3 4 1 2 3 4 (XNP3028-B) (XNP3028-B) IC16 IC15 IC12 IC14 IC13 IC11 IC17 Q31 SECONDARY ASSY J SECONDARY ASSY J J11 I SIDE A SIDE B (T1) POWER TRANSFORMER 4.7 SECONDARY ASSY J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 63 A B C D 1 2 3 4 1 2 3 4L (XNP3029-B) (XNP3029-B) Q81 IC81 IC82 IC82 PRIMARY ASSY L PRIMARY ASSY L J81 M AC IN LIVE NEUTRAL SIDE A SIDE B (T1) POWER TRANSFORMER 4.8 PRIMARY ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 64 A B C D 1 2 3 4 1 2 3 4 (XNP3029-B) IC5601 IC3901 BLUE LED ASSY N DISPLAY ASSY M CN8104 G CN81 L SIDE A 4.9 DISPLAY and BLUE LED ASSYS M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 65 A B C D 5 6 7 8 5 6 7 8 IC5501 IC3931 CN5105 I (XNP3029-B) DECK MECHANISM UNIT M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 66 A B C D 1 2 3 4 1 2 3 4 Q2906 Q2903 Q2908 Q2907 Q2904 Q2901 Q2911 Q2910 Q5501 Q5502 Q5607 Q5605 IC3931 DISPLAY ASSY M SIDE B M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A9800D 67 A B C D 5 6 7 8 5 6 7 8 (XNP3029-B) Q5654 Q5653 Q5652 Q5655 Q5650 Q5823 Q5651 Q5825 IC5601 IC3901 Q5608 Q5606 Q5801 Q5821 Q5826 Q5604 Q5824 Q5822 Q5602 Q5601 Q5827 IC5501 502 BLUE LED ASSY N (XNP3029-B) M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 XR-A9800D Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF ASSEMBLIES NSP $M MECHA PCB ASSY VWM1878 NSP SW ASSY VWG2002 NSP TRADE ASSY VWG2003 NSP MOTOR ASSY VWG2004 NSP TRAVERSE MECHANISM ASSY VWT1161 NSP SMEB ASSY VWG2048 NSP FGSB ASSY VWG2009 DVD MAIN ASSY XWX3014 CONNECT ASSY (6CH) XWX3023 FM/AM TUNER MODULE AXQ7065 MAIN ASSY XWM3174 AF ASSY XWZ3330 SECONDARY ASSY XWZ3323 COMPLEX ASSY XWM3178 REAR AMP ASSY XWZ3325 PRIMARY ASSY XWZ3332 DISPLAY ASSY XWZ3331 BLUE LED ASSY XWZ3321 SW ASSY SWITCHES S9502 ASG7009 S9501 DSG1017 OTHERS J9501 JUMPER WIRE 6P D20PWY0610E TRADE ASSY OTHERS CN9501 6P JUMPER CONNECTOR 52147-0610 CN9002 FFC CONNECTOR 13P SLW13R-1C7 CN9001 FFC CONNECTOR 8P SLW8R-1C7 MOTOR ASSY SWITCH S9503 ASG7009 OTHERS J9502 JUMPER WIRE 4P D20PWW0405E SMEB ASSY SWITCH S201 DSG1016 OTHERS CN201 3P FFC CONNECTOR 52044-0345 CN202 8P FFC CONNECTOR VKN1212 PC BOARD SMEB VNP1722 FGSB ASSY SEMICONDUCTOR PC101 GP2S60 RESISTORS All Resistors RS1/10S J DVD MAIN ASSY SEMICONDUCTORS IC21 CY2081SL-638 IC14 KM68V1000CLG-7L IC1 LA9701M IC2 LC78652W IC3 M56788FP IC19 MB811171622A-100FN IC18 MB86373B IC16 MC74VHC541DT IC17 MC74VHCT541ADT IC15 MN414800CSJ-07 IC5,IC7 NJM2100M IC11 PD3410A IC12 PE5108A IC401 PQ2TZ15 IC23 TC7SH32FU IC8 TC7SHU04F IC13 XYW3001 Q106,Q109,Q81-Q86 2SA1576A Q105,Q114,Q251 2SC4081 Q102 HN1A01F A B D C F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 XR-A9800D Mark No. Description Part No. Mark No. Description Part No. Q103,Q281,Q6,Q7 HN1B04FU Q101 HN1C01F Q112,Q113 HN1C01FU Q108 HN1K03FU Q107 RN1902 Q3 RN1911 Q1 RN4982 D302 KV1471E D6 RB501V-40 COILS AND FILTERS F8500 CHIP BEAD DTF1069 L101,L150,L330 LCYA100J2520 L304 LCYA2R7J2520 F1 VIDEO FILTER VTF1155 L81 CHIP COIL VTL1067 CAPACITORS C123,C145,C282,C283,C613 CCSRCH101J50 C627,C629,C843 CCSRCH101J50 C322 CCSRCH120J50 C206,C210,C211 CCSRCH151J50 C126,C333,C845 CCSRCH180J50 C116,C151,C314 CCSRCH220J50 C152 CCSRCH221J50 C209 CCSRCH331J50 C104-C108,C134,C236 CCSRCH470J50 C122,C208 CCSRCH471J50 C128,C335 CCSRCH560J50 C127,C334 CCSRCH5R0C50 C124,C146 CCSRCH680J50 C117,C240,C352,C360 CCSRCH681J25 C129,C142 CEV101M10 C113,C139 CEV220M16 C413,C700,C808 CEV221M4 C111,C149,C205,C207,C401 CEV470M6R3 C403,C407 CEV470M6R3 C140,C223,C224,C252,C264 CKSQYB105K10 C312,C801,C802,C807 CKSQYB105K10 C809-C815,C817-C819 CKSQYB105K10 C229 CKSQYB224K16 C148,C217,C414 CKSQYF105Z16 C216,C313,C337 CKSRYB102K50 C133,C136,C203,C220,C225 CKSRYB103K50 C239,C320,C321,C603,C625 CKSRYB103K50 C703,C711 CKSRYB103K50 C101,C102,C114,C118,C119 CKSRYB104K16 C121,C138,C204,C212,C213 CKSRYB104K16 C227,C228,C231,C263 CKSRYB104K16 C315-C317,C332,C804 CKSRYB104K16 C281,C354 CKSRYB222K50 C153,C266 CKSRYB223K25 C214,C251,C261 CKSRYB472K50 C357 CKSRYB473K16 C330 CKSRYB682K50 C109,C110,C120,C130,C131 CKSRYF104Z16 C143,C150,C202,C215 CKSRYF104Z16 C221,C222,C226,C230,C235 CKSRYF104Z16 C265,C319,C327,C359,C367 CKSRYF104Z16 C369,C370,C402,C404,C406 CKSRYF104Z16 C408,C410,C412,C415 CKSRYF104Z16 C601,C602,C604-C612 CKSRYF104Z16 C614,C615,C617-C623,C626 CKSRYF104Z16 C701,C702,C704-C710 CKSRYF104Z16 C712-C726,C831-C833 CKSRYF104Z16 C837-C839 CKSRYF104Z16 C820,C821 (2.2µF) VCG1030 C299,C844 (0.47µF) VCG1032 C368,C409,C411 (47µF/6.3V) VCH1166 C405 (330µF) VCH1191 VC1 (30pF) VCM1013 RESISTORS R123 (39Ω×4) ACN7047 R732,R733,R735,R736 (47Ω×4) ACN7077 R632,R840 (100Ω×4) DCN1092 R608,R609,R613,R624,R627 DCN1094 (100kΩ×4) R629,R631,R633,R634,R638 DCN1094 (100kΩ×4) R654,R657,R658,R662,R706 DCN1094 (100kΩ×4) R717,R718 (100kΩ×4) DCN1094 R121,R663 (22Ω×4) DCN1104 R712,R715 (0Ω×4) DCN1106 R1020,R162,R2010,R2020,R2030 RS1/10S0R0J R2040,R3050,R3520,R366,R4010 RS1/10S0R0J R4020,R4030,R4040,R4050,R4060 RS1/10S0R0J R685,R722,R8000,R821 RS1/10S0R0J R202 RS1/10S101J R700 RS1/10S1R2J R396 RS1/16S1001F R361,R364 RS1/16S1003F R807 RS1/16S1201F R363,R365 RS1/16S1503F R825-R827 RS1/16S1600F R395 RS1/16S1801F R805 RS1/16S2401F R397,R806,R808 RS1/16S2701F R848-R850 RS1/16S4700F R164 RS1/16S5600F R391 RS1/16S5601F R394 RS1/16S6801F R3510 (100Ω) VCN1120 Other Resistors RS1/16S J OTHERS X2 CHIP CERALOCK (20MHz) DSS1110 FLEXIBLE CABLE 07P VDA1681 CN6 7P FFC CONNECTOR VKN1299 CN7 B TO B CONNECTOR 14P VKN1324 CN4 24P FFC CONNECTOR VKN1464 CN30 13P FFC CONNECTOR VKN1472 CN80 32P FFC CONNECTOR VKN1518 CN20 27P FFC CONNECTOR VKN1583 X1 CRYSTAL (13.824MHz) VSS1129 CONNECT ASSY (6 CH) SEMICONDUCTORS IC8601 AK4527VQ IC8701,IC8703,IC8704,IC8706,IC8851 BA4558F-HT IC8901 BU4094BCF IC8202 LA7137M IC8401 LC89055W G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 XR-A9800D Mark No. Description Part No. Mark No. Description Part No. IC8801,IC8802 M62429FP IC8203 NJM78L08A IC8201 TA7302P IC8204 TC74HCT7007AF IC8502 W24257AJ-12 IC8501 YSS912C Q8203,Q8204 2SB1197K Q8727,Q8728,Q8733,Q8734 2SD2114K Q8741,Q8742 2SD2114K Q8915,Q8916,Q8918 DTA124EK Q8205 DTA143EK Q8201 DTC114YK Q8535,Q8917 DTC124EK Q8202 PDTA124EK D8901,D8902 1SS181 D8903 1SS184 D8501 UDZS5.1B COILS AND FILTERS L8401,L8402,L8501-L8503 DTF1064 CHIP BEAD L8201 LCTA470J2520 L8205,L8206 VTF1096 CHIP SOLID INDUCTOR L8241-L8244 CHIP BEAD VTL1081 SWITCH S8201 VSH1020 CAPACITORS C8220,C8224,C8504,C8507,C8515 CCSRCH101J50 C8518,C8523,C8524,C8527,C8529 CCSRCH101J50 C8540,C8721,C8722 CCSRCH101J50 C8741,C8742,C8761 CCSRCH151J50 C8405,C8406,C8511,C8512 CCSRCH200J50 C8201 CCSRCH390J50 C8521 CCSRCH471J50 C8111 CEAT102M10 C8727-C8730,C8747-C8750 CEJQ100M50 C8753-C8756,C8767-C8772 CEJQ100M50 C8801-C8804 CEJQ100M50 C8209,C8210,C8217,C8226,C8227 CEJQ101M10 C8235,C8239,C8502,C8842 CEJQ101M10 C9001,C9002 CEJQ101M16 C8402,C8501,C8546,C8602,C8606 CEJQ101M6R3 C8612,C8617,C8618 CEJQ101M6R3 C8621,C8622,C8627,C8628,C8814 CEJQ220M25 C8543 CEJQ221M6R3 C8212,C8223 CEJQ331M6R3 C8413 CEJQ470M10 C8101,C8232,C8242,C8244,C8400 CKSRYB103K50 C8414,C8415,C8421,C8506,C8508 CKSRYB103K50 C8510,C8514,C8517,C8520,C8525 CKSRYB103K50 C8528,C8530,C8541,C8641,C8642 CKSRYB103K50 C8733,C8734,C8758,C8759 CKSRYB103K50 C8791-C8794,C8818,C8819,C8947 CKSRYB103K50 C8202-C8206,C8208,C8211 CKSRYB104K16 C8213,C8214,C8216,C8221,C8222 CKSRYB104K16 C8228,C8233,C8234,C8236,C8237 CKSRYB104K16 C8243,C8401,C8403,C8404 CKSRYB104K16 C8408,C8409,C8411,C8416,C8417 CKSRYB104K16 C8419,C8503,C8505,C8509,C8513 CKSRYB104K16 C8516,C8519,C8522,C8526 CKSRYB104K16 C8531-C8534,C8542,C8545,C8601 CKSRYB104K16 C8604,C8605,C8613,C8615,C8616 CKSRYB104K16 C8839-C8841,C8901 CKSRYB104K16 C8745,C8746,C8765 CKSRYB152K50 C8619,C8620,C8743,C8744,C8763 CKSRYB222K50 C8766 CKSRYB223K50 C8723-C8726 CKSRYB332K50 C8643 CKSRYB471K50 C8762 CKSRYB472K50 C8241 CKSRYB473K16 RESISTORS R8514 (1kΩ×4) ACN7060 R8403,R8404,R8500,R8503,R8509 DCN1092 (100Ω×4) R8525,R8529,R8603,R8607 DCN1092 (100Ω×4) R8994-R8997 RS1/10S0R0J R8625 RS1/10S100J R8626 RS1/10S180J Other Resistors RS1/16S J OTHERS X8401,X8501 VSS1140 CRYSTAL RESONATOR (12.288MHz) CN8202 4P MINI DIN SOCKET AKP7008 JA8203 OPTICAL LINK OUT GP1F32T CN8104 FFC CONNECTOR 21P HLEM21S-1 CN8105 FFC CONNECTOR 25P HLEM25S-1 CN8103 FFC CONNECTOR 30P HLEM30S-1 JA8201 1P PIN JACK VKB1063 CN8106 7P FFC CONNECTOR VKN1238 CN8102 27P FFC CONNECTOR VKN1258 CN8101 32P FFC CONNECTOR VKN1263 CN8107 7P FFC CONNECTOR VKN1267 FM/AM TUNER MODULE SEMICONDUCTORS IC6201 LA1832ML IC6202 LC72131MD Q6402 2SC2223 Q6203 2SC2705 Q6201,Q6202 2SC2712 Q6214,Q6403 2SC2714 Q6404 2SK302 Q6401 3SK194 Q6204 DTA124ES Q6205 DTC124EK D6202 1SS254 D6401,D6402 1T378A COILS AND FILTERS L6404 FM COIL ATC1003 L6401 FM RF COIL ATC1020 L6402 FM RF COIL ATC1021 F6204 FM CERAMIC FILTER ATF-107 F6203 FM CERAMIC FILTER ATF-119 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 XR-A9800D Mark No. Description Part No. Mark No. Description Part No. F6401 FM BAND PASS FILTER ATF-155 F6206 FM CERAMIC DISCRIMINATOR ATF7008 F6202 AM CERAMIC FILTER ATF7011 L6206,L6208,L6403 LAU2R2J TRANSFORMERS T6201 ATB7008 T6401 ATE7002 CAPACITORS C6208 CCSQCH100D50 C6212,C6274,C6275,C6408 CCSQCH101J50 C6412 CCSQCH102J50 C6221,C6222,C6416 CCSQCH150J50 C6271 CCSQCH200J50 C6415 CCSQCH330J50 C6406 CCSQCH331J50 C6401,C6419 CCSQCH5R0C50 C6407 CCSQCK1R0C50 C6410 CCSQCK2R0C50 C6413 CCSQRH180J50 C6414 CCSQRH8R0D50 C6405 CCSQTH150J50 C6234,C6235 CEAL1R0M50 C6245 CEAL470M16 C6224 CEAT100M50 C6243 CEAT101M16 C6231 CEAT1R0M50 C6227 CEAT220M25 C6214,C6236 CEAT2R2M50 C6262 CEAT3R3M50 C6219 CEAT470M10 C6244 CEAT470M16 C6249,C6250,C6265,C6266 CEAT4R7M50 C6258 CEJA470M16 C6215 CFTLA103J50 C6211,C6254,C6403,C6417 CKSQYB102K50 C6201,C6205,C6210,C6237,C6276 CKSQYB103K50 C6278,C6280,C6281,C6402,C6409 CKSQYB103K50 C6418 CKSQYB103K50 C6251,C6252 CKSQYB153K50 C6203,C6259 CKSQYB223K50 C6228 CKSQYB472K50 C6209 CKSQYB473K50 C6230 CKSQYB821K50 C6218,C6223,C6255 CKSQYF103Z50 C6220,C6226,C6242,C6256 CKSQYF223Z50 C6225 CKSQYF473Z50 RESISTORS R6280 RD1/4PU101J R6413,R6416,R6418,R6906,R6909 RS1/8S0R0J R6401 RS1/8S470J VR6201 (10kΩ) PCP1029 Other Resistors RS1/10S J OTHERS BN6202 4P ANTENNA TERMINAL AKE7051 X6202 CERAMIC RESONATOR ASS1066 (456kHz) X6201 CRYSTAL RESONATOR ASS1093 (7.2000MHz) CN6201 14P SOCKET KP200IA14L MW RF TUNING BLOCK AXX7041 AF ASSY SEMICONDUCTORS IC3302 (1.25A) AEK7010 IC3305,IC3306 (5A) AEK7019 IC3836 BA3838F IC2101,IC3101,IC3102,IC3303,IC3304 BA4558F-HT IC5691 BA4558F-HT IC5891,IC5892 BU4094BCF IC2201 HA12136AF IC2301 HA12211NT IC3001 LC75396NE IC3301 STK407-070B Q3354,Q3601,Q3602,Q3621,Q82 2SA1037K Q2806 2SB1197K Q2803,Q2804 2SC1815 Q2801 2SC2240 Q2102,Q2201,Q2202,Q3101,Q3102 2SC2412K Q3353,Q3603,Q3605-Q3608,Q83 2SC2412K Q85 2SC2412K Q3081,Q81 2SD1858X Q2203,Q2204,Q2805,Q3001,Q3002 2SD2114K Q3005,Q3006,Q3311,Q3312 2SD2114K Q2301,Q2302,Q3317,Q3318 2SK368 Q3313,Q3315 DTA124EK Q3003,Q3009 DTA143EK Q2104,Q2105,Q3314 DTC124EK Q2103,Q2306,Q2802,Q2807,Q84 DTC143EK Q3351 IRFI9Z34G Q3352 IRFIZ34G D3301,D3302 1SR139-100 D2191,D2301-D2306,D3001,D3002 1SS133 D3101,D3102,D3351-D3354 1SS133 D3361,D3362,D3601-D3604,D3606 1SS133 D3612,D3613,D3621,D3622 1SS133 D3625-D3627,D5891,D81,D89 1SS133 D91,D92 1SS133 D2102,D2103,D2201,D2202,D3051 1SS355 D3607 1SS355 D3355,D3356 20E2-FC D3303 D5SBA20 D3357,D3358 MTZJ10C D3083 MTZJ11C D3313 MTZJ12C D3359,D3360 MTZJ18B D90 MTZJ2.7A D82 MTZJ24D D3363,D3364 MTZJ39C D2001 MTZJ6.2A COILS AND FILTERS L3601,L3602 AF CHOKE COIL ATH-133 L2801 OSC COIL ATX7002 L2301,L2302 LTA822J F2201,F2202 MPX FILTER RTF1209 L3002-L3004,L3065 CHIP BEAD VTL1081 L3991 AXIAL INDUCTOR XTL3001 L2101 AXIAL INDUCTOR XTL3003 RELAY RY3601 ASR7008 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 XR-A9800D Mark No. Description Part No. Mark No. Description Part No. CAPACITORS C2301,C2302,C3603,C3606 CCSRCH100D50 C5892 CCSRCH101J50 C2192 CCSRCH220J50 C3319,C3320 CCSRCJ3R0C50 C3311,C3312,C3361,C3362 CEANL1R0M50 C3317,C3318 CEANP100M35 C3313,C3314 CEANP2R2M50 C2207,C2803,C2810,C3047,C3048 CEAT100M50 C3063,C3064,C3081,C3107,C3334 CEAT100M50 C3602,C3858,C81,C85 CEAT100M50 C2002,C2316,C3045,C3046,C3091 CEAT101M16 C3303,C3304,C3684 CEAT101M50 C2312,C2313,C3035,C3036,C3108 CEAT1R0M50 C3328 CEAT1R0M50 C2106,C2214,C2215,C2321,C2322 CEAT220M50 C87 CEAT220M50 C2001 CEAT221M16 C3601 CEAT221M25 C2201,C2202,C2205,C2206 CEAT2R2M50 C2212,C2213,C2319,C2320 CEAT2R2M50 C3005-C3010,C3017,C3018,C3104 CEAT2R2M50 C3621,C3851-C3854,C5691,C5692 CEAT2R2M50 C2804,C2805,C3625 CEAT330M16 C3105 CEAT3R3M50 C3321,C3322,C3329,C3330,C3841 CEAT470M16 C2195 CEAT470M25 C3106,C3109,C3857 CEAT4R7M50 C2203,C2204 CEATR22M50 C3102,C3325 CEATR47M50 C3027,C3028 CFTLA334J50 C3023,C3024 CFTLA474J50 C2802 CKCYB681K2H C5891 CKSQYB104K25 C2194 CKSQYB105K10 C3845 CKSQYB224K16 C3075,C3076 CKSRYB102K50 C2315,C2317,C2318,C3042,C3053 CKSRYB103K50 C3083,C3086,C3098,C3103,C3991 CKSRYB103K50 C88 CKSRYB103K50 C2191,C2193,C3021,C3022,C3071 CKSRYB104K16 C3099,C3846,C3847,C3855 CKSRYB104K16 C3033,C3034,C3077 CKSRYB122K50 C2208,C2209 CKSRYB152K50 C3315,C3316 CKSRYB222K50 C2323,C2326 CKSRYB223K50 C2324,C2325 CKSRYB272K50 C3029,C3030 CKSRYB273K16 C2808,C2809 CKSRYB332K50 C3623,C3624 CKSRYB471K50 C2333,C2334,C2807 CKSRYB472K50 C3101,C3111,C3112,C3844 CKSRYB473K16 C2303,C2304,C2343,C2344 CKSRYB561K50 C3019,C3020,C3031,C3032 CKSRYB682K50 C3326,C3327 CKSRYB682K50 C3025,C3026 CKSRYB683K16 C2307,C2308,C2331,C2332 CKSRYB821K50 C3331-C3333 CKSRYF104Z50 C2801 CQHA822J2A C2210,C2211 CQMBA103J50 C2806 CQMBA223J50 C3306,C3307 (4700µF/50V) XCH3004 RESISTORS R2812 RD1/2LMF680J R89 RD1/2VM330J R3619,R3620 RD1/4LMF100J R3353,R3354 RD1/4PU101J R3024,R3025,R5892,R5894,R5895 RD1/4PU102J R3029,R3317,R3318,R3326 RD1/4PU104J R3081,R5893 RD1/4PU221J R3035,R3851 RD1/4PU222J R2813 RD1/4PU471J R2809 RD1/4PU4R7J R3026 RD1/4PU822J R3355,R3356 RS1/10S104J R3357,R3358,R3611,R3612 RS1/10S153J R2309 RS1/10S222J R3330 RS1/10S223J R2001 RS1/10S471J R3319,R3320,R81 RS1/10S561J R3605,R3606 RS1/10S562J R3603,R3604 RS1/10S823J R3347 RS1LMF821J R3991,R3992 RS2LMF331J R3601,R3602 RS3LMFR22J VR2303-VR2306 (10kΩ) VCP1156 VR2301,VR2302 (100kΩ) VCP1162 VR2801,VR2802 (220kΩ) VCP1164 Other Resistors RS1/16S J OTHERS 17P CABLE HOLDER 51063-1705 CN3601 4P SPEAKER TERMINAL AKE7018 CN2302 KR CONNECTOR B2B-PH-K-S CN2303 KR CONNECTOR B3B-PH-K-R CN2301 KR CONNECTOR 3P B3B-PH-K-S CN5105 27P FFC CONNECTOR HLEM27S-1 CN5104 30P FFC CONNECTOR HLEM30R-1 CN3051 14P PLUG KM200IB14 CN3604 11P JUMPER CONNECTOR KPE11 CN3603 9P JUMPER CONNECTOR KPE9 JA3003 2P PIN JACK VKB1046 JA3001 2P PIN JACK VKB1060 J82 CONNECTOR ASSY 2P XDX3002 JA3991 HEADPHONE JACK XKN3007 SECONDARY ASSY SEMICONDUCTORS IC17 (630mA) AEK7006 IC16 (4A) AEK7018 IC15 (5A) AEK7019 IC11,IC12 (10A) AEK7022 IC13,IC14 (10A) AEK7068 Q31 2SA965 D33 1SS133 D12,D13 G3SBA20L D11 G5SBA20L D34 MTZJ36A D31 MTZJ8.2B D35,D36 S5688G J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 XR-A9800D Mark No. Description Part No. Mark No. Description Part No. CAPACITORS C33,C34 (4700µF/80V) ACH7071 C16 (6800µF/25V) ACH7120 C31 CEAT220M50 C32 CEAT221M63 C35 CEAT682M16 C13 CQMA103K2E RESISTORS R31 RD1/4PU103J R32 RD1/4PU222J OTHERS 17P CABLE HOLDER 51063-1705 REAR AMP ASSY SEMICONDUCTORS IC51 NJM7805FA IC53 NJM7806FA IC52,IC54 NJM7812FA IC3401 STK402-230 Q3414,Q3471,Q3472 2SA1037K Q51,Q52,Q55,Q60,Q62 2SB1237X Q64 2SB1566 Q3406 2SC2412K Q3407 2SC2412K Q3408,Q3409,Q3411-Q3413,Q3415 2SC2412K Q3417,Q53,Q54,Q63 2SC2412K Q3401-Q3404 2SD2114K Q57 2SD2395 Q3405,Q3410 DTA124EK D3403-D3406,D3408,D3427,D3428 1SS133 D52,D54,D61,D62,D72 1SS133 D3425,D3426,D3471,D3472,D50 1SS355 D3409 MTZJ12C D56,D58-D60 MTZJ15C D3429 MTZJ4.7B D73 MTZJ6.2C D53,D55 MTZJ7.5C COILS L3401-L3403 AF CHOKE COIL ATH-133 L3404 CHIP BEAD VTL1081 RELAYS RY3401,RY3402 ASR7017 CAPACITORS C3422,C3471,C3472 CCSRCH100D50 C3407-C3409 CCSRCH221J50 C3413-C3415 CCSRCJ3R0C50 C3410-C3412 CEANP100M35 C3401-C3403 CEANP2R2M50 C3421,C52,C54,C64 CEAT100M50 C3420 CEAT101M10 C65 CEAT101M16 C3416,C3417,C3431 CEAT101M50 C55 CEAT1R0M50 C53 CEAT220M50 C3432 CEAT221M16 C3419 CEATR47M50 C66 CEHAT100M50 C57,C59,C62 CEJA100M16 C56,C61 CEJA1R0M50 C3423,C3424,C3429 CKSRYB103K50 C3404-C3406 CKSRYB222K50 C3425-C3428 CKSRYF104Z50 RESISTORS R3442-R3444 RD1/4LMF100J R3477,R3478 RD1/4MUF101J R52 RD1/4PU121J R54 RD1/4PU181J R64 RD1/4PU222J R66 RD1/4PU472J R3419-R3421 RD1/4PU563J R70 RD1/4PU680J R3449 RD1/4PU681J R3412 RS1/10S104J R73 RS1/10S121J R3429,R3430,R3432 RS1/10S153J R3422 RS1/10S223J R3409-R3411 RS1/10S273J R60 RS1/10S27R0F R3434,R3475,R3476 RS1/10S392J R72 RS1/10S471J R3416-R3418 RS1/10S561J R3425,R3426,R3428 RS1/10S823J R61 RS1/16S6800F R3471-R3473 RS1LMFR22J R3448 RS3LMF102J Other Resistors RS1/16S J OTHERS 9P CABLE HOLDER 51063-0905 11P CABLE HOLDER 51063-1105 CN3401 1P PIN JACK AKB7042 J3401 JUMPER WIRE D15A09-100-2651 J3402 JUMPER WIRE D15A11-100-2651 CN3404 FFC CONNECTOR 25P HLEM25R-1 PCB BINDER VEF1040 JA3403 AUDIO 3P PIN JACK XKB3007 PRIMARY ASSY SEMICONDUCTORS IC81 NJM7805FA Q81 2SD1859X D85,D88-D90 1SS133 D81 S1WB(A)60SD COIL L1 LINE FILTER ATF1136 TRANSFORMER T2 XTT3004 RELAYS RY81 ASR7018 K L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 XR-A9800D Mark No. Description Part No. Mark No. Description Part No. CAPACITORS C1,C2 (0.01µF) ACE7027 C83 CEAT100M50 C82 CEAT102M25 RESISTORS R1 (2.2MΩ, 1/2W) RCN1080 Other Resistors RD1/4PU J OTHERS H1,H2 FUSE CLIP AKR7001 CN1 2P VH CONNECTOR B2P3-VH AN1 1P AC INLET XKP3042 DISPLAY ASSY SEMICONDUCTORS IC3901 BA4558F-HT IC5601 HEF4794BT IC5501 PDC064A Q5501,Q5607,Q5608 2SA1037K Q2903,Q2906,Q2908 2SB1132 Q5602,Q5605,Q5606,Q5801 2SC2412K Q2910,Q2911,Q5826 DTA124EK Q5601 DTC124EK Q2901,Q2904,Q2907,Q5502,Q5604 DTC143EK Q5650-Q5655,Q5821,Q5825 DTC143EK D5592,D5593,D5626,D5811 1SS133 D5561-D5568,D5570,D5595 1SS181 D2901-D2903,D5623-D5625 1SS355 D5627-D5632,D5901 1SS355 D5601-D5608,D5610,D5611 SLP3118C51H D5615,D5616,D5618,D5622,D5904 SLP3118C51H D5612,D5614,D5617,D5621 SLP6118C51H D5902 SLP7118C51H D5619,D5620,D5903 SLP9118C51H D5651 UDZS5.6B COILS L3901,L3902 LCTB100K1608 L3921,L3922 CHIP BEAD VTL1081 L3914,L3915 CHIP SOLID INDUCTOR VTL1145 L5811 AXIAL INDUCTOR XTL3004 SWITCHES S5911-S5940 XSG3001 S5951 XSX3003 S5952 XSX3004 CAPACITORS C5812 (0.047F/5.5V) ACH1246 C5603,C5604 CCSRCH100D50 C5601 CCSRCH101J50 C5513,C5523 CCSRCH221J50 C3903 CCSRCH331J50 C5821 CEJA100M16 C5803 CEJA1R0M50 C3901,C3902,C3904,C3906 CEJA2R2M50 C3905,C5510,C5811,C5814 CEJA470M16 C5997,C5998 CKSQYB104K25 C5999 CKSQYB105K10 C5625 CKSQYF224Z25 C5804,C5951,C5953 CKSRYB102K50 C3911 CKSRYB103K50 C3909,C5816 CKSRYB104K16 C5506 CKSRYB471K50 C3907,C5503,C5504,C5509 CKSRYB472K50 C5507,C5508 CKSRYB473K16 C5602 CKSRYF104Z25 C5634,C5901 CKSRYF104Z50 C5813,C5822 CKSRYF473Z50 RESISTORS R5506,R5508 RA7T104J R2905,R5524,R5536 RD1/4PU102J R5601,R5617 RD1/4PU151J R5530 RD1/4PU221J R5613,R5618 RD1/4PU331J R5609 RD1/4PU391J R2902,R2907 RD1/4PU681J R5805 RS1/10S101J R5902-R5904 RS1/10S221J R5614,R5616 RS1/10S471J R5606-R5608 RS1/10S620J VR3901 (10kΩ-B) XCS3002 Other Resistors RS1/16S J OTHERS X5501 CERAMIC RESONATOR DSS1048 (10MHz) 2P CABLE HOLDER 51048-0200 4P CABLE HOLDER 51048-0400 CN5502 FFC CONNECTOR 21P 52492-2120 JA3901,JA3902 SR JACK AKN7004 J5601 JUMPER WIRE 2P D20PYY0210E J81 JUMPER WIRE 4P D20PYY0425E X5901 REMOTE RECEIVER UNIT GP1U28X CN2901 FFC CONNECTOR 15P HLEM15R-1 CN5501 27P FFC CONNECTOR HLEM27R-1 5621 FL HOLDER VNF1096 V5621 FL TUBE XAV3009 BLUE LED ASSY SEMICONDUCTOR D5613 E1L4E-7B(123) OTHERS 2P CABLE HOLDER 51048-0200 LED HOLDER XAK3154 M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 XR-A9800D Step No. Adjustment Title AM SG (400Hz, 30% Mod.) Reception Frequency Display Adjustment Location Specifications Frequency (kHz) Level (dBµV/m) 1 Front End Sensitivity 999 (∗1) 35 to 45 999kHz (∗1) T6201 Adjust so that the DC voltage between the IC6201 - pin 20 and GND becomes at maximum level. 6. ADJUSTMENT 6.1 TUNER SECTION FM Tuner Section • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. AM Tuner Section • Set the mode selector to AM BAND. • Connect the wiring as shown in Fig. 1. Note: Before adjusting, make sure there is no gap between L6401 and L6402. If there is a gap between them, bring them into contact with each other first, and then make adjustments. Note (∗1) : For the area using 10kHz step, frequency should be 1000kHz. AM SG MPX SG FM SG PRODUCT DC Voltmeter FM75Ω antenna terminal AM antenna terminal 60cm Center Center Loop antenna Fig.1 AM and FM Adjustment Wiring Diagram Step No. Adjustment Title FM SG (1kHz, ± 75kHz dev.) Reception Frequency Display Adjustment Location Specifications Frequency (MHz) Level (dBµV) 1 Front End Sensitivity 98 0 to 30 98MHz L6402 T6401 Adjust so that the DC voltage between the IC6201 - pin 20 and GND becomes at maximum level. 2 TUNED IND. Lighting Level 98 18 ± 2 98MHz VR6201 Adjust so that the indicator of TUNED IND. strats to light up. FM/AM TUNER MODULE AXX7041 L6402 L6401 T6401 T6201 IC6201 Pin 20 VR6201 AM antenna terminal FM antenna terminal YELLOW BLACK Fig.2 Adjustment Point SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 XR-A9800D 6.2 CASSETTE DECK SECTION 1. Tape Speed Adjustment Mechanical Adjustment Electrical Adjustment Check the following before starting. • Adjustment points and test points are shown in Fig.3, Fig.5 and Fig.7. • Test tape : NCT-111 (3kHz, 30min). No. Mode Test Tape Adjusting Points Measurement Points Adjustment Procedure Remarks 1 Deck Ι PLAY NCT-111 (Playback : 3kHz) ADJ. VR on CASSETTE MECHA (Fig. 3) TAPE TEST POINT (Rch) (AF Assy) Press the PLAY SW and adjust so that the reading becomes 3000Hz ± 20Hz. Confirm that wow & flutter level is below 0.3% (in the reverse direction, confirm that the reading is within 2940Hz to 3090Hz). Front Side AF Assy Fig.3 Tape Speed ADJ. Point Cassette Mechanism Section (Side View) Tape Speed ADJ. VR (1) Confirm that the tape speed adjustment has been completed. (2) Clean the heads and demagnetize them using a head eraser. (3) Set the measurement level to 0 dBV = 1 Vrms. (4) Use the specified tape for adjustment. Use the labeled (A) side of the test tape. STD-331E : For playback check STD-633 : Normal blank tape (5) Provide yourself with the following measuring devides: • AC millivoltmeter • Low-frequency oscillator • Attenuator • Oscilloscope (6) Adjust both right and left channels unless otherwise specified. (7) Turn the DOLBY NR switch off unless otherwize specified. (8) Warm up the unit for several minutes before adjustment. In particular, be sure to warm up the unit in the REC/PLAY mode for 3 to 5 minutes before starting recording/playback frequency characteristics adjustment. (9) Always follow the indicated adjustment order. Otherwise, a complete adjustment may not be achieved. Playback Adjustment (Decks Ι and ΙΙ) (1) Head Azimuth Adjustment (2) Playback Level Adjustment Recording Adjustment (Deck Ι) (1) Bias Oscillation Frequency Adjustment (2) Recording Bias Adjustment (3) Recording Level Adjustment. (4) ALC Operation Check ∗ As the reference recording level is 250nwb/m for STD-331E, the recording level will be higher by 4 dB for STD-331B (160nwb/m). When adjusting, pay carefull attention to the type of tape used. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 XR-A9800D Playback Adjustment (1) Head Azimuth Adjustment • Do not switch between forward and reverse operation with the screwdriver inserted. Deck ΙΙ Step Mode Input Signal/ Test Tape Adjusting Points Measurement Points Adjustment Value Remarks 1 PLAY STD-331E test tape (Playback: 10kHz, –20dB) Deck Ι Head azimuth adjustment screw (Fig. 5) TAPE TEST POINT (L, Rch) (AF Assy) Max. playback signal level After adjustment, apply silicon bond to the head azimuth adjustment screw. (2) Playback Level Adjustment • Since this adjustment determines playback dolby NR level, perform it carefully. Deck ΙΙ Step Mode Input Signal/ Test Tape Adjusting Points Measurement Points Adjustment Value Remarks 1 PLAY STD-331E test tape (Playback: 315Hz, 0dB) Deck Ι VR2303 (L ch) VR2304 (R ch) VR2305 (L ch) VR2306 (R ch) TAPE TEST POINT (L, Rch) (AF Assy) – 3.7dBV ± 2dB 0 dB –20 dB 30s 0 dB: 315 Hz, 250 nwb/m 315Hz 6.3kHz 10kHz 315Hz 14kHz 12.5 kHz 6.3 kHz 500 Hz 250 Hz 125 Hz 10kHz 8kHz 4kHz 2kHz 63Hz 40Hz 1kHz 30s 30s 30s 10s 10s ......................................................................................................... 10s Fig.4 STD-331E Test Tape Fig. 5 Head Azimuth Adjustment Screw Fig. 6 Frequency Characteristics PLAYBACK 250 10k 12.5k 3dB 3dB 4dB REV Azimuth Adjustment Screw FWD Azimuth Adjustment Screw RECORDING 250 10k 12.5k 3dB 3dB 5dB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 XR-A9800D Recording Adjustment (1) Bias Oscillation Frequency Adjustment (2) Recording Bias Adjustment • Since this adjustment affects recording bias, prevent distortion from increasing due to underbias. Note : Set the 10 kHz input signal level to the same value as the 315 Hz input signal level of step 1. Step Mode Input Signal/ Test Tape Adjusting Points Measurement Points Adjustment Value Remarks 1 REC Load the STD-633 test tape and set the recording mode. Deck ΙΙ Oscillation frequency to be 105.0kHz ± 2kHz. Deck Ι L2801 (AF Assy) Between A point Fig. 7 and GND Step Mode Input Signal/Test Tape Adjusting Points Measurement Points Adjustment Value Remarks 1 REC Input a 315 Hz signal to the AUX terminal and set the input selector to AUX. Deck ΙΙ Input signal level TAPE TEST POINT (L, Rch) (AF Assy) – 26dBV 2 REC → PLAY Load the STD-633 test tape and record/playback the 315Hz and 10kHz signals (see the Note below) Deck ΙΙ Deck Ι TAPE TEST POINT (L, Rch) (AF Assy) Repeat adjustment until playback level of the 10kHz signal is within 0 ± 0.5 dB from that of the 315Hz signal. If the REC/STOP button for four seconds while the power is in STAND BY mode, the frequency will decrease 2 to 3 kHz. Deck Ι VR2801 (L ch) VR2802 (R ch) (3) Recording Level Adjustment Step Mode Input Signal/Test Tape Adjusting Points Measurement Points Adjustment Value Remarks 1 REC Input a 315 Hz signal to the AUX terminal and set the input selector to AUX. Deck ΙΙ Input signal level TAPE TEST POINT (L, Rch) (AF Assy) – 7.7 dBV ± 0.5dB 2 REC → PLAY Load the STD-633 test tape and record/playback the 315Hz signal. Deck ΙΙ Deck Ι TAPE TEST POINT (L, Rch) (AF Assy) Repeat recording, playback and adjustment until playback level of the 315 Hz signal becomes – 7.7 dBV. Deck Ι VR2301 (L ch) VR2302 (R ch) (4) ALC Operation Check Step Mode Input Signal/Test Tape Adjusting Points Measurement Points Adjustment Value Remarks 1 2 REC/ PAUSE Input a 315 Hz signal to the AUX terminal and set the input selector to AUX. Input signal level Set to a level + 10dB above the input level at step 1. TAPE TEST POINT (L, Rch) (AF Assy) – 8.2 dBV Confirm that the reading is – 2.2 ± 2.5 dBV. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 XR-A9800D Fig.7 Adjustment and Measurement Points FRONT TAPE TEST POINT L ch R ch VR2303 VR2305 VR2304 VR2306 VR2302 VR2301 VR2802 VR2801 L2801 SIDE A AF ASSY A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 XR-A9800D CN7 CN20 CN7 1, 2 : FE 3, 4 : GNDS 5, 6 : RFO 7 : SREQ 8 : 2.5V 9,10 : TE 11,12 : VREF 13 : VCODR 14 : FDO 1 13 2 14 VC1 16M 1 DVD MAIN ASSY 1 IC18 IC1 IC3 IC15 SIDE A CN80 CN4 CN30 Adjustment Points (PCB Part) Adjustment Items Frequency counter Display digit ≥ 8-digit 6.3.1 ADJUSTMENT ITEMS AND LOCATION 6.3 DVD SECTION [Electrical Part] Note : When the Traverse mechanism adjustment is not properly adjusted, jitter, error rate and play ability are defective. The noise may come out by the case. Master Clock Adjustment 1 6.3.2 JIGS AND MEASURING INSTRUMENTS EXCHANGE PCB ASSY Mechanical point Electric point Exchange board DVD MAIN ASSY Note : is adjusted already. 6.3.3 NECESSARY ADJUSTMENT POINTS When Adjustment Points Screwdriver (small) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 XR-A9800D • Normal mode • Power ON Frequency counter Player SIDE A START VC1 DVD MAIN ASSY 16.934400MHz ± 80Hz DVD MAIN ASSY 6.3.4 ELECTRICAL ADJUSTMENT 1 Master Clock Adjustment • When not properly adjusted : Uneven color 16M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 XR-A9800D • Description of Each Item on the Display (1) Address indication The address being traced is displayed in number. DVD : ID indication (hexadecimal number, 8 digits) [ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] CD : A-TIME (min. sec.) [ 0 0 0 0 ∗ ∗ ∗ ∗ ] (Note : For DVDs, decimal-number indication is possible.) (2) Code indication of the remote control unit [R – ∗ ∗ ∗ ∗] The code for the key pressed on the remote control unit, which is received by the FL controller, is displayed while the key is pressed. In the case of the double code, the second code will be displayed. (3) Key code indication for the main unit [K – ∗ ∗ ] The code for the key pressed on the main unit, which is received by the system controller, is displayed while the key is pressed. (4) Background color indication [C – R∗ ∗ G∗ ∗ B∗ ∗] (5) Tracking status [TRKG – ∗∗∗] Tracking on [ON ] Tracking off [OFF] (6) 1 Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] 2 AFB status [AFB – ∗ ∗] ON [ON ] OFF [OFF] (7) Mechanism position value [M – ∗] Position code [1] to [3] (8) Slider position [S – ∗ ∗ ∗ ∗] CD TOC area [IN ] CD active area [CD ] (9) AGC setting [AGC – ∗ ∗] AGC on [AGC-ON] AGC off [AGC-OFF] Remote control code Key code Mechanism position value and slider position Output video system and Skirt terminal output FL controller version and region setting for the player Port No. of Flash ROM and system controller System controller revision Flash ROM version and Flash ROM size FL controller destination setting AV1 chip version DVD mechanism controller revision (Control and part No. of GUI-ROM) Character in bold : Item name : Information display First Screen Display • Screen Composition Address Background color Tracking status Spindle status and AFB status AGC setting FTS servo IC information C1 error value of CD and DVD Internal operation mode of the mechanism control Disc judgment and CD 1/3 beam switch Equalizer value and jitter value 7.1.1 TEST MODE SCREEN DISPLAY 7.1 DIAGNOSIS 7. GENERAL INFORMATION Consecutive double-OSD display is supported during test mode. The screen is composed 10 lines with a maximum of 32 characters per line. It can't be used with the debugging display mode together. Caution : The first screen and second screen switch by pressing [DISPLAY] key of the remote control unit. It is only a version display part on the lower right of the screen those contents of display change. ATB : ON/OFF information display and AGC manual setting display deleted with the second generation. The displays of Tilt error value, Tilt servo status and pickup DVD/CLD display deleted with the third generation becomes LD part is deleted. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 XR-A9800D (10) Output video system [V – ∗ ∗ ∗ ∗] NTSC system [NTSC] PAL system [PAL ] Auto-setting [AUTO] Skirt terminal output [SK – ∗ ∗] VIDEO [00] S-VIDEO [01] RGB [02] ∗ : Display only the model which can do the output setting of skirt terminal. (11) FTS servo IC information DSP coefficient indication [KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. (12) Error rate indication 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] (13) Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism step (2 digits) of the mechanism controller (14) 1 Disk sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. [DVD], [CD ], [VCD], [ ] 2 CD 1/3 beam switch [BM – ∗ ∗] (15) 1 Equalizer value [E – ∗ ∗] 2 Jitter value [J – ∗ ∗] nake the jitter four times, and renew it in every one second. [4 – ∗ ∗] CD is effective only in the jitter value. (16) Version of the AV-1 chip [ AV : ∗ . ∗ ∗' ∗' ] (17) 1 Version of the FL controller [FL : ∗ ∗ ∗ ∗] 2 Region setting of the player [REG : ∗ ] Setting value [1] to [6] (18) Destination setting of the FL controller [MDL : ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ] For charactors in front represent the type of model : There charactors that follow represent the destination code. J : /J, K : /KU, /KC, /KU/KC, R : /RAM, /RL, /RD, /LB, WY : /WY (19) The part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] 1 Part number of the flash ROM (Example) VYW1536-A = W1536A (Example) PD6256A9 = 6256A9 2 Part number of the system controller (Example) PD3381T1 = 3381T1 (20) 1 Version of the flash ROM [V : ∗ . ∗ ∗ ∗] 2 Flash ROM size [FLSH = ∗] (21) Revision of the system controller [S : ∗ . ∗ ∗ ∗ / ∗ . ∗ ∗ ] 1 Revision number of the external ROM part (flash ROM) of the system controller 2 Revision of the internal ROM part of the system controller (22) Revision of the DVD mechanism controller [M : ∗ . ∗ ∗ ∗ ] Revision number of the external ROM part (flash ROM) of the DVD mechanism controller (23) Control and part numbers of the GUI-ROM [GUI : ∗ ∗ ∗ ∗ ] No GUI model displays as "––– / ––––". OEM model displays the part number of GUI-ROM [GUI : ∗ ∗ ∗ ∗] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 XR-A9800D 7.1.2 TROUBLE SHOOTING XR-A9800D microcomputer troubleshooting Symptom of problem • The power supply does not enter though the power supply outlet is put, standby LED lit even if the POWER key is pushed. • It enters the state of POWER OFF soon even in case of the POWER ON. • DVD does not operate at all. • Time is not displayed in FL DISPLAY at the DVD function. • KEY is not accepted at all. • The Spectrum analyzer display does not displayed. Check method • Whether terminal RESET (11Pin) is "H" is confirmed. The operation of the RESET circuit is confirmed if not becoming "H". • Whether the AC pulse is input to AC input terminal (26Pin) is confirmed. If the AC pulse is not input, the AC pulse generation circuit is confirmed. • The microcomputer or the oscillation circuit is broken. The microcomputer or the oscillation circuit is exchanged. • Whether "H" is input to PROTECT input (55Pin) when "H" is output to the terminal of SCAN ON is confirmed. If "H" is not input, diode D5570 etc. are confirmed. • If the voltage of the 3.3DETECT (24Pin) terminal of the microcomputer is 2.9V or less, the voltage is adjusted to 2.9V or more. • Whether terminal (5,27Pin,95-97Pin) for the communication with the DVD microcomputer does the communication operation is confirmed. If the communication operation is not done, whether the FFC cable etc. are disconnected is confirmed. • Whether "H" is output to terminal DVDRESET (3Pin) is confirmed. • When KEY is not pushed, whether KEY input terminal (18-20Pin) is 5V is confirmed. If the KEY input terminal is not 5V, whether KEY SW on the line breaks is confirmed. • Whether Spectrum analyzer input terminal (23Pin) is 0.3V or more is confirmed. Whether DISPLAY MODE is DISP6 when it is 0.3V or more is confirmed. Whether Spectrum analyzer IC control terminal (8- 10Pin) was changeable when it is 0.3V or less is confirmed. If it was changeable, whether Spectrum analyzer IC breaks is confirmed. Thought cause • The microcomputer is not reset. • The AC pulse is not input. • The oscillation circuit of the microcomputer does not oscillate. • The PROTECT input does not become "H". • If the function is DVD, the 3.3DETECT input is 2.9V or less. • It does not communicate with the DVD microcomputer. • It is recognized that other KEY has already been pushed. • The Spectrum analyzer input is not input. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 XR-A9800D 7.1.3 ERROR CODE ti n u l o rt n o c e t o m e r e h t g n i s u t u o h ti w y a l p s i d L F e h t n o d e y a l p s i d e r a t a h t s e d o c r o rr E y a l p s i D L F s e s u a c e l b i s s o P ti n u e h t f o n o it a r e p O R E V 1 V A r ello rt n o c m e ts y s f o m a r g o r p e h t h ti w h ct a m a t o n si pih c 1 - V A h ti w t u o t o n y a m d n u o s e h T . oid u a cific e p s e h t R R E A U P C ).la u s u n u si e r a w d r a H ( r o rr e s s e r d d a U P C n oit a r e p o o N R R E A A M D ).la u s u n u si e r a w d r a H ( r o rr e s s e r d d a A M D n oit a r e p o o N D I H S A L F h s alf e h t f o d n a r ello rt n o c m e ts y s e h t f o M O R la n r e t ni e h t f o s n ois r e v ni e c n e r e ffi D n oit alla ts ni e s r e v e r r o e r ulia f e nil s u b r o , M O R n oit a r e p o o N R W H S A L F M O R h s alf e h t f o r o rr e tc e t o r p e tir W n oit a r e p o o N I S H S A L F s a w d e s u e b t'dlu o c h cih w M O R e h t n e h W ( M O R h s alf e h t f o r e b m u n tr a p ni e c n e r e ffi D ).tib - M 8 r o 4 e s U ( M O R h s alf e h t f o r o rr e e zis r O ). d e s u n oit a r e p o o N U S H S A L F n oit alla ts ni e s r e v e r r o ). e zis r alu g e r e h t s d e e c x e tI( M O R h s alf e h t f o r o rr e m u s k c e h C ).la u s u n u si e r a w d r a H ( n oit a r e p o o N L A G L L I e d o c n oit a r e p o n a n a h t r e h t o e d o c a d e h ct e f r ello rt n o c m e ts y s e h T ).la u s u n u si e r a w d r a H ( n oit a r e p o o N E V R E S E R ).la u s u n u si e r a w d r a H ( t p u rr e t ni d e nif e d n U n oit a r e p o o N T O L S ).la u s u n u si e r a w d r a H ( d e u s si d n a m m o c t ols e t air p o r p p a n I n oit a r e p o o N ti n u l o rt n o c e t o m e r e h t g n i s u y b y a l p s i d L F e h t n o d e y a l p s i d e r a t a h t s e d o c r o rr E )r o rr e r e ll o rt n o c m s i n a h c e M ( : y a l p s i d e h t f o n o it a c o L ; Y A L P S I D + Y A L P S I D + C S E : y a l p s i d o T f o s ti g i d o w t e h t t A t a tr a p y a l p s i d ti g i d x i s y a l p s i d L F e h t f o r e t n e c n e e r c s V T : y a l p s i d e h t f o n o it a c o L ;t o h s e n O + Y A L P S I D + C S E : y r o t s i h r o rr e e h t y a l p s i d o T L F n o it p ir c s e D r o rr E f o D V D a h ti w fi s e s u a C D C a h ti w fi s e s u a C ti n U e h t f o n o it a r e p O 1 1 t u o e m it h c r a e S 7 nih ti w e t elp m o c e b t o n dlu o c h c r a e S .s d n o c e s 7 nih ti w e t elp m o c e b t o n dlu o c h c r a e S e h t r e t n e t o n dlu o c ti d n a ,s d n o c e s D C V y b s d n o c e s 7 nih ti w a e r a t e g r a t . n a c s ,s p o t S : D C n oit a r e p o s e u nit n o C : D V D 2 1 y rt e r h c r a e S r o rr e 3 r e tf a d e t elp m o c e b t o n dlu o c h c r a e s A 4 d e t u c e x e s a w p u k c a b h c r a e s ,s eirt e r 6 ( t u o e m it f o e s a c a ni r o ,s e m it 1 1 g nic a rt s a w tin u e h t elih w ) s d n o c e s elih w t e g r a t e h t d n o y e b e r o m r o s k c a rt . g nig r e v n o c s a w n oit a r e p o h c r a e s e h t d e t u c e x e s a w pik s r e dils ts nia g a p u k c a B pik s r e dils r o , h c r a e s a g nir u d s e m it 4 - d a e r e h t m o rf g nitr a ts ni d e tlu s e r e ci w t .t nio p ni ,s p o t S : D C n oit a r e p o s e u nit n o C : D V D 9 1 t u o e m it g nic a r T elih w g nig r e v n o c t a g nic a rt elih w ) s d n o c e s 5 . 0 1 ( t u o e m i T . h c r a e s a f o e c n e g r e v n o c f o e g a ts e h t p o t S B 1 h c r a e s 0 x e d n I r o rr e h c r a e s e h t , h c r a e S ) x e d n I( k c a r T g nir u D t o n dlu o c m a r g o r p a f o g nin nig e b e h t r o f 0 2 ( s d n o c e s 3 nih ti w d e t elp m o c e b ) h c r a e S x e d n I f o e s a c e h t ni s d n o c e s a t a d C O T e h t n o d e s a b g nin oitis o p r e tf a . d e t elp m o c s a w p o t S 2 2 f o t u o e m i T r e n ni r e dils e c n e r e f m u c ric .s d n o c e s 3 nih ti w N O t o n dlu o c h cti w s e dis n I p o t S 3 2 f o t u o e m i T r e t u o r e dils e c n e r e f m u c ric .s d n o c e s 2 nih ti w F F O t o n dlu o c h cti w s e dis n I p o t S 3 3 e slu p K O F o N k c a b y alp g nir u d A V L C .s e m it 0 2 yls u o u nit n o c d e t aiv e d s a w s u c o f e h t n e h W ts o m r e n ni e h t t a s u c o f sts ujd A o t s eirt d n a e c n e r e f m u c ric e h t e r e h w n oitis o p sti o t n r u t e r 3 r o f( d e t a r e n e g s a w r o rr e .s n e p o n e h t,) s e m it r e tf a stsis r e p r o rr e e m a s e h t fI o N ( .s n e p o y a rt e h t ,y rt e r e n o ) e slu p K O F 8 3 -is n e s - e p yt- c si D r o rr e g n lli w g nis n e s e p yt- c sid ,s e s a c e e r h t g ni w ollo f e h t ni elbis s o p m i s a w g nitr a ts la m r o n fI r o rr e s u c o f e h t n e h w ,r e v e w o H .r o rr e 5 C g nit p e c x e e r u c c o s r o rr e r e h t o fi d eirt e r e b :t n e m o m e h t t a "r o rr e 8 3 " s a d e h sinif si ti ,s e m it 3 yls u o u nit n o c d e r u c c o s a w " 3 3 " c sid r e h t o n a h ti w p u tr a ts d e c r o f ) 2 ( ,tlu s e r g nis n e s - e p yt- c sid ts rif e h t h ti w p u tr a ts ) 1 ( g nit a n gis e d y b c sid la nigir o e h t h ti w p u tr a ts d e c r o f ) 3 ( , e p yt c sid e h t g nit a n gis e d y b . e p yt c sid e h t n e p O 123 123 123 123 123 123 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 XR-A9800D L F f o n o it p ir c s e D r o rr E D V D a h ti w fi s e s u a C D C a h ti w fi s e s u a C e h t f o n o it a r e p O ti n U 9 3 e g r e v n o c C G S t u o e m it k a e p e h t stc e t e d g nir u d e g r e v n o c t o n dlu o c C G S n e p O 1 4 t u o e m it eld nip S . d n a m m o c p o t S a f o e c n a u s si f o s d n o c e s 0 1 nih ti w e d o m p o t S r e t n e t o n did tin u e h T p o t S 8 4 G F eld nip S t u o e m it n oitis n a rt nih ti w o t ni e g r e v n o c t o n dlu o c eld nip s e h T ± f o % 2 1 r e tf a s d n o c e s 0 1 nih ti w d e e p s n oit a t o r G F t e g r a t e h t .k cik eld nip s c sid r e tf a e m it ts rif e h t( p u tr a ts r e tf a e m it ts rif e h T t e g r a t e h t f o r e b m u n e h t e m o c e b t'n s e o d ti ,) n oitc nitsid .s d n o c e s e vif nih ti w n oit a t o r la m r o n b a e h t stc e t e d , p u tr a ts r e tf a e m it ts rif e h T .s p o ol 3 yls u o u nit n o c d e e p s - h gih f o r e b m u n n oit a t o r S m 0 6 o t 0 4 : D C , S m 9 o t 5 : D V D )t u o e m it G F ( .s p o t S 9 4 L L P eld nip S t u o e m it n oitis n a rt t e g r a t e h t f o r e b m u n e h t e m o c e b t'n s e o d ti , p u tr a ts r e tf a s e m it d n o c e s e h t r e tf A .s d n o c e s e vif nih ti w n oit a t o r .s n oit a t o r d e e p s - w ol r o d e e p s - h gih la m r o n b a e h t stc e t e D S m 0 6 o t 0 4 : D C , S m 9 o t 5 : D V D .s p o t S g nir u d d e y alp sid si " 3 7 "( ).s s e c o r p g nitr a ts A 4 t u o e m it k c ol eld nip S . B F A e h t tr a ts e r o f e b s d n o c e s 5 . 1 n a h t e r o m k c ol t o n dlu o c eld nip S .s p o t S g nir u d d e y alp sid si " 3 7 "( ).s s e c o r p g nitr a ts 1 5 e c n e u q e s o t u A k a e p f o t u o e m it n oitc e t e d e h t r e tf a d n o c e s 1 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c ) n oitc e t e d k a e p ( T C T D D p o t S 2 5 e c n e u q e s o t u A s u c o f f o t u o e m it n w o d p m uj D P M J F e h t r e tf a S m 0 3 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c ) 0 o t 1 p m uj s u c o F ( p o t S 3 5 e c n e u q e s o t u A s u c o f f o t u o e m it p u p m uj U P M J F e h t r e tf a S m 0 3 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c ) 1 o t 0 p m uj s u c o F ( p o t S 4 5 e c n e u q e s o t u A C G A y alp f o t u o e m it e h t r e tf a S m 0 5 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c ) g nir u s a e m - C G A - y alp ( N O M U S G p o t S 5 5 e c n e u q e s o t u A - e p yt- c sid f o t u o e m it g nis n e s e h t r e tf a s d n o c e s 2 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c ) g nis n e s - c sid ( T R S J D p o t S 6 5 e c n e u q e s o t u A 2 B T A f o t u o e m it e h t r e tf a d n o c e s 1 nih ti w n r u t e r t o n did Y S U B A la n r e tx e f o n oit elp m o c e h t r e tf a B T A la n r e t n I( S F O L B T .t n e s s a w d n a m m o c ) B T A p o t S 7 5 e c n e u q e s o t u A g nik c a rt f o t u o e m it N O o v r e s N O S T e h t r e tf a S m 0 0 5 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c ) N O o v r e s g nik c a rt( p o t S 8 5 e c n e u q e s o t u A 1 B T A f o t u o e m it L B T e h t r e tf a S m 0 0 2 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c ) B T A la n r e tx e ( p o t S 9 5 e c n e u q e s o t u A s u c o f f o t u o e m it t n e m ts ujd a nia g N G F e h t r e tf a s d n o c e s 2 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c )t n e m ts ujd a nia g s u c o f( p o t S A 5 e c n e u q e s o t u A g nik c a rt f o t u o e m it t n e m ts ujd a nia g N G T r e tf a s d n o c e s 2 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c )t n e m ts ujd a nia g g nik c a rt( p o t S B 5 e c n e u q e s o t u A t e sff o f o t u o e m it t n e m ts ujd a e h t r e tf a d n o c e s 1 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c )t n e m ts ujd a t e sff o ( E V A D M C p o t S C 5 e c n e u q e s o t u A f o t u o e m it r o tc a f n oit alu d o m t n e m e r u s a e m R I M J D A e h t r e tf a S m 0 0 2 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c )t n e m e r u s a e m r o tc a f n oit alu d o m ( p o t S D 5 e c n e u q e s o t u A o t u a f o t u o e m it s aib s u c o f B F A e h t r e tf a s d n o c e s 2 nih ti w n r u t e r t o n did Y S U B A .t n e s s a w d n a m m o c ) s aib s u c o f o t u a ( p o t S F 5 e c n e u q e s o t u A y s u b y d a e rla s a w Y S U B A e s u a c e b t n e s e b t o n dlu o c d n a m m o c A V L T r e tf a S m 0 0 2 nih ti w n r u t e r t o n did Y S U B A . w ol .t n e s s a w d n a m m o c p o t S 2 6 r o rr e y rt e r e s u a P s eirt e r e e r h t nih ti w d e r o ts e r e b t o n dlu o c e d o m e s u a P . d e s a ele r n e e b d a h ti r e tf a n oit a r e p o s e u nit n o C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 XR-A9800D L F f o n o it p ir c s e D r o rr E D V D a h ti w fi s e s u a C D C a h ti w fi s e s u a C ti n U e h t f o n o it a r e p O 1 7 d a e r t o n n a c D I g nic a rt g nir u d . e r o m r o d n o c e s 1 r o f d a e r e b t o n dlu o c D I n A p o t S 2 7 k c e h c e d o c b u S g nir u d e r ulia f k c a b y alp 3 r o f d a e r e b dlu o c e m a rf o N . e r o m r o s d n o c e s p o t S 3 7 t a d a e r t o n n a c D I p u tr a ts e h t r e tf a d n o c e s 1 nih ti w d a e r e b t o n dlu o c D I n A . d e h sinif n e e b d a h t n e m ts ujd a B F A e h t s n e p O ) e r ulia f t u o d a e r D I( 4 7 k c e h c e d o c b u S p u tr a ts g nir u d e r ulia f 3 nih ti w d a e r e b dlu o c e d o c b u s o N d a h t n e m ts ujd a B F A r e tf a s d n o c e s . d e h sinif n e e b t u o d a e r e d o c b u S ( s n e p O .) e r ulia f 1 8 g nid a e r r o f t u o e m i T f o C O T m sin a h c e m e h t r ello rt n o c r o s d n o c e s 0 3 k o o t t u o d a e r C O T . e r o m p o t S 2 8 g nid a e r r o f t u o e m i T m e ts y s e h t f o C O T r ello rt n o c m e ts y s e h t f o C O T g nid a e R . e r o m r o s d n o c e s 0 3 k o o t r ello rt n o c p o t S 7 9 t a r o rr e g nih cti w S g nid a olle s u o rr u c g nir u d d e t elp m o c e b t o n dlu o c g nip m al C . g nid a ol n oit a r e p o p m alc y rt e R A 9 f o r o rr e p o t S y a rtle s u o rr u c d e t elp m o c e b t o n dlu o c n oit a t o r y a rt le s u o rr u C .s d n o c e s 0 1 nih ti w p o t S B 9 f o r o rr e h s u P y a rtle s u o rr u c . e t a ts n e p o y a rt g nid a ol e h t m o rf y a rt e h t ni h s u P y a rt e h t e s ol C C 9 f o r o rr e llu P y a rtle s u o rr u c e s olc y a rt g nid a ol e h t m o rf y a rt e h t t u o llu P . e t a ts y a rt e h t n e p O D 9 f o r o rr e p o t S g nid a olle s u o rr u c y a rt d e t elp m o c e b t o n dlu o c t n e m e v o m y a rt g nid a o L .s d n o c e s 0 1 nih ti w y a rt e h t n e p O E 9 f o r o rr e la m r o n b A h cti w s le s u o rr u c e h t h ti w d e tc e t e d s a w r o rr e h cti w s y a r T .y a rt le s u o rr u c e h t e zilaitin I( p o t S e h t ni m sin a h c e m ).r ello rt n o c m sin a h c e m F 9 e zilaitinile s u o rr u C r o rr e e h t h ti w d e v eih c a e b t o n dlu o c n oit a zilaitin I .y a rt le s u o rr u c r e w o p e h t ff o n r u T n o n oit a cid ni o n ( ylt n a ts ni o n d n a y alp sid L F e h t ).y r o m e m h s alf o t g nitir w 1 A n oit a cin u m m o C P S D f o t u o e m it d n a m m o c P S D o t d e u s si e b t o n dlu o c d n a m m o c A ni s a w ) Y S U B C X ( y s u B d n a m m o C e s u a c e b t u o b a ( e m it d eific e p s a r o f ) L = Y S U B C X ( e c r o f 0 0 2 µ .) S n oit a r e p o o N 2 A n oit a cin u m m o C g nid a e r r o f t u o e m it t n eiciff e o c P S D a r o f e c r o f ni s a w ) Y S U B C X ( y s u B d n a m m o C 0 0 2 t u o b a ( e m it d eific e p s µ a r e tf a d n a e r o f e b ) S r o , P S D o t d e u s si s a w d n a m m o c d a e r t n eiciff e o c e c n a u s si d n a m m o c r e tf a k c a b - o h c e s s e r d d a e h t .s s e r d d a p u t e s e h t h ct a m t o n did n oit a r e p o o N 3 A n oit a cin u m m o C g nitir w r o f t u o e m it t n eiciff e o c P S D a r o f e c r o f ni s a w ) Y S U B C X ( y s u B d n a m m o C r e tf a d n a e r o f e b ) S m 4 2 0 1 t u o b a ( e m it d eific e p s o t d e u s si s a w d n a m m o c e tir w t n eiciff e o c e h t . P S D n oit a r e p o o N 4 A n oit a cin u m m o C r o f t u o e m it g nitir w yls u o u nit n o c t n eiciff e o c P S D 0 0 2 r o f e c r o f ni s a w ) Y S U B C X ( y s u B d n a m m o C µ r o , g nitir w t n eiciff e o c s u o u nit n o c g nir u d S d n a m m o c e tir w s u o u nit n o c a r e tf a d n a e r o f e b . P S D o t d e u s si s a w n oit a r e p o o N 1 B r o f r o rr e t u o e m i T p u k c a b 1 r o f d a e r e b t o n dlu o c s e d o c , e c n e u q e s p u k c a b e h t g nir u d e t a ts g nic a rt e h t n I . e r o m r o d n o c e s e b t o n dlu o c P S D o v r e s e h t f o e c n e u q e s N O g nik c a rt , e c n e u q e s p u k c a b e h t n I . d e u s si s a w d n a m m o c N O g nik c a rt e h t r e tf a S m 0 0 5 n a h t e r o m fi n e v e d e t elp m o c s p o t S 2 B r o f r o rr e y rt e R p u k c a b . e c n e u q e s p u k c a b e h t ni s e m it 3 r o f N O g nik c a rt e h t g nirt e r r e tf a elbis s o p m i g nic a r T s p o t S 3 B e c a rt r o f r o rr e y rt e R r o f s n oit a r e p o p u k c a b f o s n oit a r e ti e e r h t r e tf a d e tc e t e d s a w y a w a n u r , g nic a rt g nir u D .y a w a n u r g nitc e t e d s p o t S 3 C g nik c a rt f o n oitc e t e D t n e rr u c r e v o e r o m r o s m 0 0 3 r o f L t a s a w tr o p n oitc e t e d t n e rr u c r e v o e h t ,k c a b y alp g nir u D .yls u o u nit n o c la cin a h c e m e h t( s p o t S s e t a r e p o r ello rt n o c .) ylt n e d n e p e d ni www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 XR-A9800D L F f o n o it p ir c s e D r o rr E D V D a h ti w fi s e s u a C D C a h ti w fi s e s u a C ti n U e h t f o n o it a r e p O ) 5 C ( ts e t tiu c ric -tr o h S r o rr e g nid n o p s e rr o c e r o m r o s m 0 4 r o f L t a s a w tr o p n oitc e t e d t n e rr u c r e v o e h t , n o s a w r e w o p e h t elih W .yls u o u nit n o c r e w o p e h t ff o s n r u T n o n oit a cid ni o N ( ylt n a ts ni o n d n a y alp sid L F e h t ) y r o m e m h s alf o t g nitir w 3 E ts nia g a n oit aloi V d r a u g y p o c la tigid s p o t S 5 F d e h s u p g nie b y a r T n a h t r e h t o e d o m a o t d e g n a h c ylbic r o f s a w e d o m n e p O n e e b d a h t a h t h cti w s y a rt e h T . e c r o f la n r e tx e n a y b n e p O s e s ol C 8 F t u o e m it g nid a o L t u o b a ( e m it d eific e p s a nih ti w d e t elp m o c e b t o n dlu o c g nip m alc r o g nid a oln u , g nid a o L .) s d n o c e s 5 g nid a ol e h t s e s r e v e R si t u o e m it tI . n oitc e rid e h t ,y rt e r n o p u d e t a e p e r .s p o ts tin u C F s u c o F .s e m it t h gie d e r u c c o r o rr e g ni w ollo f e h T r e tf a s d n o c e s o w t n a h t e r o m fi n e v e d e t elp m o c e b t o n dlu o c e c n e u q e s N O s u c o F ) 1 ( .t n e s s a w ) P S D o v r e s e h t o t( d n a m m o c N O s u c o f e h t . d e t elp m o c t o n s a w N I s u c o f ylla u tc a , d e h sinif s a w e c n e u q e s N I s u c o F ) 2 ( elbis s o p r e v e r e h w s p o t S e h t ni s p o ts ( s n e p o n e h t .) B e dis f o e s a c ti n u l o rt n o c e t o m e r e h t g n i s u y b y a l p s i d L F e h t n o d e y a l p s i d e r a t a h t s e d o c r o rr E )r o rr e e c i v e D ( y a l p s i d L F e h t f o tf e l f o s ti g i d o w t e h t t A : y a l p s i d e h t f o n o it a c o L ; Y A L P S I D + Y A L P S I D + C S E : y a l p s i d o T L F r o rr E f o n o it p ir c s e D D V D a h ti w fi s e s u a C D C a h ti w fi s e s u a C ti n U e h t f o n o it a r e p O .ct e 8 0 1 = 3 tib r o rr e s s e c c a 1 V A ) G N e tir w , d a e r( g nig g u b e d s e m o c e b ti r o n oit a r e p o o N . N O o t elb a si r e w o p e h t fi n oit a cid ni .ct e 4 0 1 = 2 tib r o rr e s s e c c a P I H C Y M .ct e 1 0 1 = 1 tib r o rr e s s e c c a M A R S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 XR-A9800D Remove a Bonnet (Eleven screws). 1 7.1.4 DISASSEMBLY DVD MAIN ASSY Note: The loading tray can be pulled out when the main cam is in this position. (The Lock Lever should be in the notch of the Main Cam.) 3 4 5 8 × 3 Unhook Tray Cap $M MECHA. DVD (5P) $M DVD Mecha Unit DVD Shield Rear Front PICKUP Assy AF Assy CONNECT Assy(6 CH) CN5104 CN8104 CN8105 From CONNECT Assy(6 CH) CN8103 From DISPLAY Assy CN5502 From REAR AMP Assy CN3404 11 10 12 13 12 8 9 6 × 4 Fitting Main Cam Lock Lever 2 ON OFF (at Disassembling) 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 XR-A9800D Remove a Bonnet (Eleven screws). Release the All Connectors from DVD MAIN Assy. 1 Remove the PRIMARY Assy. 3 HOW TO EXCHANGE THE FUSE (PRIMARY ASSY) 2 × 3 × 2 Unhook DVD MAIN Assy DVD Base CONNECT Assy (6 CH) $M DVD Mecha Unit $M DVD Mecha Unit PRIMARY Assy Parts mounted side FU1 16 17 18 17 15 15 14 21 Return the $M DVD Mecha Unit only to the body. Connect the connectors which disconnecting from the connectors as step 14 excepting CN6. Perform the wiring as follows, and perform the diagnosis. Put it on the stand. 19 20 CONNECT Assy (6 CH) AF Assy DVD MAIN Assy Insulation sheet CN5104 The two FFC cable of $M DVD Mecha Unit interferes with Loading Tray when it is movable. Please fixes the FFC cable to AF Assy with the tape so as not to interfere. CN8103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 XR-A9800D Remove a Bonnet (Eleven screws). and remove the $M Mecha DVD (5P). 1 DIAGNOSIS of AF and REAR AMP ASSYS Rear Panel FM/AM TUNER Module Please be useless in this case and remove FM/AM TUNER Module. AF Assy REAR AMP Assy 3 4 4 5 Diagnosis The product operates even if $M DVD Mecha. is not connected. Put the Insulation Sheet 2 × 3 2 × 4 2 2 × 2 2 × 2 5 × 3 2 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 XR-A9800D $M DVD MECHA UNIT ADDITIONAL TO JOB Mecha Base (Bottom View) Clamper Holder Unhook Front Front Clamper Holder Rotary Tray Front TRADE Assy CN9001 ×1 Unhook ×1 Unhook ×2 Mecha Base Loading Tray 1 1 2 5 6 4 3 2 4 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 XR-A9800D Servo Base Traverse Mechanism Assy-S FFC Holder Traverse Mechanism Assy-S Servo Base Unhook Traverse Mechanism Assy-S Servo Base Unhook ×2 Unhook Flexible Cable Flexible Cable Float Rubber (Black)(Soft) Float Rubber (Black)(Hard) Unhook ×1 Unhook 1 1 2 5 7 4 2 3 1 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 XR-A9800D Mark Flexible Cable Spindle Motor Float Rubber (Black)(Soft) Float Rubber (Black)(Hard) Traverse Mechanism Assy-S Connect a Flexible Cable Pull out Flexible Cable from this hole. Caution : Grease here must not adheres to a flexible cable. Hook ×4 Caution : Confirm that the part which a Flexible Cable touches this wall. Style the Flexible Cable and Float Rubber Position in the Traverse Mechanism Assy-S Style the Flexible Cable in the $M MECHA DVD Assy and Preparation before Installing the Mecha Base www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 XR-A9800D Distinction of the model and destination DEMO mode setting System power ON Release the relay Release the mute DECK mechanism initialization DVD controller rise up Standby setting DEMO mode permisshion Power ON or DEMO ? Microcomputer initialization Reset Start Standby Start when pin 11 (XRESET) becomes "H". Destinguish it by the input condition of pins 1 and 2. (Refer to the schematic diagram.) Pin 87 (POWER) : "H" Only at function is DVD. Pin 3 (DVD RESET) : "H" Turn the speaker relay to ON after about four seconds after the power is turned ON. Pin 9, 10 (RELAY ON/OFF) : "H" Note : The microcomputer enter the memory backup mode if the pulse is not inputted to pin 26 (AC) for about 60 msec. While the memory is backupped, all the process is not done. It is revert from the memory backup mode when there is rising edge (↑) input at the pin 11 (XRESET). Release the system mute after about 4.1 seconds after the power is turned ON. Pin 88 (LINE MUTE) : "L" ∗ However, mute is not released at the following condition. • When main volume is 0. • When function is TAPE and DECK mechanism is stopped. Judge whether it perform the demonstration by the backup data. The setting in shipping is demonstration ON. Initialization routine No Yes Yes : Power ON No Main loop process 7.1.5 POWER ON SEQUENCE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 XR-A9800D Motor OFF DECK mecha ΙΙ solenoid OFF. Motor 500msec ON Motor 150msec ON, DECK mecha ΙΙ solenoid 50msec ON. Does the Head Base fall down ? Is the 10th time ? DECK mechanism unit initialization Mechanism error Initialization normality completion DECK mecha ΙΙ initialization No No Yes Yes Pin 75 (MOTOR) : "H" Pin 73 (SOL2) : "H" Pin 75 (MOTOR) : "L" Pin 73 (SOL2) : "L" Check the MODE 2 SW of DECK mecha ΙΙ. Motor OFF DECK mecha Ι solenoid OFF. Motor 500msec ON Motor 150msec ON, DECK mecha Ι solenoid 50msec ON. Does the Head Base fall down ? Is the 10th time ? Mechanism error End Initialization normality completion DECK mecha Ι initialization No No Yes Yes Pin 75 (MOTOR) : "H" Pin 74 (SOL1) : "H" Pin 75 (MOTOR) : "H" Pin 75 (MOTOR) : "L" Pin 74 (SOL1) : "L" The key is not accepted in the mechanism error. Perform the retry at the next power ON. Check the MODE 1 SW of DECK mecha Ι. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 XR-A9800D • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. PDC064A (DISPLAY ASSY : IC5501) • System Control Microcomputer • Pin Function 7.2 PARTS 7.2.1 IC . o N e m a N n i P O /I n o it c n u F 1 K L C P S D O slo rt n o c R I D d n a C E D O C , P S D r o f t u p t u o k c ol C 2 O A T A D P S D O slo rt n o c R I D d n a C E D O C , P S D r o f t u p t u o a t a D 3 T E S E R D V D X O r e t u p m o c o r ci m D V D f o t u p t u o t e s e R 4 B T S C Y K O ) P F A 7 4 8 5 6 M ( C I n o c y e K f o t u p t u o e b o rt S 5 1 Y D R X O r e t u p m o c o r ci m D V D f o t u p t u o y d a e r n oit a cin u m m o C 6 E T U M R A E R O t u p t u o e t u m r a e R 7 I A T A D P S D I P S D r o f t u p ni a t a D 8 D E L R E M I T O t u p t u o D E L r e m i T 9 F F O / N O Y R O F F O / N O y ale R 0 1 Y R R A E R O F F O / N O y ale r r a e R 1 1 T E S E R X − 2 1 G O J L O V I t u p ni G O J e m ulo V 3 1 G O J P R O M I t u p ni G O J g nih p r o M d n u o S 4 1 S S V − d n u o r G 5 1 1 F C − 6 1 2 F C − 7 1 D D V − ylp p u s r e w o P 8 1 1 Y E K I ) D / A ( 1 t u p ni y e K 9 1 2 Y E K I ) D / A ( 2 t u p ni y e K 0 2 3 Y E K I ) D / A ( 3 t u p ni y e K 1 2 S M I t u p ni S M k c e D 2 2 E N U T / T S I t u p ni E N U T / O E R E T S r e n u T 3 2 N I- E P S I t u p nila n gis r e z yla n a m u rtc e p S 4 2 T C E T E D 3 . 3 I t u p ni n oitc e t e d V 3 . 3 D V D 5 2 3 L E D O M I 3 t u p ni h siu g nitsid le d o M 6 2 C A I t u p ni t p u rr e t ni e slu p C A 7 2 1 1 T L I r e t u p m o c o r ci m D V D f o t u p ni h ct al n oit a cin u m m o C 8 2 N I A T A D R I D I t u p ni a t a d R I D 9 2 N O C O M E R I t u p ni t p u rr e t nilo rt n o c e t o m e R 0 3 1 0 G O t u p t u o dir G 1 3 2 0 G 2 3 3 0 G 3 3 4 0 G 4 3 5 0 G 5 3 6 0 G 6 3 7 0 G 7 3 8 0 G 8 3 9 0 G 9 3 0 1 G 0 4 1 1 G 1 4 2 1 G 2 4 3 1 G 3 4 4 1 G 4 4 5 1 G 5 4 1 0 S O t u p t u o 1 t n e m g e S 6 4 D D V − ylp p u s r e w o P 7 4 7 9 5 5 D / 2 0 S O /I t u p t u o 2 t n e m g e S 8 4 6 9 5 5 D / 3 0 S t u p t u o 3 t n e m g e S 9 4 5 9 5 5 D / 4 0 S t u p t u o 4 t n e m g e S 0 5 4 9 5 5 D / 5 0 S O /I t u p ni 4 W S n oit a nits e D /t u p t u o 5 t n e m g e S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 XR-A9800D . o N e m a N n i P O /I n o it c n u F 1 5 P D F V − 2 5 3 9 5 5 D / 6 0 S O /I t u p ni 3 W S n oit a nits e D /t u p t u o 6 t n e m g e S 3 5 2 9 5 5 D / 7 0 S t u p ni 2 W S n oit a nits e D /t u p t u o 7 t n e m g e S 4 5 1 9 5 5 D / 8 0 S t u p ni 1 W S n oit a nits e D /t u p t u o 8 t n e m g e S 5 5 H T / 9 0 S t u p ni n oitc e t o r P /t u p t u o 9 t n e m g e S 6 5 T E D . P . H / 0 1 S t u p ni k c e h c t u o -llu p /tr e s ni e n o h p d a e H /t u p t u o 0 1 t n e m g e S 7 5 1 1 S t u p t u o 1 1 t n e m g e S 8 5 2 1 S t u p t u o 2 1 t n e m g e S 9 5 3 1 S t u p t u o 3 1 t n e m g e S 0 6 F R A / 4 1 S t u p ni W S F R A K C E D /t u p t u o 4 1 t n e m g e S 1 6 R R A / 5 1 S t u p ni W S R R A K C E D /t u p t u o 5 1 t n e m g e S 2 6 1 E D O M / 6 1 S t u p ni 1 W S E D O M K C E D /t u p t u o 6 1 t n e m g e S 3 6 2 E D O M / 7 1 S t u p ni 2 W S E D O M K C E D /t u p t u o 7 1 t n e m g e S 4 6 1 F L A H / 8 1 S t u p ni 1 W S F L A H K C E D /t u p t u o 8 1 t n e m g e S 5 6 2 F L A H / 9 1 S t u p ni 2 W S F L A H K C E D /t u p t u o 9 1 t n e m g e S 6 6 1 _ 2 O r C / 0 2 S t u p ni 1 W S 2 O r C K C E D /t u p t u o 0 2 t n e m g e S 7 6 2 _ 2 O r C / 1 2 S t u p ni 2 W S 2 O r C K C E D /t u p t u o 1 2 t n e m g e S 8 6 2 2 S O t u p t u o 2 2 t n e m g e S 9 6 3 2 S t u p t u o 3 2 t n e m g e S 0 7 4 2 S t u p t u o 4 2 t n e m g e S 1 7 K C O L R I D I n oitc e t e d k c ol R I D 2 7 D D V − ylp p u s r e w o P 3 7 2 L O S O 2 t u p t u o dio n elo s K C E D 4 7 1 L O S 1 t u p t u o dio n elo s K C E D 5 7 R O T O M O t u p t u o r o t o m K C E D 6 7 E C D E L O ) n w o d -llu p ( r e vir d D E L f o t u p t u o elb a n e pih C 7 7 E C B U S O ) n w o d -llu p ( P S D B U S C 2 1 9 S S Y f o t u p t u o elb a n e pih C 8 7 E C N I A M O ) n w o d -llu p ( P S D N I A M C 2 1 9 S S Y f o t u p t u o elb a n e pih C 9 7 E C C E D O C O ) n w o d -llu p ( C E D O C f o t u p t u o elb a n e pih C 0 8 E C R I D O ) n w o d -llu p ( R I D f o t u p t u o elb a n e pih C 1 8 1 L E E R I 1 t u p ni e slu p le e r K C E D 2 8 2 L E E R 2 t u p ni e slu p le e r K C E D 3 8 L O V S R S L O ) n w o d -llu p ( a t a d e m ulo v r a e R 4 8 L O V E F L C O ) n w o d -llu p ( a t a d e m ulo v r e t n e C 5 8 E C L L P O L L P r e n u T f o t u p t u o elb a n e pih C 6 8 E C L O V E O C I e m ulo v cin o rtc ele f o t u p t u o elb a n e pih C 7 8 R E W O P O t u p t u o r e w o P 8 8 E T U M E N I L O t u p t u o e t u m e niL 9 8 S S V − d n u o r G 0 9 D D V − ylp p u s r e w o P 1 9 K L C P X E O C I P X E r o f t u p t u o k c ol C 2 9 A T A D P X E O C I P X E r o f t u p t u o a t a D 3 9 E C P X E O ) F C B 4 9 0 4 U B ( C I P X E f o t u p t u o elb a n e pih C 4 9 N O N A C S O g nid a e r W S r o f st u p t u O 5 9 ) O S S (I S S O ) e dis P M A t a st u p t u o ( r e t u p m o c o r ci m D V D f o t u p t u o a t a d n oit a cin u m m o C 6 9 )I S S ( O S S I ) e dis P M A t a st u p ni( r e t u p m o c o r ci m D V D f o t u p ni a t a d n oit a cin u m m o C 7 9 K C S S O r e t u p m o c o r ci m D V D f o t u p t u o k c olc n oit a cin u m m o C 8 9 A T A D S Y S O C I e m ulo v cin o rtc ele / a t a d L L P r e n u T e h t f o t u p t u o a t a D 9 9 A T A D X T I t u p ni a t a d r e n u T 0 0 1 K L C S Y S O C I e m ulo v cin o rtc ele / a t a d L L P r e n u T e h t f o t u p t u o k c ol C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 XR-A9800D • Pin Assignment • Grid Assignment • Segment Designation 1G (2G) (3G to 9G) s t u e n c Dp1 p r w d1 d2 d1 d2 m k b f g j h a1 a2 53 1 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G 15G Dp2 Dp2 e n c Dp1 p r m k b f g j h a1 a2 (1G, 10G to 15G) B24 B6 B5 B4 B3 B2 B1 B7 B8 B9 B10 B14 B11 B12 B13 B24 B23 B24 B21 B20 B13 B14 B15 B13 B14 B15 B13 B14 B15 B13 B14 B15 B19 B20 B21 B7 B1 B8 B9 B10 B11 B7 B8 B8 B8 B8 B9 B9 B9 B9 B10 B10 B10 B10 B11 B11 B11 B11 B12 B12 B12 B12 B12 S1 B22 B24 B23 B21 B20 B22 B2 B3 B4 B5 B6 B1 B1 B7 B7 B7 B13 B14 B15 B16 B17 B18 B2 B2 B2 B2 B3 B3 B3 B3 B4 B4 B4 B4 B5 B5 B5 B5 B6 B6 B6 B6 B15 B16 B17 B18 B19 B6 B5 B4 B3 B2 B1 B7 B8 B9 B10 B14 B11 B12 B13 B15 B16 B17 B18 B19 S2 S3 S4 S5 S6 B1 B1 XAV3009 (DISPLAY ASSY :V5621) • FL Display 7.2.2 DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 XR-A9800D Pin No. 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 Connection F2 F2 F2 NP NP 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G 15G P1 P2 P3 P4 P5 P6 P7 Pin No. 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Connection P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 NX NX NX NX NP NP F1 F1 F1 • Pin Connection • Anode Connection NOTE 1) F1, F2.......... Filament 2) NP................ No pin 3) NX................ No extend pin 4) DL................. Datum Line 5) 1G to 15G..... Grid 6) Field of vision is a minimum of 29° from the lower side. 1G 2G 3G,4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G 15G P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 a1 a2 h j k b f g m c e r p n d1 dp1 s t u w d2 B24 B23 B22 B21 B19 B17 B15 B14 B13 B6 B11 B10 B4 B9 B8 B2 B3 B12 B18 B20 B16 B5 B1 B7 B24 B23 B22 B21 B19 B17 B15 B14 B13 B6 B11 B10 B4 B9 B8 B2 B3 B12 B18 B20 B16 B5 B1 B7 B21 B19 B17 B15 B14 B13 B6 B11 B10 B4 B9 B8 B2 B3 B12 B15 (RIGHT) B14 B13 B6 B11 B10 B4 B9 B8 B2 B3 B12 B15 B14 B13 B6 B11 B10 B4 B9 B8 B2 B3 B12 B18 B20 B16 S5 B5 B1 B7 B5 B1 B7 B5 B1 B7 B15 B14 B13 B6 B11 B10 B4 B9 B8 B2 B3 B12 S1 S2 S4 S6 S3 B5 B1 B7 a1 a2 h j k b f g m c e r p n d1 dp1 d2 a1 a2 h j k b f g m c e r p n d1 dp1 d2 a1 a2 h j k b f g m c e r p n d1 dp1 d2 a1 a2 h j k b f g m c e r p n d1 d2 a1 a2 h j k b f g m c e r p n d1 dp1 dp2 d2 a1 a2 h j k b f g m c e r p n d1 dp1 dp2 d2 (LEFT) B15 B14 B13 B6 B11 B10 B4 B9 B8 B2 B3 B12 B5 B1 B7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 XR-A9800D 8. PANEL FACILITIES AND SPECIFICATIONS 8.1 PANEL FACILITIES Front Panel Section W2-2001 VIDEO NR PHONES full logic aut reverse stereo double cassette deck auto synchro egiting system DVD CD DOLBY /DTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 XR-A9800D W2-2001 VIDEO NR DVD CD DOLBY /DTS PHONES 31 30 29 25 24 28 27 26 22 23 19 18 17 16 20 21 15 14 12 13 11 10 2 3 5 4 7 8 1 9 6 1 DISC-1/2/3 Press to select discs in the player directly. 2 AUDIO MODE Press to switch between the preset audio settings (use the JOG dial for smooth adjustment). 3 ZOOM SURROUND Press to switch between Zoom Surround modes (use the JOG dial for smooth adjustment). 4 EQUALIZER Press to switch between the preset Equalizer settings (use the JOG dial for smooth adjustment). 5 SET Use to enter timer and other settings made with the JOG dial. 6 JOG dial Use to morph between sound settings and when setting the clock or timer. 7 P.BASS (DEMO) Press to switch between P.Bass modes (use the JOG dial for smooth adjustment). 8 DISPLAY MODE Use to switch the sound level display pattern. 9 VISUAL MODE Press to switch between the preset visual settings (use the JOG dial for smooth adjustment). 10 VOLUME UP/DOWN Use to adjust the overall volume. 11 PHONES jack (Headphones) Plug in a pair of headphones to this jack. 12 MONO Press to listen to a stereo FM broadcast in mono (sound quality is usually improved). 13 TIMER / CLOCK ADJ Use to start setting the clock/timer. 14 Playback/tuning controls 7 ST. MEMORY When playing tapes or discs, press to stop a disc or tape currently playing. When in the tuner mode, press to change from manual tuning to the station presets. ¢⁄¡·+ Use for forward scanning and track skip when playing a disc. Use for forward music search and fast-forward when playing a tape. When listening to the radio, use to select a preset station, or tune manually to a station. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 XR-A9800D –·1⁄4 Use for reverse scanning and track skip when playing a disc. Use for reverse music search and rewind when playing a tape. When listening to the radio, use to select a preset station, or tune manually to a station. 26 Press to start playback of a disc or tape. When playing a disc, press to pause playback (press again to restart). When playing a tape, press to start playing the other side. 15 EJECT (tape II) Press to open the cassette door of deck II. 16 THEATER CONTROL Press to change the picture mode. There are three modes: Cinema, Animation, and Standard. 17 FREQ / STATION Press to switch between tuning and preset station modes. 18 MIC LEVEL Use to adjust the volume of the microphone relative to the backing track when singing karaoke. 19 VIDEO NR Press to switch on Video NR and improve the picture quality of Video CDs and DVDs. 20 MIC SUB Plug in a second microphone into this jack for karaoke. 21 MIC MAIN Plug in a microphone into this jack for karaoke. 22 2 NR* ON/OFF Press to switch Dolby Noise Reduction on/off for tape playback and recording. 23 DOLBY/DTS Press to switch Dolby Digital / Dolby Pro-Logic / DTS surround sound on/off. 24 EJECT (tape I) Press to open the cassette door of deck I. 25 Function select buttons DVD/CD Press to change the system function to DVD/CD. TUNER BAND Press to switch to tuner function and to switch between AM and FM. AUX Press to change the system function to auxiliary. TAPE I/II Press to switch the system function to tape and to switch between tape decks I and II. 26 ASES / COPY Press to start automatic CD/tape recording. 27 REC / STOP Press to start/stop tape recording. 28 TIMER indicator Lights when the timer has been set. 29 OPEN/CLOSE Press to open and close the disc tray. 30 DISC CHANGE Press to select the next disc in the player. 31 STANDBY/ON and standby indicator Press to switch the unit between standby and on. Indicator lights in standby. * Manufactured under licence from Dolby Labora- tories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 XR-A9800D 13 Tape indicators 2 and 3 – Indicates the current tape play/record direction. or – Indicates the current tape deck, I or II. 14 2 NR Lights when Dolby Noise Reduction is switched on. 15 Karaoke indicators L R – Indicates which channels of the karaoke track you’re hearing. – Lights when in the karaoke mode. 16 96kHz Lights when a DVD disc is playing that contains 96kHz audio. 17 STEREO Lights when the tuner is receiving a stereo FM broadcast in auto stereo mode. 18 REC Lights when recording to tape. 19 ASES Lights during automatic recording of a CD. 20 / Highlights during repeat play mode. 21 Highlights during program playback mode. 22 Highlights during random playback mode. 23 Sound morphing / sound level display 1 Character display 2 Sleep indicator Lights when sleep timer has been set. 3 Timer indicator Lights when either the record timer or the wake up timer has been set. 4 LAST MEMO Lights when a bookmark was set for the DVD disc loaded. 5 Tuned indicator Lights when the tuner is receiving a broadcast. 6 Mono indicator Lights when the tuner is set to mono FM mode. 7 Beat cut 2 indicator Lights when in beat cut 2 mode. 8 DOLBY DIGITAL Lights when a Dolby Digital DVD disc is playing. 9 CONDITION Lights when a DVD disc is loaded that has had preferences set for language, screen, etc. 10 DOLBY PRO LOGIC Lights when Dolby Pro Logic is switched on. 11 Disc play indicator Lights when a DVD/CD/Video CD is playing. 12 Disc indicator Lights when the system is in DVD/CD/Video CD mode. 22 23 21 1 2 3 4 5 6 8 9 10 20 19 18 17 16 14 7 13 12 11 15 Display Section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 XR-A9800D e Use with the SHIFT button for reverse frame- advance and slow motion reverse playback of a DVD disc. E Use with the SHIFT button for frame advance and slow motion forward playback of a DVD or Video CD. 4 Use to skip back tracks/chapters on a disc or tape. When listening to the radio, use to change the station preset. ¢ Use to skip forward tracks/chapters on a disc or tape. When listening to the radio, use to change the station preset. >10 Use to select numbers over 10 (press this button, then input the number using the other number buttons). 10/0 Use as zero or 10 when entering numbers (for track numbers, station presets, TV channels, etc.). 1–9 Number buttons (for track numbers, station presets, TV channels, etc.). A A-B (SHIFT & 5) Press to mark the start and end points of a loop to repeat when playing discs. ANGLE (SHIFT & SETUP) Press to switch camera angle on DVD discs recorded with multiple camera angles. AUDIO Press to switch the audio language of DVD discs. AUDIO/VISUAL Press to switch between Audio Preset and Visual Preset sound modes. AUX Press to change the system function to auxiliary. C CH SELECT Use to select a speaker when adjusting channel levels. CLEAR Press to clear or cancel various operations. CONDITION (SHIFT & 1) Press to memorize the current DVD disc prefer- ences. To learn about the function of a particular button, look up the name of the button in the following alphabetical list (buttons marked with symbols appear first). Press to switch the system on or into standby. 25∞3 Use to navigate the on-screen menus. 7 Press to stop a disc or tape currently playing. 2 6 Press to start playing a disc or tape, or pause one already playing. 1 Use to scan backward on a disc, or fast-rewind a tape. When listening to the radio, use for tuning to stations. ¡ Use to scan forward on a disc, or fast-forward a tape. When listening to the radio, use for tuning to stations. 6 3 9 5 2 8 4 1 7 DISC OPEN CLOSE AUDIO ANGLE TOP MEMU TV/VIDEO SETUP MENU TV TV VOL TV VOL TV CH TV CH SUBTITLE MUTE SELECT RETURN FL DISPLAY SEARCH LAST MEMO CONDITION DVD DISPLAY RANDOM A-B REPEAT PBC PROGRAM SLEEP MONO DVD/CD TV SYSTEM SYSTEM SETUP AUX TUNER/BAND TAPE SHIFT JOG AUDIO/VISUAL MORPHING CH SELECT TEST TONE KARAOKE DOLBY/DTS NEXT PREVIOUS STEP/SLOW ENTER DISC CHANGE VOLUME DISC DISC Remote Control Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 XR-A9800D D DISC-1/2/3 Use to select discs in the player directly. DISC CHANGE Press to select the next disc in the player. DOLBY/DTS Press to switch Dolby Digital / Dolby Pro-Logic / DTS surround sound on/off. DVD DISPLAY (SHIFT & >10) Press to display disc information on-screen. DVD/CD Press to change the system function to DVD/CD/ Video CD. E ENTER Use to select items from on-screen menus. F FL DISPLAY (SHIFT & CLEAR) Press to switch the display mode. J JOG Use to morph between sound settings and when setting the clock or timer. K KARAOKE (SHIFT & MORPHING) Press to switch the karaoke mode. L LAST MEMO (SHIFT & 2) Press to memorize the current position on a DVD disc. M MENU Press to display the disc menu of a DVD disc. MONO (SHIFT & 7) Press to listen to a stereo FM broadcast in mono (sound quality is usually improved). MORPHING Press to switch the sound morphing mode (adjust using the JOG buttons). MUTE Press to mute all sound from the speakers. Press again to restore the sound. N NEXT + Press to display the next menu screen on a PBC Video CD. O OPEN/CLOSE Press to open/close the disc tray. P PBC (SHIFT & 10/0) Press to switch Video CD playback control on or off. PREVIOUS – Press to display the previous menu screen on a PBC Video CD. PROGRAM (SHIFT & 9) Press to start programming a playlist. R RANDOM (SHIFT & 6) Press to start random playback of tracks/discs loaded. REPEAT (SHIFT & 4) Use to select a repeat mode for discs. RETURN Press to leave a menu screen without making changes. During PBC playback at a Video CD, press to display the PBC menu. S SEARCH (SHIFT & 3) Use to select the disc search mode (track, chap- ter, title or time). SELECT Press to start playing the selected track from a Video CD PBC menu. SETUP Press to display the DVD Setup menu for access to various sound, picture and language options. SHIFT Use to access secondary functions printed in red or orange on the remote control. SLEEP (SHIFT & 8) Press to set up the sleep timer. STEP/SLOW See e and E above. SUBTITLE Press to switch the subtitle language of DVD discs during playback. SYSTEM SETUP Press to display the menu for setting up surround sound. SYSTEM / TV switch When set to system the remote controls the system unit; when set to tv, the remote controls your TV. T TAPE I/II Press to switch to the tape function and to switch between tape decks I and II. TEST TONE (SHIFT & CH SELECT) Press to output a test tone when adjusting chan- nel levels. TOP MENU (SHIFT & MENU) Press to display the top menu of a DVD disc. TUNER/BAND Press to switch to the tuner, and use to switch between FM and AM bands. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 XR-A9800D TV Press to switch your TV on or into standby. TV CH + Press to change the TV channel. TV CH – Press to change the TV channel. TV VOL + Press to turn up the TV volume. TV VOL – Press to turn down the TV volume. TV/VIDEO Press to switch the TVs input between the built in TV tuner and an external video source. V VOLUME +/– Use to adjust the overall volume level. 8.2 SPECIFICATIONS Amplifier Section Continuous Power Output – Stereo (XR-A9800D) Continuous average power output of 70 watts* per channel, min., at 6 ohms, from 60 Hz to 15,000 Hz with no more than 5%** total harmonic distortion (front L/R). * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claim’s for Amplifiers. ** Measured by Audio Spectrum Analyzer. Surround XR-A9800D, XR-VS500D (RMS) Front ........................................................... 100 W per channel (1 kHz, 10% T.H.D., 6 Ω) Center, Rear R, L ......................................... 33 W per channel (1 kHz, 10% T.H.D., 8 Ω) Disc section Digital audio characteristics................... DVD fs: 96 kHz, 24-bit Type .......... DVD system, Video CD system and Compact Disc digital audio system Frequency response ..........................................4 Hz to 44 kHz S/N ratio .......................................................................... 95 dB Dynamic range ................................................................ 95 dB Total harmonic distortion ............................................. 0.005 % Wow and Flutter .....................................Limit of measurement ................................... (±0.001 % W.PEAK) or less (EIAJ) Cassette deck section Systems ............................................. 4 track, 2-channel stereo Heads ......................................... Recording/playback head × 1 Playback head × 1 Motor ......................................................... DC servo motor × 1 Tape types ...........TYPE I (Normal)/TYPE II (HIGH/CrO2) tape FM tuner section FrequencyRange ................................... 87.5 MHz to 108 MHz Antenna input ................................................ 75 Ω unbalanced AM tuner section FrequencyRange With 9 kHz step............................... 531 kHz to 1,602 kHz With 10 kHz step............................. 530 kHz to 1,700 kHz Antenna input ..................................................... Loop antenna Miscellaneous Power Requirements US and Canadian models .............................. AC 120 V, 60 Hz Australian models ...................................... AC 240 V, 50/60 Hz Power Consumption ....................................................... 170 W Power Consumption in Standby mode ............................... 1 W Dimensions ............................ 270 (W) x 320 (H) x 339 (D) mm ............................. 10 5/8 (W) x 12 5/8 (H) x 13 3/8 (D) in. Weight (without package) ......................... 10.2kg (22 lbs. 8oz.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 XR-A9800D Accessories Operating instructions ............................................................ 1 Remote control unit ................................................................ 1 Size AA/R6P dry cell batteries ............................................... 2 FM antenna ............................................................................ 1 AM loop antenna .................................................................... 1 Power Cord ............................................................................. 1 Video Cord ............................................................................. 1 Warranty card ......................................................................... 1 • Specifications and design subject to possible modifi- cation without notice, due to improvements. POWER-CORD CAUTION Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. 1 Remote Control Unit × 1 (XZN3109) 2 FM Antenna × 1 (ADH7004) 3 AM Loop Antenna × 1 (XTB3001) 4 AA/R6P Dry Cell Batteries × 2 5 Power Cord × 1 (ADG7022) 6 Video Cord × 1 (VDE1034) (L=1.5m) Yellow 6 3 9 5 2 8 4 1 7 DISC OPEN CLOSE AUDIO ANGLE TOP MEMU TV/VIDEO SETUP MENU TV TV VOL TV VOL TV CH TV CH SUBTITLE MUTE SELECT RETURN FL DISPLAY SEARCH LAST MEMO CONDITION DVD DISPLAY RANDOM A-B REPEAT PBC PROGRAM SLEEP MONO DVD/CD TV SYSTEM SYSTEM SETUP AUX TUNER/BAND TAPE SHIFT JOG AUDIO/VISUAL MORPHING CH SELECT TEST TONE KARAOKE DOLBY/DTS NEXT PREVIOUS STEP/SLOW ENTER DISC CHANGE VOLUME DISC DISC Accessories • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights reserved. • Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other worldwide patents issues and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. © 1996 Digital Theater Systems, Inc. All rights reserved. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
