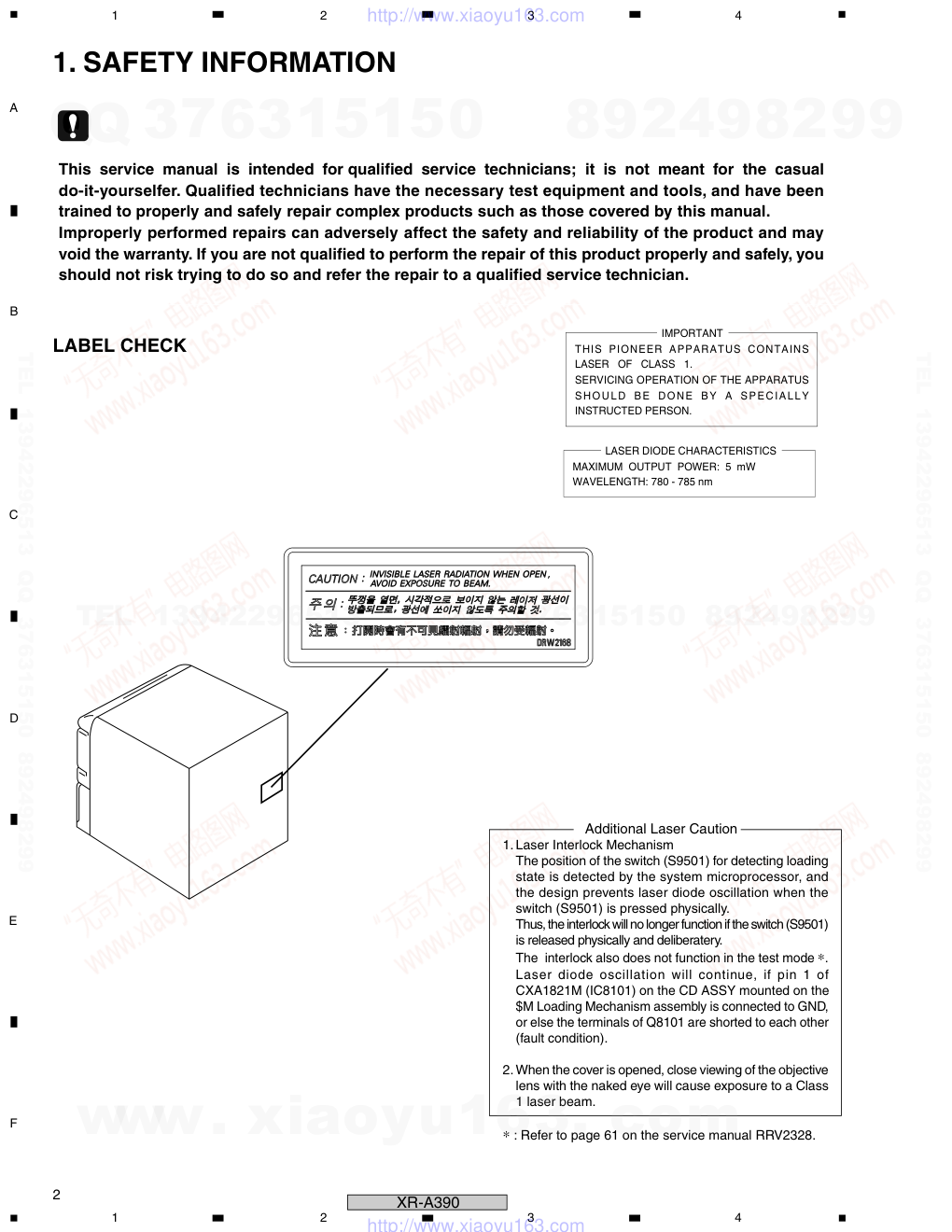

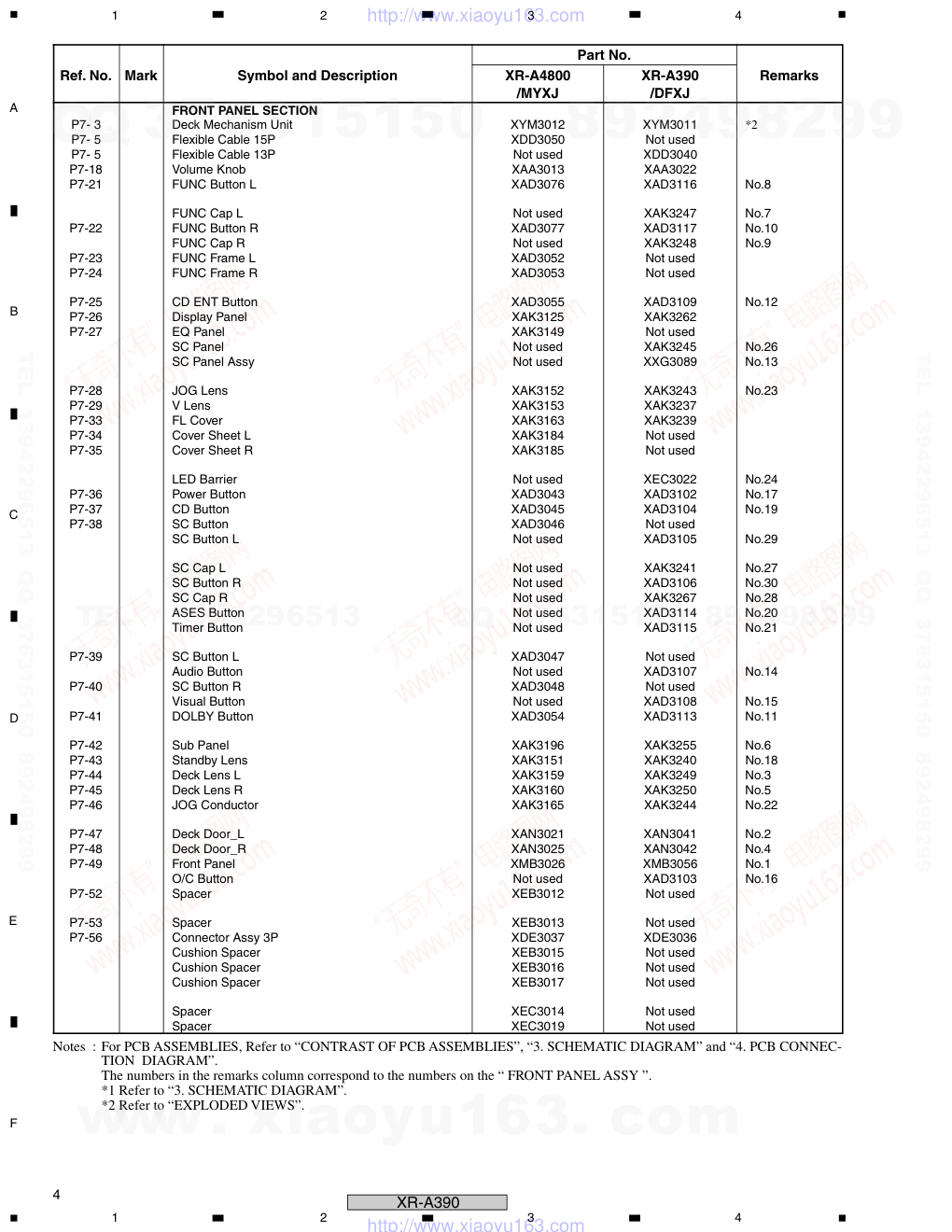

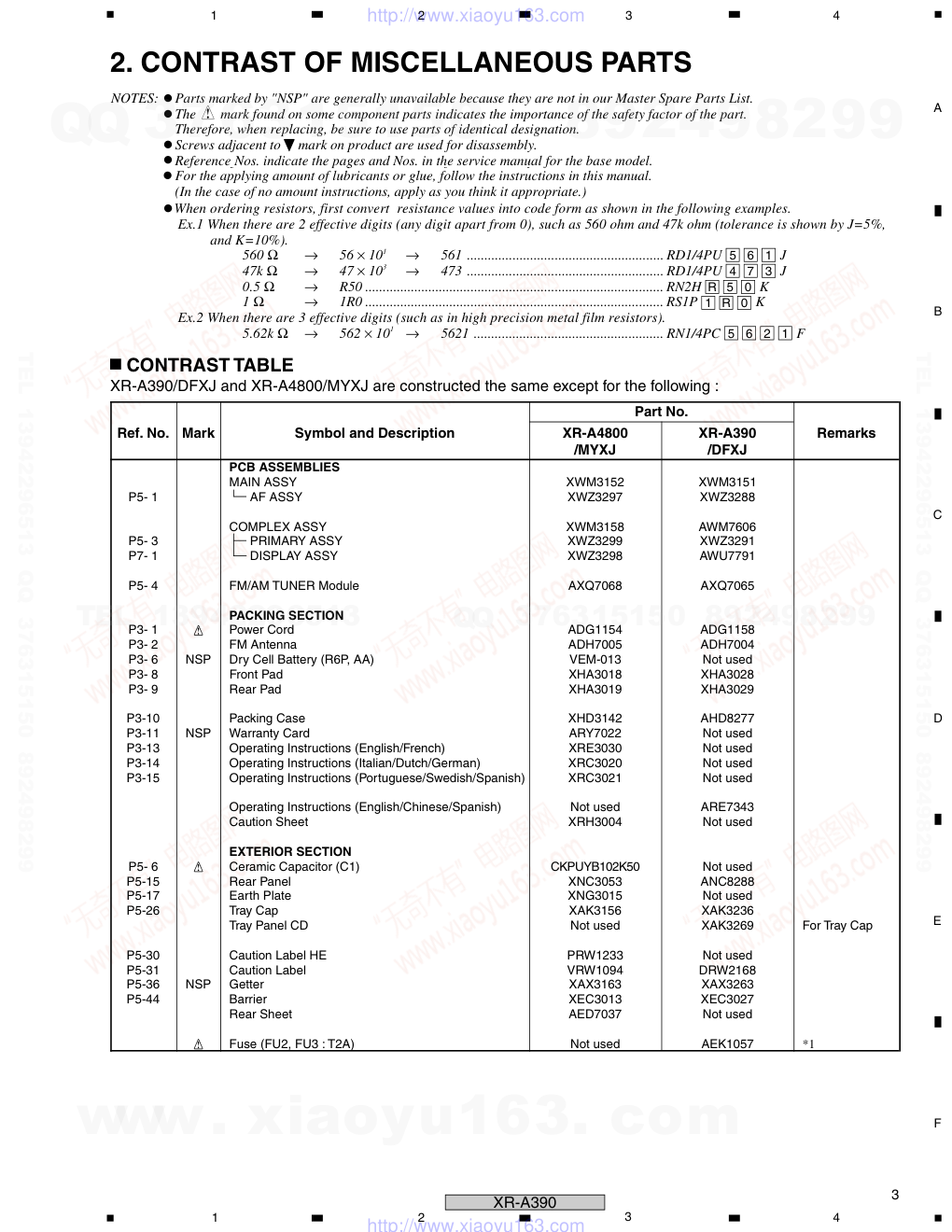

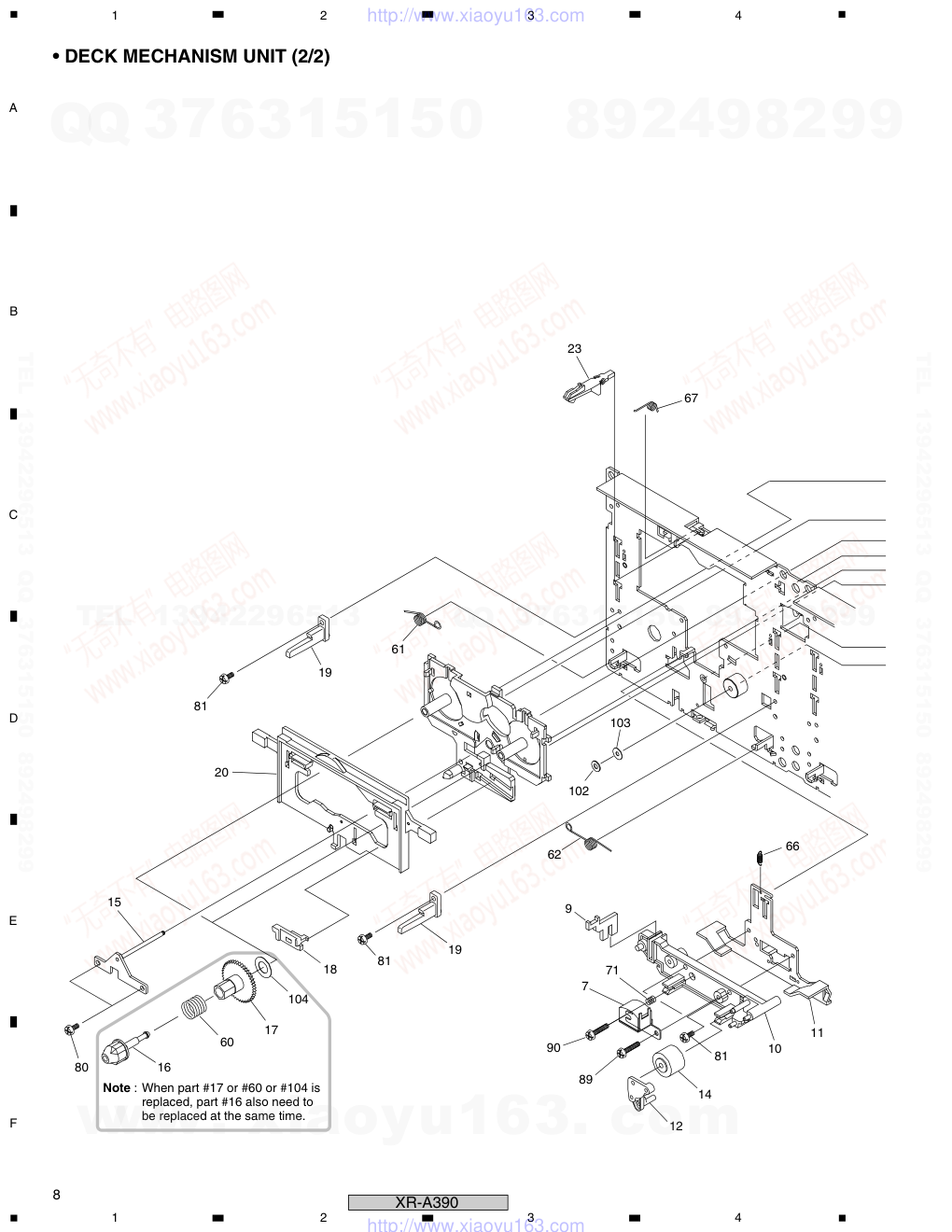

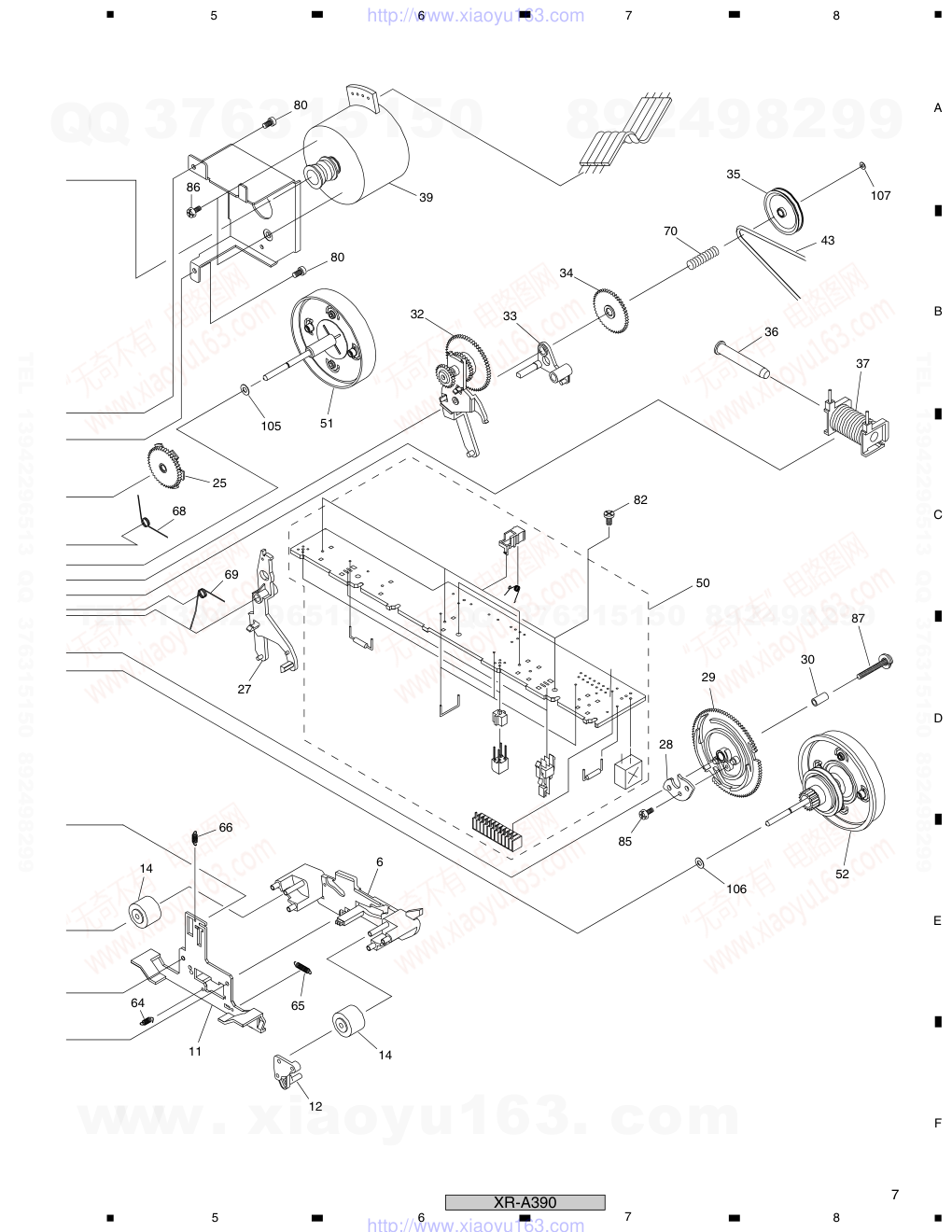

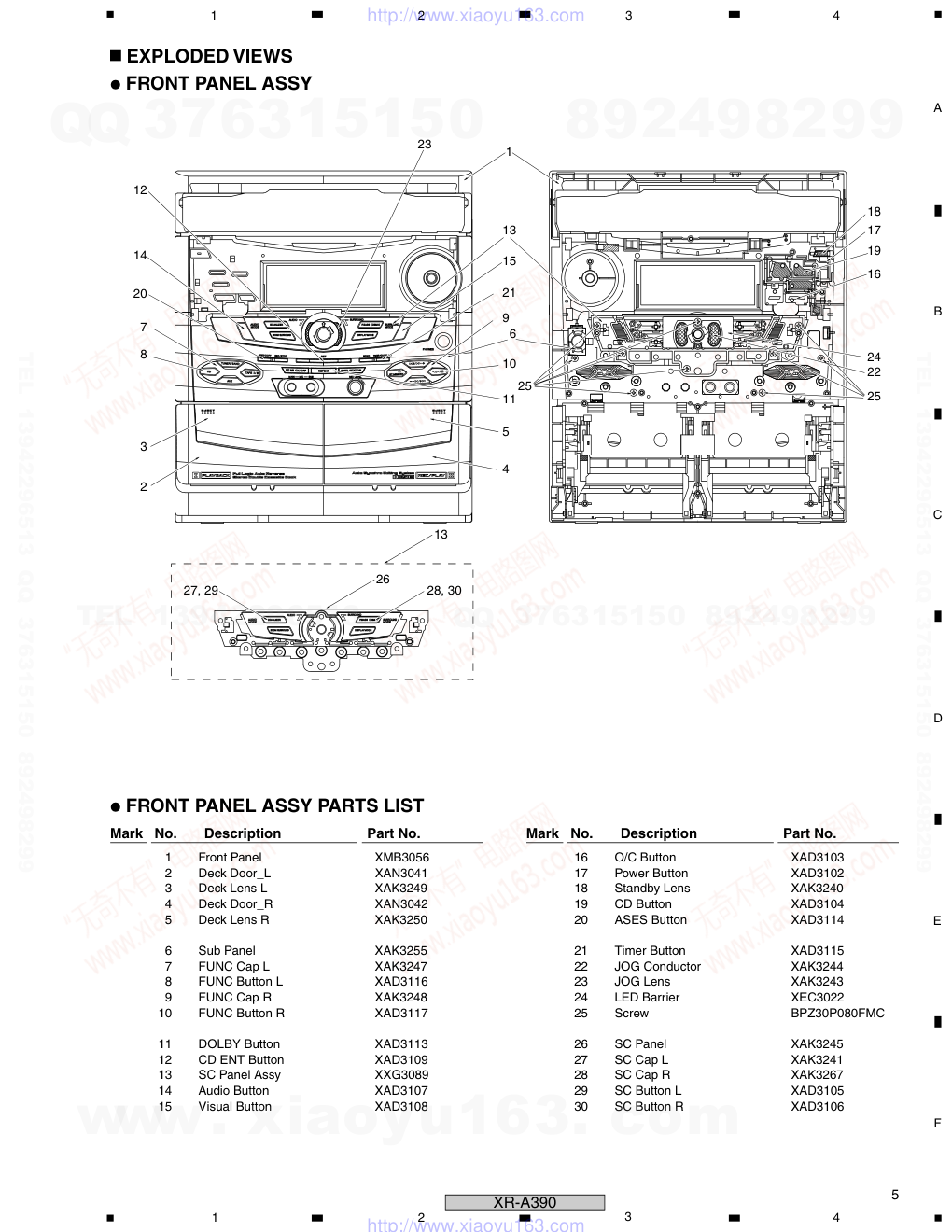

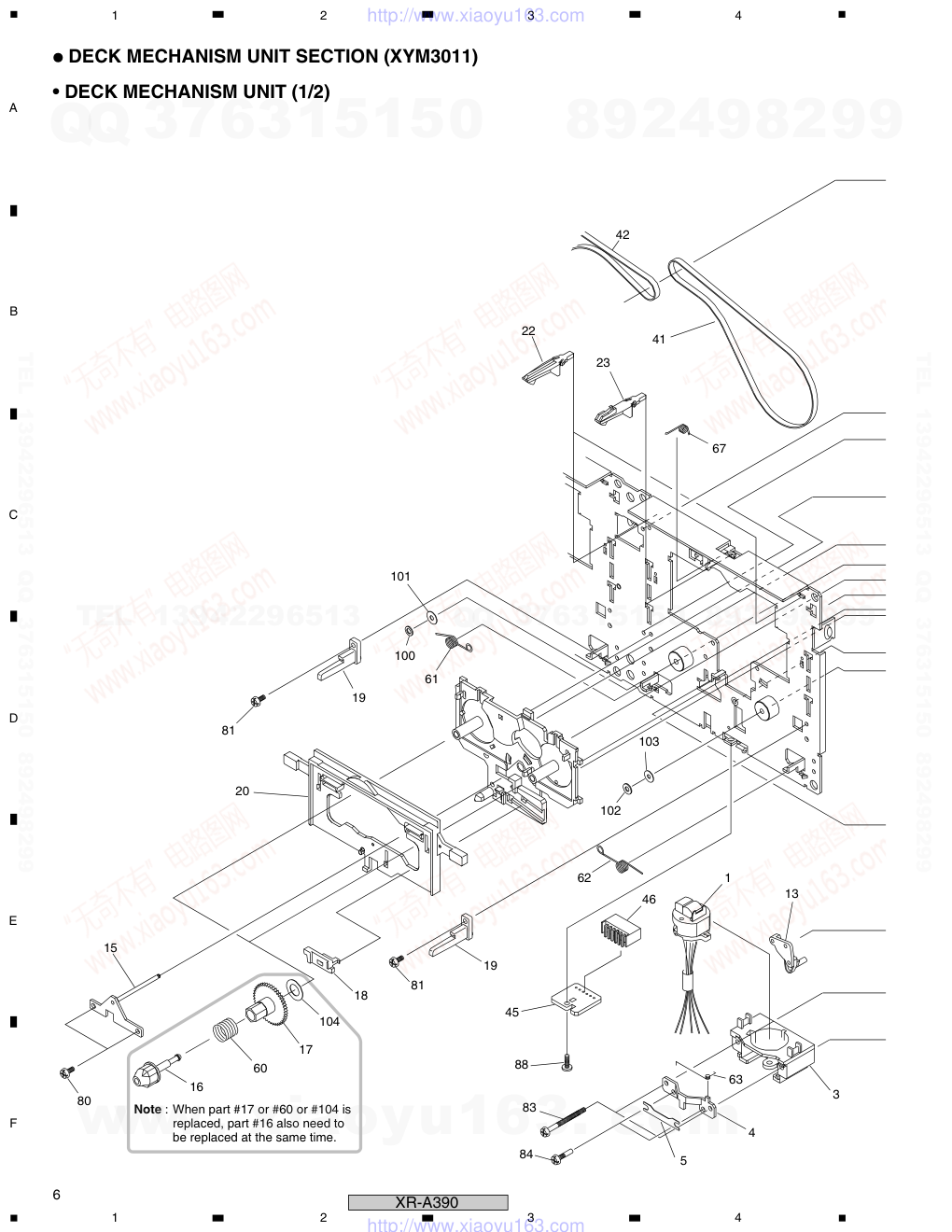

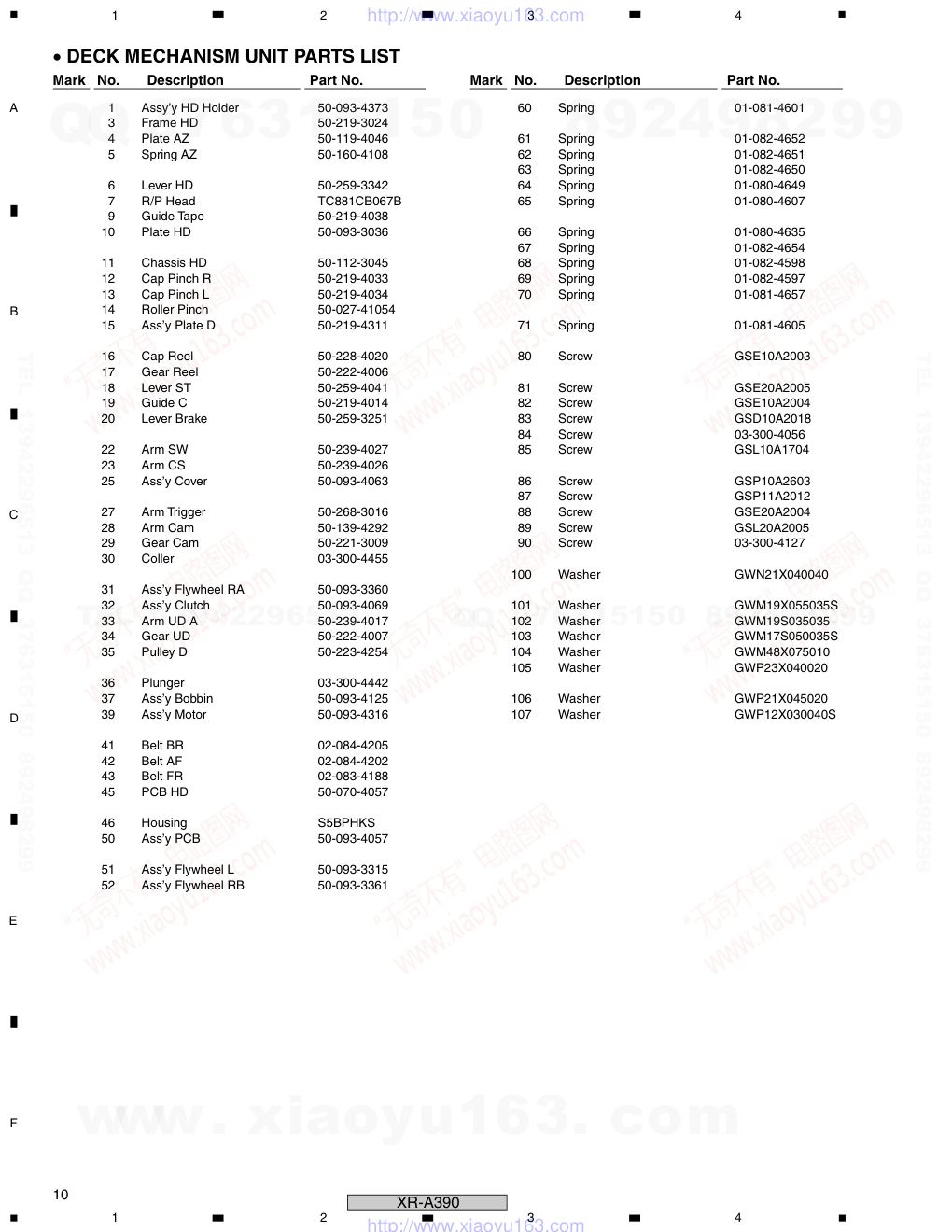

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2004 RRV2879 T – ZZK JAN. 2004 Printed in Japan STEREO CD CASSETTE DECK RECEIVER XR-A390 Model No. Order No. Remarks XR-A4800/MYXJ RRV2328 ¶ This service manual should be used together with the following manual(s): THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement The voltage can be converted by the following method. XR-A390 DFXJ AC110-127V/220-230V/240V With the voltage selector CONTENTS 1. SAFETY INFORMATION ...................................... 2 2. CONTRAST OF MISCELLANEOUS PARTS ........ 3 3. SCHEMATIC DIAGRAM ..................................... 13 4. PCB CONNECTION DIAGRAM .......................... 19 5. ADJUSTMENT .................................................... 20 ¶ For SPECIFICATIONS and PANEL FACILITIES, refer to the operating instructions. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E XR-A390 This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. SAFETY INFORMATION LABEL CHECK Additional Laser Caution 1. Laser Interlock Mechanism The position of the switch (S9501) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S9501) is pressed physically. Thus, the interlock will no longer function if the switch (S9501) is released physically and deliberatery. The interlock also does not function in the test mode ∗. Laser diode oscillation will continue, if pin 1 of CXA1821M (IC8101) on the CD ASSY mounted on the $M Loading Mechanism assembly is connected to GND, or else the terminals of Q8101 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. ∗ : Refer to page 61 on the service manual RRV2328. IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mW WAVELENGTH: 780 - 785 nm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E XR-A390 2. CONTRAST OF MISCELLANEOUS PARTS j p f y For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F XR-A390/DFXJ and XR-A4800/MYXJ are constructed the same except for the following : CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description XR-A4800 XR-A390 Remarks /MYXJ /DFXJ PCB ASSEMBLIES MAIN ASSY XWM3152 XWM3151 P5- 1 AF ASSY XWZ3297 XWZ3288 COMPLEX ASSY XWM3158 AWM7606 P5- 3 PRIMARY ASSY XWZ3299 XWZ3291 P7- 1 DISPLAY ASSY XWZ3298 AWU7791 P5- 4 FM/AM TUNER Module AXQ7068 AXQ7065 PACKING SECTION P3- 1 Power Cord ADG1154 ADG1158 P3- 2 FM Antenna ADH7005 ADH7004 P3- 6 NSP Dry Cell Battery (R6P, AA) VEM-013 Not used P3- 8 Front Pad XHA3018 XHA3028 P3- 9 Rear Pad XHA3019 XHA3029 P3-10 Packing Case XHD3142 AHD8277 P3-11 NSP Warranty Card ARY7022 Not used P3-13 Operating Instructions (English/French) XRE3030 Not used P3-14 Operating Instructions (Italian/Dutch/German) XRC3020 Not used P3-15 Operating Instructions (Portuguese/Swedish/Spanish) XRC3021 Not used Operating Instructions (English/Chinese/Spanish) Not used ARE7343 Caution Sheet XRH3004 Not used EXTERIOR SECTION P5- 6 Ceramic Capacitor (C1) CKPUYB102K50 Not used P5-15 Rear Panel XNC3053 ANC8288 P5-17 Earth Plate XNG3015 Not used P5-26 Tray Cap XAK3156 XAK3236 Tray Panel CD Not used XAK3269 For Tray Cap P5-30 Caution Label HE PRW1233 Not used P5-31 Caution Label VRW1094 DRW2168 P5-36 NSP Getter XAX3163 XAX3263 P5-44 Barrier XEC3013 XEC3027 Rear Sheet AED7037 Not used Fuse (FU2, FU3 : T2A) Not used AEK1057 *1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E XR-A390 Notes : For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES”, “3. SCHEMATIC DIAGRAM” and “4. PCB CONNEC- TION DIAGRAM”. The numbers in the remarks column correspond to the numbers on the “ FRONT PANEL ASSY ”. *1 Refer to “3. SCHEMATIC DIAGRAM”. *2 Refer to “EXPLODED VIEWS”. Part No. Ref. No. Mark Symbol and Description XR-A4800 XR-A390 Remarks /MYXJ /DFXJ FRONT PANEL SECTION P7- 3 Deck Mechanism Unit XYM3012 XYM3011 *2 P7- 5 Flexible Cable 15P XDD3050 Not used P7- 5 Flexible Cable 13P Not used XDD3040 P7-18 Volume Knob XAA3013 XAA3022 P7-21 FUNC Button L XAD3076 XAD3116 No.8 FUNC Cap L Not used XAK3247 No.7 P7-22 FUNC Button R XAD3077 XAD3117 No.10 FUNC Cap R Not used XAK3248 No.9 P7-23 FUNC Frame L XAD3052 Not used P7-24 FUNC Frame R XAD3053 Not used P7-25 CD ENT Button XAD3055 XAD3109 No.12 P7-26 Display Panel XAK3125 XAK3262 P7-27 EQ Panel XAK3149 Not used SC Panel Not used XAK3245 No.26 SC Panel Assy Not used XXG3089 No.13 P7-28 JOG Lens XAK3152 XAK3243 No.23 P7-29 V Lens XAK3153 XAK3237 P7-33 FL Cover XAK3163 XAK3239 P7-34 Cover Sheet L XAK3184 Not used P7-35 Cover Sheet R XAK3185 Not used LED Barrier Not used XEC3022 No.24 P7-36 Power Button XAD3043 XAD3102 No.17 P7-37 CD Button XAD3045 XAD3104 No.19 P7-38 SC Button XAD3046 Not used SC Button L Not used XAD3105 No.29 SC Cap L Not used XAK3241 No.27 SC Button R Not used XAD3106 No.30 SC Cap R Not used XAK3267 No.28 ASES Button Not used XAD3114 No.20 Timer Button Not used XAD3115 No.21 P7-39 SC Button L XAD3047 Not used Audio Button Not used XAD3107 No.14 P7-40 SC Button R XAD3048 Not used Visual Button Not used XAD3108 No.15 P7-41 DOLBY Button XAD3054 XAD3113 No.11 P7-42 Sub Panel XAK3196 XAK3255 No.6 P7-43 Standby Lens XAK3151 XAK3240 No.18 P7-44 Deck Lens L XAK3159 XAK3249 No.3 P7-45 Deck Lens R XAK3160 XAK3250 No.5 P7-46 JOG Conductor XAK3165 XAK3244 No.22 P7-47 Deck Door_L XAN3021 XAN3041 No.2 P7-48 Deck Door_R XAN3025 XAN3042 No.4 P7-49 Front Panel XMB3026 XMB3056 No.1 O/C Button Not used XAD3103 No.16 P7-52 Spacer XEB3012 Not used P7-53 Spacer XEB3013 Not used P7-56 Connector Assy 3P XDE3037 XDE3036 Cushion Spacer XEB3015 Not used Cushion Spacer XEB3016 Not used Cushion Spacer XEB3017 Not used Spacer XEC3014 Not used Spacer XEC3019 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E XR-A390 12 1 13 15 18 17 19 16 24 22 25 21 9 6 10 11 5 4 25 23 14 20 7 8 3 2 EXPLODED VIEWS ÷ FRONT PANEL ASSY PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Front Panel XMB3056 2 Deck Door_L XAN3041 3 Deck Lens L XAK3249 4 Deck Door_R XAN3042 5 Deck Lens R XAK3250 6 Sub Panel XAK3255 7 FUNC Cap L XAK3247 8 FUNC Button L XAD3116 9 FUNC Cap R XAK3248 10 FUNC Button R XAD3117 11 DOLBY Button XAD3113 12 CD ENT Button XAD3109 13 SC Panel Assy XXG3089 14 Audio Button XAD3107 15 Visual Button XAD3108 16 O/C Button XAD3103 17 Power Button XAD3102 18 Standby Lens XAK3240 19 CD Button XAD3104 20 ASES Button XAD3114 21 Timer Button XAD3115 22 JOG Conductor XAK3244 23 JOG Lens XAK3243 24 LED Barrier XEC3022 25 Screw BPZ30P080FMC 26 SC Panel XAK3245 27 SC Cap L XAK3241 28 SC Cap R XAK3267 29 SC Button L XAD3105 30 SC Button R XAD3106 ÷ FRONT PANEL ASSY 27, 29 26 28, 30 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E XR-A390 Note : When part #17 or #60 or #104 is replaced, part #16 also need to be replaced at the same time. 16 104 80 101 81 19 100 61 20 60 17 15 18 81 19 46 1 13 102 103 45 88 83 84 5 4 63 3 62 42 41 23 67 22 • DECK MECHANISM UNIT (1/2) ÷ DECK MECHANISM UNIT SECTION (XYM3011) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 5 6 7 8 5 6 7 8 C D F A B E XR-A390 32 82 30 29 50 28 85 106 52 87 36 43 107 35 39 80 86 34 70 33 80 105 51 25 68 69 27 66 14 64 11 12 14 65 6 37 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 C D F A B E XR-A390 Note : When part #17 or #60 or #104 is replaced, part #16 also need to be replaced at the same time. 60 104 16 15 81 19 20 18 67 17 80 61 9 7 66 62 19 81 71 90 89 12 14 81 11 10 103 102 23 • DECK MECHANISM UNIT (2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 5 6 7 8 C D F A B E XR-A390 34 106 85 28 29 30 87 31 70 35 107 37 43 36 33 32 25 68 69 27 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 C D F A B E XR-A390 Mark No. Description Part No. Mark No. Description Part No. • DECK MECHANISM UNIT PARTS LIST 1 Assy’y HD Holder 50-093-4373 3 Frame HD 50-219-3024 4 Plate AZ 50-119-4046 5 Spring AZ 50-160-4108 6 Lever HD 50-259-3342 7 R/P Head TC881CB067B 9 Guide Tape 50-219-4038 10 Plate HD 50-093-3036 11 Chassis HD 50-112-3045 12 Cap Pinch R 50-219-4033 13 Cap Pinch L 50-219-4034 14 Roller Pinch 50-027-41054 15 Ass’y Plate D 50-219-4311 16 Cap Reel 50-228-4020 17 Gear Reel 50-222-4006 18 Lever ST 50-259-4041 19 Guide C 50-219-4014 20 Lever Brake 50-259-3251 22 Arm SW 50-239-4027 23 Arm CS 50-239-4026 25 Ass’y Cover 50-093-4063 27 Arm Trigger 50-268-3016 28 Arm Cam 50-139-4292 29 Gear Cam 50-221-3009 30 Coller 03-300-4455 31 Ass’y Flywheel RA 50-093-3360 32 Ass’y Clutch 50-093-4069 33 Arm UD A 50-239-4017 34 Gear UD 50-222-4007 35 Pulley D 50-223-4254 36 Plunger 03-300-4442 37 Ass’y Bobbin 50-093-4125 39 Ass’y Motor 50-093-4316 41 Belt BR 02-084-4205 42 Belt AF 02-084-4202 43 Belt FR 02-083-4188 45 PCB HD 50-070-4057 46 Housing S5BPHKS 50 Ass’y PCB 50-093-4057 51 Ass’y Flywheel L 50-093-3315 52 Ass’y Flywheel RB 50-093-3361 60 Spring 01-081-4601 61 Spring 01-082-4652 62 Spring 01-082-4651 63 Spring 01-082-4650 64 Spring 01-080-4649 65 Spring 01-080-4607 66 Spring 01-080-4635 67 Spring 01-082-4654 68 Spring 01-082-4598 69 Spring 01-082-4597 70 Spring 01-081-4657 71 Spring 01-081-4605 80 Screw GSE10A2003 81 Screw GSE20A2005 82 Screw GSE10A2004 83 Screw GSD10A2018 84 Screw 03-300-4056 85 Screw GSL10A1704 86 Screw GSP10A2603 87 Screw GSP11A2012 88 Screw GSE20A2004 89 Screw GSL20A2005 90 Screw 03-300-4127 100 Washer GWN21X040040 101 Washer GWM19X055035S 102 Washer GWM19S035035 103 Washer GWM17S050035S 104 Washer GWM48X075010 105 Washer GWP23X040020 106 Washer GWP21X045020 107 Washer GWP12X030040S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 1 2 3 4 1 2 3 4 C D F A B E XR-A390 AF ASSY F F XWZ3288 and XWZ3297 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3297 XWZ3288 IC5751 (RDS Decoder IC) BU1923F Not used Q5751 2SA1037K Not used Q5752 DTC124EK Not used L3333, L3334 (AF Choke Coil) ATH-133 Not used L3991 (Axial Indactor) Not used XTL3001 L5751 (Axial Indactor) XTL3002 Not used C1997, C3329, C3330 CKSRYB103K50 Not used C2327–C2330, C3321, C3322, C3852, C3854 CCSRCH470J50 Not used C3001, C3002, C3858 CCSRCH101J50 Not used C3023, C3024 CFTLA564J50 CFTLA474J50 C3025, C3026 CKSRYB104K16 CKSRYB683K16 C3027, C3028 CFTLA334J50 CFTLA154J50 C3029, C3030 CKSRYB563K16 CKSRYB273K16 C3043, C3044, C3082 CEATR47M50 CEAT2R2M50 C3051, C3052, C3853, C3855 CKSRYB472K50 Not used C3073–C3076 CKSRYB122K50 Not used C3081 CEAT4R7M50 CEAT100M50 C3091 CEAT2R2M50 CEAT100M50 C3319, C3320 CCSRCH6R0D50 CCSRCJ3R0C50 C3335–C3338 CKSRYF104Z25 Not used C3345, C3346 (0.01µF) ACG7021 Not used C3850 CKSRYB473K16 Not used C3994, C3995 CCSRCH681J50 Not used C5751, C5752, C5755 CCSRCH270J50 Not used C5753 CKSRYB103K50 Not used C5754 CEAT330M16 Not used C5756 CCSQCH561J50 Not used C5757 CCSRCH271J50 Not used C5758 CEAT100M50 Not used R3333, R3334 RD1/4LMF101J RD1/4LMF100J R3335, R3336 RS1/16S100J Not used R3509 RS1/16S393J RS1/16S473J R3515–R3518 RS1/16S152J RS1/16S122J R5751 RS1/16S223J Not used R5752 RS1/16S222J Not used R5753 RS1/16S101J Not used R5754 RS1/16S102J Not used X5751 CRYSTAL RESONATOR (4.332MHz) ASS7004 Not used CONTRAST OF PCB ASSEMBLIES PRIMARY ASSY F H XWZ3291 and XWZ3299 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3299 XWZ3291 S1 VOLTAGE SELECTOR Not used XKX3001 L1 LINE FILTER XTF3001 ATF7018 H3–H6 FUSE CLIP Not used AKR7001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 C D F A B E XR-A390 ÷ PCB PARTS LIST FM/AM TUNER MODULE (AXQ7065) SEMICONDUCTORS IC6201 LA1832ML IC6202 LC72131MD Q6402 2SC2223 Q6203 2SC2705 Q6201,Q6202 2SC2712 Q6214,Q6403 2SC2714 Q6404 2SK302 Q6401 3SK194 Q6204 DTA124ES Q6205 DTC124EK D6202 1SS254 D6401,D6402 1T378A COILS AND FILTERS L6404 FM COIL ATC1003 L6401 FM RF COIL ATC1020 L6402 FM RF COIL ATC1021 F6204 FM CERAMIC FILTER ATF-107 F6203 FM CERAMIC FILTER ATF-119 F6401 FM BAND PASS FILTER ATF-155 F6206 FM CERAMIC DISCLI. ATF7008 F6202 AM CERAMIC FILTER ATF7011 L6206,L6208,L6403 LAU2R2J TRANSFORMERS T6201 ATB7008 T6401 ATE7002 CAPACITORS C6208 CCSQCH100D50 C6212,C6274,C6275,C6408 CCSQCH101J50 C6412 CCSQCH102J50 C6221,C6222,C6416 CCSQCH150J50 C6271 CCSQCH200J50 C6415 CCSQCH330J50 C6406 CCSQCH331J50 C6401,C6419 CCSQCH5R0C50 C6407 CCSQCK1R0C50 C6410 CCSQCK2R0C50 C6413 CCSQRH180J50 C6414 CCSQRH8R0D50 C6405 CCSQTH150J50 C6234,C6235 CEAL1R0M50 C6245 CEAL470M16 C6224 CEAT100M50 C6243 CEAT101M16 C6231 CEAT1R0M50 C6227 CEAT220M25 C6214,C6236 CEAT2R2M50 C6262 CEAT3R3M50 C6219 CEAT470M10 C6244 CEAT470M16 C6249,C6250,C6265,C6266 CEAT4R7M50 C6258 CEJA470M16 C6215 CFTLA103J50 C6211,C6254,C6403,C6417 CKSQYB102K50 C6201,C6205,C6210,C6237,C6276 CKSQYB103K50 C6278,C6280,C6281,C6402,C6409 CKSQYB103K50 C6418 CKSQYB103K50 C6251,C6252 CKSQYB153K50 C6203,C6259 CKSQYB223K50 C6228 CKSQYB472K50 C6209 CKSQYB473K50 C6230 CKSQYB821K50 C6218,C6223,C6255 CKSQYF103Z50 C6220,C6226,C6242,C6256 CKSQYF223Z50 C6225 CKSQYF473Z50 RESISTORS R6280 RD1/4PU101J R6413,R6416,R6418,R6906,R6909 RS1/8S0R0J R6401 RS1/8S470J VR6201 (10kW) PCP1029 Other Resistors RS1/10S J OTHERS BN6202 4P ANTENNA TERMINALAKE7051 X6202 CERAMIC RESONATOR ASS1066 (456kHz) X6201 CRYSTAL RESONATOR ASS1093 (7.2000MHz) CN6201 14P SOCKET KP200IA14L MW RF TUNING BLOCK AKX7041 AWU7791 and XWZ3298 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks XWZ3298 AWU7791 D5594–D5596 1SS355 Not used D5610, D5611, D5615, D5616, D5904 SLP3118C51H SLR-343MC(NPQ) D5612, D5614 SLP6118C51H SLR-343DC(NPQ) D5619, D5620, D5903 SLP9118C51H SLR-343VC(NPQ) D5902 SLP7118C51H SLR-343PC(KLM) S5911, S5913, S5915–S5921, S5923–S5929 XSG3001 ASG1051 S5931–S5940 XSG3001 ASG1051 C3905, C5510, C5811, C5814 CEJA470M16 CEJQ470M16 C3915 CCSRCH470J50 Not used C3920, C3921 CCSRCH101J50 Not used C3951, C3952 CKSRYB103K50 Not used R3908 RS1/16S681J RS1/16S101J R5518 RS1/16S102J Not used R5702, R5704 Not used RS1/16S223J CN2901 FFC CONNECTOR HLEM15R-1 HLEM13R-1 DISPLAY ASSY F I F A Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 1 2 3 4 1 2 3 4 C D F A B E XR-A390 XR-A790 ONLY XR-A390 ONLY R3626 XR-A790 : 18k XR-A390 : 12k XR-A390 : AKE7018 FRONT SPEAKERS F 3/3F AF ASSY (XWZ3288) F 3/3F NOTES: • When ordering service parts, be sure to refer to “EXPLODED VIEWS and PARTS LIST” or “PCB PARTS LIST”. • The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • : The power supply is shown with the marked box. 3. SCHEMATIC DIAGRAM 3.1 AF (3/3) ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 C D F A B E XR-A390 RF AMP 1T378A 1T378A MIX AMP BUFFER IF AMP FM +B SW MW RF TUNING BLOCK AKX7041 OSC A F 3.2 FM/AM TUNER MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 5 6 7 8 C D F A B E XR-A390 FM/AM TUNER MODULE (AXQ7065) CN6201 KP200IA14L AF AMP REGULATOR PLL AF AMP 2/3 F CN3051 F A A F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 C D F A B E XR-A390 3.3 PRIMARY ASSY J81 I G POWER TRANSFORMER XR-A390 : XTS3036 H Fwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 5 6 7 8 C D F A B E XR-A390 XR-A390 : AEK1060 (T4A) ATF7018 XR-A390 : AEK1057 (T2A) • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - PRIMARY ASSY (XWZ3291) H F H F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 C D F A B E XR-A390 3.4 DISPLAY ASSY XR-A790 ONLY D5601-D5608, D5621, D5622 : SLR-343MC(NPQ) 10MHz X5501 ASS7034 DISPLAY ASSY (AWU7791) I F I Fwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 1 2 3 4 1 2 3 4 C D F A B E XR-A390 VR6201 Q6203 Q6204 Q6304 Q6306 Q6401 Q6303 Q6302 Q6301 Q6214 Q6402 Q6403 Q6404 Q6202 Q6201 IC6202 IC6201 Q6205 CN3051 F (ANP7159-B) FM/AM TUNER MODULE FM/AM TUNER MODULE F A F A SIDE B SIDE B SIDE A SIDE A G F G F 4. PCB CONNECTION DIAGRAM 4.1 FM/AM TUNER MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 1 2 3 4 1 2 3 4 C D F A B E XR-A390 5. ADJUSTMENT Step No. Adjustment Title AM SG (400Hz, 30% Mod.) Reception Frequency Display Adjustment Location Specifications Frequency (kHz) Level (dBµV/m) 1 Front End Sensitivity 999 (∗1) 35 to 45 999kHz (∗1) T6201 Adjust so that the DC voltage between the IC6201 - pin 20 and GND becomes to maximum level. FM Tuner Section • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. AM Tuner Section • Set the mode selector to AM BAND. • Connect the wiring as shown in Fig. 1. Note: Before adjusting, make sure there is no gap between L6401 and L6402. If there is a gap between them, bring them into contact with each other first, and then make adjustments. Note (∗1) : For the area using 10kHz step, frequency should be 1000kHz. AM SG MPX SG FM SG PRODUCT DC Voltmeter FM75Ω antenna terminal AM antenna terminal 60cm Center Center Loop antenna Fig.1 AM and FM Adjustment Wiring Diagram Step No. Adjustment Title FM SG (1kHz, ± 75kHz dev.) Reception Frequency Display Adjustment Location Specifications Frequency (MHz) Level (dBµV) 1 Front End Sensitivity 98 0 to 30 98MHz L6402 T6401 Adjust so that the DC voltage between the IC6201 - pin 20 and GND becomes to maximum level. 2 TUNED IND. Lighting Level 98 18 ± 2 98MHz VR6201 Adjust so that the indicator of TUNED IND. strats to light up. FM/AM TUNER MODULE AXX7041 L6402 L6401 T6401 T6201 IC6201 Pin 20 VR6201 AM antenna terminal FM antenna terminal YELLOW BLACK Fig.2 Adjustment Point SIDE A Note : Adjustment of XR-A390 are the same as those of XR-A4800 except for the following: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
