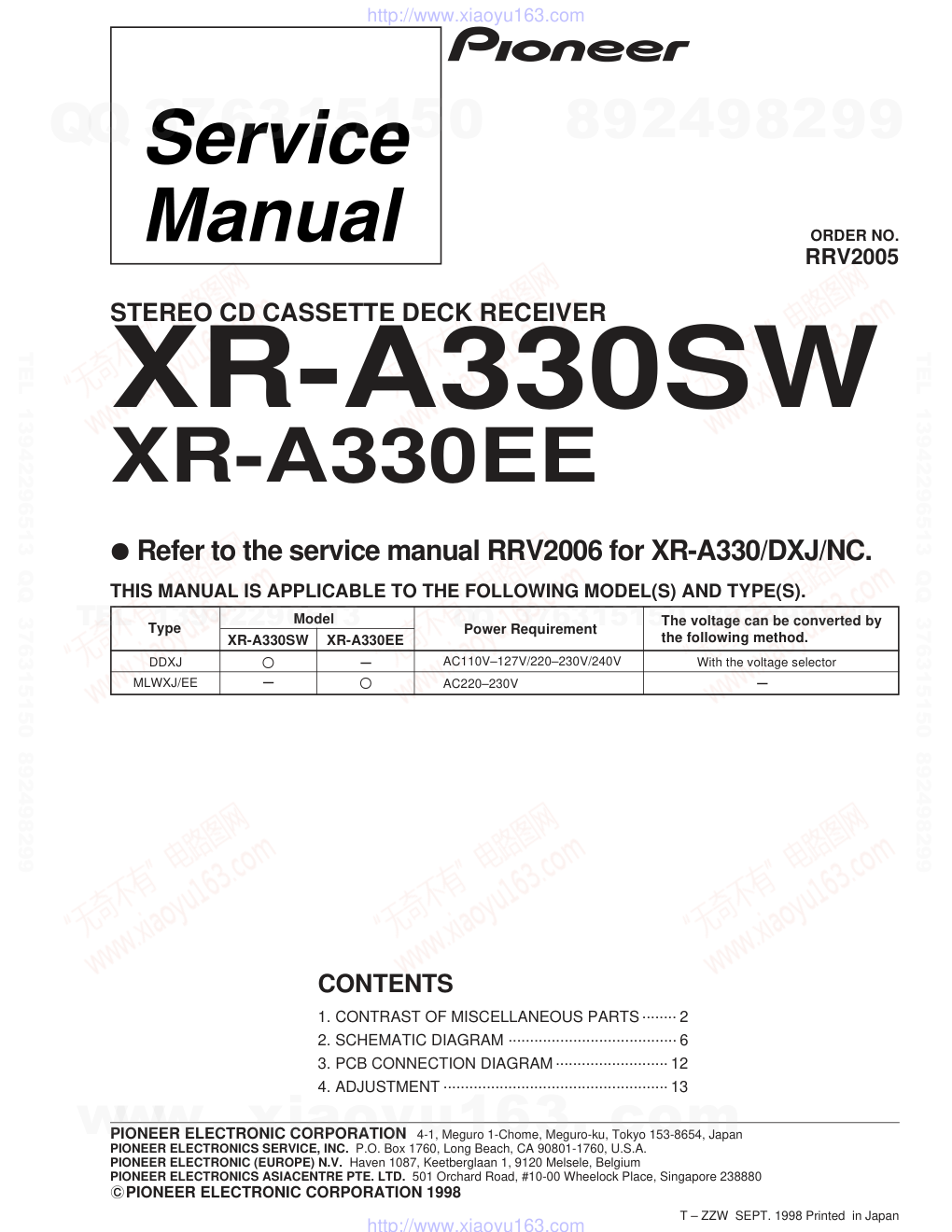

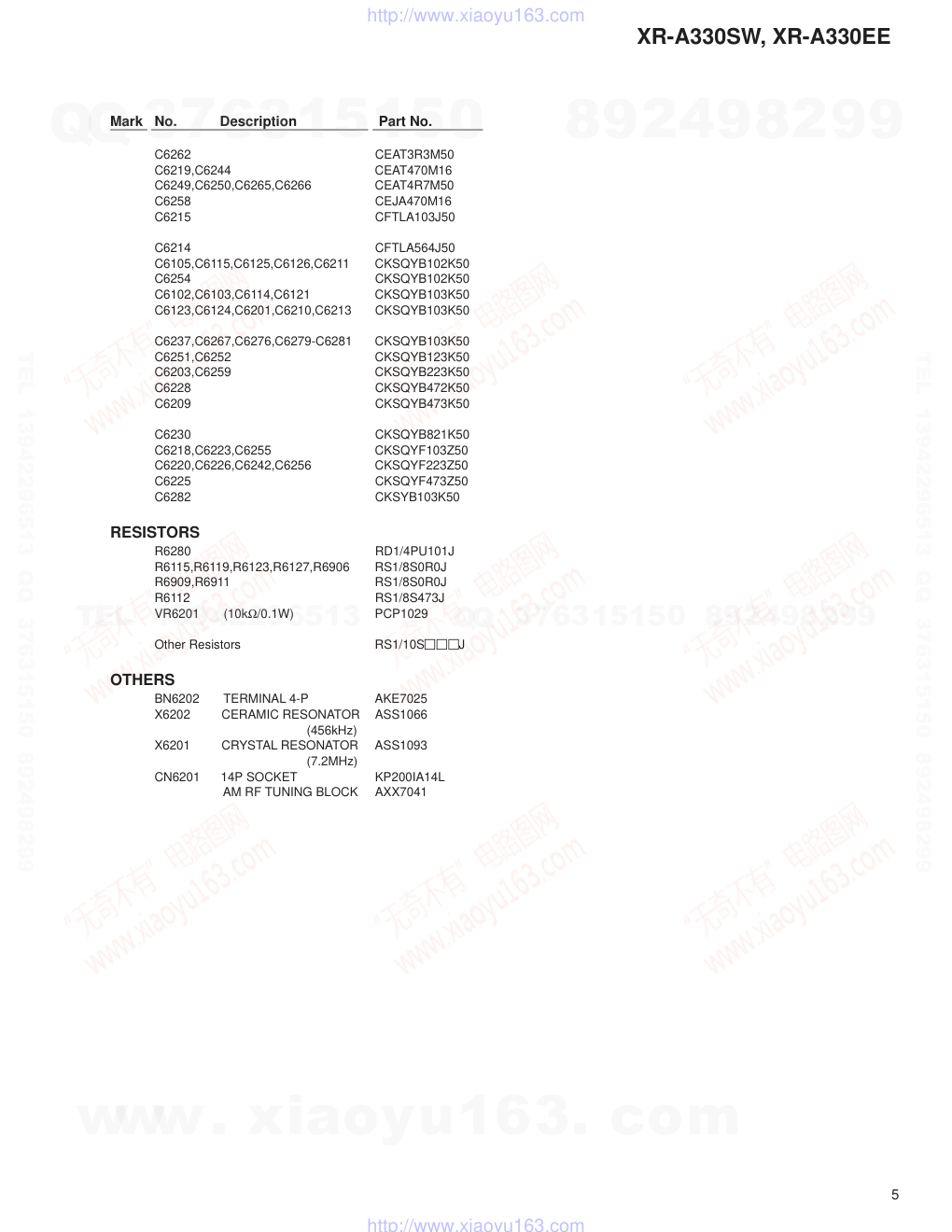

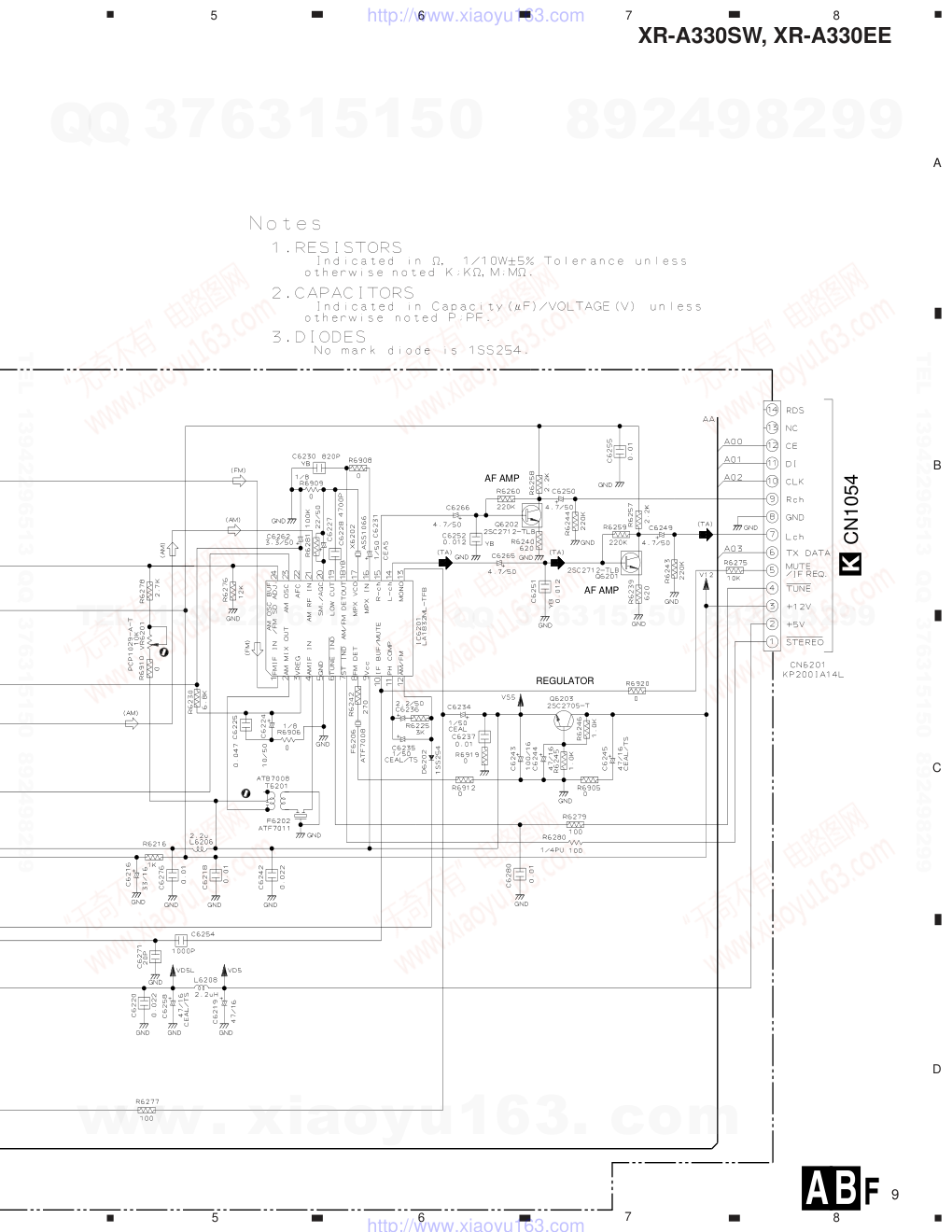

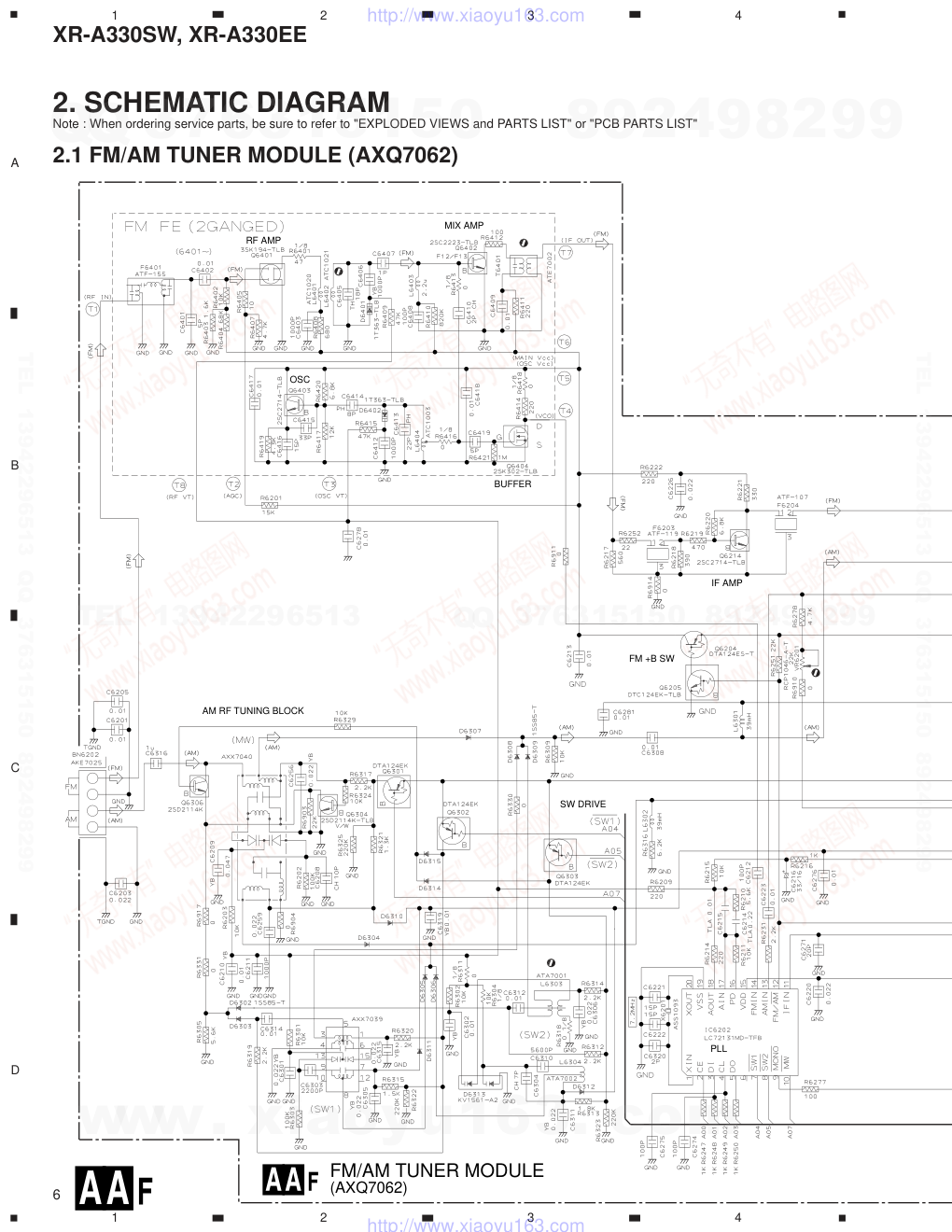

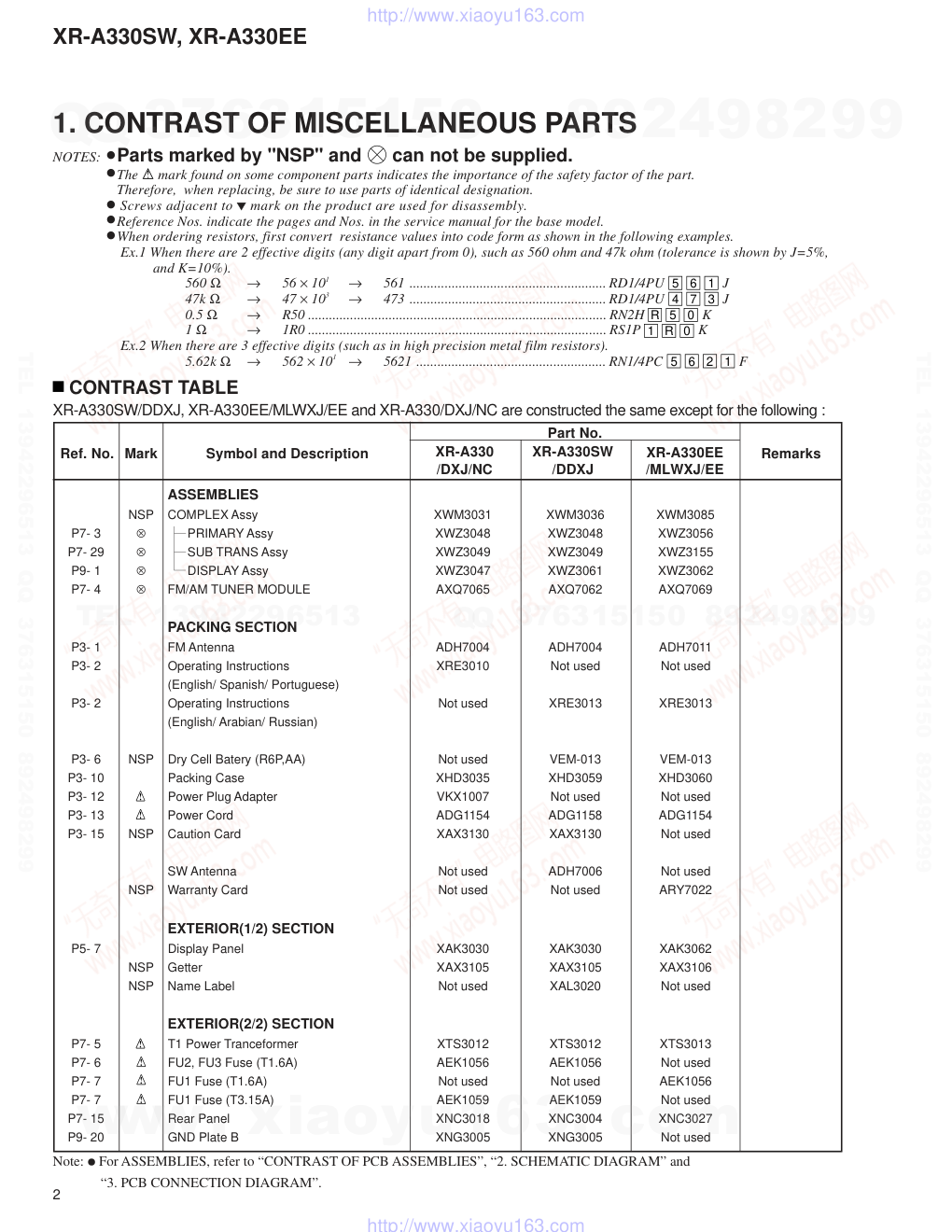

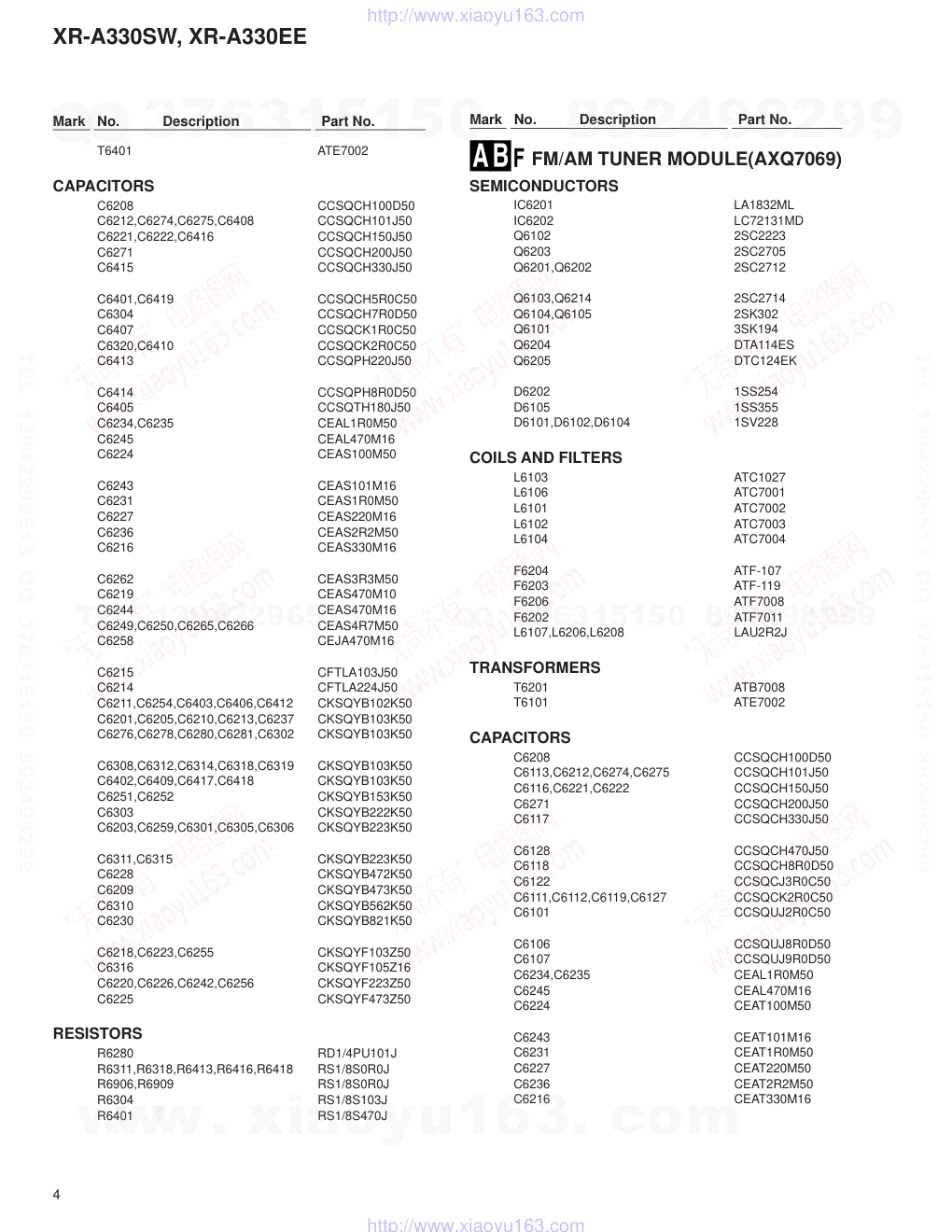

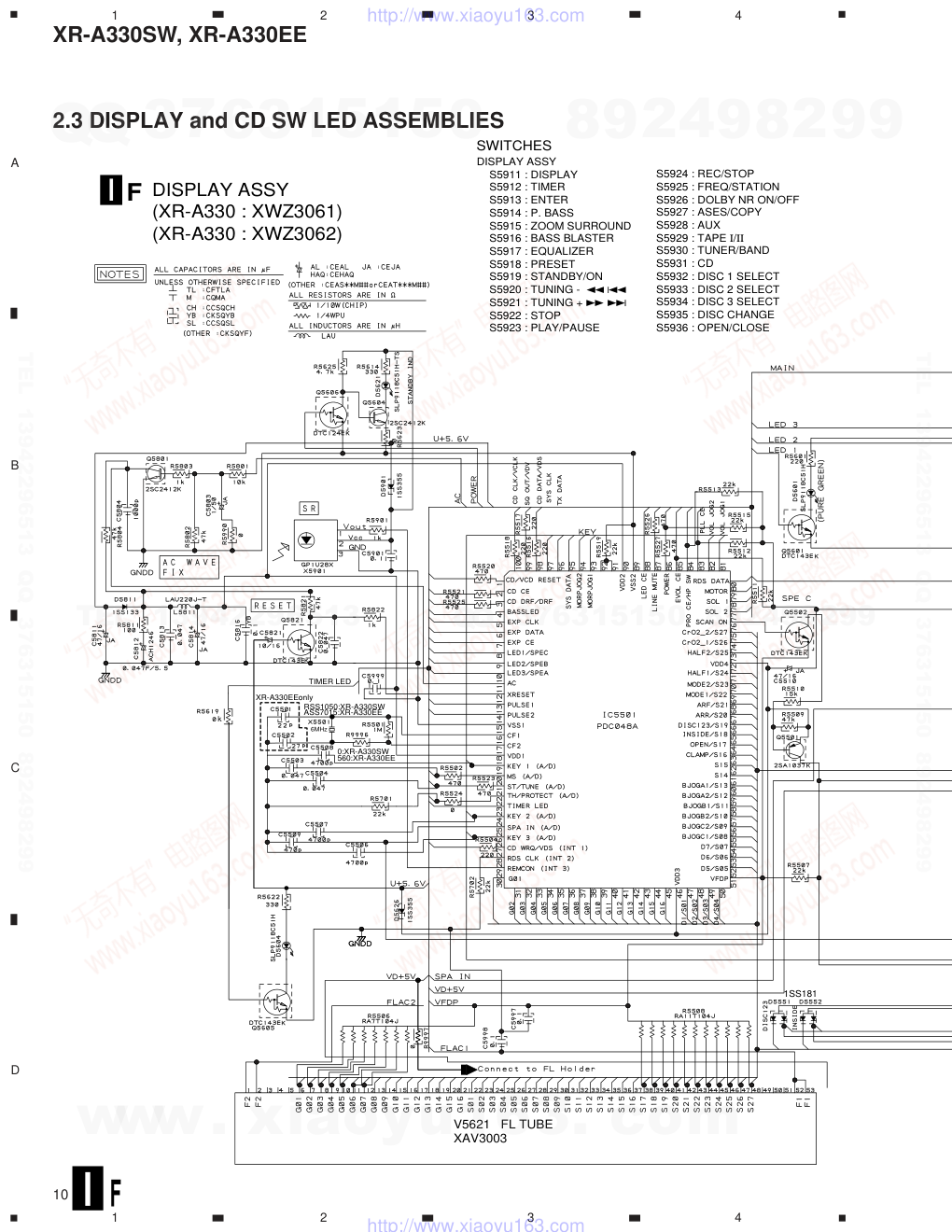

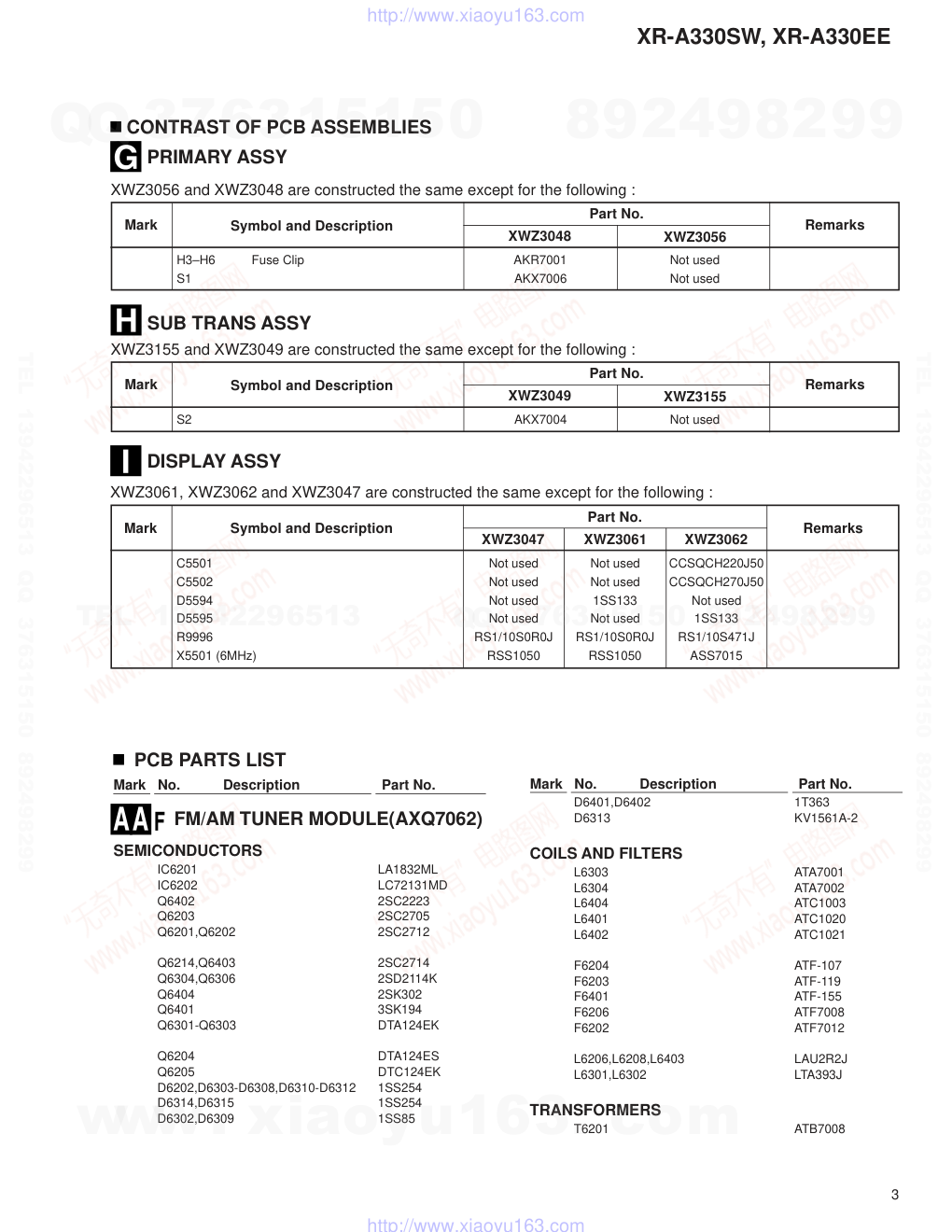

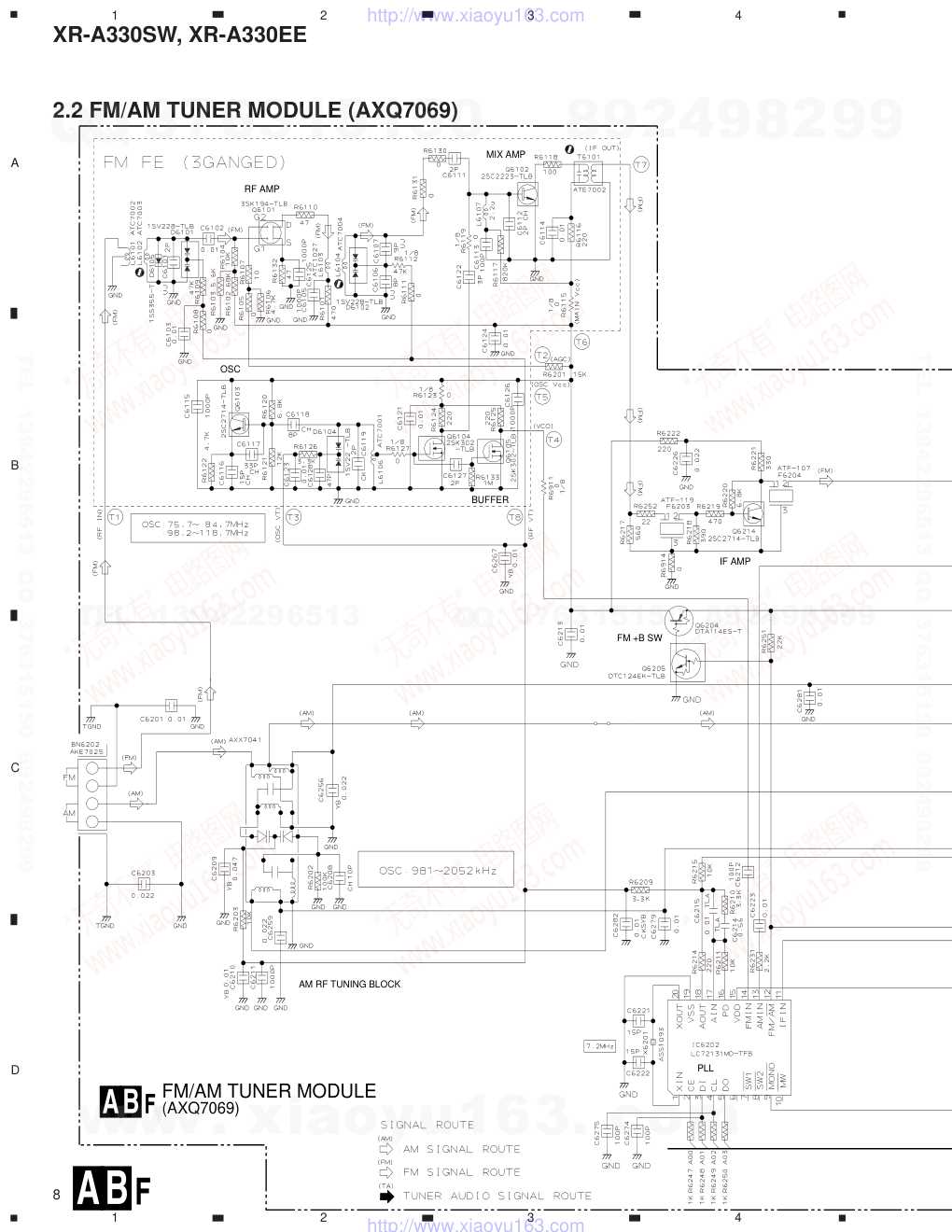

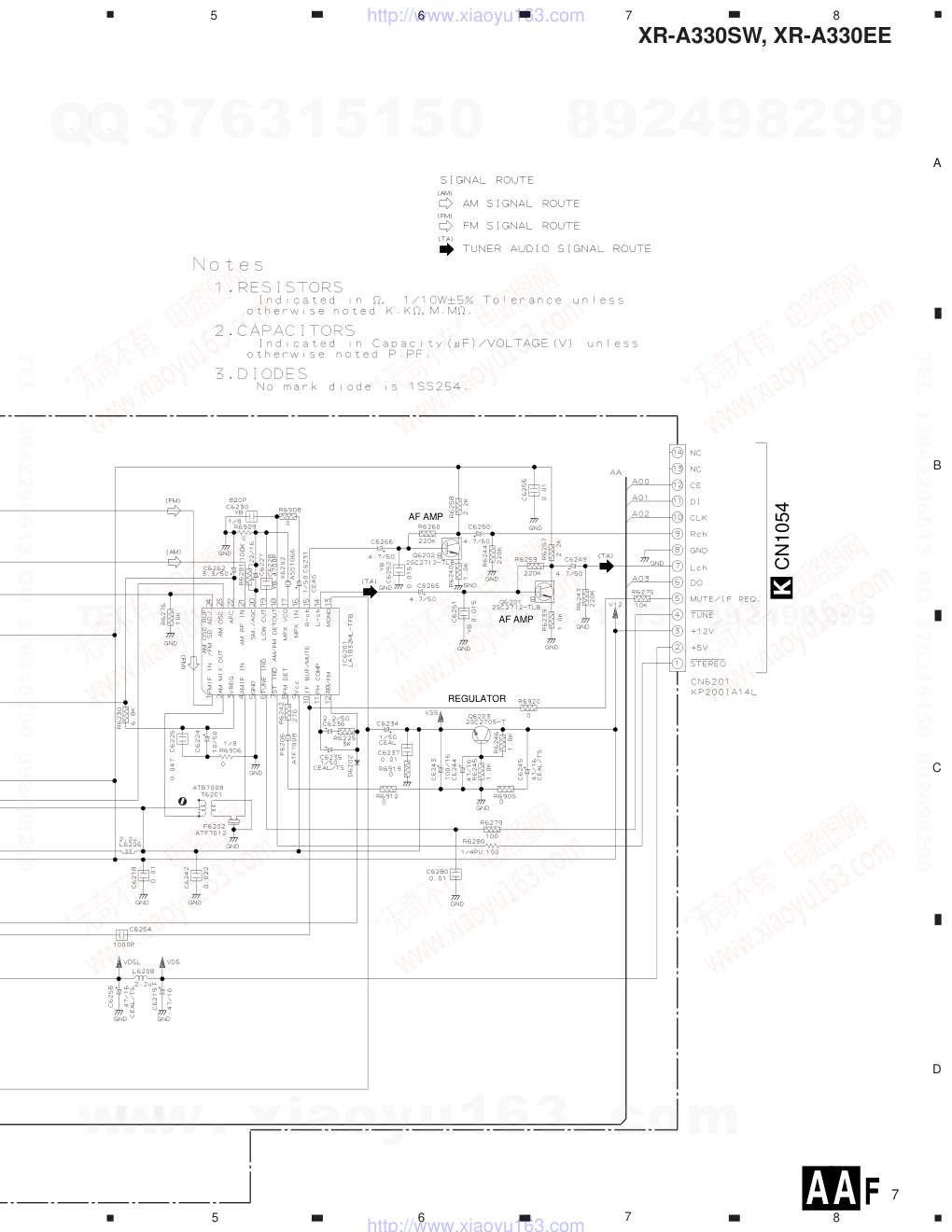

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1998 RRV2005 T – ZZW SEPT. 1998 Printed in Japan CONTENTS 1. CONTRAST OF MISCELLANEOUS PARTS ........ 2 2. SCHEMATIC DIAGRAM ....................................... 6 3. PCB CONNECTION DIAGRAM .......................... 12 4. ADJUSTMENT .................................................... 13 ¶ Refer to the service manual RRV2006 for XR-A330/DXJ/NC. THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model XR-A330SW Type Power Requirement The voltage can be converted by the following method. DDXJ MLWXJ/EE STEREO CD CASSETTE DECK RECEIVER XR-A330SW XR-A330EE ‡ AC110V–127V/220–230V/240V With the voltage selector – AC220–230V XR-A330EE – ‡ – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 2 Part No. ASSEMBLIES NSP COMPLEX Assy XWM3031 XWM3036 XWM3085 P7- 3 ⊗ PRIMARY Assy XWZ3048 XWZ3048 XWZ3056 P7- 29 ⊗ SUB TRANS Assy XWZ3049 XWZ3049 XWZ3155 P9- 1 ⊗ DISPLAY Assy XWZ3047 XWZ3061 XWZ3062 P7- 4 ⊗ FM/AM TUNER MODULE AXQ7065 AXQ7062 AXQ7069 PACKING SECTION P3- 1 FM Antenna ADH7004 ADH7004 ADH7011 P3- 2 Operating Instructions XRE3010 Not used Not used (English/ Spanish/ Portuguese) P3- 2 Operating Instructions Not used XRE3013 XRE3013 (English/ Arabian/ Russian) P3- 6 NSP Dry Cell Batery (R6P,AA) Not used VEM-013 VEM-013 P3- 10 Packing Case XHD3035 XHD3059 XHD3060 P3- 12 Power Plug Adapter VKX1007 Not used Not used P3- 13 Power Cord ADG1154 ADG1158 ADG1154 P3- 15 NSP Caution Card XAX3130 XAX3130 Not used SW Antenna Not used ADH7006 Not used NSP Warranty Card Not used Not used ARY7022 EXTERIOR(1/2) SECTION P5- 7 Display Panel XAK3030 XAK3030 XAK3062 NSP Getter XAX3105 XAX3105 XAX3106 NSP Name Label Not used XAL3020 Not used EXTERIOR(2/2) SECTION P7- 5 T1 Power Tranceformer XTS3012 XTS3012 XTS3013 P7- 6 FU2, FU3 Fuse (T1.6A) AEK1056 AEK1056 Not used P7- 7 FU1 Fuse (T1.6A) Not used Not used AEK1056 P7- 7 FU1 Fuse (T3.15A) AEK1059 AEK1059 Not used P7- 15 Rear Panel XNC3018 XNC3004 XNC3027 P9- 20 GND Plate B XNG3005 XNG3005 Not used 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE XR-A330SW/DDXJ, XR-A330EE/MLWXJ/EE and XR-A330/DXJ/NC are constructed the same except for the following : XR-A330 /DXJ/NC Ref. No. Symbol and Description Remarks Mark XR-A330SW /DDXJ XR-A330EE /MLWXJ/EE Note: ÷ For ASSEMBLIES, refer to “CONTRAST OF PCB ASSEMBLIES”, “2. SCHEMATIC DIAGRAM” and “3. PCB CONNECTION DIAGRAM”. NOTES: •Parts marked by "NSP" and can not be supplied. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. •Reference Nos. indicate the pages and Nos. in the service manual for the base model. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 3 C5501 Not used Not used CCSQCH220J50 C5502 Not used Not used CCSQCH270J50 D5594 Not used 1SS133 Not used D5595 Not used Not used 1SS133 R9996 RS1/10S0R0J RS1/10S0R0J RS1/10S471J X5501 (6MHz) RSS1050 RSS1050 ASS7015 CONTRAST OF PCB ASSEMBLIES XWZ3056 and XWZ3048 are constructed the same except for the following : PRIMARY ASSY Part No. XWZ3048 Mark Symbol and Description Remarks XWZ3056 H3–H6 Fuse Clip AKR7001 Not used S1 AKX7006 Not used XWZ3061, XWZ3062 and XWZ3047 are constructed the same except for the following : DISPLAY ASSY Part No. XWZ3047 Mark Symbol and Description Remarks XWZ3061 XWZ3062 XWZ3155 and XWZ3049 are constructed the same except for the following : SUB TRANS ASSY Part No. XWZ3049 Mark Symbol and Description Remarks XWZ3155 S2 AKX7004 Not used PCB PARTS LIST Mark No. Description Part No. Mark No. Description Part No. FM/AM TUNER MODULE(AXQ7062) SEMICONDUCTORS IC6201 LA1832ML IC6202 LC72131MD Q6402 2SC2223 Q6203 2SC2705 Q6201,Q6202 2SC2712 Q6214,Q6403 2SC2714 Q6304,Q6306 2SD2114K Q6404 2SK302 Q6401 3SK194 Q6301-Q6303 DTA124EK Q6204 DTA124ES Q6205 DTC124EK D6202,D6303-D6308,D6310-D6312 1SS254 D6314,D6315 1SS254 D6302,D6309 1SS85 D6401,D6402 1T363 D6313 KV1561A-2 COILS AND FILTERS L6303 ATA7001 L6304 ATA7002 L6404 ATC1003 L6401 ATC1020 L6402 ATC1021 F6204 ATF-107 F6203 ATF-119 F6401 ATF-155 F6206 ATF7008 F6202 ATF7012 L6206,L6208,L6403 LAU2R2J L6301,L6302 LTA393J TRANSFORMERS T6201 ATB7008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 4 FM/AM TUNER MODULE(AXQ7069) SEMICONDUCTORS IC6201 LA1832ML IC6202 LC72131MD Q6102 2SC2223 Q6203 2SC2705 Q6201,Q6202 2SC2712 Q6103,Q6214 2SC2714 Q6104,Q6105 2SK302 Q6101 3SK194 Q6204 DTA114ES Q6205 DTC124EK D6202 1SS254 D6105 1SS355 D6101,D6102,D6104 1SV228 COILS AND FILTERS L6103 ATC1027 L6106 ATC7001 L6101 ATC7002 L6102 ATC7003 L6104 ATC7004 F6204 ATF-107 F6203 ATF-119 F6206 ATF7008 F6202 ATF7011 L6107,L6206,L6208 LAU2R2J TRANSFORMERS T6201 ATB7008 T6101 ATE7002 CAPACITORS C6208 CCSQCH100D50 C6113,C6212,C6274,C6275 CCSQCH101J50 C6116,C6221,C6222 CCSQCH150J50 C6271 CCSQCH200J50 C6117 CCSQCH330J50 C6128 CCSQCH470J50 C6118 CCSQCH8R0D50 C6122 CCSQCJ3R0C50 C6111,C6112,C6119,C6127 CCSQCK2R0C50 C6101 CCSQUJ2R0C50 C6106 CCSQUJ8R0D50 C6107 CCSQUJ9R0D50 C6234,C6235 CEAL1R0M50 C6245 CEAL470M16 C6224 CEAT100M50 C6243 CEAT101M16 C6231 CEAT1R0M50 C6227 CEAT220M50 C6236 CEAT2R2M50 C6216 CEAT330M16 T6401 ATE7002 CAPACITORS C6208 CCSQCH100D50 C6212,C6274,C6275,C6408 CCSQCH101J50 C6221,C6222,C6416 CCSQCH150J50 C6271 CCSQCH200J50 C6415 CCSQCH330J50 C6401,C6419 CCSQCH5R0C50 C6304 CCSQCH7R0D50 C6407 CCSQCK1R0C50 C6320,C6410 CCSQCK2R0C50 C6413 CCSQPH220J50 C6414 CCSQPH8R0D50 C6405 CCSQTH180J50 C6234,C6235 CEAL1R0M50 C6245 CEAL470M16 C6224 CEAS100M50 C6243 CEAS101M16 C6231 CEAS1R0M50 C6227 CEAS220M16 C6236 CEAS2R2M50 C6216 CEAS330M16 C6262 CEAS3R3M50 C6219 CEAS470M10 C6244 CEAS470M16 C6249,C6250,C6265,C6266 CEAS4R7M50 C6258 CEJA470M16 C6215 CFTLA103J50 C6214 CFTLA224J50 C6211,C6254,C6403,C6406,C6412 CKSQYB102K50 C6201,C6205,C6210,C6213,C6237 CKSQYB103K50 C6276,C6278,C6280,C6281,C6302 CKSQYB103K50 C6308,C6312,C6314,C6318,C6319 CKSQYB103K50 C6402,C6409,C6417,C6418 CKSQYB103K50 C6251,C6252 CKSQYB153K50 C6303 CKSQYB222K50 C6203,C6259,C6301,C6305,C6306 CKSQYB223K50 C6311,C6315 CKSQYB223K50 C6228 CKSQYB472K50 C6209 CKSQYB473K50 C6310 CKSQYB562K50 C6230 CKSQYB821K50 C6218,C6223,C6255 CKSQYF103Z50 C6316 CKSQYF105Z16 C6220,C6226,C6242,C6256 CKSQYF223Z50 C6225 CKSQYF473Z50 RESISTORS R6280 RD1/4PU101J R6311,R6318,R6413,R6416,R6418 RS1/8S0R0J R6906,R6909 RS1/8S0R0J R6304 RS1/8S103J R6401 RS1/8S470J Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 5 Mark No. Description Part No. C6262 CEAT3R3M50 C6219,C6244 CEAT470M16 C6249,C6250,C6265,C6266 CEAT4R7M50 C6258 CEJA470M16 C6215 CFTLA103J50 C6214 CFTLA564J50 C6105,C6115,C6125,C6126,C6211 CKSQYB102K50 C6254 CKSQYB102K50 C6102,C6103,C6114,C6121 CKSQYB103K50 C6123,C6124,C6201,C6210,C6213 CKSQYB103K50 C6237,C6267,C6276,C6279-C6281 CKSQYB103K50 C6251,C6252 CKSQYB123K50 C6203,C6259 CKSQYB223K50 C6228 CKSQYB472K50 C6209 CKSQYB473K50 C6230 CKSQYB821K50 C6218,C6223,C6255 CKSQYF103Z50 C6220,C6226,C6242,C6256 CKSQYF223Z50 C6225 CKSQYF473Z50 C6282 CKSYB103K50 RESISTORS R6280 RD1/4PU101J R6115,R6119,R6123,R6127,R6906 RS1/8S0R0J R6909,R6911 RS1/8S0R0J R6112 RS1/8S473J VR6201 (10kΩ/0.1W) PCP1029 Other Resistors RS1/10S J OTHERS BN6202 TERMINAL 4-P AKE7025 X6202 CERAMIC RESONATOR ASS1066 (456kHz) X6201 CRYSTAL RESONATOR ASS1093 (7.2MHz) CN6201 14P SOCKET KP200IA14L AM RF TUNING BLOCK AXX7041 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 6 A B C D 1 2 3 4 1 2 3 4 FM/AM TUNER MODULE (AXQ7062) RF AMP MIX AMP BUFFER IF AMP PLL FM +B SW SW DRIVE AM RF TUNING BLOCK OSC 2. SCHEMATIC DIAGRAM Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" 2.1 FM/AM TUNER MODULE (AXQ7062) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 7 A B C D 5 6 7 8 5 6 7 8 CN1054 AF AMP REGULATOR AF AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 8 A B C D 1 2 3 4 1 2 3 4 2.2 FM/AM TUNER MODULE (AXQ7069) FM/AM TUNER MODULE (AXQ7069) RF AMP MIX AMP BUFFER IF AMP PLL FM +B SW AM RF TUNING BLOCK OSC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 9 A B C D 5 6 7 8 5 6 7 8 CN1054 AF AMP REGULATOR AF AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 10 A B C D 1 2 3 4 1 2 3 4 2.3 DISPLAY and CD SW LED ASSEMBLIES DISPLAY ASSY (XR-A330 : XWZ3061) (XR-A330 : XWZ3062) XR-A330EEonly 1SS181 k V5621 FL TUBE XAV3003 I F RSS1050:XR-A330SW ASS7015:XR-A330EE 0:XR-A330SW 560:XR-A330EE TIMER LED DISPLAY ASSY S5911 : DISPLAY S5912 : TIMER S5913 : ENTER S5914 : P. BASS S5915 : ZOOM SURROUND S5916 : BASS BLASTER S5917 : EQUALIZER S5918 : PRESET S5919 : STANDBY/ON S5920 : TUNING - 1�4� S5921 : TUNING + ¡�¢ S5922 : STOP S5923 : PLAY/PAUSE S5924 : REC/STOP S5925 : FREQ/STATION S5926 : DOLBY NR ON/OFF S5927 : ASES/COPY S5928 : AUX S5929 : TAPE Ι/ΙΙ S5930 : TUNER/BAND S5931 : CD S5932 : DISC 1 SELECT S5933 : DISC 2 SELECT S5934 : DISC 3 SELECT S5935 : DISC CHANGE S5936 : OPEN/CLOSE SWITCHES 6MHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 11 A B C D 5 6 7 8 5 6 7 8 DECK MECH HLEM17S-1 CN5501 52045-3845 2/3 CN5101 E 1SS183 1SS181 1SS181 SLP7118C51H XR-A330SW only XR-A330EE only CD SW LED ASSY S5937 : OPEN/CLOSE S5938 : DISC CHANGE S5939 : DISC 3 SELECT S5940 : DISC 2 SELECT S5941 : DISC 1 SELECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 12 A B C D 1 2 3 4 1 2 3 4 3. PCB CONNECTION DIAGRAM FM/AM TUNER MODULE CN1054 VR6201 Q6204 Q6203 (ANP7160-B) SIDE A SIDE B FM/AM TUNER MODULE IC6201 Q6201 Q6601 Q6202 Q6214 Q6501 Q6101 (ANP7160-B) Q6102 - Q6105 Q6205 IC6202 3.2 FM/AM TUNER MODULE (AXQ7069) 3.1 FM/AM TUNER MODULE (AXQ7062) ÷ AXQ7062 is constructed the same PCB(ANP7159) as AXQ7065 , refer to the service manual RRV2006 for XR-A330. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 13 4. ADJUSTMENT Note : Adjustment of XR-A330SW/DDXJ are the same as those of XR-A330/DXJ/NC except for the following: Step No. Adjustment Title Reception Frequency Display Specifications Adjustment Location Frequency (MHz) Input Level (dBµV/EMF) 1 AM Front End Sensitivity Adjustment AM SG (400Hz, 30% Mod.) AM Tuner SW Section Set the mode selector to SW2. Connect the wiring as shown in Fig. 1. L6303 14MHz 14 25-35 Adjust so that the DC voltage between the IC6201-Pin 20 and GND becomes at maximum level. Befor adjustment, connect AM-ANT. and IEC-dummy ANT.. Signal input is through IEC-dummy ANT.. Connecting AM-ANT. follows Fig. 1. AM SG 400pF 320Ω 20µH 125pF R IEC dummy R is 30Ω when SG output is 50Ω, 5Ω when SG output is 75Ω. PRODUCT AM antenna terminal DC voltmeter FM/AM TUNER MODULE (AXQ7062) L6402 L6401 T6401 T6201 VR6201 AM antenna terminal FM antenna terminal YELLOW BLACK L6303 GRAY BLACK Fig. 2 Adjustment points Fig. 1 SW adjustment wiring diagram 4.1 ADJUSTMENT FOR XR-A330SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XR-A330SW, XR-A330EE 14 4.2 ADJUSTMENT FOR XR-A330EE FM SG (1kHz, ±75kHz dev.) Step No. Adjustment Title Specifications Adjustment Location Level (dBµV) Frequency (MHz) Reception Frequency Display L6104 L6102 T6101 2 98 18±2 98MHz VR6201 Adjust so that the indicator of TUNED IND. starts to light up. Adjust so that the DC voltage between the IC6201-Pin 20 and GND becomes at maximum level. 70MHz 70 0-30 Front End Sensitivity 1 Notes: Before adjusting, make sure there is no gap between L6101 and L6102 as well as between L6103 and L6104. If there is a gap between them, bring them into contact with each other first, and then make adjustments. AM SG (400Hz, 30% Mod.) Step No. Adjustment Title Reception Frequency Display Specifications Adjustment Location Frequency (kHz) Level (dBµV/m) T6201 999kHz*1 1 999*1 35-45 Front End Sensitivity Adjust so that the DC voltage between the IC6201-Pin 20 and GND becomes at maximum level. AM Tuner Section *1: For the area using 10kHz step, frequencies should be 1000kHz Fig. 1 AM and FM Adjustment Wiring Diagram Fig. 2 Adjustment Points TUNED IND. Lighting Level Set the mode selector to FM BAND. Connect the wiring as shown in Fig. 1. FM Tuner Section Set the mode selector to AM BAND. Connect the wiring as shown in Fig. 1. Note : Adjustment of XR-A330EE/MLWXJ/EE are the same as those of XR-A330/DXJ/NC except for the following: AM SG MPX SG FM SG voltmeter PRODUCT FM75Ω antenna terminal AM antenna terminal 60cm Center Center Loop antenna DC FM/AM TUNER MODULE (AXQ7069) AXX7041 L6101 L6102 L6104 L6103 T6101 T6201 VR6201 AM antenna terminal FM antenna terminal YELLOW BLACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
