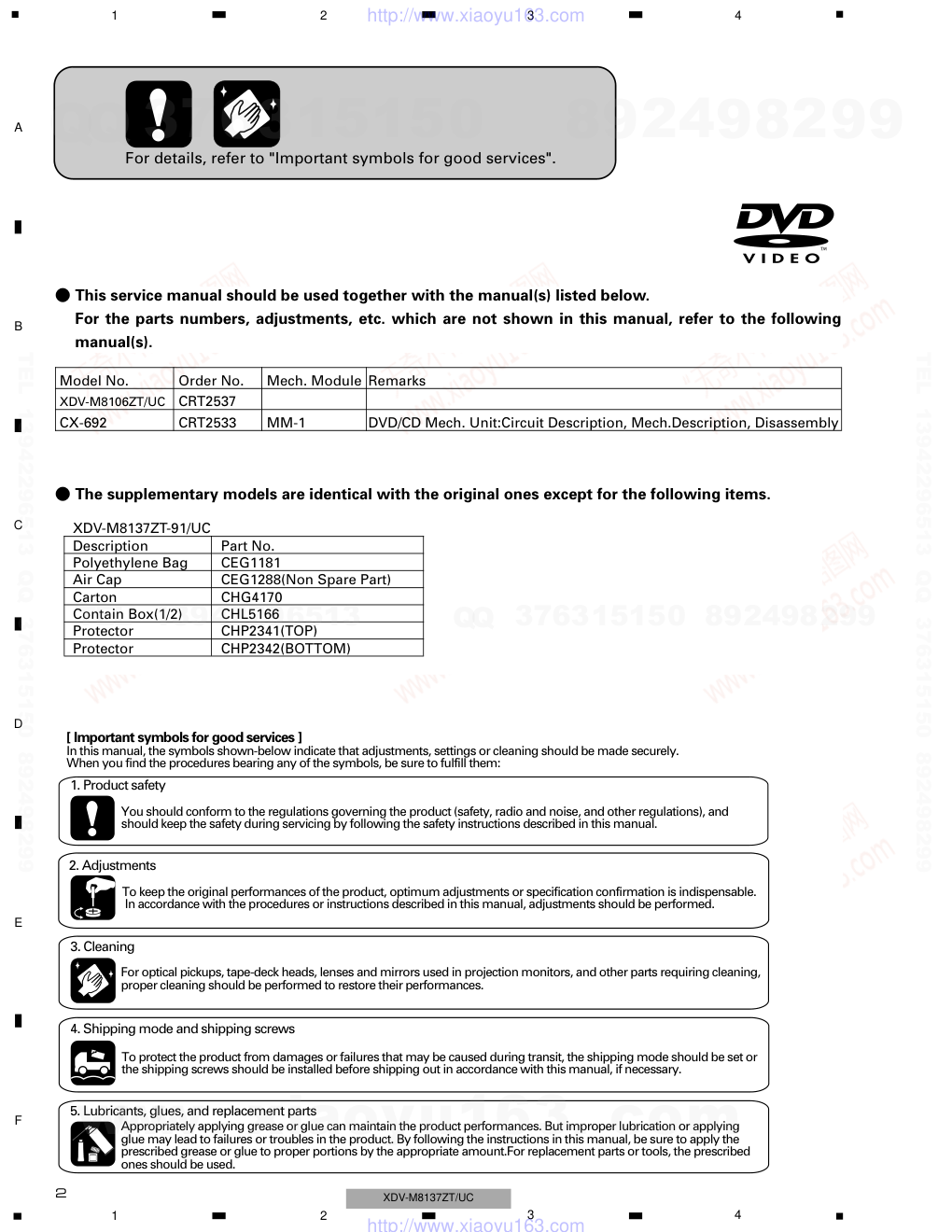

ORDER NO. CRT3131 PUB. NO. CRT3131 AUDIO SYSTEM DVD/CD COMPATIBLE CHANGER Manufactured for TOYOTA by PIONEER CORPORATION VEHICLE DESTINATION PRODUCED AFTER TOYOTA PART No. ID No. PIONEER MODEL No. LEXUS LX470 U.S.A., CANADA August 2003 86270-60112 XDV-M8137ZT/UC XDV-M8137ZT-91/UC LX470 Service Manual www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC Model No. Order No. Mech. Module Remarks XDV-M8106ZT/UC CRT2537 CX-692 CRT2533 MM-1 DVD/CD Mech. Unit:Circuit Description, Mech.Description, Disassembly - This service manual should be used together with the manual(s) listed below. For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following manual(s). - The supplementary models are identical with the original ones except for the following items. XDV-M8137ZT-91/UC Description Part No. Polyethylene Bag CEG1181 Air Cap CEG1288(Non Spare Part) Carton CHG4170 Contain Box(1/2) CHL5166 Protector CHP2341(TOP) Protector CHP2342(BOTTOM) For details, refer to "Important symbols for good services". [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC ELECTRICAL PARTS LIST(Page 48) EXTENSION UNIT Part No. Symbol and Description XDV-M8106ZT/UC XDV-M8137ZT/UC IC 3601 IC PE5058B PE5377A R 3607 RS1/16S104J RS1/16S102J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC EXPLODED VIEWS AND PARTS LIST EXTERIOR E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC 1 Screw BSZ30P055FMC 2 Screw(M2x2) CBA1176 3 Screw(M3x12) CBA1514 4 Screw(M5x6) CBA1517 5 Screw(M2x3.5) CBA1532 6 Spring CBH2335 7 Connector CDE6302 8 Cord Assy CDE6983 9 Upper Case CNB2496 10 Holder CNC8612 11 Bracket CNC8831 12 Bracket CNC8832 13 Shield CNC9089 14 Insulator CNM6337 15 Insulator CNM6405 16 Filter CNM6600 17 Insulator CNM6735 18 Cushion CNM6743 * 19 Insulator CNM6906 20 Insulator CNM6985 21 Cushion CNM7037 * 22 Insulator CNM7090 * 23 Tape CNM7273 24 Cushion CNM7347 25 Cushion CNM7872 26 PCB CNP5534 27 PCB CNP5535 28 PCB CNP5604 29 Panel CNS6473 30 Damper CNV5833 31 Holder CNV6181 32 Holder CNV6245 33 Plug(CN2903) CKS1051 34 Connector(CN2901) CKS3563 35 Holder CNC2218 36 Shield CNC8898 37 Insulator CNM6836 38 Extension Unit CWM9095 39 Screw BMZ26P050FMC 40 Cord CDE6446 41 Terminal(CN3810) CKF1064 42 Terminal(CN3811) CKF1064 43 Terminal(CN3812) CKF1064 44 Terminal(CN3813) CKF1064 45 Connector(CN3951) CKS1953 46 Connector(CN3891) CKS2191 47 Connector(CN3301) CKS2619 48 Connector(CN3302) CKS2619 49 Plug(CN3802) CKS3535 50 Connector(CN3961) CKS3749 51 Connector(CN3801) CKS4320 52 Connector(CN3803) CKS4356 53 Holder CNC8400 54 Shield CNC8899 55 Shield CNC8900 56 Insulator CNM6834 57 Insulator CNM6835 58 Main Unit CWM9093 59 Terminal(CN1603) CKF1064 60 Terminal(CN1604) CKF1064 61 Terminal(CN1605) CKF1064 62 Terminal(CN1607) CKF1064 63 Connector(CN1601) CKS1953 64 Connector(CN101) CKS1964 65 Connector(CN312) CKS2191 66 Connector(CN2000) CKS2193 67 Connector(CN302) CKS3480 68 Connector(CN1600) CKS3749 69 Connector(CN310) CKS3767 70 Connector(CN301) CKS4358 71 Connector(CN1000) CKS4374 72 Arm Unit CXA8606 73 Rear Frame Unit CXB6364 74 Lower Case Unit CXB6365 75 Button(EJECT) CAC6152 76 Door CAT2385 77 Spring CBH2336 78 Spring CBH2337 79 Spring CBH2363 80 Connector CDE6022 81 Holder CNC8402 82 Holder CNC8409 83 Cushion CNM6407 84 Cushion CNM6842 85 Cushion CNM6843 * 86 Insulator CNM6907 87 Lever CNV5831 88 Lever CNV6104 89 Damper Unit CXB4206 90 Screw IMS20P035FZK 91 Screw IMS26P040FMC 92 DVD/CD Mechanism Unit(MM-1) CXK7020 93 Fan Motor CXM1195 94 Grille CNS6472 95 Screw IMS30P060FZK 96 Screw ISS30P060FMC 97 Screw PMB26P050FMC 98 IC(IC3821) BA00AST 99 Transistor(Q3811) 2SB942A 100 MF Unit CWM6518 101 Clamper CNV7278 102 Clamper CNV7279 Mark No. Description Part No. Mark No. Description Part No. - EXTERIOR SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. ( In the case of no amount instructions, apply as you think it appropriate.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 5 M3 CXM1178 SPINDLE EREF EVREF EPVO MAGSW GND0 S301 CSN1044 MAG C302 R01 VR301 CCW1021 C301 R1 R302 6R2K VR302 CCP1338 1KΩ(B) 10K R301 5R6K CN301 M4 CXB3931 ELEVATION DSP TRP VLED TRY+ TRY- CRG- CRG+ GND DISC D851 CN504-2 S851 CSN1051 DSP S852 CSN1052 TRP M1 CXB3930 CARRIAGE M2 CXB3932 TRAY Q851 PT4800 PU UNIT A PCB UNIT(A) C PCB(A) D PCB(B) B PCB UNIT(B) CD SPDL DVD SPDL 5V 9V R R R R R R R R R(CD) R(CD) R(CD) R(DVD) R(DVD) R(DVD) R(DVD) T T T T T T T T T T T T T T T T T T T T T T T C C C C C C C C S(CD) S(CD) S(CD) S(CD) S(DVD) S(CD) S(DVD) S(DVD) S(DVD) S(DVD) 8 4 ^ @ 0 2 3 # $ % ! 7 5 6 1 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC SCHEMATIC DIAGRAM DVD MECHANISM UNIT, MAIN PCB(SERVO SECTION)(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page E F 1/2 E-a F 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 LC89170MP E F 2/2 MAIN PCB (DECODER SECTION) E F 1/2 MAIN PCB (SERVO SECTION) RF EQUALIZER ASIC DRAM 5V 3.3V Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. Main Unit Consists of Main PCB Grille PCB R(DVD) R(DVD) R(DVD) R(DVD) R(DVD) R(DVD) F S(DVD) S(DVD) S(DVD) ROM ROM ROM ROM ROM AUDIO AUDIO AUDIO AUDIO F.ACT DRIVE T T.ACT DRIVE R RF C CRG DRIVE S SPDL DRIVE AUDIO AUDIO(ANALOG) SIGNAL ROM ROM DATA SIGNAL & 9 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC E F 1/2 E-b F 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 A-a E-b E-a E-a E-b 1 2 3 PU UNIT 5V 9V F F 1/2 1/2 R R R R R R R R R(CD) R(CD) R(CD) R(DVD) R(DVD) R(DVD) R(DVD) T T T T T T T T T T T T T T T T T T T T C C S(CD) S(CD) 8 2 3 # $ % ! 7 5 6 1 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 A-a E-b E-a E-a E-b 3 4 5 M3 CXM1178 SPINDLE EREF EVREF EPVO MAGSW GND0 S301 CSN1044 MAG C302 R01 VR301 CCW1021 C301 R1 R302 6R2K VR302 CCP1338 1KΩ(B) 10K R301 5R6K CN301 M4 CXB3931 ELEVATION DSP TRP VLED TRY+ TRY- CRG- CRG+ GND DISC D851 CN504-2 S851 CSN1051 DSP S852 CSN1052 TRP M1 CXB3930 CARRIAGE M2 CXB3932 TRAY Q851 PT4800 A PCB UNIT(A) C PCB(A) D PCB(B) B PCB UNIT(B) CD SPDL DVD SPDL 9V F F 1/2 1/2 T T T T T C C C C C C C S(CD) S(CD) S(CD) S(DVD) S(CD) S(DVD) S(DVD) S(DVD) S(DVD) 8 4 ^ @ 0 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 E-a E-b E-b 1 2 3 LC89170MP E F 2/2 MAIN PCB (DECODER SECTION) E F 1/2 MAIN PCB (SERVO SECTION) RF EQUALIZER 5V 3.3V F 1/2 R(DVD) R(DVD) R(DVD) F ROM ROM ROM ROM AUDIO AUDIO AUDIO F.ACT DRIVE T T.ACT DRIVE R RF C CRG DRIVE S SPDL DRIVE AUDIO AUDIO(ANALOG) SIGNAL ROM ROM DATA SIGNAL & 9 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 E-a E-b E-b 3 4 5 ASIC DRAM Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. F 1/2 Main Unit Consists of Main PCB Grille PCB R(DVD) R(DVD) R(DVD) S(DVD) S(DVD) S(DVD) ROM AUDIO @ 0 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC 5 CH1:FEI 500mV/div. 2ms/div. 2 layer DVD:S curve check Servo adjustment mode - Waveforms 1 CH1:TEI 1V/div. 2 CH2:T- 2V/div. CD:32 tracks jump 2ms/div. 1 CH1:TEI 1V/div. 2 CH2:T- 2V/div. DVD:1 track jump 2ms/div. 3 CH1:F- 2V/div. 4 CH2:EC(TP308) 1V/div. DVD:S curve check Servo adjustment mode 500ms/div. 3 CH1:F- 2V/div. 4 CH2:EC(TP308) 1V/div. CD:S curve check Servo adjustment mode 500ms/div. 1 CH1:TEI 1V/div. 2 CH2:T- 2V/div. CD:1 track jump 2ms/div. 1 CH1:TEI 1V/div. 2 CH2:T- 2V/div. DVD:32 tracks jump 2ms/div. 5 CH1:FEI 500mV/div. 2ms/div. DVD:S curve check Servo adjustment mode 5 CH1:FEI 500mV/div. 2ms/div. CD:S curve check Servo adjustment mode 6 CH1:RFRP(TP405) 500mV/div. 1 CH2:TEI 1V/div. CD:RFRP waveform Focus close situation 2ms/div. 6 CH1:RFRP(TP405) 500mV/div. 1 CH2:TEI 1V/div. CD:RFRP waveform Focus close situation 3 CH1:F- 1V/div. 4 CH2:EC(TP308) 1V/div. DVD:Focus close situation 500ms/div. 5ms/div. ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch1 VR21 → ch1 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → Note:1. The encircled numbers denote measuring pointes in the circuit diagram. 2. Reference voltage VR21:2.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC 5 CH1:FEI 500mV/div. 7 CH2:SBAD(TP407) 500mV/div. DVD:focus close 10ms/div. 5 CH1:FEI 500mV/div. 7 CH2:SBAD(TP407) 500mV/div. CD:focus close 10ms/div. 8 CH1:C-(TP313) 2V/div. 4 CH2:EC(TP308) 1V/div. CD:CRG inside→outside 500m/div. 9 CH1:Ain(TP210) 1V/div. 0 CH2:FLGB(TP413) 5V/div. DVD:passing black dot (1mm) 500µs/div. 8 CH1:C-(TP313) 2V/div. 4 CH2:EC(TP308) 1V/div. DVD:CRG inside→outside 500m/div. 3 CH1:F- 1V/div. 4 CH2:EC(TP308) 1V/div. CD:focus close 500ms/div. 3 CH1:F- 2V/div. 2 CH2:T- 2V/div. CD:passing black dot (1mm) 500µs/div. 9 CH1:Ain(TP210) 500mV/div.100ns/div. DVD:during playback Ain waveform 5 CH1:FEI 200mV/div. 3 CH2:F- 1V/div. DVD:during playback FEI waveform 1ms/div. 0 CH1:RFOI 1V/div. 500ns/div. CD:during playback RFOI waveform 3 CH1:F- 2V/div. 2 CH2:T- 2V/div. DVD:passing black dot (1mm) 200µs/div. ! CH1:RFOI 1V/div. 0 CH2:FLGB(TP413) 5V/div. CD:passing black dot (1mm) 500µs/div. ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 GND → ch1 VR21 → ch1 VR21 → ch2 VR21 → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC 5 CH1:FEI 500mV/div. @ CH2:FEB(TP522) 500mV/div. CD:focus balance adjustment 1 CH1:TEI 200mV/div. 2 CH2:T- 1V/div. DVD:during playback TEI waveform 1ms/div. 5 CH1:FEI 500mV/div. 1 CH2:TEI 1V/div. DVD:setup 500ms/div. 5 CH1:FEI 500mV/div. 1 CH2:TEI 1V/div. CD:setup 500ms/div. 5 CH1:FEI 500mV/div. @ CH2:FEB(TP522) 200mV/div. DVD:focus balance adjustment 500ms/div. 5 CH1:FEI 500mV/div. 1 CH2:TEI 1V/div. 2 layer DVD:setup 1s/div. 5 CH1:FEI 200mV/div. 3 CH2:F- 1V/div. CD:during playback FEI waveform 1ms/div. 5 CH1:FEI 500mV/div. @ CH2:FEB(TP522) 200mV/div. 2 layer DVD:focus balance adjustment 500ms/div. 500ms/div. # CH1:TP101 5V/div. $ CH2:TP102 5V/div. % CH3:TP103 5V/div. DVD:LCD tilt servo 1ms/div. # CH1:TP101 200mV/div. ^ CH4:LCDTILT(TP504)100mV/div. DVD:LCD tilt servo CH1, CH4:offset voltage 2.5V 1s/div. & CH1:VCO 500mV/div. 200ns/div. DVD:VCO 1 CH1:TEI 200mV/div. 2 CH2:T- 1V/div. CD:during playback TEI waveform 1ms/div. ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 GND → ch2 GND → ch1 GND → ch2 GND → ch1 GND → ch2 GND → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 VR21 → ch2 VR21 → ch1 GND → ch2 GND → ch3 GND → ch1 GND → ch4 GND → ch1 GND → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC * IC1201 pin 45 200mV/div. 10µs/div. Composite signal output ch1 GND → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 PD6434A PD6432A PD3411A MPEG DECODER SDRAM 3.3V 5V E F 1/2 MAIN PCB (SERVO SECTION) ROM AU ROM AU ROM AU 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC MAIN PCB(DECODER SECTION)(GUIDE PAGE) E F 2/2 E-a F 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 CLOCK GENERATOR LPF DAC LPF 2.6V 2.6V 3.3V 5V 5V 5V 5V 8V 9V CN3961 CN3951 F EXTENSION UNIT E F 2/2 MAIN PCB (DECODER SECTION) Main Unit Consists of Main PCB Grille PCB ROM ROM DATA SIGNAL VIDEO VIDEO SIGNAL(COMPOSITE) AU AUDIO SIGNAL AU(D) AUDIO SIGNAL(DIGITAL) ROM AU ROM AU ROM AU VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO AU AU AU AU AU AU AU AU AU AU * 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC E F 2/2 E-b F 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 A-a E-b E-a E-a E-b 1 MPEG DECODER SDRAM 3.3V E F 1/2 MAIN PCB (SERVO SECTION) F 2/2 F 2/2 ROM AU ROM AU ROM AU 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 A-a E-b E-a E-a E-b 2 3 4 PD6434A PD6432A PD3411A 5V F 2/2 F 2/2 * 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 E-a E-b E-b 1 LPF DAC LPF 2.6V CN3961 F EXTENSION UNIT E F 2/2 MAIN PCB (DECODER SECTION) F 2/2 ROM AU ROM ROM AU VIDEO VIDEO VIDEO VIDEO VIDEO AU AU AU AU AU AU AU AU AU AU 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 E-a E-b E-b 2 3 4 CLOCK GENERATOR 2.6V 3.3V 5V 5V 5V 5V 8V 9V CN3951 NIT F 2/2 Main Unit Consists of Main PCB Grille PCB ROM ROM DATA SIGNAL VIDEO VIDEO SIGNAL(COMPOSITE) AU AUDIO SIGNAL AU(D) AUDIO SIGNAL(DIGITAL) AU VIDEO VIDEO AU * 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 K K GRILLE PCB H CN2903 EJECT CLOSE 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC GRILLE PCB Main Unit Consists of Main PCB Grille PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 MAIN PCB E F E F Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams E E E E E E E E 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC PCB CONNECTION DIAGRAM MAIN PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 E F SIDE A E E E E E IC,Q FRONT 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 MAIN PCB E F E F IC,Q ADJ TC1000 TC201 F CN3961 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 E F SIDE B E E E F CN3951 M3 SPDL MOTOR PU UNIT M4 ELV MOTOR C B CN301 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 K K GRILLE PCB SIDE A K GRILLE PCB SIDE B H CN2903 CLOSE EJECT 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC GRILLE PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC IC 1009 IC CY2292SI-1A0 IC 1010 IC TC7SHU04FU IC 1011 IC TC7WU04FU IC 1012 IC TC7WU04FU IC 1013 IC TC7SH08FU IC 1014 IC TC7SHU04FU IC 1015 IC TC7WU04FU IC 1200 IC MSM56V16160DP-10TS IC 1201 IC MB86373BPFV-G-BI IC 1202 IC TC74VHC541FT IC 1203 IC TC74VHCT08AFT IC 1204 IC TC74LCX245FT IC 1205 IC TC74LCX245FT IC 1206 IC TC74VHC541FT IC 1207 IC TC74VHC541FT IC 1208 IC TC74VHC00FT IC 1500 IC PE8001A1 IC 1501 IC MC33202D IC 1502 IC MC33202D IC 1503 IC NJM2068MD IC 1504 IC HA178L05UA IC 1700 IC LC35256FT-70U IC 1701 IC HD74HC245T IC 1702 IC LC89513KP IC 1704 IC TC7S02FU IC 1705 IC TC7SHU04FU IC 1706 IC TC74VHC238FT IC 1707 IC TC7SHU04FU Q 101 Transistor 2SD601A Q 102 Transistor 2SB709A Q 103 Transistor DTC114EU Q 104 Transistor 2SB1260 Q 165 Transistor 2SB709A Q 168 Transistor FMC5A Q 203 Transistor 2SB709A Q 204 Transistor 2SD601A Q 401 Transistor 2SB709A Q 402 Transistor 2SD1781K Q 403 Transistor IMX1 Q 404 Transistor 2SB1132 Q 501 Transistor DTA114EU Q 601 Transistor DTC114EU Q 1500 Transistor 2SA1037K Q 1503 Transistor 2SA1037K Q 1600 Transistor UMH8N D 201 Diode KV1410-F1 D 305 Diode 1SR154-400 D 2000 Diode UDZ18(B) D 2001 LED SML210FT(JK) L 101 Inductor CTF1473 ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Main Unit Consists of Main PCB Grille PCB Unit Number : CWM9093 Unit Name : Main Unit MISCELLANEOUS IC 101 IC IR3C07N IC 102 IC NJM2904M IC 103 IC TA1254AF IC 105 IC NJM3404AM IC 106 IC TC7WU04FU IC 107 IC PA0065AM IC 108 IC NJM3404AM IC 109 IC TC7WU04FU IC 203 IC NJM2100M IC 204 IC NJM2100M IC 206 IC TC74VHCU04FT IC 301 IC TC4W53F IC 303 IC NJM2904M IC 304 IC BA6797FM IC 305 IC LB1836M IC 351 IC TC4S66F IC 352 IC MC33202D IC 353 IC MC33202D IC 401 IC TC9461F IC 402 IC NJM2904M IC 501 IC PD5738A IC 601 IC TC4053BFT IC 604 IC NJM3414AV IC 605 IC NJM3414AV IC 701 IC PD4995A IC 702 IC MSM514800CSL60JS IC 703 IC LC89170MP IC 704 IC TC7SET08FU IC 705 IC TC7SH32FU IC 706 IC TC7SET08FU IC 707 IC TC7SET04FU IC 1000 IC M5M51008DKV-70HI IC 1001 IC PD6434A IC 1002 IC TC7SET08FU IC 1003 IC TC7SHU04FU IC 1004 IC PD6432A IC 1005 IC MAX662AESA IC 1006 IC PD3411A IC 1007 IC TC74VHC139FT IC 1008 IC TC7SHU04FU =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E F K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC L 120 Inductor CTF1473 L 121 Inductor CTF1473 L 122 Inductor CTF1473 L 123 Inductor CTF1473 L 201 Inductor LCTC4R7K2125 L 202 Inductor LCTA1R5J2520 L 203 Inductor CTF1473 L 400 Inductor CTF1473 L 500 Inductor CTF1473 L 701 Inductor CTF1473 L 702 Inductor CTF1473 L 801 Inductor CTF1453 L 804 Inductor CTF1473 L 805 Ferrite Bead CTF1528 L 1000 Inductor CTF1473 L 1001 Inductor CTF1473 L 1002 Inductor CTF1473 L 1003 Inductor CTF1473 L 1004 Inductor CTF1473 L 1005 Inductor CTF1473 L 1007 Inductor CTF1473 L 1008 Inductor CTF1473 L 1009 Inductor CTF1473 L 1010 Inductor CTF1473 L 1011 Inductor CTF1470 L 1012 Inductor CTF1473 L 1013 Inductor CTF1473 L 1014 Inductor CTF1473 L 1015 Inductor CTF1473 L 1016 Inductor CTF1473 L 1017 Inductor CTF1473 L 1018 Inductor CTF1473 L 1200 Inductor CTF1453 L 1201 Inductor CTF1473 L 1202 Inductor CTF1473 L 1203 Inductor CTF1473 L 1204 Inductor CTF1473 L 1205 Inductor CTF1473 L 1206 Inductor CTF1453 L 1207 Inductor CTF1473 L 1208 Inductor CTF1473 L 1209 Inductor CTF1473 L 1210 Inductor CTF1473 L 1500 Inductor CTF1473 L 1503 Inductor CTF1473 L 1600 Inductor CTF1453 L 1601 Inductor CTF1453 L 1602 Inductor CTF1453 L 1603 Inductor CTF1453 L 1604 Inductor CTF1453 L 1606 Inductor CTF1473 L 1607 Inductor CTF1470 L 1608 Inductor CTF1453 L 1609 Inductor CTF1470 L 1610 Inductor CTF1470 L 1611 Inductor CTF1470 L 1612 Inductor CTF1470 L 1613 Inductor CTF1470 L 1615 Inductor CTF1470 L 1616 Inductor CTF1470 L 1617 Inductor CTF1470 L 1618 Inductor CTF1470 L 1622 Inductor CTF1470 L 1624 Inductor CTF1470 L 1630 Inductor CTF1453 L 1631 Inductor CTF1470 L 1632 Inductor CTF1470 L 1633 Inductor CTF1470 L 1634 Inductor CTF1470 L 1635 Inductor CTF1470 L 1701 Inductor CTF1473 L 1702 Inductor CTF1473 L 1704 Inductor CTF1473 L 1705 Inductor CTF1473 L 1706 Inductor CTF1473 L 1707 Inductor CTF1473 L 1708 Inductor CTF1473 TC 201 Trimmer CCG1039 TC 1000 Trimmer CCL1053 X 501 Radiator 10.00MHz CSS1428 X 1000 Radiator 20.00MHz CSS1470 X 1001 Radiator 13.824MHz CSS1509 S 2000 Switch(CLOSE) CSN1051 S 2001 Switch(EJECT) CSG1110 F 1500 Filter CTF1515 RESISTORS R 101 RS1/16S0R0J R 102 RS1/16S102J R 103 RS1/16S122J R 104 RS1/16S182J R 106 RS1/16S0R0J R 108 RS1/16S0R0J R 109 RS1/10S1R5J R 110 RS1/10S1R5J R 111 RS1/10S1R5J R 112 RS1/10S1R5J R 113 RS1/16S103J R 114 RS1/16S103J R 115 RS1/16S222J R 116 RS1/16S0R0J R 118 RS1/16S0R0J R 119 RS1/16S222J R 120 RS1/16S0R0J R 121 RS1/16S393J R 122 RS1/10S3R9J R 123 RS1/16S104J R 124 RS1/10S1R5J R 125 RS1/16S222J R 126 RS1/16S122J R 127 RS1/16S222J R 133 RS1/16S0R0J R 134 RA3C101J R 136 RS1/16S331J R 137 RS1/16S112J R 138 RS1/16S302J R 139 RS1/16S0R0J R 140 RS1/16S103J R 141 RS1/16S101J R 143 RS1/16S103J R 144 RS1/16S103J R 145 RS1/16S223J R 146 RS1/16S223J R 147 RS1/16S223J R 148 RS1/16S223J R 149 RS1/16S103J R 150 RS1/16S222J R 154 RS1/16S123J R 155 RS1/16S182J R 156 RS1/16S123J R 157 RS1/16S822J R 158 RS1/16S182J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC R 159 RS1/16S203J R 160 RS1/16S101J R 164 RS1/16S203J R 165 RS1/16S101J R 166 RS1/16S222J R 170 RS1/8S100J R 171 RS1/8S120J R 172 RS1/16S470J R 201 RS1/16S0R0J R 214 RS1/16S222J R 215 RS1/16S152J R 216 RS1/16S471J R 217 RS1/16S102J R 220 RS1/16S105J R 221 RS1/16S161J R 222 RS1/16S103J R 223 RS1/16S220J R 224 RS1/16S223J R 225 RS1/16S153J R 230 RS1/8S0R0J R 231 RS1/16S104J R 232 RS1/16S220J R 233 RS1/16S101J R 234 RS1/16S0R0J R 235 RS1/16S104J R 236 RS1/16S104J R 237 RS1/16S202J R 238 RS1/16S105J R 239 RS1/16S222J R 240 RS1/16S103J R 241 RS1/16S683J R 242 RS1/16S153J R 243 RS1/16S153J R 244 RS1/16S223J R 245 RS1/16S153J R 246 RS1/16S103J R 247 RS1/16S102J R 248 RS1/16S153J R 249 RS1/16S153J R 250 RS1/10S0R0J R 251 RS1/10S0R0J R 301 RS1/16S622J R 302 RS1/16S473J R 303 RS1/16S434J R 304 RS1/16S104J R 306 RS1/16S101J R 308 RS1/10S201J R 310 RS1/10S221J R 315 RS1/16S103J R 316 RS1/16S103J R 317 RS1/16S822J R 318 RS1/16S0R0J R 322 RS1/16S1002D R 323 RS1/16S1002D R 324 RS1/16S0R0J R 325 RS1/16S0R0J R 326 RS1/16S1002D R 328 RS1/16S822J R 329 RS1/16S822J R 331 RS1/16S822J R 337 RS1/16S0R0J R 338 RS1/16S0R0J R 339 RS1/16S0R0J R 340 RS1/16S0R0J R 344 RS1/16S1002D R 345 RS1/16S1002D R 346 RS1/16S1002D R 348 RS1/16S1202D R 349 RS1/16S1202D R 350 RS1/16S1202D R 352 RS1/16S103J R 354 RS1/16S0R0J R 355 RS1/16S103J R 356 RS1/16S103J R 358 RS1/16S103J R 359 RS1/16S103J R 360 RS1/16S114J R 361 RS1/16S153J R 362 RS1/16S243J R 364 RS1/16S624J R 365 RS1/16S624J R 366 RS1/16S104J R 368 RS1/16S333J R 369 RS1/16S333J R 370 RS1/16S101J R 372 RS1/16S103J R 373 RS1/16S333J R 374 RS1/16S103J R 401 RS1/16S101J R 402 RS1/16S101J R 404 RS1/16S1202D R 405 RS1/16S3300D R 406 RS1/16S332J R 407 RS1/16S1002D R 408 RS1/16S0R0J R 409 RS1/16S153J R 410 RS1/16S225J R 411 RS1/16S272J R 412 RS1/16S333J R 413 RS1/16SS104J R 414 RS1/16S103J R 416 RS1/16SS473J R 417 RS1/16S225J R 418 RS1/16S104J R 419 RS1/16S103J R 420 RS1/16S103J R 421 22Ω CCN1111 R 423 RS1/16S1002D R 424 RS1/16S272J R 425 RS1/16S103J R 426 RS1/16S472J R 427 RS1/16S103J R 428 RS1/16S472J R 429 RS1/16S0R0J R 430 RS1/16S472J R 431 RS1/16S472J R 432 RS1/16S0R0J R 433 RS1/16S223J R 434 RS1/16S223J R 435 RS1/16SS104J R 436 22Ω CCN1111 R 439 RS1/16S220J R 440 RS1/16S220J R 441 RS1/16S103J R 442 RS1/16S103J R 443 RS1/16S622J R 448 RS1/16S221J R 450 RS1/16S103J R 501 RS1/16S3902D R 502 RS1/16S1502D =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC R 503 RS1/16SS473J R 504 RS1/16S683J R 505 RS1/16SS473J R 506 RS1/16S103J R 507 RS1/16S222J R 508 RS1/16S222J R 509 RS1/16S222J R 510 RS1/16S1002D R 511 3.3kΩ CCN1122 R 512 RS1/16S104J R 514 RS1/16S682J R 515 RS1/16S102J R 516 RS1/16S102J R 517 RS1/16S222J R 518 RS1/16S104J R 519 RS1/16S222J R 520 RS1/16S104J R 521 RS1/16S103J R 522 RA3C104J R 524 RS1/16S103J R 526 RS1/16SS473J R 527 22Ω CCN1111 R 528 RA3C473J R 529 RS1/16S682J R 530 RS1/16S103J R 531 RS1/16S103J R 532 RS1/16S103J R 534 RS1/16S104J R 535 RS1/16S104J R 536 RS1/16S104J R 537 RS1/16S104J R 540 RS1/16S103J R 541 RS1/16S104J R 542 RS1/16S104J R 543 RS1/16S104J R 544 RS1/16S104J R 551 RS1/16S220J R 556 RS1/16SS102J R 601 RS1/16S103J R 602 RS1/16S154J R 604 RS1/16S154J R 606 RS1/16S154J R 608 RS1/16S303J R 609 RS1/16S153J R 610 RS1/16S303J R 611 RS1/16S153J R 612 RS1/16S153J R 613 RS1/16S153J R 615 RS1/16S153J R 702 22Ω CCN1111 R 703 22Ω CCN1111 R 704 22Ω CCN1111 R 705 22Ω CCN1111 R 707 RS1/16S220J R 708 22Ω CCN1111 R 709 RS1/16S0R0J R 710 RS1/16S102J R 712 RS1/16S103J R 713 RS1/16S220J R 714 RS1/16S220J R 723 RS1/16S0R0J R 724 RS1/16SS473J R 726 RS1/16SS473J R 727 RS1/16SS473J R 728 RS1/16SS473J R 734 10kΩ CCN1125 R 737 RS1/16S103J R 739 RS1/16S103J R 740 RS1/16S103J R 741 RS1/16S103J R 742 RS1/16S103J R 743 RS1/16S103J R 768 RA3C221J R 769 RS1/16SS221J R 789 RS1/16S0R0J R 790 10Ω CCN1133 R 791 RA3C100J R 792 RS1/16S100J R 793 RS1/16S100J R 794 RS1/16S100J R 1000 RS1/16SS473J R 1001 RS1/16SS473J R 1002 RS1/16SS473J R 1003 RS1/16SS473J R 1004 RS1/16SS473J R 1005 RS1/16SS473J R 1006 47kΩ CCN1131 R 1007 RA3C471J R 1008 RS1/16S472J R 1009 RS1/16S103J R 1010 RS1/16SS473J R 1011 47kΩ CCN1131 R 1012 RS1/16S102J R 1013 RS1/16S470J R 1014 47kΩ CCN1131 R 1015 RS1/16S332J R 1016 RS1/16SS473J R 1017 RS1/16SS473J R 1018 RA3C473J R 1019 RS1/16S105J R 1020 RS1/16S102J R 1021 RS1/8S470J R 1022 RS1/8S470J R 1023 RS1/8S470J R 1025 RS1/16S0R0J R 1026 RS1/16S0R0J R 1027 RS1/16S0R0J R 1028 RS1/16S0R0J R 1029 RS1/16SS473J R 1030 47kΩ CCN1131 R 1031 RS1/16SS473J R 1032 RS1/16SS473J R 1033 RS1/16S472J R 1034 RS1/16SS473J R 1035 RS1/16SS473J R 1036 RS1/16SS473J R 1038 RS1/16SS473J R 1039 RS1/16SS473J R 1040 RS1/16SS473J R 1041 RS1/16S0R0J R 1042 RS1/16SS473J R 1046 RS1/16S0R0J R 1200 RS1/16S0R0J R 1202 RS1/16S201J R 1212 RS1/16S220J R 1218 RS1/16S2701D R 1219 RS1/16S1600D R 1220 RS1/16S2701D R 1221 RS1/16S2201D R 1222 RS1/16S0R0J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC R 1223 RS1/16S2701D R 1224 RS1/16S2201D R 1230 RS1/16SS473J R 1231 RS1/16SS473J R 1232 RS1/16SS473J R 1233 RS1/16SS473J R 1235 RS1/16S0R0J R 1236 RS1/16S0R0J R 1237 RS1/16S0R0J R 1500 RS1/16S222J R 1501 RS1/16S152J R 1503 RS1/16S3300D R 1506 RS1/16S0R0J R 1507 RS1/16S101J R 1510 RS1/16S222J R 1513 RS1/16S622J R 1514 RS1/16S622J R 1515 RS1/16S622J R 1516 RS1/16S622J R 1517 RS1/16S622J R 1518 RS1/16S622J R 1519 RS1/16S622J R 1520 RS1/16S622J R 1521 RS1/16S622J R 1522 RS1/16S622J R 1523 RS1/16S622J R 1524 RS1/16S622J R 1525 RS1/16S101J R 1526 RS1/16S101J R 1611 RS1/16S0R0J R 1612 RS1/16S0R0J R 1700 RS1/16SS473J R 1701 RS1/16SS473J R 1702 RS1/16SS473J R 1703 RS1/16SS473J R 1704 RS1/16SS473J R 1705 RS1/16SS473J R 1708 RS1/16SS473J CAPACITORS C 101 CKSRYB333K16 C 102 CKSRYB333K16 C 103 CKSSYB104K10 C 104 CSZSR100M16 C 105 CKSRYB103K50 C 106 CEV220M6R3 C 107 CKSRYB103K50 C 108 CKSRYB103K50 C 109 CSZSR100M16 C 110 CKSRYB333K16 C 111 CKSRYB183K25 C 112 CSZSR470M6R3 C 113 CKSRYB103K50 C 114 CKSRYB103K50 C 115 CEV220M6R3 C 116 CKSSYB104K10 C 117 CSZSR2R2M20 C 119 CSZSR470M6R3 C 120 CKSRYB103K50 C 121 CSZSR1R0M35 C 122 CKSSYB104K10 C 123 CKSSYB104K10 C 124 CKSRYB105K6R3 C 125 CKSRYB102K50 C 126 CKSSYB104K10 C 127 CKSRYB102K50 C 128 CKSRYB102K50 C 129 CSZSR100M16 C 130 CKSRYB222K50 C 131 CKSRYB222K50 C 132 CSZSR100M16 C 133 CKSSYB104K10 C 134 CEV101M10 C 135 CKSSYB104K10 C 136 CCSRCH101J50 C 137 CKSRYB222K50 C 138 CKSRYB222K50 C 139 CKSRYB222K50 C 140 CKSRYB222K50 C 141 CKSRYB103K50 C 142 CKSRYB332K50 C 143 CKSRYB333K16 C 144 CCSRCH121J50 C 145 CCSRCH121J50 C 146 CCSRCH121J50 C 147 CCSRCH121J50 C 148 CCSRCH121J50 C 149 CCSRCH471J50 C 150 CKSRYB333K16 C 151 CSZSR100M16 C 152 CKSRYB103K50 C 153 CKSRYB103K50 C 154 CKSRYB103K50 C 155 CCSRCH821J50 C 156 CCSRCH151J50 C 157 CKSRYB333K16 C 158 CKSRYB103K50 C 159 CKSSYB104K10 C 160 CEV470M10 C 162 CSZSR220M10 C 163 CKSRYB102K50 C 208 CKSRYB822K50 C 209 CKSSYB104K10 C 211 CCSRCH7R0D50 C 212 CKSQYB105K16 C 213 CCSRCH180J50 C 214 CKSRYB102K50 C 220 CKSRYB102K50 C 222 CCSRCH150J50 C 223 CKSRYB103K50 C 224 CKSRYB103K50 C 225 CKSRYB333K16 C 226 CKSRYB104K16 C 228 CCSRCH470J50 C 229 CKSRYB104K16 C 230 CKSRYB104K16 C 231 CKSRYB333K16 C 232 CSZSR1R0M35 C 233 CKSRYB104K16 C 262 CKSSYB104K10 C 301 CKSRYB104K16 C 302 CKSRYB224K10 C 306 CKSSYB104K10 C 307 CKSSYB104K10 C 309 CKSRYB103K50 C 310 CSZSR100M16 C 311 CKSRYB123K25 C 312 CKSRYB103K50 C 313 CSZSR100M16 C 314 CKSRYB153K25 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC C 319 CKSRYB103K50 C 320 CEV101M10 C 322 CCSRCH101J50 C 323 CKSQYB224K16 C 324 CKSRYB472K50 C 350 CEV220M10 C 351 CKSSYB104K10 C 352 CCSRCH101J50 C 353 CKSRYB103K50 C 354 CKSQYB334K16 C 355 CCSRCH161J50 C 356 CKSSYB104K10 C 357 CKSRYB223K25 C 358 CKSRYB472K50 C 359 CKSRYB104K16 C 360 CKSSYB104K10 C 370 CKSRYB104K16 C 401 CKSRYB333K16 C 402 CKSRYB103K50 C 403 CKSRYB103K50 C 404 CKSRYB333K16 C 406 CKSRYB273K25 C 409 CKSRYB153K25 C 410 CKSRYB103K50 C 411 CKSRYB102K50 C 412 CKSRYB104K16 C 414 CKSSYB104K10 C 415 CCSRCH470J50 C 417 CKSRYB103K50 C 418 CCSRCH101J50 C 419 CKSSYB104K10 C 421 CKSSYB104K10 C 422 CKSSYB104K10 C 424 CKSSYB104K10 C 425 CSZSR100M16 C 426 CKSSYB104K10 C 427 CKSSYB104K10 C 428 CKSSYB104K10 C 429 CSZSR100M16 C 430 CKSSYB104K10 C 431 CKSRYB103K50 C 432 CCSRCH101J50 C 435 CCSRCH101J50 C 442 CKSRYB273K25 C 450 CKSRYB152K50 C 501 CKSRYB103K50 C 502 CKSSYB104K10 C 503 CKSRYB473K16 C 504 CKSRYB473K16 C 505 CKSRYB103K50 C 506 CKSSYB104K10 C 507 CKSSYB104K10 C 508 CSZSR100M16 C 510 CKSRYB103K50 C 511 CKSRYB103K50 C 512 CKSRYB102K50 C 520 CKSRYB104K16 C 602 CKSRYB104K16 C 604 CKSRYB104K16 C 606 CKSRYB104K16 C 608 CKSRYB104K16 C 610 CKSRYB104K16 C 612 CKSRYB104K16 C 701 CKSSYB104K10 C 702 CKSSYB104K10 C 703 CKSSYB104K10 C 704 CKSSYB104K10 C 705 CKSSYB104K10 C 706 CKSSYB104K10 C 707 CKSSYB104K10 C 708 CKSSYB104K10 C 709 CEV101M4 C 710 CKSSYB104K10 C 711 CKSSYB104K10 C 712 CKSSYB104K10 C 714 CKSSYB104K10 C 715 CKSSYB104K10 C 716 CKSSYB104K10 C 717 CKSSYB104K10 C 718 CKSSYB104K10 C 719 CKSSYB104K10 C 720 CEV101M4 C 721 CKSSYB104K10 C 722 CKSRYB103K50 C 723 CKSSYB104K10 C 729 CCSRCH101J50 C 801 CCSRCH101J50 C 802 CCSRCH101J50 C 803 CCSRCH221J50 C 806 CCSSCH101J50 C 807 CKSSYB104K10 C 808 CKSYB106K6R3 C 809 CKSSYB104K10 C 810 CKSSYB104K10 C 1000 CKSSYB104K10 C 1001 CEV101M6R3 C 1002 CKSSYB104K10 C 1003 CKSYB106K6R3 C 1004 CKSSYB104K10 C 1005 CSZSR100M16 C 1006 CEV4R7M35 C 1007 CKSSYB104K10 C 1008 CKSSYB104K10 C 1009 CKSQYB224K25 C 1010 CKSQYB224K25 C 1011 CKSYB106K6R3 C 1012 CKSSYB104K10 C 1014 CKSSYB104K10 C 1015 CKSSYB104K10 C 1016 CKSYB106K6R3 C 1018 CKSSYB104K10 C 1019 CKSSYB104K10 C 1020 CKSSYB104K10 C 1021 CKSSYB104K10 C 1022 CKSSYB104K10 C 1023 CKSSYB104K10 C 1024 CCSRCH100D50 C 1025 CKSSYB104K10 C 1026 CSZSR100M16 C 1027 CKSSYB104K10 C 1028 CCSRCH180J50 C 1029 CKSSYB104K10 C 1030 CKSSYB104K10 C 1031 CCSRCH101J50 C 1032 CKSSYB104K10 C 1033 CKSSYB104K10 C 1034 CKSSYB104K10 C 1035 CKSSYB104K10 C 1036 CKSRYB103K50 C 1037 CKSSYB104K10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC C 1038 CCSRCH510J50 C 1039 CCSRCK1R0C50 C 1040 CKSSYB104K10 C 1041 CKSSYB104K10 C 1061 CKSYB106K6R3 C 1200 CKSSYB104K10 C 1201 CKSSYB104K10 C 1202 68µF/6.3V CCH1385 C 1203 CKSSYB104K10 C 1204 CKSSYB104K10 C 1205 CKSSYB104K10 C 1206 CKSSYB104K10 C 1207 CKSSYB104K10 C 1208 CKSSYB104K10 C 1209 CKSSYB104K10 C 1210 CKSSYB104K10 C 1211 CKSSYB104K10 C 1212 CKSSYB104K10 C 1213 CKSSYB104K10 C 1214 CKSSYB104K10 C 1215 CKSSYB104K10 C 1216 CKSSYB104K10 C 1217 CKSSYB104K10 C 1218 CKSSYB104K10 C 1219 CEV470M4 C 1220 CKSSYB104K10 C 1221 CKSSYB104K10 C 1222 CKSSYB104K10 C 1223 68µF/6.3V CCH1385 C 1224 CKSQYB105K16 C 1225 CEV221M4 C 1226 CKSSYB104K10 C 1227 CKSSYB104K10 C 1228 CKSSYB104K10 C 1229 CKSSYB104K10 C 1230 68µF/6.3V CCH1385 C 1231 CKSRYB103K50 C 1232 CKSSYB104K10 C 1233 CKSSYB104K10 C 1234 CKSSYB104K10 C 1235 CKSSYB104K10 C 1500 CKSSYB104K10 C 1501 CKSSYB104K10 C 1502 CSZSR100M16 C 1503 CSZSR100M16 C 1504 CSZSR100M16 C 1505 CKSSYB104K10 C 1507 CKSRYB104K16 C 1510 CSZSR100M16 C 1511 CKSSYB104K10 C 1512 CSZSR100M16 C 1513 CKSSYB104K10 C 1514 CSZSR100M16 C 1515 CKSRYB104K16 C 1516 CKSRYB104K16 C 1517 CEVNP4R7M16 C 1518 CEVNP4R7M16 C 1519 CEVNP4R7M16 C 1520 CEVNP4R7M16 C 1521 CKSRYB104K16 C 1522 CCSRCH331J50 C 1523 CCSRCH331J50 C 1524 CCSRCH221J50 C 1525 CCSRCH221J50 C 1526 CCSRCH221J50 C 1527 CCSRCH221J50 C 1531 CKSQYB334K16 C 1532 CKSYB475K10 C 1601 CKSRYB473K25 C 1602 CKSRYB473K25 C 1603 CKSRYB473K25 C 1701 CKSSYB104K10 C 1702 CKSSYB104K10 C 1703 CSZSR100M16 C 1704 CKSSYB104K10 C 1705 CSZSR100M16 C 1709 CKSSYB104K10 C 1710 CKSSYB104K10 C 1711 CKSSYB104K10 C 1712 CKSSYB104K10 C 1713 CKSSYB104K10 C 2000 CKSRYB104K16 C 2001 CKSRYB104K16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 RSA Controler 24P GGD1169 GGD1348 Bullet connector (To DC Regulated Power Supply) Bullet connector SP Line Bullet connector (To DC Regulated Power Supply) KEX-M9537ZT/UC(Pioneer AMP) KEX-M9737ZT/UC(Mraklevinson AMP) XDV-M8137ZT/UC GM-9027ZT-02/E Marklevinson AMP H/ U EMV(DENSO) 20P 12P 20P 6P 28P 26P 10P 18P 18P 10P 6P 28P 26P 12P 20P 20P 25P 16P 16P 20P 25P GGD1240 AUI+ AUI- FR+ FR- 24P AMP MDVD NAVI ECU(DENSO) *MCD *Please don't connect the MCD and MVD at the same time. *MCD or MDVD does not operate if RSA controller is not connected. - Connection Diagram LEXUS EMV SYSTEM MODEL(/UC) 20P 32P 1 2 3 4 1 2 3 4 F E D C B A XDV-M8137ZT/UC ADJUSTMENT CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 KEX- M9137ZT/UC RSA Controler 24P GGD1169 GGD1348 Bullet connector (To DC Regulated Power Supply) Bullet connector SP Line Bullet connector (To DC Regulated Power Supply) H/ U EMV(DENSO) 20P 12P 20P 10P 18P 20P 18P 10P 12P 20P 20P 14P 16P 16P 20P 14P GGD1243 AUI+ AUI- FR+ FR- 24P MDVD NAVI ECU(DENSO) JBL AMP XDV- M8137ZT/UC 14P 32P *Please don't connect the MCD and MVD at the same time. *MCD or MDVD does not operate if RSA controller is not connected. - Connection Diagram TOYOTA EMV SYSTEM MODEL(/UC) Non- connected For *MCD 6P 28P 26P 6P 28P 26P Non-connected For EMV(used for another system) 5 6 7 8 F E D C B A 5 6 7 8 XDV-M8137ZT/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 F E D C B A PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2003 K-ZZA. JULY 2003 Printed in Japan GENERAL INFORMATION DIAGNOSIS CONNECTOR FUNCTION DESCRIPTION 1. +B 2. NTSO 3. SG 4. SGND 5. CDL+ 6. CDR+ 7. NC 8. TXM+ 9. NC 10. ACC 11. GND 12. NC 13. NC 14. NC 15. CDL- 16. CDR- 17. SGND 18. TXM- 19. NC 20. MUTE - XDV-M8127ZT/UC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools DVD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Portions to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
