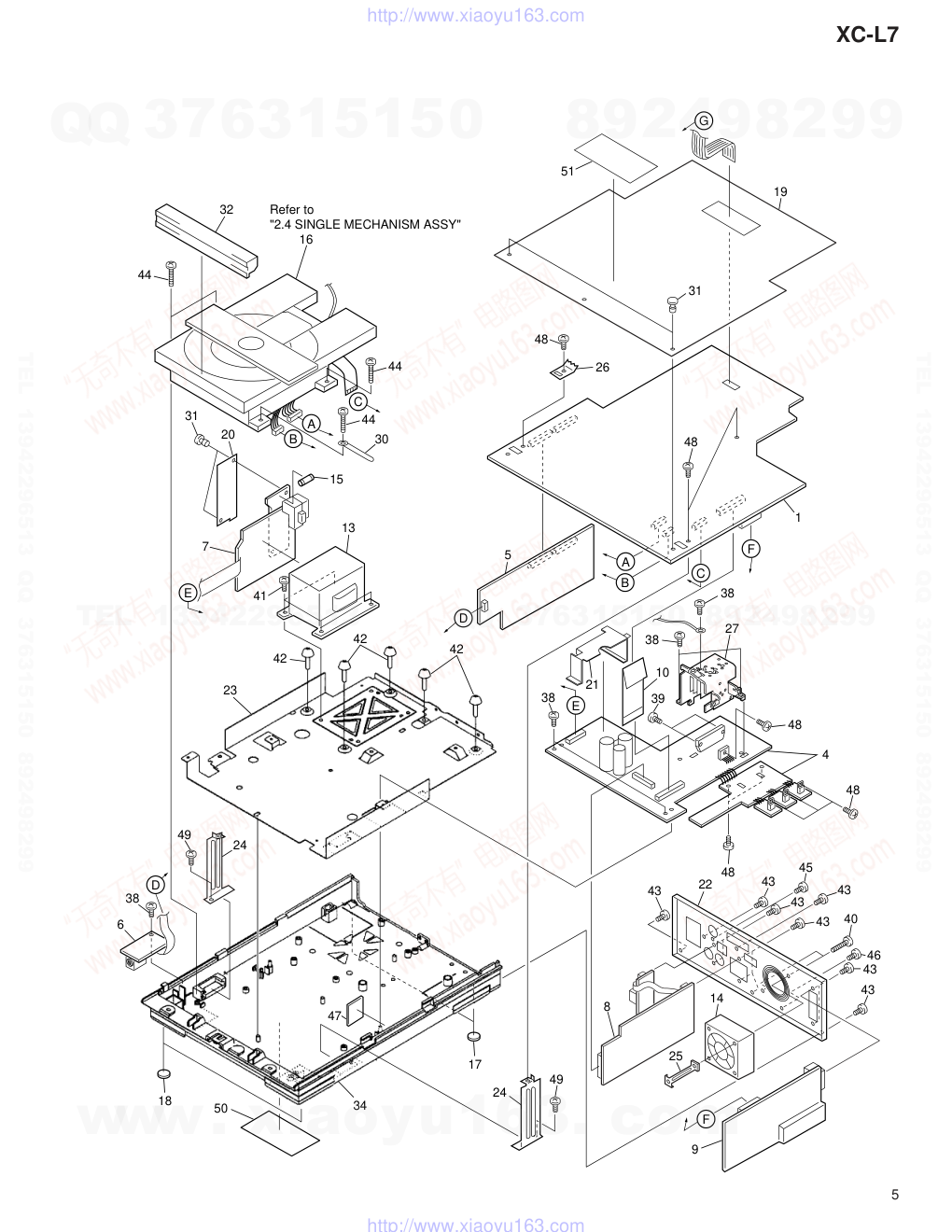

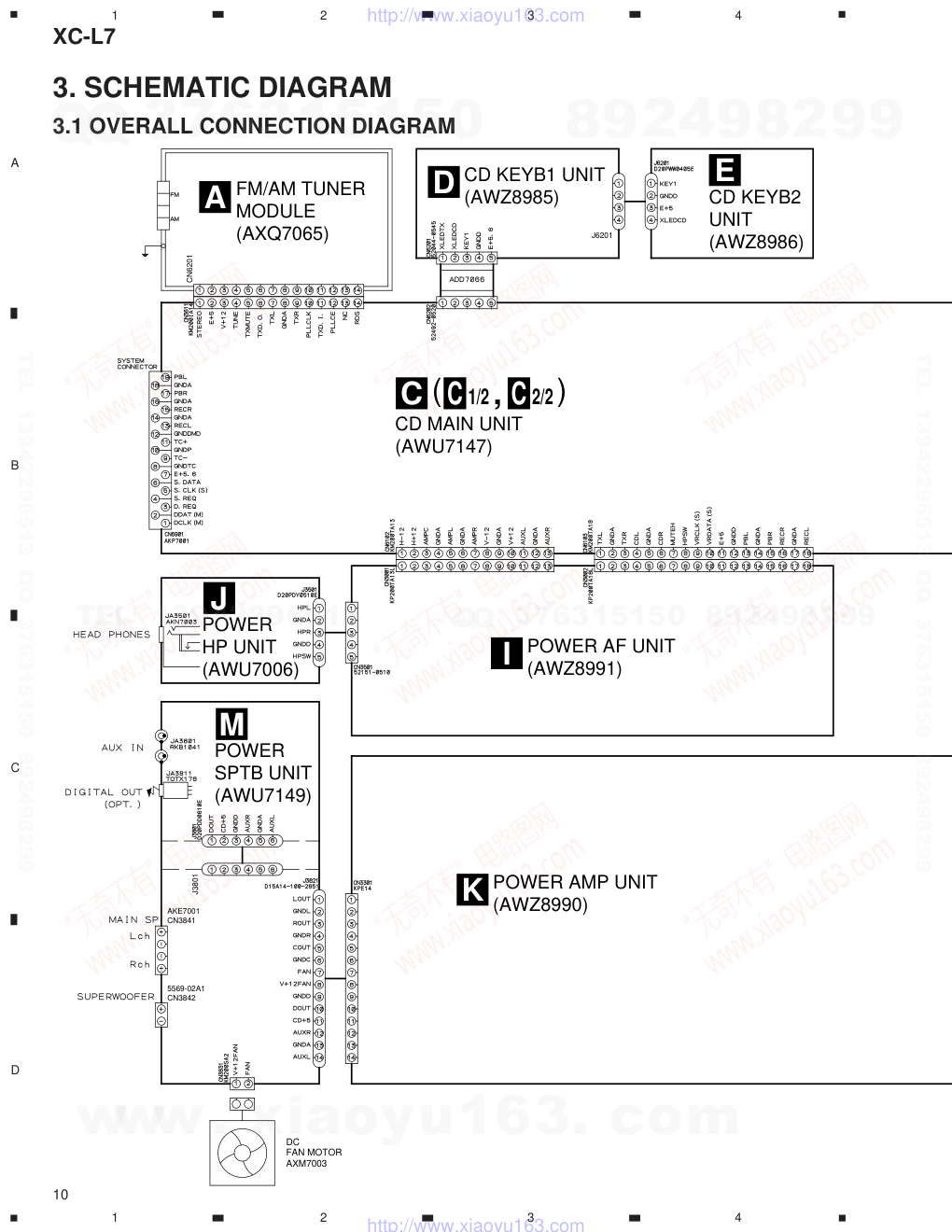

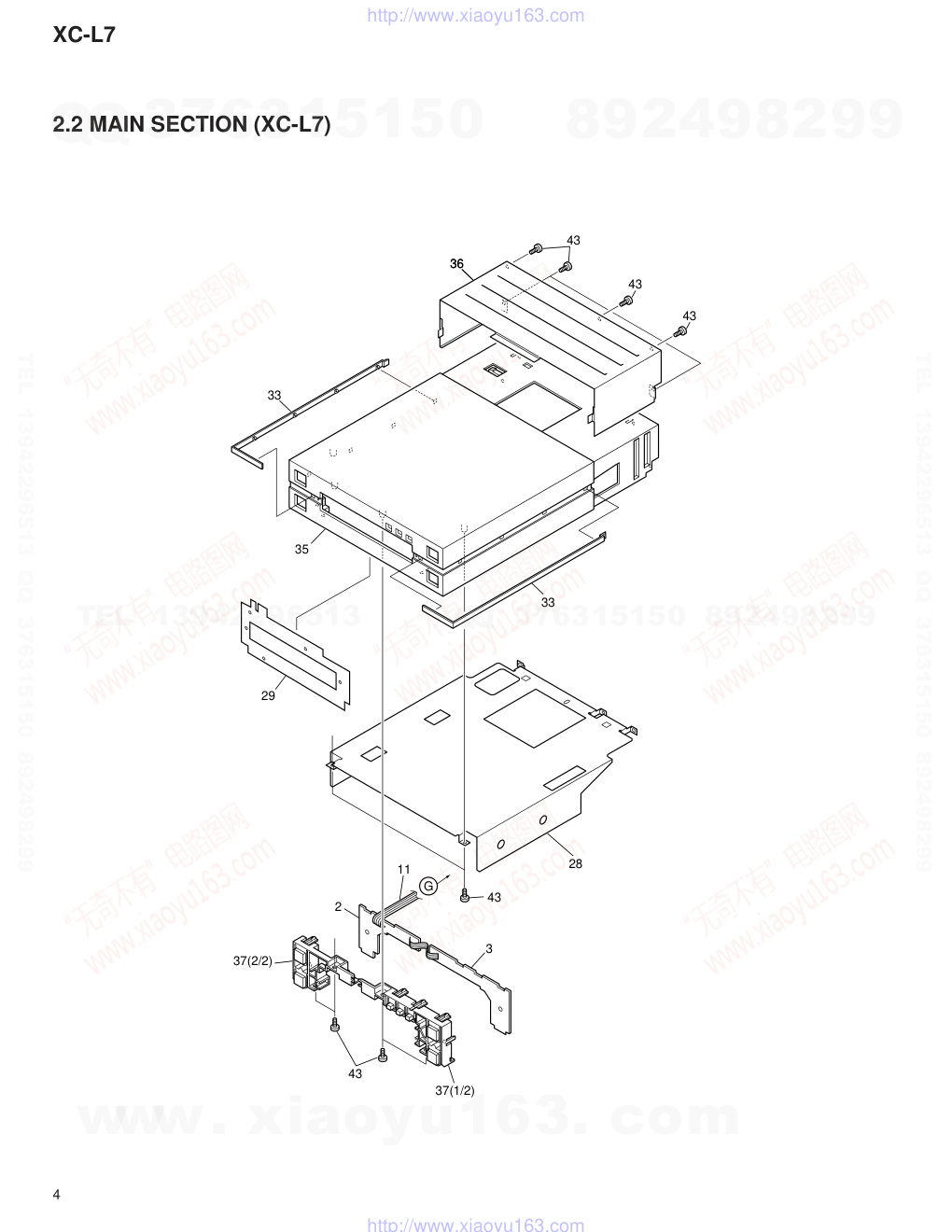

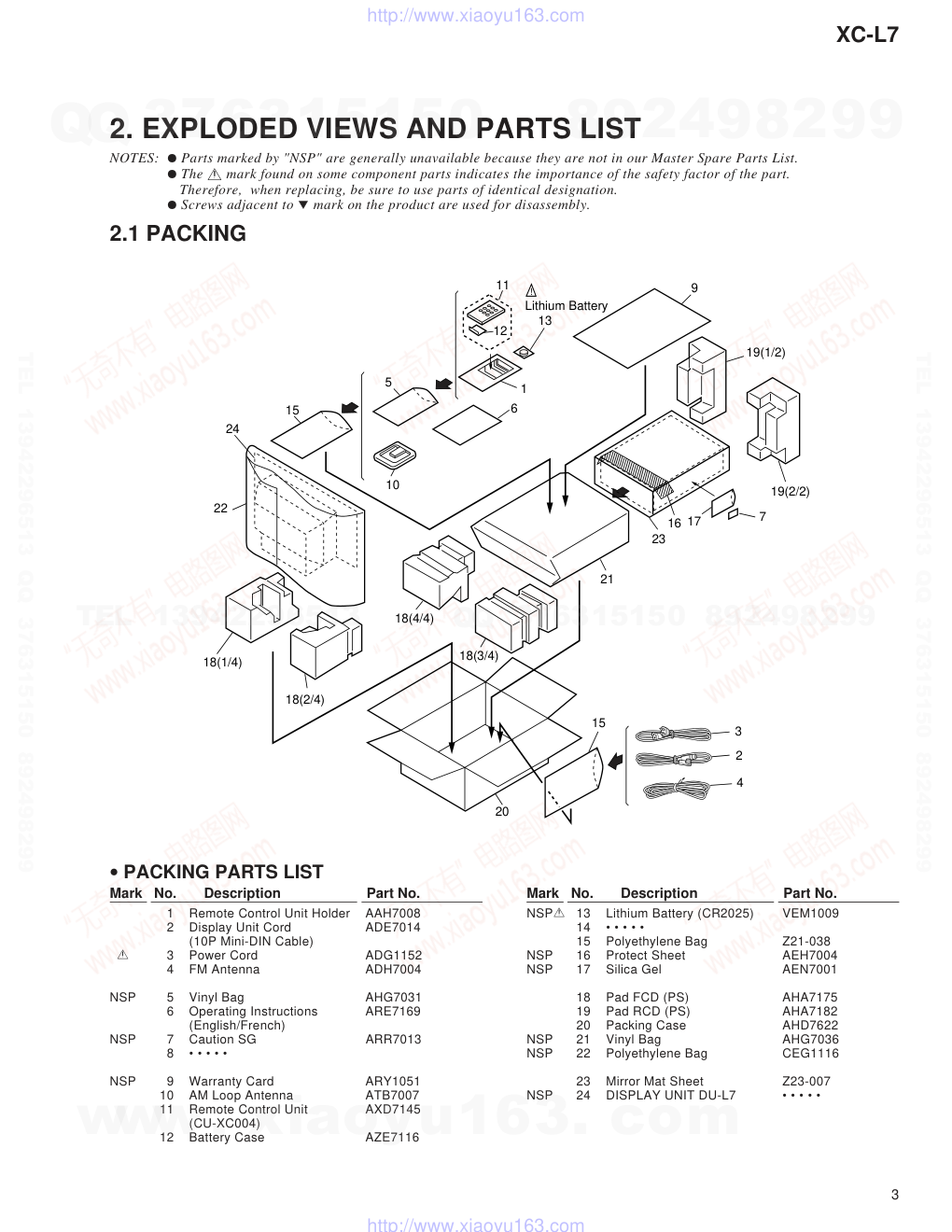

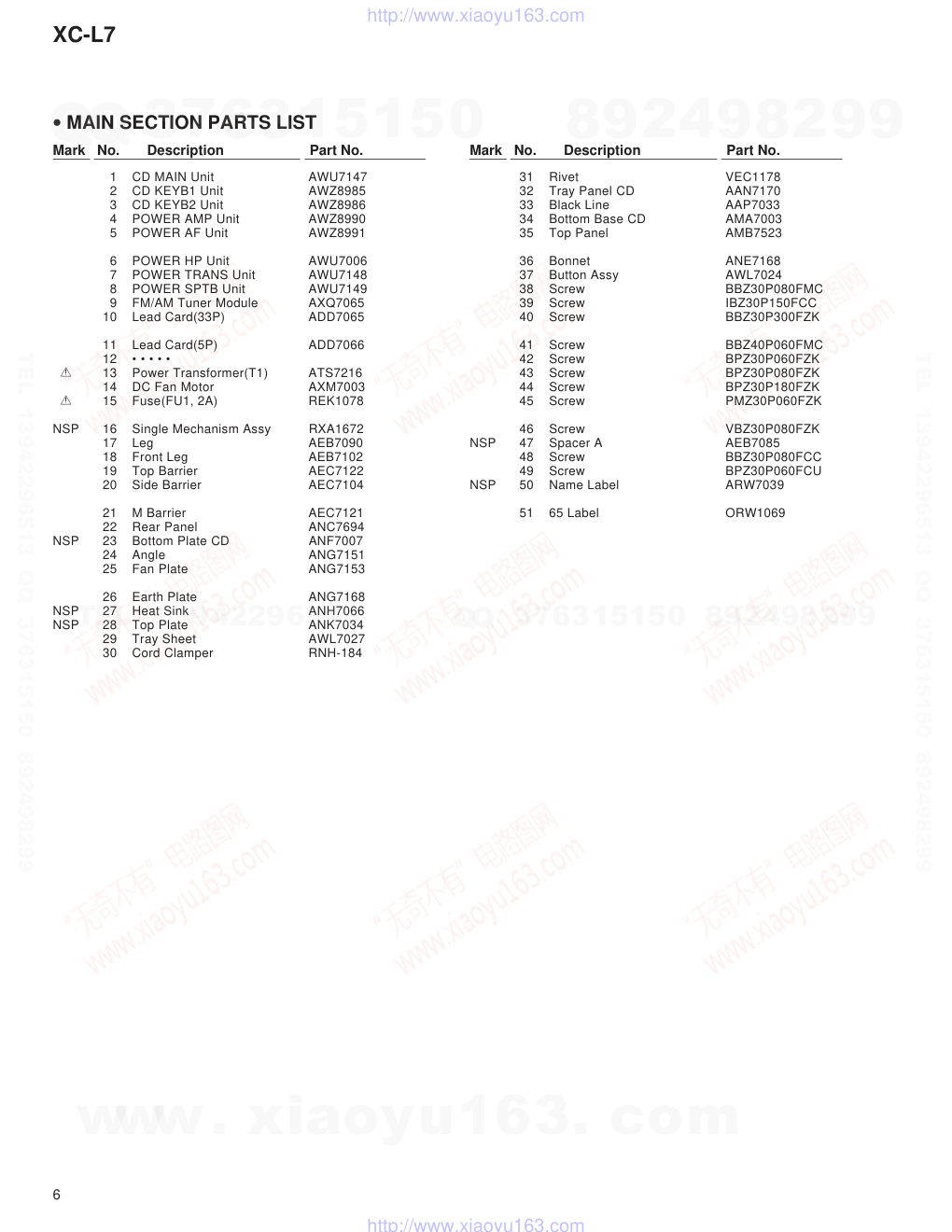

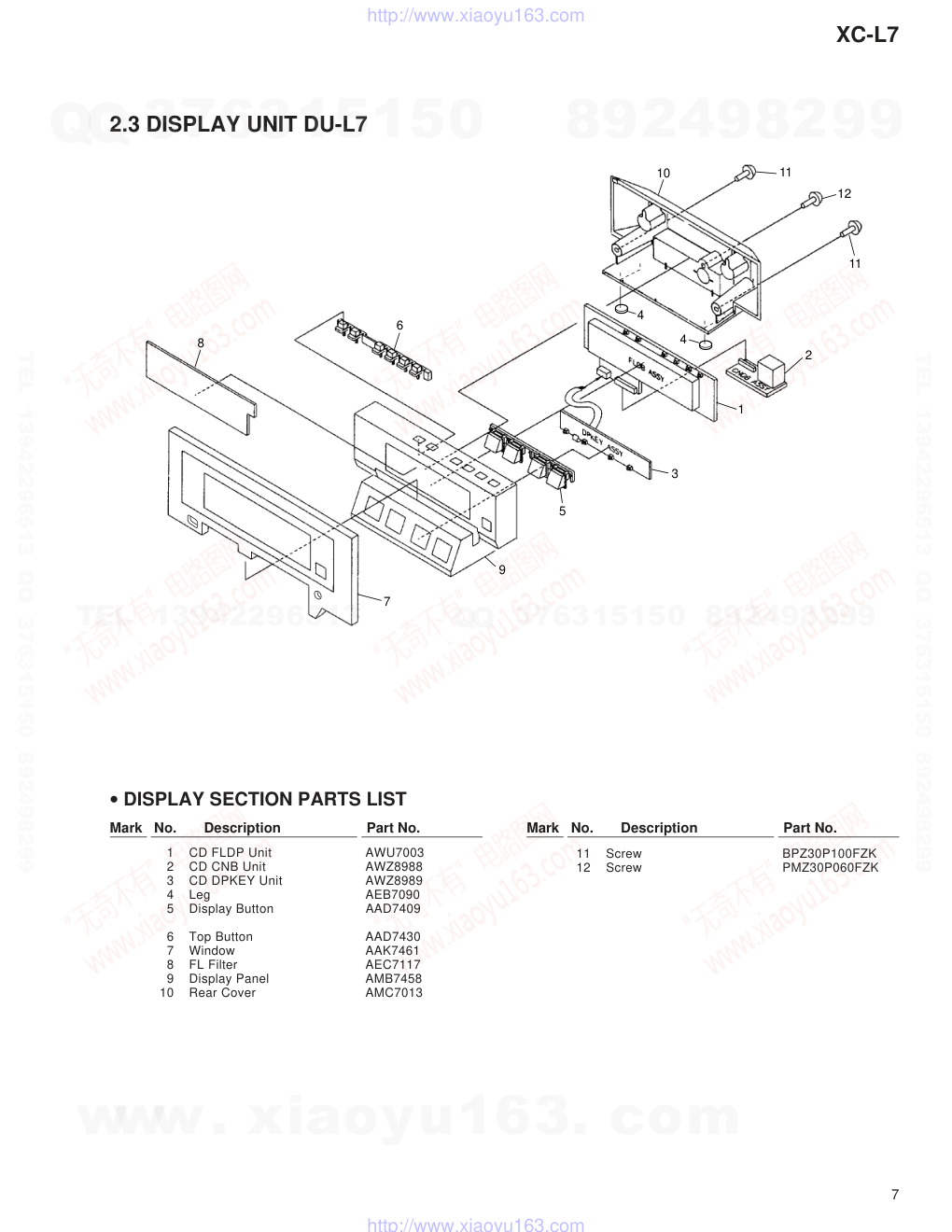

Service Manual 1. SAFETY INFORMATION ...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................ 3 3. SCHEMATIC DIAGRAM ..................................... 10 4. PCB CONNECTION DIAGRAM .......................... 26 5. PCB PARTS LIST ............................................... 38 6. ADJUSTMENT .................................................... 43 CONTENTS 7. GENERAL INFORMATION ................................ 50 7.1 PARTS .......................................................... 50 7.1.1 IC ........................................................... 50 7.1.2 DISPLAY................................................ 54 7.2 DIAGNOSIS .................................................. 55 7.2.1 DISASSEMBLY ..................................... 55 7.2.2 PCB LOCATIONS ................................. 58 7.3 BLOCK DIAGRAM ........................................ 59 8. PANEL FACILITIES AND SPECIFICATIONS .... 60 XC-L7 STEREO CD RECEIVER ORDER NO. RRV1946 T - ZZK APR. 1998 Printed in Japan PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923 C C C C C PIONEER ELECTRONIC CORPORATION 1998 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Type Model XC-L7 Power Requirement Remarks KUXJ/CA ‡ AC120V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 XC-L7 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5). When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale any smoke or fumes produced. NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 XC-L7 2.1 PACKING 1 Remote Control Unit Holder AAH7008 2 Display Unit Cord ADE7014 (10P Mini-DIN Cable) 3 Power Cord ADG1152 4 FM Antenna ADH7004 NSP 5 Vinyl Bag AHG7031 6 Operating Instructions ARE7169 (English/French) NSP 7 Caution SG ARR7013 8 • • • • • NSP 9 Warranty Card ARY1051 10 AM Loop Antenna ATB7007 11 Remote Control Unit AXD7145 (CU-XC004) 12 Battery Case AZE7116 • PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: ¶ Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. ¶ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ¶ Screws adjacent to mark on the product are used for disassembly. 22 18(1/4) 18(2/4) 18(3/4) 18(4/4) 21 23 19(1/2) 19(2/2) 17 16 15 20 4 3 2 13 Lithium Battery 1 10 6 11 12 15 24 5 7 9 ! Mark No. Description Part No. NSP 13 Lithium Battery (CR2025) VEM1009 14 • • • • • 15 Polyethylene Bag Z21-038 NSP 16 Protect Sheet AEH7004 NSP 17 Silica Gel AEN7001 18 Pad FCD (PS) AHA7175 19 Pad RCD (PS) AHA7182 20 Packing Case AHD7622 NSP 21 Vinyl Bag AHG7036 NSP 22 Polyethylene Bag CEG1116 23 Mirror Mat Sheet Z23-007 NSP 24 DISPLAY UNIT DU-L7 • • • • • www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 XC-L7 2.2 MAIN SECTION (XC-L7) G 36 43 36 43 43 33 33 35 29 28 43 43 37(1/2) 37(2/2) 2 11 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 XC-L7 A C B E D D F E C F A B G 32 10 21 39 48 48 27 4 48 31 20 7 13 15 18 50 17 34 47 23 42 41 42 42 38 38 38 40 43 43 43 46 43 45 43 43 43 8 14 22 25 9 38 49 24 6 49 24 44 30 44 44 16 Refer to "2.4 SINGLE MECHANISM ASSY" 1 5 19 31 48 26 48 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 XC-L7 1 CD MAIN Unit AWU7147 2 CD KEYB1 Unit AWZ8985 3 CD KEYB2 Unit AWZ8986 4 POWER AMP Unit AWZ8990 5 POWER AF Unit AWZ8991 6 POWER HP Unit AWU7006 7 POWER TRANS Unit AWU7148 8 POWER SPTB Unit AWU7149 9 FM/AM Tuner Module AXQ7065 10 Lead Card(33P) ADD7065 11 Lead Card(5P) ADD7066 12 • • • • • 13 Power Transformer(T1) ATS7216 14 DC Fan Motor AXM7003 15 Fuse(FU1, 2A) REK1078 NSP 16 Single Mechanism Assy RXA1672 17 Leg AEB7090 18 Front Leg AEB7102 19 Top Barrier AEC7122 20 Side Barrier AEC7104 21 M Barrier AEC7121 22 Rear Panel ANC7694 NSP 23 Bottom Plate CD ANF7007 24 Angle ANG7151 25 Fan Plate ANG7153 26 Earth Plate ANG7168 NSP 27 Heat Sink ANH7066 NSP 28 Top Plate ANK7034 29 Tray Sheet AWL7027 30 Cord Clamper RNH-184 • MAIN SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 31 Rivet VEC1178 32 Tray Panel CD AAN7170 33 Black Line AAP7033 34 Bottom Base CD AMA7003 35 Top Panel AMB7523 36 Bonnet ANE7168 37 Button Assy AWL7024 38 Screw BBZ30P080FMC 39 Screw IBZ30P150FCC 40 Screw BBZ30P300FZK 41 Screw BBZ40P060FMC 42 Screw BPZ30P060FZK 43 Screw BPZ30P080FZK 44 Screw BPZ30P180FZK 45 Screw PMZ30P060FZK 46 Screw VBZ30P080FZK NSP 47 Spacer A AEB7085 48 Screw BBZ30P080FCC 49 Screw BPZ30P060FCU NSP 50 Name Label ARW7039 51 65 Label ORW1069 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 XC-L7 2.3 DISPLAY UNIT DU-L7 1 CD FLDP Unit AWU7003 2 CD CNB Unit AWZ8988 3 CD DPKEY Unit AWZ8989 4 Leg AEB7090 5 Display Button AAD7409 6 Top Button AAD7430 7 Window AAK7461 8 FL Filter AEC7117 9 Display Panel AMB7458 10 Rear Cover AMC7013 • DISPLAY SECTION PARTS LIST Mark No. Description Part No. 8 7 9 6 5 3 2 1 11 10 4 4 11 12 Mark No. Description Part No. 11 Screw BPZ30P100FZK 12 Screw PMZ30P060FZK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 XC-L7 2.4 SINGLE MECHANISM ASSY 27 21 26 24 35 34 25 23 22 20 28 19 17 18 30 29 33 32 31 42 36 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 XC-L7 1 Lever Switch(S601) DSK1003 2 Screw PBA1048 3 Rubber Belt PEB1193 4 Motor Pulley PNW1634 5 Tray Black V PNW2455 6 Float Base PNW2032 7 Drive Gear 2 PNW2369 8 Gear Pulley PNW2034 9 Clamper Base PNW2375 10 Clamp Cam PNW2364 11 DC Motor/0.75W PXM1010 12 Float Rubber B REB1287 13 Float Rubber G REB1288 14 Screw BPZ26P080FMC 15 Screw Z39 - 019 16 Screw PMZ26P040FMC 17 Pinion Gear PNW2055 18 DC Motor (CARRIAGE) PXM1027 19 D.C. Motor Assy (SPINDLE) PEA1235 20 Carriage Base PNW2699 21 Disc Holder PNW1608 22 Screw JFZ20P030FNI 23 Screw JFZ17P025FZK 24 Gear 3 PNW2054 25 Gear 2 PNW2053 26 Washer WT12D032D025 27 Pick Up Assy-S PEA1291 28 Guide Bar PLA1094 29 Gear 1 PNW2052 30 Gear Stopper PNB1303 • SINGLE MECHANISM ASSY PARTS LIST Mark No. Description Part No. 1 • How to install the disc table Use nipper or other tool to cut the three sections marked figure . Then remove the spacer. While supporting the spindle motor shaft with the stopper, put spacer on top of the motor base (angled so it doesn't touch section ), and stick the disc table on top (takes about 9 kg pressure). Take off the spacer. 1 2 1 2 A A A B 6.9mm 3.1mm ± 0.05mm PWB Holder Spacer Spacer Spacer Setting Position Spindle Motor Carriage Base Disc Table (Pressure of about 9kg) PCB B Mark No. Description Part No. 31 Screw BPZ20P060FMC 32 PWB Holder PNW2057 33 Screw BPZ26P100FMC 34 Earth Lead Unit PDF1104 35 Screw BBZ26P060FMC NSP 36 Mechanism Board Assy PWX1192 37 Clamp Magnet PMF1014 38 Yoke PNB1216 NSP 39 H Rubber PEB1249 40 Clamper S PNW1609 41 Loading Base PNW2376 42 D.C. Motor Assy (CARRIAGE)PEA1246 NSP 43 Servo Mechanism Assy SL AXA7017 44 Binder Z09 - 056 45 Connector Assy (4P) RDE1043 46 Connector Assy (5P) PDE1239 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 10 A B C D 1 2 3 4 1 2 3 4 A D FM/AM TUNER MODULE (AXQ7065) CN6201 J6201 CD KEYB1 UNIT (AWZ8985) I POWER AF UNIT (AWZ8991) K POWER AMP UNIT (AWZ8990) M POWER SPTB UNIT (AWU7149) J POWER HP UNIT (AWU7006) CD MAIN UNIT (AWU7147) E C C CD KEYB2 UNIT (AWZ8986) ( 1/2 C 2/2 , ) J3801 DC FAN MOTOR AXM7003 AKE7001 CN3841 5569-02A1 CN3842 3. SCHEMATIC DIAGRAM 3.1 OVERALL CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 11 A B C D 5 6 7 8 5 6 7 8 G H F CD CNB UNIT (AWZ8988) DISPLAY UNIT DU-L7 CD DPKEY UNIT (AWZ8989) B MECHANISM BOARD ASSY (PWX1192) L POWER TRANS UNIT (AWU7148) CD FLDP UNIT (AWU7003) PICKUP ASSY (PEA1291) LOADING MOTOR CLAMP SW S601 AC 120V 60Hz AC POWER CORD ADG1152 POWER TRANSFORMER ATS7216 AKP7027 (7A 125V) (7A 125V) M SERVO MECHANISM ASSY SL (AXA7017) SINGLE MECHANISM ASSY (RXA1672) CN102 CN610 CN1202 173981-4 REK1078 (2A) Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS AND PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 12 A B C D 1 2 3 4 1 2 3 4 RF AMP MIX AMP BUFFER IF AMP FM +B SW AM RF TUNING BLOCK OSC FM/AM TUNER MODULE (AXQ7065) A 3.2 FM/AM TUNER MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 13 A B C D 5 6 7 8 5 6 7 8 AF AMP REGULATOR PLL AF AMP CN3611 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 14 A B C D 1 2 3 4 1 2 3 4 PICKUP ASSY (PEA1291) (CD) SIGNAL ROUTE :CD AUDIO SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (CD) (CD) (CD) (CD) (FS) (TS) (FS) (FS) (FS) (FS) (FS) (FS) (FS) (FS) (NC) (FS) (FS) (FS) (TS) (FS) (TS) (TS) (TS) (FS) (FS) (FS) (TS) (TS) (TS) (TS) (TS) (FS) (FS) (FS) (FS) (FS) (FS) (TS) (TS) (TS) (TS) (TS) (TS) (TS) (TS) (TS) (TS) C 1/2 CN1101 3.3 PICKUP ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 15 2 TP1- Pin 1 : PLAY MODE (RF) 1.2Vp-p 2 TP1- Pin 1 : TRACK SEARCH MODE (RF) 3 TP1- Pin 6 : PLAY MODE (FOER) 4 TP1- Pin 2 : PLAY MODE (TRER) 4 TP1- Pin 2 : 50T- JUMP(∗1)MODE (TRER) 5 IC1201- Pin 3 : FOCUS-IN(∗2) MODE (FODR) 8 IC1202- Pin 3 : PLAY MODE (CADR) 19 IC1301- Pin 52 : PLAY MODE (1kHz) (PCMD) 24 53 IC1301- Pin 38 : PLAY MODE (PCO) 33 IC1301- Pin 27 : PLAY MODE (MDP) 23 TRACK SEARCH MODE Upper:TP1-Pin1(RF) Lower:IC1101-Pin 29 (MIRR) 18 IC1301- Pin 50 : PLAY MODE (1kHz) (LRCK) 7 IC1202- Pin 4 : TRACK SEARCH MODE (SPDR) 7 IC1202- Pin 4 : PLAY MODE (SPDR) 6 IC1201- Pin 1 : 50T-JUMP(∗1) MODE (TRDR) 6 IC1201- Pin 1 : PLAY MODE (TRDR) 5 IC1201- Pin 3 : PLAY MODE (FODR) 8 IC1202- Pin 3 : TRACK SEARCH MODE (CADR) 9 IC1101- Pin 32 : PLAY MODE (EFM) 16 IC1301- Pin 54 : PLAY MODE (1kHz) (BCLK) PLAY MODE Upper:TP1-Pin1(RF) Lower:IC1101-Pin 30 (DFCT) 1.8Vp-p 1.2Vp-p 0.2Vp-p 1Vp-p 3.5Vp-p 0.3Vp-p 6.2Vp-p 1Vp-p 1.5Vp-p 0.5Vp-p 0.5Vp-p 5Vp-p 3Vp-p 5Vp-p 5Vp-p 1.5Vp-p 5Vp-p 1Vp-p 4.5Vp-p 3Vp-p 5Vp-p 5Vp-p H : 500nsec/div H : 200µsec/div H : 10msec/div H : 10msec/div H : 1msec/div H : 200msec/div H : 2sec/div H : 50msec/div H : 50msec/div H : 1msec/div H : 1msec/div H : 1msec/div H : 200msec/div H : 500nsec/div H : 500nsec/div H : 10µsec/div H : 500nsec/div H : 200µsec/div H : 200µsec/div H : 2µsec/div H : 10µsec/div Note: The encircled numbers denote measuring points in the schematic diagram. • WAVEFORMS OF CD MAIN UNIT ∗1 50T-JUMP: After switching to the pause mode, press the manual search key. ∗2 FOCUS-IN: Press the play key without loading a disc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 16 A B C D 1 2 3 4 1 2 3 4 PICKUP ASSY (PEA1291) SERVO MECHANISM ASSY SL (AXA7017) MECHANISM BOARD ASSY (PWX1192) 2.5V S610 B DC MOTOR ASSY (SPINDLE) PEA1235 DC MOTOR ASSY (CARRIAGE) PEA1246 5 7 6 8 1 2 14V 14V -14V -14V TRACKING DRIVE CARRIAGE DRIVE SINGLE MECHANISM ASSY (RXA1672) CD MAIN UNIT (1/2) (AWU7147) C 1/2 (CD) (FS) (FS) (FS) (TS) (TS) (FS) (FS) (FS) (TS) (TS) (TS) (TS) (SM) (SM) (SM) (SM) (SM) (SM) (CM) (SM) (CM) (CM) (CM) (CM) S601 4 B 3.4 MECHANISM BOARD ASSY AND CD MAIN UNIT(1/2) 1/2 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 17 A B C D 5 6 7 8 5 6 7 81/2 C 24 23 24 33 53 18 19 16 23 2 4 3 9 2.5V 5V W1308 0.01 0.01 C 2/2 C 2/2 C 2/2 SIGNAL ROUTE :CD AUDIO SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (CD) (CD) (CD) (CD) (CD) (CD) (FS) (FS) (FS) (FS) (FS) (TS) (TS) (TS) (TS) (CM) (CM) (TS) (TS) (SM) : SPINDLE MOTOR ROUTE : CARRIAGE MOTOR ROUTE (SM) (CM) YB YB YB C1322 0.01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 18 A B C D 1 2 3 4 1 2 3 4 IC6101 PD4843B SYSTEM CONTROL A C 1/2 C 1/2 CN6201 I CN3002 I CN3001 NO CONNECTION DC 4.5V DC 4.5V DC 4.5V 5V STBY : 0V ON : -12V STBY : 0V ON : 12V -12V (TX) (CD) (PB) (TX) (CD) (TX) (PB) (PB) (REC OUT) (REC OUT) (AUX) (AUX) 3.5 CD MAIN (2/2), CD KEYB1 AND CD KEYB2 UNITS 2/2 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 19 A B C D 5 6 7 8 5 6 7 8E 2/2 C D K CN101 12V HP POWER CONTROL TC POWER CONTROL S6203 - S6207 : RSG1034 J6201 Ever : 0V Ever : 0V 5V C 2/2 CD MAIN UNIT (2/2) (AWU7147) CD KEYB1 UNIT (AWZ8985) S6201,S6202 : RSG1034 D CD KEYB2 UNIT (AWZ8986) E -28V 5.6V CN5703 (AUX) (AUX) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N20, MFD BY ROHM CO., LTD. FOR IC3901 AND IC3902. CD KEYB2 UNIT S6203 : S6204 : S6205 : S6206 : S6207 : CD KEYB1 UNIT S6201 : S6202 : STANDBY/ON C3901 1/50 ATX1012 L114 G (AUX) (PB) (REC OUT) (TX) (CD) SIGNAL ROUTE : LCH AUDIO SIGNAL ROUTE : AUX AUDIO SIGNAL ROUTE : DECK PB SIGNAL ROUTE : DECK REC SIGNAL ROUTE : TUNER AUDIO SIGNAL ROUTE : CD AUDIO SIGNAL ROUTE GND DISP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 20 A B C D 1 2 3 4 1 2 3 4 F 5V -28V F CD FLDP UNIT (AWU7003) G CD CNB UNIT (AWZ8988) REMOTE RECEIVER UNIT YB 100/6.3 C5704 0.22 C5710 0.047 C5711 0.047 C5712 0.047 C 2/2 CN6801 3.6 CD FLDP, CD CNB AND CD DPKEY UNITS G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 21 A B C D 5 6 7 8 5 6 7 8H F H CD DPKEY UNIT (AWZ8989) DC -22V DC -22V CD FLDP UNIT S5755 : CHARACTER S5756 : MENU S5757 : CANCEL ( ) S5758 : − ( ) S5759 : + ( ) S5760 : SET FM/AM/STATION CD DPKEY UNIT S5751 : STANDBY/ON S5752 : FUNCTION (PLAY) S5753 : S5754 : VOLUME C5721 1/50 C5722 1/50 GND DISP GND DISP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 22 A B C D 1 2 3 4 1 2 3 4 I C 2/2 CN6102 C 2/2 CN6103 I POWER AF UNIT (AWZ8991) DC4.5V DC 4.5V DC 4.5V DC 0V 5V DC 0V L + R VRIC VCC FUNCTION VR TONE SUBWOOFER LEVEL CONT. 9V DC 4.5V (REC OUT) (REC OUT) (REC OUT) (CD) (CD) (CD) (TX) (TX) (TX) (PB) (PB) (AUX) (AUX) (PB) 3.7 POWER AF AND POWER HP UNITS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 23 A B C D 5 6 7 8 5 6 7 8J I J LPF VRIC Vref HPF HP AMP 4.5V 0.22 / 50 0.22 / 50 AL AL 4.7k 3.9k 3.9k 4.7k 0.047 POWER HP UNIT (AWU7006) (HP) (AUX) (PB) (REC OUT) (TX) (CD) (HP) (HP) (HP) (HP) (HP) (HP) SIGNAL ROUTE : LCH AUDIO SIGNAL ROUTE : AUX AUDIO SIGNAL ROUTE : DECK PB SIGNAL ROUTE : DECK REC SIGNAL ROUTE : TUNER AUDIO SIGNAL ROUTE : CD AUDIO SIGNAL ROUTE : H.P AUDIO SIGNAL ROUTE : SUBWOOFER OUTPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 24 A B C D 1 2 3 4 1 2 3 4 K C13,C14 : 4700 / 35 AC POWER CORD C21 100/35 10(F) 10(F) H1,H2 : AKR1003 C1,C2 : 10000p/250 REK1078 (2A 125V) T1 POWER TRANSFORMER ATS7216 2.2M IC2,IC3 : AEK7017 (3.5A 125V) -58V DISPLAY at Connect : -30V Not Connect : 0V DISPLAY at Connect : -24V Not Connect : 0V -29V 29V IC32 : AEK7007 (750mA125V) AEK7003 (315mA125V) AEK7005 (500mA125V) STANDBY : 0V POWER ON : 12V STANDBY : 0V POWER ON : -12V STANDBY : 5V POWER ON :0V STANDBY : 0V POWER ON : 5V STANDBY : 0V POWER ON : 5.6V STANDBY : 0V POWER ON : 5.6V 14V -14V 5.6V 1/2 2/2 CD 5V GENERATOR ± 12V TRACKING GENERATOR L POWER TRANS UNIT (AWU7148) • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49103.5 MFD, BY LITTELFUSE INK. FOR IC2 AND IC3 (AEK7017). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.750 MFD, BY LITTELFUSE INK. FOR IC32 (AEK7007). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.500 MFD, BY LITTELFUSE INK. FOR IC51 (AEK7005). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.315 MFD, BY LITTELFUSE INK. FOR IC61 (AEK7003). 3.8 POWER AMP, POWER TRANS AND POWER SPTB UNITS L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 25 A B C D 5 6 7 8 5 6 7 8M K ASR7007 ASR7007 ASR7007 RY3431 (3/3) ASR7007 RY3331 (3/3) ASR7007 82k 82k YB0.047 560 560 10 / 50 10 / 50 10 / 50 10 / 50 -29V 29V DC 4.5V STK401-030 STANDBY : 0V POWER ON : -29V FAN DRIVE SATELITE AMP STANDBY CONTROL SATELITE SP AMP SUBWOOFER AMP SUBWOOFER AMP STANDBY CONTROL OVER LOAD DET. DC DET. 100 100 ATH-059 ATH-059 ATH-059 J3801 AKE7001 FAN MOTOR M K POWER SPTB UNIT (AWU7149) POWER AMP UNIT(AWZ8990) C 2/2 CN6101 (AUX) (AUX) (AUX) (AUX) (AUX) (AUX) (AUX) SIGNAL ROUTE : LCH AUDIO SIGNAL ROUTE : AUX AUDIO SIGNAL ROUTE : SUBWOOFER OUTPUT ZA ZA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 26 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 27 A B C D 1 2 3 4 1 2 3 4A VR6201 Q6203 Q6204 Q6304 Q6306 Q6401 Q6303 Q6302 Q6301 Q6214 Q6402 Q6403 Q6404 Q6202 Q6201 IC6202 IC6201 Q6205 CN3611 C FM/AM TUNER MODULE A FM/AM TUNER MODULE A (ANP7159-B) 4.1 FM/AM TUNER MODULE SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 28 A B C D 1 2 3 4 1 2 3 4 B SPINDLE MOTOR INSIDE CARRIAGE MOTOR M M CN3001 I CD MAIN UNIT C MECHANISM BOARD ASSY B VR1102 VR1101 (PNP1239-C) IC1201 IC1202 Q1341 LOADING MOTOR, CLAMP SW PICKUP ASSY 4.2 MECHANISM BOARD ASSY AND CD MAIN UNIT C SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 29 A B C D 5 6 7 8 5 6 7 8C (ANP7209-C) CN3002 I CN6201 D CN5703 G CN101 K CN6201 A Q3901 Q3902 IC3901 IC3902 SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 30 A B C D 1 2 3 4 1 2 3 4 C (ANP7209-C) CD MAIN UNIT C IC3601 Q3601 Q3905 Q6102 Q3903 Q6101 Q3904 IC6101 Q6103 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 31 A B C D 5 6 7 8 5 6 7 8C Q1541 IC1301 Q1342 IC1101 IC3601 Q1544 Q6001 Q6004 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 32 A B C D 1 2 3 4 1 2 3 4 D (ANP7209-C) CN6202 C CD KEYB1 UNIT D CD KEYB2 UNIT E CD FLDP UNIT F CD DPKEY UNIT H CD CNB UNIT G CN6801 C 4.3 CD KEYB1, CD KEYB2, CD FLDP, CD CNB AND CD DPKEY UNITS SIDE A E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 33 A B C D 1 2 3 4 1 2 3 4H (ANP7209-C) CD FLDP UNIT F CD KEYB1 UNIT D CD KEYB2 UNIT E CD DPKEY UNIT H SIDE B F E D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 34 A B C D 1 2 3 4 1 2 3 4 J CN6101 C POWER TRANS UNIT L POWER HP UNIT J IC51 IC61 Q21 IC32 Q3751 IC3301 Q23 AC POWER CORD 4.4 POWER AF, POWER HP, POWER AMP, POWER TRANS AND POWER SPTB UNITS K L SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 35 A B C D 5 6 7 8 5 6 7 8M K I CN6102 C CN6103 C 101 POWER AF UNIT I POWER AMP UNIT K POWER SPTB UNIT M FAN MOTOR IC31 IC62 Q71 Q72 Q62 Q73 Q51 IC53 Q61 Q52 Q53 (ANP7210-B) Q3041 SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 36 A B C D 1 2 3 4 1 2 3 4 I (ANP7210-B) POWER AF UNIT I POWER SPTB UNIT M POWER AMP UNIT K IC3201 Q3532 IC3041 IC3011 IC3071 IC3501 Q3531 Q3533 K M SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L7 37 A B C D 5 6 7 8 5 6 7 8L K J POWER TRANS UNIT L POWER HP UNIT J Q3393 Q3392 Q3712 Q3381 Q3383 Q3711 Q3741 Q3701 Q3731 Q3752 Q3721 Q3722 Q3391 Q3481 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 XC-L7 Mark No. Description Part No. Mark No. Description Part No. FM/AM TUNER MODULE AXQ7065 NSP MECHANISM BOARD ASSY PWX1192 NSP MOTH ASSY AWM7386 CD MAIN UNIT AWU7147 CD KEYB1 UNIT AWZ8985 CD KEYB2 UNIT AWZ8986 CD FLDP UNIT AWU7003 CD CNB UNIT AWZ8988 CD DPKEY UNIT AWZ8989 NSP POWER ASSY AWM7387 POWER AF UNIT AWZ8991 POWER HP UNIT AWU7006 POWER AMP UNIT AWZ8990 POWER TRANS UNIT AWU7148 POWER SPTB UNIT AWU7149 FM/AM TUNER MODULE SEMICONDUCTORS IC6201 LA1832ML IC6202 LC72131MD Q6402 2SC2223 Q6203 2SC2705 Q6201, Q6202 2SC2712 Q6214, Q6403 2SC2714 Q6404 2SK302 Q6401 3SK194 Q6204 DTA124ES Q6205 DTC124EK D6202 1SS254 D6401, D6402 1T378A COILS AND FILTERS L6404 ATC1003 L6401 ATC1020 L6402 ATC1021 F6204 ATF-107 F6203 ATF-119 5. PCB PARTS LIST NOTES: ¶Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. ¶The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ¶When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω = 56 × 10 1 = 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω = R50 ..................................................................................... RN2H  5 0 K 1 Ω = 1R0 ..................................................................................... RS1P 1  0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF ASSEMBLIES Mark No. Description Part No. Mark No. Description Part No. A F6401 ATF-155 F6206 ATF7008 F6202 ATF7011 L6206, L6208, L6403 LAU2R2J TRANSFORMERS T6201 ATB7008 T6401 ATE7002 CAPACITORS C6208 CCSQCH100D50 C6212, C6274, C6275, C6408 CCSQCH101J50 C6221, C6222, C6416 CCSQCH150J50 C6271 CCSQCH200J50 C6415 CCSQCH330J50 C6406 CCSQCH331J50 C6401, C6419 CCSQCH5R0C50 C6407 CCSQCK1R0C50 C6410 CCSQCK2R0C50 C6413 CCSQRH180J50 C6414 CCSQRH8R0D50 C6405 CCSQTH150J50 C6234, C6235 CEAL1R0M50 C6245 CEAL470M16 C6224 CEAT100M50 C6243 CEAT101M16 C6231 CEAT1R0M50 C6227 CEAT220M25 C6214, C6236 CEAT2R2M50 C6262 CEAT3R3M50 C6219 CEAT470M10 C6244 CEAT470M16 C6249, C6250, C6265, C6266 CEAT4R7M50 C6258 CEJA470M16 C6215 CFTLA103J50 C6211, C6254, C6403, C6412, C6417 CKSQYB102K50 C6201, C6205, C6210, C6237, C6276 CKSQYB103K50 C6278, C6280, C6281, C6402, C6409 CKSQYB103K50 C6418 CKSQYB103K50 C6251, C6252 CKSQYB153K50 C6203, C6259 CKSQYB223K50 C6228 CKSQYB472K50 C6209 CKSQYB473K50 C6230 CKSQYB821K50 C6218, C6223, C6255 CKSQYF103Z50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 XC-L7 Mark No. Description Part No. Mark No. Description Part No. B C C6220, C6226, C6242, C6256 CKSQYF223Z50 C6225 CKSQYF473Z50 RESISTORS R6280 RD1/4PU101J R6413, R6416, R6418, R6906, R6909 RS1/8S0R0J R6401 RS1/8S470J VR6201(10kΩ) PCP1029 Other Resistors RS1/10S&&&J OTHERS BN6202 4P ANTENNA TERMINAL AKE7025 X6202 CRYSTAL RESONATOR ASS1066 (456kHz) X6201 CRYSTAL RESONATOR ASS1093 (7.2MHz) CN6201 14P SOCKET KP200IA14L AM RF TUNING BLOCK AXX7041 MECHANISM BOARD ASSY SWITCHES S610 DSG1016 OTHERS CN610 MT CONNECTOR(4P) 173979-4 CD MAIN UNIT SEMICONDUCTORS IC1101 CXA1372BQ IC1301 CXD2529Q IC3901,IC3902 ICP-N20 IC1201 LA6517 IC1202 LA6520 IC6101 PD4843B Q3904, Q6001, Q6004, Q6103 2SA1162 Q3901 2SA1560 Q3903, Q6002, Q6003, Q6101 2SC2712 Q3902 2SC4040 Q1543, Q1544 2SD2114K Q1341 2SK246 Q1342, Q1541, Q1542, Q3905 DTA124EK Q6102 DTC143EK D1301, D1302, D1341, D3611 1SS254 D6101–D6104 1SS254 D6907, D6908 MTZJ15B D1218 MTZJ6.8B D6801–D6805, D6904–D6906 MTZJ8.2B D6901–D6903 UDZS8.2B COILS AND FILTERS L114 Beads Filter ATX1012 L1305, L1306, L1310 LAU100J L1303 LAU1R0J L6101 LAU220J CAPACITORS C6104 ACH7013 C6106 CCSQCH101J50 C1341, C1342 CCSQCH120J50 C1481, C1482 CCSQCH151J50 C1326 CCSQCH220J50 C1391–C1393, C6114, C6120, C6124 CCSQCH221J50 C6126 CCSQCH221J50 C1118 CCSQSL561J50 C1483, C1484 CCSQSL681J50 C1211, C1212, C1485, C1486, C6107 CEAL100M16 C6130 CEAL100M16 C1111, C1302, C1303, C1311–C1313 CEAL101M6R3 C1316, C6101 CEAL101M6R3 C3901, C6109 CEAL1R0M50 C1103, C1105 CEAL4R7M35 C1309 CEALR47M50 C1119, C6121, C6122, C6125 CKSQYB102K50 C1107, C1112, C1117, C1125, C1218 CKSQYB103K50 C1101, C1102, C1104, C1106 CKSQYB104K25 C1306, C6118, C6119 CKSQYB152K50 C1114 CKSQYB182K50 C6903, C6904 CKSQYB332K50 C1109, C1113, C1116 CKSQYB333K50 C1115 CKSQYB472K50 C1108, C1307 CKSQYB473K50 C6001, C6105, C6131 CKSQYB474K16 C1110, C1122, C1205, C1210, C1215 CKSQYF103Z50 C1219, C1225, C1304, C1317, C1318 CKSQYF103Z50 C1320–C1322, C1390, C3611 CKSQYF103Z50 C6102, C6103, C6108, C6111, C6113 CKSQYF103Z50 C6199, C6901, C6902, C6907 CKSQYF103Z50 RESISTORS R6200 RD1/4PU223J R1201, R1202 RFA1/4PS4R7J R6801 RN1/10SE1001D R6148 RS1/10S102J VR1101,VR1102(22kΩ) PCP1030 Other Resistors RS1/10S&&&J OTHERS CN1101 FPC CONNECTOR(12P) 12FMZ-ABT CN1202 MT CONNECTOR(4P) 173981-4 CN1205 MT CONNECTOR(5P) 173981-5 CN6101 FFC CONNECTOR(33P) 52045-3345 CN6202 52492-0520 FFC BOTTOM CONNECTOR(5P) CN6901 SOCKET(19P) AKP7001 CN6801 10P MINI DIN SOCKET AKP7015 CN3611 14P PLUG KM200IA14 CN6102 13P PLUG KM200TA13 CN6103 18P PLUG KM200TA18 X1341 CRYSTAL RESONATOR PSS1008 (16.9344MHz) CN1102 6P SIDE POST VKN-004 KN1301,KN6101 VNF1084 EARTH METAL FITTING X6101 CERAMIC RESONATOR VSS1014 (4.19MHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 XC-L7 Mark No. Description Part No. Mark No. Description Part No. D G H I E F CD KEYB1 UNIT SEMICONDUCTORS D6203 1SS254 D6201 SLP3118C51H SWITCHES S6201, S6202 RSG1034 RESISTORS All Resistors RS1/10S&&&J OTHERS CN6201 5P FFC CONNECTOR 52044-0545 J6201 4P JUMPER WIRE D20PWW0405E CD KEYB2 UNIT SEMICONDUCTORS D6202 SLP3118C51H SWITCHES S6203–S6207 RSG1034 RESISTORS All Resistors RS1/10S&&&J CD FLDP UNIT SEMICONDUCTORS IC5701 LC75710E Q5703 2SC2712 Q5701 DTC124EK D5702 11ES2 D5701 1SS254 D5708 MTZJ39C D5709 MTZJ8.2B COILS AND FILTERS L5711 LAU100J L5701 LAU220J SWITCHES S5755–S5760 RSG1030 CAPACITORS C5701 CCSQCH300J50 C5707 CEAL100M16 C5703, C5705 CEAL101M6R3 C5721, C5722 CEAL1R0M50 C5708 CEAL470M16 C5713–C5715 CKSQYB102K50 C5709 CKSQYB103K50 C5711, C5712, C5725, C5726 CKSQYB473K50 C5706 CKSQYF103Z50 C5704 CKSQYF224Z25 C5710 CKSQYF473Z50 RESISTORS R5724 RA11T473J R5721, R5722 RA15T473J R5723 RA8T473J Other Resistors RS1/10S&&&J OTHERS 9P CABLE HOLDER 51048-0900 12P CABLE HOLDER 51048-1200 CN5751 52147-0310 3P JUMPER CONNECTOR V5701 FL TUBE AAV7051 FL SPACER AEB7091 X5701 REMOTE RECEIVER UNIT GP1U27X CN5701 10P SOCKET KP200TA10L CD CNB UNIT SEMICONDUCTORS D5707 MTZJ2.0A D5703–D5706 MTZJ8.2B OTHERS CN5703 10P MINI DIN SOCKET AKP7015 CN5702 10P PLUG KM200TA10 CD DPKEY UNIT SWITCHES S5751–S5754 RSG1030 RESISTORS All Resistors RS1/10S&&&J OTHERS J5751 3P JUMPER WIRE D20PWY0305E POWER AF UNIT SEMICONDUCTORS IC3011 M62419FP IC3071,IC3201 NJM4558MD IC3501 NJM4560M IC3041 UPC4570G2 Q3041 2SA1048 Q3531, Q3532 2SD2114K Q3533 DTA124EK D3043 MTZJ15B CAPACITORS C3051, C3052, C3505, C3506 CCSQCH101J50 C3503, C3504 CCSQCH470J50 C3016, C3020, C3028, C3030 CEAL100M16 C3091, C3092, C3203, C3221 CEAL100M16 C3241, C3242, C3501, C3502 CEAL100M16 C3521, C3522 CEAL100M16 C3041 CEAL330M10 C3049, C3201, C3507 CEAL470M16 C3071, C3072 CEALR22M50 C3015, C3021, C3027, C3029, C3045 CEAT100M50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 XC-L7 Mark No. Description Part No. Mark No. Description Part No. C3047, C3048 CEAT100M50 C3013, C3014, C3043 CEAT1R0M50 C3044 CEYA470M10 C3033, C3034, C3222 CFTLA683J50 C3509, C3510 CKSQYB102K50 C3042, C3046 CKSQYF103Z50 C3050, C3053 CKSQYF473Z50 C3223 CQMA333J50 C3031, C3032, C3035, C3036 CQMA682J50 RESISTORS R3521, R3522 RD1/4PU100J R3507, R3508 RD1/4PU470J Other Resistors RS1/10S&&&J OTHERS CN3001 13P SOCKET KP200TA13L CN3002 18P SOCKET KP200TA18L POWER HP UNIT CAPACITORS C3511, C3512 CKSQYF223Z50 C3541–C3543 CKSQYF473Z50 RESISTORS All Resistors RS1/10S&&&J OTHERS 5P CABLE HOLDER 51048-0500 JA3501 MINI JACK AKN7003 J3501 2mm PITCH JUMPER(5P) D20PDY0510E KN3541 EARTH METAL FITTING VNF1084 POWER AMP UNIT SEMICONDUCTORS IC61 (315mA 125V) AEK7003 IC51 (500mA 125V) AEK7005 IC32 (750mA 125V) AEK7007 IC3401 LM3886TF IC53 NJM4558D-D IC31 NJM78M56FA IC3301 STK401-030 Q61 2SA1048 Q3721, Q3722, Q3731 2SA1162 Q23 2SB1238X Q53, Q73 2SB1566 Q52, Q72 2SC2458 Q3383, Q3711, Q3712, Q3741 2SC2712 Q3391, Q3392, Q3411, Q3701, Q3752 2SD2114K Q62 2SD2395 Q3393, Q3481 DTA124EK Q21, Q3751 DTA124ES Q3381 DTA144EK Q51 DTC124ES D21, D22, D3751 11ES2 D25, D3381, D3701 1SS254 D3721, D3722, D3731 1SS355 D31 D2SBA20(B) D11 D3SBA20(B) D23 MTZJ33A D24 MTZJ6.2B D51, D61 MTZJ18B TH3791,TH3792 AEX7002 RELAYS RY3331,RY3431 ASR7007 CAPACITORS C3307, C3308 CCSQCH100D50 C3403 CCSQCH121J50 C3303, C3304 CCSQCH330J50 C3305, C3306 CCSQCH470J50 C33, C51, C71 CEAL1R0M50 C21 CEANP101M35 C23–C25, C3313, C3314, C3401 CEAT100M50 C3741 CEAT100M50 C22 CEAT101M2A C3323, C3354 CEAT101M50 C3321, C3322, C3421, C3422 CEAT220M50 C3711 CEAT221M6R3 C3309, C3310 CEAT330M16 C3405, C3411 CEAT470M10 C32 CEAT472M16 C13, C14 CEAT472M35 C31 CEAT682M16 C34 CEJA100M16 C53, C63 CEJA330M16 C3301, C3302 CEZA100M50 C3402 CKSQYB104K25 C3331–C3333, C3431, C3432 CKSQYB473K50 C12, C3355, C3356, C3406 CKSQYF103Z50 C3381, C3423, C3424, C61, C62 CKSQYF473Z50 C72 CKSQYF473Z50 RESISTORS R3725, R3726, R3733(0.1Ω/1W) ACN7032 R3331, R3332, R3431 RD1/4PU100J R3481 RD1/4PU123J R23, R25 RD1/4PU223J R64, R65 RD1/4PU562J R3307, R3308, R3403 RD1/4PU563J R26, R27, R73 RFA1/4PS100J R3321, R3322 RFA1/4PS101J R3724 RS1/10S102J Other Resistors RS1/10S&&&J OTHERS CN101 FFC CONNECTOR(33P) 52045-3345 CN11 9P JUMPER WIRE KPD9 CN3301 KPE14 14P JUMPER CONNECTOR PCB BINDER VEF1040 K J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 XC-L7 Mark No. Description Part No. Mark No. Description Part No. L M POWER TRANS UNIT SEMICONDUCTORS IC2, IC3 AEK7017 COILS AND FILTERS L1 ATF-151 CAPACITORS C1, C2(10000pF/AC250V) ACG7020 C4–C6 CKSQYB473K50 C7 CQMA103J50 RESISTORS R2 (2.2MΩ/ 1/2W) RCN1080 OTHERS 1 CABLE HOLDER(9P) 51052-0900 CONDENSER COVER AEC-294 AN1 1P AC INLET AKP7027 H1, H2 FUSE CLIP AKR1003 POWER SPTB UNIT SEMICONDUCTORS D3831 1SS254 COILS AND FILTERS L3851–L3853 ATH-059 L3831 LAU100J CAPACITORS C3801, C3802 CCSQCH101J50 C3803, C3804 CCSQSL471J50 C3831 CEAT220M50 C3011, C3012 CEAT2R2M50 C3832 CEAT470M10 C3843–C3845 CKSQYB102K50 C3805, C3811, C3812, C3833 CKSQYF103Z50 C3841, C3842, C3846 CKSQYF103Z50 C3861–C3866 CKSQYF473Z50 RESISTORS R3851–R3853 RD1/4LMF101J R3861–R3863 RD1/4PU6R8J R3833 RFA1/4PS330J Other Resistors RS1/10S&&&J OTHERS 6P CABLE HOLDER 51048-0600 14P CABLE HOLDER 51063-1405 CN3842 2P CONNECTOR 5569-02A1 CN3841 SPEAKER TERMINAL(4P) AKE7001 J3801 6P JUMPER WIRE D20PDD0610E J3821 14P JUMPER WIRE D15A14-100-2651 JA3801 AUDIO 2P PIN JACK RKB1041 JA3811 OPTICAL OUTPUT JACK TOTX178 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 XC-L7 CD MAIN UNIT W6102 W6103 TEST Short point FUNCTION CD MAIN UNIT W6102 W6103 TEST Short point AUX CD TUNER (AMP) CD TEST MODE TEST MODE : ON FUNCTION OF AMP TEST MODE FUNCTION OF CD TEST MODE TEST MODE : STOP CANCEL STOP all operation � � � � � � FL:ALL LIGHT UP FL:ALL LIGHT DOWN FL SEGMENT CHECK 1 NORMAL DISPLAY FL SEGMENT CHECK 2 FL SEGMENT CHECK 3 VOLUME DOWN VOLUME UP ∗ INPUT SELECTOR : AUX ANALOG DU-L7 XC-L7 FL SEGMENT CHECK 4 MENU CANCEL SET CHARACTER Lase diode:LIGHT UP Focus servo:ON STOP Carriage OUT Carriage IN AMP TEST MODE A A Spindle kick, Tracking servo, Slider servo:ON/OFF CD MAIN UNIT W6102 W6103 TEST MODE Short Point SIDE B MODE SWITCHING FUNCTION 6. ADJUSTMENT 6.1 TEST MODE 6.1.1 HOW TO START/CANCEL TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 XC-L7 6.2 TUNER SECTION 6.2.1 FM TUNER SECTION • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. 6.2.2 AM TUNER SECTION • Set the mode selector to AM BAND. • Connect the wiring as shown in Fig. 1. p e t S . o N t n e m t s u j d A e lti T ,z H k 1 ( G S M F ± ). v e d z H k 5 7 n o it p e c e R y c n e u q e r F y a l p s i D t n e m t s u j d A n o it a c o L s n o it a c ifi c e p S y c n e u q e r F ) z H M ( l e v e L B d ( µ ) V 1 d n E t n o r F ytivitis n e S 8 9 0 3 - 0 z H M 8 9 2 0 4 6 L 1 0 4 6 T - 1 0 2 6 C I e h t n e e w t e b e g a tlo v C D e h t t a h t o s ts ujd A .le v el m u m ix a m t a s e m o c e b D N G d n a 0 2 nip 2 . D N I D E N U T le v e L g nit h giL 8 9 8 1 ± 2 z H M 8 9 1 0 2 6 R V str a ts . D N I D E N U T f o r o t a cid ni e h t t a h t o s ts ujd A . p u t h gil o t : e t o N h c a e h ti w tc a t n o c o t ni m e h t g nir b , m e h t n e e w t e b p a g a si e r e h t fI . 2 0 4 6 L d n a 1 0 4 6 L n e e w t e b p a g o n si e r e h t e r u s e k a m , g nits ujd a e r o f e B .st n e m ts ujd a e k a m n e h t d n a ,ts rif r e h t o p e t S . o N t n e m t s u j d A e lti T ). d o M % 0 3 ,z H 0 0 4 ( G S M A n o it p e c e R y c n e u q e r F y a l p s i D t n e m t s u j d A n o it a c o L s n o it a c ifi c e p S y c n e u q e r F ) z H k ( l e v e L B d ( µ ) m / V 1 d n E t n o r F ytivitis n e S ( 9 9 9 ∗ ) 1 5 4 - 5 3 ( z H k 9 9 9 ∗ ) 1 1 0 2 6 T - 1 0 2 6 C I e h t n e e w t e b e g a tlo v C D e h t t a h t o s ts ujd A .le v el m u m ix a m t a s e m o c e b D N G d n a 0 2 nip ( e t o N ∗ .z H k 0 0 0 1 e b dlu o h s s eic n e u q e rf , p e ts z H k 0 1 g nis u a e r a e h t r o F :) 1 AM SG MPX SG FM SG PRODUCT DC Voltmeter FM75Ω antenna terminal AM antenna terminal 60cm Center Center Loop antenna Fig. 1 AM and FM Adjustment Wiring Diagram FM/AM TUNER MODULE AXX7041 L6402 L6401 T6401 T6201 IC6201 Pin 20 VR6201 AM antenna terminal FM antenna terminal YELLOW BLACK Fig. 2 Adjustment Point SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 XC-L7 1, 2, 3, 4, 5, 6 → Page 47 to 49 1, 2, 3, 4, 5, 6 → Page 47 to 49 1, 2, 3, 4, 5, 6 → Page 47 to 49 ADJ → Page 9 Exchange PICKUP Exchange CD MAIN UNIT Exchange SERVO MECH ASSY Exchange SPINDLE MOTOR When Adjustment Points Necessary Adjustment Points 6.3.1 PREPARATIONS 6.3 CD SECTION Jigs and Measuring Instruments 8-cm DISC (With at least about 20 minutes recording) CD TEST DISC (YEDS-7) screwdriver (small) Precise screwdriver screwdriver (medium) screwdriver (large) 39 kΩ 0.001µF Low-frequency oscillator Dual-trace oscilloscope (10 : 1 probe) Low pass filter (39 kΩ + 0.001µF) Ball point hexagon wrench (size: 1.5mm) GGK1002 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 XC-L7 Adjustment Locations 6 5 4 3 2 1 6. FE 5. FIN 4. VC 3. TIN 2. TE 1. RF TP1 CN1102 (FRONT) (REAR) CD MAIN UNIT W6103 TEST MODE Short Point W6102 VR1102 (FOCUS GAIN) VR1101 (TRACK GAIN) TP1 (CN1102) PICKUP ASSY ADJUSTMENT SCREW (Tangential tilt direction) ADJUSTMENT SCREW (Radial tilt direction) SIDE A TEST MODE : PLAY Spindle motor: START Spindle servo: CLOSE TEST DISC: YEDS-7 Laser diode: LIGHTS UP Focus servo: CLOSE inwards outwards Pickup Move CLOSE OPEN Tracking servo: A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 XC-L7 Probe(10:1) CH1 CH2 (X) (Y) FE TP1 (CN1102) CD MAIN UNIT START Player Oscilloscope DC Mode V : 5mV/div H : 10mSec/div DC voltage 0 ± 50mV 1. Focus Offset Check 2. Tracking Error Balance Check Probe(10:1) CH1 CH2 (X) (Y) TE TP1 (CN1102) CD MAIN UNIT Player Oscilloscope DC Mode V : 50mV/div H : 5mSec/div GND LEVEL A = B A 0.001µF Low pass filter Check Check If not = repair If not = repair 39kΩ • Test mode • None disc • Test mode FOCUS servo SPDL servo TRKG servo → CLOSE → CLOSE → OPEN TEST DISC PLAY R=35mm YEDS-7 START • B Check and Adjustment VC GND VC GND 6 4 2 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 XC-L7 3. Pickup Radial/ Tangential Direction Tilt Adjustment CH1 CH2 (X) (Y) TP1 TP1 Player Oscilloscope AC Mode V : 20mV/div H : 200nSec/div Eye pattern OK (Smooth) 4. RF Level Check CH1 CH2 (X) (Y) Player Oscilloscope AC Mode V : 50mV/div H : 10mSec/div 1.2Vp-p ± 0.2V NG Check If not = repair Test mode FOCUS servo SPDL servo TRKG servo → CLOSE → CLOSE → CLOSE TEST DISC PLAY R=35mm YEDS-7 TEST DISC GGK1002 Remove lock tight. 8cm DISC PLAY Test mode FOCUS servo SPDL servo TRKG servo → CLOSE → CLOSE → CLOSE 1 2 1 2 Probe(10:1) RF (CN1102) CD MAIN UNIT VC GND 1 4 START Probe(10:1) RF (CN1102) CD MAIN UNIT VC GND 1 4 START 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 XC-L7 5. Focus Servo Loop Gain Adjustment CH1 CH2 (X) (Y) 6. Tracking Servo Loop Gain Adjustment Probe(10:1) TP1 (CN1102) CD MAIN UNIT START Player Oscilloscope X-Y Mode X : 50mV/div Y : 20mV/div VR1101 Lissajous Waveform CD MAIN UNIT Probe(10:1) 100kΩ 0.001µF Low pass filter Probe(10:1) CH1 CH2 (X) (Y) TP1 (CN1102) CD MAIN UNIT START Player Oscilloscope X-Y Mode X : 20mV/div Y : 5mV/div FE FIN VC TIN TE VC Lissajous Waveform Probe(10:1) Low frequency 1.2kHz 2Vp-p oscillator Low-frequency 1.2kHz 1Vp-p oscillator VR1102 CD MAIN UNIT Test mode FOCUS servo SPDL servo TRKG servo → CLOSE → CLOSE → CLOSE TEST DISC PLAY R=35mm YEDS-7 Test mode FOCUS servo SPDL servo TRKG servo → CLOSE → CLOSE → CLOSE TEST DISC PLAY R=35mm YEDS-7 100kΩ GND GND GND GND 4 5 6 4 3 2 39kΩ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 XC-L7 7. GENERAL INFORMATION • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. 7 CXD2529Q (CD MAIN UNIT : IC1301) • DIGITAL SIGNAL PROCESSING for CD ¶ Pin Arrangement (Top view) ¶ Block Diagram 7.1 PARTS 7.1.1 IC Clock Generator EFM Demodurator D/A Interface Serial-In Interface Over Sampling Digital Filter Timing Logic 3rd-Order Noise Shaper PWM Digital OUT OSC Asymmetry Corrector 69 FSTT 70 C4M 47 ASYO 60 XPCK 39 FILO 38 PCO 46 ASYI 48 ASYE 45 BIAS 40 FILI 42 CLTV 23 FOK 13 SEIN 14 CNIN Digital PLL Servo Auto Sequencer CPU Interface Digital CLV Sub Code Processor 44 RF 68 XTSL 35 VCKI 37 VCTL 34 VPCO1 33 VPCO2 36 V16M 58 GTOP 59 XUGF 61 GFS 72 EMPH 74 WFCK 66 MNT1 65 MNT3 67 MNT0 31 TES0 62 RFCK 63 C2PO 49 WDCK 50 LRCK 52 PCMD 73 EMPHI 51 LRCKI 53 PCMDI 55 BCKI 80 SYSM 54 BCK Error Corrector 16k RAM PWM 4 RMUT 3 LMUT 90 XTAO 6 CKOUT 89 XTAI 84 AOUT1 85 AIN1 86 LOUT1 95 AOUT2 94 AIN2 93 LOUT2 16 XLTO 15 DATO 17 CLKO 9 SENS 26 MON 27 MDP 28 MDS 29 LOCK 64 XROF 71 DOUT 30 PWMI 10 DATA 11 XLAT 12 CLOK 22 XLON 75 SCOR 76 SBSO 77 EXCK 8 SQSO 7 SQCK 18-21 SPOA-D 81 NC 82 AVSS 83 AVDD 84 AOUT1 85 AIN1 86 LOUT1 87 AVSS 88 XVDD 89 XTAI 90 XTAO 91 XVSS 92 AVSS 93 LOUT2 94 AIN2 95 AOUT2 96 AVDD 97 AVSS 98 NC 99 NC 100 XRST 50 LRCK 49 WDCK 48 ASYE 47 ASYO 46 ASYI 45 BIAS 44 RF 43 AVDD 42 CLTV 41 AVSS 40 FILI 39 FILO 38 PCO 37 VCTL 36 V16M 35 VCKI 34 VPCO1 33 VPCO2 32 TES1 31 TES0 1 VDD 2 VSS 3 LMUT 4 RMUT 5 TES2 6 CKOUT 7 SQCK 8 SQSO 9 SENS 10 DATA 11 XLAT 12 CLOK 13 SEIN 14 CNIN 15 DATO 16 XLTO 17 CLKO 18 SPOA 19 SPOB 20 SPOC 21 SPOD 22 XLON 23 FOK 24 VDD 25 VSS 26 MON 27 MDP 28 MDS 29 LOCK 30 PWMI 80 SYSM 79 VDD 78 VSS 77 EXCK 76 SBSO 75 SCOR 74 WFCK 73 EMPHI 72 EMPH 71 DOUT 70 C4M 69 FSTT 68 XTSL 67 MNT0 66 MNT1 65 MNT3 64 XROF 63 C2PO 62 RFCK 61 GFS 60 XPCK 59 XUGF 58 GTOP 57 VDD 56 VSS 55 BCKI 54 BCK 53 PCMDI 52 PCMD 51 LRCKI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 XC-L7 ¶ Pin Function . o N e m a N n i P O /I n o it c n u F 1 D D V − ) V 5 + ( ylp p u s r e w o P 2 S S V − D N G 3 T U M L O g alf n oitc e t e d o r e z le n n a h c -tf e L 4 T U M R O g alf n oitc e t e d o r e z le n n a h c -t h gi R 5 2 S E T O n e p o ylla m r o n ; nip t u p t u o T S E T 6 T U O K C O I A T X st u p t u o d n a stc ele S t u p t u o r e divid - y c n e u q e rf k c olc r e ts a M × , 1 × , 2 / 1 × yln o w ol r o 4 / 1 7 K C Q S I t u p ni k c olc t u o d a e r O S Q S 8 O S Q S O t u p t u o lair e s tib - 0 8 Q b u S 9 S N E S O U P C o t t u p t u o S N E S 0 1 A T A D I U P C m o rf t u p ni a t a d lair e S 1 1 T A L X I e g d e g nilla f e h t t a d e h ct al si a t a d lair e S U P C m o rf t u p ni h ct a L 2 1 K O L C I U P C m o rf t u p ni k c olc r e fs n a rt a t a d lair e S 3 1 N I E S I P S S m o rf t u p ni S N E S 4 1 N I N C I t u p nila n gis t n u o c p m uj k c a r T 5 1 O T A D O P S S o t t u p t u o a t a d lair e S 6 1 O T L X O e g d e g nilla f e h t t a d e h ct a L P S S o t t u p t u o h ct al a t a d lair e S 7 1 O K L C O P S S o t t u p t u o k c olc r e fs n a rt a t a d lair e S 8 1 A O P S I ) A t u p ni( e c a fr e t ni d e d n e tx e r e t u p m o c o r ci M 9 1 B O P S I ) B t u p ni( e c a fr e t ni d e d n e tx e r e t u p m o c o r ci M 0 2 C O P S I ) C t u p ni( e c a fr e t ni d e d n e tx e r e t u p m o c o r ci M 1 2 D O P S I ) D t u p ni( e c a fr e t ni d e d n e tx e r e t u p m o c o r ci M 2 2 N O L X O )t u p t u o ( e c a fr e t ni d e d n e tx e r e t u p m o c o r ci M 3 2 K O F I r e c n e u q e s o t u a o v r e s e h t d n a t u p t u o S N E S r o f d e s U t u p ni K O s u c o F 4 2 D D V − ) V 5 + ( ylp p u s r e w o P 5 2 S S V − D N G 6 2 N O M O t u p t u o lo rt n o c ff o / n o r o t o m eld nip S 7 2 P D M O lo rt n o c o v r e s r o t o m eld nip S 8 2 S D M O 9 2 K C O L O la n gis h gih a st u p t u o nip sih t , h gih si S F G n e h w ;z H 0 6 4 t a d elp m a s si S F G w ol st u p t u o nip sih t ,s elp m a s e vit u c e s n o c t h gie w ol si S F G fI 0 3 I M W P I t u p nilo rt n o c la n r e tx e r o t o m eld nip S 1 3 0 S E T I D N G ylla m r o n ; nip T S E T 2 3 1 S E T 3 3 2 O C P V O E s s e r d d a f o W S C F y b ff o / n o d e n r u T t u p t u o p m u p e g r a h c L L P M F E d n a b - e di W 4 3 1 O C P V O L L P M F E d n a b - e di w r o f t u p t u o p m u p e g r a h C 5 3 I K C V I L L P M F E d n a b - e di w e h t r o f t u p ni n oit allic s o 2 O C V 6 3 M 6 1 V O L L P M F E d n a b - e di w e h t r o f t u p t u o n oit allic s o 2 O C V 7 3 L T C V I L L P M F E d n a b - e di w e h t r o f t u p ni e g a tlo v lo rt n o c 2 O C V 8 3 O C P O t u p t u o p m u p e g r a h c L L P r e ts a M 9 3 O L I F O t u p t u o r e tlif ) L L P la tigid = e v als ( L L P r e ts a M 0 4 I L I F I t u p ni r e tlif L L P r e ts a M 1 4 S S V A − D N G g ola n A 2 4 V T L C I t u p ni e g a tlo v lo rt n o c O C V r e ts a M 3 4 D D V A − ) V 5 + ( ylp p u s r e w o p g ola n A 4 4 F R I t u p nila n gis M F E 5 4 S A I B I tiu c ric y rt e m m y s a e h t f o t u p ni t n e rr u c t n a ts n o C 6 4 I Y S A I t u p ni e g a tlo v r o t a r a p m o c y rt e m m y s A 7 4 O Y S A O ) D D V = h gih , S S V = w ol( t u p t u o g ni w s -llu f M F E 8 4 E Y S A I n o tiu c ric y rt e m m y s a : h gih ;ff o tiu c ric y rt e m m y s a : w o L 9 4 K C D W O sf 2 = f k c olc d r o W e c a fr e t ni A / D 0 5 K C R L O sf = f t u p t u o k c olc R L e c a fr e t ni A / D 1 5 I K C R L I t u p ni k c olc R L 2 5 D M C P O )ts rif B S M ,t n e m elp m o c s'o w t( t u p t u o a t a d lair e S e c a fr e t ni A / D 3 5 I D M C P I )ts rif B S M ,t n e m elp m o c s'o w t( t u p ni a t a d lair e S e c a fr e t ni A / D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 XC-L7 . o N e m a N n i P O /I n o it c n u F 4 5 K C B O t u p t u o k c olc ti B e c a fr e t ni A / D 5 5 I K C B I t u p ni k c olc ti B e c a fr e t ni A / D 6 5 S S V − D N G 7 5 D D V − ) V 5 + ( ylp p u s r e w o P 8 5 P O T G O t u p t u o P O T G 9 5 F G U X O t u p t u o F G U X 0 6 K C P X O t u p t u o K C L P X 1 6 S F G O t u p t u o S F G 2 6 K C F R O t u p t u o K C F R 3 6 O P 2 C O t u p t u o O P 2 C 4 6 F O R X O t u p t u o F O A R X 5 6 3 T N I M O t u p t u o 3 T N M 6 6 1 T N I M O t u p t u o 1 T N M 7 6 0 T N I M O t u p t u o 0 T N M 8 6 L S T X I z H M 8 8 6 8 . 3 3 : h gih ;z H M 4 4 3 9 . 6 1 : w o L t u p ni r o tc ele s la ts y r C 9 6 T T S F O 0 9 d n a 9 8 s nip r o f t u p t u o r e divid - y c n e u q e rf 3 / 2 0 7 M 4 C O e d o m W - V A C nit u p t u o I K C V d e divid - y c n e u q e rf 4 / 1 t u p t u o z H M 6 3 3 2 . 4 1 7 T U O D O t u p t u o t u o la tigi D 2 7 H P M E O sis a h p m e o n si e r e h t n e h w la n gis w ol a d n a ,sis a h p m e s a h c sid k c a b y alp e h t n e h w la n gis h gih a st u p t u O 3 7 I H P M E I ff o si sis a h p m e - e d n e h w la n gis w ol a d n a , n o si sis a h p m e - e d n e h w la n gis h gih a st u p n I 4 7 K C F W O t u p t u o K C F W 5 7 R O C S O d e tc e t e d si 1 S r o 0 S c n y s e d o c b u s r e h tie n e h w la n gis h gih a st u p t u O 6 7 O S B S O t u p t u o lair e s W o t P b u S 7 7 K C X E I t u p ni k c olc t u o d a e r O S B S 8 7 S S V − D N G 9 7 D D V − ) V 5 + ( ylp p u s r e w o P 0 8 M S Y S I h gih n e h w e vitc A t u p ni e t u M 1 8 C N − d e s u t o N 2 8 S S V A − D N G g ola n A 3 8 D D V A − ) V 5 + ( ylp p u s r e w o p g ola n A 4 8 1 T U O A O t u p t u o g ola n a le n n a h c -tf e L 5 8 1 N I A I t u p ni r eifilp m a la n oit a r e p o le n n a h c -tf e L 6 8 1 T U O L O t u p t u o E N I L le n n a h c -tf e L 7 8 S S V A − D N G g ola n A 8 8 D D V X − k c olc r e ts a m r o f ylp p u s r e w o P 9 8 I A T X I nip sih t aiv k c olc r e ts a m la n r e tx e e h t t u p n I t u p nitiu c ric n oit allic s o la ts y r C 0 9 O A T X O t u p t u o tiu c ric n oit allic s o la ts y r C 1 9 S S V X − k c olc r e ts a m r o f D N G 2 9 S S V A − D N G g ola n A 3 9 2 T U O L O t u p t u o E N I L le n n a h c -t h gi R 4 9 2 N I A I t u p ni r eifilp m a la n oit a r e p o le n n a h c -t h gi R 5 9 2 T U O A O t u p t u o g ola n a le n n a h c -t h gi R 6 9 D D V A − ) V 5 + ( ylp p u s r e w o p g ola n A 7 9 S S V A − D N G g ola n A 8 9 C N − d e s u t o N 9 9 C N − d e s u t o N 0 0 1 T S R X I w ol n e h w t e s e R t e s e r m e ts y S ) s e t o N .t u p t u o t n e m elp m o c s'o w t ,ts rif B S M n a si D M C P • ) d e s a ele r w o d ni w n oitc e t o r p c n y s: h gi H ( .s u t a ts n oitc e t o r p c n y s e m a rf e h t r o tin o m o t d e s u si P O T G • . n oitc e t o r p c n y s e r o f e b la n gis e h t sitI .la n gis M F E e h t m o rf d e vir e d c n y s e m a rf e h t r o f e slu p e vit a g e n e h t si F G U X • . e dic nio c t nio p n oitis n a rtla n gis M F E e h t d n a K C L P X f o e g d e g nilla f e h t t a h t o s d e n gis e d si L L P e h T .k c olc L L P M F E e h t f o e s r e v ni e h t si K C L P X • . h ct a m g ni m it n oitc e t o r p n oitr e s ni e h t d n a c n y s e m a rf e h t n e h w h gih s e o g S F G • 6 3 1 f o elc y c a s a h la n gis sih T .y c a r u c c a la ts y r c e h t h ti w d e vir e d si K C F R • µ .) d e e p s -la m r o n g nir u d ( s .s u t a ts r o rr e a t a d e h t st n e s e r p e r O P 2 C • e h t s d e e c x e M A R K 6 1 e h t n e h w d e t a r e n e g si F O A R X • ± . nig r a m r e ttij F 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 XC-L7 7 PD4843B (CD MAIN UNIT : IC6101) • SYSTEM CONTROL UCOM ¶ Pin Function . o N k r a M e m a N n i P O /I n o it c n u F . o N k r a M e m a N n i P O /I n o it c n u F 1 5 I N A / 5 1 P O M R E H T . S I r o tsi m r e h t- b u S r o f t u p ni D / A 1 4 R W / 5 6 P E T U M O R I O h c R D C f o ts e u q e r E T U M 2 6 I N A / 6 1 P X E /J I X E : L ,J: H t u p ni h cti w s n oit a nits e D 2 4 T I A W / 6 6 P E T U M O L I O h c L D C f o ts e u q e r E T U M 3 7 I N A / 7 1 P K L C . S I K C O L C s u b m e ts y S 3 4 B T S A / 7 6 P P M L C X I t u p ni h cti w s p m alc D C 4 s s V A — — — − r e tr e v n o c D / A f o d n u o r G 4 4 0 O T / 0 3 P N E P O X I t u p ni h cti w s n e p o D C 5 0 3 1 P 1 T A D . S I N I A T A D s u b m e ts y S 5 4 1 O T / 1 3 P D S N I X I h cti w s e dis ni r e dils D C 6 1 3 1 P 0 T A D . S O T U O A T A D s u b m e ts y S 6 4 2 O T / 2 3 P N I O L O N I y a rt D C 7 1 F E R V A — — — − A / D f o t u p ni e g a tlo v e c n e r e f e R 7 4 1 I T / 3 3 P T U O O L O T U O y a rt D C 8 2 I S / 0 7 P E C L F O E C r e vir d L F 8 4 2 I T / 4 3 P W O P D C X O d e s u t o N 9 2 O S / 1 7 P A T A D L F O A T A D r e vir d L F 9 4 L C P / 5 3 P T N O C P S O lo rt n o c y ale r r e k a e p S 0 1 2 K C S / 2 7 P K L C L F O K C O L C r e vir d L F 0 5 Z U B / 6 3 P N O W O P X O F F O / N O R E W O P 1 1 1 I S / 0 2 P O S Q S I ) Q 9 2 5 2 D X C ( O S Q S D C 1 5 7 3 P W O P L F O F F O / N O R E W O P L F 2 1 1 O S / 1 2 P T A D D C O ) Q 9 2 5 2 D X C ( A T A D D C 2 5 0 P T R / 0 2 1 P V R D N A F O W O L /I H lo rt n o c n a F 3 1 1 K C S / 2 2 P K L C D C O ) Q 9 2 5 2 D X C ( K C O L C D C 3 5 1 P T R / 1 2 1 P — — — O d e s u t o N 4 1 B T S / 3 2 P W S . P . H I h cti w s e n o h p d a e H 4 5 2 P T R / 2 2 1 P U T S E T I E D O M T S E T r e k c e h c tin U 5 1 Y S U B / 4 2 P Q E R . D O S C a t a d y alp si D 5 5 3 P T R / 3 2 1 P E T U M X T O T N U O C F I / E T U M R E N U T 6 1 0 I S / 5 2 P T A D . D I A T A D a t a d y alp si D 6 5 4 P T R / 4 2 1 P . O . D X T I ) D M 1 3 1 2 7 C L ( T U O A T A D R E N U T - tc ele r o f r e zis e h t n y s y c n e u q e rf L L P ( ) g nin u t cin o r 7 1 0 O S / 6 2 P — — — O d e s u t o N 7 5 5 P T R / 5 2 1 P K L C L L P O ) D M 1 3 1 2 7 C L ( K C O L C R E N U T - tc ele r o f r e zis e h t n y s y c n e u q e rf L L P ( ) g nin u t cin o r 8 1 0 K C S / 7 2 P K L C . D I K C O L C a t a d y alp si D 8 5 6 P T R / 6 2 1 P I D X T O ) D M 1 3 1 2 7 C L ( N I A T A D R E N U T - tc ele r o f r e zis e h t n y s y c n e u q e rf L L P ( ) g nin u t cin o r 9 1 0 D A / 0 4 P — — — O d e s u t o N 9 5 7 P T R / 7 2 1 P E C L L P O E C R E N U T 0 2 1 D A / 1 4 P — — — O d e s u t o N 0 6 T E S E R T E S E R X I r o s s e c o r p o r ci m f o t u p ni T E S E R 1 2 2 D A / 2 4 P — — — O d e s u t o N 1 6 0 P T N I/ 0 0 P M E R I t u p nilo rt n o c e t o m e R 2 2 3 D A / 3 4 P — — — O d e s u t o N 2 6 1 P T N I/ 1 0 P E S L U P C A I t u p ni e slu p C A 3 2 4 D A / 4 4 P — — — O d e s u t o N 3 6 2 P T N I/ 2 0 P R O C S I R O C S D C 4 2 5 D A / 5 4 P W O P P H O e n o h p d a e h r o f ylp p u s r e w o P F F O : L , N O : H 4 6 3 P T N I/ 3 0 P K L C S D R I K C O L C C I S D R 5 2 6 D A / 6 4 P A T A D R V O A T A D ) P F 9 1 4 2 6 M ( C I e m ulo V 5 6 4 P T N I/ 4 0 P A T A D S D R I A T A D C I S D R 6 2 7 D A / 7 4 P K L C R V O K C O L C ) P F 9 1 4 2 6 M ( C I e m ulo V 6 6 5 P T N I/ 5 0 P A Q S D R I Y T I L A U Q A T A D S D R 7 2 8 A / 0 5 P X T D E L X O ,t u o - st h gil: H lo rt n o c D E L R E N U T t h gil: L 7 6 6 P T N I/ 6 0 P Q E R . S O /I Q E R s u b m e ts y S 8 2 9 A / 1 5 P D C D E L X O t h gil: L ,t u o - st h gil: H lo rt n o c D E L D C 8 6 D D V D D V − ylp p u s r e w o p e vitis o P 9 2 0 1 A / 2 5 P L E T U M D C O ) h c L ( t u p t u o g ola n a D C f o lo rt n o c e t u M 9 6 2 X 2 X − m e ts y s - nia m r o f n oitc e n n o c la ts y r C n oit allic s o k c olc 0 3 1 1 A / 3 5 P R E T U M D C O ) h c R ( t u p t u o g ola n a D C f o lo rt n o c e t u M 0 7 1 X 1 X I 1 3 2 1 A / 4 5 P A L D C X O ) Q 9 2 5 2 D X C ( H C T A L D C 1 7 C I C I − 2 3 3 1 A / 5 5 P S F G I ) Q 9 2 5 2 D X C ( t u p ni S F G D C 2 7 2 T X 2 T X − 3 3 S S V — — — − d n u o r G 3 7 7 0 P / 1 T X E D O M T S E T X I e d o m ts e T 4 3 4 1 A / 6 5 P N E S D C I ) Q 9 2 5 2 D X C ( t u p ni E S N E S D C 4 7 D D V A D D V A − ylp p u s r e w o P 5 3 5 1 A / 7 5 P T U H S D C O F F O / N O L A T X D C N O L A T X : L , F F O L A T X : H 5 7 O F E R V A O F E R V A I A / D f o t u p ni e g a tlo v e c n e r e f e R 6 3 0 6 P E T U M X O E T U M m e ts y S N O E T U M : L , F F O E T U M : H 6 7 0 I N A / 0 1 P 1 Y E K I )tin u nia m ( t u p ni Y E K 7 3 1 6 P N O D L X O N O : L , F F O : H F F O / N O e d oid r e s al D C 7 7 1 I N A / 1 1 P — — — O d e s u t o N 8 3 2 6 P W O P C T X O F F O / N O ylp p u s r e w o p E P A T N O : L , F F O : H 8 7 2 I N A / 2 1 P 3 Y E K I ) y alp sid ( t u p ni Y E K 9 3 3 6 P M F S D R X O F F O / N O ylp p u s r e w o p C I S D R 9 7 3 I N A / 3 1 P E N U T / T S I D E N U T / O E R E T S 0 4 D R / 4 6 P S E R D C O ) Q 9 2 5 2 D X C ( T E S E R D C 0 8 4 I N A / 4 1 P O M R E H T M I ) M ( t u p ni r o tsi m r e h T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 XC-L7 • Grid Assignment and Pin Assignment • FL DISPLAY AAV7051 (CD FLDP UNIT : V5701) • Pin Connection • Anode Connection 108 1 55 54 7.1.2 DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 XC-L7 7.2 DIAGNOSIS 7.2.1 DISASSEMBLY (1) BONNET AND TOP PANEL Disassembly : Assembly : × 3 Bonnet Top Panel Bottom view Unhook FFC (Lead Card 5P) 1 1 1 3 6 5 4 2 2 3 4 5 6 6 5 4 3 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 XC-L7 (2) CD MAIN UNIT, POWER AF UNIT AND FM/AM TUNER MODULE Disassembly : Assembly : × 2 × 2 × 3 CN3501 CD MAIN Unit FM/AM Tuner Module FM/AM Tuner Module CD Main Unit Top Barrier POWER AF Unit POWER AF Unit 1 1 5 6 4 2 7 3 2 3 4 5 6 7 7 6 5 4 3 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 XC-L7 × 4 (3) SINGLE MECHANISM ASSY AND POWER AMP UNIT × 5 Rear Panel Single Mechanism Assy POWER AMP Unit POWER AMP Unit Disassembly : Assembly : 1 1 3 4 8 8 , 1 2 , 5 6 , 3 4 , 7 8 2 2 3 4 5 6 7 8 7 6 5 4 3 2 6 6 6 5 6 7 8 1 Discharge C13, C14, C31 and C32 with several ohms. (Microfuse and so on will be damaged when short-circuit the circuit before discharge.) ∗ It is possible to diagnose each PCB Unit in this state. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 XC-L7 7.2.2 PCB LOCATIONS CD KEYB1 UNIT POWER AF UNIT CD MAIN UNIT POWER TRANS UNIT CD DPKEY UNIT CD CNB UNIT • DU-L7 • XC-L7 CD FLDP UNIT POWER SPTB UNIT POWER HP UNIT CD KEYB2 UNIT MECHANISM BOARD ASSY POWER AMP UNIT FM/AM TUNER MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 XC-L7 7.3 BLOCK DIAGRAM • POWER SUPPLY BLOCK • MAIN BLOCK CD + TX + AUXIN PB IN CN6901 System Cable No Connection E+5.6 REC OUT Power Supply for TC System BUS 35 34 33 36 40 26 1 15 3 1 2 5 15 14 13 12 11 10 9 8 1 3 19 13 7 11 9 1-6 1,42 TONE + Woofer Level VR IC3011 (M62419FP) Function Vol IC Other CH +12V +B −B −12V Tracking Reg. Q53 D11 D31 IC53 IC6101 Q62 LPF HPAMP L+R IC3201 (1/2) IC3201 (2/2) HPF IC3071 CD MAIN UNIT IC3301 RY3331 CN3841 SATELITE SPEAKER IC3501 Q3391 Q3531 Power Amp IC3401 RY3431 CN3842 JA3501 SUB WOOFER HEAD PHONE Power Amp TC+ TC− UCOM E+5.6 UNREG− FLAC IC31 (NJM78M56FA) CD+5 Q73 Q23 + + UNREG+ + + −30V VFDP T1 POWER TRANSFORMER CN1 L1 FU1 AC INLET AC POWER CORD Pickup Assy FM/AM Tuner Module IC1101 (CXA1372BQ) Servo Controller IC1201 (LA6517) IC1202 (LA6520) Drive Amp. IC1301 (CXD2529Q) Decoder IC6101 (PD4843B) CPU M Focus, Tracking Spindle, Carriage, Loading CD MAIN UNIT CD CNB UNIT CD FLDP UNIT CD DPKEY UNIT IC5701 (LC75712E) FL Driver V5701 (AAV7051) FL TUBE Key Button Key Button CD KEYB1 UNIT Key Button CD KEYB2 UNIT Key Button CD AUDIO SIGNAL CD TX AUX IN TX AUDIO SIGNAL AUX AUDIO SIGNAL AMP AUDIO SIGNAL DIGITAL OUT POWER AF UNIT POWER AMP UNIT Power Supply 71 86 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 XC-L7 8. PANEL FACILITIES AND SPECIFICATIONS • PANEL FACILITIES STEREO CD RECEIVER XC-L7 DISPLAY UNIT DU-L7 DISPLAY UNIT DU-L7 1 CHARACTER/Timer button 2 MENU button 3 4 ¢� SET FM/AM/STATION 3 buttons ¶ Roles of common operation buttons vary depending on the input function currently selected. 4 CANCEL/Stop button 5 REMOTE SENSOR 6 VOLUME ∧ (UP), ∨ (DOWN) buttons 7 FUNCTION button 8 POWER STANDBY/ON switch [DISPLAY SECTION] 9 Lights when station is tuned. 0 Lights when receiving a stereo broadcast. - Shows station frequencies and main operating conditions. = Lights during monaural mode. ~ Lights during setting and operation of the sleep timer. ! Lights during wake-up timer setting mode; flashes during operation. @ Lights during setting and operation of the wake-up timer. STEREO CD RECEIVER XC-L7 1 POWER, STANDBY/ON switch 2 FM/AM/station button 3 Tuner indicator 4 CD tray 5 4 1 � button 6 ¢� ¡ � button ¶ Roles of common operation buttons vary depending on the input function currently selected, as follows: During Tuner Operation 4 1 � : Frequency and station – (down) button. ¢� ¡ � : Frequency and station + (up) button. During CD Operation 4 1 � : Fast reverse/track search button. ¢� ¡ � : Fast forward/track search button. 7 Playback indicator 8 CD Play/Pause button 9 CD tray Open/Close button (0) 0 CD stop button (7). - PHONES jack For use with headphones equipped with a stereo miniplug. When headphones are connected, sound to the speakers is disabled. D 4 ¢� ¡�� 7 0 � 6 � � STANDBY/ON ' � 1 � PHONES 1 2 3 4 5 6 � 7 8 9 0 - CHARACTER MENU CANCEL SET FM/AM/STATION 7� � 4 ¢� 3 1 2 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 XC-L7 STANDBY/ON VOLUME REMOTE SENSOR D FUNCTION (PLAY) 5 6 7 8 DISPLAY UNIT DU-L7: Roles of common operation buttons vary depending on the input function currently selected, as follows: During Tuner Operation : Frequency and station – (down) button. : Frequency and station + (up) button. : FM/AM/STATION button. During CD Operation : Reverse track search button. : Forward track search button. : Play/Pause button. 4 ¢� SET FM/AM/STATION 3 4 ¢� SET FM/AM/STATION 3 9 0 - = ~ ! @ DISPLAY UNIT DU-L7 4 ¢� SET FM/AM/STATION 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 XC-L7 DIRECT PLAY VOLUME POWER ¢� 4 AUX SET MENU 7 1 ¡� ��D ROMOTE CONTROL UNIT CANCEL SOUND DISPLAY � 1 3 4 5 6 7 8 9 0 - = ~ ! @ 2 REMOTE CONTROL UNIT 1 CD Play/Pause button 2 FM/AM/Station button 3 button 4 button 5 button 6 button 7 DISPLAY button 8 VOLUME ∧ (UP), ∨ (DOWN) buttons 9 SOUND button Each time this button is pressed, the sound mode changes in the following sequence: 0 POWER button (POWER STANDBY/ON) - AUX function button = SET button NOTE : The and buttons do not operate on this component. ~ button ! CANCEL button @ MENU button ¶ Roles of buttons 3, 4, 5, 6, and ~ vary depending on the input function currently selected, as follows: During Tuner Operation : Station + (up) button : Station - (down) button : Frequency up button : Frequency down button During CD Operation : Forward track search button : Reverse track search button : Stop button : Fast forward (manual search) button : Fast reverse (manual search) button 3 ������ BASS �3 TREBLE 3 BALANCE WOOFER LEVEL 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 XC-L7 DIRECT PLAY VOLUME POWER ¢� 4 AUX SET MENU 7 1 ¡� ��D ROMOTE CONTROL UNIT CANCEL SOUND DISPLAY � • SPECIFICATIONS Stereo CD Receiver: XC-L7 Amplifier Section Output for Satellite Speakers Continuous average power output of 20 watts* per channel, min., at 8 ohms, from 200 Hz to 20,000 Hz with no more than 0.9 %** total harmonic distortion (front). Output for Subwoofer Speaker Continuous average power output of 30 watts* per channel, min., at 4 ohms, from 40 Hz to 200 Hz with no more than 0.9 %** total harmonic distortion (front). * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. FM Tuner Section Frequency Range ..................................... 87.5 - 108MHz Antenna ............................................... 75 Ω, unbalanced AM Tuner Section Frequency Range ............................ 530 kHz - 1,700 kHz (10 kHz step); 531 kHz - 1,602 kHz (9 kHz step) Antenna ..................................................... Loop antenna Compact Disc Section Type .......................... Compact disc digital audio system Usable discs ............................................. Compact discs Channels.......................................................... 2 (stereo) Frequency Response .................................. 4 Hz–20 kHz Signal-to-Noise Ratio ................................ 110 dB (EIAJ) Wow and Flutter ............................Limit of measurement (0.001%) or less (EIAJ) Power Requirements ............................. AC 120 V, 60 Hz Power Consumption ................................................ 75 W Dimensions .................... 220 (W) x 85 (H) x 310 (D) mm 8-11/16 (W) x 3-3/8 (H) x 12-3/16 (D) in Weight ................................................. 4.0 kg (8 lb 13 oz) Accessories Operating Instructions .................................................... 1 Warranty Card ................................................................ 1 FM antenna.................................................................... 1 AM loop antenna ............................................................ 1 Remote control unit ....................................................... 1 Lithium battery (CR2025) ............................................... 1 Remote control unit holder ............................................ 1 Power cord...................................................................... 1 Display unit cord ............................................................. 1 NOTE: Specifications and design subject to possible modifica- tion without notice, due to improvements. 2 1 3 4 5 * The remote control unit is supplied already mounted inside in its holder. 9 Power cord x 1 : ADG1152 0 Display unit cord (10p mini-DIN cable) x 1 : ADE7014 ¶ Operating instructions x 1 ¶ Warranty card x 1 1 Remote control unit x 1 : AXD7145 (CU-XC004) 2 Remote control unit holder x 1 : AAH7008 3 Lithium battery (CR2025) x 1 : VEM1009 4 FM antenna x 1 : ADH7004 5 AM loop antenna (shown assembled) x 1 : ATB7007 * 0 9 • Accessories www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
