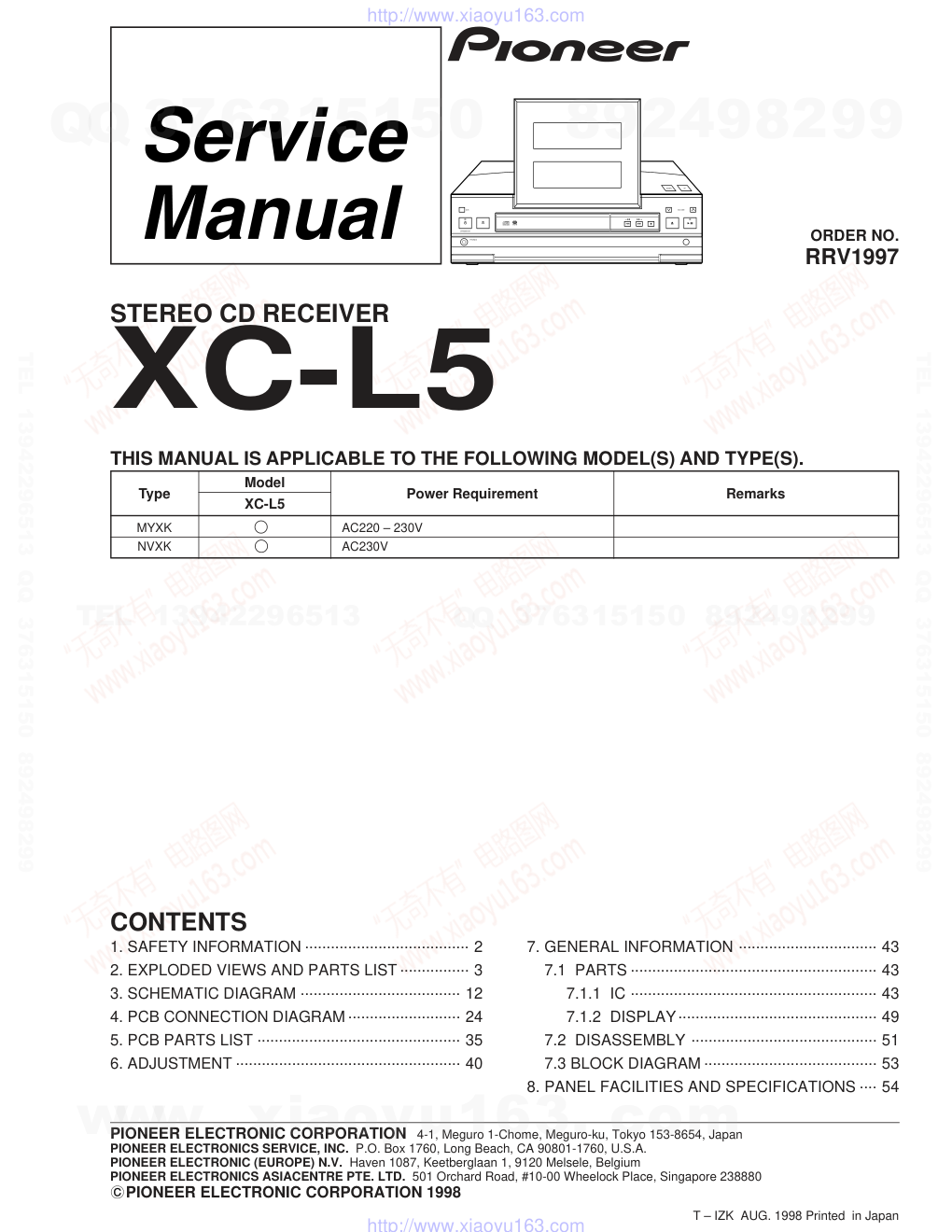

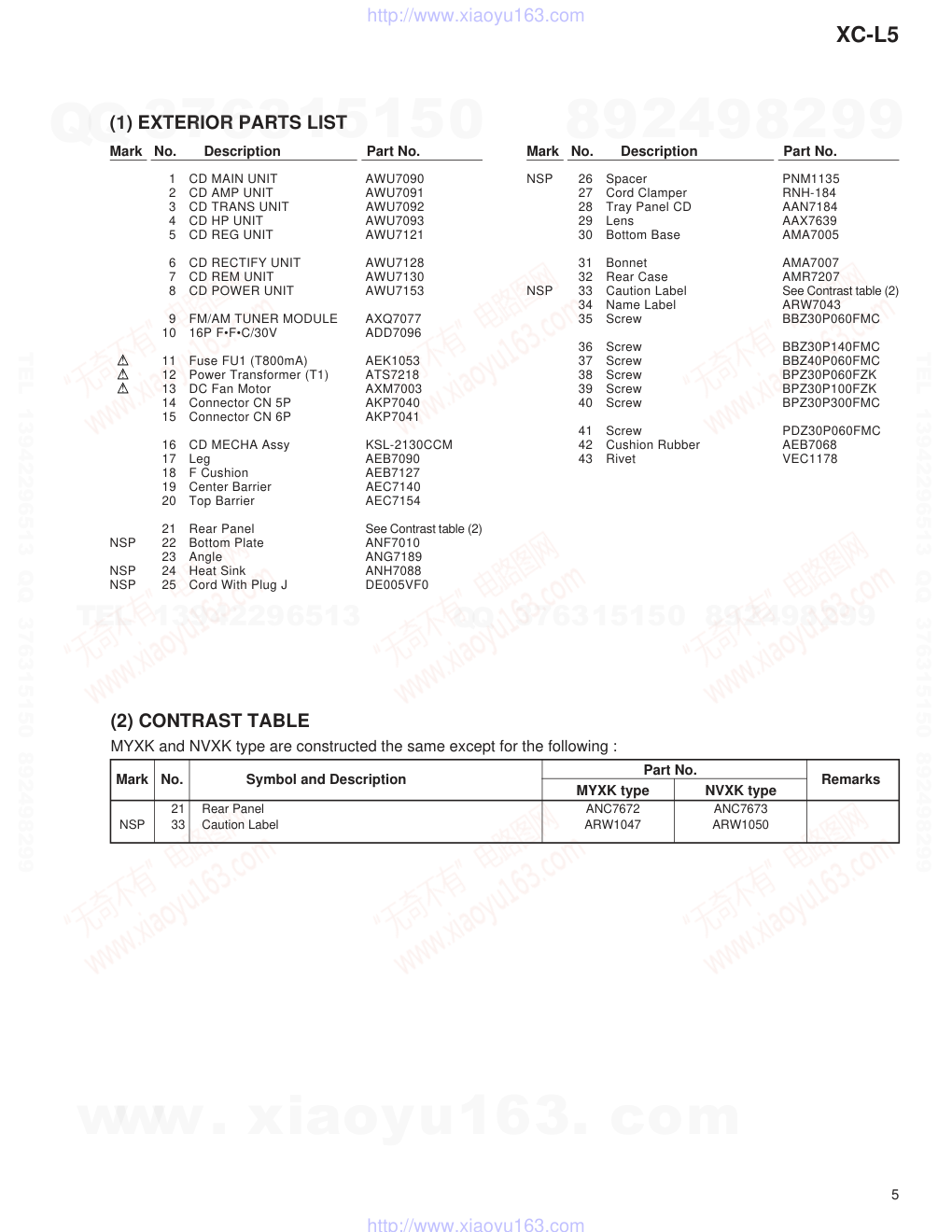

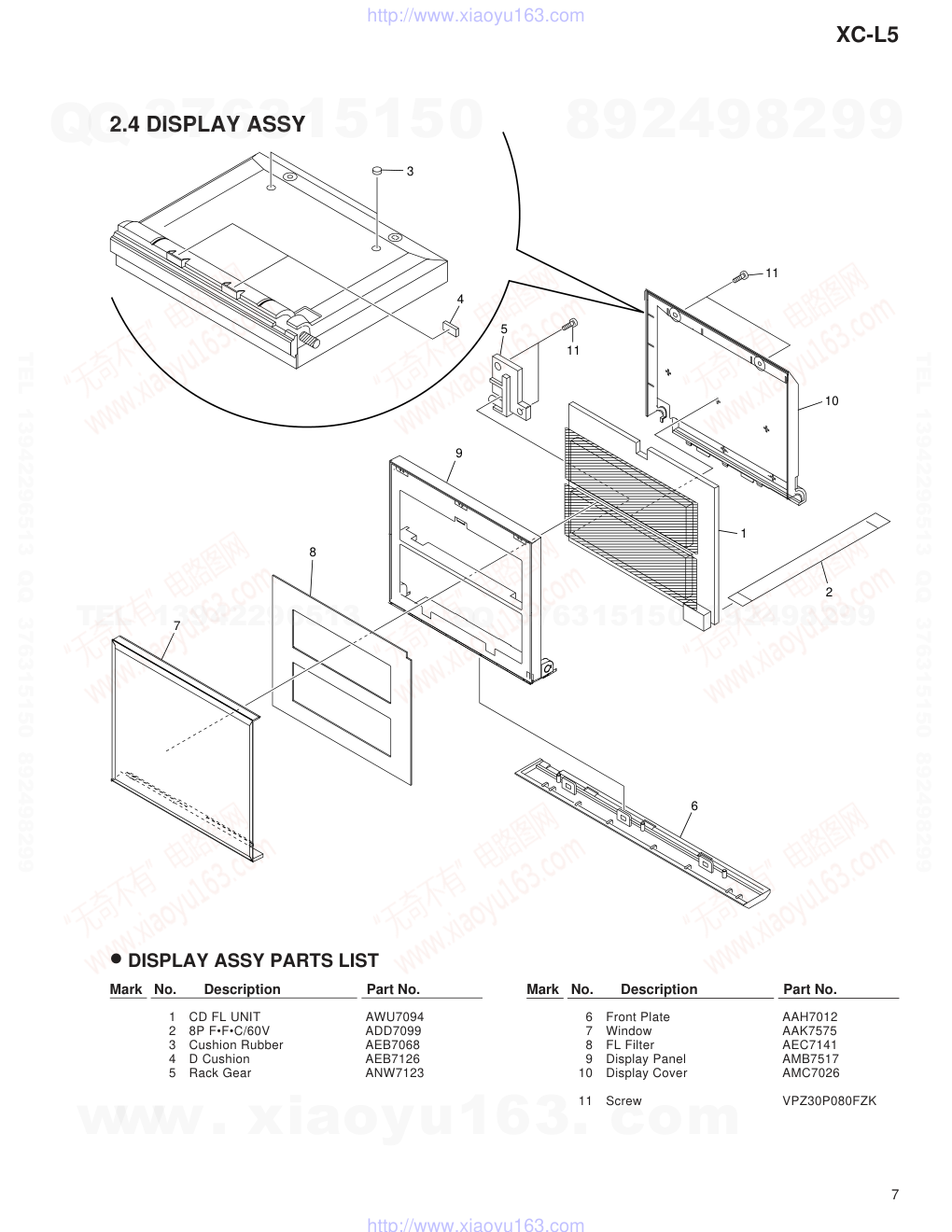

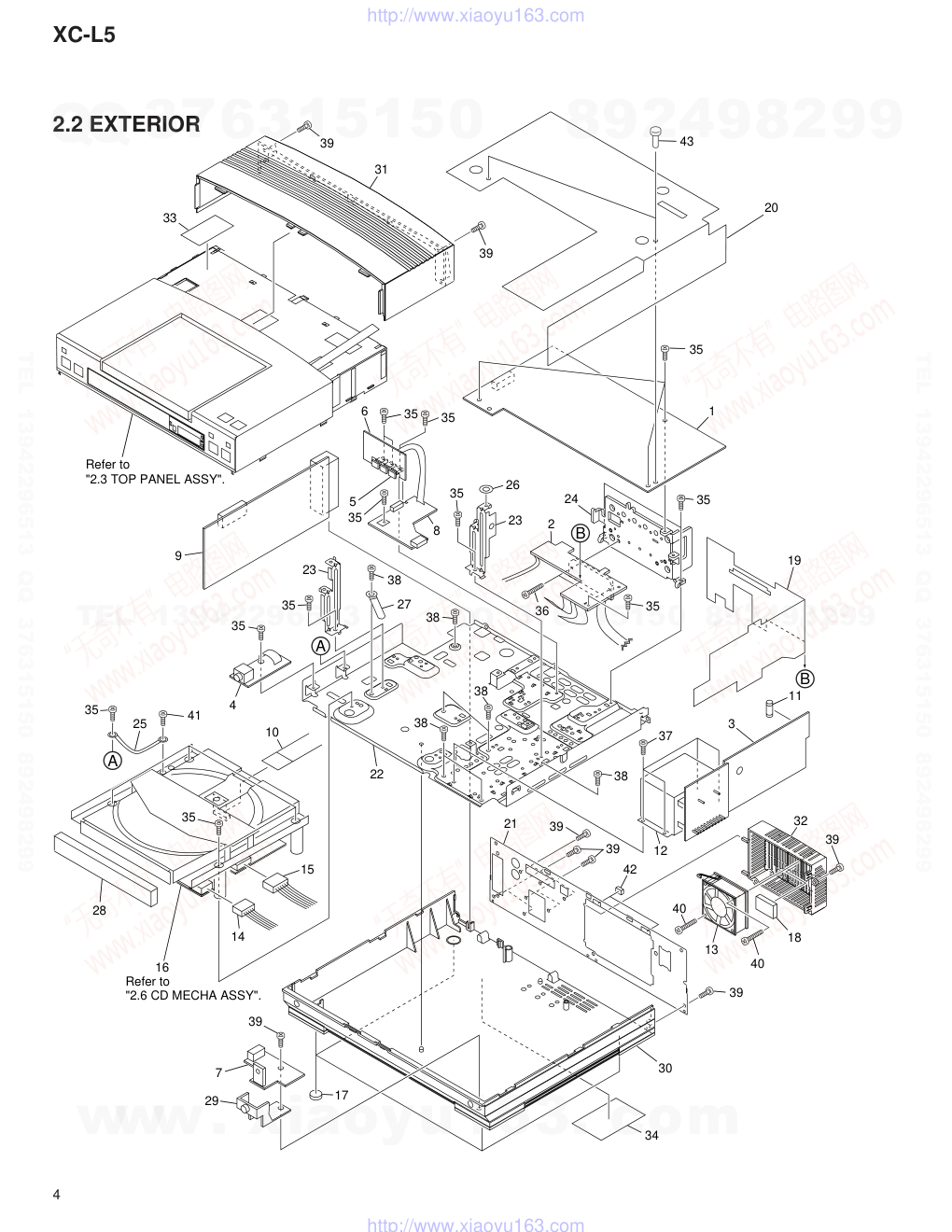

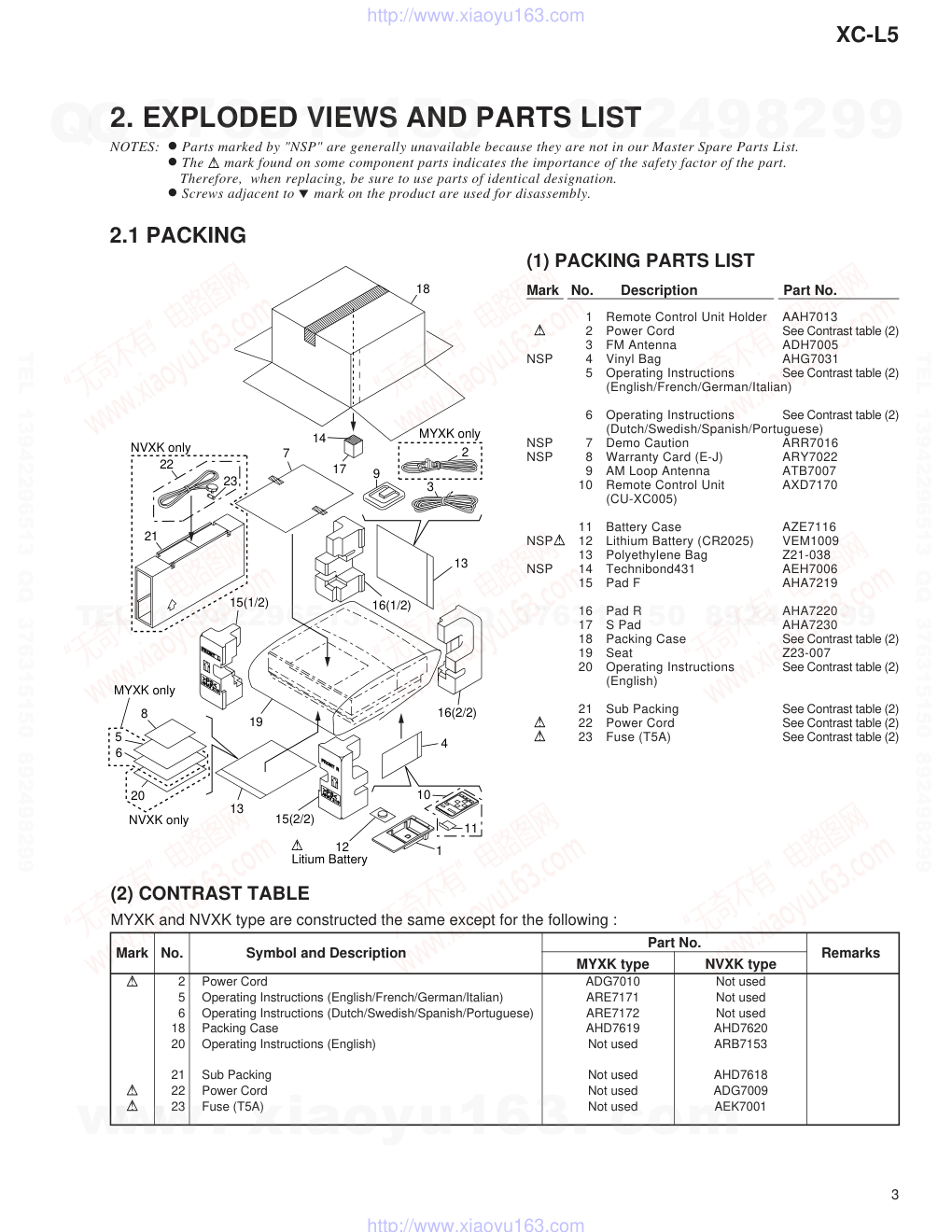

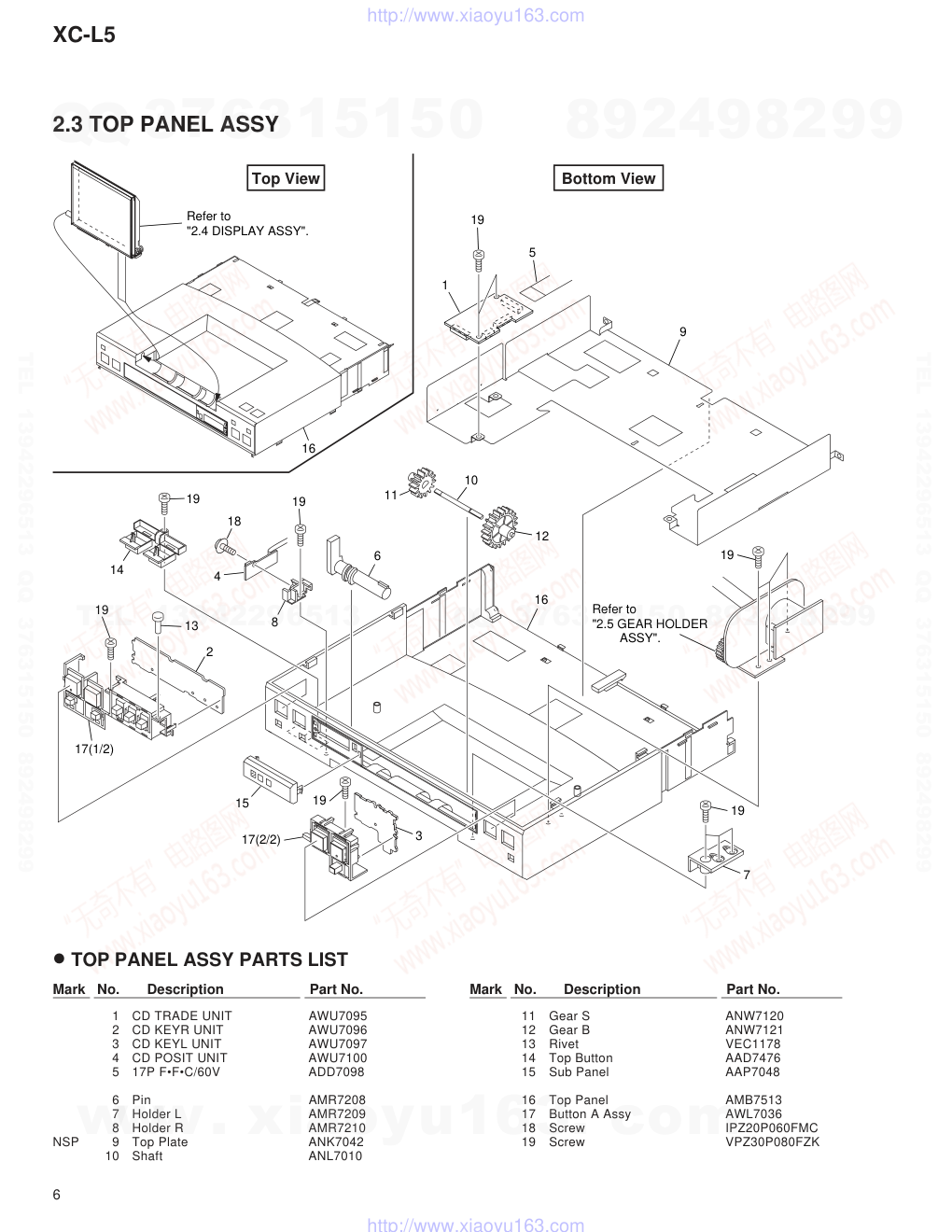

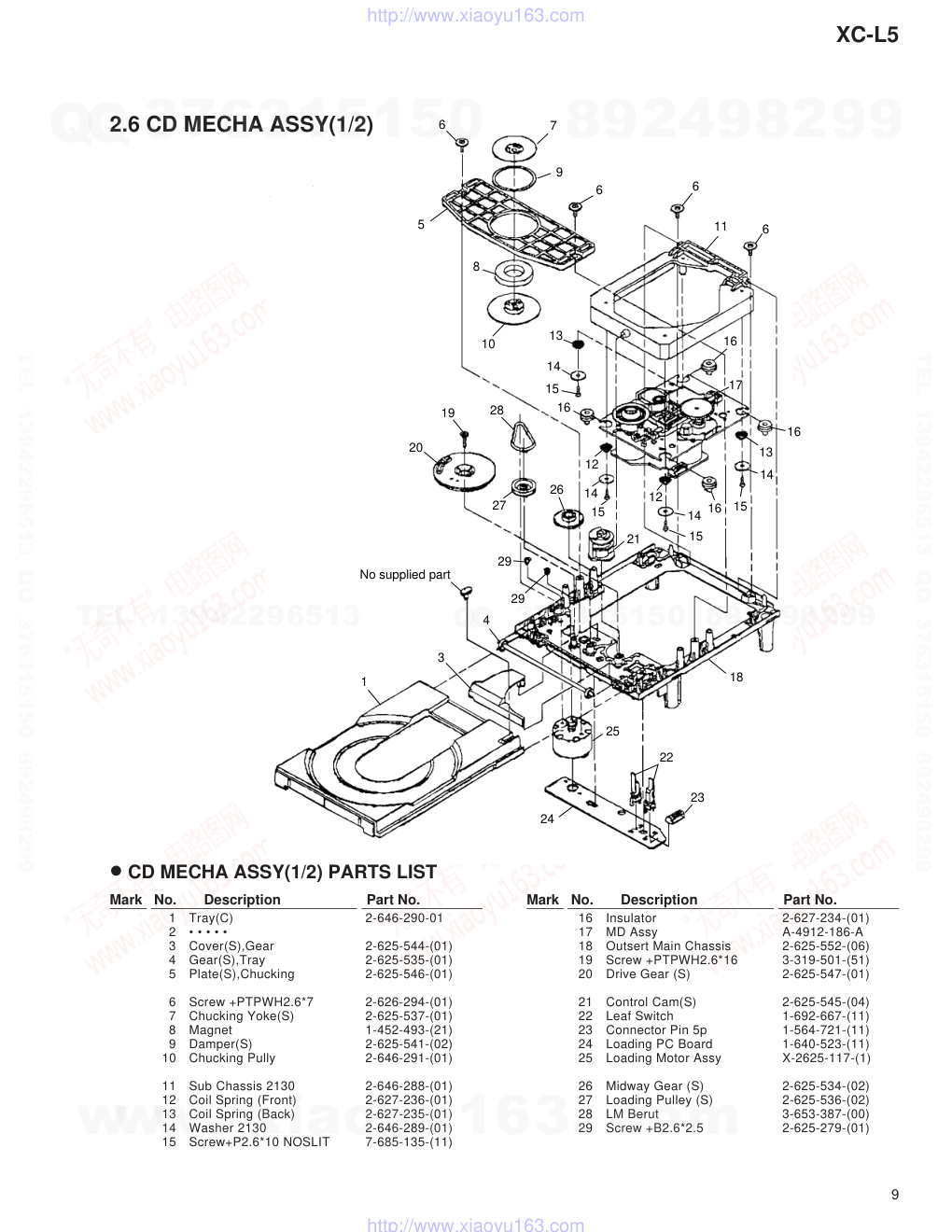

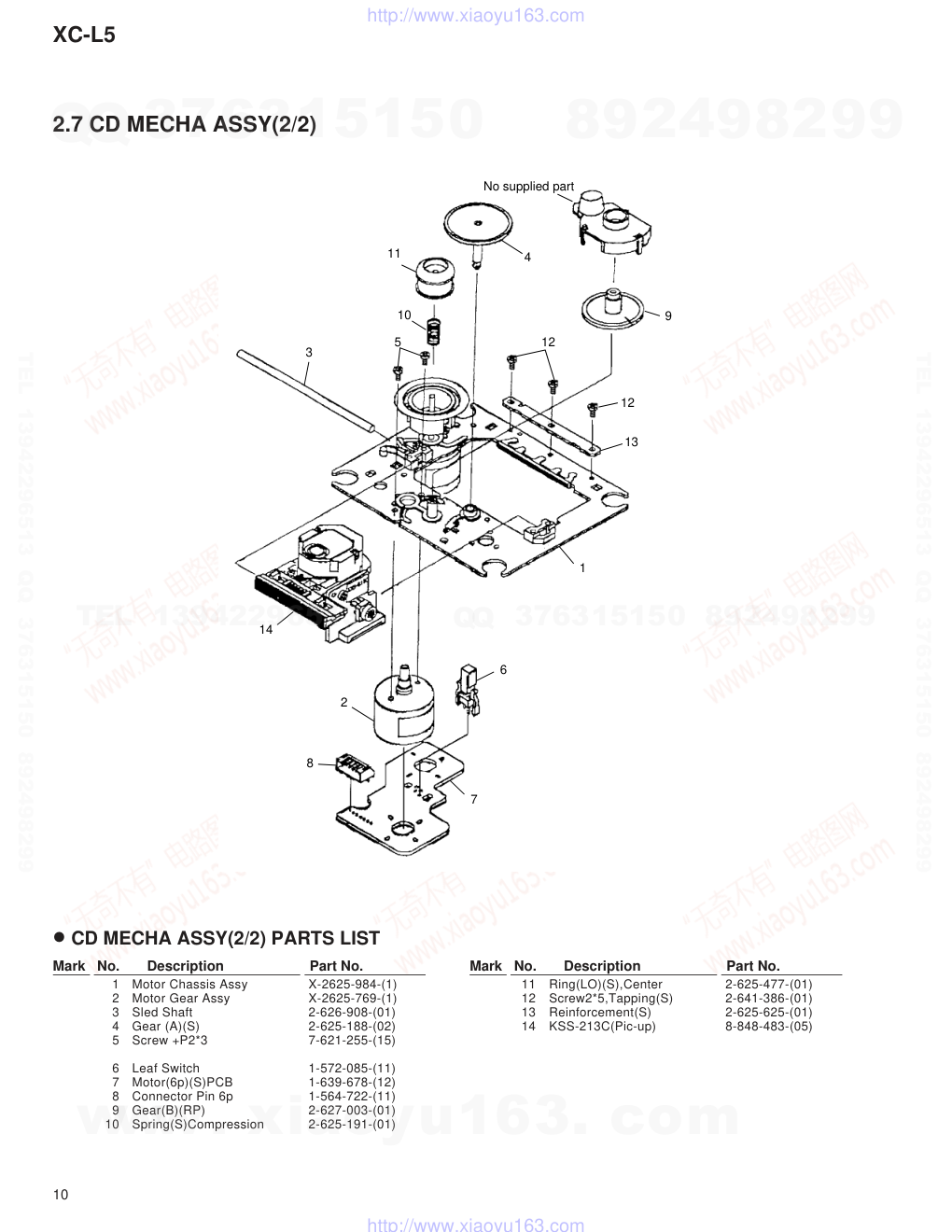

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1998 RRV1997 STEREO CD RECEIVER XC-L5 1. SAFETY INFORMATION ...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................ 3 3. SCHEMATIC DIAGRAM ..................................... 12 4. PCB CONNECTION DIAGRAM .......................... 24 5. PCB PARTS LIST ............................................... 35 6. ADJUSTMENT .................................................... 40 CONTENTS 7. GENERAL INFORMATION ................................ 43 7.1 PARTS ......................................................... 43 7.1.1 IC ......................................................... 43 7.1.2 DISPLAY.............................................. 49 7.2 DISASSEMBLY ........................................... 51 7.3 BLOCK DIAGRAM ........................................ 53 8. PANEL FACILITIES AND SPECIFICATIONS .... 54 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Type Model XC-L5 MYXK NVXK AC220 – 230V AC230V Power Requirement Remarks T – IZK AUG. 1998 Printed in Japan AUX STANDBY/ON PHONES 7 0 6 ¢� 4 ¡•+ –•1 ' VOLUME UP DOWN D R·D·S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 XC-L5 WARNING! Lithium batteries. Danger of explo- sion. Replacement must be done by qualified personnel and only by fol- lowing the instructions given in the service manual. This warning is stated on the product or in the operating instructions. When replac- ing the lithium batteries, follow the note below. Dispose of the used battery promptly. Keep away from children. Do not disas- semble and do not dispose of in fire. The battery used in this device may present a fire or chemical hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace only with the same Part Number. Use of another battery may present a risk of fire or explosion. Note: The lithium battery installation po- sition is shown in the exploded views. ADVARSEL! Lithiumbatteri − Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. Denne advarsel or angivet på produktet eller i brugsvejledningen. Ved udskiftning af lithium batterierne følges nedenstående anveisning. Batterierne må kun udskiftes med batteri- er af samme type og mærke. 1. SAFETY INFORMATION LITHIUM BATTERY NOTICE LABEL CHECK NVXK type Printed on the Rear Panel MYXK type IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mw WAVELENGTH: 780 – 785 nm 1. Laser Interlock Mechanism The loading position detect switch (in CD mechanism assembly) is set to "CLMP ON(CD CLOSE)" (ON:low level,OFF:high level) position, the system control IC(IC5501) get the "CLMP" signal, and hand the laser "LDON" signal to IC1101. Then a laser diode can be lighted except when the level of signal CLMP is low. The interlock also does not function in the test mode∗. Laser diode oscillation will continue, if pin 1 of CXA1821M (IC1101) on the CDMAIN UNIT is connected to GND, or pin 19 is connected to low level (ON), or else the terminals of Q1101 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. ∗ : Refer to page 41. Additional Laser Caution www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 XC-L5 Mark No. Symbol and Description Part No. Remarks MYXK type NVXK type 2 Power Cord ADG7010 Not used 5 Operating Instructions (English/French/German/Italian) ARE7171 Not used 6 Operating Instructions (Dutch/Swedish/Spanish/Portuguese) ARE7172 Not used 18 Packing Case AHD7619 AHD7620 20 Operating Instructions (English) Not used ARB7153 21 Sub Packing Not used AHD7618 22 Power Cord Not used ADG7009 23 Fuse (T5A) Not used AEK7001 7 23 NVXK only 22 17 9 2 MYXK only 3 13 14 18 15(1/2) 15(2/2) 4 12 Litium Battery 1 10 11 20 13 5 8 6 19 16(2/2) 16(1/2) 21 NVXK only MYXK only 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. 1 Remote Control Unit Holder AAH7013 2 Power Cord See Contrast table (2) 3 FM Antenna ADH7005 NSP 4 Vinyl Bag AHG7031 5 Operating Instructions See Contrast table (2) (English/French/German/Italian) 6 Operating Instructions See Contrast table (2) (Dutch/Swedish/Spanish/Portuguese) NSP 7 Demo Caution ARR7016 NSP 8 Warranty Card (E-J) ARY7022 9 AM Loop Antenna ATB7007 10 Remote Control Unit AXD7170 (CU-XC005) 11 Battery Case AZE7116 NSP 12 Lithium Battery (CR2025) VEM1009 13 Polyethylene Bag Z21-038 NSP 14 Technibond431 AEH7006 15 Pad F AHA7219 16 Pad R AHA7220 17 S Pad AHA7230 18 Packing Case See Contrast table (2) 19 Seat Z23-007 20 Operating Instructions See Contrast table (2) (English) 21 Sub Packing See Contrast table (2) 22 Power Cord See Contrast table (2) 23 Fuse (T5A) See Contrast table (2) (2) CONTRAST TABLE MYXK and NVXK type are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 XC-L5 A B A B 17 29 7 39 34 30 39 42 40 40 13 18 39 32 39 39 21 22 10 15 14 38 38 38 27 35 35 35 35 4 41 25 35 35 39 39 33 31 35 35 8 6 23 23 5 9 26 38 38 37 36 2 24 35 35 1 35 43 20 12 3 11 19 16 28 Refer to "2.6 CD MECHA ASSY". Refer to "2.3 TOP PANEL ASSY". 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 XC-L5 (1) EXTERIOR PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 CD MAIN UNIT AWU7090 2 CD AMP UNIT AWU7091 3 CD TRANS UNIT AWU7092 4 CD HP UNIT AWU7093 5 CD REG UNIT AWU7121 6 CD RECTIFY UNIT AWU7128 7 CD REM UNIT AWU7130 8 CD POWER UNIT AWU7153 9 FM/AM TUNER MODULE AXQ7077 10 16P F•F•C/30V ADD7096 11 Fuse FU1 (T800mA) AEK1053 12 Power Transformer (T1) ATS7218 13 DC Fan Motor AXM7003 14 Connector CN 5P AKP7040 15 Connector CN 6P AKP7041 16 CD MECHA Assy KSL-2130CCM 17 Leg AEB7090 18 F Cushion AEB7127 19 Center Barrier AEC7140 20 Top Barrier AEC7154 21 Rear Panel See Contrast table (2) NSP 22 Bottom Plate ANF7010 23 Angle ANG7189 NSP 24 Heat Sink ANH7088 NSP 25 Cord With Plug J DE005VF0 NSP 26 Spacer PNM1135 27 Cord Clamper RNH-184 28 Tray Panel CD AAN7184 29 Lens AAX7639 30 Bottom Base AMA7005 31 Bonnet AMA7007 32 Rear Case AMR7207 NSP 33 Caution Label See Contrast table (2) 34 Name Label ARW7043 35 Screw BBZ30P060FMC 36 Screw BBZ30P140FMC 37 Screw BBZ40P060FMC 38 Screw BPZ30P060FZK 39 Screw BPZ30P100FZK 40 Screw BPZ30P300FMC 41 Screw PDZ30P060FMC 42 Cushion Rubber AEB7068 43 Rivet VEC1178 (2) CONTRAST TABLE MYXK and NVXK type are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks MYXK type NVXK type 21 Rear Panel ANC7672 ANC7673 NSP 33 Caution Label ARW1047 ARW1050 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 XC-L5 Top View Bottom View Refer to "2.4 DISPLAY ASSY". 6 11 10 12 16 19 9 19 1 5 Refer to "2.5 GEAR HOLDER ASSY". 19 15 3 17(2/2) 17(1/2) 2 13 14 19 19 19 16 18 4 8 7 19 2.3 TOP PANEL ASSY • TOP PANEL ASSY PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 CD TRADE UNIT AWU7095 2 CD KEYR UNIT AWU7096 3 CD KEYL UNIT AWU7097 4 CD POSIT UNIT AWU7100 5 17P F•F•C/60V ADD7098 6 Pin AMR7208 7 Holder L AMR7209 8 Holder R AMR7210 NSP 9 Top Plate ANK7042 10 Shaft ANL7010 11 Gear S ANW7120 12 Gear B ANW7121 13 Rivet VEC1178 14 Top Button AAD7476 15 Sub Panel AAP7048 16 Top Panel AMB7513 17 Button A Assy AWL7036 18 Screw IPZ20P060FMC 19 Screw VPZ30P080FZK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 XC-L5 11 11 9 8 7 5 4 3 10 2 1 6 2.4 DISPLAY ASSY • DISPLAY ASSY PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 CD FL UNIT AWU7094 2 8P F•F•C/60V ADD7099 3 Cushion Rubber AEB7068 4 D Cushion AEB7126 5 Rack Gear ANW7123 6 Front Plate AAH7012 7 Window AAK7575 8 FL Filter AEC7141 9 Display Panel AMB7517 10 Display Cover AMC7026 11 Screw VPZ30P080FZK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 XC-L5 4.3 ± 0.3mm 3 12 13 8 9 7 13 5 6 13 4 10 2 11 1 2.5 GEAR HOLDER ASSY • GEAR HOLDER ASSY PARTS LIST Mark No. Description Part No. 1 CD MOTOR UNIT AWU7098 2 CD SENSE UNIT AWU7099 3 Belt AEB7030 4 Gear Holder ANG7190 5 Gear A ANW7063 6 Gear Pulley A ANW7066 7 Select Gear ANW7067 8 FC Gear ANW7122 9 Motor Pulley PNW1634 10 DC Motor/0.75W PXM1010 11 Screw BBZ30P060FMC 12 Screw PMA26P040FMC 13 Washer WT36D072D025 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 XC-L5 7 6 9 6 5 8 10 13 14 15 16 28 19 20 27 26 12 14 15 29 29 No supplied part 4 18 25 22 23 24 3 1 21 15 12 14 16 15 14 16 13 17 16 6 11 6 2.6 CD MECHA ASSY(1/2) • CD MECHA ASSY(1/2) PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Tray(C) 2-646-290-01 2 • • • • • 3 Cover(S),Gear 2-625-544-(01) 4 Gear(S),Tray 2-625-535-(01) 5 Plate(S),Chucking 2-625-546-(01) 6 Screw +PTPWH2.6*7 2-626-294-(01) 7 Chucking Yoke(S) 2-625-537-(01) 8 Magnet 1-452-493-(21) 9 Damper(S) 2-625-541-(02) 10 Chucking Pully 2-646-291-(01) 11 Sub Chassis 2130 2-646-288-(01) 12 Coil Spring (Front) 2-627-236-(01) 13 Coil Spring (Back) 2-627-235-(01) 14 Washer 2130 2-646-289-(01) 15 Screw+P2.6*10 NOSLIT 7-685-135-(11) 16 Insulator 2-627-234-(01) 17 MD Assy A-4912-186-A 18 Outsert Main Chassis 2-625-552-(06) 19 Screw +PTPWH2.6*16 3-319-501-(51) 20 Drive Gear (S) 2-625-547-(01) 21 Control Cam(S) 2-625-545-(04) 22 Leaf Switch 1-692-667-(11) 23 Connector Pin 5p 1-564-721-(11) 24 Loading PC Board 1-640-523-(11) 25 Loading Motor Assy X-2625-117-(1) 26 Midway Gear (S) 2-625-534-(02) 27 Loading Pulley (S) 2-625-536-(02) 28 LM Berut 3-653-387-(00) 29 Screw +B2.6*2.5 2-625-279-(01) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 XC-L5 4 11 10 5 3 12 12 9 13 1 6 7 2 8 14 No supplied part • CD MECHA ASSY(2/2) PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 2.7 CD MECHA ASSY(2/2) 1 Motor Chassis Assy X-2625-984-(1) 2 Motor Gear Assy X-2625-769-(1) 3 Sled Shaft 2-626-908-(01) 4 Gear (A)(S) 2-625-188-(02) 5 Screw +P2*3 7-621-255-(15) 6 Leaf Switch 1-572-085-(11) 7 Motor(6p)(S)PCB 1-639-678-(12) 8 Connector Pin 6p 1-564-722-(11) 9 Gear(B)(RP) 2-627-003-(01) 10 Spring(S)Compression 2-625-191-(01) 11 Ring(LO)(S),Center 2-625-477-(01) 12 Screw2*5,Tapping(S) 2-641-386-(01) 13 Reinforcement(S) 2-625-625-(01) 14 KSS-213C(Pic-up) 8-848-483-(05) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 XC-L5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 12 A B C D 1 2 3 4 1 2 3 4 J CD TRADE UNIT (AWU7095) H CD AMP UNIT (AWU7091) G CD REG UNIT (AWU7121) K CD KEYR UNIT (AWU7096) L CD FL UNIT (AWU7094) C CD REM UNIT (AWU7130) I CD HP UNIT (AWU7093) CD MAIN UNIT (AWU7090) B B ( 1/2 B 2/2 , ) DC FAN MOTOR AXM7003 IC5501 SYSTEM ucom IC3121 SELECTOR IC3001 VOL.IC IC3301 POWER IC RY3601 GSH GSH GSH 3. SCHEMATIC DIAGRAM 3.1 OVERALL CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 13 A B C D 5 6 7 8 5 6 7 8 A FM/AM TUNER MODULE (AXQ7077) E CD RECTIFY UNIT (AWU7128) O CD KEYL UNIT (AWU7097) D CD TRANS UNIT (AWU7092) F CD POWER UNIT (AWU7153) N CD MOTOR UNIT (AWU7098) M CD POSIT UNIT (AWU7100) P CD SENSE UNIT (AWU7099) AC 220-230V 50 / 60Hz AC POWER CORD MYXK : ADG7010 NVXK : ADG7009 (2.5A 250V-) CD MECHA ASSY (KSL-2130CCM) KSS-213C (8-848-483-(05)) POWER TRANSFORMER ATS7218 POWER TRANSFORMER ATT7027 IC3101 SELECTOR TX CD PB AUX IC1201 DECORDER IC1301 DRIVE IC IC1101 RF AMP GSH GSH Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS AND PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 14 A B C D 1 2 3 4 1 2 3 4 RF AMP MIX AMP BUFFER IF AMP PLL FM +B SW AM RF TUNING BLOCK OSC A FM/AM TUNER MODULE (AXQ7077) A 3.2 FM/AM TUNER MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 15 A B C D 5 6 7 8 5 6 7 8 AF AMP REGULATOR AF AMP 2/2 B CN5101 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 16 A B C D 1 2 3 4 1 2 3 4 CD MAIN UNIT (1/2) (AWU7090) B 1/2 CD MECHANISM ASSY 1 2 VC 4.54V 2.30V 2.30V 4.54V (FS) (FS) (FS) (TS) (TS) (TS) (SM) (CM) (CM) (CM) (CM) 5.70V 2.37V (FS) (TS) (FS) (FS) (TS) (TS) (SM) (SM) (CM) (CM) (LM) (LM) (LM) (FS) (FS) (TS) (TS) (FS) (FS) (TS) (TS) (SM) (SM) (CM) (CM) (LM) (LM) 4.54V 3.3 CD MAIN UNIT(1/2) 1/2 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 17 A B C D 5 6 7 8 5 6 7 8 2/2 B SIGNAL ROUTE :CD AUDIO SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SPINDLE MOTOR ROUTE : CARRIAGE MOTOR ROUTE : LOADING MOTOR ROUTE (CD) (CD) (CD) (FS) (TS) (SM) (CM) (LM) 1 IC1101- Pin 16: PLAY MODE (RF) 1.2Vp-p 2 IC1101- Pin 13 : TEST MODE, Tracking Open (TRER) H : 500nsec/div H : 5msec/div VC : IC1101- Pin12 VC 3.5Vp-p Note: The encircled numbers denote measuring point in the schematic diagram. VC DIGITAL OUT (OPT.) 4.54V 1/2 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 18 A B C D 1 2 3 4 1 2 3 4 C CD REM UNIT (AWU7130) CD MAIN UNIT (AWU7090) B 2/2 1/2 B J1 D J22 H J21 H CN5401 J -5.95V 9.08V 4.57V 5.33V AC 5.33V 5.63V 5.78V 13.38V 13.11V 5.57V 10.21V -13.78V C 3.4 CD MAIN (2/2) AND CD REM UNITS 2/2 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 19 A B C D 5 6 7 8 5 6 7 8 1/2 B CN6201 A SYSTEM CONNECTOR SP-L5 or MJ-L5 or CT-L5 AUX IN CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491001 MFD, BY LITTELFUSE INK. FOR IC5221,IC5222 (AEK7009). SIGNAL ROUTE : Lch AUDIO SIGNAL ROUTE : AUX AUDIO SIGNAL ROUTE : DECK PB SIGNAL ROUTE (AUX) (PB) : DECK REC SIGNAL ROUTE : TUNER AUDIO SIGNAL ROUTE : CD AUDIO SIGNAL ROUTE (REC) (CD) (CD) (TX) -13.78V -5.24V 13.20V 12.38V (AUX) (REC) (PB) (PB) (AUX) (TX) (TX) 4.82V 4.90V 5.63V 13.09V 12.38V -5.23V 13.09V 2/2 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 20 A B C D 1 2 3 4 1 2 3 4 G CD REG UNIT (AWU7121) D CD TRANS UNIT (AWU7092) F CD POWER UNIT (AWU7153) E CD RECTIFY UNIT (AWU7128) NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.750 MFD, BY LITTELFUSE INK. FOR IC41 (AEK7007). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 4911.25 MFD, BY LITTELFUSE INK. FOR IC21 (AEK7010). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.125 MFD, BY LITTELFUSE INK. FOR IC22 (AEK7020). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491004 MFD, BY LITTELFUSE INK. FOR IC1,IC2 (AEK7018). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491007 MFD, BY LITTELFUSE INK. FOR IC11,IC12 (AEK7021). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. ICP-N15 MFD, BY ROHM CO.,LTD. FOR IC3. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. ICP-N50 MFD, BY ROHM CO.,LTD. FOR IC4. AC POWER CORD 2/2 B CN3001 2/2 B CN5251 20.90V 13.20V -13.80V 5.57V 5.76V -5.95V 13.10V -27.80V D 3.5 CD TRANS, CD RECTIFY, CD POWER, CD REG, CD AMP AND CD HP UNITS E F G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 21 A B C D 5 6 7 8 5 6 7 8 H CD AMP UNIT (AWU7091) I CD HP UNIT (AWU7093) FAN MOTOR MAIN SPEAKERS (HP) (HP) (HP) SIGNAL ROUTE : LCH AUDIO SIGNAL ROUTE : H.P AUDIO SIGNAL ROUTE 2/2 B CN3002 -28.16V 27.90V -28.23V 27.90V I H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 22 A B C D 1 2 3 4 1 2 3 4 J CD TRADE UNIT (AWU7095) K CD KEYR UNIT (AWU7096) L CD FL UNIT (AWU7094) 2/2 B CN5301 CD KEYR UNIT S5901 : + S5902 : CD STOP S5903 : CD TRAY OPEN CLOSE S5904 : VOL. DOWN S5905 : DISPLAY UP S5906 : DISPLAY DOWN S5907 : VOL. UP S5908 : PLAY PAUSE S5909 : – -27.80V -21.13V -21.13V 4.60V J 3.6 CD TRADE, CD KEYR, CD FL, CD POSIT, CD MOTOR, CD KEYL AND CD SENSE UNITS K L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 23 A B C D 5 6 7 8 5 6 7 8 O CD KEYL UNIT (AWU7097) N CD MOTOR UNIT (AWU7098) M CD POSIT UNIT (AWU7100) P CD SENSE UNIT (AWU7099) CD KEYL UNIT S5951 : STANDBY/ON S5952 : FM/AM/STATION S5953 : AUX DC MOTOR PXM1010 P O N M L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 24 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 25 A B C D 1 2 3 4 1 2 3 4A CN5101 B FM/AM TUNER MODULE A FM/AM TUNER MODULE A Q6204 Q6203 VR6201 (ANP7161-A) IC6201 IC6202 Q6205 Q6102 Q6105 Q6101 Q6201 Q6202 Q6601 Q6214 Q6501 4.1 FM/AM TUNER MODULE SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 26 A B C D 1 2 3 4 1 2 3 4 CN6201 A CD MAIN UNIT B CD MECHA ASSY CD MECHA ASSY CD MECHA ASSY SYSTEM CONNECTOR J1 D J21 H CN5401 J CN5921 C J22 H Q1101 Q5222 IC5222 IC5221 Q5221 Q5312 Q5311 Q5251 IC5251 Q5315 Q5316 (ANP7246-C) 4.2 CD MAIN UNIT SIDE A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 27 A B C D 1 2 3 4 1 2 3 4 CD MAIN UNIT B Q1401 IC3101 IC3111 IC5701 IC3131 IC3121 IC3001 IC5501 IC1101 Q1402 Q3016 Q5701 Q5592 Q1403 Q1404 IC1201 Q3051 Q5223 Q5224 Q5225 Q5252 Q5591 Q5226 Q1201 Q5301 Q5313 Q5314 IC1301 Q5332 Q5331 (ANP7246-C) B SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 28 A B C D 1 2 3 4 1 2 3 4 J5921 B AC POWER CORD CD TRANS UNIT D CD REM UNIT C CD POWER UNIT F CD RECTIFY UNIT E CD REG UNIT G CN5251 B J51 H IC4 IC1 IC2 IC5 IC3 (ANP7246-C) SIDE A C D E F G 4.3 CD REM, CD TRANS, CD RECTIFY, CD POWER AND CD REG UNITS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 29 A B C D 1 2 3 4 1 2 3 4 CD TRANS UNIT D CD REM UNIT C CD POWER UNIT F CD RECTIFY UNIT E CD REG UNIT G (ANP7246-C) SIDE B G F E D C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 30 A B C D 1 2 3 4 1 2 3 4 FAN MOTOR CD AMP UNIT H CD HP UNIT I CN3001 B CN3002 B CN12 E (ANP7246-C) Q51 IC3302 IC3301 H 4.4 CD AMP AND CD HP UNITS I SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 31 A B C D 1 2 3 4 1 2 3 4I H CD AMP UNIT H CD HP UNIT I (ANP7246-C) Q52 Q3312 Q3311 Q3313 Q3701 Q3702 Q3703 Q3704 Q3602 Q3605 Q3606 Q3601 Q3607 Q3603 Q3905 Q3904 Q3903 Q3902 Q3901 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 32 A B C D 1 2 3 4 1 2 3 4 CD FL UNIT L CD TRADE UNIT J CD POSIT UNIT M CD KEYR UNIT K J5421 N CN5301 B (ANP7247-B) J K L SIDE A M 4.5 CD TRADE, CD KEYR, CD FL AND CD POSIT UNITS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 33 A B C D 1 2 3 4 1 2 3 4M L K SIDE B J CD FL UNIT L CD TRADE UNIT J CD POSIT UNIT M CD KEYR UNIT K (ANP7247-B) Q5603 IC5601 Q5605 Q5606 Q5604 Q5602 Q5601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XC-L5 34 A B C D 1 2 3 4 1 2 3 4 CD MOTOR UNIT N CD SENSE UNIT P CD KEYL UNIT O CD MOTOR UNIT N CD SENSE UNIT P CD KEYL UNIT O CN5403 J (ANP7247-B) (ANP7247-B) N O P 4.6 CD MOTOR, CD KEYL AND CD SENSE UNITS SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 XC-L5 Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: ¶Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. ¶The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ¶When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω = 56 × 10 1 = 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω = R50 ..................................................................................... RN2H  5 0 K 1 Ω = 1R0 ..................................................................................... RS1P 1  0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF ASSEMBLIES Mark No. Description Part No. Mark No. Description Part No. FM/AM TUNER MODULE AXQ7077 NSP CDCOMP ASSY AWM7376 CD MAIN UNIT AWU7090 CD REM UNIT AWU7130 CD TRANS UNIT AWU7092 CD RECTIFY UNIT AWU7128 CD POWER UNIT AWU7153 CD REG UNIT AWU7121 CD AMP UNIT AWU7091 CD HP UNIT AWU7093 NSP DISPLAY ASSY AWM7377 CD TRADE UNIT AWU7095 CD KEYR UNIT AWU7096 CD FL UNIT AWU7094 CD POSIT UNIT AWU7100 CD MOTOR UNIT AWU7098 CD KEYL UNIT AWU7097 CD SENSE UNIT AWU7099 FM/AM TUNER MODULE SEMICONDUCTORS IC6201 LA1832ML IC6202 LC72131MD Q6102 2SC2223 Q6203 2SC2705 Q6201, Q6202 2SC2712 Q6103, Q6214, Q6601 2SC2714 Q6104, Q6105 2SK302 Q6101 3SK194 Q6204 DTA124ES Q6205 DTC124EK D6202 1SS254 D6101–D6104 1SV228 COILS AND FILTERS L6106 ATC1003 L6105 ATC1015 L6101 ATC1016 L6102 ATC1017 L6103 ATC1018 L6104 ATC1019 F6203 ATF-119 F6206 ATF7008 F6601 ATF7009 F6204 ATF7010 F6202 ATF7011 L6107 ATH1043 L6603 LAU220J L6206, L6208, L6605 LAU2R2J TRANSFORMERS T6201 ATB7008 T6101 ATE7002 CAPACITORS C6113, C6212, C6274, C6275, C6611 CCSQCH101J50 C6116, C6208, C6221 CCSQCH150J50 C6222 CCSQCH180J50 C6271 CCSQCH200J50 C6117 CCSQCH330J50 C6608 CCSQCH680J50 C6118 CCSQCH8R0D50 C6111, C6122 CCSQCK1R0C50 C6112, C6127 CCSQCK2R0C50 C6105 CCSQSL471J50 C6101 CCSQTH110J50 C6119 CCSQTH150J50 C6109 CCSQTH270J50 C6107, C6110 CCSQTH300J50 C6106 CCSQTH330J50 C6234, C6235 CEAL1R0M50 C6245 CEAL470M16 C6224 CEAT100M50 C6243 CEAT101M16 C6231 CEAT1R0M50 C6227 CEAT220M50 C6236 CEAT2R2M50 C6216 CEAT330M16 C6262 CEAT3R3M50 C6219 CEAT470M10 C6244 CEAT470M16 C6249, C6250, C6265, C6266 CEAT4R7M50 C6258 CEJA470M16 C6215 CFTLA103J50 C6214 CFTLA224J50 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 XC-L5 Mark No. Description Part No. Mark No. Description Part No. C6115, C6125, C6126, C6211, C6254 CKSQYB102K50 C6601 CKSQYB102K50 C6102, C6114, C6121, C6123, C6124 CKSQYB103K50 C6210, C6213, C6237, C6267, C6276 CKSQYB103K50 C6279, C6281, C6604 CKSQYB103K50 C6251, C6252 CKSQYB123K50 C6606, C6607 CKSQYB182K50 C6203, C6259 CKSQYB223K50 C6228 CKSQYB472K50 C6209 CKSQYB473K50 C6230 CKSQYB821K50 C6218, C6223, C6255 CKSQYF103Z50 C6220, C6226, C6242, C6256 CKSQYF223Z50 C6225 CKSQYF473Z50 C6610 CKSYB103K50 RESISTORS R6602 RD1/4PU221J R6115, R6119, R6123, R6127, R6129 RS1/8S0R0J R6906, R6909, R6911 RS1/8S0R0J R6112 RS1/8S473J VR6201 (10kΩ) RCP1045 Other Resistors RS1/10S&&&J OTHERS BN6202 2P TERMINAL WITH PAL AKA7001 X6202 CRYSTAL RESONATOR ASS1066 (456 KHz) X6201 CRYSTAL RESONATOR ASS1093 (7.2000 MHz) CN6201 14P SOCKET KP200IA14L AM RF TUNING BLOCK AXX7042 CD MAIN UNIT SEMICONDUCTORS IC5221, IC5222 PROTECTOR(1A) AEK7009 IC5701 BU1923F IC3101 BU4052BCF IC3121 BU4066BCF IC1101 CXA1821M IC1201 CXD2587Q IC1301 M56758FP IC3001 M62420FP IC3111, IC3131 NJM4558MD IC5251 NJM78M56FA IC5501 PDG224A Q5223, Q5226, Q5331 2PB709A Q3051, Q3061, Q5224, Q5225, Q5591 2PD601A Q1101 2SA854S Q5222 2SB1237X Q5251 2SC2458 Q5221, Q5315, Q5316 2SD1858X Q1401, Q1402 2SD2114K Q5311, Q5312 2SD2395 Q1201, Q1403, Q1404, Q3121, Q5301 DTA124EK Q5313, Q5314 DTA124EK Q5252 DTA143EK Q3122, Q5332 DTC124EK Q5592 DTC143EK D1101, D3150, D3151, D5101 1SS254 D5252–D5256, D5553, D5591, D5592 1SS254 D1331, D5552 1SS355 D3051 MTZJ10B D5311 MTZJ3.9B D5312 MTZJ4.7B D6904, D6906 MTZJ8.2B D5551 S5688G D1332 UDZ4.7B D6901–D6903, D6905 UDZS8.2B COILS AND FILTERS L1101, L1102, L1201, L1231, L1232 LAU100J L1301, L1401, L1601, L1651 LAU100J L5551 LAU220J L5201–L5203 VTL1096 CAPACITORS C5594 ACH1246 C3091–C3094, C5593 CCSQCH101J50 C1231, C1261 CCSQCH102J50 C1201, C1202 CCSQCH150J50 C1401, C1402 CCSQCH151J50 C1102, C1601 CCSQCH220J50 C1239, C1246, C1247, C5502, C5503 CCSQCH221J50 C5701, C5702 CCSQCH270J50 C5704 CCSQCH271J50 C3007, C3008, C3115, C3116 CCSQCH470J50 C5705 CCSQSL561J50 C1403, C1404 CCSQSL681J50 C1203, C1233, C1240, C1602, C5102 CEAL101M6R3 C1238 CEALR47M50 C1324, C3017, C3018, C3051 CEAT100M50 C3111, C3112, C5252, C5703 CEAT100M50 C1101, C1108, C1321, C1651, C3004 CEAT101M10 C5105 CEAT101M16 C5313 CEAT102M6R3 C3061, C5251 CEAT1R0M50 C1103, C1105 CEAT330M25 C3131, C3132, C5707 CEAT470M16 C3062 CEAT470M50 C1405, C1406, C5595 CEJA100M16 C3001 CEJA100M50 C1242, C1249, C5553 CEJA101M6R3 C1411 CEJA220M35 C5505, C5515 CEJA221M6R3 C5201–C5203, C5207–C5210, C5501 CKSQYB102K50 C5513 CKSQYB102K50 C1204, C1205, C1237, C1415, C1416 CKSQYB103K50 C3002, C3005, C3009 CKSQYB103K50 C5314 CKSQYB104K25 C1236, C5512 CKSQYB152K50 C5516 CKSQYB182K50 C1248 CKSQYB222K50 C3011, C3012 CKSQYB223K50 C1319, C1320, C3015, C3016 CKSQYB333K50 C1235 CKSQYB473K50 C3013, C3014 CKSQYB474K16 C1303, C1304, C1307, C1308 CKSQYB821K50 C1311 CKSQYB822K50 C1106, C1107, C1109, C1232, C1234 CKSQYF103Z50 C1241, C1250, C1251, C1253, C1276 CKSQYF103Z50 C1322, C1323, C1325, C1413, C1414 CKSQYF103Z50 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 XC-L5 Mark No. Description Part No. Mark No. Description Part No. C1417, C1603, C1604, C1652, C1653 CKSQYF103Z50 C3003, C3095, C3113, C3114 CKSQYF103Z50 C3133, C3134, C5101, C5504 CKSQYF103Z50 C5506, C5507, C5509, C5510, C5552 CKSQYF103Z50 C5596, C5597, C5708, C5713 CKSQYF103Z50 C6902, C6903, C9102 CKSQYF103Z50 C1113 CKSQYF104Z25 C1245, C1654, C3006, C5511, C5551 CKSQYF104Z50 C5556, C6901, C9101 CKSQYF104Z50 RESISTORS R5103 RD1/4PU100J R5311 RD1/4PU111J R5312 RD1/4PU150J R5585 RD1/4PU221J R5315 RD1/4PU271J R5316 RD1/4PU391J R1331 RD1/4PU471J R5317 RFA1/4PS4R7J Other Resistors RS1/10S&&&J OTHERS CN1101 CONNECTOR(16P) 52030-1610 CN5251 4P JUMPER CONNECTOR 52147-0410 CN5301 FFC CONNECTOR 17P 52492-1720 JA3091 2P PIN JACK AKB7046 5001 SOCKET(19P) AKP7001 X5701 CRYSTAL RESONATOR ASS7004 ( 4.332 MHz) X5501 CERAMIC RESONATOR ASS7020 (16 MHz) CN1302 CONNECTOR KR(5P) B5B-PH-K-S CN1301 CONNECTOR KR(6P) B6B-PH-K-S J5921 JUMPER WIRE(3P) D20PWY0330E JA1651 OPTICAL LINK OUT GP1F32T CN5101 14P PLUG KM200IA14 CN3001 CONNECTOR(12P) KPE12 CN3002 CONNECTOR(14P) KPE14 X1201 CRYSTAL RESONATOR PSS1008 (16.9344 MHz) KN1001,KN1002 VNF1084 EARTH METAL FITTING CD REM UNIT CAPACITORS C5921 CEAT101M10 C5922 CKSQYF103Z50 OTHERS CN5921 3P JUMPER CONNECTOR 52147-0310 5921 REMOTE RECEIVER UNIT GP1U28Y CD TRANS UNIT SEMICONDUCTORS IC1, IC2 PROTECTOR(4A) AEK7018 IC3 IC PROTECTOR ICP-N15 IC4 IC PROTECTOR ICP-N50 D5 1SS254 D1–D4 S5688G COILS AND FILTERS L1 FILTER ATF-151 TRANSFORMERS T2 STANDBY TRANSFORMER ATT7027 SWITCHES AND RELAYS RY1 ASR7019 CAPACITORS C1, C2 (0.01/AC250V) ACG7010 C5 CEAT102M16 C4, C6 CQMA103J50 C3 CQMA103K2E C17 CQMBA103J50 RESISTORS R2 RFA1/4PS100J Other Resistors RS1/10S&&&J OTHERS 1 CABLE HOLDER 51048-0400 H1, H2 FUSE CLIP AKR1003 AN1 AC INLET 1P BKP1046 J1 JUMPER WIRE D20PDY0415E CN2 10P SOCKET KP250NA10 CD RECTIFY UNIT SEMICONDUCTORS IC11, IC12 PROTECTOR(7A) AEK7021 Q61 2SB1566 D21 D2SBA20(B) D11 D3SBA20(B) D63 MTZJ6.2B D31, D61 S5688G D62, D64 UDZ15B CAPACITORS C21 (6800µF/16V) ACH7103 C16 (2200µF/35V) ACH7106 C62–C64 CEAT100M50 C61 CEAT221M50 C31 CEAT222M25 C15 CEAT222M35 C22 CEAT472M16 C14 CKSQYF103Z50 RESISTORS R61, R63 RD1/4PU822J Other Resistors RS1/10S&&&J OTHERS 12 8P CABLE HOLDER 51048-0800 CN12 17PJUMPER CONNECTOR 52147-1710 J12 8P JUMPER WIRE D20PDD0810E CN11 10P PLUG KM250NA10L KN11 EARTH METAL FITTING VNF1084 CD POWER UNIT SEMICONDUCTORS IC41 PROTECTOR(750mA) AEK7007 IC21 PROTECTOR(1.25A) AEK7010 IC22 PROTECTOR(125mA) AEK7020 IC23 BA17805T IC24 NJM79M06FA C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 XC-L5 Mark No. Description Part No. Mark No. Description Part No. Q43 2PB709A Q42 2PD601A Q41 2SB1566 D22, D41 1SS254 D42 MTZJ15B D33 UDZS8.2B CAPACITORS C25 CEAL100M50 C23 CEAL1R0M50 C26, C33 CEAT100M50 C24, C32, C41 CEAT1R0M50 C42 CEAT470M16 RESISTORS R42 RD1/4PU221J Other Resistors RS1/10S&&&J OTHERS 14 3P CABLE HOLDER 51048-0300 11 8P CABLE HOLDER 51048-0800 J13 JUMPER WIRE 3P D20PDD0305G CD REG UNIT SEMICONDUCTORS IC31 NJM78M56FA OTHERS 13 3P CABLE HOLDER 51048-0300 CD AMP UNIT SEMICONDUCTORS IC3301 STK407-040B Q3601, Q3602 2PB709A Q3603, Q3605, Q3606 2PD601A Q51 2SD1858X Q3311, Q3312, Q3607, Q3702 2SD2114K Q3901–Q3904 2SD2114K Q3313, Q3701, Q3905 DTA124EK Q3703 DTA124TK Q3704, Q52 DTC124EK D3601–D3603, D3701–D3704, D3707 1SS254 D51 1SS254 D3708 S5688G COILS AND FILTERS L3601, L3602 ATH-059 SWITCHES AND RELAYS RY3601 SP RELAY/12V ASR7007 CAPACITORS C3317, C3318 CCSQCH100D50 C3315, C3316 CCSQCH330J50 C3321, C3322 CCSQCH470J50 C72 CEAL470M16 C3602, C3911, C3912, C53 CEAT100M50 C3701, C3702 CEAT101M16 C3303, C3304 CEAT101M35 C3703 CEAT221M25 C3601 CEAT221M6R3 C3319, C3320 CEAT330M16 C51, C52, C71 CEAT470M16 C3301, C3302 CEAT470M35 C3313, C3314 CEAT4R7M50 C3311, C3312 CEZA100M50 C3307, C3341, C3342, C3345, C3346 CKSQYB102K50 C3331–C3333 CKSQYB473K50 C3305, C3306, C3343, C3344 CKSQYF103Z50 C3335–C3338 CKSQYF473Z50 RESISTORS R3601, R3602 (0.1Ω/1W) ACN7032 R3333, R3334 RD1/4LMF101J R3331, R3332 RD1/4PU100J R3705 RD1/4PU103J R3706 RD1/4PU562J R3317, R3318 RD1/4PU563J R3335, R3336 RD1/4PU6R8J R3301, R3302 RFA1/4PS101J R3708 RFA1/4PS330J R3901, R3902 RS1LMF331J Other Resistors RS1/10S&&&J OTHERS 3903 CABLE HOLDER(5P) 51063-0505 21 CABLE HOLDER(12P) 51063-1205 22 CABLE HOLDER(14P) 51063-1405 3331 SPEAKER TERMINAL 4P AKE1025 J3901 JUMPER WIRE(5P) D15A05-250-2468 J21 JUMPER WIRE(12P) D15A12-200-2651 J22 JUMPER WIRE(14P) D15A14-200-2651 J51 JUMPER WIRE(17P) D20PDY1710E CD HP UNIT CAPACITORS C3901–C3904 CKSQYF103Z50 C3905 CKSQYF104Z50 RESISTORS All Resistors RS1/10S&&&J OTHERS 3902 CABLE HOLDER(5P) 51063-0505 3901 MINI JACK AKN7003 KN3901 EARTH METAL FITTING VNF1084 CD TRADE UNIT OTHERS CN5401 17P CONNECTOR 52044-1745 CN5404 3PJUMPER CONNECTOR 52151-0310 CN5403 7PJUMPER CONNECTOR 52151-0710 CD KEYR UNIT SEMICONDUCTORS D5902 SLP3118C51H SWITCHES AND RELAYS S5905, S5906 RSG1030 S5901–S5904, S5907–S5909 RSG1031 G H I J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 XC-L5 Mark No. Description Part No. Mark No. Description Part No. RESISTORS All Resistors RS1/10S&&&J OTHERS 5901 CABLE HOLDER(11P) 51048-1100 CN5901 FFC CONNECTOR 8P 52492-0820 J5901 JUMPER WIRE(11P) D20PDY1110E CD FL UNIT SEMICONDUCTORS IC5601 LC75712E Q5602, Q5604–Q5606 2PD601A Q5603 2SD1484K Q5601 DTC124EK D5603 1SS355 COILS AND FILTERS L5601, L5602 LCTA220J3225 L5621, L5622 LFA1R0J CAPACITORS C5612, C5613 CCSQCH221J50 C5614 CCSQCH300J50 C5608 CEAL100M16 C5603 CEAL101M6R3 C5525, C5622, C5624, C5627 CEAL2R2M50 C5601 CEAL470M16 C5611 CKSQYB102K50 C5524, C5616, C5621 CKSQYB103K50 C5604, C5609 CKSQYF103Z50 C5526, C5602, C5605, C5606, C5623 CKSQYF104Z50 C5626, C5628 CKSQYF104Z50 RESISTORS All Resistors RS1/10S&&&J OTHERS CN5601 CONNECTOR 8P 52492-0820 V5602 FL TUBE AAV7055 V5601 FL TUBE AAV7056 FL SPACER AEB7125 CD POSIT UNIT SWITCHES AND RELAYS S5441, S5442 ASG7012 RESISTORS All Resistors RS1/10S&&&J OTHERS J5441 3P JUMPER WIRE D20PWY0305E CD MOTOR UNIT CAPACITORS C5421 CKSQYF103Z50 RESISTORS All Resistors RS1/10S&&&J OTHERS 5421 CABLE HOLDER(7P) 51048-0700 CN5422 4PJUMPER CONNECTOR 52151-0410 J5421 JUMPER WIRE(7P) D20PDY0735E CD KEYL UNIT SEMICONDUCTORS D5951 SLP9118C51H SWITCHES AND RELAYS S5951–S5953 RSG1030 RESISTORS All Resistors RS1/10S&&&J OTHERS J5951 JUMPER WIRE(4P) D20PWY0410E CD SENSE UNIT SEMICONDUCTORS D5431 PHOTO INTERRUPTER GP1S94 OTHERS J5431 3P JUMPER WIRE D20PWW0305E O P L M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 XC-L5 CD MAIN UNIT Short TEST MODE TEST MODE : ON FUNCTION OF AMP TEST MODE FL SEGMENT CHECK VOLUME DOWN (0, 10, 20, 30, MAX STEP) (0, 10, 20, 30, MAX STEP) VOLUME UP CD TEST MODE ∗ INPUT SELECTOR : AUX ANALOG CANCEL AMP TEST MODE CD TEST MODE 6. ADJUSTMENT 6.1 TEST MODE 6.1.1 HOW TO START / CANCEL TEST MODE CD MAIN UNIT Fig. Test Mode Point Location CD MAIN UNIT TEST MODE Release TEST MODE AUX STANDBY/ON PHONES VOLUME UP DOWN R·D·S UP DISPLAY UP DOWN DISPLAY DOWN (2 STEP) Note : There is no information to be shown in this CD adjustment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 XC-L5 FUNCTION OF CD TEST MODE TEST MODE : STOP CANCEL STOP all operation UP Laser diode: LIGHT UP Focus servo: ON UP STOP Carriage OUT Carriage IN CD tray Open / Close Spindle kick, Tracking servo, Slider servo: ON/OFF AUX STANDBY/ON PHONES VOLUME UP DOWN R·D·S Special Function DISPLAY fixed mode (POPUP is fixed even if the POWER is turned ON and OFF.) How to Set Up Press POWER button (Receiver) with pressing STOP button (Receiver) in the TEST mode. How to Release Unplug the AC power cord from the outlet. TEST MODE : PLAY Spindle motor: START Spindle servo: CLOSE Auto-matic adjustment Average proccesing TEST DISC: YEDS-7 FL DISPLAY [ : ] FL DISPLAY [XX : XX] → [SERVO OFF] FL DISPLAY [FOCUS ON] FL DISPLAY [SERVO ON] FL DISPLAY [SERVO OFF] FL DISPLAY [SPNDL KICK] → [SERVO ON] Laser diode: LIGHT UP Focus servo: CLOSE inwards outwards Pickup Move CLOSE OPEN Tracking servo: A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 XC-L5 6.2 TUNER SECTION 6.2.1 FM TUNER SECTION • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. 6.2.2 AM TUNER SECTION • Set the mode selector to AM BAND. • Connect the wiring as shown in Fig. 1. AM SG MPX SG FM SG PRODUCT DC Voltmeter FM75Ω antenna terminal AM antenna terminal 60cm Center Center Loop antenna Fig. 1 AM and FM Adjustment Wiring Diagram FM/AM TUNER MODULE (AXQ7077) AXX7042 L6101 L6102 L6103 L6104 L6105 T6101 T6201 VR6201 AM antenna terminal FM antenna terminal YELLOW BLACK Fig. 2 Adjustment Point p e t S . o N t n e m t s u j d A e lti T ,z H k 1 ( G S M F ± ). v e d z H k 5 7 n o it p e c e R y c n e u q e r F y a l p s i D t n e m t s u j d A n o it a c o L s n o it a c ifi c e p S y c n e u q e r F ) z H M ( l e v e L B d ( µ ) V 1 d n E t n o r F ytivitis n e S 6 0 1 0 3 - 0 z H M 6 0 1 4 0 1 6 L 5 0 1 6 L 2 0 1 6 L 1 0 1 6 T e h t n e e w t e b e g a tlo v C D e h t t a h t o s ts ujd A m u m ix a m t a s e m o c e b D N G d n a 0 2 nip - 1 0 2 6 C I .le v el 2 n oitr o tsi D o e r e t S 8 9 ) O E R E T S N O ( 0 8 z H M 8 9 1 0 1 6 T e h t f o n oit a t o r 8 / 1 h ti w n oitr o tsid e h t e zi m ini M . e r o c 3 . D N I D E N U T le v e L g nit h giL 8 9 8 1 ± 2 z H M 8 9 1 0 2 6 R V . D N I D E N U T f o r o t a cid ni e h t t a h t o s ts ujd A . p u t h gil o t str a ts : e t o N n e e w t e b p a g a si e r e h t fI . 4 0 1 6 L d n a 3 0 1 6 L n e e w t e b s a lle w s a 2 0 1 6 L d n a 1 0 1 6 L n e e w t e b p a g o n si e r e h t e r u s e k a m , g nits ujd a e r o f e B .st n e m ts ujd a e k a m n e h t d n a ,ts rif r e h t o h c a e h ti w tc a t n o c o t ni m e h t g nir b , m e h t p e t S . o N t n e m t s u j d A e lti T ). d o M % 0 3 ,z H 0 0 4 ( G S M A n o it p e c e R y c n e u q e r F y a l p s i D t n e m t s u j d A n o it a c o L s n o it a c ifi c e p S y c n e u q e r F ) z H k ( l e v e L B d ( µ ) m / V 1 d n E t n o r F ytivitis n e S 9 9 9 ∗1 5 4 ~ 5 3 z H k 9 9 9 ∗1 1 0 2 6 T e h t n e e w t e b e g a tlo v C D e h t t a h t o s ts ujd A m u m ix a m t a s e m o c e b D N G d n a 0 2 nip - 1 0 2 6 C I .le v el ∗ .z H k 0 0 0 1 e b dlu o h s s eic n e u q e rf , p e ts z H k 0 1 g nis u a e r a e h t r o F : 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 XC-L5 7. GENERAL INFORMATION • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. CXA1821M (CD MAIN UNIT : IC1101) • RF AMP. IC •Pin Function 7.1.1 IC 7.1 PARTS •Block Diagram 20 19 18 17 16 15 14 13 12 11 1 2 3 4 5 6 7 8 9 10 10k 10k 24k 30k 55k 22k 164k 87k 10k 30k 30k 123k 260k 26k 260k 13k 56k 174k 56k 1k 24k 10k 28k 5.6k 23.8k 23.8k 123k 15k 147 25p 12p 12p 25p 30k 24k 30k 24k 30k 820k 820k VC VC VC VC VC VC VC VEE VEE VEE VEE VCC VC VCC VCC VREF 1.25V APC LD AMP FOCUS ERROR AMP TRACKING ERROR AMP RF SUMMING AMP RF EQ AMP VC BUFFER VCC LD ON LC / PD RFE RFO FE FE BIAS TE VC EO LD PD A B C D VEE F E EI . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 D L O t u p t u o r eifilp m a C P A 1 1 O E − m o rf t u p ni s a w h cih w la n gis e h t ts ujd a nia G . 9 nip 2 D P I t u p ni r eifilp m a C P A 2 1 C V O 2 /) E E V + C C V ( f o t u p t u o e g a tlo v C D 3 A I t u p ni r eifilp m a E F d n a r eifilp m a F R 3 1 E T O t u p t u o r eifilp m a r o rr e g nik c a r T .t u p t u o sila n gis E - F 4 B 4 1 S A I B E F I t n e m ts ujd a s aib s u c o f r o f ni P 5 C 5 1 E F O t u p t u o r eifilp m a r o rr e s u c o F 6 D 6 1 O F R O t u p t u o r eifilp m a F R 7 E E V − nip d n u o r G 7 1 E F R − n oit a zila u q e r eifilp m a F R r o f ni P 8 F I .t u p ni r eifilp m a r o rr e g nik c a r T 8 1 D P / C L I C I D P : N E P O , C L : C C V nip s ai B 9 E 9 1 N O D L I r eifilp m a C P A f o nip g nih cti w s F F O / N O F F O : E E V , N O : C C V 0 1 I E − m o rf t u p ni s a w h cih w la n gis e h t ts ujd a nia G . 9 nip 0 2 C C V − nip ylp p u s r e w o P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 XC-L5 CXD2587Q (CD MAIN UNIT : IC1201) • SERVO IC •Block Diagram 37 51 49 48 50 17 54 55 56 53 26 25 8 5 6 7 12 13 14 20 1 2 43 42 41 40 39 38 46 44 9 60 21 27 11 22 23 24 32 33 30 31 28 29 70 71 72 77 76 75 16 18 64 15 19 61 62 63 4 79 3 35 36 80 Clock Generator 66 67 Asymmetry Corrector OP-Amp Analog SW A/D Converter Error Corrector Digital OUT EFM Demodurator XTSL XUGF GFS EMPH WFCK C2PO LRCK PCMD BCK SYSM ADIO TRACKING PWM GENERATOR FOCUS SERVO Over Sampling Digital Filter Digital PLL Digital CLV CPU Interface Servo Auto Sequencer Sub Code Processor 16k RAM D/A Interface Senal-In Interface Timing Logic 3rd-Order Noise Shaper PWM PWM SERVO Interface MIRR DFCT FOK SERVO DSP TRACKING SERVO SLED SERVO PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR Servo Block Signal Processor Block DAC Block TES1 TEST XRST RMUT LMUT XTAI XTAO AOUT1 AIN1 LOUT1 AOUT2 AIN2 LOUT2 DOUT SCLK COUT SSTP ATSK MIRR DFCT FOK FFDR FRDR TFDR TRDR SFDR SRDR IGEN VC FE SE TE CE RFDC SQCK SQSC SCOR XLON SPOB SPOA CLOK XLAT DATA SENS LOCK MDP CLTV PCO FILI FILO XPCK BIAS ASYO ASYI RFAC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 XC-L5 •Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 O S Q S O t u p t u o a t a d le v el d n a k a e p M C P ,tib - 0 8 Q b u S t u p t u o a t a d T X E T D C 1 4 E T I t u p ni r o rr e g nik c a r T 2 K C Q S I t u o d a e r O S Q S r o f t u p ni k c ol C 2 4 E C I t u p ni g ola n a o v r e s r e t n e C 3 T S R X I " L " n e h w t e s e R t e s e r m e ts y S 3 4 C D F R I t u p nila n gis F R 4 M S Y S I " H " n e h w e t u M t u p ni e t u M 4 4 O I D A O t u p t u o r eifilp m a P O 5 A T A D I U P C m o rf t u p ni a t a d lair e S 5 4 V A S S 0 − D N G g ola n A 6 T A L X I U P C m o rf t u p ni h ct a L . e g d e g nilla f e h t t a d e h ct al si a t a d lair e S 6 4 N E G I I r eifilp m a P O r o f t u p ni t n e rr u c t n a ts n o C 7 K O L C I U P C m o rf t u p ni k c olc r e fs n a rt a t a d lair e S 7 4 V A D D 0 − ylp p u s r e w o p g ola n A 8 S N E S O U P C o t t u p t u o S N E S 8 4 O Y S A O ) D D V = " H " , S S V = " L "( t u p t u o g ni w s -llu f M F E 9 K L C S I t u o d a e r a t a d -lair e s S N E S r o f t u p ni k c ol C 9 4 I Y S A I t u p ni e g a tlo v e t a r a p m o c y rt e m m y s A 0 1 V D D − ylp p u s r e w o p la tigi D 0 5 S A I B I tiu c ric y rt e m m y s a e h t f o t u p ni t n e rr u c t n a ts n o C 1 1 K S T A O /I k c o h s -it n u r o f t u p t u o d n a t u p n I 1 5 C A F R I t u p nila n gis M F E 2 1 A O P S I ) A t u p ni( e c a fr e t ni d e d n e tx e r e t u p m o c o r ci M 2 5 V A S S 3 − D N G g ola n A 3 1 B O P S I ) B t u p ni( e c a fr e t ni d e d n e tx e r e t u p m o c o r ci M 3 5 V T L C I r e ts a m r o f t u p ni e g a tlo v lo rt n o c O C V 4 1 N O L X O )t u p t u o ( e c a fr e t ni d e d n e tx e r e t u p m o c o r ci M 4 5 O L I F O ) L L P la tigid = e v al S ( L L P r e ts a m r o f t u p t u o r e tli F 5 1 K C F W O t u p t u o K C F W 5 5 I L I F I L L P r e ts a m r o f t u p ni r e tli F 6 1 F G U X O y b t u p t u o K C F R d n a 1 T N M t u p t u o F G U X . d n a m m o c e h t g nih cti w s 6 5 O C P O L L P r e ts a m r o f t u p t u o p m u p e g r a h C 7 1 K C P X O e h t g nih cti w s y b t u p t u o 0 T N M t u p t u o K C L P X . d n a m m o c 7 5 V A D D 3 − ylp p u s r e w o p g ola n A 8 1 S F G O y b t u p t u o F O A R X d n a 3 T N M t u p t u o S F G . d n a m m o c e h t g nih cti w s 8 5 V S S − D N G la tigi D 9 1 O P 2 C O e h t g nih cti w s y b t u p t u o P O T G t u p t u o O P 2 C . d n a m m o c 9 5 V D D − ylp p u s r e w o p la tigi D 0 2 R O C S O si 1 S r o 0 S .c n y s e d o c b u s r e h tie n e h w " H " st u p t u O . d e tc e t e d 0 6 T U O D O t u p t u o T U O L A T I G I D 1 2 T U O C O /I la n gis t n u o c r e b m u n - k c a rt f o t u p t u o d n a t u p n I 1 6 K C R L O s F = f t u p t u o k c olc R L e c a fr e t ni A / D 2 2 R R I M O /I t u p t u o d n a t u p nila n gis r o rri M 2 6 D M C P O e c a fr e t ni A / D )ts rif B S M ,t n e m elp m o c s'o w t( t u p t u o a t a d lair e S 3 2 T C F D O /I t u p t u o d n a t u p nila n gis tc e f e D 3 6 K C B O t u p t u o k c olc ti B e c a fr e t ni A / D 4 2 K O F O /I t u p t u o d n a t u p nila n gis K O s u c o F 4 6 H P M E O ,sis a h p m e s a h c sid k c a b y alp e h t n e h w " H " st u p t u O .sis a h p m e o n si e r e h t n e h w " L " d n a 5 2 K C O L O /I nip sih t ," H " si S F G n e h w ;z H 0 6 4 t a d elp m a s si S F G e vit u c e s n o c t h gie " L " si S F G fI ." H " st u p t u o ." H " = N I K L n e h w t u p n I ." L " st u p t u o nip sih t ,s elp m a s 5 6 V X D D − k c olc r e ts a m r o f ylp p u s r e w o P 6 2 P D M O r o t o m eld nip s f o t u p t u o lo rt n o c o v r e S 6 6 I A T X I t u p ni tiu c ric n oit allic s o la ts y r C . nip sih t aiv k c olc r e ts a m la n r e tx e e h t t u p n I 7 2 P T S S I ts o m r e n ni c sid f o t u p nila n gis n oitc e t e D 7 6 O A T X O t u p t u o tiu c ric n oit allic s o la ts y r C 8 2 R D F S O t u p t u o e vir d d el S 8 6 V X S S − k c olc r e ts a m r o f D N G 9 2 R D R S O 9 6 V A D D 1 − ylp p u s r e w o p g ola n A 0 3 R D F T O t u p t u o e vir d g nik c a r T 0 7 1 T U O A O t u p t u o g ola n a h c L 1 3 R D R T O 1 7 1 N I A I t u p ni . p m a P O h c L 2 3 R D F F O t u p t u o e vir d s u c o F 2 7 1 T U O L O t u p t u o E N I L h c L 3 3 R D R F O 3 7 V A S S 1 − D N G g ola n A 4 3 V S S − D N G la tigi D 4 7 V A S S 2 − D N G g ola n A 5 3 T S E T I D N G ylla m r o n : nip T S E T 5 7 2 T U O L O t u p t u o E N I L h c R 6 3 T S E T I 6 7 2 N I A I t u p ni . p m a P O h c R 7 3 L S T X I t u p ni r o tc ele s la ts y r C z H M 8 8 6 8 . 3 3 :" H " , z H M 4 4 3 9 . 6 1 :" L " 7 7 2 T U O A O t u p t u o g ola n a h c R 8 3 C V I t u p ni e g a tlo v r e t n e C 8 7 V A D D 2 − ylp p u s r e w o p g ola n A 9 3 E F I t u p nila n gis r o rr e s u c o F 9 7 T U M R O g alf n oitc e t e d o r e z h c R 0 4 E S I t u p nila n gis r o rr e d el S 0 8 T U M L O g alf n oitc e t e d o r e z h c L Notes) • PCMD is an MSB first. two's complement output. • GTOP is used to monitor the frame sync protection status. (High:sync protection window released) • XUGF is the negative pulse for the frame sync derived from the EFM signal. It is the signal before sync protection. • XPLCK is the inverse of the EFM PLL clock. The PLL is designed so that the falling edge of XPLCK and the EFM signal transition point coincide. • GFS goes high when the frame sync and the insertion protection timing match. • RFCK is derived with the crystal accuracy. This signal has a cycle of 136µs. • C2PO represents the data error status. • XRAOF is generated when the 16K RAM exceeds the ±4F jitter margin. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 XC-L5 PDG224A (CD MAIN UNIT : IC5501) • Mode Control IC •Pin Function . o N k r a M e m a N n i P O /I n o it c n u F . o N k r a M e m a N n i P O /I n o it c n u F 1 3 1 0 P P / 5 B P C N O 1 5 8 N A / 4 F P C N O 2 2 1 0 P P / 4 B P L C S O k c olc P F 0 2 4 2 6 M C I L O V cin o rtc el E 2 5 s s V A D D N G O 3 1 1 0 P P / 3 B P C N O 3 5 f e r V A f e r V A − r e tr e v n o c D A r o f e g a tlo v e c n e r e f e R 4 0 1 0 P P / 2 B P C N O 4 5 d d V A d d v A − 5 9 0 P P / 1 B P K L C . S O T U O K C O L C s u b m e ts y S 5 5 7 N A / 3 F P D D N G − 6 8 0 P P / 0 B P C N O 6 5 6 N A / 2 F P ) u ( T S E T I r e k c e h c tin u r o f tr o p e d o m ts e T 7 7 0 T R / 7 C P I T A D . S O /I t u p ni N I A T A D s u b m e ts y S 7 5 5 N A / 1 F P T S E T I e d o m ts e T r o f tr o P 8 6 0 T R / 6 C P Q E R . S O /I E Q E R s u b m e ts y S 8 5 4 N A / 0 F P n oit a nits e D I h cti w s n oit a nits e d r o f tr o P ) a cir e m A h tr o N ( U K : H ,) e p o r u E ( Y M : L 9 5 0 T R / 5 C P E N U T I D S _ D E N U T r e n u T 9 5 3 N A C N I 0 1 4 0 T R / 4 C P O E R E T S I O E R E T S r e n u T 0 6 2 N A S O P I E S O L C / d n e N E P O y alp sid P U P O P W S d n e 1 1 3 0 T R / 3 C P O D X T I ) * ( 1 3 1 2 7 C L T U O A T A D r e n u T 1 6 1 N A 2 Y E K I t u p ni Y E K 2 1 8 1 0 P P / 2 C P E T U M X T O T N U O C F I / E T U M r e n u T 2 6 0 N A 1 Y E K I 3 1 7 1 0 P P / 1 C P E C L L P O ) * ( 1 3 1 2 7 C L E C r e n u T 3 6 1 I X E / 7 G P E D I S N I D C I W S E D I S N I r e dils D C 4 1 6 1 0 P P / 0 C P I D X T O ) * ( 1 3 1 2 7 C L N I A T A D r e n u T 4 6 0 I X E / 6 G P N E P O D C I W S d n e N E P O y a rt D C 5 1 7 J P K L C L L P O ) * ( 1 3 1 2 7 C L K C O L C r e n u T 5 6 5 G P E S O L C D C I W S d n e E S O L C y a rt D C 6 1 6 J P A T A D S D R I A T A D F 3 2 9 1 U B C I S D R 6 6 4 G P K O F D C I K O S U C O F D C 7 1 5 J P C N O 7 6 3 G P S F G D C I S F G D C 8 1 4 J P M F S D R O F 3 2 9 1 U B C I S D R r o f F F O / N O r e w o P 8 6 2 G P S N E S D C I S N E S D C 9 1 3 J P A D S O /I a t a d P F 0 2 4 2 6 M C I L O V cin o rtc el E 9 6 1 G P O R D C I h c R E T U M n oitc e t e d 0 D C 0 2 2 J P W S P H I h cti w s e n o h p d a e H 0 7 0 G P O L D C I h c L E T U M n oitc e t e d 0 D C 1 2 1 J P O A T A D S O /I T U O A T A D s u b m e ts y S 1 7 1 B A D / 7 E P C N O 2 2 0 J P D P I P U P O P f o t u p ni e slu p r e t n u o c elg n A y alp sid 2 7 0 B A D / 6 E P C N O 3 2 7 D P A T A D L F O A T A D ) 0 1 / 2 1 7 5 7 C L ( r e vir d L F 3 7 1 A A D / 5 E P K L C S D C O a t a d lair e s S N E S g nid a e r r o f K C O L C ) Q 7 8 5 2 D X C ( C I r e d o c e d D C f o 4 2 6 D P K L C L F O K C O L C ) 0 1 / 2 1 7 5 7 C L ( r e vir d L F 4 7 0 A A D / 4 E P T A L D C X O H C T A L ) Q 7 8 5 2 D X C ( C I r e d o c e d D C 5 2 5 D P E C L F O E C ) 0 1 / 2 1 7 5 7 C L ( r e vir d L F 5 7 1 M W P / 3 E P C N O 6 2 4 D P C N O 6 7 0 M W P / 2 E P C N O 7 2 3 D P W O P D C X O F F O / N O ylp p u s r e w o p D C 7 7 2 T N I/ C E / 1 E P K C O L C S D R I K C O L C ) F 3 2 9 1 U B ( C I r e d o c e d S D R 8 2 2 D P T N O C P S O F F O : L , N O : H F F O / N O y ale r r e k a e p S 8 7 0 T N I/ 0 E P E S L U P C A I t u p ni e slu p C A 9 2 1 D P C N O 9 7 1 I S / 7 I P O S Q S D C I t u p ni a t a d le v el , Q B U S 0 3 0 D P E T U M X O E T U M m e ts y S 0 8 1 O S / 6 I P C N O 1 3 7 H P D C D E L X O D E L Y A L P D C 1 8 1 K C S / 5 I P K C Q S D C I O S Q S g nid a e r r o f K C O L C 2 3 6 H P W O P D E L X O D E L R E W O P 2 8 1 T N I/ 4 I P R O C S D C I n oitc e t e d .c n y s e d o c b u S 3 3 5 H P P O P O lo rt n o c P U P O P 3 8 0 T / 3 I P N O D L D C O F F O / N O e d oid r e s al D C 4 3 4 H P N O R E W O P X I lo rt n o c r e w o P 4 8 M W P / 2 I P C N O 5 3 3 H P A 2 C N U F O h cti w s F F O . R U S / C I G O L O R P t u p t u o r o s s e c o r P : H , F F O . R U S : L 5 8 C M R / 1 I P M E R I t u p nilo rt n o c e t o m e R 6 3 2 H P - P O P O lo rt n o c P U P O P 6 8 X E T D D N G I 7 3 1 H P A 1 C N U F O h cti w s n oitc n u F C T / D M X U A R E N U T D C H H L L L H H L 7 8 X T C N − 8 3 0 H P B 1 C N U F O 8 8 s s V D D N G − 9 3 P M P M I 9 8 d d V d d V − 0 4 T S R T E S E R X − 0 9 C N C N − 1 4 s s V s s V − 1 9 7 0 P P / 7 A P C N O 2 4 L A T X L A T X − 2 9 6 0 P P / 6 A P K L C D C O K C O L C ) Q 7 8 5 2 D X C ( C I r e d o c e d D C 3 4 L A T X E L A T X E I 3 9 5 0 P P / 5 A P A T A D D C O A T A D ) Q 7 8 5 2 D X C ( C I r e d o c e d D C 4 4 0 S C 5 + E I 4 9 4 0 P P / 4 A P M S Y S D C O E T U M ) Q 7 8 5 2 D X C ( C I r e d o c e d D C N O E T U M : H 5 4 0 I S A T A D . D I A T A D a t a d y alp si D 5 9 3 0 P P / 3 A P T S R X D C O T E S E R ) Q 7 8 5 2 D X C ( C I r e d o c e d D C 6 4 0 O S C N O 6 9 2 0 P P / 2 A P N I D A O L O N I D A O L y a rt D C 7 4 O K C S K L C . D I K C O L C a t a d y alp si D 7 9 1 0 P P / 1 A P T U O D A O L O T U O D A O L y a rt D C 8 4 1 1 N A / 7 F P Q E R . D O S C a t a d y alp si D 8 9 0 0 P P / 0 A P R E T U M D C O h c R E T U M oid u a g ola n a D C 9 4 0 1 N A / 6 F P C N O 9 9 5 1 0 P P / 7 B P L E T U M D C O h c L E T U M oid u a g ola n a D C 0 5 9 N A / 5 F P C N O 0 0 1 4 1 0 P P / 7 B P W O P C T O N O r e w o P : H lo rt n o c r e w o p K C E D (*) : PLL frequency synthesizer for electronic tunning www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 XC-L5 Standby state Power supply to DECK Set TCPOW (pin 100) to "H". POWER ON Set XPOWON (pin 34) to "L". System bus communication transfer Transmit the following information to other connected items. • DEMO OFF • System power ON : Turn the power ON. • Function information (CD) • CD information CDSTOP • D.REQ (pin 48) of microprocessor port outputs "H" and "L" in every 3.0 msec. Each item transfer the display data in accordance with the timing. D.REQ = H MD data reception = L DECK data reception Data are transferred from D.DATA (pin 45) and D.CLK (pin47). • Judge that there is no item (DECK or MD) when data is not transferred for three seconds. The movement after it is judged that there is no item as follows. When function is changed with function switch, function name of no item is not displaed. (Judge that there is no item when disconnecting a connector, too.) Inhibit KEY reception for one second. Bus data transmission CD TRAY OPEN ? Check CD CLOSE (pin 65) No pin 65 :"L" Yes pin 65 :"H" Close the CD TRAY Yes To the function of function last-memory. No Is DECK connected ? Cut off the power supply to the DECK. Set TCPOW (pin 100) to "L". FUNCTION TUNER Transfer the last data to TUNER PLL IC. OTHER FUNCTION Transfer the dummy data to TUNER PLL IC. FUNCTION CD Transfer the dummy data to TUNER PLL IC. Initial setting of CD decoder IC. TOC READING (at disc exist) Turn the power ON • Sequence after the POWER ON Process after 3.9 seconds after the POWER ON. Transfer the data of FUNCTION, VOLUME, BASS and TREBLE to the Volume IC. Process after 4.0 seconds after the POWER ON. Release the speaker relay (SPCCONT (pin 28) :"H") Release MUTE (XMUTE (pin 30) :"OPEN") ∗ ∗ The condition that MUTE is not released • At the time of VOLUME 0 • At the time of one except for PLAY in the MD and DECK functions. The condition that SP CONT is not released. • Headphone is inserted. (HPSW (pin 20), H :There is Headphone, L : There is no Headphone) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 XC-L5 Reset TEST mode check DEMO mode start Initialize the internal data Release the hardware reset. Judge with destination port (pin 58). H : KU , L : MY TESTU port (pin 56) L : TEST mode for unit checker TEST port (pin 57) L : TEST mode Destination check DEMO mode permission ? ∗ No Yes Standby state System bus communication transfer DEMO ON………………………… During DEMO ON System power OFF end ………… POWER OFF end Function information (CD) ……… Function CD CD information CD STOP……… CD is STOP state Start the display data transfer to FL driver. Microprocessor ports FLCE (pin 25) FLDATA (pin 23) FLCLOCK (pin 24) ∗ Judge the DEMO mode permission Initial setting is DEMO mode permission. Backup the release state of DEMO mode when user does release operation of DEMO mode. Judge it with the backup data. • How to release the DEMO mode In the DEMO mode, release the DEMO mode when you press STANDBY/ON key while pressing STOP key of the CD receiver. Repeat the same operation at the time of POWER OFF when you want to permit the DEMO mode again. DEMO display Displey start Bus data transmission • Rise-up sequence after AC supplied to CD receiver microprocessor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 XC-L5 AAV7056 (CD FL UNIT : V5601) • Upper FL 7.1.2 DISPLAY 53 1 Pin No. Connection Pin Connection 1 F1 2 F1 3 F1 4 NP 5 NP 6 S35 7 S34 8 S33 9 S32 10 S31 11 S30 12 S29 13 S28 14 S27 15 S26 16 S25 17 S24 18 S23 19 S22 20 S21 21 S20 22 NC 23 NC 24 NC 25 NC 26 NC 27 NC Pin No. Connection 28 NC 29 S19 30 S18 31 S17 32 S16 33 S15 34 S14 35 S13 36 S12 37 S11 38 S10 39 S9 40 S8 41 S7 42 S6 43 S5 44 S4 45 S3 46 S2 47 S1 48 G 49 NP 50 NP 51 F2 52 F2 53 F2 Segment Designation (S2) (S4) (S3) (S1) (S28) (S27) (S33) (S5) (S29) (S30) (S31) (S6) (S7) (S8) (S9) (S10) (S11) (S12) (S13) (S19) (S23) (S20) (S24) (S21) (S25) (S22) (S26) (S14) (S15) (S16) (S17) (S18) (S32) (S34) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 XC-L5 AAV7055 (CD FL UNIT : V5602) • Lower FL 60 1 RPT PGM RDM 1G S4 S1 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 S2 S3 S10 S11 S12 S5 S6 2G 3G 4G 5G 11G 6G 7G 8G 9G 10G S13 S7 S14 S8 S15 S9 1G - 10G 11G 1G - 10G 11G P1 S1 - P20 2-4 P2 S2 - P21 3-4 P3 S3 - P22 4-4 P4 1-1 S4 P23 5-4 P5 2-1 S5 P24 1-5 P6 3-1 S6 P25 2-5 S13 P7 4-1 P26 3-5 S14 P8 5-1 S7 P27 4-5 S15 P9 1-2 S8 P28 5-5 - P10 2-2 S9 P29 1-6 - P11 3-2 S10 P30 2-6 - P12 4-2 S11 P31 3-6 - P13 5-2 S12 P32 4-6 - P14 1-3 P33 5-6 - P15 2-3 P34 1-7 - P16 3-3 P35 2-7 - P17 4-3 P36 3-7 - P18 5-3 P37 4-7 - P19 1-4 P38 5-7 - Pin No. Connection Pin Connection 1 F1 Pin No. Connection 31 P25 2 F1 32 P24 3 F1 33 P23 4 NP 34 P22 5 NP 35 P21 6 11G 36 P20 7 10G 37 P19 8 9G 38 P18 9 8G 39 P17 10 7G 40 P16 11 6G 41 P15 12 5G 42 P14 13 4G 43 P13 14 3G 44 P12 15 2G 45 P11 16 1G 46 P10 17 P38 47 P9 18 P37 48 P8 19 P36 49 P7 20 P35 50 P6 21 P34 51 P5 22 P33 52 P4 23 P32 53 P3 24 P31 54 P2 25 NC 55 P1 26 P30 56 NP 27 P29 57 NP 28 P28 58 F2 29 P27 59 F2 30 P26 60 F2 Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 XC-L5 7.2 DISASSEMBLY (1) Rear Case (2) Bonnet and Top Panel Assy (3) CD MAIN UNIT 1 1 1 1 6 1 2 3 2 3 4 2 Rear Case Top Panel Assy Top Barrier Bonnet Unhook CD MAIN UNIT 5 3 Unhook ×2 (×2) 1 4 4 4 6 ×2 ×2 5 Release CN6201 17P FFC Note: You can only connect and disconnect the 17P FFC cable about ten times before the wear and tear starts to damage it. Try to put as little stress on the cable as possible when connecting/disconnecting it. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 XC-L5 (4) CD AMP UNIT 1 Rear Panel 3 4 5 2 3 3 2 CD AMP UNIT ×3 ×2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 XC-L5 • POWER SUPPLY BLOCK 6 2 8 10 11 12 13 14 15 16 17 +B –B D11 D21 CD+5.6M UNREG– FLAC IC23 V+12 Q41 Q61 D63 D62 D64 D61 + + + + UNREG+ + + D1–D4 V+5.6 IC31 E+5.6 IC5251 V–6 IC24 VFDP T1 POWER TRANSFORMER T2 POWER TRANSFORMER 9 AN1 L1 RY1 FU1 AC INLET AC POWER CORD D31 7.3 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 XC-L5 • PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS STEREO CD RECEIVER XC-L5 STEREO CD RECEIVER XC-L5 1 STANDBY/ON switch 2 STANDBY indicator 3 AUX button 4 FM/AM/station button 5 Powered display 6 CD tray 7 4 –•1 button 8 ¢� ¡•+ button ¶ Roles of common operation buttons vary depending on the input function currently selected, as follows: During Tuner Operation 4 –•1 : Frequency and station – (down) button. ¢� ¡•+ : Frequency and station + (up) button. During CD Operation 4 –•1 : Fast reverse/track search button. ¢� ¡•+ : Fast forward/track search button. 9 CD stop button (7). 0 VOLUME ∧ (Up)/∨ (Down) buttons - Playback indicator = CD Play/Pause button ~ Remote sensor ! CD tray Open/Close button (0) @ PHONES jack For use with headphones equipped with a stereo miniplug. When headphones are connected, sound to the speakers is disabled. AUX STANDBY/ON PHONES 7 0 6 ¢� 4 ¡•+ –•1 ' VOLUME R·D·S 6 7 8 9 5 1 2 3 4 0 ~ - = ! @ * ¶ Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. ¶ “DOLBY” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 XC-L5 POWERED DISPLAY POWERED DISPLAY 1 DISPLAY UP/DOWN buttons The display is automatically powered up and down when the main power is turned on/off. The UP/DOWN buttons on the main unit or the remote control unit can be used to adjust the display’s opening angle. 2 Function display: CD ( ), MiniDisc ( ), Tuner ( ), Tape ( ). The selected function will appear emphasized in one of the following ways: In DISP MODE 1: Slightly larger display typeface In DISP MODE 2: Surrounded by frame 3 Lights during recording. 4 Tape direction indicator (reverse mode) 5 Displays operation status 6 Lights during Fast Forward (¡) or Reverse (1) 7 Displays characters and numerals 8 Lights during repeat play 9 Lights during program setting and program play 0 Lights during random play - Lights when Dolby *NR is ON. = Lights during A.S.E.S. setting and operation. ~ Lights during monaural reception mode. ! Lights to indicate MiniDisc monaural long-play mode. @ Lights to indicate reception of a stereo broadcast. # Indicates direction of cassette tape travel. $ Lights to indicate that station is tuned. % RDS indicator lights in RDS mode. ^ Lights to indicate digital input to Mini Disc recorder. & Lights when Mini Disc recorder’s AutoMark function is ON. * Lights during setting and operation of the sleep timer. ( Lights during setting of the wake-up timer. ) Lights during setting of timer recording. _ Lights to indicate that Dolby PROLOGIC Surround is ON. 7 Switch the DISPLAY MODE Two display modes can be selected; choose the one you prefer. The default mode set at the time of shipping is DISP MODE 1. 1. Press the DISPLAY/CHARACTER button to select “DISP SEL”. 4. Press the SET button to finish the DISPLAY MODE. DISPLAY/ CHARACTER 2. Press the SET button. SET 3. Use the 4 and ¢� buttons to select “DISP MODE 1” or “DISP MODE 2”. ¢� 4 Mode alternates each time button is pressed. 3 DISP MODE 1 DISP MODE 2 2 DISP MODE 1 DISP MODE 2 SET D DOWN STEREO CD RECEIVER XC-L5 DISPLAY UP TIMER REC WAKE UP SLEEP RDM PGM RPT Ÿ PRO LOGIC AUTO MARK MONO LP Ÿ NR DIGITAL 2�3 ASES TUNED STEREO MONO 2 3 4 5 6 7 8 1 ) ( * &^% $ # @ ! ~ 0 - = 9 _ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 XC-L5 During Tuner Operation : Station + (up) button : Station - (down) button : Frequency up button : Frequency down button During CD Operation : Forward track search button : Reverse track search button : Stop button : Fast forward (manual search) button : Fast reverse (manual search) button During Tape Operation : Fast forward button : Rewind button : Stop button : Forward music search button : Reverse music search button During MENU mode Operation : Plus button : Minus button : Cursor movement (during character input) : Cursor movement (during character input) During MD Operation : Forward track search button : Reverse track search button : Stop button : Fast forward (manual search) button : Fast reverse (manual search) button ¢� 4 ¡� 1 ¢� 4 7 ¡� 1 ¡� 1 7 ¢� 4 ¢� 4 ¡� 1 ¢� 4 7 ¡� 1 1 CD Play/Pause button 2 Tape Play/Direction button 3 FM/AM button 4 MD Play/Pause button 5 TIMER button 6 ¡� button 7 ¢� button 8 7 button 9 1 button 0 DISPLAY UP/DOWN buttons - VOLUME ∧ (Up), ∨ (Down) buttons = STANDBY/ON button ~ AUX function button ! DISPLAY/CHARACTER button @ SET button # 4 button $ CANCEL button % SOUND button Each time this button is pressed, the sound mode changes in the following sequence: REMOTE CONTROL UNIT ������ BASS �3 TREBLE 3 BALANCE 3 ^ MENU button ¶ Roles of buttons 6, 7, 8, 9 and # vary depending on the input function currently selected, as follows: VOLUME DISPLAY ¢� 4 AUX SET MENU 7 1 ¡� CANCEL DISPLAY/ CHARACTER SOUND TIMER DOWN UP � DIRECT PLAY 1 ^ % $ # @ ! 2 3 ~ = 4 5 6 7 8 9 0 - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 XC-L5 • SPECIFICATIONS Stereo CD Receiver: XC-L5 Amplifier Section Continuous Power Output (RMS) .............................. 30 W + 30 W (1 kHz, THD 10%, 8 Ω) Continuous Power Output (DIN) ................................ 22 W + 22 W (1 kHz, THD 1%, 8 Ω) Music Power (DIN) ..................................................... 35 W + 35 W (1 kHz, THD 1%, 8 Ω) ¶ Above specifications are for when the power supply is 230 V. FM Tuner Section Frequency Range .................................................... 87.5 - 108MHz Antenna .............................................................. 75 Ω, unbalanced AM Tuner Section Frequency Range ........................................... 531 kHz - 1,602 kHz (9 kHz step); 530 kHz - 1,700 kHz (10 kHz step) Antenna ..................................................................... Loop antenna Compact Disc Player Section Type .......................................... Compact disc digital audio system Usable discs ............................................................ Compact discs Channels......................................................................... 2 (stereo) Frequency Response ................................................. 4 Hz–20 kHz Signal-to-Noise Ratio ............................................... 102 dB (EIAJ) Wow and Flutter ........................................... Limit of measurement (0.001%) or less (EIAJ) Power Requirements ....................................... AC 230 V, 50/60 Hz Power Consumption ................................................................ 81 W Power Consumption in standby mode ...................................... 3 W Dimensions .................................... 290 (W) x 99 (H) x 277 (D) mm 200 (H) when powered display is at maximum height. Weight .................................................................................... 4.5 kg Accessories Operating Instructions ................................................................... 1 Warranty Card ............................................................................... 1 FM antenna................................................................................... 1 AM loop antenna ........................................................................... 1 Remote control unit ...................................................................... 1 Lithium battery (CR2025) .............................................................. 1 Remote control unit holder ........................................................... 1 Power cord..................................................................................... 1 NOTE: Specifications and design subject to possible modification without notice, due to improvements. ¶ When the default DEMO mode is on, supplying power after a power interruption (for example, when the power cord is first inserted into its outlet, or when power is restored after an inter- ruption) will cause the DEMO mode to automatically begin, and the powered display will also open. The unit is factory set to a default of DEMO mode ON. ¶ During the DEMO mode display, pressing the STANDBY/ON switch on either the CD receiver or remote control unit will cause the DEMO mode to be cancelled. ¶ To set the DEMO mode to OFF: Press the STANDBY/ON switch while holding down the CD receiver’s stop button (7) during the DEMO mode display. ¶ To set the DEMO mode from OFF to ON: Press the STANDBY/ON switch while holding down the CD re- ceiver’s stop button (7) in the standby mode. STANDBY/ ON switch AUX STANDBY/ON PHONES 7 0 6 ¢� 4 ¡•+ –•1 ' D VOLUME R·D·S 7 Stop button • Remote control unit × 1 [AXD7170 (CU-XC005)] • Lithium battery × 1 [VEM1009 (CR2025)] ∗ The remote control unit is supplied already mounted inside in its holder. • Remote control unit holder × 1 (AAH7013) • AM loop antenna × 1 (ATB7007) (shown assembled) • Operating instructions × 1 • Warranty card × 1 • FM antenna × 1 (ADH7005) • Power cord × 1 (ADG7009) (For NVXK type) • Power cord × 1 (ADG7010) (For MYXK type) • ACCESSORIES ∗ VOLUME DISPLAY ¢� 4 AUX SET MENU 7 1 ¡� CANCEL DISPLAY/ CHARACTER SOUND TIMER DOWN UP � DIRECT PLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
