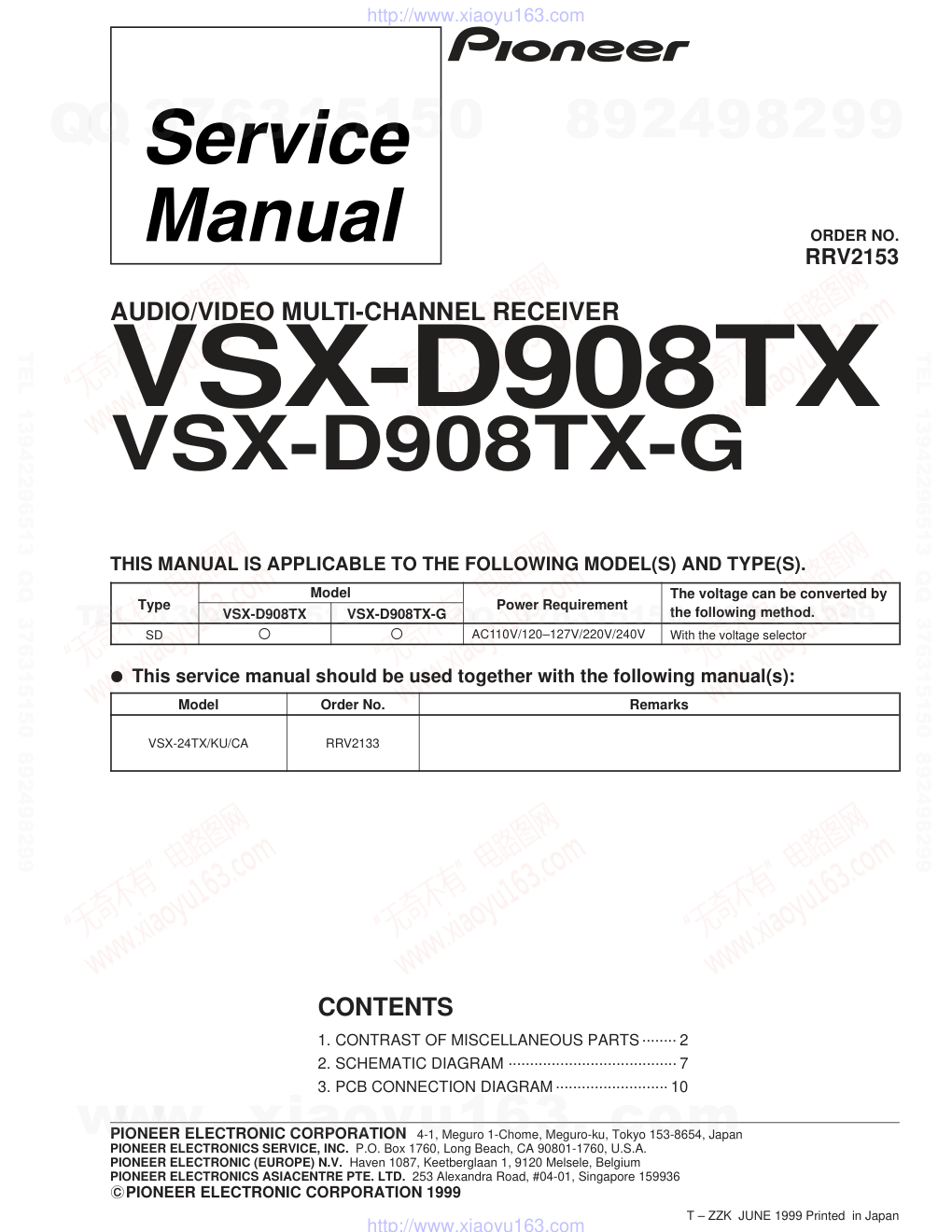

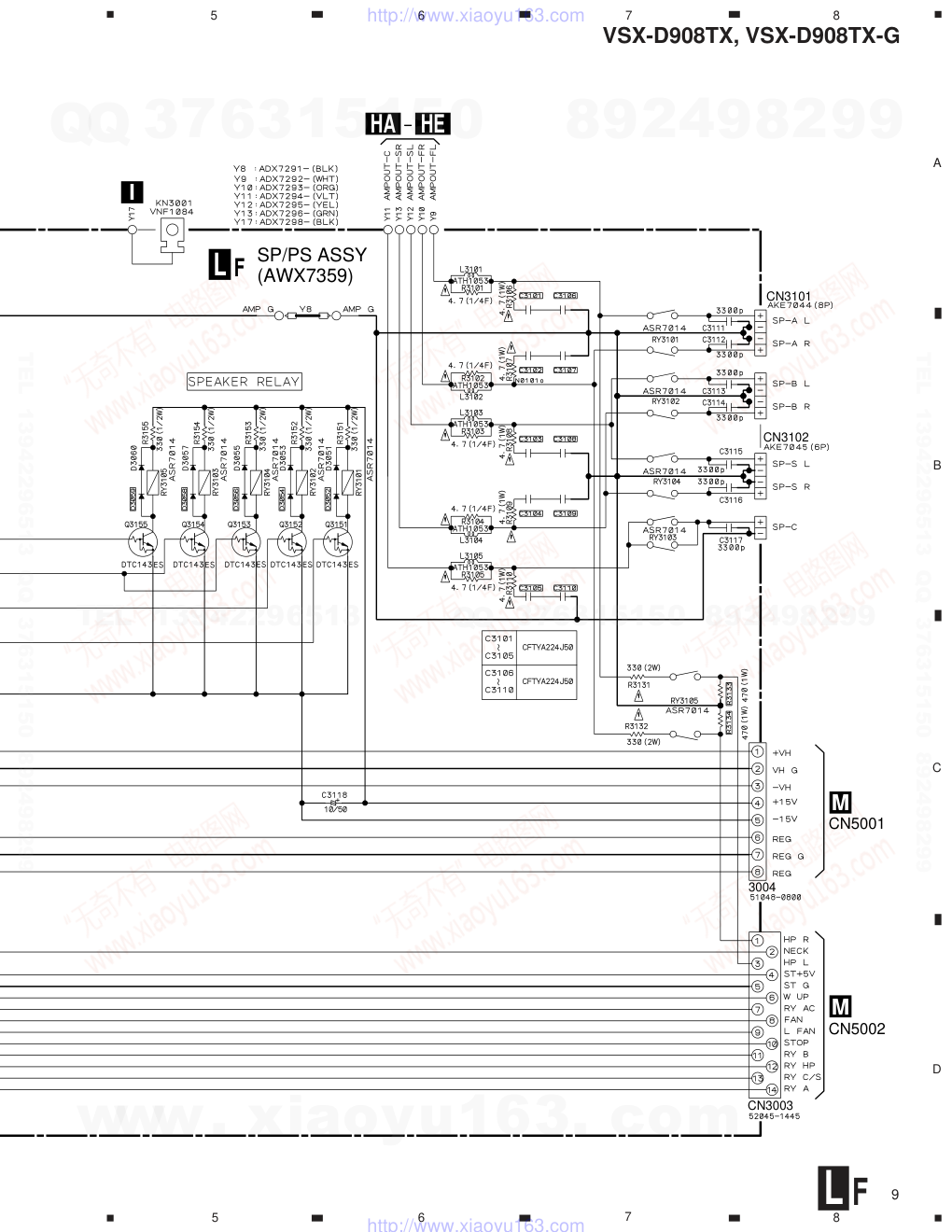

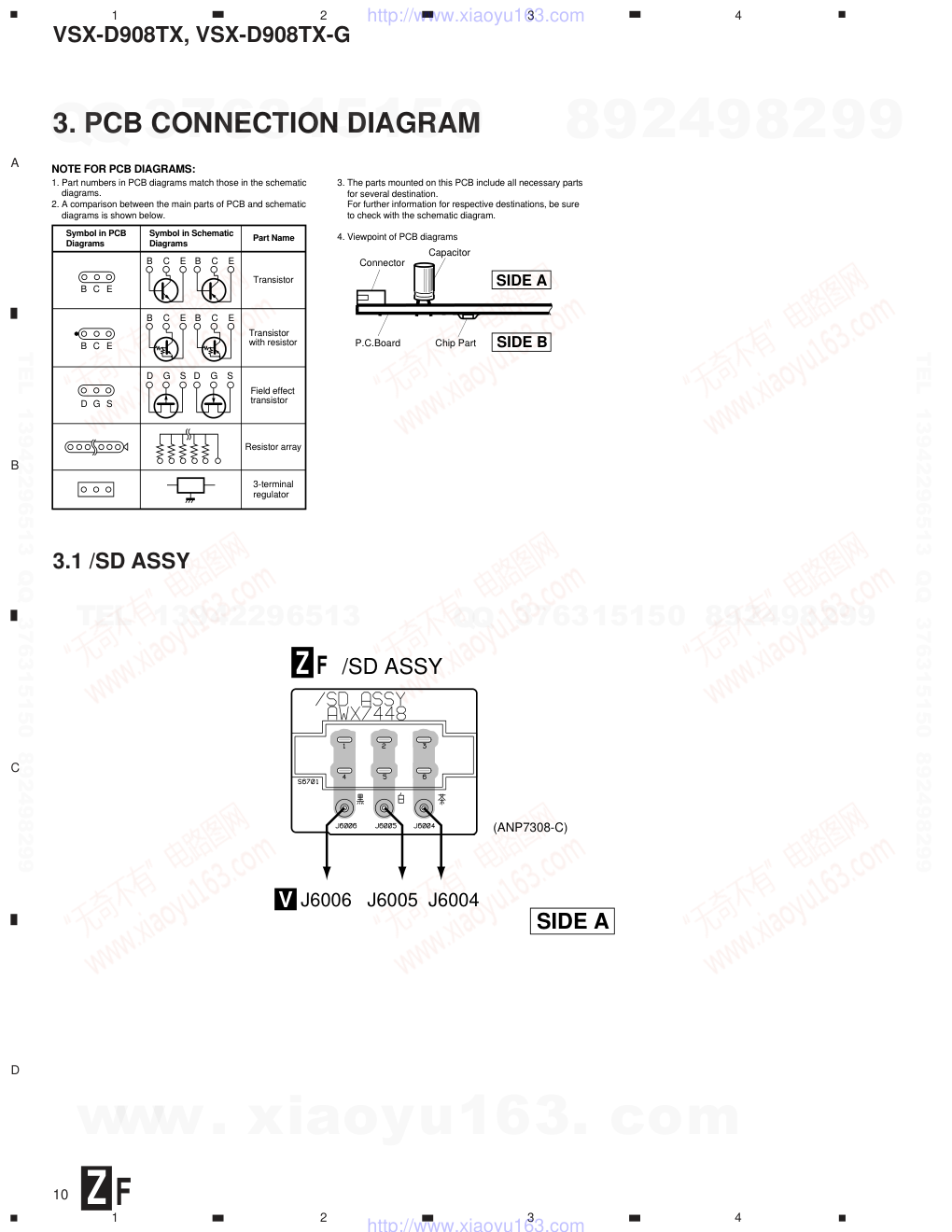

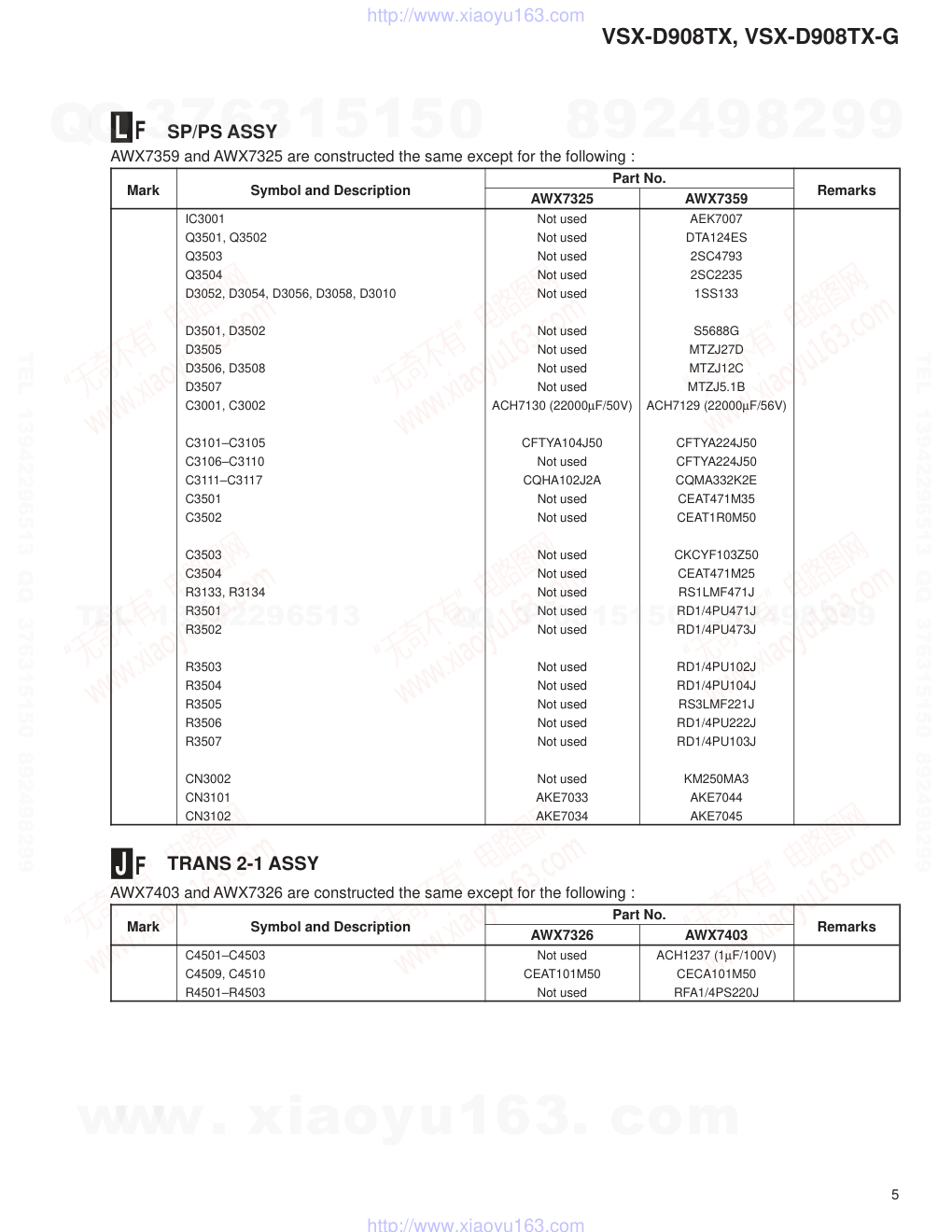

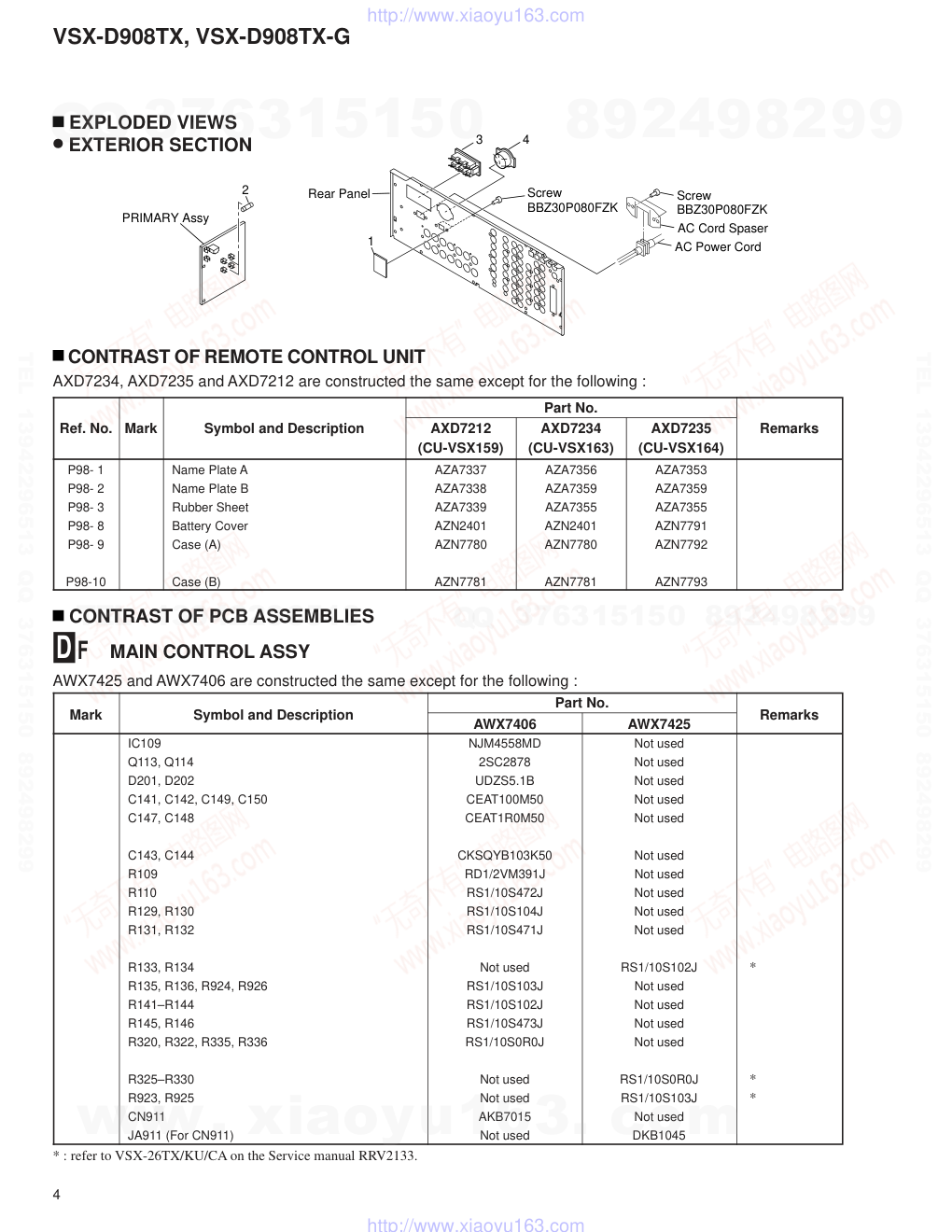

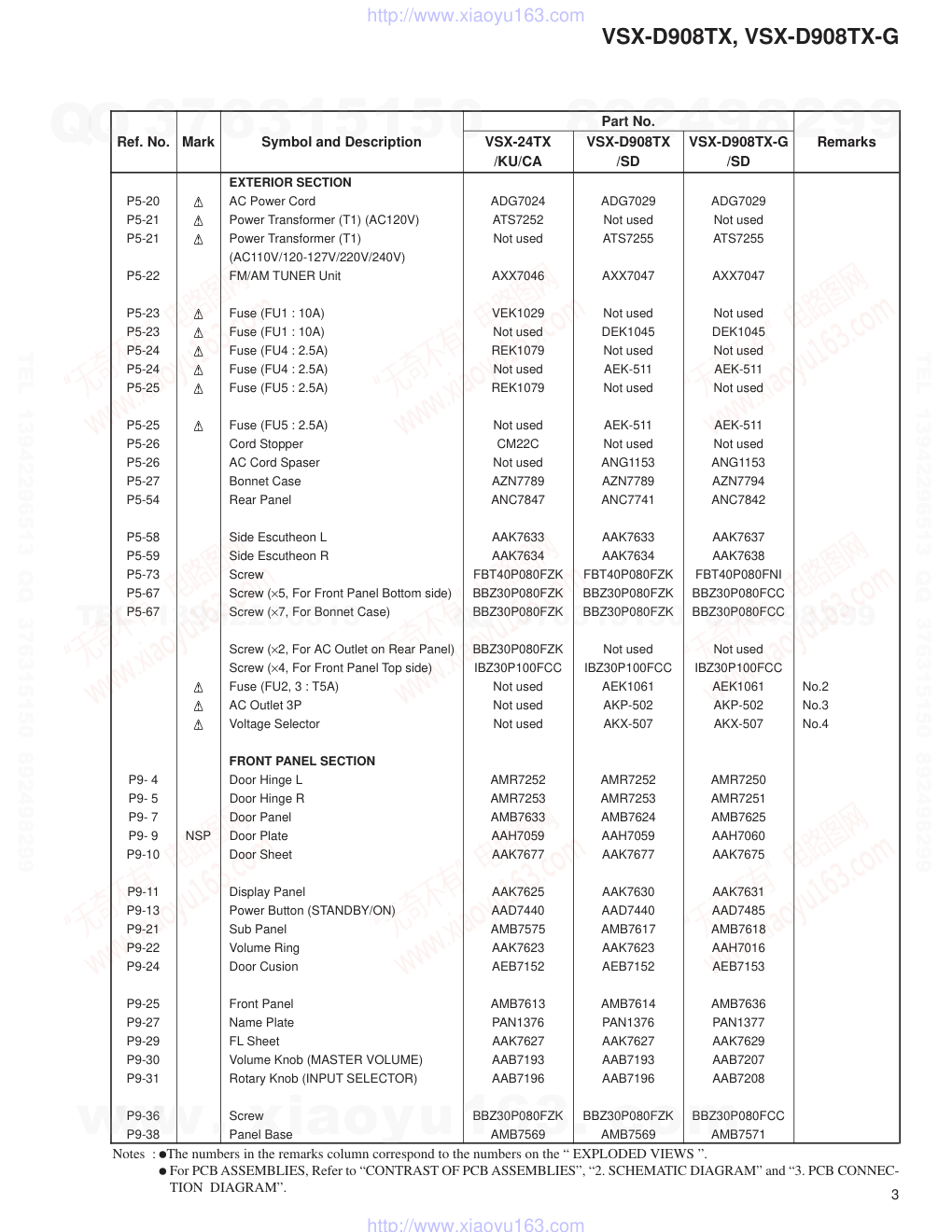

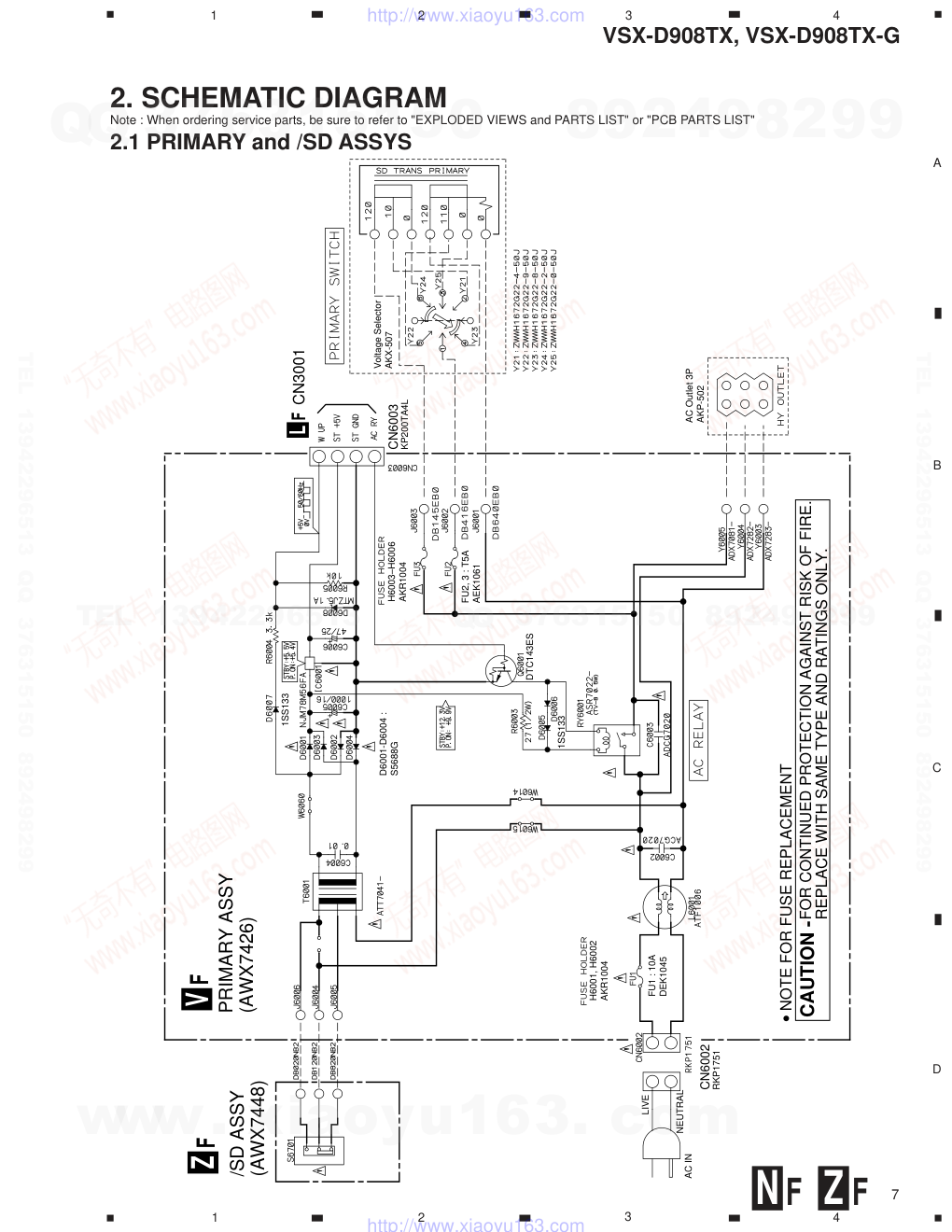

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 RRV2153 T – ZZK JUNE 1999 Printed in Japan CONTENTS 1. CONTRAST OF MISCELLANEOUS PARTS ........ 2 2. SCHEMATIC DIAGRAM ....................................... 7 3. PCB CONNECTION DIAGRAM .......................... 10 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-D908TX VSX-D908TX-G Type Model Power Requirement The voltage can be converted by VSX-D908TX VSX-D908TX-G the following method. SD ‡ ‡ AC110V/120–127V/220V/240V With the voltage selector ¶ This service manual should be used together with the following manual(s): Model Order No. Remarks VSX-24TX/KU/CA RRV2133 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description VSX-24TX VSX-D908TX VSX-D908TX-G Remarks /KU/CA /SD /SD ASSEMBLIES MAIN ASSY AWK7531 AWK7539 AWK7539 P5- 5 MAIN CONTROL ASSY AWX7406 AWX7425 AWX7425 P5-12 VIDEO ASSY AWX7407 AWX7422 AWX7422 COMPLEX ASSY AWK7526 AWK7540 AWK7540 P5- 3 A-PINJACK ASSY AWX7401 AWX7397 AWX7397 *1 P5-10 TRANS 1 ASSY AWX7316 Not used Not used P5-15 PRIMARY ASSY AWX7311 AWX7426 AWX7426 /SD ASSY Not used AWX7448 AWX7448 No.1 FRONT/VAMP ASSY AWK7527 AWK7541 AWK7541 P5-19 V-AMP ASSY AWX7409 AWX7309 AWX7309 *2 P9- 1 H.PHONE/F.VIDEO ASSY AWX7528 *3 AWX7342 AWX7342 P9- 2 DISPLAY ASSY AWX7529 *4 AWX7408 AWX7408 POWER/CURRENT ASSY AWK7498 AWK7510 AWK7510 P5- 6 TRANS 2-1 ASSY AWX7326 AWX7403 AWX7404 P5- 8 SP/PS ASSY AWX7325 AWX7359 AWX7359 PACKING SECTION P3- 3 Operating Instructions (English) ARB7186 Not used Not used P3- 3 Operating Instructions (English) Not used ARE7213 ARE7213 Operating Instructions (Chinese) Not used ARC7286 ARC7286 Operating Instructions (Spanish) Not used ARC7287 ARC7287 P3- 4 Remote Control Unit (CU-VSX159) AXD7212 Not used Not used P3- 4 Remote Control Unit (CU-VSX163) Not used AXD7234 Not used P3- 4 Remote Control Unit (CU-VSX164) Not used Not used AXD7235 P3- 9 Packing Case AHD7784 AHD7795 AHD7799 P3-12 NSP Warranty Card ARY1026 ARY7025 Not used NSP Caution Card 220V Not used ARR7003 ARR7003 On thePolyethylene Bag AC Plug Adapter Not used AKX7011 AKX7011 For Accessories VSX-D908TX/SD, VSX-D908TX-G/SD and VSX-24TX/KU/CA are constructed the same except for the following : *1, *2, *3, *4 : refer to VSX-26TX/KU/CA on the Service manual RRV2133. *3 : As for H.PHONE/F.VIDEO ASSY, the design change was done from AWX7342 to AWX7528. *4 : As for DISPLAY ASSY, the design change was done from AWX7408 to AWX7529. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 3 Notes : ÷The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”. ÷ For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES”, “2. SCHEMATIC DIAGRAM” and “3. PCB CONNEC- TION DIAGRAM”. Part No. Ref. No. Mark Symbol and Description VSX-24TX VSX-D908TX VSX-D908TX-G Remarks /KU/CA /SD /SD EXTERIOR SECTION P5-20 AC Power Cord ADG7024 ADG7029 ADG7029 P5-21 Power Transformer (T1) (AC120V) ATS7252 Not used Not used P5-21 Power Transformer (T1) Not used ATS7255 ATS7255 (AC110V/120-127V/220V/240V) P5-22 FM/AM TUNER Unit AXX7046 AXX7047 AXX7047 P5-23 Fuse (FU1 : 10A) VEK1029 Not used Not used P5-23 Fuse (FU1 : 10A) Not used DEK1045 DEK1045 P5-24 Fuse (FU4 : 2.5A) REK1079 Not used Not used P5-24 Fuse (FU4 : 2.5A) Not used AEK-511 AEK-511 P5-25 Fuse (FU5 : 2.5A) REK1079 Not used Not used P5-25 Fuse (FU5 : 2.5A) Not used AEK-511 AEK-511 P5-26 Cord Stopper CM22C Not used Not used P5-26 AC Cord Spaser Not used ANG1153 ANG1153 P5-27 Bonnet Case AZN7789 AZN7789 AZN7794 P5-54 Rear Panel ANC7847 ANC7741 ANC7842 P5-58 Side Escutheon L AAK7633 AAK7633 AAK7637 P5-59 Side Escutheon R AAK7634 AAK7634 AAK7638 P5-73 Screw FBT40P080FZK FBT40P080FZK FBT40P080FNI P5-67 Screw (×5, For Front Panel Bottom side) BBZ30P080FZK BBZ30P080FZK BBZ30P080FCC P5-67 Screw (×7, For Bonnet Case) BBZ30P080FZK BBZ30P080FZK BBZ30P080FCC Screw (×2, For AC Outlet on Rear Panel) BBZ30P080FZK Not used Not used Screw (×4, For Front Panel Top side) IBZ30P100FCC IBZ30P100FCC IBZ30P100FCC Fuse (FU2, 3 : T5A) Not used AEK1061 AEK1061 No.2 AC Outlet 3P Not used AKP-502 AKP-502 No.3 Voltage Selector Not used AKX-507 AKX-507 No.4 FRONT PANEL SECTION P9- 4 Door Hinge L AMR7252 AMR7252 AMR7250 P9- 5 Door Hinge R AMR7253 AMR7253 AMR7251 P9- 7 Door Panel AMB7633 AMB7624 AMB7625 P9- 9 NSP Door Plate AAH7059 AAH7059 AAH7060 P9-10 Door Sheet AAK7677 AAK7677 AAK7675 P9-11 Display Panel AAK7625 AAK7630 AAK7631 P9-13 Power Button (STANDBY/ON) AAD7440 AAD7440 AAD7485 P9-21 Sub Panel AMB7575 AMB7617 AMB7618 P9-22 Volume Ring AAK7623 AAK7623 AAH7016 P9-24 Door Cusion AEB7152 AEB7152 AEB7153 P9-25 Front Panel AMB7613 AMB7614 AMB7636 P9-27 Name Plate PAN1376 PAN1376 PAN1377 P9-29 FL Sheet AAK7627 AAK7627 AAK7629 P9-30 Volume Knob (MASTER VOLUME) AAB7193 AAB7193 AAB7207 P9-31 Rotary Knob (INPUT SELECTOR) AAB7196 AAB7196 AAB7208 P9-36 Screw BBZ30P080FZK BBZ30P080FZK BBZ30P080FCC P9-38 Panel Base AMB7569 AMB7569 AMB7571 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 4 Screw BBZ30P080FZK PRIMARY Assy 2 Rear Panel 1 4 3 AC Cord Spaser Screw BBZ30P080FZK AC Power Cord CONTRAST OF PCB ASSEMBLIES AWX7425 and AWX7406 are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description AXD7212 AXD7234 AXD7235 Remarks (CU-VSX159) (CU-VSX163) (CU-VSX164) P98- 1 Name Plate A AZA7337 AZA7356 AZA7353 P98- 2 Name Plate B AZA7338 AZA7359 AZA7359 P98- 3 Rubber Sheet AZA7339 AZA7355 AZA7355 P98- 8 Battery Cover AZN2401 AZN2401 AZN7791 P98- 9 Case (A) AZN7780 AZN7780 AZN7792 P98-10 Case (B) AZN7781 AZN7781 AZN7793 CONTRAST OF REMOTE CONTROL UNIT AXD7234, AXD7235 and AXD7212 are constructed the same except for the following : MAIN CONTROL ASSY F D Mark Symbol and Description Part No. Remarks AWX7406 AWX7425 IC109 NJM4558MD Not used Q113, Q114 2SC2878 Not used D201, D202 UDZS5.1B Not used C141, C142, C149, C150 CEAT100M50 Not used C147, C148 CEAT1R0M50 Not used C143, C144 CKSQYB103K50 Not used R109 RD1/2VM391J Not used R110 RS1/10S472J Not used R129, R130 RS1/10S104J Not used R131, R132 RS1/10S471J Not used R133, R134 Not used RS1/10S102J * R135, R136, R924, R926 RS1/10S103J Not used R141–R144 RS1/10S102J Not used R145, R146 RS1/10S473J Not used R320, R322, R335, R336 RS1/10S0R0J Not used R325–R330 Not used RS1/10S0R0J * R923, R925 Not used RS1/10S103J * CN911 AKB7015 Not used JA911 (For CN911) Not used DKB1045 * : refer to VSX-26TX/KU/CA on the Service manual RRV2133. EXPLODED VIEWS ÷ EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 5 AWX7359 and AWX7325 are constructed the same except for the following : SP/PS ASSY F L AWX7403 and AWX7326 are constructed the same except for the following : TRANS 2-1 ASSY F J Mark Symbol and Description Part No. Remarks AWX7326 AWX7403 C4501–C4503 Not used ACH1237 (1µF/100V) C4509, C4510 CEAT101M50 CECA101M50 R4501–R4503 Not used RFA1/4PS220J Mark Symbol and Description Part No. Remarks AWX7325 AWX7359 IC3001 Not used AEK7007 Q3501, Q3502 Not used DTA124ES Q3503 Not used 2SC4793 Q3504 Not used 2SC2235 D3052, D3054, D3056, D3058, D3010 Not used 1SS133 D3501, D3502 Not used S5688G D3505 Not used MTZJ27D D3506, D3508 Not used MTZJ12C D3507 Not used MTZJ5.1B C3001, C3002 ACH7130 (22000µF/50V) ACH7129 (22000µF/56V) C3101–C3105 CFTYA104J50 CFTYA224J50 C3106–C3110 Not used CFTYA224J50 C3111–C3117 CQHA102J2A CQMA332K2E C3501 Not used CEAT471M35 C3502 Not used CEAT1R0M50 C3503 Not used CKCYF103Z50 C3504 Not used CEAT471M25 R3133, R3134 Not used RS1LMF471J R3501 Not used RD1/4PU471J R3502 Not used RD1/4PU473J R3503 Not used RD1/4PU102J R3504 Not used RD1/4PU104J R3505 Not used RS3LMF221J R3506 Not used RD1/4PU222J R3507 Not used RD1/4PU103J CN3002 Not used KM250MA3 CN3101 AKE7033 AKE7044 CN3102 AKE7034 AKE7045 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 6 AWX7426 and AWX7311 are constructed the same except for the following : PRIMARY ASSY F V Mark Symbol and Description Part No. Remarks AWX7311 AWX7426 T6001 ATT7043 ATT7041 R6001 (2.2MΩ/ 1/2W) RCN1080 Not used H6003–H6006 Not used AKR1004 Y6003 Not used ADX7283 Y6004 Not used ADX7282 Y6005 Not used ADX7281 J6001 Not used DB640EB0 J6002 Not used DB416EB0 6004 AKP1053 Not used PCB PARTS LIST Mark No. Description Part No. /SD ASSY OTHERS S6701 VOLTAGE SELECTOR AKX1004 F Z AWX7422 and AWX7407 are constructed the same except for the following : VIDEO ASSY Mark Symbol and Description Part No. Remarks AWX7407 AWX7422 D731 1SS355 Not used C731 CCSQCH181J50 Not used C791 CKSQYB103K50 Not used R731 RS1/10S750J Not used R732 RS1/10S102J Not used JA701 AKB7056 Not used JA703 AKB7115 Not used JA705 AKN7014 Not used 702 Not used AKB7017 * 707 Not used AKB7020 * * : refer to VSX-26TX/KU/CA on the Service manual RRV2133. F P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 7 A B C D 1 2 3 4 1 2 3 4 2. SCHEMATIC DIAGRAM Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" 2.1 PRIMARY and /SD ASSYS F N F Z CN3001 CN6003 KP200TA4L CN6002 RKP1751 LIVE NEUTRAL FU1 : 10A DEK1045 FU2, 3 : T5A AEK1061 H6003–H6006 AKR1004 AC IN 1SS133 DTC143ES 1SS133 D6001-D6004 : S5688G • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - /SD ASSY (AWX7448) F Z PRIMARY ASSY (AWX7426) F V F L H6001, H6002 AKR1004 Voltage Selector AKX-507 AC Outlet 3P AKP-502 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 8 A B C D 1 2 3 4 1 2 3 4 CN3001 CN3002 3001 4001 TRANS 2-1 ASSY (AWX7403) K DIODE ASSY (AWX7343) I I CN6003 TO FAN POWER TRANSFORMER HE • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - FU4, FU5 : 2.5A AEK-511 R4501–R4503 : 22 C4501–C4503 : ACH1237 (NP1/100) C4501 R4501 CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.750 MFD, BY LITTELFUSE INC. FOR IC3001 (AEK7007). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49102.5 MFD, BY LITTELFUSE INC. FOR IC4501, IC4502 (AEK7014). F V F J C4502 R4502 C4502 R4502 750mA 2.2 TRANS 2-1, DIODE and SP/PS ASSYS F J F L K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 9 A B C D 5 6 7 8 5 6 7 8 CN3101 3004 CN3003 CN3102 SP/PS ASSY (AWX7359) CN5001 CN5002 M I M HA HE F L F L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D908TX, VSX-D908TX-G 10 A B C D 1 2 3 4 1 2 3 4 3. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS: 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator B C E B C E B C E D G S B C E B C E B C E D G S D G S 3. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 4. Viewpoint of PCB diagrams Capacitor Connector P.C.Board Chip Part SIDE A SIDE B F /SD ASSY Z J6006 J6005 J6004 V (ANP7308-C) SIDE A 3.1 /SD ASSY F Z www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
